舟一会 ZHOUYIHUI 船外机

雅马哈 C40T - 40V

共 28 个部位，点击零件编码查看详情，或搜索本页零件。

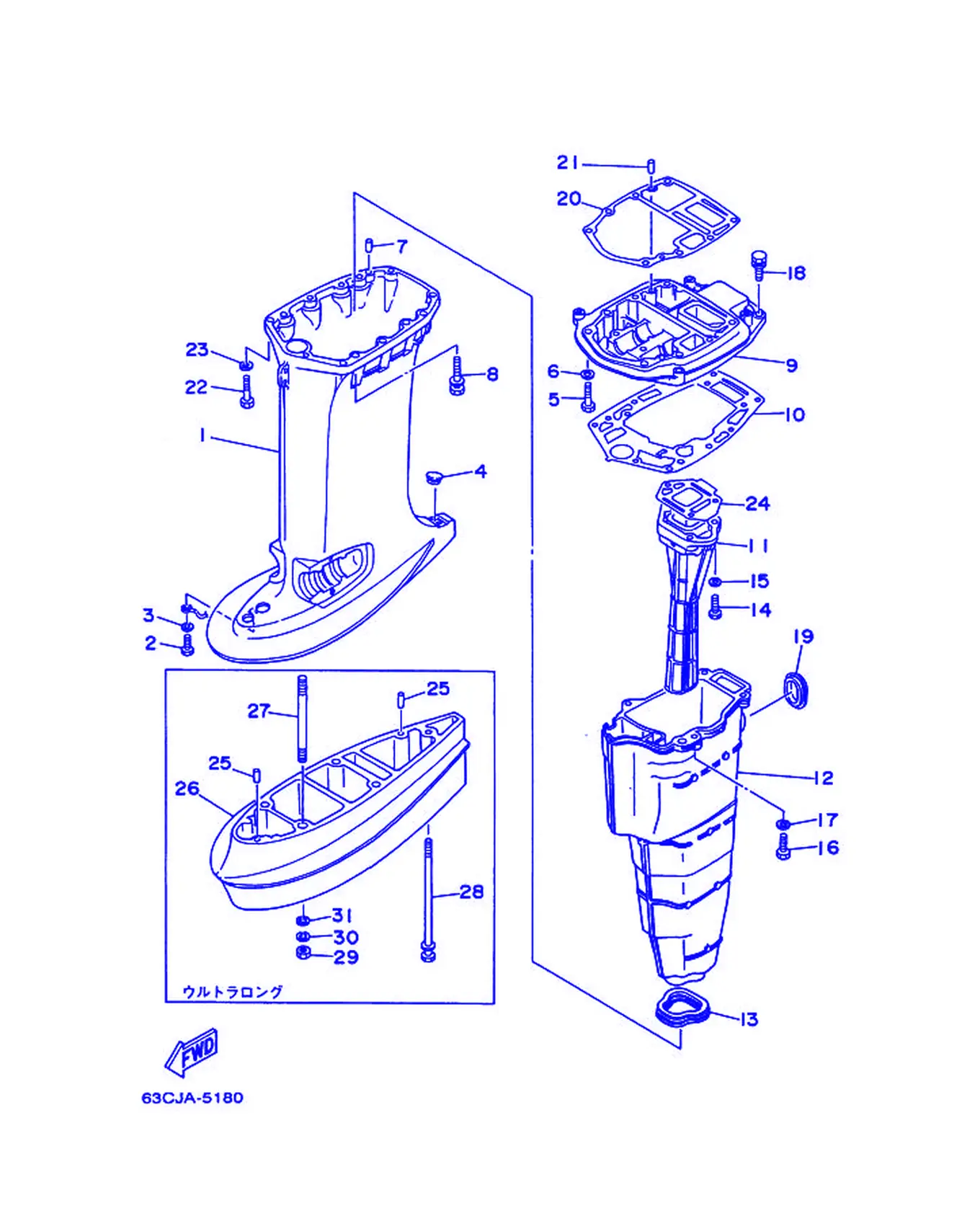

アツパーケーシング
アツパーケーシング爆炸图
REF雅马哈编码中文名称英文名称用量
163D-45111-11-4D水上装置壳Casing,Upper1
297095-06012螺栓Bolt1
392995-06100垫圈Washer,Spring1
463D-45155-00盖Cap1
597095-08045螺栓Bolt2
692995-08100盘形垫Washer2
793606-12019定位销Pin, Dowel2
890119-08M83六角螺栓Bolt, With Washer6
963D-41137-01-5B排气导管Guide,Exhaust1
1063D-45114-A0水上装置壳体衬垫Gasket,UpperCasing1
116H4-41131-01-5B排气岐管1Manifold,Exhaust 11
116H5-41131-00-5B排气岐管1Manifold,Exhaust 11
1263D-14711-10-5B消声器1Muffler 11
1363D-45123-00消音器衬垫Gasket,Muffler1
1497395-08030螺栓Bolt3
1592995-08600盘形垫Washer3
1697395-08030螺栓Bolt4
1792995-08600盘形垫Washer4
1890119-08M79卡环Bolt, With Washer2
196H3-45127-00密封Seal1
206H4-45113-A0水上装置壳体衬垫Gasket,UpperCasing1
2193606-12019定位销Pin, Dowel2
2297095-08045螺栓Bolt2
2392995-08100盘形垫Washer2
246H4-41134-A0排气岐管衬垫Gasket, Exhaust Manifold1
2593606-12019定位销Pin, Dowel2
2663D-45211-01-4D延伸部分Extension1
2790116-10M53固定Bolt, Stud4
2890119-08M00带垫螺栓Bolt, With Washer1
2995380-10600有槽螺母Nut4
3092990-10100弹簧垫圈Washer,Spring4
3192990-10600垫圈Washer,Plate4
インテーク

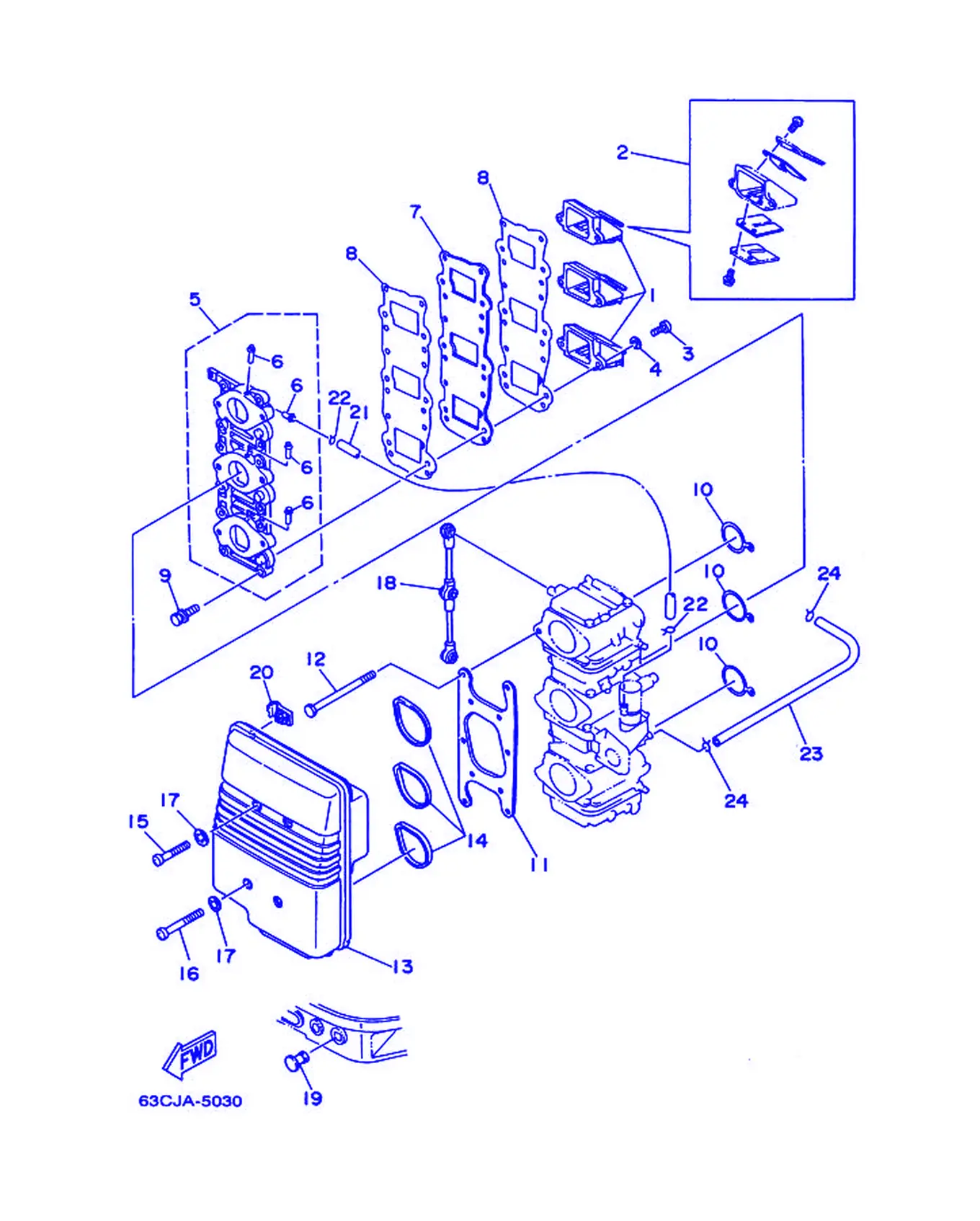

インテーク爆炸图
REF雅马哈编码中文名称英文名称用量
16H5-13610-00簧片阀组合Reed ValveAssembly3
26H4-W0004-00簧片套LeadSet1
397880-05014大柱头螺钉Screw, Pan Head6
492990-05600盘形垫Washer,Plate6
56H4-13641-12-94岐管1Manifold 11
66H1-14485-00连接管Pipe, Joint4
76H4-13624-01-94簧片阀面板Plate,Reed Valve1
86H4-13621-A1阀座衬垫Gasket,ValveSeat2
997595-06520带垫圈螺Bolt, With Washer12
106H4-14198-01垫片Gasket3
116H4-14406-00铰链Hinge1
1297095-06095螺栓Bolt6
136H4-14431-02进气消声器1Silencer,Intake 11
136H4-14431-13进气消声器1Silencer,Intake 11
146H3-14457-01密封Seal3
1597885-06040大柱头螺钉Screw, Pan Head2
1697885-06055螺栓Screw, Pan Head2
1790209-06M05平垫圈Washer4
186H4-41217-01加速器杠杆连杆Rod,AcceleratorLever1
196G1-42748-00固定Grommet1
2090464-06M19带垫圈六角头螺栓Clamp1
2190445-07MA5软管Hose1
2290467-06016固定Clip2
236H3-14349-00管Pipe1
2490467-08004卡环Clip2

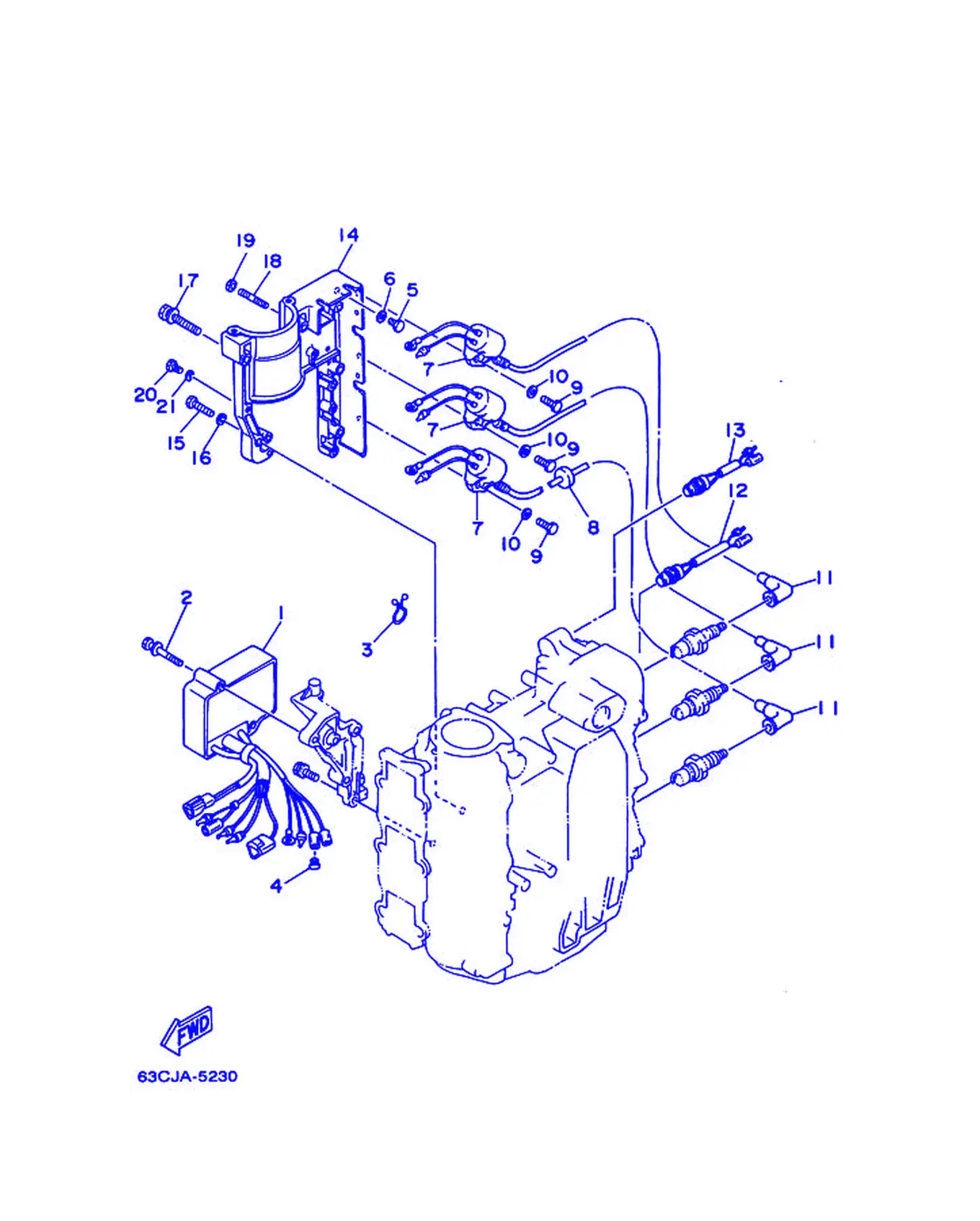

エレクトリカル 1
エレクトリカル 1爆炸图
REF雅马哈编码中文名称英文名称用量
163D-85540-00CDI总成C.D.I. Unit Assembly1
290119-06M51带垫螺栓Bolt, With Washer2
390464-16039固定夹Clamp1
4703-82119-00导线盖Cover,LeadWire1
597095-06014螺栓Bolt1
692990-06600面板垫圈Washer,Plate1
76H5-85570-00点火线圈组合Ignition Coil Assembly3
890480-25161固定Grommet1
997095-06020螺栓Bolt3
1092990-06600面板垫圈Washer,Plate3
11663-82370-01塞帽组合PlugCapAssembly3
12689-82560-00温控开关组合Thermo Switch Assembly1
136H4-82560-00温控开关组合Thermo Switch Assembly1
146H4-81822-02-98起动电动机托架Bracket, Starting Motor1
1597095-06030螺栓Bolt4
1692990-06600面板垫圈Washer,Plate4
1797513-08250带垫螺栓Bolt, With Washer1
1895670-06640轴承内圈附件Bolt, Stud1
1990179-06M24螺母Nut1
2097095-06014螺栓Bolt2
2192990-06600面板垫圈Washer,Plate2
エレクトリカル 2

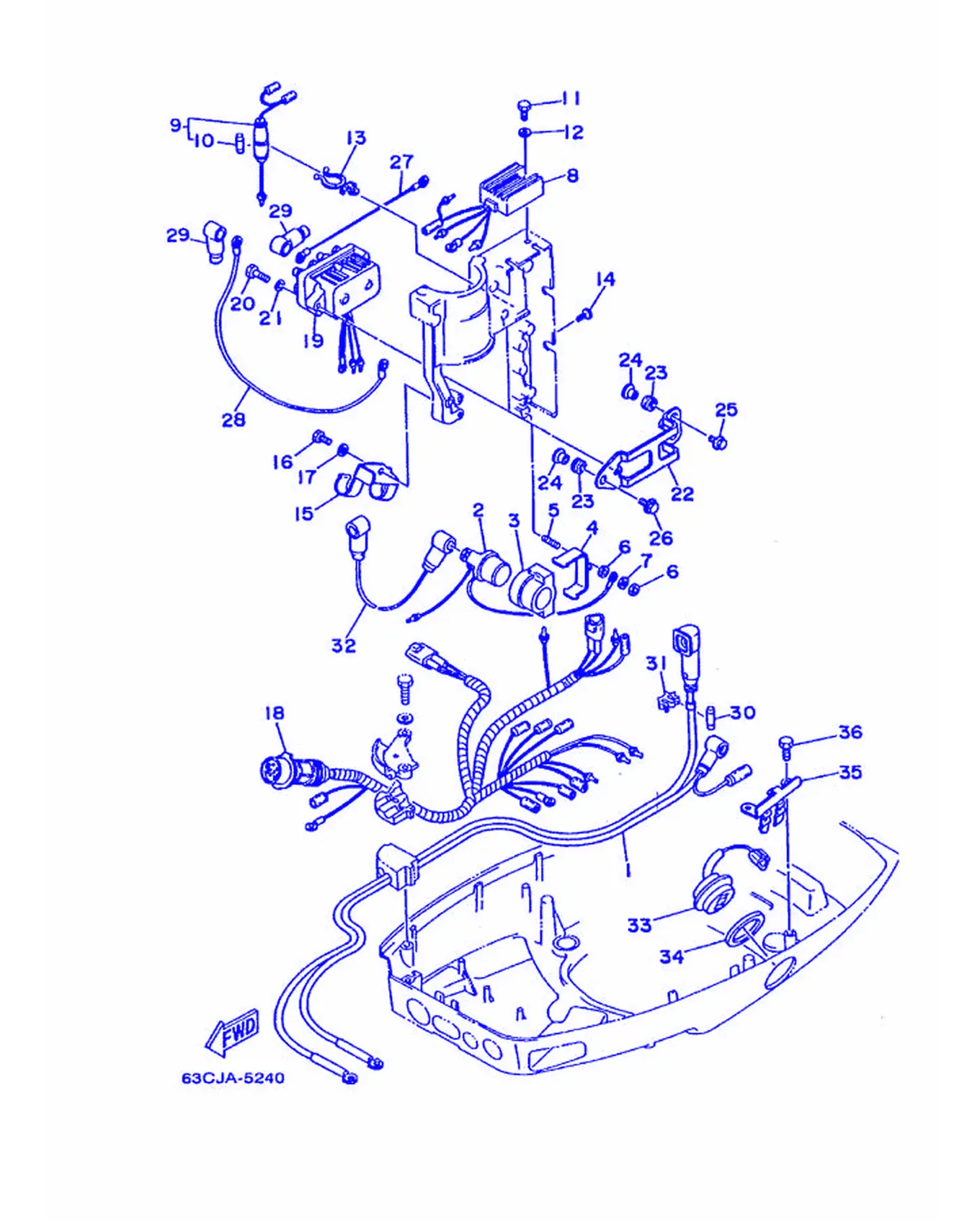

エレクトリカル 2爆炸图
REF雅马哈编码中文名称英文名称用量
163D-82105-J0电缆WireHarness1
26G1-81941-10起动继电器组合StarterRelayAssembly1
36H4-81952-00继电器支架Holder, Relay1
46H4-81945-00开关装配面板Plate, Switch Fitting1
590116-06M22卡环Bolt, Stud1
695380-06600有槽螺母Nut, Hexagon2
792990-06600面板垫圈Washer,Plate1
86H2-81960-00整流调压器组合Rectifier and Regulator1
96H4-82150-00保险丝管组合FuseHolderAssembly1
10682-82151-00保险丝Fuse(20A)1
1197095-06014螺栓Bolt1
1292990-06600面板垫圈Washer,Plate1
1390464-15M27固定Clamp1
1490338-05M11衬套Plug2
1563D-82594-00夹箍Clamp1
1697095-06012螺栓Bolt1
1792990-06600面板垫圈Washer,Plate1
1863D-82590-20电缆总成WireHarnessAssembly1
1863D-82590-10电缆总成WireHarnessAssembly1
196H1-81950-00继电器组合RelayAssembly1
2097095-06025螺栓Bolt2
2192990-06600面板垫圈Washer,Plate2
226H4-81945-20开关装配面板Plate, Switch Fitting1
2390480-13M24固定Grommet3
2490387-06M05衬套Color3
2590105-06M15六角法兰面螺栓Bolt, Washer Based Head2
2690105-06M16螺栓Bolt, Flange1
276H5-81949-00导线Wire,Lead1
2861A-81949-00导线Wire,Lead1
29682-82119-01导线盖Cover,LeadWire4
306H3-82151-00保险丝Fuse1
3190464-07M20固定Clamp1
326H4-82117-00导线Wire,Lead1
3363D-82563-10电动倾斜调整开关组合Trim & Tilt Switch Assembly1
346E5-82587-00衬垫Gasket1
356R3-83614-00托架Bracket1
3697095-06016螺栓Bolt2

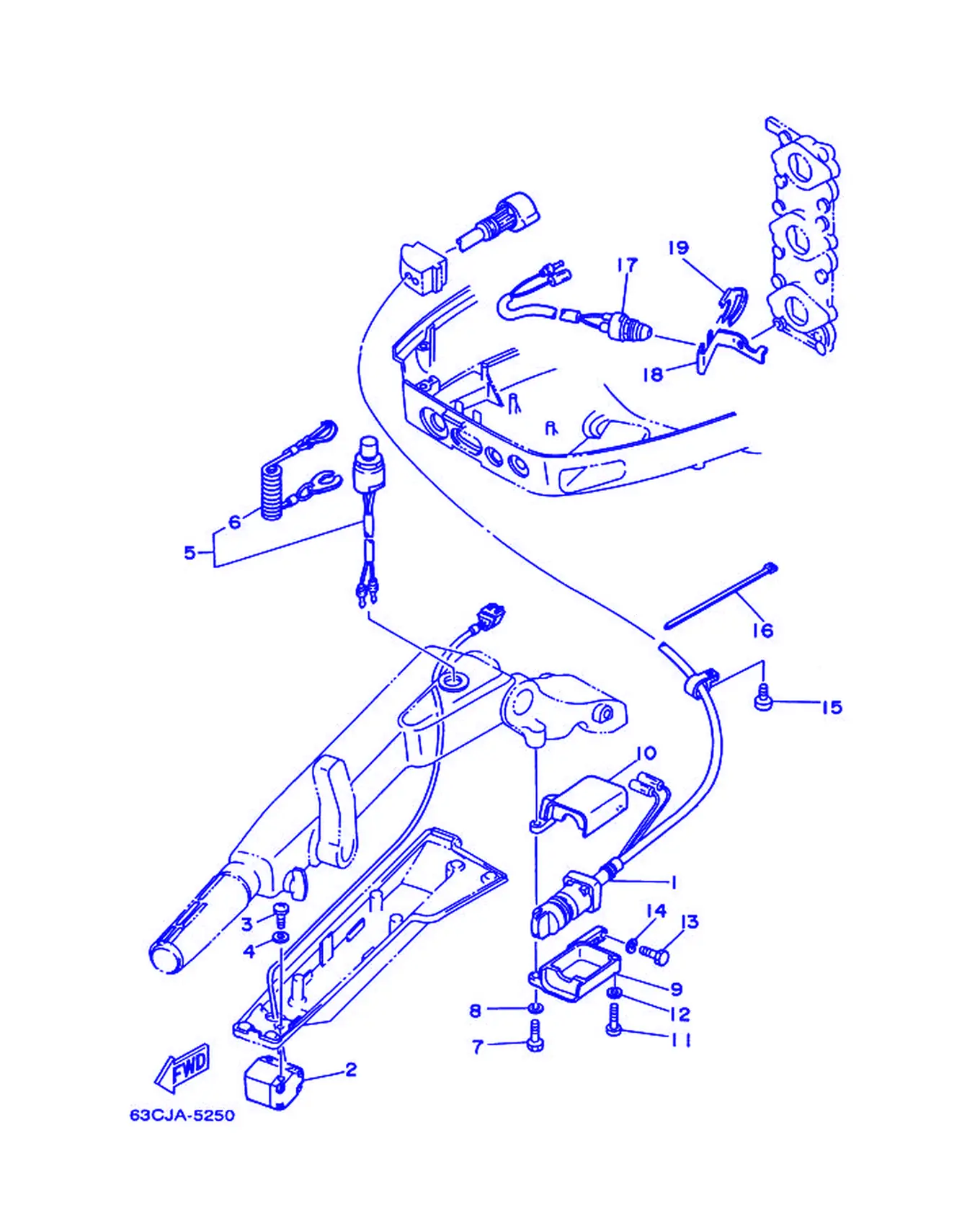

エレクトリカル 3 (マニユアルハンドルツキ)
エレクトリカル 3 (マニユアルハンドルツキ)爆炸图
REF雅马哈编码中文名称英文名称用量
163D-82510-00主开关组合MainSwitchAssembly1
263D-82563-00电动倾斜调整开关组合Trim & Tilt Switch Assembly1
397885-06016大柱头螺钉Screw, Pan Head2
492990-06600面板垫圈Washer,Plate2
563D-82575-00发动机止动开关组合Engine Stop Switch Assembly1
6682-82556-00止动拉索Stopper1
797095-06025螺栓Bolt1
892995-06100垫圈Washer,Spring1
963D-8252F-01-4D主开关盖Cover,MainSwitch1
1063D-8252E-01-4D主开关盖Cover,MainSwitch1
1197885-06025十字槽盘头螺钉Screw, Pan Head1
1292995-06100垫圈Washer,Spring1
1397095-06020螺栓Bolt1
1492995-06100垫圈Washer,Spring1
1597885-06012大柱头螺钉Screw, Pan Head1
1690465-13M36固定环Clamp1
17688-82540-11空挡开关组合Neutral Switch Assembly1
1863D-82554-00空挡开关支承Stay, Neutral Switch1
19663-82555-01主开关减震器Damper,MainSwitch 11
オイルポンプ 1 (EM_ マニユアルスタータツキ)

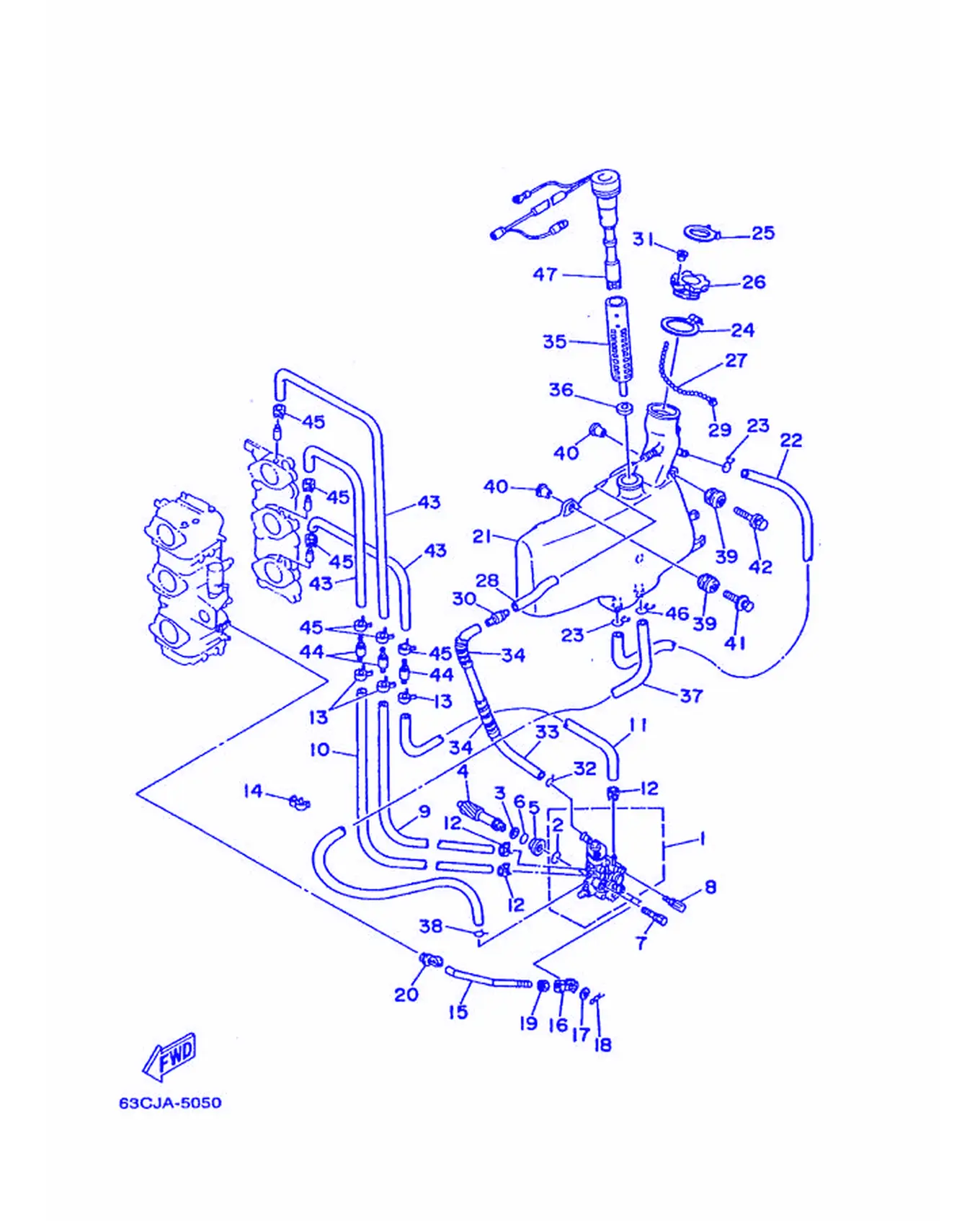

オイルポンプ 1 (EM_ マニユアルスタータツキ)爆炸图
REF雅马哈编码中文名称英文名称用量
16H4-13200-12注油泵总成Oil Injection Pump Assembly1
293210-19MA7O型圈O-ring1
390201-08M93平垫圈Washer,Plate1
46H4-11537-01从动齿Gear, Driven1
56H1-13117-01间隔轴Collar, Distance1
693210-13595O型圈O-ring1
790109-06M39卡环Bolt1
890109-06M40卡环Bolt1
990445-07M44固定Hose (L250)1
1090445-07M23固定Hose (L408)1
1190445-07MA6软管 (L90)Hose (L90)1
1290468-07M02固定Clip3
1390468-07M02固定Clip3
1490464-07M20固定Clamp1
156H4-41241-01连杆Rod, Link1
166H1-41237-00连杆接头Joint, Link1
1790202-05088平垫圈Washer,Plate1
1890468-05M03固定Clip1
1995380-05600螺母Nut1
206R5-41237-00连杆接头Joint, Link1
2163D-21707-10油罐总成OilTankComplete1
2290445-11M15固定Hose1
2390467-11M08钢夹Clip2
2463D-2175R-00带钩Hook, Band1
2563D-2176M-00钩Hook1
266H4-21770-00机油箱盖组合OilTankCapAssembly1
276H4-24633-00滚珠链Chain, Ball1
2890445-11M23油封Hose1
296H4-21757-00特制垫圈1Washer, Special 11
3063D-21744-00通气管Breather1
316H4-24634-00滚珠链条Hook, Chain Ball1
3290467-10M04带垫螺栓Clip1
3390445-11M15固定Hose1
3490446-10M01固定Hose (L60)2
356J8-13411-00机油滤芯Strainer,Oil1
366J8-13414-00滤网盖衬垫Gasket,StrainerCover1
376L2-13416-00机油管1Pipe,Oil 11
3890467-08004卡环Clip1
396A0-82317-00点火线圈减震器Damper, Ignition Coil3
40624-42542-00管Pipe3
4190119-06M65卡环Bolt, With Washer2
4290119-06M67固定Bolt, With Washer1
4390445-07M87固定Hose (L110)3
446E9-13183-70单向阀Valve, Check3
4590468-07M02固定Clip6
4690467-11M08钢夹Clip1
4763D-85720-10油位检测器总成Oil Level Gauge Assembly1
オイルポンプ 2 (E_ マニユアルスタータナシ)

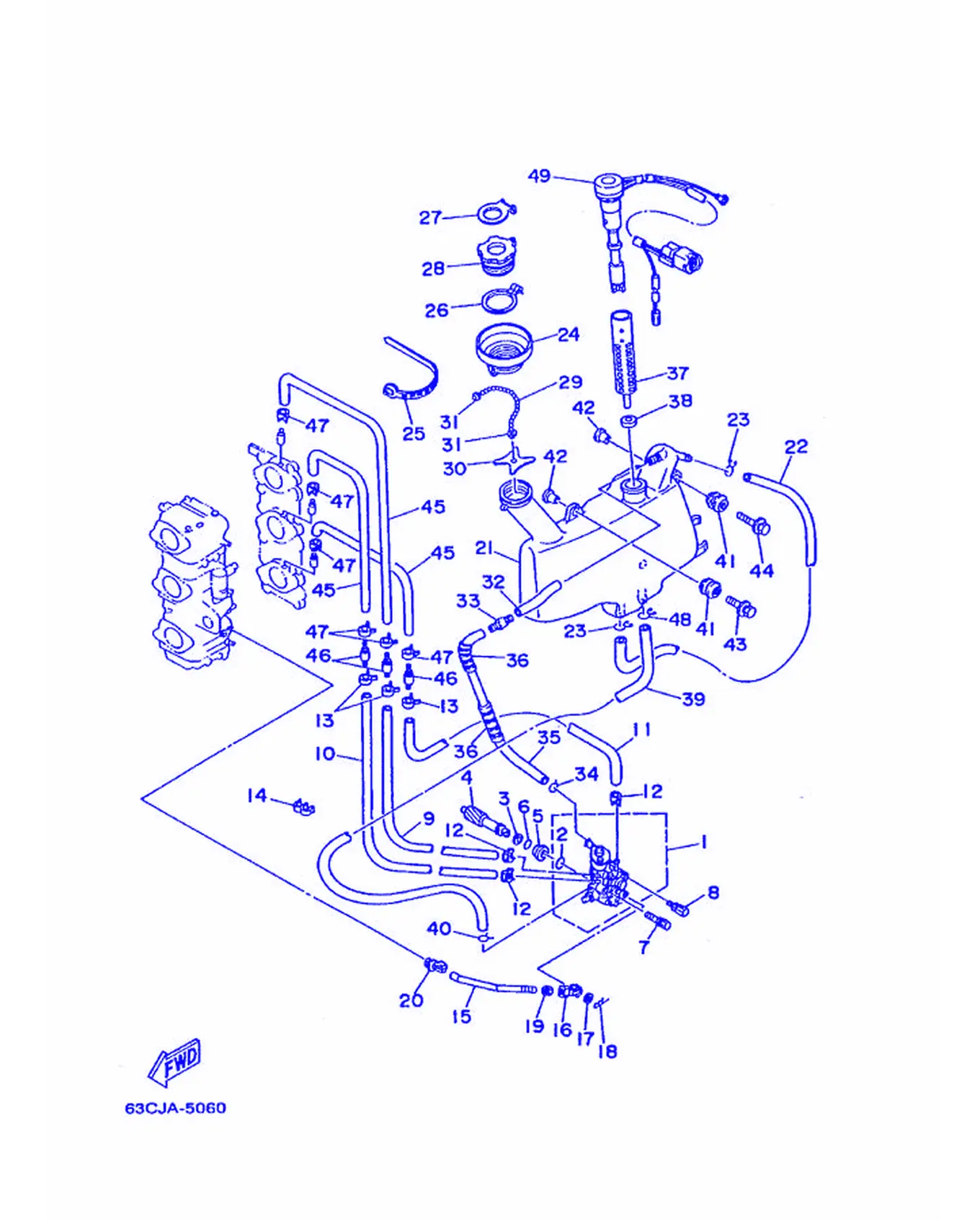

オイルポンプ 2 (E_ マニユアルスタータナシ)爆炸图
REF雅马哈编码中文名称英文名称用量
16H4-13200-12注油泵总成Oil Injection Pump Assembly1
293210-19MA7O型圈O-ring1
390201-08M93平垫圈Washer,Plate1
46H4-11537-01从动齿Gear, Driven1
56H1-13117-01间隔轴Collar, Distance1
693210-13595O型圈O-ring1
790109-06M39卡环Bolt1
890109-06M40卡环Bolt1
990445-07M44固定Hose (L250)1
1090445-07M23固定Hose (L408)1
1190445-07MA6软管 (L90)Hose (L90)1
1290468-07M02固定Clip3
1390468-07M02固定Clip3
1490464-07M20固定Clamp1
156H4-41241-01连杆Rod, Link1
166H1-41237-00连杆接头Joint, Link1
1790202-05088平垫圈Washer,Plate1
1890468-05M03固定Clip1
1995380-05600螺母Nut1
206R5-41237-00连杆接头Joint, Link1
2163D-21707-00油罐总成OilTankComplete1
2290445-11M15固定Hose1
2390467-11M08钢夹Clip2
246H4-21752-00加油管1Tube, Filler 11
2590465-13M36固定环Clamp1
2663D-2175R-00带钩Hook, Band1
2763D-2176M-00钩Hook1
286H4-21770-00机油箱盖组合OilTankCapAssembly1
296H5-24633-00滚珠链Chain, Ball1
306J8-21758-00特制垫圈2Washer, Special 21
316H1-21757-00特制垫圈1Washer, Special 12
3290445-11M23油封Hose1
3363D-21744-00通气管Breather1
3490467-10M04带垫螺栓Clip1
3590445-11M15固定Hose1
3690446-10M01固定Hose (L60)2
376J8-13411-00机油滤芯Strainer,Oil1
386J8-13414-00滤网盖衬垫Gasket,StrainerCover1
396L2-13416-00机油管1Pipe,Oil 11
4090467-08004卡环Clip1
416A0-82317-00点火线圈减震器Damper, Ignition Coil3
42624-42542-00管Pipe3
4390119-06M65卡环Bolt, With Washer2
4490119-06M67固定Bolt, With Washer1
4590445-07M87固定Hose (L110)3
466E9-13183-70单向阀Valve, Check3
4790468-07M02固定Clip6
4890467-11M08钢夹Clip1
4963D-85720-00油位检测器总成Oil Level Gauge Assembly1
オルタネート 1 (ステアリングガイドアタツチメント)

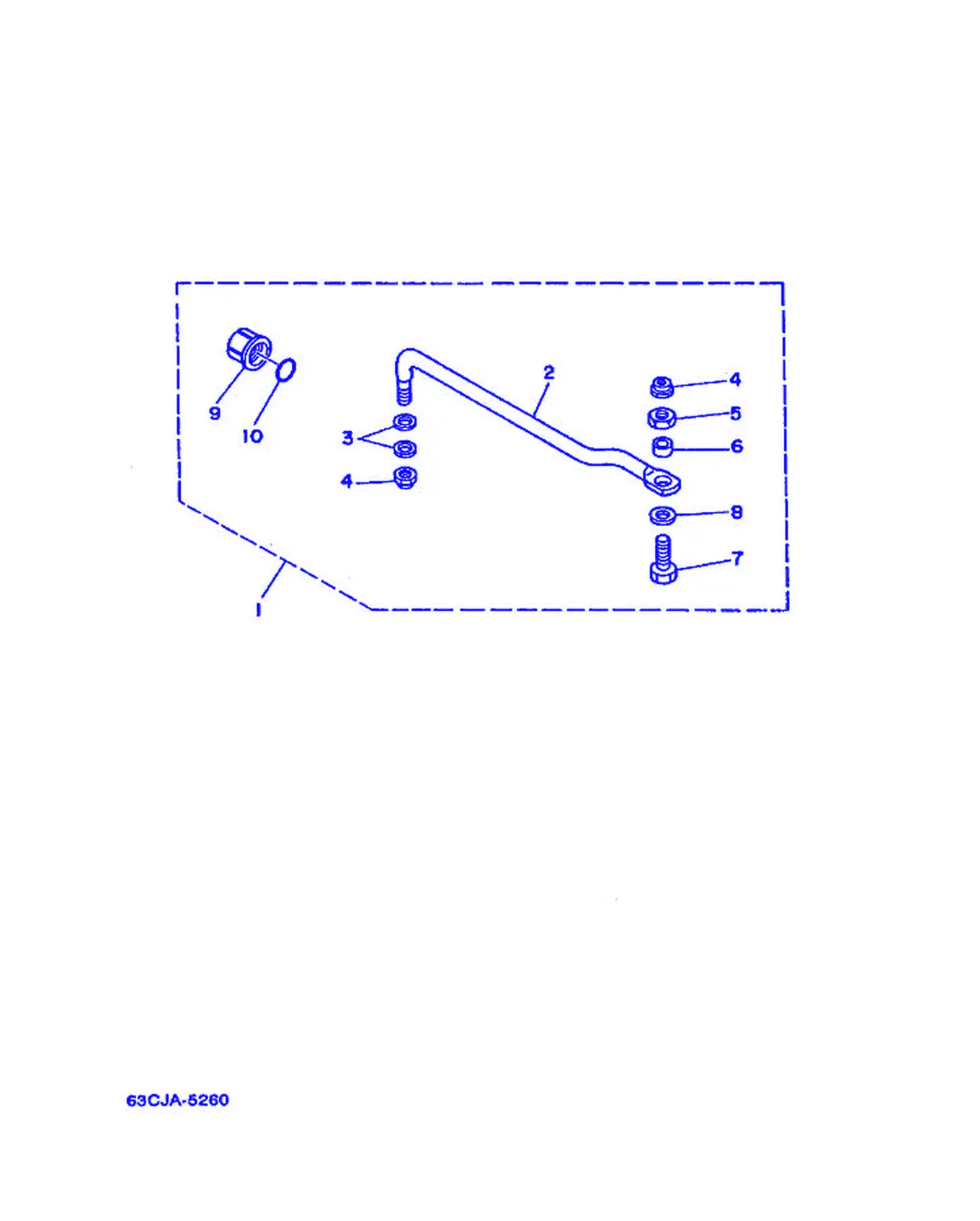

オルタネート 1 (ステアリングガイドアタツチメント)爆炸图
REF雅马哈编码中文名称英文名称用量
163D-61350-00操舵连接板套SteeringGuideAttachment1
263D-61351-00操舵连杆Rod, Steering Link1
390201-10M20面板垫圈Washer,Plate2
490185-09M01螺帽Nut, Self-Locking2
590170-09M03螺帽Nut1
690387-10M42衬套Collar1
790101-09M01卡环Bolt1
890201-10M63平垫圈Washer, Plate1
96E5-43145-00夹紧托架盖Cap, Clamp Bracket1
1093210-16275O型圈O-ring1
キヤブレタ

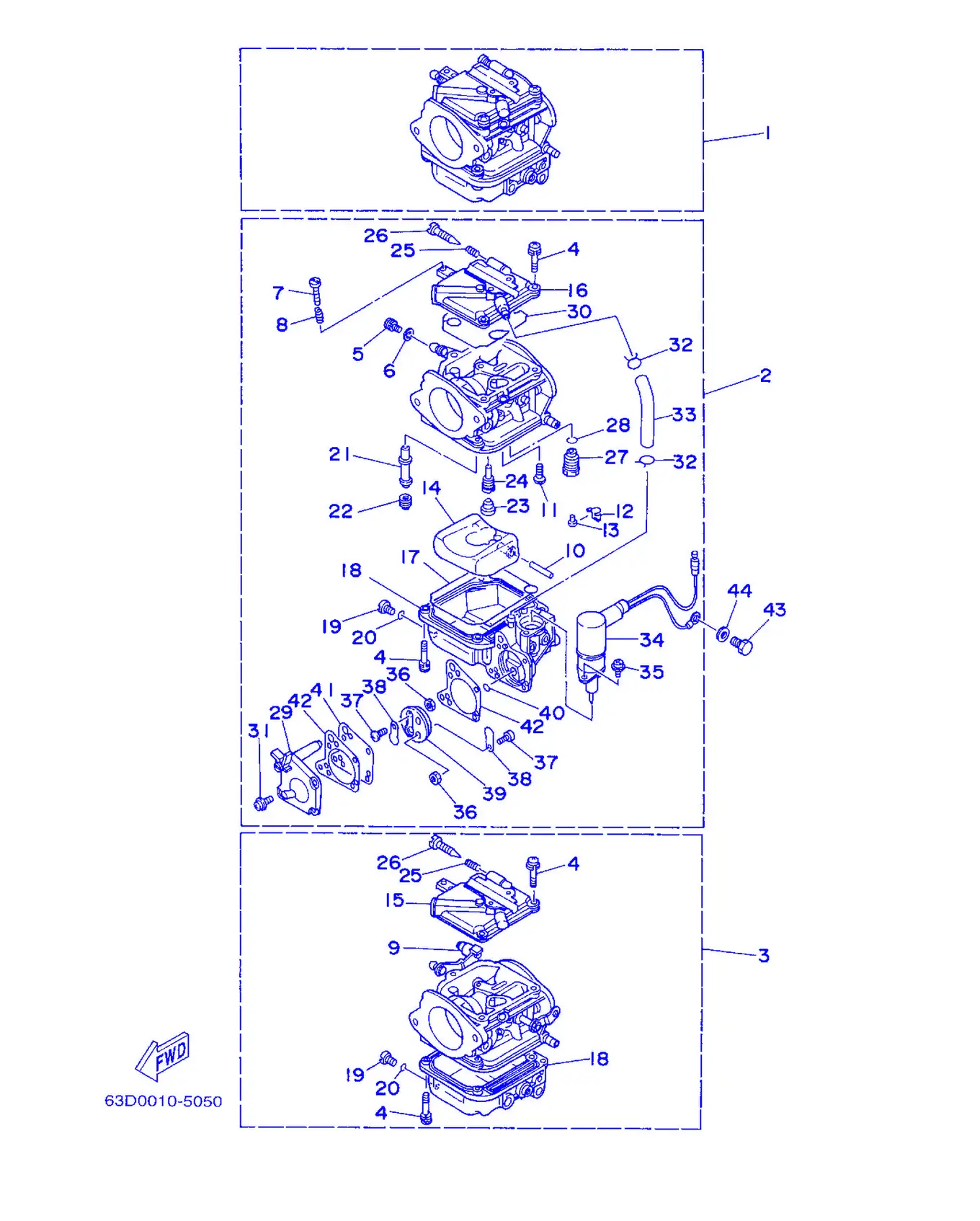

キヤブレタ爆炸图
REF雅马哈编码中文名称英文名称用量
163D-14301-00化油器总成1CarburetorAssembly 11
162X-14301-00化油器总成1CarburetorAssembly 11
263D-14302-00化油器总成2CarburetorAssembly 21
262X-14302-00化油器总成2CarburetorAssembly 21
363D-14303-00化油器总成3CarburetorAssembly 31
362X-14303-00化油器总成3CarburetorAssembly 31
497980-04114带垫圈螺钉Screw, Washer21
56K5-14592-00螺钉Screw3
690201-05652平垫圈Washer, Plate3
76H1-14523-00止动螺钉Screw, Stop1
890501-10326接头Spring, Compression1
96H2-14578-00轴套Collar1
106H4-14548-00浮子臂销Pin, Float Arm3
1198580-04008大柱头螺钉Screw, Pan Head3
12663-14159-00钢夹Clip3
13676-14186-00浮子销Pin, Float3
146H4-14985-01浮子Float3
156H4-14146-10面板Plate2
166H3-14146-10面板Plate1
176H4-14984-00浮子室衬垫Gasket, Float Chamber3
186H4-14980-00浮子室本Body, Float Chamber2
186H3-14980-10浮子室本Body, Float Chamber1
196H3-14992-00连杆Screw, Drain3
2093210-04230O型圈O-ring3
2163D-14947-00针形量孔Jet,Needle3
2162X-14947-00针形量孔Jet,Needle3
22676-14943-30主量孔Jet, Main (#115)(Upper/Lo2
2263D-14943-81主量孔Jet,Main (#118)1
22676-14943-33主量孔Jet,Main (#130)3
23676-14966-00起动杆Cap3
246H4-14948-11量孔Jet (#60)3
2462X-14948-12量孔Jet (#62)3
25679-14555-00弹簧Spring3
26692-14923-00低速螺钉Screw,Pilot3
276H4-14590-00针阀组合NeedleValveAssembly3
2893210-04228O型圈O-ring3
296H3-24452-10盖Cover1
306H4-14147-00O型圈0-Ring3
316H4-14567-00螺钉Screw4
326H3-14137-00钢夹Clip2
336H3-14349-00管Pipe1
3463D-14380-00双金属阀Prime Starter Assembly1
3598580-04010盘头螺丝Screw, Pan Head2
3695380-03600有槽螺母Nut2
3798980-03006接线螺钉，夹紧螺钉Screw, Blind2
386L5-24421-00单向阀Valve, Check2
396H4-24413-00燃油泵本体2Body 21
406H4-24486-00O型圈O-ring1
416H3-24411-10隔膜，隔板Diaphragm1
426H3-24434-10本体衬垫Gasket, Body2
4397013-06012螺栓Bolt1
4492990-06600面板垫圈Washer,Plate1

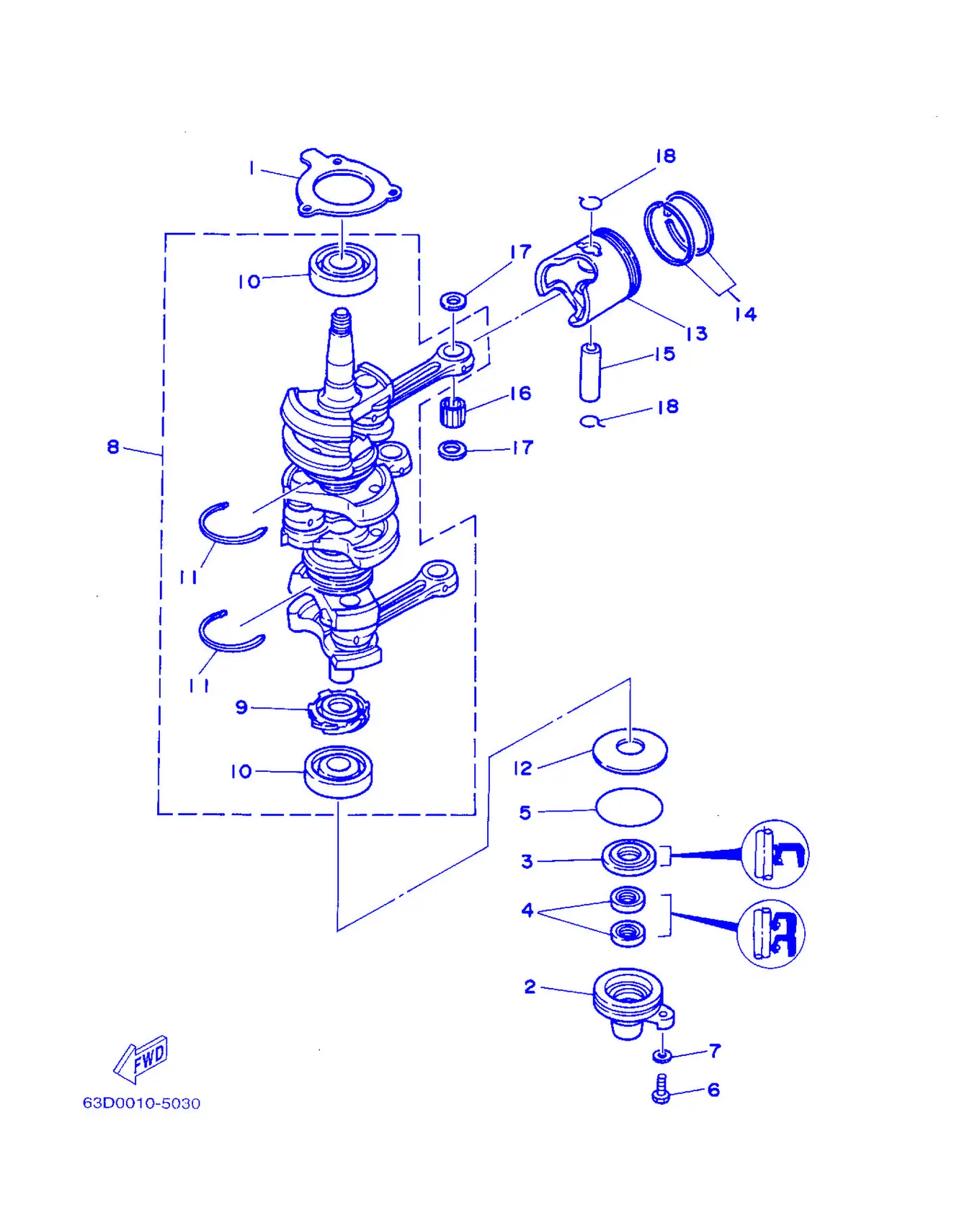

クランクシヤフト. ピストン
クランクシヤフト. ピストン爆炸图
REF雅马哈编码中文名称英文名称用量
16H4-15369-A1油封壳体衬垫Gasket,OilSealHousing1
26H4-15396-03-5B油封壳Housing,OilSeal1
393102-25M28油封OilSeal1
493104-16M01油封OilSeal2
593210-57M09O型圈O-ring1
697095-06020螺栓Bolt1
792990-06600面板垫圈Washer,Plate1
86H4-11400-14曲轴组合CrankshaftAssembly1
96H4-11536-00主动齿Gear, Drive1
1093306-305U8轴承Bearing2
1193440-62057开口簧环，卡Circlip2
1290201-50306平垫圈Washer,Plate1
136H4-11631-01-95活塞Piston (STD)3
136H4-11635-01活塞Piston (0.25MM O/S)3
136H4-11636-01活塞Piston (0.50MM O/S)3
1463D-11603-00活塞环套件PistonRingSet (STD)3
1463D-11604-00活塞环套件Piston Ring Set (0.25MM O/S)3
1463D-11605-00活塞环套件Piston Ring Set (0.50MM O/S)3
15648-11633-00活塞销Pin,Piston3
1693602-20M02定位销Pin, Dowel93
176H4-11641-00活塞销垫圈Washer,Piston Pin6
186H4-11634-01活塞销卡环Clip,Piston Pin6

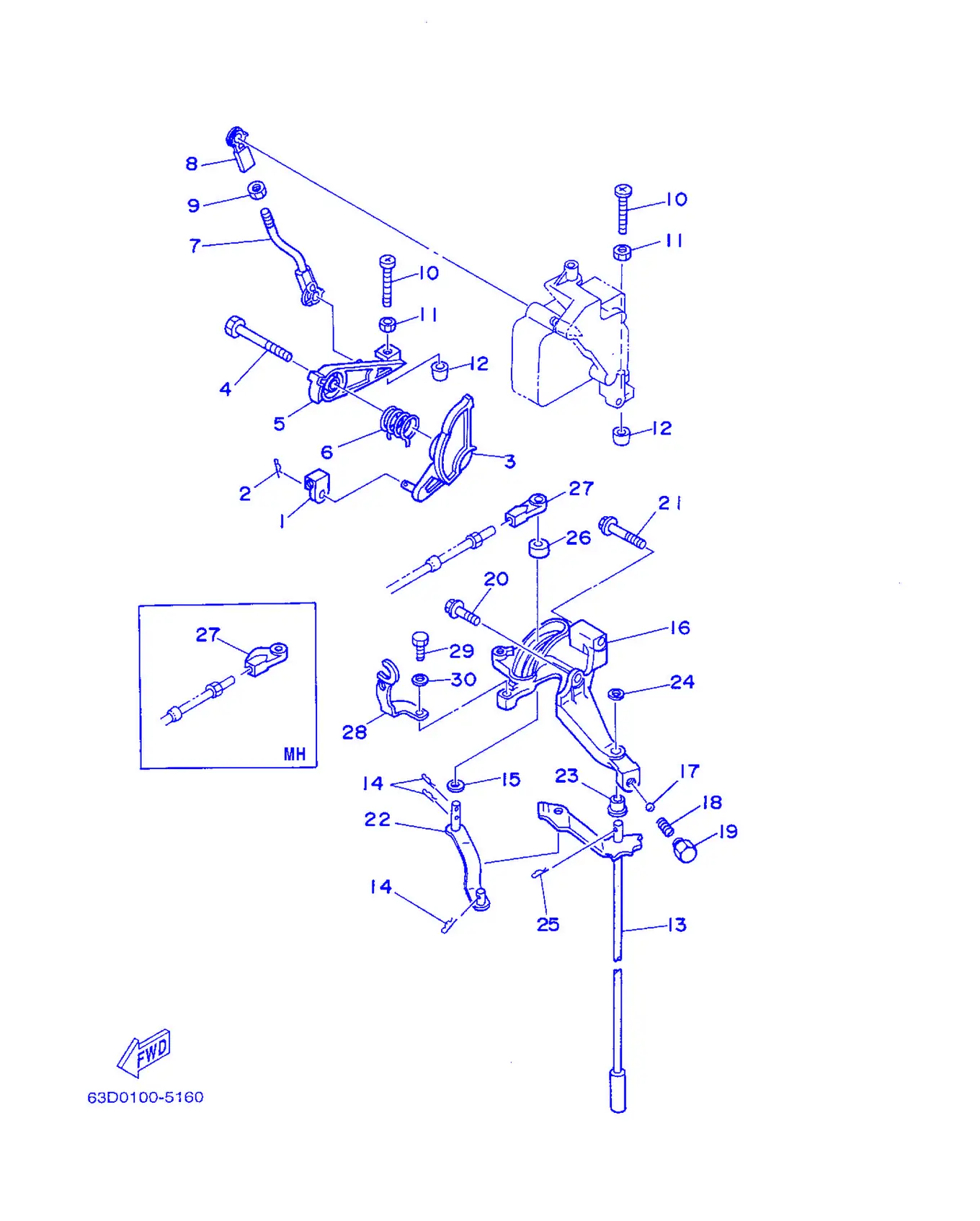

コントロール
コントロール爆炸图
REF雅马哈编码中文名称英文名称用量
16H4-48344-00遥控钢索端部Cable End, Remote Control1
290468-18008钢夹Clip1
363D-41213-00加速器凸轮Cam,Accelerator1
490109-06M43卡环Bolt1
563D-41632-00磁电机控制杠杆Lever, Magnet Control1
690508-26M35接头Spring, Torsion1
763D-41636-00磁电机控制杆Rod, Magnet Control1
86H4-41237-00连杆接头Joint, Link1
995380-05600螺母Nut1
1090157-06M13卡环Screw, Pan Head2
1195380-06600有槽螺母Nut, Hexagon2
12688-44194-00盖Cap2
1363D-44120-10变挡手柄组合Handle Gear Shift Assembly1
1363D-44120-20变挡手柄组合Handle Gear Shift Assembly1
1490468-18008钢夹Clip3
1590202-07M07平垫圈Washer,Plate1
1663D-44117-00托架Bracket1
1793501-04M02滚珠Ball1
1890501-12082压簧Spring, Compression1
19648-42715-00衬套Bushing1
2097595-06520带垫圈螺Bolt, With Washer1
2197513-06245带垫螺栓Bolt, With Washer1
2263D-44121-00变挡杆杠杆Lever, Shift Rod1
2390386-07M58衬套Bushing1
2492990-08200垫圈Washer, Plain1
2591490-20015开口销Pin, Cotter1
26688-44122-00变挡杆杠杆衬套Bushing, Shift Rod Lever1
27663-48344-00遥控钢索端部Cable End, Remote Control1
2763D-48344-00遥控钢索端部Cable End, Remote Control1
2863D-15774-00支承4Stay 41
2997095-06016螺栓Bolt1
3092990-06600面板垫圈Washer,Plate1

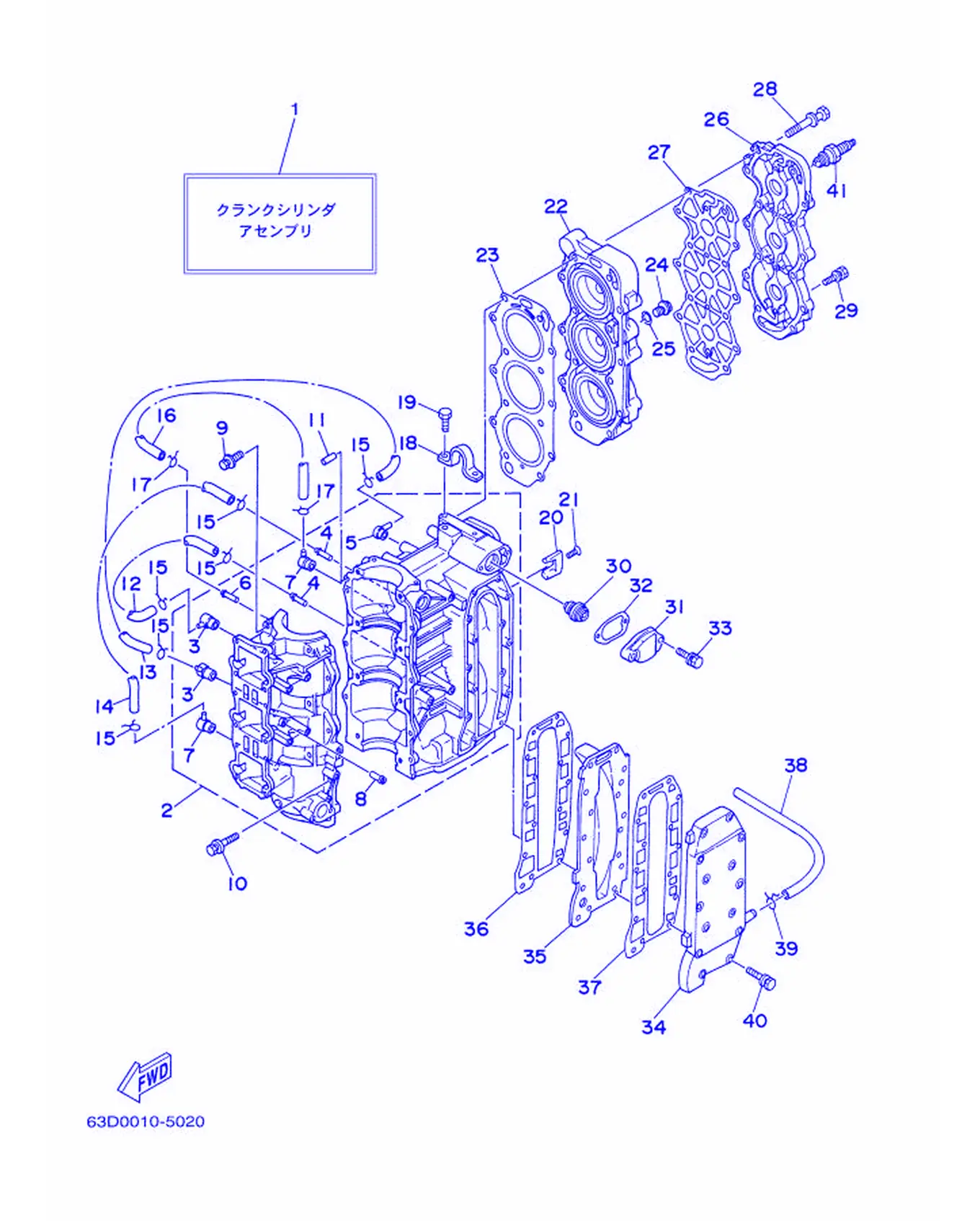

シリンダ. クランクケース
シリンダ. クランクケース爆炸图
REF雅马哈编码中文名称英文名称用量
163D-W0090-10-4D气缸曲柄组合Crank Cylinder Assembly1
26H4-15100-13-94曲轴箱组合Crankcase Assembly1
3650-11370-00单向阀组合Check Valve Assembly2
4624-14485-00连接管Pipe,Joint2
56H4-11372-00软管接头Nipple, Hose1
6624-14485-00连接管Pipe,Joint1
7688-11370-00单向阀组合Check Valve Assembly2
8652-24461-00连接管Pipe,Joint1
990119-08M19卡环Bolt, With Washer8
1090119-06M13带垫螺栓Bolt, With Washer6
1193606-12019定位销Pin, Dowel2
1290445-07M46固定Hose (L360)1
1390445-07M27固定Hose1
1490445-07M24固定Hose (L240)1
1590467-06016固定Clip6
1690445-07MA3固定Hose (L200)1
1790467-06016固定Clip2
186H4-11119-00发动机悬挂架Hanger, Engine1
1997395-06014螺栓Bolt2
20688-11325-00阳极Anode2
2198780-04016大柱头螺钉Screw, Flat Head2
2263D-11111-00-94气缸头1Head, Cylinder 11
2363D-11181-A0气缸头垫片1Gasket, Cylinder Head 11
2490340-14M00衬套Plug, Straight Screw1
2590430-14115垫片Gasket1
2663D-11191-00-9M气缸盖罩1Cover, Cylinder Head 11
2763D-11193-A0气缸盖罩衬垫1Gasket, Head Cover 11
2890119-08M29卡环Bolt, With Washer14
2997513-06225螺丝Bolt, With Washer4
306E5-12411-20温控器Thermostat1
316H4-12413-00-9M温控器盖Cover,Thermostat1
326J8-12414-A0盖衬垫Gasket,Cover1
3397513-06225螺丝Bolt, With Washer2
346H4-41113-00-9M排气管外盖Outer Cover, Exhaust1
356H4-41111-00-9M排气管内盖Inner Cover, Exhaust1
366H4-41112-A0排气管内盖衬垫Gasket, Exhaust Inner Cover1
376H4-41114-A0排气管外盖衬垫Gasket, Exhaust Outer Cover1
3890445-09M37固定Hose1
3990467-08004卡环Clip1
4097513-06235带垫螺栓Bolt, With Washer13
4194703-00217火花塞Plug, Spark (NGK B7HS-10)3
4194703-00160火花塞Plug, Spark (NGK B8HS-10)3

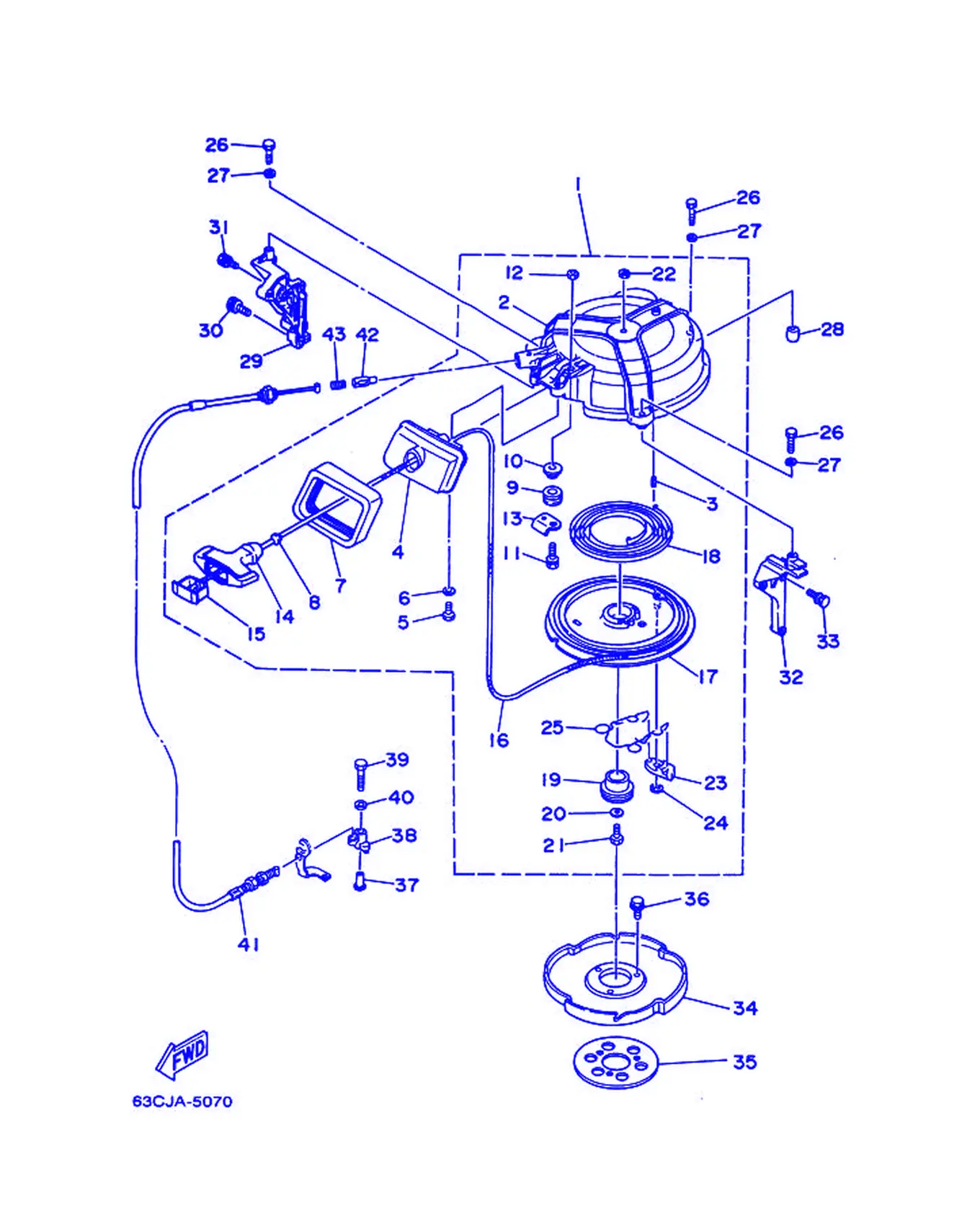

スタータ
スタータ爆炸图
REF雅马哈编码中文名称英文名称用量
16H4-15710-04-4D起动器组合StarterAssembly1
26H4-15711-02-94起动器箱Case,Starter1
391690-40018弹簧销Pin,Spring1
46H4-15758-01-4D导向绳索Guide, Rope1
597095-06016螺栓Bolt2
692990-06600面板垫圈Washer,Plate2
76H4-15762-00橡皮密封圈2Seal, Rubber 21
86A0-15789-00减震器Damper1
96F5-15752-00拉索卷轴Roller, Wire1
1090387-06M69六角螺栓Color1
1197513-06330阀座切割机45度-Bolt, with Washer1
1295380-06600有槽螺母Nut, Hexagon1
136H4-15787-01联接器Stay1
14689-15755-01起动器手Handle,Starter1
156F5-15779-02盖Cover1
176H4-15714-00拉索卷Drum, Sheave1
1890510-08002接头Spring, Spiral1
196H4-15717-01起动器轴Shaft,Starter1
2090201-065F3平垫圈Washer, Plate1
2197095-06020螺栓Bolt1
2295380-06600有槽螺母Nut, Hexagon1
23676-15741-03驱动Pawl, Drive1
2493430-06M02卡环Circlip1
256H4-15705-00驱动爪弹簧Spring, Drive Pole1
2697095-06035螺栓Bolt3
2792990-06600面板垫圈Washer,Plate3
2899530-10014定位销APin, Dowel1
2963D-15771-00-4D支承1Stay 11
3097513-08225带垫螺栓Bolt, With Washer2
3197595-06520带垫圈螺Bolt, With Washer1
326H4-15772-02-94支承2Stay 21
3397513-06225螺丝Bolt, With Washer3
346H4-15723-01-94起动器滑Pulley, Starter1
356J8-81365-A0孔盖衬垫Gasket, Hole Cover1
3697513-08220六角法兰面螺栓Bolt, With Washer3
3790387-06M66衬套Color1
3863D-15746-00臂Arm1
3997095-06040螺栓Bolt1
4092990-06600面板垫圈Washer,Plate1
4163D-15770-00起动器止动钢索组Cable Complete, Starter Stop1
42656-15748-00起动器止动柱Plunger, Starter Stop1
4390501-10227压簧Spring, Compression1

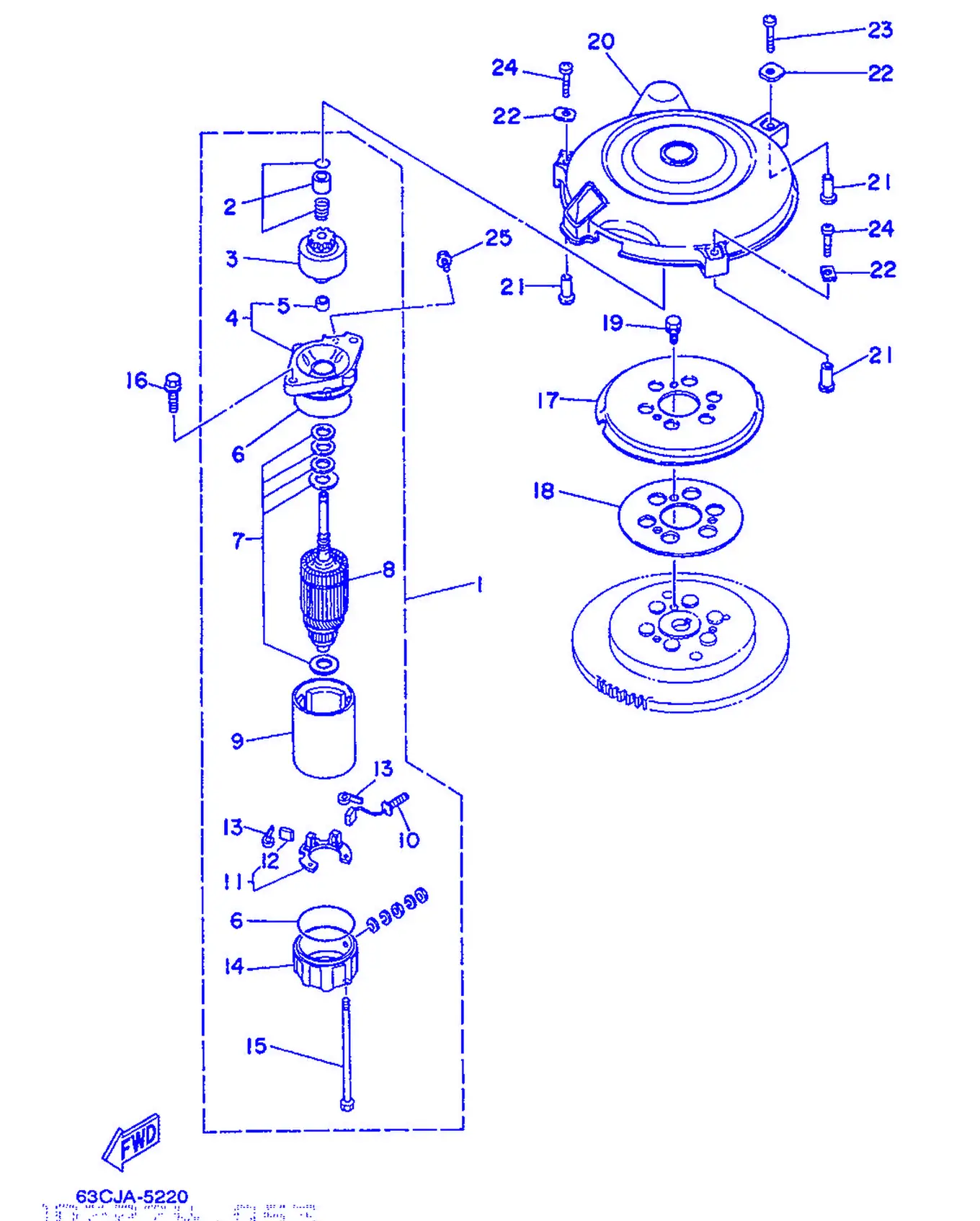

スターテイングモータ
スターテイングモータ爆炸图
REF雅马哈编码中文名称英文名称用量
16F5-81800-11起动电动机总成Starting Motor Assembly1
2689-81857-11挡Pinion Stopper Set1
3689-81807-12起动电动机齿轮组合Gear Assembly, Starting Motor1
46F5-81830-11前托架组合FrontBracketAssembly1
5689-81831-00前金属Metal, Front1
6689-81847-11O型圈O-ring2
7689-81809-11垫圈套Washer Kit1
8689-81850-12电枢组合Armature Assembly1
9689-81810-11定子组合Stator Assembly1
10689-81811-11电刷1Brush 11
11689-81840-11电刷架组合Brush Holder Assembly1
12689-81812-11电刷2Brush 21
13689-81813-10电刷弹簧Spring, Brush2
14689-81820-11后托架组合Rear Bracket Assembly1
15689-81826-10螺Bolt2
1697513-08230带垫螺栓Bolt, With Washer2
176J8-15723-E1起动器滑Pulley, Starter1
186J8-81365-A0孔盖衬垫Gasket, Hole Cover1
1997513-08214接头Bolt, With Washer3
206H4-81337-01飞轮盖Cover,Flywheel1
2190387-06M65螺栓Color3
2290209-06M04螺栓Washer3
2397885-06040大柱头螺钉Screw, Pan Head1
2497885-06035十字槽盘头螺钉Screw, Pan Head2
2597513-08216带垫螺栓Bolt, With Washer1

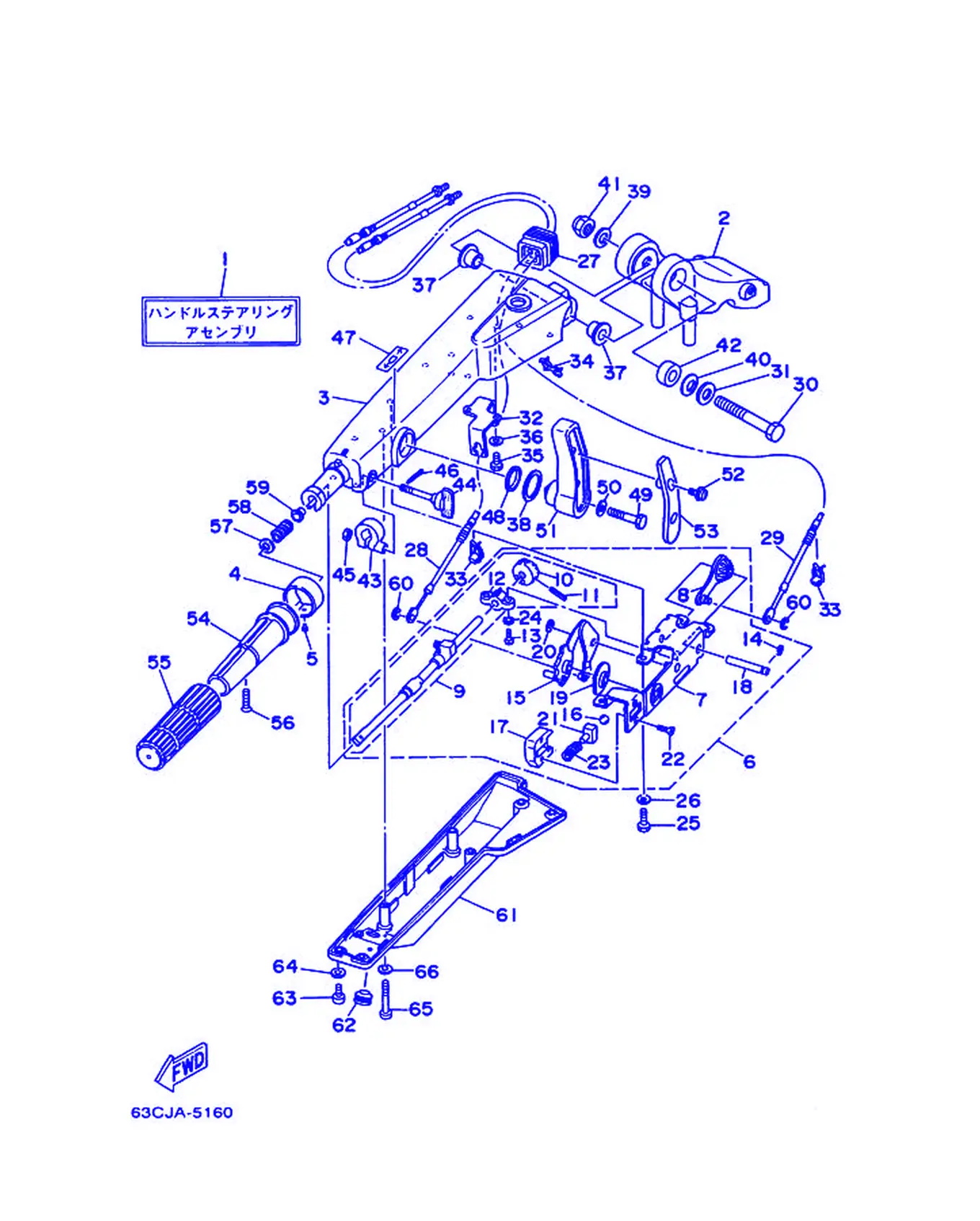

ステアリング
ステアリング爆炸图
REF雅马哈编码中文名称英文名称用量
163D-W0084-00-4D手把方向装置组合HandleSteeringAssembly1
263D-42121-00-4D托架Bracket, Carling1
363D-42111-01-4D方向手Handle,Steering1
46H2-42137-00油门指示器Indicator, Throttle1
590269-02M09螺丝Rivet1
663D-44100-10变档连杆组合Shift Link Assembly1
763D-44104-00面板组PlateComplete1
863D-48261-00油门臂Arm,Throttle1
963D-42115-00方向手把轴Shaft, Steering Handle1
10650-42152-00-94齿轮Gear1
1191690-30025弹簧销Pin,Spring1
1263D-42159-00支承Stay1
1398580-06016大柱头螺钉Screw, Pan Head2
1499001-08600卡环Circlip1
1563D-44113-00手柄凸轮面板Cam Plate, Handle1
1663D-48236-00延迟器卷轴Roller, Detent1
1763D-48119-00盖Cover1
1863D-42153-00油门控制轴Shaft, Throttle Control1
1963D-44132-00衬套Bushing1
2063D-48118-00变速杆卡箍Clip, Shift Lever1
2163D-48237-00联接器Adapter1
2298780-05014平头螺钉Screw, Flat Head2
2363D-48238-00延迟簧Spring, Detent1
2463D-42181-00垫Washer2
2597095-06016螺栓Bolt4
2692990-06600面板垫圈Washer,Plate4
2763D-42725-00固定Grommet1
2863D-48321-00钢索Cable1
2963D-26301-00油门钢索组合ThrottleCableAssembly1
3090101-12M09卡环Bolt, Hexagon1
3192990-12200平垫圈Washer, Plain1
3263D-48531-00遥控装置托架1Bracket, Remote Control 11
3363D-48538-00钢索夹1Clamp,Cable 12
3490464-09M42固定Clamp1
3597095-06016螺栓Bolt2
3692990-06600面板垫圈Washer,Plate2
3790386-12M93衬套Bushing2
3890386-29M95衬套Bushing1
3992990-12600盘形垫Washer,Plate1
4090206-12M21螺母Washer, Wave1
4190185-12058螺母Nut, Self-Locking1
4290387-12M02衬套Color1
4363D-42126-00方向手把握把摩擦Friction, Steering Handle1
4463D-48154-00油门旋钮Knob, Throttle1
4595380-06600有槽螺母Nut, Hexagon1
4691490-20010开口销Pin, Cotter1
476G8-44191-00变挡指示器Indicator, Shift1
4890202-24M53平垫圈Washer,Plate1
4997095-08040螺栓Bolt1
5092995-08600盘形垫Washer1
5163D-44159-01变挡手柄Handle, Gear Shift1
5290159-06M18带垫螺栓Screw, With Washer2
5363D-44173-00变挡控制杆Lever, Shift Control1
54664-42119-00方向手把握Grip,SteeringHandle1
556G1-42177-00手把橡皮Rubber,Handle1
5690149-05M13螺钉Screw1
5792990-10600垫圈Washer,Plate1
5890501-23215接头Spring, Compression1
5990386-08032衬套Bushing1
6093430-04M03开口簧环，卡Circlip2
6163D-42131-10方向手把盖Cover,HandleSteering1
6163D-42131-00方向手把盖Cover,HandleSteering1
6290480-14M14固定Grommet1
6397885-06016大柱头螺钉Screw, Pan Head4
6492990-06600面板垫圈Washer,Plate4
6597885-06040大柱头螺钉Screw, Pan Head3
6692990-06600面板垫圈Washer,Plate3

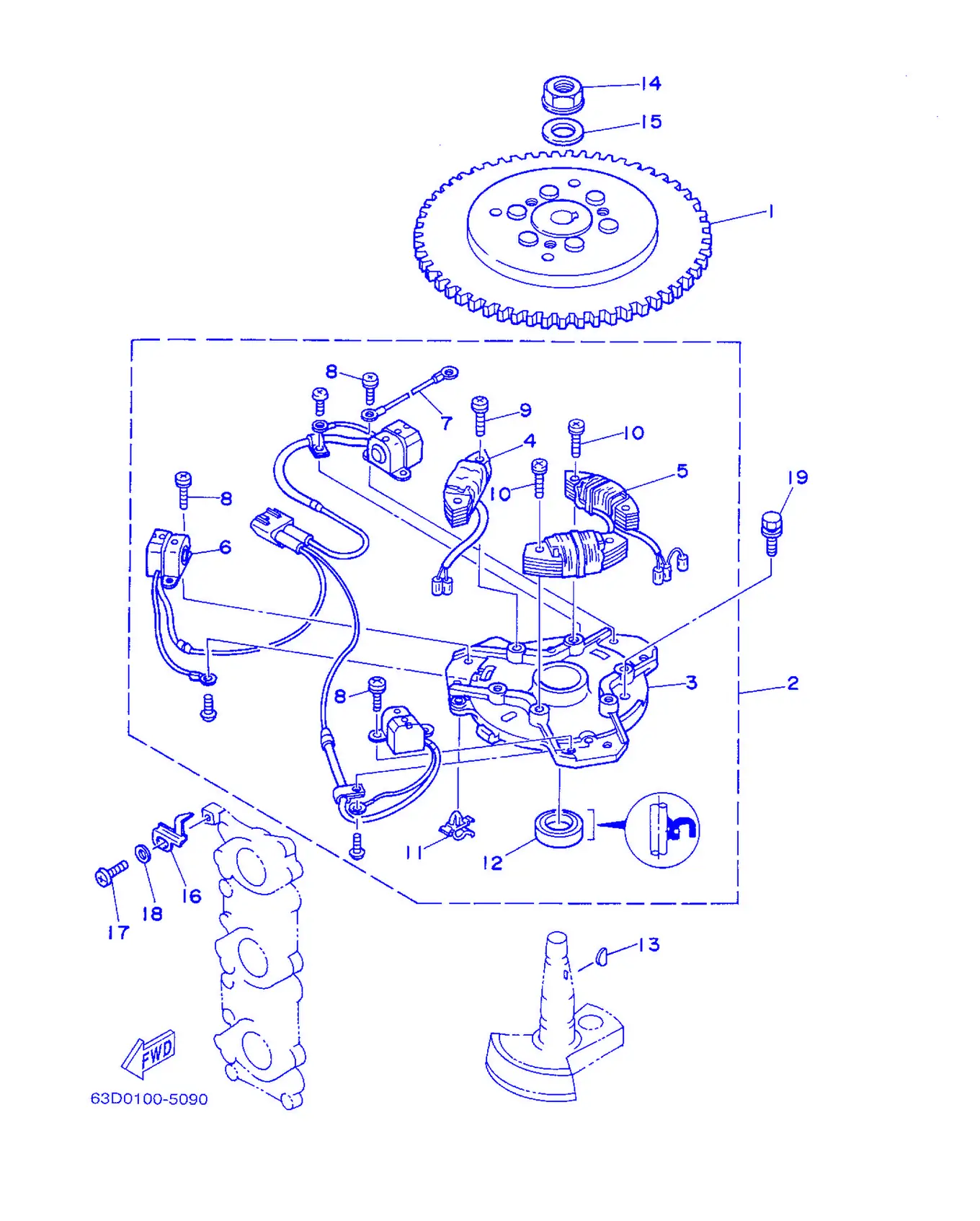

ゼネレータ
ゼネレータ爆炸图
REF雅马哈编码中文名称英文名称用量
163D-85550-00转子组合Rotor Assembly1
263D-85560-00基座组合BaseAssembly1
36H4-15359-04-94油封壳Housing, Oil Seal1
463D-85520-00充电线Coil, Charge1
563D-85533-00照明线Coil, Lighting1
663D-85580-00脉冲线Coil, Pulser1
76H4-83354-00接地线1Wire, Earth Lead 11
863D-81345-00大柱头螺钉Screw, With Washer (M5X12)6
963D-81345-10大柱头螺钉Screw, With Washer (M6X25)2
1063D-81345-20大柱头螺钉Screw, With Washer (M6X30)4
1190464-03M15卡环Clamp1
1293102-23096油封Oil Seal1
136H4-11545-00半圆键Key, Woodruff1
1490179-16M05螺母Nut1
1590201-16M44带垫面板Washer,Plate1
166H4-81332-00正时面板Plate, Timing1
1797885-05010大柱头螺钉Screw, Pan Head1
1892990-05600盘形垫Washer,Plate1
1997513-06218螺栓Bolt, With Washer3

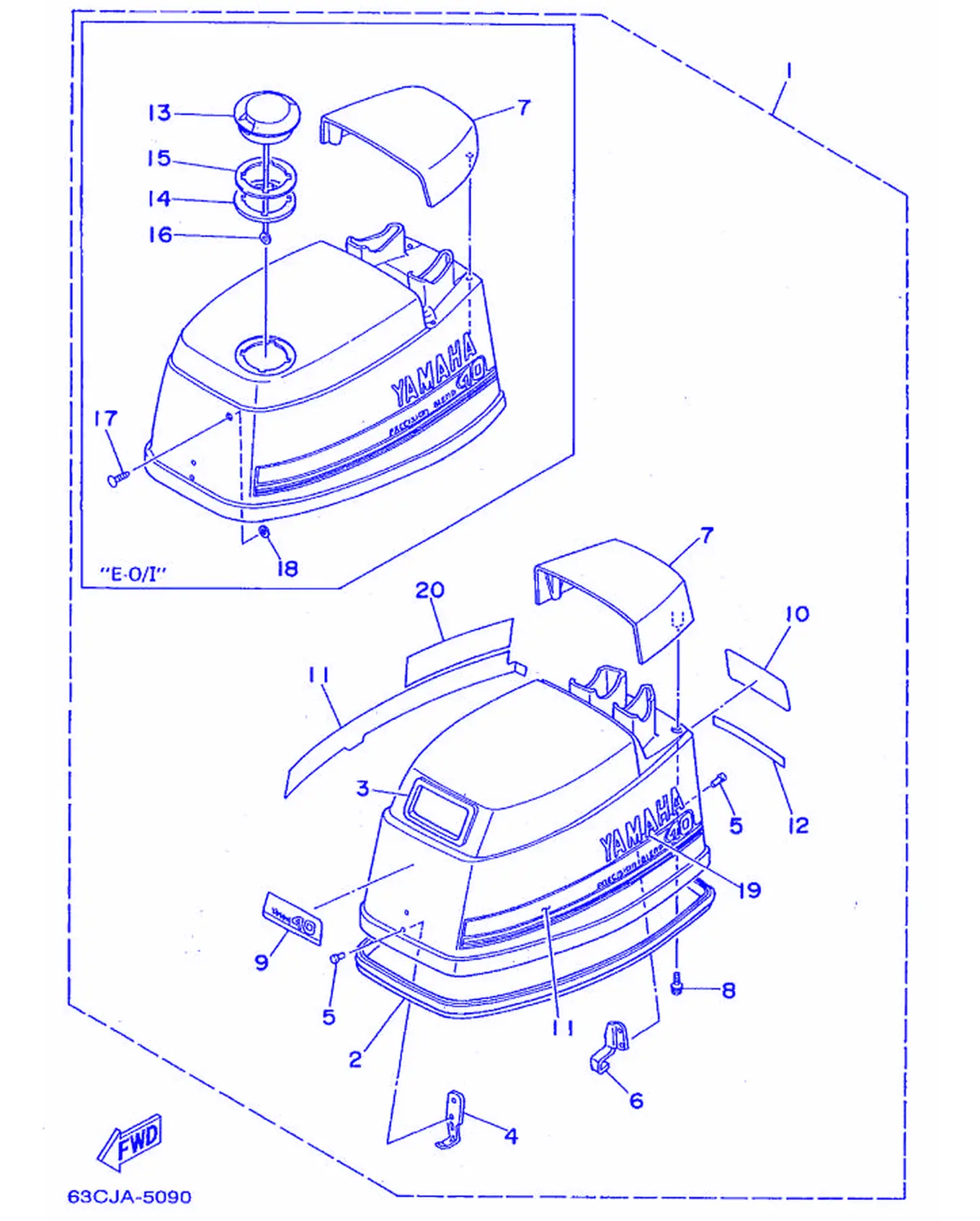

トツプカウリング
トツプカウリング爆炸图
REF雅马哈编码中文名称英文名称用量
16H4-42610-25-4D顶罩组合Top Cowling Assembly1
16H5-42610-25-4D顶罩组合Top Cowling Assembly1
16H4-42610-47-4D顶罩组合Top Cowling Assembly1
16H5-42610-47-4D顶罩组合Top Cowling Assembly1
26H4-42615-00密封Seal1
36H4-15761-00橡皮密封圈1Seal, Rubber 11
46H4-42651-00钩Fook1
590266-04M01螺丝Rivet4
66H4-42652-00钩Fook1
76H4-42613-00-4D空气导管嵌Molding, Air Duct1
76H4-42613-10-4D空气导管嵌Molding, Air Duct1
890119-06M99卡环Bolt, with Washer4
963D-42677-10前图样40XGraphic, Front1
962X-42677-10前图样Graphic, Front1
1063D-42678-10后图样Graphic, Rear1
116H4-W0070-43图样套Graphic Set1
116H5-W0070-41图样套Graphic Set1
126H4-4267A-10后图样 2Graphic, Rear 21
1363D-2177H-00圆盘盖2Disc Cap 21
146H3-21732-00水混合弯管Seal 11
156H3-21735-00密封圈2Seal 21
166H1-42694-00带箍Band1
1790338-05M03衬套Plug1
1890183-05M06螺丝Nut, Spring1
196H5-42681-10罩标志Mark, Cowling (YAMAHA)1
206H5-42682-10罩标志Mark, Cowling (YAMAHA)1
パワートリム.チルトアセンブリ 1

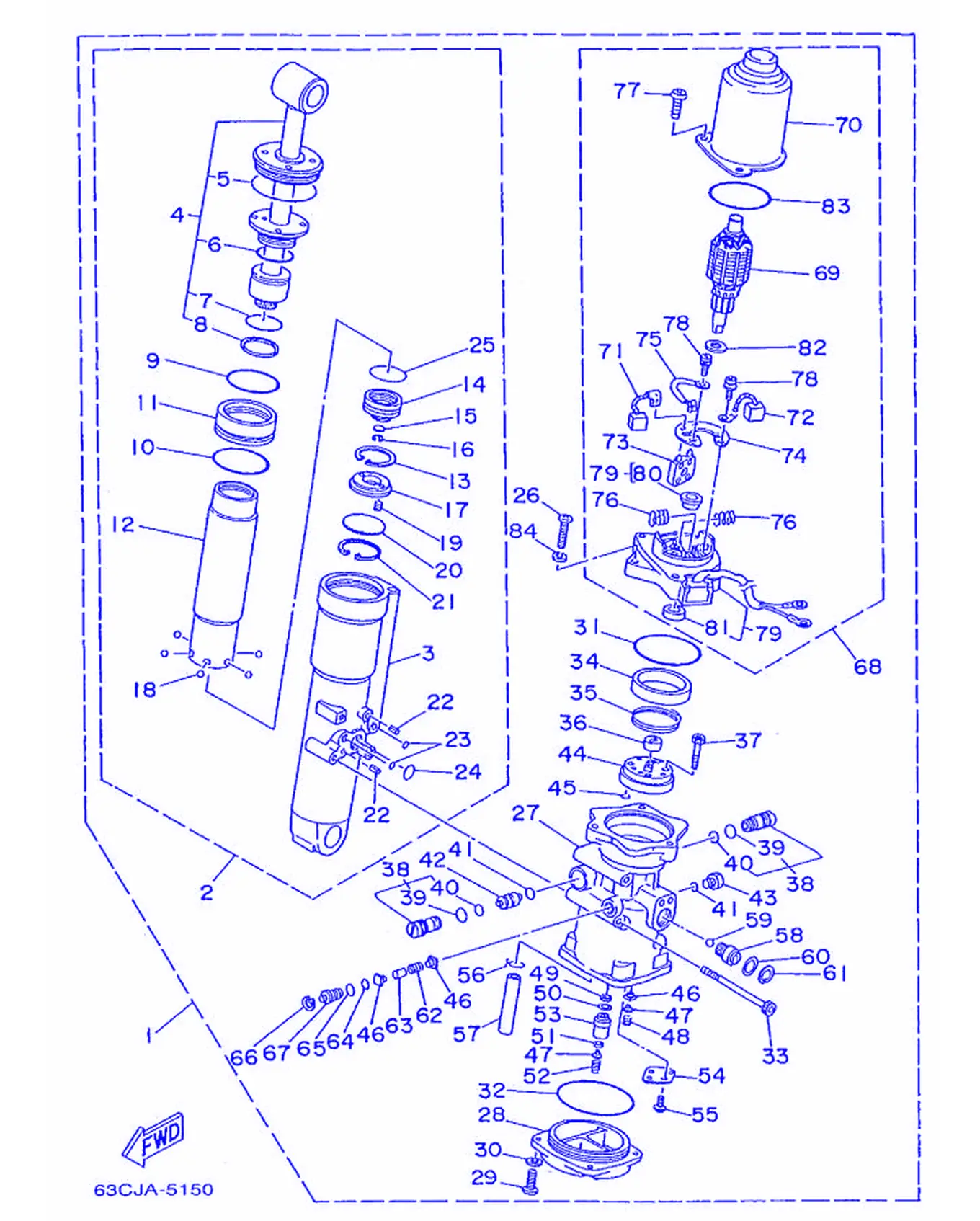

パワートリム.チルトアセンブリ 1爆炸图
REF雅马哈编码中文名称英文名称用量
162X-43800-00-4D电动倾斜调整装置组合Power Trim & Tilt Assembly1
262X-43840-00电动角度定位装置组合Power Tilt Assembly1
362X-4380K-00倾斜装置气缸Cylinder, Tilt Sub-assembly1
462X-43810-00活塞分组合Piston Sub Assembly1
562X-43861-00O型圈O-ring1
662X-43862-00O型圈O-ring1
793210-29375O型圈O-ring1
862X-43871-00环Ring, Back Up1
993210-44383O型圈O-ring1
1093210-48214O型圈O-ring1
1162X-4388A-00螺栓Piston,Trim1
1262X-22471-00减震器气Cylinder, Shock Absorber1
1399009-35500开口簧Circlip1
1462X-43814-00自由活Piston, Free1
156H1-4384G-11安全阀密封Seal, Relief Valve1
1661A-43875-00开口Ring, Snap1
1762X-43899-00面板限位板Plate Stopper1
1893503-16010滚珠Ball6
1962X-4384H-00弹簧Spring2
201UF-22434-00阀门面板1Plate,Valve 11
2162X-43875-00开口Ring, Snap1
2291690-40010弹簧销Pin,Spring2
2393210-06519O型圈O-ring2
2462X-43864-00O型圈O-ring1
2593210-29375O型圈O-ring1
2697885-05020大柱头螺钉Screw, Pan Head3
2762X-4380L-00O型圈Housing, Trim & Tilt Sub-Assembly1
2862X-4385M-00O型圈Plate, Reservoir1
2997095-06016螺栓Bolt4
3092995-06100垫圈Washer,Spring4
3162X-43865-00O型圈O-ring1
3262X-43866-00O型圈O-ring1
3362X-43878-00座螺Bolt, Socket3
346H1-43817-01过滤器2Filter 21
356H1-4385H-00弹簧密封Spring, Seal1
366H1-43831-10轴连接器Connector,Shaft1
3791318-04025螺栓Bolt4
386T4-43802-01阀门分组合Valve Sub-Assembly2
396H1-43866-00O型圈O-ring1
406H1-43867-00O型圈O-ring1
4193210-09350O型圈O-ring2
4262X-43841-00滑梭活塞Piston, Shuttle1
436H1-43829-00塞Plug,Reservoir1
4462X-43830-00齿轮泵组合Gear Pump Assembly1
4593210-06519O型圈O-ring2
466H1-4384F-10主阀门密封Seal,MainValve3
476H1-43844-10阀门支销Pin, Valve Support2
486H1-43856-10下减压弹簧Spring, Down Relief1
496H1-43816-00过滤器1Filter 11
506H1-43896-00O型圈O-ring1
516H1-4384G-11安全阀密封Seal, Relief Valve1
526H1-43855-11上减压弹簧Spring1
536H1-43895-11安全阀座Seat, Relief Valve1
5462X-4382L-00O型圈Cap Relief Valve1
5597607-05210盘头带垫螺钉Screw, Pan Head With Washer2
5690647-11032固定Clip1
5762X-4383A-00软管Hose1
5862X-43860-00手控阀门分组合Manual Valve Sub-Assembly1
5993505-32038滚珠Ball1
6093210-18397O型圈O-ring1
616H1-43875-00卡环Ring, Snap1
6261A-4385H-00弹簧密封Spring, Seal1
6393605-10108定位销Pin, Dowel1
6493210-06632滚珠轴承附件O-ring1
6593210-07540O型圈O-ring1
666T4-43876-00开口Ring, Snap1
676T4-43849-00阀门支销Pin, Valve Support1
6862X-43880-00电动机总成Motor Assembly1
6962X-43805-00电枢组合Armature Assembly1
7062X-43804-00定子组合Stator Assembly1
7162X-43891-00电刷Brush 11
7262X-43892-00O型圈Brush 21
7362X-82181-00断路器组Circuit Breaker Complete1
7462X-4380F-00电刷架板Plate, Brush Holder1
7562X-43807-00导线分组合Wire Sub Assembly1
7662X-4386K-00电刷弹簧Spring, Brush2
7797880-05020大柱头螺钉Screw, Pan Head3
7897607-04112带垫圈大柱头螺钉Screw, Pan Head With Washer2
7962X-43881-00端部框架Frame, End1
8062X-4380H-00轴连接器Metal1
8193102-08414油封Oil Seal1
8290201-083J8平垫圈Washer, Plate1
8393210-52449O型圈O-ring1
8492990-05100盘形垫Washer,Spring3

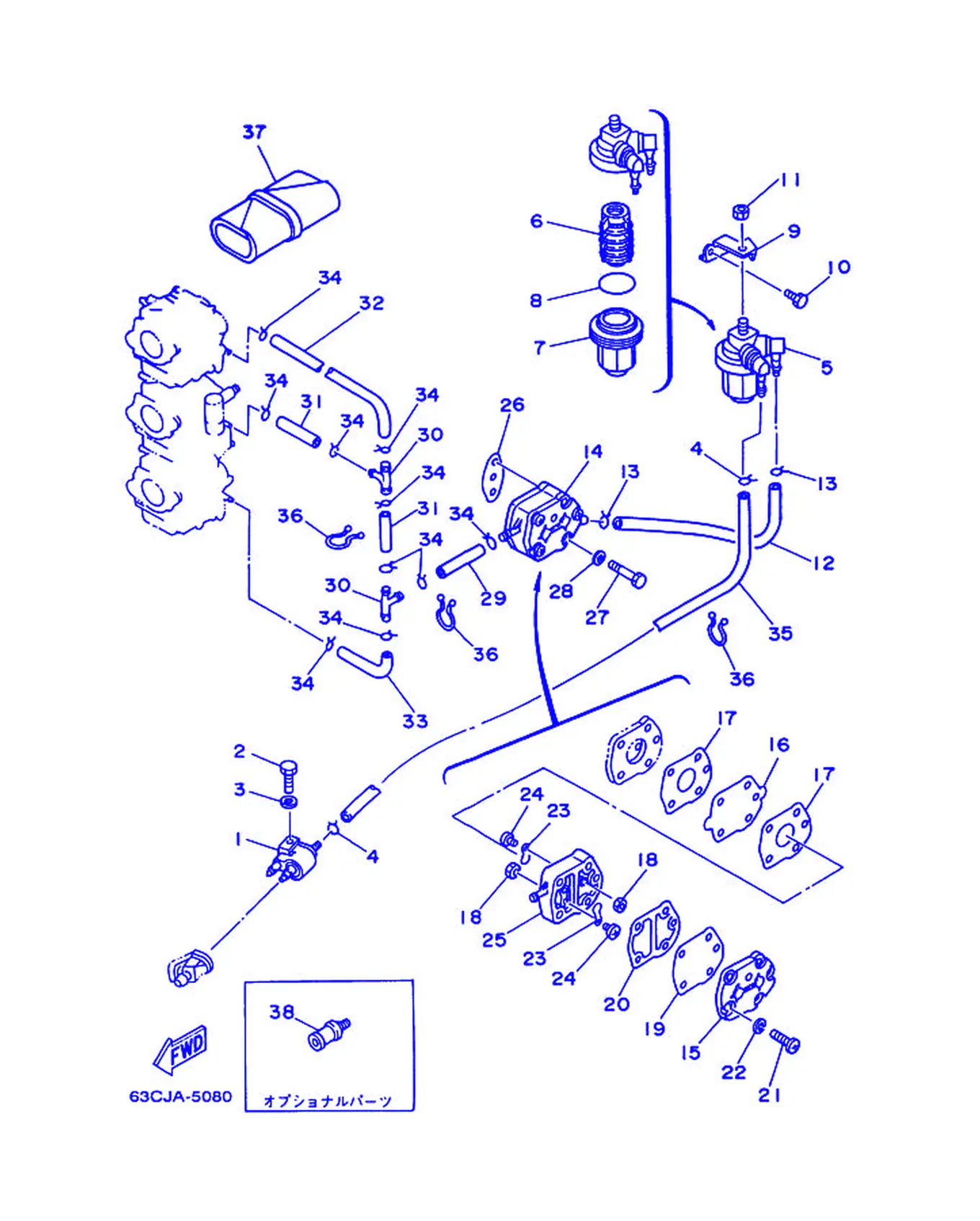

フユエル
フユエル爆炸图
REF雅马哈编码中文名称英文名称用量
16G1-24304-02燃油管接头组件1Fuel Pipe Joint Complete1
297095-06025螺栓Bolt1
392990-06600面板垫圈Washer,Plate1
490467-08004卡环Clip2
561N-24560-00机油过滤器组合Filter Assembly1
661N-24563-00过滤器滤芯Element, Filter1
761N-24521-00滤杯Cup, Filter1
893210-32738O型圈O-ring1
96H4-24566-01过滤器托架Bracket, Filter1
1097395-06014螺栓Bolt1
1195380-08600有槽螺母Nut1
126H4-24314-00管4Pipe 41
1390467-08004卡环Clip2
14692-24410-00燃油泵组合FuelPumpAssembly1
15648-24413-01燃油泵本体2Body 21
16692-24411-00隔板Diaphragm1
17648-24434-01本体衬垫Gasket, Body2
1895380-03600有槽螺母Nut2
19663-24411-00隔板Diaphragm1
20648-24435-02本体衬垫2Gasket, Body 21
2198580-05530大柱头螺钉Screw, Pan Head3
2292990-05100盘形垫Washer,Spring3
236A0-24421-01单向阀Valve, Check2
246A0-14325-00扁头螺钉Screw, Pan Head2
256A0-24412-02燃油泵本体1Body 11
26650-24431-A0燃油泵衬垫1Gasket,FuelPump 11
2797095-06040螺栓Bolt2
2892990-06600面板垫圈Washer,Plate2
2990445-09063软管Hose1
30688-24378-00连接管4Pipe,Joint2
3190445-09057固定Hose2
326H4-24313-00管3Pipe 31
336H4-24312-00管2Pipe 21
3490467-08004卡环Clip10
356H4-24311-00燃油管1Pipe,Fuel 11
3690464-16039固定夹Clamp3
37656-W2810-02工具套ToolKit1
386E0-28193-00-94单向放水Plug, Water Check1

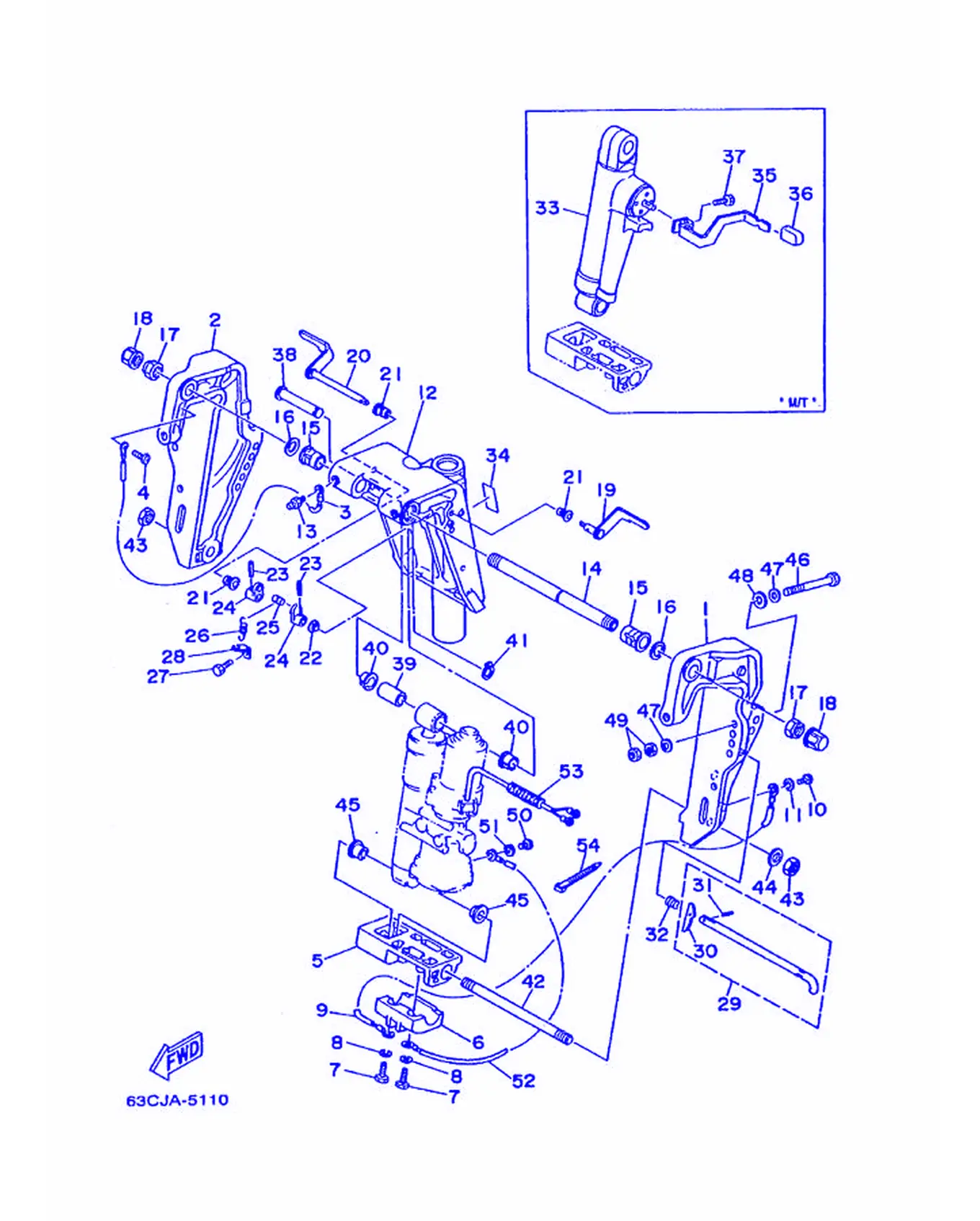

ブラケツト 1(ハイドロチルト_パワートリム.チルト)
ブラケツト 1(ハイドロチルト_パワートリム.チルト)爆炸图
REF雅马哈编码中文名称英文名称用量
163D-43111-00-4D夹紧托架Bracket,Clamp1
263D-43112-00-4D夹紧托架Bracket,Clamp1
363D-82148-00导线4Wire,Lead 41
497885-06008大柱头螺钉Screw, Pan Head1
563D-43128-01-4D夹紧托架衬套Spacer,ClampBracket1
663D-45251-00阳极Anode1
797095-06025螺栓Bolt2
892995-06100垫圈Washer,Spring2
96H1-82148-00导线4Wire,Lead 41
1097095-06010螺栓Bolt1
1192990-06600面板垫圈Washer,Plate1
1263D-43311-10-4D旋转支架Bracket, Swivel1
1393700-06M03润滑油管嘴Nipple, Grease3
1463D-43131-00夹紧托架螺Bolt,ClampBracket1
1590386-22M15衬套Bushing2
1690201-22M03平垫圈Washer,Plate2
1790185-22M11自锁螺母Nut, Self-Locking2
186G5-43145-00夹紧托架盖Cap,ClampBracket2
196H5-43181-03顶位销杆Lever, Tilt Stop1
206H5-43185-03顶位销杆Lever, Tilt Stop1
2190386-10M16衬套Bushing3
2290386-10025衬套Bushing1
2391690-30020弹簧销Pin,Spring2
246G5-43148-00间隔轴Collar, Distance2
2590249-06M19螺丝Pin1
2690506-14M24拉簧Spring, Tension1
2797095-06010螺栓Bolt1
286G5-43144-00弹簧Hook,Spring1
29688-43160-01角度定位杆组合TiltRodAssembly1
30688-43165-00角度定位锁紧面板Plate, Tilt Lock1
3191690-30012弹簧销Pin,Spring1
3290502-16M02锥形弹簧Spring, Conical1
3362X-43170-10-4D减震器组合Shock Absorber Assembly1
3463D-43691-00角度定位指示器Indicator, Tilt1
3563D-43631-00角度定位杆Lever,Tilt1
36682-43318-01盖Cover1
3797095-06010螺栓Bolt1
386E5-43126-02上侧防震销Pin, Upper Shock Mount1
3990386-18M92衬套Bushing1
4090386-18M35衬套Bushing2
4193410-18M02开口簧环，卡Circlip1
4290116-18M52双头螺栓Bolt, Stud1
4390170-18M10螺帽Nut2
4492995-18600盘形垫Washer1
4590386-18M44衬套Bushing2
4690101-12M65卡环Bolt, Hexagon4
4792995-12200盘形垫Washer8
4890201-12426平垫圈Washer,Plate4
4995380-12600有槽螺母Nut8
5097095-06010螺栓Bolt1
5192990-06600面板垫圈Washer,Plate1
526H1-82148-00导线4Wire,Lead 41
5390440-14M00固定Pipe1
5490465-11M10固定Clamp3

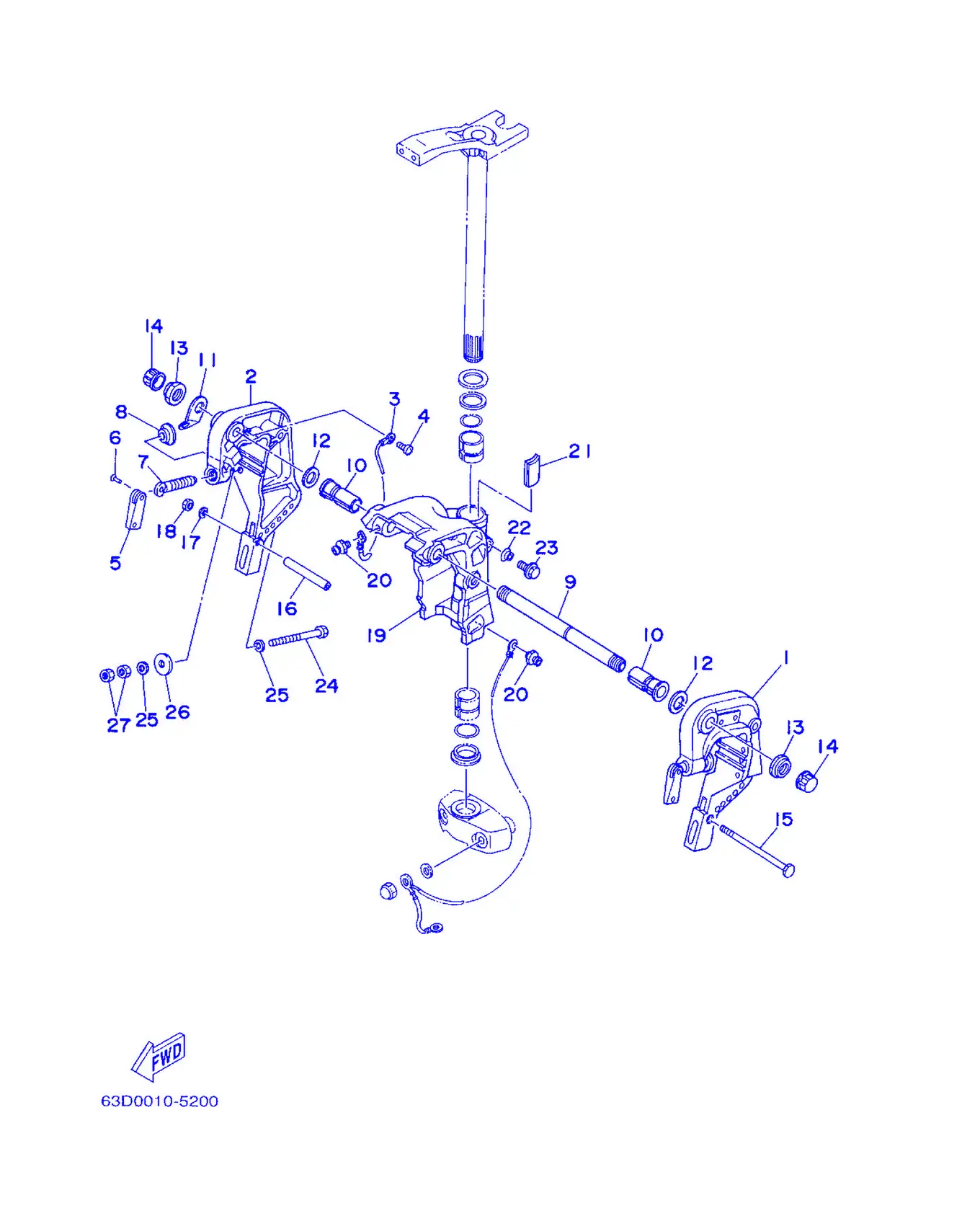

ブラケツト 2 (マニユアルチルトシヨウ)
ブラケツト 2 (マニユアルチルトシヨウ)爆炸图
REF雅马哈编码中文名称英文名称用量
16H4-43111-05-4D夹紧托架Bracket,Clamp 11
26H4-43112-04-4D夹紧托架Bracket,Clamp 21
36E5-82148-00导线4Wire,Lead 41
497885-06008大柱头螺钉Screw, Pan Head1
5616-43118-01-4D艉板夹紧手柄Handle, Transom Clamp2
690243-04M00螺丝Pin2
790149-14M12螺钉Screw2
8648-43114-01艉板夹紧衬垫Pad, Transom Clamp2
963D-43131-00夹紧托架螺Bolt,ClampBracket1
1090386-22M69衬套Bushing2
116J8-43113-01夹紧托架面板Plate,ClampBracket1
1290201-22M03平垫圈Washer,Plate2
1390185-22M11自锁螺母Nut, Self-Locking2
146G5-43145-00夹紧托架盖Cap,ClampBracket2
1590101-08339卡环Bolt, Hexagon1
1690387-08M03衬套Color1
1792990-08600盘形垫Washer,Plate1
1895380-08600有槽螺母Nut1
196J8-43311-10-4D旋转支架Bracket, Swivel1
2093700-06M03润滑油管嘴Nipple, Grease3
216J8-42528-00阻力板Plate, Friction1
22689-43373-01减震器密封Seal,Damper1
2390105-06M18螺栓Bolt, Washer Based Head1
2490101-10M58卡环Bolt, Hexagon4
2592995-10600盘形垫Washer8
2690201-12426平垫圈Washer,Plate4
2795380-10600有槽螺母Nut8

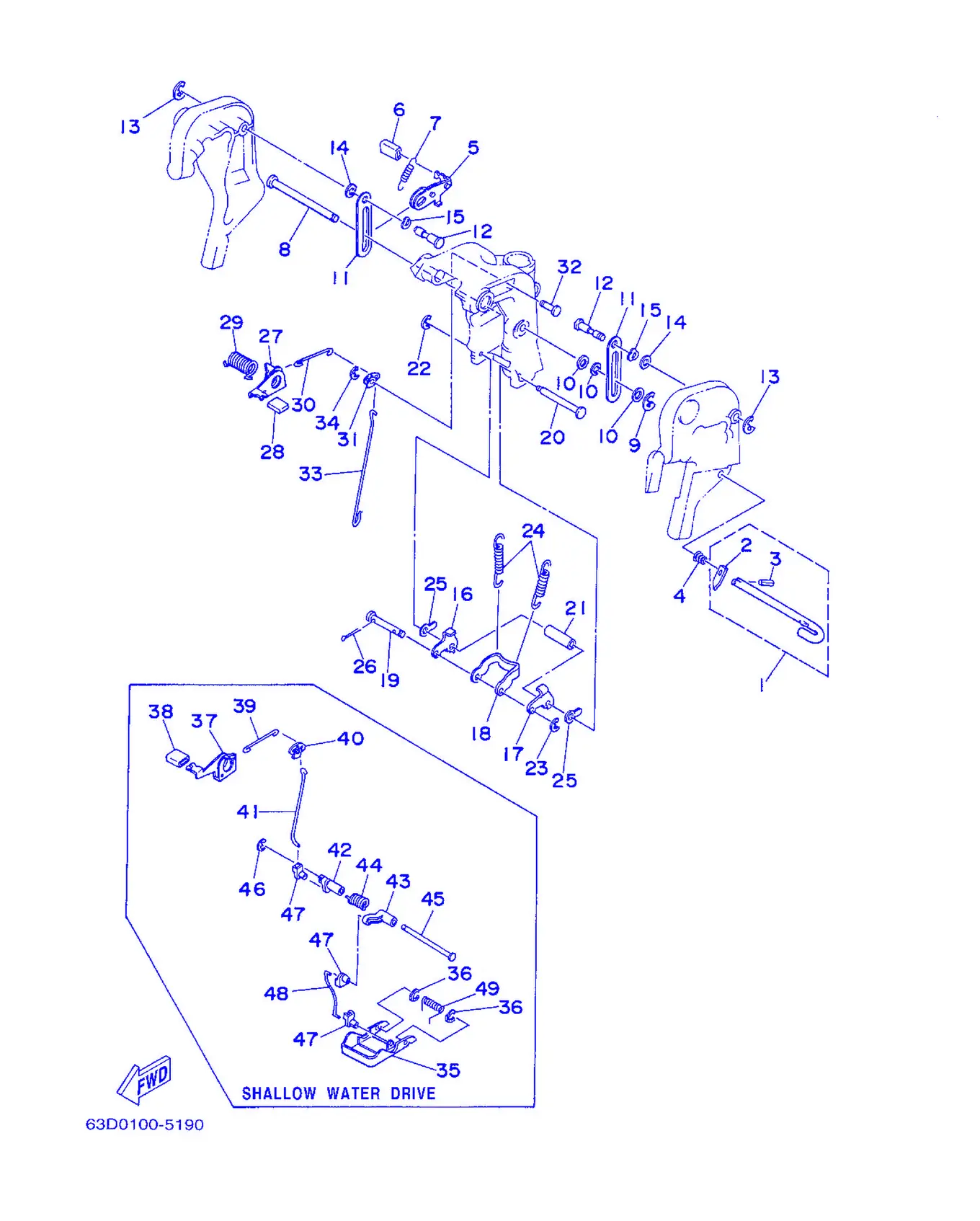

ブラケツト 3 (マニユアルチルトシヨウ)
ブラケツト 3 (マニユアルチルトシヨウ)爆炸图
REF雅马哈编码中文名称英文名称用量
16H4-43160-01角度定位杆组合TiltRodAssembly1
2676-43165-00角度定位锁紧面板Plate, Tilt Lock1
391690-30010弹簧销Pin,Spring1
490502-10M04接头Spring, Conical1
56J8-43181-01顶位销杆Lever, Tilt Stop1
6682-43318-01盖Cover1
790506-12M25固定Spring, Tension1
890249-12M28螺栓Pin1
993430-10M00开口簧环，卡Circlip1
1090202-12031平垫圈Washer,Plate3
116J8-43627-00限位板Stopper2
1290249-12M27螺丝Pin2
1393430-10M00开口簧环，卡Circlip2
1490202-12031平垫圈Washer,Plate2
1590206-12M16平垫圈Washer, Wave2
166J8-43614-00角度定位锁紧面板Plate,TiltLock1
176J8-43615-00角度定位锁紧面板Plate,TiltLock1
186J8-43613-01角度定位锁紧臂Arm,TiltLock1
196H4-43659-00倒挡锁紧轴Shaft, Reverse Lock1
206J8-43611-01角度定位锁紧轴Shaft,TiltLock1
2190387-07M64衬套Color1
2293430-06M02卡环Circlip1
2399080-05600卡环Circlip1
2490506-32M22接头Spring, Tension2
256H4-43674-00垫圈Washer2
2691490-20010开口销Pin, Cotter2
276J8-43631-00角度定位杆Lever,Tilt1
286J8-43633-00角度定位杆盖Cover,TiltLever1
2990508-18M24接头Spring, Torsion1
2990508-18M23接头Spring, Torsion1
306H4-43616-00角度定位锁紧杆Rod,TiltLock1
316J8-43641-00角度定位杆Lever,Tilt1
3290249-06M23卡环Pin1
3290249-06M24螺栓Pin1
336J8-43617-00角度定位锁紧杆Rod,TiltLock1
3499080-05600卡环Circlip1
356J8-43681-01浅水航行杆Lever, Shallow Water Drive 11
366J8-43673-00垫圈1Washer 12
376J8-43631-10角度定位杆Lever,Tilt1
386J8-43633-00角度定位杆盖Cover,TiltLever1
396H4-43616-00角度定位锁紧杆Rod,TiltLock1
406J8-43641-00角度定位杆Lever,Tilt1
416J8-43617-10角度定位锁紧杆Rod,TiltLock1
426J8-43186-00杠杆Lever1
436J8-43187-00杠杆2Lever21
4490508-25M21接头Spring, Torsion1
4590249-07M25固定Pin1
4699080-05600卡环Circlip1
476J8-41262-00阻风门杠杆接头Joint, Choke Lever3
486J8-43616-10角度定位锁紧杆Rod,TiltLock1
4990508-20M22接头Spring, Torsion1

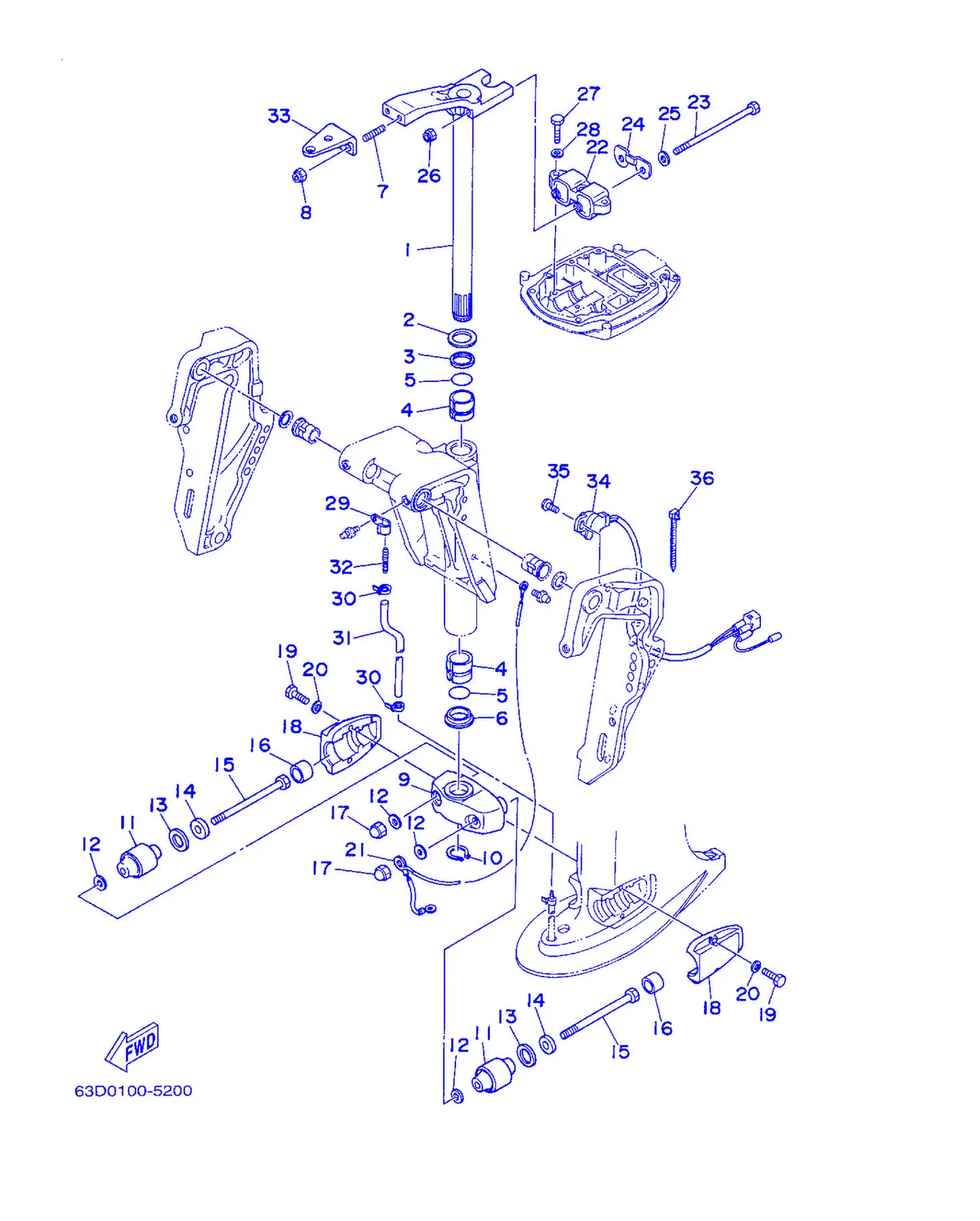

ブラケツト 4
ブラケツト 4爆炸图
REF雅马哈编码中文名称英文名称用量
163D-42510-10-4D方向托架组合SteeringBracketAssembly1
290201-30M00平垫圈Washer,Plate1
390386-30M78衬套Bushing1
490386-30M77衬套Bushing2
593210-29M94O型圈O-ring2
690386-30M60衬套Bushing1
790116-10175螺栓Bolt, Stud2
890185-10051螺母Nut, Self-Locking2
963D-44551-01-4D下侧减震胶垫壳Housing, Lower Mount Rubber1
1093410-28M06卡环Circlip1
1163D-44555-00-94下侧减震胶垫Mount Damper, Lower Side2
11688-44555-00-94下侧减震胶垫Mount Damper, Lower Side2
1290201-12M16平垫圈Washer,Plate4
1390202-25M04平垫圈Washer,Plate2
1490201-13M19平垫圈Washer,Plate2
1590109-12M21螺母Bolt2
16663-44575-00下侧减震胶垫Damper, Lower Mount Rubber2
1795380-12800有槽螺母Nut, Crown2
1863D-44552-01-4D下侧减震胶垫壳Housing, Lower Mount Rubber2
1997395-08030螺栓Bolt4
2092995-08100盘形垫Washer4
2163D-82127-10导线2Wire,Lead 21
2263D-44514-00-94上侧减震胶垫Mount Damper, Upper Side1
2263D-44514-20-94上侧减震胶垫Mount Damper, Upper Side1
2390101-08M15卡环Bolt, Hexagon2
2463D-44526-00面板Plate1
2590201-09425平垫圈Washer,Plate2
2690185-08045螺母Nut, Self-Locking2
2797395-08030螺栓Bolt3
2892995-08100盘形垫Washer3
2990465-08028固定Clamp1
3090465-11M10固定Clamp2
3190445-07MF1固定Hose1
326E5-83558-00管嘴端部End, Nipple1
3363D-48511-00-4D操舵连接板Hook,Steering1
3463D-83672-00纵倾角传感TrimSensor1
3597885-06016大柱头螺钉Screw, Pan Head2
3690465-13M11线夹Clamp1

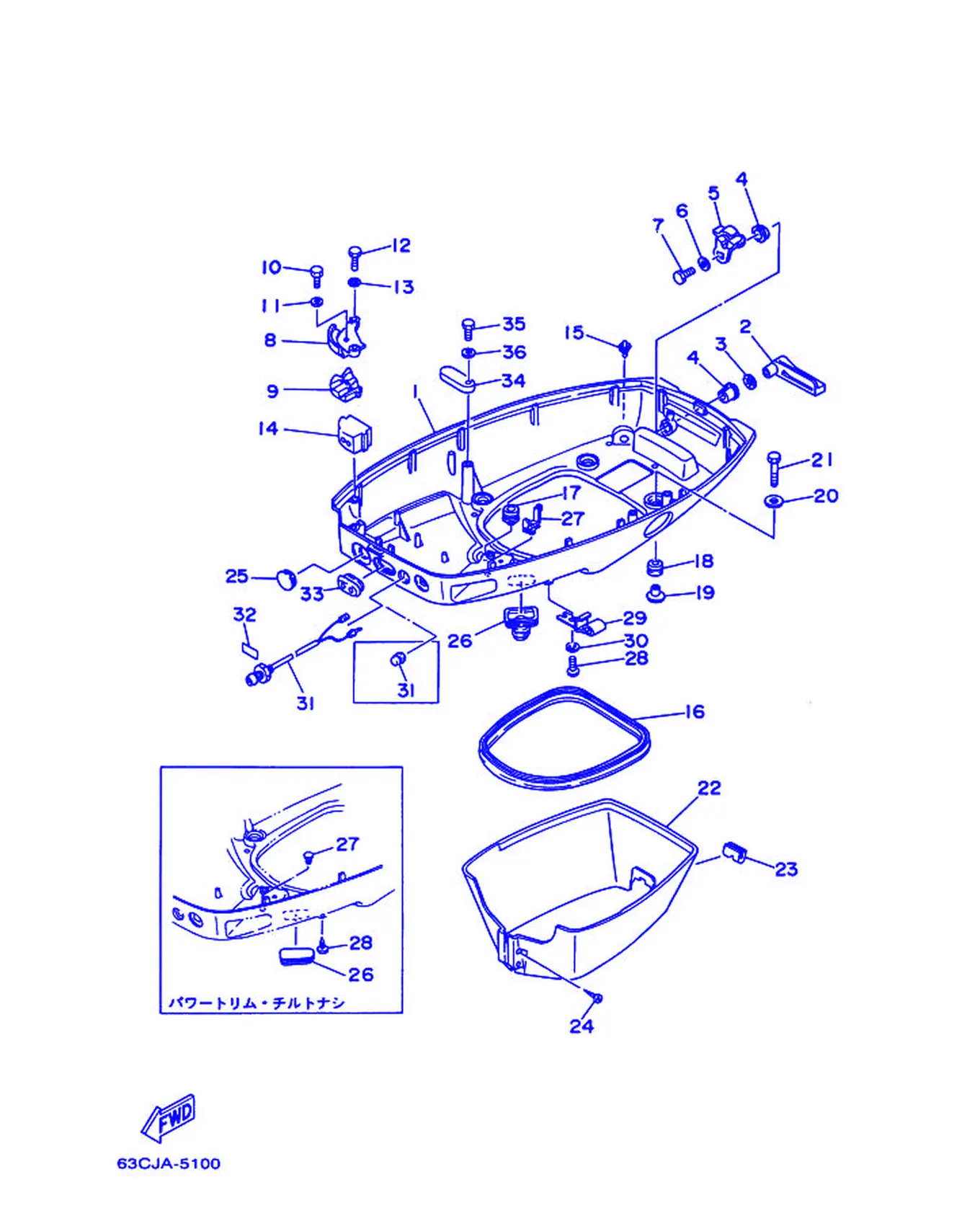

ボトムカウリング
ボトムカウリング爆炸图
REF雅马哈编码中文名称英文名称用量
16H4-42711-07-4D底罩Cowling, Bottom1
16H4-42711-25-4D底罩Cowling, Bottom1
26H4-42815-00夹杆Lever,Clamp1
390206-12052平垫圈Washer, Wave1
490386-12069衬套Bushing2
56H4-42816-00夹杆Lever,Clamp1
690201-06M02平垫圈Washer,Plate1
797313-06010螺栓Bolt1
86H4-48531-11-94遥控装置托架1Bracket, Remote Control 11
96H4-48532-11-94遥控装置托架2Bracket, Remote Control 21
1097095-05016螺栓Bolt1
1192990-05600盘形垫Washer,Plate1
1297095-06020螺栓Bolt2
1392990-06600面板垫圈Washer,Plate2
146H4-42724-20固定Grommet1
156E5-44391-00软管管嘴Nipple,Hose1
166H4-42716-00密封橡皮块1Rubber,Seal 11
176E5-42724-00固定Grommet1
1890480-09M21固定Grommet4
1990387-06M41衬套Color4
2090201-06416平垫圈Washer,Plate4
2197095-06030螺栓Bolt4
2263D-42741-00-4D挡板Apron1
2363D-42717-00密封橡皮块2Rubber,Seal 21
2497780-60525自攻螺钉Screw, Tapping2
25676-42726-00固定Grommet1
26688-42726-10固定Grommet1
266H4-42726-00固定Grommet1
2790464-15M08固定Clamp1
27703-82119-00导线盖Cover,LeadWire1
2890157-06M01卡环Screw, Pan Head1
2890338-05M03衬套Plug1
296E5-24367-01燃油管夹2Clamp,FuelPipe 21
3092990-06600面板垫圈Washer,Plate1
316H4-42725-00固定Grommet1
316J8-85410-00紧急信号灯组合Emergency Signal Light Assembly1
326H4-85415-10信号灯标志Mark1
336H3-42727-00固定Grommet1
346E5-82588-00面板Plate1
3597095-06020螺栓Bolt1
3692990-06600面板垫圈Washer,Plate1

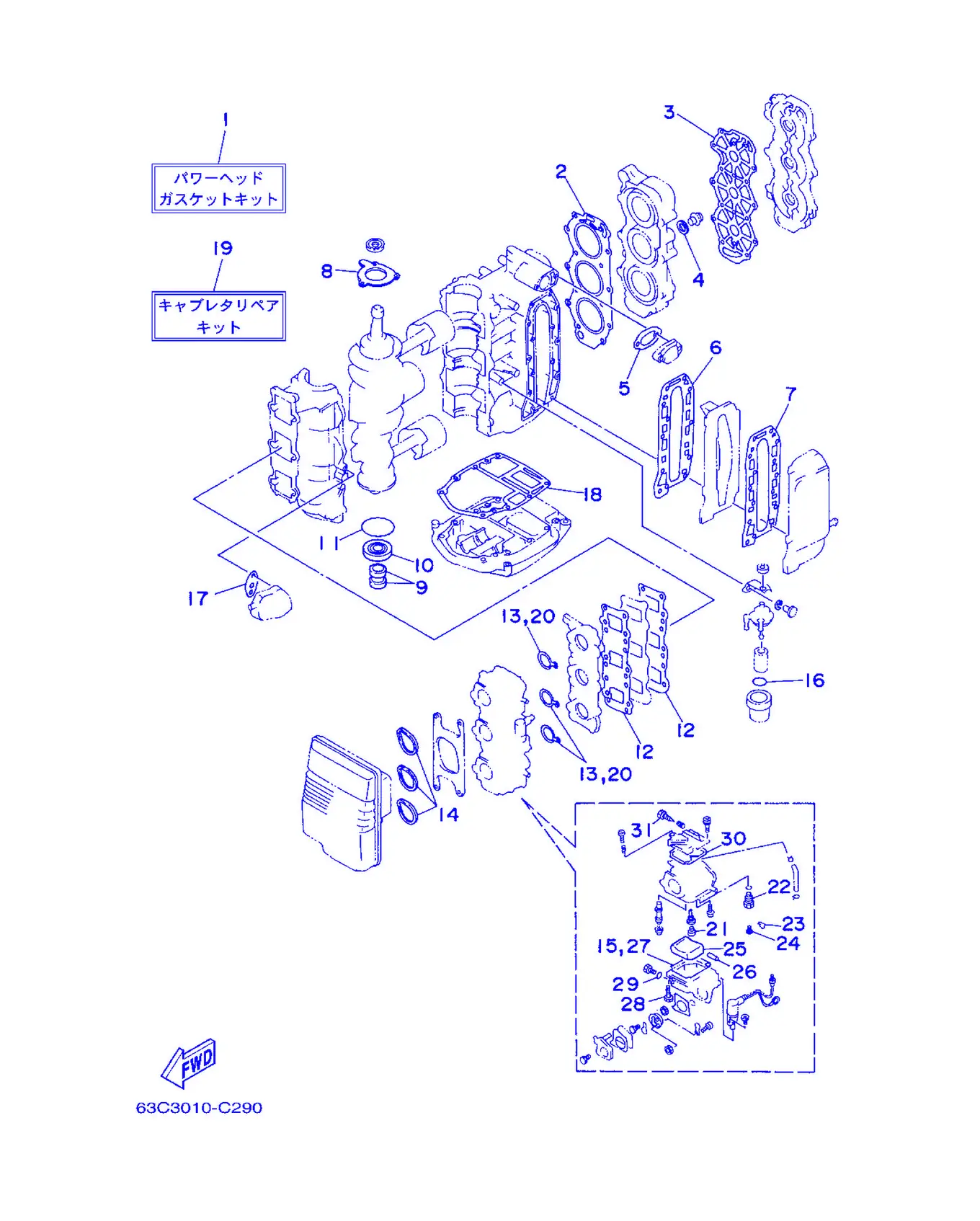

リペアキツト 1
リペアキツト 1爆炸图
REF雅马哈编码中文名称英文名称用量
163D-W0001-00衬垫套Power Head Gasket Kit1
263D-11181-A0气缸头垫片1Gasket, Cylinder Head 11
363D-11193-A0气缸盖罩衬垫1Gasket, Head Cover 11
490430-14115垫片Gasket1
56J8-12414-A0盖衬垫Gasket,Cover1
66H4-41112-A0排气管内盖衬垫Gasket, Exhaust Inner Cover1
76H4-41114-A0排气管外盖衬垫Gasket, Exhaust Outer Cover1
86H4-15369-A1油封壳体衬垫Gasket,OilSealHousing1
993101-16M36油封OilSeal2
1093102-25M28油封OilSeal1
1193210-57M09O型圈O-ring1
126H4-13621-A1阀座衬垫Gasket,ValveSeat2
136H4-14198-01垫片Gasket3
146H3-14457-01密封Seal3
156H4-14984-00浮子室衬垫Gasket, Float Chamber3
1693210-32738O型圈O-ring1
17650-24431-A0燃油泵衬垫1Gasket,FuelPump 11
186H4-45113-A0水上装置壳体衬垫Gasket,UpperCasing1
196H4-W0093-03化油器修理套CarburetorRepair Kit1
206H4-14198-01垫片Gasket3
21676-14966-00起动杆Cap3
226H4-14590-00针阀组合NeedleValveAssembly3
23663-14159-00钢夹Clip3
24676-14186-00浮子销Pin, Float3
256H4-14985-01浮子Float3
266H4-14548-00浮子臂销Pin, Float Arm3
276H4-14984-00浮子室衬垫Gasket, Float Chamber3
2897980-04114带垫圈螺钉Screw, Washer3
2993210-04230O型圈O-ring3
306H4-14147-00O型圈0-Ring3
31692-14923-00低速螺钉Screw,Pilot3

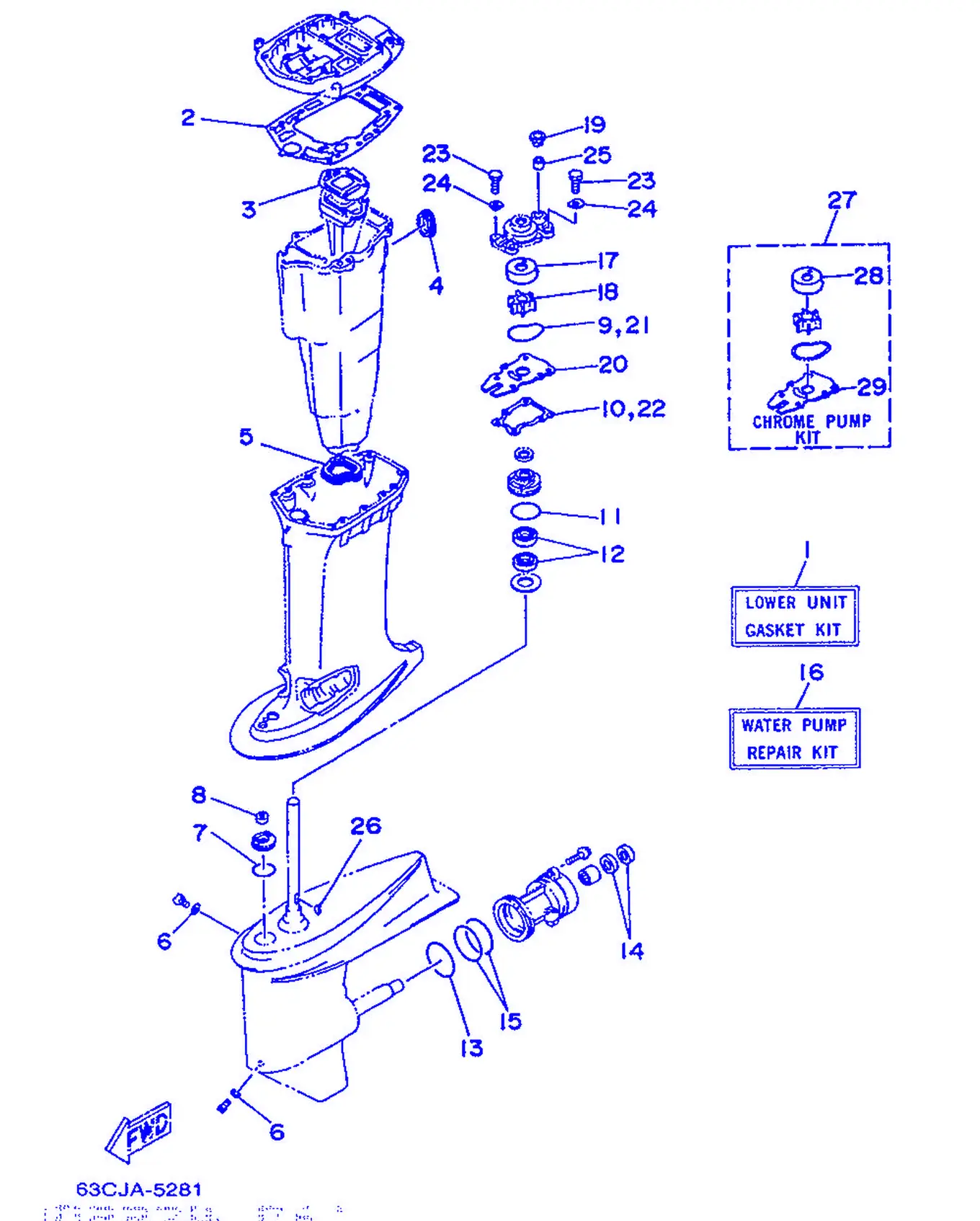

リペアキツト 2
リペアキツト 2爆炸图
REF雅马哈编码中文名称英文名称用量
163D-W0001-20衬垫套LowerUnitGasket Kit1
263D-45114-A0水上装置壳体衬垫Gasket,UpperCasing1
36H4-41134-A0排气岐管衬垫Gasket, Exhaust Manifold1
46H3-45127-00密封Seal1
563D-45123-00消音器衬垫Gasket,Muffler1
690430-08020固定Gasket3
793210-33MG4O型圈O-ring1
893106-09014油封OilSeal1
993210-59MG7O型圈O-ring1
1063D-44316-00水泵衬垫Gasket,Water Pump1
1193210-48MG8O型圈O-ring1
1293101-25M57油封OilSeal2
1393210-69MG6O型圈O-ring1
1493101-22067油封OilSeal2
1593210-74MG5O型圈O-ring2
1663D-W0078-00水泵修理套Water PumpRepair Kit1
1763D-44322-00芯子Insert, Cartridge1
186H3-44352-00叶轮Impeller1
1963D-44312-00水泵壳体盖Cover,Water PumpHousing1
2063D-44323-00外挡板Outer Plate, Cartridge1
2193210-59MG7O型圈O-ring1
2263D-44316-00水泵衬垫Gasket,Water Pump1
2397395-08030螺栓Bolt4
2490209-08M02螺丝Washer4
25663-44366-00水封减震器Damper,WaterSeal1
2690280-03024半圆键Key, Woodruff1
2763D-W0078-0A水泵修理套Chrome Pump Kit1
2863D-44322-40芯子Insert, Cartridge1
2963D-44323-40外挡板Outer Plate, Cartridge1

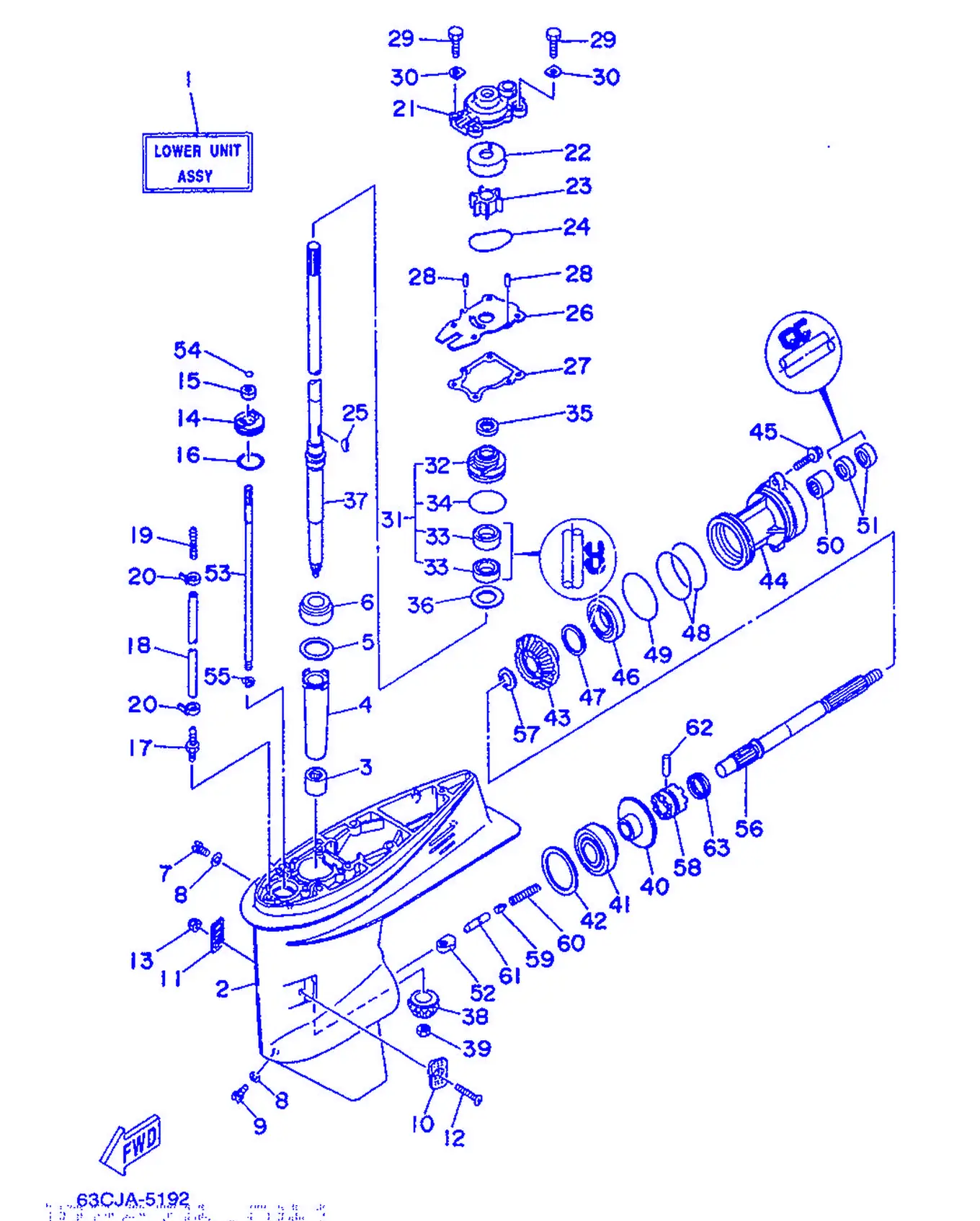

ロワーケーシング. ドライブ 1
ロワーケーシング. ドライブ 1爆炸图
REF雅马哈编码中文名称英文名称用量
163D-45300-50-4D水下装置总成LowerUnitAssembly1
163D-45300-60-4D水下装置总成LowerUnitAssembly1
263D-45301-11-4D水下装置壳Casing,Lower1
393315-32224轴承Bearing1
46H4-45536-00驱动轴套Sleeve,Drive Shaft1
5663-45587-01-10填隙Shim (T:0.10MM)1
5663-45587-01-12填隙Shim (T:0.12MM)1
5663-45587-01-15填隙Shim (T:0.15MM)1
5663-45587-01-18填隙Shim (T:0.18MM)1
5663-45587-01-30填隙Shim (T:0.30MM)1
5663-45587-01-40填隙Shim (T:0.40MM)1
5663-45587-01-50填隙Shim (T:0.50MM)1
693332-00001轴承Bearing1
790340-08M04衬套Plug, Straight Screw1
890430-08020固定Gasket2
9688-45341-00放油Plug, Drain1
1063D-45214-00进水口盖Cover, Water Inlet1
1163D-45215-00进水口盖Cover, Water Inlet1
1290142-05M06螺丝Screw, Countersunk1
1395380-05600螺母Nut1
1463D-45321-00面板Plate1
1593106-09014油封OilSeal1
1693210-33MG4O型圈O-ring1
176E5-45378-00软管嘴Nipple,Hose1
1890445-07M31固定Hose (L200)1
1890445-07M38固定Hose1
196E5-83558-10管嘴端部End, Nipple1
196E5-83558-00管嘴端部End, Nipple1
2090465-11M10固定Clamp2
2163D-44311-00水泵壳Housing,Water Pump1
2263D-44322-00芯子Insert, Cartridge1
236H3-44352-00叶轮Impeller1
2493210-59MG7O型圈O-ring1
2590280-03024半圆键Key, Woodruff1
2663D-44323-00外挡板Outer Plate, Cartridge1
2763D-44316-00水泵衬垫Gasket,Water Pump1
2893604-08062定位销Pin, Dowel2
2997395-08030螺栓Bolt4
3090209-08M02螺丝Washer4
3163D-W4434-00水泵壳体组合Water Pump Housing Assembly1
3263D-44341-00水泵壳Housing,Water Pump1
3393101-25M57油封OilSeal2
3493210-48MG8O型圈O-ring1
3563D-45344-00油封盖Cover,OilSeal1
3690201-27M00平垫圈Washer,Plate1
3763D-45501-10驱动轴组Drive ShaftComplete1
3763D-45501-20驱动轴组Drive ShaftComplete1
386H4-45551-01小齿轮Pinion1
3990170-12138螺帽Nut1
406H4-45560-01齿轮Gear1
4193332-00003轴承Bearing1
42663-45567-01-10填隙Shim (T:0.10MM)1
42663-45567-01-12填隙Shim (T:0.12MM)1
42663-45567-01-15填隙Shim (T:0.15MM)1
42663-45567-01-18填隙Shim (T:0.18MM)1
42663-45567-01-30填隙Shim (T:0.30MM)1
42663-45567-01-40填隙Shim (T:0.40MM)1
42663-45567-01-50填隙Shim (T:0.50MM)1
436H4-45571-01齿Gear1
4463D-45361-01-4D水下装置壳体盖Cap,Lower Casing1
4590105-08M61凸缘螺栓Bolt, Washer Based Head2
4693306-001U1轴承Bearing1
4763D-45577-00-10填隙Shim (T:0.10MM)1
4763D-45577-00-12填隙Shim (T:0.12MM)1
4763D-45577-00-15填隙Shim (T:0.15MM)1
4763D-45577-00-18填隙Shim (T:0.18MM)1
4763D-45577-00-30填隙Shim (T:0.30MM)1
4763D-45577-00-40填隙Shim (T:0.40MM)1
4763D-45577-00-50填隙Shim (T:0.50MM)1
4893210-74MG5O型圈O-ring2
4993210-69MG6O型圈O-ring1
5093317-22204轴承Bearing1
5193101-22067油封OilSeal2
52663-44151-00变挡凸轮Cam, Shift1
5363D-44144-00变挡连杆Rod, Shift1
5493210-07540O型圈O-ring1
5599001-08600卡环Circlip1
5663D-45611-00螺旋浆轴Shaft,Propeller1
5790201-22429平垫圈Washer,Plate1
5863D-45631-00爪形离合器Clutch, Dog1
59663-45634-00变挡滑Slide, Shift1
6090501-16M01压缩弹簧Spring, Compression1
6163D-45635-00变挡柱Plunger, Shift1
6290250-06023销Pin, Straight1
63663-45633-00固定环Ring, Cross Pin1
ロワーケーシング. ドライブ 2

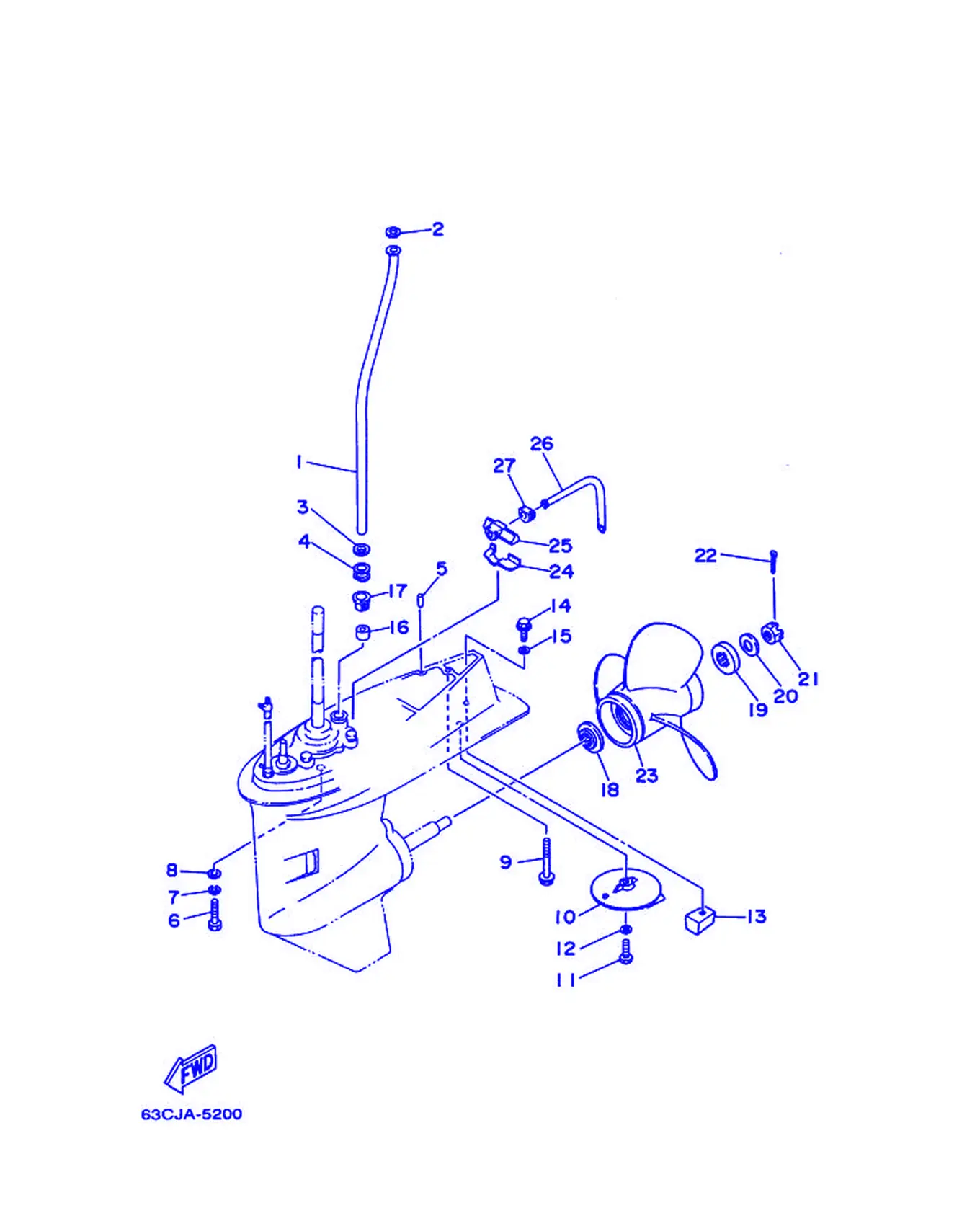

ロワーケーシング. ドライブ 2爆炸图
REF雅马哈编码中文名称英文名称用量
163D-44361-10水管Tube, Water1
163D-44361-20水管Tube, Water1
290202-12060平垫圈Washer,Plate1
390430-12072衬垫Gasket1
463D-44367-00水封减震器Damper,WaterSeal1
593606-12019定位销Pin, Dowel2
697095-10040螺栓Bolt4
792990-10100弹簧垫圈Washer,Spring4
892990-10600垫圈Washer,Plate4
990119-08M84带垫螺栓Bolt, With Washer1
10664-45371-01航向调整Tab Trim1
1197395-08025螺栓Bolt1
1292995-08100盘形垫Washer1
1363D-45251-10阳极Anode1
1497095-08020螺栓Bolt1
1592995-08100盘形垫Washer1
16663-44366-00水封减震器Damper,WaterSeal1
1763D-44312-00水泵壳体盖Cover,Water PumpHousing1
18663-45987-02衬套Spacer1
19670-45997-02衬套Spacer1
2092990-16200盘形垫Washer, Plain1
2190171-16011螺母Nut, Castle1
2291490-30030开口销Pin, Cotter1
23663-45945-02-EL螺旋浆组合Propeller (3X11-1/8 X13-G)1
23663-45954-01-EL螺旋浆Propeller (3X11-3/4 X10 -G)1
23663-45941-01-EL螺旋浆Propeller (3X10-3/4 X17 -G)1
23663-45947-02-EL螺旋浆组合Propeller (3X11-5/8 X11 -G)1
23663-45949-01-EL螺旋浆Propeller (3X10-3/4 X16 -G)1
23663-45952-02-EL螺旋浆Propeller (3X11-3/8 X12 -G)1
23663-45956-01-EL螺旋浆Propeller (3X12-1/4 X9 -G)1
246H4-45376-00密封圈减震块导承Guide,SealDamper1
2563D-45375-40密封圈减震Damper,Seal1
2663D-44362-00水管Tube, Water1
276H4-44365-00水封减震器Damper,WaterSeal1
