雅马哈 40J - 40JK

共 22 个部位，点击零件编码查看详情，或搜索本页零件。

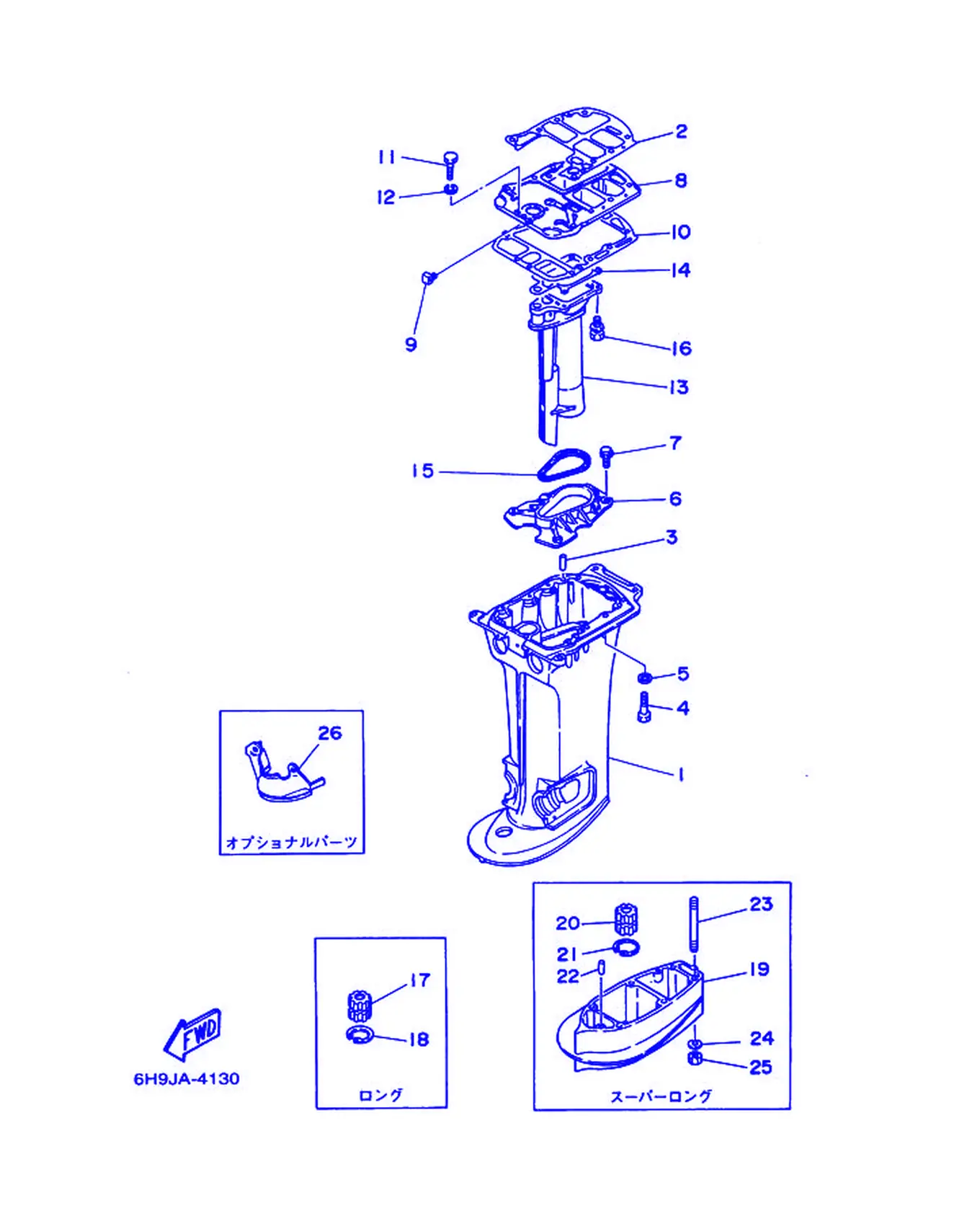

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	676-45111-03-4D	水上装置壳	Casing,Upper	1
1	6H9-45111-11-4D	水上装置壳	Casing,Upper	1
2	6F5-45113-A0	水上装置壳体衬垫	Gasket,UpperCasing	1
3	93606-25M00	定位销	Pin, Dowel	2
4	97095-08040	螺栓	Bolt	8
5	92990-08100	盘形垫	Washer,Spring	8
6	6F5-41116-00-5B	保护	Protector	1
7	90105-06M01	螺栓	Bolt, Washer Based Head	4
8	6F5-41137-02-5B	排气导管	Guide,Exhaust	1
9	6F5-41141-00	水混合弯管	Elbow, Water Mixing	1
10	676-45114-A0	水上装置壳体衬垫	Gasket,UpperCasing	1
11	97095-06025	螺栓	Bolt	3
12	92995-06100	垫圈	Washer,Spring	3
13	676-41131-01-5B	排气岐管1	Manifold, Exhaust 1	1
14	676-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
15	676-45127-00	密封	Seal	1
16	97595-06420	带垫圈螺	Bolt, With Washer	4
17	6A0-45318-00	驱动轴衬套	Bushing,Drive Shaft	1
18	93420-36M01	卡环	Circlip	1
19	6A0-45211-20-4D	延伸部分	Extension	1
20	6A0-45318-00	驱动轴衬套	Bushing,Drive Shaft	1
21	93420-36M01	卡环	Circlip	1
22	93606-12019	定位销	Pin, Dowel	2
23	90116-08M12	面板垫圈	Bolt, Stud	6
24	92990-08100	盘形垫	Washer,Spring	6
25	95380-08600	有槽螺母	Nut	6
26	676-45151-00-4D	水上装置壳体盖	Cover,UpperCasing	1
26	676-45151-10-4D	水上装置壳体盖	Cover,UpperCasing	1

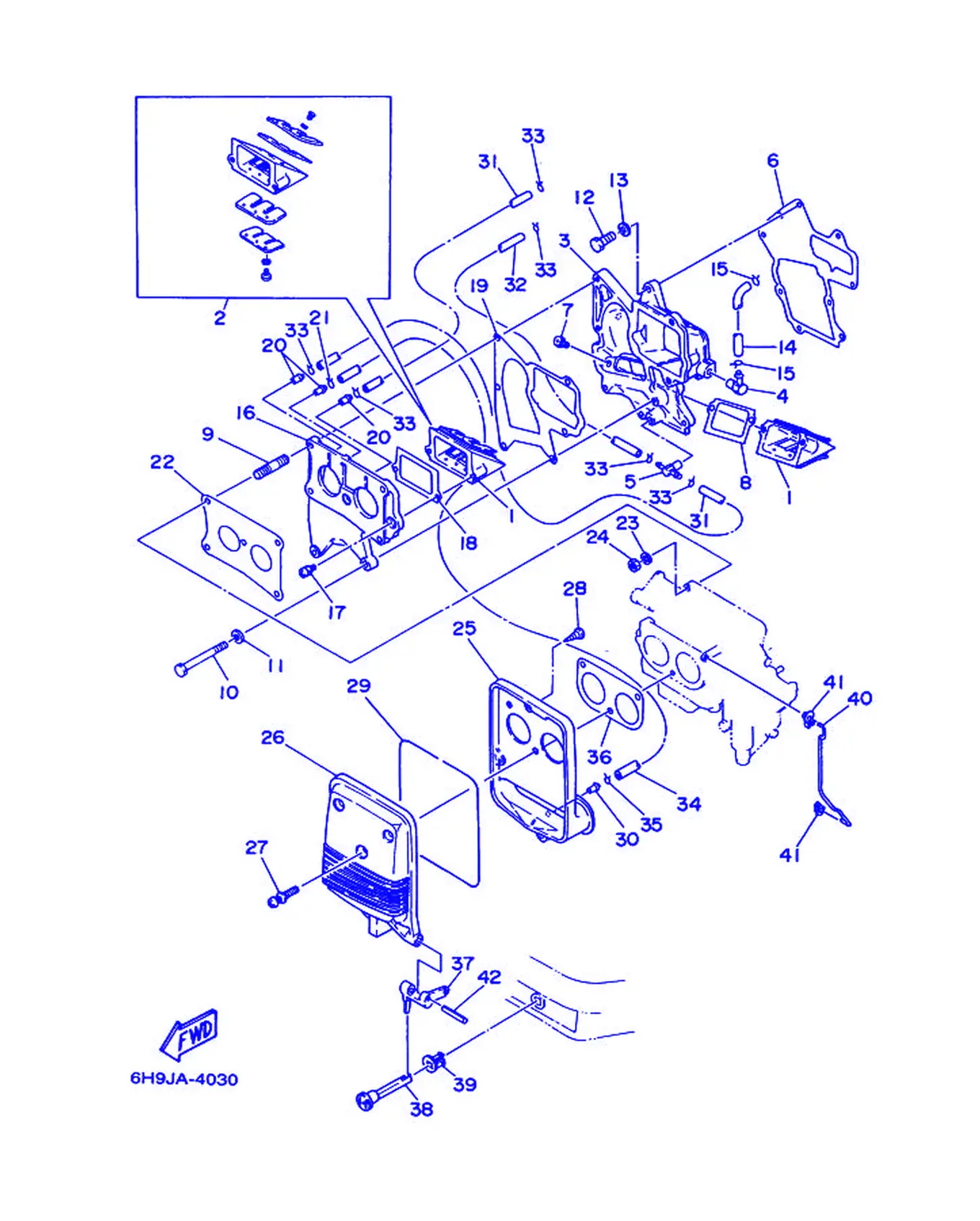

インテーク

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-13610-00	簧片阀组合	Reed ValveAssembly	2
2	6F5-W0004-00	簧片套	LeadSet	1
3	6F6-13641-00-94	岐管1	Manifold 1	1
4	650-11370-00	单向阀组合	Check Valve Assembly	1
5	6F6-11370-00	单向阀组合	Check Valve Assembly	1
6	6F5-13646-A1	岐管衬垫2	Gasket,Manifold 2	1
7	97980-05114	带垫圈螺钉	Screw, With Washer	2
8	6F5-13621-A0	阀座衬垫	Gasket,ValveSeat	1
9	90116-06M17	螺栓	Bolt, Stud	4
10	97313-06065	螺栓	Bolt	2
11	92990-06600	面板垫圈	Washer,Plate	2
12	97095-06025	螺栓	Bolt	7
13	92990-06600	面板垫圈	Washer,Plate	7
14	90445-07M44	固定	Hose (L250)	1
15	90467-06016	固定	Clip	2
16	6F5-13643-02-94	岐管盖	Cover,Manifold	1
17	97980-05114	带垫圈螺钉	Screw, With Washer	2
18	6F5-13621-A0	阀座衬垫	Gasket,ValveSeat	1
19	6F5-13645-A0	岐管衬垫1	Gasket,Manifold 1	1
20	624-14485-00	连接管	Pipe,Joint	3
21	90467-06016	固定	Clip	1
22	6F5-14198-A0	衬垫	Gasket	1
23	92990-06600	面板垫圈	Washer,Plate	4
24	95380-06600	有槽螺母	Nut, Hexagon	4
25	6F5-14417-00	盖1	Cover 1	1
26	6F5-14418-00	盖2	Cover 2	1
27	90159-06M01	带垫螺栓	Screw, With Washer	3
28	97780-50316	自攻螺钉	Screw, Tapping	4
29	6F5-14476-00	密封	Seal	1
30	624-14485-00	连接管	Pipe,Joint	1
31	90445-07240	固定	Hose	2
32	90445-07M24	固定	Hose (L240)	1
33	90467-06016	固定	Clip	6
34	90445-07240	固定	Hose	1
35	90467-06016	固定	Clip	1
36	6F5-14483-00	衬垫	Gasket	1
37	6F5-41252-00	阻风门杆	Lever, Choke	1
38	682-41271-00	阻风门旋钮	Knob, Choke	1
39	689-41273-00	固定	Grommet	1
40	6F5-41256-00	阻风门杆1	Rod, Choke 1	1
41	661-41262-02	阻风门杠杆接头	Joint, Choke Lever	2
42	91690-40032	弹簧销	Pin,Spring	1

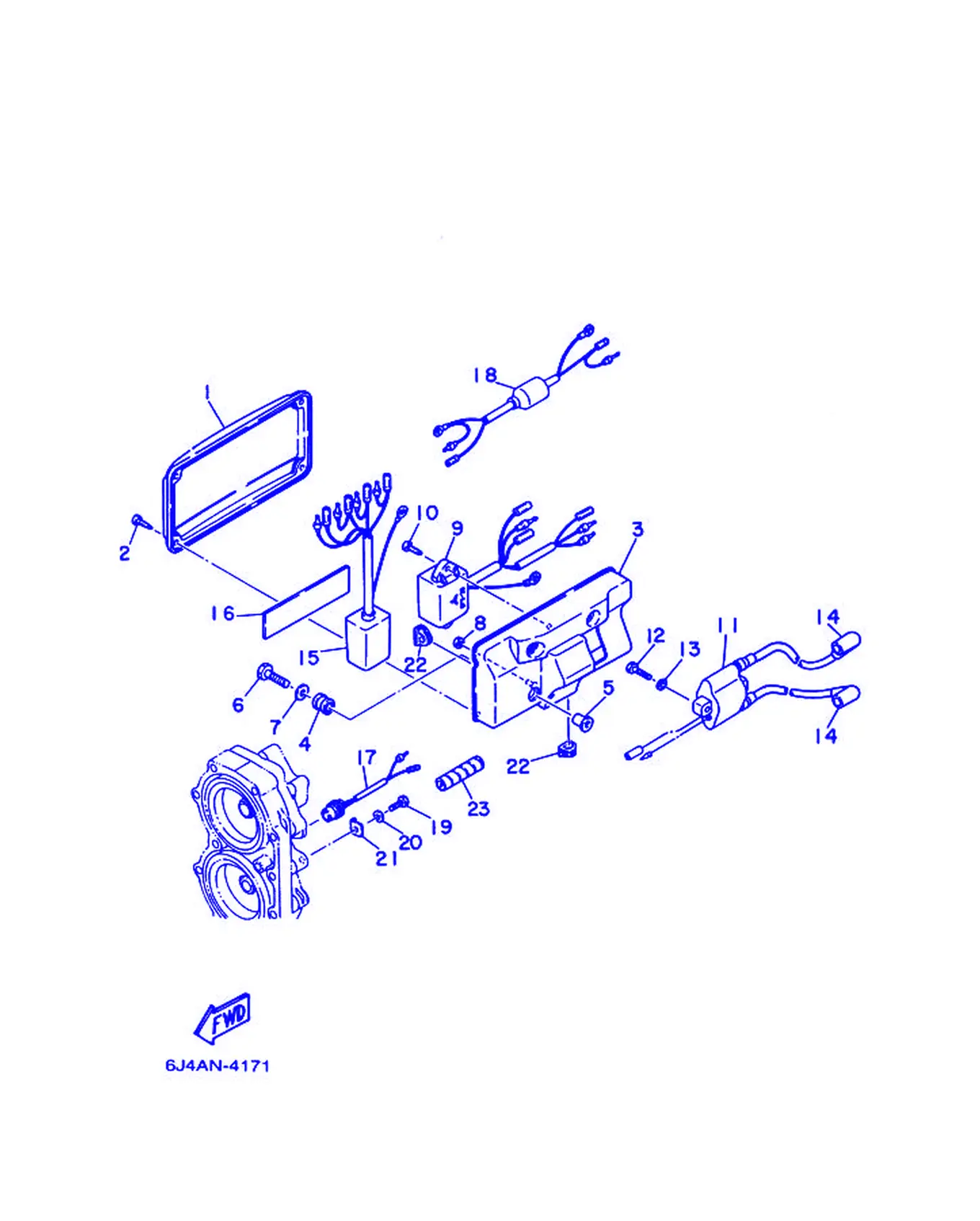

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-81916-00	接头盖	Cover, Terminal	1
2	90164-06M01	卡环	Screw, Tapping	4
3	6F5-85542-01	托架	Bracket	1
4	6F5-82317-00	点火线圈减震器	Damper, Ignition Coil	3
5	90387-08M45	衬套	Color	3
6	97313-08030	螺栓	Bolt	3
7	92990-08600	盘形垫	Washer,Plate	3
8	95380-06600	有槽螺母	Nut, Hexagon	1
9	6F5-85540-21	电子点火器总成	C.D.I. Unit Assembly	1
10	90164-06M01	卡环	Screw, Tapping	2
11	6F5-85570-11	点火线圈组合	Ignition Coil Assembly	1
12	97095-06025	螺栓	Bolt	2
13	92990-06600	面板垫圈	Washer,Plate	2
14	682-82370-00	塞帽组合	PlugCapAssembly	2
15	6F5-85590-20	控制器组合	ControlUnitAssembly	1
16	6F5-82131-00	蓄电池带箍	Band, Battery	1
17	688-82560-10	温控开关组合	Thermo Switch Assembly	1
18	6F5-82519-10	接地线	Wire, Earth Lead	1
19	97095-06016	螺栓	Bolt	1
20	92990-06600	面板垫圈	Washer,Plate	1
21	6F5-82588-00	面板	Plate	1
22	6F5-81922-00	固定	Grommet	2
23	90446-10M01	固定	Hose (L60)	1

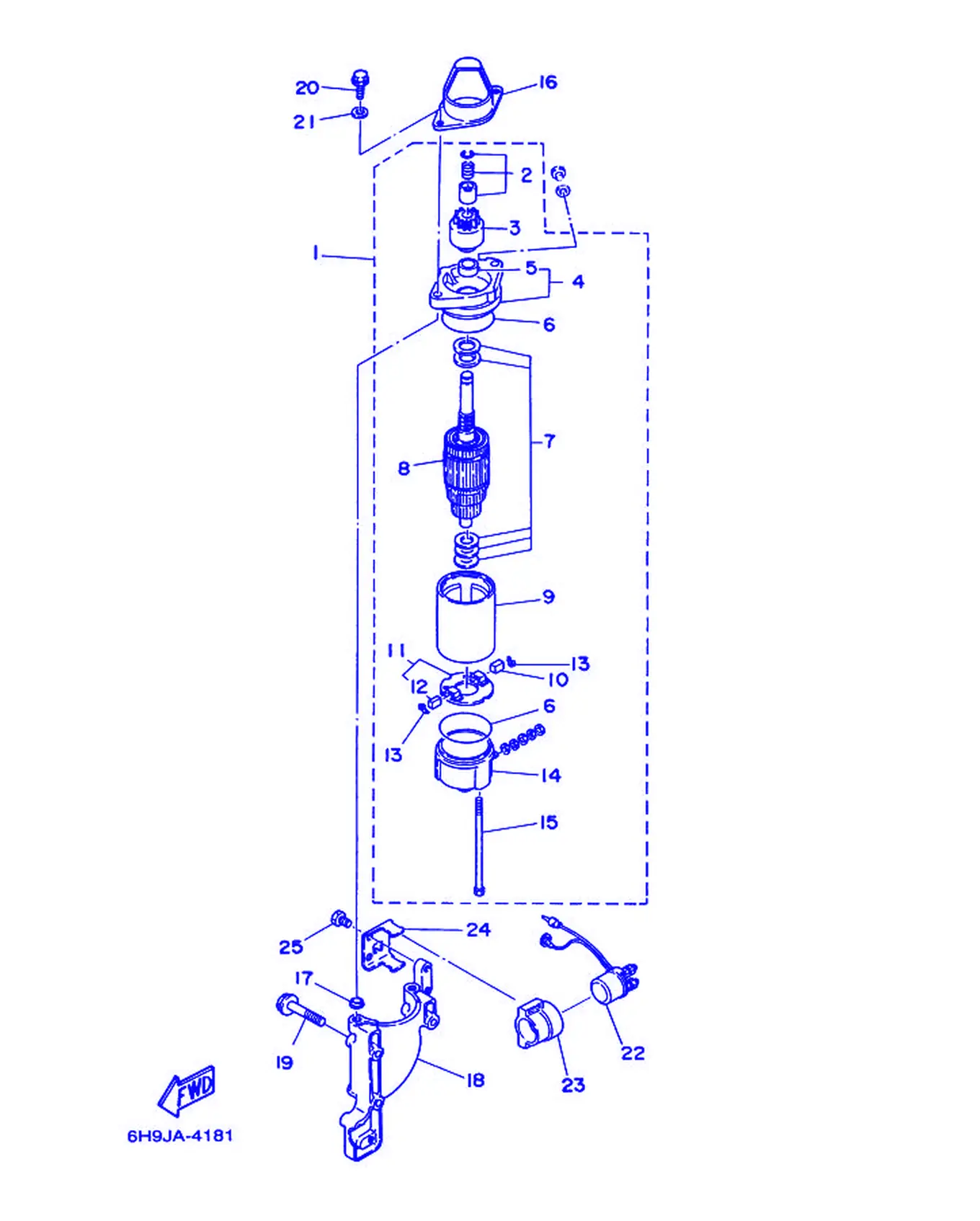

オルタネート 1 (40JEMK_40JEK)

REF	雅马哈编码	中文名称	英文名称	用量
1	6J4-81800-01	起动电动机组合	Starting Motor Assembly	1
2	689-81857-11	挡	Pinion Stopper Set	1
3	689-81807-12	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
4	6F5-81830-11	前托架组合	FrontBracketAssembly	1
5	689-81831-00	前金属	Metal, Front	1
6	689-81847-11	O型圈	O-ring	2
7	689-81809-11	垫圈套	Washer Kit	1
8	689-81850-12	电枢组合	Armature Assembly	1
9	689-81810-11	定子组合	Stator Assembly	1
10	689-81811-11	电刷1	Brush 1	1
11	689-81840-11	电刷架组合	Brush Holder Assembly	1
12	689-81812-11	电刷2	Brush 2	1
13	689-81813-10	电刷弹簧	Spring, Brush	2
14	689-81820-11	后托架组合	Rear Bracket Assembly	1
15	689-81826-10	螺	Bolt	2
16	6F5-81842-41	盖	Cover	1
17	90387-08M12	面板垫圈	Color	2
18	6J4-81820-00	后托架组合	Rear Bracket Assembly	1
19	90105-08M51	带垫螺栓	Bolt, Washer Based Head	3
20	90105-08M50	卡环	Bolt, Washer Based Head	2
21	92990-08600	盘形垫	Washer,Plate	2
22	6G1-81941-10	起动继电器组合	StarterRelayAssembly	1
23	6G1-81952-00	继电器支架	Holder, Relay	1
24	6F5-81945-00	开关装配面板	Plate, Switch Fitting	1
25	97095-06012	螺栓	Bolt	2

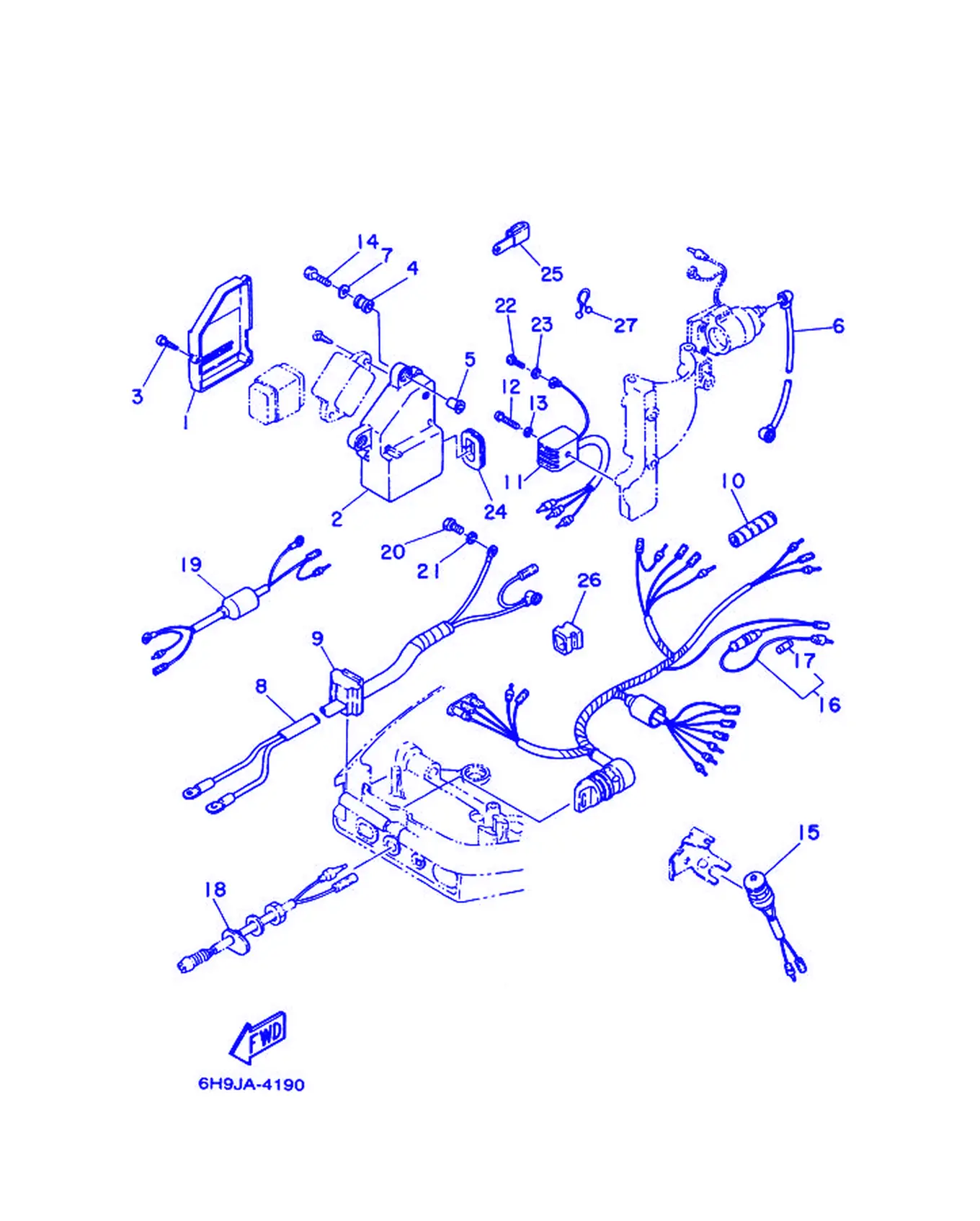

オルタネート 2 (40JEMK)

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-81916-40	接头盖	Cover, Terminal	1
2	6F5-85542-40	托架	Bracket	1
3	90164-05M00	螺帽	Screw, Tapping	3
4	6A0-82317-00	点火线圈减震器	Damper, Ignition Coil	3
5	624-42542-00	管	Pipe	3
6	6F5-82117-00	导线	Wire,Lead	1
7	90201-06M08	平垫圈	Washer,Plate	3
8	6F5-82105-J0	电缆	WireHarness	1
9	6F5-42724-40	固定	Grommet	1
10	90446-10M02	固定	Hose	1
11	6F5-81970-61	整流器组合	Rectifier Assembly	1
12	98580-05525	大柱头螺钉	Screw, Pan Head	1
13	92990-05600	盘形垫	Washer,Plate	1
14	97095-06025	螺栓	Bolt	3
15	6H3-82540-00	空挡开关组合	Neutral Switch Assembly	1
16	6F5-82510-01	主开关总成	MainSwitchAssembly	1
17	682-82151-00	保险丝	Fuse(20A)	1
18	6E9-85414-40	过热警报灯支架	Holder	1
19	6F5-82519-10	接地线	Wire, Earth Lead	1
20	97095-08016	螺栓	Bolt	1
21	92990-08100	盘形垫	Washer,Spring	1
22	97095-06016	螺栓	Bolt	1
23	92990-06600	面板垫圈	Washer,Plate	1
24	6F5-81922-40	固定	Grommet	1
25	90465-06M16	螺栓	Clamp	1
26	90480-17M08	固定	Grommet	1
27	90465-18147	固定	Clamp	1

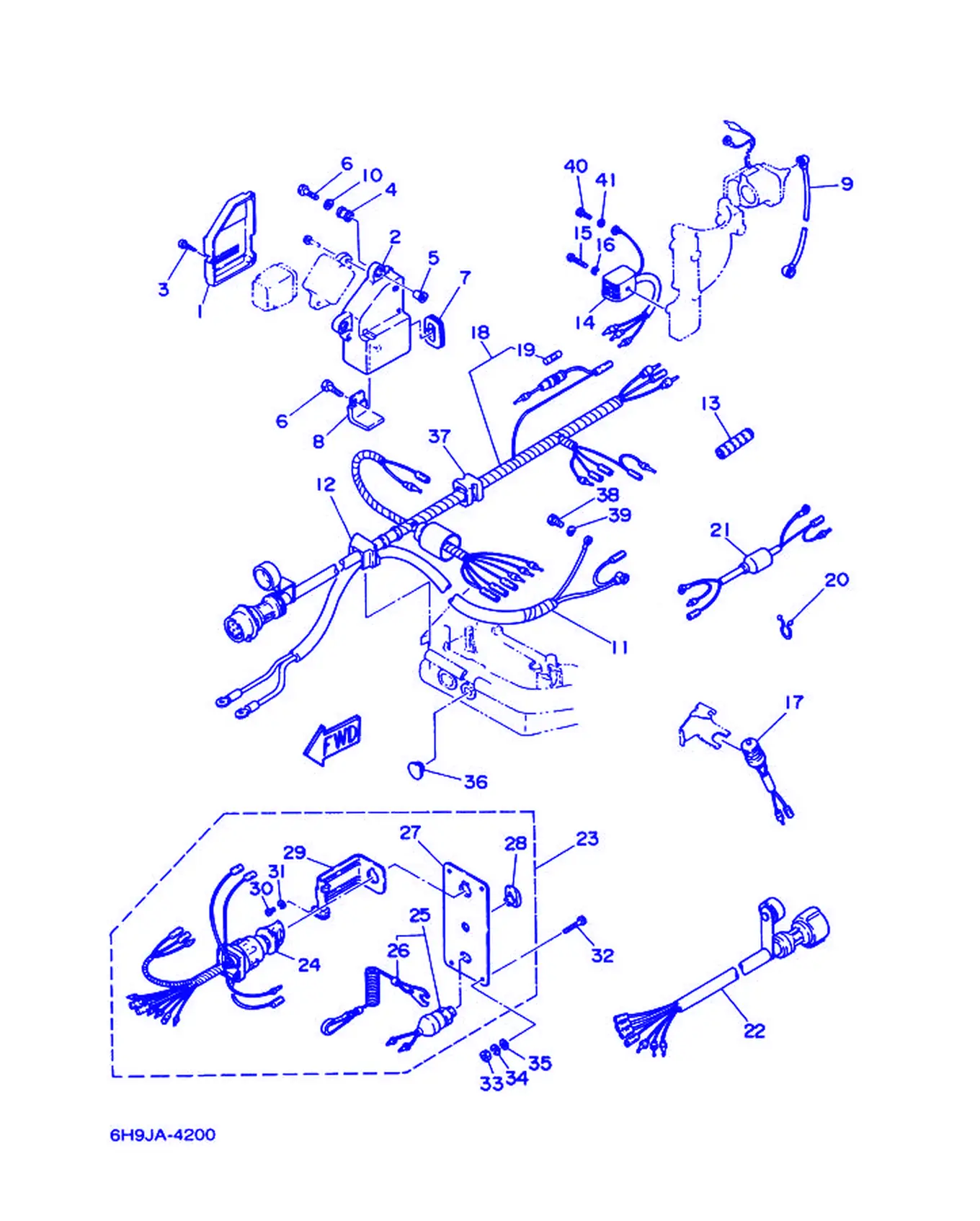

オルタネート 3 (40JEK)

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-81916-40	接头盖	Cover, Terminal	1
2	6F5-85542-40	托架	Bracket	1
3	90164-05M00	螺帽	Screw, Tapping	3
4	6A0-82317-00	点火线圈减震器	Damper, Ignition Coil	3
5	624-42542-00	管	Pipe	3
6	97095-06025	螺栓	Bolt	3
7	6F5-81922-40	固定	Grommet	1
8	90465-06M16	螺栓	Clamp	1
9	6F5-82117-00	导线	Wire,Lead	1
10	90201-06M08	平垫圈	Washer,Plate	3
11	6F5-82105-J0	电缆	WireHarness	1
12	6F5-42725-50	固定	Grommet	1
13	90446-10M02	固定	Hose	1
14	6F5-81970-61	整流器组合	Rectifier Assembly	1
15	98580-05525	大柱头螺钉	Screw, Pan Head	1
16	92990-05600	盘形垫	Washer,Plate	1
17	6H3-82540-00	空挡开关组合	Neutral Switch Assembly	1
18	6F5-82590-01	电线束组合	WireHarnessAssembly	1
19	682-82151-00	保险丝	Fuse(20A)	1
20	90465-18147	固定	Clamp	1
21	6F5-82519-10	接地线	Wire, Earth Lead	1
22	6F5-82586-21	电线束延伸部分	Extension, Wire Harness	1
23	6F5-82570-03	开关仪表板组合	Panel Switch Assembly	1
24	688-82510-11	主开关组合	Main Switch Assembly	1
25	688-82575-01	发动机止动开关组合	Engine Stop Switch Assembly	1
26	682-82556-00	止动拉索	Stopper	1
27	6F5-82571-01	开关仪表板	Panel, Switch	1
28	6F5-82535-00	固定	Grommet	1
29	663-82581-01	线夹支承	Stay, Cord Clamp	1
30	98580-04008	大柱头螺钉	Screw, Pan Head	1
31	92901-04100	盘形垫	Washer, Spring	1
32	90149-05M05	螺钉	Screw	4
33	95380-05600	螺母	Nut	4
34	92990-05100	盘形垫	Washer,Spring	4
35	92990-05600	盘形垫	Washer,Plate	4
36	90480-17165	固定	Grommet	1
37	90480-17M08	固定	Grommet	1
38	97095-08016	螺栓	Bolt	1
39	92995-08100	盘形垫	Washer	1
40	97095-06016	螺栓	Bolt	1
41	92990-06600	面板垫圈	Washer,Plate	1

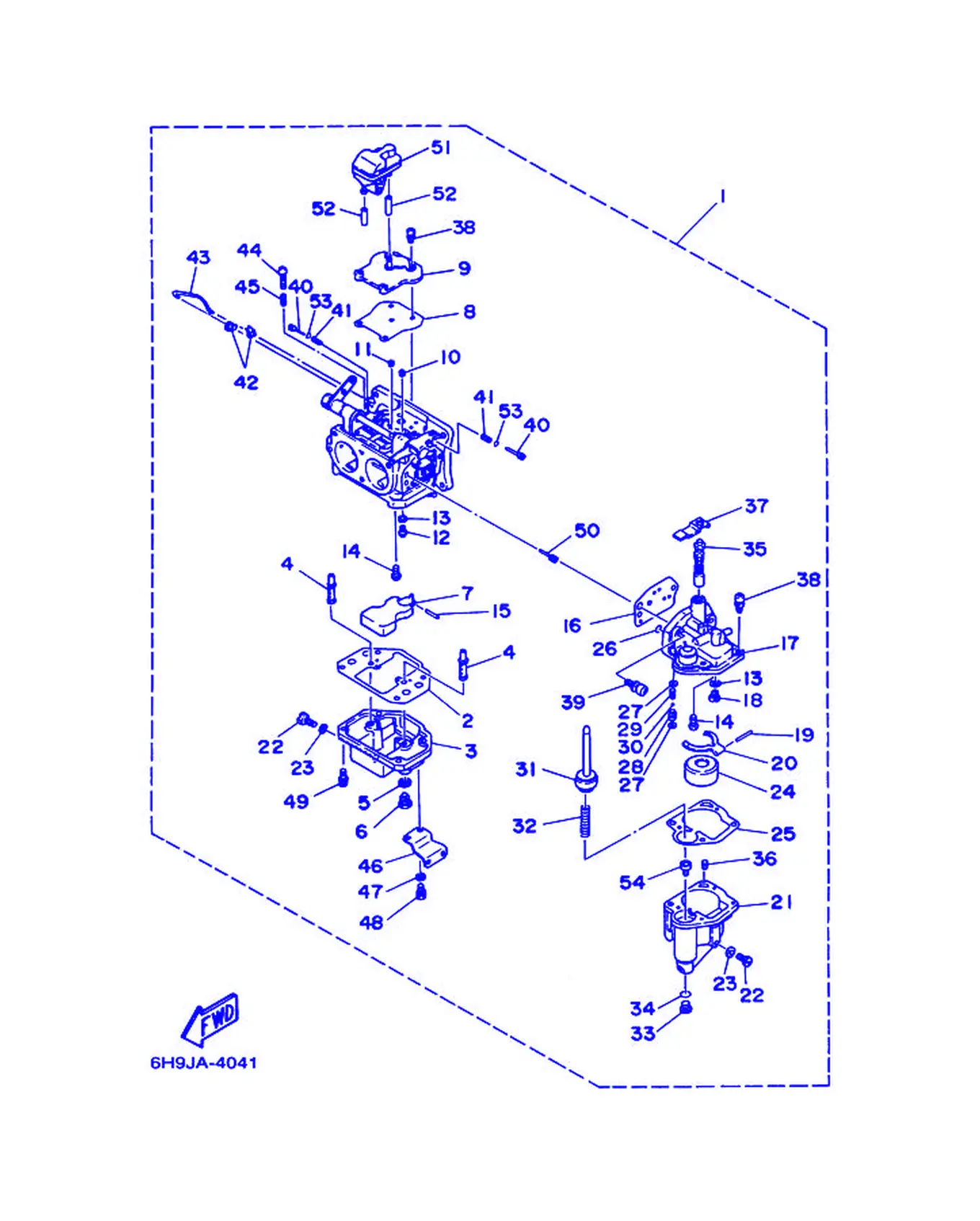

キヤブレタ

REF	雅马哈编码	中文名称	英文名称	用量
1	6H9-14301-03	化油器总成1	CarburetorAssembly 1	1
2	6F5-14384-00	浮子室衬垫	Gasket, Float Chamber	1
3	6F5-14381-00	浮子室本	Body, Float Chamber	1
4	6E5-14341-01	主喷管	Nozzle,Main	2
5	1J2-14398-00	衬垫	Gasket	2
6	677-14343-70	主量孔	Jet,Main (#140)	2
7	6E5-14385-02	浮子	Float	1
8	6F5-14398-00	衬垫	Gasket	1
9	6F5-14383-00	排放螺钉	Plate, Cover	1
10	647-14342-45	低速量孔	Jet,Pilot (# 90)	2
11	647-14342-30	低速量孔	Jet,Pilot (# 60)	2
12	6F5-14390-21	针阀组合	NeedleValveAssembly	1
13	367-14195-00	针阀垫	Gasket	2
14	98980-04006	大柱头螺钉	Screw, Blind	2
15	6E5-14386-01	浮子销	Pin, Float	1
16	6F5-14399-00	双金属阀	Gasket	1
17	6F5-14182-41	浮子室盖	Cover, Float Chamber	1
18	6F5-14390-12	针阀组合	NeedleValveAssembly	1
19	367-14386-00	浮子销	Pin, Float	1
20	6F5-14387-00	隔膜臂	Arm,Float	1
21	6F5-14381-11	浮子室本	Body, Float Chamber	1
22	6E5-14383-01	排放螺钉	Screw, Drain	2
23	6E5-14398-00	衬垫	Gasket	2
24	647-14385-00	浮子	Float	1
25	6F5-14384-10	浮子室衬垫	Gasket, Float Chamber	1
26	6F5-14397-00	O型圈	O-ring	1
27	6F5-14372-01	接收盖	Seat, Packing	2
28	6A4-14355-00	主喷管2	Seat, Ball	1
29	6F5-14332-01	空气阀弹簧	Spring	1
30	6F5-14369-00	隔膜组合2	Ball	1
31	6F5-14370-02	柱塞起动器组合	Plunger Starter Assembly	1
32	6F5-14339-00	针支承	Spring	1
33	6A4-14394-00	排放阀	Screw, Drain	1
34	652-14397-00	O型圈	0-Ring	1
35	6F5-14371-00	起动器柱	Plunger, Starter	1
36	647-14342-35	低速量孔	Jet,Pilot (# 70)	1
37	6F5-14377-00	限位板	Stopper	1
38	97603-04114	带垫圈大柱头螺钉	Screw, Pan Head With Washer	8
39	98580-06020	螺栓	Screw, Pan Head	2
40	6F5-14323-01	空气调整螺钉	Screw, Air Adjusting	2
41	6F5-14334-01	空气调整弹簧	Spring, Air Adjusting	2
42	6F5-41262-01	阻风门杠杆接头	Joint,ThrottleLever	2
43	6F5-14379-00	起动器连杆	Rod,Starter	1
44	650-14321-01	节气门螺钉	Screw, Throttle	1
45	647-14334-00	空气调整弹簧	Spring	1
46	6F5-14346-00	面板	Plate 1	1
47	654-14243-00	面板	Washer	4
48	98580-06012	大柱头螺钉	Screw, Pan Head	4
49	98580-05018	大柱头螺钉	Screw, Pan Head	4
50	6F5-14340-00	阀组合	Nozzle	1
51	6F5-14425-00	减震器1	Damper 1	1
52	90445-09M55	固定	Hose	2
53	6F5-14397-00	O型圈	O-ring	2
54	6F5-13940-01	单向阀组合	Check, Valve	1

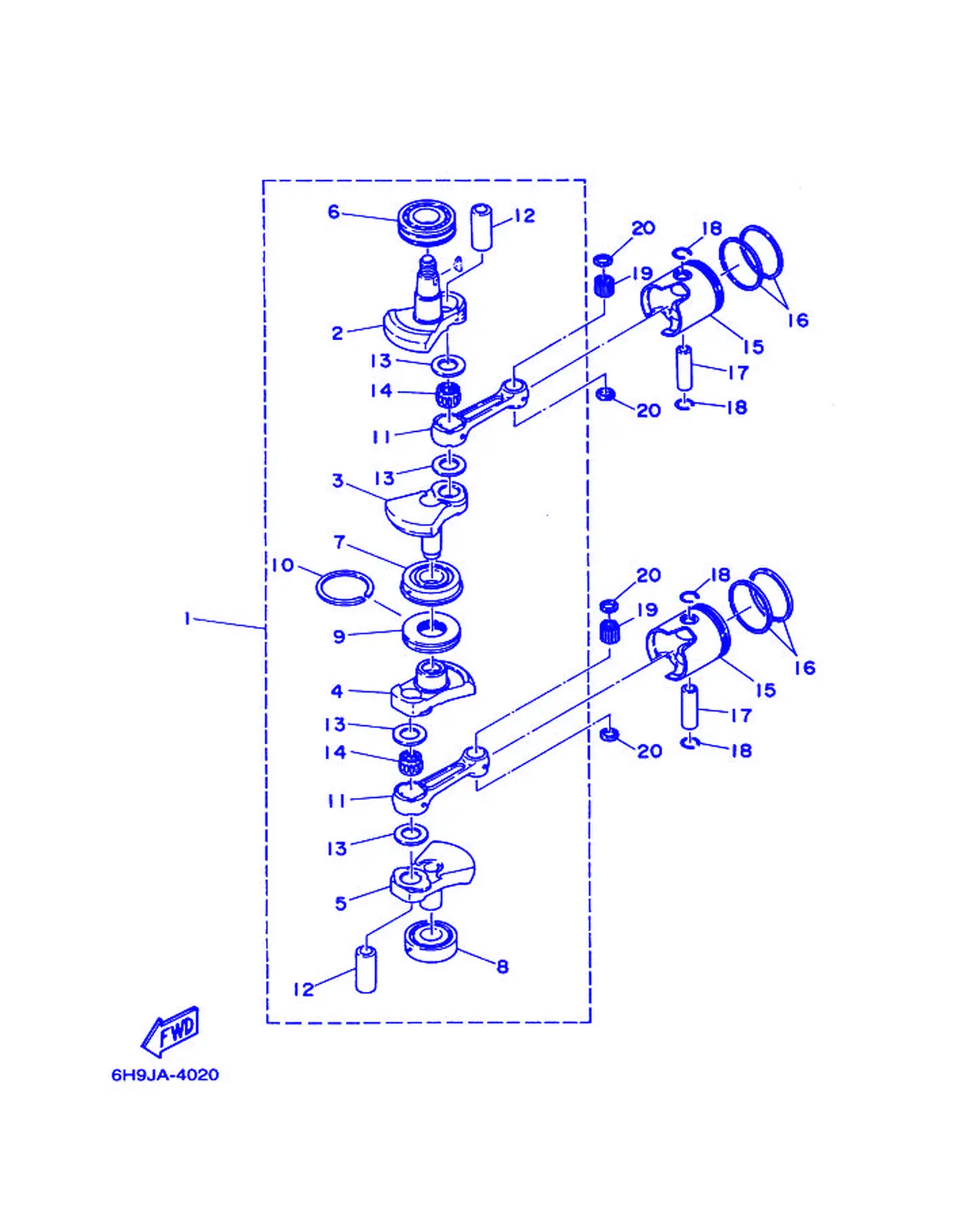

クランクシヤフト. ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-11400-11	曲轴组合	CrankshaftAssembly	1
2	6F5-11412-11	曲柄1	Crank 1	1
3	6F5-11422-11	曲柄2	Crank 2	1
4	6F5-11432-11	曲柄3	Crank 3	1
5	6F5-11442-11	曲柄4	Crank 4	1
6	93306-307U0	轴承	Bearing	1
7	93332-000V2	轴承	Bearing	1
8	93306-306V1	轴承	Bearing	1
9	6F5-11515-00	曲折环式密封	Seal, Labyrinth 1	1
10	93440-68M03	卡环	Circlip	1
11	6F5-11651-00	连杆	Rod, Connecting	2
12	6F5-11681-00	曲柄销1	Pin, Crank 1	2
13	90202-27M23	平垫圈	Washer, Plate	4
14	93310-727V7	轴承	Bearing	2
15	6F6-11631-00-95	活塞	Piston (STD)	2
16	6F5-11610-00	活塞环套件	PistonRingSet (STD)	2
16	6F5-11610-10	活塞环套件	Piston Ring Set (0.25MM O/S)	2
16	6F5-11610-20	活塞环套件	Piston Ring Set (0.50MM O/S)	2
17	6F5-11633-00	活塞销	Pin,Piston	2
18	688-11634-00	活塞销卡	Clip,Piston Pin	4
19	93603-21111	定位销	Pin, Dowel	56
20	90201-20417	平垫圈	Washer,Plate	4

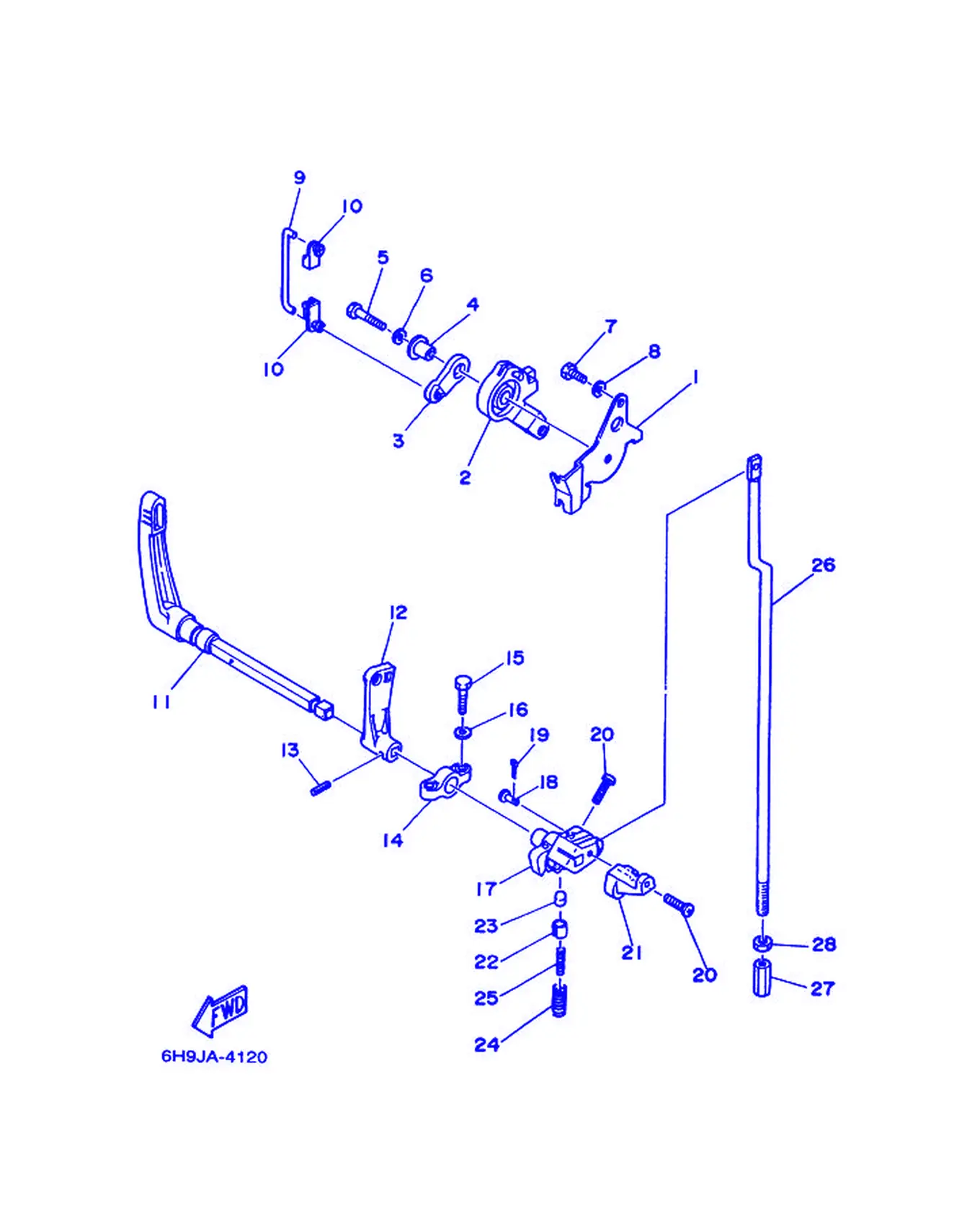

コントロール

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-14497-00	油门钢索支承	Stay, Throttle Wire	1
2	6F5-41638-00	滑	Pulley	1
3	6F5-41283-00	空转油门杠杆	Lever, Free Accelerator	1
4	90387-06M29	衬套	Color	1
5	97095-06030	螺栓	Bolt	1
6	92990-06600	面板垫圈	Washer,Plate	1
7	97095-06016	螺栓	Bolt	1
8	92990-06600	面板垫圈	Washer,Plate	1
9	6F5-41211-00	加速器连杆	Link, Accelerator	1
10	6R5-41237-00	连杆接头	Joint, Link	2
11	6F5-44111-00	变挡手柄	Handle, Gear Shift	1
12	6F5-44125-00	变挡杆杠杆手柄	Lever, Shift Rod	1
13	91690-25016	弹簧销	Pin,Spring	1
14	6F5-41662-00	托架	Bracket	1
15	97095-06025	螺栓	Bolt	2
16	92990-06600	面板垫圈	Washer,Plate	2
17	6F5-44121-00	变挡杆杠杆	Lever, Shift Rod	1
18	90240-05M09	螺丝	Pin, Clevis	1
19	91490-16010	开口销	Pin, Cotter	1
20	97780-40120	自攻螺钉	Screw, Tapping	2
21	6F5-44173-00	变挡控制杆	Lever, Shift Control	1
22	6F5-42715-00	衬套	Bushing	1
23	6F5-44167-00	变挡凸轮柱	Plunger, Shift Cam	1
24	90501-12M36	接头	Spring, Compression	1
25	90501-07M33	接头	Spring, Compression	1
26	676-44143-00	变挡连杆	Rod, Shift	1
27	648-44146-00	变挡连杆接头	Connector, Shift Rod	1
28	90170-07021	螺帽	Nut	1

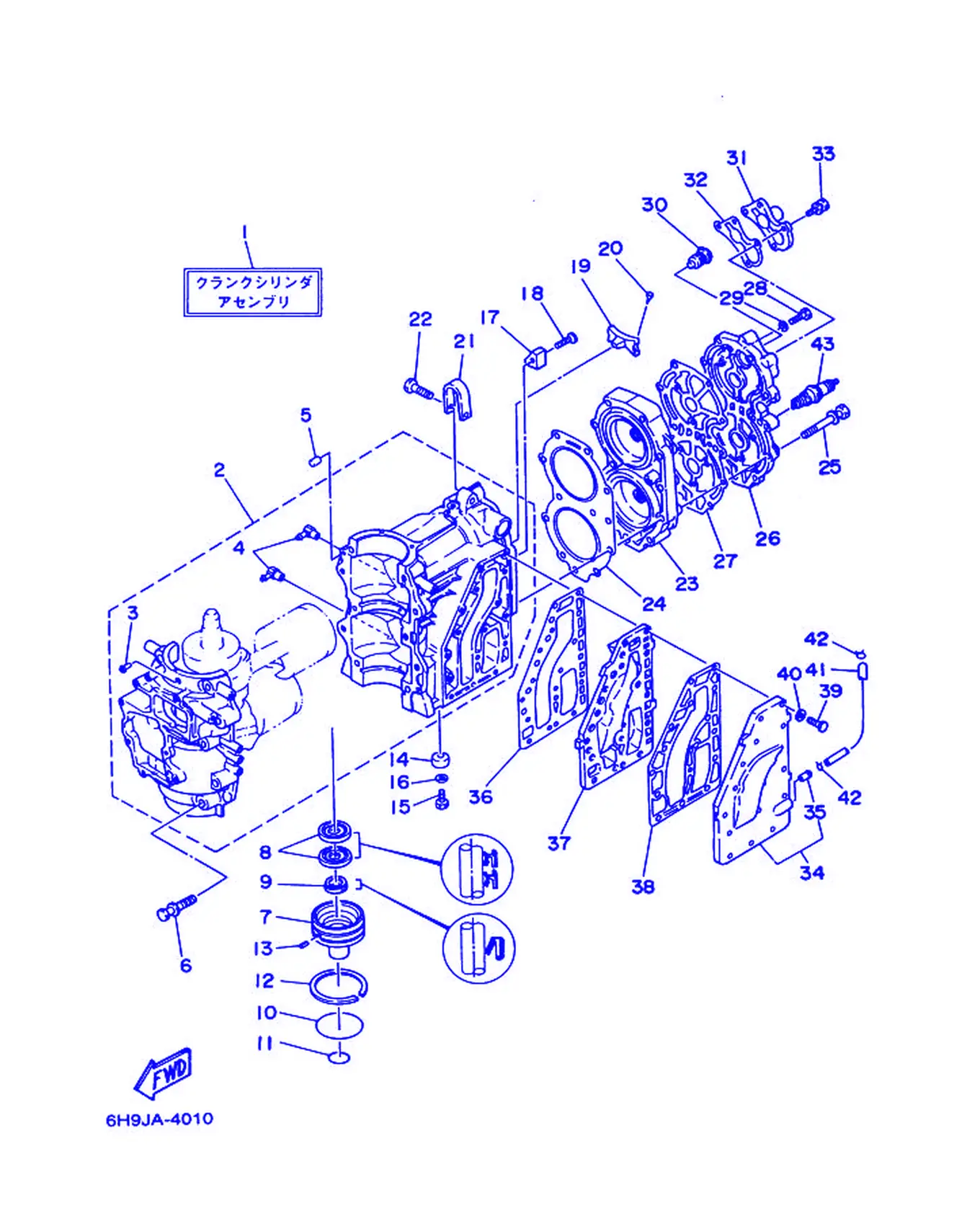

シリンダ. クランクケース

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-W0090-63-4D	气缸曲柄组合	Crank Cylinder Assembly	1
2	6F6-15100-00-94	曲轴箱组合	Crankcase Assembly	1
3	624-14485-00	连接管	Pipe,Joint	1
4	650-11370-00	单向阀组合	Check Valve Assembly	2
5	93608-12063	定位销	Pin, Dowel	2
6	90119-10M07	螺栓	Bolt, With Washer	10
7	6F5-15396-01-5B	油封壳	Housing,OilSeal	1
8	93101-30M33	油封	OilSeal	2
9	93101-16M36	油封	OilSeal	1
10	93210-65M50	O型圈	O-ring	1
11	93210-22M02	O型圈	O-ring	1
12	93440-68M03	卡环	Circlip	1
13	91690-30010	弹簧销	Pin,Spring	1
14	676-45251-00	阳极	Anode	1
15	97095-06016	螺栓	Bolt	1
16	92990-06600	面板垫圈	Washer,Plate	1
17	676-11325-00	阳极	Anode	1
18	98780-06025	平头螺钉	Screw, Flat Head	1
19	6F5-11325-00	阳极	Anode	1
20	98580-05530	大柱头螺钉	Screw, Pan Head	2
21	6F5-11119-00	发动机悬挂架	Hanger, Engine	1
22	97013-08035	螺栓	Bolt	1
23	6F5-11111-00-94	气缸头1	Head, Cylinder 1	1
24	6F5-11181-A0	气缸头垫片1	Gasket, Cylinder Head 1	1
25	90119-08M09	螺栓	Bolt, With Washer	11
26	6F5-11191-00-9M	气缸盖罩1	Cover, Cylinder Head 1	1
27	6F5-11193-A0	气缸盖罩衬垫1	Gasket, Head Cover 1	1
28	97095-06025	螺栓	Bolt	5
29	92990-06600	面板垫圈	Washer,Plate	5
30	6F5-12411-02	温控器	Thermostat	1
31	676-12413-00-9M	温控器盖	Cover,Thermostat	1
32	676-12414-00	盖衬垫	Gasket,Cover	1
33	97595-06520	带垫圈螺	Bolt, With Washer	4
34	6F5-41113-01-9M	排气管外盖	Outer Cover, Exhaust	1
35	652-24461-00	连接管	Pipe,Joint	1
36	6F5-41112-A0	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
37	6F5-41111-01-9M	排气管内盖	Inner Cover, Exhaust	1
38	6F5-41114-A0	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
39	97095-06025	螺栓	Bolt	16
40	92990-06600	面板垫圈	Washer,Plate	16
41	90445-09M37	固定	Hose	1
42	90467-08004	卡环	Clip	2
43	94703-00040	火花塞	Plug, Spark (NGK B7HS)	2

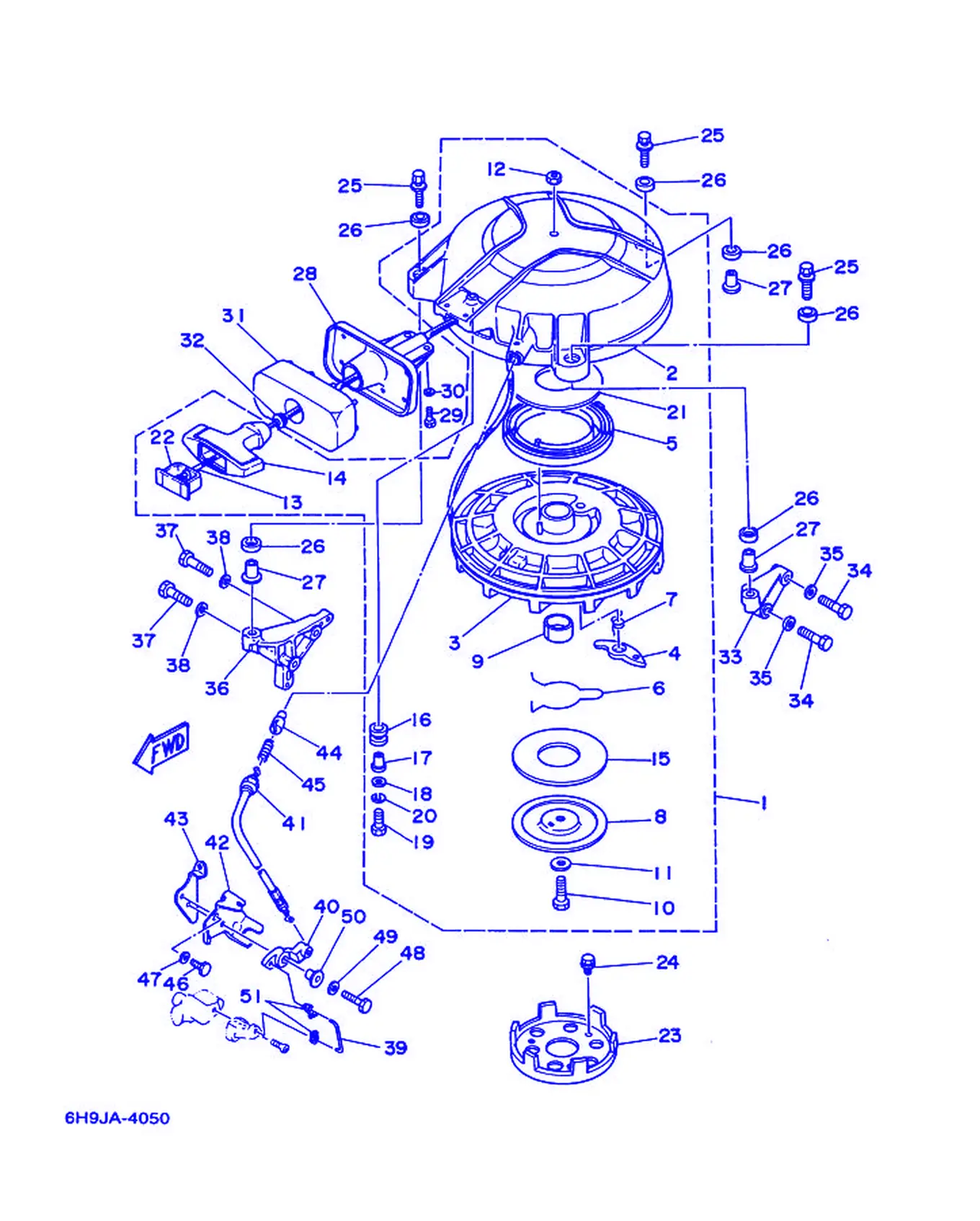

スタータ

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-W1571-02	起动器组合	StarterAssembly	1
2	6F5-15711-01	起动器箱	Case,Starter	1
3	6F5-15714-03	拉索卷	Drum, Sheave	1
4	6F5-15741-01	驱动	Pawl, Drive	1
5	6F5-15713-00	起动器弹簧	Spring,Starter	1
6	6F5-15715-00	驱动板弹簧	Spring, Drive Plate	1
7	6F5-15734-01	回位弹簧	Spring, Return	1
8	6F5-15716-01	驱动板	Plate, Drive	1
9	6G0-15754-00	衬套2	Bushing 2	1
10	97013-08030	螺栓	Bolt	1
11	6F5-15726-01	平垫	Washer, Flat	1
12	95304-08700	有槽螺母	Nut	1
14	689-15755-01	起动器手	Handle,Starter	1
15	6F5-15764-00	安装环1	Collar 1	1
16	6F5-15752-00	拉索卷轴	Roller, Wire	1
17	6F5-15753-00	衬套	Bushing	1
18	6F5-15791-00	锁紧垫	Washer, Lock	1
19	97095-06025	螺栓	Bolt	1
20	92995-06100	垫圈	Washer,Spring	1
21	6F5-15739-00	推力垫	Washer, Thrust	1
22	6F5-15779-02	盖	Cover	1
23	6F5-15723-01	起动器滑	Pulley, Starter	1
24	90105-08M10	螺栓	Bolt, Washer Based Head	3
25	90119-08M10	螺母	Bolt, With Washer	3
26	90385-12M04	衬套	Bushing	6
27	90387-08M05	衬套	Color	3
28	6A0-15758-01-94	导向绳索	Guide, Rope	1
29	97095-06016	螺栓	Bolt	2
30	92990-06600	面板垫圈	Washer,Plate	2
31	6A0-15762-00	橡皮密封圈2	Seal,Rubber 2	1
32	6A0-15789-00	减震器	Damper	1
33	6F5-15771-00-94	支承1	Stay 1	1
34	97013-08035	螺栓	Bolt	2
35	92990-08600	盘形垫	Washer,Plate	2
36	6F5-15772-00-94	支承2	Stay 2	1
37	97013-08035	螺栓	Bolt	2
38	92990-08600	盘形垫	Washer,Plate	2
39	6F5-15747-00	连杆	Link	1
40	6F5-15746-00	臂	Arm	1
41	6F5-15770-00	起动器止动钢索组	Cable Complete, Starter Stop	1
42	6F5-15774-00	支承4	Stay 4	1
43	6F5-15773-00	支承3	Stay 3	1
44	656-15748-00	起动器止动柱	Plunger, Starter Stop	1
45	90501-10227	压簧	Spring, Compression	1
46	97095-06016	螺栓	Bolt	1
47	92990-06600	面板垫圈	Washer,Plate	1
48	97095-06030	螺栓	Bolt	1
49	92990-06600	面板垫圈	Washer,Plate	1
50	90387-06M29	衬套	Color	1
51	661-41262-02	阻风门杠杆接头	Joint, Choke Lever	2

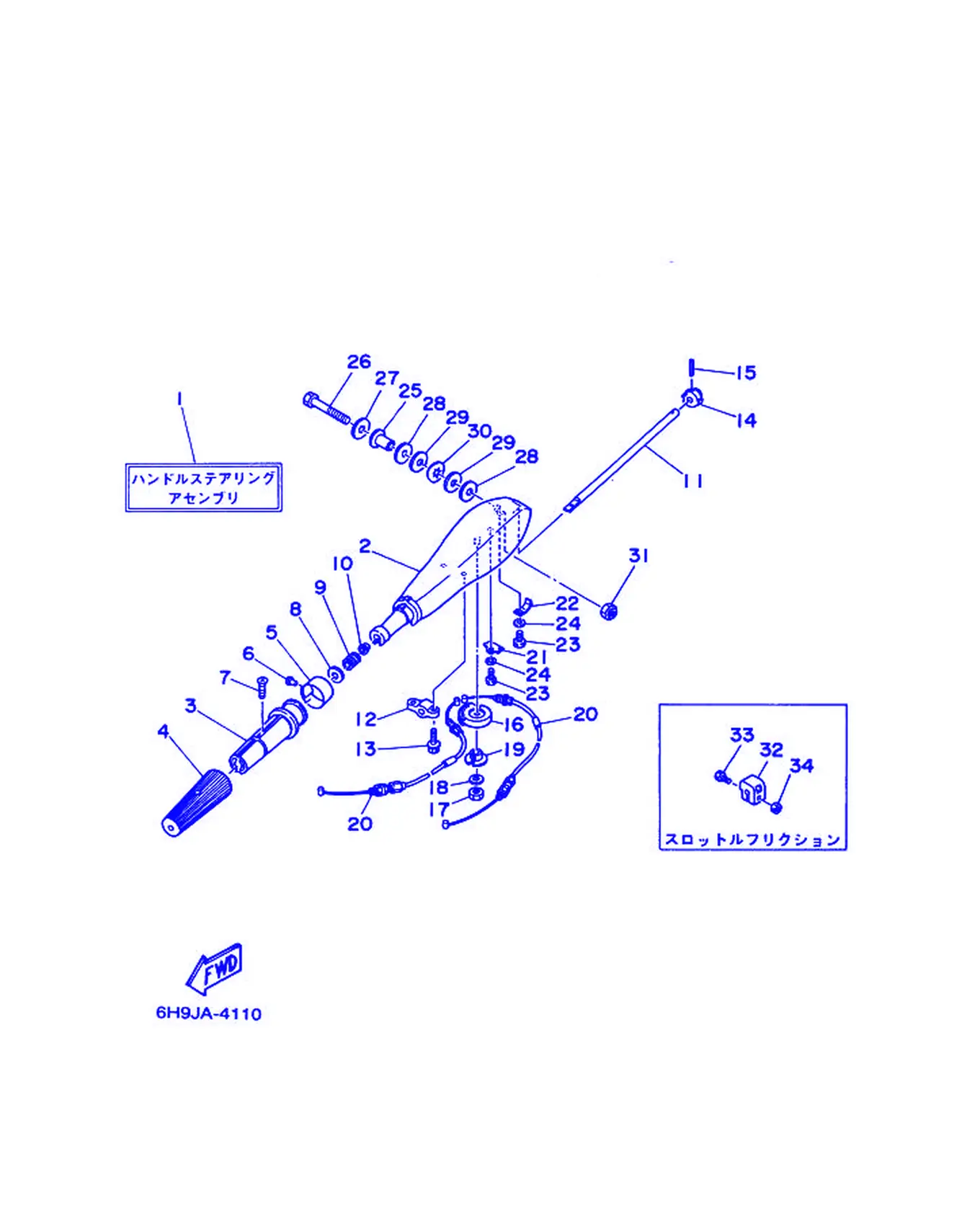

ステアリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-W0084-00-4D	手把方向装置组合	HandleSteeringAssembly	1
2	676-42111-02-4D	方向手	Handle,Steering	1
3	664-42119-00	方向手把握	Grip,SteeringHandle	1
4	6F6-42177-A0	手把橡皮	Rubber,Handle	1
5	6F5-42137-00	油门指示器	Indicator, Throttle	1
6	90269-02M09	螺丝	Rivet	1
7	90149-05M13	螺钉	Screw	1
8	92990-10600	垫圈	Washer,Plate	1
9	90501-23215	接头	Spring, Compression	1
10	90386-08032	衬套	Bushing	1
11	676-42115-00	方向手把轴	Shaft,SteeringHandle	1
12	676-42159-00	支承	Stay	1
13	97595-06520	带垫圈螺	Bolt, With Washer	2
14	650-42152-00-94	齿轮	Gear	1
15	91690-30025	弹簧销	Pin,Spring	1
16	676-42151-00-94	小齿轮	Pinion	1
17	95380-06600	有槽螺母	Nut, Hexagon	1
18	92995-06100	垫圈	Washer,Spring	1
19	90386-08M00	衬套	Bushing	1
20	6F5-26311-00	油门钢索1	Cable,Throttle 1	2
21	676-26391-00	钢索夹	Clip,Cable	1
22	676-26392-00	钢索夹2	Clip,Cable 2	1
23	97095-05010	螺栓	Bolt	2
24	92990-05600	盘形垫	Washer,Plate	2
25	90386-12089	衬套	Bushing	1
26	90101-12M37	螺栓	Bolt, Hexagon	1
27	92990-12200	平垫圈	Washer, Plain	1
28	90202-12092	平垫圈	Washer,Plate	2
29	90201-12537	平垫圈	Washer,Plate	2
30	90206-12054	平垫圈	Washer, Wave	1
31	90185-12058	螺母	Nut, Self-Locking	1
32	656-42126-01	方向手把握把摩擦	Friction, Steering Handle	1
33	97095-06520	带垫圈螺	Bolt, With Washer	1
34	90185-06062	螺母	Nut, Self-Locking	1

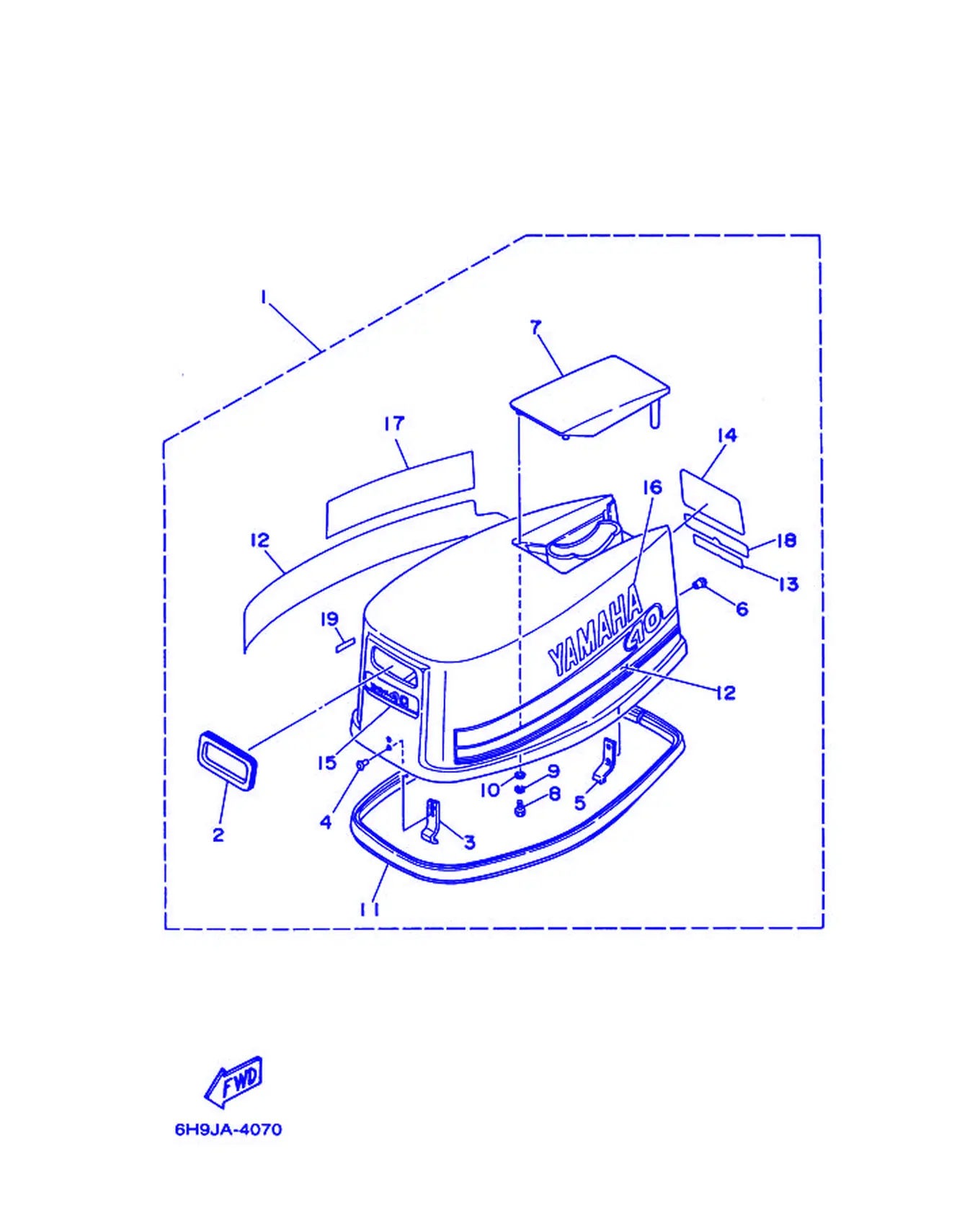

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6H9-42610-L1-4D	顶罩组合	Top Cowling Assembly	1
2	6A0-15761-00	橡皮密封圈1	Seal, Rubber 1	1
3	6E9-42651-01	钩	Fook	1
4	90266-04M04	螺丝	Rivet	2
5	6F5-42652-00	钩	Fook	1
6	90266-04M01	螺丝	Rivet	2
7	6F5-42613-00-4D	空气导管嵌	Molding, Air Duct	1
8	97095-06016	螺栓	Bolt	4
9	92995-06100	垫圈	Washer,Spring	4
10	92990-06600	面板垫圈	Washer,Plate	4
11	6F5-42615-00	密封	Seal	1
12	6H9-W0070-L0	图样套	Graphic Set	1
13	62C-42683-10	罩标志	Mark, Cowling 3	1
14	6J4-42678-20	后图样	Graphic, Rear	1
15	6J4-42677-20	前图样	Graphic, Front	1
16	6R6-42681-10	罩标志	Mark, Cowling	1
17	6R6-42682-10	罩标志	Mark, Cowling	1
18	6R6-4267A-10	后图样 2	Graphic, Rear 2	1
19	6E0-44191-11	变挡指示器	Indicator, Shift	1

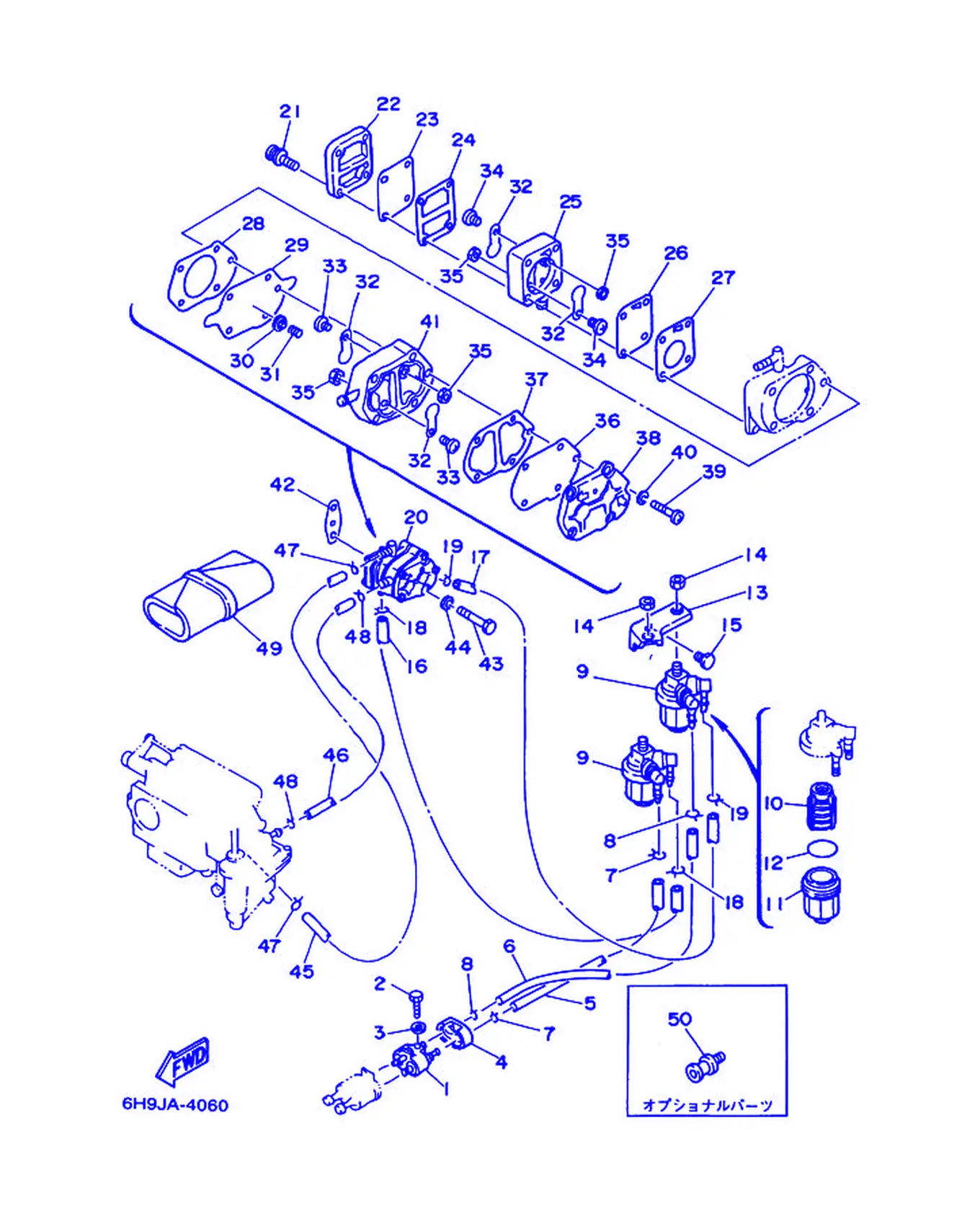

フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	680-24304-01	燃油管接头组件1	Fuel Pipe Joint Complete	1
2	97095-06025	螺栓	Bolt	1
3	92990-06600	面板垫圈	Washer,Plate	1
4	6A4-24329-00	密封	Seal	1
5	90445-09226	软管	Hose	1
6	90445-10M43	固定环	Hose	1
7	90467-08004	卡环	Clip	2
8	90467-09M03	固定	Clip	2
9	61N-24560-00	机油过滤器组合	Filter Assembly	2
10	61N-24563-00	过滤器滤芯	Element, Filter	1
11	61N-24521-00	滤杯	Cup, Filter	1
12	93210-32738	O型圈	O-ring	1
13	6F5-24566-00	过滤器托架	Bracket, Filter	1
14	95380-08600	有槽螺母	Nut	2
15	97395-06014	螺栓	Bolt	1
16	90445-09M54	固定	Hose	1
17	90445-10M50	管	Hose	1
18	90467-08004	卡环	Clip	2
19	90467-09M03	固定	Clip	2
20	6F5-24410-06	燃油泵组合	FuelPumpAssembly	1
21	677-24444-01	螺钉	Screw	4
22	677-24413-01	燃油泵本体2	Body 2	1
23	677-24471-01	隔膜	Diaphragm	1
24	677-24435-02	本体衬垫2	Gasket, Body 2	1
25	682-24412-00	燃油泵本体1	Body 1	1
26	677-24411-02	隔膜，隔板	Diaphragm	1
27	677-24434-02	本体衬垫	Gasket, Body	1
28	648-24434-01	本体衬垫	Gasket, Body	1
29	648-24411-00	隔膜，隔板	Diaphragm	1
30	648-24424-00	弹簧座	Seat,Spring	1
31	648-24423-00	隔膜弹	Spring,Diaphragm	1
32	6A0-24421-01	单向阀	Valve, Check	4
33	6A0-14325-00	扁头螺钉	Screw, Pan Head	2
34	6E7-14325-00	扁头螺钉	Screw, Pan Head	2
35	95380-03600	有槽螺母	Nut	4
36	663-24411-00	隔板	Diaphragm	1
37	648-24435-02	本体衬垫2	Gasket, Body 2	1
38	648-24413-01	燃油泵本体2	Body 2	1
39	98580-05530	大柱头螺钉	Screw, Pan Head	3
40	92990-05100	盘形垫	Washer,Spring	3
41	6A0-24412-02	燃油泵本体1	Body 1	1
42	650-24431-A0	燃油泵衬垫1	Gasket,FuelPump 1	1
43	97595-06555	带垫圈螺	Bolt, With Washer	2
44	92990-06600	面板垫圈	Washer,Plate	2
45	90445-09M53	固定	Hose	1
46	90445-10M50	管	Hose	1
47	90467-08004	卡环	Clip	2
48	90467-09M03	固定	Clip	2
49	656-W2810-02	工具套	ToolKit	1
50	626-28193-01-94	单向放水	Plug, Water Check	1

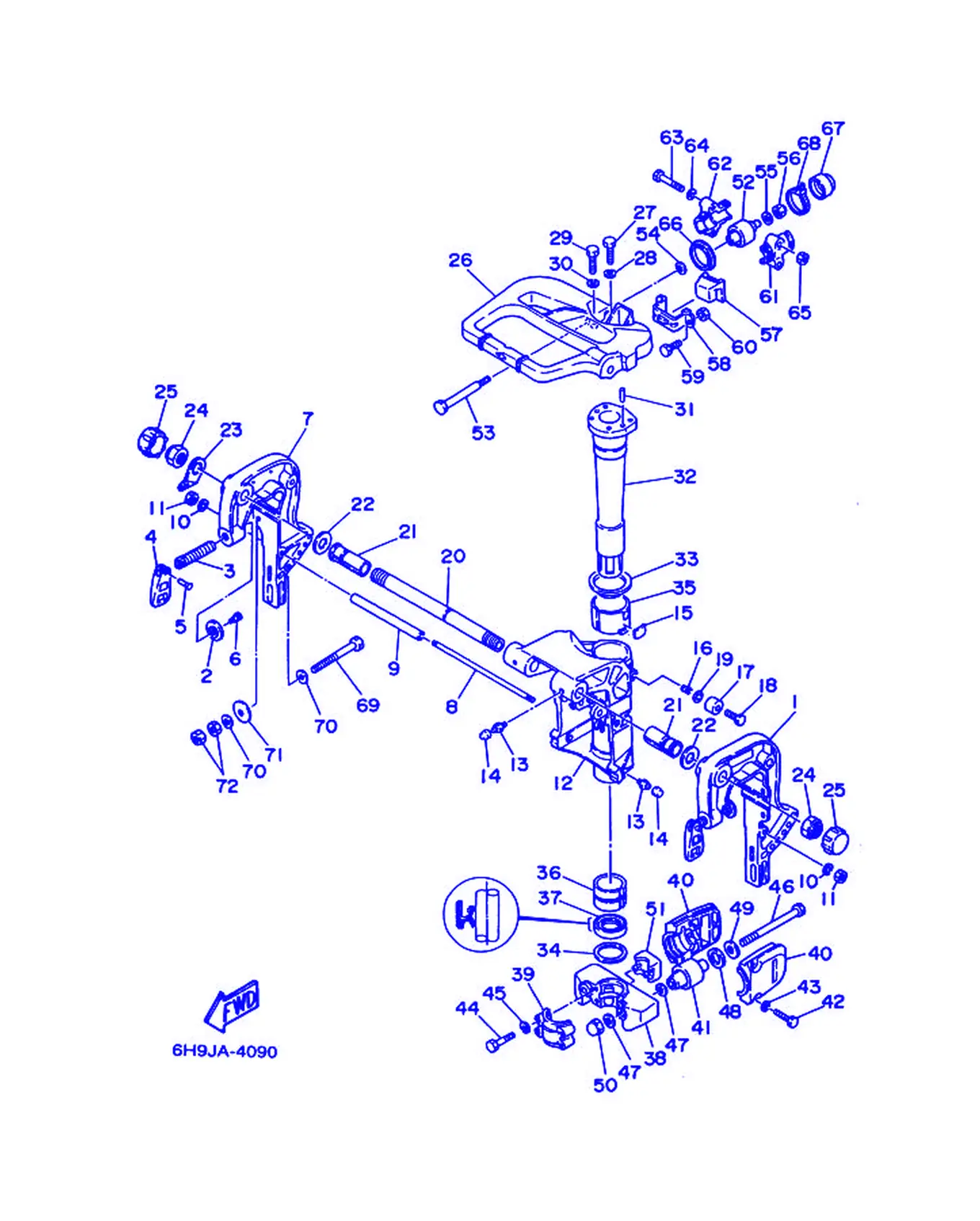

ブラケツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	676-43111-04-4D	夹紧托架	Bracket,Clamp	1
2	6F5-43114-00	艉板夹紧衬垫	Pad, Transom Clamp	2
3	6F5-43116-00	艉板夹紧螺钉	Screw, Transom Clamp	2
4	663-43118-01-4D	艉板夹紧手柄	Handle, Transom Clamp	2
5	90243-04007	固定销	Pin	2
6	90109-06M12	螺栓	Bolt	2
7	676-43112-04-4D	夹紧托架	Bracket,Clamp	1
8	90116-08M00	卡环	Bolt, Stud	1
9	90387-08M02	衬套	Color	1
10	92990-08100	盘形垫	Washer,Spring	2
11	95380-08600	有槽螺母	Nut	2
12	676-43311-02-4D	旋转支架	Bracket, Swivel	1
13	93700-06M03	润滑油管嘴	Nipple, Grease	4
14	663-45119-00	润滑油管嘴盖	Cap, Grease Nipple	4
15	648-42528-00	阻力板	Plate, Friction	1
16	90501-18M00	接头	Spring, Compression	1
17	676-43373-00	减震器密封	Seal,Damper	1
18	97095-08025	螺栓	Bolt	1
19	92990-08600	盘形垫	Washer,Plate	1
20	6J8-43131-01	夹紧托架螺	Bolt,ClampBracket	1
21	90386-22M15	衬套	Bushing	2
22	90201-22M03	平垫圈	Washer,Plate	2
23	6J8-43113-01	夹紧托架面板	Plate,ClampBracket	1
24	90185-22M11	自锁螺母	Nut, Self-Locking	2
25	6G5-43145-00	夹紧托架盖	Cap,ClampBracket	2
26	676-42511-02-4D	方向托架	Bracket,Steering	1
27	97095-08030	螺栓	Bolt	2
28	92990-08100	盘形垫	Washer,Spring	2
29	97090-08035	螺栓	Bolt	2
30	92990-08100	盘形垫	Washer,Spring	2
31	93608-12063	定位销	Pin, Dowel	2
32	676-42521-00-94	方向枢轴	Shaft, Steering Pivot	1
33	90209-52M00	垫圈	Washer	1
34	90201-44M01	平垫圈	Washer,Plate	1
35	90386-52M02	衬套	Bushing	1
36	90386-44M03	衬套	Bushing	1
37	93109-44M00	油封	OilSeal	1
38	676-44551-01-4D	下侧减震胶垫壳	Housing, Lower Mount Rubber	1
39	676-44552-01-4D	下侧减震胶垫壳	Housing, Lower Mount Rubber	1
40	676-44553-01-4D	下侧减震胶垫盖	Cover, Lower Mount	2
41	679-44555-00-94	下侧减震胶垫	Mount Damper, Lower Side	2
42	97095-08030	螺栓	Bolt	4
43	92990-08100	盘形垫	Washer,Spring	4
44	97095-08045	螺栓	Bolt	4
45	92995-08100	盘形垫	Washer	4
46	90101-12M01	螺母	Bolt, Hexagon	2
47	90201-12M16	平垫圈	Washer,Plate	4
48	90202-21100	平垫圈	Washer,Plate	2
49	90201-13M11	平垫圈	Washer,Plate	2
50	95380-12800	有槽螺母	Nut, Crown	2
51	676-44575-00	下侧减震胶垫	Damper, Lower Mount Rubber	1
52	679-44514-00-94	上侧减震胶垫	Mount Damper, Upper Side	2
53	90101-08M02	螺栓	Bolt, Hexagon	2
54	90201-08M08	平垫圈	Washer,Plate	2
55	90201-09M00	平垫圈	Washer,Plate	2
56	95780-08300	带垫螺母	Nut, Flange	2
57	676-44533-00	上侧减震胶垫	Damper, Upper Mount Rubber	1
58	676-44518-00	托架组	BracketComplete	1
59	97095-06025	螺栓	Bolt	2
60	95380-06600	有槽螺母	Nut, Hexagon	2
61	676-44511-00-94	上侧减震胶垫盖	Cover, Upper Mount Rubber	2
62	676-44512-00-94	上侧减震胶垫盖	Cover	2
63	97095-08050	螺栓	Bolt	4
64	92990-08600	盘形垫	Washer,Plate	4
65	95380-08600	有槽螺母	Nut	4
66	676-44521-00	密封	Seal	2
67	676-44522-01	密封	Seal	2
68	90465-11M52	固定	Clamp	2
69	90101-10M58	卡环	Bolt, Hexagon	4
70	92990-10600	垫圈	Washer,Plate	8
71	90201-12426	平垫圈	Washer,Plate	4
72	95380-10600	有槽螺母	Nut	8

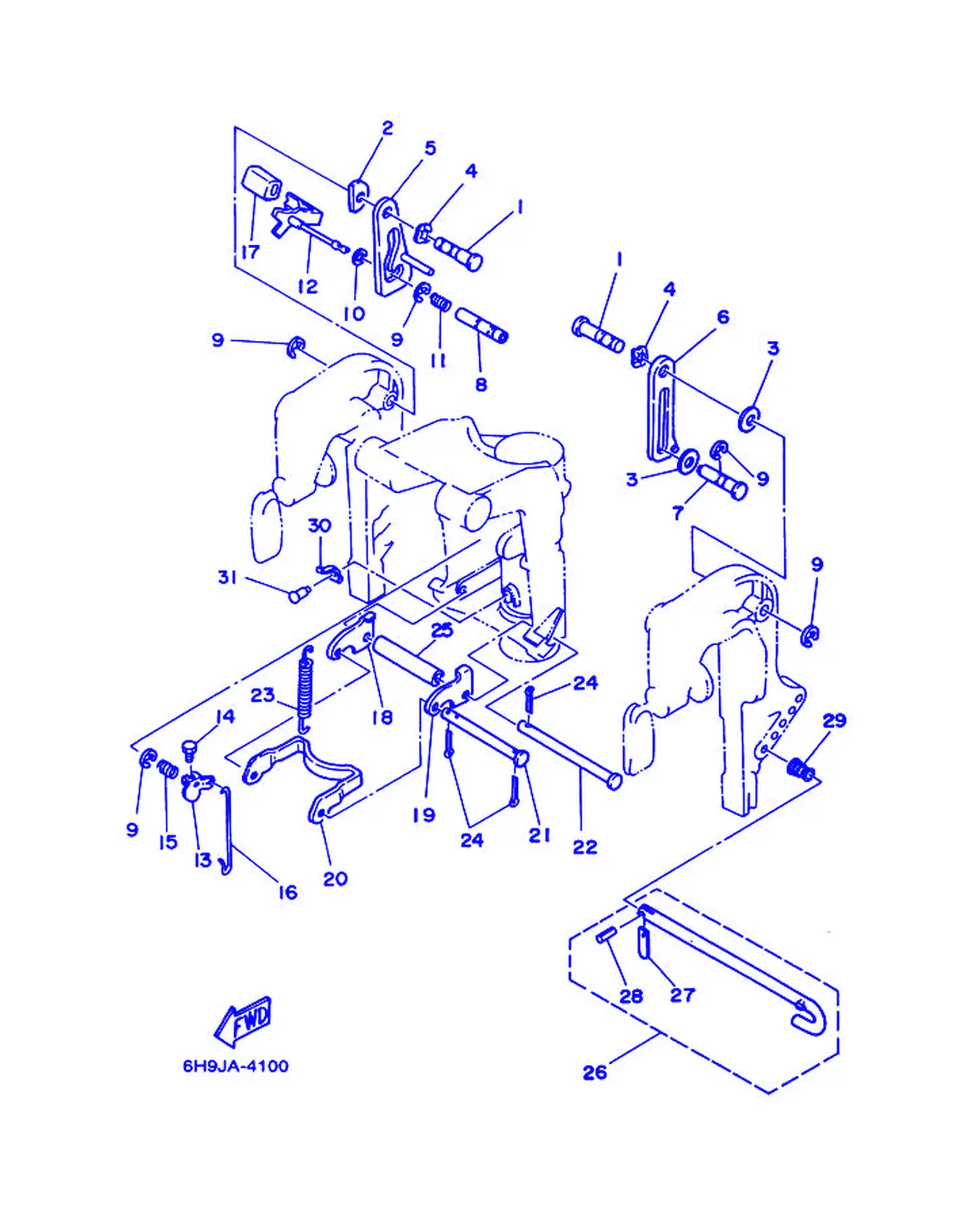

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	90249-12M27	螺丝	Pin	2
2	676-43132-00	阻力垫	Washer, Friction	1
3	90202-12M01	平垫圈	Washer,Plate	2
4	90206-12M00	波形垫圈	Washer, Wave	2
5	6F5-43627-80	限位板	Stopper	1
6	6F5-43628-80	限位板	Stopper	1
7	90249-12M13	螺丝	Pin	1
8	676-43191-00	限位轴	Shaft, Stopper	1
9	93430-10M00	开口簧环，卡	Circlip	5
10	90202-06M00	平垫圈	Washer,Plate	1
11	90501-14M05	接头	Spring, Compression	1
12	6F5-43630-80	角度定位杆组合	TiltLeverAssembly	1
13	676-43631-00	角度定位杆	Lever,Tilt	1
14	97095-05010	螺栓	Bolt	1
15	90508-14M00	接头	Spring, Torsion	1
16	676-43616-00	角度定位锁紧杆	Rod,TiltLock	1
17	663-43318-00	盖	Cover	1
18	676-43614-00	角度定位锁紧面板	Plate,TiltLock	1
19	676-43615-00	角度定位锁紧面板	Plate,TiltLock	1
20	676-43613-00	角度定位锁紧臂	Arm,TiltLock	1
21	90249-07M01	螺丝	Pin	1
22	90249-07M02	螺丝	Pin	1
23	90506-30M00	接头	Spring, Tension	2
24	91490-20015	开口销	Pin, Cotter	4
25	90387-07M04	衬套	Color	1
26	676-43160-02	角度定位杆组合	TiltRodAssembly	1
27	676-43165-00	角度定位锁紧面板	Plate, Tilt Lock	1
28	91690-30012	弹簧销	Pin,Spring	1
29	90502-10M04	接头	Spring, Conical	1
30	676-43643-00	弹簧	Spring, Torsion	1
31	90269-04M00	螺丝	Rivet	1

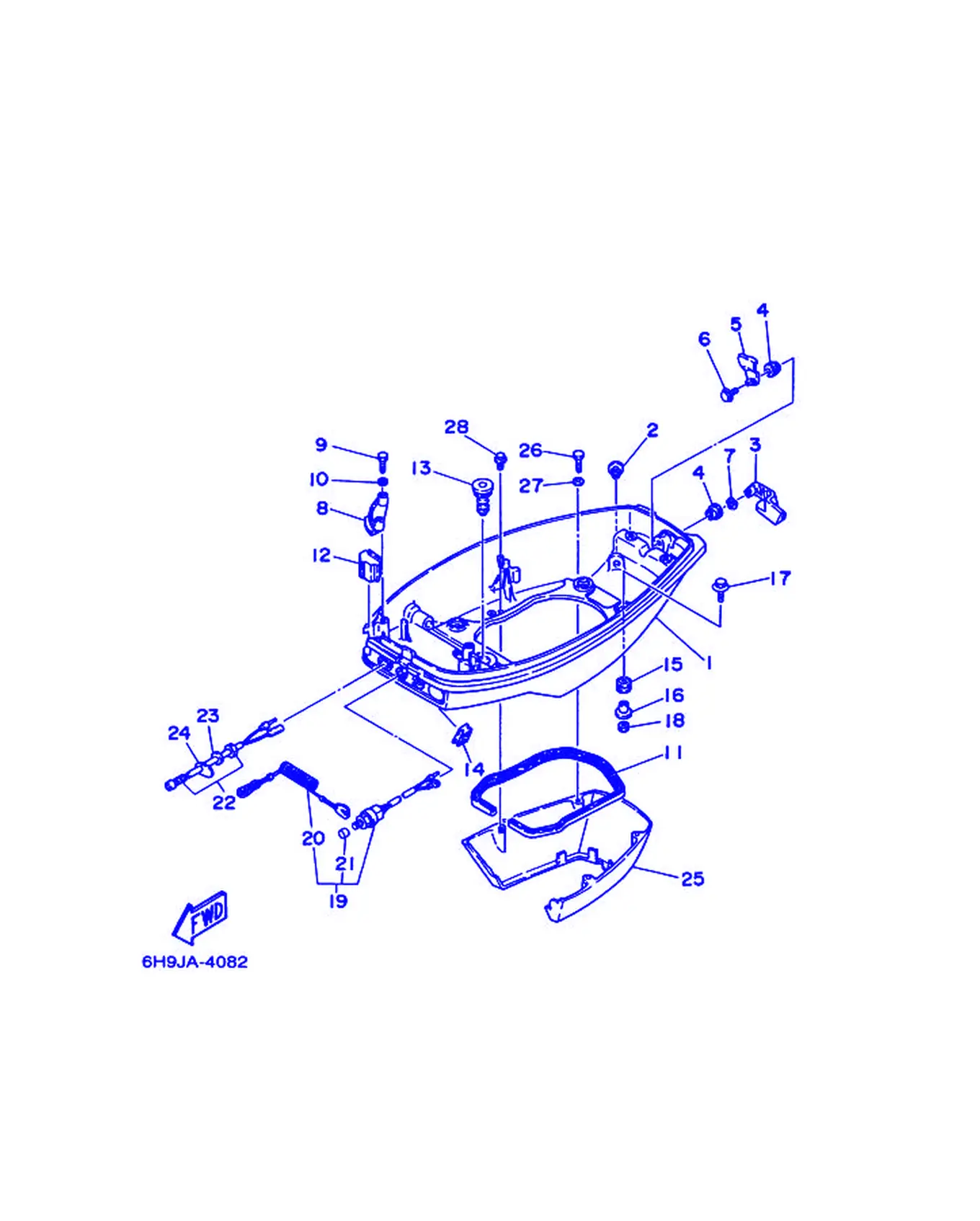

ボトムカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-42711-02-4D	底罩	Cowling, Bottom	1
2	6E5-44391-00	软管管嘴	Nipple,Hose	1
3	6F5-42815-01-4D	夹杆	Lever,Clamp	1
4	90386-12M37	衬套	Bushing	2
5	6F5-42816-00	夹杆	Lever,Clamp	1
6	90119-06M73	带垫螺栓	Bolt, With Washer	1
7	90206-12052	平垫圈	Washer, Wave	1
8	6F5-42738-01-94	装配面板	Plate, Fitting	1
9	97095-06025	螺栓	Bolt	2
10	92990-06600	面板垫圈	Washer,Plate	2
11	6F5-42716-00	密封橡皮块1	Rubber,Seal 1	1
12	6F5-42724-00	固定	Grommet	1
13	6F5-42727-00	固定	Grommet	1
14	676-26326-00	固定	Grommet	1
15	90480-09M21	固定	Grommet	4
16	90387-06M41	衬套	Color	4
17	90119-06M61	卡环	Bolt, With Washer	4
18	95380-06600	有槽螺母	Nut, Hexagon	4
19	6E9-82575-02	发动机止动开关组合	Engine Stop Switch Assembly	1
20	682-82556-00	止动拉索	Stopper	1
21	689-8257Y-00	盖	Cap	1
22	6E9-85411-00	信号灯托架	Emergency Signal Light Assembly	1
23	90201-12361	平垫圈	Washer,Plate	1
24	6E9-85414-00	过热警报灯支架	Holder	1
25	6F5-42741-11	挡板	Apron	1
26	97095-06025	螺栓	Bolt	2
27	92990-06600	面板垫圈	Washer,Plate	2
28	90119-06M11	带垫螺栓	Bolt, With Washer	2

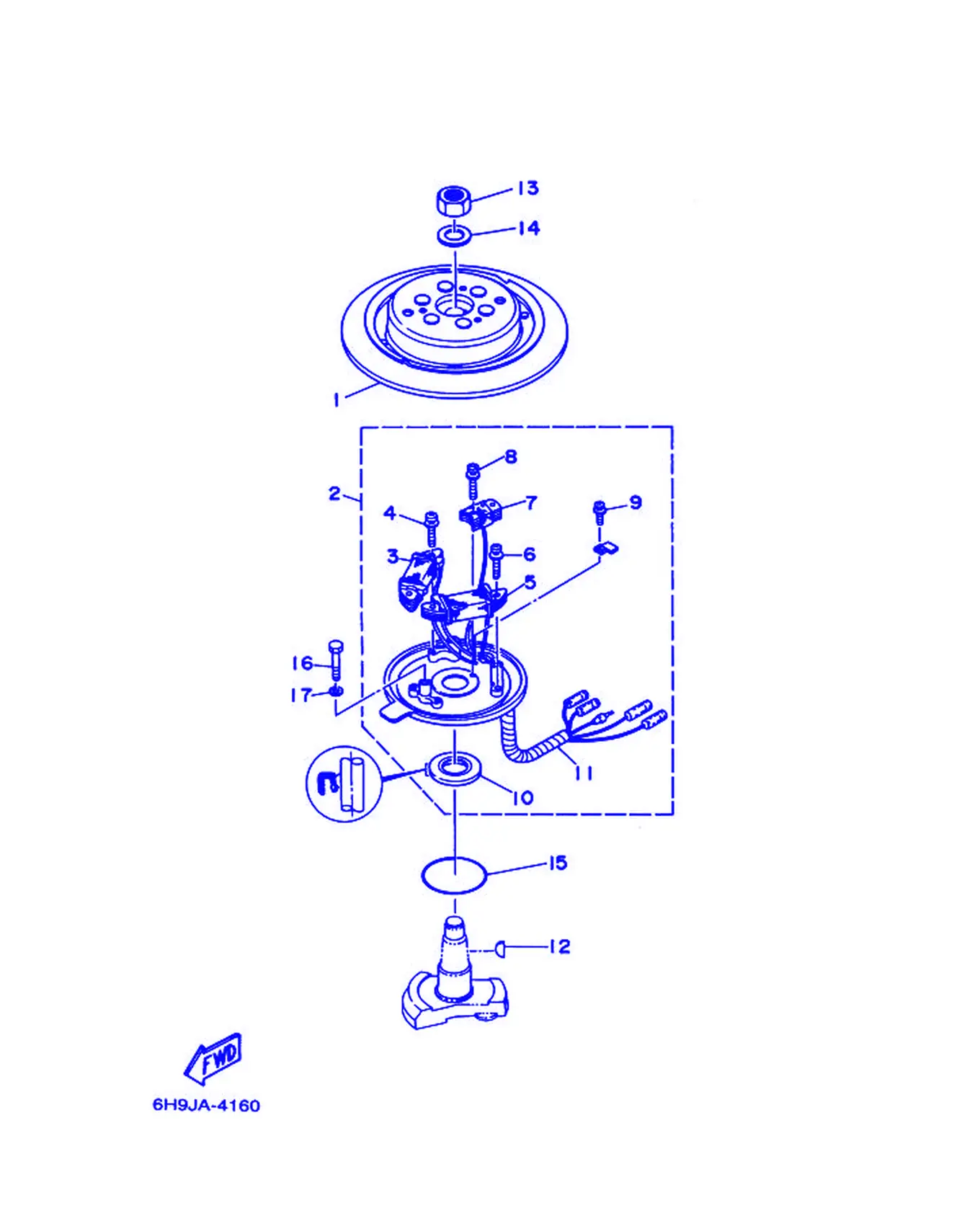

マグネト

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-85550-F2	转子组合	Rotor Assembly	1
1	6F5-85550-A2	转子组合	Rotor Assembly	1
2	6F5-85560-A2	基座组合	BaseAssembly	1
3	6F5-85520-00	充电线	Coil, Charge	1
4	90159-05040	带垫螺栓	Screw, With Washer	2
5	6F5-85533-00	照明线	Coil, Lighting	1
6	90159-05040	带垫螺栓	Screw, With Washer	2
7	6F5-85580-00	脉冲线	Coil, Pulser	1
8	97902-04122	带垫圈螺钉	Screw, Washer	2
9	90159-04035	卡环	Screw, Washer	1
10	93102-35M18	油封	Oil Seal	1
11	6F5-85515-00	导线组合	Lead Wire Assembly	1
12	90280-05049	半圆键	Key, Woodruff	1
13	90170-20137	螺母	Nut	1
14	90201-21M18	平垫圈	Washer,Plate	1
15	93210-75M51	O型圈	O-ring	1
16	97095-06040	螺栓	Bolt	3
17	92990-06600	面板垫圈	Washer,Plate	3

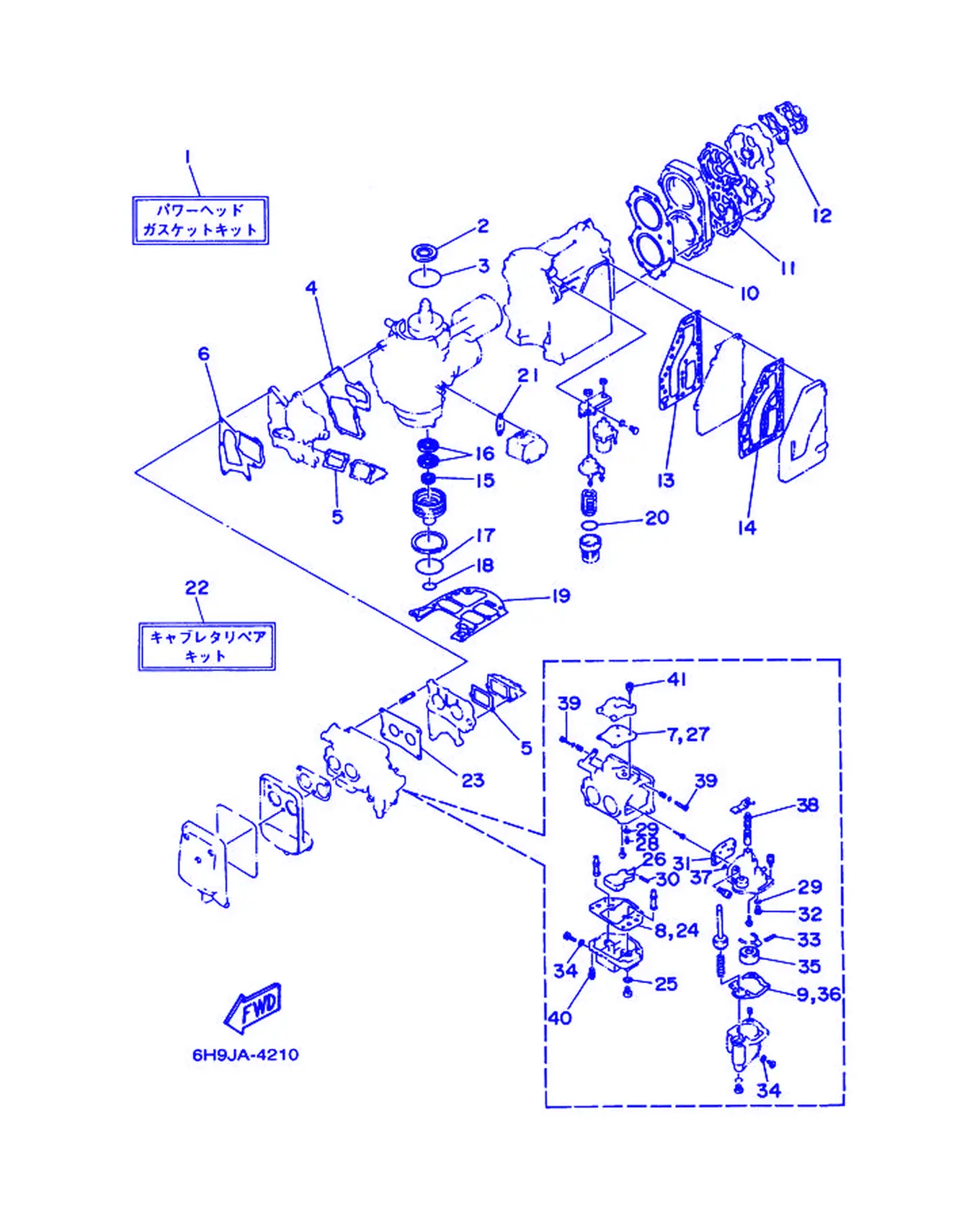

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-W0001-A2	衬垫套	Power Head Gasket Kit	1
2	93102-35M18	油封	Oil Seal	1
3	93210-75M51	O型圈	O-ring	1
4	6F5-13646-A1	岐管衬垫2	Gasket,Manifold 2	1
5	6F5-13621-A0	阀座衬垫	Gasket,ValveSeat	2
6	6F5-13645-A0	岐管衬垫1	Gasket,Manifold 1	1
7	6F5-14398-00	衬垫	Gasket	1
8	6F5-14384-00	浮子室衬垫	Gasket, Float Chamber	1
9	6F5-14384-10	浮子室衬垫	Gasket, Float Chamber	1
10	6F5-11181-A0	气缸头垫片1	Gasket, Cylinder Head 1	1
11	6F5-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
12	676-12414-00	盖衬垫	Gasket,Cover	1
13	6F5-41112-A0	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
14	6F5-41114-A0	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
15	93101-16M36	油封	OilSeal	1
16	93101-30M33	油封	OilSeal	2
17	93210-65M50	O型圈	O-ring	1
18	93210-22M02	O型圈	O-ring	1
19	6F5-45113-A0	水上装置壳体衬垫	Gasket,UpperCasing	1
20	93210-32738	O型圈	O-ring	2
21	650-24431-A0	燃油泵衬垫1	Gasket,FuelPump 1	1
22	6F5-W0093-01	化油器修理套	Carburetor Repair Set	1
23	6F5-14198-A0	衬垫	Gasket	1
24	6F5-14384-00	浮子室衬垫	Gasket, Float Chamber	1
25	1J2-14398-00	衬垫	Gasket	2
26	6E5-14385-01	浮子	Float	1
27	6F5-14398-00	衬垫	Gasket	1
28	6F5-14390-21	针阀组合	NeedleValveAssembly	1
29	367-14195-00	针阀垫	Gasket	2
30	6E5-14386-01	浮子销	Pin, Float	1
31	6F5-14399-00	双金属阀	Gasket	1
32	6F5-14390-12	针阀组合	NeedleValveAssembly	1
33	367-14386-00	浮子销	Pin, Float	1
34	6E5-14398-00	衬垫	Gasket	2
35	647-14385-00	浮子	Float	1
36	6F5-14384-10	浮子室衬垫	Gasket, Float Chamber	1
37	6F5-14397-00	O型圈	O-ring	2
38	6F5-14371-00	起动器柱	Plunger, Starter	1
39	6F5-14323-01	空气调整螺钉	Screw, Air Adjusting	2
40	98580-05018	大柱头螺钉	Screw, Pan Head	1
41	97603-04114	带垫圈大柱头螺钉	Screw, Pan Head With Washer	1

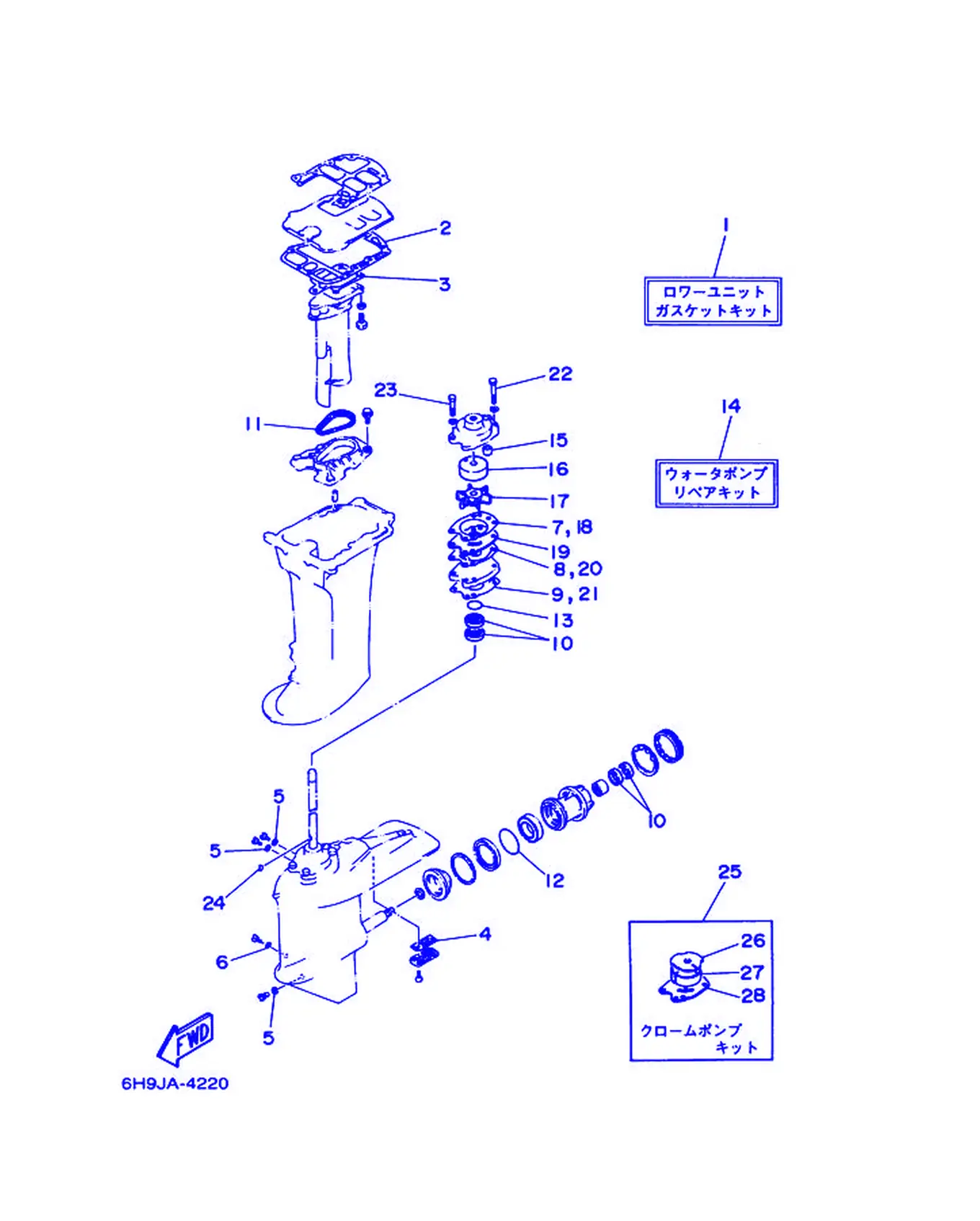

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6H9-W0001-22	衬垫套	LowerUnitGasket Kit	1
2	676-45114-A0	水上装置壳体衬垫	Gasket,UpperCasing	1
3	676-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
4	679-45315-A1	水下装置壳体密封垫	Packing, Lower Casing	1
5	90430-08020	固定	Gasket	3
6	90430-06M03	平垫圈	Gasket	1
7	676-44315-A0	水泵衬垫	Gasket,Water Pump	1
8	676-44324-A0	芯子衬垫	Gasket, Cartridge	1
9	679-44316-A0	水泵衬垫	Gasket,Water Pump	1
10	93101-22067	油封	OilSeal	4
11	676-45127-00	密封	Seal	1
12	93210-66M98	O型圈	O-ring	1
13	93210-41042	O型圈	O-ring	1
14	6F5-W0078-A0	水泵修理套	Water PumpRepair Kit	1
15	663-44366-00	水封减震器	Damper,WaterSeal	1
16	676-44322-00	芯子	Insert, Cartridge	1
17	6F5-44352-00	叶轮	Impeller	1
18	676-44315-A0	水泵衬垫	Gasket,Water Pump	1
19	676-44323-00	外挡板	Outer Plate, Cartridge	1
20	676-44324-A0	芯子衬垫	Gasket, Cartridge	1
21	676-44316-00	水泵衬垫	Gasket, Water Pump	1
22	97095-08055	螺栓	Bolt	2
23	97095-08045	螺栓	Bolt	2
24	90280-04M00	半圆键	Key, Woodruff	1
25	676-W0078-0A	水泵修理套	Chrome Pump Kit	1
26	676-44321-40	内部面板	Inner Plate, Cartridge	1
27	676-44322-40	芯子	Insert, Cartridge	1
28	676-44323-40	外挡板	Outer Plate, Cartridge	1

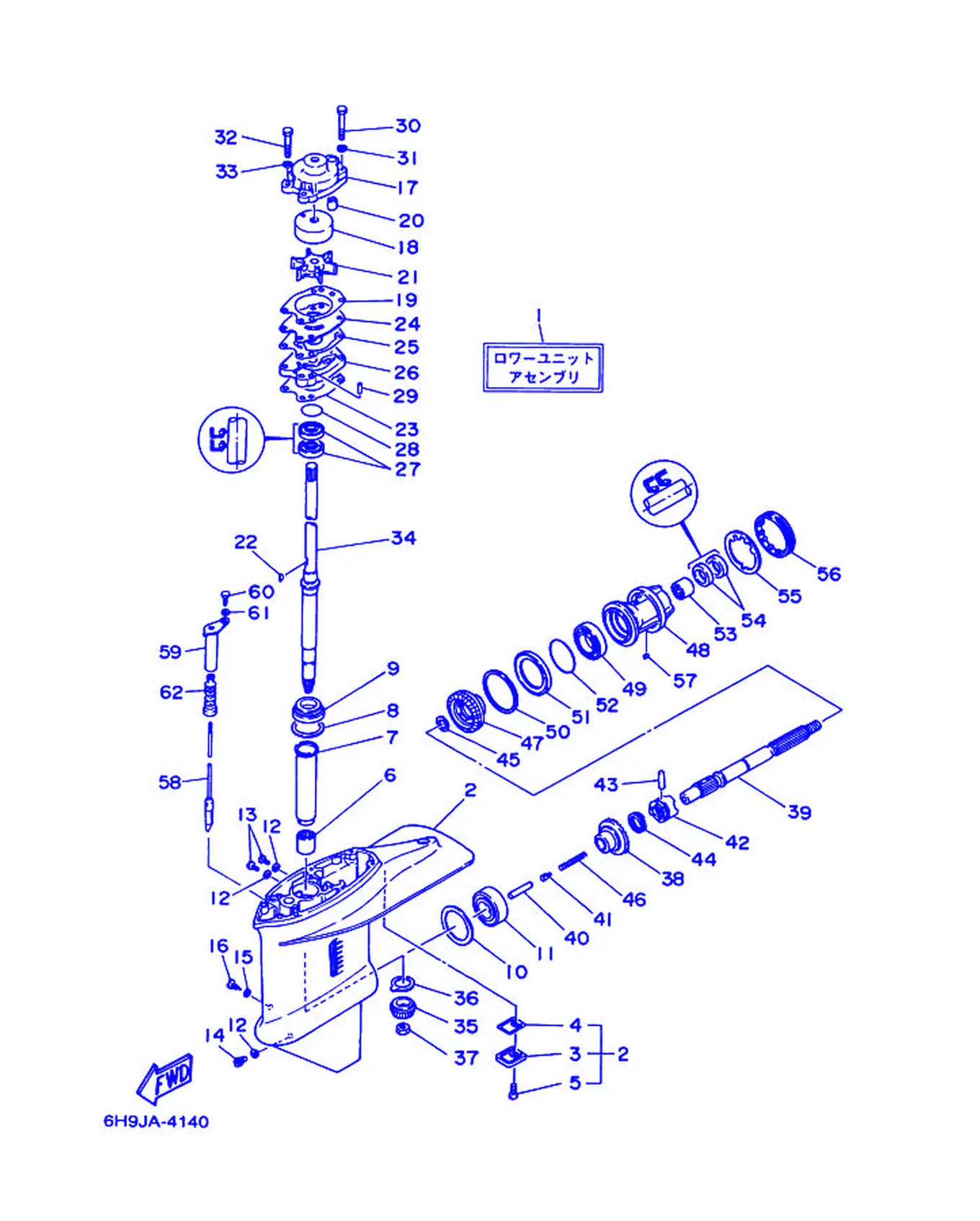

ロワーケーシング. ドライブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6H9-45300-02-4D	水下装置总成	LowerUnitAssembly	1
1	6H9-45300-12-4D	水下装置总成	LowerUnitAssembly	1
1	6H9-45300-22-4D	水下装置总成	LowerUnitAssembly	1
2	6H9-W4531-12-4D	下侧壳	Casing,Lower	1
3	679-45321-02	面板	Plate	1
4	679-45315-A1	水下装置壳体密封垫	Packing, Lower Casing	1
5	98580-06016	大柱头螺钉	Screw, Pan Head	1
6	93315-32224	轴承	Bearing	1
7	679-45536-00	驱动轴套	Sleeve,Drive Shaft	1
8	663-45587-01-10	填隙	Shim (T:0.10MM)	1
8	663-45587-01-12	填隙	Shim (T:0.12MM)	1
8	663-45587-01-15	填隙	Shim (T:0.15MM)	1
8	663-45587-01-18	填隙	Shim (T:0.18MM)	1
8	663-45587-01-30	填隙	Shim (T:0.30MM)	1
8	663-45587-01-40	填隙	Shim (T:0.40MM)	1
9	93332-00001	轴承	Bearing	1
10	663-45567-01-10	填隙	Shim (T:0.10MM)	1
10	663-45567-01-12	填隙	Shim (T:0.12MM)	1
10	663-45567-01-15	填隙	Shim (T:0.15MM)	1
10	663-45567-01-18	填隙	Shim (T:0.18MM)	1
10	663-45567-01-30	填隙	Shim (T:0.30MM)	1
10	663-45567-01-40	填隙	Shim (T:0.40MM)	1
10	663-45567-01-50	填隙	Shim (T:0.50MM)	1
11	93332-00003	轴承	Bearing	1
12	90430-08020	固定	Gasket	3
13	90340-08M04	衬套	Plug, Straight Screw	2
14	688-45341-00	放油	Plug, Drain	1
15	90430-06M03	平垫圈	Gasket	1
16	90149-06M00	螺栓	Screw	1
17	676-44311-00	水泵壳	Housing,Water Pump	1
18	676-44322-00	芯子	Insert, Cartridge	1
19	676-44315-A0	水泵衬垫	Gasket,Water Pump	1
20	663-44366-00	水封减震器	Damper,WaterSeal	1
21	6F5-44352-00	叶轮	Impeller	1
22	90280-04M00	半圆键	Key, Woodruff	1
23	679-44316-A0	水泵衬垫	Gasket,Water Pump	1
24	676-44323-00	外挡板	Outer Plate, Cartridge	1
25	676-44324-A0	芯子衬垫	Gasket, Cartridge	1
26	679-44341-00-94	水泵壳	Housing,Water Pump	1
27	93101-22067	油封	OilSeal	2
28	93210-41042	O型圈	O-ring	1
29	93604-08062	定位销	Pin, Dowel	2
30	97095-08055	螺栓	Bolt	2
31	92990-08600	盘形垫	Washer,Plate	2
32	97095-08045	螺栓	Bolt	2
33	92990-08600	盘形垫	Washer,Plate	2
34	679-45501-00	驱动轴组	Drive ShaftComplete	1
34	679-45501-10	驱动轴组	Drive ShaftComplete	1
34	6A0-45501-20	驱动轴组	Drive ShaftComplete	1
35	6H9-45551-00	小齿轮	Pinion	1
36	663-45552-00	平轴承	Bearing, Plain	1
37	90170-12138	螺帽	Nut	1
38	679-45560-00	齿轮	Gear	1
39	679-45611-01	螺旋浆轴	Shaft,Propeller	1
40	676-45635-00	变挡柱	Plunger, Shift	1
41	663-45634-00	变挡滑	Slide, Shift	1
42	663-45631-01	爪形离合器	Clutch, Dog	1
43	90250-06023	销	Pin, Straight	1
44	663-45633-00	固定环	Ring, Cross Pin	1
45	90201-22429	平垫圈	Washer,Plate	1
46	90501-16M01	压缩弹簧	Spring, Compression	1
47	679-45571-00	齿轮	Gear	1
48	679-45331-00-94	轴承壳	Housing,Bearing	1
49	93306-00702	轴承	Bearing	1
50	663-45577-01-10	填隙	Shim (T:0.10MM)	1
50	663-45577-01-12	填隙	Shim (T:0.12MM)	1
50	663-45577-01-15	填隙	Shim (T:0.15MM)	1
50	663-45577-01-18	填隙	Shim (T:0.18MM)	1
50	663-45577-01-30	填隙	Shim (T:0.30MM)	1
50	663-45577-01-40	填隙	Shim (T:0.40MM)	1
50	663-45577-01-50	填隙	Shim (T:0.50MM)	1
51	663-45576-00	推力垫	Washer, Thrust	1
52	93210-66M98	O型圈	O-ring	1
53	93317-22204	轴承	Bearing	1
54	93101-22067	油封	OilSeal	2
55	90214-48M03	平垫圈	Washer, Claw	1
56	697-45384-00	螺母	Nut	1
57	90282-04010	平键	Key, Straight	1
58	679-44150-00	变挡凸轮组合	Shift Cam Assembly	1
58	679-44150-10	变挡凸轮组合	Shift Cam Assembly	1
58	6A0-44150-20	变挡凸轮组合	Shift Cam Assembly	1
59	679-44152-00	变挡凸轮衬套	Bushing, Shift Cam	1
60	97080-06018	螺栓	Bolt	1
61	92990-06600	面板垫圈	Washer,Plate	1
62	650-44147-00	变挡连杆衬套	Boot, Shift Rod	1

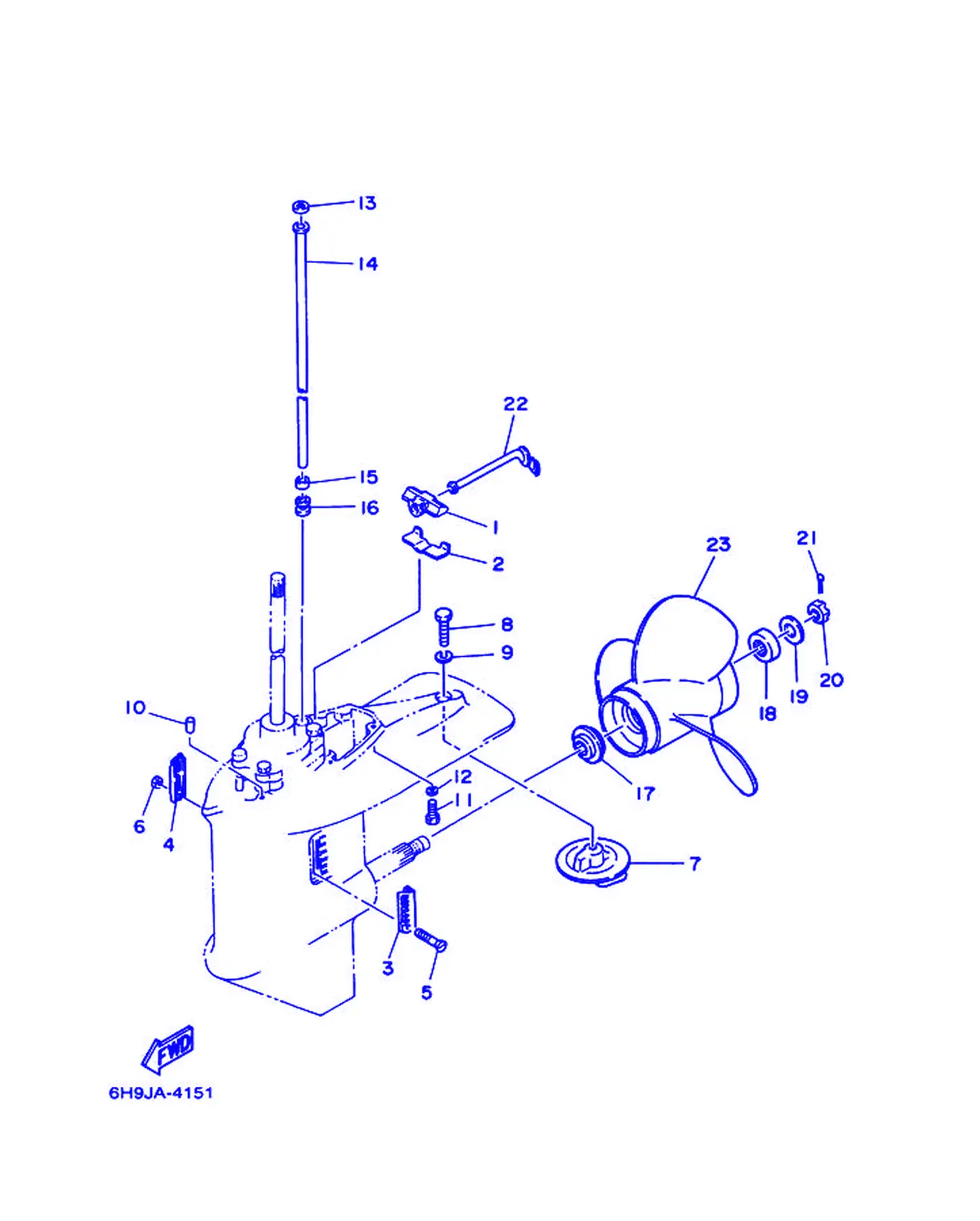

ロワーケーシング. ドライブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6H9-45375-00	密封圈减震	Damper,Seal	1
2	6H9-45376-00	密封圈减震块导承	Guide,SealDamper	1
3	688-45214-02	进水口盖	Cover, Water Inlet 1	1
4	688-45215-02	进水口盖	Cover, Water Inlet 2	1
5	90142-05M05	沉头螺钉	Screw, Countersunk	1
6	90185-05904	螺母	Nut, Self-Locking	1
7	679-45371-00	航向调整	Tab Trim	1
8	97095-10030	螺栓	Bolt	1
9	92990-10100	弹簧垫圈	Washer,Spring	1
10	93606-12019	定位销	Pin, Dowel	2
11	97095-08030	螺栓	Bolt	6
12	92990-08100	盘形垫	Washer,Spring	6
13	90202-12060	平垫圈	Washer,Plate	1
14	676-44361-00	水管	Tube, Water	1
14	676-44361-10	水管	Tube, Water	1
15	90430-12072	衬垫	Gasket	1
16	663-44367-00	水封减震器	Damper,WaterSeal	1
17	663-45987-02	衬套	Spacer	1
18	670-45997-02	衬套	Spacer	1
19	92990-16200	盘形垫	Washer, Plain	1
20	90171-16011	螺母	Nut, Castle	1
21	91490-30030	开口销	Pin, Cotter	1
22	6H9-44362-00	水管	Tube, Water	1
23	663-45941-01-EL	螺旋浆	Propeller (3X10-3/4 X17 -G)	1
23	663-45943-02-EL	螺旋浆	Propeller (3X11 X15 -G)	1
23	663-45945-02-EL	螺旋浆组合	Propeller (3X11-1/8 X13-G)	1
23	663-45947-02-EL	螺旋浆组合	Propeller (3X11-5/8 X11 -G)	1
23	663-45949-01-EL	螺旋浆	Propeller (3X10-3/4 X16 -G)	1
23	663-45952-02-EL	螺旋浆	Propeller (3X11-3/8 X12 -G)	1
