雅马哈 FL150A - FL150AETX

共 37 个部位，点击零件编码查看详情，或搜索本页零件。

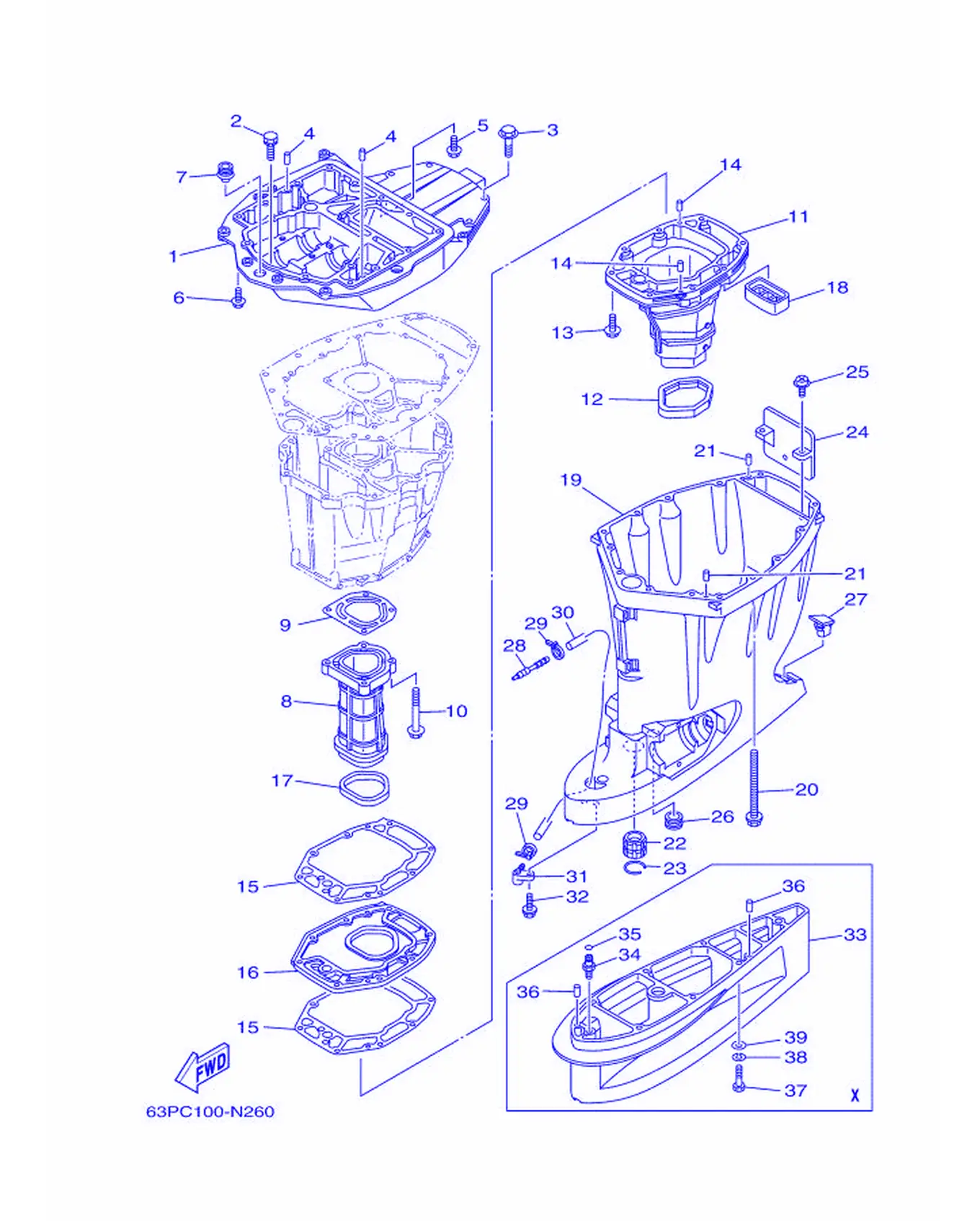

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-41137-04-CA	排气导管	Guide,Exhaust	1
2	90119-08102	带垫圈六角头螺栓	Bolt, With Washer	2
3	97575-10545	带垫圈螺	Bolt, With Washer	4
4	93608-16M16	定位销	Pin, Dowel	2
5	90119-08M58	带垫螺栓	Bolt, With Washer	3
6	97575-10535	带垫圈螺栓	Bolt, With Washer	4
7	6E5-42724-00	固定	Grommet	1
8	63P-41131-01-9S	排气岐管1	Manifold,Exhaust 1	1
9	63P-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
10	97575-08560	带垫圈螺	Bolt, With Washer	4
11	63P-14711-01-9S	消声器1	Muffler 1	1
12	69J-45123-00	消音器衬垫	Gasket,Muffler	1
13	97575-08535	带垫圈螺	Bolt, With Washer	8
14	93606-19M23	定位销	Pin, Dowel	2
15	63P-41134-A1	排气岐管衬垫	Gasket, Exhaust Manifold	2
16	63P-45181-01-9S	面板	Plate	1
17	63P-41138-00	排气管密封圈1	Seal, Exhaust 1	1
18	69J-45127-00	密封	Seal	1
19	63P-45111-00-8D	水上装置壳	Casing,Upper	1
20	90119-10007	带垫螺栓	Bolt, With Washer	8
21	93608-16M16	定位销	Pin, Dowel	2
22	6E5-45318-00	驱动轴衬套	Bushing,Drive Shaft	1
23	93420-36M01	卡环	Circlip	1
24	69J-14624-01	排气盖	Cover,Exhaust	1
25	97980-06216	带垫圈螺钉	Screw, With Washer	2
26	6E5-44366-00	水封减震器	Damper,WaterSeal	1
27	6C5-45155-00	盖	Cap	1
28	6E5-83558-00	管嘴端部	End, Nipple	1
29	90465-11M10	固定	Clamp	2
30	90445-070F1	软管	Hose (L950)	1
31	63P-45379-00	软管嘴	Nipple,Hose	1
32	90119-06M18	螺母	Bolt, With Washer	1
33	63P-45211-00-8D	延伸部分	Extension	1
34	63P-45378-00	软管嘴	Nipple,Hose	1
35	93210-07003	O型圈	O-ring	1
36	93608-16M16	定位销	Pin, Dowel	2
37	97095-10045	螺栓	Bolt	6
38	92995-10100	盘形垫	Washer	6
39	92995-10600	盘形垫	Washer	6

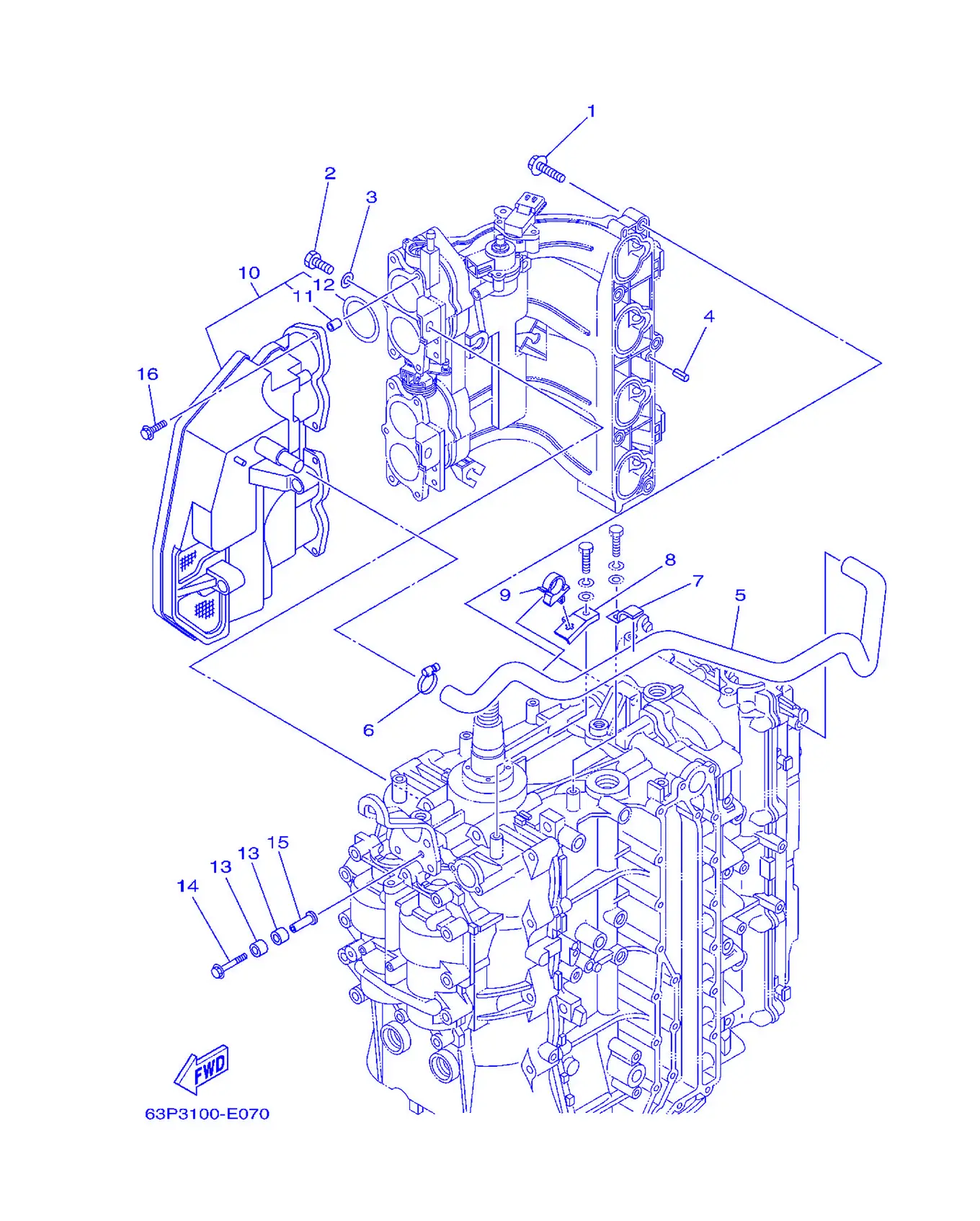

インテーク 1

REF	雅马哈编码	中文名称	英文名称	用量
1	97575-08540	带垫圈螺	Bolt, With Washer	5
2	97013-08020	螺栓	Bolt	2
3	92903-08600	有槽螺母	Washer,Plate	2
4	91690-50014	弹簧销	Pin,Spring	2
5	63P-15373-00	通气管	Pipe, Breather	1
6	90450-22M14	固定	HoseClampAssembly	1
7	90462-10023	固定	Clamp	1
8	63P-15378-00	支架	Holder	1
9	90464-20006	固定	Clamp	1
10	63P-14440-10	进气消声器组合	SilencerAssembly,Intake	1
11	63P-14449-00	轴套	Collar	6
12	63P-14457-00	密封	Seal	4
13	90386-08001	衬套	Bushing	4
14	90119-06076	带垫圈螺栓	Bolt, With Washer	2
15	90387-06280	轴套	Color	2
16	90119-06M82	带垫螺栓	Bolt, With Washer	6

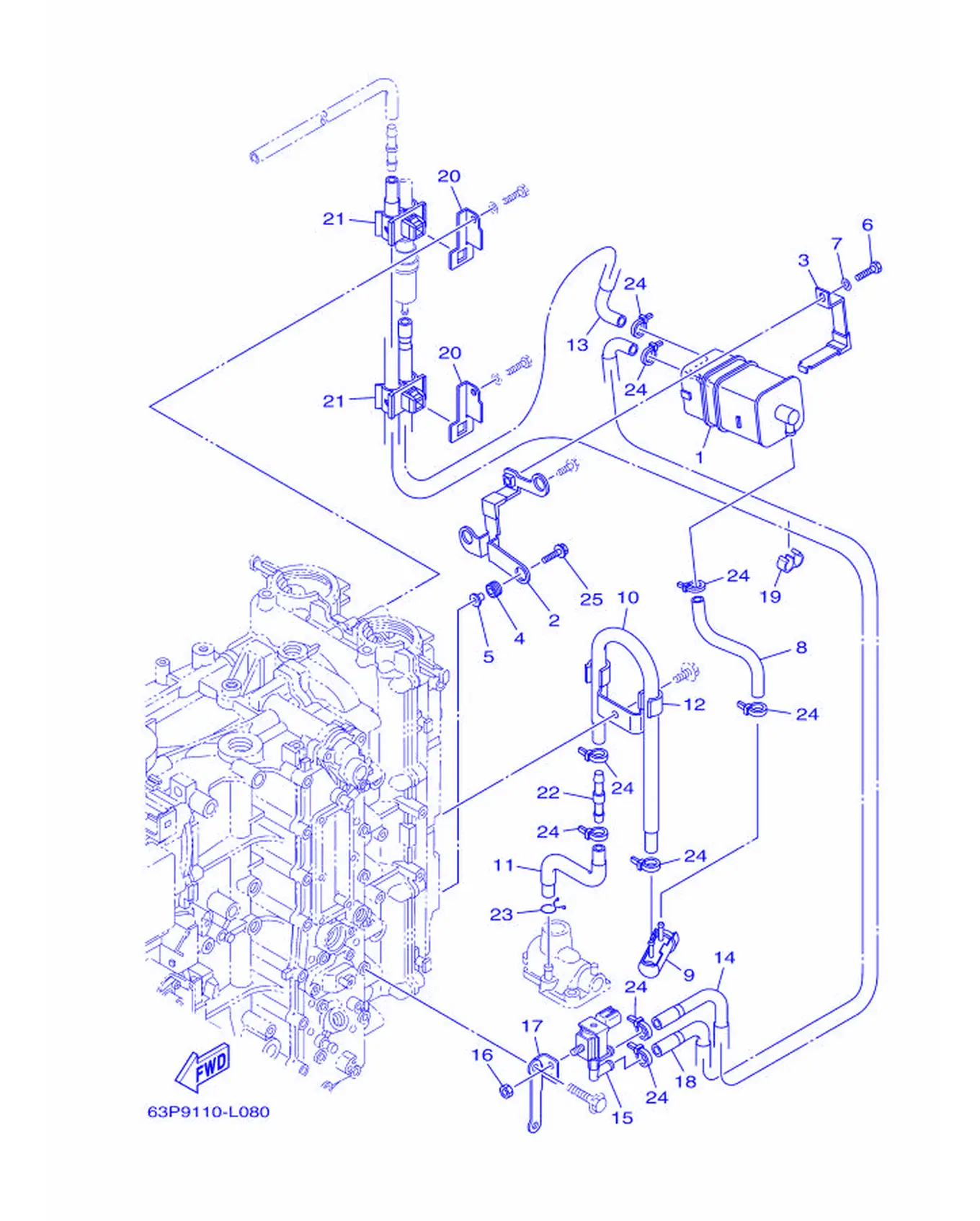

インテーク 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-24170-00	过滤器总成	Canister Assembly	1
2	63P-2134X-00	过滤罐支撑	Bracket, Canister	1
3	63P-2419A-01	支架	Holder	1
4	90480-10M23	固定	Grommet	3
5	90387-06289	轴套	Color	3
6	97095-06016	螺栓	Bolt	1
7	92995-06600	盘形垫	Washer	1
8	64P-24313-00	管3	Pipe 3	1
9	69J-24502-00	燃油过滤器	Filter, Fuel	1
10	64P-24312-00	管2	Pipe 2	1
11	64P-24311-00	燃油管1	Pipe,Fuel 1	1
12	63P-24367-01	燃油管夹2	Clamp,FuelPipe 2	1
13	64P-24315-00	管5	Pipe 5	1
14	64P-24316-00	管6	Pipe 6	1
15	6C5-86120-00	电磁阀组合	SolenoidValveAssembly	1
16	95380-06600	有槽螺母	Nut, Hexagon	1
17	63P-81845-10	面板	Plate	1
18	64P-24314-10	管4	Pipe 4	1
19	90464-09M31	固定	Clamp	1
20	63P-24364-01	支承	Stay	2
21	90464-11012	固定	Clamp	2
22	6E5-24379-00	连接管4	Pipe,Joint 4	1
23	90467-09M09	固定	Clip	1
24	90465-11M10	固定	Clamp	9
25	90119-06135	带垫圈螺栓	Bolt, With Washer	2

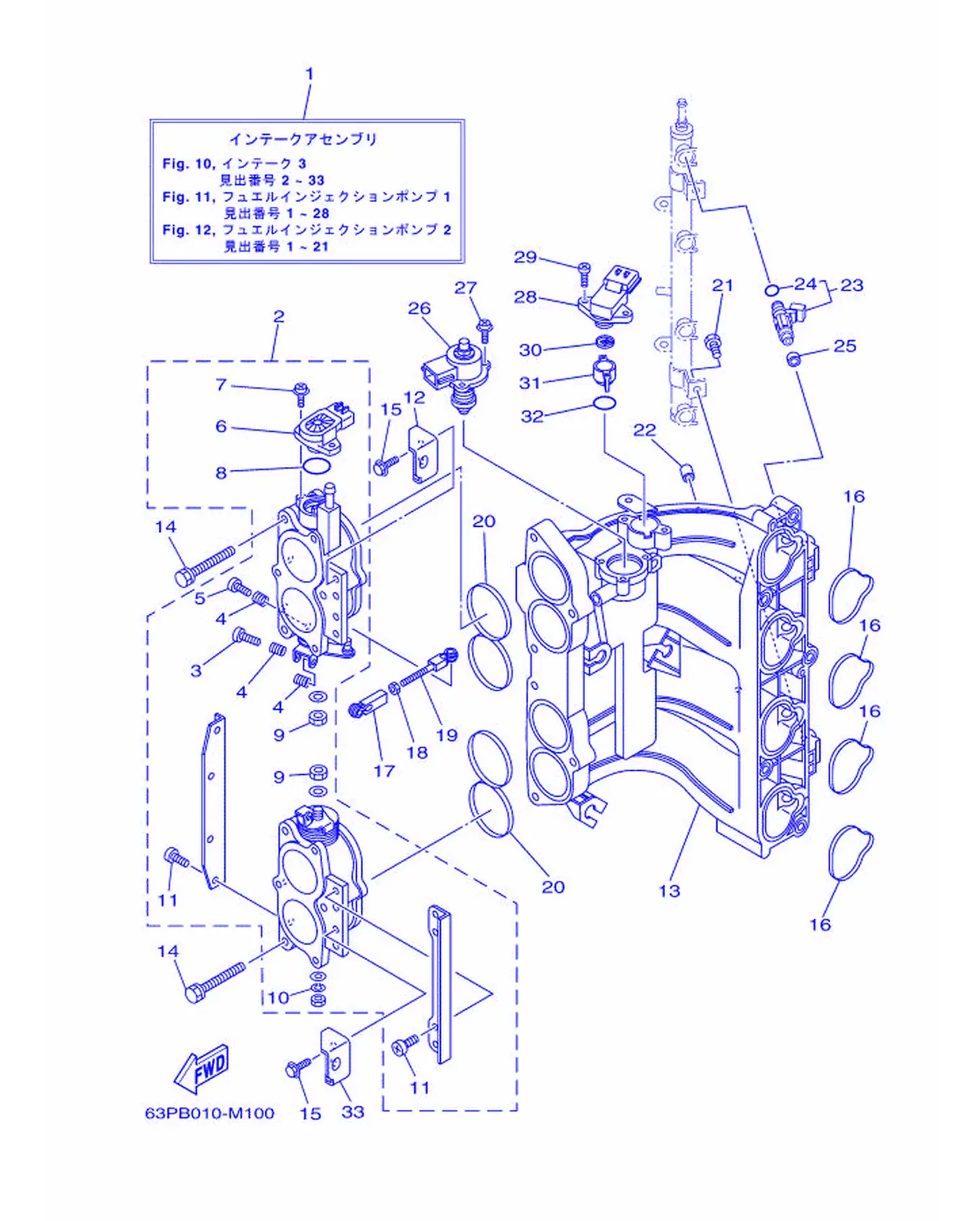

インテーク 3

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-14200-23	进气组合	IntakeAssembly	1
2	63P-13751-01	空气流量传感	Body, Throttle 1	1
3	69J-14321-00	节气门螺钉	Screw,Throttle	1
4	68V-14331-00	节气门阀弹簧	Spring,ThrottleValve	3
5	68V-14323-00	空气调整螺钉	Screw, Air Adjusting	1
6	6S1-85885-00	节流传感件组合	Throttle Sensor Assembly	1
7	68V-81145-01	螺钉1	Screw 1	2
8	68V-8182L-00	O型圈	O-ring 1	1
9	3CF-14594-00	螺母	Nut	2
10	68V-14356-00	弹簧垫	Washer, Spring	1
11	68V-14565-00	螺钉	Screw	8
12	63P-14291-00	托架1	Bracket 1	1
13	63P-13641-00	岐管1	Manifold,Intake 1	1
14	63P-14496-00	螺栓	Bolt	6
15	97595-06516	带垫圈螺	Bolt, With Washer	4
16	63P-13645-00	岐管衬垫1	Gasket,Manifold 1	4
17	6H4-41237-00	连杆接头	Joint, Link	1
18	95380-05700	有槽螺母	Nut	1
19	682-41238-01	连杆接头	Joint, Link	1
20	63P-13557-00	衬垫	Gasket	2
21	63P-14446-00	螺栓	Bolt	2
22	63P-13643-00	岐管盖	Cover,Manifold	4
23	63P-13761-01	喷射器	Injector Assembly	4
24	68V-1416A-00	O型圈	O-ring	1
25	68V-13766-00	喷射器橡皮	Rubber, Injector	4
26	63P-1312A-01	控制阀	Valve,Control	1
27	68V-81146-01	螺钉2	Screw 2	3
28	63P-82380-00	压力传感	Sensor, Pressure	1
29	68V-81147-00	螺钉3	Screw 3	2
30	63P-13905-00	过滤器	Filter Assembly	1
31	63P-13898-00	支架	Holder	1
32	63P-13769-00	O型圈	O-ring	1
33	63P-14292-00	支架 2	Bracket 2	1

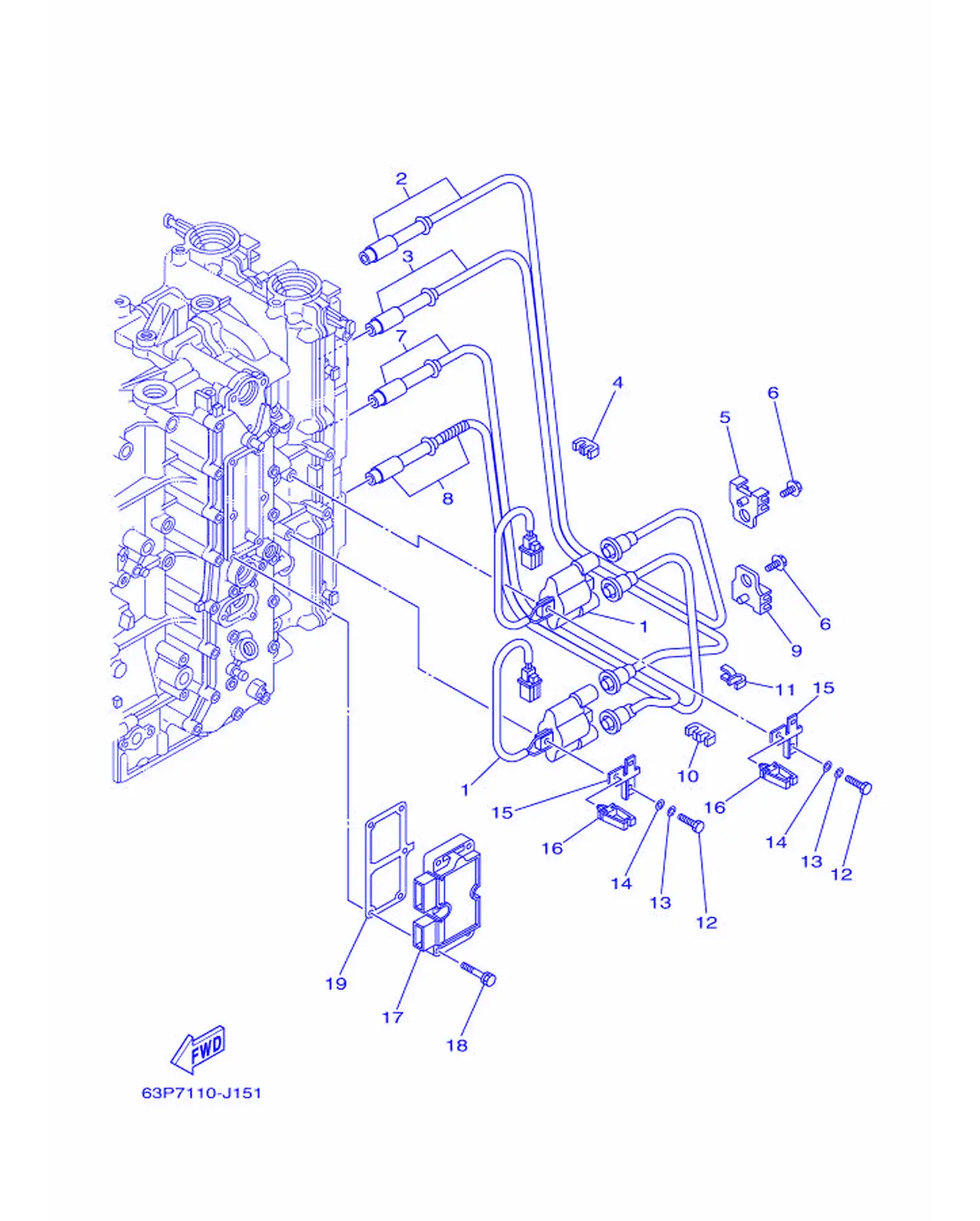

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-82310-01	点火线圈组合	Ignition Coil Assembly	2
2	63P-W823A-00	高压缆索1	Cord, High Tension 1	1
3	63P-W823B-00	高压缆索2	Cord, High Tension 2	1
4	67F-82361-00	线夹	Clamp, Cord	1
5	67F-82362-00	线夹2	Clamp, Cord 2	1
6	90119-06134	带垫圈螺栓	Bolt, With Washer	2
7	63P-W823C-00	高压缆索3	Cord, High Tension 3	1
8	63P-W823D-00	高压缆索4	Cord, High Tension 4	1
9	67F-82362-00	线夹2	Clamp, Cord 2	1
10	67F-82361-00	线夹	Clamp, Cord	1
11	90464-07M41	固定	Clamp	1
12	97095-06025	螺栓	Bolt	4
13	92995-06100	垫圈	Washer,Spring	4
14	92995-06600	盘形垫	Washer	4
15	63P-82388-00	面板	Plate	2
16	90464-05141	固定	Clamp	2
17	63P-81960-01	整流调节器	Rectifier and Regulator	1
18	90119-06MA4	带垫螺栓	Bolt, With Washer	6
19	63P-81975-00	整流器装配面板	Plate, Rectifier Fitting	1

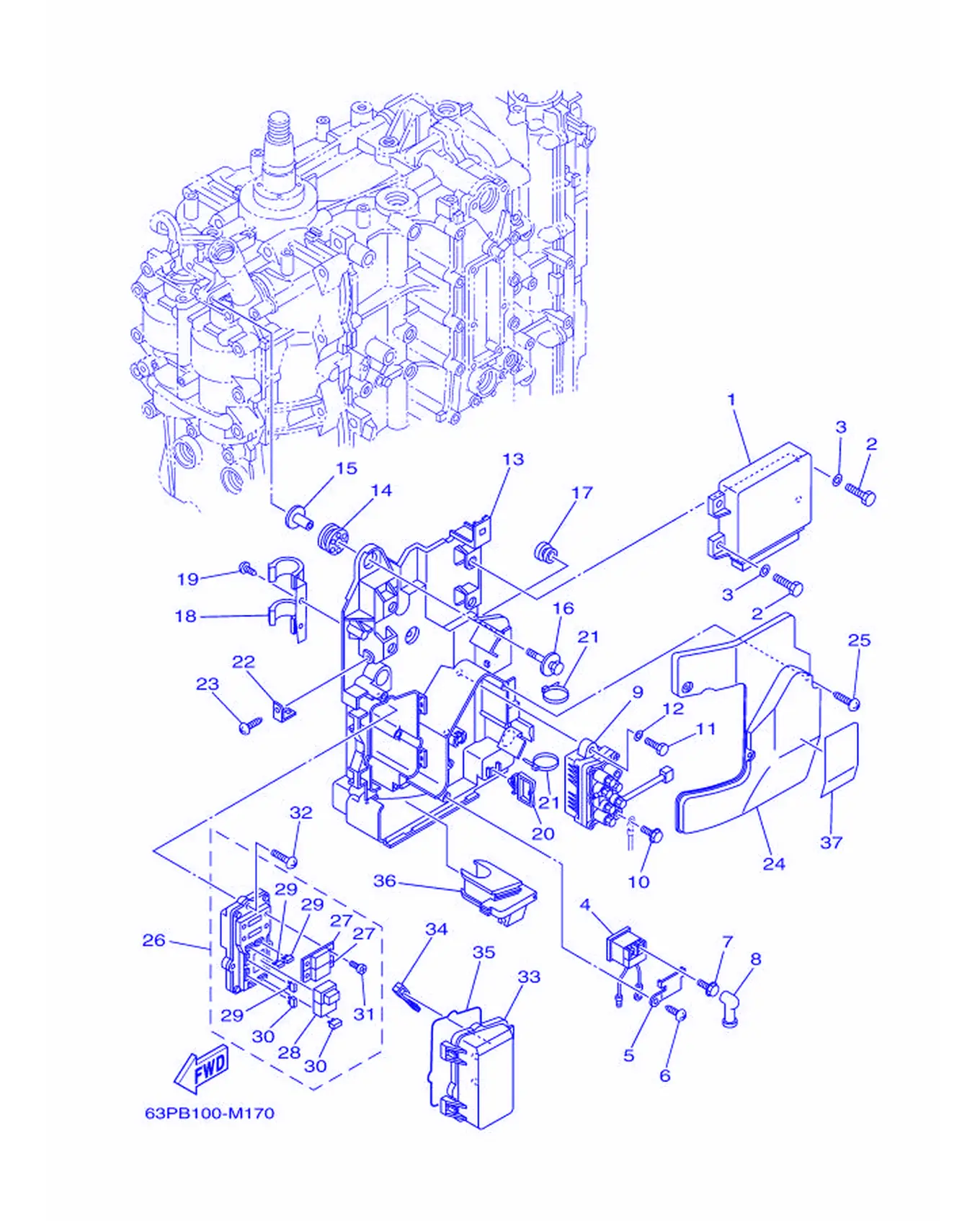

エレクトリカル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-8591A-54	托架装置	Engine Control Unit Assembly	1
2	97095-06016	螺栓	Bolt	4
3	92995-06600	盘形垫	Washer	4
4	68V-8194A-00	继电器	Relay	1
5	68V-81953-00	继电器支承	Stay, Relay	1
6	97780-60620	自攻螺钉	Screw, Tapping	1
7	97595-06610	带垫圈螺栓	Bolt, With Washer	2
8	6G5-82119-00	导线盖	Cover,LeadWire	2
9	63P-81950-00	继电器组合	RelayAssembly	1
10	97595-06610	带垫圈螺栓	Bolt, With Washer	2
11	97013-06020	螺栓	Bolt	2
12	92903-06600	盘形垫	Washer,Plate	2
13	63P-81948-00	托架	Bracket	1
14	68F-85516-01	衬套	Spacer	3
15	90387-06176	衬套	Color	3
16	68F-85119-00	托架3	Bolt	3
17	90480-10627	固定	Grommet	1
18	63P-82594-00	夹箍	Clamp	1
19	97780-60620	自攻螺钉	Screw, Tapping	1
20	90464-23199	固定夹	Clamp	1
21	90465-13M18	固定	Clamp	3
22	68V-85548-00	支架	Holder	1
23	97780-60620	自攻螺钉	Screw, Tapping	1
24	63P-81942-00	盖，罩	Cover	1
25	90169-05M00	卡环	Screw, Truss Head Tapping	3
26	63P-82170-00	保险丝盒组合	Fuse Box Assembly	1
27	63P-82151-00	保险丝	Fuse (50A)	2
28	68F-8195A-00	继电器组合	Relay Assembly	1
29	67F-82151-00	保险丝	Fuse (20A)	3
30	67F-82151-10	保险丝	Fuse (30A)	2
31	68F-82846-00	限位板组合	Screw, Pan Head (M5)	4
32	97780-50620	自攻螺钉	Screw, Tapping	3
33	60V-85544-00	盖	Case	1
34	67F-2812A-00	小夹子	Puller, Fuse	1
35	68F-82176-00	减震器	Damper	1
36	63P-81336-00	固定	Grommet	1
37	63P-81919-00	调压器图样	Graphic, Regulator	1

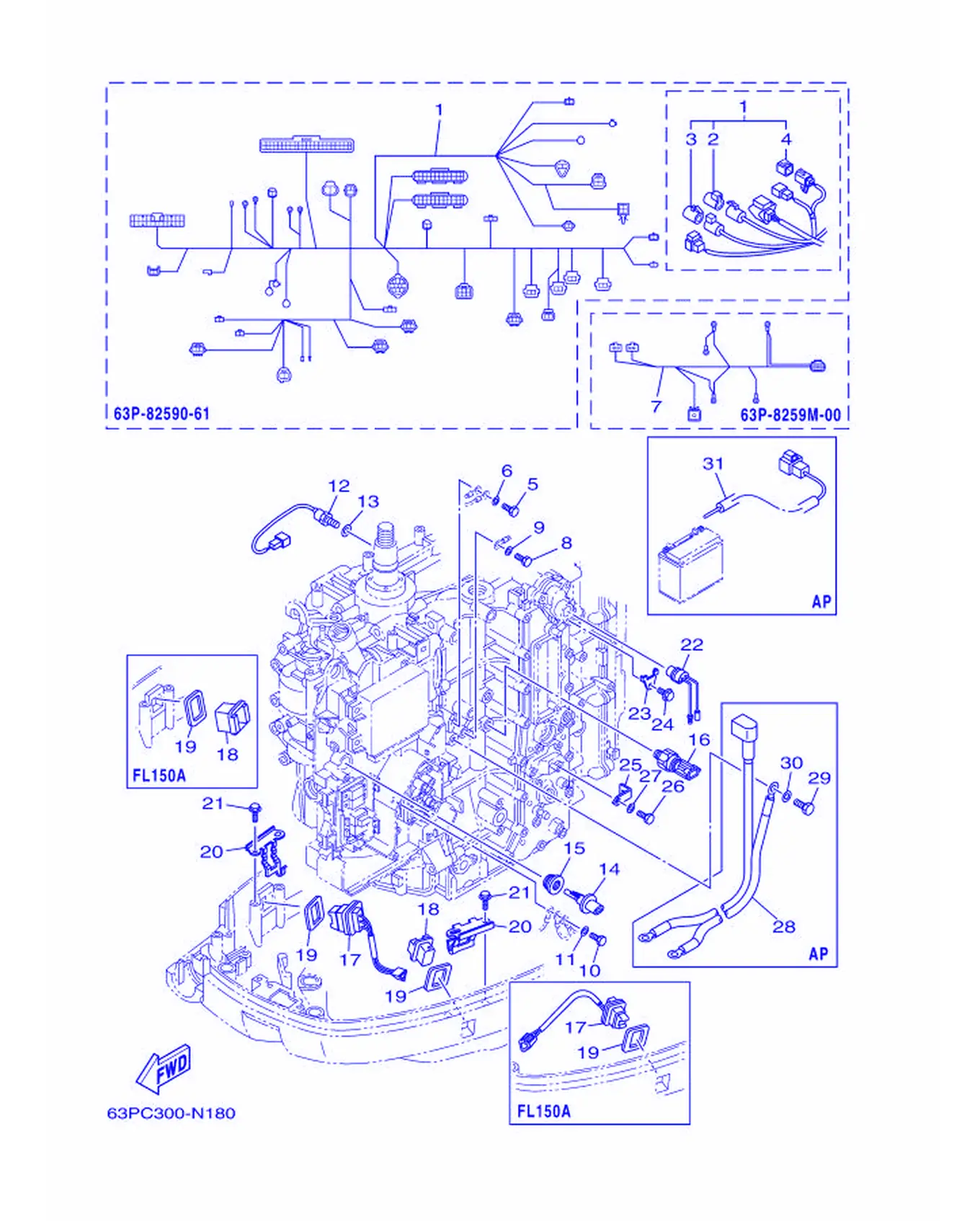

エレクトリカル 3

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-82590-61	电缆总成	WireHarnessAssembly	1
2	6DA-82582-00	电线束盖	Cap 1 (Female)	1
3	6DA-82582-10	电线束盖	Cap 1 (Male)	1
4	6Y8-82582-11	电线束盖	Cap 1 (4 Pin)	1
5	97095-06016	螺栓	Bolt	1
6	92995-06600	盘形垫	Washer	1
7	63P-8259M-00	倾斜限动电	WireHarnessAssembly 2	1
8	97095-06016	螺栓	Bolt	1
9	92995-06600	盘形垫	Washer	1
10	97095-06012	螺栓	Bolt	1
11	92995-06600	盘形垫	Washer	1
12	61A-85790-00	温控传感件组合	Thermo Sensor Assembly	1
13	92990-10600	垫圈	Washer,Plate	1
14	63P-85886-00	温控器	Sensor, Air Temperature	1
15	63P-14435-00	固定环	Grommet	1
16	6AW-83651-00	油压传感	Sender, Oil Pressure	1
17	69J-82563-00	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
18	69J-42723-01	底盖	Cover, Bottom	1
19	69J-82587-00	衬垫	Gasket	2
20	63P-83614-01	托架	Bracket	2
21	90109-06M86	螺栓	Bolt	4
22	6P2-82560-01	温控开关组合	Thermo Switch Assembly	1
23	6E9-82588-00	面板	Plate	1
24	90109-06M80	螺栓	Bolt	1
25	63P-8366P-01	托架4	Bracket 4	1
26	97095-06012	螺栓	Bolt	1
27	92995-06600	盘形垫	Washer	1
28	63P-82105-J1	电缆	Battery Cable	1
29	97095-08016	螺栓	Bolt	1
30	92995-08600	盘形垫	Washer	1
31	68F-81949-02	导线	Wire, Lead (Isolator, 2.7M)	1

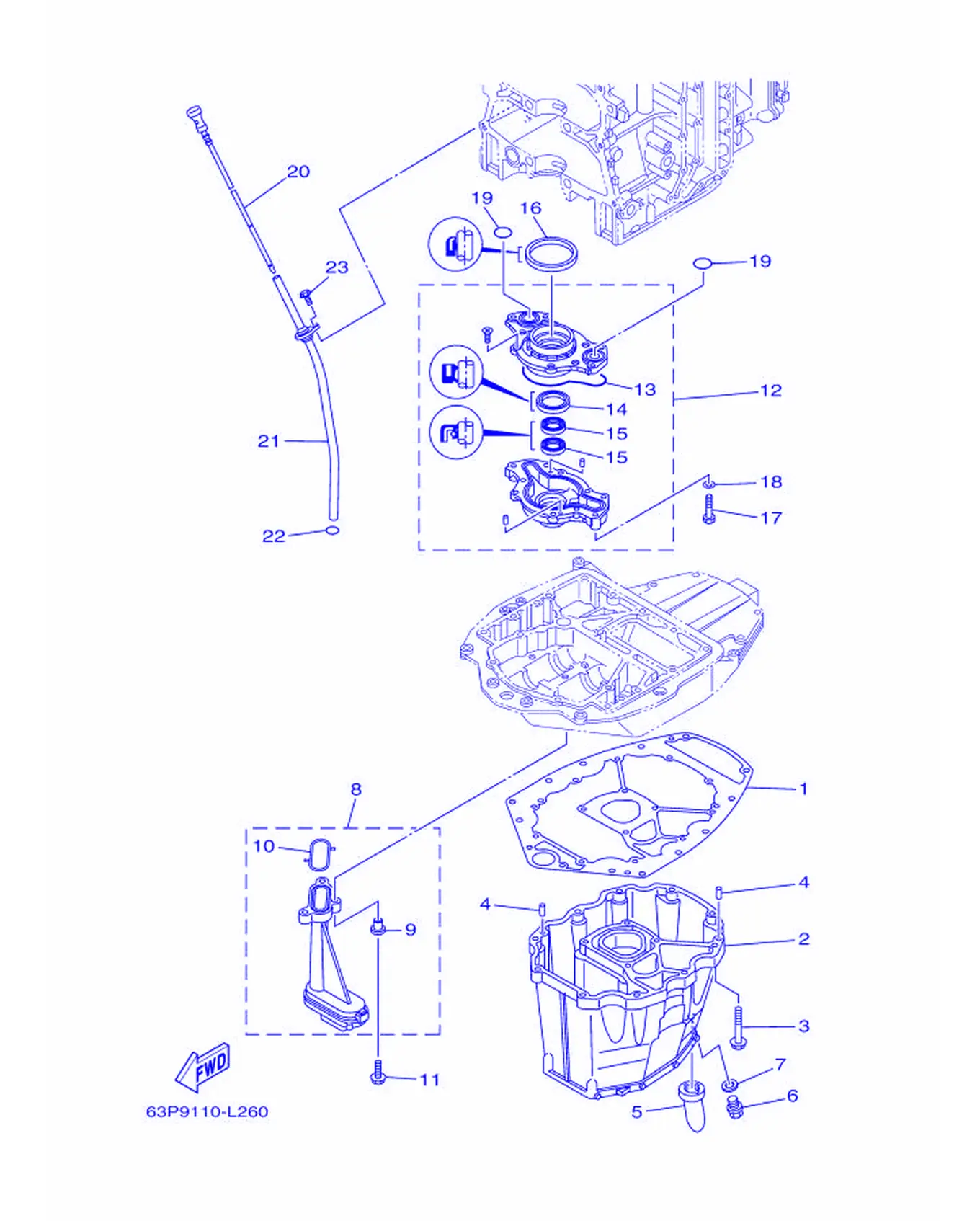

オイルパン

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-15312-01	油槽衬垫	Gasket, Oil Pan	1
2	63P-15311-02-CA	油槽	Oil Pan	1
3	97575-08535	带垫圈螺	Bolt, With Washer	10
4	93608-16M16	定位销	Pin, Dowel	2
5	63P-15316-00	发动机架减震器1	Damper 1	1
6	90340-14M06	塞	Plug, Straight Screw	1
7	90430-14M09	衬垫	Gasket	1
8	63P-13411-00	机油滤芯	Strainer,Oil	1
9	90387-06263	轴套	Color	3
10	63P-13415-00	机油滤网密封	Seal, Oil Strainer	1
11	95812-06025	螺栓	Bolt, Flange	3
12	63P-13300-02	机油泵总成	Oil PumpAssembly	1
13	63P-13329-00	泵盖衬垫	Gasket, Pump Cover	1
14	6AW-13119-00	润滑密封	Oil Seal	1
15	69J-13631-00	橡皮密封	Oil Seal	2
16	69J-11355-00	气缸密封圈1	Seal,Cylinder 1	1
17	97095-06040	螺栓	Bolt	4
18	92995-06600	盘形垫	Washer	4
19	93210-25552	O型圈	O-ring	2
20	63P-15362-10	油标塞	Plug, Oil Level	1
21	63P-15377-10	导管	Guide, Inlet	1
22	93210-19MJ3	O型圈	O-ring	1
23	95895-06016	凸缘螺	Bolt, Flange	1

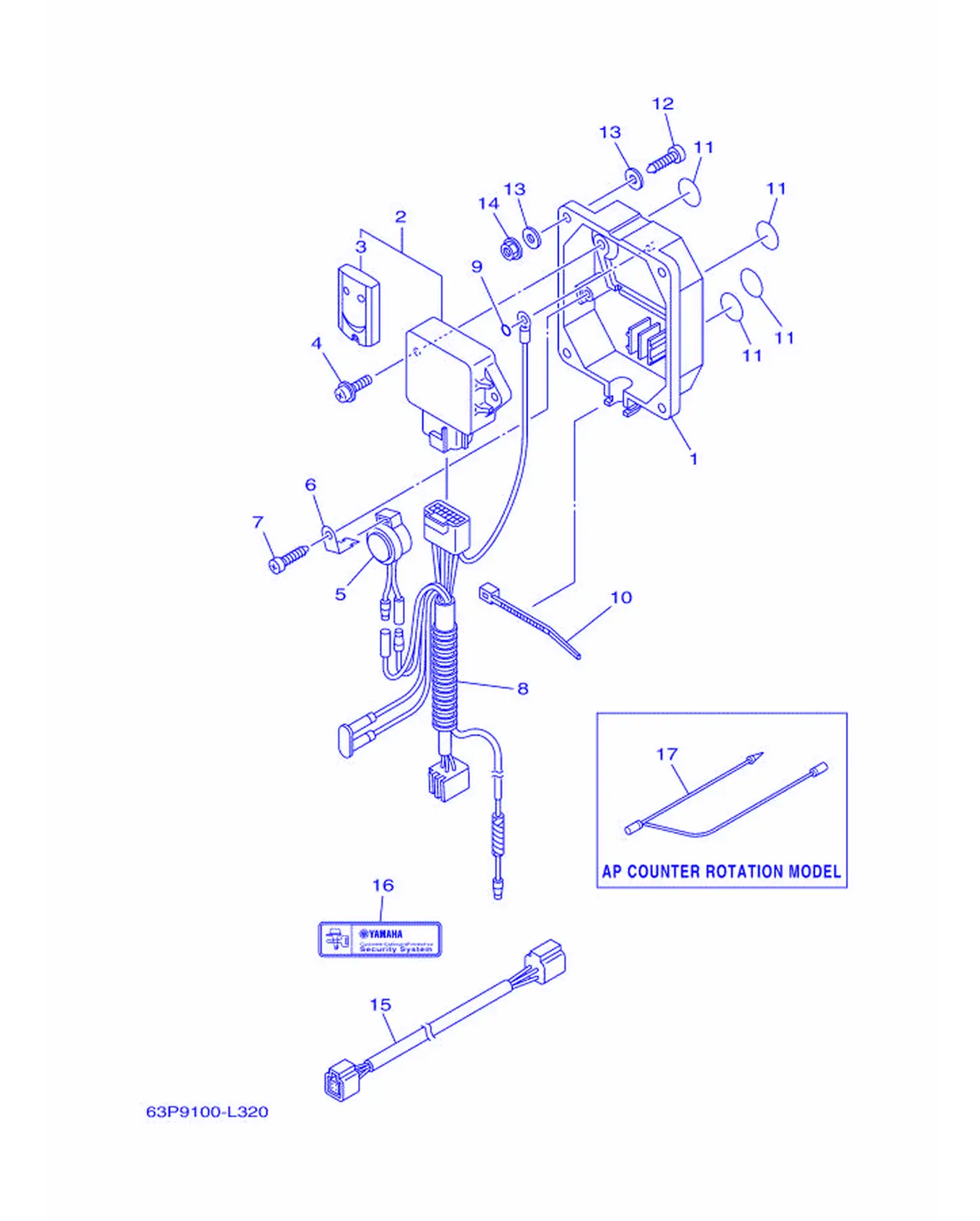

オプシヨナルパ-ツ 2

REF	雅马哈编码	中文名称	英文名称	用量
17	6H5-81315-00	导线组合	LeadWireAssembly	1

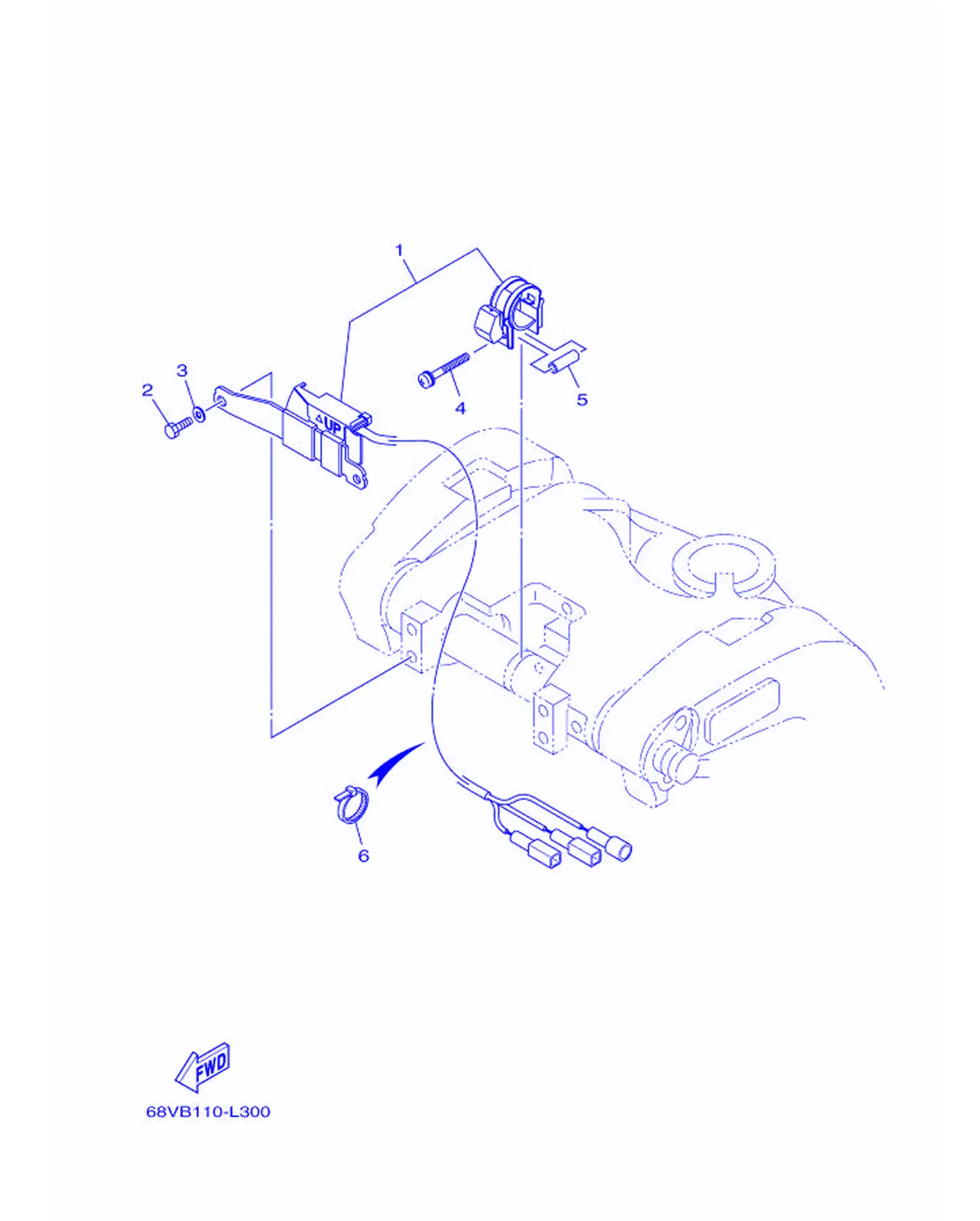

オプシヨナルパ-ツ 3

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-825E0-01	倾斜限位开关总成	Tilt Limit Switch Assembly	1
2	97095-06016	螺栓	Bolt	2
3	92995-06600	盘形垫	Washer	2
4	90159-05059	带垫圈螺丝	Screw, With Washer	1
5	90387-05004	轴套	Color	1
6	90465-11M10	固定	Clamp	5

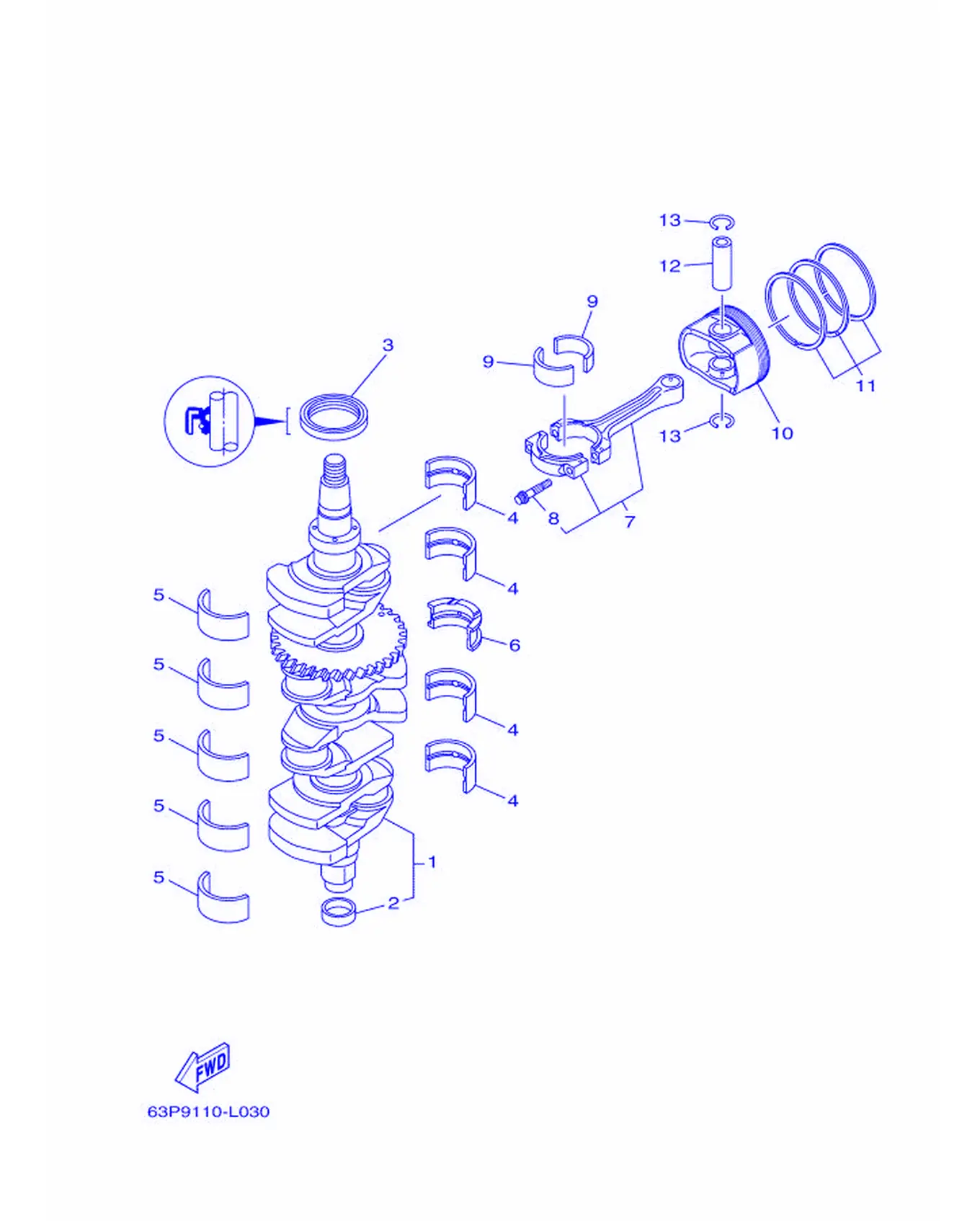

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-11410-03	曲轴	Crankshaft	1
2	6CB-11478-00	衬套	Collar	1
3	93102-60004	油封	OilSeal	1
4	63P-11416-31	轴瓦1	Plain Bearing, Crankshaft	4
4	63P-11416-41	轴瓦1	Plain Bearing, Crankshaft	4
4	63P-11416-51	轴瓦1	Plain Bearing, Crankshaft	4
5	63P-11417-41	轴瓦2棕色	Plain Bearing, Crankshaft	5
5	63P-11417-51	轴瓦2绿色	Plain Bearing, Crankshaft	5
5	63P-11417-61	轴瓦2红色	Plain Bearing, Crankshaft	5
5	63P-11417-71	轴瓦2黄色	Plain Bearing, Crankshaft	5
5	63P-11417-81	轴瓦2蓝色	Plain Bearing, Crankshaft	5
6	63P-11426-31	轴瓦1绿色	Bearing, Thrust 1	1
6	63P-11426-41	轴瓦1红	Bearing, Thrust 1	1
6	63P-11426-51	轴瓦1黄	Bearing, Thrust 1	1
7	63P-W1165-10	连杆	Connecting Rod Assembly	4
8	63P-11654-10	连杆螺栓	Bolt, Connecting Rod	2
9	63P-11656-30	轴瓦	Plain Bearing, Connecting Rod	8
9	63P-11656-40	轴瓦	Plain Bearing, Connecting Rod	8
9	63P-11656-50	轴瓦	Plain Bearing, Connecting Rod	8
10	63P-11631-10-93	活塞（STD）F150B'	Piston (STD)	4
10	63P-11635-10	活塞（0.25毫米 O/S)F150B'	Piston (0.25MM O/S)	4
11	63P-11603-01	活塞环套件	PistonRingSet (STD)	4
11	63P-11604-00	活塞环套件	Piston Ring Set (0.25MM O/S)	4
12	63P-11633-10	活塞销	Pin,Piston	4
13	63P-11634-00	活塞销挡圈	Clip,Piston Pin	8

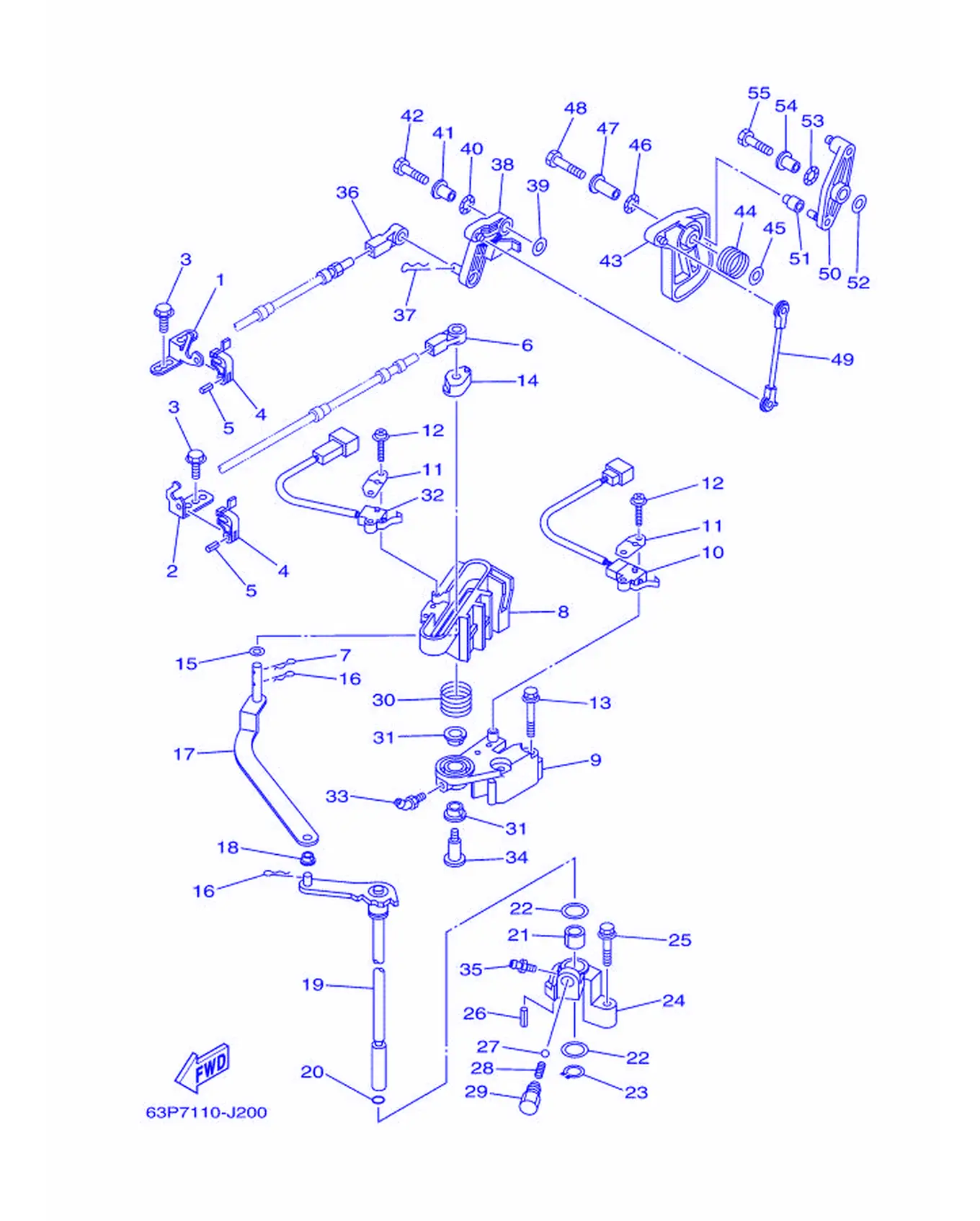

コントロ-ル

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-48531-00	遥控装置托架1	Bracket, Remote Control 1	1
2	63P-48532-00	遥控装置托架2	Bracket, Remote Control 2	1
3	90109-06M86	螺栓	Bolt	3
4	63P-48538-00	钢索夹1	Clamp,Cable 1	2
5	91690-30010	弹簧销	Pin,Spring	2
6	6E5-48344-00	遥控钢索端部	Cable End, Remote Control	1
7	90468-18008	钢夹	Clip	1
8	63P-44176-00	托架	Bracket	1
9	63P-44117-01	托架	Bracket	1
10	69J-8259F-00	开关组合	SwitchAssembly	1
11	61A-82588-01	面板	Plate	2
12	97985-04116	带垫圈螺钉	Screw, With Washer	4
13	97595-06550	带垫圈螺	Bolt, With Washer	2
14	63P-44122-00	变挡杆杠杆衬套	Bushing, Shift Rod Lever	1
15	90202-08M20	平垫圈	Washer,Plate	1
16	90468-18008	钢夹	Clip	2
17	63P-44121-00	变挡杆杠杆	Lever, Shift Rod	1
18	90386-06M12	衬套	Bushing	1
19	63P-44120-01	变挡手柄组合	Handle Gear Shift Assembly	1
20	93210-09165	O型圈	O-ring	1
21	90386-16M66	衬套	Bushing	1
22	90202-16061	平垫圈	Washer,Plate	2
23	93410-16006	开口簧环，卡	Circlip	1
24	63P-44118-00	托架	Bracket	1
25	97575-06535	带垫圈螺	Bolt, With Washer	1
26	91690-30010	弹簧销	Pin,Spring	1
27	93501-04M02	滚珠	Ball	1
28	90501-12082	压簧	Spring, Compression	1
29	648-42715-00	衬套	Bushing	1
30	90508-20M31	接头	Spring, Torsion	1
31	90386-12069	衬套	Bushing	2
32	60V-8259F-00	开关组合	SwitchAssembly	1
33	93700-06M01	润滑油管嘴	Nipple, Grease	1
34	90109-08019	卡环	Bolt	1
35	93700-06M03	润滑油管嘴	Nipple, Grease	1
36	6E5-48344-00	遥控钢索端部	Cable End, Remote Control	1
37	90468-18008	钢夹	Clip	1
38	63P-42154-00	油门控制杆	LeverThrottleControl	1
39	90201-06M31	面板垫圈	Washer,Plate	1
40	90206-10M04	波形垫圈	Washer, Wave	1
41	90387-06M29	衬套	Color	1
42	97095-06025	螺栓	Bolt	1
43	63P-41213-00	加速器凸轮	Cam,Accelerator	1
44	69J-44135-00	弹簧	Spring	1
45	90201-06M31	面板垫圈	Washer,Plate	1
46	90206-10M04	波形垫圈	Washer, Wave	1
47	90387-06M82	衬套	Color	1
48	97095-06035	螺栓	Bolt	1
49	63P-41237-00	连杆接头	Joint, Link	1
50	63P-42157-00	衬套	Lever,Throttle	1
51	68V-42171-00	衬套	Bushing	1
52	90201-06M31	面板垫圈	Washer,Plate	1
53	90206-10M04	波形垫圈	Washer, Wave	1
54	90387-06M29	衬套	Color	1
55	97095-06025	螺栓	Bolt	1

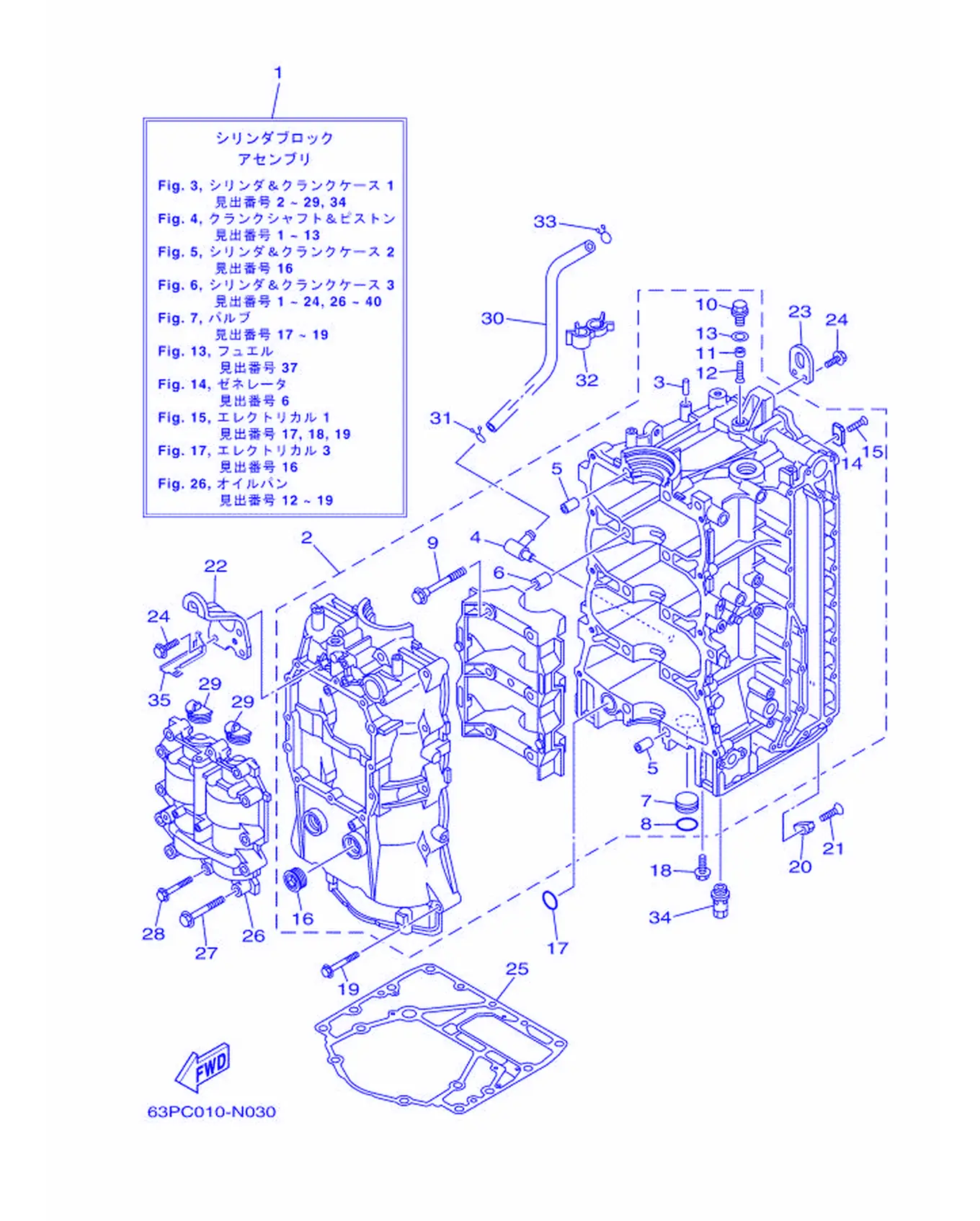

シリンダ & クランクケース 1

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-W009B-11-9S	主气缸套件	Cylinder Block Assembly	1
2	63P-W1510-03-9S	曲轴箱组合	Crankcase Assembly	1
3	93606-12019	定位销	Pin, Dowel	1
4	63P-11372-00	软管接头	Nipple, Hose	1
5	91814-18002	销	Pin, Dowel	4
6	91814-18002	销	Pin, Dowel	6
7	90338-25004	插销	Plug	1
8	93210-25647	O型圈	O-ring	1
9	90105-10071	螺栓	Bolt, Flange	10
10	63P-11197-00	绝缘插头	Blind Plug	1
11	63P-11325-21	阳极	Anode	1
12	98780-05016	平头螺钉	Screw, Flat Head	1
13	90430-14115	垫片	Gasket	1
14	63P-11325-11	阳极	Anode	4
15	90151-06M02	卡环	Screw, Countersunk	4
16	90340-27129	插销	Plug, Straight Screw	2
17	93210-25552	O型圈	O-ring	1
18	90119-06M81	带垫螺栓	Bolt, With Washer	1
19	90119-08M66	带垫螺栓	Bolt, With Washer	10
20	63P-11325-01	阳极	Anode	1
21	90151-06M02	卡环	Screw, Countersunk	1
22	63P-11119-00	发动机悬挂架	Hanger, Engine	1
23	68F-11119-00	发动机悬挂架	Hanger, Engine	1
24	90119-06MA2	卡环	Bolt, With Washer	5
25	63P-11351-01	气缸垫片1	Gasket,Cylinder	1
26	63P-11500-04	平衡轴总成	Balancer Assembly	1
27	90119-08M66	带垫螺栓	Bolt, With Washer	10
28	90119-06MA6	带垫螺栓	Bolt, With Washer	2
29	63P-11512-00	曲柄盖密封	Seal, Crank Cover	2
30	63P-11377-00	软管	Hose	1
31	90467-15M14	固定	Clip	1
32	90464-16013	固定	Clamp	1
33	90467-15M14	固定	Clip	1
34	63P-13490-00	安全阀组合	Relief Valve Assembly	1
35	63P-82588-00	垫片	Plate	1

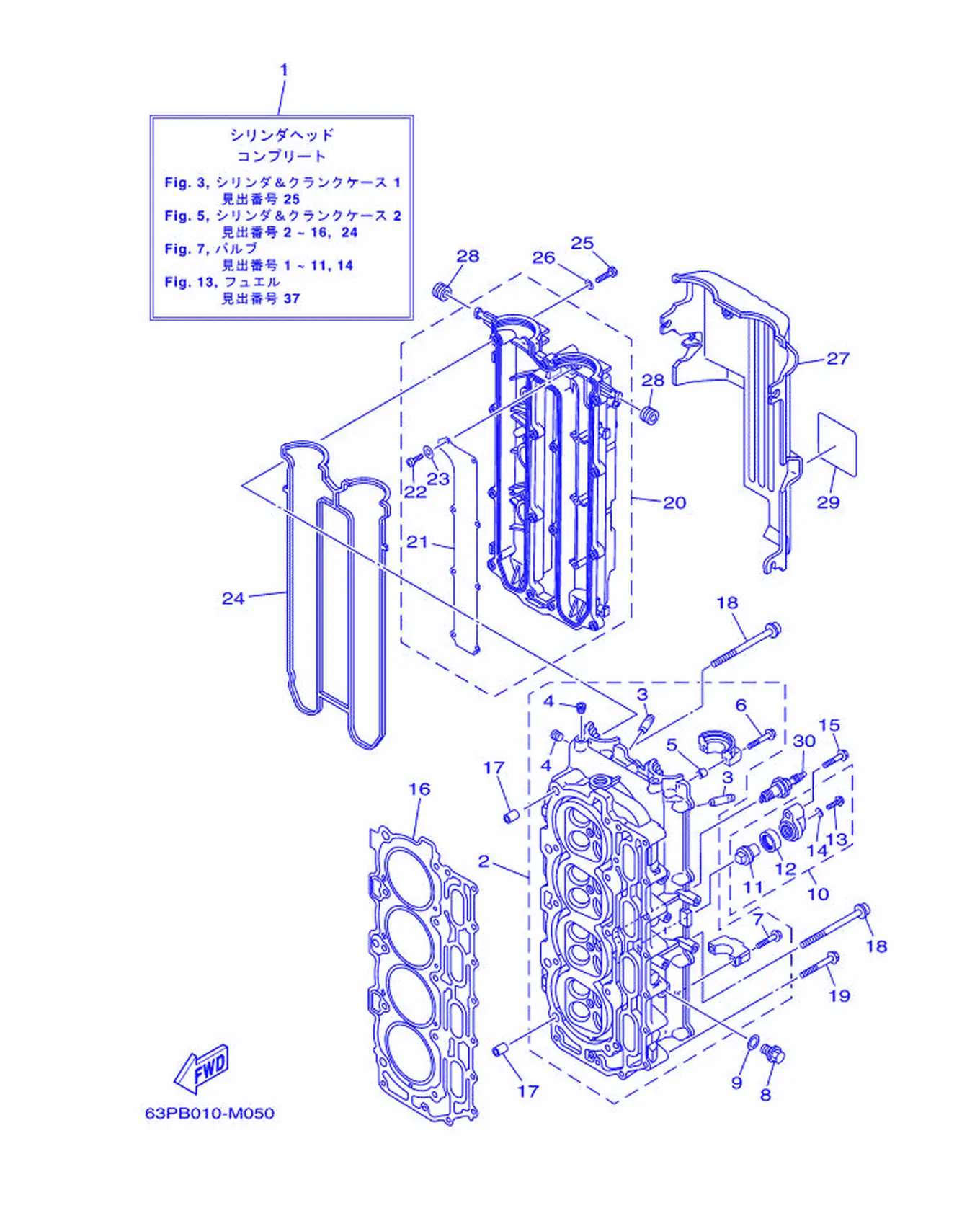

シリンダ & クランクケース 2

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-W009A-03-9S	气缸头总成	Cylinder Head Complete	1
2	63P-11110-10-9S	气缸头总成	Cylinder Head Assembly	1
3	6S5-11133-10	进气门导管	Guide,Valve 1	16
4	90344-51019	衬套	Plug, Taper Screw	3
5	91809-08006	定位销	Sleeve Guide Dowel	4
6	90119-07235	带垫螺栓	Bolt, Washer Cam Caps	4
7	90119-07234	带垫螺栓	Bolt, with Washer	16
8	90340-14M06	塞	Plug, Straight Screw	2
9	90430-14115	垫片	Gasket	2
10	69J-11301-00	锌块垫组合	Anode Cover Assembly	2
11	67F-11325-01	阳极	Anode	1
12	67F-11328-00	阳极固定	Grommet	1
13	90105-06M07	螺栓	Bolt, Flange	1
14	90430-06M03	平垫圈	Gasket	1
15	97575-08540	带垫圈螺	Bolt, With Washer	2
16	63P-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
17	99530-14016	定位销	Pin, Dowel	2
18	90155-10006	十字槽螺钉	Screw, Flat Fillister	10
19	90119-08M91	卡环	Bolt, With Washer	10
20	63P-11191-00-9S	气缸盖罩1	Cover, Cylinder Head 1	1
21	63P-11135-00	通气管面板3	Plate, Breather 3	1
22	98507-04008	大柱头螺钉	Screw, Pan Head	8
23	92907-04600	有槽螺母	Washer	8
24	63P-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
25	97095-06030	螺栓	Bolt	13
26	92995-06600	盘形垫	Washer	13
27	63P-11192-01	气缸盖罩2	Cover, Cylinder Head 2	1
28	90480-12314	固定	Grommet	5
29	63P-83626-00	标签	Mark 6	1
30	94709-00391	火花塞	Plug, Spark (NGK LFR5A-11)	4

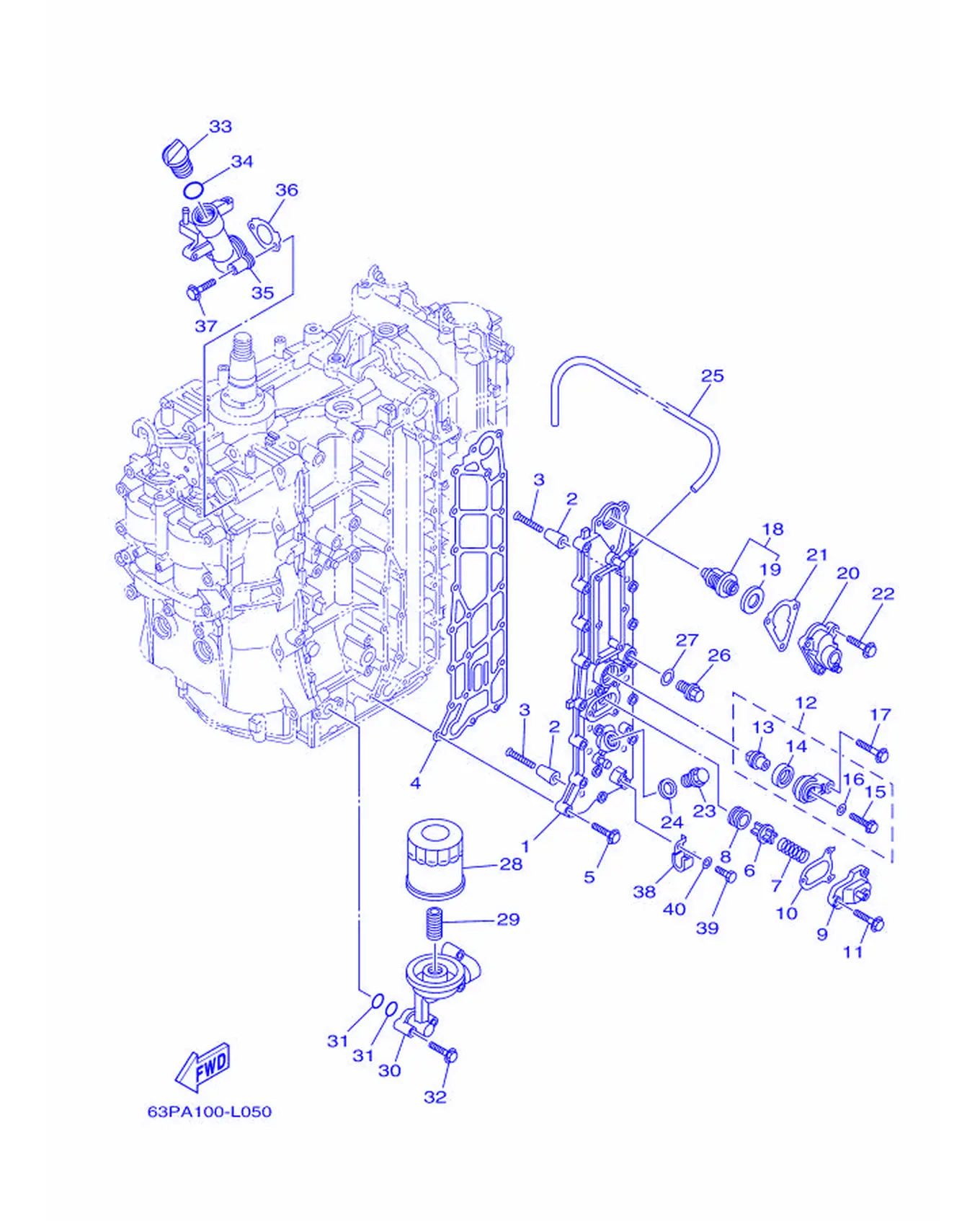

シリンダ & クランクケース 3

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-41113-03-9S	排气管外盖	Outer Cover, Exhaust	1
2	68T-11325-00	阳极	Anode	8
3	90151-05M05	卡环	Screw, Countersunk	8
4	63P-41114-A2	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
5	90119-06MA4	带垫螺栓	Bolt, With Washer	19
6	6G5-12416-00	压力控制阀	Valve, Pressure Control	1
7	90501-16M11	接头	Spring, Compression	1
8	90480-20M05	固定	Grommet	1
9	67F-1246A-01-9S	盖1	Cover 1	1
10	67F-12435-A0	衬垫	Gasket	1
11	90119-06MA2	卡环	Bolt, With Washer	3
12	69J-11301-00	锌块垫组合	Anode Cover Assembly	1
13	67F-11325-01	阳极	Anode	1
14	67F-11328-00	阳极固定	Grommet	1
15	90105-06M07	螺栓	Bolt, Flange	1
16	90430-06M03	平垫圈	Gasket	1
17	97575-08540	带垫圈螺	Bolt, With Washer	1
18	67F-12411-01	温控器	Thermostat	1
19	67F-12412-00	温控器密封	Seal,Thermostat	1
20	63P-1240H-01-9S	盖组合	CoverAssembly	1
21	63P-12414-00	盖衬垫	Gasket,Cover	1
22	90119-06MA4	带垫螺栓	Bolt, With Washer	3
23	90340-18M09	衬套	Plug, Straight Screw	1
24	90430-18130	固定	Gasket	1
25	90445-10027	软管	Hose (L670)	1
26	90340-14M06	塞	Plug, Straight Screw	1
27	90430-14115	垫片	Gasket	1
28	69J-13440-03	机油进滤器总成	Element Assembly, Oil Cleaner	1
29	6S5-12858-00	管接螺栓2	Bolt, Union	1
30	63P-13446-00-9S	连接器	Connector	1
31	93210-19MJ1	O型圈	O-ring	2
32	97575-06540	带垫圈螺栓	Bolt, With Washer	4
33	6G8-15363-00	机油塞子	Plug,Oil	1
34	93210-24M79	O型圈	O-ring	1
35	63P-15319-00-9S	接头	Joint	1
36	63P-15364-A0	机油塞衬垫	Gasket,OilPlug	1
37	97595-06545	带垫螺栓	Bolt, With Washer	2
38	90462-06013	固定	Clamp	1
39	97095-06012	螺栓	Bolt	1
40	92995-06600	盘形垫	Washer	1

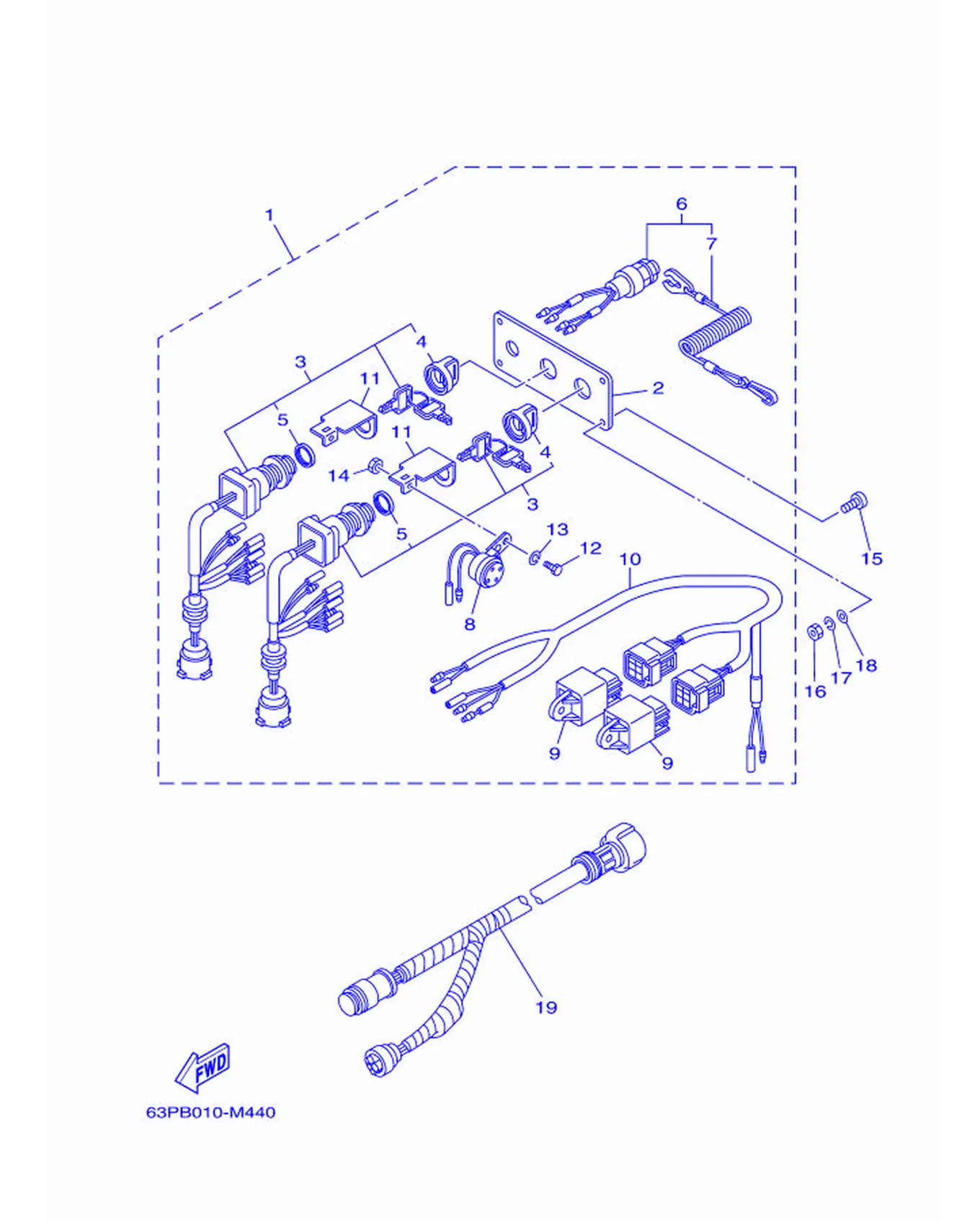

スイツチ & パネル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6Y8-82570-03	开关仪表板组合	Panel Switch Assembly	1
2	6Y8-82571-01	开关仪表板	Plate, Panel Switch	1
3	6Y8-82510-03	主开关总成	Main Switch Assembly	2
4	676-82577-01	键盖	Cap, Key	1
5	703-82532-00	盖	Cap	1
6	6K1-82575-00	发动机止动开关组合	Engine Stop Switch Assembly	1
7	682-82556-00	止动拉索	Stopper	1
8	6R5-83383-00	蜂鸣器	Buzzer	2
9	68V-81950-00	继电器组合	RelayAssembly	2
10	6Y8-82507-00	导线	Lead, Ignition Switch Relay	1
11	64D-82581-00	线夹支承	Stay, Cord Clamp	2
12	97003-05012	螺栓	Bolt	2
13	92903-05100	盘形垫	Washer,Spring	2
14	95303-05700	有槽螺母	Nut	2
15	90149-05M05	螺钉	Screw	4
16	95380-05600	螺母	Nut	4
17	92990-05100	盘形垫	Washer,Spring	4
18	92990-05600	盘形垫	Washer,Plate	4
19	6K1-8258A-40	电线束延伸部分	Extension, Wire Harness	1

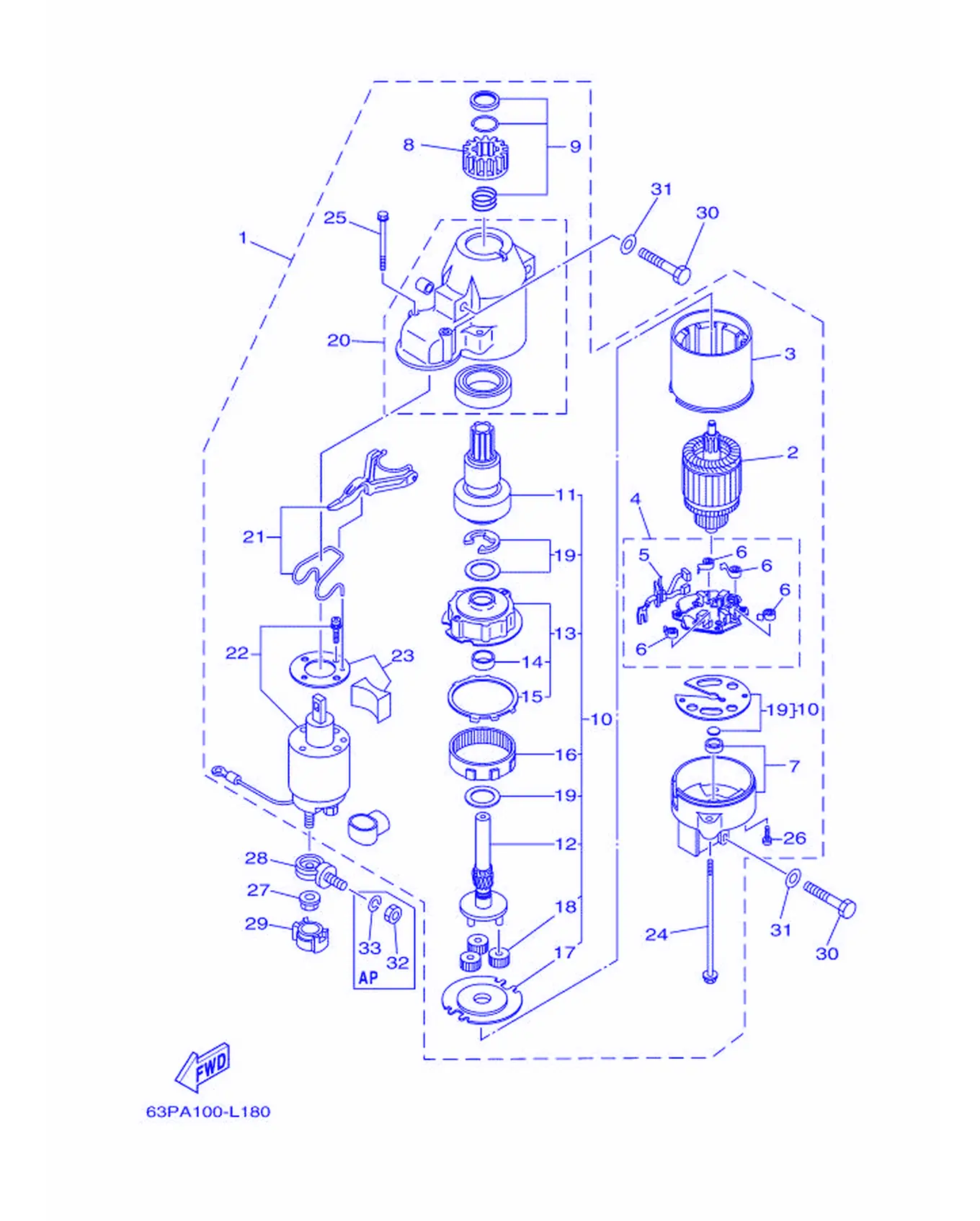

スタ-テイングモ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BR-81800-01	起动电动机总成	Starting Motor Assembly	1
2	67F-81850-00	电枢组合	Armature Assembly	1
3	67F-81810-00	定子组合	Stator Assembly	1
4	69J-81840-00	电刷架组合	Brush Holder Assembly	1
5	69J-81801-00	电刷套	Brush Set	1
6	67F-81813-00	电刷弹簧	Spring, Brush	4
7	67F-81820-00	后托架组合	Rear Bracket Assembly	1
8	67F-81808-00	环形齿轮支承	Pinion Assembly	1
9	67F-81857-00	小齿轮组件	Pinion Stopper Set	1
10	67F-81807-00	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
11	67F-81832-00	越转离合器	Clutch, Overrun	1
12	67F-81836-00	杠杆弹簧	Shaft, Pinion	1
13	67F-81821-00	开关盖	Bracket, Center 1	1
14	67F-81841-00	环形齿轮支承	Bearing	1
15	67F-8183R-00	环形齿轮支承	Gasket	1
16	67F-81891-00	环形齿轮	Gear, Ring	1
17	67F-81830-00	前托架组合	Bracket, Center 2	1
18	60V-8183T-00	环形齿轮支承	Gear, Idler	3
19	67F-81809-00	垫圈套	Washer Kit	1
20	69J-81842-00	盖	Cover	1
21	6C5-81839-00	杠杆组合	LeverAssembly	1
22	63P-81941-00	起动继电器组合	Starter Relay Assembly	1
23	6C5-81869-00	防尘盖	Cover, Dust	1
24	6K7-81826-11	螺栓	Bolt	2
25	69J-81828-00	螺栓2	Bolt 2	2
26	67F-81846-00	螺钉	Screw	2
27	90179-08003	螺母	Nut	1
28	60V-81925-00	接头	Terminal	1
29	68F-82582-00	电线束盖	Cover,WireHarness	1
30	97013-08045	螺栓	Bolt	3
31	92903-08600	有槽螺母	Washer,Plate	3
32	95333-08600	有槽螺母	Nut	1
33	92903-08100	盘形垫	Washer,Spring	1

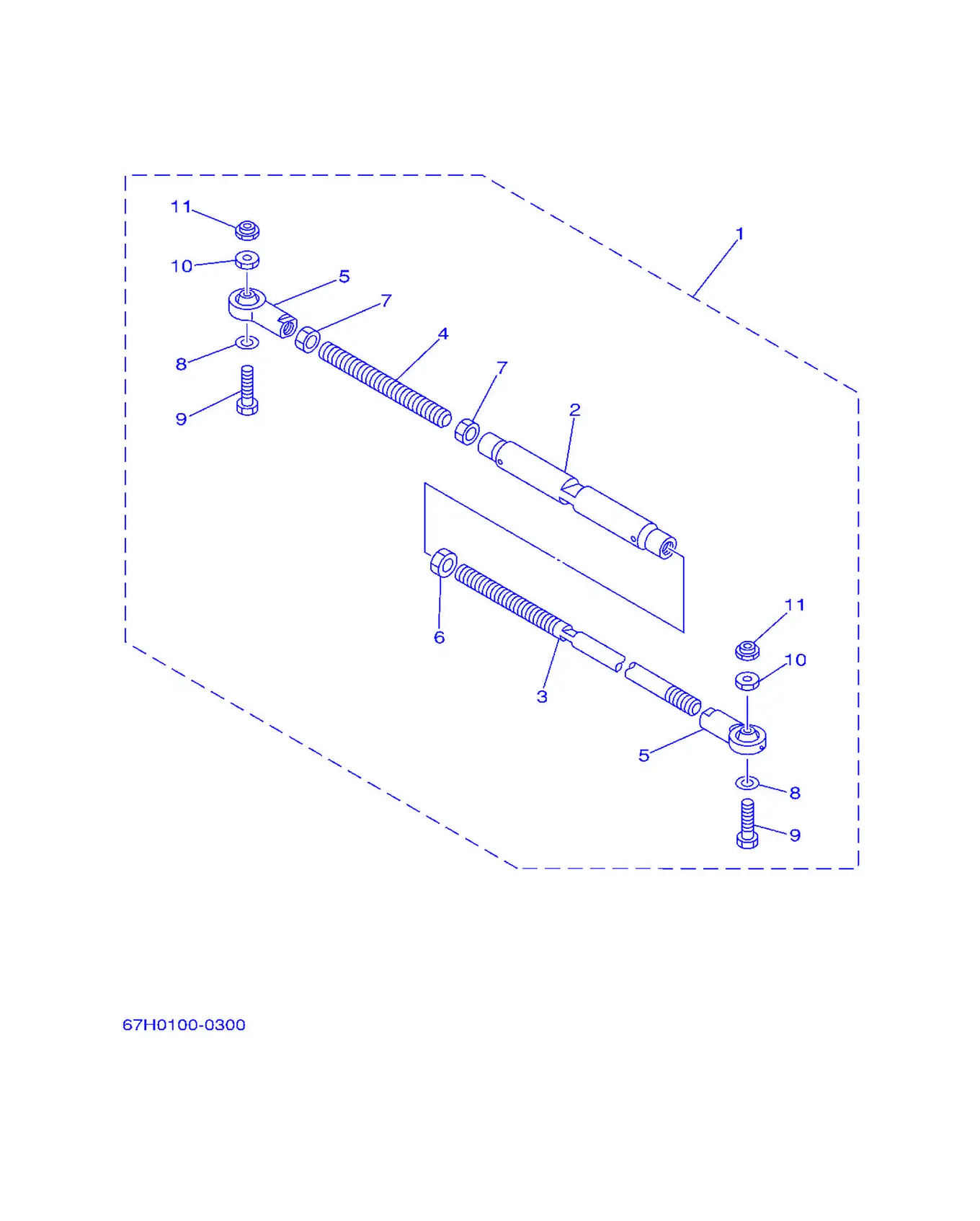

ステアリングガイドアタツチメン

REF	雅马哈编码	中文名称	英文名称	用量
1	6E5-61301-01	双机安装用套	Twin Kit	1
2	6E5-61313-00	调整器	Adjuster	1
3	6E5-61311-11	系杆	Tie Bar 1	1
4	6E5-61315-00	系杆	Tie Bar 2	1
5	6E5-61303-00	操舵扣组	Steering Eye Complete	2
6	90170-14M06	螺帽	Nut	1
7	95380-14700	有槽螺母	Nut	2
8	90201-10M76	平垫圈	Washer	2
9	90101-09M70	螺栓	Bolt	2
10	90170-09M05	螺帽	Nut	2
11	90185-09M01	螺帽	Nut, Self-Locking	2

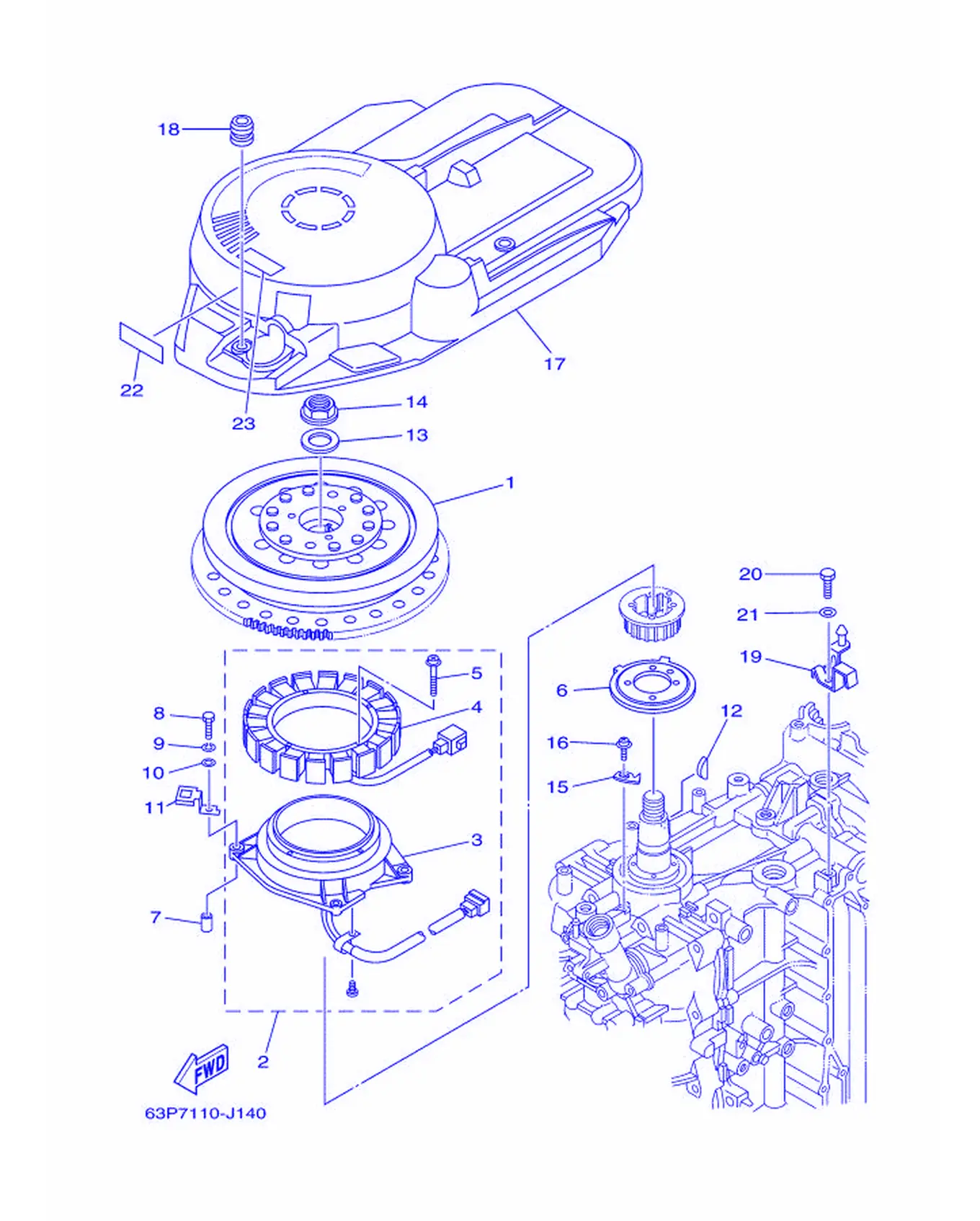

ゼネレ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-81450-00	转子组合	Rotor Assembly	1
2	63P-81460-00	基座总成	BaseAssembly	1
3	63P-85580-00	脉冲线	Coil, Pulser	1
4	63P-81410-00	定子组合	Stator Assembly	1
5	63D-81345-20	大柱头螺钉	Screw, With Washer (M6X30)	4
6	63P-81673-01	转子	Rotor	1
7	99530-08012	螺栓	Pin, Dowel	2
8	97095-06035	螺栓	Bolt	4
9	92995-06100	垫圈	Washer,Spring	4
10	92995-06600	盘形垫	Washer	4
11	63P-81845-00	面板	Plate	2
12	90280-05015	螺丝	Key, Woodruff	1
13	90201-24014	平垫圈	Washer,Plate	1
14	90179-24002	螺母	Nut	1
15	6P2-81332-00	正时面板	Plate, Timing	1
16	97985-06210	带垫圈螺钉	Screw, With Washer	1
17	63P-81337-00	飞轮盖	Cover,Flywheel	1
18	663-82317-01	点火线圈减震器	Damper, Ignition Coil	3
19	63P-8132G-00	面板	Plate	1
20	97095-06016	螺栓	Bolt	1
21	92995-06600	盘形垫	Washer	1
22	63P-13437-02	警告标签	Mark, Corrosion	1
23	6AH-81994-00	标签	Label, Safety	1

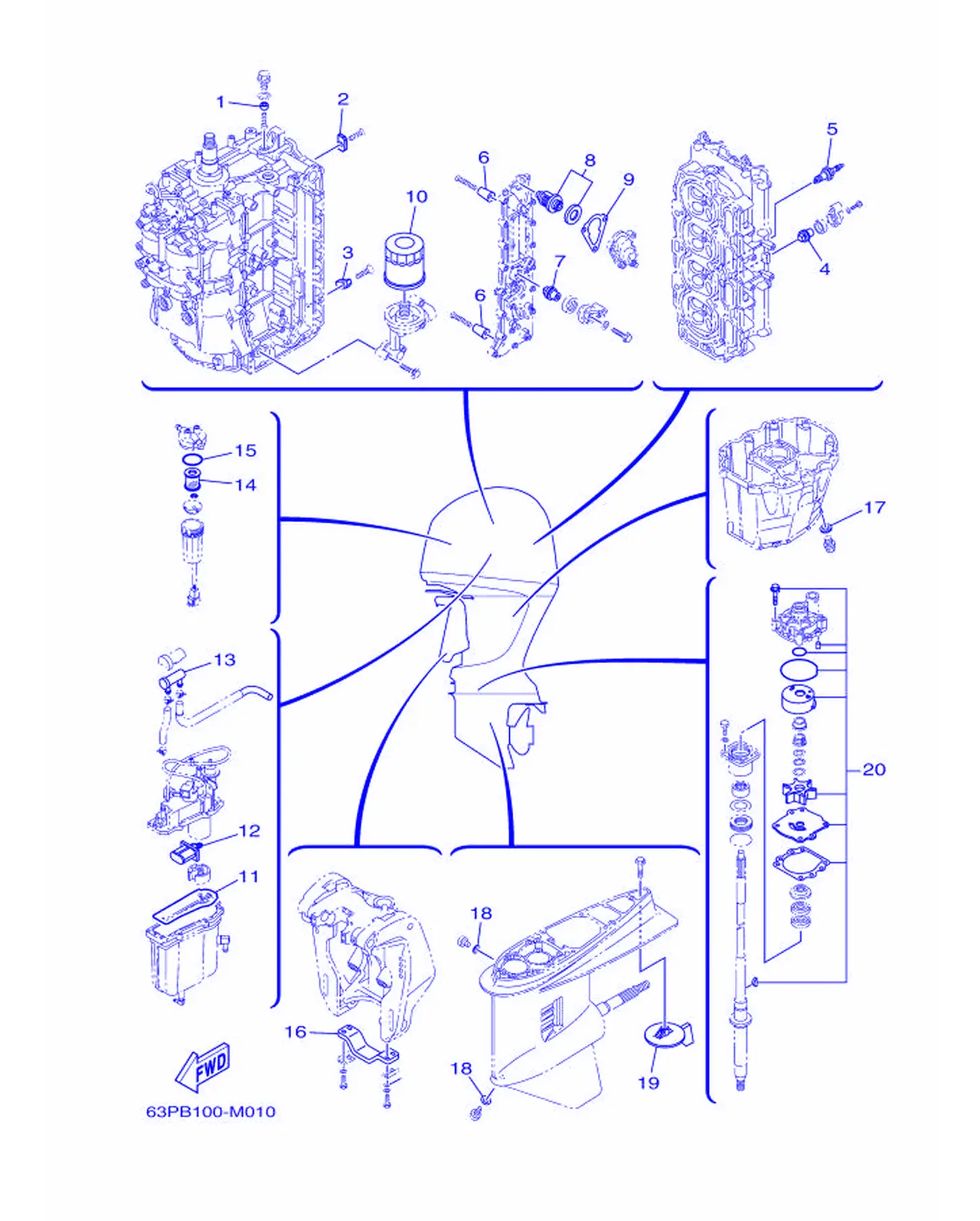

テイキコウカンブヒン

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-11325-21	阳极	Anode	1
2	63P-11325-11	阳极	Anode	4
3	63P-11325-01	阳极	Anode	1
4	67F-11325-01	阳极	Anode	2
5	94709-00391	火花塞	Plug, Spark (NGK LFR5A-11)	4
6	68T-11325-00	阳极	Anode	8
7	67F-11325-01	阳极	Anode	1
8	67F-12411-01	温控器	Thermostat	1
9	63P-12414-00	盖衬垫	Gasket,Cover	1
10	69J-13440-03	机油进滤器总成	Element Assembly, Oil Cleaner	1
11	63P-14984-00	浮子室衬垫	Gasket,FloatChamber	1
12	63P-13915-00	过滤器	Filter	1
13	69J-24501-10	燃油过滤器	Filter, Fuel	1
14	6P3-24563-01	过滤器滤芯	Element, Filter	1
15	6P3-24564-00	衬垫	Gasket	1
16	6G5-45251-02	阳极	Anode	1
17	90430-14M09	衬垫	Gasket	1
18	90430-08020	固定	Gasket	2
19	6K1-45371-02	航向调整	Tab Trim	1
20	61A-W0078-A3	水泵修理套	Water PumpRepair Kit	1

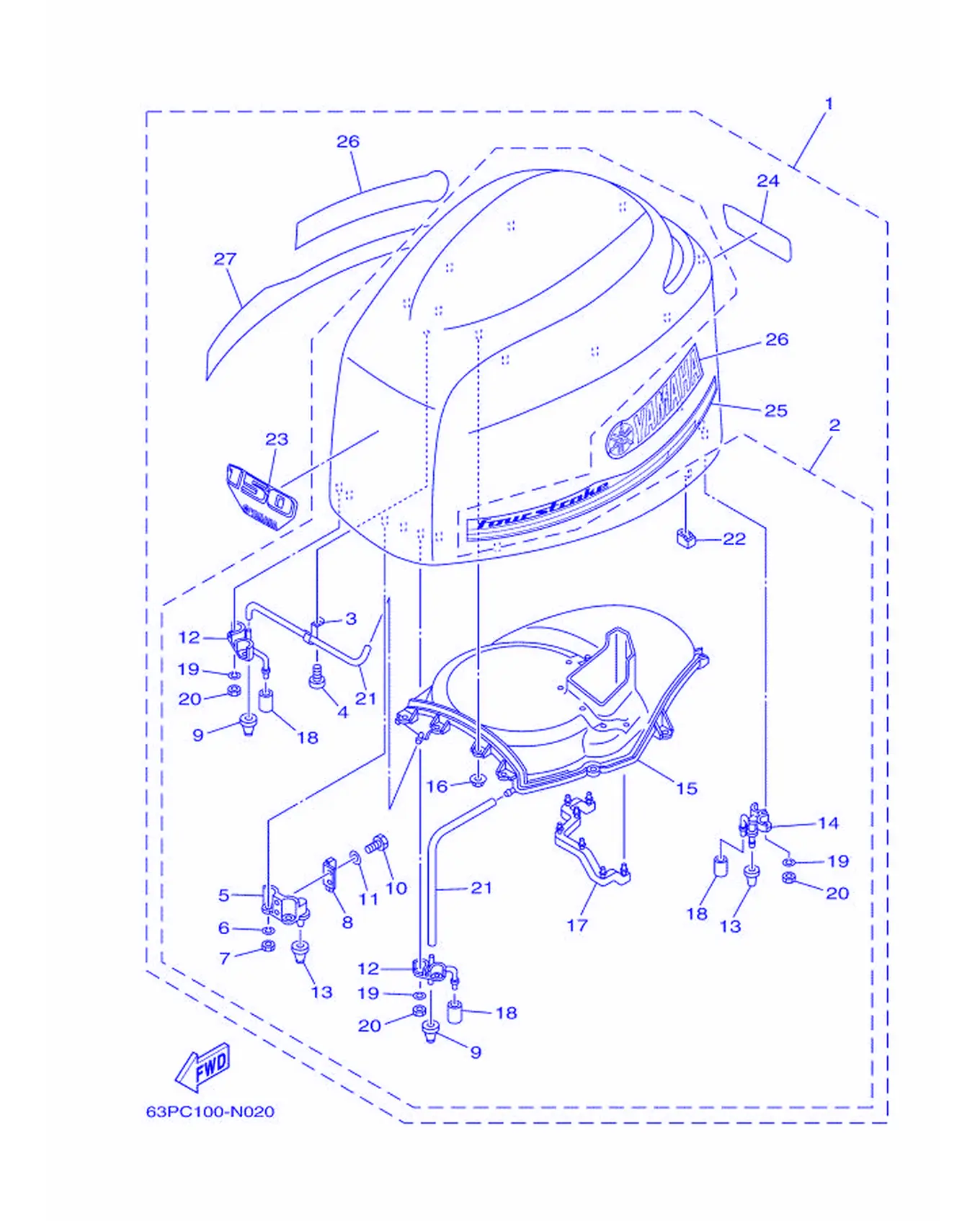

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-42610-41	顶罩组合	Top Cowling Assembly	1
2	63P-4261A-00	顶罩组合	Top Cowling (Graphic)	1
3	90465-10032	固定	Clamp	1
4	97780-50620	自攻螺钉	Screw, Tapping	1
5	63P-42647-00	夹带支架	Holder, Clamp Band	2
6	92990-06100	盘形垫	Washer,Spring	4
7	95380-06600	有槽螺母	Nut, Hexagon	4
8	60V-42651-01	钩	Fook	2
9	69J-42663-00	减震器	Damper	2
10	97095-06016	螺栓	Bolt	4
11	92995-06600	盘形垫	Washer	4
12	63P-42643-01	夹板	Clamp Plate	2
13	68F-42663-00	减震器	Damper	4
14	63P-42644-00	夹杆 2	Clamp Plate 2	2
15	63P-42613-00	空气导管嵌	Molding, Air Duct	1
16	90179-06M24	螺母	Nut	10
17	63P-42617-00	形成减震	Damper, Foam	1
18	67F-13448-00	盖	Cap	4
19	92990-06100	盘形垫	Washer,Spring	8
20	95380-06600	有槽螺母	Nut, Hexagon	8
21	90445-11020	固定	Hose (L400)	2
22	63P-42662-00	减震器	Damper	4
23	63P-42677-40	前图样	Graphic, Front	1
24	63P-42678-41	后图样	Graphic, Rear	1
25	63P-42675-20	侧面图样1	Graphic, Side 1	1
26	63P-42681-20	罩标志	Mark, Cowling	2
27	63P-42676-20	侧面图样2	Graphic, Side 2	1

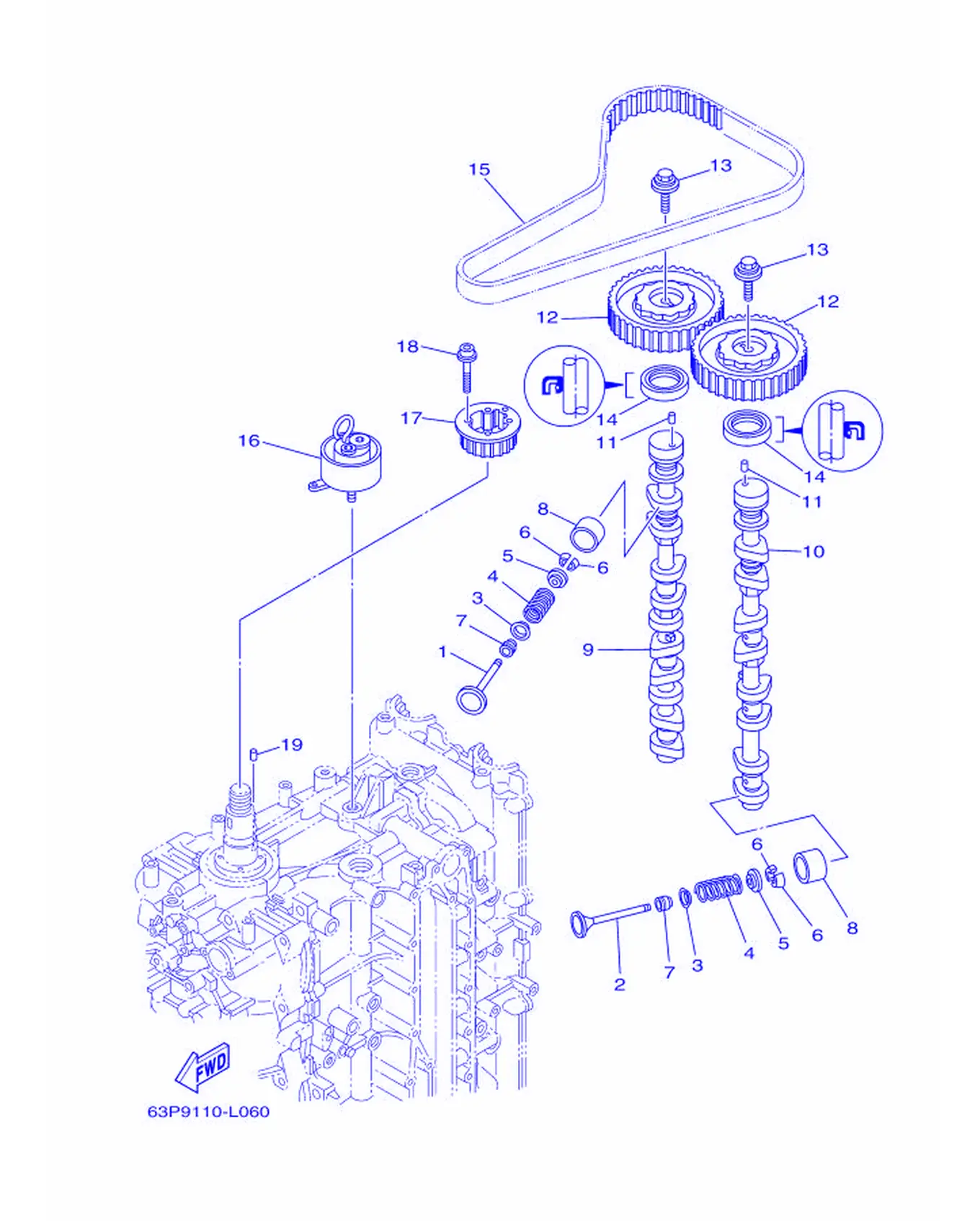

バルブ

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-12111-00	气门1	Valve,Intake	8
2	63P-12121-00	气门2	Valve,Exhaust	8
3	K0F-A3743-00	气门弹簧座	Seat, ValveSpring	16
4	6CB-12113-00	弹簧1	Spring, Valve Inner	16
5	K0F-A3741-00	气门弹簧挡圈	Retainer, ValveSpring	16
6	K0F-A3742-00	阀门弹簧固定锁	Lock, ValveSpringRetainer	32
7	51Y-12119-00	气门杆密封	Seal, Valve Stem	16
8	K0F-A3751-00	阀门挺杆	Lifter, Valve (3.000)	16
8	K0F-A3751-10	阀门挺杆	Lifter, Valve (3.025)	16
8	K0F-A3751-20	阀门挺杆	Lifter, Valve (3.050)	16
8	K0F-A3751-30	阀门挺杆	Lifter, Valve (3.075)	16
8	K0F-A3751-40	阀门挺杆	Lifter, Valve (3.100)	16
8	K0F-A3751-50	阀门挺杆	Lifter, Valve (3.122)	16
8	K0F-A3751-60	阀门挺杆	Lifter, Valve (3.142)	16
8	K0F-A3751-70	阀门挺杆	Lifter, Valve (3.162)	16
9	63P-12171-10	凸轮轴1	CamShaft 1	1
10	63P-12181-10	凸轮轴2	CamShaft 2	1
11	93605-10108	定位销	Pin, Dowel	2
12	63P-11537-00	从动齿轮	Gear, Driven	2
13	90119-10050	带垫圈六角头螺栓	Bolt, With Washer	2
14	93102-38008	油封	OilSeal	2
15	63P-46241-00	V型皮带	Belt	1
16	63P-11590-01	张紧轮柱	Tensioner Assembly	1
17	63P-11536-01	主动齿轮	Gear, Drive	1
18	90110-05020	螺栓	Bolt, Hexagon Socket Head	4
19	93605-17002	定位销	Pin, Dowel	1

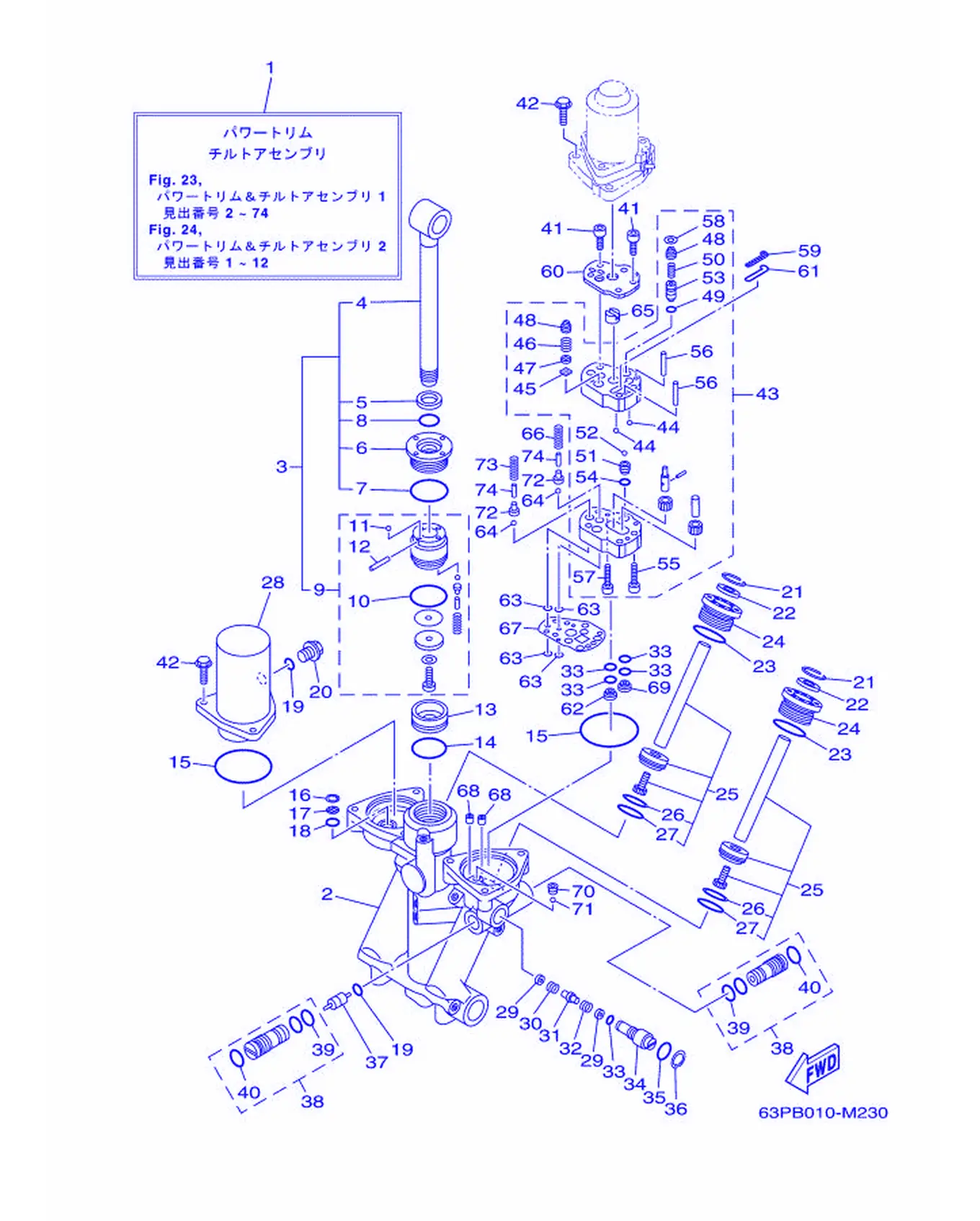

パワートリム & チルトアセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-43800-10	电动倾斜调整装置组合	Power Trim & Tilt Assembly	1
2	63P-4380L-10	倾斜调整装置壳体	Housing, Trim & Tilt Sub-Assembly	1
3	63P-43810-10	活塞分组合	Tilt Piston Sub Assembly	1
4	63P-43801-10	杆	Rod	1
5	93106-19N50	油封	Oil Seal	1
6	63P-43811-10	气缸端部螺钉	Screw, Cylinder End	1
7	6H1-43861-00	O型圈	O-ring	1
8	63P-43863-10	O型圈	O-ring	1
9	63P-4380P-10	活塞次组合	Piston Sub Assembly	1
10	6H1-43862-00	O型圈	O-ring	1
11	93505-32038	滚珠	Ball	1
12	91609-16012	弹簧销	Pin, Spring	1
13	63P-43814-10	自由活塞	Piston, Free	1
14	6H1-43862-00	O型圈	O-ring	1
15	93210-68N50	O型圈	O-ring	2
16	63P-43876-10	环	Ring, Snap	1
17	63P-43816-10	过滤器1	Filter 1	1
18	93210-11N52	O型圈	O-ring	1
19	93210-09165	O型圈	O-ring	2
20	63P-43829-10	储油箱塞	Plug,Reservoir	1
21	63P-43875-10	卡环	Ring, Snap	2
22	6H1-43822-10	纵倾角调整防尘密封	Seal,TrimDust	2
23	63P-43862-10	O型圈	O-ring	2
24	63P-43821-10	纵倾角调整气缸端部螺钉	Screw, Trim Cylinder End	2
25	63P-43820-10	活塞分组合	Trim Piston Sub-Assembly	2
26	62X-43871-00	环	Ring, Back Up	1
27	93210-29375	O型圈	O-ring	1
28	63P-43828-10	储油箱本体	Body, Reservoir	1
29	63P-43847-10	手控阀座	Seat, Manual Valve	2
30	63P-43854-10	手控释放弹簧	Spring, Manual Release	1
31	63P-4382A-10	联接器1	Adapter 1	1
32	63P-4384H-10	弹簧	Spring	1
33	69J-4389J-00	O型圈	O-ring	5
34	63P-43845-10	手控释放螺钉	Screw, Manual Release	1
35	93210-18397	O型圈	O-ring	1
36	6H1-43875-00	卡环	Ring, Snap	1
37	6H1-43841-11	滑梭活	Piston, Shuttle	1
38	63P-43802-10	阀门分组合	Valve Sub-Assembly	2
39	93210-12N52	O型圈	O-ring	1
40	6H1-43866-01	O型圈	O-ring	1
41	91318-05040	螺栓	Bolt	4
42	97595-06625	带垫圈螺	Bolt, With Washer	6
43	63P-43830-10	齿轮泵组合	GearPumpAssembly	1
44	93503-16003	滚珠	Ball	2
45	6H1-4384G-11	安全阀密封	Seal, Relief Valve	1
46	6H1-43856-10	下减压弹簧	Spring, Down Relief	1
47	6H1-43844-10	阀门支销	Pin, Valve Support	1
48	63P-43843-10	阀门锁紧螺钉	Screw, Valve Lock	2
49	93210-064A5	O型圈	O-ring	1
50	69J-43855-00	上减压弹簧	Spring	1
51	63P-43851-10	安全阀座	Seat, Relief Valve	1
52	93501-08001	滚珠	Ball	1
53	6CJ-43844-00	阀门支销	Pin, Valve Support	1
54	93210-07N51	O型圈	O-ring	1
55	91318-04025	螺栓	Bolt	1
56	93604-29184	定位销	Pin, Dowel	2
57	91318-05025	螺栓	Bolt	1
58	63P-43338-10	波形垫	Washer, Wave	1
59	6CJ-43816-00	过滤器1	Filter 1	1
60	63P-4381J-10	面板	Plate	1
61	62Y-43871-00	环	Ring, Back Up	1
62	69J-43899-01	面板限位板	Plate Stopper	1
63	93210-064A5	O型圈	O-ring	4
64	93501-08001	滚珠	Ball	2
65	69J-43831-00	轴连接器	Connector,Shaft	1
66	63P-4385H-10	弹簧密封	Spring,Seal	1
67	63P-4384G-10	安全阀密封	Seal, Relief Valve	1
68	63P-4388H-10	塞	Plug	2
69	63P-43899-10	面板限位板	Plate Stopper	1
70	61A-43878-00	座螺	Bolt, Socket	1
71	93505-32038	滚珠	Ball	1
72	65W-4386A-00	吸收器阀销	Pin, Absorber Valve	2
73	63P-43857-10	阀门减震器弹簧	Spring	1
74	688-4386F-00	直	Pin Straight	2

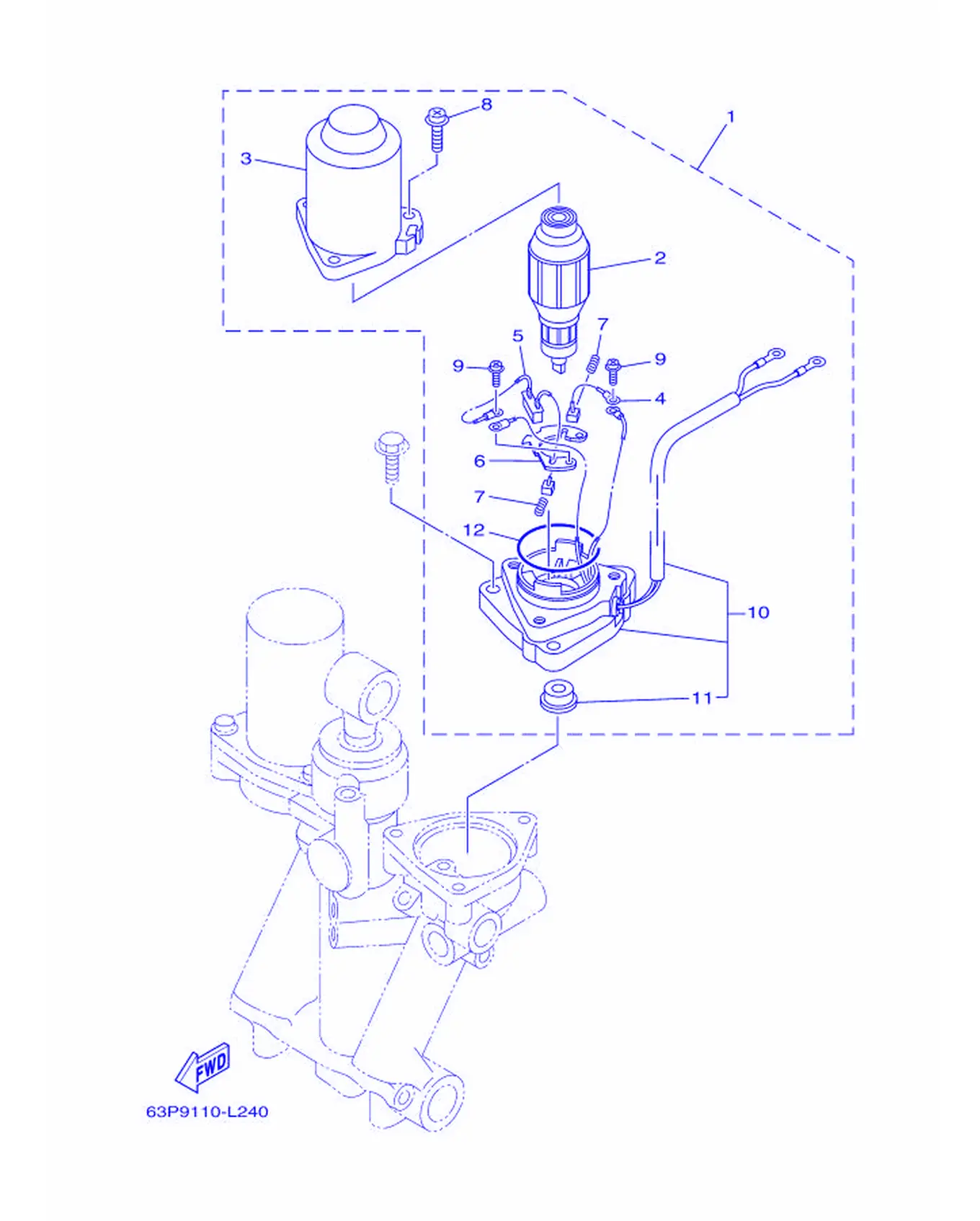

パワートリム & チルトアセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-43880-10	电动机总成	Motor Assembly	1
2	63P-43805-10	电枢组合	Armature Assembly	1
3	63P-43804-10	定子组合	Stator Assembly	1
4	63P-43892-10	电刷 2	Brush 2	1
5	63P-82181-10	断路器组	Circuit Breaker Complete	1
6	63P-4380F-10	电刷架板	Plate, Brush Holder	1
7	62X-4386K-00	电刷弹簧	Spring, Brush	2
8	63P-43879-10	带垫螺钉	Screw, Washer	3
9	97602-04316	螺丝	Screw, Pan Head Washer	2
10	63P-43881-10	端部框架	Frame, End	1
11	93102-08414	油封	Oil Seal	1
12	93210-554A9	O型圈	O-ring	1

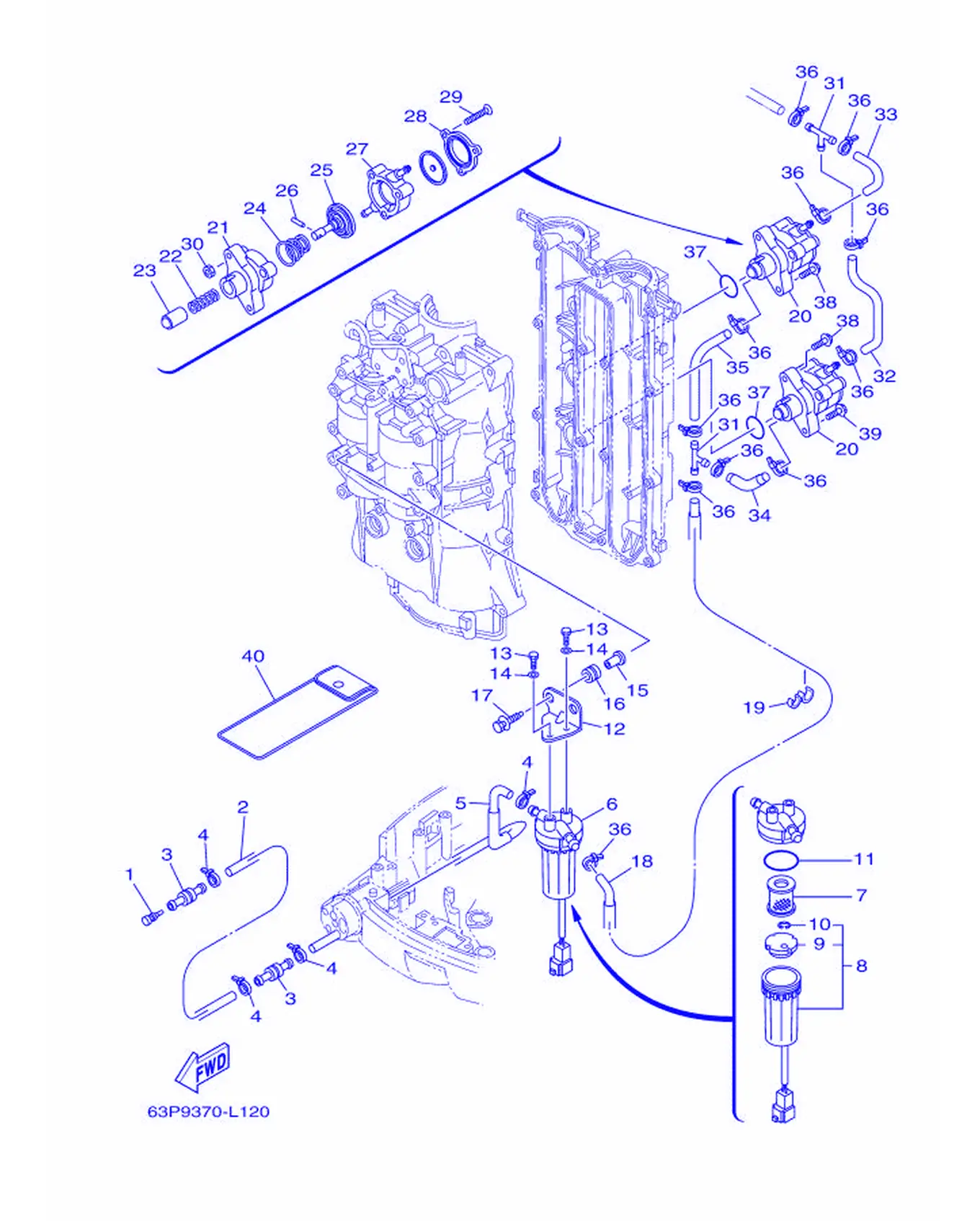

フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	689-85547-00	减震器	Damper	1
2	90445-13511	软管	Hose (L2000)	1
3	6R3-24377-10	连接管3	Pipe,Joint 2	2
4	90465-11M10	固定	Clamp	4
5	63P-24316-00	管6	Pipe 6	1
6	6P3-24560-03	过滤器总成	Filter Assembly	1
7	6P3-24563-01	过滤器滤芯	Element, Filter	1
8	6P3-24562-03	过滤器滤杯	Cup, Filter	1
9	6P3-24469-00	水位浮标	Float, Water Level	1
10	6P3-24519-00	钢夹	Clip	1
11	6P3-24564-00	衬垫	Gasket	1
12	63P-24566-00	过滤器托架	Bracket, Filter	1
13	97095-06014	螺栓	Bolt	2
14	92995-06600	盘形垫	Washer	2
15	90387-06289	轴套	Color	2
16	90480-10M23	固定	Grommet	2
17	90119-06071	带垫圈螺栓	Bolt, With Washer	2
18	63P-24311-30	油管	Pipe,Fuel 1	1
19	90464-13M34	固定	Clamp	1
20	63P-24410-10	燃油泵组合	FuelPumpAssembly	2
21	68V-24412-00	燃油泵本体1	Body 1	1
22	68V-24454-00	弹簧	Spring	1
23	63P-13131-00	柱	Plunger	1
24	63P-24423-00	隔膜弹簧	Spring,Diaphragm	1
25	68V-24411-00	隔板	Diaphragm	1
26	68V-24374-00	销	Pin	1
27	68V-24413-10	燃油泵本体2	Body 2	1
28	63P-24414-00	燃油泵本体3	Body 3	1
29	68V-24444-00	螺钉	Screw	3
30	68V-24149-00	螺母	Nut	3
31	6E5-24378-00	连接管4	Pipe,Joint 4	2
32	63P-24314-00	管4	Pipe 4	1
33	63P-24315-00	管5	Pipe 5	1
34	63P-24312-10	管2	Pipe 2	1
35	63P-24313-10	管3	Pipe 3	1
36	90465-11M10	固定	Clamp	11
37	93210-30682	O型圈	O-ring	2
38	90119-06M83	带垫螺栓	Bolt, With Washer	3
39	90119-06135	带垫圈螺栓	Bolt, With Washer	1
40	67F-28100-01	工具套	ToolKit	1

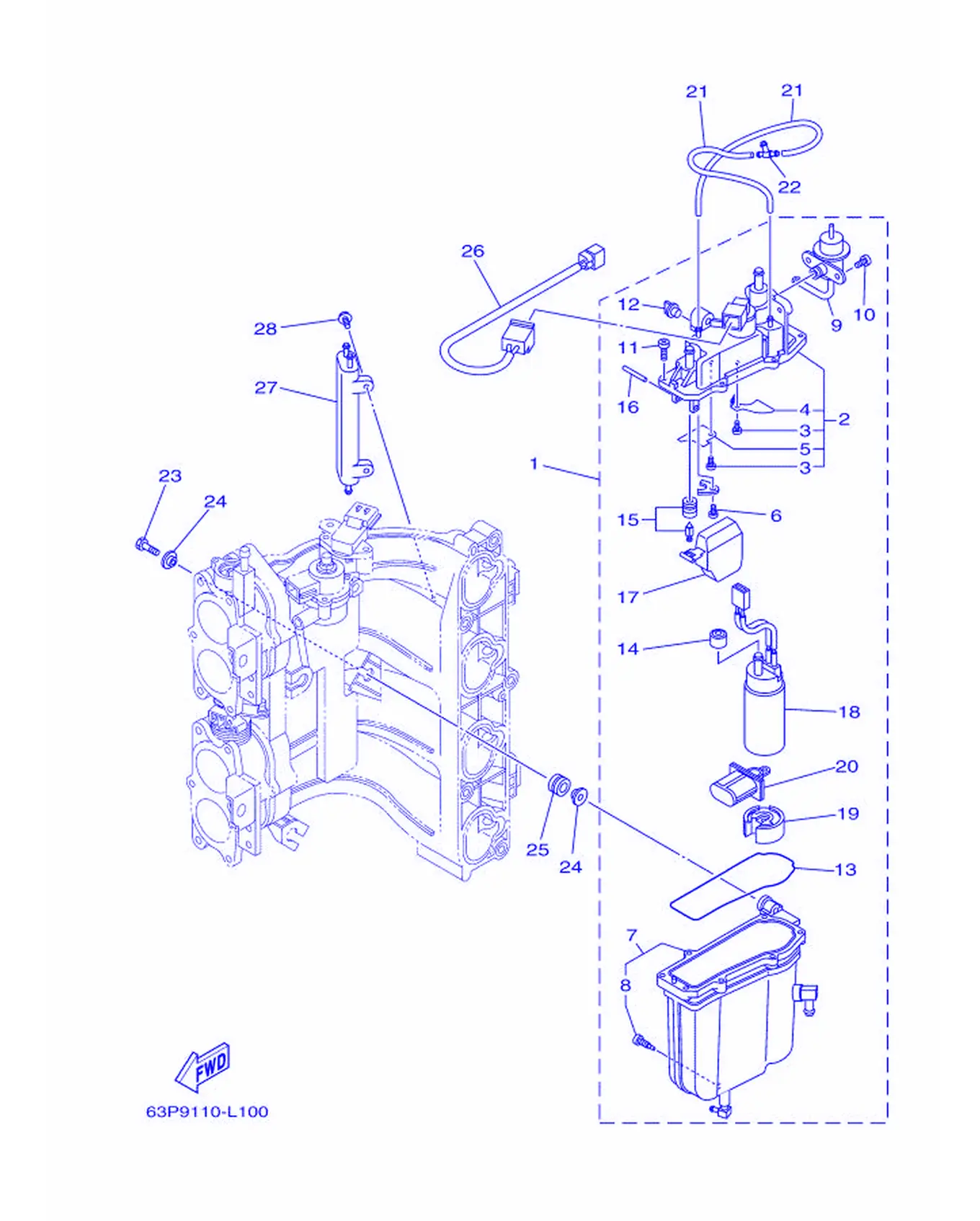

フユエルインジエクシヨンポン

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-14180-02	浮子室组合	FloatChamberAssembly	1
2	63P-14182-00	浮子室盖	Cover, Float Chamber	1
3	4SV-24453-00	螺钉	Screw	2
4	63P-2411R-00	容器托架	Plate 1	1
5	63P-2411T-00	棉板	Plate 2	1
6	4SV-24453-00	螺钉	Screw	1
7	63P-14181-00	浮子室本体1	Body, Float Chamber 1	1
8	63P-14191-00	放油旋	Drain Plug	1
9	63P-13906-00	调压器	Regulator, Pressure	1
10	63P-14565-00	螺钉	Screw	2
11	63P-14567-00	螺钉	Screw	7
12	69J-14225-01	盖	Cap	1
13	63P-14984-00	浮子室衬垫	Gasket,FloatChamber	1
14	68V-13781-20	泵减震器	Grommet & ColorSet	1
15	63P-14546-00	针阀	Valve, Needle	1
16	68V-14386-00	浮子销	Pin,Float	1
17	63P-14985-00	浮子	Float	1
18	63P-13907-03	油泵组合	Fuel Pump Complete	1
19	63P-13784-00	泵盖	Cover, Pump	1
20	63P-13915-00	过滤器	Filter	1
21	63P-14148-00	管	Pipe	2
22	69J-24379-00	连接管4	Pipe,Joint 4	1
23	63P-14777-00	螺栓	Bolt	3
24	69J-13716-00	轴套	Color	6
25	6BM-13593-00	减震器	Damper	3
26	63P-8259L-00	倾斜限动电	WireHarnessAssembly 1	1
27	69J-21841-02	冷却器	Cooler	1
28	68V-14446-00	螺栓	Bolt	2

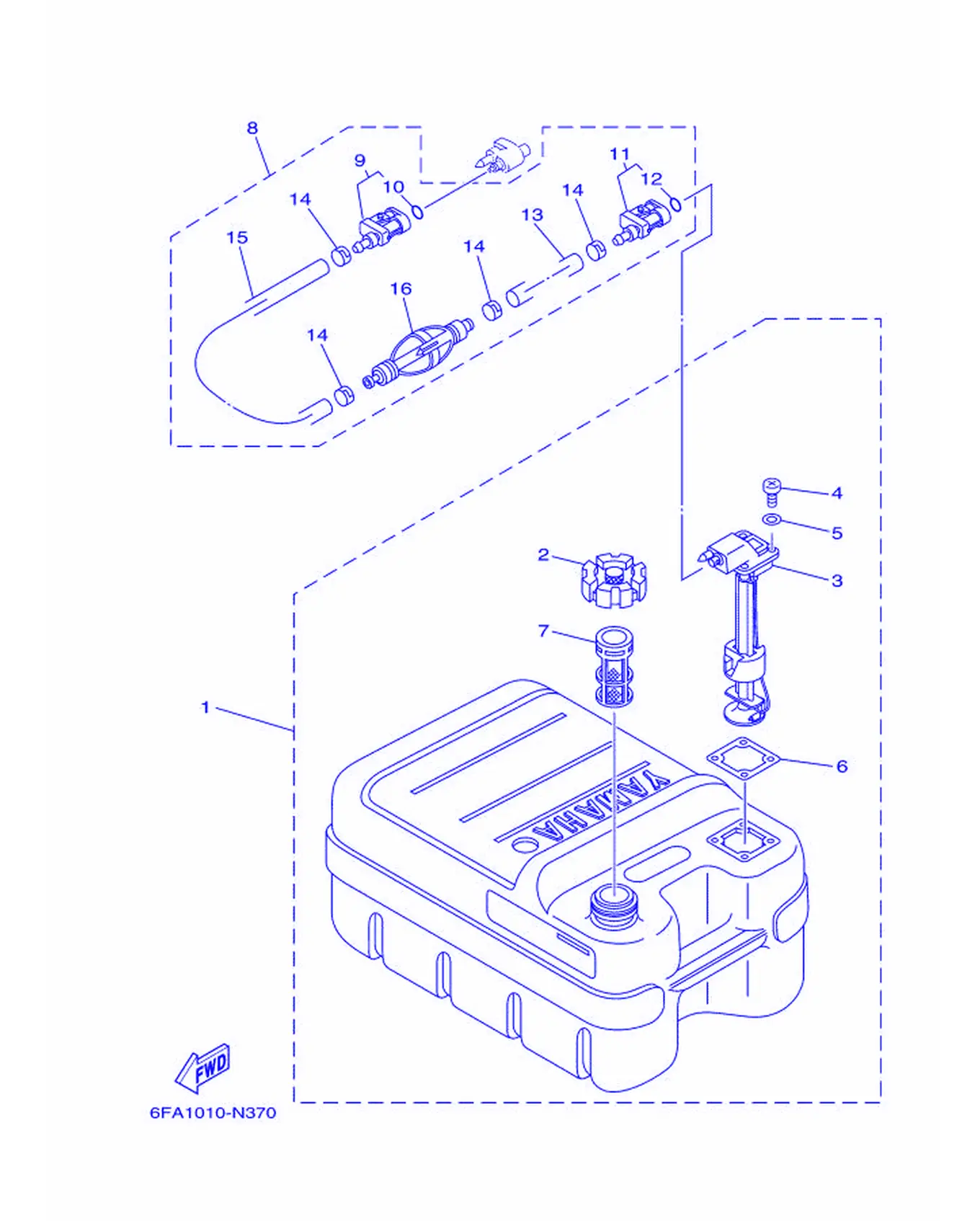

フユエルタンク

REF	雅马哈编码	中文名称	英文名称	用量
1	6YJ-W2420-J1	燃油箱组合	FuelTankAssembly (24L)	1
2	6YJ-24610-01	盖组合	Cap Assembly	1
3	6Y1-24260-13	油量计组合	Fuel Meter Assembly	1
4	90157-05M19	螺钉	Screw, Pan Head	4
5	6Y1-24329-00	密封	Seal	4
6	6Y1-24268-00	油量计衬垫	Gasket, Fuel Meter	1
7	6YJ-24167-00	滤	Strainer	1
8	6Y2-24306-56	燃油管组件1	FuelPipeComplete 1	1
9	6E5-24305-06	油管接头2	Fuel Pipe Joint Complete	1
10	93210-08287	O型圈	O-ring	1
11	6Y2-24305-06	燃油管接头组件2(85以上油箱侧D:13M	Fuel Pipe Joint Complete	1
12	93210-08287	O型圈	O-ring	1
13	90445-13M01	油管	Hose (L2050)	1
14	6E5-24351-51	带1	Band 1	4
15	90445-13M00	固定	Hose(L850)	1
16	6Y2-24360-60	起动注油泵组合	Primer Pump Assembly	1

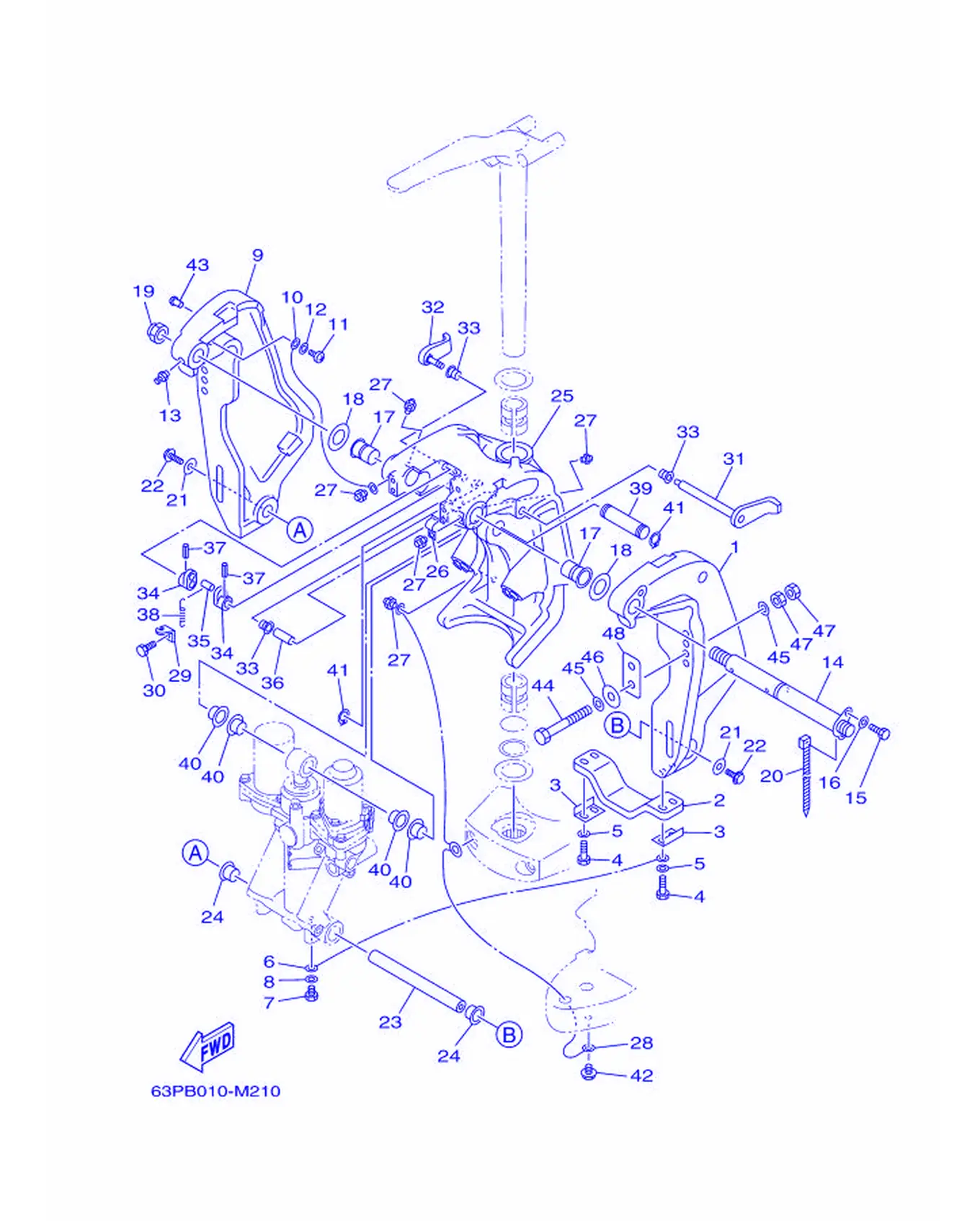

ブラケツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	64E-43111-02-8D	夹紧托架	Bracket,Clamp 1	1
2	6G5-45251-02	阳极	Anode	1
3	6G5-44526-00	面板	Plate	2
4	97095-06030	螺栓	Bolt	4
5	92995-06600	盘形垫	Washer	4
6	6E5-82148-00	导线4	Wire,Lead 4	1
7	97095-06010	螺栓	Bolt	1
8	92995-06600	盘形垫	Washer	1
9	64E-43112-02-8D	夹紧托架	Bracket,Clamp 2	1
10	6E5-82148-00	导线4	Wire,Lead 4	1
11	97885-06012	大柱头螺钉	Screw, Pan Head	1
12	92995-06600	盘形垫	Washer	1
13	93700-06M03	润滑油管嘴	Nipple, Grease	1
14	64E-43131-30	夹紧托架螺	Bolt,ClampBracket	1
15	97095-08020	螺栓	Bolt	1
16	92995-08600	盘形垫	Washer	1
17	90386-25M31	衬套	Bushing	2
18	90201-26M59	面板垫圈	Washer,Plate	2
19	90185-22M11	自锁螺母	Nut, Self-Locking	1
20	90465-11M10	固定	Clamp	1
21	90201-10060	平垫圈	Washer,Plate	2
22	97575-10530	螺栓	Bolt, With Washer	2
23	6BC-43818-00	下侧防震销	Pin, Lower Shock Mount	1
24	90386-22M98	衬套	Bushing	2
25	64E-43311-10-8D	旋转支架	Bracket, Swivel 1	1
26	90465-08M63	固定	Clamp	1
27	93700-06M03	润滑油管嘴	Nipple, Grease	5
28	66K-82149-00	导线3	Wire,Lead 3	1
29	6G5-43144-00	弹簧	Hook,Spring	1
30	97095-06010	螺栓	Bolt	1
31	6G5-43181-02	顶位销杆	Lever, Tilt Stop	1
32	6G5-43185-02	顶位销杆	Lever, Tilt Stop	1
33	90386-10M16	衬套	Bushing	3
34	6G5-43148-00	间隔轴	Collar, Distance	2
35	90249-06M19	螺丝	Pin	1
36	90387-10M05	衬套	Color	1
37	91690-30020	弹簧销	Pin,Spring	2
38	90506-16003	接头	Spring, Tension	1
39	64E-43126-10	上侧防震销	Pin, Upper Shock Mount	1
40	90386-22M98	衬套	Bushing	4
41	93410-22M11	卡环	Circlip	2
42	95895-06010	凸缘螺栓	Bolt, Flange	1
43	90269-02M08	螺丝	Rivet	2
44	90101-12M05	螺栓	Bolt (L:130MM)	6
45	90201-13M01	面板垫圈	Washer,Plate	12
46	90201-12426	平垫圈	Washer,Plate	4
47	95380-12600	有槽螺母	Nut	12
48	6G5-43119-00	艉板	Plate, Transom	2

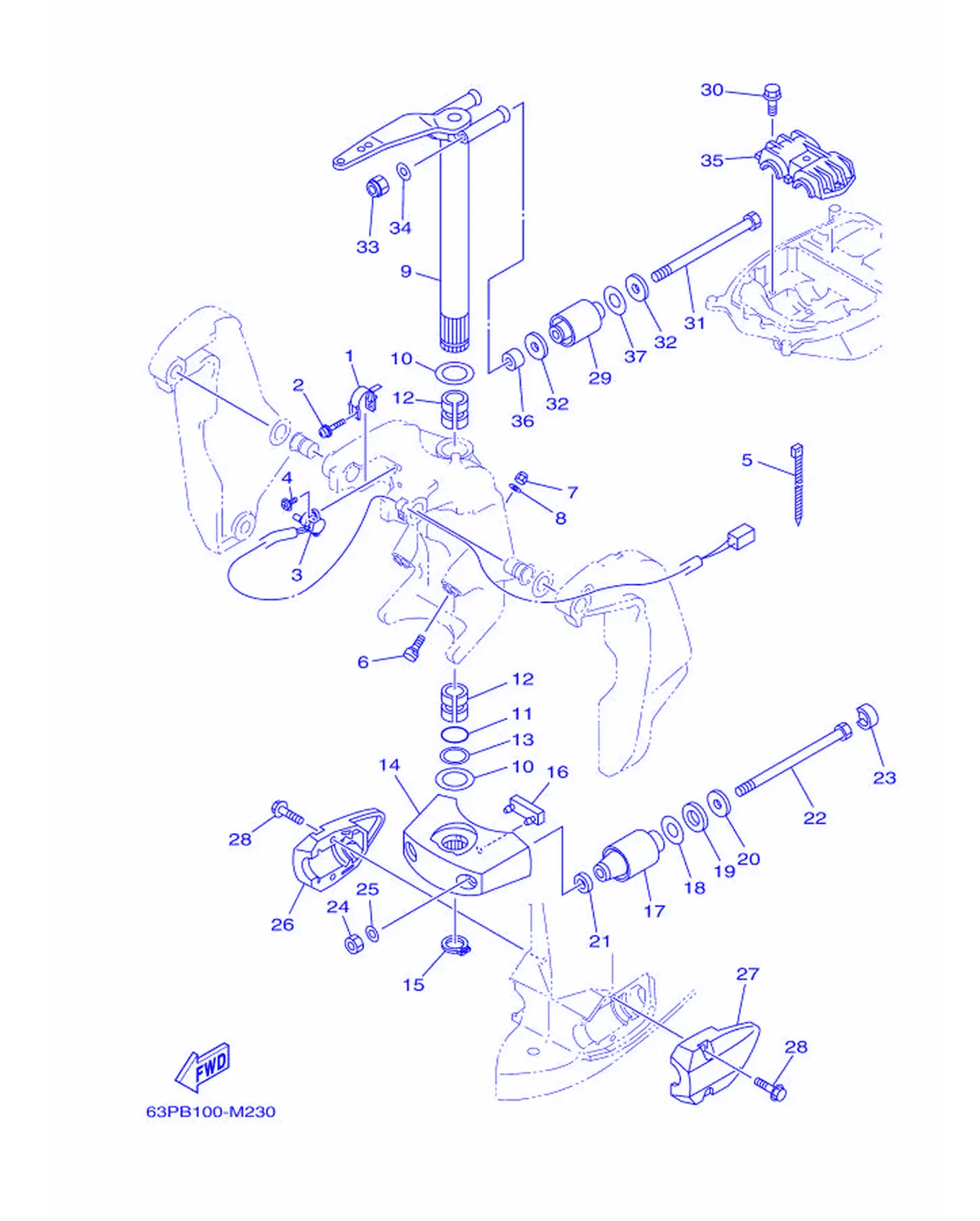

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	64E-43139-10	纵倾角传感器凸轮	Cam,TrimSensor	1
2	90159-05059	带垫圈螺丝	Screw, With Washer	1
3	67H-83672-01	纵倾角传感	TrimSensor	1
4	97985-06216	带垫圈螺丝	Screw, With Washer	2
5	90465-11M10	固定	Clamp	3
6	63P-43376-00	推力接收器螺栓	Bolt, Thrust Receiver	2
7	95780-10300	螺母	Nut, Flange	2
8	92995-10600	盘形垫	Washer	2
9	66K-42510-02-8D	方向托架组合	SteeringBracketAssembly	1
10	90201-38M60	平垫圈	Washer,Plate	2
11	93210-37MH7	O型圈	O-ring	1
12	90386-38M32	衬套	Bushing	2
13	90202-40M47	垫圈	Washer,Plate	1
14	68V-44551-00-8D	下侧减震胶垫壳	Housing, Lower Mount Rubber 1	1
15	93410-37M04	卡环	Circlip	1
16	61A-44575-00	下侧减震胶垫	Damper, Lower Mount Rubber	1
17	63P-44555-00	下侧减震胶垫	Mount Damper, Lower Side	2
18	90201-35008	面板垫圈	Washer,Plate	2
19	90202-32M19	面板垫圈	Washer,Plate	2
20	90201-16M55	面板垫圈	Washer,Plate	2
21	90201-15M58	面板垫圈	Washer,Plate	2
22	90109-14007	螺栓	Bolt	2
23	69J-44533-00	上侧减震胶垫	Damper, Upper Mount Rubber	2
24	95380-14600	有槽螺母	Nut	2
25	92995-14600	盘形垫	Washer	2
26	63P-44553-00-8D	下侧减震胶垫盖	Cover, Lower Mount	1
27	63P-44556-00-8D	前下侧减震胶垫盖 2	Cover, Lower Mount 2	1
28	97575-10540	带垫螺栓	Bolt, With Washer	4
29	63P-44514-00	上侧减震胶垫	Mount Damper, Upper Side	2
30	90119-10024	带垫圈螺栓	Bolt, With Washer	3
31	90109-14005	螺栓	Bolt	2
32	90201-16M01	平垫圈	Washer,Plate	4
33	90185-14M00	螺帽	Nut, Self-Locking	2
34	92995-14600	盘形垫	Washer	2
35	63P-44511-00	上侧减震胶垫盖	Cover, Upper Mount Rubber	1
36	90387-14004	衬套	Color	2
37	90202-28001	面板垫圈	Washer,Plate	2

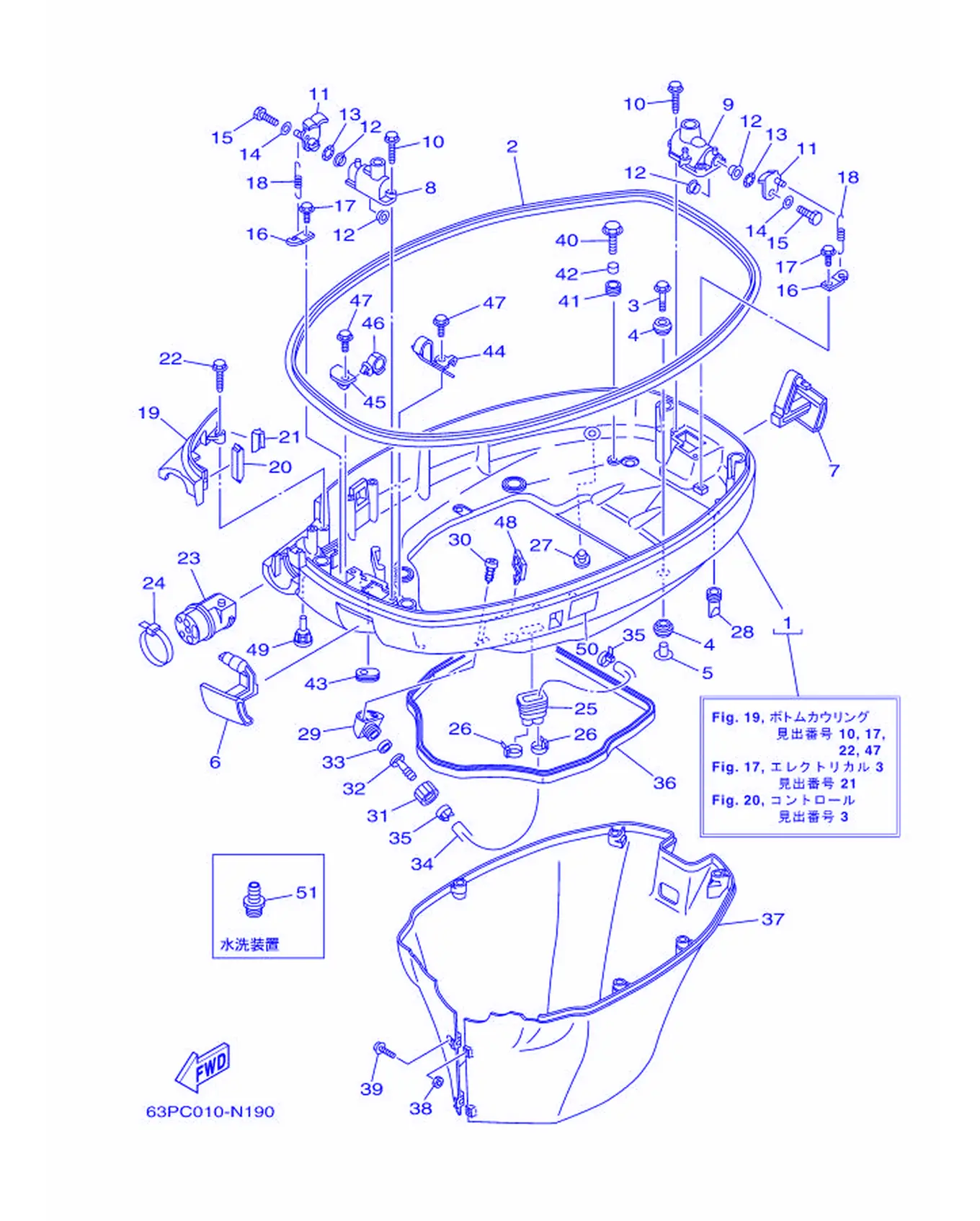

ボトムカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-42710-01-8D	底罩组合	Bottom Cowling Assembly	1
2	63P-42615-00	密封	Seal	1
3	90119-08M22	带垫螺栓	Bolt, With Washer	4
4	90480-22M81	固定	Grommet	8
5	90387-08M37	衬套	Color	4
6	63P-42815-00-8D	夹杆	Lever,Clamp	1
7	63P-42816-00-8D	夹杆	Lever,Clamp	1
8	68F-42828-03-9S	夹箍面板	Plate,Clamp	1
9	63P-42828-00-9S	夹箍面板	Plate,Clamp	1
10	90109-06M82	螺栓	Bolt	4
11	63P-42818-01	夹杆	Lever,Clamp	2
12	90386-15M73	衬套	Bushing	4
13	90206-15M18	波形垫圈	Washer, Wave	2
14	90201-06068	平垫圈	Washer,Plate	2
15	97095-06020	螺栓	Bolt	2
16	64D-43144-00	弹簧	Hook,Spring	2
17	90109-06M86	螺栓	Bolt	2
18	90506-16M34	拉力弹簧	Spring, Tension	2
19	63P-42738-00-8D	装配面板	Plate, Fitting	1
20	63P-42717-00	密封橡皮块2	Rubber,Seal 2	1
21	63P-42718-00	密封橡皮块3	Rubber,Seal 3	1
22	90109-06M82	螺栓	Bolt	2
23	63P-42725-00	固定	Grommet	1
24	90465-13M30	固定	Clamp	1
25	6H1-42726-21	固定	Grommet	1
26	90465-11M10	固定	Clamp	2
27	6P2-44391-00	软管管嘴	Nipple,Hose	1
28	61A-42717-00	密封橡皮块2	Rubber,Seal 2	4
29	68T-12572-00	软管接头5	Adapter	1
30	97780-60520	自攻螺钉	Screw, Tapping	2
31	6R3-12581-00	软管接头1	Joint,Hose 1	1
32	6R3-12582-00	软管接头2	Joint,Hose 2	1
33	6R3-12583-00	软管接头衬垫	Gasket,HoseJoint	1
34	63P-42541-00	管1	Pipe 1	1
35	90465-11M10	固定	Clamp	2
36	63P-42716-00	密封橡皮块1	Rubber,Seal 1	1
37	63P-42741-01-8D	挡板	Apron	1
38	95380-06600	有槽螺母	Nut, Hexagon	2
39	90159-06M28	带垫螺钉	Screw, With Washer	2
40	90109-06M80	螺栓	Bolt	4
41	90480-13M24	固定	Grommet	4
42	90387-06M43	衬套	Color	4
43	61A-42727-00	固定	Grommet	1
44	63P-42811-01	支承	Stay	1
45	63P-42756-00	夹箍支承	Stay, Clamp	1
46	90464-20181	固定夹	Clamp	1
47	90109-06M86	螺栓	Bolt	2
48	90464-23199	固定夹	Clamp	1
49	6H4-42748-00	固定	Grommet	2
50	6AH-42794-00	标签	Label, Warning (General)	1
51	69J-12584-00	软管接头	Joint,Hose 3	1

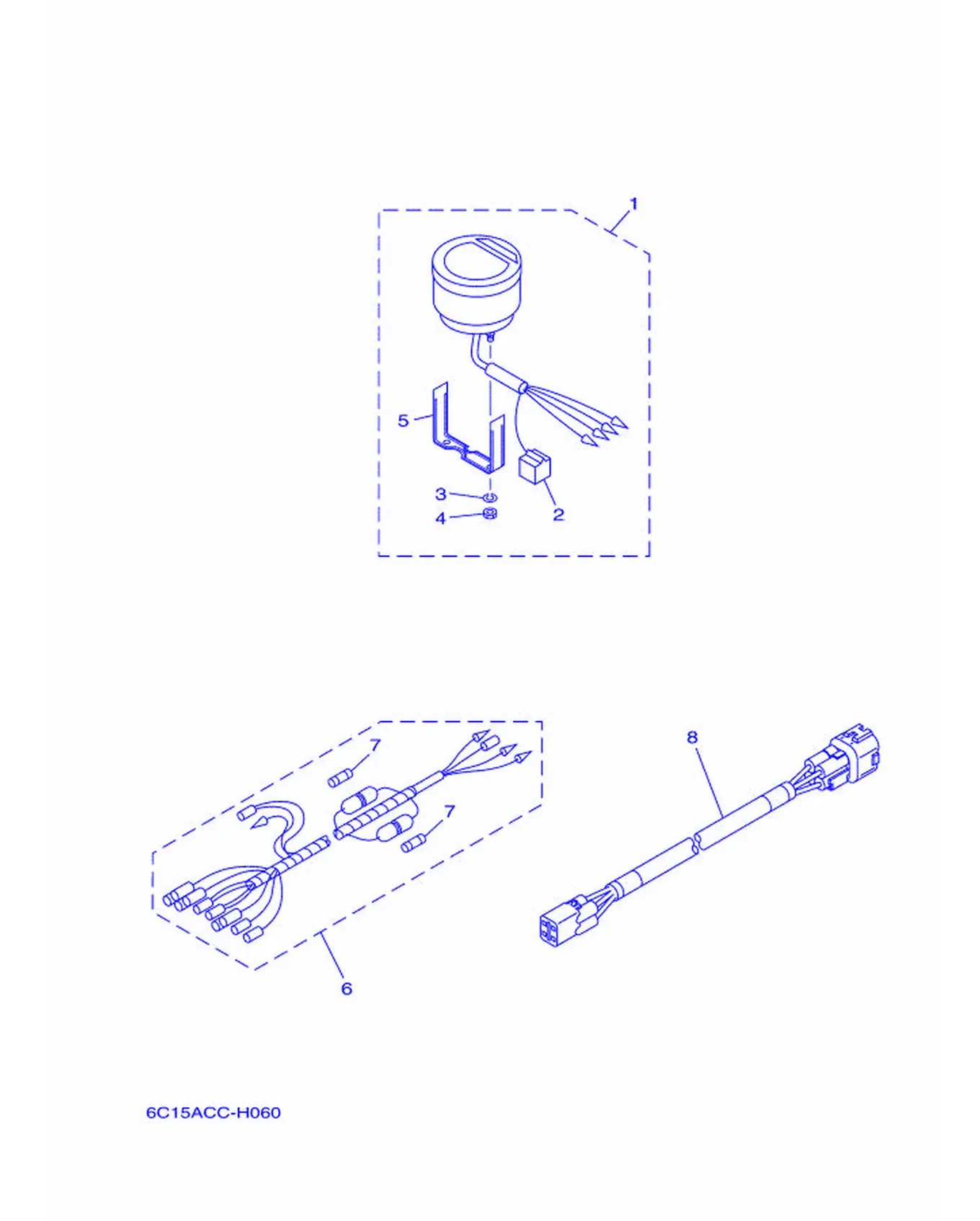

メ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6Y5-8350T-91	数字转速表	Digital Tachometer Assembly	1
2	9E450-04533	联接器	Connector	1
3	92990-04100	盘形垫	Washer, Spring	2
4	95380-04600	有槽螺母	Nut	2
5	6Y5-8355X-T1	仪表托架1	Bracket, Meter 1	1
6	6Y5-83553-M0	导线	Wire,Lead	1
7	1E6-82151-00	保险丝	Fuse (10A)	2
8	6Y5-83653-20	导线	Wire, Lead (L=7.0M)	1

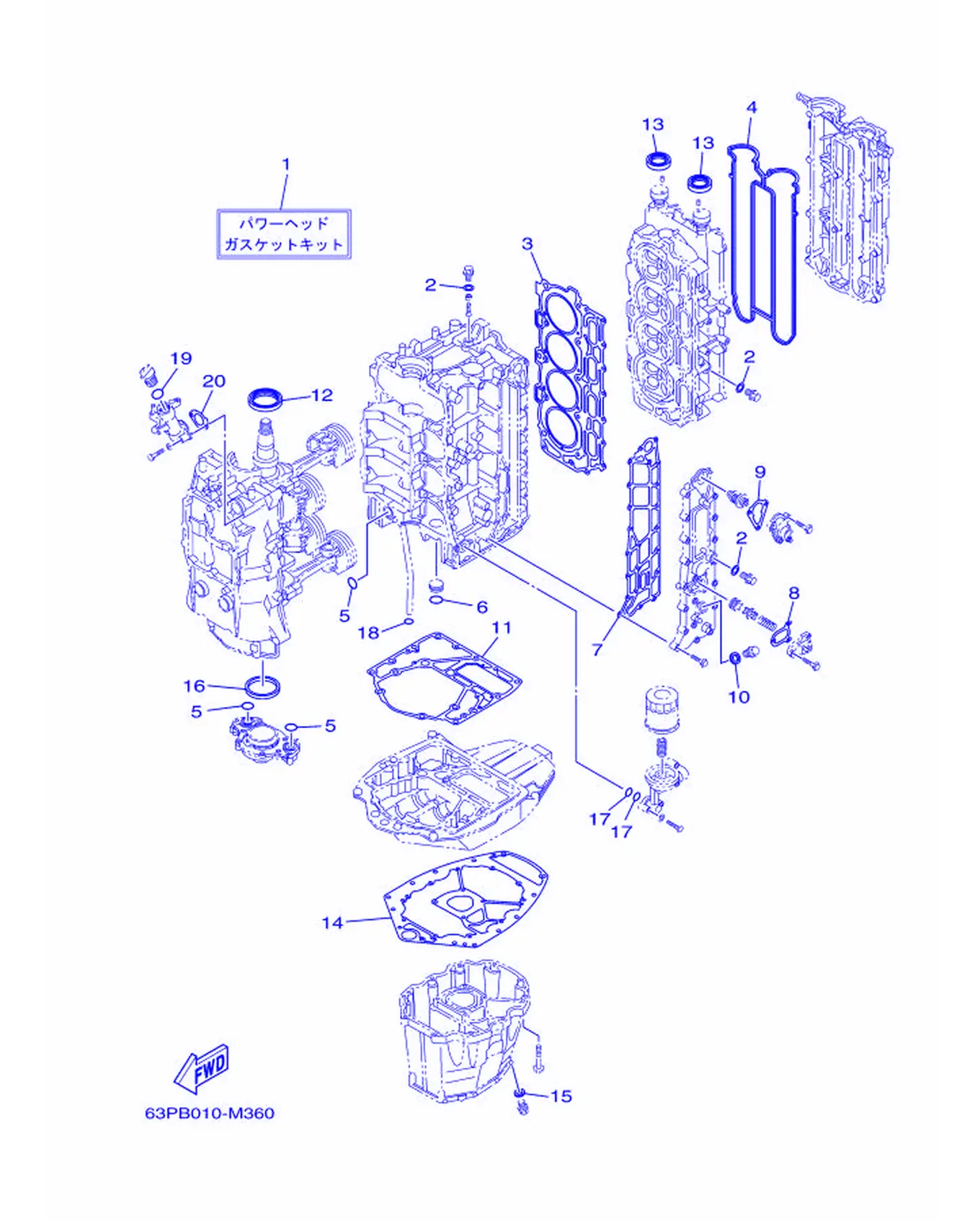

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-W0001-03	衬垫套	Power Head Gasket Kit	1
2	90430-14115	垫片	Gasket	4
3	63P-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
4	63P-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
5	93210-25552	O型圈	O-ring	3
6	93210-25647	O型圈	O-ring	1
7	63P-41114-A2	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
8	67F-12435-A0	衬垫	Gasket	1
9	63P-12414-00	盖衬垫	Gasket,Cover	1
10	90430-18130	固定	Gasket	1
11	63P-11351-01	气缸垫片1	Gasket,Cylinder	1
12	93102-60004	油封	OilSeal	1
13	93102-38008	油封	OilSeal	2
14	63P-15312-00	油槽衬垫	Gasket, Oil Pan	1
15	90430-14M09	衬垫	Gasket	1
16	69J-11355-00	气缸密封圈1	Seal,Cylinder 1	1
17	93210-19MJ1	O型圈	O-ring	2
18	93210-19MJ3	O型圈	O-ring	1
19	93210-24M79	O型圈	O-ring	1
20	63P-15364-A0	机油塞衬垫	Gasket,OilPlug	1

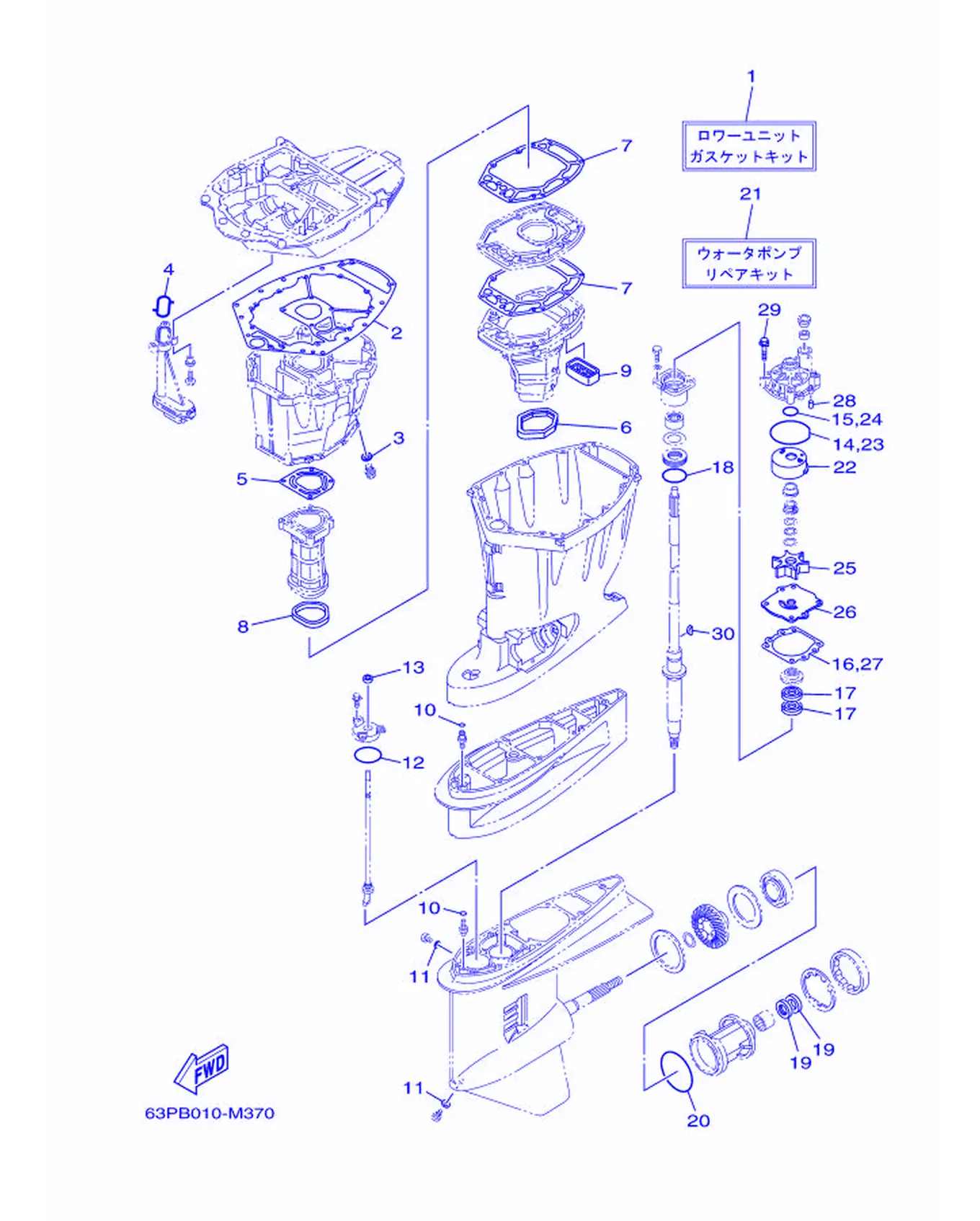

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-W0001-21	衬垫套	LowerUnitGasket Kit	1
2	63P-15312-01	油槽衬垫	Gasket, Oil Pan	1
3	90430-14M09	衬垫	Gasket	1
4	63P-13415-00	机油滤网密封	Seal, Oil Strainer	1
5	63P-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
6	69J-45123-00	消音器衬垫	Gasket,Muffler	1
7	63P-41134-A1	排气岐管衬垫	Gasket, Exhaust Manifold	2
8	63P-41138-00	排气管密封圈1	Seal, Exhaust 1	1
9	69J-45127-00	密封	Seal	1
10	93210-07003	O型圈	O-ring	2
11	90430-08020	固定	Gasket	2
12	93210-58144	O型圈	O-ring	1
13	93106-09014	油封	OilSeal	1
14	93210-86M38	O型圈	O-ring	1
15	93210-37160	O型圈	O-ring	1
16	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
17	93101-28M16	油封	OilSeal	2
18	93210-55M14	O型圈	O-ring	1
19	93101-30M17	油封	OilSeal	2
20	93210-97M55	O型圈	O-ring	1
21	61A-W0078-A3	水泵修理套	Water PumpRepair Kit	1
22	61A-44322-02	芯子	Insert, Cartridge	1
23	93210-86M38	O型圈	O-ring	1
24	93210-37160	O型圈	O-ring	1
25	6E5-44352-01	叶轮	Impeller	1
26	6G5-44323-01	外挡板	Outer Plate, Cartridge	1
27	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
28	93606-12019	定位销	Pin, Dowel	2
29	90119-08M14	带垫螺栓	Bolt, With Washer	4
30	90280-04M05	半圆键	Key, Woodruff	1

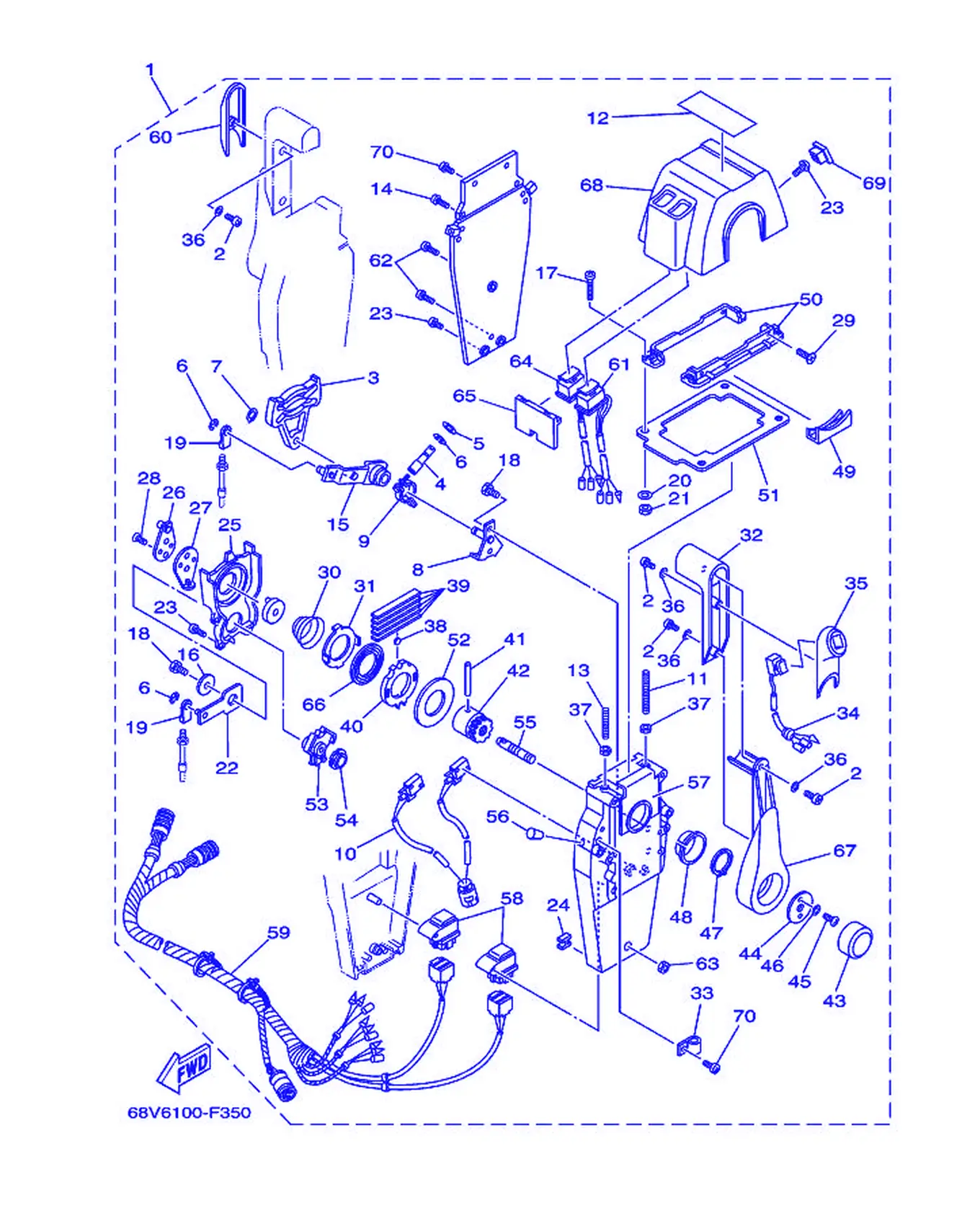

リモ-トコントロ-ルアセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	704-48207-P1	遥控装置组合	Remote Control Assembly	1
2	704-48129-00	螺钉3	Screw 3	6
3	EL8-48251-00	凸轮面板	Plate,Cam	2
4	704-48265-00	摩擦轴	Shaft, Friction	2
5	701-48246-00	衬套	Spacer	2
6	93430-06024	卡环	Circlip	8
7	EL8-48259-00	开口簧环，卡	Circlip 1	2
8	704-48262-00	油门轴	Shaft,Throttle	2
9	704-48264-00	带阻力油	Throttle, Friction	2
10	704-82540-30	空挡开关总成	Neutral Switch Assembly	1
11	EL8-48281-00	螺钉	Screw	2
12	704-48215-30	图样	Graphic	1
13	704-48281-00	螺钉	Screw	2
14	97890-05025	大柱头螺钉	Screw, Pan Head	4
15	704-48261-00	油门臂	Arm,Throttle	2
16	EL8-48191-00	垫圈1	Washer 1	2
17	704-48283-00	螺钉	Screw	4
18	97380-06018	螺栓	Bolt	6
19	703-48345-01	遥控钢索端部2	Cable End, Remote Control	4
20	704-48287-00	垫	Washer	4
21	95380-05600	螺母	Nut	4
22	704-48271-00	变挡臂	Arm, Shift	2
23	EL8-48127-00	螺钉1	Screw 1	18
24	703-48358-00	钢索固定装置	Anchor, Cable	2
25	704-48231-00	齿轮壳	Housing, Cap	2
26	EL8-48241-00	驱动臂	Arm, Drive	2
27	EL8-48254-00	油门调整限位板	Stopper, Throttle	2
28	92780-06020	平头螺钉	Screw, Flat Head	4
29	98780-05018	平头螺钉	Screw, Flat Head	4
30	EL8-48244-00	发动机空转弹簧	Spring, Free Axel	2
31	EL8-48245-00	锁紧面板	Plate, Lock	2
32	704-48222-P0	控制杠杆握柄	Grip,ControlLever	2
33	704-82594-00	夹箍	Clamp	1
34	704-82563-51	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
35	704-48229-P1	控制杠杆握柄	Grip,ControlLever	1
36	92990-05300	盘形垫	Washer, Internal Tooth	6
37	95380-06600	有槽螺母	Nut, Hexagon	4
38	701-48248-00	发动机空转卷轴	Roller, Free Accelerator	2
39	704-48238-00	延迟簧	Spring, Detent	10
40	704-48232-P1	齿	Gear	2
41	EL8-48164-00	销2	Pin 2	2
42	704-48242-10	驱动轴	Shaft, Drive	2
43	6X3-48225-20	盖	Cover	2
44	704-48192-00	垫圈2	Washer 2	2
45	97890-06018	大柱头螺钉	Screw, Pan Head	4
46	92990-06300	盘形垫	Washer, Internal Tooth	4
47	EL8-48279-00	卡环 2	Circlip 2	2
48	704-48234-00	衬套1	Bushing 1	2
49	704-48219-P0	导线盖	Cover,Lead	2
50	704-48144-20	限位板面板2	Plate, Stopper 2	2
51	704-48176-10	固定	Grommet	1
52	704-48192-P0	垫圈2	Washer 2	2
53	704-48233-00	齿轮2	Gear 2	2
54	704-48235-00	衬套	Bushing	2
55	704-48153-00	发动机空转轴	Shaft, Free Axel	2
56	704-48166-00	塞	Plug	2
57	704-48284-P0	固定	Grommet	2
58	704-81950-10	继电器总成	Relay Assembly	2
59	704-82590-10	电线束组合	Wire Harness Assembly	1
60	704-48229-R0	控制杠杆握柄	Grip,ControlLever	1
61	704-82563-H1	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
62	704-48128-00	螺钉2	Screw 2	3
63	704-48156-00	螺母1	Nut 1	1
64	704-82563-J1	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
65	704-48285-10	固定环2	Grommet 2	1
66	704-48178-00	轴面板	Plate, Shift	2
67	704-48221-P0	控制杠杆	Lever, Control	2
68	704-48119-41	盖	Cover	1
69	704-48167-11	塞	Plug	1
70	97890-05016	大柱头螺钉	Screw, Pan Head	5

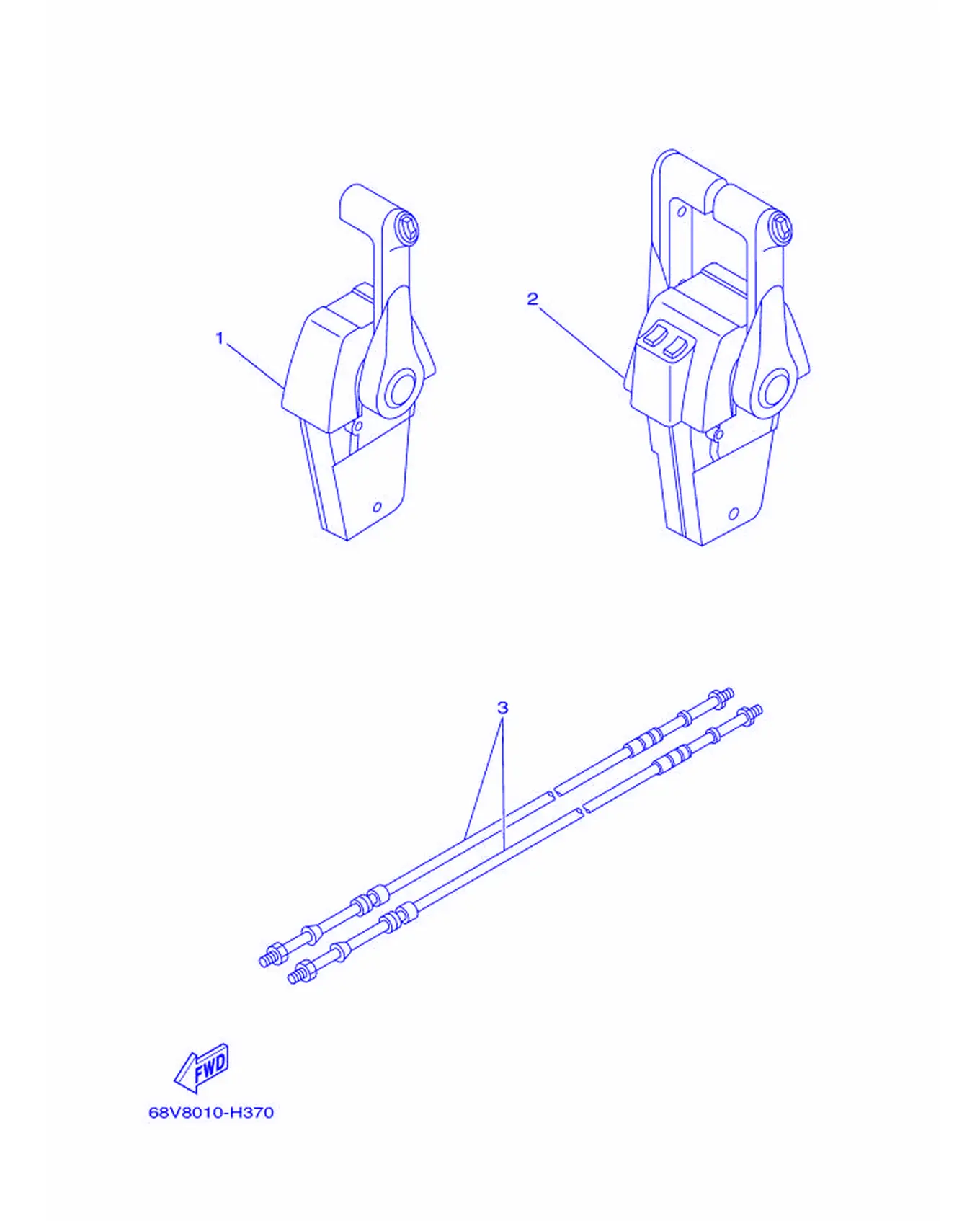

リモートコントロールボツクス

REF	雅马哈编码	中文名称	英文名称	用量
2	704-48207-P1	遥控装置组合	Remote Control Assembly	1
3	701-48320-50	遥控钢索 (4.56m)	Cable, Remote Control	2
3	701-48320-60	遥控钢索 (4.88m)	Cable, Remote Control	2
3	701-48320-80	遥控钢索 (5.18m)	Cable, Remote Control	2
3	701-48350-00	遥控钢索 (6.40m)	Cable, Remote Control	2
3	701-48350-20	遥控钢索 (7.01m)	Cable, Remote Control	2

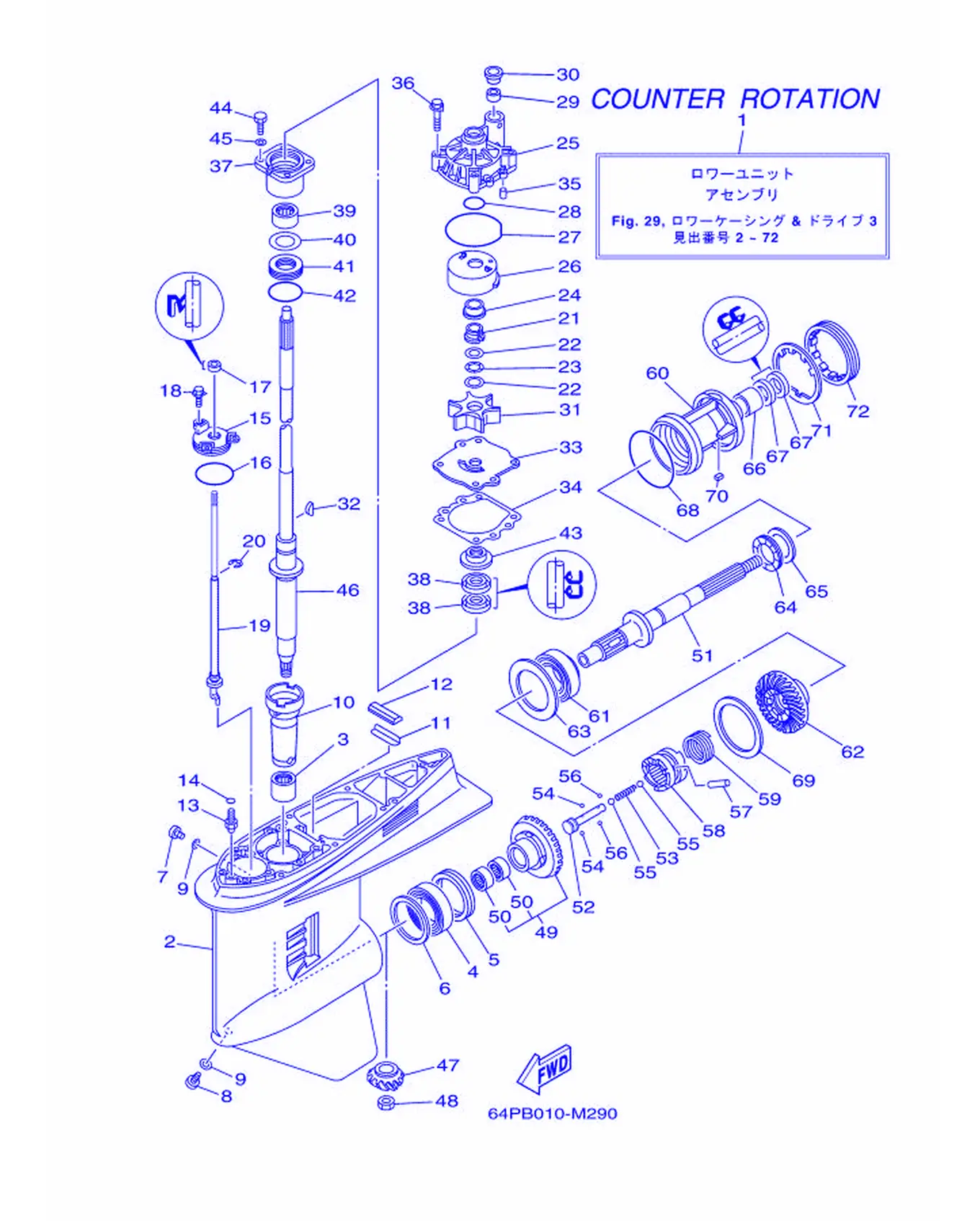

ロワーケーシング & ドライブ 3

REF	雅马哈编码	中文名称	英文名称	用量
1	64P-45300-B2-8D	水下装置总成	LowerUnitAssembly	1
2	6J9-45301-07-8D	水下装置壳	Casing,Lower	1
3	93311-928U5	轴承	Bearing	1
4	93390-000U2	轴承	Bearing	1
5	93341-465U4	轴承	Bearing	1
6	6G5-45567-01	填隙	Shim (T:0.10MM)	1
6	6G5-45567-10	填隙	Shim (T:0.12MM)	1
6	6G5-45567-20	填隙片	Shim (T:0.15MM)	1
6	6G5-45567-30	填隙	Shim (T:0.18MM)	1
6	6G5-45567-40	填隙	Shim (T:0.30MM)	1
6	6G5-45567-50	填隙	Shim (T:0.40MM)	1
6	6G5-45567-60	填隙	Shim (T:0.50MM)	1
7	90340-08002	螺丝	Plug, Straight Screw	1
8	688-45341-10	放油塞	Plug, Drain	1
9	90430-08020	固定	Gasket	2
10	6G5-45536-01	驱动轴套	Sleeve,Drive Shaft	1
11	663-45376-00	密封圈减震块导承	Guide,SealDamper	1
12	688-45375-00	密封圈减震	Damper,Seal	1
13	63P-45378-00	软管嘴	Nipple,Hose	1
14	93210-07003	O型圈	O-ring	1
15	6E5-45321-00	面板	Plate	1
16	93210-58144	O型圈	O-ring	1
17	93106-09014	油封	OilSeal	1
18	90119-06M10	带垫螺栓	Bolt, With Washer	3
19	64P-44150-11	变挡凸轮组合	Shift Cam Assembly	1
20	99001-08600	卡环	Circlip	1
21	61A-45538-00	衬套1	Spacer 1	1
22	90201-22M01	平垫圈	Washer,Plate	2
23	90206-22M19	波形垫圈	Washer, Wave	1
24	61A-45527-00	驱动轴安装	Color,Drive Shaft	1
25	61A-44311-01	水泵壳	Housing,Water Pump	1
26	61A-44322-02	芯子	Insert, Cartridge	1
27	93210-86M38	O型圈	O-ring	1
28	93210-37160	O型圈	O-ring	1
29	6E5-44365-00	水封减震器	Damper,WaterSeal	1
30	6E5-44312-00	水泵壳体盖	Cover,Water PumpHousing	1
31	6E5-44352-01	叶轮	Impeller	1
32	90280-04M05	半圆键	Key, Woodruff	1
33	6G5-44323-01	外挡板	Outer Plate, Cartridge	1
34	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
35	93606-12019	定位销	Pin, Dowel	2
36	90119-08M14	带垫螺栓	Bolt, With Washer	4
37	6E5-45331-00-9S	轴承壳	Housing,Bearing	1
38	93101-28M16	油封	OilSeal	2
39	93317-330U2	轴承	Bearing	1
40	6E5-45587-01	填隙	Shim (T:0.10MM)	1
40	6E5-45587-10	填隙	Shim (T:0.12MM)	1
40	6E5-45587-20	填隙	Shim (T:0.15MM)	1
40	6E5-45587-30	填隙	Shim (T:0.18MM)	1
40	6E5-45587-40	填隙	Shim (T:0.30MM)	1
40	6E5-45587-50	填隙	Shim (T:0.40MM)	1
40	6E5-45587-60	填隙	Shim (T:0.50MM)	1
41	93341-930V2	轴承	Bearing	1
42	93210-55M14	O型圈	O-ring	1
43	6E5-45344-00	油封盖	Cover,OilSeal	1
44	97095-08025	螺栓	Bolt	4
45	92995-08600	盘形垫	Washer	4
46	63P-45501-11	驱动轴组	Drive ShaftComplete	1
47	63P-45551-00	小齿轮	Pinion (14T)	1
48	90170-16M01	螺帽	Nut	1
49	6BN-45560-00	齿	Gear 1 (28T)	1
50	93315-425V3	轴承	Bearing	2
51	6K1-45611-10	螺旋浆轴	Shaft,Propeller	1
52	6E5-45634-02	变挡滑	Slide, Shift	1
53	90501-16M37	压簧	Spring, Compression	1
54	93507-32009	滚珠	Ball	2
55	93511-32017	滚珠	Ball	2
56	93503-16003	滚珠	Ball	2
57	90250-08M07	圆柱销	Pin, Straight	1
58	6BM-45631-00	爪形离合器	Clutch, Dog	1
59	6E5-45633-01	固定环	Ring, Cross Pin	1
60	6K1-45332-01-CA	轴承壳	Housing,Bearing	1
61	93332-00048	轴承	Bearing	1
62	6BN-45570-00	齿	Gear 2 (28T)	1
63	6K1-45576-00	推力垫	Washer, Thrust 2	1
64	93341-440U5	轴承	Bearing	1
65	6K1-45578-01	填隙	Shim (T:0.10MM)	1
65	6K1-45578-10	填隙	Shim (T:0.12MM)	1
65	6K1-45578-20	填隙	Shim (T:0.15MM)	1
65	6K1-45578-30	填隙	Shim (T:0.18MM)	1
65	6K1-45578-40	填隙	Shim (T:0.30MM)	1
65	6K1-45578-50	填隙	Shim (T:0.40MM)	1
65	6K1-45578-60	填隙	Shim (T:0.50MM)	1
66	93315-43061	滚针轴承	Bearing	1
67	93101-30M17	油封	OilSeal	2
68	93210-97M55	O型圈	O-ring	1
69	6G5-45577-02	填隙	Shim (T:0.10MM)	1
69	6G5-45577-10	填隙	Shim (T:0.12MM)	1
69	6G5-45577-20	填隙	Shim (T:0.15MM)	1
69	6G5-45577-30	填隙	Shim (T:0.18MM)	1
70	90282-04M00	直键	Key, Straight	1
71	6G5-45383-01	爪形垫	Washer, Claw	1
72	6G5-45384-02	螺母	Nut	1

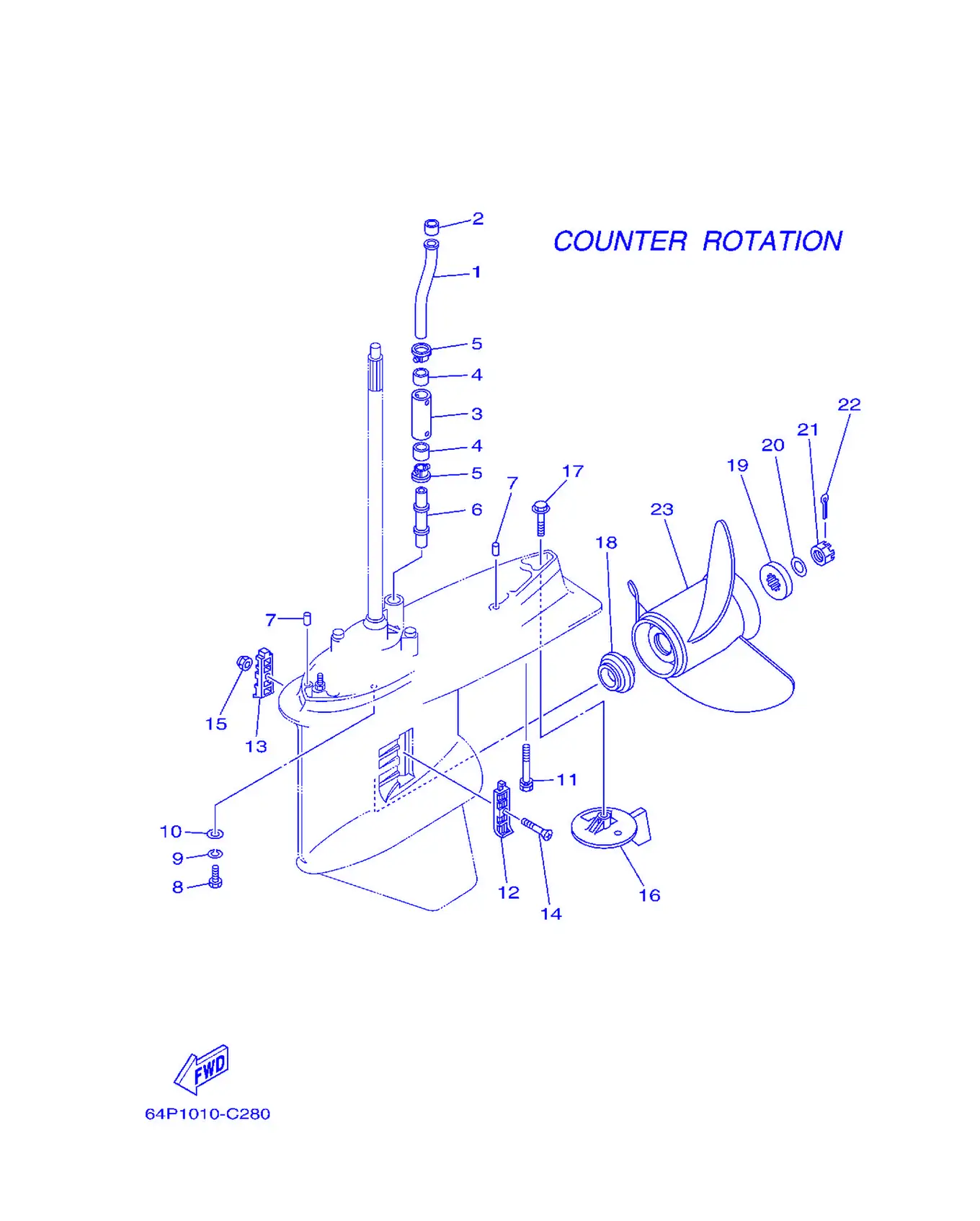

ロワーケーシング & ドライブ 4

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-44361-00	水管	Tube, Water 1	1
2	6E5-44365-00	水封减震器	Damper,WaterSeal	1
3	63P-44362-00	水管	Tube, Water 2	1
4	6E5-44365-00	水封减震器	Damper,WaterSeal	2
5	6E5-44312-00	水泵壳体盖	Cover,Water PumpHousing	2
6	63P-44363-00	水管3	Tube, Water 3	1
7	93608-16M16	定位销	Pin, Dowel	2
8	97095-10045	螺栓	Bolt	6
9	92995-10100	盘形垫	Washer	6
10	92995-10600	盘形垫	Washer	6
11	90119-10008	带垫圈螺栓	Bolt, With Washer	1
12	6J9-45214-00	进水口盖	Cover, Water Inlet	1
13	6J9-45215-00	进水口盖	Cover, Water Inlet	1
14	90152-05M08	沉头螺钉	Screw, Countersunk	1
15	90185-05002	螺母	Nut, Self-Locking	1
16	6K1-45371-02	航向调整	Tab Trim	1
17	90105-10M00	螺栓	Bolt, Flange	1
18	63P-45987-00	衬套	Spacer 1	1
19	688-45997-01	衬套	Spacer	1
20	92990-18200	盘形垫	Washer	1
21	90171-18M04	螺母	Nut, Castle	1
22	91490-40030	开口销	Pin, Cotter	1
23	6K1-45970-01	螺旋浆	Propeller (3X15-1/4X15-ML)	1
23	6K1-45972-01	螺旋浆组合	Propeller (3X13-3/4X21-ML)	1
23	6K1-45974-02	螺旋浆	Propeller (3X13-3/4X19-ML1)	1
23	6K1-45976-00	螺旋浆组合	Propeller (3X13-3/8X23-ML)	1
23	6K1-45978-02	螺旋浆	Propeller (3X13-3/4X17-ML1)	1
23	6K1-45945-00	螺旋浆组合	Propeller (3X14X19-ML)	1
23	6K1-45947-00	螺旋浆组合	Propeller (3X14-1/2X17-ML)	1
23	6R1-45970-A1	螺旋浆组合	Propeller (3X15-1/4X19-ML)	1
