雅马哈 F150D - F150DETL

共 40 个部位，点击零件编码查看详情，或搜索本页零件。

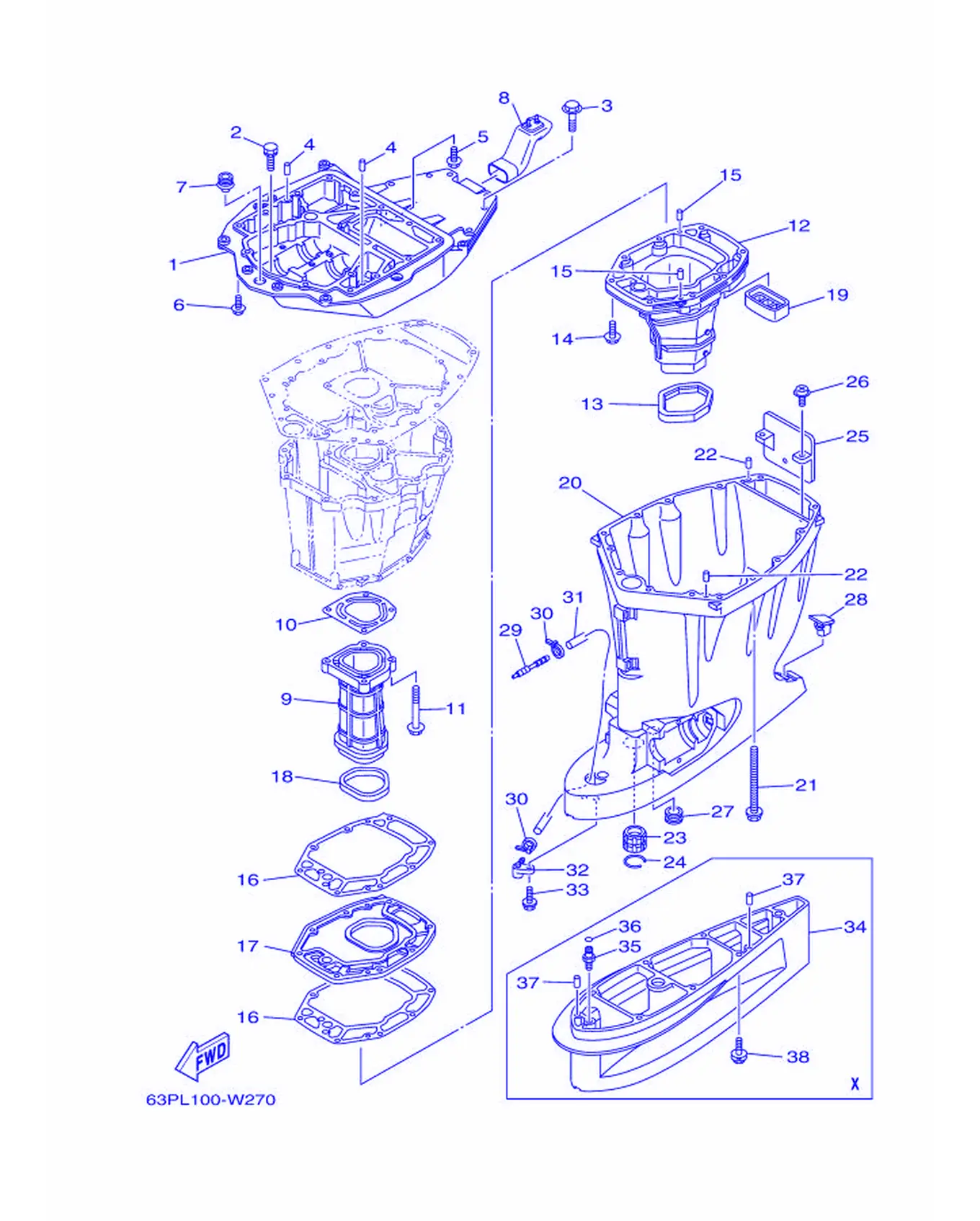

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-41137-07-CA	排气导管	Guide, Exhaust	1
2	90119-08182	带垫圈六角头螺栓	Bolt, with Washer	2
3	97E75-10545	螺栓	Bolt, Hexagon with Washer Deep Recess	4
4	93608-16M16	定位销	Pin, Dowel	2
5	90119-08189	带垫圈六角头螺栓	Bolt, with Washer	3
6	97E75-10535	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	4
7	6E5-42724-01	固定	Grommet	1
8	6DA-42769-01	橡皮密封	Seal, Rubber	1
9	63P-41131-02	排气岐管1	Manifold, Exhaust 1	1
10	63P-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
11	97E75-08560	螺栓	Bolt, Hexagon with Washer Deep Recess	4
12	63P-14711-02	消声器1	Muffler 1	1
13	69J-45123-00	消音器衬垫	Gasket,Muffler	1
14	97E75-08535	螺栓	Bolt, Hexagon with Washer Deep Recess	8
15	93606-19M23	定位销	Pin, Dowel	2
16	63P-41134-A1	排气岐管衬垫	Gasket, Exhaust Manifold	2
17	63P-45181-02	面板	Plate	1
18	63P-41138-00	排气管密封圈1	Seal, Exhaust 1	1
19	69J-45127-01	密封	Seal	1
20	63P-45111-00-8D	水上装置壳	Casing,Upper	1
21	90119-10007	带垫螺栓	Bolt, With Washer	8
22	93608-16M16	定位销	Pin, Dowel	2
23	6E5-45318-00	驱动轴衬套	Bushing,Drive Shaft	1
24	93420-36M01	卡环	Circlip	1
25	69J-14624-01	排气盖	Cover,Exhaust	1
26	97980-06216	带垫圈螺钉	Screw, With Washer	2
27	6E5-44366-01	水封减震器	Damper, Water Seal 2	1
28	6C5-45155-02	盖	Cap	1
29	6E5-83558-00	管嘴端部	End, Nipple	1
30	90465-11M10	固定	Clamp	2
31	90445-070F1	软管	Hose (L950)	1
32	63P-45379-00	软管嘴	Nipple,Hose	1
33	90119-06287	带垫圈六角头螺栓	Bolt, with Washer	1
34	63P-45211-00-8D	延伸部分	Extension	1
35	63P-45378-00	软管嘴	Nipple,Hose	1
36	93210-07003	O型圈	O-ring	1
37	93608-16M16	定位销	Pin, Dowel	2
38	97E95-10645	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	6

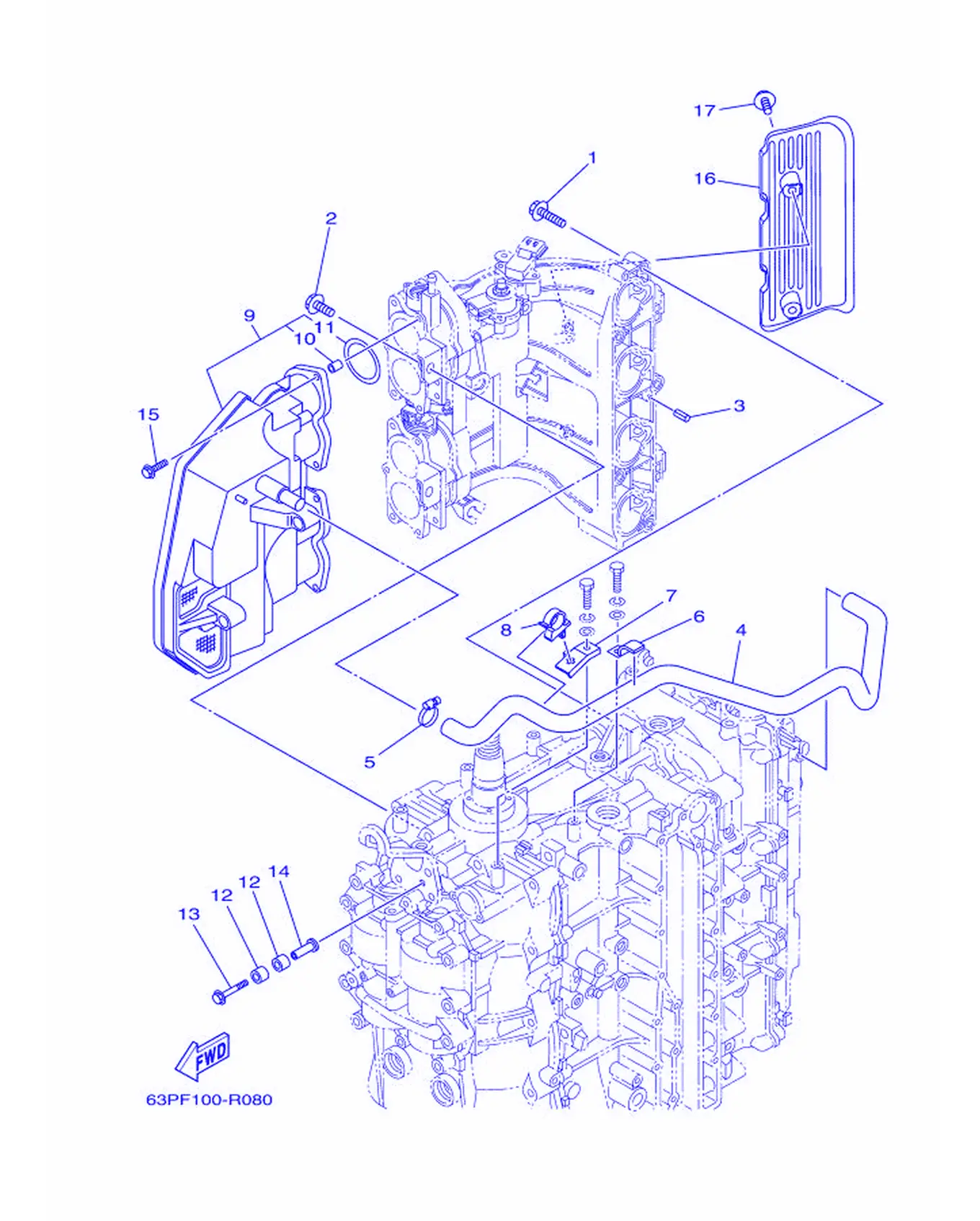

インテーク 1

REF	雅马哈编码	中文名称	英文名称	用量
1	97E75-08540	螺栓	Bolt, Hexagon with Washer Deep Recess	5
2	97513-08520	带垫圈螺	Bolt, with Washer	2
3	91690-50014	弹簧销	Pin,Spring	2
4	63P-15373-00	通气管	Pipe, Breather	1
5	90450-22M14	固定	HoseClampAssembly	1
6	90462-10023	固定	Clamp	1
7	63P-15378-00	支架	Holder	1
8	90464-20006	固定	Clamp	1
9	63P-14440-10	进气消声器组合	SilencerAssembly,Intake	1
10	63P-14449-00	轴套	Collar	6
11	63P-14457-00	密封	Seal	4
12	90386-08001	衬套	Bushing	4
13	90119-06301	带垫圈六角头螺栓	Bolt, with Washer	2
14	90387-06280	轴套	Color	2
15	90119-06283	带垫圈六角头螺栓	Bolt, with Washer	6
16	63P-13564-01	岐管盖	Cover, Manifold	1
17	95D95-06016	螺栓	Bolt, Flange Deep Recess	2

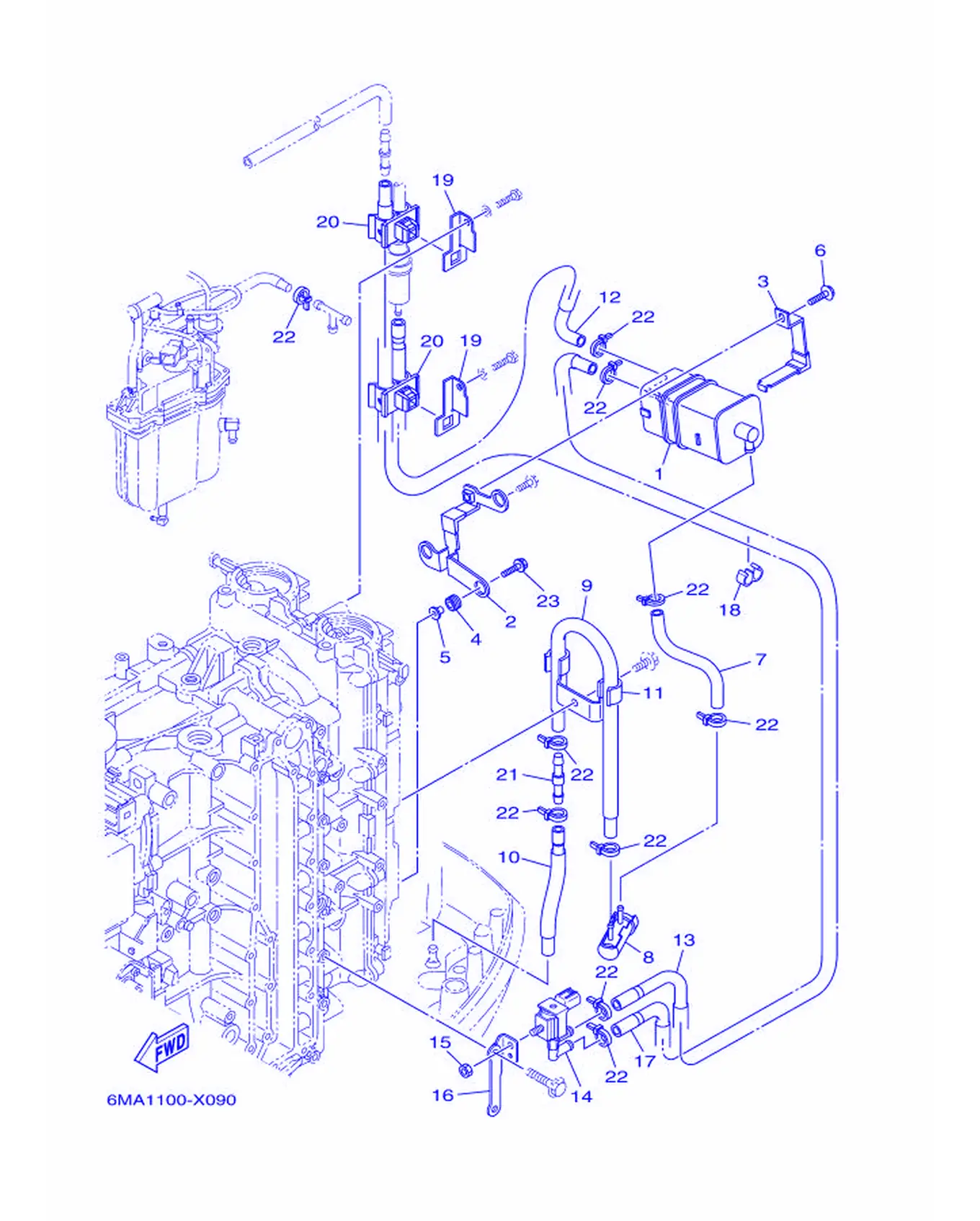

インテーク 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-24170-00	过滤器总成	Canister Assembly	1
2	63P-2134X-00	过滤罐支撑	Bracket, Canister	1
3	63P-2419A-01	支架	Holder	1
4	90480-10M23	固定	Grommet	3
5	90387-06289	轴套	Color	3
6	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	1
7	64P-24313-00	管3	Pipe 3	1
8	69J-24502-00	燃油过滤器	Filter, Fuel	1
9	64P-24312-00	管2	Pipe 2	1
10	64P-24311-10	油管	Pipe, Fuel 1	1
11	63P-24367-01	燃油管夹2	Clamp,FuelPipe 2	1
12	64P-24315-00	管5	Pipe 5	1
13	64P-24316-10	管6	Pipe 6	1
14	6C5-86120-00	电磁阀组合	SolenoidValveAssembly	1
15	95380-06600	有槽螺母	Nut, Hexagon	1
16	63P-81845-20	面板	Plate	1
17	64P-24314-10	管4	Pipe 4	1
18	90464-09M31	固定	Clamp	1
19	63P-24364-01	支承	Stay	2
20	90464-11012	固定	Clamp	2
21	6E5-24379-00	连接管4	Pipe,Joint 4	1
22	90465-11M10	固定	Clamp	10
23	90119-06135	带垫圈螺栓	Bolt, With Washer	2

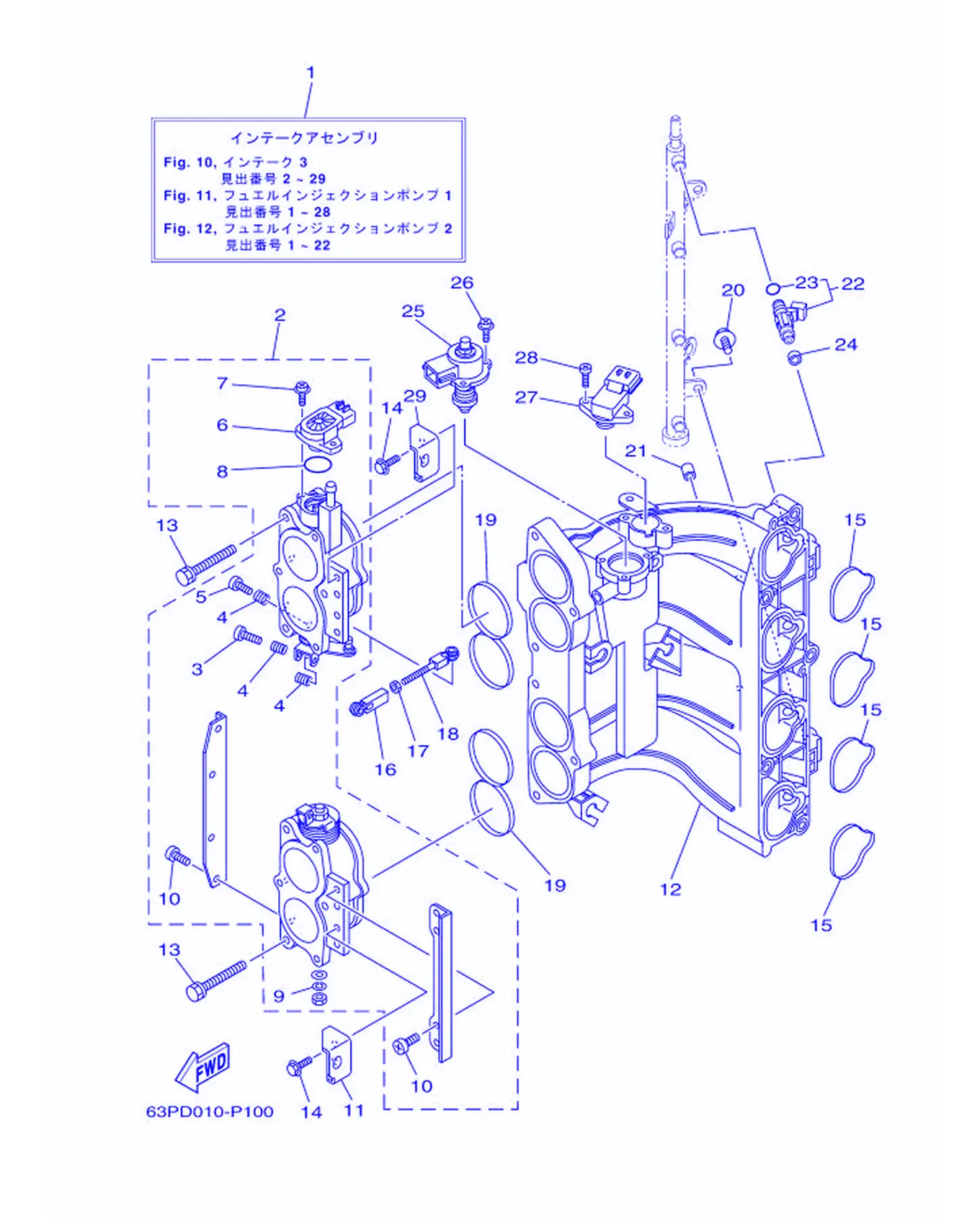

インテーク 3

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-14200-68	进气装置总成	Intake Assembly	1
2	63P-13751-21	油门本体	Body, Throttle 1	1
3	69J-14321-00	节气门螺钉	Screw,Throttle	1
4	68V-14331-00	节气门阀弹簧	Spring,ThrottleValve	3
5	68V-14323-00	空气调整螺钉	Screw, Air Adjusting	1
6	6S1-85885-01	节流传感件组合	Throttle Sensor Assembly	1
7	68V-81145-01	螺钉1	Screw 1	2
8	68V-8182L-00	O型圈	O-ring 1	1
9	68V-14356-00	弹簧垫	Washer, Spring	1
10	68V-14565-00	螺钉	Screw	8
11	63P-14291-00	托架1	Bracket 1	1
12	63P-13641-10	岐管1	Manifold, Intake 1	1
13	63P-14496-00	螺栓	Bolt	6
14	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	4
15	63P-13645-00	岐管衬垫1	Gasket,Manifold 1	4
16	6H4-41237-00	连杆接头	Joint, Link	1
17	95380-05700	有槽螺母	Nut	1
18	682-41238-01	连杆接头	Joint, Link	1
19	63P-13557-00	衬垫	Gasket	2
20	6P2-14446-00	螺栓	Bolt	2
21	63P-13643-00	岐管盖	Cover,Manifold	4
22	63P-13761-01	喷射器	Injector Assembly	4
23	68V-1416A-00	O型圈	O-ring	1
24	68V-13766-00	喷射器橡皮	Rubber, Injector	4
25	63P-1312A-02	控制阀	Valve, Control	1
26	68V-81146-01	螺钉2	Screw 2	3
27	63P-82380-00	压力传感	Sensor, Pressure	1
28	68V-81147-00	螺钉3	Screw 3	2
29	63P-14292-00	支架 2	Bracket 2	1

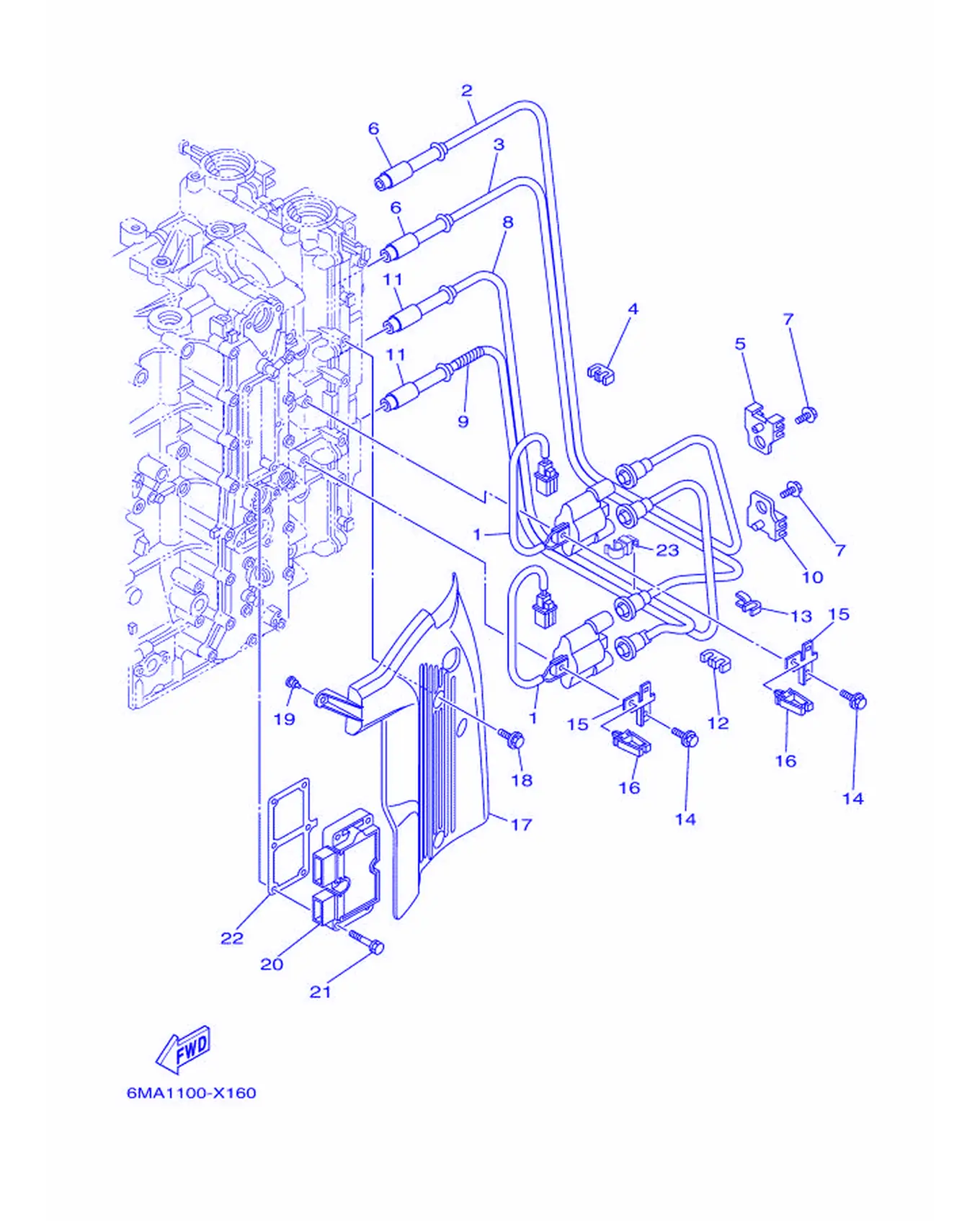

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-82310-01	点火线圈组合	Ignition Coil Assembly	2
2	6MA-82341-00	高压缆索1	Cord, High Tension 1	1
3	6MA-82342-00	高压缆索2	Cord, High Tension 2	1
4	67F-82361-00	线夹	Clamp, Cord	1
5	67F-82362-00	线夹2	Clamp, Cord 2	1
6	6MA-82370-00	塞帽组合	Plug Cap Assembly	2
7	90119-06275	带垫圈六角头螺栓	Bolt, with Washer	2
8	6MA-82343-00	高压缆索3	Cord, High Tension 3	1
9	6MA-82344-00	高压缆索4	Cord, High Tension 4	1
10	67F-82362-00	线夹2	Clamp, Cord 2	1
11	6MA-82370-00	塞帽组合	Plug Cap Assembly	2
12	67F-82361-00	线夹	Clamp, Cord	1
13	90464-07M41	固定	Clamp	1
14	97E95-06625	螺栓	Bolt, Hexagon with Washer Deep Recess	4
15	63P-82388-00	面板	Plate	2
16	90464-05141	固定	Clamp	2
17	63P-82314-01	点火线圈盖	Cover, Ignition Coil	1
18	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
19	90480-06M19	固定	Grommet	1
20	63P-81960-02	整流调节器	Rectifier and Regulator Assembly	1
21	90119-06MA4	带垫螺栓	Bolt, With Washer	6
22	63P-81975-00	整流器装配面板	Plate, Rectifier Fitting	1
23	90464-12017	线夹	Clamp	1

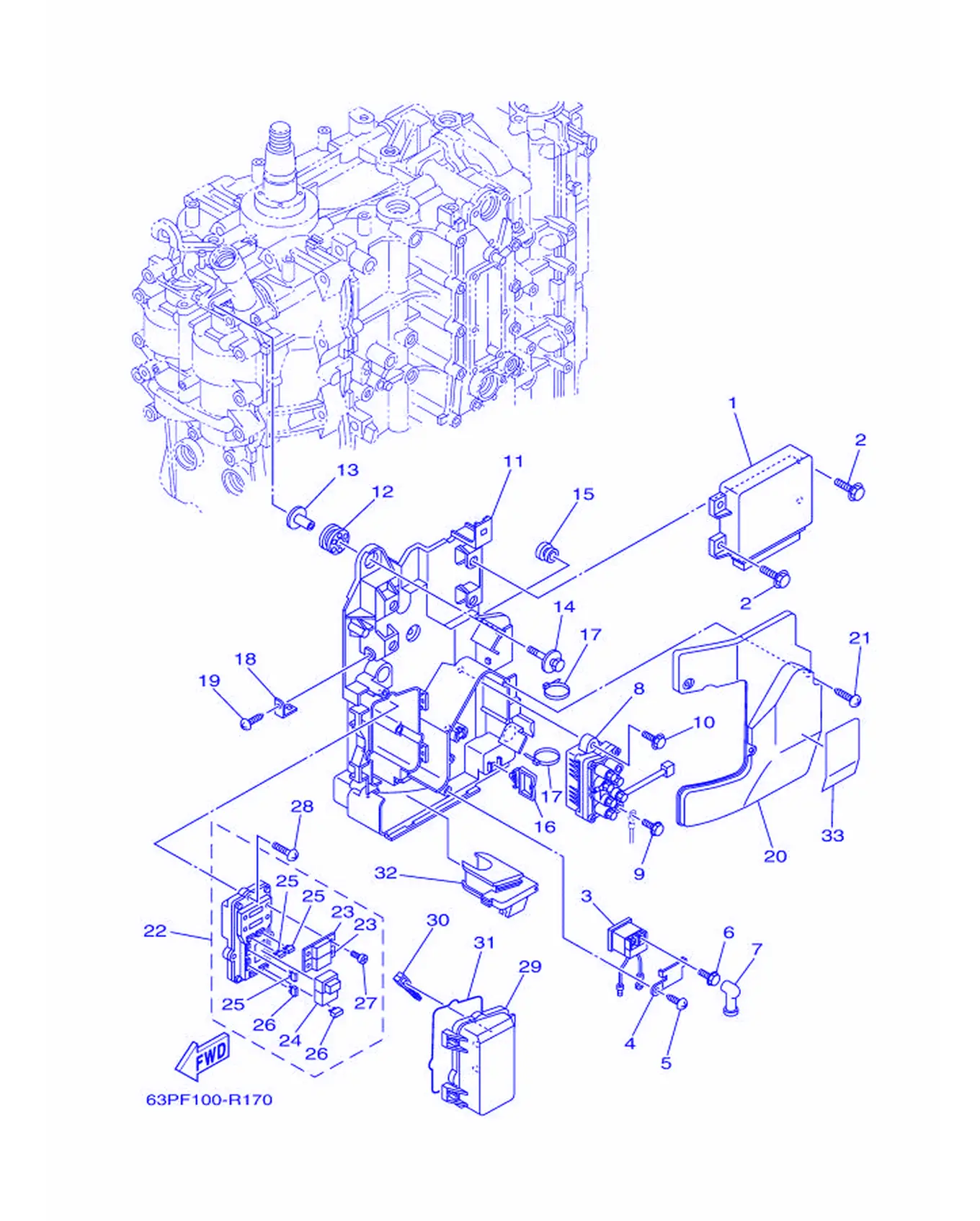

エレクトリカル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-8591A-55	托架装置	Engine Control Unit Assembly	1
2	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	4
3	68V-8194A-00	继电器	Relay	1
4	68V-81953-00	继电器支承	Stay, Relay	1
5	97780-60620	自攻螺钉	Screw, Tapping	1
6	97E95-06610	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	2
7	6G5-82119-00	导线盖	Cover,LeadWire	2
8	63P-W8195-00	继电器组合	Relay Assembly	1
9	97E95-06610	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	2
10	97513-06520	带垫圈螺	Bolt, With Washer	2
11	63P-81948-01	托架	Bracket	1
12	68F-85516-01	衬套	Spacer	3
13	90387-06176	衬套	Color	3
14	68F-85119-00	托架3	Bolt	3
15	90480-10627	固定	Grommet	1
16	90464-23199	固定夹	Clamp	1
17	90465-13M18	固定	Clamp	3
18	68V-85548-01	支架	Holder	1
19	97780-60620	自攻螺钉	Screw, Tapping	1
20	63P-81942-00	盖，罩	Cover	1
21	90169-05M00	卡环	Screw, Truss Head Tapping	3
22	63P-82170-02	保险丝盒组合	Fuse Box Assembly	1
23	63P-82151-00	保险丝	Fuse (50A)	2
24	6AW-8195A-00	继电器组合	Relay Assembly	1
25	67F-82151-00	保险丝	Fuse (20A)	3
26	67F-82151-10	保险丝	Fuse (30A)	2
27	68F-82846-00	限位板组合	Screw, Pan Head (M5)	4
28	97780-50620	自攻螺钉	Screw, Tapping	3
29	60V-85544-00	盖	Case	1
30	67F-2812A-00	小夹子	Puller, Fuse	1
31	68F-82176-00	减震器	Damper	1
32	63P-81336-01	固定	Grommet	1
33	63P-81919-00	调压器图样	Graphic, Regulator	1

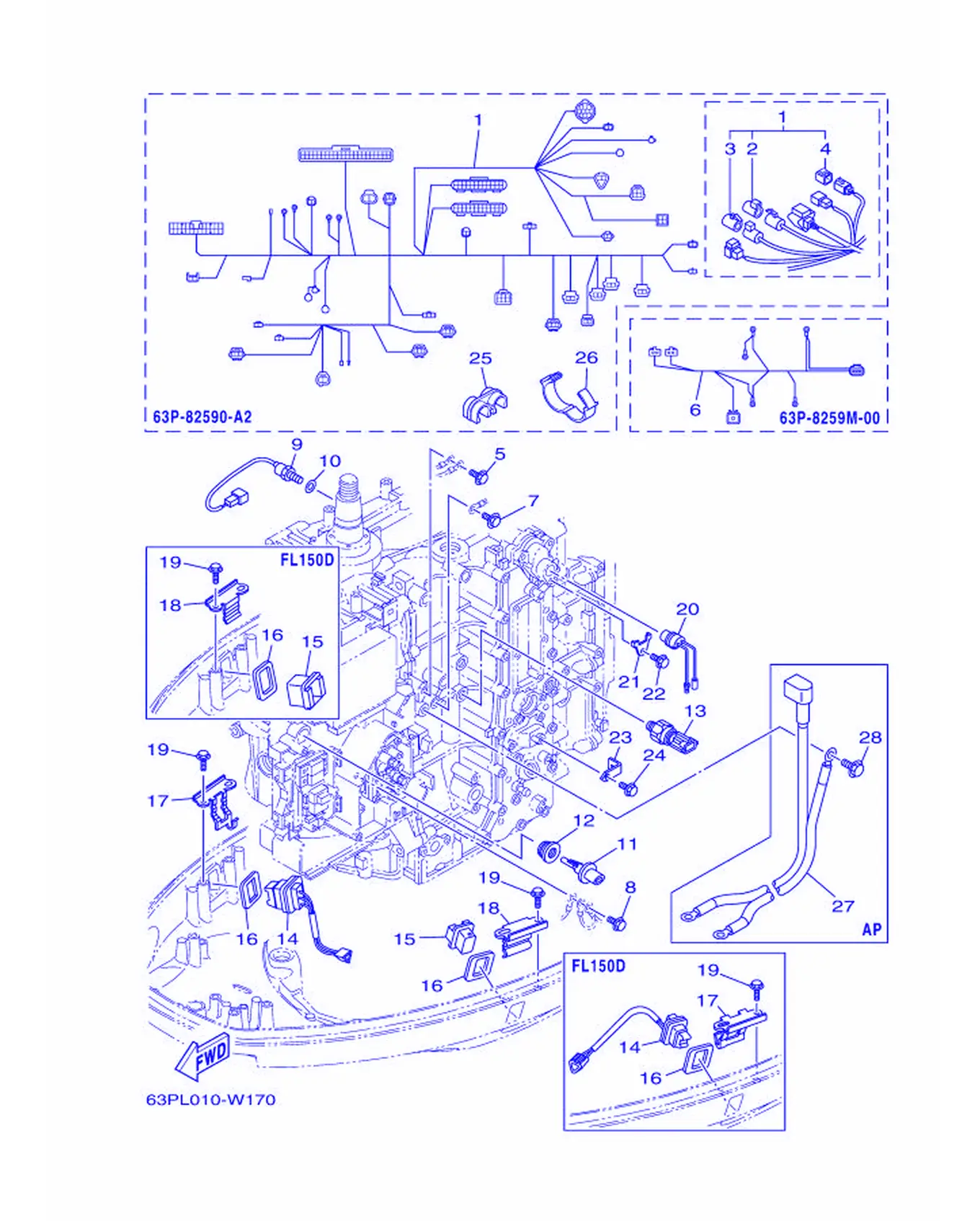

エレクトリカル 3

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-82590-A2	电缆总成	Wire Harness Assembly	1
2	6DA-82582-00	电线束盖	Cap 1 (Female)	1
3	6DA-82582-10	电线束盖	Cap 1 (Male)	1
4	6Y8-82582-11	电线束盖	Cap 1 (4 Pin)	1
5	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	1
6	63P-8259M-00	倾斜限动电	WireHarnessAssembly 2	1
7	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	1
8	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
9	61A-85790-01	温控传感件组合	Thermo Sensor Assembly	1
10	92990-10600	垫圈	Washer,Plate	1
11	63P-85886-00	温控器	Sensor, Air Temperature	1
12	63P-14435-00	固定环	Grommet	1
13	6AW-83651-01	油压传感	Sender, Oil Pressure	1
14	69J-82563-01	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
15	69J-42723-01	底盖	Cover, Bottom	1
16	69J-82587-01	衬垫	Gasket	2
17	63P-83614-01	托架	Bracket	1
18	6DA-83614-00	托架	Bracket	1
19	90109-06316	螺栓	Bolt	4
20	6P2-82560-01	温控开关组合	Thermo Switch Assembly	1
21	6E9-82588-00	面板	Plate	1
22	90109-06M80	螺栓	Bolt	1
23	63P-8366P-01	托架4	Bracket 4	1
24	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
25	90464-12224	线夹	Clamp	1
26	90464-26001	线夹	Clamp	1
27	6DA-82105-J2	电缆	Battery Cable	1
28	97E95-08516	螺栓	Bolt, Hexagon with Washer Deep Recess	1

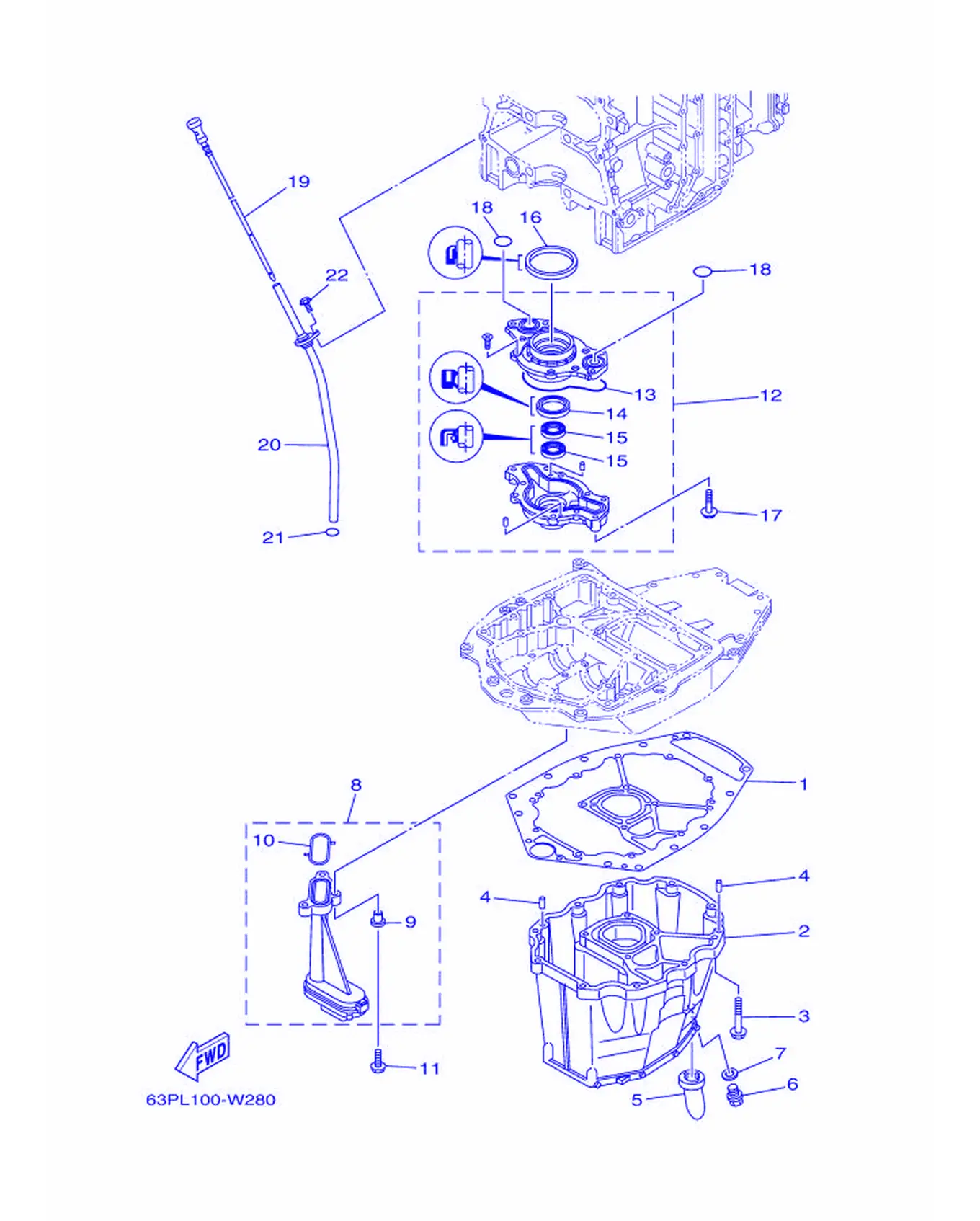

オイルパン

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-15312-02	油槽衬垫	Gasket, Oil Pan	1
2	63P-15311-12-CA	油槽	Oil Pan	1
3	97E75-08535	螺栓	Bolt, Hexagon with Washer Deep Recess	10
4	93608-16M16	定位销	Pin, Dowel	2
5	63P-15316-01	减震垫1	Damper 1	1
6	90340-14M06	塞	Plug, Straight Screw	1
7	90430-14M09	衬垫	Gasket	1
8	63P-13411-00	机油滤芯	Strainer,Oil	1
9	90387-06263	轴套	Color	3
10	63P-13415-00	机油滤网密封	Seal, Oil Strainer	1
11	95812-06025	螺栓	Bolt, Flange	3
12	63P-13300-02	机油泵总成	Oil PumpAssembly	1
13	63P-13329-00	泵盖衬垫	Gasket, Pump Cover	1
14	6AW-13119-00	润滑密封	Oil Seal	1
15	69J-13631-00	橡皮密封	Oil Seal	2
16	69J-11355-00	气缸密封圈1	Seal,Cylinder 1	1
17	97E95-06540	螺栓	Bolt, Hexagon with Washer Deep Recess	4
18	93210-25552	O型圈	O-ring	2
19	63P-15362-10	油标塞	Plug, Oil Level	1
20	63P-15377-10	导管	Guide, Inlet	1
21	93210-19MJ3	O型圈	O-ring	1
22	95D95-06016	螺栓	Bolt, Flange Deep Recess	1

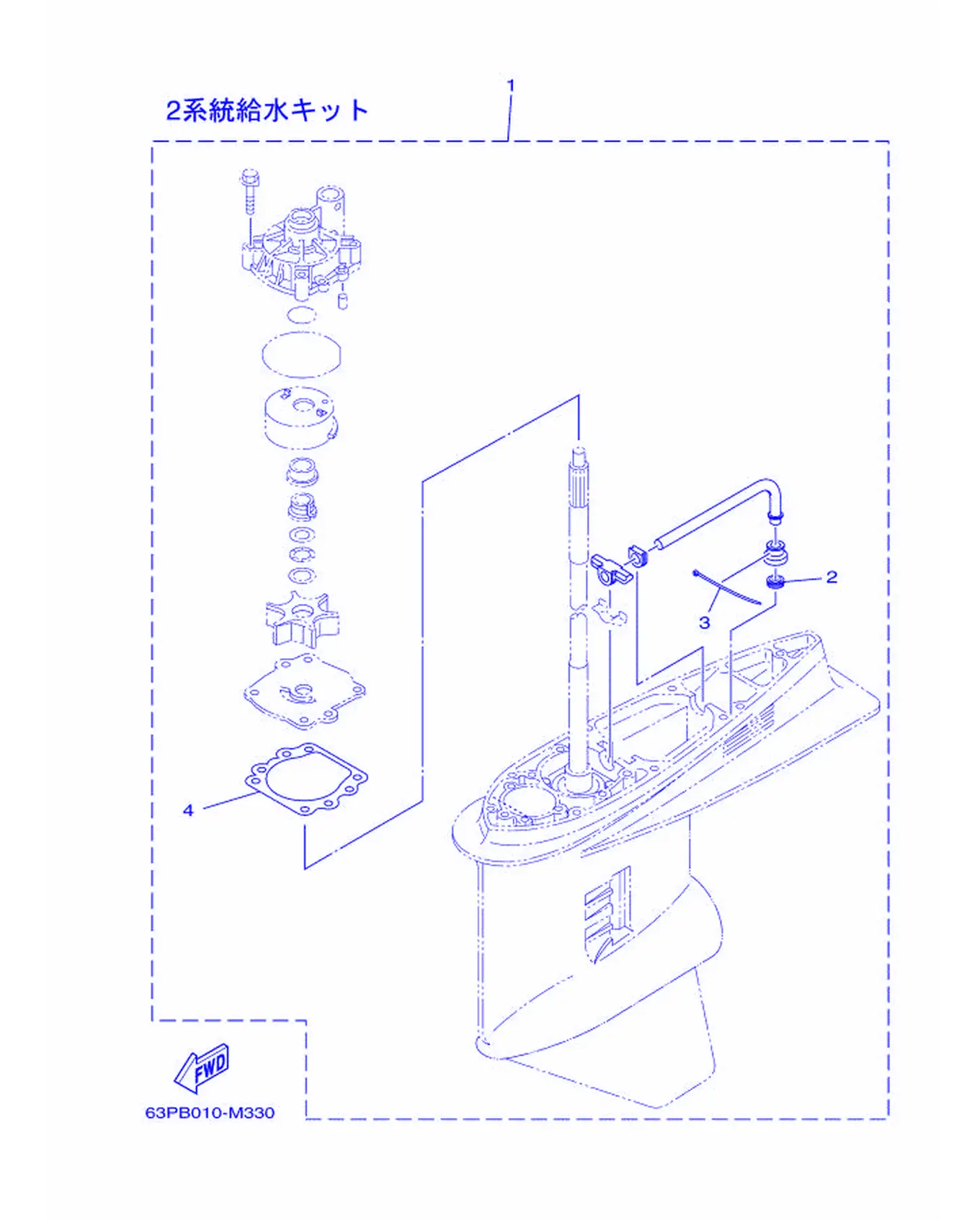

オプシヨナルパ-ツ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6E5-44360-01	水管组合	Water Tube Assembly	1
2	6E5-44328-00	面板	Plate	1
3	90465-11M10	固定	Clamp	1
4	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1

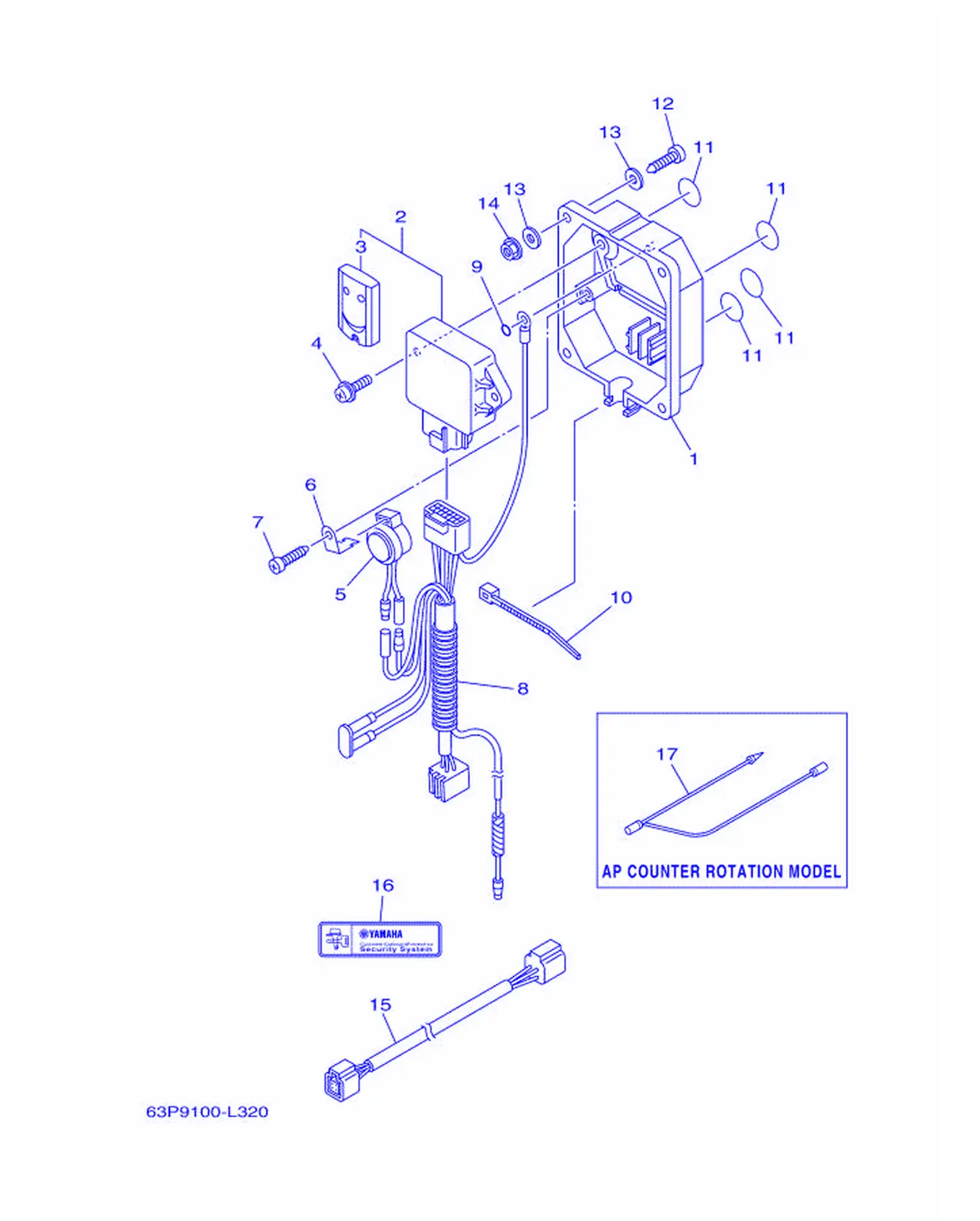

オプシヨナルパ-ツ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6Y8-86267-00	容器 1	CaseComplete 1	1
2	6Y8-86260-20	遥控装置组件	Remote Control Unit Assembly	1
3	6AA-86261-10	传感器组件	Transmitter Complete	2
4	97980-06216	带垫圈螺钉	Screw, With Washer	2
5	6X4-83383-00	蜂鸣器	Buzzer	1
6	6X4-83386-00	蜂鸣器支承	Stay, Buzzer	1
7	97780-60620	自攻螺钉	Screw, Tapping	1
8	6Y8-82509-10	副导线	Wire, Sub Lead	1
9	93210-04279	O型圈	O-ring	1
10	90465-11M10	固定	Clamp	1
11	6Y8-8454G-00	隔片 1	Patch 1	4
12	90167-06M00	六角头盘头自攻螺钉	Screw, Tapping	4
12	97880-06035	大柱头螺钉	Screw, Pan Head	4
13	90201-06M30	带垫面板	Washer,Plate	8
14	95780-06300	带垫螺母	Nut, Flange	4
15	6Y8-82521-11	导线	Pigtail Bus Wire (2FT)	1
16	6Y8-48277-00	标签 1	Sticker 1	3

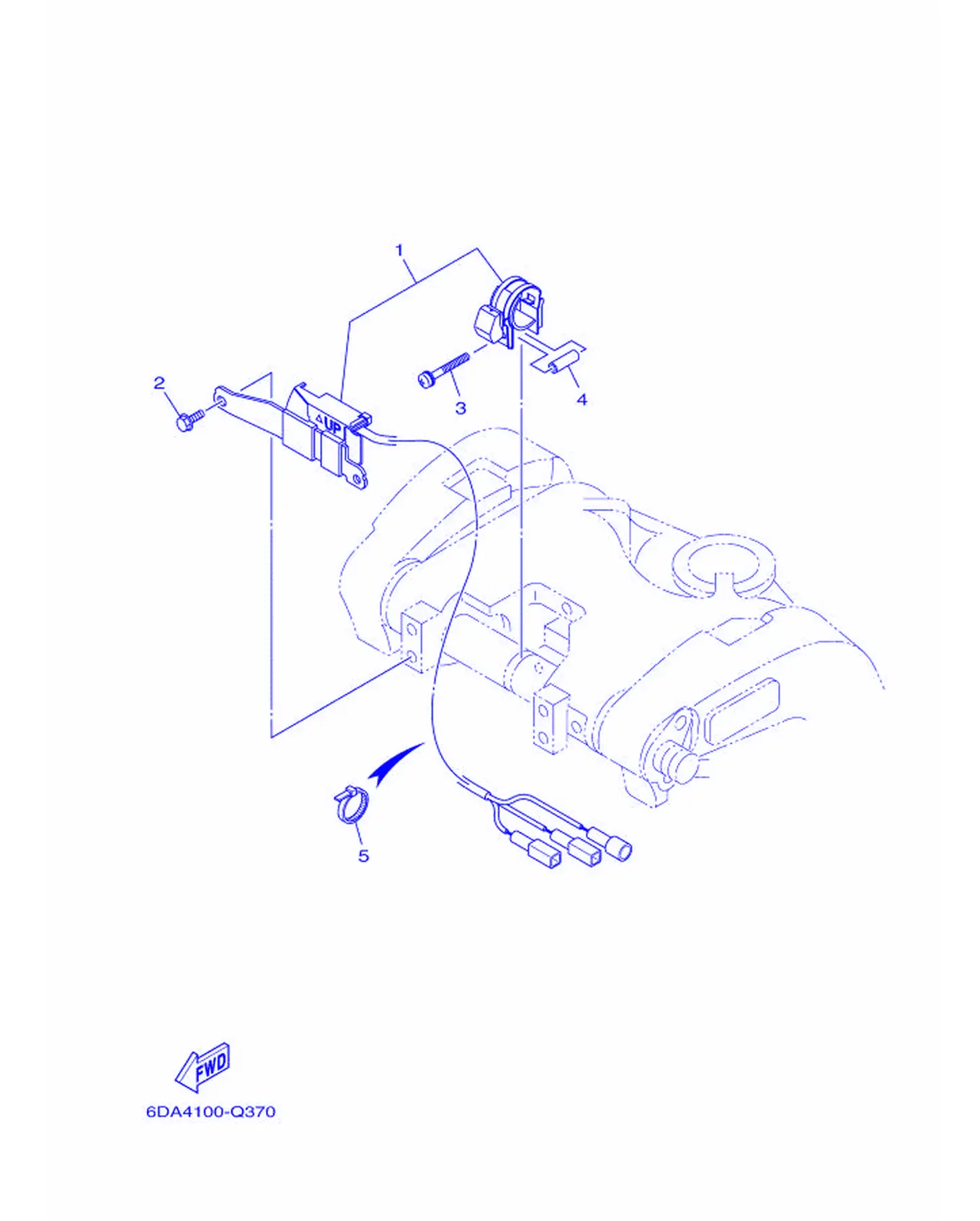

オプシヨナルパ-ツ 3

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-825E0-02	倾斜限位开关总成	Tilt Limit Switch Assembly	1
2	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	2
3	90159-05059	带垫圈螺丝	Screw, With Washer	1
4	90387-05004	轴套	Color	1
5	90465-11M10	固定	Clamp	5

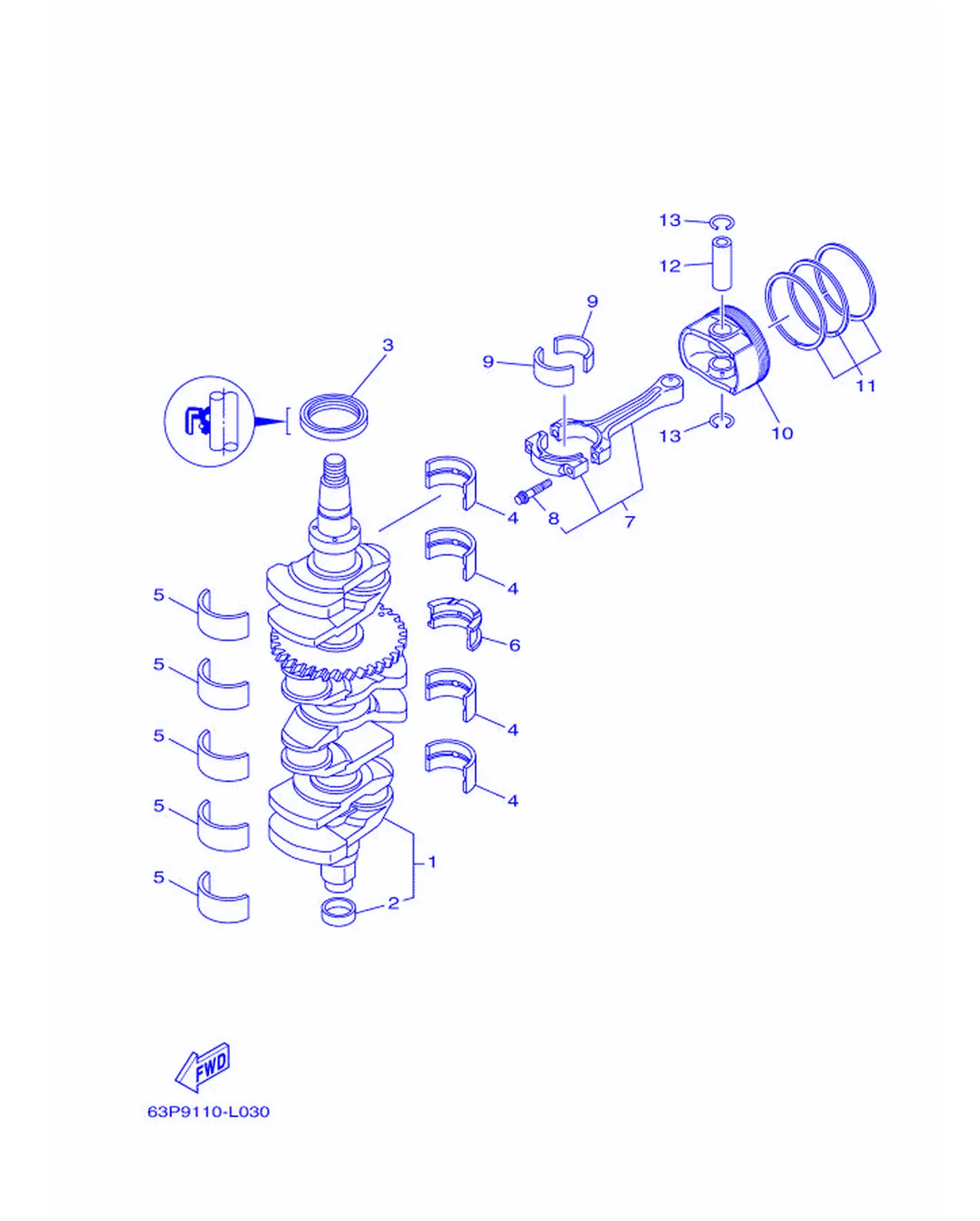

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-11410-04	曲轴	Crankshaft	1
2	6CB-11478-00	衬套	Collar	1
3	93102-60004	油封	OilSeal	1
4	63P-11416-31	轴瓦1	Plain Bearing, Crankshaft	4
4	63P-11416-41	轴瓦1	Plain Bearing, Crankshaft	4
4	63P-11416-51	轴瓦1	Plain Bearing, Crankshaft	4
5	63P-11417-41	轴瓦2棕色	Plain Bearing, Crankshaft	5
5	63P-11417-51	轴瓦2绿色	Plain Bearing, Crankshaft	5
5	63P-11417-61	轴瓦2红色	Plain Bearing, Crankshaft	5
5	63P-11417-71	轴瓦2黄色	Plain Bearing, Crankshaft	5
5	63P-11417-81	轴瓦2蓝色	Plain Bearing, Crankshaft	5
6	63P-11426-31	轴瓦1绿色	Bearing, Thrust 1	1
6	63P-11426-41	轴瓦1红	Bearing, Thrust 1	1
6	63P-11426-51	轴瓦1黄	Bearing, Thrust 1	1
7	63P-W1165-10	连杆	Connecting Rod Assembly	4
8	63P-11654-10	连杆螺栓	Bolt, Connecting Rod	2
9	63P-11656-30	轴瓦	Plain Bearing, Connecting Rod	8
9	63P-11656-40	轴瓦	Plain Bearing, Connecting Rod	8
9	63P-11656-50	轴瓦	Plain Bearing, Connecting Rod	8
10	63P-11631-11-93	活塞	Piston (STD)	4
10	63P-11635-10	活塞（0.25毫米 O/S)F150B'	Piston (0.25MM O/S)	4
11	63P-11603-01	活塞环套件	PistonRingSet (STD)	4
11	63P-11604-00	活塞环套件	Piston Ring Set (0.25MM O/S)	4
12	63P-11633-10	活塞销	Pin,Piston	4
13	63P-11634-00	活塞销挡圈	Clip,Piston Pin	8

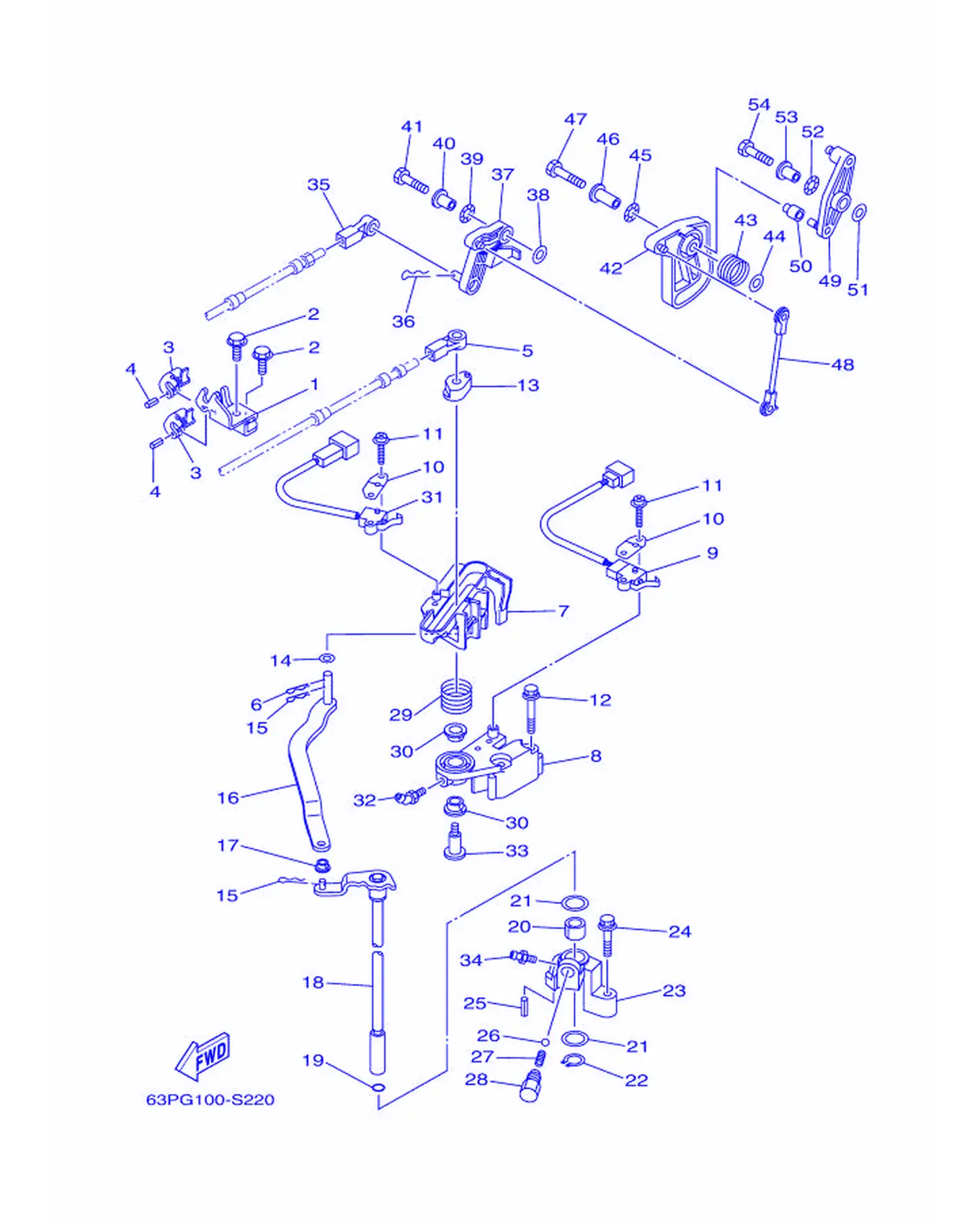

コントロ-ル

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-48531-10	遥控装置托架1	Bracket, Remote Control 1	1
2	90109-06316	螺栓	Bolt	2
3	6E5-48538-00	钢索夹1	Clamp, Cable 1	2
4	91690-30010	弹簧销	Pin,Spring	2
5	6E5-48344-00	遥控钢索端部	Cable End, Remote Control	1
6	90468-18008	钢夹	Clip	1
7	6DA-44176-00	托架	Bracket	1
8	63P-44117-01	托架	Bracket	1
9	69J-8259F-00	开关组合	SwitchAssembly	1
10	61A-82588-01	面板	Plate	2
11	97985-04116	带垫圈螺钉	Screw, With Washer	4
12	97E95-06550	螺栓	Bolt, Hexagon with Washer Deep Recess	2
13	63P-44122-00	变挡杆杠杆衬套	Bushing, Shift Rod Lever	1
14	90202-08M20	平垫圈	Washer,Plate	1
15	90468-18008	钢夹	Clip	2
16	6DA-44121-00	变挡杆杠杆	Lever, Shift Rod	1
17	90386-06M12	衬套	Bushing	1
18	6DA-44120-12	变挡手柄组合	Handle Gear Shift Assembly	1
19	93210-09165	O型圈	O-ring	1
20	90386-16M66	衬套	Bushing	1
21	90202-16061	平垫圈	Washer,Plate	2
22	93410-16006	开口簧环，卡	Circlip	1
23	63P-44118-00	托架	Bracket	1
24	97E75-06535	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	1
25	91690-30010	弹簧销	Pin,Spring	1
26	93501-04M02	滚珠	Ball	1
27	90501-12082	压簧	Spring, Compression	1
28	648-42715-00	衬套	Bushing	1
29	90508-20M31	接头	Spring, Torsion	1
30	90386-12069	衬套	Bushing	2
31	60V-8259F-01	开关组合	Switch Assembly	1
32	93700-06M01	润滑油管嘴	Nipple, Grease	1
33	90109-08019	卡环	Bolt	1
34	93700-06M03	润滑油管嘴	Nipple, Grease	1
35	6E5-48344-00	遥控钢索端部	Cable End, Remote Control	1
36	90468-18008	钢夹	Clip	1
37	63P-42154-10	油门控制杆	Lever Throttle Control	1
38	90201-06M31	面板垫圈	Washer,Plate	1
39	90206-10M04	波形垫圈	Washer, Wave	1
40	90387-06M29	衬套	Color	1
41	97D95-06025	螺栓	Bolt, Hexagon Deep Recess	1
42	63P-41213-00	加速器凸轮	Cam,Accelerator	1
43	69J-44135-00	弹簧	Spring	1
44	90201-06M31	面板垫圈	Washer,Plate	1
45	90206-10M04	波形垫圈	Washer, Wave	1
46	90387-06M82	衬套	Color	1
47	97D95-06035	螺栓	Bolt, Hexagon Deep Recess	1
48	63P-41237-00	连杆接头	Joint, Link	1
49	63P-42157-00	衬套	Lever,Throttle	1
50	68V-42171-00	衬套	Bushing	1
51	90201-06M31	面板垫圈	Washer,Plate	1
52	90206-10M04	波形垫圈	Washer, Wave	1
53	90387-06M29	衬套	Color	1
54	97D95-06025	螺栓	Bolt, Hexagon Deep Recess	1

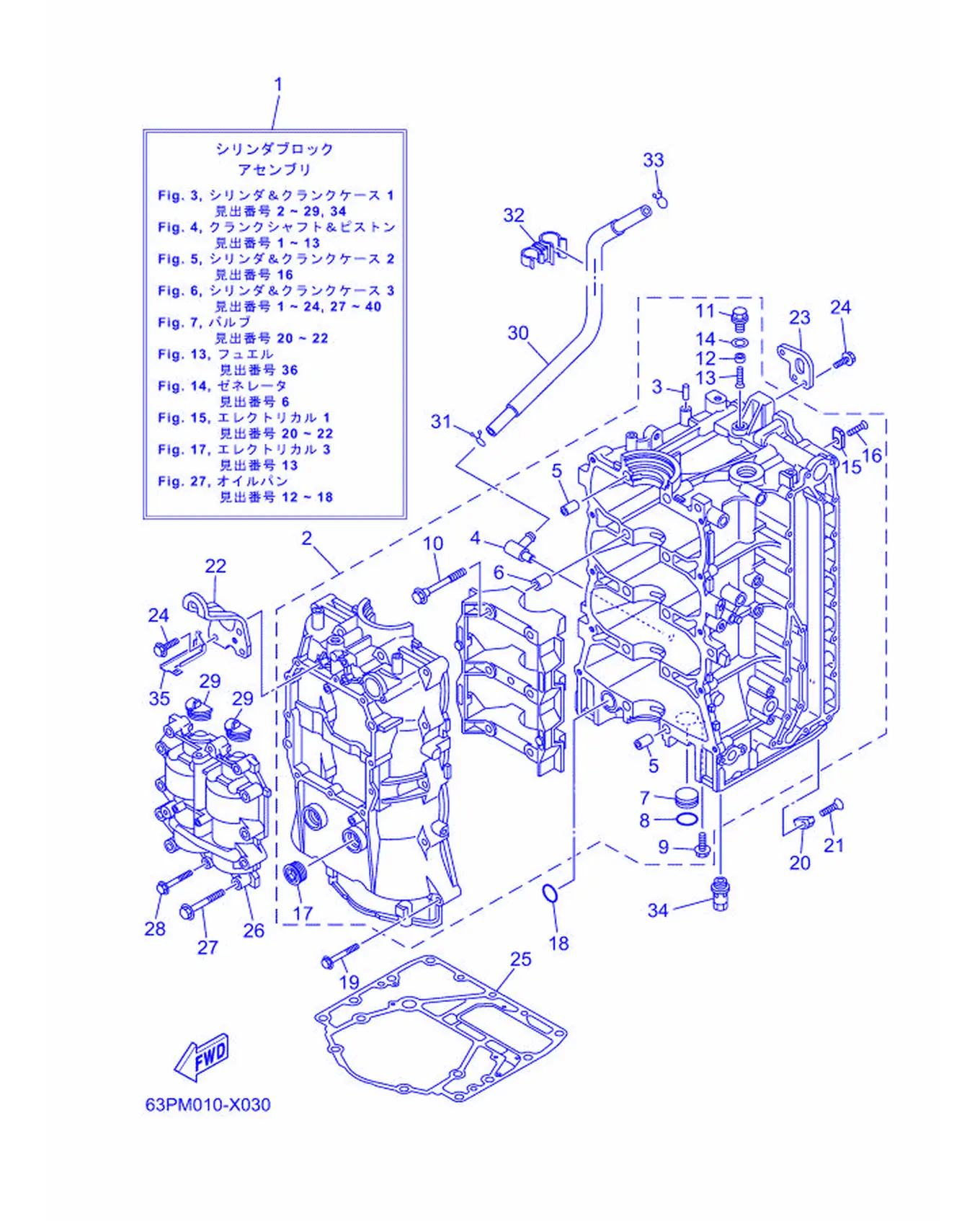

シリンダ & クランクケース 1

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-W009B-16-9S	主气缸套件	Cylinder Block Assembly	1
2	63P-W1510-04-9S	曲轴箱总成	Crankcase Assembly	1
3	93606-12019	定位销	Pin, Dowel	1
4	63P-11372-00	软管接头	Nipple, Hose	1
5	91814-18002	销	Pin, Dowel	4
6	91814-18002	销	Pin, Dowel	6
7	90338-25004	插销	Plug	1
8	93210-25647	O型圈	O-ring	1
9	90119-06276	带垫圈六角头螺栓	Bolt, with Washer	1
10	90105-10071	螺栓	Bolt, Flange	10
11	63P-11197-00	绝缘插头	Blind Plug	1
12	63P-11325-21	阳极	Anode	1
13	98780-05016	平头螺钉	Screw, Flat Head	1
14	90430-14115	垫片	Gasket	1
15	63P-11325-11	阳极	Anode	4
16	90151-06M02	卡环	Screw, Countersunk	4
17	90340-27129	插销	Plug, Straight Screw	2
18	93210-25552	O型圈	O-ring	1
19	90119-08M66	带垫螺栓	Bolt, With Washer	10
20	63P-11325-01	阳极	Anode	1
21	90151-06M02	卡环	Screw, Countersunk	1
22	63P-11119-00	发动机悬挂架	Hanger, Engine	1
23	63P-11119-10	发动机悬挂架	Hanger, Engine	1
24	90119-06MA2	卡环	Bolt, With Washer	5
25	63P-11351-04	气缸垫片1	Gasket, Cylinder	1
26	63P-11500-04	平衡轴总成	Balancer Assembly	1
27	90119-08M66	带垫螺栓	Bolt, With Washer	10
28	90119-06MA6	带垫螺栓	Bolt, With Washer	2
29	63P-11512-00	曲柄盖密封	Seal, Crank Cover	2
30	63P-11377-10	软管	Hose	1
31	90467-15M14	固定	Clip	1
32	90464-15007	固定夹	Clamp	1
33	90467-15M14	固定	Clip	1
34	63P-13490-00	安全阀组合	Relief Valve Assembly	1
35	63P-82588-00	垫片	Plate	1

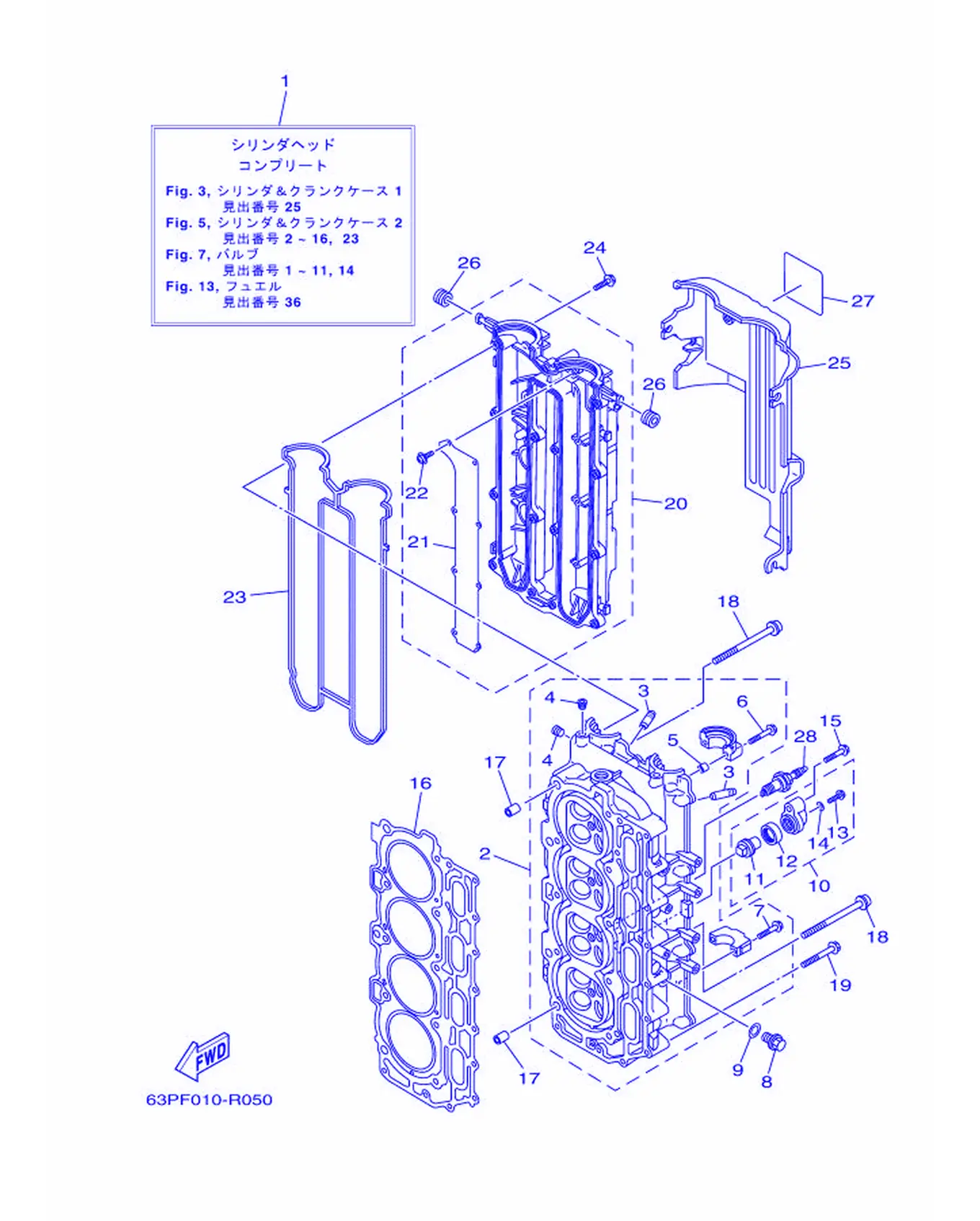

シリンダ & クランクケース 2

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-W009A-07-9S	气缸头总成	Cylinder Head Complete	1
2	63P-11110-11-9S	气缸头总成	Cylinder Head Assembly	1
3	6DA-11133-10	进气门导管	Guide,Valve 1	16
4	90344-51019	衬套	Plug, Taper Screw	3
5	91809-08006	定位销	Sleeve Guide Dowel	4
6	90119-07235	带垫螺栓	Bolt, Washer Cam Caps	4
7	90119-07234	带垫螺栓	Bolt, with Washer	16
8	90340-14M06	塞	Plug, Straight Screw	2
9	90430-14115	垫片	Gasket	2
10	69J-11301-02	锌块垫组合	Anode Cover Assembly	2
11	6ML-11325-00	阳极	Anode	1
12	67F-11328-01	阳极固定	Grommet	1
13	90105-06M07	螺栓	Bolt, Flange	1
14	90430-06M03	平垫圈	Gasket	1
15	97E75-08540	螺栓	Bolt, Hexagon with Washer Deep Recess	2
16	63P-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
17	99530-14016	定位销	Pin, Dowel	2
18	90155-10010	十字槽螺钉	Screw, Flat Fillister	10
19	90119-08M91	卡环	Bolt, With Washer	10
20	63P-11191-00-9S	气缸盖罩1	Cover, Cylinder Head 1	1
21	63P-11135-00	通气管面板3	Plate, Breather 3	1
22	97607-04208	螺钉	Screw, Pan Head Washer	8
23	63P-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
24	97E95-06530	螺栓	Bolt, Hexagon with Washer Deep Recess	13
25	63P-11192-01	气缸盖罩2	Cover, Cylinder Head 2	1
26	90480-12314	固定	Grommet	5
27	63P-83626-00	标签	Mark 6	1
28	94709-00391	火花塞	Plug, Spark (NGK LFR5A-11)	4

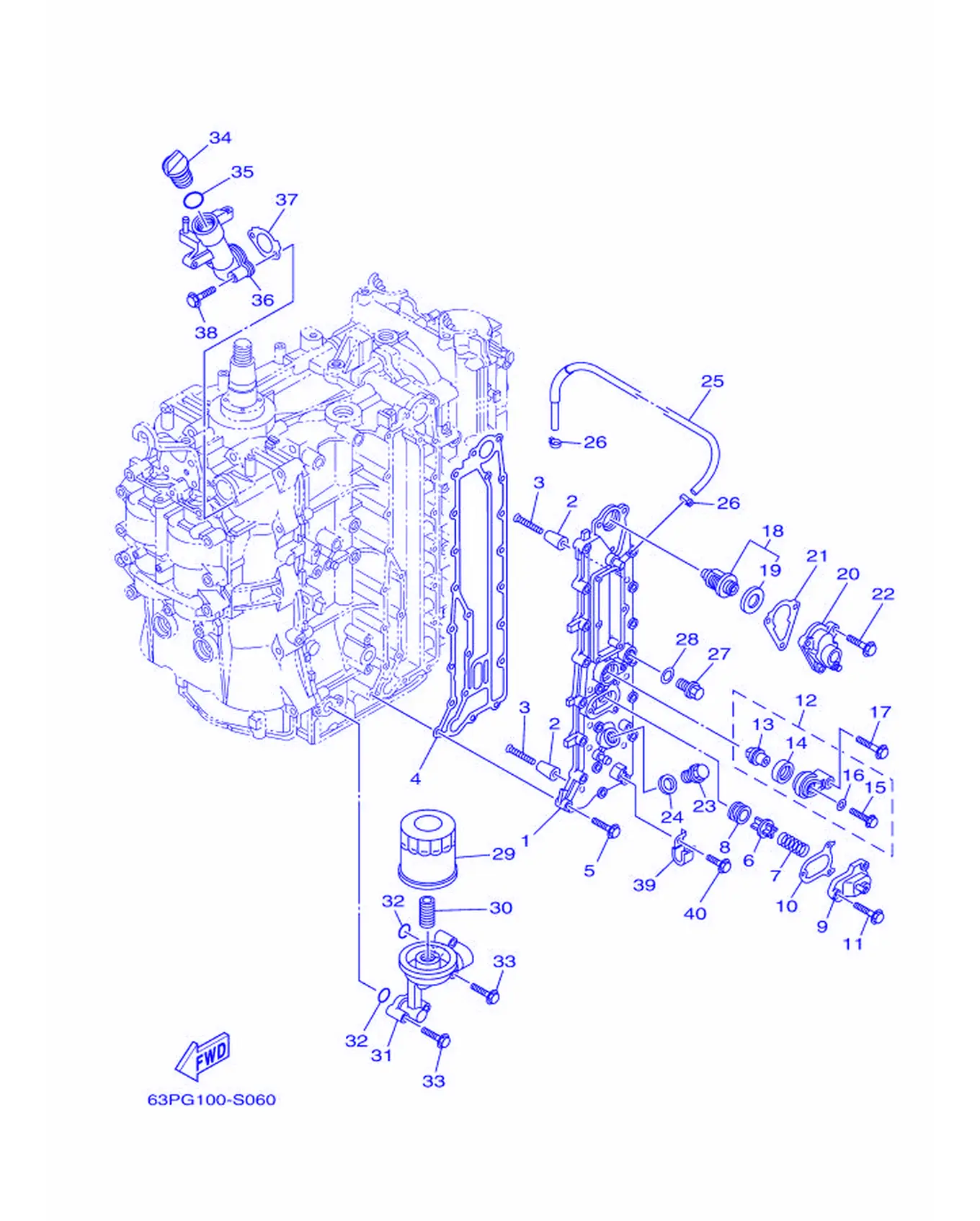

シリンダ & クランクケース 3

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-41113-04-9S	排气管外盖	Outer Cover, Exhaust	1
2	68T-11325-00	阳极	Anode	8
3	90151-05M05	卡环	Screw, Countersunk	8
4	63P-41114-A3	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
5	90119-06MA4	带垫螺栓	Bolt, With Washer	19
6	6G5-12416-00	压力控制阀	Valve, Pressure Control	1
7	90501-16M11	接头	Spring, Compression	1
8	90480-20M05	固定	Grommet	1
9	67F-1246A-A0-9S	盖1	Cover 1	1
10	67F-12435-A0	衬垫	Gasket	1
11	90119-06MA2	卡环	Bolt, With Washer	3
12	69J-11301-02	锌块垫组合	Anode Cover Assembly	1
13	6ML-11325-00	阳极	Anode	1
14	67F-11328-01	阳极固定	Grommet	1
15	90105-06M07	螺栓	Bolt, Flange	1
16	90430-06M03	平垫圈	Gasket	1
17	97E75-08540	螺栓	Bolt, Hexagon with Washer Deep Recess	1
18	67F-12411-01	温控器	Thermostat	1
19	67F-12412-00	温控器密封	Seal,Thermostat	1
20	63P-1240H-01-9S	盖组合	CoverAssembly	1
21	63P-12414-00	盖衬垫	Gasket,Cover	1
22	90119-06MA4	带垫螺栓	Bolt, With Washer	3
23	90340-18M09	衬套	Plug, Straight Screw	1
24	90201-186F1	平垫圈	Washer,Plate	1
25	63P-1243A-00	软管1	Hose 1	1
26	90465-11M10	固定	Clamp	2
27	90340-14M06	塞	Plug, Straight Screw	1
28	90430-14115	垫片	Gasket	1
29	69J-13440-05	机油进滤器总成	Element Assembly, Oil Cleaner	1
30	6S5-12858-00	管接螺栓2	Bolt, Union	1
31	63P-13446-01	连接器	Connector	1
32	93210-19MJ1	O型圈	O-ring	2
33	97E75-06540	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	4
34	6G8-15363-00	机油塞子	Plug,Oil	1
35	93210-24M79	O型圈	O-ring	1
36	63P-15319-00-9S	接头	Joint	1
37	63P-15364-A0	机油塞衬垫	Gasket,OilPlug	1
38	97E95-06545	螺栓	Bolt, Hexagon with Washer Deep Recess	2
39	90462-06013	固定	Clamp	1
40	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1

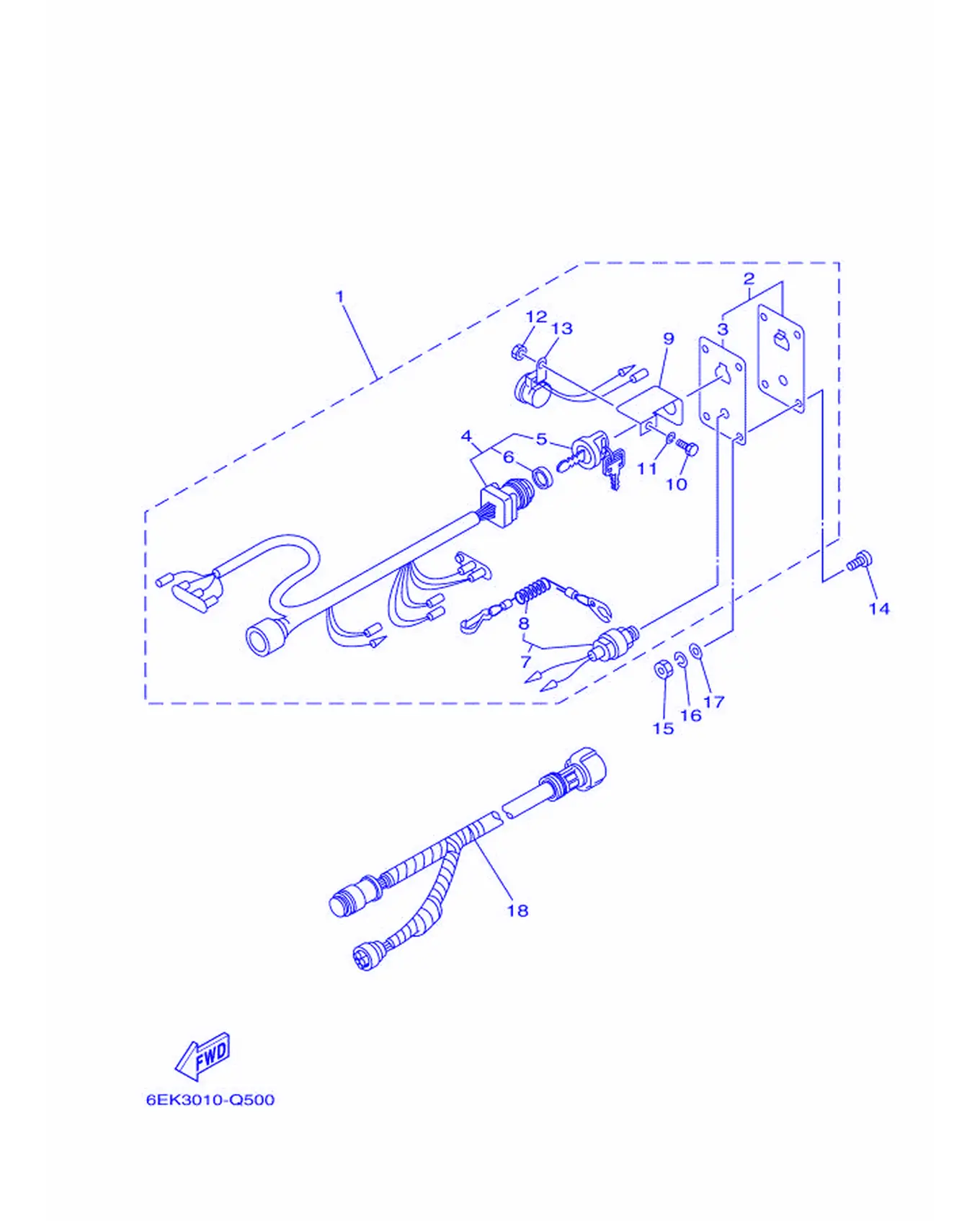

スイツチ & パネル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6R5-82570-0A	开关仪表板组合	Panel Switch Assembly	1
2	704-82571-02	开关仪表板	Panel, Switch	1
3	6R5-82588-01	面板	Plate	1
4	6R5-82510-04	主开关总成	Main Switch Assembly	1
5	676-82577-01	键盖	Cap, Key	1
6	703-82532-00	盖	Cap	1
7	688-82575-02	发动机止动开关组合	Engine Stop Switch Assembly	1
8	682-82556-00	止动拉索	Stopper	1
9	64D-82581-00	线夹支承	Stay, Cord Clamp	1
10	97303-05012	螺栓	Bolt	1
11	92903-05100	盘形垫	Washer,Spring	1
12	95303-05700	有槽螺母	Nut	1
13	6R5-83383-00	蜂鸣器	Buzzer	1
14	90149-05M05	螺钉	Screw	4
15	95303-05600	有槽螺母	Nut	4
16	92903-05100	盘形垫	Washer,Spring	4
17	92903-05600	盘形垫	Washer,Plate	4
18	688-8258A-70	电线束延伸部分	Extension, Wire Harness	1

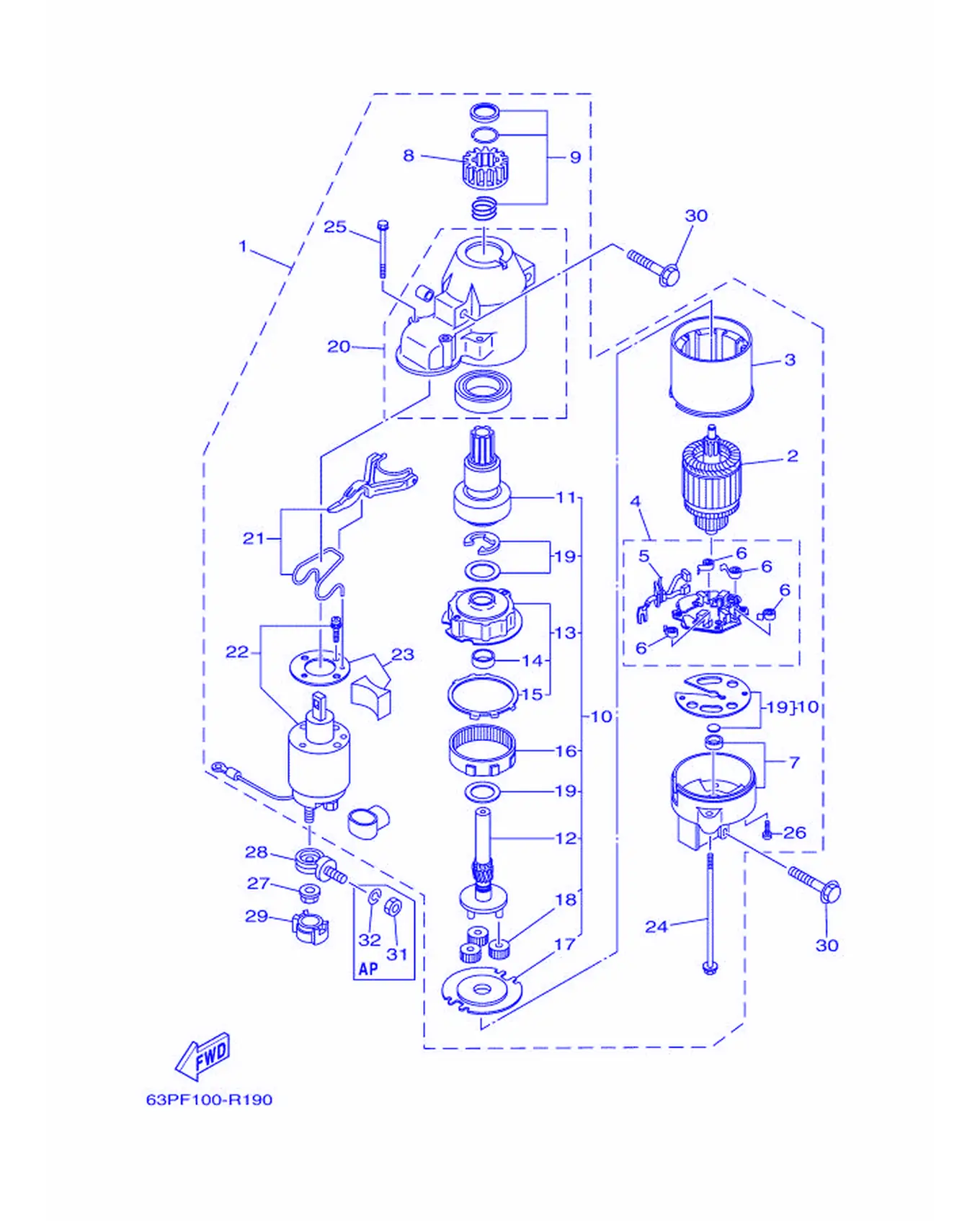

スタ-テイングモ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BR-81800-02	起动电动机总成	Starting Motor Assembly	1
2	67F-81850-00	电枢组合	Armature Assembly	1
3	67F-81810-00	定子组合	Stator Assembly	1
4	69J-81840-11	电刷架组合	Brush Holder Assembly	1
5	69J-81801-11	碳刷组件	Brush Set	1
6	67F-81813-00	电刷弹簧	Spring, Brush	4
7	67F-81820-00	后托架组合	Rear Bracket Assembly	1
8	67F-81808-00	环形齿轮支承	Pinion Assembly	1
9	67F-81857-00	小齿轮组件	Pinion Stopper Set	1
10	67F-81807-00	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
11	67F-81832-00	越转离合器	Clutch, Overrun	1
12	67F-81836-00	杠杆弹簧	Shaft, Pinion	1
13	67F-81821-00	开关盖	Bracket, Center 1	1
14	67F-81841-00	环形齿轮支承	Bearing	1
15	67F-8183R-00	环形齿轮支承	Gasket	1
16	67F-81891-00	环形齿轮	Gear, Ring	1
17	67F-81830-00	前托架组合	Bracket, Center 2	1
18	60V-8183T-00	环形齿轮支承	Gear, Idler	3
19	67F-81809-00	垫圈套	Washer Kit	1
20	69J-81842-00	盖	Cover	1
21	6C5-81839-00	杠杆组合	LeverAssembly	1
22	63P-81941-00	起动继电器组合	Starter Relay Assembly	1
23	6C5-81869-00	防尘盖	Cover, Dust	1
24	6K7-81826-11	螺栓	Bolt	2
25	69J-81828-00	螺栓2	Bolt 2	2
26	67F-81846-00	螺钉	Screw	2
27	90179-08003	螺母	Nut	1
28	60V-81925-00	接头	Terminal	1
29	68F-82582-00	电线束盖	Cover,WireHarness	1
30	97513-08545	带垫圈螺栓	Bolt, with Washer	3
31	95333-08600	有槽螺母	Nut	1
32	92903-08100	盘形垫	Washer,Spring	1

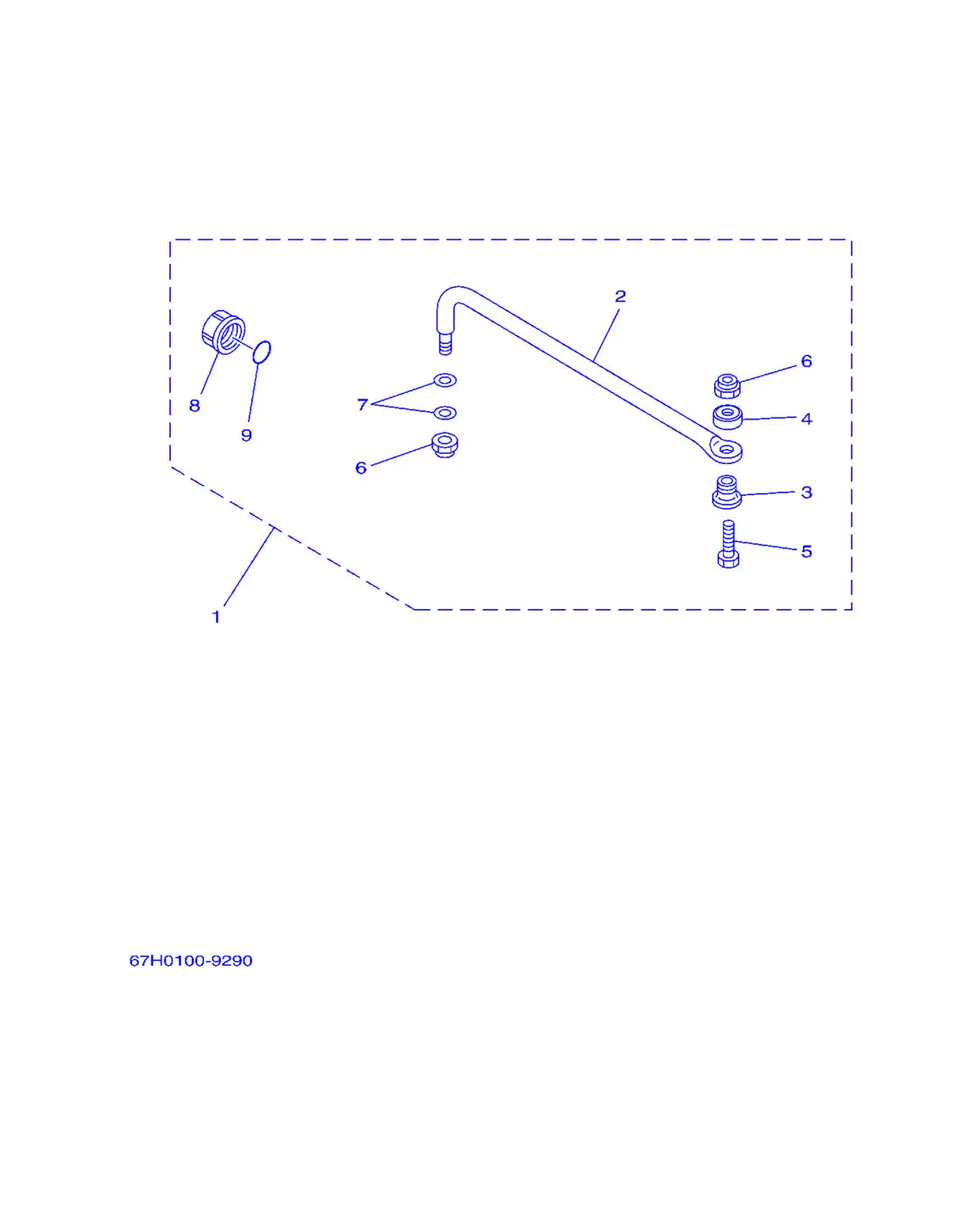

ステアリングガイドアタツチメン

REF	雅马哈编码	中文名称	英文名称	用量
1	6E5-61350-02	操舵连接板套	SteeringGuideAttachment	1
2	6E5-61351-01	操舵连杆	Rod, Steering Link	1
3	90387-10M61	衬套	Collar	1
4	90560-12M01	接头	Spacer	1
5	6E5-61355-00	螺栓	Bolt	1
6	90185-09M01	螺帽	Nut, Self-Locking	2
7	90201-10M20	面板垫圈	Washer,Plate	2
8	6E5-43145-01	夹紧托架盖	Cap, Clamp Bracket	1
9	93210-16275	O型圈	O-ring	1

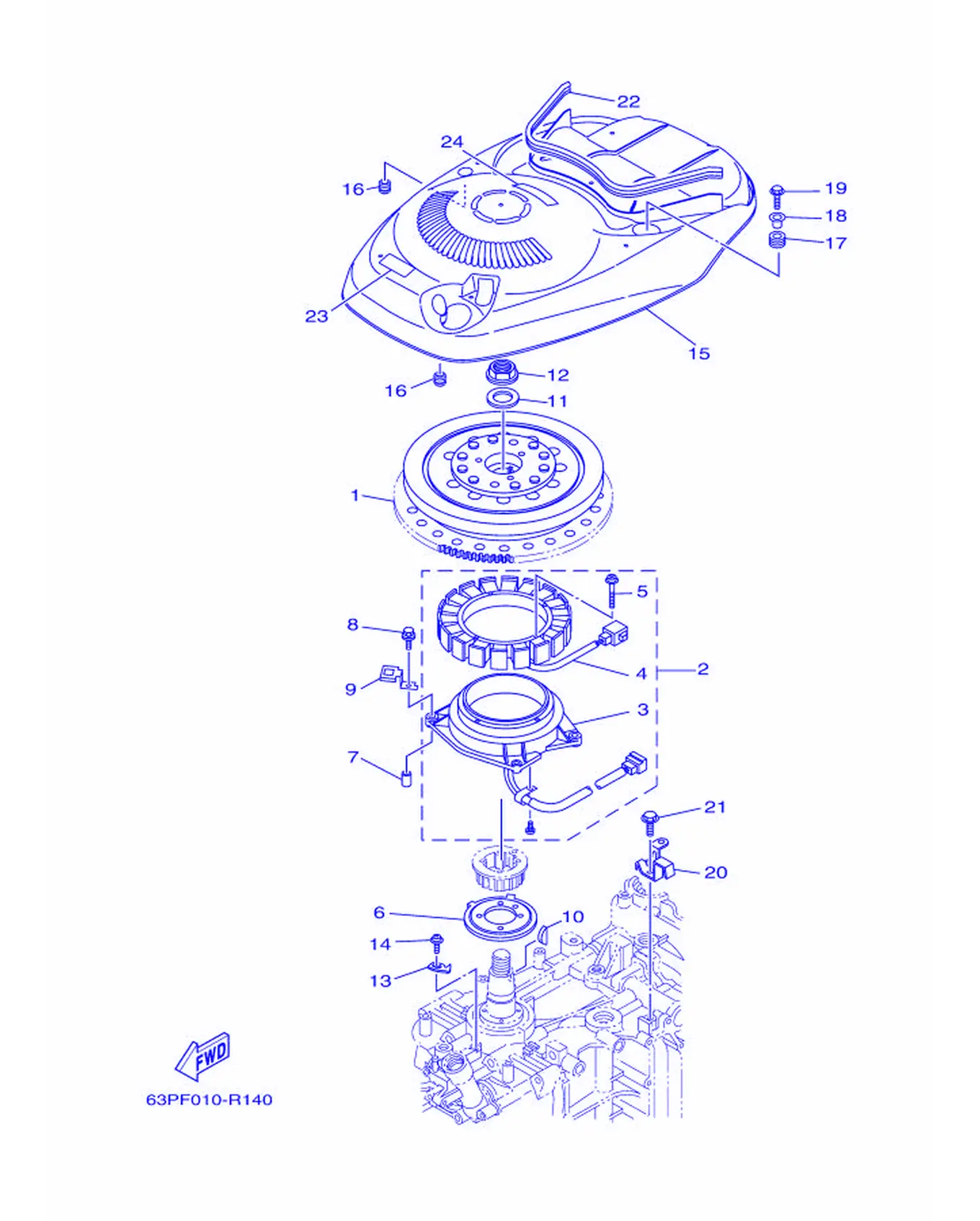

ゼネレ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-81450-00	转子组合	Rotor Assembly	1
2	63P-81460-01	基座总成	Base Assembly	1
3	63P-85580-01	脉冲线	Coil, Pulser	1
4	63P-81410-00	定子组合	Stator Assembly	1
5	63D-81345-20	大柱头螺钉	Screw, With Washer (M6X30)	4
6	63P-81673-01	转子	Rotor	1
7	99530-08012	螺栓	Pin, Dowel	2
8	97E95-06635	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	4
9	63P-81845-00	面板	Plate	2
10	90280-05015	螺丝	Key, Woodruff	1
11	90201-24014	平垫圈	Washer,Plate	1
12	90179-24002	螺母	Nut	1
13	6P2-81332-00	正时面板	Plate, Timing	1
14	97985-06210	带垫圈螺钉	Screw, With Washer	1
15	63P-81337-11	飞轮盖	Cover, Flywheel	1
16	6A0-82317-01	点火线圈减震器	Damper, Ignition Coil	2
17	90480-15M31	固定	Grommet	1
18	90387-06285	带垫圈六角头螺栓	Collar	1
19	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	1
20	63P-8132G-10	面板	Plate	1
21	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	1
22	6DA-42617-00	形成减震	Damper, Foam	1
23	63P-13437-02	警告标签	Mark, Corrosion	1
24	6EE-81994-01	警告标签	Label, Safety	1

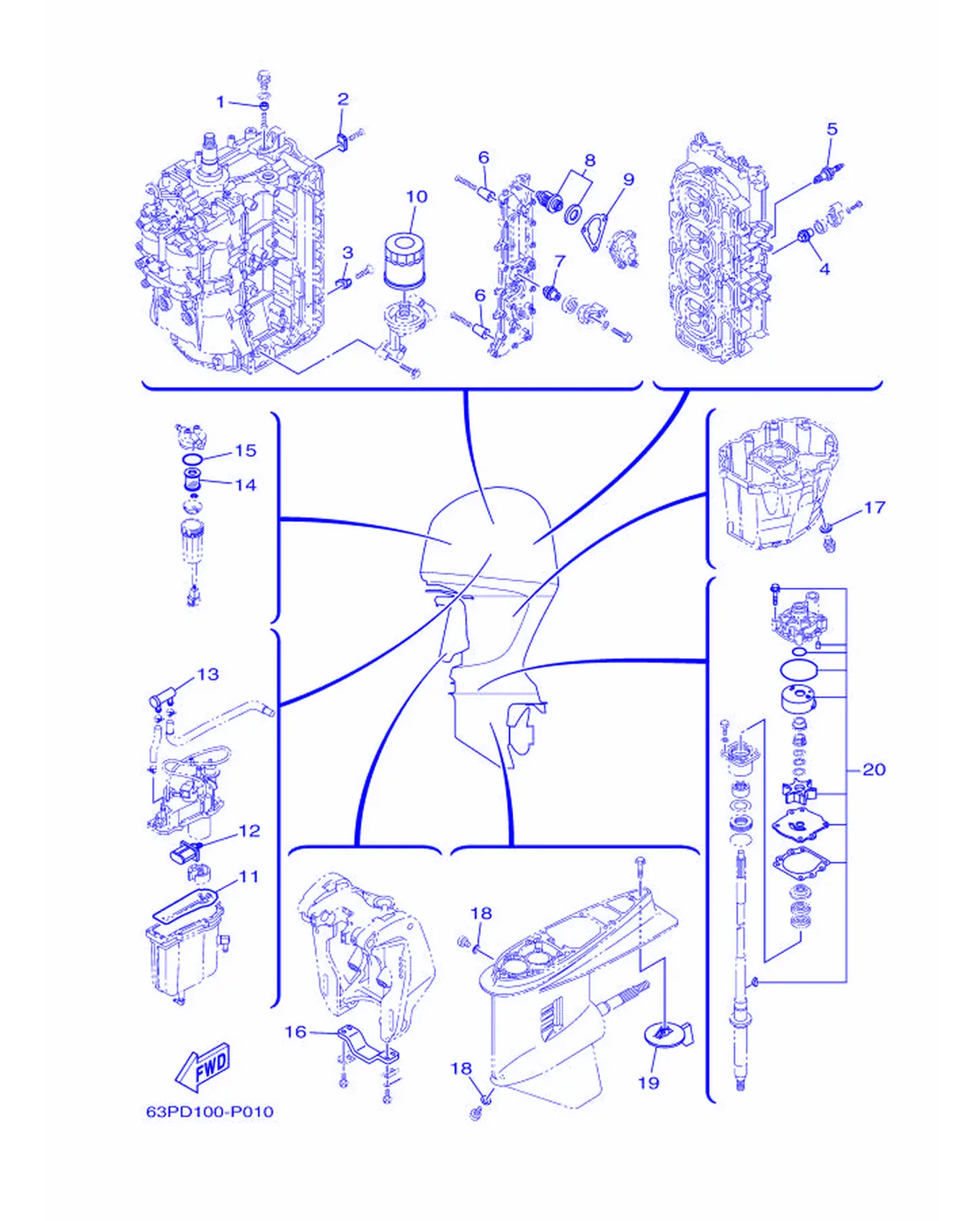

テイキコウカンブヒン

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-11325-21	阳极	Anode	1
2	63P-11325-11	阳极	Anode	4
3	63P-11325-01	阳极	Anode	1
4	6ML-11325-00	阳极	Anode	2
5	94709-00391	火花塞	Plug, Spark (NGK LFR5A-11)	4
6	68T-11325-00	阳极	Anode	8
7	6ML-11325-00	阳极	Anode	1
8	67F-12411-01	温控器	Thermostat	1
9	63P-12414-00	盖衬垫	Gasket,Cover	1
10	69J-13440-04	机油进滤器总成	Element Assembly, Oil Cleaner	1
11	63P-14984-00	浮子室衬垫	Gasket,FloatChamber	1
12	63P-13915-00	过滤器	Filter	1
13	69J-24501-10	燃油过滤器	Filter, Fuel	1
14	6P3-24563-02	过滤器滤芯	Element, Filter	1
15	6P3-24564-00	衬垫	Gasket	1
16	6G5-45251-02	阳极	Anode	1
17	90430-14M09	衬垫	Gasket	1
18	90430-08003	垫片	Gasket	2
19	6J9-45371-01	航向调整	Tab Trim	1
20	61A-W0078-A4	水泵修理套	Water Pump Repair Kit	1

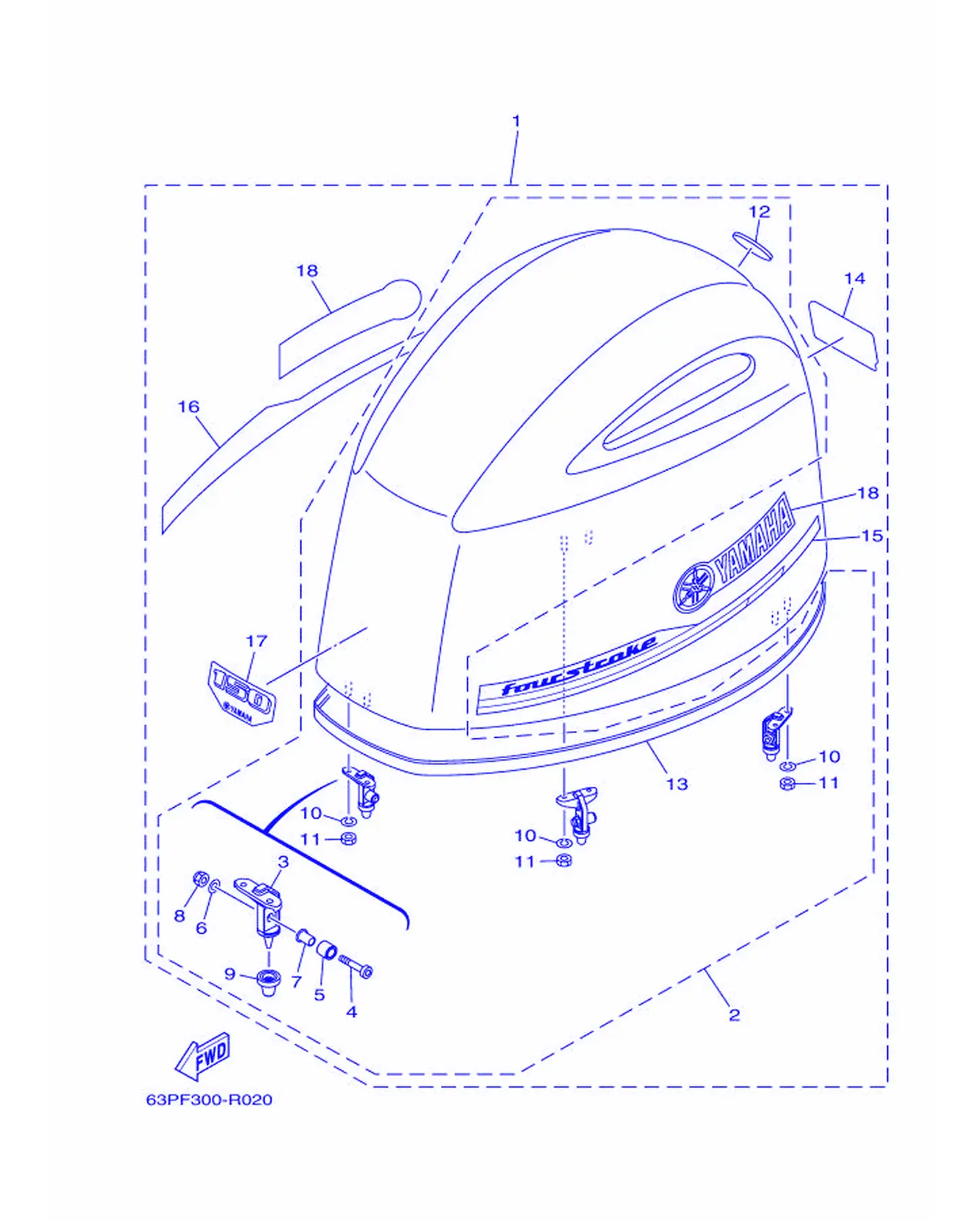

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-42610-72-8D	顶罩组合	Top Coupling Assembly	1
2	63P-4261A-12-8D	顶罩组合	Top Cowling (Graphic)	1
3	6CB-42647-B0	夹带支架	Holder, Clamp Band	3
4	90111-08078	内六角薄型螺栓	Bolt	3
5	90387-10094	轴套	Collar	3
6	92990-08600	盘形垫	Washer,Plate	3
7	90387-08M45	衬套	Color	3
8	95780-08300	带垫螺母	Nut, Flange	3
9	6AW-42663-01	减震器	Damper 2	3
10	92990-06100	盘形垫	Washer,Spring	6
11	95380-06600	有槽螺母	Nut, Hexagon	6
12	6DA-42697-00	音叉标志	Tuning Fork Mark	1
13	6CB-42628-00	密封	Seal	1
14	63P-42678-60	后图样	Graphic, Rear	1
15	6DA-42675-00	侧面图样1	Graphic, Side 1	1
16	6DA-42676-00	侧面图样2	Graphic, Side 2	1
17	63P-42677-60	前图样	Graphic, Front	1
18	63P-42681-20	罩标志	Mark, Cowling	2

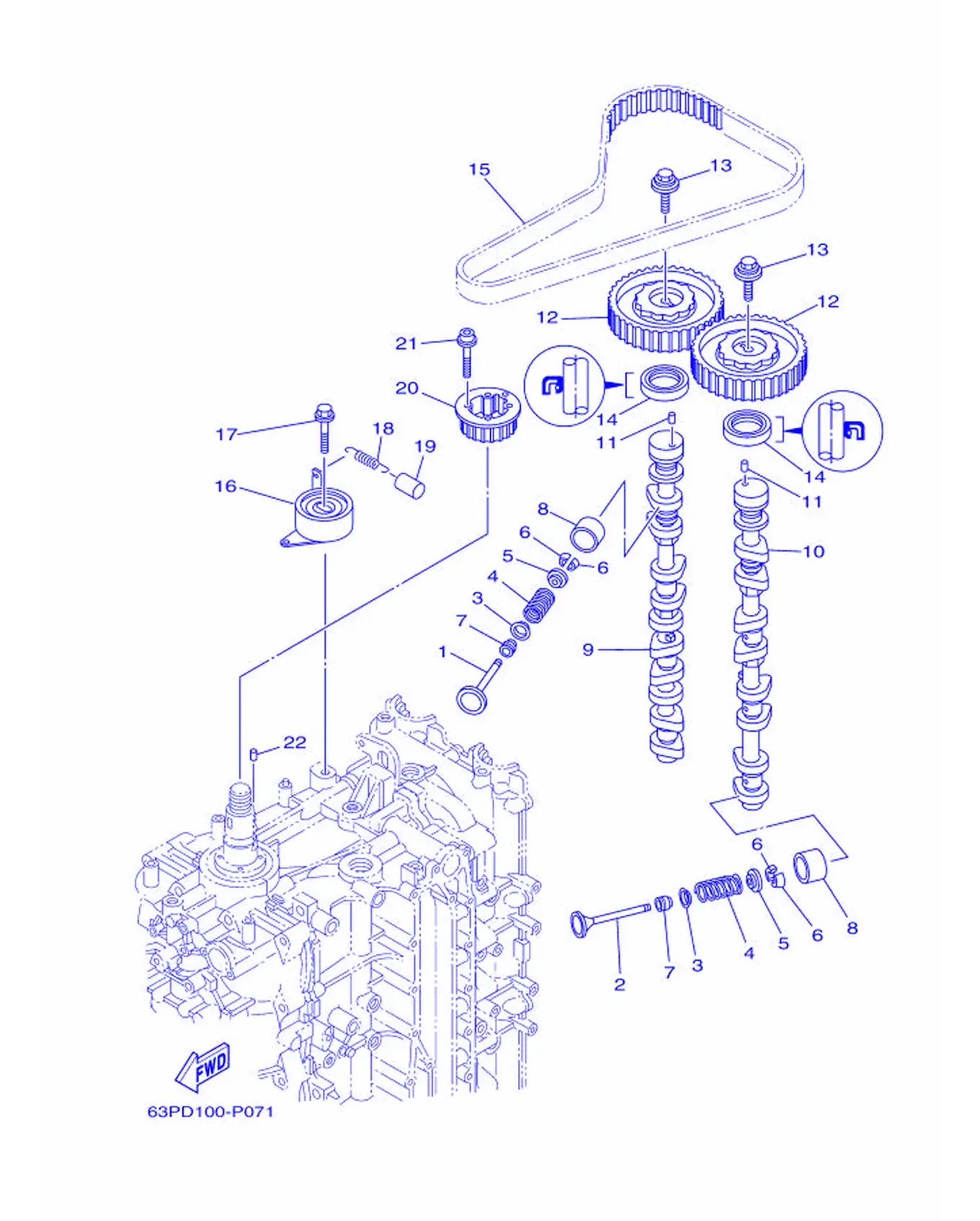

バルブ

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-12111-00	气门1	Valve,Intake	8
2	63P-12121-00	气门2	Valve,Exhaust	8
3	K0F-A3743-00	气门弹簧座	Seat, ValveSpring	16
4	6CB-12113-00	弹簧1	Spring, Valve Inner	16
5	K0F-A3741-00	气门弹簧挡圈	Retainer, ValveSpring	16
6	K0F-A3742-00	阀门弹簧固定锁	Lock, ValveSpringRetainer	32
7	51Y-12119-00	气门杆密封	Seal, Valve Stem	16
8	K0F-A3751-00	阀门挺杆	Lifter, Valve (3.000)	16
8	K0F-A3751-10	阀门挺杆	Lifter, Valve (3.025)	16
8	K0F-A3751-20	阀门挺杆	Lifter, Valve (3.050)	16
8	K0F-A3751-30	阀门挺杆	Lifter, Valve (3.075)	16
8	K0F-A3751-40	阀门挺杆	Lifter, Valve (3.100)	16
8	K0F-A3751-50	阀门挺杆	Lifter, Valve (3.122)	16
8	K0F-A3751-60	阀门挺杆	Lifter, Valve (3.142)	16
8	K0F-A3751-70	阀门挺杆	Lifter, Valve (3.162)	16
9	63P-12171-10	凸轮轴1	CamShaft 1	1
10	63P-12181-10	凸轮轴2	CamShaft 2	1
11	93605-10108	定位销	Pin, Dowel	2
12	63P-11537-00	从动齿轮	Gear, Driven	2
13	90119-10050	带垫圈六角头螺栓	Bolt, With Washer	2
14	93102-38008	油封	OilSeal	2
15	63P-46241-00	V型皮带	Belt	1
16	63P-11590-10	张紧器总成	Tensioner Assembly	1
17	90119-10M07	螺栓	Bolt, With Washer	1
18	90506-16M39	接头	Spring, Tension	1
19	90445-15M03	固定	Hose (L23)	1
20	63P-11536-01	主动齿轮	Gear, Drive	1
21	90110-05020	螺栓	Bolt, Hexagon Socket Head	4
22	93605-17002	定位销	Pin, Dowel	1

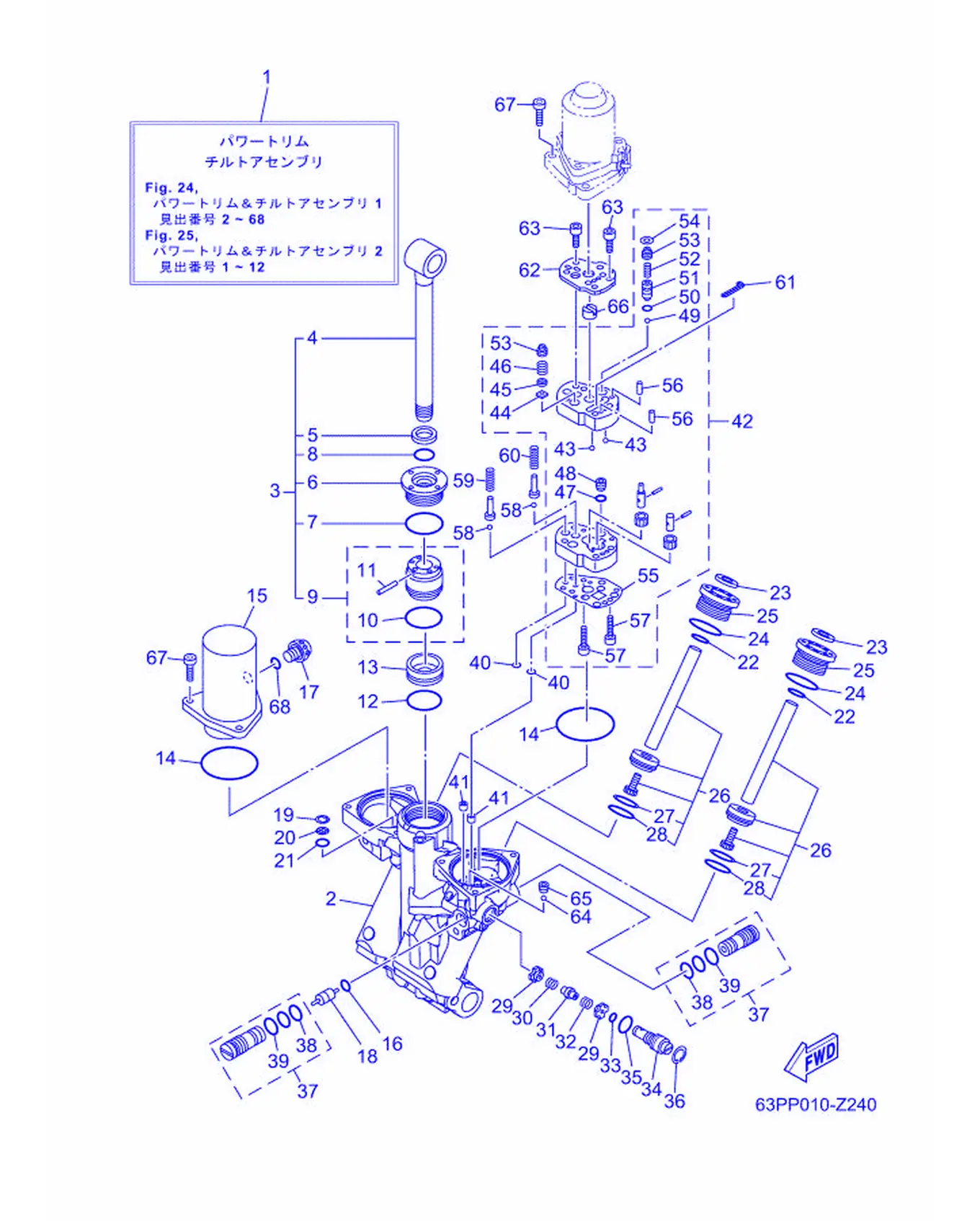

パワートリム & チルトアセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-43800-23	电动倾斜调整装置组合	Power Trim & Tilt Assembly	1
2	63P-4380L-23	倾斜调整装置壳体	Housing, Trim & Tilt Sub-Assembly	1
3	63P-43810-21	活塞分组合	Tilt Piston Sub-Assembly	1
4	63P-43801-10	杆	Rod	1
5	93106-19001	油封	Oil Seal	1
6	63P-43811-20	气缸端部螺钉	Screw, Cylinder End	1
7	63P-43861-20	O型圈	O-ring	1
8	63P-43863-10	O型圈	O-ring	1
9	63P-4380P-20	活塞分组合	Piston Sub Assembly	1
10	6H1-43862-00	O型圈	O-ring	1
11	91609-16010	螺旋销	Pin, Spring	1
12	6H1-43862-00	O型圈	O-ring	1
13	63P-43814-20	自由活	Piston, Free	1
14	93210-68N50	O型圈	O-ring	2
15	63P-4382C-20	阀体，储油罐	Body, Reservoir 2	1
16	93210-09165	O型圈	O-ring	1
17	6CJ-43829-20	储油箱盖	Reserve Plug	1
18	6H1-43841-11	滑梭活	Piston, Shuttle	1
19	63P-43876-10	环	Ring, Snap	1
20	63P-43816-10	过滤器1	Filter 1	1
21	93210-11N52	O型圈	O-ring	1
22	6D8-43863-00	O型圈	O-ring	2
23	63P-43812-20	防尘密封	Seal, Dust	2
24	63P-43862-10	O型圈	O-ring	2
25	63P-43821-21	纵倾角调整气缸端部螺钉	Screw, Trim Cylinder End	2
26	63P-43820-20	活塞分组合	Trim Piston Sub-Assembly	2
27	62X-43871-00	环	Ring, Back Up	1
28	93210-29375	O型圈	O-ring	1
29	63P-43847-10	手控阀座	Seat, Manual Valve	2
30	63P-43854-10	手控释放弹簧	Spring, Manual Release	1
31	63P-4382A-10	联接器1	Adapter 1	1
32	63P-4384H-10	弹簧	Spring	1
33	69J-4389J-00	O型圈	O-ring	1
34	63P-43845-20	手控释放螺钉	Screw, Manual Release	1
35	93210-12327	O型圈	O-ring	1
36	61A-43876-01	开口环	Ring, Snap	1
37	63P-43802-21	阀门分组合	Valve Sub-Assembly	2
38	93210-12N52	O型圈	O-ring	1
39	6H1-43866-01	O型圈	O-ring	1
40	93210-064A5	O型圈	O-ring	2
41	63P-4381C-20	过滤器3	Filter 3	2
42	63P-43830-20	齿轮泵组合	Gear Pump Assembly	1
43	93503-16003	滚珠	Ball	2
44	6H1-4384G-11	安全阀密封	Seal, Relief Valve	1
45	6H1-43844-10	阀门支销	Pin, Valve Support	1
46	6H1-43856-10	下减压弹簧	Spring, Down Relief	1
47	93210-07N51	O型圈	O-ring	1
48	63P-43851-20	安全阀座	Seat, Relief Valve	1
49	93501-08001	滚珠	Ball	1
50	93210-064A5	O型圈	O-ring	1
51	63P-43844-20	阀门支销	Pin, Valve Support	1
52	69J-43855-00	上减压弹簧	Spring	1
53	63P-43843-10	阀门锁紧螺钉	Screw, Valve Lock	2
54	63P-43338-10	波形垫	Washer, Wave	1
55	63P-4384G-20	安全阀密封	Seal, Relief Valve	1
56	93604-10011	带垫圈六角头螺栓	Pin, Dowel	2
57	91312-04020	内六角圆柱头螺栓	Bolt, Hexagon Socket Head	2
58	93501-08001	滚珠	Ball	2
59	63P-43857-10	阀门减震器弹簧	Spring	1
60	63P-4385H-10	弹簧密封	Spring,Seal	1
61	6CJ-43816-00	过滤器1	Filter 1	1
62	63P-4381J-10	面板	Plate	1
63	91312-05035	内六角圆柱头螺栓	Bolt, Hexagon Socket Head	4
64	93505-32038	滚珠	Ball	1
65	61A-43878-00	座螺	Bolt, Socket	1
66	69J-43831-00	轴连接器	Connector,Shaft	1
67	91380-06025	螺栓	Bolt	6
68	6CJ-43861-10	O型圈	O-ring	1

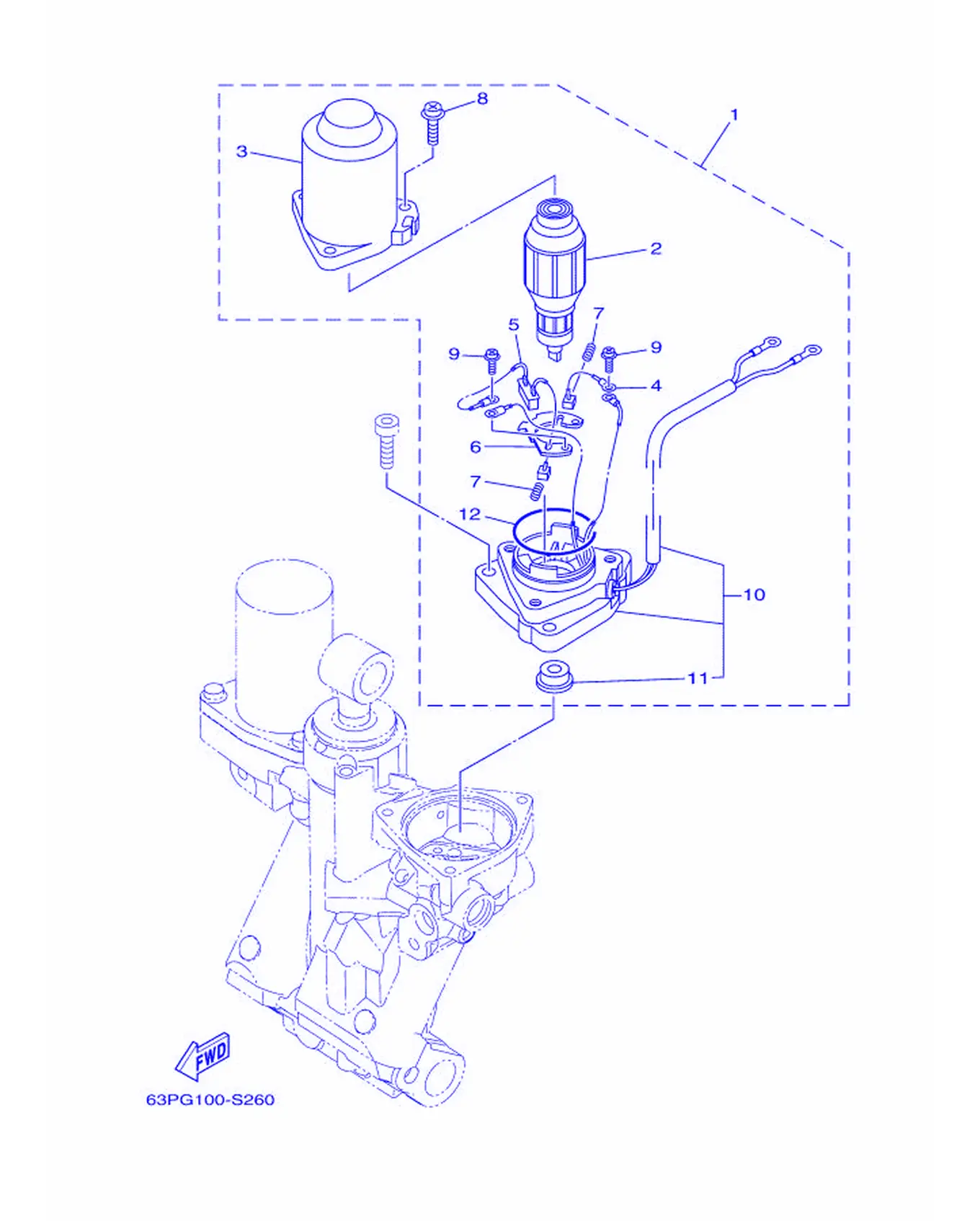

パワートリム & チルトアセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6KW-43880-01	电动机总成	Motor Assembly	1
2	6EK-43805-01	电枢组合	Armature Assembly	1
3	6EK-43804-11	定子组合	Starter Assembly	1
4	6EK-43892-00	电刷	Brush 2	1
5	63P-82181-20	断路器组	Circuit Breaker Complete	1
6	6EK-4380F-00	支架	Plate, Brush Holder	1
7	62X-4386K-00	电刷弹簧	Spring, Brush	2
8	63P-43879-10	带垫螺钉	Screw, Washer	3
9	97602-04316	螺丝	Screw, Pan Head Washer	2
10	63P-43881-22	端部框架	Frame, End	1
11	6EK-43882-00	油封	Oil Seal	1
12	6EK-43862-01	O型圈	O-ring	1

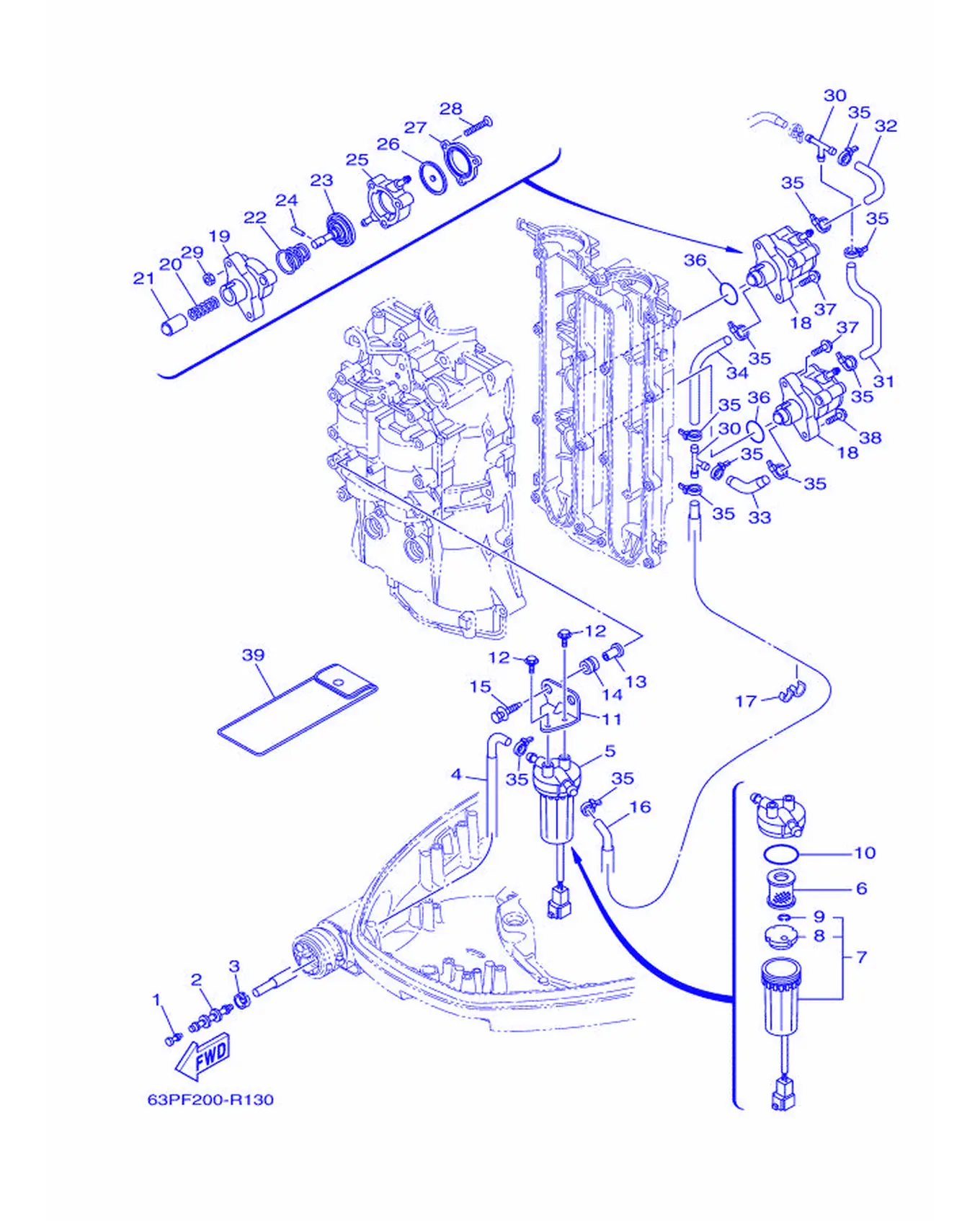

フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	689-85547-01	减震器	Damper	1
2	6AW-24377-01	连接管3	Pipe, Joint 2	1
3	6E5-24351-51	带1	Band 1	1
4	63P-24316-30	管6	Pipe 6	1
5	6P3-24560-04	过滤器总成	Filter Assembly	1
6	6P3-24563-02	过滤器滤芯	Element, Filter	1
7	6P3-24562-03	过滤器滤杯	Cup, Filter	1
8	6P3-24469-00	水位浮标	Float, Water Level	1
9	6P3-24519-00	钢夹	Clip	1
10	6P3-24564-00	衬垫	Gasket	1
11	63P-24566-00	过滤器托架	Bracket, Filter	1
12	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	2
13	90387-06289	轴套	Color	2
14	90480-10M23	固定	Grommet	2
15	90119-06309	带垫圈六角头螺栓	Bolt, with Washer	2
16	63P-24311-30	油管	Pipe,Fuel 1	1
17	90464-13M34	固定	Clamp	1
18	63P-24410-20	燃油泵组合	Fuel Pump Assembly	2
19	68V-24412-00	燃油泵本体1	Body 1	1
20	68V-24454-00	弹簧	Spring	1
21	63P-13131-00	柱	Plunger	1
22	63P-24423-00	隔膜弹簧	Spring,Diaphragm	1
23	68V-24411-00	隔板	Diaphragm	1
24	68V-24374-00	销	Pin	1
25	63P-24413-00	燃油泵本体2	Body 2	1
26	68V-24471-10	隔膜	Diaphragm	1
27	63P-24414-00	燃油泵本体3	Body 3	1
28	68V-24444-00	螺钉	Screw	3
29	68V-24149-00	螺母	Nut	3
30	6E5-24378-00	连接管4	Pipe,Joint 4	2
31	63P-24314-00	管4	Pipe 4	1
32	63P-24315-00	管5	Pipe 5	1
33	63P-24312-10	管2	Pipe 2	1
34	63P-24313-10	管3	Pipe 3	1
35	90465-11M10	固定	Clamp	11
36	93210-30682	O型圈	O-ring	2
37	90119-06312	阀座切割机	Bolt, with Washer	3
38	90119-06135	带垫圈螺栓	Bolt, With Washer	1
39	67F-28100-03	随机工具	Tool Kit	1

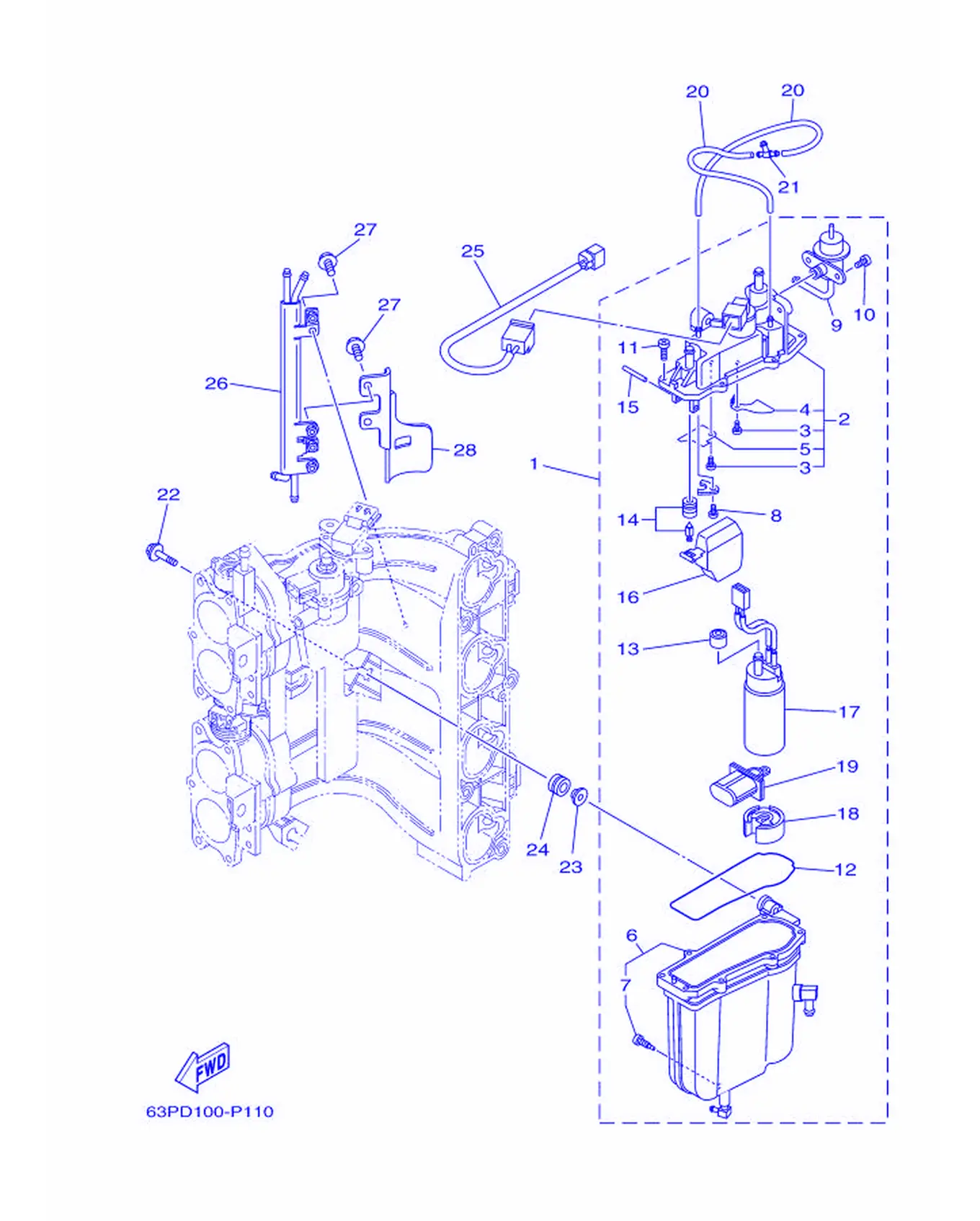

フユエルインジエクシヨンポン

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-14180-22	浮子室组合	Float Chamber Assembly	1
2	63P-14182-20	浮子室盖	Cover, Float Chamber	1
3	4SV-24453-00	螺钉	Screw	2
4	63P-2411R-00	容器托架	Plate 1	1
5	63P-2411T-00	棉板	Plate 2	1
6	63P-14181-20	浮子室本体1	Body, Float Chamber 1	1
7	63P-14191-00	放油旋	Drain Plug	1
8	4SV-24453-00	螺钉	Screw	1
9	63P-13906-00	调压器	Regulator, Pressure	1
10	63P-14565-00	螺钉	Screw	1
11	63P-14567-00	螺钉	Screw	7
12	63P-14984-00	浮子室衬垫	Gasket,FloatChamber	1
13	68V-13781-20	泵减震器	Grommet & ColorSet	1
14	63P-14546-00	针阀	Valve, Needle	1
15	68V-14386-00	浮子销	Pin,Float	1
16	63P-14985-00	浮子	Float	1
17	63P-13907-05	油泵组合	Fuel Pump Complete	1
18	63P-13784-00	泵盖	Cover, Pump	1
19	63P-13915-00	过滤器	Filter	1
20	63P-14148-00	管	Pipe	2
21	69J-24379-00	连接管4	Pipe,Joint 4	1
22	90119-06299	带垫圈六角头螺栓	Bolt, with Washer	3
23	63P-13716-00	轴套	Collar	3
24	6BM-13593-00	减震器	Damper	3
25	63P-8259L-01	线束总成	Wire Harness Assembly 1	1
26	63P-21841-10	冷却器	Cooler	1
27	63P-13573-00	螺栓1	Bolt 1	3
28	63P-13882-00	盖2	Cover 2	1

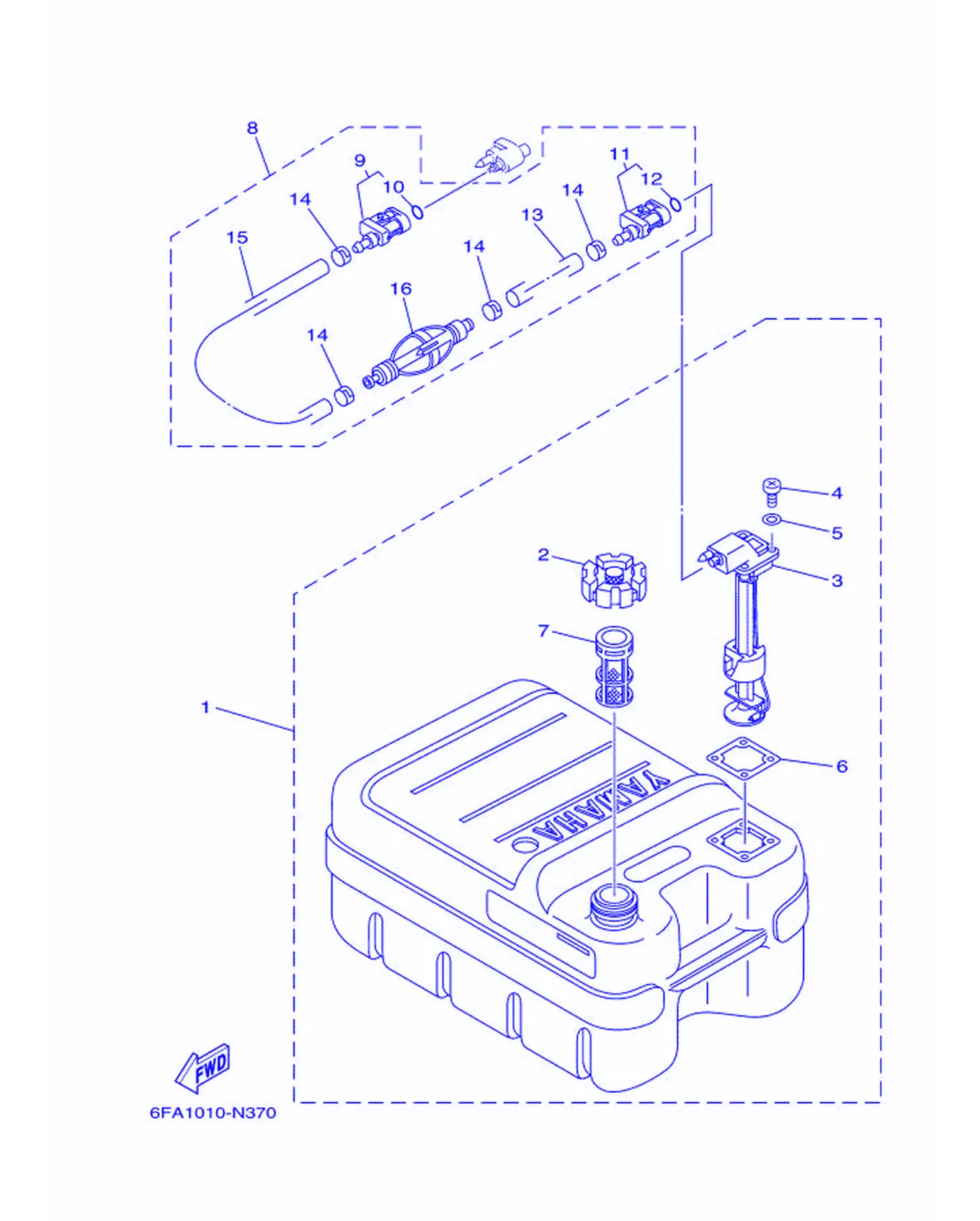

フユエルタンク

REF	雅马哈编码	中文名称	英文名称	用量
1	6YJ-W2420-J3	燃油箱组合	Fuel Tank Assembly (24L)	1
2	6YJ-24610-01	盖组合	Cap Assembly	1
3	6Y1-24260-30	油量计组合	Fuel Meter Assembly	1
4	90157-05M19	螺钉	Screw, Pan Head	4
5	6Y1-24329-00	密封	Seal	4
6	6Y1-24268-01	油量计衬垫	Gasket, Fuel Meter	1
7	6YJ-24167-00	滤	Strainer	1
8	6Y2-24306-57	燃油管组件1	Fuel Pipe Complete 1	1
9	6E5-24305-06	油管接头2	Fuel Pipe Joint Complete	1
10	93210-08287	O型圈	O-ring	1
11	6Y2-24305-06	燃油管接头组件2(85以上油箱侧D:13M	Fuel Pipe Joint Complete	1
12	93210-08287	O型圈	O-ring	1
13	90445-13M25	软管	Hose (L2050)	1
14	6E5-24351-51	带1	Band 1	4
15	90445-13M24	软管	Hose (L850)	1
16	6Y2-24360-60	起动注油泵组合	Primer Pump Assembly	1

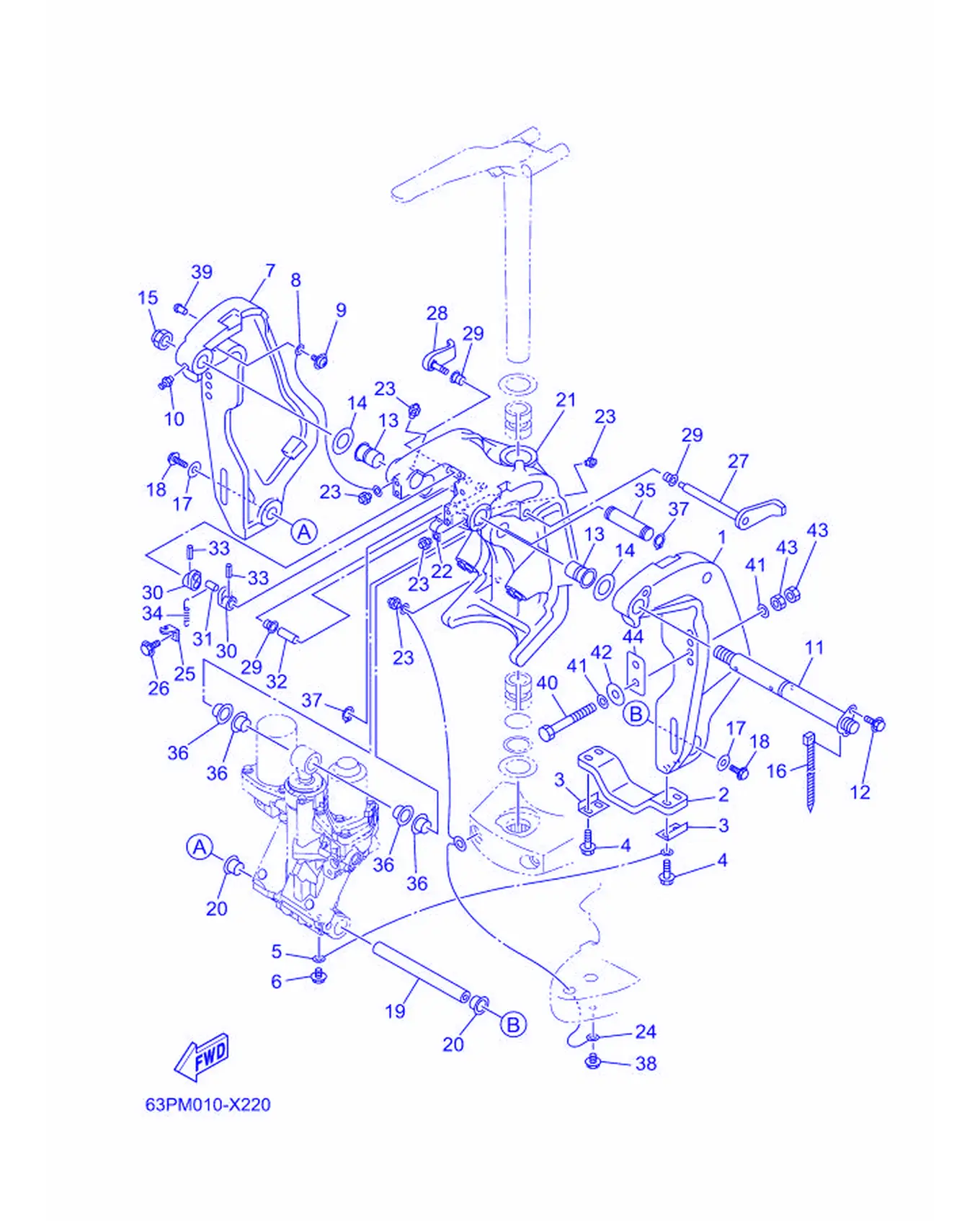

ブラケツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	64E-43111-02-8D	夹紧托架	Bracket,Clamp 1	1
2	6G5-45251-02	阳极	Anode	1
3	6G5-44526-00	面板	Plate	2
4	97E95-06530	螺栓	Bolt, Hexagon with Washer Deep Recess	4
5	6E5-82148-00	导线4	Wire,Lead 4	1
6	97E95-06510	螺栓	Bolt, Hexagon with Washer Deep Recess	1
7	64E-43112-02-8D	夹紧托架	Bracket,Clamp 2	1
8	6E5-82148-00	导线4	Wire,Lead 4	1
9	97985-06212	带垫圈螺钉	Screw, With Washer	1
10	93700-06002	油脂嘴	Nipple, Grease	1
11	64E-43131-30	夹紧托架螺	Bolt,ClampBracket	1
12	97E95-08520	螺栓	Bolt, Hexagon with Washer Deep Recess	1
13	90386-25M31	衬套	Bushing	2
14	90201-26M59	面板垫圈	Washer,Plate	2
15	90185-22M11	自锁螺母	Nut, Self-Locking	1
16	90465-11M10	固定	Clamp	1
17	90201-10060	平垫圈	Washer,Plate	2
18	90119-10054	带垫圈六角头螺栓	Bolt, with Washer	2
19	6BC-43818-00	下侧防震销	Pin, Lower Shock Mount	1
20	90386-22M98	衬套	Bushing	2
21	64E-43311-10-8D	旋转支架	Bracket, Swivel 1	1
22	90465-08M63	固定	Clamp	1
23	93700-06002	油脂嘴	Nipple, Grease	5
24	66K-82149-00	导线3	Wire,Lead 3	1
25	6G5-43144-00	弹簧	Hook,Spring	1
26	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
27	6G5-43181-02	顶位销杆	Lever, Tilt Stop	1
28	6G5-43185-02	顶位销杆	Lever, Tilt Stop	1
29	90386-10M16	衬套	Bushing	3
30	6G5-43148-00	间隔轴	Collar, Distance	2
31	90249-06M19	螺丝	Pin	1
32	90387-10M05	衬套	Color	1
33	91690-30020	弹簧销	Pin,Spring	2
34	90506-16003	接头	Spring, Tension	1
35	64E-43126-10	上侧防震销	Pin, Upper Shock Mount	1
36	90386-22M98	衬套	Bushing	4
37	93410-22M11	卡环	Circlip	2
38	95D95-06010	螺栓	Bolt, Flange Deep Recess	1
39	90269-02M08	螺丝	Rivet	2
40	90101-12065	螺栓	Bolt (L:130MM)	6
41	90201-13M01	面板垫圈	Washer,Plate	12
42	90201-12426	平垫圈	Washer,Plate	4
43	95380-12600	有槽螺母	Nut	12
44	6G5-43119-00	艉板	Plate, Transom	2

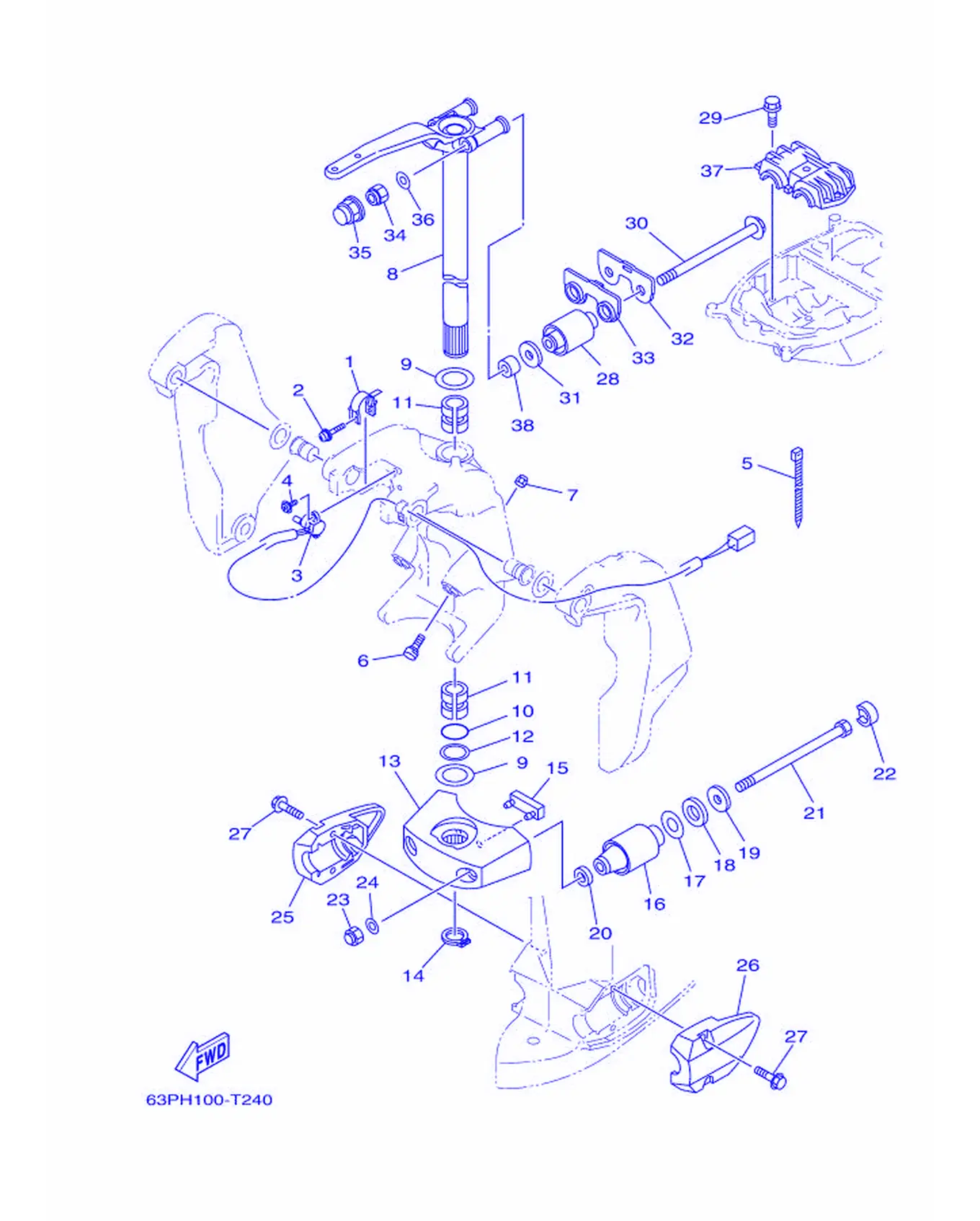

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	64E-43139-11	纵倾角传感器凸轮	Cam, Trim Sender	1
2	90159-05059	带垫圈螺丝	Screw, With Washer	1
3	67H-83672-02	纵倾角传感器	Trim Sender	1
4	97985-06216	带垫圈螺丝	Screw, With Washer	2
5	90465-11M10	固定	Clamp	3
6	61A-43376-00	推力接收器螺	Bolt, Thrust Receiver	2
7	95780-10300	螺母	Nut, Flange	2
8	6DA-42510-10-8D	方向托架组合	Steering Bracket Assembly	1
9	90201-38M60	平垫圈	Washer,Plate	2
10	93210-37MH7	O型圈	O-ring	1
11	90386-38M32	衬套	Bushing	2
12	90202-40M47	垫圈	Washer,Plate	1
13	68V-44551-00-8D	下侧减震胶垫壳	Housing, Lower Mount Rubber 1	1
14	93410-36102	弹性挡圈	Circlip	1
15	61A-44575-01	下侧减震胶垫	Damper, Lower Mount Rubber	1
16	60V-44555-00	下侧减震胶垫	Mount Damper, Lower Side	2
16	63P-44555-00	下侧减震胶垫	Mount Damper, Lower Side	2
17	90201-35008	面板垫圈	Washer,Plate	2
18	90202-32M19	面板垫圈	Washer,Plate	2
19	90201-16M55	面板垫圈	Washer,Plate	2
20	90201-15M58	面板垫圈	Washer,Plate	2
21	90109-14007	螺栓	Bolt	2
22	69J-44533-00	上侧减震胶垫	Damper, Upper Mount Rubber	2
23	90176-14003	盖形螺母	Nut, Cap	2
24	92995-14600	盘形垫	Washer	2
25	63P-44553-00-8D	下侧减震胶垫盖	Cover, Lower Mount	1
26	63P-44556-00-8D	前下侧减震胶垫盖 2	Cover, Lower Mount 2	1
27	90119-10058	带垫圈六角头螺栓	Bolt, with Washer	4
28	6DA-44514-00	上侧减震胶垫	Mount Damper, Upper Side	2
29	90119-10024	带垫圈螺栓	Bolt, With Washer	3
30	90105-14009	六角法兰面螺栓	Bolt, Flange	2
31	90201-16M01	平垫圈	Washer,Plate	2
32	6DA-44526-00	面板	Plate	1
33	6DA-44532-00	上侧装配限位板	Stopper, Upper Mount	1
34	90185-14M00	螺帽	Nut, Self-Locking	2
35	6DA-44194-00	盖	Cap	2
36	92995-14600	盘形垫	Washer	2
37	63P-44511-00	上侧减震胶垫盖	Cover, Upper Mount Rubber	1
38	90387-14004	衬套	Color	2

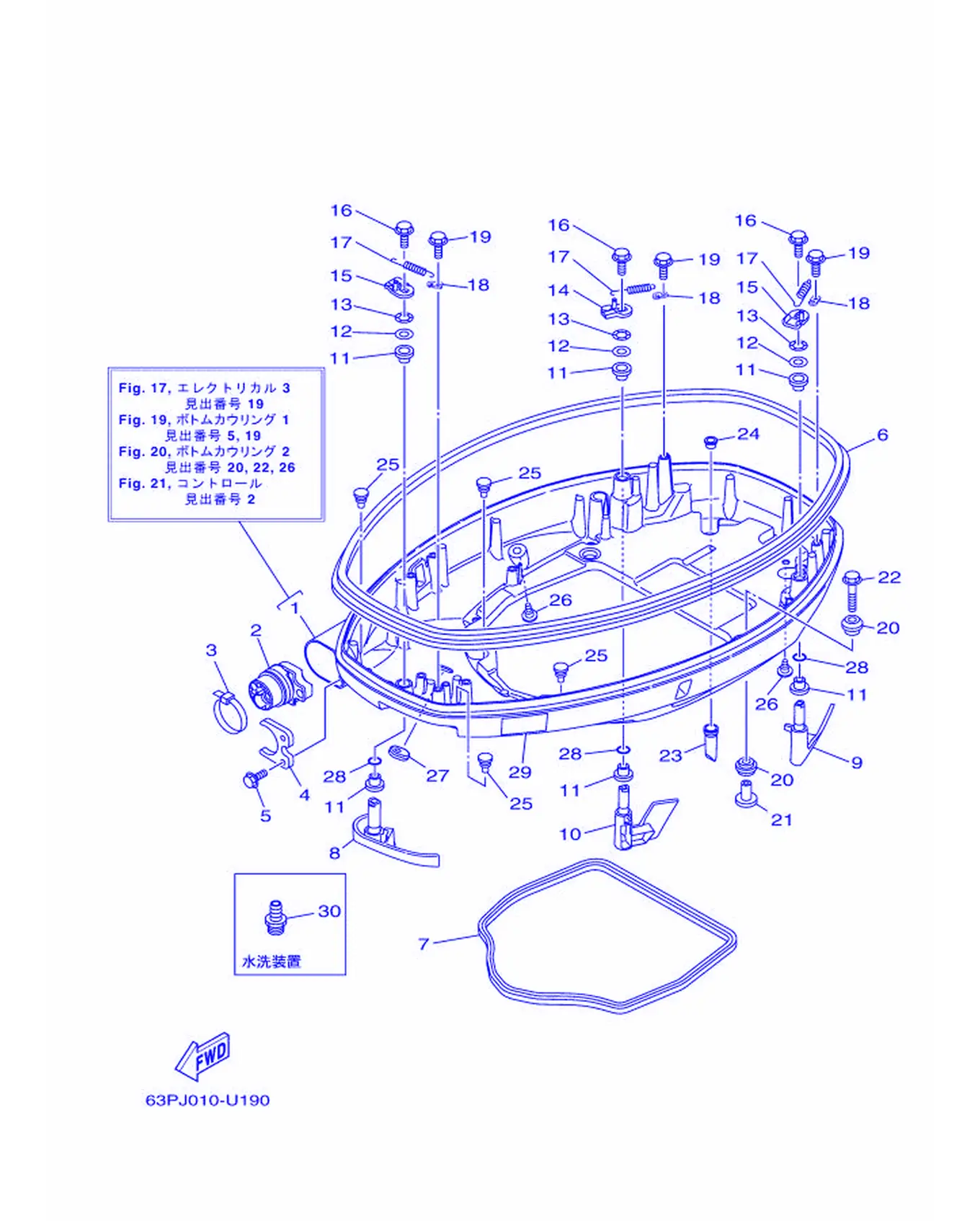

ボトムカウリング 1

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-42710-11-8D	底罩组合	Bottom Cowling Assembly	1
2	6DA-42725-03	固定	Grommet	1
3	90465-13M30	固定	Clamp	1
4	6CB-42761-00	限位板	Stopper	1
5	90109-06316	螺栓	Bolt	2
6	63P-42615-10	密封	Seal	1
7	63P-42716-01	密封橡皮块1	Rubber Seal 1	1
8	63P-42815-11-8D	夹杆	Lever, Clamp 1	1
9	6DA-42816-02-8D	夹杆	Lever, Clamp 2	1
10	6DA-42817-02-8D	夹杆	Lever, Clamp 3	1
11	90386-15M73	衬套	Bushing	6
12	90201-156J2	面板垫圈	Washer, Plate	3
13	90206-15M18	波形垫圈	Washer, Wave	3
14	6CB-42818-00	夹杆	Lever, Clamp 4	1
15	6CB-42819-00	夹杆	Lever, Clamp 5	2
16	95D95-08012	螺栓	Bolt, Flange Deep Recess	3
17	90506-22001	拉簧	Spring, Tension	3
18	66T-43144-00	弹簧	Hook,Spring	3
19	90109-06316	螺栓	Bolt	3
20	90480-22M81	固定	Grommet	8
21	90387-08M37	衬套	Color	4
22	90119-08187	带垫圈六角头螺栓	Bolt, with Washer	4
23	6DA-42717-01	密封橡皮块2	Rubber, Seal 2	4
24	6DA-42384-00	帽密封	Seal, Cap	4
25	6H4-42748-01	固定	Grommet	4
26	6P2-44391-00	软管管嘴	Nipple,Hose	2
27	6KA-42727-00	固定	Grommet	1
28	93210-13M63	O型圈	O-ring	3
29	6EE-42794-01	警告标志	Label, Warning (General)	1
30	69J-12584-00	软管接头	Joint,Hose 3	1

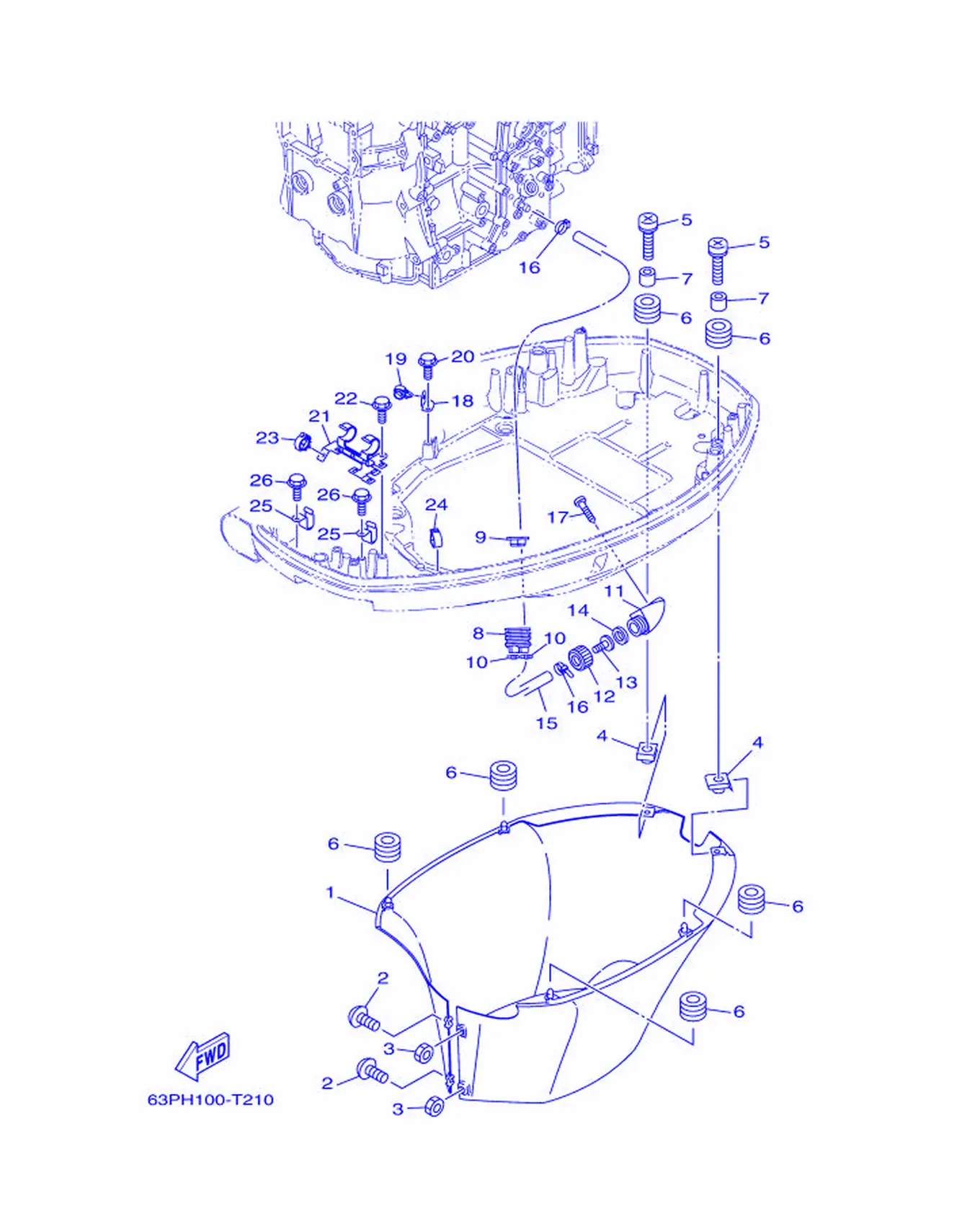

ボトムカウリング 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6DA-42741-11-8D	挡板	Apron 1	1
2	90159-06M28	带垫螺钉	Screw, With Washer	2
3	95380-06600	有槽螺母	Nut, Hexagon	2
4	90183-061A8	弹性螺母	Nut, Spring	2
5	90159-06053	带垫圈十字槽螺钉	Screw, Washer	2
6	90480-13M24	固定	Grommet	6
7	90387-06M43	衬套	Color	2
8	6H1-42726-22	固定	Grommet	1
9	6BG-42384-00	密封	Seal, Cap	1
10	90465-11M10	固定	Clamp	2
11	6AW-12572-00	联接器	Adapter	1
12	6R3-12581-00	软管接头1	Joint,Hose 1	1
13	6R3-12582-00	软管接头2	Joint,Hose 2	1
14	6R3-12583-00	软管接头衬垫	Gasket,HoseJoint	1
15	63P-42541-10	管1	Pipe 1	1
16	90465-11M10	固定	Clamp	2
17	97780-60520	自攻螺钉	Screw, Tapping	2
18	63P-42756-00	夹箍支承	Stay, Clamp	1
19	90464-13249	线夹	Clamp	1
20	90109-06316	螺栓	Bolt	1
21	63P-8366G-00	托架3	Bracket 3	1
22	90109-06316	螺栓	Bolt	2
23	90464-18246	固定	Clamp	2
24	90464-18004	固定夹	Clamp	1
25	90462-12013	线夹	Clamp	2
26	90109-06316	螺栓	Bolt	2

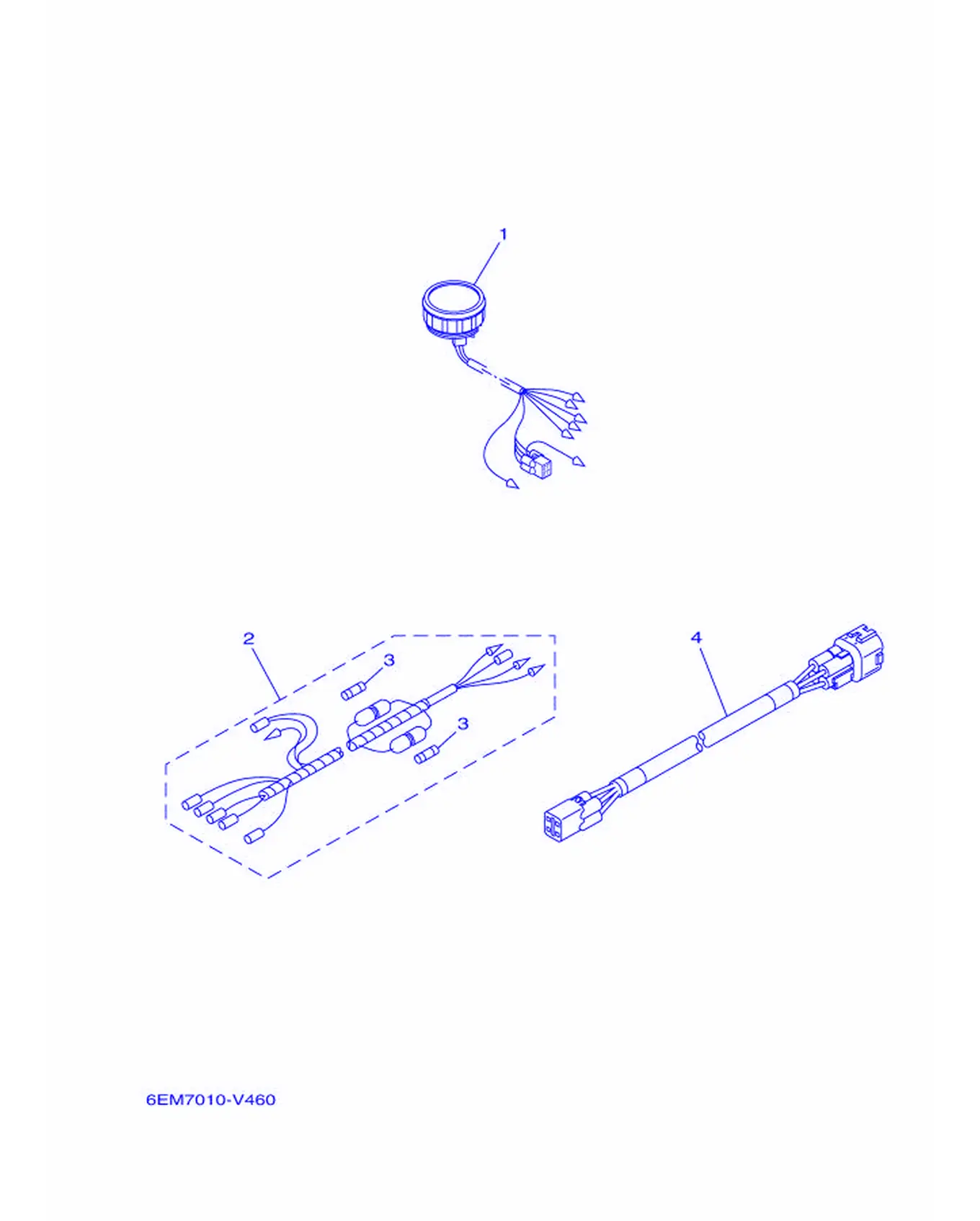

メータ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6Y7-83540-92	转速表总成	Tachometer Assembly	1
2	6Y5-83553-M1	导线	Wire, Lead (L=2.5M)	1
3	6G1-82151-01	保险	Fuse (10A)	2
4	6Y5-83653-20	导线	Wire, Lead (L=7.0M)	1

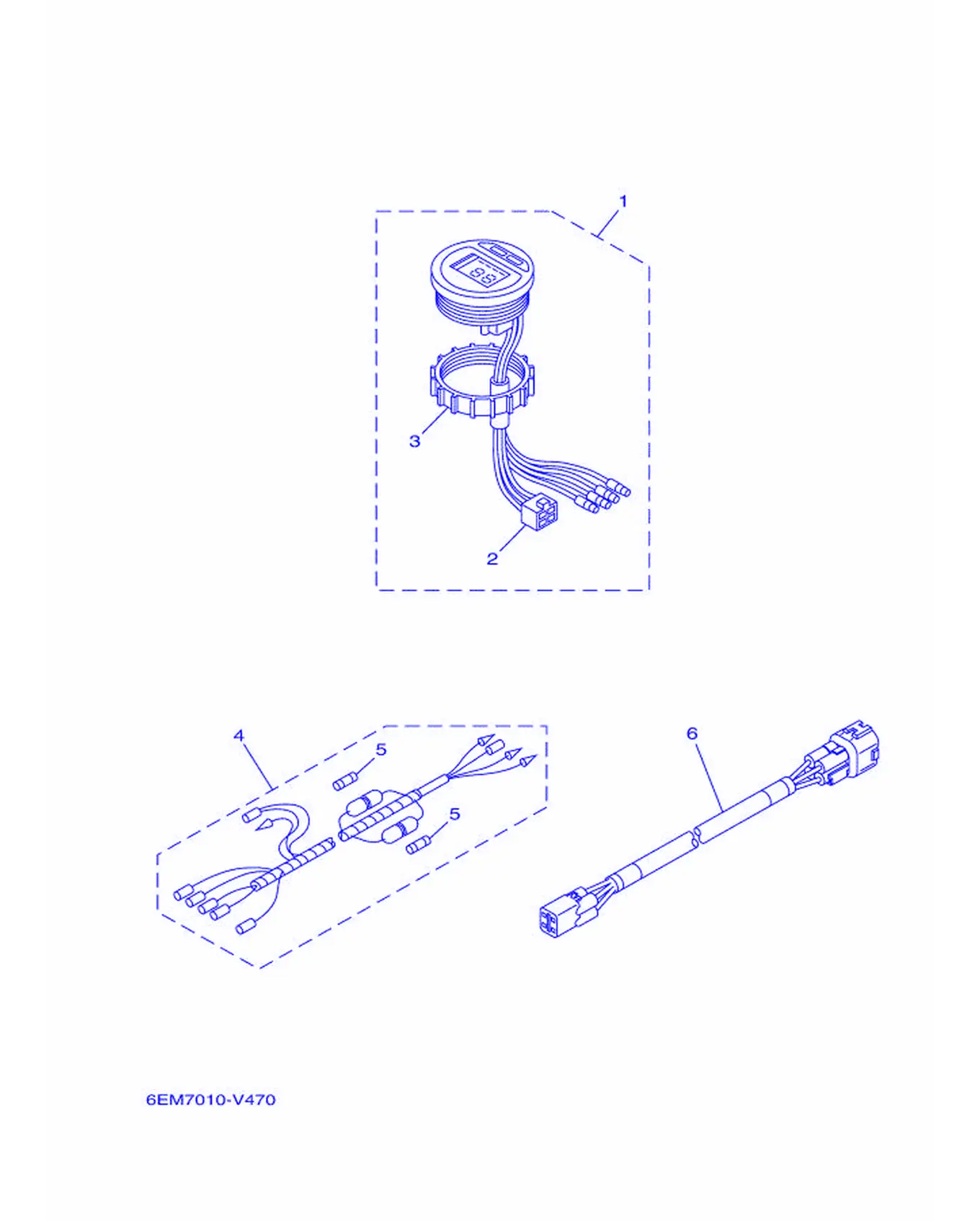

メータ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6Y5-8350T-E3	数字转数表	Tachometer Assembly	1
2	9E450-04533	联接器	Connector	1
3	6Y8-84383-00	螺母	Nut, Ring	1
4	6Y5-83553-M1	导线	Wire, Lead (L=2.5M)	1
5	6G1-82151-01	保险	Fuse (10A)	2
6	6Y5-83653-20	导线	Wire, Lead (L=7.0M)	1

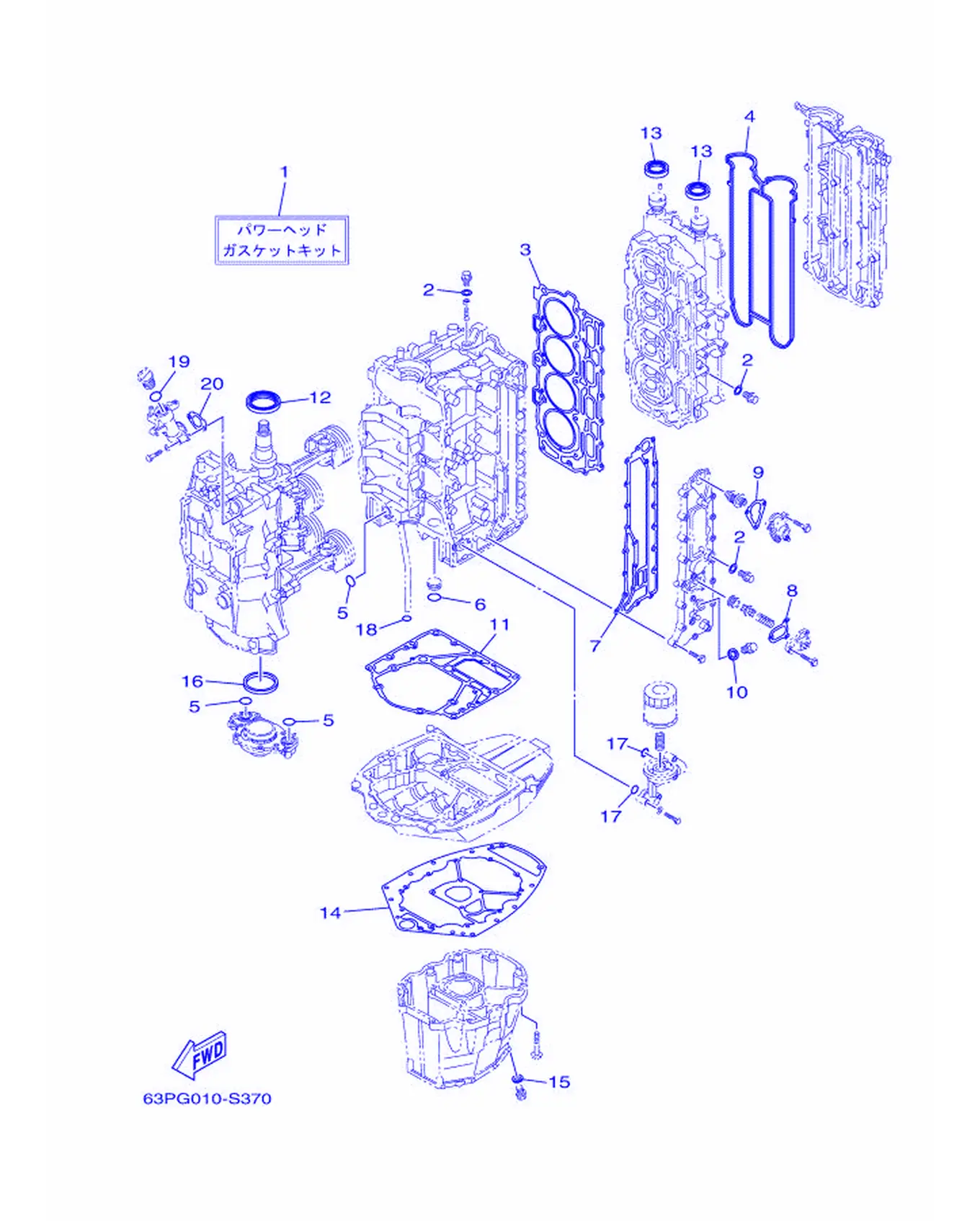

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-W0001-05	衬垫套件	Power Head Gasket Kit	1
2	90430-14115	垫片	Gasket	4
3	63P-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
4	63P-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
5	93210-25552	O型圈	O-ring	3
6	93210-25647	O型圈	O-ring	1
7	63P-41114-A3	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
8	67F-12435-A0	衬垫	Gasket	1
9	63P-12414-00	盖衬垫	Gasket,Cover	1
10	90201-186F1	平垫圈	Washer,Plate	1
11	63P-11351-04	气缸垫片1	Gasket, Cylinder	1
12	93102-60004	油封	OilSeal	1
13	93102-38008	油封	OilSeal	2
14	63P-15312-02	油槽衬垫	Gasket, Oil Pan	1
15	90430-14M09	衬垫	Gasket	1
16	69J-11355-00	气缸密封圈1	Seal,Cylinder 1	1
17	93210-19MJ1	O型圈	O-ring	2
18	93210-19MJ3	O型圈	O-ring	1
19	93210-24M79	O型圈	O-ring	1
20	63P-15364-A0	机油塞衬垫	Gasket,OilPlug	1

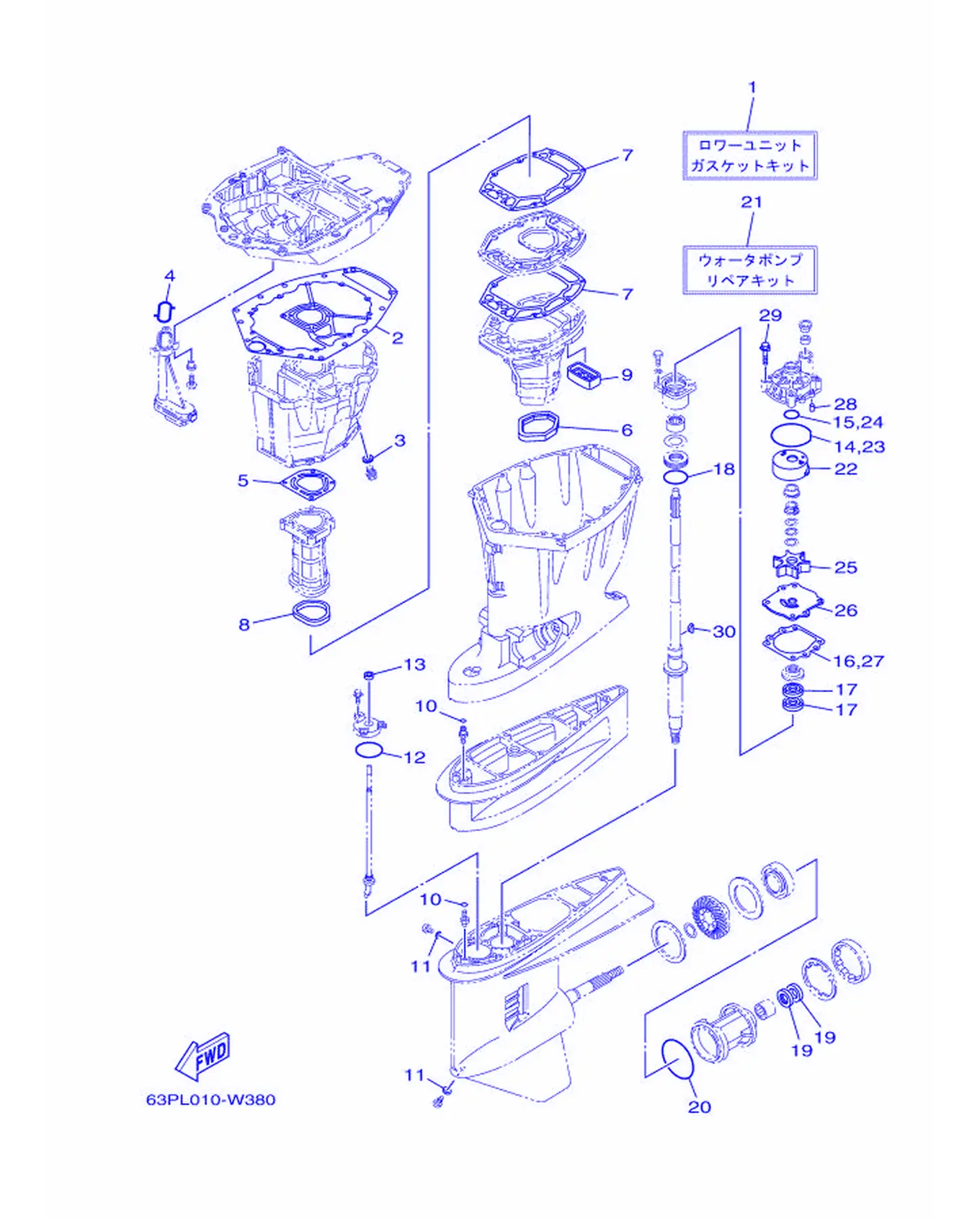

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-W0001-22	衬垫套	Lower Unit Gasket Kit	1
2	63P-15312-02	油槽衬垫	Gasket, Oil Pan	1
3	90430-14M09	衬垫	Gasket	1
4	63P-13415-00	机油滤网密封	Seal, Oil Strainer	1
5	63P-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
6	69J-45123-00	消音器衬垫	Gasket,Muffler	1
7	63P-41134-A1	排气岐管衬垫	Gasket, Exhaust Manifold	2
8	63P-41138-00	排气管密封圈1	Seal, Exhaust 1	1
9	69J-45127-01	密封	Seal	1
10	93210-07003	O型圈	O-ring	2
11	90430-08003	垫片	Gasket	2
12	93210-58144	O型圈	O-ring	1
13	93106-09014	油封	OilSeal	1
14	93210-86M38	O型圈	O-ring	1
15	93210-37160	O型圈	O-ring	1
16	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
17	93101-28M16	油封	OilSeal	2
18	93210-55M14	O型圈	O-ring	1
19	93101-30M17	油封	OilSeal	2
20	93210-97M55	O型圈	O-ring	1
21	61A-W0078-A4	水泵修理套	Water Pump Repair Kit	1
22	61A-44322-02	芯子	Insert, Cartridge	1
23	93210-86M38	O型圈	O-ring	1
24	93210-37160	O型圈	O-ring	1
25	6E5-44352-01	叶轮	Impeller	1
26	6G5-44323-01	外挡板	Outer Plate, Cartridge	1
27	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
28	93606-12019	定位销	Pin, Dowel	2
29	90119-08191	带垫圈六角头螺栓	Bolt, with Washer	4
30	90280-04M05	半圆键	Key, Woodruff	1

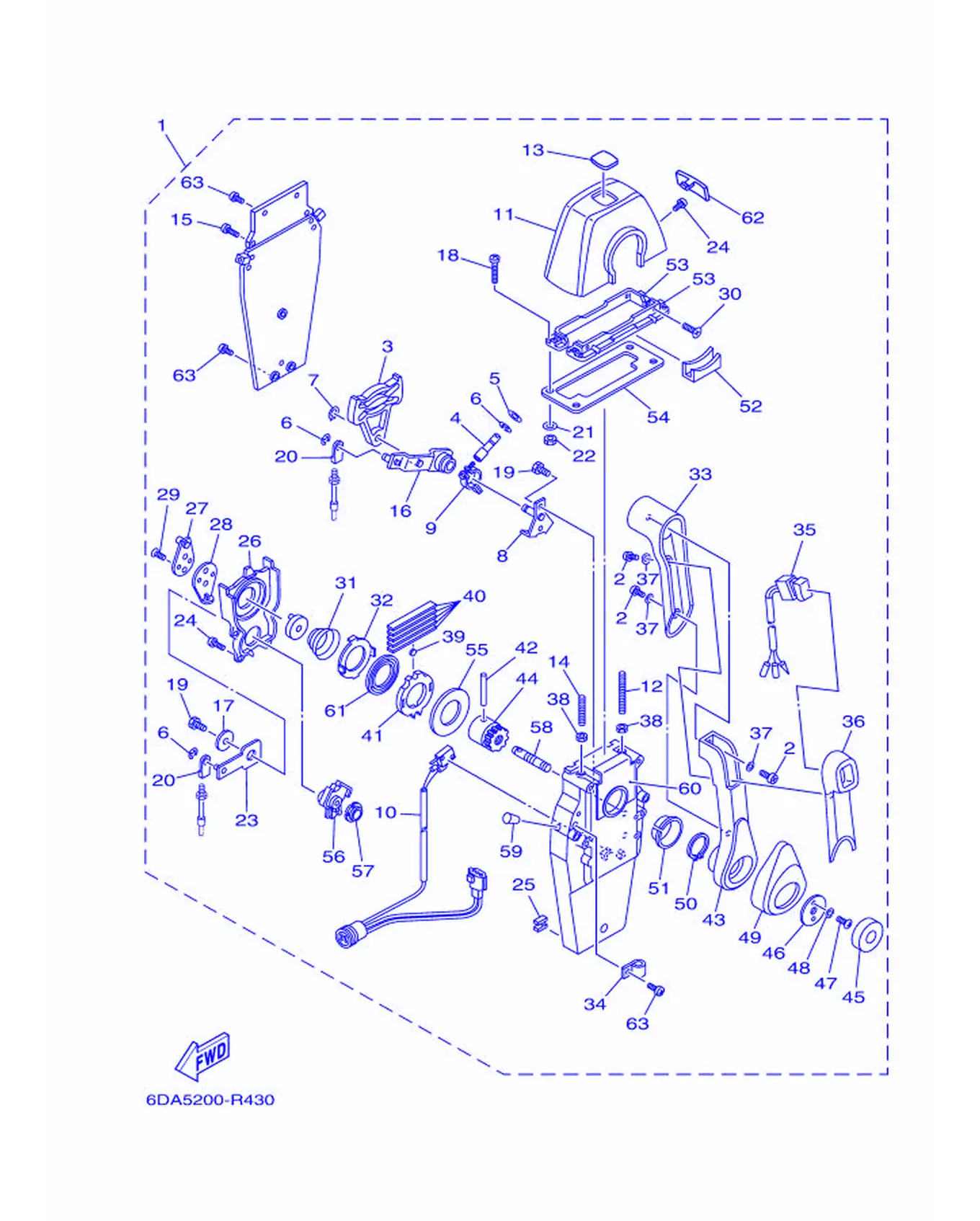

リモ-トコントロ-ルアセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	704-48205-R2	遥控装置组合	Remote Control Assembly (R/H)	1
2	704-48129-11	螺钉3	Screw 3	3
3	EL8-48251-00	凸轮面板	Plate,Cam	1
4	704-48265-00	摩擦轴	Shaft, Friction	1
5	701-48246-00	衬套	Spacer	1
6	93430-06024	卡环	Circlip	4
7	EL8-48259-00	开口簧环，卡	Circlip 1	1
8	704-48262-00	油门轴	Shaft,Throttle	1
9	704-48264-00	带阻力油	Throttle, Friction	1
10	704-82540-40	空挡开关组合	Neutral Switch Assembly	1
11	704-48119-50	盖	Cover	1
12	EL8-48281-00	螺钉	Screw	1
13	704-48215-61	图样	Graphic	1
14	704-48281-00	螺钉	Screw	1
15	97890-05025	大柱头螺钉	Screw, Pan Head	2
16	704-48261-00	油门臂	Arm,Throttle	1
17	EL8-48191-00	垫圈1	Washer 1	1
18	704-48283-00	螺钉	Screw	4
19	97380-06018	螺栓	Bolt	3
20	703-48345-01	遥控钢索端部2	Cable End, Remote Control	2
21	704-48287-00	垫	Washer	4
22	95380-05600	螺母	Nut	4
23	704-48271-00	变挡臂	Arm, Shift	1
24	EL8-48127-00	螺钉1	Screw 1	10
25	703-48358-01	钢索固定装置	Anchor, Cable	1
26	704-48231-00	齿轮壳	Housing, Cap	1
27	EL8-48241-00	驱动臂	Arm, Drive	1
28	EL8-48254-00	油门调整限位板	Stopper, Throttle	1
29	92780-06020	平头螺钉	Screw, Flat Head	2
30	98780-05018	平头螺钉	Screw, Flat Head	4
31	EL8-48244-00	发动机空转弹簧	Spring, Free Axel	1
32	EL8-48245-00	锁紧面板	Plate, Lock	1
33	704-48222-10	控制杠杆握柄	Grip,ControlLever	1
34	704-82594-00	夹箍	Clamp	1
35	704-82563-60	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
36	704-48229-30	控制杠杆握柄	Grip,ControlLever	1
37	92990-05300	盘形垫	Washer, Internal Tooth	3
38	95380-06600	有槽螺母	Nut, Hexagon	2
39	701-48248-00	发动机空转卷轴	Roller, Free Accelerator	1
40	704-48238-00	延迟簧	Spring, Detent	5
41	704-48232-P1	齿	Gear	1
42	EL8-48164-00	销2	Pin 2	1
43	704-48221-R0	控制杠杆	Lever, Control	1
44	704-48242-10	驱动轴	Shaft, Drive	1
45	704-48225-R0	盖	Cover	1
46	704-48192-00	垫圈2	Washer 2	1
47	97890-06018	大柱头螺钉	Screw, Pan Head	2
48	92990-06300	盘形垫	Washer, Internal Tooth	2
49	704-48224-R0	控制杠杆盖	Cover,ControlLever	1
50	EL8-48279-00	卡环 2	Circlip 2	1
51	704-48234-00	衬套1	Bushing 1	1
52	704-48219-R0	导线盖	Cover,Lead	1
53	704-48144-10	限位板面板2	Plate, Stopper 2	2
54	704-48176-01	固定	Grommet	1
55	704-48192-P0	垫圈2	Washer 2	1
56	704-48233-00	齿轮2	Gear 2	1
57	704-48235-00	衬套	Bushing	1
58	704-48153-00	发动机空转轴	Shaft, Free Axel	1
59	704-48166-00	塞	Plug	1
60	704-48284-P0	固定	Grommet	1
61	704-48178-10	轴面板	Plate, Shift	1
62	704-48167-20	塞	Plug	1
63	97890-05016	大柱头螺钉	Screw, Pan Head	3

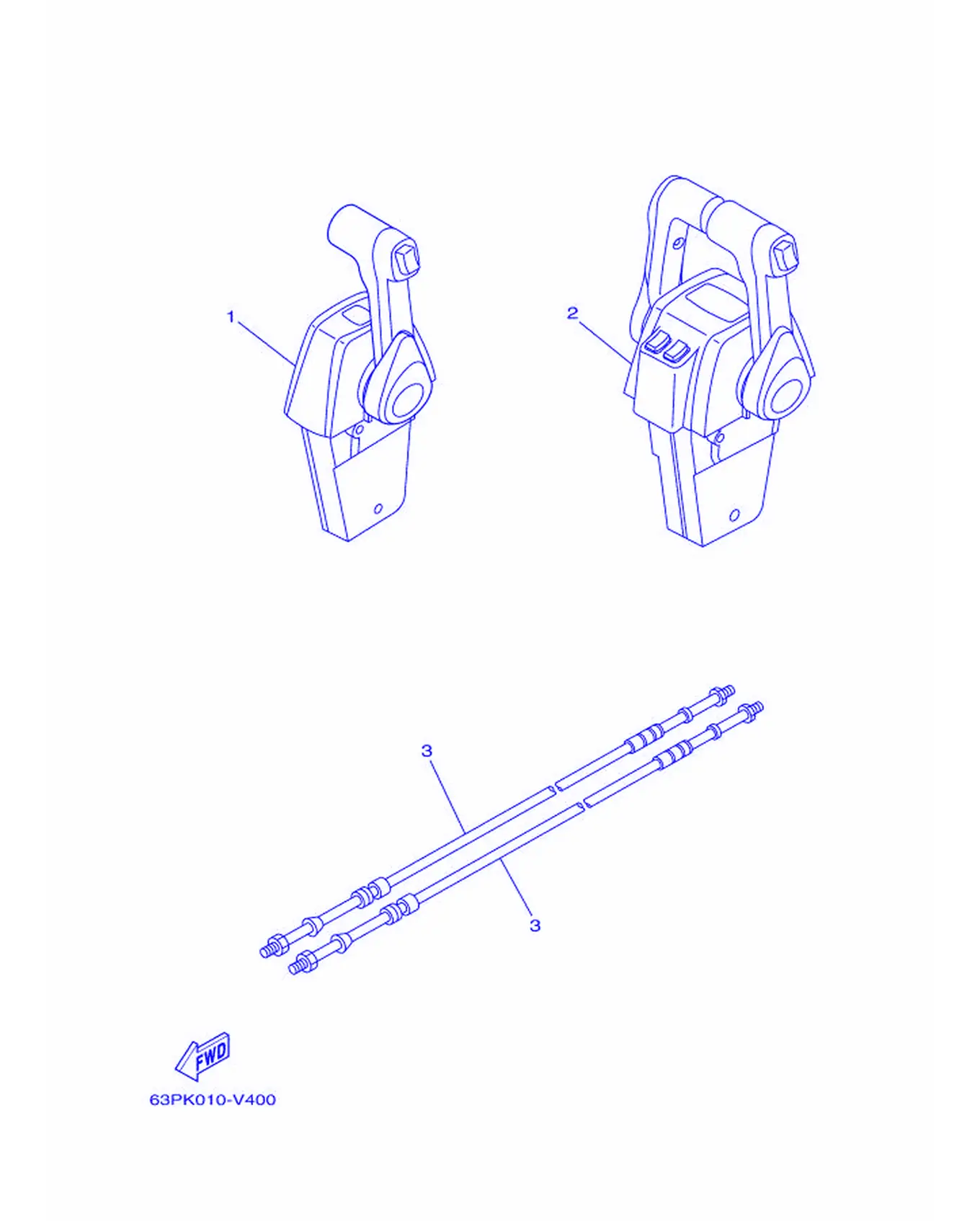

リモートコントロールボツクス

REF	雅马哈编码	中文名称	英文名称	用量
1	704-48205-R2	遥控装置组合	Remote Control Assembly (R/H)	1
3	701-48320-50	遥控钢索 (4.56m)	Cable, Remote Control	2
3	701-48320-60	遥控钢索 (4.88m)	Cable, Remote Control	2
3	701-48320-80	遥控钢索 (5.18m)	Cable, Remote Control	2
3	701-48350-00	遥控钢索 (6.40m)	Cable, Remote Control	2
3	701-48350-20	遥控钢索 (7.01m)	Cable, Remote Control	2

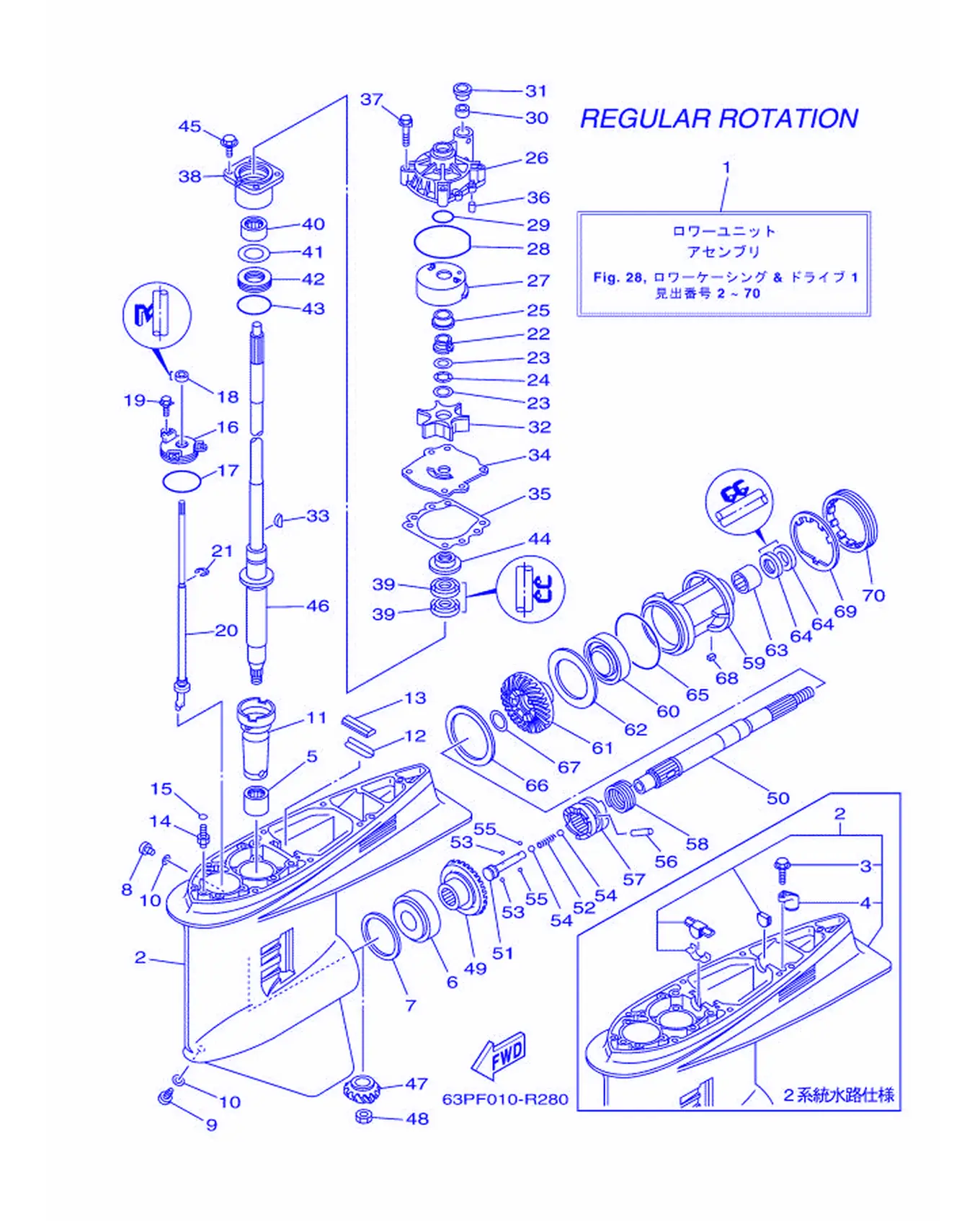

ロワーケーシング & ドライブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-45300-07-8D	水下装置总成	Lower Unit Assembly	1
1	63P-45300-17-8D	水下装置总成	Lower Unit Assembly	1
1	63P-45300-A4-8D	水下装置总成	Lower Unit Assembly	1
1	63P-45300-B6-8D	水下装置总成	Lower Unit Assembly	1
2	6J9-45301-07-8D	水下装置壳	Casing,Lower	1
2	6J9-45301-11-8D	水下装置壳	Casing,Lower	1
3	90109-06M82	螺栓	Bolt	1
4	6E5-45619-00	帽	Cap	1
5	93311-928U5	轴承	Bearing	1
6	93332-000V3	轴承	Bearing	1
7	6G5-45567-01	填隙	Shim (T:0.10MM)	1
7	6G5-45567-10	填隙	Shim (T:0.12MM)	1
7	6G5-45567-20	填隙片	Shim (T:0.15MM)	1
7	6G5-45567-30	填隙	Shim (T:0.18MM)	1
7	6G5-45567-40	填隙	Shim (T:0.30MM)	1
8	90340-08002	螺丝	Plug, Straight Screw	1
9	688-45341-10	放油塞	Plug, Drain	1
10	90430-08003	垫片	Gasket	2
11	6G5-45536-01	驱动轴套	Sleeve,Drive Shaft	1
12	663-45376-00	密封圈减震块导承	Guide,SealDamper	1
13	688-45375-00	密封圈减震	Damper,Seal	1
14	63P-45378-00	软管嘴	Nipple,Hose	1
15	93210-07003	O型圈	O-ring	1
16	6E5-45321-00	面板	Plate	1
17	93210-58144	O型圈	O-ring	1
18	93106-09014	油封	OilSeal	1
19	90119-06286	带垫圈六角头螺栓	Bolt, with Washer	3
20	63P-44150-01	变挡凸轮组合	Shift Cam Assembly	1
21	99001-08600	卡环	Circlip	1
22	61A-45538-00	衬套1	Spacer 1	1
23	90201-22M01	平垫圈	Washer,Plate	2
24	90206-22M19	波形垫圈	Washer, Wave	1
25	61A-45527-00	驱动轴安装	Color,Drive Shaft	1
26	61A-44311-01	水泵壳	Housing,Water Pump	1
27	61A-44322-02	芯子	Insert, Cartridge	1
28	93210-86M38	O型圈	O-ring	1
29	93210-37160	O型圈	O-ring	1
30	6E5-44365-01	水封减震器	Damper, Water Seal 1	1
31	6E5-44312-00	水泵壳体盖	Cover,Water PumpHousing	1
32	6E5-44352-01	叶轮	Impeller	1
33	90280-04M05	半圆键	Key, Woodruff	1
34	6G5-44323-01	外挡板	Outer Plate, Cartridge	1
35	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
36	93606-12019	定位销	Pin, Dowel	2
37	90119-08191	带垫圈六角头螺栓	Bolt, with Washer	4
38	6E5-45331-00-9S	轴承壳	Housing,Bearing	1
39	93101-28M16	油封	OilSeal	2
40	93317-330U2	轴承	Bearing	1
41	6E5-45587-01	填隙	Shim (T:0.10MM)	1
41	6E5-45587-10	填隙	Shim (T:0.12MM)	1
41	6E5-45587-20	填隙	Shim (T:0.15MM)	1
41	6E5-45587-30	填隙	Shim (T:0.18MM)	1
41	6E5-45587-40	填隙	Shim (T:0.30MM)	1
41	6E5-45587-50	填隙	Shim (T:0.40MM)	1
41	6E5-45587-60	填隙	Shim (T:0.50MM)	1
42	93341-930V2	轴承	Bearing	1
43	93210-55M14	O型圈	O-ring	1
44	6E5-45344-00	油封盖	Cover,OilSeal	1
45	97E95-08525	螺栓	Bolt, Hexagon with Washer Deep Recess	4
46	63P-45501-01	驱动轴组	Drive ShaftComplete	1
46	63P-45501-11	驱动轴组	Drive ShaftComplete	1
47	63P-45551-00	小齿轮	Pinion (14T)	1
48	90170-16M01	螺帽	Nut	1
49	6EH-45560-00	齿轮1	Gear 1 (28T)	1
50	6J9-45611-01	螺旋浆轴	Shaft,Propeller	1
51	6E5-45634-02	变挡滑	Slide, Shift	1
52	90501-16M37	压簧	Spring, Compression	1
53	93507-32009	滚珠	Ball	2
54	93511-32017	滚珠	Ball	2
55	93503-16003	滚珠	Ball	2
56	90250-08M07	圆柱销	Pin, Straight	1
57	6DA-45631-01	爪形离合器	Clutch, Dog	1
58	6E5-45633-01	固定环	Ring, Cross Pin	1
59	6J9-45332-00-CA	轴承壳	Housing,Bearing	1
60	93306-209U0	轴承	Bearing	1
61	6EH-45571-00	齿轮2	Gear 2 (28T)	1
62	6G5-45576-10	推力垫	Washer, Thrust	1
63	93315-43061	滚针轴承	Bearing	1
64	93101-30M17	油封	OilSeal	2
65	93210-97M55	O型圈	O-ring	1
66	6G5-45577-02	填隙	Shim (T:0.10MM)	1
66	6G5-45577-10	填隙	Shim (T:0.12MM)	1
66	6G5-45577-20	填隙	Shim (T:0.15MM)	1
66	6G5-45577-30	填隙	Shim (T:0.18MM)	1
66	6G5-45577-40	填隙	Shim (T:0.30MM)	1
66	6G5-45577-50	填隙	Shim (T:0.40MM)	1
66	6G5-45577-60	填隙	Shim (T:0.50MM)	1
67	90201-30M92	平垫圈	Washer,Plate	1
68	90282-04M00	直键	Key, Straight	1
69	6G5-45383-01	爪形垫	Washer, Claw	1
70	6G5-45384-02	螺母	Nut	1

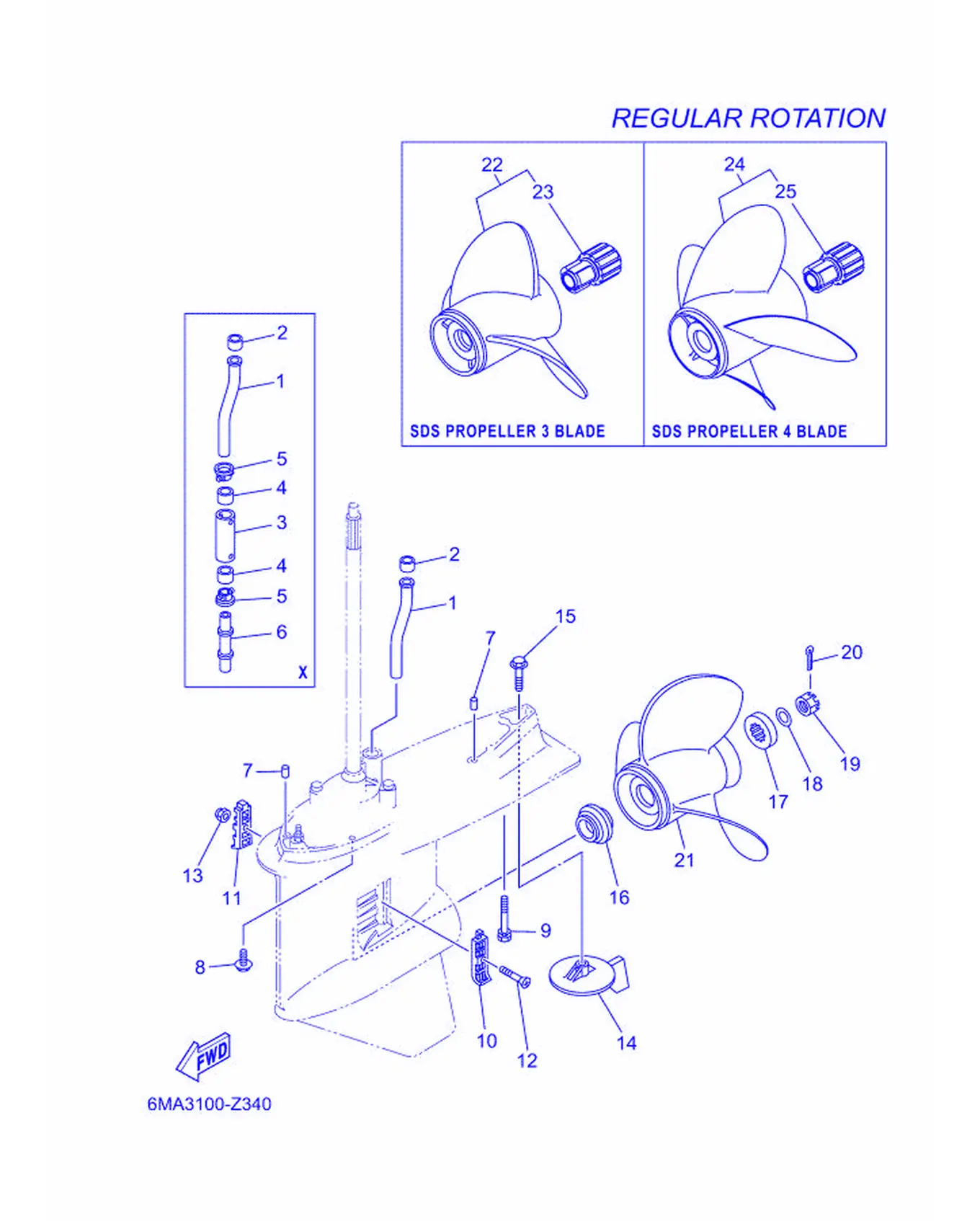

ロワーケーシング & ドライブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-44361-00	水管	Tube, Water 1	1
2	6E5-44365-01	水封减震器	Damper, Water Seal 1	1
3	63P-44362-00	水管	Tube, Water 2	1
4	6E5-44365-01	水封减震器	Damper, Water Seal 1	2
5	6E5-44312-00	水泵壳体盖	Cover,Water PumpHousing	2
6	63P-44363-00	水管3	Tube, Water 3	1
7	93608-16M16	定位销	Pin, Dowel	2
8	97E95-10645	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	6
9	90119-10072	带垫圈六角头螺栓	Bolt, with Washer	1
9	90119-10008	带垫圈螺栓	Bolt, With Washer	1
10	6J9-45214-00	进水口盖	Cover, Water Inlet	1
11	6J9-45215-00	进水口盖	Cover, Water Inlet	1
12	90152-05M08	沉头螺钉	Screw, Countersunk	1
13	90185-05002	螺母	Nut, Self-Locking	1
14	6J9-45371-01	航向调整	Tab Trim	1
15	90105-10M00	螺栓	Bolt, Flange	1
16	6E5-45987-01	衬套	Spacer	1
17	688-45997-01	衬套	Spacer	1
18	92990-18200	盘形垫	Washer	1
19	90171-18M04	螺母	Nut, Castle	1
20	91490-40030	开口销	Pin, Cotter	1
21	6G5-45941-00	螺旋浆组合	Propeller (3X15-1/4X15-M)	1
21	6G5-45952-00	螺旋浆组合	Propeller (3X14-5/8X16-M)	1
21	6G5-45947-01	螺旋浆组合	Propeller (3X14-1/2X17-M)	1
21	6G5-45945-01	螺旋浆	Propeller (3X14X19-M)	1
21	6G5-45943-01	螺旋浆组合	Propeller (3X13-3/4X21-M)	1
21	6G5-45949-00	螺旋浆组合	Propeller (3X13-1/2X23-M)	1
21	6G5-45932-00	螺旋浆组合	Propeller (3X15-3/4X13-M)	1
21	6G5-45970-02	螺旋浆组合	Propeller (3X15-1/4X15-M)	1
21	6G5-45978-03	螺旋浆组合	Propeller (3X13-3/4X17-M2)	1
22	68F-45932-20	螺旋浆组合	Propeller (3X14-1/2X13-M)	1
22	68F-45930-20	螺旋浆组合	Propeller (3X14-1/2X14-M)	1
22	68F-45970-20	螺旋浆组合14 1/2X15R	Propeller (3X14-1/2X15-M)	1
22	68F-45972-20	螺旋浆组合14 1/4X17R	Propeller (3X14-1/4X17-M)	1
22	68F-45978-20	螺旋浆组合14 1/4X18R	Propeller (3X14-1/4X18-M)	1
22	68F-45974-20	螺旋浆组合13 3/4X19R	Propeller (3X13-3/4X19-M)	1
22	68F-45976-20	螺旋浆组合13 3/4X21R	Propeller (3X13-3/4X21-M)	1
22	60H-45970-00	螺旋浆组合	Propeller (3X14-1/4X14-M)	1
22	60H-45972-00	螺旋浆组合	Propeller (3X14-1/4X16-M)	1
22	60H-45974-00	螺旋浆组合	Propeller (3X14-1/4X18-M)	1
22	60H-45976-00	螺旋浆组合	Propeller (3X14-1/4X20-M)	1
22	60H-45978-00	螺旋浆组合	Propeller (3X14-1/4X22-M)	1
22	6CE-45934-20	螺旋桨	Propeller (3X15-1/4X18-T)	1
22	6CE-45970-20	螺旋浆组合	Propeller (3X15-1/4X19-T)	1
23	6CE-45C81-10	螺旋桨减震胶1	Damper Rubber, Propeller 1	1
24	6CE-45B70-20	螺旋桨	Propeller (4X15X21-T)	1
24	6CE-45B72-20	螺旋桨	Propeller (4X15X22-T)	1
24	6CE-45B74-20	螺旋桨	Propeller (4X15X23-T)	1
25	6CE-45C81-10	螺旋桨减震胶1	Damper Rubber, Propeller 1	1
