雅马哈 F300A - F300AETU

共 53 个部位，点击零件编码查看详情，或搜索本页零件。

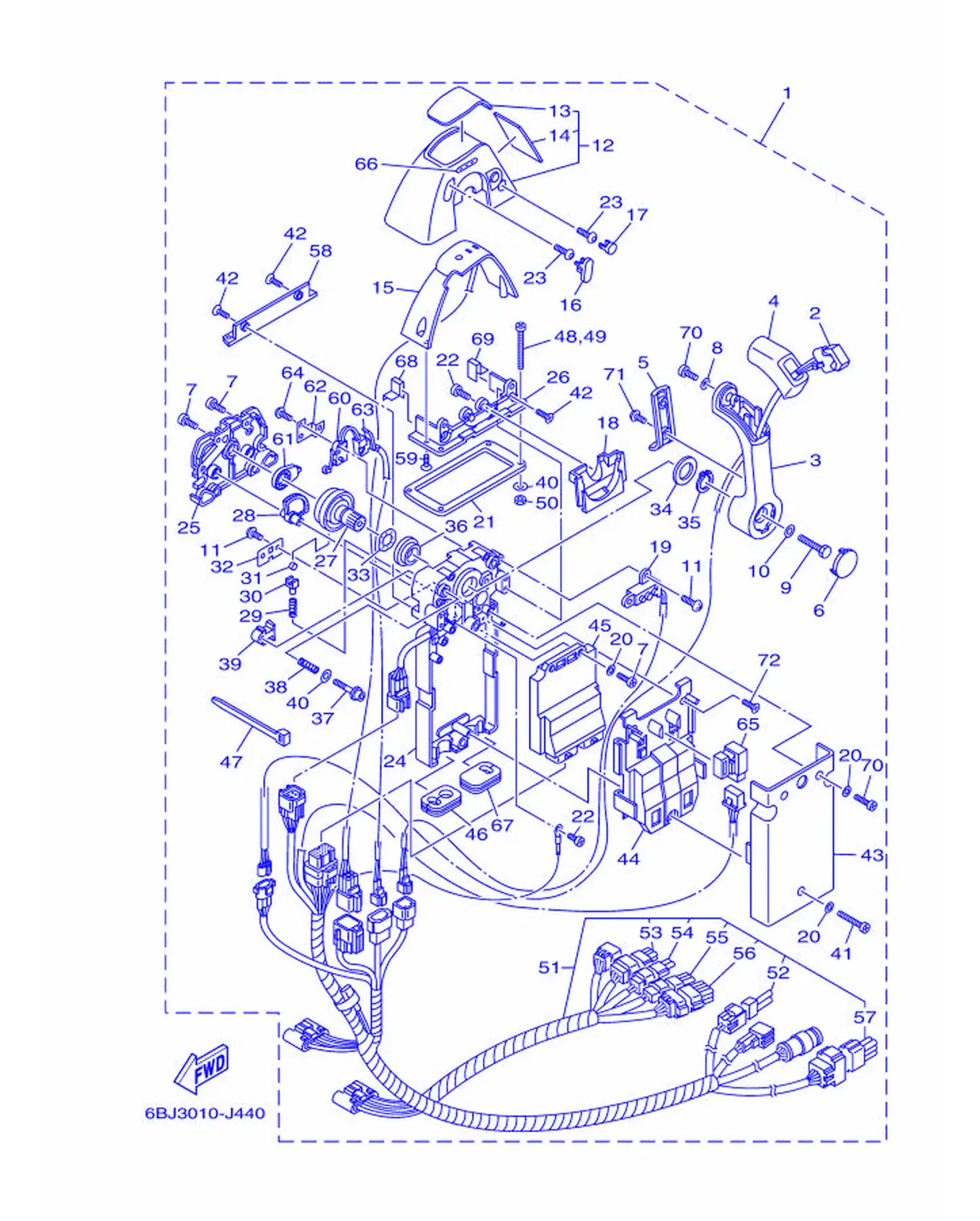

DBWリモートコントロール 1 (シングル)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-48205-00	遥控装置组合	Remote Control Assembly (Si	1
1	6X6-48205-10	遥控装置组合	Remote Control Assembly	1
1	6X6-48205-20	遥控装置组合	Remote Control Assembly	1
2	6X6-82563-00	电动倾斜调整开关组合	Trim・Tilt Switch Assembly	1
3	6X6-48221-00	控制杠杆	Lever, Control	1
4	6X6-48222-00	控制杠杆握柄	Grip,ControlLever	1
5	6X6-48224-00	控制杠杆盖	Cover,ControlLever	1
6	6X6-48224-10	控制杠杆盖	Cover,ControlLever	1
7	98580-05014	大柱头螺钉	Screw, Pan Head	6
8	92990-05300	盘形垫	Washer, Internal Tooth	1
9	6X6-48171-00	螺栓	Bolt	1
10	92990-08600	盘形垫	Washer,Plate	1
11	EL8-48127-00	螺钉1	Screw 1	4
12	6X6-48119-03	盖	Cover	1
13	6X6-48215-00	图样	Graphic	1
14	6X6-48216-00	图样	Graphic	1
15	6X6-84301-00	位灯总成1	Pilot Light Assembly 1	1
16	6X6-48167-00	塞	Plug	1
17	6X6-48167-50	塞	Plug	1
18	6X6-48219-00	导线盖	Cover,Lead	1
19	6X6-8259E-00	开关总成	Switch Assembly	1
20	92990-05200	盘形垫	Washer, Plain	5
21	6X6-48176-00	固定	Grommet	1
22	98580-04010	盘头螺丝	Screw, Pan Head	3
23	92D80-05016	大柱头螺钉	Bolt, Socket Head	2
24	6X6-481A0-01	箱组件	Remote Control Case Assembly	1
25	6X6-48212-00	面板 1	Back Plate 1	1
26	6X6-48144-10	限位板面板2	Plate, Stopper 2	1
27	6X6-48242-01	驱动轴	Shaft, Drive	1
28	6X6-48233-01	齿轮2	Gear 2	1
29	6X6-48238-00	延迟簧	Spring, Detent	1
30	6X6-48237-00	联接器	Adapter	1
31	6X6-48236-00	延迟器卷轴	Roller, Detent	1
32	6X6-48189-00	挡圈	Retainer	1
33	703-48198-00	波形垫	Washer, Wave	1
34	6X6-48193-00	垫圈3	Washer 3	1
35	6X6-48118-00	变速杆卡箍	Clip, Shift Lever	1
36	6X6-48234-00	衬套1	Bushing 1	1
37	6X6-48267-00	螺栓套件	BoltSet	1
38	6X6-48158-00	弹簧1	Spring1	1
39	6X6-48264-00	带阻力油	Friction, Throttle	1
40	704-48287-00	垫	Washer	5
41	6X6-81145-00	螺钉1	Screw 1	1
42	98780-05014	平头螺钉	Screw, Flat Head	4
43	6X6-48213-00	面板	Back Plate 2	1
44	6X6-48228-00	开关支架	Holder,Switch	1
45	6X6-85590-10	控制器组合	Control Unit Assembly	1
45	6X6-85590-00	控制器组合	Control Unit Assembly	1
46	6X6-48175-00	防尘套	Boot	1
46	6X6-48175-00	防尘套	Boot	2
47	703-82591-00	带	Band	3
47	703-82591-00	带	Band	4
48	97780-50145	十字槽盘头自攻螺钉	Screw, Tapping	4
49	98580-05060	平头螺钉	Screw, Pan Head	4
50	95380-05600	螺母	Nut	4
51	6X6-82590-00	电缆总成	Wire Harness Assembly	1
51	6X6-82590-20	电缆总成	Wire Harness Assembly	1
51	6X6-82590-50	电缆总成	Wire Harness Assembly	1
52	6X6-82585-20	盖2	Cap 2 (2P)	1
53	6X6-82582-60	电线束盖	Cap 1 (6P)	1
54	6X6-82582-40	电线束盖	Cap 1 (4P)	1
55	6X6-82582-30	电线束盖	Cap 1 (3P)	1
56	6X6-82582-B0	电线束盖	Cap 1 (12P)	1
57	6X6-8257Y-60	帽	Cap (6P)	1
58	6X6-48144-00	限位板面板2	Plate, Stopper 2	1
59	6X6-48129-00	螺钉3	Screw 3	2
60	6X6-82540-00	空挡开关总成	Neutral Switch Assembly	1
61	6X6-48241-00	驱动臂	Arm, Drive	1
62	6X6-48245-01	锁紧面板	Plate, Lock	1
63	6X6-82545-00	固定	Grommet	1
64	6X6-8252V-00	螺钉	Screw, Special	2
65	704-81950-10	继电器总成	Relay Assembly	1
66	6X6-44191-00	变挡指示器	Indicator, Shift	1
67	6X6-48175-10	防尘套	Boot	1
68	6X6-48176-50	固定	Grommet	1
69	6X6-48176-60	固定	Grommet	1
70	6X6-48127-00	螺钉1	Screw 1	3
71	6X6-48128-00	螺钉2	Screw 2	2
72	6X6-81146-00	螺钉2	Screw 2	2

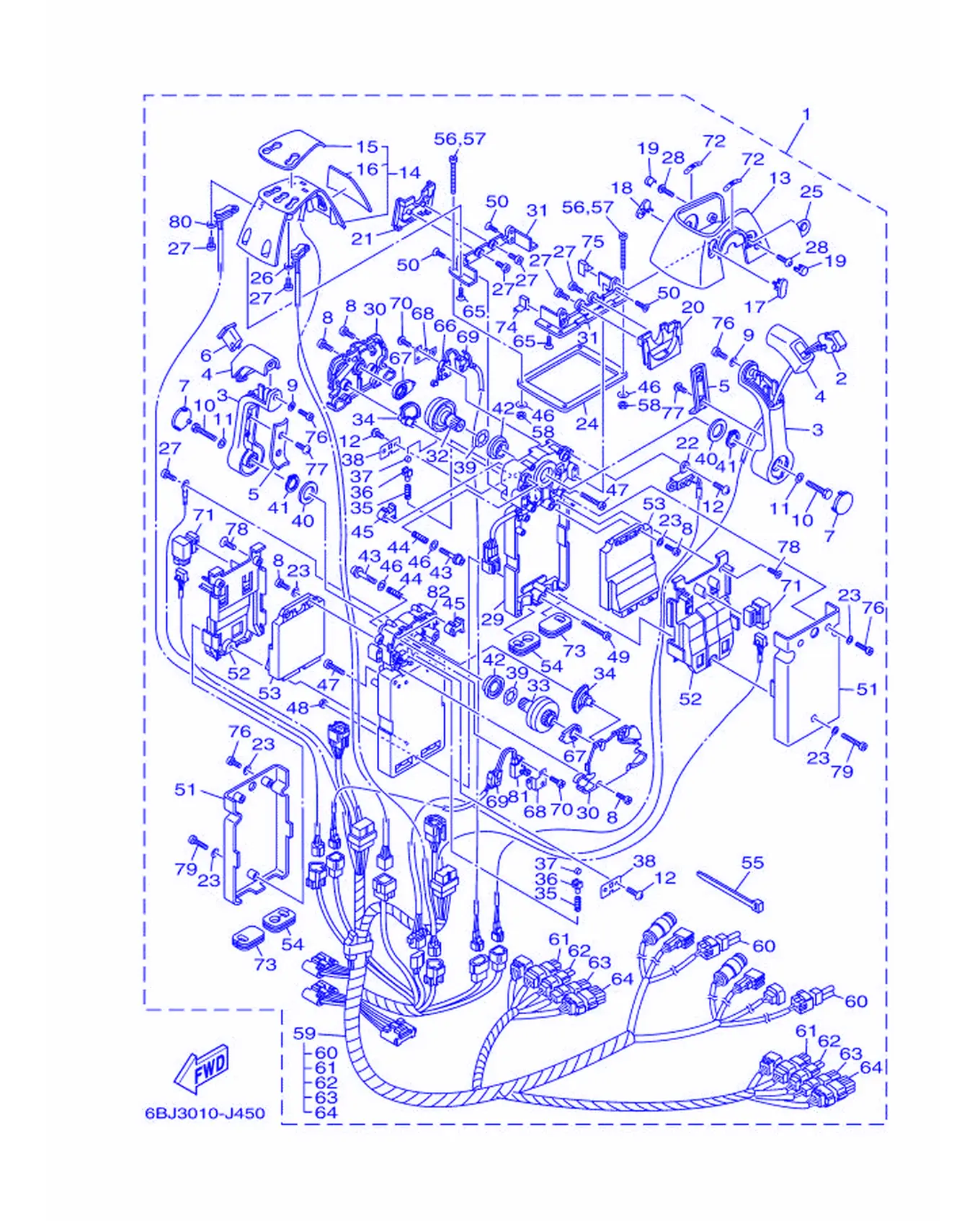

DBWリモートコントロール 2 (ツイン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-48207-00	遥控装置组合	Remote Control Assembly (Tw	1
1	6X6-48207-10	遥控装置组合	Remote Control Assembly	1
1	6X6-48207-20	遥控装置组合	Remote Control Assembly	1
2	6X6-82563-00	电动倾斜调整开关组合	Trim・Tilt Switch Assembly	1
3	6X6-48221-00	控制杠杆	Lever, Control	2
4	6X6-48222-00	控制杠杆握柄	Grip,ControlLever	2
5	6X6-48224-00	控制杠杆盖	Cover,ControlLever	2
6	6X6-48222-10	控制杠杆握柄	Grip,ControlLever	1
7	6X6-48224-10	控制杠杆盖	Cover,ControlLever	2
8	98580-05014	大柱头螺钉	Screw, Pan Head	12
9	92990-05300	盘形垫	Washer, Internal Tooth	2
10	6X6-48171-00	螺栓	Bolt	2
11	92990-08600	盘形垫	Washer,Plate	2
12	EL8-48127-00	螺钉1	Screw 1	6
13	6X6-48119-10	盖	Cover	1
14	6X6-84301-12	位灯总成1	Pilot Light Assembly 1	1
15	6X6-48215-10	图样	Graphic	1
16	6X6-48216-10	图样	Graphic	1
17	6X6-48167-10	塞	Plug	1
18	6X6-48167-20	塞	Plug	1
19	6X6-48167-60	塞	Plug	2
20	6X6-48219-10	导线盖	Cover,Lead	1
21	6X6-48219-20	导线盖	Cover,Lead	1
22	6X6-8259E-00	开关总成	Switch Assembly	1
23	92990-05200	盘形垫	Washer, Plain	10
24	6X6-48176-10	固定	Grommet	1
25	6X6-48225-00	盖	Cover	1
26	6X6-82563-10	电动倾斜调整开关组合	Trim・Tilt Switch Assembly	1
27	98580-04010	盘头螺丝	Screw, Pan Head	9
28	92D80-05016	大柱头螺钉	Bolt, Socket Head	2
29	6X6-481A0-01	箱组件	Remote Control Case Assembly	1
30	6X6-48212-00	面板 1	Back Plate 1	2
31	6X6-48144-10	限位板面板2	Plate, Stopper 2	2
32	6X6-48242-01	驱动轴	Shaft, Drive	1
33	6X6-48242-11	驱动轴	Shaft, Drive	1
34	6X6-48233-01	齿轮2	Gear 2	2
35	6X6-48238-00	延迟簧	Spring, Detent	2
36	6X6-48237-00	联接器	Adapter	2
37	6X6-48236-00	延迟器卷轴	Roller, Detent	2
38	6X6-48189-00	挡圈	Retainer	2
39	703-48198-00	波形垫	Washer, Wave	2
40	6X6-48193-00	垫圈3	Washer 3	2
41	6X6-48118-00	变速杆卡箍	Clip, Shift Lever	2
42	6X6-48234-00	衬套1	Bushing 1	2
43	6X6-48267-00	螺栓套件	BoltSet	2
44	6X6-48158-00	弹簧1	Spring1	2
45	6X6-48264-00	带阻力油	Friction, Throttle	2
46	704-48287-00	垫	Washer	6
47	98580-05025	大柱头螺钉	Screw, Pan Head	2
48	704-48156-00	螺母1	Nut 1	1
49	704-48283-00	螺钉	Screw	1
50	98780-05014	平头螺钉	Screw, Flat Head	4
51	6X6-48213-00	面板	Back Plate 2	2
52	6X6-48228-00	开关支架	Holder,Switch	2
53	6X6-85590-10	控制器组合	Control Unit Assembly	2
53	6X6-85590-00	控制器组合	Control Unit Assembly	2
54	6X6-48175-00	防尘套	Boot	2
54	6X6-48175-00	防尘套	Boot	4
55	703-82591-00	带	Band	6
55	703-82591-00	带	Band	8
56	97780-50145	十字槽盘头自攻螺钉	Screw, Tapping	4
57	98580-05060	平头螺钉	Screw, Pan Head	4
58	95380-05600	螺母	Nut	4
59	6X6-82590-10	电缆总成	Wire Harness Assembly	1
59	6X6-82590-30	电缆总成	Wire Harness Assembly	1
59	6X6-82590-60	电缆总成	Wire Harness Assembly	1
60	6X6-82585-20	盖2	Cap 2 (2P)	2
61	6X6-82582-60	电线束盖	Cap 1 (6P)	2
62	6X6-82582-40	电线束盖	Cap 1 (4P)	2
63	6X6-82582-30	电线束盖	Cap 1 (3P)	2
64	6X6-82582-B0	电线束盖	Cap 1 (12P)	2
65	6X6-48129-00	螺钉3	Screw 3	4
66	6X6-82540-00	空挡开关总成	Neutral Switch Assembly	1
67	6X6-48241-00	驱动臂	Arm, Drive	2
68	6X6-48245-01	锁紧面板	Plate, Lock	2
69	6X6-82545-00	固定	Grommet	2
70	6X6-8252V-00	螺钉	Screw, Special	4
71	704-81950-10	继电器总成	Relay Assembly	2
72	6X6-44191-00	变挡指示器	Indicator, Shift	2
73	6X6-48175-10	防尘套	Boot	2
74	6X6-48176-50	固定	Grommet	1
75	6X6-48176-60	固定	Grommet	1
76	6X6-48127-00	螺钉1	Screw 1	6
77	6X6-48128-00	螺钉2	Screw 2	4
78	6X6-81146-00	螺钉2	Screw 2	4
79	6X6-81145-00	螺钉1	Screw 1	2
80	6X6-82563-20	电动倾斜调整开关组合	Trim・Tilt Switch Assembly	1
81	6X6-82540-10	空挡开关总成	Neutral Switch Assembly	1
82	6X6-481A0-21	箱组件	Remote Control Case Assembly	1

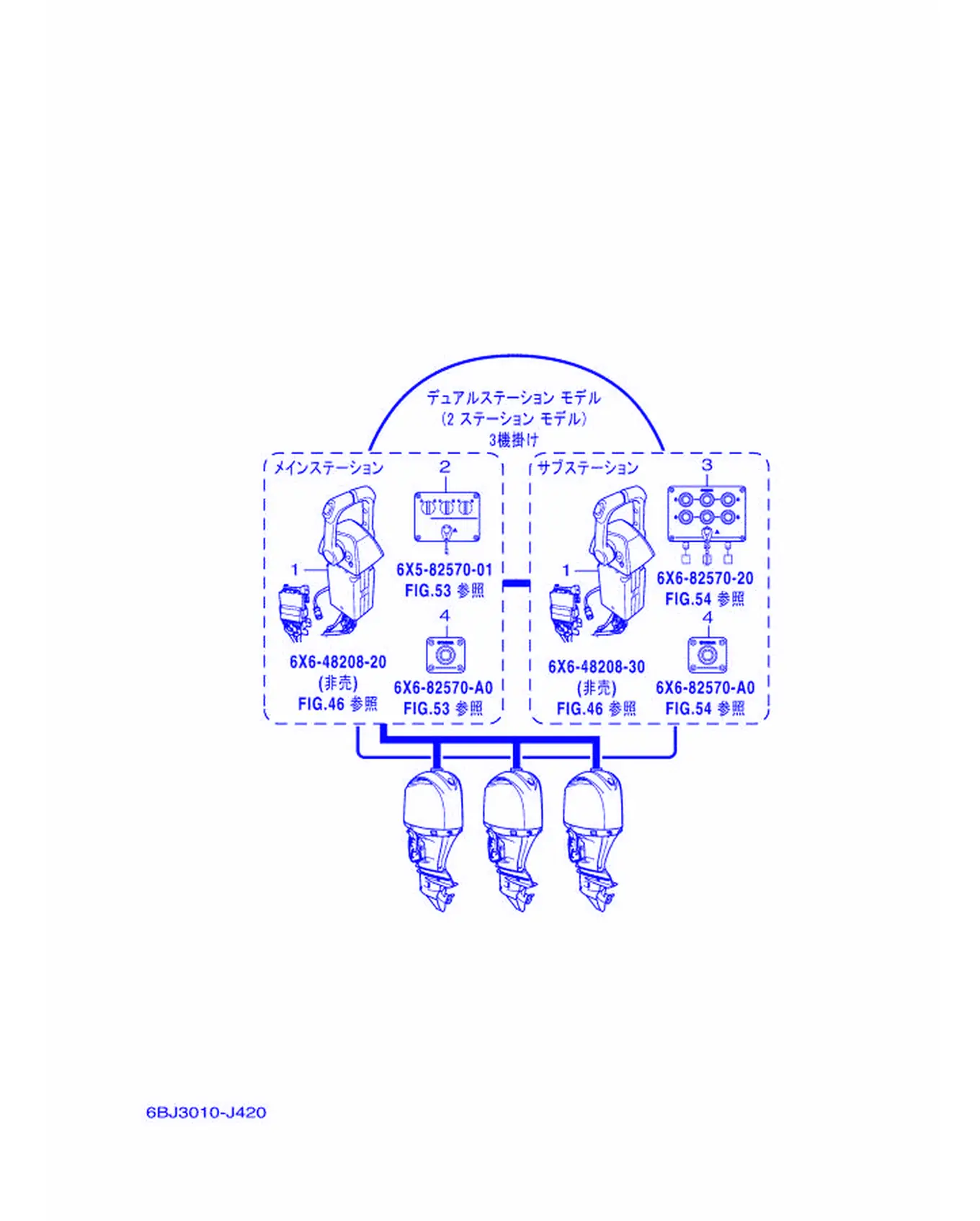

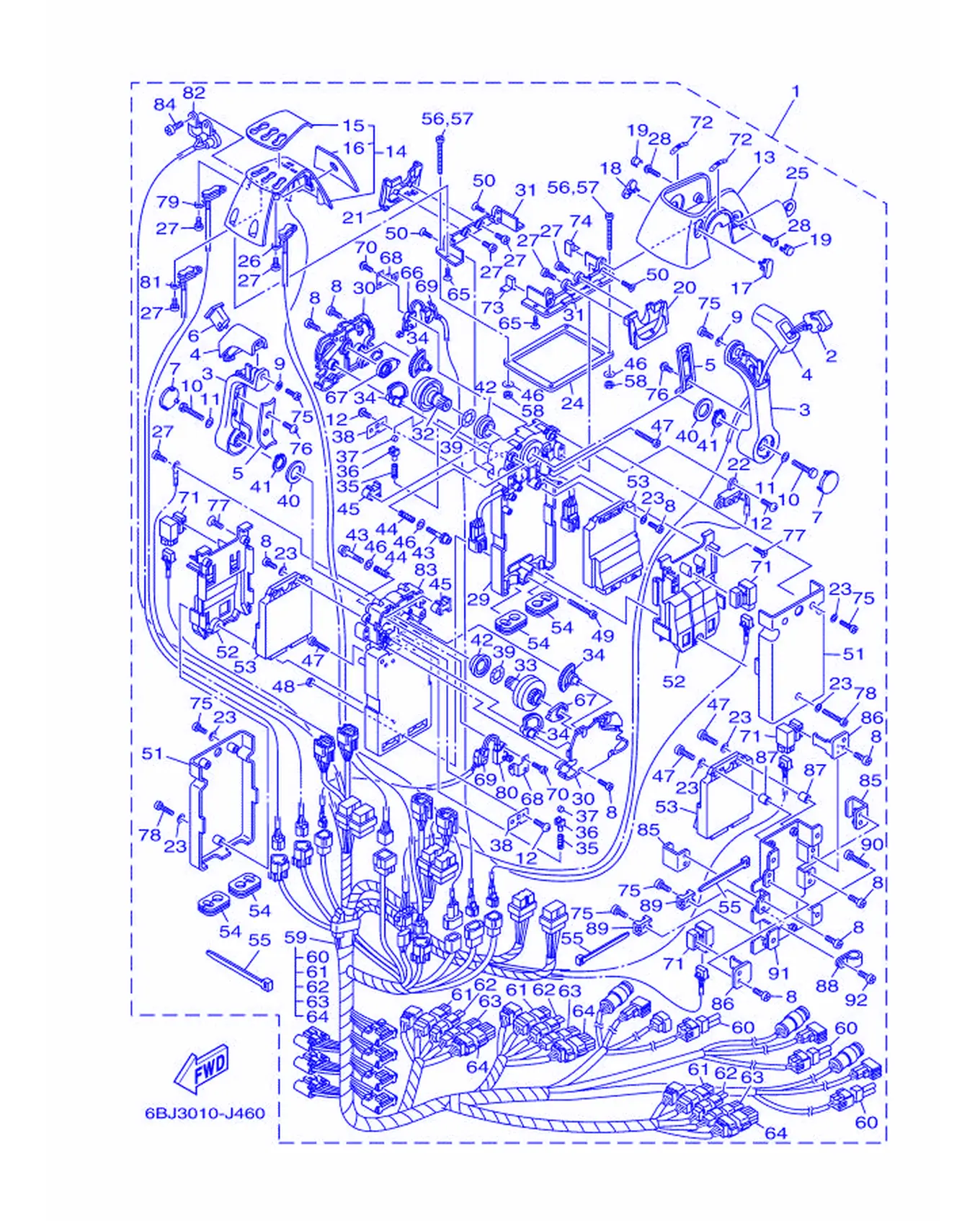

DBWリモートコントロール 3 (トリプル)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-48208-20	遥控装置组合	Remote Control Assembly	1
1	6X6-48208-30	遥控装置组合	Remote Control Assembly	1
2	6X6-82563-00	电动倾斜调整开关组合	Trim・Tilt Switch Assembly	1
3	6X6-48221-00	控制杠杆	Lever, Control	2
4	6X6-48222-00	控制杠杆握柄	Grip,ControlLever	2
5	6X6-48224-00	控制杠杆盖	Cover,ControlLever	2
6	6X6-48222-10	控制杠杆握柄	Grip,ControlLever	1
7	6X6-48224-10	控制杠杆盖	Cover,ControlLever	2
8	98580-05014	大柱头螺钉	Screw, Pan Head	20
9	92990-05300	盘形垫	Washer, Internal Tooth	2
10	6X6-48171-00	螺栓	Bolt	2
11	92990-08600	盘形垫	Washer,Plate	2
12	EL8-48127-00	螺钉1	Screw 1	6
13	6X6-48119-10	盖	Cover	1
14	6X6-84301-22	位灯总成1	Pilot Light Assembly 1	1
15	6X6-48215-20	图样	Graphic	1
16	6X6-48216-20	图样	Graphic	1
17	6X6-48167-10	塞	Plug	1
18	6X6-48167-20	塞	Plug	1
19	6X6-48167-60	塞	Plug	2
20	6X6-48219-10	导线盖	Cover,Lead	1
21	6X6-48219-20	导线盖	Cover,Lead	1
22	6X6-8259E-00	开关总成	Switch Assembly	1
23	92990-05200	盘形垫	Washer, Plain	12
24	6X6-48176-10	固定	Grommet	1
25	6X6-48225-00	盖	Cover	1
26	6X6-82563-10	电动倾斜调整开关组合	Trim・Tilt Switch Assembly	1
27	98580-04010	盘头螺丝	Screw, Pan Head	11
28	92D80-05016	大柱头螺钉	Bolt, Socket Head	2
29	6X6-481A0-11	箱组件	Remote Control Case Assembly	1
30	6X6-48212-00	面板 1	Back Plate 1	2
31	6X6-48144-10	限位板面板2	Plate, Stopper 2	2
32	6X6-48242-01	驱动轴	Shaft, Drive	1
33	6X6-48242-11	驱动轴	Shaft, Drive	1
34	6X6-48233-01	齿轮2	Gear 2	4
35	6X6-48238-00	延迟簧	Spring, Detent	2
36	6X6-48237-00	联接器	Adapter	2
37	6X6-48236-00	延迟器卷轴	Roller, Detent	2
38	6X6-48189-00	挡圈	Retainer	2
39	703-48198-00	波形垫	Washer, Wave	2
40	6X6-48193-00	垫圈3	Washer 3	2
41	6X6-48118-00	变速杆卡箍	Clip, Shift Lever	2
42	6X6-48234-00	衬套1	Bushing 1	2
43	6X6-48267-00	螺栓套件	BoltSet	2
44	6X6-48158-00	弹簧1	Spring1	2
45	6X6-48264-00	带阻力油	Friction, Throttle	2
46	704-48287-00	垫	Washer	6
47	98580-05025	大柱头螺钉	Screw, Pan Head	4
48	704-48156-00	螺母1	Nut 1	1
49	704-48283-00	螺钉	Screw	1
50	98780-05014	平头螺钉	Screw, Flat Head	4
51	6X6-48213-00	面板	Back Plate 2	2
52	6X6-48228-00	开关支架	Holder,Switch	2
53	6X6-85590-00	控制器组合	Control Unit Assembly	3
54	6X6-48175-00	防尘套	Boot	4
55	703-82591-00	带	Band	10
56	97780-50145	十字槽盘头自攻螺钉	Screw, Tapping	4
57	98580-05060	平头螺钉	Screw, Pan Head	4
58	95380-05600	螺母	Nut	4
59	6X6-82590-80	电缆总成	Wire Harness Assembly	1
60	6X6-82585-20	盖2	Cap 2 (2P)	3
61	6X6-82582-60	电线束盖	Cap 1 (6P)	3
62	6X6-82582-40	电线束盖	Cap 1 (4P)	3
63	6X6-82582-30	电线束盖	Cap 1 (3P)	3
64	6X6-82582-B0	电线束盖	Cap 1 (12P)	3
65	6X6-48129-00	螺钉3	Screw 3	4
66	6X6-82540-00	空挡开关总成	Neutral Switch Assembly	1
67	6X6-48241-00	驱动臂	Arm, Drive	2
68	6X6-48245-01	锁紧面板	Plate, Lock	2
69	6X6-82545-00	固定	Grommet	2
70	6X6-8252V-00	螺钉	Screw, Special	4
71	704-81950-10	继电器总成	Relay Assembly	4
72	6X6-44191-00	变挡指示器	Indicator, Shift	2
73	6X6-48176-50	固定	Grommet	1
74	6X6-48176-60	固定	Grommet	1
75	6X6-48127-00	螺钉1	Screw 1	8
76	6X6-48128-00	螺钉2	Screw 2	4
77	6X6-81146-00	螺钉2	Screw 2	4
78	6X6-81145-00	螺钉1	Screw 1	2
79	6X6-82563-20	电动倾斜调整开关组合	Trim・Tilt Switch Assembly	1
80	6X6-82540-10	空挡开关总成	Neutral Switch Assembly	1
81	6X6-82563-30	电动倾斜调整开关组合	Trim・Tilt Switch Assembly	1
82	6X6-8259F-00	开关组合	Switch Assembly	1
83	6X6-481A0-31	箱组件	Remote Control Case Assembly	1
84	98780-05010	十字槽沉头螺钉	Screw, Flat Head	2
85	6X6-85557-00	支承	Holder	2
86	6X6-82591-00	带	Band	2
87	6X6-8252S-00	隔板, 1	Spacer, 1	2
88	6X6-82584-00	开关盖	Clamp	1
89	6X6-82581-00	线夹支承	Stay, Cord Clamp	2
90	6X0-48128-00	螺钉2	Screw 2	4
91	6X6-48211-10	壳体1	Housing 1	1
92	6X7-48127-00	螺钉1	Screw 1	1

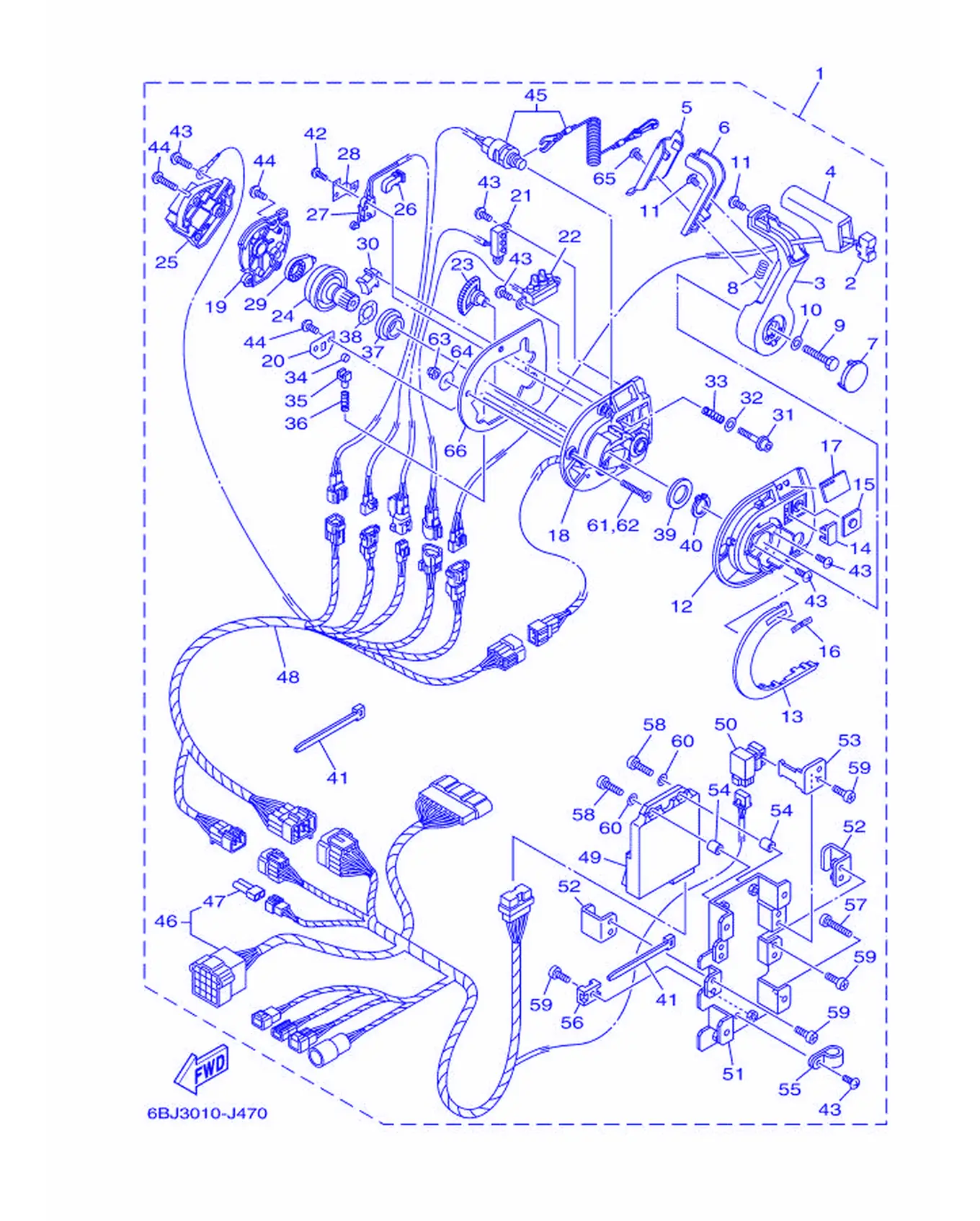

DBWリモートコントロール 4 (6X7)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X7-48206-00	遥控装置衬套	Remote Control Assembly	1
2	6X7-82563-00	电动倾斜调整开关组合	Trim・Tilt Switch Assembly	1
3	6X7-48221-00	控制杠杆	Lever, Control	1
4	6X7-48222-00	控制杠杆握柄	Grip,ControlLever	1
5	6X7-48224-00	控制杠杆盖	Cover,ControlLever	1
6	6X7-48223-00	空挡锁定装置	Lock, Neutral	1
7	6X7-48224-10	控制杠杆盖	Cover,ControlLever	1
8	703-48227-00	空挡锁定弹簧	Spring, Neutral Lock	1
9	6X6-48171-00	螺栓	Bolt	1
10	92990-08600	盘形垫	Washer,Plate	1
11	6X6-48128-00	螺钉2	Screw 2	2
12	6X7-48119-00	盖	Cover	1
13	6X7-48167-10	塞	Plug	1
14	6X7-48167-00	塞	Plug	1
15	6X7-48225-00	盖	Cover	1
16	6X7-44191-00	变挡指示器	Indicator, Shift	1
17	6X7-48215-00	图样	Graphic	1
18	6X7-481A0-01	箱组件	Remote Control Case Assembly	1
19	6X7-48212-00	板1	Back Plate 1	1
20	6X7-48189-00	挡圈	Retainer	1
21	6X7-8259E-00	开关总成	Switch Assembly	1
22	6X7-84301-00	位灯总成1	Pilot Light Assembly 1	1
23	6X7-48233-00	齿轮2	Gear 2	1
24	6X7-48242-00	驱动轴	Shaft, Drive	1
25	6X7-48228-00	开关支架	Holder,Switch	1
26	6X7-82545-00	固定	Grommet	1
27	6X6-82540-00	空挡开关总成	Neutral Switch Assembly	1
28	6X6-48245-01	锁紧面板	Plate, Lock	1
29	6X6-48241-00	驱动臂	Arm, Drive	1
30	6X6-48264-00	带阻力油	Friction, Throttle	1
31	6X6-48267-00	螺栓套件	BoltSet	1
32	704-48287-00	垫	Washer	1
33	6X6-48158-00	弹簧1	Spring1	1
34	6X6-48236-00	延迟器卷轴	Roller, Detent	1
35	6X6-48237-00	联接器	Adapter	1
36	6X6-48238-00	延迟簧	Spring, Detent	1
37	6X6-48234-00	衬套1	Bushing 1	1
38	703-48198-00	波形垫	Washer, Wave	1
39	6X6-48193-00	垫圈3	Washer 3	1
40	6X6-48118-00	变速杆卡箍	Clip, Shift Lever	1
41	703-82591-00	带	Band	3
42	6X6-8252V-00	螺钉	Screw, Special	2
43	6X7-48127-00	螺钉1	Screw 1	8
44	EL8-48127-00	螺钉1	Screw 1	8
45	6X7-82575-00	发动机止动开关组合	Engine Stop Switch Assembly	1
46	6X7-82590-10	电缆总成	Wire Harness Assembly	1
47	6X6-82585-20	盖2	Cap 2 (2P)	1
48	6X7-82590-00	电缆总成	Wire Harness Assembly	1
49	6X6-85590-10	控制器组合	Control Unit Assembly	1
50	704-81950-10	继电器总成	Relay Assembly	1
51	6X6-48211-10	壳体1	Housing 1	1
52	6X6-85557-00	支承	Holder	2
53	6X6-82591-00	带	Band	1
54	6X6-8252S-00	隔板, 1	Spacer, 1	2
55	6X6-82584-00	开关盖	Clamp	1
56	6X6-82581-00	线夹支承	Stay, Cord Clamp	1
57	6X0-48128-00	螺钉2	Screw 2	4
58	98580-05025	大柱头螺钉	Screw, Pan Head	2
59	98580-05014	大柱头螺钉	Screw, Pan Head	7
60	92990-05200	盘形垫	Washer, Plain	2
61	98780-06035	十字槽沉头螺钉	Screw, Flat Head	3
62	97780-06230	十字槽盘头自攻螺钉	Screw, Tapping	3
63	6X0-48156-00	螺母1	Nut 1	3
64	701-48287-00	垫圈	Washer	3
65	6X7-48128-00	螺钉2	Screw 2	1
66	6X7-48176-10	固定	Grommet	1

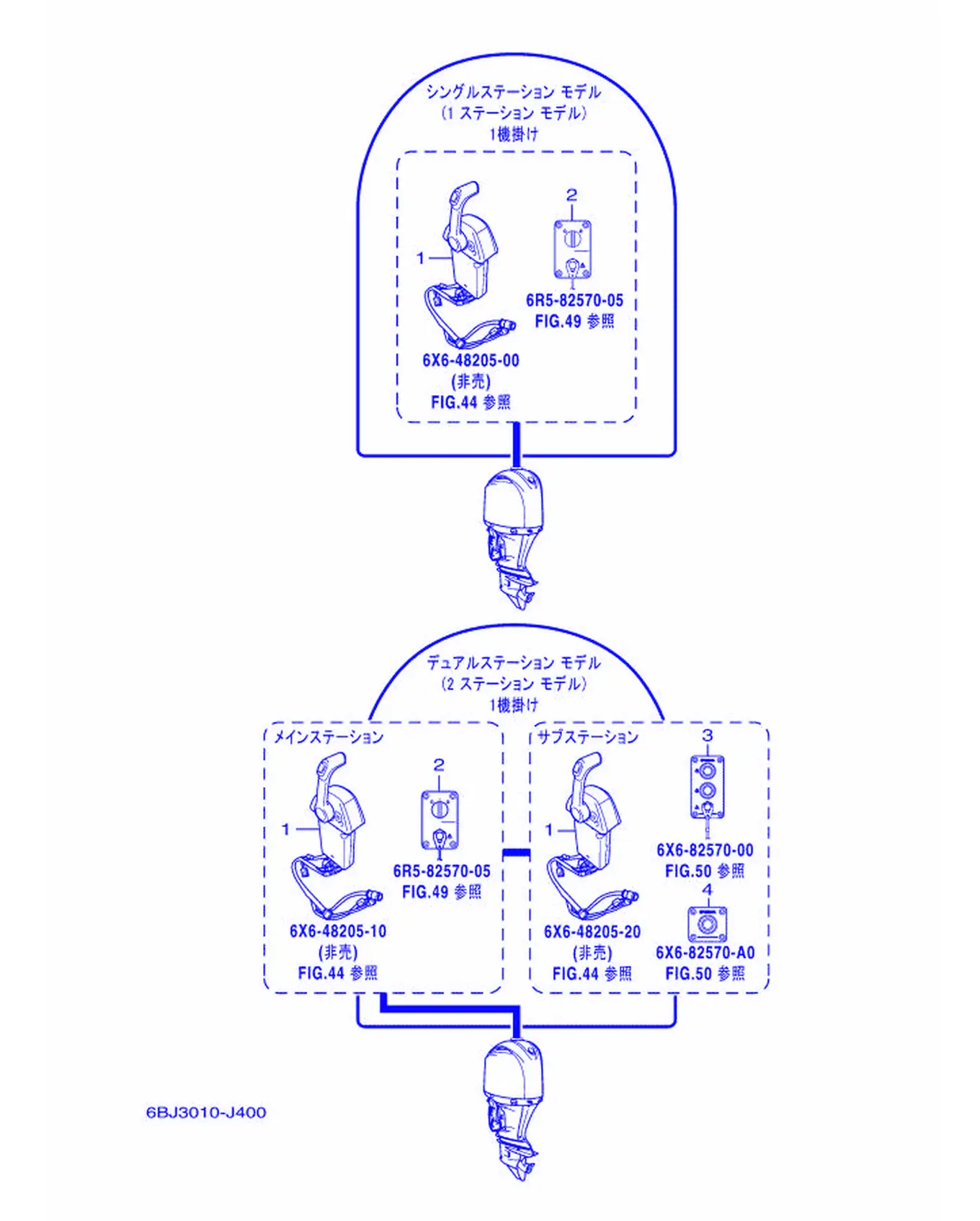

DBWリモートコントロールレイアウト 1 (シングル)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-48205-00	遥控装置组合	Remote Control Assembly (Si	1
1	6X6-48205-10	遥控装置组合	Remote Control Assembly	1
1	6X6-48205-20	遥控装置组合	Remote Control Assembly	1
2	6R5-82570-05	开关仪表板组合	Panel Switch Assembly	1
3	6X6-82570-00	开关仪表板组合	Panel Switch Assembly (Single	1
4	6X6-82570-A0	开关仪表板组合	Panel Switch Assembly	2

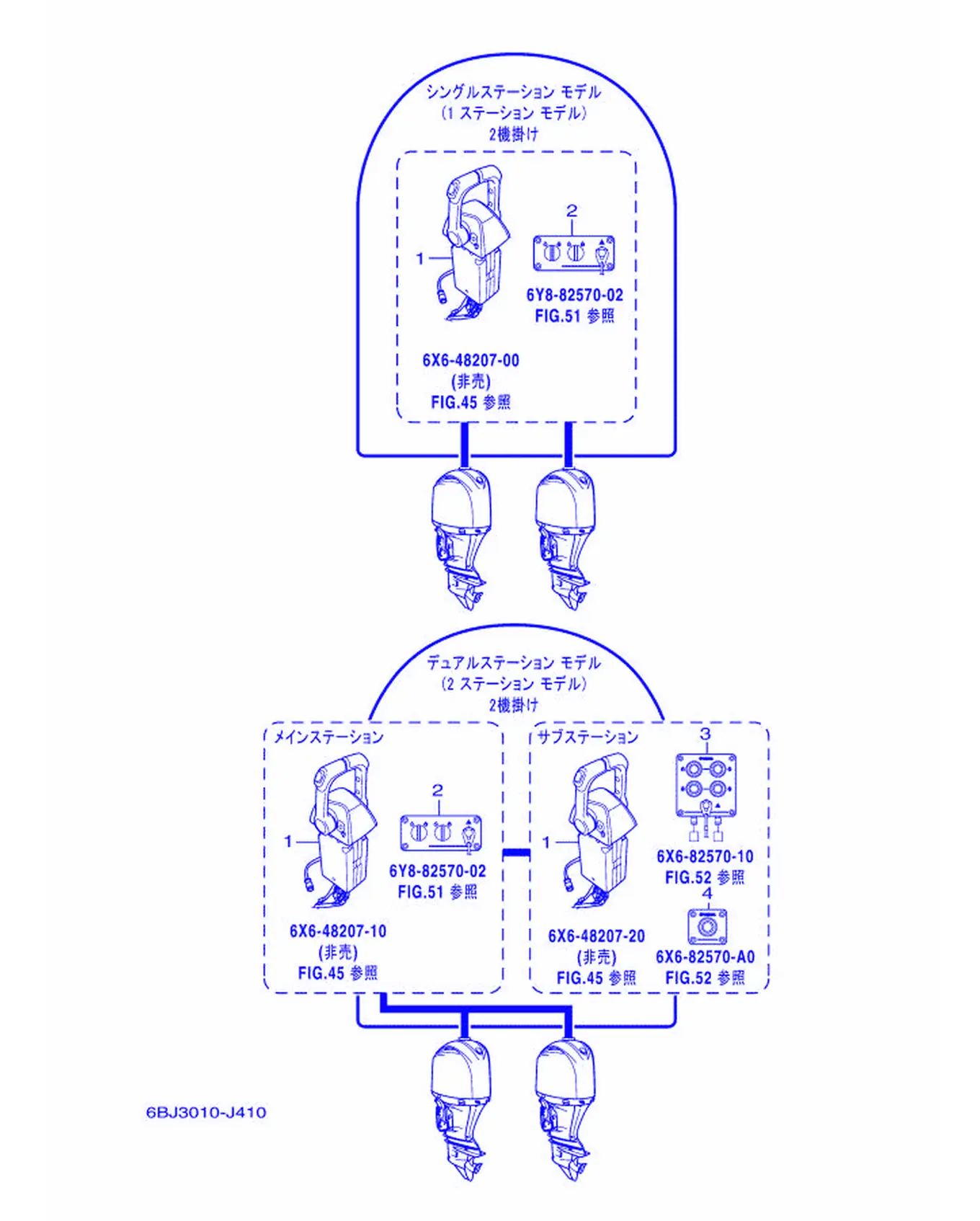

DBWリモートコントロールレイアウト 2 (ツイン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-48207-00	遥控装置组合	Remote Control Assembly (Tw	1
1	6X6-48207-10	遥控装置组合	Remote Control Assembly	1
1	6X6-48207-20	遥控装置组合	Remote Control Assembly	1
2	6Y8-82570-02	开关仪表板组合	Panel Switch Assembly, Twin	1
3	6X6-82570-10	开关仪表板组合	Panel Switch Assembly (Twin)	1
4	6X6-82570-A0	开关仪表板组合	Panel Switch Assembly	2

DBWリモートコントロールレイアウト 3 (トリプル)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-48208-20	遥控装置组合	Remote Control Assembly	1
1	6X6-48208-30	遥控装置组合	Remote Control Assembly	1
2	6X5-82570-01	开关仪表板组合	Panel Switch Assembly	1
3	6X6-82570-20	开关仪表板组合	Panel Switch Assembly	1
4	6X6-82570-A0	开关仪表板组合	Panel Switch Assembly	2

DBWリモートコントロールレイアウト 4 (6X7)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X7-48206-00	遥控装置衬套	Remote Control Assembly	1
2	64D-82570-20	开关仪表板组合	Panel Switch Assembly	1

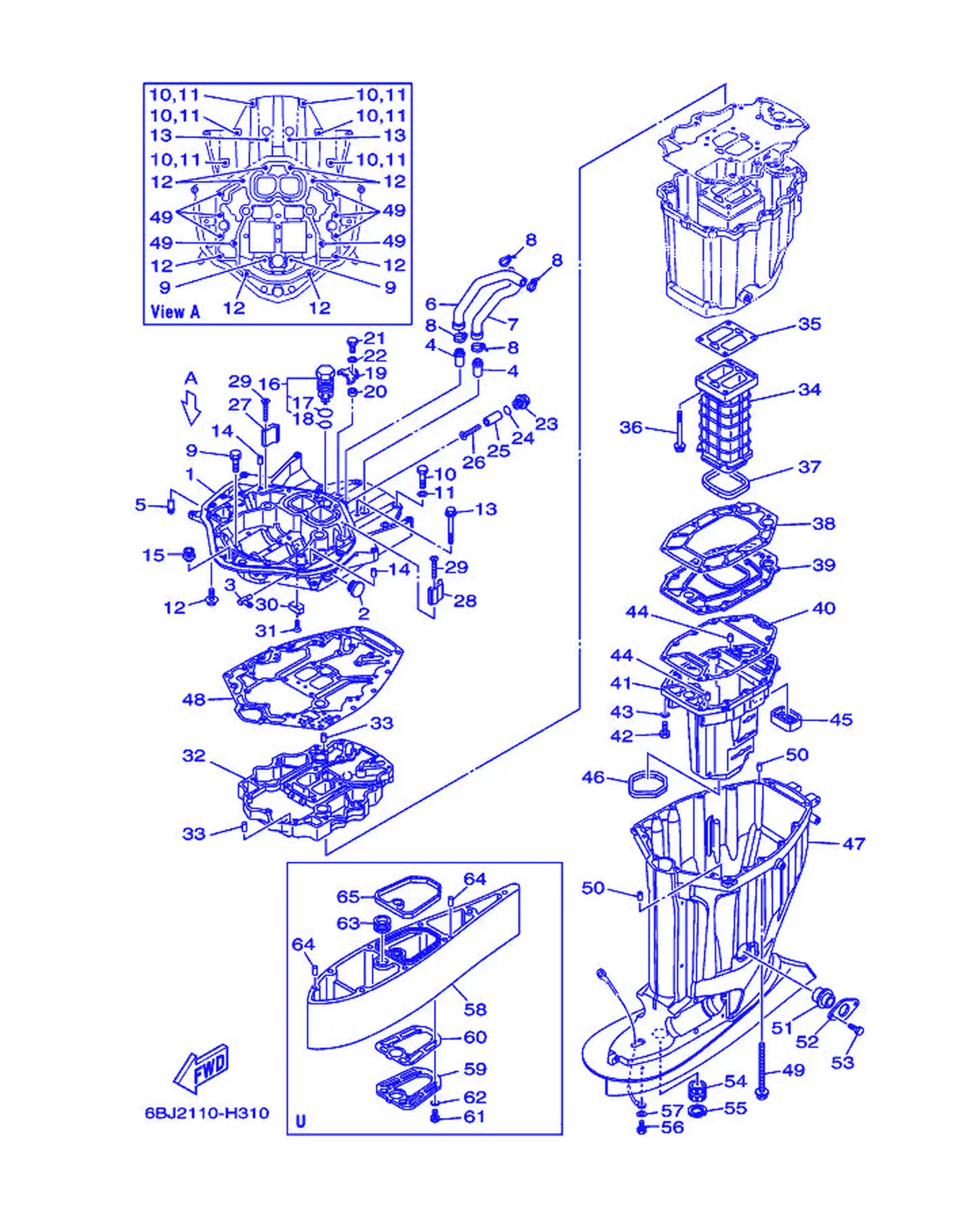

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-41137-10-CA	排气导管	Guide,Exhaust	1
2	90340-26001	线夹	Plug, Straight Screw	2
3	6H1-11372-00	软管接头	Nipple,Hose	1
4	6AW-1475G-00	管4	Pipe 4	2
5	6AW-1475J-00	管6	Pipe	2
6	6AW-1244H-00	软管5	Hose 5	1
7	6AW-1243F-00	软管3	Hose, 3	1
8	90465-11M59	固定	Clamp	4
9	90119-08M79	卡环	Bolt, With Washer	2
10	97075-10045	螺栓	Bolt	6
11	92995-10600	盘形垫	Washer	6
12	90119-10040	带垫圈六角头螺栓	Bolt, with Washer	8
13	97575-10585	带垫圈螺栓	Bolt, with Washer	2
14	93608-16M16	定位销	Pin, Dowel	2
15	6AW-42724-00	固定	Grommet	1
16	6AW-11371-10	罩	Pressure Control Valve Assembly	1
17	93210-347A1	O型圈	O-ring	1
18	93210-28543	O型圈	O-ring	1
19	69J-12233-00	导向限位板面板1	Plate, Guide Stopper 1	1
20	90387-06037	衬套	Color	1
21	97095-06020	螺栓	Bolt	1
22	92995-06600	盘形垫	Washer	1
23	6AW-11197-00	绝缘插头	Blind Plug	1
24	93210-19758	O型圈	O-ring	1
25	6AW-1132S-00	阳极 7	Anode 7	1
26	98780-05550	十字槽沉头螺钉	Screw, Flat Head	1
27	6AW-1132T-00	阳极 8	Anode 8	1
28	6AW-1132U-00	阳极 9	Anode 9	1
29	98780-05550	十字槽沉头螺钉	Screw, Flat Head	2
30	63P-11325-11	阳极	Anode	1
31	90151-06M02	卡环	Screw, Countersunk	1
32	6AW-41131-00-CA	排气岐管1	Manifold,Exhaust 1	1
33	93608-16M16	定位销	Pin, Dowel	2
34	6AW-41132-00-9S	排气岐管	Manifold,Exhaust	1
35	6AW-41134-01	排气岐管衬垫	Gasket, Exhaust Manifold	1
36	90119-08117	带垫圈六角头螺栓	Bolt, with Washer	4
37	6AW-41138-00	排气管密封圈1	Seal, Exhaust 1	1
38	6AW-41135-00	排气岐管衬垫	Gasket, Exhaust Manifold	1
39	6AW-45181-00-9S	面板	Plate	1
40	6AW-41136-00	排气岐管衬垫4	Gasket, Exhaust Manifold	1
41	6AW-14711-00-9S	消声器1	Muffler 1	1
42	97075-08035	螺栓	Bolt	12
43	92995-08600	盘形垫	Washer	12
44	93606-19M23	定位销	Pin, Dowel	2
45	6AW-45127-00	密封	Seal	1
46	69J-45123-00	消音器衬垫	Gasket,Muffler	1
47	6AW-45111-00-8D	水上装置壳	Casing,Upper	1
48	6AW-45113-00	水上装置壳体衬垫	Gasket, Upper Casing	1
49	90119-10007	带垫螺栓	Bolt, With Washer	8
50	93608-16M16	定位销	Pin, Dowel	2
51	69J-15316-00	发动机架减震器1	Damper 1	1
52	69J-45152-10	水上装置壳体盖2	Cover,UpperCasing 2	1
53	90101-06055	六角螺栓	Bolt, Hexagon	2
54	6AW-45318-00	驱动轴衬套	Bushing, Drive Shaft	1
55	93420-38091	弹性挡圈	Circlip	1
56	97095-06010	螺栓	Bolt	1
57	92995-06600	盘形垫	Washer	1
58	6AW-45211-00-8D	延伸部分	Extension	1
59	6AW-45213-00-9S	延伸盖	Cover, Extension	1
60	6AW-4581L-00	板衬垫	Gasket, Plate	1
61	97075-06020	螺栓	Bolt	4
62	92995-06600	盘形垫	Washer	4
63	6AW-44366-00	水封减震器	Damper, Water Seal	1
64	93608-12M05	定位销	Pin, Dowel	2
65	6AW-45159-00	减震器	SealRubber	1

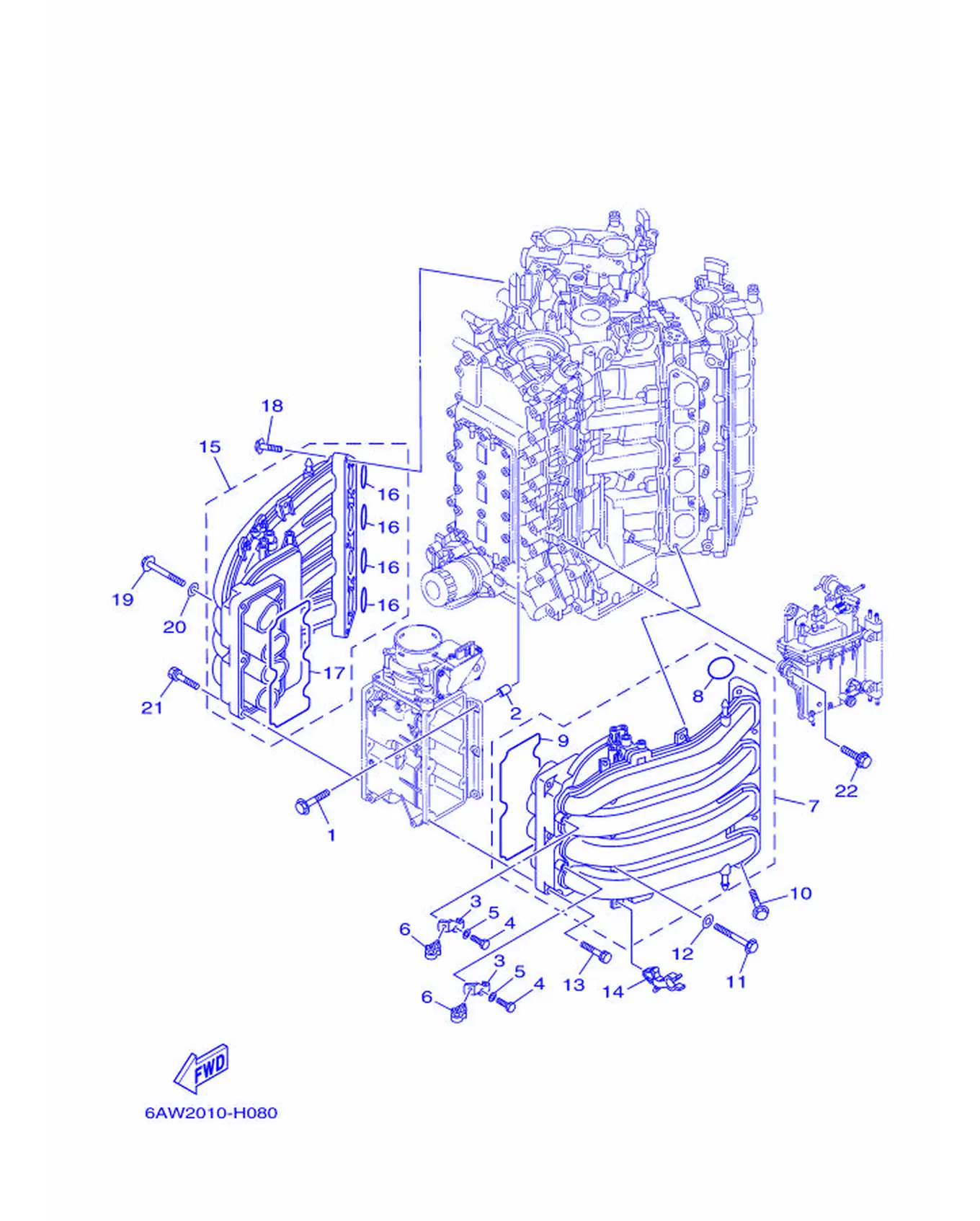

インテーク 1

REF	雅马哈编码	中文名称	英文名称	用量
1	95875-08035	螺栓	Bolt, Flange	6
2	99530-10114	定位销	Pin, Dowel	2
3	6AW-13782-00	支承	Stay	2
4	97095-06012	螺栓	Bolt	2
5	92995-06600	盘形垫	Washer	2
6	90464-09023	线夹	Clamp	2
7	6AW-13641-00	岐管1	Manifold 1	1
8	6AW-13645-00	岐管衬垫1	Gasket, Manifold 1	4
9	6AW-13646-00	岐管衬垫2	Gasket, Manifold 2	1
10	97575-08540	带垫圈螺	Bolt, With Washer	5
11	90105-06149	六角法兰面螺栓	Bolt, Flange	3
12	92995-06200	盘形垫	Washer	3
13	90119-06MA6	带垫螺栓	Bolt, With Washer	3
14	90464-17006	线夹	Clamp	2
15	6AW-13641-00	岐管1	Manifold 1	1
16	6AW-13645-00	岐管衬垫1	Gasket, Manifold 1	4
17	6AW-13646-00	岐管衬垫2	Gasket, Manifold 2	1
18	97575-08540	带垫圈螺	Bolt, With Washer	5
19	90105-06149	六角法兰面螺栓	Bolt, Flange	3
20	92995-06200	盘形垫	Washer	3
21	90119-06MA6	带垫螺栓	Bolt, With Washer	3
22	90119-06M24	带垫螺栓	Bolt, With Washer	4

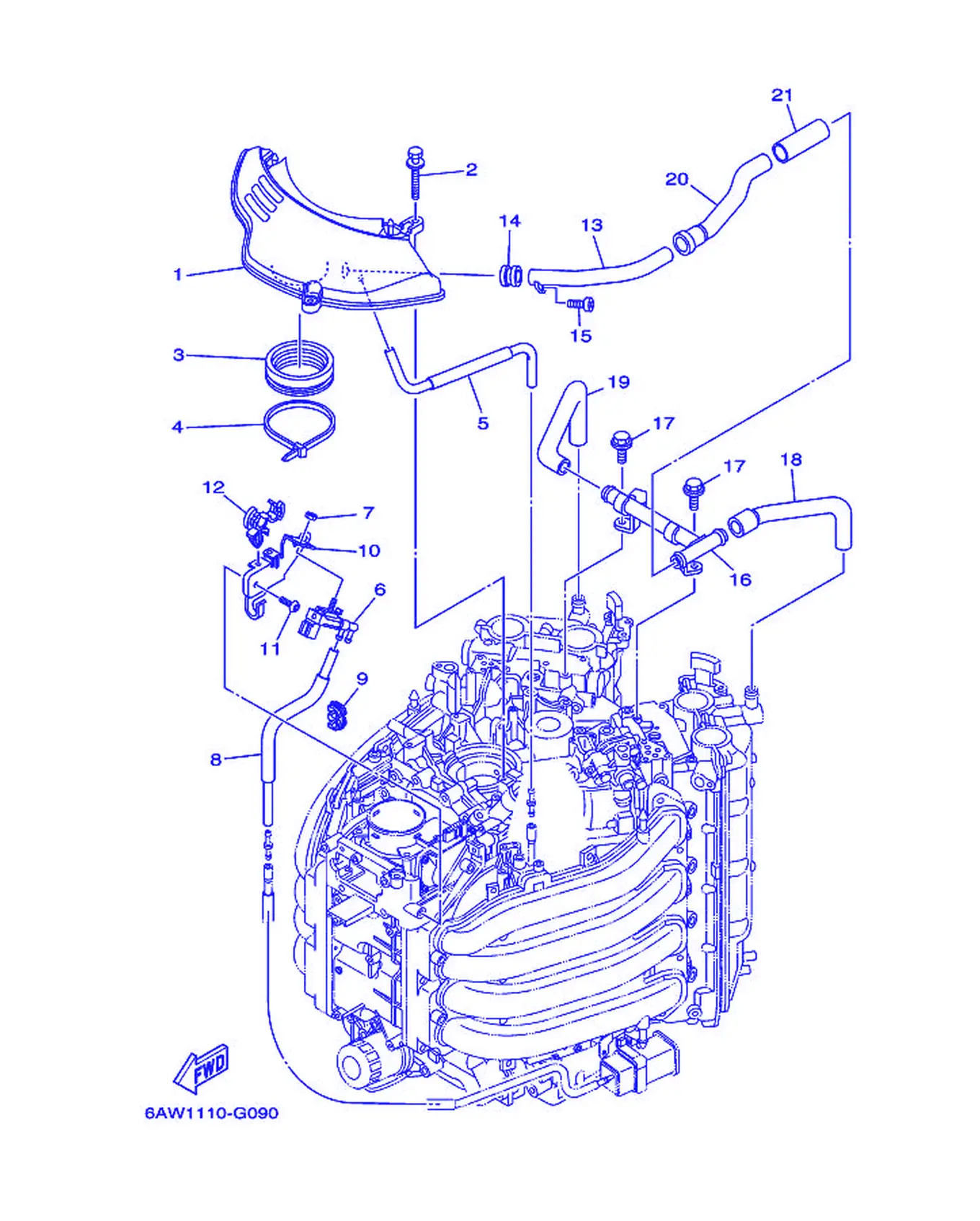

インテーク 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-14440-00	进气消声器组合	SilencerAssembly,Intake	1
2	90119-06M35	带垫圈螺栓	Bolt, with Washer	3
3	6AW-1441J-00	消声器管	Pipe, Silencer	1
4	90464-99004	固定夹	Clamp	1
5	6AW-14419-00	管	Pipe	1
6	6C5-86120-00	电磁阀组合	SolenoidValveAssembly	1
7	95380-06600	有槽螺母	Nut, Hexagon	1
8	6AW-24312-00	燃油管2	Pipe 2	1
9	90464-12224	线夹	Clamp	1
10	6AW-8611A-00	支架	Holder, Solenoid	1
11	90111-06034	内六角薄型螺栓	Bolt	2
12	90464-18246	固定	Clamp	1
13	6AW-15373-00	通气管	Pipe, Breather	1
14	6AW-14445-00	减震套	Grommet	1
15	97780-60620	自攻螺钉	Screw, Tapping	1
16	6AW-15393-00	通气管2	Pipe, Breather 2	1
17	97575-06514	带垫圈螺	Bolt, With Washer	2
18	6AW-1531A-00	通气软管1	Hose, Breather 1	1
19	6AW-1531A-10	通气软管1	Hose, Breather 1	1
20	6AW-1532A-00	通气软管 2	Hose, Breather 2	1
21	90446-32002	软管	Hose	1

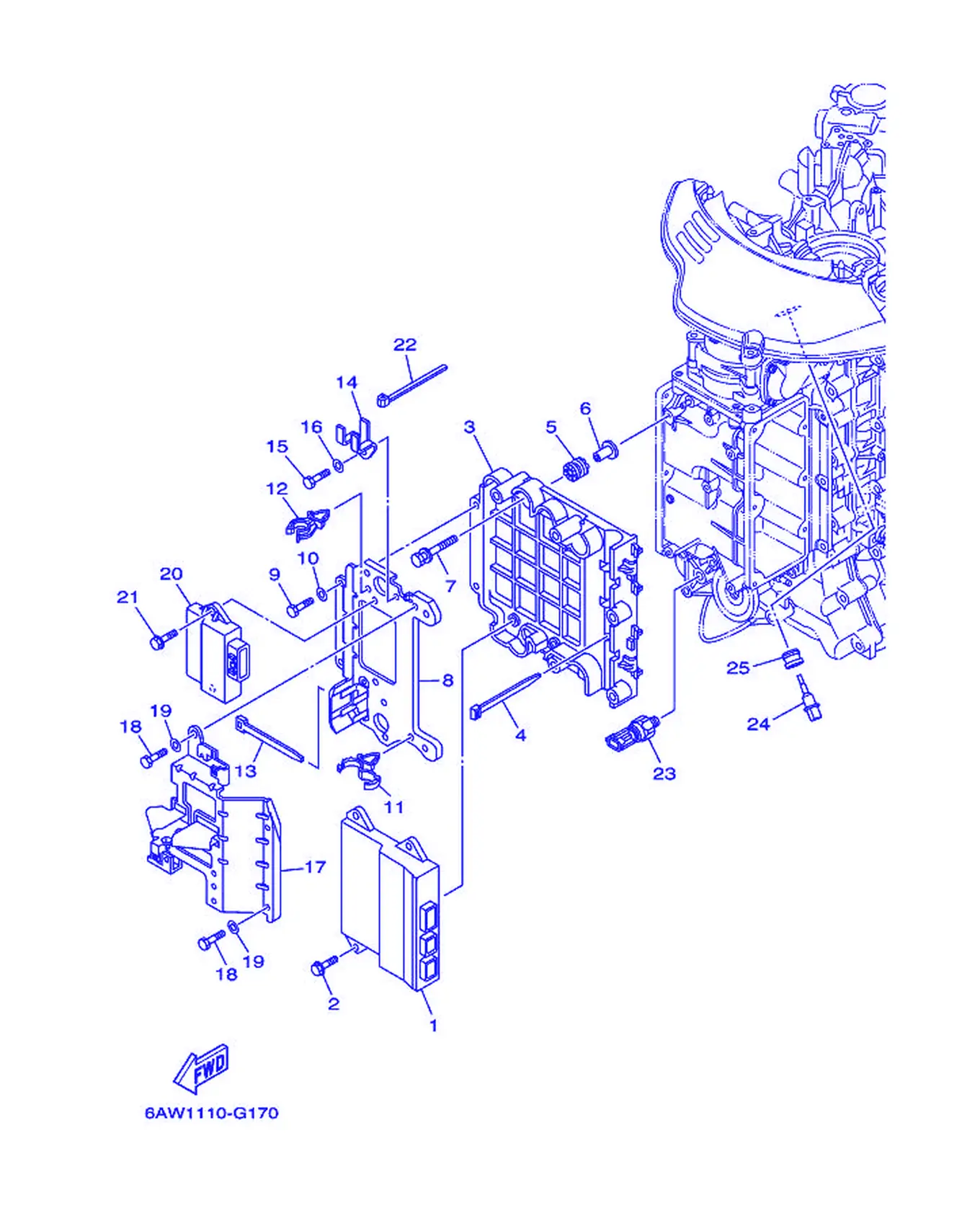

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6BJ-8591A-01	发动机控制单元	Engine Control Unit Assembly	1
2	90119-06M23	卡环	Bolt, With Washer	4
3	6AW-85991-00	托架装置	Bracket, Unit	1
4	90465-14M66	固定	Clamp	4
5	60V-85564-00	固定	Grommet	4
6	90387-06176	衬套	Color	4
7	68F-85119-00	托架3	Bolt	4
8	6AW-8591C-00	壳	Case, ECU	1
9	97095-06012	螺栓	Bolt	5
10	92995-06600	盘形垫	Washer	5
11	90464-18246	固定	Clamp	1
12	90464-16240	线夹	Clamp	1
13	90465-13M24	固定	Clamp	1
14	6AW-82544-00	夹	Clamp	1
15	97095-06012	螺栓	Bolt	1
16	92995-06600	盘形垫	Washer	1
17	6AW-82588-00	垫片	Plate	1
18	97095-06012	螺栓	Bolt	4
19	92995-06600	盘形垫	Washer	4
20	6AW-85740-00	控制器组合	Control Unit Assembly	1
21	90119-06024	带垫螺栓	Bolt, With Washer	2
22	90465-14M66	固定	Clamp	1
23	6AW-83651-00	油压传感	Sender, Oil Pressure	1
24	63P-85886-00	温控器	Sensor, Air Temperature	1
25	63P-14435-00	固定环	Grommet	1

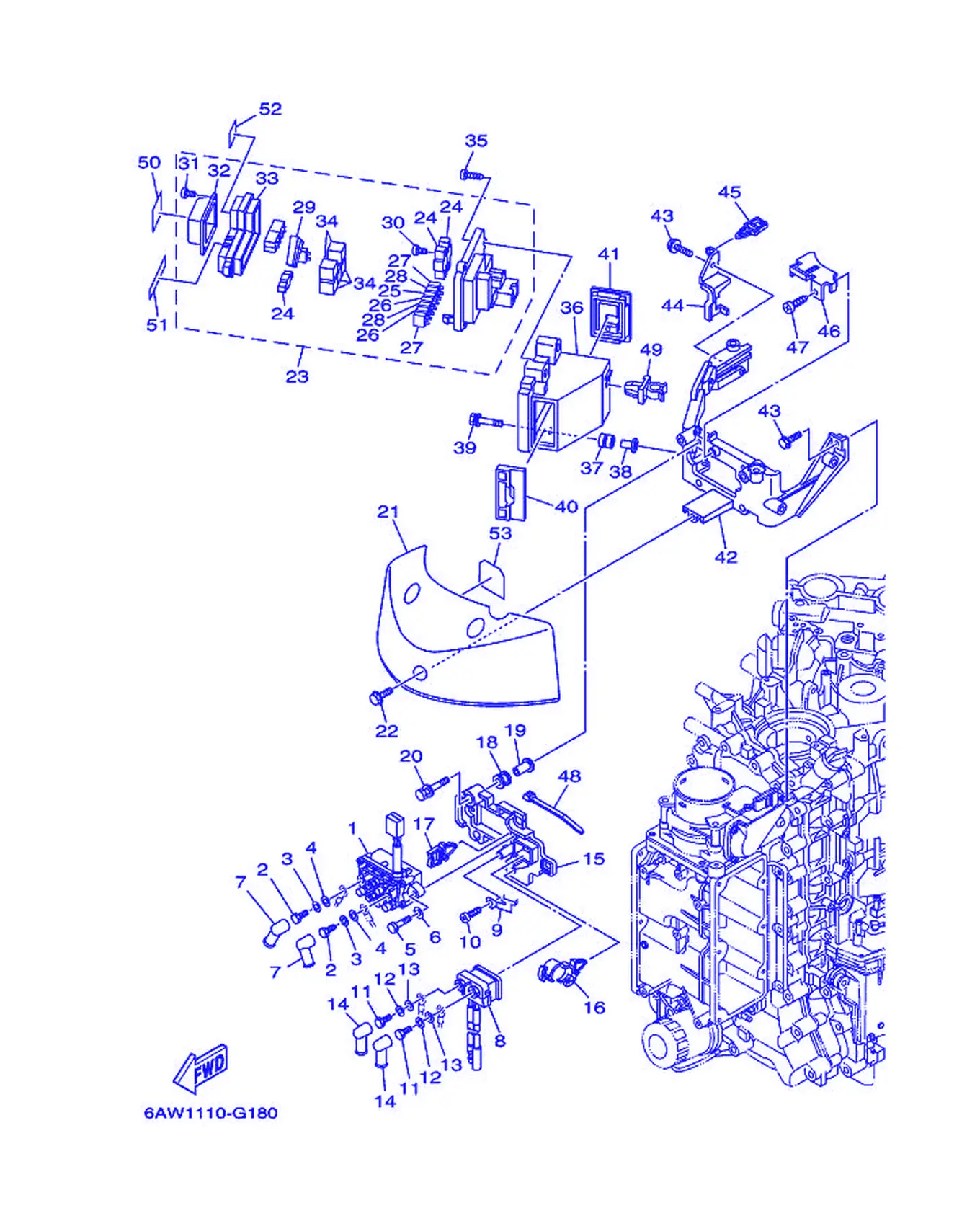

エレクトリカル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-81950-00	继电器总成	Relay Assembly	1
2	97095-06010	螺栓	Bolt	2
3	92995-06100	垫圈	Washer,Spring	2
4	92995-06600	盘形垫	Washer	2
5	97013-06020	螺栓	Bolt	2
6	92903-06600	盘形垫	Washer,Plate	2
7	6G5-82119-10	导线盖	Cover,LeadWire	2
8	6AW-8194A-00	继电器	Relay	1
9	68V-81953-00	继电器支承	Stay, Relay	1
10	97780-60620	自攻螺钉	Screw, Tapping	1
11	97095-06010	螺栓	Bolt	2
12	92995-06100	垫圈	Washer,Spring	2
13	92995-06600	盘形垫	Washer	2
14	6G5-82119-00	导线盖	Cover,LeadWire	2
15	6AW-81952-00	继电器支架	Holder, Relay	1
16	90464-12183	线夹	Clamp	1
17	90464-11121	固定	Clamp	1
18	6A0-82317-00	点火线圈减震器	Damper, Ignition Coil	4
19	90387-06119	环	Color	4
20	90119-06M59	带垫螺栓	Bolt, With Washer	4
21	6AW-81942-00	护板	Cover	1
22	95895-06016	凸缘螺	Bolt, Flange	3
23	6AW-82170-01	保险丝盒组合	Fuse Box Assembly	1
24	6P2-82151-00	保险丝	Fuse (60A)	3
25	67F-82151-00	保险丝	Fuse (20A)	2
26	67F-82151-10	保险丝	Fuse (30A)	3
27	67F-82151-40	保险丝	Fuse (10A)	3
28	67F-82151-50	保险丝	Fuse (15A)	3
29	67F-2812A-00	小夹子	Puller, Fuse	1
30	68F-82846-00	限位板组合	Screw, Pan Head (M5)	4
31	6P2-82113-00	螺钉	Screw (M3)	4
32	6P2-81639-00	电枢装配面板	Relay Cover	1
33	6P2-85544-00	盖	Case	1
34	68F-8195A-00	继电器组合	Relay Assembly	5
35	97780-50620	自攻螺钉	Screw, Tapping	4
36	6AW-82171-00	保险丝盒支承	Stay, Fuse Box	1
37	6A0-82317-00	点火线圈减震器	Damper, Ignition Coil	3
38	90387-06119	环	Color	3
39	90119-06M59	带垫螺栓	Bolt, With Washer	3
40	6AW-82572-00	固定环1	Grommet 1	1
41	6AW-82573-00	固定环 2	Grommet 2	1
42	6AW-81948-00	托架	Bracket	1
43	95895-06020	凸缘螺	Bolt, Flange	4
44	6AW-81678-00	夹箍2	Clamp 2	1
45	90464-11121	固定	Clamp	1
46	6AW-81443-00	导线夹1	Clamp,Lead 1	1
47	97780-50514	自攻螺钉	Screw, Tapping	1
48	90465-11M10	固定	Clamp	2
49	90464-09008	线夹	Clamp	1
50	6AW-81919-10	调压器图样	Graphic, Regulator	1
51	6AW-81919-20	调压器图样	Graphic, Regulator	1
52	6AW-81919-31	调压器图样	Graphic, Regulator	1
53	6AW-81919-00	调压器图样	Graphic, Regulator	1

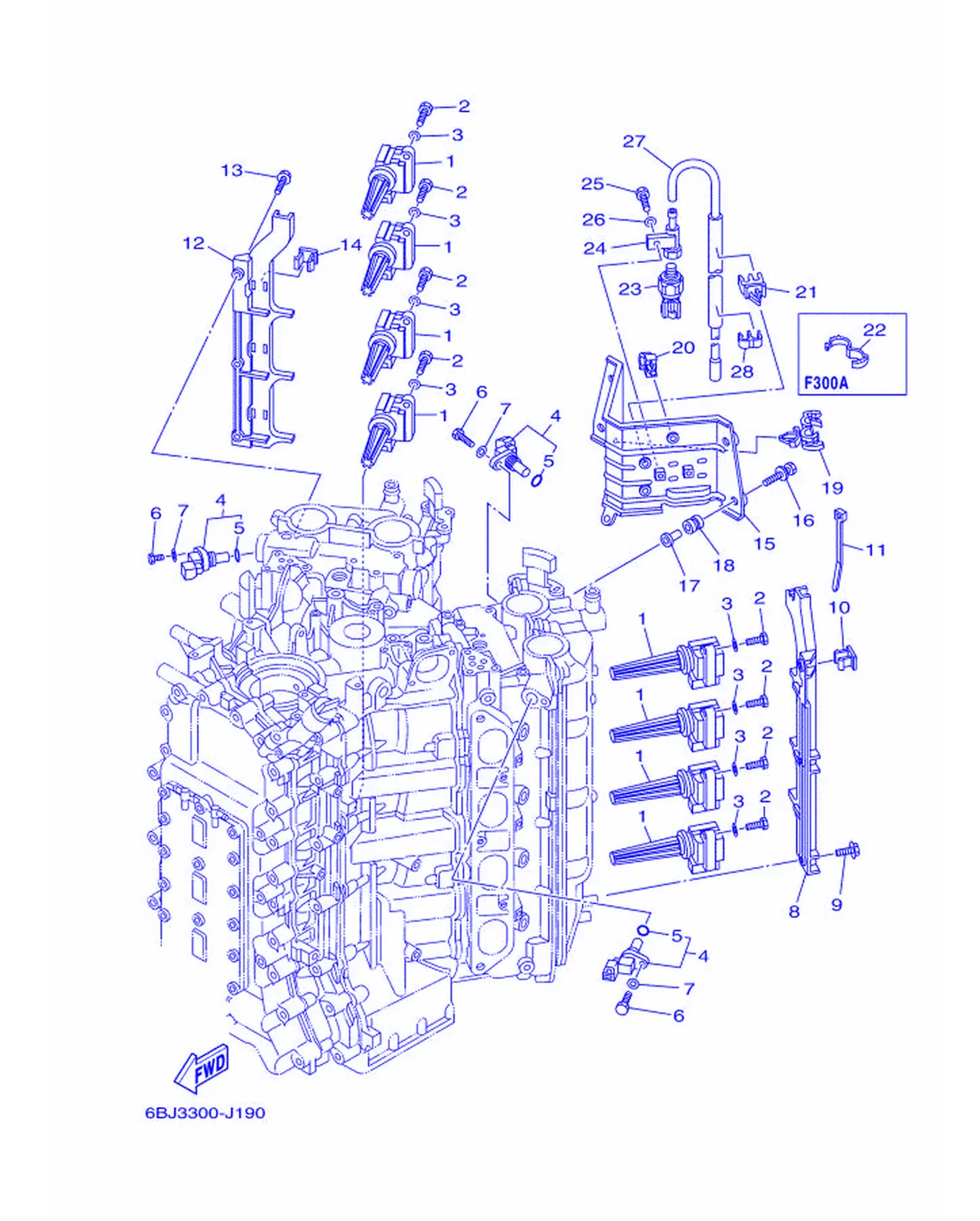

エレクトリカル 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-82310-01	点火线圈总成	Ignition Coil Assembly	8
2	97095-06025	螺栓	Bolt	8
3	92995-06600	盘形垫	Washer	8
4	6P2-85896-00	曲柄位置传感	Sensor, Cam Position	3
5	6P2-85075-00	O型圈	O-ring	1
6	97095-06020	螺栓	Bolt	3
7	92995-06600	盘形垫	Washer	3
8	6AW-8272F-00	面板 1	Guide Plate 1	1
9	95895-06014	凸缘螺栓	Bolt, Flange	3
10	6AW-82361-00	线夹	Clamp, Cord	3
11	90465-11M10	固定	Clamp	1
12	6AW-8272F-10	面板 1	Guide Plate 1	1
13	95895-06014	凸缘螺栓	Bolt, Flange	3
14	6AW-82361-10	线夹	Clamp, Cord	4
15	6AW-8366G-00	托架 3	Bracket 3	1
16	90119-06M35	带垫圈螺栓	Bolt, with Washer	4
17	69M-42758-00	轴套	Color	4
18	64J-85516-00	衬套	Spacer	4
19	90464-18246	固定	Clamp	1
20	90464-07259	夹	Clamp	1
21	90464-07009	线夹	Clamp	2
22	90464-16001	夹子	Clamp	1
23	6AW-8366B-00	水压传感器	Sensor, Water Pressure	1
24	60V-8366D-00	盖	Adapter, Input	1
25	97095-06016	螺栓	Bolt	1
26	92995-06600	盘形垫	Washer	1
27	6AW-82353-00	管	Hose	1
28	90464-07M20	固定	Clamp	1

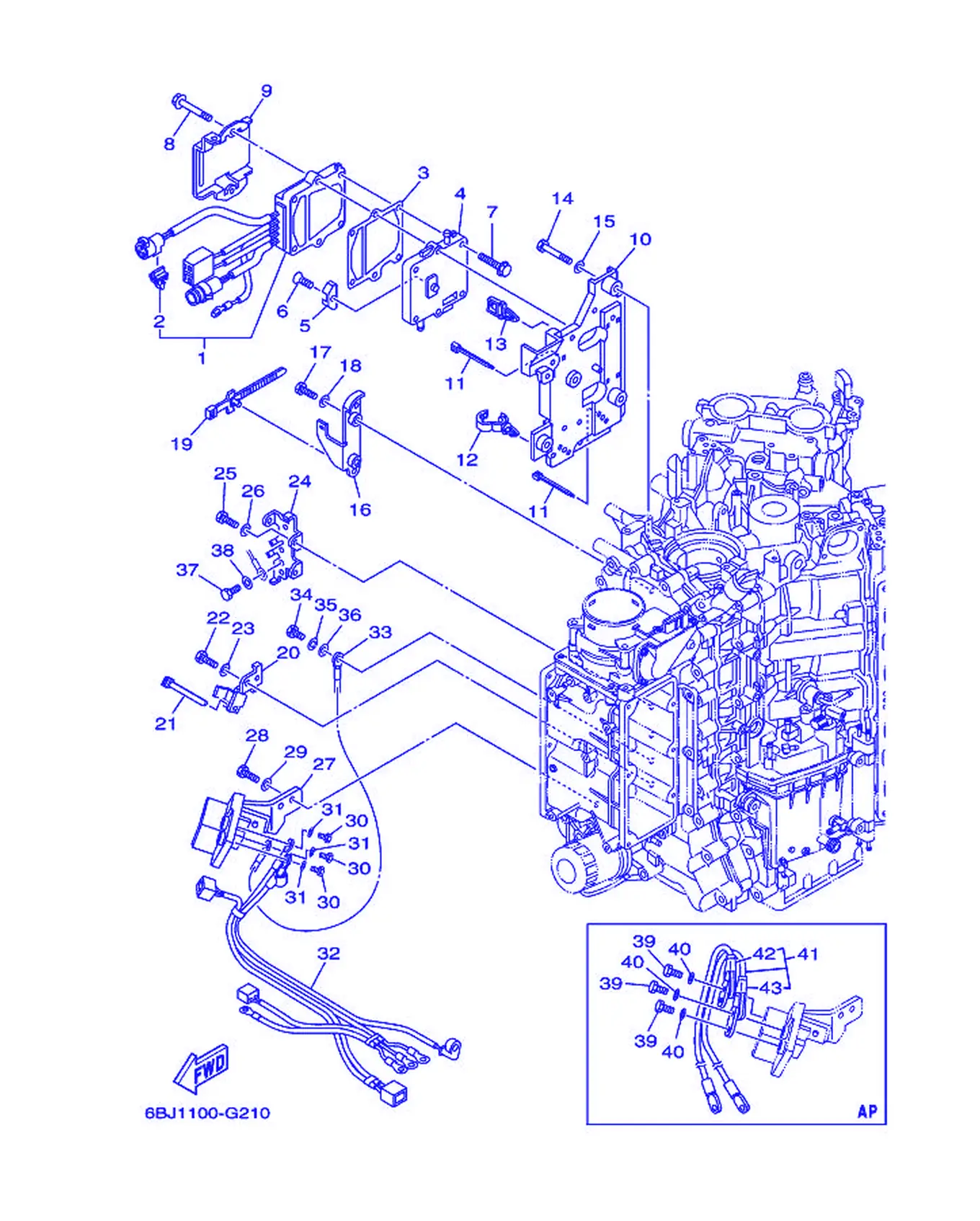

エレクトリカル 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-81960-01	整流调节器	Rectifier and Regulator	1
2	90464-12002	固定	Clamp	1
3	6AW-81975-00	整流器安装板	Plate, Rectifier Fitting	1
4	6AW-81972-00-9S	整流罩	Cover, Rectifier	1
5	6E5-11325-00	阳极	Anode	1
6	98780-04015	平头螺钉	Screw, Flat Head	1
7	90119-06MA3	带垫螺栓	Bolt, With Washer	4
8	90119-06MA5	带垫螺栓	Bolt, With Washer	2
9	6AW-82581-00	线夹支承	Stay, Cord Clamp	1
10	6AW-8235A-00	壳 1	Case 1	1
11	90465-14M66	固定	Clamp	5
12	90464-13249	线夹	Clamp	1
13	90464-11121	固定	Clamp	1
14	97095-06016	螺栓	Bolt	4
15	92995-06600	盘形垫	Washer	4
16	6AW-83614-00	托架	Bracket	1
17	97095-06014	螺栓	Bolt	2
18	92995-06600	盘形垫	Washer	2
19	90464-44002	线夹	Clamp	2
20	6AW-81328-00	夹箍	Clamp	1
21	90465-14M66	固定	Clamp	1
22	97095-06016	螺栓	Bolt	1
23	92995-06600	盘形垫	Washer	1
24	6AW-81218-00	端子，电极	Terminal	1
25	97095-06016	螺栓	Bolt	2
26	92995-06600	盘形垫	Washer	2
27	6AW-81925-01	接头	Terminal	1
28	97095-08020	螺栓	Bolt	2
29	92995-08600	盘形垫	Washer	2
30	90101-08022	六角螺栓	Bolt, Hexagon	3
31	92990-08600	盘形垫	Washer,Plate	3
32	6AW-8259M-00	电线线束总成	WireHarnessAssembly 2	1
33	6AW-82117-01	导线	Wire, Lead	1
34	97095-06020	螺栓	Bolt	1
35	92995-06100	垫圈	Washer,Spring	1
36	92995-06600	盘形垫	Washer	1
37	97095-06010	螺栓	Bolt	4
38	92995-06600	盘形垫	Washer	4
39	97095-08016	螺栓	Bolt	3
40	92995-08600	盘形垫	Washer	3
41	6AW-82105-J0	电缆	Wire Harness	1
42	6AW-82119-00	线套	Cover, Lead Wire	1
43	6AW-82119-20	线套	Cover, Lead Wire	1

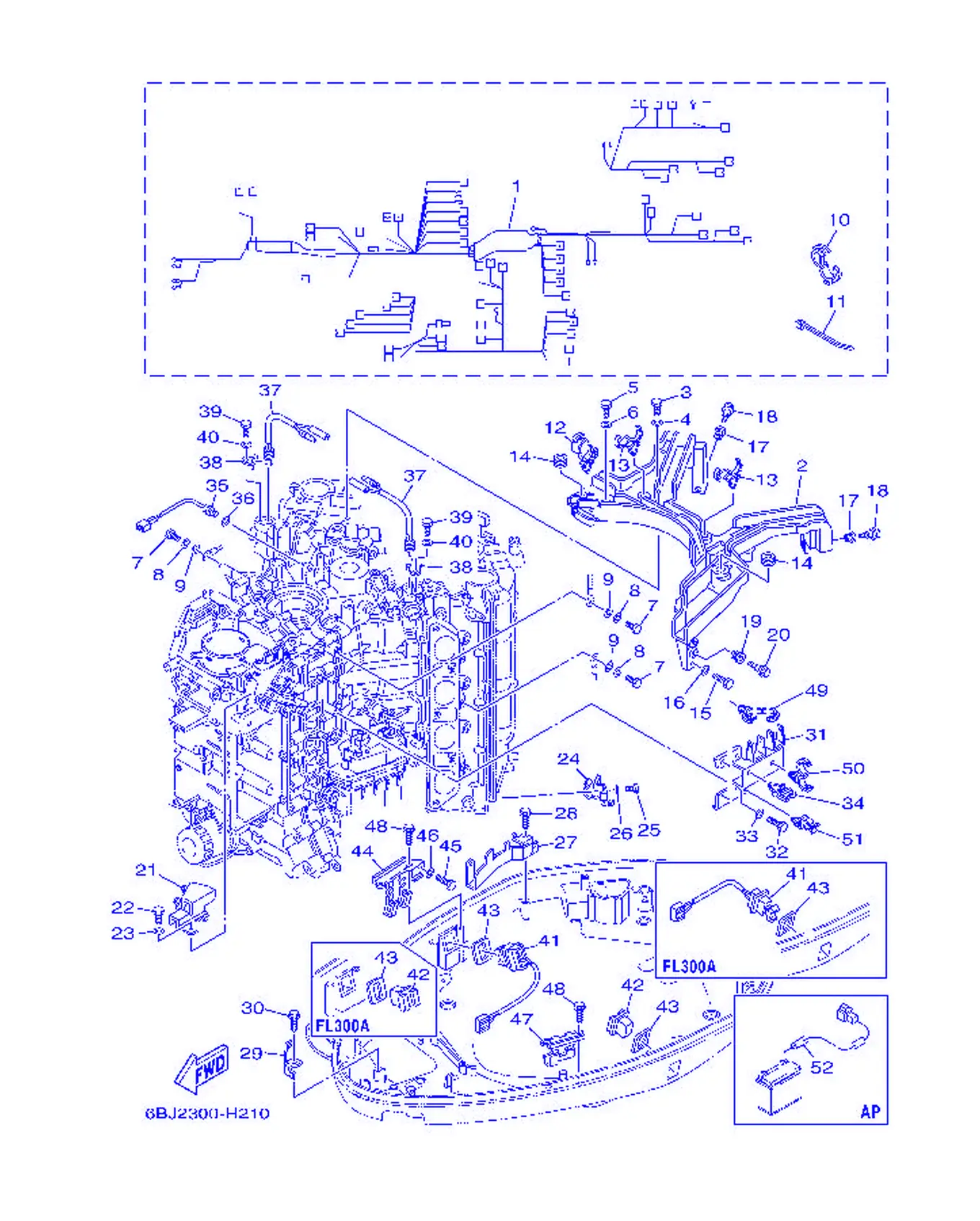

エレクトリカル 5

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-82590-01	电缆总成	Wire Harness Assembly	1
2	6AW-82589-00	电线束保护装	Protector, Wire Harness	1
3	97095-06035	螺栓	Bolt	2
4	92995-06600	盘形垫	Washer	2
5	97095-06025	螺栓	Bolt	1
6	92995-06600	盘形垫	Washer	1
7	97095-06016	螺栓	Bolt	3
8	92995-06100	垫圈	Washer,Spring	3
9	92995-06600	盘形垫	Washer	3
10	90464-30003	固定	Clamp	1
11	90465-13M18	固定	Clamp	2
12	90464-20181	固定夹	Clamp	1
13	90464-18246	固定	Clamp	2
14	90480-19368	固定	Grommet	2
15	97095-06012	螺栓	Bolt	1
16	92995-06600	盘形垫	Washer	1
17	90480-12072	固定	Grommet	2
18	90109-06MA1	螺栓	Bolt	2
19	90480-12072	固定	Grommet	2
20	90109-06MA1	螺栓	Bolt	2
21	6AW-82388-00	面板	Plate	1
22	97095-06014	螺栓	Bolt	1
23	92995-06600	盘形垫	Washer	1
24	6AW-81677-00	夹箍1	Clamp 1	1
25	97095-06014	螺栓	Bolt	1
26	92995-06600	盘形垫	Washer	1
27	6AW-8257G-00	线夹	Clamp, Cord	1
28	90109-06M86	螺栓	Bolt	1
29	6AW-42743-00	托架	Bracket	1
30	90109-06M86	螺栓	Bolt	1
31	6AW-81845-00	面板	Plate	1
32	97095-06014	螺栓	Bolt	2
33	92995-06600	盘形垫	Washer	2
34	90464-11121	固定	Clamp	1
35	61A-85790-00	温控传感件组合	Thermo Sensor Assembly	1
36	92990-10600	垫圈	Washer,Plate	1
37	6AW-82560-00	热敏开关总成	Thermo Switch Assembly	2
38	6E9-82588-00	面板	Plate	2
39	97095-06016	螺栓	Bolt	2
40	92995-06600	盘形垫	Washer	2
41	6AW-82563-00	电动倾斜调整开关组合	Trim・Tilt Switch Assembly	1
42	69J-42723-00-8D	底盖	Cover, Bottom	1
43	69J-82587-00	衬垫	Gasket	2
44	6AX-83614-00	托架	Bracket	1
45	97095-06014	螺栓	Bolt	1
46	92995-06600	盘形垫	Washer	1
47	63P-83614-00	托架	Bracket	1
48	90109-06M86	螺栓	Bolt	4
49	90464-20181	固定夹	Clamp	2
50	90464-18246	固定	Clamp	1
51	90464-09008	线夹	Clamp	1
52	69J-81949-02	导线	Wire, Lead (Isolator, 3.8M)	1

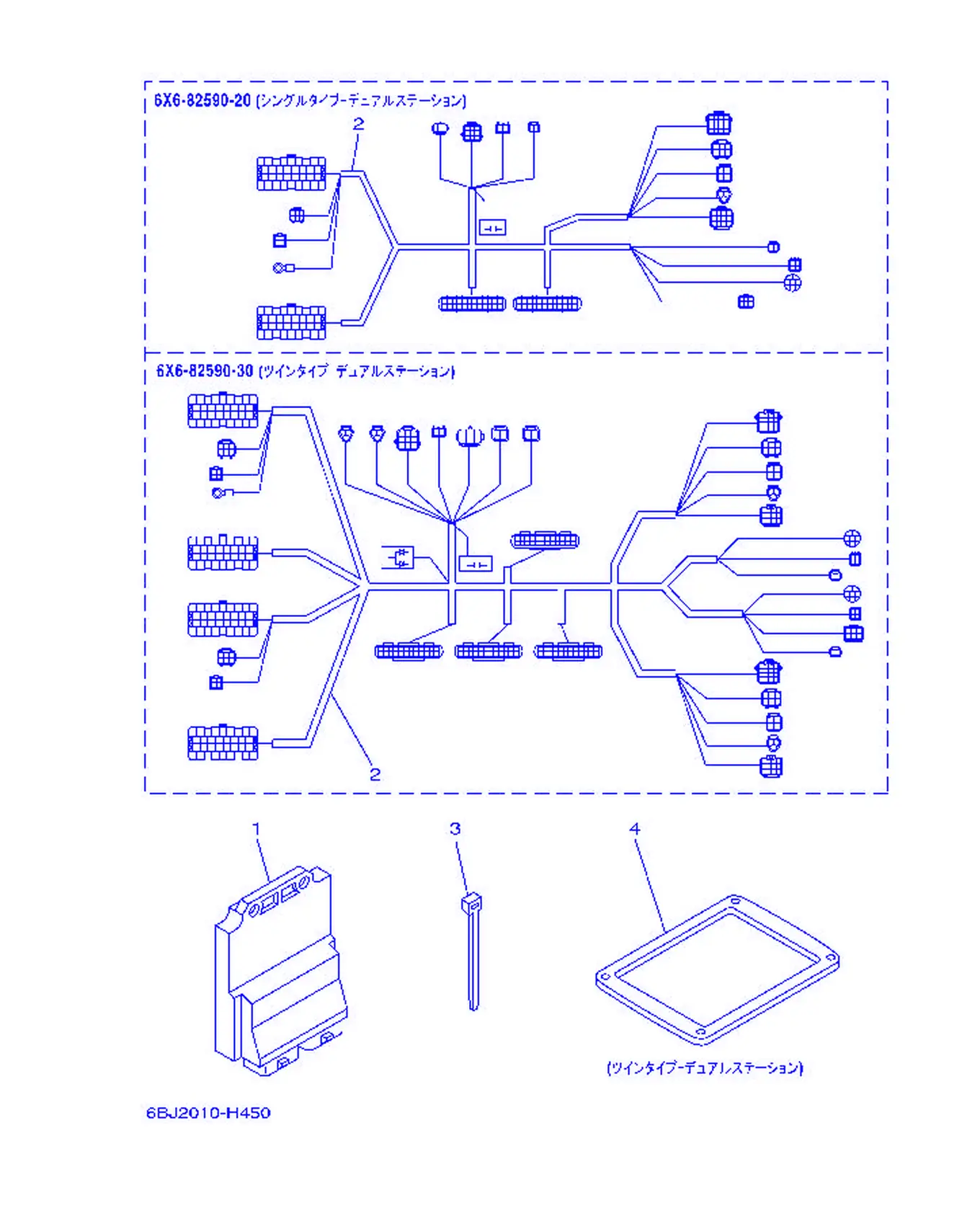

エレクトリカル DBWリモートコントロール

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-85590-00	控制器组合	Control Unit Assembly	1
1	6X6-85590-00	控制器组合	Control Unit Assembly	2
2	6X6-82590-20	电缆总成	Wire Harness Assembly	1
2	6X6-82590-30	电缆总成	Wire Harness Assembly	1
3	703-82591-00	带	Band	4
3	703-82591-00	带	Band	8
4	6X6-48176-10	固定	Grommet	1

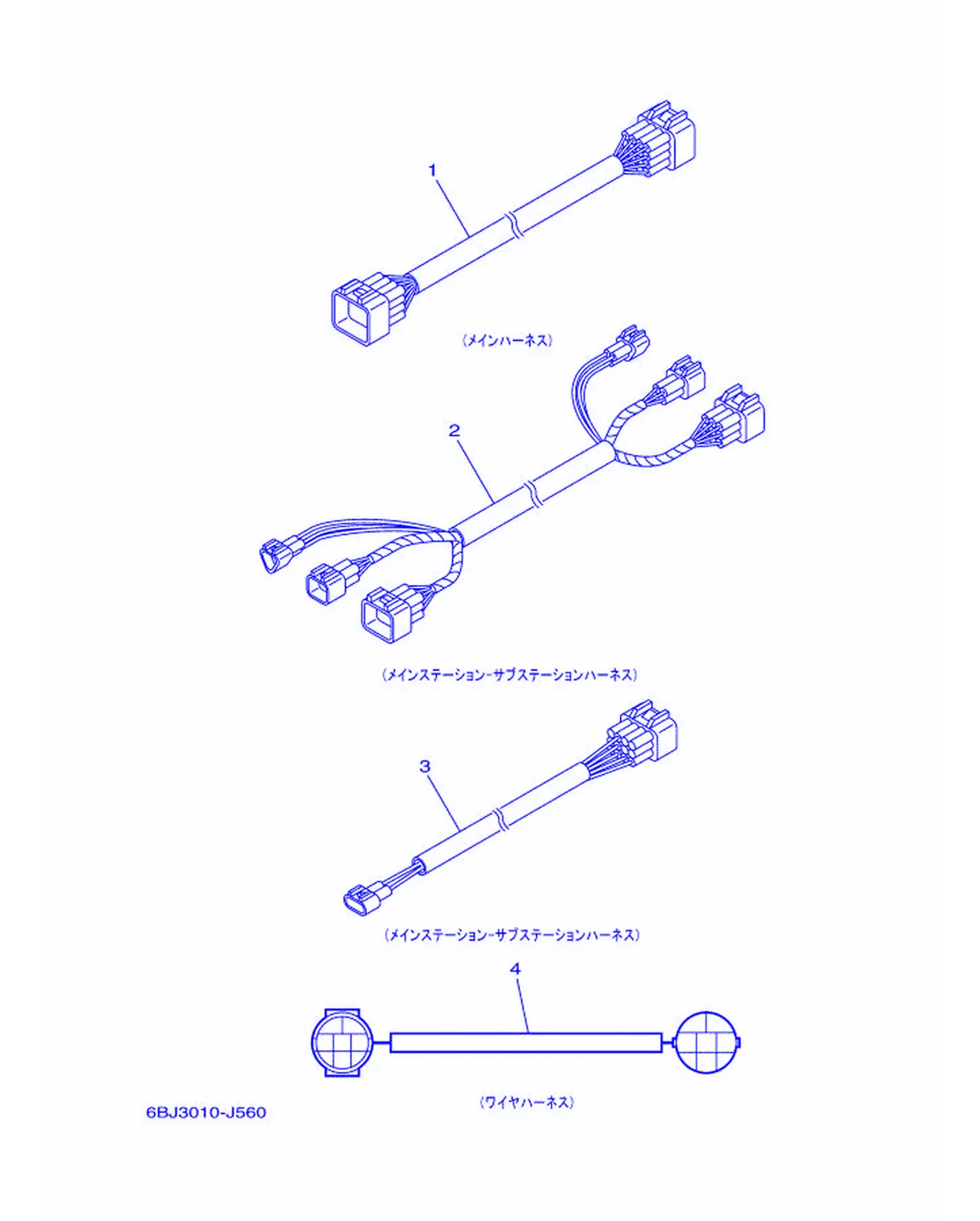

エレクトリカルワイヤハーネス

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-8258A-00	电线束延伸部分	Extension, Wire Harness	1
1	6X6-8258A-10	电线束延伸部分	Extension, Wire Harness	1
1	6X6-8258A-20	电线束延伸部分	Extension, Wire Harness	1
1	6X6-8258A-30	电线束延伸部分	Extension, Wire Harness	1
1	6X6-8258A-40	电线束延伸部分	Extension, Wire Harness	1
2	6X6-8258A-A1	电线束延伸部分	Extension, Wire Harness	1
2	6X6-8258A-C1	电线束延伸部分	Extension, Wire Harness	1
2	6X6-8258A-E1	电线束延伸部分	Extension, Wire Harness	1
3	6X6-8258A-B1	电线束延伸部分	Extension, Wire Harness	1
3	6X6-8258A-D1	电线束延伸部分	Extension, Wire Harness	1
3	6X6-8258A-F1	电线束延伸部分	Extension, Wire Harness	1
4	6X7-82590-30	电缆总成	Wire Harness Assembly	1

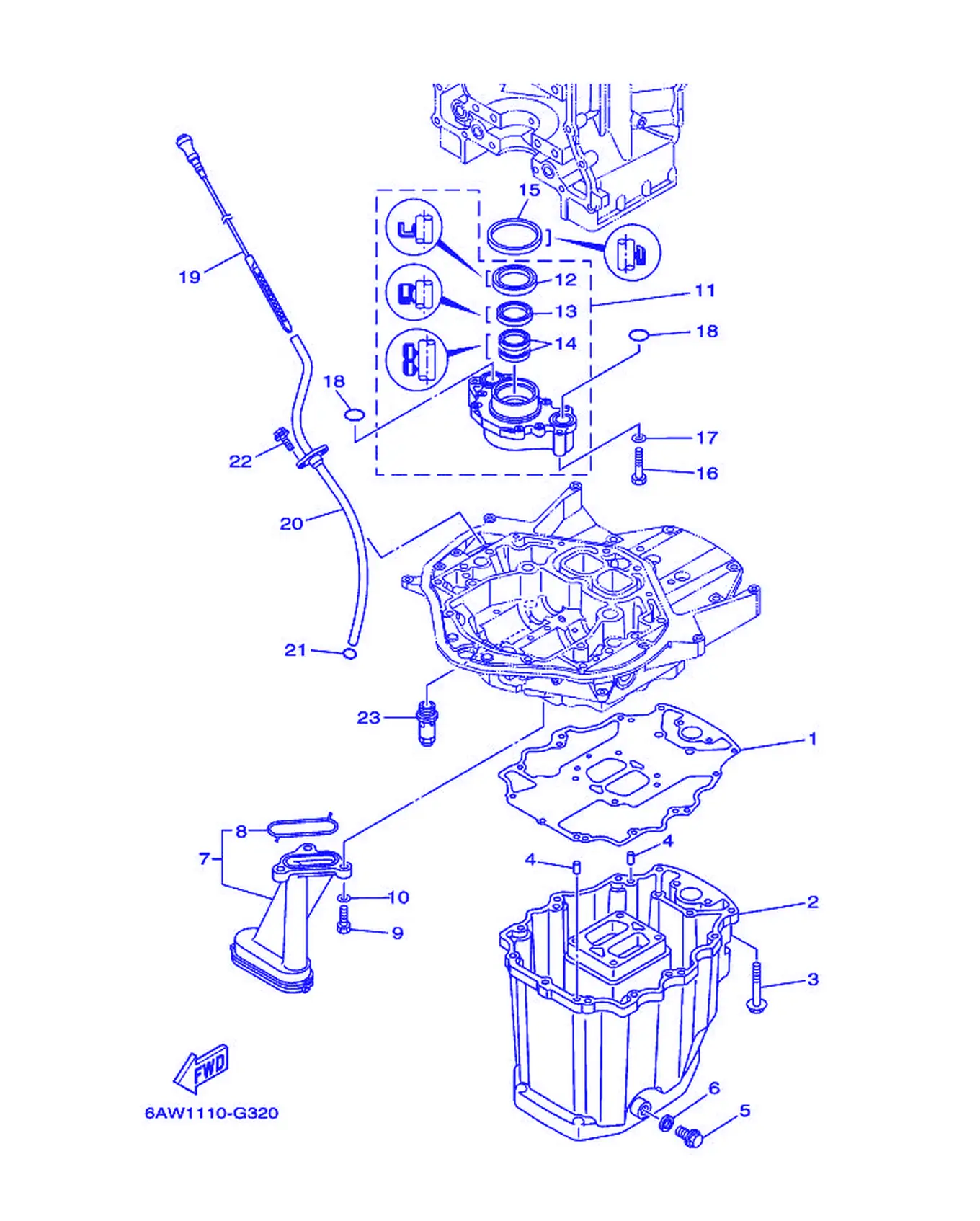

オイルパン

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-15312-00	油槽衬垫	Gasket, Oil Pan	1
2	6AW-15311-00-CA	油槽	Oil Pan	1
3	97575-08570	带垫圈螺栓	Bolt, with Washer	13
4	93608-16M16	定位销	Pin, Dowel	2
5	90340-14M06	塞	Plug, Straight Screw	1
6	90430-14M09	衬垫	Gasket	1
7	6AW-13411-00	机油过滤网	Strainer,Oil	1
8	6AW-13415-00	机油滤网密封	Seal, Oil Strainer	1
9	97027-06025	螺栓	Bolt	3
10	92907-06600	有槽螺母	Washer,Plate	3
11	6AW-13300-00	机油泵总成	Oil Pump Assembly	1
12	69J-13338-00	密封圈	Oil Seal	1
13	6AW-13119-00	润滑密封	Oil Seal	1
14	6AW-13631-00	橡皮密封	Oil Seal	2
15	69J-11355-00	气缸密封圈1	Seal,Cylinder 1	1
16	97075-06050	螺栓	Bolt	4
17	92995-06600	盘形垫	Washer	4
18	93210-26658	O型圈	O-ring	2
19	6AW-15362-00	油标塞	Plug, Oil Level	1
20	6AW-15377-00	导管	Guide, Inlet	1
21	93210-19MJ3	O型圈	O-ring	1
22	95875-06016	螺栓	Bolt, Flange	2
23	6AW-13490-01	安全阀组合	Relief Valve Assembly	1

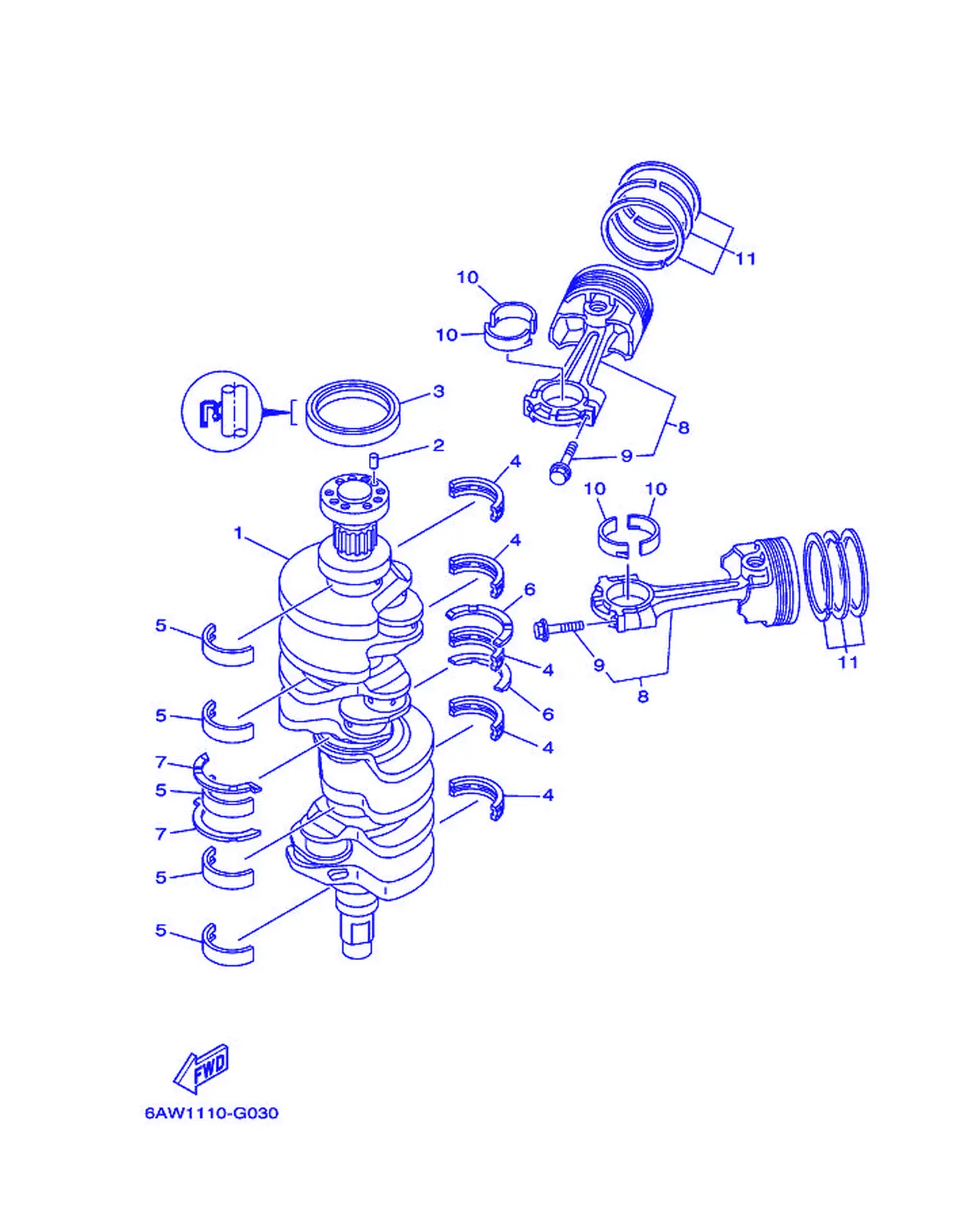

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-11411-00	曲轴	Crankshaft	1
2	93606-12019	定位销	Pin, Dowel	1
3	93102-85004	油封	Oil Seal	1
4	6AW-11416-00	轴瓦1	Plain Bearing, Crankshaft	5
4	6AW-11416-10	轴瓦1	Plain Bearing, Crankshaft	5
4	6AW-11416-20	轴瓦1	Plain Bearing, Crankshaft	5
4	6AW-11416-30	轴瓦1	Plain Bearing, Crankshaft	5
4	6AW-11416-40	轴瓦1	Plain Bearing, Crankshaft	5
5	6AW-11417-00	轴瓦2	Plain Bearing, Crankshaft	5
5	6AW-11417-10	轴瓦2	Plain Bearing, Crankshaft	5
5	6AW-11417-20	轴瓦2	Plain Bearing, Crankshaft	5
5	6AW-11417-30	轴瓦2	Plain Bearing, Crankshaft	5
5	6AW-11417-40	轴瓦2	Plain Bearing, Crankshaft	5
6	6AW-11426-00	轴瓦1	Bearing, Thrust 1	2
7	6AW-11427-00	轴瓦2	Bearing, Thrust 2	2
8	6AW-W1164-01	活塞带连杆总成	Piston/Connecting Rod Assembly	8
9	63P-11654-00	螺栓	Bolt, Connecting Rod	2
10	63P-11656-01	轴瓦	Plain Bearing, Connecting Rod	16
10	63P-11656-11	轴瓦	Plain Bearing, Connecting Rod	16
10	63P-11656-21	轴瓦	Plain Bearing, Connecting Rod	16
11	6AW-11603-00	活塞环套件	Piston Ring Set (STD)	8

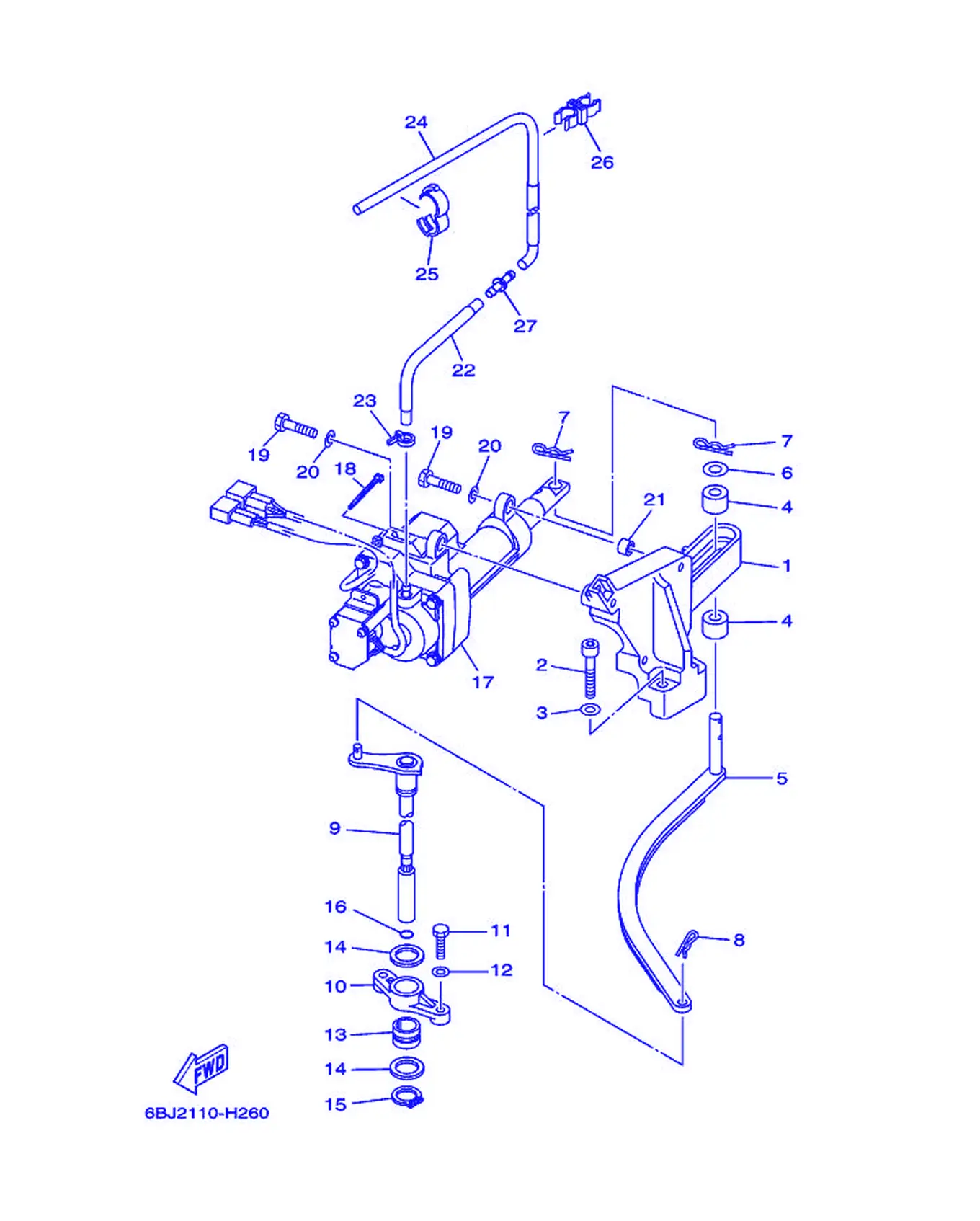

コントロ-ル

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-44176-00-94	托架	Bracket	1
2	90110-08085	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	2
3	92990-08600	盘形垫	Washer,Plate	2
4	6AW-44122-00	变挡杆杠杆衬套	Bushing, Shift Rod Lever	2
5	6AW-44121-00	变挡杆杠杆	Lever, Shift Rod	1
6	90201-11008	面板垫圈	Washer, Plate	1
7	90468-180A0	卡环	Clip	2
8	90468-18008	钢夹	Clip	1
9	6AW-44120-00	变挡手柄组合	Handle Gear Shift Assembly	1
9	6AW-44120-10	变挡手柄组合	Handle Gear Shift Assembly	1
10	6AW-44118-00-94	托架	Bracket	1
11	97095-06025	螺栓	Bolt	2
12	92995-06600	盘形垫	Washer	2
13	90380-19001	衬套	Bushing, Solid	1
14	90202-19001	平垫圈	Washer, Plate	2
15	93410-19088	弹性挡圈	Circlip	1
16	93210-09165	O型圈	O-ring	1
17	6AW-4820A-10	执行器单元	Actuator Unit	1
18	90465-11M10	固定	Clamp	1
19	97080-08030	螺栓	Bolt	4
20	92900-08600	垫圈	Washer	4
21	90387-08M31	轴套	Color	2
22	6AW-24314-10	管4	Pipe 4	1
23	90465-11M10	固定	Clamp	1
24	6AW-24314-00	管4	Pipe 4	1
25	90464-16001	夹子	Clamp	1
26	90464-10M59	固定	Clamp	1
27	6G8-24376-00	连接管1	Pipe,Joint 1	1

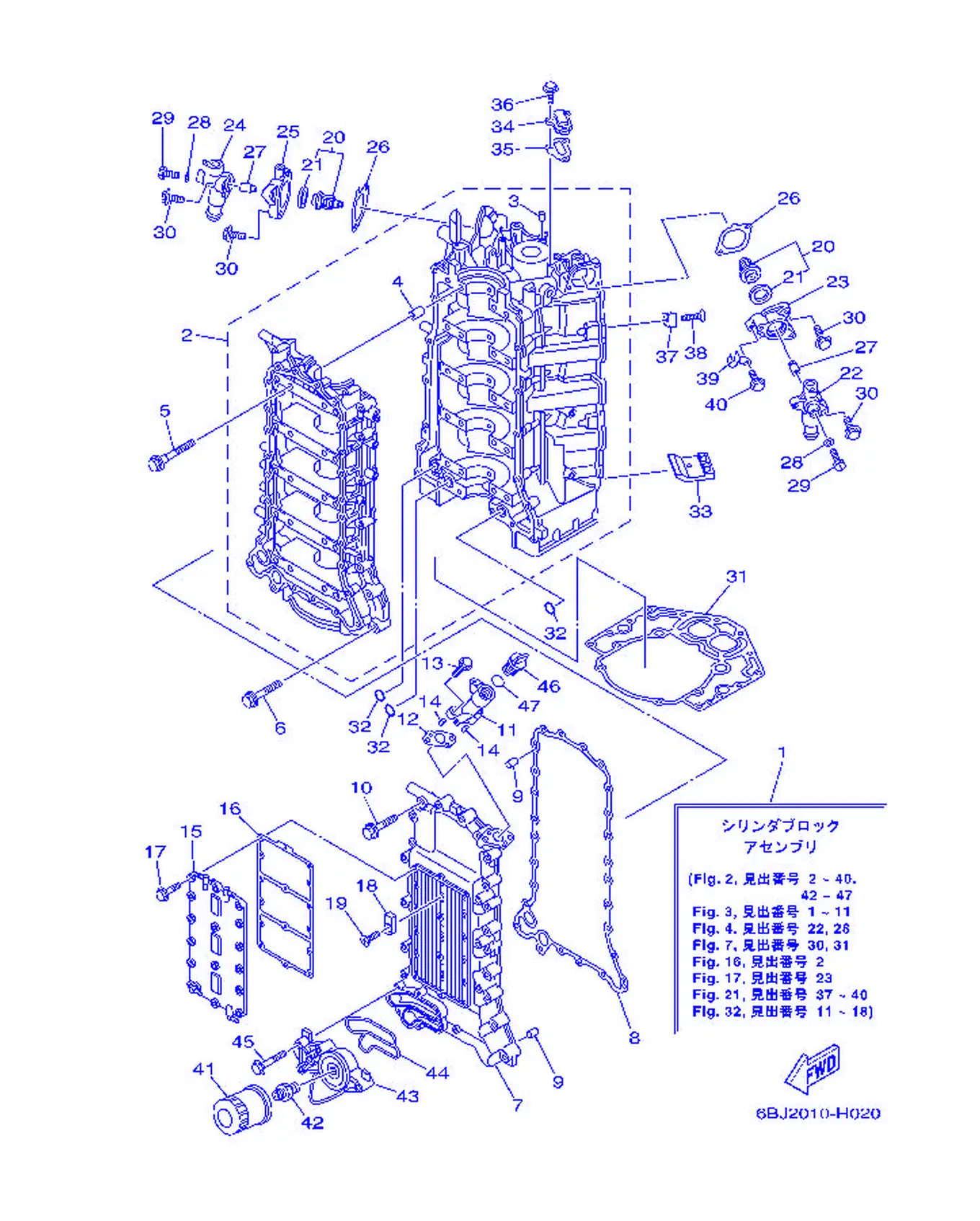

シリンダ & クランクケース 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-W009B-03-9S	缸体总成F350AET	Cylinder Block Assembly	1
2	6AW-15100-02-9S	曲轴箱组合	Crankcase Assembly	1
3	93606-12019	定位销	Pin, Dowel	3
4	91814-18001	定位销	Pin, Dowel	10
5	69J-15187-00	螺栓	Bolt	20
6	90105-08175	六角法兰面螺栓	Bolt, Flange	18
7	6AW-15411-00-9S	曲轴箱盖1	Cover, Crankcase 1	1
8	6AW-15451-00	曲轴箱盖垫片1	Gasket, Crankcase Cover	1
9	93606-12019	定位销	Pin, Dowel	2
10	90105-08175	六角法兰面螺栓	Bolt, Flange	26
11	6AW-15319-00-9S	接头	Joint	1
12	6AW-15364-00	机油塞衬垫	Gasket, Oil Plug	1
13	90105-06155	六角法兰面螺栓	Bolt, Flange	2
14	93604-08062	定位销	Pin, Dowel	2
15	6AW-15421-00-9S	曲轴箱盖2	Cover, Crankcase 2	1
16	6AW-15461-00	曲轴箱盖垫片2	Gasket, Crankcase Cover 2	1
17	90105-06037	螺栓	Bolt, Flange	16
18	63P-11325-01	阳极	Anode	3
19	90151-06M02	卡环	Screw, Countersunk	3
20	6AW-12411-00	温控器	Thermostat	2
21	6AW-12412-00	温控器密封	Seal, Thermostat	1
22	6AW-12413-00-9S	温控器盖	Cover, Thermostat	1
23	6AW-12422-00-9S	壳体盖	Cover, Housing	1
24	6AW-1241B-00-9S	温控器盖2	Cover, Thermostat 2	1
25	6AW-1242B-00-9S	壳体盖 2	Cover, Housing 2	1
26	6AW-12427-00	壳体盖衬垫1	Gasket, Housing Cover 1	2
27	6AW-1132R-00	阳极 6	Anode 6	2
28	90430-05002	衬垫	Gasket	2
29	90105-05012	凸缘螺栓	Bolt, Flange	2
30	90105-06028	六角法兰面螺栓	Bolt, Flange	8
31	6AW-11351-00	气缸垫片1	Gasket, Cylinder	1
32	93210-26658	O型圈	O-ring	3
33	6AW-14664-00	隔水板	Grommet, Water Jacket	2
34	6AW-1131M-00-9S	罩	Cover	1
35	6AW-11381-00	衬垫1	Gasket 1	1
36	90105-06039	螺栓	Bolt, Flange	3
37	6AW-1132P-00	阳极 5	Anode 5	8
38	98780-06530	十字槽沉头螺钉	Screw, Flat Head	8
39	90462-12008	线夹	Clamp	1
40	95895-06012	凸缘螺	Bolt, Flange	1
41	N26-13440-00	机油进滤器总成	Element Assembly, Oil Cleaner	1
42	90401-19001	螺栓	Bolt, Union	1
43	6AW-13446-00-9S	连接器	Connector	1
44	6AW-13477-00	衬垫	Gasket	1
45	95885-06045	螺栓	Bolt, Flange	5
46	6G8-15363-00	机油塞子	Plug,Oil	1
47	93210-24M79	O型圈	O-ring	1

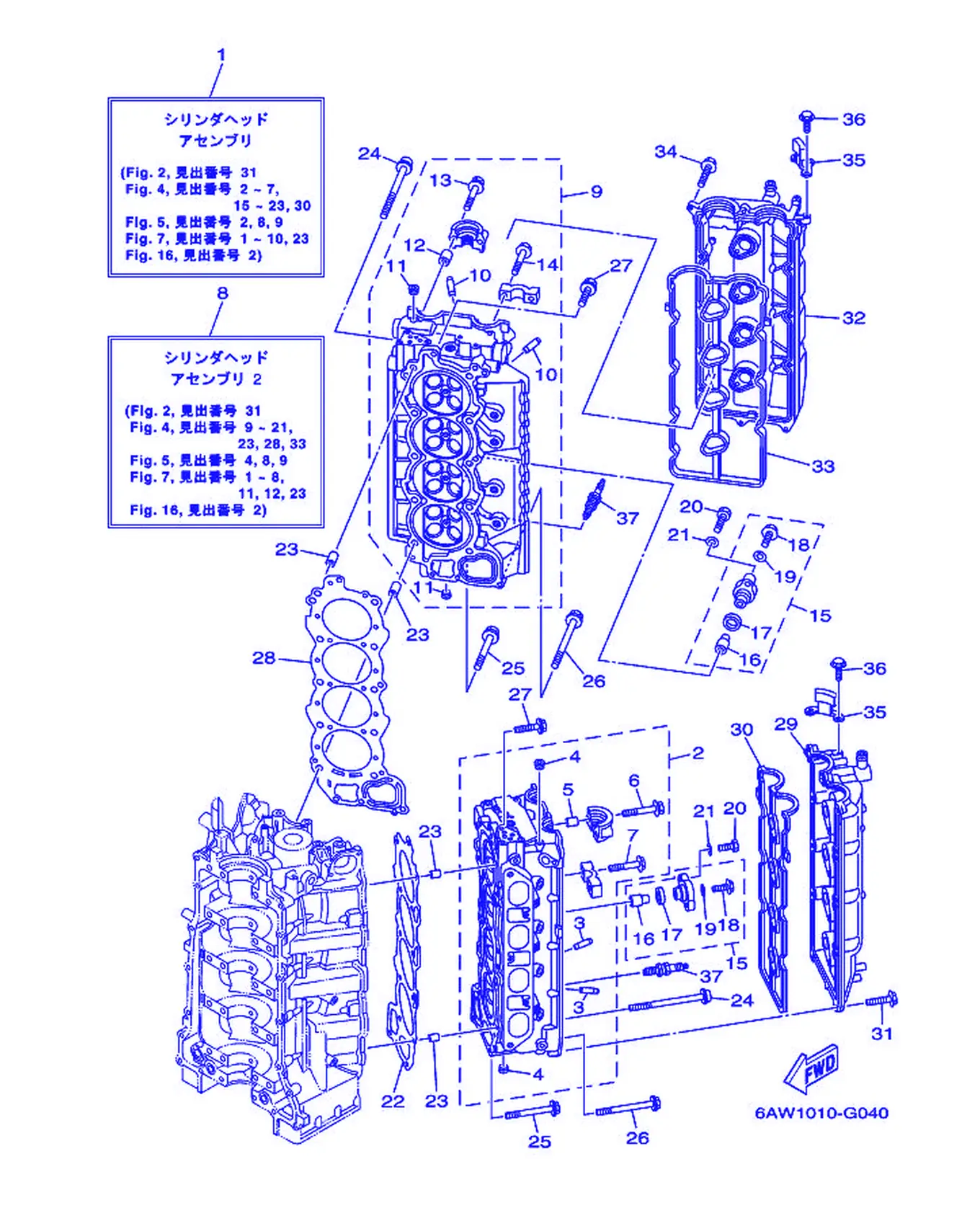

シリンダ & クランクケース 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-W009A-00-9S	气缸盖总成	Cylinder Head Assembly	1
2	6AW-11110-01-9S	气缸头总成	Cylinder Head Assembly	1
3	69J-11133-10	阀门导杆1	Guide,Valve 1	16
4	90344-51019	衬套	Plug, Taper Screw	9
5	91809-08006	定位销	Sleeve Guide Dowel	4
6	90119-07001	带垫圈螺栓	Bolt, with Washer	4
7	90119-07234	带垫螺栓	Bolt, with Washer	16
8	6AW-W009C-00-9S	气缸盖总成2	Cylinder Head Assembly 2	1
9	6AW-11120-01-9S	气缸头总成2	Cylinder Head Assembly 2	1
10	69J-11133-10	阀门导杆1	Guide,Valve 1	16
11	90344-51019	衬套	Plug, Taper Screw	9
12	91809-08006	定位销	Sleeve Guide Dowel	4
13	90119-07001	带垫圈螺栓	Bolt, with Washer	4
14	90119-07234	带垫螺栓	Bolt, with Washer	16
15	6AW-11301-00	阳极盖组合	Anode Cover Assembly	6
16	6AW-11325-00	阳极	Anode	1
17	67F-11328-00	阳极固定	Grommet	1
18	90105-06M07	螺栓	Bolt, Flange	1
19	90430-06M03	平垫圈	Gasket	1
20	97075-08025	螺栓	Bolt	12
21	92995-08600	盘形垫	Washer	12
22	6AW-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
23	90387-11005	轴套	Collar	4
24	90155-11001	螺钉	Screw, Flat Fillister	20
25	90119-08MA5	带垫螺栓	Bolt, With Washer	4
26	90119-08021	带垫螺栓	Bolt, With Washer	2
27	90119-08115	带垫圈六角头螺栓	Bolt, with Washer	2
28	6AW-11182-00	气缸头垫片2	Gasket, Cylinder Head 2	1
29	6AW-11191-00-9S	气缸盖罩1	Cover, Cylinder Head 1	1
30	6AW-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
31	90105-06152	六角法兰面螺栓	Bolt, Flange	16
32	6AW-11192-00-9S	气缸盖罩2	Cover, Cylinder Head 2	1
33	6AW-11194-00	气缸盖罩衬垫2	Gasket, Head Cover 2	1
34	90105-06152	六角法兰面螺栓	Bolt, Flange	16
35	6AW-15142-00	导向板1	Guide 1	2
36	95885-06014	螺栓	Bolt, Flange	4
37	94709-00400	火花塞	Plug, Spark (NGK LFR6A-11)	8

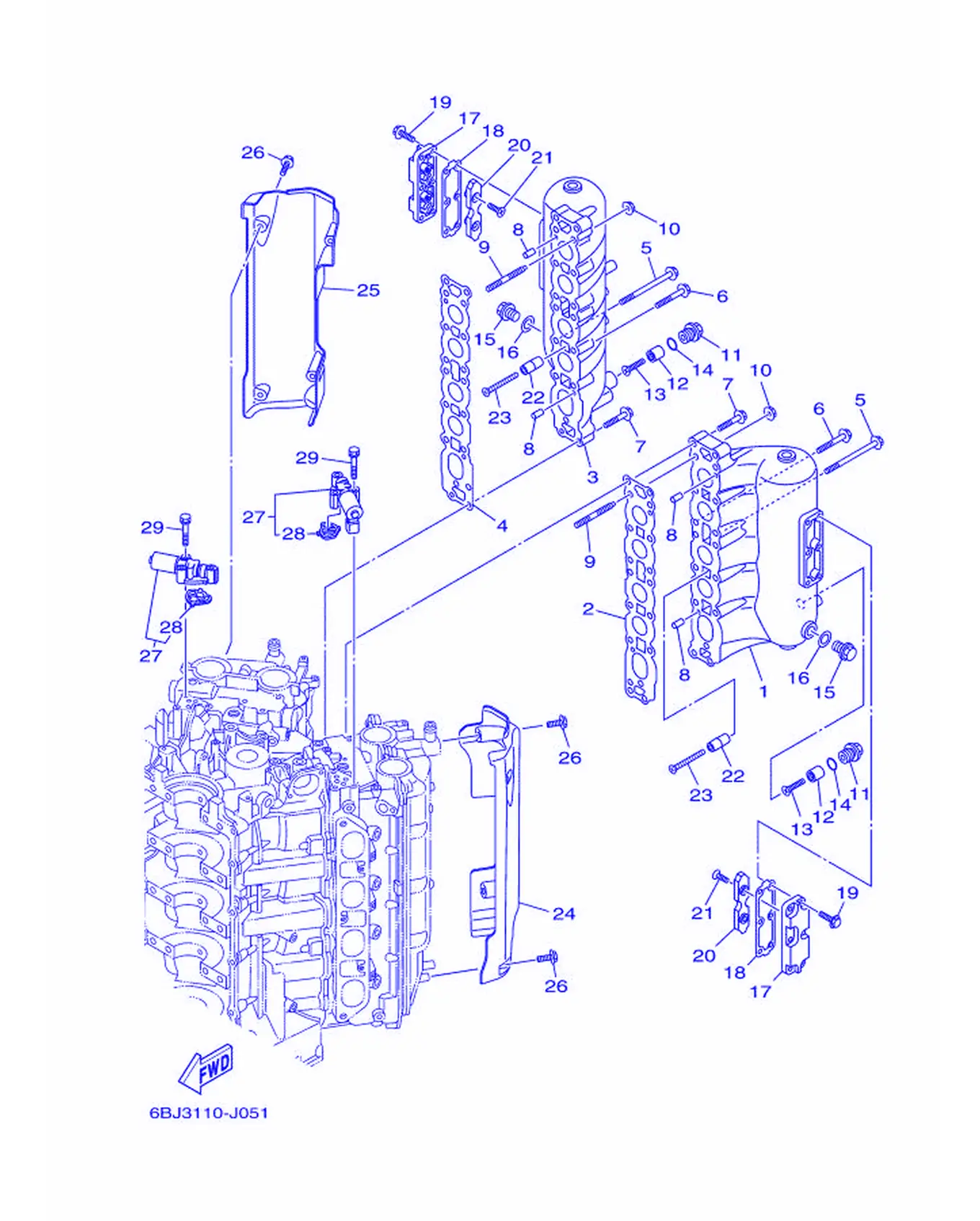

シリンダ & クランクケース 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-14615-00-9S	排气管接头1	Joint, Exhaust 1	1
2	6AW-14613-00	排气管垫片1	Gasket, Exhaust Pipe	1
3	6AW-14625-00-9S	排气管接头2	Joint, Exhaust 2	1
4	6AW-14623-00	排气管衬垫	Gasket, Exhaust Pipe	1
5	90105-08173	六角法兰面螺栓	Bolt, Flange	12
6	90105-08175	六角法兰面螺栓	Bolt, Flange	10
7	90105-06151	六角法兰面螺栓	Bolt, Flange	8
8	93608-16M16	定位销	Pin, Dowel	4
9	90116-08037	双头螺栓	Bolt, Stud	4
10	90179-08M34	螺帽	Nut	4
11	6AW-11197-00	绝缘插头	Blind Plug	2
12	6AW-1132L-00	阳极 2	Anode 2	2
13	98780-05025	平头螺钉	Screw, Flat Head	2
14	93210-19758	O型圈	O-ring	2
15	90340-18M09	衬套	Plug, Straight Screw	2
16	90430-18130	固定	Gasket	2
17	6AW-1118A-00-9S	罩	Cover	2
18	6AW-11195-00	垫片	Gasket	2
19	90105-06155	六角法兰面螺栓	Bolt, Flange	12
20	6AW-1132M-00	阳极 3	Anode 3	2
21	98780-06020	平头螺钉	Screw, Flat Head	4
22	6AW-1132N-00	阳极 4	Anode 4	10
22	6AW-1132N-01	阳极 4	Anode 4	10
23	98585-06050	螺栓	Screw, Pan Head	10
23	98780-06550	十字槽沉头螺钉	Screw, Flat Head	10
24	6AW-11186-00	气缸头侧盖1	Cover, Cylinder Head Side 2	1
25	6AW-11187-00	气缸头侧盖2	Cover, Cylinder Head Side 3	1
26	90119-06M92	带垫螺栓	Bolt, With Washer	8
27	6P2-86120-00	电磁阀组合	Solenoid Valve Assembly	2
28	6P2-12403-00	过滤器	Filter	1
29	90119-06MA6	带垫螺栓	Bolt, With Washer	6

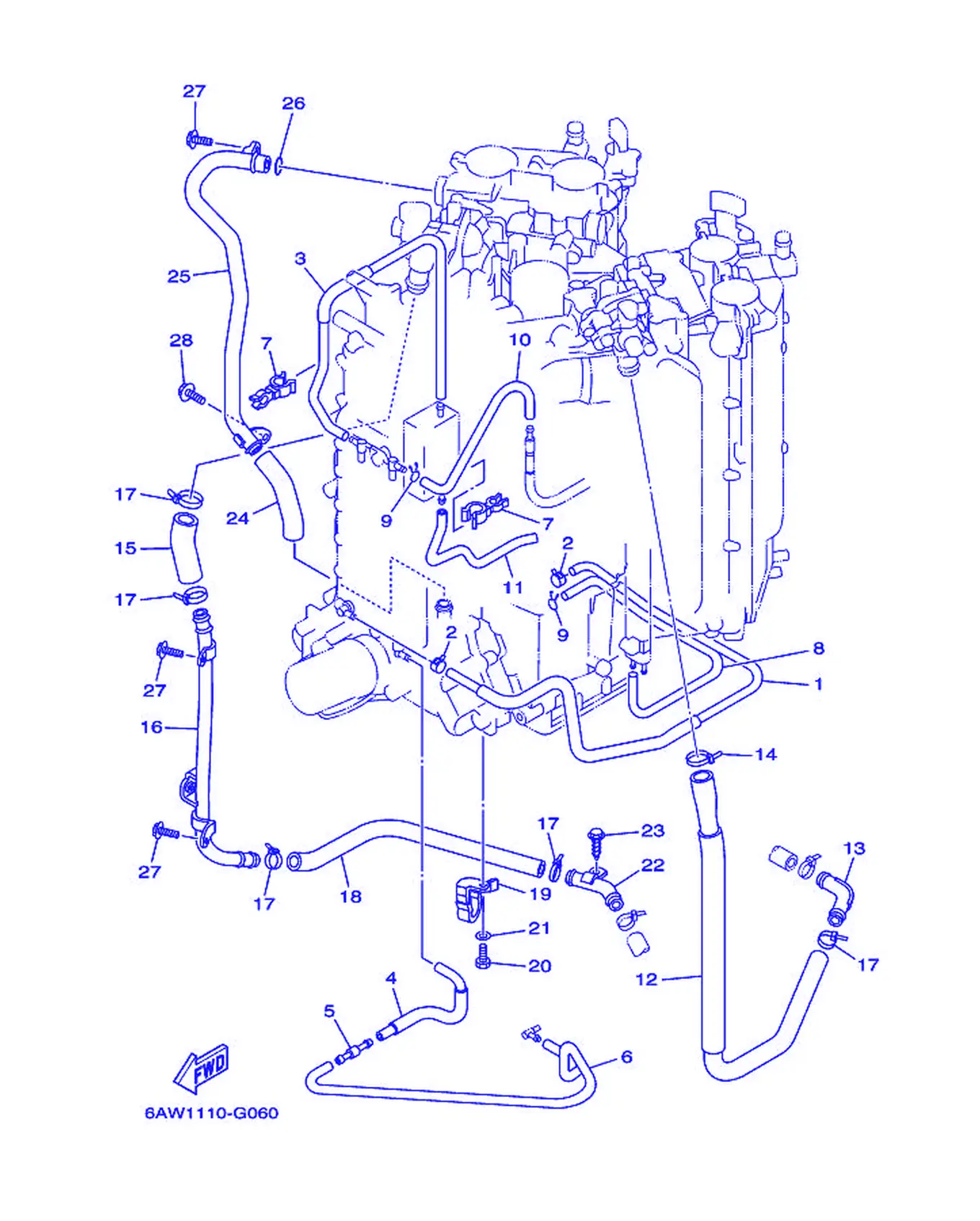

シリンダ & クランクケース 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-12576-00	软管1	Hose 1	1
2	90467-11136	卡环	Clip	2
3	6AW-12577-00	软管2	Hose 2	1
4	6AW-12578-00	软管3	Hose 3	1
5	6E5-24379-00	连接管4	Pipe,Joint 4	1
6	6AW-12579-00	软管4	Hose 4	1
7	90464-10010	线夹	Clamp	2
8	90445-09111	软管	Hose (L430)	1
9	90467-08M10	固定	Clip	2
10	6AW-12483-00	管3	Pipe 3	1
11	6AW-12482-00	管2	Pipe 2	1
12	6AW-1243A-00	软管1	Hose 1	1
13	6AW-12477-00	管7	Pipe 7	1
14	90465-11M59	固定	Clamp	1
15	6AW-1243E-00	软管2	Hose 2	1
16	6AW-12484-00	管4	Pipe 4	1
17	90465-11M59	固定	Clamp	5
18	6AW-1244G-00	软管4	Hose 4	1
19	6AW-12491-00	线夹1	Clamp 1	1
20	97095-06014	螺栓	Bolt	1
21	92995-06600	盘形垫	Washer	1
22	6AW-12476-00	管6	Pipe 6	1
23	90109-06M86	螺栓	Bolt	1
24	6AW-1244J-00	软管6	Hose 6	1
25	6AW-11378-00	软管2	Hose 2	1
26	93210-207A0	O型圈	O-ring	1
27	95885-06014	螺栓	Bolt, Flange	3
28	95885-06010	螺栓	Bolt, Flange	1

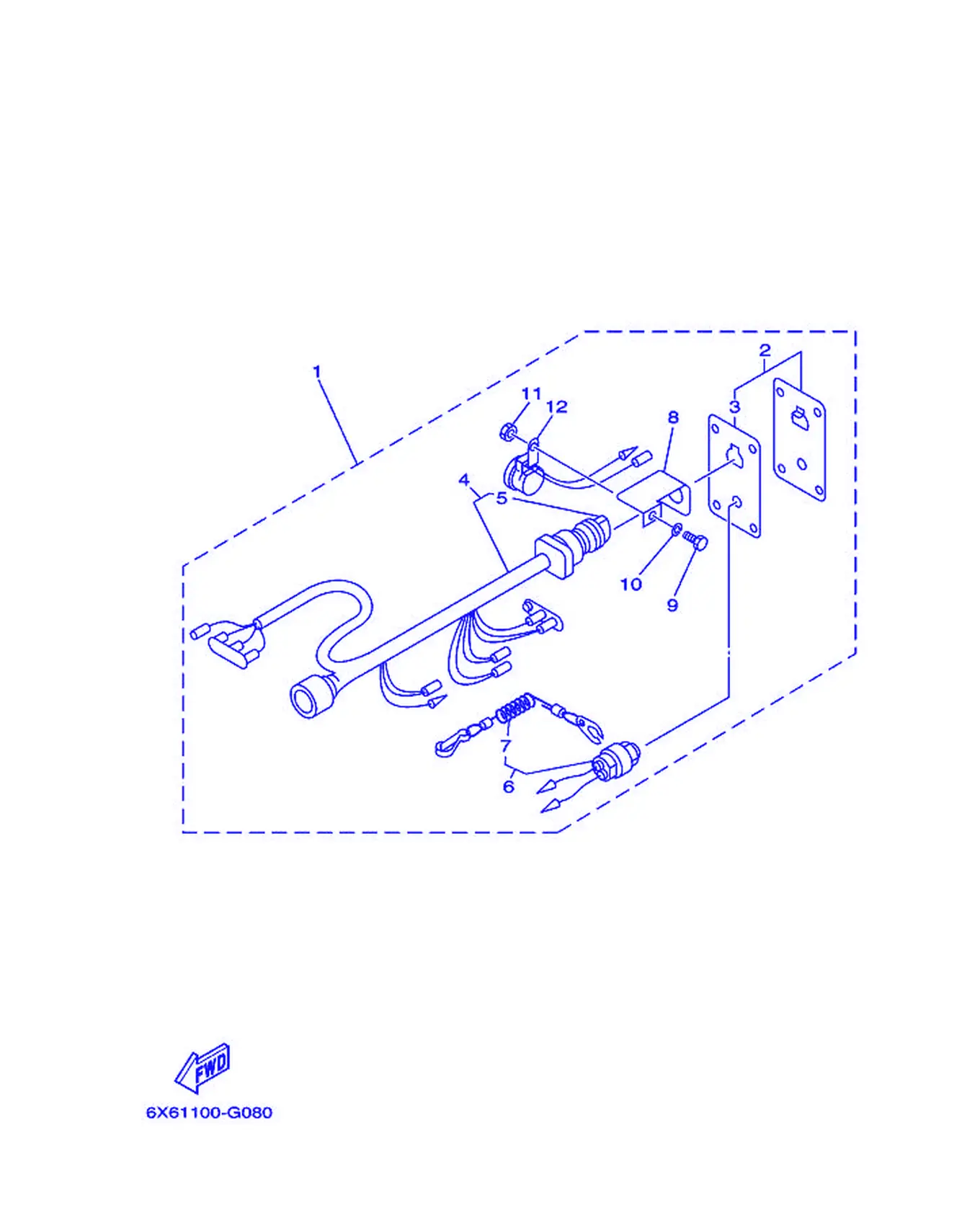

スイツチ & パネル 1 (シングル)

REF	雅马哈编码	中文名称	英文名称	用量
1	6R5-82570-05	开关仪表板组合	Panel Switch Assembly	1
2	704-82571-02	开关仪表板	Panel, Switch	1
3	6R5-82588-01	面板	Plate	1
4	6R5-82510-02	主开关组合	Main Switch Assembly	1
5	676-82577-00	倾斜限动电	Cap, Key	1
6	688-82575-01	发动机止动开关组合	Engine Stop Switch Assembly	1
7	682-82556-00	止动拉索	Stopper	1
8	64D-82581-00	线夹支承	Stay, Cord Clamp	1
9	97303-05012	螺栓	Bolt	1
10	92903-05100	盘形垫	Washer,Spring	1
11	95303-05700	有槽螺母	Nut	1
12	6R5-83383-00	蜂鸣器	Buzzer	1

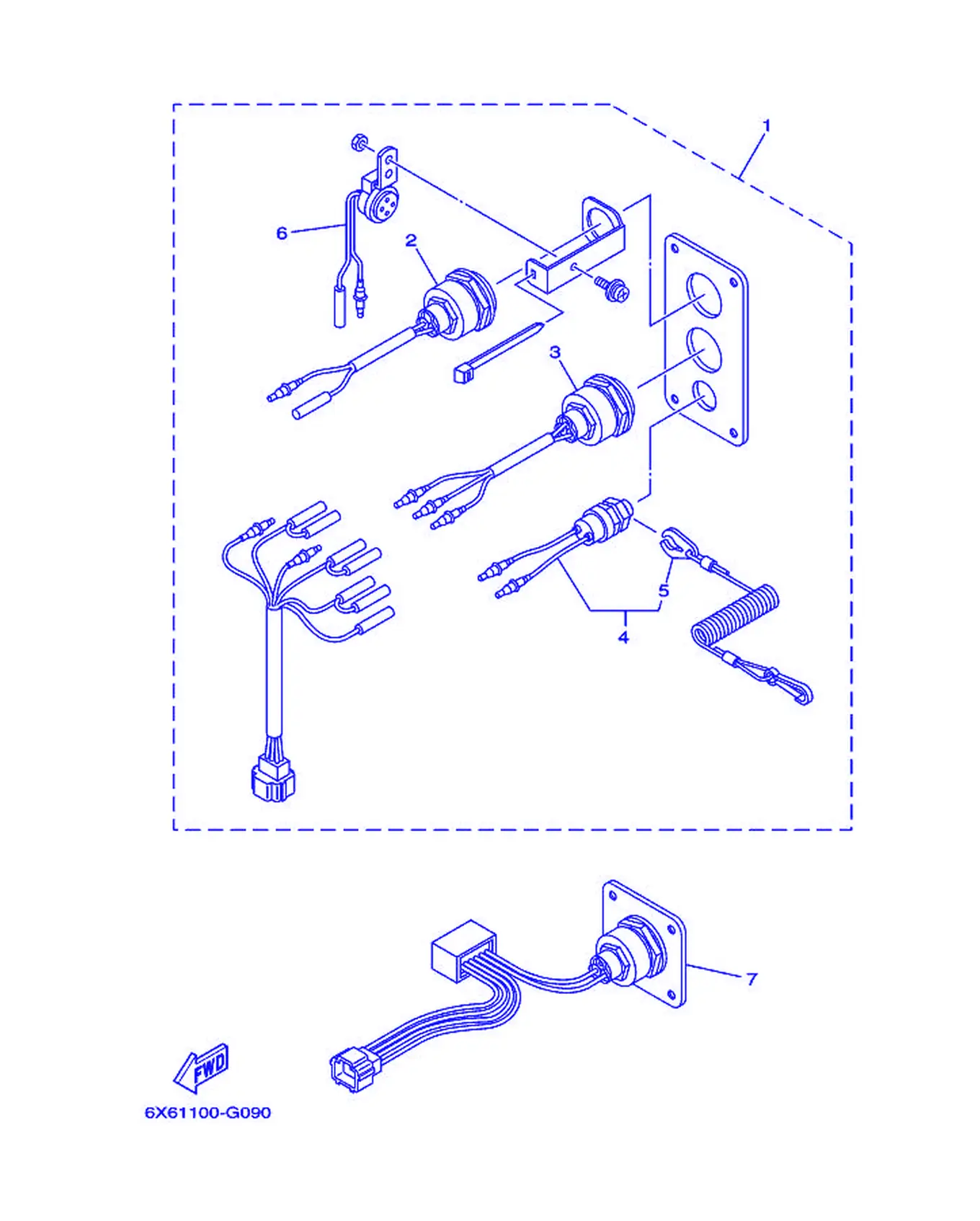

スイツチ & パネル 2 (シングル)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-82570-00	开关仪表板组合	Panel Switch Assembly (Single	1
2	6X1-81870-00	起动开关组合	Starting Switch Assembly	1
3	6X1-82550-00	发动机止动开关组合	Engine Stop Switch Assembly	1
4	688-82575-01	发动机止动开关组合	Engine Stop Switch Assembly	1
5	682-82556-00	止动拉索	Stopper	1
6	6R5-83383-00	蜂鸣器	Buzzer	1
7	6X6-82570-A0	开关仪表板组合	Panel Switch Assembly	2

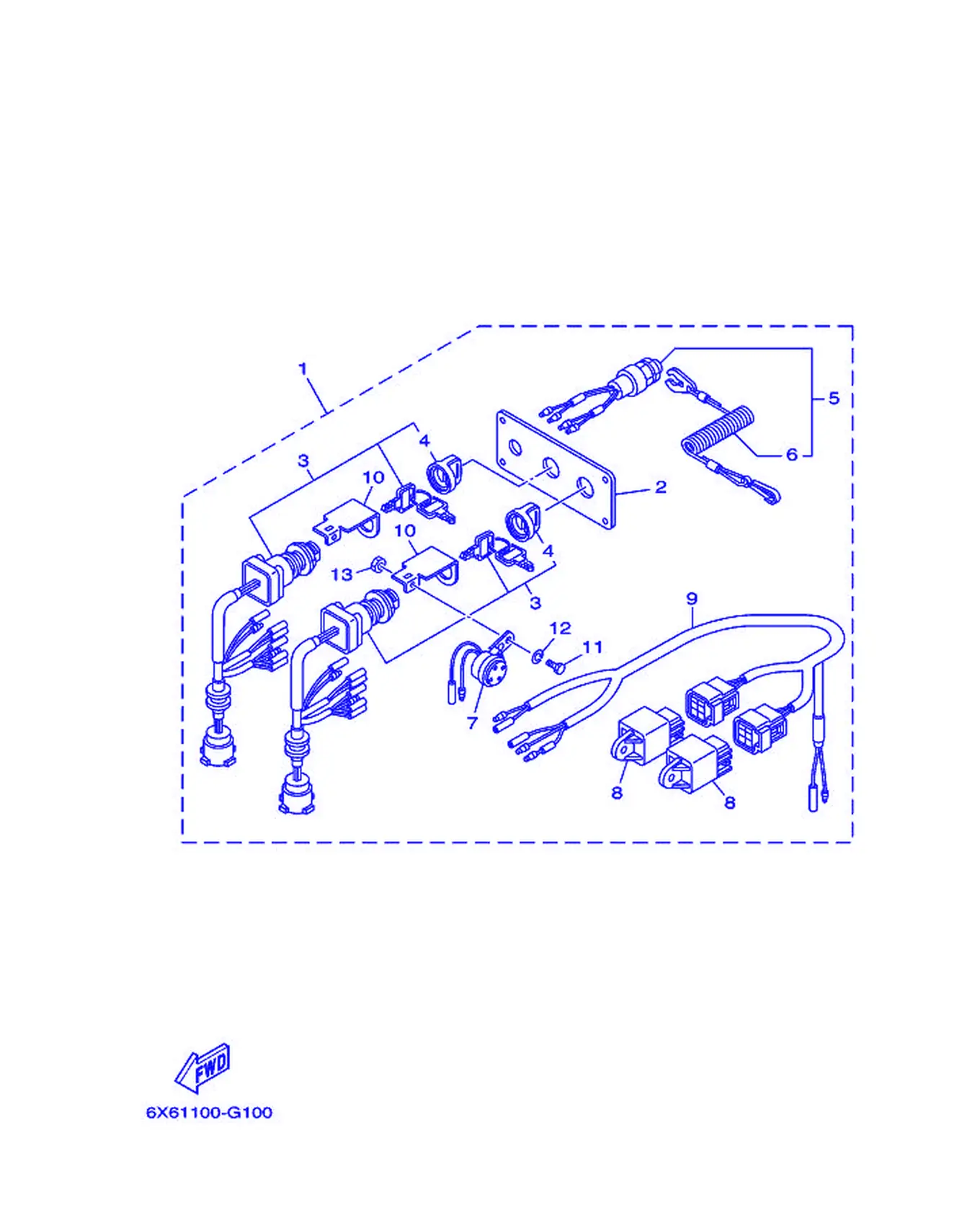

スイツチ & パネル 3 (ツイン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6Y8-82570-02	开关仪表板组合	Panel Switch Assembly, Twin	1
2	6Y8-82571-01	开关仪表板	Plate, Panel Switch	1
3	6Y8-82510-02	主开关总成	Main Switch Assembly	2
4	676-82577-00	倾斜限动电	Cap, Key	1
5	6K1-82575-00	发动机止动开关组合	Engine Stop Switch Assembly	1
6	682-82556-00	止动拉索	Stopper	1
7	6R5-83383-00	蜂鸣器	Buzzer	2
8	68V-81950-00	继电器组合	RelayAssembly	2
9	6Y8-82507-00	导线	Lead, Ignition Switch Relay	1
10	64D-82581-00	线夹支承	Stay, Cord Clamp	2
11	97303-05012	螺栓	Bolt	2
12	92903-05100	盘形垫	Washer,Spring	2
13	95303-05700	有槽螺母	Nut	2

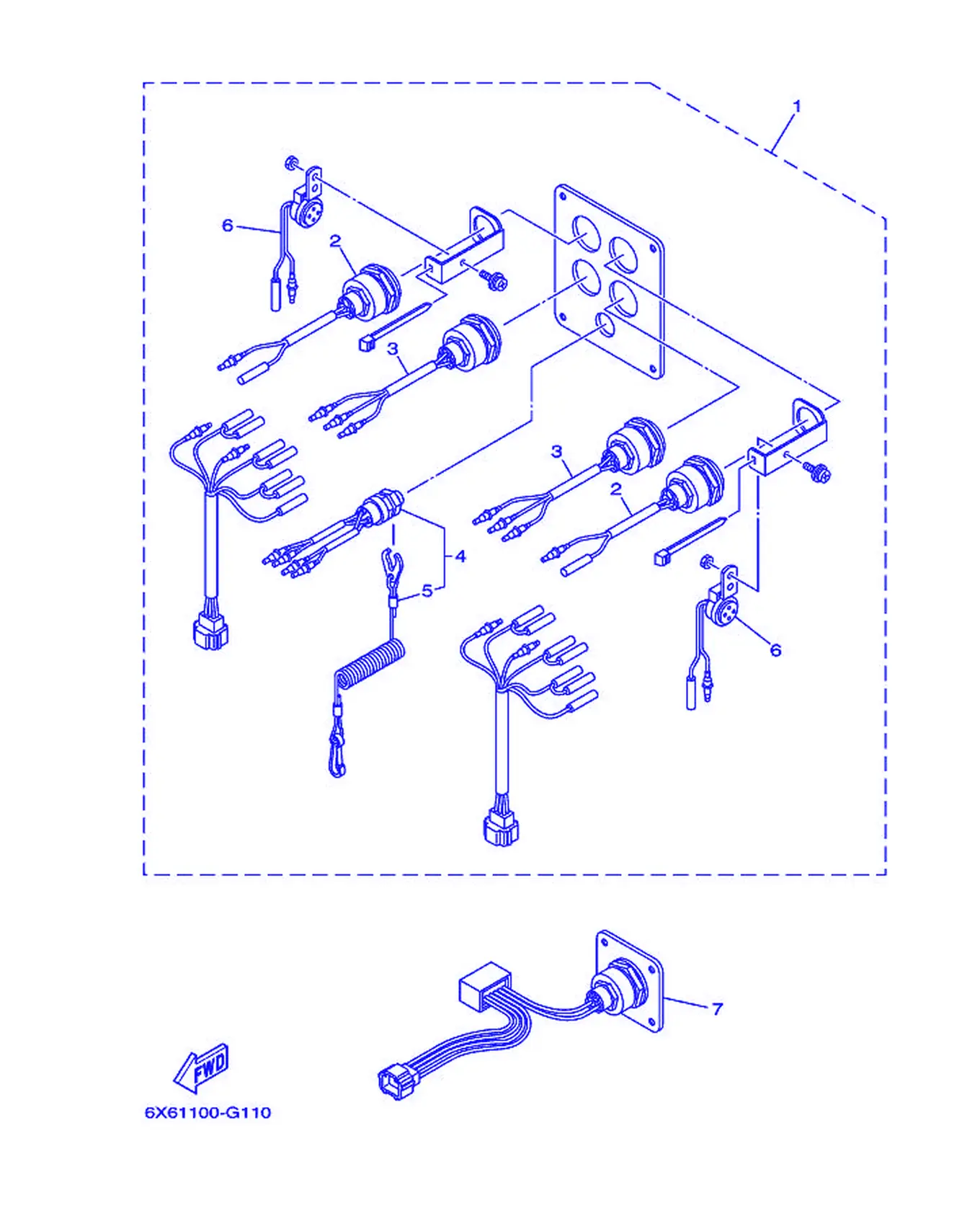

スイツチ & パネル 4 (ツイン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-82570-10	开关仪表板组合	Panel Switch Assembly (Twin)	1
2	6X1-81870-00	起动开关组合	Starting Switch Assembly	2
3	6X1-82550-00	发动机止动开关组合	Engine Stop Switch Assembly	2
4	6K1-82575-00	发动机止动开关组合	Engine Stop Switch Assembly	1
5	682-82556-00	止动拉索	Stopper	1
6	6R5-83383-00	蜂鸣器	Buzzer	2
7	6X6-82570-A0	开关仪表板组合	Panel Switch Assembly	2

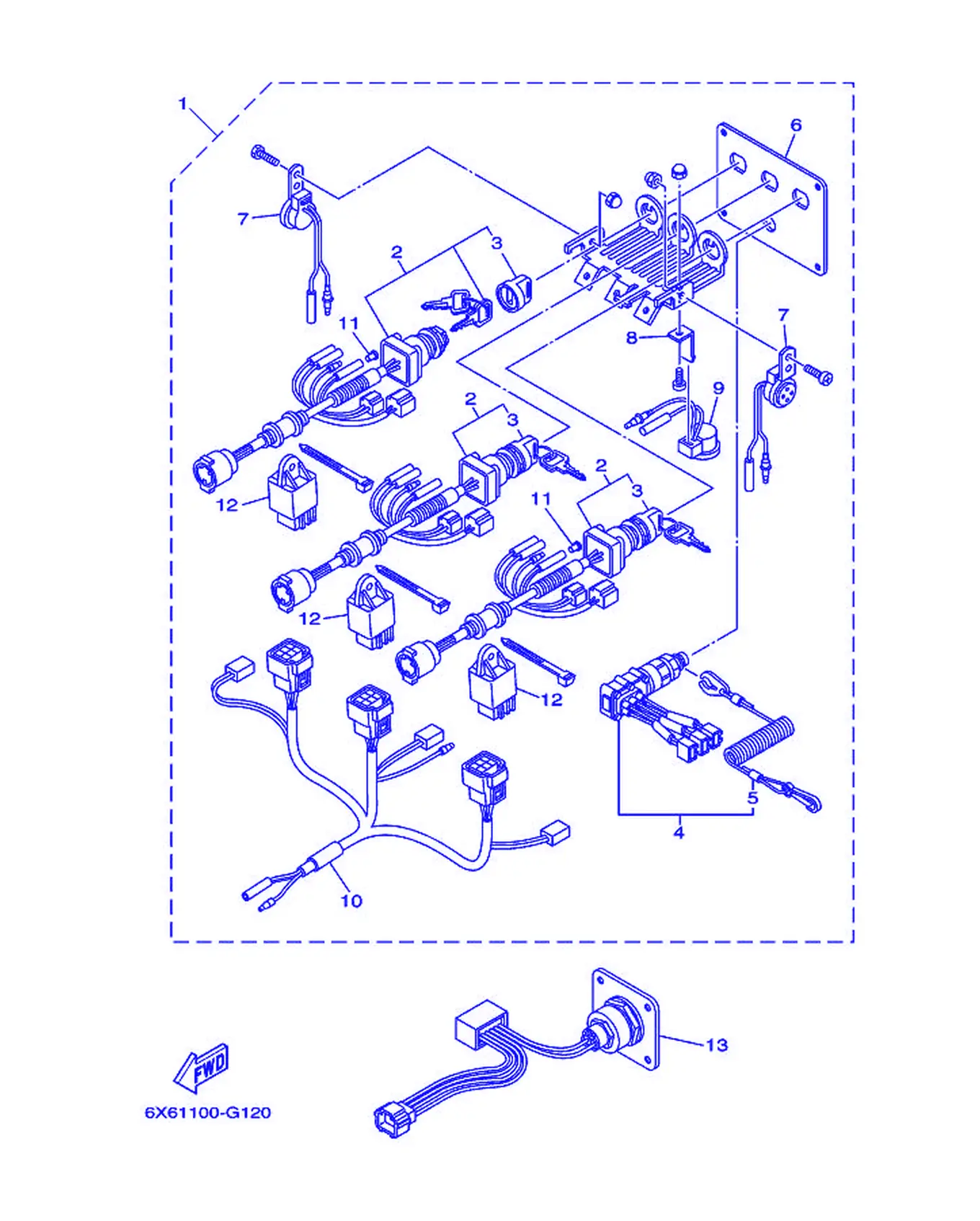

スイツチ & パネル 5 (トリプル)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X5-82570-01	开关仪表板组合	Panel Switch Assembly	1
2	6X5-82510-01	主开关总成	Main Switch Assembly	3
3	676-82577-00	倾斜限动电	Cap, Key	1
4	6X5-82575-00	发动机止动开关组合	Engine Stop Switch Assembly	1
5	682-82556-00	止动拉索	Stopper	1
6	6X5-82571-00	开关仪表板	Panel, Switch	1
7	6X5-83383-00	蜂鸣器	Buzzer	2
8	6X5-82581-00	线夹支承	Stay, Cord Clamp	1
9	6X4-83383-00	蜂鸣器	Buzzer	1
10	6X5-82507-00	导线	Wire, Lead	1
11	703-82119-00	导线盖	Cover,LeadWire	5
12	68V-81950-00	继电器组合	RelayAssembly	3
13	6X6-82570-A0	开关仪表板组合	Panel Switch Assembly	1

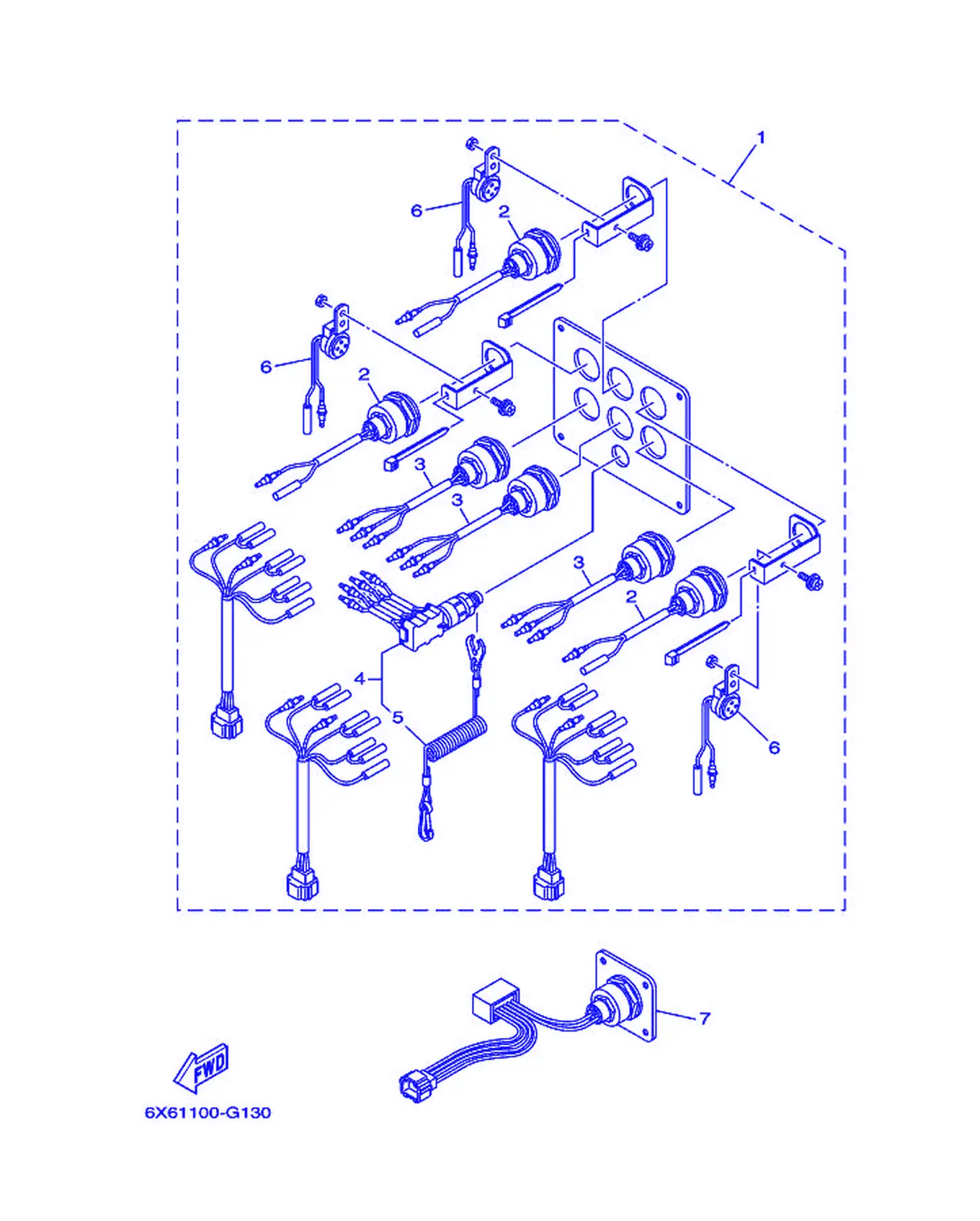

スイツチ & パネル 6 (トリプル)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-82570-20	开关仪表板组合	Panel Switch Assembly	1
2	6X1-81870-00	起动开关组合	Starting Switch Assembly	3
3	6X1-82550-00	发动机止动开关组合	Engine Stop Switch Assembly	3
4	6X6-82575-00	发动机止动开关组合	Engine Stop Switch Assembly	1
5	682-82556-00	止动拉索	Stopper	1
6	6R5-83383-00	蜂鸣器	Buzzer	3
7	6X6-82570-A0	开关仪表板组合	Panel Switch Assembly	2

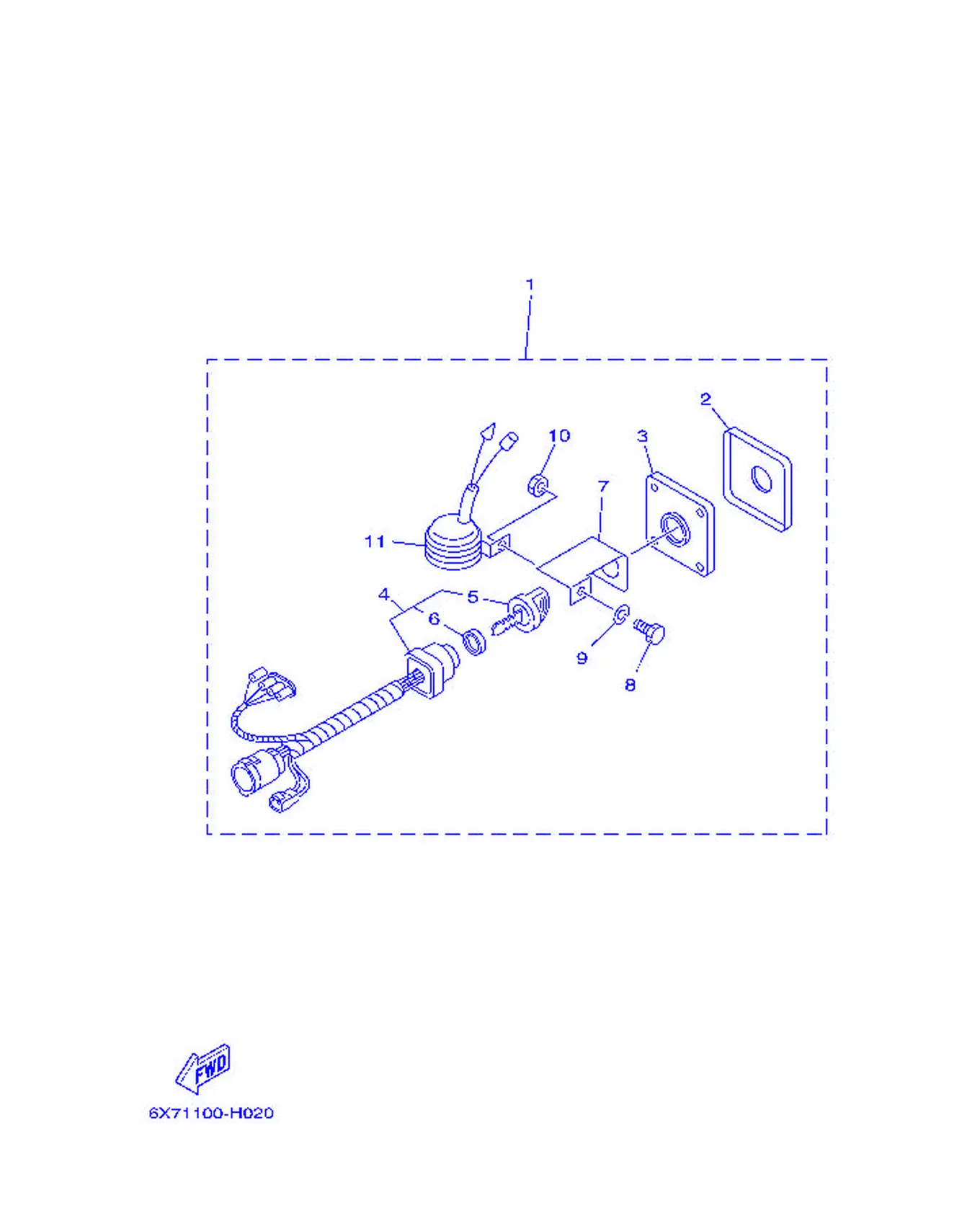

スイツチ & パネル 8 (6X7)

REF	雅马哈编码	中文名称	英文名称	用量
1	64D-82570-20	开关仪表板组合	Panel Switch Assembly	1
2	64D-82571-00	开关仪表板	Panel, Switch	1
3	64D-82588-00	面板	Plate	1
4	64D-82510-03	主开关组合	Main Switch Assembly	1
5	703-82577-00	旋钮	Cap, Key	1
6	6K1-82532-00	盖	Cap	1
7	64D-82581-00	线夹支承	Stay, Cord Clamp	1
8	97303-05012	螺栓	Bolt	1
9	92903-05100	盘形垫	Washer,Spring	1
10	95303-05700	有槽螺母	Nut	1
11	688-83383-11	蜂鸣器	Buzzer	1

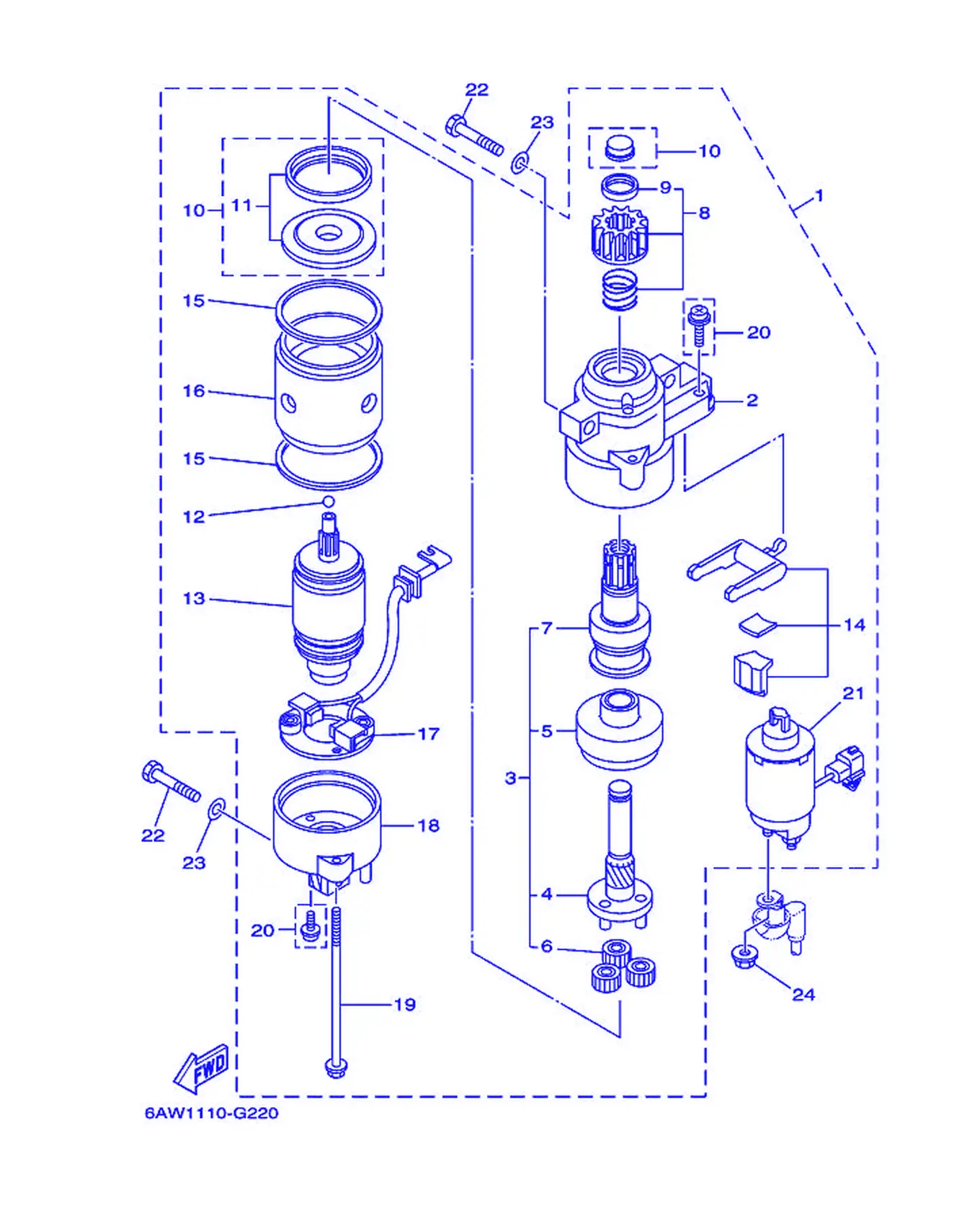

スタ-テイングモ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-81800-00	起动电动机总成	Starting Motor Assembly	1
2	6AW-81830-00	前托架组合	FrontBracketAssembly	1
3	6AW-81807-00	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
4	6AW-81836-00	杠杆弹簧	Spring, Lever	1
5	6AW-81891-00	环形齿轮	Gear, Ring	1
6	6AW-8183T-00	惰轮	Gear, Idler	3
7	6AW-81832-00	越转离合器	Clutch, Overrun	1
8	6AW-81808-00	小齿轮总成	Pinion Assembly	1
9	6AW-81857-00	挡圈	Retainer	1
10	6AW-81862-00	盖	Cap	1
11	6AW-8183R-00	衬垫套件	Packing Set	1
12	6AW-81854-00	钢珠	Ball, Steel	1
13	6AW-81850-00	电枢组合	Armature Assembly	1
14	6AW-81839-00	杠杆组合	LeverAssembly	1
15	6AW-81842-00	盖	Packing	2
16	6AW-81810-00	定子组合	Stator Assembly	1
17	6AW-81840-00	电刷架组合	Brush Holder Assembly	1
18	6AW-81820-00	后托架组合	Rear Bracket Assembly	1
19	6AW-81826-00	螺栓	Bolt	1
20	6AW-81846-00	螺钉1	Screw	1
21	6AW-81941-00	起动继电器组合	Starter Relay Assembly	1
22	97013-08045	螺栓	Bolt	3
23	92903-08600	有槽螺母	Washer,Plate	3
24	90179-08003	螺母	Nut	1

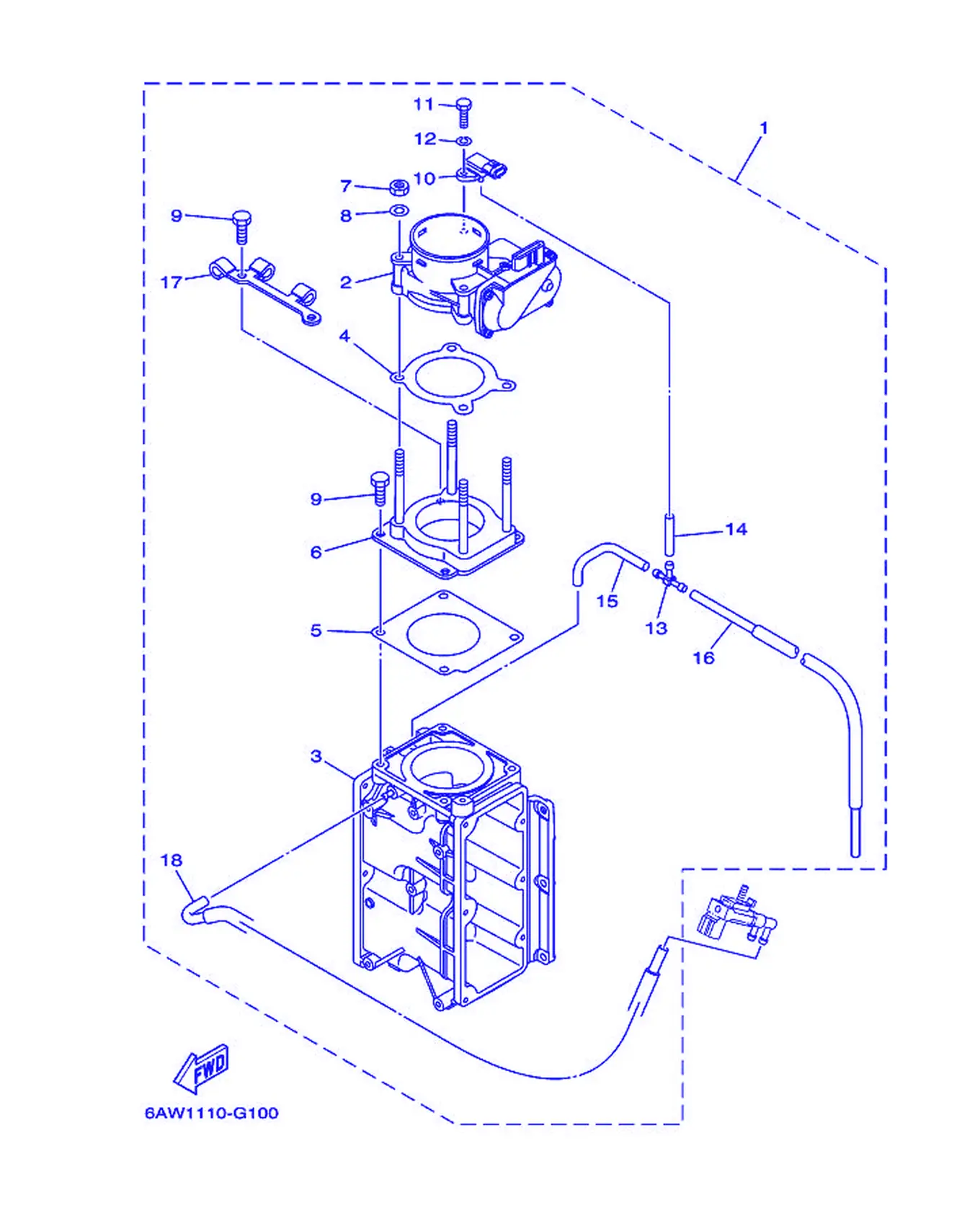

スロツトルボデ-アセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-13750-01	节流阀体总成	Throttle Body Assembly	1
2	6AW-13751-00	油门本体 1	Body, Throttle 1	1
3	6AW-13711-01	混合本体	Mixing Body	1
4	6AW-13556-00	岐管衬垫	Gasket, Manifold	1
5	6AW-13557-00	衬垫	Gasket	1
6	6AW-14360-00	风门组合	Throttle Damper Assembly	1
7	6P2-13588-00	螺母	Nut	4
8	6P2-13578-00	垫圈	Washer	4
9	6P2-14496-00	螺栓	Bolt	4
10	6P2-82380-00	压力传感	Sensor, Pressure	1
11	6P2-13573-00	螺栓1	Bolt 1	1
12	68V-14356-00	弹簧垫	Washer, Spring	1
13	4N0-14251-00	螺纹接头	Nipple	1
14	5JW-24311-00	油管	Pipe, Fuel 1	1
15	6AW-82364-00	管 2	Hose 2	1
16	6AW-82365-00	管 3	Hose 3	1
17	6AW-11188-00	管夹	Clip, Pipe	1
18	6AW-82366-00	管 4	Hose 4	1

スロツトルボデ-アセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-13160-00	输送管组合1	Delivery Pipe Assembly 1	1
2	6AW-13161-00	管1	Pipe, Delivery 1	1
3	6AW-13761-00	喷射器	Injector Assembly	4
4	6AW-1410B-00	衬垫套件	Packing Kit	1
5	6AW-13577-00	卡环	Clip	4
6	6AW-13767-00	喷射器盖	Cap, Injector	4
7	95875-06016	螺栓	Bolt, Flange	2
8	6AW-13564-00	岐管盖	Cover,Manifold	1
9	6AW-13889-00	标签	Label	1
10	6AW-13170-00	输送管组合2	Delivery Pipe Assembly 2	1
11	6AW-13171-00	输送管2	Pipe, Delivery 2	1
12	6AW-13761-00	喷射器	Injector Assembly	4
13	6AW-1410B-00	衬垫套件	Packing Kit	1
14	6AW-13577-00	卡环	Clip	4
15	6AW-13767-00	喷射器盖	Cap, Injector	4
16	95875-06016	螺栓	Bolt, Flange	2
17	6AW-13594-00	岐管盖2	Cover, Manifold 2	1
18	6AW-13889-10	标签	Label	1

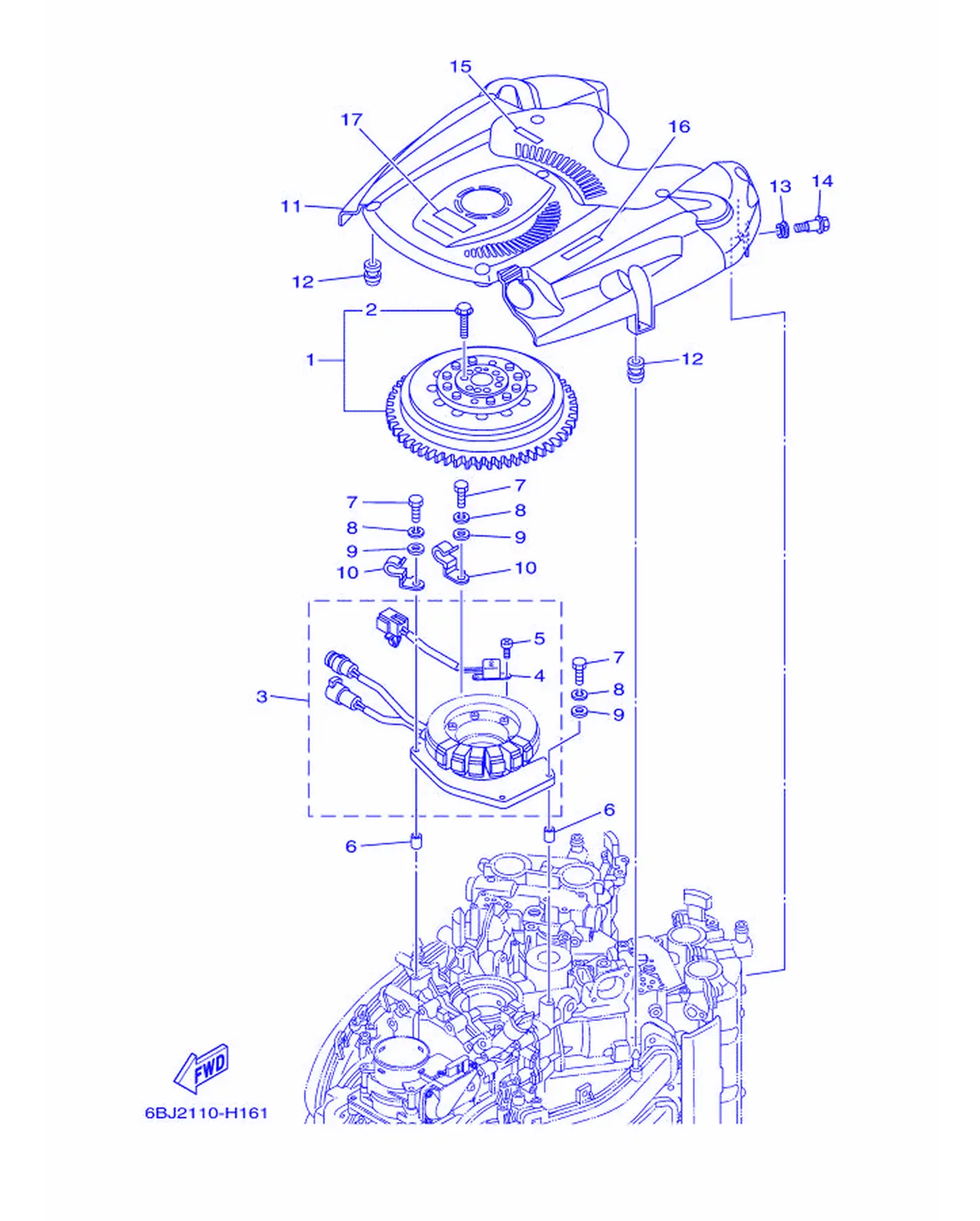

ゼネレ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-W8145-01	带螺栓转子	Rotor Assembly (with Bolt)	1
2	6AW-W9011-00	螺栓套件	Bolt Set (for Rotor ASSY)	1
3	6AW-81460-00	基座组合	BaseAssembly	1
4	6AW-85580-00	脉冲发生器总成	Coil, Pulser	1
5	63D-81345-00	大柱头螺钉	Screw, With Washer (M5X12)	2
6	99530-08012	螺栓	Pin, Dowel	2
7	97095-06030	螺栓	Bolt	4
8	92995-06100	垫圈	Washer,Spring	4
9	92995-06600	盘形垫	Washer	4
10	90462-10042	线夹	Clamp	2
11	6AW-81337-01	飞轮盖	Cover,Flywheel	1
12	663-82317-01	点火线圈减震器	Damper, Ignition Coil	4
13	90480-12072	固定	Grommet	2
14	90109-06MA1	螺栓	Bolt	2
15	67F-12138-01	凸轮轴盖3	Mark, Corrosion	1
16	6AW-13437-01	警告标签	Mark, Caution	1
17	6AH-81994-00	标签	Label, Safety	1

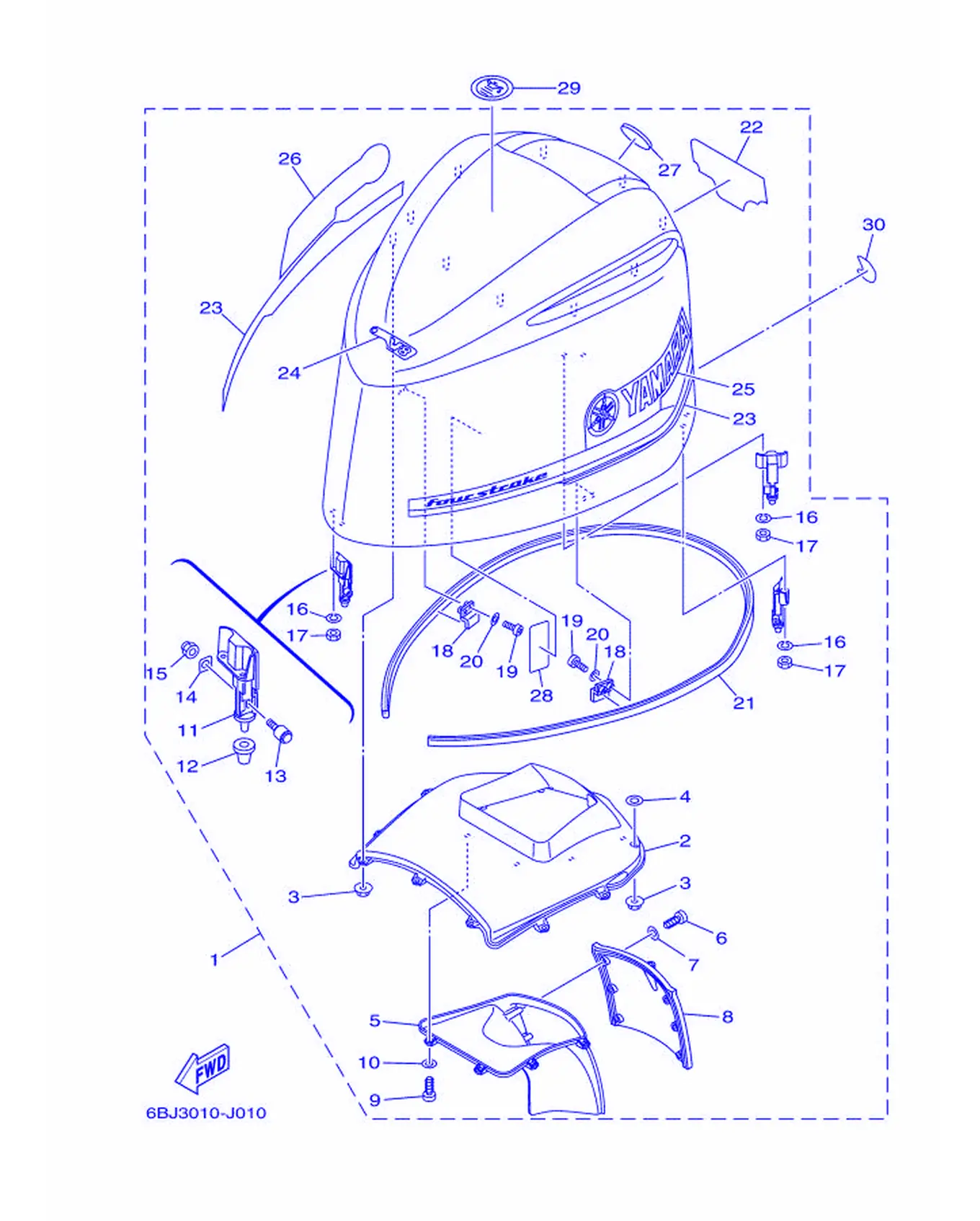

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6BJ-42610-20-8D	顶罩组合	Top Coupling Assembly	1
2	6AW-42613-00	空气导管嵌	Molding, Air Duct	1
3	90179-06M28	螺帽	Nut	10
4	90202-06003	螺母	Washer, Plate	3
5	6AW-42635-00	分水管	Duct, Water Separator	1
6	97780-60516	自攻螺钉	Screw, Tapping	6
7	92995-06200	盘形垫	Washer	6
8	6AW-42532-00	盖	Cover	1
9	97780-60516	自攻螺钉	Screw, Tapping	7
10	92995-06200	盘形垫	Washer	7
11	6AW-42647-00-9S	夹带支架	Holder, Clamp Band	3
12	6AW-42663-00	减震器	Damper	3
13	6AW-4264A-00	钩组合	Hook Assembly	3
14	6AW-42646-10	夹板	Clamp Plate	3
15	95780-08300	带垫螺母	Nut, Flange	3
16	92990-06100	盘形垫	Washer,Spring	6
17	95380-06600	有槽螺母	Nut, Hexagon	6
18	6AW-42477-00	锁紧板	Plate, Lock	2
19	97885-05010	大柱头螺钉	Screw, Pan Head	4
20	92995-05600	盘形垫	Washer	4
21	6AW-42628-20	密封	Seal	1
22	6BJ-42678-00	后图样	Graphic, Rear	1
23	6AW-W0070-00	图样套	Graphic Set	1
24	6AW-42677-00	前图样	Graphic, Front	1
25	6AW-42681-00	罩标志	Mark, Cowling	1
26	6AW-42682-00	罩标志	Mark, Cowling	1
27	6AW-42697-10	音叉标记	Tuning Fork Mark	1
28	6AH-42735-00	保护	Protector	1
29	67F-13434-10	告诫标记	Label, Corrosion	1
30	6C5-24239-00	标志 5	Mark 5	1

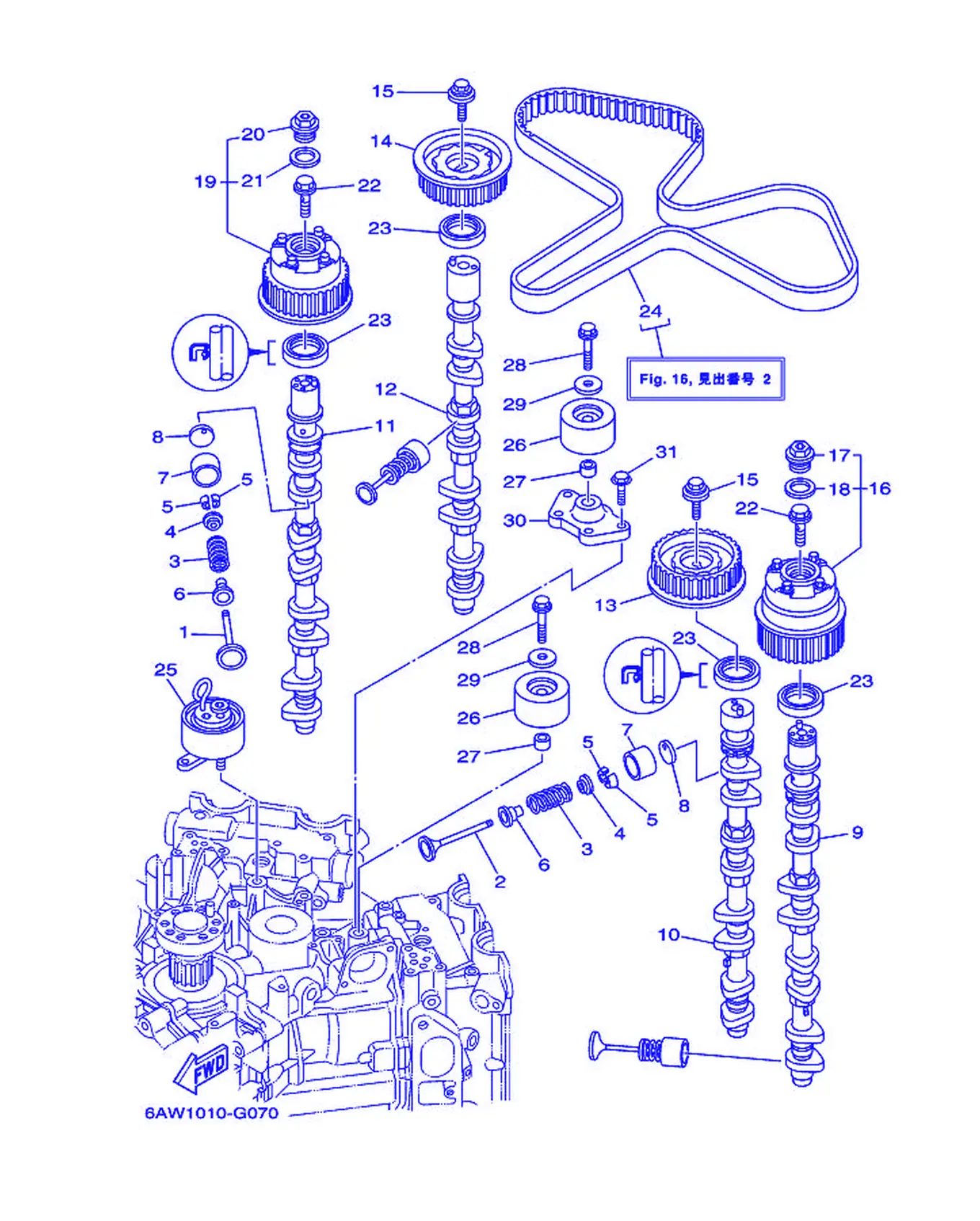

バルブ

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-12111-00	进气门	Valve,Intake	16
2	6P2-12121-00	排气门	Valve,Exhaust	16
3	69J-12113-01	气门内弹簧	Spring, Valve Inner	32
4	69J-12117-01	气门弹簧座	Retainer,ValveSpring	32
5	69J-12118-00	气门锁夹	Cotter, Valve	64
6	69J-12119-00	气门杆密封	Seal, Valve Stem	32
7	69J-12153-00	气门挺杆	Lifter, Valve	32
8	6S1-12168-00	调整衬垫	Pad, Adjusting (2.320)	32
8	6S1-12168-10	调整衬垫	Pad, Adjusting (2.340)	32
8	6S1-12168-20	调整衬垫	Pad, Adjusting (2.360)	32
8	6S1-12168-30	调整衬垫	Pad, Adjusting (2.380)	32
8	6S1-12168-40	调整衬垫	Pad, Adjusting (2.400)	32
8	6S1-12168-50	调整衬垫	Pad, Adjusting (2.420)	32
8	6S1-12168-60	调整衬垫	Pad, Adjusting (2.440)	32
8	6S1-12168-70	调整衬垫	Pad, Adjusting (2.460)	32
9	6AW-12171-01	凸轮轴1	Camshaft 1	1
10	6AW-12181-00	凸轮轴2	Camshaft 2	1
11	6AW-12172-01	凸轮轴3	Camshaft 3	1
12	6AW-12182-00	凸轮轴4	Camshaft 4	1
13	6AW-11537-00	从动齿	Gear, Driven	1
14	6AW-11567-00	从动齿 2	Gear, Driven 2	1
15	68V-12157-00	锁紧螺母	Bolt	2
16	6AW-12645-00	滑轮组合1	Pulley Assembly 1	1
17	6P2-12623-00	螺栓	Bolt	1
18	6P2-12663-00	衬垫	Gasket	1
19	6AW-1264A-00	滑轮组合2	Pulley Assembly 2	1
20	6P2-12623-00	螺栓	Bolt	1
21	6P2-12663-00	衬垫	Gasket	1
22	6P2-12615-00	螺栓	Bolt	2
23	93102-38008	油封	OilSeal	4
24	6AW-W4624-00	皮带	Belt (Rotor Bolt Included)	1
25	6P2-11590-00	张紧轮组合	Tensioner Assembly	1
26	6P2-15512-00	空转齿轮1	Gear, Idler 1	2
27	90387-10M08	衬套	Color	2
28	90119-10M07	螺栓	Bolt, With Washer	2
29	90201-10M01	平垫圈	Washer,Plate	2
30	6AW-15544-00-94	支承1	Stay 1	1
31	90105-08178	六角法兰面螺栓	Bolt, Flange	4

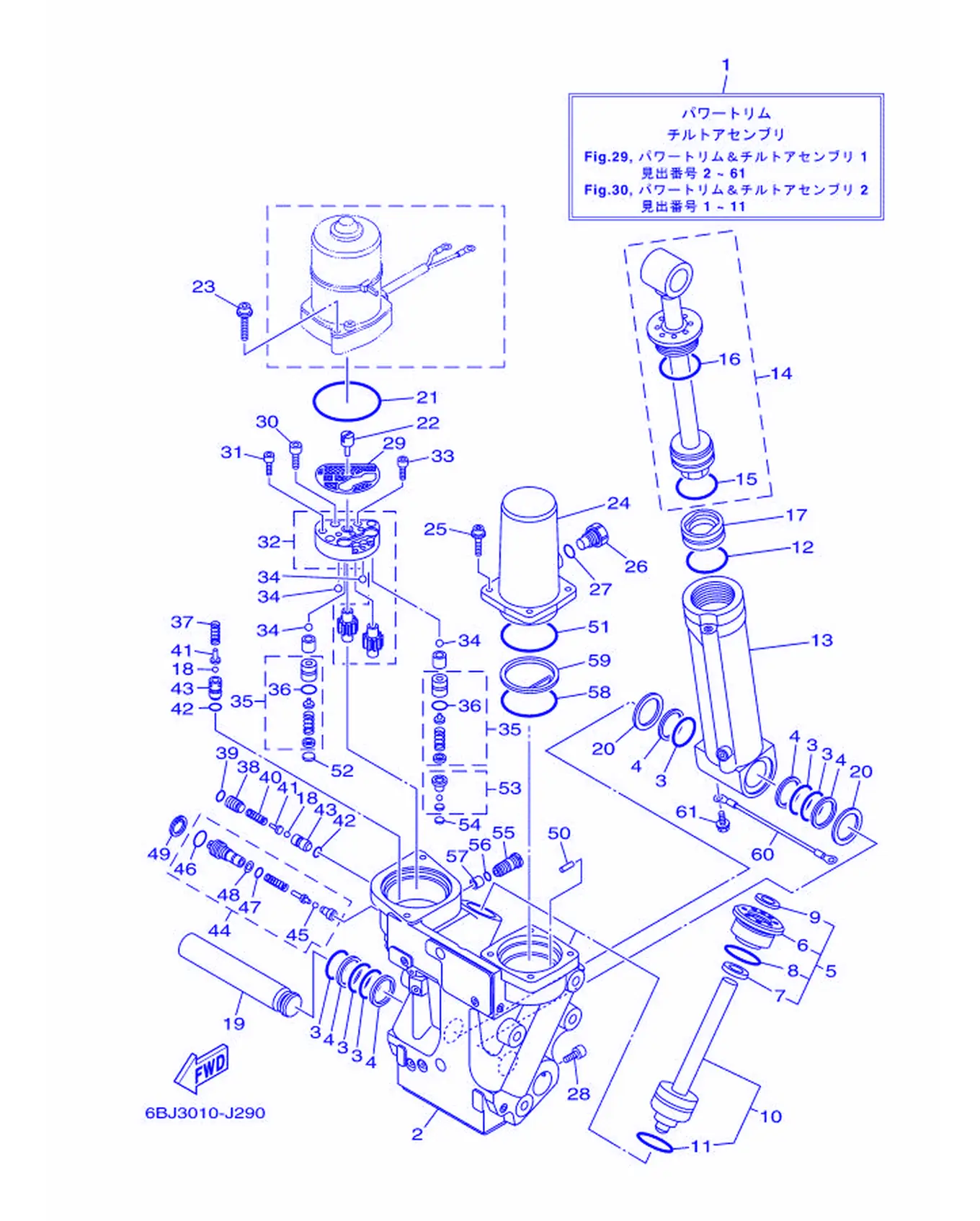

パワートリム & チルトアセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-43800-01	电动倾斜调整装置组合	Power Trim & Tilt Assembly	1
2	6AW-43825-01	纵倾角调整和角度定位装置壳	Housing, Trim Tilt	1
3	6AW-4389H-00	O型圈	O-ring	6
4	6AW-43871-00	环	Ring, Back Up	5
5	6AW-4380R-00	活塞分组合缸体	Cylinder End Sub-assembly	2
6	6AW-43821-00	纵倾角调整气缸端部螺钉	Screw, Trim Cylinder End	1
7	6AW-4384J-00	向下纵倾角密封	Seal, Trim Down	1
8	6E5-43862-00	O型圈	O-ring	1
9	6AW-43822-00	纵倾角调整防尘密封	Seal, Trim Dust	1
10	6AW-43820-00	活塞分组合	Trim Piston Sub-Assembly	2
11	6G5-43864-00	O型圈	O-ring	1
12	6E5-43862-00	O型圈	O-ring	1
13	6AW-43813-00	角度定位气	Cylinder, Tilt	1
14	6AW-43810-01	活塞分组合	Tilt Piston Sub-Assembly	1
15	6E5-43862-00	O型圈	O-ring	1
16	64E-43866-00	O型圈	O-ring	1
17	6AW-43814-00	自由活	Piston, Free	1
18	64E-43858-00	滚珠	Ball	2
19	6AW-4381A-00	轴	Shaft	1
20	6AW-4387G-00	垫圈	Washer	2
21	64E-43868-00	O型圈	O-ring	1
22	64E-43831-00	轴连接器	Connector,Shaft	1
23	6AW-43879-00	带垫螺钉	Screw, Washer	2
24	6AW-43828-00	储油箱	Body, Reservoir	1
25	6AW-43887-00	螺栓	Bolt	4
26	6AW-43829-00	储油箱	Reserve Plug	1
27	6AW-43897-00	O型圈	O-ring	1
28	6AW-4388E-00	锥形螺钉	Bolt, Screw	1
29	64E-43817-11	过滤器2	Filter 2	1
30	6AW-43878-00	座螺栓	Bolt, Socket	4
31	6AW-43888-00	座螺螺栓	Bolt, Socket	3
32	6AW-43830-00	齿轮泵组合	Gear Pump Assembly	1
33	6AW-43886-00	螺栓	Bolt	1
34	6AW-43858-00	滚珠	Ball	4
35	6AW-43802-00	阀门分组合	Valve Sub-Assembly	2
36	6E5-43896-00	O型圈	O-ring	1
37	6AW-43856-00	下减压弹簧	Spring, Down Relief	1
38	6AW-4388J-00	塞 2	Plug 2	1
39	6AW-43869-00	O型圈	O-ring	1
40	6AW-4384H-00	弹簧	Spring	1
41	6AW-43844-00	阀门支销	Pin, Valve Support	2
42	6G5-43863-00	O型圈	O-ring	2
43	6AW-4382G-00	波形垫	Valve Seat	2
44	6AW-43860-01	手控阀门分组合	Manual Valve Sub-Assembly	1
45	64E-43858-00	滚珠	Ball	1
46	72X-85075-L0	O型圈	O-ring	1
47	64E-4387A-00	O型圈	O-ring	1
48	64E-43873-00	支承	Ring, Back Up	1
49	6AW-43875-00	环	Ring, Snap	1
50	6AW-4381G-00	销1	Pin 1	1
51	6AW-43861-00	O型圈	O-ring	1
52	6AW-43817-00	过滤器2	Filter 2	1
53	6AW-43809-00	阀座组件2	Seat Valve Complete 2	1
54	64E-43816-00	过滤器1	Filter 1	1
55	6AX-4388J-00	塞2	Plug 2	1
56	64E-43865-00	O型圈	O-ring	1
57	6AW-4388H-00	塞	Plug	1
58	6AW-4389J-00	O型圈	O-ring	1
59	6AW-43899-00	面板限位板	Plate Stopper	1
60	6H1-82148-00	导线4	Wire,Lead 4	1
61	97595-06510	带垫圈螺	Bolt, With Washer	1

パワートリム & チルトアセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-43880-01	电动机总成	Motor Assembly	1
2	6AW-43882-00	油封	Oil Seal	1
3	6AW-43805-00	电枢组合	Armature Assembly	1
4	6AW-43843-00	阀门锁紧螺钉	Screw	2
5	6AW-43804-00	定子组合	Stator Assembly	1
6	6AW-43881-11	端部框架	Frame, End	1
7	6AX-43887-00	螺栓	Bolt	2
8	6AW-43138-00	螺母	Nut	2
9	6AW-43842-00	阀座螺钉	Screw	2
10	6AW-4380J-00	电刷架	Holder, Brush	1
11	6AW-4386K-00	电刷弹簧	Spring, Brush	4

フユエル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	689-85547-00	减震器	Damper	1
2	6AW-24377-00	连接管3	Pipe, Joint 2	1
3	6AW-24311-00	油管	Pipe, Fuel 1	1
4	6E5-24351-51	带1	Band 1	1
5	90465-11M10	固定	Clamp	2
6	6P3-24560-11	过滤器总成	Filter Assembly	1
7	6P3-24562-11	滤杯	Cup, Filter	1
8	6P3-24519-00	钢夹	Clip	1
9	6P3-24469-00	水位浮标	Float, Water Level	1
10	6P3-24564-00	衬垫	Gasket	1
11	6P3-24563-00	过滤器滤	Element, Filter	1
12	90119-06M17	卡环	Bolt, With Washer	2
13	90387-06M60	衬套	Color	2
14	90480-10M23	固定	Grommet	2
15	6AW-24596-00	盖	Cover	1
16	97095-06012	螺栓	Bolt	2
17	92995-06600	盘形垫	Washer	2
18	90464-11121	固定	Clamp	1
19	90464-20181	固定夹	Clamp	1
20	69J-28100-01	工具套	ToolKit	1

フユエル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-24408-01	供油系统组合	Fuel Feed Assembly	1
2	6AW-244A0-00	泵壳体组件	Pump Case Complete	1
3	6AW-244A1-00	泵壳体 1	Case, Pump 1	1
4	6AW-24460-00	放油阀组合，安全阀组合	Relief Valve Assembly	1
5	6AW-24378-00	连接管4	Pipe, Joint 3	1
6	6AW-24322-00	管	Pipe 11	1
7	6AW-24323-00	管	Pipe 12	1
8	6AW-24410-00	燃油泵组合	Fuel Pump Assembly	1
9	6AW-24324-00	管	Pipe 13	1
10	6AW-24502-00	燃油滤清器	Filter, Fuel	1
11	6AW-24325-00	管	Pipe 14	1
12	68V-13577-00	钢夹	Clip	9
13	6AW-24379-00	连接管4	Pipe, Joint 4	1
14	6AW-24321-01	管	Pipe 10	1
15	69J-14137-00	钢夹	Clip	1
16	6AW-14118-00	罩	Cap	1
17	6AW-24356-00	管钢夹1	Clip, Pipe 1	1
18	6AW-14567-00	螺钉	Screw	9
19	6AW-24491-00	油泵支承	Bracket, Fuel Pump	1
20	6AW-24492-00	燃油泵衬套	Bush, Fuel Pump	1
21	6AW-24492-10	燃油泵衬套	Bush, Fuel Pump	1
22	6AW-24431-00	燃油泵衬垫1	Gasket, Fuel Pump 1	1
23	6AW-14565-00	螺钉	Screw	7
24	68V-14397-00	O型圈	O-ring	2
25	68V-2481H-00	夹箍	Clamp	1
26	6AW-24327-00	管保护	Protector, Pipe	1
27	90109-06MA2	螺栓	Bolt	4
28	90467-120A0	卡环	Clip	1
29	90462-12009	线夹	Clamp	1

フユエルインジエクシヨンポン

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-14180-01	浮子室组合	Float Chamber Assembly	1
2	6AW-14182-00	浮子室盖	Cover, Float Chamber	1
3	4SV-24453-00	螺钉	Screw	2
4	6AW-2411T-00	板 2	Plate 2	1
5	6AW-2411R-00	板 1	Plate 1	1
6	6AW-14181-00	浮子室本体1	Body, Float Chamber 1	1
7	6P2-14191-00	放油旋	Drain Plug	1
8	6P2-14985-00	浮子	Float	1
9	6P2-14386-00	浮子销	Pin,Float	1
10	6P2-14546-00	针阀	Valve, Needle	1
11	6P2-13769-00	O型圈	O-ring	1
12	4SV-24453-00	螺钉	Screw	1
13	6P2-13574-00	螺栓2	Bolt 2	1
14	68V-13781-10	泵减震器	Damper,Pump	1
15	6AW-13907-00	油泵组合	Fuel Pump Complete	1
16	63P-13784-00	泵盖	Cover, Pump	1
17	63P-13915-00	过滤器	Filter	1
18	6AW-13906-00	调压器	Regulator, Pressure	1
19	63P-14567-00	螺钉	Screw	5
20	6AW-14984-00	浮子室衬垫	Gasket, Float Chamber	1
21	69J-24379-00	连接管4	Pipe,Joint 4	1
22	6AW-1475K-00	管7	Pipe 7	1
23	6AW-1475L-00	管8	Pipe 8	1
24	68V-14564-00	螺丝	Screw	2
25	90480-10M23	固定	Grommet	2
26	6P2-24170-00	过滤器总成	Canister Assembly	1
27	90387-06M60	衬套	Color	2
28	90119-06M59	带垫螺栓	Bolt, With Washer	2
29	6P2-14446-00	螺栓	Bolt	2
30	69J-21841-02	冷却器	Cooler	1
31	68V-14265-00	轴套	Color	2
32	6AW-2134X-00	金属箱托架	Bracket, Canister	1
33	6P2-2419A-00	支架	Holder	1
34	69J-13593-00	减震器	Damper	4
35	69J-13716-00	轴套	Color	8
36	6AW-14197-00	管	Pipe	1
37	98507-04008	大柱头螺钉	Screw, Pan Head	1
38	69J-14225-01	盖	Cap	1

フユエルタンク

REF	雅马哈编码	中文名称	英文名称	用量
1	6YJ-W2420-J1	燃油箱组合	FuelTankAssembly (24L)	1
2	6YJ-24610-01	盖组合	Cap Assembly	1
3	6Y1-24260-12	油量计组合	Fuel Meter Assembly	1
4	90157-05M19	螺钉	Screw, Pan Head	4
5	6Y1-24329-00	密封	Seal	4
6	6Y1-24268-00	油量计衬垫	Gasket, Fuel Meter	1
7	6YJ-24167-00	滤	Strainer	1
10	6Y2-24306-56	燃油管组件1	FuelPipeComplete 1	1
11	6E5-24305-06	油管接头2	Fuel Pipe Joint Complete	1
12	93210-08287	O型圈	O-ring	1
13	6Y2-24305-06	燃油管接头组件2(85以上油箱侧D:13M	Fuel Pipe Joint Complete	1
14	93210-08287	O型圈	O-ring	1
15	90445-13M01	油管	Hose (L2050)	1
16	6E5-24351-51	带1	Band 1	4
17	90445-13M00	固定	Hose(L850)	1
18	6Y2-24360-60	起动注油泵组合	Primer Pump Assembly	1

ブラケツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-43111-00-8D	夹紧托架	Bracket, Clamp 1	1
2	90110-10092	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	1
3	90201-10049	面板垫圈	Washer, Plate	1
4	6AW-45251-00	阳极	Anode	1
5	6G5-44526-00	面板	Plate	2
6	97095-06030	螺栓	Bolt	4
7	92995-06600	盘形垫	Washer	4
8	6H1-82148-00	导线4	Wire,Lead 4	1
9	97095-06010	螺栓	Bolt	1
10	92995-06600	盘形垫	Washer	1
11	6H1-82148-00	导线4	Wire,Lead 4	1
12	97885-06012	大柱头螺钉	Screw, Pan Head	1
13	92995-06600	盘形垫	Washer	1
14	61A-43132-00	阻力垫	Washer, Friction	1
15	97885-06010	大柱头螺钉	Screw, Pan Head	2
16	6AW-43112-00-8D	夹紧托架	Bracket, Clamp 2	1
17	90110-10092	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	1
18	90201-10049	面板垫圈	Washer, Plate	1
19	6AW-43113-00	夹紧托架面板	Plate,ClampBracket	1
20	61A-43133-00	阻力垫	Washer, Friction	1
21	97885-06010	大柱头螺钉	Screw, Pan Head	2
22	90465-08M83	固定	Clamp	1
23	97885-06012	大柱头螺钉	Screw, Pan Head	1
24	92995-06600	盘形垫	Washer	1
25	6R3-43131-10	夹紧托架螺栓	Bolt, Clamp Bracket	1
26	90386-25003	衬套	Bushing	2
27	90201-26014	平垫圈	Washer, Plate	2
28	90185-22007	螺母	Nut, Self-Locking	1
29	93410-21089	弹性挡圈	Circlip	1
30	90465-11M10	固定	Clamp	3
31	90465-08M83	固定	Clamp	1
32	97095-06014	螺栓	Bolt	1
33	92995-06600	盘形垫	Washer	1
34	90119-10039	带垫圈六角头螺栓	Bolt, with Washer	6
35	90116-10047	双头螺栓	Bolt, Stud	2
36	95780-10300	螺母	Nut, Flange	2
37	90201-10048	平垫圈	Washer, Plate	2
38	6AW-43311-00-8D	旋转支架	Bracket, Swivel 1	1
39	93700-06M03	润滑油管嘴	Nipple, Grease	3
40	6E5-82147-00	导线4	Wire,Lead 4	1
41	97095-06010	螺栓	Bolt	1
42	92995-06600	盘形垫	Washer	1
43	6AW-44116-00	弹簧	Spring	1
44	97095-06010	螺栓	Bolt	1
45	92995-06600	盘形垫	Washer	1
46	6AW-43181-00	顶位销杆	Lever, Tilt Stop	1
47	6AW-43185-00	顶位销杆	Lever, Tilt Stop	1
48	90386-10M16	衬套	Bushing	3
49	6AW-43148-00	间隔轴	Collar, Distance	1
50	91690-30020	弹簧销	Pin,Spring	2
51	6AW-43126-00	上侧防震销	Pin, Upper Shock Mount	1
51	6AW-43126-01	上侧防震销	Pin, Upper Shock Mount	1
52	90386-18M63	衬套	Bushing	2
53	90386-18M14	衬套	Bushing	2
54	93410-18M02	开口簧环，卡	Circlip	1
54	93410-18M02	开口簧环，卡	Circlip	2
55	90269-02M08	螺丝	Rivet	2
56	90101-12031	六角螺栓	Bolt, Hexagon (150MM)	6
56	90101-12036	六角螺栓	Bolt, Hexagon (170MM)	2
57	90201-12060	平垫圈	Washer, Plate	12
58	90201-12M05	面板垫圈	Washer,Plate	2
59	90201-13M19	平垫圈	Washer,Plate	4
60	95380-12600	有槽螺母	Nut	12

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-83672-00	纵倾角传感	Trim Sender	1
2	97885-06016	大柱头螺钉	Screw, Pan Head	2
3	6AW-43376-00	推力接收器螺栓	Bolt, Thrust Recess	2
4	95780-10300	螺母	Nut, Flange	2
5	6AW-42510-01-8D	方向托架组合	Steering Bracket Assembly	1
6	90201-46008	平垫圈	Washer, Plate	2
7	93210-43001	O型圈	O-ring	2
8	90202-45001	平垫圈	Washer, Plate	2
9	90386-45002	衬套	Bushing	2
10	6AW-44551-00-8D	下侧减震胶垫壳	Housing, Lower Mount Rubber	1
11	93410-44087	弹性挡圈	Circlip	1
12	6AW-44575-00	下侧减震胶垫	Damper, Lower Mount Rubber	1
13	6AW-44555-00-94	下侧减震胶垫	Mount Damper, Lower Side	2
14	90202-32M19	面板垫圈	Washer,Plate	2
15	90201-16016	面板垫圈	Washer,Plate	2
16	6AW-82149-00	导线3	Wire, Lead 3	1
17	90101-14004	六角螺栓	Bolt, Hexagon	2
18	90201-15M58	面板垫圈	Washer,Plate	2
19	90185-14M00	螺帽	Nut, Self-Locking	2
20	92995-14600	盘形垫	Washer	2
21	6AW-44552-00-CA	下侧减震胶垫壳	Housing, Lower Mount Rubber 2	2
22	90119-10024	带垫圈螺栓	Bolt, With Washer	4
23	6AW-44514-01-94	上侧减震胶垫	Mount Damper, Upper Side	2
24	6AW-44532-00	上侧装配限位板	Stopper, Upper Mount	1
25	6AW-44526-00	面板	Plate	1
26	90105-16003	六角法兰面螺栓	Bolt, Flange	2
27	90185-16008	锁紧螺母	Nut, Self-Locking	2
28	90201-16030	平垫圈	Washer, Plate	2
29	6AW-44533-00	上侧减震胶垫	Damper, Upper Mount Rubber	1
30	6AW-44511-01-CA	上侧减震胶垫盖	Cover, Upper Mount Rubber	1
31	90119-10024	带垫圈螺栓	Bolt, With Washer	4

ボトムカウリング 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-42710-00-8D	底罩组合	Bottom Cowling Assembly	1
2	6AW-42725-00	固定	Grommet	1
3	6AW-42761-00	限位板	Stopper	1
4	90109-06M86	螺栓	Bolt	2
5	6AW-42735-00	保护器	Protector	1
6	90109-06M86	螺栓	Bolt	2
7	6AW-42615-00	密封	Seal	1
8	63P-42716-00	密封橡皮块1	Rubber,Seal 1	1
9	6AW-42815-00-8D	夹杆	Lever, Clamp	1
10	6AW-42816-01-8D	夹杆	Lever, Clamp	1
11	6AW-42817-01-8D	夹杆	Lever, Clamp	1
12	6AW-42828-00-8D	夹箍面板	Clamp Plate	1
13	6AW-42829-00-8D	夹箍面板 2	Clamp Plate 2	1
14	6AW-42722-00	衬垫 2	Gasket 2	2
15	90109-06M81	螺栓	Bolt	6
16	90381-15002	双金属衬套	Bushing, Solid	3
17	90202-15M37	平垫圈	Washer,Plate	3
18	90206-15M18	波形垫圈	Washer, Wave	3
19	90201-156J2	面板垫圈	Washer, Plate	3
20	6AW-42818-01	夹杆	Lever, Clamp	1
21	6AW-42819-01	夹杆	Lever, Clamp	1
22	6AW-4281A-01	夹杆 6	Lever, Clamp 6	1
23	90201-06M30	带垫面板	Washer,Plate	3
24	90105-06155	六角法兰面螺栓	Bolt, Flange	3
25	90506-22001	拉簧	Spring, Tension	3
26	66T-43144-00	弹簧	Hook,Spring	3
27	90109-06M86	螺栓	Bolt	3
28	6AW-42851-00	夹紧盖	Cover, Clamp	1
29	90111-06094	内六角薄型螺栓	Bolt	1
30	90480-22M81	固定	Grommet	12
31	90387-08M37	衬套	Color	6
32	90119-08M22	带垫螺栓	Bolt, With Washer	6
33	61A-42717-00	密封橡皮块2	Rubber,Seal 2	2
34	6P2-44391-00	软管管嘴	Nipple,Hose	1
35	6H1-42726-21	固定	Grommet	1
36	90465-11M10	固定	Clamp	2
37	6H4-42748-00	固定	Grommet	1
38	6AW-42726-00	固定	Grommet	2
39	90480-16007	橡胶垫	Grommet	1
40	68F-42753-00	紧固	Fastener	1
41	90464-20258	固定环	Clamp	1
42	69J-12584-00	软管接头	Joint,Hose 3	1
43	6AH-42794-00	标签	Label, Warning (General)	1
44	6AH-81996-00	标志	Mark	1
45	6E0-44191-11	变挡指示器	Indicator, Shift	1

ボトムカウリング 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-12572-00	联接器	Adapter	1
2	97780-60520	自攻螺钉	Screw, Tapping	2
3	6R3-12581-00	软管接头1	Joint,Hose 1	1
4	6AW-12582-00	软管接头2	Joint, Hose 2	1
5	6R3-12583-00	软管接头衬垫	Gasket,HoseJoint	1
6	90445-14015	软管	Hose (L1520)	1
7	6AW-42785-00	管	Pipe	1
8	90445-14013	软管	Hose (L480)	1
9	6AW-42169-00	接头	Joint	1
10	66V-24314-00	管4	Pipe 4	1
11	90445-116J1	软管	Hose (L185)	1
12	90465-11M10	固定	Clamp	8
13	6E5-82588-00	面板	Plate	2
14	90109-06M81	螺栓	Bolt	2
15	90465-08M82	固定	Clamp	1
16	6AW-42744-00	支承	Stay	1
17	90109-06M86	螺栓	Bolt	1
18	6AW-42733-00	沥干箱	Box, Drain	1
19	6AW-42734-00	沥干箱2	Box, Drain 2	1
20	69J-42717-00	密封橡皮块2	Rubber,Seal 2	4
21	95895-06016	凸缘螺	Bolt, Flange	4
22	6AW-42786-00	排水管 1	Hose, Drain 1	1
23	6AW-42787-00	排水管 2	Hose, Drain 2	1
24	6AW-42723-00-8D	底盖	Cover, Bottom	2
25	6AW-42721-00	衬垫 1	Gasket 1	2
26	90109-06M81	螺栓	Bolt	6
27	6AW-42769-00	橡皮密封	Seal,Rubber	1
28	6AW-42629-00	密封	Seal	1
29	6AW-14750-00	消声器组合	Silencer Assembly	1
30	95875-06016	螺栓	Bolt, Flange	4
31	6AW-1475E-00	管2	Pipe 2	1
32	6AW-14763-00	隔套	Spacer	1
33	95875-06025	螺栓	Bolt, Flange	2
34	6AW-1475F-00	管3	Pipe 3	2
35	6AW-14764-00-CA	隔套	Spacer	2
36	95875-06016	螺栓	Bolt, Flange	4
37	6AW-8339X-00	线夹	Clamp, Cord	1
38	90464-12001	线夹	Clamp	1
42	68V-82377-00	铭牌	Label	1

ボトムカウリング 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-42741-00-8D	挡板	Apron	1
2	90480-14M17	橡胶垫	Grommet	1
3	6AW-42771-00-8D	挡板	Apron	1
4	90480-14M17	橡胶垫	Grommet	1
5	69J-42774-10	挡板支承1	Stay, Apron 1	4
6	90386-07001	衬套	Bushing	2
7	90111-06111	内六角薄型螺栓	Bolt	14
8	90111-06111	内六角薄型螺栓	Bolt	1
9	90111-06113	内六角薄型螺栓	Bolt	1
10	90173-06001	螺帽	Nut, Square	2
11	6AW-45151-01-8D	水上装置壳体盖	Cover,UpperCasing	1
12	6AW-42775-00	支承 2	Stay, Apron 2	1
13	97095-06014	螺栓	Bolt	2
14	92995-06600	盘形垫	Washer	2

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-W0001-00	衬垫套	Power Head Gasket Kit	1
2	6AW-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
3	6AW-11182-00	气缸头垫片2	Gasket, Cylinder Head 2	1
4	6AW-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
5	6AW-11194-00	气缸盖罩衬垫2	Gasket, Head Cover 2	1
6	6AW-14613-00	排气管垫片1	Gasket, Exhaust Pipe	1
7	6AW-14623-00	排气管衬垫	Gasket, Exhaust Pipe	1
8	93210-19758	O型圈	O-ring	2
9	90430-18130	固定	Gasket	2
10	6AW-11195-00	垫片	Gasket	2
11	6AW-15451-00	曲轴箱盖垫片1	Gasket, Crankcase Cover	1
12	6AW-15364-00	机油塞衬垫	Gasket, Oil Plug	1
13	6AW-15461-00	曲轴箱盖垫片2	Gasket, Crankcase Cover 2	1
14	6AW-12427-00	壳体盖衬垫1	Gasket, Housing Cover 1	2
15	90430-05002	衬垫	Gasket	2
16	93210-207A0	O型圈	O-ring	1
17	6AW-11351-00	气缸垫片1	Gasket, Cylinder	1
18	93210-26658	O型圈	O-ring	3
19	6AW-14664-00	隔水板	Grommet, Water Jacket	2
20	6AW-11381-00	衬垫1	Gasket 1	1
21	93102-85004	油封	Oil Seal	1
22	93102-38008	油封	OilSeal	4
23	69J-11355-00	气缸密封圈1	Seal,Cylinder 1	1
24	93210-26658	O型圈	O-ring	2
25	6AW-13477-00	衬垫	Gasket	1
26	93210-24M79	O型圈	O-ring	1

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-W0001-20	衬垫套	LowerUnitGasket Kit	1
2	6AW-15312-00	油槽衬垫	Gasket, Oil Pan	1
3	90430-14M09	衬垫	Gasket	1
4	6AW-13415-00	机油滤网密封	Seal, Oil Strainer	1
5	93210-19MJ3	O型圈	O-ring	1
6	93210-33MG4	O型圈	O-ring	1
7	93210-28543	O型圈	O-ring	1
8	93210-19758	O型圈	O-ring	1
9	6AW-41134-01	排气岐管衬垫	Gasket, Exhaust Manifold	1
10	6AW-41138-00	排气管密封圈1	Seal, Exhaust 1	1
11	6AW-41135-00	排气岐管衬垫	Gasket, Exhaust Manifold	1
12	6AW-41136-00	排气岐管衬垫4	Gasket, Exhaust Manifold	1
13	6AW-45127-00	密封	Seal	1
14	69J-45123-00	消音器衬垫	Gasket,Muffler	1
15	6AW-45113-00	水上装置壳体衬垫	Gasket, Upper Casing	1
16	6AW-44366-00	水封减震器	Damper, Water Seal	1
17	90430-08020	固定	Gasket	2
18	93210-48214	O型圈	O-ring	1
19	93101-12M70	油封	OilSeal	1
20	93109-24001	油封	Oil Seal	1
21	93210-94003	O型圈	O-ring	1
22	93210-37160	O型圈	O-ring	1
23	6AW-44365-00	水封减震器	Damper, Water Seal	1
24	6AW-44315-00	水泵衬垫	Gasket, Water Pump	1
25	93101-28004	油封	Oil Seal	2
26	93210-69MG6	O型圈	O-ring	1
27	93101-35018	油封	Oil Seal	2
28	93211-10232	O型圈	O-ring	1
29	6AW-W0078-00	水泵修理套	Water PumpRepair Kit	1
30	6AW-44322-00	芯子	Insert, Cartridge	1
31	93210-94003	O型圈	O-ring	1
32	93210-37160	O型圈	O-ring	1
33	6AW-44352-00	叶轮	Impeller	1
34	6AW-44336-00	键	Key	1
35	6AW-44323-00	外挡板	Outer Plate, Cartridge	1
36	6AW-44315-00	水泵衬垫	Gasket, Water Pump	1
37	93606-12019	定位销	Pin, Dowel	2
38	90119-08M14	带垫螺栓	Bolt, With Washer	4

ロワーケーシング & ドライブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-45300-20-8D	水下装置总成	LowerUnitAssembly	1
1	6AW-45300-30-8D	水下装置总成	LowerUnitAssembly	1
2	6AW-45311-00-8D	水下装置壳	Casing,Lower	1
3	93311-93590	轴承	Bearing	1
4	93340-67011	轴承	Bearing	1
5	93390-00031	轴承	Bearing	1
6	6AW-45567-00	填隙	Shim (T:2.00MM)	1
6	6AW-45567-10	填隙	Shim (T:2.03MM)	1
6	6AW-45567-20	填隙	Shim (T:2.06MM)	1
6	6AW-45567-30	填隙	Shim (T:2.09MM)	1
6	6AW-45567-40	填隙	Shim (T:2.12MM)	1
6	6AW-45567-50	填隙	Shim (T:2.15MM)	1
7	90340-08002	螺丝	Plug, Straight Screw	1
8	688-45341-10	放油塞	Plug, Drain	1
9	90430-08020	固定	Gasket	2
10	6AW-45321-00	面板	Plate	1
11	93210-48214	O型圈	O-ring	1
12	93101-12M70	油封	OilSeal	1
13	90119-08M26	卡环	Bolt, with Washer	3
14	6AW-44150-00	变挡凸轮组合	Shift Cam Assembly	1
15	99002-10600	有槽螺母	Clip	1
16	90501-127J4	压簧	Spring, Compression	1
17	6AW-44311-00	水泵壳	Housing, Water Pump	1
18	93109-24001	油封	Oil Seal	1
19	93420-35085	弹性挡圈	Circlip	1
20	6AW-44322-00	芯子	Insert, Cartridge	1
21	93210-94003	O型圈	O-ring	1
22	93210-37160	O型圈	O-ring	1
23	6AW-44365-00	水封减震器	Damper, Water Seal	1
24	6AW-44312-00	水泵壳体盖	Cover, Water Pump Housing	1
25	6AW-44352-00	叶轮	Impeller	1
26	6AW-44336-00	键	Key	1
27	6AW-44323-00	外挡板	Outer Plate, Cartridge	1
28	6AW-44315-00	水泵衬垫	Gasket, Water Pump	1
29	93606-12019	定位销	Pin, Dowel	2
30	90119-08M14	带垫螺栓	Bolt, With Washer	4
31	6AW-45723-00	密封	Seal Plate	1
32	6AW-45335-00-CA	油封壳	Housing, Oil Seal	1
33	93101-28004	油封	Oil Seal	2
34	90201-68008	平垫圈	Washer, Plate	1
35	6AW-45587-00	填隙	Shim (T:0.10MM)	1
35	6AW-45587-10	填隙	Shim (T:0.12MM)	1
35	6AW-45587-20	填隙	Shim (T:0.15MM)	1
35	6AW-45587-30	填隙	Shim (T:0.18MM)	1
35	6AW-45587-40	填隙	Shim (T:0.30MM)	1
36	93399-99962	轴承	Bearing	1
37	90201-301U7	平垫圈	Washer, Plate	1
38	90214-30003	爪形垫圈	Washer, Claw	1
39	90170-30M18	螺母	Nut	1
40	93210-69MG6	O型圈	O-ring	1
41	6AW-45344-00	油封盖	Cover, Oil Seal	1
42	97095-08020	螺栓	Bolt	2
43	92995-08600	盘形垫	Washer	2
44	6AW-45501-00	驱动轴组	Drive Shaft Complete	1
44	6AW-45501-10	驱动轴组	Drive Shaft Complete	1
45	6T5-45539-00	衬套2	Spacer 2	1
46	6AW-45244-00	螺母	Nut	1
47	6AW-45550-00	齿	Gear Set	1
48	90201-18023	平垫圈	Washer, Plate	1
49	90179-18009	螺母	Nut	1
50	90201-35015	平垫圈	Washer, Plate	1
51	6AW-45611-00	螺旋浆轴	Shaft, Propeller	1
52	6AW-45641-00	变挡装置	Shifter	1
53	61A-45634-01	变挡滑	Slide, Shift	1
54	6AW-45632-00	十字销	Pin, Cross	1
55	6AW-45631-00	爪形离合器	Clutch, Dog	1
56	6AW-45633-00	十字销环	Ring, Cross Pin	1
57	6H1-45668-00	自由轴	Shaft, Free	1
58	61A-45635-00	变挡柱	Plunger, Shift	2
59	90201-02M00	平垫圈	Washer,Plate	1
60	90183-02M03	螺帽	Nut,Spring	2
61	90501-10M77	压簧	Spring, Compression	1
62	93501-04011	滚珠	Ball	2
63	6AW-45612-00	推力垫圈	Washer, Thrust	1
64	6AW-45332-00-94	轴承壳	Housing, Bearing	1
65	93306-21101	轴承	Bearing	1
66	6AW-45576-00	推力垫圈	Washer, Thrust	1
67	6AW-45571-00	齿轮	Gear 2 (26T)	1
68	6AW-45577-00	填隙	Shim (T:0.10MM)	1
68	6AW-45577-10	填隙	Shim (T:0.12MM)	1
68	6AW-45577-20	填隙	Shim (T:0.15MM)	1
68	6AW-45577-30	填隙	Shim (T:0.18MM)	1
68	6AW-45577-40	填隙	Shim (T:0.30MM)	1
68	6AW-45577-50	填隙	Shim (T:0.40MM)	1
68	6AW-45577-60	填隙	Shim (T:0.50MM)	1
69	93311-63591	轴承	Bearing	1
70	99009-47500	卡环	Circlip	1
71	93101-35018	油封	Oil Seal	2
72	93211-10232	O型圈	O-ring	1
73	90282-05008	平键	Key, Straight	1
74	6AW-45383-00	爪形垫	Washer, Claw	1
75	6AW-45384-00	螺母	Nut	1

ロワーケーシング & ドライブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-44365-00	水封减震器	Damper, Water Seal	1
2	6AW-44366-00	水封减震器	Damper, Water Seal	1
3	6AW-44361-00	水管	Tube, Water	1
3	6AW-44361-10	水管	Tube, Water	1
4	93608-12M05	定位销	Pin, Dowel	2
5	90119-10038	带垫圈六角头螺栓	Bolt, with Washer	7
5	90116-10041	双头螺栓	Bolt, Stud	6
6	90201-10048	平垫圈	Washer, Plate	6
7	90170-10009	六角螺母	Nut	6
8	90119-10008	带垫圈螺栓	Bolt, With Washer	1
9	97575-10570	带垫圈螺栓	Bolt, with Washer	1
9	90119-10009	带垫圈六角头螺栓	Bolt, with Washer	1
10	61A-45376-00-94	密封圈减震块导承	Guide,SealDamper	1
11	6AW-45375-00	密封圈减震	Damper, Seal	1
12	6AW-45214-00	进水口盖1	Cover, Water Inlet 1	1
13	6AW-45215-00	进水口盖2	Cover, Water Inlet 2	1
14	90152-05003	沉头螺钉	Screw, Countersunk	1
15	90185-05002	螺母	Nut, Self-Locking	1
16	6AW-45224-00	进水口盖3	Cover, Water Inlet 3	1
17	90185-05002	螺母	Nut, Self-Locking	1
18	6AW-45225-00	进水口盖4	Cover, Water Inlet 4	1
19	90110-05050	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	1
20	6AW-45373-00	阳极	Anode	1
21	92990-10300	平垫圈	Washer	1
22	90105-10257	六角法兰面螺栓	Bolt, Flange	1
23	6AW-45619-00	帽	Cap	1
24	90110-10018	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	1
25	6AW-44367-00	水封减震器	Damper, Water Seal	1
26	6AW-44362-00	水管	Tube, Water	1
27	6AW-44375-00	水管夹箍	Grommet, Water Tube 1	1
28	6AW-44376-00	水管夹箍	Grommet, Water Tube 2	1
29	6AW-45987-00	衬套	Spacer	1
30	6AW-45997-00	衬套	Spacer	1
31	90201-19M01	面板垫圈	Washer, Plate	1
32	90171-18M04	螺母	Nut, Castle	1
33	91490-40030	开口销	Pin, Cotter	1
34	6AW-45970-00	螺旋浆组合	Propeller (3X16-1/4X17-X)	1
34	6AW-45972-00	螺旋浆组合	Propeller (3X16-1/4X19-X)	1
34	6AW-45974-00	螺旋浆组合	Propeller (3X15-1/2X21-X)	1
34	6AW-45976-00	螺旋浆组合	Propeller (3X15-1/4X23-X)	1
34	6AW-45978-00	螺旋浆组合	Propeller (3X15-1/4X25-X)	1
