雅马哈 FL200C - FL200CETX

共 41 个部位，点击零件编码查看详情，或搜索本页零件。

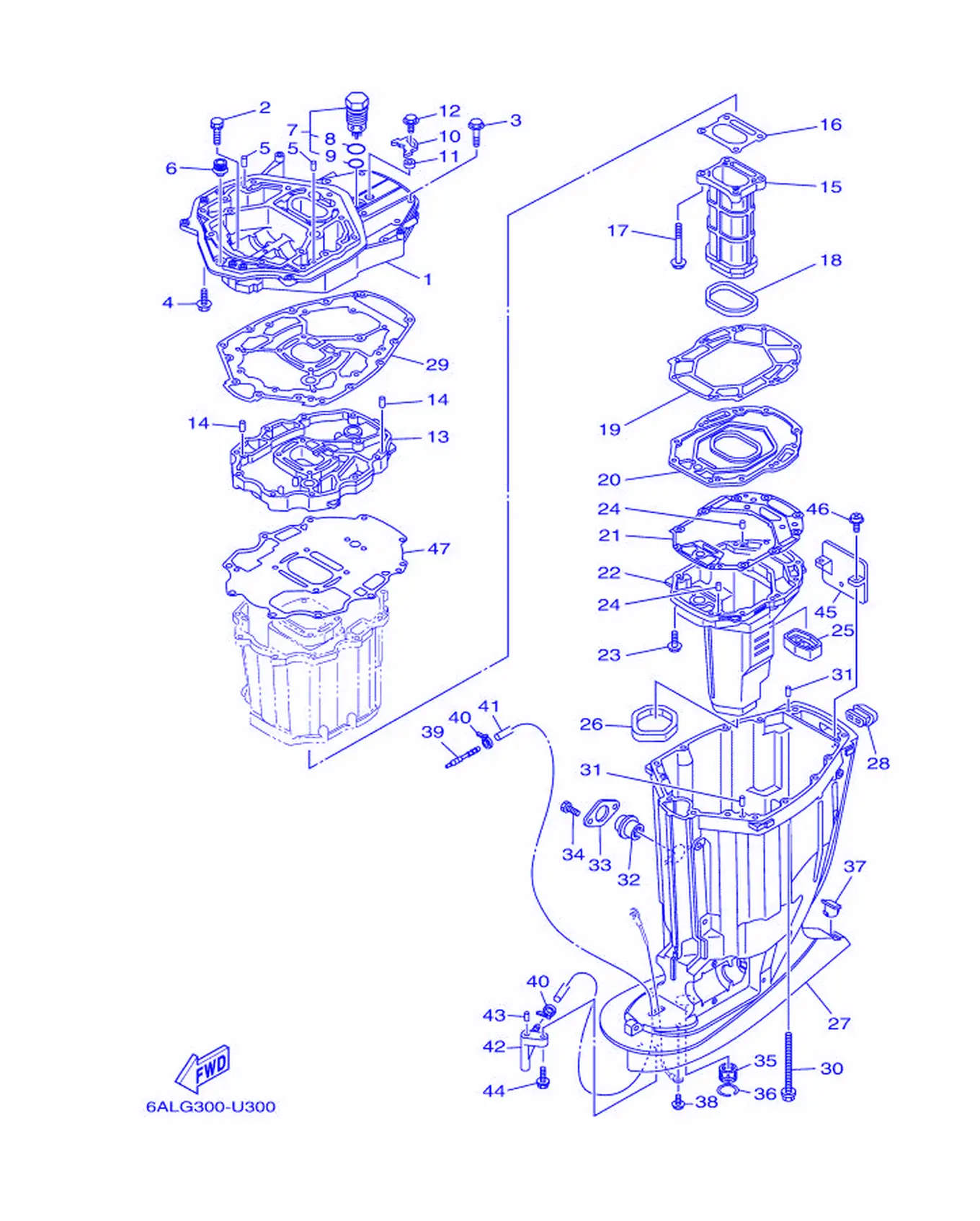

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-41137-10-CA	排气导管	Guide,Exhaust	1
2	90119-08182	带垫圈六角头螺栓	Bolt, with Washer	2
3	97E75-10545	螺栓	Bolt, Hexagon with Washer Deep Recess	7
4	97E75-10535	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	7
5	93608-16M16	定位销	Pin, Dowel	2
6	6E5-42724-01	固定	Grommet	1
7	6AW-11371-10	罩	Pressure Control Valve Assembly	1
8	93210-347A1	O型圈	O-ring	1
9	93210-28543	O型圈	O-ring	1
10	69J-12233-00	导向限位板面板1	Plate, Guide Stopper 1	1
11	90387-06037	衬套	Color	1
12	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	1
13	69J-41131-11-CA	排气岐管1	Manifold,Exhaust 1	1
14	93608-16M16	定位销	Pin, Dowel	2
15	69J-41132-20-9S	排气岐管	Manifold,Exhaust	1
16	6P2-41134-00	排气岐管衬垫	Gasket, Exhaust Manifold	1
17	97E75-08590	螺栓	Bolt, Hexagon with Washer Deep Recess	4
18	69J-41138-00	排气管密封圈1	Seal, Exhaust 1	1
19	69J-41135-A0	排气岐管衬垫	Gasket, Exhaust Manifold	1
20	69J-45181-10-9S	面板	Plate	1
21	6S1-41136-01	歧管衬垫	Gasket, Exhaust Manifold 4	1
22	69J-14711-00-9S	消声器1	Muffler 1	1
23	97E75-08535	螺栓	Bolt, Hexagon with Washer Deep Recess	10
24	93606-19M23	定位销	Pin, Dowel	2
25	69J-45127-01	密封	Seal	1
26	69J-45123-00	消音器衬垫	Gasket,Muffler	1
27	69J-45111-10-8D	水上装置壳	Casing,Upper	1
28	69J-42769-01	橡皮密封	Seal, Rubber	1
29	69J-45113-21	水上装置壳体衬垫	Gasket, Upper Casing	1
30	90119-10007	带垫螺栓	Bolt, With Washer	6
31	93608-16M16	定位销	Pin, Dowel	2
32	69J-15316-01	减震垫1	Damper 1	1
33	69J-45152-10	水上装置壳体盖2	Cover,UpperCasing 2	1
34	97D95-06012	螺栓	Bolt, Hexagon Deep Recess	2
35	69J-45318-01	驱动轴衬套	Bushing,Drive Shaft	1
36	93420-36M01	卡环	Circlip	1
37	61A-45155-01	盖	Cap	1
38	95D95-06010	螺栓	Bolt, Flange Deep Recess	1
39	6E5-83558-00	管嘴端部	End, Nipple	1
40	90465-11M10	固定	Clamp	2
41	90445-07010	固定	Hose (L1330)	1
42	61A-45378-00	软管嘴	Nipple,Hose	1
43	93606-12019	定位销	Pin, Dowel	1
44	90119-06309	带垫圈六角头螺栓	Bolt, with Washer	1
45	69J-14624-01	排气盖	Cover,Exhaust	1
46	97980-06216	带垫圈螺钉	Screw, With Washer	2
47	69J-15312-02	油槽衬垫	Gasket, Oil Pan	1

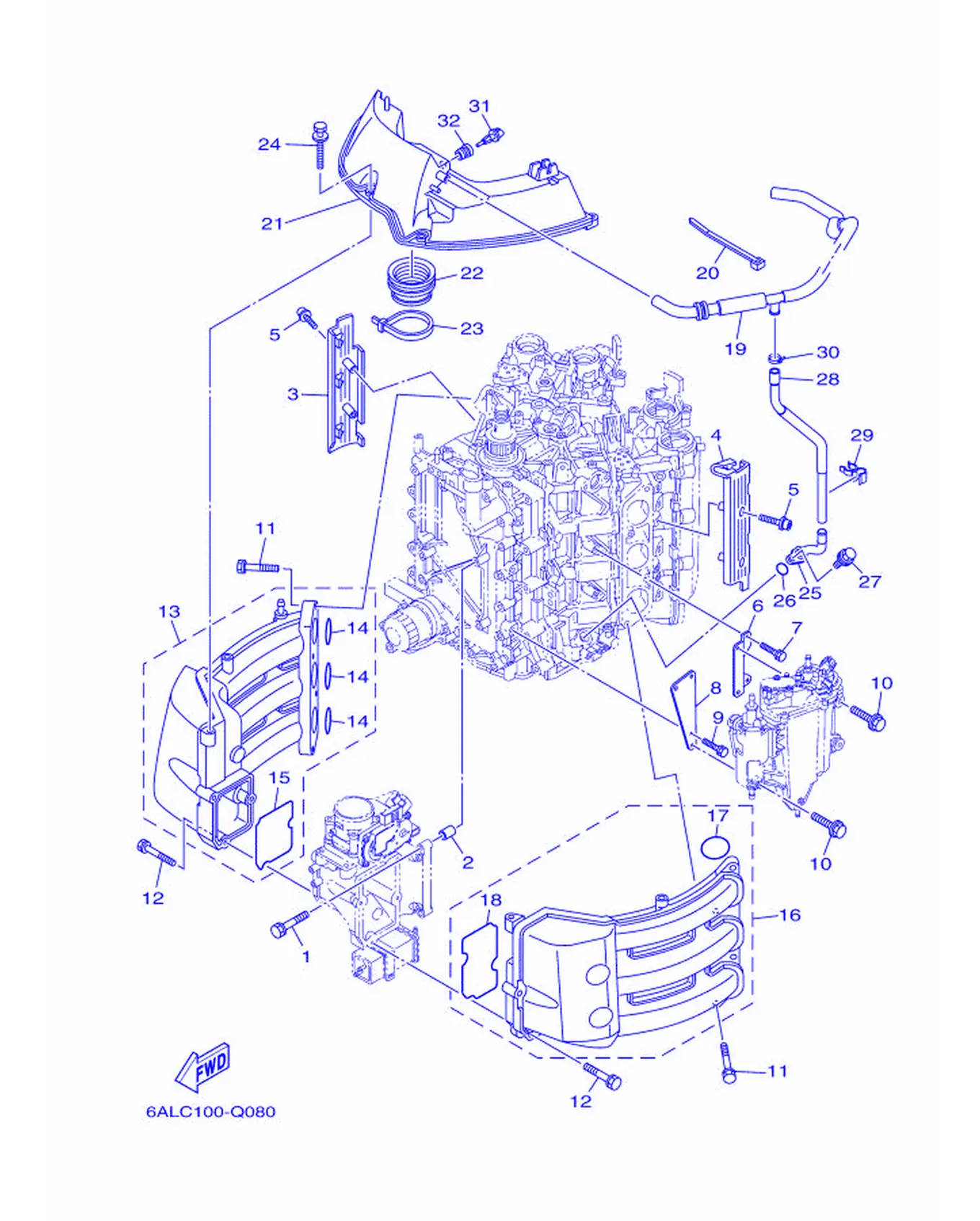

インテーク 1

REF	雅马哈编码	中文名称	英文名称	用量
1	97E75-08540	螺栓	Bolt, Hexagon with Washer Deep Recess	4
2	99530-10114	定位销	Pin, Dowel	2
3	6P2-13564-00	岐管盖	Cover, Manifold	1
4	6P2-13594-00	岐管盖2	Cover, Manifold 2	1
5	90110-06038	六角头插座螺栓	Bolt, Hexagon Socket Head	4
6	6P2-24422-10	面板	Plate	1
7	97E75-06516	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	2
8	6P2-24419-00	分离器托架	Bracket, Separator	1
9	97E75-06516	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	2
10	90119-06299	带垫圈六角头螺栓	Bolt, with Washer	4
11	97E75-08540	螺栓	Bolt, Hexagon with Washer Deep Recess	8
12	90119-06MA6	带垫螺栓	Bolt, With Washer	7
13	6P2-13641-00	岐管1	Manifold, Intake 1	1
14	6P2-13645-00	岐管衬垫1	Gasket, Manifold 1	3
15	6P2-13646-00	岐管衬垫2	Gasket, Manifold 2	1
16	6P2-13642-00	岐管2	Manifold 2	1
17	6P2-13645-00	岐管衬垫1	Gasket, Manifold 1	3
18	6P2-13647-00	岐管衬垫3	Gasket, Manifold 3	1
19	6P2-15373-02	通气管	Pipe, Breather	1
20	90465-13M18	固定	Clamp	1
21	6P2-14440-00	进气消声器组合	Silencer Assembly, Intake	1
22	6P2-1441J-01	消声器管	Pipe, Silencer	1
23	90464-99004	固定夹	Clamp	1
24	90119-06311	带垫圈六角头螺栓	Bolt, with Washer	4
25	6P2-11372-00	软管接头	Nipple, Hose	1
26	93210-19MJ3	O型圈	O-ring	1
27	97E95-06620	螺栓	Bolt, Hexagon with Washer Deep Recess	1
28	6P2-11377-00	软管	Hose	1
29	90464-20011	固定夹	Clamp	1
30	90465-11M10	固定	Clamp	1
31	63P-85886-00	温控器	Sensor, Air Temperature	1
32	63P-14435-00	固定环	Grommet	1

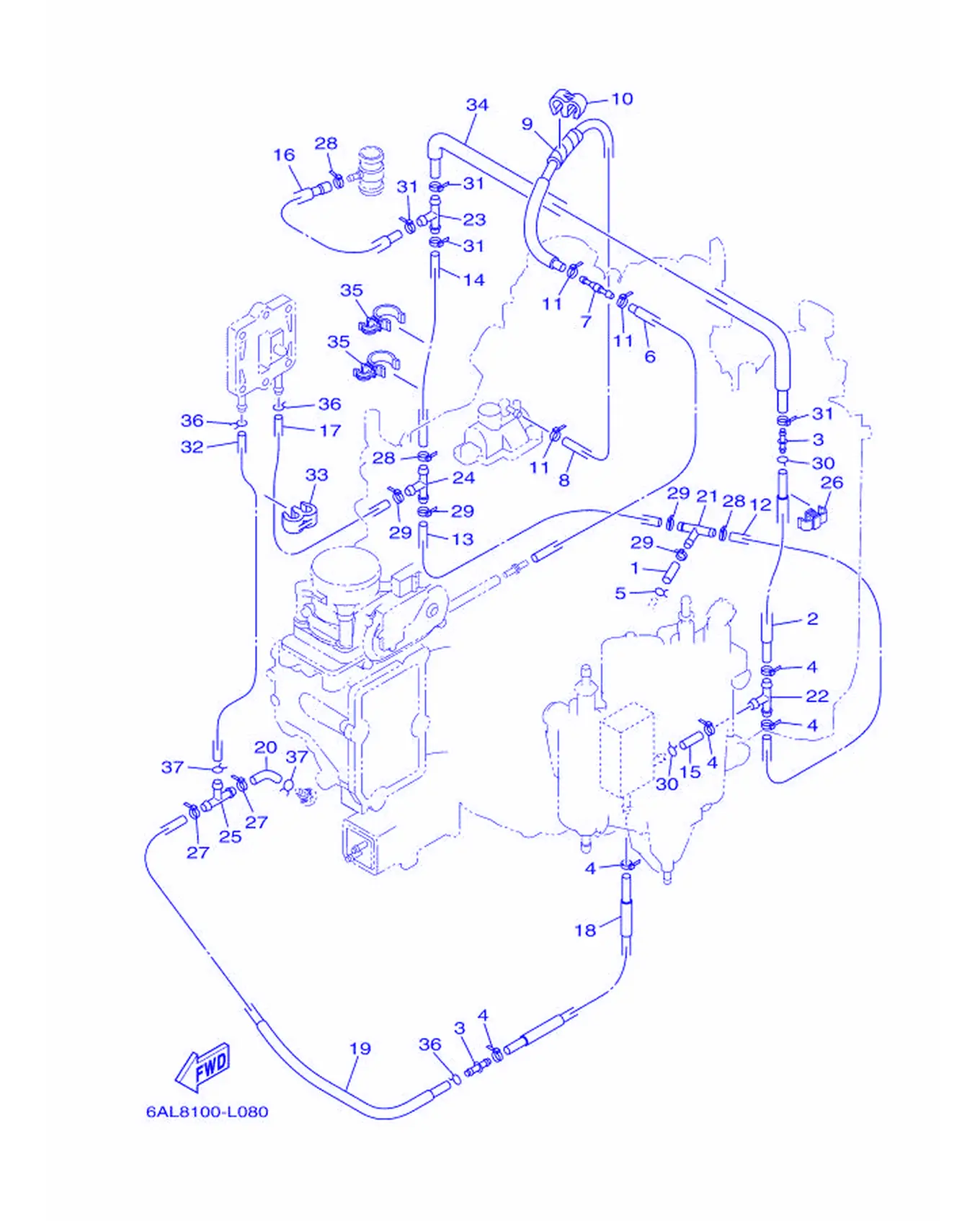

インテーク 2

REF	雅马哈编码	中文名称	英文名称	用量
1	90445-09040	软管	Hose (L50)	1
2	6P2-12484-01	管4	Pipe 4	1
3	6CE-24376-01	连接管1	Pipe, Joint 1	2
4	90465-11M10	固定	Clamp	5
5	90467-09M03	固定	Clip	1
6	6P2-12482-00	管2	Pipe 2	1
7	6E5-21744-00	通气管	Breather	1
8	6P2-12483-00	管3	Pipe 3	1
9	90446-10M01	固定	Hose (L60)	1
10	90464-60067	线夹	Clamp	1
11	90465-11M10	固定	Clamp	3
12	90445-09041	软管	Hose (L500)	1
13	90445-09224	软管	Hose (L270)	1
14	90445-09097	固定	Hose	1
15	90445-09220	固定	Hose (L30)	1
16	6P2-12485-00	管5	Pipe 5	1
17	6P2-1248A-00	管8	Pipe 8	1
18	6P2-1248E-00	管9	Pipe 9	1
19	6P2-14752-00	出口管	Pipe, Outlet	1
20	61A-24316-00	管6	Pipe 6	1
21	688-24378-00	连接管4	Pipe,Joint	1
22	688-24378-00	连接管4	Pipe,Joint	1
23	688-24378-00	连接管4	Pipe,Joint	1
24	688-24378-00	连接管4	Pipe,Joint	1
25	688-24378-00	连接管4	Pipe,Joint	1
26	90464-09013	固定	Clamp	1
27	90465-11M10	固定	Clamp	2
28	90465-11M10	固定	Clamp	3
29	90465-11M10	固定	Clamp	4
30	90467-08M18	固定	Clip	2
31	90465-11M10	固定	Clamp	4
32	90445-09304	软管	Hose (L310)	1
33	90464-60067	线夹	Clamp	1
34	6P2-12481-12	管1	Pipe 1	1
35	90464-21002	固定夹	Clamp	2
36	90467-08M18	固定	Clip	3
37	90467-09M09	固定	Clip	2

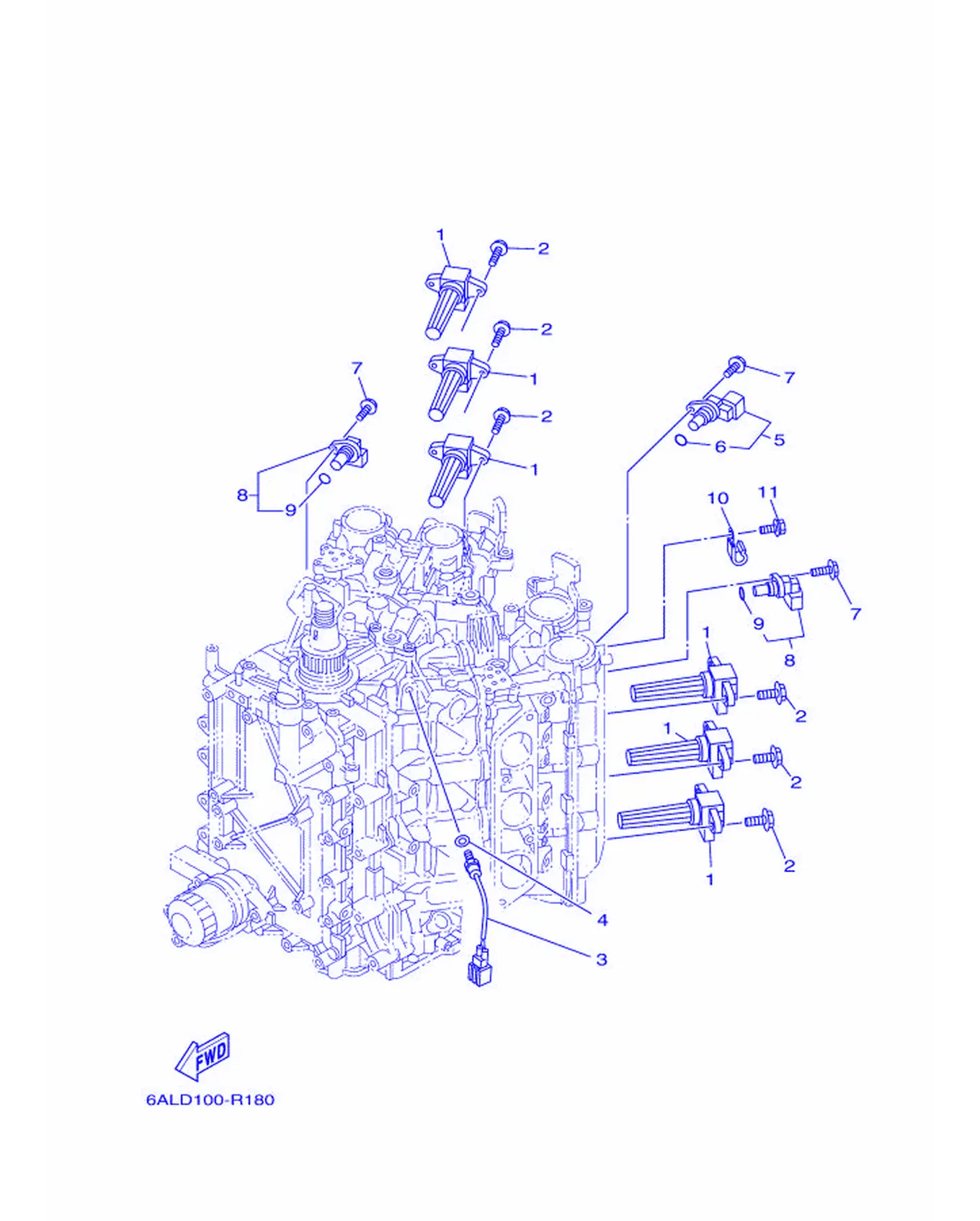

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-82310-03	点火线圈总成	Ignition Coil Assembly	6
2	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	12
3	61A-85790-01	温控传感件组合	Thermo Sensor Assembly	1
4	92990-10600	垫圈	Washer,Plate	1
5	6P2-85896-00	曲柄位置传感	Sensor, Cam Position	1
6	6P2-85075-00	O型圈	O-ring	1
7	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	3
8	6P2-85897-00	曲柄位置传感	Sensor, Cam Position 2	2
9	6P2-85075-00	O型圈	O-ring	1
10	90462-08032	固定夹	Clamp	1
11	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1

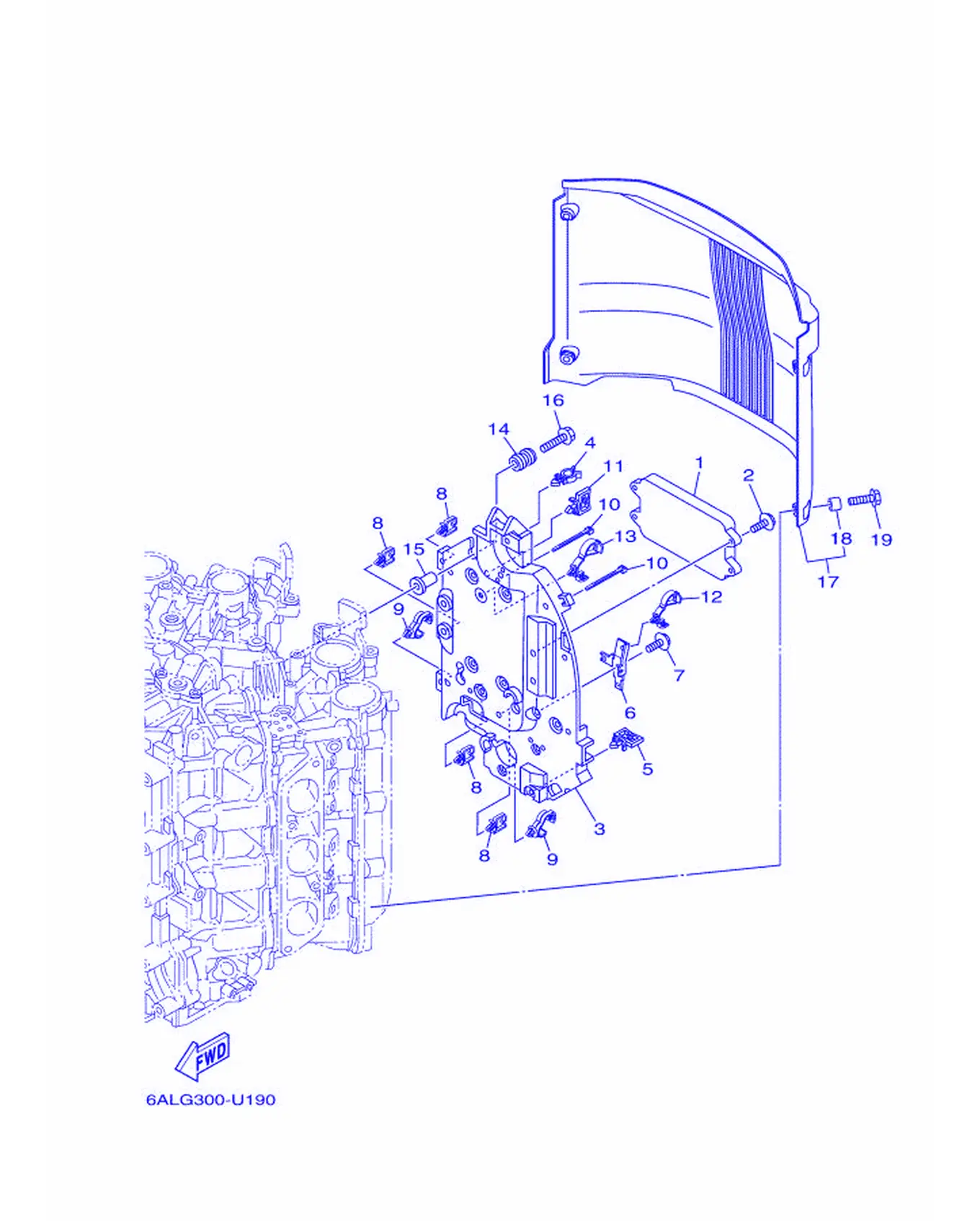

エレクトリカル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AL-8591A-33	发动机控制单元	Engine Control Unit Assembly	1
2	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	4
3	6P2-82316-01	点火线圈托架	Bracket, Ignition Coil	1
4	90464-19M45	固定夹	Clamp	1
5	90464-23199	固定夹	Clamp	1
6	6P2-81845-10	面板	Plate	1
7	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	1
8	90464-08004	固定夹	Clamp	4
9	90464-13249	线夹	Clamp	2
10	90465-14M66	固定	Clamp	2
11	90464-23199	固定夹	Clamp	1
12	90464-12183	线夹	Clamp	1
13	90464-12183	线夹	Clamp	1
14	6A0-82317-01	点火线圈减震器	Damper, Ignition Coil	4
15	90387-06119	环	Color	4
16	90119-06289	带垫圈六角头螺栓	Bolt, with Washer	4
17	6P2-82314-21	点火线圈盖	Cover, Ignition Coil	1
18	90387-06044	卡环	Collar	4
19	90119-06M92	带垫螺栓	Bolt, With Washer	4

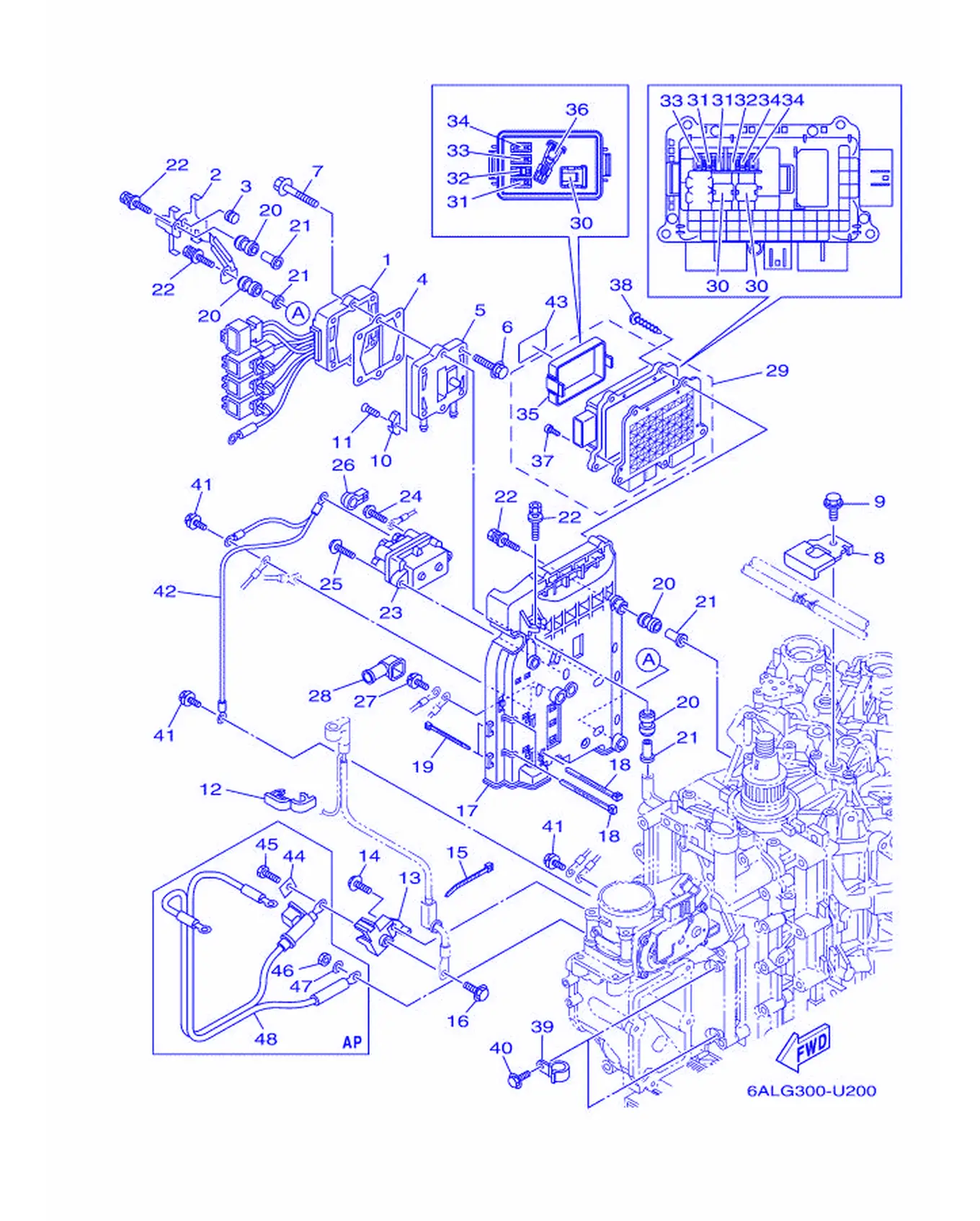

エレクトリカル 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-81960-12	整流调节器	Rectifier and Regulator Assembly	1
2	6P2-81614-10	保护	Protector	1
3	2D1-14737-01	消音器减震垫	Damper, Muffler	1
4	60V-81975-A0	整流器装配面板	Rectifier Fitting Plate	1
5	6P2-81972-00-9S	整流罩	Cover, Rectifier	1
6	90119-06MA3	带垫螺栓	Bolt, With Washer	4
7	90119-06MA5	带垫螺栓	Bolt, With Washer	2
8	6P2-12491-00	卡箍1	Clamp 1	1
9	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
10	6E5-11325-00	阳极	Anode	1
11	98780-04015	平头螺钉	Screw, Flat Head	1
12	90464-18004	固定夹	Clamp	5
13	6P2-81925-01	接头	Terminal	1
14	97E95-08520	螺栓	Bolt, Hexagon with Washer Deep Recess	1
15	90465-11M52	固定	Clamp	1
16	97E95-08516	螺栓	Bolt, Hexagon with Washer Deep Recess	1
17	6P2-81948-10	托架	Bracket	1
18	90465-11M52	固定	Clamp	4
19	90465-14M66	固定	Clamp	2
20	6A0-82317-01	点火线圈减震器	Damper, Ignition Coil	6
21	90387-06119	环	Color	6
22	90119-06294	带垫圈六角头螺栓	Bolt, with Washer	6
23	63P-W8195-00	继电器组合	Relay Assembly	1
24	97E95-06610	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	2
25	97513-06525	带垫圈螺	Bolt, with Washer	2
26	6P2-8183X-00	电极盖	Cap, Terminal	2
27	97E95-06616	螺栓	Bolt, Hexagon with Washer Deep Recess	1
28	6P2-82119-00	导线盖	Cover, Reed Wire	1
29	6DA-82170-12	保险丝盒组合	Fuse Box Assembly	1
30	6CB-82151-41	保险	Fuse (60A)	3
31	6CB-82151-00	保险丝	Fuse (10A)	3
32	6CB-82151-10	保险	Fuse (15A)	2
33	6CB-82151-20	保险丝	Fuse (20A)	2
34	6CB-82151-30	保险丝	Fuse (30A)	3
35	6CB-85544-10	盖	Cover	1
36	6CB-2812A-00	保险丝拆卸器	Puller, Fuse	1
37	6P2-82113-00	螺钉	Screw (M3)	5
38	97780-50620	自攻螺钉	Screw, Tapping	4
39	90462-08026	固定夹	Clamp	2
40	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	2
41	97E95-06616	螺栓	Bolt, Hexagon with Washer Deep Recess	3
42	6P2-8259M-10	电缆总成2	Wire Harness Assembly 2	1
43	6DA-81919-11	调压器图样	Graphic, Regulator	1
44	6P2-81923-00	垫圈	Washer	1
45	97D95-08016	螺栓	Bolt, Hexagon Deep Recess	1
46	95333-08600	有槽螺母	Nut	1
47	92903-08100	盘形垫	Washer,Spring	1
48	6P2-82105-J3	电缆	Battery Cable	1

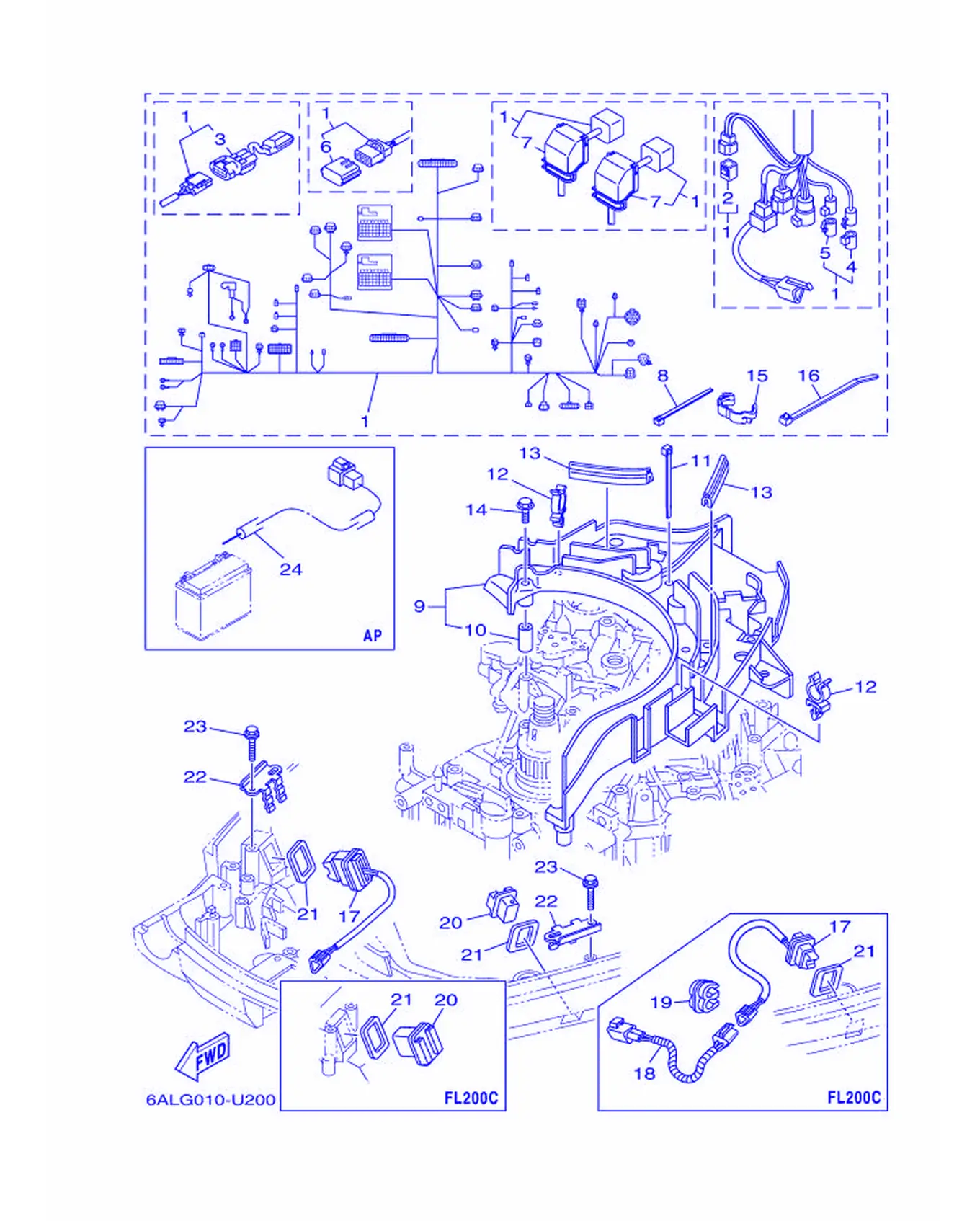

エレクトリカル 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-82590-72	电缆总成	Wire Harness Assembly	1
2	6Y8-82582-11	电线束盖	Cap 1 (4 Pin)	1
3	6FM-81980-01	二极管总成	Diode Assembly	1
4	6DA-82582-00	电线束盖	Cap 1 (Female)	1
5	6DA-82582-10	电线束盖	Cap 1 (Male)	1
6	6AW-82582-00	电线束盖	Cap 1	2
7	6EM-82599-00	连接套	Cover, Connector	2
8	90465-14M66	固定	Clamp	4
9	6P2-82589-10	电线束保护装	Wire Harness Protector	1
10	90387-06M26	衬套	Color	5
11	90465-14M66	固定	Clamp	2
12	90464-19M45	固定夹	Clamp	4
13	6P2-85722-00	绝缘器	Insulator	2
14	97E95-06535	螺栓	Bolt, Hexagon with Washer Deep Recess	5
15	90464-14010	线夹	Clamp	1
16	90465-13M18	固定	Clamp	3
17	69J-82563-01	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
18	6P3-82553-00	导线延伸部分	Extension, Wire Lead	1
19	90464-10M57	固定	Clamp	1
20	69J-42723-01	底盖	Cover, Bottom	1
21	69J-82587-01	衬垫	Gasket	2
22	69J-83614-10	托架	Bracket	2
23	90109-06M86	螺栓	Bolt	4
24	69J-81949-03	导线	Wire, Lead (Isolator, 3.8M)	1

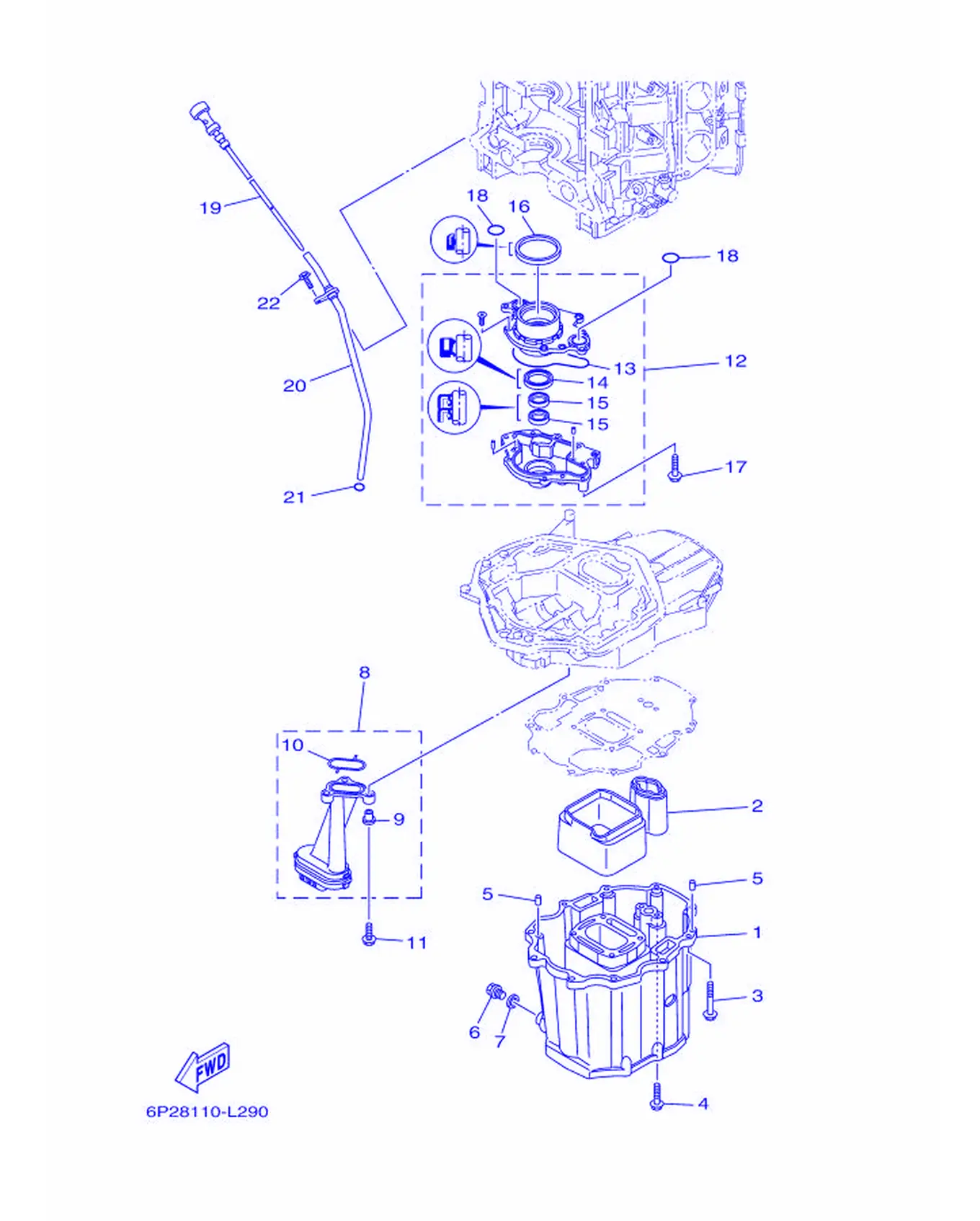

オイルパン

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-15311-10-CA	油槽	Oil Pan	1
2	69J-15761-00	橡皮密封圈1	Seal,Rubber 1	1
3	97E75-08560	螺栓	Bolt, Hexagon with Washer Deep Recess	10
4	97E75-08535	螺栓	Bolt, Hexagon with Washer Deep Recess	2
5	93608-16M16	定位销	Pin, Dowel	2
6	90340-14M06	塞	Plug, Straight Screw	1
7	90430-14M09	衬垫	Gasket	1
8	69J-13411-01	机油过滤网	Strainer, Oil	1
9	90387-06263	轴套	Color	3
10	69J-13415-00	机油滤网密封	Seal, Oil Strainer	1
11	95812-06025	螺栓	Bolt, Flange	3
12	6P2-13300-00	机油泵总成	Oil Pump Assembly	1
13	69J-13329-01	泵盖垫片	Gasket, Pump Cover	1
14	6AW-13119-00	润滑密封	Oil Seal	1
15	69J-13631-00	橡皮密封	Oil Seal	2
16	69J-11355-00	气缸密封圈1	Seal,Cylinder 1	1
17	97E75-06540	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	4
18	93210-25552	O型圈	O-ring	2
19	6P2-15362-10	油标塞	Plug, Oil Level	1
20	6P2-15377-10	导管	Guide, Inlet	1
21	93210-19MJ3	O型圈	O-ring	1
22	95D95-06016	螺栓	Bolt, Flange Deep Recess	1

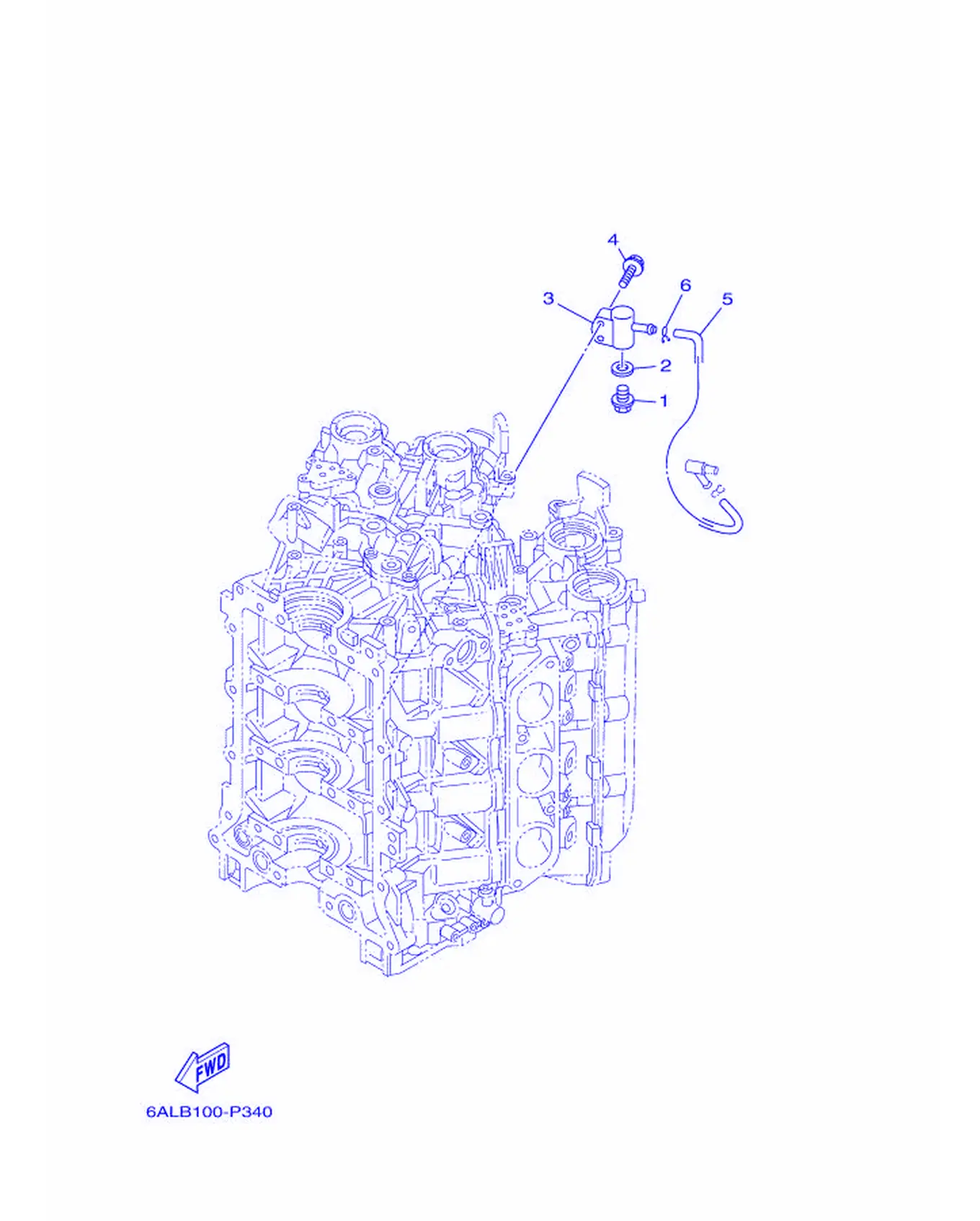

オプシヨナルパ-ツ

REF	雅马哈编码	中文名称	英文名称	用量
1	90340-14M06	塞	Plug, Straight Screw	1
2	90430-14115	垫片	Gasket	1
3	6P2-83652-00	连接	Connector	1
4	97E95-06530	螺栓	Bolt, Hexagon with Washer Deep Recess	2
5	6H4-24311-00	燃油管1	Pipe,Fuel 1	1
6	90467-08M18	固定	Clip	1

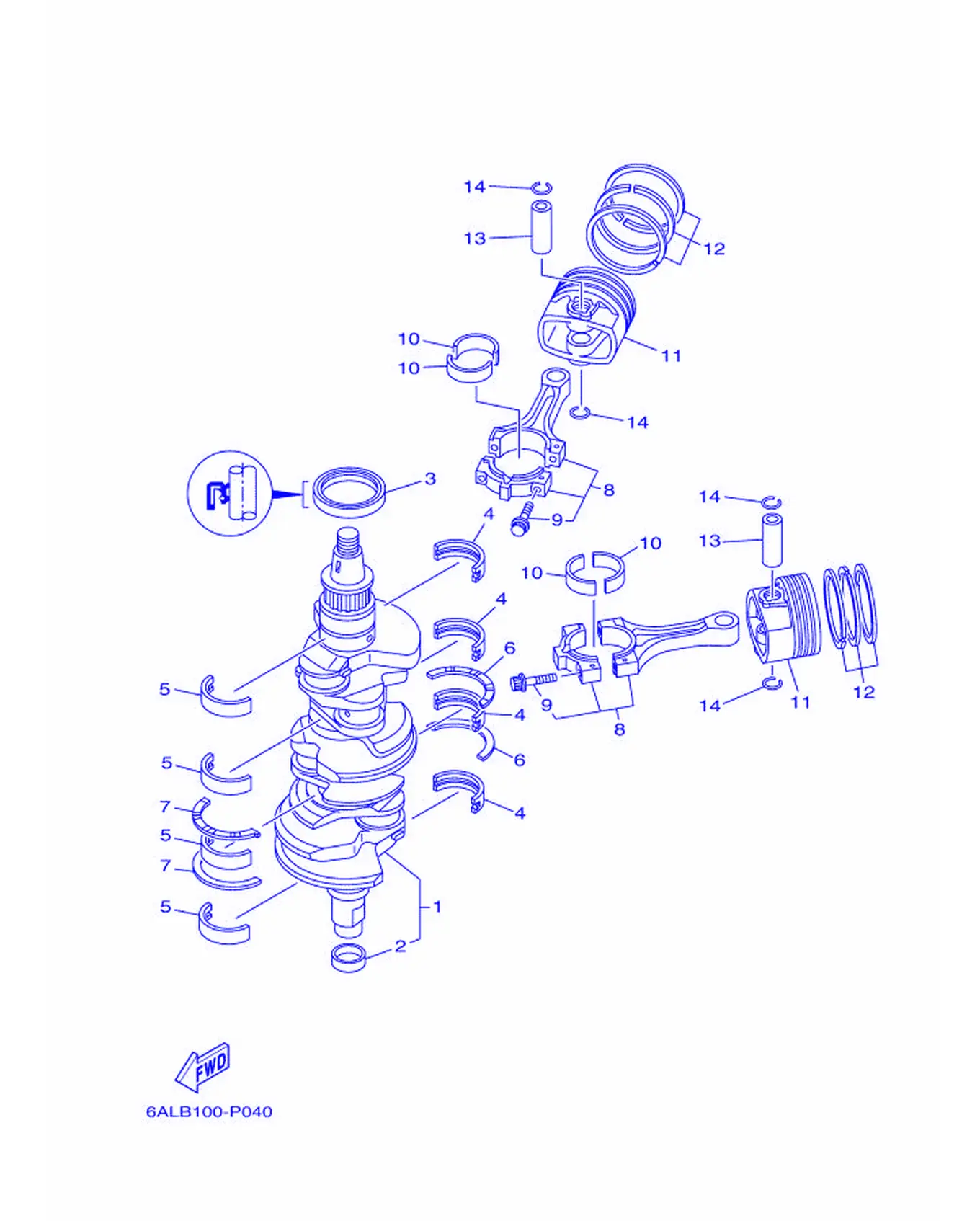

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-11410-10	曲轴	Crankshaft	1
2	6CB-11478-00	衬套	Collar	1
3	93102-63004	油封	Oil Seal	1
4	6P2-11416-00	轴瓦1	Crankshaft Plain Bearing 1	4
4	6P2-11416-10	轴瓦1	Crankshaft Plain Bearing 1	4
4	6P2-11416-20	轴瓦1	Crankshaft Plain Bearing 1	4
5	6P2-11417-00	轴瓦	Crankshaft Plain Bearing 2	4
5	6P2-11417-10	轴瓦2	Crankshaft Plain Bearing 2	4
5	6P2-11417-20	轴瓦2	Crankshaft Plain Bearing 2	4
6	6AW-11426-01	轴瓦1	Bearing, Thrust 1	2
7	6AW-11427-01	轴瓦2	Bearing, Thrust 2	2
8	6P2-11650-00	连杆组合	Connecting Rod Assembly	6
9	63P-11654-10	连杆螺栓	Bolt, Connecting Rod	2
10	6S1-11656-00	轴瓦	Connecting Rod Plain Bearing	12
10	6S1-11656-10	轴瓦	Connecting Rod Plain Bearing	12
11	6P2-11631-11-93	活塞	Piston (STD)	6
11	6P2-11635-10	活塞	Piston (0.25MM O/S)	6
12	63P-11603-01	活塞环套件	PistonRingSet (STD)	6
12	63P-11604-00	活塞环套件	Piston Ring Set (0.25MM O/S)	6
13	63P-11633-10	活塞销	Pin,Piston	6
14	63P-11634-00	活塞销挡圈	Clip,Piston Pin	12

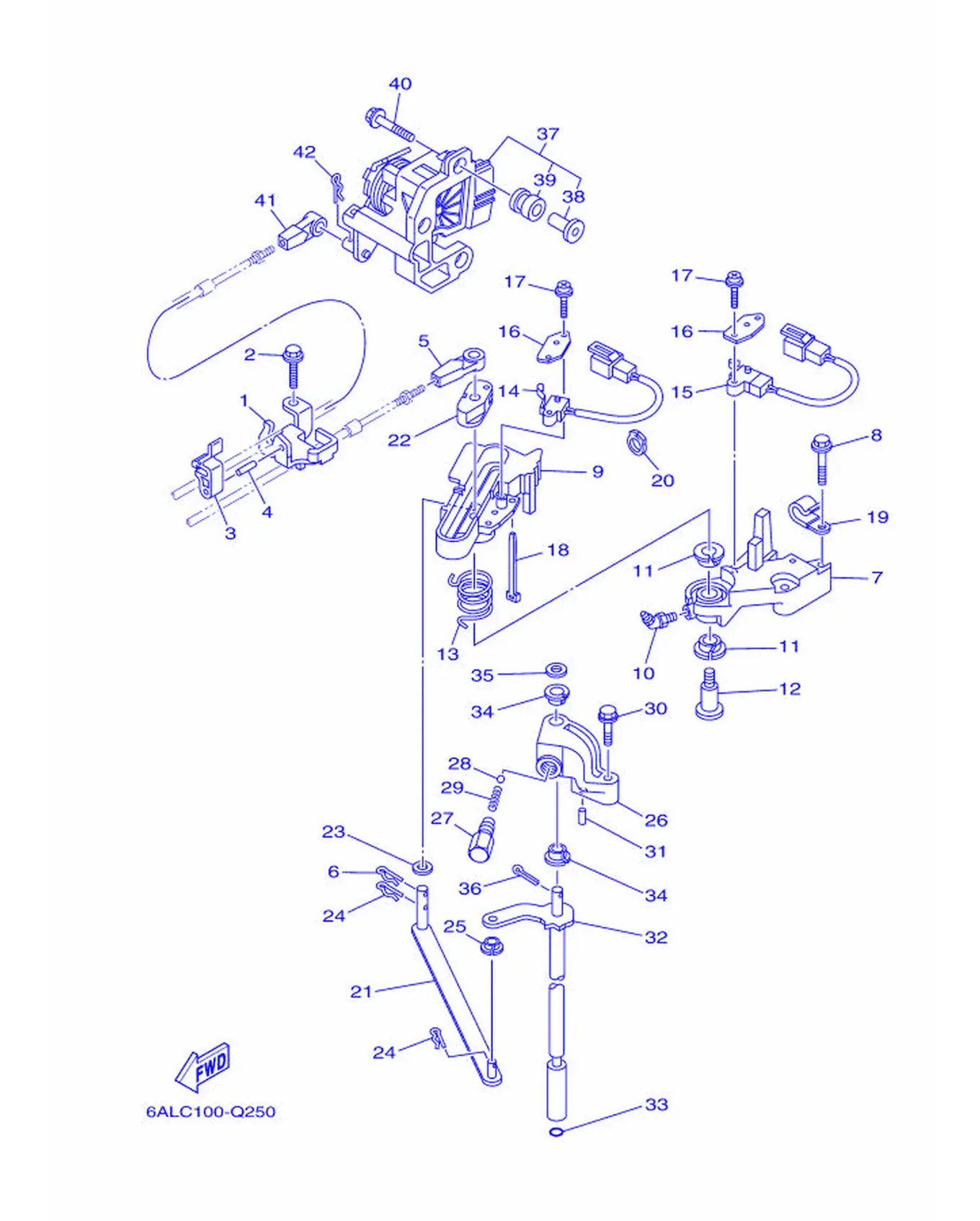

コントロ-ル

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-48531-00	遥控装置托架1	Bracket, Remote Control 1	1
2	90109-06M86	螺栓	Bolt	2
3	63P-48538-00	钢索夹1	Clamp,Cable 1	1
4	91690-30010	弹簧销	Pin,Spring	1
5	6E5-48344-00	遥控钢索端部	Cable End, Remote Control	1
6	90468-18008	钢夹	Clip	1
7	69J-44117-00	托架	Bracket	1
8	97E95-06535	螺栓	Bolt, Hexagon with Washer Deep Recess	2
9	69J-44176-01	托架	Bracket	1
10	93700-06M01	润滑油管嘴	Nipple, Grease	1
11	90386-12069	衬套	Bushing	2
12	90109-08019	卡环	Bolt	1
13	90508-20020	扭簧	Spring, Torsion	1
14	60V-8259F-01	开关组合	Switch Assembly	1
15	69J-8259F-00	开关组合	SwitchAssembly	1
16	61A-82588-01	面板	Plate	2
17	97985-04116	带垫圈螺钉	Screw, With Washer	4
18	90465-11M10	固定	Clamp	1
19	90465-06M86	夹箍	Clamp	1
20	90464-09010	固定	Clamp	1
21	6P2-44121-00	变挡杆杠杆	Lever, Shift Rod	1
22	69J-44122-00	变挡杆杠杆衬套	Bushing, Shift Rod Lever	1
23	90202-08M20	平垫圈	Washer,Plate	1
24	90468-18008	钢夹	Clip	2
25	90386-06M12	衬套	Bushing	1
26	69J-44118-00	托架	Bracket	1
27	648-42715-00	衬套	Bushing	1
28	93501-04M02	滚珠	Ball	1
29	90501-12082	压簧	Spring, Compression	1
30	97E75-06535	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	1
31	91690-30010	弹簧销	Pin,Spring	1
32	69J-44120-02	变挡手柄组合	Handle Gear Shift Assembly	1
33	93210-09165	O型圈	O-ring	1
34	90386-90M90	衬套	Bushing	2
35	90201-09M02	面板垫圈	Washer,Plate	1
36	91490-20015	开口销	Pin, Cotter	1
37	6P2-8A410-02	传感器组合	Sensor Unit	1
38	6P2-44139-00	安装环	Collar	3
39	6CB-41273-00	固定	Grommet	3
40	90119-06297	带垫圈六角头螺栓	Bolt, with Washer	3
41	6E5-48344-00	遥控钢索端部	Cable End, Remote Control	1
42	90468-18008	钢夹	Clip	1

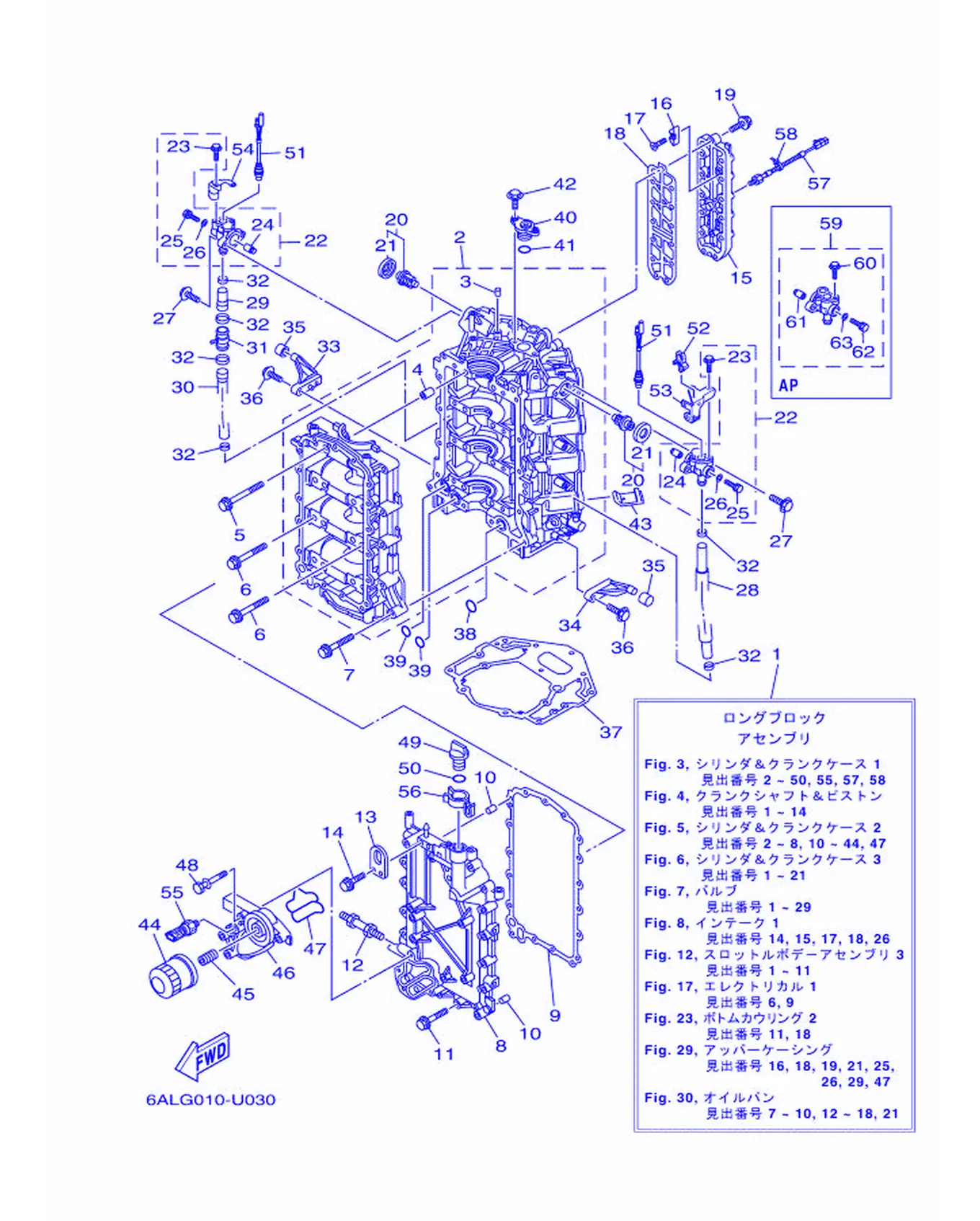

シリンダ & クランクケース 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-11000-06	发动机副总成	Long Block Assembly	1
2	6P2-15100-11	曲轴箱组合	Crankcase Assembly	1
3	93606-12019	定位销	Pin, Dowel	1
4	91814-18002	销	Pin, Dowel	8
5	6P2-15187-00	螺栓	Bolt	8
6	6P2-15481-00	螺栓1	Bolt 1	8
7	90119-08M66	带垫螺栓	Bolt, With Washer	13
8	6P2-15411-01-9S	曲轴箱盖1	Cover, Crankcase 1	1
9	69J-15451-01	曲轴箱盖垫片1	Gasket, Crankcase Cover	1
10	93606-12019	定位销	Pin, Dowel	2
11	90119-08009	带垫螺栓	Bolt, With Washer	17
12	90116-10027	螺栓	Bolt, Stud	1
13	69J-11119-00	发动机悬挂架	Hanger, Engine	1
14	90105-06M09	六角法兰面螺栓	Bolt, Washer Based Head	2
15	6P2-1131C-00-9S	接头盖	Cover, Joint	1
16	6E5-11325-00	阳极	Anode	4
17	98780-04016	大柱头螺钉	Screw, Flat Head	4
18	6P2-1131B-00	衬垫	Gasket, Cover	1
19	90119-06MA4	带垫螺栓	Bolt, With Washer	13
20	67F-12411-01	温控器	Thermostat	2
21	67F-12412-00	温控器密封	Seal,Thermostat	1
22	6P2-1240H-00-9S	盖组合	Anode Assembly	2
23	90109-06M80	螺栓	Bolt	2
24	6P3-11325-00	阳极	Anode	1
25	90105-05012	凸缘螺栓	Bolt, Flange	1
26	90430-05002	衬垫	Gasket	1
27	97E95-06525	螺栓	Bolt, Hexagon with Washer Deep Recess	4
28	6P2-1243A-00	软管1	Hose 1	1
29	6P2-1243E-00	软管2	Hose 2	1
30	6P2-1243F-00	软管3	Hose, 3	1
31	6S1-24378-00	连接管4	Pipe, Joint 3	1
32	90465-11M59	固定	Clamp	6
33	67F-42761-01	限位板	Stopper	1
34	6P2-42761-00	限位板	Stopper	1
35	68F-44533-02	上侧减震胶垫	Damper, Upper Mount Rubber	2
36	97E95-06525	螺栓	Bolt, Hexagon with Washer Deep Recess	4
37	69J-11351-12	气缸垫片1	Gasket, Cylinder	1
38	93210-25552	O型圈	O-ring	1
39	93210-19MJ1	O型圈	O-ring	2
40	69J-11313-00	绝缘插头	Blind Plug	1
41	93210-25647	O型圈	O-ring	1
42	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	2
43	69J-14664-01	断水	Grommet, Water Jacket	2
44	69J-13440-05	机油进滤器总成	Element Assembly, Oil Cleaner	1
45	6S5-12858-00	管接螺栓2	Bolt, Union	1
46	6P2-13446-00-9S	连接器	Connector	1
47	6P2-13477-00	衬垫	Gasket	1
48	90119-06025	带垫螺栓	Bolt, With Washer	5
49	6G8-15363-00	机油塞子	Plug,Oil	1
50	93210-24M79	O型圈	O-ring	1
51	6P2-82560-01	温控开关组合	Thermo Switch Assembly	2
52	90464-06001	固定	Clamp	1
53	6P2-82588-01	垫片	Plate	1
54	6P2-82389-10	面板2	Plate 2	1
55	6AW-83651-01	油压传感	Sender, Oil Pressure	1
56	6P2-83597-00	夹箍	Clamp	1
57	6P2-85780-01	发爆传感	Sensor, Knock	1
58	90465-11M10	固定	Clamp	1
59	6P3-1240H-00-9S	盖组合	Anode Assembly	1
60	90109-06M80	螺栓	Bolt	2
61	6P3-11325-00	阳极	Anode	1
62	90105-05012	凸缘螺栓	Bolt, Flange	1
63	90430-05002	衬垫	Gasket	1

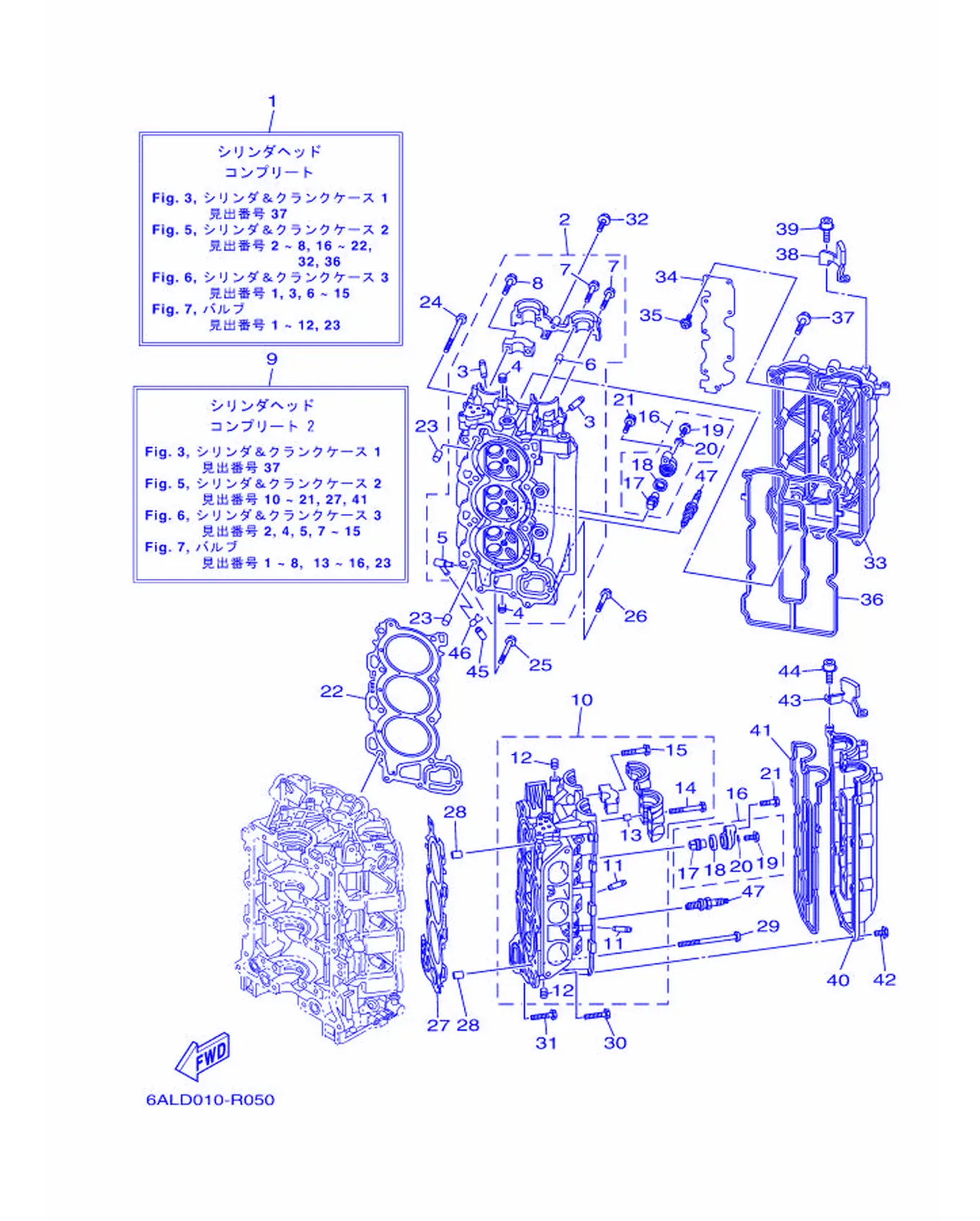

シリンダ & クランクケース 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-W009A-07-9S	气缸头总成	Cylinder Head Complete	1
2	6P2-11110-12-9S	气缸头总成	Cylinder Head Assembly	1
3	6S5-11133-10	进气门导管	Guide,Valve 1	12
4	90344-51019	衬套	Plug, Taper Screw	7
5	676-11372-00	软管接头	Nipple,Hose	1
6	91809-08006	定位销	Sleeve Guide Dowel	2
7	90119-07001	带垫圈螺栓	Bolt, with Washer	4
8	90119-07234	带垫螺栓	Bolt, with Washer	14
9	6P2-W009C-07-9S	气缸头总成	Cylinder Head Complete 2	1
10	6P2-11120-12-9S	气缸盖组合2	Cylinder Head Assembly 2	1
11	6S5-11133-10	进气门导管	Guide,Valve 1	12
12	90344-51019	衬套	Plug, Taper Screw	3
13	91809-08006	定位销	Sleeve Guide Dowel	4
14	90119-07235	带垫螺栓	Bolt, Washer Cam Caps	6
15	90119-07234	带垫螺栓	Bolt, with Washer	12
16	69J-11301-02	锌块垫组合	Anode Cover Assembly	4
17	6ML-11325-00	阳极	Anode	1
18	67F-11328-01	阳极固定	Grommet	1
19	90105-06M07	螺栓	Bolt, Flange	1
20	90430-06M03	平垫圈	Gasket	1
21	97E75-08540	螺栓	Bolt, Hexagon with Washer Deep Recess	4
22	6P2-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
23	99530-14016	定位销	Pin, Dowel	2
24	90155-10009	十字槽螺钉	Screw, Flat Fillister	8
25	90119-08M91	卡环	Bolt, With Washer	2
26	90119-08021	带垫螺栓	Bolt, With Washer	1
27	6P2-11182-00	气缸盖衬垫2	Gasket, Cylinder Head 2	1
28	99530-14016	定位销	Pin, Dowel	2
29	90155-10009	十字槽螺钉	Screw, Flat Fillister	8
30	90119-08M91	卡环	Bolt, With Washer	2
31	90119-08021	带垫螺栓	Bolt, With Washer	1
32	97E95-06530	螺栓	Bolt, Hexagon with Washer Deep Recess	1
33	6P2-11191-00-9S	气缸盖罩1	Cover, Cylinder Head 1	1
34	6P2-11135-00	通气管面板3	Breather Plate 3	1
35	97607-04208	螺钉	Screw, Pan Head Washer	8
36	6P2-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
37	97E95-06530	螺栓	Bolt, Hexagon with Washer Deep Recess	14
38	6P2-15142-00	托架	Guide 1	1
39	90110-06150	螺栓	Bolt, Hexagon Socket Head	2
40	6P2-11192-00-9S	气缸盖罩2	Cover, Cylinder Head 2	1
41	6P2-11194-00	气缸盖罩衬垫2	Gasket, Head Cover 2	1
42	97E95-06530	螺栓	Bolt, Hexagon with Washer Deep Recess	14
43	6P2-15143-00	托架	Guide	1
44	90110-06150	螺栓	Bolt, Hexagon Socket Head	2
45	6P2-13448-00	盖	Cap	1
46	90467-08M18	固定	Clip	1
47	94709-00400	火花塞	Plug, Spark (NGK LFR6A-11)	6

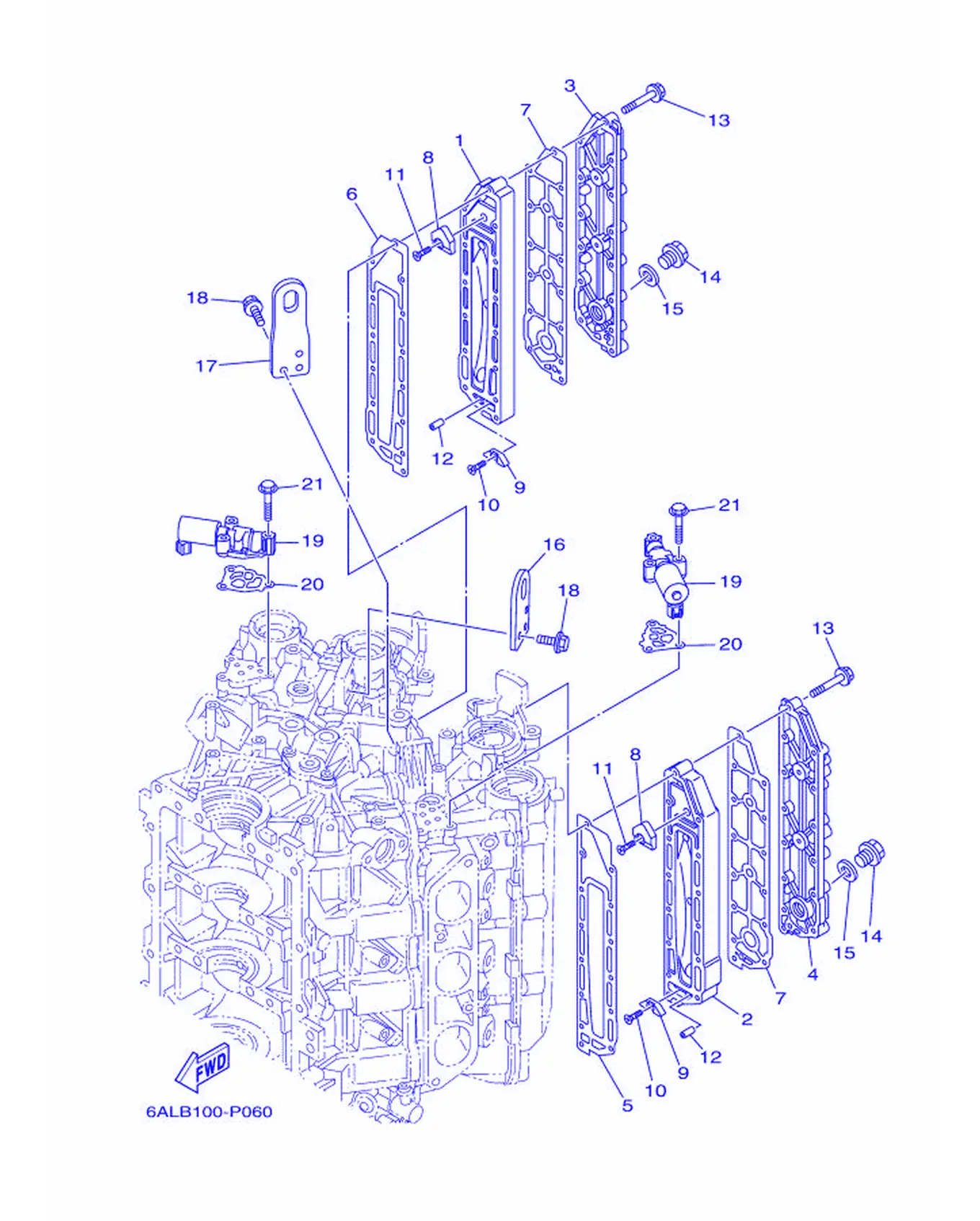

シリンダ & クランクケース 3

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-41111-01-9S	排气管内盖	Inner Cover, Exhaust	1
2	69J-41121-01-9S	排气管内盖	Inner Cover, Exhaust	1
3	69J-41113-02-9S	排气管外盖	Outer Cover, Exhaust	1
4	69J-41123-02-9S	排气管外盖	Outer Cover, Exhaust	1
5	6P2-41112-00	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
6	6P2-41122-00	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
7	6P2-41114-00	排气管外盖衬垫	Gasket, Exhaust Outer Cover	2
8	6P2-11325-00	阳极	Anode	2
9	6E5-11325-00	阳极	Anode	2
10	98780-04016	大柱头螺钉	Screw, Flat Head	2
11	90151-06M02	卡环	Screw, Countersunk	2
12	91690-40010	弹簧销	Pin,Spring	2
13	90119-06027	带垫螺栓	Bolt, With Washer	28
14	90340-18M09	衬套	Plug, Straight Screw	2
15	90201-186F1	平垫圈	Washer,Plate	2
16	6P2-11119-00	发动机悬挂架	Hanger, Engine	1
17	6P2-1111E-00	发动机悬挂架2	Hanger, Engine 2	1
18	90105-06M09	六角法兰面螺栓	Bolt, Washer Based Head	6
19	6CB-86120-00	电磁阀组合	Solenoid Valve Assembly	2
20	6CB-1242F-00	滤清器衬垫	Gasket Filter	2
21	90105-06035	螺栓	Bolt, Flange	6

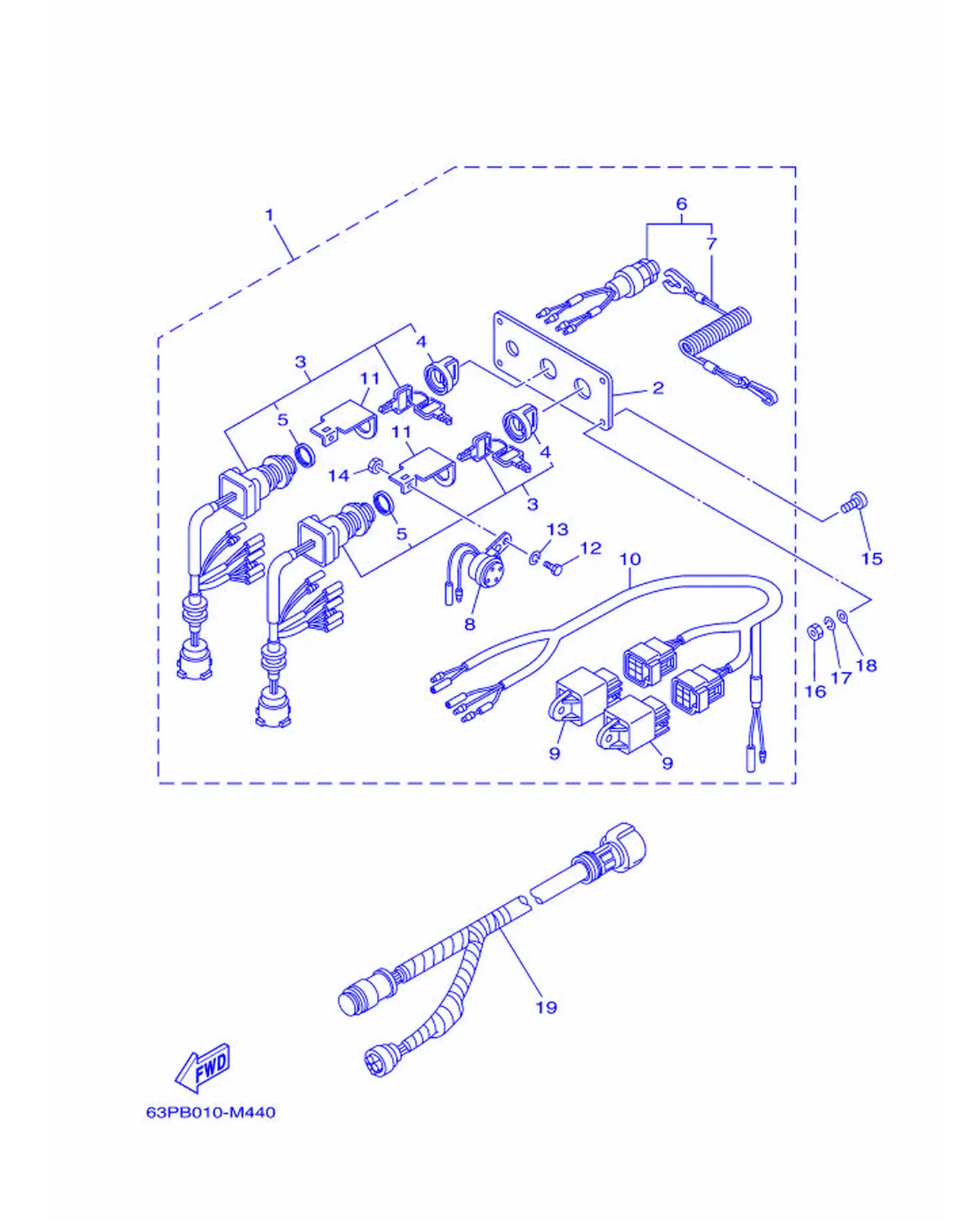

スイツチ & パネル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6Y8-82570-05	开关仪表板组合	Panel Switch Assembly	1
2	6Y8-82571-01	开关仪表板	Plate, Panel Switch	1
3	6Y8-82510-03	主开关总成	Main Switch Assembly	2
4	676-82577-01	键盖	Cap, Key	1
5	703-82532-00	盖	Cap	1
6	6K1-82575-01	发动机止动开关组合	Engine Stop Switch Assembly	1
7	682-82556-00	止动拉索	Stopper	1
8	6R5-83383-00	蜂鸣器	Buzzer	2
9	68V-81950-00	继电器组合	RelayAssembly	2
10	6Y8-82507-00	导线	Lead, Ignition Switch Relay	1
11	64D-82581-00	线夹支承	Stay, Cord Clamp	2
12	97003-05012	螺栓	Bolt	2
13	92903-05100	盘形垫	Washer,Spring	2
14	95303-05700	有槽螺母	Nut	2
15	90149-05M05	螺钉	Screw	4
16	95380-05600	螺母	Nut	4
17	92990-05100	盘形垫	Washer,Spring	4
18	92990-05600	盘形垫	Washer,Plate	4
19	688-8258A-70	电线束延伸部分	Extension, Wire Harness	1

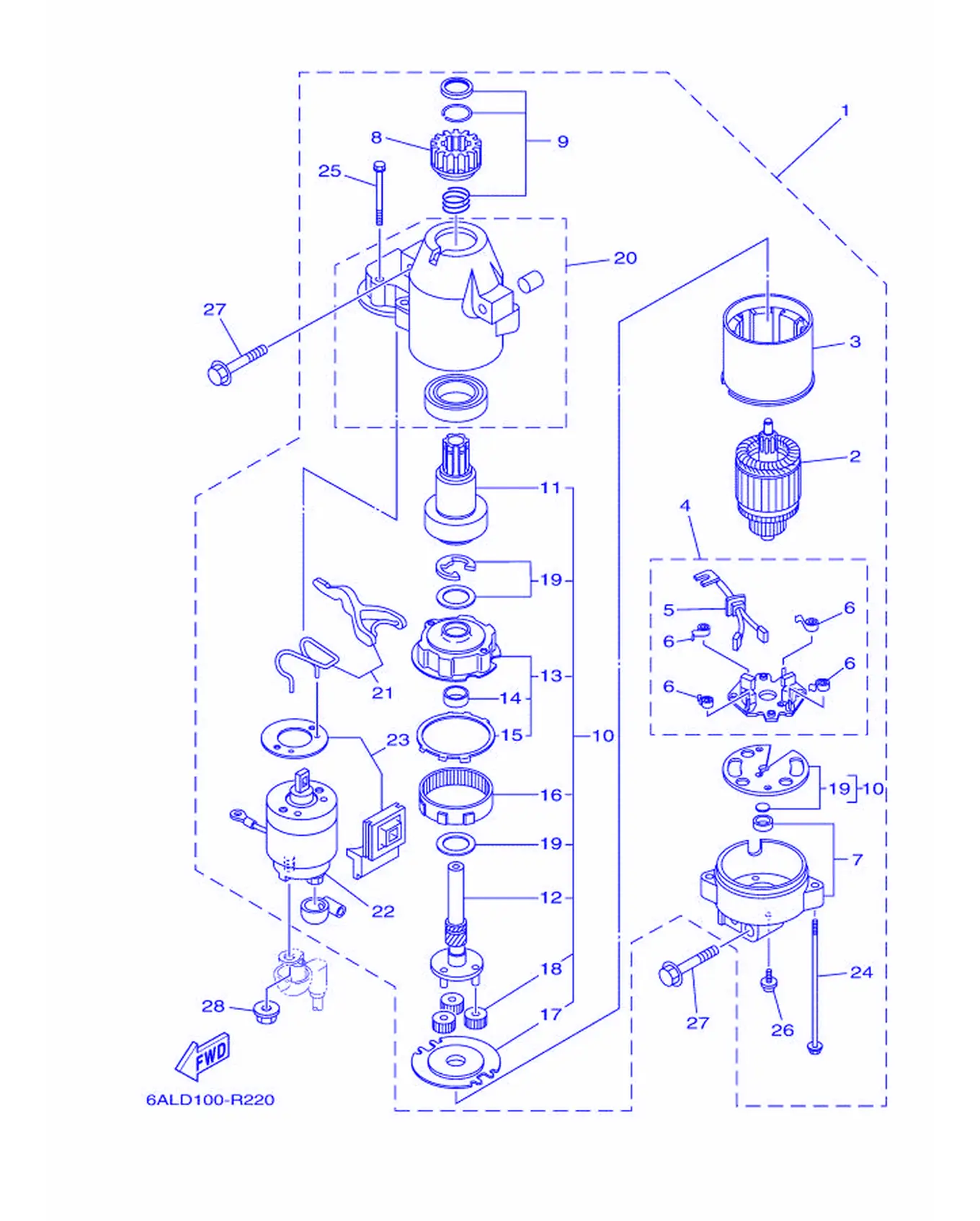

スタ-テイングモ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BR-81800-02	起动电动机总成	Starting Motor Assembly	1
2	67F-81850-00	电枢组合	Armature Assembly	1
3	67F-81810-00	定子组合	Stator Assembly	1
4	69J-81840-11	电刷架组合	Brush Holder Assembly	1
5	69J-81801-11	碳刷组件	Brush Set	1
6	67F-81813-00	电刷弹簧	Spring, Brush	4
7	67F-81820-00	后托架组合	Rear Bracket Assembly	1
8	67F-81808-00	环形齿轮支承	Pinion Assembly	1
9	67F-81857-00	小齿轮组件	Pinion Stopper Set	1
10	67F-81807-00	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
11	67F-81832-00	越转离合器	Clutch, Overrun	1
12	67F-81836-00	杠杆弹簧	Shaft, Pinion	1
13	67F-81821-00	开关盖	Bracket, Center 1	1
14	67F-81841-00	环形齿轮支承	Bearing	1
15	67F-8183R-00	环形齿轮支承	Gasket	1
16	67F-81891-00	环形齿轮	Gear, Ring	1
17	67F-81830-00	前托架组合	Bracket, Center 2	1
18	60V-8183T-00	环形齿轮支承	Gear, Idler	3
19	67F-81809-00	垫圈套	Washer Kit	1
20	69J-81842-00	盖	Cover	1
21	6C5-81839-00	杠杆组合	LeverAssembly	1
22	63P-81941-00	起动继电器组合	Starter Relay Assembly	1
23	6C5-81869-00	防尘盖	Cover, Dust	1
24	6K7-81826-11	螺栓	Bolt	2
25	69J-81828-00	螺栓2	Bolt 2	2
26	67F-81846-00	螺钉	Screw	2
27	97513-08545	带垫圈螺栓	Bolt, with Washer	3
28	90179-08003	螺母	Nut	1

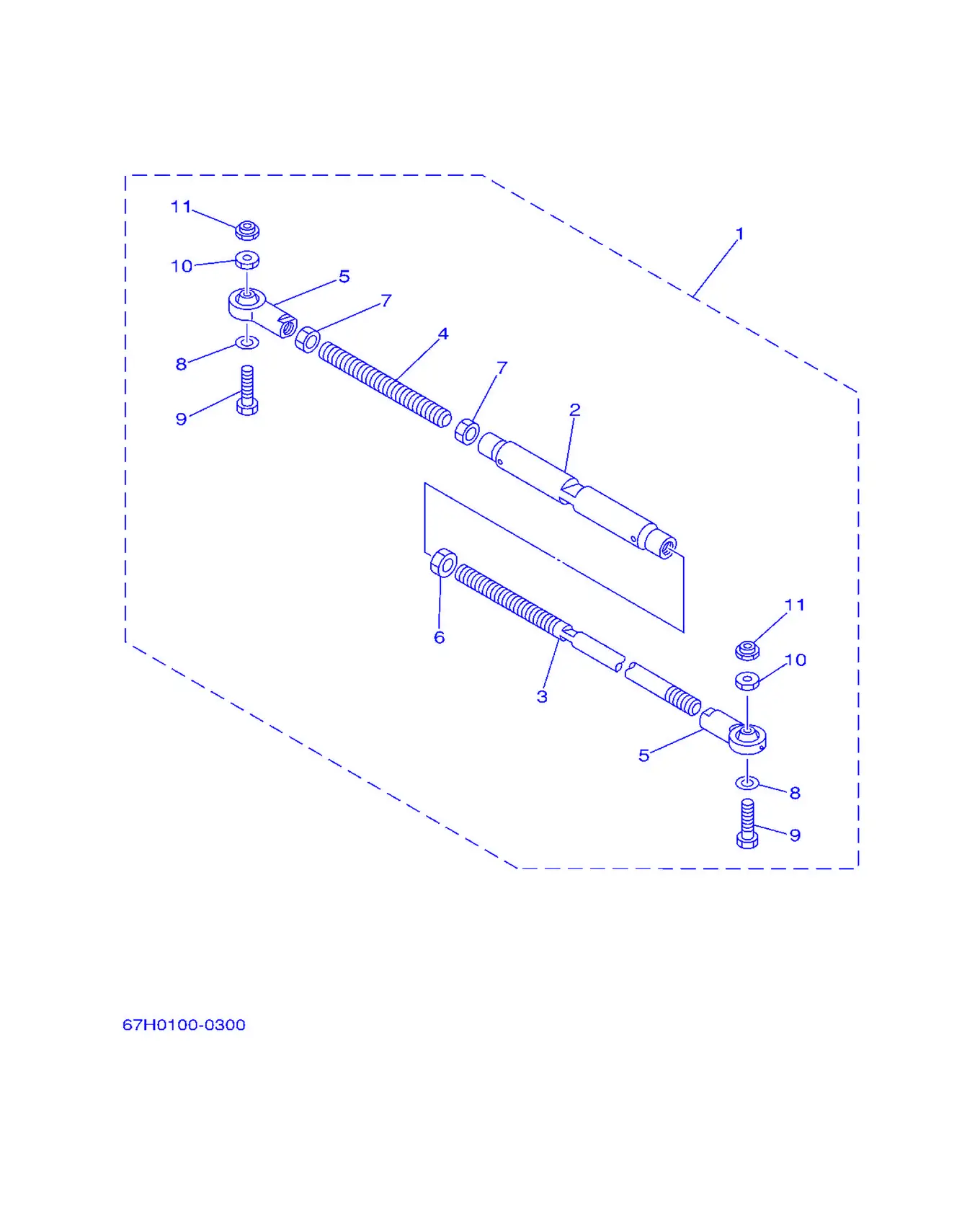

ステアリングガイドアタツチメン

REF	雅马哈编码	中文名称	英文名称	用量
1	6E5-61310-00	拉杆总成	Tie Bar Assembly (L:600-800MM)	1
2	6E5-61313-00	调整器	Adjuster	1
3	6E5-61311-11	系杆	Tie Bar 1	1
4	6E5-61315-00	系杆	Tie Bar 2	1
5	6E5-61303-01	操舵扣组	Steering Eye Complete	2
6	90170-14M06	螺帽	Nut	1
7	95380-14700	有槽螺母	Nut	2
8	90201-10M76	平垫圈	Washer	2
9	90101-09M70	螺栓	Bolt	2
10	90170-09M05	螺帽	Nut	2
11	90185-09M01	螺帽	Nut, Self-Locking	2

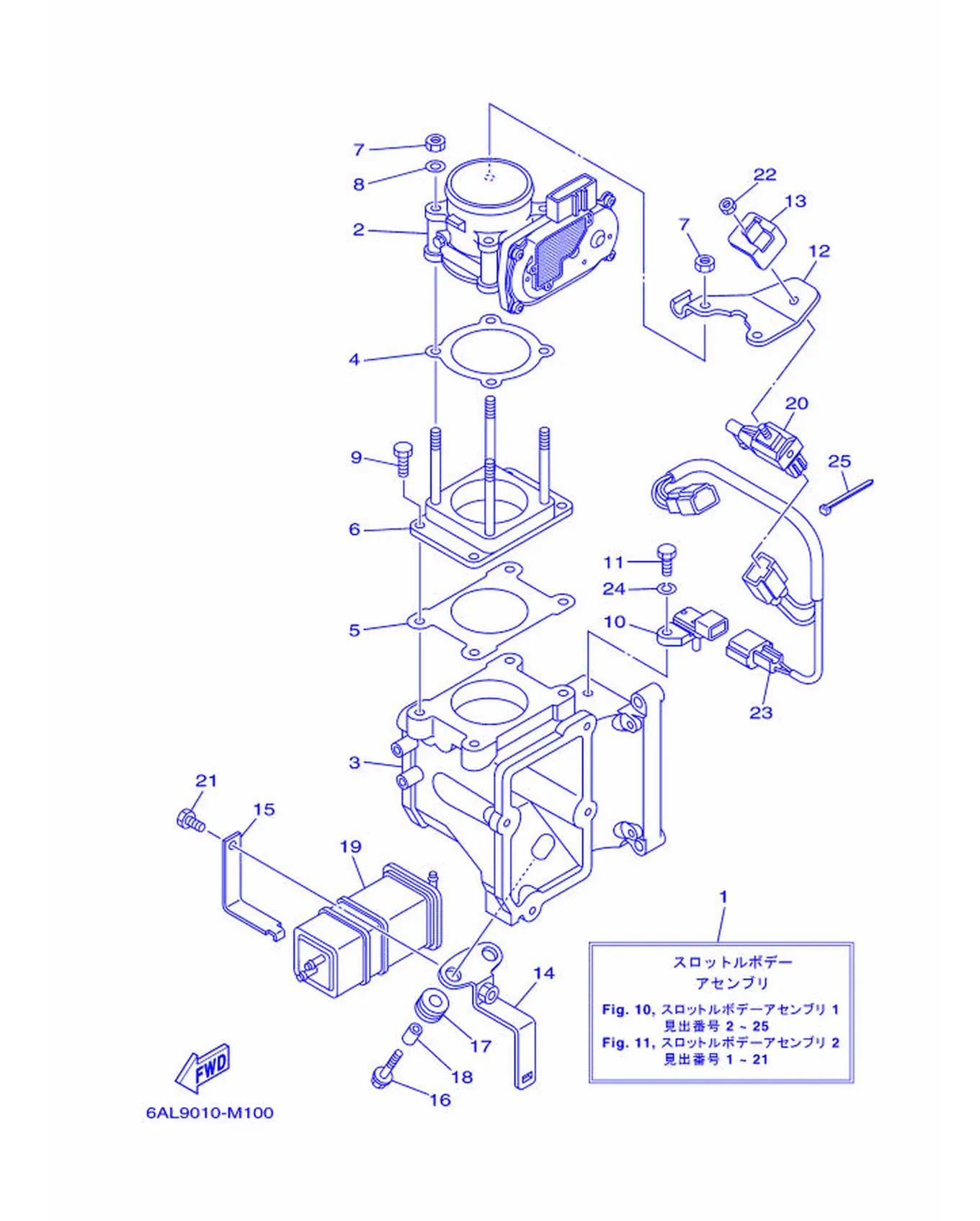

スロツトルボデ-アセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-13750-15	节流阀体总成	Throttle Body Assembly	1
2	6P2-13751-05	油门本体	Body, Throttle 1	1
3	6P2-13711-00	混合体	Mixing Body	1
4	6P2-13556-00	岐管衬垫	Gasket, Manifold	1
5	6P2-13557-00	衬垫	Gasket	1
6	6P2-14360-00	风门组合	Throttle Damper Assembly	1
7	6P2-13588-01	螺母	Nut	4
8	6P2-13578-00	垫圈	Washer	2
9	6P2-14496-00	螺栓	Bolt	4
10	6P2-82380-00	压力传感	Sensor, Pressure	1
11	6P2-13573-00	螺栓1	Bolt 1	1
12	6P2-14255-00	面板	Plate	1
13	6P2-14159-00	钢夹	Clip	1
14	6P2-2134X-00	金属箱托架	Bracket, Canister	1
15	6P2-2419A-00	支架	Holder	1
16	90119-06289	带垫圈六角头螺栓	Bolt, with Washer	2
17	90480-10M23	固定	Grommet	2
18	90387-06289	轴套	Color	2
19	6P2-24170-00	过滤器总成	Canister Assembly	1
20	6C5-86120-00	电磁阀组合	SolenoidValveAssembly	1
21	6P2-13574-00	螺栓2	Bolt 2	1
22	69J-14164-00	固定螺母	Nut, Holding	1
23	6P2-8258A-00	电线束延伸部分	Extension, Wire Harness	1
24	68V-14356-00	弹簧垫	Washer, Spring	1
25	68V-2481H-00	夹箍	Clamp	1

スロツトルボデ-アセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-14349-00	管	Pipe	1
2	6P2-13533-00	负压传感软管4	Hose, Vacuum Sensing 4	1
3	6P2-13532-10	负压传感软管3	Hose, Vacuum Sensing 3	1
4	6P2-13595-00	接头	Joint	1
5	6P2-1475A-10	管1	Pipe 1	1
6	6P2-1475E-00	管2	Pipe 2	1
7	6P2-13545-00	软管1	Hose 1	1
8	6P2-1475F-00	管	Pipe 3	1
9	6P2-1475G-00	管	Pipe 4	1
10	6P2-13546-00	软管2	Hose 2	1
11	6P2-2416A-00	软管	Hose	1
12	6P2-24135-00	夹箍1	Clamp 1	2
13	6P2-24136-00	夹箍2	Clamp 2	2
14	6P2-13758-00	接合管	Pipe, Joint	2
15	6P2-24137-00	容器托架	Clamp 3	1
16	6E5-21744-00	通气管	Breather	1
17	688-24378-00	连接管4	Pipe,Joint	1
18	6P2-13547-00	软管3	Hose 3	1
19	6P2-13548-10	空气导管4	Hose, Air 4	1
20	6P2-24376-00	连接管1	Pipe, Joint 1	1
21	90464-18004	固定夹	Clamp	1
22	90464-18004	固定夹	Clamp	2

スロツトルボデ-アセンブリ 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-13160-11	输送管组合1	Delivery Pipe Assembly 1	1
2	6P2-13161-00	输送管1	Pipe, Delivery 1	1
3	6P2-13761-11	喷射器	Injector Assembly	3
4	6C5-1410B-00	衬垫	Packing Kit	1
5	6P2-13577-00	钢夹	Clip	3
6	6P2-13170-11	输送管组合2	Delivery Pipe Assembly 2	1
7	6P2-13171-00	输送管2	Pipe, Delivery 2	1
8	6P2-13761-11	喷射器	Injector Assembly	3
9	6C5-1410B-00	衬垫	Packing Kit	1
10	6P2-13577-00	钢夹	Clip	3
11	90119-06296	带垫圈六角头螺栓	Bolt, with Washer	4

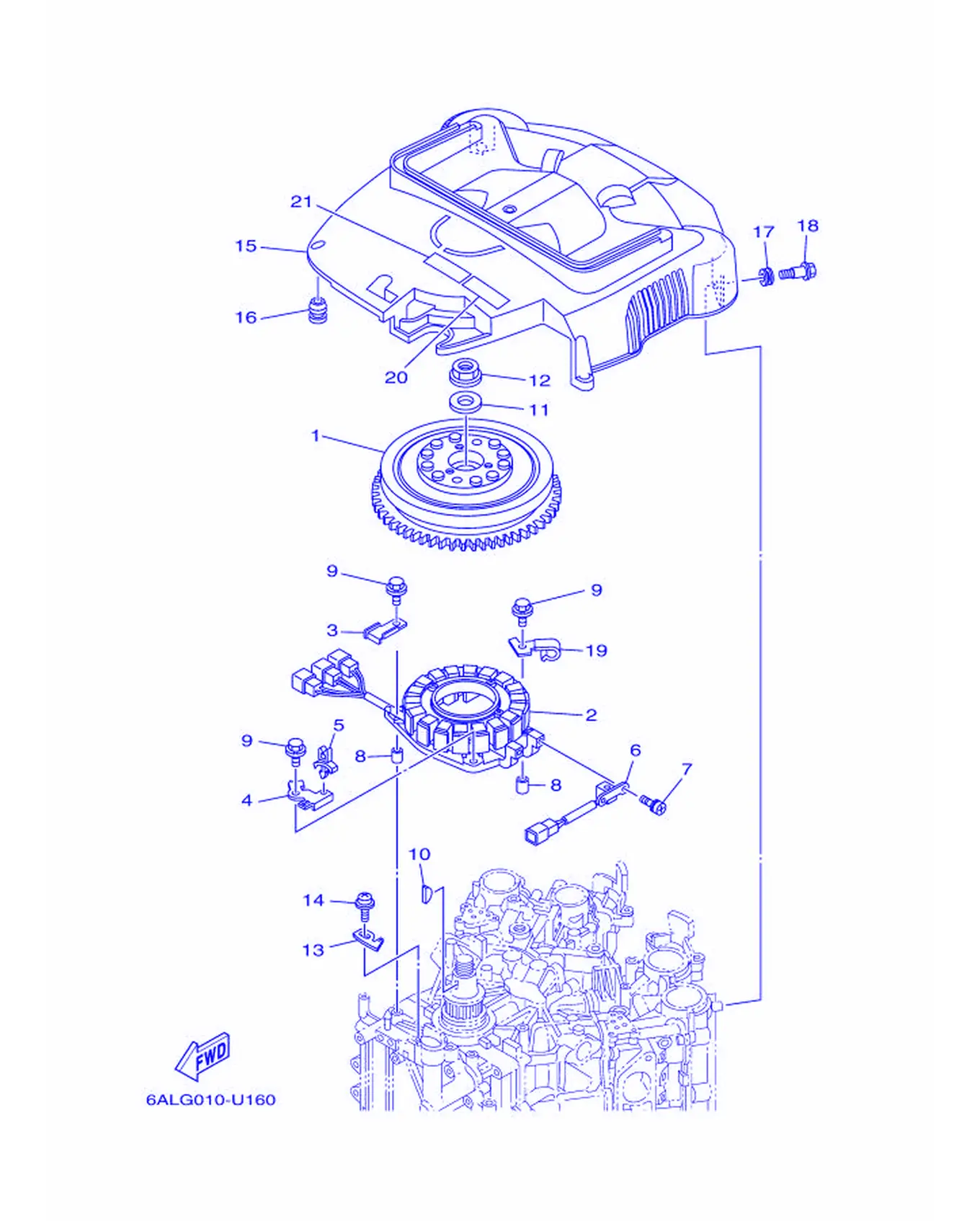

ゼネレ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-81450-00	转子组合	Rotor Assembly	1
2	6P2-81460-00	基座组合	Base Assembly	1
3	6P2-81443-00	导线夹1	Clamp, Lead 1	1
4	6P2-8257V-00	连接器面板	Connector Plate	1
5	90464-06001	固定	Clamp	1
6	6P2-85580-00	脉冲线圈	Coil, Pulser	1
7	97980-05312	带垫圈螺钉	Screw, Washer	2
8	99530-08012	螺栓	Pin, Dowel	2
9	97E95-06635	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	4
10	90280-05015	螺丝	Key, Woodruff	1
11	90201-24014	平垫圈	Washer,Plate	1
12	90179-24002	螺母	Nut	1
13	6P2-81332-00	正时面板	Plate, Timing	1
14	97985-06210	带垫圈螺钉	Screw, With Washer	1
15	6P2-81337-02	飞轮盖	Cover, Flywheel	1
16	663-82317-02	点火线圈减震器	Damper, Ignition Coil	4
17	90480-12314	固定	Grommet	2
18	90109-06MA1	螺栓	Bolt	2
19	6P2-81128-00	夹箍	Clamp	1
20	60L-13437-02	警告标签	Mark, Corrosion	1
21	6EE-81994-01	警告标签	Label, Safety	1

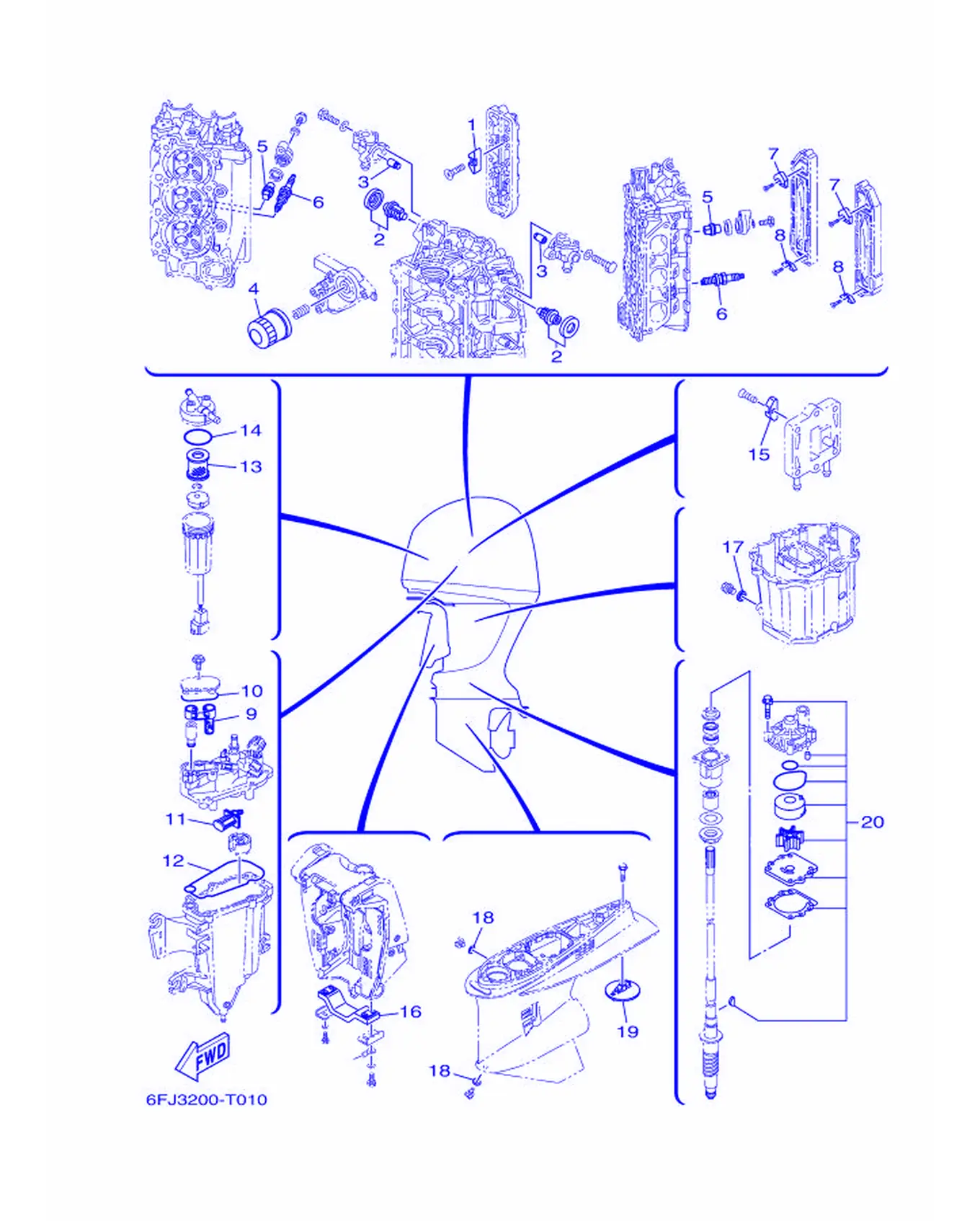

テイキコウカンブヒン

REF	雅马哈编码	中文名称	英文名称	用量
1	6E5-11325-00	阳极	Anode	4
2	67F-12411-01	温控器	Thermostat	2
3	6P3-11325-00	阳极	Anode	2
4	69J-13440-05	机油进滤器总成	Element Assembly, Oil Cleaner	1
5	6ML-11325-00	阳极	Anode	4
6	94709-00400	火花塞	Plug, Spark (NGK LFR6A-11)	6
7	6P2-11325-00	阳极	Anode	2
8	6E5-11325-00	阳极	Anode	2
9	6CB-24501-01	燃油过滤器	Filter, Fuel	1
10	6CB-13016-00	O型圈	O-ring	1
11	63P-13915-00	过滤器	Filter	1
12	6CB-14984-00	浮子室衬垫	Gasket,FloatChamber	1
13	6P3-24563-02	过滤器滤芯	Element, Filter	1
14	6P3-24564-00	衬垫	Gasket	1
15	6E5-11325-00	阳极	Anode	1
16	6G5-45251-02	阳极	Anode	1
17	90430-14M09	衬垫	Gasket	1
18	90430-08003	垫片	Gasket	2
19	6CE-45373-00	阳极	Anode	1
20	61A-W0078-A4	水泵修理套	Water Pump Repair Kit	1

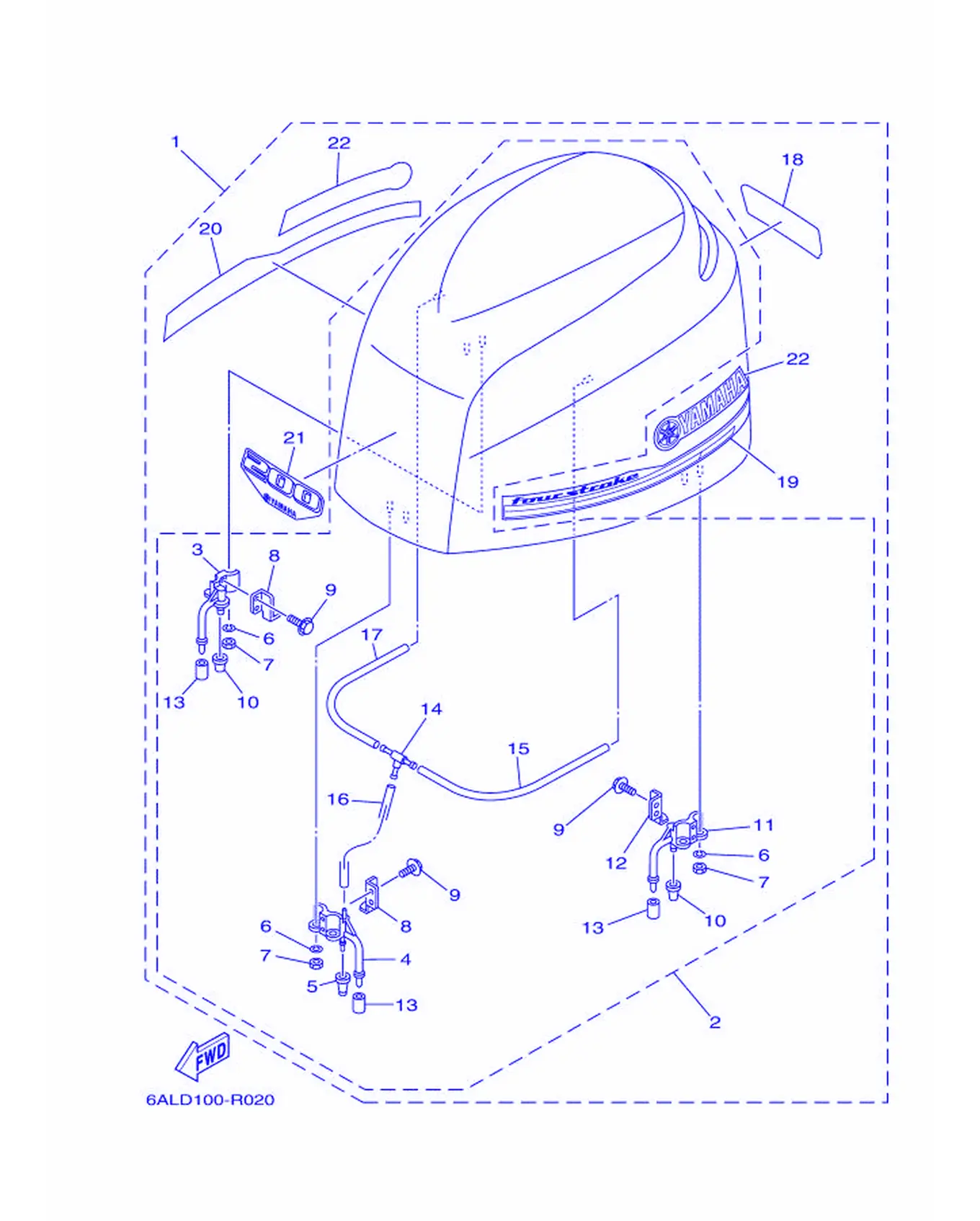

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6AL-42610-22	顶罩组合	Top Coupling Assembly	1
2	6P2-4261A-02	顶罩总成	Top Cowling (Graphic)	1
3	68F-42647-01	夹带支架	Holder, Clamp Band	1
4	69J-42647-01	夹带支架	Holder, Clamp Band	1
5	69J-42663-01	减震器	Damper 2	1
6	92990-06100	盘形垫	Washer,Spring	6
7	95380-06600	有槽螺母	Nut, Hexagon	6
8	60V-42651-01	钩	Fook	2
9	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	6
10	68F-42663-01	减震器	Damper 2	2
11	68F-42648-01	夹带支架	Holder, Clamp Band	1
12	60V-42652-00	钩	Fook	1
13	67F-13448-00	盖	Cap	3
14	69J-24378-00	连接管4	Pipe, Joint 3	1
15	90445-11M27	软管	Hose (L240)	1
16	90445-11699	软管	Hose (L500)	1
17	90445-11182	软管	Hose (L300)	1
18	6AL-42678-10	后图样	Graphic, Rear	1
19	6AS-42675-00	侧面图样1	Graphic, Side 1	1
20	6AS-42676-00	侧面图样2	Graphic, Side 2	1
21	6AL-42677-00	前图样	Graphic, Front	1
22	63P-42681-20	罩标志	Mark, Cowling	2

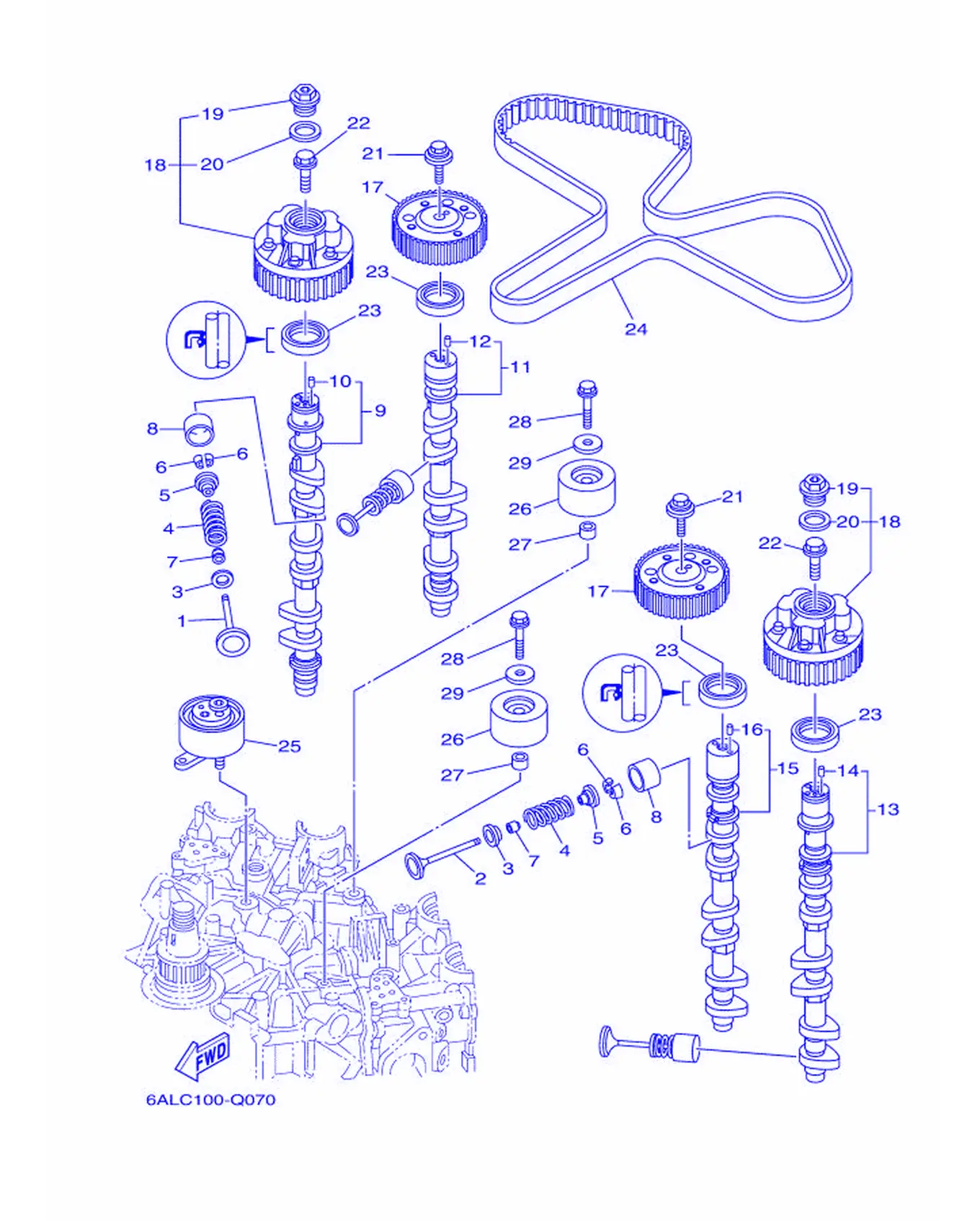

バルブ

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-12111-10	气门1	Valve, Intake	12
2	6DX-12121-00	排气门	Valve, Exhaust	12
3	K0F-A3743-00	气门弹簧座	Seat, ValveSpring	24
4	6CB-12113-00	弹簧1	Spring, Valve Inner	24
5	K0F-A3741-00	气门弹簧挡圈	Retainer, ValveSpring	24
6	K0F-A3742-00	阀门弹簧固定锁	Lock, ValveSpringRetainer	48
7	51Y-12119-00	气门杆密封	Seal, Valve Stem	24
8	K0F-A3751-00	阀门挺杆	Lifter, Valve (3.000)	24
8	K0F-A3751-10	阀门挺杆	Lifter, Valve (3.025)	24
8	K0F-A3751-20	阀门挺杆	Lifter, Valve (3.050)	24
8	K0F-A3751-30	阀门挺杆	Lifter, Valve (3.075)	24
8	K0F-A3751-40	阀门挺杆	Lifter, Valve (3.100)	24
8	K0F-A3751-50	阀门挺杆	Lifter, Valve (3.122)	24
8	K0F-A3751-60	阀门挺杆	Lifter, Valve (3.142)	24
8	K0F-A3751-70	阀门挺杆	Lifter, Valve (3.162)	24
9	6P2-12171-11	凸轮轴1	Camshaft 1	1
10	93605-10108	定位销	Pin, Dowel	1
11	6P2-12181-11	凸轮轴2	Camshaft 2	1
12	93605-10108	定位销	Pin, Dowel	1
13	6P2-12172-11	凸轮轴 3	Camshaft 3	1
14	93605-10108	定位销	Pin, Dowel	1
15	6P2-12182-11	凸轮轴盖4	Camshaft 4	1
16	93605-10108	定位销	Pin, Dowel	1
17	6FA-11567-00	从动齿轮2	Gear, Driven 2	2
18	6P2-12645-22	滑轮组合	Pulley Assembly 1	2
19	6P2-12623-00	螺栓	Bolt	1
20	6P2-12663-00	衬垫	Gasket	1
21	90119-10050	带垫圈六角头螺栓	Bolt, With Washer	2
22	6P2-12615-00	螺栓	Bolt	2
23	93102-38008	油封	OilSeal	4
24	6P2-46241-02	V型皮带	Belt	1
25	6P2-11590-05	张紧轮组合	Tensioner Assembly	1
26	6P2-15512-00	空转齿轮1	Gear, Idler 1	2
27	99530-14016	定位销	Pin, Dowel	2
28	90119-10M07	螺栓	Bolt, With Washer	2
29	90201-10M01	平垫圈	Washer,Plate	2

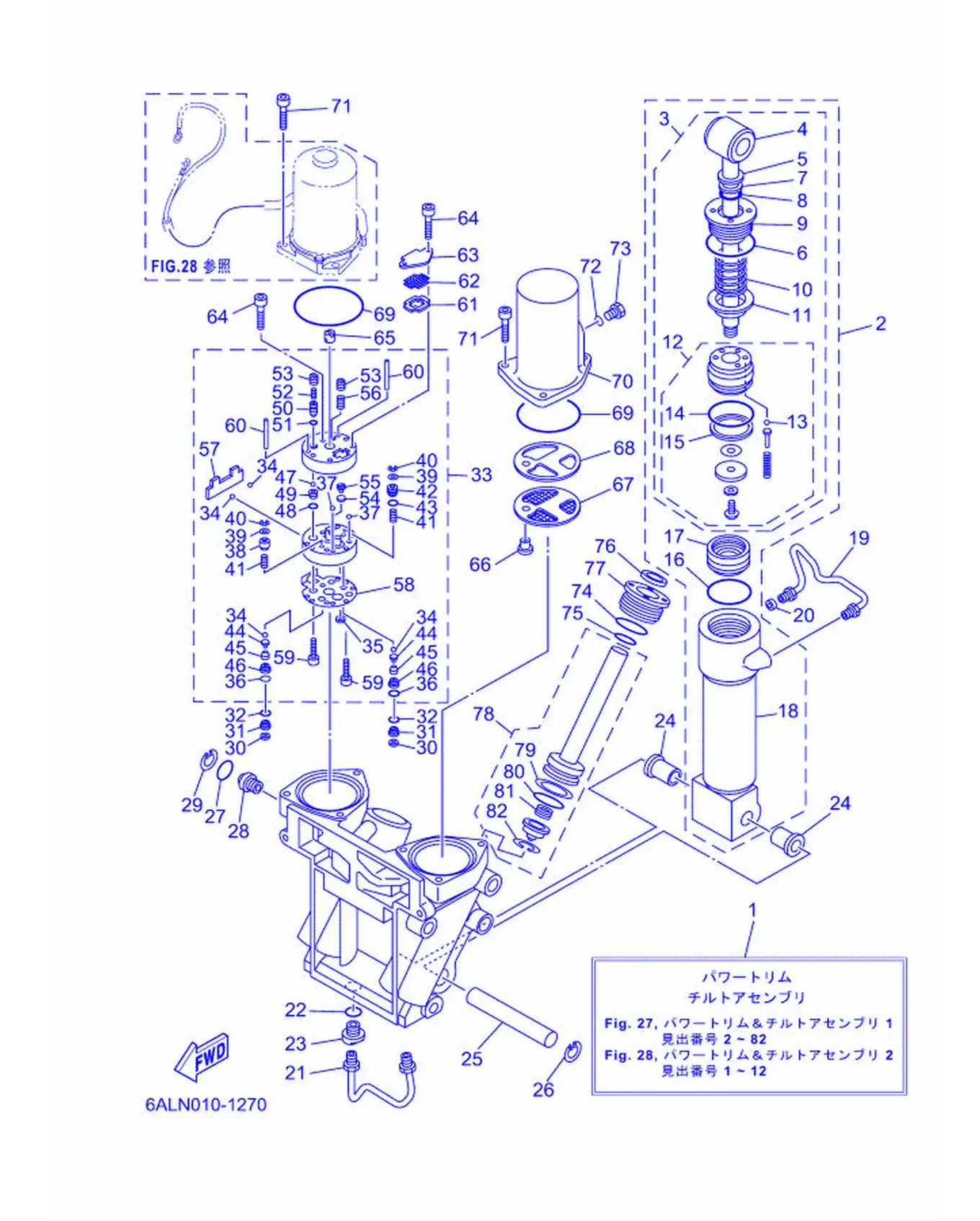

パワートリム & チルトアセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-43800-15-8D	电动倾斜调整装置组合	Power Trim & Tilt Assembly	1
2	6CE-43840-01	电动角度定位装置组合	Power Tilt Assembly	1
3	6CE-43810-01	活塞分组合	Tilt Piston Sub-Assembly	1
4	69J-43801-01	杆	Rod	1
5	93106-19001	油封	Oil Seal	1
6	63P-43861-20	O型圈	O-ring	1
7	6H1-43872-00	支承	Ring, Back Up	1
8	61A-4389H-01	O型圈	O-ring	1
9	61A-43811-00	气缸端部螺钉	Screw, Cylinder End	1
10	69J-4384H-00	弹簧	Spring	1
11	69J-4382E-00	联接器2	Adapter 2	1
12	6CE-4380P-00	活塞分组合	Piston Sub Assembly	1
13	93505-32038	滚珠	Ball	5
14	61A-43861-00	O型圈	O-ring	1
15	61A-43871-00	环	Ring, Back Up	1
16	61A-43861-00	O型圈	O-ring	1
17	6H1-43814-11	自由活	Piston, Free	1
18	61A-43813-02	角度定位气	Cylinder, Tilt	1
19	69J-43835-10	管	Pipe	1
20	69J-4388J-00	塞 2	Plug 2	1
21	69J-43833-02	管	Pipe	1
22	93210-17239	O型圈	O-ring	1
23	69J-4388E-01	锥形螺钉	Bolt, Screw	1
24	90386-18M14	衬套	Bushing	2
25	61A-43818-00	下侧防震销	Pin, Lower Shock Mount	1
26	61A-43876-01	开口环	Ring, Snap	1
27	6D8-43863-00	O型圈	O-ring	1
28	69J-43845-00	手控释放螺钉	Screw, Manual Release	1
29	6H1-43875-00	卡环	Ring, Snap	1
30	69J-4381C-00	滤芯 3	Filter 3	2
31	69J-43899-01	面板限位板	Plate Stopper	2
32	69J-4389J-00	O型圈	O-ring	2
33	69J-43830-01	齿轮泵组合	GearPumpAssembly	1
34	93505-32038	滚珠	Ball	4
35	69J-4381C-00	滤芯 3	Filter 3	1
36	69J-4389J-00	O型圈	O-ring	2
37	93503-16003	滚珠	Ball	2
38	6CJ-4384M-00	穿梭活塞2	Piston, Shuttle 2	1
39	69A-4384F-00	主阀门密封	Seal, Main Valve	2
40	99002-03600	簧环	Circlip	2
41	69J-43894-00	滑梭回位弹簧	Spring, Shuttle Return	2
42	6CJ-43841-00	滑梭活塞	Piston, Shuttle	1
43	6H1-43883-00	O型圈	O-ring	1
44	60V-4386A-00	吸收器阀销	Pin, Absorber Valve	2
45	69J-43853-00	主阀门弹簧	Spring	2
46	6CJ-43893-00	垫	Washer	2
47	93501-08001	滚珠	Ball	2
48	93210-08391	O型圈	O-ring	1
49	69J-43851-00	安全阀座	Seat, Relief Valve	1
50	63P-43844-20	阀门支销	Pin, Valve Support	1
51	93210-064A5	O型圈	O-ring	1
52	69J-43855-00	上减压弹簧	Spring	1
53	6CJ-43843-00	阀门锁紧螺钉	Screw, Valve Lock	2
54	6H1-4384G-11	安全阀密封	Seal, Relief Valve	1
55	6H1-43844-10	阀门支销	Pin, Valve Support	1
56	6H1-43856-10	下减压弹簧	Spring, Down Relief	1
57	69J-43854-00	手控释放弹簧	Spring, Manual Release	1
58	69J-4384G-00	安全阀密封	Seal, Relief Valve	1
59	91318-05025	螺栓	Bolt	2
60	93604-35236	定位销	Pin, Dowel	2
61	69J-43871-00	环	Ring, Back Up	1
62	69J-43816-00	过滤器1	Filter 1	1
63	69J-4381J-00	面板	Plate	1
64	91318-05040	螺栓	Bolt	3
65	69J-43831-00	轴连接器	Connector,Shaft	1
66	69J-4388H-00	塞子	Plug	1
67	69J-43817-00	过滤器2	Filter 2	1
68	69J-4388F-00	垫片	Spacer	1
69	93210-66001	O型圈	O-ring	2
70	69J-43828-00	储油箱	Body, Reservoir	1
71	69J-43888-00	座螺	Bolt, Socket	6
72	93210-09165	O型圈	O-ring	1
73	6H1-43829-00	塞	Plug,Reservoir	1
74	61A-43861-00	O型圈	O-ring	2
75	6D8-43863-00	O型圈	O-ring	2
76	63P-43812-20	防尘密封	Seal, Dust	2
77	61A-43821-02	纵倾角调整气缸端部螺钉	Screw, Trim Cylinder End	2
78	69J-43820-01	活塞分组合	Trim Piston Sub-Assembly	2
79	61A-43874-00	支承	Ring, Back Up	1
80	61A-43864-00	O型圈	O-ring	1
81	61A-4384H-10	弹簧	Spring	1
82	61A-43875-10	开口	Ring, Snap	1

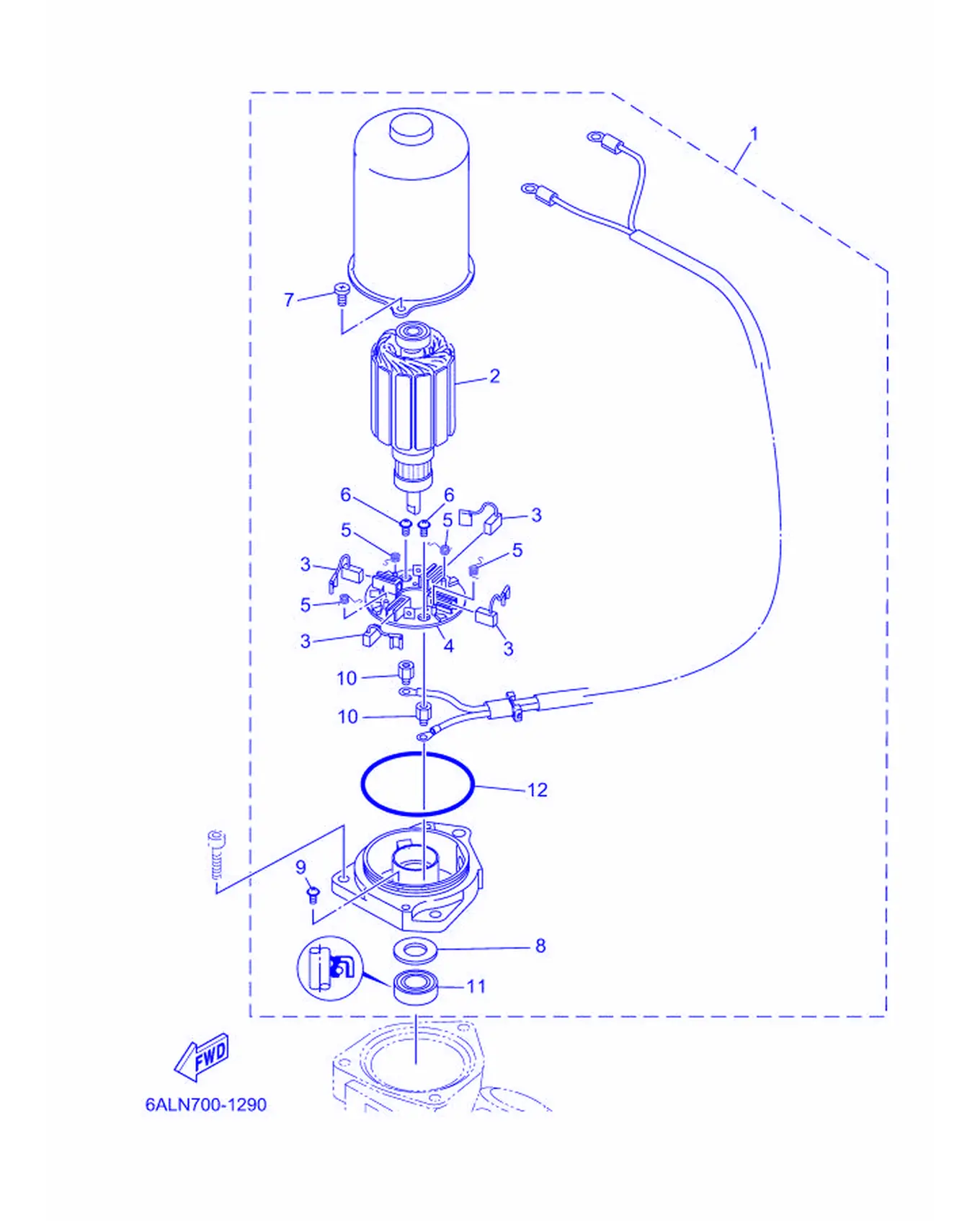

パワートリム & チルトアセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-43880-29-8D	电动机总成	Motor Assembly	1
2	6ML-43805-00	电枢组合	Armature Assembly	1
3	6KA-43892-00	电刷 2	Brush 2	4
4	6KA-43806-00	电刷架组合	Brush Holder Assembly	1
5	6KA-4386K-00	电刷弹簧	Spring, Brush	4
6	97602-04306	螺钉	Screw, Pan Head Washer	2
7	6KA-43879-00	带垫螺钉	Screw, Washer	2
8	6KA-4387G-00	垫圈	Washer	1
9	97602-04308	螺钉	Screw, Pan Head Washer	1
10	6KA-4388F-00	垫片	Spacer	2
11	6KA-43882-00	油封	Oil Seal	1
12	6KA-43862-00	O型圈	O-ring	1

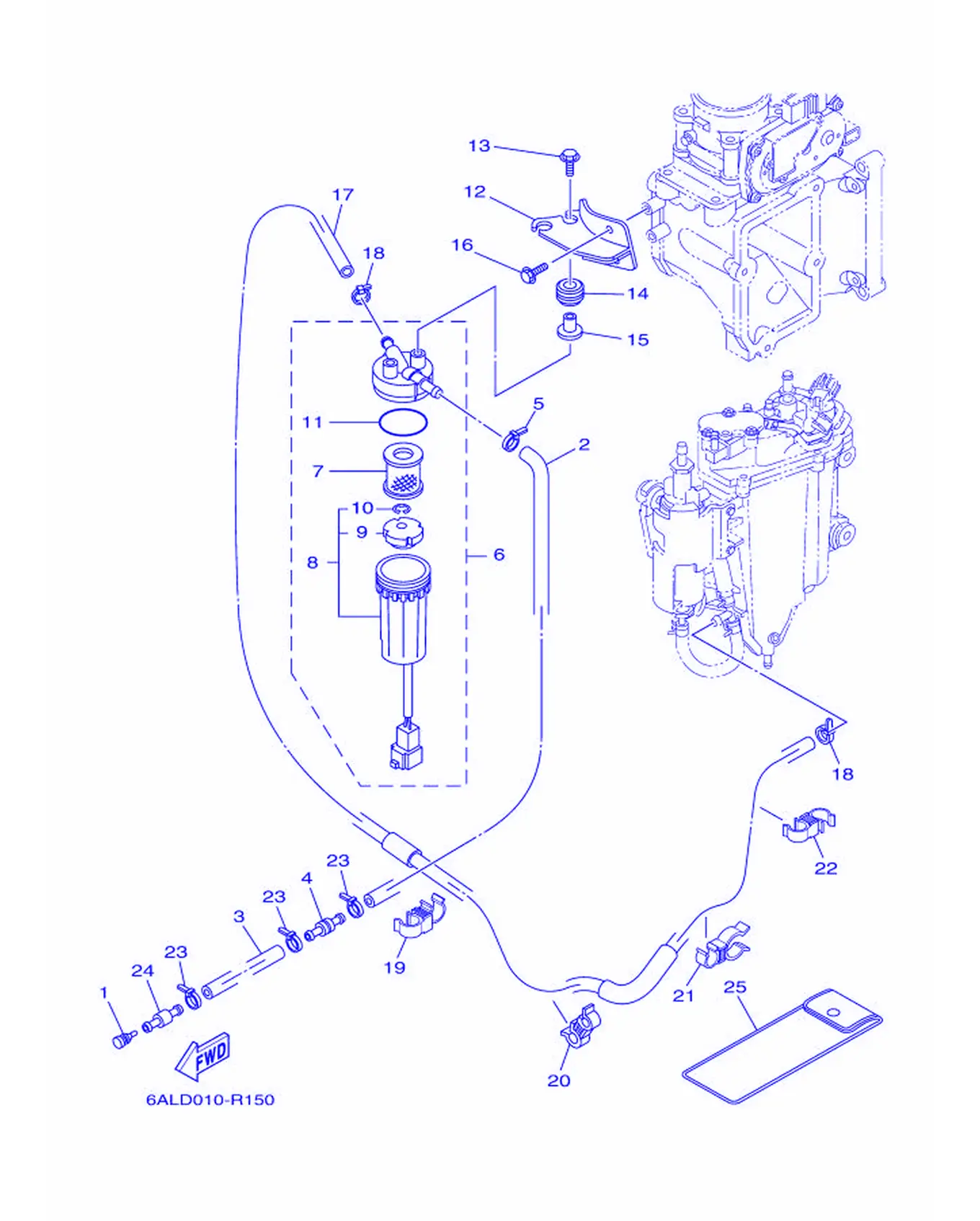

フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	689-85547-01	减震器	Damper	1
2	6P2-24314-00	管4	Pipe 4	1
3	90445-13511	软管	Hose (L2000)	1
4	6R3-24377-10	连接管3	Pipe,Joint 2	1
5	90465-11M10	固定	Clamp	1
6	6P3-24560-04	过滤器总成	Filter Assembly	1
7	6P3-24563-02	过滤器滤芯	Element, Filter	1
8	6P3-24562-03	过滤器滤杯	Cup, Filter	1
9	6P3-24469-00	水位浮标	Float, Water Level	1
10	6P3-24519-00	钢夹	Clip	1
11	6P3-24564-00	衬垫	Gasket	1
12	6P2-24566-11	过滤器支架	Bracket, Filter	1
13	90119-06309	带垫圈六角头螺栓	Bolt, with Washer	2
14	90480-14018	橡胶垫	Grommet	2
15	90387-06289	轴套	Color	2
16	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	2
17	6P2-24313-50	管3	Pipe 3	1
18	90465-11M10	固定	Clamp	2
19	90464-12009	塞	Clamp	1
20	90464-12010	固定夹	Clamp	1
21	90464-20024	线夹	Clamp	1
22	90464-12009	塞	Clamp	1
23	90465-11M10	固定	Clamp	3
24	6R3-24377-00	连接管3	Pipe,Joint 3	1
25	69J-28100-03	随车工具	Tool Kit	1

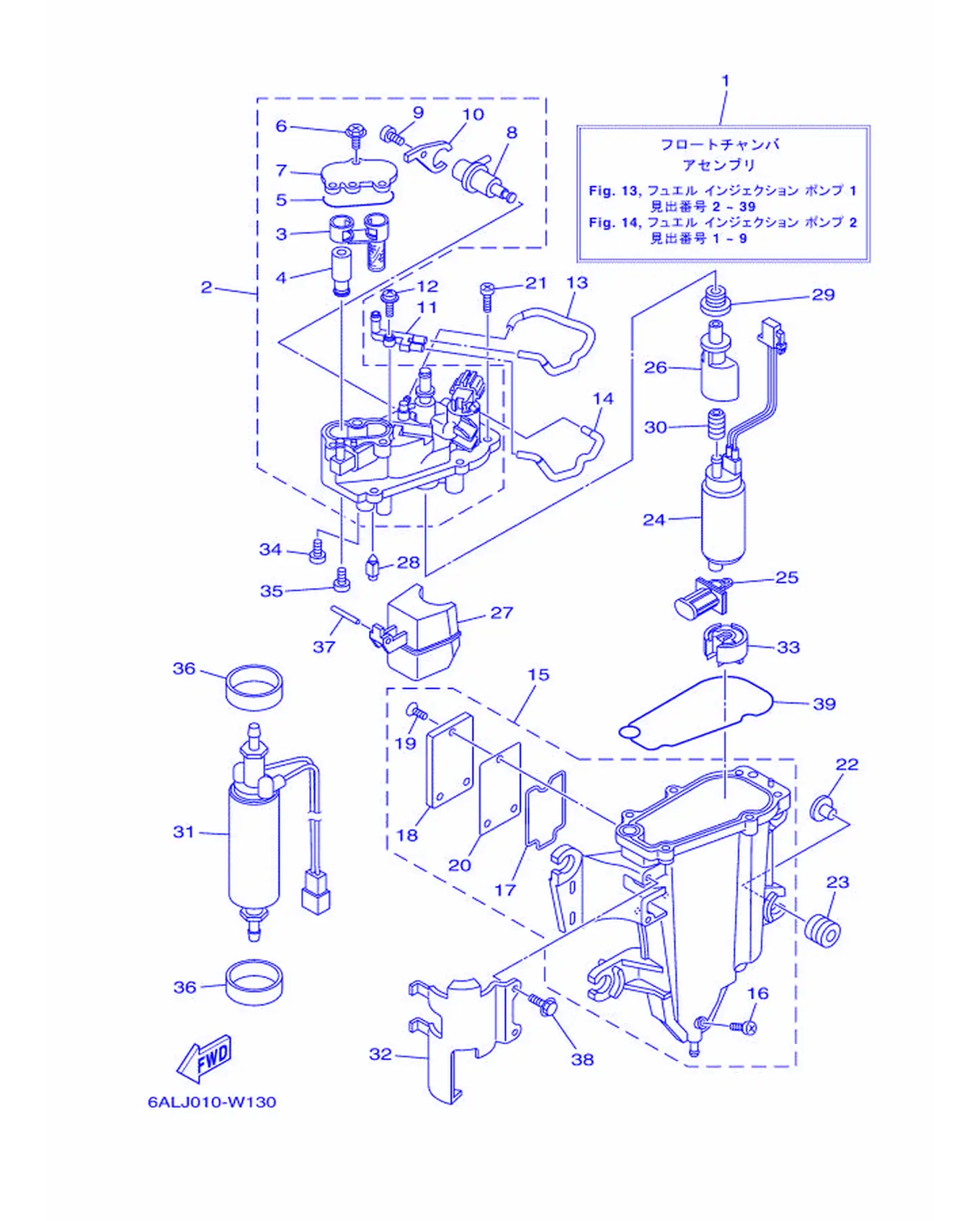

フユエルインジエクシヨンポン

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-14180-57	浮子室组合	Float Chamber Assembly	1
2	6AW-14182-11	浮子室盖	Cover, Float Chamber	1
3	6CB-24501-01	燃油过滤器	Filter, Fuel	1
4	6CB-24460-00	放油阀组合，安全阀组合	Relief Valve Assembly	1
5	6CB-13016-00	O型圈	O-ring	1
6	6CB-14216-00	螺钉	Screw	3
7	6CB-24217-00	盖	Cover	1
8	6CB-13906-01	调压器	Regulator, Pressure	1
9	6CB-14564-00	螺钉	Screw	1
10	6CB-14146-00	面板	Plate	1
11	68V-24379-10	连接管4	Pipe,Joint 4	1
12	68V-14216-00	螺钉	Screw	1
13	68V-1475H-00	管5	Pipe 5	1
14	68V-1475J-00	管6	Pipe 6	1
15	6AW-14181-11	浮子室本体1	Body, Float Chamber 1	1
16	6P2-14191-00	放油旋	Drain Plug	1
17	6CB-14239-00	密封	Seal	1
18	6CB-24452-10	盖	Cover	1
19	6CB-14429-01	螺钉	Screw	3
20	6CB-24482-00	衬垫1	Gasket 1	1
21	63P-14567-00	螺钉	Screw	6
22	63P-13716-00	轴套	Collar	4
23	6CB-13593-00	隔板	Damper	4
24	6P2-13907-22	油泵组合	Fuel Pump Complete	1
25	63P-13915-00	过滤器	Filter	1
26	6KA-13132-00	接头	Joint	1
27	6CB-14985-00	浮子	Float	1
28	6CB-14546-00	针阀	Valve,Needle	1
29	6LH-1447B-00	衬套	Bushing 1	1
30	6AW-13781-00	泵减震器	Damper,Pump	1
31	6GR-24410-02	燃油泵组合	Fuel Pump Assembly	1
32	6AW-24491-10	油泵支承	Bracket, Fuel Pump	1
33	6AW-13784-00	泵盖	Cover,Pump	1
34	4SV-24453-00	螺钉	Screw	1
35	98507-04008	大柱头螺钉	Screw, Pan Head	1
36	6CB-24492-00	燃油泵衬套	Bush, Fuel Pump	2
37	6P2-14386-00	浮子销	Pin,Float	1
38	6CB-24592-00	螺栓	Bolt	2
39	6CB-14984-00	浮子室衬垫	Gasket,FloatChamber	1

フユエルタンク

REF	雅马哈编码	中文名称	英文名称	用量
1	6YJ-W2420-J3	燃油箱组合	Fuel Tank Assembly (24L)	1
2	6YJ-24610-01	盖组合	Cap Assembly	1
3	6Y1-24260-30	油量计组合	Fuel Meter Assembly	1
4	90157-05M19	螺钉	Screw, Pan Head	4
5	6Y1-24329-00	密封	Seal	4
6	6Y1-24268-01	油量计衬垫	Gasket, Fuel Meter	1
7	6YJ-24167-00	滤	Strainer	1
8	6Y2-24306-57	燃油管组件1	Fuel Pipe Complete 1	1
9	6E5-24305-06	油管接头2	Fuel Pipe Joint Complete	1
10	93210-08287	O型圈	O-ring	1
11	6Y2-24305-06	燃油管接头组件2(85以上油箱侧D:13M	Fuel Pipe Joint Complete	1
12	93210-08287	O型圈	O-ring	1
13	90445-13M25	软管	Hose (L2050)	1
14	6E5-24351-51	带1	Band 1	4
15	90445-13M24	软管	Hose (L850)	1
16	6Y2-24360-60	起动注油泵组合	Primer Pump Assembly	1

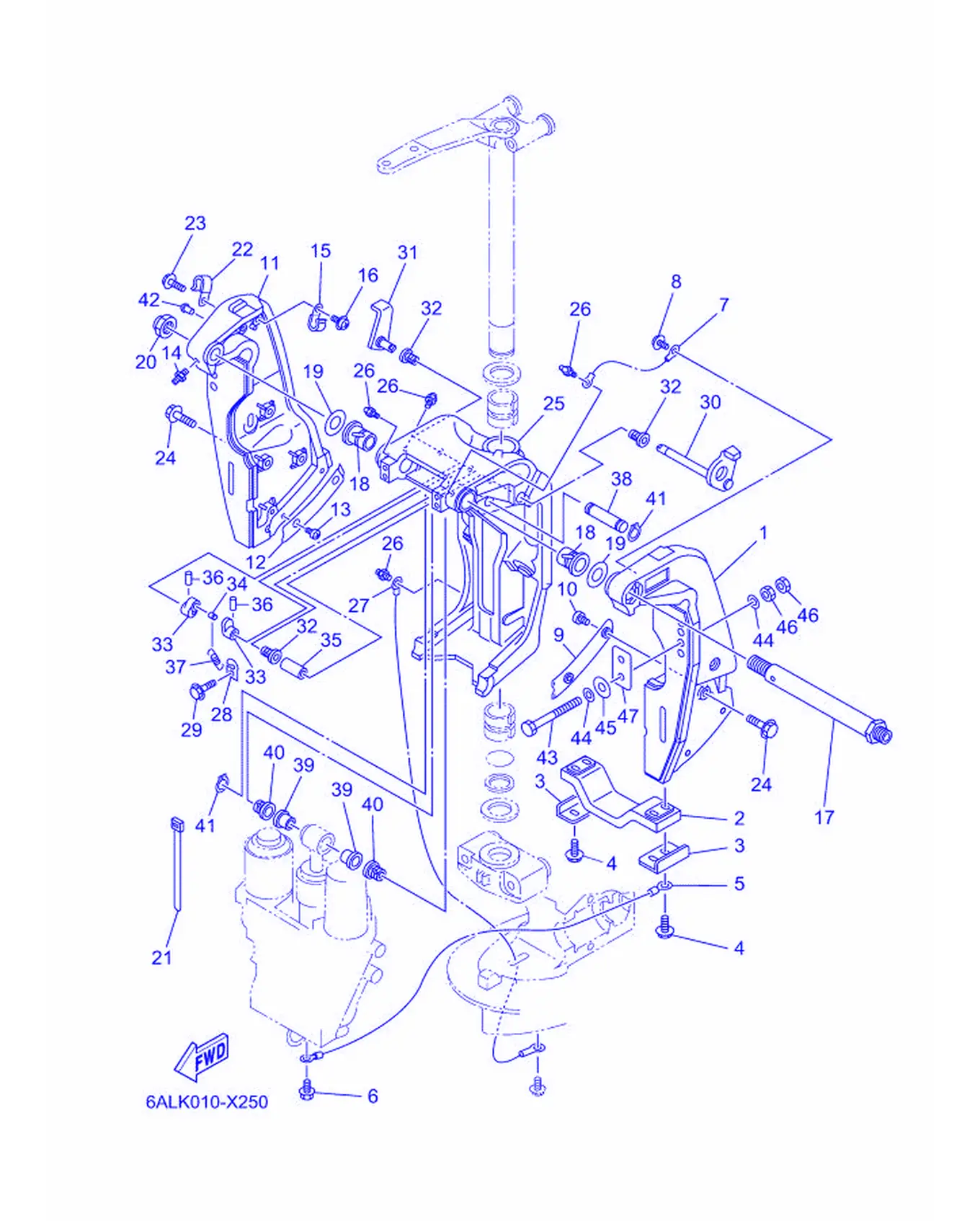

ブラケツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-43111-03-8D	夹紧托架	Bracket, Clamp 1	1
2	6G5-45251-02	阳极	Anode	1
3	6G5-44526-00	面板	Plate	2
4	97E95-06525	螺栓	Bolt, Hexagon with Washer Deep Recess	4
5	6H1-82148-00	导线4	Wire,Lead 4	1
6	97E95-06510	螺栓	Bolt, Hexagon with Washer Deep Recess	1
7	6E5-82148-00	导线4	Wire,Lead 4	1
8	97985-06212	带垫圈螺钉	Screw, With Washer	1
9	61A-43132-01	阻力垫	Washer, Friction	1
10	97885-06010	大柱头螺钉	Screw, Pan Head	2
11	69J-43112-03-8D	夹紧托架	Bracket, Clamp 2	1
12	61A-43133-01	阻力垫	Washer, Friction	1
13	97885-06010	大柱头螺钉	Screw, Pan Head	2
14	93700-06002	油脂嘴	Nipple, Grease	1
15	90465-08M83	固定	Clamp	1
16	97985-06212	带垫圈螺钉	Screw, With Washer	1
17	6R3-43131-00	夹紧托架螺	Bolt,ClampBracket	1
18	90386-25M31	衬套	Bushing	2
19	90201-26M59	面板垫圈	Washer,Plate	2
20	90185-22M11	自锁螺母	Nut, Self-Locking	1
21	90465-11M10	固定	Clamp	4
22	90465-08M83	固定	Clamp	1
23	97585-06510	带垫螺栓	Bolt, with Washer	1
24	90119-10024	带垫圈螺栓	Bolt, With Washer	8
25	61A-43311-22-8D	旋转支架	Bracket, Swivel 1	1
26	93700-06002	油脂嘴	Nipple, Grease	5
27	69J-82147-00	导线4	Wire, Lead 5	1
28	6G5-43144-00	弹簧	Hook,Spring	1
29	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
30	61A-43181-01	顶位销杆	Lever, Tilt Stop	1
31	6G5-43185-02	顶位销杆	Lever, Tilt Stop	1
32	90386-10M16	衬套	Bushing	3
33	6G5-43148-00	间隔轴	Collar, Distance	2
34	90249-06M19	螺丝	Pin	1
35	90387-10M05	衬套	Color	1
36	91690-30020	弹簧销	Pin,Spring	2
37	90506-16003	接头	Spring, Tension	1
38	6E5-43126-10	上侧防震销	Pin, Upper Shock Mount	1
39	90386-18M63	衬套	Bushing	2
40	90386-18M14	衬套	Bushing	2
41	93410-18M05	卡环	Circlip	2
42	90269-02M08	螺丝	Rivet	2
43	90101-12065	螺栓	Bolt (L:130MM)	6
44	90201-13M01	面板垫圈	Washer,Plate	12
45	90201-12426	平垫圈	Washer,Plate	4
46	95380-12600	有槽螺母	Nut	12
47	6G5-43119-00	艉板	Plate, Transom	2

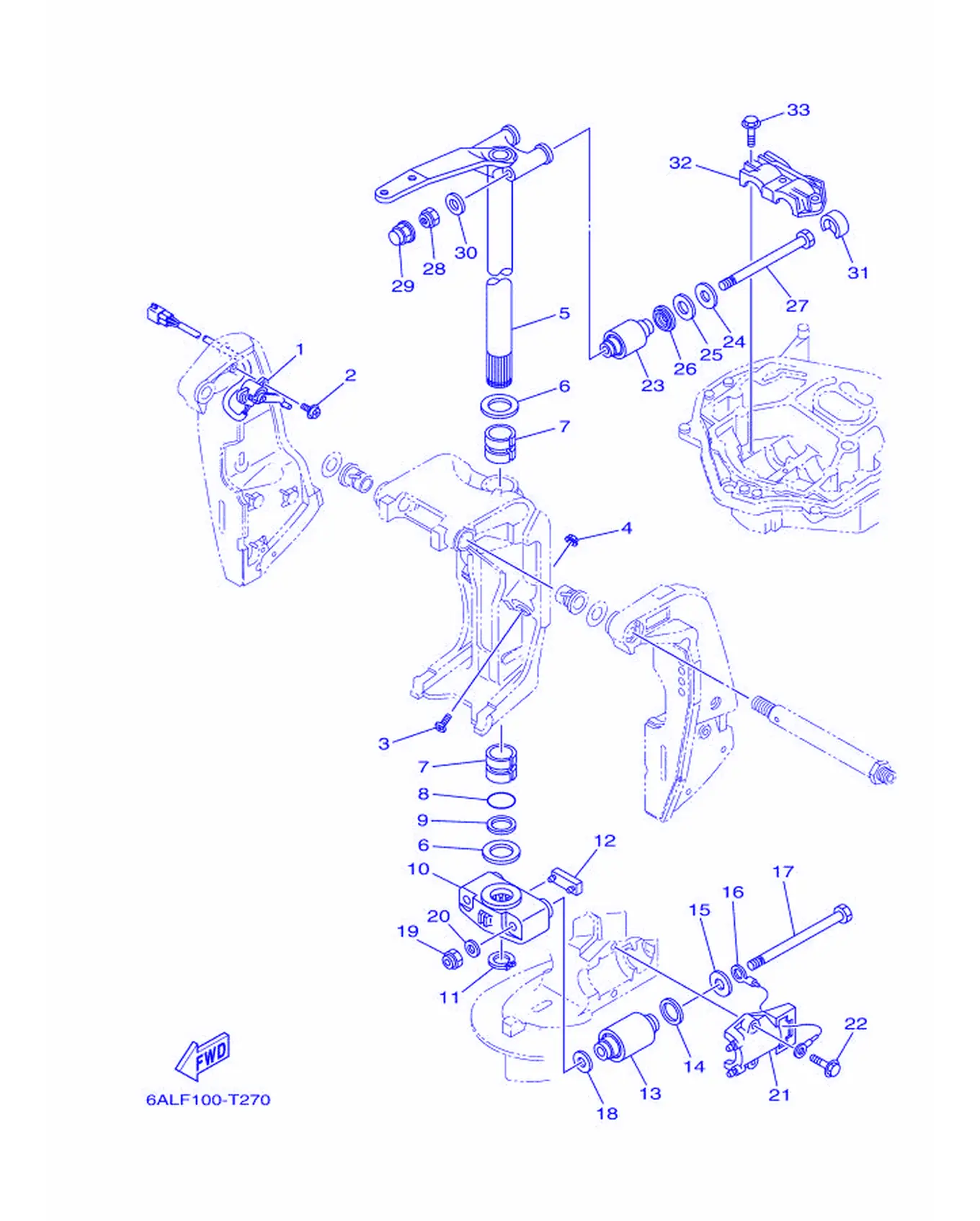

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-83672-13	纵倾角传感	Trim Sender	1
2	97985-06216	带垫圈螺丝	Screw, With Washer	2
3	6AW-43376-00	推力接收器螺栓	Bolt, Thrust Recess	2
4	95780-10300	螺母	Nut, Flange	2
5	69J-42510-00-8D	方向托架组合	SteeringBracketAssembly	1
6	90201-40M00	平垫圈	Washer,Plate	2
7	90386-39M89	衬套	Bushing	2
8	93210-35321	O型圈	O-ring	1
9	90202-40M47	垫圈	Washer,Plate	1
10	69J-44551-00-8D	下侧减震胶垫壳	Housing, Lower Mount Rubber 1	1
11	93410-36102	弹性挡圈	Circlip	1
12	61A-44575-01	下侧减震胶垫	Damper, Lower Mount Rubber	1
13	60X-44555-00	下侧减震胶垫	Mount Damper, Lower Side	2
14	90202-32M19	面板垫圈	Washer,Plate	2
15	90201-16016	面板垫圈	Washer,Plate	2
16	6E5-82149-00	导线3	Wire,Lead 3	1
17	90101-14002	螺栓	Bolt, Hexagon	2
18	90201-15M58	面板垫圈	Washer,Plate	2
19	90185-14M00	螺帽	Nut, Self-Locking	2
20	92995-14600	盘形垫	Washer	2
21	61A-44552-01-CA	下侧减震胶垫壳	Housing, Lower Mount Rubber 2	2
22	90119-10024	带垫圈螺栓	Bolt, With Washer	4
23	69J-44514-00	上侧减震胶垫	Mount Damper, Upper Side	2
24	90201-16015	面板垫圈	Washer,Plate	2
25	90202-28M46	平垫圈	Washer,Plate	2
26	69J-44532-00	上侧装配限位板	Stopper, Upper Mount	2
27	90101-14003	螺栓	Bolt, Hexagon	2
28	90185-14M00	螺帽	Nut, Self-Locking	2
29	6DA-44194-00	盖	Cap	2
30	92995-14600	盘形垫	Washer	2
31	69J-44533-00	上侧减震胶垫	Damper, Upper Mount Rubber	2
32	61A-44511-01	上侧减震胶垫盖	Cover, Upper Mount Rubber	1
33	90119-10024	带垫圈螺栓	Bolt, With Washer	3

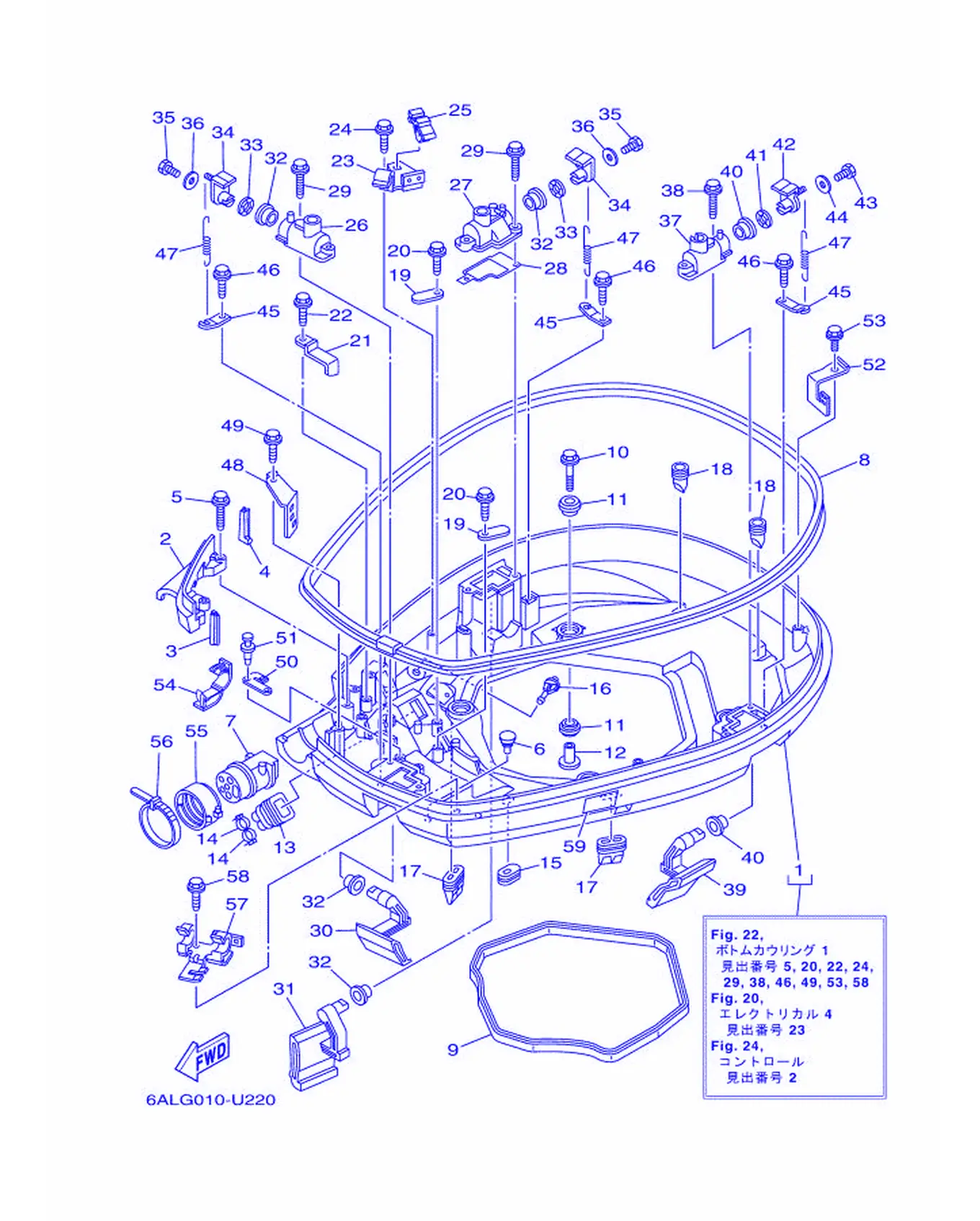

ボトムカウリング 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-42710-00-8D	底罩组合	Bottom Cowling Assembly	1
2	6P2-42738-00-8D	装配面板	Fitting Plate	1
3	6P2-42717-00	密封橡皮块2	Rubber,Seal 2	1
4	6P2-42718-00	密封橡皮块3	Rubber,Seal 3	1
5	90109-06M82	螺栓	Bolt	2
6	6H4-42748-01	固定	Grommet	2
7	6P2-42725-02	固定	Grommet	1
8	6P2-42615-00	密封	Seal	1
9	69J-42716-01	密封橡皮块1	Rubber Seal 1	1
10	90119-08187	带垫圈六角头螺栓	Bolt, with Washer	4
11	90480-22M81	固定	Grommet	8
12	90387-08M37	衬套	Color	4
13	6H1-42726-22	固定	Grommet	1
14	90465-11M10	固定	Clamp	2
15	61A-42727-01	固定	Grommet	1
16	6P2-44391-00	软管管嘴	Nipple,Hose	1
17	69J-42717-01	密封橡皮块2	Rubber, Seal 2	2
18	61A-42717-00	密封橡皮块2	Rubber,Seal 2	2
19	6E5-82588-00	面板	Plate	2
20	90109-06M81	螺栓	Bolt	2
23	6P2-82554-00	空挡开关支承	Stay, Neutral Switch	1
24	90109-06M86	螺栓	Bolt	1
25	90464-09M47	固定	Clamp	1
26	69J-42828-02-9S	夹箍面板	Clamp Plate	1
27	6P2-42828-00-9S	夹箍面板	Clamp Plate	1
28	6P2-42722-00	衬垫 2	Gasket 2	1
29	90109-06M82	螺栓	Bolt	4
30	69J-42815-00-8D	夹杆	Lever,Clamp	1
31	69J-42817-00-8D	夹杆	Lever,Clamp	1
32	90386-15M73	衬套	Bushing	4
33	90206-15M18	波形垫圈	Washer, Wave	2
34	63P-42818-01	夹杆	Lever,Clamp	2
35	97D95-06020	螺栓	Bolt, Hexagon Deep Recess	2
36	90201-06068	平垫圈	Washer,Plate	2
37	68F-42828-11-9S	夹箍面板	Plate,Clamp	1
38	90109-06M82	螺栓	Bolt	2
39	69J-42816-00-8D	夹杆	Lever,Clamp	1
40	90386-15M73	衬套	Bushing	2
41	90206-15M18	波形垫圈	Washer, Wave	1
42	68V-42818-01	夹杆	Lever,Clamp	1
43	97D95-06020	螺栓	Bolt, Hexagon Deep Recess	1
44	90201-06068	平垫圈	Washer,Plate	1
45	64D-43144-00	弹簧	Hook,Spring	3
46	90109-06M86	螺栓	Bolt	3
47	90506-18M40	接头	Spring, Tension	3
48	6P2-42743-00	托架	Bracket	1
49	90109-06M82	螺栓	Bolt	1
50	6P2-42766-20	托架 2	Bracket 2	1
51	90269-05005	面板	Rivet	2
52	69J-8366G-02	托架3	Bracket 3	1
53	90109-06M86	螺栓	Bolt	1
54	90464-18004	固定夹	Clamp	2
55	68F-42753-00	紧固	Fastener	1
56	90464-20258	固定环	Clamp	1
57	6P2-82594-00	夹箍	Clamp	1
58	90109-06M86	螺栓	Bolt	1
59	6EE-42794-01	警告标志	Label, Warning (General)	1

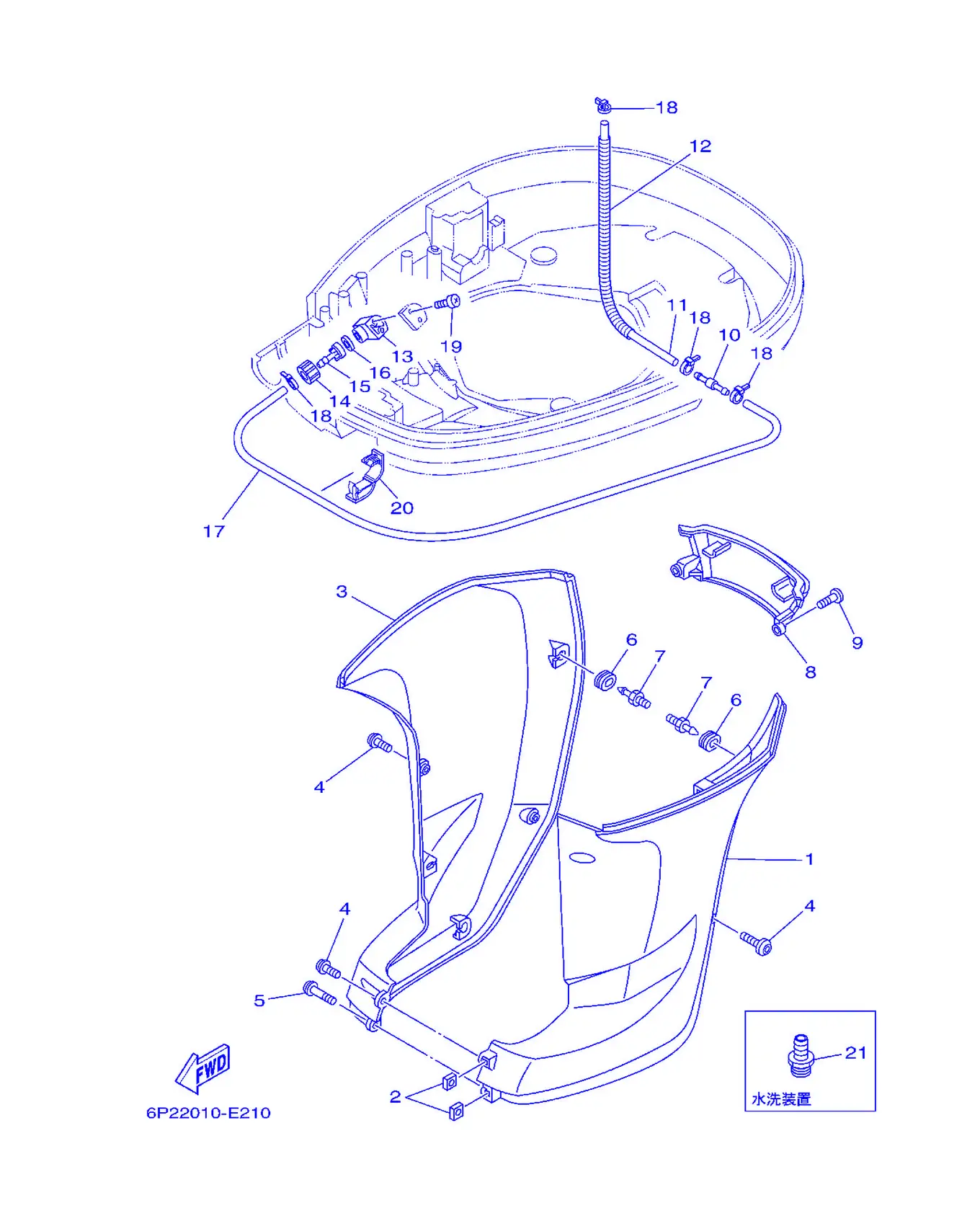

ボトムカウリング 2

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-42741-00-8D	挡板	Apron	1
2	90173-06001	螺帽	Nut, Square	2
3	69J-42771-00-8D	挡板	Apron	1
4	90111-06144	内六角薄型螺栓	Bolt	5
5	90111-06142	内六角薄型螺栓	Bolt	1
6	90480-14M17	橡胶垫	Grommet	6
7	69J-42774-10	挡板支承1	Stay, Apron 1	6
8	69J-45151-00-8D	水上装置壳体盖	Cover,UpperCasing	1
9	90111-06144	内六角薄型螺栓	Bolt	2
10	6E5-24379-00	连接管4	Pipe,Joint 4	1
11	90445-11M47	软管	Hose (L370)	1
12	90447-13009	软管	Tube	1
13	6DR-12572-00	适配器	Adapter	1
14	6R3-12581-10	软管接头1	Joint, Hose 1	1
15	6R3-12582-00	软管接头2	Joint,Hose 2	1
16	6R3-12583-10	软管接头衬垫	Gasket, Hose Joint	1
17	90445-11028	固定	Hose (L1050)	1
18	90465-11M10	固定	Clamp	4
19	97780-60520	自攻螺钉	Screw, Tapping	2
20	90464-18004	固定夹	Clamp	1
21	69J-12584-10	软管接头	Joint, Hose 3	1

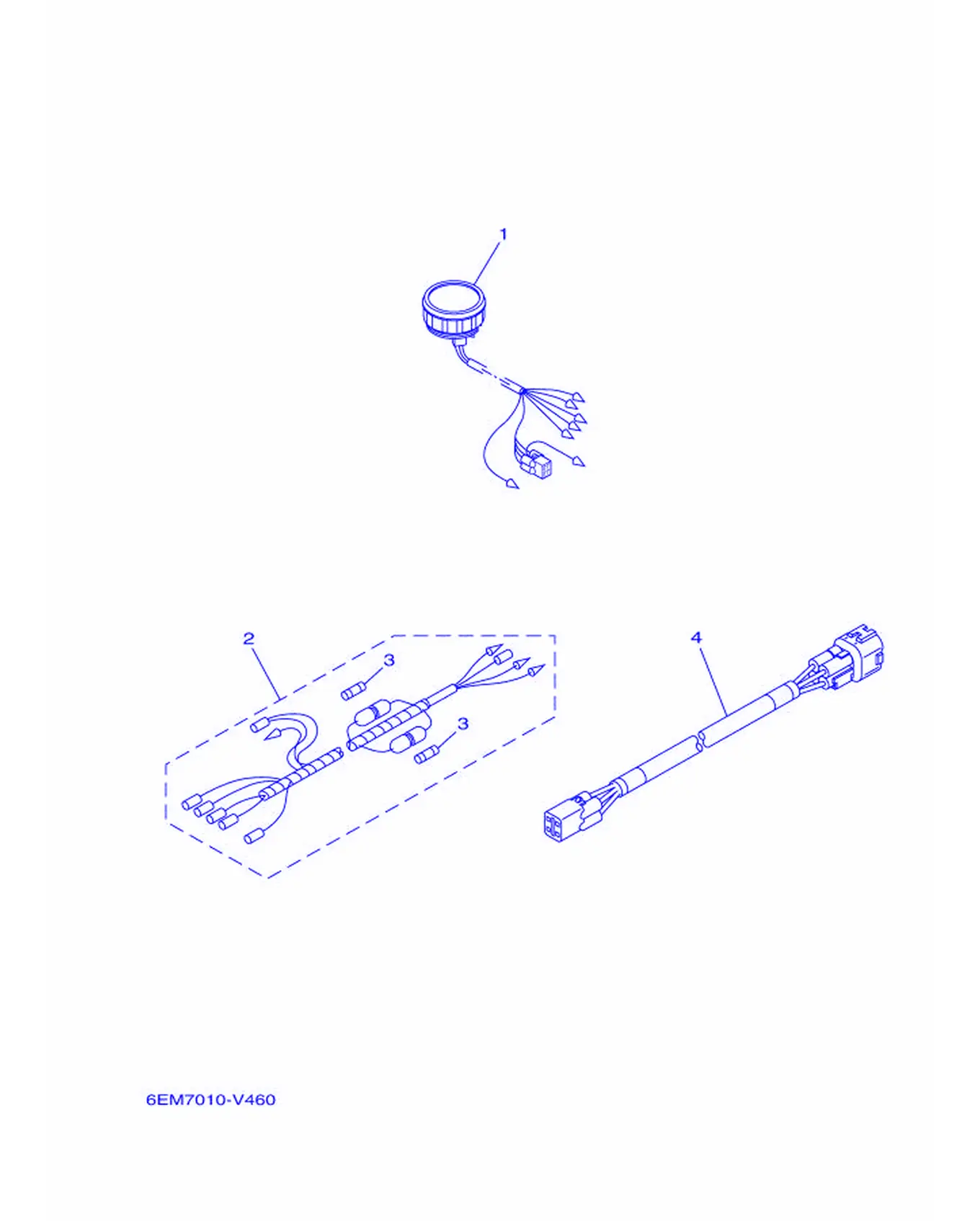

メータ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6Y7-83540-92	转速表总成	Tachometer Assembly	1
2	6Y5-83553-M1	导线	Wire, Lead (L=2.5M)	1
3	6G1-82151-01	保险	Fuse (10A)	2
4	6Y5-83653-20	导线	Wire, Lead (L=7.0M)	1

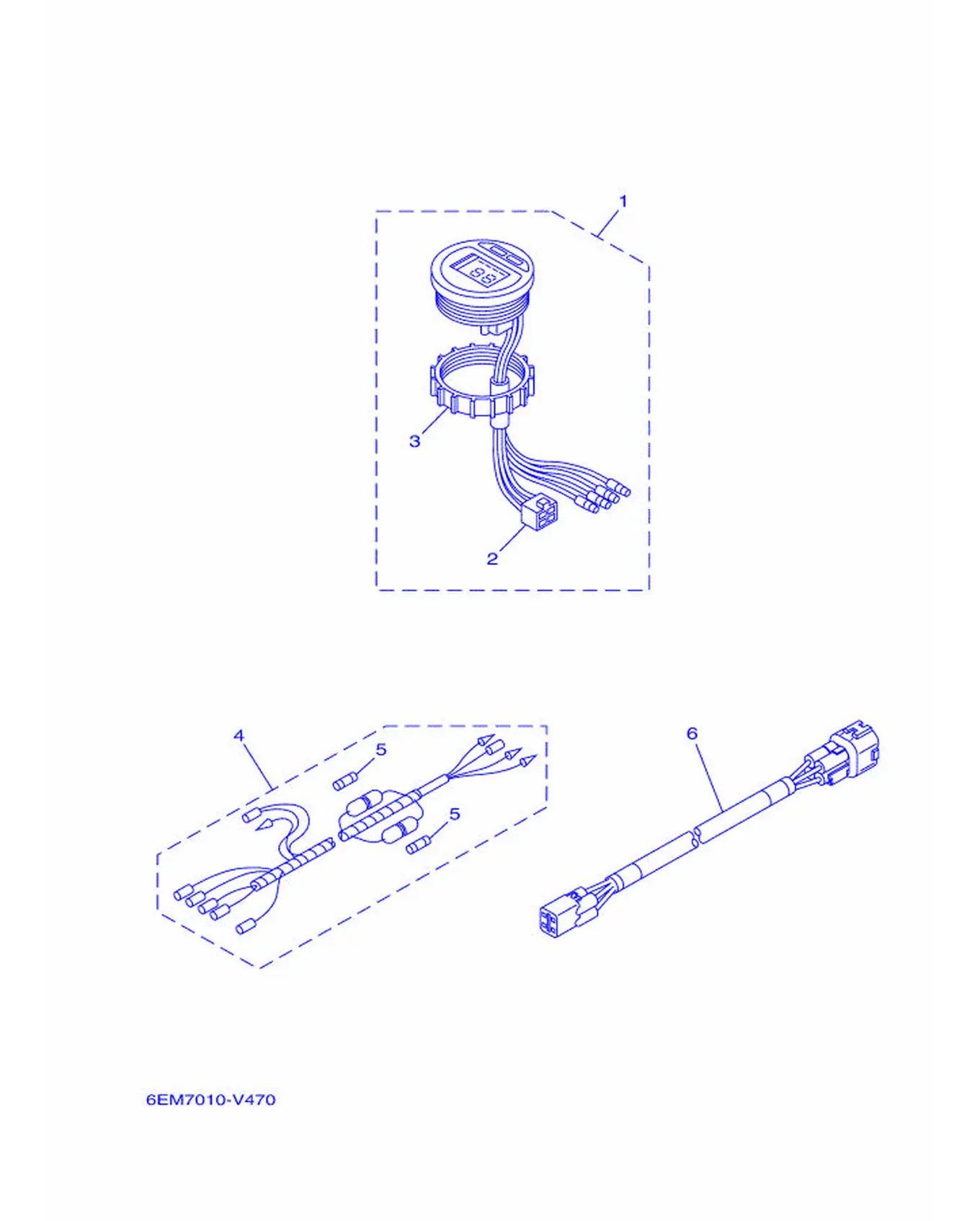

メータ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6Y5-8350T-E3	数字转数表	Tachometer Assembly	1
2	9E450-04533	联接器	Connector	1
3	6Y8-84383-00	螺母	Nut, Ring	1
4	6Y5-83553-M1	导线	Wire, Lead (L=2.5M)	1
5	6G1-82151-01	保险	Fuse (10A)	2
6	6Y5-83653-20	导线	Wire, Lead (L=7.0M)	1

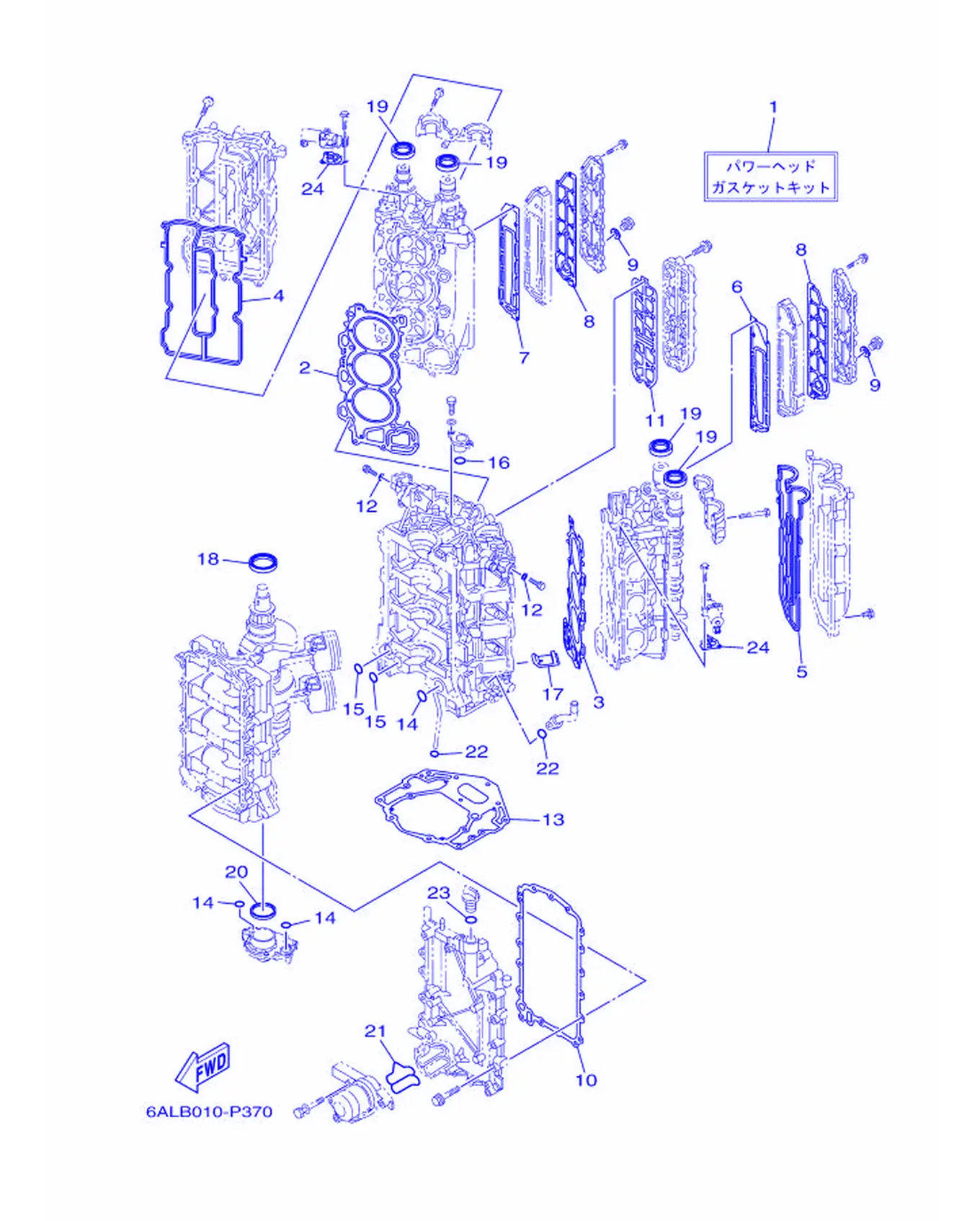

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-W0001-04	衬垫套	Power Head Gasket Kit	1
2	6P2-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
3	6P2-11182-00	气缸盖衬垫2	Gasket, Cylinder Head 2	1
4	6P2-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
5	6P2-11194-00	气缸盖罩衬垫2	Gasket, Head Cover 2	1
6	6P2-41112-00	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
7	6P2-41122-00	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
8	6P2-41114-00	排气管外盖衬垫	Gasket, Exhaust Outer Cover	2
9	90201-186F1	平垫圈	Washer,Plate	2
10	69J-15451-01	曲轴箱盖垫片1	Gasket, Crankcase Cover	1
11	6P2-1131B-00	衬垫	Gasket, Cover	1
12	90430-05002	衬垫	Gasket	2
13	69J-11351-12	气缸垫片1	Gasket, Cylinder	1
14	93210-25552	O型圈	O-ring	3
15	93210-19MJ1	O型圈	O-ring	2
16	93210-25647	O型圈	O-ring	1
17	69J-14664-01	断水	Grommet, Water Jacket	2
18	93102-63004	油封	Oil Seal	1
19	93102-38008	油封	OilSeal	4
20	69J-11355-00	气缸密封圈1	Seal,Cylinder 1	1
21	6P2-13477-00	衬垫	Gasket	1
22	93210-19MJ3	O型圈	O-ring	2
23	93210-24M79	O型圈	O-ring	1
24	6CB-1242F-00	滤清器衬垫	Gasket Filter	2

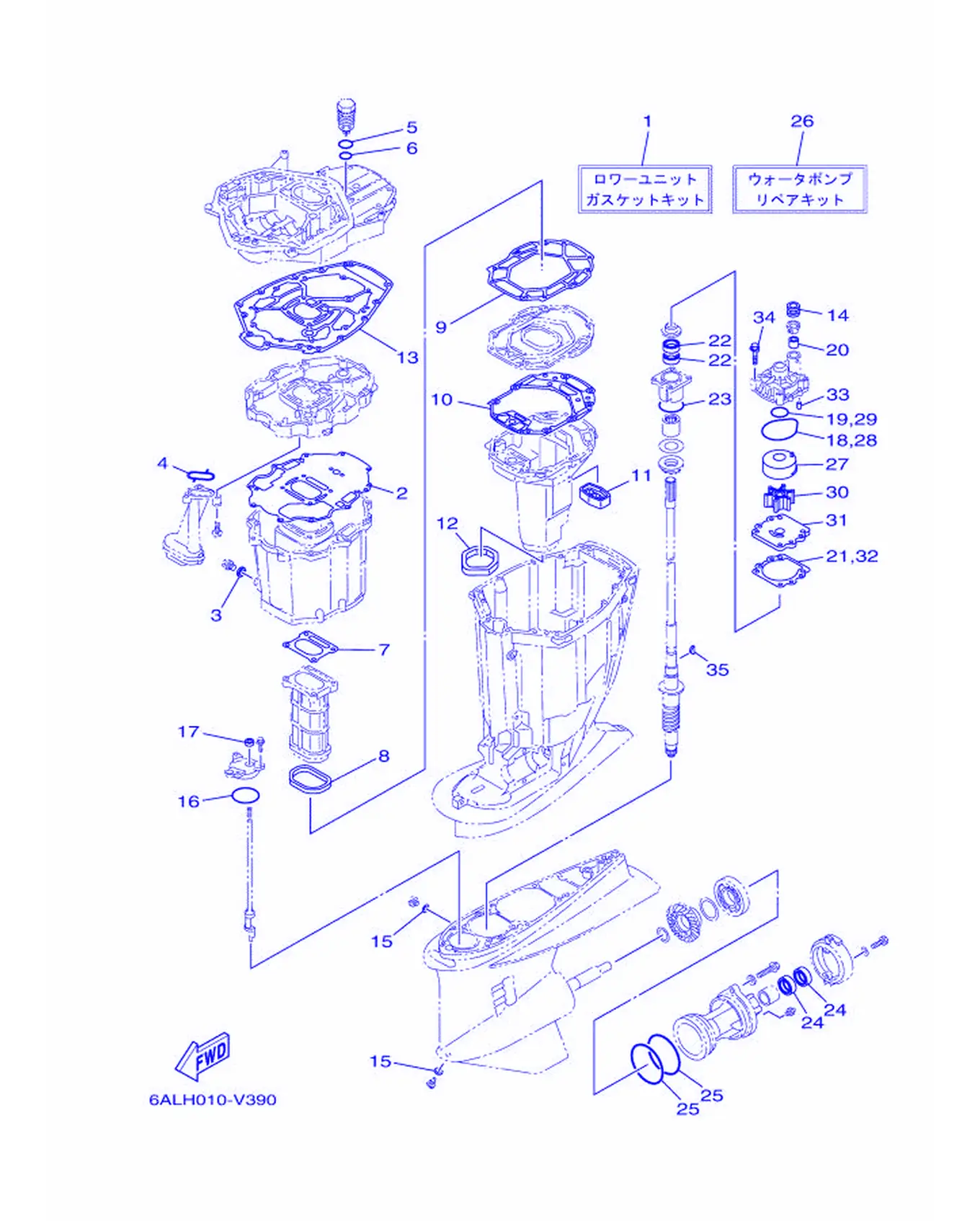

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-W0001-24	衬垫套	Lower Unit Gasket Kit	1
2	69J-15312-02	油槽衬垫	Gasket, Oil Pan	1
3	90430-14M09	衬垫	Gasket	1
4	69J-13415-00	机油滤网密封	Seal, Oil Strainer	1
5	93210-347A1	O型圈	O-ring	1
6	93210-28543	O型圈	O-ring	1
7	6P2-41134-00	排气岐管衬垫	Gasket, Exhaust Manifold	1
8	69J-41138-00	排气管密封圈1	Seal, Exhaust 1	1
9	69J-41135-A0	排气岐管衬垫	Gasket, Exhaust Manifold	1
10	6S1-41136-01	歧管衬垫	Gasket, Exhaust Manifold 4	1
11	69J-45127-01	密封	Seal	1
12	69J-45123-00	消音器衬垫	Gasket,Muffler	1
13	69J-45113-21	水上装置壳体衬垫	Gasket, Upper Casing	1
14	6E5-44366-01	水封减震器	Damper, Water Seal 2	1
15	90430-08003	垫片	Gasket	2
16	93210-64488	O型圈	O-ring	1
17	93106-09014	油封	OilSeal	1
18	93210-86M38	O型圈	O-ring	1
19	93210-37160	O型圈	O-ring	1
20	6E5-44365-01	水封减震器	Damper, Water Seal 1	1
21	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
22	93101-28019	油封	Oil Seal	2
23	93210-55M14	O型圈	O-ring	1
24	93101-30030	油封	Oil Seal	2
25	93211-04384	O型圈	O-ring	2
26	61A-W0078-A4	水泵修理套	Water Pump Repair Kit	1
27	61A-44322-02	芯子	Insert, Cartridge	1
28	93210-86M38	O型圈	O-ring	1
29	93210-37160	O型圈	O-ring	1
30	6E5-44352-01	叶轮	Impeller	1
31	6G5-44323-01	外挡板	Outer Plate, Cartridge	1
32	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
33	93606-12019	定位销	Pin, Dowel	2
34	90119-08191	带垫圈六角头螺栓	Bolt, with Washer	4
35	90280-04M05	半圆键	Key, Woodruff	1

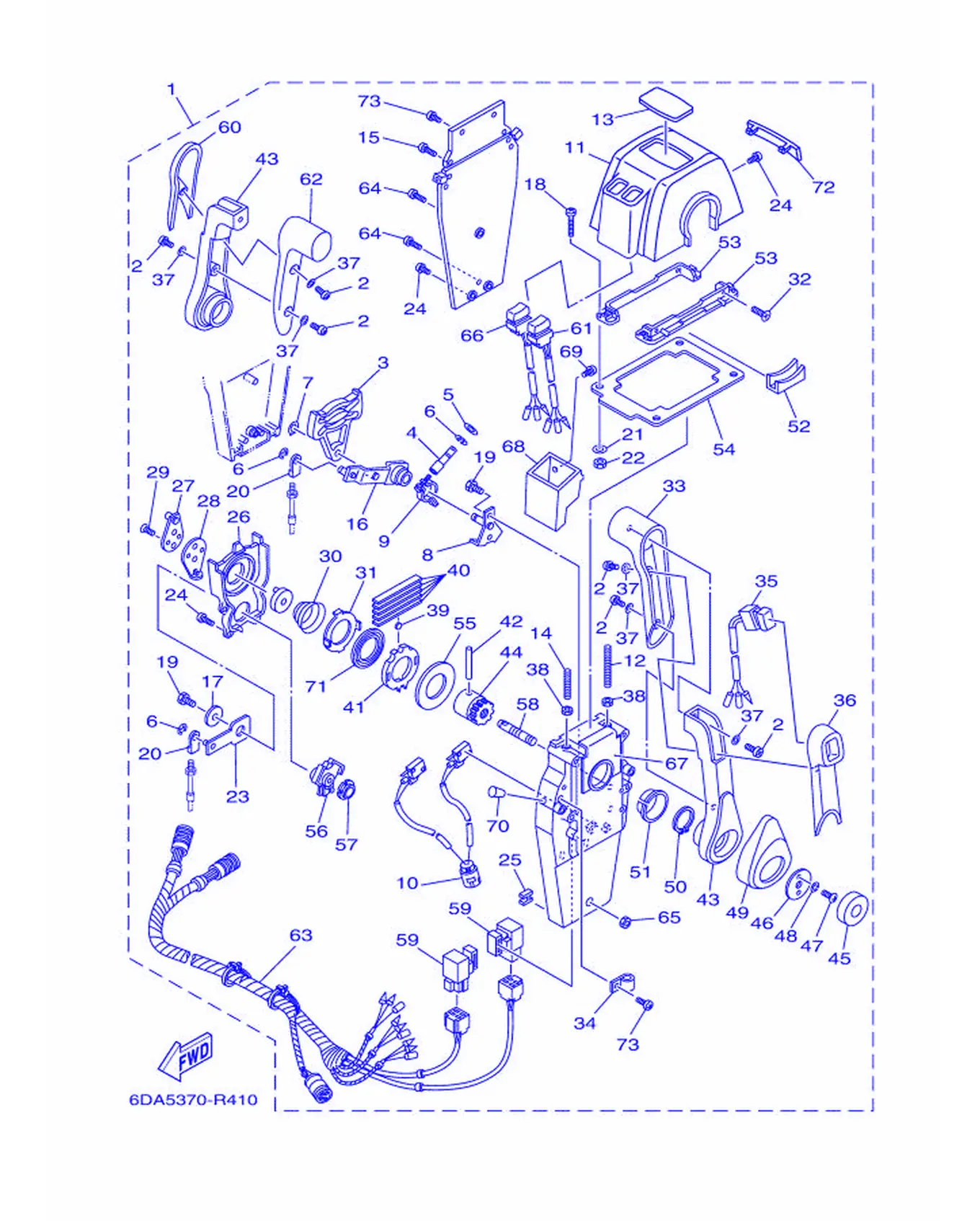

リモ-トコントロ-ルアセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	704-48207-R2	遥控装置组合	Remote Control Assembly	1
2	704-48129-11	螺钉3	Screw 3	6
3	EL8-48251-00	凸轮面板	Plate,Cam	2
4	704-48265-00	摩擦轴	Shaft, Friction	2
5	701-48246-00	衬套	Spacer	2
6	93430-06024	卡环	Circlip	8
7	EL8-48259-00	开口簧环，卡	Circlip 1	2
8	704-48262-00	油门轴	Shaft,Throttle	2
9	704-48264-00	带阻力油	Throttle, Friction	2
10	704-82540-30	空挡开关总成	Neutral Switch Assembly	1
11	704-48119-60	盖	Cover	1
12	EL8-48281-00	螺钉	Screw	2
13	704-48215-70	图样	Graphic	1
14	704-48281-00	螺钉	Screw	2
15	97890-05025	大柱头螺钉	Screw, Pan Head	4
16	704-48261-00	油门臂	Arm,Throttle	2
17	EL8-48191-00	垫圈1	Washer 1	2
18	704-48283-00	螺钉	Screw	4
19	97380-06018	螺栓	Bolt	6
20	703-48345-01	遥控钢索端部2	Cable End, Remote Control	4
21	704-48287-00	垫	Washer	4
22	95380-05600	螺母	Nut	4
23	704-48271-00	变挡臂	Arm, Shift	2
24	EL8-48127-00	螺钉1	Screw 1	18
25	703-48358-01	钢索固定装置	Anchor, Cable	2
26	704-48231-00	齿轮壳	Housing, Cap	2
27	EL8-48241-00	驱动臂	Arm, Drive	2
28	EL8-48254-00	油门调整限位板	Stopper, Throttle	2
29	92780-06020	平头螺钉	Screw, Flat Head	4
30	EL8-48244-00	发动机空转弹簧	Spring, Free Axel	2
31	EL8-48245-00	锁紧面板	Plate, Lock	2
32	98780-05018	平头螺钉	Screw, Flat Head	4
33	704-48222-30	控制杠杆握柄	Grip,ControlLever	2
34	704-82594-00	夹箍	Clamp	1
35	704-82563-70	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
36	704-48229-30	控制杠杆握柄	Grip,ControlLever	1
37	92990-05300	盘形垫	Washer, Internal Tooth	6
38	95380-06600	有槽螺母	Nut, Hexagon	4
39	701-48248-00	发动机空转卷轴	Roller, Free Accelerator	2
40	704-48238-00	延迟簧	Spring, Detent	10
41	704-48232-P1	齿	Gear	2
42	EL8-48164-00	销2	Pin 2	2
43	704-48221-R0	控制杠杆	Lever, Control	2
44	704-48242-10	驱动轴	Shaft, Drive	2
45	704-48225-R0	盖	Cover	2
46	704-48192-00	垫圈2	Washer 2	2
47	97890-06018	大柱头螺钉	Screw, Pan Head	4
48	92990-06300	盘形垫	Washer, Internal Tooth	4
49	704-48224-R0	控制杠杆盖	Cover,ControlLever	2
50	EL8-48279-00	卡环 2	Circlip 2	2
51	704-48234-00	衬套1	Bushing 1	2
52	704-48219-R0	导线盖	Cover,Lead	2
53	704-48144-20	限位板面板2	Plate, Stopper 2	2
54	704-48176-10	固定	Grommet	1
55	704-48192-P0	垫圈2	Washer 2	2
56	704-48233-00	齿轮2	Gear 2	2
57	704-48235-00	衬套	Bushing	2
58	704-48153-00	发动机空转轴	Shaft, Free Axel	2
59	704-81950-11	继电器总成	Relay Assembly	2
60	704-48229-20	控制杠杆握柄	Grip,ControlLever	1
61	704-82563-80	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
62	704-48222-20	控制杠杆握柄	Grip,ControlLever	1
63	704-82590-10	电线束组合	Wire Harness Assembly	1
64	704-48128-00	螺钉2	Screw 2	3
65	704-48156-00	螺母1	Nut 1	1
66	704-82563-90	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
67	704-48284-P0	固定	Grommet	2
68	704-48285-20	固定环2	Grommet 2	1
69	704-48129-60	螺钉3	Screw 3	2
70	704-48166-00	塞	Plug	2
71	704-48178-00	轴面板	Plate, Shift	2
72	704-48167-30	塞	Plug	1
73	97890-05016	大柱头螺钉	Screw, Pan Head	5

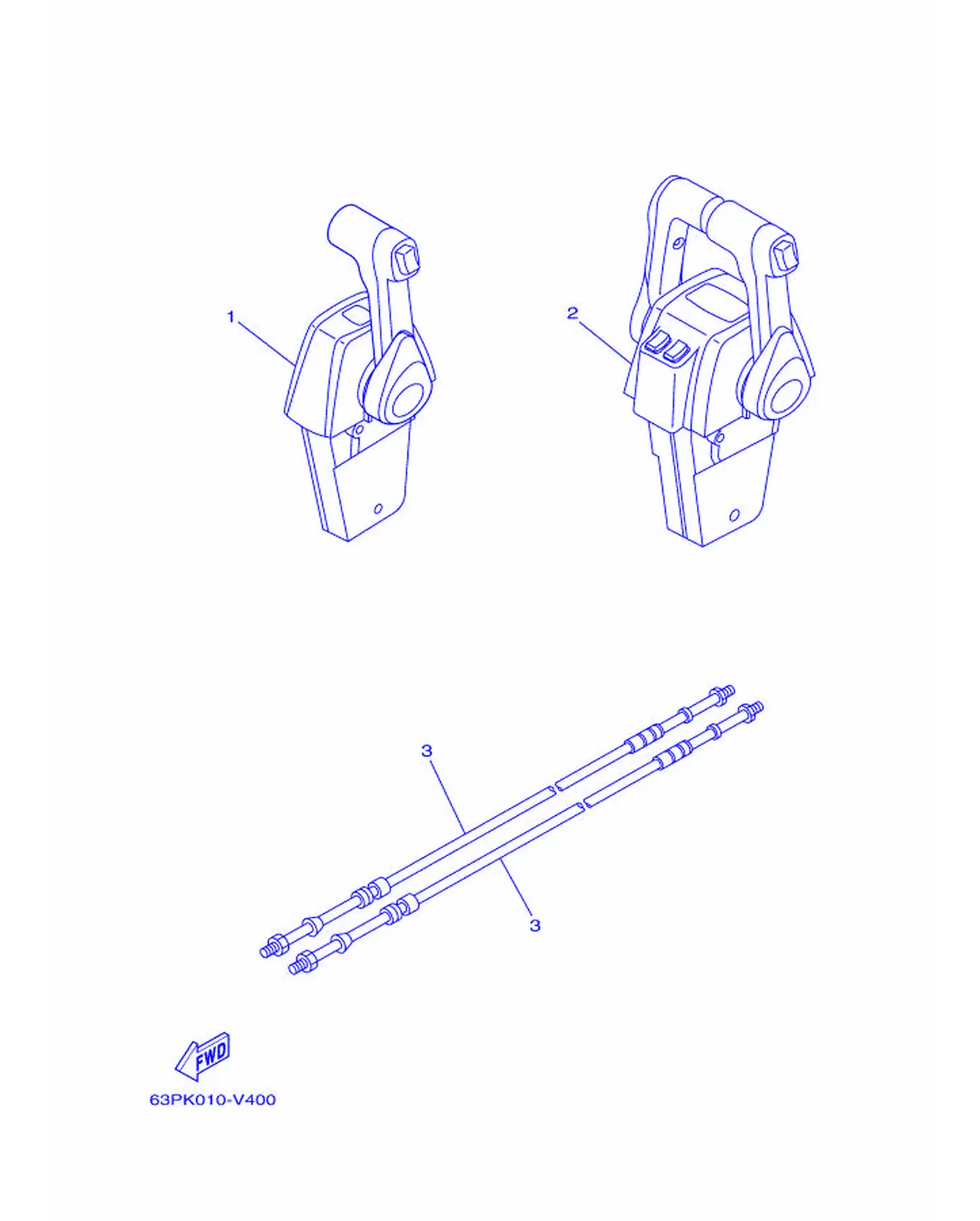

リモートコントロールボツクス

REF	雅马哈编码	中文名称	英文名称	用量
2	704-48207-R2	遥控装置组合	Remote Control Assembly	1
3	701-48320-50	遥控钢索 (4.56m)	Cable, Remote Control	2
3	701-48320-60	遥控钢索 (4.88m)	Cable, Remote Control	2
3	701-48320-80	遥控钢索 (5.18m)	Cable, Remote Control	2
3	701-48350-00	遥控钢索 (6.40m)	Cable, Remote Control	2
3	701-48350-20	遥控钢索 (7.01m)	Cable, Remote Control	2

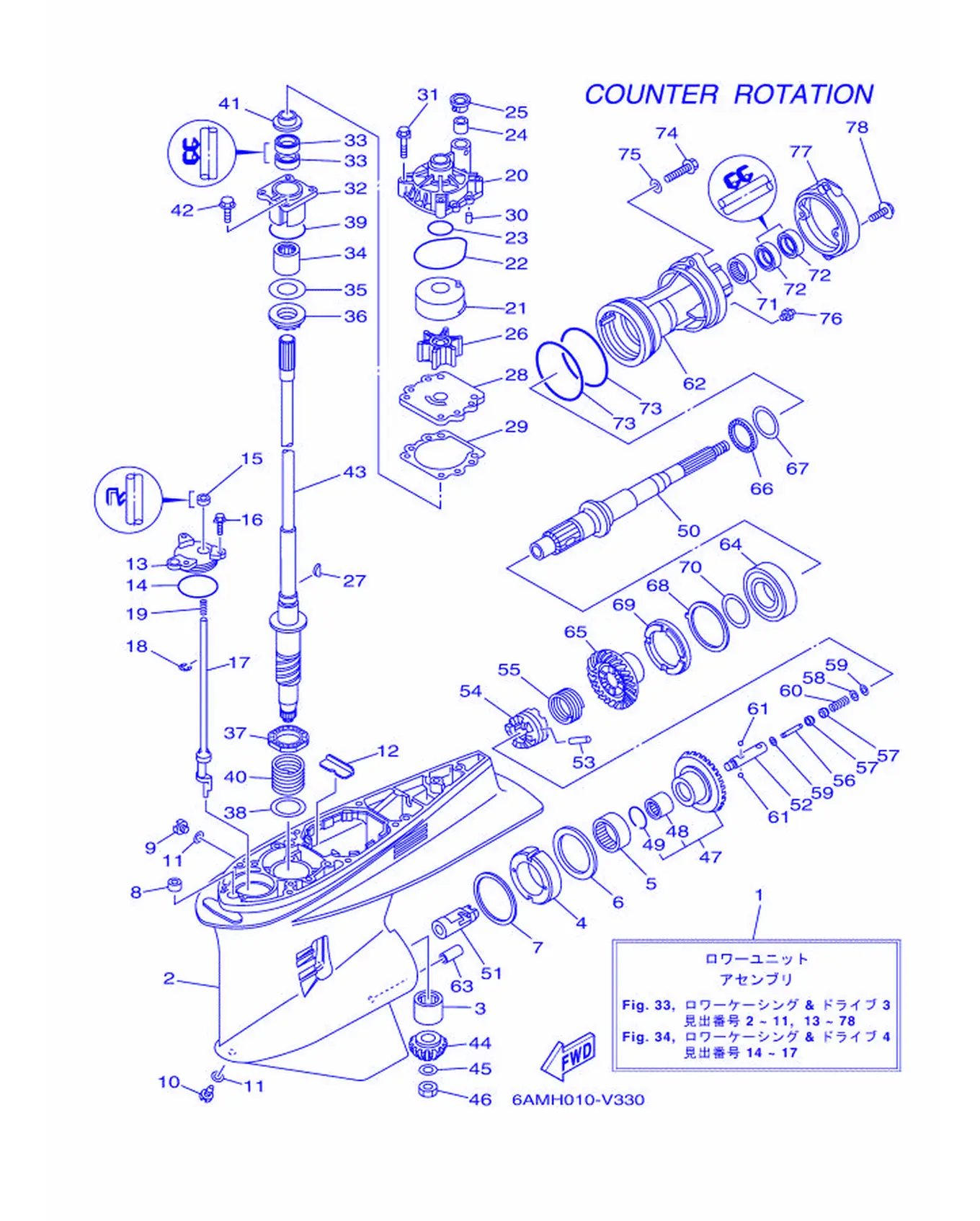

ロワーケーシング & ドライブ 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6AT-45300-00-8D	水下装置总成	Lower Unit Assembly	1
2	6P2-45301-00-8D	水下装置壳	Casing, Lower	1
3	93311-83280	轴承	Bearing	1
4	61B-45538-01	衬套1	Spacer 1	1
5	93315-660W3	轴承	Bearing	1
6	93341-670V0	轴承	Bearing	1
7	61A-45567-00	填隙	Shim (T:0.10MM)	1
7	61A-45567-10	填隙	Shim (T:0.12MM)	1
7	61A-45567-20	填隙	Shim (T:0.15MM)	1
7	61A-45567-30	填隙	Shim (T:0.18MM)	1
7	61A-45567-40	填隙	Shim (T:0.30MM)	1
7	61A-45567-50	填隙	Shim (T:0.40MM)	1
7	61A-45567-60	填隙	Shim (T:0.50MM)	1
8	663-44366-01	水封减震器	Damper, Water Seal 2	1
9	90340-08002	螺丝	Plug, Straight Screw	1
10	688-45341-10	放油塞	Plug, Drain	1
11	90430-08003	垫片	Gasket	2
12	61A-45376-00	密封圈减震块导承	Guide,SealDamper	1
13	61A-45321-01	面板	Plate	1
14	93210-64488	O型圈	O-ring	1
15	93106-09014	油封	OilSeal	1
16	90119-06286	带垫圈六角头螺栓	Bolt, with Washer	3
17	69K-44150-00	变挡凸轮组合	Shift Cam Assembly	1
18	99001-08600	卡环	Circlip	1
19	90501-11M10	接头	Spring, Compression	1
20	61A-44311-01	水泵壳	Housing,Water Pump	1
21	61A-44322-02	芯子	Insert, Cartridge	1
22	93210-86M38	O型圈	O-ring	1
23	93210-37160	O型圈	O-ring	1
24	6E5-44365-01	水封减震器	Damper, Water Seal 1	1
25	6E5-44312-00	水泵壳体盖	Cover,Water PumpHousing	1
26	6E5-44352-01	叶轮	Impeller	1
27	90280-04M05	半圆键	Key, Woodruff	1
28	6G5-44323-01	外挡板	Outer Plate, Cartridge	1
29	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
30	93606-12019	定位销	Pin, Dowel	2
31	90119-08191	带垫圈六角头螺栓	Bolt, with Washer	4
32	61A-45331-00-9S	轴承壳	Housing,Bearing	1
33	93101-28019	油封	Oil Seal	2
34	93317-330U2	轴承	Bearing	1
35	61A-45587-00	填隙	Shim (T:0.10MM)	1
35	61A-45587-10	填隙	Shim (T:0.12MM)	1
35	61A-45587-20	填隙	Shim (T:0.15MM)	1
35	61A-45587-30	填隙	Shim (T:0.18MM)	1
35	61A-45587-40	填隙	Shim (T:0.30MM)	1
36	93341-93020	轴承	Bearing	1
37	93341-34019	轴承	Bearing	1
38	90201-42014	平垫圈	Washer, Plate	1
39	93210-55M14	O型圈	O-ring	1
40	90501-450A2	弹簧	Spring, Compression	1
41	6E5-45344-00	油封盖	Cover,OilSeal	1
42	97E95-08525	螺栓	Bolt, Hexagon with Washer Deep Recess	4
43	6P2-45501-01	驱动轴组	Drive Shaft Complete	1
44	6FJ-45551-00	小齿轮	Pinion (13T)	1
45	90201-16M00	平垫圈	Washer,Plate	1
46	90170-16M19	螺帽	Nut	1
47	6FK-45560-00	齿轮	Gear 1 (26T)	1
48	93317-62891	轴承	Bearing	1
49	93450-37097	弹性挡圈	Circlip	1
50	69K-45611-01	螺旋浆轴	Shaft, Propeller	1
51	61B-45641-01	变挡装置	Shifter	1
52	61A-45634-01	变挡滑	Slide, Shift	1
53	61A-45632-00	十字销	Pin, Cross	1
54	69J-45631-00	爪形离合器	Clutch, Dog	1
55	61A-45633-00	十字环	Ring, Cross Pin	1
56	6H1-45668-00	自由轴	Shaft, Free	1
57	61A-45635-00	变挡柱	Plunger, Shift	2
58	90201-02M00	平垫圈	Washer,Plate	1
59	90183-02M03	螺帽	Nut,Spring	2
60	90501-10M77	压簧	Spring, Compression	1
61	93501-04011	滚珠	Ball	2
62	6DY-45332-00	轴承壳	Housing, Bearing	1
63	99590-10114	定位销	Pin, Dowel	1
64	93332-00048	轴承	Bearing	1
65	6FK-45571-00	齿轮	Gear 2 (26T)	1
66	93341-440U5	轴承	Bearing	1
67	6K1-45578-01	填隙	Shim (T:0.10MM)	1
67	6K1-45578-10	填隙	Shim (T:0.12MM)	1
67	6K1-45578-20	填隙	Shim (T:0.15MM)	1
67	6K1-45578-30	填隙	Shim (T:0.18MM)	1
67	6K1-45578-40	填隙	Shim (T:0.30MM)	1
67	6K1-45578-50	填隙	Shim (T:0.40MM)	1
67	6K1-45578-60	填隙	Shim (T:0.50MM)	1
68	61B-45383-00	爪形垫	Washer, Claw	1
69	6DY-45384-00	螺母	Nut	1
70	69K-45577-00	填隙	Shim (T:0.10MM)	1
70	69K-45577-10	填隙	Shim (T:0.12MM)	1
70	69K-45577-20	填隙	Shim (T:0.15MM)	1
71	93315-43064	轴承	Bearing	1
72	93101-30030	油封	Oil Seal	2
73	93211-04384	O型圈	O-ring	2
74	90105-08049	凸缘螺栓	Bolt, Flange	2
75	90201-08023	平垫圈	Washer,Plate	2
76	93700-09M00	润滑油管嘴	Nipple, Grease	1
77	6D0-45361-00-8D	水下装置壳体盖	Cap, Lower Casing	1
78	97E95-08520	螺栓	Bolt, Hexagon with Washer Deep Recess	2

ロワーケーシング & ドライブ 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6E5-44365-01	水封减震器	Damper, Water Seal 1	1
2	6E5-44366-01	水封减震器	Damper, Water Seal 2	1
3	6S1-44361-02	水管	Tube, Water 1	1
4	93608-12M05	定位销	Pin, Dowel	2
5	97E95-10645	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	7
6	90119-10072	带垫圈六角头螺栓	Bolt, with Washer	1
7	6D0-45375-01	密封圈减震	Damper, Seal	1
8	61A-45214-11	进水口盖	Cover, Water Inlet 1	1
9	61A-45215-11	进水口盖	Cover, Water Inlet 2	1
10	90152-05003	沉头螺钉	Screw, Countersunk	1
11	90185-05002	螺母	Nut, Self-Locking	1
12	6CE-45373-00	阳极	Anode	1
13	90105-10M00	螺栓	Bolt, Flange	1
14	6D0-44367-00	水封减震器	Damper, Water Seal 3	1
15	6D0-44362-01	水管	Tube, Water 2	1
16	6D0-44365-00	水封减震器	Damper, Water Seal 1	1
17	6D0-44366-01	水封减震器	Damper, Water Seal 2	1
18	69J-45987-00	衬套	Spacer 1	1
19	688-45997-01	衬套	Spacer	1
20	92990-18200	盘形垫	Washer	1
21	90171-18M04	螺母	Nut, Castle	1
22	91490-40030	开口销	Pin, Cotter	1
23	6K1-45947-00	螺旋浆组合	Propeller (3X14-1/2X17-ML)	1
23	6K1-45945-00	螺旋浆组合	Propeller (3X14X19-ML)	1
23	6K1-45970-01	螺旋浆	Propeller (3X15-1/4X15-ML)	1
23	6K1-45978-02	螺旋浆	Propeller (3X13-3/4X17-ML1)	1
23	6K1-45974-02	螺旋浆	Propeller (3X13-3/4X19-ML1)	1
23	6K1-45972-01	螺旋浆组合	Propeller (3X13-3/4X21-ML)	1
23	6K1-45976-00	螺旋浆组合	Propeller (3X13-3/8X23-ML)	1
23	61B-45978-00	螺旋浆	Propeller (3X15X17-TL)	1
24	60J-45970-00	螺旋浆组合	Propeller (3X14-1/4X14-ML)	1
24	60J-45972-00	螺旋浆组合	Propeller (3X14-1/4X16-ML)	1
24	60J-45974-00	螺旋浆组合	Propeller (3X14-1/4X18-ML)	1
24	60J-45976-00	螺旋浆组合	Propeller (3X14-1/4X20-ML)	1
24	60J-45978-00	螺旋浆组合	Propeller (3X14-1/4X22-ML)	1
24	68G-45930-20	螺旋浆组合	Propeller (3X14-1/2X14-ML)	1
24	68G-45970-20	螺旋浆组合	Propeller (3X14-1/2X15-ML)	1
24	68G-45972-20	螺旋浆组合	Propeller (3X14-1/4X17-ML)	1
24	68G-45978-20	螺旋浆组合	Propeller (3X14-1/4X18-ML)	1
25	6CE-45C81-10	螺旋桨减震胶1	Damper Rubber, Propeller 1	1
26	6CF-45B70-20	螺旋槳	Propeller (4X15X21-TL)	1
26	6CF-45B72-20	螺旋槳	Propeller (4X15X22-TL)	1
26	6CF-45B74-20	螺旋槳	Propeller (4X15X23-TL)	1
27	6CE-45C81-10	螺旋桨减震胶1	Damper Rubber, Propeller 1	1
