雅马哈 F9.9B - F9.9MLHRL

共 24 个部位，点击零件编码查看详情，或搜索本页零件。

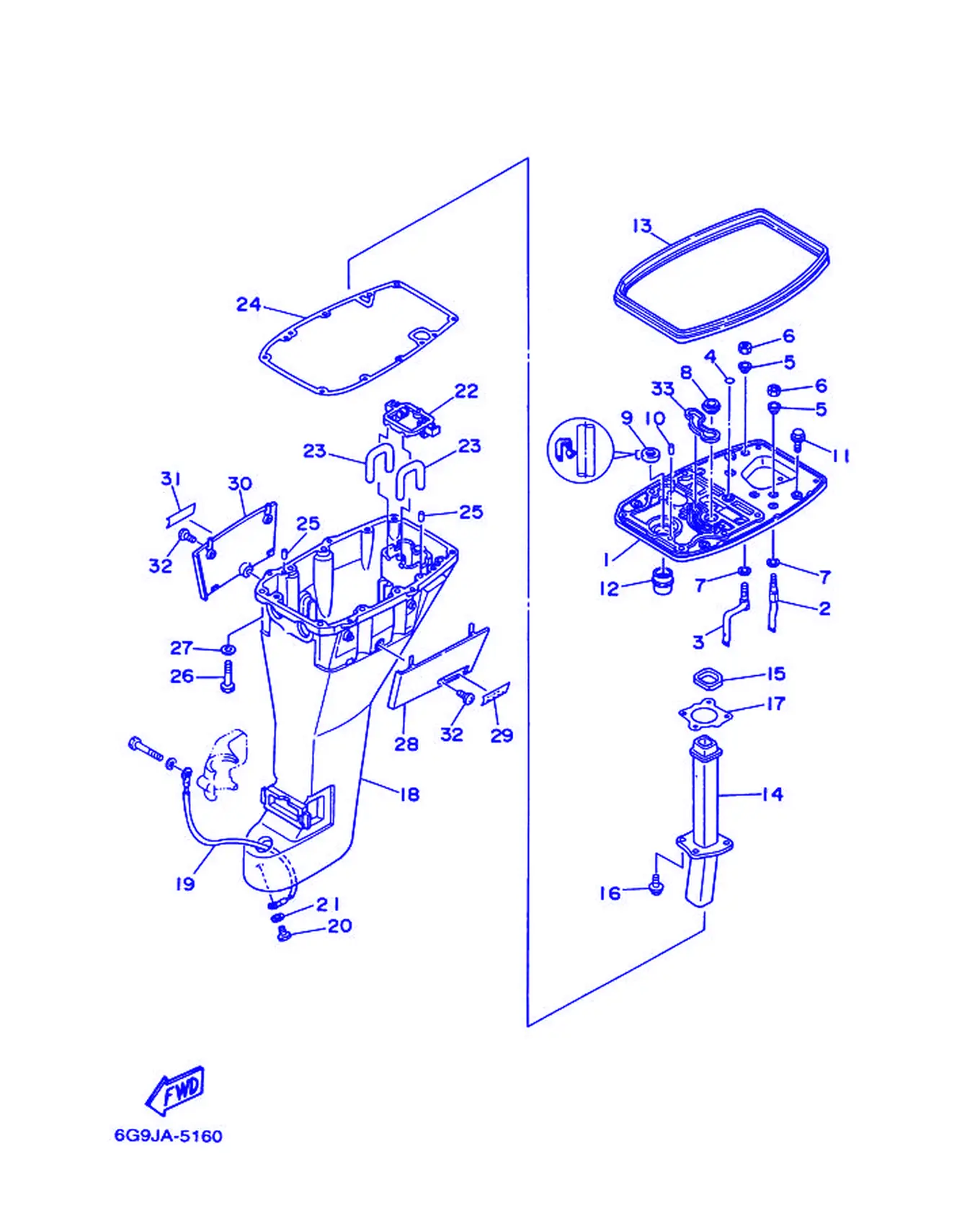

アツパケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-41137-04-94	排气导管	Guide,Exhaust	1
2	6G8-12483-00	管3	Pipe 3	1
3	6G8-12484-00	管4	Pipe 4	1
4	93210-08M60	六角螺栓	O-ring	1
5	90386-10M70	衬套	Bushing	2
6	95380-10700	螺母	Nut	2
7	90202-10M03	带垫螺栓	Washer,Plate	2
8	6G8-44367-00	水封减震器	Damper,WaterSeal	1
9	93101-13M27	油封	OilSeal	1
10	93606-12019	定位销	Pin, Dowel	2
11	97513-06520	带垫圈螺	Bolt, With Washer	2
12	6G8-45135-00	管	Pipe	1
13	6G8-42716-00	密封橡皮块1	Rubber,Seal 1	1
14	6G8-41131-01	排气岐管1	Manifold,Exhaust 1	1
15	6G8-41138-00	排气管密封圈1	Seal,Exhaust1	1
16	90105-06M33	螺栓	Bolt, Washer Based Head	4
17	6G8-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
18	6G8-45111-13-4D	水上装置壳	Casing,Upper	1
19	6G8-82149-00	导线3	Wire,Lead 3	1
20	97095-06012	螺栓	Bolt	1
21	92995-06600	盘形垫	Washer	1
22	6G8-45151-10	水上装置壳体盖	Cover,UpperCasing	1
23	6G8-45136-00	面板	Pipe	2
24	6G8-45113-A1	水上装置壳体衬垫	Gasket,UpperCasing	1
25	93606-12019	定位销	Pin, Dowel	2
26	97095-08040	螺栓	Bolt	6
27	92995-08600	盘形垫	Washer	6
28	6G8-42741-00-4D	挡板	Apron	1
29	6G8-42791-00	标志，商标1	Mark 1	1
30	6G8-42771-00-4D	挡板	Apron	1
31	6G8-42792-00	标志，商标	Mark	1
32	90157-06M04	螺栓	Screw, Pan Head	2
33	6G8-11355-00	气缸密封圈1	Seal,Cylinder 1	1

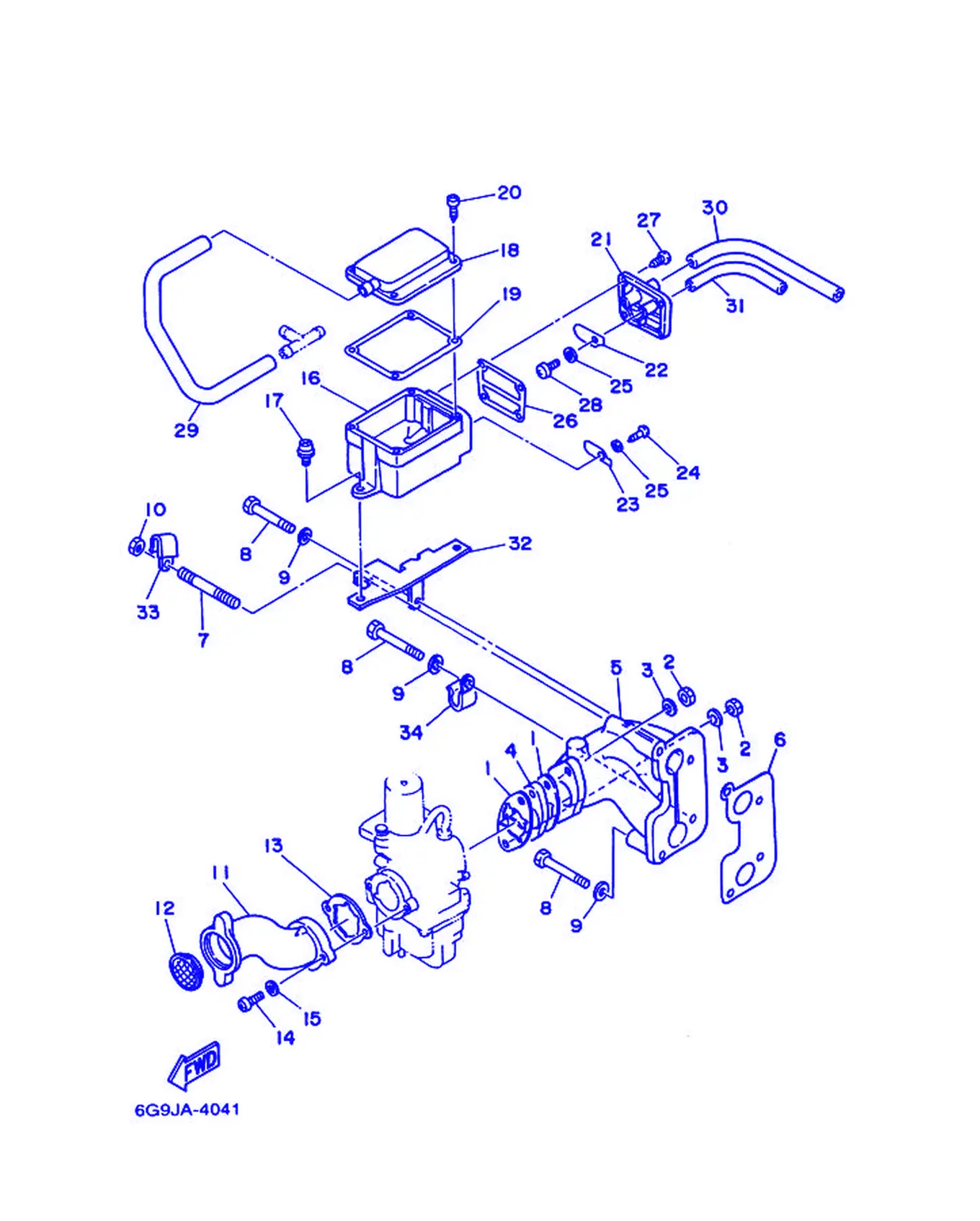

インテーク

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-13646-A0	岐管衬垫2	Gasket,Manifold 2	2
2	95380-06700	有槽螺母	Nut	2
3	92990-06600	面板垫圈	Washer,Plate	2
4	6G8-13647-00	岐管衬垫3	Gasket,Manifold 3	1
5	6G8-13641-01-94	岐管1	Manifold 1	1
6	6G8-13645-00	岐管衬垫1	Gasket,Manifold 1	1
7	90116-06M15	螺栓	Bolt, Stud	1
8	97095-06045	螺栓	Bolt	3
9	92995-06600	盘形垫	Washer	3
10	95380-06700	有槽螺母	Nut	1
11	6G8-14479-02-94	漏斗	Funnel	1
12	6G8-14478-00	通风百叶	Louver	1
13	6G8-14198-A0	衬垫	Gasket	1
14	97880-05016	大柱头螺钉	Screw, Pan Head	2
15	92990-05600	盘形垫	Washer,Plate	2
16	6G8-15358-00	油水分离器	Separator, Oil	1
17	90159-06M05	平垫圈	Screw, With Washer	2
18	6G8-15368-00-94	油水分离器	Separator, Oil	1
19	6G8-15369-00	油封壳体衬垫	Gasket,OilSealHousing	1
20	97780-40512	自攻螺钉	Screw, Tapping	4
21	6G8-15371-00-94	通气器	Breather	1
22	6G8-15346-00	通气孔1	Breather 1	1
23	6G8-15347-00	通气器2	Breather 2	1
24	97780-40512	自攻螺钉	Screw, Tapping	1
25	92990-04200	平垫圈	Washer, Plain	2
26	6G8-15374-00	通气器衬垫	Gasket, Breather	1
27	97780-40512	自攻螺钉	Screw, Tapping	4
28	98507-04010	大柱头螺钉	Screw, Pan Head	1
29	6G8-15393-00	通气管2	Pipe, Breather 2	1
30	90445-11M52	固定	Hose	1
31	90445-09065	固定	Hose	1
32	6G8-15376-00	导套支架	Holder,Guide	1
33	90465-08M07	固定	Clamp	1
34	90465-08M07	固定	Clamp	1

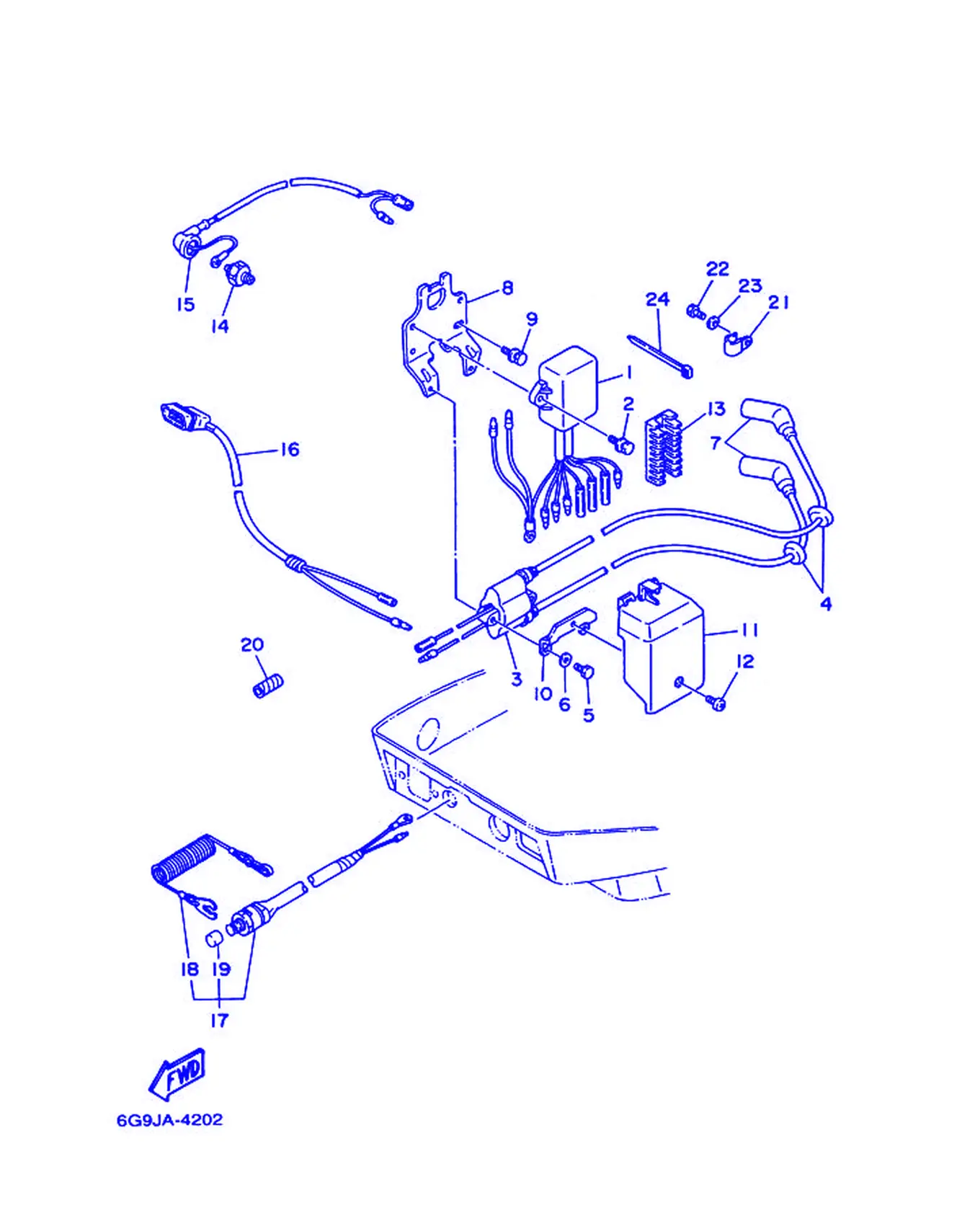

エレクトリツクパーツ

REF	雅马哈编码	中文名称	英文名称	用量
1	6G9-85540-22	电子点火器总成	C.D.I. Unit Assembly	1
2	97595-06520	带垫圈螺	Bolt, With Washer	2
3	6G8-85570-21	点火线圈组合	Ignition Coil Assembly	1
4	90480-25161	固定	Grommet	2
5	97095-06025	螺栓	Bolt	2
6	92995-06600	盘形垫	Washer	2
7	6G8-82370-20	塞帽组合	PlugCapAssembly	2
8	6G8-85542-00	托架	Bracket	1
9	97595-06520	带垫圈螺	Bolt, With Washer	2
10	6G8-85525-00	盖	Plate	1
11	6G8-81916-00	接头盖	Cover, Terminal	1
12	98980-06008	螺栓	Screw, Bind	1
13	6G8-82522-00	联轴节夹箍	Clamp, Coupler	1
14	6G8-82504-00	油压开关组合	Oil Pressure Switch Assembly	1
15	6G8-82127-00	导线2	Wire,Lead 2	1
16	6G8-83582-01	指示灯组件	Pilot Light Assembly	1
17	6G9-82575-02	发动机止动开关组合	Engine Stop Switch Assembly	1
18	682-82556-00	止动拉索	Stopper	1
19	689-8257Y-00	盖	Cap	1
20	90446-10M02	固定	Hose	1
21	90465-08M07	固定	Clamp	1
22	97013-06012	螺栓	Bolt	1
23	92903-06600	盘形垫	Washer,Plate	1
24	90465-13M11	线夹	Clamp	1

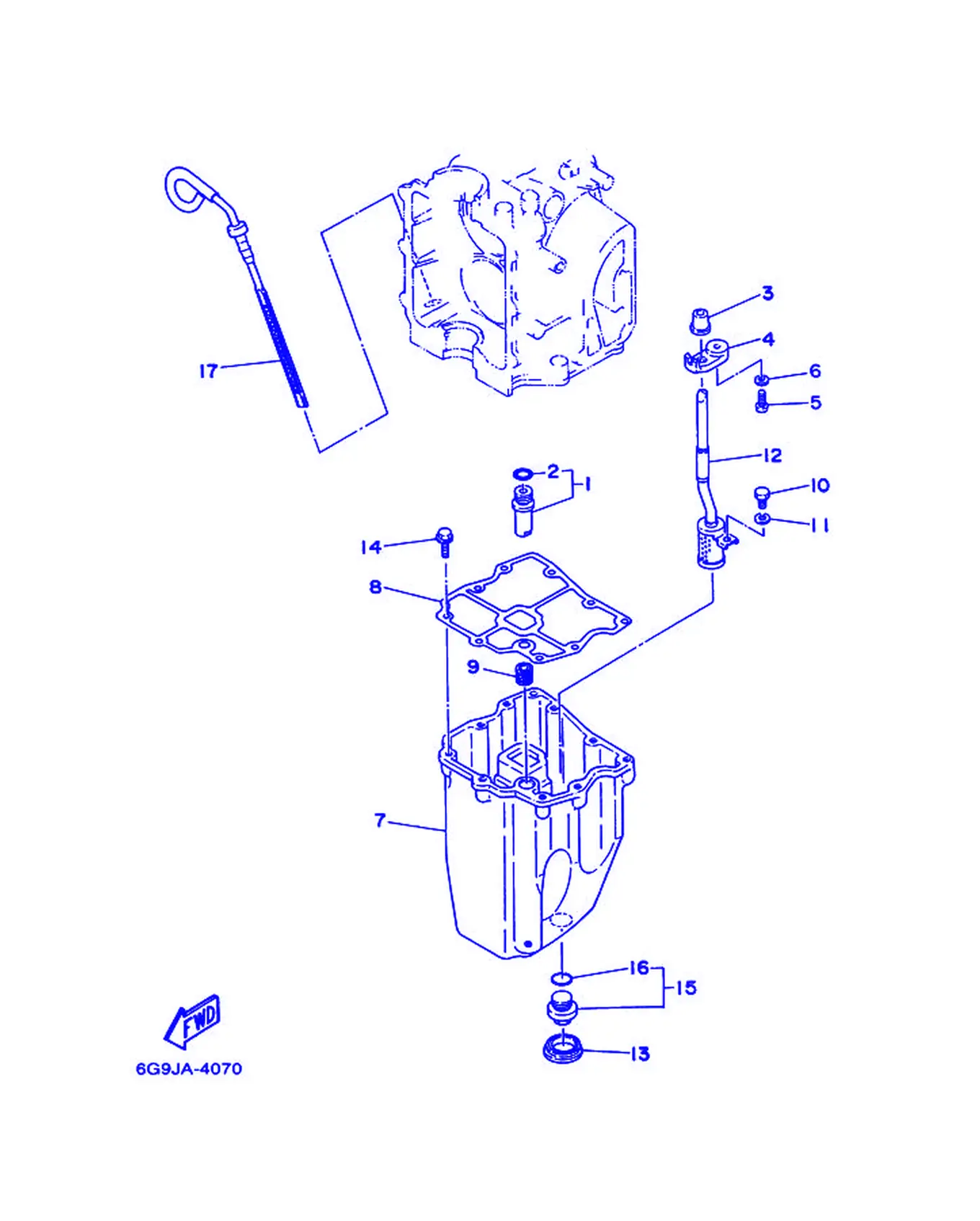

オイルパン

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-11575-00	安全阀组合	Relief Valve Assembly	1
2	93210-12M62	O型圈	O-ring	1
3	6G8-15379-00	密封	Seal, Crankcase	1
4	6G8-13487-00	机油软管导套	Guide,OilHose	1
5	97880-05012	大柱头螺钉	Screw, Pan Head	1
6	92990-05600	盘形垫	Washer,Plate	1
7	6G8-15311-03-0D	油槽	Oil Pan	1
8	6G8-15312-A0	油槽衬垫	Gasket, Oil Pan	1
9	6G8-45127-00	密封	Seal	1
10	97013-06010	螺栓	Bolt	1
11	92903-06100	盘形垫	Washer,Spring	1
12	6G8-13421-00	滤网2	Strainer 2	1
13	6G8-15316-00	减震垫1	Damper, Engine Mount 1	1
14	90105-06M33	螺栓	Bolt, Washer Based Head	9
15	6G8-13471-00	放油塞	Plug, Drain	1
16	93210-16M64	O型圈	O-ring	1
17	6G8-15362-04	油标塞	Plug, Oil Level	1

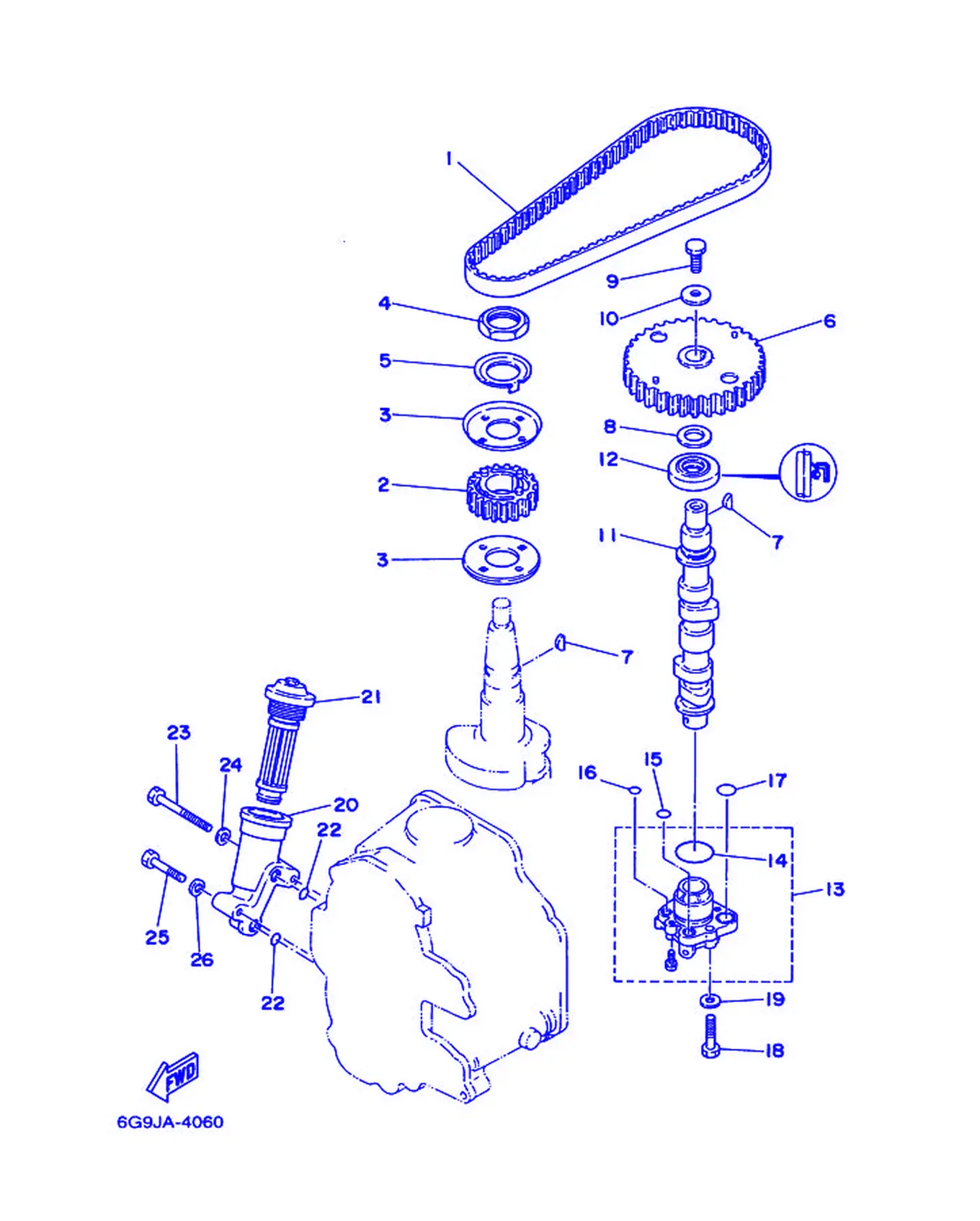

オイルポンプ

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-46241-00	V型皮带	V-Belt	1
2	6G8-11536-00-94	主动齿	Gear, Drive	1
3	6G8-11557-00	垫圈1	Washer 1	2
4	90170-24M09	螺帽	Nut	1
5	6G8-11587-00	锁紧垫	Washer,Lock	1
6	6G8-11537-00-94	从动齿	Gear, Driven	1
7	90280-03M01	螺丝	Key, Woodruff	2
8	90201-13201	平垫圈	Washer,Plate	1
9	97013-06016	螺栓	Bolt	1
10	90201-06M94	平垫圈	Washer,Plate	1
11	6G8-12171-00	凸轮轴1	CamShaft 1	1
12	93102-18M21	油封	OilSeal	1
13	6G8-13300-02	机油泵总成	Oil PumpAssembly	1
14	93210-27ME3	O型圈	O-ring	1
15	93210-10M61	衬套	O-ring	1
16	93210-09M01	卡环	O-ring	1
17	93210-13M63	O型圈	O-ring	2
18	97095-06025	螺栓	Bolt	3
19	92995-06600	盘形垫	Washer	3
20	6G8-13442-00-94	机油滤清器壳体	Housing, Oil Filter	1
21	6G8-13440-00	机油进滤器总成	Element Assembly, Oil Cleaner	1
22	93210-09M01	卡环	O-ring	2
23	97013-06050	螺栓	Bolt	1
24	92903-06600	盘形垫	Washer,Plate	1
25	97013-06030	螺栓	Bolt	1
26	92903-06600	盘形垫	Washer,Plate	1

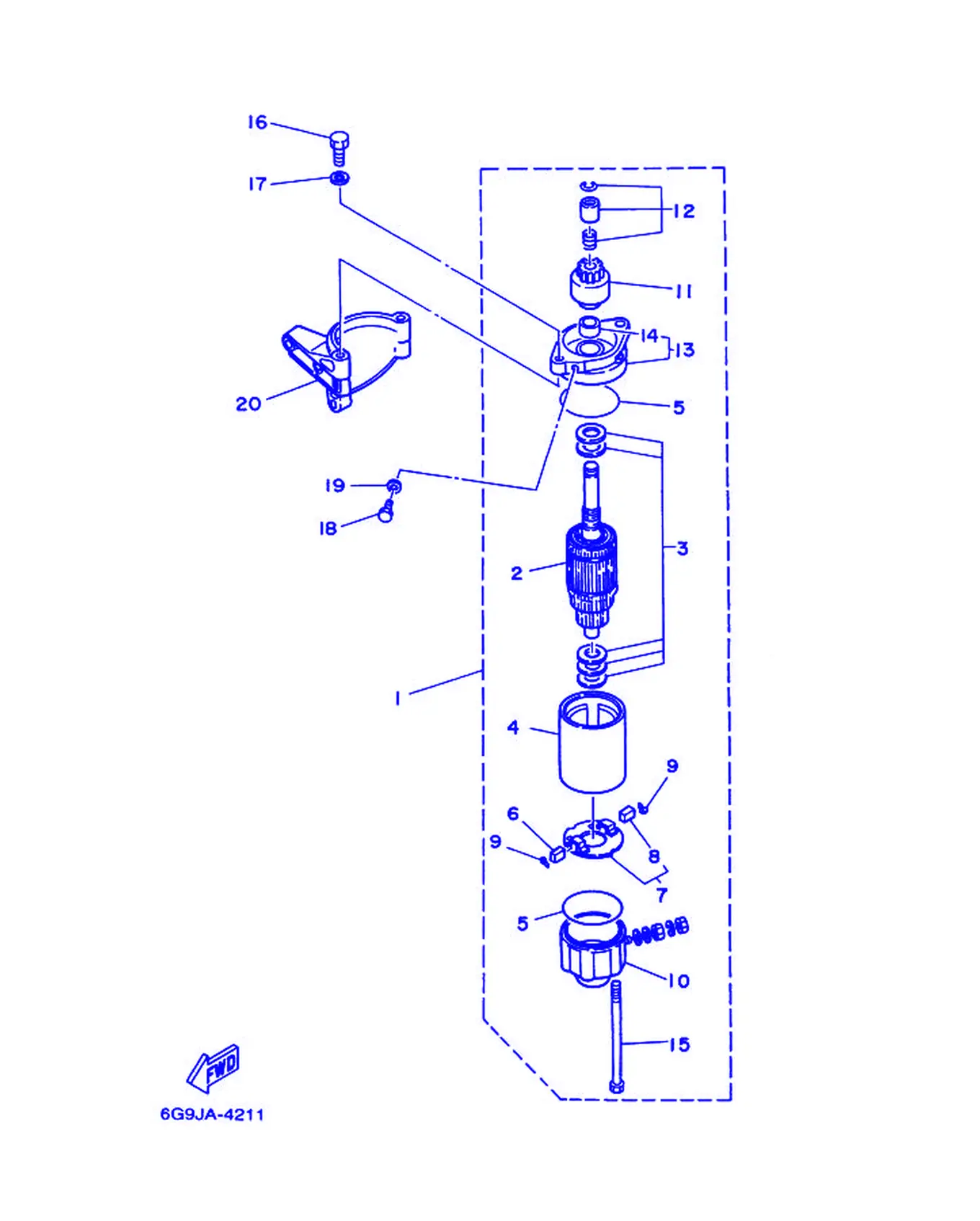

オルタネート 1 (F9.9BEH)

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-81800-11	起动电动机总成	Starting Motor Assembly	1
2	689-81850-12	电枢组合	Armature Assembly	1
3	689-81809-11	垫圈套	Washer Kit	1
4	689-81810-11	定子组合	Stator Assembly	1
5	689-81847-11	O型圈	O-ring	2
6	689-81811-11	电刷1	Brush 1	1
7	689-81840-11	电刷架组合	Brush Holder Assembly	1
8	689-81812-11	电刷2	Brush 2	1
9	689-81813-10	电刷弹簧	Spring, Brush	2
10	689-81820-11	后托架组合	Rear Bracket Assembly	1
11	689-81807-12	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
12	689-81857-11	挡	Pinion Stopper Set	1
13	6F5-81830-11	前托架组合	FrontBracketAssembly	1
14	689-81831-00	前金属	Metal, Front	1
15	689-81826-10	螺	Bolt	2
16	97075-08025	螺栓	Bolt	2
17	92995-08600	盘形垫	Washer	2
18	97095-08016	螺栓	Bolt	1
19	92995-08600	盘形垫	Washer	1
20	6G8-81822-40-94	起动电动机托架	Bracket, Starting Motor	1

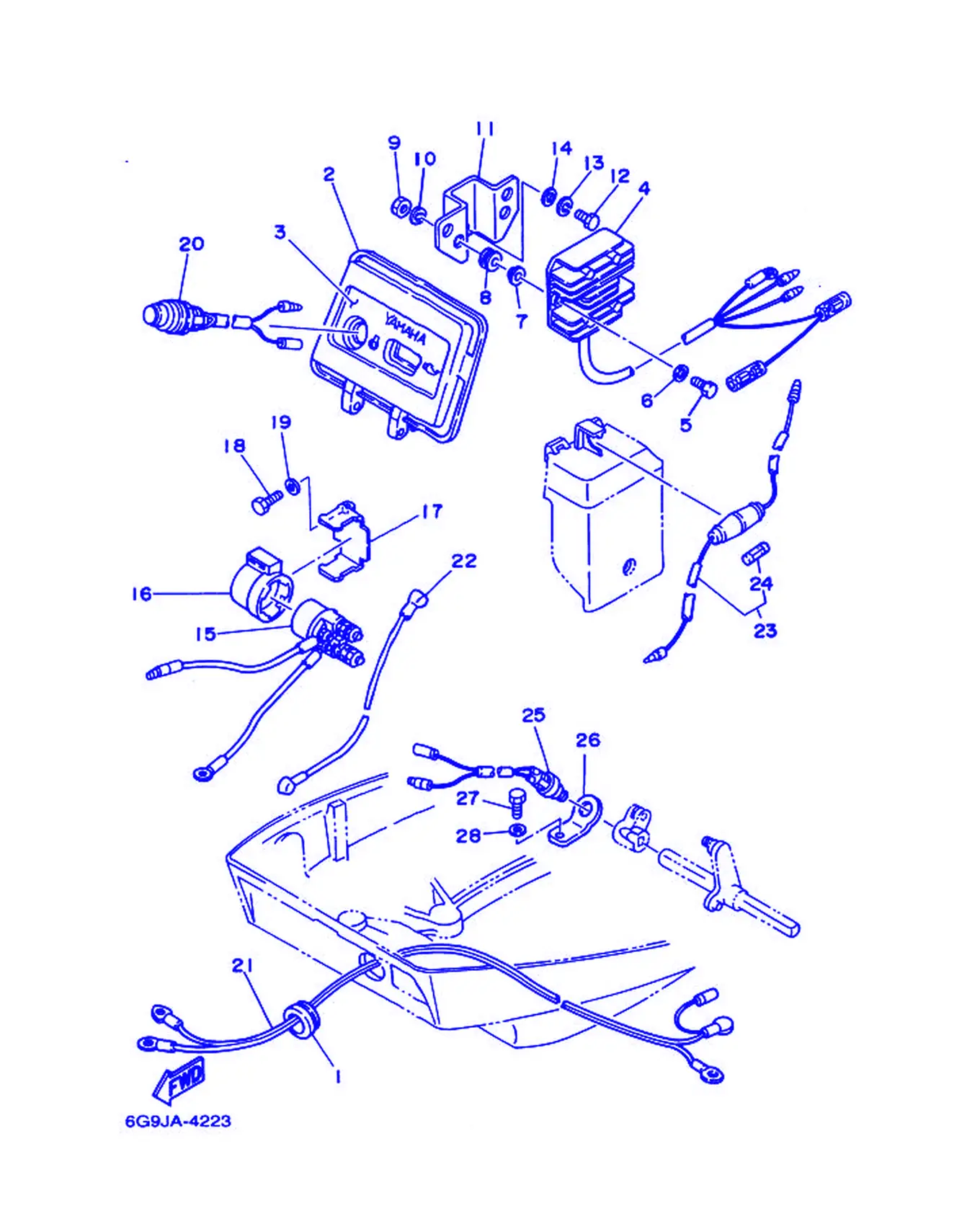

オルタネート 2 (F9.9BEH)

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-42724-40	固定	Grommet	1
2	6G8-42614-12	前上侧板	Panel, Front Upper	1
3	6G8-42677-10	前图样	Graphic, Front	1
4	6G8-81960-A1	整流调压器组合	Rectifier and Regulator	1
5	97095-06025	螺栓	Bolt	2
6	92995-06600	盘形垫	Washer	2
7	90387-06M70	衬套	Color	2
8	90480-13M24	固定	Grommet	2
9	95380-06700	有槽螺母	Nut	2
10	92990-06600	面板垫圈	Washer,Plate	2
11	6G8-81948-02	托架	Bracket	1
12	97095-06020	螺栓	Bolt	1
13	92995-06100	垫圈	Washer,Spring	1
14	92995-06600	盘形垫	Washer	1
15	6J0-81941-10	起动继电器组合	StarterRelayAssembly	1
16	6G1-81952-00	继电器支架	Holder, Relay	1
17	6G8-81953-00	继电器支架	Stay, Relay	1
18	97095-06012	螺栓	Bolt	1
19	92995-06600	盘形垫	Washer	1
20	6G8-81870-00	起动开关组合	Starting Switch Assembly	1
21	6G8-82105-01	电缆	WireHarness	1
22	6G8-82117-00	导线	Wire,Lead	1
23	6G8-82150-00	保险丝管组合	FuseHolderAssembly	1
24	663-82151-00	保险丝	Fuse (12V-20A)	1
25	6H3-82540-00	空挡开关组合	Neutral Switch Assembly	1
26	6G8-82554-00	空挡开关支承	Stay, Neutral Switch	1
27	97095-06012	螺栓	Bolt	1
28	92995-06600	盘形垫	Washer	1

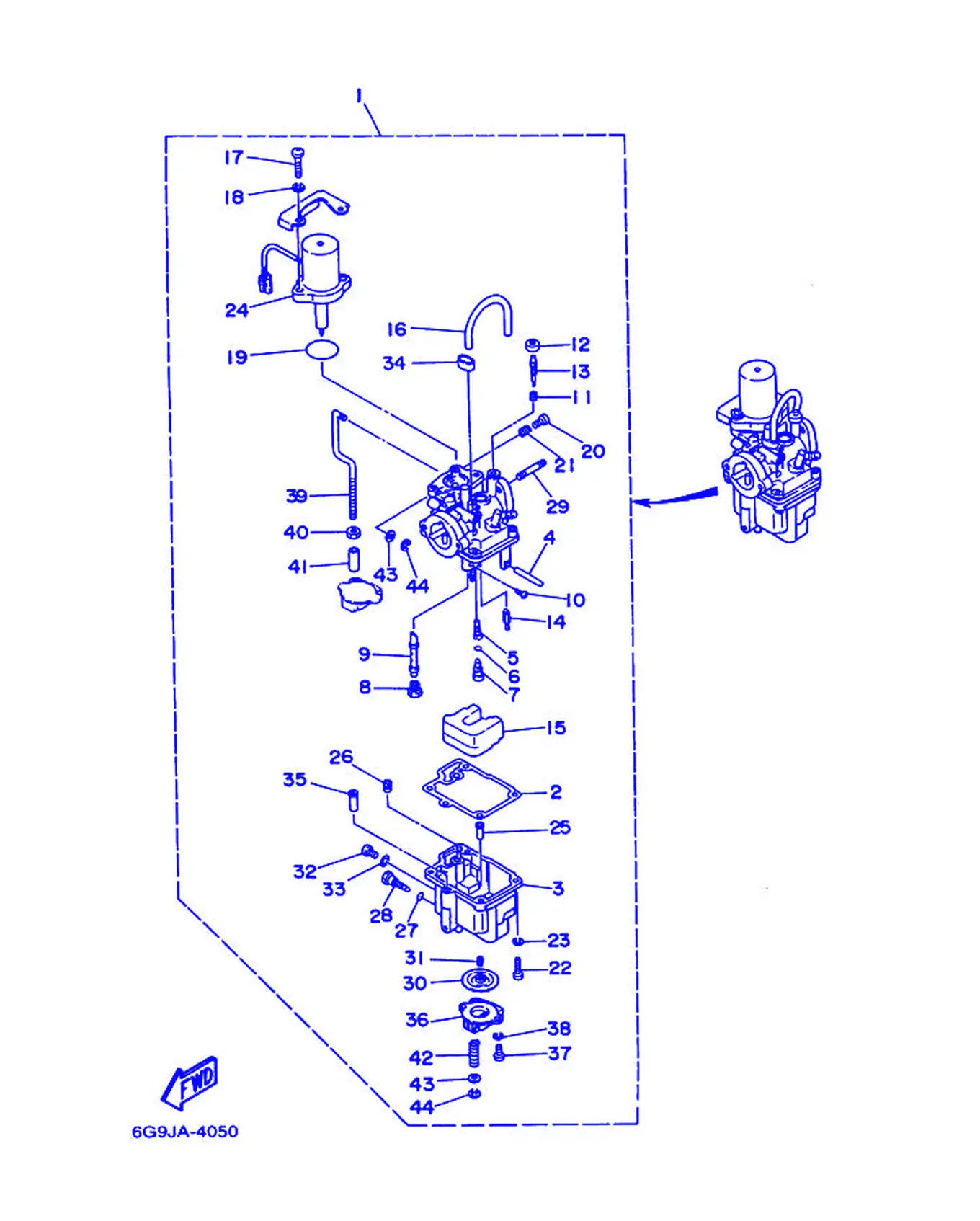

キヤブレタ

REF	雅马哈编码	中文名称	英文名称	用量
1	6G9-14301-05	化油器总成1	CarburetorAssembly 1	1
2	6G8-14384-01	浮子室衬垫	Gasket, Float Chamber	1
3	6G8-14381-02	浮子室本	Body, Float Chamber	1
4	647-14386-00	浮子销	Pin, Float	1
5	6G8-14342-24	低速量孔	Jet,Pilot (# 48)	1
6	654-14198-00	衬垫	Gasket	1
7	6G8-14345-00	主喷嘴堵头	Plug,MainNozzle	1
8	648-14343-43	主量孔	Jet,Main (# 86)	1
9	6G8-14341-20	主喷管	Nozzle,Main	1
10	6G8-14216-00	螺钉	Screw	1
11	647-14334-00	空气调整弹簧	Spring	1
12	6G8-14997-00	密封	Seal	1
13	6G8-14323-00	空气调整螺钉	Screw, Air Adjusting	1
14	6G8-14392-00	针阀	Valve, Needle	1
15	6G8-14385-00	浮子	Float	1
16	6G8-14197-01	管	Pipe	1
17	98580-06018	螺栓	Screw, Pan Head	2
18	92990-06100	盘形垫	Washer,Spring	2
19	1HV-14147-00	O型圈	O-ring	1
20	664-14321-01	节气门螺钉	Screw, Throttle	1
21	646-14212-00	混合气调整弹簧	Spring, Pilot Adjusting	1
22	98580-04016	大柱头螺钉	Screw, Pan Head	4
23	92990-04100	盘形垫	Washer, Spring	4
24	6G8-1410A-01	起动器组件	StarterSet	1
25	6G8-14827-00	过滤器	Filter	1
26	6A4-14344-30	起动喷嘴(#60)	Jet,Starter (# 60)	1
27	5Y1-14397-00	O型圈	O-ring	1
28	6G8-14383-00	排放螺钉	Screw, Drain	1
29	90116-06M26	衬套	Bolt, Stud	2
30	6G8-14368-02	隔膜组合1	Diaphragm Assembly 1	1
31	6G8-14275-01	弹簧	Spring	1
32	97890-05006	大柱头螺钉	Screw, Pan Head	1
33	646-14198-01	衬垫	Gasket	1
34	6G8-14349-00	管	Pipe	1
35	6G8-14217-00	阻风门阀	Valve, Choke	1
36	6G8-14293-03	盖1	Cover 1	1
37	98580-04010	盘头螺丝	Screw, Pan Head	2
38	92990-04100	盘形垫	Washer, Spring	2
39	6G8-14379-00	起动器连杆	Rod,Starter	1
40	98813-03100	底罩	Nut	1
41	6G8-14229-00	O型圈	Shaft, Choke	1
42	6G8-14286-01	弹簧	Spring	1
43	6G8-14357-00	平垫	Washer, Plain	2
44	389-14137-00	钢夹	Clip	2

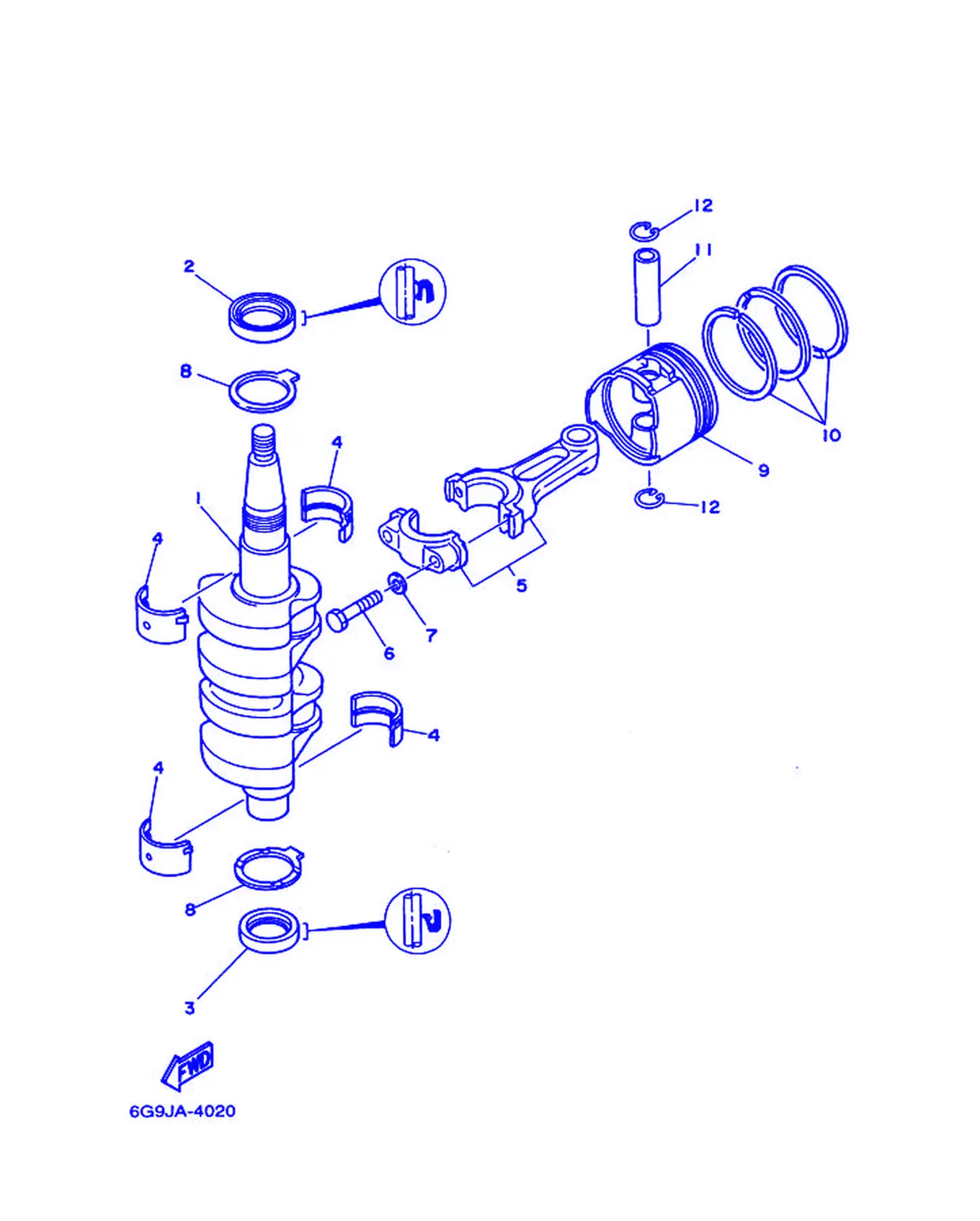

クランクシヤフト. ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-11411-04	曲轴	Crankshaft	1
2	93102-30M22	油封	OilSeal	1
3	93101-25M24	油封	OilSeal	1
4	6G8-11416-00	轴瓦1	Plain Bearing, Crankshaft	4
4	6G8-11416-10	轴瓦1	Plain Bearing, Crankshaft	4
4	6G8-11416-20	轴瓦1	Plain Bearing, Crankshaft	4
5	6G8-11650-03	连杆组合	Connecting Rod Assembly	2
6	6G8-11654-00	连杆螺栓	Bolt, Connecting Rod	4
7	90201-06M00	卡环	Washer,Plate	4
8	6G8-11426-00	轴瓦1	Plain Bearing, Crankshaft	2
9	6G8-11631-03-96	活塞	Piston (STD)	2
9	6G8-11635-03	活塞	Piston (0.25MM O/S)	2
9	6G8-11636-03	活塞	Piston (0.50MM O/S)	2
10	6G8-11610-02	活塞环套	PistonRingSet (STD)	2
10	6G8-11610-12	活塞环套	Piston Ring Set (0.25MM O/S)	2
11	634-11633-00	活塞销	Pin,Piston	2
12	93450-15023	卡环	Circlip	4

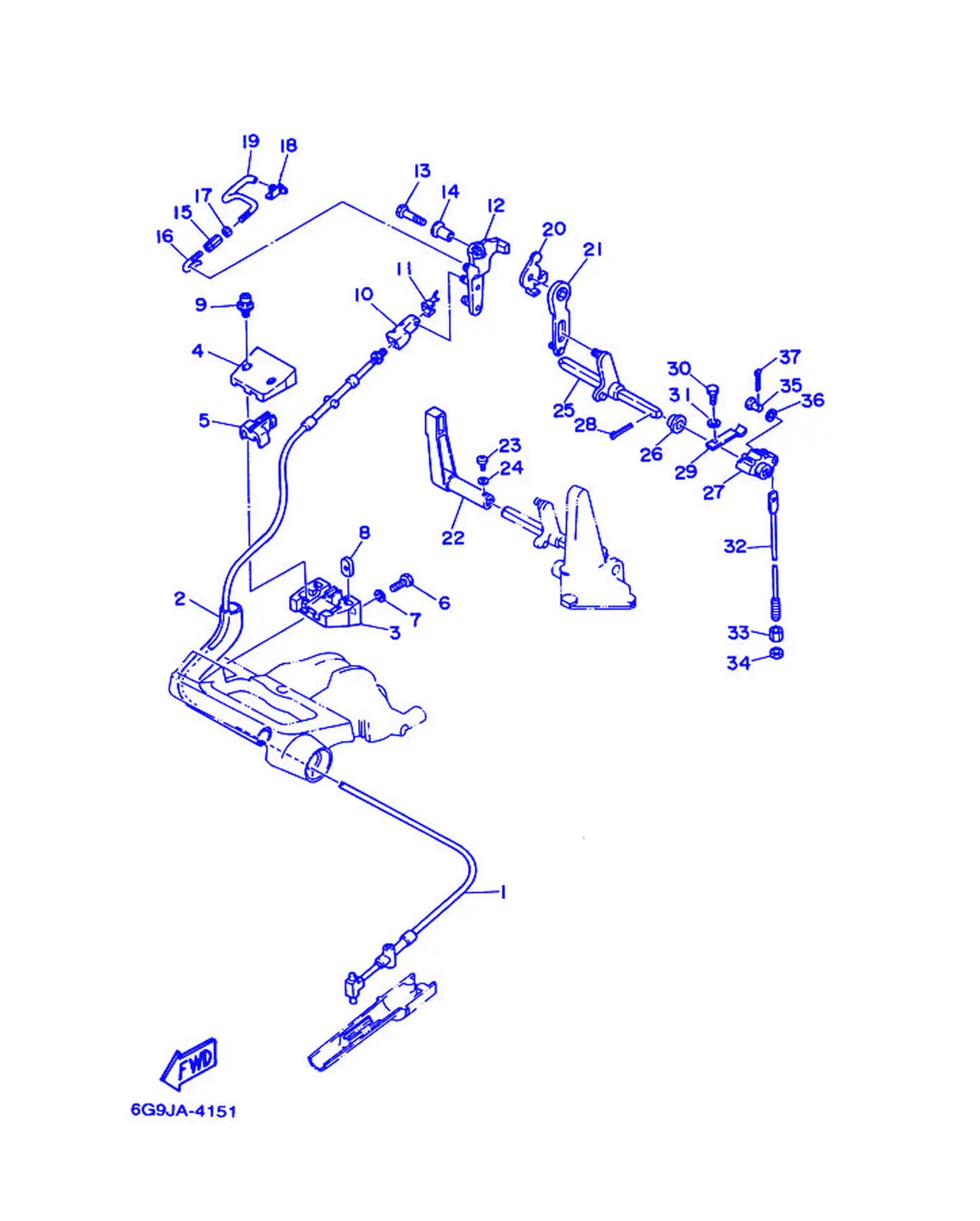

コントロール

REF	雅马哈编码	中文名称	英文名称	用量
1	6G9-48311-02	钢索 L=	Cable	1
2	90445-24M00	软管	Hose	1
3	6G8-41661-00-98	托架	Bracket	1
4	6G8-41662-00-98	托架	Bracket	1
5	6G8-41663-00	托架3	Bracket 3	1
6	97095-06016	螺栓	Bolt	2
7	92995-06600	盘形垫	Washer	2
8	6G8-41654-00	螺母	Nut	2
9	90159-05M06	螺丝	Screw, With Washer	2
10	6G8-26363-00	钢索端部	End, Cable	1
11	6G8-26364-00	钢丝绳接头2	End, Cable 2	1
12	6G8-41212-00	加速器臂	Arm,Accelerator	1
13	97013-06030	螺栓	Bolt	1
14	90387-06M58	衬套	Color	1
15	6G8-41238-01	连杆接头	Joint, Link	1
16	6G8-41241-01	连杆	Rod, Link	1
17	95303-04600	有槽螺母	Nut	1
18	6G8-41237-01	连杆接头	Joint, Link	1
19	6G8-41242-01	杆2	Rod 2	1
20	6G8-14493-00	支承1	Stay 1	1
21	6G8-44111-00	变挡手柄	Handle, Gear Shift	1
22	6G9-44111-00-98	变挡手柄	Handle, Gear Shift	1
23	97880-04016	大柱头螺钉	Screw, Pan Head	1
24	92990-04600	平垫圈	Washer,Plate	1
25	6G8-44159-00	变挡手柄	Handle, Gear Shift	1
26	682-44132-00	衬套	Bushing	1
27	682-44121-01	变挡杆杠杆	Lever, Shift Rod	1
28	91490-25020	开口销	Pin, Cotter	1
29	682-44116-01	弹簧	Spring	1
30	97095-06014	螺栓	Bolt	1
31	92995-06600	盘形垫	Washer	1
32	6G8-44143-10	变挡连杆	Rod, Shift	1
33	90170-06015	螺母	Nut	1
34	95380-06700	有槽螺母	Nut	1
35	91790-05020	螺栓	Pin, Clevis	1
36	92990-05600	盘形垫	Washer,Plate	1
37	91490-16010	开口销	Pin, Cotter	1

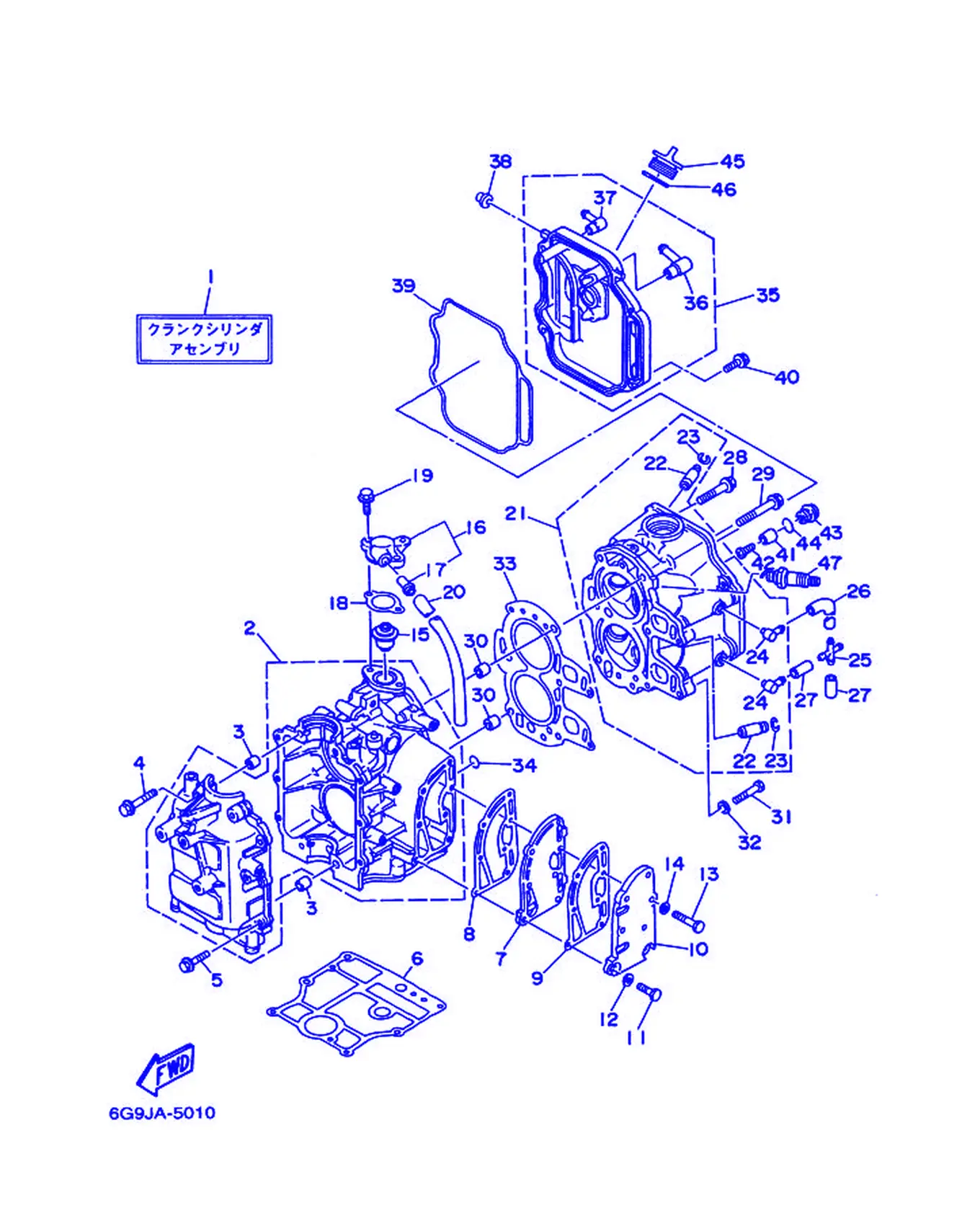

シリンダ. クランクケース

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-W0090-33-4D	气缸曲柄组合	Crank Cylinder Assembly	1
2	6G8-15100-05-94	曲轴箱组合	Crankcase Assembly	1
3	99510-10114	定位销	Pin, Dowel	2
4	90119-08M18	带垫螺栓	Bolt, With Washer	4
5	90119-06M12	带垫螺栓	Bolt, With Washer	6
6	6G8-11351-A0	气缸衬垫	Gasket,Cylinder	1
7	6G8-41111-02-9M	排气管内盖	Inner Cover, Exhaust	1
8	6G8-41112-02	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
9	6G8-41114-00	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
10	6G8-41113-10-9M	排气管外盖	Outer Cover, Exhaust	1
11	97013-06025	螺栓	Bolt	2
12	92903-06600	盘形垫	Washer,Plate	2
13	97013-06030	螺栓	Bolt	5
14	92903-06600	盘形垫	Washer,Plate	5
15	6G8-12411-02	温控器	Thermostat	1
16	6G8-12413-00-9M	温控器盖	Cover,Thermostat	1
17	6E5-24377-00	连接管3	Pipe, Joint 3	1
18	6G8-12414-A0	盖衬垫	Gasket,Cover	1
19	97513-06520	带垫圈螺	Bolt, With Washer	2
20	90445-11M66	固定	Hose	1
21	6G8-11111-03-94	气缸头1	Head, Cylinder 1	1
22	6G8-11133-00	进气门导管	Guide,IntakeValve	4
23	93450-09M01	开口簧环，卡	Circlip	4
24	676-11372-00	软管接头	Nipple,Hose	2
25	6G9-24379-00	连接管4	Pipe,Joint 4	1
26	6G8-12481-01	管1	Pipe 1	1
27	90445-09220	固定	Hose (L30)	2
28	90105-08M37	带垫螺栓	Bolt, Washer Based Head	3
29	90105-08M36	六角螺栓	Bolt, Flange	3
30	99510-10114	定位销	Pin, Dowel	2
31	97013-06035	螺栓	Bolt	2
32	92903-06600	盘形垫	Washer,Plate	2
33	6G8-11181-A1	气缸头垫片1	Gasket, Cylinder Head 1	1
34	93210-11M59	固定	O-ring	1
35	6G8-11191-01-94	气缸盖罩1	Cover, Cylinder Head 1	1
36	6G8-15373-00	通气管	Pipe, Breather	1
37	676-11372-00	软管接头	Nipple,Hose	1
38	6G8-81336-00	固定	Grommet	2
39	6G8-11356-00	气缸密封圈2	Seal,Cylinder 2	1
40	97513-06520	带垫圈螺	Bolt, With Washer	4
41	6G8-11325-00	阳极	Anode	1
42	97880-05025	大柱头螺钉	Screw, Pan Head	1
43	6G8-11197-00	绝缘插头	Plug, Blind	1
44	93210-13M63	O型圈	O-ring	1
45	6G8-15363-00	机油塞子	Plug,Oil	1
46	93210-24M79	O型圈	O-ring	1
47	94703-00282	火花塞 (NGK-CR6HS)	Plug, Spark (NGK-CR6HS)	2

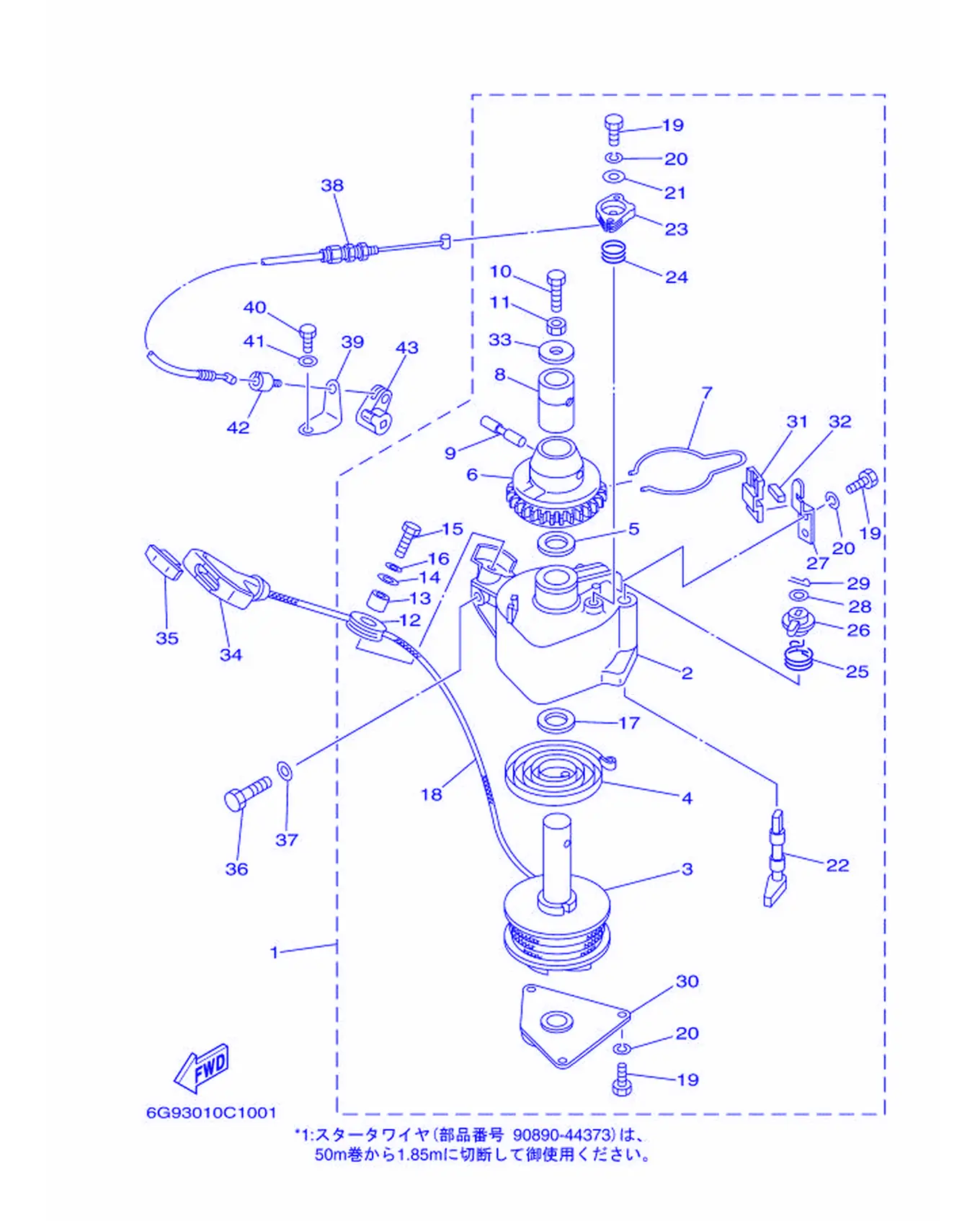

スタータ

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-15710-10	起动器组合	StarterAssembly	1
2	6G8-15711-00	起动器箱	Case,Starter	1
3	6G8-15714-00	拉索卷	Drum, Sheave	1
4	6G8-15713-00	起动器弹簧	Spring,Starter	1
5	6G8-15719-00	推力垫	Washer, Thrust	1
6	6G8-15723-00	起动器滑	Pulley, Starter	1
7	6G8-15715-00	驱动板弹簧	Spring, Friction	1
8	6G8-15754-00	衬套2	Bushing 2	1
9	6G8-15727-00	螺丝	Pin	1
10	6G8-15768-00	螺栓	Bolt	1
11	95333-08700	有槽螺母	Nut	1
12	6F5-15752-00	拉索卷轴	Roller, Wire	1
13	663-15753-00	衬套	Bushing	1
14	663-15791-00	锁紧垫	Washer, Lock	1
15	97305-06025	螺栓	Bolt	1
16	92903-06100	盘形垫	Washer,Spring	1
17	6G8-15739-00	推力垫	Washer, Thrust	1
19	97322-05012	螺栓	Bolt	6
20	92902-05100	盘形垫	Washer, Spring	6
21	6G8-15726-00	平垫	Washer, Flat	1
22	6G8-15794-00	限位板	Stopper	1
23	6G8-15746-00	臂	Arm	1
24	6G8-15767-00	弹簧	Spring	1
25	6G8-15734-00	回位弹簧	Spring, Return	1
26	6G8-15747-00	连杆	Link	1
27	6G8-15716-00	驱动板	Plate, Drive	1
28	92902-06200	盘形垫	Washer	1
29	91490-16012	开口销	Pin, Cotter	1
30	6G8-15712-00	起动器壳盖	Cover,StarterCase	1
31	6G8-15779-00	盖	Cover	1
32	6G8-15789-00	减震器	Damper	1
33	6G8-15742-00	驱动极垫圈	Washer, Drive Pole	1
34	6G1-15755-00	起动器手	Handle,Starter	1
35	689-15779-01	盖	Cover	1
36	97075-08030	螺栓	Bolt	3
37	92995-08600	盘形垫	Washer	3
38	6G8-15770-00	起动器止动钢索组	Cable Complete, Starter Stop	1
39	6G8-15771-00	支承1	Stay 1	1
40	97095-06012	螺栓	Bolt	1
41	92995-06600	盘形垫	Washer	1
42	6G8-15772-00	支承2	Stay 2	1
43	6G8-44125-00	变挡杆杠杆手柄	Lever, Shift Rod	1

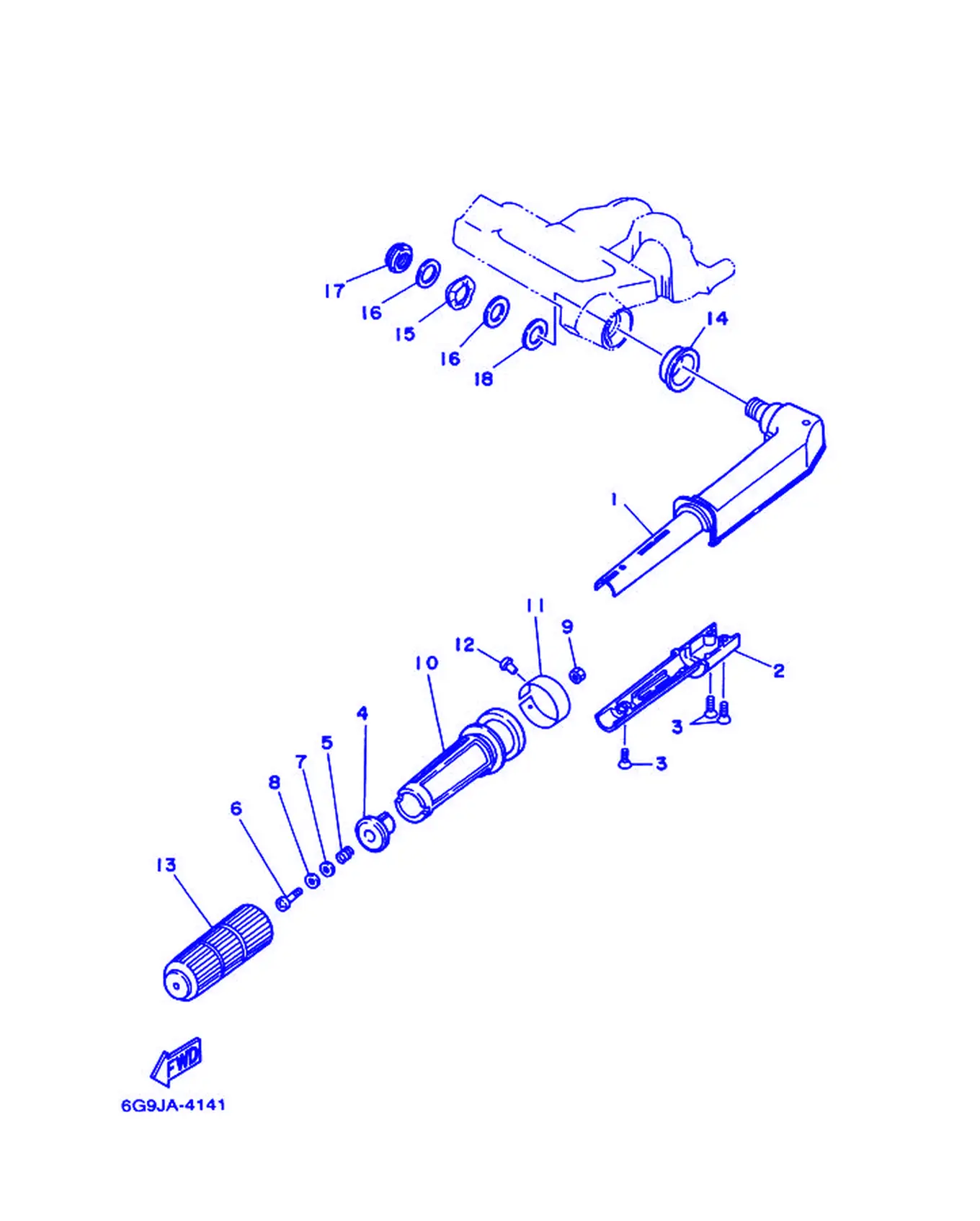

ステアリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6G9-42111-03-4D	方向手	Handle,Steering	1
2	6G9-42112-01-4D	方向手	Handle,Steering	1
3	98780-05016	平头螺钉	Screw, Flat Head	3
4	6G8-42126-01-94	方向手把握把摩擦	Friction, Steering Handle	1
5	90501-23M42	接头	Spring, Compression	1
6	97880-06030	大柱头螺钉	Screw, Pan Head	1
7	90201-06049	内六角薄型螺栓	Washer,Plate	1
8	90202-06007	带垫面板	Washer,Plate	1
9	95380-06700	有槽螺母	Nut	1
10	6G8-42119-00	方向手把握	Grip,SteeringHandle	1
11	6G8-42137-01	油门指示器	Indicator, Throttle	1
12	90269-02M09	螺丝	Rivet	1
13	6G8-42177-00	手把橡皮	Rubber,Handle	1
14	90386-33M56	衬套	Bushing	1
15	90206-20M14	平垫圈	Washer, Wave	1
16	90201-20M00	平垫圈	Washer,Plate	2
17	90185-20M03	接头	Nut, Self-Locking	1
18	90202-20M33	平垫圈	Washer,Plate	1

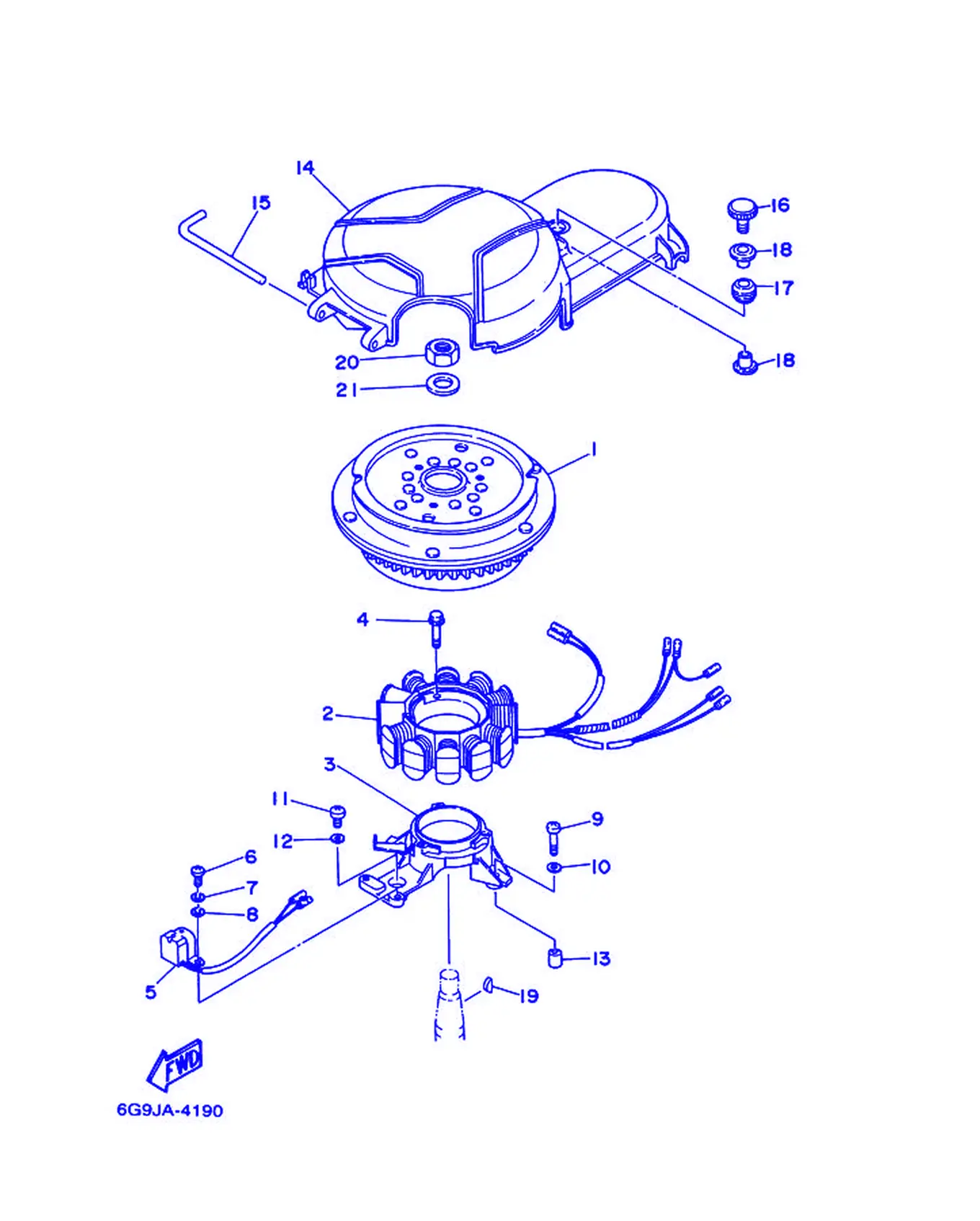

ゼネレータ

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-85550-11	转子组合	Rotor Assembly	1
1	6G8-85550-01	转子组合	Rotor Assembly	1
2	6G9-85510-01	定子组合	Stator Assembly	1
3	6G8-85561-00-94	磁体底座	Base,Magnet	1
4	95023-06025	凸缘螺	Bolt, Flange	3
5	6G8-85580-02	脉冲线	Coil, Pulser	1
6	97880-05012	大柱头螺钉	Screw, Pan Head	2
7	92990-05100	盘形垫	Washer,Spring	2
8	92990-05600	盘形垫	Washer,Plate	2
9	97880-06025	螺栓	Screw, Pan Head	2
10	92990-06600	面板垫圈	Washer,Plate	2
11	97880-06020	大柱头螺钉	Screw, Pan Head	1
12	92990-06600	面板垫圈	Washer,Plate	1
13	99530-08012	螺栓	Pin, Dowel	2
14	6G8-81337-01	飞轮盖	Cover,Flywheel	1
15	6G8-42752-00	轴	Shaft	1
16	6G8-81323-00	螺钉1	Screw 1	1
17	90480-15M31	固定	Grommet	1
18	90387-06M71	衬套	Color	2
19	90280-05013	螺丝	Key, Woodruff	1
20	90170-12066	螺帽	Nut	1
21	90201-12472	平垫圈	Washer,Plate	1

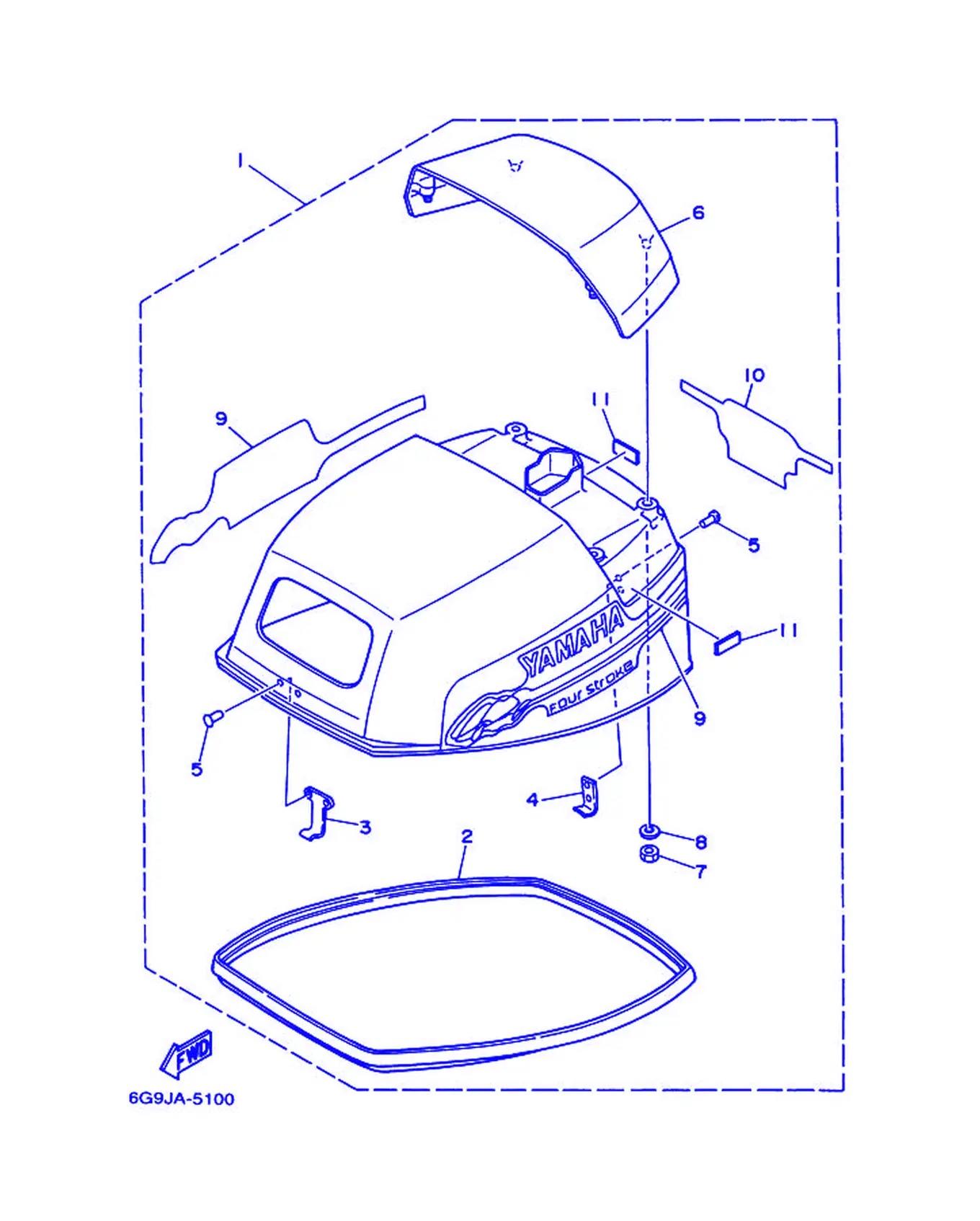

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6G9-42610-14-4D	顶罩组合	Top Cowling Assembly	1
2	6G8-42615-01	密封	Seal	1
3	6G8-42651-00	钩	Fook	1
4	6G8-42652-00	钩	Fook	1
5	90266-04M04	螺丝	Rivet	4
6	6G8-42613-01-4D	空气导管嵌	Molding, Air Duct	1
7	95303-06700	有槽螺母	Nut	4
8	92903-06200	盘形垫	Washer, Plain	4
9	6G9-W0070-13	图样套	Graphic Set	1
10	6G9-42678-13	后图样	Graphic, Rear	1
11	6G8-42662-00	减震器	Damper	3

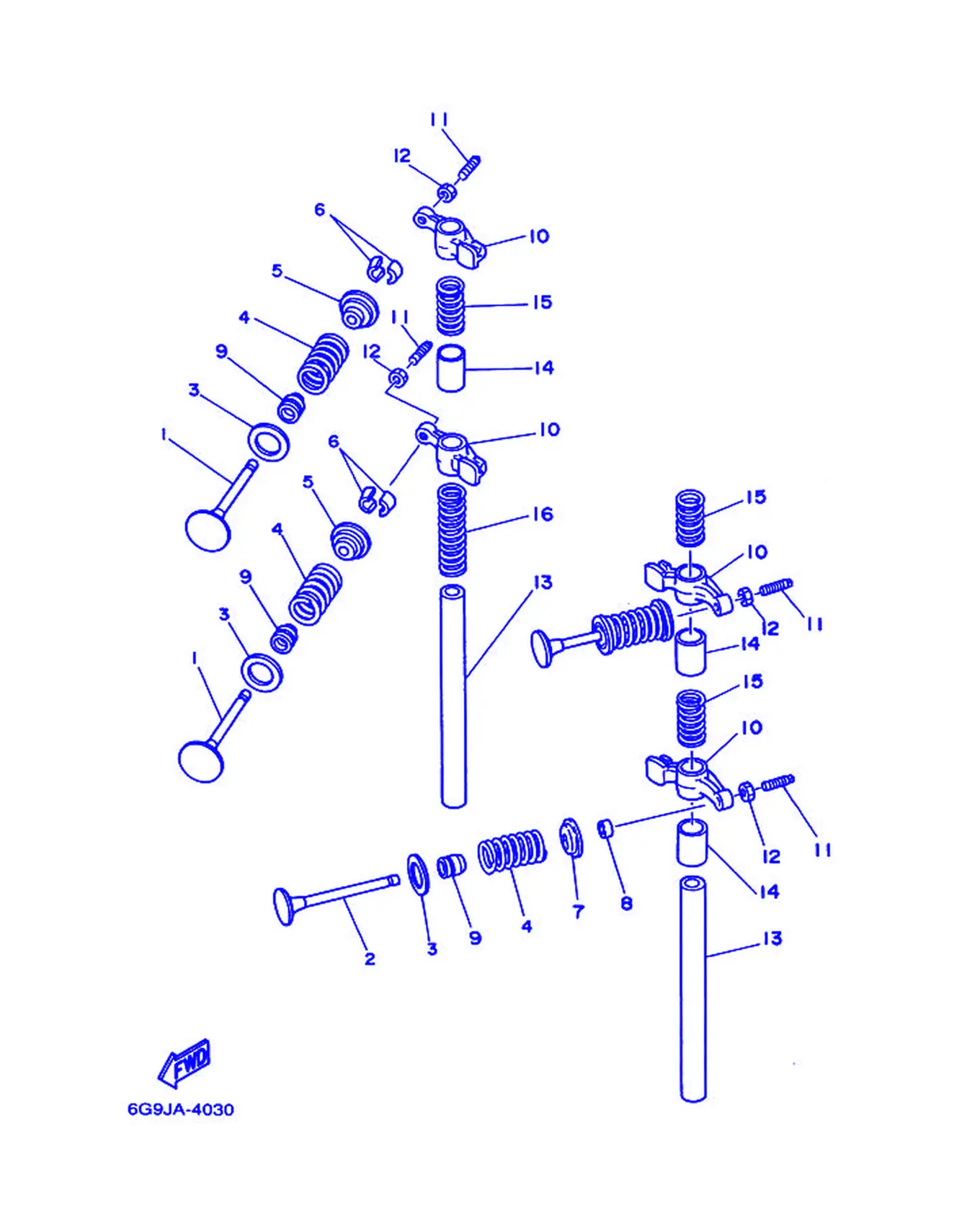

バルブ

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-12111-00	气门1	Valve,Intake	2
2	6G8-12121-01	气门2	Valve,Exhaust	2
3	6G8-12116-00	气门簧座	Seat,ValveSpring	4
4	6G8-12113-00	弹簧1	Spring, Valve Inner	4
5	6G8-12117-00	气门弹簧座	Retainer,ValveSpring	2
6	30X-12118-00	气门锁销	Cotter, Valve	4
7	6G8-12117-10	气门弹簧座	Retainer,ValveSpring	2
8	6G8-12153-00	气门挺杆	Lifter, Valve	2
9	51Y-12119-00	气门杆密封	Seal, Valve Stem	4
10	6G8-12151-00	气门摇臂	Arm, Valve Rocker	4
11	6G8-12159-00	气门调整螺钉	Screw, Valve Adjusting	4
12	6G8-12158-00	锁紧螺母	Nut,Lock	4
13	6G8-12146-00	摇臂轴	Shaft, Rocker	2
14	90387-13M56	衬套	Color	3
15	90501-12M40	接头	Spring, Compression	3
16	90501-12M41	接头	Spring, Compression	1

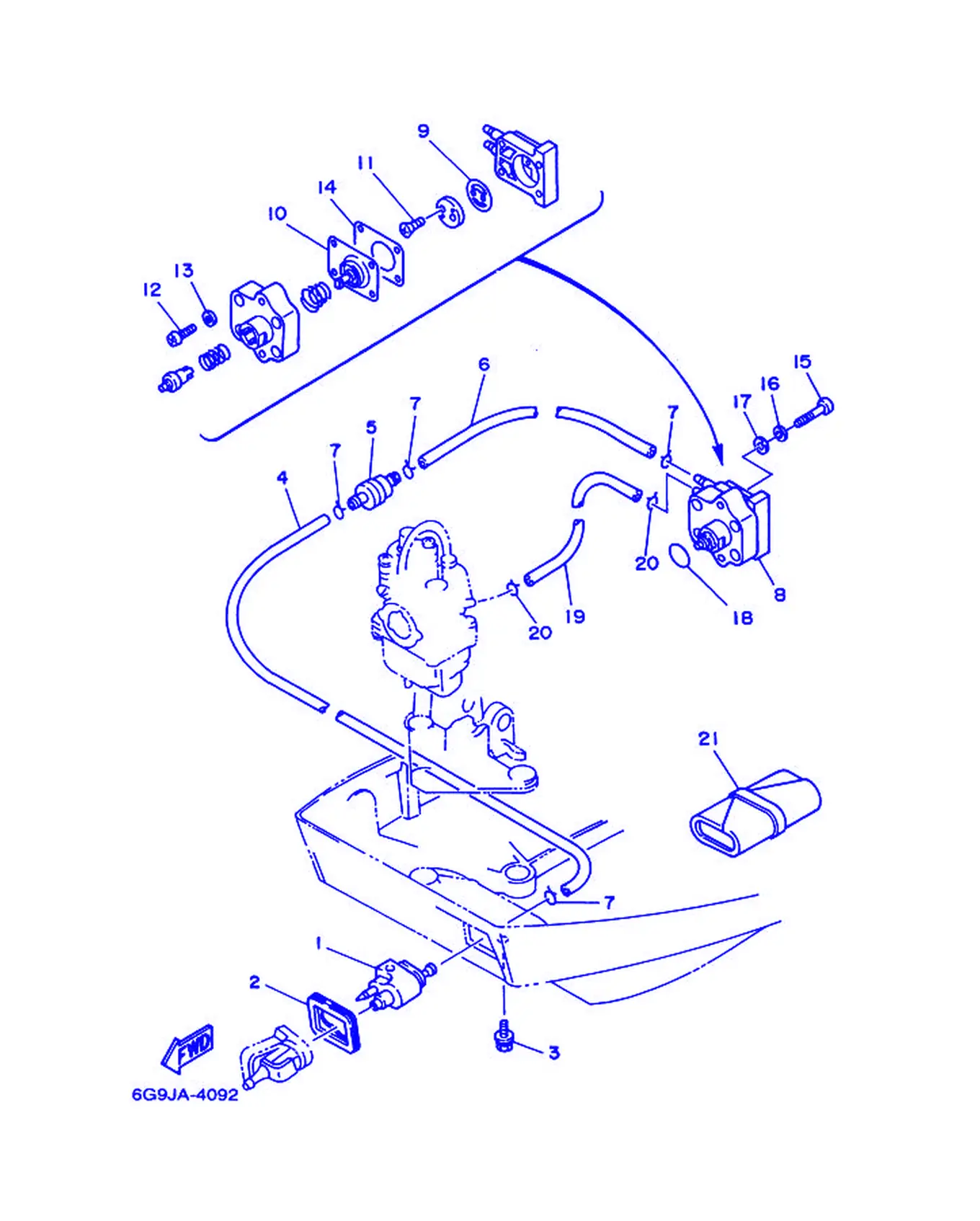

フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	6G1-24304-02	燃油管接头组件1	Fuel Pipe Joint Complete	1
2	6G8-24329-00	密封	Seal	1
3	97595-06520	带垫圈螺	Bolt, With Washer	1
4	6G8-24311-00	油管	Pipe,Fuel 1	1
5	646-24251-02	滤网1	Strainer 1	1
6	90445-09065	固定	Hose	1
7	90467-08004	卡环	Clip	4
8	6G8-24410-03	燃油泵组合	FuelPumpAssembly	1
9	6G8-24421-00	单向阀	Valve, Check	1
10	6G8-24411-02	隔膜，隔板	Diaphragm	1
11	98780-03008	千分尺	Screw, Flat Head	2
12	98503-04014	.大柱头螺丝	Screw, Pan Head	4
13	92903-04600	有槽螺母	Washer	4
14	6G8-24471-00	隔膜	Diaphragm	1
15	97880-06025	螺栓	Screw, Pan Head	2
16	92990-06100	盘形垫	Washer,Spring	2
17	92990-06600	面板垫圈	Washer,Plate	2
18	93210-20M65	O型圈	O-ring	1
19	90445-09105	固定	Hose	1
20	90467-08004	卡环	Clip	2
21	676-W2810-01	工具套	ToolKit	1

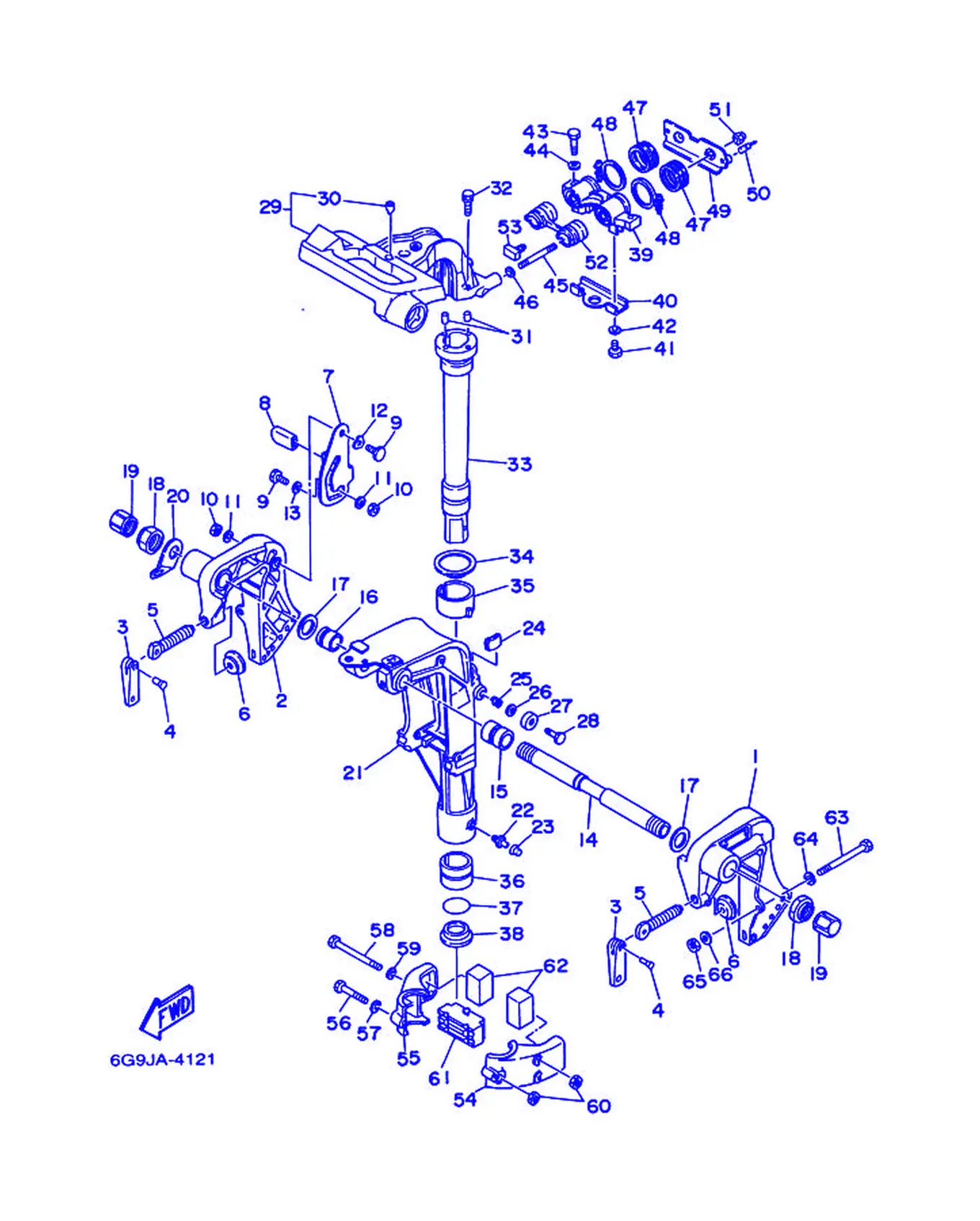

ブラケツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-43111-04-4D	夹紧托架	Bracket,Clamp	1
2	6G8-43112-04-4D	夹紧托架	Bracket,Clamp	1
3	6E0-43118-01	艉板夹紧手柄	Handle, Transom Clamp	2
4	90243-04M01	销	Pin	2
5	6E7-43116-00	艉板夹紧螺钉	Screw, Transom Clamp	2
6	648-43114-01	艉板夹紧衬垫	Pad, Transom Clamp	2
7	6G8-43181-00	顶位销杆	Lever, Tilt Stop	1
8	682-43318-01	盖	Cover	1
9	90109-06M25	卡环	Bolt	2
10	95680-06100	自锁螺母	Nut,U	2
11	92990-06600	面板垫圈	Washer,Plate	2
12	90206-10M15	固定	Washer, Wave	1
13	682-43339-01	垫	Washer	1
14	6G8-43131-00	夹紧托架螺	Bolt,ClampBracket	1
15	90386-22M92	衬套	Bushing	1
16	90386-22M93	O型圈	Bushing	1
17	90201-22M03	平垫圈	Washer,Plate	2
18	90185-22043	卡环	Nut, Self-Locking	2
19	6G5-43145-00	夹紧托架盖	Cap,ClampBracket	2
20	6J8-43113-01	夹紧托架面板	Plate,ClampBracket	1
21	6G8-43311-15-4D	旋转支架	Bracket, Swivel	1
22	93700-06M03	润滑油管嘴	Nipple, Grease	1
23	663-45119-00	润滑油管嘴盖	Cap, Grease Nipple	1
24	6G8-42528-00	阻力板	Plate, Friction	1
25	90501-18M00	接头	Spring, Compression	1
26	90201-06M31	面板垫圈	Washer,Plate	1
27	6G8-43373-00	减震器密封	Seal,Damper	1
28	97095-06025	螺栓	Bolt	1
29	6G9-42511-01-4D	方向托架	Bracket,Steering	1
30	6G8-42534-00	定位销	Pin, Dowel	1
31	93605-15065	定位销	Pin, Dowel	2
32	90119-06M06	螺母	Bolt, With Washer	2
33	6G8-42521-10-94	方向枢轴	Shaft, Steering Pivot	1
34	90209-45M09	垫圈	Washer	1
35	6G8-42537-00	枢轴衬套	Bushing, Pivot Shaft	1
36	90386-37M47	衬套	Bushing	1
37	93210-37M67	O型圈	O-ring	1
38	90386-37M48	衬套	Bushing	1
39	6G8-44517-00-94	减震胶垫	Mount Rubber	1
40	6G8-44526-00	面板	Plate	1
41	97095-06012	螺栓	Bolt	2
42	92995-06600	盘形垫	Washer	2
43	97095-08030	螺栓	Bolt	2
44	92995-08600	盘形垫	Washer	2
45	90116-08M28	螺栓	Bolt, Stud	2
46	90201-08M12	面板垫圈	Washer,Plate	2
47	6G8-44522-00	密封	Seal	2
48	90460-38M06	软管卡箍	Clamp,Hose	2
49	6G8-44518-00	托架组	BracketComplete	1
50	6G8-44533-00	上侧减震胶垫	Damper, Upper Mount Rubber	2
51	90185-08057	卡环	Nut, Self-Locking	2
52	6G8-44521-00	密封	Seal	1
53	6G8-44532-00	上侧装配限位板	Stopper, Upper Mount	1
54	6G8-44551-01-4D	下侧减震胶垫壳	Housing, Lower Mount Rubber	1
55	6G8-44552-02-4D	下侧减震胶垫壳	Housing, Lower Mount Rubber	1
56	97095-06045	螺栓	Bolt	1
57	92995-06600	盘形垫	Washer	1
58	97095-06095	螺栓	Bolt	2
59	92995-06600	盘形垫	Washer	2
60	95380-06700	有槽螺母	Nut	3
61	6G8-44557-00	前下侧减震胶垫	Mount Damper, Lower Front	1
62	682-44555-00	下侧减震胶垫	Mount Damper, Lower Side	2
63	90101-08M88	螺栓	Bolt, Hexagon	2
64	92990-08600	盘形垫	Washer,Plate	2
65	95780-08300	带垫螺母	Nut, Flange	2
66	90201-08MA4	面板垫圈	Washer,Plate	2

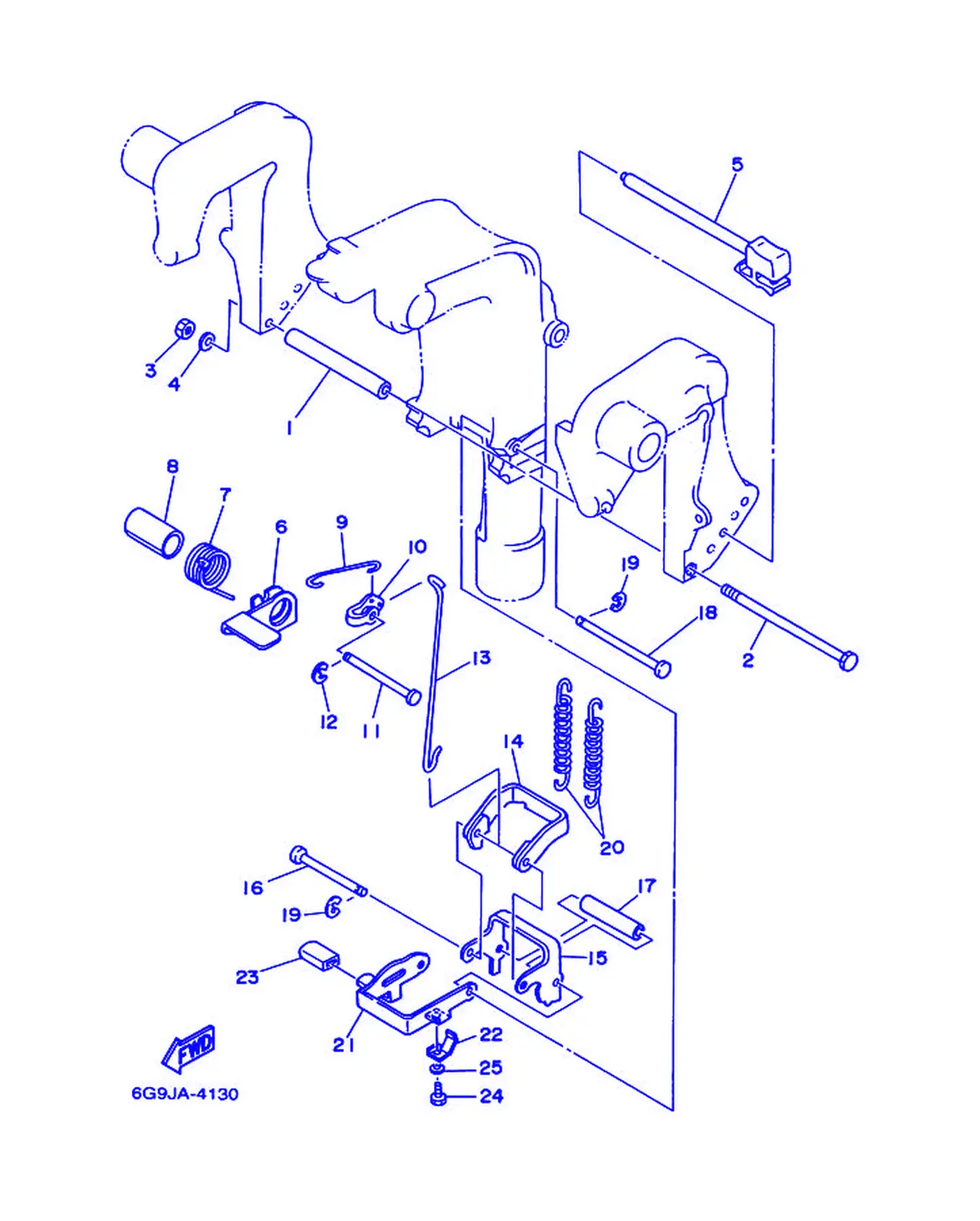

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	90387-06M09	六角法兰面螺栓	Color	1
2	97095-06135	带垫圈螺栓	Bolt	1
3	95380-06700	有槽螺母	Nut	1
4	92990-06600	面板垫圈	Washer,Plate	1
5	6G8-43160-01	角度定位杆组合	TiltRodAssembly	1
6	6G8-43631-03	角度定位杆	Lever,Tilt	1
7	90508-18M33	接头	Spring, Torsion	1
8	90386-20M94	衬套	Bushing	1
9	6G8-43616-00	角度定位锁紧杆	Rod,TiltLock	1
10	682-43641-00	角度定位杆	Lever,Tilt	1
11	90249-06M20	衬套	Pin	1
12	93430-05027	开口簧环，卡	Circlip	1
13	6G8-43617-00	角度定位锁紧杆	Rod,TiltLock	1
14	682-43614-00	角度定位锁紧面板	Plate,TiltLock	1
15	682-43615-01	角度定位锁紧面板	Plate,TiltLock	1
16	682-43611-01	角度定位锁紧轴	Shaft,TiltLock	1
17	90387-06M20	衬套	Color	1
18	682-43659-00	倒挡锁紧轴	Shaft, Reverse Lock	1
19	93430-05027	开口簧环，卡	Circlip	2
20	90506-26M01	面板垫圈	Spring, Tension	2
20	90506-26M07	接头	Spring, Tension	2
21	6G9-43681-00	浅水航行杆	Lever, Shallow Water Drive 1	1
22	6G9-43643-00	弹簧	Spring, Torsion	1
23	682-43318-01	盖	Cover	1
24	97095-06008	螺栓	Bolt	1
25	92990-06600	面板垫圈	Washer,Plate	1

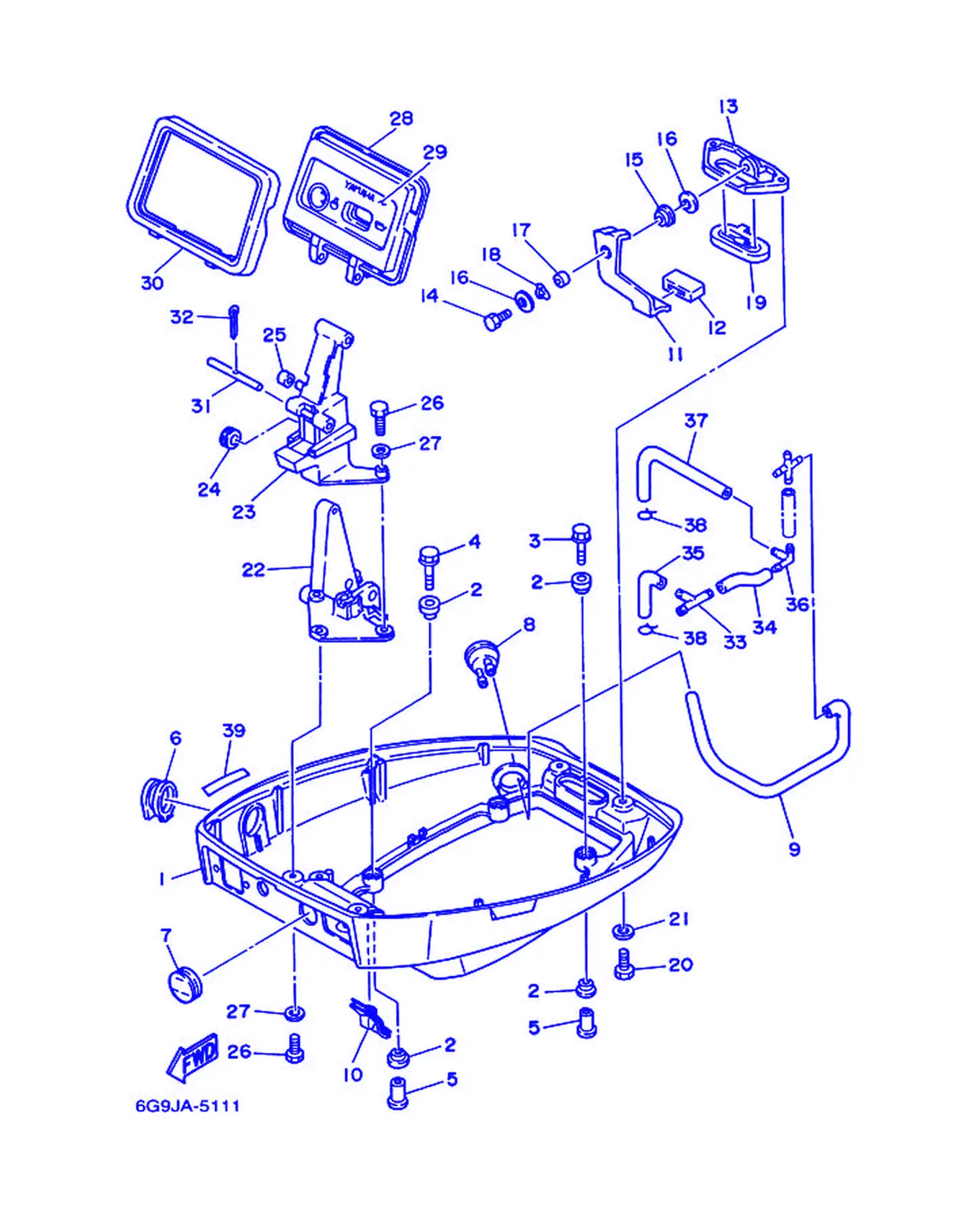

ボトムカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-42711-02-4D	底罩	Cowling, Bottom	1
2	90480-09M35	固定	Grommet	8
3	90119-06M56	卡环	Bolt, With Washer	2
4	90119-06M55	带垫螺栓	Bolt, With Washer	2
5	90387-06M15	衬套	Color	4
6	6G9-42724-00	固定	Grommet	1
7	6G8-42725-10	固定	Grommet	1
8	6G8-44391-00	软管管嘴	Nipple,Hose	1
9	90445-09163	固定	Hose	1
10	6G8-42727-00	固定	Grommet	1
11	6G8-42815-00	夹杆	Lever,Clamp	1
12	6G8-42831-00	衬套	Bushing	1
13	6G8-42811-00-94	支承	Stay	1
14	97013-06016	螺栓	Bolt	1
15	90386-08M49	衬套	Bushing	1
16	90201-06M31	面板垫圈	Washer,Plate	2
17	90387-06M72	衬套	Color	1
18	90206-08M13	带垫螺栓	Washer, Wave	1
19	6G8-42748-00	固定	Grommet	1
20	97095-06016	螺栓	Bolt	2
21	92995-06600	盘形垫	Washer	2
22	6G8-42738-00-94	装配面板	Plate, Fitting	1
23	6G8-42719-00-94	前下板	Panel, Front Lower	1
24	90480-19031	橡胶垫	Grommet	1
25	90445-05ME6	固定	Hose	1
26	97095-06016	螺栓	Bolt	4
27	92995-06600	盘形垫	Washer	4
28	6G8-42614-02	前上侧板	Panel, Front Upper	1
29	6G8-42677-00	前图样	Graphic, Front	1
30	6G8-42629-02	密封	Seal	1
31	6G8-42755-00	机罩铰链	Hinge, Cowling	1
32	91490-16010	开口销	Pin, Cotter	1
33	6G8-24379-00	连接管4	Pipe,Joint 4	1
34	90445-10M78	固定	Hose	1
35	6G8-12476-00	管6	Pipe 6	1
36	6G8-24378-01	连接管4	Pipe,Joint 3	1
37	6G8-12485-00	管5	Pipe 5	1
38	90467-10M04	带垫螺栓	Clip	2
39	6E0-44191-11	变挡指示器	Indicator, Shift	1

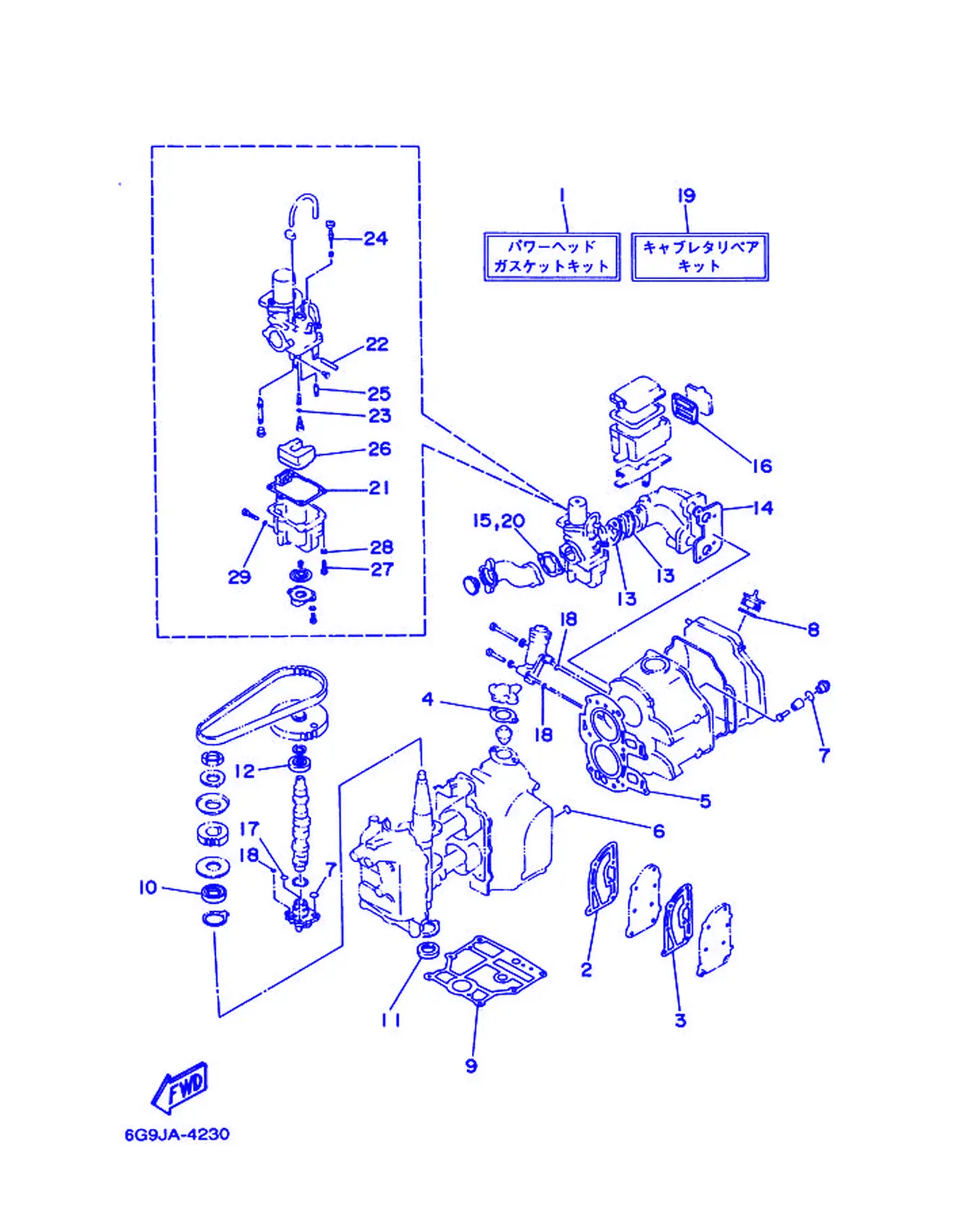

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-W0001-A3	衬垫套	Power Head Gasket Kit	1
2	6G8-41112-02	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
3	6G8-41114-00	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
4	6G8-12414-A0	盖衬垫	Gasket,Cover	1
5	6G8-11181-A1	气缸头垫片1	Gasket, Cylinder Head 1	1
6	93210-11M59	固定	O-ring	1
7	93210-13M63	O型圈	O-ring	3
8	93210-24M79	O型圈	O-ring	1
9	6G8-11351-A0	气缸衬垫	Gasket,Cylinder	1
10	93102-30M22	油封	OilSeal	1
11	93101-25M24	油封	OilSeal	1
12	93102-18M21	油封	OilSeal	1
13	6G8-13646-A0	岐管衬垫2	Gasket,Manifold 2	2
14	6G8-13645-00	岐管衬垫1	Gasket,Manifold 1	1
15	6G8-14198-A0	衬垫	Gasket	1
16	6G8-15374-00	通气器衬垫	Gasket, Breather	1
17	93210-10M61	衬套	O-ring	1
18	93210-09M01	卡环	O-ring	3
19	6G8-W0093-03	化油器修理套	CarburetorRepair Kit	1
20	6G8-14198-A0	衬垫	Gasket	1
21	6G8-14384-01	浮子室衬垫	Gasket, Float Chamber	1
22	647-14386-00	浮子销	Pin, Float	1
23	654-14198-00	衬垫	Gasket	1
24	6G8-14323-00	空气调整螺钉	Screw, Air Adjusting	1
25	6G8-14392-00	针阀	Valve, Needle	1
26	6G8-14385-00	浮子	Float	1
27	98580-04016	大柱头螺钉	Screw, Pan Head	4
28	92990-04100	盘形垫	Washer, Spring	4
29	5Y1-14397-00	O型圈	O-ring	1

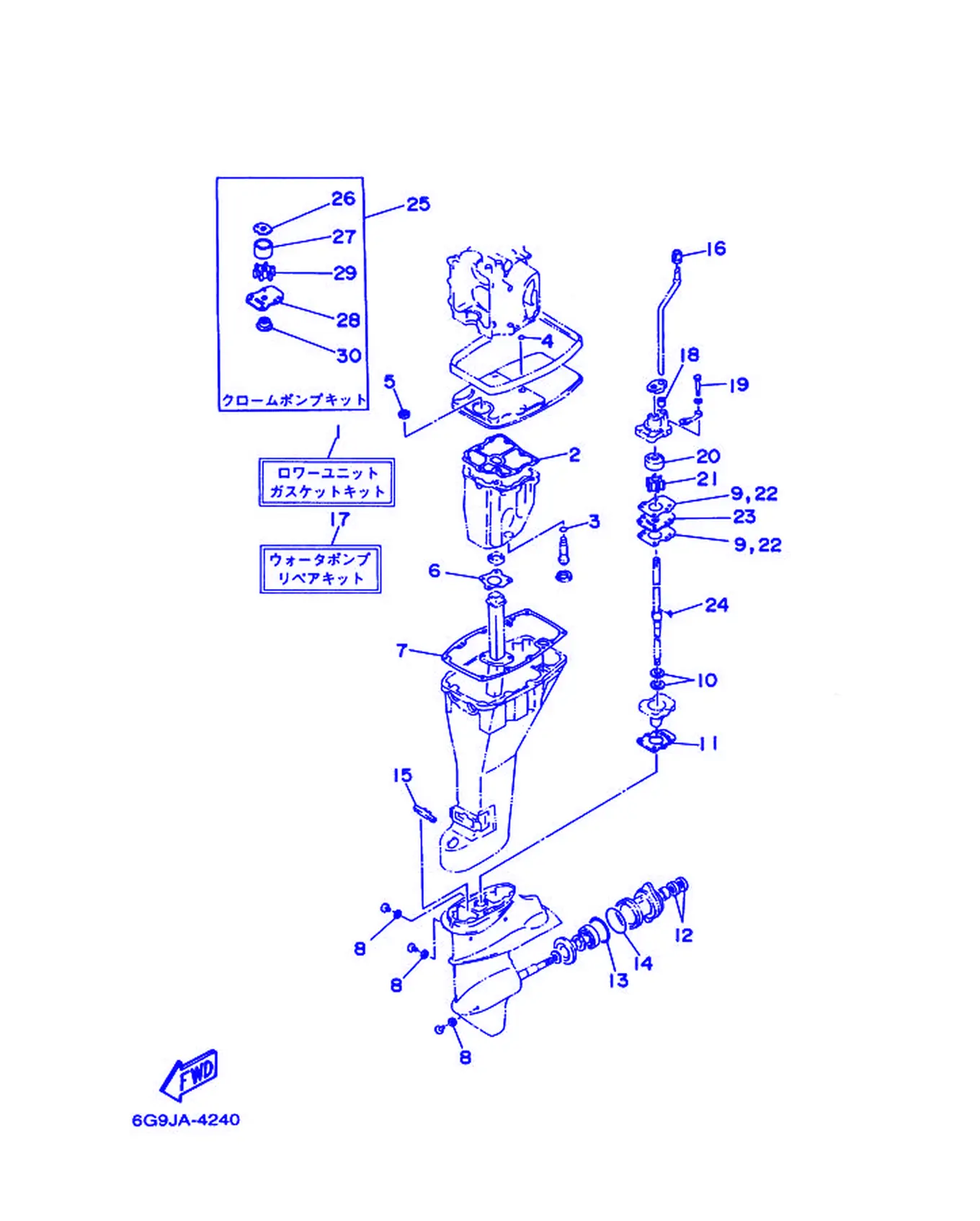

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6G9-W0001-C5	衬垫套	LowerUnitGasket Kit	1
2	6G8-15312-A0	油槽衬垫	Gasket, Oil Pan	1
3	93210-16M64	O型圈	O-ring	1
4	93210-08M60	六角螺栓	O-ring	1
5	93101-13M27	油封	OilSeal	1
6	6G8-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
7	6G8-45113-A1	水上装置壳体衬垫	Gasket,UpperCasing	1
8	90430-08020	固定	Gasket	3
9	682-44315-A0	水泵衬垫	Gasket,Water Pump	2
10	93101-20048	油封	OilSeal	2
11	683-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
12	93101-17054	油封	OilSeal	2
13	93210-57M09	O型圈	O-ring	1
14	93210-56M80	O型圈	O-ring	1
15	682-45375-01	密封圈减震	Damper,Seal	1
16	626-44365-01	水封减震器	Damper,WaterSeal	1
17	682-W0078-A2	水泵修理套	Water PumpRepair Kit	1
18	682-44365-00	水封减震器	Damper, Water Seal	1
19	97095-06045	螺栓	Bolt	4
20	682-44322-00	芯子	Insert, Cartridge	1
21	682-44352-01	叶轮	Impeller	1
22	682-44315-A0	水泵衬垫	Gasket,Water Pump	2
23	682-44323-00	外挡板	Outer Plate, Cartridge	1
24	90280-03024	半圆键	Key, Woodruff	1
25	682-W0078-0A	水泵修理套	Chrome Pump Kit	1
26	682-44321-40	内部面板	Inner Plate, Cartridge	1
27	682-44322-40	芯子	Insert, Cartridge	1
28	682-44323-40	外挡板	Outer Plate, Cartridge	1
29	682-44352-01	叶轮	Impeller	1
30	682-45344-00	油封盖	Cover, Oil Seal	1

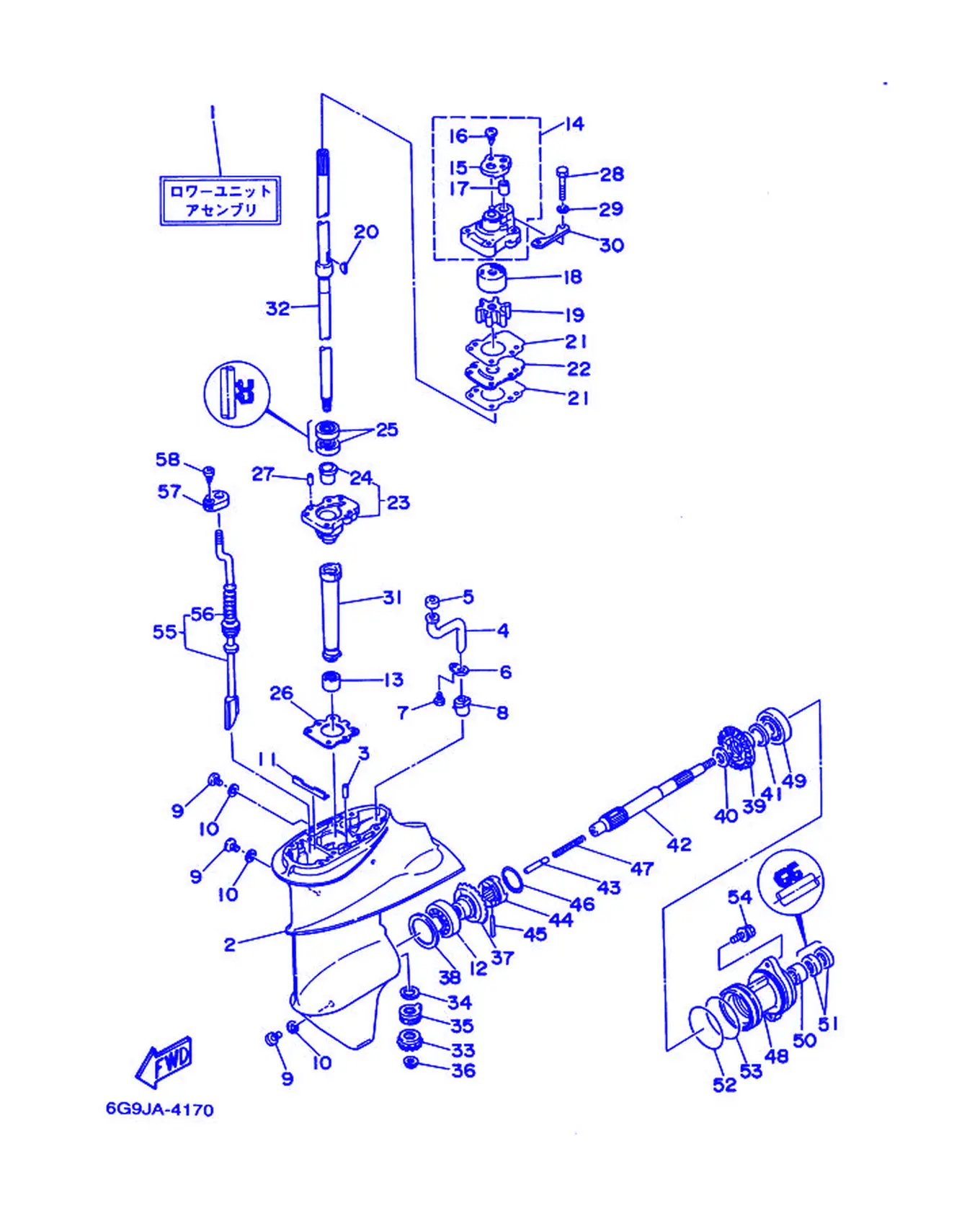

ロワーケーシング. ドライブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6G9-45300-16-4D	水下装置总成	LowerUnitAssembly	1
2	6E8-45311-00-4D	水下装置壳	Casing,Lower	1
3	93604-08062	定位销	Pin, Dowel	1
4	683-44362-01	水管	Tube, Water	1
5	683-44365-01	水封减震器	Damper,WaterSeal	1
6	683-44373-00	水管固定面板	Set Plate, Water Tube	1
7	97095-06010	螺栓	Bolt	1
8	6E7-44366-00	水封减震器	Damper,WaterSeal	1
9	90340-08M04	衬套	Plug, Straight Screw	3
10	90430-08020	固定	Gasket	3
11	682-45376-01	密封圈减震块导承	Guide,SealDamper	1
12	93332-00005	轴承	Bearing	1
13	93315-314V8	轴承	Bearing	1
14	682-44300-01	水泵壳体组合	Housing Water Pump Assembly	1
15	682-44312-00	水泵壳体盖	Cover, Water Pump Housing	1
16	97780-40112	自攻螺钉	Screw, Tapping	2
17	682-44365-00	水封减震器	Damper, Water Seal	1
18	682-44322-00	芯子	Insert, Cartridge	1
19	682-44352-01	叶轮	Impeller	1
20	90280-03024	半圆键	Key, Woodruff	1
21	682-44315-A0	水泵衬垫	Gasket,Water Pump	2
22	682-44323-00	外挡板	Outer Plate, Cartridge	1
23	6E7-45331-00-5B	轴承壳	Housing,Bearing	1
24	626-45316-09	驱动轴衬套	Bushing, Drive Shaft	1
25	93101-20048	油封	OilSeal	2
26	683-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
27	93606-12019	定位销	Pin, Dowel	2
28	97095-06045	螺栓	Bolt	4
29	92995-06600	盘形垫	Washer	4
30	682-44328-00	面板	Plate	2
31	6E7-45536-00	驱动轴套	Sleeve,Drive Shaft	1
32	6G9-45501-11	驱动轴组	Drive ShaftComplete	1
33	6E7-45551-00	小齿轮	Pinion	1
34	6E8-45587-00-13	填隙	Shim (T:1.13MM)	1
34	6E8-45587-00-20	填隙	Shim (T:1.20MM)	1
35	93341-414V1	轴承	Bearing, Thrust	1
36	90179-08M06	螺母	Nut	1
37	6E7-45560-00	齿	Gear	1
38	664-45567-01-10	填隙	Shim (T:0.10MM)	1
38	664-45567-01-12	填隙	Shim (T:0.12MM)	1
38	664-45567-01-15	填隙	Shim (T:0.15MM)	1
38	664-45567-01-18	填隙	Shim (T:0.18MM)	1
38	664-45567-01-30	填隙	Shim (T:0.30MM)	1
38	664-45567-01-40	填隙	Shim (T:0.40MM)	1
38	664-45567-01-50	填隙	Shim (T:0.50MM)	1
39	6E7-45571-00	齿轮	Gear	1
40	90201-17682	垫圈	Washer,Plate	1
41	626-45577-00-01	填隙	Shim (0.1MM)	1
41	626-45577-00-03	填隙	Shim (0.3MM)	1
41	626-45577-00-05	填隙	Shim (0.5MM)	1
42	683-45611-00	螺旋浆轴	Shaft,Propeller	1
43	650-45635-00	变挡柱	Plunger, Shift	1
44	682-45631-00	爪形离合器	Clutch, Dog	1
45	90250-05010	圆柱销	Pin, Straight	1
46	648-45633-00	十字	Ring, Cross Pin	1
47	90501-14M06	接头	Spring, Compression	1
48	683-45361-02-4D	水下装置壳体盖	Cap,Lower Casing	1
49	93306-00501	轴承	Bearing	1
50	93315-317U2	轴承	Bearing	1
51	93101-17054	油封	OilSeal	2
52	93210-57M09	O型圈	O-ring	1
53	93210-56M80	O型圈	O-ring	1
54	97595-06520	带垫圈螺	Bolt, With Washer	2
55	6G9-44150-10	变挡凸轮组合	Shift Cam Assembly	1
56	682-44147-00	变挡连杆衬套	Boot, Shift Rod	1
57	682-44176-00	托架	Bracket	1
58	97780-50510	自攻螺钉	Screw, Tapping	1

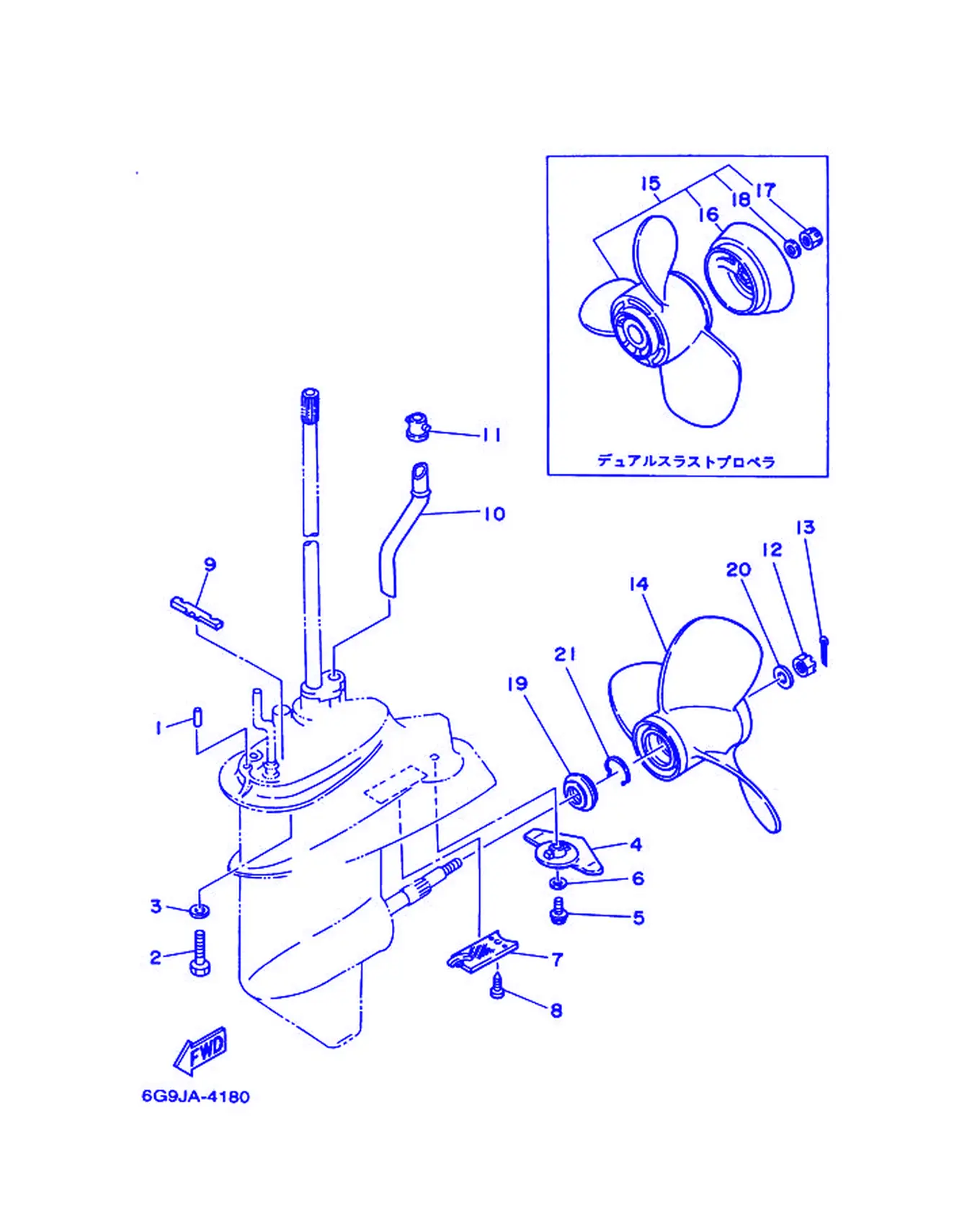

ロワーケーシング. ドライブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	93606-12019	定位销	Pin, Dowel	2
2	97075-08035	螺栓	Bolt	4
3	92995-08600	盘形垫	Washer	4
4	6E8-45251-02	阳极	Anode	1
5	95895-06020	凸缘螺	Bolt, Flange	1
6	92990-06300	盘形垫	Washer, Internal Tooth	1
7	6E7-45214-00	进水口盖	Cover, Water Inlet	1
8	97880-05012	大柱头螺钉	Screw, Pan Head	1
9	682-45375-01	密封圈减震	Damper,Seal	1
10	6G8-44361-10	水管	Tube, Water	1
11	626-44365-01	水封减震器	Damper,WaterSeal	1
12	90171-10M01	螺帽	Nut, Castle	1
13	91490-30020	开口销	Pin, Cotter	1
13	91490-30030	开口销	Pin, Cotter	1
14	683-45949-00-EL	螺旋浆	Propeller (3X9-1/2 X6-1/2 -J)	1
15	683-W4591-02-EL	螺旋桨	Propeller (3X9-3/4 X8 -J)	1
15	683-W4592-02-EL	螺旋桨	Propeller (3X9-3/4 X6-1/2 -J)	1
16	6E7-45986-00	偏向器	Ring, Deflector	1
17	90171-10M07	螺帽	Nut, Castle	1
18	90201-10M02	面板垫圈	Washer,Plate	1
19	6G9-45987-00	衬套	Spacer	1
20	90201-10M01	平垫圈	Washer,Plate	1
21	93450-10M05	卡环	Circlip	1
