雅马哈 F6C - F6CMHS

共 24 个部位，点击零件编码查看详情，或搜索本页零件。

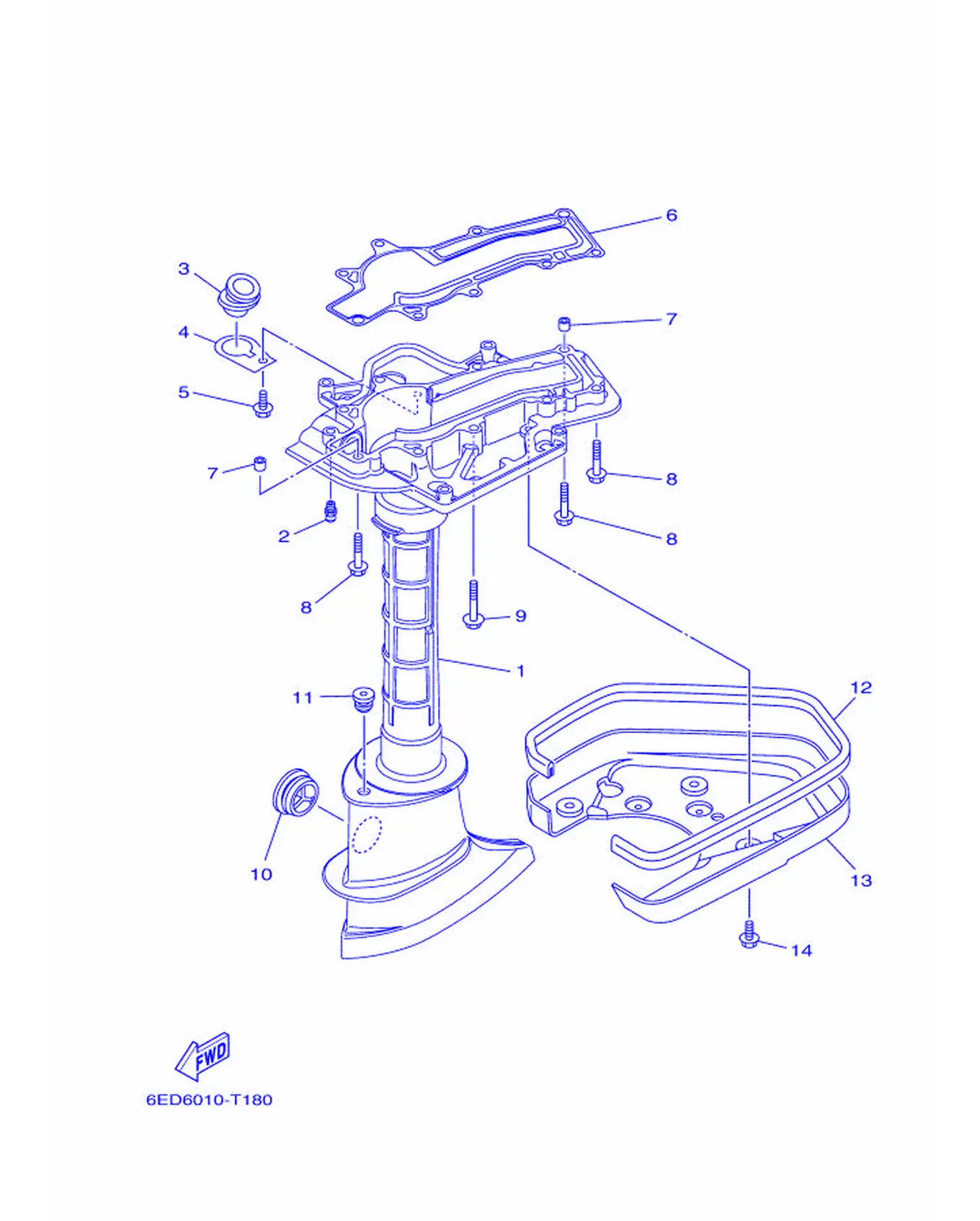

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-45111-00-8D	水上装置壳	Casing, Upper	1
2	93700-06004	翼形螺	Nipple, Grease	1
3	6BX-15316-00	减震垫1	Damper 1	1
4	6EE-45181-00	面板	Plate	1
5	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	1
6	6EE-45113-00	水上装置壳体衬垫	Gasket, Upper Casing	1
7	90387-06M14	安装环	Color	2
8	97E75-06540	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	5
9	97E75-06550	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	4
10	647-45151-02	水上装置壳体盖	Cover, Upper Casing	2
11	90480-10M13	固定	Grommet	1
12	6EE-42716-00	密封橡皮块1	Rubber Seal 1	1
13	6EE-42723-00	底盖	Cover, Bottom	1
14	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	4

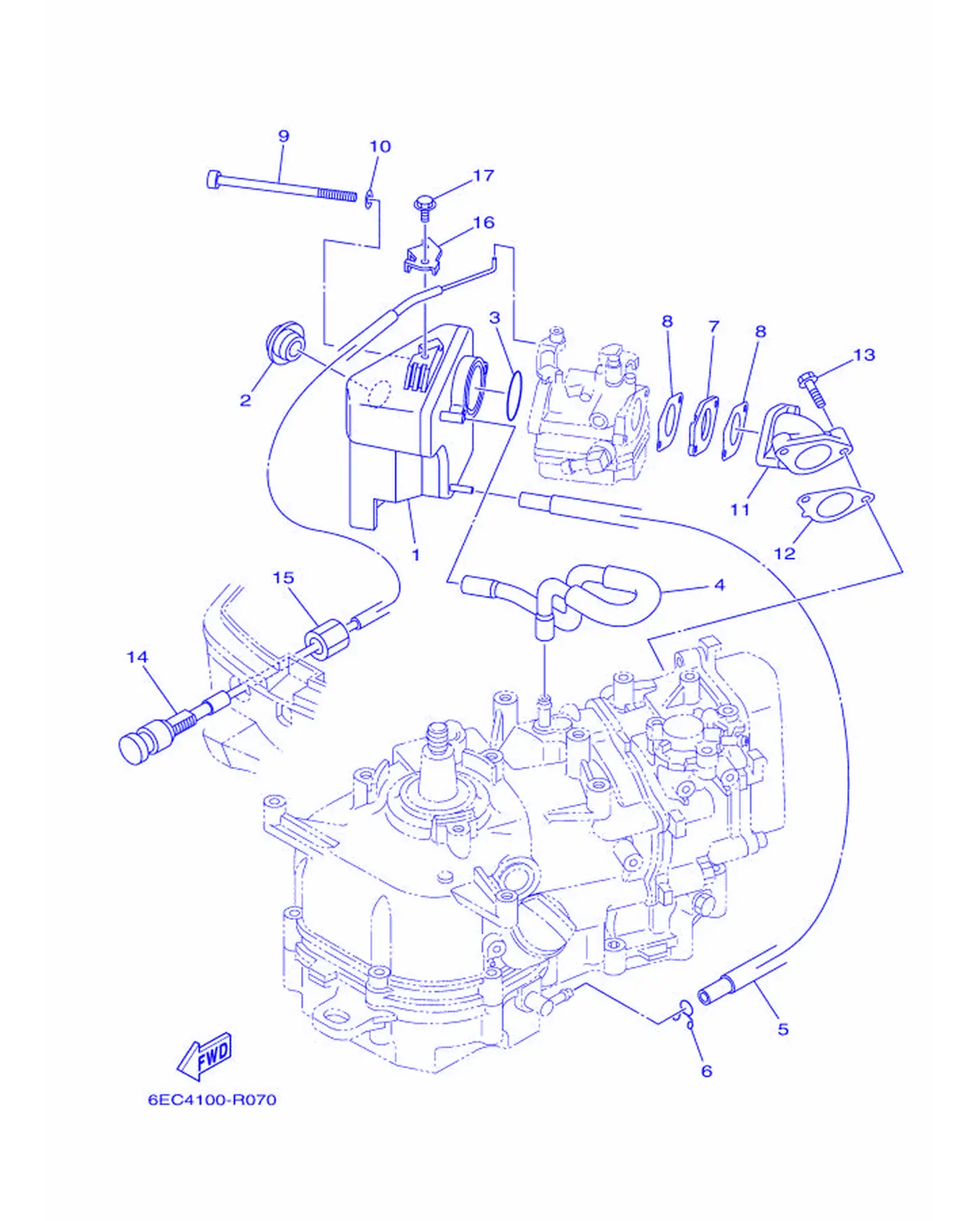

インテ-ク

REF	雅马哈编码	中文名称	英文名称	用量
1	6BX-14440-00	进气消声器组合	SilencerAssembly,Intake	1
2	90480-18M74	橡胶垫	Grommet	1
3	93210-320A7	O型圈	O-ring	1
4	6EE-24314-00	管4	Pipe 4	1
5	90445-09137	软管	Hose	1
6	90467-09M09	固定	Clip	1
7	6EE-13647-00	岐管衬垫3	Gasket, Manifold 3	1
8	6EE-13646-00	岐管衬垫2	Gasket, Manifold 2	2
9	90110-06350	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	2
10	90201-06106	平垫圈	Washer,Plate	2
11	6EE-13641-00	岐管1	Manifold, Intake 1	1
12	6EE-13645-00	岐管衬垫1	Gasket, Manifold 1	1
13	90119-06MA3	带垫螺栓	Bolt, With Washer	2
14	6EE-26330-00	起动器钢索组合	Starter Cable Assembly	1
15	90179-11001	螺母	Nut	1
16	6EE-13151-00	支架1	Stay	1
17	97595-05510	带垫圈螺栓	Bolt, Hexagon Head	1

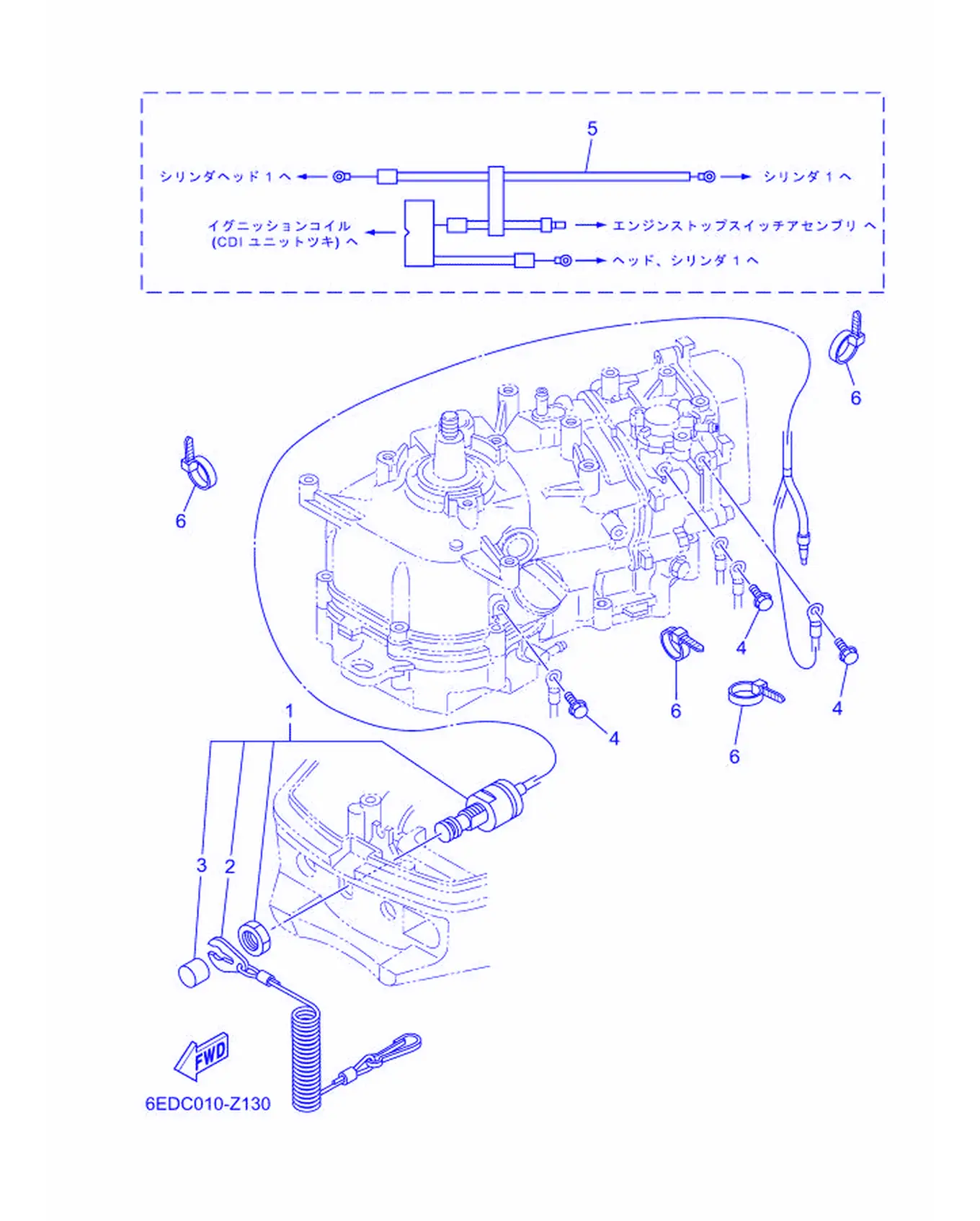

エレクトリカル

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-82575-00	发动机止动开关组合	Engine Stop Switch Assembly	1
2	682-82556-00	止动拉索	Stopper	1
3	689-8257Y-00	盖	Cap	1
4	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	3
5	6EE-82531-00	导线	Wire, Lead	1
6	90465-13M97	固定	Clamp	4

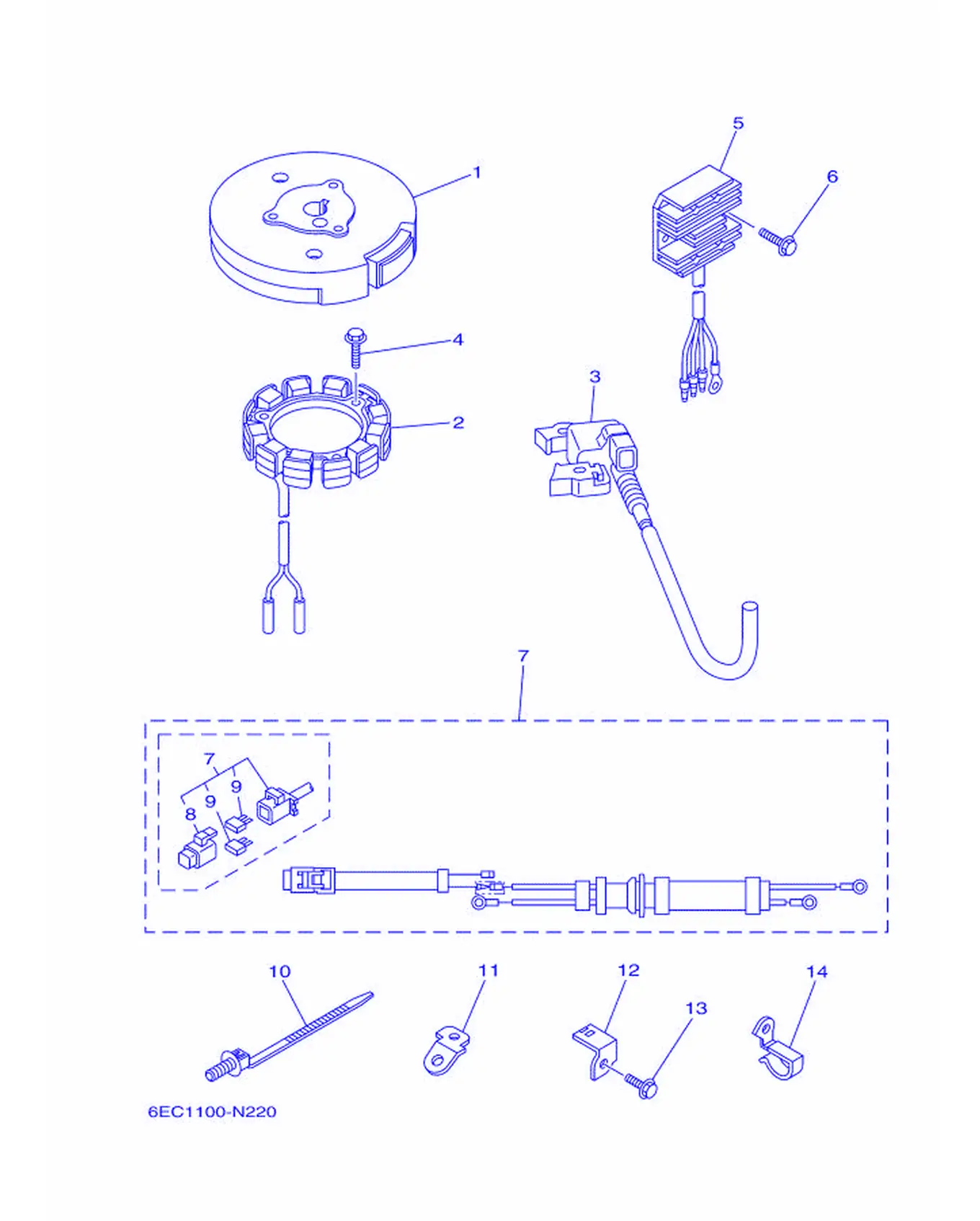

オプシヨナルパ-ツ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BX-85550-A0	转子总成	Rotor Assembly	1
2	6BX-85510-A0	定子总成	Lighting Coil Assembly	1
3	6BX-85571-00	点火线圈	Ignition Coil (with CDI Unit)	1
4	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	3
5	6BX-81960-00	整流调节器	Rectifier and Regulator	1
6	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	2
7	6BX-81949-00	导线	Wire,Lead	1
8	67F-8215B-00	断路器盖	Cap (Black)	1
9	67F-82151-00	保险丝	Fuse (20A)	2
10	90464-30009	线夹	Clamp	1
11	6BX-82581-00	线夹支承	Stay, Code Clamp	1
12	6BX-82388-00	面板	Plate	1
13	90109-06M80	螺栓	Bolt	1
14	90465-08371	线夹	Clamp	1

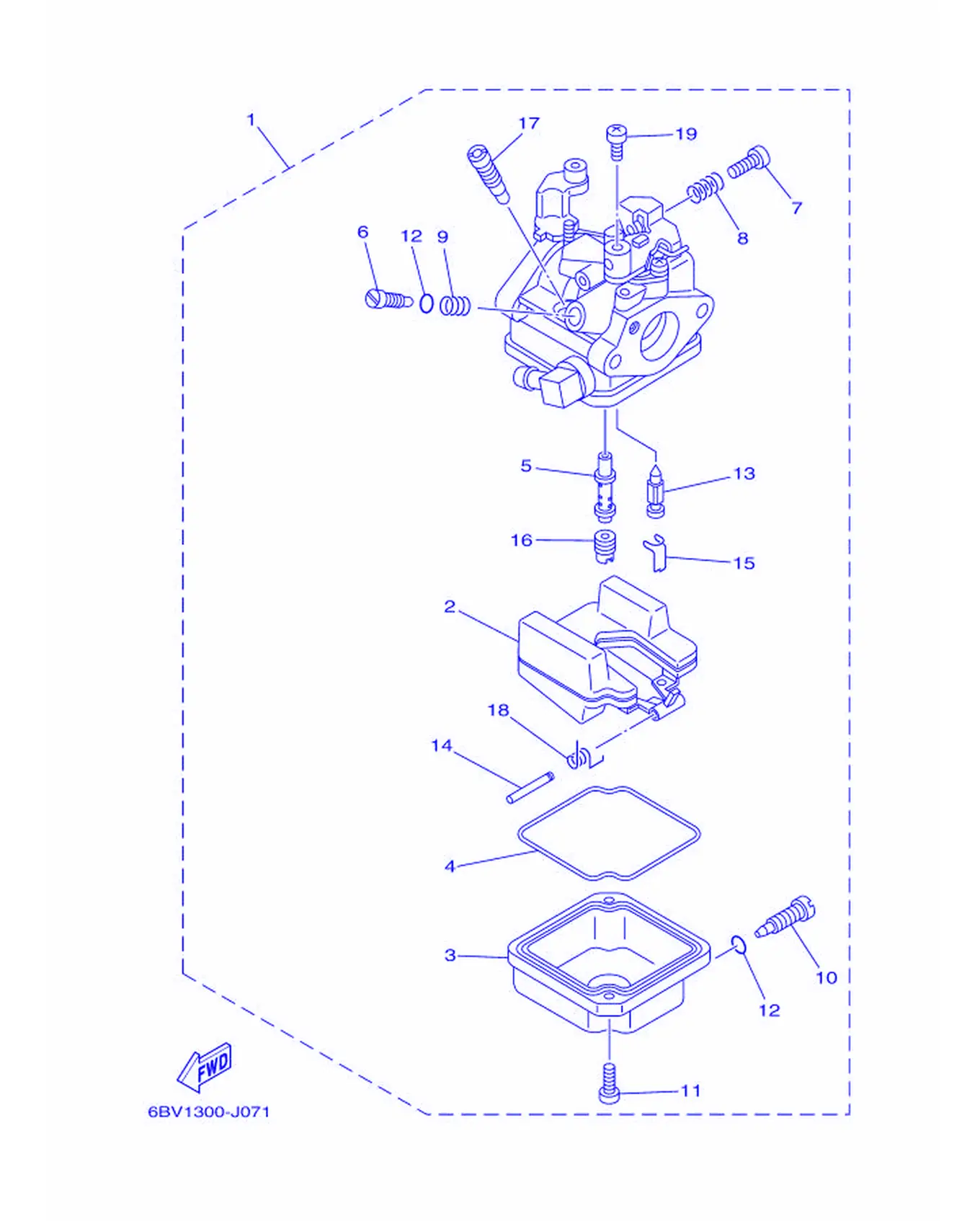

キヤブレタ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BX-14301-22	化油器总成1	Carburetor Assembly 1	1
2	6BX-14985-00	浮子	Float	1
3	6BX-14980-00	浮子室本	Body, Float Chamber	1
4	6BX-14984-00	浮子室衬垫	Gasket, Float Chamber	1
5	6BX-14947-01	针形量孔	Jet, Needle	1
6	6BX-14923-01	低速螺钉	Screw,Pilot	1
7	6BX-14523-00	止动螺钉	Screw, Stop	1
8	6BX-14555-00	弹簧	Spring	1
9	6BX-14935-00	弹簧	Spring	1
10	6BX-14991-00	螺钉	Screw	1
11	6BX-14592-00	螺钉	Screw	2
12	67F-14398-10	衬垫	O-ring	2
13	6BX-14546-00	阀门	Valve, Needle	1
14	6BX-14548-00	浮子臂销	Pin, Float Arm	1
15	6BX-14937-00	钢夹	Clip	1
16	6BX-14943-17	主量孔	Jet,Main (#75)	1
17	6BX-14948-04	量孔	Jet (#42)	1
18	6BX-14556-00	弹簧	Spring	1
19	98580-04006	大柱头螺钉	Screw, Pan Head	1

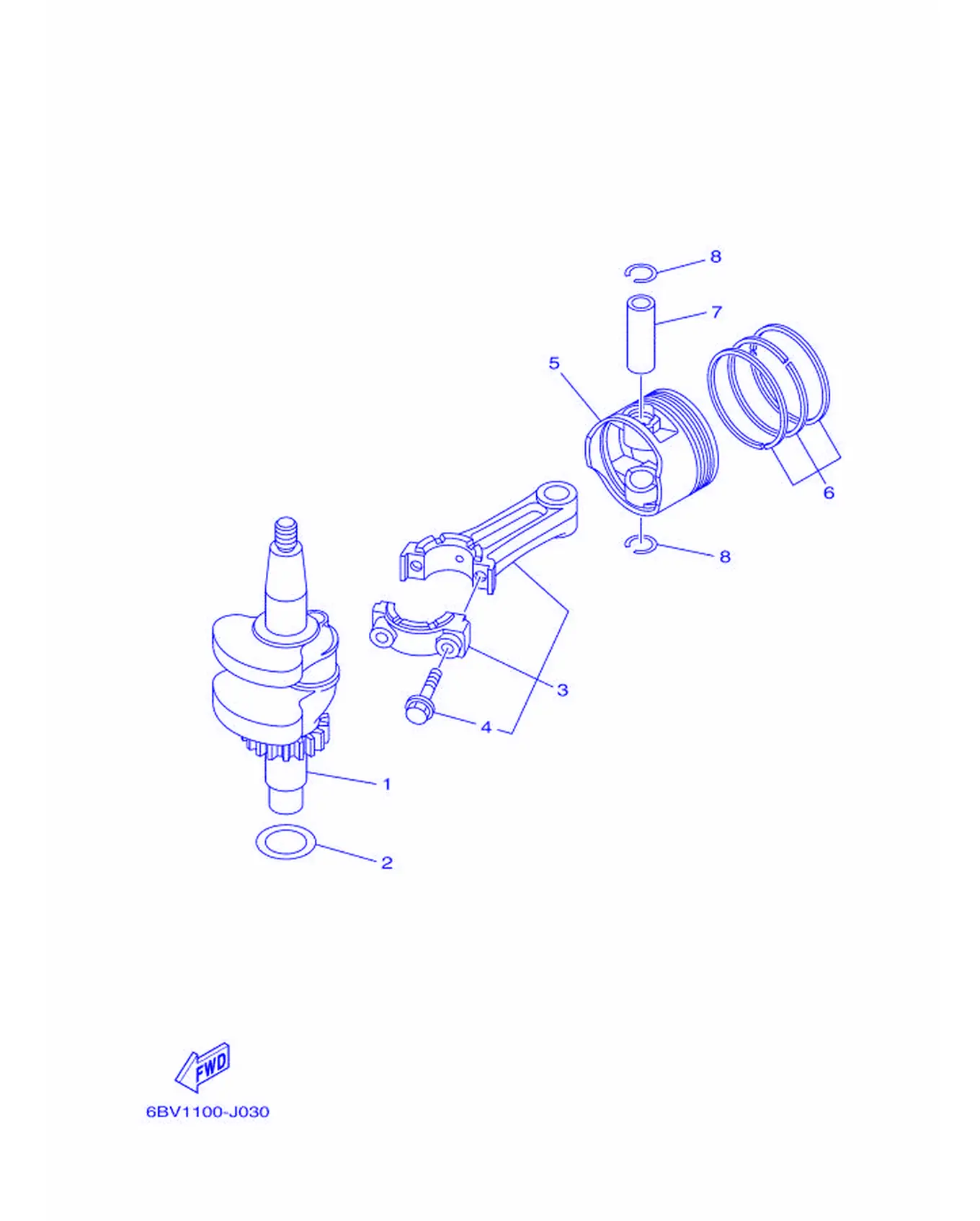

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-11410-00	曲轴	Crankshaft	1
2	90201-266P2	平垫圈	Washer,Plate	1
3	6EE-11650-00	连杆组合	Connecting Rod Assembly	1
4	6EE-11654-00	连杆螺栓	Bolt, Connecting Rod	2
5	6EE-11631-00-96	活塞	Piston (STD)	1
5	6EE-11635-00	活塞	Piston (0.25MM O/S)	1
5	6EE-11636-00	活塞	Piston (0.50MM O/S)	1
6	6EE-11603-00	活塞环套件	Piston Ring Set (STD)	1
6	6EE-11604-00	活塞环套件	Piston Ring Set (0.25MM O/S)	1
6	6EE-11605-00	活塞环套件	Piston Ring Set (0.50MM O/S)	1
7	6EE-11633-00	活塞销	Pin, Piston	1
8	93450-16068	卡环	Circlip	2

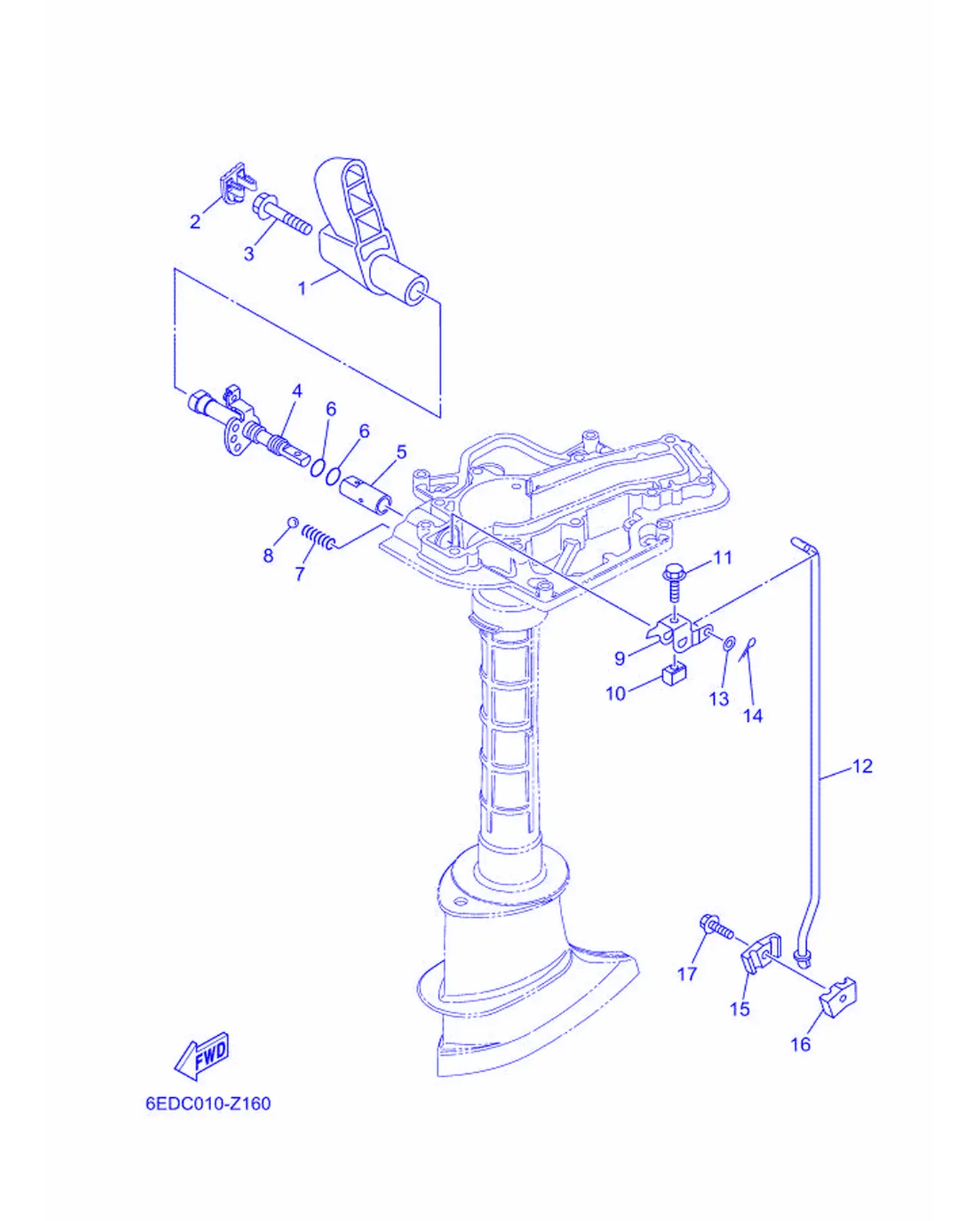

コントロ-ル

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-44111-00	变挡手柄	Handle, Gear Shift	1
2	6EE-43679-00	限位板	Cover	1
3	90105-08046	六角法兰面螺栓	Bolt, Flange	1
4	6EE-44119-00-8D	变挡轴	Shaft, Change	1
5	6EE-44122-00	变挡杆杠杆衬套	Bushing, Shift Rod Lever	1
6	93210-09350	O型圈	O-ring	2
7	90501-12274	接头	Spring, Compression	1
8	93505-16024	滚珠	Ball	1
9	6EE-44121-00	变挡杆杠杆	Lever, Shift Rod	1
10	6BX-18175-01	隔套	Spacer	1
11	90119-05M04	带垫圈六角头螺栓	Bolt, With Washer	1
12	6BX-44143-00	变挡连杆	Rod, Shift	1
13	92990-05600	盘形垫	Washer,Plate	1
14	91490-16010	开口销	Pin, Cotter	1
15	6EE-44145-00	变挡连杆接头	Connector, Shift Rod 1	1
16	6EE-44146-00	变挡连杆接头	Connector, Shift Rod 2	1
17	90119-06256	带垫圈六角头螺栓	Bolt, With Washer	1

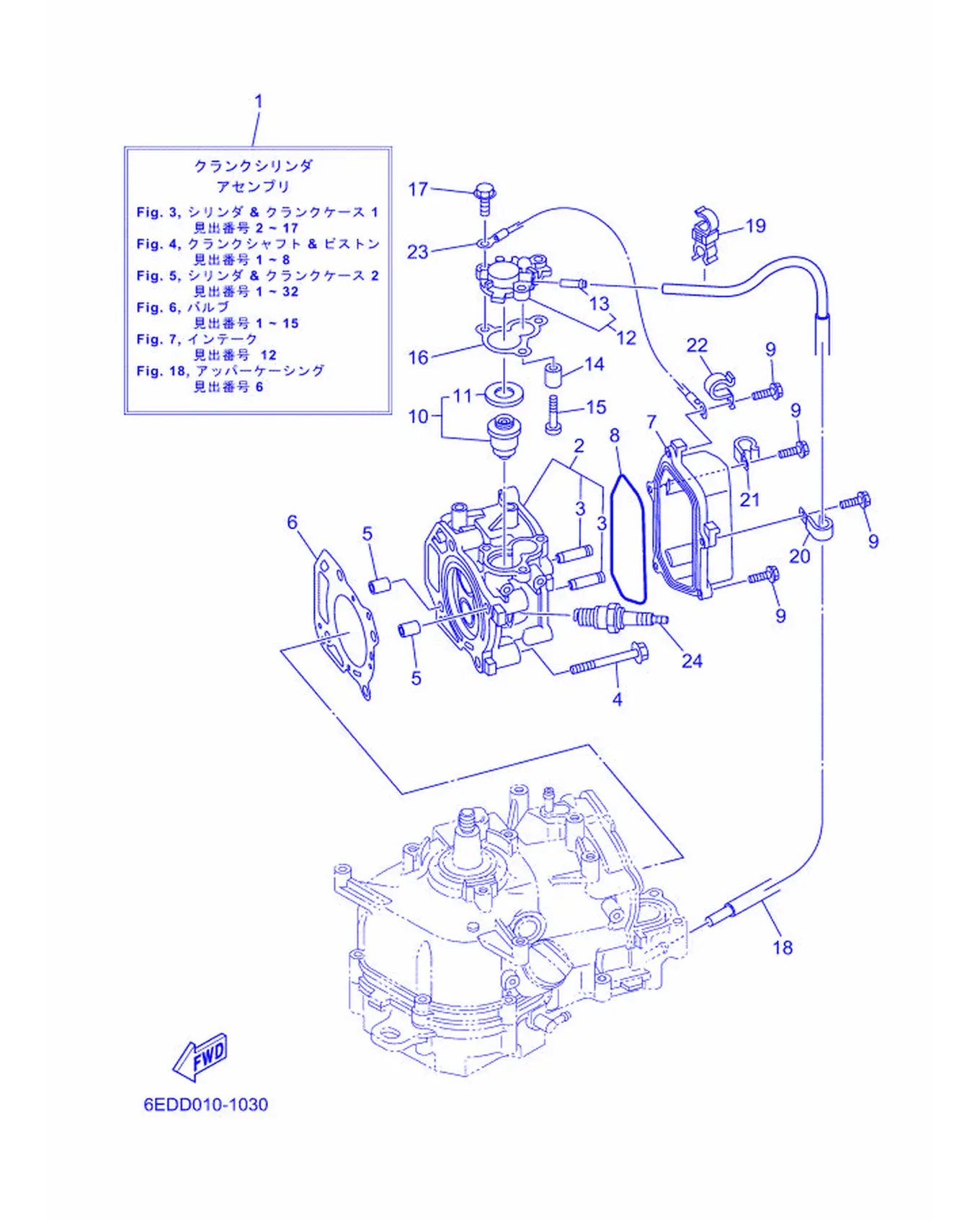

シリンダ & クランクケース 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-W0090-00-1S	气缸曲柄组合	Crank Cylinder Assembly	1
2	6EE-11111-00-1S	气缸头1	Head, Cylinder 1	1
3	67D-11133-10	进气门导管	Guide,Valve 1	2
4	90105-08M36	六角螺栓	Bolt, Flange	4
5	99530-10114	定位销	Pin, Dowel	2
6	6BX-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
7	6EE-11191-00	气缸盖罩1	Cover, Cylinder Head 1	1
8	6BX-11356-00	气缸密封圈2	Seal,Cylinder 2	1
9	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	5
10	66M-12411-01	温控器	Thermostat	1
11	688-12412-00	温控器密封	Seal,Thermostat	1
12	6EE-12413-00-1S	温控器盖	Cover, Thermostat	1
13	650-24378-00	连接管4	Pipe,Joint 4	1
14	6G8-11325-00	阳极	Anode	1
15	98980-05025	十字槽盘头螺钉	Screw, Bind	1
16	67D-12414-A0	盖衬垫	Gasket, Cover	1
17	90119-06MA2	卡环	Bolt, With Washer	3
18	90445-09136	软管	Hose	1
19	90464-09021	线夹	Clamp	1
20	90465-06M86	夹箍	Clamp	1
21	90465-06M86	夹箍	Clamp	1
22	90465-08371	线夹	Clamp	1
23	6EE-82519-00	接地线	Wire, Earth Lead	1
24	94709-00372	火花塞	Plug, Spark (NGK CR6HSB)	1

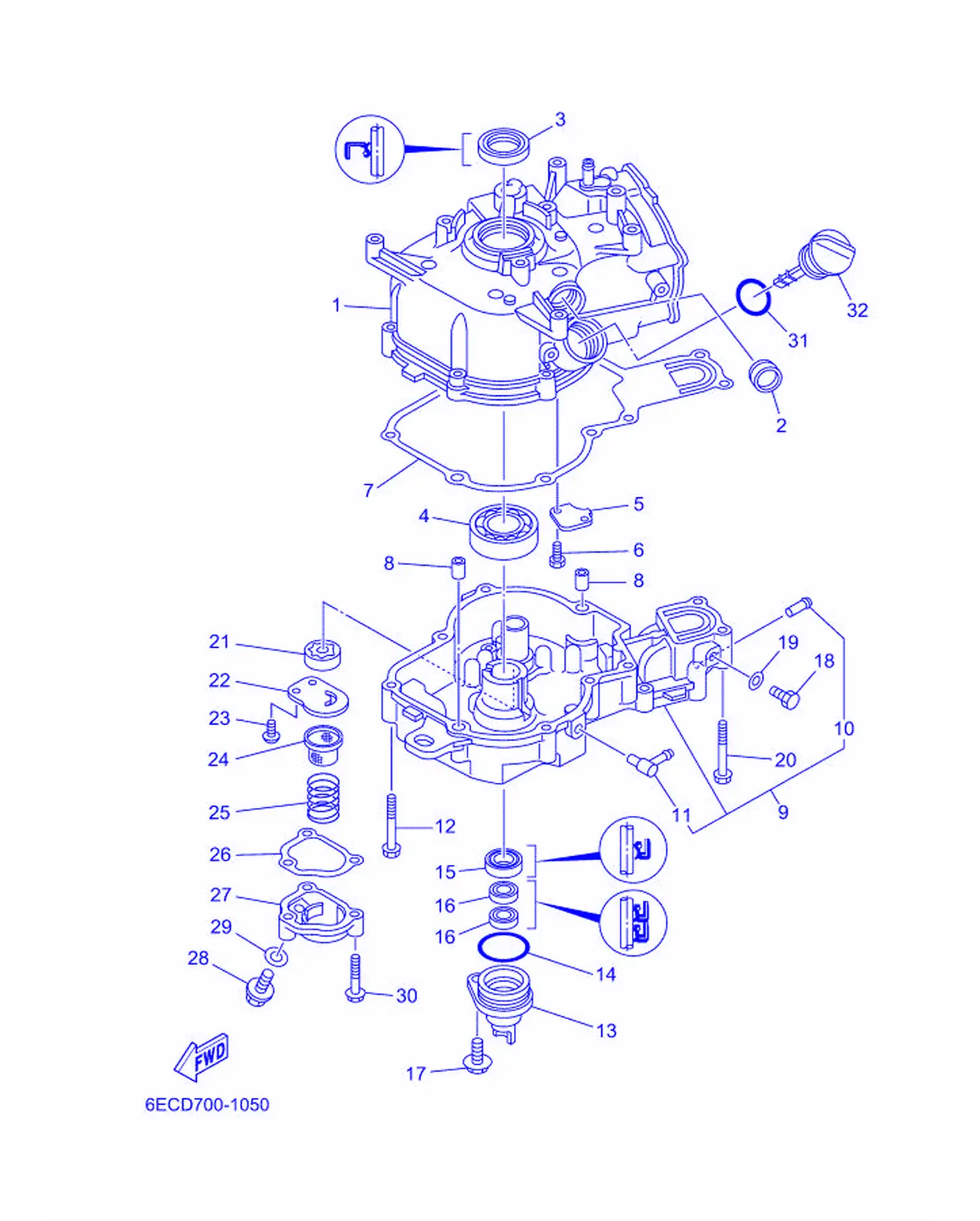

シリンダ & クランクケース 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-11311-00-1S	气缸1	Cylinder 1	1
2	3Y6-15361-00	油标	Gauge, Level	1
3	93102-25022	油封	Oil Seal	1
4	93306-205B2	轴承	Bearing	1
5	6EE-11168-00	通气管盖	Cover, Breather	1
6	97013-05010	螺栓	Bolt	2
7	6BX-11351-00	气缸垫片1	Gasket, Cylinder	1
8	99530-10114	定位销	Pin, Dowel	2
9	6EE-15111-00-1S	曲轴箱1	Crankcase 1	1
10	650-24378-00	连接管4	Pipe,Joint 4	1
11	676-11372-00	软管接头	Nipple,Hose	1
12	97513-06550	飞轮塞	Bolt, with Washer	8
13	6EE-15396-00-CA	油封壳	Housing, Oil Seal	1
14	93210-35537	O型圈	O-ring	1
15	93102-20108	油封	OilSeal	1
16	93102-10004	油封	OilSeal	2
17	97E95-08520	螺栓	Bolt, Hexagon with Washer Deep Recess	1
18	97D95-08014	螺栓	Bolt, Hexagon Deep Recess	1
19	90430-08143	衬垫	Gasket	1
20	97513-06550	飞轮塞	Bolt, with Washer	2
21	6EE-13310-00	转子总成1	Rotor Assembly 1	1
22	6EE-13316-00	泵盖	Cover, Pump	1
23	98517-06012	螺栓	Screw, Pan Head	2
24	51Y-13411-00	机油过滤网	Strainer,Oil	1
25	90501-18576	压簧	Spring, Compression	1
26	6EE-13475-00	衬垫	Gasket	1
27	6EE-13417-00-1S	滤网盖	Cover, Strainer	1
28	90105-08M76	六角螺栓	Bolt, Flange	1
29	90201-08124	平垫圈	Washer, Plate	1
30	97E75-06535	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	3
31	93210-24M79	O型圈	O-ring	1
32	6EE-15362-00	油标塞	Plug, Oil Level	1

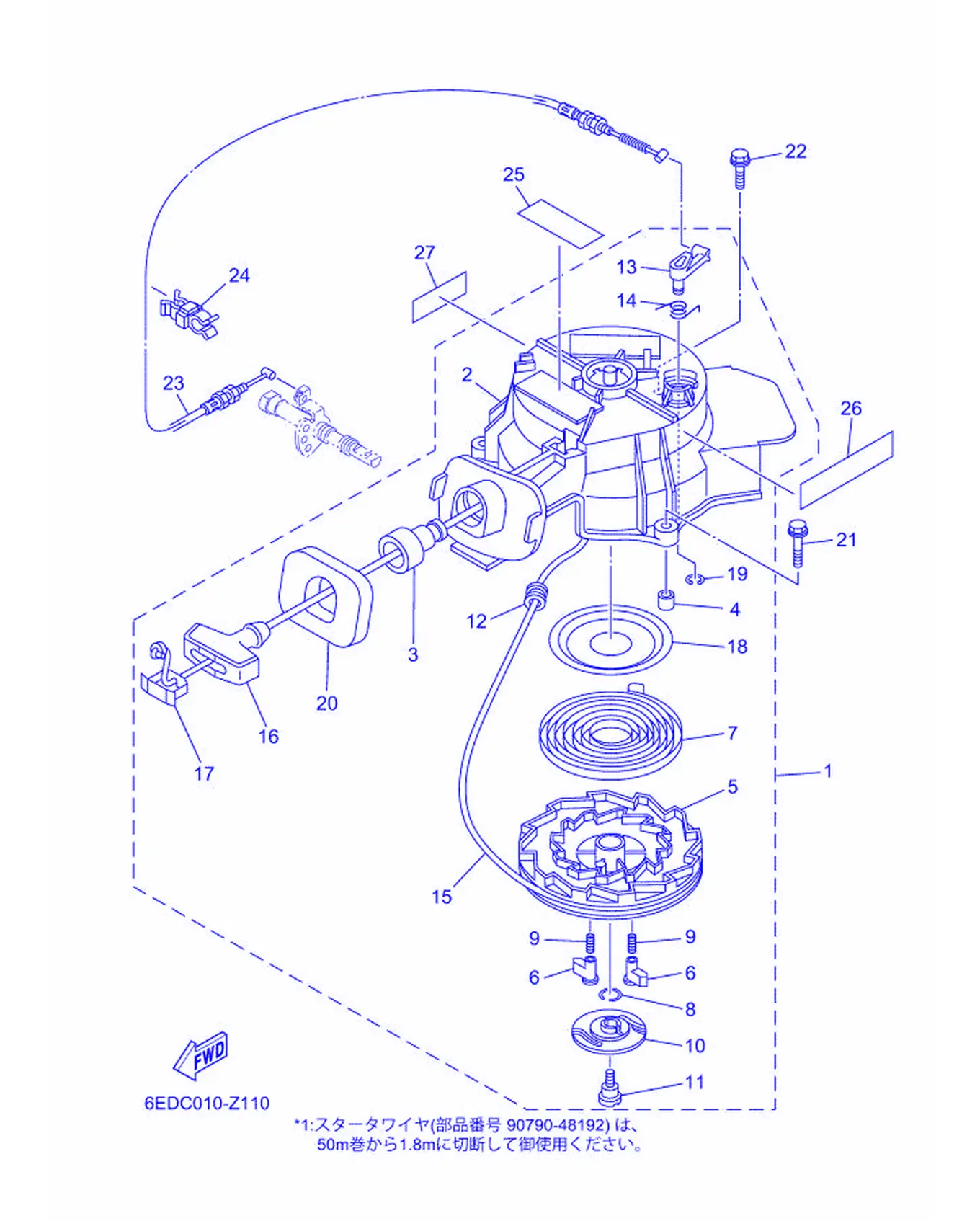

スタ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-15710-00	起动器组合	Starter Assembly	1
2	6EE-15711-00	起动器箱	Case,Starter	1
3	63V-15795-01	钢夹	Guide, Rope	1
4	67D-15764-00	安装环1	Collar 1	3
5	6EE-15714-00	拉索卷	Drum, Sheave	1
6	67D-15741-00	驱动爪	Pawl, Drive	2
7	67D-15713-00	起动器弹簧	Spring,Starter	1
8	6BX-15705-00	驱动爪弹簧	Spring, Drive Pole	1
9	67D-15767-00	弹簧	Spring	2
10	67D-15735-00	凸轮导向装置	Guide,Cam	1
11	67D-15793-00	螺钉	Screw	1
12	68T-15764-00	安装环1	Collar 1	1
13	67D-15794-01	限位板	Stopper	1
14	67D-15734-00	回位弹簧	Spring, Return	1
16	6G1-15755-00	起动器手	Handle,Starter	1
17	6G1-15779-00	盖	Cover	1
18	67D-15739-00	推力垫	Washer, Thrust	1
19	67D-15744-00	卡圈	Circlip	1
20	6BX-15762-00	橡皮密封圈2	Seal,Rubber 2	1
21	97E95-06535	螺栓	Bolt, Hexagon with Washer Deep Recess	2
22	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	1
23	6EE-15770-00	起动器止动钢索组	Cable Complete, Starter Stop	1
24	90464-07008	固定	Clamp	1
25	6EE-81995-01	警告标签	Label, Warning	1
26	6EE-14427-00	指示牌	Label, Instruction	1
27	6EE-81994-01	警告标签	Label, Safety	1

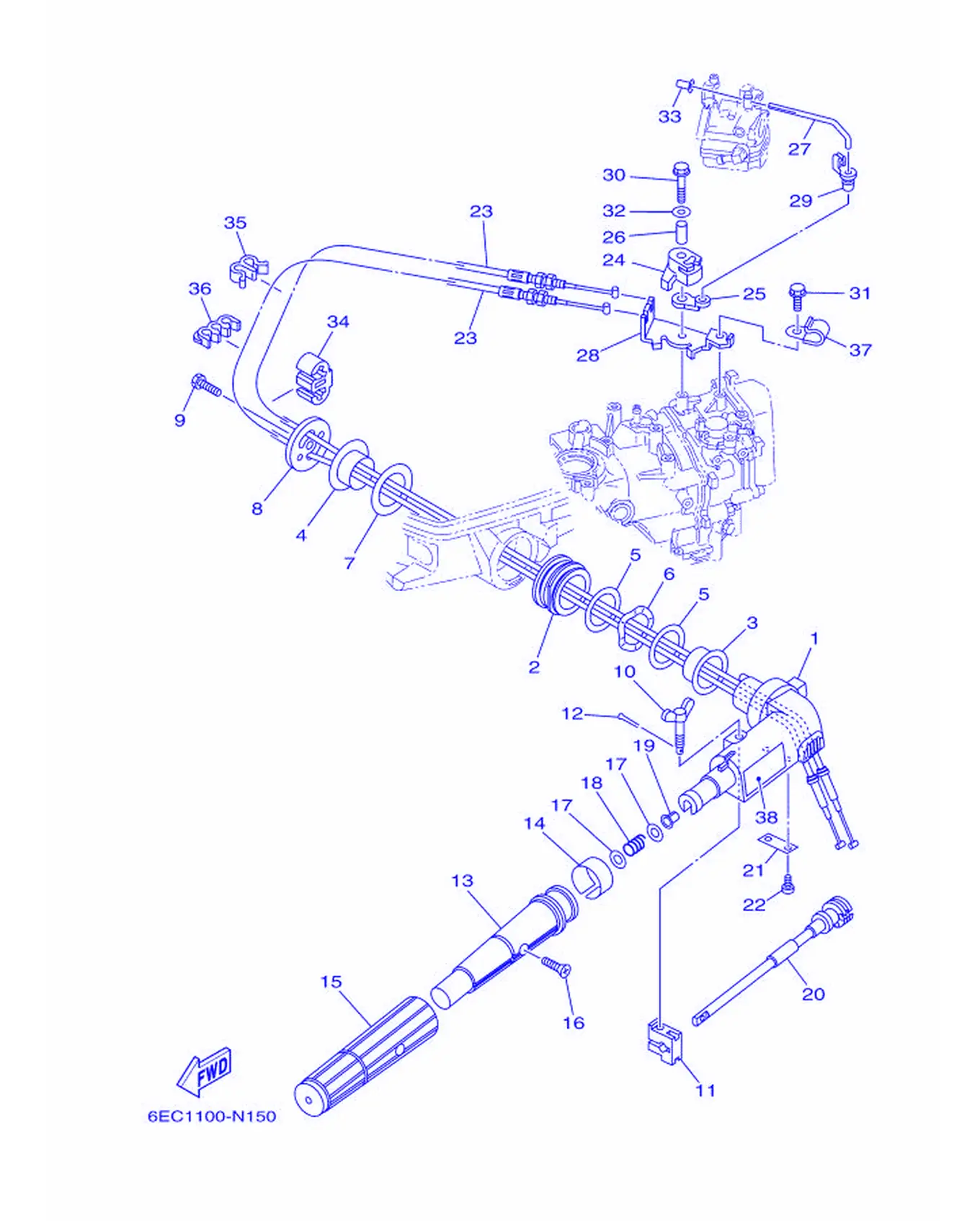

ステアリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-42111-00-8D	方向手	Handle, Steering	1
2	6BX-42129-00	橡皮衬套	Bushing,Rubber	1
3	6EE-42171-00	衬套	Bushing	1
4	6EE-42172-00	衬套2	Bushing 2	1
5	6EE-42181-00	垫圈	Washer	2
6	6EE-42188-00	波形垫片	Washer, Wave	1
7	6EE-42182-00	垫圈 2	Washer 2	1
8	6BX-42131-00	方向手把盖	Cover,HandleSteering	1
9	97D75-08025	螺栓	Bolt, Hexagon Deep Recess	1
10	6G1-42125-01	阻力调整螺	Bolt, Friction Adjust	1
11	6G1-42126-00	方向手把握把摩擦	Friction, Steering Handle	1
12	91490-16010	开口销	Pin, Cotter	1
13	67D-42119-01	方向手把握	Grip,SteeringHandle	1
14	6EE-42137-00	油门指示器	Indicator, Throttle	1
15	67D-42177-01	手把橡皮	Rubber, Handle	1
16	90152-05011	沉头螺钉	Screw, Countersunk	1
17	90201-10M02	面板垫圈	Washer,Plate	2
18	90501-23215	接头	Spring, Compression	1
19	90386-08032	衬套	Bushing	1
20	6BX-42138-00	油门杆	Lever,Throttle	1
21	6E0-42159-02	支承	Stay	1
22	97885-05012	大柱头螺钉	Screw, Pan Head	2
23	6EE-26301-00	节气门拉索总成1	Throttle Cable Assembly	2
24	6BX-41638-00	滑	Pulley	1
25	6BX-41283-00	空转油门杠杆	Lever, Free Accelerator	1
26	90387-06252	轴套	Color	1
27	6EE-41211-00	加速器连杆	Link, Accelerator	1
28	6EE-14497-00	油门钢索支承	Stay, Throttle Wire	1
29	661-41262-02	阻风门杠杆接头	Joint, Choke Lever	1
30	97E95-06535	螺栓	Bolt, Hexagon with Washer Deep Recess	1
31	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
32	90201-06M62	平垫圈	Washer,Plate	1
33	647-14395-61	溢流管盖	Cap, Overflow Pipe	1
34	90464-06006	线夹	Clamp	2
35	90464-07M20	固定	Clamp	1
36	90464-07M05	固定	Clamp	1
37	90465-08395	固定	Clamp	1
38	6EE-42794-01	警告标志	Label, Warning (General)	1

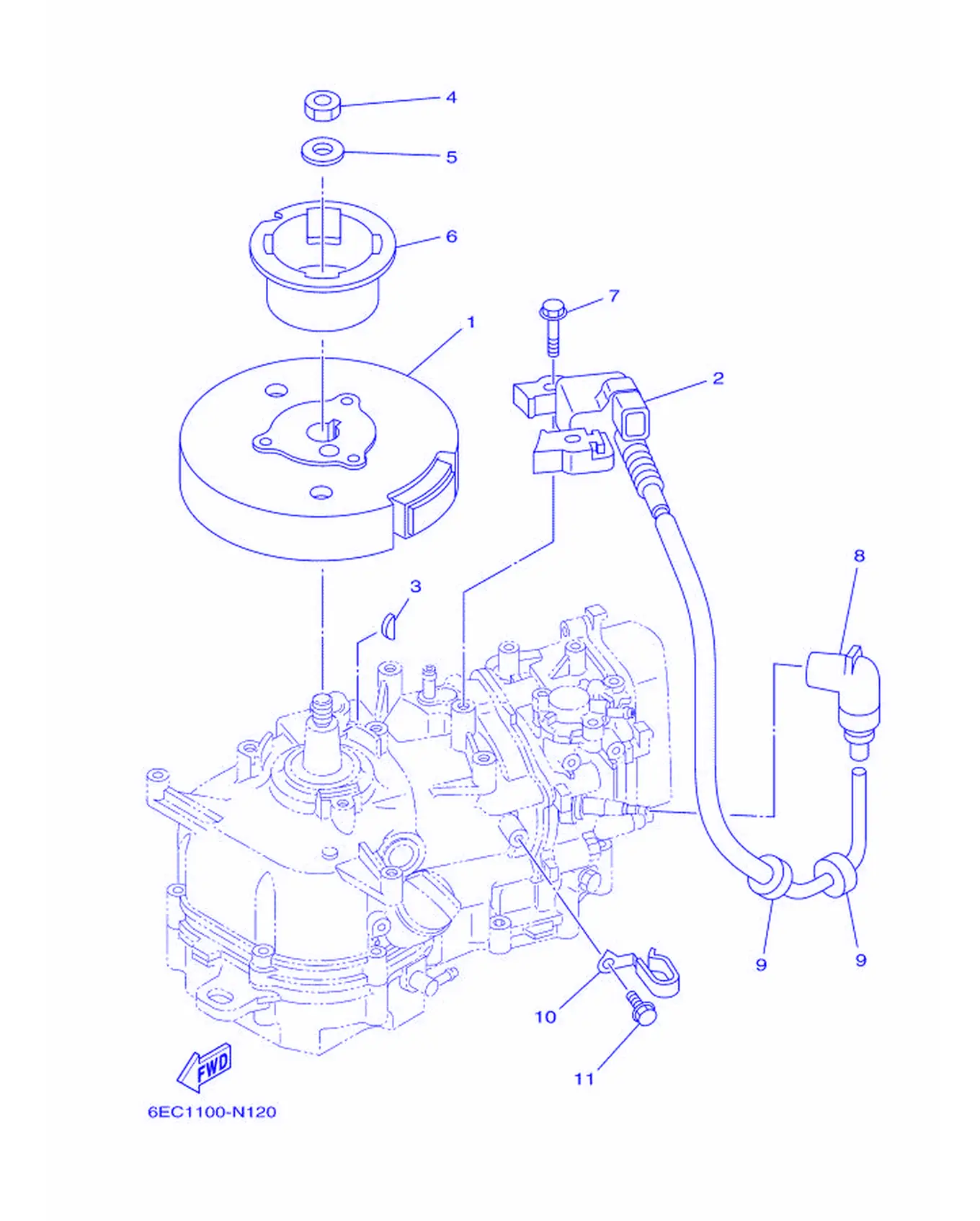

ゼネレ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BX-85550-00	转子总成	Rotor Assembly	1
2	6BX-85571-00	点火线圈	Ignition Coil (with CDI Unit)	1
3	90280-04M06	半圆键	Key, Woodruff	1
4	90170-12066	螺帽	Nut	1
5	90201-12472	平垫圈	Washer,Plate	1
6	6BX-15723-00	起动器滑	Pulley, Starter	1
7	90105-06037	螺栓	Bolt, Flange	2
8	6BX-82370-00	火花塞帽总成	PlugCapAssembly	1
9	90480-25161	固定	Grommet	2
10	90465-08361	线夹	Clamp	1
11	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1

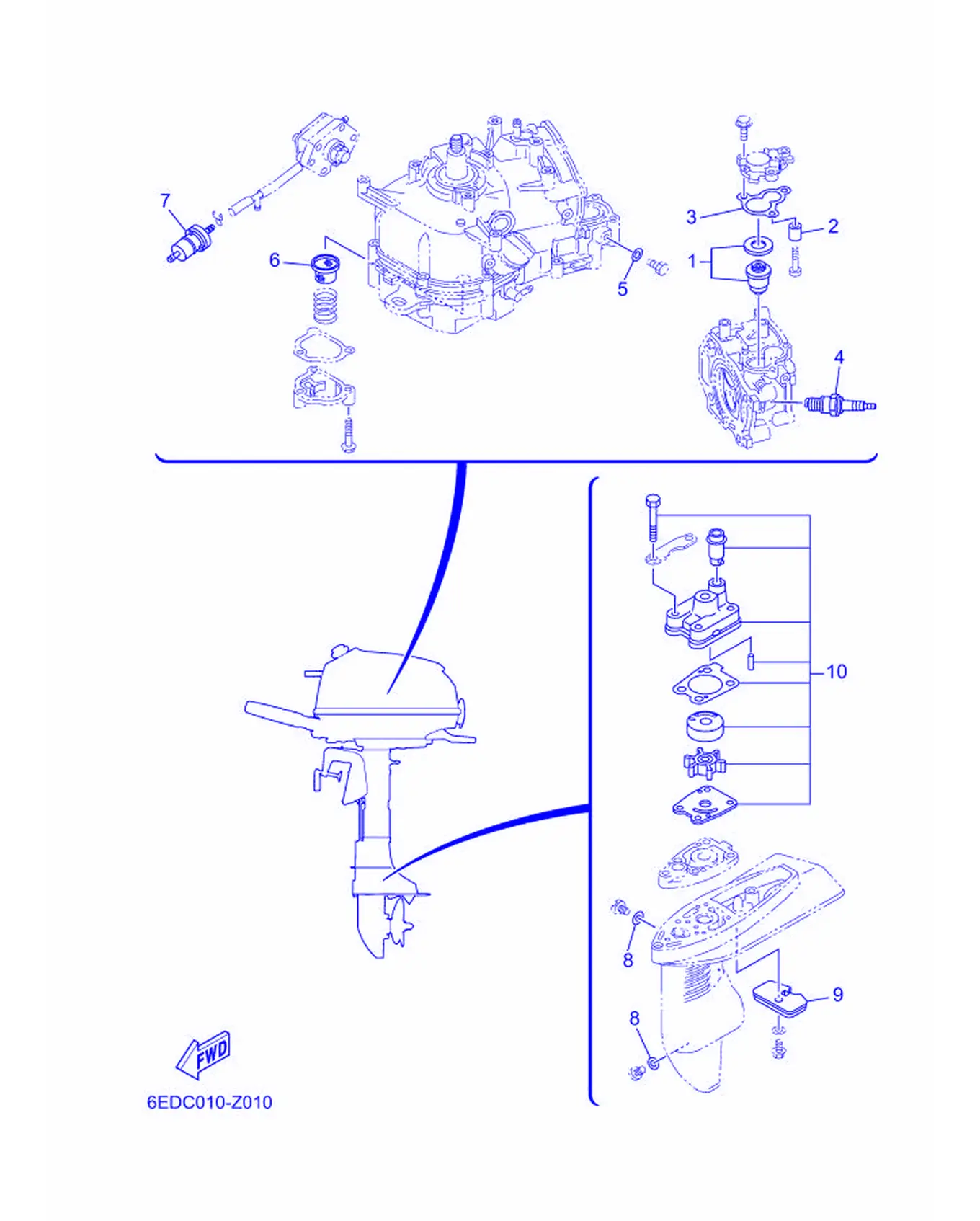

テイキコウカンブヒン

REF	雅马哈编码	中文名称	英文名称	用量
1	66M-12411-01	温控器	Thermostat	1
2	6G8-11325-00	阳极	Anode	1
3	67D-12414-A0	盖衬垫	Gasket, Cover	1
4	94709-00372	火花塞	Plug, Spark (NGK CR6HSB)	1
5	90430-08143	衬垫	Gasket	1
6	51Y-13411-00	机油过滤网	Strainer,Oil	1
7	68T-24251-01	滤网1	Strainer 1	1
8	90430-08003	垫片	Gasket	3
9	6L5-45251-03	阳极	Anode	1
10	6EE-W0078-03	水泵修理套	Water Pump Repair Kit	1

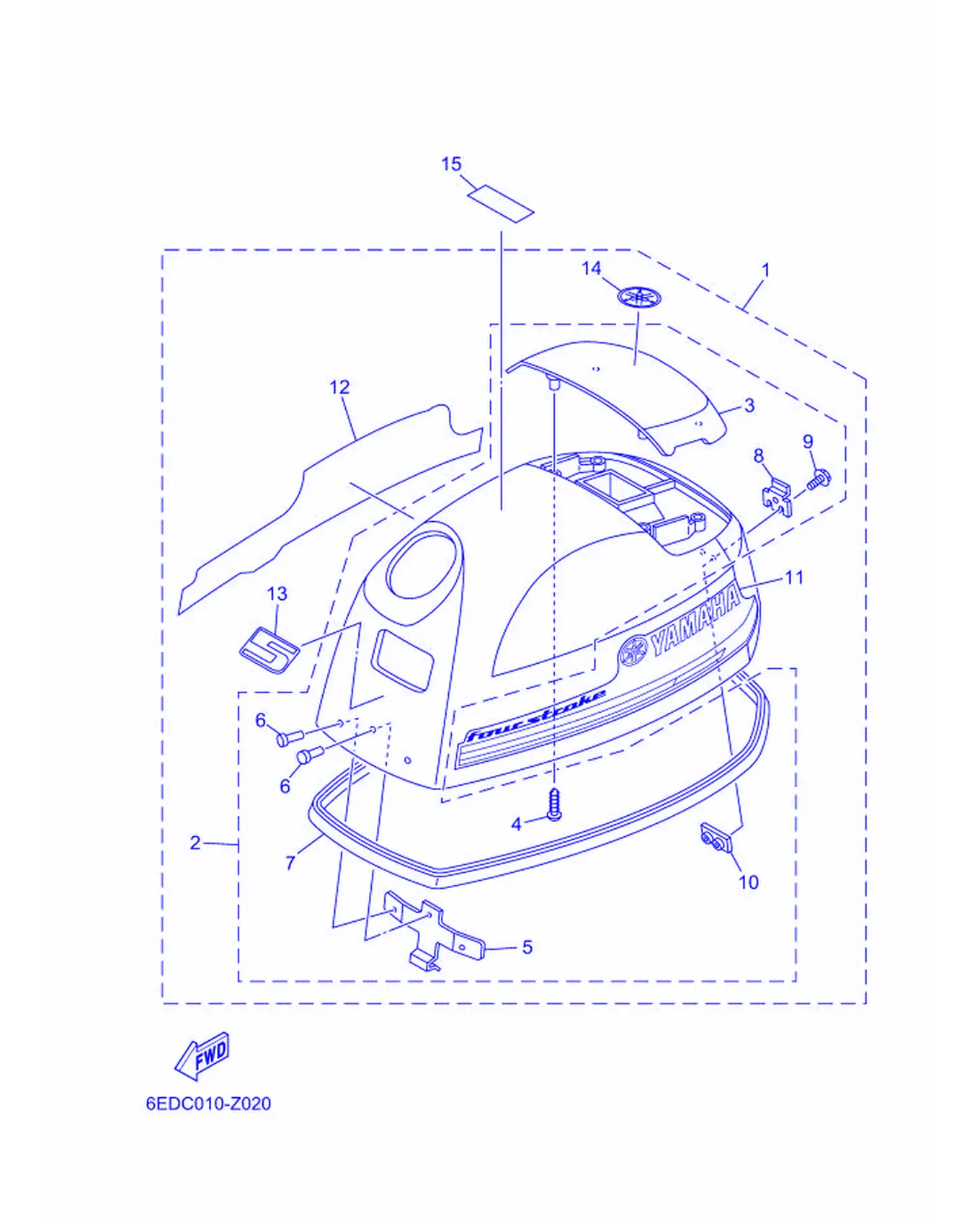

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-42610-00	顶罩组合	Top Coupling Assembly	1
2	6EE-4261A-00	顶罩组合	Top Cowling (Graphic)	1
3	6EE-42613-00	空气导管嵌	Molding, Air Duct	1
4	97780-40012	自攻螺钉	Screw, Tapping	4
5	6EE-42651-00	钩	Fook	1
6	90266-04M04	螺丝	Rivet	3
7	6BX-42615-00	密封	Seal	1
8	60R-42652-00	钩	Fook	1
9	97595-05514	螺栓	Bolt, With Washer	2
10	68T-42649-00	夹带支架	Holder, Clamp Band	1
11	6EE-42675-00	侧面图样1	Graphic, Side 1	1
12	6EE-42676-00	侧面图样2	Graphic, Side 2	1
13	6EE-42677-00	前图样	Graphic, Front	1
14	6BX-42697-10	音叉标志	Tuning Fork Mark	1
15	6EE-42698-01	警告标签	Label, Warning (Fuel)	1

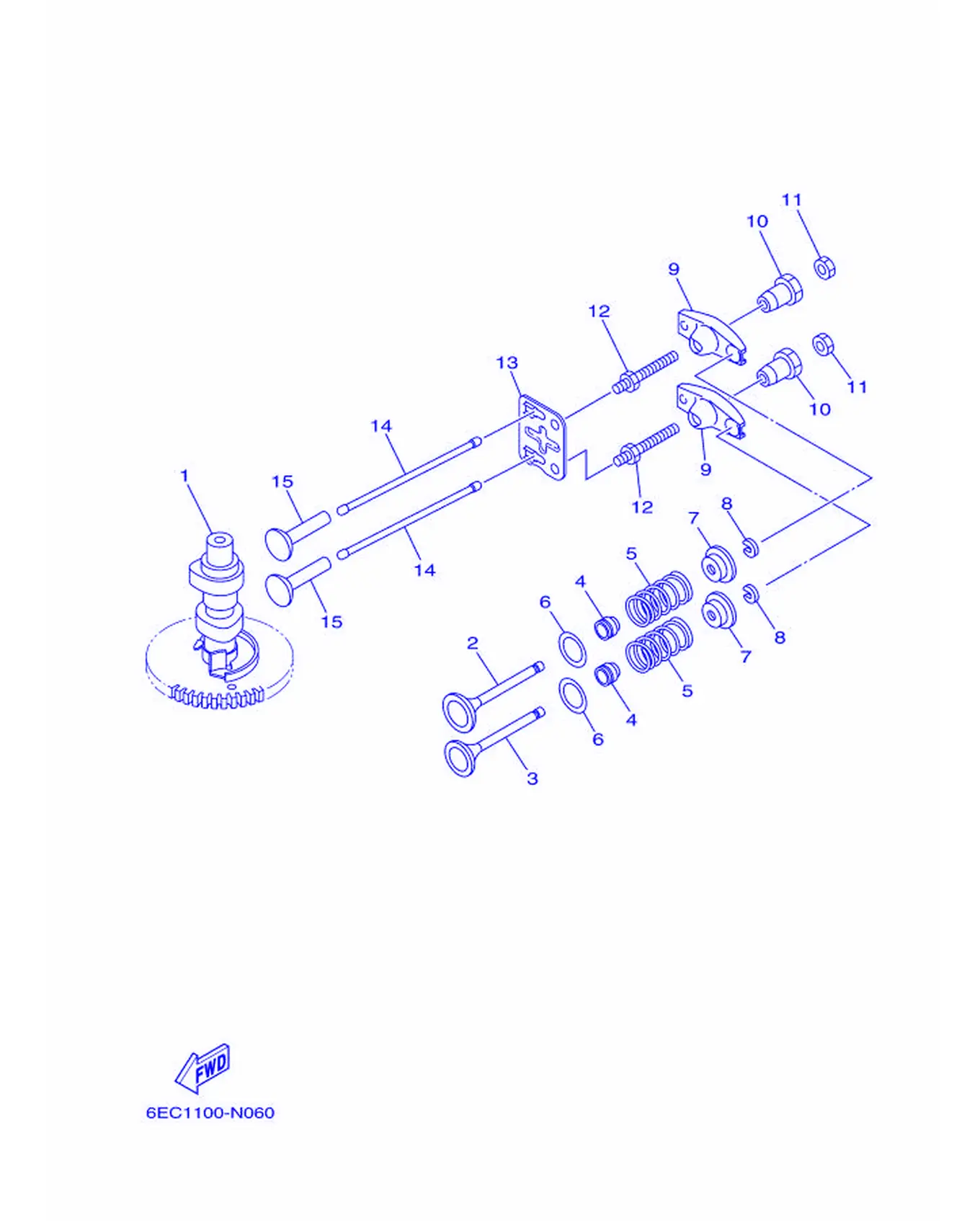

バルブ

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-12170-00	凸轮轴总成	Camshaft Assembly 1	1
2	6EE-12111-00	气门1	Valve, Intake	1
3	6EE-12121-00	气门2	Valve, Exhaust	1
4	51Y-12119-00	气门杆密封	Seal, Valve Stem	2
5	60R-12113-00	弹簧1	Spring, Valve Inner	2
6	68T-12116-00	气门簧座	Seat,ValveSpring	2
7	7NJ-12117-00	气门弹簧座	Retainer,ValveSpring	2
8	7NJ-12118-00	气门锁夹	Cotter, Valve	2
9	67D-12151-00	气门摇臂	Arm, Valve Rocker	2
10	6EE-12165-00	摇臂枢轴	Pivot, Rocker Arm	2
11	90170-06028	六角螺母	Nut	2
12	67D-12157-00	锁紧螺母	Bolt	2
13	6EE-12155-00	推杆导承	Guide, Push Rod	1
14	6BX-12154-00	气门推杆	Rod, Valve Push	2
15	JA9-12153-00	气门挺杆	Lifter, Valve	2

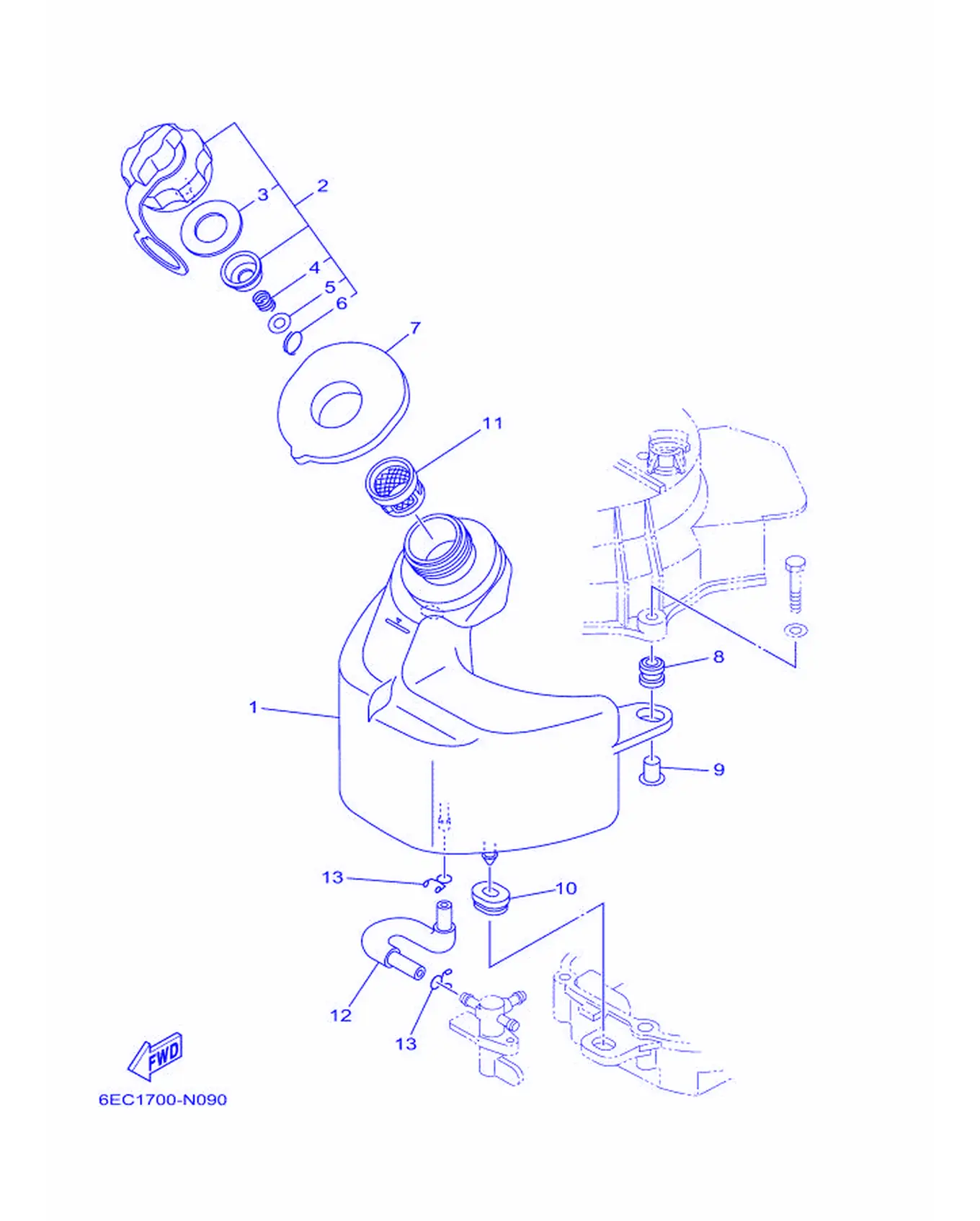

フユエル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-24111-02	油箱	Tank, Fuel	1
2	6BX-24610-02	油箱盖总成	Cap Assembly	1
3	68D-24612-01	盖衬垫	Packing,Cap	1
4	90501-100A5	压簧	Spring, Compression	1
5	92990-04200	平垫圈	Washer, Plain	1
6	90468-100A0	卡环	Clip	1
7	6BX-24641-00	盖衬垫1	Gasket,Cap 1	1
8	6A0-82317-01	点火线圈减震器	Damper, Ignition Coil	2
9	90387-06119	环	Color	2
10	90480-01559	固定	Grommet	1
11	6BX-24167-00	过滤器	Strainer	1
12	6EE-24311-00	油管	Pipe, Fuel 1	1
13	90467-09M09	固定	Clip	2

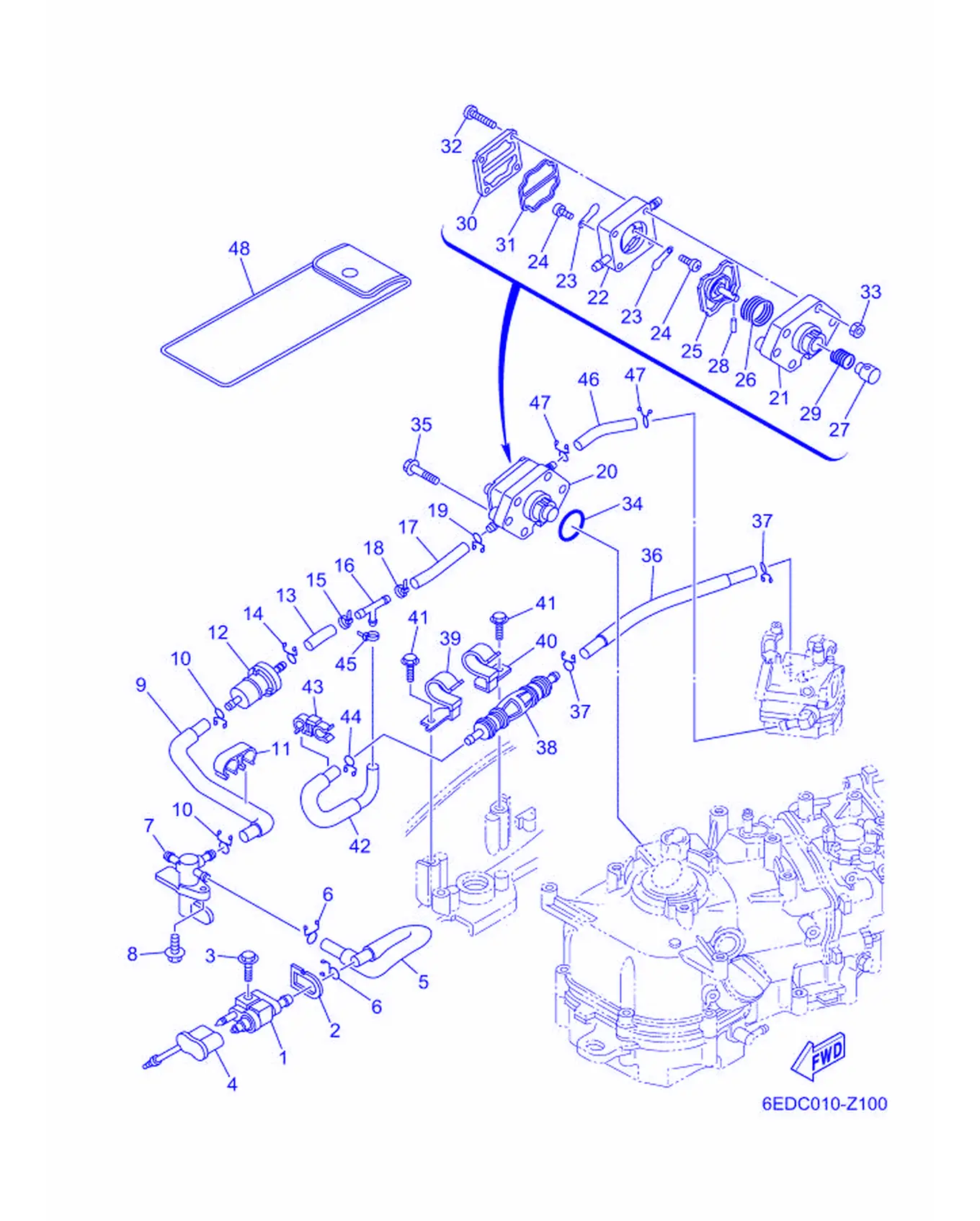

フユエル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6G1-24304-11	燃油管接头组件1	Fuel Pipe Joint Complete 1	1
2	61N-24329-01	密封	Seal	1
3	97E95-06525	螺栓	Bolt, Hexagon with Washer Deep Recess	1
4	6BX-2476U-00	保护1	Protector, 1	1
5	6EE-24312-00	燃油管2	Pipe 2	1
6	90467-09M09	固定	Clip	2
7	6EE-24500-00	燃油开关组合	Fuel Cock Assembly 1	1
8	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
9	6EE-24313-00	管3	Pipe 3	1
10	90467-09M09	固定	Clip	2
11	90464-12016	线夹	Clamp	1
12	68T-24251-01	滤网1	Strainer 1	1
13	90445-10078	软管	Hose	1
14	90467-09M09	固定	Clip	1
15	90465-11M10	固定	Clamp	1
16	688-24378-00	连接管4	Pipe,Joint	1
17	90445-10M46	固定	Hose (L65)	1
18	90465-11M10	固定	Clamp	1
19	90467-09M09	固定	Clip	1
20	6BX-24410-01	燃油泵组合	Fuel Pump Assembly	1
21	67D-24412-00	燃油泵本体1	Body 1	1
22	67D-24413-02	燃油泵本体2	Body 2	1
23	6A0-24421-01	单向阀	Valve, Check	2
24	6E7-14325-00	扁头螺钉	Screw, Pan Head	2
25	6BX-24411-01	隔膜，隔板	Diaphragm	1
26	67D-24423-00	隔膜弹	Spring,Diaphragm	1
27	6BX-13131-00	柱	Plunger	1
28	66M-24374-00	销	Pin	1
29	6BX-24454-00	弹簧	Spring	1
30	67D-24414-01	燃油泵本体3	Body 3	1
31	66M-24471-02	隔膜	Diaphragm	1
32	67D-24444-00	螺钉	Screw	4
33	95380-04600	有槽螺母	Nut	4
34	93210-27ME3	O型圈	O-ring	1
35	97E95-06630	螺栓	Bolt, Hexagon with Washer Deep Recess	2
36	90445-10075	软管	Hose	1
37	90467-09M09	固定	Clip	2
38	6BX-24360-00	起动注油泵组合	Primer Pump Assembly	1
39	6EE-24135-00	线夹1	Clamp 1	1
40	6EE-24136-00	线夹2	Clamp 2	1
41	90109-06M80	螺栓	Bolt	2
42	6EE-2247A-00	软管	Hose 1	1
43	90464-09021	线夹	Clamp	1
44	90467-09M09	固定	Clip	1
45	90465-11M10	固定	Clamp	1
46	90445-10073	软管	Hose	1
47	90467-09M09	固定	Clip	2
48	6EG-28100-00	随车工具	Tool Kit	1

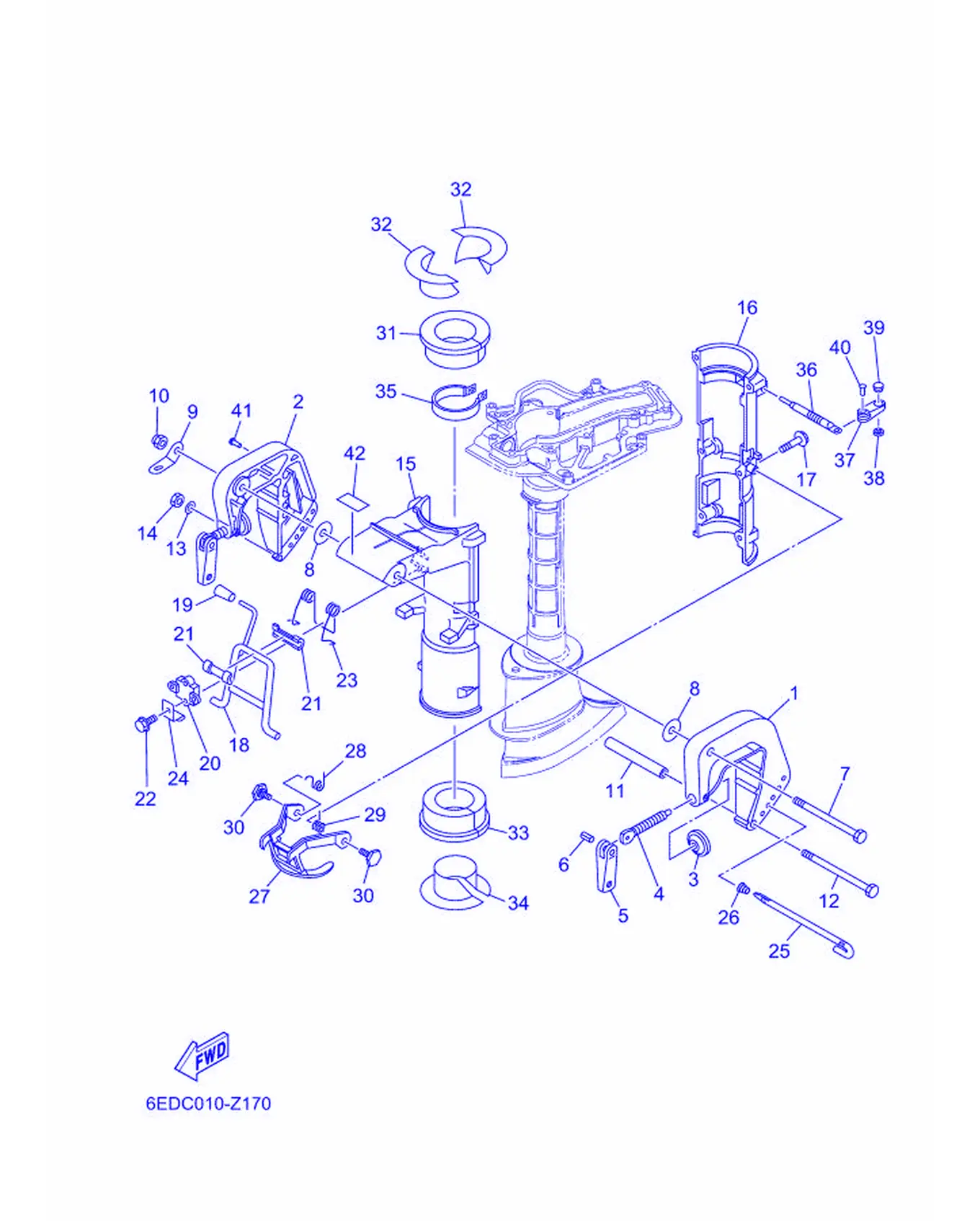

ブラケツト

REF	雅马哈编码	中文名称	英文名称	用量
1	6E0-43111-02-8D	夹紧托架	Bracket, Clamp 1	1
2	6E0-43112-01-8D	夹紧托架	Bracket, Clamp 2	1
3	648-43114-01	艉板夹紧衬垫	Pad, Transom Clamp	2
4	6E0-43116-01	艉板夹紧螺钉	Screw, Transom Clamp	2
5	6E0-43118-01	艉板夹紧手柄	Handle, Transom Clamp	2
6	90243-04M01	销	Pin	2
7	90101-08M07	螺栓	Bolt, Hexagon	1
8	90202-08M58	平垫圈	Washer,Plate	2
9	6A1-43113-01	夹紧托架面板	Plate,ClampBracket	1
10	90185-08057	卡环	Nut, Self-Locking	1
11	90387-06379	轴套	Collar	1
12	90101-06335	卡环	Bolt, Hexagon	1
13	92990-06600	面板垫圈	Washer,Plate	1
14	95380-06600	有槽螺母	Nut, Hexagon	1
15	6EE-43311-00-8D	旋转支架	Bracket, Swivel 1	1
16	6EE-43312-00-8D	旋转支架	Bracket, Swivel 2	1
17	95D95-06035	凸缘螺栓	Bolt, Flange Deep Recess	6
18	6EE-43181-00-8D	顶位销杆	Lever, Tilt Stop 1	1
19	6E0-43632-00	角度定位旋钮	Knob, Tilt	1
20	6E0-43313-00-8D	旋转支架	Bracket, Swivel 3	1
21	620-43189-00	衬套	Bushing	2
22	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
23	6BX-48561-00	弹簧1	Spring	1
24	6EE-43319-00	面板	Plate	1
25	6E0-43160-01	角度定位杆组合	TiltRodAssembly	1
26	90502-08M05	接头	Spring, Conical	1
27	6BX-43614-01	角度定位锁紧面板	Tilt Lock Plate	1
28	6BX-43188-00	弹簧	Spring	1
29	6BX-43198-00	弹簧2	Spring 2	1
30	90109-06M84	螺栓	Bolt	2
31	6EE-42537-00	枢轴衬套	Bushing, Pivot Shaft	1
32	6EE-42539-00	枢轴衬套	Bushing, Pivot Shaft	2
33	6EE-42538-00	枢轴衬套	Bushing, Pivot Shaft	1
34	6EE-42549-00	枢轴衬套	Bushing, Pivot Shaft	1
35	6E0-42528-04	阻力板	Friction Plate	1
36	6L5-42529-01	阻力块螺钉	Screw, Friction Piece	1
37	6L5-42561-00	方向锁紧旋钮	Knob	1
38	6L5-44196-00	指示器3	Indicator 3	1
39	6L5-44197-00	指示器4	Indicator 4	1
40	90266-04M05	螺丝	Rivet	1
41	90269-02M08	螺丝	Rivet	2
42	6EE-24591-00	燃油旋活栓标牌	Emblem, Fuel Cock	1

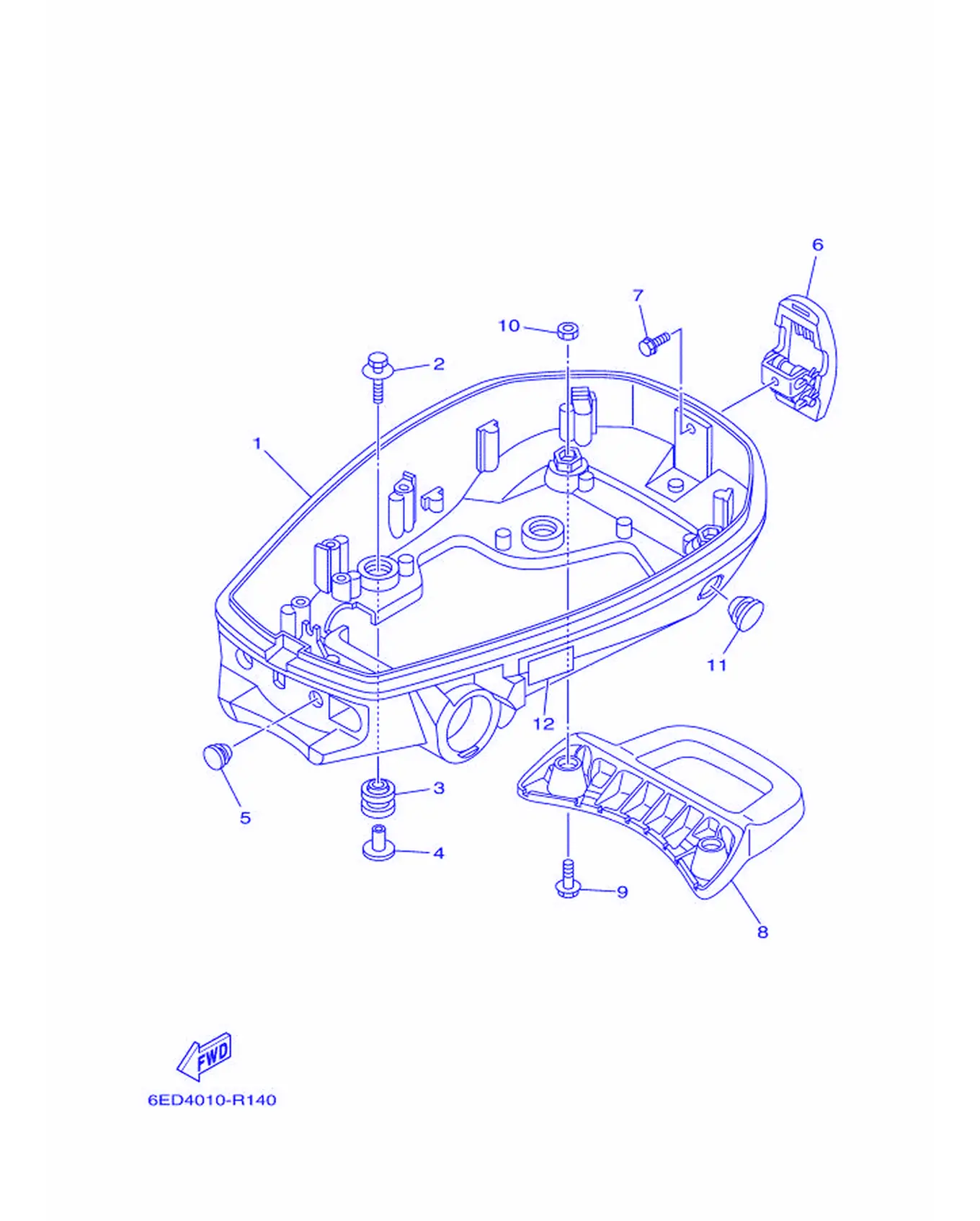

ボトムカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-42711-00-8D	底罩	Cowling, Bottom 1	1
2	90119-06300	带垫圈六角头螺栓	Bolt, with Washer	4
3	90480-21M82	固定	Grommet	4
4	90387-06176	衬套	Color	4
5	90480-14M14	固定	Grommet	1
6	68T-42801-00	罩箍组	CowlingClampComplete	1
7	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
8	6EE-42731-00	承载提	Carrying Handle	1
9	97E95-08520	螺栓	Bolt, Hexagon with Washer Deep Recess	2
10	95380-08600	有槽螺母	Nut	2
11	90480-22M72	固定	Grommet	1
12	6EE-13437-00	警告标签	Mark, Caution	1

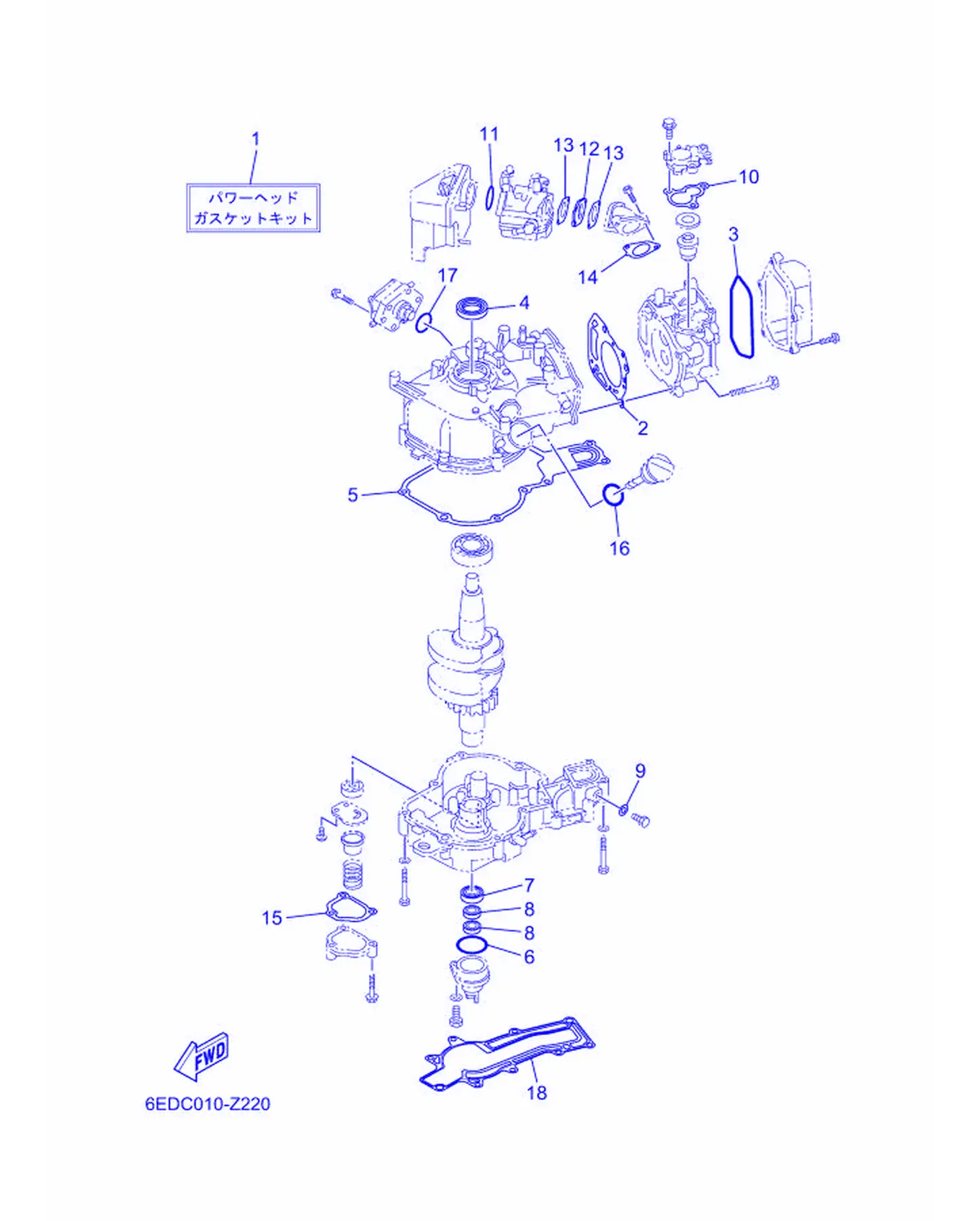

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-W0001-01	衬垫套	Power Head Gasket Kit	1
2	6BX-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
3	6BX-11356-00	气缸密封圈2	Seal,Cylinder 2	1
4	93102-25022	油封	Oil Seal	1
5	6BX-11351-00	气缸垫片1	Gasket, Cylinder	1
6	93210-35537	O型圈	O-ring	1
7	93102-20108	油封	OilSeal	1
8	93102-10004	油封	OilSeal	2
9	90430-08143	衬垫	Gasket	1
10	67D-12414-A0	盖衬垫	Gasket, Cover	1
11	93210-320A7	O型圈	O-ring	1
12	6EE-13647-00	岐管衬垫3	Gasket, Manifold 3	1
13	6EE-13646-00	岐管衬垫2	Gasket, Manifold 2	2
14	6EE-13645-00	岐管衬垫1	Gasket, Manifold 1	1
15	6EE-13475-00	衬垫	Gasket	1
16	93210-24M79	O型圈	O-ring	1
17	93210-27ME3	O型圈	O-ring	1
18	6EE-45113-00	水上装置壳体衬垫	Gasket, Upper Casing	1

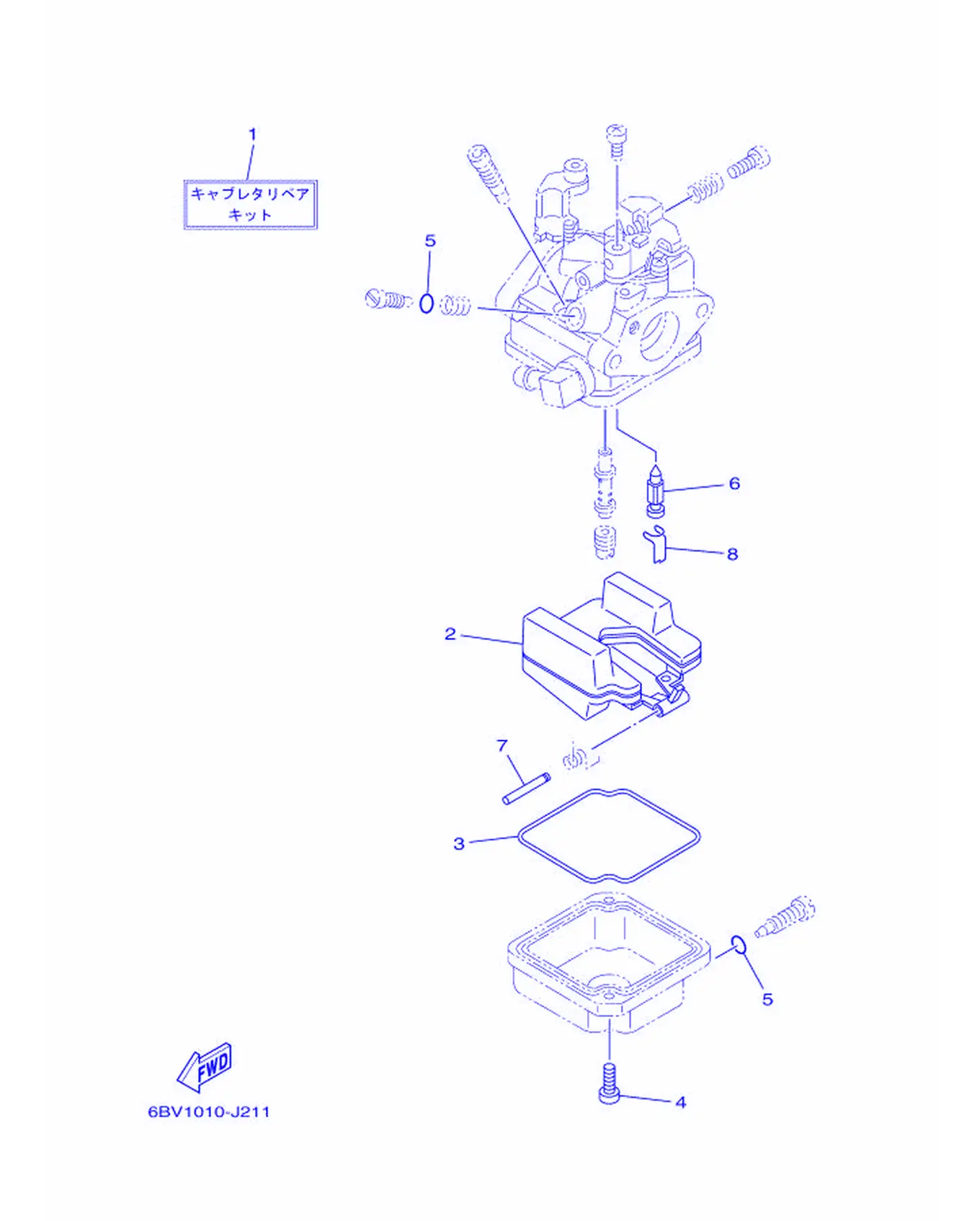

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6BX-W0093-00	化油器修理套	CarburetorRepair Kit	1
2	6BX-14985-00	浮子	Float	1
3	6BX-14984-00	浮子室衬垫	Gasket, Float Chamber	1
4	6BX-14592-00	螺钉	Screw	2
5	67F-14398-10	衬垫	O-ring	2
6	6BX-14546-00	阀门	Valve, Needle	1
7	6BX-14548-00	浮子臂销	Pin, Float Arm	1
8	6BX-14937-00	钢夹	Clip	1

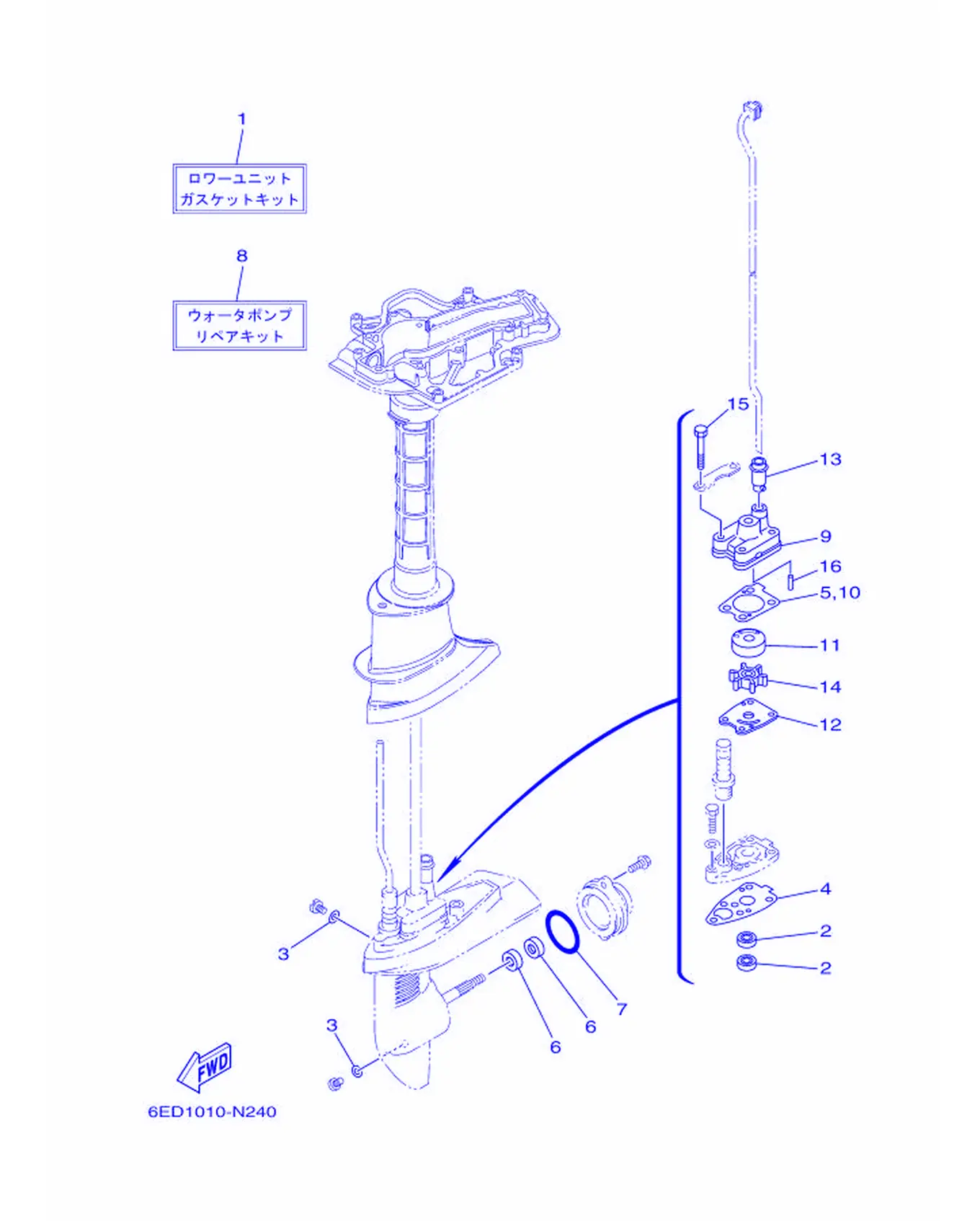

リペアキツト 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-W0001-21	衬垫套	Lower Unit Gasket Kit	1
2	93101-10M14	油封	OilSeal	2
3	90430-08003	垫片	Gasket	3
4	6E0-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
5	6EE-44315-00	水泵衬垫	Gasket, Water Pump	1
6	93101-13M12	油封	OilSeal	2
7	93210-48214	O型圈	O-ring	1
8	6EE-W0078-03	水泵修理套	Water Pump Repair Kit	1
9	6BX-44311-00	水泵壳	Housing,Water Pump	1
10	6EE-44315-00	水泵衬垫	Gasket, Water Pump	1
11	6BX-44322-00	芯子	Insert, Cartridge	1
12	6BX-44323-00	外挡板	Outer Plate, Cartridge	1
13	67D-44366-00	水封减震器	Damper,WaterSeal	1
14	6E0-44352-00	叶轮	Impeller	1
15	97D95-06045	螺栓	Bolt, Hexagon Deep Recess	4
16	93604-18080	定位销	Pin, Dowel	2

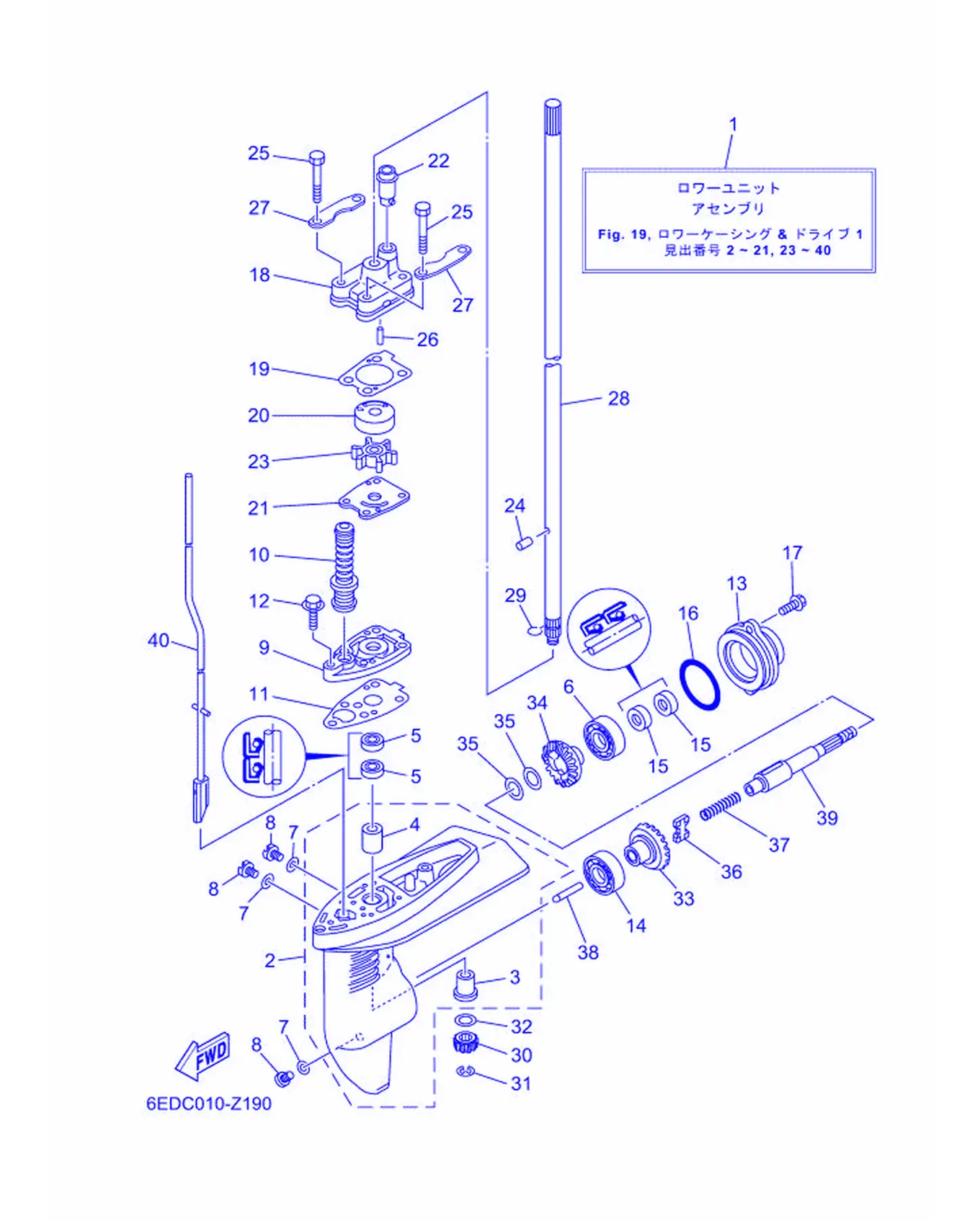

ロワーケーシング & ドライブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-45300-01-8D	水下装置总成	Lower Unit Assembly	1
1	6EE-45300-11-8D	水下装置总成	Lower Unit Assembly	1
2	6E0-45311-02-8D	水下装置壳	Casing, Lower	1
3	6E0-45317-09	驱动轴衬套	Bushing, Drive Shaft	1
4	6E0-45316-09	驱动轴衬套	Bushing, Drive Shaft	1
5	93101-10M14	油封	OilSeal	2
6	93306-004U0	轴承	Bearing	1
7	90430-08003	垫片	Gasket	3
8	90340-08002	螺丝	Plug, Straight Screw	3
9	6E0-45321-01-CA	面板	Plate	1
10	6L2-44147-00	变挡连杆衬套	Boot, Shift Rod	1
11	6E0-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
12	97E95-06525	螺栓	Bolt, Hexagon with Washer Deep Recess	1
13	6E0-45361-01-8D	水下装置壳体盖	Cap, Lower Casing	1
14	93306-004U0	轴承	Bearing	1
15	93101-13M12	油封	OilSeal	2
16	93210-48214	O型圈	O-ring	1
17	95D95-06016	螺栓	Bolt, Flange Deep Recess	2
18	6BX-44311-00	水泵壳	Housing,Water Pump	1
19	6EE-44315-00	水泵衬垫	Gasket, Water Pump	1
20	6BX-44322-00	芯子	Insert, Cartridge	1
21	6BX-44323-00	外挡板	Outer Plate, Cartridge	1
22	67D-44366-00	水封减震器	Damper,WaterSeal	1
23	6E0-44352-00	叶轮	Impeller	1
24	93604-09066	定位销	Pin, Dowel	1
25	97D95-06045	螺栓	Bolt, Hexagon Deep Recess	4
26	93604-18080	定位销	Pin, Dowel	2
27	6E0-44328-00	面板	Plate	2
28	6E0-45511-01	驱动轴	Shaft, Drive	1
28	6E0-45511-11	驱动轴	Shaft, Drive	1
29	90467-08M01	卡环	Clip	1
30	6BX-45551-00	小齿轮	Pinion (13T)	1
31	99001-06600	卡环	Circlip	1
32	90201-11M49	平垫圈	Washer,Plate	1
33	67D-45560-00	齿轮	Gear 1 (27T)	1
34	67D-45570-00	齿轮	Gear 2 (27T)	1
35	67D-45576-00	推力垫圈	Washer, Thrust	2
36	67D-45631-01	爪形离合器	Clutch, Dog	1
37	90501-120A9	压簧	Spring, Compression	1
38	67D-45635-00	变挡柱	Plunger, Shift	1
39	6EE-45611-00	螺旋浆轴	Shaft, Propeller	1
40	6EE-44150-01	变挡凸轮组合	Shift Cam Assembly	1
40	6EE-44150-11	变挡凸轮组合	Shift Cam Assembly	1

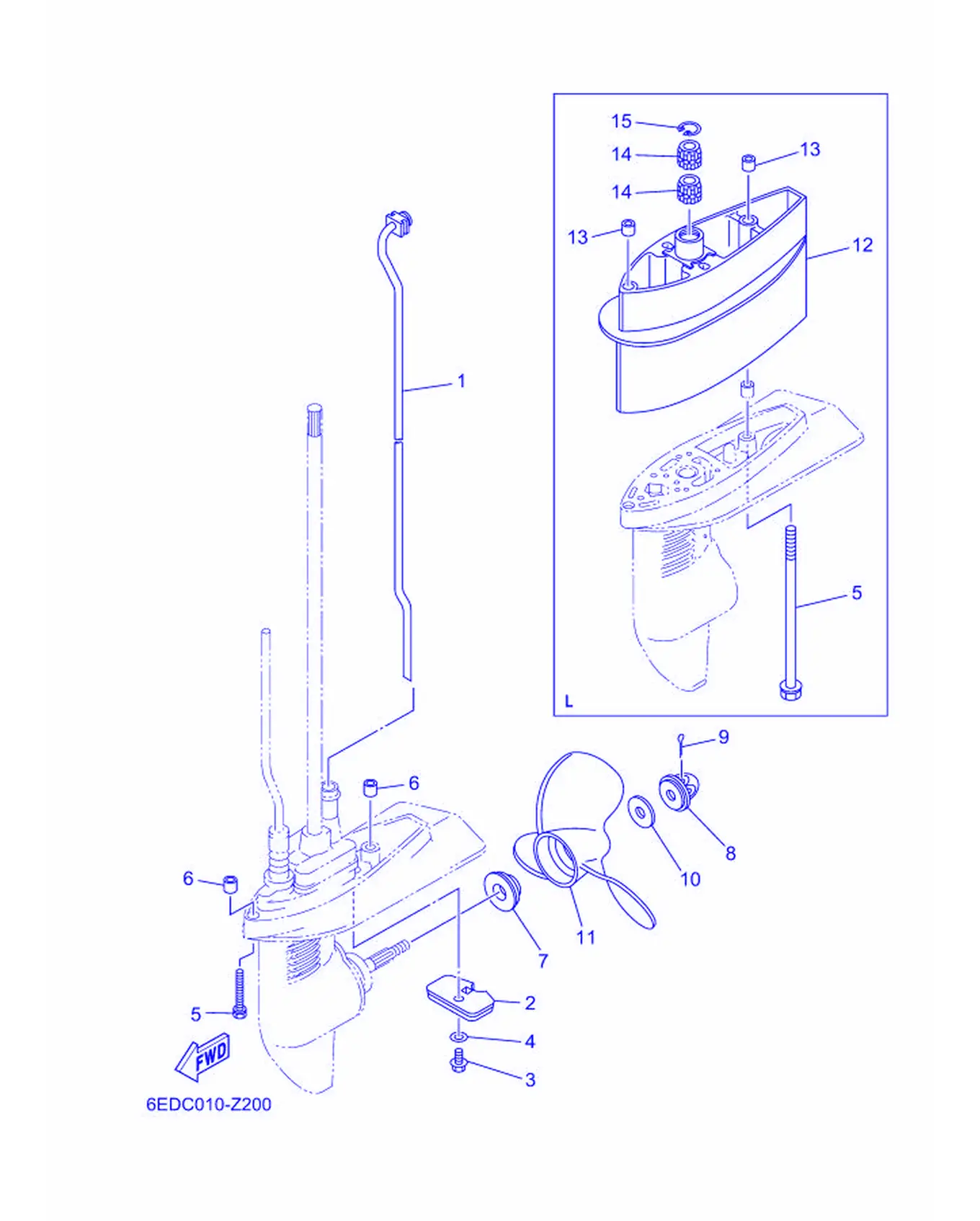

ロワーケーシング & ドライブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6EE-44360-00	水管组合	Water Tube Assembly	1
1	6EE-44360-10	水管组合	Water Tube Assembly	1
2	6L5-45251-03	阳极	Anode	1
3	95D95-06012	螺栓	Bolt, Flange Deep Recess	1
4	92990-06300	盘形垫	Washer, Internal Tooth	1
5	90119-06253	带垫圈六角头螺栓	Bolt, With Washer	2
5	90119-06254	带垫圈六角头螺栓	Bolt, With Washer	2
6	90387-06M14	安装环	Color	2
7	6L5-45987-01	衬套	Spacer	1
8	6L5-45616-00	螺旋浆螺母	Nut,Propeller	1
9	91490-25030	开口销	Pin, Cotter	1
10	90201-08M54	平垫圈	Washer,Plate	1
11	6E0-45949-00	螺旋浆	Propeller (3X7-1/4X6-1/2-BA)	1
11	6E0-45943-01	螺旋浆组合	Propeller (3X7-1/2X7-BA)	1
11	6E0-45941-01	螺旋浆组合	Propeller (3X7-1/2X8-BA)	1
12	6EE-45211-00-8D	延伸部分	Extension	1
13	90387-06M14	安装环	Color	2
14	6BX-45318-01	驱动轴衬套	Bushing,Drive Shaft	2
15	93420-22M03	开口簧环，卡	Circlip	1
