雅马哈 F250A - F250AETX

共 37 个部位，点击零件编码查看详情，或搜索本页零件。

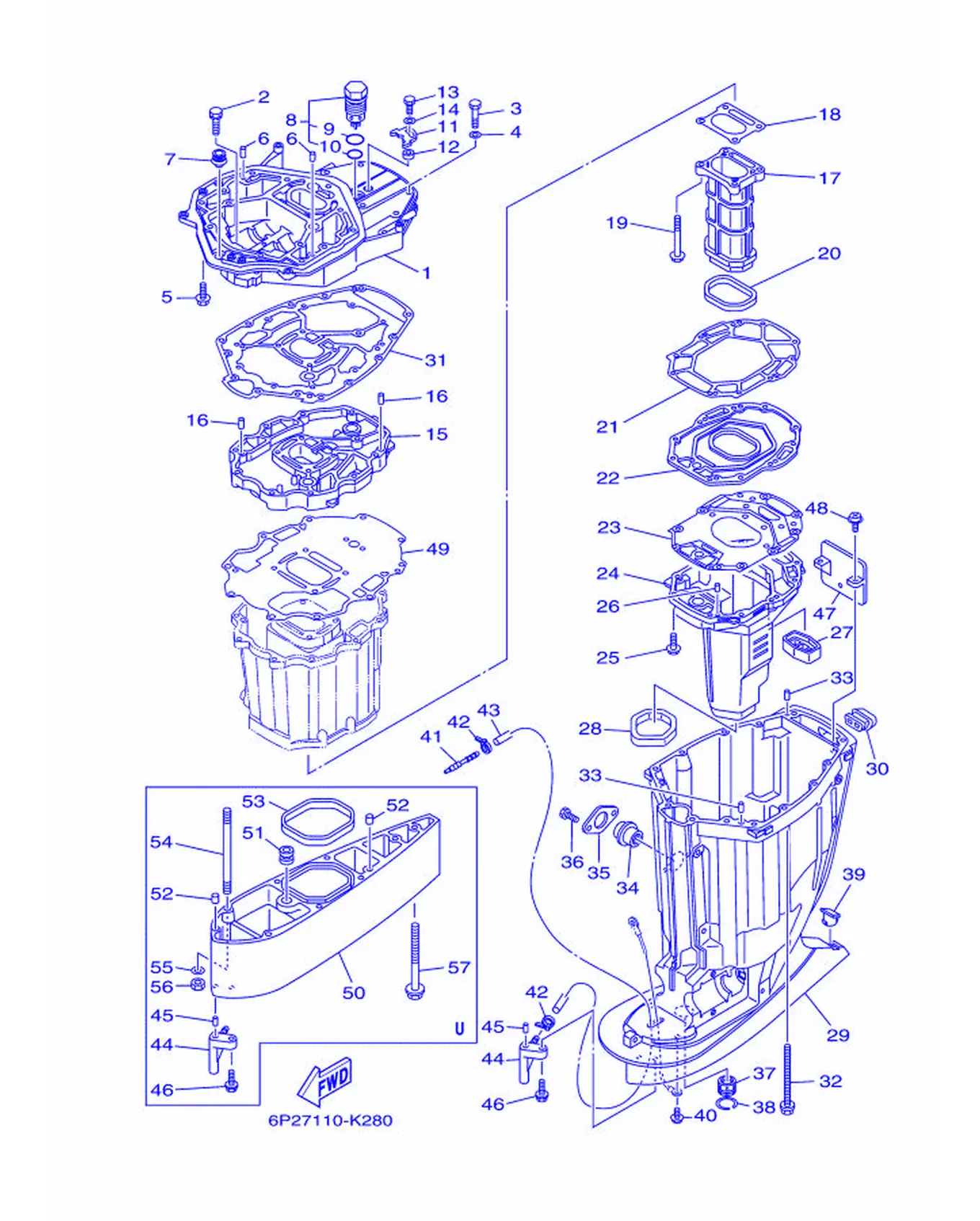

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-41137-10-CA	排气导管	Guide,Exhaust	1
2	90119-08102	带垫圈六角头螺栓	Bolt, With Washer	2
3	97075-10045	螺栓	Bolt	7
4	92995-10600	盘形垫	Washer	7
5	97575-10535	带垫圈螺栓	Bolt, With Washer	7
6	93608-16M16	定位销	Pin, Dowel	2
7	6E5-42724-00	固定	Grommet	1
8	6AW-11371-10	罩	Pressure Control Valve Assembly	1
9	93210-347A1	O型圈	O-ring	1
10	93210-28543	O型圈	O-ring	1
11	69J-12233-00	导向限位板面板1	Plate, Guide Stopper 1	1
12	90387-06037	衬套	Color	1
13	97095-06020	螺栓	Bolt	1
14	92995-06600	盘形垫	Washer	1
15	69J-41131-11-CA	排气岐管1	Manifold,Exhaust 1	1
16	93608-16M16	定位销	Pin, Dowel	2
17	69J-41132-20-9S	排气岐管	Manifold,Exhaust	1
18	6P2-41134-00	排气岐管衬垫	Gasket, Exhaust Manifold	1
19	97575-08590	带垫圈螺	Bolt, With Washer	4
20	69J-41138-00	排气管密封圈1	Seal, Exhaust 1	1
21	69J-41135-A0	排气岐管衬垫	Gasket, Exhaust Manifold	1
22	69J-45181-10-9S	面板	Plate	1
23	6S1-41136-00	歧管衬垫	Gasket, Exhaust Manifold	1
24	69J-14711-20-9S	消声器1	Muffler 1	1
25	97575-08535	带垫圈螺	Bolt, With Washer	10
26	93606-19M23	定位销	Pin, Dowel	2
27	69J-45127-00	密封	Seal	1
28	69J-45123-00	消音器衬垫	Gasket,Muffler	1
29	69J-45111-10-8D	水上装置壳	Casing,Upper	1
30	69J-42769-00	橡皮密封	Seal,Rubber	1
31	69J-45113-20	水上装置壳体衬垫	Gasket,UpperCasing	1
32	90119-10007	带垫螺栓	Bolt, With Washer	6
33	93608-16M16	定位销	Pin, Dowel	2
34	69J-15316-00	发动机架减震器1	Damper 1	1
35	69J-45152-10	水上装置壳体盖2	Cover,UpperCasing 2	1
36	97095-06014	螺栓	Bolt	2
37	69J-45318-01	驱动轴衬套	Bushing,Drive Shaft	1
38	93420-36M01	卡环	Circlip	1
39	61A-45155-00	盖	Cap	1
40	95895-06010	凸缘螺栓	Bolt, Flange	1
41	6E5-83558-00	管嘴端部	End, Nipple	1
42	90465-11M10	固定	Clamp	2
43	90445-07010	固定	Hose (L1330)	1
43	90445-07012	软管	Hose (L1457)	1
44	61A-45378-00	软管嘴	Nipple,Hose	1
45	93606-12019	定位销	Pin, Dowel	1
46	90119-06M17	卡环	Bolt, With Washer	1
47	69J-14624-01	排气盖	Cover,Exhaust	1
48	97980-06216	带垫圈螺钉	Screw, With Washer	2
49	69J-15312-01	油槽衬垫	Gasket, Oil Pan	1
50	69J-45211-02-8D	延伸部分	Extension	1
51	6E5-44366-00	水封减震器	Damper,WaterSeal	1
52	93608-12M05	定位销	Pin, Dowel	2
53	69J-45159-00	减震器	SealRubber	1
54	90116-10012	双头螺栓	Bolt, Stud	6
55	92995-10600	盘形垫	Washer	6
56	95380-10600	有槽螺母	Nut	6
57	90119-10009	带垫圈六角头螺栓	Bolt, with Washer	1

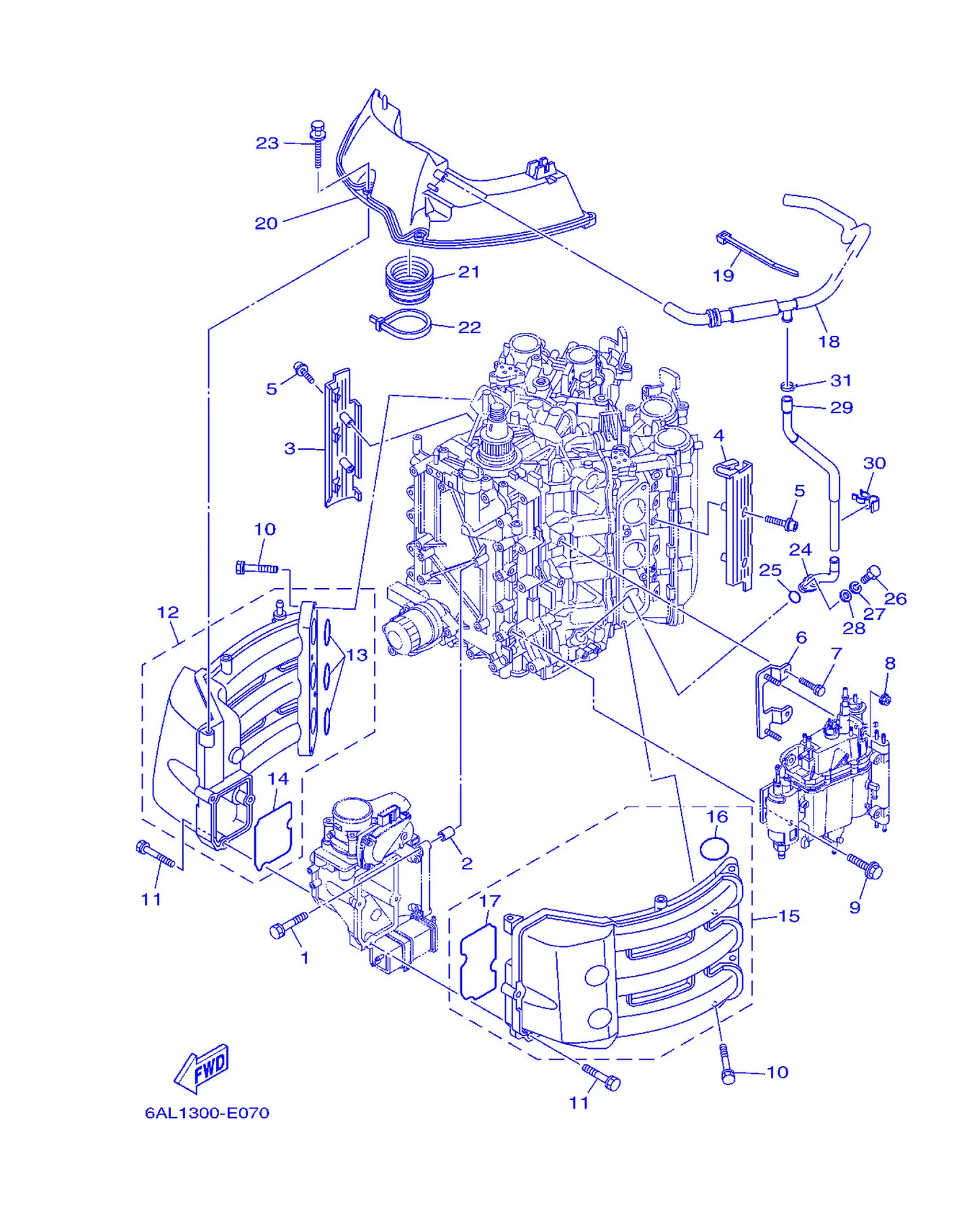

インテーク 1

REF	雅马哈编码	中文名称	英文名称	用量
1	97575-08540	带垫圈螺	Bolt, With Washer	4
2	99530-10114	定位销	Pin, Dowel	2
3	6P2-13564-00	岐管盖	Cover, Manifold	1
4	6P2-13594-00	岐管盖2	Cover, Manifold 2	1
5	90110-06038	六角头插座螺栓	Bolt, Hexagon Socket Head	4
6	6P2-24422-00	面板	Plate	1
7	97575-06516	带垫圈螺栓	Bolt, With Washer	2
8	90179-06M28	螺帽	Nut	2
9	90119-06M24	带垫螺栓	Bolt, With Washer	2
10	97575-08540	带垫圈螺	Bolt, With Washer	8
11	90119-06MA6	带垫螺栓	Bolt, With Washer	7
12	6P2-13641-00	岐管1	Manifold, Intake 1	1
13	6P2-13645-00	岐管衬垫1	Gasket, Manifold 1	3
14	6P2-13646-00	岐管衬垫2	Gasket, Manifold 2	1
15	6P2-13642-00	岐管2	Manifold 2	1
16	6P2-13645-00	岐管衬垫1	Gasket, Manifold 1	3
17	6P2-13647-00	岐管衬垫3	Gasket, Manifold 3	1
18	6P2-15373-01	通气管	Pipe, Breather	1
19	90465-13M18	固定	Clamp	1
20	6P2-14440-00	进气消声器组合	Silencer Assembly, Intake	1
21	6P2-1441J-00	消声器管	Pipe, Silencer	1
22	90464-99004	固定夹	Clamp	1
23	90119-06M35	带垫圈螺栓	Bolt, with Washer	4
24	6P2-11372-00	软管接头	Nipple, Hose	1
25	93210-19MJ3	O型圈	O-ring	1
26	97095-06020	螺栓	Bolt	1
27	92995-06100	垫圈	Washer,Spring	1
28	92995-06600	盘形垫	Washer	1
29	6P2-11377-00	软管	Hose	1
30	90464-20011	固定夹	Clamp	1
31	90465-11M10	固定	Clamp	1

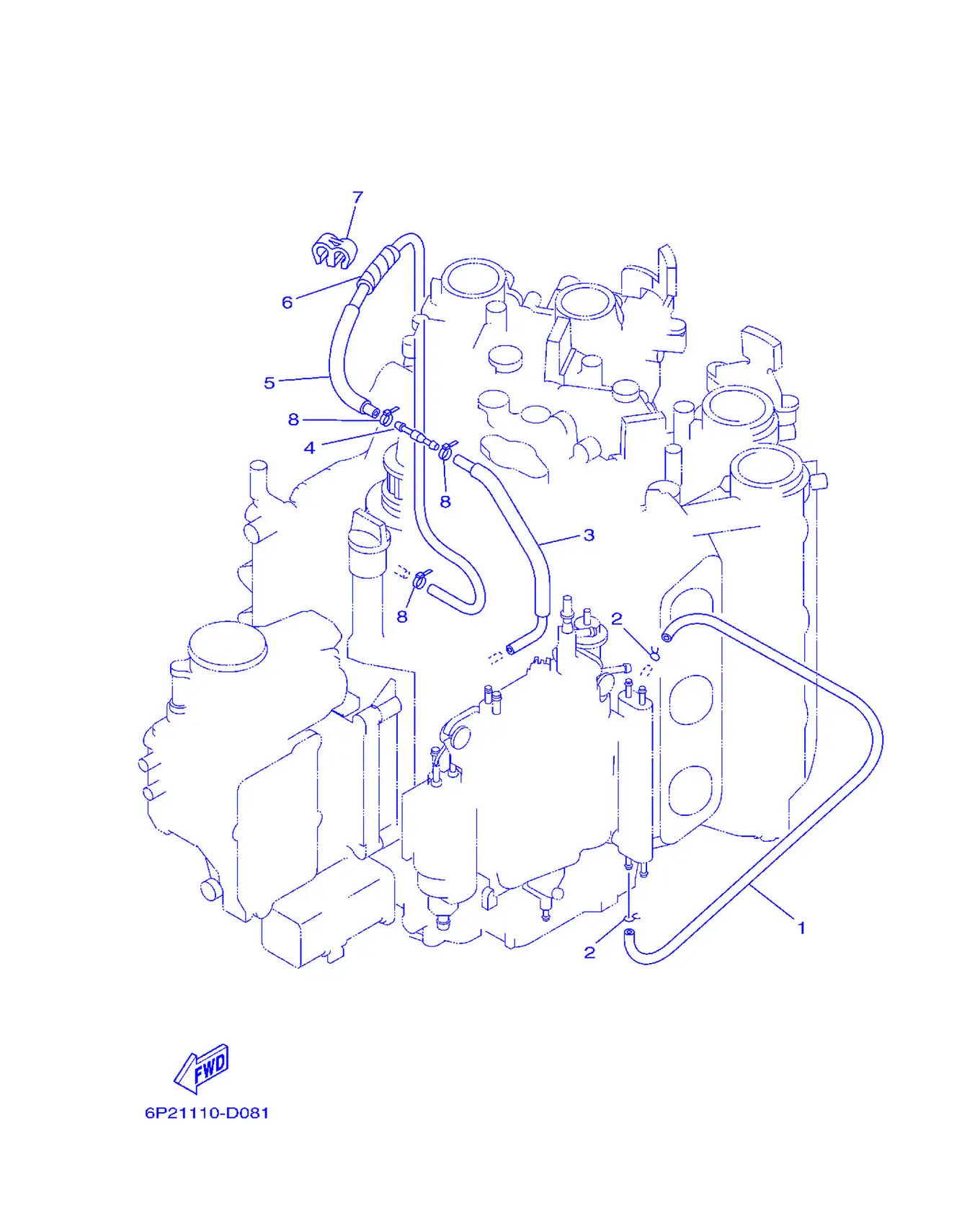

インテーク 2

REF	雅马哈编码	中文名称	英文名称	用量
1	90445-09120	软管	Hose (L600)	1
2	90467-09M03	固定	Clip	2
3	6P2-12482-00	管2	Pipe 2	1
4	6E5-21744-00	通气管	Breather	1
5	6P2-12483-00	管3	Pipe 3	1
6	90446-10M01	固定	Hose (L60)	1
7	90464-09M21	固定夹	Clamp	1
8	90465-11M10	固定	Clamp	3

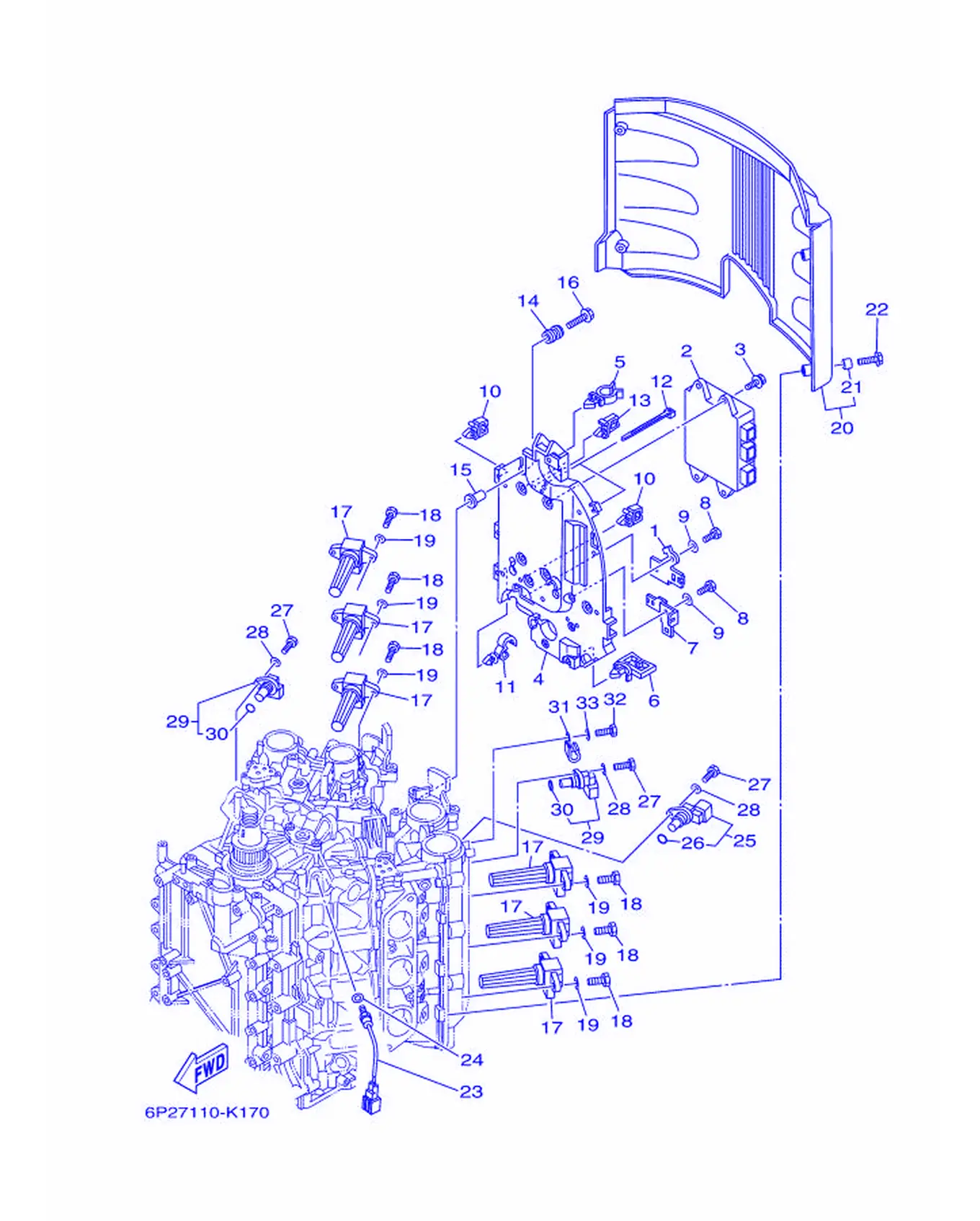

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-8257V-00	连接器面板	Connector Plate	1
2	6P2-8591A-25	发动机控制单元	Engine Control Unit Assembly	1
3	90119-06M82	带垫螺栓	Bolt, With Washer	4
4	6P2-82316-00	点火线圈托架	Bracket, Ignition Coil	1
5	90464-19M45	固定夹	Clamp	1
6	90464-23199	固定夹	Clamp	1
7	6P2-81845-00	面板	Plate	1
8	97095-06016	螺栓	Bolt	2
9	92995-06600	盘形垫	Washer	2
10	90464-11121	固定	Clamp	4
11	90464-13249	线夹	Clamp	2
12	90465-14M66	固定	Clamp	2
13	90464-08004	固定夹	Clamp	1
14	6A0-82317-00	点火线圈减震器	Damper, Ignition Coil	4
15	90387-06119	环	Color	4
16	90119-06M59	带垫螺栓	Bolt, With Washer	4
17	6P2-82310-01	点火线圈总成	Ignition Coil Assembly	6
18	97095-06020	螺栓	Bolt	12
19	92995-06600	盘形垫	Washer	12
20	6P2-82314-00	点火线圈盖	Cover, Ignition Coil	1
21	90387-06044	卡环	Collar	4
22	90119-06M92	带垫螺栓	Bolt, With Washer	4
23	61A-85790-00	温控传感件组合	Thermo Sensor Assembly	1
24	92990-10600	垫圈	Washer,Plate	1
25	6P2-85896-00	曲柄位置传感	Sensor, Cam Position	1
26	6P2-85075-00	O型圈	O-ring	1
27	97095-06020	螺栓	Bolt	3
28	92995-06600	盘形垫	Washer	3
29	6P2-85897-00	曲柄位置传感	Sensor, Cam Position 2	2
30	6P2-85075-00	O型圈	O-ring	1
31	90462-08032	固定夹	Clamp	1
32	97095-06012	螺栓	Bolt	1
33	92995-06600	盘形垫	Washer	1

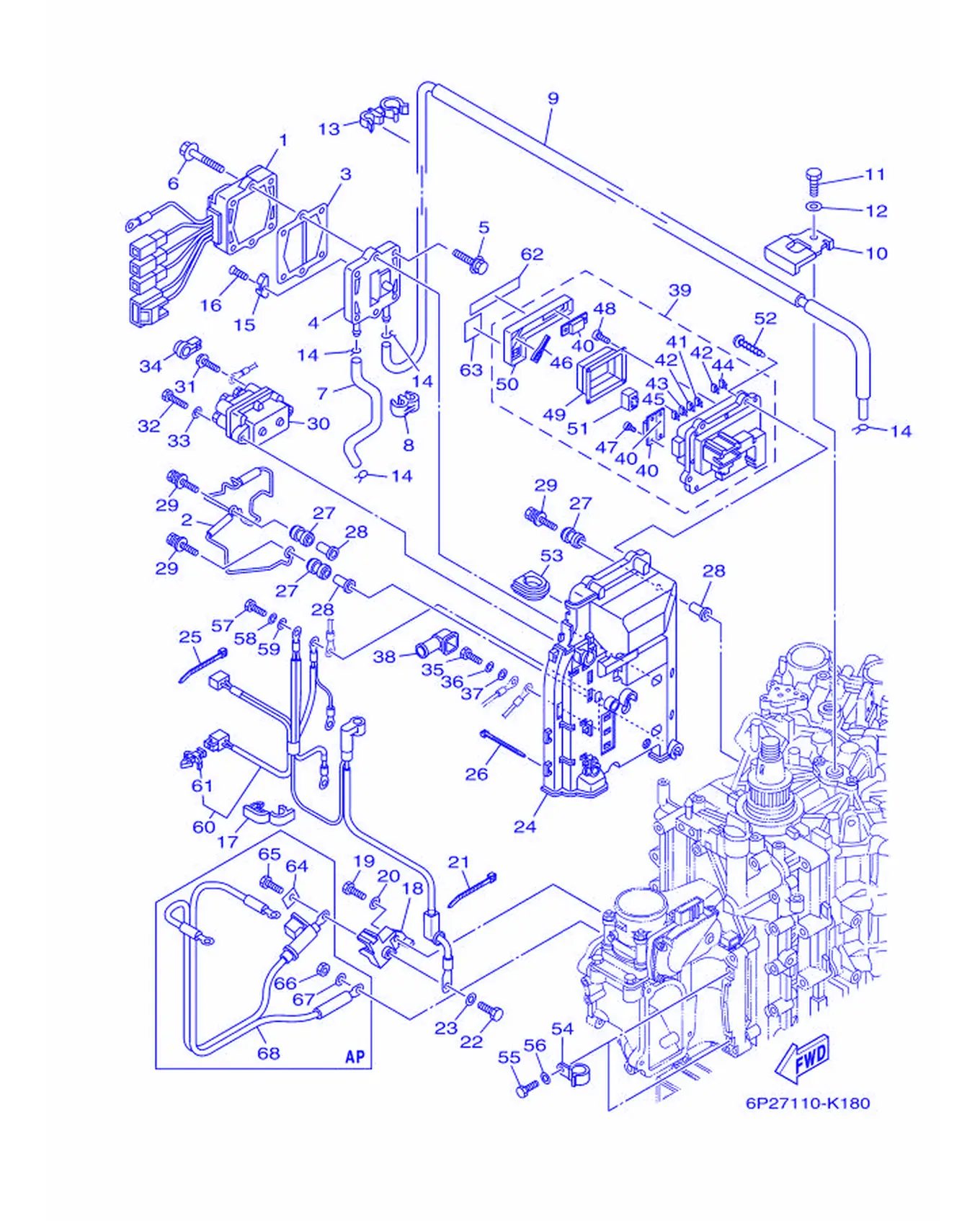

エレクトリカル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-81960-02	整流器调整器组合	Rectifier and Regulator	1
2	6P2-81614-00	保护件	Protector	1
3	60V-81975-A0	整流器装配面板	Rectifier Fitting Plate	1
4	6P2-81972-00-9S	整流罩	Cover, Rectifier	1
5	90119-06MA3	带垫螺栓	Bolt, With Washer	4
6	90119-06MA5	带垫螺栓	Bolt, With Washer	2
7	90445-09304	软管	Hose (L310)	1
8	90464-09M21	固定夹	Clamp	1
9	6P2-12481-00	管1	Pipe 1	1
10	6P2-12491-00	卡箍1	Clamp 1	1
11	97095-06012	螺栓	Bolt	1
12	92995-06600	盘形垫	Washer	1
13	90464-21002	固定夹	Clamp	2
14	90467-08M18	固定	Clip	4
15	6E5-11325-00	阳极	Anode	1
16	98780-04015	平头螺钉	Screw, Flat Head	1
17	90464-18004	固定夹	Clamp	5
18	6P2-81925-01	接头	Terminal	1
19	97095-08020	螺栓	Bolt	1
20	92995-08600	盘形垫	Washer	1
21	90465-13M18	固定	Clamp	1
22	97095-08016	螺栓	Bolt	1
23	92995-08600	盘形垫	Washer	1
24	6P2-81948-00	托架	Bracket	1
25	90465-13M18	固定	Clamp	6
26	90465-14M66	固定	Clamp	3
27	6A0-82317-00	点火线圈减震器	Damper, Ignition Coil	5
28	90387-06119	环	Color	5
29	90119-06M95	带垫螺栓	Bolt, With Washer	5
30	63P-81950-00	继电器组合	RelayAssembly	1
31	97595-06610	带垫圈螺栓	Bolt, With Washer	2
32	97013-06025	螺栓	Bolt	2
33	92903-06600	盘形垫	Washer,Plate	2
34	6P2-8183X-00	电极盖	Cap, Terminal	2
35	97095-06020	螺栓	Bolt	1
36	92995-06100	垫圈	Washer,Spring	1
37	92995-06600	盘形垫	Washer	1
38	6P2-82119-00	导线盖	Cover, Reed Wire	1
39	6P2-82170-01	保险丝盒组合	Fuse Box Assembly	1
40	6P2-82151-00	保险丝	Fuse (60A)	3
41	67F-82151-00	保险丝	Fuse (20A)	2
42	67F-82151-10	保险丝	Fuse (30A)	3
43	67F-82151-20	保险丝	Fuse (5A)	2
44	67F-82151-40	保险丝	Fuse (10A)	2
45	67F-82151-50	保险丝	Fuse (15A)	2
46	67F-2812A-00	小夹子	Puller, Fuse	1
47	68F-82846-00	限位板组合	Screw, Pan Head (M5)	4
48	6P2-82113-00	螺钉	Screw (M3)	4
49	6P2-81639-00	电枢装配面板	Relay Cover	1
50	6P2-85544-00	盖	Case	1
51	68F-8195A-00	继电器组合	Relay Assembly	4
52	97780-50620	自攻螺钉	Screw, Tapping	4
53	6P2-81336-00	固定	Grommet	1
54	90462-08026	固定夹	Clamp	2
55	97095-06016	螺栓	Bolt	2
56	92995-06600	盘形垫	Washer	2
57	97095-06020	螺栓	Bolt	3
58	92995-06100	垫圈	Washer,Spring	3
59	92995-06600	盘形垫	Washer	3
60	6P2-8259M-00	电线束	WireHarnessAssembly 2	1
61	90464-09M47	固定	Clamp	1
62	6P2-81919-20	调压器图样	Graphic, Regulator	1
63	6P2-81919-31	稳压器标签	Graphic, Regulator	1
64	6P2-81923-00	垫圈	Washer	1
65	97095-08016	螺栓	Bolt	1
66	95333-08600	有槽螺母	Nut	1
67	92903-08100	盘形垫	Washer,Spring	1
68	6P2-82105-J1	电缆	Wire Harness	1

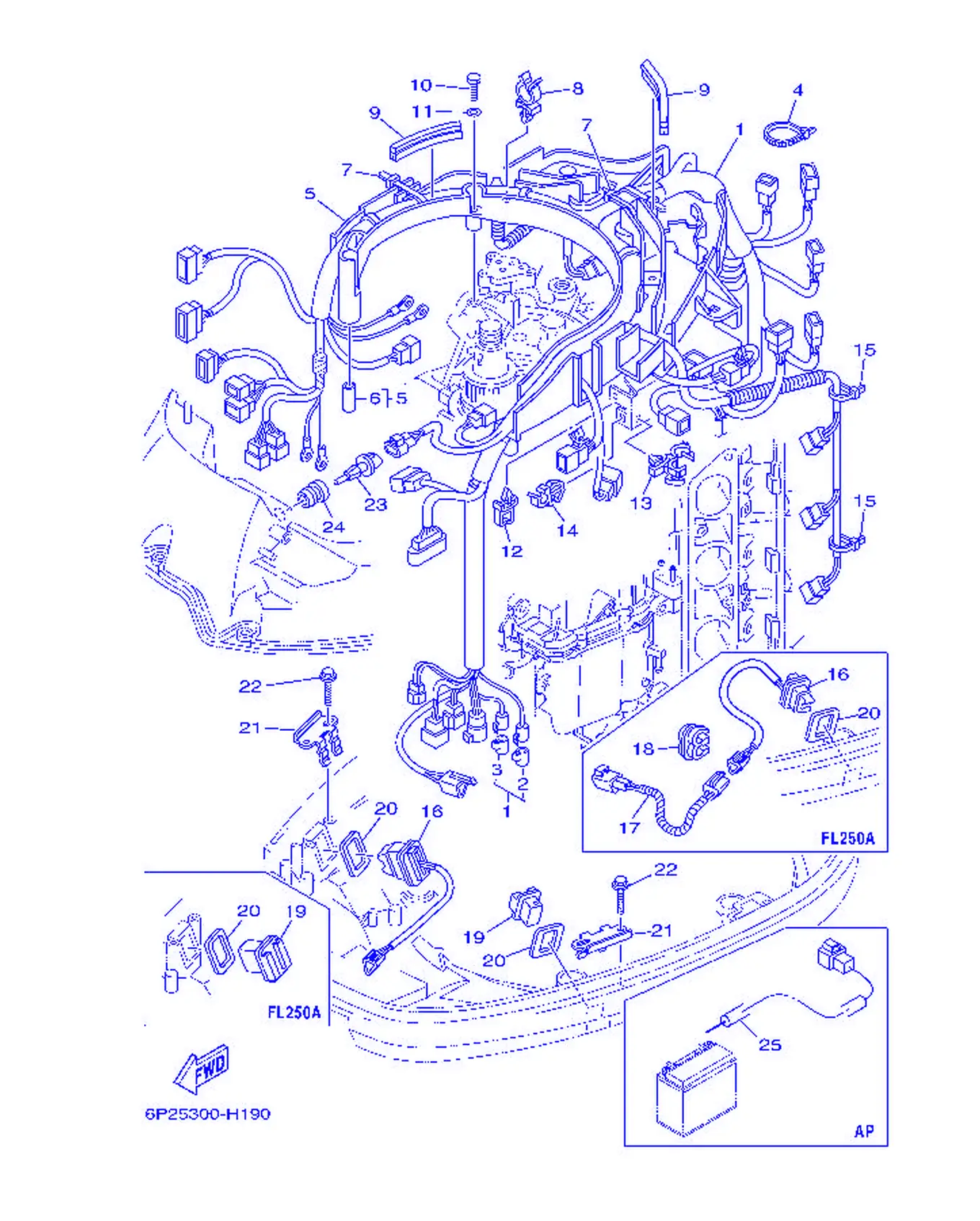

エレクトリカル 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-82590-31	电缆总成	Wire Harness Assembly	1
2	6P2-82582-00	电线束盖	Cap 1 (Female)	1
3	6P2-82582-10	电线束盖	Cap 1 (Male)	1
4	90465-14M66	固定	Clamp	1
5	6P2-82589-00	电线束保护装	Protector, Wire Harness	1
6	90387-06M26	衬套	Color	6
7	90465-14M66	固定	Clamp	2
8	90464-19M45	固定夹	Clamp	4
9	6P2-85722-00	绝缘器	Insulator	2
10	97095-06035	螺栓	Bolt	6
11	92995-06600	盘形垫	Washer	6
12	90464-06001	固定	Clamp	1
13	90464-18246	固定	Clamp	1
14	90464-08051	固定夹	Clamp	1
15	90465-13M18	固定	Clamp	3
16	69J-82563-00	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
19	69J-42723-00-8D	底盖	Cover, Bottom	1
20	69J-82587-00	衬垫	Gasket	2
21	69J-83614-10	托架	Bracket	2
22	90109-06M86	螺栓	Bolt	4
23	63P-85886-00	温控器	Sensor, Air Temperature	1
24	63P-14435-00	固定环	Grommet	1
25	69J-81949-02	导线	Wire, Lead (Isolator, 3.8M)	1

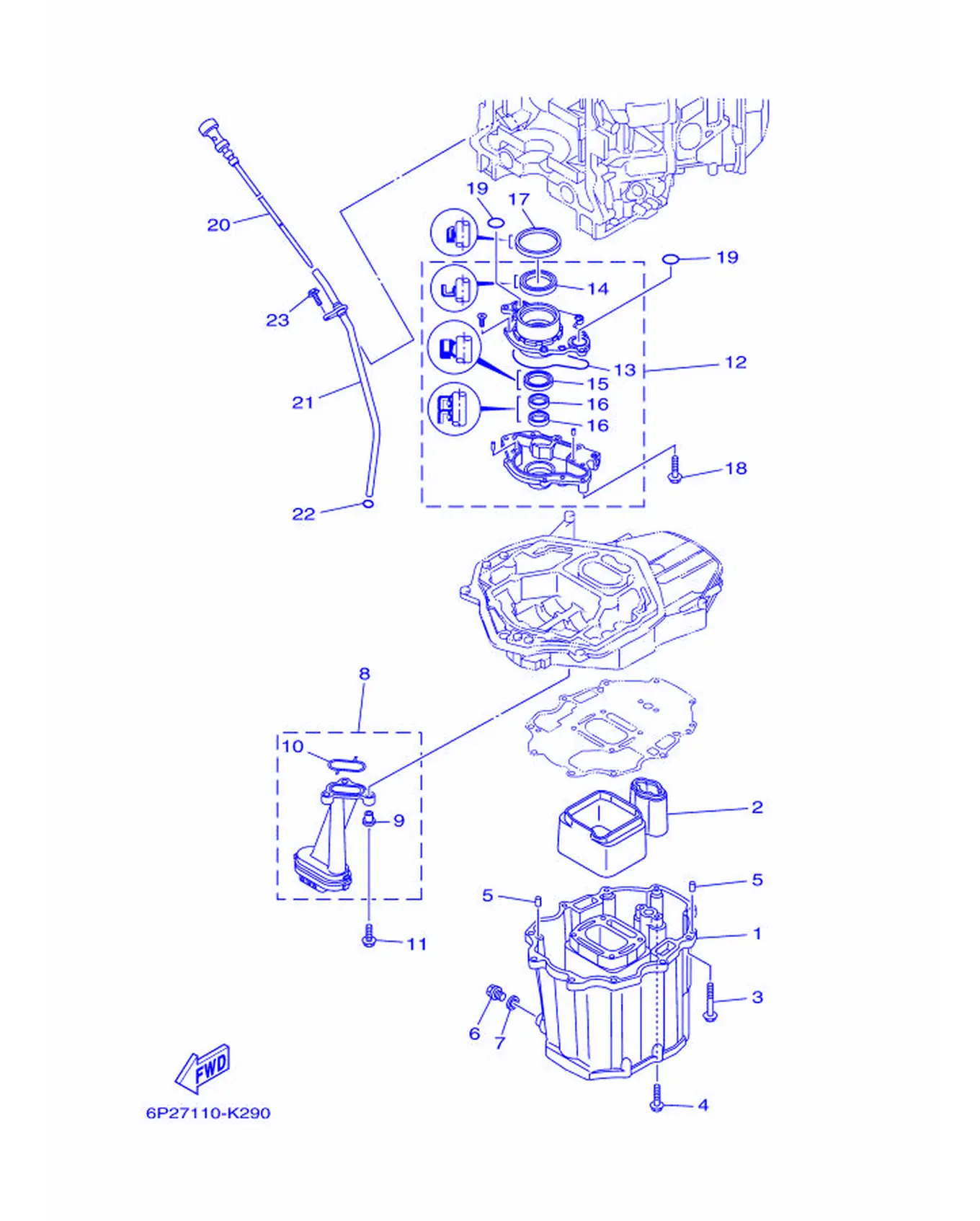

オイルパン

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-15311-00-CA	油槽	Oil Pan	1
2	69J-15761-00	橡皮密封圈1	Seal,Rubber 1	1
3	97575-08560	带垫圈螺	Bolt, With Washer	10
4	97575-08535	带垫圈螺	Bolt, With Washer	2
5	93608-16M16	定位销	Pin, Dowel	2
6	90340-14M06	塞	Plug, Straight Screw	1
7	90430-14M09	衬垫	Gasket	1
8	69J-13411-00	机油滤芯	Strainer,Oil	1
9	90387-06263	轴套	Color	3
10	69J-13415-00	机油滤网密封	Seal, Oil Strainer	1
11	95812-06025	螺栓	Bolt, Flange	3
12	69J-13300-02	机油泵总成	Oil PumpAssembly	1
13	69J-13329-00	泵盖衬垫	Gasket, Pump Cover	1
14	69J-13338-00	密封圈	Oil Seal	1
15	6AW-13119-00	润滑密封	Oil Seal	1
16	69J-13631-00	橡皮密封	Oil Seal	2
17	69J-11355-00	气缸密封圈1	Seal,Cylinder 1	1
18	97575-06540	带垫圈螺栓	Bolt, With Washer	4
19	93210-25552	O型圈	O-ring	2
20	6P2-15362-10	油标塞	Plug, Oil Level	1
21	6P2-15377-10	导管	Guide, Inlet	1
22	93210-19MJ3	O型圈	O-ring	1
23	95895-06016	凸缘螺	Bolt, Flange	1

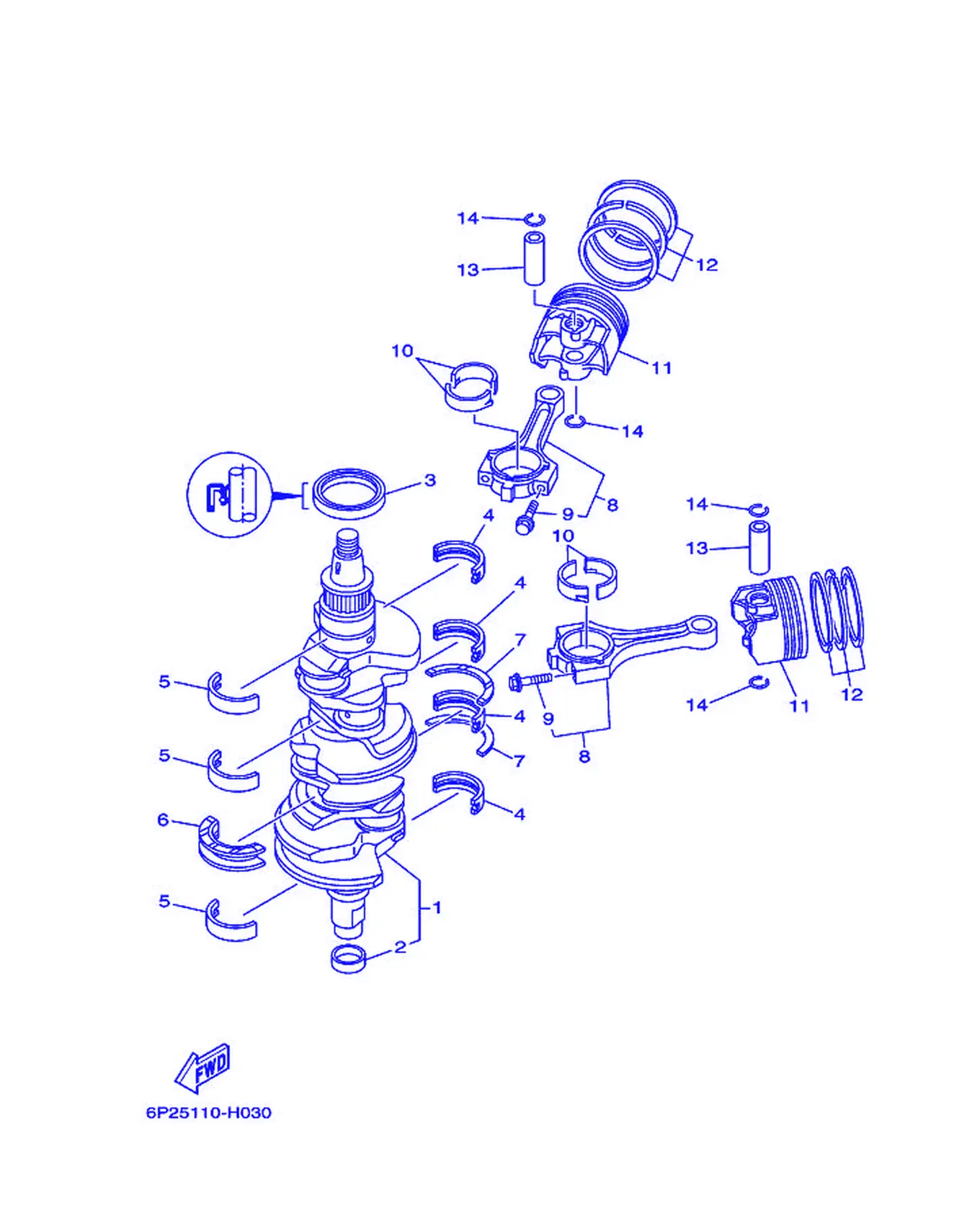

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-11410-01	曲轴组合	Crankshaft	1
2	69J-11478-00	衬套	Collar	1
3	93102-63004	油封	Oil Seal	1
4	69J-11416-01	轴瓦1	Crankshaft Plain Bearing 1	4
4	69J-11416-11	轴瓦1	Crankshaft Plain Bearing 1	4
4	69J-11416-21	轴瓦1	Crankshaft Plain Bearing 1	4
5	69J-11417-01	轴瓦2	Crankshaft Plain Bearing 2	4
5	69J-11417-11	轴瓦2	Crankshaft Plain Bearing 2	4
5	69J-11417-21	轴瓦2	Crankshaft Plain Bearing 2	4
5	69J-11417-01	轴瓦2	Crankshaft Plain Bearing 2	3
5	69J-11417-11	轴瓦2	Crankshaft Plain Bearing 2	3
5	69J-11417-21	轴瓦2	Crankshaft Plain Bearing 2	3
6	6AW-11426-00	轴瓦1	Bearing, Thrust 1	2
6	69J-11426-01	轴瓦1	Bearing, Thrust 1	1
6	69J-11426-11	轴瓦1	Bearing, Thrust 1	1
7	6AW-11427-00	轴瓦2	Bearing, Thrust 2	2
7	69J-11427-00	轴瓦2	Bearing, Thrust 2	2
8	69J-W1165-01	连杆平面支承套	Connecting Rod Assembly	6
9	69J-11654-00	连杆螺	Bolt, Connecting Rod	2
10	69J-11656-00	轴瓦	Connecting Rod Plain Bearing	12
10	69J-11656-10	轴瓦	Connecting Rod Plain Bearing	12
10	69J-11656-20	轴瓦	Connecting Rod Plain Bearing	12
11	6P2-11631-01-93	活塞	Piston (STD)	6
12	63P-11603-01	活塞环套件	PistonRingSet (STD)	6
13	69J-11633-00	活塞销	Pin, Piston	6
14	69J-11634-01	活塞销挡圈	Clip, Piston Pin	12

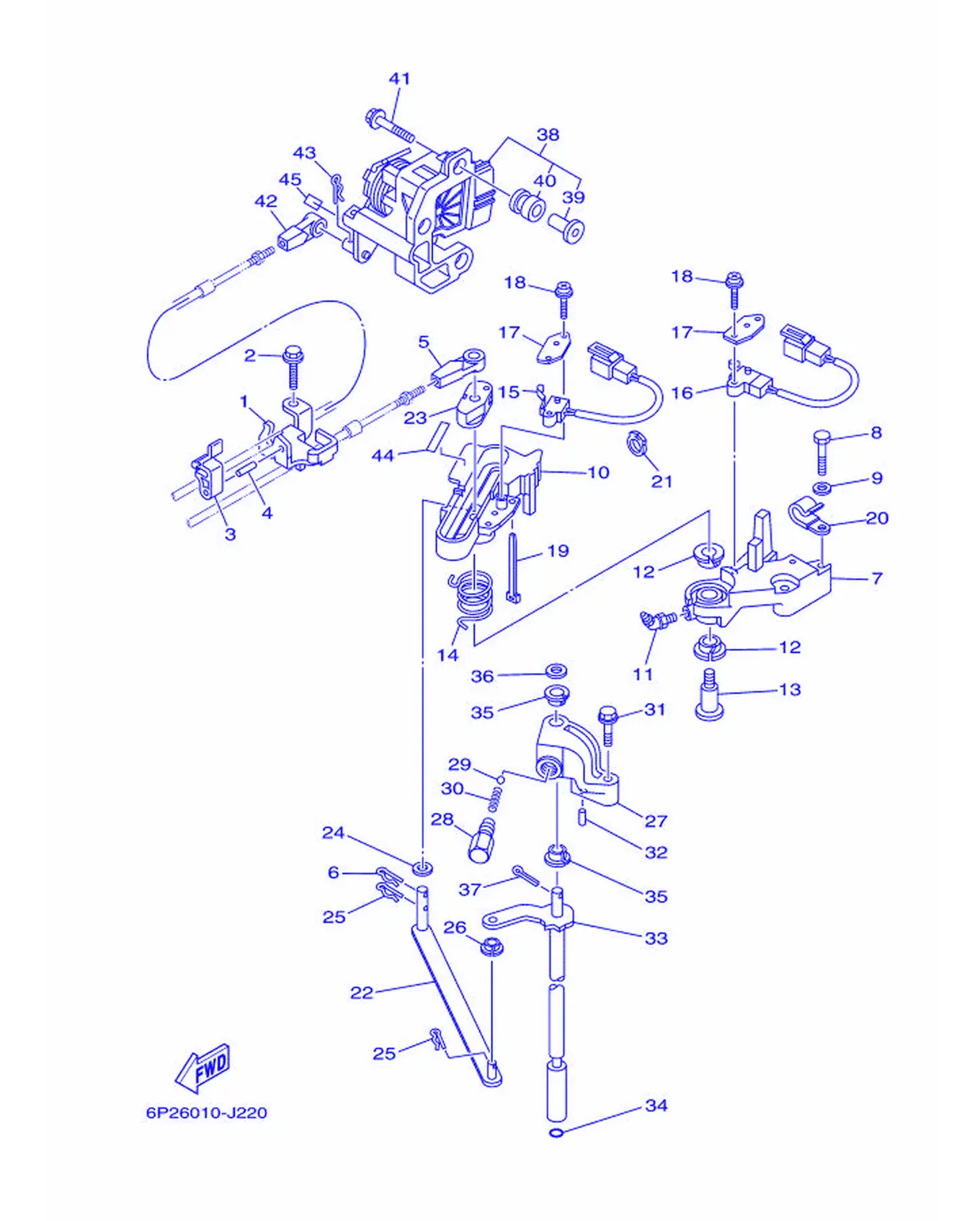

コントロ-ル

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-48531-00	遥控装置托架1	Bracket, Remote Control 1	1
2	90109-06M86	螺栓	Bolt	2
3	63P-48538-00	钢索夹1	Clamp,Cable 1	1
4	91690-30010	弹簧销	Pin,Spring	1
5	6E5-48344-00	遥控钢索端部	Cable End, Remote Control	1
6	90468-18008	钢夹	Clip	1
7	69J-44117-00	托架	Bracket	1
8	97095-06035	螺栓	Bolt	2
9	92995-06600	盘形垫	Washer	2
10	69J-44176-01	托架	Bracket	1
11	93700-06M01	润滑油管嘴	Nipple, Grease	1
12	90386-12069	衬套	Bushing	2
13	90109-08019	卡环	Bolt	1
14	90508-20020	扭簧	Spring, Torsion	1
15	60V-8259F-00	开关组合	SwitchAssembly	1
16	69J-8259F-00	开关组合	SwitchAssembly	1
17	61A-82588-01	面板	Plate	2
18	97985-04116	带垫圈螺钉	Screw, With Washer	4
19	90465-11M10	固定	Clamp	1
20	90465-06M86	夹箍	Clamp	1
21	90464-09010	固定	Clamp	1
22	6P2-44121-00	变挡杆杠杆	Lever, Shift Rod	1
23	69J-44122-00	变挡杆杠杆衬套	Bushing, Shift Rod Lever	1
24	90202-08M20	平垫圈	Washer,Plate	1
25	90468-18008	钢夹	Clip	2
26	90386-06M12	衬套	Bushing	1
27	69J-44118-00	托架	Bracket	1
28	648-42715-00	衬套	Bushing	1
29	93501-04M02	滚珠	Ball	1
30	90501-12082	压簧	Spring, Compression	1
31	97575-06535	带垫圈螺	Bolt, With Washer	1
32	91690-30010	弹簧销	Pin,Spring	1
33	69J-44120-00	变挡手柄组合	Handle Gear Shift Assembly	1
33	69J-44120-10	变挡手柄组合	Handle Gear Shift Assembly	1
34	93210-09165	O型圈	O-ring	1
35	90386-90M90	衬套	Bushing	2
36	90201-09M02	面板垫圈	Washer,Plate	1
37	91490-20015	开口销	Pin, Cotter	1
38	6P2-8A410-00	传感器	Sensor Unit	1
39	6P2-44139-00	安装环	Collar	3
40	6P2-41273-00	固定	Grommet	3
41	90119-06126	带垫圈螺栓	Bolt, with Washer	3
42	6E5-48344-00	遥控钢索端部	Cable End, Remote Control	1
43	90468-18008	钢夹	Clip	1
44	6E0-44191-11	变挡指示器	Indicator, Shift	1
45	6E5-42137-10	油门指示器	Indicator, Throttle	1

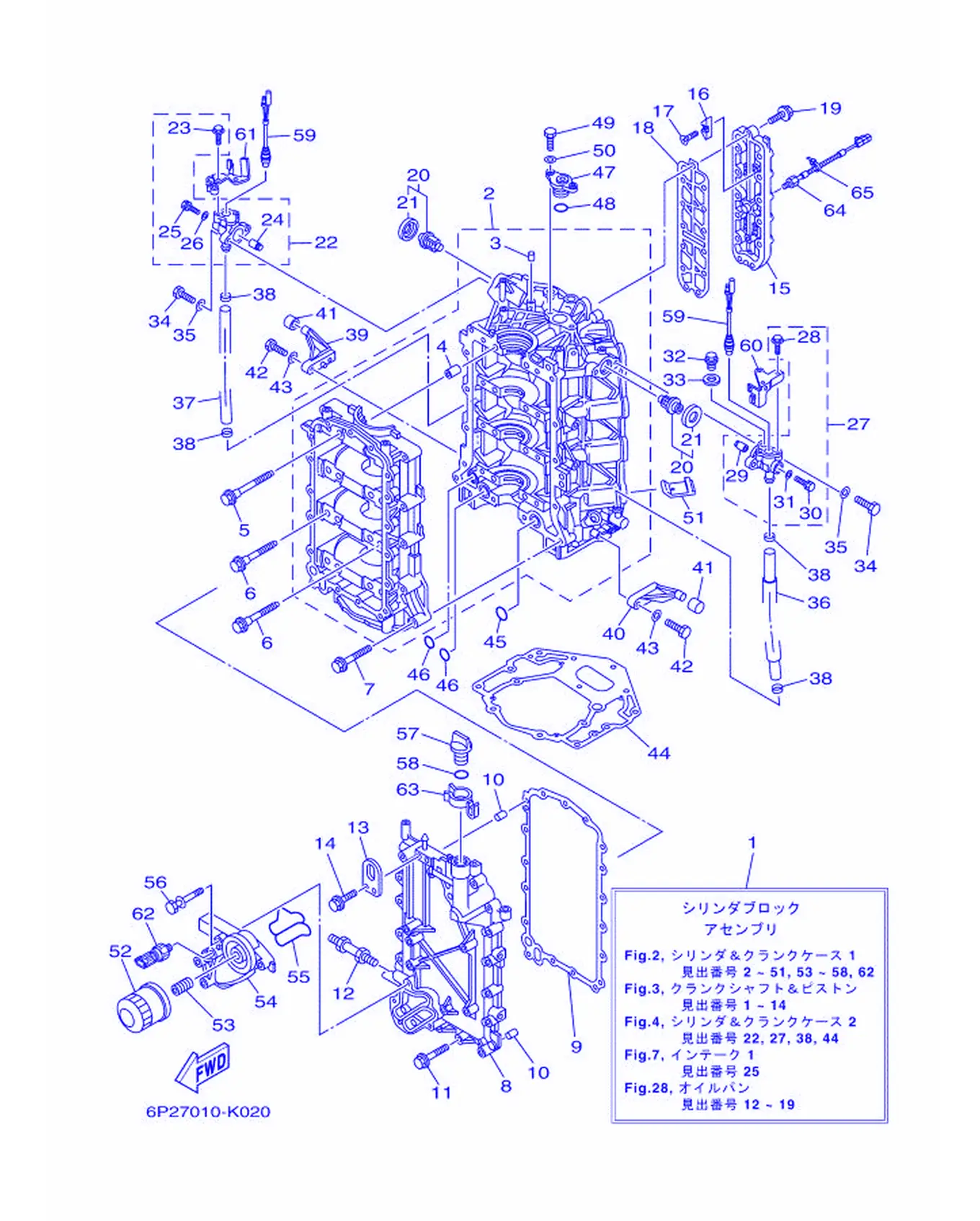

シリンダ & クランクケース 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-W009B-05-9S	主缸体总成B	Cylinder Block Assembly	1
1	6P2-W009B-04-9S	主缸体总成B	Cylinder Block Assembly	1
2	6P2-15100-02-9S	曲轴箱组合	Crankcase Assembly	1
2	6P2-15100-03-9S	曲轴箱组合	Crankcase Assembly	1
3	93606-12019	定位销	Pin, Dowel	1
4	91814-18001	定位销	Pin, Dowel	8
5	69J-15187-00	螺栓	Bolt	8
6	69J-15481-00	螺栓1	Bolt 1	8
7	90119-08M66	带垫螺栓	Bolt, With Washer	13
8	6P2-15411-01-9S	曲轴箱盖1	Cover, Crankcase 1	1
9	69J-15451-00	曲轴箱盖衬垫1	Gasket, Crankcase Cover	1
10	93606-12019	定位销	Pin, Dowel	2
11	90119-08009	带垫螺栓	Bolt, With Washer	17
12	90116-10027	螺栓	Bolt, Stud	1
13	69J-11119-00	发动机悬挂架	Hanger, Engine	1
14	90105-06M09	六角法兰面螺栓	Bolt, Washer Based Head	2
15	6P2-1131C-00-9S	接头盖	Cover, Joint	1
16	6E5-11325-00	阳极	Anode	4
17	98780-04015	平头螺钉	Screw, Flat Head	4
18	6P2-1131B-00	衬垫	Gasket, Cover	1
19	90119-06MA4	带垫螺栓	Bolt, With Washer	13
20	67F-12411-01	温控器	Thermostat	2
21	67F-12412-00	温控器密封	Seal,Thermostat	1
22	6P2-1240H-00-9S	盖组合	Anode Assembly	1
23	90109-06M80	螺栓	Bolt	2
24	6P3-11325-00	阳极	Anode	1
25	90105-05012	凸缘螺栓	Bolt, Flange	1
26	90430-05002	衬垫	Gasket	1
27	6P3-1240H-00-9S	盖组合	Anode Assembly	1
28	90109-06M80	螺栓	Bolt	2
29	6P3-11325-00	阳极	Anode	1
30	90105-05012	凸缘螺栓	Bolt, Flange	1
31	90430-05002	衬垫	Gasket	1
32	90340-14M06	塞	Plug, Straight Screw	1
33	90430-14115	垫片	Gasket	1
34	97095-06025	螺栓	Bolt	4
35	92995-06600	盘形垫	Washer	4
36	6P2-1243A-00	软管1	Hose 1	1
37	69J-1243E-00	软管2	Hose 2	1
38	90465-11M10	固定	Clamp	4
39	67F-42761-01	限位板	Stopper	1
40	6P2-42761-00	限位板	Stopper	1
41	68F-44533-01	上侧减震胶垫	Damper, Upper Mount Rubber	2
42	97095-06025	螺栓	Bolt	4
43	92995-06600	盘形垫	Washer	4
44	69J-11351-11	气缸衬垫	Gasket, Cylinder	1
45	93210-25552	O型圈	O-ring	1
46	93210-19MJ1	O型圈	O-ring	2
47	69J-11313-00	绝缘插头	Blind Plug	1
48	93210-25647	O型圈	O-ring	1
49	97095-06020	螺栓	Bolt	2
50	92995-06600	盘形垫	Washer	2
51	69J-14664-00	断水	Grommet, Water Jacket	2
52	69J-13440-01	机油进滤器总成	Element Assembly, Oil Cleaner	1
53	69J-12858-00	管接螺栓2	Bolt, Union	1
54	6P2-13446-00-9S	连接器	Connector	1
55	6P2-13477-00	衬垫	Gasket	1
56	90119-06025	带垫螺栓	Bolt, With Washer	5
57	6G8-15363-00	机油塞子	Plug,Oil	1
58	93210-24M79	O型圈	O-ring	1
59	6P2-82560-01	温控开关组合	Thermo Switch Assembly	2
60	6P2-82588-00	面板	Plate	1
61	6P2-82389-00	面板2	Plate 2	1
62	6AW-83651-00	油压传感	Sender, Oil Pressure	1
63	6P2-83597-00	夹箍	Clamp	1
64	6P2-85780-00	发爆传感	Sensor, Knock	1
65	90465-11M10	固定	Clamp	1

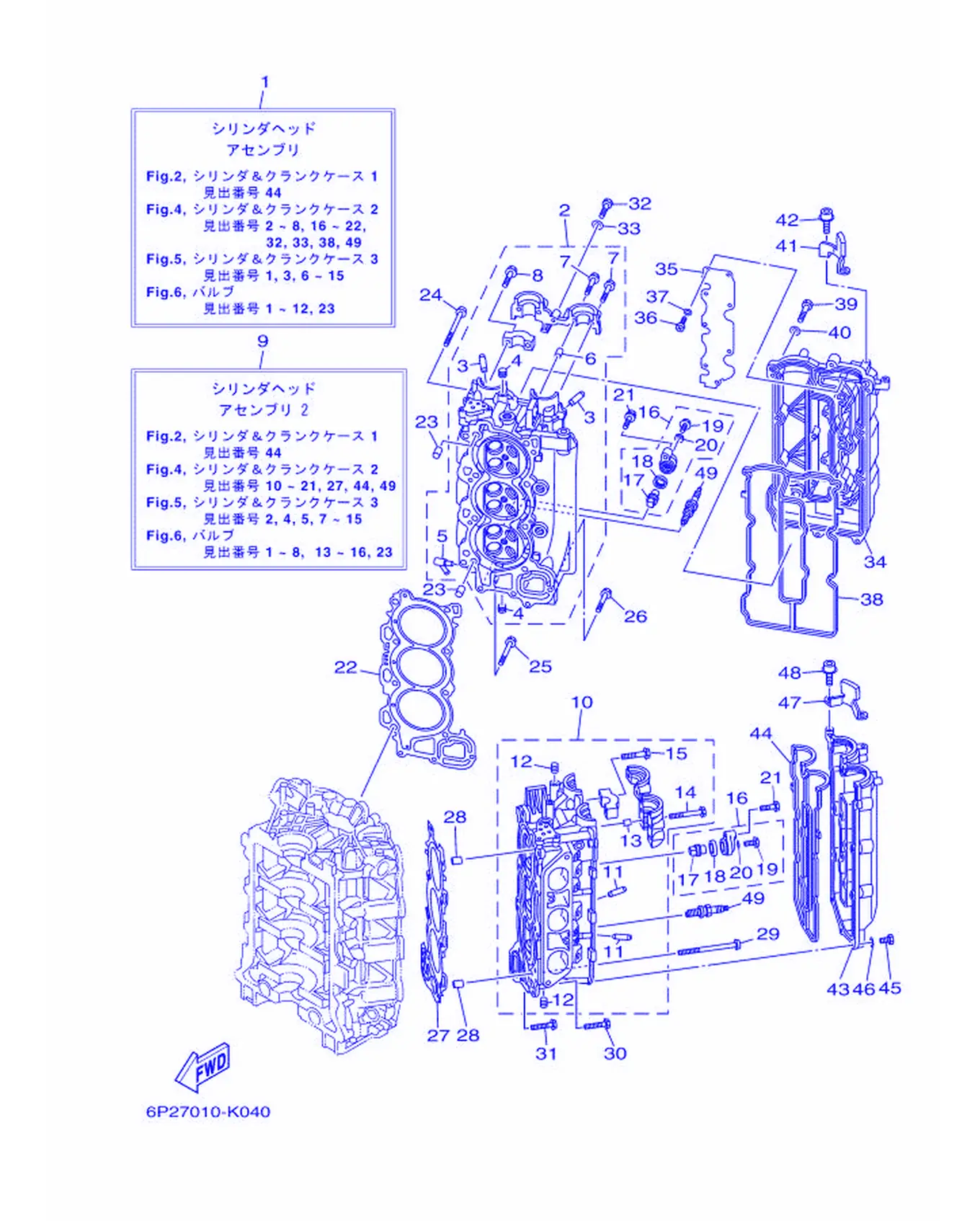

シリンダ & クランクケース 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-W009A-02-9S	气缸盖组件	Cylinder Head Assembly	1
2	6P2-11110-01	气缸头总成	Cylinder Head Assembly	1
3	69J-11133-10	阀门导杆1	Guide,Valve 1	12
4	90344-51019	衬套	Plug, Taper Screw	7
5	676-11372-00	软管接头	Nipple,Hose	1
6	91809-08006	定位销	Sleeve Guide Dowel	2
7	90119-07001	带垫圈螺栓	Bolt, with Washer	4
8	90119-07234	带垫螺栓	Bolt, with Washer	14
9	6P2-W009C-02-9S	气缸盖组件	Cylinder Head Assembly 2	1
10	6P2-11120-01	气缸头总成2	Cylinder Head Assembly 2	1
11	69J-11133-10	阀门导杆1	Guide,Valve 1	12
12	90344-51019	衬套	Plug, Taper Screw	3
13	91809-08006	定位销	Sleeve Guide Dowel	4
14	90119-07235	带垫螺栓	Bolt, Washer Cam Caps	6
15	90119-07234	带垫螺栓	Bolt, with Washer	12
16	69J-11301-00	锌块垫组合	Anode Cover Assembly	4
17	67F-11325-01	阳极	Anode	1
18	67F-11328-00	阳极固定	Grommet	1
19	90105-06M07	螺栓	Bolt, Flange	1
20	90430-06M03	平垫圈	Gasket	1
21	97575-08540	带垫圈螺	Bolt, With Washer	4
22	6P2-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
23	90387-10M08	衬套	Color	2
24	90155-10004	十字槽螺钉	Screw, Flat Fillister	8
25	90119-08M91	卡环	Bolt, With Washer	2
26	90119-08021	带垫螺栓	Bolt, With Washer	1
27	6P2-11182-00	气缸盖衬垫2	Gasket, Cylinder Head 2	1
28	90387-10M08	衬套	Color	2
29	90155-10004	十字槽螺钉	Screw, Flat Fillister	8
30	90119-08M91	卡环	Bolt, With Washer	2
31	90119-08021	带垫螺栓	Bolt, With Washer	1
32	97095-06030	螺栓	Bolt	1
33	92995-06600	盘形垫	Washer	1
34	6P2-11191-00-9S	气缸盖罩1	Cover, Cylinder Head 1	1
35	6P2-11135-00	通气管面板3	Breather Plate 3	1
36	98507-04008	大柱头螺钉	Screw, Pan Head	9
37	92907-04600	有槽螺母	Washer	9
38	6P2-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
39	97095-06030	螺栓	Bolt	14
40	92995-06600	盘形垫	Washer	14
41	6P2-15142-00	托架	Guide 1	1
42	90110-06150	螺栓	Bolt, Hexagon Socket Head	2
43	6P2-11192-00-9S	气缸盖罩2	Cover, Cylinder Head 2	1
44	6P2-11194-00	气缸盖罩衬垫2	Gasket, Head Cover 2	1
45	97095-06030	螺栓	Bolt	14
46	92995-06600	盘形垫	Washer	14
47	6P2-15143-00	托架	Guide	1
48	90110-06150	螺栓	Bolt, Hexagon Socket Head	2
49	94709-00400	火花塞	Plug, Spark (NGK LFR6A-11)	6

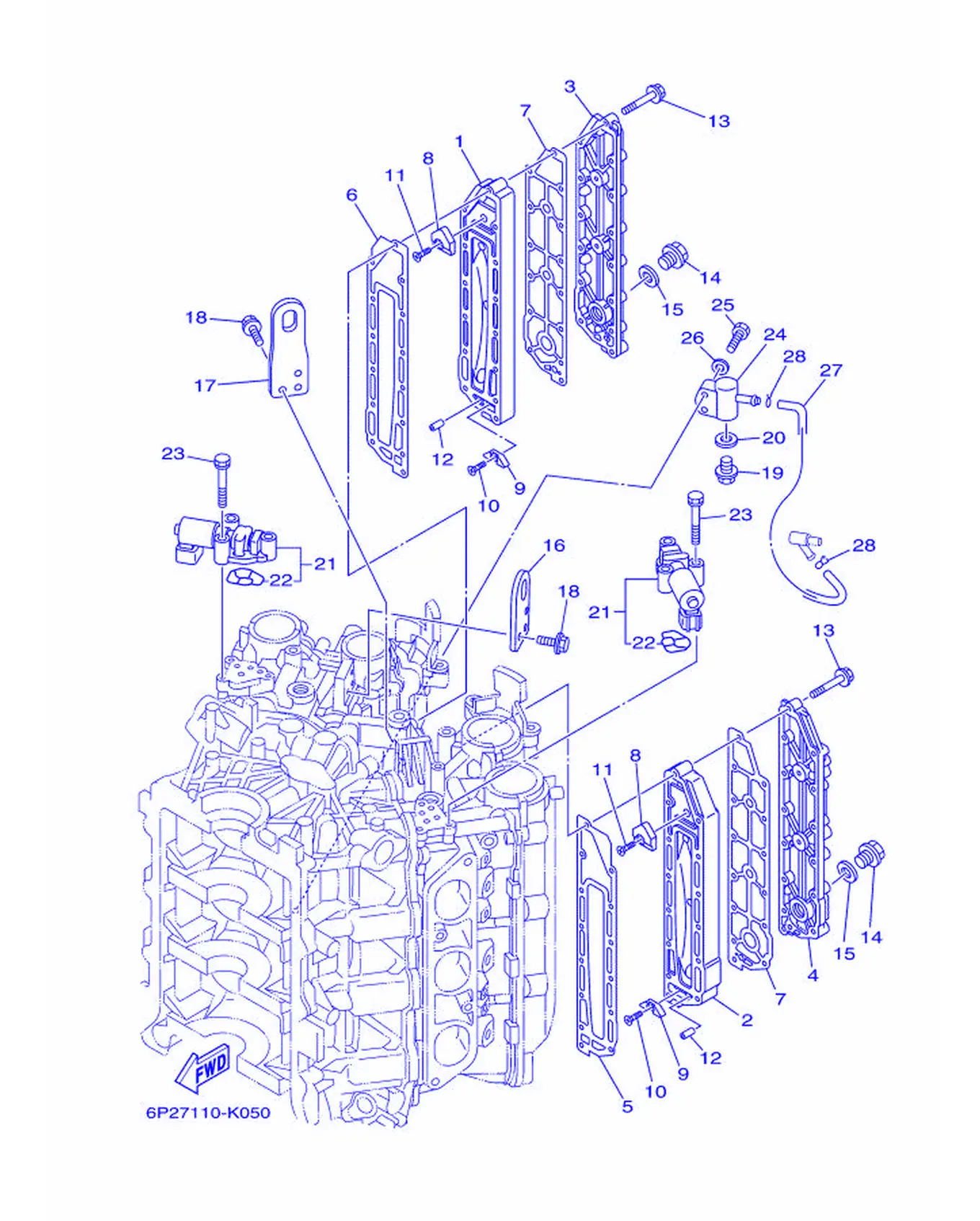

シリンダ & クランクケース 3

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-41111-01-9S	排气管内盖	Inner Cover, Exhaust	1
2	69J-41121-01-9S	排气管内盖	Inner Cover, Exhaust	1
3	69J-41113-02-9S	排气管外盖	Outer Cover, Exhaust	1
4	69J-41123-02-9S	排气管外盖	Outer Cover, Exhaust	1
5	6P2-41112-00	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
6	6P2-41122-00	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
7	6P2-41114-00	排气管外盖衬垫	Gasket, Exhaust Outer Cover	2
8	6P2-11325-00	阳极	Anode	2
9	6E5-11325-00	阳极	Anode	2
10	98780-04015	平头螺钉	Screw, Flat Head	2
11	90151-06M02	卡环	Screw, Countersunk	2
12	91690-40010	弹簧销	Pin,Spring	2
13	90119-06027	带垫螺栓	Bolt, With Washer	28
14	90340-18M09	衬套	Plug, Straight Screw	2
15	90430-18130	固定	Gasket	2
16	6P2-11119-00	发动机悬挂架	Hanger, Engine	1
17	6P2-1111E-00	发动机悬挂架2	Hanger, Engine 2	1
18	90105-06M09	六角法兰面螺栓	Bolt, Washer Based Head	6
19	90340-14M06	塞	Plug, Straight Screw	1
20	90430-14115	垫片	Gasket	1
21	6P2-86120-00	电磁阀组合	Solenoid Valve Assembly	2
22	6P2-12403-00	过滤器	Filter	1
23	90119-06MA6	带垫螺栓	Bolt, With Washer	6
24	6P2-83652-00	连接	Connector	1
25	97095-06030	螺栓	Bolt	2
26	92995-06600	盘形垫	Washer	2
27	6H4-24311-00	燃油管1	Pipe,Fuel 1	1
28	90467-08M18	固定	Clip	2

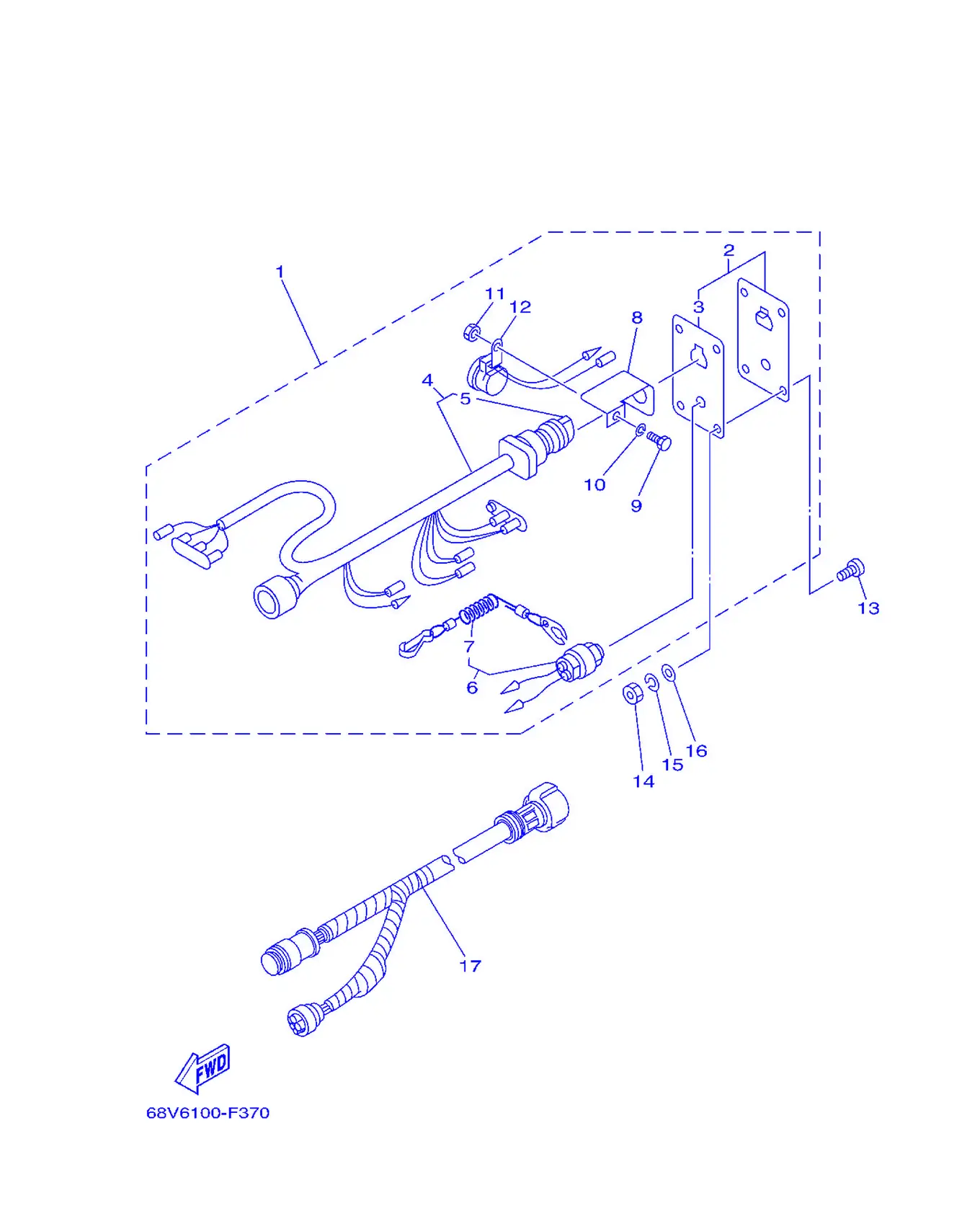

スイツチ & パネル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6R5-82570-05	开关仪表板组合	Panel Switch Assembly	1
2	704-82571-02	开关仪表板	Panel, Switch	1
3	6R5-82588-01	面板	Plate	1
4	6R5-82510-02	主开关组合	Main Switch Assembly	1
5	676-82577-00	倾斜限动电	Cap, Key	1
6	688-82575-01	发动机止动开关组合	Engine Stop Switch Assembly	1
7	682-82556-00	止动拉索	Stopper	1
8	64D-82581-00	线夹支承	Stay, Cord Clamp	1
9	97303-05012	螺栓	Bolt	1
10	92903-05100	盘形垫	Washer,Spring	1
11	95303-05700	有槽螺母	Nut	1
12	6R5-83383-00	蜂鸣器	Buzzer	1
13	90149-05M05	螺钉	Screw	4
14	95303-05600	有槽螺母	Nut	4
15	92903-05100	盘形垫	Washer,Spring	4
16	92903-05600	盘形垫	Washer,Plate	4
17	6K1-8258A-40	电线束延伸部分	Extension, Wire Harness	1

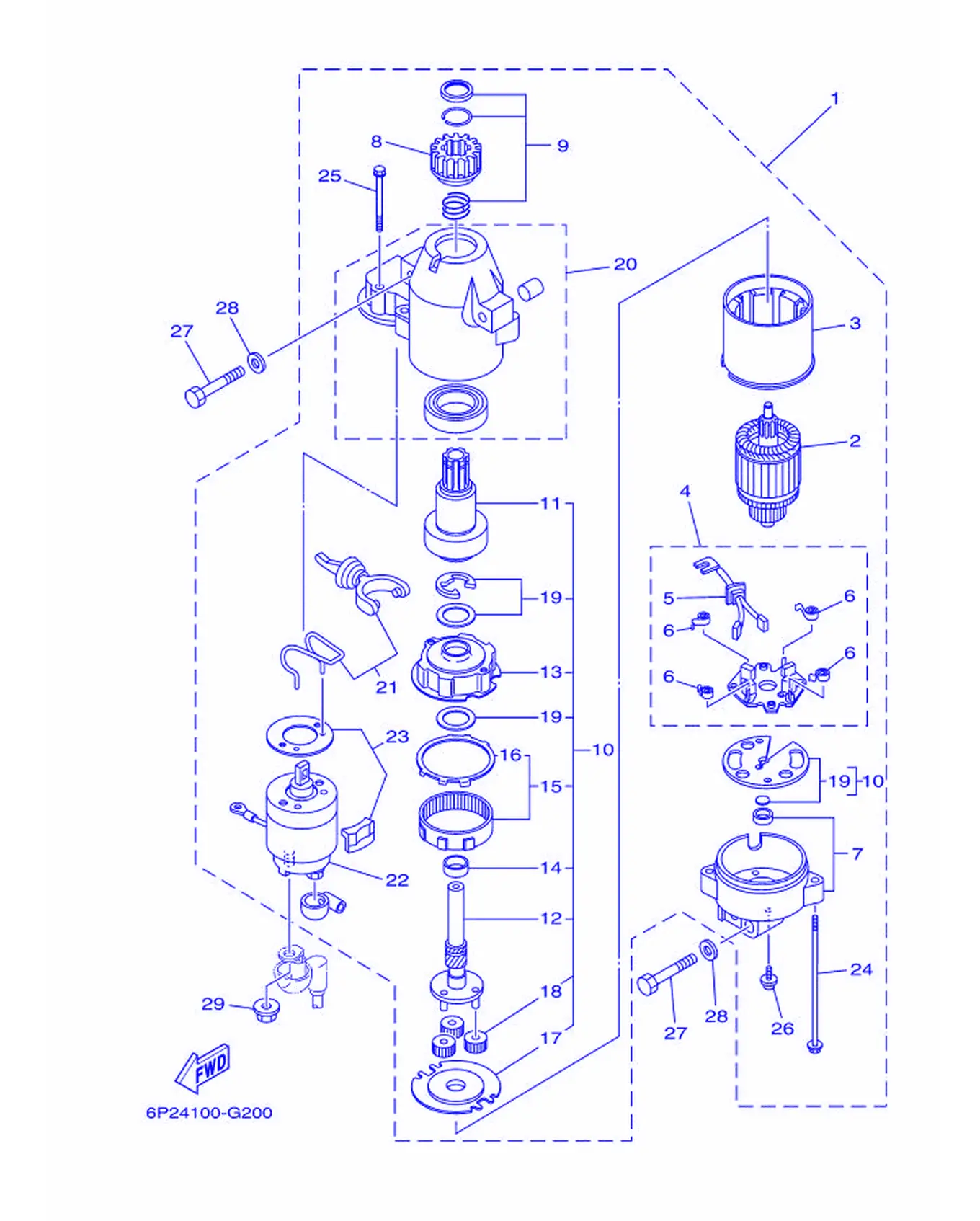

スタ-テイングモ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BR-81800-00	起动电动机总成	Starting Motor Assembly	1
2	67F-81850-00	电枢组合	Armature Assembly	1
3	67F-81810-00	定子组合	Stator Assembly	1
4	69J-81840-00	电刷架组合	Brush Holder Assembly	1
5	69J-81801-00	电刷套	Brush Set	1
6	67F-81813-00	电刷弹簧	Spring, Brush	4
7	67F-81820-00	后托架组合	Rear Bracket Assembly	1
8	67F-81808-00	环形齿轮支承	Pinion Assembly	1
9	67F-81857-00	小齿轮组件	Pinion Stopper Set	1
10	67F-81807-00	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
11	67F-81832-00	越转离合器	Clutch, Overrun	1
12	67F-81836-00	杠杆弹簧	Shaft, Pinion	1
13	67F-81821-00	开关盖	Bracket, Center 1	1
14	67F-81841-00	环形齿轮支承	Bearing	1
15	67F-81891-00	环形齿轮	Gear, Ring	1
16	67F-8183R-00	环形齿轮支承	Gasket	1
17	67F-81830-00	前托架组合	Bracket, Center 2	1
18	60V-8183T-00	环形齿轮支承	Gear, Idler	3
19	67F-81809-00	垫圈套	Washer Kit	1
20	69J-81842-00	盖	Cover	1
21	69J-81839-00	杠杆组合	LeverAssembly	1
22	63P-81941-00	起动继电器组合	Starter Relay Assembly	1
23	69J-81869-00	防尘盖	Cover, Dust	1
24	6K7-81826-11	螺栓	Bolt	2
25	69J-81828-00	螺栓2	Bolt 2	2
26	67F-81846-00	螺钉	Screw	2
27	97013-08045	螺栓	Bolt	3
28	92903-08600	有槽螺母	Washer,Plate	3
29	90179-08003	螺母	Nut	1

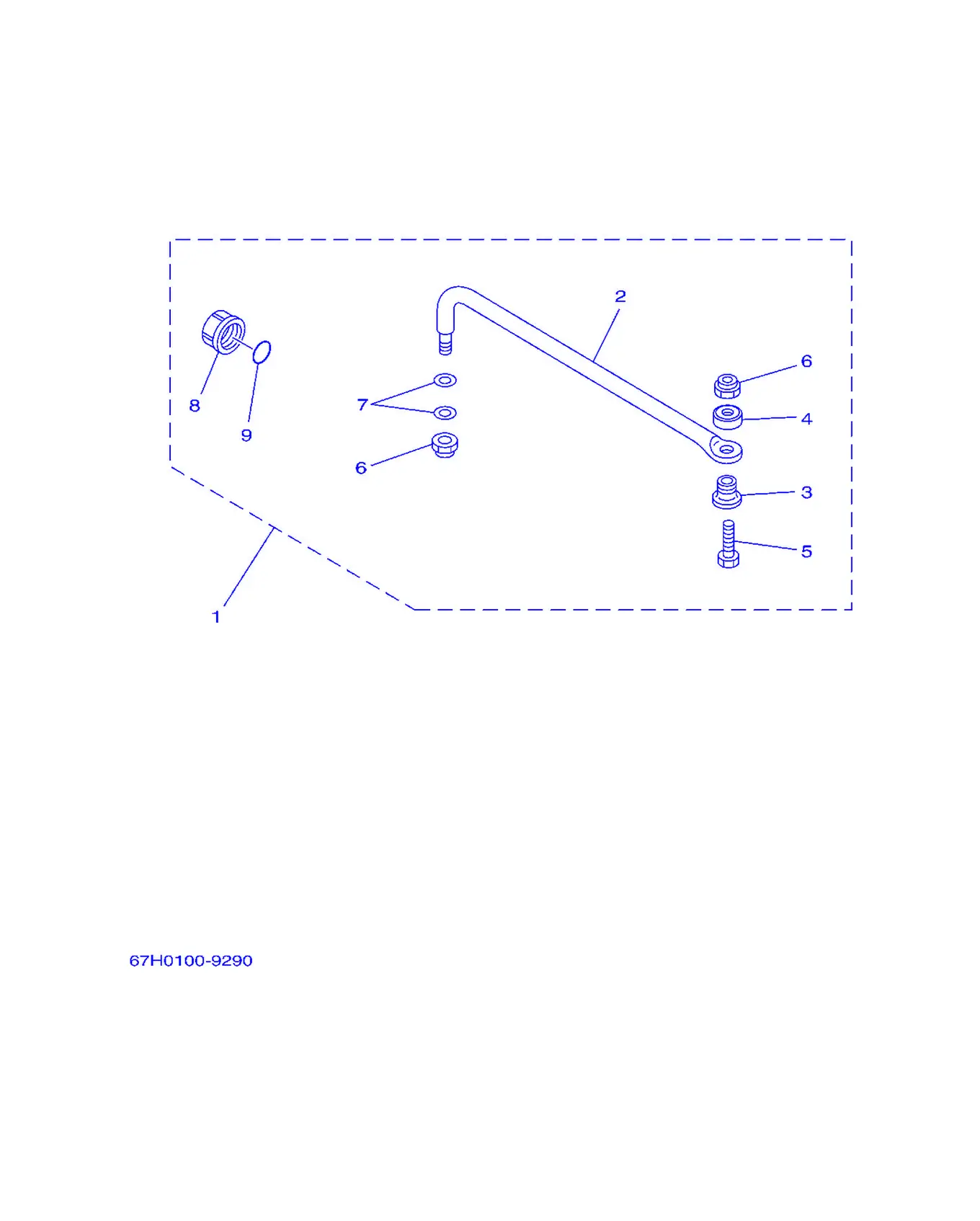

ステアリングガイドアタツチメン

REF	雅马哈编码	中文名称	英文名称	用量
1	6E5-61350-02	操舵连接板套	SteeringGuideAttachment	1
2	6E5-61351-01	操舵连杆	Rod, Steering Link	1
3	90387-10M61	衬套	Collar	1
4	90560-12M01	接头	Spacer	1
5	6E5-61355-00	螺栓	Bolt	1
6	90185-09M01	螺帽	Nut, Self-Locking	2
7	90201-10M20	面板垫圈	Washer,Plate	2
8	6E5-43145-01	夹紧托架盖	Cap, Clamp Bracket	1
9	93210-16275	O型圈	O-ring	1

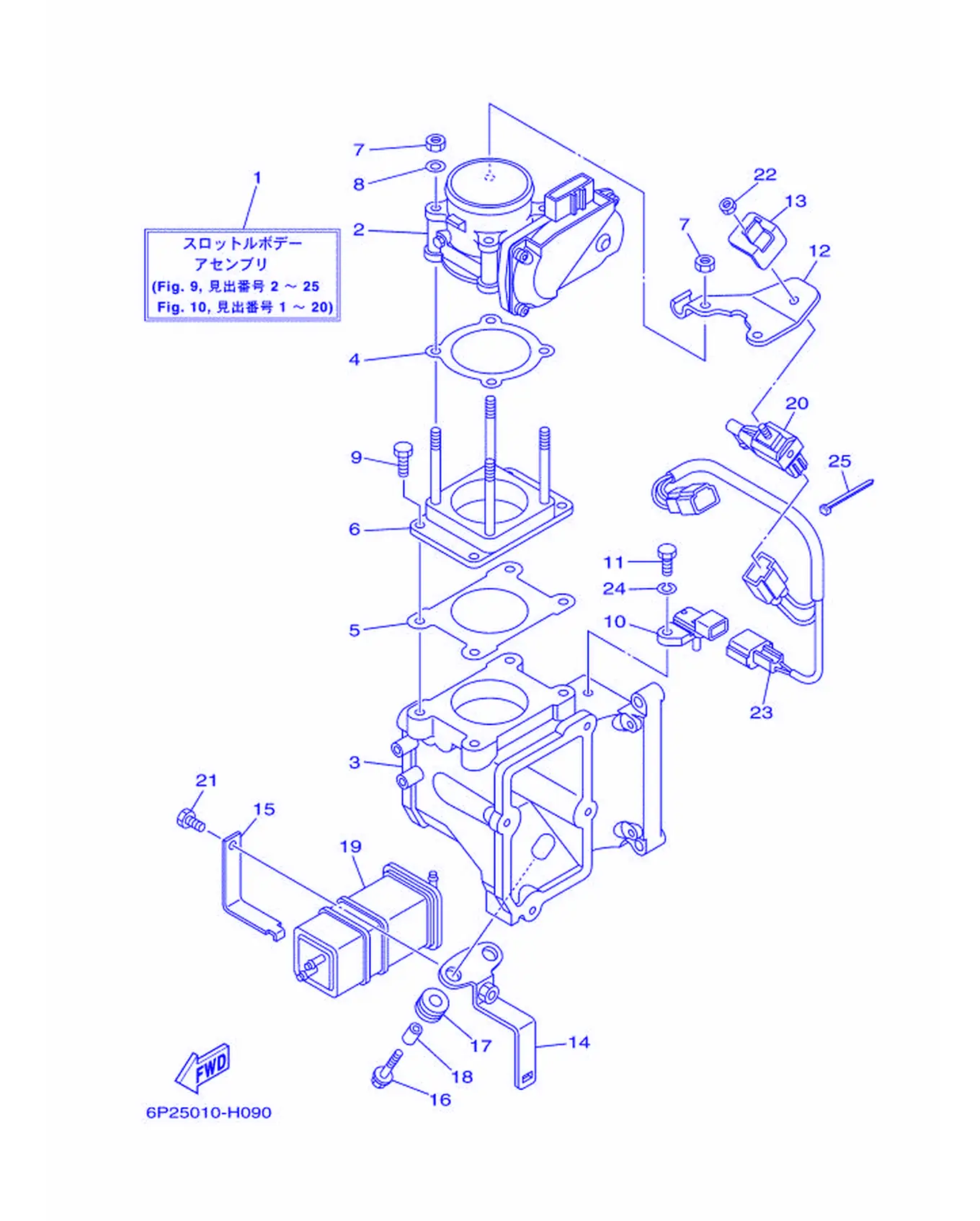

スロツトルボデ-アセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-13750-00	节气门本体组合	Throttle Body Assembly	1
2	6P2-13751-00	本体	Body, Throttle 1	1
3	6P2-13711-00	混合体	Mixing Body	1
4	6P2-13556-00	岐管衬垫	Gasket, Manifold	1
5	6P2-13557-00	衬垫	Gasket	1
6	6P2-14360-00	风门组合	Throttle Damper Assembly	1
7	6P2-13588-00	螺母	Nut	4
8	6P2-13578-00	垫圈	Washer	2
9	6P2-14496-00	螺栓	Bolt	4
10	6P2-82380-00	压力传感	Sensor, Pressure	1
11	6P2-13573-00	螺栓1	Bolt 1	1
12	6P2-14255-00	面板	Plate	1
13	6P2-14159-00	钢夹	Clip	1
14	6P2-2134X-00	金属箱托架	Bracket, Canister	1
15	6P2-2419A-00	支架	Holder	1
16	90119-06M59	带垫螺栓	Bolt, With Washer	2
17	90480-10M23	固定	Grommet	2
18	90387-06M60	衬套	Color	2
19	6P2-24170-00	过滤器总成	Canister Assembly	1
20	6C5-86120-00	电磁阀组合	SolenoidValveAssembly	1
21	6P2-13574-00	螺栓2	Bolt 2	1
22	69J-14164-00	固定螺母	Nut, Holding	1
23	6P2-8258A-00	电线束延伸部分	Extension, Wire Harness	1
24	68V-14356-00	弹簧垫	Washer, Spring	1
25	68V-2481H-00	夹箍	Clamp	1

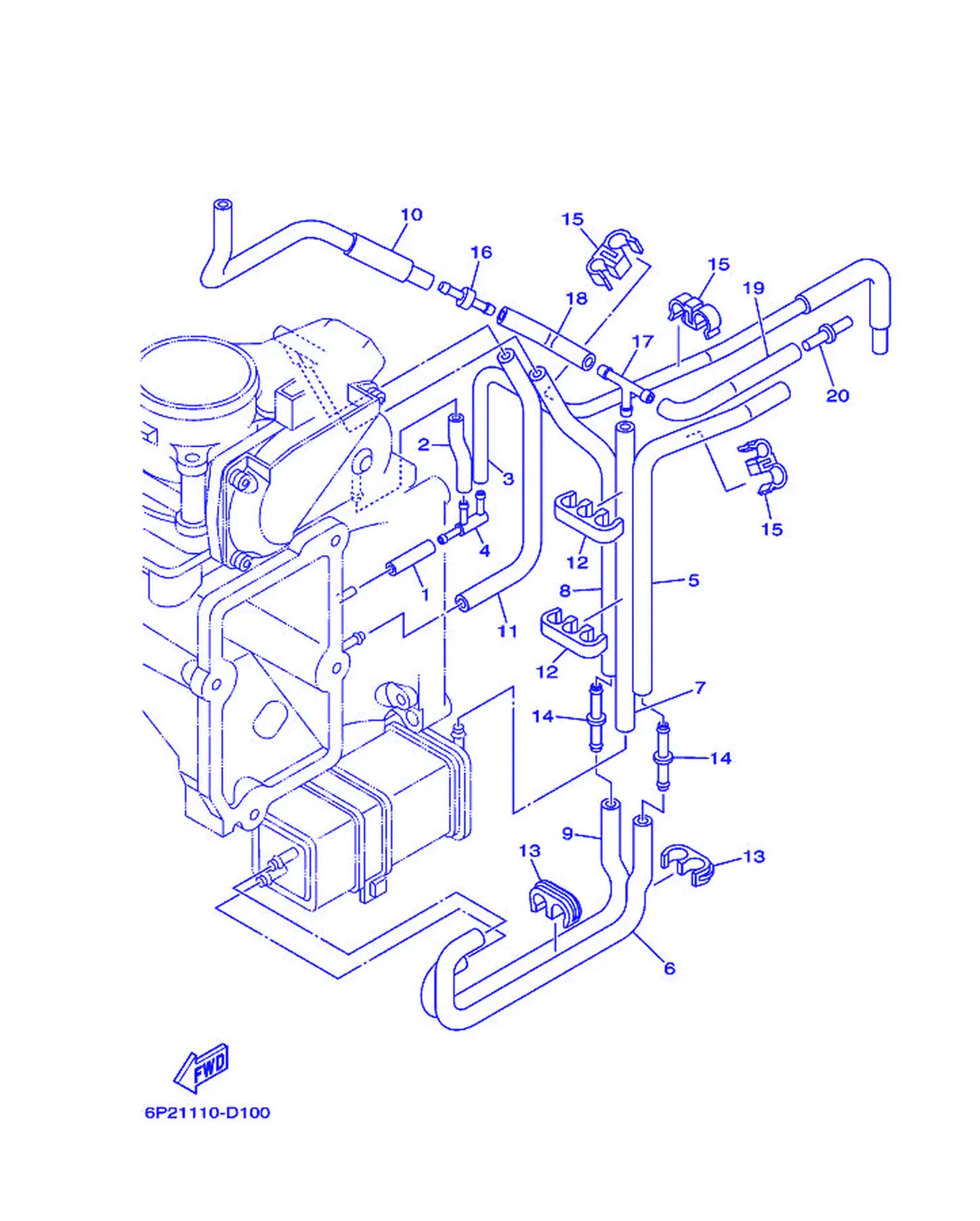

スロツトルボデ-アセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-14349-00	管	Pipe	1
2	6P2-13533-00	负压传感软管4	Hose, Vacuum Sensing 4	1
3	6P2-13532-00	负压传感软管3	Hose, Vacuum Sensing 3	1
4	6P2-13595-00	接头	Joint	1
5	6P2-1475A-00	管1	Pipe 1	1
6	6P2-1475E-00	管2	Pipe 2	1
7	6P2-13545-00	软管1	Hose 1	1
8	6P2-1475F-00	管	Pipe 3	1
9	6P2-1475G-00	管	Pipe 4	1
10	6P2-13546-00	软管2	Hose 2	1
11	6P2-2416A-00	软管	Hose	1
12	6P2-24135-00	夹箍1	Clamp 1	2
13	6P2-24136-00	夹箍2	Clamp 2	2
14	6P2-13758-00	接合管	Pipe, Joint	2
15	6P2-24137-00	容器托架	Clamp 3	3
16	6E5-21744-00	通气管	Breather	1
17	688-24378-00	连接管4	Pipe,Joint	1
18	6P2-13547-00	软管3	Hose 3	1
19	6P2-13548-00	化油器接头4	Hose,Air 4	1
20	6P2-24376-00	连接管1	Pipe, Joint 1	1

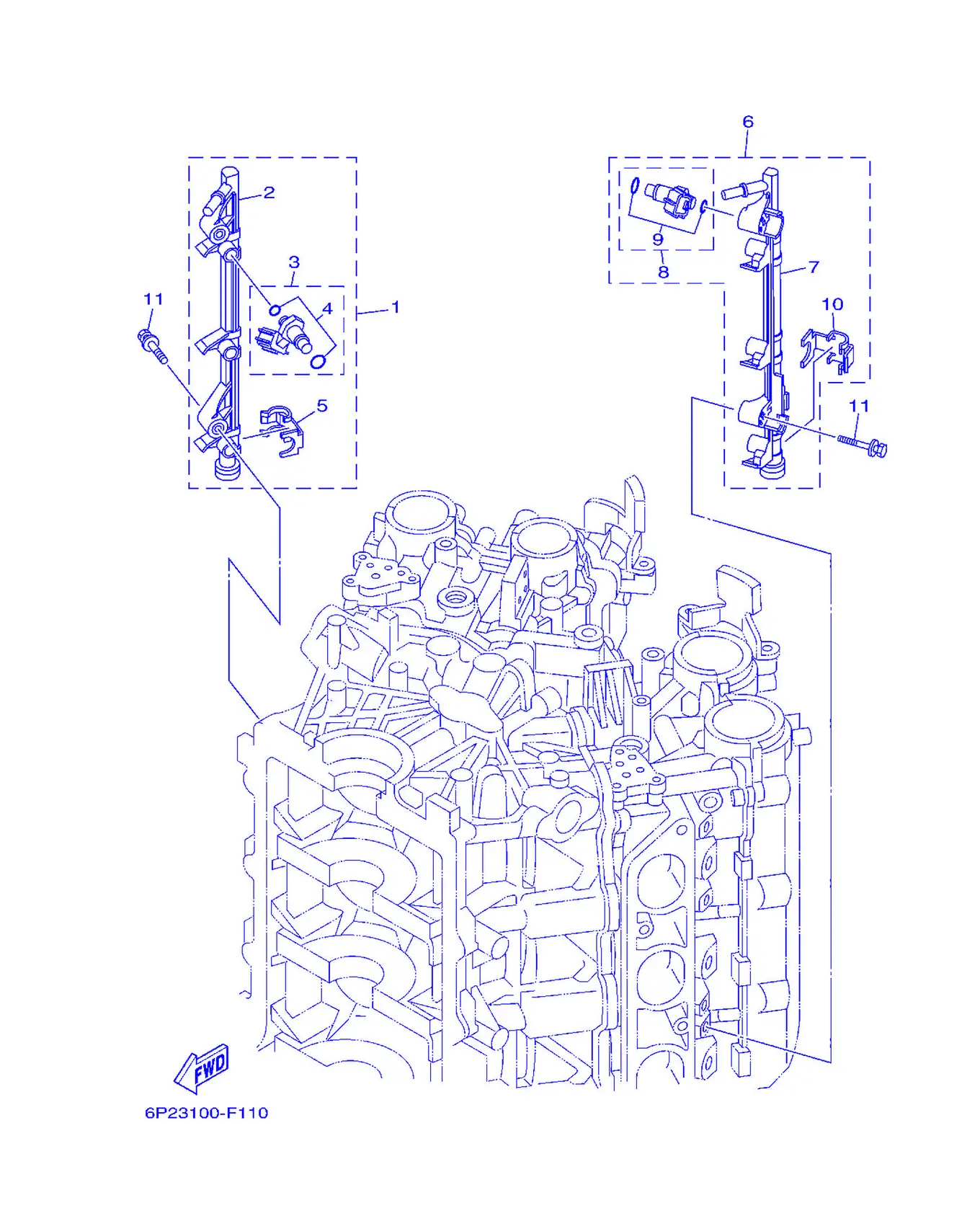

スロツトルボデ-アセンブリ 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-13160-10	输送管组合1	Delivery Pipe Assembly 1	1
2	6P2-13161-00	输送管1	Pipe, Delivery 1	1
3	6P2-13761-10	喷射器组合	Injector Assembly	3
4	6C5-1410B-00	衬垫	Packing Kit	1
5	6P2-13577-00	钢夹	Clip	3
6	6P2-13170-10	泵托架	Delivery Pipe Assembly 2	1
7	6P2-13171-00	输送管2	Pipe, Delivery 2	1
8	6P2-13761-10	喷射器组合	Injector Assembly	3
9	6C5-1410B-00	衬垫	Packing Kit	1
10	6P2-13577-00	钢夹	Clip	3
11	90119-06122	带垫圈螺栓	Bolt, with Washer	4

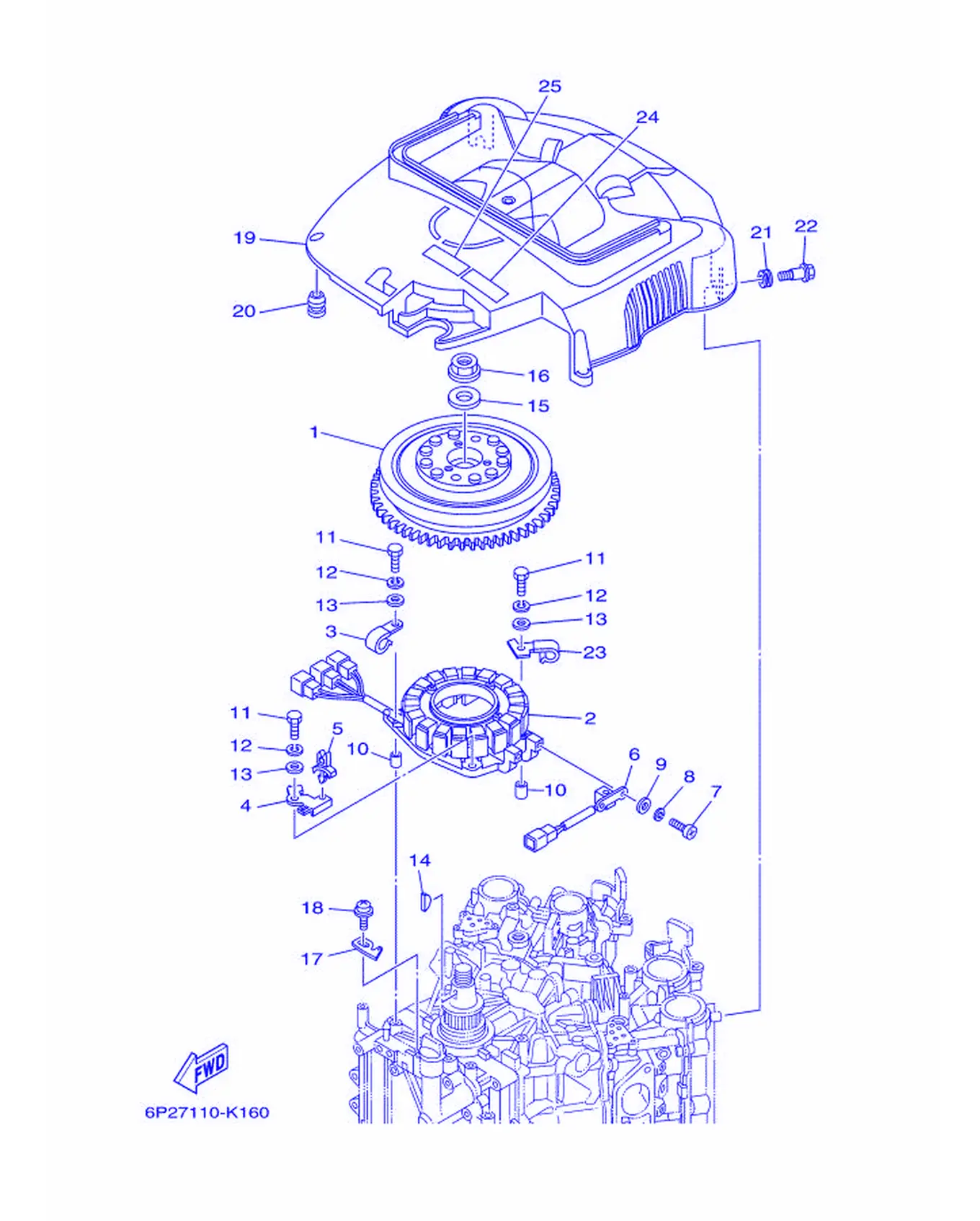

ゼネレ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-81450-00	转子组合	Rotor Assembly	1
2	6P2-81460-00	基座组合	Base Assembly	1
3	90462-08032	固定夹	Clamp	1
4	6P2-8257V-00	连接器面板	Connector Plate	1
5	90464-06001	固定	Clamp	1
6	6P2-85580-00	脉冲线圈	Coil, Pulser	1
7	97880-05012	大柱头螺钉	Screw, Pan Head	2
8	92990-05100	盘形垫	Washer,Spring	2
9	92990-05600	盘形垫	Washer,Plate	2
10	99530-08012	螺栓	Pin, Dowel	2
11	97095-06035	螺栓	Bolt	4
12	92995-06100	垫圈	Washer,Spring	4
13	92995-06600	盘形垫	Washer	4
14	90280-05015	螺丝	Key, Woodruff	1
15	90201-24014	平垫圈	Washer,Plate	1
16	90179-24002	螺母	Nut	1
17	6P2-81332-00	正时面板	Plate, Timing	1
18	97985-06210	带垫圈螺钉	Screw, With Washer	1
19	6P2-81337-00	飞轮盖	Cover,Flywheel	1
20	663-82317-01	点火线圈减震器	Damper, Ignition Coil	4
21	90480-12314	固定	Grommet	2
22	90109-06MA1	螺栓	Bolt	2
23	6P2-81128-00	夹箍	Clamp	1
24	60L-13437-02	警告标签	Mark, Corrosion	1
25	6AH-81994-00	标签	Label, Safety	1

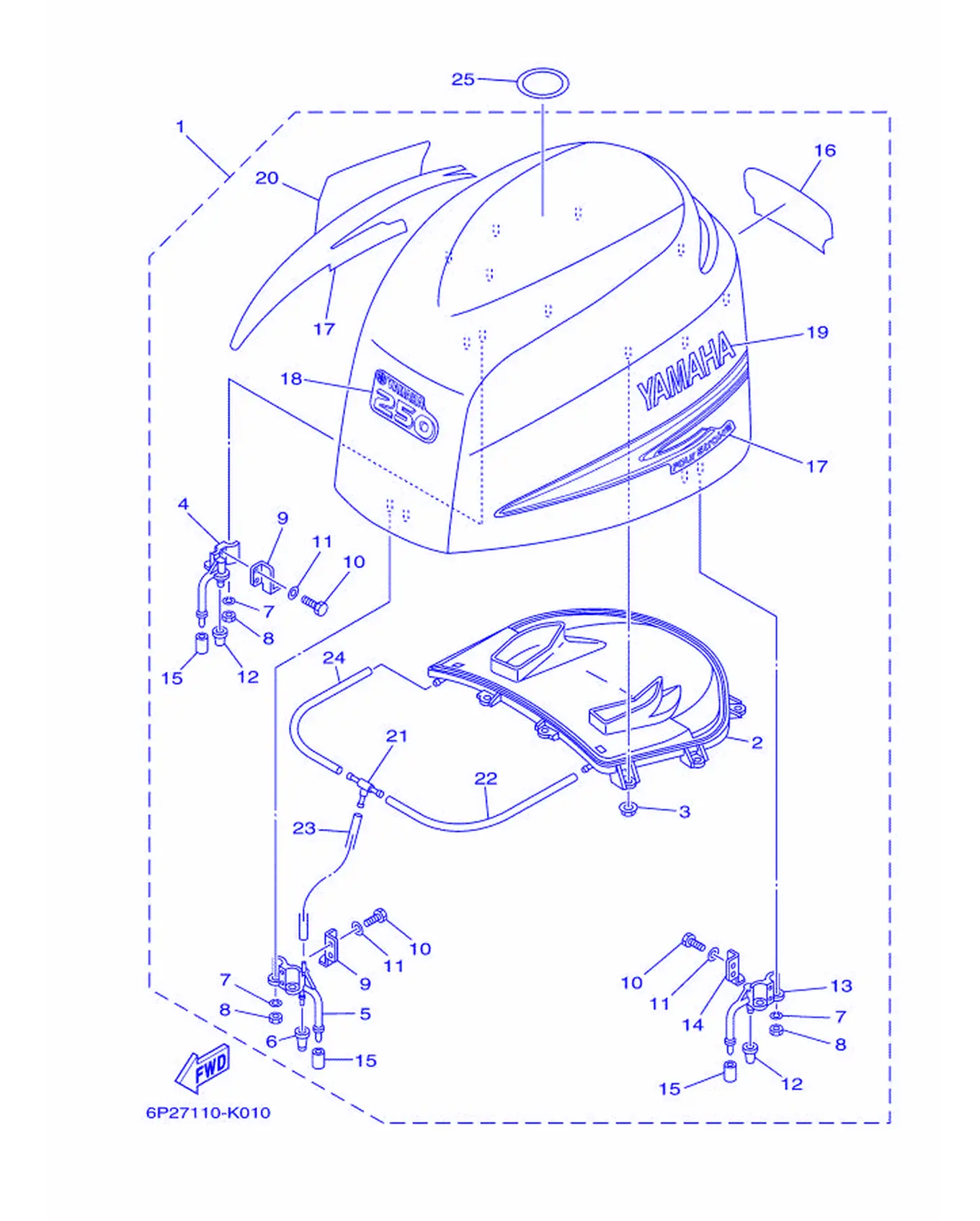

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-42610-01	顶罩组合	Top Coupling Assembly	1
2	6P2-42613-00	空气导管嵌盖	Molding, Air Duct	1
3	90179-06M28	螺帽	Nut	9
4	68F-42647-01	夹带支架	Holder, Clamp Band	1
5	69J-42647-01	夹带支架	Holder, Clamp Band	1
6	69J-42663-00	减震器	Damper	1
7	92990-06100	盘形垫	Washer,Spring	6
8	95380-06600	有槽螺母	Nut, Hexagon	6
9	60V-42651-01	钩	Fook	2
10	97095-06016	螺栓	Bolt	6
11	92995-06600	盘形垫	Washer	6
12	68F-42663-00	减震器	Damper	2
13	68F-42648-01	夹带支架	Holder, Clamp Band	1
14	60V-42652-00	钩	Fook	1
15	67F-13448-00	盖	Cap	3
16	6P2-42678-00	后图样	Graphic, Rear	1
17	69J-W0070-00	图样套	Graphic Set	1
18	6P2-42677-00	前图样	Graphic, Front	1
19	69J-42681-00	罩标志	Mark, Cowling	1
20	69J-42682-00	罩标志	Mark, Cowling	1
21	69J-24378-00	连接管4	Pipe, Joint 3	1
22	90445-11M27	软管	Hose (L240)	1
23	90445-11699	软管	Hose (L500)	1
24	90445-11182	软管	Hose (L300)	1
25	67F-13434-20	告诫标记	Label, Corrosion	1

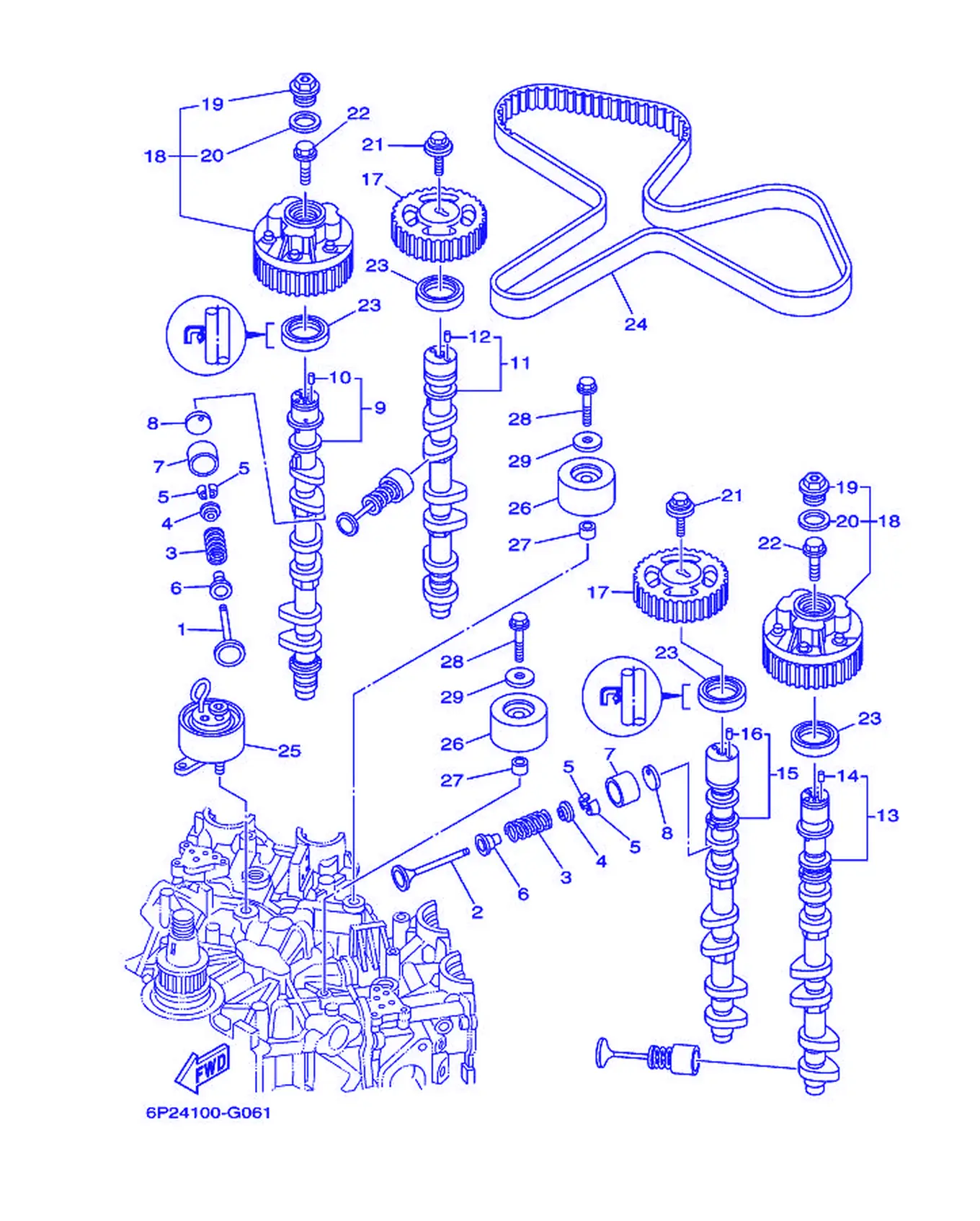

バルブ

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-12111-00	进气门	Valve,Intake	12
2	6P2-12121-00	排气门	Valve,Exhaust	12
3	69J-12113-01	气门内弹簧	Spring, Valve Inner	24
4	69J-12117-01	气门弹簧座	Retainer,ValveSpring	24
5	69J-12118-00	气门锁夹	Cotter, Valve	48
6	69J-12119-00	气门杆密封	Seal, Valve Stem	24
7	69J-12153-00	气门挺杆	Lifter, Valve	24
8	6S1-12168-00	调整衬垫	Pad, Adjusting (2.320)	24
8	6S1-12168-10	调整衬垫	Pad, Adjusting (2.340)	24
8	6S1-12168-20	调整衬垫	Pad, Adjusting (2.360)	24
8	6S1-12168-30	调整衬垫	Pad, Adjusting (2.380)	24
8	6S1-12168-40	调整衬垫	Pad, Adjusting (2.400)	24
8	6S1-12168-50	调整衬垫	Pad, Adjusting (2.420)	24
8	6S1-12168-60	调整衬垫	Pad, Adjusting (2.440)	24
8	6S1-12168-70	调整衬垫	Pad, Adjusting (2.460)	24
9	6P2-12171-02	凸轮轴1	Camshaft 1	1
10	93605-10108	定位销	Pin, Dowel	1
11	6P2-12181-01	凸轮轴2	Camshaft 2	1
12	93605-10108	定位销	Pin, Dowel	1
13	6P2-12172-02	凸轮轴 3	Camshaft 3	1
14	93605-10108	定位销	Pin, Dowel	1
15	6P2-12182-01	凸轮轴4	Camshaft 4	1
16	93605-10108	定位销	Pin, Dowel	1
17	6P2-11537-01	从动齿	Gear, Driven	2
18	6P2-12645-10	滑轮组合	Pulley Assembly 1	2
19	6P2-12623-00	螺栓	Bolt	1
20	6P2-12663-00	衬垫	Gasket	1
21	68V-12157-00	锁紧螺母	Bolt	2
22	6P2-12615-00	螺栓	Bolt	2
23	93102-38008	油封	OilSeal	4
24	6P2-46241-00	V型皮带	Belt	1
25	6P2-11590-00	张紧轮组合	Tensioner Assembly	1
26	6P2-15512-00	空转齿轮1	Gear, Idler 1	2
27	90387-10M08	衬套	Color	2
28	90119-10M07	螺栓	Bolt, With Washer	2
29	90201-10M01	平垫圈	Washer,Plate	2

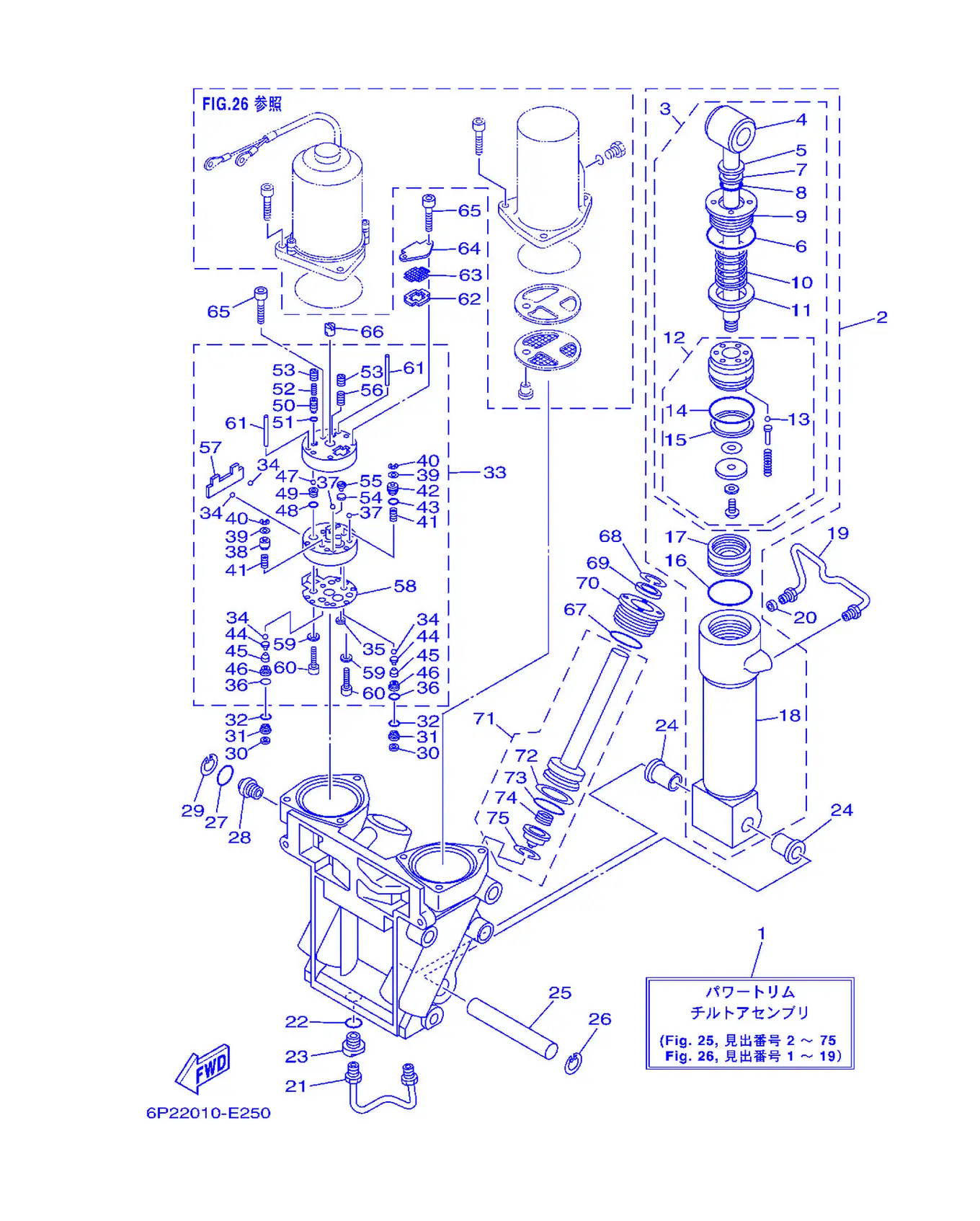

パワートリム & チルトアセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-43800-04-8D	电动倾斜调整装置组合	Power Trim & Tilt Assembly	1
2	6CE-43840-00	电动角度定位装置组合	Power TiltAssembly	1
3	6CE-43810-00	活塞分组合	Tilt Piston Sub-Assembly	1
4	69J-43801-01	杆	Rod	1
5	93106-19N50	油封	Oil Seal	1
6	6H1-43861-00	O型圈	O-ring	1
7	6H1-43872-00	支承	Ring, Back Up	1
8	61A-4389H-00	O型圈	O-ring	1
9	61A-43811-00	气缸端部螺钉	Screw, Cylinder End	1
10	69J-4384H-00	弹簧	Spring	1
11	69J-4382E-00	联接器2	Adapter 2	1
12	6CE-4380P-00	活塞分组合	Piston Sub Assembly	1
13	93505-32038	滚珠	Ball	5
14	61A-43861-00	O型圈	O-ring	1
15	61A-43871-00	环	Ring, Back Up	1
16	61A-43861-00	O型圈	O-ring	1
17	6H1-43814-00	活塞	Piston, Free	1
18	61A-43813-01	角度定位气	Cylinder, Tilt	1
19	61A-43835-01	管	Pipe	1
20	69J-4388J-00	塞 2	Plug 2	1
21	69J-43833-00	管	Pipe	1
22	93210-17239	O型圈	O-ring	1
23	69J-4388E-01	锥形螺钉	Bolt, Screw	1
24	90386-18M14	衬套	Bushing	2
25	61A-43818-00	下侧防震销	Pin, Lower Shock Mount	1
26	61A-43876-00	开口	Ring, Snap	1
27	93210-18397	O型圈	O-ring	1
28	69J-43845-00	手控释放螺钉	Screw, Manual Release	1
29	6H1-43875-00	卡环	Ring, Snap	1
30	69J-4381C-00	滤芯 3	Filter 3	2
31	69J-43899-01	面板限位板	Plate Stopper	2
32	69J-4389J-00	O型圈	O-ring	2
33	69J-43830-01	齿轮泵组合	GearPumpAssembly	1
34	93505-32038	滚珠	Ball	4
35	69J-4381C-00	滤芯 3	Filter 3	1
36	69J-4389J-00	O型圈	O-ring	2
37	93503-16003	滚珠	Ball	2
38	6CJ-4384M-00	穿梭活塞2	Piston, Shuttle 2	1
39	69A-4384F-00	主阀门密封	Seal, Main Valve	2
40	99002-03600	簧环	Circlip	2
41	69J-43894-00	滑梭回位弹簧	Spring, Shuttle Return	2
42	6CJ-43841-00	滑梭活塞	Piston, Shuttle	1
43	6H1-43883-00	O型圈	O-ring	1
44	60V-4386A-00	吸收器阀销	Pin, Absorber Valve	2
45	69J-43853-00	主阀门弹簧	Spring	2
46	6CJ-43893-00	垫	Washer	2
47	93501-08001	滚珠	Ball	2
48	93210-08391	O型圈	O-ring	1
49	69J-43851-00	安全阀座	Seat, Relief Valve	1
50	6CJ-43844-00	阀门支销	Pin, Valve Support	1
51	93210-064A5	O型圈	O-ring	1
52	69J-43855-00	上减压弹簧	Spring	1
53	6CJ-43843-00	阀门锁紧螺钉	Screw, Valve Lock	2
54	6H1-4384G-11	安全阀密封	Seal, Relief Valve	1
55	6H1-43844-10	阀门支销	Pin, Valve Support	1
56	6H1-43856-10	下减压弹簧	Spring, Down Relief	1
57	69J-43854-00	手控释放弹簧	Spring, Manual Release	1
58	69J-4384G-00	安全阀密封	Seal, Relief Valve	1
59	CS3-4387G-00	平垫圈	Washer	2
60	91318-05025	螺栓	Bolt	2
61	93604-35236	定位销	Pin, Dowel	2
62	69J-43871-00	环	Ring, Back Up	1
63	69J-43816-00	过滤器1	Filter 1	1
64	69J-4381J-00	面板	Plate	1
65	91318-05040	螺栓	Bolt	3
66	69J-43831-00	轴连接器	Connector,Shaft	1
67	61A-43861-00	O型圈	O-ring	2
68	6T4-43875-01	开口环	Ring, Snap	2
69	61A-43822-00	纵倾角调整防尘密封	Seal,TrimDust	2
70	61A-43821-00	纵倾角调整气缸端部螺钉	Screw, Trim Cylinder End	2
71	69J-43820-00	活塞分组合	Trim Piston Sub-Assembly	2
72	61A-43874-00	支承	Ring, Back Up	1
73	61A-43864-00	O型圈	O-ring	1
74	61A-4384H-10	弹簧	Spring	1
75	61A-43875-10	开口	Ring, Snap	1

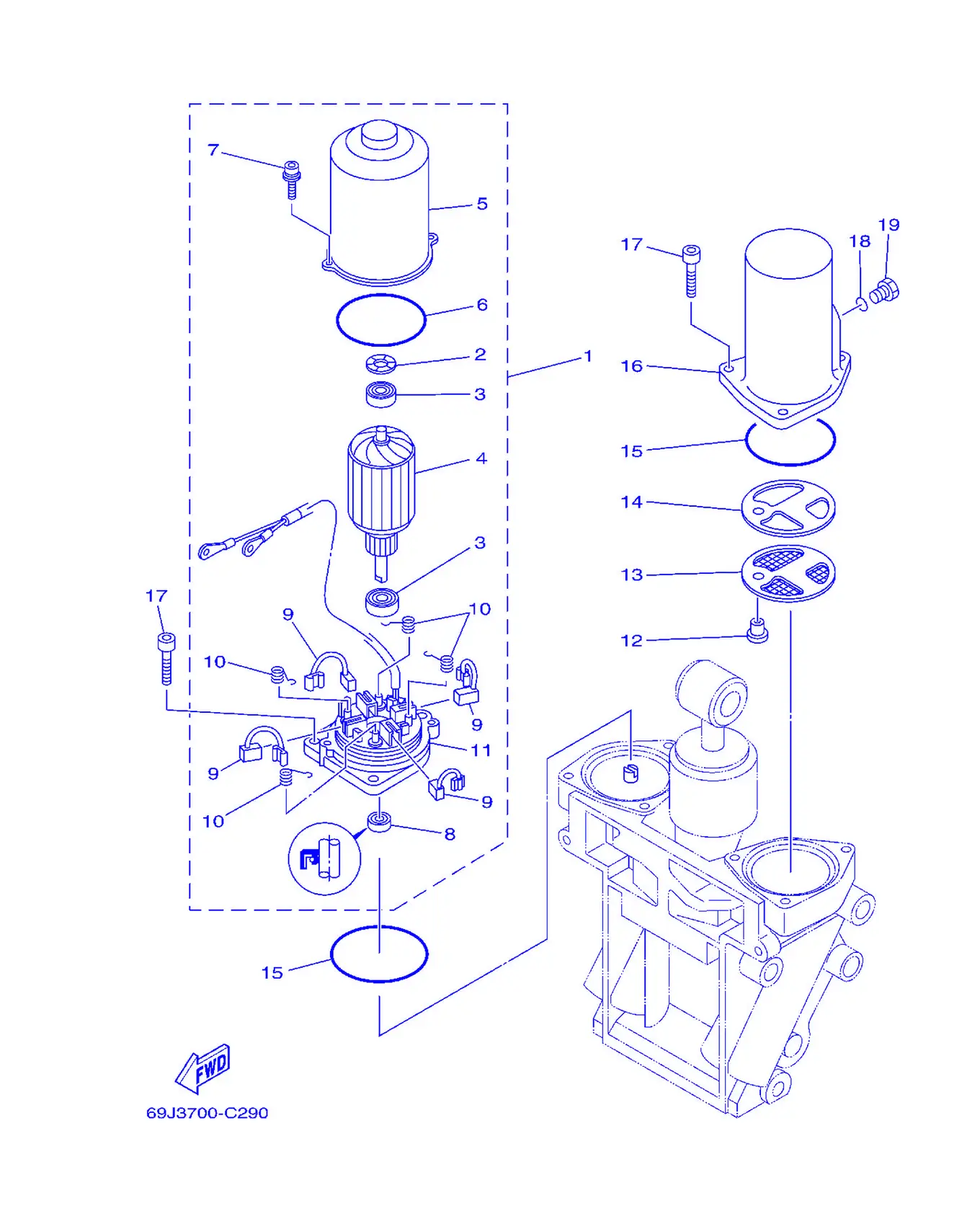

パワートリム & チルトアセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-43880-01	电动机总成	Motor Assembly	1
2	90206-14N50	波形垫	Washer, Wave	1
3	93399-999T6	轴承	Bearing	2
4	69J-43805-00	电枢组合	Armature Assembly	1
5	69J-43804-00	定子组合	Stator Assembly	1
6	69J-43861-00	O型圈	O-ring	1
7	69J-43886-00	螺栓	Bolt	2
8	69J-43882-00	油封	Oil Seal	1
9	69J-43891-00	电刷	Brush 1	4
10	69J-4386K-00	电刷弹簧	Spring, Brush	4
11	69J-43881-01	端部框架	Frame, End	1
12	69J-4388H-00	塞子	Plug	1
13	69J-43817-00	过滤器2	Filter 2	1
14	69J-4388F-00	垫片	Spacer	1
15	6H1-43869-00	O型圈	O-ring	2
16	69J-43828-00	储油箱	Body, Reservoir	1
17	69J-43888-00	座螺	Bolt, Socket	6
18	93210-09165	O型圈	O-ring	1
19	6H1-43829-00	塞	Plug,Reservoir	1

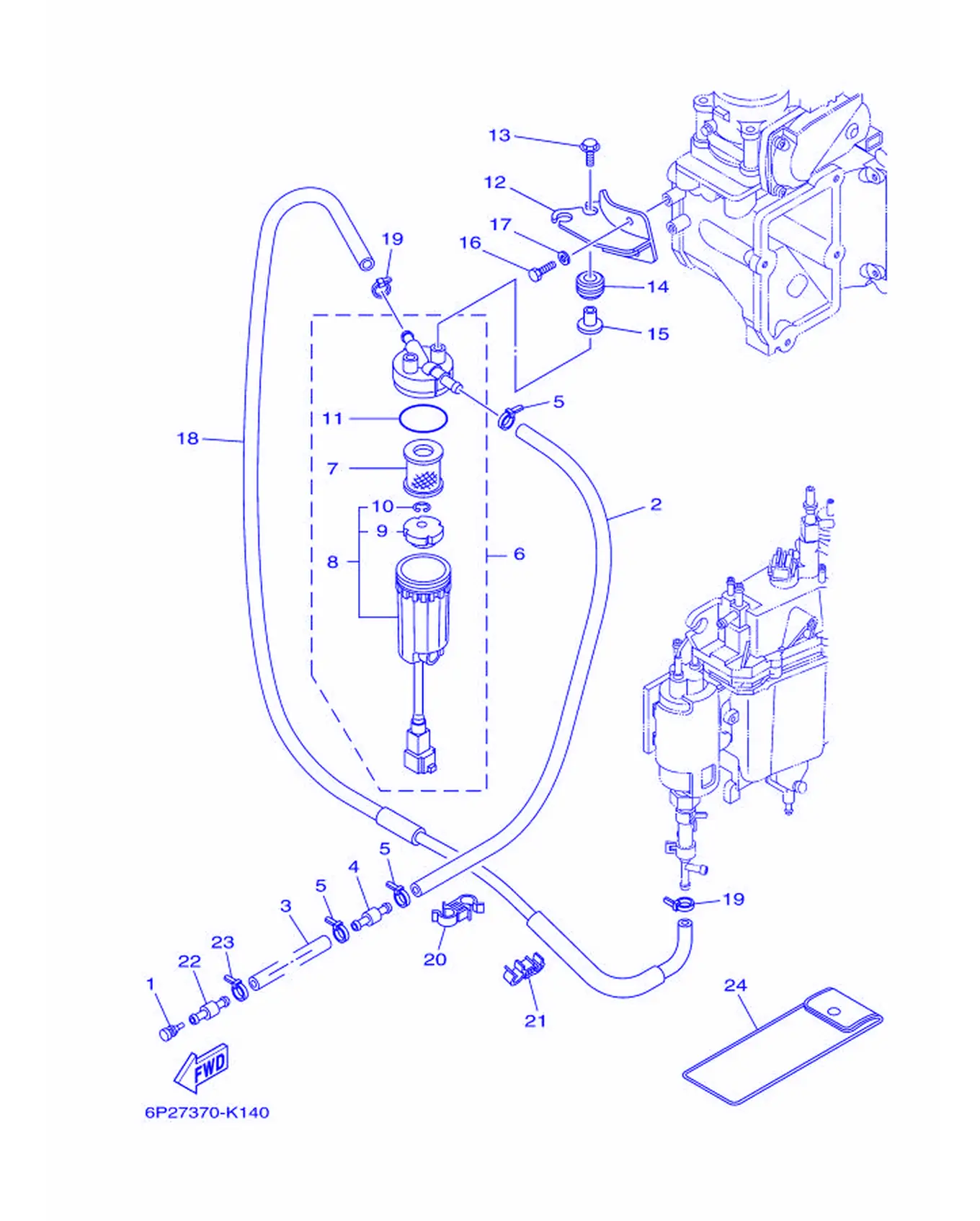

フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	689-85547-00	减震器	Damper	1
2	6P2-24314-00	管4	Pipe 4	1
3	90445-13511	软管	Hose (L2000)	1
4	6R3-24377-10	连接管3	Pipe,Joint 2	1
5	90465-11M10	固定	Clamp	3
6	6P3-24560-01	过滤器	Filter Assembly	1
7	6P3-24563-00	过滤器滤	Element, Filter	1
8	6P3-24562-02	滤杯	Cup, Filter	1
9	6P3-24469-00	水位浮标	Float, Water Level	1
10	6P3-24519-00	钢夹	Clip	1
11	6P3-24564-00	衬垫	Gasket	1
12	6P2-24566-11	过滤器支架	Bracket, Filter	1
13	90119-06M17	卡环	Bolt, With Washer	2
14	90480-14018	橡胶垫	Grommet	2
15	90387-06M60	衬套	Color	2
16	97095-06014	螺栓	Bolt	2
17	92995-06600	盘形垫	Washer	2
18	6P2-24313-10	管3	Pipe 3	1
19	90465-11M10	固定	Clamp	2
20	90464-12009	塞	Clamp	1
21	90464-12010	固定夹	Clamp	1
22	6R3-24377-00	连接管3	Pipe,Joint 3	1
23	90465-11M10	固定	Clamp	1
24	69J-28100-01	工具套	ToolKit	1

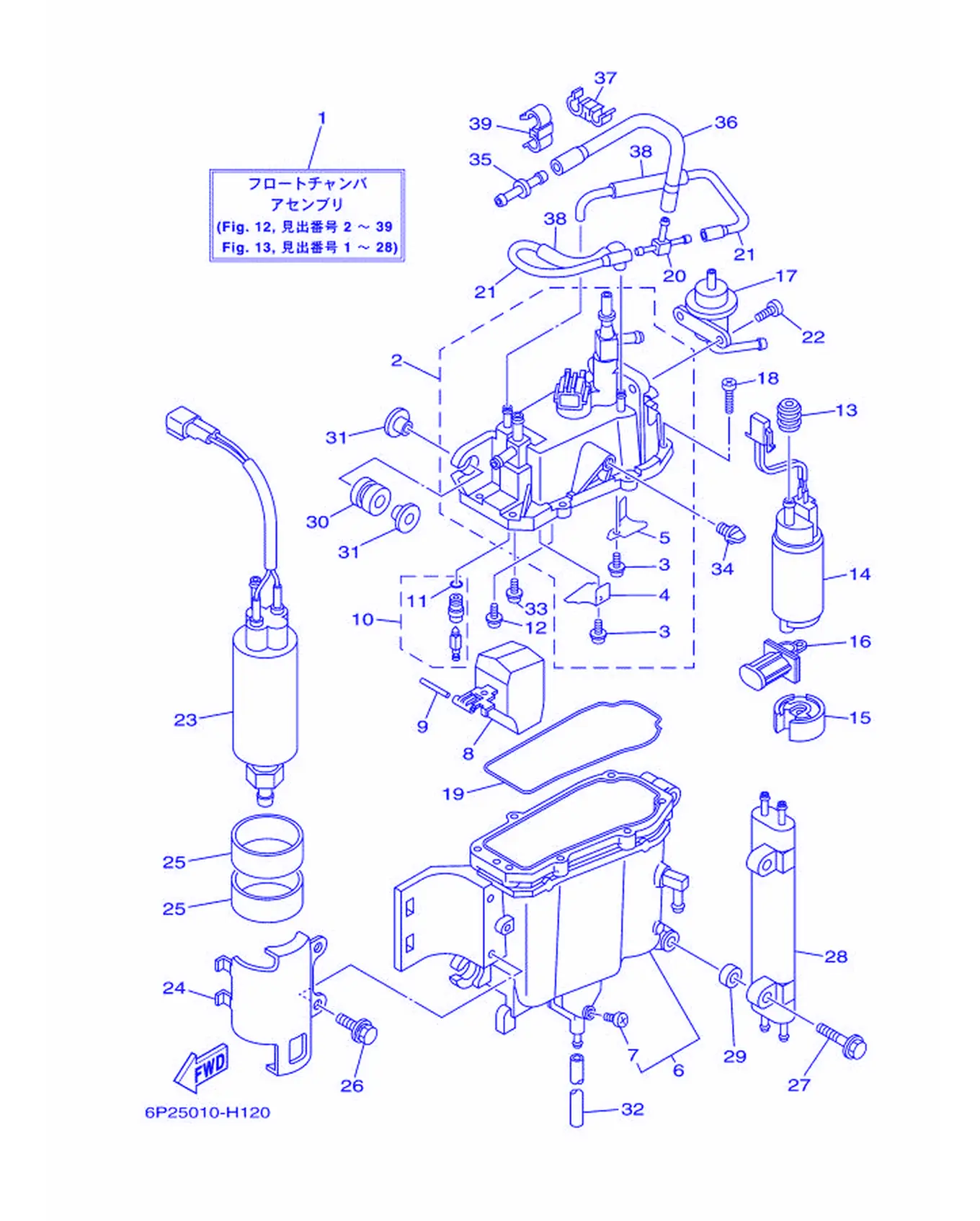

フユエルインジエクシヨンポン

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-14180-04	浮子室组合	Float Chamber Assembly	1
2	6P2-14182-00	浮子室盖	Cover, Float Chamber	1
3	4SV-24453-00	螺钉	Screw	2
4	6P2-2411T-00	容器托架	Plate 2	1
5	63P-2411R-00	容器托架	Plate 1	1
6	6P2-14181-00	浮子室本体1	Body, Float Chamber 1	1
7	6P2-14191-00	放油旋	Drain Plug	1
8	6P2-14985-00	浮子	Float	1
9	6P2-14386-00	浮子销	Pin,Float	1
10	6P2-14546-00	针阀	Valve, Needle	1
11	6P2-13769-00	O型圈	O-ring	1
12	4SV-24453-00	螺钉	Screw	1
13	68V-13781-10	泵减震器	Damper,Pump	1
14	6P2-13907-00	燃油泵组	Fuel Pump Complete	1
15	63P-13784-00	泵盖	Cover, Pump	1
16	63P-13915-00	过滤器	Filter	1
17	6P2-13906-00	调压器	Regulator, Pressure	1
18	63P-14567-00	螺钉	Screw	7
19	6P2-14984-00	浮子室衬垫	Gasket, Float Chamber	1
20	69J-24379-00	连接管4	Pipe,Joint 4	1
21	63P-14148-00	管	Pipe	2
22	68V-14564-00	螺丝	Screw	2
23	69J-24410-02	燃油泵组合	FuelPumpAssembly	1
24	6P2-24491-00	燃油泵托架	Bracket, Fuel Pump	1
25	69J-24492-00	旋钮	Bush, Fuel Pump	2
26	6P2-24592-00	螺栓	Bolt	2
27	6P2-14446-00	螺栓	Bolt	2
28	69J-21841-02	冷却器	Cooler	1
29	68V-14265-00	轴套	Color	2
30	69J-13593-00	减震器	Damper	4
31	69J-13716-00	轴套	Color	8
32	6P2-14149-00	管	Pipe	1
33	98507-04008	大柱头螺钉	Screw, Pan Head	1
34	69J-14225-01	盖	Cap	1
35	6P2-1410F-00	连接器	Nipple 1	1
36	6P2-14197-00	管	Pipe	1
37	6P2-2417J-00	夹箍2	Clamp 2	1
38	6P2-24321-00	管	Pipe 10	2
39	6P2-2417K-00	夹箍3	Clamp 3	1

フユエルタンク

REF	雅马哈编码	中文名称	英文名称	用量
1	6YJ-W2420-J1	燃油箱组合	FuelTankAssembly (24L)	1
2	6YJ-24610-01	盖组合	Cap Assembly	1
3	6Y1-24260-12	油量计组合	Fuel Meter Assembly	1
4	90157-05M19	螺钉	Screw, Pan Head	4
5	6Y1-24329-00	密封	Seal	4
6	6Y1-24268-00	油量计衬垫	Gasket, Fuel Meter	1
7	6YJ-24167-00	滤	Strainer	1
8	6Y2-24306-56	燃油管组件1	FuelPipeComplete 1	1
9	6E5-24305-06	油管接头2	Fuel Pipe Joint Complete	1
10	93210-08287	O型圈	O-ring	1
11	6Y2-24305-06	燃油管接头组件2(85以上油箱侧D:13M	Fuel Pipe Joint Complete	1
12	93210-08287	O型圈	O-ring	1
13	90445-13M01	油管	Hose (L2050)	1
14	6E5-24351-51	带1	Band 1	4
15	90445-13M00	固定	Hose(L850)	1
16	6Y2-24360-60	起动注油泵组合	Primer Pump Assembly	1

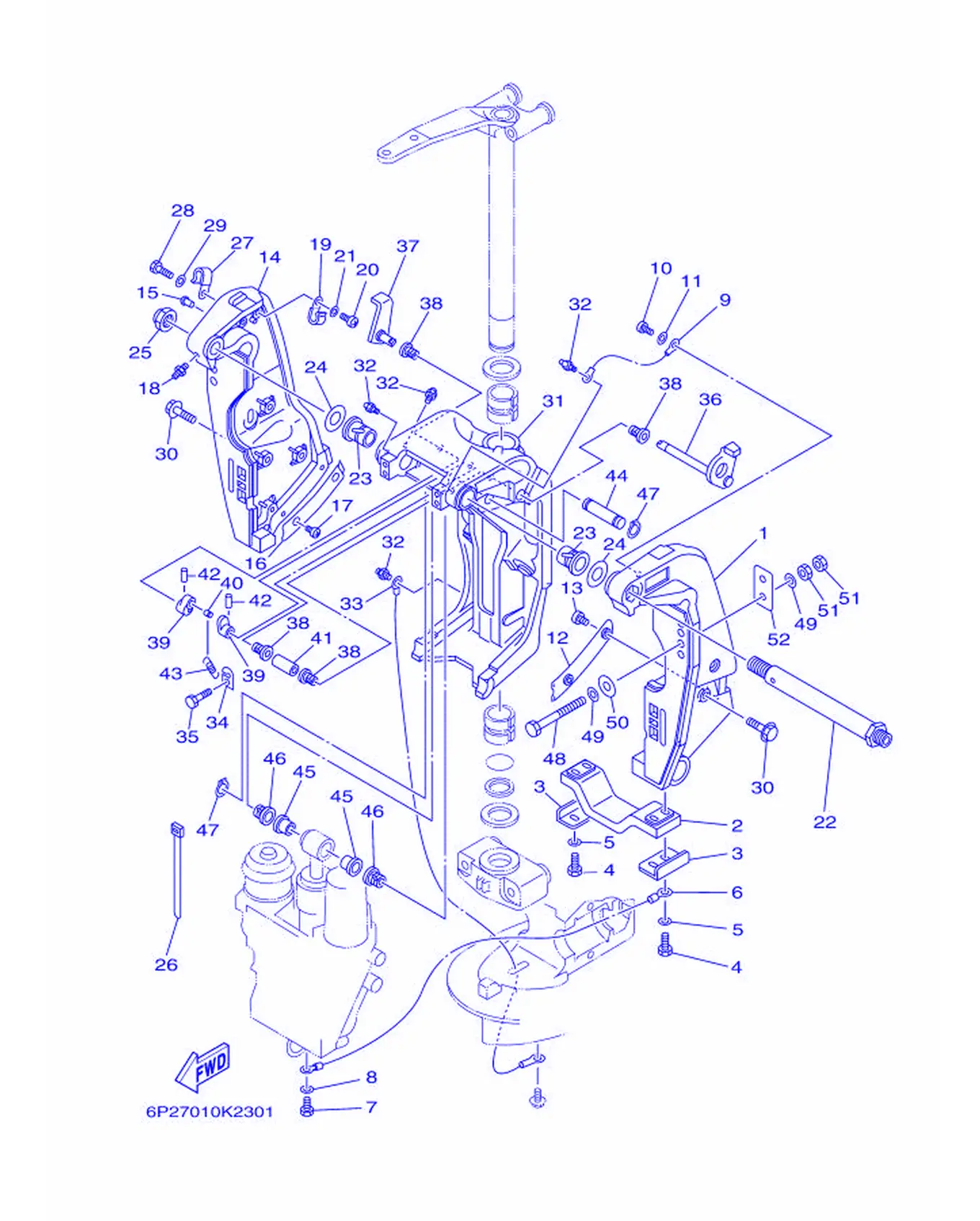

ブラケツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-43111-01-8D	夹紧托架	Bracket,Clamp	1
2	6G5-45251-02	阳极	Anode	1
3	6G5-44526-00	面板	Plate	2
4	97095-06025	螺栓	Bolt	4
5	92995-06600	盘形垫	Washer	4
6	6H1-82148-00	导线4	Wire,Lead 4	1
7	97095-06010	螺栓	Bolt	1
8	92995-06600	盘形垫	Washer	1
9	6E5-82148-00	导线4	Wire,Lead 4	1
10	97885-06012	大柱头螺钉	Screw, Pan Head	1
11	92995-06600	盘形垫	Washer	1
12	61A-43132-00	阻力垫	Washer, Friction	1
13	97885-06010	大柱头螺钉	Screw, Pan Head	2
14	69J-43112-01-8D	夹紧托架	Bracket, Clamp 2	1
15	90269-02M08	螺丝	Rivet	2
16	61A-43133-00	阻力垫	Washer, Friction	1
17	97885-06010	大柱头螺钉	Screw, Pan Head	2
18	93700-06M03	润滑油管嘴	Nipple, Grease	1
19	90465-08M83	固定	Clamp	1
20	97885-06012	大柱头螺钉	Screw, Pan Head	1
21	92995-06600	盘形垫	Washer	1
22	6R3-43131-00	夹紧托架螺	Bolt,ClampBracket	1
23	90386-25M31	衬套	Bushing	2
24	90201-26M59	面板垫圈	Washer,Plate	2
25	90185-22M11	自锁螺母	Nut, Self-Locking	1
26	90465-11M10	固定	Clamp	4
27	90465-08M83	固定	Clamp	1
28	97095-06014	螺栓	Bolt	1
29	92995-06600	盘形垫	Washer	1
30	90119-10024	带垫圈螺栓	Bolt, With Washer	8
31	61A-43311-21-8D	旋转支架	Bracket, Swivel 1	1
32	93700-06M03	润滑油管嘴	Nipple, Grease	5
33	69J-82147-00	导线4	Wire, Lead 5	1
34	6G5-43144-00	弹簧	Hook,Spring	1
35	97095-06010	螺栓	Bolt	1
36	61A-43181-01	顶位销杆	Lever, Tilt Stop	1
37	6G5-43185-02	顶位销杆	Lever, Tilt Stop	1
38	90386-10M16	衬套	Bushing	4
39	6G5-43148-00	间隔轴	Collar, Distance	2
40	90249-06M19	螺丝	Pin	1
41	90387-10M05	衬套	Color	1
42	91690-30020	弹簧销	Pin,Spring	2
43	90506-16003	接头	Spring, Tension	1
44	6E5-43126-02	上侧防震销	Pin, Upper Shock Mount	1
44	6E5-43126-10	上侧防震销	Pin, Upper Shock Mount	1
45	90386-18M63	衬套	Bushing	2
46	90386-18M14	衬套	Bushing	2
47	93410-18M02	开口簧环，卡	Circlip	1
47	93410-18M02	开口簧环，卡	Circlip	2
48	90101-12M05	螺栓	Bolt (L:130MM)	6
49	90201-13M01	面板垫圈	Washer,Plate	12
50	90201-12M05	面板垫圈	Washer,Plate	4
51	95380-12600	有槽螺母	Nut	12
52	6G5-43119-00	艉板	Plate, Transom	2

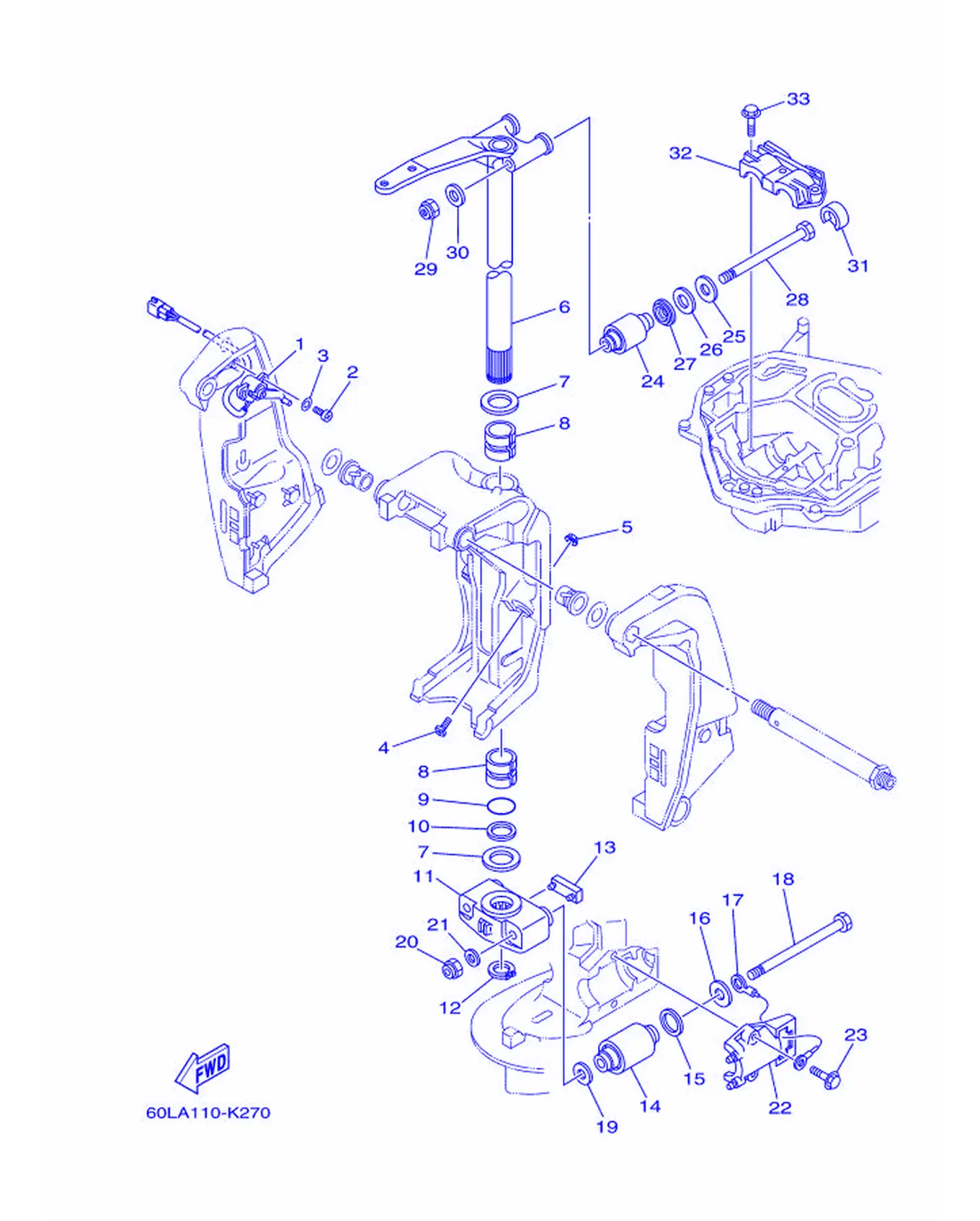

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-83672-11	纵倾角传感	TrimSensor	1
2	97885-06016	大柱头螺钉	Screw, Pan Head	2
3	92995-06600	盘形垫	Washer	2
4	61A-43376-00	推力接收器螺	Bolt, Thrust Receiver	2
5	95780-10300	螺母	Nut, Flange	2
6	69J-42510-00-8D	方向托架组合	SteeringBracketAssembly	1
7	90201-40M00	平垫圈	Washer,Plate	2
8	90386-39M89	衬套	Bushing	2
9	93210-35321	O型圈	O-ring	1
10	90202-40M47	垫圈	Washer,Plate	1
11	69J-44551-00-8D	下侧减震胶垫壳	Housing, Lower Mount Rubber 1	1
12	93410-37M04	卡环	Circlip	1
13	61A-44575-00	下侧减震胶垫	Damper, Lower Mount Rubber	1
14	60X-44555-00	下侧减震胶垫	Mount Damper, Lower Side	2
15	90202-32M19	面板垫圈	Washer,Plate	2
16	90201-16016	面板垫圈	Washer,Plate	2
17	6E5-82149-00	导线3	Wire,Lead 3	1
18	90101-14002	螺栓	Bolt, Hexagon	2
19	90201-15M58	面板垫圈	Washer,Plate	2
20	90185-14M00	螺帽	Nut, Self-Locking	2
21	92995-14600	盘形垫	Washer	2
22	61A-44552-01-CA	下侧减震胶垫壳	Housing, Lower Mount Rubber 2	2
23	90119-10024	带垫圈螺栓	Bolt, With Washer	4
24	69J-44514-00	上侧减震胶垫	Mount Damper, Upper Side	2
25	90201-16015	面板垫圈	Washer,Plate	2
26	90202-28M46	平垫圈	Washer,Plate	2
27	69J-44532-00	上侧装配限位板	Stopper, Upper Mount	2
28	90101-14003	螺栓	Bolt, Hexagon	2
29	90185-14M00	螺帽	Nut, Self-Locking	2
30	92995-14600	盘形垫	Washer	2
31	69J-44533-00	上侧减震胶垫	Damper, Upper Mount Rubber	2
32	61A-44511-01	上侧减震胶垫盖	Cover, Upper Mount Rubber	1
33	90119-10024	带垫圈螺栓	Bolt, With Washer	3

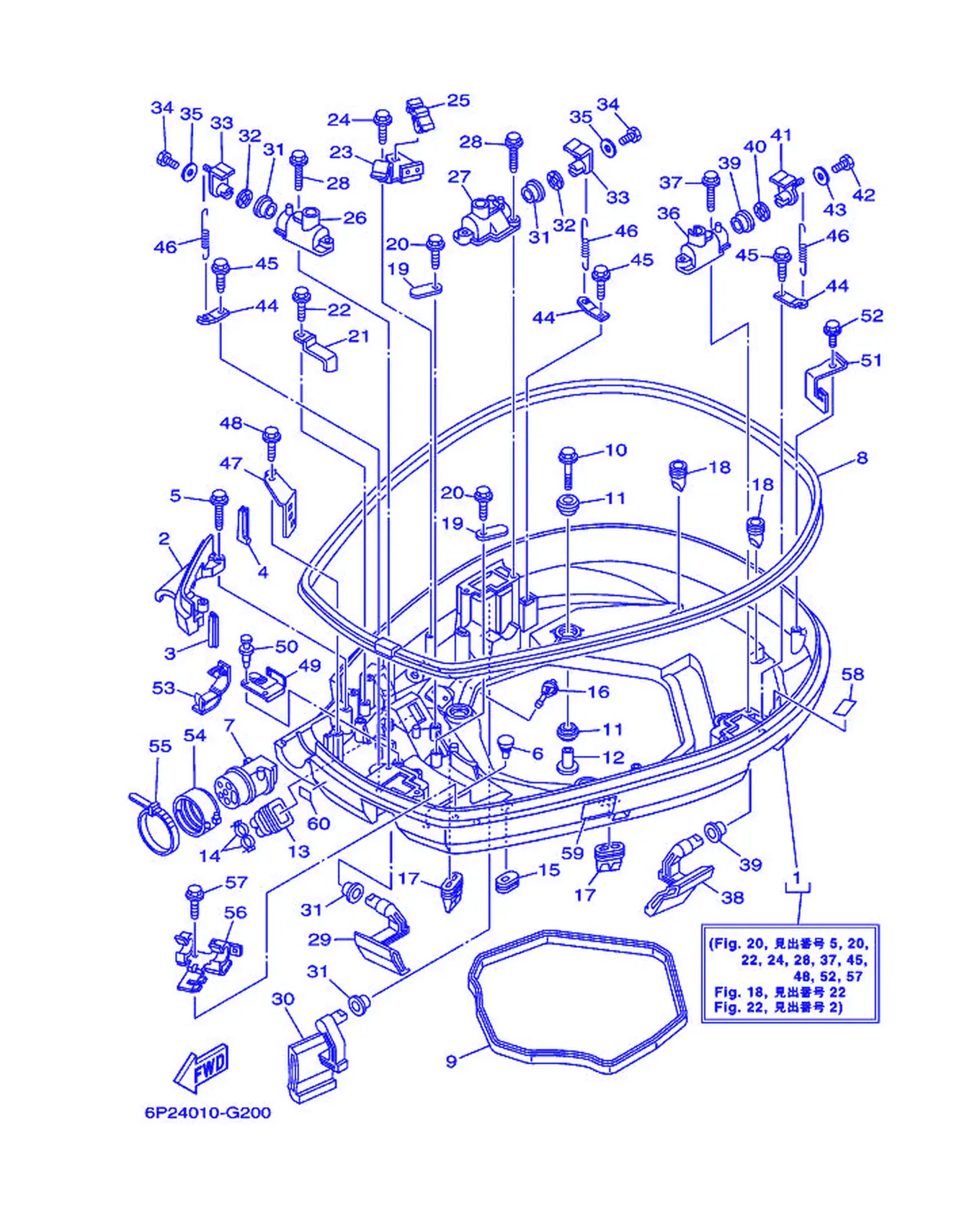

ボトムカウリング 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-42710-00-8D	底罩组合	Bottom Cowling Assembly	1
2	6P2-42738-00-8D	装配面板	Fitting Plate	1
3	6P2-42717-00	密封橡皮块2	Rubber,Seal 2	1
4	6P2-42718-00	密封橡皮块3	Rubber,Seal 3	1
5	90109-06M82	螺栓	Bolt	2
6	6H4-42748-00	固定	Grommet	2
7	6P2-42725-00	固定	Grommet	1
8	6P2-42615-00	密封	Seal	1
9	69J-42716-00	密封橡皮块1	Rubber,Seal 1	1
10	90119-08M22	带垫螺栓	Bolt, With Washer	4
11	90480-22M81	固定	Grommet	8
12	90387-08M37	衬套	Color	4
13	6H1-42726-21	固定	Grommet	1
14	90465-11M10	固定	Clamp	2
15	61A-42727-00	固定	Grommet	1
16	6P2-44391-00	软管管嘴	Nipple,Hose	1
17	69J-42717-00	密封橡皮块2	Rubber,Seal 2	2
18	61A-42717-00	密封橡皮块2	Rubber,Seal 2	2
19	6E5-82588-00	面板	Plate	2
20	90109-06M81	螺栓	Bolt	2
21	90462-20001	固定	Clamp	1
22	90109-06M86	螺栓	Bolt	1
23	6P2-82554-00	空挡开关支承	Stay, Neutral Switch	1
24	90109-06M86	螺栓	Bolt	1
25	90464-09M47	固定	Clamp	1
26	69J-42828-02-8D	夹箍面板	Plate,Clamp	1
27	6P2-42828-00-8D	夹箍面板	Clamp Plate	1
28	90109-06M82	螺栓	Bolt	4
29	69J-42815-00-8D	夹杆	Lever,Clamp	1
30	69J-42817-00-8D	夹杆	Lever,Clamp	1
31	90386-15M73	衬套	Bushing	4
32	90206-15M18	波形垫圈	Washer, Wave	2
33	63P-42818-01	夹杆	Lever,Clamp	2
34	97095-06020	螺栓	Bolt	2
35	90201-06068	平垫圈	Washer,Plate	2
36	68F-42828-10-8D	夹箍面板	Plate,Clamp	1
37	90109-06M82	螺栓	Bolt	2
38	69J-42816-00-8D	夹杆	Lever,Clamp	1
39	90386-15M73	衬套	Bushing	2
40	90206-15M18	波形垫圈	Washer, Wave	1
41	68V-42818-01	夹杆	Lever,Clamp	1
42	97095-06020	螺栓	Bolt	1
43	90201-06068	平垫圈	Washer,Plate	1
44	64D-43144-00	弹簧	Hook,Spring	3
45	90109-06M86	螺栓	Bolt	3
46	90506-18M40	接头	Spring, Tension	3
47	6P2-42743-00	托架	Bracket	1
48	90109-06M82	螺栓	Bolt	1
49	6P2-42766-10	安装支架	Bracket 2	1
50	90269-05005	面板	Rivet	2
51	69J-8366G-02	托架3	Bracket 3	1
52	90109-06M86	螺栓	Bolt	1
53	90464-18001	固定夹	Clamp	2
54	68F-42753-00	紧固	Fastener	1
55	90464-20258	固定环	Clamp	1
56	6P2-82594-00	夹箍	Clamp	1
57	90109-06M86	螺栓	Bolt	1
58	68V-82377-00	铭牌	Label	1
59	6AH-42794-00	标签	Label, Warning (General)	1
60	6AH-81996-00	标志	Mark	1

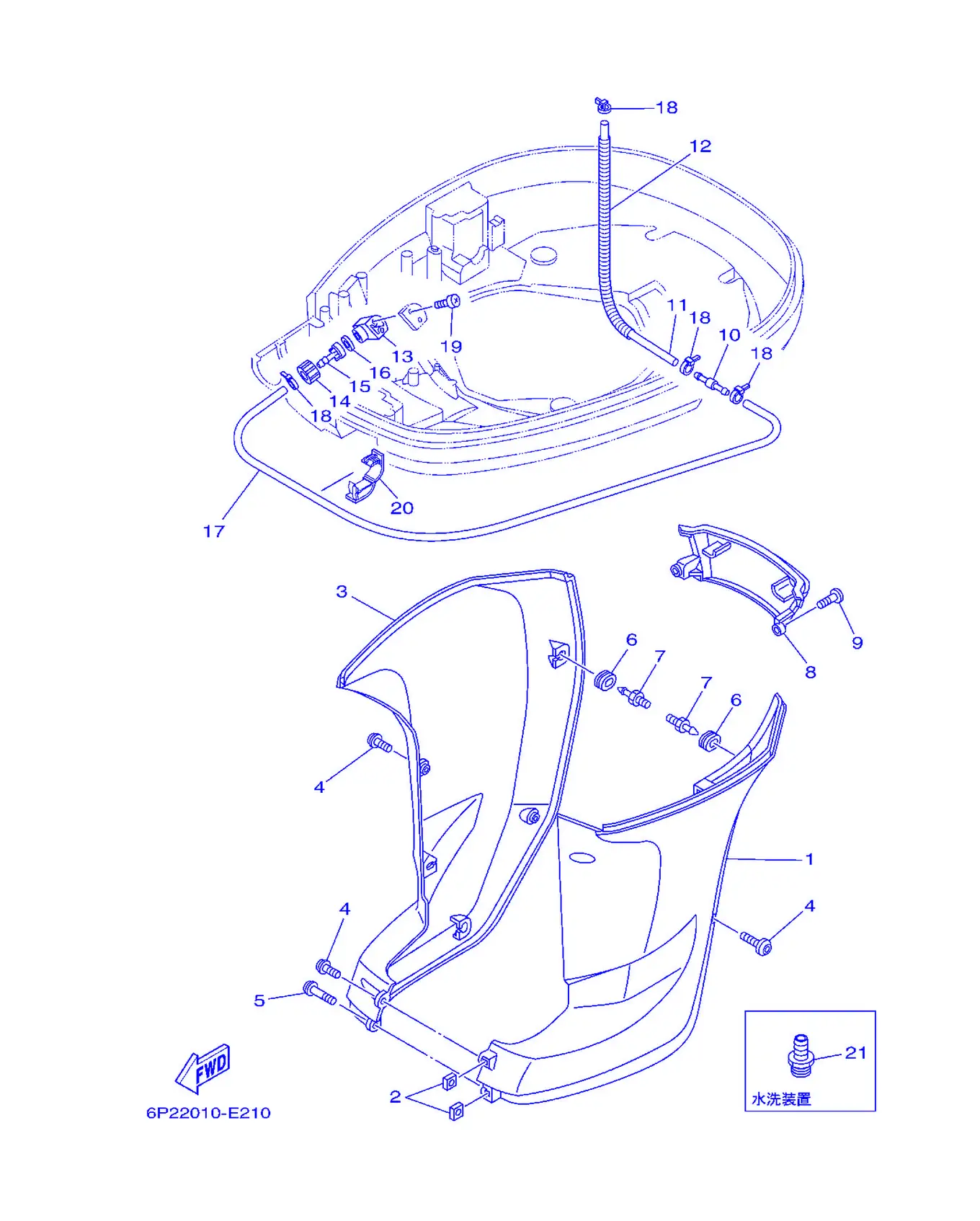

ボトムカウリング 2

REF	雅马哈编码	中文名称	英文名称	用量
1	69J-42741-00-8D	挡板	Apron	1
2	90173-06001	螺帽	Nut, Square	2
3	69J-42771-00-8D	挡板	Apron	1
4	90111-06111	内六角薄型螺栓	Bolt	5
5	90111-06113	内六角薄型螺栓	Bolt	1
6	90480-14M17	橡胶垫	Grommet	6
7	69J-42774-10	挡板支承1	Stay, Apron 1	6
8	69J-45151-00-8D	水上装置壳体盖	Cover,UpperCasing	1
9	90111-06111	内六角薄型螺栓	Bolt	2
10	6E5-24379-00	连接管4	Pipe,Joint 4	1
11	90445-11M47	软管	Hose (L370)	1
12	90447-13009	软管	Tube	1
13	68T-12572-00	软管接头5	Adapter	1
14	6R3-12581-00	软管接头1	Joint,Hose 1	1
15	6R3-12582-00	软管接头2	Joint,Hose 2	1
16	6R3-12583-00	软管接头衬垫	Gasket,HoseJoint	1
17	90445-11028	固定	Hose (L1050)	1
18	90465-11M10	固定	Clamp	4
19	97780-60520	自攻螺钉	Screw, Tapping	2
20	90464-18004	固定夹	Clamp	1
21	69J-12584-00	软管接头	Joint,Hose 3	1

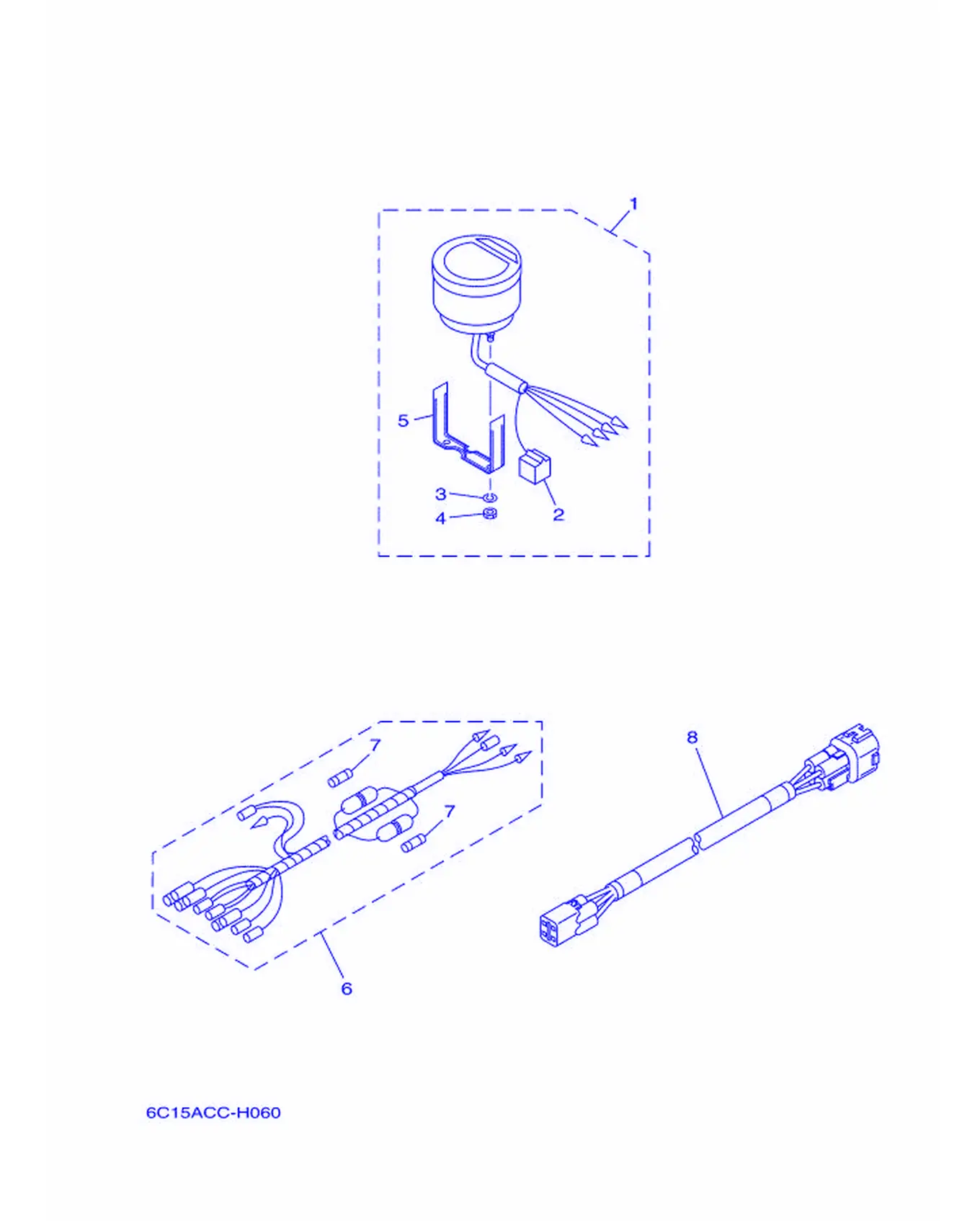

メ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6Y5-8350T-90	数字转速表	Digital Tachometer Assembly	1
2	9E450-04533	联接器	Connector	1
3	92990-04100	盘形垫	Washer, Spring	2
4	95380-04600	有槽螺母	Nut	2
5	6Y5-8355X-T1	仪表托架1	Bracket, Meter 1	1
6	6Y5-83553-M0	导线	Wire,Lead	1
7	1E6-82151-00	保险丝	Fuse (10A)	2
8	6Y5-83653-20	导线	Wire, Lead (L=7.0M)	1

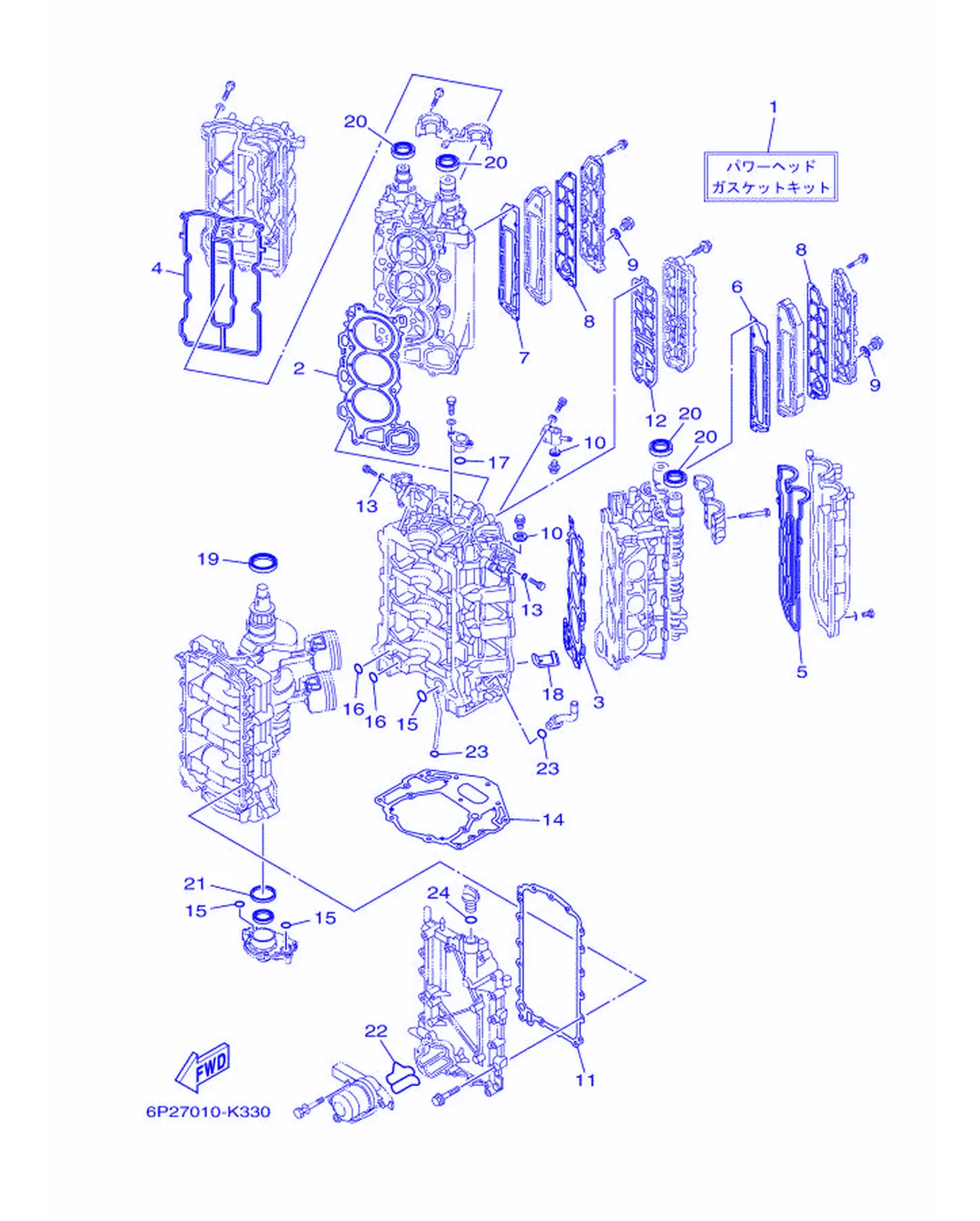

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-W0001-01	动力装置衬垫套	Power Head Gasket Kit	1
2	6P2-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
3	6P2-11182-00	气缸盖衬垫2	Gasket, Cylinder Head 2	1
4	6P2-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
5	6P2-11194-00	气缸盖罩衬垫2	Gasket, Head Cover 2	1
6	6P2-41112-00	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
7	6P2-41122-00	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
8	6P2-41114-00	排气管外盖衬垫	Gasket, Exhaust Outer Cover	2
9	90430-18130	固定	Gasket	2
10	90430-14115	垫片	Gasket	2
11	69J-15451-00	曲轴箱盖衬垫1	Gasket, Crankcase Cover	1
12	6P2-1131B-00	衬垫	Gasket, Cover	1
13	90430-05002	衬垫	Gasket	2
14	69J-11351-11	气缸衬垫	Gasket, Cylinder	1
15	93210-25552	O型圈	O-ring	3
16	93210-19MJ1	O型圈	O-ring	2
17	93210-25647	O型圈	O-ring	1
18	69J-14664-00	断水	Grommet, Water Jacket	2
19	93102-63004	油封	Oil Seal	1
20	93102-38008	油封	OilSeal	4
21	69J-11355-00	气缸密封圈1	Seal,Cylinder 1	1
22	6P2-13477-00	衬垫	Gasket	1
23	93210-19MJ3	O型圈	O-ring	2
24	93210-24M79	O型圈	O-ring	1

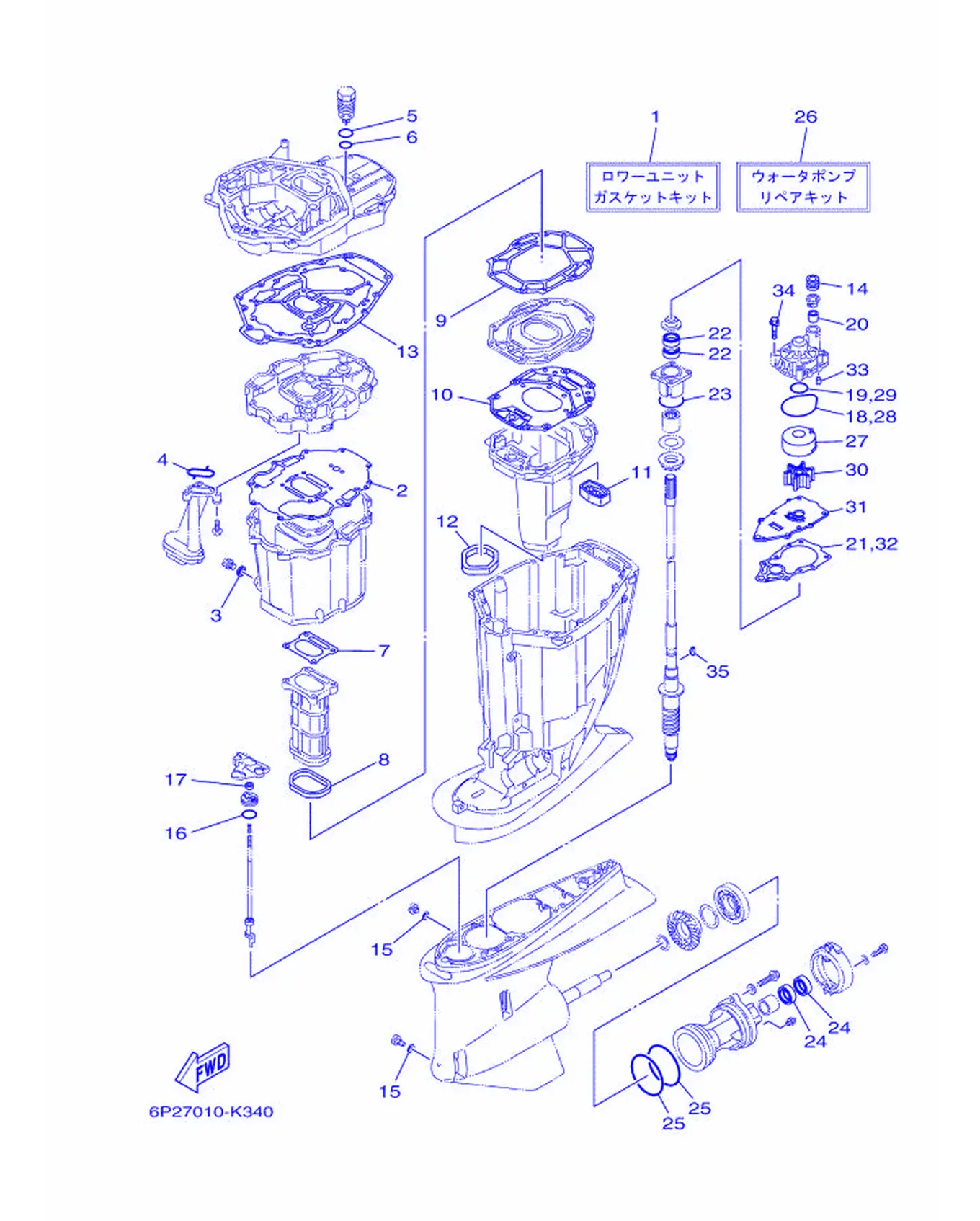

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-W0001-30	水下装置衬垫套	LowerUnitGasket Kit	1
2	69J-15312-01	油槽衬垫	Gasket, Oil Pan	1
3	90430-14M09	衬垫	Gasket	1
4	69J-13415-00	机油滤网密封	Seal, Oil Strainer	1
5	93210-347A1	O型圈	O-ring	1
6	93210-28543	O型圈	O-ring	1
7	6P2-41134-00	排气岐管衬垫	Gasket, Exhaust Manifold	1
8	69J-41138-00	排气管密封圈1	Seal, Exhaust 1	1
9	69J-41135-A0	排气岐管衬垫	Gasket, Exhaust Manifold	1
10	6S1-41136-00	歧管衬垫	Gasket, Exhaust Manifold	1
11	69J-45127-00	密封	Seal	1
12	69J-45123-00	消音器衬垫	Gasket,Muffler	1
13	69J-45113-20	水上装置壳体衬垫	Gasket,UpperCasing	1
14	6E5-44366-00	水封减震器	Damper,WaterSeal	1
15	90430-08020	固定	Gasket	2
16	93210-33M49	O型圈	O-ring	1
17	93106-09014	油封	OilSeal	1
18	93210-86M38	O型圈	O-ring	1
19	93210-37160	O型圈	O-ring	1
20	6E5-44365-00	水封减震器	Damper,WaterSeal	1
21	60X-44315-A0	水泵衬垫	Gasket, Water Pump	1
22	93101-28M16	油封	OilSeal	2
23	93210-55M14	O型圈	O-ring	1
24	93101-30002	油封	Oil Seal	2
25	93211-04384	O型圈	O-ring	2
26	6P2-W0078-00	水泵修理套	Water PumpRepair Kit	1
27	61A-44322-02	芯子	Insert, Cartridge	1
28	93210-86M38	O型圈	O-ring	1
29	93210-37160	O型圈	O-ring	1
30	6E5-44352-01	叶轮	Impeller	1
31	6P2-44323-00	外挡板	Outer Plate, Cartridge	1
32	60X-44315-A0	水泵衬垫	Gasket, Water Pump	1
33	93606-12019	定位销	Pin, Dowel	2
34	90119-08M14	带垫螺栓	Bolt, With Washer	4
35	90280-04M05	半圆键	Key, Woodruff	1

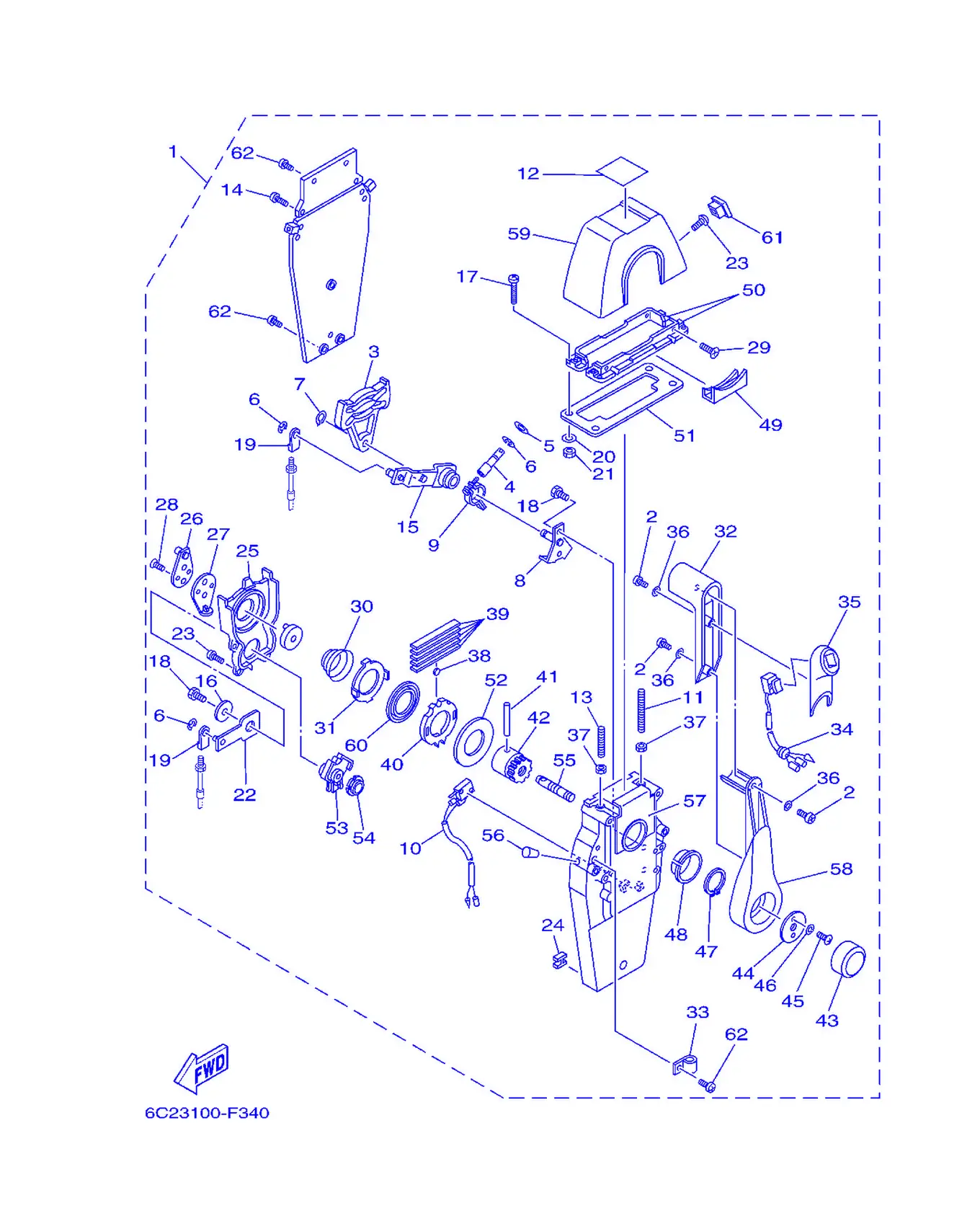

リモ-トコントロ-ルアセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	704-48205-P1	遥控装置组合	Remote Control Assembly (Ra	1
2	704-48128-00	螺钉2	Screw 2	3
3	EL8-48251-00	凸轮面板	Plate,Cam	1
4	704-48265-00	摩擦轴	Shaft, Friction	1
5	701-48246-00	衬套	Spacer	1
6	93430-06024	卡环	Circlip	4
7	EL8-48259-00	开口簧环，卡	Circlip 1	1
8	704-48262-00	油门轴	Shaft,Throttle	1
9	704-48264-00	带阻力油	Throttle, Friction	1
10	704-82540-20	空挡开关组合	Neutral Switch Assembly	1
11	EL8-48281-00	螺钉	Screw	1
12	704-48215-20	图样	Graphic	1
13	704-48281-00	螺钉	Screw	1
14	97890-05025	大柱头螺钉	Screw, Pan Head	2
15	704-48261-00	油门臂	Arm,Throttle	1
16	EL8-48191-00	垫圈1	Washer 1	1
17	704-48283-00	螺钉	Screw	4
18	97380-06018	螺栓	Bolt	3
19	703-48345-01	遥控钢索端部2	Cable End, Remote Control	2
20	704-48287-00	垫	Washer	4
21	95380-05600	螺母	Nut	4
22	704-48271-00	变挡臂	Arm, Shift	1
23	EL8-48127-00	螺钉1	Screw 1	10
24	703-48358-00	钢索固定装置	Anchor, Cable	1
25	704-48231-00	齿轮壳	Housing, Cap	1
26	EL8-48241-00	驱动臂	Arm, Drive	1
27	EL8-48254-00	油门调整限位板	Stopper, Throttle	1
28	92780-06020	平头螺钉	Screw, Flat Head	2
29	98780-05018	平头螺钉	Screw, Flat Head	4
30	EL8-48244-00	发动机空转弹簧	Spring, Free Axel	1
31	EL8-48245-00	锁紧面板	Plate, Lock	1
32	704-48222-P0	控制杠杆握柄	Grip,ControlLever	1
33	704-82594-00	夹箍	Clamp	1
34	704-82563-41	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
35	704-48229-P1	控制杠杆握柄	Grip,ControlLever	1
36	92990-05300	盘形垫	Washer, Internal Tooth	3
37	95380-06600	有槽螺母	Nut, Hexagon	2
38	701-48248-00	发动机空转卷轴	Roller, Free Accelerator	1
39	704-48238-00	延迟簧	Spring, Detent	5
40	704-48232-P1	齿	Gear	1
41	EL8-48164-00	销2	Pin 2	1
42	704-48242-10	驱动轴	Shaft, Drive	1
43	6X3-48225-20	盖	Cover	1
44	704-48192-00	垫圈2	Washer 2	1
45	97890-06018	大柱头螺钉	Screw, Pan Head	2
46	92990-06300	盘形垫	Washer, Internal Tooth	2
47	EL8-48279-00	卡环 2	Circlip 2	1
48	704-48234-00	衬套1	Bushing 1	1
49	704-48219-P0	导线盖	Cover,Lead	1
50	704-48144-10	限位板面板2	Plate, Stopper 2	2
51	704-48176-00	固定	Grommet	1
52	704-48192-P0	垫圈2	Washer 2	1
53	704-48233-00	齿轮2	Gear 2	1
54	704-48235-00	衬套	Bushing	1
55	704-48153-00	发动机空转轴	Shaft, Free Axel	1
56	704-48166-00	塞	Plug	1
57	704-48284-P0	固定	Grommet	1
58	704-48221-P0	控制杠杆	Lever, Control	1
59	704-48119-31	盖	Cover	1
60	704-48178-10	轴面板	Plate, Shift	1
61	704-48167-01	塞	Plug	1
62	97890-05016	大柱头螺钉	Screw, Pan Head	3

リモートコントロールボツクス

REF	雅马哈编码	中文名称	英文名称	用量
1	704-48205-P1	遥控装置组合	Remote Control Assembly (Ra	1
3	701-48320-50	遥控钢索 (4.56m)	Cable, Remote Control	2
3	701-48320-60	遥控钢索 (4.88m)	Cable, Remote Control	2
3	701-48320-80	遥控钢索 (5.18m)	Cable, Remote Control	2
3	701-48350-00	遥控钢索 (6.40m)	Cable, Remote Control	2
3	701-48350-20	遥控钢索 (7.01m)	Cable, Remote Control	2

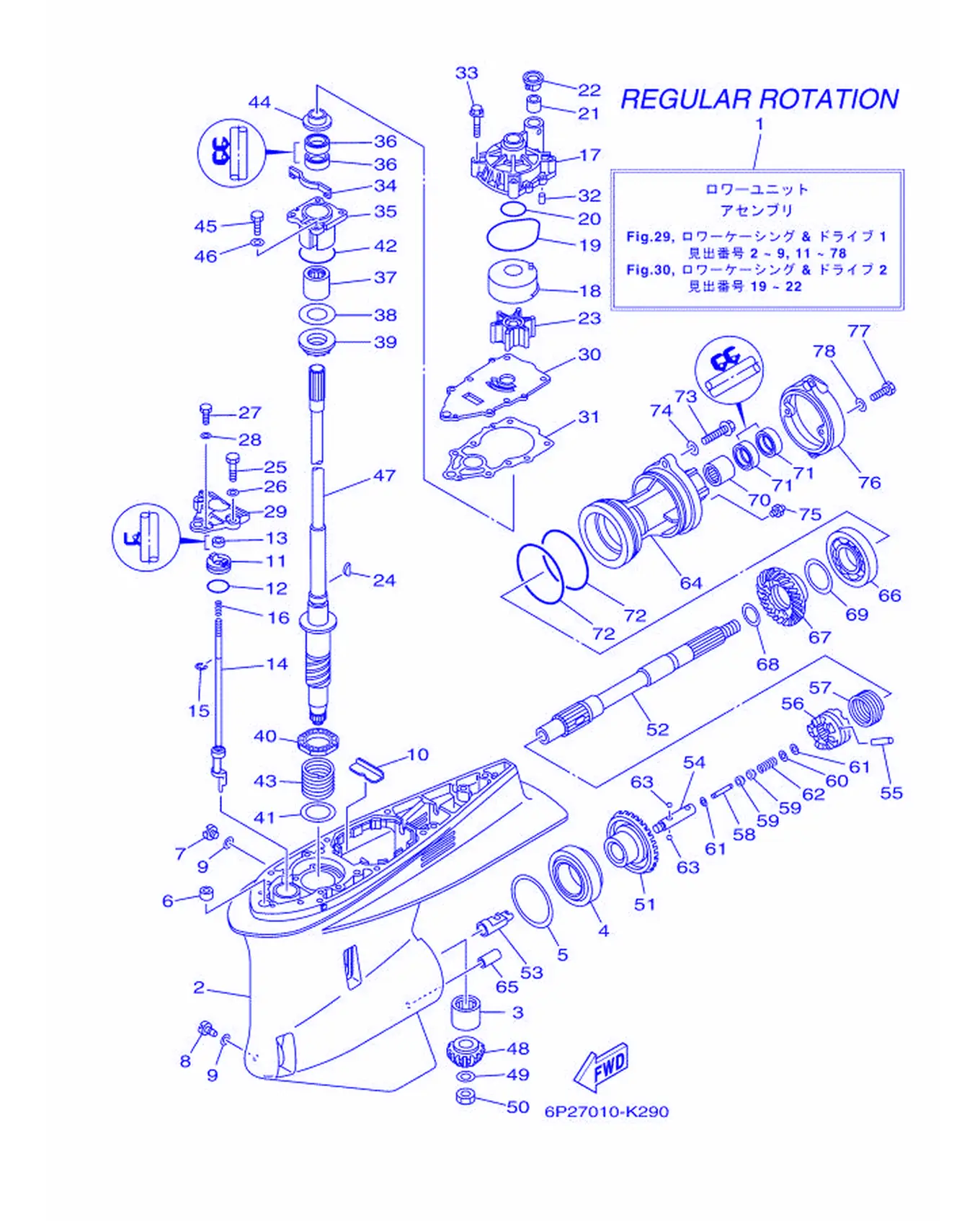

ロワーケーシング & ドライブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6P2-45300-40-8D	水下装置总成	LowerUnitAssembly	1
1	6P2-45300-50-8D	水下装置总成	LowerUnitAssembly	1
2	6P2-45301-10-8D	水下装置壳	Casing,Lower	1
3	93311-83280	轴承	Bearing	1
4	93332-000W1	轴承	Bearing	1
5	61A-45567-00	填隙	Shim (T:0.10MM)	1
5	61A-45567-10	填隙	Shim (T:0.12MM)	1
5	61A-45567-20	填隙	Shim (T:0.15MM)	1
5	61A-45567-30	填隙	Shim (T:0.18MM)	1
5	61A-45567-40	填隙	Shim (T:0.30MM)	1
5	61A-45567-50	填隙	Shim (T:0.40MM)	1
5	61A-45567-60	填隙	Shim (T:0.50MM)	1
6	663-44366-00	水封减震器	Damper,WaterSeal	1
7	90340-08002	螺丝	Plug, Straight Screw	1
8	688-45341-10	放油塞	Plug, Drain	1
9	90430-08020	固定	Gasket	2
10	61A-45376-00	密封圈减震块导承	Guide,SealDamper	1
11	65N-45321-00	面板	Plate	1
12	93210-33M49	O型圈	O-ring	1
13	93106-09014	油封	OilSeal	1
14	6P2-44150-00	变挡凸轮组合	Shift Cam Assembly	1
15	99001-08600	卡环	Circlip	1
16	90501-11M10	接头	Spring, Compression	1
17	61A-44311-01	水泵壳	Housing,Water Pump	1
18	61A-44322-02	芯子	Insert, Cartridge	1
19	93210-86M38	O型圈	O-ring	1
20	93210-37160	O型圈	O-ring	1
21	6E5-44365-00	水封减震器	Damper,WaterSeal	1
22	6E5-44312-00	水泵壳体盖	Cover,Water PumpHousing	1
23	6E5-44352-01	叶轮	Impeller	1
24	90280-04M05	半圆键	Key, Woodruff	1
25	97095-08030	螺栓	Bolt	2
26	92995-08600	盘形垫	Washer	2
27	97095-06016	螺栓	Bolt	1
28	92995-06600	盘形垫	Washer	1
29	60X-44312-00	水泵壳体盖	Cover, Water Pump Housing	1
30	6P2-44323-00	外挡板	Outer Plate, Cartridge	1
31	60X-44315-A0	水泵衬垫	Gasket, Water Pump	1
32	93606-12019	定位销	Pin, Dowel	2
33	90119-08M14	带垫螺栓	Bolt, With Washer	4
34	6P2-45723-00	油封固定板	Seal Plate	1
35	6P2-45331-00-9S	轴承壳	Housing, Bearing	1
36	93101-28M16	油封	OilSeal	2
37	93317-330U2	轴承	Bearing	1
38	61A-45587-00	填隙	Shim (T:0.10MM)	1
39	93341-930U9	轴承	Bearing	1
40	93341-34019	轴承	Bearing	1
41	90201-42014	平垫圈	Washer, Plate	1
42	93210-55M14	O型圈	O-ring	1
43	90501-450A2	弹簧	Spring, Compression	1
44	6E5-45344-00	油封盖	Cover,OilSeal	1
45	97095-08025	螺栓	Bolt	4
46	92995-08600	盘形垫	Washer	4
47	6P2-45501-00	驱动轴组	Drive Shaft Complete	1
48	6P2-45551-01	小齿轮	Pinion (15T)	1
49	90201-16M00	平垫圈	Washer,Plate	1
50	90170-16M19	螺帽	Nut	1
51	6P2-45560-00	齿	Gear 1 (30T)	1
52	69J-45611-00	螺旋浆轴	Shaft,Propeller	1
53	61A-45641-02	变挡装置	Shifter	1
54	61A-45634-01	变挡滑	Slide, Shift	1
55	61A-45632-00	十字销	Pin, Cross	1
56	69J-45631-00	爪形离合器	Clutch, Dog	1
57	61A-45633-00	十字环	Ring, Cross Pin	1
58	6H1-45668-00	自由轴	Shaft, Free	1
59	61A-45635-00	变挡柱	Plunger, Shift	2
60	90201-02M00	平垫圈	Washer,Plate	1
61	90183-02M03	螺帽	Nut,Spring	2
62	90501-10M77	压簧	Spring, Compression	1
63	93501-04011	滚珠	Ball	2
64	6D0-45332-00-CA	轴承壳	Housing, Bearing	1
65	99590-10114	定位销	Pin, Dowel	1
66	93306-210U0	轴承	Bearing	1
67	6P2-45571-00	齿轮	Gear 2 (30T)	1
68	6P2-45578-00	填隙	Shim (T:1.80MM)	1
68	6P2-45578-10	填隙	Shim (T:1.90MM)	1
68	6P2-45578-20	填隙	Shim (T:2.00MM)	1
68	6P2-45578-30	填隙	Shim (T:2.10MM)	1
68	6P2-45578-40	填隙	Shim (T:2.20MM)	1
69	61A-45577-00	填隙	Shim (T:0.10MM)	1
69	61A-45577-10	填隙	Shim (T:0.12MM)	1
69	61A-45577-20	填隙	Shim (T:0.15MM)	1
69	61A-45577-30	填隙	Shim (T:0.18MM)	1
70	93315-43064	轴承	Bearing	1
71	93101-30002	油封	Oil Seal	2
72	93211-04384	O型圈	O-ring	2
73	90105-08049	凸缘螺栓	Bolt, Flange	2
74	90201-08023	平垫圈	Washer,Plate	2
75	93700-09M00	润滑油管嘴	Nipple, Grease	1
76	6D0-45361-00-8D	水下装置壳体盖	Cap, Lower Casing	1
77	97095-08020	螺栓	Bolt	2
78	92995-08600	盘形垫	Washer	2

ロワーケーシング & ドライブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6E5-44365-00	水封减震器	Damper,WaterSeal	1
2	6E5-44366-00	水封减震器	Damper,WaterSeal	1
3	6S1-44361-01	水管	Tube, Water 1	1
3	6S1-44361-11	水管	Tube, Water 1	1
4	93608-12M05	定位销	Pin, Dowel	2
5	97095-10045	螺栓	Bolt	7
6	92995-10100	盘形垫	Washer	7
7	92995-10600	盘形垫	Washer	7
8	90119-10MA2	卡环	Bolt, With Washer	1
8	90119-10008	带垫圈螺栓	Bolt, With Washer	1
9	6D0-45375-00	密封圈减震	Damper, Seal	1
10	6P2-45214-00	进水口盖1	Cover, Water Inlet 1	1
11	6P2-45215-00	进水口盖2	Cover, Water Inlet 2	1
12	90152-05M08	沉头螺钉	Screw, Countersunk	1
13	90185-05002	螺母	Nut, Self-Locking	1
14	6P2-45224-00	进水口盖3	Cover, Water Inlet 3	1
15	6P2-45225-00	进水口盖4	Cover, Water Inlet 4	1
16	90110-05039	螺栓	Bolt, Hexagon Socket Head	1
17	61A-45371-00	航向调整	Tab Trim	1
18	90105-10M00	螺栓	Bolt, Flange	1
19	6D0-44367-00	水封减震器	Damper, Water Seal 3	1
20	6D0-44362-01	水管	Tube, Water 2	1
21	6D0-44365-00	水封减震器	Damper, Water Seal 1	1
22	6D0-44366-00	水封减震器	Damper, Water Seal 2	1
23	69J-45987-00	衬套	Spacer 1	1
24	688-45997-01	衬套	Spacer	1
25	92990-18200	盘形垫	Washer	1
26	90171-18M04	螺母	Nut, Castle	1
27	91490-40030	开口销	Pin, Cotter	1
28	6G5-45970-02-98	螺旋浆组合	Propeller (3X15-1/4 X15 -M)	1
