雅马哈 2B - 2BMHS

共 9 个部位，点击零件编码查看详情，或搜索本页零件。

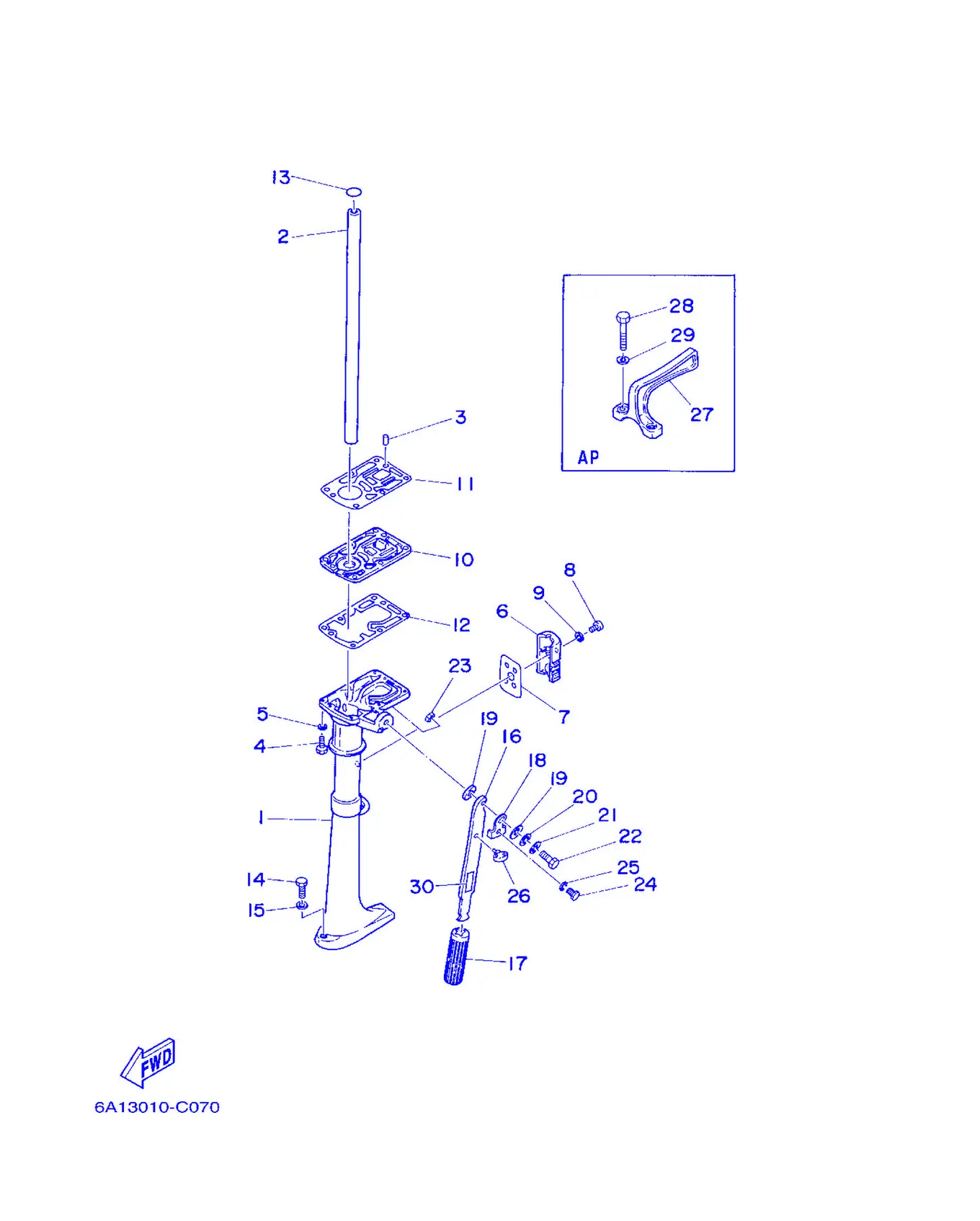

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	6A1-45111-03-4D	水上装置壳	Casing,Upper	1
2	6A1-45113-00	实物是管（目录印错）2C	Gasket,UpperCasing	1
3	93605-15065	定位销	Pin, Dowel	2
4	97095-06025	螺栓	Bolt	6
5	92995-06600	盘形垫	Washer	6
6	6A1-45151-00	水上装置壳体盖	Cover,UpperCasing	1
7	6A1-45115-00	水上装置壳体衬垫	Gasket,UpperCasing	1
8	97880-06016	大柱头螺钉	Screw, Pan Head	1
9	92990-06600	面板垫圈	Washer,Plate	1
10	6A1-41137-00-5B	排气导管	Guide,Exhaust	1
11	6A1-14613-A0	排气管衬垫	Gasket,ExhaustPipe	1
12	646-14623-A1	排气管衬垫	Gasket,ExhaustPipe	1
13	93210-19123	O型圈	O-ring	1
14	97095-06030	螺栓	Bolt	1
15	92995-06600	盘形垫	Washer	1
16	6A1-42111-01-4D	方向手柄	Handle,Steering	1
17	646-42119-02	方向手把握	Grip,SteeringHandle	1
18	6A1-42181-00	垫	Washer	1
19	90201-09117	平垫圈	Washer,Plate	2
20	92990-08200	垫圈	Washer, Plain	1
21	92990-08100	盘形垫	Washer,Spring	1
22	90101-08M11	螺栓	Bolt, Hexagon	1
23	95380-08600	有槽螺母	Nut	1
24	97095-06010	螺栓	Bolt	1
25	92995-06100	垫圈	Washer,Spring	1
26	646-42591-00	剪力安全销支架	Holder, Shear Pin	1
27	646-42121-00-94	托架	Bracket, Carling	1
28	97095-06055	螺栓	Bolt	2
29	92990-06100	盘形垫	Washer,Spring	2
30	6A1-2415A-01	告诫牌	Label, Corrosion	1

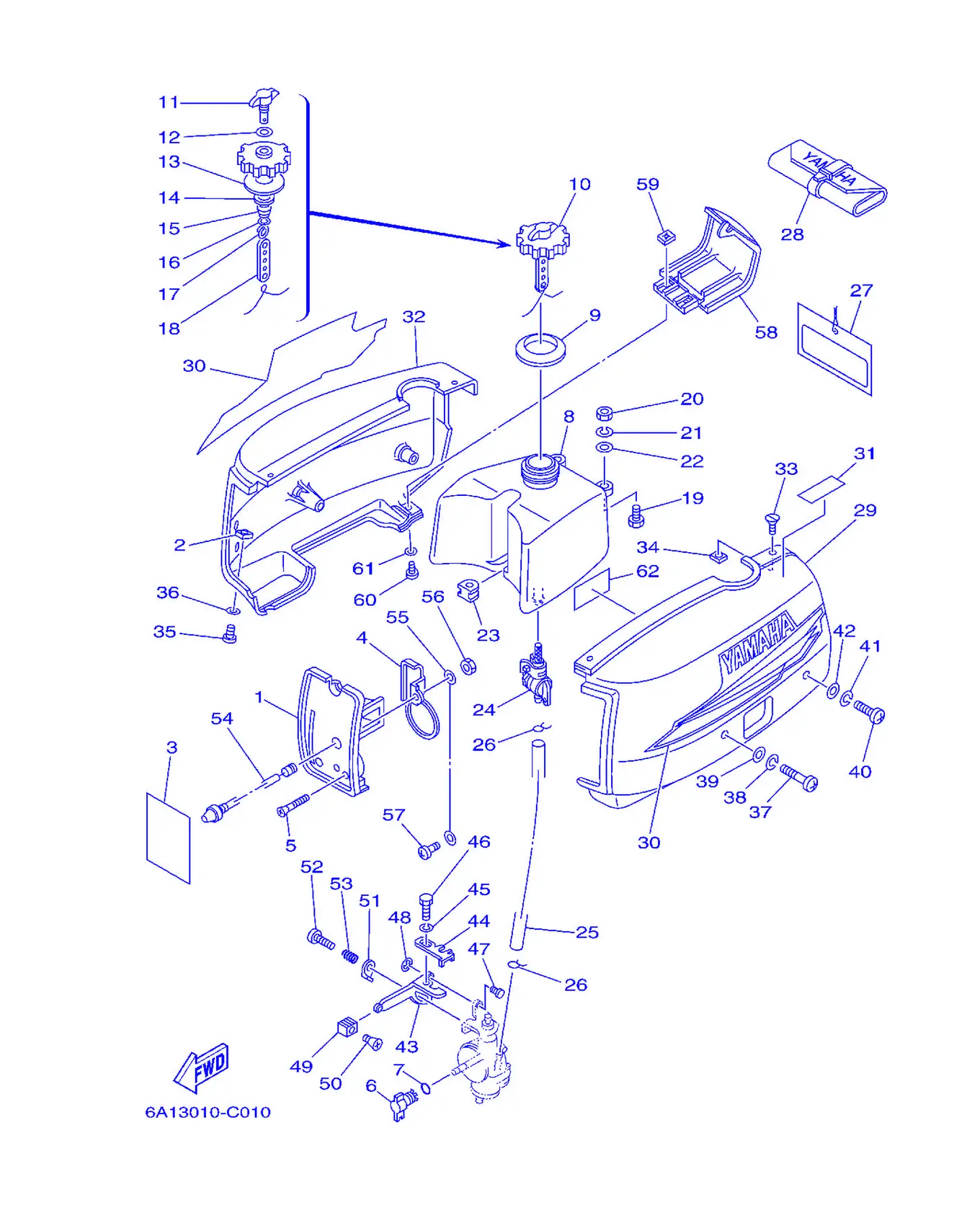

カウリング & フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	6A1-14441-02	进气消声器2	Silencer,Intake 2	1
2	90173-05M00	螺帽	Nut, Square	2
3	6A1-42677-10	前图样	Graphic, Front	1
4	6A1-14442-00	衬套	Spacer	1
5	90151-04M04	卡环	Screw, Countersunk	2
6	6A1-41271-00	阻风门旋钮	Knob, Choke	1
7	93210-08M29	O型圈	O-ring	1
8	6A1-24110-01	燃油箱组	FuelTankComplete	1
9	6A1-24198-00	橡皮座	Seat,Rubber	1
10	6A1-24610-01	盖组合	CapAssembly	1
11	6A1-24631-00	空气螺钉	Screw,Air	1
12	90430-04005	固定	Gasket	1
13	90430-14117	固定	Gasket	1
14	646-24615-01	面板衬垫1	Gasket,Plate 1	1
15	90501-10374	接头	Spring, Compression	1
16	92907-04200	平垫圈	Washer	1
17	90501-10260	接头	Spring, Compression	1
18	646-24241-00	指示标1	Indicator 1	1
19	97095-06018	螺栓	Bolt	2
20	95380-06600	有槽螺母	Nut, Hexagon	2
21	92995-06100	垫圈	Washer,Spring	2
22	90201-06M30	带垫面板	Washer,Plate	2
23	6A1-24181-00	定位减震器1	Damper, Locating 1	1
24	6A1-24500-02	燃油活栓组合1	Fuel Cock Assembly 1	1
25	6A1-24311-00	燃油管1	Pipe,Fuel 1	1
26	90467-08004	卡环	Clip	2
27	61H-2819R-01	警告标签	Tag, Warning	1
28	656-W2810-02	工具套	ToolKit	1
29	6A1-42741-12	挡板	Apron	1
30	6A1-W0070-14	图样套	Graphic Set	1
31	6Y1-2415A-00	告诫牌	Label, Corrosion	1
32	6A1-42771-12	挡板	Apron	1
33	98780-05012	平头螺钉	Screw, Flat Head	2
34	90183-05M00	螺帽	Nut,Spring	2
35	97880-05012	大柱头螺钉	Screw, Pan Head	2
36	92990-05600	盘形垫	Washer,Plate	2
37	97880-06040	大柱头螺钉	Screw, Pan Head	2
38	92990-06100	盘形垫	Washer,Spring	2
39	92990-06600	面板垫圈	Washer,Plate	2
40	97880-06025	螺栓	Screw, Pan Head	2
41	92990-06100	盘形垫	Washer,Spring	2
42	92990-06600	面板垫圈	Washer,Plate	2
43	6A1-41212-01	加速器臂	Arm,Accelerator	1
44	6A1-41211-00	加速器连杆	Link, Accelerator	1
45	92990-05100	盘形垫	Washer,Spring	1
46	97095-05010	螺栓	Bolt	1
47	6A1-14365-00	U形叉销	Pin, Clevis	1
48	99001-04600	有槽螺母	Circlip	1
49	6A1-41637-00	磁电机控制旋钮	Knob, Magnet Control	1
50	98780-03010	平头螺钉	Screw, Flat Head	1
51	6A1-41223-00	锁紧垫圈1	Washer,Lock 1	1
52	97885-05025	大柱头螺钉	Screw, Pan Head	1
53	90501-12M16	接头	Spring, Compression	1
54	6A1-82550-02	发动机止动开关组合	Engine Stop Switch Assembly	1
55	6A1-82541-00	导线	Wire,Lead	1
56	95380-08700	有槽螺母	Nut	1
57	97880-05008	大柱头螺钉	Screw, Pan Head	1
58	6A1-82375-12	塞帽盖	Cover,PlugCap	1
59	90183-05M00	螺帽	Nut,Spring	2
60	97880-05012	大柱头螺钉	Screw, Pan Head	2
61	92990-05600	盘形垫	Washer,Plate	2
62	6A1-83625-01	商标，标志5	Mark 5	1

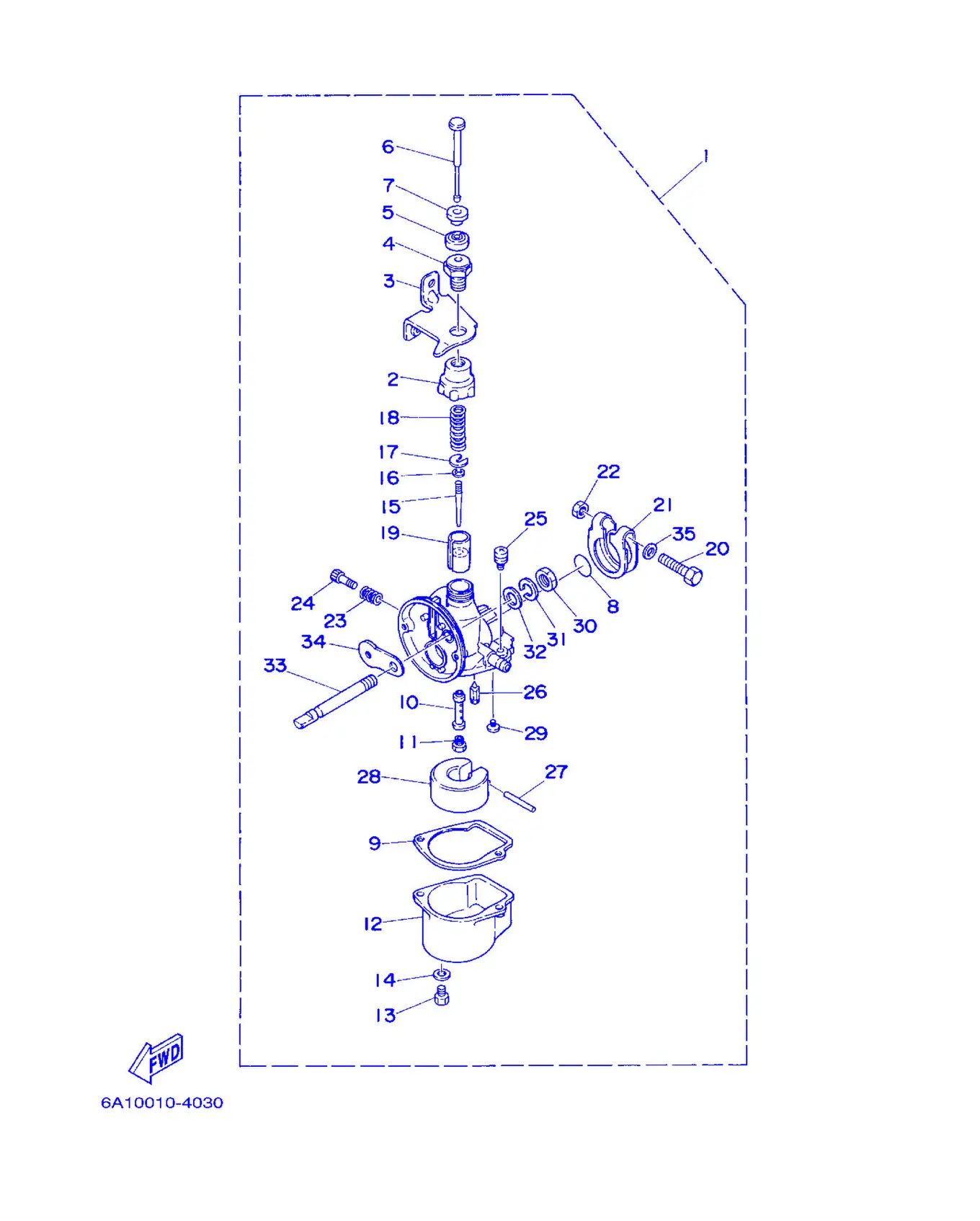

キヤブレタ

REF	雅马哈编码	中文名称	英文名称	用量
1	6A1-14301-03	化油器总成1	CarburetorAssembly 1	1
2	646-14158-00	混合室盖罩	Top, Mixing Chamber	1
3	6A1-14497-00	油门钢索支承	Stay, Throttle Wire	1
4	646-14321-00	节气门螺钉	Screw, Throttle	1
5	646-14169-00	盖	Cap	1
6	6A1-14314-00	节气门杆	Bar, Throttle	1
7	6A1-14163-00	隔套	Spacer	1
8	646-14229-01	O型圈	O-ring	1
9	6A1-14384-00	浮子室衬垫	Gasket, Float Chamber	1
10	6A1-14341-01	主喷管	Nozzle,Main	1
11	6A1-14343-48	主量孔	Jet,Main (# 96)	1
12	6A1-14381-02	浮子室本	Body, Float Chamber	1
13	97890-05006	大柱头螺钉	Screw, Pan Head	1
14	646-14198-01	衬垫	Gasket	1
15	6A1-14116-10	针	Needle	1
16	646-14137-00	钢夹	Clip	1
17	646-14136-00	弹簧座	Seat,Spring	1
18	646-14331-01	节气门阀弹簧	Spring, Throttle Valve	1
19	646-14312-08	节气门阀1	Valve,Throttle 1	1
20	6A1-14125-01	螺钉	Screw	1
21	6A1-14127-01	钢夹	Clip	1
22	6A1-14358-01	螺母	Nut	1
23	6A1-14212-00	混合气调整弹簧	Spring, Pilot Adjusting	1
24	646-14211-02	混合气调整螺钉	Screw, Pilot Adjusting	1
25	97980-04110	带垫圈螺钉	Screw, Washer	2
26	6A1-14392-00	针阀	Valve, Needle	1
27	6A1-14386-00	浮子销	Pin, Float	1
28	6A1-14385-00	浮子	Float	1
29	98580-03005	大柱头螺钉	Screw, Pan Head	1
30	646-14358-00	螺母	Nut	1
31	6A1-14356-00	弹簧垫	Washer, Spring	1
32	646-14357-00	平垫	Washer, Plain	1
33	6A1-14448-00	阻风门挺杆	Lever, Choke Valve	1
34	6A1-14217-01	阻风门阀	Valve, Choke	1
35	92990-05600	盘形垫	Washer,Plate	1

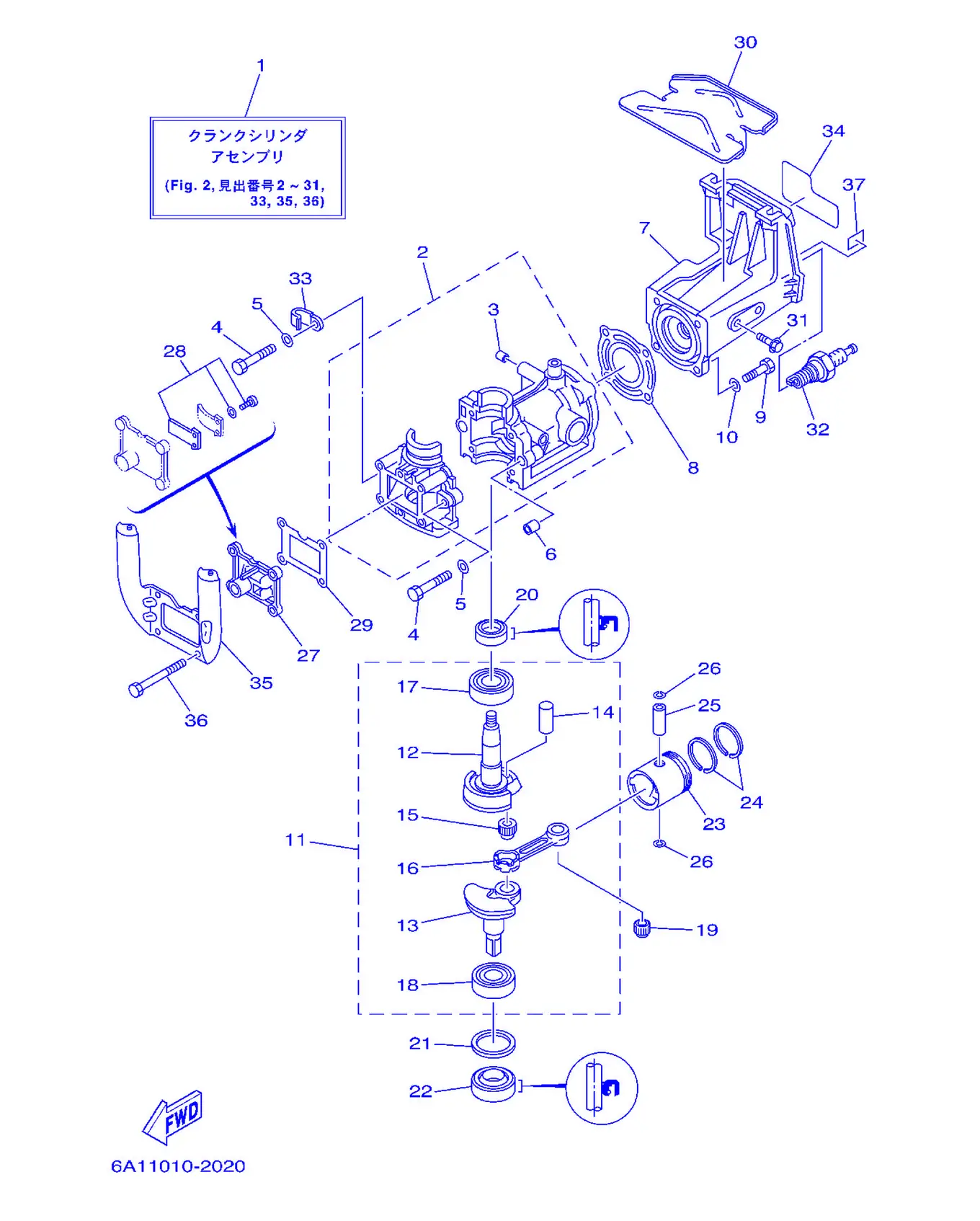

シリンダ & クランクケース

REF	雅马哈编码	中文名称	英文名称	用量
1	6A1-W0090-05-1S	气缸曲柄组合	Crank Cylinder Assembly	1
2	6A1-15100-01-1S	曲轴箱组合	Crankcase Assembly	1
3	90336-06001	衬套	Plug, Taper	1
4	97013-06040	螺栓	Bolt	2
5	92903-06600	盘形垫	Washer,Plate	2
6	99530-10014	定位销A	Pin, Dowel	2
7	6A1-11111-02-1S	气缸头1	Head, Cylinder 1	1
8	6A1-11181-A1	气缸头垫片1	Gasket, Cylinder Head 1	1
9	97095-06025	螺栓	Bolt	4
10	92995-06600	盘形垫	Washer	4
11	6A1-11400-00	曲轴组合	CrankshaftAssembly	1
12	646-11412-01	曲柄1	Crank 1	1
13	6A1-11422-00	曲柄2	Crank 2	1
14	646-11681-00	曲柄销1	Pin, Crank 1	1
15	93310-31439	轴承	Bearing	1
16	646-11651-02	连杆	Rod, Connecting	1
17	93306-00409	轴承	Bearing	1
18	93306-30204	轴承	Bearing	1
19	93310-210V1	轴承	Bearing	1
20	93102-20070	油封	OilSeal	1
21	90201-35300	平垫圈	Washer,Plate	1
22	93102-15M32	油封	OilSeal	1
23	646-11631-01-98	活塞	Piston (STD)	1
23	646-11635-01	活塞	Piston (0.25MM O/S)	1
23	646-11636-01	活塞	Piston (0.50MM O/S)	1
24	646-11601-01	活塞环套件	PistonRingSet (STD)	1
24	646-11601-11	活塞环套件	Piston Ring Set (0.25MM O/S)	1
24	646-11601-21	活塞环套件	Piston Ring Set (0.50MM O/S)	1
25	646-11633-00	活塞销	Pin,Piston	1
26	93450-11021	卡环	Circlip	2
27	6A1-13610-00	簧片阀组合	Reed ValveAssembly	1
28	6A1-W0004-00	簧片套	LeadSet	1
29	6A1-13621-A0	阀座衬垫	Gasket,ValveSeat	1
30	6A1-24141-00	燃油箱保护	Protector, Fuel Tank	1
31	95895-06010	凸缘螺栓	Bolt, Flange	2
32	94703-00069	火花塞 (NGK B5HS)	Plug, Spark (NGK B5HS)	1
33	90465-06M86	夹箍	Clamp	1
34	6A1-42678-12	后图样	Graphic, Rear	1
35	6A1-15771-01	支承1	Stay 1	1
36	97013-06060	螺栓	Bolt	4
37	678-42791-00	标志，商标1	Mark 1	1

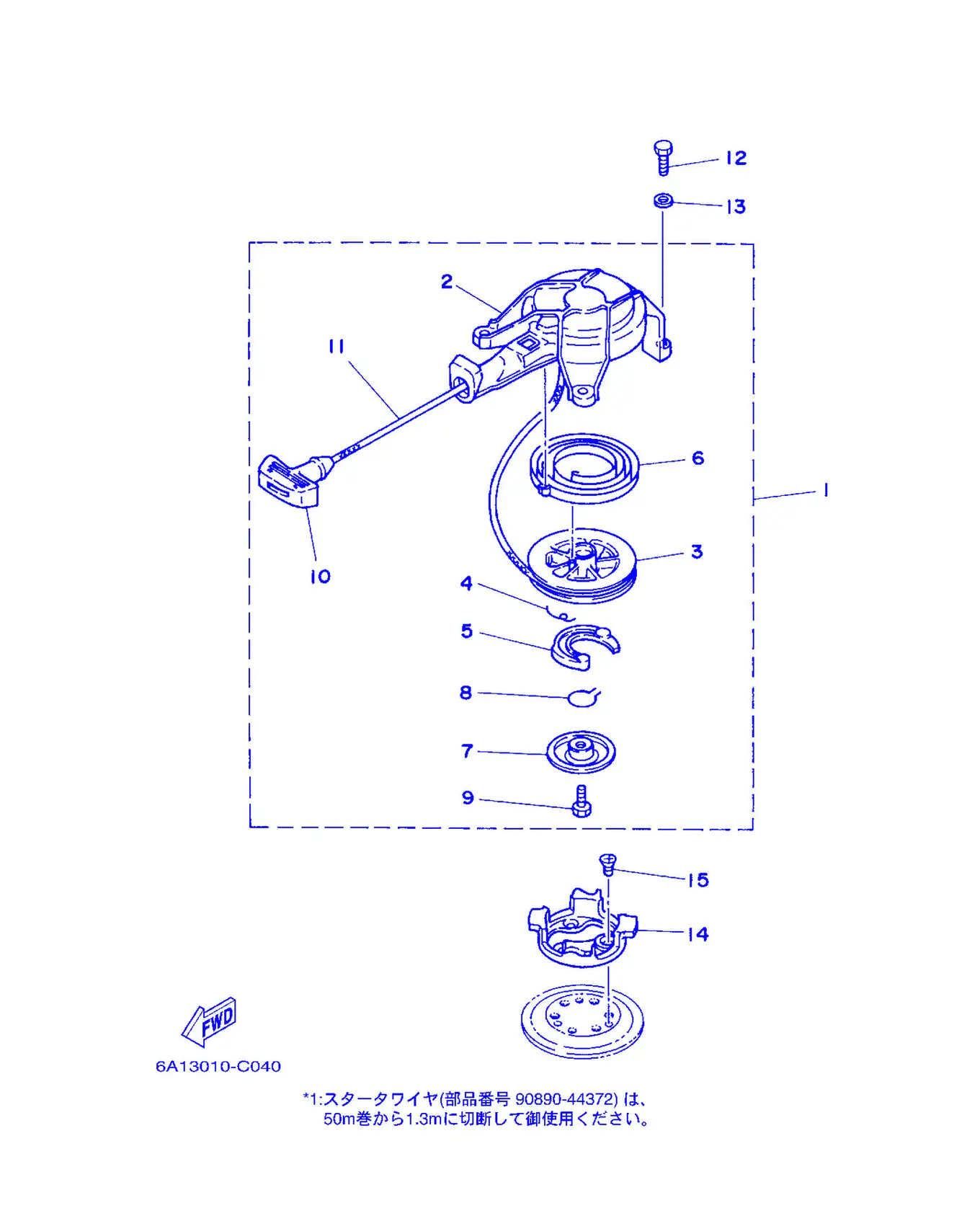

スタータ

REF	雅马哈编码	中文名称	英文名称	用量
1	6A1-15710-00	起动器组合	StarterAssembly	1
2	6A1-15711-00	起动器箱	Case,Starter	1
3	6A1-15714-00	拉索卷	Drum, Sheave	1
4	6A1-15767-00	弹簧	Spring	1
5	6A1-15741-00	驱动	Pawl, Drive	1
6	6A1-15713-00	起动器弹簧	Spring,Starter	1
7	6A1-15717-00	起动器轴	Shaft,Starter	1
8	6A1-15705-00	驱动爪弹簧	Spring, Drive Pole	1
9	97322-06012	螺栓	Bolt	1
10	6A1-15755-02	起动器手	Handle, Starter	1
12	97095-06016	螺栓	Bolt	3
13	92995-06600	盘形垫	Washer	3
14	6A1-15723-00-94	起动器滑	Pulley, Starter	1
15	98703-06012	平头螺钉	Screw, Flat Head	3

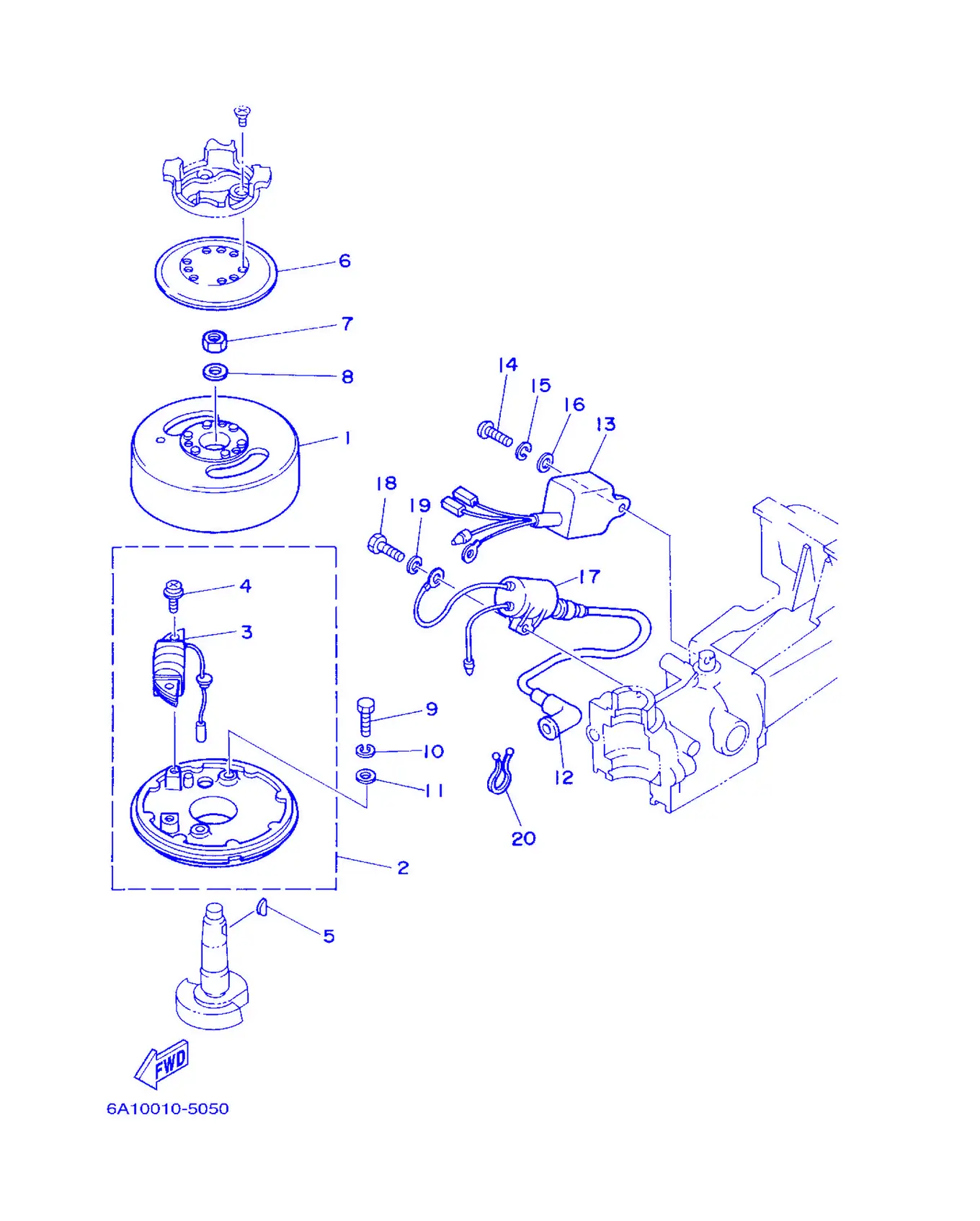

ゼネレータ

REF	雅马哈编码	中文名称	英文名称	用量
1	6A1-85550-00	转子组合	Rotor Assembly	1
2	6A1-85560-00	基座组合	BaseAssembly	1
3	6A1-85520-00	充电线	Coil, Charge	1
4	97885-05020	大柱头螺钉	Screw, Pan Head	2
5	90280-04M06	半圆键	Key, Woodruff	1
6	6A1-81362-00	孔盖	Cover, Hole	1
7	90170-10M33	螺帽	Nut	1
8	92903-10100	盘形垫	Washer,Spring	1
9	97013-06030	螺栓	Bolt	2
10	92903-06100	盘形垫	Washer,Spring	2
11	92903-06600	盘形垫	Washer,Plate	2
12	663-82370-01	塞帽组合	PlugCapAssembly	1
13	6A1-85540-01	电子点火器总成	C.D.I. Unit Assembly	1
14	97885-06016	大柱头螺钉	Screw, Pan Head	1
15	92995-06100	垫圈	Washer,Spring	1
16	92995-06600	盘形垫	Washer	1
17	6A1-85570-00	点火线圈组合	Ignition Coil Assembly	1
18	97095-06020	螺栓	Bolt	1
19	92995-06600	盘形垫	Washer	1
20	90464-08M07	固定	Clamp	1

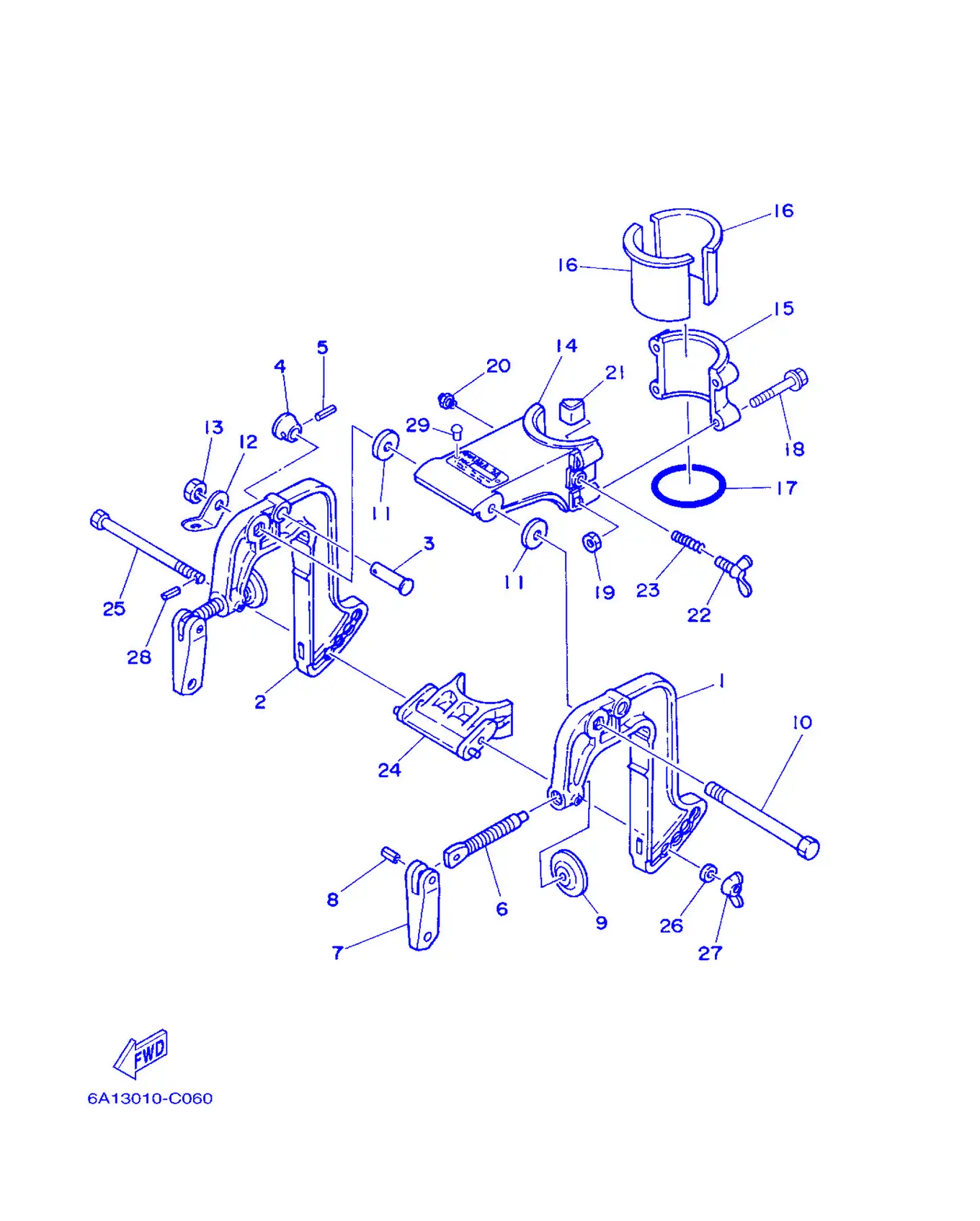

ブラケツト

REF	雅马哈编码	中文名称	英文名称	用量
1	6A1-43111-03-4D	夹紧托架	Bracket,Clamp 1	1
2	6A1-43112-00-4D	夹紧托架	Bracket,Clamp 2	1
3	6A1-43191-00	限位轴	Shaft, Stopper	1
4	6A1-43192-00	限位旋钮	Knob, Stopper	1
5	91690-30014	弹簧销	Pin,Spring	1
6	6E0-43116-01	艉板夹紧螺钉	Screw, Transom Clamp	2
7	6E0-43118-01	艉板夹紧手柄	Handle, Transom Clamp	2
8	90243-04M01	销	Pin	2
9	620-43114-00	艉板夹紧衬垫	Pad, Transom Clamp	2
10	90101-08217	卡环	Bolt, Hexagon	1
11	90202-08022	平垫圈	Washer,Plate	2
12	6A1-43113-01	夹紧托架面板	Plate,ClampBracket	1
13	95380-08600	有槽螺母	Nut	1
14	6A1-43311-02-4D	旋转支架	Bracket, Swivel 1	1
15	6A1-43312-00-4D	旋转支架	Bracket, Swivel 2	1
16	646-42537-01	枢轴衬套	Bushing, Pivot Shaft	2
17	93210-46044	O型圈	O-ring	1
18	90119-06M98	带垫螺栓	Bolt, With Washer	4
19	95380-06600	有槽螺母	Nut, Hexagon	4
20	93700-06M03	润滑油管嘴	Nipple, Grease	1
21	646-42528-00	阻力板	Plate, Friction	1
22	90122-06004	翼形螺	Bolt, Wing	1
23	90501-12272	接头	Spring, Compression	1
24	6A1-43351-00	推力接收器	Receiver, Thrust	1
25	6A1-43371-00	接收器螺	Bolt, Receiver	1
26	90201-06040	平垫圈	Washer,Plate	1
27	90175-06008	螺栓	Nut, Wing	1
28	91690-20006	弹簧销	Pin,Spring	1
29	90269-02M08	螺丝	Rivet	2

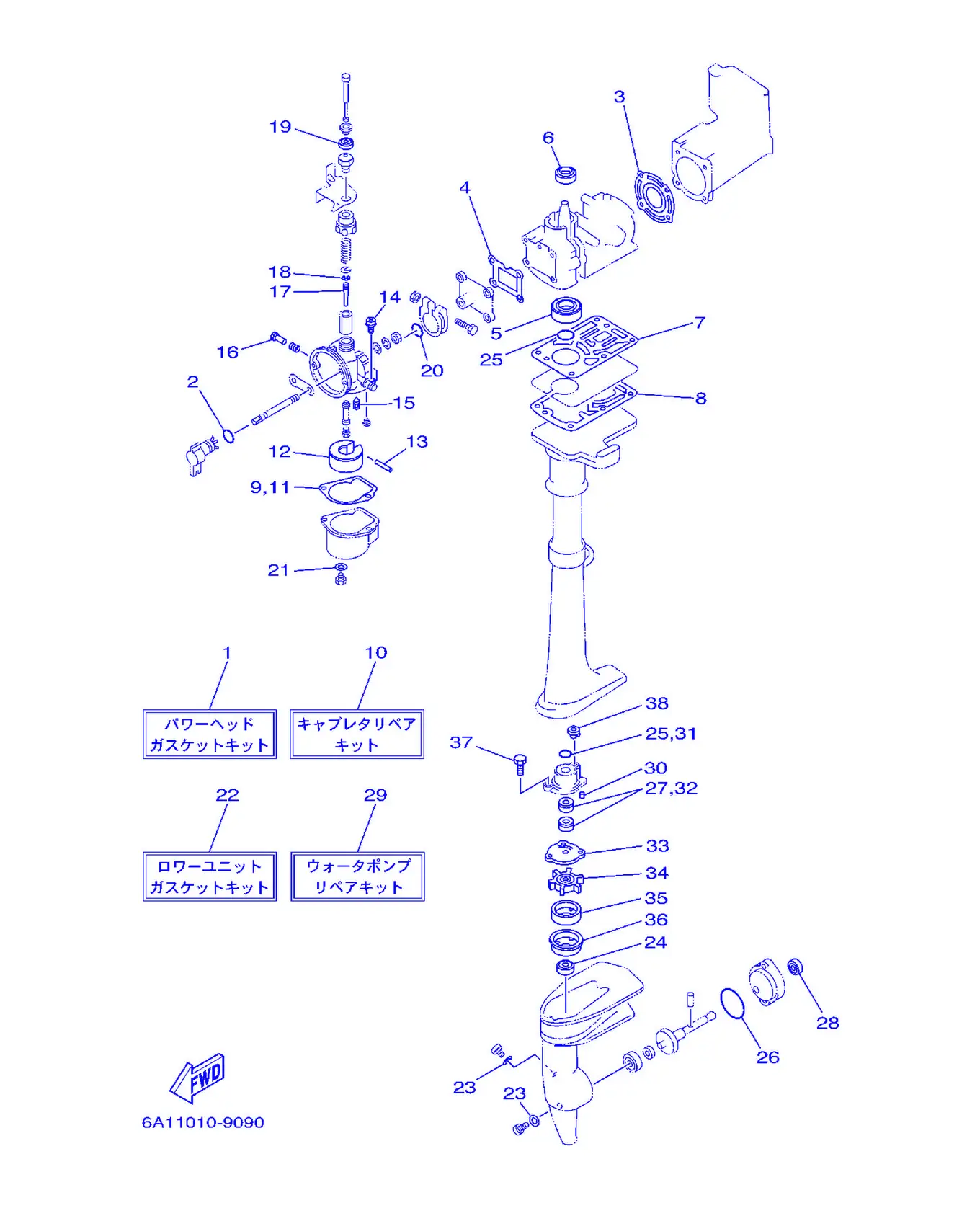

リペアキツト

REF	雅马哈编码	中文名称	英文名称	用量
1	6A1-W0001-A2	衬垫套	Power Head Gasket Kit	1
2	93210-08M29	O型圈	O-ring	1
3	6A1-11181-A1	气缸头垫片1	Gasket, Cylinder Head 1	1
4	6A1-13621-A0	阀座衬垫	Gasket,ValveSeat	1
5	93102-15M32	油封	OilSeal	1
6	93102-20070	油封	OilSeal	1
7	6A1-14613-A0	排气管衬垫	Gasket,ExhaustPipe	1
8	646-14623-A1	排气管衬垫	Gasket,ExhaustPipe	1
9	6A1-14384-00	浮子室衬垫	Gasket, Float Chamber	1
10	6A1-W0093-03	化油器修理套	CarburetorRepair Kit	1
11	6A1-14384-00	浮子室衬垫	Gasket, Float Chamber	1
12	6A1-14385-00	浮子	Float	1
13	6A1-14386-00	浮子销	Pin, Float	1
14	97980-04110	带垫圈螺钉	Screw, Washer	2
15	6A1-14392-00	针阀	Valve, Needle	1
16	646-14211-02	混合气调整螺钉	Screw, Pilot Adjusting	1
17	6A1-14116-10	针	Needle	1
18	646-14137-00	钢夹	Clip	1
19	646-14169-00	盖	Cap	1
20	646-14229-01	O型圈	O-ring	1
21	646-14198-01	衬垫	Gasket	1
22	6A1-W0001-23	衬垫套	LowerUnitGasket Kit	1
23	90430-08020	固定	Gasket	2
24	93103-11051	油封	OilSeal	1
25	93210-19123	O型圈	O-ring	1
26	93210-42101	O型圈	O-ring	1
27	93101-11M44	油封	OilSeal	2
28	93103-10052	油封	OilSeal	1
29	6A1-W0078-02	水泵修理套	Water PumpRepair Kit	1
30	93604-09068	定位销	Pin, Dowel	2
31	93210-19123	O型圈	O-ring	1
32	93101-11M44	油封	OilSeal	2
33	646-44323-00	外挡板	Outer Plate, Cartridge	1
34	646-44352-01	叶轮	Impeller	1
35	646-44322-00	芯子	Insert, Cartridge	1
36	6A1-44325-00	油封保护器	Protector, Oil Seal	1
37	97095-05016	螺栓	Bolt	2
38	646-44366-01	水封减震器	Damper,WaterSeal	1

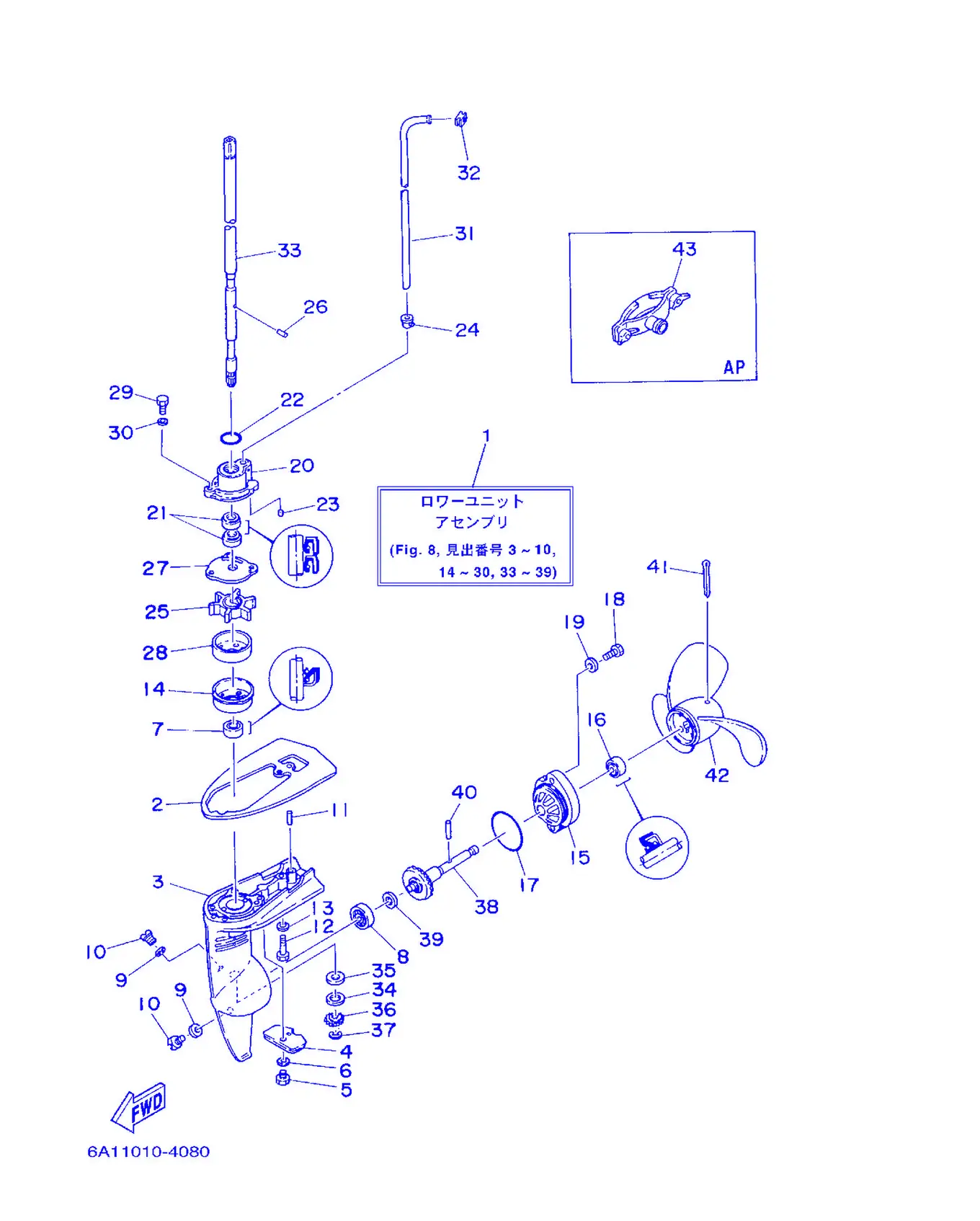

ロワーケーシング & ドライブ

REF	雅马哈编码	中文名称	英文名称	用量
1	6A1-45300-03-4D	水下装置总成	LowerUnitAssembly	1
2	6A1-45181-00-4D	面板	Plate	1
3	6A1-45311-02-4D	水下装置壳	Casing,Lower	1
4	6L5-45251-03	阳极	Anode	1
5	95895-06012	凸缘螺	Bolt, Flange	1
6	92990-06300	盘形垫	Washer, Internal Tooth	1
7	93103-11051	油封	OilSeal	1
8	93306-00001	轴承	Bearing	1
9	90430-08020	固定	Gasket	2
10	90340-08002	螺丝	Plug, Straight Screw	2
11	93605-18M04	定位销	Pin, Dowel	2
12	97095-06030	螺栓	Bolt	1
13	92995-06600	盘形垫	Washer	1
14	6A1-44325-00	油封保护器	Protector, Oil Seal	1
15	6A1-45361-01-4D	水下装置壳体盖	Cap,Lower Casing	1
16	93103-10052	油封	OilSeal	1
17	93210-42101	O型圈	O-ring	1
18	97090-06014	螺栓	Bolt	2
19	92990-06600	面板垫圈	Washer,Plate	2
20	6A1-44312-01-94	水泵壳体盖	Cover,Water PumpHousing	1
21	93101-11M44	油封	OilSeal	2
22	93210-19123	O型圈	O-ring	1
23	93604-09068	定位销	Pin, Dowel	2
24	646-44366-01	水封减震器	Damper,WaterSeal	1
25	646-44352-01	叶轮	Impeller	1
26	93604-09066	定位销	Pin, Dowel	1
27	646-44323-00	外挡板	Outer Plate, Cartridge	1
28	646-44322-00	芯子	Insert, Cartridge	1
29	97095-05016	螺栓	Bolt	2
30	92995-05600	盘形垫	Washer	2
31	6A1-44361-00	水管	Tube, Water	1
32	646-44365-00	水封减震器	Damper,WaterSeal	1
33	6A1-45510-01	驱动轴组合	Drive ShaftAssembly	1
34	90201-11M49	平垫圈	Washer,Plate	1
35	646-45534-00-03	推力垫	Shim (T:0.30MM)	1
35	646-45534-00-04	推力垫	Shim (T:0.40MM)	1
35	646-45534-00-05	推力垫	Shim (T:0.50MM)	1
36	646-45551-00	小齿轮	Pinion (13T)	1
37	99001-06600	卡环	Circlip	1
38	646-45560-00	齿	Gear 1 (27T)	1
39	646-45567-00	填隙	Shim (T:0.30MM)	1
39	646-45567-10	填隙	Shim (T:0.40MM)	1
39	646-45567-20	填隙	Shim (T:0.50MM)	1
40	90250-03M10	圆柱销	Pin, Straight	1
41	91490-30040	开口销	Pin, Cotter	1
42	6A1-45943-00	螺旋浆	Propeller (3X7-1/4X4-A)	1
42	646-45942-01-EL	螺旋浆组合	Propeller (3X7-1/4X5-1/2-A)	1
42	646-45944-01-EL	螺旋浆	Propeller (3X7-1/4X4-1/2-A)	1
43	646-28193-00	单向放水	Plug, Water Check	1
