水星 Mercury 6C HP 6H8-010382 THRU 0B367529 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-17158 · 共 40 个部位 · 1449 条零件

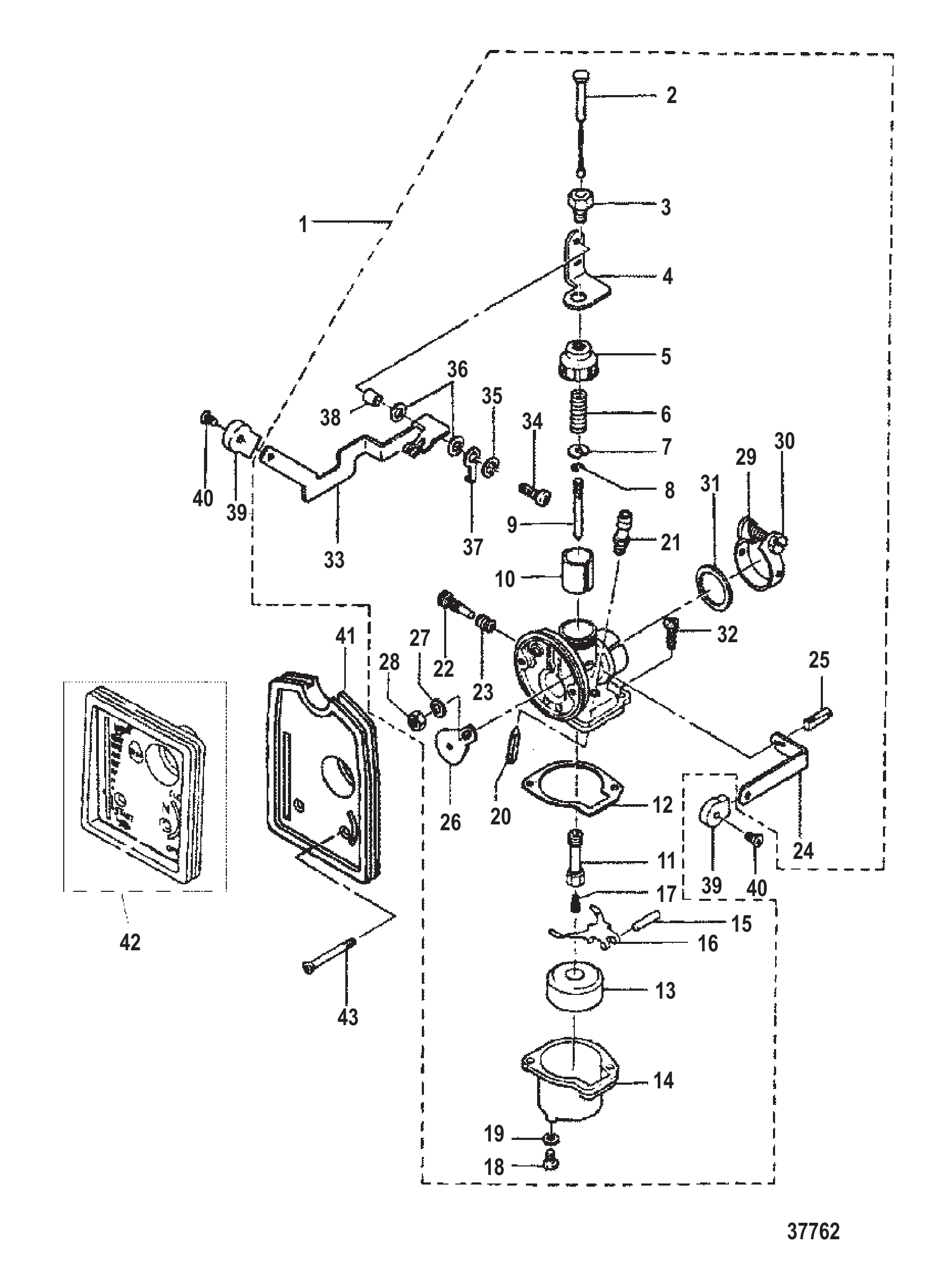

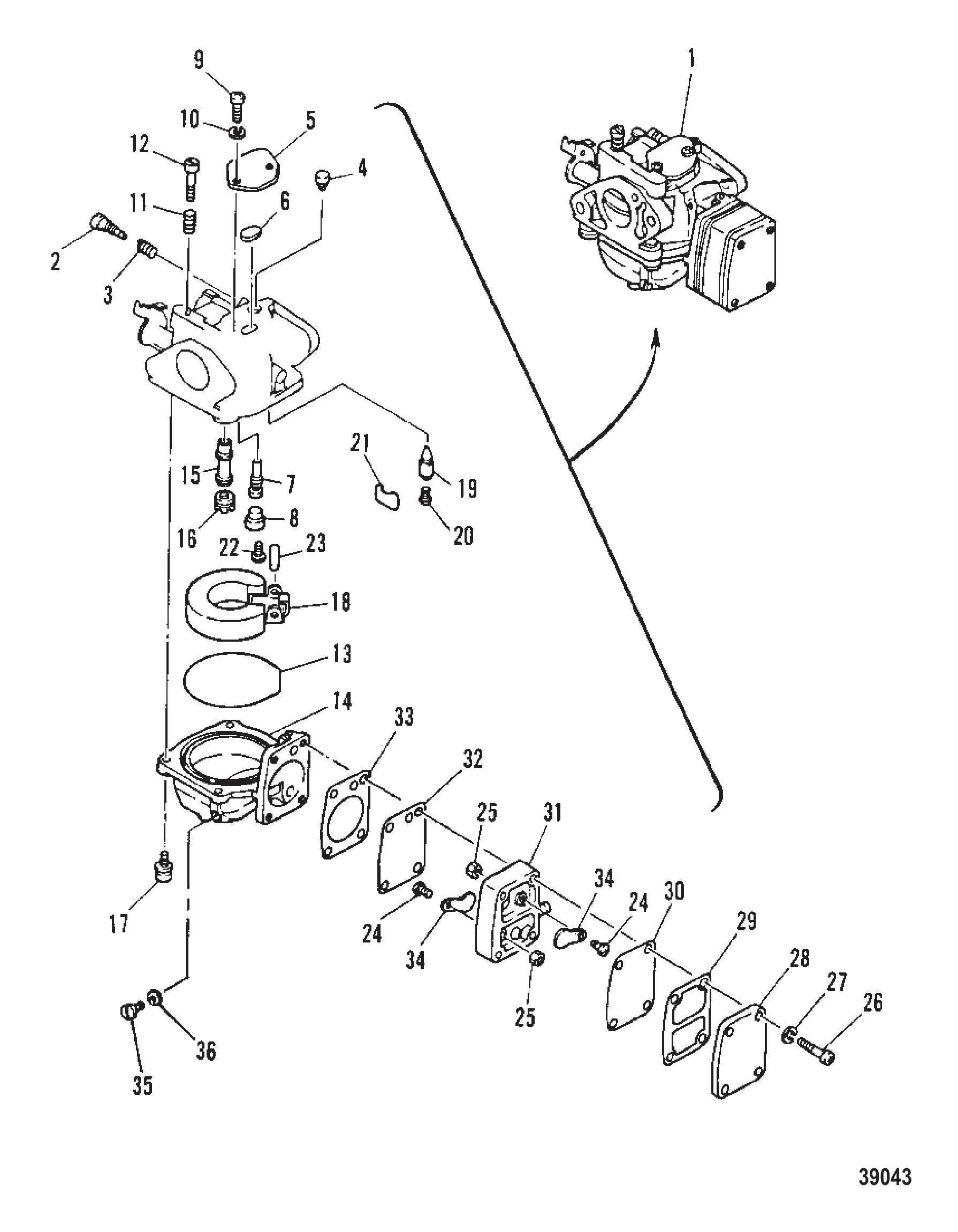

图 1化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	9692M	化油器总成	CARBURETOR ASSEMBLY	1
1	9693M	化油器总成	CARBURETOR ASSEMBLY	1
1	9694M	化油器总成	CARBURETOR ASSEMBLY	1
2	83889M	调节螺钉	SCREW ADJUSTING	1
3	94499M	弹簧	SPRING	1
4	11477M	盖帽	CAP	1
5	11478M	安装板	PLATE	1
6	11479M	填料	PACKING	1
7	11480M	低速量孔(#45)	JET SLOW (#45)	1
8	83369M	盖帽	CAP	1
8	8M0080455	堵头	PLUG	1
9	82509M	螺钉	SCREW	2
9	82568M	螺栓@2	BOLT @2	2
10	82184M	锁紧垫圈	LOCKWASHER	2
10	82206M	锁紧垫圈	LOCKWASHER	2
11	82080M	弹簧	SPRING	1
12	81277M	止动螺丝	SCREW STOP	1
13	11483M	浮子室衬垫	GASKET FLAOT CHAMBER	1
14	17358M	浮子室本体	BODY FLOAT CHAMBER	1
15	11485M	主喷嘴	NOZZLE MAIN	1
15	11486M	主喷嘴	NOZZLE MAIN	1
15	17359M	主喷嘴	NOZZLE MAIN	1
16	11487M	主量孔(#98)	JET MAIN (#98)	1
16	11488M	主量孔(#100)	JET MAIN (#100)	1
16	17360M	主量孔(#98)	JET MAIN (#98)	1
17	83373M	带垫片螺钉	SCREW WITH WASHER	4
17	11796M	螺钉(M4 x 14)	SCREW (M4 x 14)	4
18	11489M	浮子	FLOAT	1
19	11490M	浮子阀	VALVE FLOAT	1
20	92639M	浮子阀销	PIN Float VALVE	1
21	82781M	卡扣	CLIP	1
21	8M0120624	卡箍@2	CLIP @2	1
22	82500M	螺钉(M4 x 8)	SCREW (M4 x 8)	1
23	97730M	摇臂销	PIN ARM	1
24	11492M	螺钉	SCREW	2
25	11493M	螺母	NUT	2
26	11494M	螺钉	SCREW	4
27	82184M	锁紧垫圈	LOCKWASHER	4
27	82206M	锁紧垫圈	LOCKWASHER	4
28	11495M	泵盖	COVER PUMP	1
29	11496M	衬垫	GASKET	1
29	11496T	衬垫	GASKET	1
30	11497M	隔膜	DIAPHRAGM	1
31	11498M	泵体	BODY PUMP	1
32	11499M	隔膜	DIAPHRAGM	1
32	11499T	隔膜	DIAPHRAGM	1
33	11500M	衬垫	GASKET	1
34	11501M	止回阀	VALVE CHECK	2
35	17361M	放油螺丝	SCREW DRAIN	1
36	17362M	垫圈	WASHER	1
-	11502M	维修套件	REPAIR KIT	1

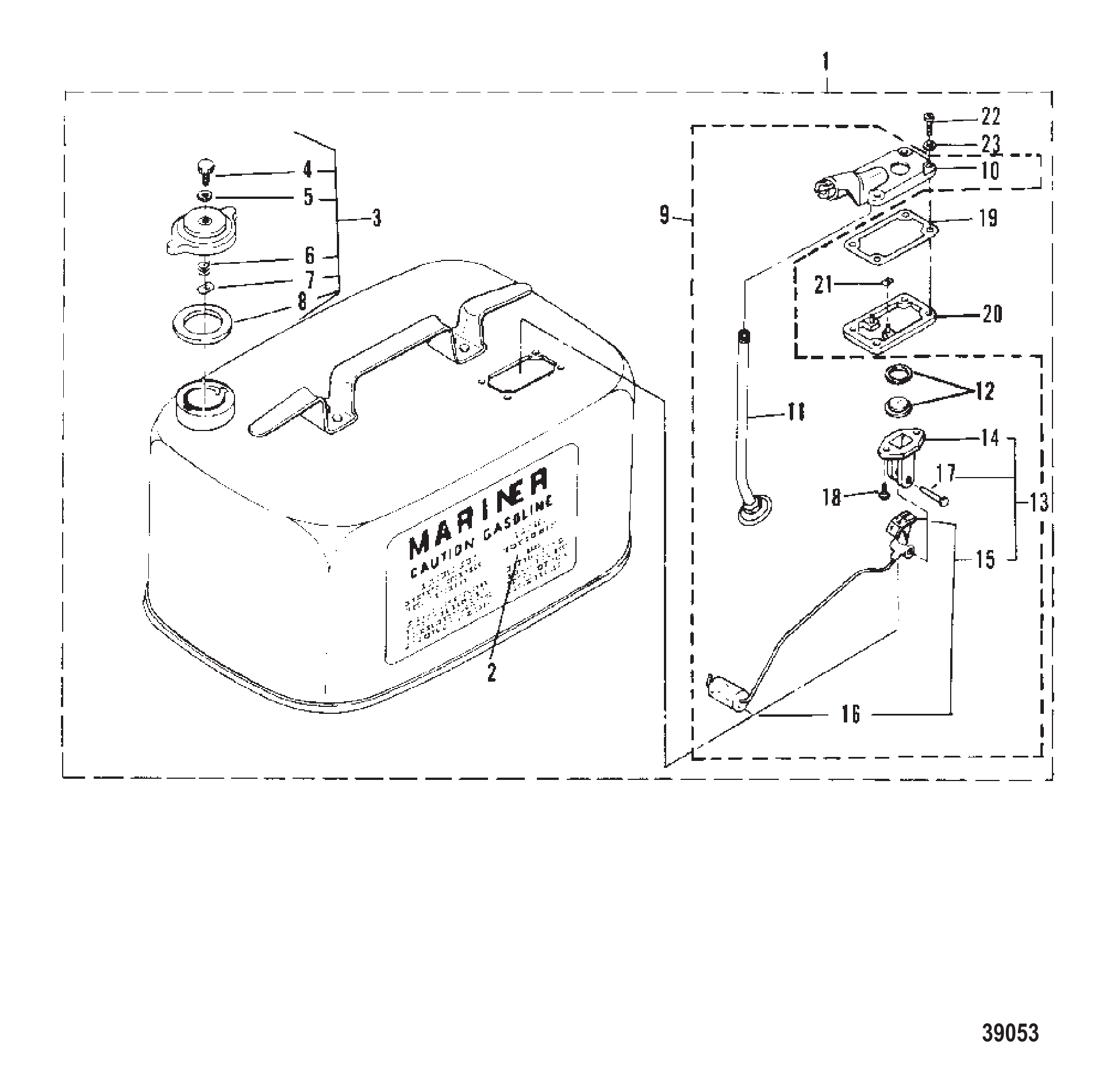

图 2燃油箱(非原装) FUEL TANK (NOT ORIGINAL EQUIPMENT TANK)

REF	零件编号	中文名称	英文名称	数量
1	1529A26	燃油箱总成(6加仑)	TANK ASSEMBLY Fuel COMPLETE (6 GALLON)	1
2	99734A1	燃油箱贴花	DECAL FUEL TANK	1
2	13921	贴花	DECAL	1
3	99734A1	贴花	DECAL	1
3	13921	贴花	DECAL	1
4	25575	螺钉 通气-加注口盖	SCREW VENT-FILLER CAP	1
5	492211	通气螺钉垫圈	WASHER VENT SCREW	1
5	8M0204663	垫片@5	WASHER @5	1
6	22227	张力弹簧-通气螺钉	SPRING TENSION-VENT SCREW	1
7	28587	螺母 调速弹簧固定器	NUT SPEED-SPRING RETAINER	1
8	41065	衬垫 加注口盖至燃油箱	GASKET FILLER CAP TO FUEL TANK	1
9	64841A1	连接器/仪表总成	CONNECTOR/GAUGE ASSEMBLY COMPLETE	1
10	64841A3	燃油箱盖	COVER FUEL TANK	1
10	17792A1	浮子组件总成	BODY ASSEMBLY PickUp	1
11	75239	管	TUBE	1
12	98542A1	燃油表视窗总成	WINDOW ASSEMBLY FUEL GAUGE	1
13	28897A2	燃油表总成	GAUGE ASSEMBLY Fuel COMPLETE	1
14	20430	燃油表固定架	RETAINER FUEL GAUGE	1
15	28897A1	指针与浮子总成	INDICATOR AND FLOAT ASSEMBLY	1
16	99274	燃油表浮子	FLOAT FUEL GAUGE	1
17	20426	铆钉 指针至固定架	RIVET INDICATOR TO RETAINER	1
18	62568	螺钉(#10-16 x .375) 固定架至燃油箱盖	SCREW (#10-16 x .375) RETAINER TO FUEL TANK COVER	2
19	28862	衬垫 盖总成至框架	GASKET COVER ASSEMBLY TO FRAME	1
20	28860	框架固定件-燃油箱盖	FRAME RETAINING-FUEL TANK COVER	1
21	28903	螺母 固定框架至燃油箱	NUT RETAINING FRAME TO FUEL TANK	2
22	20411	螺钉(.190-24 x .62) 燃油箱盖至燃油箱	SCREW (.190-24 x .62) FUEL TANK COVER TO FUEL TANK	4
23	29070	燃油箱盖紧固螺钉垫圈	WASHER FUEL TANK COVER FASTENING SCREW	4

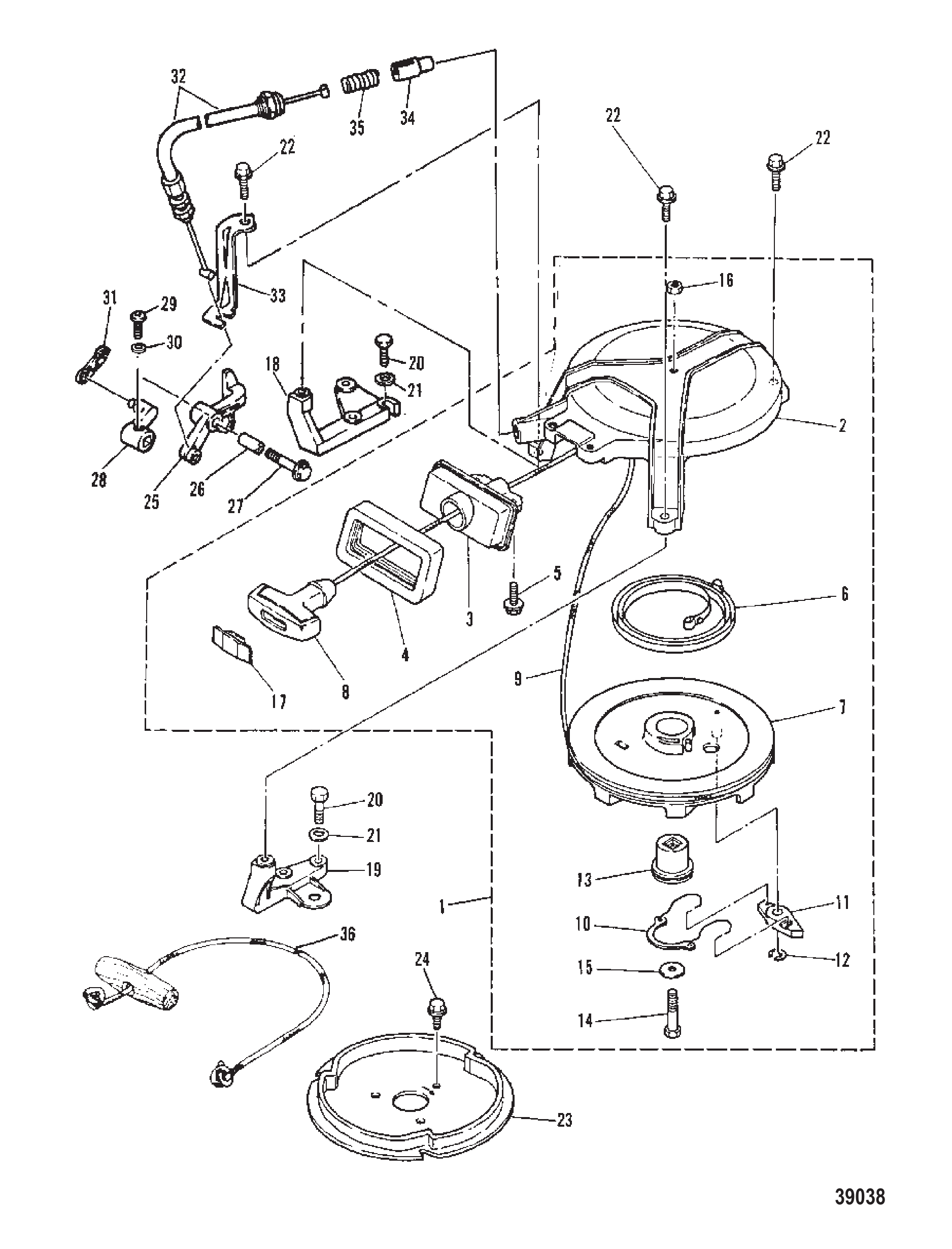

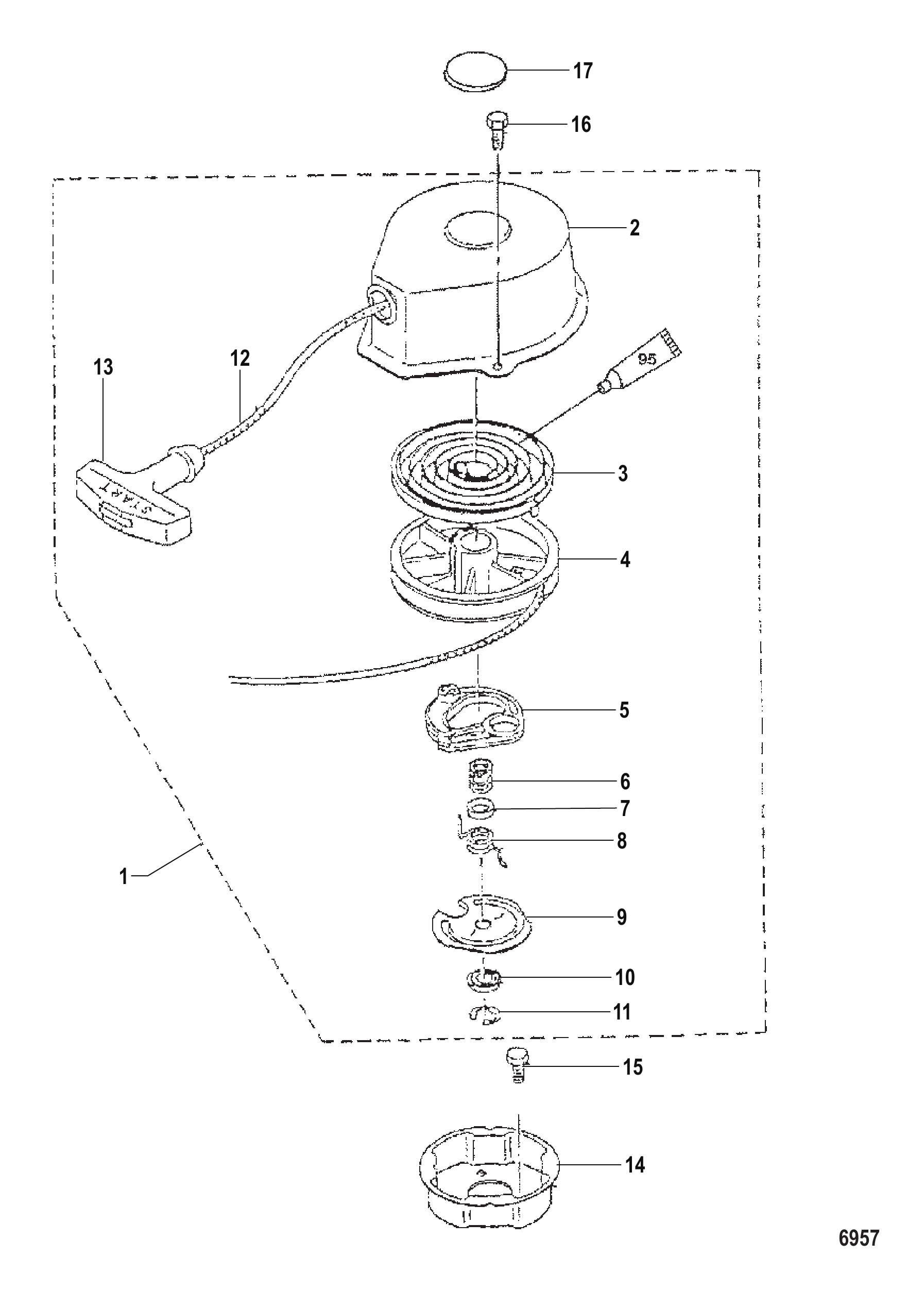

图 3反冲启动器 RECOIL STARTER

REF	零件编号	中文名称	英文名称	数量
1	9300M	手拉启动器总成	STARTER ASSEMBLY Recoil	1
2	9301M	启动器壳体	CASE STARTER	1
3	11422M	启动绳导向器	GUIDE STARTER ROPE	1
4	11423M	密封件	SEAL	1
5	91686M	螺栓	BOLT	2
6	95484M	弹簧	SPRING	1
7	11424M	鼓轮	DRUM SHEAVE	1
8	95468M	启动手柄	HANDLE STARTER	1
9	79629A1	启动绳	ROPE Starter	1
9	12066Q10	启动绳@2	ROPE-STARTER@2	1
10	11425M	驱动爪弹簧	SPRING PAWL DRIVE	1
11	83252M	驱动爪	PAWL DRIVE	1
12	84895M	卡环	RING Snap	1
13	11426M	衬套	BUSHING	1
14	83285M	螺栓	BOLT	1
15	92564M	垫圈	WASHER	1
16	82380M	螺母	NUT	1
16	82389M	螺母	NUT	1
17	41882M	盖板	COVER	1
17	814491A1	手柄	HANDLE	1
18	11427M	支架	BRACKET	1
19	11428M	支架	BRACKET	1
20	83539M	螺栓 (M6 x 20)	BOLT (M6 x 20)	4
20	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	4
21	82214M	垫圈	WASHER	4
22	91674M	螺栓	BOLT	3
23	11429M	启动器滑轮	PULLEY STARTER	1
24	11430M	螺栓	BOLT	3
25	17365M	臂	ARM	1
25	11943M	臂	ARM	1
26	11944M	轴环	COLLAR	1
27	11945M	螺栓	BOLT	1
28	11946M	换挡杆	LEVER Shift Rod	1
29	83356M	螺钉	SCREW	1
30	82211M	垫圈	WASHER	1
31	11947M	连接杆	LINK	1
32	11941M	启动停止拉线	CABLE STARTER STOP	1
33	11942M	支架	BRACKET	1
34	81106M	启动停止柱塞	PLUNGER STARTER STOP	1
35	82079M	压缩弹簧	SPRING COMPRESSION	1
36	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
36	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

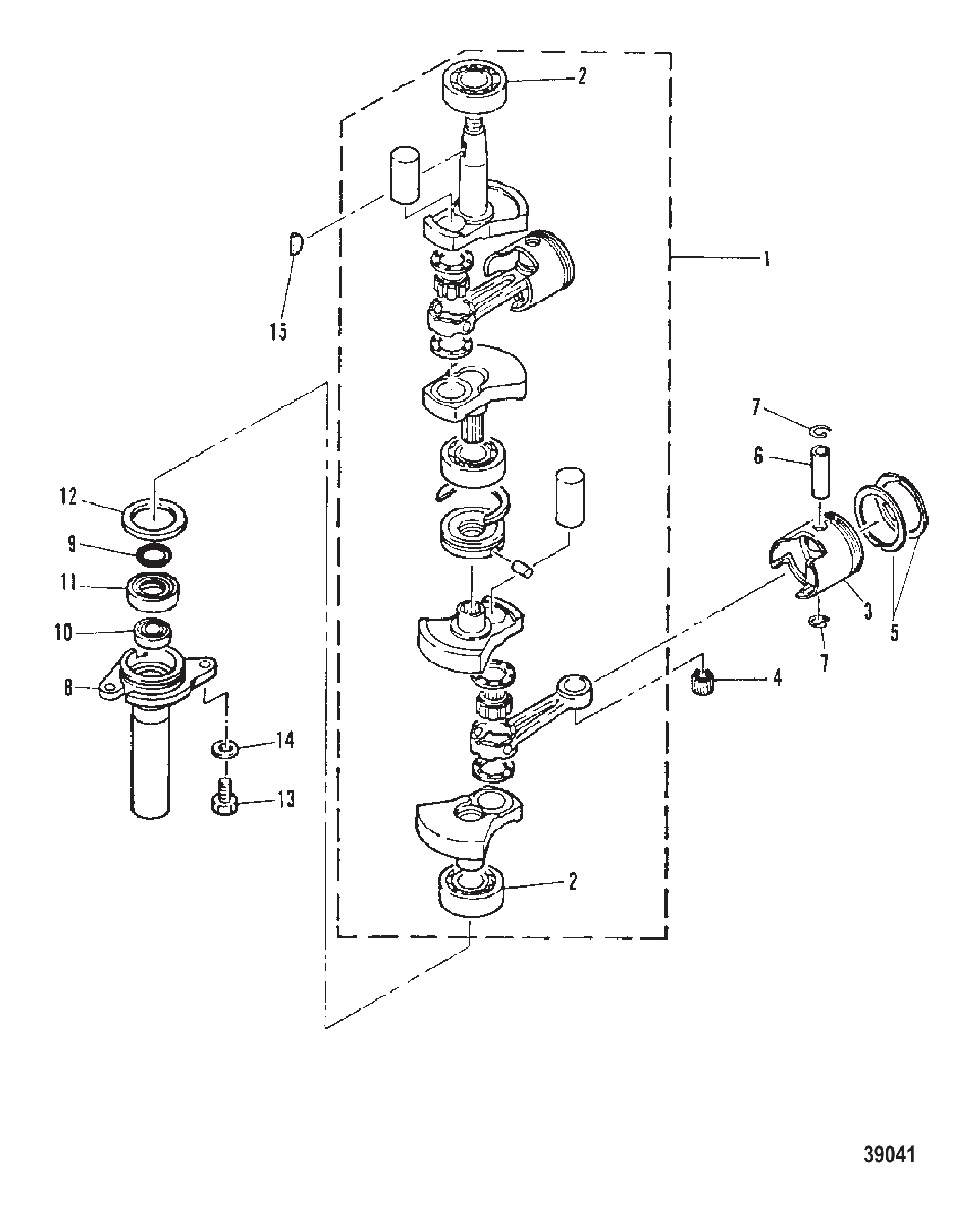

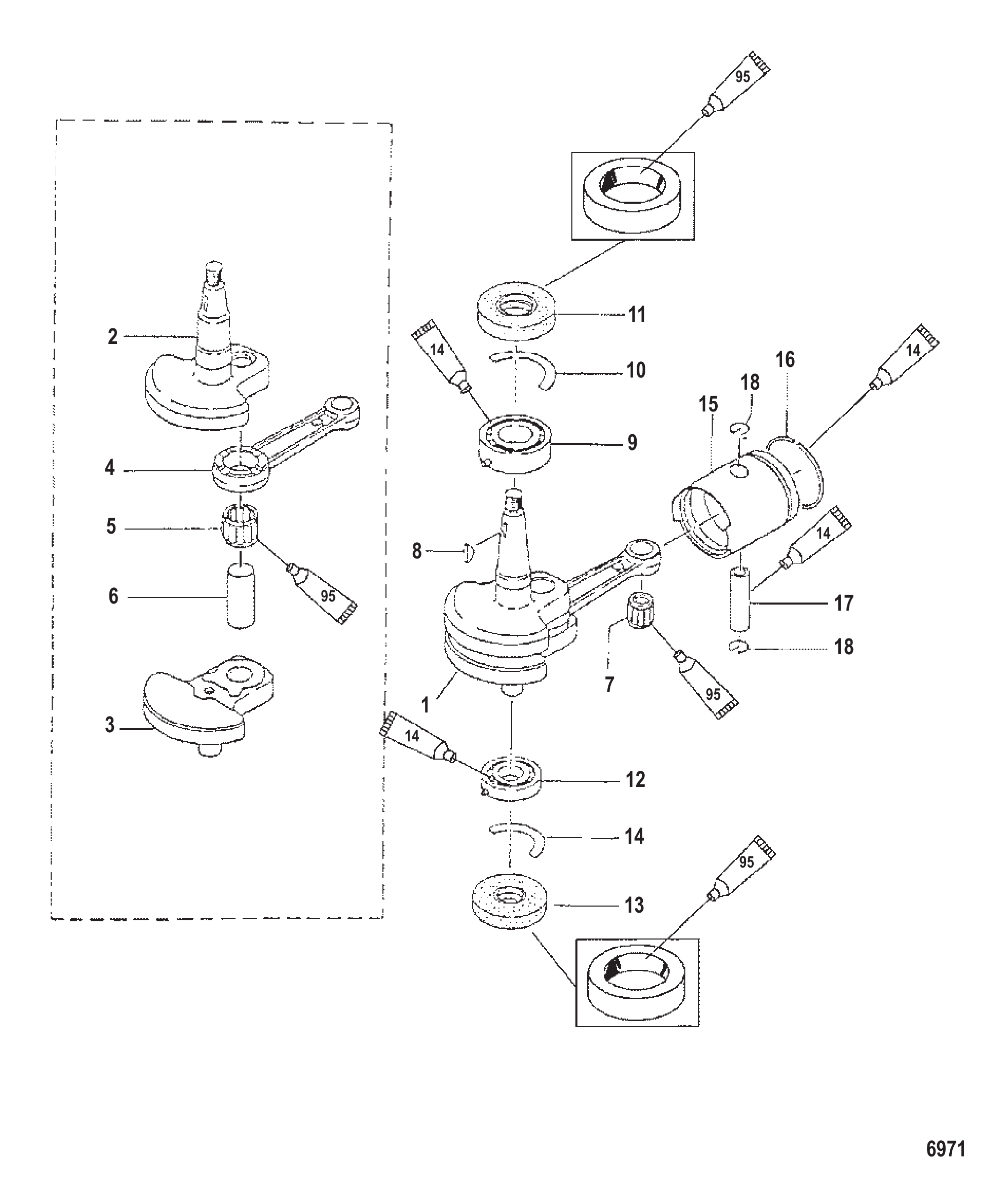

图 4曲轴与活塞 CRANKSHAFT AND PISTON

REF	零件编号	中文名称	英文名称	数量
1	9305M	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	82299M	轴承	BEARING	2
2	18859T	轴承	BEARING	2
3	9306M	活塞	PISTON	2
4	91721M	轴承	BEARING	2
5	11462M	活塞环组(标准)	RING SET Piston (STD)	2
5	11462T	活塞环组	PISTON RING SET	2
6	95601M	活塞销	PIN PISTON	2
6	80005M	活塞销	PIN Piston	2
7	82342M	活塞销卡簧	CLIP PISTON PIN	4
8	11463M	下部油封壳体	HOUSING OIL SEAL LOWER	1
9	82276M	O型圈	O-RING	1
10	14202M	油封	SEAL Oil	1
11	94663M	下部油封	SEAL Oil LOWER	1
11	18843M	油封	SEAL Oil	1
12	81841M	垫圈	WASHER	1
13	91725M	螺栓	BOLT	1
13	826957M	螺栓	BOLT	1
14	82214M	垫圈	WASHER	1
15	81913M	飞轮键	KEY FLYWHEEL	1
15	893761	键	KEY	1
-	11434M	衬垫套件	GASKET SET	1

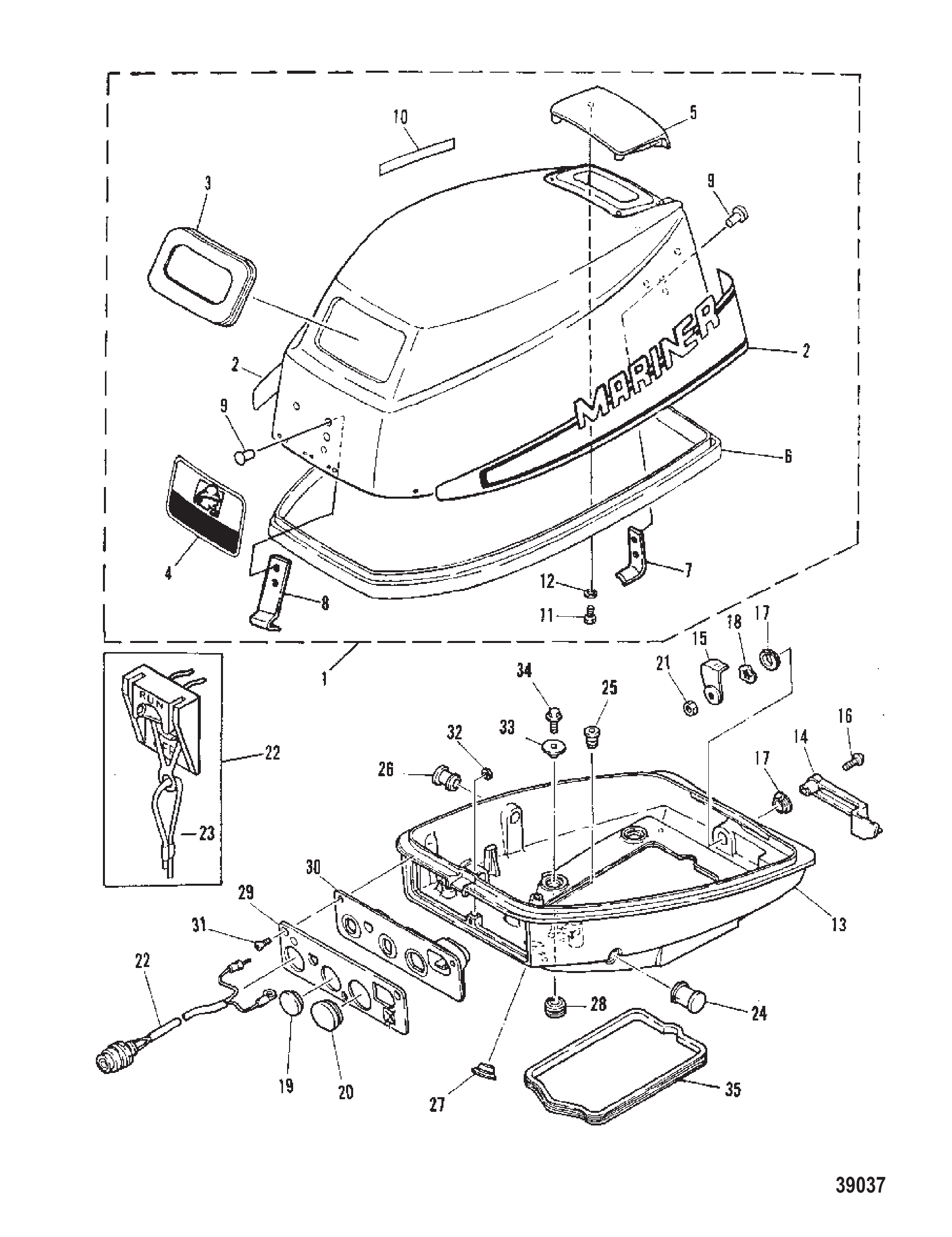

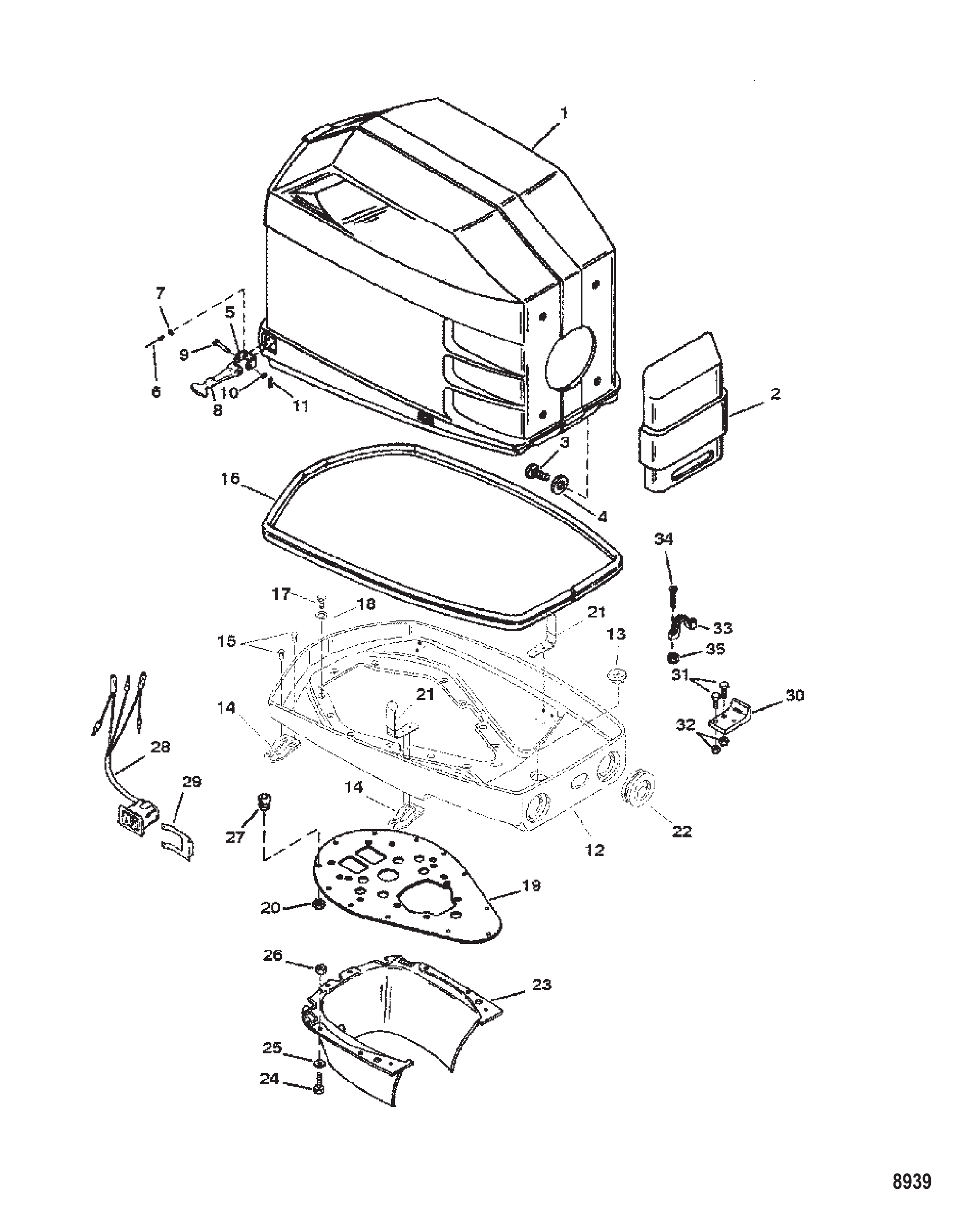

图 5外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	9372M	顶盖总成	TOP COWL ASSEMBLY	1
1	9373M	顶盖总成	TOP COWL ASSEMBLY	1
2	11938M	侧面贴花套装	DECAL SIDE SET	1
2	11939M	侧面贴花套装	DECAL SIDE SET	1
3	11403M	密封件	SEAL	1
4	11940M	前标牌	DECAL FRONT	1
5	11937M	空气导管成型件	MOLDING AIR DUCT	1
6	95587M	密封件	SEAL	1
7	11406M	卡箍固定架	HOLDER CLAMP BAND	1
8	11407M	挂钩	HOOK	1
9	83140M	铆钉	RIVET	4
10	81202M	换挡指示贴花	DECAL Shift Indicator	1
11	84303M	螺栓	BOLT	4
11	91772M	螺栓	BOLT	4
12	82214M	垫圈	WASHER	4
13	9509M	底部罩壳	COWLING BOTTOM	1
14	11408M	杠杆夹	LEVER CLAMP	1
15	91660M	挂钩夹	HOOK CLAMP	1
16	91661M	螺栓	BOLT	1
16	8527876	螺钉	SCREW	1
17	F11409	衬套	BUSHING	2
17	F12146	弹簧	SPRING	2
18	81869M	波形垫圈	WASHER WAVE	1
19	11410M	堵头	PLUG	1
20	11411M	堵头	PLUG	1
21	82381M	螺母	NUT	1
21	82390M	螺母 (M6)	NUT (M6)	1
22	14222M	点火开关总成(带安全绳)	SWITCH ASSEMBLY Ignition - With Lanyard	1
22	93102M	停机开关总成	SWITCH ASSEMBLY Stop	1
23	97756M	止动器	STOPPER	1
24	11412M	堵头	PLUG	1
25	11413M	护孔环	GROMMET	1
26	11414M	护孔环	GROMMET	1
27	11415M	堵头	PLUG	1
28	11416M	护孔环	GROMMET	4
28	11416T	护孔环	GROMMET	4
29	11417M	面板	PANEL	1
30	11418M	支架	BRACKET	1
31	11419M	螺钉	SCREW	3
32	82378M	螺母	NUT	1
32	82388M	螺母 (M5)	NUT (M5)	1
33	11420M	轴环	COLLAR	4
34	91674M	螺栓	BOLT	4
35	11421M	密封件	SEAL	1

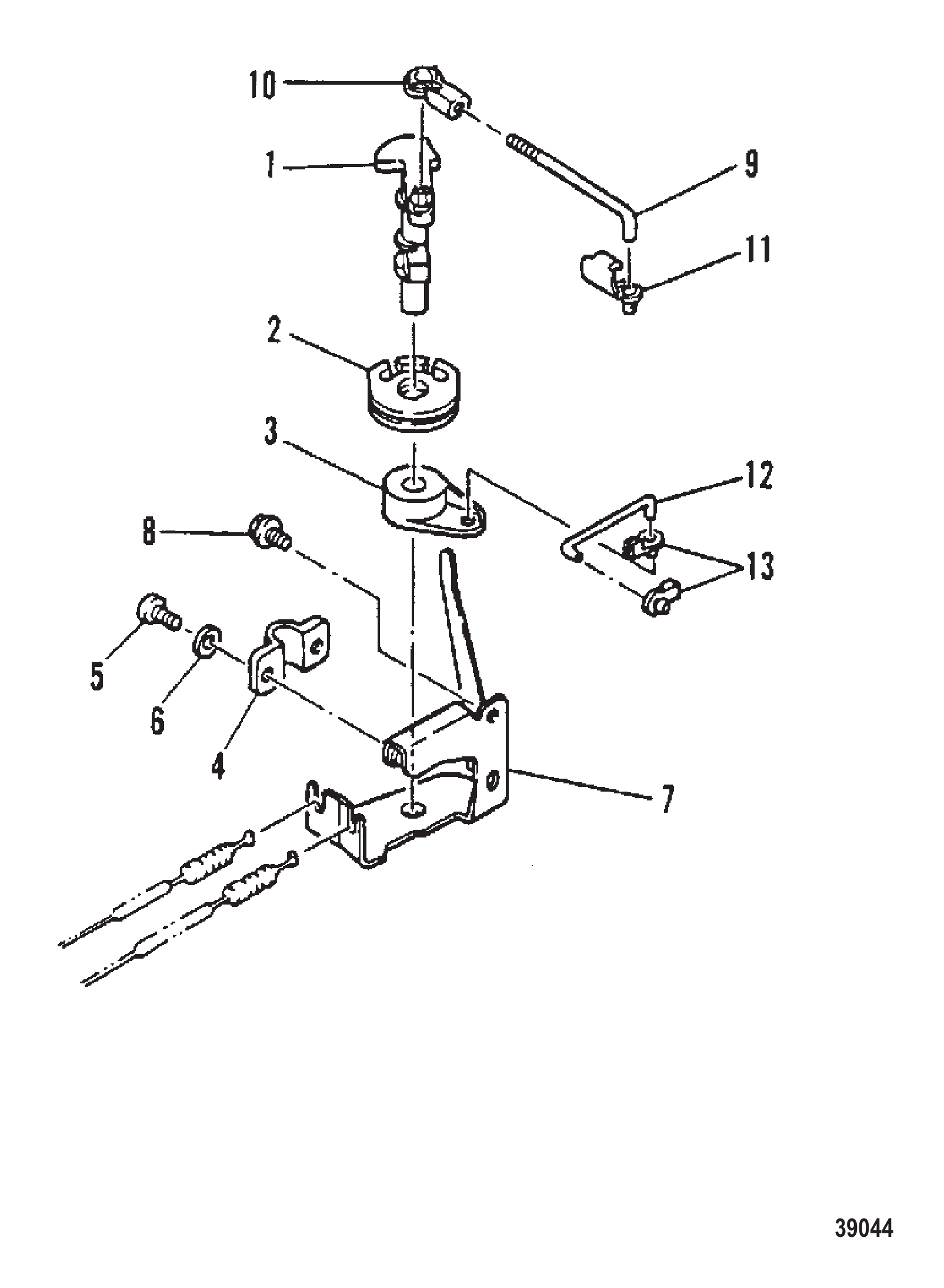

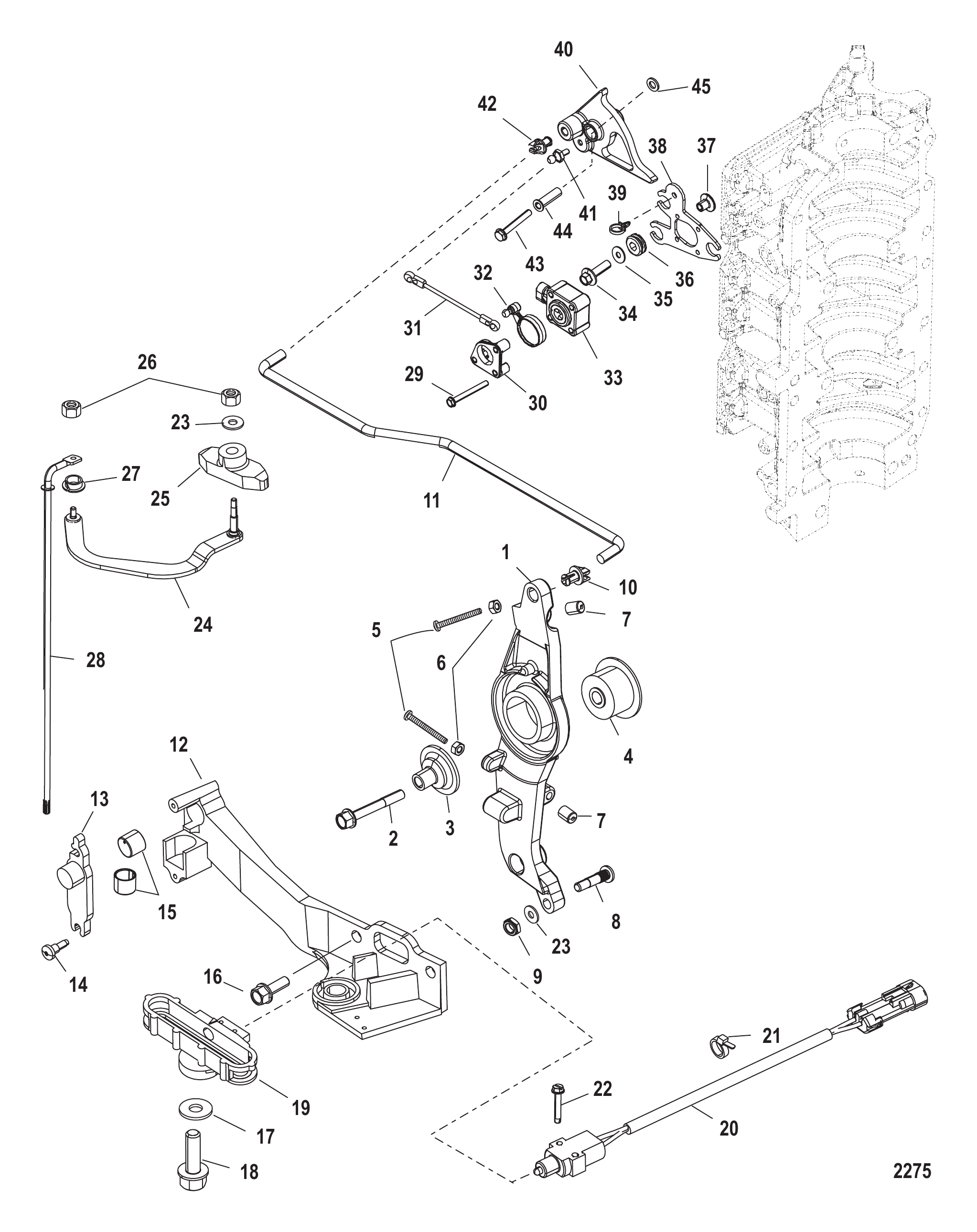

图 6节气门联动装置 THROTTLE LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	11503M	磁电机控制杆	LEVER MAGNETO CONTROL	1
2	11504M	滑轮	PULLEY	1
3	11950M	自由加速杆	LEVER FREE ACCEL.	1
4	11506M	支架	BRACKET	1
5	83523M	螺钉	SCREW	2
6	82211M	垫圈	WASHER	2
7	11951M	节气门拉线支架	BRACKET THROTTLE WIRE	1
8	95456M	螺栓	BOLT	2
9	11508M	杆	ROD	1
10	16715M	连接杆	JOINT ROD	1
11	97742M	连接杆	LINK	1
12	11509M	加速杆	ROD ACCEL.	1
13	81191M	阻风门杆支架	BRACKET CHOKE LEVER	2
13	16333	卡扣拉杆	ROD Snap	2

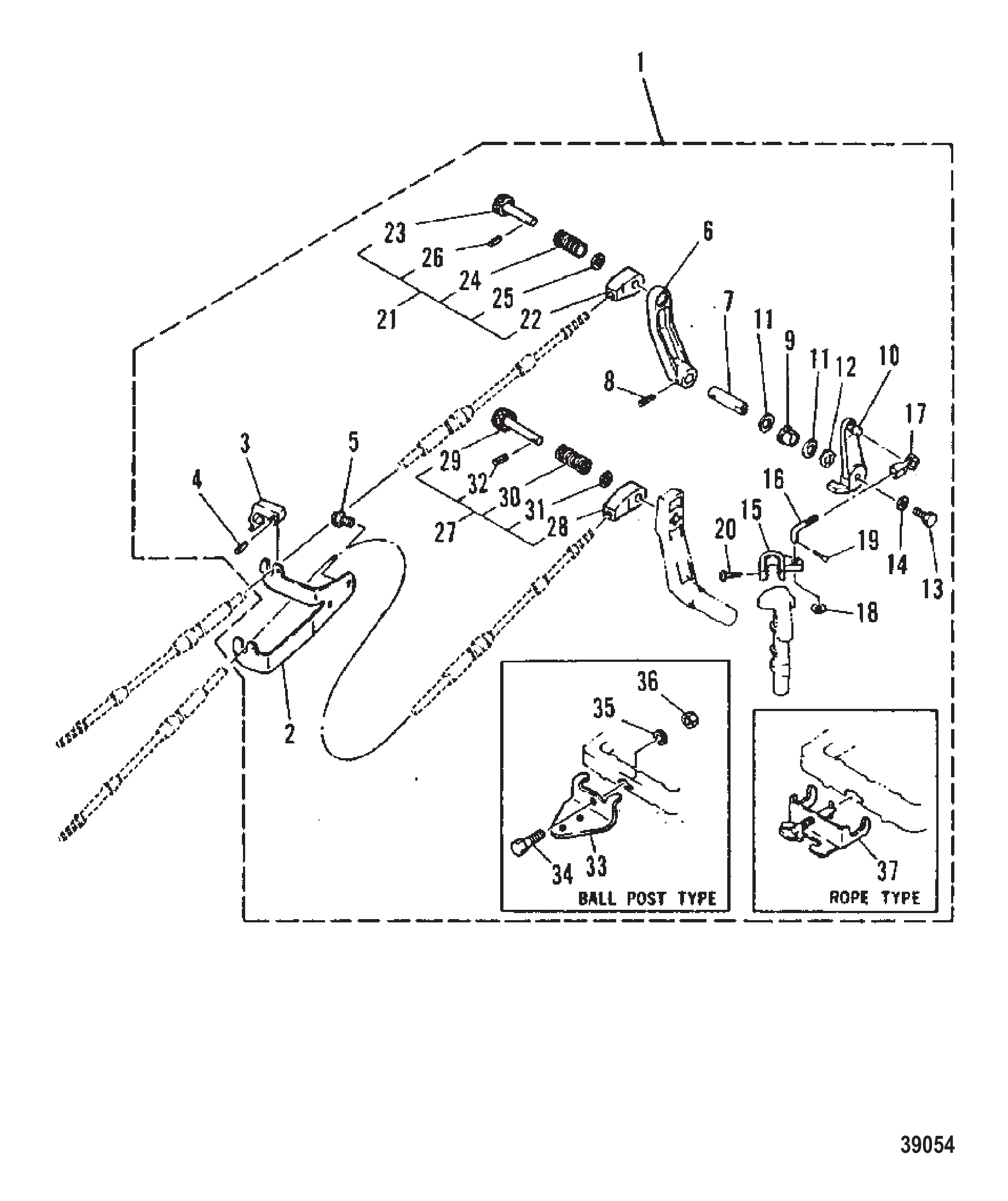

图 7遥控附件套件 REMOTE CONTROL ATTACHING KIT

REF	零件编号	中文名称	英文名称	数量
1	11661A1	球柱式安装套件	ATTACHING KIT (BALL POST TYPE)	1
2	11662M	遥控支架	BRACKET REMOTE CONTROL	1
3	84113M	线缆夹	CLAMP CABLE	2
4	82146M	弹簧销	PIN SPRING	2
5	95456M	螺栓	BOLT	2
6	11663M	磁电机控制杆	LEVER MAGNETO CONTROL	1
7	11664M	轴	SHAFT	1
8	82155M	销	PIN	1
9	81946M	衬套	BUSHING	1
10	11665M	磁电机控制杆	LEVER MAGNETO CONTROL	1
11	81846M	垫圈	WASHER	2
12	11666M	波形垫圈	WASHER WAVE	1
13	82879M	螺栓	BOLT	1
14	82211M	垫圈	WASHER	1
15	11667M	磁电机控制杆	LEVER MAGNETO CONTROL	1
16	11668M	杆	ROD	1
17	81225M	端盖	END	1
17	16715M	接头	JOINT	1
18	83768M	垫圈	WASHER	1
19	82129M	开口销	PIN COTTER	1
19	84301M	开口销	PIN-COTTER	1
20	11669M	螺钉	SCREW	1
21	84109M	油门拉索端部总成	END ASSEMBLY Cable (THROTTLE)	1
22	84110M	拉索端头	END Cable	1
23	83726M	电缆挂钩	HOOK CABLE	1
23	814499M	挂钩	HOOK	1
24	83725M	弹簧	SPRING	1
25	82217M	垫圈	WASHER	1
26	82146M	销	PIN	1
27	84106M	换档拉索端部总成	END ASSEMBLY Cable (SHIFT)	1
28	84107M	拉索端头	END Cable	1
29	83722M	电缆挂钩	HOOK CABLE	1
29	814500M	挂钩	HOOK	1
30	83721M	弹簧	SPRING	1
31	82217M	垫圈	WASHER	1
32	82146M	销	PIN	1
33	11670M	转向支架(球柱式)	BRACKET STEERING (BALL POST TYPE)	1
33	11670T	支架	BRACKET	1
34	91636M	螺栓	BOLT	1
35	82220M	垫圈	WASHER	1
36	81785M	自锁螺母	LOCKNUT SELF LOCKING	1
37	83727M	绳索式转向支架	BRACKET STEERING (ROPE TYPE)	OPT

图 8螺旋桨图表 PROP CHART

REF	零件编号	中文名称	英文名称	数量
-	11672M	3叶铝制螺旋桨(8.5螺距)	PROPELLER 3-Aluminum (8-1/2 Pitch)	1
-	11673M	3叶铝制螺旋桨(7.5螺距)	PROPELLER 3-Aluminum (7-1/2 Pitch)	1
-	11896M	3叶铝制螺旋桨(7螺距)	PROPELLER 3-Aluminum (7 Pitch)	1
-	11674M	3叶铝制螺旋桨(6.5螺距)	PROPELLER 3-Aluminum (6-1/2 Pitch)	1
-	11897M	3叶铝制螺旋桨(5螺距)	PROPELLER 3-Aluminum (5 Pitch)	1

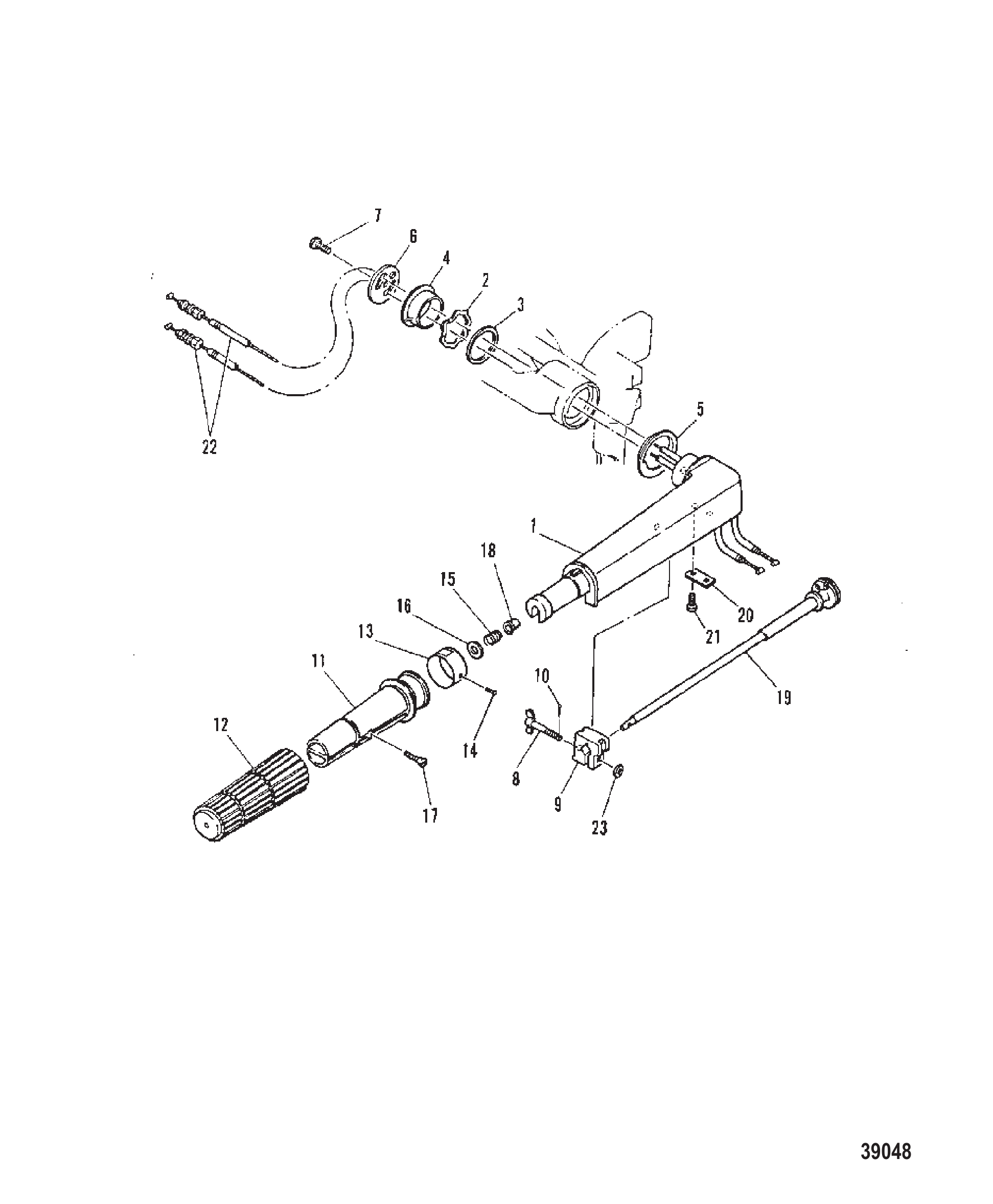

图 9转向手柄 STEERING HANDLE

REF	零件编号	中文名称	英文名称	数量
1	14204M	转向手柄	HANDLE STEERING	1
2	11550M	波形垫圈	WASHER WAVE	1
3	11551M	平板垫圈	WASHER PLATE	1
4	11552M	衬套	BUSHING	1
5	11953M	衬套	BUSHING	1
6	11554M	转向手柄罩	COVER STEERING HANDLE	1
7	91725M	螺栓	BOLT	1
7	826957M	螺栓	BOLT	1
8	17363M	摩擦调节螺栓	BOLT FRICTION ADJUSTING	1
9	11556M	摩擦片	PIECE FRICTION	1
10	82125M	开口销	COTTER PIN	1
11	81585M	转向手柄握把	GRIP STEERING HANDLE	1
12	95497M	橡胶手柄	HANDLE RUBBER	1
12	8M0080456	握把	GRIP	1
13	11557M	节气门指示器	INDICATOR THROTTLE	1
14	81907M	铆钉	RIVET	1
15	82095M	弹簧	SPRING	1
17	8400M	气缸盖	HEAD	1
18	81945M	衬套	BUSHING	1
19	11558M	节流阀杆	LEVER THROTTLE	1
20	91769M	支架	BRACKET	1
20	18848M	支架	BRACKET	1
21	83570M	螺钉	SCREW	2
21	14232M	螺钉	SCREW	2
22	11954M	油门拉线	WIRE Throttle	2
22	8M0121334	油门拉线	THROTTLE WIRE	2
23	83768M	垫圈	WASHER	1

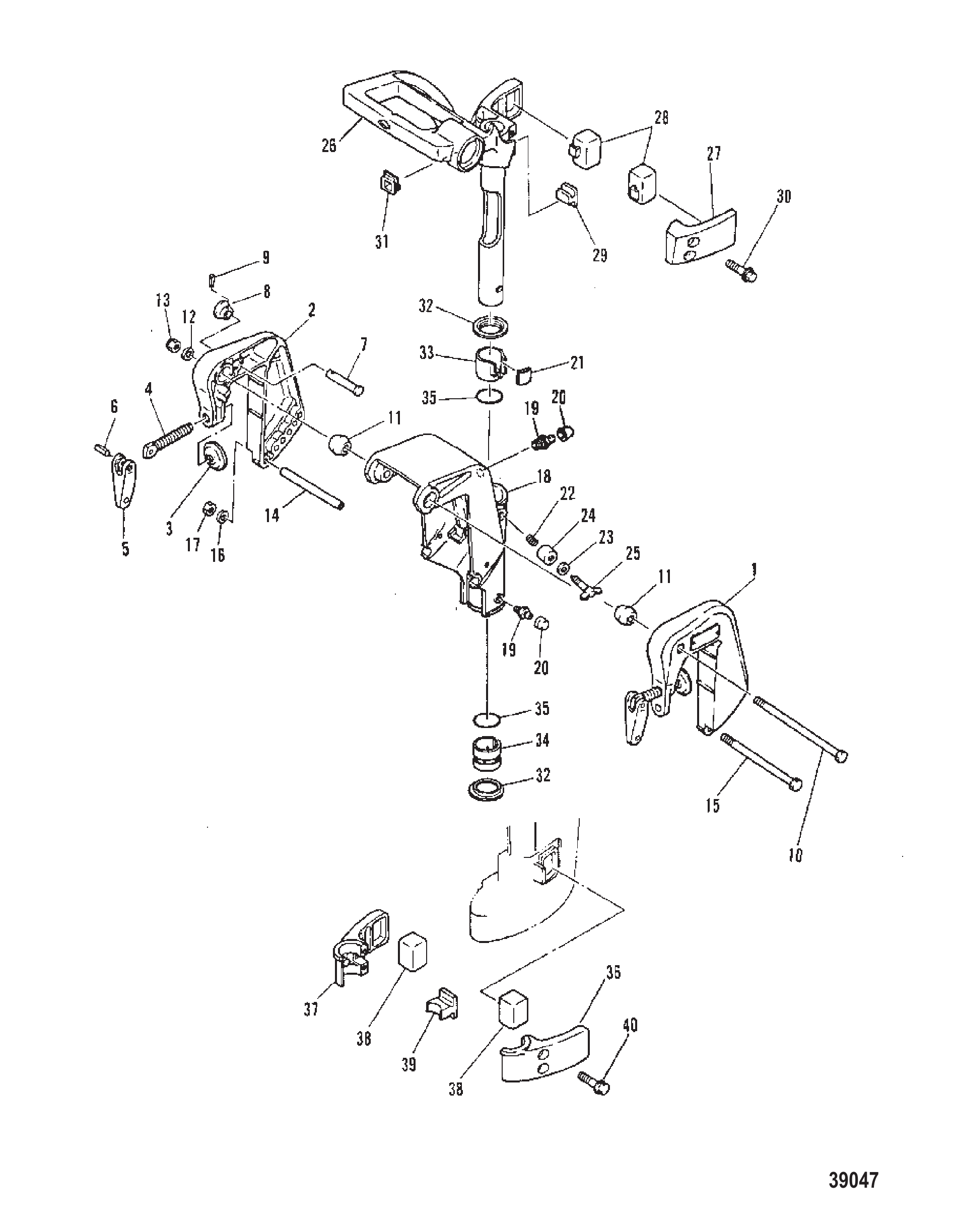

图 10夹紧旋转支架 CLAMP AND SWIVEL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	9309M	夹紧支架(左舷)	BRACKET CLAMP (PORT)	1
2	9310M	夹紧支架(右舷)	BRACKET CLAMP (STARBOARD)	1
3	80638M	艉板夹垫	PAD TRANSOM CLAMP	2
4	11529M	艉板夹紧螺钉	SCREW TRANSOM CLAMP	2
4	81755M	螺钉	SCREW	2
5	91784M	艉板夹手柄	HANDLE TRANSOM CLAMP	2
6	41267M	销	PIN	2
6	852812	销	PIN	2
7	84835M	轴挡块	SHAFT STOPPER	1
8	95650M	旋钮挡块	KNOB STOPPER	1
9	82148M	弹簧销	PIN SPRING	1
10	11530M	螺栓	BOLT	1
11	11531M	摩擦片	PIECE FRICTION	2
12	82217M	垫圈	WASHER	1
13	84295M	自锁螺母	NUT SELF-LOCKING	1
14	94568M	轴环	COLLAR	1
15	11532M	螺栓	BOLT	1
16	82214M	垫圈	WASHER	1
17	82389M	螺母	NUT	1
18	9311M	旋转支架	BRACKET SWIVEL	1
19	82369M	黄油嘴	FITTING GREASE	2
20	81439M	黄油嘴盖	CAP GREASE FITTING	2
21	11533M	摩擦片	PLATE FRICTION	1
22	83488M	压缩弹簧	SPRING COMPRESSION	1
23	82217M	垫圈	WASHER	1
24	11534M	密封件	SEAL	1
25	11535M	摩擦片螺钉	SCREW FRICTION PIECE	1
26	15437M	转向支架	BRACKET STEERING	1
27	11537M	上支座盖	COVER UPPER MOUNT	1
28	11538M	上部侧支架	MOUNT UPPER SIDE	2
29	11539M	上部前支架	MOUNT UPPER FRONT	1
30	91788M	螺栓	BOLT	2
31	11540M	护孔环	GROMMET	1
32	11541M	止推垫圈	WASHER THRUST	2
33	11542M	枢轴衬套	BUSHING PIVOT SHAFT	1
34	11543M	枢轴衬套	BUSHING PIVOT SHAFT	1
35	11544M	O型圈	O-RING	2
36	11545M	下部安装壳体	HOUSING LOWER MOUNT	1
37	11546M	下部安装壳体	HOUSING LOWER MOUNT	1
38	11547M	下部侧支架	MOUNT LOWER SIDE	2
39	11548M	下部侧支架	MOUNT LOWER SIDE	1
40	91788M	螺栓	BOLT	2

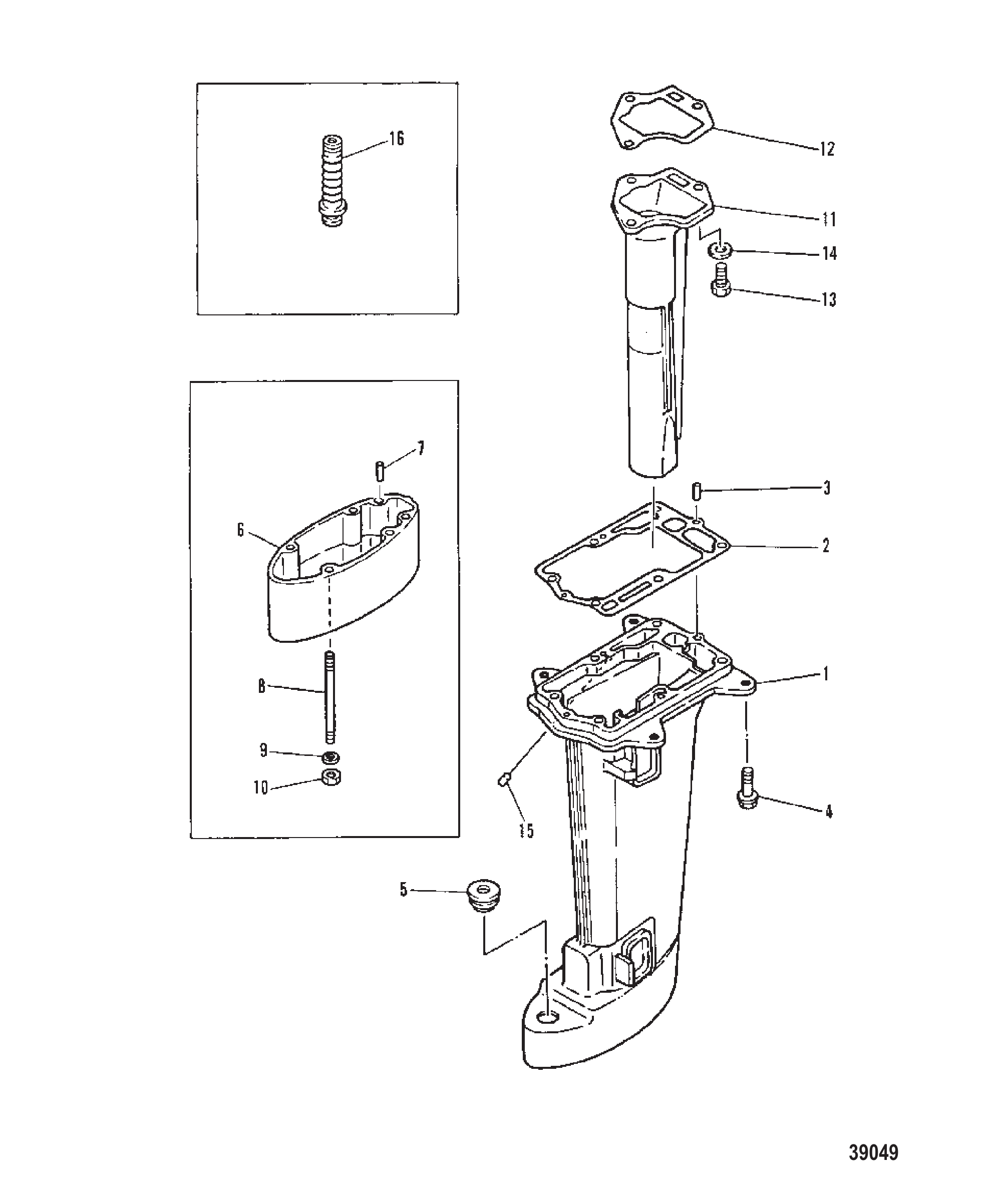

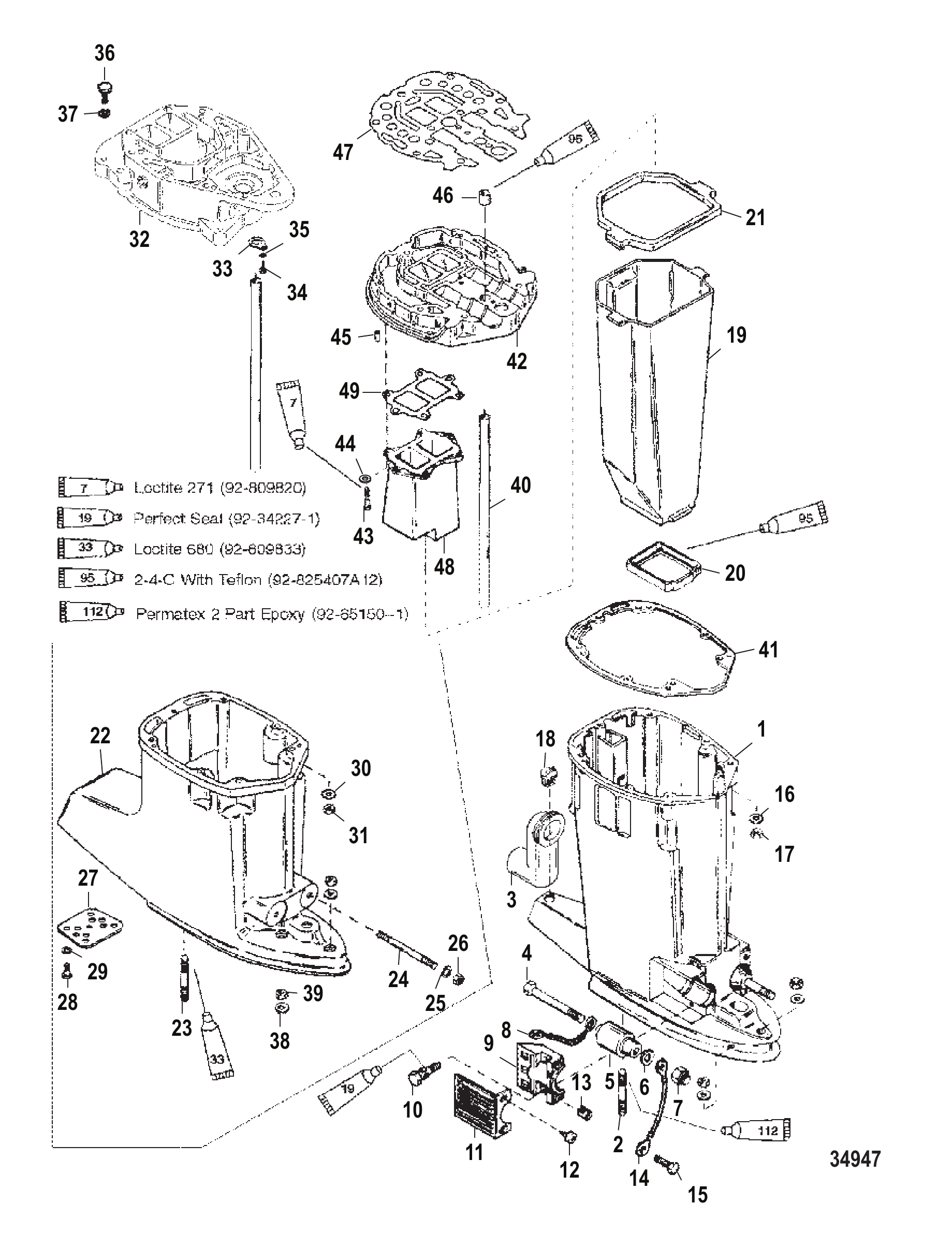

图 11驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	9312M	驱动轴壳体	HOUSING Driveshaft	1
1	9313M	驱动轴壳体	HOUSING Driveshaft	1
2	11560M	衬垫	GASKET	1
3	82354M	定位销	PIN DOWEL	2
4	11561M	螺栓	BOLT	6
5	11562M	护孔环	GROMMET	1
6	11563M	延长件	EXTENSION	1
7	82354M	定位销	PIN DOWEL	2
8	11564M	螺柱	STUD	4
9	82214M	垫圈	WASHER	4
10	11565M	螺母	NUT	4
11	11566M	排气歧管	MANIFOLD EXHAUST	1
11	11567M	排气歧管	MANIFOLD EXHAUST	1
11	17364M	排气歧管	MANIFOLD EXHAUST	1
12	11568M	排气歧管衬垫	GASKET EXHAUST MANIFOLD	1
13	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	3
14	82214M	垫圈	WASHER	3
15	11569M	管道	PIPE	1
16	15304M	换挡杆护套	BOOT SHIFT ROD	1

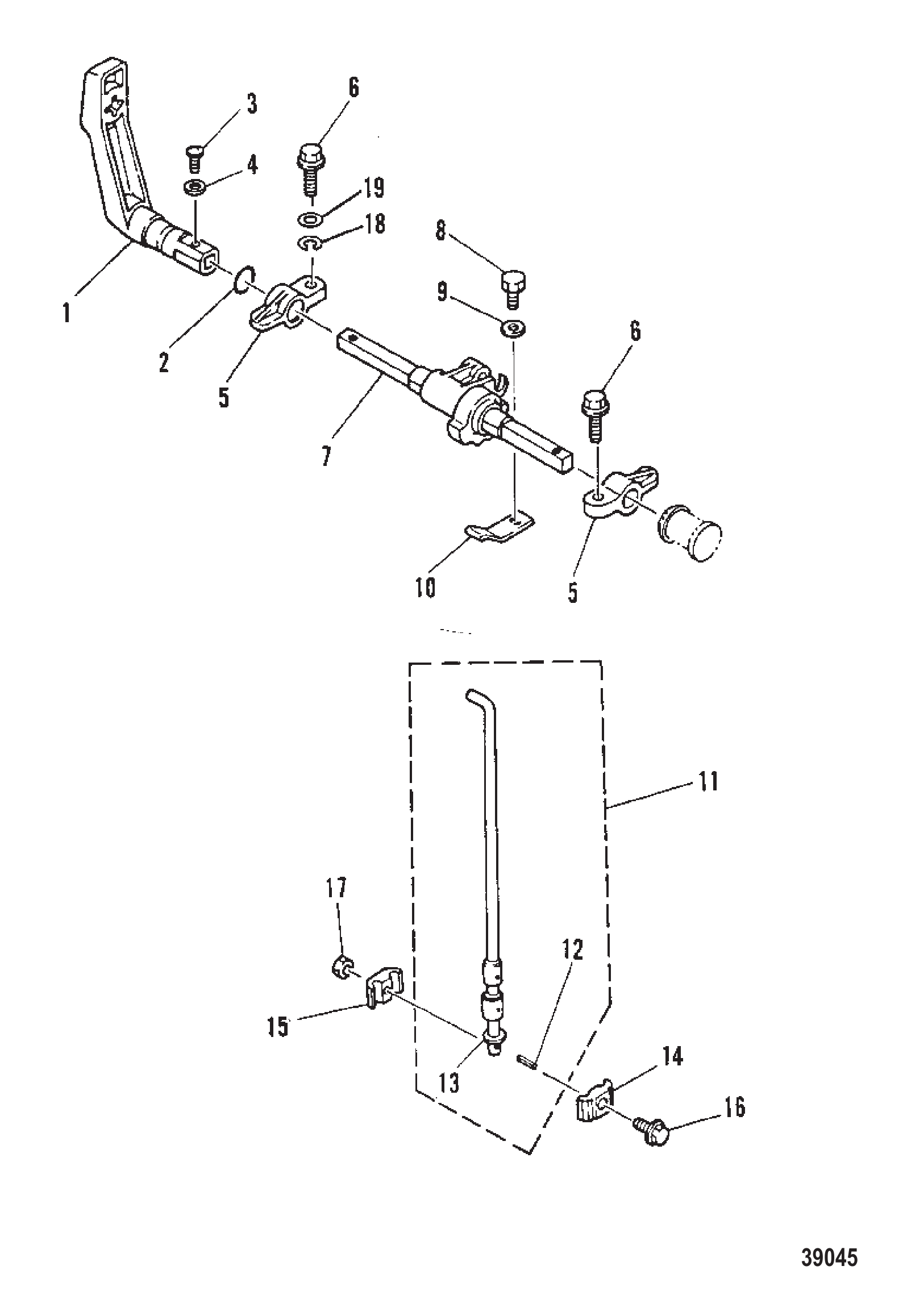

图 12换挡联动装置 GEAR SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	11510M	换挡手柄	HANDLE GEAR SHIFT	1
2	91774M	O型圈	O-RING	1
3	83356M	螺钉	SCREW	1
4	82211M	垫圈	WASHER	1
5	17366M	支架	BRACKET	2
6	83539M	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
6	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
7	11512M	换挡拉杆	LEVER SHIFT ROD	1
8	91772M	螺栓	BOLT	1
9	82214M	垫圈	WASHER	1
10	11513M	弹簧	SPRING	1
11	11514M	换挡杆总成	SHIFT ROD ASSEMBLY	1
12	91793M	弹簧销	PIN SPRING	1
13	82211M	垫圈	WASHER	1
14	11515M	换挡杆连接器	CONNECTOR SHIFT ROD	1
15	11516M	换挡杆连接器	CONNECTOR SHIFT ROD	1
16	11517M	螺栓	BOLT	1
17	82389M	螺母	NUT	1
18	82212M	锁紧垫圈	LOCKWASHER	1
19	82213M	垫圈	WASHER	1

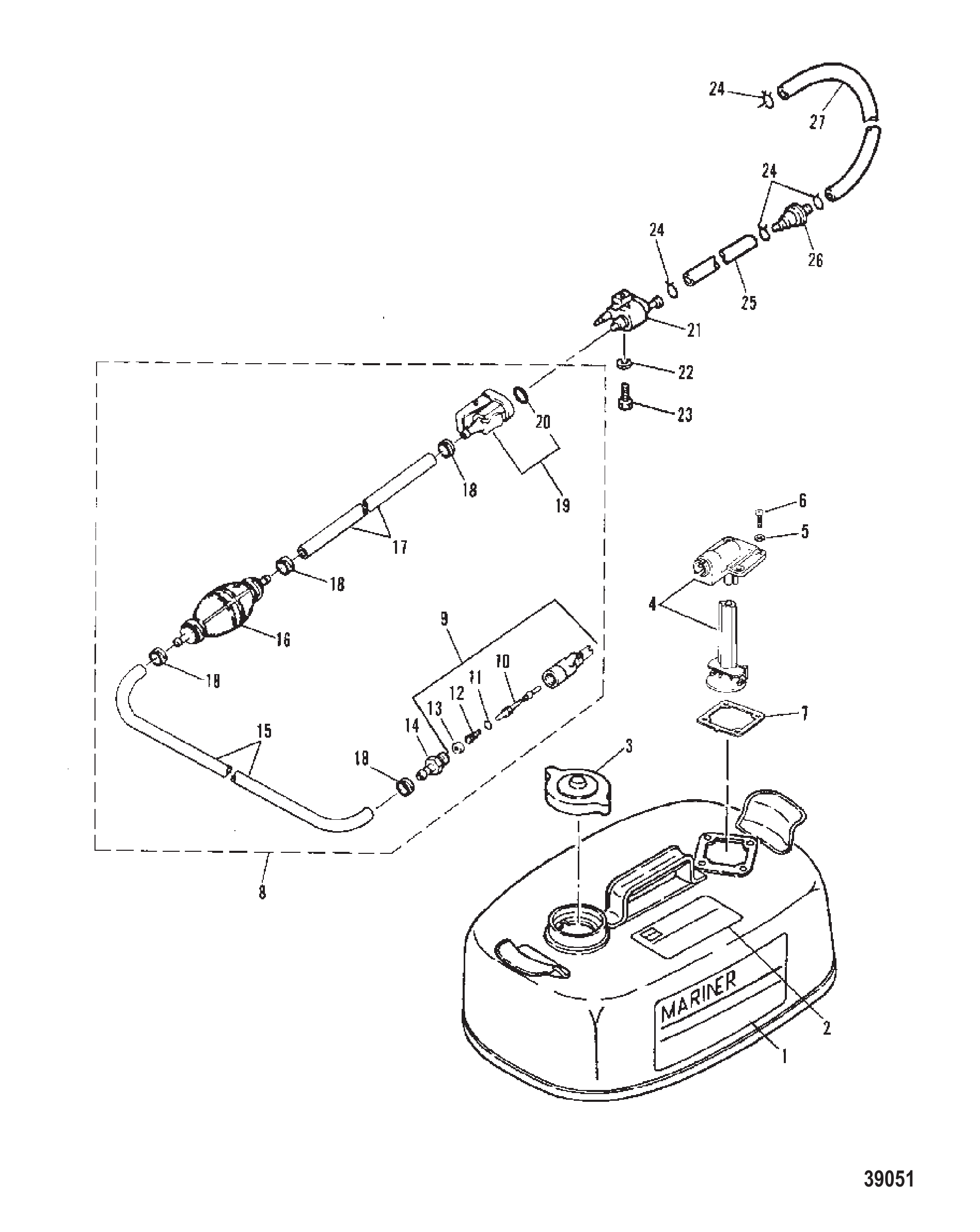

图 13燃油箱及油管(原装)(14升) FUEL TANK AND FUEL LINES (ORIGINAL)(14 LITRE)

REF	零件编号	中文名称	英文名称	数量
1	95539M	侧贴花(英文)	DECAL SIDE (ENGLISH)	1
1	95540M	侧贴花(法文)	DECAL SIDE (FRENCH)	1
2	95489M	顶部贴花(英文)	DECAL TOP (ENGLISH)	1
2	95503M	顶部贴花(法文)	DECAL TOP (FRENCH)	1
3	14223M	油箱盖总成	CAP ASSEMBLY Fuel Tank	1
3	18962M	燃油箱盖	CAP Fuel Tank	1
4	95541M	燃油接头壳体总成	HOUSING ASSEMBLY FUEL CONNECTOR	1
5	95501M	密封件	SEAL	4
6	95502M	螺钉	SCREW	4
7	95500M	壳体总成衬垫	GASKET HOUSING ASS'Y	1
8	16570M	燃油管路总成	LINE ASSEMBLY Fuel	1
8	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
9	30185A3	燃油卡口总成	BAYONET ASSEMBLY Fuel	1
9	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
10	30187	卡口阀体阀杆	STEM BAYONET BODY	1
10	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
11	20415	卡口阀体阀杆O型圈	O-RING BAYONET BODY STEM	1
11	16524	燃油接头O型圈	O-RING Fuel Connector	1
12	30189	卡口阀体弹簧总成	SPRING BAYONET BODY ASS'Y	1
13	30188	盖垫圈	WASHER CAP	1
14	63187	倒刺接头(0.250-18)燃油管	FITTING Barb (.250-18) FUEL LINE	1
15	16571M	燃油箱至注油泵软管	HOSE FUEL TANK TO PRIMER BULB	1
16	17149M	灯泡	BULB	1
16	13330Q07	注油泵总成 - Quicksilver品牌	BULB ASSEMBLY Primer - Quicksilver Brand	1
17	16573M	软管	HOSE	1
17	16571M	软管	HOSE	1
18	16574M	软管卡箍	CLAMP HOSE	4
19	16609M	发动机燃油接头	CONNECTOR Fuel ENGINE FUEL CONNECTOR	1
19	13563Q3	发动机端快速接头(水星)	QUICK DISCONNECT Engine End (Quicksilver)	1
20	82789M	发动机燃油接头壳体O型圈	O-RING ENGINE FUEL CONNECTOR HOUSING	1
21	14187M	燃油管接头	CONNECTOR FUEL LINE	1
22	82214M	垫圈	WASHER	1
23	82405M	螺栓	BOLT	1
24	82047M	卡箍	CLAMP	4
25	94806M	软管	HOSE	1
25	82012M	软管	HOSE	1
26	80365M	燃油滤清器	FILTER FUEL	1
27	97129M	软管	HOSE	1
27	82012M	软管	HOSE	1

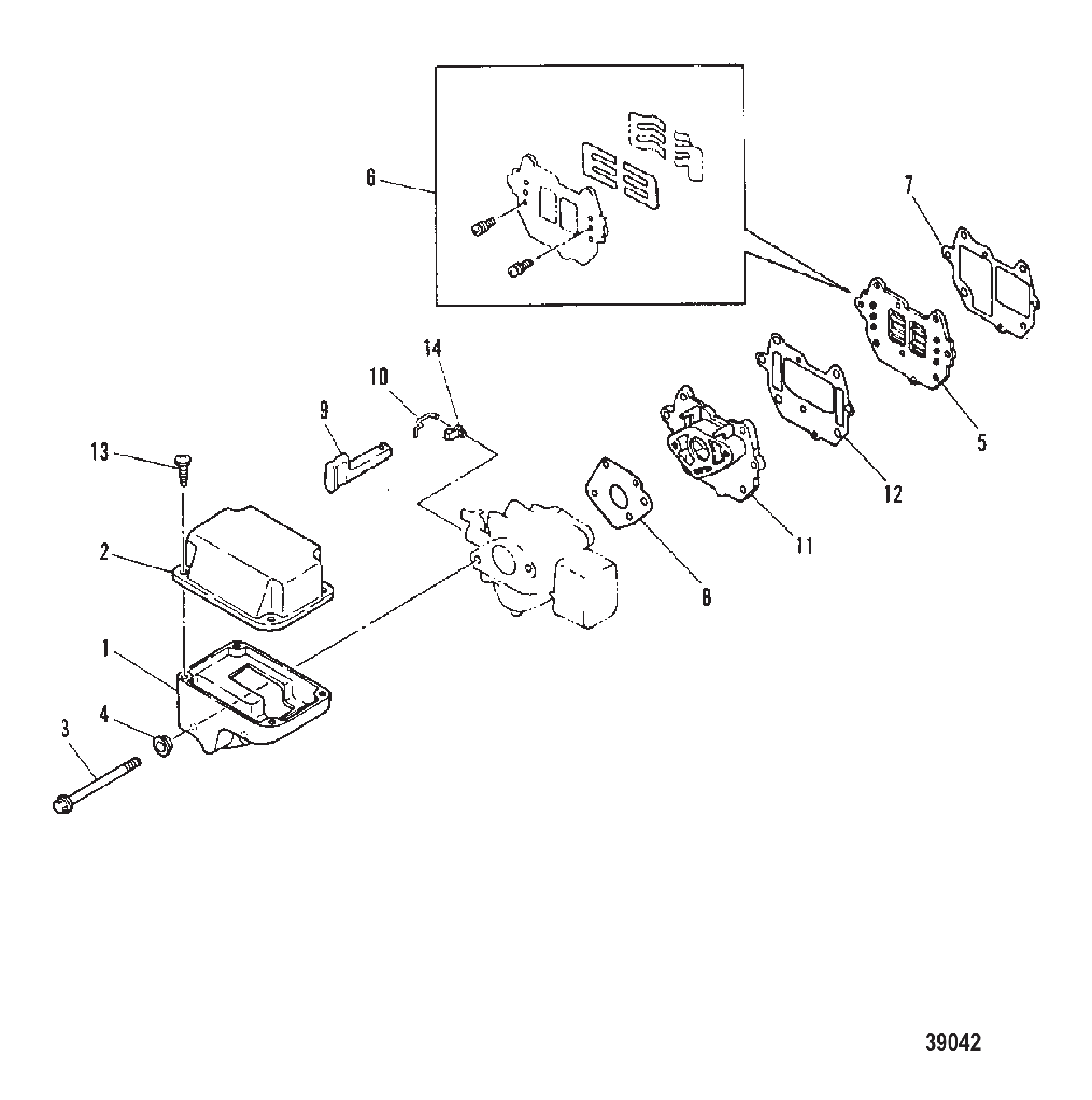

图 14进气歧管 INTAKE MANIFOLD

REF	零件编号	中文名称	英文名称	数量
1	11465M	进气盖(外)	COVER AIR INTAKE (OUTER)	1
2	11466M	进气盖(内)	COVER AIR INTAKE (INNER)	1
3	11467M	螺钉	SCREW	2
4	17044M	衬套	BUSHING	2
5	11469M	簧片阀总成	REED VALVE ASSEMBLY	1
6	11470M	簧片组(不含止动片)	REED SET (REED STOPS NOT INCLUDED)	1
7	11471M	簧片阀垫片	GASKET REED VALVE	1
8	11472M	化油器衬垫	GASKET CARBURETOR	1
9	11473M	阻风门旋钮	KNOB CHOKE	1
10	11474M	阻风门连杆	ROD CHOKE LINK	1
11	11475M	进气歧管	MANIFOLD INTAKE	1
12	11476M	进气歧管垫片	GASKET INTAKE MANIFOLD	1
13	96610M	螺钉	SCREW	4
14	81191M	阻风门杆支架	BRACKET CHOKE ROD	1
14	16333	卡扣拉杆	ROD Snap	1
-	11434M	衬垫套件	GASKET SET	1

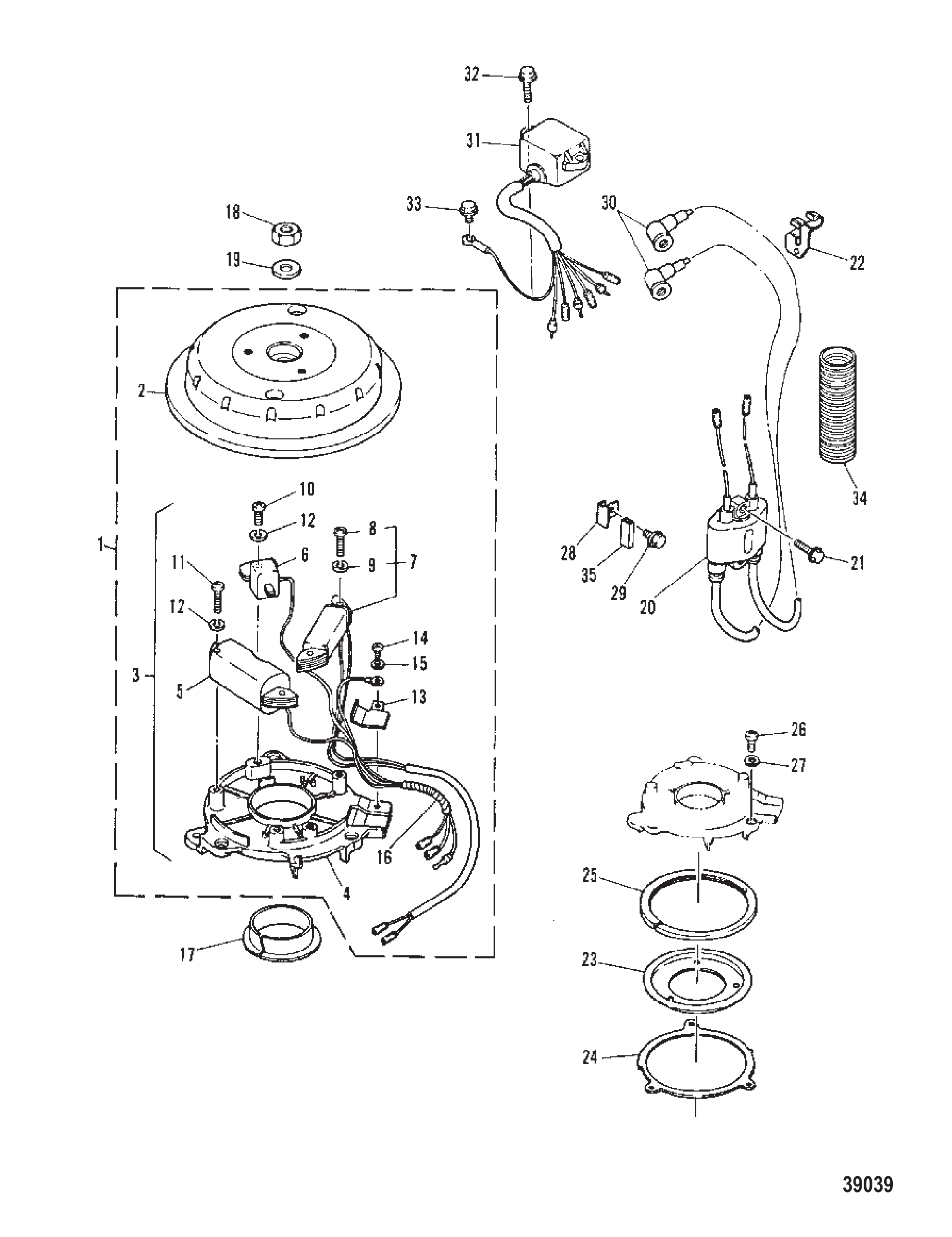

图 15C.D.I.磁电机 C.D.I. MAGNETO

REF	零件编号	中文名称	英文名称	数量
1	9302M	磁电机总成	MAGNETO ASSEMBLY	1
2	9303M	转子总成	ROTOR ASSEMBLY	1
3	11435M	底座总成	BASE AAS'Y	1
4	11436M	磁电机底座	BASE MAGNETO	1
5	41829M	充电线圈总成	COIL ASSEMBLY Charge	1
5	41829T	线圈	COIL	1
6	41830M	脉冲线圈总成	COIL ASSEMBLY Pulser	1
7	41866M	照明线圈总成 (见备注)	COIL ASSEMBLY Lighting (SEE NOTE)	1
8	82521M	螺钉	SCREW	2
8	83108M	螺钉	SCREW	2
9	82208M	垫圈	WASHER	2
9	82186M	垫圈	WASHER	2
10	95178M	螺钉	SCREW	1
11	95174M	螺钉	SCREW	2
11	815005M	螺钉	SCREW	2
12	82208M	垫圈	WASHER	3
12	82186M	垫圈	WASHER	3
13	11437M	卡箍	CLAMP	1
14	82513M	螺钉	SCREW	1
14	82500M	螺钉(M4 x 8)	SCREW (M4 x 8)	1
15	82184M	锁紧垫圈	LOCKWASHER	1
15	82206M	锁紧垫圈	LOCKWASHER	1
16	11439M	导线	WIRE LEAD	1
17	11440M	衬套	BUSHING	1
18	81769M	螺母	NUT	1
19	81805M	垫圈	WASHER	1
20	11441M	点火线圈总成	COIL ASSEMBLY Ignition	1
21	11945M	螺栓	BOLT	2
22	11442M	支架	BRACKET	1
23	11443M	磁电机底座护圈	RETAINER MAGNETO BASE	1
24	11444M	磁电机底座护圈	RETAINER MAGNETO BASE	1
25	92572M	摩擦底板	PLATE BASE FRICTION	1
26	83523M	螺钉	SCREW	3
27	82211M	垫圈	WASHER	3
28	11445M	磁电机底座止动块	STOPPER MAGNETO BASE	1
29	95456M	螺栓	BOLT	1
30	82788M	火花塞帽总成	CAP ASSEMBLY Spark Plug	2
30	63709A1	护套/端子套件	BOOT/TERMINAL KIT	2
31	41305M	开关盒总成	SWITCHBOX ASSEMBLY	1
32	91674M	螺栓	BOLT	2
33	95456M	螺栓	BOLT	1
34	11446M	油管	TUBING	1
35	11447M	盖帽	CAP	1

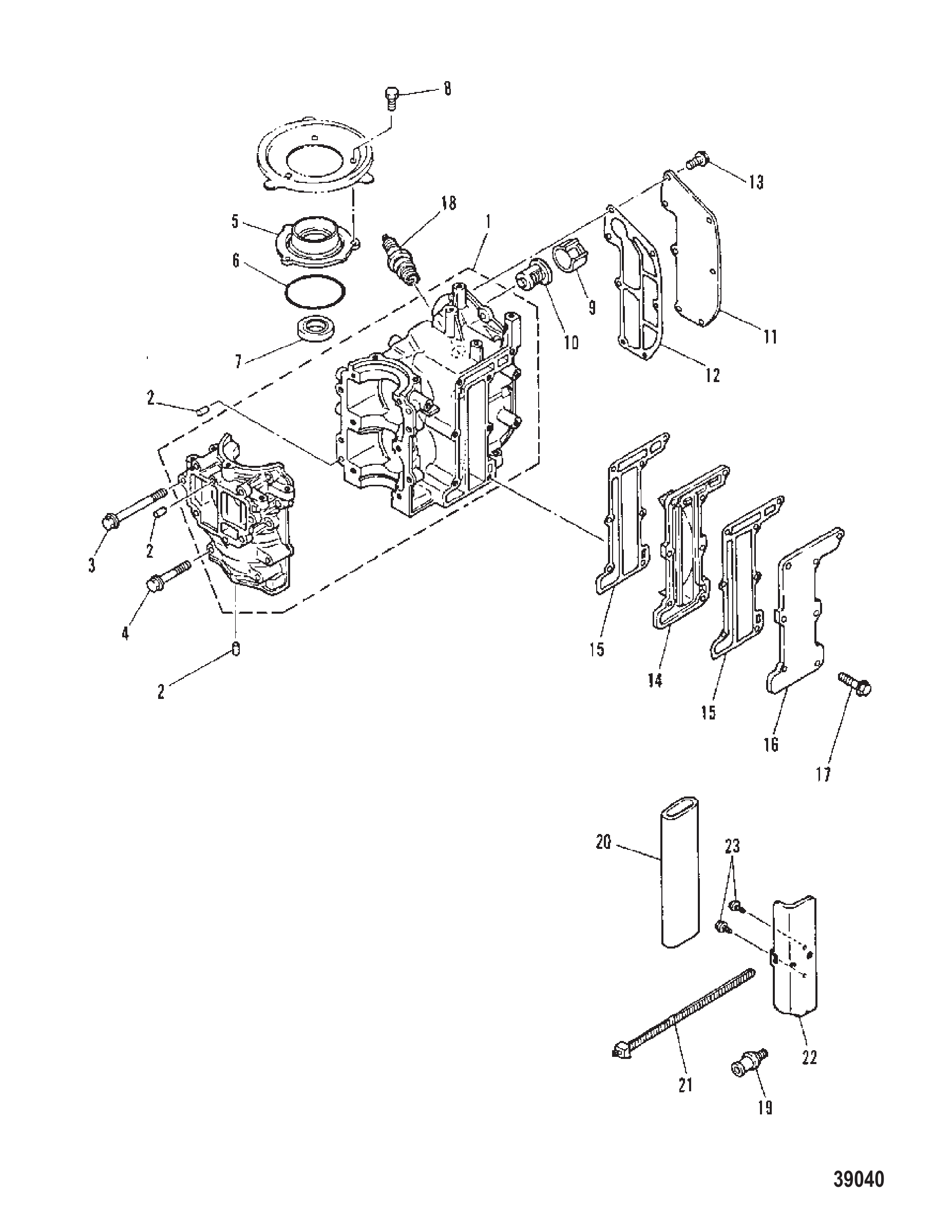

图 16曲轴箱和气缸盖 CRANKCASE AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	9304M	曲轴箱总成	CRANKCASE ASSEMBLY	1
2	82354M	定位销	PIN DOWEL	4
3	11448M	带垫圈螺栓	BOLT WITH WASHER	6
4	11449M	带垫圈螺栓	BOLT WITH WASHER	4
5	14201M	油封壳体	HOUSING OIL SEAL	1
6	11451M	O型圈	O-RING	1
7	14195M	油封	SEAL Oil	1
8	84247M	螺栓	BOLT	3
8	826957M	螺栓	BOLT	3
9	11452M	轴环	COLLAR	1
10	11919M	节温器	THERMOSTAT	1
10	11919001	节温器	THERMOSTAT	1
11	11453M	气缸盖罩	COVER CYLINDER HEAD	1
12	11454M	缸盖罩垫片	GASKET HEAD COVER	1
13	91686M	带垫圈螺栓	BOLT WITH WASHER	7
14	11455M	排气内罩	INNER COVER EXHAUST	1
15	11456M	排气内盖衬垫	GASKET EXHAUST INNER COVER	2
15	11456	衬垫	GASKET	2
16	11457M	排气外罩	OUTER COVER EXHAUST	1
17	11945M	带垫圈螺栓	BOLT WITH WASHER	7
18	41263M	火花塞 (NGK # B7HS10)	SPARK PLUG (NGK # B7HS10)	2
18	8M0181925	火花塞	SPARK PLUG	2
18	11458M	火花塞 (NGK # B6HS10)	SPARK PLUG (NGK # B6HS10)	2
18	8M0114738	SP B6HS-10 @4	SP B6HS-10 @4	2
19	95633M	检水塞	PLUG WATER CHECK	1
19	8M0121335	堵头	PLUG	1
20	80277M	工具包	TOOL KIT	1
20	803581	工具包	TOOL KIT	1
21	95485M	绑带	STRAP	1
21	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	1
22	11459M	工具架	BRACKET TOOL KIT	1
23	95456M	螺栓	BOLT	2
-	11434M	衬垫套件	GASKET SET	1
-	11948M	动力头总成	POWERHEAD ASSEMBLY	1
-	11949M	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	11948M	动力头总成	POWERHEAD ASSEMBLY	1

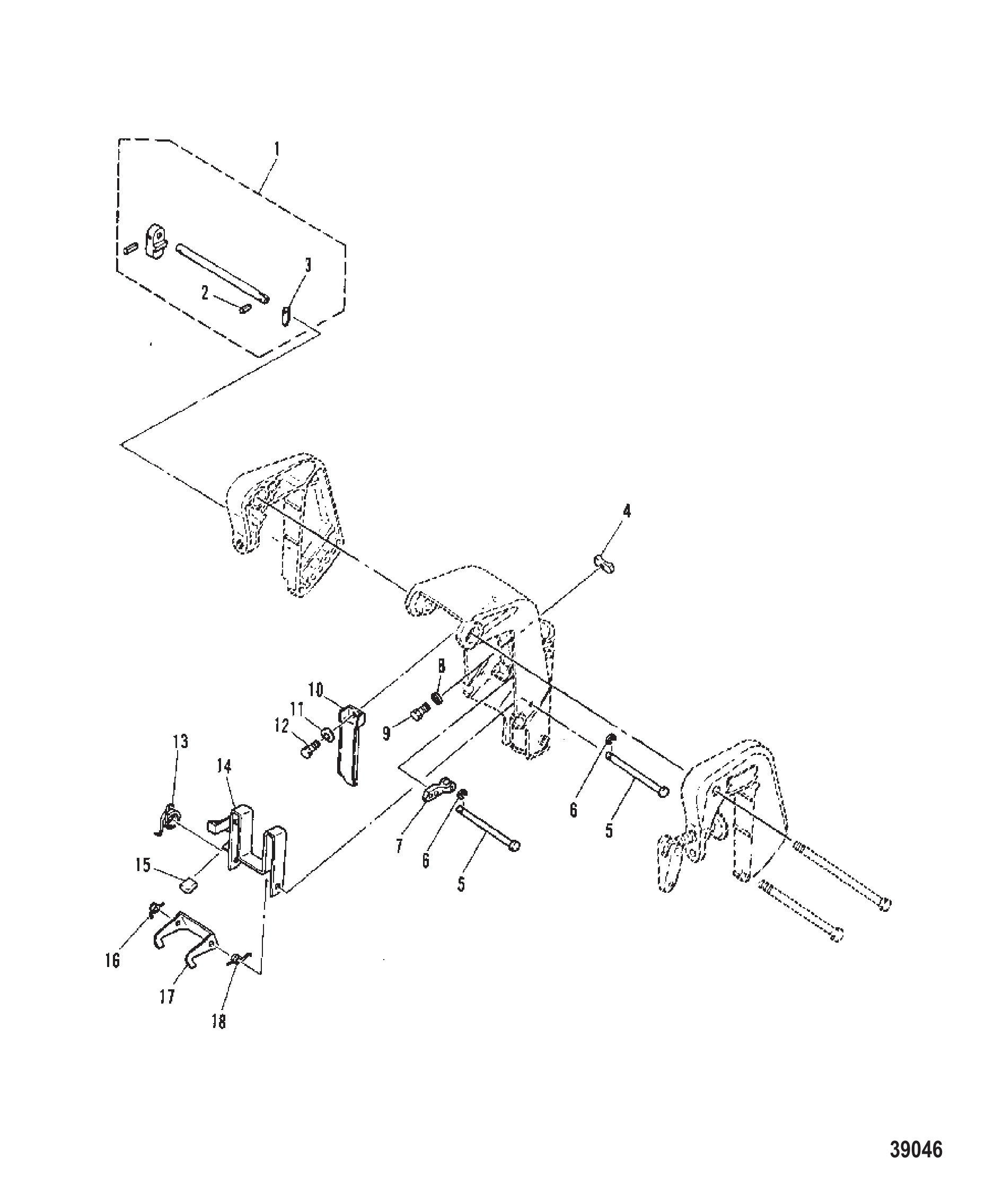

图 17倒挡锁 REVERSE LOCK

REF	零件编号	中文名称	英文名称	数量
1	11518M	倾斜杆总成	TILT ROD ASSEMBLY	1
2	82144M	弹簧销	PIN SPRING	1
3	82857M	倾斜锁止挡板	PLATE Stopper TILT LOCK	1
4	11519M	上部安装止动块	STOPPER UPPER MOUNT	1
5	11520M	倒档锁止轴	SHAFT REVERSE LOCK	2
6	82330M	卡环	RING Snap	2
7	11521M	倾斜锁止板	PLATE TILT LOCK	1
8	82214M	垫圈	WASHER	1
9	84088M	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
10	11522M	搬运手柄	CARRING HANDLE	1
11	82217M	垫圈	WASHER	1
12	95546M	螺栓	BOLT	1
13	11523M	弹簧	SPRING	1
14	11524M	浅水驱动杆	LEVER SHALLOW WATER DRIVE	1
15	11525M	盖板	COVER	1
16	11526M	弹簧	SPRING	1
17	11527M	倾斜锁止板	PLATE TILT LOCK	1
18	11528M	弹簧	SPRING	1

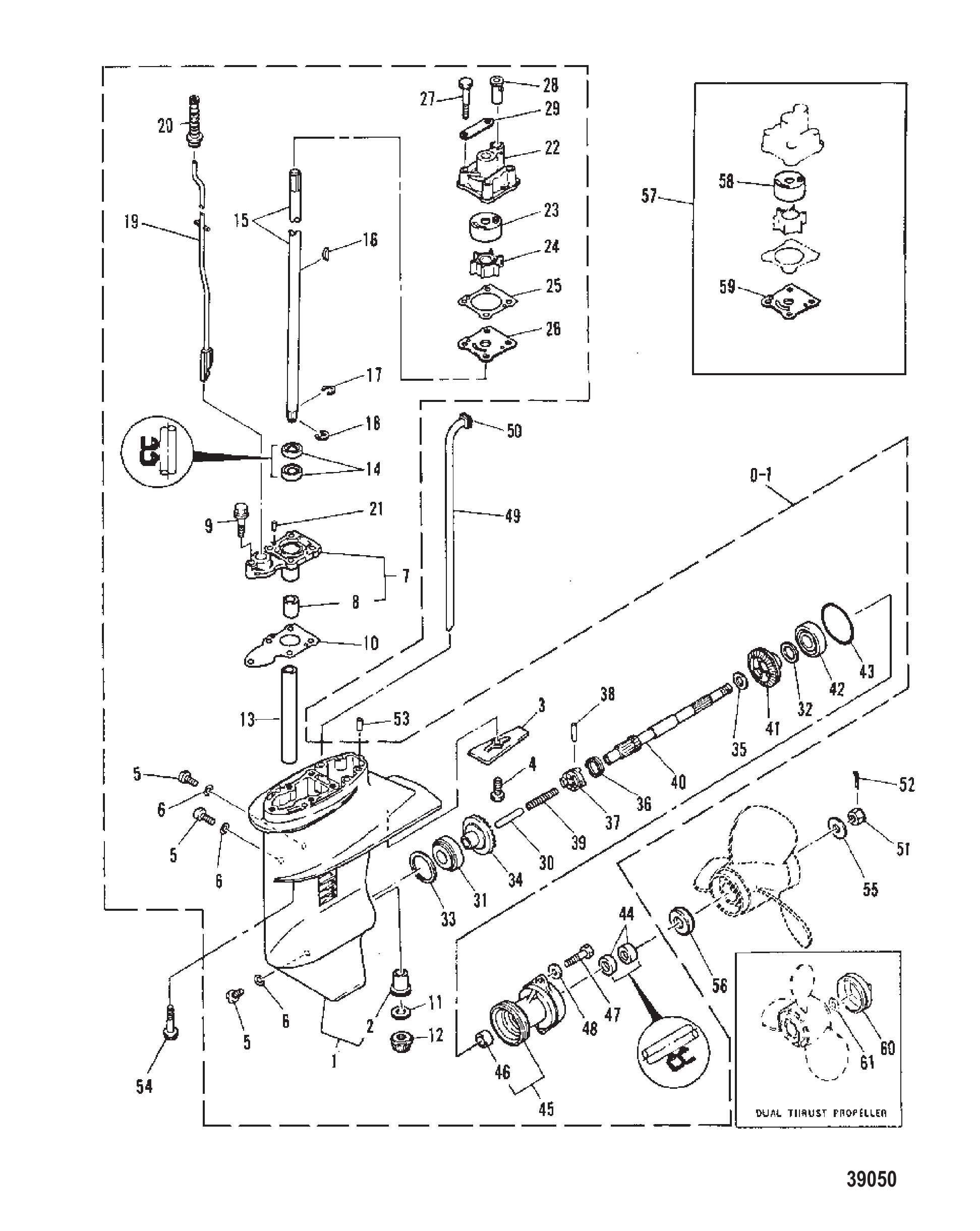

图 18齿轮箱总成 GEARHOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
0-1	9314M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
0-1	9315M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9316M	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	11570M	驱动轴衬套	BUSHING DRIVE SHAFT	1
3	14205M	阳极块	ANODE	1
4	91772M	螺栓	BOLT	1
5	81924M	堵头	PLUG	3
6	81987M	衬垫	GASKET	3
6	81987	衬垫	GASKET	3
7	11572M	轴承壳体	HOUSING BEARING	1
8	11573M	衬套	BUSHING	1
9	92523M	螺栓	BOLT	1
9	83285M	螺栓	BOLT	1
10	11574M	下壳体衬垫	GASKET LOWER CASING	1
11	11575M	止推垫圈 (0.8MM)	WASHER THRUST (0.8MM)	1
11	11576M	止推垫圈 (1.0MM)	WASHER THRUST (1.0MM)	1
11	11577M	止推垫圈 (1.2MM)	WASHER THRUST (1.2MM)	1
11	11578M	止推垫圈(1.4MM)	WASHER THRUST (1.4MM)	1
12	11579M	小齿轮	GEAR PINION	1
13	11580M	轴环	COLLAR	1
14	11464M	油封	SEAL Oil	2
15	11581M	驱动轴	DRIVESHAFT	1
15	11582M	驱动轴	DRIVESHAFT	1
15	11583M	驱动轴	DRIVESHAFT	1
16	81912M	水泵键	KEY WATER PUMP	1
17	11584M	卡扣	CLIP	1
18	82331M	卡环	RING Snap	1
19	14206M	换档凸轮总成	SHIFT CAM ASSEMBLY	1
19	14207M	换档凸轮总成	SHIFT CAM ASSEMBLY	1
19	14208M	换档凸轮总成	SHIFT CAM ASSEMBLY	1
20	15304M	换挡杆护套	BOOT SHIFT ROD	1
21	82354M	定位销	PIN DOWEL	2
22	11588M	水泵壳体	HOUSING WATER PUMP	1
22	8M0121497	壳体	HOUSING	1
23	11589M	滤芯	INSERT CARTRIDGE	1
24	11590M	叶轮	IMPELLER	1
25	11591M	水泵衬垫	GASKET WATER PUMP	1
25	11591	衬垫	GASKET	1
26	11592M	滤芯外板	OUTER PLATE CARTRIDGE	1
27	92536M	螺栓	BOLT	4
27	84657M	螺栓	BOLT	4
28	80532M	橡胶水封	RUBBER WATER SEAL	1
29	11593M	安装板	PLATE	2
30	11594M	换挡柱塞	PLUNGER SHIFT	1
31	84805M	前进齿轮轴承	BEARING FOWARD GEAR	1
31	84805T	轴承	BEARING	1
32	80543M	齿轮调整垫片(0.1MM)	SHIM GEAR ADJUST (0.1MM)	AR
33	81638M	齿轮调整垫片(0.3MM)	SHIM GEAR ADJUST (0.3MM)	AR
33	81639M	齿轮调整垫片(0.5MM)	SHIM GEAR ADJUST (0.5MM)	AR
33	81640M	齿轮调整垫片(0.1MM)	SHIM GEAR ADJUST (0.1MM)	AR
33	19118M	垫片	SHIM	AR
33	81641M	齿轮调整垫片(0.3MM)	SHIM GEAR ADJUST (0.3MM)	AR
33	19121M	垫片	SHIM	AR
33	81642M	齿轮调整垫片(0.5MM)	SHIM GEAR ADJUST (0.5MM)	AR
33	19123001	垫片 @5	SHIM @5	AR
34	11595M	前进齿轮总成	GEAR ASSEMBLY FOWARD	1
35	11596M	垫圈	WASHER	1
36	81013M	十字销环	RING CROSS PIN	1
37	11597M	离合器爪	CLUTCH DOG	1
38	11598M	十字销	PIN CROSS	1
39	14209M	弹簧	SPRING	1
40	11599M	螺旋桨轴	SHAFT PROPELLER	1
41	11647M	倒档齿轮总成	GEAR ASSEMBLY REVERSE	1
42	95475M	倒车齿轮轴承	BEARING REVERSE GEAR	1
42	82291T	轴承	BEARING	1
43	82281M	O型圈	O-RING	1
44	82226M	油封	SEAL Oil	2
45	11648M	下壳体盖	CAP LOWER CASING	1
46	11649M	衬套	BUSHING	1
47	91725M	螺栓	BOLT	2
47	826957M	螺栓	BOLT	2
48	82214M	垫圈	WASHER	3
49	11650M	水管	TUBE WATER	1
49	11651M	水管	TUBE WATER	1
49	11652M	水管	TUBE WATER	1
50	11653M	水封	SEAL Water	1
50	852859	密封件	SEAL	1
51	84087M	螺旋桨螺母	NUT PROPELLER	1
51	859933	螺旋桨螺母	PROP NUT	1
52	99046M	开口销	PIN COTTER	1
52	815026	开口销	COTTER PIN	1
53	82354M	定位销	PIN DOWEL	2
54	11561M	螺栓	BOLT	4
55	84275M	垫圈	WASHER	1
55	859894	隔套	SPACER	1
56	11654M	隔套	SPACER	1
57	11657M	铬合金泵套件	PUMP KIT Chrome	1
58	11658M	滤芯	INSERT CARTRIDGE	1
59	11659M	滤芯外板	OUTER PLATE CARTRIDGE	1
60	11599M	螺旋桨轴	SHAFT PROPELLER	1
61	84974M	垫圈	WASHER	1
-	11655M	衬垫套件	GASKET SET	1
-	11656M	维修套件	REPAIR KIT	1
-	11656T	维修套件	REPAIR KIT	1

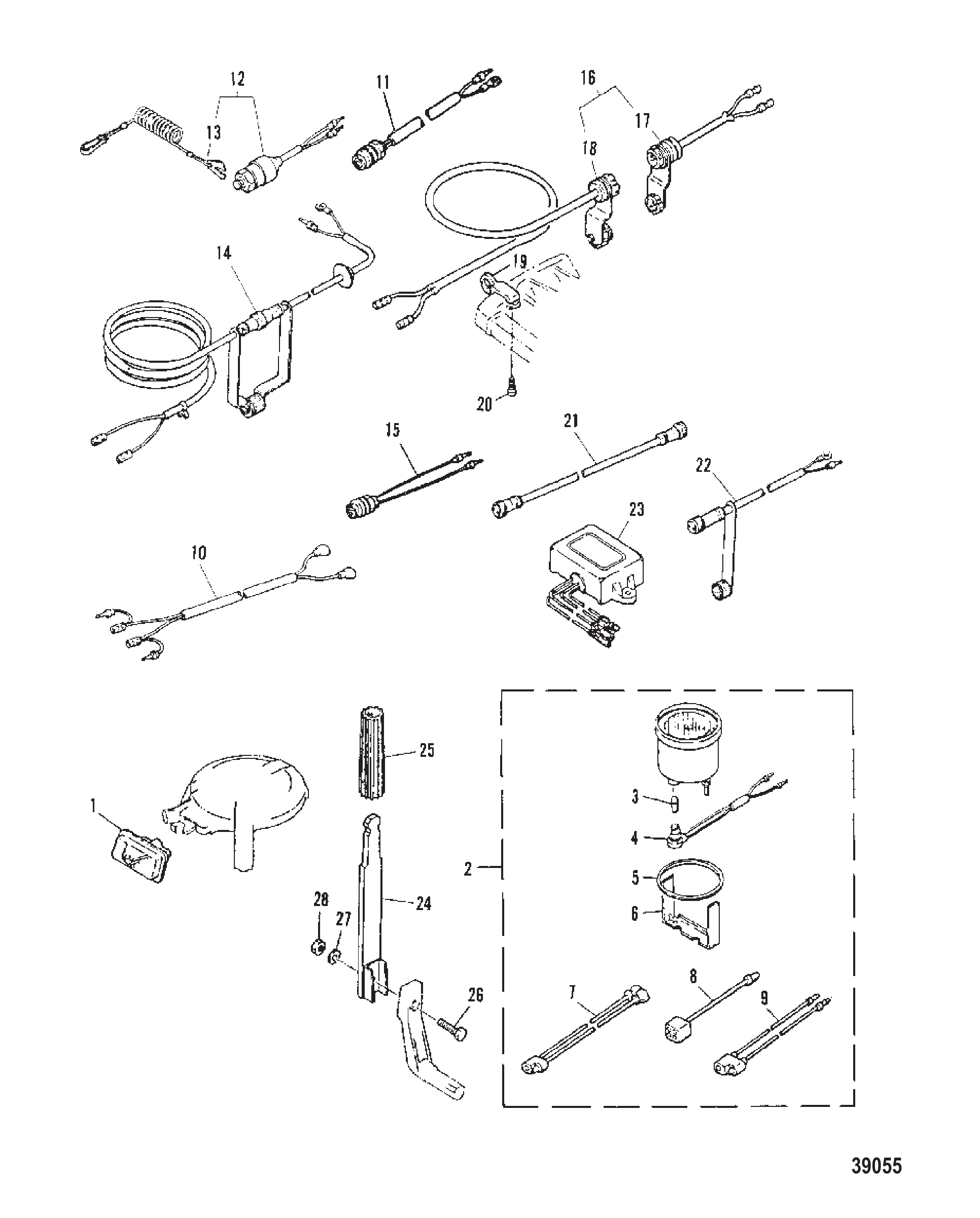

图 19可选零件 OPTIONAL PARTS

REF	零件编号	中文名称	英文名称	数量
1	11903M	启动绳导向器	GUIDE STARTER ROPE	1
2	43984A1	转速表套件	TACHOMETER KIT	1
3	99055M	灯泡	BULB	1
4	99056M	灯泡插座	SOCKET BULB	1
4	99056A1	故障指示灯	MALFUNCTION INDICATOR LAMP	1
5	99057M	减震器	DAMPER	1
6	99058M	安装板	PLATE	1
7	99059M	电线	WIRE	1
8	84353M	连接器	CONNECTOR	2
9	84352M	延长导线	EXTENSION LEAD	1
10	99060M	延长导线	EXTENSION LEAD	1
11	97754M	停机开关总成	SWITCH ASSEMBLY Stop	1
12	97755M	停机开关总成	SWITCH ASSEMBLY Stop	1
12	97765M	停机开关总成	SWITCH ASSEMBLY Stop	1
13	97756M	止动器	STOPPER	1
14	84964M	延长导线	EXTENSION LEAD	1
15	93102M	停机开关总成	SWITCH ASSEMBLY Stop	1
16	84124M	连接器	CONNECTOR	1
17	99051M	连接器	CONNECTOR	1
18	99052M	连接器	CONNECTOR	1
19	84327M	支架	HOLDER	1
20	84328M	螺钉	SCREW	1
21	84959M	延长件	EXTENSION	1
22	99053M	插座线束总成	SOCKET CORD ASSEMBLY	1
23	84125M	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
23	84125T	电压调节器	REGULATOR Voltage	1
24	11902M	换档手柄-顶置式换档	HANDLE GEAR SHIFT - TOP MOUNT SHIFT	1
25	80380M	转向手柄握把-顶置式换档	GRIP STEERING HANDLE - TOP MOUNT SHIFT	1
26	83285M	顶置换档螺栓	BOLT TOP MOUNT SHIFT	1
27	82214M	顶置换档垫圈	WASHER TOP MOUNT SHIFT	1
28	82389M	顶置换档螺母	NUT TOP MOUNT SHIFT	1

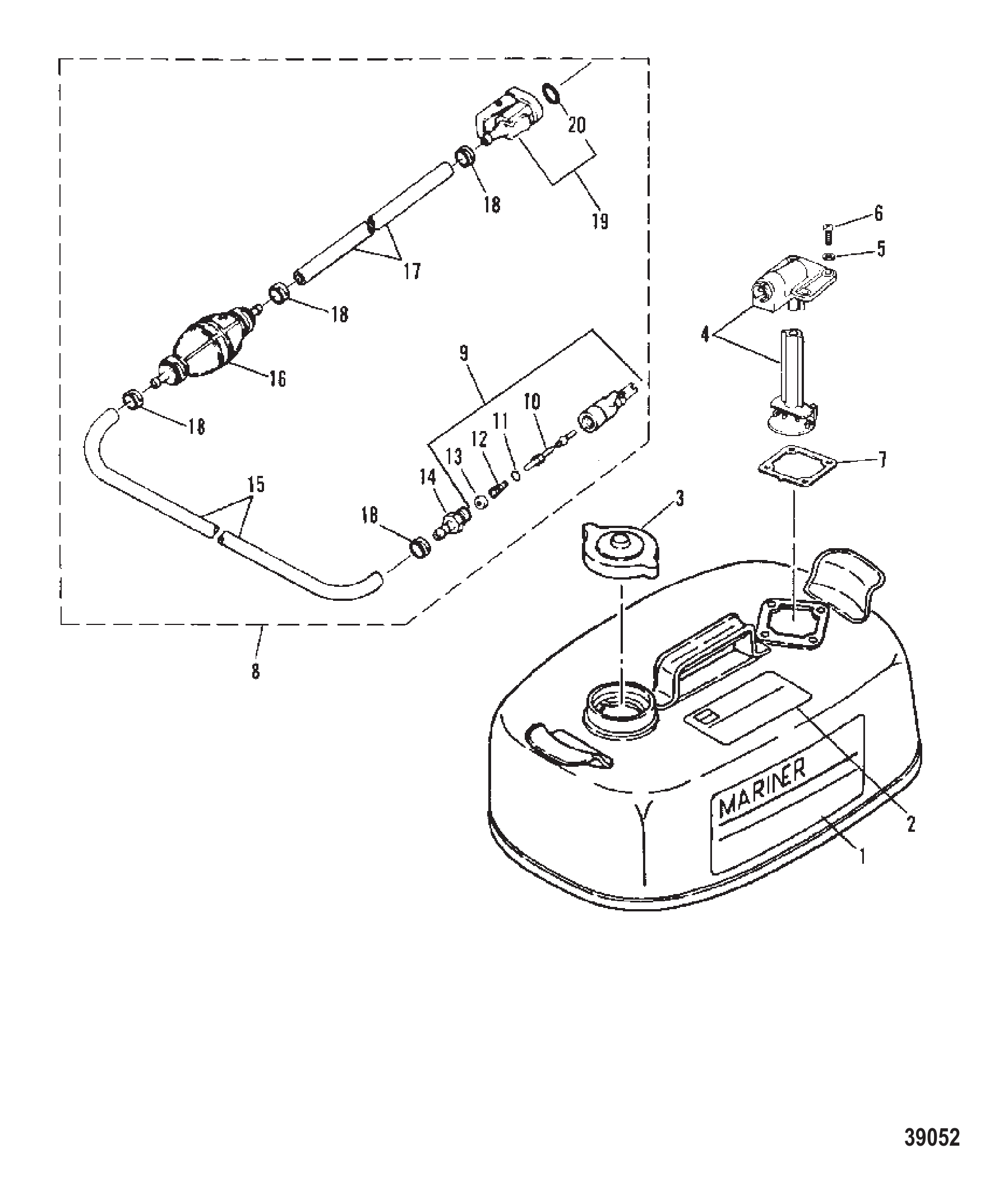

图 20燃油箱及油管(原装)(12升) FUEL TANK AND FUEL LINE (ORIGINAL)(12 LITRE)

REF	零件编号	中文名称	英文名称	数量
1	95488M	侧面贴花	DECAL SIDE	1
2	95489M	顶部贴花	DECAL TOP	1
3	14223M	油箱盖总成	CAP ASSEMBLY Fuel Tank	1
3	18962M	燃油箱盖	CAP Fuel Tank	1
4	83584M	燃油接头壳体总成	HOUSING ASSEMBLY FUEL CONNECTOR	1
5	95501M	密封件	SEAL	4
6	95502M	螺钉	SCREW	4
7	81320M	壳体总成衬垫	GASKET HOUSING ASS'Y	1
8	16721M	燃油管路总成	LINE ASSEMBLY Fuel	1
9	30185A3	燃油卡口总成	BAYONET ASSEMBLY Fuel	1
9	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
10	30187	卡口阀体阀杆	STEM BAYONET BODY	1
10	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
11	20415	卡口阀体阀杆O型圈	O-RING BAYONET BODY STEM	1
11	16524	燃油接头O型圈	O-RING Fuel Connector	1
12	30189	卡口阀体弹簧总成	SPRING BAYONET BODY ASS'Y	1
13	30188	盖垫圈	WASHER CAP	1
14	63187	倒刺接头(0.250-18)燃油管	FITTING Barb (.250-18) FUEL LINE	1
15	16722M	燃油箱至注油泵软管	HOSE FUEL TANK T PRIMER BULB	1
15	94727M	软管	HOSE	1
16	16723M	注油球	PRIMER BULB	1
16	89396Q01	注油球@4	PRIMER BULB @4	1
17	16724M	软管	HOSE	1
17	94727M	软管	HOSE	1
18	16725M	软管卡箍	CLAMP HOSE	4
19	14213M	发动机燃油接头	CONNECTOR Fuel ENGINE FUEL CONNECTOR	1
19	14213Q	燃油接头@2	FITTING-FUEL@2	1
20	82789M	发动机燃油接头壳体O型圈	O-RING ENGINE FUEL CONNECTOR HOUSING	1

图 21C.D.I.磁电机 C.D.I. MAGNETO

REF	零件编号	中文名称	英文名称	数量
1	9302M	磁电机总成	MAGNETO ASSEMBLY	1
2	9303M	转子总成	ROTOR ASSEMBLY	1
3	11435M	底座总成	BASE AAS'Y	1
4	11436M	磁电机底座	BASE MAGNETO	1
5	41829M	充电线圈总成	COIL ASSEMBLY Charge	1
5	41829T	线圈	COIL	1
6	41830M	脉冲线圈总成	COIL ASSEMBLY Pulser	1
7	41866M	照明线圈总成 (见备注)	COIL ASSEMBLY Lighting (SEE NOTE)	1
8	82521M	螺钉	SCREW	2
8	83108M	螺钉	SCREW	2
9	82208M	垫圈	WASHER	2
9	82186M	垫圈	WASHER	2
10	95178M	螺钉	SCREW	1
11	95174M	螺钉	SCREW	2
11	815005M	螺钉	SCREW	2
12	82208M	垫圈	WASHER	3
12	82186M	垫圈	WASHER	3
13	11437M	卡箍	CLAMP	1
14	82513M	螺钉	SCREW	1
14	82500M	螺钉(M4 x 8)	SCREW (M4 x 8)	1
15	82184M	锁紧垫圈	LOCKWASHER	1
15	82206M	锁紧垫圈	LOCKWASHER	1
16	11439M	导线	WIRE LEAD	1
17	11440M	衬套	BUSHING	1
18	81769M	螺母	NUT	1
19	81805M	垫圈	WASHER	1
20	11441M	点火线圈总成	COIL ASSEMBLY Ignition	1
21	11945M	螺栓	BOLT	2
22	11442M	支架	BRACKET	1
23	11443M	磁电机底座护圈	RETAINER MAGNETO BASE	1
24	11444M	磁电机底座护圈	RETAINER MAGNETO BASE	1
25	92572M	摩擦底板	PLATE BASE FRICTION	1
26	83523M	螺钉	SCREW	3
27	82211M	垫圈	WASHER	3
28	11445M	磁电机底座止动块	STOPPER MAGNETO BASE	1
29	95456M	螺栓	BOLT	1
30	82788M	火花塞帽总成	CAP ASSEMBLY Spark Plug	2
30	63709A1	护套/端子套件	BOOT/TERMINAL KIT	2
31	41305M	开关盒总成	SWITCHBOX ASSEMBLY	1
32	91674M	螺栓	BOLT	2
33	95456M	螺栓	BOLT	1
34	11446M	油管	TUBING	1
35	11447M	盖帽	CAP	1

图 22化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	8231752	化油器总成	CARBURETOR ASSEMBLY	1
1	8230402	化油器总成	CARBURETOR ASSEMBLY	1
1	823040A2	化油器	CARBURETOR	1
1	8M0203718	化油器	CARBURETOR	1
2	95252	油门拉线	WIRE Throttle	1
3	95321	螺栓	BOLT	1
4	95253	支架	BRACKET	1
5	95254	盖帽	CAP	1
6	95322	弹簧	SPRING	1
7	95255	安装板	PLATE	1
8	95323	E型卡环	E RING	1
9	815126A1	量孔针阀	JET NEEDLE	1
9	823041	量孔针阀	JET NEEDLE	1
9	8151262	量孔针阀	JET NEEDLE	1
9	8151263	量孔针阀	JET NEEDLE	1
9	8151261	量孔针阀	JET NEEDLE	1
10	95257	油门阀	VALVE Throttle	1
10	952573	油门阀	VALVE Throttle	1
11	815126A1	量孔针阀	JET NEEDLE	1
12	95324	衬垫	GASKET	1
13	95259	浮子	FLOAT	1
14	95260	浮子室	FLOAT BOWL	1
15	95327	铰链销	PIN Hinge	1
16	952621	铰链	HINGE	1
17	815029	主量孔(#92)	MAIN JET (#92)	1
17	8150291	主量孔(#80)	MAIN JET (#80)	1
18	95325	螺钉	SCREW	1
18	953251	放油螺钉	SCREW Drain	1
19	95326	衬垫	GASKET	1
19	953261	衬垫	GASKET	1
19	95326	衬垫	GASKET	1
20	95263	针阀	VALVE Needle	1
20	95263A1	针阀套件	NEEDLE VALVE KIT	1
20	952631	针阀	NEEDLE VALVE	1
21	95264	阀座	SEAT	1
21	95263A1	针阀套件	NEEDLE VALVE KIT	1
21	952641	针阀座	SEAT Needle Valve	1
21	8M0171808	阀座	SEAT VALVE	1
22	95328	螺钉	SCREW	1
23	95329	弹簧	SPRING	1
24	95266	阻风门杠杆	LEVER Shutter	1
25	95331	螺钉	SCREW	1
26	95265	阻风门板	PLATE Choke	1
27	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	1
28	95330	螺母	NUT	1
29	95332	卡箍	CLAMP	1
30	95333	螺钉	SCREW	1
31	811601	O型圈	O-RING	1
32	815071	螺钉	SCREW	2
33	95268	油门杆	LEVER Throttle	1
34	815072	螺钉	SCREW	1
35	95238	锁紧垫圈	LOCKWASHER	1
36	95336	衬垫	GASKET	2
37	95286	轴环	COLLAR	1
37	952672	支架	BRACKET	1
37	952867	轴环	COLLAR	1
38	95267	支架	BRACKET	1
38	952867	轴环	COLLAR	1
38	952672	支架	BRACKET	1
39	95269	旋钮	KNOB	2
40	95338	螺钉	SCREW	2
41	815073	盖板	COVER	1
41	815132	盖板	COVER	1
41	8151321	盖板	COVER	1
41	815073	盖板	COVER	1
42	8150731	盖板	COVER	1
42	8150732	盖板	COVER	1
43	95339	螺钉	SCREW	1
-	95263A1	针阀套件	NEEDLE VALVE KIT	1
-	855546A2	化油器维修套件	REPAIR KIT Carburetor	1
-	8M0171816	化油器修理包	CARB REPAIR KIT	1
-	815076A1	动力头衬垫套件	GASKET SET Powerhead	1
-	898101928	衬垫套装-PH	GASKET SET-PH	1

图 23夹紧旋转支架 CLAMP AND SWIVEL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	9309M	夹紧支架(左舷)	BRACKET CLAMP (PORT)	1
2	9310M	夹紧支架(右舷)	BRACKET CLAMP (STARBOARD)	1
3	80638M	艉板夹垫	PAD TRANSOM CLAMP	2
4	11529M	艉板夹紧螺钉	SCREW TRANSOM CLAMP	2
4	81755M	螺钉	SCREW	2
5	91784M	艉板夹手柄	HANDLE TRANSOM CLAMP	2
6	41267M	销	PIN	2
6	852812	销	PIN	2
7	84835M	轴挡块	SHAFT STOPPER	1
8	95650M	旋钮挡块	KNOB STOPPER	1
9	82148M	弹簧销	PIN SPRING	1
10	11530M	螺栓	BOLT	1
11	11531M	摩擦片	PIECE FRICTION	2
12	82217M	垫圈	WASHER	1
13	84295M	自锁螺母	NUT SELF-LOCKING	1
14	94568M	轴环	COLLAR	1
15	11532M	螺栓	BOLT	1
16	82214M	垫圈	WASHER	1
17	82389M	螺母	NUT	1
18	9311M	旋转支架	BRACKET SWIVEL	1
19	82369M	黄油嘴	FITTING GREASE	2
20	81439M	黄油嘴盖	CAP GREASE FITTING	2
21	11533M	摩擦片	PLATE FRICTION	1
22	83488M	压缩弹簧	SPRING COMPRESSION	1
23	82217M	垫圈	WASHER	1
24	11534M	密封件	SEAL	1
25	11535M	摩擦片螺钉	SCREW FRICTION PIECE	1
26	15437M	转向支架	BRACKET STEERING	1
27	11537M	上支座盖	COVER UPPER MOUNT	1
28	11538M	上部侧支架	MOUNT UPPER SIDE	2
29	11539M	上部前支架	MOUNT UPPER FRONT	1
30	91788M	螺栓	BOLT	2
31	11540M	护孔环	GROMMET	1
32	11541M	止推垫圈	WASHER THRUST	2
33	11542M	枢轴衬套	BUSHING PIVOT SHAFT	1
34	11543M	枢轴衬套	BUSHING PIVOT SHAFT	1
35	11544M	O型圈	O-RING	2
36	11545M	下部安装壳体	HOUSING LOWER MOUNT	1
37	11546M	下部安装壳体	HOUSING LOWER MOUNT	1
38	11547M	下部侧支架	MOUNT LOWER SIDE	2
39	11548M	下部侧支架	MOUNT LOWER SIDE	1
40	91788M	螺栓	BOLT	2

图 24外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	817704A22	顶盖总成	TOP COWL ASSEMBLY	1
1	817704A23	顶盖总成	TOP COWL ASSEMBLY	1
1	817704T23	灰色顶罩	COWL-TOP-GRAY	1
2	817706A3	前盖	FRONT COVER	1
2	817706A4	前盖	FRONT COVER	1
3	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	4
4	22887	垫圈	WASHER	4
5	71602	轭架	YOKE	4
5	8M0192198	轭架	YOKE	4
5	716021	轭架	YOKE	4
6	816771	铆钉	RIVET	12
7	847883	垫圈(0.192x0.375x0.033)	WASHER (.192 x .375 x .033)	12
8	817708	压紧件	HOLD DOWN	4
9	58712	U型销	PIN Clevis	4
10	847883	垫圈(0.192x0.375x0.033)	WASHER (.192 x .375 x .033)	4
11	21071	开口销	COTTER PIN	4
11	210711	开口销	COTTER PIN	4
12	848164A7	底壳	BOTTOM PAN	1
12	848164T7	黑色底罩	COWL-BOTTOM-BLACK	1
12	817709A13	底壳	BOTTOM PAN	1
12	848164T8	灰色底罩	COWL-BOTTOM-GRAY	1
13	815784	盖帽	CAP	2
14	13734	固定座	RETAINER	4
14	8M0192190	固定座	RETAINER	4
14	137341	固定座	RETAINER	4
15	848172	开口铆钉	RIVET (POP-OPEN)	16
16	8177121	密封条(6.79英尺大卷)	SEAL (6.79 Feet Bulk)	1
16	817712003	密封条(6.79英尺)	SEAL (6.79 Feet)	1
17	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	11
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	11
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	11
19	8221882	安装板	PLATE	1
19	822188T2	安装板	PLATE	1
20	35045	螺母(.250-28)	NUT (.250-28)	11
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	11
21	848165	支撑架	BRACE	2
22	8177131	护孔环	GROMMET	2
22	8177133	护孔环	GROMMET	2
23	847894A1	围板	SKIRT	1
23	847894T1	黑色围板	SKIRT-BLACK	1
23	847894A2	围板	SKIRT	1
24	69028	螺钉（.250-28 x .750）不锈钢	SCREW (.250-28 x .750) Stainless Steel	8
25	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	16
26	35045	螺母(.250-28)	NUT (.250-28)	8
26	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	8
27	126021	护孔环	GROMMET	1
27	12602002	护孔环	GROMMET	1
28	18286A40	开关总成	SWITCH ASSEMBLY	1
28	8M0235192	微调开关	SWITCH TRIM	1
29	8124431	固定座	RETAINER	1
29	8M0032848	开关固定座	RETAINER Switch	1
30	847897	燃油接头支架	BRACKET Fuel Connector	1
31	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	2
32	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
32	8M0207776	螺母	NUT	2
33	88621	固定座(按需使用)	RETAINER (Use where Applicable)	1
34	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
34	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
35	29488	螺母 (#10-32)	NUT (#10-32)	2
35	8M0204718	螺母	NUT	2

图 25曲轴箱和气缸盖 CRANKCASE AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	9304M	曲轴箱总成	CRANKCASE ASSEMBLY	1
2	82354M	定位销	PIN DOWEL	4
3	11448M	带垫圈螺栓	BOLT WITH WASHER	6
4	11449M	带垫圈螺栓	BOLT WITH WASHER	4
5	14201M	油封壳体	HOUSING OIL SEAL	1
6	11451M	O型圈	O-RING	1
7	14195M	油封	SEAL Oil	1
8	84247M	螺栓	BOLT	3
8	826957M	螺栓	BOLT	3
9	11452M	轴环	COLLAR	1
10	11919M	节温器	THERMOSTAT	1
10	11919001	节温器	THERMOSTAT	1
11	11453M	气缸盖罩	COVER CYLINDER HEAD	1
12	11454M	缸盖罩垫片	GASKET HEAD COVER	1
13	91686M	带垫圈螺栓	BOLT WITH WASHER	7
14	11455M	排气内罩	INNER COVER EXHAUST	1
15	11456M	排气内盖衬垫	GASKET EXHAUST INNER COVER	2
15	11456	衬垫	GASKET	2
16	11457M	排气外罩	OUTER COVER EXHAUST	1
17	11945M	带垫圈螺栓	BOLT WITH WASHER	7
18	41263M	火花塞 (NGK # B7HS10)	SPARK PLUG (NGK # B7HS10)	2
18	8M0181925	火花塞	SPARK PLUG	2
18	11458M	火花塞 (NGK # B6HS10)	SPARK PLUG (NGK # B6HS10)	2
18	8M0114738	SP B6HS-10 @4	SP B6HS-10 @4	2
19	95633M	检水塞	PLUG WATER CHECK	1
19	8M0121335	堵头	PLUG	1
20	80277M	工具包	TOOL KIT	1
20	803581	工具包	TOOL KIT	1
21	95485M	绑带	STRAP	1
21	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	1
22	11459M	工具架	BRACKET TOOL KIT	1
23	95456M	螺栓	BOLT	2
-	11434M	衬垫套件	GASKET SET	1
-	11948M	动力头总成	POWERHEAD ASSEMBLY	1
-	11949M	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	11948M	动力头总成	POWERHEAD ASSEMBLY	1

图 26曲轴与活塞 CRANKSHAFT AND PISTON

REF	零件编号	中文名称	英文名称	数量
1	91531	曲轴总成	CRANKSHAFT ASSEMBLY	1
1	91531	曲轴总成	CRANKSHAFT ASSEMBLY	1
1	879147T16	曲轴总成	CRANKSHAFT ASSY	1
1	822892	曲轴总成	CRANKSHAFT ASSEMBLY	1
1	822892T02	曲轴总成	CRANKSHAFT ASSY	1
2	NSS	曲轴不单独销售	NOT SOLD SEPARATE Crankshaft	1
3	NSS	曲轴不单独销售	NOT SOLD SEPARATE Crankshaft	1
4	813269	连杆	CONNECTING ROD	1
5	813270	轴承	BEARING	1
6	813271	曲轴销	PIN Crank	1
6	813271001	曲轴销-TH	CRANK PIN-TH	1
7	95227	滚柱轴承	BEARING Roller	1
8	95229	键	KEY	1
9	95228	滚珠轴承	BEARING Ball	1
9	898101936	轴承	BEARING	1
10	95230	安装板	PLATE	1
11	95232	油封	SEAL Oil	1
12	95307	滚珠轴承	BEARING Ball	1
12	95307	滚珠轴承	BEARING Ball	1
12	822894	滚珠轴承	BEARING Ball	1
13	95308	油封	SEAL Oil	1
13	95308	油封	SEAL Oil	1
13	822897	油封	SEAL Oil	1
14	822896	下部推力板	THRUST PLATE Lower	1
15	9154A01	完整活塞总成	PISTON ASSEMBLY Complete	1
15	8M0103754	活塞总成	PISTON ASSY	1
15	9183A01	完整活塞总成	PISTON ASSEMBLY Complete	1
15	8M0103753	活塞总成	PISTON ASSY	1
15	9154	活塞	PISTON	1
15	9154A01	完整活塞总成	PISTON ASSEMBLY Complete	1
15	9183	活塞	PISTON	AR
16	95234	活塞环	RING Piston	1
16	95309	活塞环	RING Piston	AR
17	95235	活塞销	PIN Piston	1
17	898101917	活塞销	PIN-PISTON	1
18	952366	卡扣	CLIP	2
-	95220A5	动力头衬垫套件	GASKET SET Powerhead	1
-	898101928	衬垫套装-PH	GASKET SET-PH	1
-	95220A5	动力头衬垫套件	GASKET SET Powerhead	1
-	898101928	衬垫套装-PH	GASKET SET-PH	1
-	815076A2	动力头衬垫套件	GASKET SET Powerhead	1
-	8M0203727	衬垫套件 P/H	GASKET SET P/H	1

图 27驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	8343T15	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	2
3	849330	怠速排气套	BOOT Idle Exhaust	1
4	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	816054T1	下支架	MOUNT Lower	2
6	816056	垫圈	WASHER	4
7	82670817	螺母(.500-20)	NUT (.500-20)	2
7	898832	螺母(.500-20)	NUT (.500-20)	2
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	卡箍	CLAMP	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
11	67077T	黑色盖	COVER Black	2
11	8M4500752	盖板	COVER	2
12	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
13	35521	螺母	NUT	4
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
16	822838	垫圈 (.401 x .745 x .097)	WASHER (.401 x .745 x .097)	10
17	46335	螺母 (.375-24)	NUT (.375-24)	10
18	64649	堵头	PLUG	1
19	18276	排气管	TUBE Exhaust	1
19	18276T	排气管	EXHAUST TUBE	1
20	66350	下密封件	SEAL (LOWER)	1
20	66350001	密封件	SEAL	1
21	177261	上密封件	SEAL (UPPER)	1
21	8M0039076	密封件	SEAL	1
22	818900T8	驱动轴壳体	HOUSING Driveshaft	1
22	818900T24	驱动轴壳体	HOUSING Driveshaft	1
23	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	2
24	818908	双头螺柱 (.500-13/.500-20 x 4.120)	STUD (.500-13/.500-20 x 4.120)	2
25	816056	垫圈	WASHER	2
26	28040	螺母(.500-20)	NUT (.500-20)	2
26	898832	螺母(.500-20)	NUT (.500-20)	2
27	818909	排气挡板	PLATE Exhaust Blockoff	1
28	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
29	847539	垫圈	WASHER	1
30	822838	垫圈 (.401 x .745 x .097)	WASHER (.401 x .745 x .097)	10
31	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
31	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
31	34932	螺母 (.375-24)	NUT (.375-24)	8
31	82671013	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	8
32	848284T11	排气延伸板总成	PLATE ASSEMBLY Extension - Exhaust	1
33	8476581	固定座	RETAINER	1
34	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
35	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
36	91903	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	3
37	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	3
38	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	3
39	134391	螺母 (.4375-20)	NUT (.4375-20)	3
39	859116	螺母(.437-20)	NUT (.437-20)	3
40	8476503	水管	TUBE Water	1
40	67295	水管	TUBE Water	1
40	8M0042788	长型水管	TUBE-WATER-LONG	1
41	991734	衬垫	GASKET	1
42	18233A5	隔板总成	PLATE ASSEMBLY	1
43	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
43	823258	螺钉 (.312-18 x 1.250) (.312-18 X 1-1/4)	SCREW (.312-18 x 1.250) (.312-18 X 1-1/4)	6
44	822714	垫圈	WASHER	6
45	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
45	823106	定位销 (.875)	PIN Dowel (.875)	2
45	8M0043826	定位销	PIN Dowel	2
46	88397	密封件	SEAL	1
46	38970	密封件	SEAL	1
47	183074	衬垫	GASKET	1
48	848545T1	排气管延长段	EXTENSION Exhaust	1
48	41942F3	排气管延长段	EXTENSION Exhaust	1
48	879288T71	排气管延长段	EXTENSION Exhaust	1
49	782461	衬垫	GASKET	1
-	813859A95	衬垫套件	GASKET SET	1

图 28燃油箱(非原装) FUEL TANK (NOT ORIGINAL EQUIPMENT TANK)

REF	零件编号	中文名称	英文名称	数量
1	1529A26	燃油箱总成(6加仑)	TANK ASSEMBLY Fuel COMPLETE (6 GALLON)	1
2	99734A1	燃油箱贴花	DECAL FUEL TANK	1
2	13921	贴花	DECAL	1
3	99734A1	贴花	DECAL	1
3	13921	贴花	DECAL	1
4	25575	螺钉 通气-加注口盖	SCREW VENT-FILLER CAP	1
5	492211	通气螺钉垫圈	WASHER VENT SCREW	1
5	8M0204663	垫片@5	WASHER @5	1
6	22227	张力弹簧-通气螺钉	SPRING TENSION-VENT SCREW	1
7	28587	螺母 调速弹簧固定器	NUT SPEED-SPRING RETAINER	1
8	41065	衬垫 加注口盖至燃油箱	GASKET FILLER CAP TO FUEL TANK	1
9	64841A1	连接器/仪表总成	CONNECTOR/GAUGE ASSEMBLY COMPLETE	1
10	64841A3	燃油箱盖	COVER FUEL TANK	1
10	17792A1	浮子组件总成	BODY ASSEMBLY PickUp	1
11	75239	管	TUBE	1
12	98542A1	燃油表视窗总成	WINDOW ASSEMBLY FUEL GAUGE	1
13	28897A2	燃油表总成	GAUGE ASSEMBLY Fuel COMPLETE	1
14	20430	燃油表固定架	RETAINER FUEL GAUGE	1
15	28897A1	指针与浮子总成	INDICATOR AND FLOAT ASSEMBLY	1
16	99274	燃油表浮子	FLOAT FUEL GAUGE	1
17	20426	铆钉 指针至固定架	RIVET INDICATOR TO RETAINER	1
18	62568	螺钉(#10-16 x .375) 固定架至燃油箱盖	SCREW (#10-16 x .375) RETAINER TO FUEL TANK COVER	2
19	28862	衬垫 盖总成至框架	GASKET COVER ASSEMBLY TO FRAME	1
20	28860	框架固定件-燃油箱盖	FRAME RETAINING-FUEL TANK COVER	1
21	28903	螺母 固定框架至燃油箱	NUT RETAINING FRAME TO FUEL TANK	2
22	20411	螺钉(.190-24 x .62) 燃油箱盖至燃油箱	SCREW (.190-24 x .62) FUEL TANK COVER TO FUEL TANK	4
23	29070	燃油箱盖紧固螺钉垫圈	WASHER FUEL TANK COVER FASTENING SCREW	4

图 29燃油箱及油管(原装)(14升) FUEL TANK AND FUEL LINES (ORIGINAL)(14 LITRE)

REF	零件编号	中文名称	英文名称	数量
1	95539M	侧贴花(英文)	DECAL SIDE (ENGLISH)	1
1	95540M	侧贴花(法文)	DECAL SIDE (FRENCH)	1
2	95489M	顶部贴花(英文)	DECAL TOP (ENGLISH)	1
2	95503M	顶部贴花(法文)	DECAL TOP (FRENCH)	1
3	14223M	油箱盖总成	CAP ASSEMBLY Fuel Tank	1
3	18962M	燃油箱盖	CAP Fuel Tank	1
4	95541M	燃油接头壳体总成	HOUSING ASSEMBLY FUEL CONNECTOR	1
5	95501M	密封件	SEAL	4
6	95502M	螺钉	SCREW	4
7	95500M	壳体总成衬垫	GASKET HOUSING ASS'Y	1
8	16570M	燃油管路总成	LINE ASSEMBLY Fuel	1
8	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
9	30185A3	燃油卡口总成	BAYONET ASSEMBLY Fuel	1
9	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
10	30187	卡口阀体阀杆	STEM BAYONET BODY	1
10	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
11	20415	卡口阀体阀杆O型圈	O-RING BAYONET BODY STEM	1
11	16524	燃油接头O型圈	O-RING Fuel Connector	1
12	30189	卡口阀体弹簧总成	SPRING BAYONET BODY ASS'Y	1
13	30188	盖垫圈	WASHER CAP	1
14	63187	倒刺接头(0.250-18)燃油管	FITTING Barb (.250-18) FUEL LINE	1
15	16571M	燃油箱至注油泵软管	HOSE FUEL TANK TO PRIMER BULB	1
16	17149M	灯泡	BULB	1
16	13330Q07	注油泵总成 - Quicksilver品牌	BULB ASSEMBLY Primer - Quicksilver Brand	1
17	16573M	软管	HOSE	1
17	16571M	软管	HOSE	1
18	16574M	软管卡箍	CLAMP HOSE	4
19	16609M	发动机燃油接头	CONNECTOR Fuel ENGINE FUEL CONNECTOR	1
19	13563Q3	发动机端快速接头(水星)	QUICK DISCONNECT Engine End (Quicksilver)	1
20	82789M	发动机燃油接头壳体O型圈	O-RING ENGINE FUEL CONNECTOR HOUSING	1
21	14187M	燃油管接头	CONNECTOR FUEL LINE	1
22	82214M	垫圈	WASHER	1
23	82405M	螺栓	BOLT	1
24	82047M	卡箍	CLAMP	4
25	94806M	软管	HOSE	1
25	82012M	软管	HOSE	1
26	80365M	燃油滤清器	FILTER FUEL	1
27	97129M	软管	HOSE	1
27	82012M	软管	HOSE	1
