Mercury 250-hp-xs-6-cyl-3-0l 0t651945-thru-0t818042 — взрыв-схемы

Взрыв-схемы и спецификации запчастей Mercury 250-hp-xs-6-cyl-3-0l 0t651945-thru-0t818042: 22 схем.

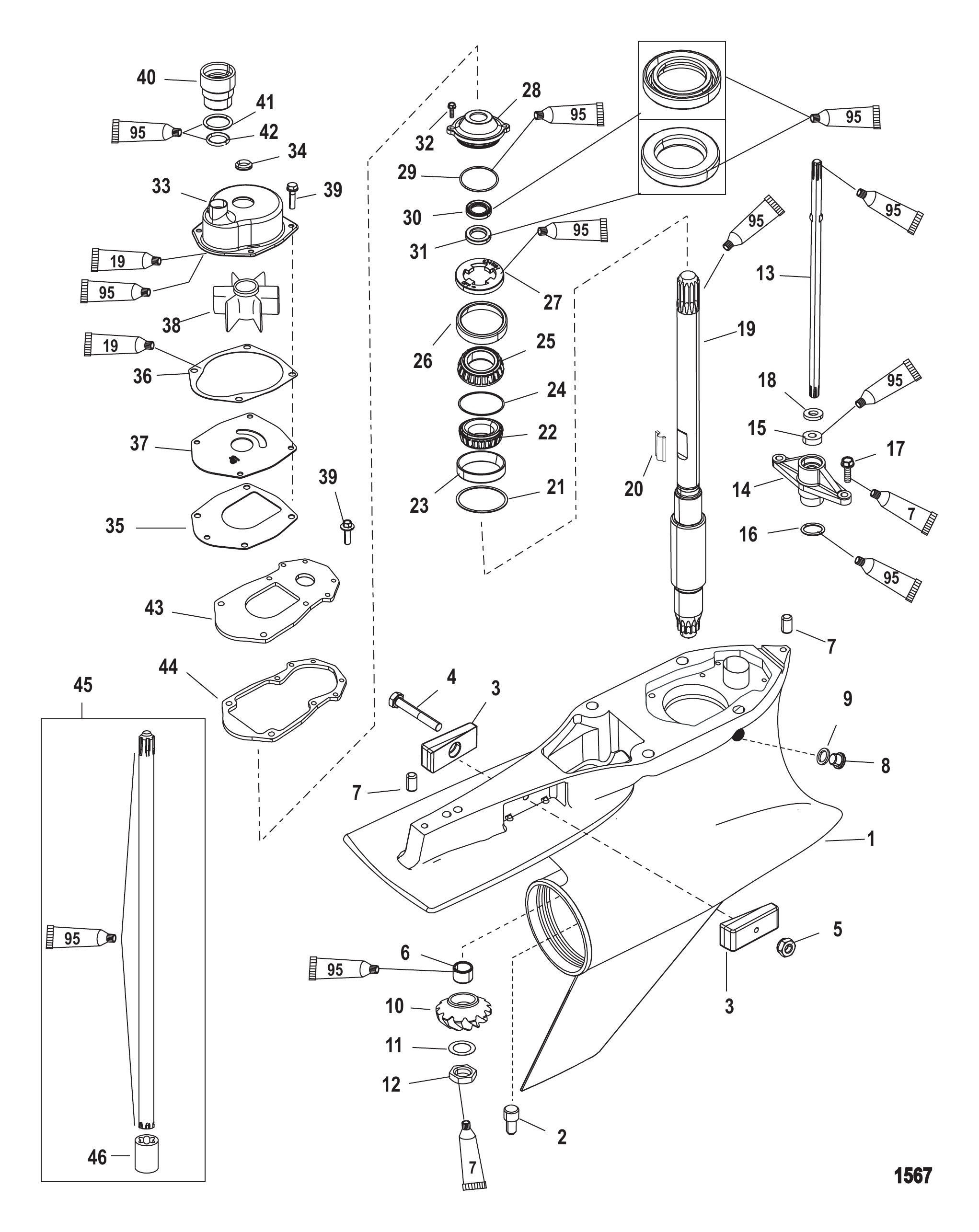

Рис. 1 — Gear Housing Driveshaft - SportMaster 2 дет.
Рис. 2 — Gear Housing (Driveshaft-Standard/Counter-SportMaster 2 дет.
Рис. 3 — Gear Housing Driveshaft-Counter Rotation-SportMaster 2 дет.
Рис. 4 — Gear Housing Driveshaft-Standard Rotation-SportMaster 2 дет.

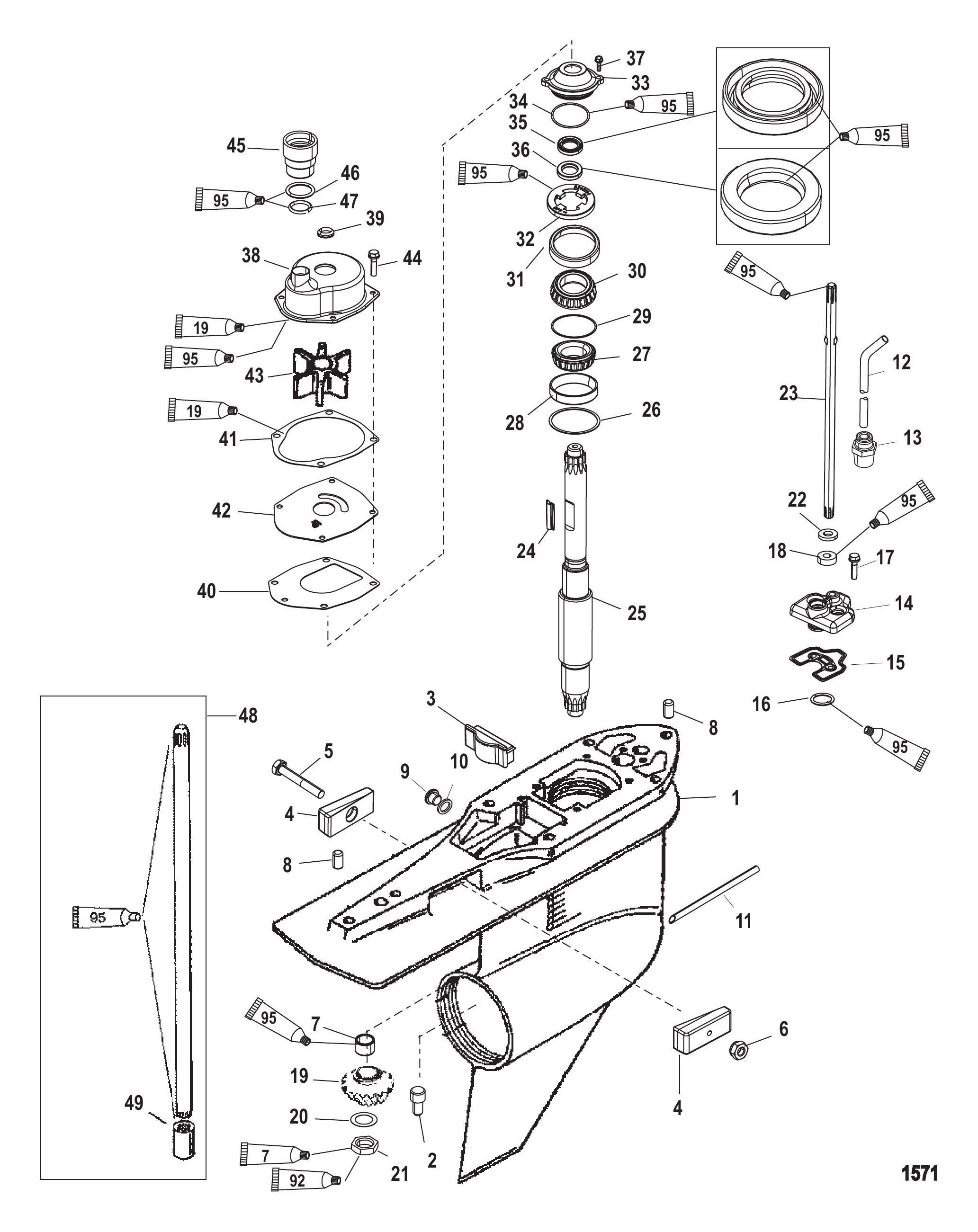

Рис. 5 — Gear Housing Driveshaft - TorqueMaster 2 дет.
Рис. 6 — Gear Housing Driveshaft - Torque Master 2 дет.
Рис. 7 — GEAR HSG. (DRIVESHAFT)(STD)(S/N-0T234999 & BELOW) 2 дет.
Рис. 8 — Gear Housing (Driveshaft)(Torque Master) 2 дет.
Рис. 9 — Gear Housing (Drive-TorqueMaster/FleetMaster-Heavy Duty) 2 дет.
Рис. 10 — Gear Housing Driveshaft-Standard-TorqueMaster 2 дет.
Рис. 11 — Gear Housing (Drive) Standard/Counter Rotatation-Sportmaster 2 дет.
Рис. 12 — Gear Housing Driveshaft-Standard/Counter-SportMaster 2 дет.

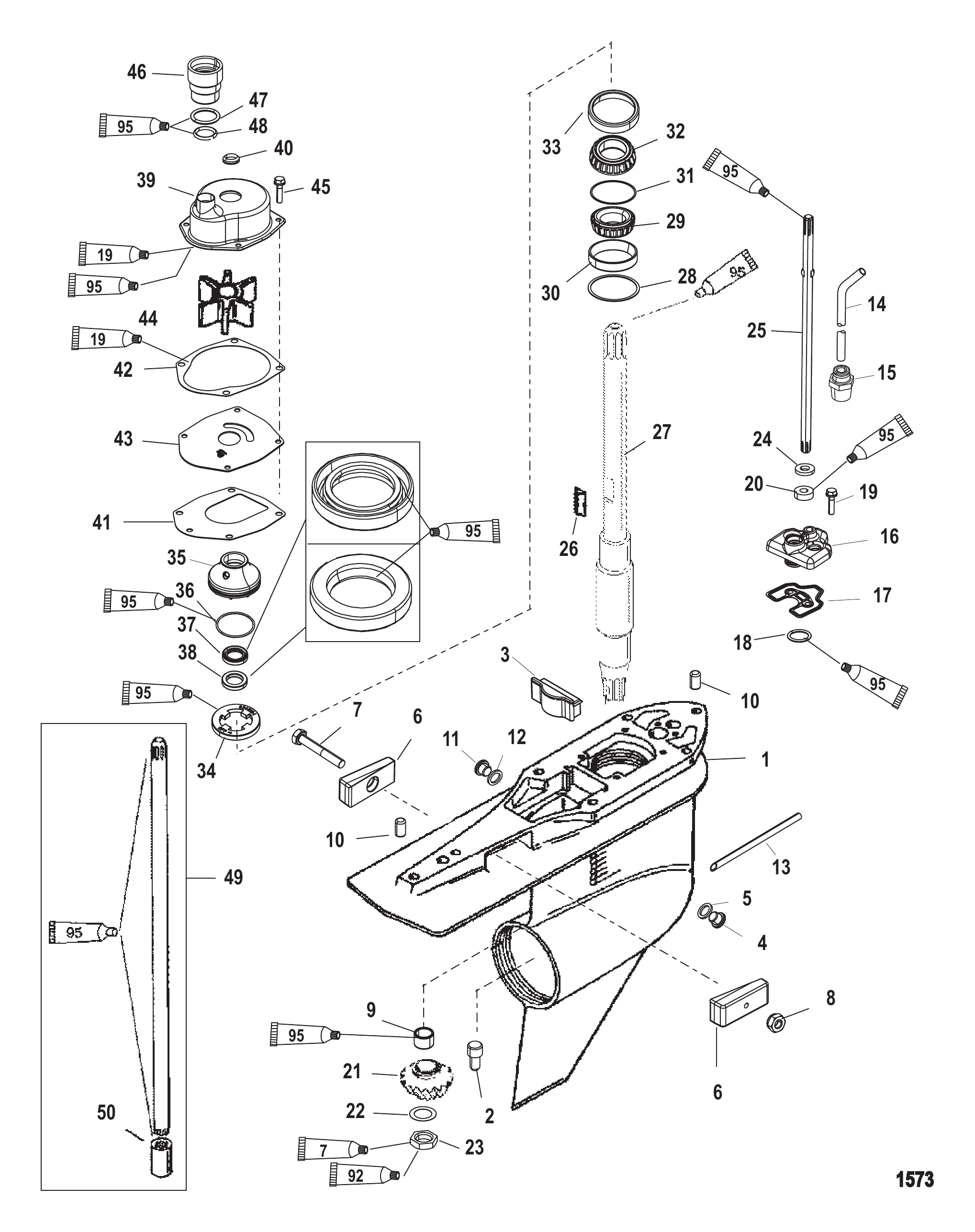

Рис. 13 — Gear Housing Driveshaft-Standard/Counter-FleetMaster 4 дет.
Рис. 14 — Gear Housing Driveshaft-Counter-FleetMaster 2 дет.
Рис. 15 — Gear Housing Driveshaft-Standard-FleetMaster 2 дет.

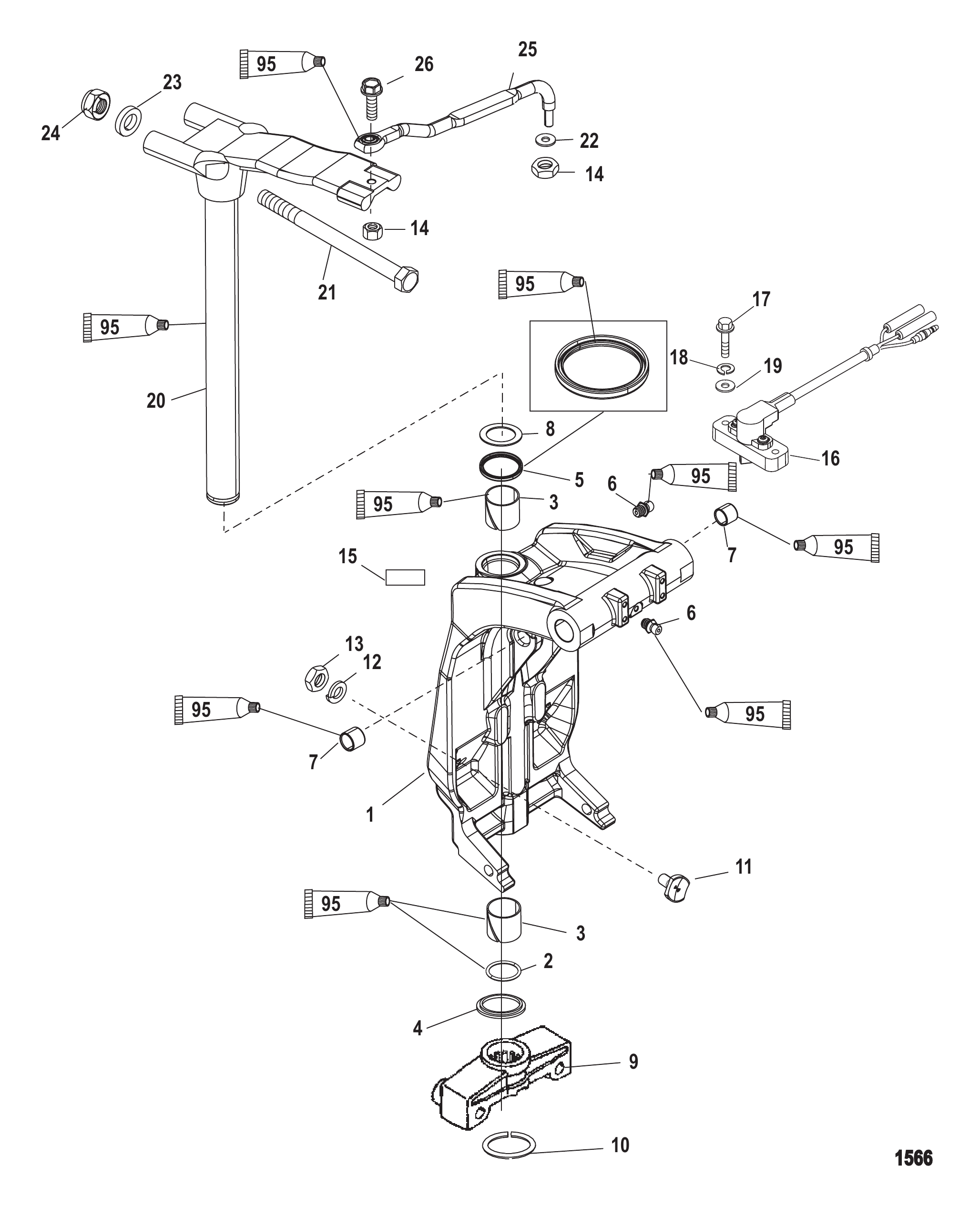

Рис. 16 — Swivel Bracket (With Integral Trim) 1 дет.
Рис. 17 — Swivel Bracket With Integral Trim 1 дет.

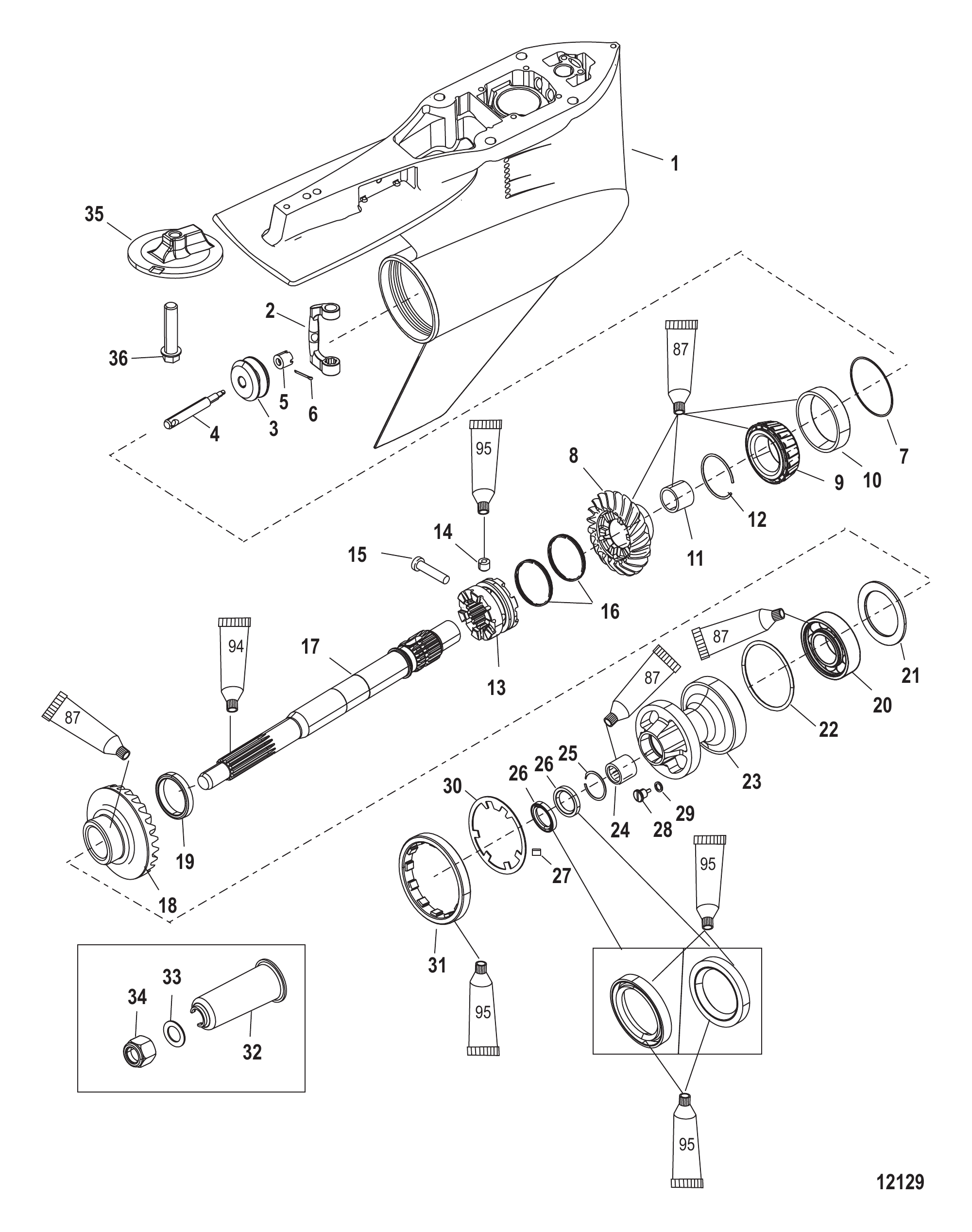

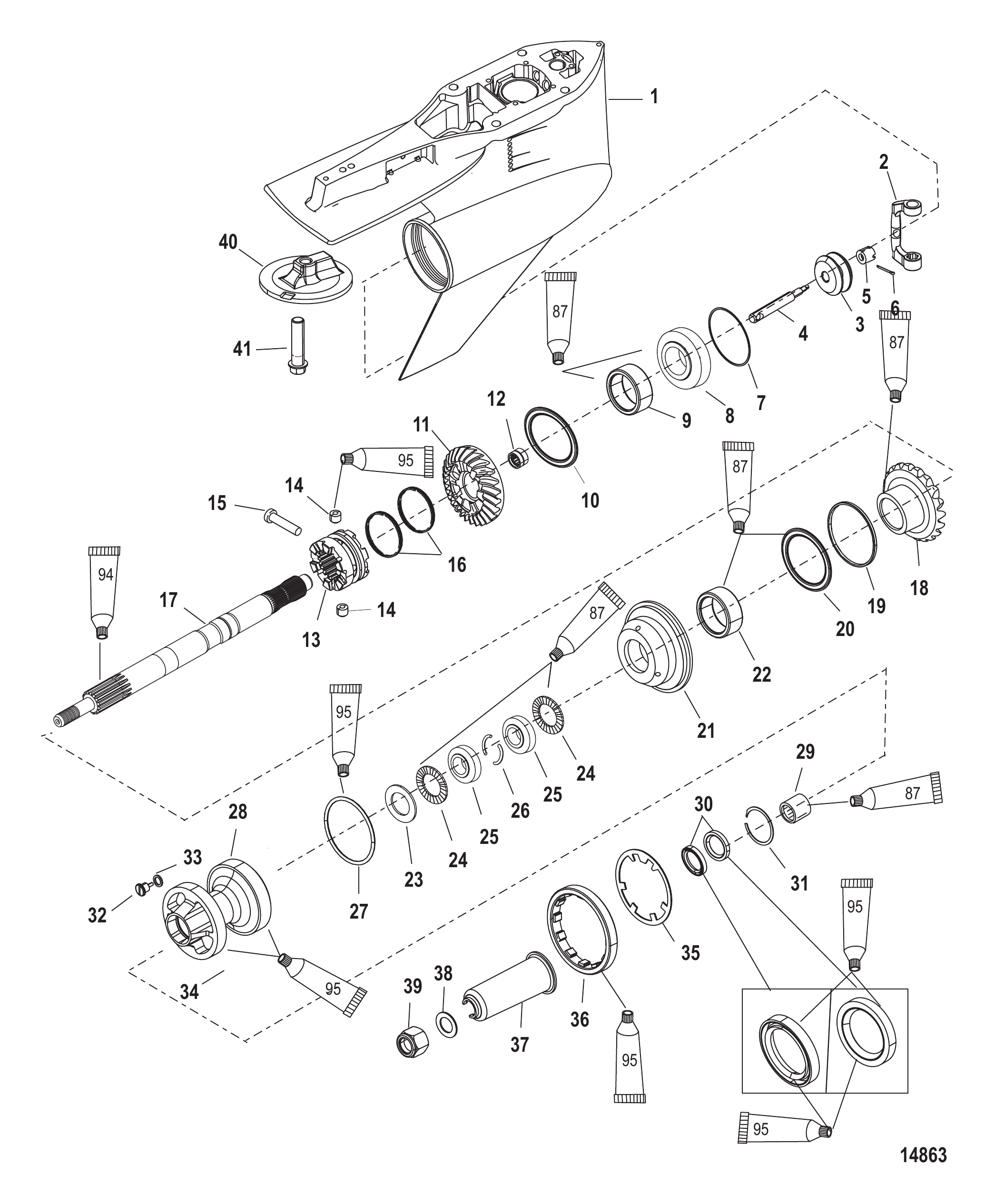

Рис. 18 — Gear Housing Propeller Shaft-Counter-FleetMaster 1 дет.
Рис. 19 — Gear Housing Propeller Shaft-Standard-Fleetmaster 1 дет.
Рис. 20 — Gear Housing Propeller Shaft-Standard-FleetMaster 1 дет.
Рис. 21 — GEAR HSG. (DRIVESHAFT)(STD)(S/N-0T235000 & UP) 1 дет.

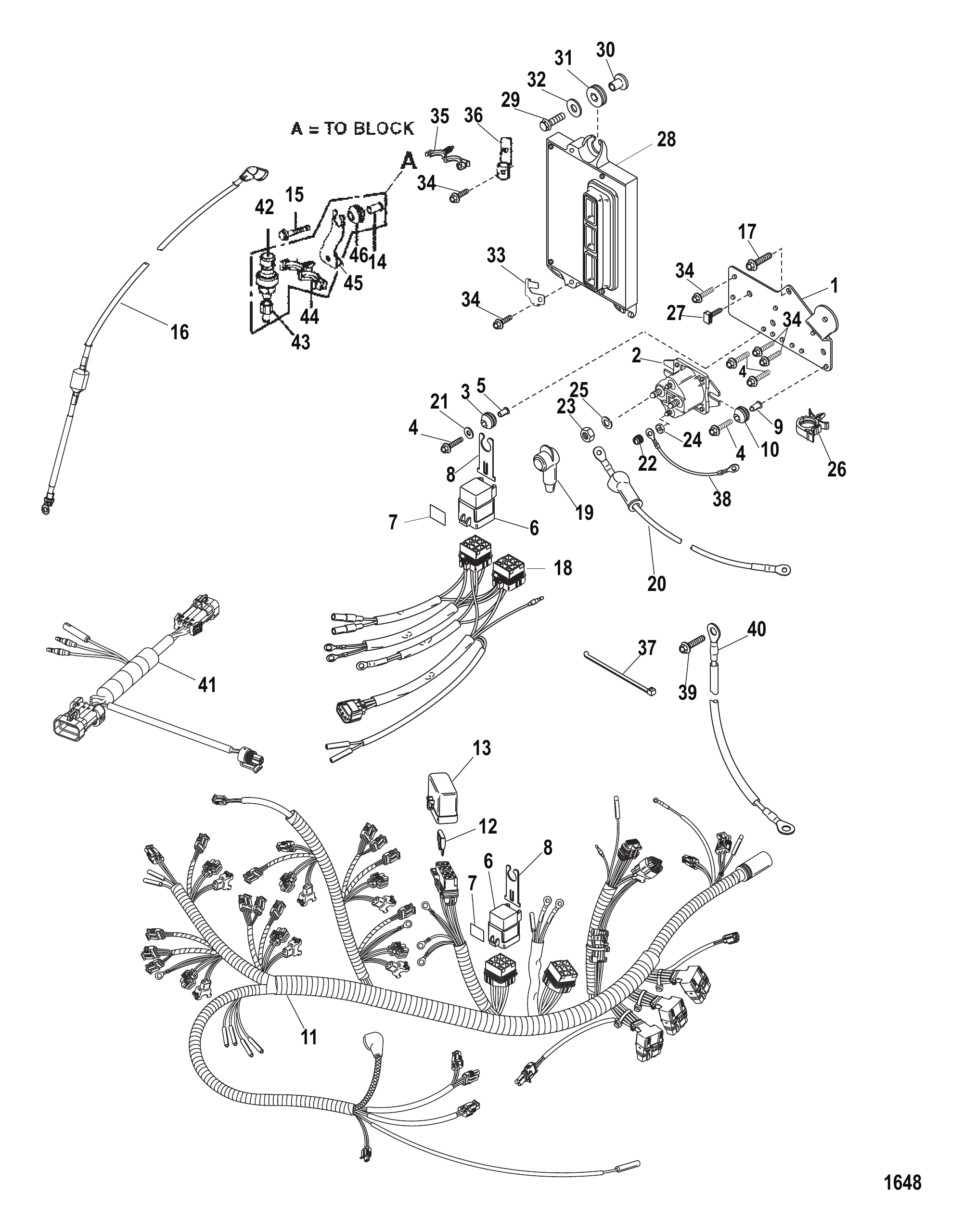

Рис. 22 — Solenoid Plate And Electrical Wiring 3 дет.
