东发 Tohatsu MFS75/90/100/115/140A 2024 - 爆炸图零件明细

四冲程 4-Stroke · 2024 年 · 手册号 002-21059-0BD · 共 23 个部位 · 986 条零件

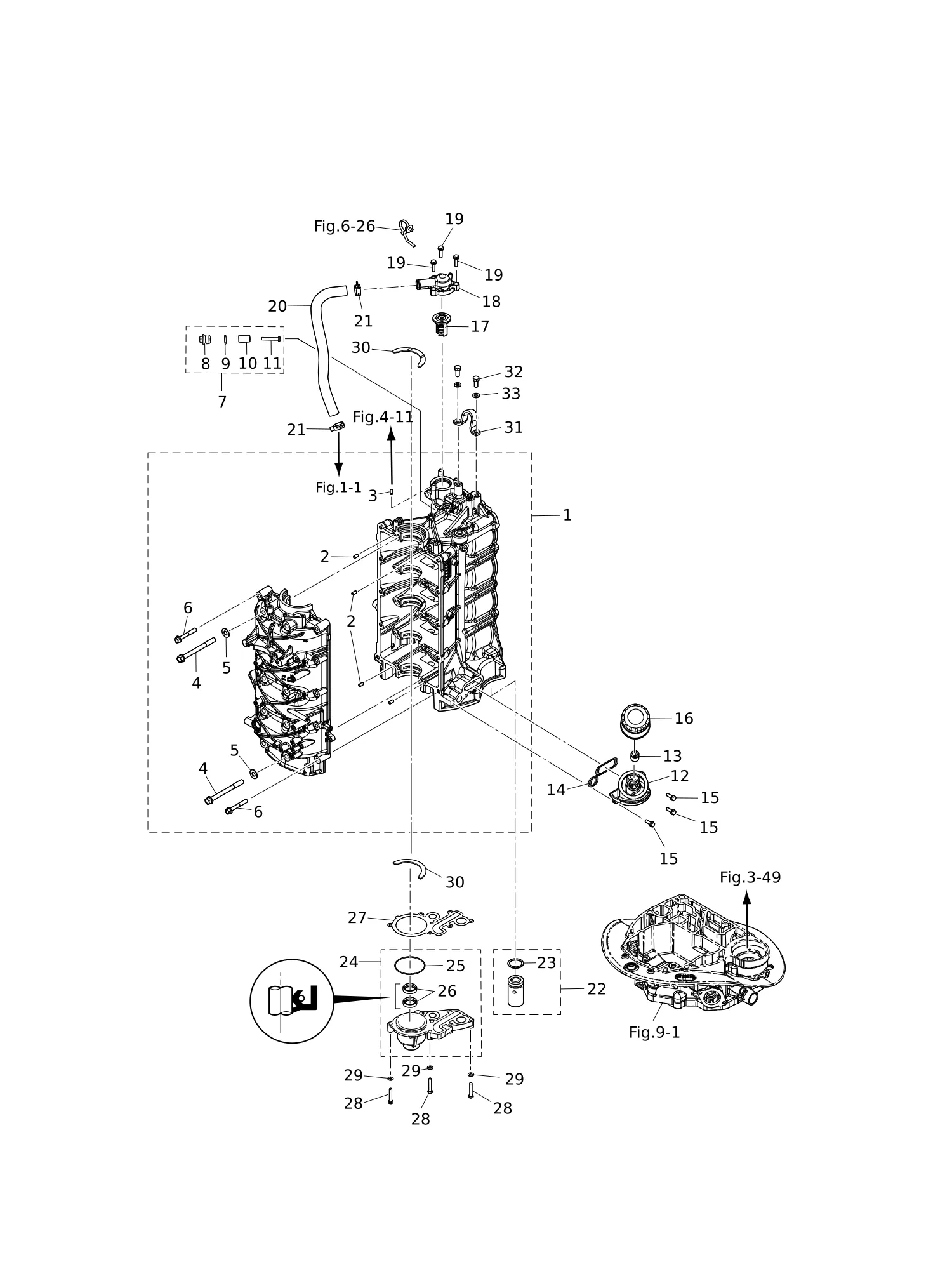

图 01气缸·曲轴箱 CYLINDER · CRANK CASE

REF	零件编号	中文名称	英文名称	数量
1	3SSB01100-2	气缸体与曲轴箱总成	CYL BLOCK & CRANKCASE ASSY	1
2	345-01111-0	* 定位销 6-12	* DOWEL PIN 6-12	10
3	3AB-01111-0	* 定位销 6-12	* DOWEL PIN 6-12	1
4	3SS-01113-0	* 螺栓 M10-105-P1.25	* BOLT M10-105-P1.25	10
5	940103-1000	* 垫圈	* WASHER	10
6	3SS-01114-0	* 螺栓 M8-55-P1.25	* BOLT M8-55-P1.25	10
7	3KM-01142-0	阳极螺塞总成	ANODE PLUG ASSY	1
8	3P0-01143-0	* 阳极塞	* ANODE PLUG	1
9	3T5-10046-0	* O型圈1.9-13	* O-RING 1.9-13	1
10	3P0-60218-0	* 阳极	* ANODE	1
11	921503-0530	* 螺钉	* SCREW	1
12	3SS-07637-0	机油滤清器支架	OIL FILTER BRACKET	1
13	3H8-07636-0	机油滤清器螺栓	OIL FILTER BOLT	1
14	3SS-07632-0	O型圈	O-RING	1
15	910103-5620	螺栓	BOLT	3
16	3BJ-07615-0	机油滤清器	OIL FILTER	1
17	3SS-01030-0	节温器	THERMOSTAT	1
18	3SS-01031-0	节温器盖	THERMOSTAT CAP	1
19	910103-5625	螺栓	BOLT	3
20	3SS-65210-0	冷却软管 21-28 440-87	COOLING HOSE 21-28 440-87	1
21	3SS-35143-0	卡扣	CLIP	2
22	3SS-07620-0	柱塞总成	PLUNGER ASSY	1
23	3SS-07631-0	* O型圈 2.4-18.8	* O-RING 2.4-18.8	1
24	3SSB01290-0	曲轴箱盖总成	CRANKCASE HEAD ASSY	1
25	151-00053-0	* O型圈2-66.5	* O-RING 2-66.5	1
26	3SS-01215-0	* 油封 22-32-7	* OIL SEAL 22-32-7	2
27	3SS-01214-0	曲轴箱盖垫片	CRANKCASE HEAD GASKET	1
28	3B2-61018-0	螺栓35mm	BOLT 35mm	7
29	9401E3-0600	垫圈	WASHER	7
30	3SS-00115-0	止推板	THRUST PLATE	2
31	3C7-01513-2	吊架	HANGER	1
32	910114-0820	螺栓	BOLT	2
33	941322-0800	弹簧垫圈	SPRING WASHER	2

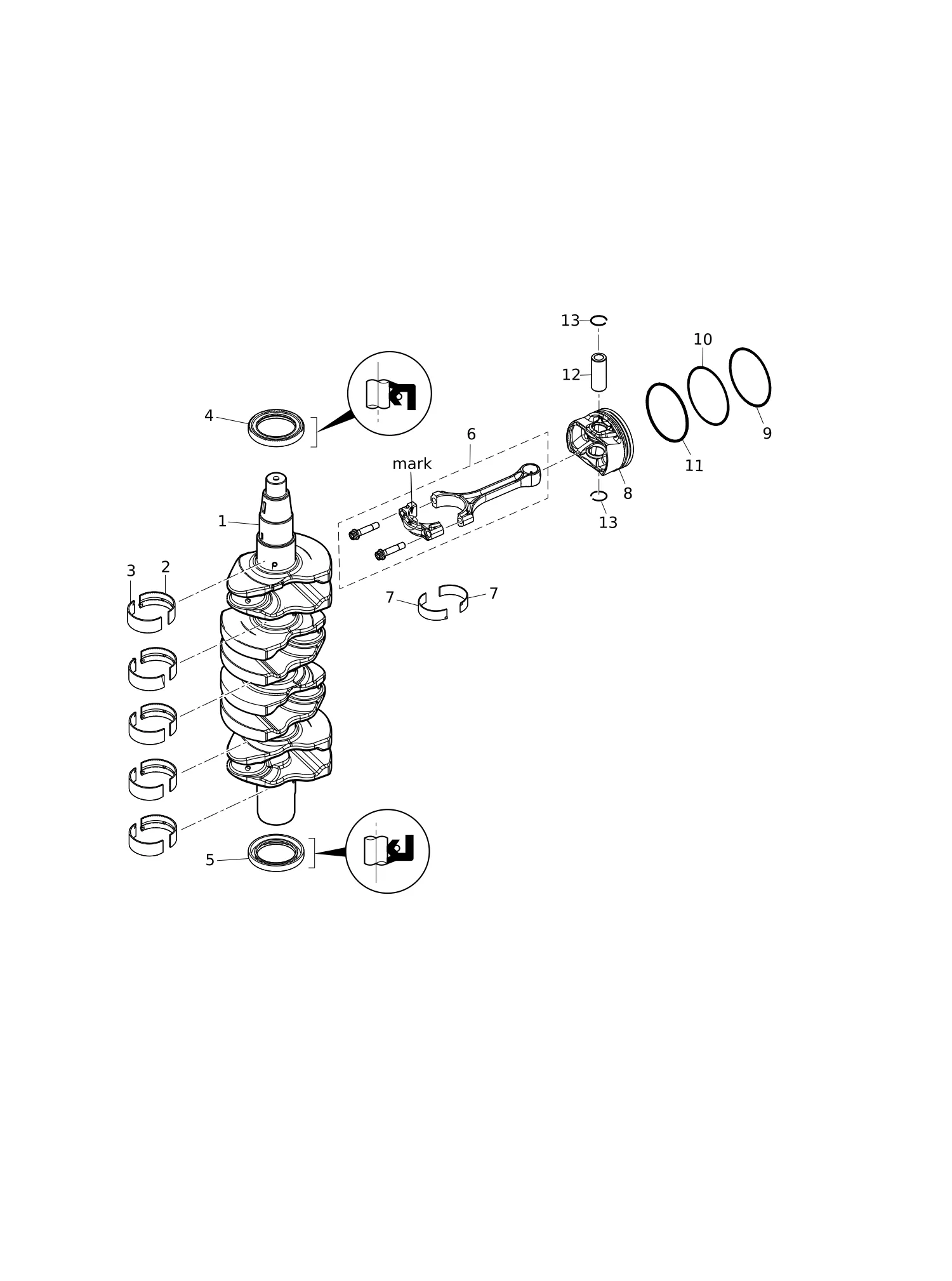

图 02活塞·曲轴 PISTON · CRANK SHAFT

REF	零件编号	中文名称	英文名称	数量
1	3SS-00030-0	曲轴总成	CRANKSHAFT ASSY	1
2	3SS-07707-0	滑动轴承	PLAIN SHAFT BEARING	1
2	3SS-07708-0	滑动轴承	PLAIN SHAFT BEARING	1
2	3SS-07750-0	滑动轴承	PLAIN SHAFT BEARING	1
2	3SS-07751-0	滑动轴承	PLAIN SHAFT BEARING	1
2	3SS-07752-0	滑动轴承	PLAIN SHAFT BEARING	1
3	3UG-07707-0	滑动轴承	PLAIN SHAFT BEARING	1
3	3UG-07708-0	滑动轴承	PLAIN SHAFT BEARING	1
3	3UG-07750-0	滑动轴承	PLAIN SHAFT BEARING	1
3	3UG-07751-0	滑动轴承	PLAIN SHAFT BEARING	1
3	3UG-07752-0	滑动轴承	PLAIN SHAFT BEARING	1
4	3SS-00121-0	油封 52-75-9	OIL SEAL 52-75-9	1
5	3UG-00121-0	油封 52-75-9	OIL SEAL 52-75-9	1
6	3SS-00040-0	连杆总成	CONNECTING ROD ASSY	4
7	3SS-00080-0	大端轴承	BIG END BEARING	1
7	3SS-00081-0	大端轴承	BIG END BEARING	1
7	3SS-00082-0	大端轴承	BIG END BEARING	1
7	3SS-00083-0	大端轴承	BIG END BEARING	1
7	3SS-00084-0	大端轴承	BIG END BEARING	1
8	3SS-00001-0	活塞（标准）	PISTON(STD)	4
9	3SS-00011-1	活塞环	PISTON RING	4
10	3SS-00012-1	活塞环	PISTON RING	4
11	3SS-00013-0	油环	PISTON RING-OIL	4
12	3SS-00021-0	活塞销	PISTON PIN	4
13	3SS-00024-0	活塞销卡簧	PISTON PIN CLIP	8

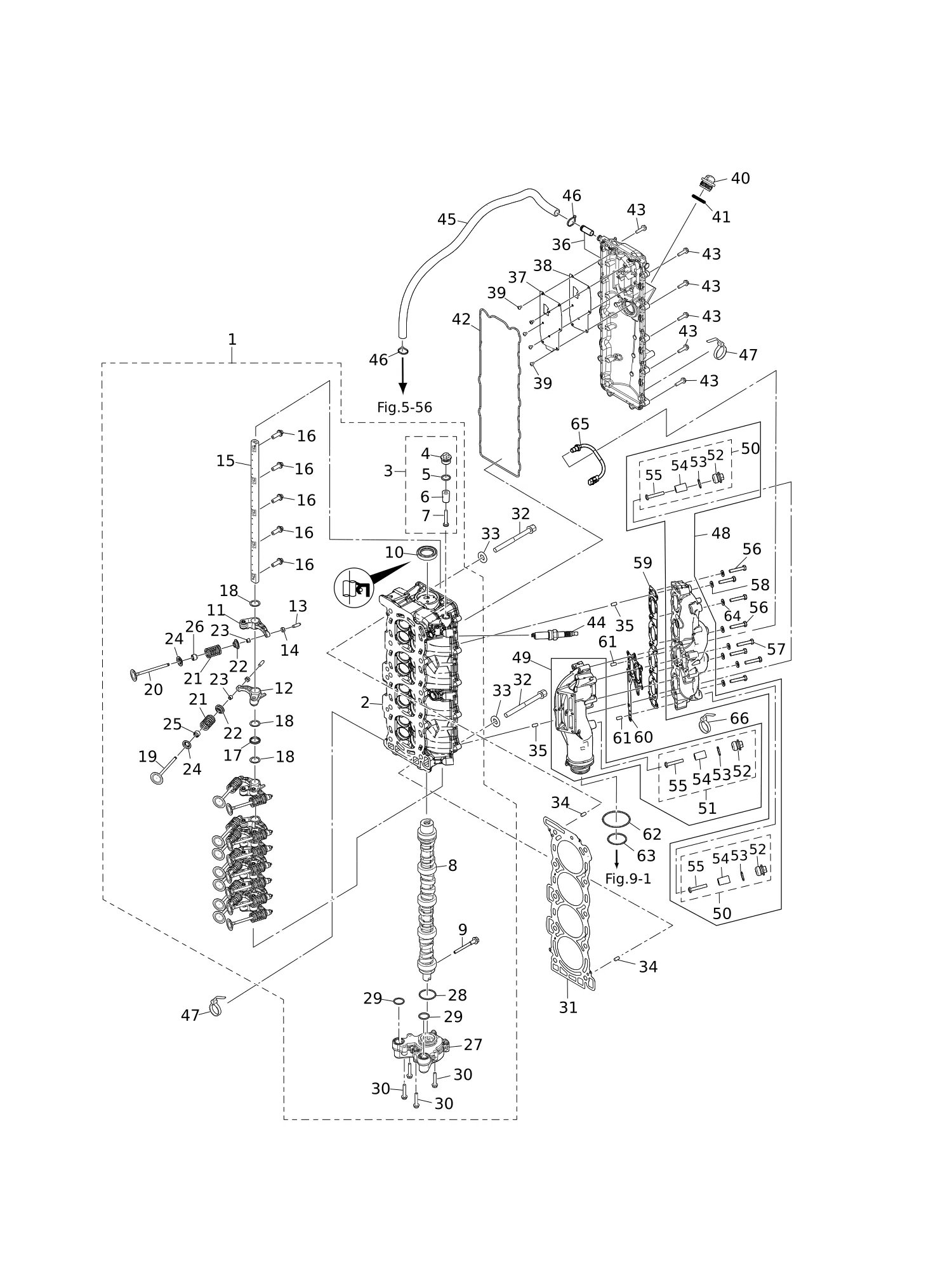

图 03气缸盖·机油泵 CYLINDERHEAD · OIL PUMP

REF	零件编号	中文名称	英文名称	数量
1	3SS-01000-0	气缸盖总成	CYLINDER HEAD COMPLETE	1
1	3ZG-01000-0	气缸盖总成	CYLINDER HEAD COMPLETE	1
2	3SS-01001-0	* 气缸盖总成	* CYLINDER HEAD ASSY	1
8	3SS-07810-0	* 凸轮轴总成	* CAMSHAFT ASSY	1
8	3ZG-07810-0	* 凸轮轴总成	* CAMSHAFT ASSY	1
9	3KY-07950-0	* 推力螺栓	* THRUST BOLT	1
10	3SS-07825-0	* 油封 30-47-8	* OIL SEAL 30-47-8	1
11	3WA-07935-0	* 摇臂	* ROCKER ARM	8
12	3UG-07935-0	* 摇臂	* ROCKER ARM	8
13	3R0-07238-0	* 调节螺钉	* ADJUSTING SCREW	16
14	3H8-07237-0	* 调节螺母	* ADJUSTING NUT	16
15	3SS-07920-0	* 摇臂轴	* ROCKER ARM SHAFT	1
16	3SS-07922-0	* 摇臂轴螺栓	* ROCKER SHAFT BOLT	5
17	3SS-07925-0	* 摇臂轴弹簧	* ROCKER SHAFT SPRING	4
18	3SS-07927-0	* 垫圈 18.2-24-0.5	* WASHER 18.2-24-0.5	16
19	3KY-07901-0	* 进气阀 φ32	* INTAKE VALVE φ32	8
20	3KY-07902-0	* 排气阀 φ28	* EXHAUST VALVE φ28	8
21	3KY-07903-0	* 阀门弹簧	* VALVE SPRING	16
22	3KY-07921-0	* 固定座	* RETAINER	16
23	3KY-07923-0	* 开口销	* COTTER	32
24	3KY-07905-0	* 阀门弹簧座	* VALVE SPRING SEAT	16
25	3R3-07204-0	* 进气阀杆油封	* INTAKE VALVE STEM SEAL	8
26	3R3-07206-0	* 排气阀杆密封	* EXHAUST VALVE STEM SEAL	8
27	3SS-07600-0	* 机油泵总成	* OIL PUMP ASSY	1
28	3SS-07639-0	* O型圈 2.4-37.2	* O-RING 2.4-37.2	1
29	3SS-07635-0	* O型圈 2.4-21.8	* O-RING 2.4-21.8	2
30	910103-5635	螺栓	* BOLT	4
31	3SS-01005-0	气缸盖衬垫	CYLINDER HEAD GASKET	1
32	3SS-01013-0	气缸盖螺栓 M10-114	CYLINDER HEAD BOLT M10-114	10
33	3SS-01015-0	垫圈10.5-20-2	WASHER 10.5-20-2	10
36	3SSB01022-0	气缸盖罩分总成	CYLINDER HEAD COVER SUB-ASSY	1
37	3SS-07731-0	呼吸室盖	BREATHER CHAMBER COVER	1
38	3SS-07732-0	呼吸室盖衬垫	BREATHER CHAMBER COVER GASKET	1
39	921503-0406	螺钉	SCREW	8
40	3R0-71015-1	机油加注口盖	OIL FILLER CAP	1
41	3R0-07422-0	O型圈 3.1-24.4	O-RING 3.1-24.4	1
42	3SS-01024-0	气缸盖罩垫片	CYLINDER HEAD COVER GASKET	1
43	910103-5625	螺栓	BOLT	13
44	9701-1-1130	火花塞 (LKR6E)	SPARK PLUG (LKR6E)	4
45	3SS-07735-0	呼吸管 50-575-125	BREATHER HOSE 50-575-125	1
46	3T5-84398-0	箍带 104	BAND 104	2
48	3SS-02327-0	排气歧管总成	EXHAUST MANIFOLD ASSY	1
49	3UG-02327-0	排气歧管总成	EXHAUST MANIFOLD ASSY	1
51	3KM-01142-0	* 阳极塞总成	* ANODE PLUG ASSY	1
52	3P0-01143-0	阳极塞	** ANODE PLUG	1
53	3T5-10046-0	O型圈 1.9-13	** O-RING 1.9-13	1
54	3P0-60218-0	阳极	** ANODE	1
55	921503-0530	螺钉	** SCREW	1
57	3KM-01012-0	气缸盖螺栓	CYLINDER HEAD BOLT	8
59	3SS-02335-0	排气歧管垫片	EXHAUST MANIFOLD GASKET	1
60	3UG-02335-0	排气歧管垫片	EXHAUST MANIFOLD GASKET	1
61	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
62	3SS-10311-0	O型圈 3.1-74.4	O-RING 3.1-74.4	1
63	3UG-10311-0	O型圈 3.1-49.4	O-RING 3.1-49.4	1
64	940103-0800	垫圈	WASHER	8
65	3VS-72510-0	发动机温度传感器	ENGINE TEMP SENSOR	1
66	3SS-84398-0	带箍φ9-φ45	BAND φ9-φ45	1

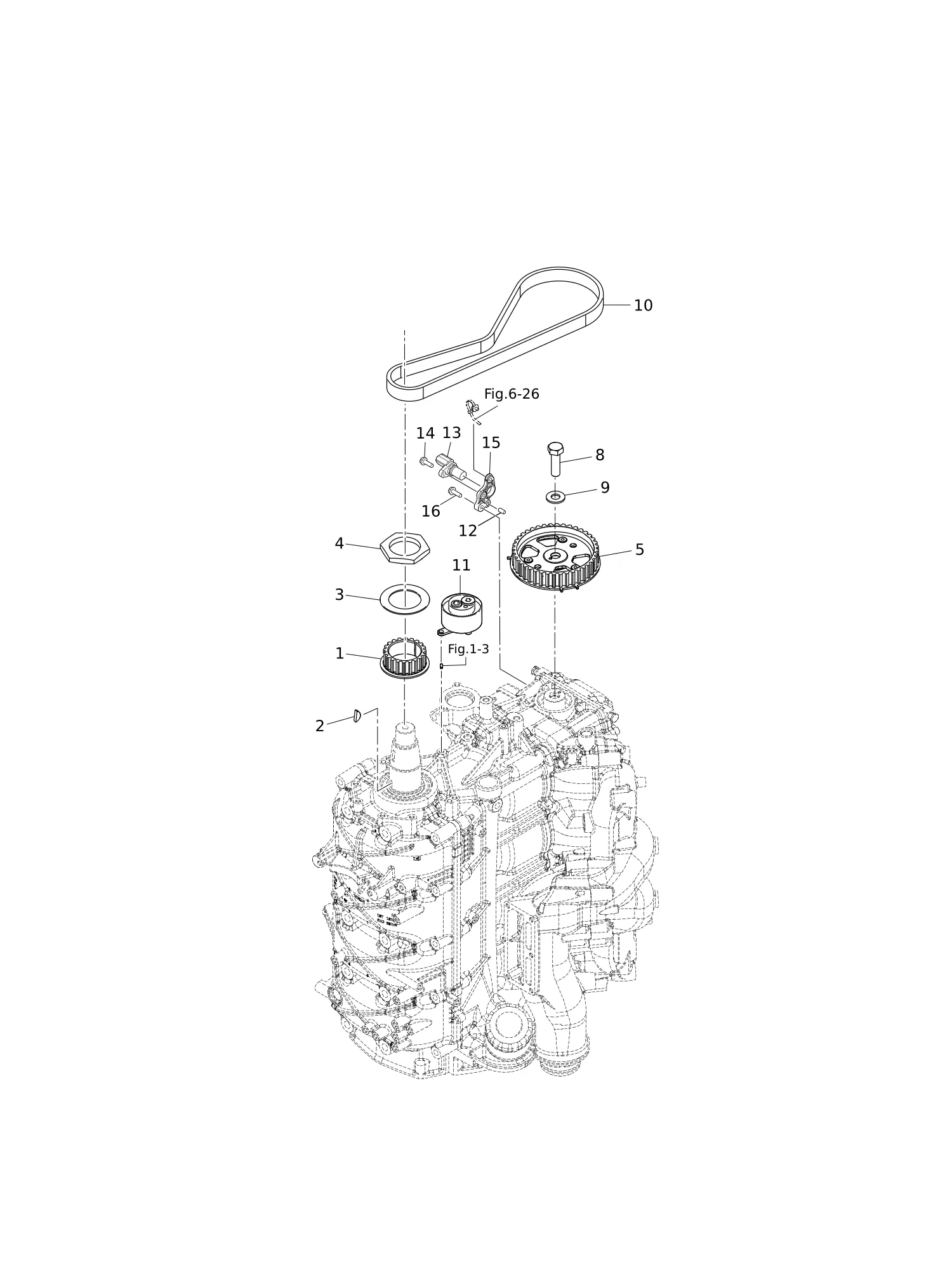

图 04皮带轮·正时皮带 PULLEY · TIMING BELT

REF	零件编号	中文名称	英文名称	数量
1	3SS-10060-0	驱动皮带轮	DRIVE PULLEY	1
2	309-00131-0	键 10-3.7-3	KEY 10-3.7-3	1
3	3SS-10063-0	皮带导轮	BELT GUIDE	1
4	3SS-10068-0	螺母 M45-P1.5	NUT M45-P1.5	1
5	3SS-10065-0	从动皮带轮带角板	DRIVEN PULLEY W/ANGLE PLATE	1
8	3SS-02319-0	螺栓 M12-40-P1.25	BOLT M12-40-P1.25	1
9	3SS-01116-0	垫片 13-26-3.2	WASHER 13-26-3.2	1
10	3SS-10045-0	正时皮带	TIMING BELT	1
11	3SS-10070-0	正时皮带张紧器	TIMING BELT TENSIONER	1
12	345-01111-0	定位销6-12	DOWEL PIN 6-12	1
13	3SS-07817-0	凸轮轴角度传感器	CAM ANGLE SENSOR	1
15	3SS-07819-0	凸轮轴角度传感器支架	CAM ANGLE SENSOR BRACKET	1
16	910103-5620	螺栓	BOLT	1

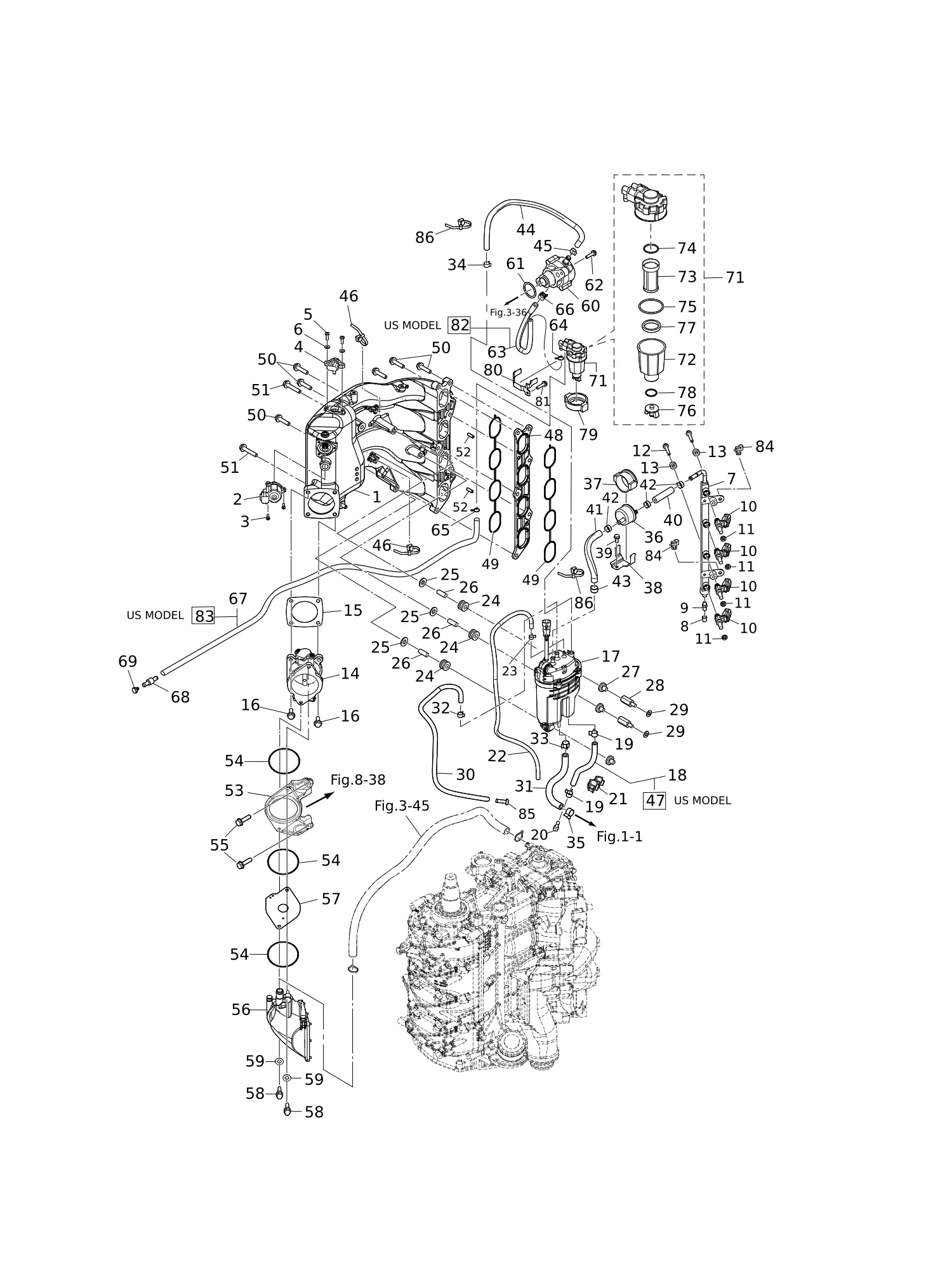

图 05进气歧管·燃油系统 INTAKE MANIFOLD · FUEL SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	3SS-02091-0	进气歧管	INTAKE MANIFOLD	1
2	3SS-10211-0	怠速控制阀	ISC VALVE	1
3	921503-0414	螺钉	SCREW	3
4	3RS-10214-0	进气压力传感器	MAP SENSOR	1
5	921503-0516	螺钉	SCREW	2
6	940103-0500	垫圈	WASHER	2
7	3SSB10201-0	燃油轨	FUEL RAIL	1
8	3T5-10099-0	盖帽	CAP	1
9	3T5-10098-1	阀门总成（压力检测）	VALVE ASSY (PRESSURE CHECK)	1
10	3SS-10300-0	喷油器总成	FUEL INJECTOR ASSY	4
11	3RS-10323-0	密封环	SEAL RING	4
12	910103-5635	螺栓	BOLT	2
13	3BA-63207-0	轴环 6.5-12.5-7.5	COLLAR 6.5-12.5-7.5	2
14	3SS-10100-0	节气门体总成	THROTTLE BODY ASSY	1
15	3SS-10104-0	衬垫	GASKET	1
16	910103-5825	螺栓	BOLT	4
17	3SS-10150-1	蒸汽分离器总成	VAPOR SEPARATOR ASSY	1
18	98AB-50-220	软管	HOSE	1
19	3GT-35143-0	卡环 φ9.4	CLIP φ9.4	2
20	3SS-03813-0	塞	PLUG	1
21	3T1-06917-0	夹箍φ10	CLAMP φ10	1
22	98AL-40-920	软管	HOSE	1
23	3BJ-02215-0	卡环 φ7.8	CLIP φ7.8	1
24	3KY-06920-0	橡胶支座	RUBBER MOUNT	3
25	940103-0800	垫圈	WASHER	3
26	3KY-01080-1	销 φ8-22	PIN φ8-22	3
27	3KY-10155-0	衬套	BUSHING	3
28	3SS-06162-0	垫片	SPACER	2
30	3UG-65212-0	水管 L=650 5-7	WATER HOSE L=650 5-7	1
31	3SS-65212-0	水管 L=160 33-7	WATER HOSE L=160 33-7	1
34	181-33182-1	卡扣φ12.5	CLIP φ12.5	1
35	345-70114-1	卡扣φ11.3	CLIP φ11.3	1
36	3ACB10143-0	高压燃油滤清器	HIGH PRESSURE FUEL FILTER	1
37	3AC-10145-0	燃油滤清器橡胶座	FUEL FILTER RUBBER MOUNT	1
38	3SS-02239-0	板	PLATE	1
39	910103-5616	螺栓	BOLT	1
40	3SS-02209-0	低渗透软管 L=50 6.5-14.5	LOW PERMEATION HOSE L=50 6.5-14.5	1
41	3AC-02209-0	低渗透软管 L=140	LOW PERMEATION HOSE L=140	1
42	3AC-10087-0	夹箍φ16.8	CLAMP φ16.8	3
43	3T5-10086-0	卡箍 21/32	CLAMP 21/32	1
44	3SS-02170-0	带保护套燃油软管	FUEL HOSE W/PROTECTOR	1
44	3SS-04085-0	带保护套燃油软管	FUEL HOSE W/PROTECTOR	1
46	3SS-84398-0	带箍φ9-φ45	BAND φ9-φ45	2
47	3SS-02135-0	低渗透软管 L=220 5-10	LOW PERMEATION HOSE L=220 5-10	1
48	3SS-03952-0	绝缘体	INSULATOR	1
49	3SS-02012-0	O型圈 φ1.9	O-RING φ1.9	2
50	910103-5835	螺栓	BOLT	6
51	910103-5845	螺栓	BOLT	2
52	3B2-01111-0	定位销6-16	DOWEL PIN 6-16	2
53	3SS-02503-0	支架	HOLDER	1
54	3SS-10046-0	O型圈	O-RING	1
56	3SS-02409-0	进气消声器总成	INTAKE SILENCER ASSY	1
57	3SS-03536-0	节流阀	RESTRICTOR	1
57	3UG-03536-0	节流阀	RESTRICTOR	1
57	3UH-03536-0	节流阀	RESTRICTOR	1
57	3UJ-03536-0	节流阀	RESTRICTOR	1
58	3NT-02095-0	螺栓35mm	BOLT 35mm	2
59	940103-0600	垫圈	WASHER	2
60	3SS-04000-0	燃油泵总成	FUEL PUMP ASSY	1
61	3SS-03818-0	O型圈 3.5-31.2	O-RING 3.5-31.2	1
62	910103-5625	螺栓	BOLT	2
63	3SS-02211-0	燃油软管 长250 5.5-7.5	FUEL HOSE L=250 5.5-7.5	1
65	338-02215-0	卡扣φ10	CLIP φ10	1
66	3AC-09056-1	卡扣φ13.5	CLIP φ13.5	1
67	3SS-02212-1	燃油软管 长1100_5-7	FUEL HOSE L=1100_5-7	1
68	3VS-70235-0	燃油软管接头	FUEL HOSE JOINT	1
69	3T1-03813-0	塞	PLUG	1
71	3RS-02230-0	燃油滤清器总成	FUEL FILTER ASSY	1
72	3RS-02237-0	* 杯状件	* CUP	1
73	3B7-02234-0	* 滤清器	* FILTER	1
74	3B7-02236-0	* O型圈	* O-RING	1
75	3RS-02235-0	* O型圈	* O-RING	1
76	3RS-02253-0	* 排水阀	* DRAIN VALVE	1
77	3RS-02229-0	* 浮子	* FLOAT	1
78	3RS-02258-0	* 密封件	* SEAL	1
79	3RS-02232-0	燃油滤清器固定座	FUEL FILTER HOLDER	1
80	3RS-02239-0	板	PLATE	1
81	910103-5612	螺栓	BOLT	1
82	3SS-04060-0	低渗透软管 L=250 5.5-7.5	LOW PERMEATION HOSE L=250 5.5-7.5	1
83	3SS-04055-1	低渗透软管 L=1100 5-7	LOW PERMEATION HOSE L=1100 5-7	1
84	3KY-84398-0	箍带	BAND	2
85	3T1-01138-0	管接头 6-8-11	NIPPLE 6-8-11	1
86	3T5-84398-0	箍带 104	BAND 104	2

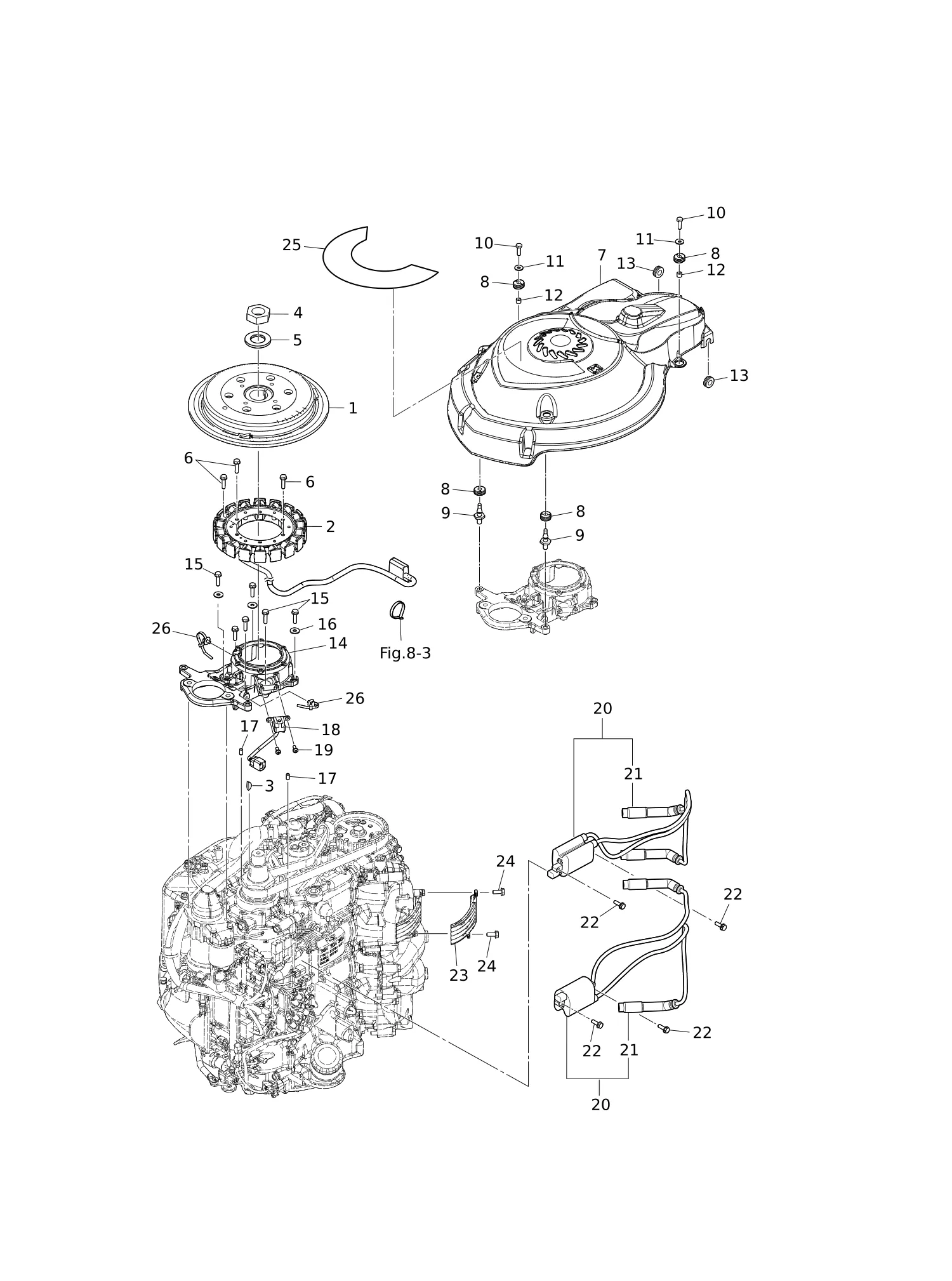

图 06磁电机 MAGNETO

REF	零件编号	中文名称	英文名称	数量
1	3SS-06191-0	带齿圈飞轮	FLYWHEEL W/RING GEAR	1
2	3SS-06123-0	交流发电机总成	ALTERNATOR ASSY	1
3	334-00131-0	键 19-7-5	KEY 19-7-5	1
4	3SS-00132-0	螺母 27-P1.5	NUT 27-P1.5	1
5	3SS-00133-0	垫片 27.5-50-5	WASHER 27.5-50-5	1
6	910103-5630	螺栓	BOLT	6
7	3SS-06301-0	齿圈盖	RING GEAR COVER	1
8	3T1-67005-0	索环 16-2.5	GROMMET 16-2.5	4
9	1E0-36056-0	挂钩	HOOK	2
10	910103-0620	螺栓	BOLT	2
11	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	2
12	3A0-76079-0	轴套 6.2-9-7.4	COLLAR 6.2-9-7.4	2
13	172-36008-0	索环 13-2	GROMMET 13-2	2
14	3SS-06008-0	线圈支架	COIL BRACKET	1
15	3M3-02319-0	螺栓30mm	BOLT 30mm	6
16	940103-0600	垫圈	WASHER	6
17	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
18	3SS-06071-0	脉冲线圈	PULSAR COIL	1
19	921503-0512	螺钉	SCREW	2
20	3SS-06469-0	带帽点火线圈	IGNITION COIL W/R-CAP	2
21	3SS-06999-0	* 带电阻火花塞帽	* PLUG CAP W/RESISTANCE	2
22	910103-5620	螺栓	BOLT	4
23	3SS-06025-0	支架	HOLDER	1
24	910103-5616	螺栓	BOLT	2
25	3SS-72181-0	警示标贴(B型)	CAUTION DECAL (B)	1
25	3UG-72181-0	警示标贴(B型)	CAUTION DECAL (B)	1
26	3SS-84398-0	带箍φ9-φ45	BAND φ9-φ45	4

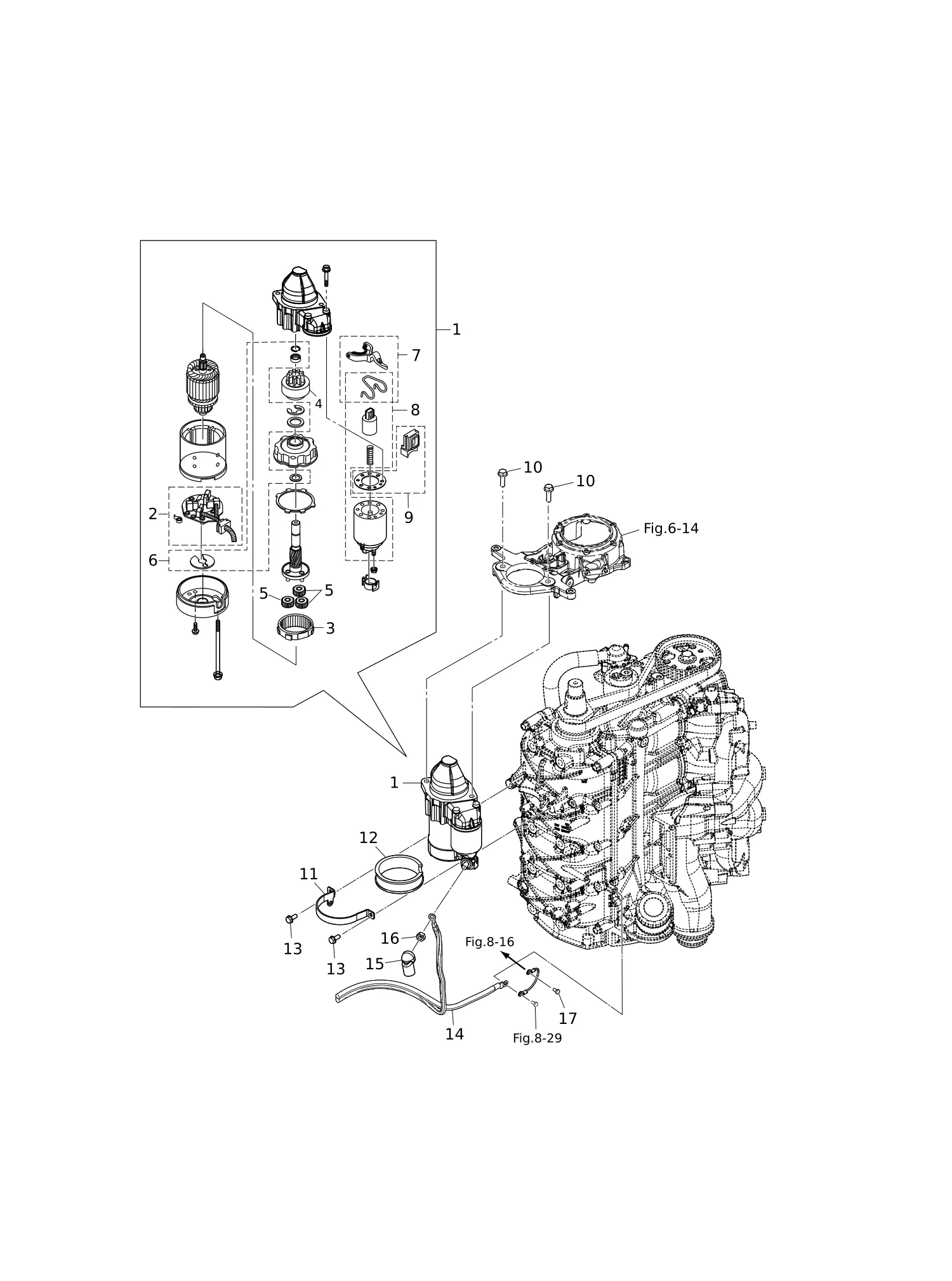

图 07电气部件(启动电机) ELECTRIC PARTS (STARTER MOTOR)

REF	零件编号	中文名称	英文名称	数量
1	3KY-76010-1	启动马达总成	STARTER MOTOR ASSY	1
2	3KY-76014-0	* 碳刷架	* BRUSH HOLDER	1
3	3FW-76317-0	* 行星齿轮	* PLANET GEAR	1
4	3FW-76015-0	* 小齿轮总成	* PINION ASSY	1
5	3FW-76314-0	* 内齿轮	* INTERNAL GEAR	3
6	3FW-76318-0	* 垫圈套装	* WASHER SET	1
7	3FW-76320-0	* 换挡杆总成	* SHIFT LEVER SET	1
8	3FW-76321-0	* 磁力开关	* MAGNETIC SWITCH	1
9	3FW-76322-0	* 防尘罩套装	* DUST COVER SET	1
10	910103-5830	螺栓	BOLT	2
11	3KY-76009-0	启动马达固定带	STARTER MOTOR BAND	1
12	3FW-76007-0	减震器	DAMPER	1
13	910103-5616	螺栓	BOLT	2
14	3FW-76120-0	蓄电池电缆	BATTERY CABLE	1
15	3FW-76145-0	端子盖 15.5-18.28	TERMINAL CAP 15.5-18.28	1
16	930103-0800	螺母	NUT	1
17	910103-5612	螺栓	BOLT	1

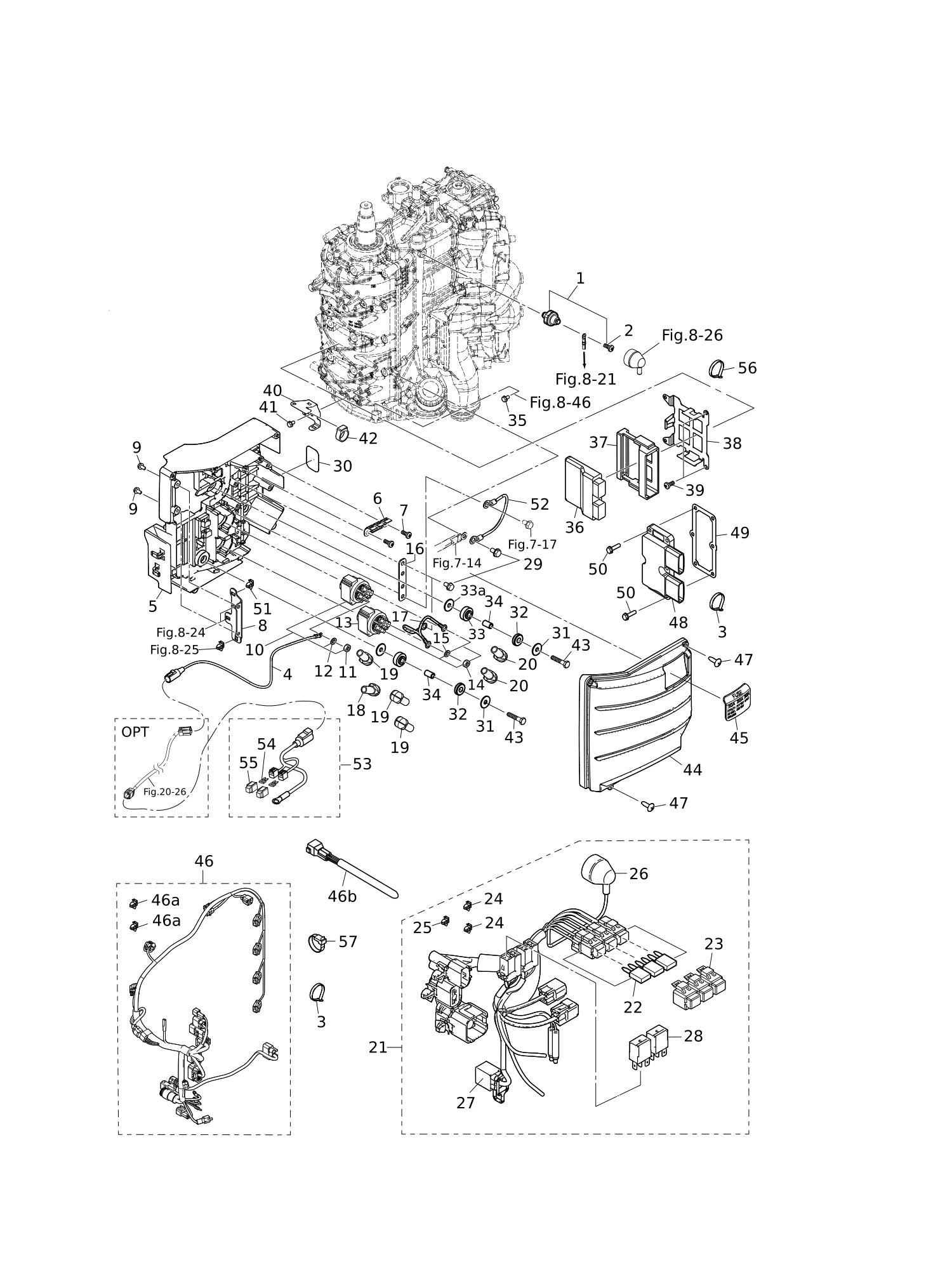

图 08电气部件 ELECTRIC PARTS

REF	零件编号	中文名称	英文名称	数量
1	3SS-07611-0	油压开关	OIL PRESSURE SWITCH	1
2	921503-6406	* 螺钉	* SCREW	1
3	3F9-84398-0	箍带 205	BAND 205	2
4	3SS-76141-0	启动电缆	STARTER CABLE	1
5	3SS-06901-0	支架	BRACKET	1
6	3KY-76064-0	保险丝支架	FUSE HOLDER BRACKET	1
7	3V1-05913-0	自攻螺丝 5-12	TAPPING SCREW 5-12	2
8	3SS-62004-0	线束固定座 t=1.5mm	CORD HOLDER t=1.5mm	1
10	3C8-72580-0	动力升降倾斜装置电磁阀开关(A)	PTT SOLENOID SWITCH (A)	1
13	3C8-72581-0	动力升降倾斜装置电磁阀开关(B)	PTT SOLENOID SWITCH (B)	1
14	930103-0600	螺母	* NUT	3
15	941303-0600	* 弹簧垫圈	* SPRING WASHER	3
16	3SS-06869-0	支架 t=2	BRACKET t=2	1
17	3KY-72583-0	电磁开关线束(B) L=150	SOLENOID SWITCH CORD (B) L=150	1
18	3AA-76145-0	端子盖 13-13-28	TERMINAL CAP 13-13-28	1
19	3Y1-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	3
20	3A3-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	2
21	3UG-76110-0	线束总成	CORD ASSY	1
22	3T5-76247-0	* 保险丝 20A	* FUSE 20A	2
22	3T5-76249-0	* 保险丝 30A	* FUSE 30A	1
23	1E0-34092-0	* 盖帽(绿色)	* CAP (G)	1
23	1E0-34093-0	* 盖帽(黄色)	* CAP (Y)	2
25	3UG-06973-0	* 卡箍	* CLAMP	1
26	3KY-07612-0	* 护孔环	* GROMMET	1
27	3KY-76037-0	* 线缆端子塞	* CABLE TERMINAL PLUG	1
28	3SS-06330-0	* 继电器	* RELAY	2
30	3SS-72020-0	火花塞帽编号贴花	PLUG CAP NUMBER DECAL	1
32	346-67113-0	8.5-14-2.5支架	MOUNT 8.5-14-2.5	4
33a	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	4
33	3B7-06920-0	橡胶支座 8.5-14-2.5	RUBBER MOUNT 8.5-14-2.5	4
34	346-67114-1	垫圈 6.2-9-15.7	SPACER 6.2-9-15.7	4
36	3SS-06401-0	电控单元总成(115)	ECU ASSY (115)	1
36	3UG-06401-0	电控单元总成(90)	ECU ASSY (90)	1
36	3UH-06401-0	电控单元总成(75)	ECU ASSY (75)	1
36	3UJ-06401-0	电控单元总成(100)	ECU ASSY (100)	1
36	3YT-06401-0	电控单元总成(115)	ECU ASSY (115)	1
36	3YV-06401-0	电控单元总成(90)	ECU ASSY (90)	1
36	3YY-06401-0	电控单元总成(75)	ECU ASSY (75)	1
36	3ZG-06401-0	电控单元总成(140)	ECU ASSY (140)	1
36	3ZV-06401-0	电控单元总成(140)	ECU ASSY (140)	1
37	3SS-06410-0	电控单元支架	ECU HOLDER	1
38	3SS-06322-0	板	PLATE	1
39	921503-0612	螺钉	SCREW	2
40	3UG-62004-0	线束固定座	CORD HOLDER	1
41	910103-5612	螺栓	BOLT	2
42	3SS-06302-0	橡胶支座	RUBBER MOUNT	1
43	910103-0630	螺栓	BOLT	4
44	3SS-06902-0	盖板	COVER	1
45	3SS-06908-0	索环/护孔圈	GROMMET	1
46	3SS-76110-0	线束总成	CORD ASSY	1
46b	3SS-76154-0	终端电阻	TERMINATING RESISTOR	1
47	3SS-06437-0	自攻螺钉 M5-16	TAPPING SCREW M5-16	4
48	3SS-76065-0	整流器总成	RECTIFIER COMPLETE	1
49	3SS-76067-0	整流器总成垫片	RECTIFIER COMPLETE GASKET	1
50	9101E3-5625	螺栓	BOLT	6
51	3SS-06973-0	卡箍	CLAMP	1
52	3B7-76142-1	接地电缆 L=120	GROUND CABLE L=120	1
53	3UG-76139-0	启动电缆组件	STARTER CABLE SUB-ASY	1
54	3UG-76210-0	* 保险丝(50A)	* FUSE(50A)	4
55	3UG-76252-0	* 保险丝帽 (蓝色)	* FUSE CAP (BLUE)	2
56	369-84398-1	箍带 202	BAND 202	1
57	3UG-84398-0	带箍φ2.5-φ32	BANDφ2.5-φ32	1

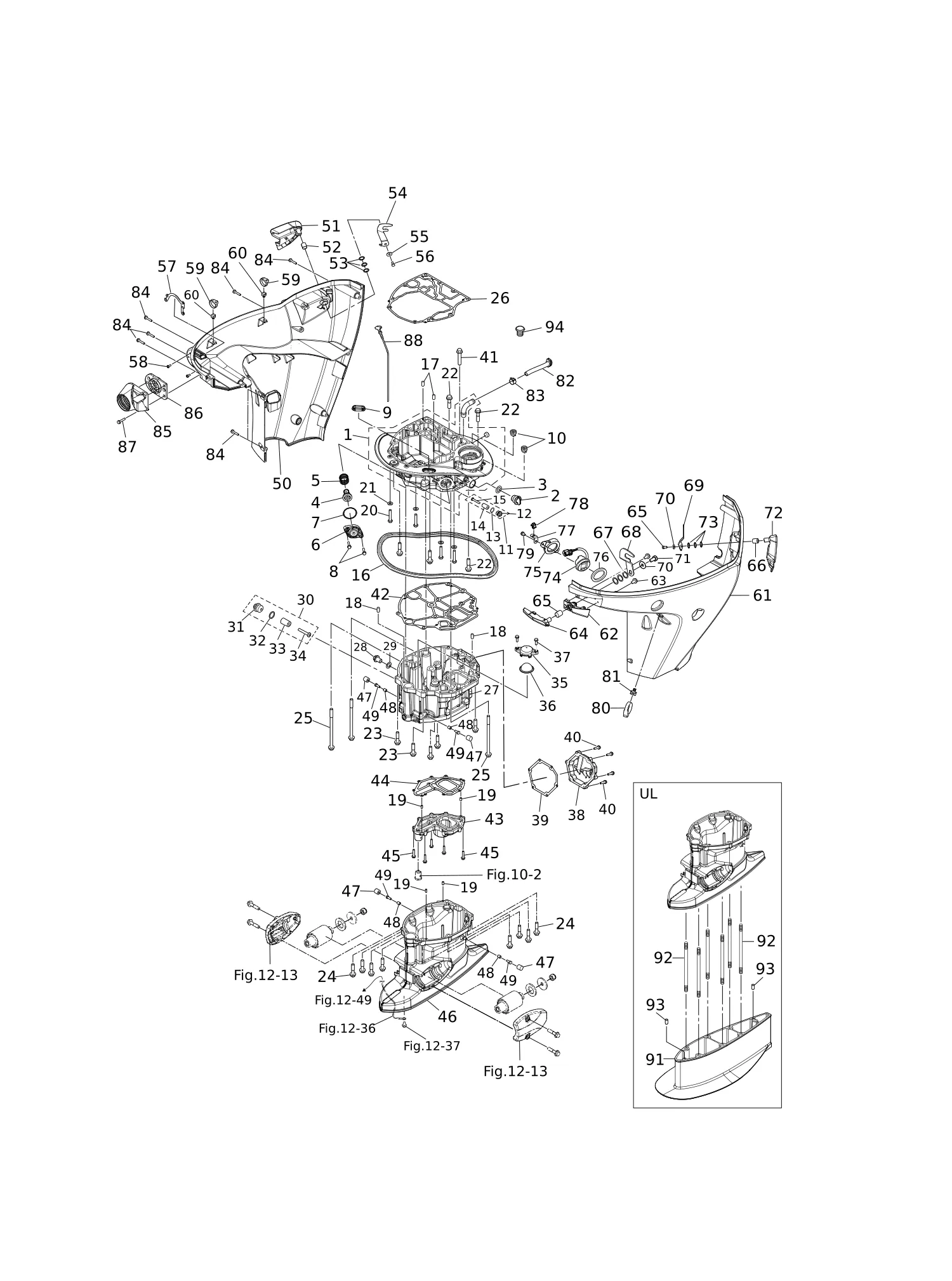

图 09驱动轴壳体 DRIVE SHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	3SS-01302-0	发动机底座分总成	ENGINE BASEMENT SUB-ASSY	1
2	3RS-72404-0	冲洗连接器盖	FLUSHING CONNECTOR CAP	1
3	3RS-67147-0	密封环	SEAL RING	1
4	3SS-65250-0	水压安全阀	WATER PRESSURE RELIEF VALVE	1
5	3SS-65255-0	弹簧	SPRING	1
6	3SS-65248-0	水压泄压盖	WATER PRESSURE RELIEF CAP	1
7	353-00108-0	O型圈 2.4-44.7	O-RING 2.4-44.7	1
9	3R3-66226-0	衬套 40-18-3	GROMMET 40-18-3	1
10	3T1-67161-0	索环/护孔圈	GROMMET	2
16	3SS-67116-0	发动机底座密封件 L=1307	ENGINE BASEMENT SEAL L=1307	1
18	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
20	3KK-01012-0	气缸盖螺栓	CYLINDER HEAD BOLT	4
21	9401E3-0800	垫圈	WASHER	4
24	3SS-60001-0	螺栓 M10-45-P1.25	BOLT M10-45-P1.25	8
25	3SS-61018-0	螺栓M10-170-P1.25	BOLT M10-170-P1.25	3
26	3SS-01303-0	发动机基座垫片	ENGINE BASEMENT GASKET	1
27	3SS-07701-0	油底壳	OILPAN	1
28	3R3-07705-1	放油螺栓14-14	DRAIN BOLT 14-14	1
29	3R3-07406-0	垫片 14.5-24-1	WASHER 14.5-24-1	1
30	3KM-01142-0	阳极螺塞总成	ANODE PLUG ASSY	1
31	3P0-01143-0	* 阳极塞	* ANODE PLUG	1
32	3T5-10046-0	* O型圈1.9-13	* O-RING 1.9-13	1
33	3P0-60218-0	* 阳极	* ANODE	1
34	921503-0530	* 螺钉	* SCREW	1
35	3SS-07712-0	滤网盖	STRAINER CAP	1
36	3SS-07713-0	滤网	MESH	1
37	9101E3-5620	螺栓	BOLT	2
38	3SS-61208-0	怠速排气口盖	IDLE EXHAUST PORT COVER	1
39	3UG-61220-0	怠速排气口垫片	IDLE EXHAUST PORT GASKET	1
40	9101E3-5625	螺栓	BOLT	6
41	3SS-61343-0	螺栓 M10-55-P1.25	BOLT M10-55-P1.25	1
42	3SS-07702-0	油底壳垫片	OILPAN GASKET	1
43	3SS-07711-0	油底壳盖板	OILPAN PLATE	1
44	3SS-07714-0	油底壳盖板垫片	OILPAN PLATE GASKET	1
46	3SSQ61192-0	驱动轴壳体(L)	DRIVE SHAFT HOUSING (L)	1
46	3SSW61192-0	驱动轴壳体(L)	DRIVE SHAFT HOUSING (L)	1
47	3RS-67144-0	整流罩支撑橡胶	COWL SUPPORT RUBBER	4
48	3AL-76079-0	轴套 6.2-9-9.55	COLLAR 6.2-9-9.55	4
49	910103-0616	螺栓	BOLT	4
50	3SSQ67003-0	驱动轴壳体盖(R)	DRIVE SHAFT HOUSING COVER (R)	1
50	3SSW67003-0	驱动轴壳体盖(R)	DRIVE SHAFT HOUSING COVER (R)	1
51	3SS-67685-0	挂钩杆(右)	HOOK LEVER (RIGHT)	1
54	3UG-67142-0	盖板挂钩	COVER HOOK	1
57	3SS-67470-0	线缆盖撑条	CABLE COVER STAY	1
58	921503-0512	螺钉	SCREW	2
61	3SSQ67004-0	驱动轴壳体盖(L)	DRIVE SHAFT HOUSING COVER (L)	1
61	3SSW67004-0	驱动轴壳体盖(L)	DRIVE SHAFT HOUSING COVER (L)	1
62	3SSQ67140-0	挂钩杆托架	HOOK LEVER BRACKET	1
62	3SSW67140-0	挂钩杆托架	HOOK LEVER BRACKET	1
64	3SS-67141-0	挂钩杆	HOOK LEVER	1
66	350-67105-0	挂钩杆衬套 14-16.5-17.7	HOOK LEVER BUSHING 14-16.5-17.7	1
68	3UH-67142-0	盖板挂钩	COVER HOOK	1
69	3SS-67142-0	盖板挂钩	COVER HOOK	1
70	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	2
71	3SS-02095-0	螺栓16mm	BOLT 16mm	2
72	3SS-67684-0	挂钩杆(左)	HOOK LEVER (LEFT)	1
73	941403-1400	波形垫圈 d=14	WAVE WASHER d=14	3
74	3SS-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
75	3SS-72617-0	动力升降倾斜装置开关总成支架	PTT SWITCH ASSY BRACKET	1
76	3F3-72616-1	衬垫	GASKET	1
77	3SS-72594-0	支架	BRACKET	1
78	3SS-06973-0	卡箍	CLAMP	1
79	910103-5612	螺栓	BOLT	2
80	3UG-84398-0	带箍φ2.5-φ32	BAND φ2.5-φ32	1
81	3SS-67113-0	支架	MOUNT	1
82	3SS-61212-0	索环/护孔圈	GROMMET	1
83	3T1-07737-1	卡环 φ17.8	CLIP φ17.8	1
84	3RS-67485-0	螺栓	BOLT	7
85	3SS-67477-0	盖板	COVER	1
86	3SS-76116-0	索环/护孔圈	GROMMET	1
87	9101E3-5630	螺栓	BOLT	3
88	3SS-07721-0	油位计	OIL LEVEL GAUGE	1
91	3SSQ61110-0	延伸壳体	EXTENSION HOUSING	1
91	3SSW61110-0	延伸壳体	EXTENSION HOUSING	1
92	3SS-61111-0	螺柱M10-165_P1.25	STUD M10-165_P1.25	6
93	3AB-01111-0	定位销6-12	DOWEL PIN 6-12	2
94	3A3-60984-0	副进水口软管塞	SUB-WATER INLET HOSE PLUG	1

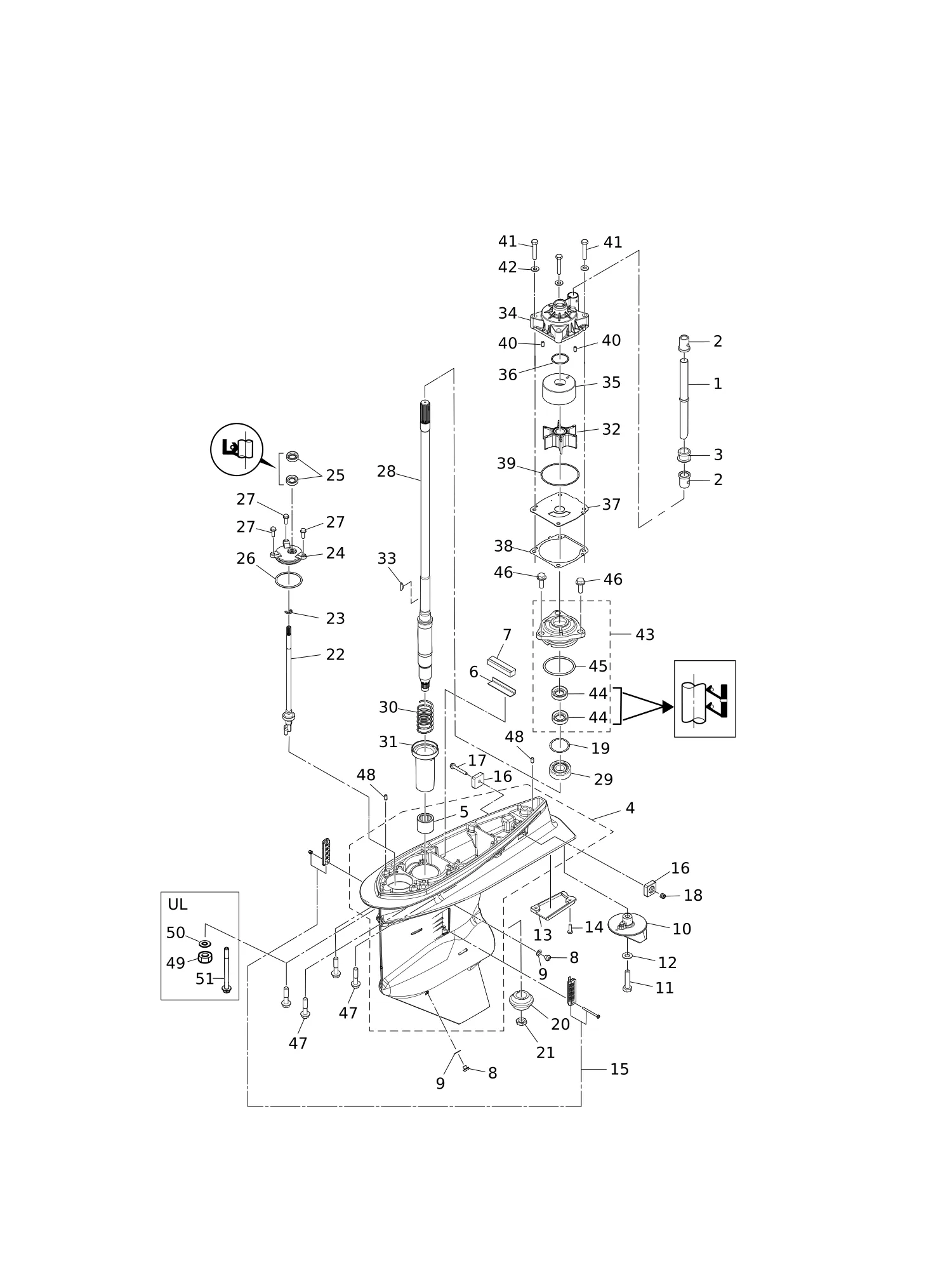

图 10驱动轴齿轮箱 GEAR CASE (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
1	3SS-65110-0	水管(左)	WATER PIPE (L)	1
1	3SS-65120-0	水管(左上)	WATER PIPE (UL)	1
2	3SS-65014-0	水管密封件(下)	WATER PIPE SEAL (LOWER)	1
3	3SS-65204-0	水管辅助支架 φ16	WATER PIPE AUXILIARY MOUNT φ16	1
4	3SSQ60000-0	齿轮箱总成	GEAR CASE ASSY	1
4	3SSW60000-0	齿轮箱总成	GEAR CASE ASSY	1
5	3C7-60211-1	* 滚柱轴承 28.6-38.1-3	* ROLLER BEARING 28.6-38.1-3	1
6	3SS-60042-0	水封板	WATER SEAL PLATE	1
7	3SS-60041-0	水封橡胶	WATER SEAL RUBBER	1
8	332-60005-3	塞 8-8	PLUG 8-8	2
9	332-60006-1	衬垫8.1-15-1	GASKET 8.1-15-1	2
10	3SS-60217-0	配平片	TRIM TAB	1
11	911103-1045	螺栓 10-P1.25	BOLT 10-P1.25	1
12	940103-1000	垫圈	WASHER	1
13	3SS-60012-0	齿轮箱盖板	GEAR CASE PLATE	1
14	9215E3-0516	螺钉	SCREW	2
15	3SS-60205-0	滤水器组件	WATER STRAINER SET	1
16	3KY-60218-0	阳极块	ANODE	2
17	910103-5645	螺栓	BOLT	1
18	930403-0600	尼龙螺母 6-P1.0	NYLON NUT 6-P1.0	1
19	353-64014-0	垫片52-60.5-0.3	SHIM 52-60.5-0.3	1
19	353-64015-0	垫片52-60.5-0.15	SHIM 52-60.5-0.15	1
19	353-64016-0	垫片 52-60.5-0.1	SHIM 52-60.5-0.1	1
20	3SS-64020-0	锥齿轮B	BEVEL GEAR B	1
21	3SS-64027-0	螺母	NUT	1
22	3SS-66013-0	凸轮杆(长)	CAM ROD (L)	1
22	3SS-66014-0	凸轮杆(超长)	CAM ROD (UL)	1
23	945303-0900	E型卡环 d=9	E-RING d=9	1
24	3SS-66031-1	凸轮杆衬套	CAM ROD BUSHING	1
25	3SS-66137-0	油封 10-20-7	OIL SEAL 10-20-7	2
27	9101E3-5620	螺栓	BOLT	3
28	3SS-64302-0	驱动轴(L)	DRIVE SHAFT (L)	1
28	3SS-64303-0	驱动轴(UL)	DRIVE SHAFT (UL)	1
29	3C7-60213-0	圆锥滚子轴承 0506	TAPERED ROLLER BEARING 0506	1
30	3SS-64327-0	驱动轴弹簧	DRIVE SHAFT SPRING	1
31	3SS-64328-0	驱动轴弹簧导套	DRIVE SHAFT SPRING GUIDE	1
32	3SS-65021-0	水泵叶轮	WATER PUMP IMPELLER	1
33	3B7-65022-1	键 28-5.7-4	KEY 28-5.7-4	1
34	3SS-65016-0	泵壳(上)	PUMP CASE (UPPER)	1
35	3SS-65011-0	泵壳衬套	PUMP CASE LINER	1
36	3SS-65015-0	O型圈 2.4-35.2	O-RING 2.4-35.2	1
37	3SS-65025-0	水泵导板	WATER PUMP GUIDE PLATE	1
38	3SS-65029-0	导板垫片	GUIDE PLATE GASKET	1
39	3UG-65015-0	O型圈 2.4-84.4	O-RING 2.4-84.4	1
41	9161E3-0845	螺栓	BOLT	4
42	9401E3-0800	垫圈	WASHER	4
43	3SS-60231-0	油封壳体总成	OIL SEAL HOUSING ASSY	1
44	3SS-60223-0	* 油封 22-40-8	* OIL SEAL 22-40-8	2
45	3SS-66023-0	* O型圈 3.5-55.6	* O-RING 3.5-55.6	1
46	9101E3-5825	螺栓	BOLT	3
47	3SS-60001-0	螺栓 M10-45-P1.25	BOLT M10-45-P1.25	7
48	3AB-01111-0	定位销6-12	DOWEL PIN 6-12	2
49	3B7-61114-0	螺母 10-P1.25	NUT 10-P1.25	6
50	9402E3-1000	垫圈	WASHER	6
51	3SS-61018-0	螺栓M10-170-P1.25	BOLT M10-170-P1.25	1

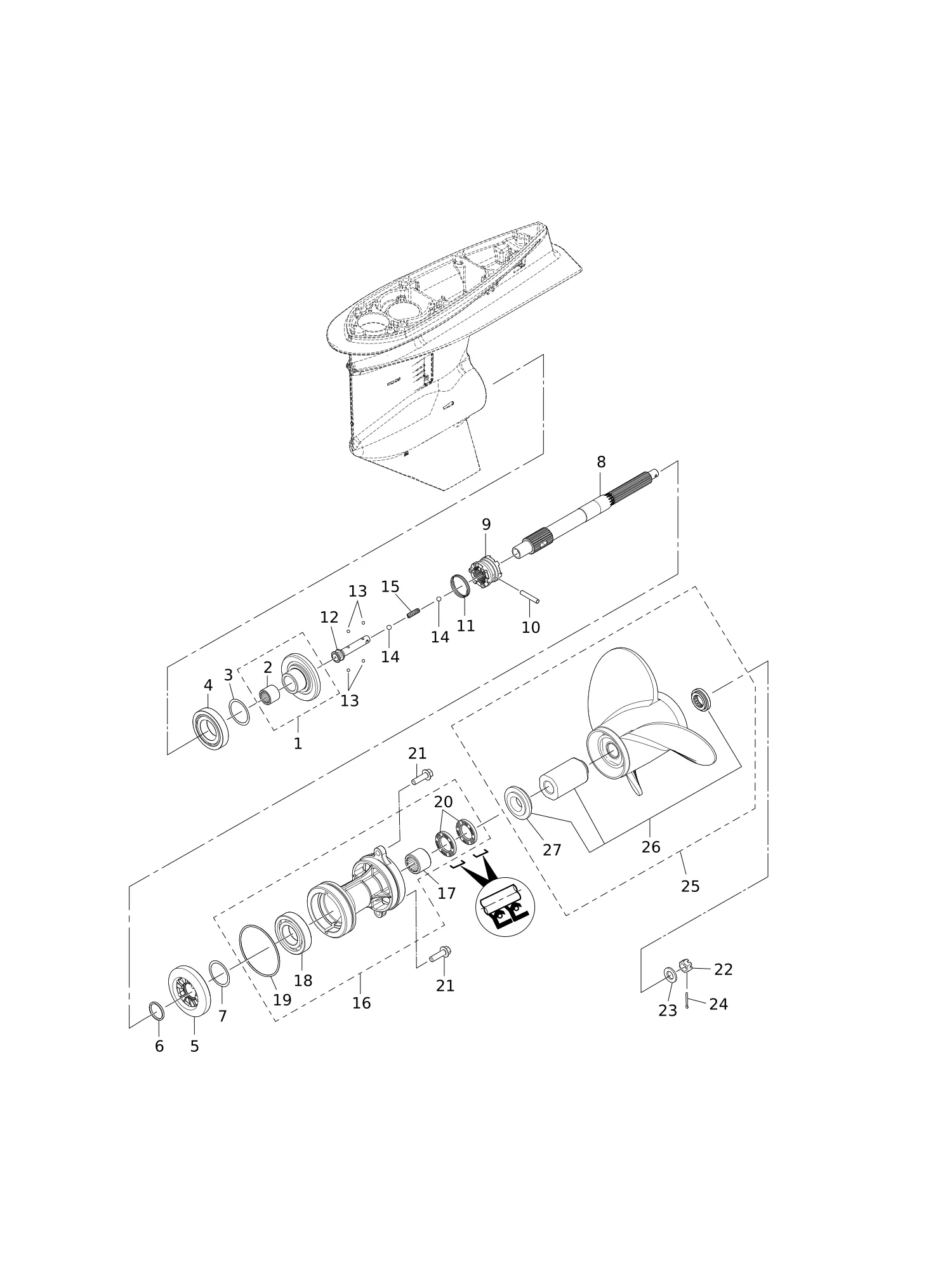

图 11螺旋桨轴齿轮箱 GEAR CASE (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
1	3SS-64010-0	锥齿轮总成(A)	BEVEL GEAR ASSY (A)	1
2	3B7-64011-0	* 滚柱轴承 25-32-26	* ROLLER BEARING 25-32-26	1
3	3B7-64015-0	垫片 47-57-0.15	SHIM 47-57-0.15	1
3	3B7-64016-0	垫片 47-57-0.1	SHIM 47-57-0.1	1
4	3C7-60215-0	圆锥滚子轴承 30209	TAPERED ROLLER BEARING 30209	1
5	3SS-64030-0	锥齿轮C	BEVEL GEAR C	1
6	3B7-64032-0	垫圈 t=3.2	WASHER t=3.2	1
6	3B7-64034-0	垫圈 t=3.0	WASHER t=3.0	1
6	3B7-64035-0	垫圈 t=2.8	WASHER t=2.8	1
6	3SS-64034-0	垫圈 t=2.6	WASHER t=2.6	1
6	3SS-64035-0	垫圈 t=2.4	WASHER t=2.4	1
7	3B7-64036-0	垫片 42-50-0.15	SHIM 42-50-0.15	1
7	3B7-64037-0	垫片 42-50-0.1	SHIM 42-50-0.1	1
8	3SS-64211-0	螺旋桨轴	PROPELLER SHAFT	1
9	3SS-64215-0	离合器	CLUTCH	1
10	3B7-64218-0	销钉	PIN	1
11	3B7-64219-1	卡扣	SNAP	1
12	3SS-64225-0	离合器滑块	CLUTCH SLIDER	1
13	965002-3207	钢球 7/32=5.556毫米	BALL 7/32=5.556mm	4
14	965002-3211	钢球 11/32=8.731毫米	BALL 11/32=8.731mm	2
15	3SS-64221-0	弹簧	SPRING	1
16	3SSQ87323-0	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
16	3SSW87323-0	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
17	3B7-60211-0	* 滚柱轴承 30-40-30	* ROLLER BEARING 30-40-30	1
18	9601-0-6208	* 球轴承 6208	* BALL BEARING 6208	1
19	3SS-60103-0	* O型圈 3.1-94.4	* O-RING 3.1-94.4	1
20	3SS-60111-0	* 油封 30-50-7	* OIL SEAL 30-50-7	2
21	3SS-61017-0	螺栓M10-35-P1.25	BOLT M10-35-P1.25	2
22	353-64121-0	螺旋桨螺母M16P1.5	PROPELLER NUT M16P1.5	1
23	345-64124-0	垫片 17-32-3	WASHER 17-32-3	1
24	951503-0325	开口销3-25	SPLIT PIN 3-25	1
25	3HKB64518-0	螺旋桨总成(9英寸)	PROPELLER ASSY (9")	1
25	3HKB64523-0	螺旋桨总成(11英寸)	PROPELLER ASSY (11")	1
25	3HKB64527-0	螺旋桨总成(13英寸)	PROPELLER ASSY (13")	1
25	3HKB64532-0	螺旋桨总成(15英寸)	PROPELLER ASSY (15")	1
25	3HKB64536-0	螺旋桨总成(17英寸)	PROPELLER ASSY (17")	1
25	3HKB64541-0	螺旋桨总成(19英寸)	PROPELLER ASSY (19")	1
25	3HKB64545-0	螺旋桨总成(21英寸)	PROPELLER ASSY (21")	1
26	3HK-64238-0	螺旋桨轮毂套件	PROPELLER HUB KIT	1
27	3HK-64235-0	* 前进推力垫圈	* FORWARD THRUST WASHER	1

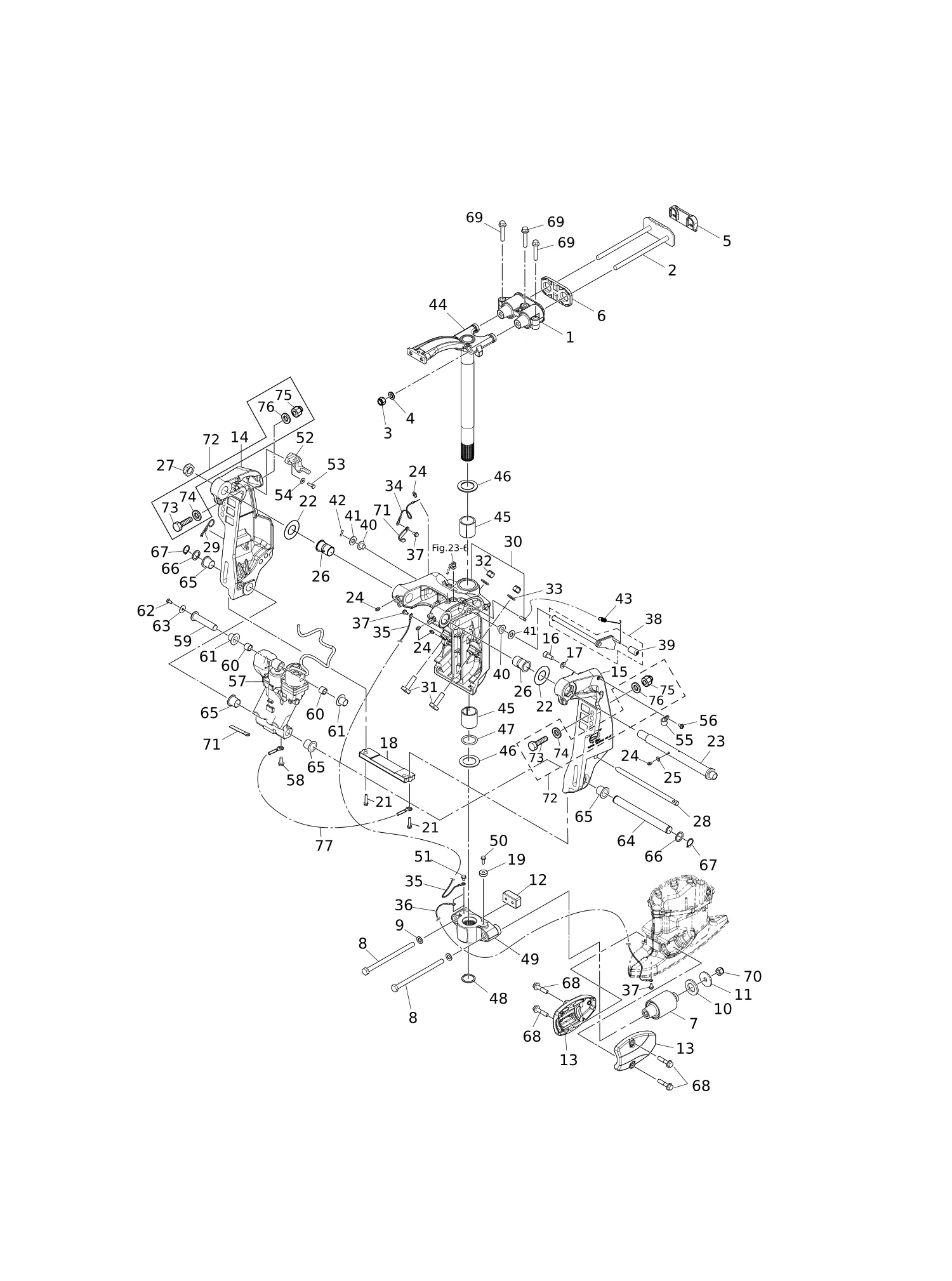

图 12支架 BRACKET

REF	零件编号	中文名称	英文名称	数量
1	3SS-61301-0	橡胶支座(上)	RUBBER MOUNT (UPPER)	1
2	3SS-61326-0	带螺栓锁紧板	LOCK PLATE W/BOLT	1
5	3SS-61339-0	上减震器	DAMPER (UPPER)	1
6	3SS-61333-0	上减震器	DAMPER (UPPER)	1
7	3SS-61302-0	橡胶支座(下)	RUBBER MOUNT (LOWER)	2
8	3SS-61321-0	螺栓 M12-195-P1.25	BOLT M12-195_P1.25	2
9	9402E3-1200	垫圈	WASHER	2
10	3SS-61338-0	减震器 28.2-48-5	DAMPER 28.2-48-5	2
11	3SS-61334-0	垫片 12.5-46-4	WASHER 12.5-46-4	2
12	3SS-61336-0	下减震器	DAMPER (LOWER)	1
13	3SSQ61342-0	支架固定板(下)	MOUNT HOLDING PLATE (LOWER)	2
13	3SSW61342-0	支架固定板(下)	MOUNT HOLDING PLATE (LOWER)	2
14	3SSQ77211-0	夹紧支架(动力升降倾斜装置-右)	CLAMP BRACKET (PTT-R)	1
14	3SSW77211-0	夹紧支架(动力升降倾斜装置-右)	CLAMP BRACKET (PTT-R)	1
15	3SSQ77212-1	卡箍支架 (动力升降倾斜装置-左)	CLAMP BRACKET (PTT-L)	1
15	3SSW77212-1	卡箍支架 (动力升降倾斜装置-左)	CLAMP BRACKET (PTT-L)	1
16	9102E3-1020	螺栓	BOLT	1
17	9402E3-1000	垫圈	WASHER	1
18	3C7-60218-2	阳极块	ANODE	1
19	338-60218-2	阳极块	ANODE	1
21	910103-5630	螺栓	BOLT	2
22	3E0-62116-1	垫片 25.7-50-1	WASHER 25.7-50-1	2
23	3SS-62191-0	旋转支架轴总成	SWIVEL BRACKET SHAFT ASSY	1
24	344-67177-1	黄油嘴	GREASE FITTING	4
25	940103-0600	垫圈	WASHER	1
26	3E0-62126-0	衬套 25.6-28.6-40	BUSHING 25.6-28.6-40	2
27	346-62124-1	尼龙螺母 7/8-14	NYLON NUT 7/8-14	1
28	3E0-62121-1	推力杆	THRUST ROD	1
29	3B7-62129-1	销钉	PIN	1
30	3SSQ77208-0	旋转支架总成	SWIVEL BRACKET ASSY	1
30	3SSW77208-0	旋转支架总成	SWIVEL BRACKET ASSY	1
31	3SS-77085-0	螺栓 M12-P1.25-43	BOLT M12-P1.25-43	2
35	3SS-62396-0	接地线 260mm	GROUND 260mm	1
36	3C8-62396-1	接地线 L=210	GROUND L=210	1
38	3SS-62431-0	倾斜止动器总成	TILT STOPPER ASSY	1
39	3Y9-62433-0	* 倾斜止动握把	* TILT STOPPER GRIP	1
40	3SS-63207-0	轴环 12.2-26-15.5	COLLAR 12.2-26-15.5	2
41	940103-1200	垫圈	WASHER	2
42	951403-3516	弹簧销 3.5-16	SPRING PIN 3.5-16	1
43	3E0-62473-1	倾斜止动弹簧	TILT STOPPER SPRING	1
44	3SSQ62010-0	转向轴总成	STEERING SHAFT ASSY	1
44	3SSW62010-0	转向轴总成	STEERING SHAFT ASSY	1
45	3SS-62417-0	衬套	BUSHING	2
46	3SS-62423-0	上止推板38.5-58-2	THRUST PLATE (UPPER) 38.5-58-2	2
47	3SS-62415-0	O型圈 4.8-36.7	O-RING 4.8-36.7	1
48	945103-3600	C形环	C-RING	1
49	3SSQ61411-0	支架托架	MOUNT BRACKET	1
49	3SSW61411-0	支架托架	MOUNT BRACKET	1
50	910103-5620	螺栓	BOLT	1
52	3T1-72574-0	配平传感器 L=1700	TRIM SENSOR L=1700	1
53	910103-0620	螺栓	BOLT	2
54	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	2
55	345-06915-0	卡箍 6.5-14L	CLAMP 6.5-14L	1
56	921503-5612	螺钉	SCREW	1
57	3SS-77150-1	动力升降倾斜总成	PTT ASSY	1
58	910103-5612	螺栓	BOLT	1
59	3SS-77071-0	气缸销(上)	CYLINDER PIN (UPPER)	1
60	3C8-77075-0	衬套 18-24-19	BUSHING 18-24-19	2
61	3E0-77076-0	衬套 18-20-20.5	BUSHING 18-20-20.5	2
62	9101E3-0612	螺栓	BOLT	1
63	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	1
64	3E0-77101-2	气缸销(下)	CYLINDER PIN (LOWER)	1
65	3E0-77103-0	衬套 22-25.4-23.5	BUSHING 22-25.4-23.5	4
66	346-62412-1	垫片 22.6-30-2	WASHER 22.6-30-2	2
67	945103-2200	C形环 d=22	C-RING d=22	2
68	3SS-60001-0	螺栓 M10-45-P1.25	BOLT M10-45-P1.25	4
69	3SS-61343-0	螺栓 M10-55-P1.25	BOLT M10-55-P1.25	3
71	3PR-06972-0	卡箍 6.5-47.5P	CLAMP 6.5-47.5P	2
72	3AM-72120-0	索具螺栓套装	RIGGING BOLT SET	1
73	3C7-62133-2	螺栓 12-105 P1.25	* BOLT 12-105 P1.25	4
74	353-61334-0	* 垫圈 13-34-3	* WASHER 13-34-3	4
75	3R0-61324-0	尼龙螺母 12-P1.25	* NYLON NUT 12-P1.25	4
76	9401E3-1200	* 垫圈	* WASHER	4
77	398-62396-1	接地线 L=130	GROUND L=130	1

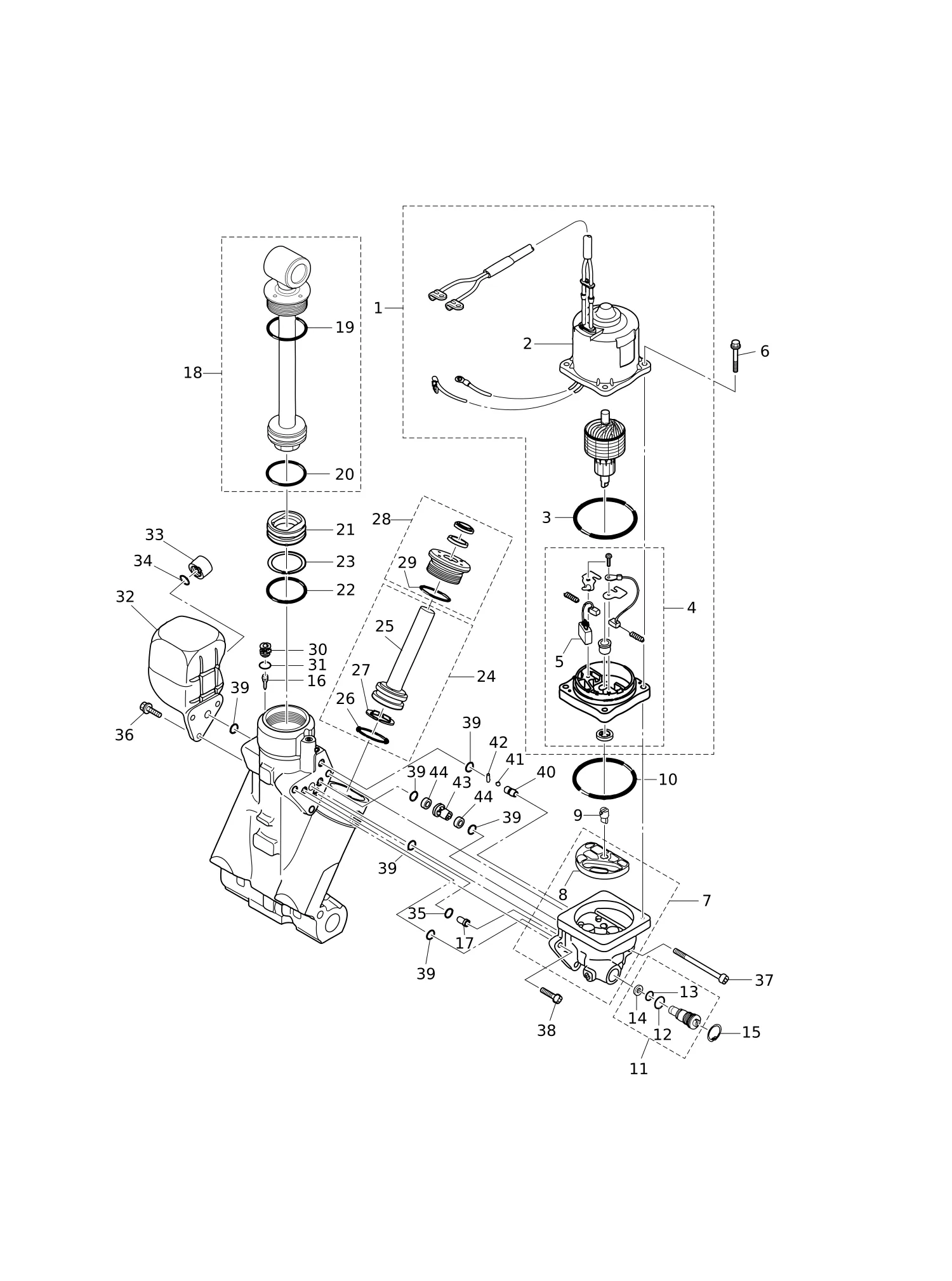

图 13动力升降倾斜装置 POWER TRIM&TILT

REF	零件编号	中文名称	英文名称	数量
1	3SS-77180-0	马达总成	MOTOR ASSY	1
2	3T1-77195-0	* 轭架总成	* YOKE ASSY	1
3	353-77182-1	* O型圈	* O-RING	1
4	3SS-77192-0	* 电机支架总成	* MOTOR BRACKET ASSY	1
5	3SS-77191-0	断路器	** BREAKER	1
6	3SS-77199-0	螺栓	BOLT	4
7	3SS-77430-0	泵	PUMP	1
8	3E0-77434-0	* 滤清器	* FILTER	1
9	3E0-77163-0	联轴器	COUPLING	1
10	3B7-77167-0	O型圈1.8-69.6	O-RING 1.8-69.6	1
11	3E0-77176-1	手动阀	MANUAL VALVE	1
12	3B7-77411-0	* O型圈	* O-RING	1
13	3E0-77407-0	* O型圈	* O-RING	1
14	3E0-77408-0	* 挡圈	* BACK-UP RING	1
15	3SS-77171-0	C形环	C-RING	1
16	3E0-77475-0	过滤器	FILTER	1
17	3E0-77479-0	节流孔	ORIFICE	1
18	3SS-77365-0	活塞连杆总成	PISTON ROD ASSY	1
19	3E0-77383-0	* O型圈	* O-RING	1
21	3B7-77377-1	自由活塞	FREE PISTON	1
22	3B7-77375-0	O型圈	O-RING	1
23	3B7-77376-0	挡圈/支撑环	BACK-UP RING	1
24	3E0-77388-0	配平活塞总成	TRIM PISTON ASSY	2
25	3E0-77390-0	* 配平活塞	* TRIM PISTON	1
26	3B7-77392-0	* O型圈	* O-RING	1
27	3B7-77393-0	* 挡圈	* BACK-UP RING	1
28	3SS-77395-0	导杆分总成	ROD GUIDE SUB-ASSY	2
29	3E0-77398-0	* O型圈	* O-RING	1
30	3E0-77472-1	塞	PLUG	1
31	3SS-77179-0	O型圈	O-RING	1
32	3E0-77165-0	储备油箱	RESERVE TANK	1
33	3E0-77168-0	盖帽	CAP	1
34	3E0-77169-0	O型圈	O-RING	1
35	3SS-77169-0	O型圈	O-RING	1
36	3SS-77159-0	螺栓	BOLT	3
37	3SS-77431-0	螺栓	BOLT	1
38	3SS-77432-0	螺栓	BOLT	2
39	3SS-77167-0	O型圈	O-RING	6
40	3E0-77557-0	节流孔	ORIFICE	1
41	3E0-77558-0	钢球	BALL	1
42	3E0-77559-0	销钉	PIN	1
43	3E0-77453-0	阀座	VALVE SEAT	1
44	3E0-77456-0	过滤器	FILTER	2

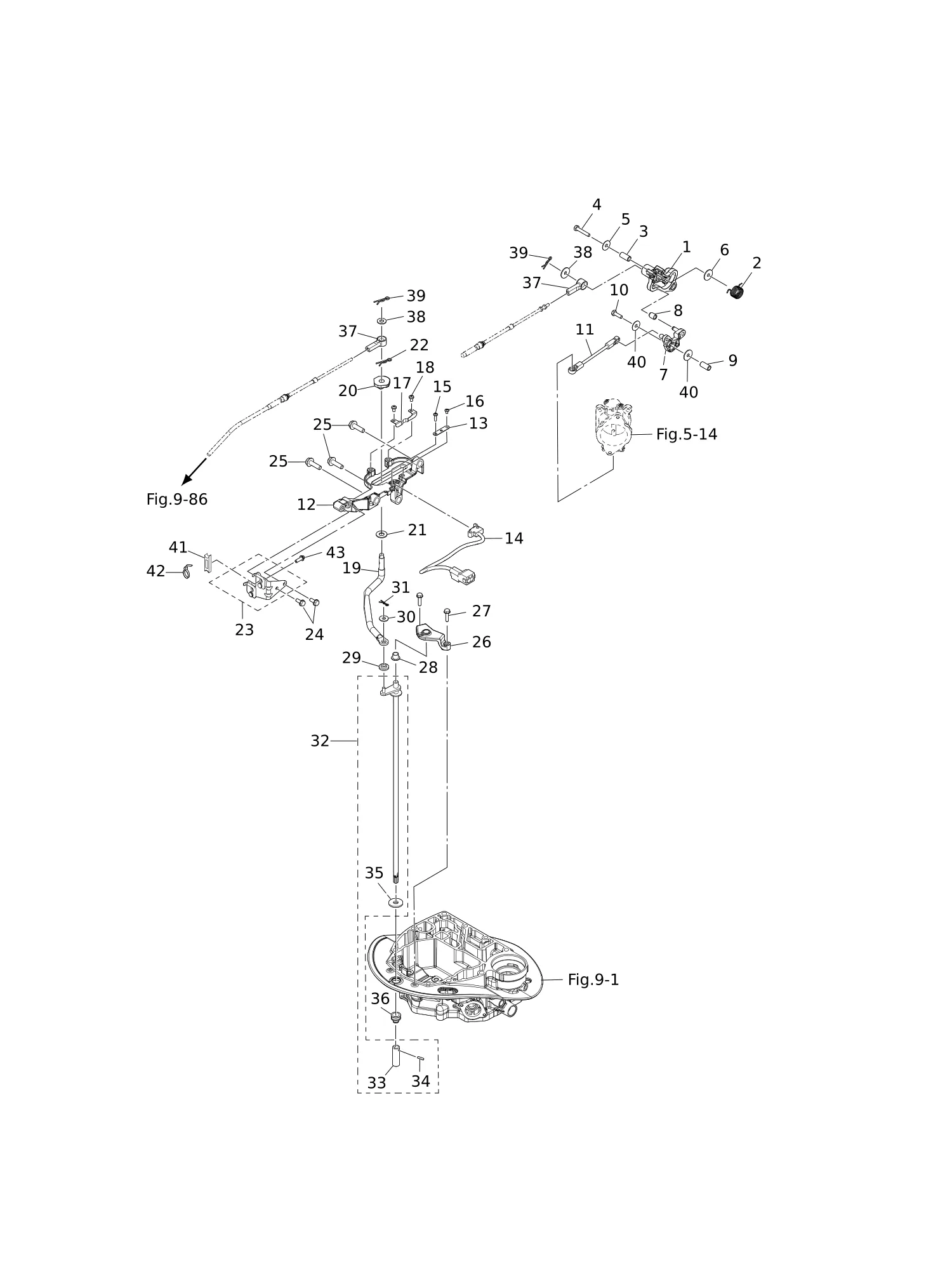

图 14换挡·油门 SHIFT · THROTTLE

REF	零件编号	中文名称	英文名称	数量
1	3SS-63718-0	节气门凸轮	THROTTLE CAM	1
2	3SS-63727-0	弹簧	SPRING	1
3	3R3-66124-0	轴套 6.5-10.5-22.6	COLLAR 6.5-10.5-22.6	1
4	910103-0635	螺栓	BOLT	1
6	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	1
7	3SS-63751-0	节气门臂	THROTTLE ARM	1
8	3KY-03171-0	节气门滚轮	THROTTLE ROLLER	1
9	3KY-76079-0	轴套 6.5-10.5-9.3	COLLAR 6.5-10.5-9.3	1
10	910103-0620	螺栓	BOLT	1
11	3SS-63617-0	节气门拉杆	THROTTLE ROD	1
12	3SS-66272-0	换挡滑块支架	SHIFT SLIDER BRACKET	1
13	3SS-76081-0	空档开关支架	NEUTRAL SWITCH BRACKET	1
14	3SS-76080-0	空档开关	NEUTRAL SWITCH	1
15	921503-0414	螺钉	SCREW	1
16	921503-0406	螺钉	SCREW	1
17	3SS-66113-1	换挡定位弹簧	SHIFT DETENT SPRING	1
18	921503-5508	螺钉	SCREW	2
19	3SS-66122-0	换挡臂	SHIFT ARM	1
20	3SS-66270-1	换挡滑块	SHIFT SLIDER	1
21	3SS-66308-0	垫圈	WASHER	1
22	951603-1000	弹性销	SNAP PIN	1
23	3SS-83820-0	线缆夹总成	CABLE CLIP ASSY	1
25	910103-5830	螺栓	BOLT	3
26	3SS-66220-0	换挡杆支架	SHIFT ROD BRACKET	1
27	9101E3-5625	螺栓	BOLT	2
28	3SS-66221-0	衬套 10-12_H=10	BUSHING 10-12_H=10	1
29	346-63721-0	衬套 6.2-16-5	BUSHING 6.2-16-5	1
30	3AL-83719-0	垫片 7-18-1.6	WASHER 7-18-1.6	1
31	951603-0600	弹性销d=6	SNAP PIN d=6	1
32	3SS-66200-0	换挡杆总成	SHIFT ROD ASSY	1
33	3SS-66241-0	* 换挡杆接头	* SHIFT ROD JOINT	1
34	951403-0414	* 弹簧销 4-14	* SPRING PIN 4-14	1
35	3UG-66233-0	* 垫圈 10.5-28-3	* WASHER 10.5-28-3	1
36	3SS-66226-0	衬套 φ20-6,φ9	GROMMET φ20-6,φ9	1
37	3B7-83715-2	线缆接头	CABLE JOINT	2
38	3AA-83719-0	垫圈 8.5-18-1.6	WASHER 8.5-18-1.6	2
39	951603-0800	弹性销 d=8	SNAP PIN d=8	2
40	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	2
41	3SS-63505-0	线缆固定座	CABLE HOLDER	1
42	3F9-84398-0	箍带 205	BAND 205	1
43	910103-5616	螺栓	BOLT	1

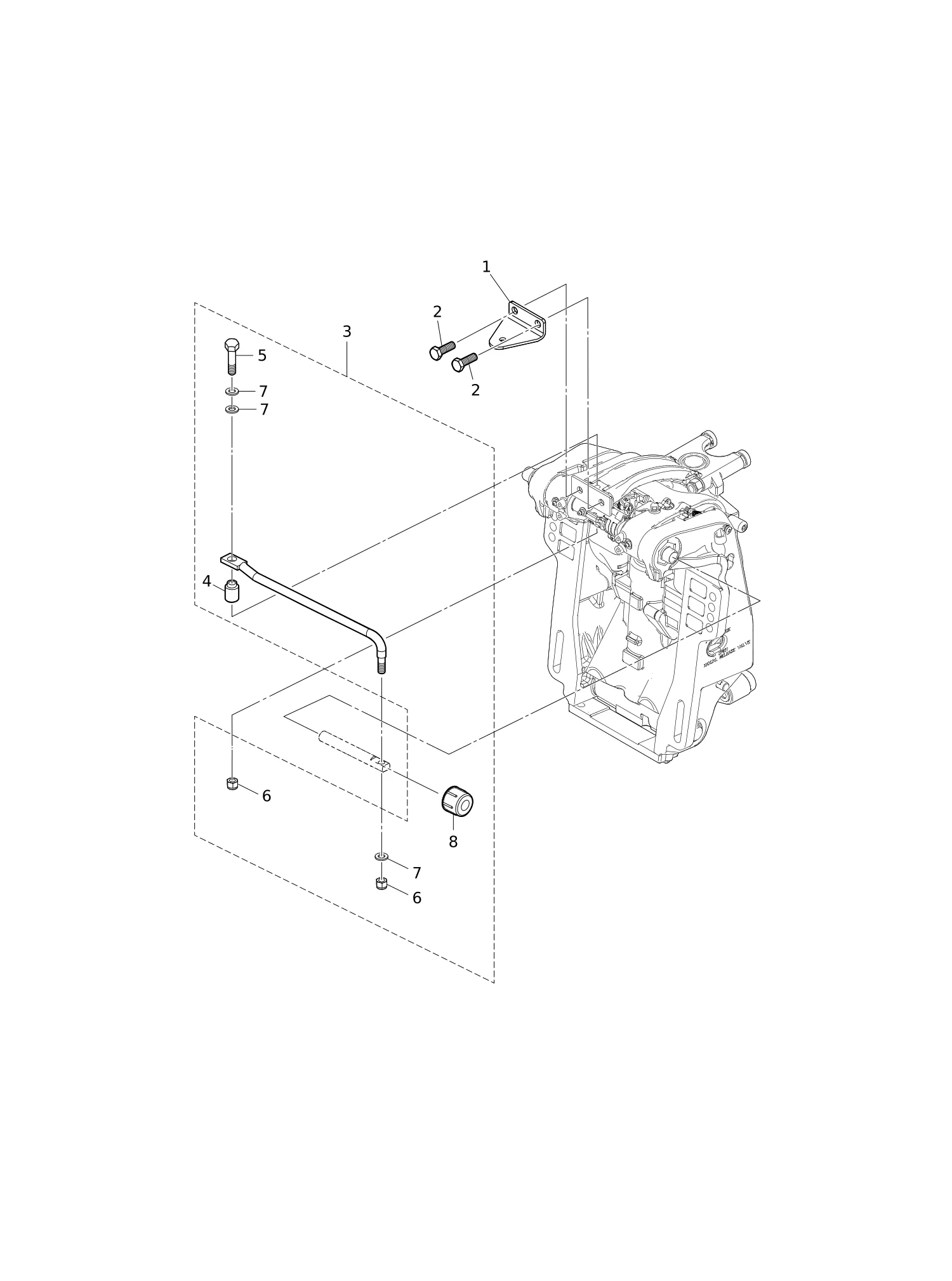

图 15转向装置 STEERING

REF	零件编号	中文名称	英文名称	数量
1	3SS-83830-0	转向钩板	STEERING HOOK PLATE	1
2	910103-1030	螺栓	BOLT	2
3	3SS-84905-0	转向拉杆总成	DRAG LINK ASSY	1
4	3E0-84914-0	* 衬套 9.6-19-13	* SPACER 9.6-19-13	1
5	3E0-84917-0	螺栓 3/8-50	* BOLT 3/8-50	1
6	353-84918-0	尼龙螺母 3/8-24UNF	* NYLON NUT 3/8-24UNF	2
7	353-84916-0	* 垫圈 9.6-18-2	* WASHER 9.6-18-2	3
8	3F3-84908-0	* 密封环	* SEAL RING	1

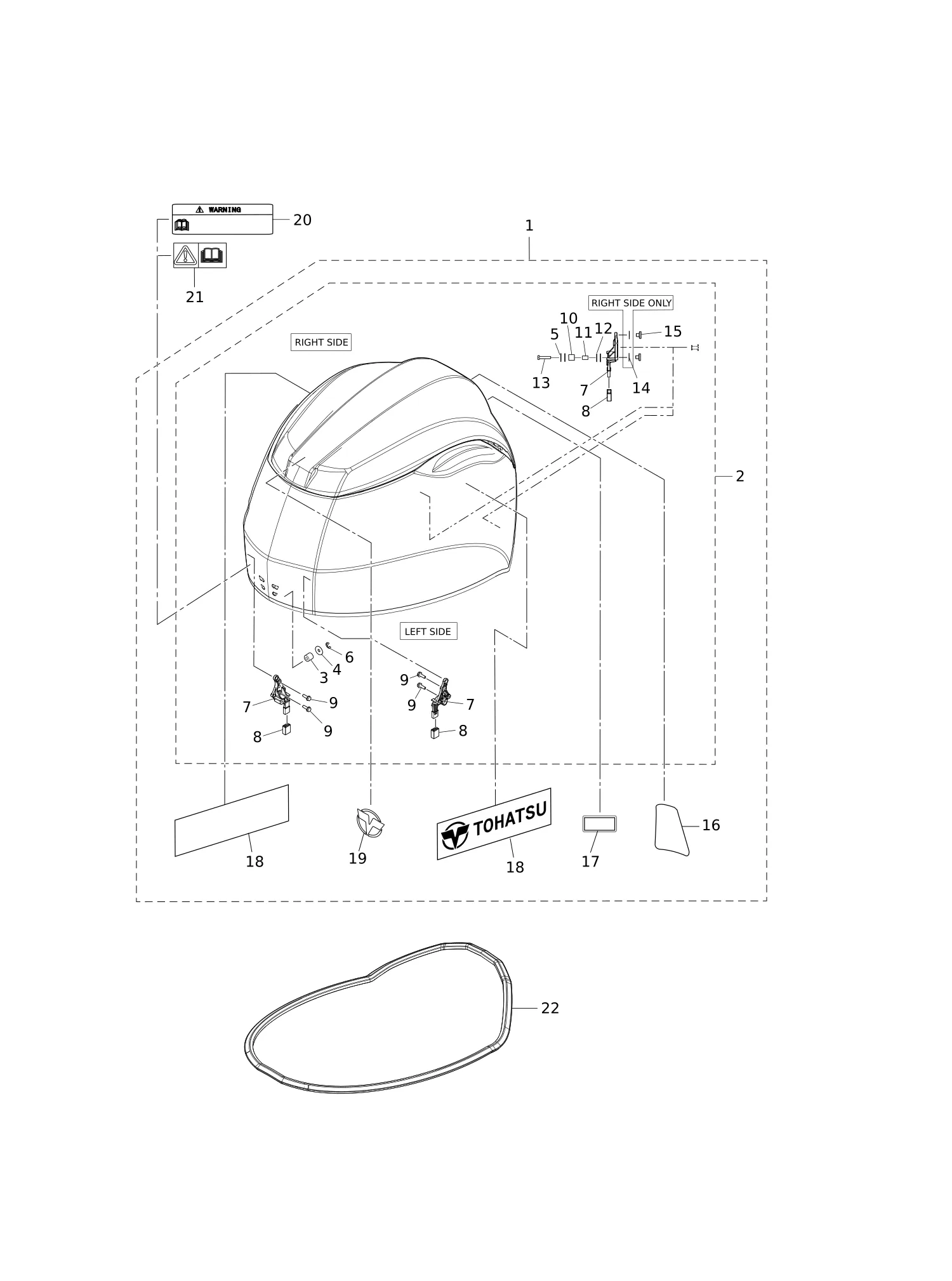

图 16顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	3SSQ67645-2	顶罩总成	TOP COWL ASSY	1
1	3SSW67645-2	顶罩总成	TOP COWL ASSY	1
2	3SSQ67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
2	3SSW67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
3	3R0-67517-0	滚轮 6.1-14.7-14	** ROLLER 6.1-14.7-14	1
5	346-67115-0	垫圈 6.5-21-1	** WASHER 6.5-21-1	4
6	945303-0500	** E型卡环 d=5	** E-RING d=5	1
7	3SS-67143-0	外罩支架	** COWL SUPPORT	4
8	3UG-67144-0	外罩支架橡胶垫	** COWL SUPPORT RUBBER	4
9	910103-5620	螺栓	** BOLT	4
10	3SS-67519-0	滚轮 φ9.1-φ15-15	** ROLLER φ9.1-φ15-15	2
11	3SY-76079-0	轴环	** COLLAR	2
12	940103-0600	垫圈	** WASHER	4
13	910103-0630	螺栓	** BOLT	2
14	940203-0800	垫圈 8.4-15.5-1.6	** WASHER 8.4-15.5-1.6	2
15	3KY-10155-0	衬套	** BUSHING	4
16	3SS-67536-0	* 后贴花 (MFS115A)	* REAR DECAL (MFS115A)	1
16	3UG-67536-0	* 后贴花 (MFS90A)	* REAR DECAL (MFS90A)	1
16	3UH-67536-0	* 后贴花 (MFS75A)	* REAR DECAL (MFS75A)	1
16	3UJ-67536-0	* 后贴花 (MFS100A)	* REAR DECAL (MFS100A)	1
16	3VG-67536-0	* 后贴花 (MFS90AW)	* REAR DECAL (MFS90AW)	1
16	3YU-67536-0	* 后贴花 (MFS115AW)	* REAR DECAL (MFS115AW)	1
16	3ZG-67536-0	* 后贴花 (MFS140A)	* REAR DECAL (MFS140A)	1
16	3ZH-67536-0	* 后贴花 (MFS140AW)	* REAR DECAL (MFS140AW)	1
17	3SS-67538-0	* SIMPLIQ标识贴	* SIMPLIQ DECAL	1
17	3YU-67538-0	* SIMPLIQ标识贴	* SIMPLIQ DECAL	1
18	3SS-67541-0	* 侧标识贴	* SIDE DECAL	2
18	3UG-67541-0	* 侧标识贴	* SIDE DECAL	2
19	3SS-67580-0	* 标志贴花	* LOGO DECAL	1
20	3WL-72180-0	警示标贴(A型)	CAUTION DECAL (A)	1
20	3YG-72180-0	警示标贴(A型)	CAUTION DECAL (A)	1
21	3F0-72185-0	警示标贴	CAUTION DECAL	1
22	3SS-67501-0	顶罩密封件	TOP COWL SEAL	1

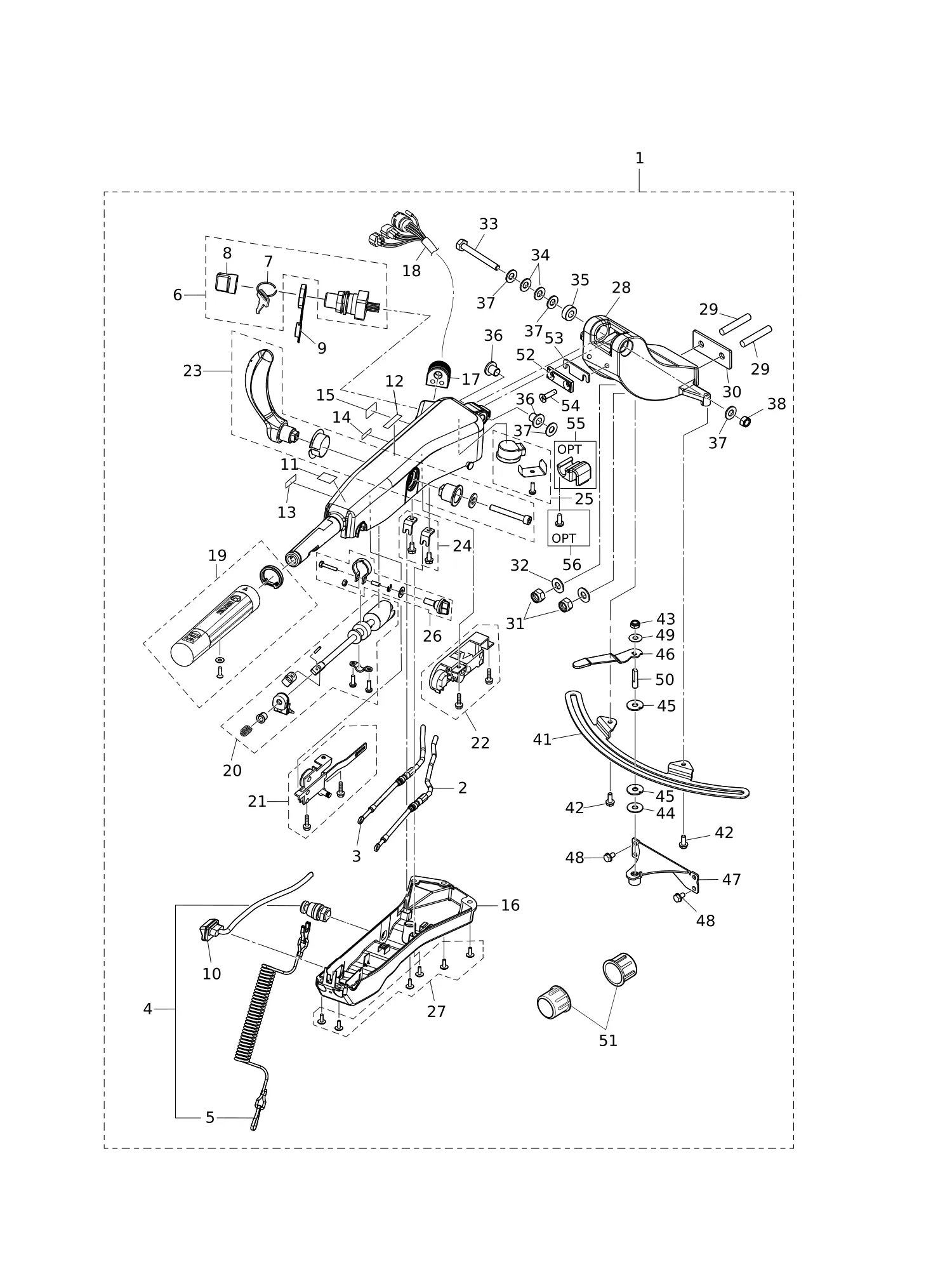

图 17多功能舵柄手柄 MULTI TILLER HANDLE

REF	零件编号	中文名称	英文名称	数量
1	3SSQ63000-3	舵柄套件	TILLER HANDLE KIT	1
1	3SSW63000-3	舵柄套件	TILLER HANDLE KIT	1
2	3SS-63600-0	* 节气门拉线	* THROTTLE WIRE	1
3	3SS-66196-0	* 换挡拉索	* SHIFT CABLE	1
4	398-06830-0	* 停机开关总成	* STOP SWITCH ASSY	1
5	353-06821-0	停机开关拉绳总成	** STOP SWITCH LANYARD ASSY	1
6	3GF-76020-0	* 主开关总成	* MAIN SWITCH ASSY	1
7	3GF-76217-0	主开关钥匙	** MAIN SWITCH KEY	1
7	3GF-76218-0	主开关钥匙	** MAIN SWITCH KEY	1
7	3GF-76219-0	主开关钥匙	** MAIN SWITCH KEY	1
8	3GF-76205-0	主开关钥匙防尘盖	** MAIN SWITCH KEY COVERING CAP	1
9	3T5-76022-0	* 主开关帽 (防水)	* MAIN SWITCH CAP (WATERPROOF)	1
10	3GF-71040-0	* 指示灯总成	* PILOT LAMP ASSY	1
11	3GF-72019-1	* 油门标识贴	* THROTTLE DECAL	1
12	3GF-67578-2	* 换挡标贴	* SHIFT DECAL	1
13	3GF-72198-1	* 警示灯贴花	* WARNING LAMP DECAL	1
14	3GF-72200-1	* 停机开关标贴	* STOP SWITCH DECAL	1
15	3GF-84339-1	* 操作说明标贴	* INSTRUCTION DECAL	1
16	3UR-63320-0	* 舵柄手柄盖	* TILLER HANDLE COVER	1
17	3GF-63624-0	* 护孔环	* GROMMET	1
18	3SS-76119-0	* 绳索总成	* CORD ASSY	1
19	3UR-63193-0	* 手柄零件套件	* GRIP PARTS KIT	1
20	3UR-63062-0	* 节气门轴套件	* THROTTLE SHAFT KIT	1
21	3GF-63067-0	* 节气门连杆总成	* THROTTLE LINK ASSY	1
22	3GF-66160-0	* 换挡单元总成	* SHIFT UNIT ASSY	1
23	3GF-66158-0	* 换挡杆套件	* SHIFT LEVER KIT	1
24	3GF-66198-0	* 线缆支架套件	* CABLE BRACKET KIT	1
25	3GF-76175-0	* 蜂鸣器套件	* BUZZER KIT	1
26	3GF-63032-0	* 油门摩擦总成	* THROTTLE FRICTION ASSY	1
27	3GF-63205-0	* 螺钉套件	* SCREW SET	1
28	3SSQ62001-1	* 转向支架	* STEERING BRACKET	1
28	3SSW62001-1	* 转向支架	* STEERING BRACKET	1
29	9153E3-1040	* 双头螺柱 M10-40	* STUD M10-40	2
30	3SS-62991-0	* 板	* PLATE	1
31	930403-1000	尼龙螺母 10-P1.5	* NYLON NUT 10-P1.5	2
33	3GF-63201-0	螺栓 10-80 P1.25	* BOLT 10-80 P1.25	1
34	3GF-63305-0	* 锥形弹簧垫圈 10.5-21-2.3	* CONICAL SPRING WASHER 10.5-21-2.3	2
35	3GF-63025-0	* 隔套 10.5-23-9	* SPACER 10.5-23-9	1
36	3GF-63102-0	* 衬套 10.5-12.7-13.5	* BUSHING 10.5-12.7-13.5	2
37	9401E3-1000	* 垫圈	* WASHER	4
38	3GF-63310-0	* 锁紧螺母 10-P1.25	* LOCK NUT 10-P1.25	1
41	3SS-62447-0	* 板	* PLATE	1
42	3V1-60108-0	* 预涂螺栓6-16	* PRE-COATED BOLT 6-16	2
43	3V5-62442-0	尼龙螺母 8-P1.25	* NYLON NUT 8-P1.25	1
44	3B7-63730-0	* 垫圈 8.5-24-1.5	* WASHER 8.5-24-1.5	1
45	3SS-62449-0	* 圆盘	* DISC	2
46	3SS-62441-0	* 摩擦杆	* FRICTION LEVER	1
47	3SS-62400-0	* 摩擦杆支架	* FRICTION LEVER BRACKET	1
48	910103-5612	螺栓	* BOLT	4
49	3R3-62443-0	* 垫圈 8.1-20-0.8	* WASHER 8.1-20-0.8	1
50	3GF-62445-0	* 螺栓 8-32 P1.25	* BOLT 8-32 P1.25	1
51	346-62127-0	* 盖形螺母	* CAP NUT	2
52	3VS-63025-0	* 隔套	* SPACER	1
53	3VV-63025-0	* 隔套	* SPACER	1
54	9216E3-0630	* 螺钉	* SCREW	2
55	3GF-62004-0	线束固定座	CORD HOLDER	1
56	3T5-06437-0	自攻螺钉 6-16	TAPPING SCREW 6-16	1

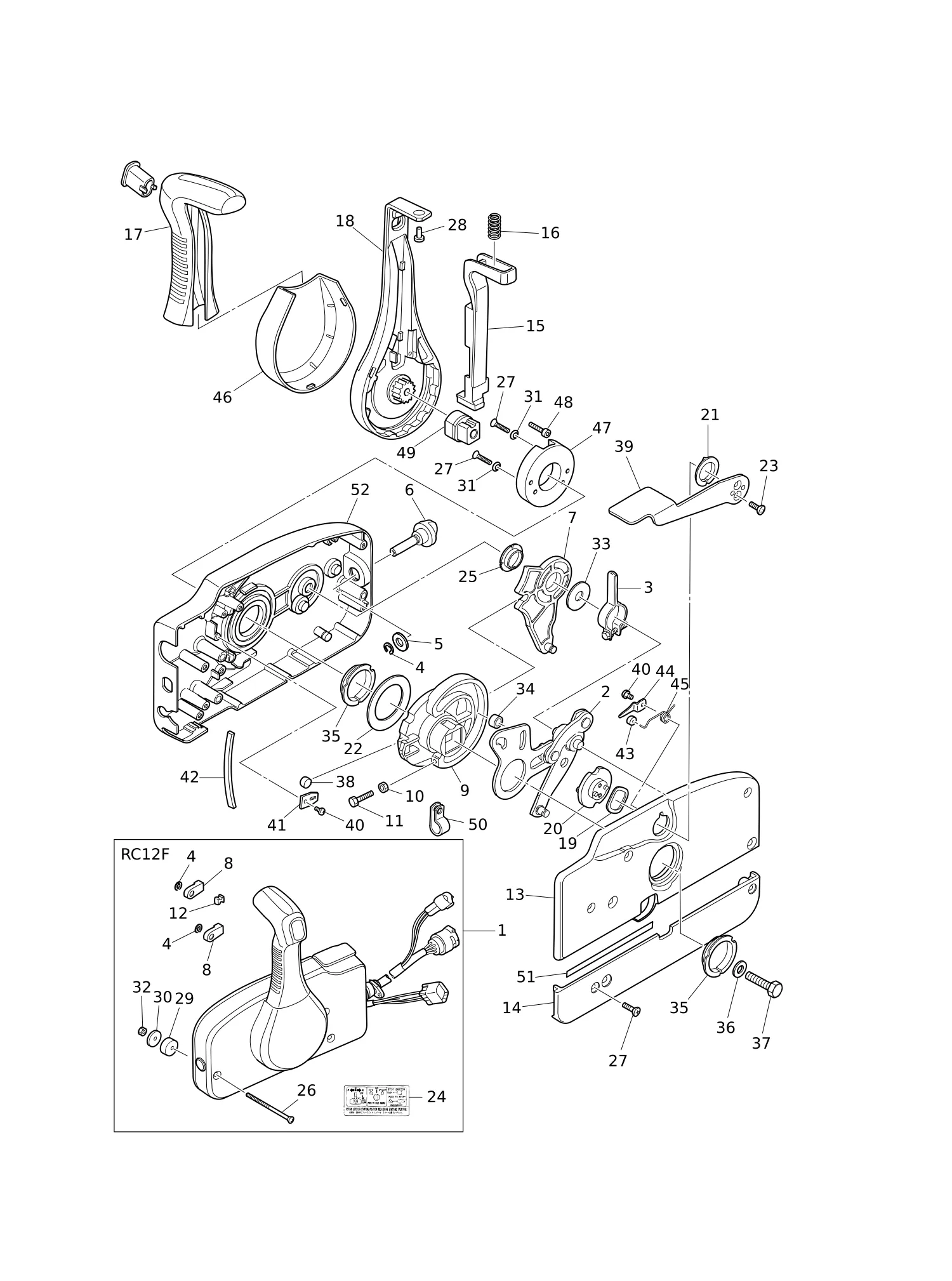

图 18遥控器零部件 COMPONENT PARTS OF REMOTE CONTROL

REF	零件编号	中文名称	英文名称	数量
1	3U2B84500-1	遥控头总成(RC12F)	REMOTE CONTROL HEAD ASSY (RC12F)	1
2	3A3-84365-1	* 节气门摇臂	* THROTTLE ARM	1
3	3A3-84428-0	* 油门摩擦摇臂	* THROTTLE FRICTION ARM	1
4	945303-0600	* E型卡环 d=6	* E-RING d=6	3
5	353-84394-0	* 垫圈	* WASHER	1
6	3U2-84427-0	* 调节螺钉	* ADJUSTING SCREW	1
7	3A3-84381-0	* 换挡齿轮总成	* SHIFT GEAR ASSY	1
8	3A3-83314-2	* 线缆端子	* CABLE TERMINAL	2
9	3A3-84364-2	* 驱动齿轮	* DRIVE GEAR	1
10	930103-0500	螺母	* NUT	1
11	910103-0525	螺栓	* BOLT	1
12	3A3-84376-0	* 护孔环	* GROMMET	1
13	3U2B84441-0	* 后壳体	* REAR HOUSING	1
14	3U2B84366-0	* 后盖板	* REAR PANEL	1
15	3U2-84401-0	* 空档锁止臂	* NEUTRAL LOCK ARM	1
16	3A3-84403-0	* 空档锁止弹簧	* NEUTRAL LOCK SPRING	1
17	3U2-84404-0	* 手柄	* GRIP	1
18	3U2-84343-0	* 控制杆	* CONTROL LEVER	1
19	3A3-84368-0	* 波形垫圈	* WAVE WASHER	1
20	3A3-84391-0	* 自由节流鼓	* FREE THROTTLE DRUM	1
21	3A3-84435-0	* 衬套	* BUSHING	1
22	3A3-84422-0	* 推力板	* THRUST PLATE	1
23	921603-0512	* 螺钉	* SCREW	2
24	3VK-84339-1	* 操作说明标贴	* INSTRUCTION DECAL	1
25	3A3-84432-0	* 衬套	* BUSHING	1
26	3U2-84375-0	* 螺钉	* SCREW	3
27	3VK-84375-0	* 螺钉	* SCREW	7
28	3VL-84375-0	* 螺钉	* SCREW	1
29	3A3-84374-0	* 隔套	* SPACER	3
30	353-84371-0	* 垫圈	* WASHER	3
31	3U2-84371-0	* 垫圈	* WASHER	2
32	930103-0600	螺母	* NUT	3
33	3A3-84383-0	* 垫圈	* WASHER	1
34	3A3-84421-0	* 滚轮	* ROLLER	1
35	3U2-84431-0	* 衬套	* BUSHING	2
36	940103-0800	* 垫圈	* WASHER	1
37	3U2-84442-0	螺栓	* BOLT	1
38	353-84388-0	* 定位滚轮	* DETENT ROLLER	1
39	3U2B84312-0	* 自由节流杆	* FREE THROTTLE LEVER	1
40	921503-0406	* 螺钉	* SCREW	3
41	3A3-84423-0	* 定位器挡圈	* DETENT RETAINER	1
42	3A3-84307-0	* 定位弹簧	* DETENT SPRING	6
43	3A3-84424-0	* 自由节流滚轮	* FREE THROTTLE ROLLER	1
44	3A3-84426-0	* 滚柱保持架	* ROLLER RETAINER	1
45	3A3-84425-0	* 自由节流弹簧	* FREE THROTTLE SPRING	1
46	3U2-63107-0	* 盖板	* COVER	1
47	3U2-63506-0	* 支架	* HOLDER	1
48	3U2-84917-0	螺栓	* BOLT	1
49	3U2-77367-0	* 接头	* JOINT	1
50	3U2-06973-0	* 卡箍	* CLAMP	1
51	3U2-72187-0	* 警示标贴(SIGP)	* CAUTION DECAL (SIGP)	1
52	3U2B84440-0	* 前壳体	* FRONT HOUSING	1

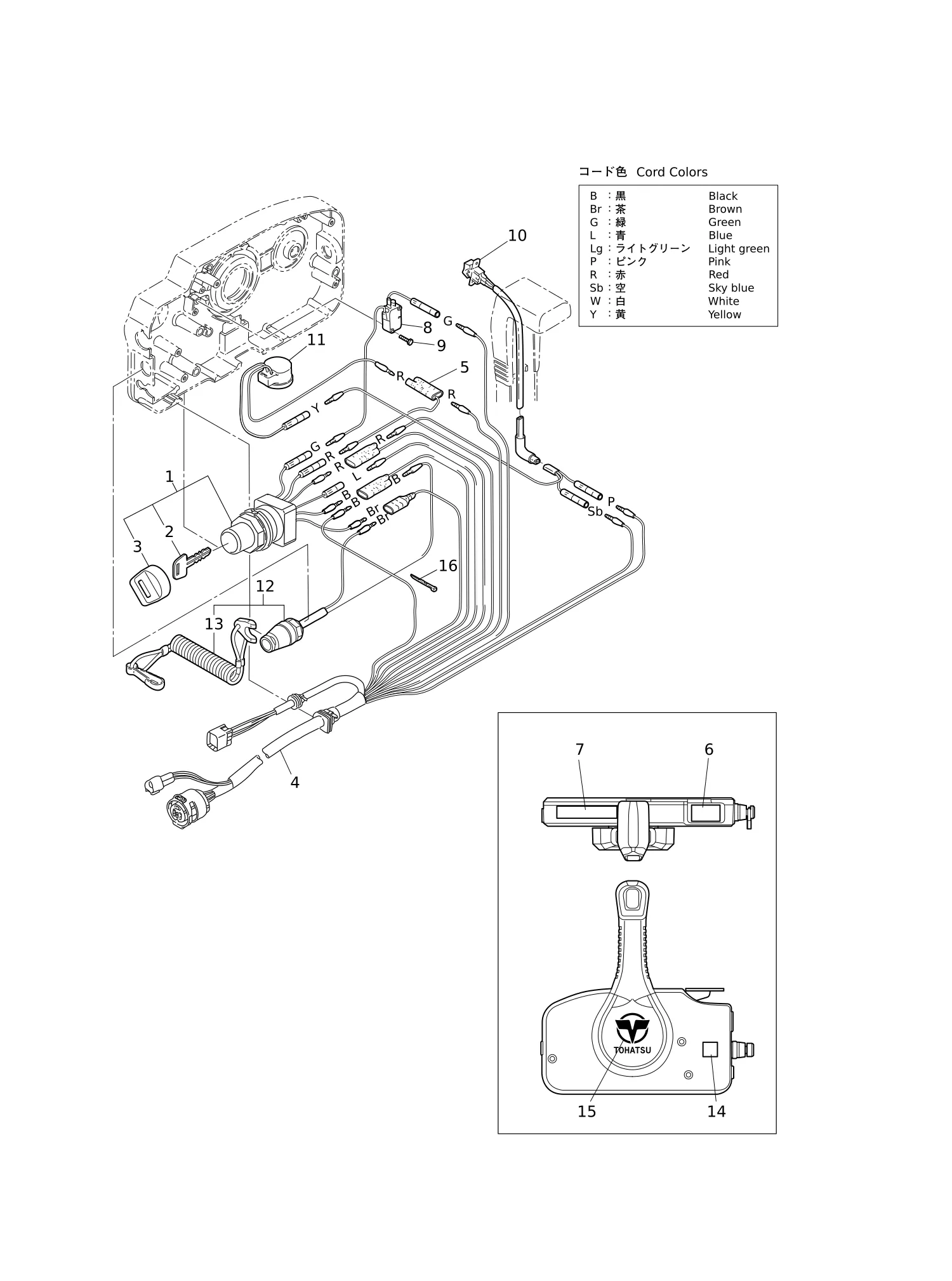

图 19遥控器零部件(电气部件) COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)

REF	零件编号	中文名称	英文名称	数量
1	3GF-76020-0	主开关总成	MAIN SWITCH ASSY	1
2	3GF-76217-0	* 主开关钥匙	* MAIN SWITCH KEY	1
2	3GF-76218-0	* 主开关钥匙	* MAIN SWITCH KEY	1
2	3GF-76219-0	* 主开关钥匙	* MAIN SWITCH KEY	1
3	3GF-76205-0	* 主开关钥匙盖帽	* MAIN SWITCH KEY COVERING CAP	1
4	3T5-76115-1	线束总成 L=6200	CORD ASSY L=6200	1
5	353-72546-0	辅助拉绳(红) 长200	ASSIST CORD (RED) L=200	1
6	3U2-84331-0	操纵杆贴花	DECAL (LEVER)	1
7	3U2-84336-1	挡位标识贴	SHIFT POSITION DECAL	1
8	3T5-76086-0	空档开关(遥控型)	NEUTRAL SWITCH (REMOTE CONT)	1
9	921503-5316	螺钉	SCREW	2
10	3U2-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
11	3C8-76171-0	过热报警器	OVERHEAT BUZZER	1
12	3A3-06830-0	停止开关总成	STOP SWITCH ASSY	1
13	353-06821-0	* 停机开关拉绳总成	* STOP SWITCH LANYARD ASSY	1
14	3U2-72200-0	停止开关贴花	STOP SWITCH DECAL	2
15	3U2-84334-0	遥控标识贴花	REMOTE CONTROL LOGO DECAL	1
16	3U2-84398-0	箍带	BAND	5

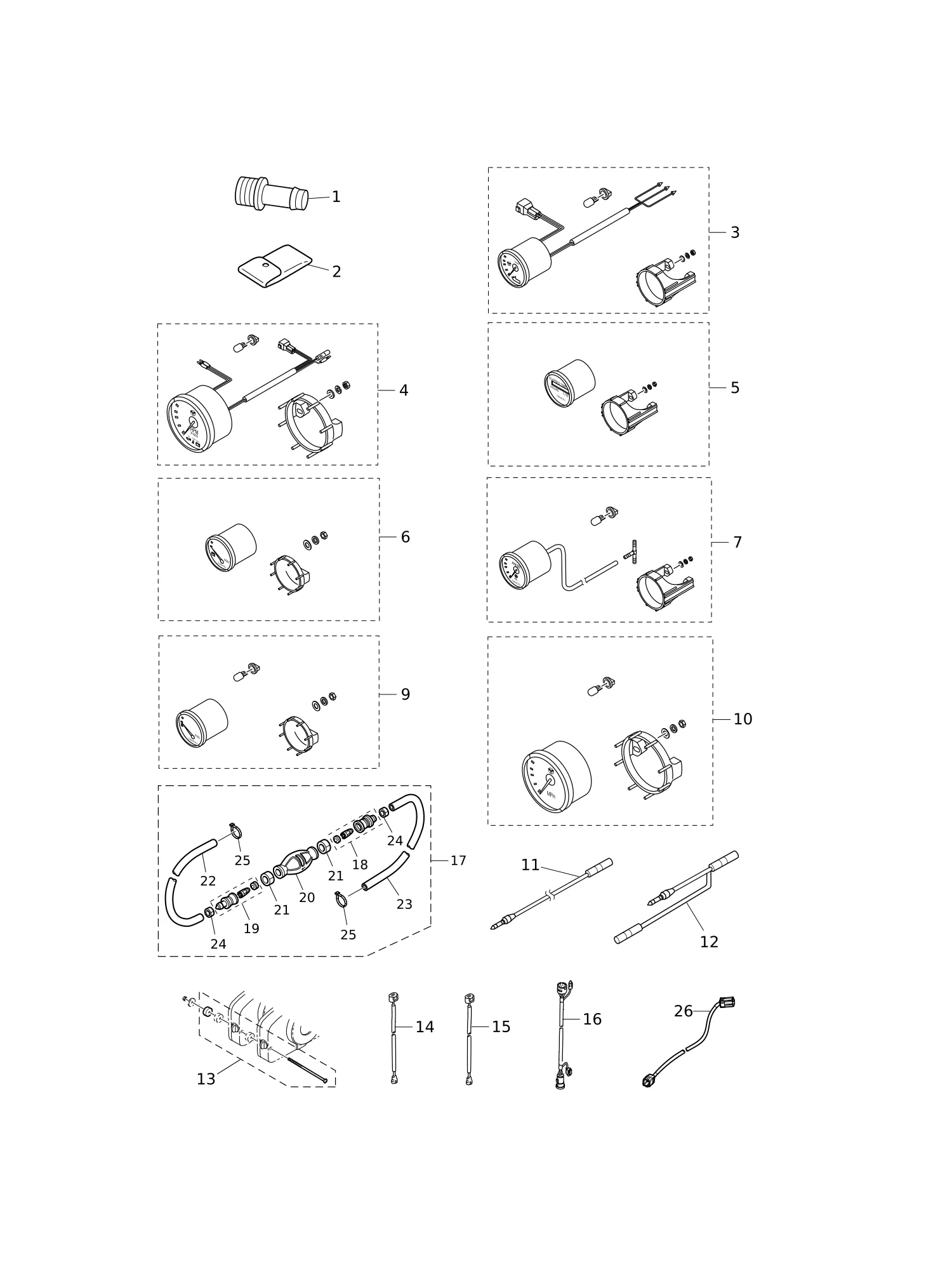

图 20选装配件 OPTIONAL PARTS · ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
1	3T1-72405-0	软管接头(水工)	HOSE JOINT (WATER-WORKS)	1
2	3SS-72100-1	工具包	TOOL KIT	1
3	3UR-72523-3	配平表套件	TRIM METER KIT	1
3	3WA-72523-3	配平表套件	TRIM METER KIT	1
4	3UR-72647-3	转速表	TACHOMETER	1
4	3WA-72647-3	转速表	TACHOMETER	1
5	3UR-72532-1	计时器套件	HOUR METER KIT	1
5	3WA-72532-1	计时器套件	HOUR METER KIT	1
6	3UR-72531-1	电压表套件	VOLTMETER KIT	1
6	3WA-72531-1	电压表套件	VOLTMETER KIT	1
7	3UR-72527-3	水压表套件	WATER PRESSURE METER KIT	1
7	3WA-72527-3	水压表套件	WATER PRESSURE METER KIT	1
9	3UR-72600-1	燃油表套件	FUEL METER KIT	1
9	3WA-72600-1	燃油表套件	FUEL METER KIT	1
10	3KY-72673-1	速度表套件(70英里/时)	SPEEDOMETER KIT (70MPH)	1
10	3UW-72673-1	速度表套件(70英里/时)	SPEEDOMETER KIT (70MPH)	1
11	3KY-72538-0	速度表引线	SPEEDOMETER LEAD WIRE	1
12	3KY-72546-0	辅助拉绳(红)	ASSIST CORD (RED)	1
13	3A3-81301-0	双联遥控套件	TWIN REMOTE CONTROL KIT	1
14	3T1-72573-1	延长线(配平传感器) L=6000	EXTENSION CORD (TRIM SENSOR) L=6000	1
14	3Z4-72573-0	延长线(配平传感器) L=2000	EXTENSION CORD (TRIM SENSOR) L=2000	1
15	3T5-76112-0	延长线 L=2000 (2针)	EXTENSION CORD L=2000 (2P)	1
16	3KY-76114-0	延长线 L=4000 (11针)	EXTENSION CORD L=4000 (11P)	1
16	3T5-76114-0	延长线 L=2000 (11针)	EXTENSION CORD L=2000 (11P)	1
17	3SS-70232-0	带箍手动泵球总成	PRIMER BULB ASSY W/BAND	1
18	3C7-70220-1	* 接头组件(进口)	* JOINT ASSY (INLET)	1
19	3C7-70224-1	* 接头组件(出口)	* JOINT ASSY (OUTLET)	1
20	3C7-70211-1	* 注油球	* PRIMER BULB	1
21	3C7-70217-0	* 卡箍	* CLAMP	2
22	98AB-70-700	* 软管	* HOSE	1
23	98AB-701600	* 软管	* HOSE	1
24	332-70201-0	* 卡箍	* CLAMP	2
25	3T5-84398-0	箍带 104	* BAND 104	2
26	3SS-76144-0	启动器延长电缆	EXTENSION STARTER CABLE	1

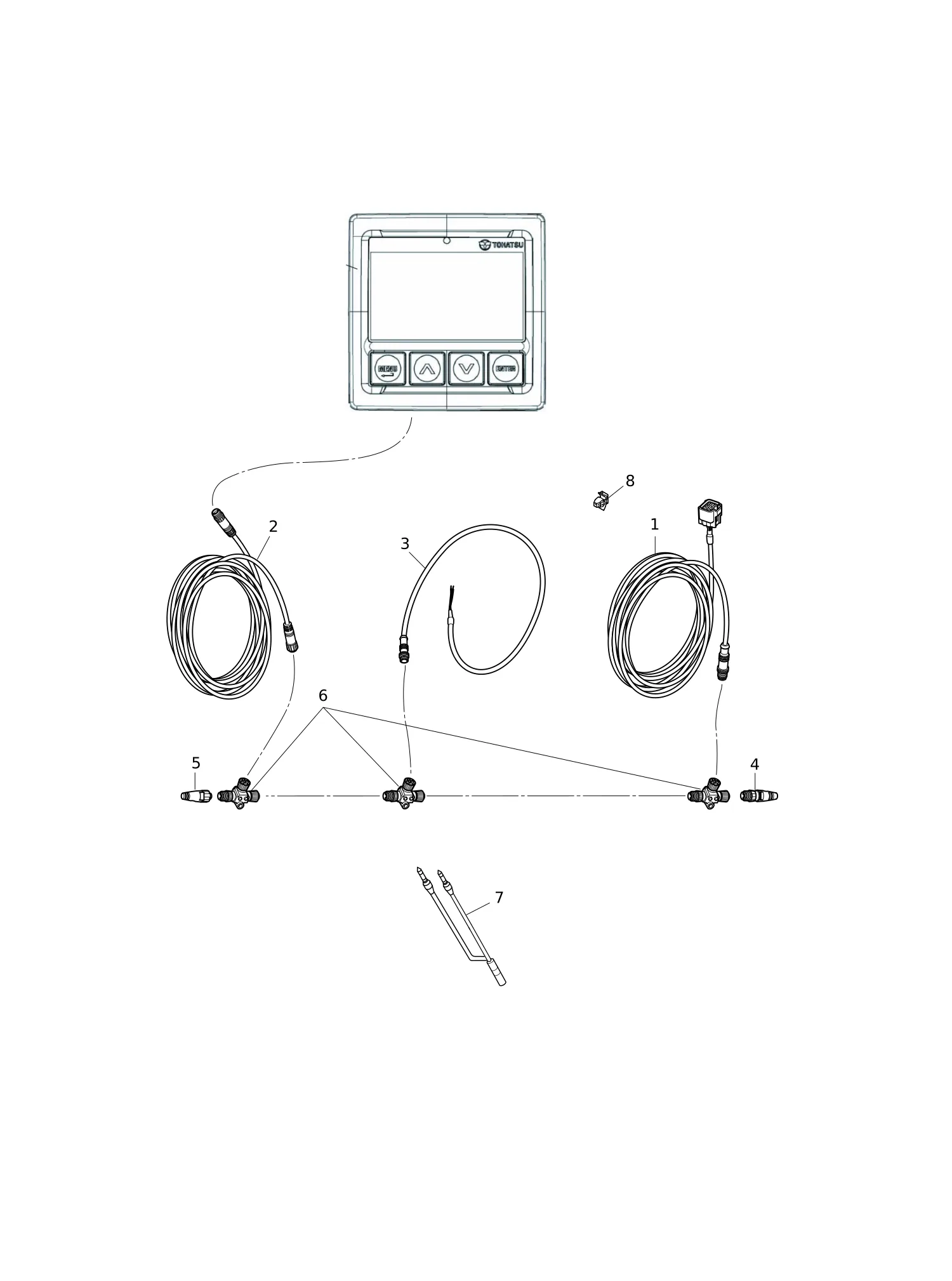

图 21选装件(1) OPTIONAL PARTS (1)

REF	零件编号	中文名称	英文名称	数量
1	3ZG-76131-1	发动机下垂电缆 L=6米	ENGINE DROP CABLE L=6m	1
2	3SS-76132-0	主干电缆 L=2米	BACKBONE CABLE L=2m	1
2	3ZG-76132-0	主干电缆 L=6米	BACKBONE CABLE L=6m	1
3	3ZG-76120-0	蓄电池电缆	BATTERY CABLE	1
4	3ZG-76153-0	终端接头(公)	TERMINATOR (MALE)	1
5	3ZG-76152-0	终端接头(母)	TERMINATOR (FEMALE)	1
6	3ZG-76151-0	三通接头	TEE CONNECTOR	3
7	3SS-76049-0	导线	LEAD WIRE	1
8	3SS-06973-0	卡箍	CLAMP	1

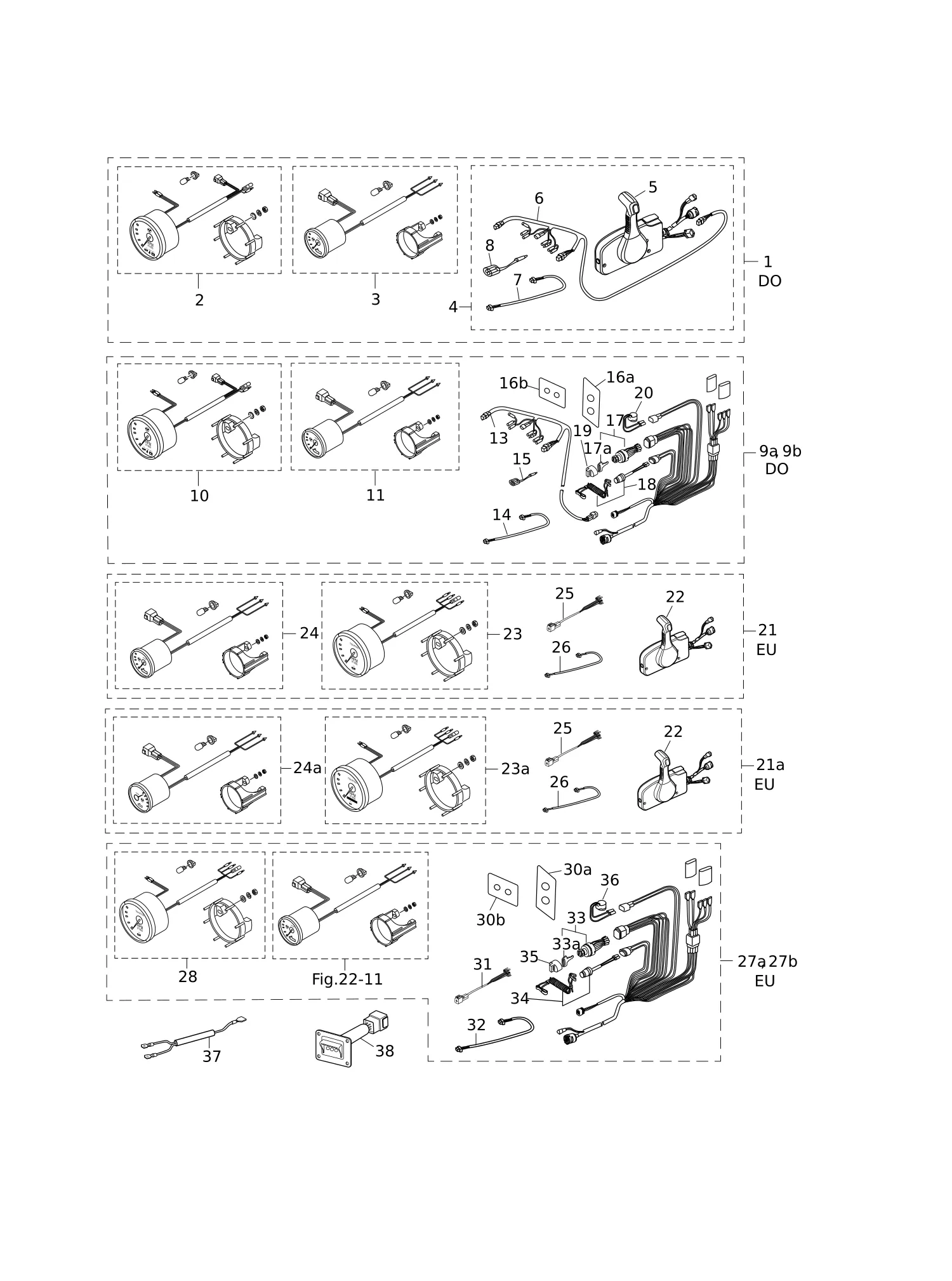

图 22索具套件 RIGGING KIT

REF	零件编号	中文名称	英文名称	数量
1	3SSQ84555-3	通用侧装预装配套件	PRE-RIGGING KIT (GENERIC SIDE)	1
4	3GLQ84550-6	* 预装配套件	* PRE-RIGGING KIT	1
9a	3SS-84556-2	通用平装预装配套件(垂直)	PRE-RIGGING KIT(GENERIC FLUSH) (Vertical)	1
9b	3UG-84556-2	通用平装预装配套件(水平)	PRE-RIGGING KIT(GENERIC FLUSH) (Horizontal)	1
10	3UR-72647-3	* 转速表	* TACHOMETER	1
13	3KY-72537-0	* 仪表引线 L=8000	* METER LEAD WIRE L=8000	1
15	353-72548-0	* 辅助绳(黑) L=200	* ASSIST CORD (BLK) L=200	1
21a	3UH-84555-0	通用侧装预装配套件	PRE-RIGGING KIT (GENERIC SIDE)	1
21	3ZG-84555-1	通用侧装预装配套件	PRE-RIGGING KIT (GENERIC SIDE)	1
22	3U2B84500-1	* 遥控头总成(RC12F型)	* REMOTE CONTROL HEAD ASSY (RC12F)	1
23a	3VS-72638-0	* 转速表套件	* TACHOMETER KIT	1
24	3UR-72523-3	* 配平表套件	* TRIM METER KIT	1
24a	3VS-72523-0	* 配平表套件	* TRIM METER KIT	1
27b	3UH-84556-1	通用平装预装配套件(水平)	PRE-RIGGING KIT(GENERIC FLUSH) (Horizontal)	1
27a	3ZG-84556-1	通用平装预装配套件(垂直)	PRE-RIGGING KIT(GENERIC FLUSH) (Vertical)	1
28	3PA-72638-2	* 转速表套件	* TACHOMETER KIT	1
30a	3KY-76201-0	* 主开关面板(垂直式)	* MAIN SWITCH PANEL (VERTICAL)	1
30b	3NV-76201-0	* 主开关面板(水平式)	* MAIN SWITCH PANEL (HORIZONTAL)	1
31	3KY-72539-0	* 转速表引线 L=2000	* TACHOMETER LEAD WIRE L=2000	1
32	3T1-72573-1	* 延长线(配平传感器) L=6000	* EXTENSION CORD (TRIM SENSOR) L=6000	1
33a	353-76203-1	301号主开关钥匙	** MAIN SWITCH KEY No.301	1
33a	353-76203-2	302号主开关钥匙	** MAIN SWITCH KEY No.302	1
33a	353-76203-3	303号主开关钥匙	** MAIN SWITCH KEY No.303	1
33	3Y9-76020-0	* 主开关总成	* MAIN SWITCH ASSY	1
34	3Y9-06830-0	* 停机开关总成	* STOP SWITCH ASSY	1
35	353-76205-1	* 主开关钥匙盖帽	* MAIN SWITCH KEY COVERING CAP	1
36	3Y9-76171-0	* 过热报警器	* OVERHEAT BUZZER	1
37	3Y9-76049-0	导线L=200	LEAD WIRE L=200	1
38	3Y9-76251-0	灯板总成	LAMP PANEL ASSY	1

图 23套件零件总成 ASSEMBLY · KIT PARTS

REF	零件编号	中文名称	英文名称	数量
1	31KQ87304-0	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
1	31KW87304-0	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
1	3SSQ87302-1	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3SSQ87304-1	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
1	3SSW87302-1	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3SSW87304-1	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
2	3SSB87090-4	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
2	3ZGB87090-2	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
3	151-00053-0	* O型圈2-66.5	* O-RING 2-66.5	1
3	3R0-07422-0	* O型圈 3.1-24.4	* O-RING 3.1-24.4	1
3	3R3-07204-0	* 进气阀杆油封	* INTAKE VALVE STEM SEAL	8
3	3R3-07206-0	* 排气阀杆密封	* EXHAUST VALVE STEM SEAL	8
3	3SS-00121-0	* 油封 52-75-9	* OIL SEAL 52-75-9	1
3	3SS-01005-0	* 气缸盖垫片	* CYLINDER HEAD GASKET	1
3	3SS-01024-0	* 气缸盖罩衬垫	* CYLINDER HEAD COVER GASKET	1
3	3SS-01214-0	* 曲轴箱缸头垫片	* CRANKCASE HEAD GASKET	1
3	3SS-01215-0	* 油封 22-32-7	* OIL SEAL 22-32-7	2
3	3SS-01303-0	* 发动机底座衬垫	* ENGINE BASEMENT GASKET	1
3	3SS-02335-0	* 排气歧管衬垫	* EXHAUST MANIFOLD GASKET	1
3	3SS-03818-0	* O型圈 3.5-31.2	* O-RING 3.5-31.2	1
3	3SS-07631-0	* O型圈 φ2.4-18.8	* O-RING φ2.4-18.8	1
3	3SS-07632-0	* O型圈	* O-RING	1
3	3SS-07635-0	* O型圈 2.4-21.8	* O-RING 2.4-21.8	2
3	3SS-07639-0	* O型圈 2.4-37.2	* O-RING 2.4-37.2	1
3	3SS-07702-0	* 油底壳衬垫	* OILPAN GASKET	1
3	3SS-07714-0	* 油底壳盖板垫片	* OILPAN PLATE GASKET	1
3	3SS-07825-0	* 油封 30-47-8	* OIL SEAL 30-47-8	1
3	3SS-10311-0	* O型圈 3.1-74.4	* O-RING 3.1-74.4	1
3	3SS-76067-0	* 整流器总成垫片	* RECTIFIER COMPLETE GASKET	1
3	3SS-87121-0	动力头衬垫套装	POWER HEAD GASKET SET	1
3	3UG-00121-0	* 油封 52-75-9	* OIL SEAL 52-75-9	1
3	3UG-02335-0	* 排气歧管衬垫	* EXHAUST MANIFOLD GASKET	1
3	3UG-10311-0	* O型圈 3.1-49.4	* O-RING 3.1-49.4	1
3	3UG-61220-0	* 怠速排气口衬垫	* IDLE EXHAUST PORT GASKET	1
4	3SS-60103-0	* O型圈 3.1-94.4	* O-RING 3.1-94.4	1
4	3SS-60111-0	* 油封 30-50-7	* OIL SEAL 30-50-7	2
4	3SS-60223-0	* 油封 22-40-8	* OIL SEAL 22-40-8	2
4	3SS-66023-0	* O型圈 3.5-55.6	* O-RING 3.5-55.6	1
4	3SS-66137-0	* 油封 10-20-7	* OIL SEAL 10-20-7	2
4	3SS-87321-0	下部单元衬垫套件	LOWER UNIT GASKET SET	1
5	3SS-72620-0	倾斜限位开关套件	TILT LIMIT SWITCH KIT	1
5	3SS-72622-0	* 倾斜限位开关凸轮总成	* TILT LIMIT SWITCH CAM ASSY	1
5	3SS-72623-0	* 倾斜限位开关板总成	* TILT LIMIT SWITCH PLATE ASSY	1
5	9101E3-5612	螺栓	* BOLT	1
6	3SS-72561-0	* 配平传感器凸轮总成	* TRIM SENSOR CAM ASSY	1
6	3SS-72572-0	* 配平传感器总成(数字式)	* TRIM SENSOR ASSY (DIGITAL)	1
6	3SS-72578-0	配平传感器套件(数字式)	TRIM SENSOR KIT (DIGITAL)	1
6	3SS-72628-0	* 倾斜限位凸轮座	* TILT LIMIT CAM HOLDER	1
6	3SS-84398-0	* 箍带	* BAND	1
6	9101E3-5616	螺栓	* BOLT	1
6	921503-0510	* 螺钉	* SCREW	1
7	3SS-87322-0	水泵维修套件	WATER PUMP REPAIR KIT	1
7	9161E3-0845	螺栓	* BOLT	4
7	9401E3-0800	* 垫圈	* WASHER	4
8	3AB-01111-0	* 定位销 6-12	* DOWEL PIN 6-12	2
8	3B7-61114-0	螺母 10-P1.25	* NUT 10-P1.25	6
8	3C7-60213-0	* 圆锥滚子轴承 0506	* TAPERED ROLLER BEARING 0506	1
8	3SS-61018-0	* 螺栓 M10-170-P1.25	* BOLT M10-170-P1.25	1
8	3SS-61111-0	* 双头螺柱 M10-165_P1.25	* STUD M10-165_P1.25	6
8	3SS-64303-0	* 驱动轴（上长）	* DRIVE SHAFT (UL)	1
8	3SS-65120-0	* 水管 (上左)	* WATER PIPE (UL)	1
8	3SS-66014-0	* 凸轮杆(上左)	* CAM ROD (UL)	1
8	3SSQ61110-0	* 延伸壳体	* EXTENSION HOUSING	1
8	3SSQ87314-1	延伸壳体套件(超长)	EXTENSION HOUSING KIT (UL)	1
8	9402E3-1000	* 垫圈	* WASHER	6
8	945303-0900	* E型卡环 d=9	* E-RING d=9	1
9	332-60006-1	* 衬垫 8.1-15-1	* GASKET 8.1-15-1	2
9	338-60218-2	* 阳极	* ANODE	1
9	369-60218-1	* 阳极	* ANODE	1
9	3B7-65022-1	* 键 28-5.7-4	* KEY 28-5.7-4	1
9	3BJ-07615-0	* 机油滤清器	* OIL FILTER	1
9	3C7-60218-2	* 阳极	* ANODE	1
9	3KY-60218-0	* 阳极	* ANODE	2
9	3P0-60218-0	* 阳极	* ANODE	10
9	3R3-07406-0	* 垫圈 14.5-24-1	* WASHER 14.5-24-1	1
9	3SS-65011-0	* 泵壳衬套	* PUMP CASE LINER	1
9	3SS-65015-0	* O型圈 2.4-35.2	* O-RING 2.4-35.2	1
9	3SS-65021-0	* 水泵叶轮	* WATER PUMP IMPELLER	1
9	3SS-65025-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
9	3SS-65029-0	* 导板垫片	* GUIDE PLATE GASKET	1
9	3SS-87500-0	维护套件	MAINTENANCE KIT	1
9	3T5-10046-0	* O型圈1.9-13	* O-RING 1.9-13	10
9	3UG-65015-0	* O型圈 2.4-84.4	* O-RING 2.4-84.4	1
9	951503-0325	* 开口销 3-25	* SPLIT PIN 3-25	1
9	9701-1-1130	* 火花塞 (LKR6E)	* SPARK PLUG (LKR6E)	4
10	3SS-00001-0	* 活塞(标准)	* PISTON(STD)	1
10	3SS-00021-0	* 活塞销	* PISTON PIN	1
10	3SS-00024-0	* 活塞销卡簧	* PISTON PIN CLIP	2
10	3SS-87130-0	活塞修理包	PISTON REPAIR KIT	1
11	3SS-00011-1	* 活塞环	* PISTON RING	1
11	3SS-00012-1	* 活塞环	* PISTON RING	1
11	3SS-00013-0	* 油环	* PISTON RING-OIL	1
11	3SS-87123-1	活塞环组	PISTON RING SET	1
12	3KY-07901-0	* 进气阀 φ32	* INTAKE VALVE φ32	8
12	3SS-07895-0	进气阀套件	INTAKE VALVE KIT	1
13	3KY-07902-0	* 排气阀 φ28	* EXHAUST VALVE φ28	8
13	3KY-07921-0	* 固定座	* RETAINER	8
13	3KY-07923-0	* 开口销	* COTTER	16
13	3SS-07896-0	排气阀套件	EXHAUST VALVE KIT	1
