东发 Tohatsu MFS60A 2021 - 爆炸图零件明细

四冲程 4-Stroke · 2021 年 · 手册号 002-21058-0BA · 共 26 个部位 · 835 条零件

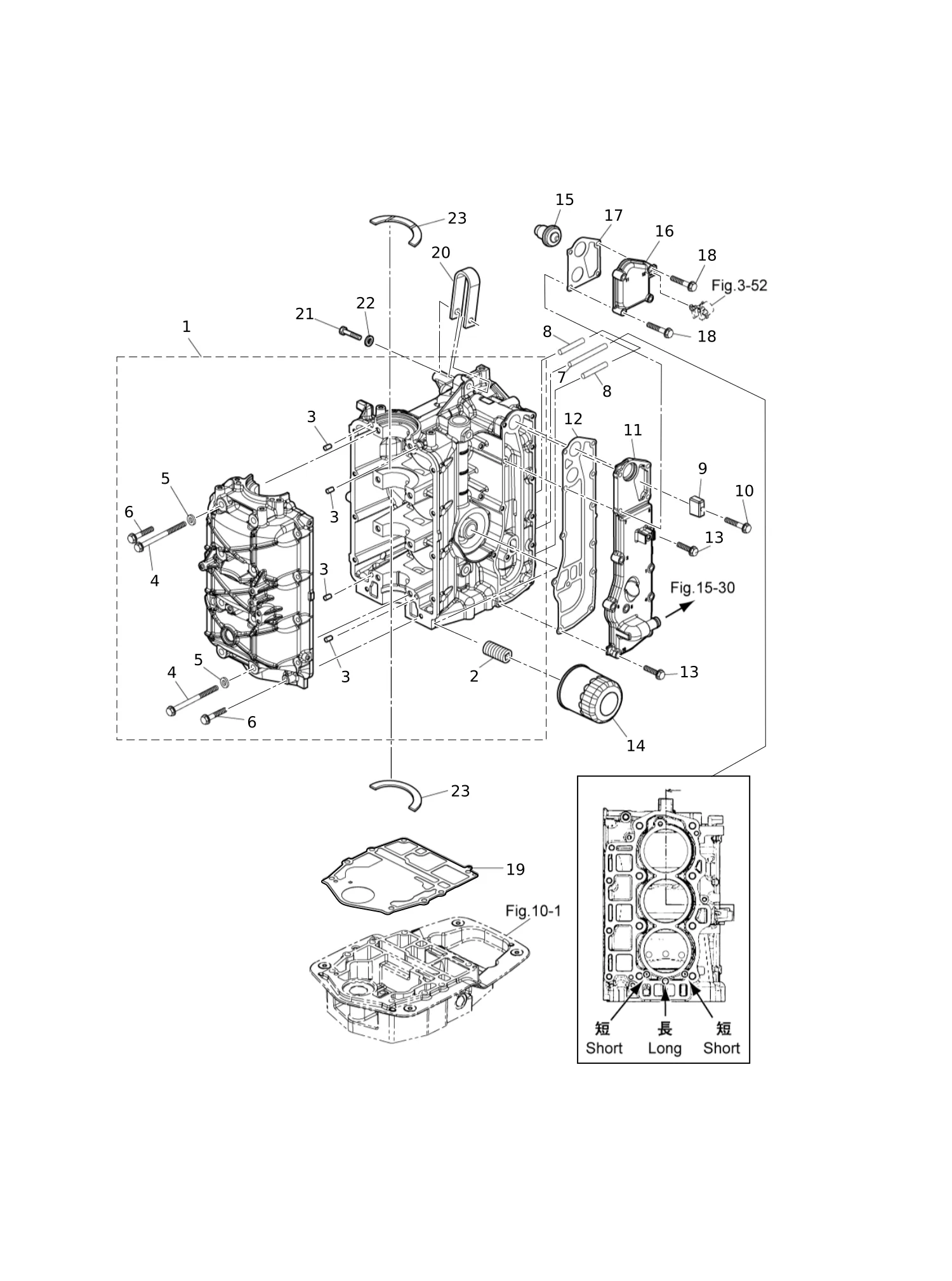

图 01气缸·曲轴箱 CYLINDER · CRANK CASE

REF	零件编号	中文名称	英文名称	数量
1	3KYB01100-1	气缸体与曲轴箱总成	CYL BLOCK & CRANKCASE ASSY	1
2	3H8-07636-0	* 机油滤清器螺栓	* OIL FILTER BOLT	1
3	345-01111-0	* 定位销 6-12	* DOWEL PIN 6-12	4
4	3R0-01113-1	* 螺栓 8-90	* BOLT 8-90	8
6	3KY-01114-0	* 螺栓 M6-35	* BOLT M6-35	10
7	3KY-01195-0	水套嵌件(右)	WATER JACKET INSERT (R)	1
8	3KY-01196-0	水套嵌件(左) L=35	WATER JACKET INSERT (L) L=35	2
9	3B7-60218-1	阳极块	ANODE	1
10	910103-5635	螺栓	BOLT	1
11	3KYB02300-0	排气盖总成	EXHAUST COVER ASSY	1
12	3KY-02305-0	排气盖垫片	EXHAUST COVER GASKET	1
13	910103-5625	螺栓	BOLT	8
14	3BJ-07615-0	机油滤清器	OIL FILTER	1
15	3KY-01030-1	节温器	THERMOSTAT	1
16	3KYB01031-0	节温器盖	THERMOSTAT CAP	1
17	3KY-01032-0	节温器盖垫片	THERMOSTAT CAP GASKET	1
18	9101E3-5635	螺栓	BOLT	4
19	3KY-01303-0	发动机基座垫片	ENGINE BASEMENT GASKET	1
20	3KY-01513-0	吊架	HANGER	1
21	910114-0835	螺栓	BOLT	1
22	940103-0800	垫圈	WASHER	1
23	3KY-00115-0	止推板	THRUST PLATE	2

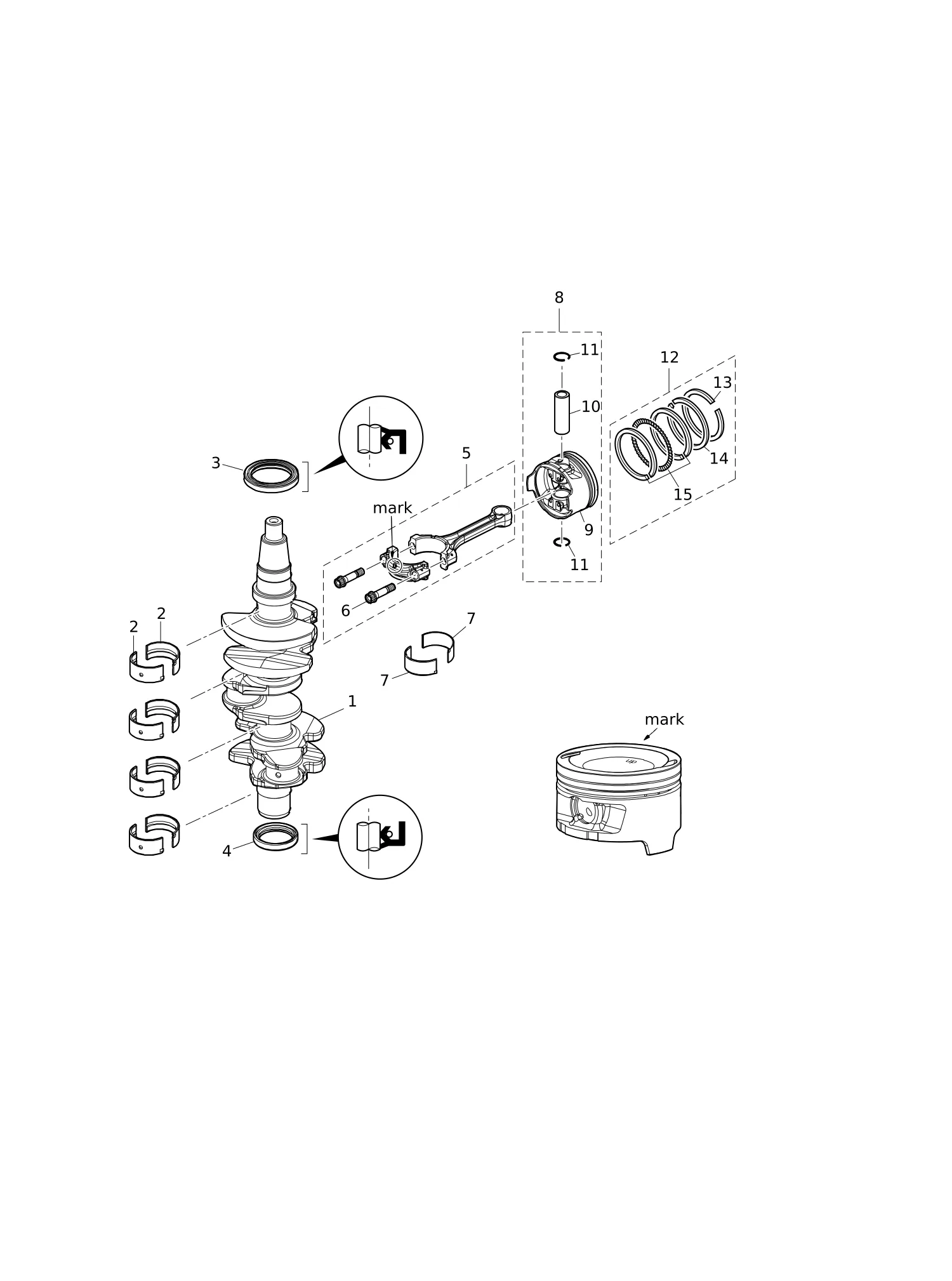

图 02活塞·曲轴 PISTON · CRANK SHAFT

REF	零件编号	中文名称	英文名称	数量
1	3KY-00030-1	曲轴总成	CRANKSHAFT ASSY	1
2	3KY-07707-0	滑动轴承	PLAIN SHAFT BEARING	1
2	3KY-07708-0	滑动轴承	PLAIN SHAFT BEARING	1
2	3KY-07750-0	滑动轴承	PLAIN SHAFT BEARING	1
3	3KY-00122-0	油封 50-68-9	OIL SEAL 50-68-9	1
4	3KY-00121-0	油封 38-50-8	OIL SEAL 38-50-8	1
5	3KY-00040-0	连杆总成	CONNECTING ROD ASSY	3
6	3KY-00059-0	* 连杆螺栓	* CONNECTING ROD BOLT	2
7	3KY-00080-0	大端轴承(棕色)	BIG END BEARING（Brown)	1
7	3KY-00081-0	大端轴承(黑色)	BIG END BEARING（Black)	1
7	3KY-00082-0	大端轴承(蓝色)	BIG END BEARING（Blue)	1
8	3UR-87130-0	活塞修理包	PISTON REPAIR KIT	3
8	3UR-87131-0	活塞修理包（0.5加大）	PISTON REPAIR KIT (0.5 O/S)	3
9	3UR-00001-0	* 活塞	* PISTON	1
9	3UR-00004-0	* 活塞 (0.5 加大)	* PISTON (0.5 O/S)	1
10	3KY-00021-0	* 活塞销	* PISTON PIN	1
11	3LC-00024-0	* 活塞销卡簧	* PISTON PIN CLIP	2
12	3KY-87123-0	活塞环组 φ70	PISTON RING SET φ70	3
12	3KY-87124-0	活塞环组（0.5加大）φ70.5(OS)	PISTON RING SET (0.5 O/S) φ70.5(OS)	3
13	3KY-00011-0	* 活塞环	* PISTON RING	1
13	3KY-00014-0	* 活塞环 (0.5 加大) φ70.5(OS)	* PISTON RING (0.5 O/S) φ70.5(OS)	1
14	3KY-00012-0	* 活塞环	* PISTON RING	1
14	3KY-00015-0	* 活塞环 (0.5 加大) φ70.5(OS)	* PISTON RING (0.5 O/S) φ70.5(OS)	1
15	3KY-00013-0	* 油环	* PISTON RING-OIL	1
15	3KY-00016-0	* 油环 (0.5 加大) φ70.5(OS)	* PISTON RING-OIL (0.5 O/S) φ70.5(OS)	1

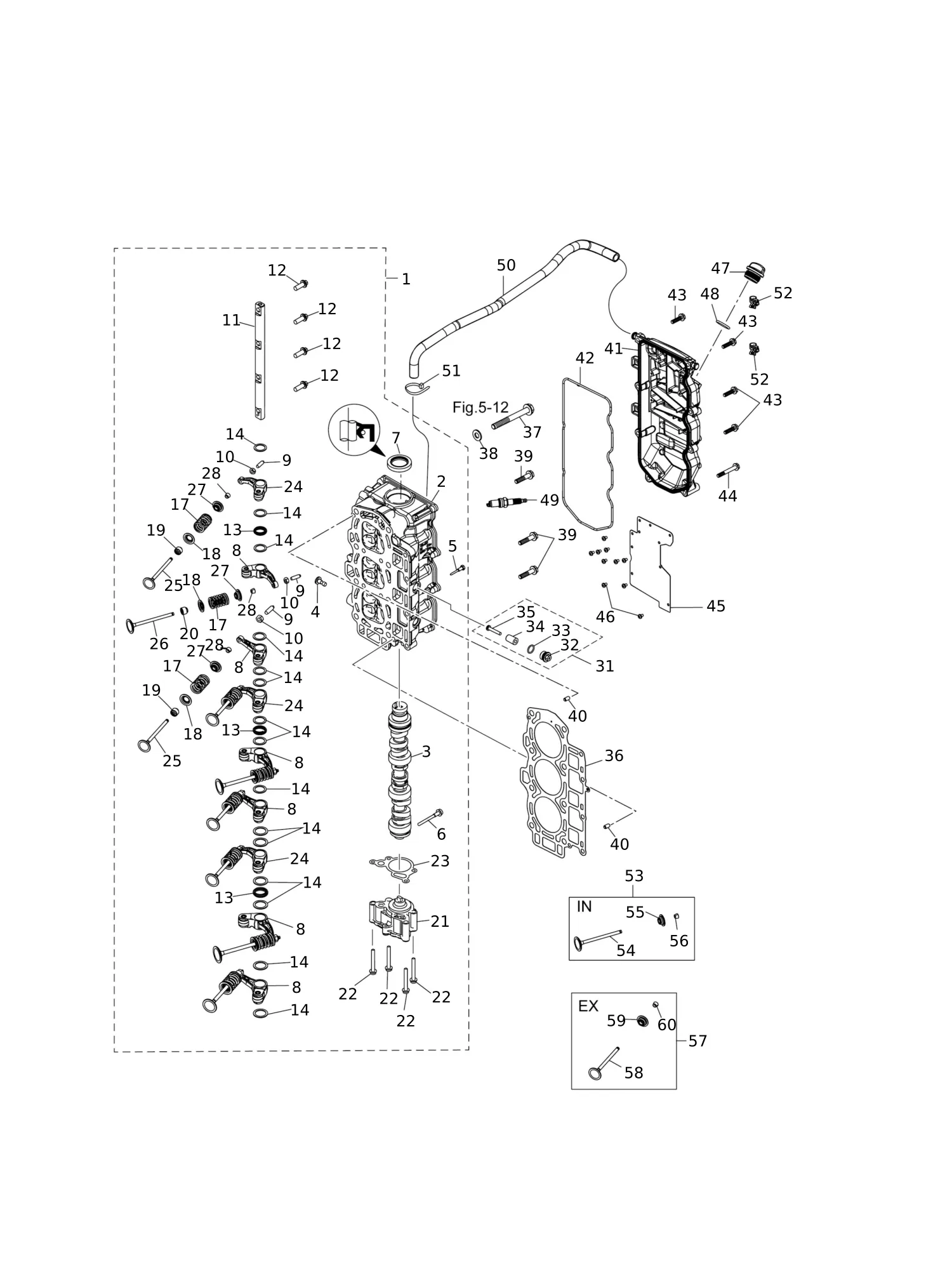

图 03气缸盖·机油泵 CYLINDERHEAD · OIL PUMP

REF	零件编号	中文名称	英文名称	数量
1	3URB01000-0	气缸盖总成	CYLINDER HEAD COMPLETE	1
2	3URB01001-0	* 气缸盖总成	* CYLINDER HEAD ASSY	1
3	3UR-07810-0	* 凸轮轴总成	* CAMSHAFT ASSY	1
4	3KY-07960-0	* 挺杆	* LIFTER	1
5	3KY-07962-0	* 挺杆螺栓	* LIFTER BOLT	1
6	3KY-07950-0	* 推力螺栓	* THRUST BOLT	1
7	3V1-00121-0	* 油封 30-45-8	* OIL SEAL 30-45-8	1
8	3WA-07935-0	* 摇臂	* ROCKER ARM	6
9	3R0-07238-0	* 调节螺钉	* ADJUSTING SCREW	9
10	3H8-07237-0	* 调节螺母	* ADJUSTING NUT	9
11	3UR-07920-0	* 摇臂轴	* ROCKER ARM SHAFT	1
12	3UR-07922-0	* 摇臂轴螺栓	* ROCKER SHAFT BOLT	4
13	3UR-07925-0	* 摇臂轴弹簧	* ROCKER SHAFT SPRING	3
14	3UR-07927-0	* 垫圈	* WASHER	15
17	3KY-07903-0	* 阀门弹簧	* VALVE SPRING	9
18	3KY-07905-0	* 阀门弹簧座	* VALVE SPRING SEAT	9
19	3R3-07204-0	* 进气阀杆油封	* INTAKE VALVE STEM SEAL	6
20	3R3-07206-0	* 排气阀杆密封	* EXHAUST VALVE STEM SEAL	3
21	3KY-07600-0	* 机油泵总成	* OIL PUMP ASSY	1
22	910103-5650	螺栓	* BOLT	4
23	3KY-07653-0	* 机油泵垫片	* OIL PUMP GASKET	1
24	3UR-07935-0	* 摇臂	* ROCKER ARM	3
31	3KM-01142-0	阳极螺塞总成	ANODE PLUG ASSY	3
32	3P0-01143-0	* 阳极塞	* ANODE PLUG	1
33	3T5-10046-0	* O型圈1.9-13	* O-RING 1.9-13	1
34	3P0-60218-0	* 阳极	* ANODE	1
35	921503-0530	* 螺钉	* SCREW	1
36	3KY-01005-0	气缸盖衬垫	CYLINDER HEAD GASKET	1
37	3KY-01013-0	气缸盖螺栓 M10-90	CYLINDER HEAD BOLT M10-90	8
38	940221-1000	垫圈	WASHER	8
39	3BJ-61017-1	螺栓8-P1.25	BOLT 8-P1.25	4
40	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
41	3KYB01020-0	气缸盖罩组件	CYLINDER HEAD COVER ASSY	1
42	3KY-01024-0	气缸盖罩垫片	CYLINDER HEAD COVER GASKET	1
43	910103-5625	螺栓	BOLT	6
44	910103-5645	螺栓	BOLT	2
45	3KY-07731-0	呼吸室盖	BREATHER CHAMBER COVER	1
46	921521-0408	螺钉	SCREW	10
47	3R0-71015-1	机油加注口盖	OIL FILLER CAP	1
48	3R0-07422-0	O型圈 3.1-24.4	O-RING 3.1-24.4	1
49	9701-1-1121	火花塞 (IKR6G8)	SPARK PLUG (IKR6G8)	3
50	3KY-07735-0	呼吸管	BREATHER HOSE	1
51	3T5-84398-0	箍带 104	BAND 104	1
52	3KY-84398-0	箍带	BAND	3
53	3UR-07895-0	进气阀套件	INTAKE VALVE KIT	1
54	3UR-07901-0	* 进气阀	* INTAKE VALVE	6
57	3KY-07896-1	排气阀套件	EXHAUST VALVE KIT	1
58	3KY-07902-0	* 排气阀 φ28	* EXHAUST VALVE φ28	3
59	3KY-07921-0	* 固定座	* RETAINER	3
60	3KY-07923-0	* 开口销	* COTTER	6

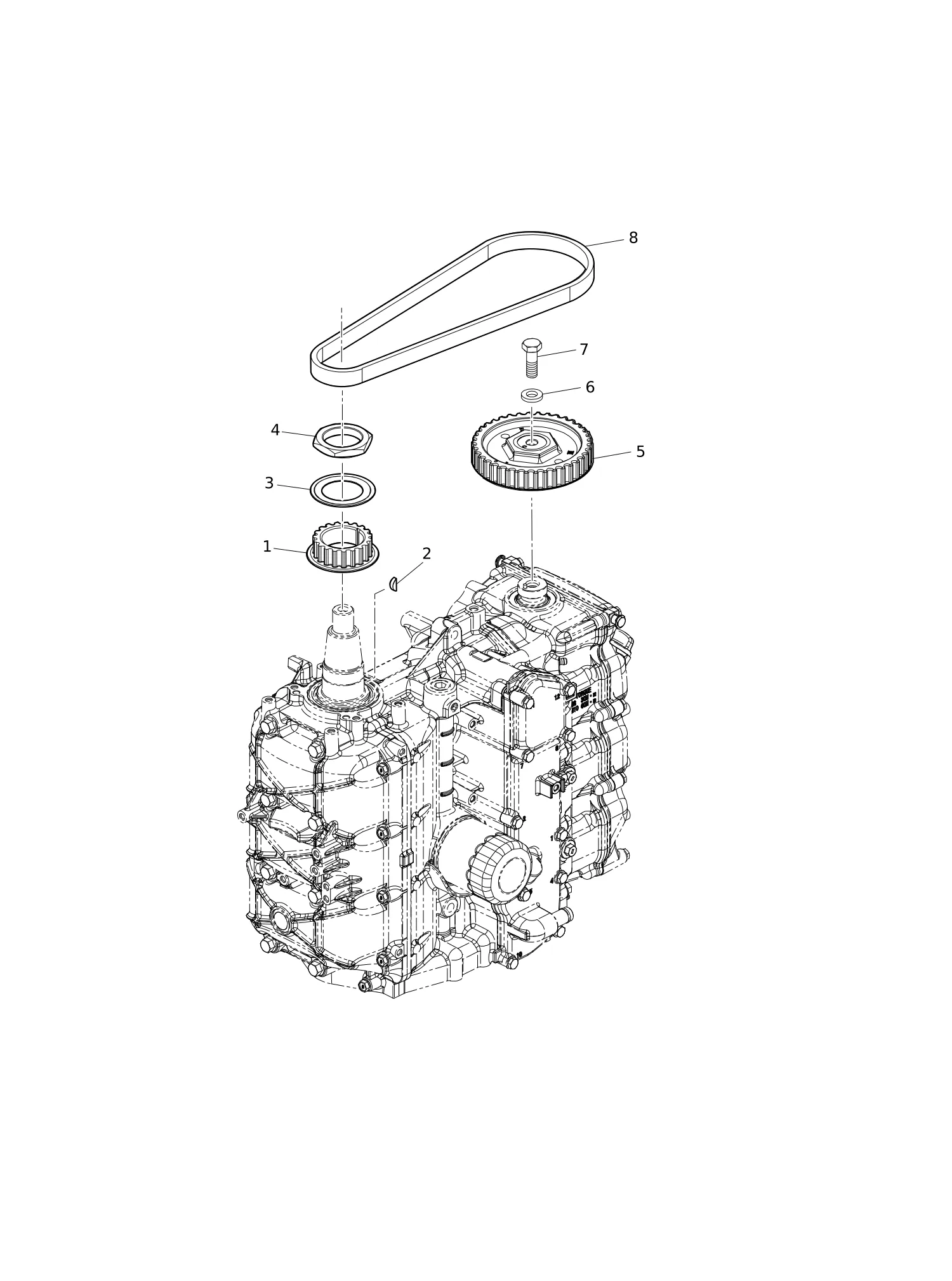

图 04皮带轮·正时皮带 PULLEY · TIMING BELT

REF	零件编号	中文名称	英文名称	数量
1	3KY-10060-0	驱动皮带轮	DRIVE PULLEY	1
2	3T5-10131-0	键 t=4	KEY ｔ=4	1
3	3KY-10063-0	皮带导轮	BELT GUIDE	1
4	3KY-10068-0	螺母	NUT	1
5	3KY-10062-0	从动皮带轮	DRIVEN PULLEY	1
6	3B7-01116-0	垫圈10.5-20-3.2	WASHER 10.5-20-3.2	1
7	911103-1030	螺栓	BOLT	1
8	3KY-10045-0	正时皮带	TIMING BELT	1

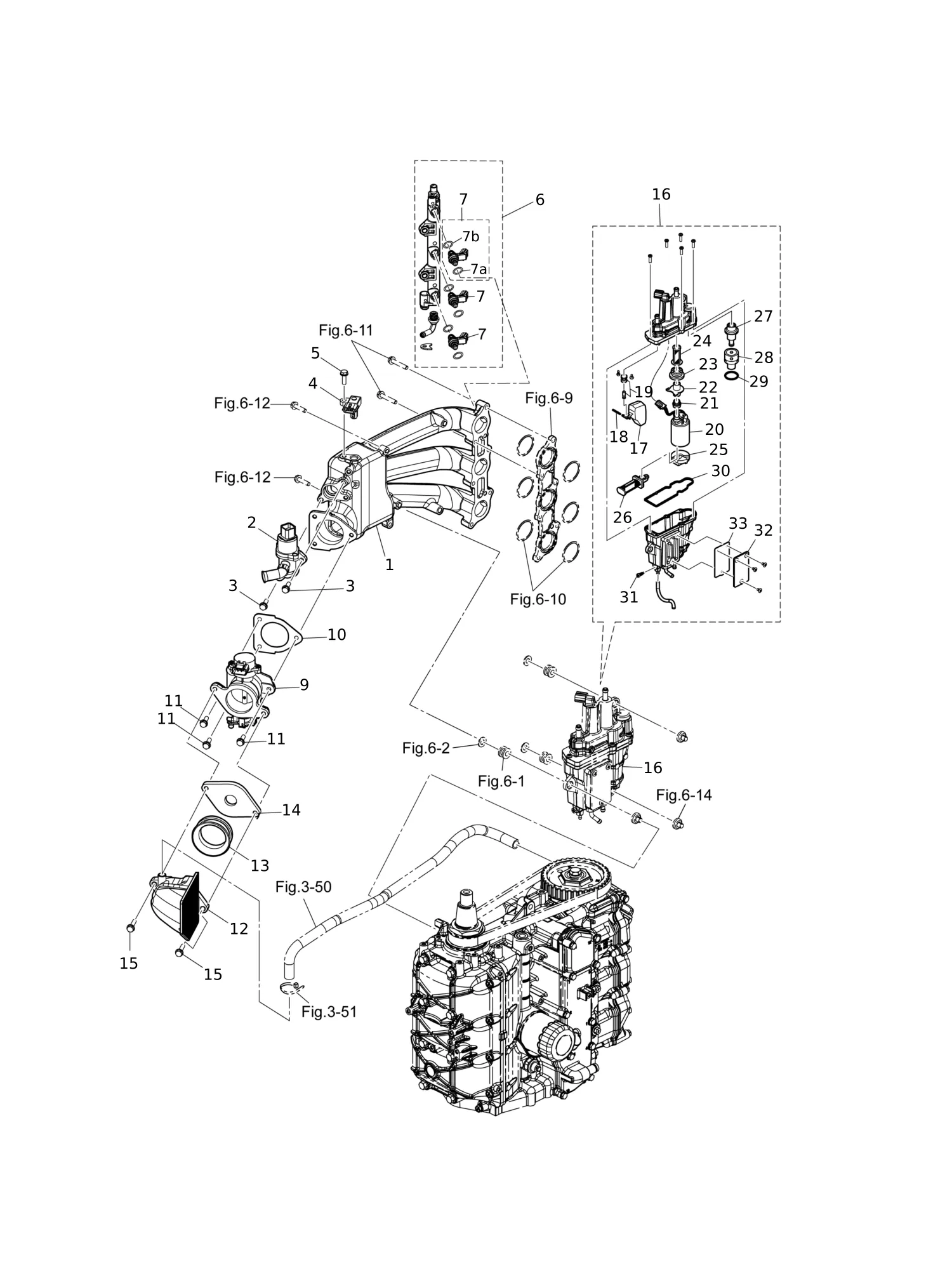

图 05进气歧管 INTAKE MANIFOLD

REF	零件编号	中文名称	英文名称	数量
1	3UR-02010-0	进气歧管总成	INTAKE MANIFOLD ASSY	1
2	3KY-10211-0	怠速控制阀	ISC VALVE	1
4	3KY-10214-0	进气压力传感器	MAP SENSOR	1
6	3KY-10200-0	燃油轨总成	FUEL RAIL ASSY	1
7	3KY-10300-0	* 喷油器总成	* FUEL INJECTOR ASSY	3
7b	3KY-10303-0	O型圈	** O-RING	1
7a	3KY-10304-0	O型圈	** O-RING	1
9	3UR-10100-0	节气门体总成	THROTTLE BODY ASSY	1
10	3KY-10104-0	衬垫	GASKET	1
11	910103-5620	螺栓	BOLT	3
12	3KY-02409-0	进气消声器总成	INTAKE SILENCER ASSY	1
13	3KY-02418-0	衬垫	GASKET	1
15	910103-5625	螺栓	BOLT	2
16	3KY-10150-1	蒸汽分离器总成	VAPOR SEPARATOR ASSY	1
17	3KY-03230-0	* 浮子	* FLOAT	1
18	3KY-03232-0	* 浮子臂销	* FLOAT ARM PIN	1
19	3KY-03239-0	* 浮子阀总成	* FLOAT VALVE ASSY	1
20	3KY-04302-0	* 燃油供给泵	* FUEL FEED PUMP	1
21	3KY-04319-1	* 护孔环	* GROMMET	1
22	3KY-04325-0	* 燃油供给泵接头	* FUEL FEED PUMP JOINT	1
23	3KY-04313-0	* 护孔环	* GROMMET	1
24	3KY-04321-0	* 滤清器(出口)	* FILTER (OUTLET)	1
25	3KY-04314-0	* 护孔环	* GROMMET	1
26	3KY-04322-0	* 滤清器(进口)	* FILTER (INLET)	1
27	3KY-10154-0	* 燃油调节器	* FUEL REGULATOR	1
28	3KY-10157-0	* 支架	* HOLDER	1
29	3KY-10095-0	* O型圈	* O-RING	1
30	3KY-03235-0	* O型圈	* O-RING	1
31	3KY-03292-0	* 放油螺钉	* DRAIN SCREW	1
32	3KY-10179-0	* 盖板	* COVER	1
33	3KY-10180-0	* 密封件	* SEAL	1

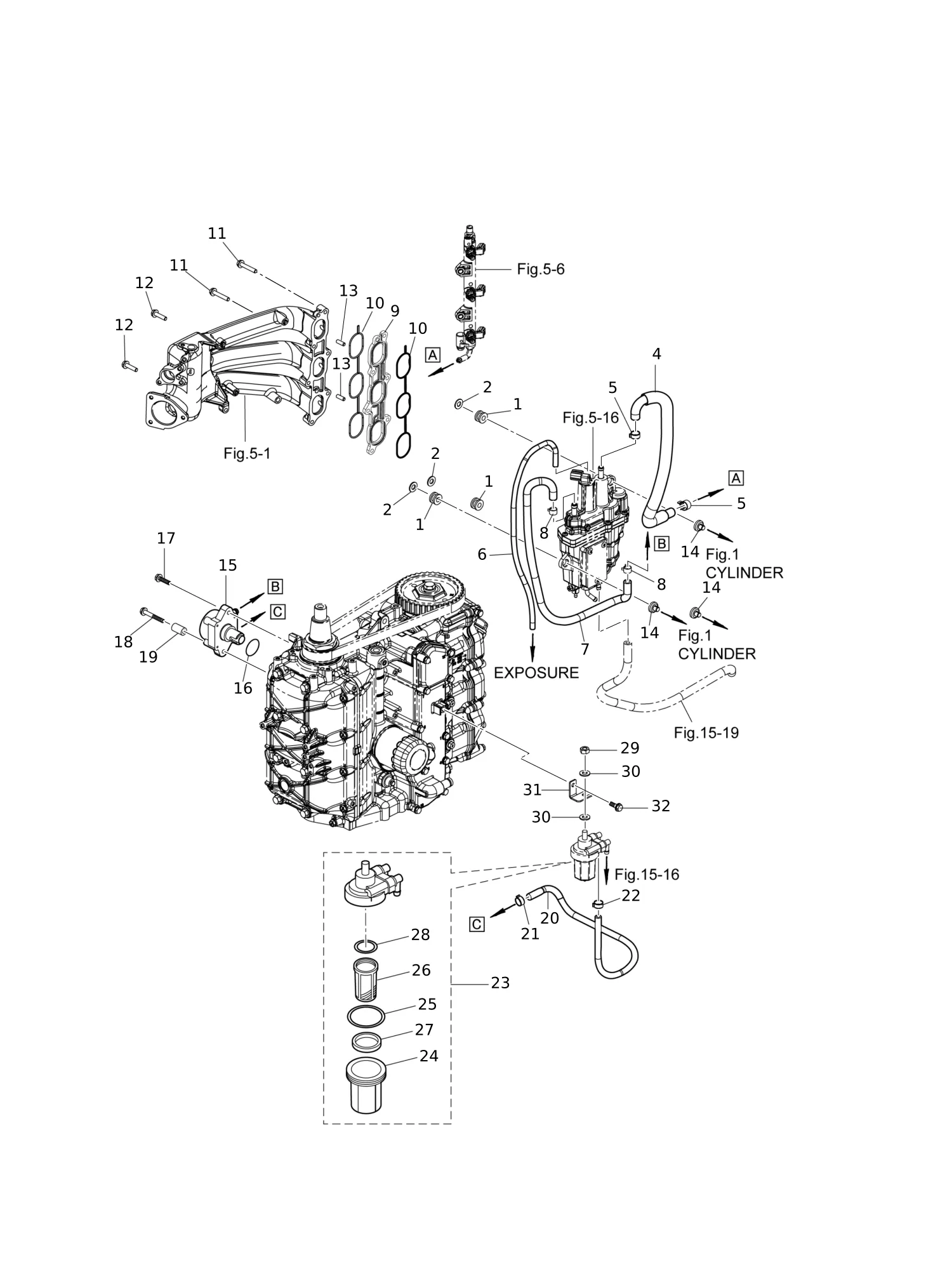

图 06燃油系统 FUEL SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	3KY-06920-0	橡胶支座	RUBBER MOUNT	3
4	3KY-02165-0	带保护套燃油软管	FUEL HOSE W/PROTECTOR	1
5	3AC-10087-0	夹箍φ16.8	CLAMP φ16.8	2
6	3KY-02203-0	燃油软管 4-9	FUEL HOSE 4-9	1
7	3UR-04077-0	带保护套燃油软管	FUEL HOSE W/PROTECTOR	1
7	3UR-04085-0	带保护套燃油软管	FUEL HOSE W/PROTECTOR	1
9	3UR-03952-0	绝缘体	INSULATOR	1
10	3UR-02012-0	O型圈	O-RING	2
11	910103-5635	螺栓	BOLT	6
12	910103-5625	螺栓	BOLT	2
13	3B2-01111-0	定位销6-16	DOWEL PIN 6-16	2
14	3KY-10155-0	衬套	BUSHING	3
15	3UR-04000-0	燃油泵总成	FUEL PUMP ASSY	1
16	3UR-62415-0	O型圈	O-RING	1
17	910103-5620	螺栓	BOLT	1
18	910103-5640	螺栓	BOLT	1
19	3KY-02605-0	垫圈 6.2-13-22	SPACER 6.2-13-22	1
20	3KY-02211-0	燃油软管 5-10,长445	FUEL HOSE 5-10,L=445	1
20	3KY-04060-0	低渗透软管 φ11.3-φ7～φ5-φ10,L=445	LOW PERMEATION HOSE φ11.3-φ7～φ5-φ10,L=445	1
21	345-70114-1	卡扣φ11.3	CLIP φ11.3	1
22	3GT-35143-0	卡环 φ9.4	CLIP φ9.4	1
23	3T5-02230-0	燃油滤清器总成	FUEL FILTER ASSY	1
24	3B7-02237-0	* 杯状件	* CUP	1
25	3B7-02235-0	* O型圈	* O-RING	1
26	3B7-02234-0	* 滤清器	* FILTER	1
27	3T5-02229-0	* 浮子	* FLOAT	1
28	3B7-02236-0	* O型圈	* O-RING	1
29	930103-0800	螺母	NUT	1
30	940103-0800	垫圈	WASHER	2
31	3KY-02239-0	板	PLATE	1
32	910103-5612	螺栓	BOLT	1

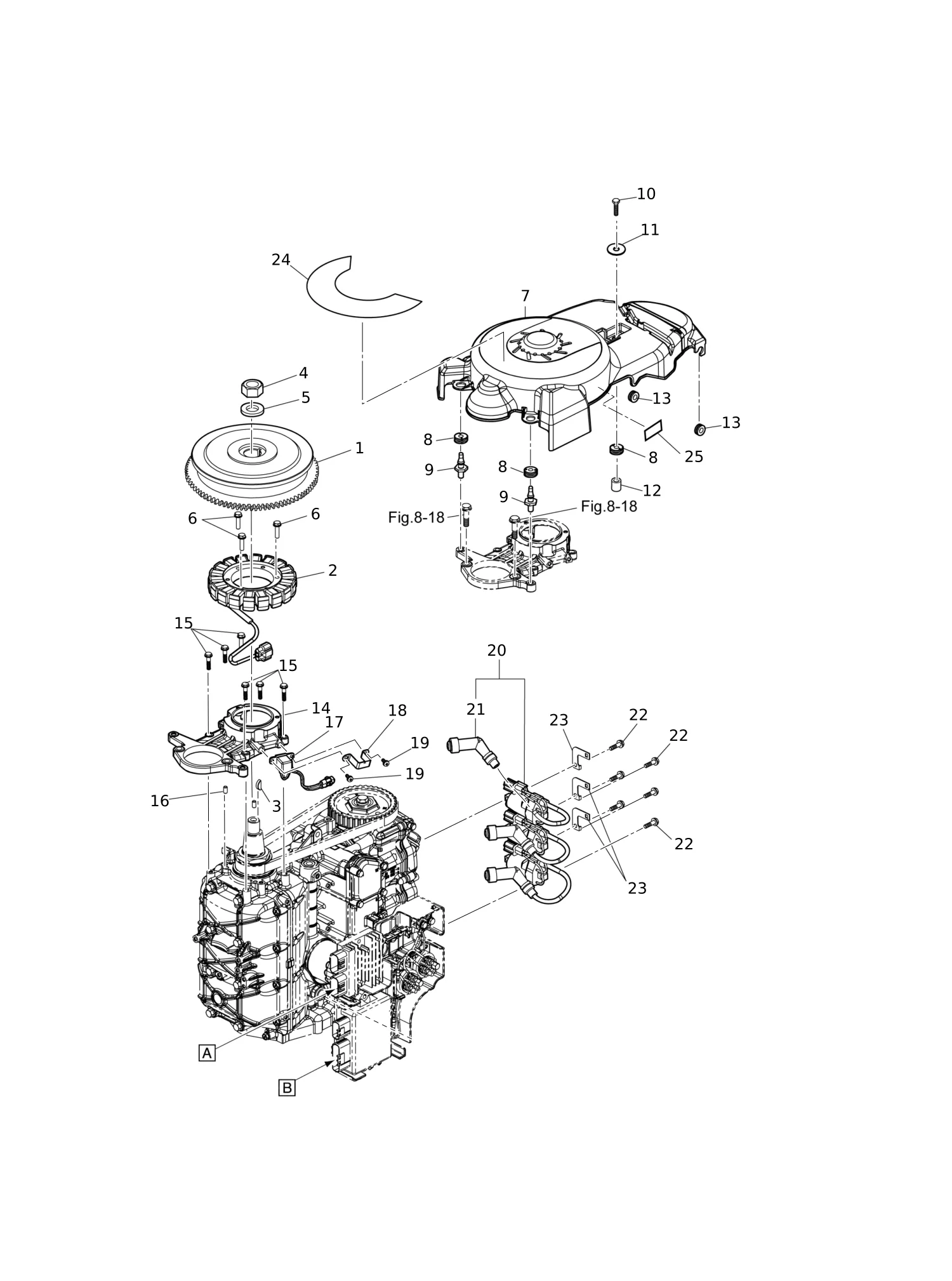

图 07磁电机 MAGNETO

REF	零件编号	中文名称	英文名称	数量
1	3KY-06191-0	带齿轮飞轮	FLYWHEEL W/GEAR	1
2	3KY-06123-0	交流发电机总成	ALTERNATOR ASSY	1
3	334-00131-0	键 19-7-5	KEY 19-7-5	1
4	3C7-00132-0	螺母 20-P1.25	NUT 20-P1.25	1
5	3C7-00133-0	垫片 20.5-37-5	WASHER 20.5-37-5	1
7	3KY-06301-0	齿圈盖	RING GEAR COVER	1
8	3T1-67005-0	索环 16-2.5	GROMMET 16-2.5	3
9	1E0-36056-0	挂钩	HOOK	2
10	910103-0620	螺栓	BOLT	1
11	3R0-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
12	3A0-76079-0	轴套 6.2-9-7.4	COLLAR 6.2-9-7.4	1
13	172-36008-0	索环 13-2	GROMMET 13-2	2
14	3KY-06008-1	线圈支架	COIL BRACKET	1
15	910103-5625	螺栓	BOLT	6
16	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
17	3KY-06071-0	脉冲线圈	PULSAR COIL	1
18	3KY-06070-0	脉冲线圈护罩	PULSAR COIL GUARD	1
19	921503-5512	螺钉	SCREW	2
20	3UR-06469-0	带帽点火线圈	IGNITION COIL W/R-CAP	3
21	3AC-06999-0	* 带电阻火花塞帽	* PLUG CAP W/RESISTANCE	1
22	910103-5620	螺栓	BOLT	6
23	3KY-76174-0	撑杆	STAY	3
24	3SS-72181-0	警示标贴(B型)	CAUTION DECAL (B)	1
24	3UG-72181-0	警示标贴(B型)	CAUTION DECAL (B)	1
25	3KY-72194-0	保险丝贴纸	FUSE DECAL	1

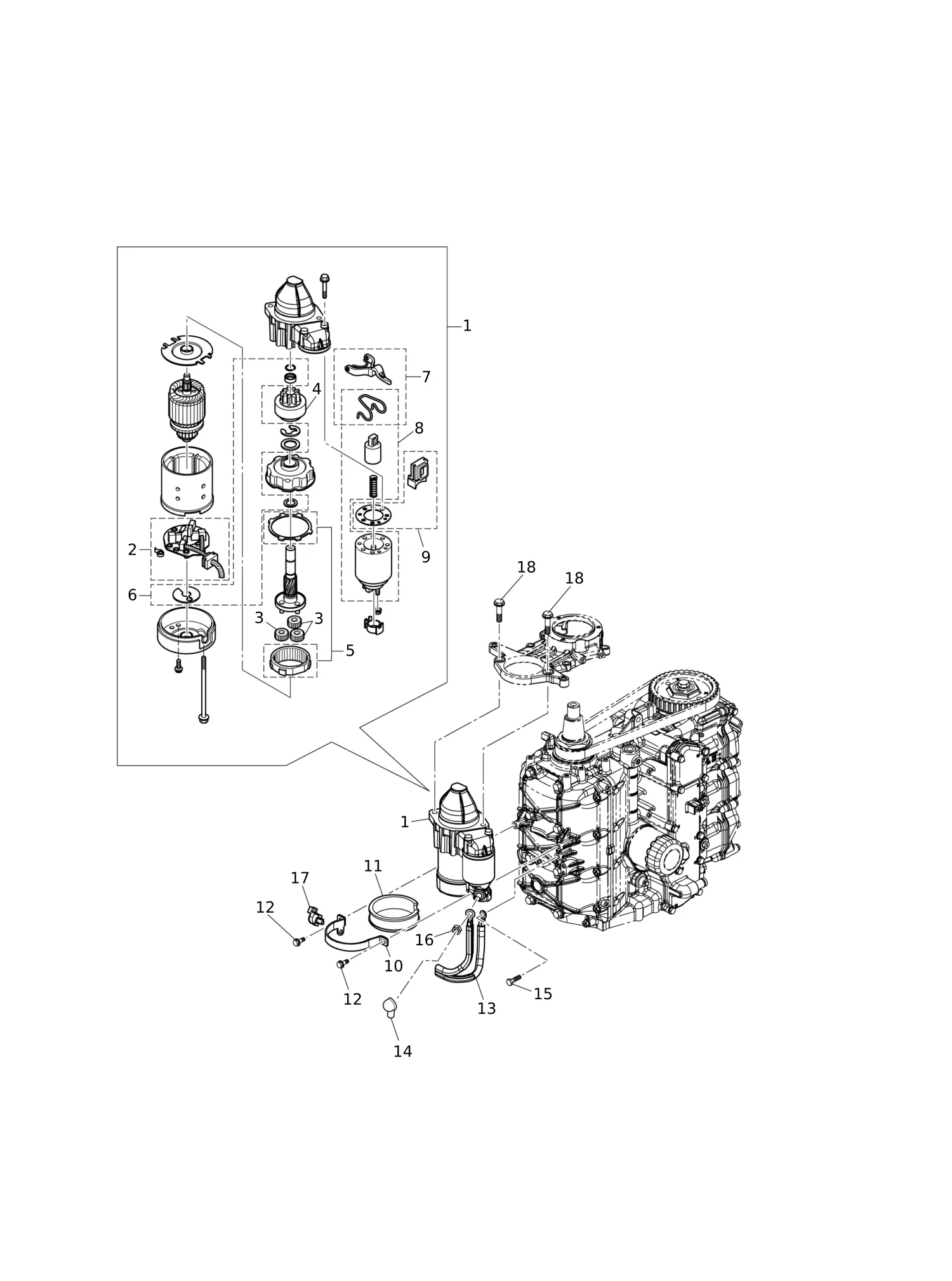

图 08电气部件(启动电机) ELECTRIC PARTS(STARTER MOTOR)

REF	零件编号	中文名称	英文名称	数量
1	3KY-76010-1	启动马达总成	STARTER MOTOR ASSY	1
2	3KY-76014-0	* 碳刷架	* BRUSH HOLDER	1
3	3FW-76314-0	* 内齿轮	* INTERNAL GEAR	3
4	3FW-76015-0	* 小齿轮总成	* PINION ASSY	1
5	3FW-76317-0	* 行星齿轮	* PLANET GEAR	1
6	3FW-76318-0	* 垫圈套装	* WASHER SET	1
7	3FW-76320-0	* 换挡杆总成	* SHIFT LEVER SET	1
8	3FW-76321-0	* 磁力开关	* MAGNETIC SWITCH	1
9	3FW-76322-0	* 防尘罩套装	* DUST COVER SET	1
10	3KY-76009-0	启动马达固定带	STARTER MOTOR BAND	1
11	3FW-76007-0	减震器	DAMPER	1
12	910103-5616	螺栓	BOLT	2
13	3FW-76120-0	蓄电池电缆	BATTERY CABLE	1
14	3FW-76145-0	端子盖 15.5-18.28	TERMINAL CAP 15.5-18.28	1
15	910103-5612	螺栓	BOLT	1
16	930103-0800	螺母	NUT	1
17	3BJ-84398-0	箍带 135	BAND 135	1
18	910103-5830	螺栓	BOLT	2

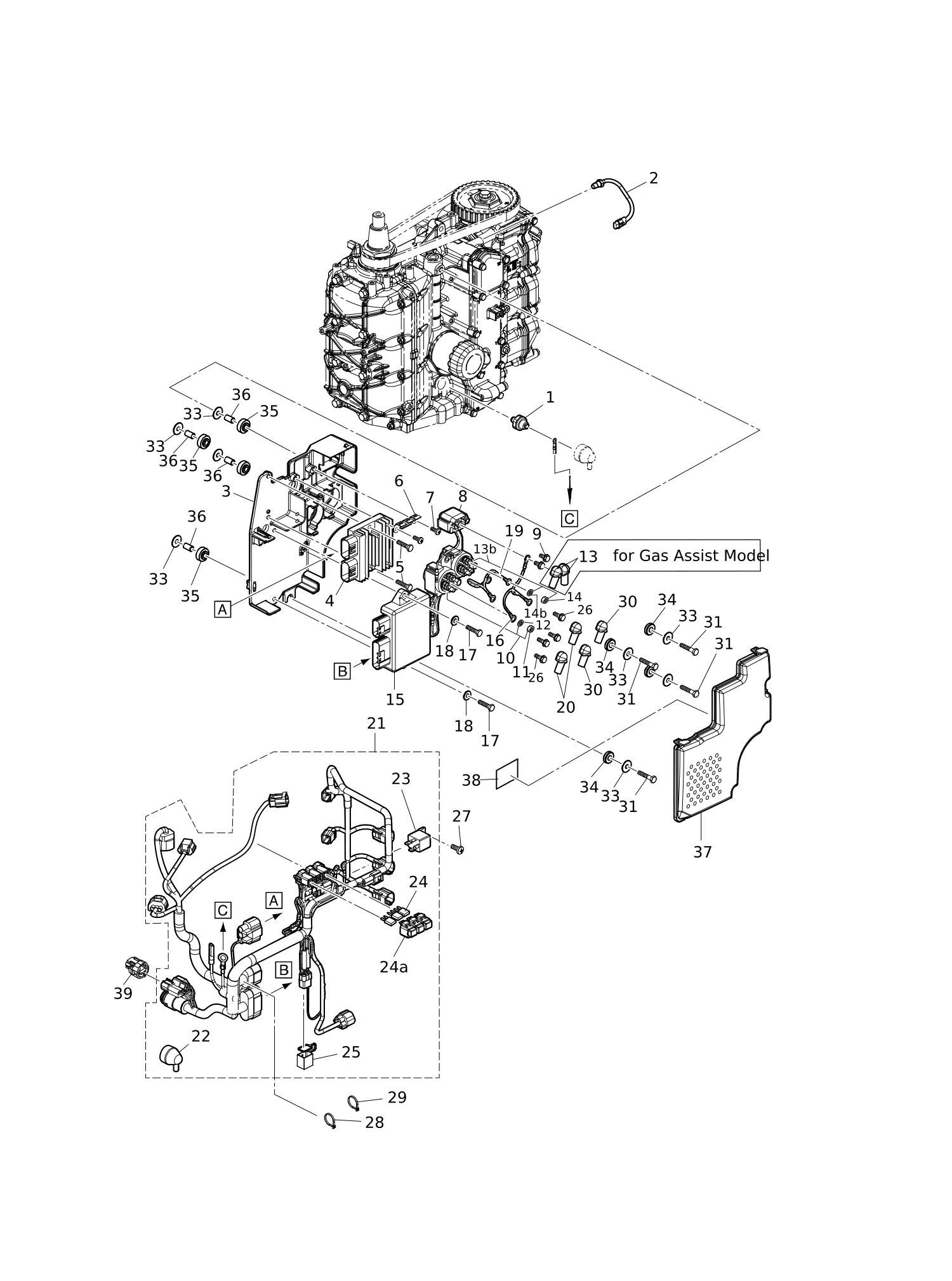

图 09电气部件 ELECTRIC PARTS

REF	零件编号	中文名称	英文名称	数量
1	3KY-07611-0	油压开关	OIL PRESSURE SWITCH	1
2	3KY-72510-0	发动机温度传感器	ENGINE TEMP SENSOR	1
3	3KY-06901-0	支架	BRACKET	1
4	3KY-76065-0	整流器总成	RECTIFIER COMPLETE	1
5	910103-5625	螺栓	BOLT	2
6	3KY-76064-0	保险丝支架	FUSE HOLDER BRACKET	1
8	3H8-76040-0	启动器电磁阀	STARTER SOLENOID	1
9	910103-5608	螺栓	BOLT	2
10	3C8-72580-0	动力升降倾斜装置电磁阀开关(A)	PTT SOLENOID SWITCH (A)	1
13b	3C8-72581-0	动力升降倾斜装置电磁阀开关(B)	PTT SOLENOID SWITCH (B)	1
14	930103-0600	螺母	* NUT	3
14b	941303-0600	* 弹簧垫圈	* SPRING WASHER	3
15	3UR-06401-0	电控单元总成	ECU ASSY	1
16	3KY-72582-0	电磁开关线束(A)	SOLENOID SWITCH CORD (A)	1
17	910103-0620	螺栓	BOLT	2
18	3R0-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	2
19	3KY-72583-0	电磁开关线束(B)	SOLENOID SWITCH CORD (B)	1
20	3Y1-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	6
21	3KY-76110-3	线束总成	CORD ASSY	1
22	3KY-07612-0	* 护孔环	* GROMMET	1
23	3T1-06330-0	* 继电器	* RELAY	1
24a	1E0-34092-0	* 盖帽(绿色)	* CAP (G)	1
24a	1E0-34093-0	* 盖帽(黄色)	* CAP (Y)	2
24	3T5-76247-0	* 保险丝 20A	* FUSE 20A	2
24	3T5-76249-0	* 保险丝 30A	* FUSE 30A	1
25	3KY-76037-0	* 线缆端子塞	* CABLE TERMINAL PLUG	1
26	910103-5612	螺栓	BOLT	4
27	921503-0512	螺钉	SCREW	1
28	3T5-84398-0	箍带 104	BAND 104	1
29	3Z0-84398-0	箍带 203	BAND 203	1
30	3A3-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	2
31	910103-0630	螺栓	BOLT	4
33	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	8
34	346-67113-0	8.5-14-2.5支架	MOUNT 8.5-14-2.5	4
35	3B7-06920-0	橡胶支座 8.5-14-2.5	RUBBER MOUNT 8.5-14-2.5	4
36	346-67114-1	垫圈 6.2-9-15.7	SPACER 6.2-9-15.7	4
37	3KY-06902-0	盖板	COVER	1
38	3KY-72028-0	接线图标签	WIRING DIAGRAM DECAL	1
39	3KZ-76037-0	电缆端子插头	CABLE TERMINAL PLUG	1

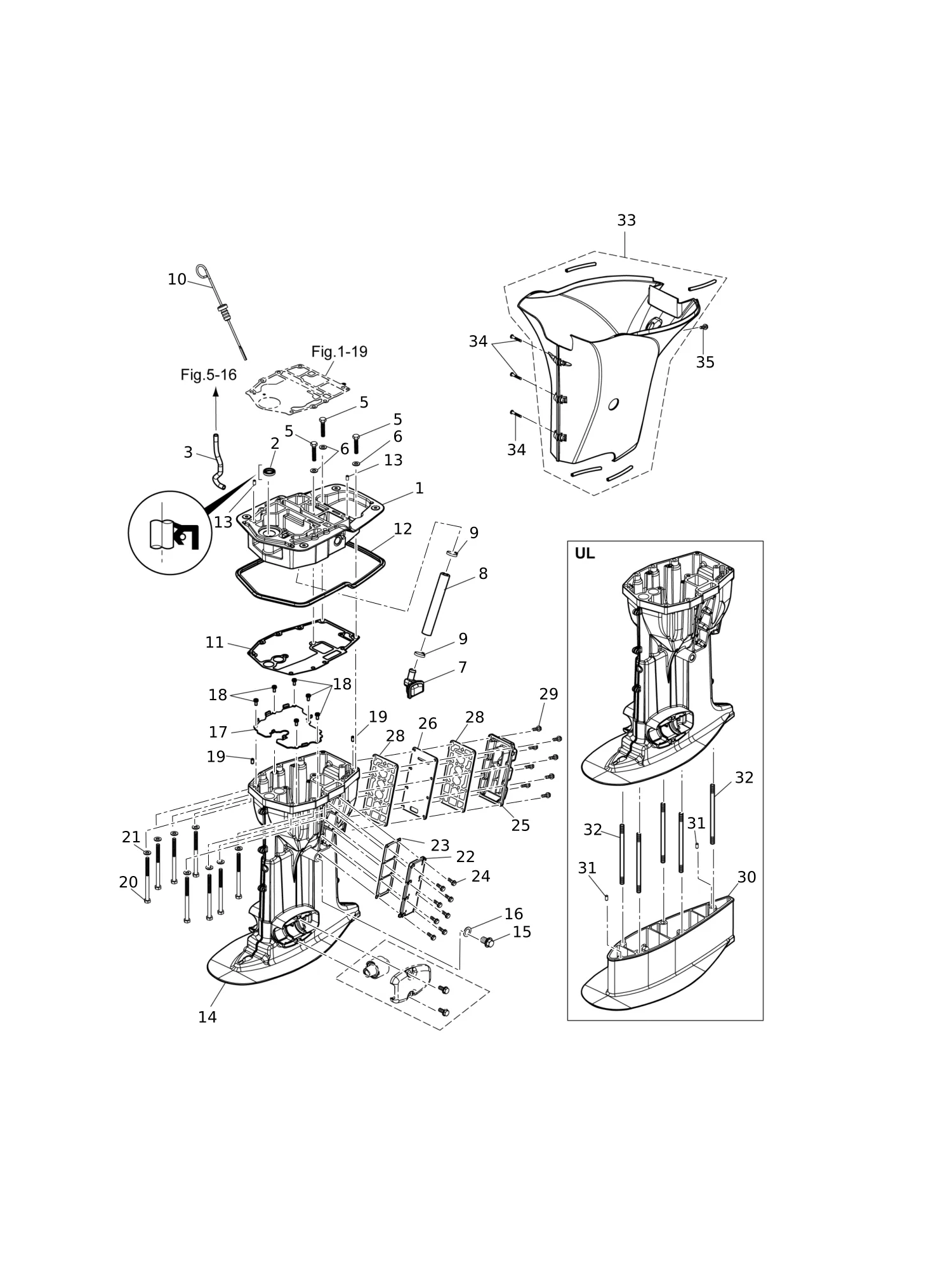

图 10驱动轴壳体 DRIVE SHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	3KYQ01300-0	发动机基座总成	ENGINE BASEMENT ASSY	1
2	346-01215-0	油封 16-28-6	OIL SEAL 16-28-6	1
3	3KY-65210-0	冷却软管	COOLING HOSE	1
5	3LD-01012-0	气缸盖螺栓	CYLINDER HEAD BOLT	3
6	940103-0800	垫圈	WASHER	3
7	3KY-07710-0	机油滤网总成	OIL STRAINER ASSY	1
8	3KY-07715-0	管 L=150	PIPE L=150	1
9	369-84398-1	箍带 202	BAND 202	2
10	3KY-07721-0	油位计	OIL LEVEL GAUGE	1
11	3KY-61012-0	驱动轴壳体衬垫 t=0.5	DRIVE SHAFT HOUSING GASKET t=0.5	1
12	3KY-67116-0	发动机基座密封件	ENGINE BASEMENT SEAL	1
14	3KYQ61020-0	驱动轴壳体总成(S)	DRIVE SHAFT HOUSING ASSY (S)	1
14	3KYQ61030-1	驱动轴壳体总成(L)	DRIVE SHAFT HOUSING ASSY (L)	1
14	3KYW61030-1	驱动轴壳体总成(L)	DRIVE SHAFT HOUSING ASSY (L)	1
15	3R3-07705-1	放油螺栓14-14	DRAIN BOLT 14-14	1
16	3R3-07406-0	垫片 14.5-24-1	WASHER 14.5-24-1	1
17	3KY-07740-0	导板	GUIDE PLATE	1
18	921503-0510	螺钉	SCREW	6
19	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
20	3B7-61018-2	螺栓8-115	BOLT 8-115	8
21	9401E3-0800	垫圈	WASHER	8
22	3KYQ61028-0	盖板	COVER	1
22	3KYW61028-0	盖板	COVER	1
23	3KY-61029-0	衬垫	GASKET	1
25	3KYQ61208-0	怠速排气口盖	IDLE EXHAUST PORT COVER	1
25	3KYW61208-0	怠速排气口盖	IDLE EXHAUST PORT COVER	1
26	3KY-62114-0	板	PLATE	1
28	3KY-61220-0	怠速排气口垫片	IDLE EXHAUST PORT GASKET	2
29	9101E3-5620	螺栓	BOLT	8
30	3KYQ61110-0	延伸壳体(上)	EXTENSION HOUSING (UL)	1
31	3AB-01111-0	定位销6-12	DOWEL PIN 6-12	2
32	3KY-61111-0	螺柱M10-145	STUD M10-145	5
33	3KYQ61225-0	挡板总成	APRON ASSY	1
33	3KYW61225-0	挡板总成	APRON ASSY	1
33	3KZQ61225-0	挡板总成	APRON ASSY	1
34	3F3-02423-0	自攻螺钉 5-30	TAPPING SCREW 5-30	2
35	9101E3-5616	螺栓	BOLT	1

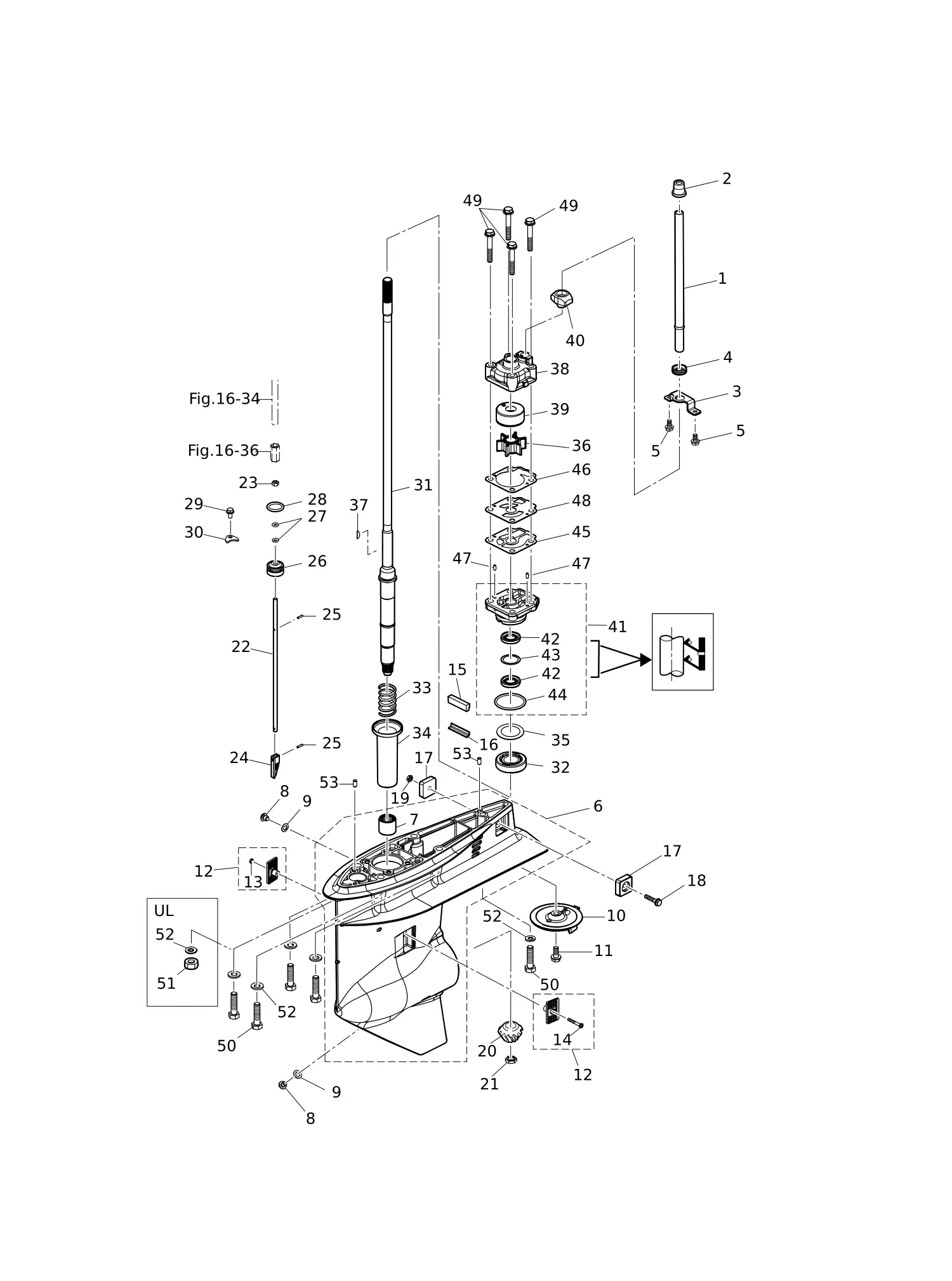

图 11齿轮箱(驱动轴) GEARCASE(DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
1	3KY-65100-0	水管(短)	WATER PIPE (S)	1
1	3KY-65110-0	水管(左)	WATER PIPE (L)	1
1	3KY-65120-0	水管(左上)	WATER PIPE (UL)	1
2	3KY-65206-0	水管密封件(上)	WATER PIPE SEAL (UPPER)	1
3	3KY-65203-0	锁紧板	LOCK PLATE	1
4	3KY-65204-0	水管辅助支架	WATER PIPE AUXILIARY MOUNT	1
6	3KYQ60000-1	齿轮箱总成	GEAR CASE ASSY	1
6	3KYW60000-1	齿轮箱总成	GEAR CASE ASSY	1
7	3KY-60211-0	* 滚柱轴承	* ROLLER BEARING	1
8	332-60005-2	塞 8-8	PLUG 8-8	2
9	332-60006-1	衬垫8.1-15-1	GASKET 8.1-15-1	2
10	3KZ-60217-0	配平片 3S型	TRIM TAB 3S	1
11	910103-5820	螺栓	BOLT	1
12	3KY-60205-0	滤水器组件	WATER STRAINER SET	1
13	930403-0400	尼龙螺母 4-P0.7	* NYLON NUT 4-P0.7	1
14	921503-0430	* 螺钉	* SCREW	1
15	3KY-60041-0	水封橡胶	WATER SEAL RUBBER	1
16	3KY-60042-0	水封板	WATER SEAL PLATE	1
17	3KY-60218-0	阳极块	ANODE	2
18	910103-5625	螺栓	BOLT	1
19	930403-0600	尼龙螺母 6-P1.0	NYLON NUT 6-P1.0	1
20	3KY-64020-0	锥齿轮B	BEVEL GEAR B	1
21	3C8-64027-0	螺母	NUT	1
22	3KY-66013-0	凸轮杆(长)	CAM ROD (L)	1
22	3KY-66014-0	凸轮杆(超长)	CAM ROD (UL)	1
23	930103-0600	螺母	NUT	1
24	3AC-66011-2	离合器凸轮	CLUTCH CAM	1
25	951407-0312	弹簧销 3-12	SPRING PIN 3-12	2
26	3R0-66031-0	凸轮杆衬套	CAM ROD BUSHING	1
27	332-66021-0	O型圈 2.4-5.8	O-RING 2.4-5.8	2
28	3C8-66032-0	O型圈 3.5-21.7	O-RING 3.5-21.7	1
29	9101E3-5612	螺栓	BOLT	1
30	353-66024-0	止动块	STOPPER	1
31	3KY-64301-0	驱动轴(S)	DRIVE SHAFT (S)	1
31	3KY-64302-0	驱动轴(L)	DRIVE SHAFT (L)	1
31	3KY-64303-0	驱动轴(UL)	DRIVE SHAFT (UL)	1
32	3KY-60215-0	圆锥滚子轴承	TAPERED ROLLER BEARING	1
33	3KY-64327-0	驱动轴弹簧	DRIVE SHAFT SPRING	1
34	3KY-64328-0	驱动轴弹簧导套	DRIVE SHAFT SPRING GUIDE	1
35	345-64081-0	垫片 41-51.5-0.1	SHIM 41-51.5-0.1	1
35	345-64082-0	垫片 41-51.5-0.15	SHIM 41-51.5-0.15	1
35	345-64083-0	垫片 41-51.5-0.3	SHIM 41-51.5-0.3	1
35	345-64084-0	垫片 41-51.5-0.5	SHIM 41-51.5-0.5	1
36	3C8-65021-2	水泵叶轮	WATER PUMP IMPELLER	1
37	332-65022-0	键 20-4.6-2	KEY 20-4.6-2	1
38	3T5-65016-0	泵壳(上)	PUMP CASE (UPPER)	1
39	3T5-65011-0	泵壳衬套	PUMP CASE LINER	1
40	3C8-65014-0	水管密封件(下)	WATER PIPE SEAL (LOWER)	1
41	3KY-65002-1	泵壳总成(下)	PUMP CASE ASSY (LOWER)	1
42	3C8-60223-0	* 油封 17-33-6	* OIL SEAL 17-33-6	2
43	3C8-64084-0	* 垫片 32.9-26-0.5	* SHIM 32.9-26-0.5	1
44	345-65015-0	* O型圈 3.2-47	* O-RING 3.2-47	1
45	3C8-65029-3	导板垫片	GUIDE PLATE GASKET	1
46	3T5-65018-2	泵壳垫片	PUMP CASE GASKET	1
47	334-65012-0	定位销4-10	DOWEL PIN 4-10	2
48	3C8-65025-0	水泵导板	WATER PUMP GUIDE PLATE	1
49	9101E3-5855	螺栓	BOLT	4
50	3KY-60001-0	螺栓	BOLT	5
51	3B7-61114-0	螺母 10-P1.25	NUT 10-P1.25	5
52	9402E3-1000	垫圈	WASHER	5
53	3AB-01111-0	定位销6-12	DOWEL PIN 6-12	2

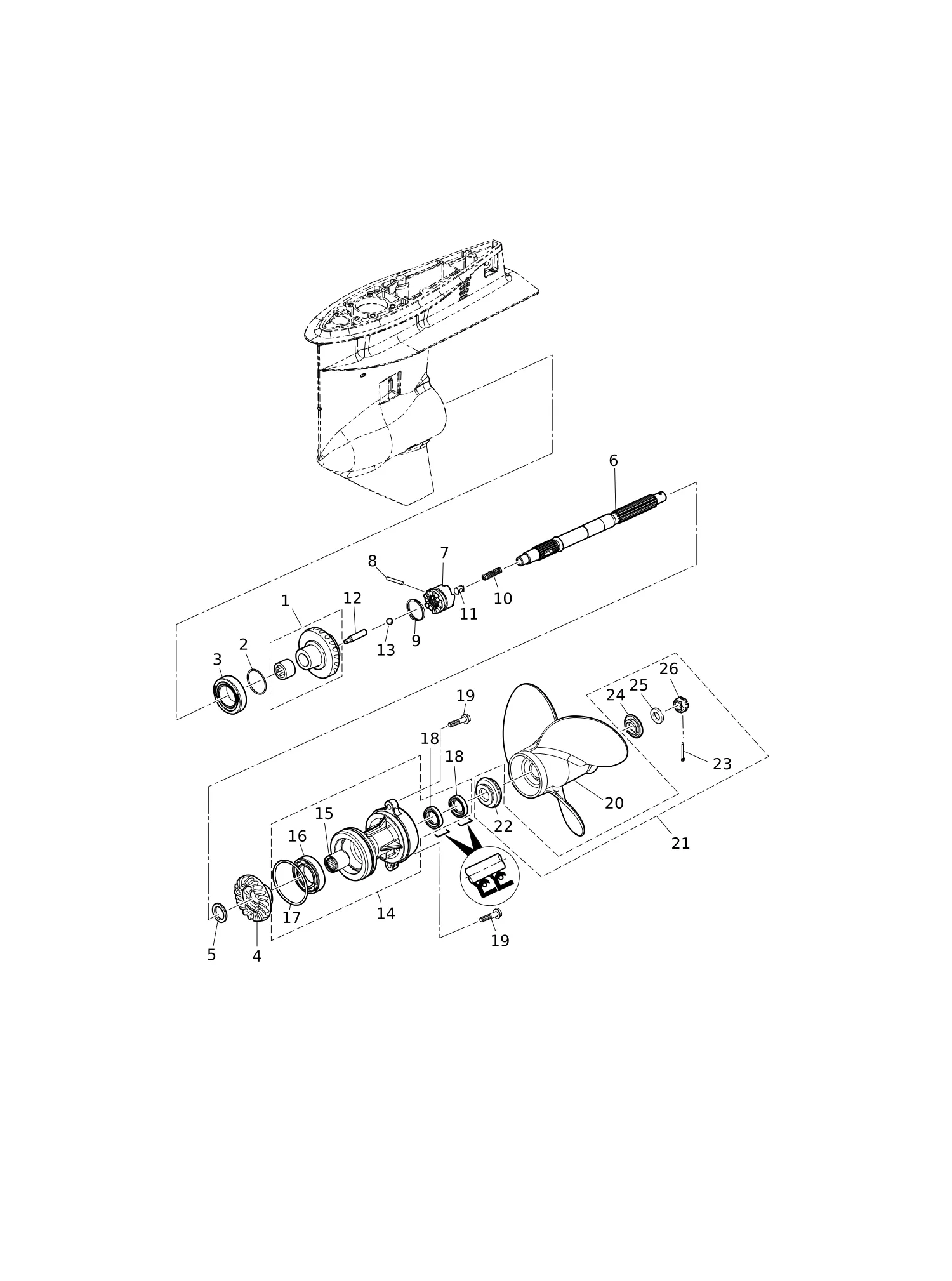

图 12齿轮箱(螺旋桨轴) GEAR CASE(PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
1	3KY-64010-0	锥齿轮总成(A)	BEVEL GEAR ASSY (A)	1
2	353-64036-0	垫片 36-44-0.3	SHIM 36-44-0.3	1
2	353-64037-0	垫片 36-44-0.15	SHIM 36-44-0.15	1
2	353-64038-0	垫片 36-44-0.1	SHIM 36-44-0.1	1
3	345-60215-0	圆锥滚子轴承 32007	TAPERED ROLLER BEARING 32007	1
4	3KY-64030-0	锥齿轮C	BEVEL GEAR C	1
5	3KY-64032-0	垫片 22.1-26-3	WASHER 22.1-26-3	1
6	3KY-64211-1	螺旋桨轴	PROPELLER SHAFT	1
7	3KY-64215-0	离合器	CLUTCH	1
8	3C8-64217-0	销钉	PIN	1
9	3C8-64219-1	卡扣	SNAP	1
10	3C8-64221-0	弹簧	SPRING	1
11	3C8-64222-0	弹簧挡圈	SPRING RETAINER	1
12	3KY-64223-0	推杆	PUSH ROD	1
13	965002-0803	钢球 3/8英寸	BALL 3/8	1
14	3KYQ87323-1	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
14	3KYW87323-1	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
15	3KY-60102-0	* 滚柱轴承	* ROLLER BEARING	1
16	9601-0-6007	* 球轴承 6007	* BALL BEARING 6007	1
17	3KY-60103-0	* O型圈	* O-RING	1
18	3F3-60223-0	* 油封 22-37-8	* OIL SEAL 22-37-8	2
19	9101E3-5830	螺栓	BOLT	2
20	348B64108-1	螺旋桨总成(7英寸)	PROPELLER ASSY (7")	1
20	3KYB64534-1	螺旋桨总成(16)	PROPELLER ASSY (16)	1
20	3KYB64536-1	螺旋桨总成(17)	PROPELLER ASSY (17)	1
20	3T5B64518-1	螺旋桨总成(9英寸)	PROPELLER ASSY (9)	1
20	3T5B64523-1	螺旋桨总成(11)	PROPELLER ASSY (11)	1
20	3T5B64525-1	螺旋桨总成(12)	PROPELLER ASSY (12)	1
20	3T5B64527-1	螺旋桨总成(13)	PROPELLER ASSY (13)	1
20	3T5B64529-1	螺旋桨总成(14英寸)	PROPELLER ASSY (14")	1
20	3T5B64532-1	螺旋桨总成(15)	PROPELLER ASSY (15)	1
21	3KY-87326-0	螺旋桨五金件套件	PROPELLER HARDWARE KIT	1
22	3KY-64231-0	* 推力支架	* THRUST HOLDER	1
23	951503-0325	* 开口销 3-25	* SPLIT PIN 3-25	1
24	3TW-64232-0	* 止动块	* STOPPER	1
25	3TW-64124-0	* 垫圈 17-40-3	* WASHER 17-40-3	1
26	353-64121-0	* 螺旋桨螺母M16P1.5	* PROPELLER NUT M16P1.5	1

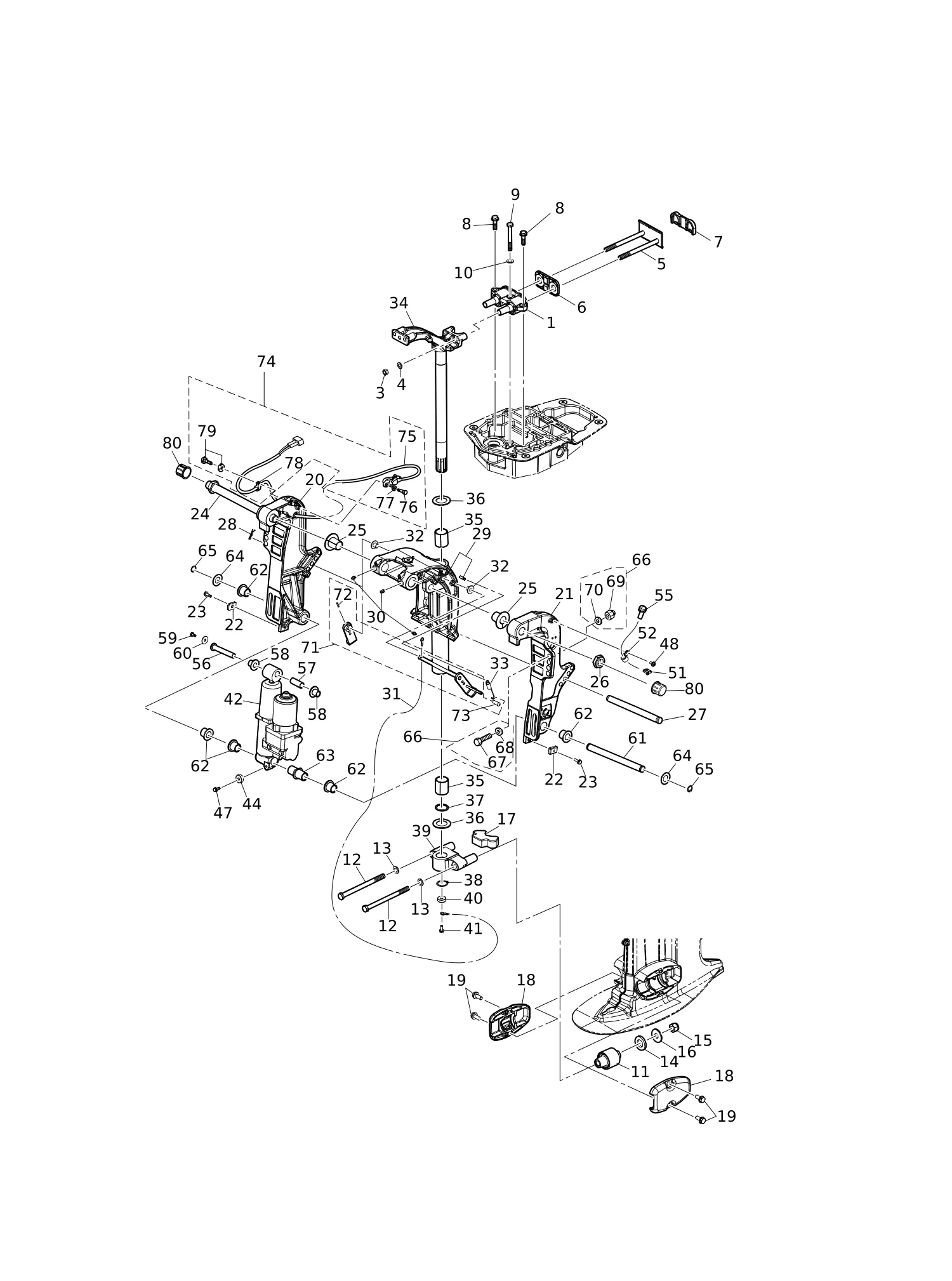

图 13支架 BRACKET

REF	零件编号	中文名称	英文名称	数量
1	3KY-61301-1	橡胶支座(上)	RUBBER MOUNT (UPPER)	1
3	3B7-61114-0	螺母 10-P1.25	NUT 10-P1.25	2
4	940203-1000	垫圈	WASHER	2
5	3KY-61326-0	带螺栓锁紧板	LOCK PLATE W/BOLT	1
6	3KY-61333-0	上减震器	DAMPER (UPPER)	1
7	3KY-61339-0	上减震器	DAMPER (UPPER)	1
8	9101E3-5830	螺栓	BOLT	2
9	3KY-61343-0	螺栓 M8-70	BOLT M8-70	1
10	9402E3-0800	垫圈	WASHER	1
11	3KY-61302-0	橡胶支座(下)	RUBBER MOUNT (LOWER)	2
12	3KY-61321-0	螺栓 M12-P1.25-177.5	BOLT M12,P1.25-177.5	2
13	9402E3-1200	垫圈	WASHER	2
14	3C7-61338-0	减震器 21-36-5	DAMPER 21-36-5	2
17	3KY-61336-0	下减震器	DAMPER (LOWER)	1
18	3KYQ61342-1	支架固定板(下)	MOUNT HOLDING PLATE (LOWER)	2
18	3KYW61342-1	支架固定板(下)	MOUNT HOLDING PLATE (LOWER)	2
19	9101E3-5820	螺栓	BOLT	4
20	3KYQ77211-1	夹紧支架(动力升降倾斜装置-右)	CLAMP BRACKET (PTT-R)	1
20	3KYW77211-1	夹紧支架(动力升降倾斜装置-右)	CLAMP BRACKET (PTT-R)	1
21	3KYQ77212-1	卡箍支架 (动力升降倾斜装置-左)	CLAMP BRACKET (PTT-L)	1
21	3KYW77212-1	卡箍支架 (动力升降倾斜装置-左)	CLAMP BRACKET (PTT-L)	1
22	3H6-60218-0	阳极块	ANODE	2
23	910103-5620	螺栓	BOLT	2
24	3AD-62191-0	旋转支架轴总成	SWIVEL BRACKET SHAFT ASSY	1
25	3KY-77213-0	衬套	BUSHING	2
26	346-62124-1	尼龙螺母 7/8-14	NYLON NUT 7/8-14	1
27	3R0-77118-0	动力升降倾斜推力杆	PTT THRUST ROD	1
28	951603-1000	弹性销	SNAP PIN	1
29	3KYQ77208-1	旋转支架总成	SWIVEL BRACKET ASSY	1
29	3KYW77208-1	旋转支架总成	SWIVEL BRACKET ASSY	1
29	3KZQ77208-1	旋转支架总成	SWIVEL BRACKET ASSY	1
30	344-67177-1	黄油嘴	GREASE FITTING	3
31	3C8-62396-1	接地线 L=210	GROUND L=210	1
32	353-63207-0	轴环 10.2-12-12	COLLAR 10.2-12-12	2
33	3R0-62473-0	倾斜止动弹簧	TILT STOPPER SPRING	1
34	3KYQ62010-1	转向轴总成	STEERING SHAFT ASSY	1
34	3KYW62010-1	转向轴总成	STEERING SHAFT ASSY	1
34	3KZQ62010-1	转向轴总成	STEERING SHAFT ASSY	1
35	353-62417-0	衬套 30-36-41	BUSHING 30-36-41	2
36	353-62423-1	上止推板31-50-2	THRUST PLATE (UPPER) 31-50-2	2
37	353-62415-0	O型圈 3.5-29.7	O-RING 3.5-29.7	1
38	945103-2800	C形环 d=28	C-RING d=28	1
39	3KYQ61411-1	支架托架	MOUNT BRACKET	1
39	3KYW61411-1	支架托架	MOUNT BRACKET	1
42	3Z5-77150-3	动力升降倾斜总成	PTT ASSY	1
44	338-60218-2	阳极块	ANODE	1
47	910103-5616	螺栓	BOLT	1
51	3Z0-84398-0	箍带 203	BAND 203	1
52	345-06915-0	卡箍 6.5-14L	CLAMP 6.5-14L	1
55	3Y1-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	2
56	3KY-77071-0	气缸销(上)	CYLINDER PIN (UPPER)	1
57	3R0-77075-0	衬套 13-16-40	BUSHING 13-16-40	1
58	3KY-77075-0	衬套 13-17-19.5 18-24-22	BUSHING 13-17-19.5 18-24-22	2
59	910103-0612	螺栓	BOLT	1
60	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	1
61	3KY-77101-0	气缸销(下)	CYLINDER PIN (LOWER)	1
62	3KY-77076-0	衬套 18-24-22	BUSHING 18-24-22	5
63	3KY-77103-0	衬套 18-24-57.5	BUSHING 18-24-57.5	1
64	3R0-77112-0	垫片 18.2-34-1	WASHER 18.2-34-1	2
65	945103-1800	C形环 d=18	C-RING d=18	2
66	3AD-72120-1	索具螺栓套装	RIGGING BOLT SET	1
67	3C7-62133-2	螺栓 12-105 P1.25	* BOLT 12-105 P1.25	4
68	353-61334-0	* 垫圈 13-34-3	* WASHER 13-34-3	4
69	3R0-61324-0	尼龙螺母 12-P1.25	* NYLON NUT 12-P1.25	4
70	9401E3-1200	* 垫圈	* WASHER	4
71	3GF-62466-1	倾斜止动器套件	TILT STOPPER KIT	1
72	951403-3516	* 弹簧销 3.5-16	* SPRING PIN 3.5-16	1
73	369-62433-1	* 倾斜止动握把	* TILT STOPPER GRIP	1
74	3KY-72575-0	配平传感器套件	TRIM SENSOR KIT	1
75	3Z4-72574-0	* 配平传感器 L=1700	* TRIM SENSOR L=1700	1
76	910103-0620	螺栓	* BOLT	2
77	3C8-66308-0	* 垫圈 6-16-1.5	* WASHER 6-16-1.5	2
78	336-06973-0	* 卡箍 6-9.5L	* CLAMP 6-9.5L	1
79	921503-5612	* 螺钉	* SCREW	1
80	346-62127-0	盖形螺母	CAP NUT	2

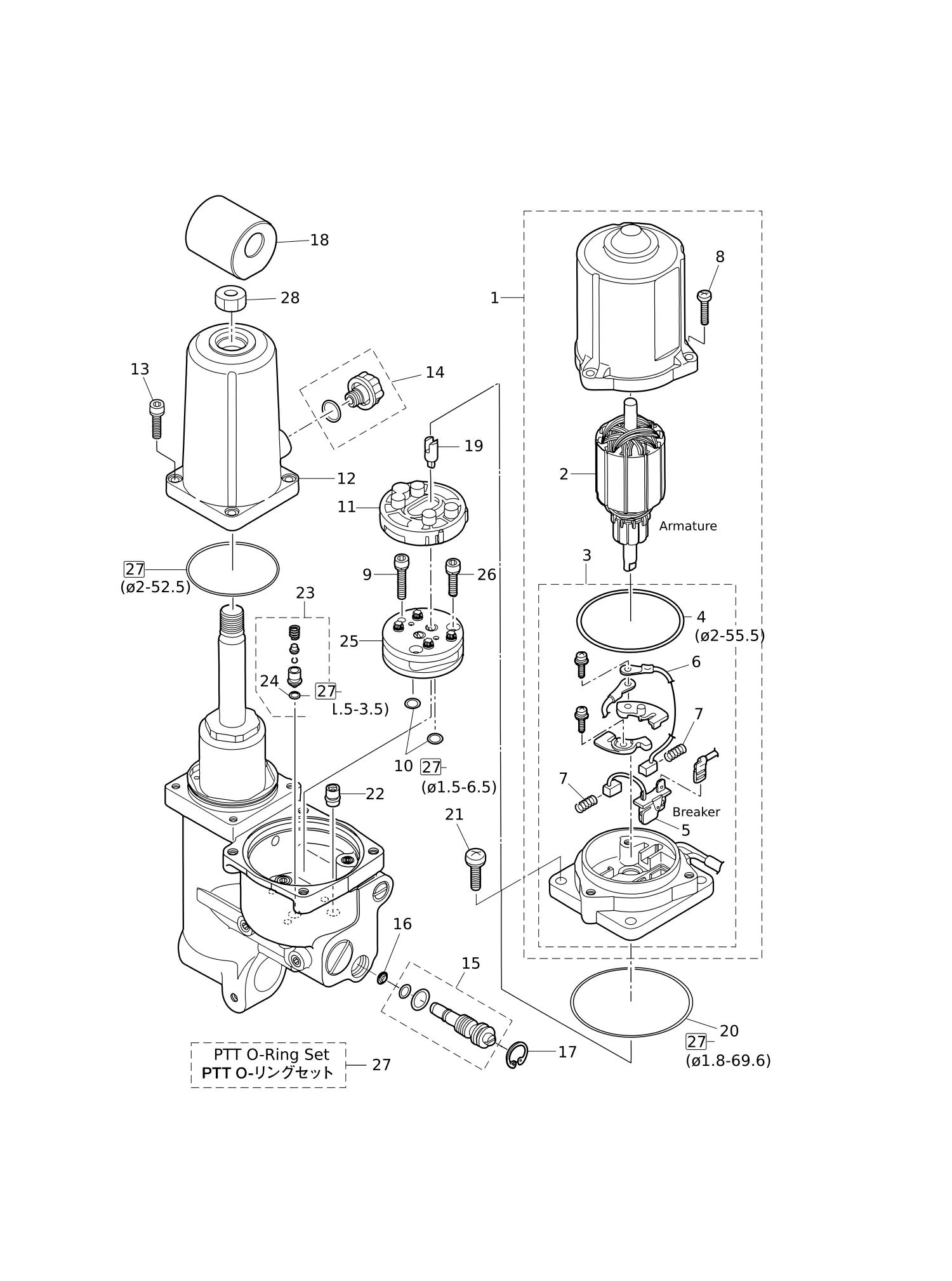

图 14动力升降倾斜装置 POWER TRIM&TILT

REF	零件编号	中文名称	英文名称	数量
1	3Z5-77180-0	马达总成	MOTOR ASSY	1
2	3Z5-77190-0	* 电枢总成	* ARMATURE ASSY	1
3	3Z5-77192-0	* 电机支架总成	* MOTOR BRACKET ASSY	1
4	3Z5-77182-0	O型圈 2-55.5	** O-RING 2-55.5	1
5	3Z5-77191-0	断路器	** BREAKER	1
6	3E0-77183-0	电刷	** BRUSH	1
7	3E0-77184-0	电刷弹簧	** BRUSH SPRING	2
8	921503-0520	* 螺钉	* SCREW	3
9	3B7-77431-1	螺栓	BOLT	1
10	3B7-77433-0	O型圈1.5-6.5	O-RING 1.5-6.5	2
11	3B7-77434-1	过滤器	FILTER	1
12	3Z5-77165-1	储备油箱	RESERVE TANK	1
13	3Z5-77159-0	螺栓	BOLT	4
14	3Z5-77221-0	盖帽总成	CAP ASSY	1
15	3Z5-77175-0	手动阀总成	MANUAL VALVE ASSY	1
16	3R0-77173-0	密封垫圈	SEAL WASHER	1
17	3Z5-77171-0	C形环	C-RING	1
18	3KY-77367-0	接头	JOINT	1
19	3Z5-77166-0	联轴器	COUPLING	1
20	3B7-77167-0	O型圈1.8-69.6	O-RING 1.8-69.6	1
21	3Z5-77194-0	螺钉	SCREW	4
22	3Z5-77460-0	阀门总成	VALVE ASSY	1
23	3Z5-77450-0	安全阀总成	RELIEF VALVE ASSY	1
24	3R0-77451-0	* O型圈1.5-3.5	* O-RING 1.5-3.5	1
25	3B7-77430-0	泵	PUMP	1
26	3B7-77432-1	螺栓	BOLT	2
27	3Z5-77225-0	动力升降倾斜装置O型圈套装	PTT O-RING SET	1
28	3KY-77374-0	螺母	NUT	1

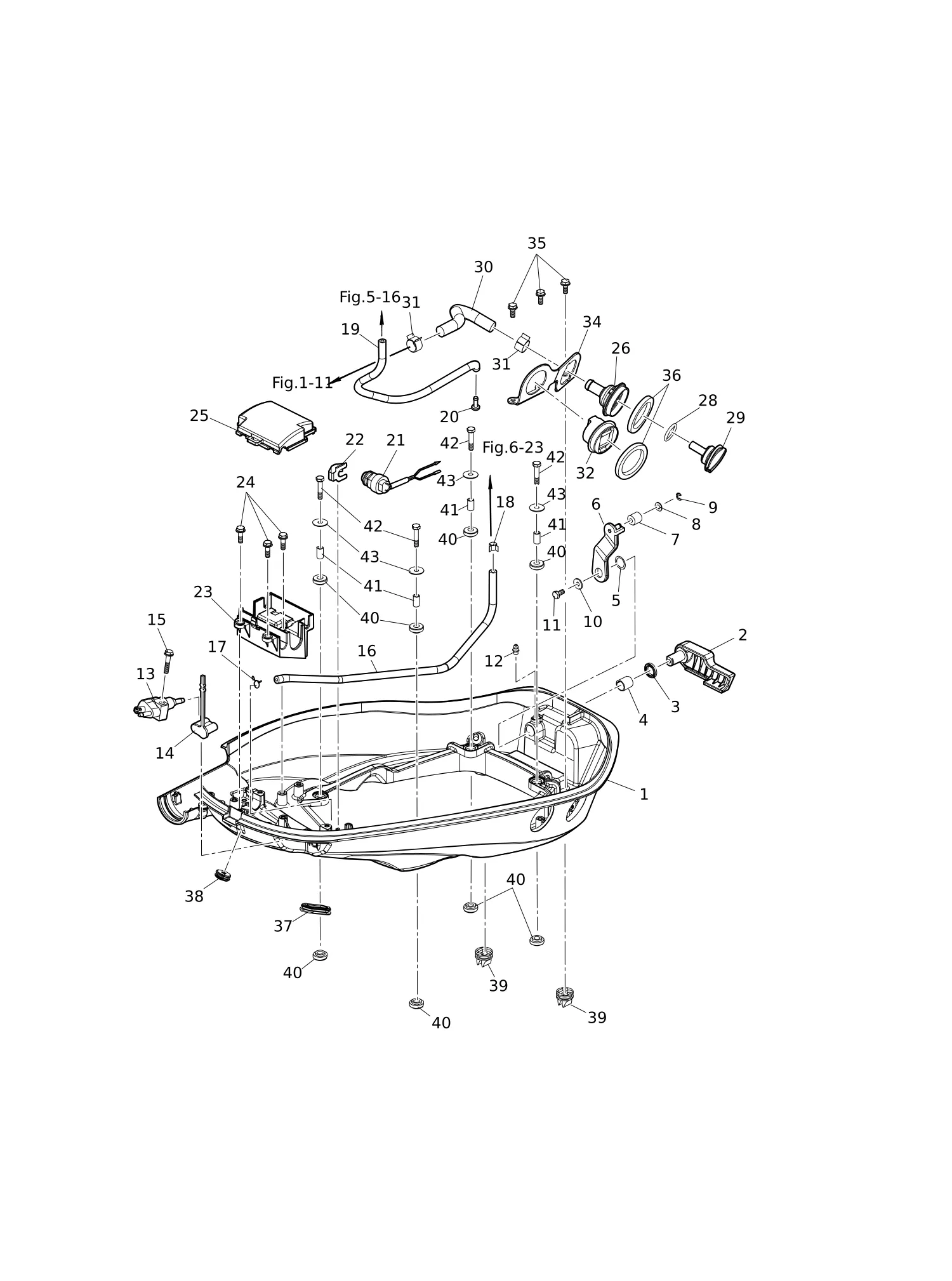

图 15下罩壳 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	3KYQ67100-0	下罩壳	BOTTOM COWL	1
1	3KYW67100-0	下罩壳	BOTTOM COWL	1
2	3KY-67141-0	挂钩杆	HOOK LEVER	1
3	338-67147-0	密封环 13.8-22-3.7	SEAL RING 13.8-22-3.7	1
4	350-67105-0	挂钩杆衬套 14-16.5-17.7	HOOK LEVER BUSHING 14-16.5-17.7	1
5	941403-1400	波形垫圈 d=14	WAVE WASHER d=14	1
6	3KY-67142-0	盖板挂钩	COVER HOOK	1
7	3R0-67517-0	滚柱 6.1-14.7-14	ROLLER 6.1-14.7-14	1
9	945303-0500	E型卡环 d=5	E-RING d=5	1
10	3R0-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
11	910103-0616	螺栓	BOLT	1
12	344-67177-1	黄油嘴	GREASE FITTING	1
13	394-70260-0	燃油接头（公头）	FUEL CONNECTOR (MALE)	1
14	3H6-70262-0	燃油接头护套	FUEL CONNECTOR PROTECTOR	1
15	9101E3-5630	螺栓	BOLT	1
16	3KY-04055-0	低渗透软管 φ5-φ10, L=450	LOW PERMEATION HOSE φ5-φ10, L=450	1
16	98AB-50-450	软管	HOSE	1
17	338-02215-0	卡扣φ10	CLIP φ10	1
18	3GT-35143-0	卡环 φ9.4	CLIP φ9.4	1
19	3KY-65212-0	水管	WATER HOSE	1
20	3T1-01138-0	管接头 6-8-11	NIPPLE 6-8-11	1
21	3NV-76080-0	空档开关	NEUTRAL SWITCH	1
22	398-76083-0	空档开关执行器	NEUTRAL SWITCH ACTUATOR	1
23	3KY-06281-0	电缆端子座	CABLE TERMINAL HOLDER	1
24	910103-5620	螺栓	BOLT	3
25	3KZ-06902-0	盖板	COVER	1
26	3T1-72403-0	冲洗连接器	FLUSHING CONNECTOR	1
28	3R0-07422-0	O型圈 3.1-24.4	O-RING 3.1-24.4	1
29	3T1-72404-0	冲洗连接器盖	FLUSHING CONNECTOR CAP	1
30	3KY-72410-0	冲洗软管	FLUSHING HOSE	1
31	3T1-07737-1	卡环 φ17.8	CLIP φ17.8	2
32	3AC-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
34	3KY-72413-0	冲洗连接器支架	FLUSHING CONNECTOR BRACKET	1
35	910103-5616	螺栓	BOLT	3
36	3F3-72616-1	衬垫	GASKET	2
37	3R3-66226-0	衬套 40-18-3	GROMMET 40-18-3	1
38	3KY-67117-0	索环/护孔圈	GROMMET	1
39	3T1-67161-0	索环/护孔圈	GROMMET	2
40	346-67113-0	8.5-14-2.5支架	MOUNT 8.5-14-2.5	8
41	346-67114-1	垫圈 6.2-9-15.7	SPACER 6.2-9-15.7	4
42	910103-0630	螺栓	BOLT	4
43	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	4

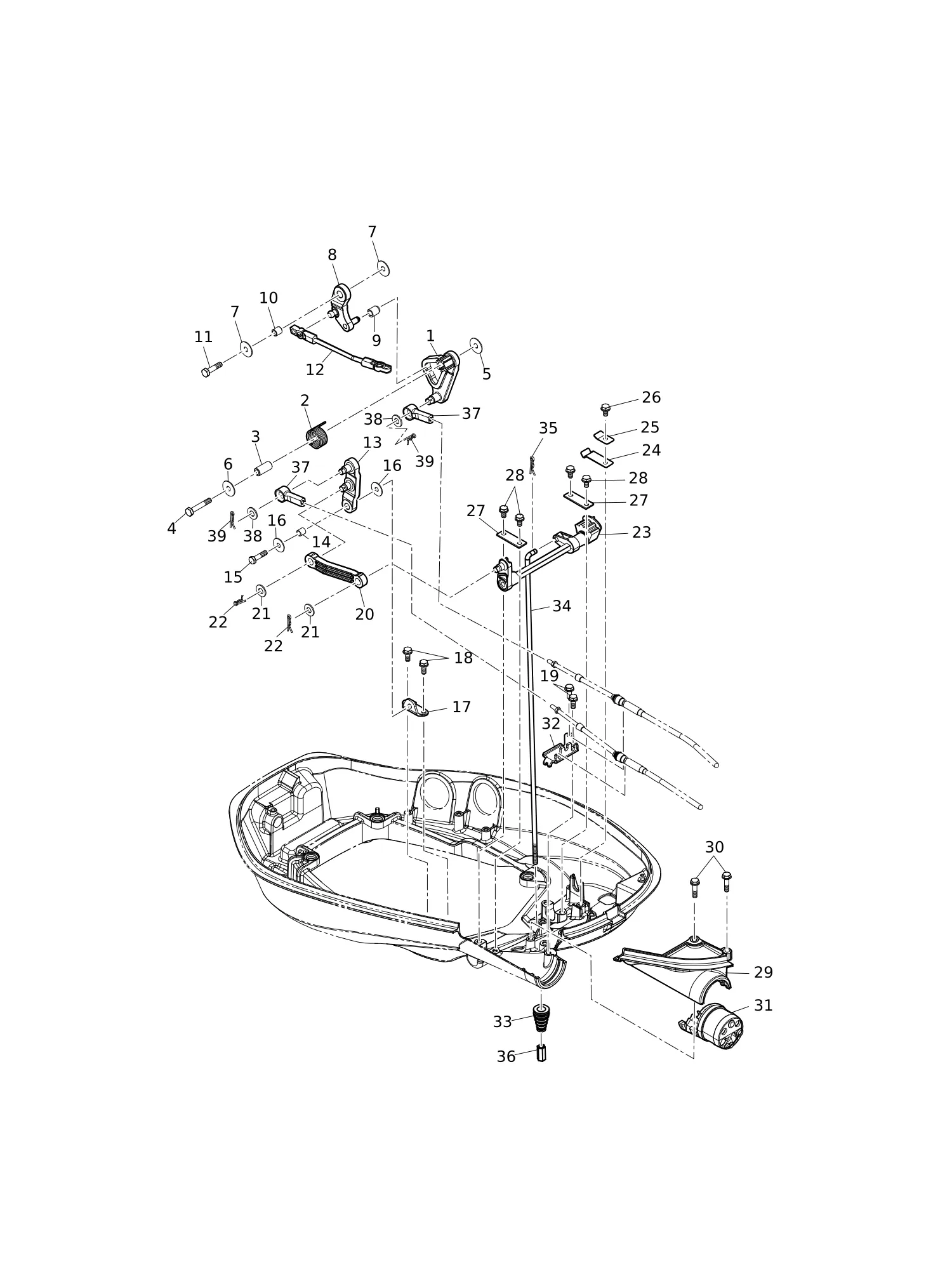

图 16换挡·油门 SHIFT · THROTTLE

REF	零件编号	中文名称	英文名称	数量
1	3KY-63718-0	节气门凸轮	THROTTLE CAM	1
2	3KY-63727-0	弹簧	SPRING	1
3	3R3-66124-0	轴套 6.5-10.5-22.6	COLLAR 6.5-10.5-22.6	1
4	910103-0635	螺栓	BOLT	1
6	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	1
8	3KY-63751-0	节气门臂	THROTTLE ARM	1
9	3KY-03171-0	节气门滚轮	THROTTLE ROLLER	1
11	910103-0620	螺栓	BOLT	1
12	3KY-63709-1	节气门拉杆	THROTTLE ROD	1
13	3KY-66122-0	换挡臂	SHIFT ARM	1
14	3KY-76079-0	轴套 6.5-10.5-9.3	COLLAR 6.5-10.5-9.3	1
15	910103-0625	螺栓	BOLT	1
16	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	2
17	3KY-66126-0	支架	BRACKET	1
19	910103-5616	螺栓	BOLT	2
20	3KY-66134-0	换挡杆连杆	SHIFT LEVER ROD	1
23	3KY-66130-0	换挡杆轴总成	SHIFT LEVER SHAFT ASSY	1
24	3EF-66113-0	换挡定位弹簧	SHIFT DETENT SPRING	1
25	3Y1-66117-0	换挡定位支架 t=0.8	SHIFT DETENT SUPPORTER t=0.8	1
27	3V1-66145-0	支架	HOLDER	2
28	910103-5612	螺栓	BOLT	4
29	3KYQ67483-0	遥控线缆支架盖	REMOTE CONT CABLE STAY COVER	1
29	3KYW67483-0	遥控线缆支架盖	REMOTE CONT CABLE STAY COVER	1
30	910103-5625	螺栓	BOLT	2
31	3KY-76116-0	索环/护孔圈	GROMMET	1
32	3KY-83734-0	线缆夹	CABLE CLIP	1
33	3M2-66226-0	索环 17-3	GROMMET 17-3	1
34	3KY-66214-0	换挡连杆(短)	SHIFT ROD (S)	1
34	3KY-66215-0	换挡连杆(长)	SHIFT ROD (L)	1
35	951603-0500	弹性销d=5	SNAP PIN d=5	1
36	3KY-66241-0	换挡杆接头 M6-22	SHIFT ROD JOINT M6-22	1
37	3B7-83715-2	线缆接头	CABLE JOINT	2
38	3AA-83719-0	垫圈 8.5-18-1.6	WASHER 8.5-18-1.6	2
39	951603-0800	弹性销 d=8	SNAP PIN d=8	2

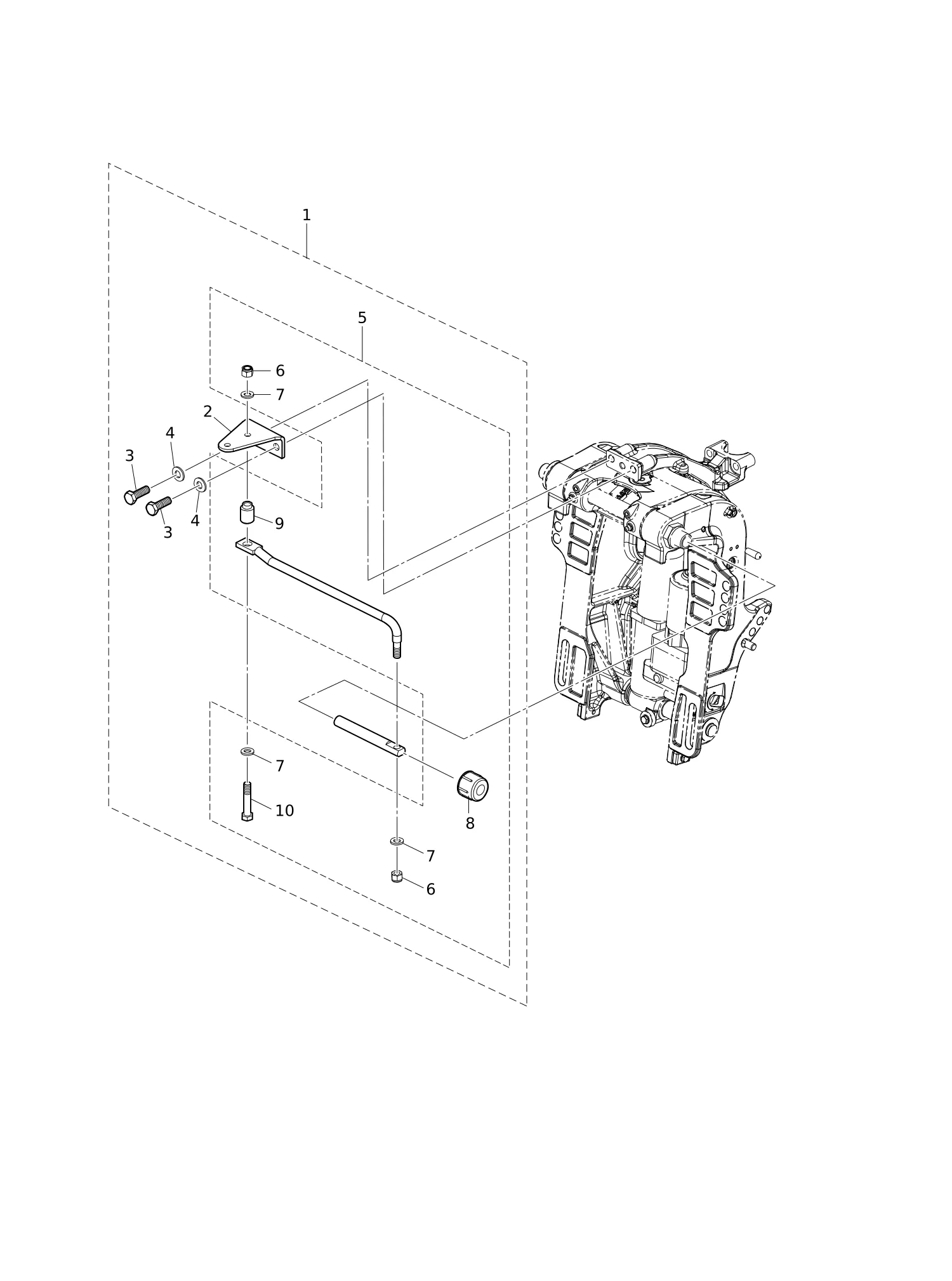

图 17转向装置 STEERING

REF	零件编号	中文名称	英文名称	数量
1	3KY-83880-0	遥控装置总成	REMOTE CONTROL FITTING ASSY	1
2	3KY-83830-0	* 转向钩板	* STEERING HOOK PLATE	1
3	910103-1030	螺栓	* BOLT	2
4	940103-1000	* 垫圈	* WASHER	2
5	3KY-84905-0	* 转向拉杆总成	* DRAG LINK ASSY	1
6	353-84918-0	尼龙螺母 3/8-24UNF	** NYLON NUT 3/8-24UNF	2
7	353-84916-0	垫圈 9.6-18-2	** WASHER 9.6-18-2	3
8	3F3-84908-0	密封环	** SEAL RING	1
9	3B7-84914-0	** 隔套 9.6-19-19	** SPACER 9.6-19-19	1
10	353-84917-0	螺栓 3/8-45	** BOLT 3/8-45	1

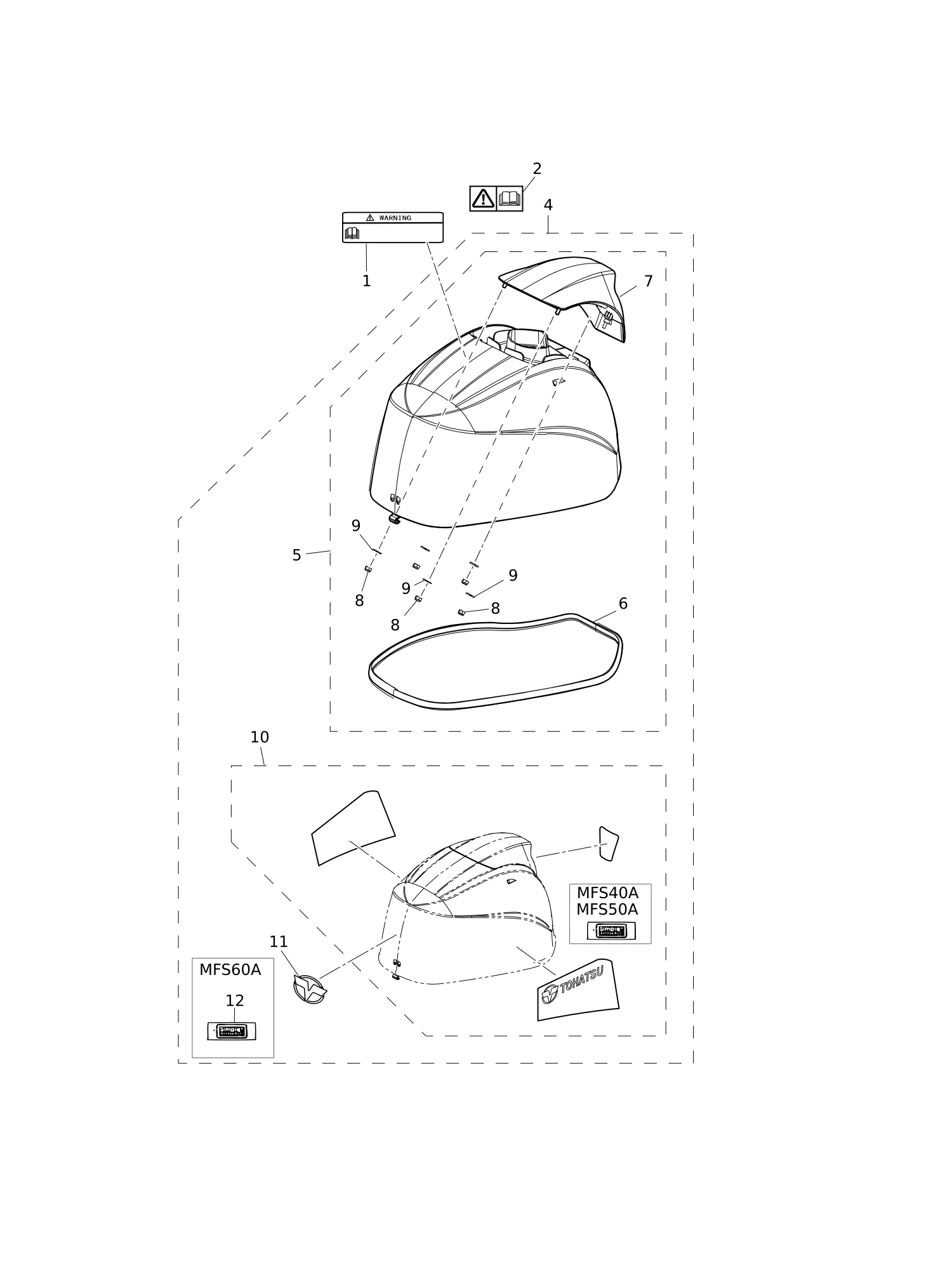

图 18顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	3WL-72180-0	警示标贴(A型)	CAUTION DECAL (A)	1
1	3YG-72180-0	警示标贴(A型)	CAUTION DECAL (A)	1
2	3F0-72185-0	警示标贴	CAUTION DECAL	1
4	3URQ67645-0	顶罩总成	TOP COWL ASSY	1
4	3URW67645-0	顶罩总成	TOP COWL ASSY	1
5	3URQ67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
5	3URW67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
6	3KY-67501-1	顶罩密封条	** TOP COWL SEAL	1
7	3KYQ67521-0	倾斜把手	** TILT HANDLE	1
7	3KYW67521-0	倾斜把手	** TILT HANDLE	1
8	930403-0600	尼龙螺母 6-P1.0	** NYLON NUT 6-P1.0	5
9	3C8-66308-0	垫圈 6-16-1.5	** WASHER 6-16-1.5	5
10	3UR-87801-0	* 贴花套装(MFS60A/AW)	* DECAL SET(MFS60A/AW)	1
11	3SS-67580-0	标志贴花	LOGO DECAL	1
12	3UR-67538-0	简标贴花	SIMPLIQ DECAL	1
12	3WM-67538-0	简标贴花	SIMPLIQ DECAL	1

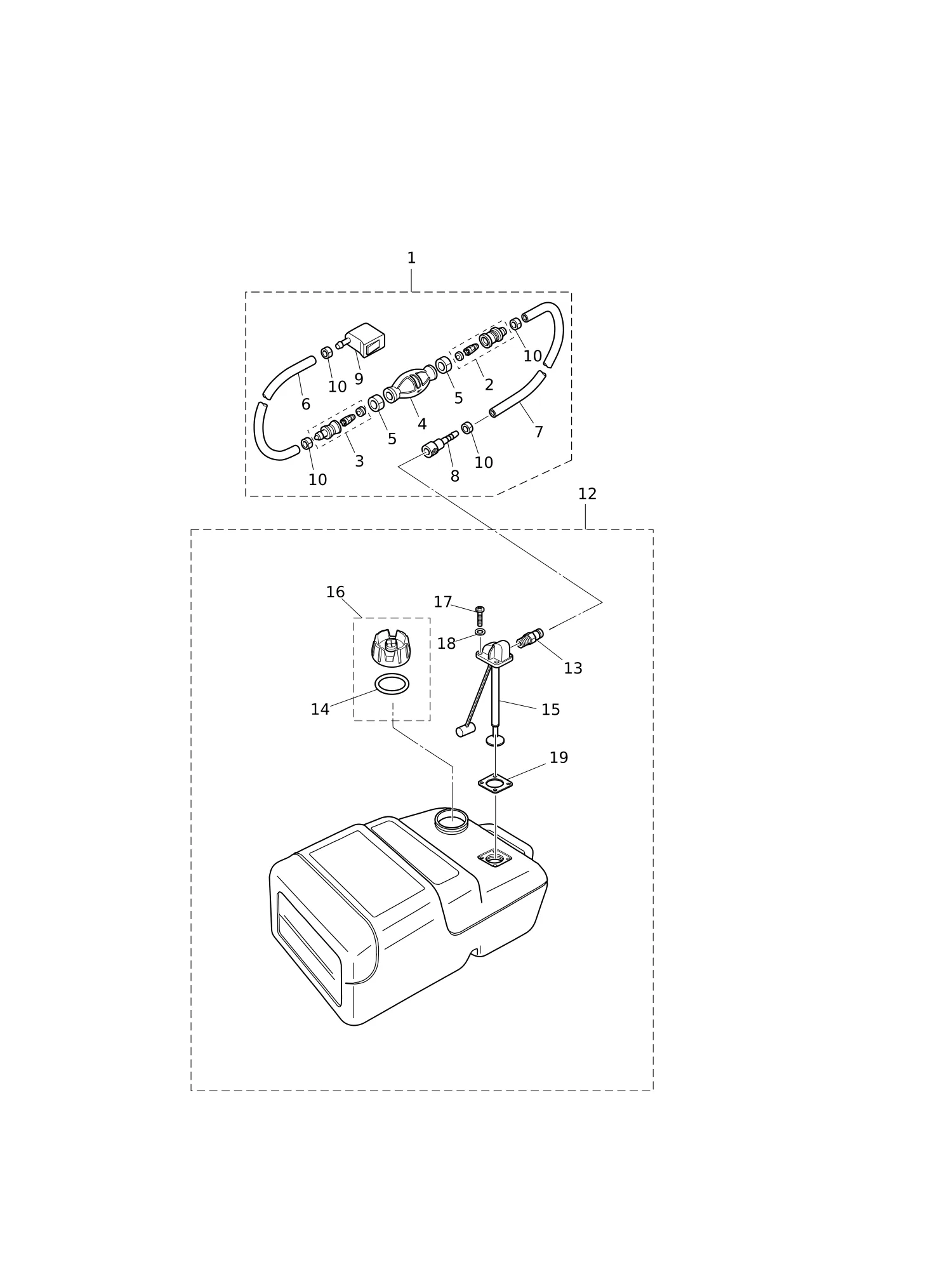

图 19燃油箱 FUEL TANK

REF	零件编号	中文名称	英文名称	数量
1	3H6-70200-2	手动泵球总成	PRIMER BULB ASSY	1
2	3C7-70220-1	* 接头组件(进口)	* JOINT ASSY (INLET)	1
3	3C7-70224-1	* 接头组件(出口)	* JOINT ASSY (OUTLET)	1
4	3C7-70211-1	* 注油球	* PRIMER BULB	1
5	3C7-70217-0	* 卡箍	* CLAMP	2
6	98AB-70-700	* 软管	* HOSE	1
7	98AB-701600	* 软管	* HOSE	1
8	3GF-70281-0	* 燃油接头	* FUEL CONNECTOR	1
9	3GR-70250-0	* 燃油接头	* FUEL CONNECTOR	1
10	332-70201-0	* 卡箍	* CLAMP	4
12	3KZ-70177-0	25升燃油箱总成	FUEL TANK ASSY 25L	1
13	3E0-70270-0	* 快速接头(公)	* QUICK-CONNECTOR (MALE)	1
14	3RS-70021-0	油箱盖衬垫	** TANK FILLER CAP GASKET	1
15	3AC-70157-0	* 带油量计的燃油吸油总成	* FUEL PICK-UP ASSY W/GAUGE	1
16	3RS-70020-0	* 燃油箱盖总成	* FUEL TANK CAP ASSY	1
17	3AC-70140-0	* 螺钉	* SCREW	4
18	3AC-70145-0	* 垫圈	* WASHER	4
19	3AC-70150-0	* 衬垫	* GASKET	1

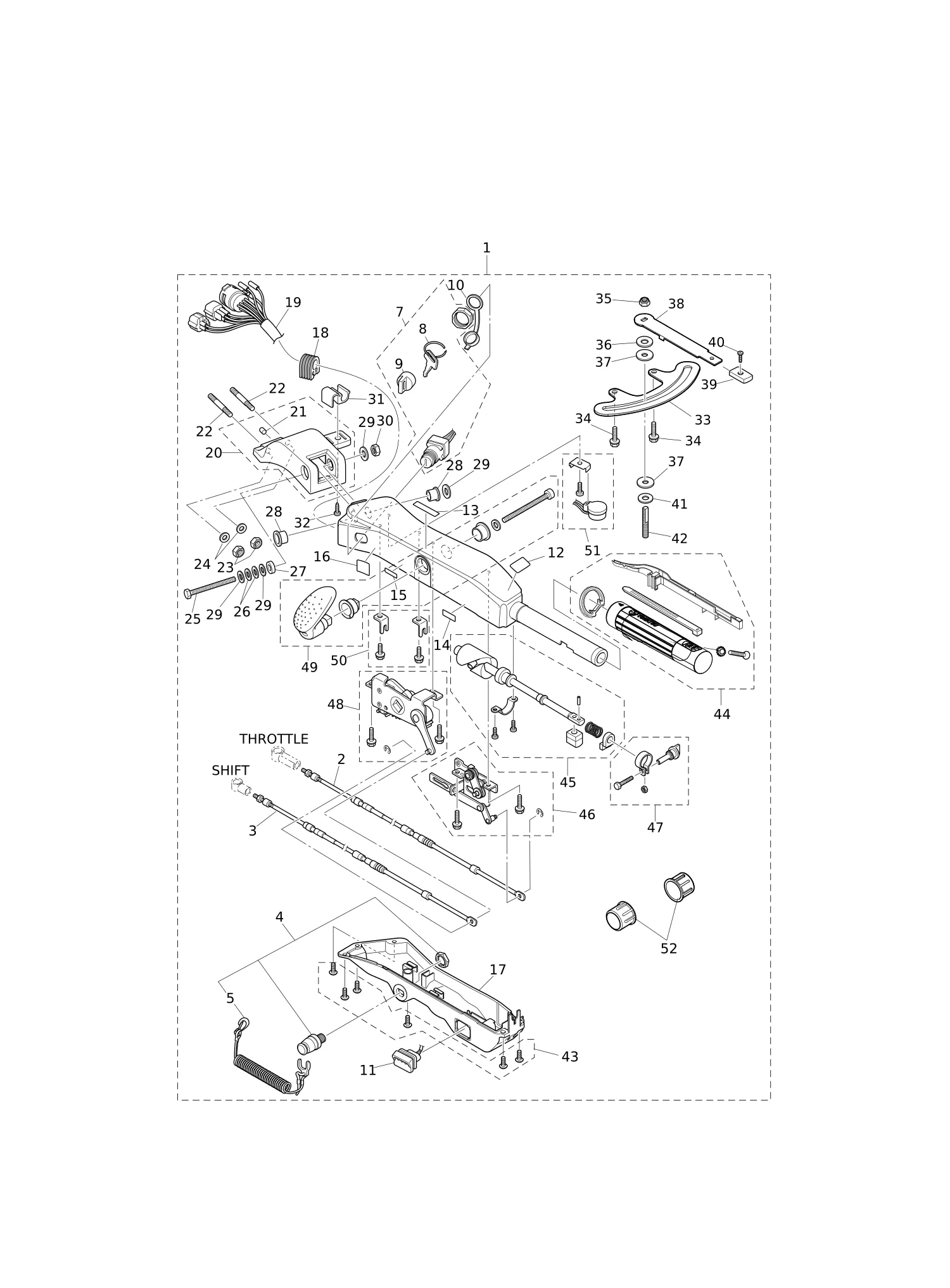

图 20多功能舵柄手柄 MULTI TILLER HANDLE

REF	零件编号	中文名称	英文名称	数量
1	3KYQ63000-3	舵柄套件	TILLER HANDLE KIT	1
1	3KYW63000-3	舵柄套件	TILLER HANDLE KIT	1
2	3KY-63600-0	* 节气门拉线	* THROTTLE WIRE	1
3	3KY-66196-0	* 换挡拉索	* SHIFT CABLE	1
4	398-06830-0	* 停机开关总成	* STOP SWITCH ASSY	1
5	353-06821-0	停机开关拉绳总成	** STOP SWITCH LANYARD ASSY	1
7	3GF-76020-0	* 主开关总成	* MAIN SWITCH ASSY	1
8	3GF-76217-0	主开关钥匙	** MAIN SWITCH KEY	1
8	3GF-76218-0	主开关钥匙	** MAIN SWITCH KEY	1
8	3GF-76219-0	主开关钥匙	** MAIN SWITCH KEY	1
9	3GF-76205-0	主开关钥匙防尘盖	** MAIN SWITCH KEY COVERING CAP	1
10	3T5-76022-0	* 主开关帽 (防水)	* MAIN SWITCH CAP (WATERPROOF)	1
11	3GF-71040-0	* 指示灯总成	* PILOT LAMP ASSY	1
12	3GF-72019-0	* 油门标识贴	* THROTTLE DECAL	1
13	3GF-67578-1	* 换挡标贴	* SHIFT DECAL	1
14	3GF-72198-0	* 警示灯贴花	* WARNING LAMP DECAL	1
15	3GF-72200-0	* 停机开关标贴	* STOP SWITCH DECAL	1
16	3GF-84339-0	* 操作说明标贴	* INSTRUCTION DECAL	1
17	3UR-63320-0	* 舵柄手柄盖	* TILLER HANDLE COVER	1
18	3GF-63624-0	* 护孔环	* GROMMET	1
19	3KY-76119-0	* 绳索总成	* CORD ASSY	1
20	3AHQ62000-0	* 转向支架总成	* STEERING BRACKET ASSY	1
20	3AHW62000-0	* 转向支架总成	* STEERING BRACKET ASSY	1
21	3GF-65012-0	** 定位销 8-16	** DOWEL PIN 8-16	1
22	9153E3-1040	* 双头螺柱 M10-40	* STUD M10-40	2
23	930403-1000	尼龙螺母 10-P1.5	* NYLON NUT 10-P1.5	2
25	3GF-63201-0	螺栓 10-80 P1.25	* BOLT 10-80 P1.25	1
26	3GF-63305-0	* 锥形弹簧垫圈 10.5-21-2.3	* CONICAL SPRING WASHER 10.5-21-2.3	2
27	3GF-63025-0	* 隔套 10.5-23-9	* SPACER 10.5-23-9	1
28	3GF-63102-0	* 衬套 10.5-12.7-13.5	* BUSHING 10.5-12.7-13.5	2
29	9401E3-1000	* 垫圈	* WASHER	4
30	3GF-63310-0	* 锁紧螺母 10-P1.25	* LOCK NUT 10-P1.25	1
31	3GF-62004-0	* 绳索固定器	* CORD HOLDER	1
32	3T5-06437-0	* 自攻螺钉 6-16	* TAPPING SCREW 6-16	1
33	3KY-62447-0	* 板	* PLATE	1
34	3V1-60108-0	* 预涂螺栓6-16	* PRE-COATED BOLT 6-16	2
35	3V5-62442-0	尼龙螺母 8-P1.25	* NYLON NUT 8-P1.25	1
36	3B7-63730-0	* 垫圈 8.5-24-1.5	* WASHER 8.5-24-1.5	1
37	3GF-62449-0	* 圆盘 8.5-25-2	* DISC 8.5-25-2	2
38	3KY-62441-0	* 摩擦杆	* FRICTION LEVER	1
39	3AC-63012-0	* 手柄	* GRIP	1
40	346-66334-0	* 止动块	* STOPPER	1
41	3R3-62443-0	* 垫圈 8.1-20-0.8	* WASHER 8.1-20-0.8	1
42	3GF-62445-0	* 螺栓 8-32 P1.25	* BOLT 8-32 P1.25	1
43	3GF-63205-0	* 螺钉套件	* SCREW SET	1
44	3UR-63193-0	* 手柄零件套件	* GRIP PARTS KIT	1
45	3UR-63062-0	* 节气门轴套件	* THROTTLE SHAFT KIT	1
46	3GF-63067-0	* 节气门连杆总成	* THROTTLE LINK ASSY	1
47	3GF-63032-0	* 油门摩擦总成	* THROTTLE FRICTION ASSY	1
48	3GF-66160-0	* 换挡单元总成	* SHIFT UNIT ASSY	1
49	3GF-66158-0	* 换挡杆套件	* SHIFT LEVER KIT	1
50	3GF-66198-0	* 线缆支架套件	* CABLE BRACKET KIT	1
51	3GF-76175-0	* 蜂鸣器套件	* BUZZER KIT	1
52	346-62127-0	* 盖形螺母	* CAP NUT	2

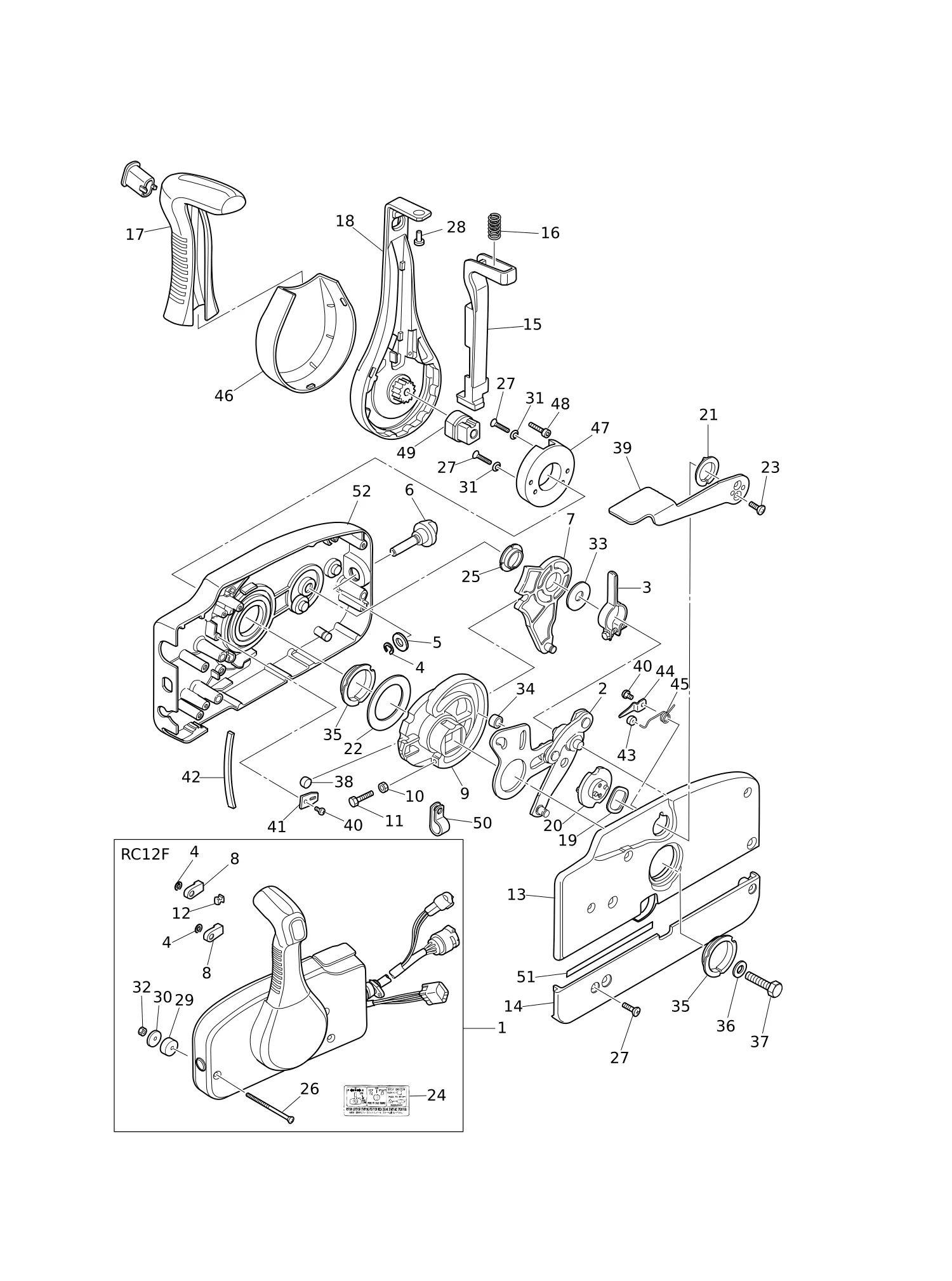

图 21遥控器零部件 COMPONENT PARTS OF REMOTE CONTROL

REF	零件编号	中文名称	英文名称	数量
1	3U2B84500-0	遥控头总成(RC12F)	REMOTE CONTROL HEAD ASSY(RC12F)	1
2	3A3-84365-1	* 节气门摇臂	* THROTTLE ARM	1
3	3A3-84428-0	* 油门摩擦摇臂	* THROTTLE FRICTION ARM	1
4	945303-0600	* E型卡环 d=6	* E-RING d=6	3
5	353-84394-0	* 垫圈	* WASHER	1
6	3U2-84427-0	* 调节螺钉	* ADJUSTING SCREW	1
7	3A3-84381-0	* 换挡齿轮总成	* SHIFT GEAR ASSY	1
8	3A3-83314-2	* 线缆端子	* CABLE TERMINAL	2
9	3A3-84364-2	* 驱动齿轮	* DRIVE GEAR	1
10	930103-0500	螺母	* NUT	1
11	910103-0525	螺栓	* BOLT	1
12	3A3-84376-0	* 护孔环	* GROMMET	1
13	3U2B84441-0	* 后壳体	* REAR HOUSING	1
14	3U2B84366-0	* 后盖板	* REAR PANEL	1
15	3U2-84401-0	* 空档锁止臂	* NEUTRAL LOCK ARM	1
16	3A3-84403-0	* 空档锁止弹簧	* NEUTRAL LOCK SPRING	1
17	3U2-84404-0	* 手柄	* GRIP	1
18	3U2-84343-0	* 控制杆	* CONTROL LEVER	1
19	3A3-84368-0	* 波形垫圈	* WAVE WASHER	1
20	3A3-84391-0	* 自由节流鼓	* FREE THROTTLE DRUM	1
21	3A3-84435-0	* 衬套	* BUSHING	1
22	3A3-84422-0	* 推力板	* THRUST PLATE	1
23	921603-0512	* 螺钉	* SCREW	2
24	3VK-84339-0	* 操作说明标贴	* INSTRUCTION DECAL	1
25	3A3-84432-0	* 衬套	* BUSHING	1
26	3U2-84375-0	* 螺钉	* SCREW	3
27	3VK-84375-0	* 螺钉	* SCREW	7
28	3VL-84375-0	* 螺钉	* SCREW	1
29	3A3-84374-0	* 隔套	* SPACER	3
30	353-84371-0	* 垫圈	* WASHER	3
31	3U2-84371-0	* 垫圈	* WASHER	2
32	930103-0600	螺母	* NUT	3
33	3A3-84383-0	* 垫圈	* WASHER	1
34	3A3-84421-0	* 滚轮	* ROLLER	1
35	3U2-84431-0	* 衬套	* BUSHING	2
36	940103-0800	* 垫圈	* WASHER	1
37	3U2-84442-0	螺栓	* BOLT	1
38	353-84388-0	* 定位滚轮	* DETENT ROLLER	1
39	3U2B84312-0	* 自由节流杆	* FREE THROTTLE LEVER	1
40	921503-0406	* 螺钉	* SCREW	3
41	3A3-84423-0	* 定位器挡圈	* DETENT RETAINER	1
42	3A3-84307-0	* 定位弹簧	* DETENT SPRING	6
43	3A3-84424-0	* 自由节流滚轮	* FREE THROTTLE ROLLER	1
44	3A3-84426-0	* 滚柱保持架	* ROLLER RETAINER	1
45	3A3-84425-0	* 自由节流弹簧	* FREE THROTTLE SPRING	1
46	3U2-63107-0	* 盖板	* COVER	1
47	3U2-63506-0	* 支架	* HOLDER	1
48	3U2-84917-0	螺栓	* BOLT	1
49	3U2-77367-0	* 接头	* JOINT	1
50	3U2-06973-0	* 卡箍	* CLAMP	1
51	3U2-72187-0	* 警示标贴(SIGP)	* CAUTION DECAL(SIGP)	1
52	3U2B84440-0	* 前壳体	* FRONT HOUSING	1

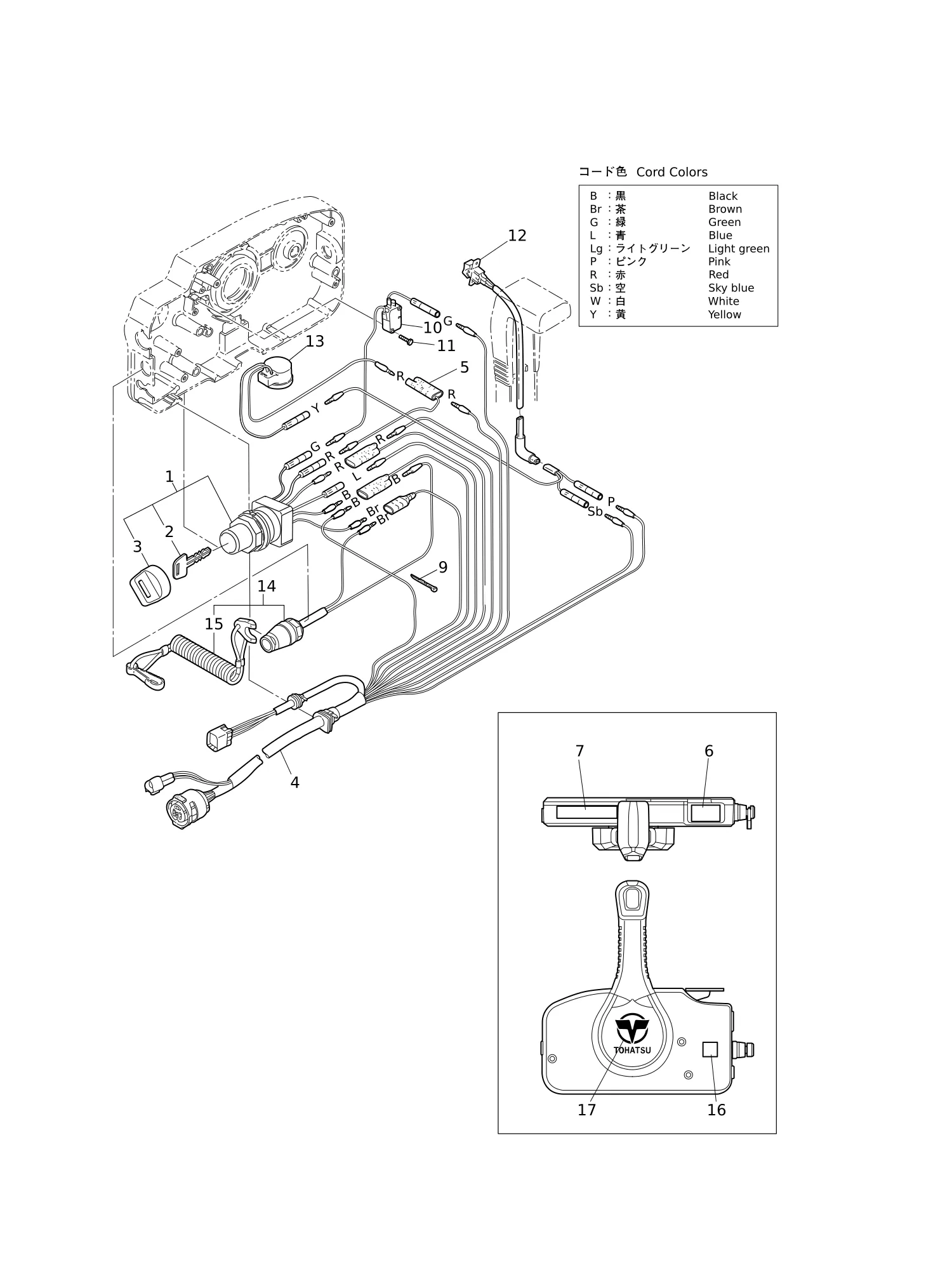

图 22遥控器零部件(电气部件) COMPONENT PARTS OF REMOTE CONTROL(ELECTRIC PARTS)

REF	零件编号	中文名称	英文名称	数量
1	3GF-76020-0	主开关总成	MAIN SWITCH ASSY	1
2	3GF-76217-0	* 主开关钥匙	* MAIN SWITCH KEY	1
2	3GF-76218-0	* 主开关钥匙	* MAIN SWITCH KEY	1
2	3GF-76219-0	* 主开关钥匙	* MAIN SWITCH KEY	1
3	3GF-76205-0	* 主开关钥匙盖帽	* MAIN SWITCH KEY COVERING CAP	1
4	3T5-76115-1	线束总成 L=6200	CORD ASSY L=6200	1
5	353-72546-0	辅助拉绳(红) 长200	ASSIST CORD (RED) L=200	1
6	3U2-84331-0	操纵杆贴花	DECAL (LEVER)	1
7	3U2-84336-0	挡位标识贴	SHIFT POSITION DECAL	1
9	3U2-84398-0	箍带	BAND	5
10	3T5-76086-0	空档开关(遥控型)	NEUTRAL SWITCH (REMOTE CONT)	1
11	921503-5316	螺钉	SCREW	2
12	3U2-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
13	3C8-76171-0	过热报警器	OVERHEAT BUZZER	1
14	3A3-06830-0	停止开关总成	STOP SWITCH ASSY	1
15	353-06821-0	* 停机开关拉绳总成	* STOP SWITCH LANYARD ASSY	1
16	3U2-72200-0	停止开关贴花	STOP SWITCH DECAL	2
17	3U2-84334-0	遥控标识贴花	REMOTE CONTROL LOGO DECAL	1

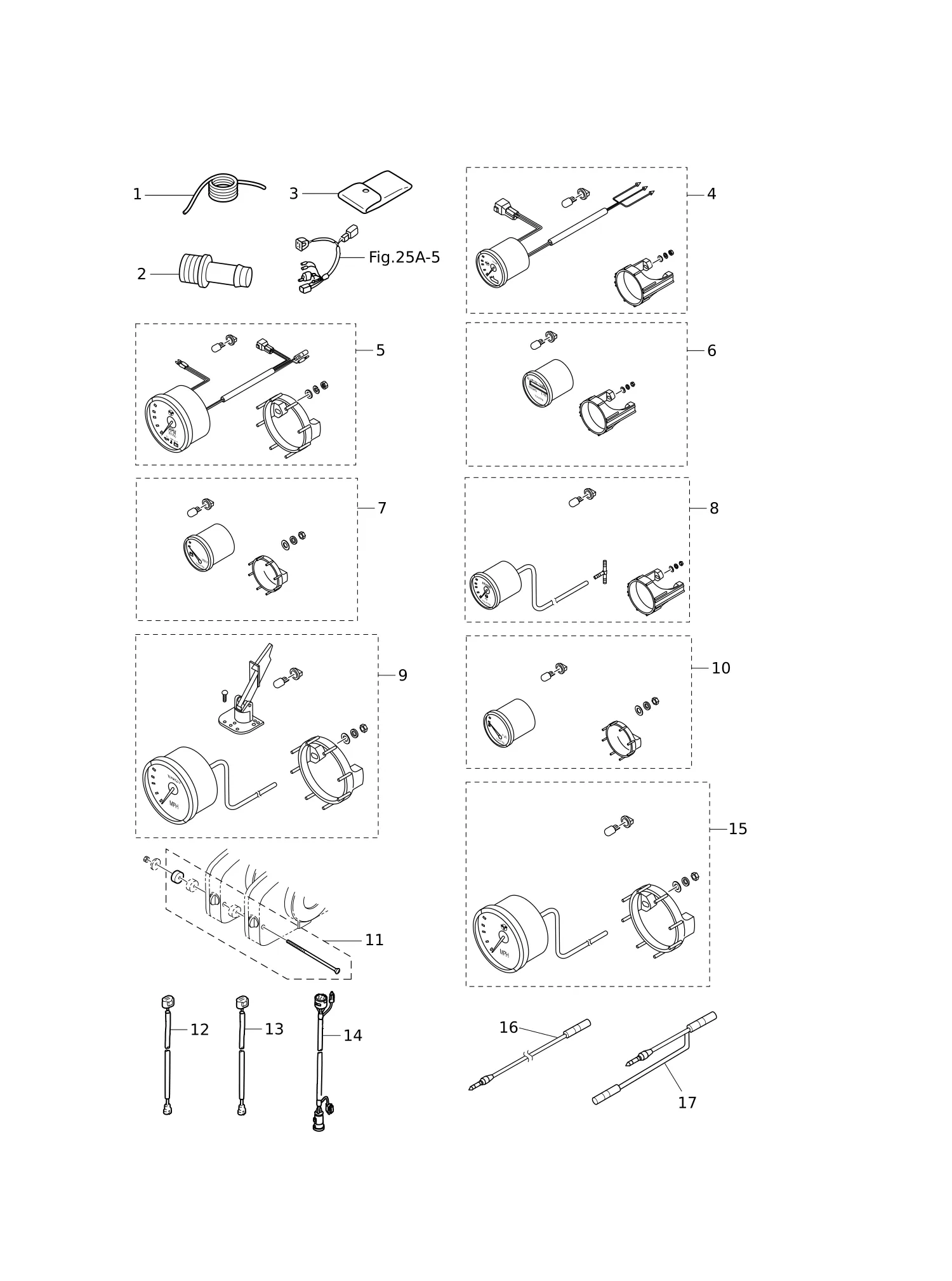

图 23选装配件 OPTIONAL PARTS · ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
1	3B7-72201-0	安全绳φ5-1600	SAFETY ROPE φ5-1600	1
2	3T1-72405-0	软管接头(水工)	HOSE JOINT (WATER-WORKS)	1
3	3BJ-72100-0	工具包	TOOL KIT	1
4	3UR-72523-1	配平表套件	TRIM METER KIT	1
4	3WA-72523-1	配平表套件	TRIM METER KIT	1
5	3UR-72647-1	转速表	TACHOMETER	1
5	3WA-72647-1	转速表	TACHOMETER	1
6	3UR-72532-0	计时器套件	HOUR METER KIT	1
6	3WA-72532-0	计时器套件	HOUR METER KIT	1
7	3UR-72531-0	电压表套件	VOLTMETER KIT	1
7	3WA-72531-0	电压表套件	VOLTMETER KIT	1
8	3UR-72527-0	水压表套件	WATER PRESSURE METER KIT	1
8	3WA-72527-0	水压表套件	WATER PRESSURE METER KIT	1
9	3GF-72672-0	速度表套件(60英里/时)	SPEEDOMETER KIT (60MPH)	1
9	3GL-72672-0	速度表套件(60英里/时)	SPEEDOMETER KIT (60MPH)	1
10	3UR-72600-0	燃油表套件	FUEL METER KIT	1
10	3WA-72600-0	燃油表套件	FUEL METER KIT	1
11	3A3-81301-0	双联遥控套件	TWIN REMOTE CONTROL KIT	1
12	3Z4-72573-0	延长线(配平传感器) L=2000	EXTENSION CORD (TRIM SENSOR) L=2000	1
13	3T5-76112-0	延长线 L=2000 (2针)	EXTENSION CORD L=2000 (2P)	1
14	3T5-76114-0	延长线 L=2000 (11针)	EXTENSION CORD L=2000 (11P)	1
15	3KY-72673-0	速度表套件(70英里/时)	SPEEDOMETER KIT (70MPH)	1
15	3UW-72673-0	速度表套件(70英里/时)	SPEEDOMETER KIT (70MPH)	1
16	3KY-72538-0	速度表引线	SPEEDOMETER LEAD WIRE	1
17	3KY-72546-0	辅助拉绳(红)	ASSIST CORD (RED)	1

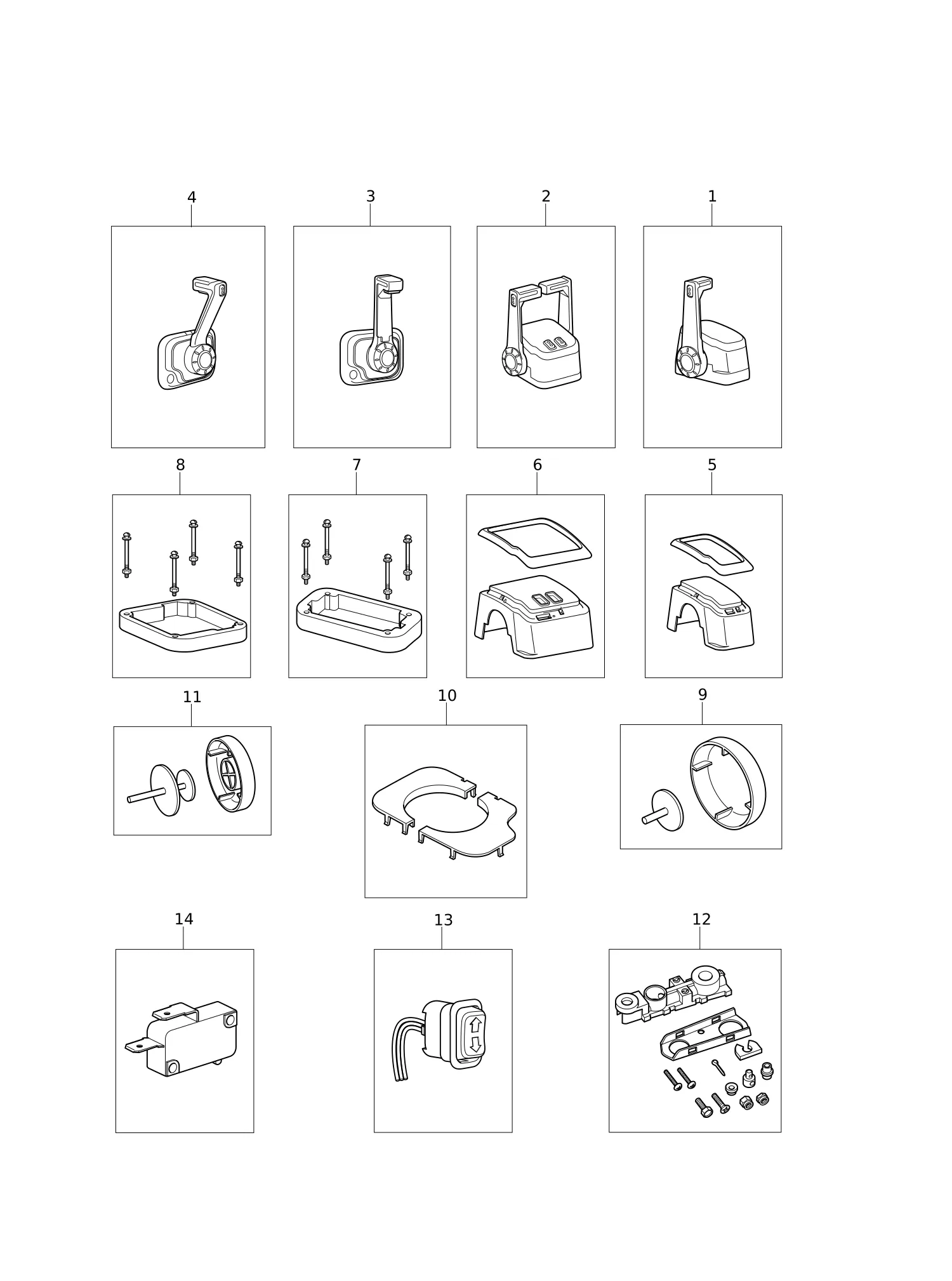

图 24选装配件(2) OPTIONAL PARTS(2)

REF	零件编号	中文名称	英文名称	数量
1	3U3-84490-1	控制头总成(顶部单控)	CONTROL HEAD ASSY (TOP-SINGLE)	1
2	3U3-84540-1	控制头总成(顶部双控)	CONTROL HEAD ASSY (TOP-TWIN)	1
3	3U3-84620-1	控制头总成(中控台)	CONT HEAD ASSY (CENTER CONSOLE)	1
4	3U3-84600-1	控制头总成(嵌入式)	CONT HEAD ASSY (FLUSH MOUNT)	1
5	3U3-84541-1	装饰盖套件	BEZEL COVER KIT	1
6	3U6-84541-1	装饰盖套件	BEZEL COVER KIT	1
7	3U3-84373-0	垫圈套装	SPACER SET	1
8	3U6-84373-0	垫圈套装	SPACER SET	1
9	3U3-84313-0	节气门自由按钮	FREE THROTTLE BUTTON	1
10	3U8-84541-1	装饰盖套件	BEZEL COVER KIT	1
11	3U8-84313-0	节气门自由按钮	FREE THROTTLE BUTTON	1
12	3U3-83710-0	电缆接头总成	CABLE JOINT ASSY	1
13	3U3-72560-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
14	3U3-76086-0	空档开关(遥控型)	NEUTRAL SWITCH (REMOTE CONT)	1

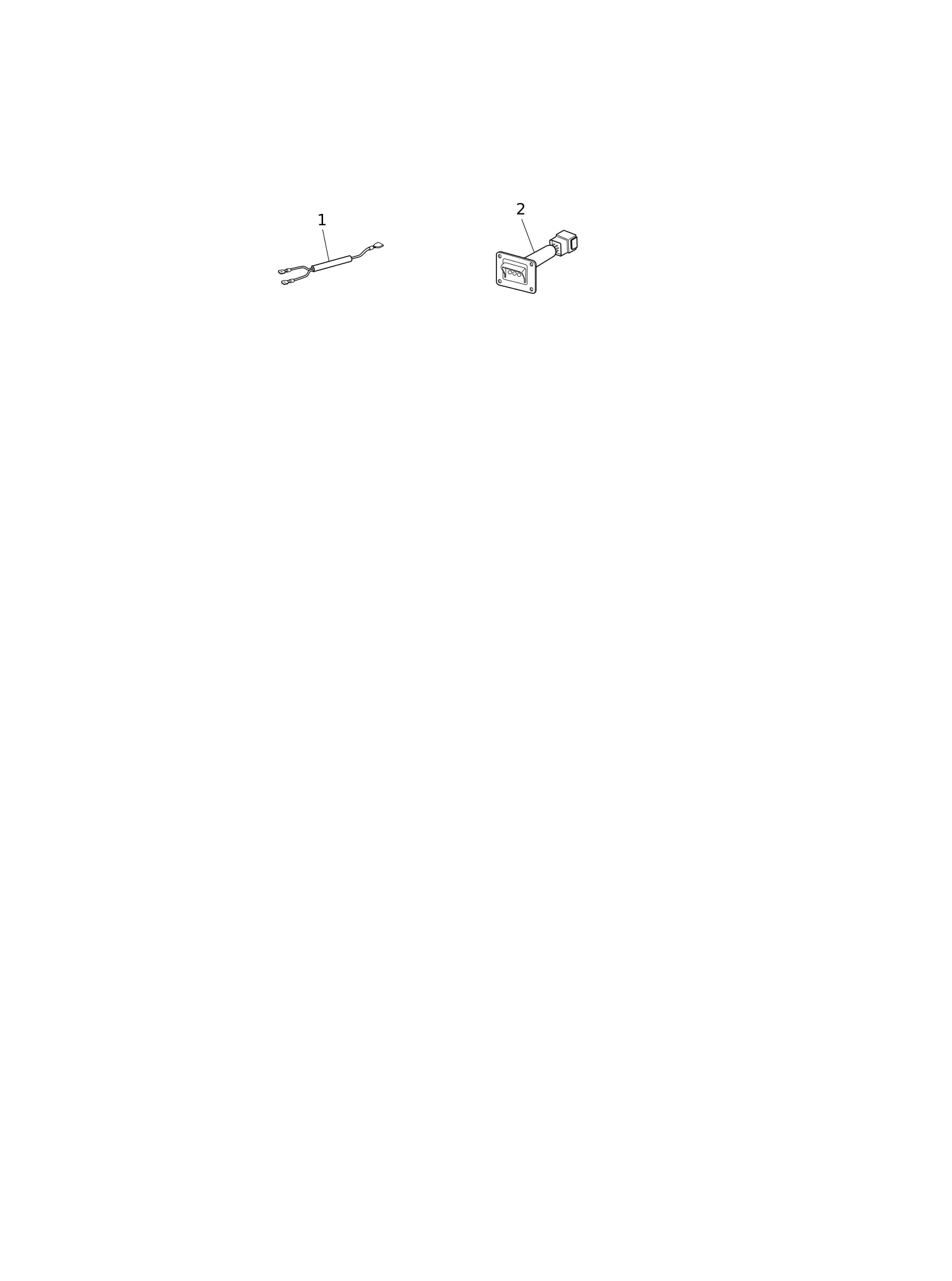

图 25索具套件1 RIGGING KIT（1）

REF	零件编号	中文名称	英文名称	数量
1	3Y9-76049-0	导线L=200	LEAD WIRE L=200	1
2	3Y9-76251-0	灯板总成	LAMP PANEL ASSY	1

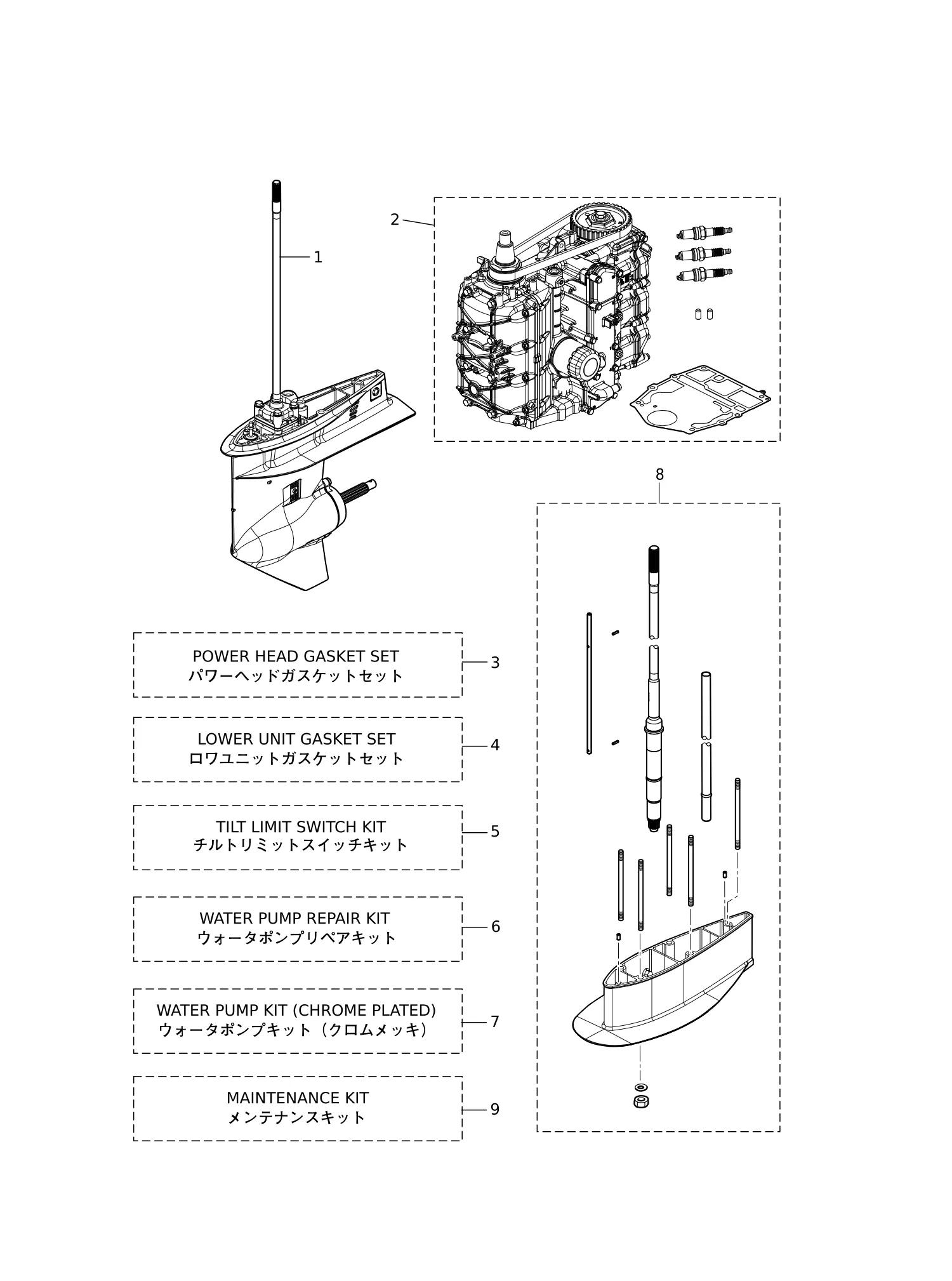

图 26套件零件总成 ASSEMBLY · KIT PARTS

REF	零件编号	中文名称	英文名称	数量
1	3KYQ87304-4	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
1	3NRQ87301-4	下部单元总成 (S)	LOWER UNIT ASSY (S)	1
1	3NRQ87302-4	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3NRW87302-4	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
2	3URB87090-2	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
3	346-01215-0	* 油封 16-28-6	* OIL SEAL 16-28-6	1
3	3KY-00121-0	* 油封 38-50-8	* OIL SEAL 38-50-8	1
3	3KY-00122-0	* 油封 50-68-9	* OIL SEAL 50-68-9	1
3	3KY-01005-0	* 气缸盖垫片	* CYLINDER HEAD GASKET	1
3	3KY-01024-0	* 气缸盖罩衬垫	* CYLINDER HEAD COVER GASKET	1
3	3KY-01303-0	* 发动机底座衬垫	* ENGINE BASEMENT GASKET	1
3	3KY-02305-0	* 排气盖衬垫	* EXHAUST COVER GASKET	1
3	3KY-07653-0	* 机油泵垫片	* OIL PUMP GASKET	1
3	3KY-61012-0	* 驱动轴壳体衬垫 t=0.5	* DRIVE SHAFT HOUSING GASKET t=0.5	1
3	3R0-07422-0	* O型圈 3.1-24.4	* O-RING 3.1-24.4	1
3	3R3-07204-0	* 进气阀杆油封	* INTAKE VALVE STEM SEAL	6
3	3R3-07206-0	* 排气阀杆密封	* EXHAUST VALVE STEM SEAL	3
3	3UR-87121-0	* 动力头衬垫套装	* POWER HEAD GASKET SET	1
3	3V1-00121-0	* 油封 30-45-8	* OIL SEAL 30-45-8	1
4	332-66021-0	* O型圈 2.4-5.8	* O-RING 2.4-5.8	2
4	345-65015-0	* O型圈 3.2-47	* O-RING 3.2-47	1
4	3C8-66032-0	* O型圈 3.5-21.7	* O-RING 3.5-21.7	1
4	3F3-60223-0	* 油封 22-37-8	* OIL SEAL 22-37-8	2
4	3KY-60103-0	* O型圈	* O-RING	1
4	3KY-87321-0	下部单元衬垫套件	LOWER UNIT GASKET SET	1
5	3KY-72620-1	倾斜限位开关套件	TILT LIMIT SWITCH KIT	1
5	3KY-72622-0	* 倾斜限位开关凸轮总成	* TILT LIMIT SWITCH CAM ASSY	1
5	3KY-72623-0	*倾斜限位开关板总成	*TILT LIMIT SWITCH PLATE ASSY	1
5	3KY-72628-0	* 倾斜限位凸轮座	* TILT LIMIT CAM HOLDER	1
5	9101E3-5612	螺栓	* BOLT	1
5	921503-0510	* 螺钉	* SCREW	1
6	3T5-87322-3	水泵维修套件	WATER PUMP REPAIR KIT	1
6	9101E3-5855	螺栓	* BOLT	4
7	3C8-65239-1	* 水泵导板	* WATER PUMP GUIDE PLATE	1
7	3Z5-65231-1	水泵套件(镀铬)	WATER PUMP KIT (CHROME PLATED)	1
7	3Z5-65238-1	* 泵壳衬套	* PUMP CASE LINER	1
8	3AB-01111-0	* 定位销 6-12	* DOWEL PIN 6-12	2
8	3B7-61114-0	螺母 10-P1.25	* NUT 10-P1.25	5
8	3KY-61111-0	* 双头螺柱 M10-145	* STUD M10-145	5
8	3KY-64303-0	* 驱动轴（上长）	* DRIVE SHAFT (UL)	1
8	3KY-65120-0	* 水管 (上左)	* WATER PIPE (UL)	1
8	3KY-66014-0	* 凸轮杆(上左)	* CAM ROD (UL)	1
8	3KYQ61110-0	* 延伸壳体(UL)	* EXTENSION HOUSING (UL)	1
8	3KYQ87314-0	延伸壳体套件(超长)	EXTENSION HOUSING KIT (UL)	1
8	9402E3-1000	* 垫圈	* WASHER	5
8	951407-0312	* 弹簧销 3-12	* SPRING PIN 3-12	2
9	332-60006-1	* 衬垫 8.1-15-1	* GASKET 8.1-15-1	2
9	332-65022-0	* 键 20-4.6-2	* KEY 20-4.6-2	1
9	3B7-60218-1	* 阳极	* ANODE	1
9	3BJ-07615-0	* 机油滤清器	* OIL FILTER	1
9	3C8-65021-2	* 水泵叶轮	* WATER PUMP IMPELLER	1
9	3C8-65025-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
9	3C8-65029-3	* 导板垫片	* GUIDE PLATE GASKET	1
9	3KY-01032-0	* 节温器盖衬垫	* THERMOSTAT CAP GASKET	1
9	3KY-60218-0	* 阳极	* ANODE	2
9	3KY-87500-0	MFS40/50A维护套件	MAINTENANCE KIT FOR MFS40/50A	1
9	3P0-60218-0	* 阳极	* ANODE	3
9	3R3-07406-0	* 垫圈 14.5-24-1	* WASHER 14.5-24-1	1
9	3T5-10046-0	* O型圈1.9-13	* O-RING 1.9-13	3
9	3T5-65011-0	* 泵壳衬套	* PUMP CASE LINER	1
9	3T5-65018-2	* 泵壳衬垫	* PUMP CASE GASKET	1
9	951503-0325	* 开口销 3-25	* SPLIT PIN 3-25	1
9	9701-1-1121	* 火花塞 (IKR6G8)	* SPARK PLUG (IKR6G8)	3
