东发 Tohatsu MFS6BZ/8B/9.8B 2024 - 爆炸图零件明细

四冲程 4-Stroke · 2024 年 · 手册号 002-21051-0BD · 共 25 个部位 · 963 条零件

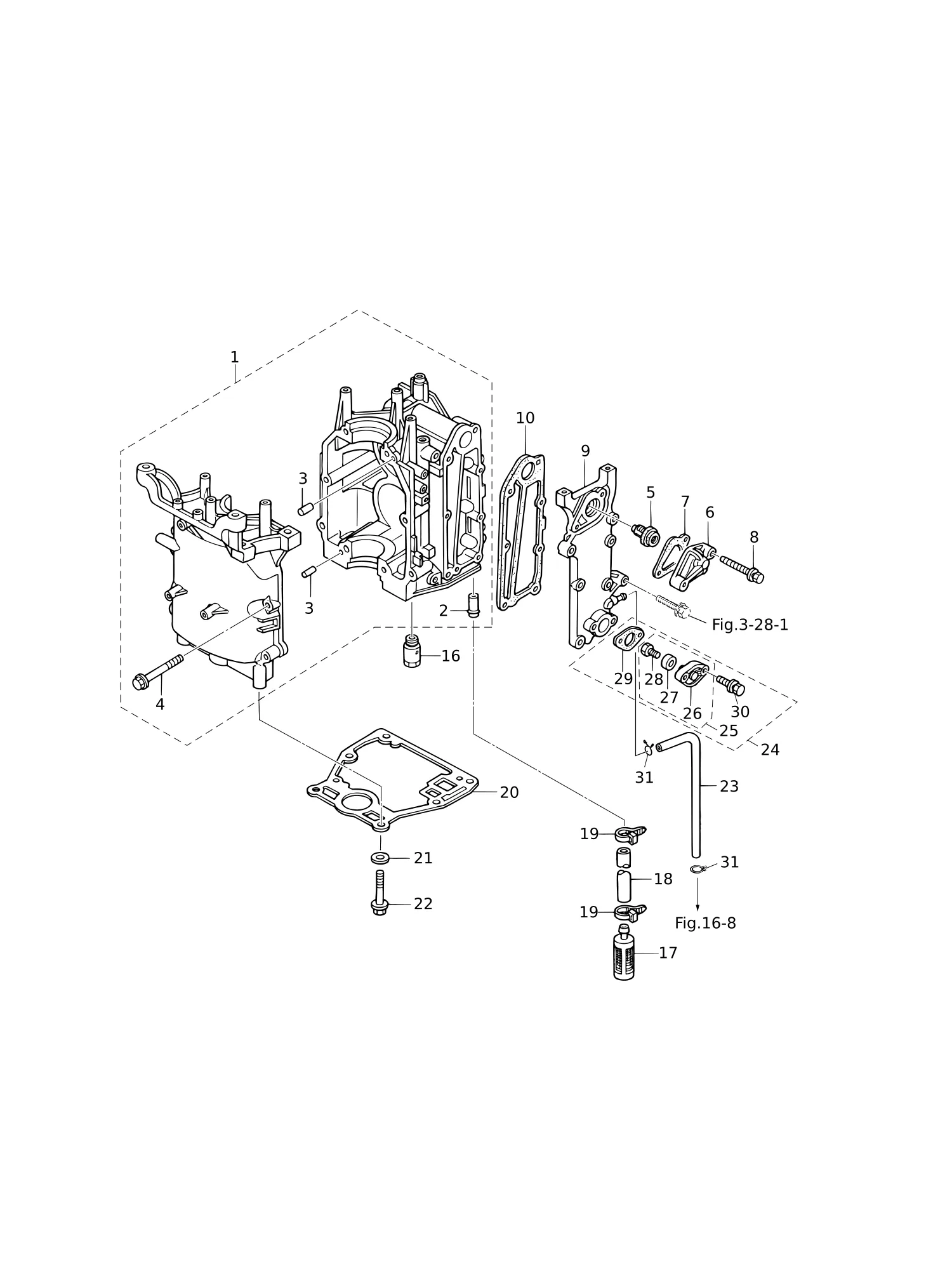

图 01气缸·曲轴箱 CYLINDER · CRANK CASE

REF	零件编号	中文名称	英文名称	数量
1	3V1B01100-0	气缸体与曲轴箱总成	CYL BLOCK & CRANKCASE ASSY	1
2	3H8-02093-0	接头 10-32	* NIPPLE 10-32	1
3	345-01111-0	* 定位销 6-12	* DOWEL PIN 6-12	2
4	3H8-01012-1	* 气缸盖螺栓 8-50	* CYLINDER HEAD BOLT 8-50	8
5	3NV-01030-0	节温器	THERMOSTAT	1
6	3H6B01031-0	节温器盖	THERMOSTAT CAP	1
7	346-01032-0	节温器盖垫片	THERMOSTAT CAP GASKET	1
8	9101E3-5640	螺栓	BOLT	2
9	3V1B02301-0	排气外盖	EXHAUST COVER (OUTER)	1
10	3V1-02305-0	排气盖垫片	EXHAUST COVER GASKET	1
16	3V2-07620-0	柱塞总成	PLUNGER ASSY	1
17	3V1-07410-1	机油滤网总成	OIL STRAINER ASSY	1
18	3UA-07715-0	管 L=120	PIPE L=120	1
19	369-84398-1	箍带 202	BAND 202	2
20	3V1-01303-0	发动机基座垫片	ENGINE BASEMENT GASKET	1
21	9401E3-0800	垫圈	WASHER	6
22	3BJ-61017-1	螺栓8-P1.25	BOLT 8-P1.25	6
23	98AB-50-330	软管	HOSE	1
24	3UAB01147-0	阳极螺塞套件	ANODE PLUG KIT	1
25	3UAB01142-0	* 阳极塞总成	* ANODE PLUG ASSY	1
26	3H8B01143-1	阳极塞	** ANODE PLUG	1
27	369-60218-1	阳极	** ANODE	1
28	910103-0616	螺栓	** BOLT	1
29	3R3-01144-0	* 衬垫	* GASKET	1
30	9101E3-5620	螺栓	* BOLT	2
31	338-02215-0	卡扣φ10	CLIP φ10	2

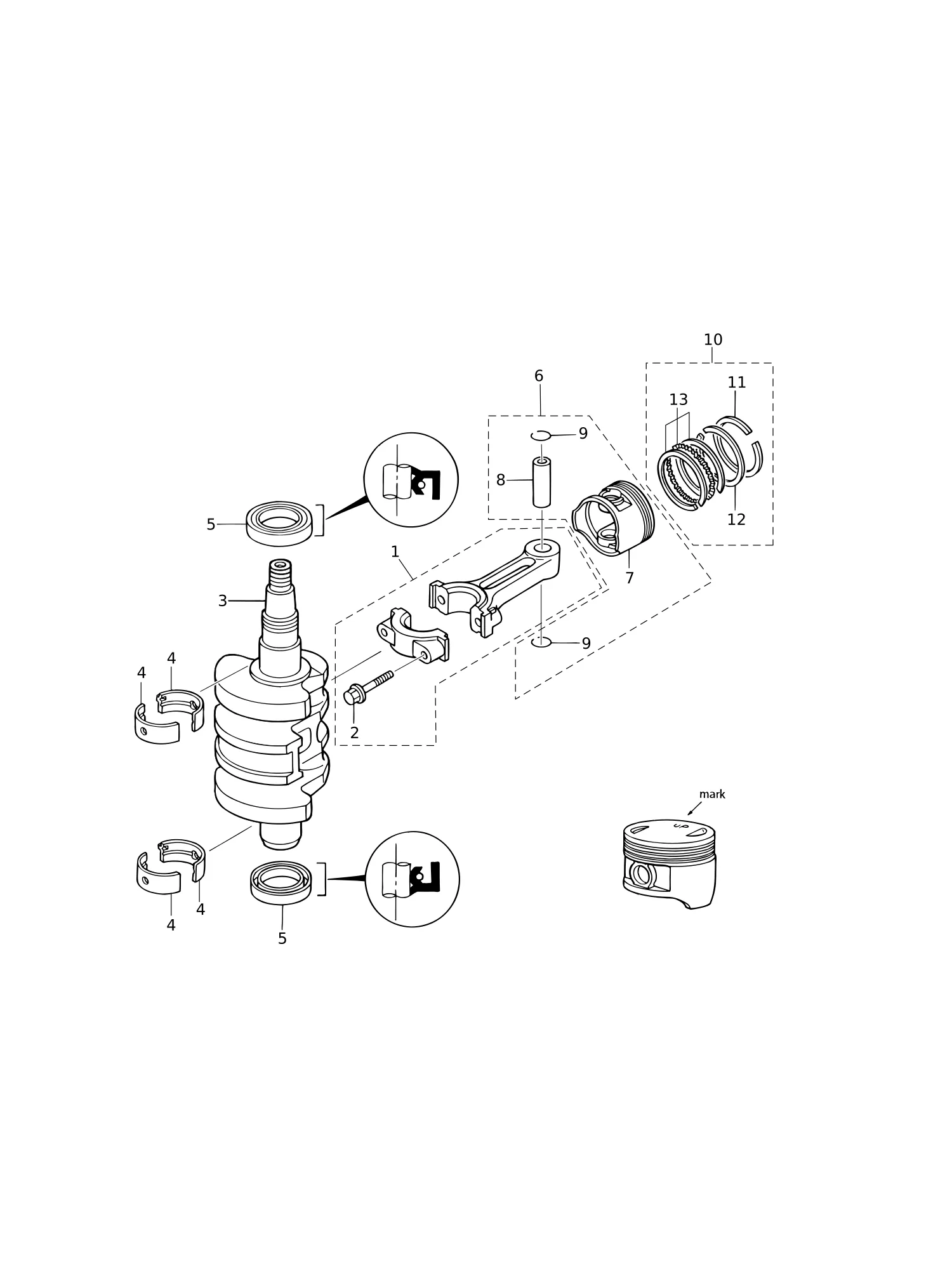

图 02活塞·曲轴 PISTON · CRANK SHAFT

REF	零件编号	中文名称	英文名称	数量
1	3V1-00040-1	连杆总成	CONNECTING ROD ASSY	2
2	3H6-00059-0	* 连杆螺栓	* CONNECTING ROD BOLT	2
3	3V1-00030-1	曲轴总成	CRANKSHAFT ASSY	1
4	3V1-07407-0	滑动轴承 30-33-15	PLAIN SHAFT BEARING 30-33-15	1
4	3V1-07408-0	滑动轴承 30-33-15	PLAIN SHAFT BEARING 30-33-15	1
5	3V1-00121-0	油封 30-45-8	OIL SEAL 30-45-8	2
6	3FK-87130-0	活塞修理包	PISTON REPAIR KIT	2
6	3FK-87131-0	活塞修理包（0.5加大）	PISTON REPAIR KIT (0.5 O/S)	2
7	3V1-00001-1	* 活塞	* PISTON	1
7	3V1-00004-1	* 活塞 (0.5 加大)	* PISTON (0.5 O/S)	1
8	332-00021-1	* 活塞销	* PISTON PIN	1
9	350-00024-1	* 活塞销卡簧	* PISTON PIN CLIP	2
10	3FK-87123-0	活塞环组	PISTON RING SET	2
10	3FK-87124-0	活塞环组（0.5加大）	PISTON RING SET (0.5 O/S)	2
11	3V1-00011-0	* 活塞环	* PISTON RING	1
11	3V1-00014-0	* 活塞环 (0.5 加大)	* PISTON RING (0.5 O/S)	1
12	3V1-00012-0	* 活塞环	* PISTON RING	1
12	3V1-00015-0	* 活塞环 (0.5 加大)	* PISTON RING (0.5 O/S)	1
13	3V1-00013-0	* 油环	* PISTON RING-OIL	1
13	3V1-00016-0	* 油环 (0.5 加大)	* PISTON RING-OIL (0.5 O/S)	1

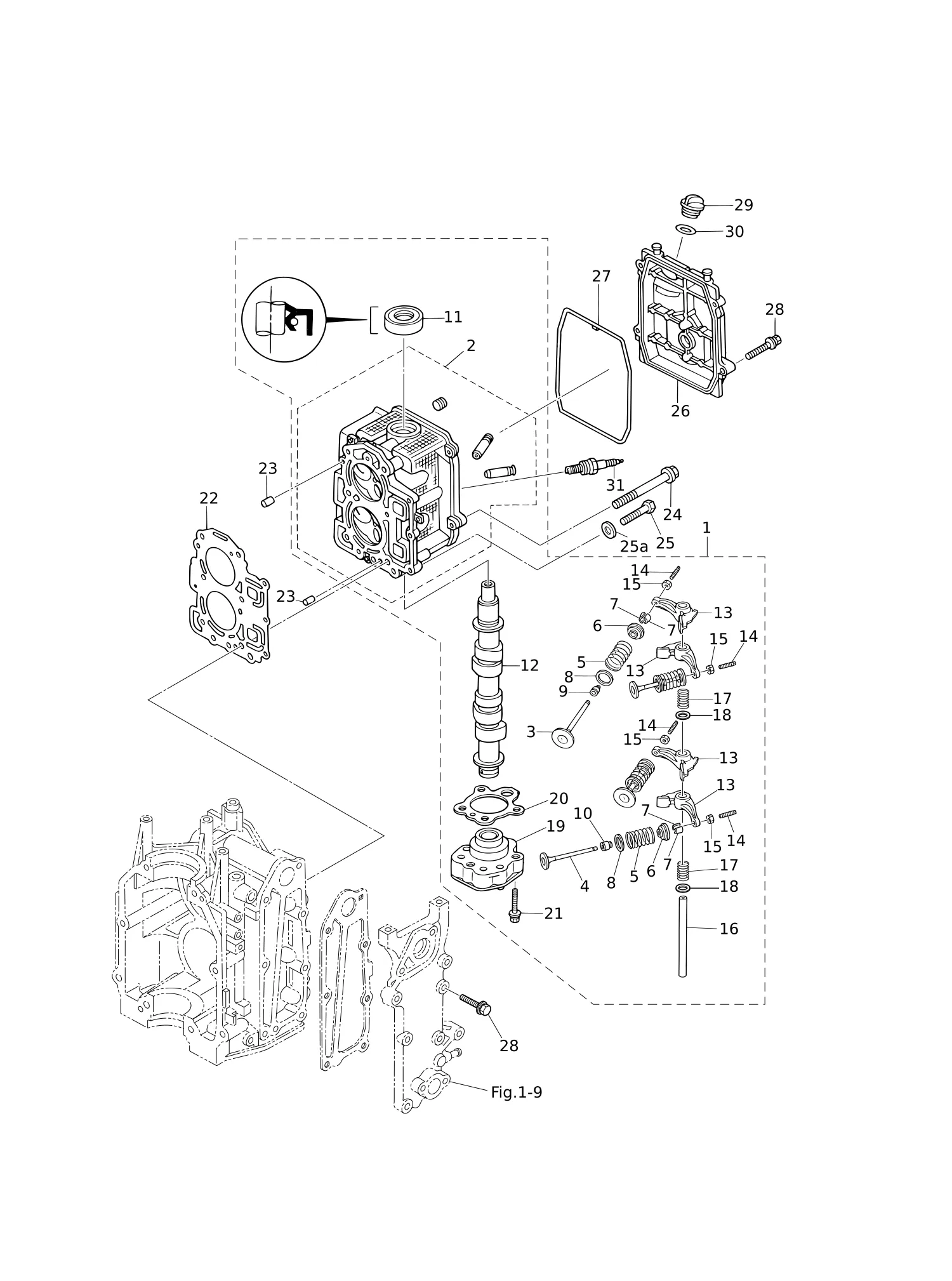

图 03气缸盖·机油泵 CYLINDER HEAD · OIL PUMP

REF	零件编号	中文名称	英文名称	数量
1	3FKB01000-2	气缸盖总成	CYLINDER HEAD COMPLETE	1
1	3V1B01000-4	气缸盖总成	CYLINDER HEAD COMPLETE	1
1	3WBB01000-0	气缸盖总成	CYLINDER HEAD COMPLETE	1
2	3V1B01001-0	* 气缸盖总成	* CYLINDER HEAD ASSY	1
2	3WBB01001-0	* 气缸盖总成	* CYLINDER HEAD ASSY	1
3	3V1-07201-0	* 进气阀	* INTAKE VALVE	2
4	3V1-07202-0	* 排气阀	* EXHAUST VALVE	2
5	3AA-07203-0	* 阀门弹簧 L=38.3	* VALVE SPRING L=38.3	4
6	3GT-07921-0	* 固定座	* RETAINER	4
7	3KY-07923-0	* 开口销	* COTTER	8
8	3V1-07205-0	* 阀门弹簧座	* VALVE SPRING SEAT	4
9	3R3-07204-0	* 进气阀杆油封	* INTAKE VALVE STEM SEAL	2
10	3R3-07206-0	* 排气阀杆密封	* EXHAUST VALVE STEM SEAL	2
11	3H8-07025-0	* 油封 18-35-8	* OIL SEAL 18-35-8	1
12	3FK-07810-1	* 凸轮轴总成	* CAMSHAFT ASSY	1
12	3Y4-07810-1	* 凸轮轴总成	* CAMSHAFT ASSY	1
13	3Y2-07935-0	* 摇臂	* ROCKER ARM	4
14	3R0-07238-0	* 调节螺钉	* ADJUSTING SCREW	4
15	3H8-07237-0	* 调节螺母	* ADJUSTING NUT	4
16	3Y2-07920-0	* 摇臂轴	* ROCKER ARM SHAFT	1
17	3AA-07225-0	* 摇臂轴弹簧 L=25	* ROCKER SHAFT SPRING L=25	2
18	3R3-07227-0	* 垫圈 13.2-21.8-2	* WASHER 13.2-21.8-2	2
19	3V1-07600-0	* 机油泵总成	* OIL PUMP ASSY	1
20	3V1-07653-0	* 机油泵垫片	* OIL PUMP GASKET	1
21	910114-5635	螺栓	* BOLT	3
22	3V1-01005-0	气缸盖衬垫	CYLINDER HEAD GASKET	1
23	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
24	3H8-01012-1	气缸盖螺栓8-50	CYLINDER HEAD BOLT 8-50	6
25	3KK-02319-0	螺栓25mm	BOLT　25mm	3
25a	940103-0600	垫圈	WASHER	3
26	3V1B01021-0	气缸盖罩	CYLINDER HEAD COVER	1
27	3V1-01024-0	气缸盖罩垫片	CYLINDER HEAD COVER GASKET	1
28	910103-5625	螺栓	BOLT	4
28	9101E3-5625	螺栓	BOLT	5
29	3R0-71015-1	机油加注口盖	OIL FILLER CAP	1
30	3R0-07422-0	O型圈 3.1-24.4	O-RING 3.1-24.4	1
31	9701-1-1103	火花塞 (DCPR6E)	SPARK PLUG (DCPR6E)	2

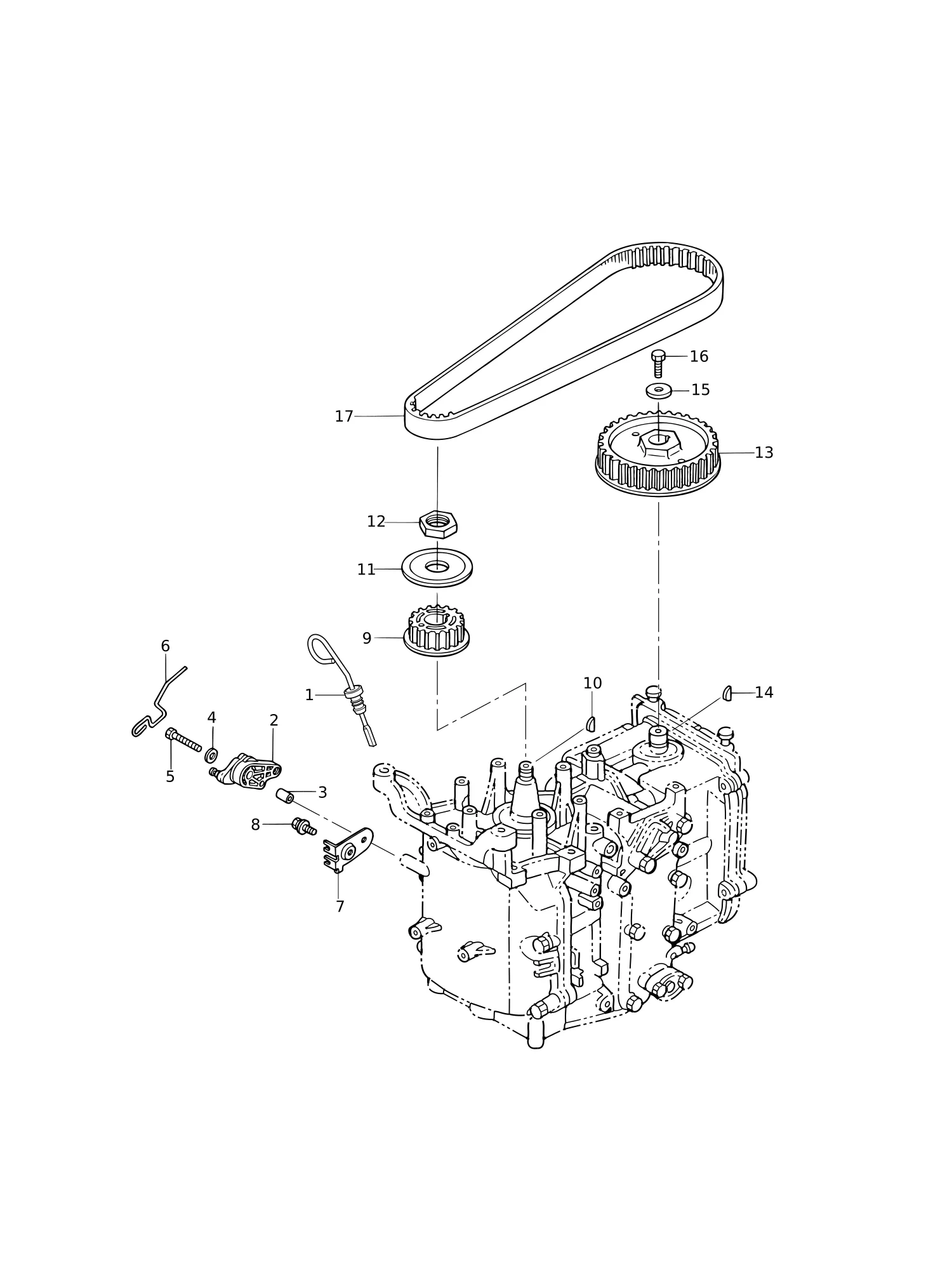

图 04皮带轮·正时皮带 PULLEY · TIMING BELT

REF	零件编号	中文名称	英文名称	数量
1	3V1-07421-0	油位计	OIL LEVEL GAUGE	1
2	3V1-63622-0	节气门鼓轮总成	THROTTLE DRUM ASSY	1
3	346-67114-1	垫圈 6.2-9-15.7	SPACER 6.2-9-15.7	1
4	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
5	910103-0630	螺栓	BOLT	1
6	3V1-63617-1	节气门拉杆	THROTTLE ROD	1
7	3V1-63508-1	节气门拉线支架	THROTTLE WIRE BRACKET	1
8	910103-5612	螺栓	BOLT	1
9	3V1-10060-0	驱动皮带轮	DRIVE PULLEY	1
10	3T5-10131-0	键 t=4	KEY ｔ=4	1
11	3V1-10063-0	皮带导轮	BELT GUIDE	1
12	3V1-10068-0	螺母	NUT	1
13	3H8-10062-2	从动皮带轮	DRIVEN PULLEY	1
14	309-00131-0	键 10-3.7-3	KEY 10-3.7-3	1
15	3H8-10066-0	垫片 6.5-19-3.2	WASHER 6.5-19-3.2	1
16	3AA-60108-0	预涂层螺栓6-20	PRE-COATED BOLT 6-20	1
17	3V1-10045-0	正时皮带	TIMING BELT	1

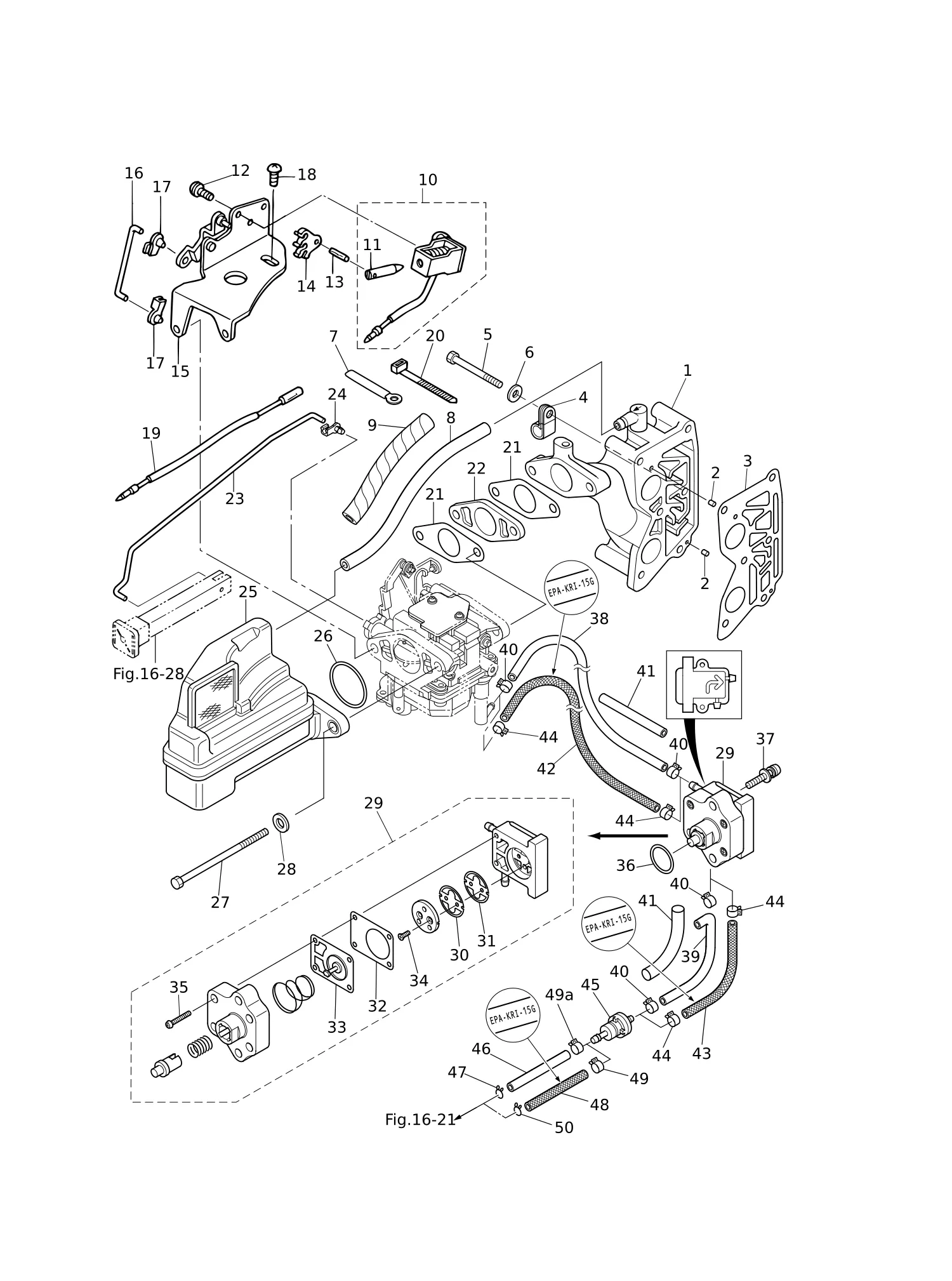

图 05进气歧管·燃油泵 INTAKE MANIFOLD · FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	3AA-02010-1	进气歧管总成	INTAKE MANIFOLD ASSY	1
2	951403-0310	弹簧销 3-10	SPRING PIN 3-10	2
3	3V1-02104-0	进气歧管垫片	INTAKE MANIFOLD GASKET	1
4	345-06915-0	卡箍 6.5-14L	CLAMP 6.5-14L	1
5	9161G4-0653	螺栓	BOLT	6
7	3T4-06972-1	卡箍 6.5-87P	CLAMP 6.5-87P	1
8	98AB-70-275	软管	HOSE	1
9	3V1-76148-0	螺旋管保护套φ10-100	SPIRAL TUBE PROTECTOR φ10-100	1
10	3V1-76050-0	阻风门电磁阀	CHOKE SOLENOID	1
11	361-76073-0	* 柱塞	* PLUNGER	1
12	921503-6408	螺钉	SCREW	1
13	951403-0312	弹簧销 3-12	SPRING PIN 3-12	1
14	346-76057-0	阻风门电磁阀挂钩	CHOKE SOLENOID HOOK	1
15	3V1-76078-1	阻风门电磁阀支架总成	CHOKE SOLENOID BRACKET ASSY	1
16	3V1-76076-0	连接杆	LINK ROD	1
17	3V1-67196-0	1.5-2连杆卡扣	ROD SNAP 1.5-2	1
18	921503-0510	螺钉	SCREW	1
19	3V1-72547-0	辅助拉绳(蓝)	ASSIST CORD (BLU)	1
20	3T5-84398-0	箍带 104	BAND 104	1
21	3V1-02011-0	化油器垫片	CARBURETOR GASKET	2
22	3FK-03952-0	绝缘体	INSULATOR	1
22	3V1-03952-0	绝缘体	INSULATOR	1
23	3Y3-67192-0	阻风门拉杆	CHOKE ROD	1
24	346-67196-1	3-B连杆卡扣	ROD SNAP 3-B	1
25	3V1-02409-0	进气消声器总成	INTAKE SILENCER ASSY	1
26	3V1-02012-0	O型圈 2.4-35.2	O-RING 2.4-35.2	1
27	916103-0695	螺栓	BOLT	2
28	940103-0600	垫圈	WASHER	2
29	3H6-04000-7	燃油泵总成	FUEL PUMP ASSY	1
30	3H6-04044-0	* 止回阀	* CHECK VALVE	1
31	3H6-04014-1	* 止回阀	* CHECK VALVE	1
32	3H6-04028-0	* 泵体衬垫	* PUMP BODY GASKET	1
33	3H6-04005-0	* 泵膜片	* PUMP DIAPHRAGM	1
34	921603-0308	* 螺钉	* SCREW	2
35	922503-6418	* 螺钉	* SCREW	4
36	3H6-07422-0	O型圈 2.6-18.7	O-RING 2.6-18.7	1
37	921503-5625	螺钉	SCREW	2
38	98AB-50-260	软管	HOSE	1
39	3UA-70315-0	燃油软管	FUEL HOSE	1
41	3V2-06157-0	保护套 φ12-120	PROTECTOR φ12-120	2
42	3BJ-02160-0	带保护套燃油软管 L=260	FUEL HOSE W/PROTECTOR L=260	1
43	3V2-02160-0	带保护套燃油软管 L=150	FUEL HOSE W/PROTECTOR L=150	1
45	369-02230-1	燃油滤清器总成	FUEL FILTER ASSY	1
46	98AB-50-330	软管	HOSE	1
48	3AA-02160-0	带保护套燃油软管 L=350	FUEL HOSE W/PROTECTOR L=350	1
49a	3GT-35143-0	卡环 φ9.4	CLIP φ9.4	1
50	338-02215-0	卡扣φ10	CLIP φ10	1

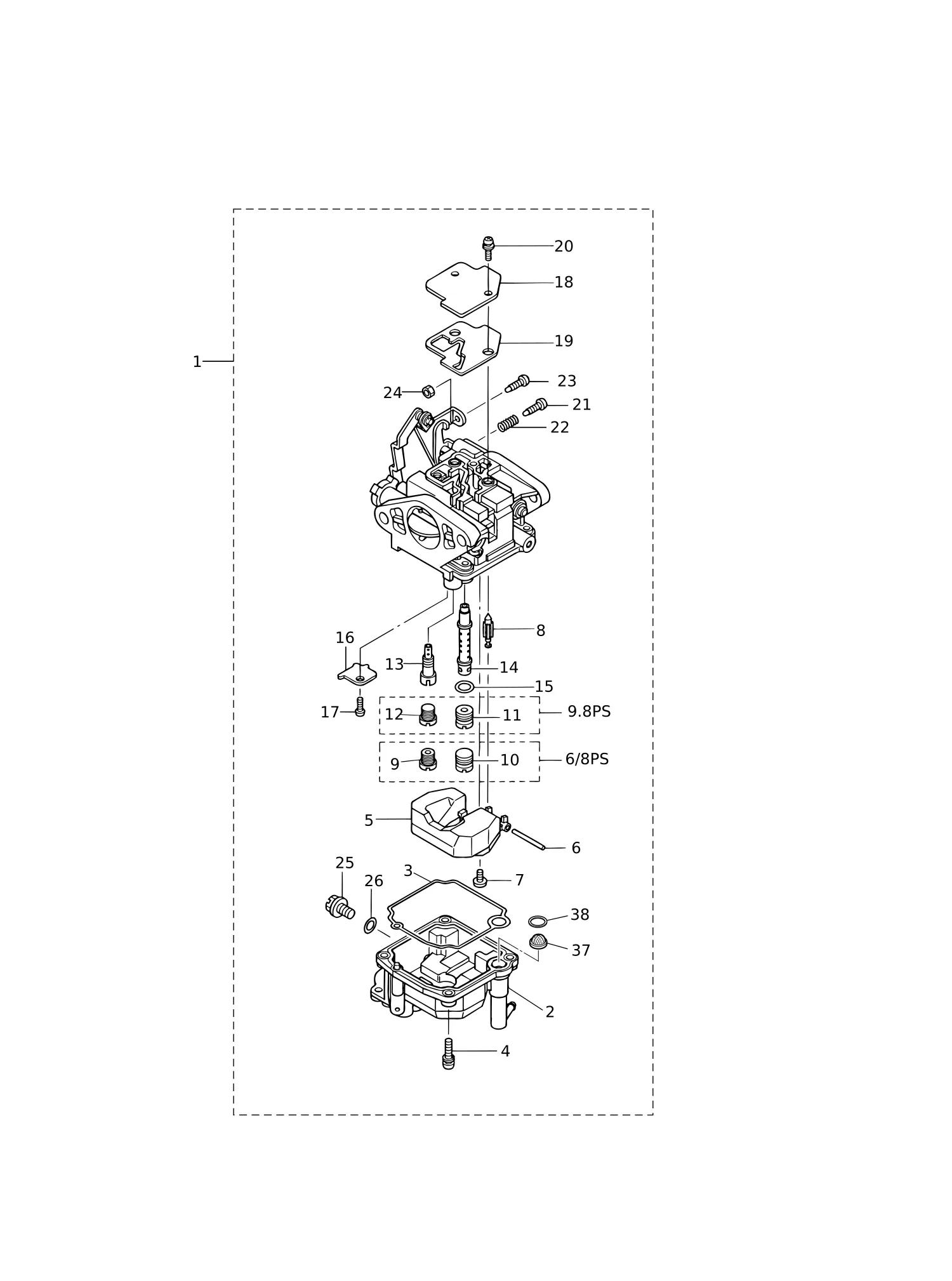

图 06化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	3V1-03100-4	化油器总成	CARBURETOR ASSY	1
1	3V1-03133-4	化油器总成(EP型)	CARBURETOR ASSY (EP)	1
1	3V2-03100-4	化油器总成	CARBURETOR ASSY	1
1	3V2-03133-4	化油器总成(EP型)	CARBURETOR ASSY (EP)	1
2	3V1-03120-0	* 浮子室	* FLOAT CHAMBER	1
3	3V1-03121-0	* 浮子室垫片	* FLOAT CHAMBER GASKET	1
4	922503-6412	* 螺钉	* SCREW	4
5	3C8-03125-0	* 浮子	* FLOAT	1
6	3C8-03126-0	* 浮子臂销	* FLOAT ARM PIN	1
7	921703-0406	* 螺钉	* SCREW	1
8	3V1-03147-1	* 浮子阀	* FLOAT VALVE	1
9	3V1-04476-0	* 主量孔 (#76)	* MAIN JET (#76)	1
10	3V1-03169-0	* 塞	* PLUG	1
11	3V2-04492-0	* 主量孔 (#92)	* MAIN JET (#92)	1
12	3V2-03169-0	* 塞	* PLUG	1
13	3V1-04539-0	* 低速喷嘴(#39)	* SLOW JET (#39)	1
14	3V1-03141-0	* 主喷管 φ2.3	* MAIN NOZZLE φ2.3	1
14	3V2-03141-0	* 主喷管 φ2.6	* MAIN NOZZLE φ2.6	1
15	3V1-03116-0	* O型圈	* O-RING	1
16	3V1-03128-0	* 板	* PLATE	1
17	922503-0305	* 螺钉	* SCREW	1
18	3C8-03181-0	* 化油器盖	* CARBURETOR COVER	1
19	3V1-03182-0	* 化油器盖垫片	* CARBURETOR COVER GASKET	1
20	922503-6410	* 螺钉	* SCREW	2
21	3V2-03179-0	* 止动螺钉 L=18	* STOP SCREW L=18	1
22	3V2-03157-0	* 弹簧 L=14	* SPRING L=14	1
23	3V1-03179-0	* 止动螺钉 L=15	* STOP SCREW L=15	1
24	3V1-03191-0	螺母	* NUT	1
25	3V1-03192-0	* 放油螺钉	* DRAIN SCREW	1
26	3V1-03193-0	* 衬垫	* GASKET	1
37	3BJ-02234-0	* 滤清器	* FILTER	1
38	3UA-03026-0	* 隔套	* SPACER	1

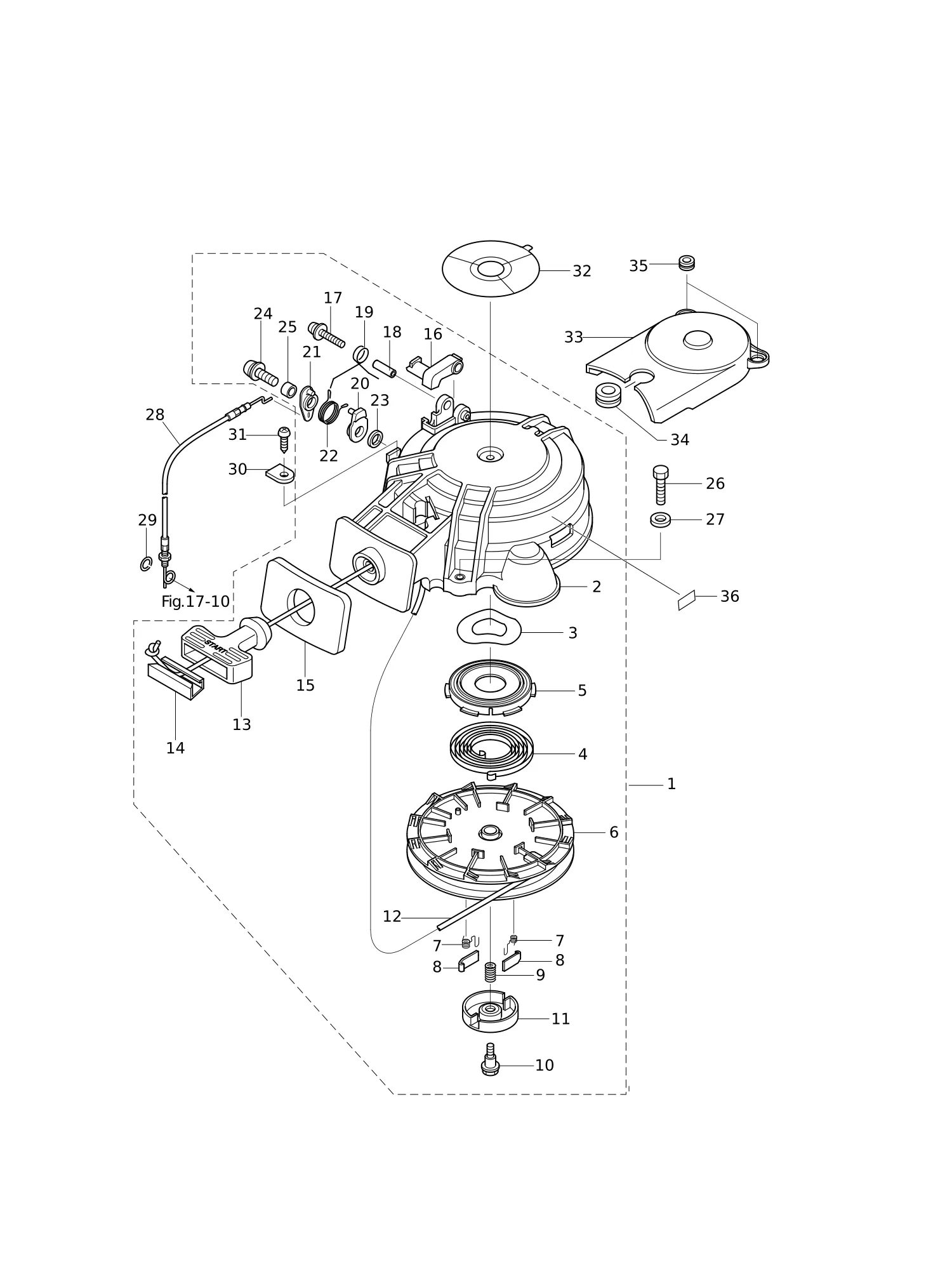

图 07反冲启动器 RECOIL STARTER

REF	零件编号	中文名称	英文名称	数量
1	3UA-05090-0	反冲启动器总成1D	RECOIL STARTER ASSY 1D	1
2	3AA-05098-1	* 启动器外壳总成	* STARTER CASE ASSY	1
3	3V1-05259-0	* 波形垫圈	* WAVE WASHER	1
4	3AA-05004-0	* 启动弹簧	* STARTER SPRING	1
5	3R1-05125-0	* 启动弹簧壳	* STARTER SPRING CASE	1
6	3V1-05104-1	* φ140卷轴	* REEL φ140	1
7	3R1-05012-0	* 回位弹簧	* RETURN SPRING	2
8	3R1-05003-2	* 棘轮	* RATCHET	2
9	3R1-05007-0	* 摩擦弹簧	* FRICTION SPRING	1
10	3R1-05138-1	螺栓 5-10-6.8-7.8	* BOLT 5-10-6.8-7.8	1
11	3R1-05006-2	* 摩擦板	* FRICTION PLATE	1
12	3AA-05013-0	* 启动绳 φ4.5-1600	* STARTER ROPE φ4.5-1600	1
13	3AA-05019-0	* 启动手柄	* STARTER HANDLE	1
14	3R1-05131-1	* 绳索锚定器	* ROPE ANCHOR	1
15	3UA-67503-0	* 启动器密封件 4S	* STARTER SEAL 4S	1
16	3AA-05252-0	* 启动器锁	* STARTER LOCK	1
17	921503-5430	* 螺钉	* SCREW	1
18	3R1-05255-0	* 轴环 4-6-21	* COLLAR 4-6-21	1
19	3R1-05216-0	* 启动器锁弹簧	* STARTER LOCK SPRING	1
20	3Y0-05253-0	* 启动器锁凸轮	* STARTER LOCK CAM	1
21	3Y0-05226-0	* 启动器锁杆	* STARTER LOCK LEVER	1
22	3Y0-05258-0	* 启动器锁凸轮弹簧	* STARTER LOCK CAM SPRING	1
23	940103-0600	* 垫圈	* WASHER	1
24	921503-5625	* 螺钉	* SCREW	1
25	3R0-06303-1	* 轴环 6.2-9-12.3	* COLLAR 6.2-9-12.3	1
26	3V2-60108-0	预涂层螺栓6-25	PRE-COATED BOLT 6-25	3
27	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	2
28	3Y0-05207-0	启动锁线	STARTER LOCK WIRE	1
29	3C7-03271-2	O型圈1.5-2.5	O-RING 1.5-2.5	1
30	332-66033-0	止动块	STOPPER	1
31	3V1-05913-0	自攻螺丝 5-12	TAPPING SCREW 5-12	1
32	3NV-72181-1	警示标贴(B型)	CAUTION DECAL (B)	1
32	3PA-72181-1	警示标贴(B型)	CAUTION DECAL (B)	1
33	3V1-06308-0	皮带罩	BELT COVER	1
34	3V1-06302-0	橡胶支座 2.5-20	RUBBER MOUNT 2.5-20	1
35	172-36008-0	索环 13-2	GROMMET 13-2	2
36	3UR-72187-1	警示标贴(SIGP型)	CAUTION DECAL (SIGP)	1

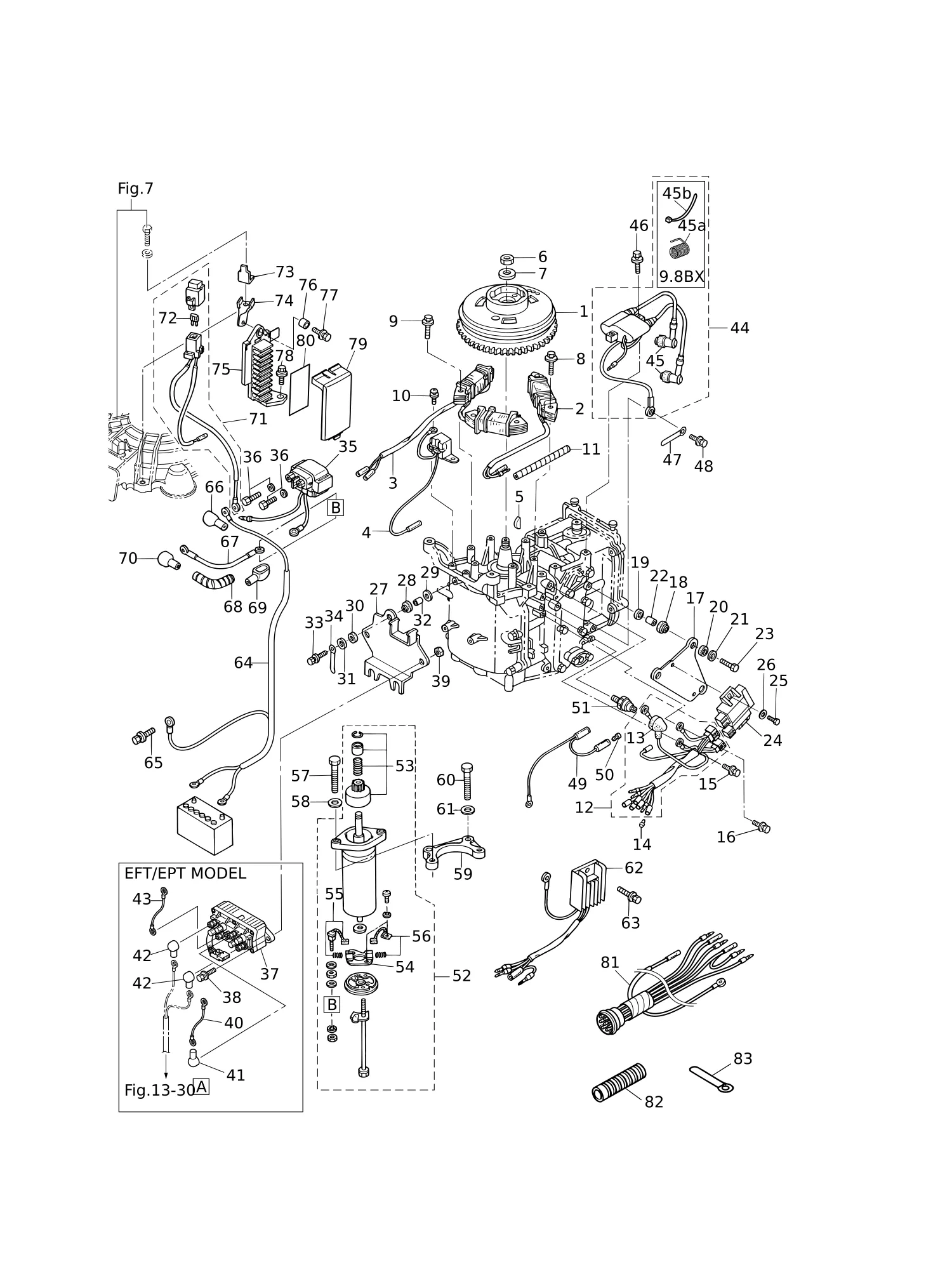

图 08磁电机·电气部件 MAGNETO · ELECTRIC PARTS

REF	零件编号	中文名称	英文名称	数量
1	3AA-06091-0	带齿轮飞轮	FLYWHEEL W/GEAR	1
2	3AA-06021-0	励磁线圈	EXCITER COIL	1
3	3AA-06023-0	交流发电机总成	ALTERNATOR ASSY	1
4	3V1-06071-0	脉冲线圈	PULSAR COIL	1
5	3T5-10131-0	键 t=4	KEY ｔ=4	1
6	369-00132-0	螺母 12-P1.25	NUT 12-P1.25	1
7	940121-1200	垫圈	WASHER	1
9	910103-5630	螺栓	BOLT	4
10	910103-5512	螺栓	BOLT	2
12	3AA-06167-0	CD单元线束总成	CD UNIT CORD ASSY	1
13	3KY-07612-0	* 护孔环	* GROMMET	1
17	3V1-06061-1	CD单元支架	CD UNIT BRACKET	1
23	910103-0625	螺栓	BOLT	3
24	3Y0-06060-0	CD单元	CD UNIT	1
25	3V1-60108-0	预涂层螺栓6-16	PRE-COATED BOLT 6-16	2
27	3V1-06900-1	电机支架总成	ELECTRIC BRACKET ASSY	1
28	3T5-06920-0	橡胶支座 8.5-18-7	RUBBER MOUNT 8.5-18-7	3
30	3B7-06305-0	橡胶支座 9-16-4.3	RUBBER MOUNT 9-16-4.3	3
31	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	3
32	3A0-76079-0	轴套 6.2-9-7.4	COLLAR 6.2-9-7.4	3
33	910103-0620	螺栓	BOLT	3
35	3H8-76040-0	启动器电磁阀	STARTER SOLENOID	1
37	3Z0-72580-0	动力升降倾斜装置电磁阀开关(A)	PTT SOLENOID SWITCH (A)	1
38	910103-5620	螺栓	BOLT	2
39	930103-0600	螺母	NUT	2
40	3C8-72582-0	电磁开关线束(A) L=80	SOLENOID SWITCH CORD (A) L=80	1
43	3C8-72583-1	电磁开关线束(B) L=150	SOLENOID SWITCH CORD (B) L=150	1
44	3V1-06040-0	带帽点火线圈	IGNITION COIL W/R-CAP	1
44	3WB-06050-0	带帽点火线圈	IGNITION COIL W/CAP	1
45	3H6-06999-0	* 带电阻火花塞帽	* PLUG CAP W/RESISTANCE	2
45	3LD-06921-0	* 火花塞帽	* PLUG CAP	2
45a	3M2-06926-0	* 火花塞帽端子	* PLUG CAP TERMINAL	2
45b	3T5-84398-0	箍带 104	* BAND 104	2
46	910103-5625	螺栓	BOLT	2
47	3PR-06972-0	卡箍 6.5-47.5P	CLAMP 6.5-47.5P	1
49	3V5-72678-0	分离线（黑色）	SEPARATE CORD (BLK)	1
50	3A3-76037-0	电缆端子插头	CABLE TERMINAL PLUG	1
51	3H6-07611-1	油压开关	OIL PRESSURE SWITCH	1
52	3AA-76010-0	启动马达总成	STARTER MOTOR ASSY	1
53	350-76015-0	* 小齿轮总成	* PINION ASSY	1
54	3AA-76014-0	* 碳刷架	* BRUSH HOLDER	1
55	3AA-76012-0	* 正极电刷	* POSITIVE BRUSH	1
56	3AA-76013-0	* 负极电刷	* NEGATIVE BRUSH	1
59	3V1-76011-1	启动马达支架	STARTER MOTOR BRACKET	1
60	916114-0830	螺栓	BOLT	2
61	940103-0800	垫圈	WASHER	2
62	3AA-76065-0	整流器总成	RECTIFIER COMPLETE	1
64	3AC-76120-0	蓄电池电缆 L=2500	BATTERY CABLE L=2500	1
65	910103-5610	螺栓	BOLT	1
66	3AA-76145-0	端子盖 13-13-28	TERMINAL CAP 13-13-28	1
67	3B2-76147-2	启动电缆 L=200	STARTER CABLE L=200	1
68	3V1-76148-0	螺旋管保护套φ10-100	SPIRAL TUBE PROTECTOR φ10-100	1
69	3Y0-76145-0	端子盖 8-18-28	TERMINAL CAP 8-18-28	1
70	3Y1-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	1
71	3V1-76066-0	保险丝总成 L=185	FUSE WIRE ASSY L=185	1
72	3T5-76247-0	* 保险丝 20A	* FUSE 20A	2
73	3R0-76064-0	保险丝支架	FUSE HOLDER BRACKET	1
74	3V1-06284-1	电缆端子座支架	CABLE TERMINAL HOLDER STAY	1
75	3AA-06281-1	电缆端子座	CABLE TERMINAL HOLDER	1
76	174-35012-0	轴套 6-8-6	COLLAR 6-8-6	1
77	910103-5612	螺栓	BOLT	1
78	910103-5616	螺栓	BOLT	1
79	3AA-06902-1	盖板	COVER	1
80	3V1-72028-0	接线图标签	WIRING DIAGRAM DECAL	1
80	3V2-72028-1	接线图标签	WIRING DIAGRAM DECAL	1
81	3V2-76110-0	线束总成	CORD ASSY	1
82	3V1-06133-0	保护套 φ24-70	PROTECTOR φ24-70	1
83	3T4-06972-1	卡箍 6.5-87P	CLAMP 6.5-87P	1

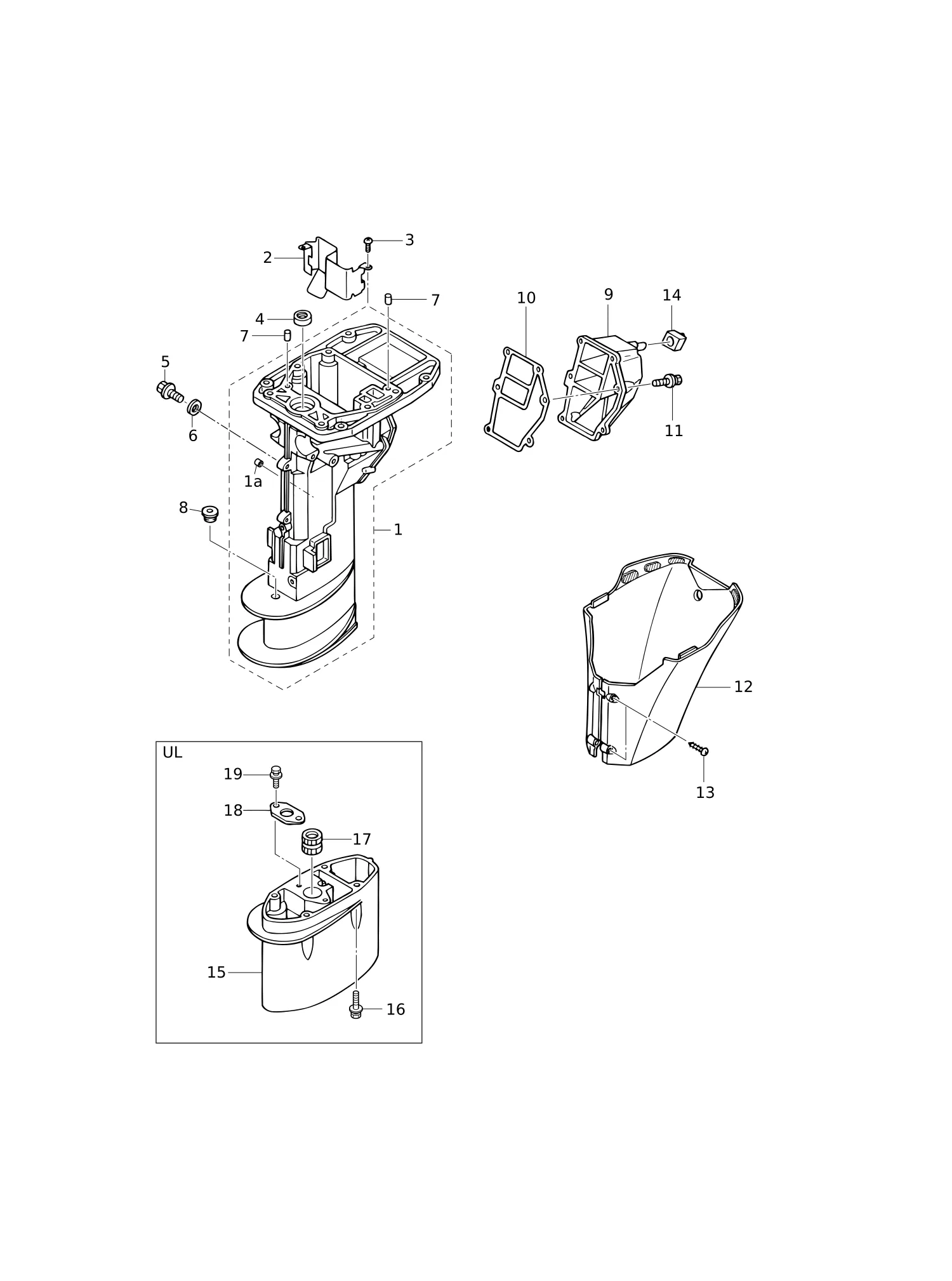

图 09驱动轴壳体 DRIVE SHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1a	3C7-01181-0	* 密封塞	* SEALING PLUG	2
1	3V1Q61020-2	驱动轴壳体总成(S)	DRIVE SHAFT HOUSING ASSY (S)	1
1	3V1Q61030-1	驱动轴壳体总成(L)	DRIVE SHAFT HOUSING ASSY (L)	1
2	3V1-07440-1	导板	GUIDE PLATE	1
3	921503-0510	螺钉	SCREW	2
4	3B2-01215-0	油封 12-28-5	OIL SEAL 12-28-5	1
5	3R3-07705-1	放油螺栓14-14	DRAIN BOLT 14-14	1
6	3R3-07406-0	垫片 14.5-24-1	WASHER 14.5-24-1	1
7	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
8	369-66043-1	索环 10.7-3.5	GROMMET 10.7-3.5	1
9	3V1Q61208-0	怠速排气口盖	IDLE EXHAUST PORT COVER	1
10	3V1-61220-0	怠速排气口垫片	IDLE EXHAUST PORT GASKET	1
11	9101E3-5620	螺栓	BOLT	6
12	3V1Q61225-0	挡板总成	APRON ASSY	1
13	3F3-02423-0	自攻螺钉 5-30	TAPPING SCREW 5-30	2
14	3V1-61212-0	索环 12.7-16.2	GROMMET 12.7-16.2	1
15	3B2Q61110-2	延伸壳体	EXTENSION HOUSING	1
16	3V2-60001-0	螺栓6-35	BOLT 6-35	4
17	3B2-60003-1	驱动轴衬套(UL)	DRIVE SHAFT BUSHING (UL)	1
18	3V1-64332-0	止动块	STOPPER	1
19	9101E3-5612	螺栓	BOLT	2

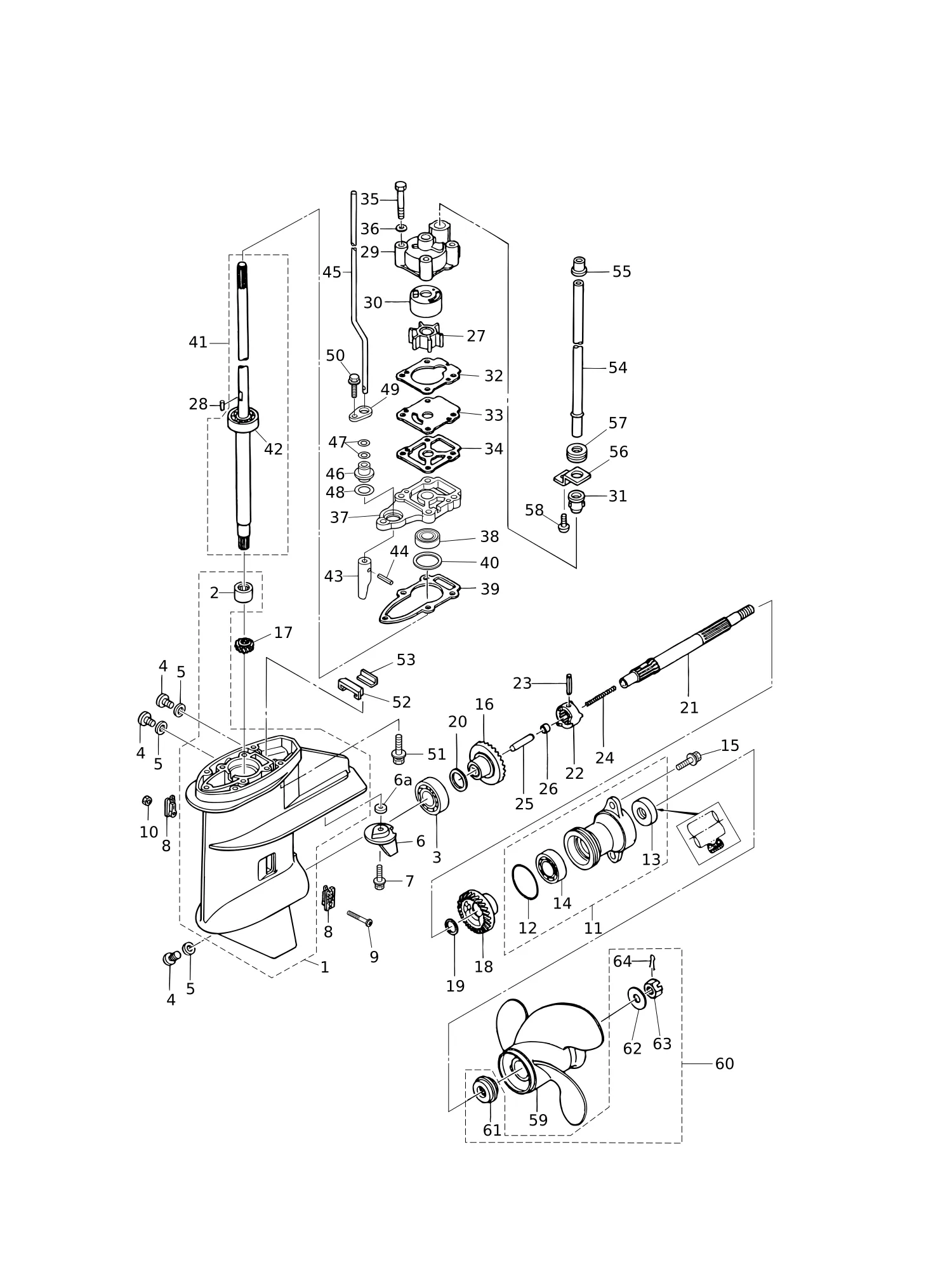

图 10齿轮箱 GEAR CASE

REF	零件编号	中文名称	英文名称	数量
1	3AAQ60000-1	齿轮箱总成	GEAR CASE ASSY	1
1	3WBQ60000-0	齿轮箱总成	GEAR CASE ASSY	1
2	3WB-60211-0	* 滚柱轴承 15-21-16	* ROLLER BEARING 15-21-16	1
3	9601-0-6204	滚珠轴承 6204	BALL BEARING 6204	1
4	332-60005-3	塞 8-8	PLUG 8-8	3
5	332-60006-1	衬垫	GASKET	3
6a	338-60218-2	阳极块	ANODE	1
6	3V1-60217-0	配平片	TRIM TAB	1
7	910103-5620	螺栓	BOLT	1
8	3AA-60206-0	滤水器 W=17	WATER STRAINER W=17	2
9	921503-0430	螺钉	SCREW	1
10	930403-0400	尼龙螺母 4-P0.7	NYLON NUT 4-P0.7	1
11	3B2Q60100-1	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
11	3WBQ60100-0	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
12	345-65015-0	* O型圈 3.2-47	* O-RING 3.2-47	1
13	369-60111-0	* 油封 15-28-10	* OIL SEAL 15-28-10	1
14	9601-0-6004	* 球轴承 6004	* BALL BEARING 6004	1
15	9101E3-5620	螺栓	BOLT	2
16	3B2-64010-1	锥齿轮总成(A)	BEVEL GEAR ASSY (A)	1
17	3B2-64020-1	锥齿轮B	BEVEL GEAR B	1
17	3WB-64020-0	锥齿轮B	BEVEL GEAR B	1
18	3B2-64030-1	锥齿轮C	BEVEL GEAR C	1
19	369-64032-0	垫片 15.2-19-1.9	WASHER 15.2-19-1.9	1
20	369-64014-0	垫片 21-28-0.1	SHIM 21-28-0.1	1
20	369-64015-0	垫片 21-28-0.15	SHIM 21-28-0.15	1
21	3V1-64211-1	螺旋桨轴	PROPELLER SHAFT	1
22	3B2-64215-0	离合器	CLUTCH	1
23	301-64217-0	销 3.5-28	PIN 3.5-28	1
24	3V1-64221-0	弹簧	SPRING	1
25	369-64223-0	推杆	PUSH ROD	1
26	3B2-64222-0	弹簧挡圈	SPRING RETAINER	1
27	3B2-65021-1	水泵叶轮	WATER PUMP IMPELLER	1
28	3B2-65022-0	键 φ3-11	KEY φ3-11	1
29	3B2-65016-0	泵壳(上)	PUMP CASE (UPPER)	1
30	3B2-65011-0	泵壳衬套	PUMP CASE LINER	1
31	331-65014-0	水管密封件(下)	WATER PIPE SEAL (LOWER)	1
32	3B2-65018-2	泵壳垫片	PUMP CASE GASKET	1
33	3B2-65025-0	水泵导板	WATER PUMP GUIDE PLATE	1
34	3B2-65029-2	导板垫片	GUIDE PLATE GASKET	1
35	9161E3-0650	螺栓	BOLT	4
36	9401E3-0600	垫圈	WASHER	4
37	3UA-65017-0	泵壳(下)	PUMP CASE (LOWER)	1
38	309-60111-0	油封 12-24-8	OIL SEAL 12-24-8	1
39	3B2-65020-1	泵壳垫片(下)	PUMP CASE GASKET (LOWER)	1
40	3B2-64081-0	垫片 28-36.8-0.1	SHIM 28-36.8-0.1	1
40	3B2-64082-0	垫片 28-36.8-0.15	SHIM 28-36.8-0.15	1
40	3B2-64083-0	垫片 28-36.8-0.3	SHIM 28-36.8-0.3	1
41	3V1-64306-2	驱动轴总成(S)	DRIVE SHAFT ASSY (S)	1
41	3V1-64307-2	驱动轴总成(L)	DRIVE SHAFT ASSY (L)	1
41	3V1-64309-2	驱动轴总成(UL)	DRIVE SHAFT ASSY (UL)	1
41	3WB-64307-0	驱动轴总成(L)	DRIVE SHAFT ASSY (L)	1
41	3WB-64309-0	驱动轴总成(UL)	DRIVE SHAFT ASSY (UL)	1
42	9601-0-6301	* 球轴承 6301	* BALL BEARING 6301	2
43	369-66011-0	离合器凸轮	CLUTCH CAM	1
44	951407-0310	弹簧销 3-10	SPRING PIN 3-10	1
45	3V1-66012-0	凸轮杆(短)	CAM ROD (S)	1
45	3V1-66013-0	凸轮杆(长)	CAM ROD (L)	1
45	3V1-66014-0	凸轮杆(超长)	CAM ROD (UL)	1
46	3UA-66031-0	凸轮杆衬套	CAM ROD BUSHING	1
47	369-66021-1	O型圈 2.5-4.9	O-RING 2.5-4.9	2
48	332-66032-0	O型圈 2.4-15.4	O-RING 2.4-15.4	1
49	369-66033-0	止动块	STOPPER	1
50	9101E3-5625	螺栓	BOLT	1
51	3V2-60001-0	螺栓6-35	BOLT 6-35	4
52	3V1-60041-0	水封橡胶	WATER SEAL RUBBER	1
53	3V1-60042-0	水封板	WATER SEAL PLATE	1
54	3V1-65100-0	水管(短)	WATER PIPE (S)	1
54	3V1-65110-0	水管(左)	WATER PIPE (L)	1
54	3V1-65120-0	水管(左上)	WATER PIPE (UL)	1
55	3V1-65206-0	水管密封件(上)	WATER PIPE SEAL (UPPER)	1
56	3V1-65203-0	锁紧板	LOCK PLATE	1
57	3V1-65204-0	水管辅助支架 13-2.5	WATER PIPE AUXILIARY MOUNT 13-2.5	1
58	9215E3-0510	螺钉	SCREW	1
59	3B2B64513-1	螺旋桨总成(6.5英寸)	PROPELLER ASSY (6.5")	1
59	3B2B64514-1	螺旋桨总成(7英寸)	PROPELLER ASSY (7")	1
59	3B2B64515-1	螺旋桨总成(7.5英寸)	PROPELLER ASSY (7.5")	1
59	3B2B64517-1	螺旋桨总成(8.5英寸)	PROPELLER ASSY (8.5")	1
59	3B2B64519-1	螺旋桨总成(9.5英寸)	PROPELLER ASSY (9.5")	1
59	3V1B64510-1	螺旋桨总成(5英寸)	PROPELLER ASSY (5")	1
59	3V1B64514-1	螺旋桨总成(7英寸)	PROPELLER ASSY (7)	1
60	3UB-87326-0	螺旋桨五金件套件	PROPELLER HARDWARE KIT	1
61	3UB-64231-0	* 推力支架4D	* THRUST HOLDER 4D	1
62	369-64124-0	* 垫圈 10.5-28-2	* WASHER 10.5-28-2	1
63	369-64121-0	* 螺旋桨螺母	* PROPELLER NUT	1
64	951503-0318	* 开口销 3-18	* SPLIT PIN 3-18	1

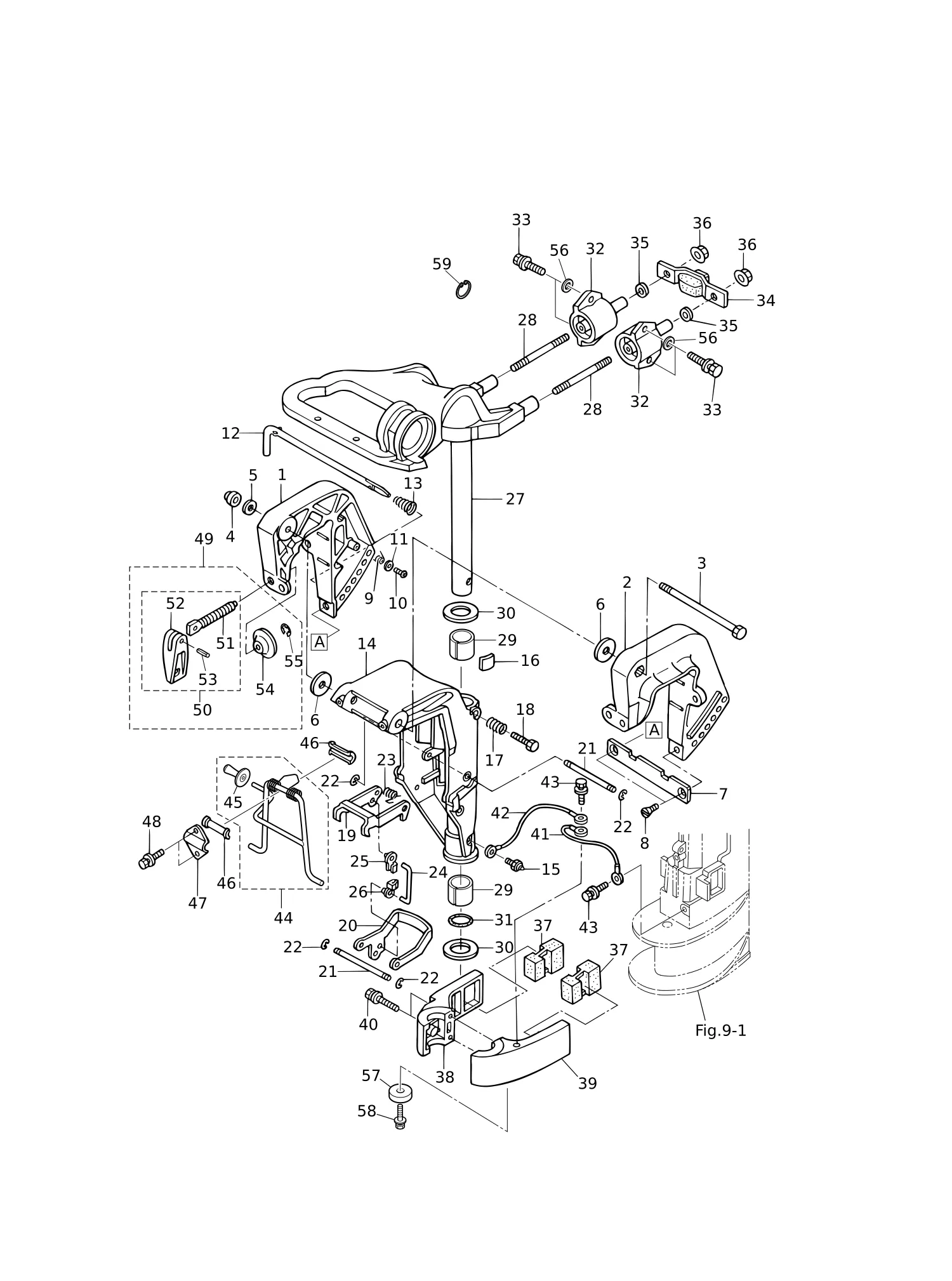

图 11支架(MF·EF型号) BRACKET (MF · EF MODEL)

REF	零件编号	中文名称	英文名称	数量
1	3V1Q62112-2	夹紧支架(右)	CLAMP BRACKET (R)	1
2	3V1Q62113-2	卡箍支架 (左)	CLAMP BRACKET (L)	1
3	309-62115-2	螺栓8-122	BOLT 8-122	1
4	930403-0800	尼龙螺母 8-P1.25	NYLON NUT 8-P1.25	1
6	307-62116-1	垫圈 8.5-28-1	WASHER 8.5-28-1	2
7	3B2-62118-0	隔板	DISTANCE PLATE	1
8	9216E3-0612	螺钉	SCREW	2
9	369-62146-1	船尾支架弹簧	STERN BRACKET SPRING	1
10	921703-0406	螺钉	SCREW	1
11	369-62147-0	垫片 4.3-16-1.5	WASHER 4.3-16-1.5	1
12	350-62121-2	推力杆	THRUST ROD	1
13	369-62122-2	推力杆弹簧	THRUST ROD SPRING	1
14	3V1Q62310-0	旋转支架	SWIVEL BRACKET	1
15	344-67177-1	黄油嘴	GREASE FITTING	1
16	345-62441-0	摩擦片	FRICTION PIECE	1
17	346-62421-1	摩擦弹簧	FRICTION SPRING	1
18	9101E3-0830	螺栓	BOLT	1
19	3V1-66322-0	倒车锁	REVERSE LOCK	1
20	3V1-66313-0	倒车锁臂	REVERSE LOCK ARM	1
21	3B2-66321-1	倒挡锁杆	REVERSE LOCK ROD	2
23	3B2-66315-0	倒挡锁弹簧	REVERSE LOCK SPRING	1
24	3V1-66305-1	倒车锁连杆	REVERSE LOCK LINK	1
25	3C8-63733-0	5-3连杆卡扣	ROD SNAP 5-3	1
26	3K9-05223-0	4-2连杆卡扣	ROD SNAP 4-2	1
27	3V1Q62010-0	转向轴总成	STEERING SHAFT ASSY	1
27	3WBQ62010-0	转向轴总成	STEERING SHAFT ASSY	1
28	3V1-61313-1	螺柱	STUD	2
29	350-62417-0	衬套 24-30-30	BUSHING 24-30-30	2
30	350-62423-0	上止推板	THRUST PLATE (UPPER)	2
31	350-62415-0	O型圈 3.5-22	O-RING 3.5-22	1
32	3V1B61301-1	橡胶支座(上)	RUBBER MOUNT (UPPER)	2
32	3Z0-61301-0	橡胶支座(上)	RUBBER MOUNT (UPPER)	2
33	3UA-61343-0	螺栓 M6-20	BOLT M6-20	4
34	3V1-61333-1	上减震器	DAMPER (UPPER)	1
35	9401E3-0800	垫圈	WASHER	2
36	3V1-61324-0	螺母	NUT	2
37	3V1-61302-0	橡胶支座(下)	RUBBER MOUNT (LOWER)	2
38	3V1Q61401-0	支架托架(右)	MOUNT BRACKET (R)	1
39	3V1Q61402-0	支架托架(左)	MOUNT BRACKET (L)	1
39	3WBQ61402-0	支架托架(左)	MOUNT BRACKET (L)	1
40	9101E3-5652	螺栓	BOLT	2
42	3A3-62396-1	接地线 L=110	GROUND L=110	1
43	910103-5612	螺栓	BOLT	2
44	3V1-62431-1	倾斜止动器总成	TILT STOPPER ASSY	1
45	3AS-62433-0	* 倾斜止动握把	* TILT STOPPER GRIP	1
46	393-62437-1	衬套	BUSHING	2
47	369-62439-1	定位板	SETTING PLATE	1
48	9101E3-5612	螺栓	BOLT	2
49	3V1Q62105-2	夹紧螺丝套件	CLAMP SCREW KIT	2
50	3V1Q62108-1	* 卡箍螺丝总成	* CLAMP SCREW ASSY	1
51	3M3-62106-0	夹紧螺钉	** CLAMP SCREW	1
52	3RSQ62102-0	夹紧螺钉手柄	** CLAMP SCREW HANDLE	1
53	951403-0622	** 弹簧销	** SPRING PIN	1
54	332-62101-1	* 卡箍螺丝垫片	* CLAMP SCREW PAD	1
55	945303-0500	* E型卡环 d=5	* E-RING d=5	1
56	9401E3-0600	垫圈	WASHER	4
57	338-60218-2	阳极块	ANODE	1
58	910103-5620	螺栓	BOLT	1
59	945103-2400	C形环	C-RING	1

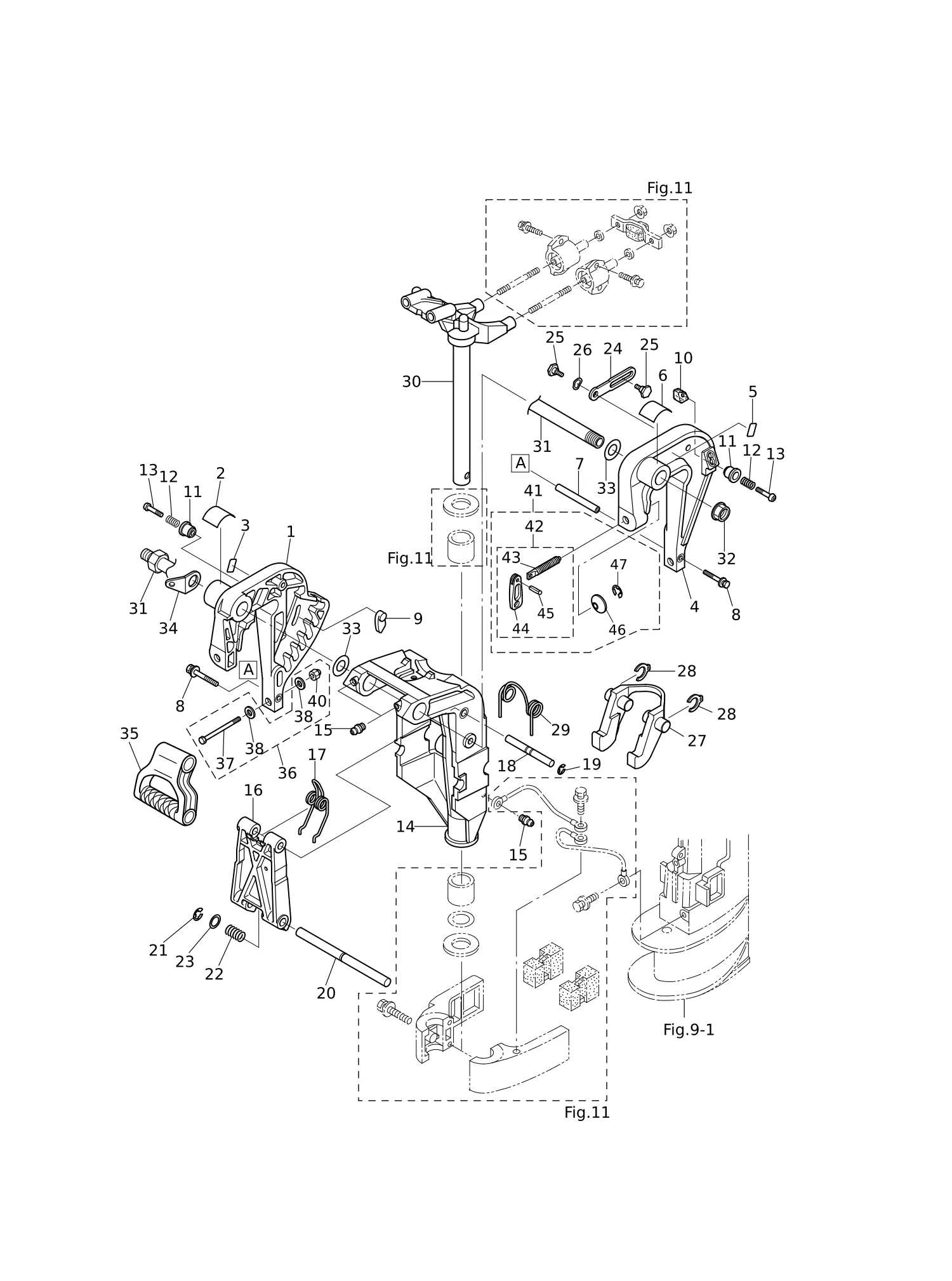

图 12支架(EP型号) BRACKET (EP MODEL)

REF	零件编号	中文名称	英文名称	数量
1	3AAQ62112-1	夹紧支架(右)	CLAMP BRACKET (R)	1
2	3AA-84461-0	配平位置标贴	TRIM POSITION DECAL	1
3	3AA-67589-0	下倾限位标贴	LOWER TILT LIMIT DECAL	1
4	3AAQ62113-1	卡箍支架 (左)	CLAMP BRACKET (L)	1
5	3AA-67584-0	倾斜锁定标贴	TILT LOCK DECAL	1
6	3AA-72049-0	副驾驶贴花	CO-PILOT DECAL	1
7	3AA-62117-0	间隔块	DISTANCE PIECE	1
8	9101E3-5640	螺栓	BOLT	2
9	3AA-62163-0	配平设定板	TRIM SETTING PLATE	1
10	3AA-62164-0	倾斜锁定块	TILT LOCK PIECE	1
11	3AA-62463-0	旋钮	KNOB	2
12	3Y0-66112-0	弹簧	SPRING	2
13	921503-0535	螺钉	SCREW	2
14	3AAQ62310-1	旋转支架	SWIVEL BRACKET	1
15	344-67177-1	黄油嘴	GREASE FITTING	3
16	3AA-62994-0	倾斜止动器主体	TILT STOPPER BODY	1
17	3AA-62434-0	弹簧	SPRING	1
18	3AA-62995-0	倾斜止动轴(上)	TILT STOPPER SHAFT (UPPER)	1
19	945303-0600	E型卡环 d=6	E-RING d=6	2
20	3AA-62996-1	倾斜止动轴(下)	TILT STOPPER SHAFT (LOWER)	1
21	945303-0900	E型卡环 d=9	E-RING d=9	1
22	3AA-63727-0	弹簧	SPRING	1
23	332-61315-0	垫圈10.5-18-1.5	WASHER 10.5-18-1.5	1
24	3AA-62454-0	倾斜止动器(左)	TILT STOPPER (L)	2
25	3AA-62452-0	螺栓6-12.5-9.5-2.5	BOLT 6-12.5-9.5-2.5	4
26	941403-1000	波形垫圈 d=10	WAVE WASHER d=10	2
27	3AA-66322-1	倒车锁	REVERSE LOCK	1
28	3DN-66316-0	倒车锁卡扣	REVERSE LOCK CLIP	2
29	3AA-66315-0	倒挡锁弹簧	REVERSE LOCK SPRING	1
30	3AAQ62010-0	转向轴总成	STEERING SHAFT ASSY	1
31	3AC-62191-0	旋转支架轴总成	SWIVEL BRACKET SHAFT ASSY	1
32	346-62124-1	尼龙螺母 7/8-14	NYLON NUT 7/8-14	1
33	3AA-62116-0	垫片 22-36-1	WASHER 22-36-1	2
34	3AA-62114-1	板	PLATE	1
35	3AA-61199-0	搬运把手	CARRYING HANDLE	1
36	3BA-72120-0	索具螺栓套装	RIGGING BOLT SET	1
37	9101E3-0885	螺栓	* BOLT	2
38	9401E3-0800	* 垫圈	* WASHER	4
40	930403-0800	尼龙螺母 8-P1.25	* NYLON NUT 8-P1.25	2
41	3RSQ62105-1	夹紧螺丝套件	CLAMP SCREW KIT	2
42	3RSQ62108-0	* 卡箍螺丝总成	* CLAMP SCREW ASSY	1
43	3RS-62106-0	夹紧螺钉	** CLAMP SCREW	1
44	3RSQ62102-0	夹紧螺钉手柄	** CLAMP SCREW HANDLE	1
45	951403-0622	** 弹簧销	** SPRING PIN	1
46	332-62101-1	* 卡箍螺丝垫片	* CLAMP SCREW PAD	1
47	945303-0500	* E型卡环 d=5	* E-RING d=5	1

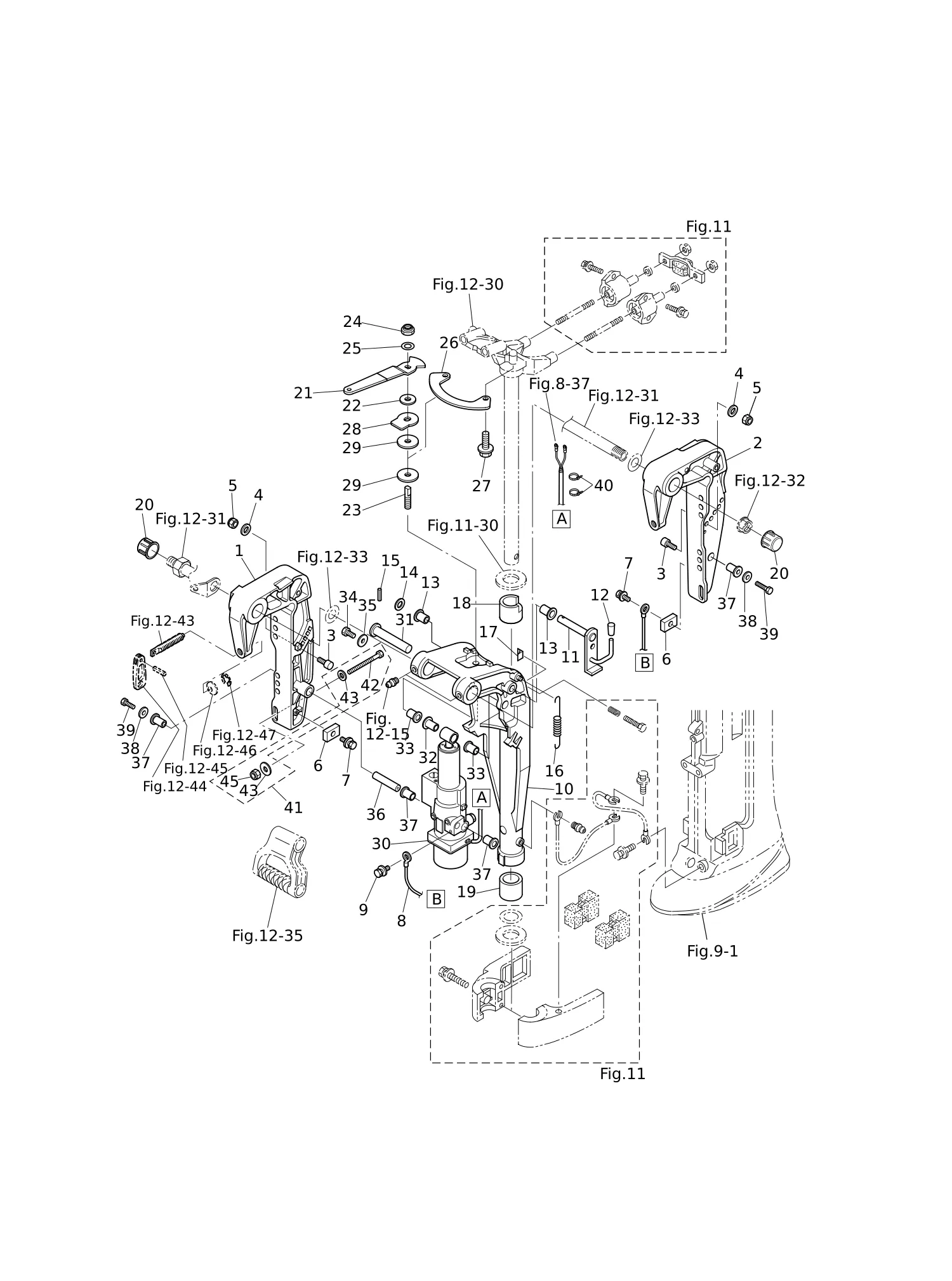

图 13支架(EFT·EPT型号) BRACKET (EFT · EPT MODEL)

REF	零件编号	中文名称	英文名称	数量
1	3Z0Q77211-2	夹紧支架(动力升降倾斜装置-右)	CLAMP BRACKET (PTT-R)	1
2	3Z0Q77212-0	卡箍支架 (动力升降倾斜装置-左)	CLAMP BRACKET (PTT-L)	1
3	3Z0-77115-0	配平锁销	TRIM LOCK PIN	2
4	3P0-66233-0	垫片 8.1-16-1.5	WASHER 8.1-16-1.5	2
5	3V5-62442-0	尼龙螺母 8-P1.25	NYLON NUT 8-P1.25	2
6	3H6-60218-0	阳极块	ANODE	2
7	910103-5616	螺栓	BOLT	2
8	398-62396-1	接地线 L=130	GROUND L=130	1
9	910103-5612	螺栓	BOLT	1
10	3V1Q77208-0	旋转支架总成	SWIVEL BRACKET ASSY	1
11	3Z0-62476-2	倾斜止动器	TILT STOPPER	1
12	369-62433-1	倾斜止动器手柄	TILT STOPPER GRIP	1
13	353-63207-0	轴环 10.2-12-12	COLLAR 10.2-12-12	2
14	940103-1000	垫圈	WASHER	1
15	951403-3516	弹簧销 3.5-16	SPRING PIN 3.5-16	1
16	3R0-62473-0	倾斜止动弹簧	TILT STOPPER SPRING	1
17	3Z0-63035-0	摩擦片	FRICTION PIECE	1
18	3Z0-62417-0	衬套 24-30-30	BUSHING 24-30-30	1
19	350-62417-0	衬套 24-30-30	BUSHING 24-30-30	1
20	346-62127-0	盖形螺母	CAP NUT	2
21	3AA-62441-0	摩擦杆	FRICTION LEVER	1
22	3R3-62443-0	垫圈 8.1-20-0.8	WASHER 8.1-20-0.8	1
23	3R3-62445-0	螺栓 M8-P1.25	BOLT M8 P1.25	1
25	940103-0800	垫圈	WASHER	1
26	3AA-62447-0	板	PLATE	1
27	9101E3-5616	螺栓	BOLT	2
28	3R3-62448-1	垫圈 8.5-38-3	WASHER 8.5-38-3	1
29	3R3-62449-0	圆盘8.5-38-2	DISC 8.5-38-2	2
30	3Z0Q77151-1	动力倾斜总成	PT ASSY	1
31	3KY-77071-0	气缸销(上)	CYLINDER PIN (UPPER)	1
33	3R0-77076-0	衬套 13-17-19.5	BUSHING 13-17-19.5	2
34	9101E3-0612	螺栓	BOLT	1
35	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	1
36	3Z0-77101-1	气缸销(下)	CYLINDER PIN (LOWER)	1
37	3Z0-77076-0	衬套 13-16-31	BUSHING 13-16-31	4
38	307-62116-1	垫圈 8.5-28-1	WASHER 8.5-28-1	2
39	910103-0820	螺栓	BOLT	2
40	3Z0-84398-0	箍带 203	BAND 203	2
41	3BJ-72120-1	索具螺栓套装	RIGGING BOLT SET	1
42	9101E3-0885	螺栓	* BOLT	4
43	9401E3-0800	* 垫圈	* WASHER	8
45	930403-0800	尼龙螺母 8-P1.25	* NYLON NUT 8-P1.25	4

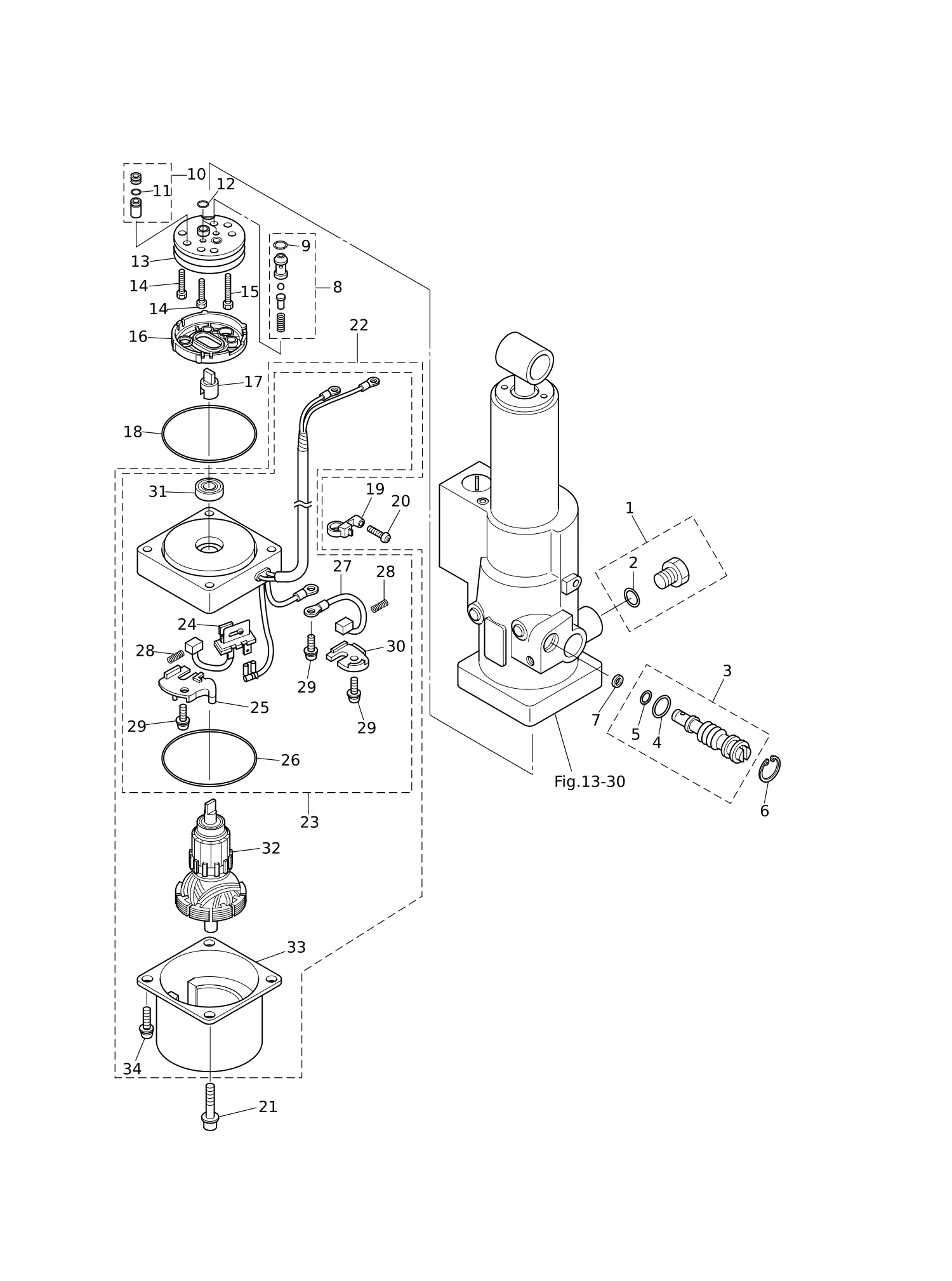

图 14动力倾斜装置 POWER TILT

REF	零件编号	中文名称	英文名称	数量
1	3Z0-77221-0	盖帽总成	CAP ASSY	1
3	3Z0-77175-0	手动阀总成	MANUAL VALVE ASSY	1
4	3R0-77177-0	* O型圈 2.4-9.8	* O-RING 2.4-9.8	1
6	3R0-77171-0	C形环	C-RING	1
7	3AC-77173-0	密封垫圈	SEAL WASHER	1
8	3Z0-77450-0	安全阀总成	RELIEF VALVE ASSY	1
9	3Z0-77179-0	* O型圈	* O-RING	1
10	3Z0-77460-0	阀门总成	VALVE ASSY	1
11	3R0-77451-0	* O型圈1.5-3.5	* O-RING 1.5-3.5	1
12	3B7-77169-0	O型圈	O-RING	2
13	3B7-77430-0	泵	PUMP	1
14	3B7-77432-1	螺栓	BOLT	2
15	3B7-77431-1	螺栓	BOLT	1
16	3B7-77434-1	过滤器	FILTER	1
17	3E0-77163-0	联轴器	COUPLING	1
18	3R0-77167-0	O型圈2-62.5	O-RING 2-62.5	1
19	3Z1-84398-1	箍带	BAND	1
20	3V1-64333-0	预涂层螺钉5-12	PRE-COATED SCREW 5-12	1
21	3Z0-77431-0	螺栓	BOLT	2
22	3Z0-77180-0	马达总成	MOTOR ASSY	1
23	3Z0-77192-0	* 电机支架总成	* MOTOR BRACKET ASSY	1
24	3Z0-77191-0	断路器	** BREAKER	1
25	3Z0-77187-0	断路器座	** BREAKER HOLDER	1
26	3Z0-77167-0	O型圈	** O-RING	1
27	3E0-77183-0	电刷	** BRUSH	1
28	3E0-77184-0	电刷弹簧	** BRUSH SPRING	2
29	921521-5512	螺钉	** SCREW	3
30	3Z0-77186-0	电刷架	** BRUSH HOLDER	1
31	3E0-77193-0	油封	** OIL SEAL	1
32	3Z0-77190-0	* 电枢总成	* ARMATURE ASSY	1
33	3Z0-77195-0	* 轭架总成	* YOKE ASSY	1
34	9215E3-5512	* 螺钉	* SCREW	2

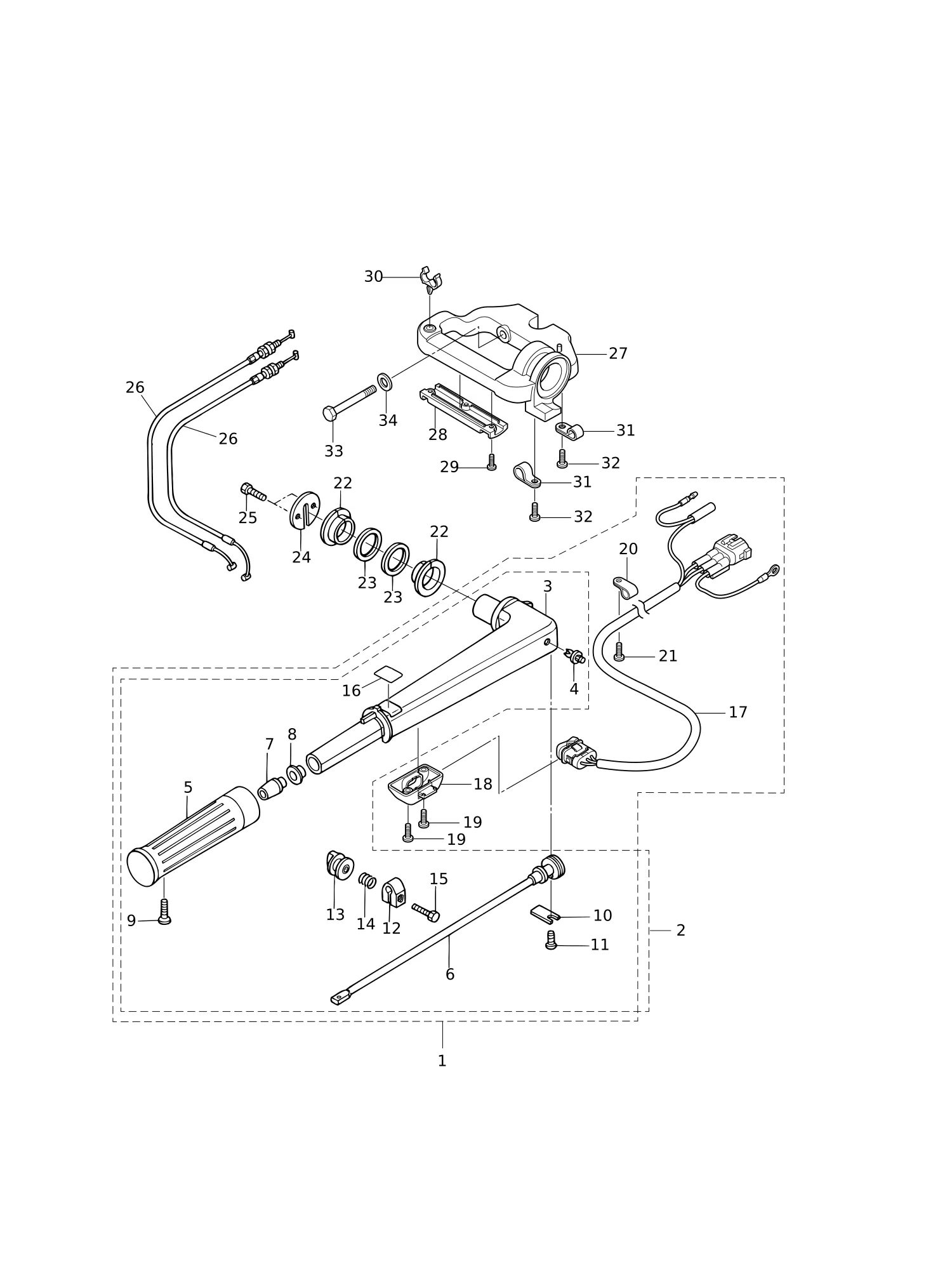

图 15舵柄 TILLER HANDLE

REF	零件编号	中文名称	英文名称	数量
1	3V2Q63003-2	舵柄总成	TILLER HANDLE ASSY	1
2	3V1Q63003-6	* 舵柄手柄总成	* TILLER HANDLE ASSY	1
3	3V1Q63011-3	* 舵柄手柄	* TILLER HANDLE	1
4	350-67154-0	* 塑料铆钉 6.5	* PLASTIC RIVET 6.5	1
5	3R3-63012-0	* 手柄	* GRIP	1
6	3V1-63041-0	* 节气门轴	* THROTTLE SHAFT	1
7	3H6-63048-0	* 节气门轴缓冲器	* THROTTLE SHAFT DAMPER	1
8	3H6-63510-0	* 衬套 14-15.8-7	* BUSHING 14-15.8-7	1
9	920803-0518	* 螺钉	* SCREW	1
10	3B2-63063-0	* 节气门轴支撑	* THROTTLE SHAFT SUPPORT	1
11	9215E3-0612	* 螺钉	* SCREW	1
12	3V1-63035-1	* 摩擦片	* FRICTION PIECE	1
13	3V1-63077-0	* 调节螺母	* ADJUSTING NUT	1
14	3V1-63036-0	* 弹簧	* SPRING	1
15	910103-0625	螺栓	* BOLT	1
16	3V9-72019-1	* 油门标识贴	* THROTTLE DECAL	1
17	3V1-72615-0	* 动力升降倾斜开关总成	* PTT SWITCH ASSY	1
18	3V1-76032-0	* 开关盒	* SWITCH BOX	1
19	9215E3-0516	* 螺钉	* SCREW	2
21	9215E3-0512	* 螺钉	* SCREW	1
22	3V1-63102-0	衬套	BUSHING	2
23	3V1-63108-1	垫片 39-52-1	WASHER 39-52-1	2
24	3V1-63107-0	盖板	COVER	1
25	9101E3-0616	螺栓	BOLT	2
26	3V1-63600-0	节气门拉线	THROTTLE WIRE	2
27	3V1Q62001-1	转向支架	STEERING BRACKET	1
28	3V1-62004-0	线束固定座	CORD HOLDER	1
29	921503-0408	螺钉	SCREW	3
30	3V2-62004-0	线束固定座	CORD HOLDER	1
31	336-06973-0	卡箍 6-9.5L	CLAMP 6-9.5L	2
32	9215E3-0510	螺钉	SCREW	2
33	3R3-62094-2	螺栓 10-80	BOLT 10-80	2
34	9401E3-1000	垫圈	WASHER	2

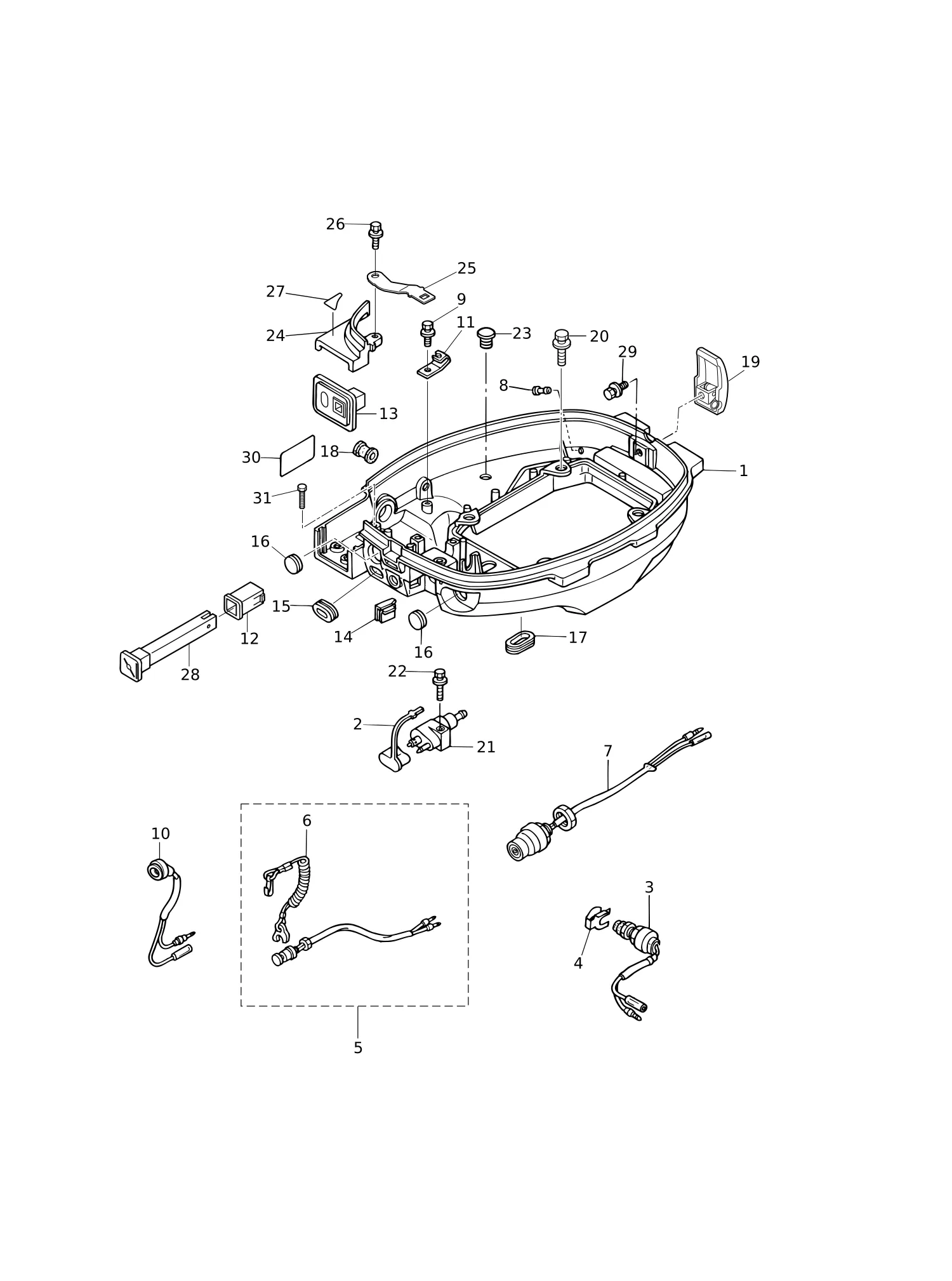

图 16下罩壳 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	3V2Q67100-0	下罩壳	BOTTOM COWL	1
2	3H6-70262-0	燃油接头护套	FUEL CONNECTOR PROTECTOR	1
3	398-76080-1	空档开关	NEUTRAL SWITCH	1
4	398-76083-0	空档开关执行器	NEUTRAL SWITCH ACTUATOR	1
5	398-06830-0	停止开关总成	STOP SWITCH ASSY	1
6	353-06821-0	* 停机开关拉绳总成	* STOP SWITCH LANYARD ASSY	1
7	3AA-76026-0	主开关总成	MAIN SWITCH ASSY	1
8	3BA-01138-0	管接头 6.8-3-10	NIPPLE 6.8-3-10	1
9	9101E3-5612	螺栓	BOLT	1
10	3R3-71040-0	指示灯总成	PILOT LAMP ASSY	1
10	3Z0-71040-0	指示灯总成	PILOT LAMP ASSY	1
11	3V1-69000-0	启动锁电缆支架	STARTER LOCK CABLE BRACKET	1
12	3C8-67156-0	衬套	BUSHING	1
13	3Y3-63621-0	索环/护孔圈	GROMMET	1
14	3V1-63624-0	索环/护孔圈	GROMMET	1
15	3R3-67162-0	索环 25-15-3	GROMMET 25-15-3	1
16	345-67117-0	索环 17-2.7	GROMMET 17-2.7	2
17	3R3-66226-0	衬套 40-18-3	GROMMET 40-18-3	2
18	3B2-67187-0	索环 16-17.5	GROMMET 16-17.5	1
19	3AA-67120-1	整流罩锁扣总成	COWL LATCH ASSY	1
21	394-70260-1	燃油接头（公头）	FUEL CONNECTOR (MALE)	1
22	9101E3-5625	螺栓	BOLT	1
23	3A3-60984-0	副进水口软管塞	SUB-WATER INLET HOSE PLUG	1
24	3V1Q67481-0	换挡杆支架盖	SHIFT LEVER BRACKET COVER	1
25	3Z0-76174-0	撑杆	STAY	1
26	9101E3-5616	螺栓	BOLT	1
27	3UA-67578-0	换挡标识贴	SHIFT DECAL	1
28	3C8-67151-2	阻风门拉杆	CHOKE ROD	1
29	910103-5612	螺栓	BOLT	1
30	3H6-67572-1	存放标识	STORAGE DECAL	1
31	910103-0610	螺栓	BOLT	2

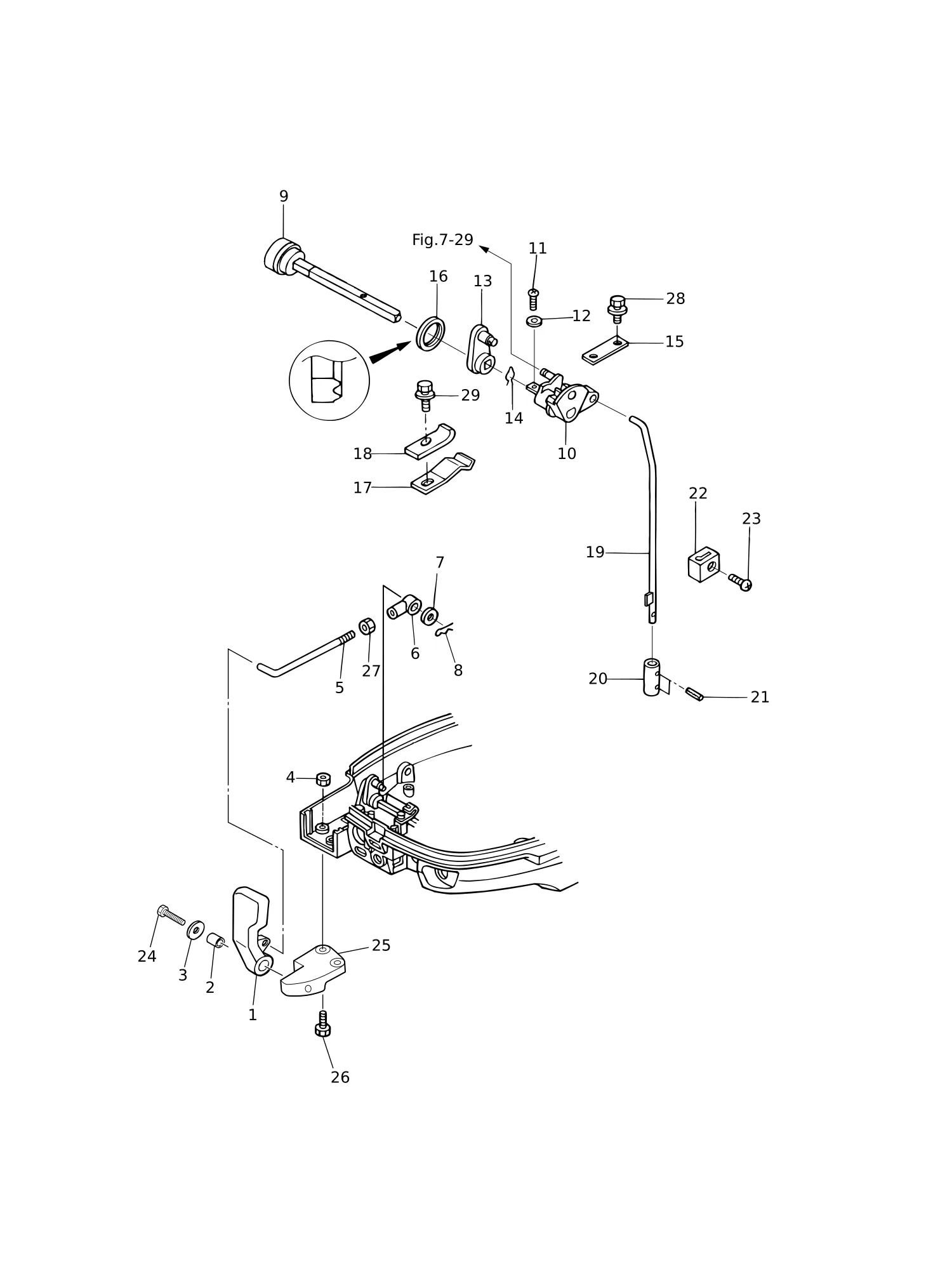

图 17换挡机构 SHIFT

REF	零件编号	中文名称	英文名称	数量
1	3Y3-66110-0	换挡杆	SHIFT LEVER	1
2	3H6-63619-1	轴套 6.5-10.5-10	COLLAR 6.5-10.5-10	1
3	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	1
4	9301E3-0600	螺母	NUT	2
5	3Y3-66134-0	换挡杆连杆	SHIFT LEVER ROD	1
6	3R0-83715-0	电缆接头 4.5-40.5	CABLE JOINT 4.5-40.5	1
7	3AA-83719-0	垫圈 8.5-18-1.6	WASHER 8.5-18-1.6	1
8	951603-0800	弹性销 d=8	SNAP PIN d=8	1
9	3AA-66135-1	换挡杆轴	SHIFT LEVER SHAFT	1
10	3V1-66225-0	换挡杆手柄	SHIFT ROD LEVER	1
11	921503-0414	螺钉	SCREW	1
12	940103-0400	垫圈	WASHER	1
13	3V1-66129-0	换挡杆(遥控)	SHIFT LEVER (REMOTE CONTROL)	1
14	951703-0800	弹性挡圈 d=8	SNAP RETAINER ｄ=8	1
15	3V1-66145-0	支架	HOLDER	1
16	3V1-66187-0	密封环 23-29-3.7	SEAL RING 23-29-3.7	1
17	3UA-66113-0	换挡定位弹簧 t=0.8	SHIFT DETENT SPRING t=0.8	1
18	3Y1-66117-0	换挡定位支架 t=0.8	SHIFT DETENT SUPPORTER t=0.8	1
19	3V1-66211-1	换挡连杆	SHIFT ROD	1
20	3V1-66241-0	换挡杆接头	SHIFT ROD JOINT	1
21	951403-0310	弹簧销 3-10	SPRING PIN 3-10	2
22	3V1-66302-1	倒车锁连杆接头	REVERSE LOCK LINK JOINT	1
23	921503-0612	螺钉	SCREW	1
24	9101E3-0625	螺栓	BOLT	1
25	3Y3Q67480-0	换挡杆支架	SHIFT LEVER BRACKET	1
26	9101E3-5625	螺栓	BOLT	2
27	930103-0500	螺母	NUT	1
29	9101E3-5612	螺栓	BOLT	1

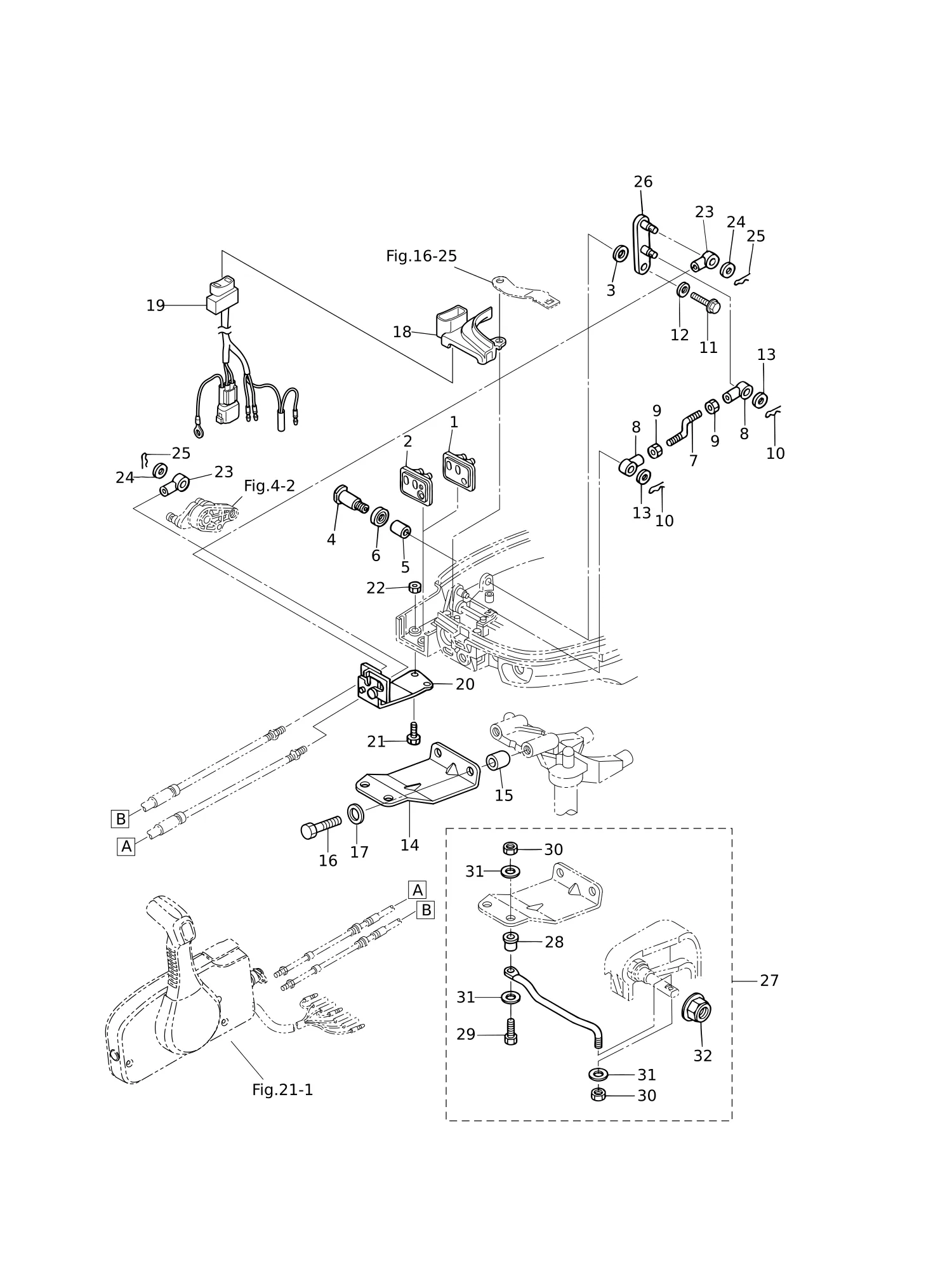

图 18遥控装置零件 REMOTE CONTROL PARTS

REF	零件编号	中文名称	英文名称	数量
1	3V1-83732-0	索环/护孔圈	GROMMET	1
2	3V2-83732-0	索环/护孔圈	GROMMET	1
3	941403-1400	波形垫圈 d=14	WAVE WASHER d=14	1
4	3V1-66142-0	枢轴	PIVOT	1
5	369-67105-0	挂钩杆衬套	HOOK LEVER BUSHING	1
6	338-67147-0	密封环 13.8-22-3.7	SEAL RING 13.8-22-3.7	1
7	3V1-66134-0	换挡杆连杆	SHIFT LEVER ROD	1
8	3R0-83715-0	电缆接头 4.5-40.5	CABLE JOINT 4.5-40.5	2
9	930103-0500	螺母	NUT	2
11	9101E3-5612	螺栓	BOLT	1
12	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	1
14	3AA-83830-0	转向钩板	STEERING HOOK PLATE	1
15	3AA-83913-0	轴环 10.1-20-15	COLLAR 10.1-20-15	2
16	9161E3-1045	螺栓	BOLT	2
17	940103-1000	垫圈	WASHER	2
18	3V1Q67483-0	遥控线缆支架盖	REMOTE CONT CABLE STAY COVER	1
19	3V2-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
20	3V1-83820-0	线缆夹总成	CABLE CLIP ASSY	1
21	9101E3-0616	螺栓	BOLT	2
22	9301E3-0600	螺母	NUT	2
23	3B7-83715-2	线缆接头	CABLE JOINT	2
24	3AA-83719-0	垫圈 8.5-18-1.6	WASHER 8.5-18-1.6	2
25	951603-0800	弹性销 d=8	SNAP PIN d=8	2
26	3V2-66128-0	换挡臂（遥控型）	SHIFT ARM (REMOTE CONTROL)	1
27	3AA-84905-0	转向拉杆总成	DRAG LINK ASSY	1
28	3E0-84914-0	* 衬套 9.6-19-13	* SPACER 9.6-19-13	1
29	3C8-84964-0	螺栓 3/8-35	* BOLT 3/8-35	1
30	353-84918-0	尼龙螺母 3/8-24UNF	* NYLON NUT 3/8-24UNF	2
31	353-84916-0	* 垫圈 9.6-18-2	* WASHER 9.6-18-2	3
32	3F3-84908-0	* 密封环	* SEAL RING	1

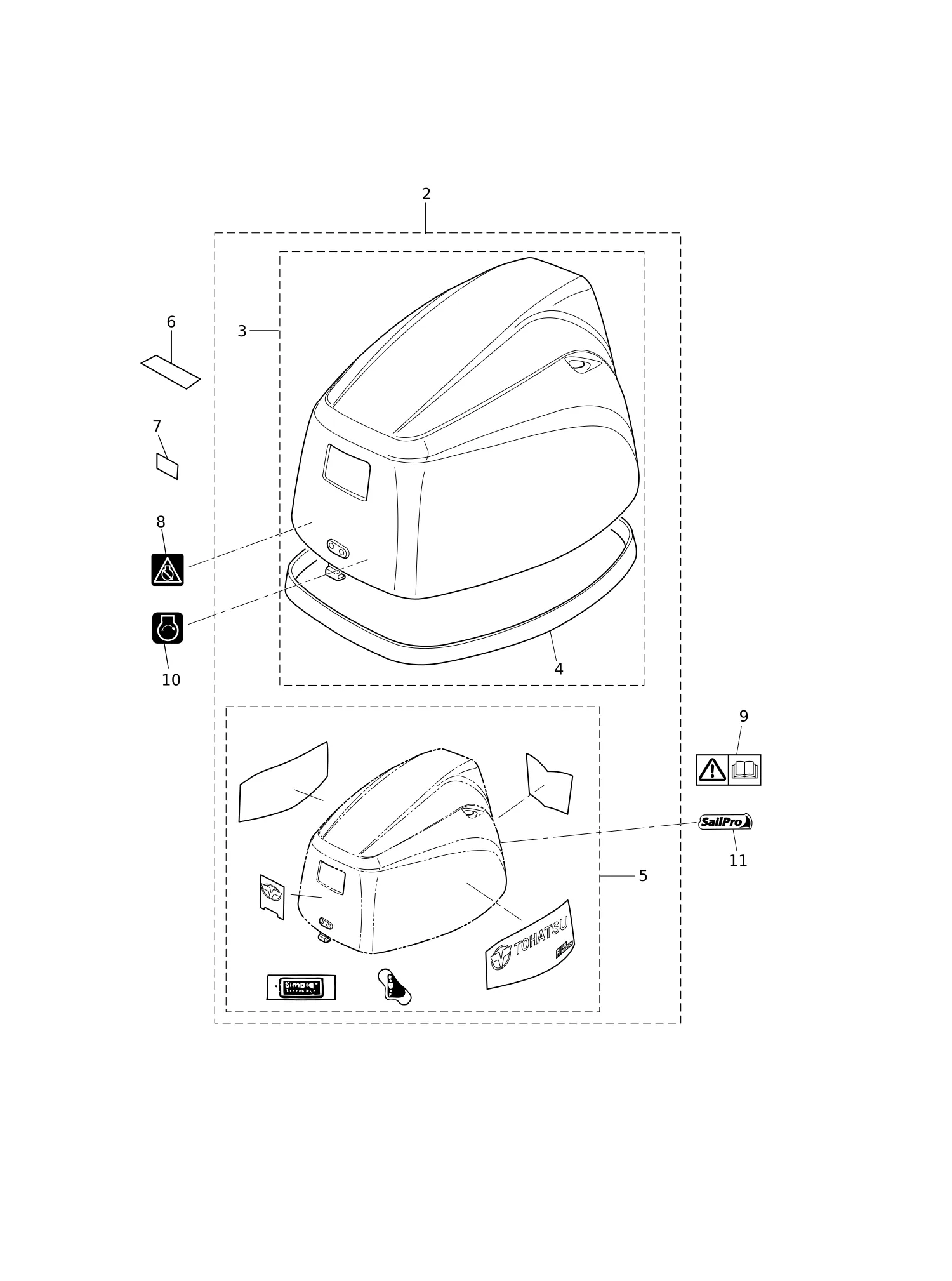

图 19顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
2	3UAQ67645-1	顶罩总成	TOP COWL ASSY	1
3	3UAQ67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
4	3UA-67501-0	顶罩密封条	** TOP COWL SEAL	1
5	3UA-87801-1	* 贴花套装 (MFS8B)	* DECAL SET (MFS8B)	1
5	3UB-87801-1	* 贴花套装 (MFS9.8B)	* DECAL SET (MFS9.8B)	1
5	3UC-87801-1	* 贴花套装 (MFS6Z)	* DECAL SET (MFS6Z)	1
6	3WL-72180-0	警示标贴(A型)	CAUTION DECAL (A)	1
7	3BA-76199-0	油压标贴	OIL PRESSURE DECAL	1
8	3AC-72200-0	停止开关贴花	STOP SWITCH DECAL	1
9	3F0-72185-0	警示标贴	CAUTION DECAL	1
10	3VS-67587-0	启动标识贴	START DECAL	1
11	3AU-67562-2	帆船专业贴花	SAIL PRO DECAL	1

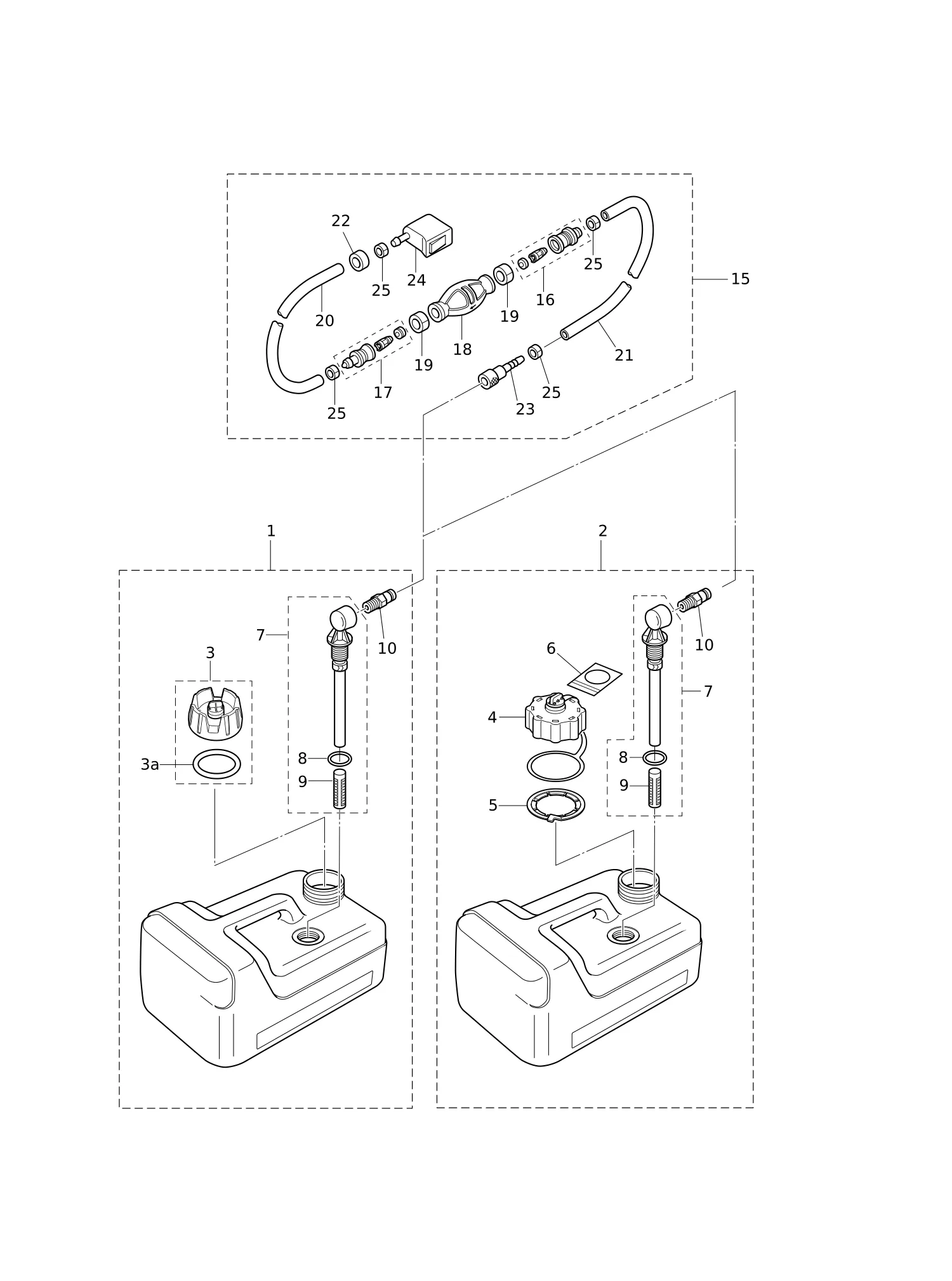

图 20燃油箱 FUEL TANK

REF	零件编号	中文名称	英文名称	数量
1	3RS-70167-0	12升燃油箱总成	FUEL TANK ASSY 12L	1
2	3UA-70167-0	12升燃油箱总成	FUEL TANK ASSY 12L	1
3	3RS-70020-0	* 燃油箱盖总成	* FUEL TANK CAP ASSY	1
3a	3RS-70021-0	油箱盖衬垫	** TANK FILLER CAP GASKET	1
4	3AC-70052-1	* 燃油箱盖总成	* FUEL TANK CAP ASSY	1
5	3AC-70055-0	* 挡圈	* RETAINING RING	1
6	3AC-70352-1	* 指示标签	* INSTRUCTION TAG	1
7	3B2-70155-1	* 吸油弯管总成(12升)	* PICK-UP ELBOW ASSY (12L)	1
8	3C7-70199-0	O型圈	** O-RING	1
9	3C7-70113-0	** 滤清器	** FILTER	1
10	3E0-70270-0	* 快速接头(公)	* QUICK-CONNECTOR (MALE)	1
15	3AD-70200-2	手动泵球总成	PRIMER BULB ASSY	1
15	3H6-70200-2	手动泵球总成	PRIMER BULB ASSY	1
16	3C7-70220-1	* 接头组件(进口)	* JOINT ASSY (INLET)	1
17	3C7-70224-1	* 接头组件(出口)	* JOINT ASSY (OUTLET)	1
18	3C7-70211-1	* 注油球	* PRIMER BULB	1
18	3GF-70211-1	* 注油球	* PRIMER BULB	1
19	3C7-70217-0	* 卡箍	* CLAMP	2
20	3GF-70241-1	* 低渗透软管 L=700	* LOW PERMEATION HOSE L=700	1
20	98AB-70-700	* 软管	* HOSE	1
21	3GF-70240-1	* 低渗透软管 L=1600	* LOW PERMEATION HOSE L=1600	1
21	98AB-701600	* 软管	* HOSE	1
22	3GR-70280-0	* 燃油接头标记	* FUEL CONNECTOR MARK	1
23	3GF-70281-0	* 燃油接头	* FUEL CONNECTOR	1
24	3GR-70250-0	* 燃油接头	* FUEL CONNECTOR	1
25	332-70201-0	* 卡箍	* CLAMP	4

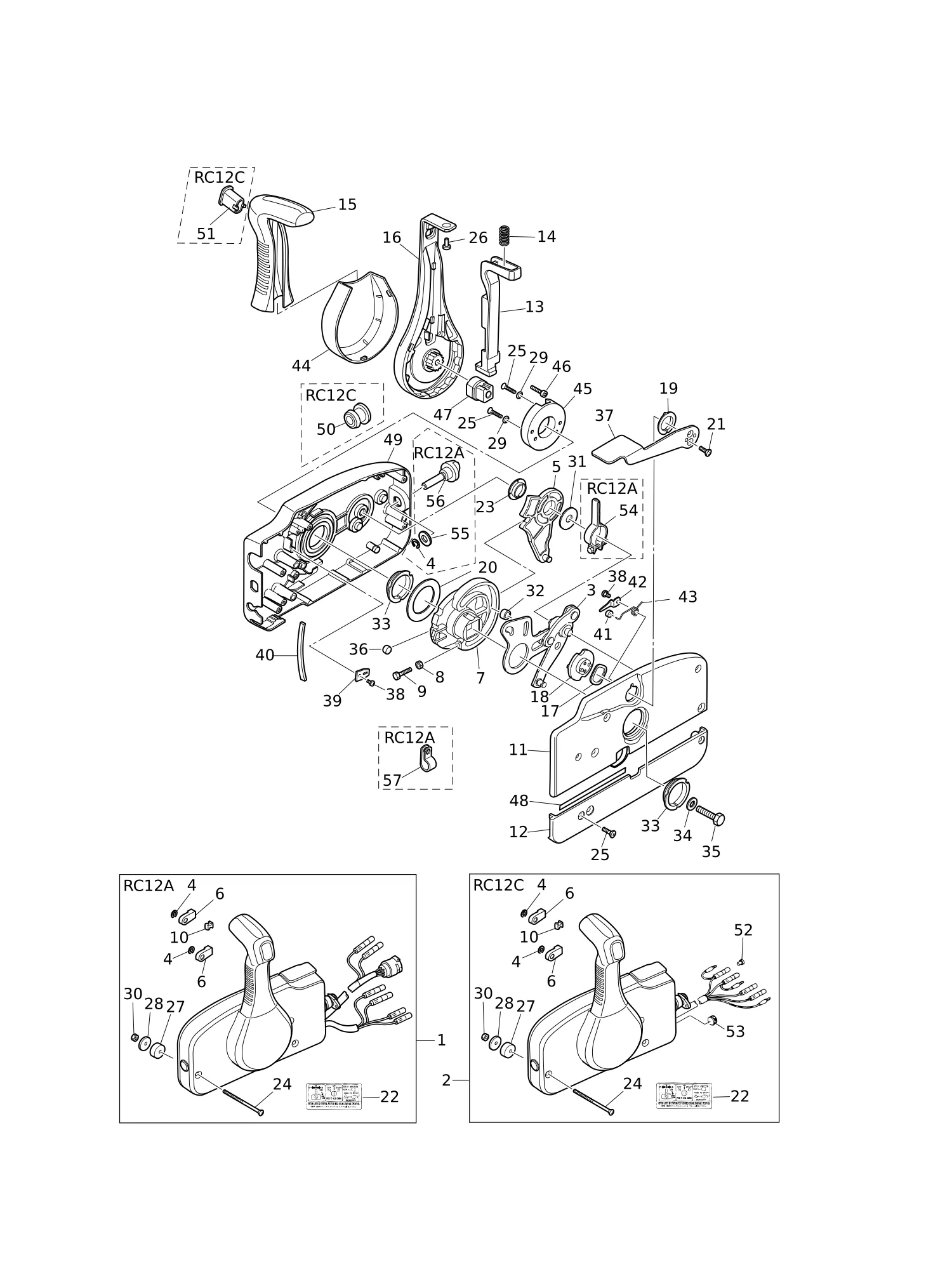

图 21遥控器零部件 COMPONENT PARTS OF REMOTE CONTROL

REF	零件编号	中文名称	英文名称	数量
1	3U2B84330-1	遥控头总成(RC12A)	REMOTE CONTROL HEAD ASSY (RC12A)	1
2	3U2B84350-1	遥控头总成	REMOTE CONTROL HEAD ASSY	1
3	3A3-84365-1	* 节气门摇臂	* THROTTLE ARM	1
4	945303-0600	* E型卡环 d=6	* E-RING d=6	3
5	3A3-84381-0	* 换挡齿轮总成	* SHIFT GEAR ASSY	1
6	3A3-83314-2	* 线缆端子	* CABLE TERMINAL	2
7	3A3-84364-2	* 驱动齿轮	* DRIVE GEAR	1
8	930103-0500	螺母	* NUT	1
9	910103-0525	螺栓	* BOLT	1
10	3A3-84376-0	* 护孔环	* GROMMET	1
11	3U2B84441-0	* 后壳体	* REAR HOUSING	1
12	3U2B84366-0	* 后盖板	* REAR PANEL	1
13	3U2-84401-0	* 空档锁止臂	* NEUTRAL LOCK ARM	1
14	3A3-84403-0	* 空档锁止弹簧	* NEUTRAL LOCK SPRING	1
15	3U2-84404-0	* 手柄	* GRIP	1
16	3U2-84343-0	* 控制杆	* CONTROL LEVER	1
17	3A3-84368-0	* 波形垫圈	* WAVE WASHER	1
18	3A3-84391-0	* 自由节流鼓	* FREE THROTTLE DRUM	1
19	3A3-84435-0	* 衬套	* BUSHING	1
20	3A3-84422-0	* 推力板	* THRUST PLATE	1
21	921603-0512	* 螺钉	* SCREW	2
22	3U2-84339-1	* 操作说明标贴	* INSTRUCTION DECAL	1
23	3A3-84432-0	* 衬套	* BUSHING	1
24	3U2-84375-0	* 螺钉	* SCREW	3
25	3VK-84375-0	* 螺钉	* SCREW	7
26	3VL-84375-0	* 螺钉	* SCREW	1
27	3A3-84374-0	* 隔套	* SPACER	3
28	353-84371-0	* 垫圈	* WASHER	3
29	3U2-84371-0	* 垫圈	* WASHER	2
30	930103-0600	螺母	* NUT	3
31	3A3-84383-0	* 垫圈	* WASHER	1
32	3A3-84421-0	* 滚轮	* ROLLER	1
33	3U2-84431-0	* 衬套	* BUSHING	2
34	940103-0800	* 垫圈	* WASHER	1
35	3U2-84442-0	螺栓	* BOLT	1
36	353-84388-0	* 定位滚轮	* DETENT ROLLER	1
37	3U2B84312-0	* 自由节流杆	* FREE THROTTLE LEVER	1
38	921503-0406	* 螺钉	* SCREW	3
39	3A3-84423-0	* 定位器挡圈	* DETENT RETAINER	1
40	3A3-84307-0	* 定位弹簧	* DETENT SPRING	6
41	3A3-84424-0	* 自由节流滚轮	* FREE THROTTLE ROLLER	1
42	3A3-84426-0	* 滚柱保持架	* ROLLER RETAINER	1
43	3A3-84425-0	* 自由节流弹簧	* FREE THROTTLE SPRING	1
44	3VK-63107-0	* 盖板	* COVER	1
45	3U2-63506-0	* 支架	* HOLDER	1
46	3U2-84917-0	螺栓	* BOLT	1
47	3U2-77367-0	* 接头	* JOINT	1
48	3U2-72187-0	* 警示标贴(SIGP)	* CAUTION DECAL (SIGP)	1
49	3U2B84440-0	* 前壳体	* FRONT HOUSING	1
50	3U2-84414-0	* 护孔环	* GROMMET	1
51	3U2-84452-0	* 倾斜开关塞	* TILT SWITCH PLUG	1
52	3A3-76037-0	* 线缆端子塞	* CABLE TERMINAL PLUG	1
53	361-84415-0	* 护孔环	* GROMMET	1
54	3A3-84428-0	* 油门摩擦摇臂	* THROTTLE FRICTION ARM	1
55	353-84394-0	* 垫圈	* WASHER	1
56	3U2-84427-0	* 调节螺钉	* ADJUSTING SCREW	1
57	3U2-06973-0	* 卡箍	* CLAMP	1

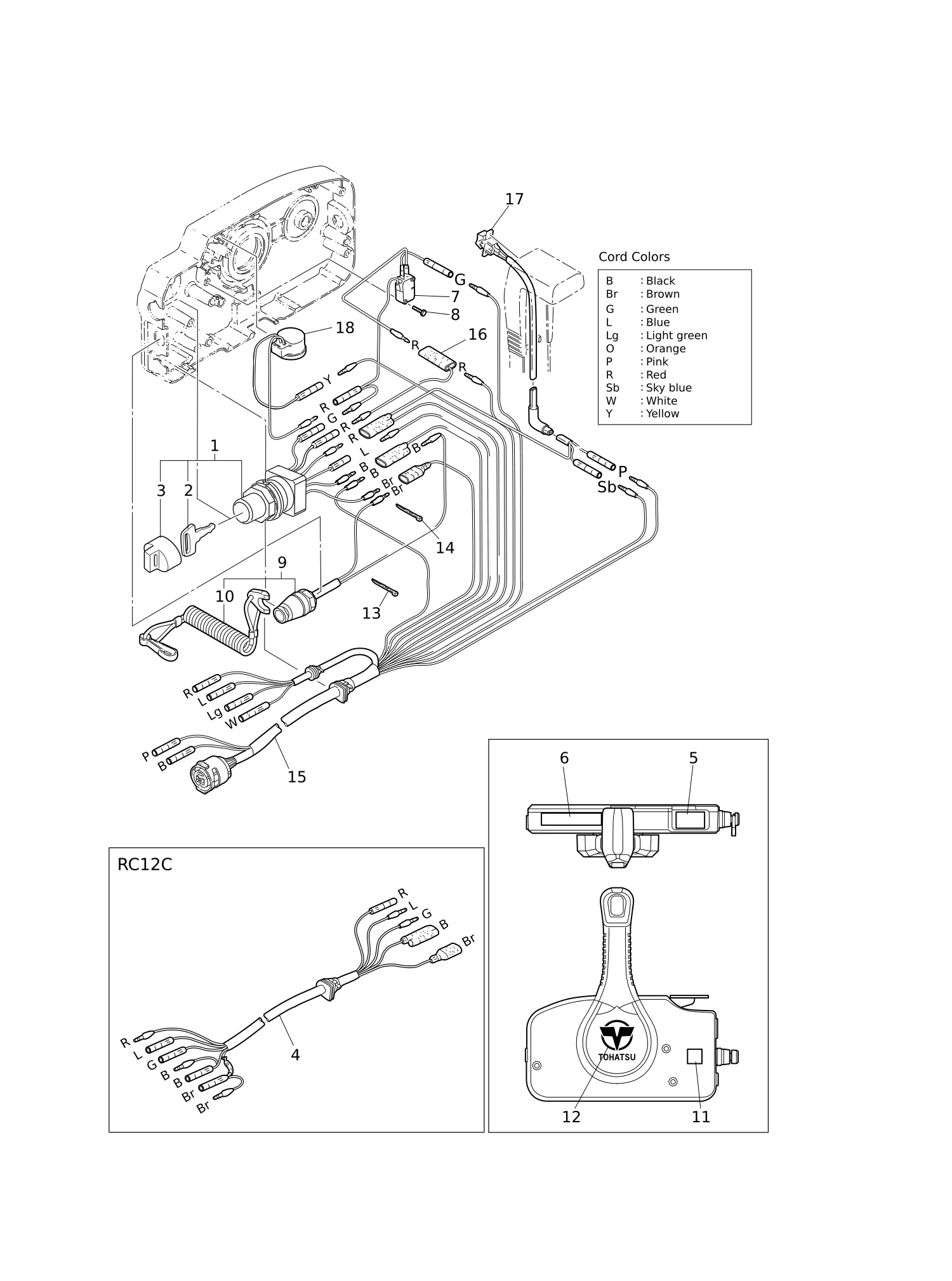

图 22遥控器零部件(电气部件) COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)

REF	零件编号	中文名称	英文名称	数量
1	3GF-76020-0	主开关总成	MAIN SWITCH ASSY	1
2	3GF-76217-0	* 主开关钥匙	* MAIN SWITCH KEY	1
2	3GF-76218-0	* 主开关钥匙	* MAIN SWITCH KEY	1
2	3GF-76219-0	* 主开关钥匙	* MAIN SWITCH KEY	1
3	3GF-76205-0	* 主开关钥匙盖帽	* MAIN SWITCH KEY COVERING CAP	1
4	361-76110-1	线束总成	CORD ASSY	1
5	3U2-84331-0	操纵杆贴花	DECAL (LEVER)	1
6	3U2-84336-1	挡位标识贴	SHIFT POSITION DECAL	1
7	3A3-76086-1	空档开关(遥控型)	NEUTRAL SWITCH (REMOTE CONT)	1
8	921503-5316	螺钉	SCREW	2
9	3A3-06830-0	停止开关总成	STOP SWITCH ASSY	1
10	353-06821-0	* 停机开关拉绳总成	* STOP SWITCH LANYARD ASSY	1
11	3U2-72200-0	停止开关贴花	STOP SWITCH DECAL	2
12	3U2-84334-0	遥控标识贴花	REMOTE CONTROL LOGO DECAL	1
14	3U2-84398-0	箍带	BAND	5
15	3A3-76115-1	线束总成 L=6200	CORD ASSY L=6200	1
16	353-72546-0	辅助拉绳(红) 长200	ASSIST CORD (RED) L=200	1
17	3U2-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
18	3C8-76171-0	过热报警器	OVERHEAT BUZZER	1

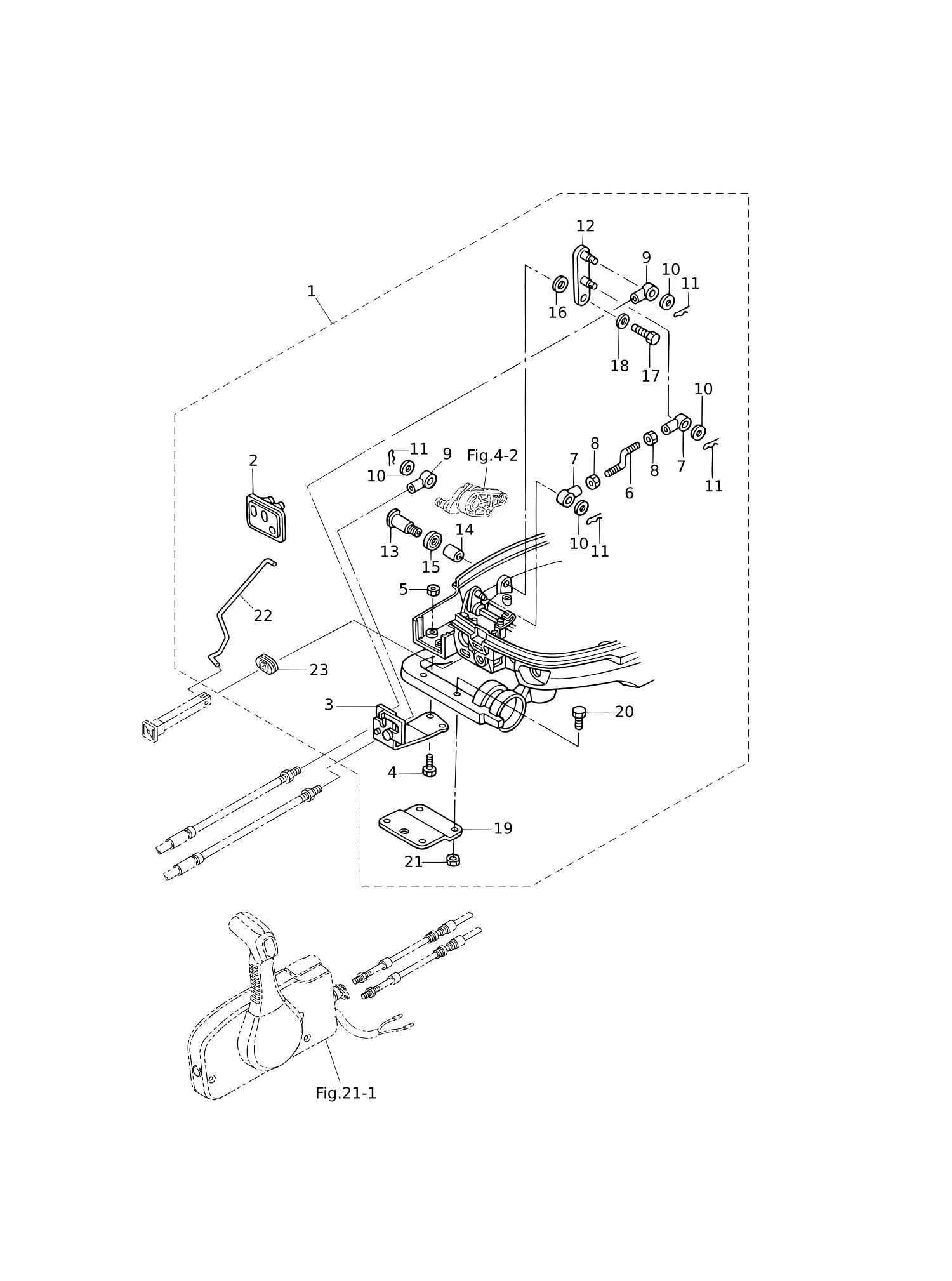

图 23选装配件(遥控装置) OPTIONAL PARTS (REMOTE CONTROL)

REF	零件编号	中文名称	英文名称	数量
1	3V2-83880-2	遥控装置总成	REMOTE CONTROL FITTING ASSY	1
2	3V1-83732-0	* 护孔环	* GROMMET	1
3	3V1-83820-0	* 线缆夹总成	* CABLE CLIP ASSY	1
4	9101E3-0616	螺栓	* BOLT	2
5	9301E3-0600	螺母	* NUT	2
6	3V1-66134-0	* 换挡杆	* SHIFT LEVER ROD	1
7	3R0-83715-0	* 线缆接头 4.5-40.5	* CABLE JOINT 4.5-40.5	2
8	930103-0500	螺母	* NUT	2
9	3B7-83715-2	* 线缆接头	* CABLE JOINT	2
10	3AA-83719-0	* 垫圈 8.5-18-1.6	* WASHER 8.5-18-1.6	4
11	951603-0800	* 弹性销 d=8	* SNAP PIN d=8	4
12	3V2-66128-0	* 换挡臂(遥控)	* SHIFT ARM (REMOTE CONTROL)	1
13	3V1-66142-0	* 枢轴	* PIVOT	1
14	369-67105-0	* 钩杆衬套	* HOOK LEVER BUSHING	1
15	338-67147-0	* 密封环 13.8-22-3.7	* SEAL RING 13.8-22-3.7	1
16	941403-1400	* 波形垫圈 d=14	* WAVE WASHER d=14	1
17	910103-0612	螺栓	* BOLT	1
18	346-67115-0	* 垫圈 6.5-21-1	* WASHER 6.5-21-1	1
19	369-83830-2	* 转向钩板	* STEERING HOOK PLATE	1
20	9101E3-5830	螺栓	* BOLT	2
21	9301E3-0800	螺母	* NUT	2
22	3V2-67192-0	* 阻风门拉杆	* CHOKE ROD	1
23	3V2-67193-0	* 护孔环	* GROMMET	1

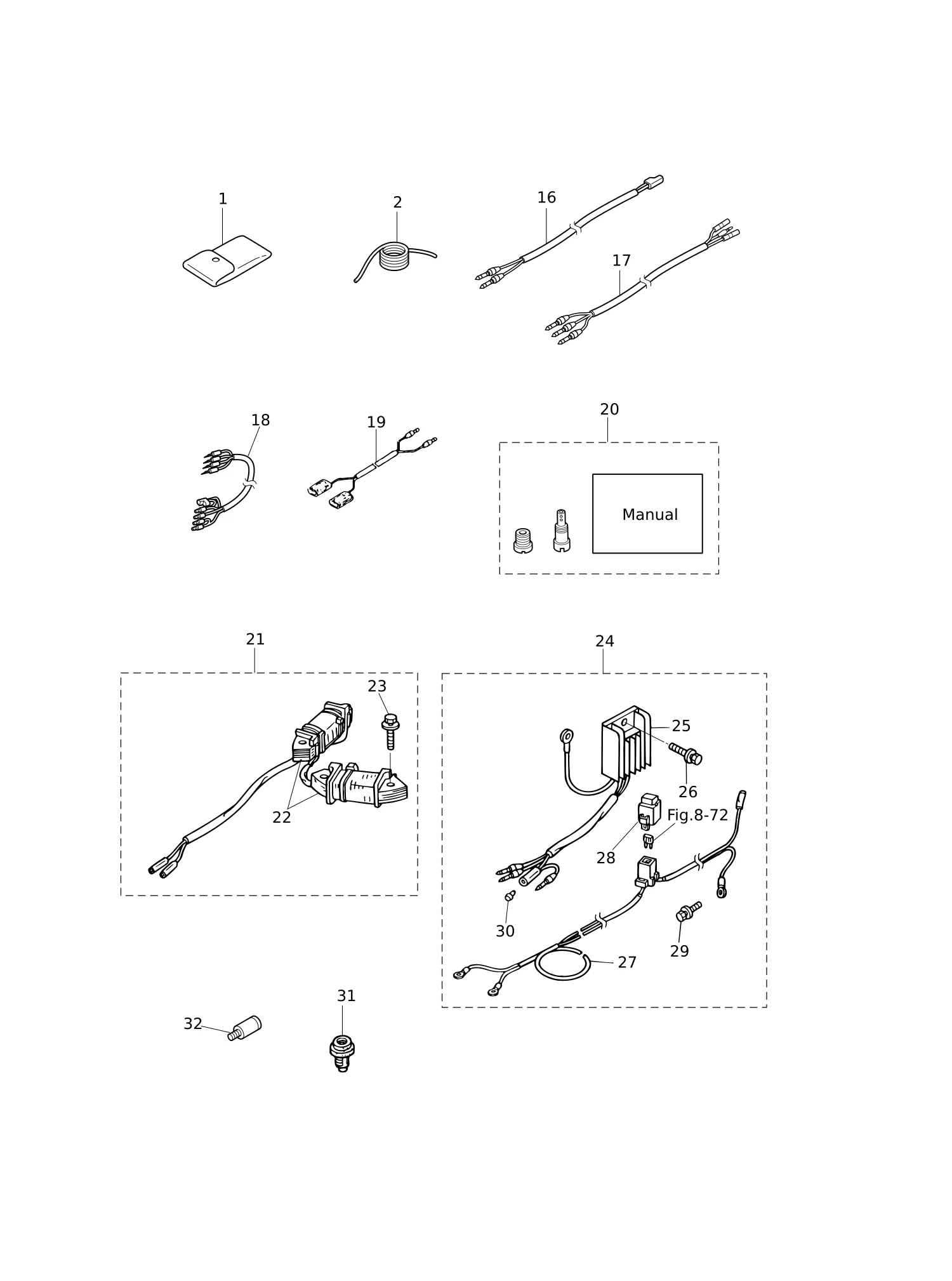

图 24选装件(附件) OPTIONAL PARTS (ACCESSORIES)

REF	零件编号	中文名称	英文名称	数量
1	3BJ-72100-1	工具包	TOOL KIT	1
2	3B7-72201-0	安全绳φ5-1600	SAFETY ROPE φ5-1600	1
16	361-72539-0	转速表导线 L=6000	TACHOMETER LEAD WIRE L=6000	1
17	3UA-72539-0	转速表导线 L=6000	TACHOMETER LEAD WIRE L=6000	1
18	3UA-72537-0	仪表引线 长2000mm	METER LEAD WIRE L=2000	1
19	353-72537-0	仪表引线 长1500mm	METER LEAD WIRE L=1500	1
20	3V1-10230-0	海拔调节套件	ALTITUDE ADJUSTMENT KIT	1
20	3V2-10230-0	海拔调节套件	ALTITUDE ADJUSTMENT KIT	1
21	3V2-06128-0	交流发电机套件	ALTERNATOR KIT	1
22	3AA-06023-0	* 交流发电机总成	* ALTERNATOR ASSY	1
23	910103-5630	螺栓	* BOLT	4
24	3V2-76160-0	整流器套件	RECTIFIER KIT	1
25	3AA-76065-0	* 整流器总成	* RECTIFIER COMPLETE	1
26	910103-5616	螺栓	* BOLT	1
27	3AA-76161-0	* 延长线 L=2150	* EXTENSION CORD L=2150	1
28	1E0-34093-0	* 盖帽(黄色)	* CAP (Y)	1
29	910103-5610	螺栓	* BOLT	1
30	3A3-76037-0	* 线缆端子塞	* CABLE TERMINAL PLUG	1
31	3AA-01030-0	节温器	THERMOSTAT	1
32	336-60007-0	冲洗塞	FLUSHING PLUG	1

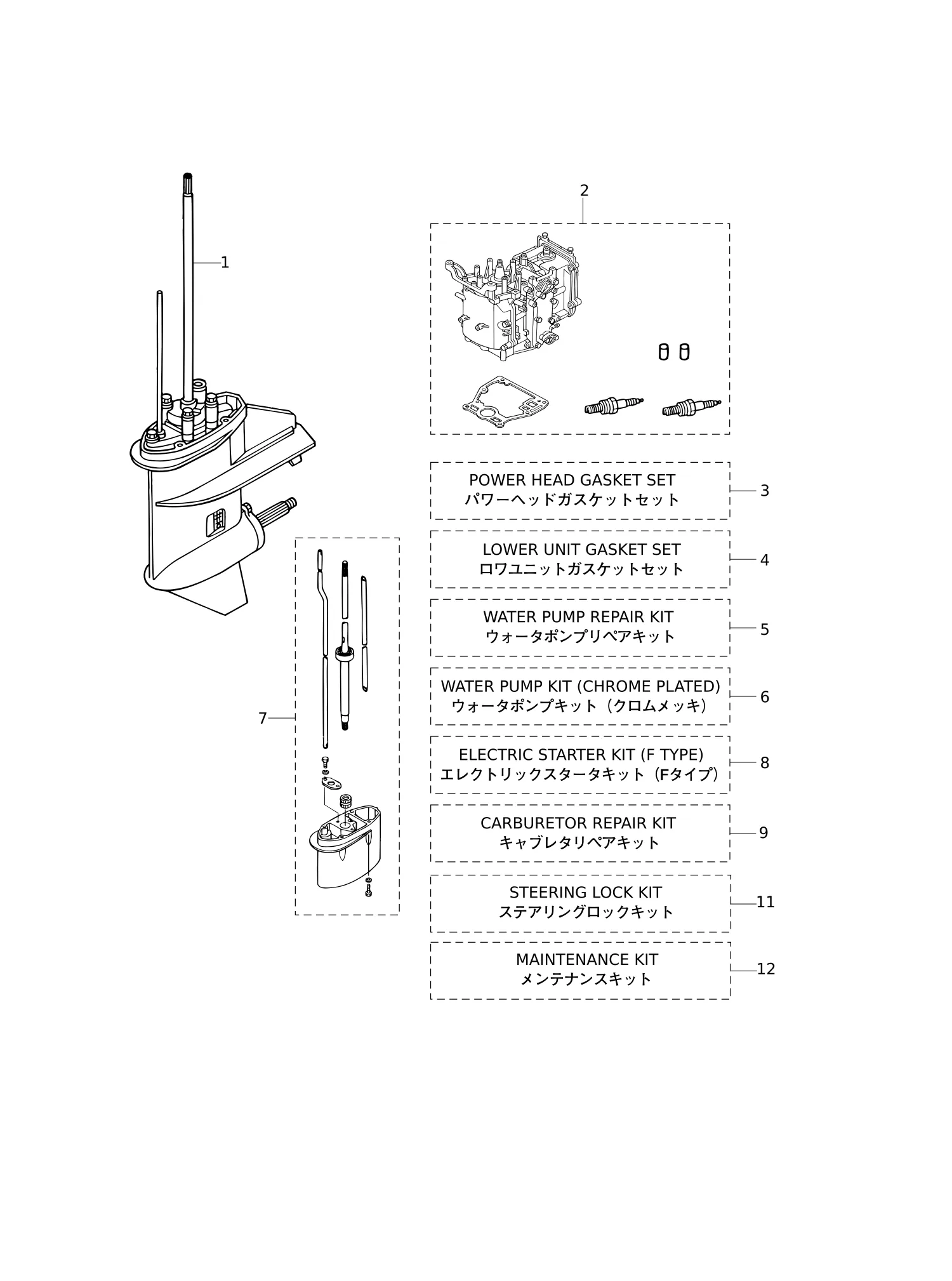

图 25套件零件总成 ASSEMBLY · KIT PARTS

REF	零件编号	中文名称	英文名称	数量
1	3V1Q87301-8	下部单元总成 (S)	LOWER UNIT ASSY (S)	1
1	3V1Q87302-8	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3V1Q87304-8	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
1	3WBQ87302-0	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3WBQ87304-0	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
2	3FKB87090-5	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
2	3V1B87090-8	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
3	346-01032-0	* 节温器盖衬垫	* THERMOSTAT CAP GASKET	1
3	3B2-01215-0	* 油封 12-28-5	* OIL SEAL 12-28-5	1
3	3H6-07422-0	* O型圈 2.6-18.7	* O-RING 2.6-18.7	1
3	3H8-07025-0	* 油封 18-35-8	* OIL SEAL 18-35-8	1
3	3R0-07422-0	* O型圈 3.1-24.4	* O-RING 3.1-24.4	1
3	3V1-00121-0	* 油封 30-45-8	* OIL SEAL 30-45-8	2
3	3V1-01005-0	* 气缸盖垫片	* CYLINDER HEAD GASKET	1
3	3V1-01024-0	* 气缸盖罩衬垫	* CYLINDER HEAD COVER GASKET	1
3	3V1-01303-0	* 发动机底座衬垫	* ENGINE BASEMENT GASKET	1
3	3V1-02011-0	* 化油器衬垫	* CARBURETOR GASKET	2
3	3V1-02012-0	* O型圈 2.4-35.2	* O-RING 2.4-35.2	1
3	3V1-02104-0	* 进气歧管垫片	* INTAKE MANIFOLD GASKET	1
3	3V1-02305-0	* 排气盖衬垫	* EXHAUST COVER GASKET	1
3	3V1-07653-0	* 机油泵垫片	* OIL PUMP GASKET	1
3	3V1-87121-0	动力头衬垫套装	POWER HEAD GASKET SET	1
4	309-60111-0	* 油封 12-24-8	* OIL SEAL 12-24-8	1
4	332-66032-0	* O型圈2.4-15.4	* O-RING 2.4-15.4	1
4	345-65015-0	* O型圈 3.2-47	* O-RING 3.2-47	1
4	369-60111-0	* 油封 15-28-10	* OIL SEAL 15-28-10	1
4	369-66021-1	* O型圈 2.5-4.9	* O-RING 2.5-4.9	2
4	3B2-02312-2	* 排气管衬垫	* EXHAUST PIPE GASKET	1
4	3B2-61012-2	* 驱动轴壳体衬垫	* DRIVE SHAFT HOUSING GASKET	1
4	3B2-87321-5	下部单元衬垫套件	LOWER UNIT GASKET SET	1
5	3B2-65020-1	* 泵壳衬垫(下)	* PUMP CASE GASKET (LOWER)	1
5	3B2-87322-2	水泵维修套件	WATER PUMP REPAIR KIT	1
5	9161E3-0650	螺栓	* BOLT	4
5	940103-0600	* 垫圈	* WASHER	4
6	3B2-65231-2	水泵套件(镀铬)	WATER PUMP KIT (CHROME PLATED)	1
6	3B2-65238-0	* 泵壳衬套	* PUMP CASE LINER	1
6	3B2-65239-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
7	3B2-60003-1	* 驱动轴衬套（上长）	* DRIVE SHAFT BUSHING (UL)	1
7	3B2Q61110-2	* 延伸壳体	* EXTENSION HOUSING	1
7	3V1-64309-2	* 驱动轴总成（上长）	* DRIVE SHAFT ASSY (UL)	1
7	3V1-64332-0	* 止动块	* STOPPER	1
7	3V1-65120-0	* 水管 (上左)	* WATER PIPE (UL)	1
7	3V1-66014-0	* 凸轮杆(上左)	* CAM ROD (UL)	1
7	3V1Q87314-5	延伸壳体套件(超长)	EXTENSION HOUSING KIT (UL)	1
7	3V2-60001-0	螺栓 6-35	* BOLT 6-35	4
7	9101E3-5612	螺栓	* BOLT	2
8	174-35012-0	* 轴环 6-8-6	* COLLAR 6-8-6	1
8	398-76080-1	* 空档开关	* NEUTRAL SWITCH	1
8	398-76083-0	* 空档开关执行器	* NEUTRAL SWITCH ACTUATOR	1
8	3A0-76079-0	* 轴环 6.2-9-7.4	* COLLAR 6.2-9-7.4	3
8	3AA-06023-0	* 交流发电机总成	* ALTERNATOR ASSY	1
8	3AA-06091-0	* 飞轮(带齿轮)	* FLYWHEEL W/GEAR	1
8	3AA-06281-1	* 线缆端子固定座	* CABLE TERMINAL HOLDER	1
8	3AA-06902-1	* 盖板	* COVER	1
8	3AA-76010-0	* 启动电机总成	* STARTER MOTOR ASSY	1
8	3AA-76026-0	* 主开关总成	* MAIN SWITCH ASSY	1
8	3AA-76065-0	* 整流器总成	* RECTIFIER COMPLETE	1
8	3AA-76145-0	* 端子盖 13-13-28	* TERMINAL CAP 13-13-28	1
8	3AC-76120-0	蓄电池电缆 L=2500	* BATTERY CABLE L=2500	1
8	3B2-76147-2	* 启动电缆 L=200	* STARTER CABLE L=200	1
8	3B7-06305-0	* 橡胶支座 9-16-4.3	* RUBBER MOUNT 9-16-4.3	3
8	3H8-76040-0	* 启动电磁阀	* STARTER SOLENOID	1
8	3R0-66308-0	* 垫圈 6-16-1.5	* WASHER 6-16-1.5	6
8	3R0-76064-0	* 保险丝支架	* FUSE HOLDER BRACKET	1
8	3T5-06920-0	* 橡胶支座 8.5-18-7	* RUBBER MOUNT 8.5-18-7	3
8	3V1-06284-1	* 线缆端子固定支架	* CABLE TERMINAL HOLDER STAY	1
8	3V1-06900-1	* 电气支架总成	* ELECTRIC BRACKET ASSY	1
8	3V1-76011-1	* 启动电机支架	* STARTER MOTOR BRACKET	1
8	3V1-76066-0	* 保险丝线束总成 L=185	* FUSE WIRE ASSY L=185	1
8	3V1-76148-0	* 螺旋软管护套 φ10-100	* SPIRAL TUBE PROTECTOR φ10-100	2
8	3V2-76300-4	电动启动器套件(F)	ELECTRIC STARTER KIT (F)	1
8	3Y0-76145-0	* 端子盖 8-18-28	* TERMINAL CAP 8-18-28	1
8	3Y1-76145-0	* 端子盖 8-13-28	* TERMINAL CAP 8-13-28	1
8	910103-5610	螺栓	* BOLT	3
8	910103-5612	螺栓	* BOLT	1
8	910103-5616	螺栓	* BOLT	1
8	910103-5630	螺栓	* BOLT	4
8	9101E3-0620	螺栓	* BOLT	3
8	916114-0830	螺栓	* BOLT	4
8	940103-0800	* 垫圈	* WASHER	4
9	3BJ-02234-0	* 滤清器	* FILTER	1
9	3C8-03125-0	* 浮子	* FLOAT	1
9	3C8-03126-0	* 浮子臂销	* FLOAT ARM PIN	1
9	3UA-03026-0	* 隔套	* SPACER	1
9	3V1-03116-0	* O型圈	* O-RING	1
9	3V1-03121-0	* 浮子室垫片	* FLOAT CHAMBER GASKET	1
9	3V1-03147-1	* 浮子阀	* FLOAT VALVE	1
9	3V1-03182-0	* 化油器盖垫片	* CARBURETOR COVER GASKET	1
9	3V1-03193-0	* 衬垫	* GASKET	1
9	3V1-87122-1	化油器修理包	CARBURETOR REPAIR KIT	1
9	921703-0406	* 螺钉	* SCREW	1
9	922503-6410	* 螺钉	* SCREW	2
9	922503-6412	* 螺钉	* SCREW	4
11	346-62127-0	* 盖形螺母	* CAP NUT	2
11	3V1-62500-1	转向锁套件	STEERING LOCK KIT	1
11	3V1-62510-0	* 转向锁板	* STEERING LOCK PLATE	1
11	3Y3-60108-0	* 预涂螺栓6-12	* PRE-COATED BOLT 6-12	2
11	3Y4-60108-0	* 预涂螺栓8-20	* PRE-COATED BOLT 8-20	1
11	3Z0-61334-0	* 垫圈 8.5-34-3	* WASHER 8.5-34-3	1
12	332-60006-1	* 衬垫	* GASKET	2
12	369-02230-1	* 燃油滤清器总成	* FUEL FILTER ASSY	1
12	369-60218-1	* 阳极	* ANODE	1
12	3B2-65011-0	* 泵壳衬套	* PUMP CASE LINER	1
12	3B2-65018-2	* 泵壳衬垫	* PUMP CASE GASKET	1
12	3B2-65021-1	* 水泵叶轮	* WATER PUMP IMPELLER	1
12	3B2-65022-0	* 键 φ3-11	* KEY φ3-11	1
12	3B2-65025-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
12	3B2-65029-2	* 导板垫片	* GUIDE PLATE GASKET	1
12	3R3-01144-0	* 衬垫	* GASKET	1
12	3R3-07406-0	* 垫圈 14.5-24-1	* WASHER 14.5-24-1	1
12	3V1-60217-0	* 配平片	* TRIM TAB	1
12	3V1-87500-0	MFS 8/9.8A3/B维护套件	MAINTENANCE KIT FOR MFS 8/9.8A3/B	1
12	951403-0310	* 弹簧销 3-10	* SPRING PIN 3-10	2
12	951503-0318	* 开口销 3-18	* SPLIT PIN 3-18	1
12	9701-1-1103	* 火花塞 (DCPR6E)	* SPARK PLUG (DCPR6E)	2
