四冲程 4-Stroke · 2020 年 · 手册号 002-21051-0BX · 共 25 个部位 · 973 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

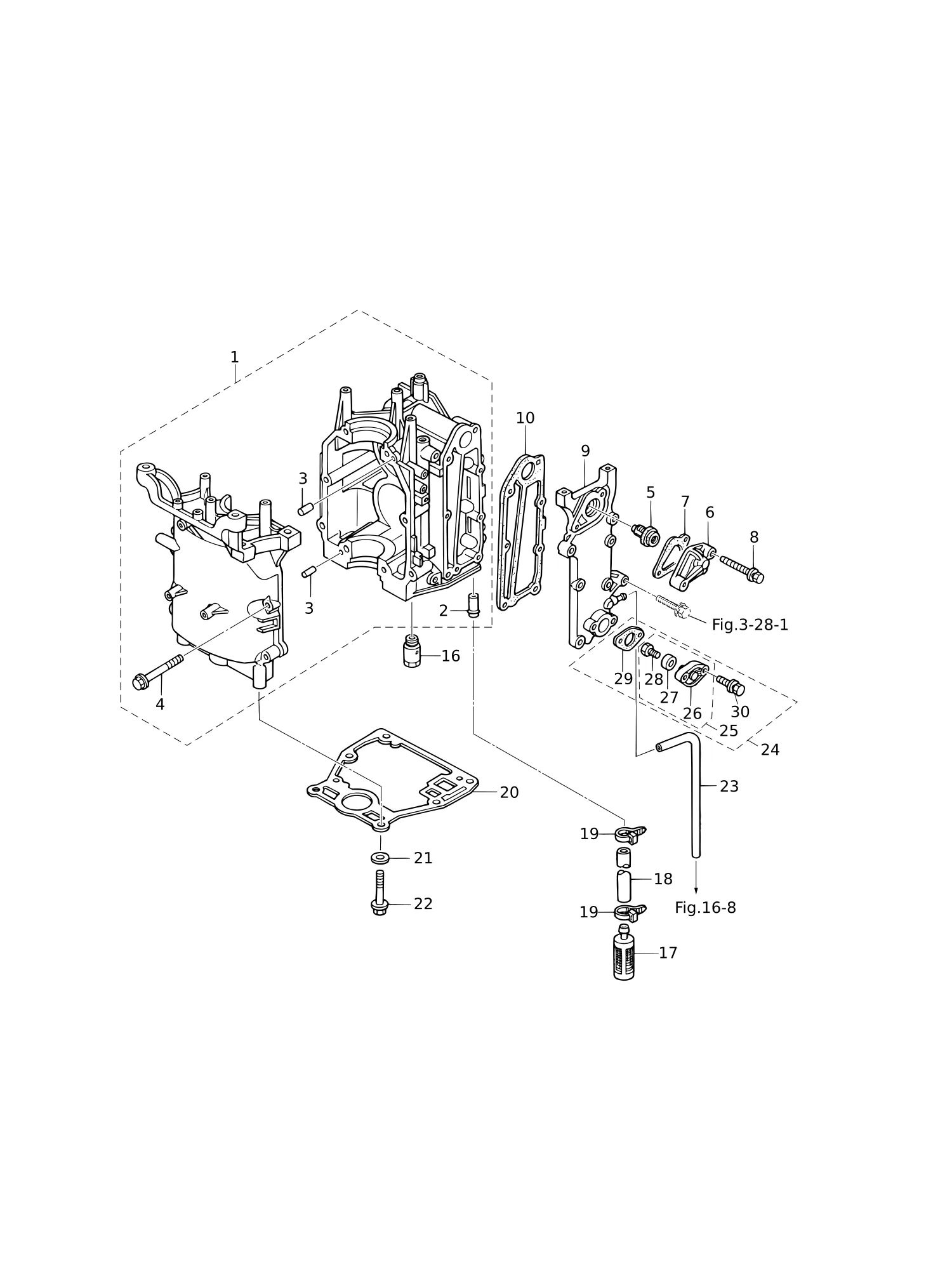

| 1 | 3V1B01100-0 | 气缸体与曲轴箱总成 | CYL BLOCK & CRANKCASE ASSY | 1 |
| 2 | 3H8-02093-0 | 接头 10-32 | * NIPPLE 10-32 | 1 |
| 3 | 345-01111-0 | * 定位销 6-12 | * DOWEL PIN 6-12 | 2 |
| 4 | 3H8-01012-1 | * 气缸盖螺栓 8-50 | * CYLINDER HEAD BOLT 8-50 | 8 |
| 5 | 3NV-01030-0 | 节温器 | THERMOSTAT | 1 |
| 6 | 3H6B01031-0 | 节温器盖 | THERMOSTAT CAP | 1 |
| 7 | 346-01032-0 | 节温器盖垫片 | THERMOSTAT CAP GASKET | 1 |
| 8 | 9101E3-5640 | 螺栓 | BOLT | 2 |
| 9 | 3V1B02301-0 | 排气外盖 | EXHAUST COVER (OUTER) | 1 |
| 10 | 3V1-02305-0 | 排气盖垫片 | EXHAUST COVER GASKET | 1 |
| 16 | 3V2-07620-0 | 柱塞总成 | PLUNGER ASSY | 1 |
| 17 | 3V1-07410-1 | 机油滤网总成 | OIL STRAINER ASSY | 1 |
| 18 | 98AH-95-120 | 软管 | HOSE | 1 |
| 19 | 369-84398-1 | 箍带 202 | BAND 202 | 2 |
| 20 | 3V1-01303-0 | 发动机基座垫片 | ENGINE BASEMENT GASKET | 1 |
| 21 | 9401E3-0800 | 垫圈 | WASHER | 6 |
| 22 | 3BJ-61017-1 | 螺栓8-P1.25 | BOLT 8-P1.25 | 6 |
| 23 | 98AB-50-330 | 软管 | HOSE | 1 |
| 24 | 3UAB01147-0 | 阳极螺塞套件 | ANODE PLUG KIT | 1 |
| 25 | 3UAB01142-0 | * 阳极塞总成 | * ANODE PLUG ASSY | 1 |
| 26 | 3H8B01143-1 | 阳极塞 | ** ANODE PLUG | 1 |
| 27 | 369-60218-1 | 阳极 | ** ANODE | 1 |
| 28 | 910103-0616 | 螺栓 | ** BOLT | 1 |
| 29 | 3R3-01144-0 | * 衬垫 | * GASKET | 1 |
| 30 | 9101E3-5620 | 螺栓 | * BOLT | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

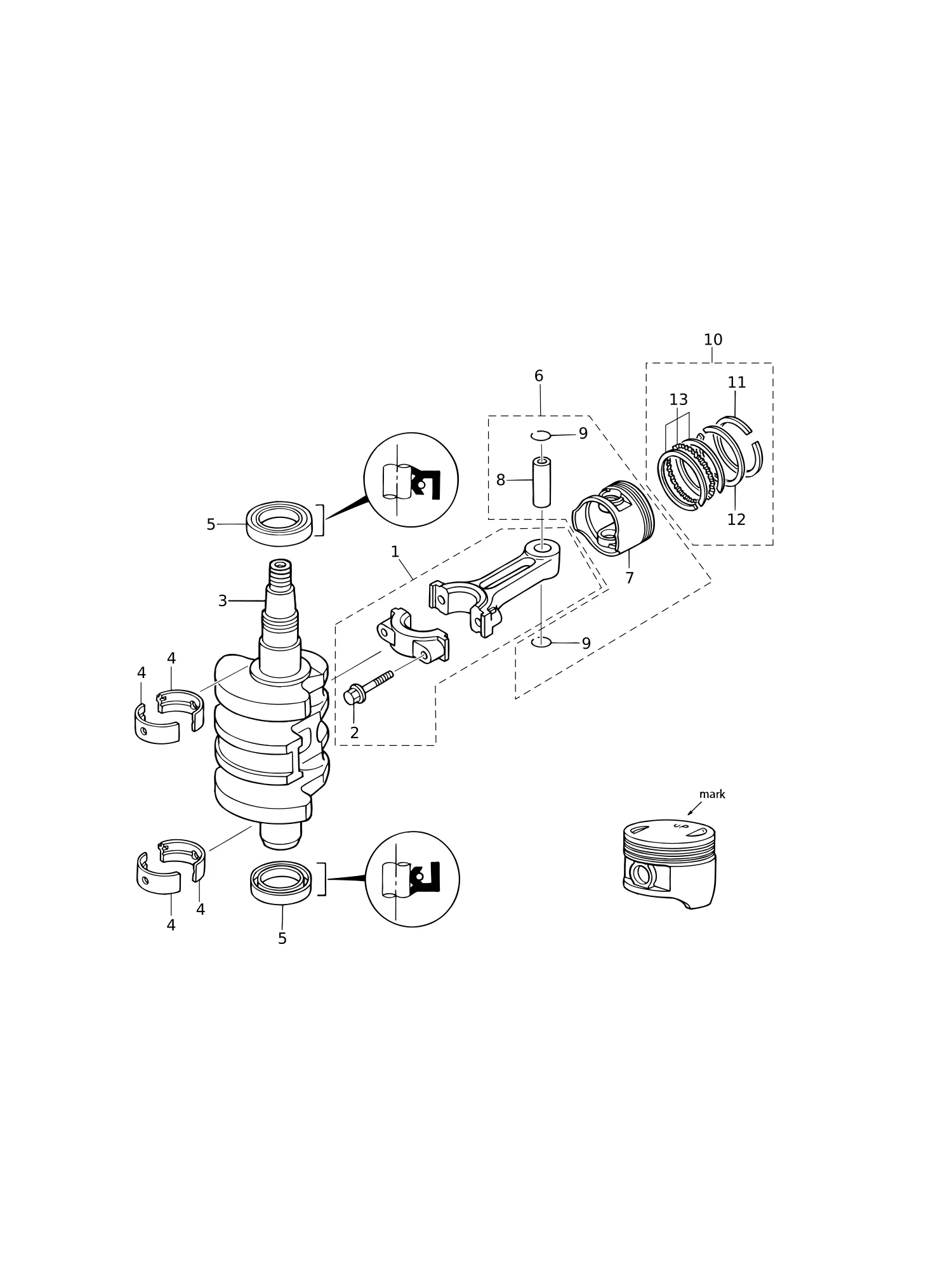

| 1 | 3V1-00040-1 | 连杆总成 | CONNECTING ROD ASSY | 2 |
| 2 | 3H6-00059-0 | * 连杆螺栓 | * CONNECTING ROD BOLT | 2 |
| 3 | 3V1-00030-1 | 曲轴总成 | CRANKSHAFT ASSY | 1 |
| 4 | 3V1-07407-0 | 滑动轴承 30-33-15 | PLAIN SHAFT BEARING 30-33-15 | 1 |
| 4 | 3V1-07408-0 | 滑动轴承 30-33-15 | PLAIN SHAFT BEARING 30-33-15 | 1 |
| 5 | 3V1-00121-0 | 油封 30-45-8 | OIL SEAL 30-45-8 | 2 |
| 6 | 3FK-87130-0 | 活塞修理包 | PISTON REPAIR KIT | 2 |
| 6 | 3FK-87131-0 | 活塞修理包（0.5加大） | PISTON REPAIR KIT (0.5 O/S) | 2 |
| 7 | 3V1-00001-1 | * 活塞 | * PISTON | 1 |
| 7 | 3V1-00004-1 | * 活塞 (0.5 加大) | * PISTON (0.5 O/S) | 1 |
| 8 | 332-00021-1 | * 活塞销 | * PISTON PIN | 1 |
| 9 | 350-00024-1 | * 活塞销卡簧 | * PISTON PIN CLIP | 2 |
| 10 | 3FK-87123-0 | 活塞环组 | PISTON RING SET | 2 |
| 10 | 3FK-87124-0 | 活塞环组（0.5加大） | PISTON RING SET (0.5 O/S) | 2 |
| 11 | 3V1-00011-0 | * 活塞环 | * PISTON RING | 1 |
| 11 | 3V1-00014-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 1 |
| 12 | 3V1-00012-0 | * 活塞环 | * PISTON RING | 1 |
| 12 | 3V1-00015-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 1 |
| 13 | 3V1-00013-0 | * 油环 | * PISTON RING-OIL | 1 |
| 13 | 3V1-00016-0 | * 油环 (0.5 加大) | * PISTON RING-OIL (0.5 O/S) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

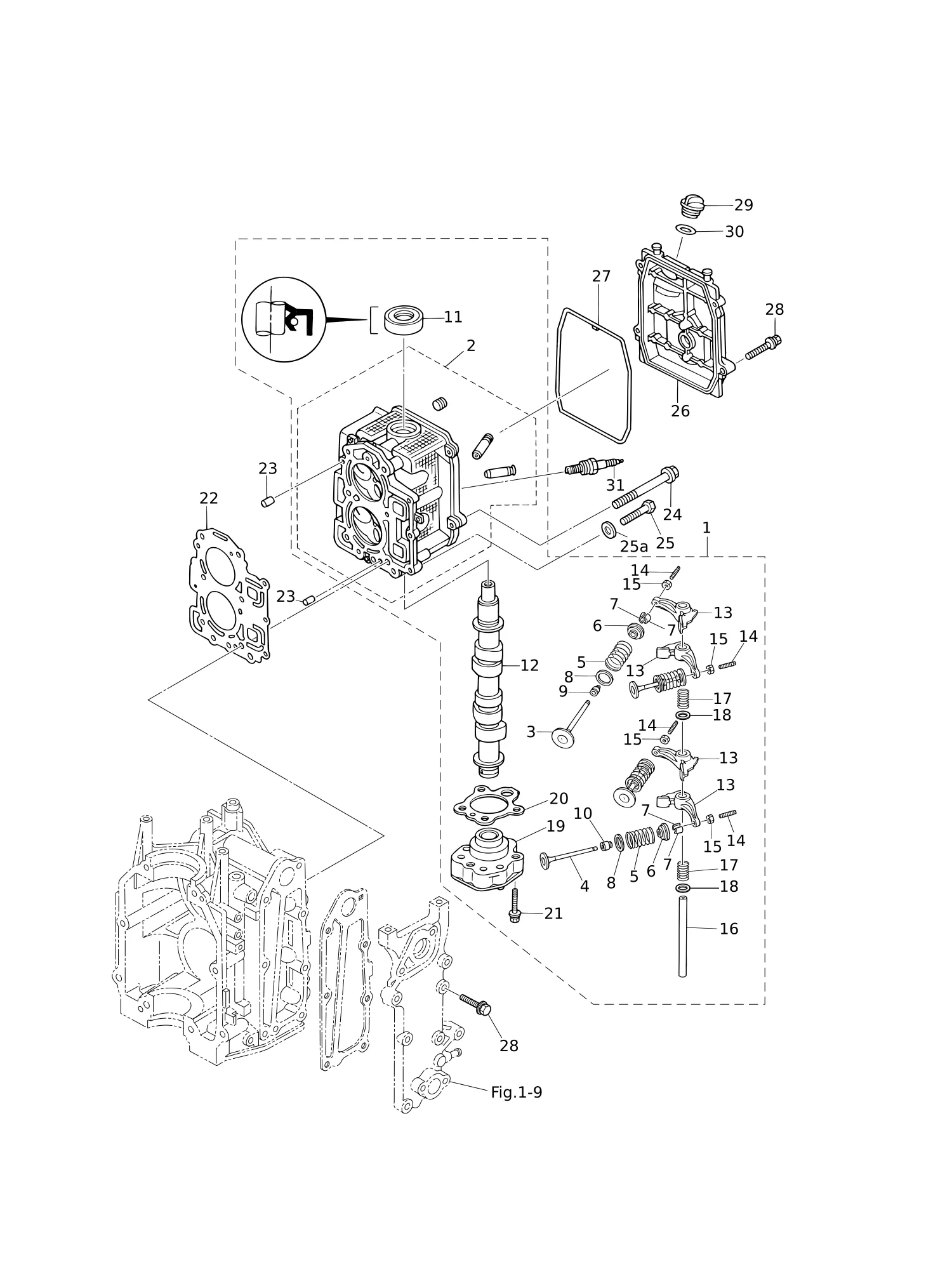

| 1 | 3FKB01000-2 | 气缸盖总成 | CYLINDER HEAD COMPLETE | 1 |
| 1 | 3V1B01000-4 | 气缸盖总成 | CYLINDER HEAD COMPLETE | 1 |
| 1 | 3WBB01000-0 | 气缸盖总成 | CYLINDER HEAD COMPLETE | 1 |
| 2 | 3V1B01001-0 | * 气缸盖总成 | * CYLINDER HEAD ASSY | 1 |
| 2 | 3WBB01001-0 | * 气缸盖总成 | * CYLINDER HEAD ASSY | 1 |
| 3 | 3V1-07201-0 | * 进气阀 | * INTAKE VALVE | 2 |
| 4 | 3V1-07202-0 | * 排气阀 | * EXHAUST VALVE | 2 |
| 5 | 3AA-07203-0 | * 阀门弹簧 L=38.3 | * VALVE SPRING L=38.3 | 4 |
| 6 | 3GT-07921-0 | * 固定座 | * RETAINER | 4 |
| 7 | 3KY-07923-0 | * 开口销 | * COTTER | 8 |
| 8 | 3V1-07205-0 | * 阀门弹簧座 | * VALVE SPRING SEAT | 4 |
| 9 | 3R3-07204-0 | * 进气阀杆油封 | * INTAKE VALVE STEM SEAL | 2 |
| 10 | 3R3-07206-0 | * 排气阀杆密封 | * EXHAUST VALVE STEM SEAL | 2 |
| 11 | 3H8-07025-0 | * 油封 18-35-8 | * OIL SEAL 18-35-8 | 1 |
| 12 | 3FK-07810-1 | * 凸轮轴总成 | * CAMSHAFT ASSY | 1 |
| 12 | 3Y4-07810-1 | * 凸轮轴总成 | * CAMSHAFT ASSY | 1 |
| 13 | 3Y2-07935-0 | * 摇臂 | * ROCKER ARM | 4 |
| 14 | 3R0-07238-0 | * 调节螺钉 | * ADJUSTING SCREW | 4 |
| 15 | 3H8-07237-0 | * 调节螺母 | * ADJUSTING NUT | 4 |
| 16 | 3Y2-07920-0 | * 摇臂轴 | * ROCKER ARM SHAFT | 1 |
| 17 | 3AA-07225-0 | * 摇臂轴弹簧 L=25 | * ROCKER SHAFT SPRING L=25 | 2 |
| 18 | 3R3-07227-0 | * 垫圈 13.2-21.8-2 | * WASHER 13.2-21.8-2 | 2 |
| 19 | 3V1-07600-0 | * 机油泵总成 | * OIL PUMP ASSY | 1 |
| 20 | 3V1-07653-0 | * 机油泵垫片 | * OIL PUMP GASKET | 1 |
| 21 | 9101F4-5635 | 螺栓 | * BOLT | 3 |
| 22 | 3V1-01005-0 | 气缸盖衬垫 | CYLINDER HEAD GASKET | 1 |
| 23 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 2 |
| 24 | 3H8-01012-1 | 气缸盖螺栓8-50 | CYLINDER HEAD BOLT 8-50 | 6 |
| 25 | 3KK-02319-0 | 螺栓 | BOLT | 3 |
| 25a | 940103-0600 | 垫圈 | WASHER | 3 |
| 26 | 3V1B01021-0 | 气缸盖罩 | CYLINDER HEAD COVER | 1 |
| 27 | 3V1-01024-0 | 气缸盖罩垫片 | CYLINDER HEAD COVER GASKET | 1 |
| 28 | 910103-5625 | 螺栓 | BOLT | 4 |
| 28 | 9101E3-5625 | 螺栓 | BOLT | 5 |
| 29 | 3R0-71015-1 | 机油加注口盖 | OIL FILLER CAP | 1 |
| 30 | 3R0-07422-0 | O型圈 3.1-24.4 | O-RING 3.1-24.4 | 1 |
| 31 | 9701-1-1103 | 火花塞 (DCPR6E) | SPARK PLUG(DCPR6E) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

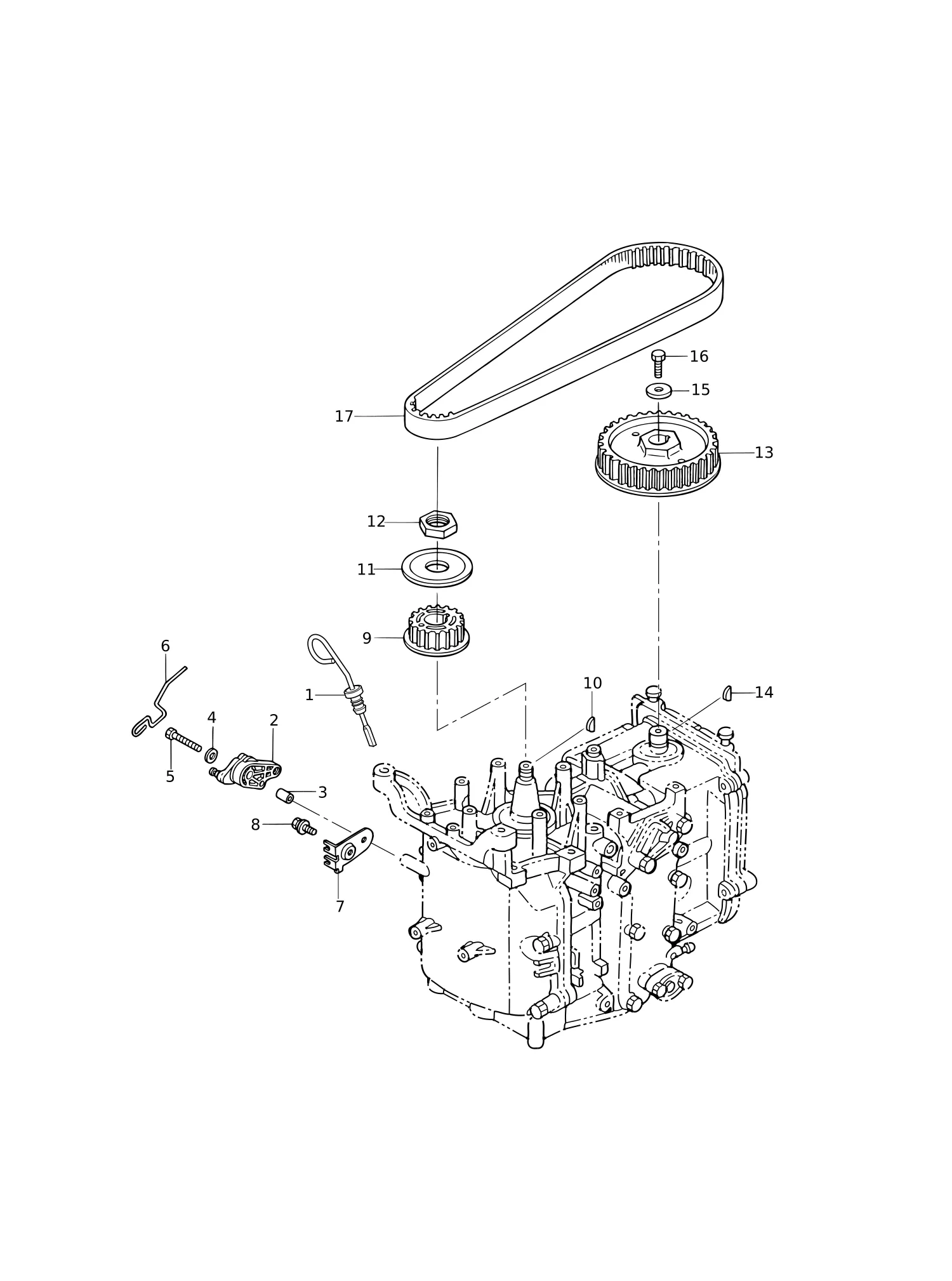

| 1 | 3V1-07421-0 | 油位计 | OIL LEVEL GAUGE | 1 |
| 2 | 3V1-63622-0 | 节气门鼓轮总成 | THROTTLE DRUM ASSY | 1 |
| 3 | 346-67114-1 | 垫圈 6.2-9-15.7 | SPACER 6.2-9-15.7 | 1 |
| 4 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 1 |
| 5 | 910103-0630 | 螺栓 | BOLT | 1 |
| 6 | 3V1-63617-1 | 节气门拉杆 | THROTTLE ROD | 1 |
| 7 | 3V1-63508-1 | 节气门拉线支架 | THROTTLE WIRE BRACKET | 1 |
| 8 | 910103-5612 | 螺栓 | BOLT | 1 |
| 9 | 3V1-10060-0 | 驱动皮带轮 | DRIVE PULLEY | 1 |
| 10 | 3T5-10131-0 | 键 t=4 | KEY ｔ=4 | 1 |
| 11 | 3V1-10063-0 | 皮带导轮 | BELT GUIDE | 1 |
| 12 | 3V1-10068-0 | 螺母 | NUT | 1 |
| 13 | 3H8-10062-2 | 从动皮带轮 | DRIVEN PULLEY | 1 |
| 14 | 309-00131-0 | 键 10-3.7-3 | KEY 10-3.7-3 | 1 |
| 15 | 3H8-10066-0 | 垫片 6.5-19-3.2 | WASHER 6.5-19-3.2 | 1 |
| 16 | 3AA-60108-0 | 预涂层螺栓6-20 | PRE-COATED BOLT 6-20 | 1 |
| 17 | 3V1-10045-0 | 正时皮带 | TIMING BELT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

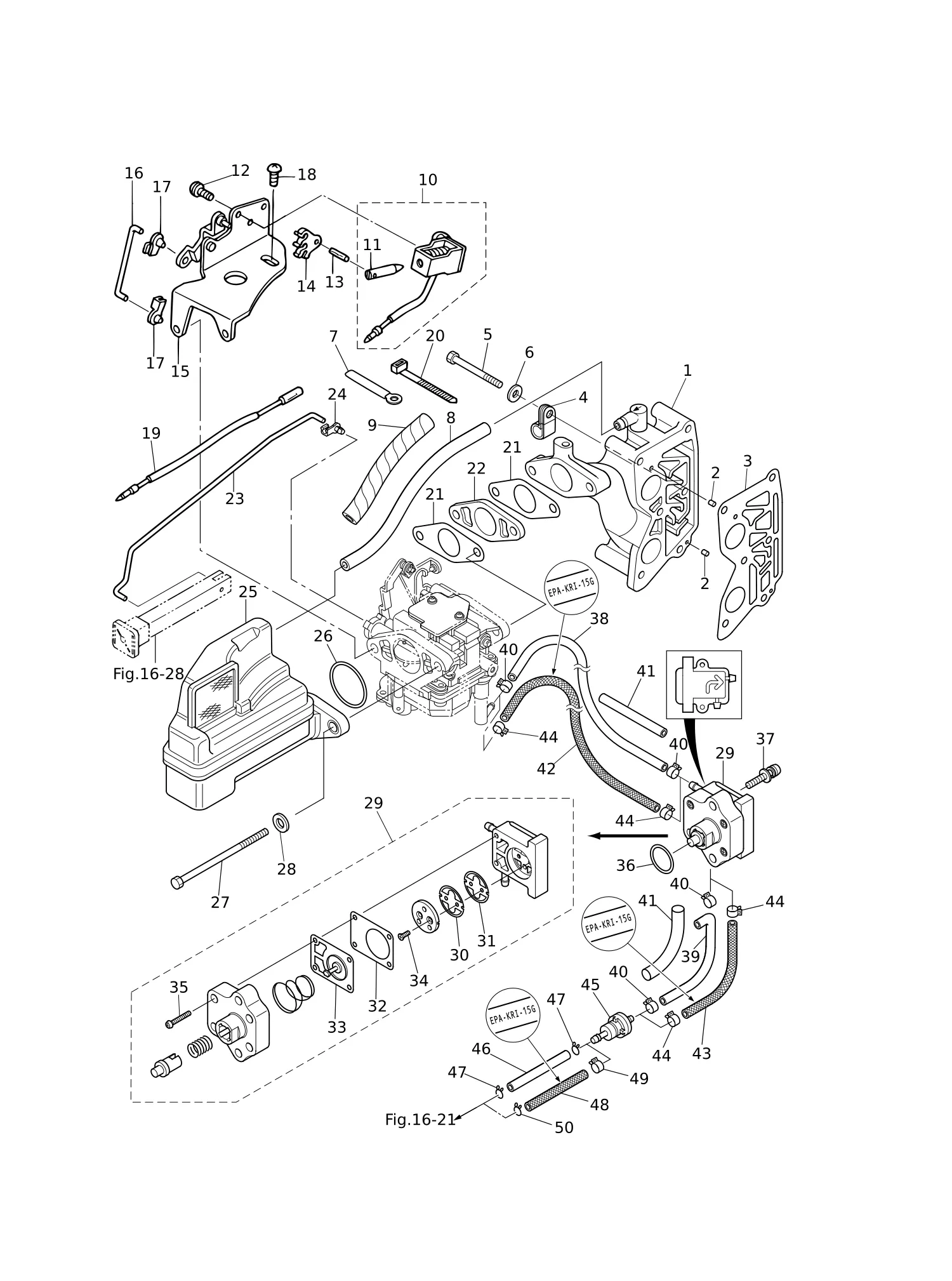

| 1 | 3AA-02010-1 | 进气歧管总成 | INTAKE MANIFOLD ASSY | 1 |
| 2 | 951403-0310 | 弹簧销 3-10 | SPRING PIN 3-10 | 2 |
| 3 | 3V1-02104-0 | 进气歧管垫片 | INTAKE MANIFOLD GASKET | 1 |
| 4 | 345-06915-0 | 卡箍 6.5-14L | CLAMP 6.5-14L | 1 |
| 5 | 9161F4-0653 | 螺栓 | BOLT | 6 |
| 7 | 3T4-06972-1 | 卡箍 6.5-87P | CLAMP 6.5-87P | 1 |
| 8 | 98AB-70-275 | 软管 | HOSE | 1 |
| 9 | 3V1-76148-0 | 螺旋管保护套φ10-100 | SPIRAL TUBE PROTECTOR φ10-100 | 1 |
| 10 | 3V1-76050-0 | 阻风门电磁阀 | CHOKE SOLENOID | 1 |
| 11 | 361-76073-0 | * 柱塞 | * PLUNGER | 1 |
| 12 | 921503-6408 | 螺钉 | SCREW | 3 |
| 13 | 951403-0312 | 弹簧销 3-12 | SPRING PIN 3-12 | 1 |
| 14 | 346-76057-0 | 阻风门电磁阀挂钩 | CHOKE SOLENOID HOOK | 1 |
| 15 | 3V1-76078-1 | 阻风门电磁阀支架总成 | CHOKE SOLENOID BRACKET ASSY | 1 |
| 16 | 3V1-76076-0 | 连接杆 | LINK ROD | 1 |
| 17 | 3V1-67196-0 | 1.5-2连杆卡扣 | ROD SNAP 1.5-2 | 2 |
| 18 | 921503-0510 | 螺钉 | SCREW | 1 |
| 19 | 3V1-72547-0 | 辅助拉绳(蓝) | ASSIST CORD (BLU) | 1 |
| 20 | 3T5-84398-0 | 箍带 104 | BAND 104 | 1 |
| 21 | 3V1-02011-0 | 化油器垫片 | CARBURETOR GASKET | 2 |
| 22 | 3FK-03952-0 | 绝缘体 | INSULATOR | 1 |
| 22 | 3V1-03952-0 | 绝缘体 | INSULATOR | 1 |
| 23 | 3Y3-67192-0 | 阻风门拉杆 | CHOKE ROD | 1 |
| 24 | 346-67196-1 | 3-B连杆卡扣 | ROD SNAP 3-B | 1 |
| 25 | 3V1-02409-0 | 进气消声器总成 | INTAKE SILENCER ASSY | 1 |
| 26 | 3V1-02012-0 | O型圈 2.4-35.2 | O-RING 2.4-35.2 | 1 |
| 27 | 916103-0695 | 螺栓 | BOLT | 2 |
| 28 | 940103-0600 | 垫圈 | WASHER | 2 |
| 29 | 3H6-04000-7 | 燃油泵总成 | FUEL PUMP ASSY | 1 |
| 30 | 3H6-04044-0 | * 止回阀 | * CHECK VALVE | 1 |
| 31 | 3H6-04014-1 | * 止回阀 | * CHECK VALVE | 1 |
| 32 | 3H6-04028-0 | * 泵体衬垫 | * PUMP BODY GASKET | 1 |
| 33 | 3H6-04005-0 | * 泵膜片 | * PUMP DIAPHRAGM | 1 |
| 34 | 921603-0308 | * 螺钉 | * SCREW | 2 |
| 35 | 922503-6418 | * 螺钉 | * SCREW | 4 |
| 36 | 3H6-07422-0 | O型圈 2.6-18.7 | O-RING 2.6-18.7 | 1 |
| 37 | 921503-5625 | 螺钉 | SCREW | 2 |
| 38 | 98AB-50-260 | 软管 | HOSE | 1 |
| 39 | 3UA-70315-0 | 燃油软管 | FUEL HOSE | 1 |
| 41 | 3V2-06157-0 | 保护套 φ12-120 | PROTECTOR φ12-120 | 2 |
| 42 | 3BJ-02160-0 | 带保护套燃油软管 L=260 | FUEL HOSE W/PROTECTOR L=260 | 1 |
| 43 | 3V2-02160-0 | 带保护套燃油软管 L=150 | FUEL HOSE W/PROTECTOR L=150 | 1 |
| 45 | 369-02230-1 | 燃油滤清器总成 | FUEL FILTER ASSY | 1 |
| 46 | 98AB-50-330 | 软管 | HOSE | 1 |
| 48 | 3AA-02160-0 | 带保护套燃油软管 L=350 | FUEL HOSE W/PROTECTOR L=350 | 1 |
| 49 | 3GT-35143-0 | 卡环 φ9.4 | CLIP φ9.4 | 1 |
| 50 | 338-02215-0 | 卡扣φ10 | CLIP φ10 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

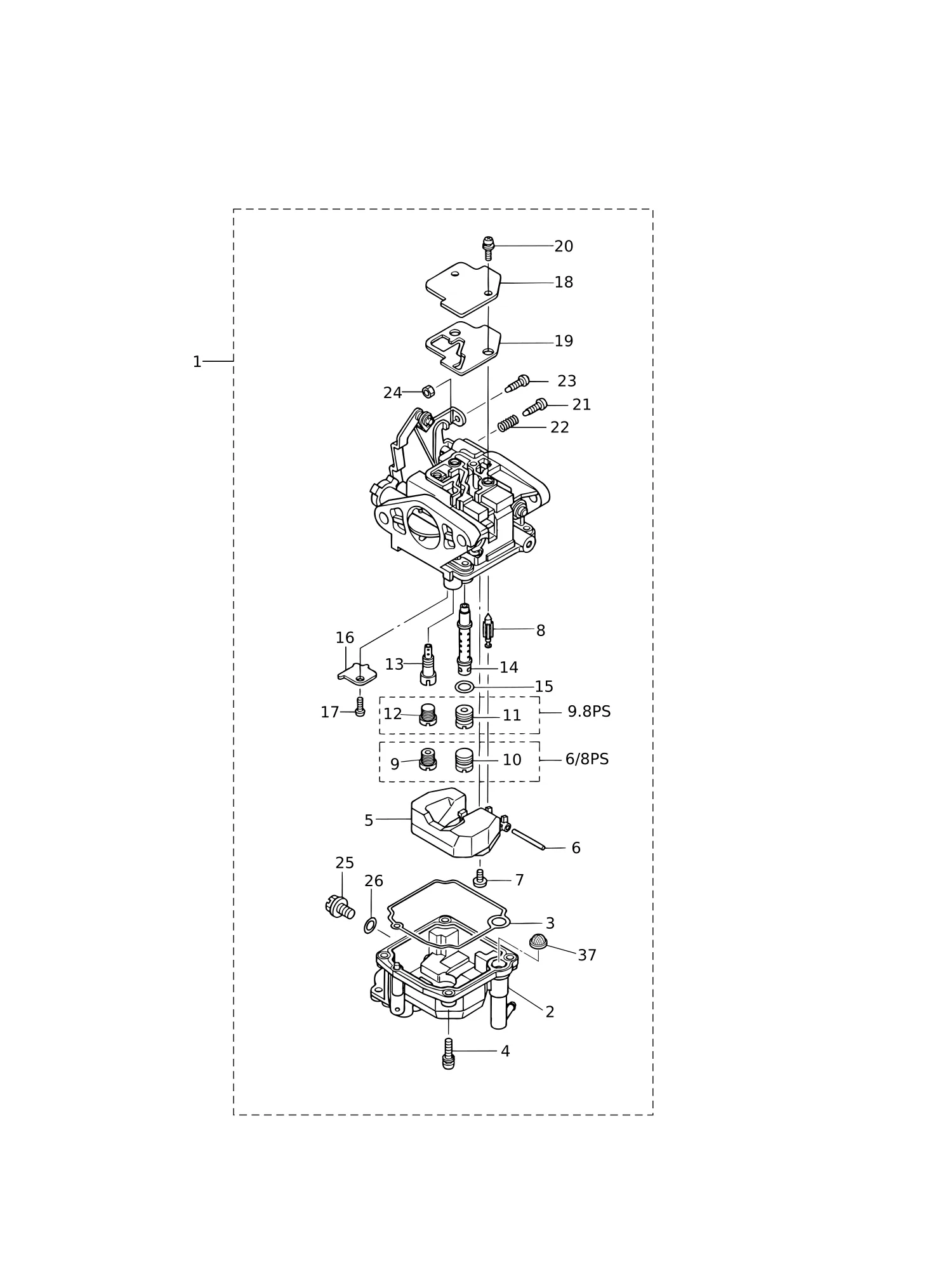

| 1 | 3V1-03100-3 | 化油器总成 | CARBURETOR ASSY | 1 |
| 1 | 3V1-03133-3 | 化油器总成(EP型) | CARBURETOR ASSY (EP) | 1 |
| 1 | 3V2-03100-3 | 化油器总成 | CARBURETOR ASSY | 1 |
| 1 | 3V2-03133-3 | 化油器总成(EP型) | CARBURETOR ASSY (EP) | 1 |
| 2 | 3V1-03120-0 | * 浮子室 | * FLOAT CHAMBER | 1 |
| 3 | 3V1-03121-0 | * 浮子室垫片 | * FLOAT CHAMBER GASKET | 1 |
| 4 | 922503-6412 | * 螺钉 | * SCREW | 4 |
| 5 | 3C8-03125-0 | * 浮子 | * FLOAT | 1 |
| 6 | 3C8-03126-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 7 | 921703-0406 | * 螺钉 | * SCREW | 1 |
| 8 | 3V1-03147-1 | * 浮子阀 | * FLOAT VALVE | 1 |
| 9 | 3V1-04476-0 | * 主量孔 (#76) | * MAIN JET (#76) | 1 |
| 10 | 3V1-03169-0 | * 塞 | * PLUG | 1 |
| 11 | 3V2-04492-0 | * 主量孔 (#92) | * MAIN JET (#92) | 1 |
| 12 | 3V2-03169-0 | * 塞 | * PLUG | 1 |
| 13 | 3V1-04539-0 | * 低速喷嘴(#39) | * SLOW JET (#39) | 1 |
| 14 | 3V1-03141-0 | * 主喷管 φ2.3 | * MAIN NOZZLE φ2.3 | 1 |
| 14 | 3V2-03141-0 | * 主喷管 φ2.6 | * MAIN NOZZLE φ2.6 | 1 |
| 15 | 3V1-03116-0 | * O型圈 | * O-RING | 1 |
| 16 | 3V1-03128-0 | * 板 | * PLATE | 1 |
| 17 | 922503-0305 | * 螺钉 | * SCREW | 1 |
| 18 | 3C8-03181-0 | * 化油器盖 | * CARBURETOR COVER | 1 |
| 19 | 3V1-03182-0 | * 化油器盖垫片 | * CARBURETOR COVER GASKET | 1 |
| 20 | 922503-6410 | * 螺钉 | * SCREW | 2 |
| 21 | 3V2-03179-0 | * 止动螺钉 L=18 | * STOP SCREW L=18 | 1 |
| 22 | 3V2-03157-0 | * 弹簧 L=14 | * SPRING L=14 | 1 |
| 23 | 3V1-03179-0 | * 止动螺钉 L=15 | * STOP SCREW L=15 | 1 |
| 24 | 3V1-03191-0 | 螺母 | * NUT | 1 |
| 25 | 3V1-03192-0 | * 放油螺钉 | * DRAIN SCREW | 1 |
| 26 | 3V1-03193-0 | * 衬垫 | * GASKET | 1 |
| 37 | 3BJ-02234-0 | * 滤清器 | * FILTER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

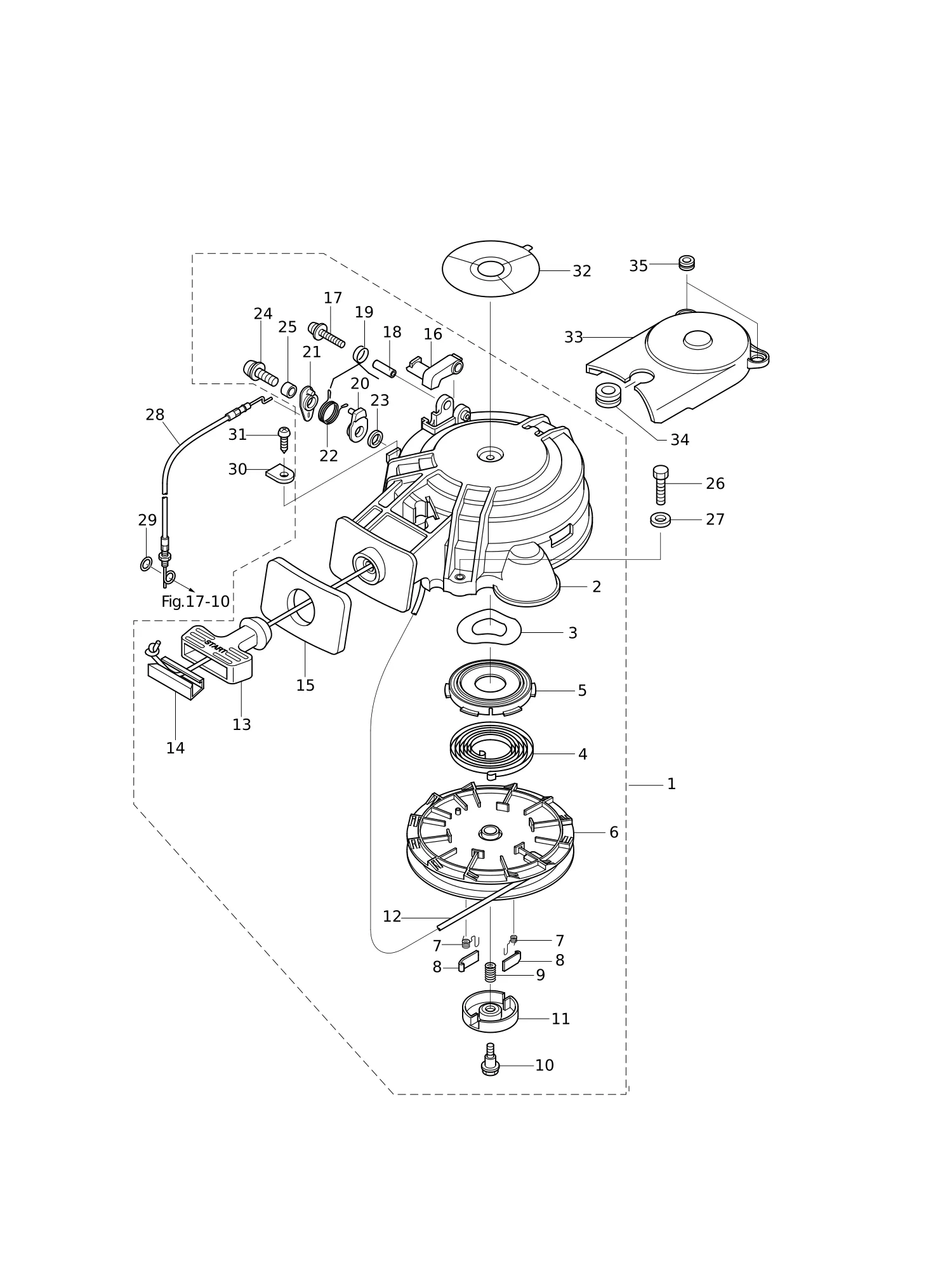

| 1 | 3UA-05090-0 | 反冲启动器总成1D | RECOIL STARTER ASSY 1D | 1 |
| 2 | 3AA-05098-1 | * 启动器外壳总成 | * STARTER CASE ASSY | 1 |
| 3 | 3V1-05259-0 | * 波形垫圈 | * WAVE WASHER | 1 |
| 4 | 3AA-05004-0 | * 启动弹簧 | * STARTER SPRING | 1 |
| 5 | 3R1-05125-0 | * 启动弹簧壳 | * STARTER SPRING CASE | 1 |
| 6 | 3V1-05104-1 | * φ140卷轴 | * REEL φ140 | 1 |
| 7 | 3R1-05012-0 | * 回位弹簧 | * RETURN SPRING | 2 |
| 8 | 3R1-05003-2 | * 棘轮 | * RATCHET | 2 |
| 9 | 3R1-05007-0 | * 摩擦弹簧 | * FRICTION SPRING | 1 |
| 10 | 3R1-05138-1 | 螺栓 5-10-6.8-7.8 | * BOLT 5-10-6.8-7.8 | 1 |
| 11 | 3R1-05006-2 | * 摩擦板 | * FRICTION PLATE | 1 |
| 12 | 3AA-05013-0 | * 启动绳 φ4.5-1600 | * STARTER ROPE φ4.5-1600 | 1 |
| 13 | 3AA-05019-0 | * 启动手柄 | * STARTER HANDLE | 1 |
| 14 | 3R1-05131-1 | * 绳索锚定器 | * ROPE ANCHOR | 1 |
| 15 | 3UA-67503-0 | * 启动器密封件 4S | * STARTER SEAL 4S | 1 |
| 16 | 3AA-05252-0 | * 启动器锁 | * STARTER LOCK | 1 |
| 17 | 921503-5430 | * 螺钉 | * SCREW | 1 |
| 18 | 3R1-05255-0 | * 轴环 4-6-21 | * COLLAR 4-6-21 | 1 |
| 19 | 3R1-05216-0 | * 启动器锁弹簧 | * STARTER LOCK SPRING | 1 |
| 20 | 3Y0-05253-0 | * 启动器锁凸轮 | * STARTER LOCK CAM | 1 |
| 21 | 3Y0-05226-0 | * 启动器锁杆 | * STARTER LOCK LEVER | 1 |
| 22 | 3Y0-05258-0 | * 启动器锁凸轮弹簧 | * STARTER LOCK CAM SPRING | 1 |
| 23 | 940103-0600 | * 垫圈 | * WASHER | 1 |
| 24 | 921503-5625 | * 螺钉 | * SCREW | 1 |
| 25 | 3R0-06303-1 | * 轴环 6.2-9-12.3 | * COLLAR 6.2-9-12.3 | 1 |
| 26 | 3V2-60108-0 | 预涂层螺栓6-25 | PRE-COATED BOLT 6-25 | 3 |
| 27 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 2 |
| 28 | 3Y0-05207-0 | 启动锁线 | STARTER LOCK WIRE | 1 |
| 29 | 3C7-03271-2 | O型圈1.5-2.5 | O-RING 1.5-2.5 | 1 |
| 30 | 332-66033-0 | 止动块 | STOPPER | 1 |
| 31 | 3V1-05913-0 | 自攻螺丝 5-12 | TAPPING SCREW 5-12 | 1 |
| 32 | 3NV-72181-0 | 警示标贴(B型) | CAUTION DECAL (B) | 1 |
| 32 | 3PA-72181-1 | 警示标贴(B型) | CAUTION DECAL (B) | 1 |
| 33 | 3V1-06308-0 | 皮带罩 | BELT COVER | 1 |
| 34 | 3V1-06302-0 | 橡胶支座 2.5-20 | RUBBER MOUNT 2.5-20 | 1 |
| 35 | 172-36008-0 | 索环 13-2 | GROMMET 13-2 | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

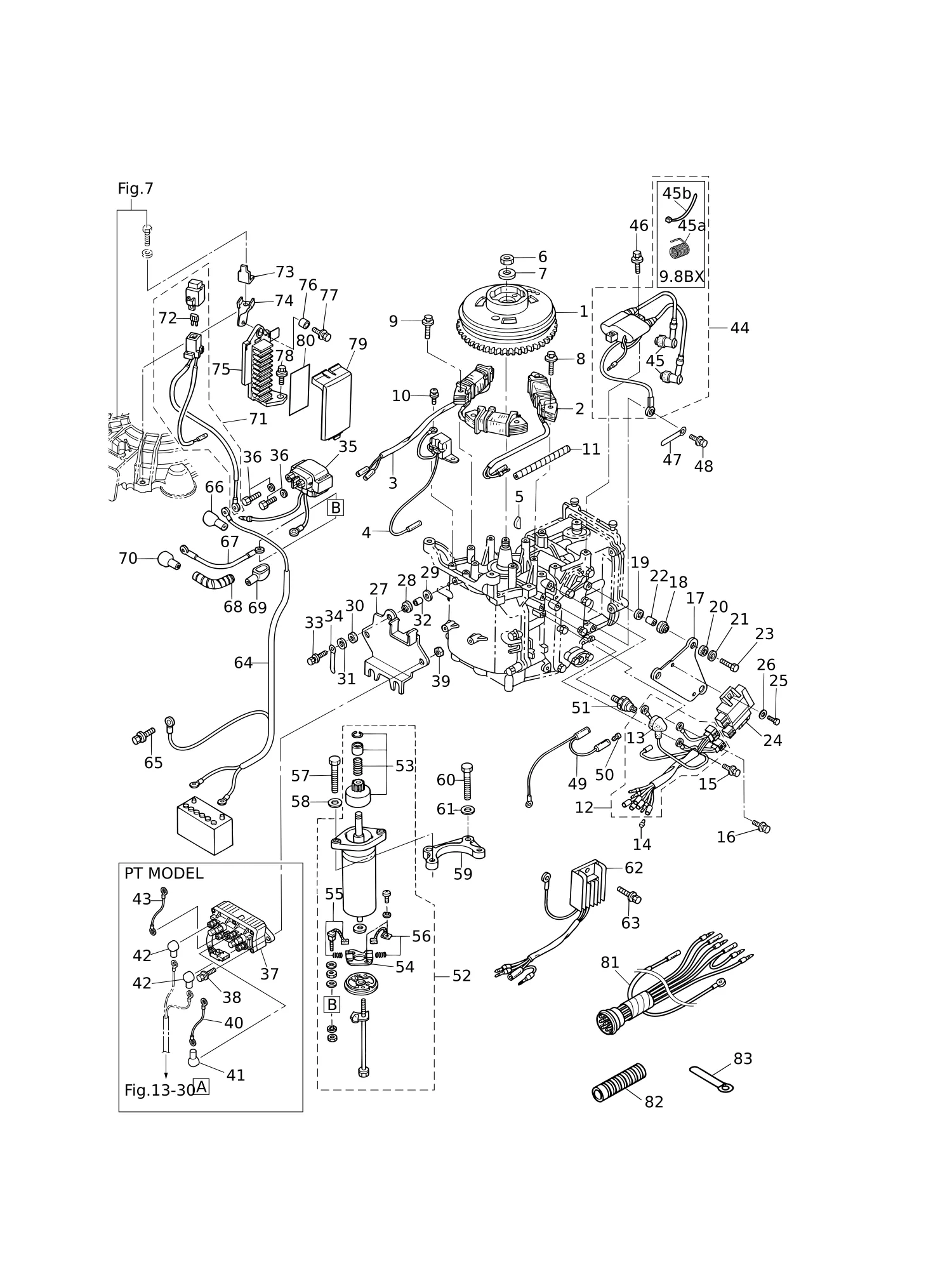

| 1 | 3AA-06091-0 | 带齿轮飞轮 | FLYWHEEL W/GEAR | 1 |
| 2 | 3AA-06021-0 | 励磁线圈 | EXCITER COIL | 1 |
| 3 | 3AA-06023-0 | 交流发电机总成 | ALTERNATOR ASSY | 1 |
| 4 | 3V1-06071-0 | 脉冲线圈 | PULSAR COIL | 1 |
| 5 | 3T5-10131-0 | 键 t=4 | KEY ｔ=4 | 1 |
| 6 | 369-00132-0 | 螺母 12-P1.25 | NUT 12-P1.25 | 1 |
| 7 | 940121-1200 | 垫圈 | WASHER | 1 |
| 9 | 910103-5630 | 螺栓 | BOLT | 4 |
| 10 | 910103-5512 | 螺栓 | BOLT | 2 |
| 12 | 3AA-06167-0 | CD单元线束总成 | CD UNIT CORD ASSY | 1 |
| 13 | 3KY-07612-0 | * 护孔环 | * GROMMET | 1 |
| 17 | 3V1-06061-1 | CD单元支架 | CD UNIT BRACKET | 1 |
| 23 | 910103-0625 | 螺栓 | BOLT | 3 |
| 24 | 3Y0-06060-0 | CD单元 | CD UNIT | 1 |
| 25 | 3V1-60108-0 | 预涂层螺栓6-16 | PRE-COATED BOLT 6-16 | 2 |
| 27 | 3V1-06900-1 | 电机支架总成 | ELECTRIC BRACKET ASSY | 1 |
| 28 | 3T5-06920-0 | 橡胶支座 8.5-18-7 | RUBBER MOUNT 8.5-18-7 | 3 |
| 30 | 3B7-06305-0 | 橡胶支座 9-16-4.3 | RUBBER MOUNT 9-16-4.3 | 3 |
| 31 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 3 |
| 32 | 3A0-76079-0 | 轴套 6.2-9-7.4 | COLLAR 6.2-9-7.4 | 3 |
| 33 | 910103-0620 | 螺栓 | BOLT | 3 |
| 35 | 3H8-76040-0 | 启动器电磁阀 | STARTER SOLENOID | 1 |
| 37 | 3Z0-72580-0 | 动力升降倾斜装置电磁阀开关(A) | PTT SOLENOID SWITCH (A) | 1 |
| 38 | 910103-5620 | 螺栓 | BOLT | 2 |
| 39 | 930103-0600 | 螺母 | NUT | 2 |
| 40 | 3C8-72582-0 | 电磁开关线束(A) L=80 | SOLENOID SWITCH CORD (A) L=80 | 1 |
| 43 | 3C8-72583-1 | 电磁开关线束(B) L=150 | SOLENOID SWITCH CORD (B) L=150 | 1 |
| 44 | 3V1-06040-0 | 带帽点火线圈 | IGNITION COIL W/R-CAP | 1 |
| 44 | 3WB-06050-0 | 带帽点火线圈 | IGNITION COIL W/CAP | 1 |
| 45 | 3H6-06999-0 | * 带电阻火花塞帽 | * PLUG CAP W/RESISTANCE | 2 |
| 45 | 3LD-06921-0 | * 火花塞帽 | * PLUG CAP | 2 |
| 45a | 3M2-06926-0 | * 火花塞帽端子 | * PLUG CAP TERMINAL | 2 |
| 45b | 3T5-84398-0 | 箍带 104 | * BAND 104 | 2 |
| 46 | 910103-5625 | 螺栓 | BOLT | 2 |
| 47 | 3PR-06972-0 | 卡箍 6.5-47.5P | CLAMP 6.5-47.5P | 1 |
| 49 | 3V5-72678-0 | 分离线（黑色） | SEPARATE CORD (BLK) | 1 |
| 50 | 3A3-76037-0 | 电缆端子插头 | CABLE TERMINAL PLUG | 1 |
| 51 | 3H6-07611-1 | 油压开关 | OIL PRESSURE SWITCH | 1 |
| 52 | 3AA-76010-0 | 启动马达总成 | STARTER MOTOR ASSY | 1 |
| 53 | 350-76015-0 | * 小齿轮总成 | * PINION ASSY | 1 |
| 54 | 3AA-76014-0 | * 碳刷架 | * BRUSH HOLDER | 1 |
| 55 | 3AA-76012-0 | * 正极电刷 | * POSITIVE BRUSH | 1 |
| 56 | 3AA-76013-0 | * 负极电刷 | * NEGATIVE BRUSH | 1 |
| 59 | 3V1-76011-1 | 启动马达支架 | STARTER MOTOR BRACKET | 1 |
| 60 | 9161F4-0830 | 螺栓 | BOLT | 2 |
| 61 | 940103-0800 | 垫圈 | WASHER | 2 |
| 62 | 3AA-76065-0 | 整流器总成 | RECTIFIER COMPLETE | 1 |
| 64 | 3AC-76120-0 | 蓄电池电缆 L=2500 | BATTERY CABLE L=2500 | 1 |
| 65 | 910103-5610 | 螺栓 | BOLT | 1 |
| 66 | 3AA-76145-0 | 端子盖 13-13-28 | TERMINAL CAP 13-13-28 | 1 |
| 67 | 3B2-76147-2 | 启动电缆 L=200 | STARTER CABLE L=200 | 1 |
| 68 | 3V1-76148-0 | 螺旋管保护套φ10-100 | SPIRAL TUBE PROTECTOR φ10-100 | 1 |
| 69 | 3Y0-76145-0 | 端子盖 8-18-28 | TERMINAL CAP 8-18-28 | 1 |
| 70 | 3Y1-76145-0 | 端子盖 8-13-28 | TERMINAL CAP 8-13-28 | 1 |
| 71 | 3V1-76066-0 | 保险丝总成 L=185 | FUSE WIRE ASSY L=185 | 1 |
| 72 | 3T5-76247-0 | * 保险丝 20A | * FUSE 20A | 2 |
| 73 | 3R0-76064-0 | 保险丝支架 | FUSE HOLDER BRACKET | 1 |
| 74 | 3V1-06284-1 | 电缆端子座支架 | CABLE TERMINAL HOLDER STAY | 1 |
| 75 | 3AA-06281-1 | 电缆端子座 | CABLE TERMINAL HOLDER | 1 |
| 76 | 174-35012-0 | 轴套 6-8-6 | COLLAR 6-8-6 | 1 |
| 77 | 910103-5612 | 螺栓 | BOLT | 1 |
| 78 | 910103-5616 | 螺栓 | BOLT | 1 |
| 79 | 3AA-06902-1 | 盖板 | COVER | 1 |
| 80 | 3V1-72028-0 | 接线图标签 | WIRING DIAGRAM DECAL | 1 |
| 80 | 3V2-72028-1 | 接线图标签 | WIRING DIAGRAM DECAL | 1 |
| 81 | 3V2-76110-0 | 线束总成 | CORD ASSY | 1 |
| 82 | 3V1-06133-0 | 保护套 φ24-70 | PROTECTOR φ24-70 | 1 |
| 83 | 3T4-06972-1 | 卡箍 6.5-87P | CLAMP 6.5-87P | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

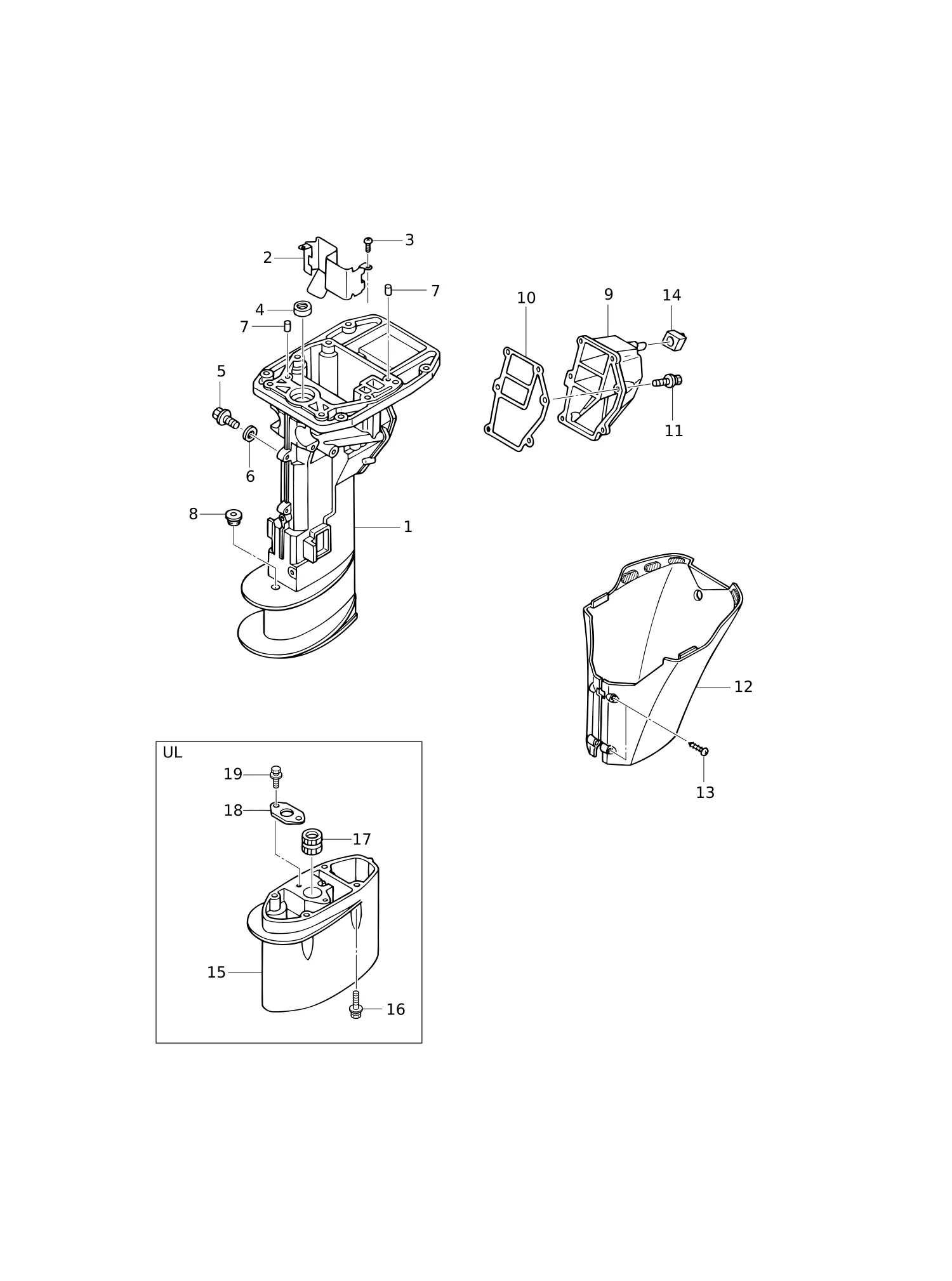

| 1 | 3V1Q61020-2 | 驱动轴壳体总成(S) | DRIVE SHAFT HOUSING ASSY (S) | 1 |
| 1 | 3V1Q61030-1 | 驱动轴壳体总成(L) | DRIVE SHAFT HOUSING ASSY (L) | 1 |
| 2 | 3V1-07440-1 | 导板 | GUIDE PLATE | 1 |
| 3 | 921503-0510 | 螺钉 | SCREW | 2 |
| 4 | 3B2-01215-0 | 油封 12-28-5 | OIL SEAL 12-28-5 | 1 |
| 5 | 3R3-07705-1 | 放油螺栓14-14 | DRAIN BOLT 14-14 | 1 |
| 6 | 3R3-07406-0 | 垫片 14.5-24-1 | WASHER 14.5-24-1 | 1 |
| 7 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 2 |
| 8 | 369-66043-1 | 索环 10.7-3.5 | GROMMET 10.7-3.5 | 1 |
| 9 | 3V1Q61208-0 | 怠速排气口盖 | IDLE EXHAUST PORT COVER | 1 |
| 10 | 3V1-61220-0 | 怠速排气口垫片 | IDLE EXHAUST PORT GASKET | 1 |
| 11 | 9101E3-5620 | 螺栓 | BOLT | 6 |
| 12 | 3V1Q61225-0 | 挡板总成 | APRON ASSY | 1 |
| 13 | 3F3-02423-0 | 自攻螺钉 5-30 | TAPPING SCREW 5-30 | 2 |
| 14 | 3V1-61212-0 | 索环 12.7-16.2 | GROMMET 12.7-16.2 | 1 |
| 15 | 3B2Q61110-2 | 延伸壳体 | EXTENSION HOUSING | 1 |
| 16 | 3V2-60001-0 | 螺栓6-35 | BOLT 6-35 | 4 |
| 17 | 3B2-60003-1 | 驱动轴衬套(UL) | DRIVE SHAFT BUSHING (UL) | 1 |
| 18 | 3V1-64332-0 | 止动块 | STOPPER | 1 |
| 19 | 9101E3-5612 | 螺栓 | BOLT | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

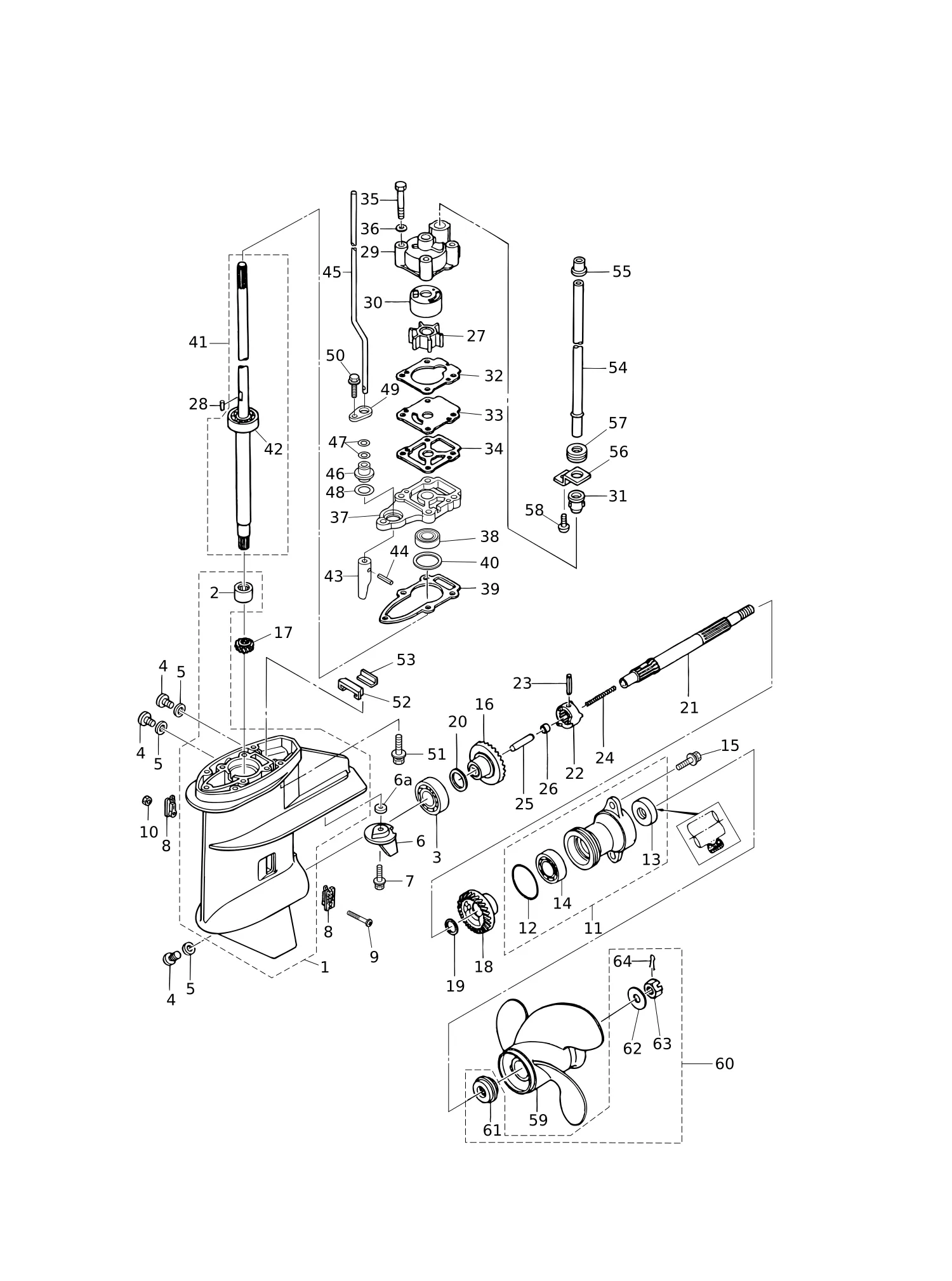

| 1 | 3AAQ60000-1 | 齿轮箱总成 | GEAR CASE ASSY | 1 |
| 1 | 3WBQ60000-0 | 齿轮箱总成 | GEAR CASE ASSY | 1 |
| 2 | 3WB-60211-0 | * 滚柱轴承 15-21-16 | * ROLLER BEARING 15-21-16 | 1 |
| 3 | 9601-0-6204 | 滚珠轴承 6204 | BALL BEARING 6204 | 1 |
| 4 | 332-60005-2 | 塞 8-8 | PLUG 8-8 | 3 |
| 5 | 332-60006-1 | 衬垫 | GASKET | 3 |
| 6a | 338-60218-2 | 阳极块 | ANODE | 1 |
| 6 | 3V1-60217-0 | 配平片 | TRIM TAB | 1 |
| 7 | 910103-5620 | 螺栓 | BOLT | 1 |
| 8 | 3AA-60206-0 | 滤水器 W=17 | WATER STRAINER W=17 | 2 |
| 9 | 921503-0430 | 螺钉 | SCREW | 1 |
| 10 | 930403-0400 | 尼龙螺母 4-P0.7 | NYLON NUT 4-P0.7 | 1 |
| 11 | 3B2Q60100-1 | 螺旋桨轴套总成 | PROPELLER SHAFT HOUSING ASSY | 1 |
| 11 | 3WBQ60100-0 | 螺旋桨轴套总成 | PROPELLER SHAFT HOUSING ASSY | 1 |
| 12 | 345-65015-0 | * O型圈 3.2-47 | * O-RING 3.2-47 | 1 |
| 13 | 369-60111-0 | * 油封 15-28-10 | * OIL SEAL 15-28-10 | 1 |
| 14 | 9601-0-6004 | * 球轴承 6004 | * BALL BEARING 6004 | 1 |
| 15 | 9101E3-5620 | 螺栓 | BOLT | 2 |
| 16 | 3B2-64010-1 | 锥齿轮总成(A) | BEVEL GEAR ASSY (A) | 1 |
| 17 | 3B2-64020-1 | 锥齿轮B | BEVEL GEAR B | 1 |
| 17 | 3WB-64020-0 | 锥齿轮B | BEVEL GEAR B | 1 |
| 18 | 3B2-64030-1 | 锥齿轮C | BEVEL GEAR C | 1 |
| 19 | 369-64032-0 | 垫片 15.2-19-1.9 | WASHER 15.2-19-1.9 | 1 |
| 20 | 369-64014-0 | 垫片 21-28-0.1 | SHIM 21-28-0.1 | 1 |
| 20 | 369-64015-0 | 垫片 21-28-0.15 | SHIM 21-28-0.15 | 1 |
| 21 | 3V1-64211-1 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 22 | 3B2-64215-0 | 离合器 | CLUTCH | 1 |
| 23 | 301-64217-0 | 销 3.5-28 | PIN 3.5-28 | 1 |
| 24 | 3V1-64221-0 | 弹簧 | SPRING | 1 |
| 25 | 369-64223-0 | 推杆 | PUSH ROD | 1 |
| 26 | 3B2-64222-0 | 弹簧挡圈 | SPRING RETAINER | 1 |
| 27 | 3B2-65021-1 | 水泵叶轮 | WATER PUMP IMPELLER | 1 |
| 28 | 3B2-65022-0 | 键 φ3-11 | KEY φ3-11 | 1 |
| 29 | 3B2-65016-0 | 泵壳(上) | PUMP CASE (UPPER) | 1 |
| 30 | 3B2-65011-0 | 泵壳衬套 | PUMP CASE LINER | 1 |
| 31 | 331-65014-0 | 水管密封件(下) | WATER PIPE SEAL (LOWER) | 1 |
| 32 | 3B2-65018-2 | 泵壳垫片 | PUMP CASE GASKET | 1 |
| 33 | 3B2-65025-0 | 水泵导板 | WATER PUMP GUIDE PLATE | 1 |
| 34 | 3B2-65029-2 | 导板垫片 | GUIDE PLATE GASKET | 1 |
| 35 | 9161E3-0650 | 螺栓 | BOLT | 4 |
| 36 | 9401E3-0600 | 垫圈 | WASHER | 4 |
| 37 | 3UA-65017-0 | 泵壳(下) | PUMP CASE (LOWER) | 1 |
| 38 | 309-60111-0 | 油封 12-24-8 | OIL SEAL 12-24-8 | 1 |
| 39 | 3B2-65020-1 | 泵壳垫片(下) | PUMP CASE GASKET (LOWER) | 1 |
| 40 | 3B2-64081-0 | 垫片 28-36.8-0.1 | SHIM 28-36.8-0.1 | 1 |
| 40 | 3B2-64082-0 | 垫片 28-36.8-0.15 | SHIM 28-36.8-0.15 | 1 |
| 40 | 3B2-64083-0 | 垫片 28-36.8-0.3 | SHIM 28-36.8-0.3 | 1 |
| 41 | 3V1-64306-2 | 驱动轴总成(S) | DRIVE SHAFT ASSY (S) | 1 |
| 41 | 3V1-64307-2 | 驱动轴总成(L) | DRIVE SHAFT ASSY (L) | 1 |
| 41 | 3V1-64309-2 | 驱动轴总成(UL) | DRIVE SHAFT ASSY (UL) | 1 |
| 41 | 3WB-64307-0 | 驱动轴总成(L) | DRIVE SHAFT ASSY (L) | 1 |
| 41 | 3WB-64309-0 | 驱动轴总成(UL) | DRIVE SHAFT ASSY (UL) | 1 |
| 42 | 9601-0-6301 | 滚珠轴承 6301 | BALL BEARING 6301 | 2 |
| 43 | 369-66011-0 | 离合器凸轮 | CLUTCH CAM | 1 |
| 44 | 951407-0310 | 弹簧销 3-10 | SPRING PIN 3-10 | 1 |
| 45 | 3V1-66012-0 | 凸轮杆(短) | CAM ROD (S) | 1 |
| 45 | 3V1-66013-0 | 凸轮杆(长) | CAM ROD (L) | 1 |
| 45 | 3V1-66014-0 | 凸轮杆(超长) | CAM ROD (UL) | 1 |
| 46 | 3UA-66031-0 | 凸轮杆衬套 | CAM ROD BUSHING | 1 |
| 47 | 369-66021-1 | O型圈 2.5-4.9 | O-RING 2.5-4.9 | 2 |
| 48 | 332-66032-0 | O型圈 2.4-15.4 | O-RING 2.4-15.4 | 1 |
| 49 | 369-66033-0 | 止动块 | STOPPER | 1 |
| 50 | 9101E3-5625 | 螺栓 | BOLT | 1 |
| 51 | 3V2-60001-0 | 螺栓6-35 | BOLT 6-35 | 4 |
| 52 | 3V1-60041-0 | 水封橡胶 | WATER SEAL RUBBER | 1 |
| 53 | 3V1-60042-0 | 水封板 | WATER SEAL PLATE | 1 |
| 54 | 3V1-65100-0 | 水管(短) | WATER PIPE (S) | 1 |
| 54 | 3V1-65110-0 | 水管(左) | WATER PIPE (L) | 1 |
| 54 | 3V1-65120-0 | 水管(左上) | WATER PIPE (UL) | 1 |
| 55 | 3V1-65206-0 | 水管密封件(上) | WATER PIPE SEAL (UPPER) | 1 |
| 56 | 3V1-65203-0 | 锁紧板 | LOCK PLATE | 1 |
| 57 | 3V1-65204-0 | 水管辅助支架 13-2.5 | WATER PIPE AUXILIARY MOUNT 13-2.5 | 1 |
| 58 | 9215E3-0510 | 螺钉 | SCREW | 1 |
| 59 | 3B2B64513-1 | 螺旋桨总成(6.5英寸) | PROPELLER ASSY (6.5") | 1 |
| 59 | 3B2B64514-1 | 螺旋桨总成(7英寸) | PROPELLER ASSY (7") | 1 |
| 59 | 3B2B64515-1 | 螺旋桨总成(7.5英寸) | PROPELLER ASSY (7.5") | 1 |
| 59 | 3B2B64517-1 | 螺旋桨总成(8.5英寸) | PROPELLER ASSY (8.5") | 1 |
| 59 | 3B2B64519-1 | 螺旋桨总成(9.5英寸) | PROPELLER ASSY (9.5") | 1 |
| 59 | 3V1B64510-1 | 螺旋桨总成(5英寸) | PROPELLER ASSY (5") | 1 |
| 59 | 3V1B64514-1 | 螺旋桨总成(7英寸) | PROPELLER ASSY (7) | 1 |
| 60 | 3UB-87326-0 | 螺旋桨五金件套件 | PROPELLER HARDWARE KIT | 1 |
| 61 | 3UB-64231-0 | * 推力支架4D | * THRUST HOLDER 4D | 1 |
| 62 | 369-64124-0 | * 垫圈 10.5-28-2 | * WASHER 10.5-28-2 | 1 |
| 63 | 369-64121-0 | * 螺旋桨螺母 | * PROPELLER NUT | 1 |
| 64 | 951503-0318 | * 开口销 3-18 | * SPLIT PIN 3-18 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

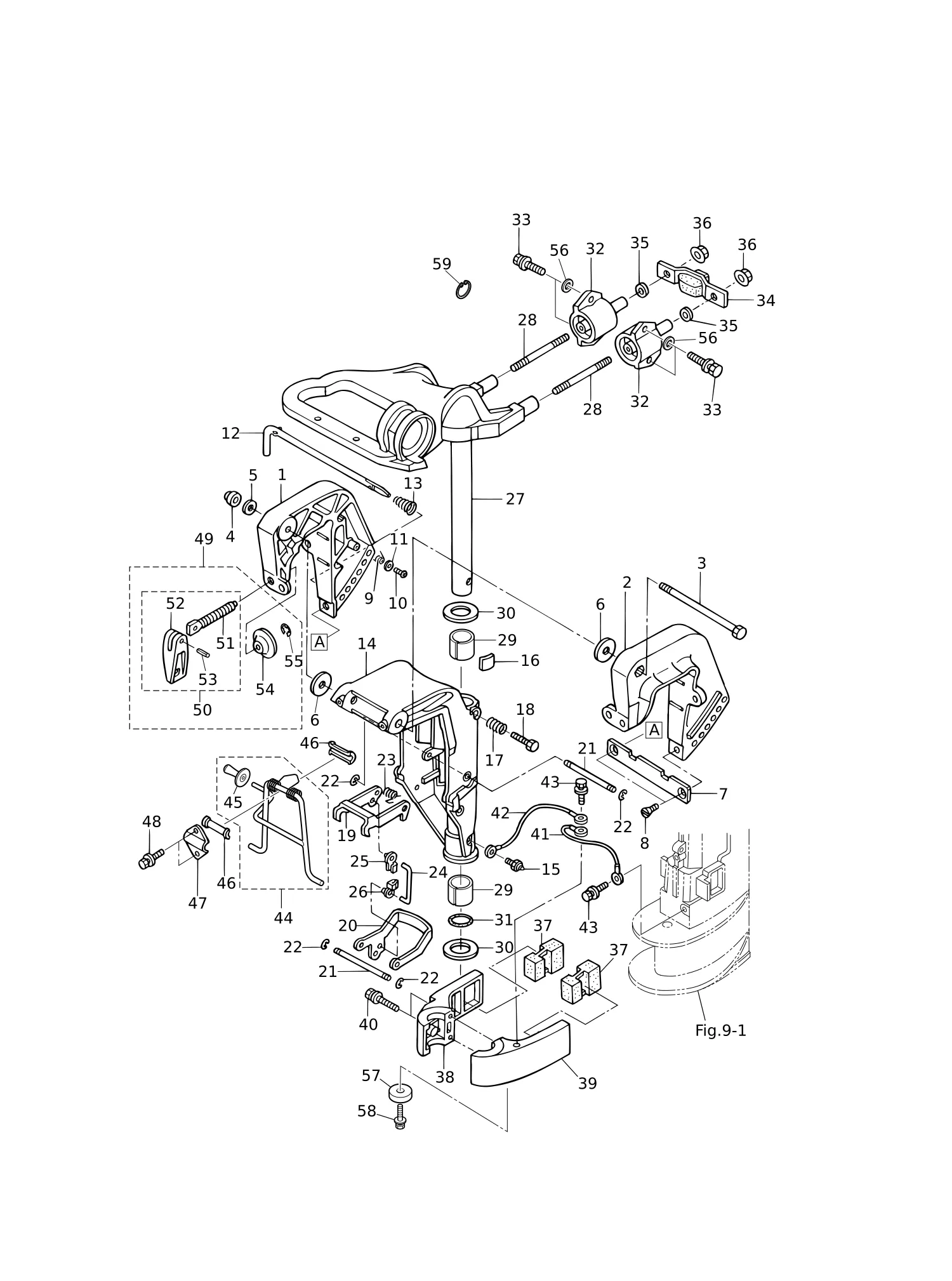

| 1 | 3V1Q62112-2 | 夹紧支架(右) | CLAMP BRACKET (R) | 1 |
| 2 | 3V1Q62113-2 | 卡箍支架 (左) | CLAMP BRACKET (L) | 1 |
| 3 | 309-62115-2 | 螺栓8-122 | BOLT 8-122 | 1 |
| 4 | 930403-0800 | 尼龙螺母 8-P1.25 | NYLON NUT 8-P1.25 | 1 |
| 6 | 307-62116-1 | 垫圈 8.5-28-1 | WASHER 8.5-28-1 | 2 |
| 7 | 3B2-62118-0 | 隔板 | DISTANCE PLATE | 1 |
| 8 | 9216E3-0612 | 螺钉 | SCREW | 2 |
| 9 | 369-62146-1 | 船尾支架弹簧 | STERN BRACKET SPRING | 1 |
| 10 | 921703-0406 | 螺钉 | SCREW | 1 |
| 11 | 369-62147-0 | 垫片 4.3-16-1.5 | WASHER 4.3-16-1.5 | 1 |
| 12 | 350-62121-2 | 推力杆 | THRUST ROD | 1 |
| 13 | 369-62122-2 | 推力杆弹簧 | THRUST ROD SPRING | 1 |
| 14 | 3V1Q62310-0 | 旋转支架 | SWIVEL BRACKET | 1 |
| 15 | 344-67177-1 | 黄油嘴 | GREASE FITTING | 1 |
| 16 | 345-62441-0 | 摩擦片 | FRICTION PIECE | 1 |
| 17 | 346-62421-1 | 摩擦弹簧 | FRICTION SPRING | 1 |
| 18 | 9101E3-0830 | 螺栓 | BOLT | 1 |
| 19 | 3V1-66322-0 | 倒车锁 | REVERSE LOCK | 1 |
| 20 | 3V1-66313-0 | 倒车锁臂 | REVERSE LOCK ARM | 1 |
| 21 | 3B2-66321-1 | 倒挡锁杆 | REVERSE LOCK ROD | 2 |
| 23 | 3B2-66315-0 | 倒挡锁弹簧 | REVERSE LOCK SPRING | 1 |
| 24 | 3V1-66305-1 | 倒车锁连杆 | REVERSE LOCK LINK | 1 |
| 25 | 3C8-63733-0 | 5-3连杆卡扣 | ROD SNAP 5-3 | 1 |
| 26 | 3K9-05223-0 | 4-2连杆卡扣 | ROD SNAP 4-2 | 1 |
| 27 | 3V1Q62010-0 | 转向轴总成 | STEERING SHAFT ASSY | 1 |
| 27 | 3WBQ62010-0 | 转向轴总成 | STEERING SHAFT ASSY | 1 |
| 28 | 3V1-61313-1 | 螺柱 | STUD | 2 |
| 29 | 350-62417-0 | 衬套 24-30-30 | BUSHING 24-30-30 | 2 |
| 30 | 350-62423-0 | 上止推板 | THRUST PLATE (UPPER) | 2 |
| 31 | 350-62415-0 | O型圈 3.5-22 | O-RING 3.5-22 | 1 |
| 32 | 3V1B61301-1 | 橡胶支座(上) | RUBBER MOUNT (UPPER) | 2 |
| 32 | 3Z0-61301-0 | 橡胶支座(上) | RUBBER MOUNT (UPPER) | 2 |
| 33 | 3UA-61343-0 | 螺栓 M6-20 | BOLT M6-20 | 4 |
| 34 | 3V1-61333-1 | 上减震器 | DAMPER (UPPER) | 1 |
| 35 | 9401E3-0800 | 垫圈 | WASHER | 2 |
| 36 | 3V1-61324-0 | 螺母 | NUT | 2 |
| 37 | 3V1-61302-0 | 橡胶支座(下) | RUBBER MOUNT (LOWER) | 2 |
| 38 | 3V1Q61401-0 | 支架托架(右) | MOUNT BRACKET (R) | 1 |
| 39 | 3V1Q61402-0 | 支架托架(左) | MOUNT BRACKET (L) | 1 |
| 39 | 3WBQ61402-0 | 支架托架(左) | MOUNT BRACKET (L) | 1 |
| 40 | 9101E3-5652 | 螺栓 | BOLT | 2 |
| 42 | 3A3-62396-1 | 接地线 L=110 | GROUND L=110 | 1 |
| 43 | 910103-5612 | 螺栓 | BOLT | 2 |
| 44 | 3V1-62431-1 | 倾斜止动器总成 | TILT STOPPER ASSY | 1 |
| 45 | 3AS-62433-0 | * 倾斜止动握把 | * TILT STOPPER GRIP | 1 |
| 46 | 393-62437-1 | 衬套 | BUSHING | 2 |
| 47 | 369-62439-1 | 定位板 | SETTING PLATE | 1 |
| 48 | 9101E3-5612 | 螺栓 | BOLT | 2 |
| 49 | 3V1Q62105-2 | 夹紧螺丝套件 | CLAMP SCREW KIT | 2 |
| 50 | 3V1Q62108-1 | * 卡箍螺丝总成 | * CLAMP SCREW ASSY | 1 |
| 51 | 3M3-62106-0 | 夹紧螺钉 | ** CLAMP SCREW | 1 |
| 52 | 3RSQ62102-0 | 夹紧螺钉手柄 | ** CLAMP SCREW HANDLE | 1 |
| 53 | 951403-0622 | ** 弹簧销 | ** SPRING PIN | 1 |
| 54 | 332-62101-1 | * 卡箍螺丝垫片 | * CLAMP SCREW PAD | 1 |
| 55 | 945303-0500 | * E型卡环 d=5 | * E-RING d=5 | 1 |
| 56 | 9401E3-0600 | 垫圈 | WASHER | 4 |
| 57 | 338-60218-2 | 阳极块 | ANODE | 1 |
| 58 | 910103-5620 | 螺栓 | BOLT | 1 |
| 59 | 945103-2400 | C形环 | C-RING | 1 |

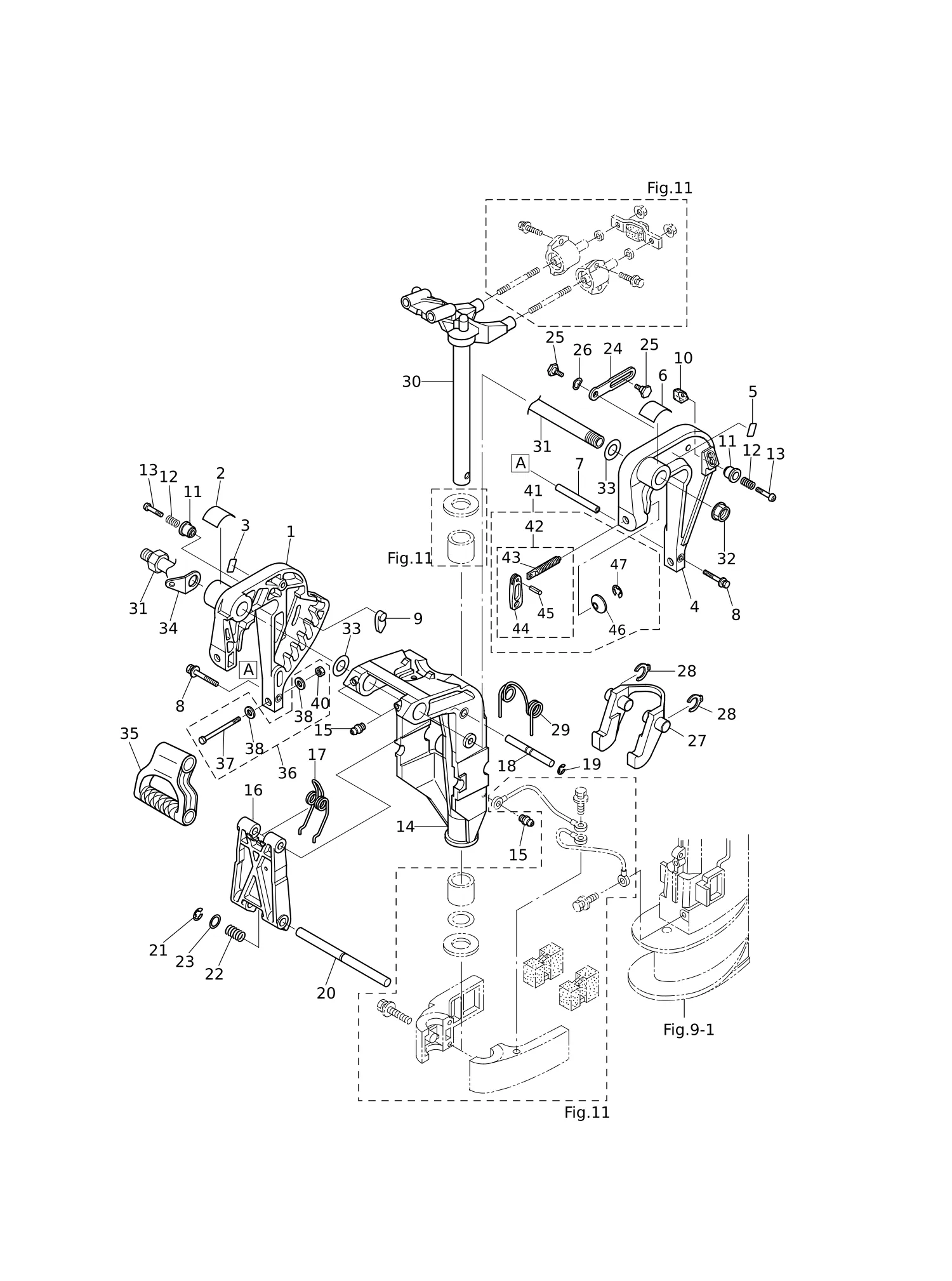

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3AAQ62112-1 | 夹紧支架(右) | CLAMP BRACKET (R) | 1 |
| 2 | 3AA-84461-0 | 配平位置标贴 | TRIM POSITION DECAL | 1 |
| 3 | 3AA-67589-0 | 下倾限位标贴 | LOWER TILT LIMIT DECAL | 1 |
| 4 | 3AAQ62113-1 | 卡箍支架 (左) | CLAMP BRACKET (L) | 1 |
| 5 | 3AA-67584-0 | 倾斜锁定标贴 | TILT LOCK DECAL | 1 |
| 6 | 3AA-72049-0 | 副驾驶贴花 | CO-PILOT DECAL | 1 |
| 7 | 3AA-62117-0 | 间隔块 | DISTANCE PIECE | 1 |
| 8 | 9101E3-5640 | 螺栓 | BOLT | 2 |
| 9 | 3AA-62163-0 | 配平设定板 | TRIM SETTING PLATE | 1 |
| 10 | 3AA-62164-0 | 倾斜锁定块 | TILT LOCK PIECE | 1 |
| 11 | 3AA-62463-0 | 旋钮 | KNOB | 2 |
| 12 | 3Y0-66112-0 | 弹簧 | SPRING | 2 |
| 13 | 921503-0535 | 螺钉 | SCREW | 2 |
| 14 | 3AAQ62310-1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 15 | 344-67177-1 | 黄油嘴 | GREASE FITTING | 3 |
| 16 | 3AA-62994-0 | 倾斜止动器主体 | TILT STOPPER BODY | 1 |
| 17 | 3AA-62434-0 | 弹簧 | SPRING | 1 |
| 18 | 3AA-62995-0 | 倾斜止动轴(上) | TILT STOPPER SHAFT (UPPER) | 1 |
| 19 | 945303-0600 | E型卡环 d=6 | E-RING d=6 | 2 |
| 20 | 3AA-62996-1 | 倾斜止动轴(下) | TILT STOPPER SHAFT (LOWER) | 1 |
| 21 | 945303-0900 | E型卡环 d=9 | E-RING d=9 | 1 |
| 22 | 3AA-63727-0 | 弹簧 | SPRING | 1 |
| 23 | 332-61315-0 | 垫圈10.5-18-1.5 | WASHER 10.5-18-1.5 | 1 |
| 24 | 3AA-62454-0 | 倾斜止动器(左) | TILT STOPPER (L) | 2 |
| 25 | 3AA-62452-0 | 螺栓6-12.5-9.5-2.5 | BOLT 6-12.5-9.5-2.5 | 4 |
| 26 | 941403-1000 | 波形垫圈 d=10 | WAVE WASHER d=10 | 2 |
| 27 | 3AA-66322-1 | 倒车锁 | REVERSE LOCK | 1 |
| 28 | 3DN-66316-0 | 倒车锁卡扣 | REVERSE LOCK CLIP | 2 |
| 29 | 3AA-66315-0 | 倒挡锁弹簧 | REVERSE LOCK SPRING | 1 |
| 30 | 3AAQ62010-0 | 转向轴总成 | STEERING SHAFT ASSY | 1 |
| 31 | 3AC-62191-0 | 旋转支架轴总成 | SWIVEL BRACKET SHAFT ASSY | 1 |
| 32 | 346-62124-1 | 尼龙螺母 7/8-14 | NYLON NUT 7/8-14 | 1 |
| 33 | 3AA-62116-0 | 垫片 22-36-1 | WASHER 22-36-1 | 2 |
| 34 | 3AA-62114-1 | 板 | PLATE | 1 |
| 35 | 3AA-61199-0 | 搬运把手 | CARRYING HANDLE | 1 |
| 36 | 3UA-72120-0 | 索具螺栓套装 | RIGGING BOLT SET | 1 |
| 37 | 9101E3-0885 | 螺栓 | * BOLT | 2 |
| 38 | 9401E3-0800 | * 垫圈 | * WASHER | 4 |
| 40 | 9301E3-0800 | 螺母 | * NUT | 2 |
| 41 | 3RSQ62105-1 | 夹紧螺丝套件 | CLAMP SCREW KIT | 2 |
| 42 | 3RSQ62108-0 | * 卡箍螺丝总成 | * CLAMP SCREW ASSY | 1 |
| 43 | 3RS-62106-0 | 夹紧螺钉 | ** CLAMP SCREW | 1 |
| 44 | 3RSQ62102-0 | 夹紧螺钉手柄 | ** CLAMP SCREW HANDLE | 1 |
| 45 | 951403-0622 | ** 弹簧销 | ** SPRING PIN | 1 |
| 46 | 332-62101-1 | * 卡箍螺丝垫片 | * CLAMP SCREW PAD | 1 |
| 47 | 945303-0500 | * E型卡环 d=5 | * E-RING d=5 | 1 |

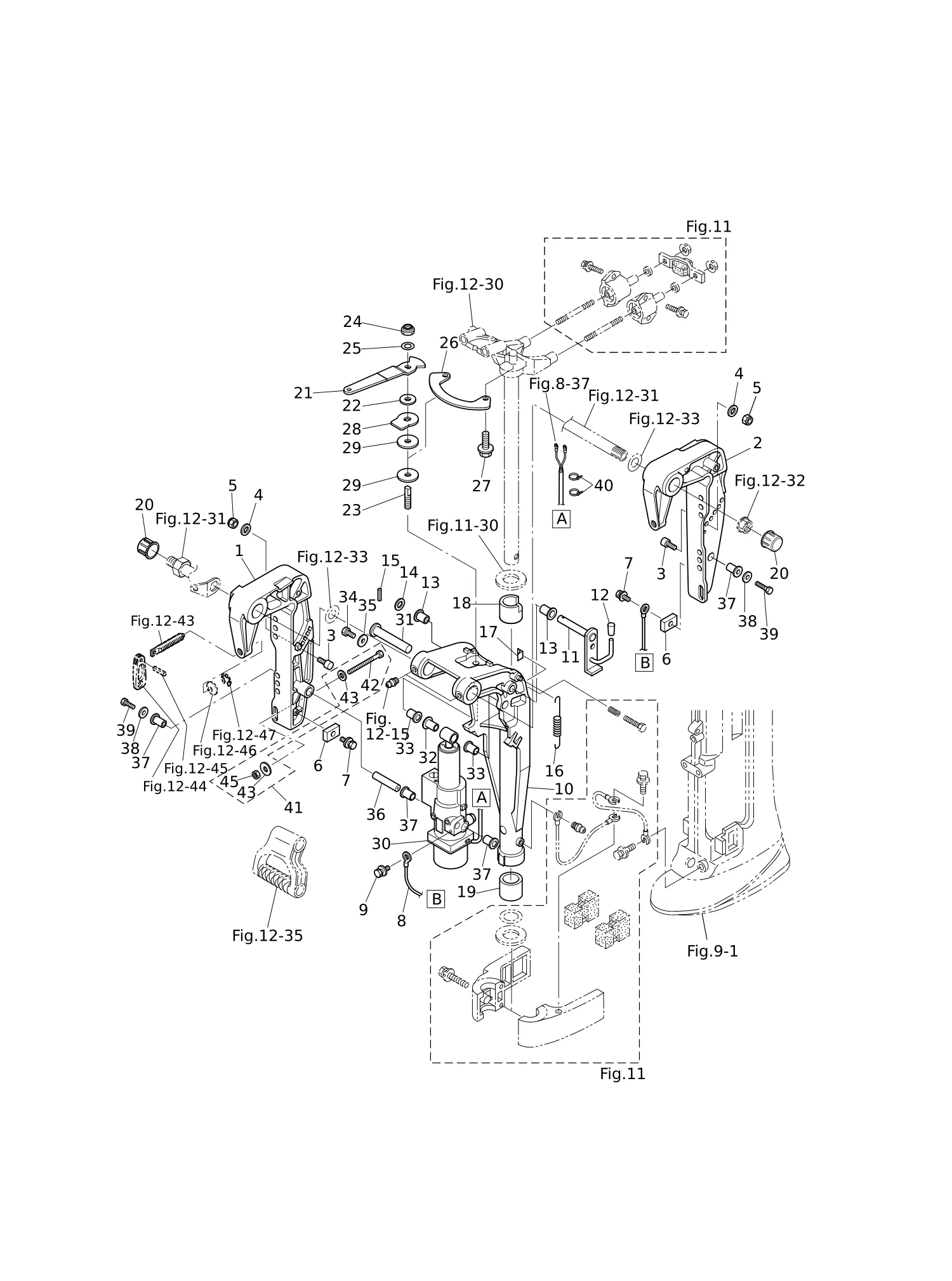

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3Z0Q77211-2 | 夹紧支架(动力升降倾斜装置-右) | CLAMP BRACKET (PTT-R) | 1 |
| 2 | 3Z0Q77212-0 | 卡箍支架 (动力升降倾斜装置-左) | CLAMP BRACKET (PTT-L) | 1 |
| 3 | 3Z0-77115-0 | 配平锁销 | TRIM LOCK PIN | 2 |
| 4 | 3P0-66233-0 | 垫片 8.1-16-1.5 | WASHER 8.1-16-1.5 | 2 |
| 5 | 3V5-62442-0 | 尼龙螺母 8-P1.25 | NYLON NUT 8-P1.25 | 2 |
| 6 | 3H6-60218-0 | 阳极块 | ANODE | 2 |
| 7 | 910103-5616 | 螺栓 | BOLT | 2 |
| 8 | 398-62396-1 | 接地线 L=130 | GROUND L=130 | 1 |
| 9 | 910103-5612 | 螺栓 | BOLT | 1 |
| 10 | 3V1Q77208-0 | 旋转支架总成 | SWIVEL BRACKET ASSY | 1 |
| 11 | 3Z0-62476-2 | 倾斜止动器 | TILT STOPPER | 1 |
| 12 | 369-62433-1 | 倾斜止动器手柄 | TILT STOPPER GRIP | 1 |
| 13 | 353-63207-0 | 轴环 10.2-12-12 | COLLAR 10.2-12-12 | 2 |
| 14 | 940103-1000 | 垫圈 | WASHER | 1 |
| 15 | 951403-3516 | 弹簧销 3.5-16 | SPRING PIN 3.5-16 | 1 |
| 16 | 3R0-62473-0 | 倾斜止动弹簧 | TILT STOPPER SPRING | 1 |
| 17 | 3Z0-63035-0 | 摩擦片 | FRICTION PIECE | 1 |
| 18 | 3Z0-62417-0 | 衬套 24-30-30 | BUSHING 24-30-30 | 1 |
| 19 | 350-62417-0 | 衬套 24-30-30 | BUSHING 24-30-30 | 1 |
| 20 | 346-62127-0 | 盖形螺母 | CAP NUT | 2 |
| 21 | 3AA-62441-0 | 摩擦杆 | FRICTION LEVER | 1 |
| 22 | 3R3-62443-0 | 垫圈 8.1-20-0.8 | WASHER 8.1-20-0.8 | 1 |
| 23 | 3R3-62445-0 | 螺栓 M8-P1.25 | BOLT M8 P1.25 | 1 |
| 24 | 930403-0800 | 尼龙螺母 8-P1.25 | NYLON NUT 8-P1.25 | 1 |
| 25 | 940103-0800 | 垫圈 | WASHER | 1 |
| 26 | 3AA-62447-0 | 板 | PLATE | 1 |
| 27 | 9101E3-5616 | 螺栓 | BOLT | 2 |
| 28 | 3R3-62448-1 | 垫圈 8.5-38-3 | WASHER 8.5-38-3 | 1 |
| 29 | 3R3-62449-0 | 圆盘8.5-38-2 | DISC 8.5-38-2 | 2 |
| 30 | 3Z0Q77151-1 | 动力倾斜总成 | PT ASSY | 1 |
| 31 | 3KY-77071-0 | 气缸销(上) | CYLINDER PIN (UPPER) | 1 |
| 33 | 3R0-77076-0 | 衬套 13-17-19.5 13-17-19.5 | BUSHING 13-17-19.5 13-17-19.5 | 2 |
| 34 | 9101E3-0612 | 螺栓 | BOLT | 1 |
| 35 | 345-05122-1 | 垫片 6.5-23-1.5 | WASHER 6.5-23-1.5 | 1 |
| 36 | 3Z0-77101-1 | 气缸销(下) | CYLINDER PIN (LOWER) | 1 |
| 37 | 3Z0-77076-0 | 衬套 13-16-31 | BUSHING 13-16-31 | 4 |
| 38 | 307-62116-1 | 垫圈 8.5-28-1 | WASHER 8.5-28-1 | 2 |
| 39 | 910103-0820 | 螺栓 | BOLT | 2 |
| 40 | 3Z0-84398-0 | 箍带 203 | BAND 203 | 2 |
| 41 | 3UA-72120-0 | 索具螺栓套装 | RIGGING BOLT SET | 1 |
| 42 | 9101E3-0885 | 螺栓 | * BOLT | 4 |
| 43 | 9401E3-0800 | * 垫圈 | * WASHER | 8 |
| 45 | 9301E3-0800 | 螺母 | * NUT | 4 |

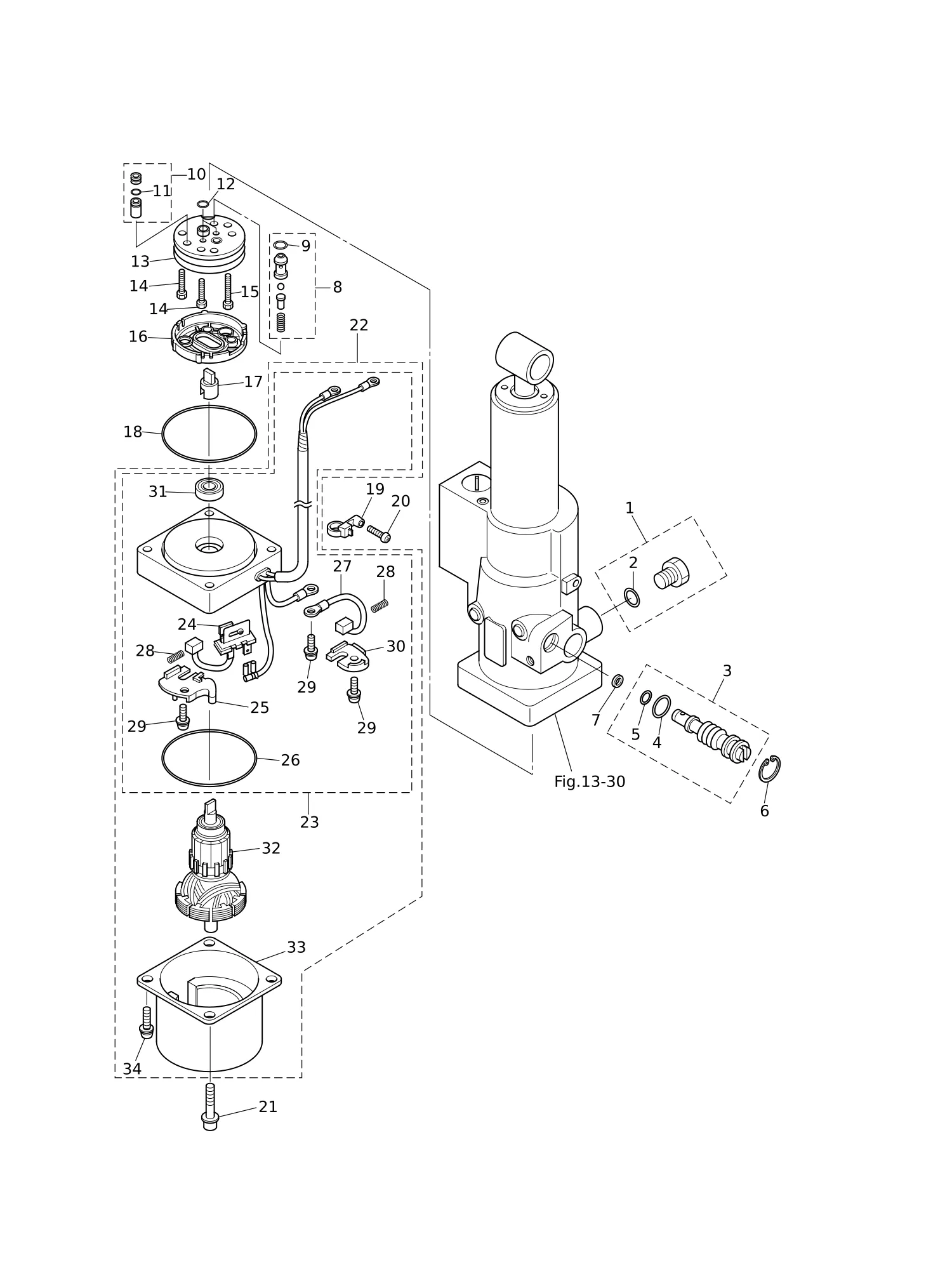

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3Z0-77221-0 | 盖帽总成 | CAP ASSY | 1 |
| 3 | 3Z0-77175-0 | 手动阀总成 | MANUAL VALVE ASSY | 1 |
| 4 | 3R0-77177-0 | * O型圈 2.4-9.8 | * O-RING 2.4-9.8 | 1 |
| 6 | 3R0-77171-0 | C形环 | C-RING | 1 |
| 7 | 3AC-77173-0 | 密封垫圈 | SEAL WASHER | 1 |
| 8 | 3Z0-77450-0 | 安全阀总成 | RELIEF VALVE ASSY | 1 |
| 9 | 3Z0-77179-0 | * O型圈 | * O-RING | 1 |
| 10 | 3Z0-77460-0 | 阀门总成 | VALVE ASSY | 1 |
| 11 | 3R0-77451-0 | * O型圈1.5-3.5 | * O-RING 1.5-3.5 | 1 |
| 12 | 3B7-77169-0 | O型圈 | O-RING | 2 |
| 13 | 3B7-77430-0 | 泵 | PUMP | 1 |
| 14 | 3B7-77432-1 | 螺栓 | BOLT | 2 |
| 15 | 3B7-77431-1 | 螺栓 | BOLT | 1 |
| 16 | 3B7-77434-1 | 过滤器 | FILTER | 1 |
| 17 | 3E0-77163-0 | 联轴器 | COUPLING | 1 |
| 18 | 3R0-77167-0 | O型圈2-62.5 | O-RING 2-62.5 | 1 |
| 19 | 3Z1-84398-1 | 箍带 | BAND | 1 |
| 20 | 3V1-64333-0 | 预涂层螺钉5-12 | PRE-COATED SCREW 5-12 | 1 |
| 21 | 3Z0-77431-0 | 螺栓 | BOLT | 2 |
| 22 | 3Z0-77180-0 | 马达总成 | MOTOR ASSY | 1 |
| 23 | 3Z0-77192-0 | * 电机支架总成 | * MOTOR BRACKET ASSY | 1 |
| 24 | 3Z0-77191-0 | 断路器 | ** BREAKER | 1 |
| 25 | 3Z0-77187-0 | 断路器座 | ** BREAKER HOLDER | 1 |
| 26 | 3Z0-77167-0 | O型圈 | ** O-RING | 1 |
| 27 | 3E0-77183-0 | 电刷 | ** BRUSH | 1 |
| 28 | 3E0-77184-0 | 电刷弹簧 | ** BRUSH SPRING | 2 |
| 29 | 921521-5512 | 螺钉 | ** SCREW | 3 |
| 30 | 3Z0-77186-0 | 电刷架 | ** BRUSH HOLDER | 1 |
| 31 | 3E0-77193-0 | 油封 | ** OIL SEAL | 1 |
| 32 | 3Z0-77190-0 | * 电枢总成 | * ARMATURE ASSY | 1 |
| 33 | 3Z0-77195-0 | * 轭架总成 | * YOKE ASSY | 1 |
| 34 | 9215E3-5512 | * 螺钉 | * SCREW | 2 |

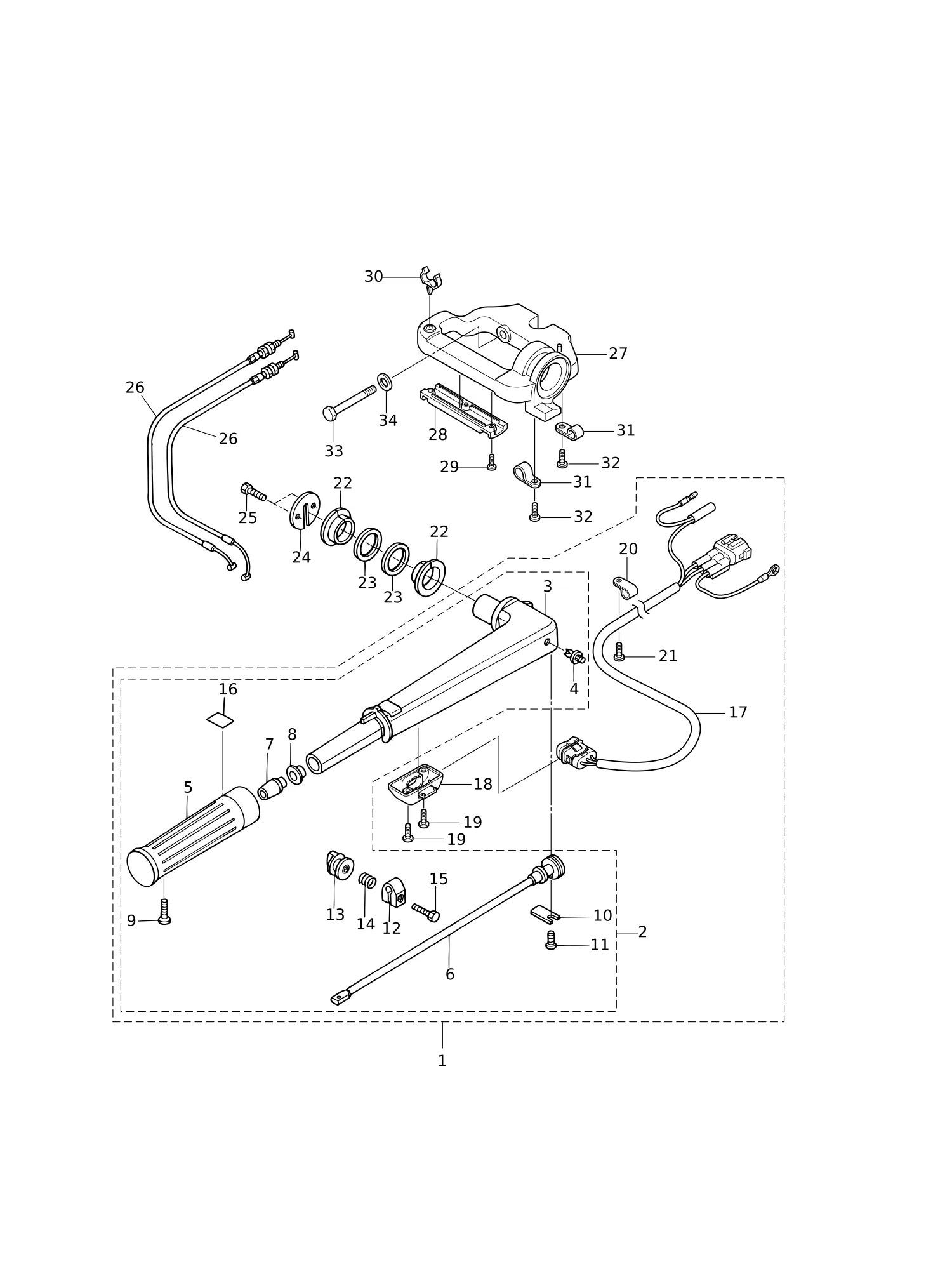

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3V2Q63003-1 | 舵柄总成 | TILLER HANDLE ASSY | 1 |
| 2 | 3V1Q63003-5 | * 舵柄手柄总成 | * TILLER HANDLE ASSY | 1 |
| 3 | 3V1Q63011-3 | 舵柄把手 | ** TILLER HANDLE | 1 |
| 4 | 350-67154-0 | 塑料铆钉 6.5 | ** PLASTIC RIVET 6.5 | 1 |
| 5 | 3R3-63012-0 | 手柄 | ** GRIP | 1 |
| 6 | 3V1-63041-0 | 油门轴 | ** THROTTLE SHAFT | 1 |
| 7 | 3H6-63048-0 | 油门轴缓冲器 | ** THROTTLE SHAFT DAMPER | 1 |
| 8 | 3H6-63510-0 | 衬套 14-15.8-7 | ** BUSHING 14-15.8-7 | 1 |
| 9 | 920803-0518 | 螺钉 | ** SCREW | 1 |
| 10 | 3B2-63063-0 | 油门轴支架 | ** THROTTLE SHAFT SUPPORT | 1 |
| 11 | 9215E3-0612 | 螺钉 | ** SCREW | 1 |
| 12 | 3V1-63035-1 | ** 摩擦片 | ** FRICTION PIECE | 1 |
| 13 | 3V1-63077-0 | 调节螺母 | ** ADJUSTING NUT | 1 |
| 14 | 3V1-63036-0 | ** 弹簧 | ** SPRING | 1 |
| 15 | 910103-0625 | 螺栓 | ** BOLT | 1 |
| 16 | 3V9-72019-0 | 油门标贴 | ** THROTTLE DECAL | 1 |
| 17 | 3V1-72615-0 | * 动力升降倾斜开关总成 | * PTT SWITCH ASSY | 1 |
| 18 | 3V1-76032-0 | * 开关盒 | * SWITCH BOX | 1 |
| 19 | 9215E3-0516 | * 螺钉 | * SCREW | 2 |
| 21 | 9215E3-0512 | * 螺钉 | * SCREW | 1 |
| 22 | 3V1-63102-0 | 衬套 | BUSHING | 2 |
| 23 | 3V1-63108-1 | 垫片 39-52-1 | WASHER 39-52-1 | 2 |
| 24 | 3V1-63107-0 | 盖板 | COVER | 1 |
| 25 | 9101E3-0616 | 螺栓 | BOLT | 2 |
| 26 | 3V1-63600-0 | 节气门拉线 | THROTTLE WIRE | 2 |
| 27 | 3V1Q62001-1 | 转向支架 | STEERING BRACKET | 1 |
| 28 | 3V1-62004-0 | 线束固定座 | CORD HOLDER | 1 |
| 29 | 921503-0408 | 螺钉 | SCREW | 3 |
| 30 | 3V2-62004-0 | 线束固定座 | CORD HOLDER | 1 |
| 31 | 336-06973-0 | 卡箍 6-9.5L | CLAMP 6-9.5L | 2 |
| 32 | 9215E3-0510 | 螺钉 | SCREW | 2 |
| 33 | 3R3-62094-2 | 螺栓 10-80 | BOLT 10-80 | 2 |
| 34 | 9401E3-1000 | 垫圈 | WASHER | 2 |

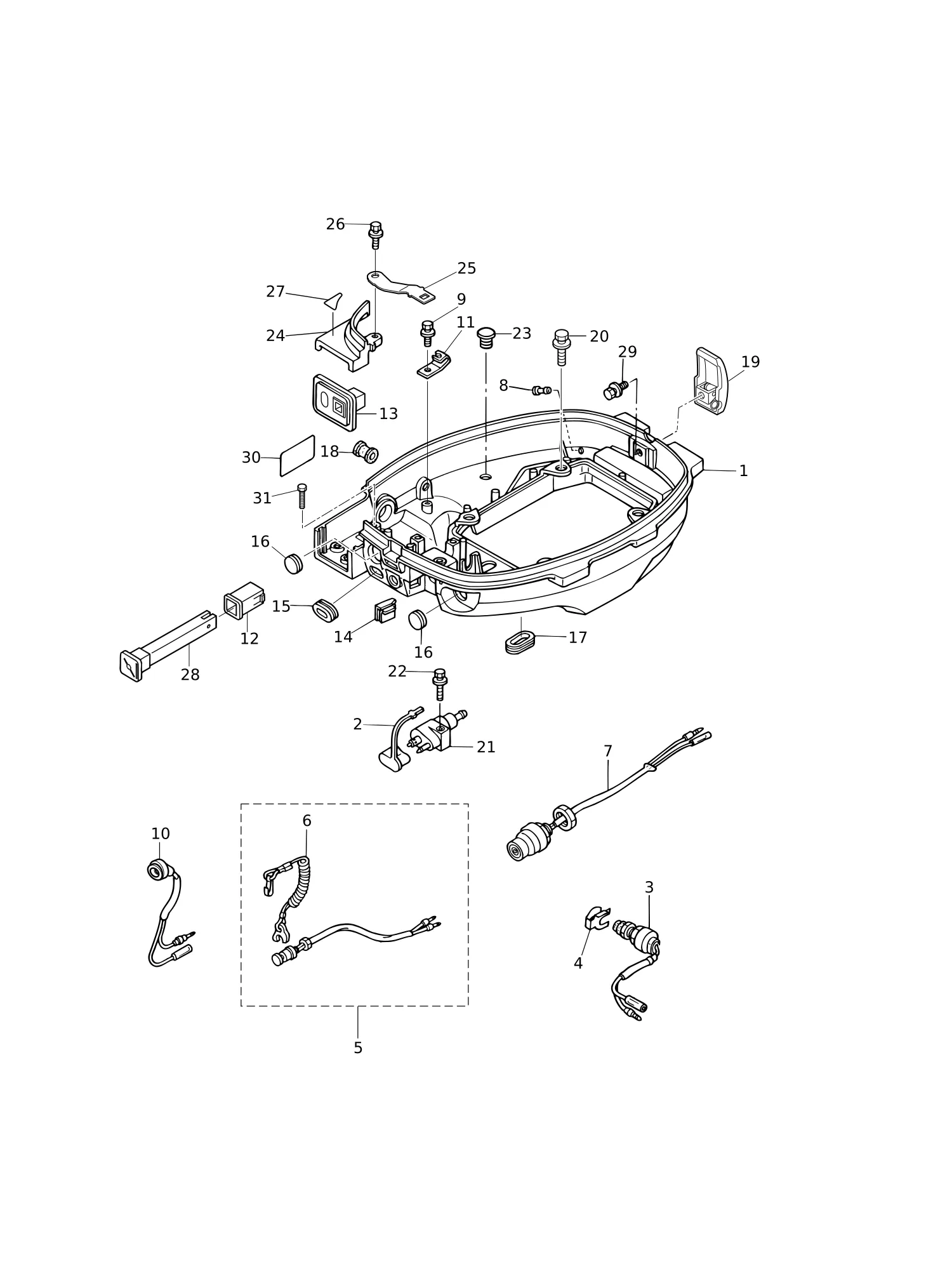

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3V2Q67100-0 | 下罩壳 | BOTTOM COWL | 1 |
| 2 | 3H6-70262-0 | 燃油接头护套 | FUEL CONNECTOR PROTECTOR | 1 |
| 3 | 398-76080-1 | 空档开关 | NEUTRAL SWITCH | 1 |
| 4 | 398-76083-0 | 空档开关执行器 | NEUTRAL SWITCH ACTUATOR | 1 |
| 5 | 398-06830-0 | 停止开关总成 | STOP SWITCH ASSY | 1 |
| 6 | 353-06821-0 | * 停机开关拉绳总成 | * STOP SWITCH LANYARD ASSY | 1 |
| 7 | 3AA-76026-0 | 主开关总成 | MAIN SWITCH ASSY | 1 |
| 8 | 3BA-01138-0 | 管接头 6.8-3-10 | NIPPLE 6.8-3-10 | 1 |
| 9 | 9101E3-5612 | 螺栓 | BOLT | 1 |
| 10 | 3R3-71040-0 | 指示灯总成 | PILOT LAMP ASSY | 1 |
| 10 | 3Z0-71040-0 | 指示灯总成 | PILOT LAMP ASSY | 1 |
| 11 | 3V1-69000-0 | 启动锁电缆支架 | STARTER LOCK CABLE BRACKET | 1 |
| 12 | 3C8-67156-0 | 衬套 | BUSHING | 1 |
| 13 | 3Y3-63621-0 | 索环/护孔圈 | GROMMET | 1 |
| 14 | 3V1-63624-0 | 索环/护孔圈 | GROMMET | 1 |
| 15 | 3R3-67162-0 | 索环 25-15-3 | GROMMET 25-15-3 | 1 |
| 16 | 345-67117-0 | 索环 17-2.7 | GROMMET 17-2.7 | 2 |
| 17 | 3R3-66226-0 | 衬套 40-18-3 | GROMMET 40-18-3 | 2 |
| 18 | 3B2-67187-0 | 索环 16-17.5 | GROMMET 16-17.5 | 1 |
| 19 | 3AA-67120-1 | 整流罩锁扣总成 | COWL LATCH ASSY | 1 |
| 21 | 394-70260-0 | 燃油接头（公头） | FUEL CONNECTOR (MALE) | 1 |
| 22 | 9101E3-5625 | 螺栓 | BOLT | 1 |
| 23 | 3A3-60984-0 | 副进水口软管塞 | SUB-WATER INLET HOSE PLUG | 1 |
| 24 | 3V1Q67481-0 | 换挡杆支架盖 | SHIFT LEVER BRACKET COVER | 1 |
| 25 | 3Z0-76174-0 | 撑杆 | STAY | 1 |
| 26 | 9101E3-5616 | 螺栓 | BOLT | 1 |
| 27 | 3UA-67578-0 | 换挡标识贴 | SHIFT DECAL | 1 |
| 28 | 3C8-67151-2 | 阻风门拉杆 | CHOKE ROD | 1 |
| 29 | 910103-5612 | 螺栓 | BOLT | 1 |
| 30 | 3H6-67572-0 | 存放标识 | STORAGE DECAL | 1 |
| 31 | 910103-0610 | 螺栓 | BOLT | 2 |

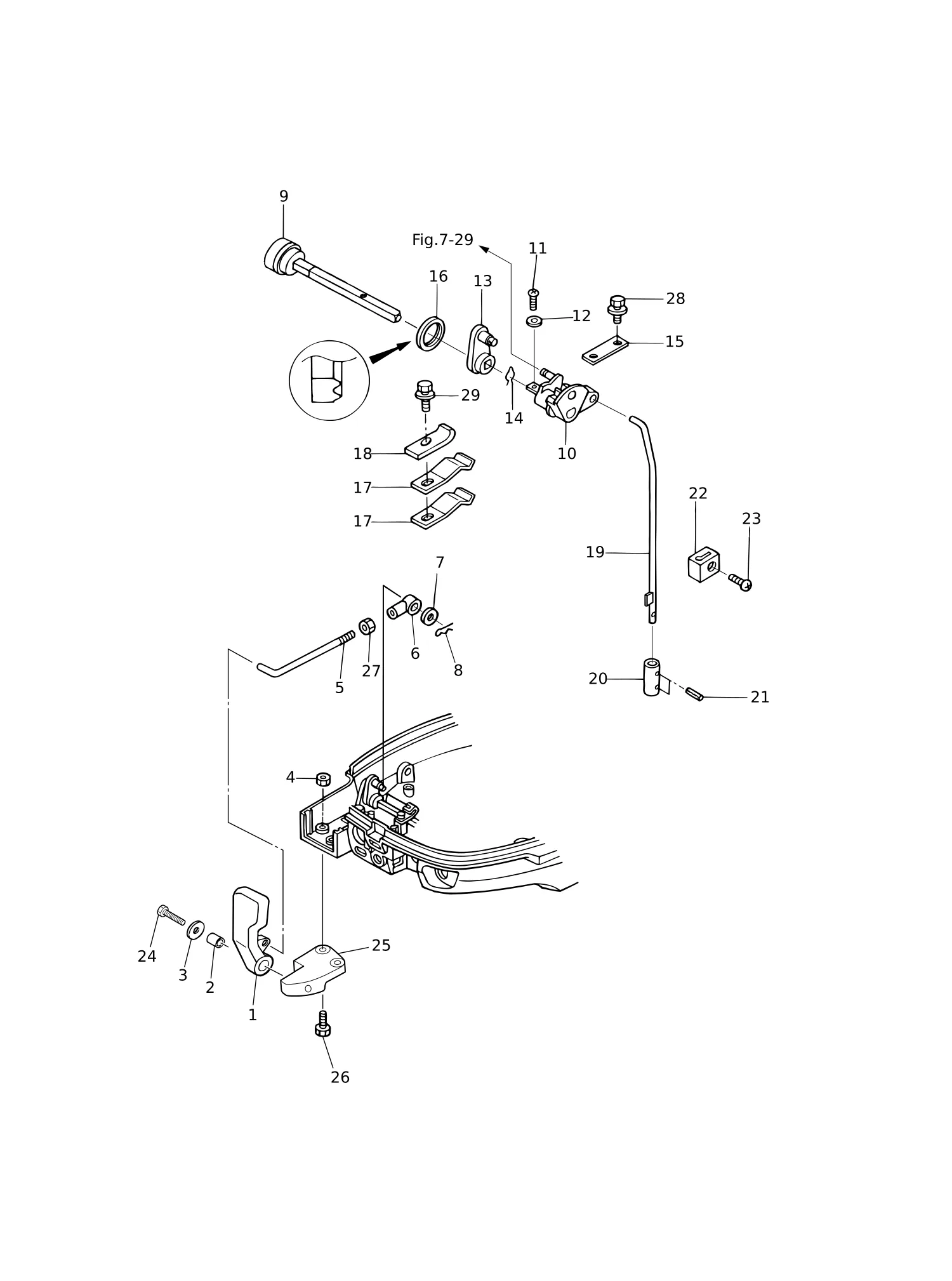

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3Y3-66110-0 | 换挡杆 | SHIFT LEVER | 1 |
| 2 | 3H6-63619-1 | 轴套 6.5-10.5-10 | COLLAR 6.5-10.5-10 | 1 |
| 3 | 346-67115-0 | 垫片 6.5-21-1 | WASHER 6.5-21-1 | 1 |
| 4 | 9301E3-0600 | 螺母 | NUT | 2 |
| 5 | 3Y3-66134-0 | 换挡杆连杆 | SHIFT LEVER ROD | 1 |
| 6 | 3R0-83715-0 | 电缆接头 4.5-40.5 | CABLE JOINT 4.5-40.5 | 1 |
| 7 | 3AA-83719-0 | 垫圈 8.5-18-1.6 | WASHER 8.5-18-1.6 | 1 |
| 8 | 951603-0800 | 弹性销 d=8 | SNAP PIN d=8 | 1 |
| 9 | 3AA-66135-1 | 换挡杆轴 | SHIFT LEVER SHAFT | 1 |
| 10 | 3V1-66225-0 | 换挡杆手柄 | SHIFT ROD LEVER | 1 |
| 11 | 921503-0414 | 螺钉 | SCREW | 1 |
| 12 | 940103-0400 | 垫圈 | WASHER | 1 |
| 13 | 3V1-66129-0 | 换挡杆(遥控) | SHIFT LEVER (REMOTE CONTROL) | 1 |
| 14 | 951703-0800 | 弹性挡圈 d=8 | SNAP RETAINER ｄ=8 | 1 |
| 15 | 3V1-66145-0 | 支架 | HOLDER | 1 |
| 16 | 3V1-66187-0 | 密封环 23-29-3.7 | SEAL RING 23-29-3.7 | 1 |
| 17 | 3UA-66113-0 | 换挡定位弹簧 t=0.8 | SHIFT DETENT SPRING t=0.8 | 1 |
| 18 | 3Y1-66117-0 | 换挡定位支架 t=0.8 | SHIFT DETENT SUPPORTER t=0.8 | 1 |
| 19 | 3V1-66211-1 | 换挡连杆 | SHIFT ROD | 1 |
| 20 | 3V1-66241-0 | 换挡杆接头 | SHIFT ROD JOINT | 1 |
| 21 | 951403-0310 | 弹簧销 3-10 | SPRING PIN 3-10 | 2 |
| 22 | 3V1-66302-1 | 倒车锁连杆接头 | REVERSE LOCK LINK JOINT | 1 |
| 23 | 921503-0612 | 螺钉 | SCREW | 1 |
| 24 | 9101E3-0625 | 螺栓 | BOLT | 1 |
| 25 | 3Y3Q67480-0 | 换挡杆支架 | SHIFT LEVER BRACKET | 1 |
| 26 | 9101E3-5625 | 螺栓 | BOLT | 2 |
| 27 | 930103-0500 | 螺母 | NUT | 1 |
| 29 | 9101E3-5612 | 螺栓 | BOLT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

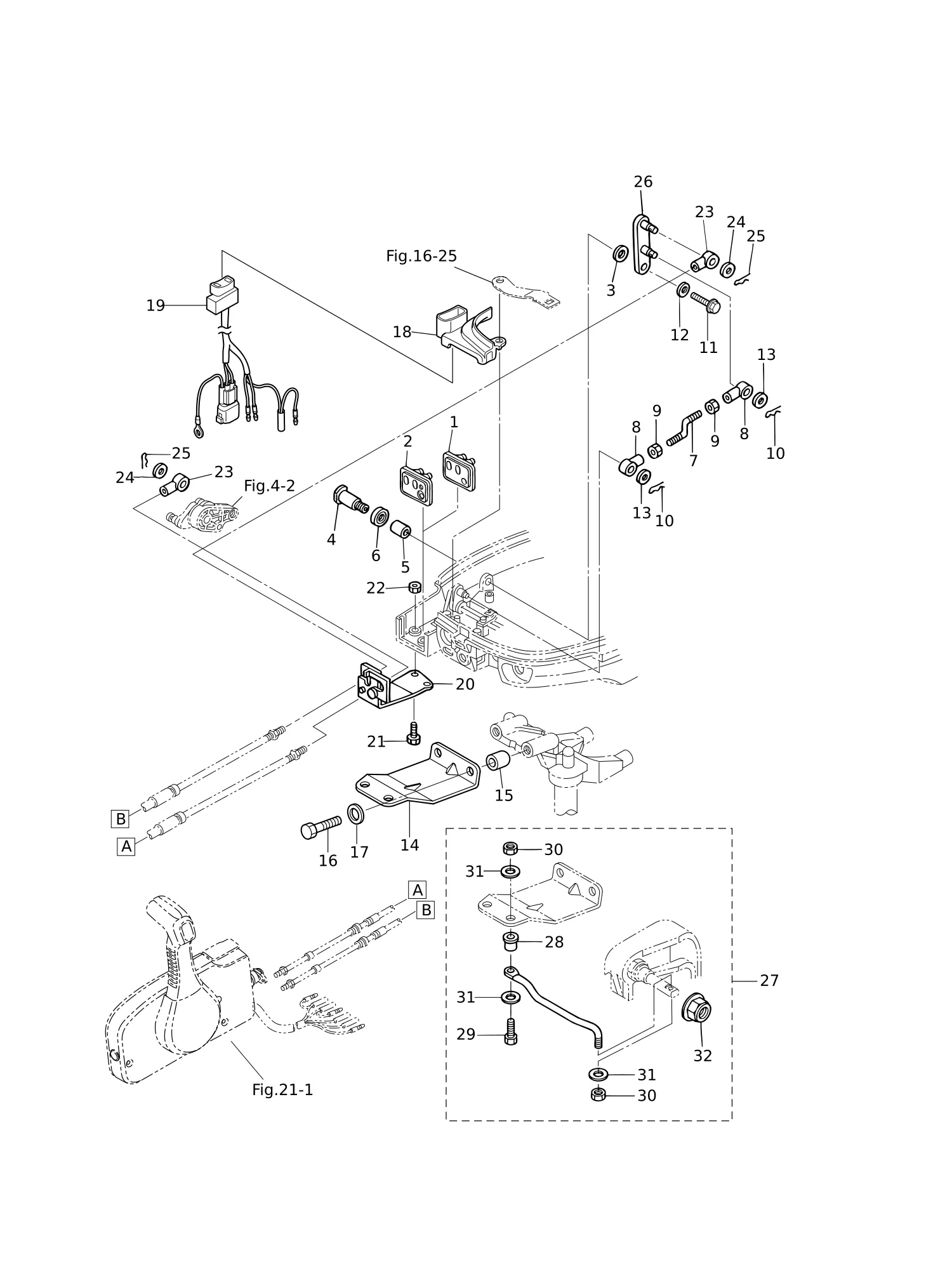

| 1 | 3V1-83732-0 | 索环/护孔圈 | GROMMET | 1 |
| 2 | 3V2-83732-0 | 索环/护孔圈 | GROMMET | 1 |
| 3 | 941403-1400 | 波形垫圈 d=14 | WAVE WASHER d=14 | 1 |
| 4 | 3V1-66142-0 | 枢轴 | PIVOT | 1 |
| 5 | 369-67105-0 | 挂钩杆衬套 | HOOK LEVER BUSHING | 1 |
| 6 | 338-67147-0 | 密封环 13.8-22-3.7 | SEAL RING 13.8-22-3.7 | 1 |
| 7 | 3V1-66134-0 | 换挡杆连杆 | SHIFT LEVER ROD | 1 |
| 8 | 3R0-83715-0 | 电缆接头 4.5-40.5 | CABLE JOINT 4.5-40.5 | 2 |
| 9 | 930103-0500 | 螺母 | NUT | 2 |
| 11 | 9101E3-5612 | 螺栓 | BOLT | 1 |
| 12 | 346-67115-0 | 垫片 6.5-21-1 | WASHER 6.5-21-1 | 1 |
| 14 | 3AA-83830-0 | 转向钩板 | STEERING HOOK PLATE | 1 |
| 15 | 3AA-83913-0 | 轴环 10.1-20-15 | COLLAR 10.1-20-15 | 2 |
| 16 | 9161E3-1045 | 螺栓 | BOLT | 2 |
| 17 | 940103-1000 | 垫圈 | WASHER | 2 |
| 18 | 3V1Q67483-0 | 遥控线缆支架盖 | REMOTE CONT CABLE STAY COVER | 1 |
| 19 | 3V2-72615-0 | 动力升降倾斜装置开关总成 | PTT SWITCH ASSY | 1 |
| 20 | 3V1-83820-0 | 线缆夹总成 | CABLE CLIP ASSY | 1 |
| 21 | 9101E3-0616 | 螺栓 | BOLT | 2 |
| 22 | 9301E3-0600 | 螺母 | NUT | 2 |
| 23 | 3B7-83715-2 | 线缆接头 | CABLE JOINT | 2 |
| 24 | 3AA-83719-0 | 垫圈 8.5-18-1.6 | WASHER 8.5-18-1.6 | 2 |
| 25 | 951603-0800 | 弹性销 d=8 | SNAP PIN d=8 | 2 |
| 26 | 3V2-66128-0 | 换挡臂（遥控型） | SHIFT ARM (REMOTE CONTROL) | 1 |
| 27 | 3AA-84905-0 | 转向拉杆总成 | DRAG LINK ASSY | 1 |
| 28 | 3E0-84914-0 | * 衬套 9.6-19-13 | * SPACER 9.6-19-13 | 1 |
| 29 | 3C8-84964-0 | 螺栓 3/8-35 | * BOLT 3/8-35 | 1 |
| 30 | 353-84918-0 | 尼龙螺母 3/8-24UNF | * NYLON NUT 3/8-24UNF | 2 |
| 31 | 353-84916-0 | * 垫圈 9.6-18-2 | * WASHER 9.6-18-2 | 3 |
| 32 | 3F3-84908-0 | * 密封环 | * SEAL RING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

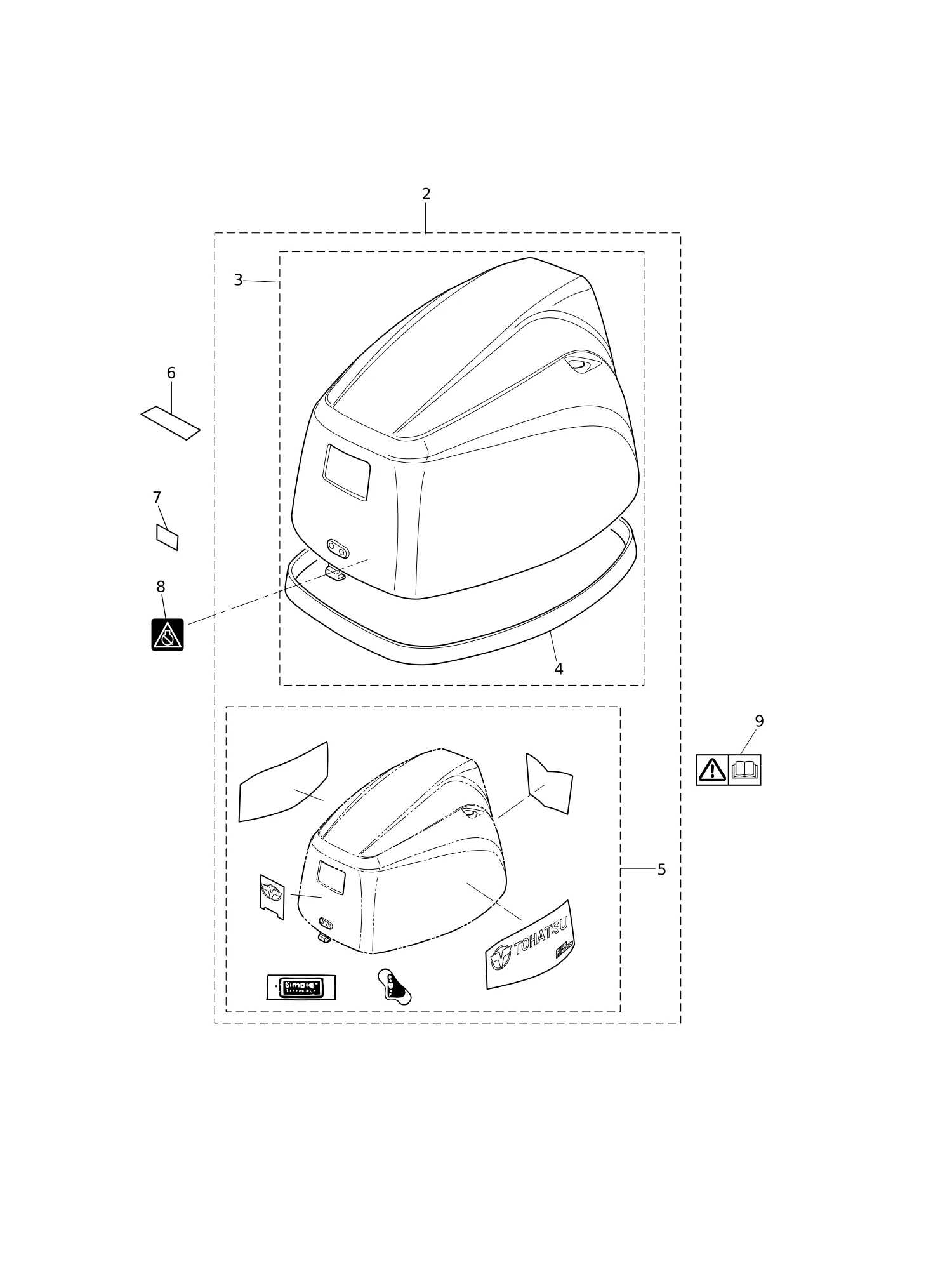

| 2 | 3UAQ67645-1 | 顶罩总成 | TOP COWL ASSY | 1 |
| 3 | 3UAQ67640-0 | * 顶罩分总成 1D | * TOP COWL SUB-ASSY 1D | 1 |
| 4 | 3UA-67501-0 | 顶罩3D密封条 | ** TOP COWL SEAL 3D | 1 |
| 5 | 3UA-87801-1 | * 贴花套装 (MFS8B) | * DECAL SET (MFS8B) | 1 |
| 5 | 3UB-87801-1 | * 贴花套装 (MFS9.8B) | * DECAL SET (MFS9.8B) | 1 |
| 5 | 3UC-87801-1 | * 贴花套装 (MFS6Z) | * DECAL SET (MFS6Z) | 1 |
| 6 | 3WL-72180-0 | 警示标贴(A型) | CAUTION DECAL (A) | 1 |
| 7 | 3BA-76199-0 | 油压标贴 | OIL PRESSURE DECAL | 1 |
| 8 | 3AC-72200-0 | 停止开关贴花 | STOP SWITCH DECAL | 1 |
| 9 | 3F0-72185-0 | 警示标贴 | CAUTION DECAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

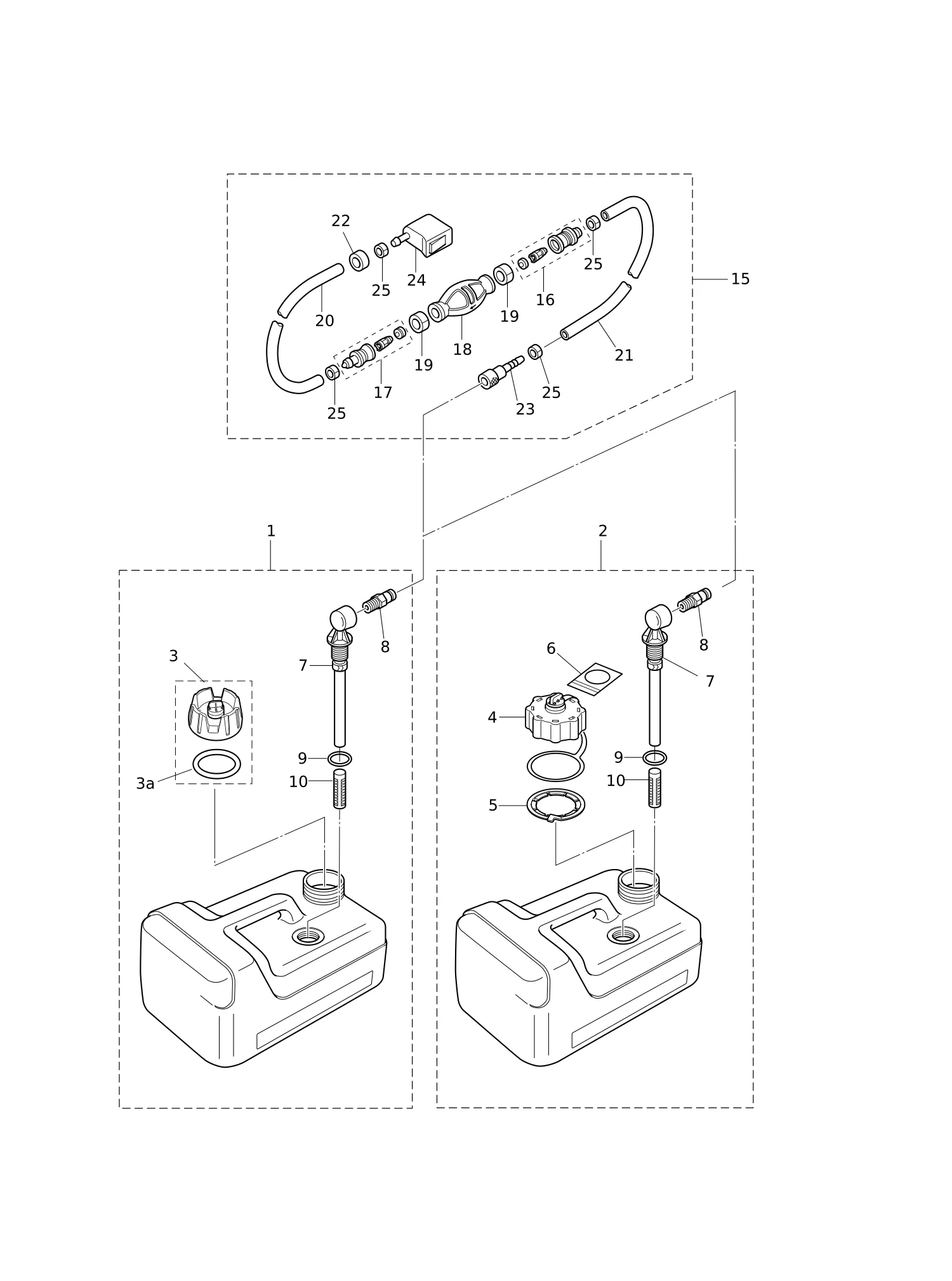

| 1 | 3RS-70167-0 | 12升燃油箱总成 | FUEL TANK ASSY 12L | 1 |
| 2 | 3UA-70167-0 | 12升燃油箱总成 | FUEL TANK ASSY 12L | 1 |
| 3 | 3RS-70020-0 | * 燃油箱盖总成 | * FUEL TANK CAP ASSY | 1 |
| 3a | 3RS-70021-0 | 油箱盖衬垫 | ** TANK FILLER CAP GASKET | 1 |
| 4 | 3AC-70052-1 | 燃油箱盖总成 | FUEL TANK CAP ASSY | 1 |
| 5 | 3AC-70055-0 | 挡圈 | RETAINING RING | 1 |
| 6 | 3AC-70352-1 | 说明标签 | INSTRUCTION TAG | 1 |
| 7 | 3B2-70155-0 | 拾波弯头总成（12升） | PICK-UP ELBOW ASSY (12L) | 1 |
| 8 | 3E0-70270-0 | 快速接头(公头) | QUICK-CONNECTOR (MALE) | 1 |
| 9 | 3C7-70199-0 | O型圈 | O-RING | 1 |
| 10 | 3C7-70113-0 | 过滤器 | FILTER | 1 |
| 15 | 3AD-70200-2 | 手动泵球总成 | PRIMER BULB ASSY | 1 |
| 15 | 3H6-70200-2 | 手动泵球总成 | PRIMER BULB ASSY | 1 |
| 16 | 3C7-70220-1 | * 接头组件(进口) | * JOINT ASSY (INLET) | 1 |
| 17 | 3C7-70224-1 | * 接头组件(出口) | * JOINT ASSY (OUTLET) | 1 |
| 18 | 3C7-70211-1 | 手动泵球 | PRIMER BULB | 1 |
| 18 | 3GF-70211-1 | * 注油球 | * PRIMER BULB | 1 |
| 19 | 3C7-70217-0 | * 卡箍 | * CLAMP | 2 |
| 20 | 3GF-70241-1 | * 低渗透软管 L=700 | * LOW PERMEATION HOSE L=700 | 1 |
| 20 | 98AB-70-700 | * 软管 | * HOSE | 1 |
| 21 | 3GF-70240-1 | * 低渗透软管 L=1600 | * LOW PERMEATION HOSE L=1600 | 1 |
| 21 | 98AB-701600 | * 软管 | * HOSE | 1 |
| 22 | 3GR-70280-0 | * 燃油接头标记 | * FUEL CONNECTOR MARK | 1 |
| 23 | 3GF-70281-0 | * 燃油接头 | * FUEL CONNECTOR | 1 |
| 24 | 3GR-70250-0 | * 燃油接头 | * FUEL CONNECTOR | 1 |
| 25 | 332-70201-0 | * 卡箍 | * CLAMP | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

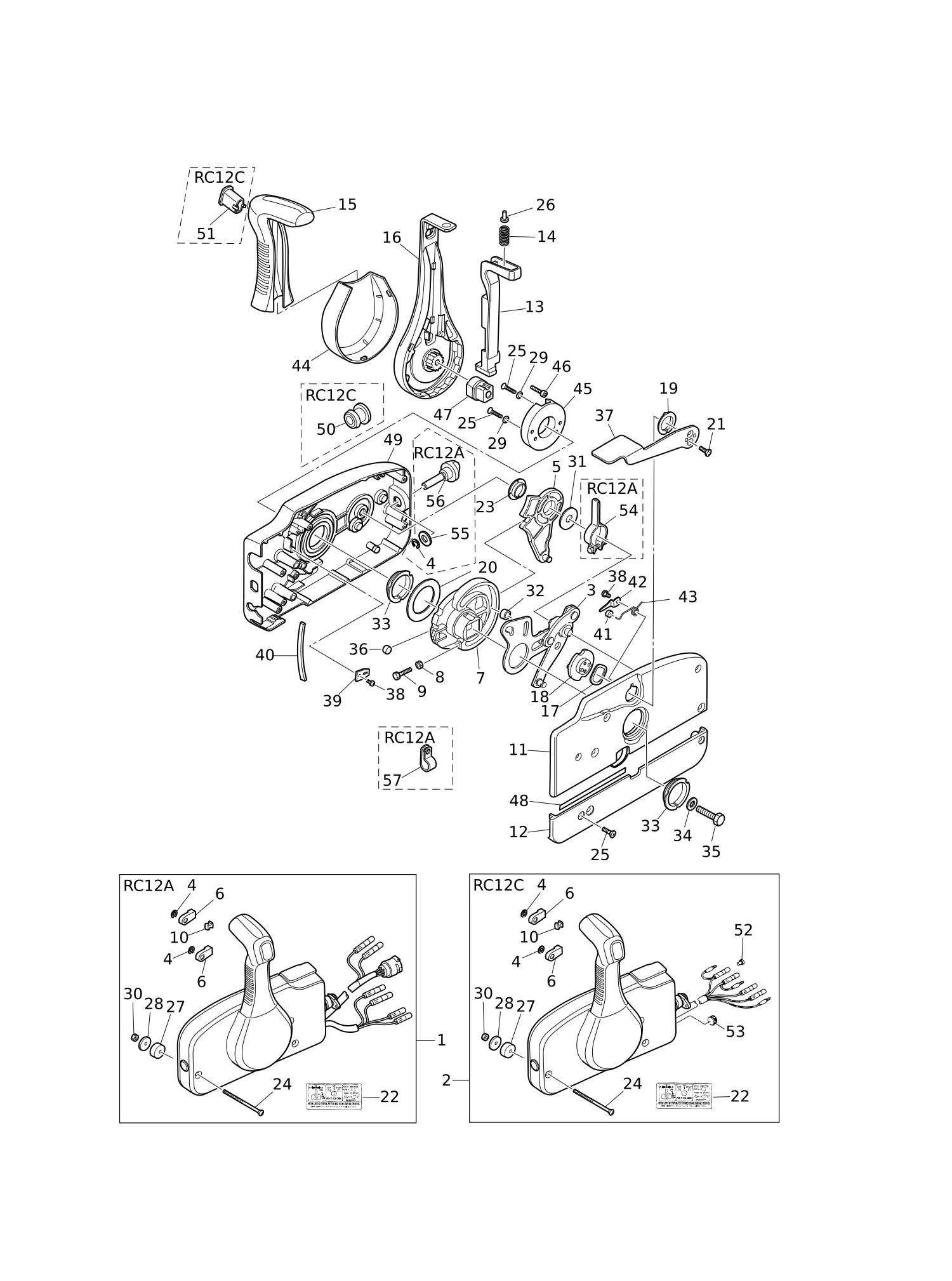

| 1 | 3U2B84330-0 | 遥控头总成(RC12A) | REMOTE CONTROL HEAD ASSY (RC12A) | 1 |
| 2 | 3U2B84350-0 | 遥控头总成 | REMOTE CONTROL HEAD ASSY | 1 |
| 3 | 3A3-84365-1 | * 节气门摇臂 | * THROTTLE ARM | 1 |
| 4 | 945303-0600 | * E型卡环 d=6 | * E-RING d=6 | 3 |
| 5 | 3A3-84381-0 | * 换挡齿轮总成 | * SHIFT GEAR ASSY | 1 |
| 6 | 3A3-83314-2 | * 线缆端子 | * CABLE TERMINAL | 2 |
| 7 | 3A3-84364-2 | * 驱动齿轮 | * DRIVE GEAR | 1 |
| 8 | 930103-0500 | 螺母 | * NUT | 1 |
| 9 | 910103-0525 | 螺栓 | * BOLT | 1 |
| 10 | 3A3-84376-0 | * 护孔环 | * GROMMET | 1 |
| 11 | 3U2B84441-0 | * 后壳体 | * REAR HOUSING | 1 |
| 12 | 3U2B84366-0 | * 后盖板 | * REAR PANEL | 1 |
| 13 | 3U2-84401-0 | * 空档锁止臂 | * NEUTRAL LOCK ARM | 1 |
| 14 | 3A3-84403-0 | * 空档锁止弹簧 | * NEUTRAL LOCK SPRING | 1 |
| 15 | 3U2-84404-0 | * 手柄 | * GRIP | 1 |
| 16 | 3U2-84343-0 | * 控制杆 | * CONTROL LEVER | 1 |
| 17 | 3A3-84368-0 | * 波形垫圈 | * WAVE WASHER | 1 |
| 18 | 3A3-84391-0 | * 自由节流鼓 | * FREE THROTTLE DRUM | 1 |
| 19 | 3A3-84435-0 | * 衬套 | * BUSHING | 1 |
| 20 | 3A3-84422-0 | * 推力板 | * THRUST PLATE | 1 |
| 21 | 921603-0512 | * 螺钉 | * SCREW | 2 |
| 22 | 3U2-84339-0 | * 操作说明标贴 | * INSTRUCTION DECAL | 1 |
| 23 | 3A3-84432-0 | * 衬套 | * BUSHING | 1 |
| 24 | 3U2-84375-0 | * 螺钉 | * SCREW | 3 |
| 25 | 3VK-84375-0 | * 螺钉 | * SCREW | 7 |
| 26 | 3VL-84375-0 | * 螺钉 | * SCREW | 1 |
| 27 | 3A3-84374-0 | * 隔套 | * SPACER | 3 |
| 28 | 353-84371-0 | * 垫圈 | * WASHER | 3 |
| 29 | 3U2-84371-0 | * 垫圈 | * WASHER | 2 |
| 30 | 930103-0600 | 螺母 | * NUT | 3 |
| 31 | 3A3-84383-0 | * 垫圈 | * WASHER | 1 |
| 32 | 3A3-84421-0 | * 滚轮 | * ROLLER | 1 |
| 33 | 3U2-84431-0 | * 衬套 | * BUSHING | 2 |
| 34 | 940103-0800 | * 垫圈 | * WASHER | 1 |
| 35 | 3U2-84442-0 | 螺栓 | * BOLT | 1 |
| 36 | 353-84388-0 | * 定位滚轮 | * DETENT ROLLER | 1 |
| 37 | 3U2B84312-0 | * 自由节流杆 | * FREE THROTTLE LEVER | 1 |
| 38 | 921503-0406 | * 螺钉 | * SCREW | 3 |
| 39 | 3A3-84423-0 | * 定位器挡圈 | * DETENT RETAINER | 1 |
| 40 | 3A3-84307-0 | * 定位弹簧 | * DETENT SPRING | 6 |
| 41 | 3A3-84424-0 | * 自由节流滚轮 | * FREE THROTTLE ROLLER | 1 |
| 42 | 3A3-84426-0 | * 滚柱保持架 | * ROLLER RETAINER | 1 |
| 43 | 3A3-84425-0 | * 自由节流弹簧 | * FREE THROTTLE SPRING | 1 |
| 44 | 3VK-63107-0 | * 盖板 | * COVER | 1 |
| 45 | 3U2-63506-0 | * 支架 | * HOLDER | 1 |
| 46 | 3U2-84917-0 | 螺栓 | * BOLT | 1 |
| 47 | 3U2-77367-0 | * 接头 | * JOINT | 1 |
| 48 | 3U2-72187-0 | 警示标贴(SIGP型) | CAUTION DECAL(SIGP) | 1 |
| 49 | 3U2B84440-0 | * 前壳体 | * FRONT HOUSING | 1 |
| 50 | 3U2-84414-0 | * 护孔环 | * GROMMET | 1 |
| 51 | 3U2-84452-0 | * 倾斜开关塞 | * TILT SWITCH PLUG | 1 |
| 52 | 3A3-76037-0 | * 线缆端子塞 | * CABLE TERMINAL PLUG | 1 |
| 53 | 361-84415-0 | * 护孔环 | * GROMMET | 1 |
| 54 | 3A3-84428-0 | * 油门摩擦摇臂 | * THROTTLE FRICTION ARM | 1 |
| 55 | 353-84394-0 | * 垫圈 | * WASHER | 1 |
| 56 | 3U2-84427-0 | * 调节螺钉 | * ADJUSTING SCREW | 1 |
| 57 | 3U2-06973-0 | * 卡箍 | * CLAMP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

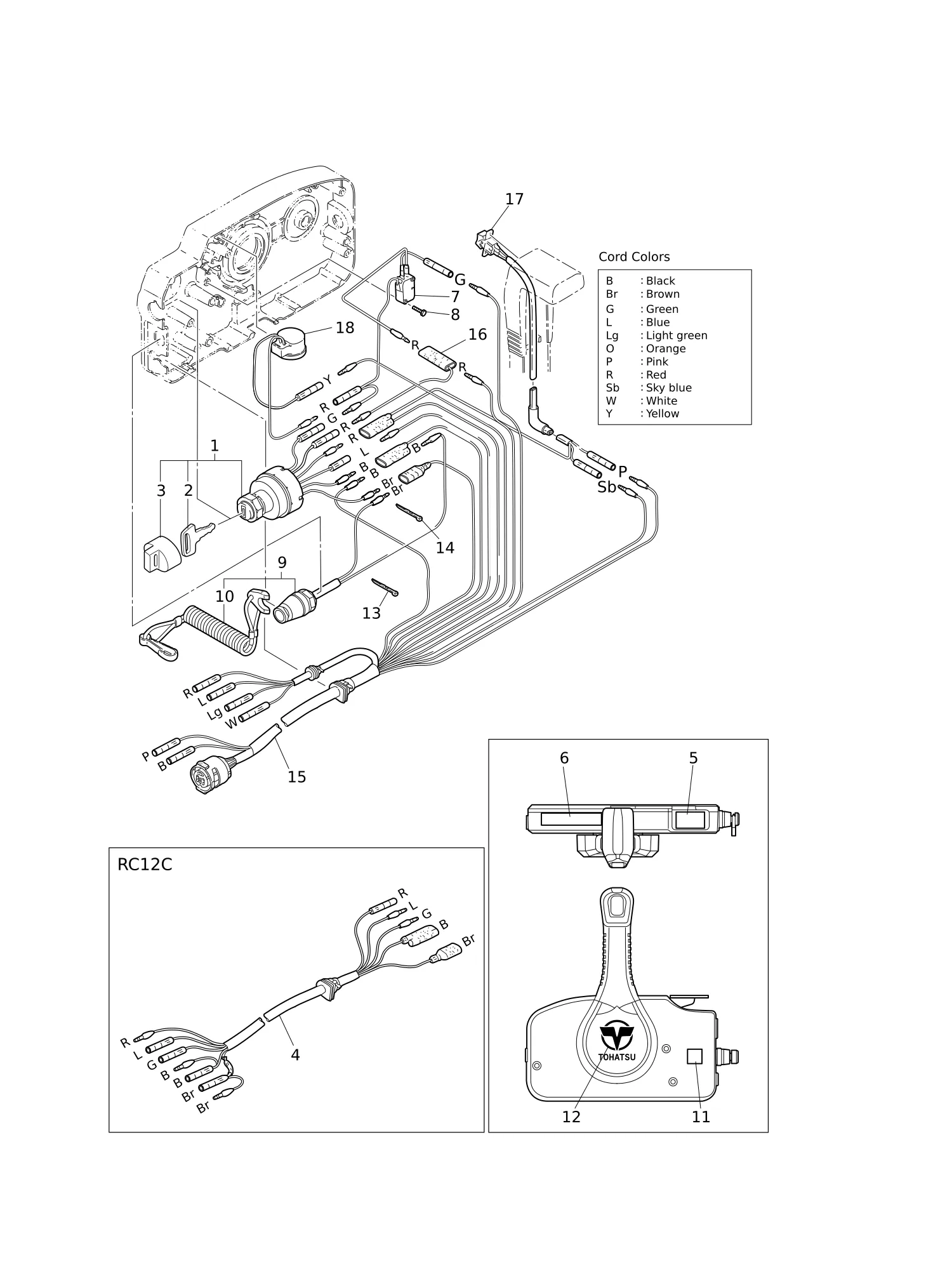

| 1 | 3GF-76020-0 | 主开关总成 | MAIN SWITCH ASSY | 1 |
| 2 | 3GF-76217-0 | * 主开关钥匙 | * MAIN SWITCH KEY | 1 |
| 2 | 3GF-76218-0 | * 主开关钥匙 | * MAIN SWITCH KEY | 1 |
| 2 | 3GF-76219-0 | * 主开关钥匙 | * MAIN SWITCH KEY | 1 |
| 3 | 3GF-76205-0 | * 主开关钥匙盖帽 | * MAIN SWITCH KEY COVERING CAP | 1 |
| 4 | 361-76110-1 | 线束总成 | CORD ASSY | 1 |
| 5 | 3U2-84331-0 | 操纵杆贴花 | DECAL (LEVER) | 1 |
| 6 | 3U2-84336-0 | 挡位标识贴 | SHIFT POSITION DECAL | 1 |
| 7 | 3A3-76086-1 | 空档开关(遥控型) | NEUTRAL SWITCH (REMOTE CONT) | 1 |
| 8 | 921503-5316 | 螺钉 | SCREW | 2 |
| 9 | 3A3-06830-0 | 停止开关总成 | STOP SWITCH ASSY | 1 |
| 10 | 353-06821-0 | * 停机开关拉绳总成 | * STOP SWITCH LANYARD ASSY | 1 |
| 11 | 3U2-72200-0 | 停止开关贴花 | STOP SWITCH DECAL | 2 |
| 12 | 3U2-84334-0 | 遥控标识贴花 | REMOTE CONTROL LOGO DECAL | 1 |
| 14 | 3U2-84398-0 | 箍带 | BAND | 5 |
| 15 | 3A3-76115-1 | 线束总成 L=6200 | CORD ASSY L=6200 | 1 |
| 16 | 353-72546-0 | 辅助拉绳(红) 长200 | ASSIST CORD (RED) L=200 | 1 |
| 17 | 3U2-72615-0 | 动力升降倾斜装置开关总成 | PTT SWITCH ASSY | 1 |
| 18 | 3C8-76171-0 | 过热报警器 | OVERHEAT BUZZER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

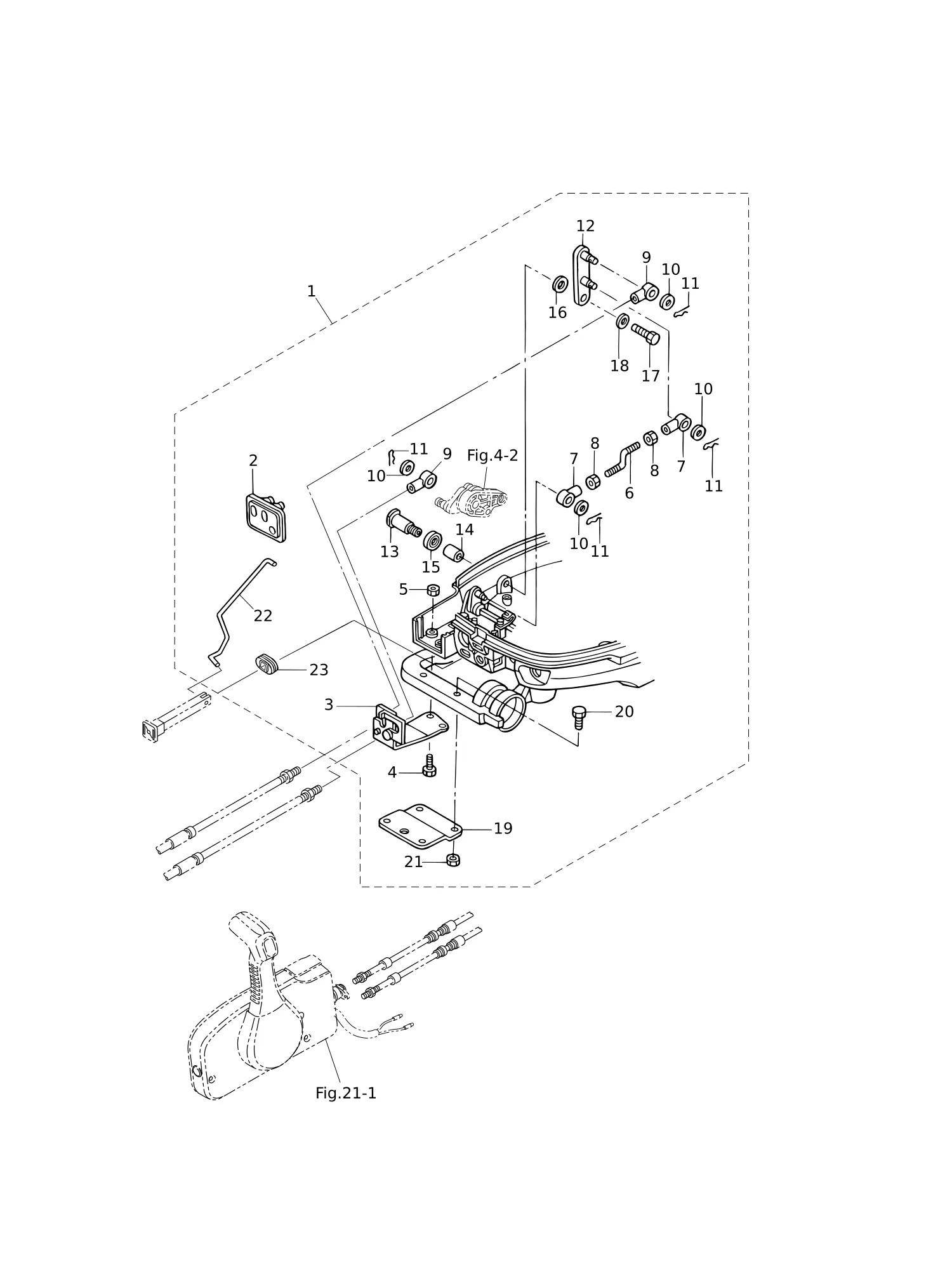

| 1 | 3V2-83880-2 | 遥控装置总成 | REMOTE CONTROL FITTING ASSY | 1 |
| 2 | 3V1-83732-0 | * 护孔环 | * GROMMET | 1 |
| 3 | 3V1-83820-0 | * 线缆夹总成 | * CABLE CLIP ASSY | 1 |
| 4 | 9101E3-0616 | 螺栓 | * BOLT | 2 |
| 5 | 9301E3-0600 | 螺母 | * NUT | 2 |
| 6 | 3V1-66134-0 | * 换挡杆 | * SHIFT LEVER ROD | 1 |
| 7 | 3R0-83715-0 | * 线缆接头 4.5-40.5 | * CABLE JOINT 4.5-40.5 | 2 |
| 8 | 930103-0500 | 螺母 | * NUT | 2 |
| 9 | 3B7-83715-2 | * 线缆接头 | * CABLE JOINT | 2 |
| 10 | 3AA-83719-0 | * 垫圈 8.5-18-1.6 | * WASHER 8.5-18-1.6 | 4 |
| 11 | 951603-0800 | * 弹性销 d=8 | * SNAP PIN d=8 | 4 |
| 12 | 3V2-66128-0 | * 换挡臂(遥控) | * SHIFT ARM (REMOTE CONTROL) | 1 |
| 13 | 3V1-66142-0 | * 枢轴 | * PIVOT | 1 |
| 14 | 369-67105-0 | * 钩杆衬套 | * HOOK LEVER BUSHING | 1 |
| 15 | 338-67147-0 | * 密封环 13.8-22-3.7 | * SEAL RING 13.8-22-3.7 | 1 |
| 16 | 941403-1400 | * 波形垫圈 d=14 | * WAVE WASHER d=14 | 1 |
| 17 | 910103-0612 | 螺栓 | * BOLT | 1 |
| 18 | 346-67115-0 | * 垫圈 6.5-21-1 | * WASHER 6.5-21-1 | 1 |
| 19 | 369-83830-2 | * 转向钩板 | * STEERING HOOK PLATE | 1 |
| 20 | 9101E3-5830 | 螺栓 | * BOLT | 2 |
| 21 | 9301E3-0800 | 螺母 | * NUT | 2 |
| 22 | 3V2-67192-0 | * 阻风门拉杆 | * CHOKE ROD | 1 |
| 23 | 3V2-67193-0 | * 护孔环 | * GROMMET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

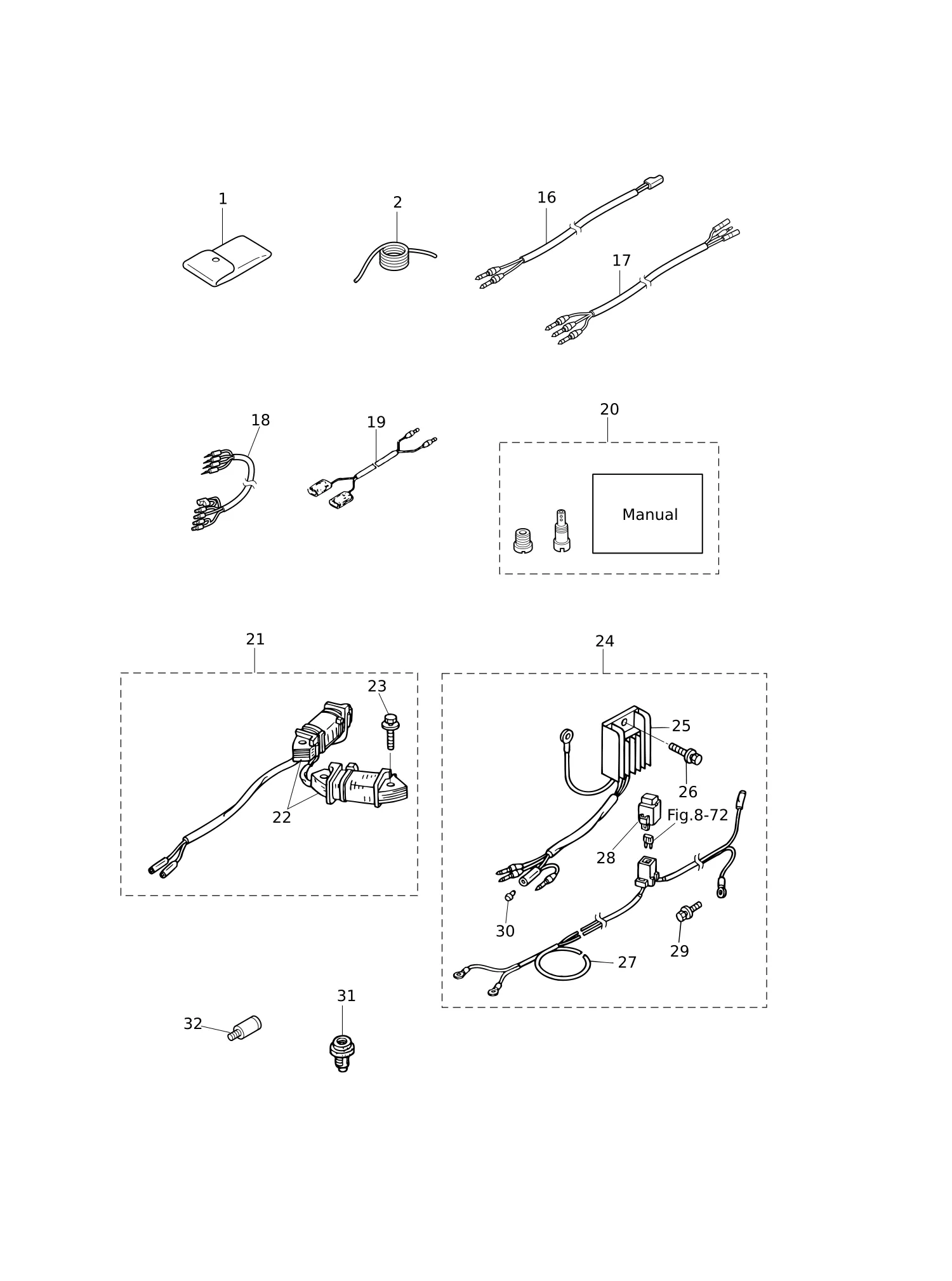

| 1 | 3BJ-72100-0 | 工具包 | TOOL KIT | 1 |
| 2 | 3B7-72201-0 | 安全绳φ5-1600 | SAFETY ROPE φ5-1600 | 1 |
| 16 | 361-72539-0 | 转速表导线 L=6000 | TACHOMETER LEAD WIRE L=6000 | 1 |
| 17 | 3UA-72539-0 | 转速表导线 L=6000 | TACHOMETER LEAD WIRE L=6000 | 1 |
| 18 | 3A3-72537-1 | 仪表引线 长2000mm | METER LEAD WIRE L=2000 | 1 |
| 19 | 353-72537-0 | 仪表引线 长1500mm | METER LEAD WIRE L=1500 | 1 |
| 20 | 3V1-10230-0 | 海拔调节套件 | ALTITUDE ADJUSTMENT KIT | 1 |
| 20 | 3V2-10230-0 | 海拔调节套件 | ALTITUDE ADJUSTMENT KIT | 1 |
| 21 | 3V2-06128-0 | 交流发电机套件 | ALTERNATOR KIT | 1 |
| 22 | 3AA-06023-0 | * 交流发电机总成 | * ALTERNATOR ASSY | 1 |
| 23 | 910103-5630 | 螺栓 | * BOLT | 4 |
| 24 | 3V2-76160-0 | 整流器套件 | RECTIFIER KIT | 1 |
| 25 | 3AA-76065-0 | * 整流器总成 | * RECTIFIER COMPLETE | 1 |
| 26 | 910103-5616 | 螺栓 | * BOLT | 1 |
| 27 | 3AA-76161-0 | * 延长线 L=2150 | * EXTENSION CORD L=2150 | 1 |
| 28 | 1E0-34093-0 | * 盖帽 | * CAP | 1 |
| 29 | 910103-5610 | 螺栓 | * BOLT | 1 |
| 30 | 3A3-76037-0 | * 线缆端子塞 | * CABLE TERMINAL PLUG | 1 |
| 31 | 3AA-01030-0 | 节温器 | THERMOSTAT | 1 |
| 32 | 336-60007-0 | 冲洗塞 | FLUSHING PLUG | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

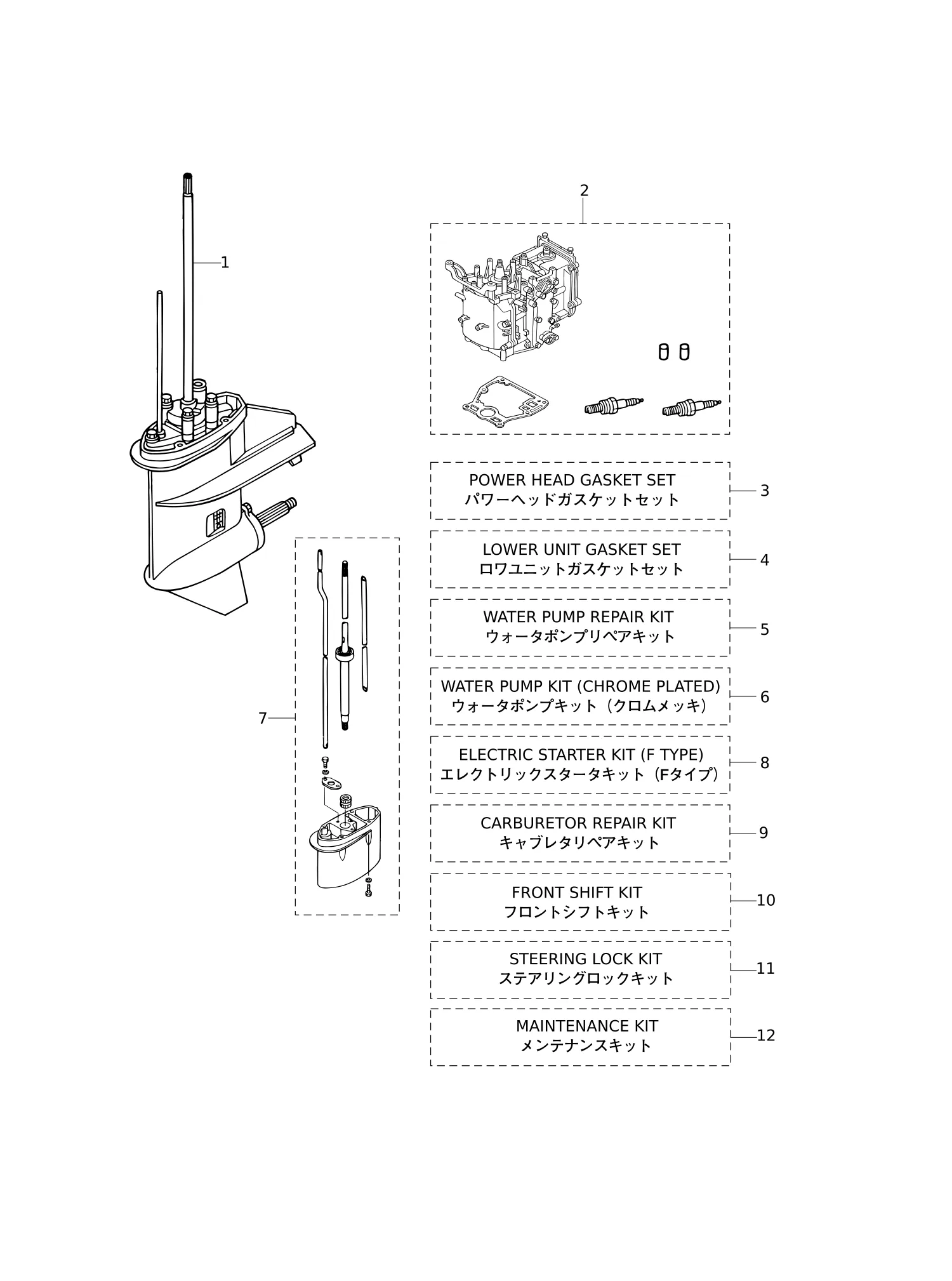

| 1 | 3V1Q87301-8 | 下部单元总成 (S) | LOWER UNIT ASSY (S) | 1 |
| 1 | 3V1Q87302-8 | 下部单元总成 (L) | LOWER UNIT ASSY (L) | 1 |
| 1 | 3V1Q87304-8 | 下部单元总成 (UL) | LOWER UNIT ASSY (UL) | 1 |
| 1 | 3WBQ87302-0 | 下部单元总成 (L) | LOWER UNIT ASSY (L) | 1 |
| 1 | 3WBQ87304-0 | 下部单元总成 (UL) | LOWER UNIT ASSY (UL) | 1 |
| 2 | 3FKB87090-5 | 发动机短缸体套件 | ENGINE SHORT BLOCK KIT | 1 |
| 2 | 3V1B87090-8 | 发动机短缸体套件 | ENGINE SHORT BLOCK KIT | 1 |
| 3 | 346-01032-0 | * 节温器盖衬垫 | * THERMOSTAT CAP GASKET | 1 |
| 3 | 3B2-01215-0 | * 油封 12-28-5 | * OIL SEAL 12-28-5 | 1 |
| 3 | 3H6-07422-0 | * O型圈 2.6-18.7 | * O-RING 2.6-18.7 | 1 |
| 3 | 3H8-07025-0 | * 油封 18-35-8 | * OIL SEAL 18-35-8 | 1 |
| 3 | 3R0-07422-0 | * O型圈 3.1-24.4 | * O-RING 3.1-24.4 | 1 |
| 3 | 3V1-00121-0 | * 油封 30-45-8 | * OIL SEAL 30-45-8 | 2 |
| 3 | 3V1-01005-0 | * 气缸盖垫片 | * CYLINDER HEAD GASKET | 1 |
| 3 | 3V1-01024-0 | * 气缸盖罩衬垫 | * CYLINDER HEAD COVER GASKET | 1 |
| 3 | 3V1-01303-0 | * 发动机底座衬垫 | * ENGINE BASEMENT GASKET | 1 |
| 3 | 3V1-02011-0 | * 化油器衬垫 | * CARBURETOR GASKET | 2 |
| 3 | 3V1-02012-0 | * O型圈 2.4-35.2 | * O-RING 2.4-35.2 | 1 |
| 3 | 3V1-02104-0 | * 进气歧管垫片 | * INTAKE MANIFOLD GASKET | 1 |
| 3 | 3V1-02305-0 | * 排气盖衬垫 | * EXHAUST COVER GASKET | 1 |
| 3 | 3V1-07653-0 | * 机油泵垫片 | * OIL PUMP GASKET | 1 |
| 3 | 3V1-87121-0 | 动力头衬垫套装 | POWER HEAD GASKET SET | 1 |
| 4 | 309-60111-0 | * 油封 12-24-8 | * OIL SEAL 12-24-8 | 1 |
| 4 | 332-66032-0 | * O型圈2.4-15.4 | * O-RING 2.4-15.4 | 1 |
| 4 | 345-65015-0 | * O型圈 3.2-47 | * O-RING 3.2-47 | 1 |
| 4 | 369-60111-0 | * 油封 15-28-10 | * OIL SEAL 15-28-10 | 1 |
| 4 | 369-66021-1 | * O型圈 2.5-4.9 | * O-RING 2.5-4.9 | 2 |
| 4 | 3B2-02312-2 | * 排气管衬垫 | * EXHAUST PIPE GASKET | 1 |
| 4 | 3B2-61012-2 | * 驱动轴壳体衬垫 | * DRIVE SHAFT HOUSING GASKET | 1 |
| 4 | 3B2-87321-5 | 下部单元衬垫套件 | LOWER UNIT GASKET SET | 1 |
| 5 | 3B2-65020-1 | * 泵壳衬垫(下) | * PUMP CASE GASKET (LOWER) | 1 |
| 5 | 3B2-87322-2 | 水泵维修套件 | WATER PUMP REPAIR KIT | 1 |
| 5 | 9161E3-0650 | 螺栓 | * BOLT | 4 |
| 5 | 940103-0600 | * 垫圈 | * WASHER | 4 |
| 6 | 3B2-65231-2 | 水泵套件(镀铬) | WATER PUMP KIT (CHROME PLATED) | 1 |
| 6 | 3B2-65238-0 | * 泵壳衬套 | * PUMP CASE LINER | 1 |
| 6 | 3B2-65239-0 | * 水泵导板 | * WATER PUMP GUIDE PLATE | 1 |
| 7 | 3B2-60003-1 | * 驱动轴衬套（上长） | * DRIVE SHAFT BUSHING (UL) | 1 |
| 7 | 3B2Q61110-2 | * 延伸壳体 | * EXTENSION HOUSING | 1 |
| 7 | 3V1-64309-2 | * 驱动轴总成（上长） | * DRIVE SHAFT ASSY (UL) | 1 |
| 7 | 3V1-64332-0 | * 止动块 | * STOPPER | 1 |
| 7 | 3V1-65120-0 | * 水管 (上左) | * WATER PIPE (UL) | 1 |
| 7 | 3V1-66014-0 | * 凸轮杆(上左) | * CAM ROD (UL) | 1 |
| 7 | 3V1Q87314-5 | 延伸壳体套件(超长) | EXTENSION HOUSING KIT (UL) | 1 |
| 7 | 3V2-60001-0 | 螺栓 6-35 | * BOLT 6-35 | 4 |
| 7 | 9101E3-5612 | 螺栓 | * BOLT | 2 |
| 8 | 174-35012-0 | * 轴环 6-8-6 | * COLLAR 6-8-6 | 1 |
| 8 | 398-76080-1 | * 空档开关 | * NEUTRAL SWITCH | 1 |
| 8 | 398-76083-0 | * 空档开关执行器 | * NEUTRAL SWITCH ACTUATOR | 1 |
| 8 | 3A0-76079-0 | * 轴环 6.2-9-7.4 | * COLLAR 6.2-9-7.4 | 3 |
| 8 | 3AA-06023-0 | * 交流发电机总成 | * ALTERNATOR ASSY | 1 |
| 8 | 3AA-06091-0 | * 飞轮(带齿轮) | * FLYWHEEL W/GEAR | 1 |
| 8 | 3AA-06281-1 | * 线缆端子固定座 | * CABLE TERMINAL HOLDER | 1 |
| 8 | 3AA-06902-1 | * 盖板 | * COVER | 1 |
| 8 | 3AA-76010-0 | * 启动电机总成 | * STARTER MOTOR ASSY | 1 |
| 8 | 3AA-76026-0 | * 主开关总成 | * MAIN SWITCH ASSY | 1 |
| 8 | 3AA-76065-0 | * 整流器总成 | * RECTIFIER COMPLETE | 1 |
| 8 | 3AA-76145-0 | * 端子盖 13-13-28 | * TERMINAL CAP 13-13-28 | 1 |
| 8 | 3AC-76120-0 | 蓄电池电缆 L=2500 | * BATTERY CABLE L=2500 | 1 |
| 8 | 3B2-76147-2 | * 启动电缆 L=200 | * STARTER CABLE L=200 | 1 |
| 8 | 3B7-06305-0 | * 橡胶支座 9-16-4.3 | * RUBBER MOUNT 9-16-4.3 | 3 |
| 8 | 3H8-76040-0 | * 启动电磁阀 | * STARTER SOLENOID | 1 |
| 8 | 3R0-66308-0 | * 垫圈 6-16-1.5 | * WASHER 6-16-1.5 | 6 |
| 8 | 3R0-76064-0 | * 保险丝支架 | * FUSE HOLDER BRACKET | 1 |
| 8 | 3T5-06920-0 | * 橡胶支座 8.5-18-7 | * RUBBER MOUNT 8.5-18-7 | 3 |
| 8 | 3V1-06284-1 | * 线缆端子固定支架 | * CABLE TERMINAL HOLDER STAY | 1 |
| 8 | 3V1-06900-1 | * 电气支架总成 | * ELECTRIC BRACKET ASSY | 1 |
| 8 | 3V1-76011-1 | * 启动电机支架 | * STARTER MOTOR BRACKET | 1 |
| 8 | 3V1-76066-0 | * 保险丝线束总成 L=185 | * FUSE WIRE ASSY L=185 | 1 |
| 8 | 3V1-76148-0 | * 螺旋软管护套 φ10-100 | * SPIRAL TUBE PROTECTOR φ10-100 | 2 |
| 8 | 3V2-76300-4 | 电动启动器套件(F) | ELECTRIC STARTER KIT (F) | 1 |
| 8 | 3Y0-76145-0 | * 端子盖 8-18-28 | * TERMINAL CAP 8-18-28 | 1 |
| 8 | 3Y1-76145-0 | * 端子盖 8-13-28 | * TERMINAL CAP 8-13-28 | 1 |
| 8 | 910103-5610 | 螺栓 | * BOLT | 3 |
| 8 | 910103-5612 | 螺栓 | * BOLT | 1 |
| 8 | 910103-5616 | 螺栓 | * BOLT | 1 |
| 8 | 910103-5630 | 螺栓 | * BOLT | 4 |
| 8 | 9101E3-0620 | 螺栓 | * BOLT | 3 |
| 8 | 9161F4-0830 | 螺栓 | * BOLT | 4 |
| 8 | 940103-0800 | * 垫圈 | * WASHER | 4 |
| 9 | 3C8-03125-0 | * 浮子 | * FLOAT | 1 |
| 9 | 3C8-03126-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 9 | 3V1-03116-0 | * O型圈 | * O-RING | 1 |
| 9 | 3V1-03121-0 | * 浮子室垫片 | * FLOAT CHAMBER GASKET | 1 |
| 9 | 3V1-03147-1 | * 浮子阀 | * FLOAT VALVE | 1 |
| 9 | 3V1-03182-0 | * 化油器盖垫片 | * CARBURETOR COVER GASKET | 1 |
| 9 | 3V1-03193-0 | * 衬垫 | * GASKET | 1 |
| 9 | 3V1-87122-0 | 化油器修理包 | CARBURETOR REPAIR KIT | 1 |
| 9 | 921703-0406 | * 螺钉 | * SCREW | 1 |
| 9 | 922503-6410 | * 螺钉 | * SCREW | 2 |
| 9 | 922503-6412 | * 螺钉 | * SCREW | 4 |
| 10 | 346-67115-0 | * 垫圈 6.5-21-1 | * WASHER 6.5-21-1 | 1 |
| 10 | 3AA-66135-1 | * 换挡杆轴 | * SHIFT LEVER SHAFT | 1 |
| 10 | 3AA-83719-0 | * 垫圈 8.5-18-1.6 | * WASHER 8.5-18-1.6 | 1 |
| 10 | 3H6-63619-1 | * 轴环 6.5-10.5-10 | * COLLAR 6.5-10.5-10 | 1 |
| 10 | 3R0-83715-0 | * 线缆接头 4.5-40.5 | * CABLE JOINT 4.5-40.5 | 1 |
| 10 | 3V1Q80404-0 | 前换挡套件 | FRONT SHIFT KIT | 1 |
| 10 | 3Y3-63621-0 | * 护孔环 | * GROMMET | 1 |
| 10 | 3Y3-66110-0 | * 换挡杆 | * SHIFT LEVER | 1 |
| 10 | 3Y3-66134-0 | * 换挡杆 | * SHIFT LEVER ROD | 1 |
| 10 | 3Y3-67192-0 | * 阻风门拉杆 | * CHOKE ROD | 1 |
| 10 | 3Y3-67578-1 | * 换挡标贴 | * SHIFT DECAL | 1 |
| 10 | 3Y3Q67480-0 | * 换挡杆支架 | * SHIFT LEVER BRACKET | 1 |
| 10 | 9101E3-0625 | 螺栓 | * BOLT | 1 |
| 10 | 9101E3-5625 | 螺栓 | * BOLT | 2 |
| 10 | 930103-0500 | 螺母 | * NUT | 1 |
| 10 | 9301E3-0600 | 螺母 | * NUT | 2 |
| 10 | 951603-0800 | * 弹性销 d=8 | * SNAP PIN d=8 | 1 |
| 11 | 346-62127-0 | * 盖形螺母 | * CAP NUT | 2 |
| 11 | 3V1-62500-1 | 转向锁套件 | STEERING LOCK KIT | 1 |
| 11 | 3V1-62510-0 | * 转向锁板 | * STEERING LOCK PLATE | 1 |
| 11 | 3Y3-60108-0 | * 预涂螺栓6-12 | * PRE-COATED BOLT 6-12 | 2 |
| 11 | 3Y4-60108-0 | * 预涂螺栓8-20 | * PRE-COATED BOLT 8-20 | 1 |
| 11 | 3Z0-61334-0 | * 垫圈 8.5-34-3 | * WASHER 8.5-34-3 | 1 |
| 12 | 332-60006-1 | * 衬垫 | * GASKET | 2 |
| 12 | 369-02230-1 | * 燃油滤清器总成 | * FUEL FILTER ASSY | 1 |
| 12 | 369-60218-1 | * 阳极 | * ANODE | 1 |
| 12 | 3B2-65011-0 | * 泵壳衬套 | * PUMP CASE LINER | 1 |
| 12 | 3B2-65018-2 | * 泵壳衬垫 | * PUMP CASE GASKET | 1 |
| 12 | 3B2-65021-1 | * 水泵叶轮 | * WATER PUMP IMPELLER | 1 |
| 12 | 3B2-65022-0 | * 键 φ3-11 | * KEY φ3-11 | 1 |
| 12 | 3B2-65025-0 | * 水泵导板 | * WATER PUMP GUIDE PLATE | 1 |
| 12 | 3B2-65029-2 | * 导板垫片 | * GUIDE PLATE GASKET | 1 |
| 12 | 3R3-01144-0 | * 衬垫 | * GASKET | 1 |
| 12 | 3R3-07406-0 | * 垫圈 14.5-24-1 | * WASHER 14.5-24-1 | 1 |
| 12 | 3V1-60217-0 | * 配平片 | * TRIM TAB | 1 |
| 12 | 3V1-87500-0 | MFS 8/9.8A3/B维护套件 | MAINTENANCE KIT FOR MFS 8/9.8A3/B | 1 |
| 12 | 951403-0310 | * 弹簧销 3-10 | * SPRING PIN 3-10 | 2 |
| 12 | 951503-0318 | * 开口销 3-18 | * SPLIT PIN 3-18 | 1 |
| 12 | 9701-1-1103 | * 火花塞 (DCPR6E) | * SPARK PLUG(DCPR6E) | 2 |
