东发 Tohatsu MFS6CZ/8C/9.8C/9.9CY 2025 - 爆炸图零件明细

四冲程 4-Stroke · 2025 年 · 手册号 002-21061-0BE · 共 22 个部位 · 992 条零件

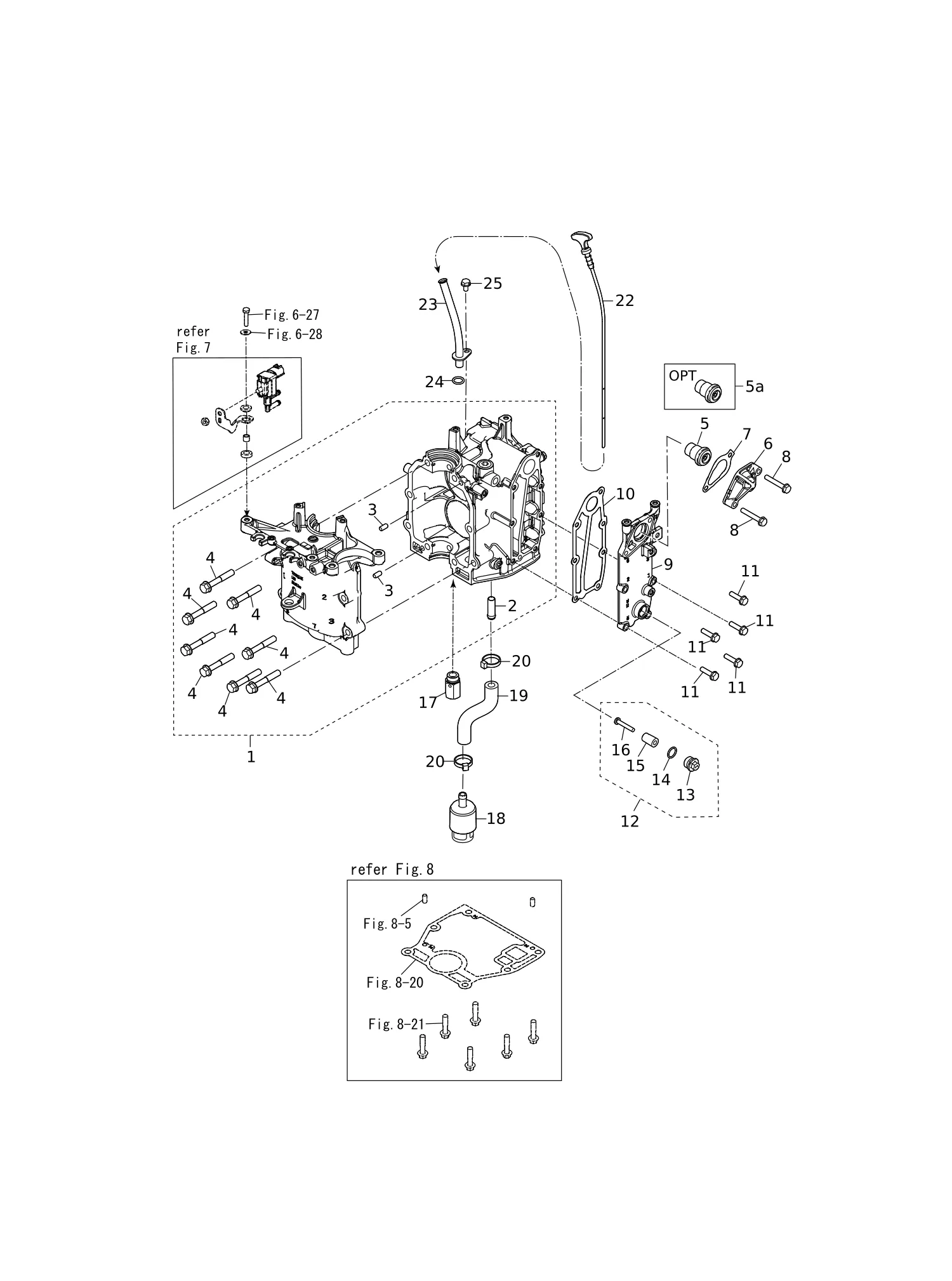

图 01气缸·曲轴箱 CYLINDER · CRANK CASE

REF	零件编号	中文名称	英文名称	数量
1	31HB01100-0	气缸体与曲轴箱总成	CYL BLOCK & CRANKCASE ASSY	1
2	31H-02093-0	接头 10-11.5-32	* NIPPLE 10-11.5-32	1
3	345-01111-0	* 定位销 6-12	* DOWEL PIN 6-12	2
4	31H-01114-0	* 螺栓 M8-50-P1.25	* BOLT M8-50-P1.25	8
5a	3AA-01030-0	节温器	THERMOSTAT	1
5	3NV-01030-0	节温器	THERMOSTAT	1
6	3H6B01031-0	节温器盖	THERMOSTAT CAP	1
7	346-01032-0	节温器盖垫片	THERMOSTAT CAP GASKET	1
8	9101E3-5640	螺栓	BOLT	2
9	31HB02301-0	排气外盖	EXHAUST COVER (OUTER)	1
10	31H-02305-0	排气盖垫片	EXHAUST COVER GASKET	1
11	9101E3-5625	螺栓	BOLT	5
12	3KM-01142-0	阳极螺塞总成	ANODE PLUG ASSY	1
13	3P0-01143-0	* 阳极塞	* ANODE PLUG	1
14	3T5-10046-0	* O型圈1.9-13	* O-RING 1.9-13	1
15	3P0-60218-0	* 阳极	* ANODE	1
16	921503-0530	* 螺钉	* SCREW	1
17	3V2-07620-0	柱塞总成	PLUNGER ASSY	1
18	31H-07710-0	机油滤网总成	OIL STRAINER ASSY	1
19	3UA-07715-0	管 L=120	PIPE L=120	1
20	369-84398-1	箍带 202	BAND 202	2
22	31H-07721-0	油位计	OIL LEVEL GAUGE	1
23	31H-07720-0	油位计导杆	OIL LEVEL GAUGE GUIDE	1
24	3T5-10162-0	O型圈1.9-9.8	O-RING 1.9-9.8	1
25	910103-5612	螺栓	BOLT	1

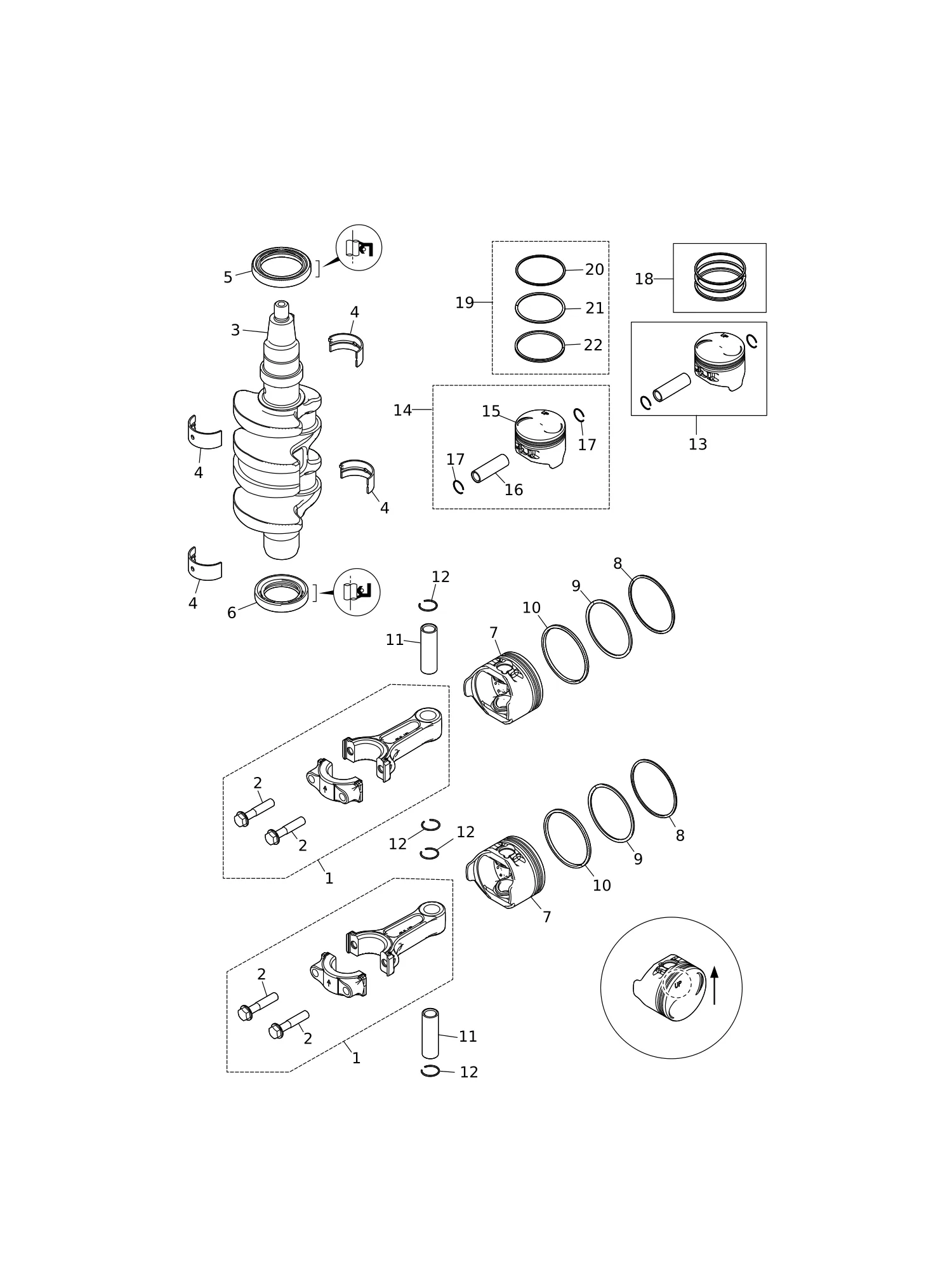

图 02活塞·曲轴 PISTON · CRANK SHAFT

REF	零件编号	中文名称	英文名称	数量
1	3V1-00040-1	连杆总成	CONNECTING ROD ASSY	2
2	3H6-00059-0	* 连杆螺栓	* CONNECTING ROD BOLT	2
3	31H-00030-0	曲轴总成	CRANKSHAFT ASSY	1
4	3V1-07407-0	滑动轴承 30-33-15	PLAIN SHAFT BEARING 30-33-15	1
4	3V1-07408-0	滑动轴承 30-33-15	PLAIN SHAFT BEARING 30-33-15	1
5	3BJ-00121-0	油封 36-50-7	OIL SEAL 36-50-7	1
6	3V1-00121-0	油封 30-45-8	OIL SEAL 30-45-8	1
7	3V1-00001-1	活塞	PISTON	2
8	3V1-00011-0	活塞环	PISTON RING	2
9	3V1-00012-0	活塞环	PISTON RING	2
10	3V1-00013-0	油环	PISTON RING-OIL	2
13	3FK-87130-0	活塞修理包	PISTON REPAIR KIT	2
14	3FK-87131-0	活塞修理包（0.5加大）	PISTON REPAIR KIT (0.5 O/S)	2
15	3V1-00004-1	* 活塞 (0.5 加大)	* PISTON (0.5 O/S)	1
16	332-00021-1	* 活塞销	* PISTON PIN	1
17	350-00024-1	* 活塞销卡簧	* PISTON PIN CLIP	2
18	3FK-87123-0	活塞环组	PISTON RING SET	2
19	3FK-87124-0	活塞环组（0.5加大）	PISTON RING SET (0.5 O/S)	2
20	3V1-00014-0	* 活塞环 (0.5 加大)	* PISTON RING (0.5 O/S)	1
21	3V1-00015-0	* 活塞环 (0.5 加大)	* PISTON RING (0.5 O/S)	1
22	3V1-00016-0	* 油环 (0.5 加大)	* PISTON RING-OIL (0.5 O/S)	1

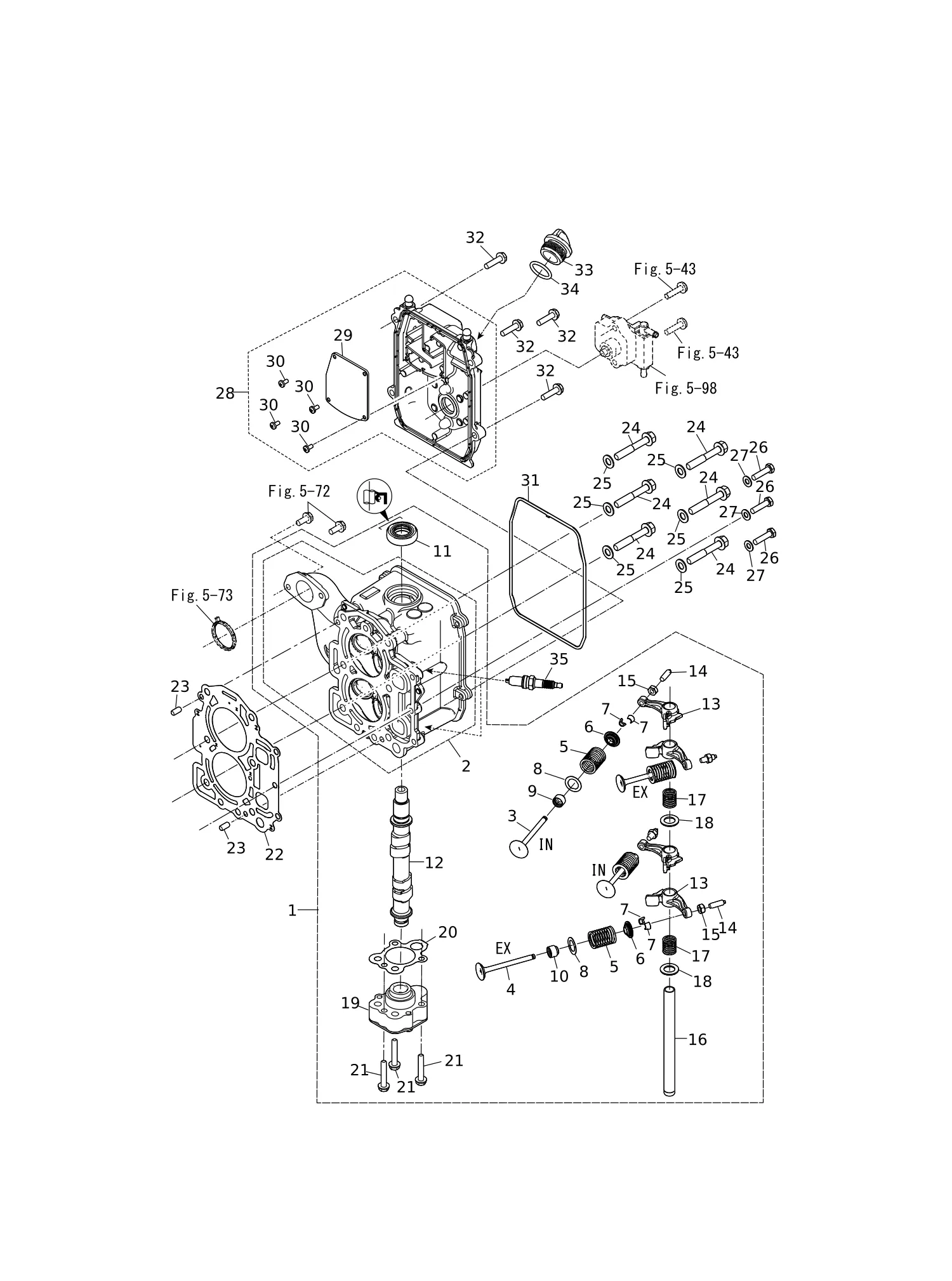

图 03气缸盖·机油泵 CYLINDER HEAD · OIL PUMP

REF	零件编号	中文名称	英文名称	数量
1	31HB01000-0	气缸盖总成	CYLINDER HEAD COMPLETE	1
1	31PB01000-0	气缸盖总成	CYLINDER HEAD COMPLETE	1
2	31HB01001-0	* 气缸盖总成	* CYLINDER HEAD ASSY	1
3	3V1-07201-0	* 进气阀	* INTAKE VALVE	2
4	3V1-07202-0	* 排气阀	* EXHAUST VALVE	2
5	3AA-07203-0	* 阀门弹簧 L=38.3	* VALVE SPRING L=38.3	4
6	3GT-07921-0	* 固定座	* RETAINER	4
7	3KY-07923-0	* 开口销	* COTTER	8
8	3V1-07205-0	* 阀门弹簧座	* VALVE SPRING SEAT	4
9	3R3-07204-0	* 进气阀杆油封	* INTAKE VALVE STEM SEAL	2
10	3R3-07206-0	* 排气阀杆密封	* EXHAUST VALVE STEM SEAL	2
11	3H8-07025-0	* 油封 18-35-8	* OIL SEAL 18-35-8	1
12	31H-07810-0	* 凸轮轴总成	* CAMSHAFT ASSY	1
12	31P-07810-0	* 凸轮轴总成	* CAMSHAFT ASSY	1
13	3VS-07935-0	* 摇臂	* ROCKER ARM	4
14	3R0-07238-0	* 调节螺钉	* ADJUSTING SCREW	4
15	3H8-07237-0	* 调节螺母	* ADJUSTING NUT	4
16	3RS-07920-0	* 摇臂轴	* ROCKER ARM SHAFT	1
17	3AA-07225-0	* 摇臂轴弹簧 L=25	* ROCKER SHAFT SPRING L=25	2
18	3R3-07227-0	* 垫圈 13.2-21.7-2	* WASHER 13.2-21.7-2	2
19	3V1-07600-0	* 机油泵总成	* OIL PUMP ASSY	1
20	31H-07653-0	* 机油泵垫片	* OIL PUMP GASKET	1
21	910103-5635	螺栓	* BOLT	3
22	31H-01005-0	气缸盖衬垫	CYLINDER HEAD GASKET	1
23	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
24	31N-01012-0	气缸盖螺栓8-1.25-50-12.9	CYLINDER HEAD BOLT 8-1.25-50-12.9	6
25	940221-0800	垫圈	WASHER	6
26	3KK-02319-0	螺栓6-1.0-25-A2-70	BOLT 6-1.0-25-A2-70	3
27	940103-0600	垫圈	WASHER	3
28	31HB01020-0	气缸盖罩组件	CYLINDER HEAD COVER ASSY	1
29	31H-07731-0	* 呼吸室盖	* BREATHER CHAMBER COVER	1
30	921521-0408	* 螺钉	* SCREW	4
31	3V1-01024-0	气缸盖罩垫片	CYLINDER HEAD COVER GASKET	1
32	910103-5625	螺栓	BOLT	4
33	3R0-71015-1	机油加注口盖	OIL FILLER CAP	1
34	3R0-07422-0	O型圈 3.1-24.4	O-RING 3.1-24.4	1
35	9701-1-1103	火花塞 (DCPR6E)	SPARK PLUG (DCPR6E)	2

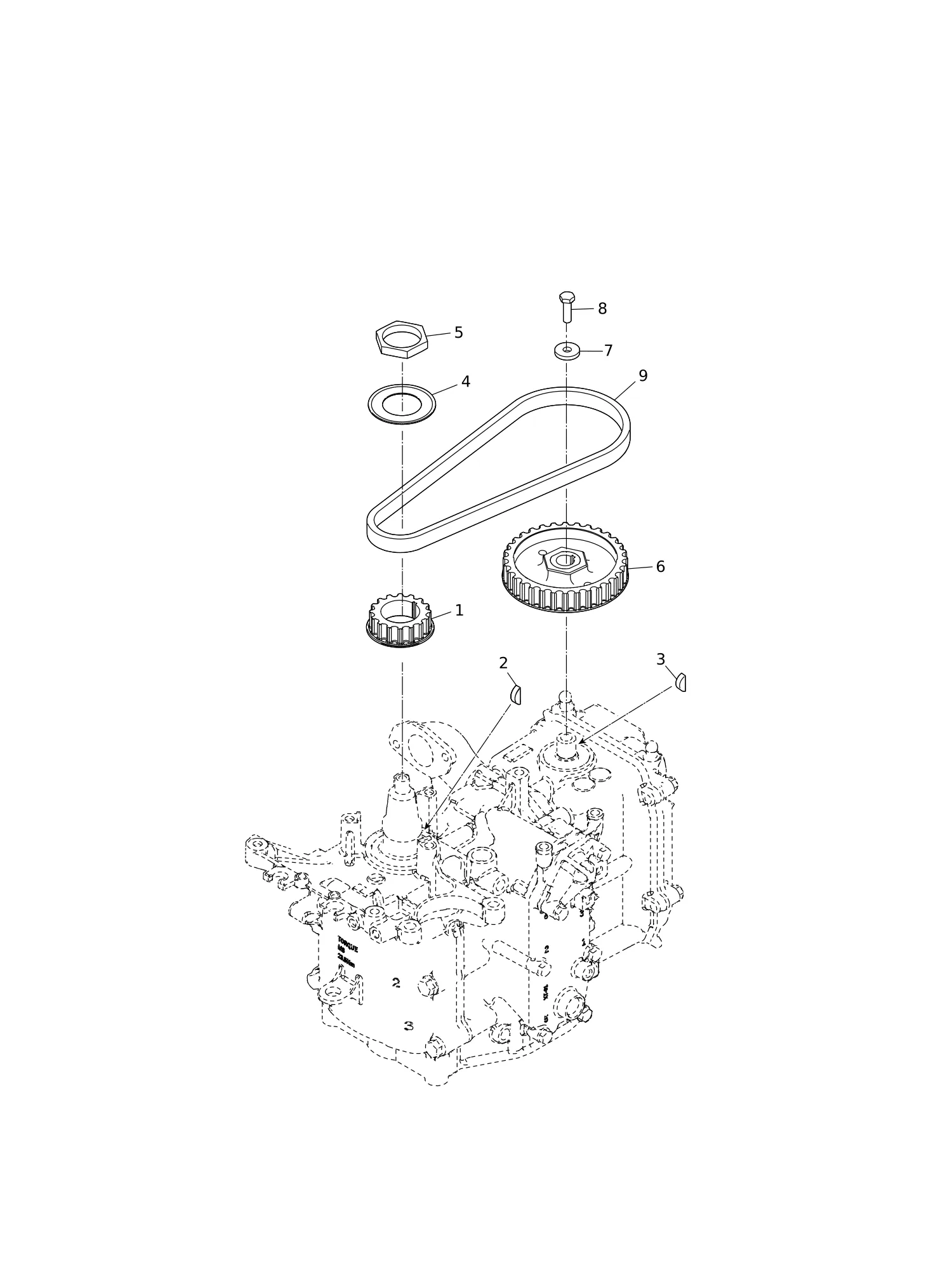

图 04皮带轮·正时皮带 PULLEY · TIMING BELT

REF	零件编号	中文名称	英文名称	数量
1	3VS-10060-0	驱动皮带轮	DRIVE PULLEY	1
3	309-00131-0	键 10-3.7-3	KEY 10-3.7-3	1
4	31H-10063-0	皮带导轮 30-52-1	BELT GUIDE 30-52-1	1
5	3T5-10068-2	螺母	NUT	1
6	3VS-10062-0	从动皮带轮	DRIVEN PULLEY	1
7	3H8-10066-0	垫片 6.5-19-3.2	WASHER 6.5-19-3.2	1
8	3AA-60108-0	预涂层螺栓	PRE-COATED BOLT	1
9	31H-10045-0	正时皮带	TIMING BELT	1

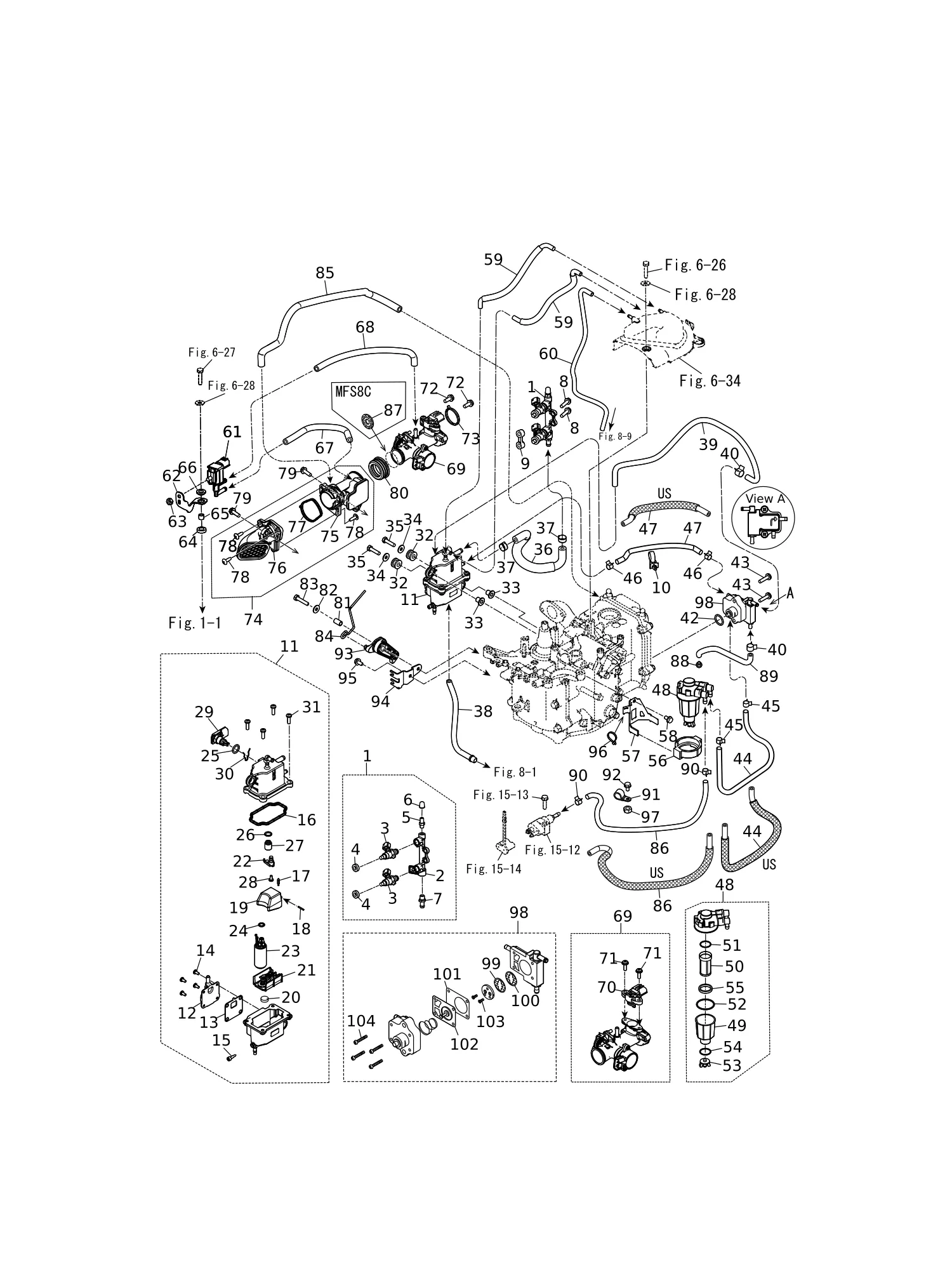

图 05进气歧管·燃油泵 INTAKE MANIFOLD · FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	31H-10200-0	燃油轨总成	FUEL RAIL ASSY	1
2	31H-10201-0	* 燃油轨	* FUEL RAIL	1
3	3VS-10300-0	* 喷油器总成	* FUEL INJECTOR ASSY	2
4	3VS-10323-0	* 密封环 Φ8.5-5.5	* SEAL RING Φ8.5-5.5	2
5	3T5-10098-1	* 阀门总成(压力检测)	* VALVE ASSY (PRESSURE CHECK)	1
6	3T5-10099-0	* 盖帽	* CAP	1
7	31H-01615-0	接头 6-8-R1/8	* NIPPLE 6-8-R1/8	1
8	910103-5625	螺栓	BOLT	2
9	3RS-03952-0	绝缘体	INSULATOR	1
10	3KY-84398-0	箍带	BAND	1
11	31H-10150-0	蒸汽分离器总成	VAPOR SEPARATOR ASSY	1
12	31H-10179-0	* 盖板	* COVER	1
13	31H-10180-0	* 密封件	* SEAL	1
15	3RS-03292-0	* 放油螺钉	* DRAIN SCREW	1
16	3RS-04116-0	* 衬垫	* GASKET	1
17	3RS-03239-0	* 浮子阀总成	* FLOAT VALVE ASSY	1
18	3RS-03232-0	* 浮子臂销	* FLOAT ARM PIN	1
19	3RS-03230-0	* 浮子	* FLOAT	1
20	3RS-04314-0	* 护孔环	* GROMMET	1
21	3RS-04322-0	* 滤清器(进口)	* FILTER (INLET)	1
22	3RS-10157-0	* 支架	* HOLDER	1
23	3RS-04302-0	* 燃油供给泵	* FUEL FEED PUMP	1
24	3RS-03116-0	* O型圈	* O-RING	1
25	3RT-03116-0	* O型圈	* O-RING	1
26	3RS-10095-0	* O型圈	* O-RING	1
27	3RS-10154-0	* 燃油调节器	* FUEL REGULATOR	1
28	921503-0408	* 螺钉	* SCREW	1
29	3RS-10172-0	* VST连接器	* VST CONNECTOR	1
30	3RS-03244-0	* 卡扣	* CLIP	1
32	3KY-06920-0	橡胶支座	RUBBER MOUNT	2
33	3RS-76079-0	轴套 6.1-16-12.2	COLLAR 6.1-16-12.2	2
35	910103-0625	螺栓	BOLT	2
36	31H-02168-0	带保护套燃油软管	FUEL HOSE W/PROTECTOR	1
37	3AC-10087-0	夹箍φ16.8	CLAMP φ16.8	2
38	98AB-50-190	软管	HOSE	1
39	31H-65212-0	水管 5-10-450-30	WATER HOSE 5-10-450-30	1
42	3H6-07422-0	O型圈	O-RING	1
43	921503-5625	螺钉	SCREW	2
44	31N-02160-0	带保护套燃油软管	FUEL HOSE W/PROTECTOR	1
44	98AB-50-415	软管	HOSE	1
47	32A-02160-0	带保护套燃油软管	FUEL HOSE W/PROTECTOR	1
47	98AB-50-230	软管	HOSE	1
48	3RS-02230-0	燃油滤清器总成	FUEL FILTER ASSY	1
49	3RS-02237-0	* 杯状件	* CUP	1
50	3B7-02234-0	* 滤清器	* FILTER	1
51	3B7-02236-0	* O型圈	* O-RING	1
52	3RS-02235-0	* O型圈	* O-RING	1
53	3RS-02253-0	* 排水阀	* DRAIN VALVE	1
54	3RS-02258-0	* 密封件	* SEAL	1
55	3RS-02229-0	* 浮子	* FLOAT	1
56	31H-02232-0	燃油滤清器固定座	FUEL FILTER HOLDER	1
57	31H-02228-0	燃油滤清器支架	FUEL FILTER BRACKET	1
59	31H-10185-0	通风软管带保护套	VENT HOSE W/PROTECTOR	2
60	31N-02203-0	燃油软管 4-8-400-30.5	FUEL HOSE 4-8-400-30.5	1
61	31H-10211-0	怠速控制阀	ISC VALVE	1
62	31H-02107-0	怠速控制阀支架	ISC VALVE STAY	1
63	930103-0600	螺母	NUT	1
64	3B7-06305-0	橡胶支座 9-16-4.3	RUBBER MOUNT 9-16-4.3	1
65	3A0-76079-0	轴套 6.2-9-7.4	COLLAR 6.2-9-7.4	1
66	3F3-06920-0	橡胶支座 8.5-12-2	RUBBER MOUNT 8.5-12-2	1
67	31H-10212-0	软管 5.5-10.5-140-50	HOSE 5.5-10.5-140-50	1
68	31N-10212-0	软管 5.5-10.5-205-30	HOSE 5.5-10.5-205-30	1
69	31H-10100-0	节气门体总成	THROTTLE BODY ASSY	1
70	3RS-10214-0	* 进气压力传感器	* MAP SENSOR	1
71	921503-0516	* 螺钉	* SCREW	2
72	910103-5616	螺栓	BOLT	2
73	31H-10104-0	衬垫	GASKET	1
74	31H-02409-0	进气消声器总成	INTAKE SILENCER ASSY	1
75	31H-02410-0	* 进气消声器组件	* INTAKE SILENCER SUB-ASSY	1
76	31N-02410-0	* 进气消声器组件	* INTAKE SILENCER SUB-ASSY	1
77	31N-02418-0	* 衬垫	* GASKET	1
78	3SS-06437-0	* 自攻螺钉 M5-16	* TAPPING SCREW M5-16	3
79	910103-5620	螺栓	BOLT	2
80	31H-02418-0	衬垫	GASKET	1
81	3SY-76079-0	轴环	COLLAR	1
82	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
83	910103-0630	螺栓	BOLT	1
84	31H-63617-0	节气门拉杆	THROTTLE ROD	1
85	31H-07735-0	呼吸管 7-12-320-49	BREATHER HOSE 7-12-320-49	1
86	31H-02160-0	带保护套燃油软管	FUEL HOSE W/PROTECTOR	1
86	31H-02203-0	燃油软管 5-10-380-30-35	FUEL HOSE 5-10-380-30-35	1
86	31S-02160-0	带保护套燃油软管	FUEL HOSE W/PROTECTOR	1
86	31S-04080-0	带保护套燃油软管	FUEL HOSE W/PROTECTOR	1
87	31N-03536-0	节流阀	RESTRICTOR	1
88	3T1-01138-0	管接头 6-8-11	NIPPLE 6-8-11	1
89	98AB-50-160	软管	HOSE	1
90	3GT-35143-0	卡环 φ9.4	CLIP φ9.4	2
91	345-06915-0	卡箍 6.5-14L	CLAMP 6.5-14L	1
92	9101E3-5616	螺栓	BOLT	1
93	31H-63622-0	节气门鼓轮总成	THROTTLE DRUM ASSY	1
94	31H-63508-0	节气门拉线支架	THROTTLE WIRE BRACKET	1
95	910103-5612	螺栓	BOLT	1
96	3VS-84398-0	箍带	BAND	1
97	9301E3-0600	螺母	NUT	1
98	3AA-04000-2	燃油泵总成	FUEL PUMP ASSY	1
99	3H6-04044-0	* 止回阀	* CHECK VALVE	1
100	3H6-04014-1	* 止回阀	* CHECK VALVE	1
101	3H6-04028-0	* 泵体衬垫	* PUMP BODY GASKET	1
102	3H6-04005-0	* 泵膜片	* PUMP DIAPHRAGM	1
103	921603-0308	* 螺钉	* SCREW	2
104	922503-6418	* 螺钉	* SCREW	4

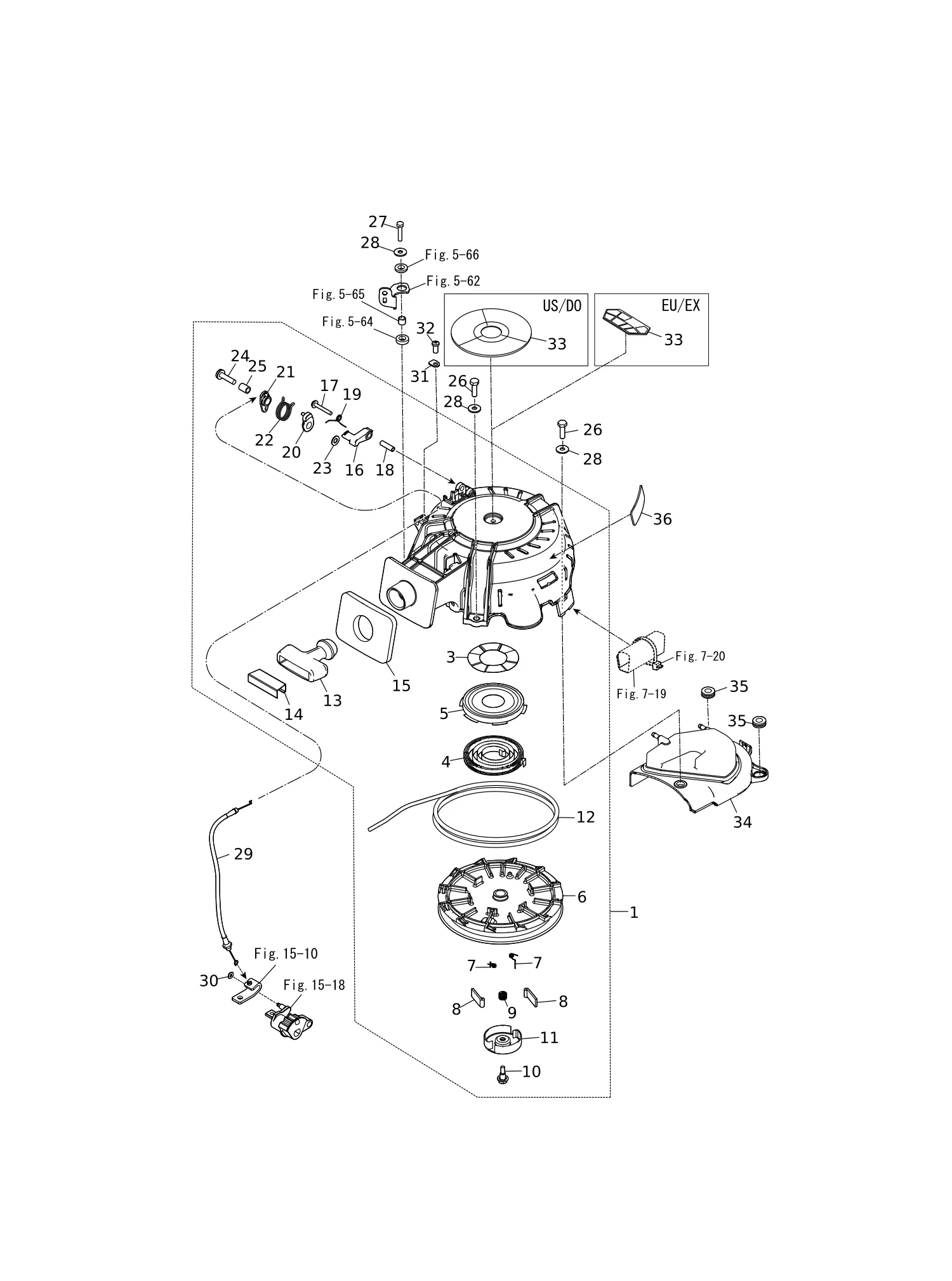

图 06反冲启动器 RECOIL STARTER

REF	零件编号	中文名称	英文名称	数量
1	31H-05090-0	反冲启动器总成	RECOIL STARTER ASSY	1
3	3V1-05259-0	* 波形垫圈 35.5-66-0.2	* WAVE WASHER 35.5-66-0.2	1
4	3AA-05004-0	* 启动弹簧	* STARTER SPRING	1
5	3R1-05125-0	* 启动弹簧壳	* STARTER SPRING CASE	1
6	3V1-05104-1	* φ140卷轴	* REEL φ140	1
7	3R1-05012-0	* 回位弹簧	* RETURN SPRING	2
8	3R1-05003-2	* 棘轮	* RATCHET	2
9	3R1-05007-0	* 摩擦弹簧	* FRICTION SPRING	1
10	3R1-05138-1	螺栓 5-10-6.8-7.8	* BOLT 5-10-6.8-7.8	1
11	3R1-05006-2	* 摩擦板	* FRICTION PLATE	1
12	3AA-05013-0	* 启动绳 φ4.5-1600	* STARTER ROPE φ4.5-1600	1
13	31H-05019-0	* 启动手柄	* STARTER HANDLE	1
14	3R1-05131-1	* 绳索锚定器	* ROPE ANCHOR	1
15	3UA-67503-0	* 启动器密封件	* STARTER SEAL	1
16	3AA-05252-0	* 启动器锁	* STARTER LOCK	1
17	921503-5430	* 螺钉	* SCREW	1
18	3R1-05255-0	* 轴环 4-6-21	* COLLAR 4-6-21	1
19	3R1-05216-0	* 启动器锁弹簧	* STARTER LOCK SPRING	1
20	3Y0-05253-0	* 启动器锁凸轮	* STARTER LOCK CAM	1
21	3Y0-05226-0	* 启动器锁杆	* STARTER LOCK LEVER	1
22	3Y0-05258-0	* 启动器锁凸轮弹簧	* STARTER LOCK CAM SPRING	1
23	940103-0600	* 垫圈	* WASHER	1
24	921503-5625	* 螺钉	* SCREW	1
25	3R0-06303-1	* 轴环 6.2-9-12.3	* COLLAR 6.2-9-12.3	1
26	3AL-60108-0	预涂层螺栓6-1.0-20-50	PRE-COATED BOLT 6-1.0-20-50	2
27	31H-60108-0	预涂层螺栓6-1.0-30	PRE-COATED BOLT 6-1.0-30	1
28	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	3
29	3Y0-05207-0	启动锁线	STARTER LOCK WIRE	1
30	3C7-03271-2	O型圈1.5-2.5	O-RING 1.5-2.5	1
31	332-66033-0	止动块	STOPPER	1
32	3V1-05913-0	自攻螺丝 5-12	TAPPING SCREW 5-12	1
33	3NV-72181-1	警示标贴(B型)	CAUTION DECAL (B)	1
33	3PA-72181-1	警示标贴(B型)	CAUTION DECAL (B)	1
34	31H-06308-0	皮带罩	BELT COVER	1
35	172-36008-0	索环 13-2	GROMMET 13-2	2
36	3UR-72187-1	警示标贴(SIGP型)	CAUTION DECAL (SIGP)	1

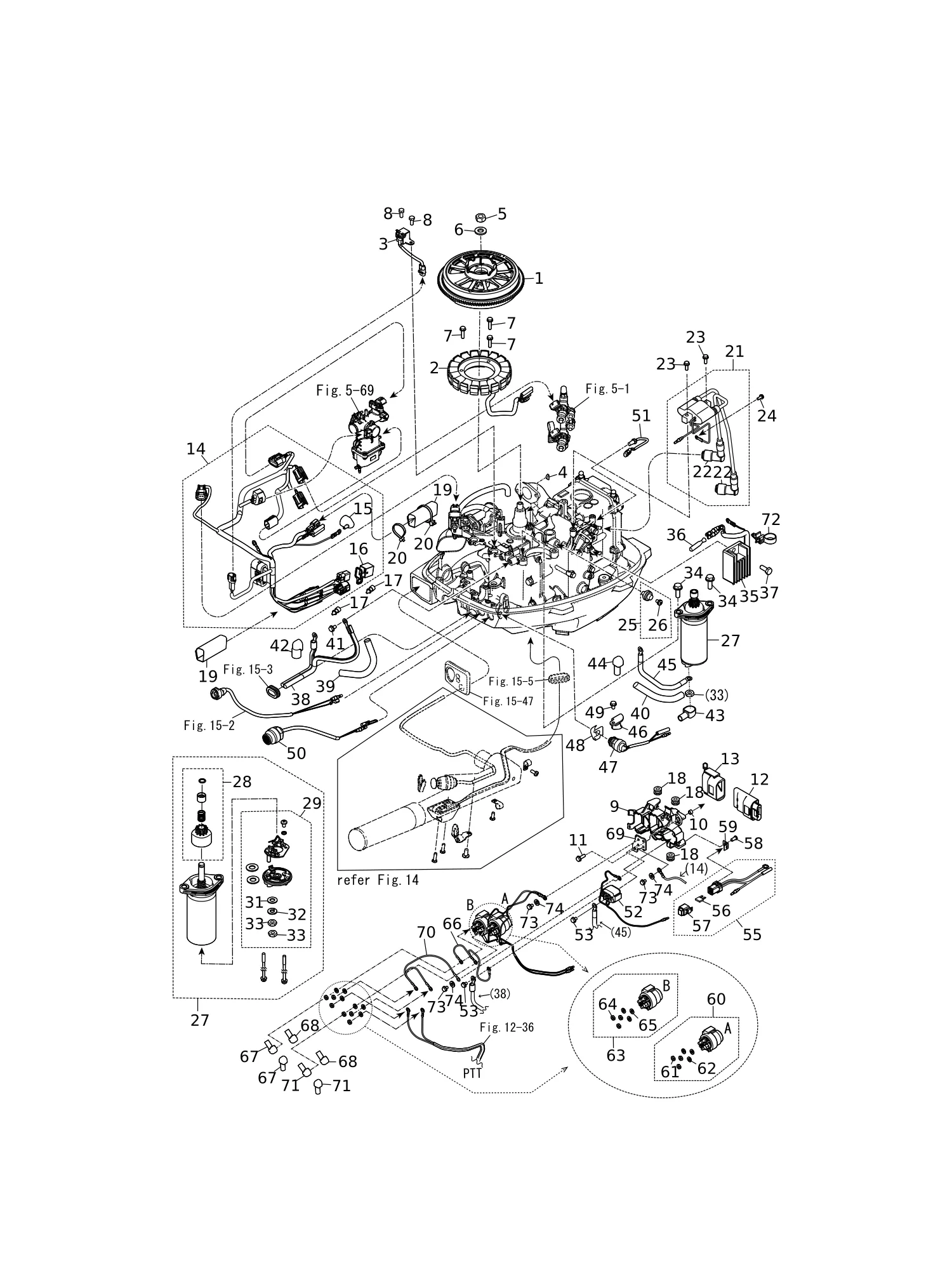

图 07磁电机·电气部件 MAGNETO · ELECTRIC PARTS

REF	零件编号	中文名称	英文名称	数量
1	31H-06101-0	飞轮总成	FLYWHEEL ASSY	1
1	31H-06191-0	带齿圈飞轮	FLYWHEEL W/RING GEAR	1
2	31H-06023-0	交流发电机总成	ALTERNATOR ASSY	1
2	3RS-06023-0	交流发电机总成	ALTERNATOR ASSY	1
3	3RS-06071-0	脉冲线圈	PULSAR COIL	1
4	3T5-10131-0	键 t=4	KEY t=4	1
5	369-00132-0	螺母 12-P1.25	NUT 12-P1.25	1
6	3SS-01116-0	垫片 13-26-3.2	WASHER 13-26-3.2	1
8	910103-5512	螺栓	BOLT	2
9	31H-06903-0	电机支架	ELECTRIC BRACKET	1
10	31H-76079-0	轴套 6.2-9-6	COLLAR 6.2-9-6	1
11	910103-5620	螺栓	BOLT	1
12	31H-06401-0	电控单元总成(9.8/9.9)	ECU ASSY (9.8/9.9)	1
12	31N-06401-0	电控单元总成(8)	ECU ASSY (8)	1
12	31P-06401-0	电控单元总成(6)	ECU ASSY (6)	1
12	31S-06401-0	电控单元总成(9.8)	ECU ASSY (9.8)	1
12	31T-06401-0	电控单元总成(8)	ECU ASSY (8)	1
13	31H-06410-0	电控单元支架	ECU HOLDER	1
14	31H-76110-0	线束总成	CORD ASSY	1
14	31N-76110-0	线束总成	CORD ASSY	1
14	31T-76110-0	线束总成	CORD ASSY	1
14	31U-76110-0	线束总成	CORD ASSY	1
15	3KY-07612-0	* 护孔环	* GROMMET	1
16	3KY-76037-0	* 线缆端子塞	* CABLE TERMINAL PLUG	1
17	3A3-76037-0	电缆端子插头	CABLE TERMINAL PLUG	2
18	3KY-06920-0	橡胶支座	RUBBER MOUNT	3
19	31H-06157-0	保护套	PROTECTOR	2
20	369-84398-1	箍带 202	BAND 202	2
21	31H-06040-0	带帽点火线圈	IGNITION COIL W/R-CAP	1
22	31H-06999-0	* 带电阻火花塞帽	* PLUG CAP W/RESISTANCE	2
23	910103-5625	螺栓	BOLT	2
25	3H6-07611-1	油压开关	OIL PRESSURE SWITCH	1
26	921503-6406	* 螺钉	* SCREW	1
27	31H-76010-0	启动马达总成	STARTER MOTOR ASSY	1
28	31H-76015-0	* 小齿轮总成	* PINION ASSY	1
29	31H-75014-0	* 碳刷架总成	* BRUSH HOLDER ASSY	1
33	930203-0600	螺母	** NUT	2
34	910103-5825	螺栓	BOLT	2
35	3AA-76065-0	整流器总成	RECTIFIER COMPLETE	1
36	3SY-01047-0	塞	PLUG	2
37	910103-5616	螺栓	BOLT	1
38	3B2-76120-1	蓄电池电缆 L=2000	BATTERY CABLE L=2000	1
40	3RS-06133-0	保护套	PROTECTOR	1
42	3BJ-76145-0	端子盖 15.5-20-28	TERMINAL CAP 15.5-20-28	1
43	3Y0-76145-0	端子盖 8-18-28	TERMINAL CAP 8-18-28	1
45	3B2-76147-2	启动电缆 L=200	STARTER CABLE L=200	1
46	31H-76081-0	空档开关支架	NEUTRAL SWITCH BRACKET	1
47	3NV-76080-0	空档开关	NEUTRAL SWITCH	1
48	3RS-76083-0	空档开关执行器	NEUTRAL SWITCH ACTUATOR	1
49	910103-5612	螺栓	BOLT	1
50	3AA-76026-0	主开关总成	MAIN SWITCH ASSY	1
51	31H-72510-0	发动机温度传感器	ENGINE TEMP SENSOR	1
52	31H-76040-0	启动器电磁阀	STARTER SOLENOID	1
53	910103-5610	螺栓	BOLT	2
55	31H-76066-0	保险丝总成	FUSE WIRE ASSY	1
56	3T5-76247-0	* 保险丝 20A	* FUSE 20A	2
57	1E0-34093-0	* 盖帽(黄色)	* CAP (Y)	1
58	3V1-05913-0	自攻螺丝 5-12	TAPPING SCREW 5-12	1
59	3R0-76064-0	保险丝支架	FUSE HOLDER BRACKET	1
60	31H-72580-0	动力升降倾斜装置电磁阀开关(A)	PTT SOLENOID SWITCH (A)	1
63	31H-72581-0	动力升降倾斜装置电磁阀开关(B)	PTT SOLENOID SWITCH (B)	1
64	930103-0600	螺母	* NUT	3
65	941303-0600	* 弹簧垫圈	* SPRING WASHER	3
66	31H-72582-0	电磁开关线束(A)	SOLENOID SWITCH CORD (A)	1
68	3A3-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	2
69	31H-06869-0	支架	BRACKET	1
70	31H-72583-0	电磁开关线束(B)	SOLENOID SWITCH CORD (B)	1
71	3Y1-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	2
72	3KY-84398-0	箍带	BAND	1
73	910103-0610	螺栓	BOLT	3
74	940103-0600	垫圈	WASHER	3

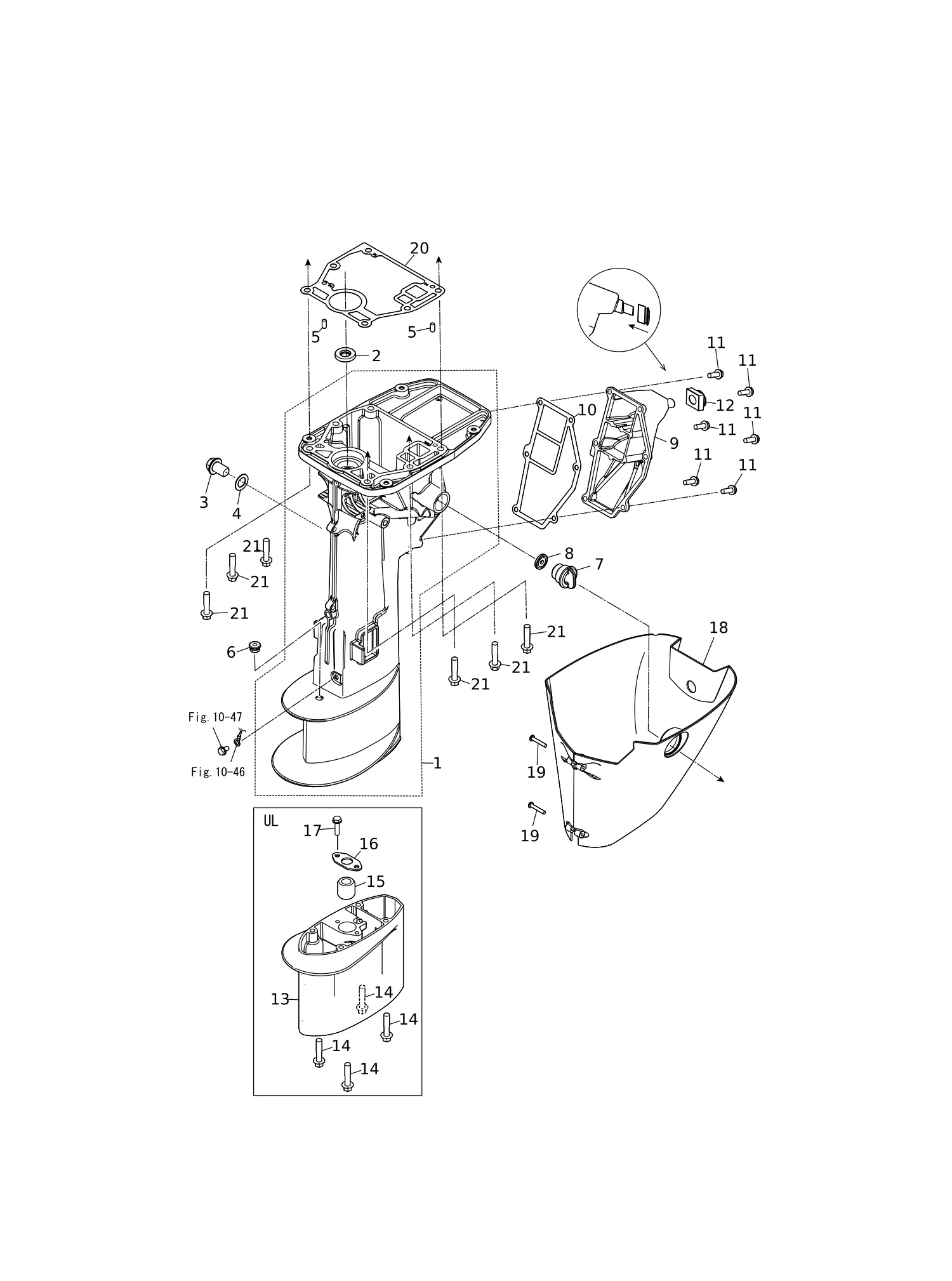

图 08驱动轴壳体 DRIVE SHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	31HQ61020-0	驱动轴壳体总成(S)	DRIVE SHAFT HOUSING ASSY (S)	1
1	31HQ61030-0	驱动轴壳体总成(L)	DRIVE SHAFT HOUSING ASSY (L)	1
1	31HW61020-0	驱动轴壳体总成(S)	DRIVE SHAFT HOUSING ASSY (S)	1
1	31HW61030-0	驱动轴壳体总成(L)	DRIVE SHAFT HOUSING ASSY (L)	1
2	3B2-01215-0	油封 12.1-28-5	OIL SEAL 12.1-28-5	1
3	3R3-07705-1	放油螺栓14-14	DRAIN BOLT 14-14	1
4	3R3-07406-0	垫片 14.5-24-1	WASHER 14.5-24-1	1
5	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
6	369-66043-1	索环 10.7-3.5	GROMMET 10.7-3.5	1
7	3RS-72404-0	冲洗连接器盖	FLUSHING CONNECTOR CAP	1
8	3RS-67147-0	密封环	SEAL RING	1
9	31HQ61208-0	怠速排气口盖	IDLE EXHAUST PORT COVER	1
9	31HW61208-0	怠速排气口盖	IDLE EXHAUST PORT COVER	1
10	3V1-61220-0	怠速排气口垫片	IDLE EXHAUST PORT GASKET	1
11	9101E3-5620	螺栓	BOLT	6
12	3V1-61212-0	索环 12.7-16.2	GROMMET 12.7-16.2	1
13	3B2Q61110-2	延伸壳体	EXTENSION HOUSING	1
13	3B2W61110-2	延伸壳体	EXTENSION HOUSING	1
14	3V2-60001-0	螺栓6-35	BOLT 6-35	4
15	3B2-60003-1	驱动轴衬套(UL)	DRIVE SHAFT BUSHING (UL)	1
16	3V1-64332-0	止动块	STOPPER	1
17	9101E3-5612	螺栓	BOLT	2
18	31HQ61210-0	挡板	APRON	1
18	31HW61210-0	挡板	APRON	1
19	3F3-02423-0	自攻螺钉 5-30	TAPPING SCREW 5-30	2
20	31H-01303-0	发动机基座垫片	ENGINE BASEMENT GASKET	1
21	3VS-61017-0	螺栓8-P1.25	BOLT 8-P1.25	6

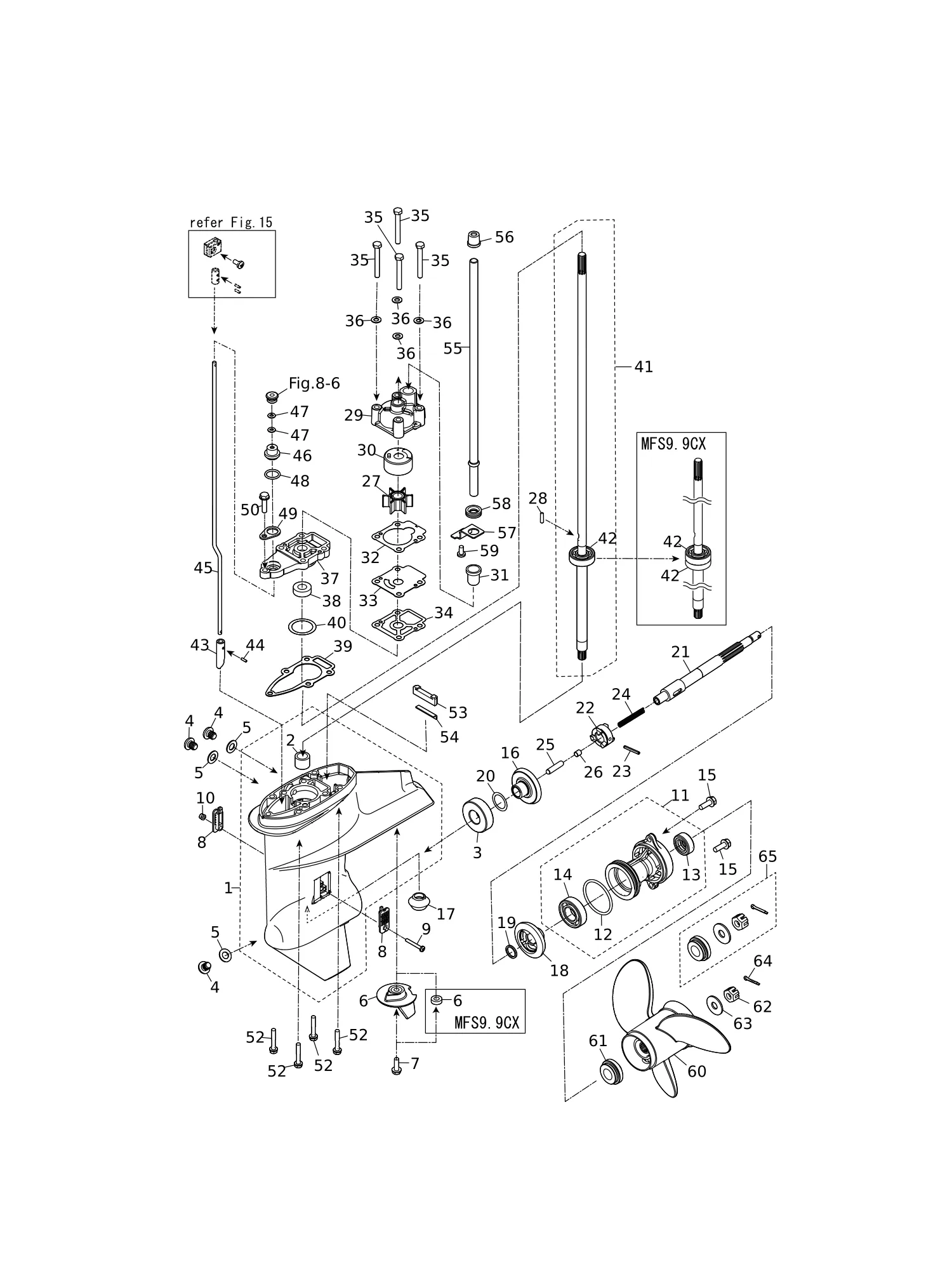

图 09齿轮箱 GEAR CASE

REF	零件编号	中文名称	英文名称	数量
1	3AAQ60000-1	齿轮箱总成	GEAR CASE ASSY	1
1	3AAW60000-1	齿轮箱总成	GEAR CASE ASSY	1
1	3WBQ60000-0	齿轮箱总成	GEAR CASE ASSY	1
2	3WB-60211-0	* 滚柱轴承 15-21-16	* ROLLER BEARING 15-21-16	1
3	9601-0-6204	滚珠轴承 6204	BALL BEARING 6204	1
4	332-60005-3	塞 8-8	PLUG 8-8	3
5	332-60006-1	衬垫8.1-15-1	GASKET 8.1-15-1	3
6	338-60218-2	阳极块	ANODE	1
6	3V1-60217-0	配平片	TRIM TAB	1
7	910103-5620	螺栓	BOLT	1
8	3AA-60206-0	滤水器 W=17	WATER STRAINER W=17	2
9	921503-0430	螺钉	SCREW	1
10	930403-0400	尼龙螺母 4-P0.7	NYLON NUT 4-P0.7	1
11	3B2Q60100-1	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
11	3B2W60100-1	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
11	3WBQ60100-0	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
12	345-65015-0	* O型圈 3.2-47	* O-RING 3.2-47	1
13	369-60111-0	* 油封 15-28-10	* OIL SEAL 15-28-10	1
14	9601-0-6004	* 球轴承 6004	* BALL BEARING 6004	1
15	9101E3-5620	螺栓	BOLT	2
16	3B2-64010-1	锥齿轮总成(A)	BEVEL GEAR ASSY (A)	1
17	3B2-64020-1	锥齿轮B	BEVEL GEAR B	1
17	3WB-64020-0	锥齿轮B	BEVEL GEAR B	1
18	3B2-64030-1	锥齿轮C	BEVEL GEAR C	1
19	369-64032-0	垫片 15.2-19-1.9	WASHER 15.2-19-1.9	1
20	369-64014-0	垫片 21-28-0.1	SHIM 21-28-0.1	1
20	369-64015-0	垫片 21-28-0.15	SHIM 21-28-0.15	1
21	3V1-64211-1	螺旋桨轴	PROPELLER SHAFT	1
22	3B2-64215-0	离合器	CLUTCH	1
23	301-64217-0	销 3.5-28	PIN 3.5-28	1
24	3V1-64221-0	弹簧	SPRING	1
25	369-64223-0	推杆	PUSH ROD	1
26	3B2-64222-0	弹簧挡圈	SPRING RETAINER	1
27	3B2-65021-1	水泵叶轮	WATER PUMP IMPELLER	1
28	3B2-65022-0	键 φ3-11	KEY φ3-11	1
29	3B2-65016-0	泵壳(上)	PUMP CASE (UPPER)	1
30	3B2-65011-0	泵壳衬套	PUMP CASE LINER	1
31	331-65014-0	水管密封件(下)	WATER PIPE SEAL (LOWER)	1
32	3B2-65018-2	泵壳垫片	PUMP CASE GASKET	1
33	3B2-65025-0	水泵导板	WATER PUMP GUIDE PLATE	1
34	3B2-65029-2	导板垫片	GUIDE PLATE GASKET	1
35	9161E3-0650	螺栓	BOLT	4
36	9401E3-0600	垫圈	WASHER	4
37	3UA-65017-0	泵壳(下)	PUMP CASE (LOWER)	1
38	309-60111-0	油封 12-24-8	OIL SEAL 12-24-8	1
39	3B2-65020-1	泵壳垫片(下)	PUMP CASE GASKET (LOWER)	1
40	3B2-64081-0	垫片 28-36.8-0.1	SHIM 28-36.8-0.1	1
40	3B2-64082-0	垫片 28-36.8-0.15	SHIM 28-36.8-0.15	1
40	3B2-64083-0	垫片 28-36.8-0.3	SHIM 28-36.8-0.3	1
41	3B2-64306-1	驱动轴总成(S)	DRIVE SHAFT ASSY (S)	1
41	3B2-64307-1	驱动轴总成(L)	DRIVE SHAFT ASSY (L)	1
41	3V1-64309-2	驱动轴总成(UL)	DRIVE SHAFT ASSY (UL)	1
41	3WB-64307-0	驱动轴总成(L)	DRIVE SHAFT ASSY (L)	1
41	3WB-64309-0	驱动轴总成(UL)	DRIVE SHAFT ASSY (UL)	1
42	9601-0-6301	* 球轴承 6301	* BALL BEARING 6301	2
43	369-66011-0	离合器凸轮	CLUTCH CAM	1
44	951407-0310	弹簧销 3-10	SPRING PIN 3-10	1
45	3V1-66012-0	凸轮杆(短)	CAM ROD (S)	1
45	3V1-66013-0	凸轮杆(长)	CAM ROD (L)	1
45	3V1-66014-0	凸轮杆(超长)	CAM ROD (UL)	1
46	3UA-66031-0	凸轮杆衬套	CAM ROD BUSHING	1
47	369-66021-1	O型圈 2.5-4.9	O-RING 2.5-4.9	2
48	332-66032-0	O型圈 2.4-15.4	O-RING 2.4-15.4	1
49	369-66033-0	止动块	STOPPER	1
50	9101E3-5625	螺栓	BOLT	1
52	3V2-60001-0	螺栓6-35	BOLT 6-35	4
53	3V1-60041-0	水封橡胶	WATER SEAL RUBBER	1
54	3V1-60042-0	水封板	WATER SEAL PLATE	1
55	3V1-65100-0	水管(短)	WATER PIPE (S)	1
55	3V1-65110-0	水管(左)	WATER PIPE (L)	1
55	3V1-65120-0	水管(左上)	WATER PIPE (UL)	1
56	3V1-65206-0	水管密封件(上)	WATER PIPE SEAL (UPPER)	1
57	3V1-65203-0	锁紧板	LOCK PLATE	1
58	3V1-65204-0	水管辅助支架 13-2.5	WATER PIPE AUXILIARY MOUNT 13-2.5	1
59	9215E3-0510	螺钉	SCREW	1
60	3B2B64513-1	螺旋桨总成(6.5英寸)	PROPELLER ASSY (6.5")	1
60	3B2B64514-1	螺旋桨总成(7英寸)	PROPELLER ASSY (7")	1
60	3B2B64515-1	螺旋桨总成(7.5英寸)	PROPELLER ASSY (7.5")	1
60	3B2B64517-1	螺旋桨总成(8.5英寸)	PROPELLER ASSY (8.5")	1
60	3B2B64519-1	螺旋桨总成(9.5英寸)	PROPELLER ASSY (9.5")	1
60	3V1B64510-1	螺旋桨总成(5英寸)	PROPELLER ASSY (5")	1
60	3V1B64514-1	螺旋桨总成(7英寸)	PROPELLER ASSY (7)	1
61	3UB-64231-0	止推座	THRUST HOLDER	1
62	369-64121-0	螺旋桨螺母	PROPELLER NUT	1
63	369-64124-0	垫片 10.5-28-2	WASHER 10.5-28-2	1
64	951503-0318	开口销3-18	SPLIT PIN 3-18	1
65	3UB-87326-0	螺旋桨五金件套件	PROPELLER HARDWARE KIT	1

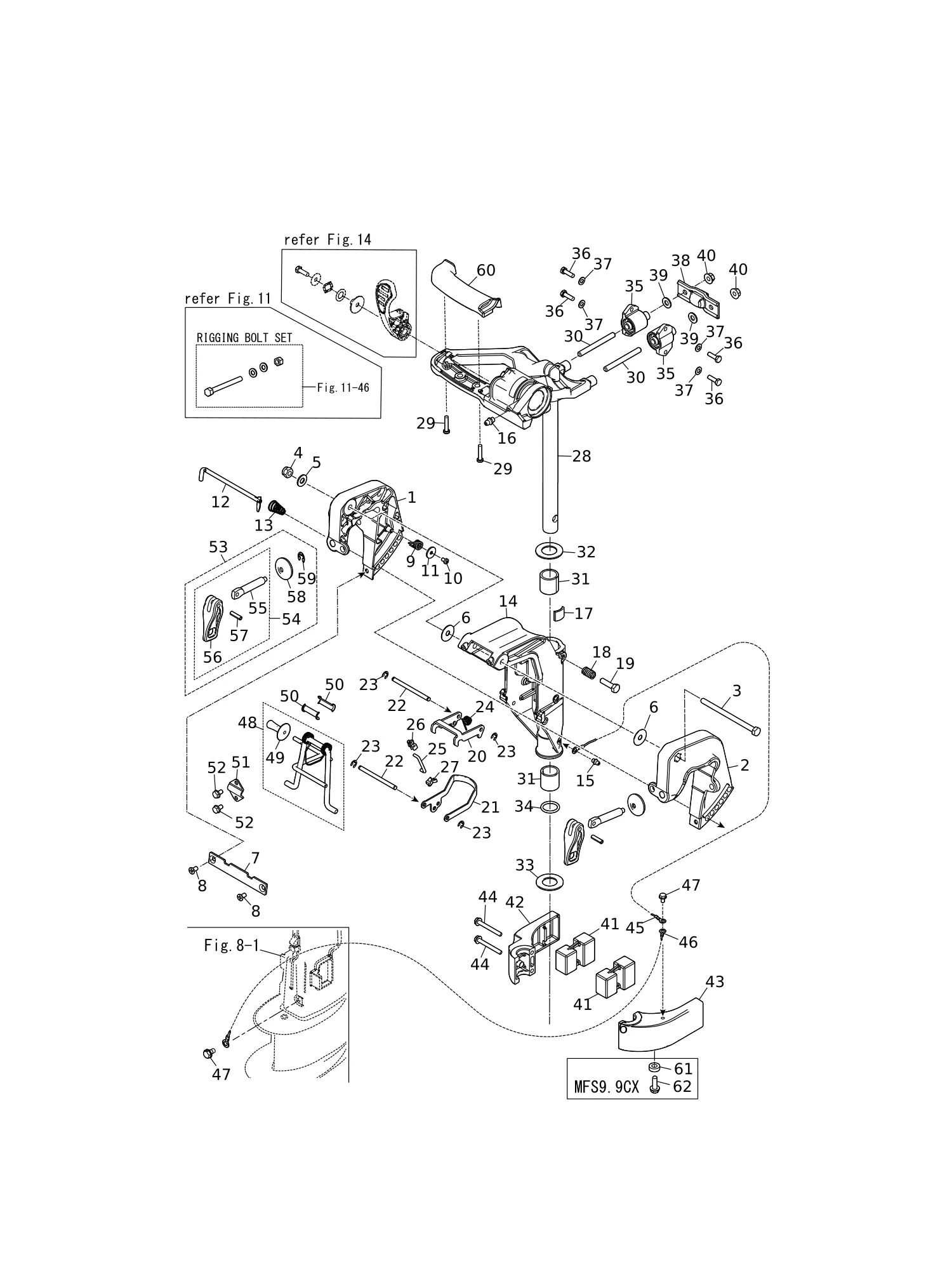

图 10支架(MF/EF型号) BRACKET (MF/EF MODEL)

REF	零件编号	中文名称	英文名称	数量
1	3V1Q62112-2	夹紧支架(右)	CLAMP BRACKET (R)	1
1	3V1W62112-2	夹紧支架(右)	CLAMP BRACKET (R)	1
2	3V1Q62113-2	卡箍支架 (左)	CLAMP BRACKET (L)	1
2	3V1W62113-2	卡箍支架 (左)	CLAMP BRACKET (L)	1
3	309-62115-2	螺栓8-122	BOLT 8-122	1
4	930403-0800	尼龙螺母 8-P1.25	NYLON NUT 8-P1.25	1
6	307-62116-1	垫圈 8.5-28-1	WASHER 8.5-28-1	2
7	3B2-62118-0	隔板	DISTANCE PLATE	1
8	9216E3-0612	螺钉	SCREW	2
9	369-62146-1	船尾支架弹簧	STERN BRACKET SPRING	1
10	921703-0406	螺钉	SCREW	1
11	369-62147-0	垫片 4.3-16-1.5	WASHER 4.3-16-1.5	1
12	350-62121-2	推力杆	THRUST ROD	1
13	369-62122-2	推力杆弹簧	THRUST ROD SPRING	1
14	3V1Q62310-0	旋转支架	SWIVEL BRACKET	1
14	3V1W62310-0	旋转支架	SWIVEL BRACKET	1
16	344-67177-1	黄油嘴	GREASE FITTING	1
17	345-62441-0	摩擦片	FRICTION PIECE	1
18	346-62421-1	摩擦弹簧	FRICTION SPRING	1
19	9101E3-0830	螺栓	BOLT	1
20	3V1-66322-0	倒车锁	REVERSE LOCK	1
21	3V1-66313-0	倒车锁臂	REVERSE LOCK ARM	1
22	3B2-66321-1	倒挡锁杆	REVERSE LOCK ROD	2
24	3B2-66315-0	倒挡锁弹簧	REVERSE LOCK SPRING	1
25	3V1-66305-1	倒车锁连杆	REVERSE LOCK LINK	1
26	3C8-63733-0	5-3连杆卡扣	ROD SNAP 5-3	1
27	3K9-05223-0	4-2连杆卡扣	ROD SNAP 4-2	1
28	31HQ62010-0	转向轴总成	STEERING SHAFT ASSY	1
28	31HW62010-0	转向轴总成	STEERING SHAFT ASSY	1
28	31PQ62010-0	转向轴总成	STEERING SHAFT ASSY	1
29	3F0-66227-0	自攻螺丝 4-20	TAPPING SCREW 4-20	2
30	31H-61313-0	螺柱M8-P1.25-65	STUD M8-P1.25-65	2
31	350-62417-0	衬套 24-30-30	BUSHING 24-30-30	2
32	31H-62423-0	上止推板25-44-2	THRUST PLATE (UPPER) 25-44-2	1
33	350-62423-0	上止推板25-44-2	THRUST PLATE (UPPER) 25-44-2	1
34	350-62415-0	O型圈 3.5-22	O-RING 3.5-22	1
35	3V1B61301-1	橡胶支座(上)	RUBBER MOUNT (UPPER)	2
35	3Z0-61301-0	橡胶支座(上)	RUBBER MOUNT (UPPER)	2
36	3UA-61343-0	螺栓 M6-20	BOLT M6-20	4
37	9401E3-0600	垫圈	WASHER	4
38	3V1-61333-1	上减震器	DAMPER (UPPER)	1
39	9401E3-0800	垫圈	WASHER	2
40	3V1-61324-0	螺母	NUT	2
41	3V1-61302-0	橡胶支座(下)	RUBBER MOUNT (LOWER)	2
42	3V1Q61401-0	支架托架(右)	MOUNT BRACKET (R)	1
42	3V1W61401-0	支架托架(右)	MOUNT BRACKET (R)	1
43	3V1Q61402-0	支架托架(左)	MOUNT BRACKET (L)	1
43	3V1W61402-0	支架托架(左)	MOUNT BRACKET (L)	1
43	3WBQ61402-0	支架托架(左)	MOUNT BRACKET (L)	1
44	9101E3-5652	螺栓	BOLT	2
46	3A3-62396-1	接地线 L=110	GROUND L=110	1
47	910103-5612	螺栓	BOLT	2
48	3V1-62431-1	倾斜止动器总成	TILT STOPPER ASSY	1
49	3AS-62433-0	* 倾斜止动握把	* TILT STOPPER GRIP	1
50	393-62437-1	衬套	BUSHING	2
51	369-62439-1	定位板	SETTING PLATE	1
52	9101E3-5612	螺栓	BOLT	2
53	3RSQ62105-1	夹紧螺丝套件	CLAMP SCREW KIT	2
53	3RSW62105-1	夹紧螺丝套件	CLAMP SCREW KIT	2
53	3V1Q62105-2	夹紧螺丝套件	CLAMP SCREW KIT	2
53	3V1W62105-2	夹紧螺丝套件	CLAMP SCREW KIT	2
54	3RSQ62108-0	* 卡箍螺丝总成	* CLAMP SCREW ASSY	1
54	3RSW62108-0	* 卡箍螺丝总成	* CLAMP SCREW ASSY	1
54	3V1Q62108-1	* 卡箍螺丝总成	* CLAMP SCREW ASSY	1
54	3V1W62108-1	* 卡箍螺丝总成	* CLAMP SCREW ASSY	1
55	3M3-62106-0	夹紧螺钉	** CLAMP SCREW	1
55	3RS-62106-0	夹紧螺钉	** CLAMP SCREW	1
56	3RSQ62102-0	夹紧螺钉手柄	** CLAMP SCREW HANDLE	1
56	3RSW62102-0	夹紧螺钉手柄	** CLAMP SCREW HANDLE	1
57	951403-0622	** 弹簧销	** SPRING PIN	1
58	332-62101-1	* 卡箍螺丝垫片	* CLAMP SCREW PAD	1
59	945303-0500	* E型卡环 d=5	* E-RING d=5	1
60	31H-62004-0	线束固定座	CORD HOLDER	1
61	338-60218-2	阳极块	ANODE	1
62	910103-5620	螺栓	BOLT	1

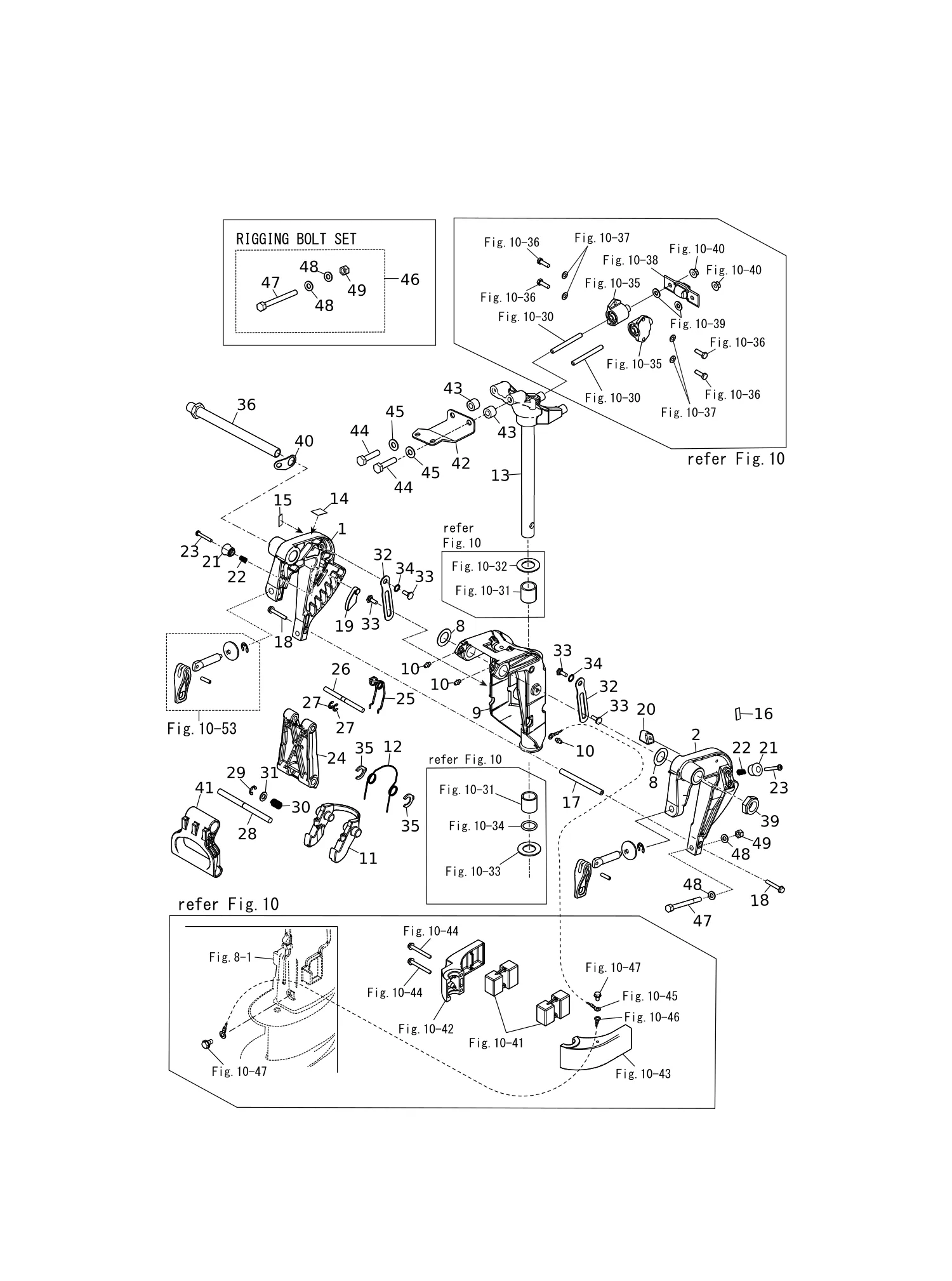

图 11支架(EP型号) BRACKET (EP MODEL)

REF	零件编号	中文名称	英文名称	数量
1	3AAQ62112-1	夹紧支架(右)	CLAMP BRACKET (R)	1
1	3AAW62112-1	夹紧支架(右)	CLAMP BRACKET (R)	1
2	3AAQ62113-1	卡箍支架 (左)	CLAMP BRACKET (L)	1
2	3AAW62113-1	卡箍支架 (左)	CLAMP BRACKET (L)	1
8	3AA-62116-0	垫片 22-36-1	WASHER 22-36-1	2
9	3AAQ62310-1	旋转支架	SWIVEL BRACKET	1
9	3AAW62310-1	旋转支架	SWIVEL BRACKET	1
10	344-67177-1	黄油嘴	GREASE FITTING	3
11	3AA-66322-1	倒车锁	REVERSE LOCK	1
12	3AA-66315-0	倒挡锁弹簧	REVERSE LOCK SPRING	1
13	3AAQ62010-0	转向轴总成	STEERING SHAFT ASSY	1
13	3AAW62010-0	转向轴总成	STEERING SHAFT ASSY	1
14	3AA-84461-0	配平位置标贴	TRIM POSITION DECAL	1
15	3AA-67589-0	下倾限位标贴	LOWER TILT LIMIT DECAL	1
16	3AA-67584-0	倾斜锁定标贴	TILT LOCK DECAL	1
17	3AA-62117-0	间隔块	DISTANCE PIECE	1
18	9101E3-5640	螺栓	BOLT	2
19	3AA-62163-0	配平设定板	TRIM SETTING PLATE	1
20	3AA-62164-0	倾斜锁定块	TILT LOCK PIECE	1
21	3AA-62463-0	旋钮	KNOB	2
22	3Y0-66112-0	弹簧	SPRING	2
23	921503-0535	螺钉	SCREW	2
24	3AA-62994-0	倾斜止动器主体	TILT STOPPER BODY	1
25	3AA-62434-0	弹簧	SPRING	1
26	3AA-62995-0	倾斜止动轴(上)	TILT STOPPER SHAFT (UPPER)	1
27	945303-0600	E型卡环 d=6	E-RING d=6	2
28	3AA-62996-1	倾斜止动轴(下)	TILT STOPPER SHAFT (LOWER)	1
29	945303-0900	E型卡环 d=9	E-RING d=9	1
30	3AA-63727-0	弹簧	SPRING	1
31	332-61315-0	垫圈10.5-18-1.5	WASHER 10.5-18-1.5	1
32	3AA-62454-0	倾斜止动器(左)	TILT STOPPER (L)	2
33	3AA-62452-0	螺栓6-12.5-9.5-2.5	BOLT 6-12.5-9.5-2.5	4
34	941403-1000	波形垫圈 d=10	WAVE WASHER d=10	2
35	3DN-66316-0	倒车锁卡扣	REVERSE LOCK CLIP	2
36	3AC-62191-0	旋转支架轴总成	SWIVEL BRACKET SHAFT ASSY	1
39	346-62124-1	尼龙螺母 7/8-14	NYLON NUT 7/8-14	1
40	3AA-62114-1	板	PLATE	1
41	3AA-61199-0	搬运把手	CARRYING HANDLE	1
42	3AA-83830-0	转向钩板	STEERING HOOK PLATE	1
43	3AA-83913-0	轴环 10.1-20-15	COLLAR 10.1-20-15	2
44	9161E3-1045	螺栓	BOLT	2
45	940103-1000	垫圈	WASHER	2
46	3BA-72120-0	索具螺栓套装	RIGGING BOLT SET	1
46	3BJ-72120-1	索具螺栓套装	RIGGING BOLT SET	1
47	9101E3-0885	螺栓	* BOLT	4
48	9401E3-0800	* 垫圈	* WASHER	8
49	930403-0800	尼龙螺母 8-P1.25	* NYLON NUT 8-P1.25	4

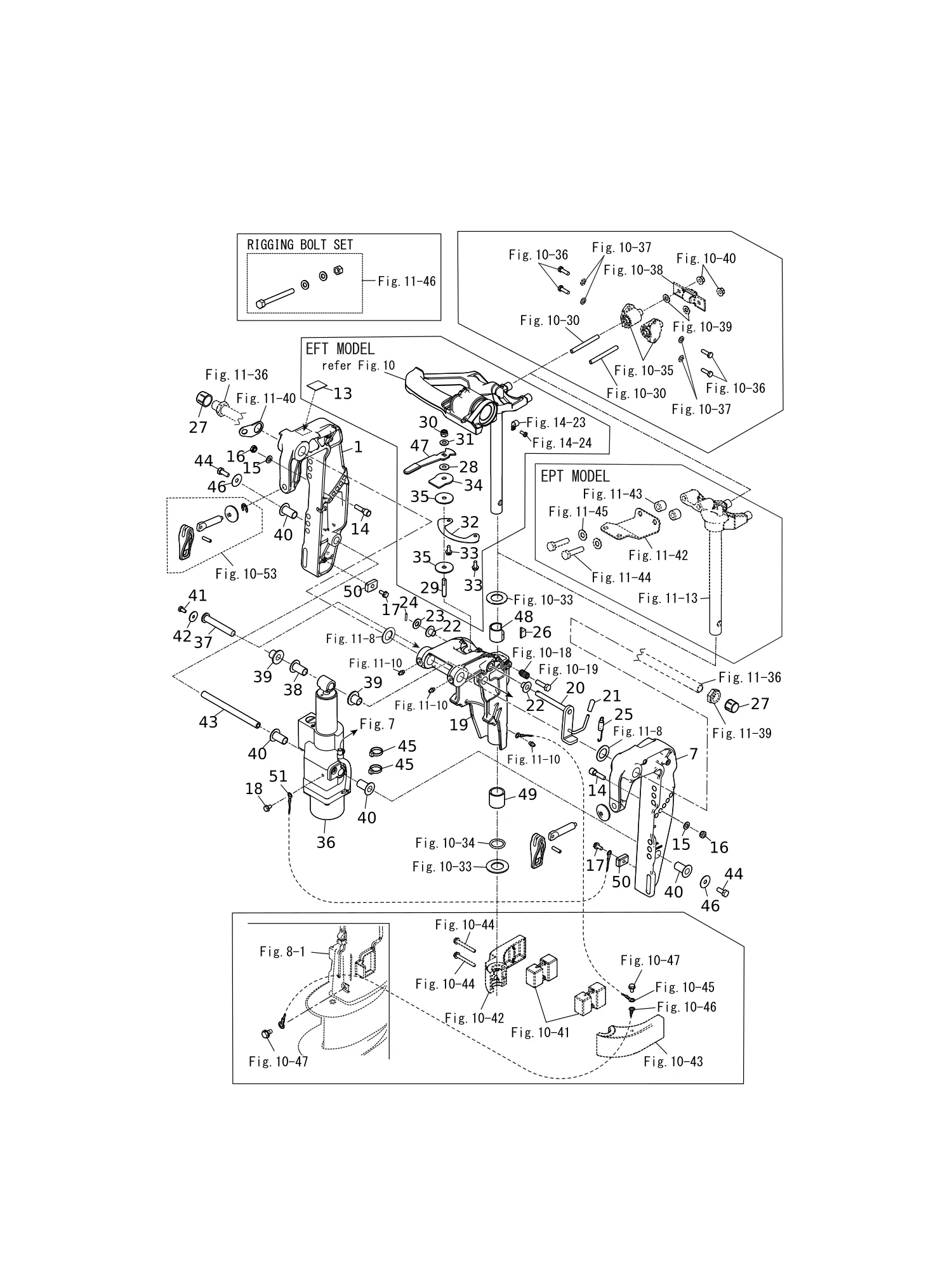

图 12支架（PTT）（EFT/EPT型号） BRACKET (PTT)(EFT/EPT MODEL)

REF	零件编号	中文名称	英文名称	数量
1	3Z0Q77211-2	夹紧支架(动力升降倾斜装置-右)	CLAMP BRACKET (PTT-R)	1
7	3Z0Q77212-0	卡箍支架 (动力升降倾斜装置-左)	CLAMP BRACKET (PTT-L)	1
13	3AA-72049-0	副驾驶贴花	CO-PILOT DECAL	1
14	3Z0-77115-0	配平锁销	TRIM LOCK PIN	2
15	3P0-66233-0	垫片 8.1-16-1.5	WASHER 8.1-16-1.5	2
16	3V5-62442-0	尼龙螺母 8-P1.25	NYLON NUT 8-P1.25	2
17	910103-5616	螺栓	BOLT	2
18	910103-5612	螺栓	BOLT	1
19	3V1Q77208-0	旋转支架总成	SWIVEL BRACKET ASSY	1
20	3Z0-62476-2	倾斜止动器	TILT STOPPER	1
21	369-62433-1	倾斜止动器手柄	TILT STOPPER GRIP	1
22	353-63207-0	轴环 10.2-24-12	COLLAR 10.2-24-12	2
23	940103-1000	垫圈	WASHER	1
24	951403-3516	弹簧销 3.5-16	SPRING PIN 3.5-16	1
25	3R0-62473-0	倾斜止动弹簧	TILT STOPPER SPRING	1
26	3Z0-63035-0	摩擦片	FRICTION PIECE	1
27	346-62127-0	盖形螺母	CAP NUT	2
28	3R3-62443-0	垫圈 8.1-20-0.8	WASHER 8.1-20-0.8	1
29	3R3-62445-0	螺栓	BOLT	1
30	930403-0800	尼龙螺母 8-P1.25	NYLON NUT 8-P1.25	1
31	940103-0800	垫圈	WASHER	1
32	3AA-62447-0	板	PLATE	1
33	9101E3-5616	螺栓	BOLT	2
34	3R3-62448-1	垫圈 8.5-38-3	WASHER 8.5-38-3	1
35	3R3-62449-0	圆盘8.5-38-2	DISC 8.5-38-2	2
36	31HQ77151-1	动力倾斜总成	PT ASSY	1
37	3KY-77071-0	气缸销(上)	CYLINDER PIN (UPPER)	1
39	3R0-77076-0	衬套 13-17-19.5	BUSHING 13-17-19.5	2
40	3Z0-77076-0	衬套 13-16-31	BUSHING 13-16-31	4
41	9101E3-0612	螺栓	BOLT	1
42	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	1
43	3Z0-77101-1	气缸销(下)	CYLINDER PIN (LOWER)	1
44	910103-0820	螺栓	BOLT	2
45	3Z0-84398-0	箍带 203	BAND 203	2
46	307-62116-1	垫圈 8.5-28-1	WASHER 8.5-28-1	2
47	3AA-62441-0	摩擦杆	FRICTION LEVER	1
48	3Z0-62417-0	衬套 24-30-30	BUSHING 24-30-30	1
49	350-62417-0	衬套 24-30-30	BUSHING 24-30-30	1
50	3H6-60218-0	阳极块	ANODE	2
51	398-62396-1	接地线 L=130	GROUND L=130	1

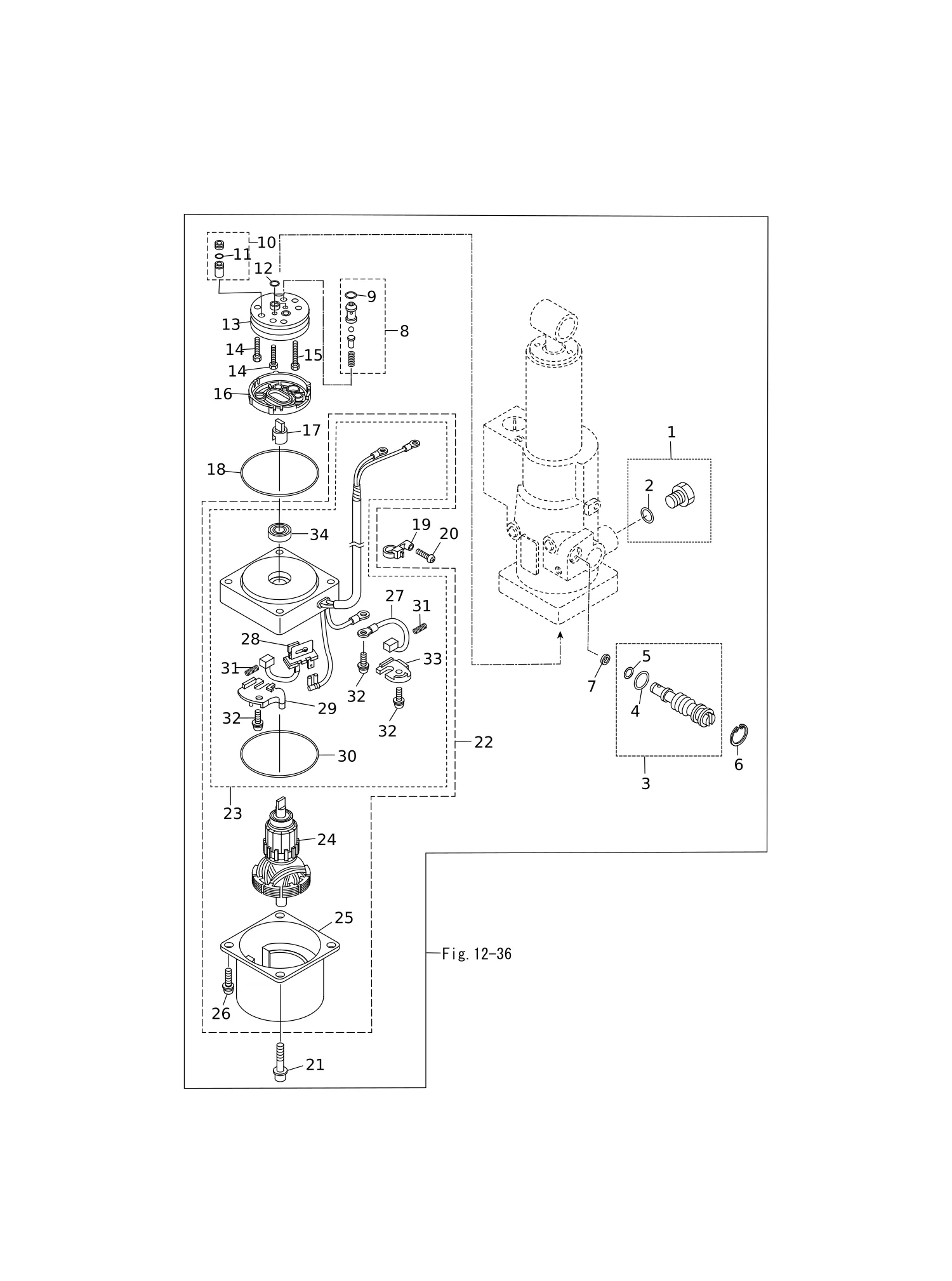

图 13动力倾斜装置 POWER TILT

REF	零件编号	中文名称	英文名称	数量
1	3Z0-77221-0	盖帽总成	CAP ASSY	1
3	3Z0-77175-0	手动阀总成	MANUAL VALVE ASSY	1
4	3R0-77177-0	* O型圈 2.4-9.8	* O-RING 2.4-9.8	1
6	3R0-77171-0	C形环	C-RING	1
7	3AC-77173-0	密封垫圈	SEAL WASHER	1
8	3Z0-77450-0	安全阀总成	RELIEF VALVE ASSY	1
9	3Z0-77179-0	* O型圈	* O-RING	1
10	3Z0-77460-0	阀门总成	VALVE ASSY	1
11	3R0-77451-0	* O型圈1.5-3.5	* O-RING 1.5-3.5	1
12	3B7-77169-0	O型圈	O-RING	2
13	3B7-77430-0	泵	PUMP	1
14	3B7-77432-1	螺栓	BOLT	2
15	3B7-77431-1	螺栓	BOLT	1
16	3B7-77434-1	过滤器	FILTER	1
17	3E0-77163-0	联轴器	COUPLING	1
18	3R0-77167-0	O型圈2-62.5	O-RING 2-62.5	1
19	3Z1-84398-1	箍带	BAND	1
20	3V1-64333-0	预涂层螺钉5-12	PRE-COATED SCREW 5-12	1
21	3Z0-77431-0	螺栓	BOLT	2
22	31H-77180-1	马达总成	MOTOR ASSY	1
23	31H-77192-1	* 电机支架总成	* MOTOR BRACKET ASSY	1
24	3Z0-77190-0	* 电枢总成	* ARMATURE ASSY	1
25	3Z0-77195-0	* 轭架总成	* YOKE ASSY	1
26	9215E3-5512	* 螺钉	* SCREW	2
27	3SS-77183-1	电刷	** BRUSH	1
28	3RS-77191-0	断路器	** BREAKER	1
29	3Z0-77187-0	断路器座	** BREAKER HOLDER	1
30	3Z0-77167-0	O型圈	** O-RING	1
31	3E0-77184-0	电刷弹簧	** BRUSH SPRING	2
32	921521-5512	螺钉	** SCREW	3
33	3Z0-77186-0	电刷架	** BRUSH HOLDER	1
34	3E0-77193-0	油封	** OIL SEAL	1

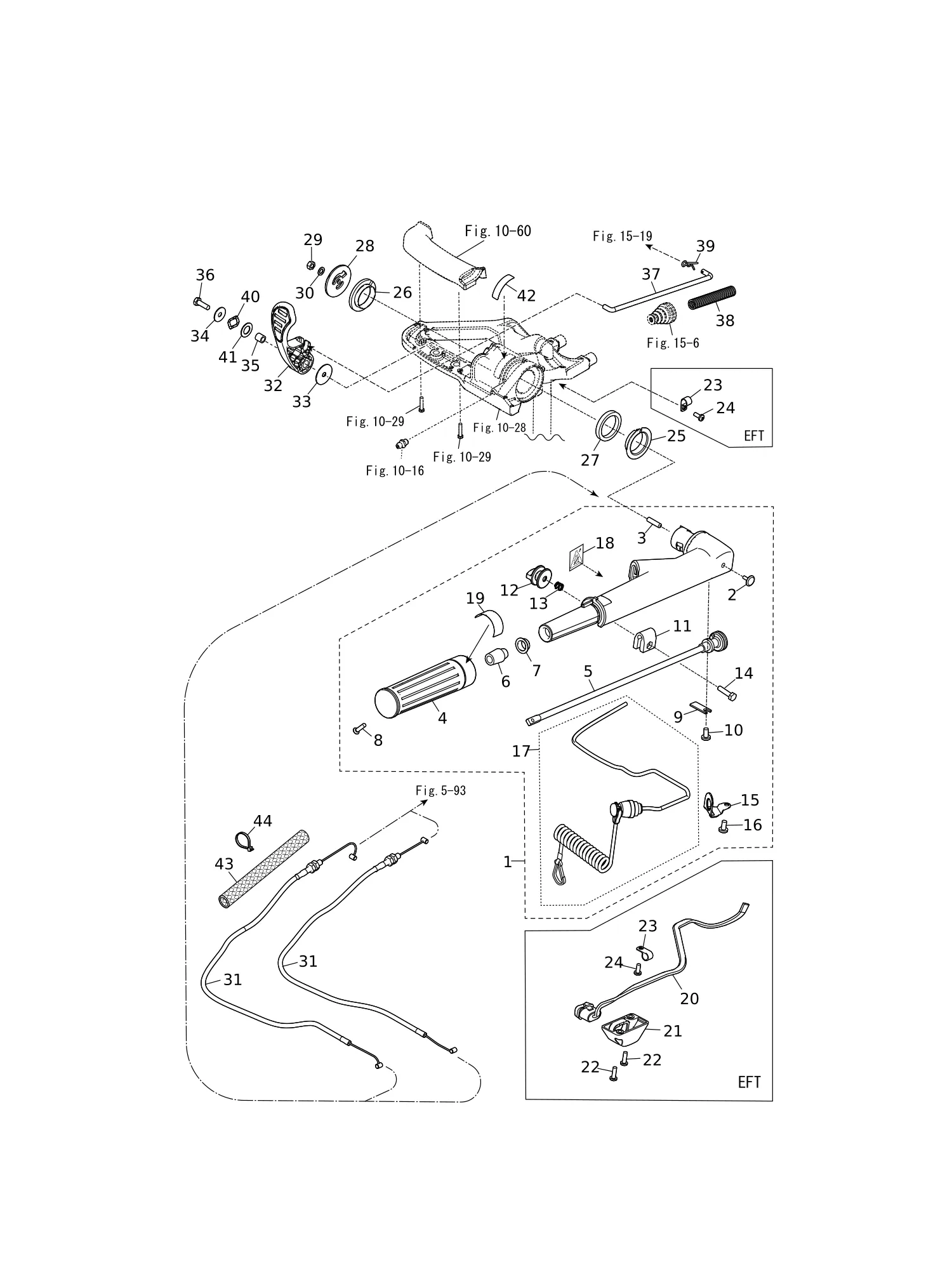

图 14舵柄/换挡杆 TILLER HANDLE/SHIFT LEVER

REF	零件编号	中文名称	英文名称	数量
1	31HQ63003-0	舵柄总成	TILLER HANDLE ASSY	1
1	31HW63003-0	舵柄总成	TILLER HANDLE ASSY	1
2	350-67154-0	* 塑料铆钉 6.5	* PLASTIC RIVET 6.5	1
3	3B2-63104-1	* 双头螺柱	* STUD	1
4	3R3-63012-0	* 手柄	* GRIP	1
5	3V1-63041-0	* 节气门轴	* THROTTLE SHAFT	1
6	3H6-63048-0	* 节气门轴缓冲器	* THROTTLE SHAFT DAMPER	1
7	3H6-63510-0	* 衬套 14-15.8-7	* BUSHING 14-15.8-7	1
8	921803-0520	* 螺钉	* SCREW	1
9	3B2-63063-0	* 节气门轴支撑	* THROTTLE SHAFT SUPPORT	1
11	3V1-63035-1	* 摩擦片	* FRICTION PIECE	1
12	3V1-63077-0	* 调节螺母	* ADJUSTING NUT	1
13	3V1-63036-0	* 弹簧	* SPRING	1
14	910103-0625	螺栓	* BOLT	1
15	3RS-06869-0	* 支架	* BRACKET	1
16	9215E3-0612	* 螺钉	* SCREW	1
17	31H-06830-0	* 停机开关总成	* STOP SWITCH ASSY	1
18	3AC-72200-0	* 停机开关标贴	* STOP SWITCH DECAL	1
19	3NV-72019-0	* 油门标识贴	* THROTTLE DECAL	1
20	3RS-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
21	3V1-76032-0	开关盒	SWITCH BOX	1
22	9215E3-0516	螺钉	SCREW	2
23	336-06973-0	卡箍 6-9.5L	CLAMP 6-9.5L	2
24	9215E3-0512	螺钉	SCREW	2
25	3V1-63102-0	衬套	BUSHING	1
26	3RS-63102-0	衬套	BUSHING	1
27	3RS-63108-0	垫圈	WASHER	1
28	3RS-63107-1	盖板	COVER	1
29	930103-0600	螺母	NUT	1
30	940203-0600	垫圈	WASHER	1
31	31H-63600-0	节气门拉线	THROTTLE WIRE	2
32	3RS-66110-1	换挡杆	SHIFT LEVER	1
33	3RS-67115-0	垫片 6.5-30-1	WASHER 6.5-30-1	1
34	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	1
35	3H6-63619-1	轴套 6.5-10.5-10	COLLAR 6.5-10.5-10	1
36	9101E3-0620	螺栓	BOLT	1
37	31N-66134-0	换挡杆连杆	SHIFT LEVER ROD	1
38	31N-06133-0	保护套 6.4-10-0.2-60	PROTECTOR 6.4-10-.2-60	1
39	951603-0600	弹性销d=6	SNAP PIN d=6	1
40	3RS-05259-0	波形垫圈 13-20-0.3	WAVE WASHER 13-20-0.3	1
41	3RS-61315-0	垫圈	WASHER	1
42	3WL-67578-0	换挡标识贴	SHIFT DECAL	1
42	3YG-67578-0	换挡标识贴	SHIFT DECAL	1
43	31H-63609-0	柔性编织套管	FLEX BRAIDED SLEEVE	1
44	369-84398-1	箍带 202	BAND 202	1

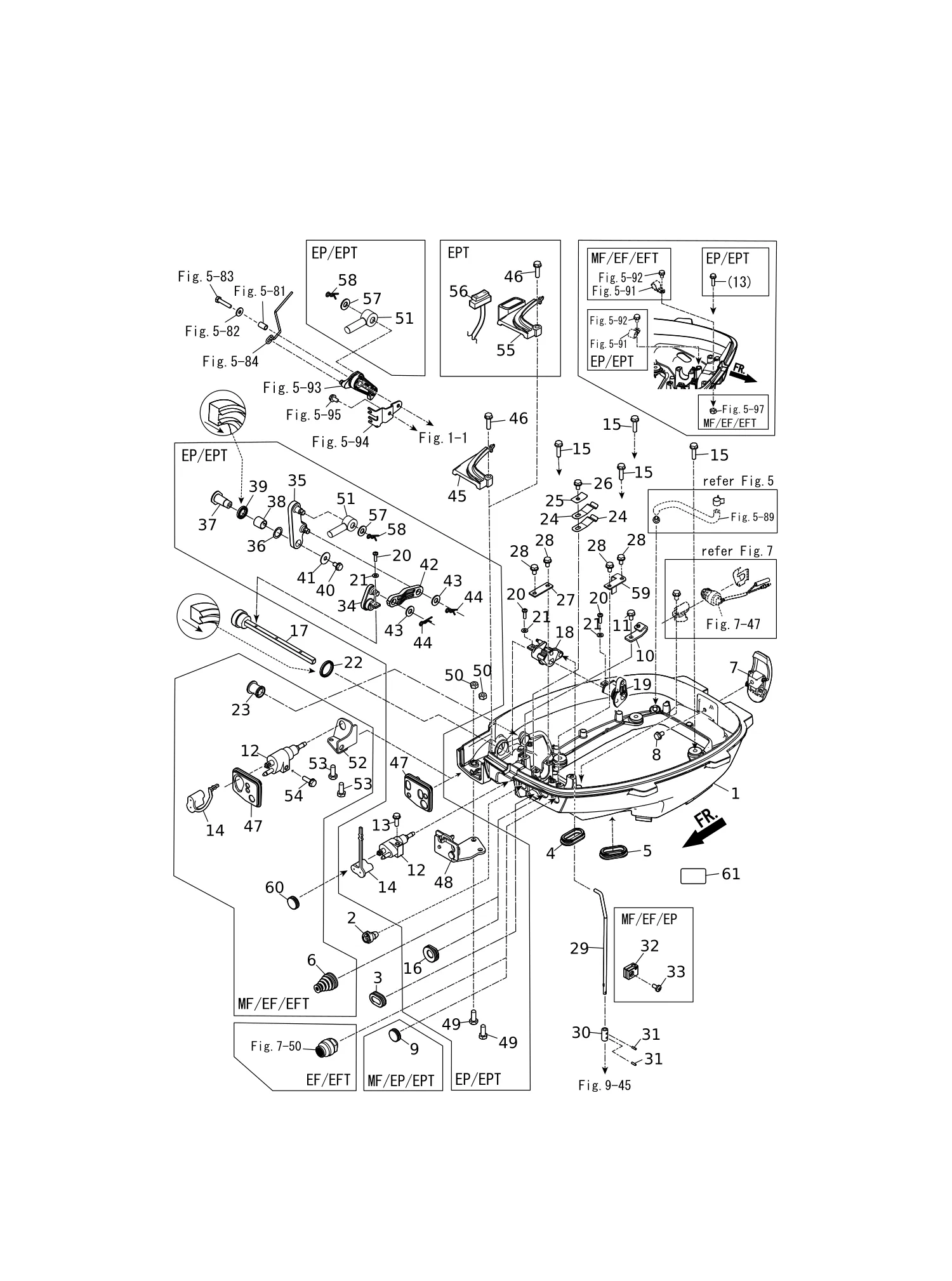

图 15下罩壳/换挡 BOTTOM COWL/SHIFT

REF	零件编号	中文名称	英文名称	数量
1	31HQ67100-1	下罩壳	BOTTOM COWL	1
1	31HW67100-1	下罩壳	BOTTOM COWL	1
2	3R3-71040-0	指示灯总成	PILOT LAMP ASSY	1
3	3R3-67162-0	索环 25-15-3	GROMMET 25-15-3	1
5	3R3-66226-0	衬套 40-18-3	GROMMET 40-18-3	1
6	3RS-66260-1	索环/护孔圈	GROMMET	1
7	3AA-67120-1	整流罩锁扣总成	COWL LATCH ASSY	1
10	3V1-69000-0	启动锁电缆支架	STARTER LOCK CABLE BRACKET	1
12	394-70260-1	燃油接头（公头）	FUEL CONNECTOR (MALE)	1
14	3H6-70262-0	燃油接头护套	FUEL CONNECTOR PROTECTOR	1
15	9101E3-5625	螺栓	BOLT	4
16	345-67161-0	索环 22-3	GROMMET 22-3	1
17	31H-66135-0	换挡杆轴	SHIFT LEVER SHAFT	1
18	3V1-66225-0	换挡杆手柄	SHIFT ROD LEVER	1
19	31H-66155-0	操纵杆	LEVER	1
20	921503-0414	螺钉	SCREW	3
21	940103-0400	垫圈	WASHER	3
22	3V1-66187-0	密封环 23-29-3.7	SEAL RING 23-29-3.7	1
23	3B2-67187-0	索环 16-17.5	GROMMET 16-17.5	1
24	3UA-66113-0	换挡定位弹簧 t=0.8	SHIFT DETENT SPRING t=0.8	2
25	3Y1-66117-0	换挡定位支架 t=0.8	SHIFT DETENT SUPPORTER t=0.8	1
27	3V1-66145-0	支架	HOLDER	1
29	3V1-66211-1	换挡连杆	SHIFT ROD	1
30	3V1-66241-0	换挡杆接头	SHIFT ROD JOINT	1
31	951403-0310	弹簧销 3-10	SPRING PIN 3-10	2
32	3V1-66302-1	倒车锁连杆接头	REVERSE LOCK LINK JOINT	1
33	921503-0612	螺钉	SCREW	1
34	31H-66129-0	换挡杆(遥控)	SHIFT LEVER (REMOTE CONTROL)	1
35	31H-66128-0	换挡臂（遥控型）	SHIFT ARM (REMOTE CONTROL)	1
36	941403-1400	波形垫圈 d=14	WAVE WASHER d=14	1
37	3V1-66142-0	枢轴	PIVOT	1
38	369-67105-0	挂钩杆衬套	HOOK LEVER BUSHING	1
39	338-67147-0	密封环 13.8-22-3.7	SEAL RING 13.8-22-3.7	1
40	910103-5612	螺栓	BOLT	1
41	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	1
42	31H-66134-0	换挡杆连杆	SHIFT LEVER ROD	1
45	31HQ67481-0	换挡杆支架盖	SHIFT LEVER BRACKET COVER	1
45	31HW67481-0	换挡杆支架盖	SHIFT LEVER BRACKET COVER	1
46	910103-5625	螺栓	BOLT	1
47	31H-63621-0	索环/护孔圈	GROMMET	1
47	31H-83732-0	索环/护孔圈	GROMMET	1
48	3AA-83820-0	线缆夹总成	CABLE CLIP ASSY	1
49	9101E3-0616	螺栓	BOLT	2
50	930103-0600	螺母	NUT	2
51	3B7-83715-2	线缆接头	CABLE JOINT	2
52	31H-70251-0	燃油接头支架	FUEL CONNECTOR STAY	1
53	9101E3-5616	螺栓	BOLT	2
54	910103-5616	螺栓	BOLT	1
55	31HQ67483-0	遥控线缆支架盖	REMOTE CONT CABLE STAY COVER	1
56	3RS-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
57	3AA-83719-0	垫圈 8.5-18-1.6	WASHER 8.5-18-1.6	2
58	951603-0800	弹性销 d=8	SNAP PIN d=8	2
59	31H-66145-0	支架	HOLDER	1
60	345-67117-0	索环 17-2.7	GROMMET 17-2.7	1
61	3H6-67572-1	存放标识	STORAGE DECAL	1

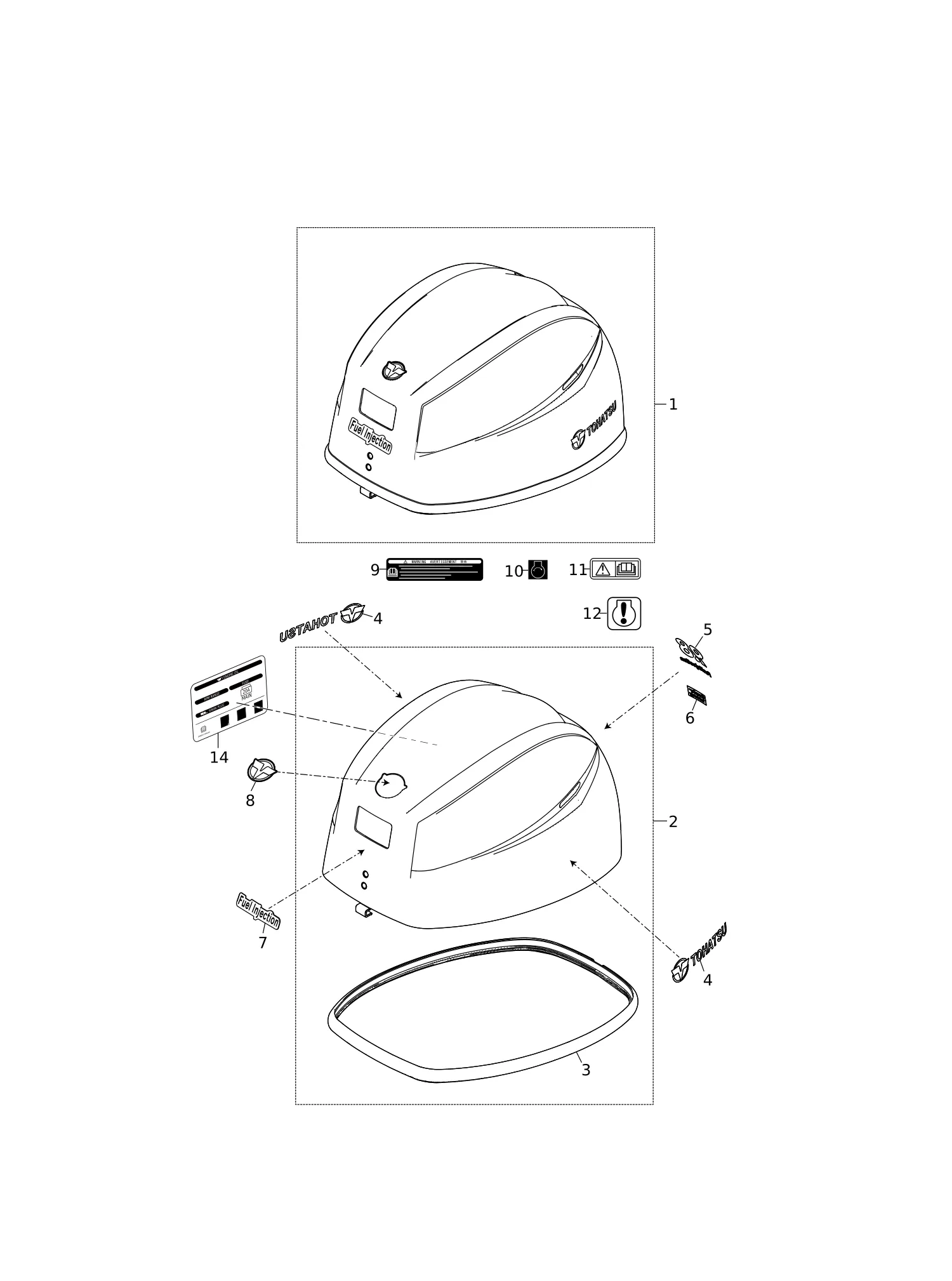

图 16顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	31HQ67645-0	顶罩总成	TOP COWL ASSY	1
1	31WW67645-0	顶罩总成	TOP COWL ASSY	1
2	31HQ67640-0	顶罩分总成	TOP COWL SUB-ASSY	1
2	31HW67640-0	顶罩分总成	TOP COWL SUB-ASSY	1
3	31H-67501-0	* 顶罩密封条	* TOP COWL SEAL	1
4	3VS-67541-0	侧贴花	SIDE DECAL	2
4	3ZB-67541-0	侧贴花	SIDE DECAL	2
5	31H-67536-0	后贴花(9.8)	REAR DECAL (9.8)	1
5	31N-67536-0	后部贴花(8马力)	REAR DECAL (8)	1
5	31W-67536-0	后贴花(9.8)	REAR DECAL (9.8)	1
5	32H-67536-0	后贴花(9.9)	REAR DECAL (9.9)	1
5	3RU-67536-2	后贴花(9.9)	REAR DECAL (9.9)	1
5	3WL-67536-0	后部贴花(6马力)	REAR DECAL (6)	1
6	3VS-67538-0	简标贴花	SIMPLIQ DECAL	1
6	3ZB-67538-0	简标贴花	SIMPLIQ DECAL	1
7	3RS-67545-0	燃油喷射标识贴	FUEL INJECTION DECAL	1
7	3WF-67545-0	燃油喷射标识贴	FUEL INJECTION DECAL	1
8	3RT-67580-0	标志贴花	LOGO DECAL	1
9	3WL-72180-0	警示标贴(A型)	CAUTION DECAL (A)	1
9	3YG-72180-0	警示标贴(A型)	CAUTION DECAL (A)	1
10	3VS-67587-0	启动标识贴	START DECAL	1
11	3F0-72185-0	警示标贴	CAUTION DECAL	1
12	3AC-76190-0	警告标贴	WARNING DECAL	1
14	31H-38136-1	维护标签	MAINTENANCE LABEL	1

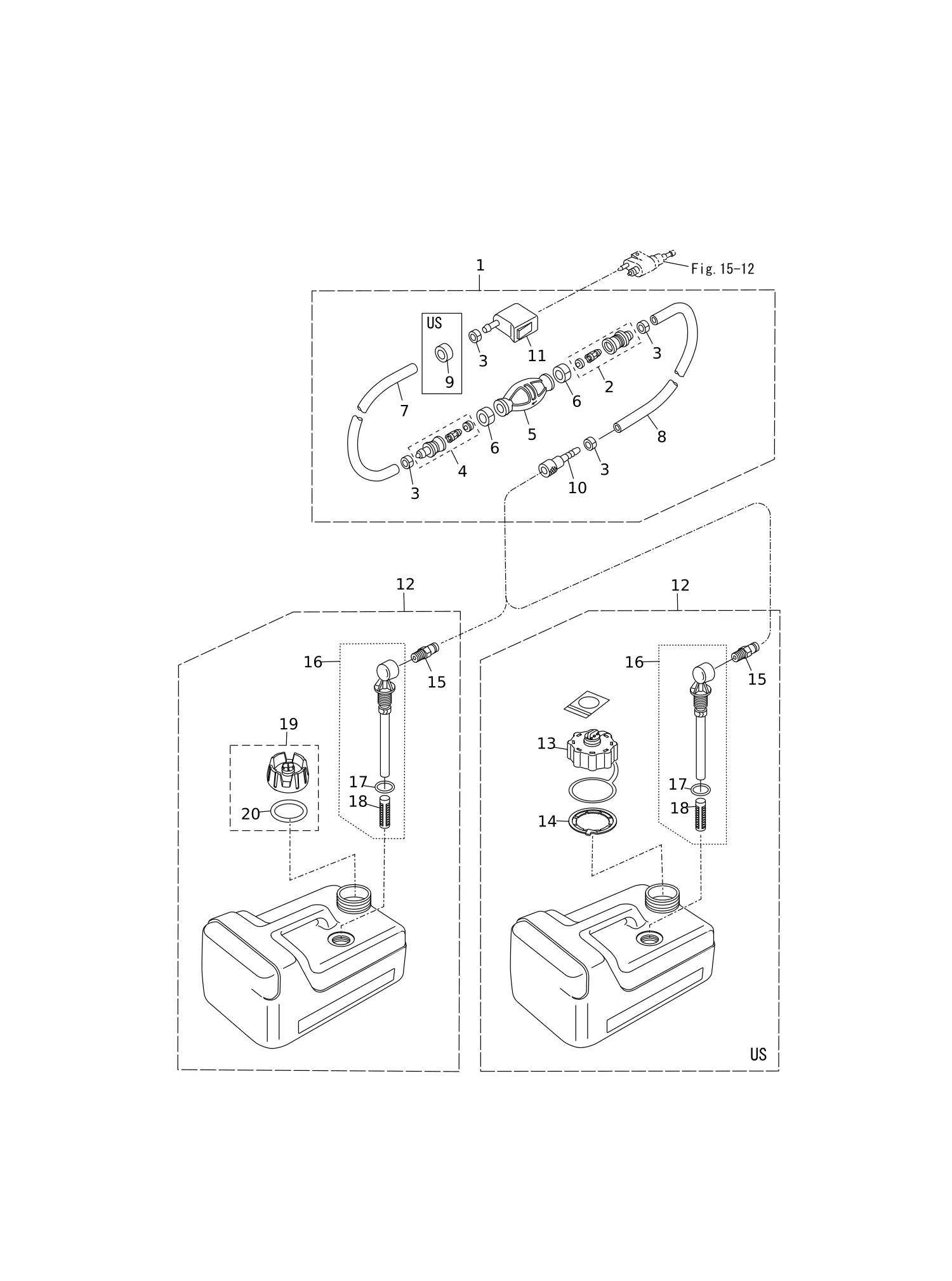

图 17独立燃油箱 SEPARATE FUEL TANK

REF	零件编号	中文名称	英文名称	数量
1	3AD-70200-2	手动泵球总成	PRIMER BULB ASSY	1
1	3H6-70200-2	手动泵球总成	PRIMER BULB ASSY	1
2	3C7-70220-1	* 接头组件(进口)	* JOINT ASSY (INLET)	1
3	332-70201-0	* 卡箍	* CLAMP	4
4	3C7-70224-1	* 接头组件(出口)	* JOINT ASSY (OUTLET)	1
5	3C7-70211-1	* 注油球	* PRIMER BULB	1
5	3GF-70211-1	* 注油球	* PRIMER BULB	1
6	3C7-70217-0	* 卡箍	* CLAMP	2
7	3GF-70241-1	* 低渗透软管 L=700	* LOW PERMEATION HOSE L=700	1
7	98AB-70-700	* 软管	* HOSE	1
8	3GF-70240-1	* 低渗透软管 L=1600	* LOW PERMEATION HOSE L=1600	1
8	98AB-701600	* 软管	* HOSE	1
9	3GR-70280-0	* 燃油接头标记	* FUEL CONNECTOR MARK	1
10	3GF-70281-0	* 燃油接头	* FUEL CONNECTOR	1
11	3GR-70250-0	* 燃油接头	* FUEL CONNECTOR	1
12	3RS-70167-0	12升燃油箱总成	FUEL TANK ASSY 12L	1
12	3UA-70167-0	12升燃油箱总成	FUEL TANK ASSY 12L	1
13	3AC-70052-1	* 燃油箱盖总成	* FUEL TANK CAP ASSY	1
14	3AC-70055-0	* 挡圈	* RETAINING RING	1
15	3E0-70270-0	* 快速接头(公)	* QUICK-CONNECTOR (MALE)	1
16	3B2-70155-1	* 吸油弯管总成(12升)	* PICK-UP ELBOW ASSY (12L)	1
17	3C7-70199-0	O型圈	** O-RING	1
18	3C7-70113-0	** 滤清器	** FILTER	1
19	3RS-70020-0	* 燃油箱盖总成	* FUEL TANK CAP ASSY	1
20	3RS-70021-0	油箱盖衬垫	** TANK FILLER CAP GASKET	1

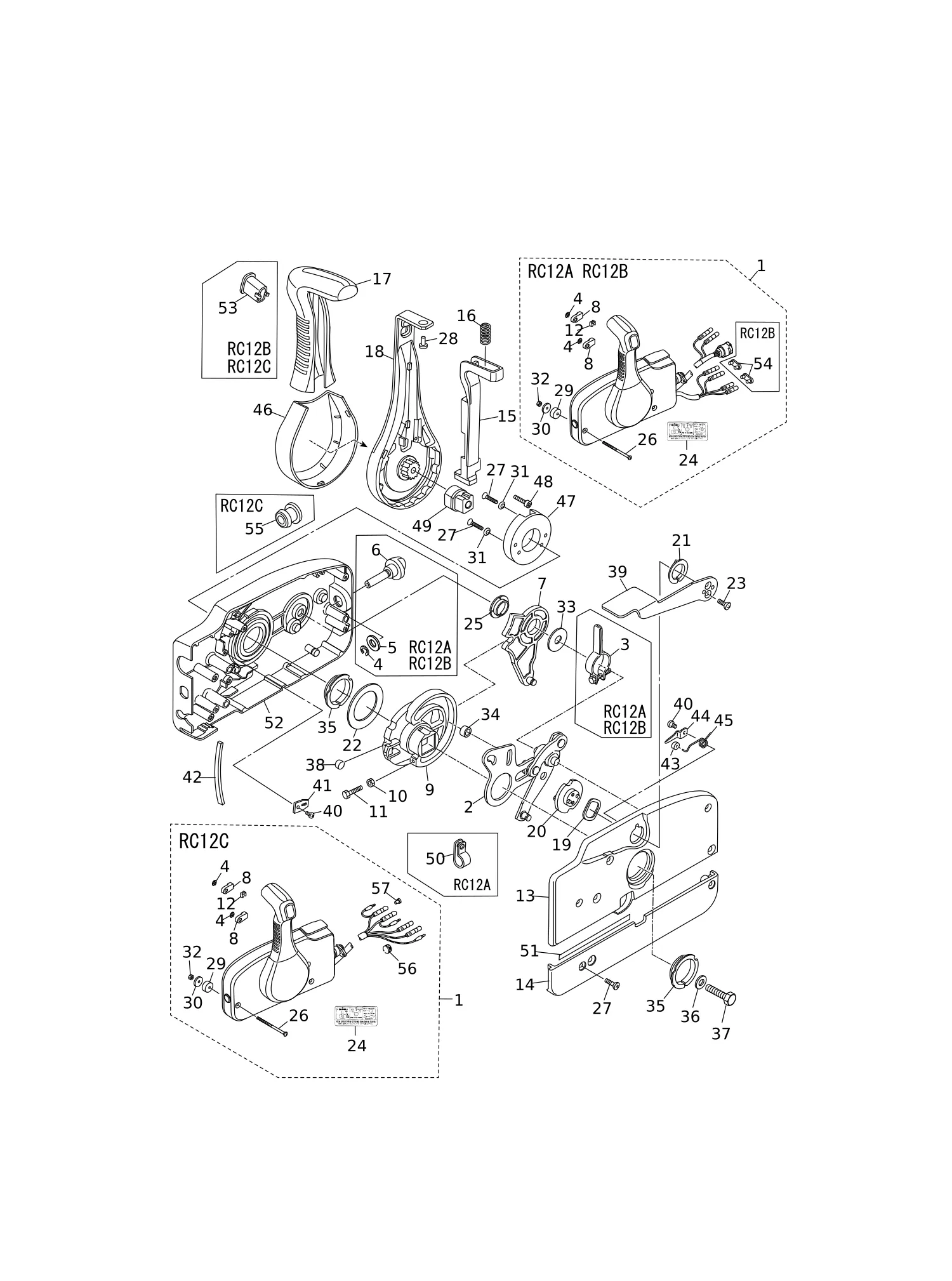

图 18遥控器零部件 COMPONENT PARTS OF REMOTE CONTROL

REF	零件编号	中文名称	英文名称	数量
1	3U2B84330-1	遥控头总成(RC12A)	REMOTE CONTROL HEAD ASSY (RC12A)	1
1	3U2B84340-1	遥控头总成(RC12B)	REMOTE CONTROL HEAD ASSY (RC12B)	1
1	3U2B84350-1	遥控头总成(RC12C)	REMOTE CONTROL HEAD ASSY (RC12C)	1
2	3A3-84365-1	* 节气门摇臂	* THROTTLE ARM	1
3	3A3-84428-0	* 油门摩擦摇臂	* THROTTLE FRICTION ARM	1
4	945303-0600	* E型卡环 d=6	* E-RING d=6	2
5	353-84394-0	* 垫圈	* WASHER	1
6	3U2-84427-0	* 调节螺钉	* ADJUSTING SCREW	1
7	3A3-84381-0	* 换挡齿轮总成	* SHIFT GEAR ASSY	1
8	3A3-83314-2	* 线缆端子	* CABLE TERMINAL	2
9	3A3-84364-2	* 驱动齿轮	* DRIVE GEAR	1
10	930103-0500	螺母	* NUT	1
11	910103-0525	螺栓	* BOLT	1
12	3A3-84376-0	* 护孔环	* GROMMET	1
13	3U2B84441-0	* 后壳体	* REAR HOUSING	1
14	3U2B84366-0	* 后盖板	* REAR PANEL	1
15	3U2-84401-0	* 空档锁止臂	* NEUTRAL LOCK ARM	1
16	3A3-84403-0	* 空档锁止弹簧	* NEUTRAL LOCK SPRING	1
17	3U2-84404-0	* 手柄	* GRIP	1
18	3U2-84343-0	* 控制杆	* CONTROL LEVER	1
19	3A3-84368-0	* 波形垫圈	* WAVE WASHER	1
20	3A3-84391-0	* 自由节流鼓	* FREE THROTTLE DRUM	1
21	3A3-84435-0	* 衬套	* BUSHING	1
22	3A3-84422-0	* 推力板	* THRUST PLATE	1
23	921603-0512	* 螺钉	* SCREW	2
24	3U2-84339-1	* 操作说明标贴	* INSTRUCTION DECAL	1
25	3A3-84432-0	* 衬套	* BUSHING	1
26	3U2-84375-0	* 螺钉	* SCREW	3
27	3VK-84375-0	* 螺钉	* SCREW	7
28	3VL-84375-0	* 螺钉	* SCREW	1
29	3A3-84374-0	* 隔套	* SPACER	3
30	353-84371-0	* 垫圈	* WASHER	3
31	3U2-84371-0	* 垫圈	* WASHER	2
32	930103-0600	螺母	* NUT	3
33	3A3-84383-0	* 垫圈	* WASHER	1
34	3A3-84421-0	* 滚轮	* ROLLER	1
35	3U2-84431-0	* 衬套	* BUSHING	2
36	940103-0800	* 垫圈	* WASHER	1
37	3U2-84442-0	螺栓	* BOLT	1
38	353-84388-0	* 定位滚轮	* DETENT ROLLER	1
39	3U2B84312-0	* 自由节流杆	* FREE THROTTLE LEVER	1
40	921503-0406	* 螺钉	* SCREW	3
41	3A3-84423-0	* 定位器挡圈	* DETENT RETAINER	1
42	3A3-84307-0	* 定位弹簧	* DETENT SPRING	6
43	3A3-84424-0	* 自由节流滚轮	* FREE THROTTLE ROLLER	1
44	3A3-84426-0	* 滚柱保持架	* ROLLER RETAINER	1
45	3A3-84425-0	* 自由节流弹簧	* FREE THROTTLE SPRING	1
46	3VK-63107-0	* 盖板	* COVER	1
47	3U2-63506-0	* 支架	* HOLDER	1
48	3U2-84917-0	螺栓	* BOLT	1
49	3U2-77367-0	* 接头	* JOINT	1
50	3U2-06973-0	* 卡箍	* CLAMP	1
51	3U2-72187-0	* 警示标贴(SIGP)	* CAUTION DECAL (SIGP)	1
52	3U2B84440-0	* 前壳体	* FRONT HOUSING	1
53	3U2-84452-0	* 倾斜开关塞	* TILT SWITCH PLUG	1
54	353-76037-0	* 线缆端子塞	* CABLE TERMINAL PLUG	2
55	3U2-84414-0	* 护孔环	* GROMMET	1
56	361-84415-0	* 护孔环	* GROMMET	1
57	3A3-76037-0	* 线缆端子塞	* CABLE TERMINAL PLUG	1

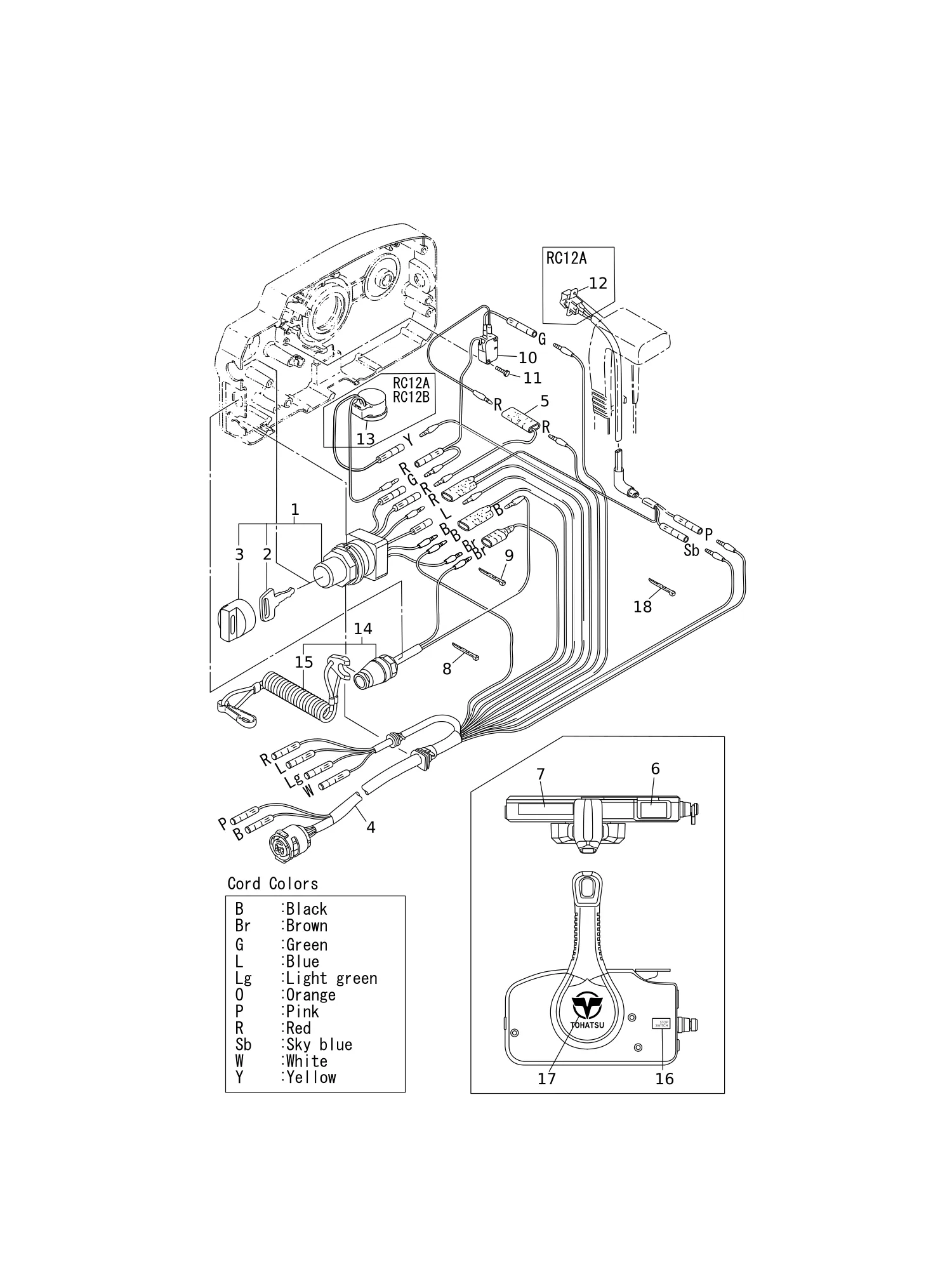

图 19遥控器零部件(电气部件) COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)

REF	零件编号	中文名称	英文名称	数量
1	3GF-76020-0	主开关总成	MAIN SWITCH ASSY	1
2	3GF-76217-0	* 主开关钥匙 No.943	* MAIN SWITCH KEY No.943	1
2	3GF-76218-0	* 主开关钥匙 No.944	* MAIN SWITCH KEY No.944	1
2	3GF-76219-0	* 主开关钥匙 No.945	* MAIN SWITCH KEY No.945	1
3	3GF-76205-0	* 主开关钥匙盖帽	* MAIN SWITCH KEY COVERING CAP	1
4	361-76110-1	线束总成	CORD ASSY	1
4	3A3-76115-1	线束总成 L=6200	CORD ASSY L=6200	1
5	353-72546-0	辅助拉绳(红) 长200	ASSIST CORD (RED) L=200	1
6	3U2-84331-0	操纵杆贴花	DECAL (LEVER)	1
7	3U2-84336-1	挡位标识贴	SHIFT POSITION DECAL	1
10	3A3-76086-1	空档开关(遥控型)	NEUTRAL SWITCH (REMOTE CONT)	1
11	921503-5316	螺钉	SCREW	2
12	3U2-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
13	3C8-76171-0	过热报警器	OVERHEAT BUZZER	1
14	3A3-06830-0	停止开关总成	STOP SWITCH ASSY	1
15	31H-06848-0	* 停机开关拉绳总成	* STOP SWITCH LANYARD ASSY	1
16	3U2-72200-0	停止开关贴花	STOP SWITCH DECAL	2
17	3U2-84334-0	遥控标识贴花	REMOTE CONTROL LOGO DECAL	1
18	3U2-84398-0	箍带	BAND	3

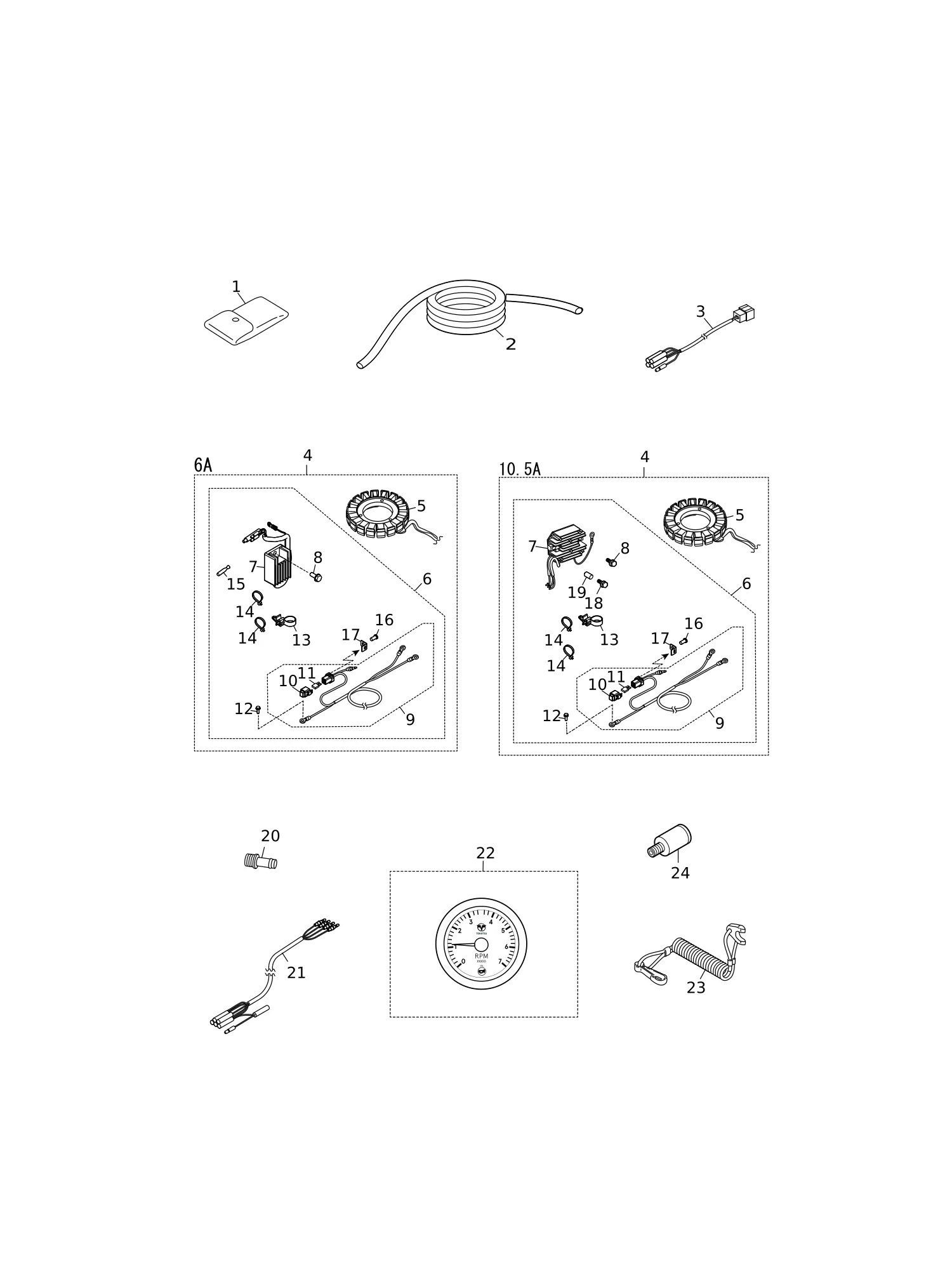

图 20选装配件 OPTIONAL PARTS · ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
1	3BJ-72100-1	工具包	TOOL KIT	1
2	3B7-72201-0	安全绳φ5-1600	SAFETY ROPE φ5-1600	1
3	3KY-72539-0	转速表导线 L=2000	TACHOMETER LEAD WIRE L=2000	1
4	31H-06128-0	交流发电机套件	ALTERNATOR KIT	1
4	31N-06128-0	交流发电机套件	ALTERNATOR KIT	1
5	31H-06023-0	* 交流发电机总成	* ALTERNATOR ASSY	1
5	3RT-06023-0	* 交流发电机总成	* ALTERNATOR ASSY	1
6	31H-76160-0	* 整流器套件	* RECTIFIER KIT	1
6	31N-76160-0	* 整流器套件	* RECTIFIER KIT	1
7	3AA-76065-0	整流器总成	** RECTIFIER COMPLETE	1
7	3RS-76060-0	整流器总成	** RECTIFIER COMPLETE	1
8	910103-5616	螺栓	** BOLT	1
8	910103-5620	螺栓	** BOLT	1
9	31H-76161-0	** 延长线	** EXTENSION CORD	1
10	1E0-34093-0	盖帽(Y型)	*** CAP (Y)	1
11	3T5-76247-0	保险丝 20A	*** FUSE 20A	2
12	910103-5612	螺栓	** BOLT	1
13	3KY-84398-0	带箍	** BAND	1
14	369-84398-1	带箍 202	** BAND 202	2
15	3SY-01047-0	塞	** PLUG	1
16	3V1-05913-0	自攻螺钉5-12	** TAPPING SCREW 5-12	1
17	3R0-76064-0	保险丝支架	** FUSE HOLDER BRACKET	1
18	910103-5630	螺栓	** BOLT	1
19	3H6-63619-1	轴环 6.5-10.5-10	** COLLAR 6.5-10.5-10	1
20	3T1-72405-0	软管接头(水工)	HOSE JOINT (WATER-WORKS)	1
21	3UA-72537-0	仪表引线 长2000mm	METER LEAD WIRE L=2000	1
22	3PA-72638-2	转速表组件	TACHOMETER KIT	1
22	3PB-72638-2	转速表组件	TACHOMETER KIT	1
23	3GR-06821-0	缆线	CORD	1
24	336-60007-0	冲洗塞	FLUSHING PLUG	1

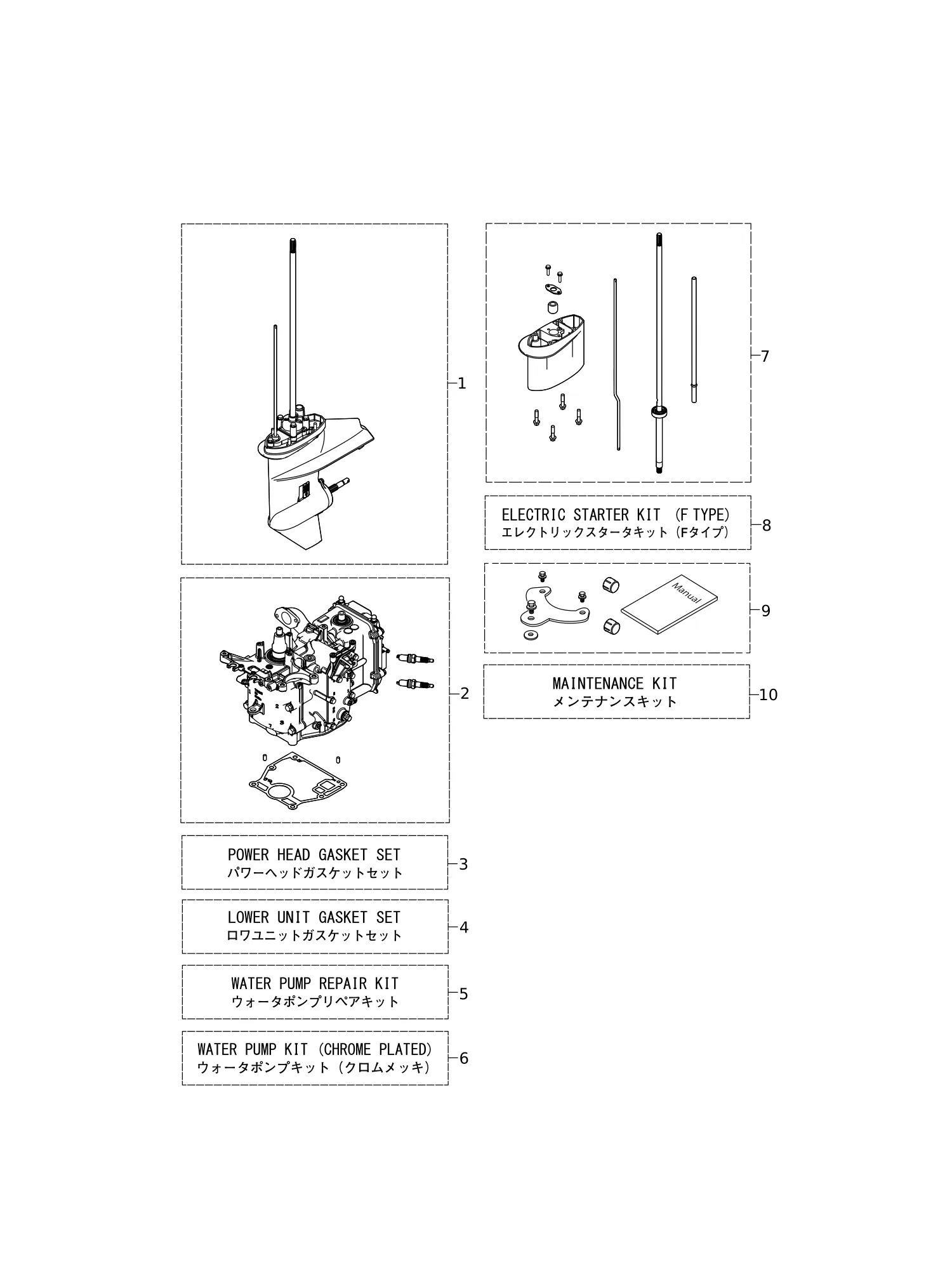

图 21套件零件总成 ASSEMBLY · KIT PARTS

REF	零件编号	中文名称	英文名称	数量
1	31HQ87301-0	下部单元总成 (S)	LOWER UNIT ASSY (S)	1
1	31HQ87302-0	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	31HW87301-0	下部单元总成 (S)	LOWER UNIT ASSY (S)	1
1	31HW87302-0	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3V1Q87304-8	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
1	3V1W87304-8	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
1	3WBQ87302-0	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3WBQ87304-0	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
2	31HB87090-0	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
2	31PB87090-0	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
3	31H-01005-0	* 气缸盖垫片	* CYLINDER HEAD GASKET	1
3	31H-01303-0	* 发动机底座衬垫	* ENGINE BASEMENT GASKET	1
3	31H-02305-0	* 排气盖衬垫	* EXHAUST COVER GASKET	1
3	31H-02418-0	* 衬垫	* GASKET	1
3	31H-07653-0	* 机油泵垫片	* OIL PUMP GASKET	1
3	31H-10104-0	* 衬垫	* GASKET	1
3	31H-87121-0	动力头衬垫套装	POWER HEAD GASKET SET	1
3	346-01032-0	* 节温器盖衬垫	* THERMOSTAT CAP GASKET	1
3	3B2-01215-0	* 油封 12.1-28-5	* OIL SEAL 12.1-28-5	1
3	3BJ-00121-0	* 油封 36-50-7	* OIL SEAL 36-50-7	1
3	3H6-07422-0	* O型圈 2.62-18.72	* O-RING 2.62-18.72	1
3	3H8-07025-0	* 油封 18-35-8	* OIL SEAL 18-35-8	1
3	3R0-07422-0	* O型圈 3.1-24.4	* O-RING 3.1-24.4	1
3	3V1-00121-0	* 油封 30-45-8	* OIL SEAL 30-45-8	1
3	3V1-01024-0	* 气缸盖罩衬垫	* CYLINDER HEAD COVER GASKET	1
4	309-60111-0	* 油封 12-24-8	* OIL SEAL 12-24-8	1
4	332-66032-0	* O型圈2.4-15.4	* O-RING 2.4-15.4	1
4	345-65015-0	* O型圈 3.2-47	* O-RING 3.2-47	1
4	369-60111-0	* 油封 15-28-10	* OIL SEAL 15-28-10	1
4	369-66021-1	* O型圈 2.5-4.9	* O-RING 2.5-4.9	2
4	3B2-02312-2	* 排气管衬垫	* EXHAUST PIPE GASKET	1
4	3B2-61012-2	* 驱动轴壳体衬垫	* DRIVE SHAFT HOUSING GASKET	1
4	3B2-87321-5	下部单元衬垫套件	LOWER UNIT GASKET SET	1
5	3B2-65020-1	* 泵壳衬垫(下)	* PUMP CASE GASKET (LOWER)	1
5	3B2-87322-2	水泵维修套件	WATER PUMP REPAIR KIT	1
5	9161E3-0650	螺栓	* BOLT	4
6	3B2-65231-2	水泵套件(镀铬)	WATER PUMP KIT (CHROME PLATED)	1
6	3B2-65238-0	* 泵壳衬套	* PUMP CASE LINER	1
6	3B2-65239-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
7	3B2-60003-1	* 驱动轴衬套（上长）	* DRIVE SHAFT BUSHING (UL)	1
7	3B2Q61110-2	* 延伸壳体	* EXTENSION HOUSING	1
7	3V1-64309-2	* 驱动轴总成（上长）	* DRIVE SHAFT ASSY (UL)	1
7	3V1-64332-0	* 止动块	* STOPPER	1
7	3V1-65120-0	* 水管 (上左)	* WATER PIPE (UL)	1
7	3V1-66014-0	* 凸轮杆(上左)	* CAM ROD (UL)	1
7	3V1Q87314-5	延伸壳体套件(超长)	EXTENSION HOUSING KIT (UL)	1
7	3V2-60001-0	螺栓 6-35	* BOLT 6-35	4
7	9101E3-5612	螺栓	* BOLT	2
8	1E0-34093-0	* 盖帽(黄色)	* CAP (Y)	1
8	31H-06023-0	* 交流发电机总成	* ALTERNATOR ASSY	1
8	31H-06191-0	* 飞轮带齿圈	* FLYWHEEL W/RING GEAR	1
8	31H-06869-0	* 支架	* BRACKET	1
8	31H-76010-0	* 启动电机总成	* STARTER MOTOR ASSY	1
8	31H-76040-0	* 启动电磁阀	* STARTER SOLENOID	1
8	31H-76066-0	* 保险丝线束总成	* FUSE WIRE ASSY	1
8	31H-76081-0	* 空档开关支架	* NEUTRAL SWITCH BRACKET	1
8	31H-76300-1	电动启动器套件(F)	ELECTRIC STARTER KIT (F)	1
8	3AA-76026-0	* 主开关总成	* MAIN SWITCH ASSY	1
8	3AA-76065-0	* 整流器总成	* RECTIFIER COMPLETE	1
8	3B2-76120-1	蓄电池电缆 L=2000	* BATTERY CABLE L=2000	1
8	3B2-76147-2	* 启动电缆 L=200	* STARTER CABLE L=200	1
8	3BJ-76145-0	* 端子盖 15.5-20-28	* TERMINAL CAP 15.5-20-28	1
8	3NV-76080-0	* 空档开关	* NEUTRAL SWITCH	1
8	3R0-76064-0	* 保险丝支架	* FUSE HOLDER BRACKET	1
8	3RS-06133-0	* 保护罩	* PROTECTOR	1
8	3RS-76083-0	* 空档开关执行器	* NEUTRAL SWITCH ACTUATOR	1
8	3SY-01047-0	* 塞	* PLUG	1
8	3T5-76247-0	* 保险丝 20A	* FUSE 20A	2
8	3V1-05913-0	* 自攻螺钉 5-12	* TAPPING SCREW 5-12	1
8	3VS-67587-0	* 启动标识贴	* START DECAL	1
8	3Y0-76145-0	* 端子盖 8-18-28	* TERMINAL CAP 8-18-28	1
8	3Y1-76145-0	* 端子盖 8-13-28	* TERMINAL CAP 8-13-28	1
8	910103-0610	螺栓	* BOLT	1
8	910103-5610	螺栓	* BOLT	2
8	910103-5612	螺栓	* BOLT	1
8	910103-5616	螺栓	* BOLT	1
8	910103-5825	螺栓	* BOLT	2
8	940103-0600	* 垫圈	* WASHER	1
9	346-62127-0	* 盖形螺母	* CAP NUT	2
9	3V1-62500-1	转向锁套件	STEERING LOCK KIT	1
9	3V1-62510-0	* 转向锁板	* STEERING LOCK PLATE	1
9	3Y3-60108-0	* 预涂螺栓6-12	* PRE-COATED BOLT 6-12	2
9	3Y4-60108-0	* 预涂螺栓8-20	* PRE-COATED BOLT 8-20	1
9	3Z0-61334-0	* 垫圈 8.5-34-3	* WASHER 8.5-34-3	1
10	31H-87500-0	维护套件	MAINTENANCE KIT	1
10	332-60006-1	* 衬垫 8.1-15-1	* GASKET 8.1-15-1	2
10	3B2-65011-0	* 泵壳衬套	* PUMP CASE LINER	1
10	3B2-65018-2	* 泵壳衬垫	* PUMP CASE GASKET	1
10	3B2-65021-1	* 水泵叶轮	* WATER PUMP IMPELLER	1
10	3B2-65022-0	* 键 φ3-11	* KEY φ3-11	1
10	3B2-65025-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
10	3B2-65029-2	* 导板垫片	* GUIDE PLATE GASKET	1
10	3KM-01142-0	* 阳极塞总成	* ANODE PLUG ASSY	1
10	3R3-07406-0	* 垫圈 14.5-24-1	* WASHER 14.5-24-1	1
10	3V1-60217-0	* 配平片	* TRIM TAB	1
10	951403-0310	* 弹簧销 3-10	* SPRING PIN 3-10	2
10	951503-0318	* 开口销 3-18	* SPLIT PIN 3-18	1
10	9701-1-1103	* 火花塞 (DCPR6E)	* SPARK PLUG (DCPR6E)	2

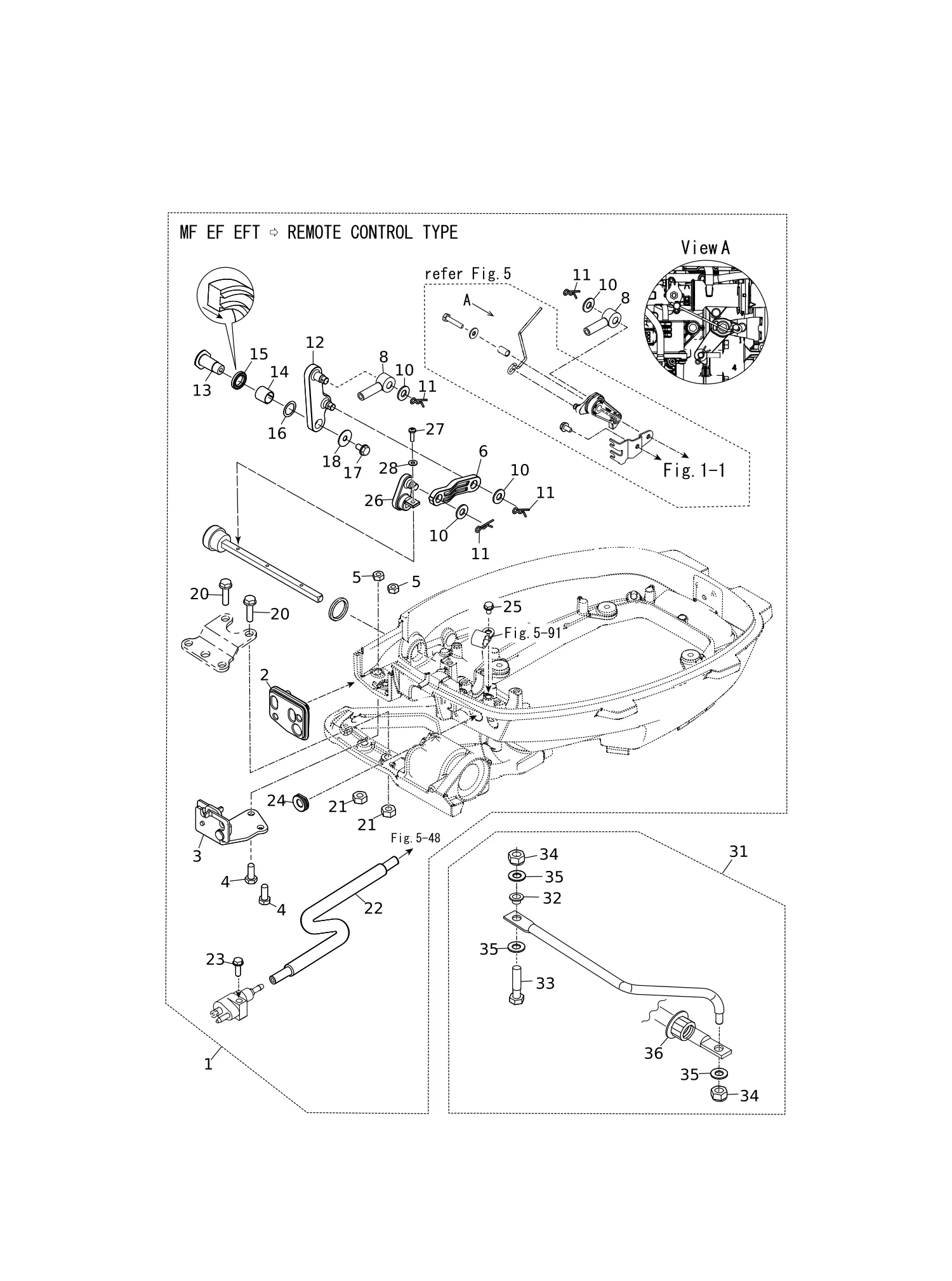

图 22遥控装置套件/拉杆 REMOTE CONTROL FITTING KIT/DRAG LINK

REF	零件编号	中文名称	英文名称	数量
1	31H-83880-1	遥控装置总成	REMOTE CONTROL FITTING ASSY	1
2	31H-83732-0	* 护孔环	* GROMMET	1
3	3AA-83820-0	* 线缆夹总成	* CABLE CLIP ASSY	1
4	9101E3-0616	螺栓	* BOLT	2
5	9301E3-0600	螺母	* NUT	2
6	31H-66134-0	* 换挡杆	* SHIFT LEVER ROD	1
8	3B7-83715-2	* 线缆接头	* CABLE JOINT	2
10	3AA-83719-0	* 垫圈 8.5-18-1.6	* WASHER 8.5-18-1.6	4
11	951603-0800	* 弹性销 d=8	* SNAP PIN d=8	4
12	31H-66128-0	* 换挡臂(遥控)	* SHIFT ARM (REMOTE CONTROL)	1
13	3V1-66142-0	* 枢轴	* PIVOT	1
14	369-67105-0	* 钩杆衬套	* HOOK LEVER BUSHING	1
15	338-67147-0	* 密封环 13.8-22-3.7	* SEAL RING 13.8-22-3.7	1
16	941403-1400	* 波形垫圈 d=14	* WAVE WASHER d=14	1
18	346-67115-0	* 垫圈 6.5-21-1	* WASHER 6.5-21-1	1
20	9101E3-5825	螺栓	* BOLT	2
21	9301E3-0800	螺母	* NUT	2
22	31H-02160-0	* 带保护套燃油软管	* FUEL HOSE W/PROTECTOR	1
23	9101E3-5625	螺栓	* BOLT	1
24	345-67161-0	* 衬套 22-3	* GROMMET 22-3	1
25	910103-5612	螺栓	* BOLT	1
26	31H-66129-0	* 换挡杆(遥控)	* SHIFT LEVER (REMOTE CONTROL)	1
27	921503-0414	* 螺钉	* SCREW	1
28	940103-0400	* 垫圈	* WASHER	1
31	3AA-84905-0	转向拉杆总成	DRAG LINK ASSY	1
32	3E0-84914-0	* 衬套 9.6-19-13	* SPACER 9.6-19-13	1
33	3C8-84964-0	螺栓 3/8-24UNF-35-A2-50	* BOLT 3/8-24UNF-35-A2-50	1
34	353-84918-0	尼龙螺母 3/8-24UNF	* NYLON NUT 3/8-24UNF	2
35	353-84916-0	* 垫圈 9.6-18-2	* WASHER 9.6-18-2	3
36	3F3-84908-0	* 密封环	* SEAL RING	1
