东发 Tohatsu MFS4/5/6D 2021 - 爆炸图零件明细

四冲程 4-Stroke · 2021 年 · 手册号 002-21046-0BA · 共 17 个部位 · 747 条零件

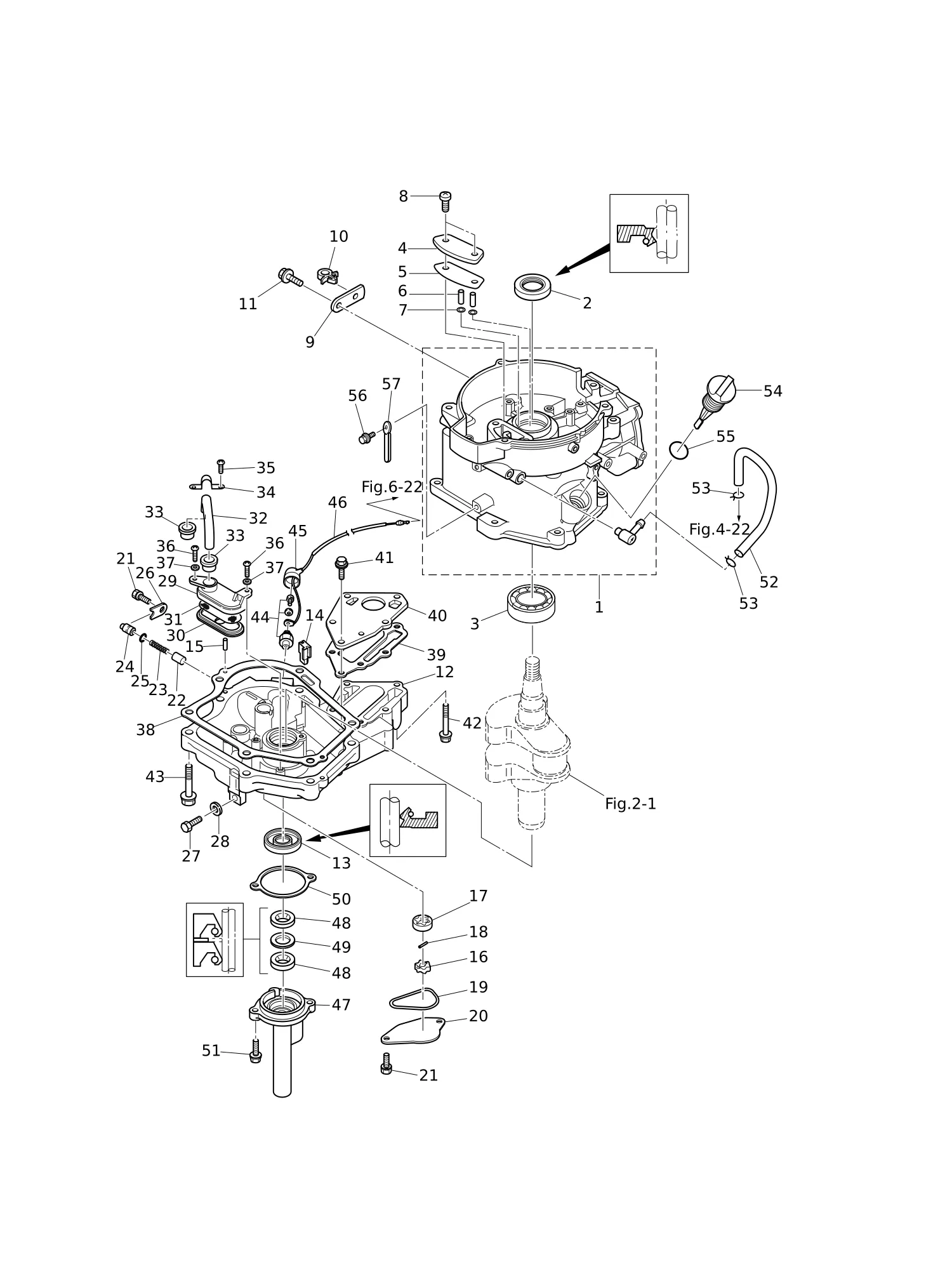

图 01气缸·油底壳 CYLINDER · OIL PAN

REF	零件编号	中文名称	英文名称	数量
1	3GRB01184-1	气缸体	CYLINDER BLOCK	1
2	3AB-00121-0	油封 20-35-7	OIL SEAL 20-35-7	1
3	9601-3-6205	滚珠轴承 6205	BALL BEARING 6205	1
4	3ASB07431-0	呼吸室盖	BREATHER CHAMBER COVER	1
5	3AS-07432-0	衬垫	GASKET	1
6	3R1-07439-0	轴环 8-10-20.1	COLLAR 8-10-20.1	2
7	941403-0500	波形垫圈 d=5	WAVE WASHER d=5	2
8	921521-6616	螺钉	SCREW	2
9	3GR-63505-0	线缆固定座	CABLE HOLDER	1
10	3GR-06973-0	卡箍 6-9.5L	CLAMP 6-9.5L	1
12	3AS-07709-0	油底壳分总成	OILPAN SUB-ASSY	1
13	3GR-00122-0	油封 25-40-8	OIL SEAL 25-40-8	1
14	3H6-07404-0	索环/护孔圈	GROMMET	1
15	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
16	3H6-07601-0	油泵转子（内）	OIL PUMP ROTOR (INNER)	1
17	3H6-07602-0	油泵转子（外）	OIL PUMP ROTOR (OUTER)	1
18	3H6-07603-0	销钉	PIN	1
19	3R1-07605-0	O型圈 φ3.1	O-RING φ3.1	1
20	3H6-07606-0	油泵盖	OIL PUMP COVER	1
21	910121-6616	螺栓	BOLT	3
22	3H6-07621-0	柱塞控制阀	PLUNGER CONTROL	1
23	3H6-07622-0	弹簧	SPRING	1
24	3H6-07623-0	阀座	SEAT	1
25	345-66021-0	O型圈1.9-6.8	O-RING 1.9-6.8	1
26	3H6-67115-0	柱塞盖	PLUNGER COVER	1
27	3H6-07705-1	放油螺栓10-14 P1.25	DRAIN BOLT 10-14 P1.25	1
28	3H6-07406-0	垫圈10.2-19-1	WASHER 10.2-19-1	1
29	3H6-07411-0	滤网壳体	STRAINER BODY	1
30	3H6-07412-0	滤网盖	STRAINER CAP	1
31	3H6-07413-0	滤网	MESH	1
32	3H6-07415-0	管	PIPE	1
33	3H6-07416-0	密封件	SEAL	2
34	3H6-07417-0	滤网止动塞	STRAINER STOPPER	1
35	921521-6512	螺钉	SCREW	1
36	3C8-02420-0	螺栓5-16	BOLT 5-16	2
37	940121-0500	垫圈	WASHER	2
38	3H6-07402-0	油底壳垫片	OILPAN GASKET	1
39	3H6-02305-0	排气盖垫片	EXHAUST COVER GASKET	1
40	3H6-02302-1	排气内盖	EXHAUST COVER (INNER)	1
41	9101F4-5620	螺栓	BOLT	3
42	9101F4-5640	螺栓	BOLT	3
43	910124-5840	螺栓	BOLT	6
44	3H6-07611-1	油压开关	OIL PRESSURE SWITCH	1
45	3KY-07612-0	索环/护孔圈	GROMMET	1
46	3GR-07613-0	油压开关引线 L=240	OIL PRESSURE SWITCH LEAD WIRE L=240	1
47	369-01210-4	曲轴箱盖	CRANKCASE HEAD	1
48	3GR-01215-0	油封 10.1-25-7	OIL SEAL 10.1-25-7	2
49	369-01217-0	垫片 19-24.8-1	SPACER 19-24.8-1	1
50	3GR-01214-0	曲轴箱盖垫片	CRANKCASE HEAD GASKET	1
51	910103-5620	螺栓	BOLT	2
52	3R1-07435-0	呼吸管	BREATHER HOSE	1
53	3C7-02215-0	卡扣φ12	CLIP φ12	2
54	3H6-07421-0	油位计	OIL LEVEL GAUGE	1
55	3H6-07422-0	O型圈 2.6-18.7	O-RING 2.6-18.7	1
56	910103-5612	螺栓	BOLT	1
57	3PR-06972-0	卡箍 6.5-47.5P	CLAMP 6.5-47.5P	1

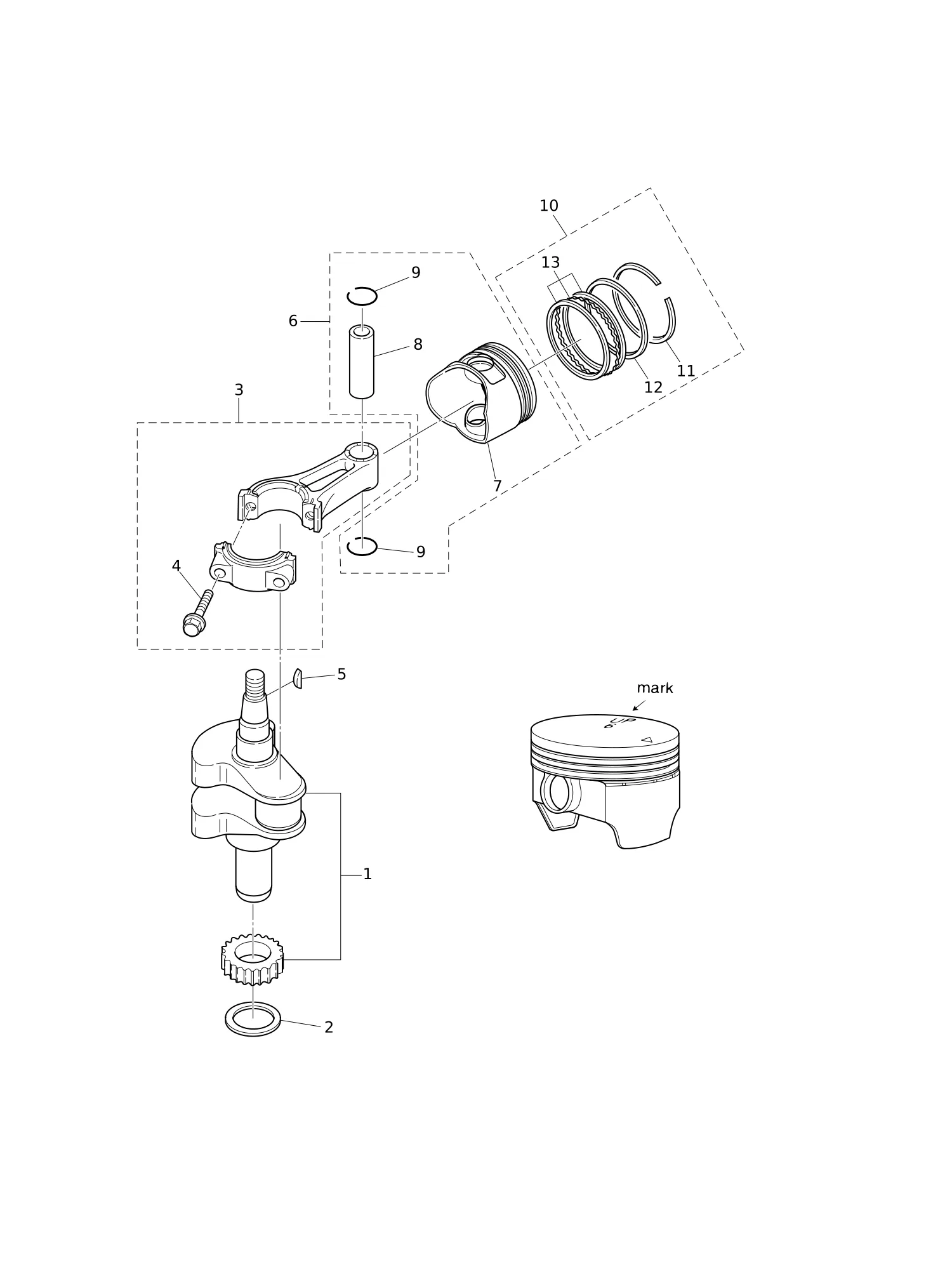

图 02活塞·曲轴 PISTON · CRANK SHAFT

REF	零件编号	中文名称	英文名称	数量
1	3H6-00030-0	曲轴总成	CRANKSHAFT ASSY	1
2	3H6-00115-0	止推板	THRUST PLATE	1
3	3H6-00040-1	连杆总成	CONNECTING ROD ASSY	1
4	3H6-00059-0	* 连杆螺栓	* CONNECTING ROD BOLT	2
5	338-00131-0	键 16-5.7-4	KEY 16-5.7-4	1
6	3JD-87130-0	活塞修理包	PISTON REPAIR KIT	1
6	3JD-87131-0	活塞修理包（0.5加大）	PISTON REPAIR KIT (0.5 O/S)	1
7	3R4-00001-3	* 活塞	* PISTON	1
7	3R4-00004-3	* 活塞 (0.5 加大)	* PISTON (0.5 O/S)	1
8	3AE-00021-0	* 活塞销	* PISTON PIN	1
9	3H6-00024-0	* 活塞销卡簧	* PISTON PIN CLIP	2
10	3JD-87123-0	活塞环组	PISTON RING SET	1
10	3JD-87124-0	活塞环组（0.5加大）	PISTON RING SET (0.5 O/S)	1
11	3H6-00011-0	* 活塞环	* PISTON RING	1
11	3H6-00014-0	* 活塞环 (0.5 加大)	* PISTON RING (0.5 O/S)	1
12	3H6-00012-0	* 活塞环	* PISTON RING	1
12	3H6-00015-0	* 活塞环 (0.5 加大)	* PISTON RING (0.5 O/S)	1
13	3H6-00013-0	* 油环	* PISTON RING-OIL	1
13	3H6-00016-0	* 油环 (0.5 加大)	* PISTON RING-OIL (0.5 O/S)	1

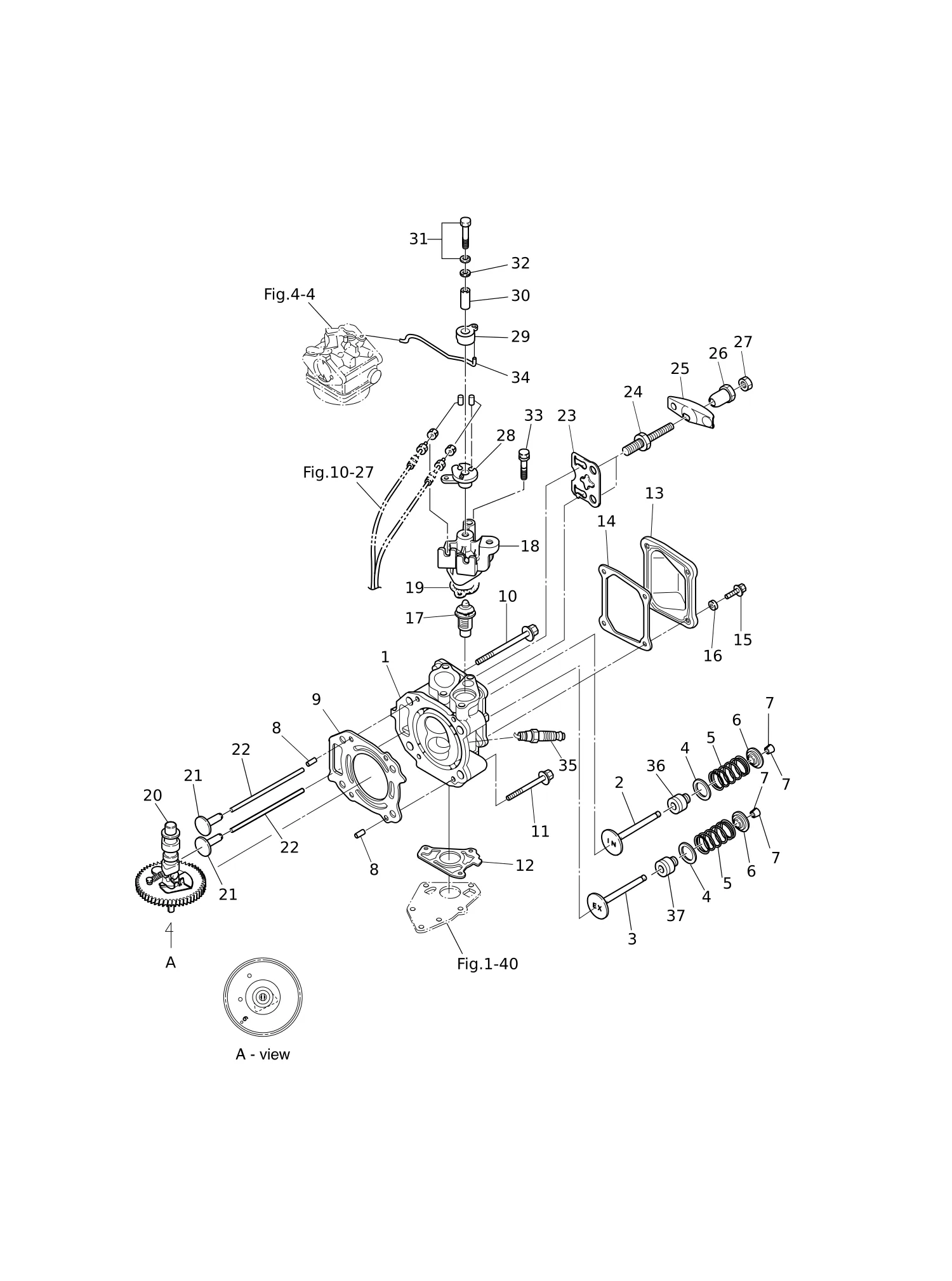

图 03气缸盖·气门·凸轮轴 CYLINDER HEAD · VALVE · CAMSHAFT

REF	零件编号	中文名称	英文名称	数量
1	3GRB01001-1	气缸盖总成	CYLINDER HEAD ASSY	1
2	3GR-07901-0	进气阀	INTAKE VALVE	1
3	3GR-07902-0	排气阀	EXHAUST VALVE	1
4	3GR-07905-0	阀门弹簧座	VALVE SPRING SEAT	2
5	3AE-07203-0	阀门弹簧 L=35	VALVE SPRING L=35	2
6	3GT-07921-0	固定座	RETAINER	2
7	3KY-07923-0	开口销	COTTER	4
8	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
9	3H6-01005-1	气缸盖衬垫	CYLINDER HEAD GASKET	1
10	3R0-01113-1	螺栓8-90	BOLT 8-90	2
11	3H8-01013-0	气缸盖螺栓8-60	CYLINDER HEAD BOLT 8-60	2
12	3H6-02306-0	排气盖垫片	EXHAUST COVER GASKET	1
13	3H6B01021-0	气缸盖罩	CYLINDER HEAD COVER	1
14	3H6-01024-0	气缸盖罩垫片	CYLINDER HEAD COVER GASKET	1
15	910121-0616	螺栓	BOLT	4
17	3H6-01030-0	节温器	THERMOSTAT	1
18	3GRB01031-0	节温器盖	THERMOSTAT CAP	1
19	346-01032-0	节温器盖垫片	THERMOSTAT CAP GASKET	1
20	3R4-07810-2	凸轮轴总成(F6A)	CAMSHAFT ASSY (F6A)	1
21	3H6-07231-0	挺杆	LIFTER	2
22	3H6-07232-0	推杆	PUSH ROD	2
23	3H6-07233-0	板	PLATE	1
24	3H6-07234-0	枢轴螺栓	PIVOT BOLT	2
25	3GR-07935-0	摇臂	ROCKER ARM	2
26	3H6-07236-0	枢轴	PIVOT	2
27	3H6-07937-0	调节螺母	ADJUSTING NUT	2
28	3GR-63611-0	节气门鼓轮	THROTTLE DRUM	1
29	3GR-63612-0	节气门开启器	THROTTLE OPENER	1
30	3H6-63618-0	轴套 6.5-10.5-22.6	COLLAR 6.5-10.5-22.6	1
31	910103-6635	螺栓	BOLT	1
32	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
33	910103-6645	螺栓	BOLT	2
34	3H6-63617-0	节气门拉杆	THROTTLE ROD	1
35	9701-1-1103	火花塞 (DCPR6E)	SPARK PLUG(DCPR6E)	1
36	3R3-07204-0	进气阀杆密封	INTAKE VALVE STEM SEAL	1
37	3R3-07206-0	排气阀杆密封件	EXHAUST VALVE STEM SEAL	1

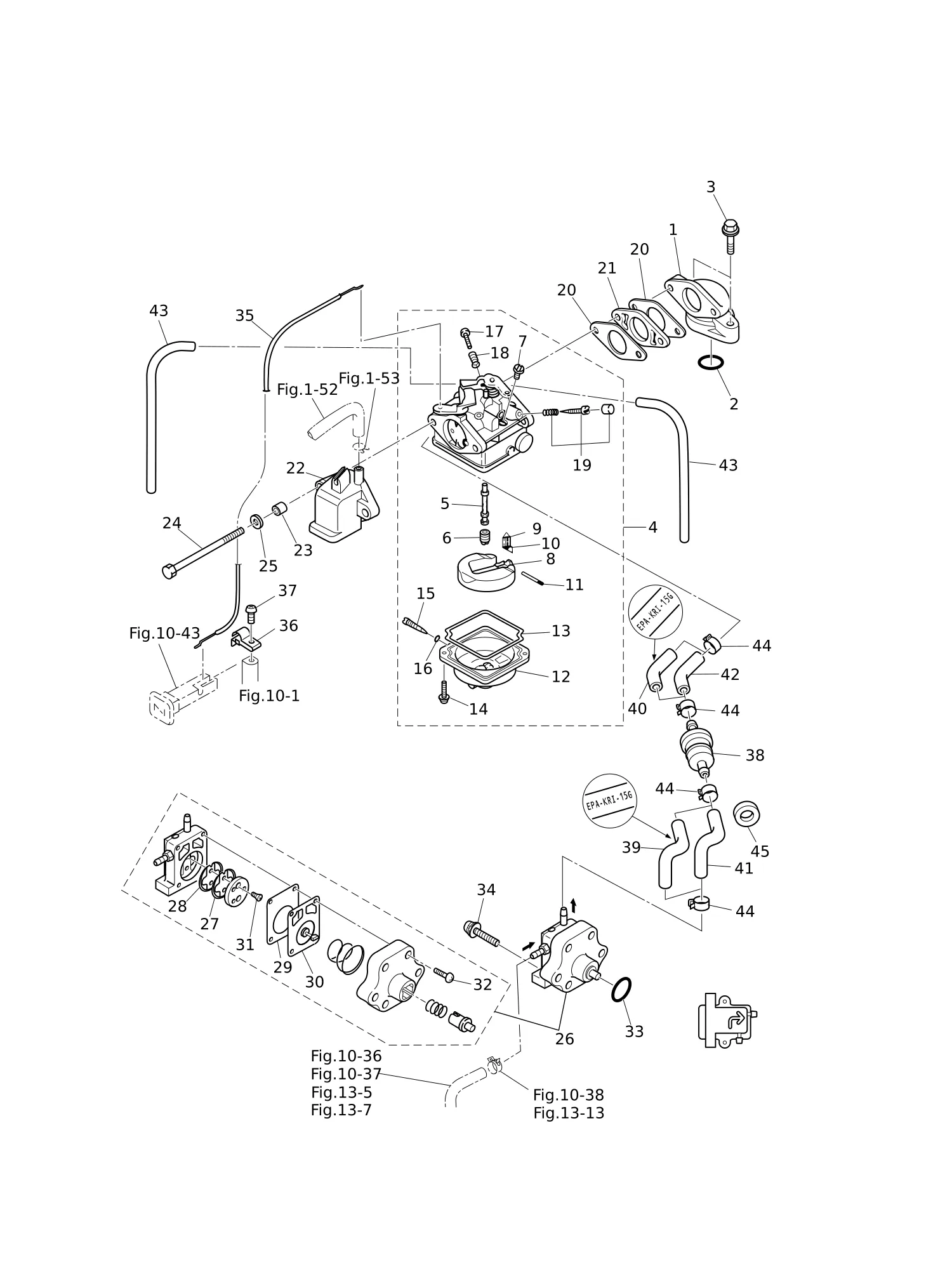

图 04化油器·燃油泵 CARBURETOR · FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	3H6B02010-0	进气歧管总成	INTAKE MANIFOLD ASSY	1
2	3H6-02104-0	进气歧管垫片 2-33.5	INTAKE MANIFOLD GASKET 2-33.5	1
3	910124-5625	螺栓	BOLT	2
4	3GR-03200-0	化油器总成	CARBURETOR ASSY	1
4	3JD-03200-0	化油器总成	CARBURETOR ASSY	1
4	3JE-03200-0	化油器总成	CARBURETOR ASSY	1
5	3GR-03252-0	* 主喷管	* MAIN NOZZLE	1
5	3JD-03252-0	* 主喷管	* MAIN NOZZLE	1
5	3JE-03252-0	* 主喷管	* MAIN NOZZLE	1
6	3AU-04468-0	* 主量孔 (#68)	* MAIN JET (#68)	1
6	3GR-04470-0	* 主量孔 (#70)	* MAIN JET (#70)	1
6	3GU-04462-0	* 主量孔 (#62)	* MAIN JET (#62)	1
7	3R1-03254-0	* 低速喷嘴(#38)	* SLOW JET (#38)	1
8	3H6-03231-0	* 浮子	* FLOAT	1
9	3H6-03240-0	* 浮子阀	* FLOAT VALVE	1
10	3H6-03244-0	* 卡扣	* CLIP	1
11	3H6-03232-0	* 浮子臂销	* FLOAT ARM PIN	1
12	3H6-03221-0	* 浮子室	* FLOAT CHAMBER	1
13	3H6-03222-0	* 浮子室O型圈	* FLOAT CHAMBER O-RING	1
14	922503-6412	* 螺钉	* SCREW	2
15	3H6-03292-0	* 放油螺钉	* DRAIN SCREW	1
16	3H6-03293-0	* O型圈	* O-RING	1
17	3H6-03265-0	* 止动螺钉	* STOP SCREW	1
18	3H6-03267-0	* 弹簧	* SPRING	1
19	3AS-03266-0	* 调节螺钉	* PILOT SCREW	1
19	3JD-03266-0	* 调节螺钉	* PILOT SCREW	1
20	3H6-02011-0	化油器垫片	CARBURETOR GASKET	2
21	3H6-03952-1	绝缘体	INSULATOR	1
22	3GR-02409-0	进气消声器总成	INTAKE SILENCER ASSY	1
23	3A0-76079-0	轴套 6.2-9-7.4	COLLAR 6.2-9-7.4	2
24	9164F1-0685	螺栓	BOLT	2
25	940103-0600	垫圈	WASHER	2
26	3H6-04000-7	燃油泵总成	FUEL PUMP ASSY	1
27	3H6-04044-0	* 止回阀	* CHECK VALVE	1
28	3H6-04014-1	* 止回阀	* CHECK VALVE	1
29	3H6-04028-0	* 泵体衬垫	* PUMP BODY GASKET	1
30	3H6-04005-0	* 泵膜片	* PUMP DIAPHRAGM	1
31	921603-0308	* 螺钉	* SCREW	2
32	922503-6418	* 螺钉	* SCREW	4
33	3H6-07422-0	O型圈 2.6-18.7	O-RING 2.6-18.7	1
34	921503-7630	螺钉	SCREW	2
35	3GR-67197-0	阻风门拉线	CHOKE WIRE	1
36	3JD-63505-0	线缆固定座	CABLE HOLDER	1
37	921503-0510	螺钉	SCREW	1
38	369-02230-1	燃油滤清器总成	FUEL FILTER ASSY	1
39	3GS-02207-0	低渗透软管 24-29-24	LOW PERMEATION HOSE 24-29-24	1
40	3JJ-02130-0	低渗透软管 L=60	LOW PERMEATION HOSE L=60	1
41	3GR-02204-0	燃油软管24-29-24	FUEL HOSE 24-29-24	1
42	3JJ-02204-0	燃油软管 长60	FUEL HOSE L=60	1
43	98AB-30-270	软管	HOSE	2
44	3GT-35143-0	卡环 φ9.4	CLIP φ9.4	4
45	3B7-06305-0	橡胶支座 9-16-4.3	RUBBER MOUNT 9-16-4.3	1

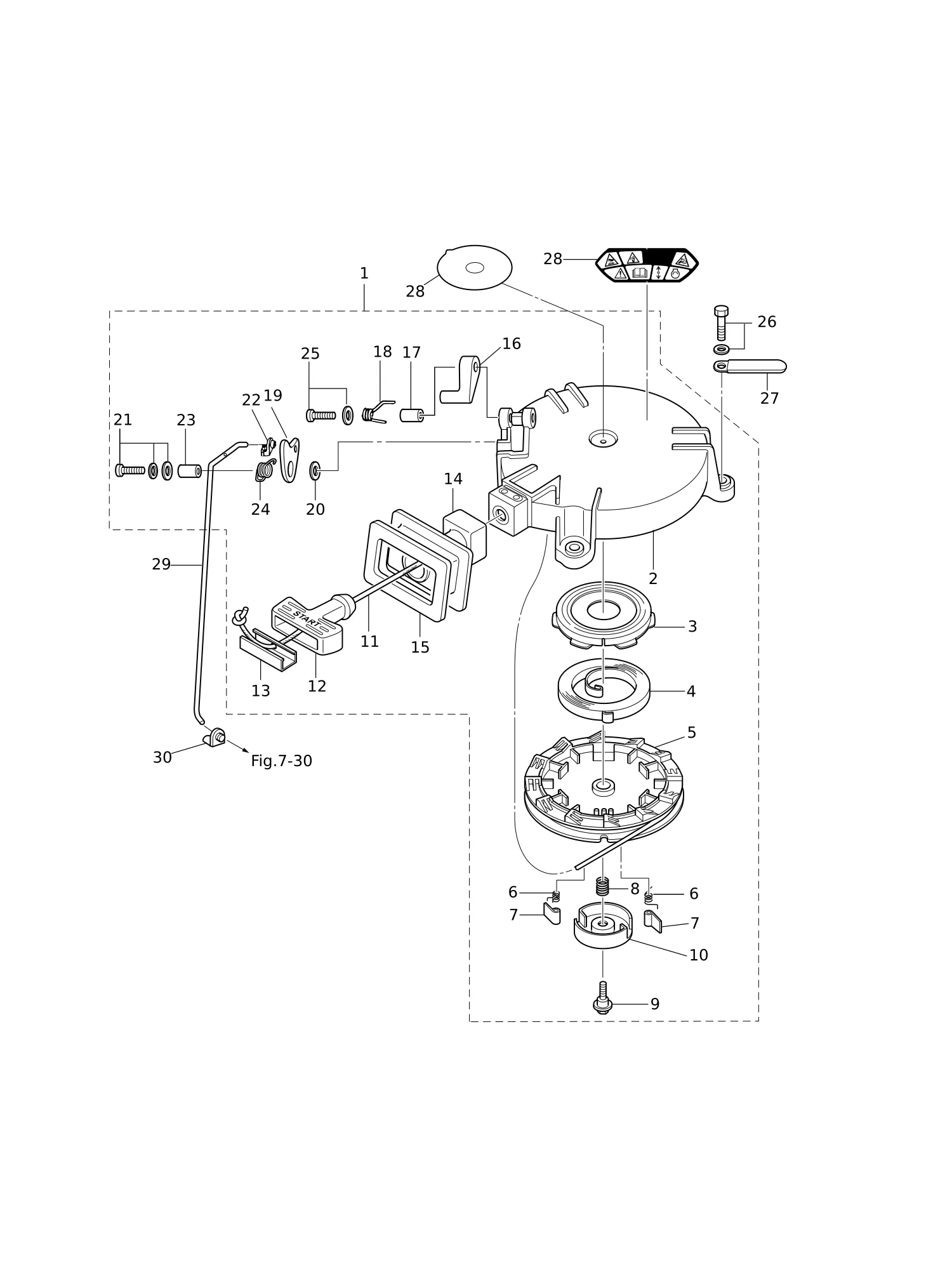

图 05反冲启动器 RECOIL STARTER

REF	零件编号	中文名称	英文名称	数量
1	3GR-05090-1	反冲启动器总成	RECOIL STARTER ASSY	1
2	3R1-05105-0	* 启动器外壳	* STARTER CASE	1
3	3R1-05125-0	* 启动弹簧壳	* STARTER SPRING CASE	1
4	3R1-05004-0	* 启动弹簧	* STARTER SPRING	1
5	3R1-05104-0	* 卷轴	* REEL	1
6	3R1-05012-0	* 回位弹簧	* RETURN SPRING	2
7	3R1-05003-2	* 棘轮	* RATCHET	2
8	3R1-05007-0	* 摩擦弹簧	* FRICTION SPRING	1
9	3R1-05138-1	螺栓 5-10-6.8-7.8	* BOLT 5-10-6.8-7.8	1
10	3R1-05006-2	* 摩擦板	* FRICTION PLATE	1
11	3R1-05013-0	* 启动绳 φ4.5-1620	* STARTER ROPE φ4.5-1620	1
12	3R1-05019-0	* 启动手柄	* STARTER HANDLE	1
13	3R1-05131-1	* 绳索锚定器	* ROPE ANCHOR	1
14	3GR-05116-0	* 密封板	* SEALING PLATE	1
15	3GR-67503-0	* 启动器密封件	* STARTER SEAL	1
16	3GR-05252-0	* 启动器锁	* STARTER LOCK	1
17	3R1-05255-0	* 轴环 4-6-21	* COLLAR 4-6-21	1
18	3R1-05216-0	* 启动器锁弹簧	* STARTER LOCK SPRING	1
19	3GR-05253-0	* 启动器锁凸轮	* STARTER LOCK CAM	1
20	940103-0600	* 垫圈	* WASHER	1
21	921503-7616	* 螺钉	* SCREW	1
22	3R1-05223-0	* 连杆卡扣 3.5-2	* ROD SNAP 3.5-2	1
23	3R1-05215-0	* 轴环 6.1-8-6.5	* COLLAR 6.1-8-6.5	1
24	3R1-05258-0	* 启动器锁凸轮弹簧	* STARTER LOCK CAM SPRING	1
25	921503-5430	* 螺钉	* SCREW	1
26	3AD-06864-0	预涂层螺栓6-25	PRE-COATED BOLT 6-25	3
27	3PR-06972-0	卡箍 6.5-47.5P	CLAMP 6.5-47.5P	1
28	3NV-72181-1	警示标贴(B型)	CAUTION DECAL (B)	1
28	3PA-72181-1	警示标贴(B型)	CAUTION DECAL (B)	1
29	3GR-05217-1	启动锁杆	STARTER LOCK ROD	1
30	345-05223-1	3.5-2连杆卡扣	ROD SNAP 3.5-2	1

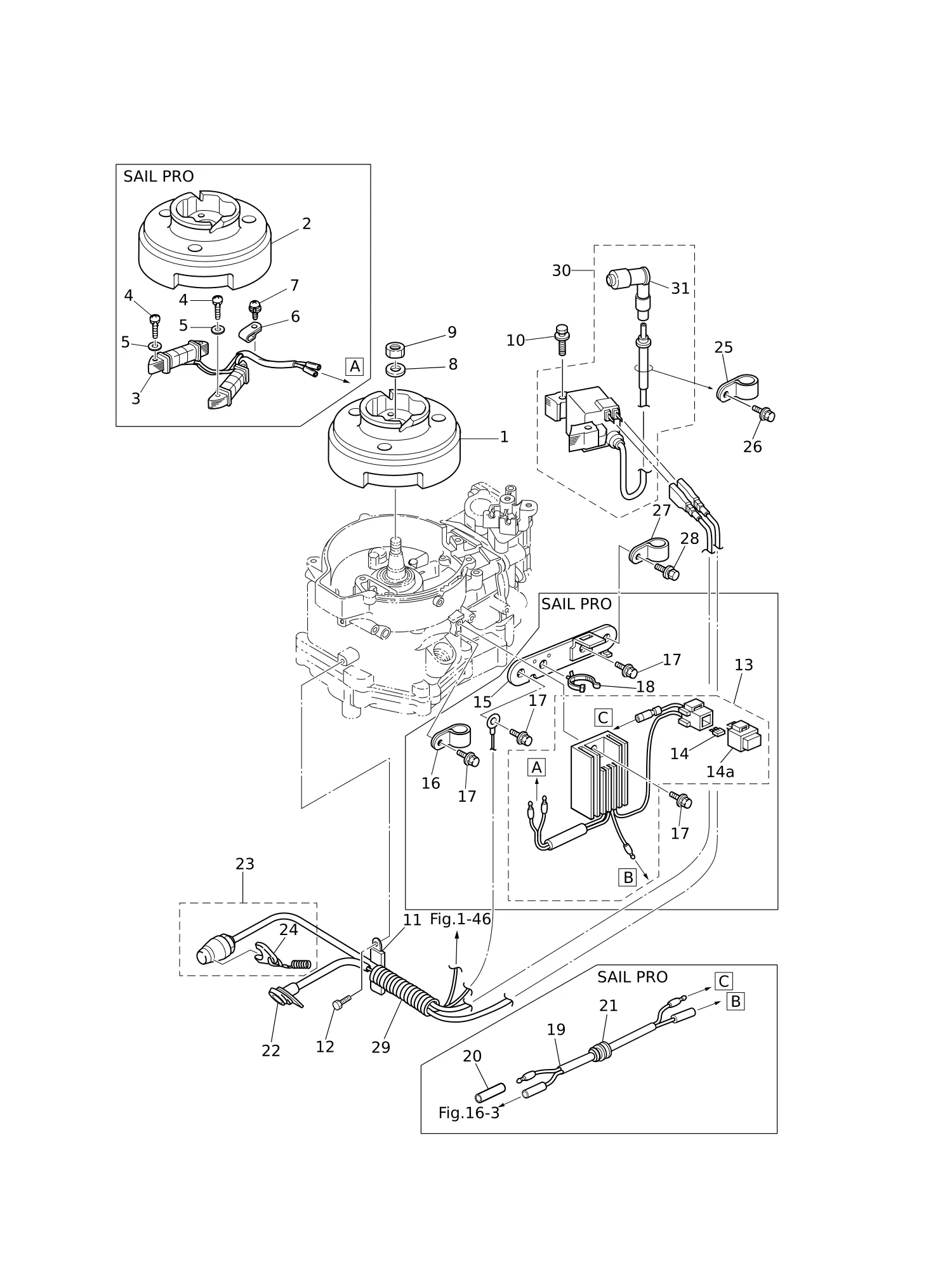

图 06磁电机 MAGNETO

REF	零件编号	中文名称	英文名称	数量
1	3AS-06009-0	飞轮	FLYWHEEL	1
2	3AS-06001-0	飞轮	FLYWHEEL	1
3	3GR-06023-0	交流发电机总成	ALTERNATOR ASSY	1
4	921503-0525	螺钉	SCREW	4
5	940103-0500	垫圈	WASHER	4
6	369-06915-0	卡箍 4.2-3-8	CLAMP 4.2-3-8	1
7	921521-6408	螺钉	SCREW	1
8	940121-1200	垫圈	WASHER	1
9	369-00132-0	螺母 12-P1.25	NUT 12-P1.25	1
10	910103-5630	螺栓	BOLT	2
11	3PR-06972-0	卡箍 6.5-47.5P	CLAMP 6.5-47.5P	1
13	3GR-76060-0	整流器总成	RECTIFIER COMPLETE	1
14a	1E0-34093-0	* 盖帽(黄色)	* CAP (Y)	1
14	3GR-76246-0	* 保险丝 10A	* FUSE 10A	2
15	3GR-06900-0	电机支架总成	ELECTRIC BRACKET ASSY	1
17	910103-5614	螺栓	BOLT	4
18	3BJ-84398-0	箍带 135	BAND 135	1
19	399-76120-0	蓄电池电缆 L=494	BATTERY CABLE L=494	1
20	3H6-76037-0	电缆端子插头	CABLE TERMINAL PLUG	1
21	345-66226-0	索环 17-3	GROMMET 17-3	1
22	3GR-71040-0	指示灯总成	PILOT LAMP ASSY	1
23	3GR-06870-0	停止开关总成	STOP SWITCH ASSY	1
24	353-06821-0	* 停机开关拉绳总成	* STOP SWITCH LANYARD ASSY	1
27	345-06915-0	卡箍 6.5-14L	CLAMP 6.5-14L	1
28	910103-5612	螺栓	BOLT	1
29	3BA-06133-0	保护套 φ10.7-180	PROTECTOR φ10.7-180	1
30	3GR-06041-0	带帽点火器	IGNITER W/R-CAP	1
31	3H6-06999-0	* 带电阻火花塞帽	* PLUG CAP W/RESISTANCE	1

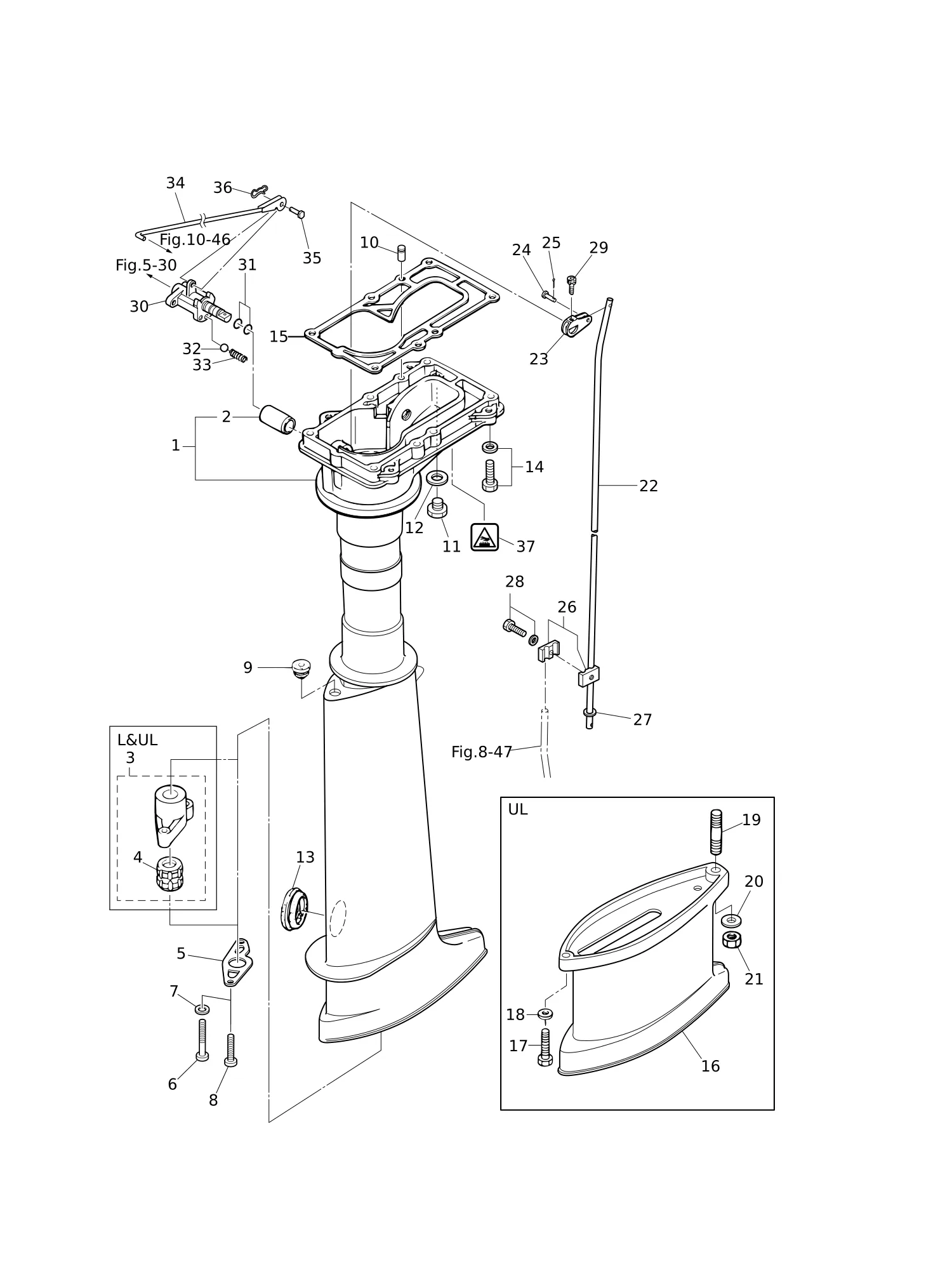

图 07驱动轴外壳·换挡机构 DRIVE SHAFT HOUSING · SHIFT

REF	零件编号	中文名称	英文名称	数量
1	3ASQ61030-3	驱动轴壳体总成(L)	DRIVE SHAFT HOUSING ASSY (L)	1
1	3ASW61030-3	驱动轴壳体总成(L)	DRIVE SHAFT HOUSING ASSY (L)	1
1	3H6Q61020-3	驱动轴壳体总成(S)	DRIVE SHAFT HOUSING ASSY (S)	1
1	3H6Q61030-4	驱动轴壳体总成(L)	DRIVE SHAFT HOUSING ASSY (L)	1
1	3H6W61020-3	驱动轴壳体总成(S)	DRIVE SHAFT HOUSING ASSY (S)	1
1	3H6W61030-4	驱动轴壳体总成(L)	DRIVE SHAFT HOUSING ASSY (L)	1
2	301-61021-0	* 衬套	* BUSHING	1
3	369-64331-2	驱动轴衬套总成	DRIVE SHAFT BUSHING ASSY	1
3	3AS-64331-0	驱动轴衬套总成	DRIVE SHAFT BUSHING ASSY	1
4	369-60003-0	* 驱动轴衬套	* DRIVE SHAFT BUSHING	1
4	3AB-60003-0	驱动轴衬套	DRIVE SHAFT BUSHING	1
5	369-64332-1	止动块	STOPPER	1
6	3H6-64333-1	预涂层螺钉5-25	PRE-COATED SCREW 5-25	2
7	940103-0500	垫圈	WASHER	2
8	9215E3-0510	螺钉	SCREW	2
9	369-66043-1	索环 10.7-3.5	GROMMET 10.7-3.5	1
10	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
11	9106E3-0808	螺栓	BOLT	1
12	332-60006-1	衬垫8.1-15-1	GASKET 8.1-15-1	1
13	369-61016-0	索环 29-3	GROMMET 29-3	1
14	9101E3-5630	螺栓	BOLT	6
15	3H6-61012-0	驱动轴壳体衬垫	DRIVE SHAFT HOUSING GASKET	1
16	369Q61110-2	延伸壳体	EXTENSION HOUSING	1
16	369W61110-2	延伸壳体	EXTENSION HOUSING	1
17	9161E3-0625	螺栓	BOLT	1
18	9401E3-0600	垫圈	WASHER	1
19	9152E3-0825	螺柱	STUD	1
20	9401E3-0800	垫圈	WASHER	1
21	930103-0800	螺母	NUT	1
22	369-66214-0	换挡连杆(短)	SHIFT ROD (S)	1
22	3GR-66215-0	换挡连杆(长)	SHIFT ROD (L)	1
23	369-66225-0	换挡杆手柄	SHIFT ROD LEVER	1
24	369-66223-0	销钉	PIN	1
25	951503-1210	开口销	SPLIT PIN	1
26	369-66241-0	换挡杆接头总成	SHIFT ROD JOINT ASSY	1
27	940103-0600	垫圈	WASHER	1
28	910103-5616	螺栓	BOLT	1
29	910903-6416	螺栓	BOLT	1
30	3GR-66130-0	换挡杆轴总成	SHIFT LEVER SHAFT ASSY	1
31	301-66136-0	O型圈1.9-8.8	O-RING 1.9-8.8	2
32	3GR-66116-0	陶瓷球7.7	CERAMIC BALL 7.7	1
33	3GR-66112-0	弹簧	SPRING	1
34	3GR-66134-1	换挡杆连杆	SHIFT LEVER ROD	1
35	3GR-66223-0	销钉	PIN	1
36	3EF-65307-1	弹性销	SNAP PIN	1
37	3GR-76191-0	高温警示标贴	HIGH TEMPERATURE CAUTION DECAL	1

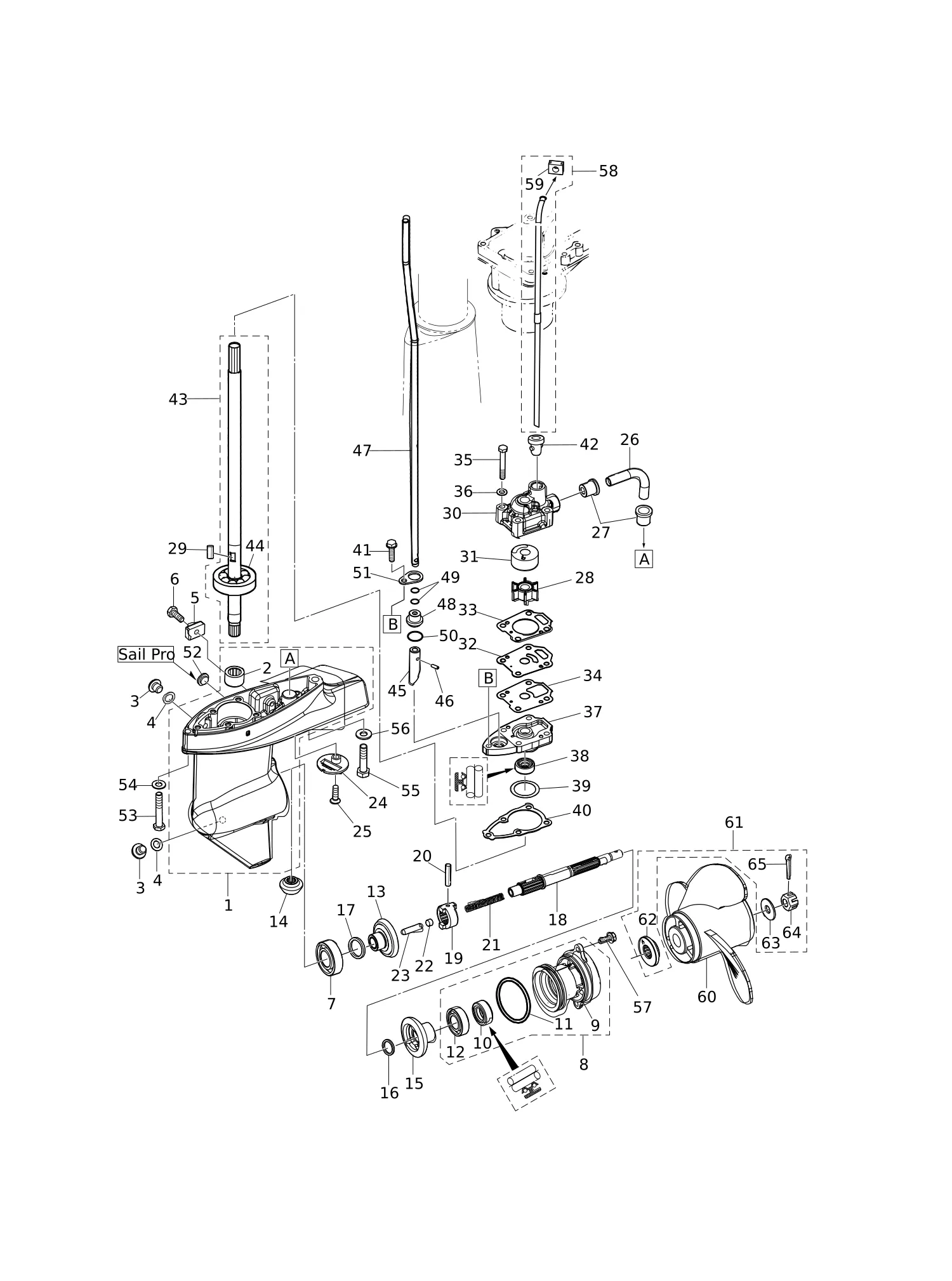

图 08齿轮箱 GEAR CASE

REF	零件编号	中文名称	英文名称	数量
1	369Q60000-3	齿轮箱总成	GEAR CASE ASSY	1
1	369W60000-3	齿轮箱总成	GEAR CASE ASSY	1
1	399Q60000-3	齿轮箱总成	GEAR CASE ASSY	1
1	399W60000-3	齿轮箱总成	GEAR CASE ASSY	1
2	369-60211-0	* 滚柱轴承 14-20-12	* ROLLER BEARING 14-20-12	1
3	332-60005-2	塞 8-8	PLUG 8-8	2
4	332-60006-1	衬垫8.1-15-1	GASKET 8.1-15-1	2
5	3H6-60218-0	阳极块	ANODE	1
6	910103-0616	螺栓	BOLT	1
7	9601-0-6004	滚珠轴承 6004	BALL BEARING 6004	1
8	369Q87323-1	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
8	369W87323-1	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
9	369Q60101-1	* 螺旋桨轴套	* PROPELLER SHAFT HOUSING	1
9	369W60101-1	* 螺旋桨轴套	* PROPELLER SHAFT HOUSING	1
10	369-60111-0	* 油封 15-28-10	* OIL SEAL 15-28-10	1
11	345-65015-0	* O型圈 3.2-47	* O-RING 3.2-47	1
12	9601-0-6002	* 球轴承 6002	* BALL BEARING 6002	1
13	3GR-64010-0	锥齿轮总成(A)	BEVEL GEAR ASSY (A)	1
14	3GR-64020-0	锥齿轮B	BEVEL GEAR B	1
15	3GR-64089-0	锥齿轮总成(C)	BEVEL GEAR ASSY (C)	1
16	369-64032-0	垫片 15.2-19-1.9	WASHER 15.2-19-1.9	1
17	369-64014-0	垫片 21-28-0.1	SHIM 21-28-0.1	1
17	369-64015-0	垫片 21-28-0.15	SHIM 21-28-0.15	1
18	369-64211-1	螺旋桨轴	PROPELLER SHAFT	1
19	301-64215-1	离合器	CLUTCH	1
20	301-64217-0	销 3.5-28	PIN 3.5-28	1
21	393-64221-0	弹簧	SPRING	1
22	369-64222-0	弹簧挡圈	SPRING RETAINER	1
23	369-64223-0	推杆	PUSH ROD	1
24	369-60206-0	滤水器	WATER STRAINER	1
25	921803-0620	螺钉	SCREW	1
26	369-65035-0	水管(下)	WATER PIPE (LOWER)	1
27	369-65036-0	密封件	SEAL	2
28	369-65021-1	水泵叶轮	WATER PUMP IMPELLER	1
29	369-65022-0	键 φ2-11	KEY φ2-11	1
30	369-65016-0	泵壳(上)	PUMP CASE (UPPER)	1
31	369-65011-0	泵壳衬套	PUMP CASE LINER	1
32	369-65025-0	水泵导板	WATER PUMP GUIDE PLATE	1
33	369-65018-1	泵壳垫片	PUMP CASE GASKET	1
34	369-65029-0	导板垫片	GUIDE PLATE GASKET	1
36	940103-0600	垫圈	WASHER	4
37	369-65017-1	泵壳(下)	PUMP CASE (LOWER)	1
38	369-60223-0	油封 10-24-8	OIL SEAL 10-24-8	1
39	369-64081-1	垫片 26.5-34.8-0.1	SHIM 26.5-34.8-0.1	1
39	369-64082-1	垫片 26.5-34.8-0.15	SHIM 26.5-34.8-0.15	1
40	369-65020-0	泵壳垫片(下)	PUMP CASE GASKET (LOWER)	1
41	910103-5625	螺栓	BOLT	1
42	369-65014-0	水管密封件(下)	WATER PIPE SEAL (LOWER)	1
43	369-64301-0	驱动轴总成(S)	DRIVE SHAFT ASSY (S)	1
43	369-64302-0	驱动轴总成(L)	DRIVE SHAFT ASSY (L)	1
43	369-64303-0	驱动轴总成(UL)	DRIVE SHAFT ASSY (UL)	1
44	9601-0-6300	* 球轴承 6300	* BALL BEARING 6300	1
45	3GR-66011-0	离合器凸轮	CLUTCH CAM	1
46	951407-0310	弹簧销 3-10	SPRING PIN 3-10	1
47	369-66012-1	凸轮杆(短)	CAM ROD (S)	1
47	369-66013-1	凸轮杆(长)	CAM ROD (L)	1
47	369-66014-2	凸轮杆(超长)	CAM ROD (UL)	1
48	3UA-66031-0	凸轮杆衬套	CAM ROD BUSHING	1
49	369-66021-1	O型圈 2.5-4.9	O-RING 2.5-4.9	2
50	332-66032-0	O型圈 2.4-15.4	O-RING 2.4-15.4	1
51	369-66033-0	止动块	STOPPER	1
52	3DK-61016-0	索环 12-3	GROMMET 12-3	2
53	9161E3-0645	螺栓	BOLT	1
54	9401E3-0600	垫圈	WASHER	1
55	9161E3-0835	螺栓	BOLT	1
56	9401E3-0800	垫圈	WASHER	1
57	9101E3-5616	螺栓	BOLT	2
58	369-65100-0	水管总成(短)	WATER PIPE ASSY (S)	1
58	369-65110-0	水管总成(左)	WATER PIPE ASSY (L)	1
58	369-65120-0	水管总成(左上)	WATER PIPE ASSY (UL)	1
59	369-65195-0	* 护孔环 10-2	* GROMMET 10-2	1
60	369B64518-1	螺旋桨总成(9英寸)	PROPELLER ASSY (9")	1
60	393B64512-1	螺旋桨总成(6英寸)	PROPELLER ASSY (6")	1
60	399B64512-1	螺旋桨总成(Y型6英寸)	PROPELLER ASSY (Y6")	1
60	3R1B64514-2	螺旋桨总成(7英寸)	PROPELLER ASSY (7)	1
60	3R1B64516-2	螺旋桨总成(8英寸)	PROPELLER ASSY (8)	1
61	3H6-87326-0	螺旋桨五金件套件	PROPELLER HARDWARE KIT	1
62	3AS-64230-0	* 推力支架总成	* THRUST HOLDER ASSY	1
63	369-64124-0	* 垫圈 10.5-28-2	* WASHER 10.5-28-2	1
64	369-64121-0	* 螺旋桨螺母	* PROPELLER NUT	1
65	951503-0318	* 开口销 3-18	* SPLIT PIN 3-18	1

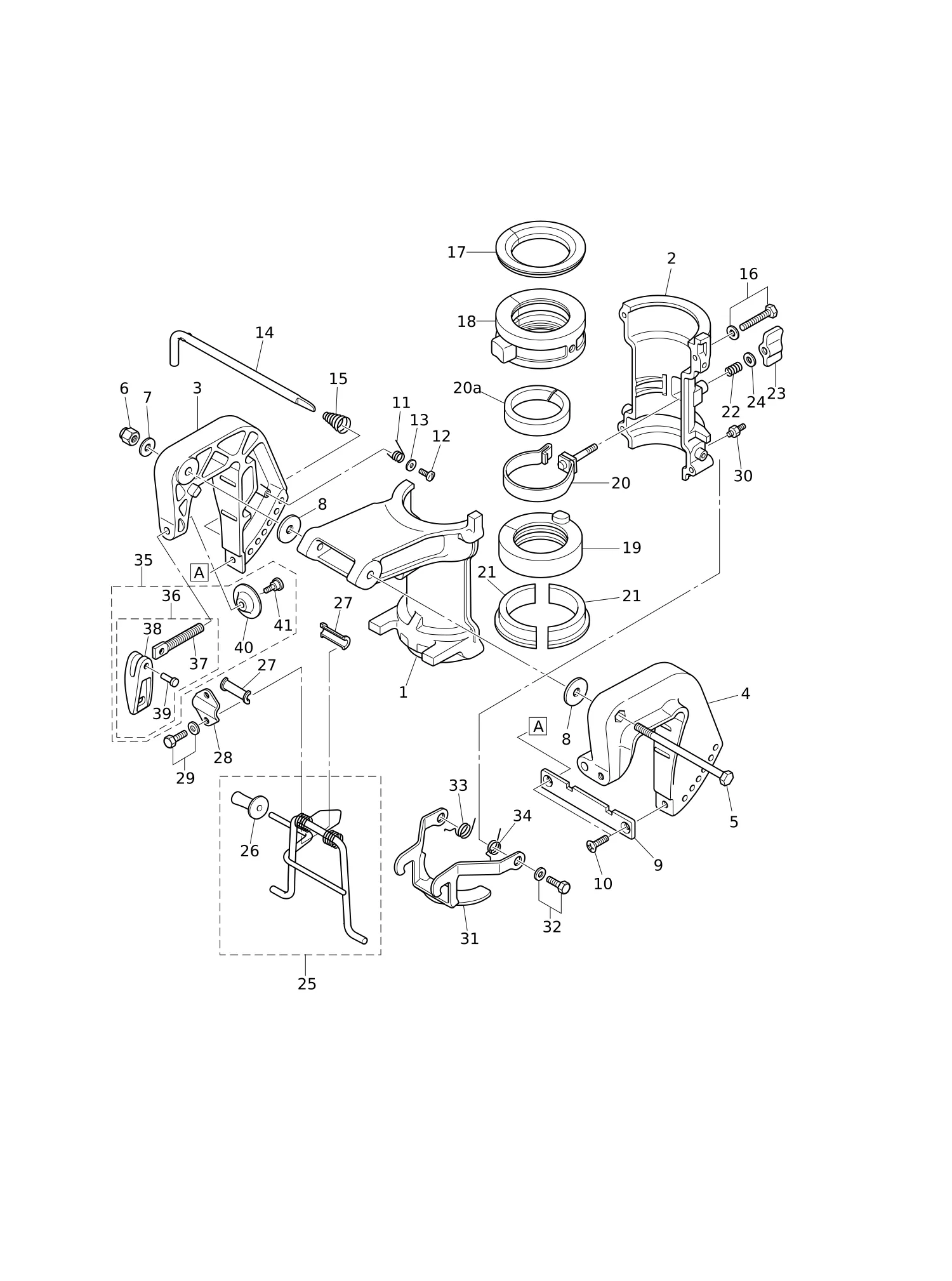

图 09支架·倒挡锁 BRACKET · REVERSE LOCK

REF	零件编号	中文名称	英文名称	数量
1	3H6Q62391-0	旋转支架	SWIVEL BRACKET	1
1	3H6W62391-0	旋转支架	SWIVEL BRACKET	1
2	3H6Q62392-1	旋转支架	SWIVEL BRACKET	1
2	3H6W62392-1	旋转支架	SWIVEL BRACKET	1
3	369Q62112-3	夹紧支架(右)	CLAMP BRACKET (R)	1
3	369W62112-3	夹紧支架(右)	CLAMP BRACKET (R)	1
4	369Q62113-2	卡箍支架 (左)	CLAMP BRACKET (L)	1
4	369W62113-2	卡箍支架 (左)	CLAMP BRACKET (L)	1
5	309-62115-2	螺栓8-122	BOLT 8-122	1
6	930403-0800	尼龙螺母 8-P1.25	NYLON NUT 8-P1.25	1
7	9401E3-0800	垫圈	WASHER	1
8	307-62116-1	垫圈 8.5-28-1	WASHER 8.5-28-1	2
9	3B2-62118-0	隔板	DISTANCE PLATE	1
10	9216E3-0612	螺钉	SCREW	2
11	369-62146-1	船尾支架弹簧	STERN BRACKET SPRING	1
12	921703-0406	螺钉	SCREW	1
13	369-62147-0	垫片 4.3-16-1.5	WASHER 4.3-16-1.5	1
14	350-62121-2	推力杆	THRUST ROD	1
15	369-62122-2	推力杆弹簧	THRUST ROD SPRING	1
16	9101E3-5640	螺栓	BOLT	4
17	3H6-62325-0	止推衬套	THRUST BUSHING	1
18	3H6-61301-0	衬套	BUSHING	1
19	3H6-62417-1	衬套	BUSHING	1
20a	3GR-62417-0	衬套	BUSHING	1
20	3GR-62418-0	摩擦带总成	FRICTION BAND ASSY	1
21	3H6-62424-0	下止推板	THRUST PLATE (LOWER)	2
22	3H9-62446-0	弹簧	SPRING	1
23	3H9-62442-0	摩擦旋钮	FRICTION KNOB	1
24	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
25	3GR-62431-0	倾斜止动器总成	TILT STOPPER ASSY	1
26	3AS-62433-0	* 倾斜止动握把	* TILT STOPPER GRIP	1
27	393-62437-1	衬套	BUSHING	2
28	369-62439-1	定位板	SETTING PLATE	1
29	9101E3-5612	螺栓	BOLT	2
30	344-67177-1	黄油嘴	GREASE FITTING	2
31	3H6-66313-0	倒车锁臂	REVERSE LOCK ARM	1
32	9101E3-5614	螺栓	BOLT	2
33	369-66338-0	倒挡锁弹簧(右)	REVERSE LOCK SPRING (R)	1
34	369-66339-0	倒挡锁弹簧(左)	REVERSE LOCK SPRING (L)	1
35	3GTQ62105-1	夹紧螺丝套件	CLAMP SCREW KIT	2
35	3GTW62105-1	夹紧螺丝套件	CLAMP SCREW KIT	2
36	3GTQ62108-1	* 卡箍螺丝总成	* CLAMP SCREW ASSY	1
36	3GTW62108-1	* 卡箍螺丝总成	* CLAMP SCREW ASSY	1
37	369-62106-1	夹紧螺钉	** CLAMP SCREW	1
38	3ABQ62102-0	夹紧螺钉手柄	** CLAMP SCREW HANDLE	1
38	3ABW62102-0	夹紧螺钉手柄	** CLAMP SCREW HANDLE	1
39	3C8-62104-2	铆钉 3-22	** RIVET 3-22	1
40	332-62101-1	* 卡箍螺丝垫片	* CLAMP SCREW PAD	1
41	3C8-62107-0	* 肩螺栓	* SHOULDER BOLT	1

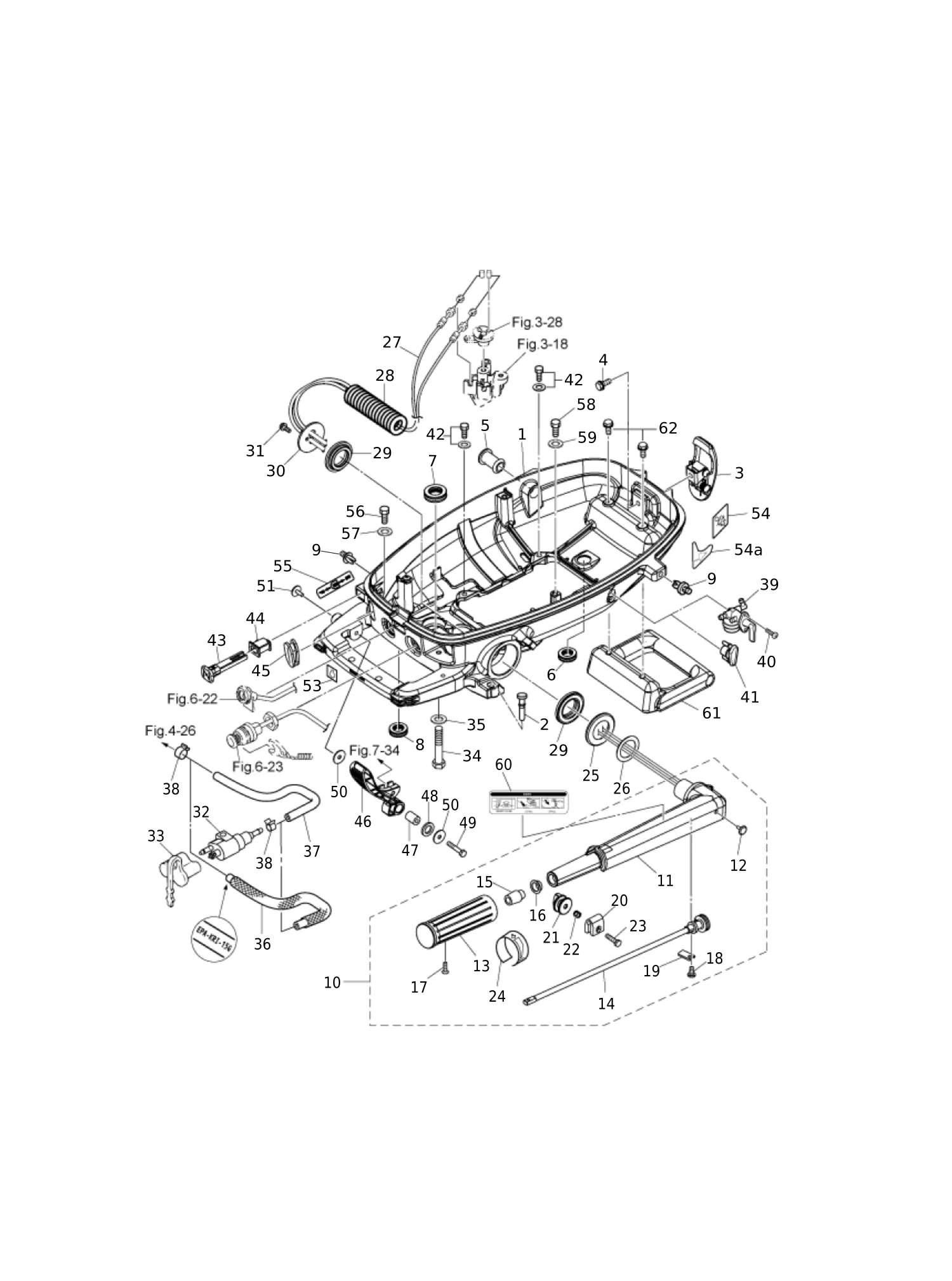

图 10下罩壳·舵柄 BOTTOM COWL · TILLER HANDLE

REF	零件编号	中文名称	英文名称	数量
1	3WLQ67100-0	下罩壳	BOTTOM COWL	1
1	3WLW67100-0	下罩壳	BOTTOM COWL	1
2	3GR-67161-0	索环 22-3	GROMMET 22-3	1
3	3AA-67120-1	整流罩锁扣总成	COWL LATCH ASSY	1
5	3GR-67187-0	索环 15.5-27	GROMMET 15.5-27	1
6	338-67163-0	索环 18-2.5	GROMMET 18-2.5	1
7	3B7-76093-0	索环 25-5	GROMMET 25-5	1
8	345-67117-0	索环 17-2.7	GROMMET 17-2.7	1
10	3V1Q63003-6	舵柄总成	TILLER HANDLE ASSY	1
10	3V1W63003-6	舵柄总成	TILLER HANDLE ASSY	1
11	3V1Q63011-3	* 舵柄手柄	* TILLER HANDLE	1
11	3V1W63011-3	* 舵柄手柄	* TILLER HANDLE	1
12	350-67154-0	* 塑料铆钉 6.5	* PLASTIC RIVET 6.5	1
13	3R3-63012-0	* 手柄	* GRIP	1
14	3V1-63041-0	* 节气门轴	* THROTTLE SHAFT	1
15	3H6-63048-0	* 节气门轴缓冲器	* THROTTLE SHAFT DAMPER	1
16	3H6-63510-0	* 衬套 14-15.8-7	* BUSHING 14-15.8-7	1
17	920803-0518	* 螺钉	* SCREW	1
18	9215E3-0612	* 螺钉	* SCREW	1
19	3B2-63063-0	* 节气门轴支撑	* THROTTLE SHAFT SUPPORT	1
20	3V1-63035-1	* 摩擦片	* FRICTION PIECE	1
21	3V1-63077-0	* 调节螺母	* ADJUSTING NUT	1
22	3V1-63036-0	* 弹簧	* SPRING	1
24	3V9-72019-1	* 油门标识贴	* THROTTLE DECAL	1
25	3H6-63026-0	垫片 33.5-55-3.3	SPACER 33.5-55-3.3	1
26	3B2-63108-0	垫片 30-45-1	WASHER 30-45-1	1
27	3GR-63600-0	节气门拉线	THROTTLE WIRE	2
28	3BA-06133-0	保护套 φ10.7-180	PROTECTOR φ10.7-180	1
29	3H6-63102-0	衬套	BUSHING	2
30	3GR-63107-0	盖板	COVER	1
31	910103-5616	螺栓	BOLT	2
32	394-70260-0	燃油接头（公头）	FUEL CONNECTOR (MALE)	1
33	3H6-70262-0	燃油接头护套	FUEL CONNECTOR PROTECTOR	1
34	910103-0625	螺栓	BOLT	1
35	940203-0600	垫圈	WASHER	1
36	3JF-02160-0	带保护套燃油软管 353-40-30	FUEL HOSE W/PROTECTOR 353-40-30	1
37	3JG-02203-0	燃油软管353-40-30	FUEL HOSE 353-40-30	1
38	3GT-35143-0	卡环 φ9.4	CLIP φ9.4	2
39	3H9-70311-0	燃油旋塞总成	FUEL COCK ASSY	1
40	3GR-83821-0	螺钉 M4-10	SCREW M4-10	2
41	3GR-67129-0	索环/护孔圈	GROMMET	1
42	9101E3-5616	螺栓	BOLT	4
43	3H6-67151-1	阻风门拉杆	CHOKE ROD	1
44	3GR-67104-0	阻风门拉杆衬套	CHOKE ROD BUSHING	1
45	3GR-66260-0	索环 30.2-12.7	GROMMET 30.2-12.7	1
46	3GR-66110-0	换挡杆	SHIFT LEVER	1
47	3GR-63066-0	轴环 15.9-17-9	COLLAR 15.9-17-9	1
48	3GR-63108-0	垫片 30-45-1	WASHER 30-45-1	1
49	3H6-62445-0	螺栓6-35	BOLT 6-35	1
51	3A3-76037-0	电缆端子插头	CABLE TERMINAL PLUG	1
53	3BA-76199-0	油压标贴	OIL PRESSURE DECAL	1
54a	3WJ-72024-0	燃油杆标贴	FUEL LEVER DECAL	1
54	3WL-72024-0	燃油杆标贴	FUEL LEVER DECAL	1
54	3ZL-72024-0	燃油杆标贴	FUEL LEVER DECAL	1
54a	3ZM-72024-0	燃油杆标贴	FUEL LEVER DECAL	1
55	3WL-67578-0	换挡标识贴	SHIFT DECAL	1
55	3YG-67578-0	换挡标识贴	SHIFT DECAL	1
58	910103-0612	螺栓	BOLT	1
59	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	1
61	3WL-61199-0	搬运把手	CARRYING HANDLE	1
62	3V1-60108-0	预涂层螺栓6-16	PRE-COATED BOLT 6-16	2

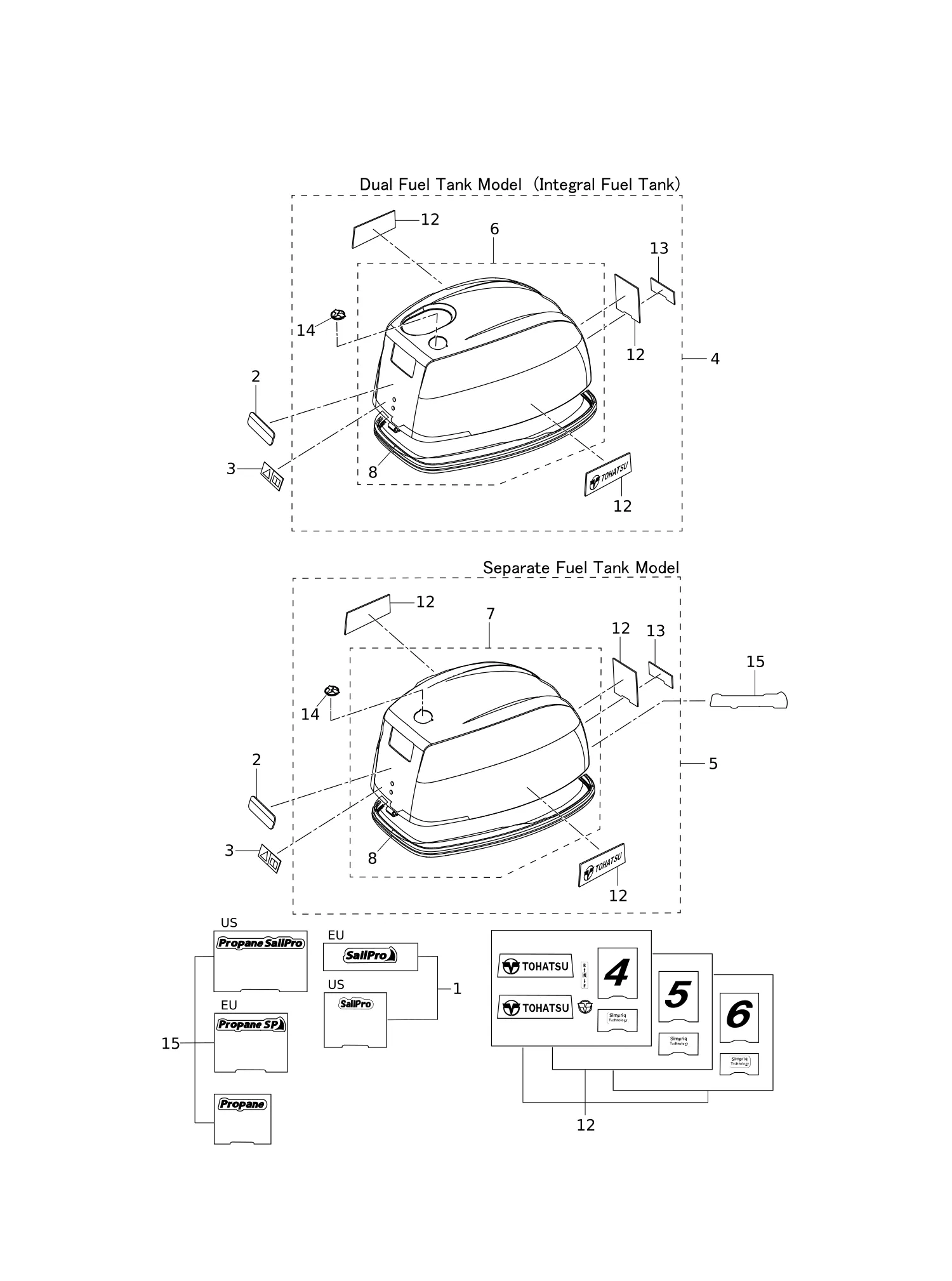

图 11顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	3WL-67561-0	SP贴花	SP DECAL	1
1	3WL-67562-0	帆船专业贴花	SAIL PRO DECAL	1
2	3WL-72180-0	警示标贴(A型)	CAUTION DECAL (A)	1
2	3YG-72180-0	警示标贴(A型)	CAUTION DECAL (A)	1
3	3F0-72185-0	警示标贴	CAUTION DECAL	1
4	3WJQ67645-0	顶罩总成	TOP COWL ASSY	1
4	3WJW67645-0	顶罩总成	TOP COWL ASSY	1
5	3WKQ67645-0	顶罩总成	TOP COWL ASSY	1
5	3WKW67645-0	顶罩总成	TOP COWL ASSY	1
6	3WJQ67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
6	3WJW67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
7	3WLQ67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
7	3WLW67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
8	3GR-67501-0	顶罩密封条	** TOP COWL SEAL	1
12	3WJ-87801-0	* 贴花套装(MFS4D) (MFS4D)	* DECAL SET(MFS4D) (MFS4D)	1
12	3WK-87801-0	* 贴花套装(MFS5D) (MFS5D)	* DECAL SET(MFS5D) (MFS5D)	1
12	3WL-87801-0	* 贴花套装(MFS6D) (MFS6D)	* DECAL SET(MFS6D) (MFS6D)	1
12	3ZL-87801-0	* 贴花套装 (MFS6DW)	* DECAL SET (MFS6DW)	1
13	3WE-67538-0	* SIMPLIQ标识贴	* SIMPLIQ DECAL	1
14	3WE-67580-0	* 标志贴花	* LOGO DECAL	1

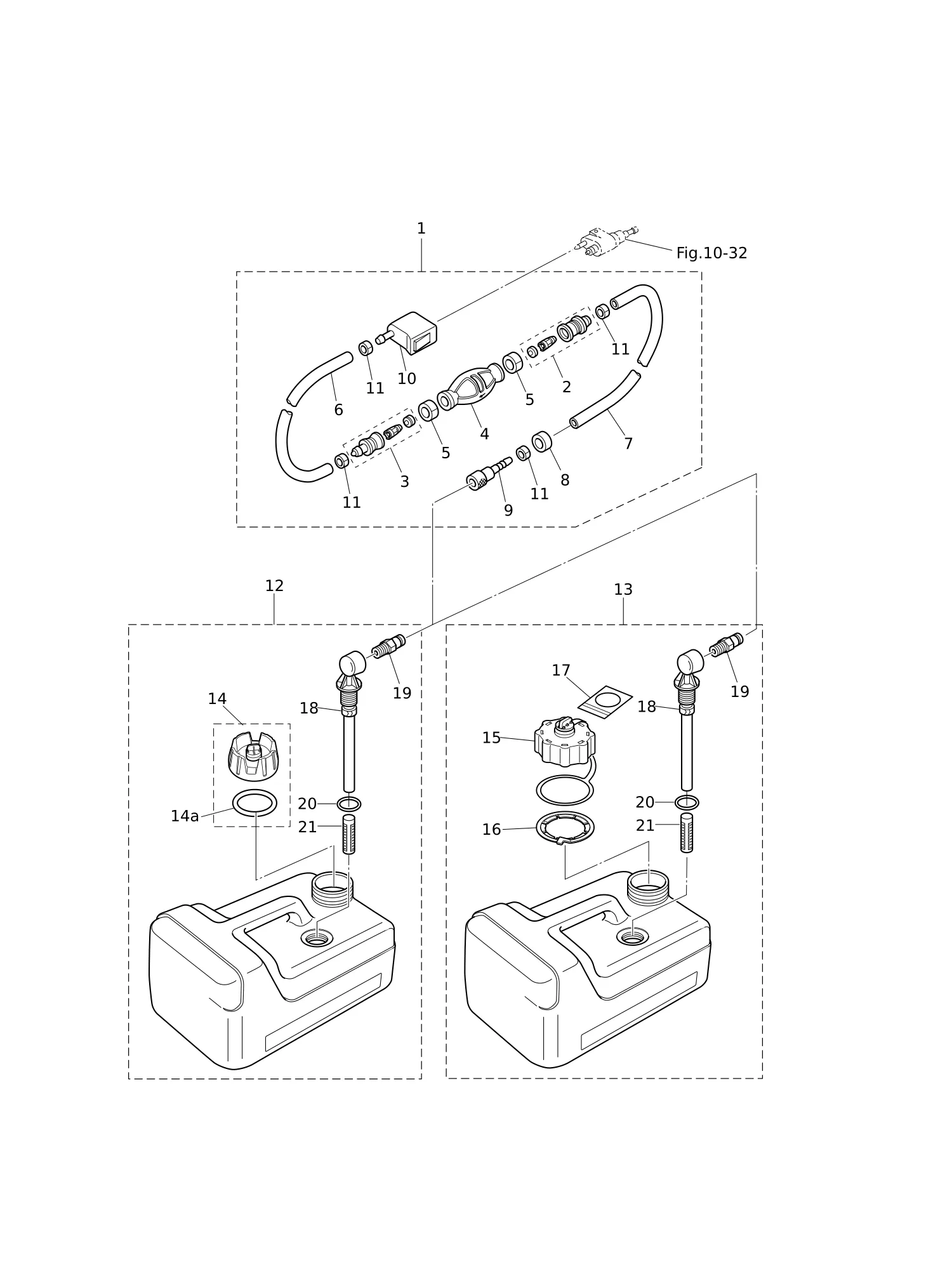

图 12独立燃油箱 SEPARATE FUEL TANK

REF	零件编号	中文名称	英文名称	数量
1	3AD-70200-2	手动泵球总成	PRIMER BULB ASSY	1
1	3H6-70200-2	手动泵球总成	PRIMER BULB ASSY	1
2	3C7-70220-1	* 接头组件(进口)	* JOINT ASSY (INLET)	1
3	3C7-70224-1	* 接头组件(出口)	* JOINT ASSY (OUTLET)	1
4	3C7-70211-1	* 注油球	* PRIMER BULB	1
4	3GF-70211-1	* 注油球	* PRIMER BULB	1
5	3C7-70217-0	* 卡箍	* CLAMP	2
6	3GF-70241-1	* 低渗透软管 L=700	* LOW PERMEATION HOSE L=700	1
6	98AB-70-700	* 软管	* HOSE	1
7	3GF-70240-1	* 低渗透软管 L=1600	* LOW PERMEATION HOSE L=1600	1
7	98AB-701600	* 软管	* HOSE	1
8	3GR-70280-0	* 燃油接头标记	* FUEL CONNECTOR MARK	1
9	3GF-70281-0	* 燃油接头	* FUEL CONNECTOR	1
10	3GR-70250-0	* 燃油接头	* FUEL CONNECTOR	1
11	332-70201-0	* 卡箍	* CLAMP	4
12	3RS-70167-0	12升燃油箱总成	FUEL TANK ASSY 12L	1
13	3UA-70167-0	12升燃油箱总成	FUEL TANK ASSY 12L	1
14	3RS-70020-0	* 燃油箱盖总成	* FUEL TANK CAP ASSY	1
14a	3RS-70021-0	油箱盖衬垫	** TANK FILLER CAP GASKET	1
15	3AC-70052-1	燃油箱盖总成	FUEL TANK CAP ASSY	1
16	3AC-70055-0	挡圈	RETAINING RING	1
17	3AC-70352-1	说明标签	INSTRUCTION TAG	1
18	3B2-70155-0	拾波弯头总成（12升）	PICK-UP ELBOW ASSY (12L)	1
19	3E0-70270-0	快速接头(公头)	QUICK-CONNECTOR (MALE)	1
20	3C7-70199-0	O型圈	O-RING	1
21	3C7-70113-0	过滤器	FILTER	1

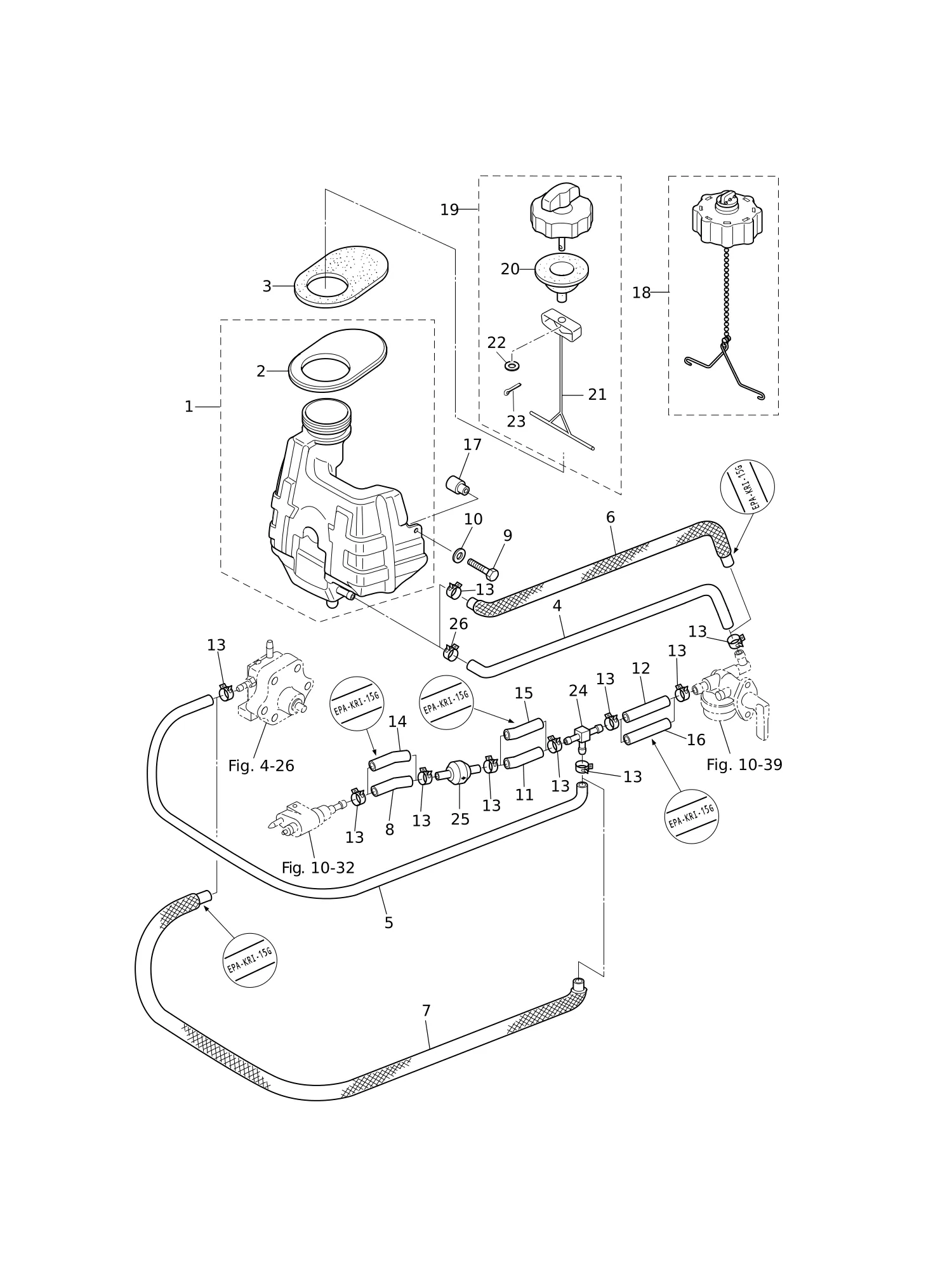

图 13一体式燃油箱 INTEGRAL FUEL TANK

REF	零件编号	中文名称	英文名称	数量
1	3GR-70310-4	燃油箱总成	FUEL TANK ASSY	1
1	3JE-70310-2	燃油箱总成	FUEL TANK ASSY	1
2	3JD-05116-1	* 密封板	* SEALING PLATE	1
3	3JD-70036-0	燃油箱密封件	FUEL TANK SEAL	1
4	3JK-70326-0	燃油软管275-20	FUEL HOSE 275-20	1
5	3JS-70315-0	燃油软管 455-25	FUEL HOSE 455-25	1
6	3GR-02160-0	带保护套燃油软管 275-20	FUEL HOSE W/PROTECTOR 275-20	1
7	3JK-02160-0	带保护套燃油软管 455-25	FUEL HOSE W/PROTECTOR 455-25	1
8	3JJ-70325-0	燃油软管30-25	FUEL HOSE 30-25	1
9	910103-0630	螺栓	BOLT	2
10	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	2
11	3JD-70325-0	燃油软管 长35	FUEL HOSE L=35	1
12	3JD-02204-0	燃油软管 长90	FUEL HOSE L=90	1
13	3GT-35143-0	卡环 φ9.4	CLIP φ9.4	9
14	3LE-02207-0	低渗透软管 30-25	LOW PERMEATION HOSE 30-25	1
15	3GR-02130-0	低渗透软管 L=35	LOW PERMEATION HOSE L=35	1
16	3JD-02130-0	低渗透软管 L=90	LOW PERMEATION HOSE L=90	1
17	3GR-70015-0	垫圈 7.2-10-6	SPACER 7.2-10-6	2
18	3GT-70321-0	燃油箱盖总成	FUEL TANK CAP ASSY	1
19	3GP-70020-0	燃油箱盖总成	FUEL TANK CAP ASSY	1
20	3GR-70021-0	* 油箱加注口盖垫片	* TANK FILLER CAP GASKET	1
21	3H9-70095-0	* 挂钩	* HOOK	1
22	940103-0400	* 垫圈	* WASHER	1
23	951503-1610	* 开口销 1.6-10	* SPLIT PIN 1.6-10	1
24	394-70013-0	管接头 4-4	PIPE JOINT 4-4	1
25	394-70327-0	止回阀	NON-RETURN VALVE	1
26	3GR-35143-0	卡扣φ10.0	CLIP φ10.0	1

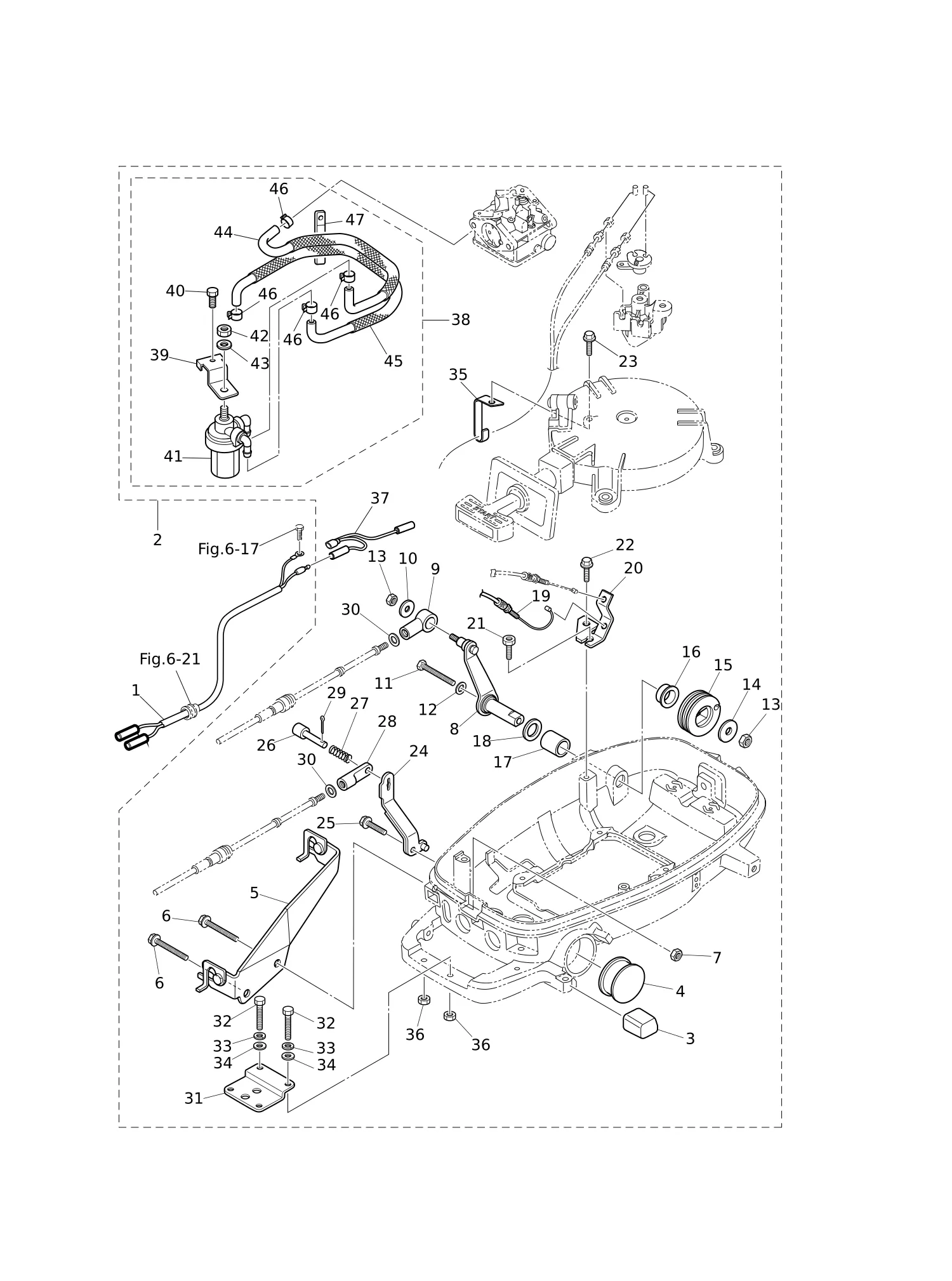

图 14选装件(1)附件(遥控装置) OPTIONAL PARTS (1) ACCESSORIES (REMOTE CONTROL)

REF	零件编号	中文名称	英文名称	数量
1	369-83846-0	遥控急停拉绳 L=2000	REMOTE CONTROL STOP CORD L=2000	1
1	369-83848-0	遥控急停拉绳 L=3200	REMOTE CONTROL STOP CORD L=3200	1
1	369-83853-0	遥控急停拉绳 L=3900	REMOTE CONTROL STOP CORD L=3900	1
1	369-83858-0	遥控急停拉绳 L=5900	REMOTE CONTROL STOP CORD L=5900	1
2	3GR-83880-0	遥控装置总成	REMOTE CONTROL FITTING ASSY	1
3	3JK-67161-0	* 衬套 20-29	* GROMMET 20-29	1
4	3H6-67161-0	* 衬套 43-23	* GROMMET 43-23	1
5	3GR-83820-0	* 线缆夹总成	* CABLE CLIP ASSY	1
6	910103-6640	螺栓	* BOLT	2
7	930103-0600	螺母	* NUT	1
8	3GR-83910-0	* 油门杆(遥控)	* THROTTLE LEVER (REMOTE CONT)	1
9	3R0-83715-0	电缆接头 4.5-40.5	CABLE JOINT 4.5-40.5	1
10	346-67115-0	* 垫圈 6.5-21-1	* WASHER 6.5-21-1	1
11	910103-0660	螺栓	* BOLT	1
12	941303-0600	* 弹簧垫圈	* SPRING WASHER	1
13	930403-0600	尼龙螺母 6-P1.0	* NYLON NUT 6-P1.0	2
14	345-05122-1	* 垫圈 6.5-23-1.5	* WASHER 6.5-23-1.5	1
15	3JD-63611-0	* 节气门鼓轮	* THROTTLE DRUM	1
16	3H6-63510-0	* 衬套 14-15.8-7	* BUSHING 14-15.8-7	1
17	369-67105-0	* 钩杆衬套	* HOOK LEVER BUSHING	1
18	338-67147-0	* 密封环 13.8-22-3.7	* SEAL RING 13.8-22-3.7	1
19	3GR-83873-0	* 节气门拉线(遥控)	* THROTTLE WIRE (REMOTE CONTROL)	1
20	3GR-63508-0	* 节气门拉线支架	* THROTTLE WIRE BRACKET	1
21	3GR-04317-0	* 护孔环	* GROMMET	1
22	910103-5614	螺栓	* BOLT	1
23	3AD-06864-0	* 预涂螺栓6-25	* PRE-COATED BOLT 6-25	1
24	3GR-66129-0	* 换挡杆(遥控)	* SHIFT LEVER (REMOTE CONTROL)	1
25	3V1-60108-0	* 预涂螺栓6-16	* PRE-COATED BOLT 6-16	1
26	332-83728-0	* 销	* PIN	1
27	332-83729-0	* 弹簧	* SPRING	1
28	369-83715-1	线缆接头	CABLE JOINT	1
29	951403-0220	* 弹簧销	* SPRING PIN	1
30	332-83725-0	* 垫圈 5.5-14-1.2	* WASHER 5.5-14-1.2	2
31	369-83830-2	* 转向钩板	* STEERING HOOK PLATE	1
32	910103-0830	螺栓	* BOLT	2
33	941303-0800	* 弹簧垫圈	* SPRING WASHER	2
34	940103-0800	* 垫圈	* WASHER	2
35	3JK-63505-0	* 线缆固定座	* CABLE HOLDER	1
36	930403-0800	尼龙螺母 8-P1.25	* NYLON NUT 8-P1.25	2
37	3AS-83883-0	* 分离线	* SEPARATE CORD	1
38	3GR-02217-0	* 燃油滤清器套件	* FUEL FILTER KIT	1
39	3GR-63737-0	** 撑杆	** STAY	1
40	910103-5610	螺栓	** BOLT	1
41	346-02230-0	** 燃油滤清器总成	** FUEL FILTER ASSY	1
42	930103-0800	螺母	** NUT	1
43	940121-0800	垫圈	** WASHER	1
44	3LE-02160-0	** 燃油管带护套 25-193-30	** FUEL HOSE W/PROTECTOR 25-193-30	1
45	3JD-02160-0	** 燃油管带护套 25-315-25	** FUEL HOSE W/PROTECTOR 25-315-25	1
46	3GT-35143-0	卡扣 φ9.4	** CLIP φ9.4	4
47	3T4-06972-1	卡箍 6.5-87P	** CLAMP 6.5-87P	1

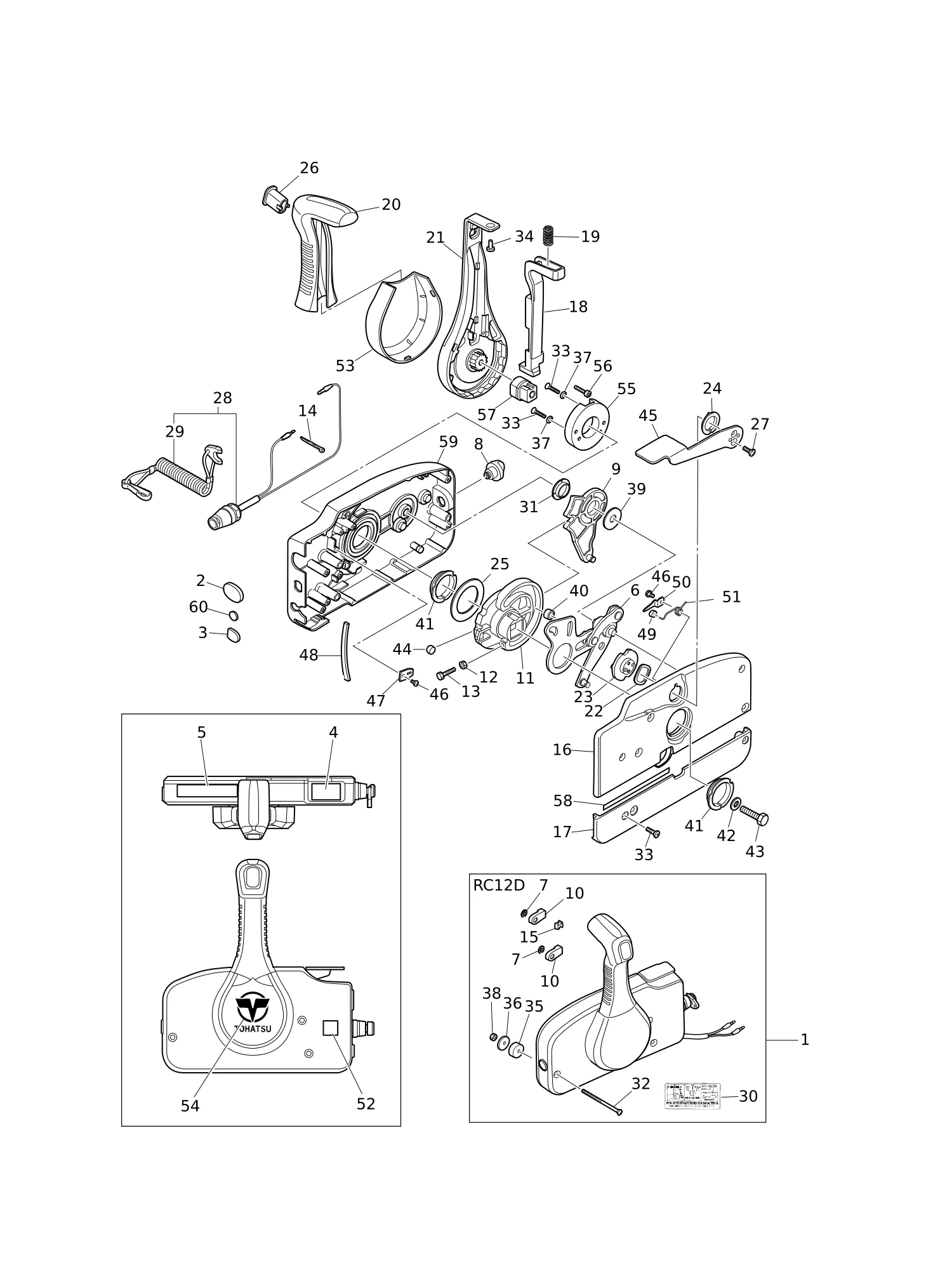

图 15遥控器零部件 COMPONENT PARTS OF REMOTE CONTROL

REF	零件编号	中文名称	英文名称	数量
1	3U2B84360-0	遥控头总成(RC12D)	REMOTE CONTROL HEAD ASSY(RC12D)	1
2	3U2-84416-0	* 护孔环	* GROMMET	1
3	353-84321-0	* 护孔环	* GROMMET	1
4	3U2-84331-0	* 标牌(操纵杆)	* DECAL (LEVER)	1
5	3U2-84336-0	* 档位标识贴	* SHIFT POSITION DECAL	1
6	3A3-84365-1	* 节气门摇臂	* THROTTLE ARM	1
7	945303-0600	* E型卡环 d=6	* E-RING d=6	2
8	3U2-84414-0	* 护孔环	* GROMMET	1
9	3A3-84381-0	* 换挡齿轮总成	* SHIFT GEAR ASSY	1
10	3A3-83314-2	* 线缆端子	* CABLE TERMINAL	2
11	3A3-84364-2	* 驱动齿轮	* DRIVE GEAR	1
12	930103-0500	螺母	* NUT	1
13	910103-0525	螺栓	* BOLT	1
14	3U2-84398-0	* 箍带	* BAND	3
15	3A3-84376-0	* 护孔环	* GROMMET	1
16	3U2B84441-0	* 后壳体	* REAR HOUSING	1
17	3U2B84366-0	* 后盖板	* REAR PANEL	1
18	3U2-84401-0	* 空档锁止臂	* NEUTRAL LOCK ARM	1
19	3A3-84403-0	* 空档锁止弹簧	* NEUTRAL LOCK SPRING	1
20	3U2-84404-0	* 手柄	* GRIP	1
21	3U2-84343-0	* 控制杆	* CONTROL LEVER	1
22	3A3-84368-0	* 波形垫圈	* WAVE WASHER	1
23	3A3-84391-0	* 自由节流鼓	* FREE THROTTLE DRUM	1
24	3A3-84435-0	* 衬套	* BUSHING	1
25	3A3-84422-0	* 推力板	* THRUST PLATE	1
26	3U2-84452-0	* 倾斜开关塞	* TILT SWITCH PLUG	1
27	921603-0512	* 螺钉	* SCREW	2
28	3A3-06830-0	* 停机开关总成	* STOP SWITCH ASSY	1
29	353-06821-0	停机开关拉绳总成	** STOP SWITCH LANYARD ASSY	1
30	3U2-84339-0	* 操作说明标贴	* INSTRUCTION DECAL	1
31	3A3-84432-0	* 衬套	* BUSHING	1
32	3U2-84375-0	螺钉	SCREW	3
33	3VK-84375-0	螺钉	SCREW	7
34	3VL-84375-0	螺钉	SCREW	1
35	3A3-84374-0	* 隔套	* SPACER	3
36	353-84371-0	* 垫圈	* WASHER	3
37	3U2-84371-0	* 垫圈	* WASHER	2
38	930103-0600	螺母	* NUT	3
39	3A3-84383-0	* 垫圈	* WASHER	1
40	3A3-84421-0	* 滚轮	* ROLLER	1
41	3U2-84431-0	* 衬套	* BUSHING	2
42	940103-0800	* 垫圈	* WASHER	1
43	3U2-84442-0	螺栓	* BOLT	1
44	353-84388-0	* 定位滚轮	* DETENT ROLLER	1
45	3U2B84312-0	* 自由节流杆	* FREE THROTTLE LEVER	1
46	921503-0406	* 螺钉	* SCREW	3
47	3A3-84423-0	* 定位器挡圈	* DETENT RETAINER	1
48	3A3-84307-0	* 定位弹簧	* DETENT SPRING	6
49	3A3-84424-0	* 自由节流滚轮	* FREE THROTTLE ROLLER	1
50	3A3-84426-0	* 滚柱保持架	* ROLLER RETAINER	1
51	3A3-84425-0	* 自由节流弹簧	* FREE THROTTLE SPRING	1
52	3U2-72200-0	* 停机开关标贴	* STOP SWITCH DECAL	2
53	3VK-63107-0	* 盖板	* COVER	1
54	3U2-84334-0	* 遥控标识贴花	* REMOTE CONTROL LOGO DECAL	1
55	3U2-63506-0	* 支架	* HOLDER	1
56	3U2-84917-0	螺栓	* BOLT	1
57	3U2-77367-0	* 接头	* JOINT	1
58	3U2-72187-0	* 警示标贴(SIGP)	* CAUTION DECAL(SIGP)	1
59	3U2B84440-0	* 前壳体	* FRONT HOUSING	1
60	369-84418-0	* 护孔环	* GROMMET	1

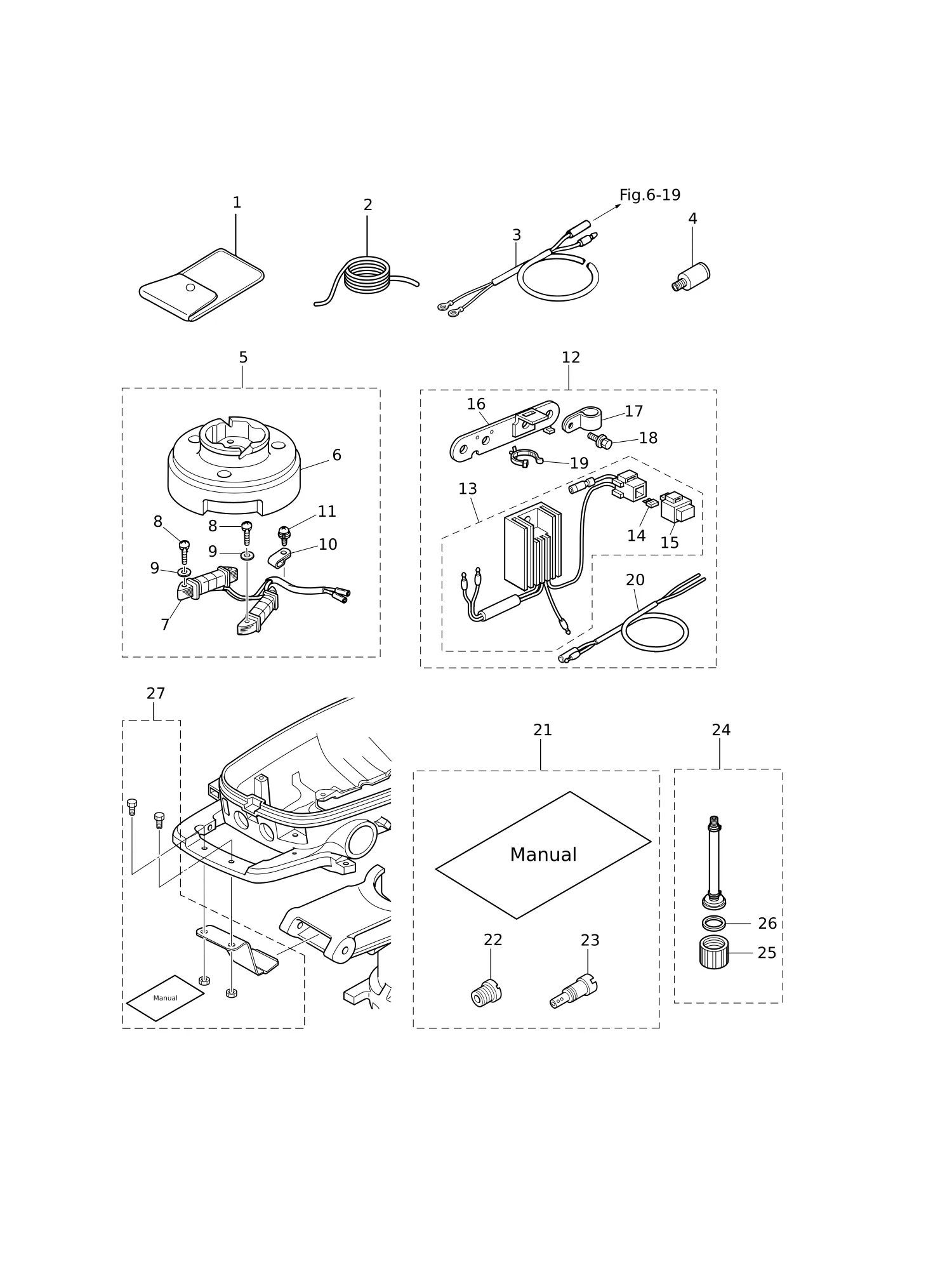

图 16选装件(2)附件 OPTIONAL PARTS (2) ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
1	3BJ-72100-0	工具包	TOOL KIT	1
2	312-72201-0	安全绳φ4-1000	SAFETY ROPE φ4-1000	1
3	399-76130-0	蓄电池电缆 L=1716	BATTERY CABLE L=1716	1
4	336-60007-0	冲洗塞	FLUSHING PLUG	1
5	3GR-06128-0	交流发电机套件	ALTERNATOR KIT	1
6	3AS-06001-0	* 飞轮	* FLYWHEEL	1
7	3GR-06023-0	* 交流发电机总成	* ALTERNATOR ASSY	1
8	921503-0525	* 螺钉	* SCREW	4
9	940103-0500	* 垫圈	* WASHER	4
10	369-06915-0	* 卡箍 4.2-3-8	* CLAMP 4.2-3-8	1
11	921521-6408	* 螺钉	* SCREW	1
12	3GR-76160-0	整流器套件	RECTIFIER KIT	1
13	3GR-76060-0	* 整流器总成	* RECTIFIER COMPLETE	1
14	3GR-76246-0	** 保险丝 10A	** FUSE 10A	2
15	1E0-34093-0	盖帽(Y型)	** CAP (Y)	1
16	3GR-06900-0	* 电气支架总成	* ELECTRIC BRACKET ASSY	1
17	345-06915-0	* 卡箍 6.5-14L	* CLAMP 6.5-14L	1
18	910103-5614	螺栓	* BOLT	2
19	3BJ-84398-0	箍带 135	* BAND 135	1
20	369-76161-0	* 延长线	* EXTENSION CORD	1
21	3GR-10230-0	海拔调节套件	ALTITUDE ADJUSTMENT KIT	1
21	3JD-10230-0	海拔调节套件	ALTITUDE ADJUSTMENT KIT	1
21	3JE-10230-0	海拔调节套件	ALTITUDE ADJUSTMENT KIT	1
22	3AU-04468-0	* 主量孔 (#68)	* MAIN JET (#68)	1
22	3H9-03251-0	* 主量孔 (#60)	* MAIN JET (#60)	1
22	3R1-03251-0	* 主量孔 (#65)	* MAIN JET (#65)	1
23	3R6-03254-0	* 低速喷嘴(#35)	* SLOW JET (#35)	1
24	3GR-72406-0	冲洗附件总成	FLUSHING ATTACHMENT ASSY	1
25	3GR-70212-0	* 接头	* JOINT	1
26	3T1-67147-0	* 密封环	* SEAL RING	1
27	3GR-62500-3	转向锁套件	STEERING LOCK KIT	1

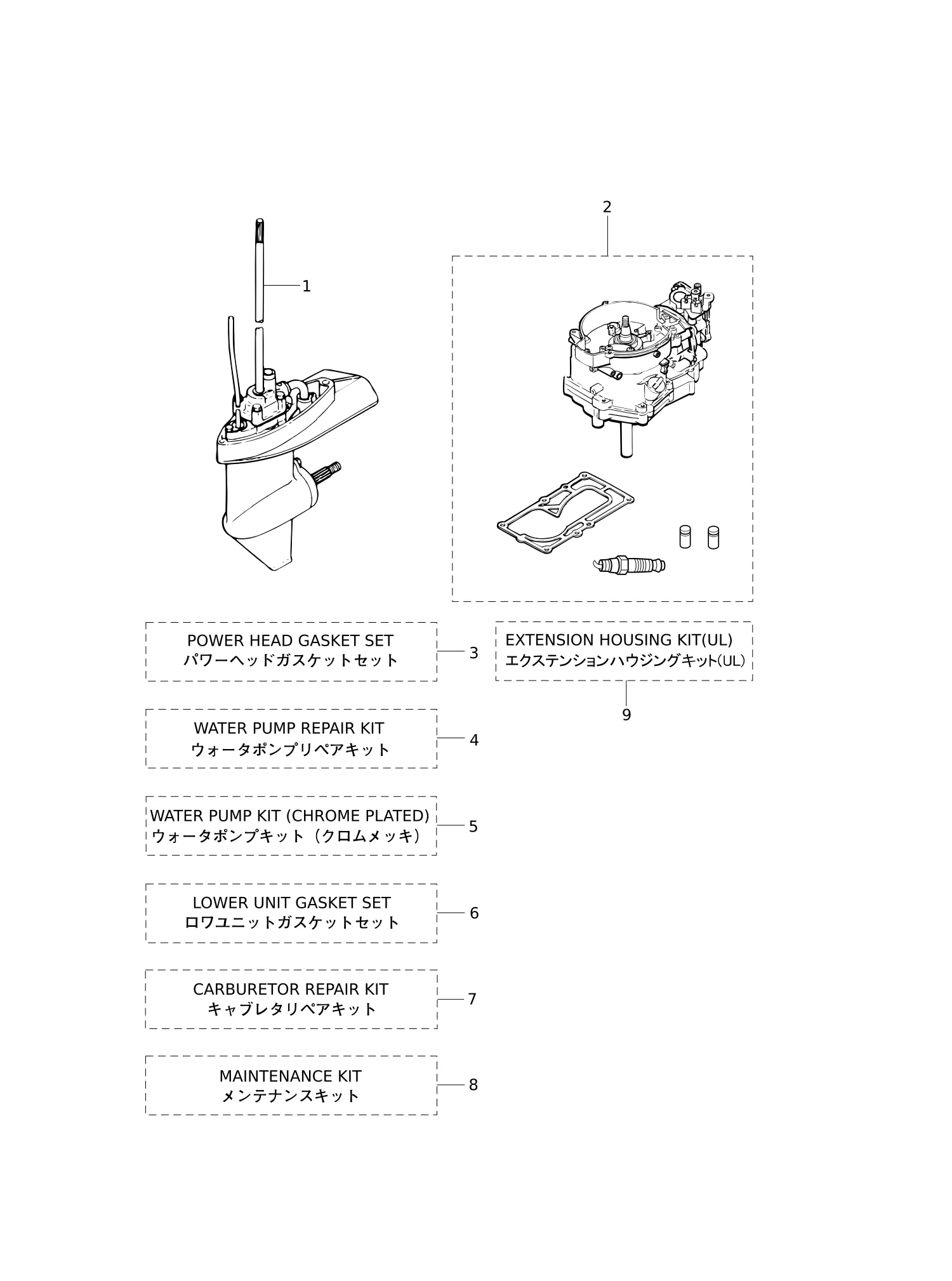

图 17套件零件总成 ASSEMBLY · KIT PARTS

REF	零件编号	中文名称	英文名称	数量
1	3GRQ87301-2	下部单元总成 (S)	LOWER UNIT ASSY (S)	1
1	3GRQ87302-2	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3GRQ87304-2	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
1	3GRW87301-2	下部单元总成 (S)	LOWER UNIT ASSY (S)	1
1	3GRW87302-2	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3LEQ87302-2	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3LEW87302-2	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3LKQ87304-2	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
1	3LKW87304-2	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
2	3GRB87090-7	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
3	345-66021-0	* O型圈1.9-6.8	* O-RING 1.9-6.8	1
3	346-01032-0	* 节温器盖衬垫	* THERMOSTAT CAP GASKET	1
3	3AB-00121-0	* 油封 20-35-7	* OIL SEAL 20-35-7	1
3	3AS-07432-0	* 衬垫	* GASKET	1
3	3AS-87121-2	动力头衬垫套装	POWER HEAD GASKET SET	1
3	3GR-00122-0	* 油封 25-40-8	* OIL SEAL 25-40-8	1
3	3GR-01214-0	* 曲轴箱缸头垫片	* CRANKCASE HEAD GASKET	1
3	3GR-01215-0	* 油封 10.1-25-7	* OIL SEAL 10.1-25-7	2
3	3H6-01005-1	* 气缸盖垫片	* CYLINDER HEAD GASKET	1
3	3H6-01024-0	* 气缸盖罩衬垫	* CYLINDER HEAD COVER GASKET	1
3	3H6-02011-0	* 化油器衬垫	* CARBURETOR GASKET	2
3	3H6-02104-0	* 进气歧管垫片 2-33.5	* INTAKE MANIFOLD GASKET 2-33.5	1
3	3H6-02305-0	* 排气盖衬垫	* EXHAUST COVER GASKET	1
3	3H6-02306-0	* 排气盖衬垫	* EXHAUST COVER GASKET	1
3	3H6-07402-0	* 油底壳衬垫	* OILPAN GASKET	1
3	3H6-07422-0	* O型圈 2.6-18.7	* O-RING 2.6-18.7	1
3	3H6-61012-0	* 驱动轴壳体衬垫	* DRIVE SHAFT HOUSING GASKET	1
3	3R1-07605-0	* O型圈 φ3.1	* O-RING φ3.1	1
4	369-87322-2	水泵维修套件	WATER PUMP REPAIR KIT	1
4	9161E3-0645	螺栓	* BOLT	4
4	940103-0600	* 垫圈	* WASHER	4
5	369-65231-1	水泵套件(镀铬)	WATER PUMP KIT (CHROME PLATED)	1
5	369-65238-0	* 泵壳衬套	* PUMP CASE LINER	1
5	369-65239-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
6	332-66032-0	* O型圈2.4-15.4	* O-RING 2.4-15.4	1
6	345-65015-0	* O型圈 3.2-47	* O-RING 3.2-47	1
6	369-60111-0	* 油封 15-28-10	* OIL SEAL 15-28-10	1
6	369-60223-0	* 油封 10-24-8	* OIL SEAL 10-24-8	1
6	369-65020-0	* 泵壳衬垫(下)	* PUMP CASE GASKET (LOWER)	1
6	369-66021-1	* O型圈 2.5-4.9	* O-RING 2.5-4.9	2
6	369-87321-2	下部单元衬垫套件	LOWER UNIT GASKET SET	1
7	3H6-03222-0	* 浮子室O型圈	* FLOAT CHAMBER O-RING	1
7	3H6-03231-0	* 浮子	* FLOAT	1
7	3H6-03232-0	* 浮子臂销	* FLOAT ARM PIN	1
7	3H6-03240-0	* 浮子阀	* FLOAT VALVE	1
7	3H6-03244-0	* 卡扣	* CLIP	1
7	3H6-03293-0	* O型圈	* O-RING	1
7	3H6-87122-0	化油器修理包	CARBURETOR REPAIR KIT	1
7	922503-6412	* 螺钉	* SCREW	2
8	332-60006-1	* 衬垫 8.1-15-1	* GASKET 8.1-15-1	2
8	369-02230-1	* 燃油滤清器总成	* FUEL FILTER ASSY	1
8	369-65011-0	* 泵壳衬套	* PUMP CASE LINER	1
8	369-65018-1	* 泵壳衬垫	* PUMP CASE GASKET	1
8	369-65021-1	* 水泵叶轮	* WATER PUMP IMPELLER	1
8	369-65022-0	* 键 φ2-11	* KEY φ2-11	1
8	369-65025-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
8	369-65029-0	* 导板垫片	* GUIDE PLATE GASKET	1
8	3GR-87500-1	维护套件	MAINTENANCE KIT	1
8	3H6-07406-0	* 垫圈 10.2-19-1	* WASHER 10.2-19-1	1
8	3H6-60218-0	* 阳极	* ANODE	1
8	951503-0318	* 开口销 3-18	* SPLIT PIN 3-18	1
8	9701-1-1103	* 火花塞 (DCPR6E)	* SPARK PLUG(DCPR6E)	1
9	369-64303-0	* 驱动轴总成（上长）	* DRIVE SHAFT ASSY (UL)	1
9	369-65120-0	* 水管总成 (上左)	* WATER PIPE ASSY (UL)	1
9	369-66014-2	* 凸轮杆(上左)	* CAM ROD (UL)	1
9	369Q61110-2	* 延伸壳体	* EXTENSION HOUSING	1
9	369Q87314-4	延伸壳体套件(超长)	EXTENSION HOUSING KIT (UL)	1
9	369W61110-2	* 延伸壳体	* EXTENSION HOUSING	1
9	369W87314-4	延伸壳体套件(超长)	EXTENSION HOUSING KIT (UL)	1
9	9152E3-0825	* 双头螺柱	* STUD	1
9	9161E3-0625	螺栓	* BOLT	1
9	930103-0800	螺母	* NUT	1
9	9401E3-0600	* 垫圈	* WASHER	1
9	9401E3-0800	* 垫圈	* WASHER	1
