四冲程 4-Stroke · 2014 年 · 手册号 002-21046-A · 共 17 个部位 · 687 条零件

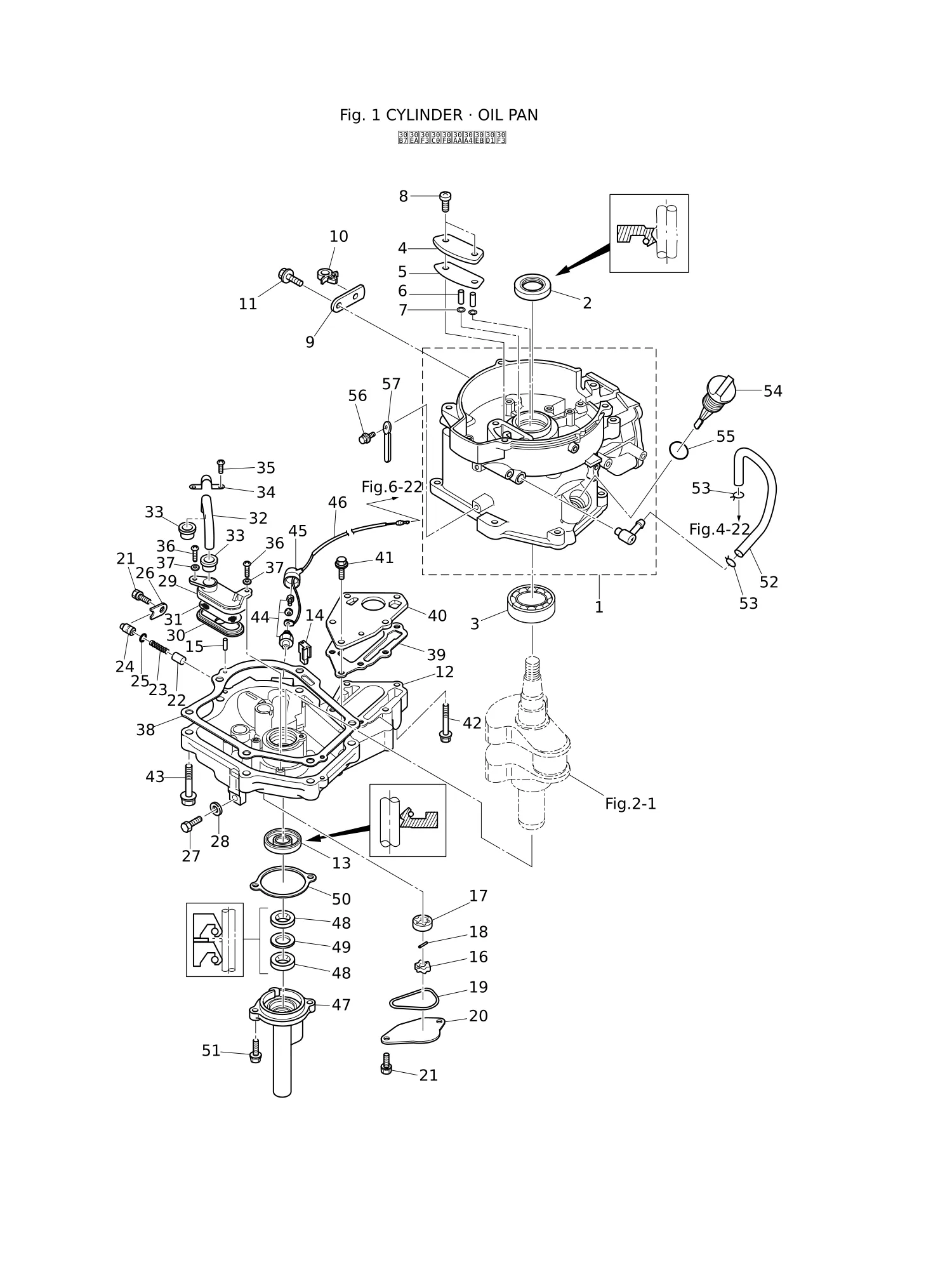

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3GRB01184-1 | 气缸体(维修件) | CYLINDER BLOCK (SERVICE) | 1 |
| 2 | 3AB-00121-0 | 油封 20-35-7 | OIL SEAL 20-35-7 | 1 |
| 3 | 9601-3-6205 | 滚珠轴承 6205 | BALL BEARING 6205 | 1 |
| 4 | 3ASB07431-0 | 呼吸室盖 | BREATHER CHAMBER COVER | 1 |
| 5 | 3AS-07432-0 | 衬垫 | GASKET | 1 |
| 6 | 3R1-07439-0 | 轴环 | COLLAR | 2 |
| 7 | 941403-0500 | 波形垫圈 d=5 | WAVE WASHER d=5 | 2 |
| 8 | 921521-6616 | 螺钉 | SCREW | 2 |
| 9 | 3GR-63505-0 | 线缆固定座 | CABLE HOLDER | 1 |
| 10 | 3GR-06973-0 | 卡箍 6-9.5L | CLAMP 6-9.5L | 1 |
| 12 | 3AS-07709-0 | 油底壳分总成 | OILPAN SUB-ASSY | 1 |
| 13 | 3GR-00122-0 | 油封 25-40-8 | OIL SEAL 25-40-8 | 1 |
| 14 | 3H6-07404-0 | 索环/护孔圈 | GROMMET | 1 |
| 15 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 2 |
| 16 | 3H6-07601-0 | 油泵转子（内） | OIL PUMP ROTOR (INNER) | 1 |
| 17 | 3H6-07602-0 | 油泵转子（外） | OIL PUMP ROTOR (OUTER) | 1 |
| 18 | 3H6-07603-0 | 销钉 | PIN | 1 |
| 19 | 3R1-07605-0 | O型圈 φ3.1 | O-RING φ3.1 | 1 |
| 20 | 3H6-07606-0 | 油泵盖 | OIL PUMP COVER | 1 |
| 21 | 910121-6616 | 螺栓 | BOLT | 3 |
| 22 | 3H6-07621-0 | 柱塞控制阀 | PLUNGER CONTROL | 1 |
| 23 | 3H6-07622-0 | 弹簧 | SPRING | 1 |
| 24 | 3H6-07623-0 | 阀座 | SEAT | 1 |
| 25 | 345-66021-0 | O型圈1.9-6.8 | O-RING 1.9-6.8 | 1 |
| 26 | 3H6-67115-0 | 柱塞盖 | PLUNGER COVER | 1 |
| 27 | 3H6-07705-1 | 放油螺栓10-14 P1.25 | DRAIN BOLT 10-14 P1.25 | 1 |
| 28 | 3H6-07406-0 | 垫圈10.2-19-1 | WASHER 10.2-19-1 | 1 |
| 29 | 3H6-07411-0 | 滤网壳体 | STRAINER BODY | 1 |
| 30 | 3H6-07412-0 | 滤网盖 | STRAINER CAP | 1 |
| 31 | 3H6-07413-0 | 滤网 | MESH | 1 |
| 32 | 3H6-07415-0 | 管 | PIPE | 1 |
| 33 | 3H6-07416-0 | 密封件 | SEAL | 2 |
| 34 | 3H6-07417-0 | 滤网止动塞 | STRAINER STOPPER | 1 |
| 35 | 921521-6512 | 螺钉 | SCREW | 1 |
| 36 | 3C8-02420-0 | 螺栓5-16 | BOLT 5-16 | 2 |
| 37 | 940121-0500 | 垫圈 | WASHER | 2 |
| 38 | 3H6-07402-0 | 油底壳垫片 | OILPAN GASKET | 1 |
| 39 | 3H6-02305-0 | 排气盖垫片 | EXHAUST COVER GASKET | 1 |
| 40 | 3H6-02302-1 | 排气内盖 | EXHAUST COVER (INNER) | 1 |
| 41 | 9101F4-5620 | 螺栓 | BOLT | 3 |
| 42 | 9101F4-5640 | 螺栓 | BOLT | 3 |
| 43 | 910124-5840 | 螺栓 | BOLT | 6 |
| 44 | 3H6-07611-0 | 油压开关 | OIL PRESSURE SWITCH | 1 |
| 45 | 3H6-07612-0 | 索环/护孔圈 | GROMMET | 1 |
| 46 | 3GR-07613-0 | 油压开关引线 L=240 | OIL PRESSURE SWITCH LEAD WIRE L=240 | 1 |
| 47 | 369-01210-4 | 曲轴箱盖 | CRANKCASE HEAD | 1 |
| 48 | 3GR-01215-0 | 油封 10.1-25-7 | OIL SEAL 10.1-25-7 | 2 |
| 49 | 369-01217-0 | 垫片 19-24.8-1 | SPACER 19-24.8-1 | 1 |
| 50 | 369-01214-0 | 曲轴箱盖垫片 | CRANKCASE HEAD GASKET | 1 |
| 51 | 910103-5620 | 螺栓 | BOLT | 2 |
| 52 | 3R1-07435-0 | 呼吸管 | BREATHER HOSE | 1 |
| 53 | 3C7-02215-0 | 卡扣φ12 | CLIP φ12 | 2 |
| 54 | 3H6-07421-0 | 油位计 | OIL LEVEL GAUGE | 1 |
| 55 | 3H6-07422-0 | O型圈 2.6-18.7 | O-RING 2.6-18.7 | 1 |
| 56 | 910103-5612 | 螺栓 | BOLT | 1 |
| 57 | 309-06972-0 | 卡箍 6.5-47.5P | CLAMP 6.5-47.5P | 1 |

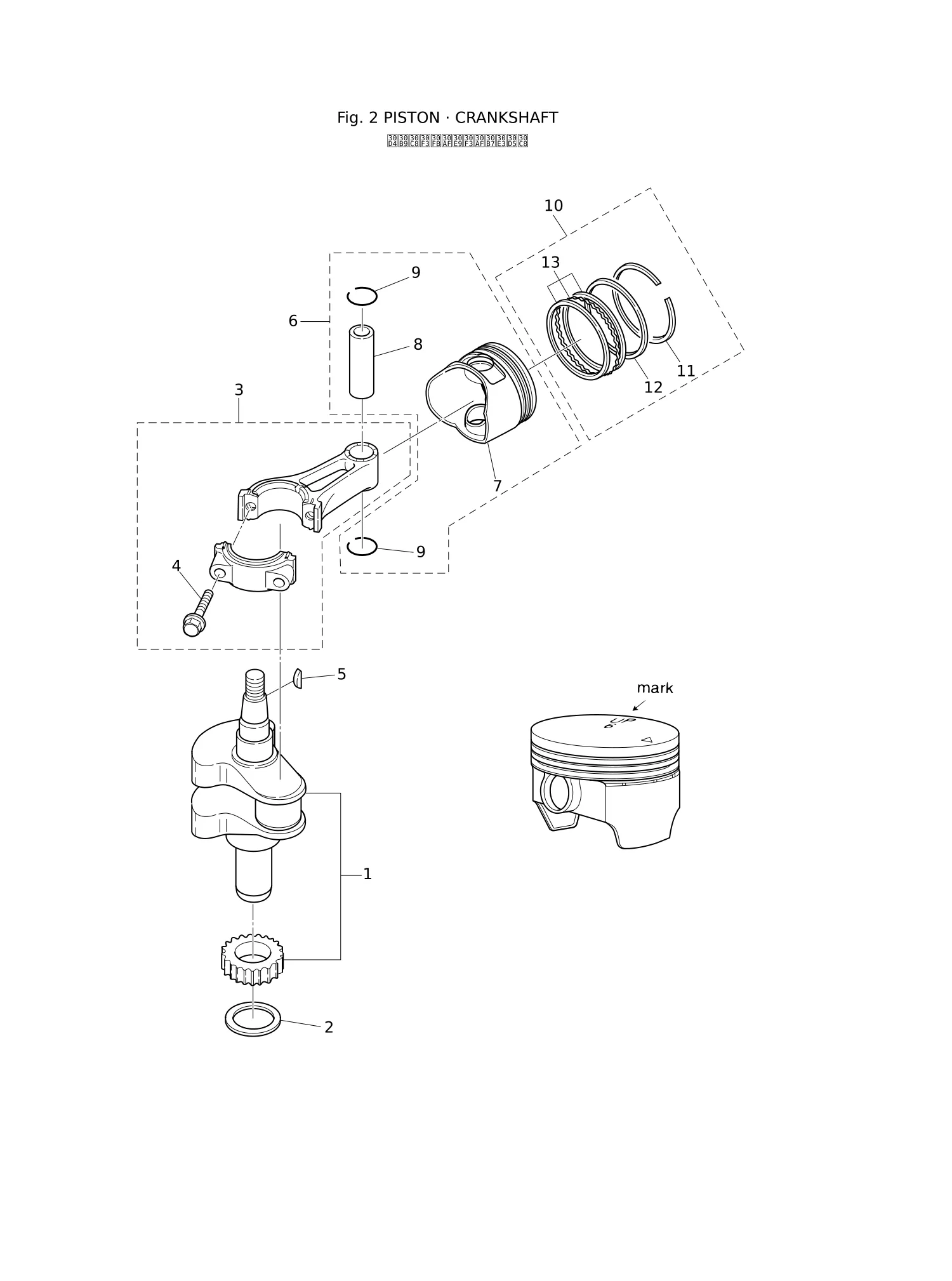

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3H6-00030-0 | 曲轴总成 | CRANKSHAFT ASSY | 1 |
| 2 | 3H6-00115-0 | 止推板 | THRUST PLATE | 1 |
| 3 | 3H6-00040-0 | 连杆总成 | CONNECTING ROD ASSY | 1 |
| 4 | 3H6-00059-0 | * 连杆螺栓 | * CONNECTING ROD BOLT | 2 |
| 5 | 338-00131-0 | 键 | KEY | 1 |
| 6 | 3JD-87130-0 | 活塞修理包 | PISTON REPAIR KIT | 1 |
| 6 | 3JD-87131-0 | 活塞修理包（0.5加大） | PISTON REPAIR KIT (0.5 O/S) | 1 |
| 7 | 3R4-00001-3 | * 活塞 | * PISTON | 1 |
| 7 | 3R4-00004-3 | * 活塞 (0.5 加大) | * PISTON (0.5 O/S) | 1 |
| 8 | 3AE-00021-0 | * 活塞销 | * PISTON PIN | 1 |
| 9 | 3H6-00024-0 | * 活塞销卡簧 | * PISTON PIN CLIP | 2 |
| 10 | 3JD-87123-0 | 活塞环组 | PISTON RING SET | 1 |
| 10 | 3JD-87124-0 | 活塞环组（0.5加大） | PISTON RING SET (0.5 O/S) | 1 |
| 11 | 3H6-00011-0 | * 活塞环 | * PISTON RING | 1 |
| 11 | 3H6-00014-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 1 |
| 12 | 3H6-00012-0 | * 活塞环 | * PISTON RING | 1 |
| 12 | 3H6-00015-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 1 |
| 13 | 3H6-00013-0 | * 油环 | * PISTON RING-OIL | 1 |
| 13 | 3H6-00016-0 | * 油环 (0.5 加大) | * PISTON RING-OIL (0.5 O/S) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

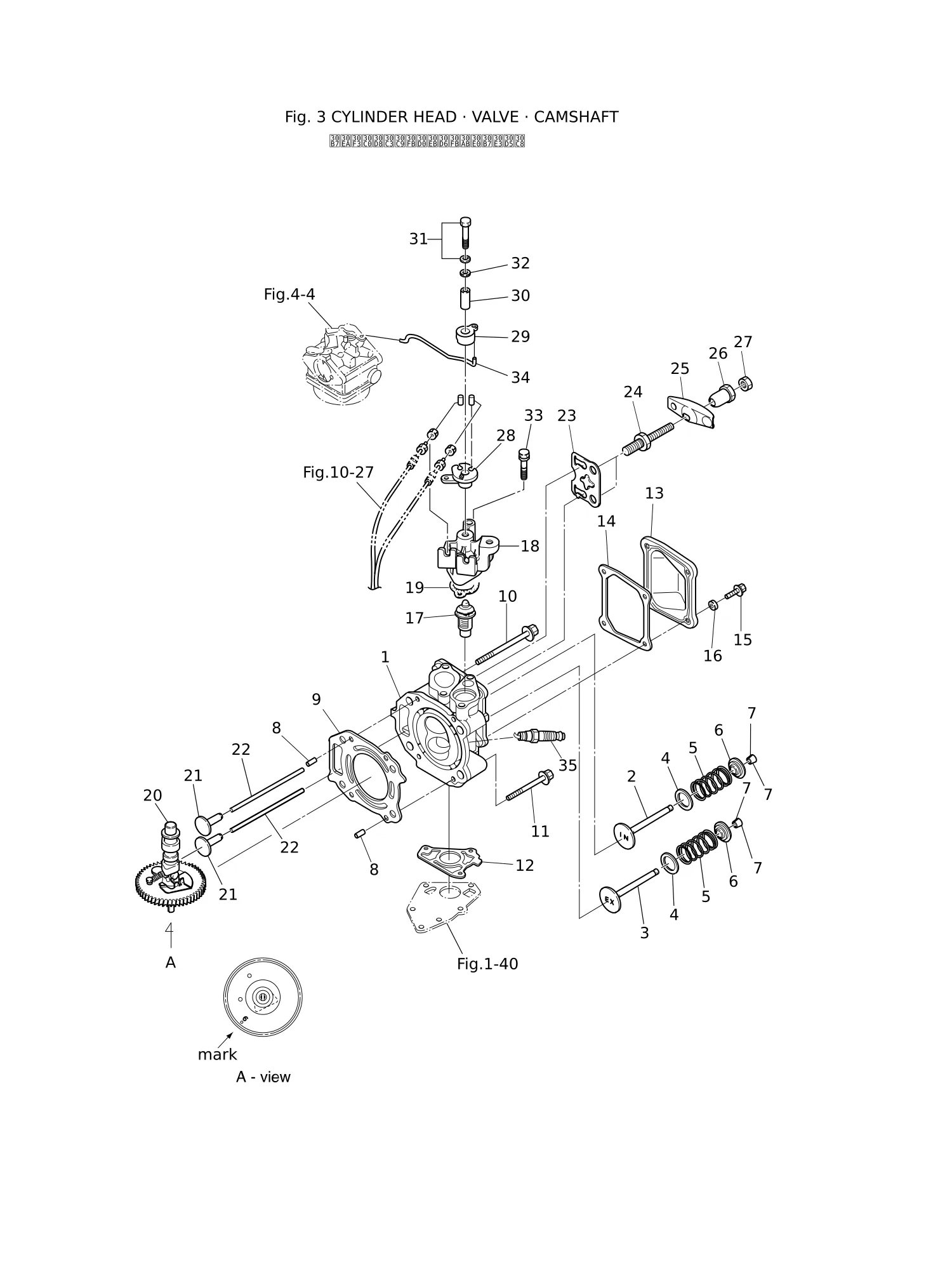

| 1 | 3R4B01001-1 | 气缸盖总成 | CYLINDER HEAD ASSY | 1 |
| 2 | 3GR-07901-0 | 进气阀 | INTAKE VALVE | 1 |
| 3 | 3GR-07902-0 | 排气阀 | EXHAUST VALVE | 1 |
| 4 | 3H6-07205-0 | 阀门弹簧座 | VALVE SPRING SEAT | 2 |
| 5 | 3AE-07203-0 | 阀门弹簧 L=35 | VALVE SPRING L=35 | 2 |
| 6 | 3H6-07221-0 | 固定座 | RETAINER | 2 |
| 7 | 3H6-07223-0 | 开口销 | COTTER | 4 |
| 8 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 2 |
| 9 | 3H6-01005-1 | 气缸盖衬垫 | CYLINDER HEAD GASKET | 1 |
| 10 | 3H6-01012-0 | 气缸盖螺栓8-90 | CYLINDER HEAD BOLT 8-90 | 2 |
| 11 | 3H6-01013-0 | 气缸盖螺栓8-60 | CYLINDER HEAD BOLT 8-60 | 2 |
| 12 | 3H6-02306-0 | 排气盖垫片 | EXHAUST COVER GASKET | 1 |
| 13 | 3H6B01021-0 | 气缸盖罩 | CYLINDER HEAD COVER | 1 |
| 14 | 3H6-01024-0 | 气缸盖罩垫片 | CYLINDER HEAD COVER GASKET | 1 |
| 15 | 910121-0616 | 螺栓 | BOLT | 4 |
| 17 | 3H6-01030-0 | 节温器 | THERMOSTAT | 1 |
| 18 | 3GRB01031-0 | 节温器盖 | THERMOSTAT CAP | 1 |
| 19 | 346-01032-0 | 节温器盖垫片 | THERMOSTAT CAP GASKET | 1 |
| 20 | 3R4-07010-1 | 凸轮轴总成 | CAMSHAFT ASSY | 1 |
| 21 | 3H6-07231-0 | 挺杆 | LIFTER | 2 |
| 22 | 3H6-07232-0 | 推杆 | PUSH ROD | 2 |
| 23 | 3H6-07233-0 | 板 | PLATE | 1 |
| 24 | 3H6-07234-0 | 枢轴螺栓 | PIVOT BOLT | 2 |
| 25 | 3GR-07935-0 | 摇臂 | ROCKER ARM | 2 |
| 26 | 3H6-07236-0 | 枢轴 | PIVOT | 2 |
| 27 | 3H6-07937-0 | 调节螺母 | ADJUSTING NUT | 2 |
| 28 | 3GR-63611-0 | 节气门鼓轮 | THROTTLE DRUM | 1 |
| 29 | 3GR-63612-0 | 节气门开启器 | THROTTLE OPENER | 1 |
| 30 | 3H6-63618-0 | 轴环 | COLLAR | 1 |
| 31 | 910103-6635 | 螺栓 | BOLT | 1 |
| 32 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 1 |
| 33 | 910103-6645 | 螺栓 | BOLT | 2 |
| 34 | 3H6-63617-0 | 节气门拉杆 | THROTTLE ROD | 1 |
| 35 | 9701-1-1103 | 火花塞 (DCPR6E) | SPARK PLUG (DCPR6E) | 1 |

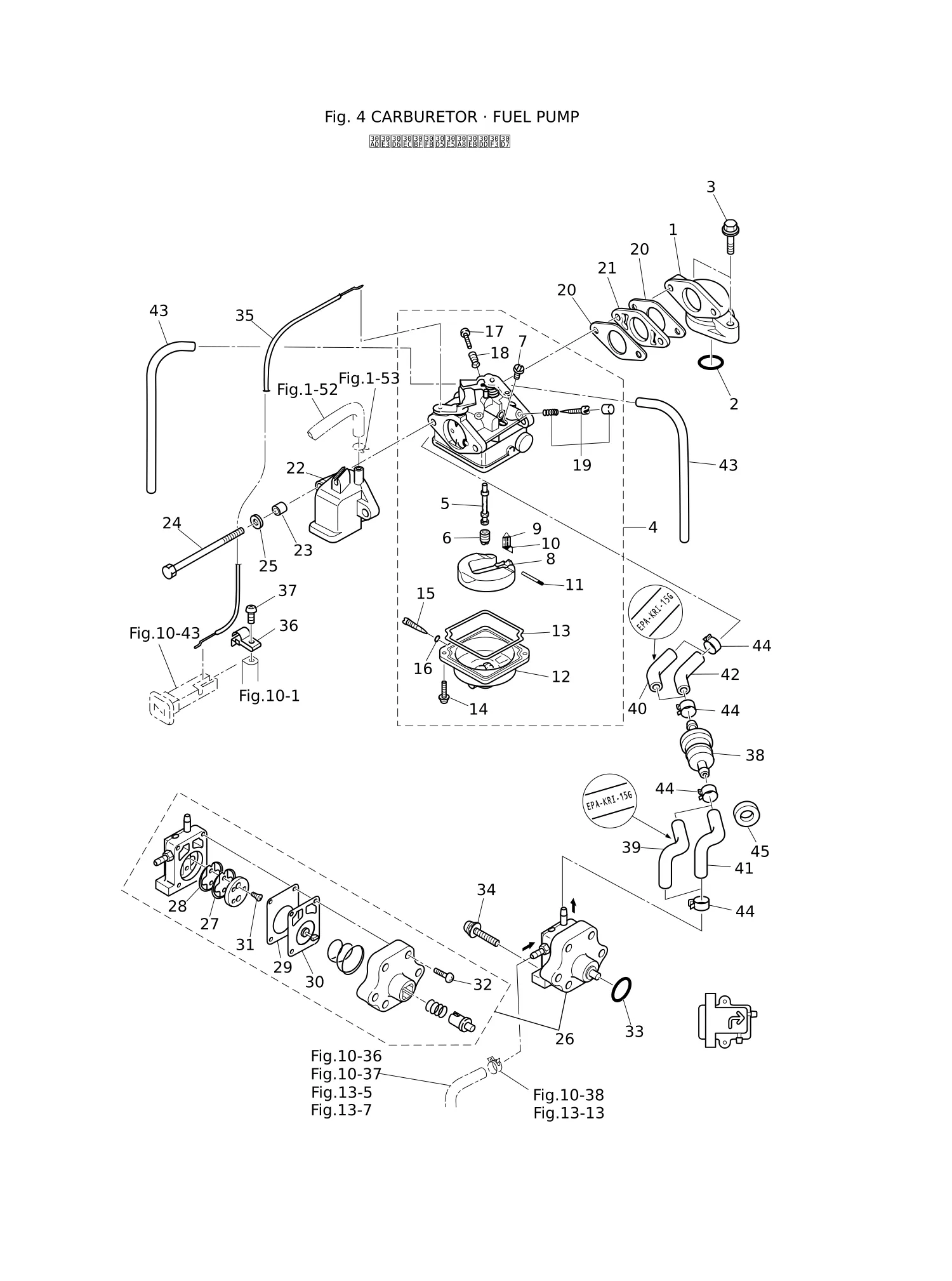

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3H6B02010-0 | 进气歧管总成 | INTAKE MANIFOLD ASSY | 1 |
| 2 | 3H6-02104-0 | 进气歧管垫片 2-33.5 | INTAKE MANIFOLD GASKET 2-33.5 | 1 |
| 3 | 910124-5625 | 螺栓 | BOLT | 2 |
| 4 | 3GR-03200-0 | 化油器总成 | CARBURETOR ASSY | |
| 4 | 3JD-03200-0 | 化油器总成 | CARBURETOR ASSY | 1 |
| 4 | 3JE-03200-0 | 化油器总成 | CARBURETOR ASSY | |
| 5 | 3GR-03252-0 | * 主喷管 | * MAIN NOZZLE | |
| 5 | 3JD-03252-0 | * 主喷管 | * MAIN NOZZLE | 1 |
| 5 | 3JE-03252-0 | * 主喷管 | * MAIN NOZZLE | |
| 6 | 3AU-04468-0 | * 主量孔 (#68) | * MAIN JET (#68) | |
| 6 | 3GR-04470-0 | * 主量孔 (#70) | * MAIN JET (#70) | |
| 6 | 3GU-04462-0 | * 主量孔 (#62) | * MAIN JET (#62) | 1 |
| 7 | 3R1-03254-0 | * 低速喷嘴(#38) | * SLOW JET (#38) | 1 |
| 8 | 3H6-03231-0 | * 浮子 | * FLOAT | 1 |
| 9 | 3H6-03240-0 | * 浮子阀 | * FLOAT VALVE | 1 |
| 10 | 3H6-03244-0 | * 卡扣 | * CLIP | 1 |
| 11 | 3H6-03232-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 12 | 3H6-03221-0 | * 浮子室 | * FLOAT CHAMBER | 1 |
| 13 | 3H6-03222-0 | * 浮子室O型圈 | * FLOAT CHAMBER O-RING | 1 |
| 14 | 922503-6412 | * 螺钉 | * SCREW | 2 |
| 15 | 3H6-03292-0 | * 放油螺钉 | * DRAIN SCREW | 1 |
| 16 | 3H6-03293-0 | * O型圈 | * O-RING | 1 |
| 17 | 3H6-03265-0 | * 止动螺钉 | * STOP SCREW | 1 |
| 18 | 3H6-03267-0 | * 弹簧 | * SPRING | 1 |
| 19 | 3AS-03266-0 | * 调节螺钉 | * PILOT SCREW | |
| 19 | 3JD-03266-0 | * 调节螺钉 | * PILOT SCREW | 1 |
| 20 | 3H6-02011-0 | 化油器垫片 | CARBURETOR GASKET | 2 |
| 21 | 3H6-03952-1 | 绝缘体 | INSULATOR | 1 |
| 22 | 3GR-02409-0 | 进气消声器总成 | INTAKE SILENCER ASSY | 1 |
| 23 | 3A0-76079-0 | 轴套 6.2-9-7.4 | COLLAR 6.2-9-7.4 | 2 |
| 24 | 9164F1-0685 | 螺栓 | BOLT | 2 |
| 25 | 940103-0600 | 垫圈 | WASHER | 2 |
| 26 | 3H6-04000-7 | 燃油泵总成 | FUEL PUMP ASSY | 1 |
| 27 | 3H6-04044-0 | * 止回阀 | * CHECK VALVE | 1 |
| 28 | 3H6-04014-1 | * 止回阀 | * CHECK VALVE | 1 |
| 29 | 3H6-04028-0 | * 泵体衬垫 | * PUMP BODY GASKET | 1 |
| 30 | 3H6-04005-0 | * 泵膜片 | * PUMP DIAPHRAGM | 1 |
| 31 | 921603-0308 | * 螺钉 | * SCREW | 2 |
| 32 | 922503-6418 | * 螺钉 | * SCREW | 4 |
| 33 | 3H6-07422-0 | O型圈 2.6-18.7 | O-RING 2.6-18.7 | 1 |
| 34 | 921503-7630 | 螺钉 | SCREW | 2 |
| 35 | 3GR-67197-0 | 阻风门拉线 | CHOKE WIRE | 1 |
| 36 | 3JD-63505-0 | 线缆固定座 | CABLE HOLDER | 1 |
| 37 | 921503-0510 | 螺钉 | SCREW | 1 |
| 38 | 369-02230-0 | 燃油滤清器总成 | FUEL FILTER ASSY | 1 |
| 39 | 3GS-02207-0 | 低渗透软管 24-29-24 | LOW PERMEATION HOSE 24-29-24 | 1 |
| 40 | 3JJ-02130-0 | 低渗透软管 L=60 | LOW PERMEATION HOSE L=60 | 1 |
| 41 | 3GR-02204-0 | 燃油软管24-29-24 | FUEL HOSE 24-29-24 | 1 |
| 42 | 3JJ-02204-0 | 燃油软管 长60 | FUEL HOSE L=60 | 1 |
| 43 | 98AB-30-270 | 软管 | HOSE | 2 |
| 44 | 3AB-35143-0 | 卡环 φ9.4 | CLIP φ9.4 | 4 |
| 45 | 3B7-06305-0 | 橡胶支座 9-16-4.3 | RUBBER MOUNT 9-16-4.3 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

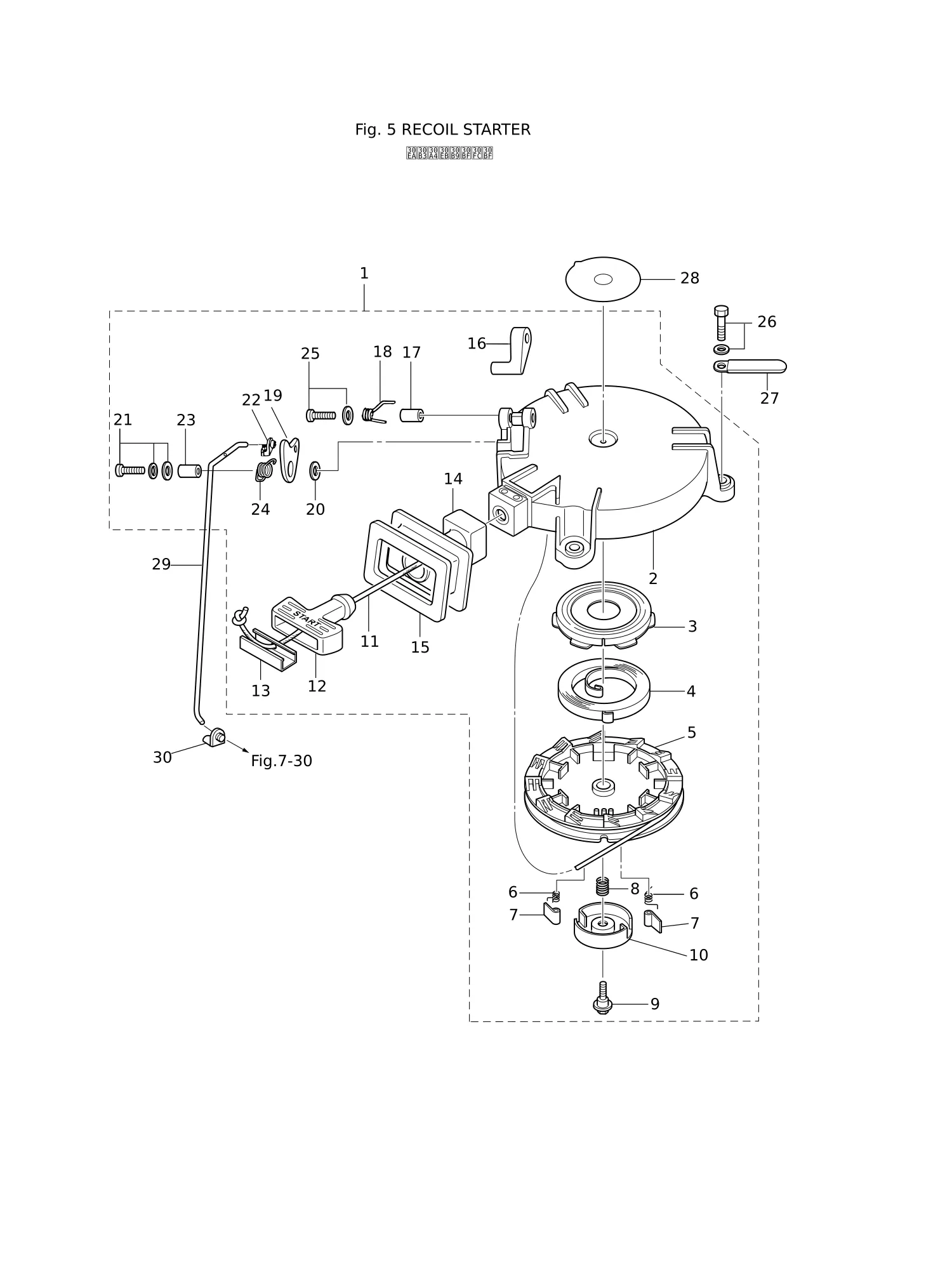

| 1 | 3GR-05090-1 | 反冲启动器总成 | RECOIL STARTER ASSY | 1 |
| 2 | 3R1-05105-0 | * 启动器外壳 | * STARTER CASE | 1 |
| 3 | 3R1-05125-0 | * 启动弹簧壳 | * STARTER SPRING CASE | 1 |
| 4 | 3R1-05004-0 | * 启动弹簧 | * STARTER SPRING | 1 |
| 5 | 3R1-05104-0 | * 卷轴 | * REEL | 1 |
| 6 | 3R1-05012-0 | * 回位弹簧 | * RETURN SPRING | 2 |
| 7 | 3R1-05003-2 | * 棘轮 | * RATCHET | 2 |
| 8 | 3R1-05007-0 | * 摩擦弹簧 | * FRICTION SPRING | 1 |
| 9 | 3R1-05138-1 | 螺栓 | * BOLT | 1 |
| 10 | 3R1-05006-2 | * 摩擦板 | * FRICTION PLATE | 1 |
| 11 | 3R1-05013-0 | * 启动绳 φ4.5-1620 | * STARTER ROPE φ4.5-1620 | 1 |
| 12 | 3R1-05019-0 | * 启动手柄 | * STARTER HANDLE | 1 |
| 13 | 3R1-05131-1 | * 绳索锚定器 | * ROPE ANCHOR | 1 |
| 14 | 3GR-05116-0 | * 密封板 | * SEALING PLATE | 1 |
| 15 | 3GR-67503-0 | * 启动器密封件 | * STARTER SEAL | 1 |
| 16 | 3GR-05252-0 | * 启动器锁 | * STARTER LOCK | 1 |
| 17 | 3R1-05255-0 | * 轴环 4-6-21 | * COLLAR 4-6-21 | 1 |
| 18 | 3R1-05216-0 | * 启动器锁弹簧 | * STARTER LOCK SPRING | 1 |
| 19 | 3GR-05253-0 | * 启动器锁凸轮 | * STARTER LOCK CAM | 1 |
| 20 | 940103-0600 | * 垫圈 | * WASHER | 1 |
| 21 | 921503-7616 | * 螺钉 | * SCREW | 1 |
| 22 | 3R1-05223-0 | * 连杆卡扣 3.5-2 | * ROD SNAP 3.5-2 | 1 |
| 23 | 3R1-05215-0 | * 轴环 6.1-8-6.5 | * COLLAR 6.1-8-6.5 | 1 |
| 24 | 3R1-05258-0 | * 启动器锁凸轮弹簧 | * STARTER LOCK CAM SPRING | 1 |
| 25 | 921503-5430 | * 螺钉 | * SCREW | 1 |
| 26 | 3AD-06864-0 | 预涂层螺栓6-25 | PRE-COATED BOLT 6-25 | 3 |
| 27 | 309-06972-0 | 卡箍 6.5-47.5P | CLAMP 6.5-47.5P | 1 |
| 28 | 3R0-72181-0 | 警示标贴(B型) | CAUTION DECAL (B) | 1 |
| 29 | 3GR-05217-1 | 启动锁杆 | STARTER LOCK ROD | 1 |
| 30 | 345-05223-1 | 3.5-2连杆卡扣 | ROD SNAP 3.5-2 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

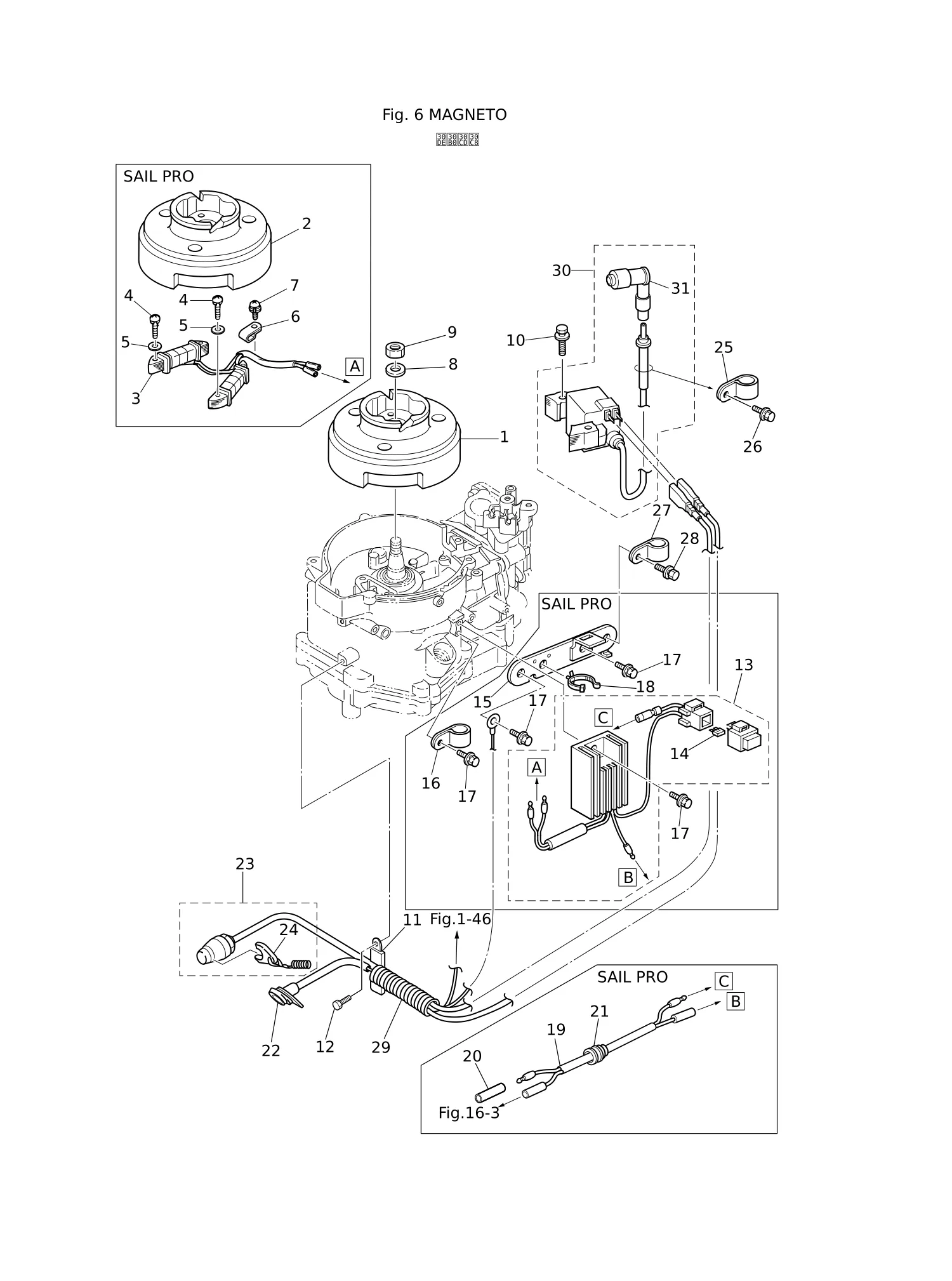

| 1 | 3AS-06009-0 | 飞轮 | FLYWHEEL | 1 |
| 2 | 3AS-06001-0 | 飞轮 | FLYWHEEL | |
| 3 | 3GR-06023-0 | 交流发电机总成 | ALTERNATOR ASSY | |
| 4 | 921503-0525 | 螺钉 | SCREW | |
| 5 | 940103-0500 | 垫圈 | WASHER | |
| 6 | 369-06915-0 | 卡箍 4.2-3-8 | CLAMP 4.2-3-8 | |
| 7 | 921521-6408 | 螺钉 | SCREW | |
| 8 | 940121-1200 | 垫圈 | WASHER | 1 |
| 9 | 369-00132-0 | 螺母 12-P1.25 | NUT 12-P1.25 | 1 |
| 10 | 910103-5630 | 螺栓 | BOLT | 2 |
| 11 | 309-06972-0 | 卡箍 6.5-47.5P | CLAMP 6.5-47.5P | 1 |
| 13 | 3GR-76060-0 | 整流器总成 | RECTIFIER COMPLETE | |
| 14 | 3GR-76246-0 | * 保险丝 10A | * FUSE 10A | |
| 15 | 3GR-06900-0 | 电机支架总成 | ELECTRIC BRACKET ASSY | |
| 17 | 910103-5614 | 螺栓 | BOLT | |
| 18 | 3BJ-84398-0 | 箍带 135 | BAND 135 | |
| 19 | 399-76120-0 | 蓄电池电缆 L=494 | BATTERY CABLE L=494 | |
| 20 | 3H6-76037-0 | 电缆端子插头 | CABLE TERMINAL PLUG | |
| 21 | 345-66226-0 | 索环 17-3 | GROMMET 17-3 | |
| 22 | 3GR-71040-0 | 指示灯总成 | PILOT LAMP ASSY | 1 |
| 23 | 3GR-06870-0 | 停止开关总成 | STOP SWITCH ASSY | 1 |
| 24 | 353-06821-0 | * 停机开关拉绳总成 | * STOP SWITCH LANYARD ASSY | 1 |
| 27 | 345-06915-0 | 卡箍 6.5-14L | CLAMP 6.5-14L | |
| 28 | 910103-5612 | 螺栓 | BOLT | 1 |
| 29 | 3H6-06133-0 | 保护套 | PROTECTOR | 1 |
| 30 | 3GR-06041-0 | 带帽点火器 | IGNITER W/R-CAP | 1 |
| 31 | 3H6-06999-0 | * 带电阻火花塞帽 | * PLUG CAP W/RESISTANCE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

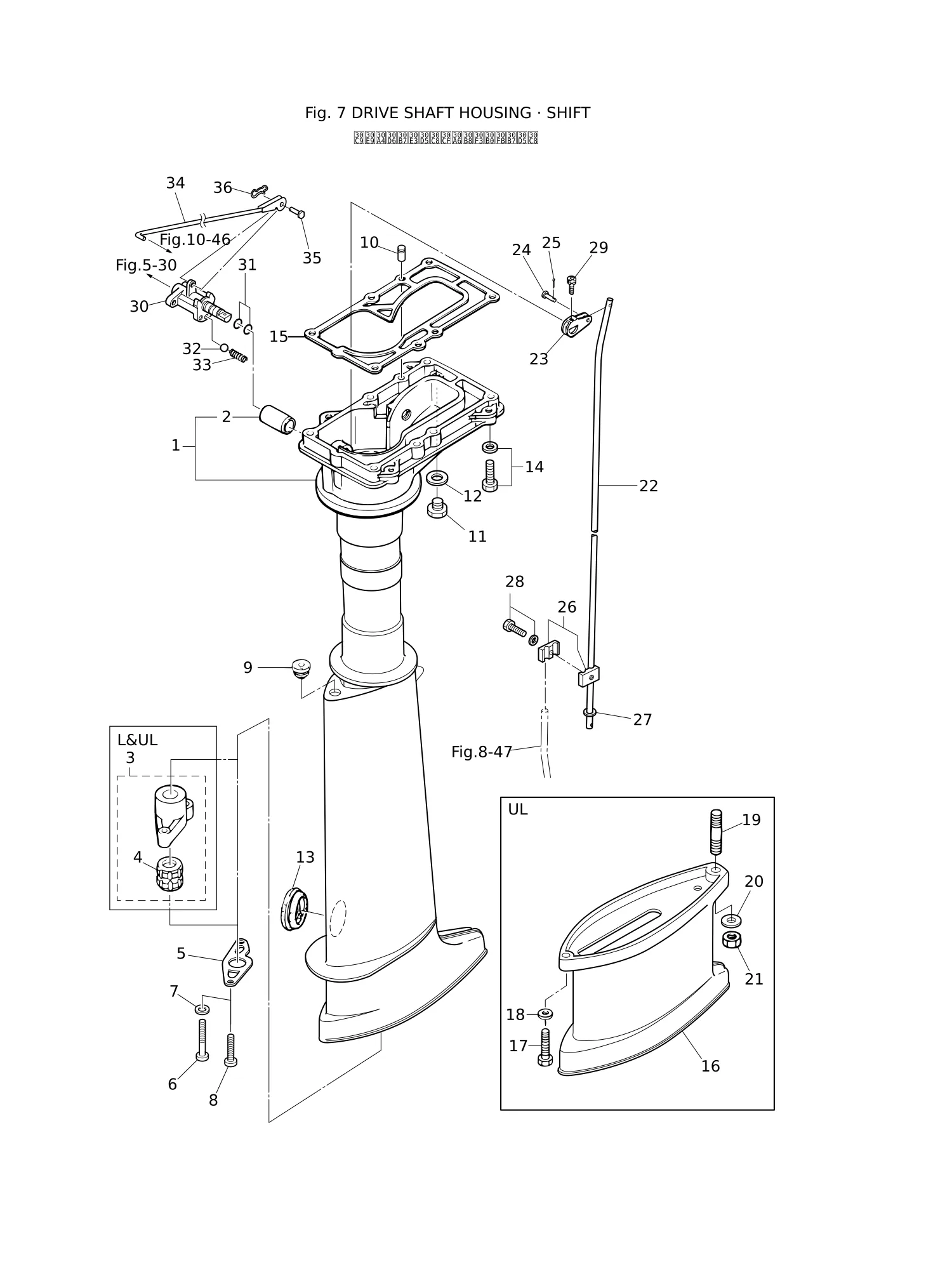

| 1 | 3ASQ61030-3 | 驱动轴壳体总成(L) | DRIVE SHAFT HOUSING ASSY (L) | |
| 1 | 3H6Q61020-3 | 驱动轴壳体总成(S) | DRIVE SHAFT HOUSING ASSY (S) | 1 |
| 1 | 3H6Q61030-4 | 驱动轴壳体总成(L) | DRIVE SHAFT HOUSING ASSY (L) | 1 |
| 2 | 301-61021-0 | * 衬套 | * BUSHING | 1 |
| 3 | 369-64331-2 | 驱动轴衬套总成 | DRIVE SHAFT BUSHING ASSY | 1 |
| 3 | 3AS-64331-0 | 驱动轴衬套总成 | DRIVE SHAFT BUSHING ASSY | |
| 4 | 369-60003-0 | * 驱动轴衬套 | * DRIVE SHAFT BUSHING | 1 |
| 4 | 3AB-60003-0 | * 驱动轴衬套 | * DRIVE SHAFT BUSHING | |
| 5 | 369-64332-1 | 止动块 | STOPPER | 1 |
| 6 | 3H6-64333-1 | 预涂层螺钉5-25 | PRE-COATED SCREW 5-25 | 2 |
| 7 | 9401E3-0500 | 垫圈 | WASHER | 2 |
| 8 | 9215E3-0510 | 螺钉 | SCREW | 2 |
| 9 | 369-66043-1 | 索环/护孔圈 | GROMMET | 1 |
| 10 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 2 |
| 11 | 9106E3-0808 | 螺栓 | BOLT | 1 |
| 12 | 332-60006-0 | 衬垫8.1-15-1 | GASKET 8.1-15-1 | 1 |
| 13 | 369-61016-0 | 索环 29-3 | GROMMET 29-3 | 1 |
| 14 | 9101E3-5630 | 螺栓 | BOLT | 6 |
| 15 | 3H6-61012-0 | 驱动轴壳体衬垫 | DRIVE SHAFT HOUSING GASKET | 1 |
| 16 | 369Q61110-2 | 延伸壳体 | EXTENSION HOUSING | |
| 17 | 9161E3-0625 | 螺栓 | BOLT | |
| 18 | 9401E3-0600 | 垫圈 | WASHER | |
| 19 | 9152E3-0825 | 螺柱 | STUD | |
| 20 | 9401E3-0800 | 垫圈 | WASHER | |
| 21 | 930103-0800 | 螺母 | NUT | |
| 22 | 369-66214-0 | 换挡连杆(短) | SHIFT ROD (S) | 1 |
| 22 | 3GR-66215-0 | 换挡连杆(长) | SHIFT ROD (L) | 1 |
| 23 | 369-66225-0 | 换挡杆手柄 | SHIFT ROD LEVER | 1 |
| 24 | 369-66223-0 | 销钉 | PIN | 1 |
| 25 | 951503-1210 | 开口销 | SPLIT PIN | 1 |
| 26 | 369-66241-0 | 换挡杆接头总成 | SHIFT ROD JOINT ASSY | 1 |
| 27 | 940103-0600 | 垫圈 | WASHER | 1 |
| 28 | 910103-5616 | 螺栓 | BOLT | 1 |
| 29 | 910903-6416 | 螺栓 | BOLT | 1 |
| 30 | 3GR-66130-0 | 换挡杆轴总成 | SHIFT LEVER SHAFT ASSY | 1 |
| 31 | 301-66136-0 | O型圈1.9-8.8 | O-RING 1.9-8.8 | 2 |
| 32 | 3GR-66116-0 | 陶瓷球7.7 | CERAMIC BALL 7.7 | 1 |
| 33 | 3GR-66112-0 | 弹簧 | SPRING | 1 |
| 34 | 3GR-66134-1 | 换挡杆连杆 | SHIFT LEVER ROD | 1 |
| 35 | 3GR-66223-0 | 销钉 | PIN | 1 |
| 36 | 3EF-65307-0 | 弹性销 | SNAP PIN | 1 |

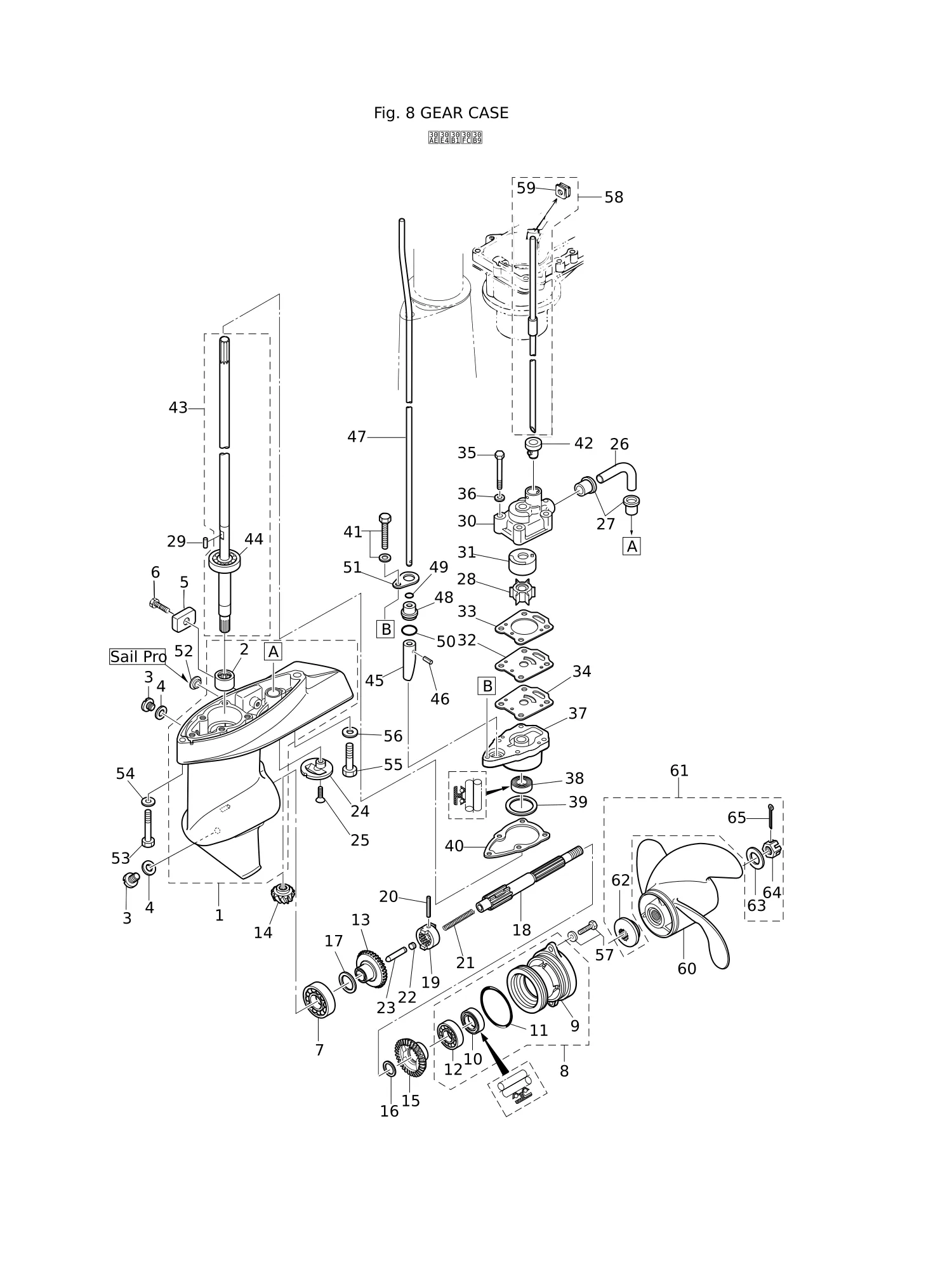

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 369Q60000-3 | 齿轮箱总成 | GEAR CASE ASSY | 1 |
| 1 | 399Q60000-3 | 齿轮箱总成 | GEAR CASE ASSY | |
| 2 | 369-60211-0 | * 滚柱轴承 14-20-12 | * ROLLER BEARING 14-20-12 | 1 |
| 3 | 332-60005-2 | 塞 8-8 | PLUG 8-8 | 2 |
| 4 | 332-60006-0 | 衬垫8.1-15-1 | GASKET 8.1-15-1 | 2 |
| 5 | 3H6-60218-0 | 阳极块 | ANODE | 1 |
| 6 | 910103-0616 | 螺栓 | BOLT | 1 |
| 7 | 9601-0-6004 | 滚珠轴承 6004 | BALL BEARING 6004 | 1 |
| 8 | 369Q87323-1 | 螺旋桨轴套总成 | PROPELLER SHAFT HOUSING ASSY | 1 |
| 9 | 369Q60101-1 | * 螺旋桨轴套 | * PROPELLER SHAFT HOUSING | 1 |
| 10 | 369-60111-0 | * 油封 15-28-10 | * OIL SEAL 15-28-10 | 1 |
| 11 | 345-65015-0 | * O型圈 3.2-47 | * O-RING 3.2-47 | 1 |
| 12 | 9601-0-6002 | * 球轴承 6002 | * BALL BEARING 6002 | 1 |
| 13 | 369-64010-2 | 锥齿轮总成(A) | BEVEL GEAR ASSY (A) | 1 |
| 14 | 369-64020-2 | 锥齿轮B | BEVEL GEAR B | 1 |
| 15 | 369-64030-2 | 锥齿轮总成(C) | BEVEL GEAR ASSY (C) | 1 |
| 16 | 369-64032-0 | 垫片 15.2-19-1.9 | WASHER 15.2-19-1.9 | 1 |
| 17 | 369-64014-0 | 垫片 21-28-0.1 | SHIM 21-28-0.1 | A |
| 17 | 369-64015-0 | 垫片 21-28-0.15 | SHIM 21-28-0.15 | A |
| 18 | 369-64211-1 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 19 | 301-64215-1 | 离合器 | CLUTCH | 1 |
| 20 | 301-64217-0 | 销 3.5-28 | PIN 3.5-28 | 1 |
| 21 | 393-64221-0 | 弹簧 | SPRING | 1 |
| 22 | 369-64222-0 | 弹簧挡圈 | SPRING RETAINER | 1 |
| 23 | 369-64223-0 | 推杆 | PUSH ROD | 1 |
| 24 | 369-60206-0 | 滤水器 | WATER STRAINER | 1 |
| 25 | 921803-0620 | 螺钉 | SCREW | 1 |
| 26 | 369-65035-0 | 水管(下) | WATER PIPE (LOWER) | 1 |
| 27 | 369-65036-0 | 密封件 | SEAL | 2 |
| 28 | 369-65021-1 | 水泵叶轮 | WATER PUMP IMPELLER | 1 |
| 29 | 369-65022-0 | 键 φ2-11 | KEY φ2-11 | 1 |
| 30 | 369-65016-0 | 泵壳(上) | PUMP CASE (UPPER) | 1 |
| 31 | 369-65011-0 | 泵壳衬套 | PUMP CASE LINER | 1 |
| 32 | 369-65025-0 | 水泵导板 | WATER PUMP GUIDE PLATE | 1 |
| 33 | 369-65018-0 | 泵壳垫片 | PUMP CASE GASKET | 1 |
| 34 | 369-65029-0 | 导板垫片 | GUIDE PLATE GASKET | 1 |
| 36 | 940103-0600 | 垫圈 | WASHER | 4 |
| 37 | 369-65017-1 | 泵壳(下) | PUMP CASE (LOWER) | 1 |
| 38 | 369-60223-0 | 油封 10-24-8 | OIL SEAL 10-24-8 | 1 |
| 39 | 369-64081-1 | 垫片 26.5-34.8-0.1 | SHIM 26.5-34.8-0.1 | A |
| 39 | 369-64082-1 | 垫片 26.5-34.8-0.15 | SHIM 26.5-34.8-0.15 | A |
| 40 | 369-65020-0 | 泵壳垫片(下) | PUMP CASE GASKET (LOWER) | 1 |
| 41 | 910103-5625 | 螺栓 | BOLT | 1 |
| 42 | 369-65014-0 | 水管密封件(下) | WATER PIPE SEAL (LOWER) | 1 |
| 43 | 369-64301-0 | 驱动轴总成(S) | DRIVE SHAFT ASSY (S) | 1 |
| 43 | 369-64302-0 | 驱动轴总成(L) | DRIVE SHAFT ASSY (L) | 1 |
| 43 | 369-64303-0 | 驱动轴总成(UL) | DRIVE SHAFT ASSY (UL) | |
| 44 | 9601-0-6300 | * 球轴承 6300 | * BALL BEARING 6300 | 1 |
| 45 | 369-66011-0 | 离合器凸轮 | CLUTCH CAM | 1 |
| 46 | 951407-0310 | 弹簧销 3-10 | SPRING PIN 3-10 | 1 |
| 47 | 369-66012-1 | 凸轮杆(短) | CAM ROD (S) | 1 |
| 47 | 369-66013-1 | 凸轮杆(长) | CAM ROD (L) | 1 |
| 47 | 369-66014-2 | 凸轮杆(超长) | CAM ROD (UL) | |
| 48 | 369-66031-0 | 凸轮杆衬套 | CAM ROD BUSHING | 1 |
| 49 | 369-66021-1 | O型圈 2.5-4.9 | O-RING 2.5-4.9 | 1 |
| 50 | 332-66032-0 | O型圈 2.4-15.4 | O-RING 2.4-15.4 | 1 |
| 51 | 369-66033-0 | 止动块 | STOPPER | 1 |
| 52 | 3DK-61016-0 | 索环/护孔圈 | GROMMET | |
| 53 | 9161E3-0645 | 螺栓 | BOLT | 1 |
| 54 | 9401E3-0600 | 垫圈 | WASHER | 1 |
| 55 | 9161E3-0835 | 螺栓 | BOLT | 1 |
| 56 | 9401E3-0800 | 垫圈 | WASHER | 1 |
| 57 | 9101E3-5616 | 螺栓 | BOLT | 2 |
| 58 | 369-65100-0 | 水管总成(短) | WATER PIPE ASSY (S) | 1 |
| 58 | 369-65110-0 | 水管总成(左) | WATER PIPE ASSY (L) | 1 |
| 58 | 369-65120-0 | 水管总成(左上) | WATER PIPE ASSY (UL) | |
| 59 | 369-65195-0 | * 护孔环 | * GROMMET | 1 |
| 60 | 369B64518-1 | 螺旋桨总成(9英寸) | PROPELLER ASSY (9") | 1 |
| 60 | 393B64512-1 | 螺旋桨总成(6英寸) | PROPELLER ASSY (6") | 1 |
| 60 | 399B64512-1 | 螺旋桨总成(6英寸) | PROPELLER ASSY (6") | 1 |
| 60 | 3R1B64514-1 | 螺旋桨总成(7英寸) | PROPELLER ASSY (7") | 1 |
| 60 | 3R1B64516-1 | 螺旋桨总成(8英寸) | PROPELLER ASSY (8") | 1 |
| 61 | 3H6-87326-0 | 螺旋桨五金件套件 | PROPELLER HARDWARE KIT | 1 |
| 62 | 3AS-64230-0 | * 推力支架总成 | * THRUST HOLDER ASSY | 1 |
| 63 | 369-64124-0 | * 垫圈 10.5-28-2 | * WASHER 10.5-28-2 | 1 |
| 64 | 369-64121-0 | * 螺旋桨螺母 | * PROPELLER NUT | 1 |
| 65 | 951503-0318 | * 开口销 3-18 | * SPLIT PIN 3-18 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

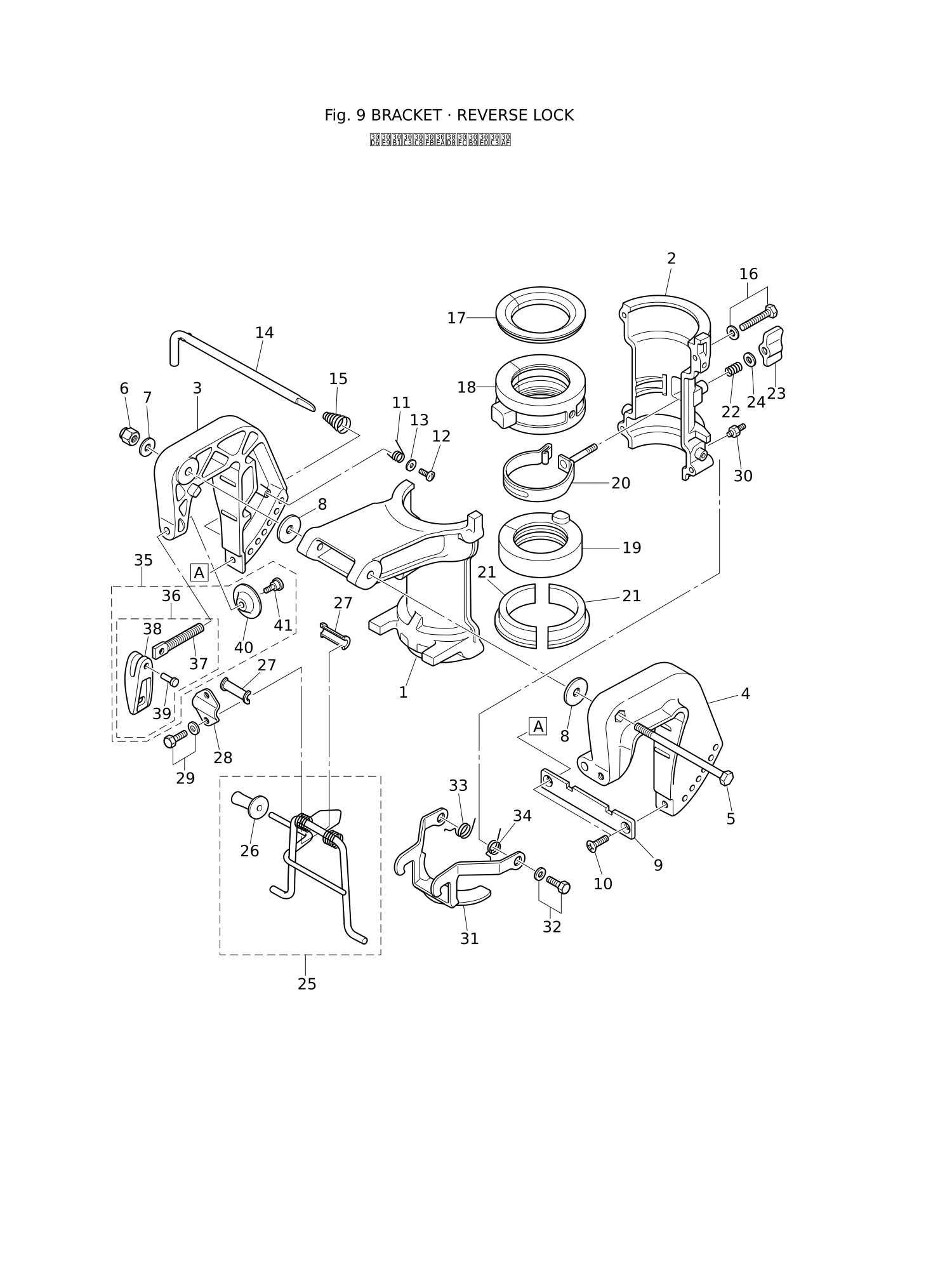

| 1 | 3H6Q62391-0 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 3H6Q62392-1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 3 | 369Q62112-3 | 夹紧支架(右) | CLAMP BRACKET (R) | 1 |
| 4 | 369Q62113-2 | 卡箍支架 (左) | CLAMP BRACKET (L) | 1 |
| 5 | 309-62115-2 | 螺栓8-122 | BOLT 8-122 | 1 |
| 6 | 930403-0800 | 尼龙螺母 8-P1.25 | NYLON NUT 8-P1.25 | 1 |
| 7 | 9401E3-0800 | 垫圈 | WASHER | 1 |
| 8 | 307-62116-1 | 垫圈 8.5-28-1 | WASHER 8.5-28-1 | 2 |
| 9 | 3B2-62118-0 | 隔板 | DISTANCE PLATE | 1 |
| 10 | 9216E3-0612 | 螺钉 | SCREW | 2 |
| 11 | 369-62146-1 | 船尾支架弹簧 | STERN BRACKET SPRING | 1 |
| 12 | 921703-0406 | 螺钉 | SCREW | 1 |
| 13 | 369-62147-0 | 垫片 4.3-16-1.5 | WASHER 4.3-16-1.5 | 1 |
| 14 | 350-62121-2 | 推力杆 | THRUST ROD | 1 |
| 15 | 369-62122-2 | 推力杆弹簧 | THRUST ROD SPRING | 1 |
| 16 | 9101E3-5640 | 螺栓 | BOLT | 4 |
| 17 | 3H6-62325-0 | 止推衬套 | THRUST BUSHING | 1 |
| 18 | 3H6-61301-0 | 衬套 | BUSHING | 1 |
| 19 | 3H6-62417-1 | 衬套 | BUSHING | 1 |
| 20 | 3H9-62418-1 | 摩擦带总成 | FRICTION BAND ASSY | 1 |
| 21 | 3H6-62424-0 | 下止推板 | THRUST PLATE (LOWER) | 2 |
| 22 | 3H9-62446-0 | 弹簧 | SPRING | 1 |
| 23 | 3H9-62442-0 | 摩擦旋钮 | FRICTION KNOB | 1 |
| 24 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 1 |
| 25 | 3GR-62431-0 | 倾斜止动器总成 | TILT STOPPER ASSY | 1 |
| 26 | 3AS-62433-0 | * 倾斜止动握把 | * TILT STOPPER GRIP | 1 |
| 27 | 393-62437-1 | 衬套 | BUSHING | 2 |
| 28 | 369-62439-1 | 定位板 | SETTING PLATE | 1 |
| 29 | 9101E3-5612 | 螺栓 | BOLT | 2 |
| 30 | 344-67177-1 | 黄油嘴 | GREASE FITTING | 2 |
| 31 | 3H6-66313-0 | 倒车锁臂 | REVERSE LOCK ARM | 1 |
| 32 | 9101E3-5614 | 螺栓 | BOLT | 2 |
| 33 | 369-66338-0 | 倒挡锁弹簧(右) | REVERSE LOCK SPRING (R) | 1 |
| 34 | 369-66339-0 | 倒挡锁弹簧(左) | REVERSE LOCK SPRING (L) | 1 |
| 35 | 3GTQ62105-1 | 夹紧螺丝套件 | CLAMP SCREW KIT | 1 |
| 36 | 3GTQ62108-1 | * 卡箍螺丝总成 | * CLAMP SCREW ASSY | 1 |
| 37 | 369-62106-1 | 夹紧螺钉 | ** CLAMP SCREW | 1 |
| 38 | 3ABQ62102-0 | 夹紧螺钉手柄 | ** CLAMP SCREW HANDLE | 1 |
| 39 | 3C8-62104-2 | 铆钉 3-22 | ** RIVET 3-22 | 1 |
| 40 | 332-62101-1 | * 卡箍螺丝垫片 | * CLAMP SCREW PAD | 1 |
| 41 | 3C8-62107-0 | * 肩螺栓 | * SHOULDER BOLT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

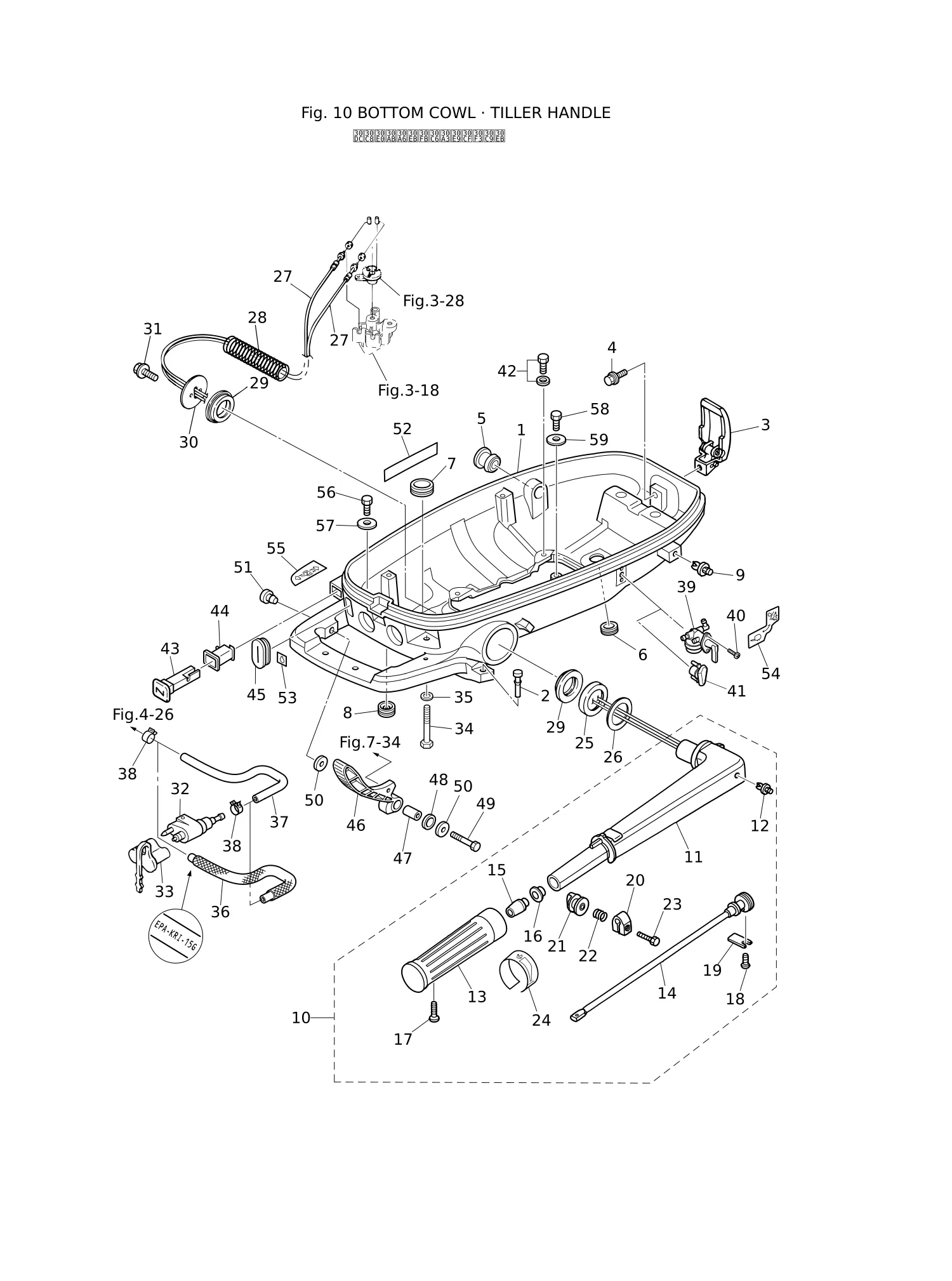

| 1 | 3GRQ67100-0 | 下罩壳 | BOTTOM COWL | 1 |
| 2 | 3GR-67161-0 | 索环 22-3 | GROMMET 22-3 | 1 |
| 3 | 3AA-67120-1 | 整流罩锁扣总成 | COWL LATCH ASSY | 1 |
| 4 | 910103-5616 | 螺栓 | BOLT | 1 |
| 5 | 3GR-67187-0 | 索环 15.5-27 | GROMMET 15.5-27 | 1 |
| 6 | 338-67163-0 | 索环 18-2.5 | GROMMET 18-2.5 | 1 |
| 7 | 3B7-76093-0 | 索环 25-5 | GROMMET 25-5 | 1 |
| 8 | 345-67117-0 | 索环 17-2.7 | GROMMET 17-2.7 | 1 |
| 10 | 3V1Q63003-4 | 舵柄总成 | TILLER HANDLE ASSY | 1 |
| 11 | 3V1Q63011-3 | * 舵柄手柄 | * TILLER HANDLE | 1 |
| 12 | 350-67154-0 | 塑料铆钉6.5 | *PLASTIC RIVET 6.5 | 1 |
| 13 | 3R3-63012-0 | * 手柄 | * GRIP | 1 |
| 14 | 3V1-63041-0 | * 节气门轴 | * THROTTLE SHAFT | 1 |
| 15 | 3H6-63048-0 | * 节气门轴缓冲器 | * THROTTLE SHAFT DAMPER | 1 |
| 16 | 3H6-63510-0 | * 衬套 14-15.8-7 | * BUSHING 14-15.8-7 | 1 |
| 17 | 920803-0518 | * 螺钉 | * SCREW | 1 |
| 18 | 9215E3-0612 | * 螺钉 | * SCREW | 1 |
| 19 | 3B2-63063-0 | * 节气门轴支撑 | * THROTTLE SHAFT SUPPORT | 1 |
| 20 | 3V1-63035-1 | * 摩擦片 | * FRICTION PIECE | 1 |
| 21 | 3V1-63077-0 | * 调节螺母 | * ADJUSTING NUT | 1 |
| 22 | 3V1-63036-0 | * 弹簧 | * SPRING | 1 |
| 23 | 9101E3-0625 | 螺栓 | * BOLT | 1 |
| 24 | 3V9-72019-0 | * 油门标识贴 | * THROTTLE DECAL | 1 |
| 25 | 3H6-63026-0 | 垫片 33.5-55-3.3 | SPACER 33.5-55-3.3 | 1 |
| 26 | 3B2-63108-0 | 垫片 30-45-1 | WASHER 30-45-1 | 1 |
| 27 | 3GR-63600-0 | 节气门拉线 | THROTTLE WIRE | 2 |
| 28 | 3H6-06133-0 | 保护套 | PROTECTOR | 1 |
| 29 | 3H6-63102-0 | 衬套 | BUSHING | 2 |
| 30 | 3GR-63107-0 | 盖板 | COVER | 1 |
| 32 | 394-70260-0 | 燃油接头（公头） | FUEL CONNECTOR (MALE) | 1 |
| 33 | 3H6-70262-0 | 燃油接头护套 | FUEL CONNECTOR PROTECTOR | 1 |
| 34 | 910103-0625 | 螺栓 | BOLT | 1 |
| 35 | 940203-0600 | 垫圈 | WASHER | 1 |
| 36 | 3JF-02160-0 | 带保护套燃油软管 353-40-30 | FUEL HOSE W/PROTECTOR 353-40-30 | |
| 37 | 3JG-02203-0 | 燃油软管353-40-30 | FUEL HOSE 353-40-30 | |
| 38 | 3AB-35143-0 | 卡环 φ9.4 | CLIP φ9.4 | |
| 39 | 3H9-70311-0 | 燃油旋塞总成 | FUEL COCK ASSY | 1 |
| 40 | 3GR-83821-0 | 螺钉 | SCREW | 2 |
| 41 | 3GR-67129-0 | 索环/护孔圈 | GROMMET | |
| 42 | 9101E3-5616 | 螺栓 | BOLT | 4 |
| 43 | 3H6-67151-0 | 阻风门拉杆 | CHOKE ROD | 1 |
| 44 | 3GR-67104-0 | 阻风门拉杆衬套 | CHOKE ROD BUSHING | 1 |
| 45 | 3GR-66260-0 | 索环/护孔圈 | GROMMET | 1 |
| 46 | 3GR-66110-0 | 换挡杆 | SHIFT LEVER | 1 |
| 47 | 3GR-63066-0 | 轴环 15.9-17-9 | COLLAR 15.9-17-9 | 1 |
| 48 | 3GR-63108-0 | 垫片 30-45-1 | WASHER 30-45-1 | 1 |
| 49 | 3H6-62445-0 | 螺栓 | BOLT | 1 |
| 51 | 3A3-76037-0 | 电缆端子插头 | CABLE TERMINAL PLUG | 1 |
| 52 | 3H6-67572-0 | 存放标识 | STORAGE DECAL | 1 |
| 53 | 3BA-76199-0 | 油压标贴 | OIL PRESSURE DECAL | 1 |
| 54 | 3JJ-72024-0 | 燃油杆标贴 | FUEL LEVER DECAL | 1 |
| 55 | 3JJ-67578-0 | 换挡标识贴 | SHIFT DECAL | 1 |
| 58 | 910103-0612 | 螺栓 | BOLT | |
| 59 | 345-05122-1 | 垫片 6.5-23-1.5 | WASHER 6.5-23-1.5 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3AU-67562-1 | 帆船专业贴花 | SAIL PRO DECAL | 2 |
| 1 | 3LE-67561-0 | SP贴花 | SP DECAL | 2 |
| 2 | 3R0-72180-0 | 警示标贴(A型) | CAUTION DECAL (A) | 1 |

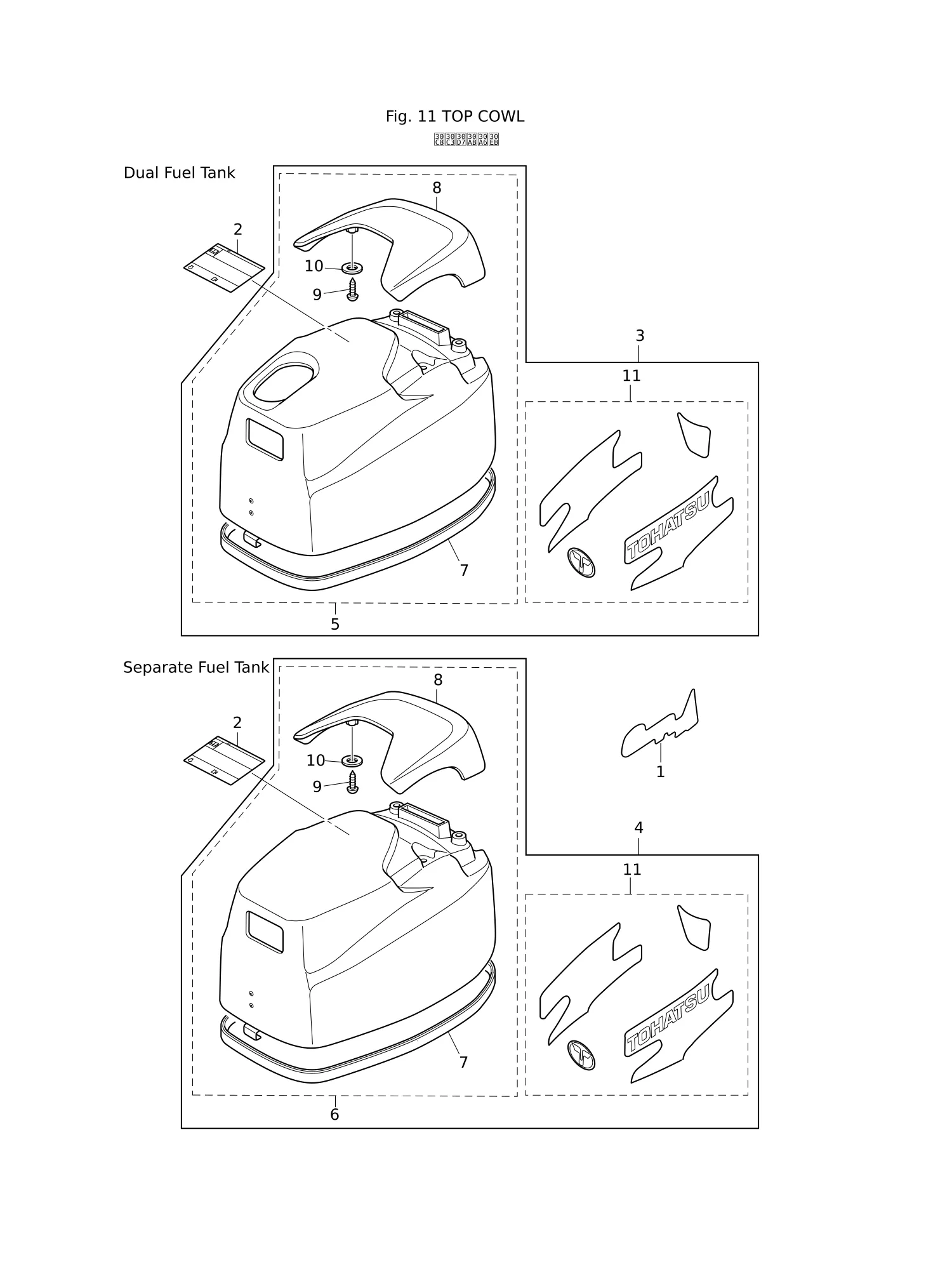

| 3 | 3JDQ67645-1 | 顶罩总成 | TOP COWL ASSY | 1 |
| 4 | 3GRQ67645-1 | 顶罩总成 | TOP COWL ASSY | 1 |
| 5 | 3GRQ67640-0 | * 顶罩分总成 | * TOP COWL SUB-ASSY | 1 |
| 6 | 3JEQ67640-0 | * 顶罩分总成 | * TOP COWL SUB-ASSY | 1 |
| 7 | 3GR-67501-0 | 顶罩密封条 | ** TOP COWL SEAL | 1 |
| 8 | 3JDQ67521-0 | 倾斜把手 | ** TILT HANDLE | 1 |
| 9 | 3GR-05913-0 | 自攻螺钉 | ** TAPPING SCREW | 4 |
| 10 | 940103-0600 | 垫圈 | ** WASHER | 4 |
| 11 | 3GP-87801-2 | * 贴花套装 (MFS4C) | * DECAL SET (MFS4C) | 1 |
| 11 | 3GR-87801-2 | * 贴花套装 (MFS5C) | * DECAL SET (MFS5C) | 1 |
| 11 | 3GS-87801-2 | * 贴花套装 (MFS6C) | * DECAL SET (MFS6C) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

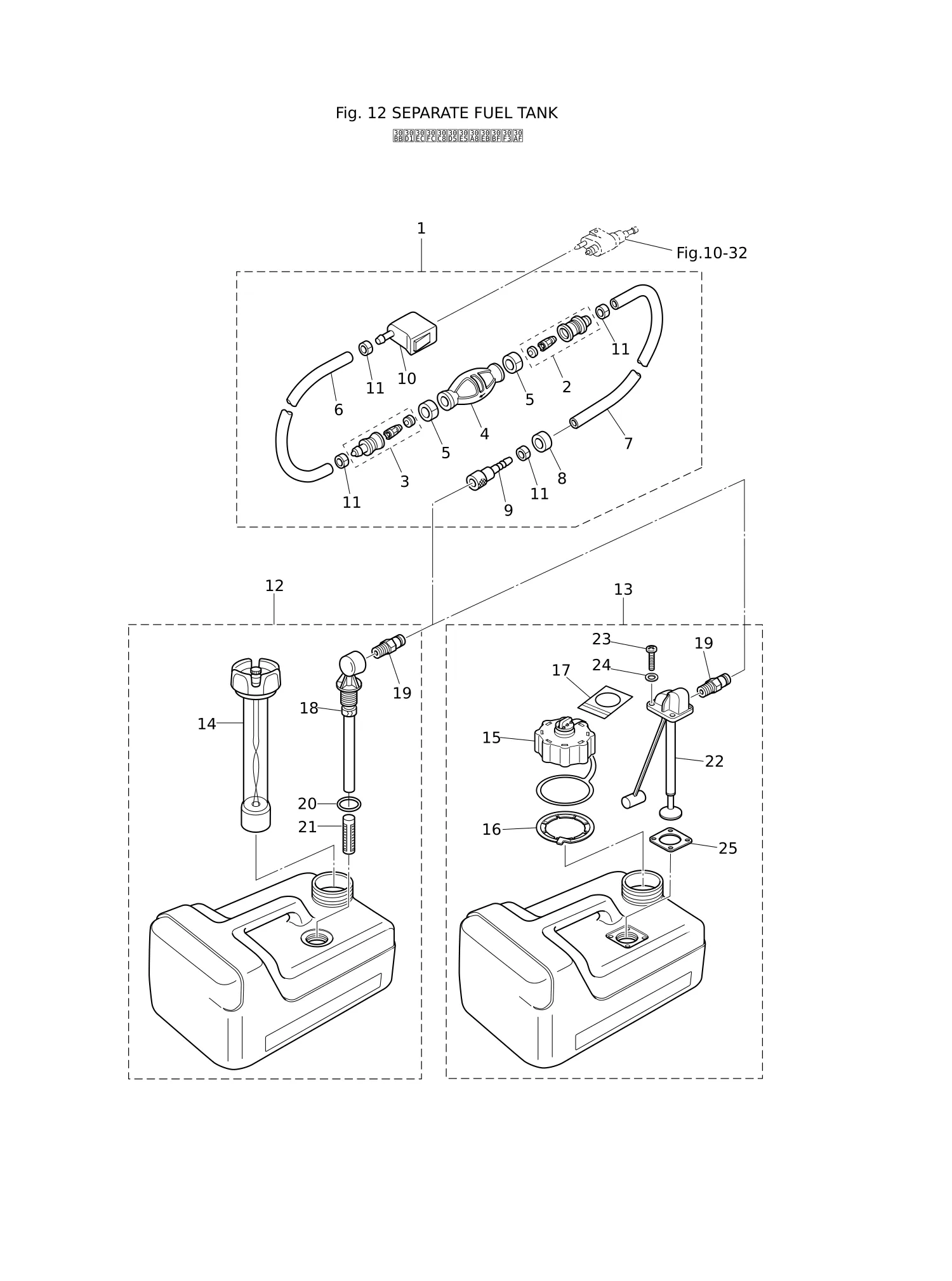

| 1 | 3AD-70200-2 | 手动泵球总成 | PRIMER BULB ASSY | |
| 1 | 3H6-70200-2 | 手动泵球总成 | PRIMER BULB ASSY | |
| 2 | 3C7-70220-1 | * 接头组件(进口) | * JOINT ASSY (INLET) | |
| 3 | 3C7-70224-1 | * 接头组件(出口) | * JOINT ASSY (OUTLET) | |
| 4 | 3C7-70211-1 | * 注油球 | * PRIMER BULB | |
| 4 | 3GF-70211-1 | * 注油球 | * PRIMER BULB | |
| 5 | 3C7-70217-0 | * 卡箍 | * CLAMP | |
| 6 | 3GF-70241-1 | * 低渗透软管 L=700 | * LOW PERMEATION HOSE L=700 | |
| 6 | 98AB-70-700 | * 软管 | * HOSE | |
| 7 | 3GF-70240-1 | * 低渗透软管 L=1600 | * LOW PERMEATION HOSE L=1600 | |
| 7 | 98AB-701600 | * 软管 | * HOSE | |
| 8 | 3GR-70280-0 | * 燃油接头标记 | * FUEL CONNECTOR MARK | |
| 9 | 3GF-70281-0 | * 燃油接头 | * FUEL CONNECTOR | |
| 10 | 3GR-70250-0 | * 燃油接头 | * FUEL CONNECTOR | |
| 11 | 332-70201-0 | * 卡箍 | * CLAMP | |
| 12 | 3B2-70167-1 | 12升燃油箱总成 | FUEL TANK ASSY 12L | |
| 13 | 3V1-70167-2 | 12升燃油箱总成 | FUEL TANK ASSY 12L | |
| 14 | 3B2-70050-1 | * 燃油表通气盖总成（12升） | * FUEL GAUGE VENT CAP ASSY (12L) | |
| 15 | 3AC-70052-1 | 油箱盖总成 | *FUEL TANK CAP ASSY | |
| 16 | 3AC-70055-0 | * 挡圈 | * RETAINING RING | |
| 17 | 3AC-70352-1 | 指示标签 | *INSTRUCTION TAG | |
| 18 | 3B2-70155-0 | * 吸油弯管总成(12升) | * PICK-UP ELBOW ASSY (12L) | |
| 19 | 3E0-70270-0 | * 快速接头(公) | * QUICK-CONNECTOR (MALE) | |
| 20 | 3C7-70199-0 | * O型圈 | * O-RING | |
| 21 | 3C7-70113-0 | * 滤清器 | * FILTER | |
| 22 | 3V1-70157-0 | * 带油量计的燃油吸油总成 | * FUEL PICK-UP ASSY W/GAUGE | |
| 23 | 3AC-70140-0 | * 螺钉 | * SCREW | |
| 24 | 3AC-70145-0 | * 垫圈 | * WASHER | |
| 25 | 3AC-70150-0 | * 衬垫 | * GASKET |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

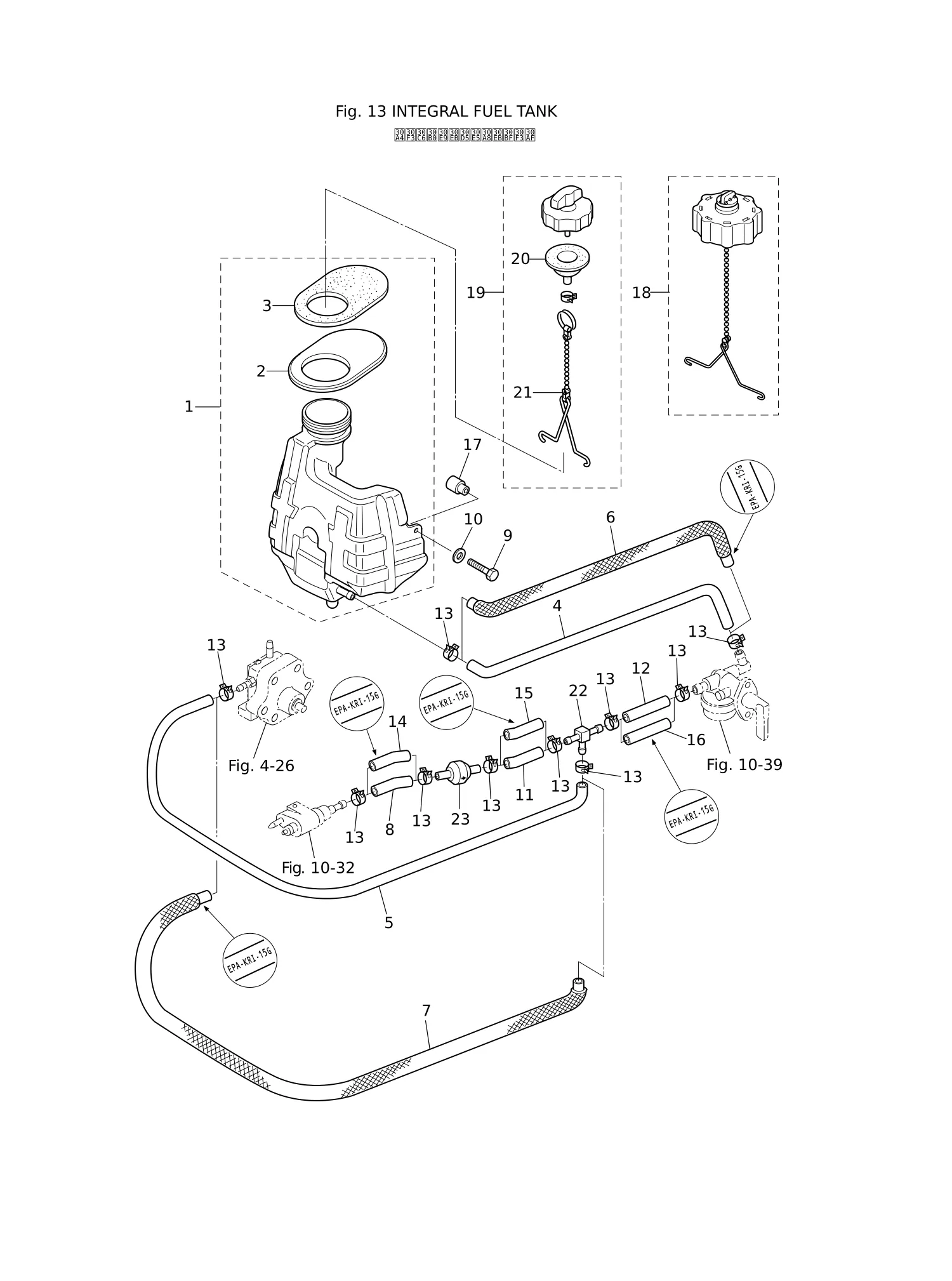

| 1 | 3GR-70310-2 | 燃油箱总成 | FUEL TANK ASSY | 1 |
| 1 | 3JE-70310-0 | 燃油箱总成 | FUEL TANK ASSY | 1 |
| 2 | 3JD-05116-1 | * 密封板 | * SEALING PLATE | 1 |
| 3 | 3JD-70036-0 | * 燃油箱密封件 | * FUEL TANK SEAL | 1 |
| 4 | 3JK-70326-0 | 燃油软管275-20 | FUEL HOSE 275-20 | 1 |
| 5 | 3JS-70315-0 | 燃油软管 455-25 | FUEL HOSE 455-25 | 1 |
| 6 | 3GR-02160-0 | 带保护套燃油软管 275-20 | FUEL HOSE W/PROTECTOR 275-20 | 1 |
| 7 | 3JK-02160-0 | 带保护套燃油软管 455-25 | FUEL HOSE W/PROTECTOR 455-25 | 1 |
| 8 | 3JJ-70325-0 | 燃油软管30-25 | FUEL HOSE 30-25 | 1 |
| 9 | 910103-0630 | 螺栓 | BOLT | 2 |
| 10 | 345-05122-1 | 垫片 6.5-23-1.5 | WASHER 6.5-23-1.5 | 2 |
| 11 | 3JD-70325-0 | 燃油软管 长35 | FUEL HOSE L=35 | 1 |
| 12 | 3JD-02204-0 | 燃油软管 长90 | FUEL HOSE L=90 | 1 |
| 13 | 3AB-35143-0 | 卡环 φ9.4 | CLIP φ9.4 | 10 |
| 14 | 3LE-02207-0 | 低渗透软管 30-25 | LOW PERMEATION HOSE 30-25 | 1 |
| 15 | 3GR-02130-0 | 低渗透软管 L=35 | LOW PERMEATION HOSE L=35 | 1 |
| 16 | 3JD-02130-0 | 低渗透软管 L=90 | LOW PERMEATION HOSE L=90 | 1 |
| 17 | 3GR-70015-0 | 垫圈 7.2-10-6 | SPACER 7.2-10-6 | 2 |
| 18 | 3GT-70321-0 | 燃油箱盖总成 | FUEL TANK CAP ASSY | 1 |
| 19 | 3GR-70020-0 | 燃油箱盖总成 | FUEL TANK CAP ASSY | 1 |
| 20 | 3GR-70021-0 | * 油箱加注口盖垫片 | * TANK FILLER CAP GASKET | 1 |
| 21 | 3C8-71017-0 | * 盖帽挂钩 | * CAP HOOK | 1 |
| 22 | 394-70013-0 | 管接头 4-4 | PIPE JOINT 4-4 | 1 |
| 23 | 394-70327-0 | 止回阀 | NON-RETURN VALVE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

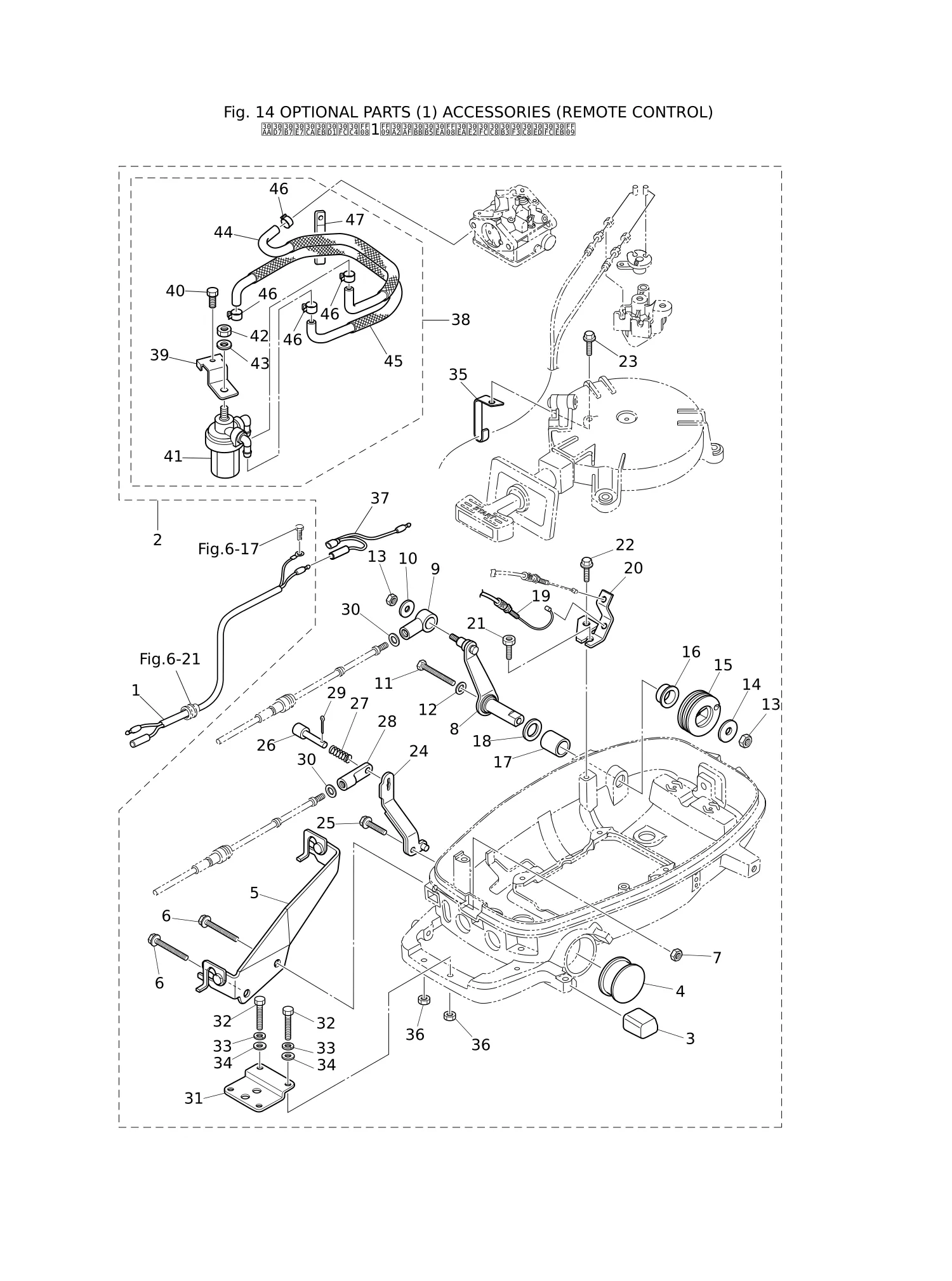

| 1 | 369-83846-0 | 遥控急停拉绳 L=2000 | REMOTE CONTROL STOP CORD L=2000 | 1 |
| 1 | 369-83848-0 | 遥控急停拉绳 L=3200 | REMOTE CONTROL STOP CORD L=3200 | 1 |
| 1 | 369-83853-0 | 遥控急停拉绳 L=3900 | REMOTE CONTROL STOP CORD L=3900 | 1 |
| 1 | 369-83858-0 | 遥控急停拉绳 L=5900 | REMOTE CONTROL STOP CORD L=5900 | 1 |
| 2 | 3GR-83880-0 | 遥控装置总成 | REMOTE CONTROL FITTING ASSY | 1 |
| 3 | 3JK-67161-0 | * 护孔环 | * GROMMET | 1 |
| 4 | 3H6-67161-0 | * 衬套 43-23 | * GROMMET 43-23 | 1 |
| 5 | 3GR-83820-0 | * 线缆夹总成 | * CABLE CLIP ASSY | 1 |
| 6 | 910103-6640 | 螺栓 | * BOLT | 2 |
| 7 | 930103-0600 | 螺母 | * NUT | 1 |
| 8 | 3GR-83910-0 | * 油门杆(遥控) | * THROTTLE LEVER (REMOTE CONT) | 1 |
| 9 | 3R0-83715-0 | * 线缆接头 | * CABLE JOINT | 1 |
| 10 | 346-67115-0 | * 垫圈 6.5-21-1 | * WASHER 6.5-21-1 | 1 |
| 11 | 910103-0660 | 螺栓 | * BOLT | 1 |
| 12 | 941303-0600 | * 弹簧垫圈 | * SPRING WASHER | 1 |
| 13 | 930403-0600 | 尼龙螺母 6-P1.0 | * NYLON NUT 6-P1.0 | 2 |
| 14 | 345-05122-1 | * 垫圈 6.5-23-1.5 | * WASHER 6.5-23-1.5 | 1 |
| 15 | 3JD-63611-0 | * 节气门鼓轮 | * THROTTLE DRUM | 1 |
| 16 | 3H6-63510-0 | * 衬套 14-15.8-7 | * BUSHING 14-15.8-7 | 1 |
| 17 | 369-67105-0 | * 钩杆衬套 | * HOOK LEVER BUSHING | 1 |
| 18 | 338-67147-0 | * 密封环 13.8-22-3.7 | * SEAL RING 13.8-22-3.7 | 1 |
| 19 | 3GR-83873-0 | * 节气门拉线(遥控) | * THROTTLE WIRE (REMOTE CONTROL) | 1 |
| 20 | 3GR-63508-0 | * 节气门拉线支架 | * THROTTLE WIRE BRACKET | 1 |
| 21 | 3GR-04317-0 | * 护孔环 | * GROMMET | 1 |
| 22 | 910103-5614 | 螺栓 | * BOLT | 1 |
| 23 | 3AD-06864-0 | * 预涂螺栓6-25 | * PRE-COATED BOLT 6-25 | 1 |
| 24 | 3GR-66129-0 | * 换挡杆(遥控) | * SHIFT LEVER (REMOTE CONTROL) | 1 |
| 25 | 3V1-60108-0 | * 预涂螺栓6-16 | * PRE-COATED BOLT 6-16 | 1 |
| 26 | 332-83728-0 | * 销 | * PIN | 1 |
| 27 | 332-83729-0 | * 弹簧 | * SPRING | 1 |
| 28 | 369-83715-1 | * 线缆接头 | * CABLE JOINT | 1 |
| 29 | 951403-0220 | * 弹簧销 | * SPRING PIN | 1 |
| 30 | 332-83725-0 | * 垫圈 5.5-14-1.2 | * WASHER 5.5-14-1.2 | 2 |
| 31 | 369-83830-2 | * 转向钩板 | * STEERING HOOK PLATE | 1 |
| 32 | 910103-0830 | 螺栓 | * BOLT | 2 |
| 33 | 941303-0800 | * 弹簧垫圈 | * SPRING WASHER | 2 |
| 34 | 940103-0800 | * 垫圈 | * WASHER | 2 |
| 35 | 3JK-63505-0 | * 线缆固定座 | * CABLE HOLDER | 1 |
| 36 | 930403-0800 | 尼龙螺母 8-P1.25 | * NYLON NUT 8-P1.25 | 2 |
| 37 | 3AS-83883-0 | * 分离线 | * SEPARATE CORD | 1 |
| 38 | 3GR-02217-0 | * 燃油滤清器套件 | * FUEL FILTER KIT | 1 |
| 39 | 3GR-63737-0 | ** 撑杆 | ** STAY | 1 |
| 40 | 910103-5610 | 螺栓 | ** BOLT | 1 |
| 41 | 346-02230-0 | ** 燃油滤清器总成 | ** FUEL FILTER ASSY | 1 |
| 42 | 930103-0800 | 螺母 | ** NUT | 1 |
| 43 | 940121-0800 | 垫圈 | ** WASHER | 1 |
| 44 | 3LE-02160-0 | ** 燃油管带护套 25-193-30 | ** FUEL HOSE W/PROTECTOR 25-193-30 | 1 |
| 45 | 3JD-02160-0 | ** 燃油管带护套 25-315-25 | ** FUEL HOSE W/PROTECTOR 25-315-25 | 1 |
| 46 | 3AB-35143-0 | 卡扣 φ9.4 | ** CLIP φ9.4 | 4 |
| 47 | 3T4-06972-1 | 卡箍 6.5-87P | ** CLAMP 6.5-87P | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

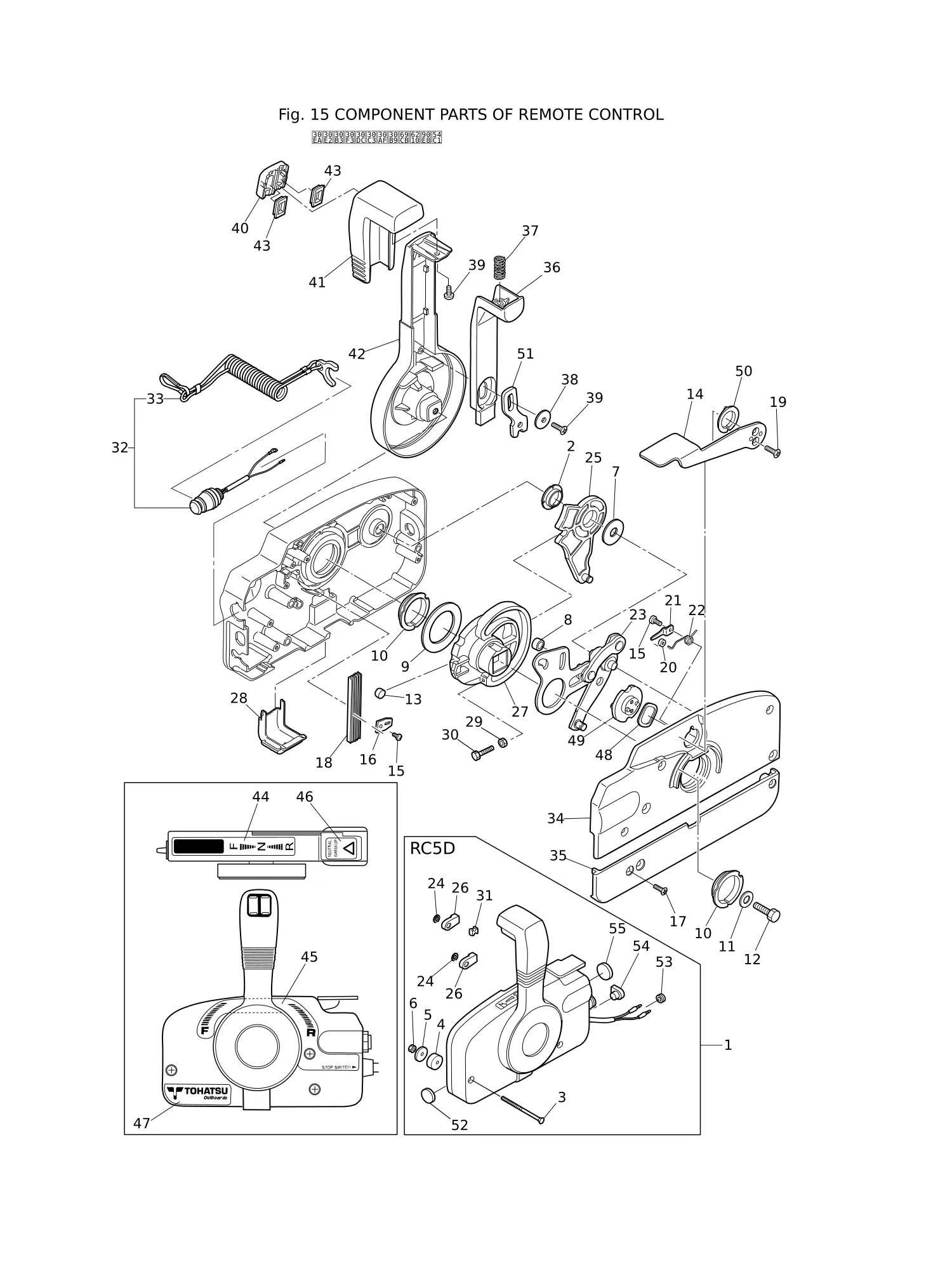

| 1 | 3B7Q84360-1 | 遥控头总成(RC5D) | REMOTE CONTROL HEAD ASSY (RC5D) | 1 |
| 2 | 3A3-84432-0 | * 衬套 | * BUSHING | 1 |
| 3 | 3A3-84375-0 | * 螺钉 | * SCREW | 3 |
| 4 | 3A3-84374-0 | * 隔套 | * SPACER | 3 |
| 5 | 353-84371-0 | * 垫圈 | * WASHER | 3 |
| 6 | 930103-0600 | 螺母 | * NUT | 3 |
| 7 | 3A3-84383-0 | * 垫圈 | * WASHER | 1 |
| 8 | 3A3-84421-0 | * 滚轮 | * ROLLER | 1 |
| 9 | 3A3-84422-0 | * 推力板 | * THRUST PLATE | 1 |
| 10 | 3A3-84431-0 | * 衬套 | * BUSHING | 2 |
| 11 | 940103-0800 | * 垫圈 | * WASHER | 1 |
| 12 | 3A3-84442-0 | 螺栓 | * BOLT | 1 |
| 13 | 353-84388-0 | * 定位滚轮 | * DETENT ROLLER | 1 |
| 14 | 3B7Q84312-0 | * 自由节流杆 | * FREE THROTTLE LEVER | 1 |
| 15 | 921503-0406 | * 螺钉 | * SCREW | 2 |
| 16 | 3A3-84423-0 | * 定位器挡圈 | * DETENT RETAINER | 1 |
| 17 | 921603-0518 | * 螺钉 | * SCREW | 5 |
| 18 | 3A3-84307-0 | * 定位弹簧 | * DETENT SPRING | 5 |
| 19 | 921603-0512 | * 螺钉 | * SCREW | 2 |
| 20 | 3A3-84424-0 | * 自由节流滚轮 | * FREE THROTTLE ROLLER | 1 |
| 21 | 3A3-84426-0 | * 滚柱保持架 | * ROLLER RETAINER | 1 |
| 22 | 3A3-84425-0 | * 自由节流弹簧 | * FREE THROTTLE SPRING | 1 |
| 23 | 3A3-84365-1 | * 节气门摇臂 | * THROTTLE ARM | 1 |
| 24 | 945303-0600 | * E型卡环 d=6 | * E-RING d=6 | 2 |
| 25 | 3A3-84381-0 | * 换挡齿轮总成 | * SHIFT GEAR ASSY | 1 |
| 26 | 3A3-83314-2 | * 线缆端子 | * CABLE TERMINAL | 2 |
| 27 | 3A3-84364-2 | * 驱动齿轮 | * DRIVE GEAR | 1 |
| 28 | 3A3-84429-0 | * 线束盖 | * WIRE COVER | 1 |
| 29 | 930103-0500 | 螺母 | * NUT | 1 |
| 30 | 910103-0525 | 螺栓 | * BOLT | 1 |
| 31 | 3A3-84376-0 | * 护孔环 | * GROMMET | 1 |
| 32 | 398-06830-0 | * 停机开关总成 | * STOP SWITCH ASSY | 1 |
| 33 | 353-06821-0 | 停机开关拉绳总成 | ** STOP SWITCH LANYARD ASSY | 1 |
| 34 | 3B7Q84441-0 | * 后壳体 | * REAR HOUSING | 1 |
| 35 | 3B7Q84366-0 | * 后盖板 | * REAR PANEL | 1 |
| 36 | 3A3-84401-0 | * 空档锁止臂 | * NEUTRAL LOCK ARM | 1 |
| 37 | 3A3-84403-0 | * 空档锁止弹簧 | * NEUTRAL LOCK SPRING | 1 |
| 38 | 3A3-84407-0 | * 垫圈 | * WASHER | 1 |
| 39 | 921503-0510 | * 螺钉 | * SCREW | 2 |
| 40 | 3A3-84451-0 | * 倾斜开关盖 | * TILT SWITCH COVER | 1 |
| 41 | 3A3-84404-0 | * 手柄 | * GRIP | 1 |
| 42 | 3B7Q84343-0 | * 控制杆 | * CONTROL LEVER | 1 |
| 43 | 3A3-84452-0 | * 倾斜开关塞 | * TILT SWITCH PLUG | 2 |
| 44 | 3N5-84336-0 | * 档位标识贴 | * SHIFT POSITION DECAL | 1 |
| 45 | 3N5-84465-0 | * 档位侧标识贴 | * SHIFT POSITION SIDE DECAL | 1 |
| 46 | 3N5-84331-0 | * 标牌(操纵杆) | * DECAL (LEVER) | 1 |
| 47 | 3N5-84333-0 | * 标牌(东发) | * DECAL (TOHATSU) | 1 |
| 48 | 3A3-84368-0 | * 波形垫圈 | * WAVE WASHER | 1 |
| 49 | 3A3-84391-0 | * 自由节流鼓 | * FREE THROTTLE DRUM | 1 |
| 50 | 3A3-84435-0 | * 衬套 | * BUSHING | 1 |
| 51 | 3A3-84406-0 | * 板 | * PLATE | 1 |
| 52 | 361-84414-0 | * 护孔环 | * GROMMET | 1 |
| 53 | 369-84418-0 | * 护孔环 | * GROMMET | 1 |
| 54 | 353-84321-0 | * 护孔环 | * GROMMET | 1 |
| 55 | 369-84416-0 | * 护孔环 | * GROMMET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

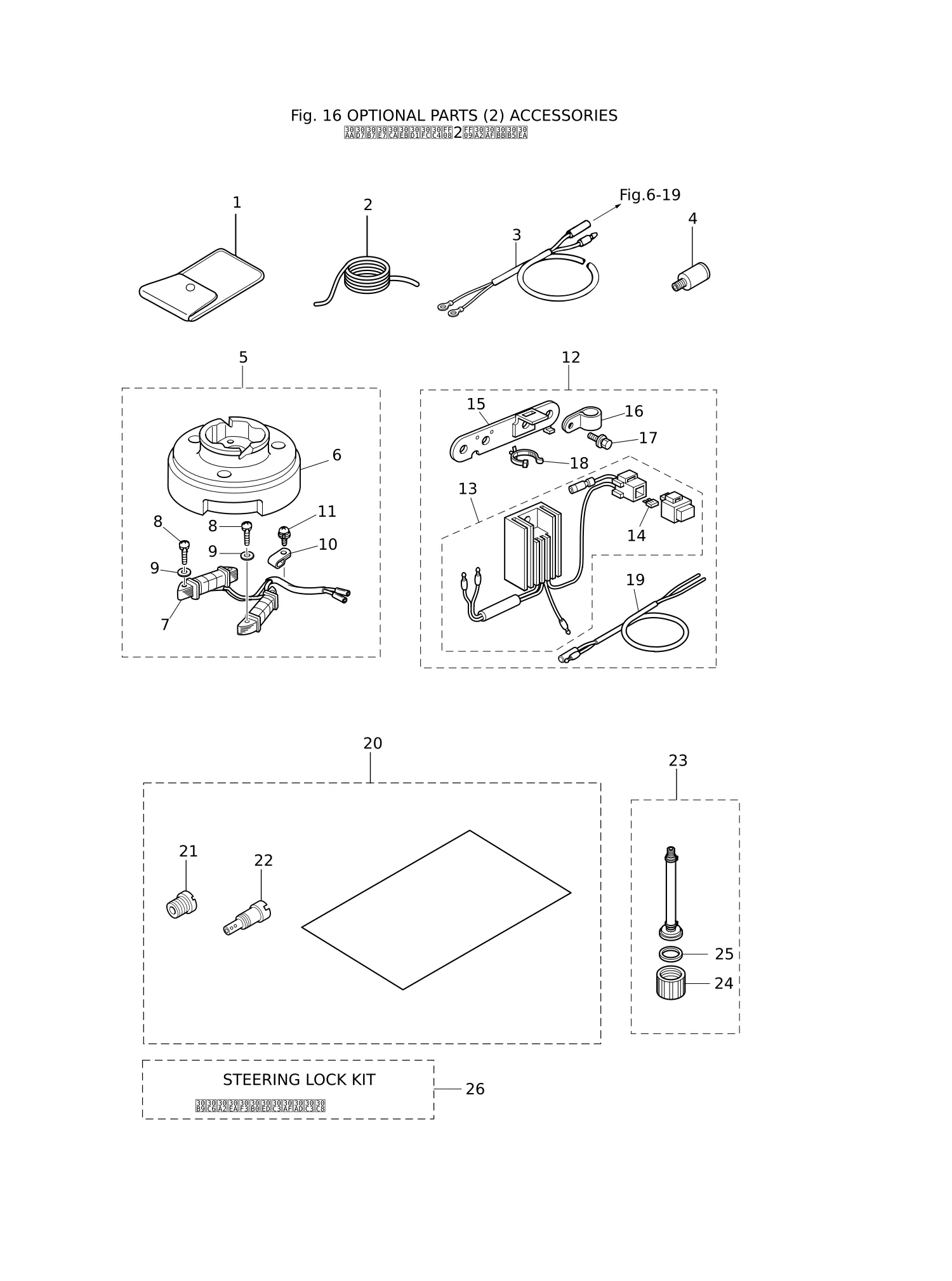

| 1 | 3BJ-72100-0 | 工具包 | TOOL KIT | 1 |
| 2 | 312-72201-0 | 安全绳φ4-1000 | SAFETY ROPE φ4-1000 | 1 |
| 3 | 399-76130-0 | 蓄电池电缆 L=1716 | BATTERY CABLE L=1716 | |
| 4 | 336-60007-0 | 冲洗塞 | FLUSHING PLUG | 1 |
| 5 | 3GR-06128-0 | 交流发电机套件 | ALTERNATOR KIT | 1 |
| 6 | 3AS-06001-0 | * 飞轮 | * FLYWHEEL | 1 |
| 7 | 3GR-06023-0 | * 交流发电机总成 | * ALTERNATOR ASSY | 1 |
| 8 | 921503-0525 | * 螺钉 | * SCREW | 4 |
| 9 | 940103-0500 | * 垫圈 | * WASHER | 4 |
| 10 | 369-06915-0 | * 卡箍 4.2-3-8 | * CLAMP 4.2-3-8 | 1 |
| 11 | 921521-6408 | * 螺钉 | * SCREW | 1 |
| 12 | 3GR-76160-0 | 整流器套件 | RECTIFIER KIT | 1 |
| 13 | 3GR-76060-0 | * 整流器总成 | * RECTIFIER COMPLETE | 1 |
| 14 | 3GR-76246-0 | ** 保险丝 10A | ** FUSE 10A | 1 |
| 15 | 3GR-06900-0 | * 电气支架总成 | * ELECTRIC BRACKET ASSY | 1 |
| 16 | 345-06915-0 | * 卡箍 6.5-14L | * CLAMP 6.5-14L | 1 |
| 17 | 910103-5614 | 螺栓 | * BOLT | 2 |
| 18 | 3BJ-84398-0 | 箍带 135 | * BAND 135 | 1 |
| 19 | 369-76161-0 | * 延长线 | * EXTENSION CORD | 1 |
| 20 | 3GR-10230-0 | 海拔调节套件 | ALTITUDE ADJUSTMENT KIT | |
| 20 | 3JD-10230-0 | 海拔调节套件 | ALTITUDE ADJUSTMENT KIT | 1 |
| 20 | 3JE-10230-0 | 海拔调节套件 | ALTITUDE ADJUSTMENT KIT | |
| 21 | 3AU-04468-0 | * 主量孔 (#68) | * MAIN JET (#68) | |
| 21 | 3H9-03251-0 | * 主量孔 (#60) | * MAIN JET (#60) | 1 |
| 21 | 3R1-03251-0 | * 主量孔 (#65) | * MAIN JET (#65) | |
| 22 | 3R6-03254-0 | * 低速喷嘴(#35) | * SLOW JET (#35) | 1 |
| 23 | 3GR-72406-0 | 冲洗附件总成 | FLUSHING ATTACHMENT ASSY | 1 |
| 24 | 3GR-70212-0 | * 接头 | * JOINT | 1 |
| 25 | 3T1-67147-0 | * 密封环 | * SEAL RING | 1 |
| 26 | 3GR-62500-2 | 转向锁套件 | STEERING LOCK KIT | 1 |
| 27 | 910103-5825 | 螺栓 | * BOLT | 2 |
| 28 | 930403-0800 | 尼龙螺母 8-P1.25 | * NYLON NUT 8-P1.25 | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

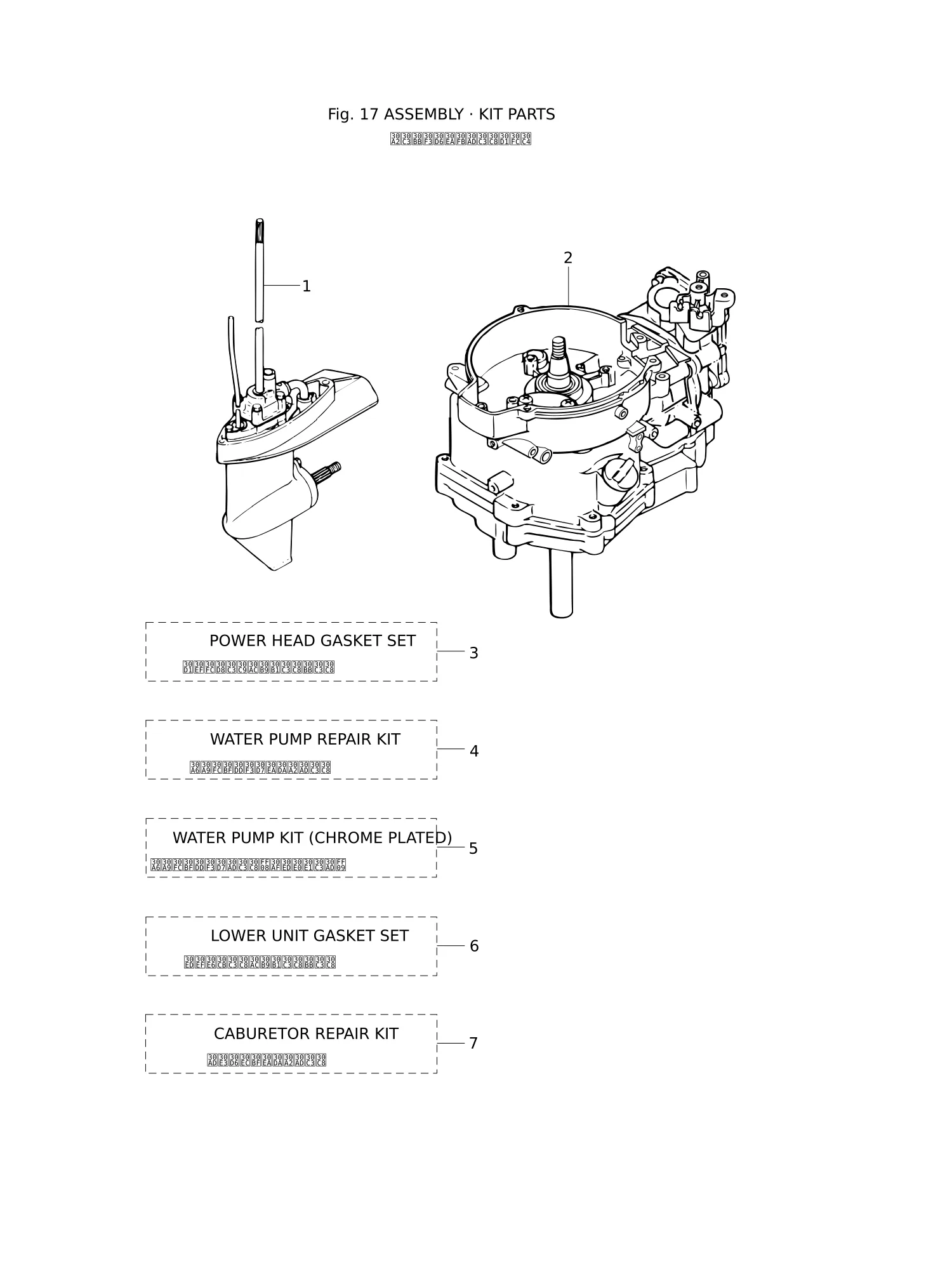

| 1 | 369Q87301-4 | 下部单元总成 (S) | LOWER UNIT ASSY (S) | 1 |
| 1 | 369Q87302-4 | 下部单元总成 (L) | LOWER UNIT ASSY (L) | 1 |
| 1 | 369Q87304-2 | 下部单元总成 (UL) | LOWER UNIT ASSY (UL) | |
| 1 | 399Q87302-3 | 下部单元总成 (L) | LOWER UNIT ASSY (L) | |
| 1 | 3DKQ87304-1 | 下部单元总成 (UL) | LOWER UNIT ASSY (UL) | |
| 2 | 3GRB87090-1 | 发动机短缸体套件 | ENGINE SHORT BLOCK KIT | 1 |
| 3 | 345-66021-0 | * O型圈1.9-6.8 | * O-RING 1.9-6.8 | 1 |
| 3 | 346-01032-0 | * 节温器盖衬垫 | * THERMOSTAT CAP GASKET | 1 |
| 3 | 369-01214-0 | * 曲轴箱缸头垫片 | * CRANKCASE HEAD GASKET | 1 |
| 3 | 3AB-00121-0 | * 油封 20-35-7 | * OIL SEAL 20-35-7 | 1 |
| 3 | 3AS-07432-0 | * 衬垫 | * GASKET | 1 |
| 3 | 3AS-87121-0 | 动力头衬垫套装 | POWER HEAD GASKET SET | 1 |
| 3 | 3GR-00122-0 | * 油封 25-40-8 | * OIL SEAL 25-40-8 | 1 |
| 3 | 3GR-01215-0 | * 油封 10.1-25-7 | * OIL SEAL 10.1-25-7 | 2 |
| 3 | 3H6-01005-1 | * 气缸盖垫片 | * CYLINDER HEAD GASKET | 1 |
| 3 | 3H6-01024-0 | * 气缸盖罩衬垫 | * CYLINDER HEAD COVER GASKET | 1 |
| 3 | 3H6-02011-0 | * 化油器衬垫 | * CARBURETOR GASKET | 2 |
| 3 | 3H6-02104-0 | * 进气歧管垫片 2-33.5 | * INTAKE MANIFOLD GASKET 2-33.5 | 1 |
| 3 | 3H6-02305-0 | * 排气盖衬垫 | * EXHAUST COVER GASKET | 1 |
| 3 | 3H6-02306-0 | * 排气盖衬垫 | * EXHAUST COVER GASKET | 1 |
| 3 | 3H6-07402-0 | * 油底壳衬垫 | * OILPAN GASKET | 1 |
| 3 | 3H6-07422-0 | * O型圈 2.6-18.7 | * O-RING 2.6-18.7 | 1 |
| 3 | 3H6-61012-0 | * 驱动轴壳体衬垫 | * DRIVE SHAFT HOUSING GASKET | 1 |
| 3 | 3R1-07605-0 | * O型圈 φ3.1 | * O-RING φ3.1 | 1 |
| 4 | 369-65011-0 | * 泵壳衬套 | * PUMP CASE LINER | 1 |
| 4 | 369-65022-0 | * 键 φ2-11 | * KEY φ2-11 | 1 |
| 4 | 369-65025-0 | * 水泵导板 | * WATER PUMP GUIDE PLATE | 1 |
| 4 | 369-87322-1 | 水泵维修套件 | WATER PUMP REPAIR KIT | 1 |
| 4 | 9161E3-0645 | 螺栓 | * BOLT | 4 |
| 4 | 940103-0600 | * 垫圈 | * WASHER | 4 |
| 5 | 369-65021-1 | * 水泵叶轮 | * WATER PUMP IMPELLER | 1 |
| 5 | 369-65231-0 | 水泵套件(镀铬) | WATER PUMP KIT (CHROME PLATED) | 1 |
| 5 | 369-65238-0 | * 泵壳衬套 | * PUMP CASE LINER | 1 |
| 5 | 369-65239-0 | * 水泵导板 | * WATER PUMP GUIDE PLATE | 1 |
| 6 | 332-60006-0 | * 衬垫 8.1-15-1 | * GASKET 8.1-15-1 | 2 |
| 6 | 332-66032-0 | * O型圈2.4-15.4 | * O-RING 2.4-15.4 | 1 |
| 6 | 345-65015-0 | * O型圈 3.2-47 | * O-RING 3.2-47 | 1 |
| 6 | 369-60111-0 | * 油封 15-28-10 | * OIL SEAL 15-28-10 | 1 |
| 6 | 369-60223-0 | * 油封 10-24-8 | * OIL SEAL 10-24-8 | 1 |
| 6 | 369-65018-0 | * 泵壳衬垫 | * PUMP CASE GASKET | 1 |
| 6 | 369-65020-0 | * 泵壳衬垫(下) | * PUMP CASE GASKET (LOWER) | 1 |
| 6 | 369-65029-0 | * 导板垫片 | * GUIDE PLATE GASKET | 1 |
| 6 | 369-66021-1 | * O型圈 2.5-4.9 | * O-RING 2.5-4.9 | 1 |
| 6 | 369-87321-0 | 下部单元衬垫套件 | LOWER UNIT GASKET SET | 1 |
| 7 | 3H6-03222-0 | * 浮子室O型圈 | * FLOAT CHAMBER O-RING | 1 |
| 7 | 3H6-03231-0 | * 浮子 | * FLOAT | 1 |
| 7 | 3H6-03232-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 7 | 3H6-03240-0 | * 浮子阀 | * FLOAT VALVE | 1 |
| 7 | 3H6-03244-0 | * 卡扣 | * CLIP | 1 |
| 7 | 3H6-03293-0 | * O型圈 | * O-RING | 1 |
| 7 | 3H6-87122-0 | 化油器修理包 | CARBURETOR REPAIR KIT | 1 |
| 7 | 922503-6412 | * 螺钉 | * SCREW | 2 |
