四冲程 4-Stroke · 2025 年 · 手册号 002-21060-0BE · 共 29 个部位 · 1160 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

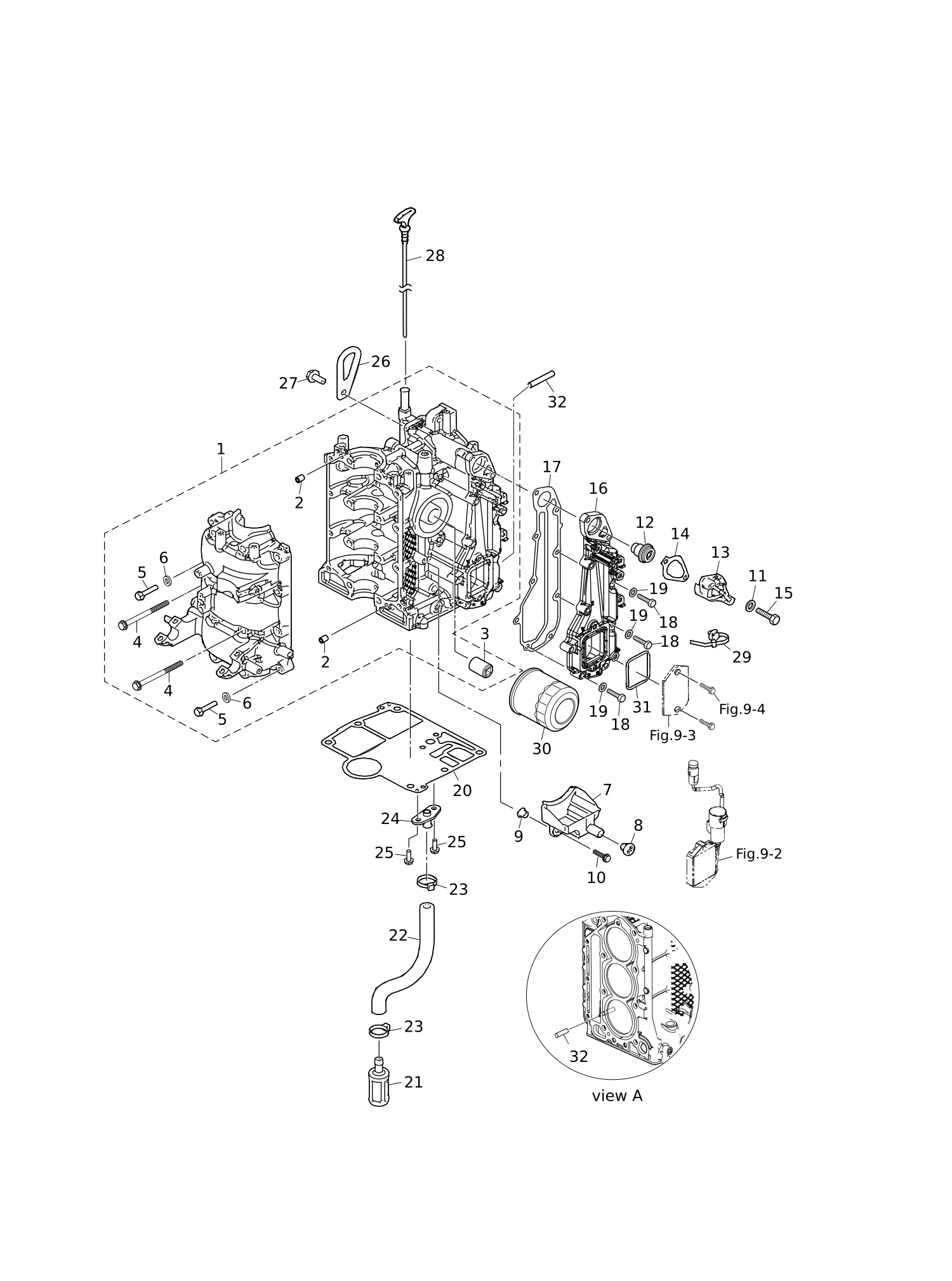

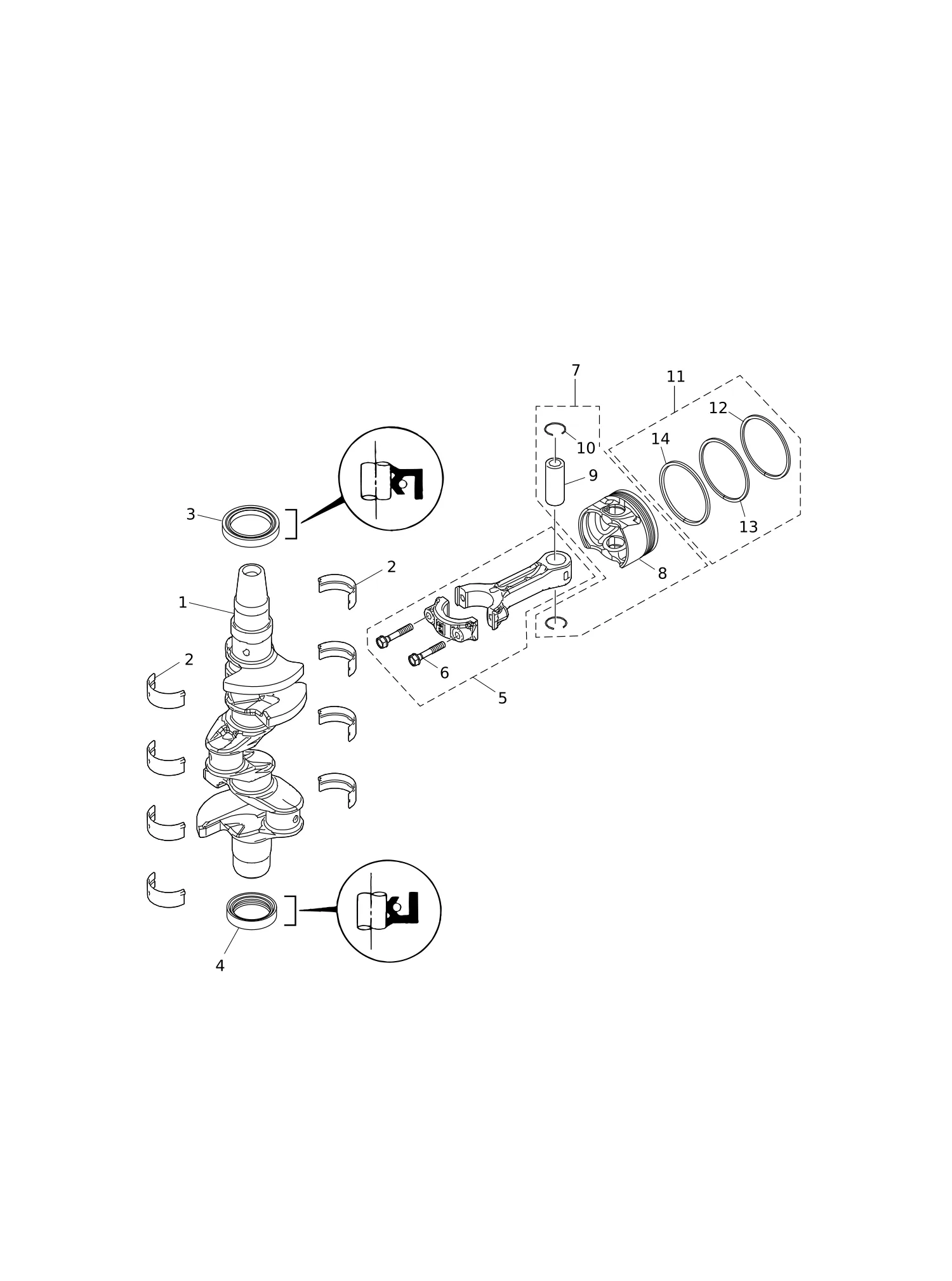

| 1 | 3VSB01100-0 | 气缸体与曲轴箱总成 | CYL BLOCK & CRANKCASE ASSY | 1 |
| 2 | 345-01111-0 | * 定位销 6-12 | * DOWEL PIN 6-12 | 2 |
| 3 | 3H8-07636-0 | * 机油滤清器螺栓 | * OIL FILTER BOLT | 1 |
| 4 | 3VS-01114-0 | * 螺栓 M8-70-P1.25 | * BOLT M8-70-P1.25 | 8 |
| 5 | 9161G9-0630 | 螺栓 | * BOLT | 8 |
| 7 | 3VS-07617-0 | 机油滴盘 | OIL DRIP TRAY | 1 |
| 8 | 3VS-09084-0 | 塞 Φ11 | PLUG Φ11 | 1 |
| 9 | 3BJ-06283-0 | 轴套 6.1-9-7.4 | COLLAR 6.1-9-7.4 | 1 |
| 10 | 910103-5620 | 螺栓 | BOLT | 1 |
| 12 | 3VS-01030-0 | 节温器 | THERMOSTAT | 1 |
| 13 | 3H6B01031-0 | 节温器盖 | THERMOSTAT CAP | 1 |
| 14 | 346-01032-0 | 节温器盖垫片 | THERMOSTAT CAP GASKET | 1 |
| 15 | 3B2-61018-0 | 螺栓35mm | BOLT 35mm | 2 |
| 16 | 3VSB02301-0 | 排气外盖 | EXHAUST COVER (OUTER) | 1 |
| 17 | 1BM-02305-0 | 排气盖垫片 | EXHAUST COVER GASKET | 1 |
| 18 | 3KK-02319-0 | 螺栓25mm | BOLT 25mm | 7 |
| 19 | 940103-0600 | 垫圈 | WASHER | 7 |
| 20 | 3VS-01303-0 | 发动机基座垫片 t=0.5 | ENGINE BASEMENT GASKET t=0.5 | 1 |
| 21 | 3R3-07710-1 | 机油滤网总成 | OIL STRAINER ASSY | 1 |
| 22 | 3VS-07715-0 | 管 | PIPE | 1 |
| 23 | 369-84398-1 | 箍带 202 | BAND 202 | 2 |
| 24 | 3VS-02093-0 | 管接头 Φ9.7-Φ7.7-25 | NIPPLE Φ9.7-Φ7.7-25 | 1 |
| 25 | 910103-5612 | 螺栓 | BOLT | 2 |
| 26 | 3VS-01513-0 | 吊架 | HANGER | 1 |
| 27 | 910103-5820 | 螺栓 | BOLT | 1 |
| 28 | 3VS-07721-1 | 油位计 413 | OIL LEVEL GAUGE 413 | 1 |
| 29 | 3SS-84398-0 | 箍带 | BAND | 1 |
| 30 | 3BJ-07615-0 | 机油滤清器 | OIL FILTER | 1 |
| 31 | 3VS-76067-0 | 整流器总成垫片Φ3 | RECTIFIER COMPLETE GASKET Φ3 | 1 |
| 32 | 3VS-01196-0 | 水套嵌件(左) | WATER JACKET INSERT (L) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3VS-00030-0 | 曲轴总成 | CRANKSHAFT ASSY | 1 |
| 2 | 3VS-07707-0 | 滑动轴承(红色) 34-37-15 | PLAIN SHAFT BEARING (RED) 34-37-15 | 1 |
| 2 | 3VS-07708-0 | 滑动轴承(蓝色) 34-37-15 | PLAIN SHAFT BEARING (BLUE) 34-37-15 | 1 |
| 3 | 3BJ-00121-0 | 油封 36-50-7 | OIL SEAL 36-50-7 | 1 |
| 4 | 3R3-00121-0 | 油封 32-44-9 | OIL SEAL 32-44-9 | 1 |
| 5 | 3RS-00040-0 | 连杆总成 | CONNECTING ROD ASSY | 3 |
| 6 | 3RS-00059-0 | * 连杆螺栓 | * CONNECTING ROD BOLT | 2 |
| 7 | 3RS-87130-0 | 活塞修理包 | PISTON REPAIR KIT | 3 |
| 8 | 3RS-00001-0 | * 活塞 | * PISTON | 1 |
| 9 | 3RS-00021-0 | * 活塞销 | * PISTON PIN | 1 |
| 10 | 3H6-00024-0 | * 活塞销卡簧 | * PISTON PIN CLIP | 2 |
| 11 | 3VS-87123-0 | 活塞环组 | PISTON RING SET | 3 |
| 12 | 3VS-00011-0 | * 活塞环 | * PISTON RING | 1 |
| 13 | 3RS-00012-0 | * 活塞环 | * PISTON RING | 1 |
| 14 | 3RS-00013-0 | * 油环 | * PISTON RING-OIL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

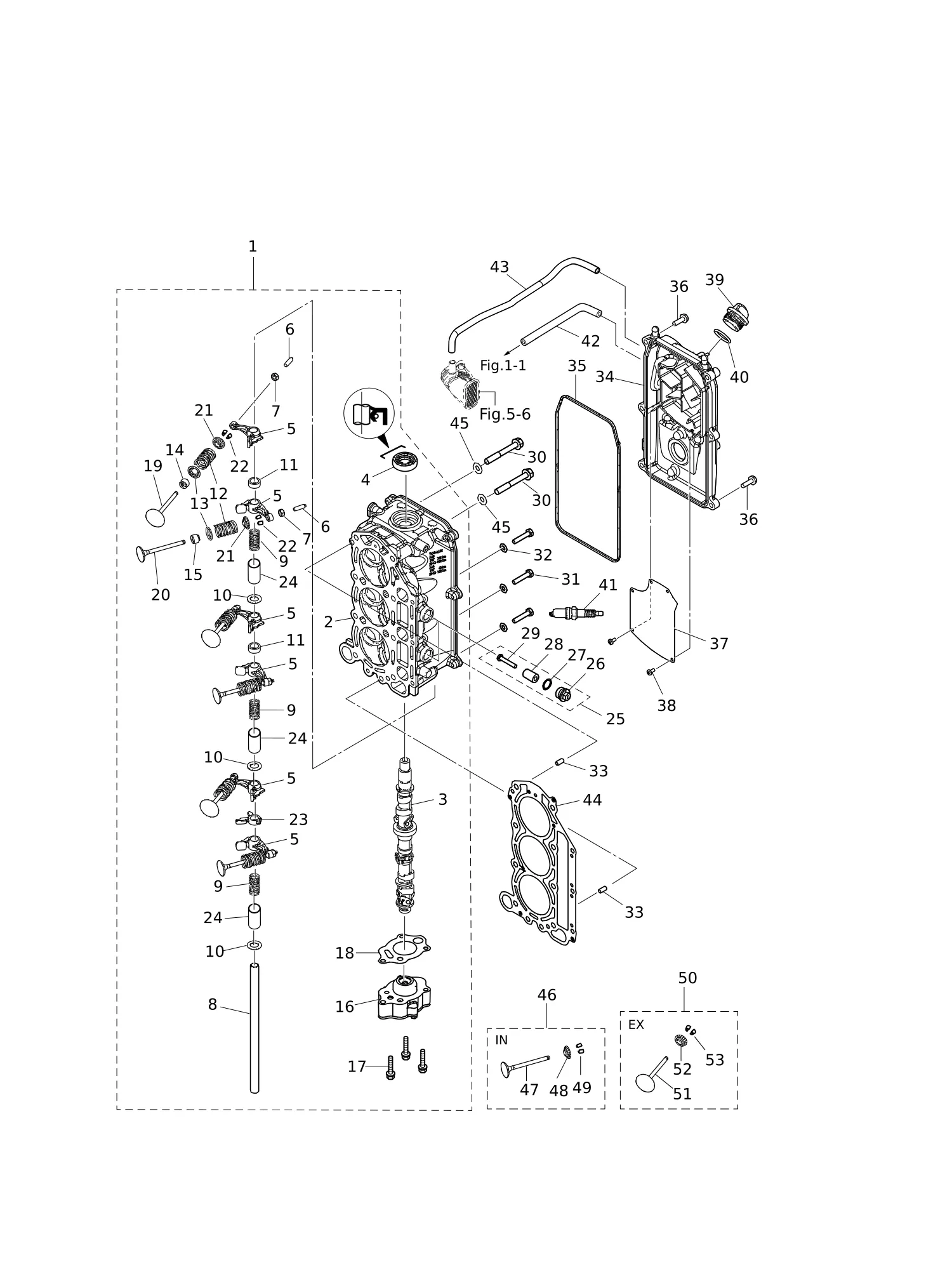

| 1 | 3VSB01000-0 | 气缸盖总成 | CYLINDER HEAD COMPLETE | 1 |
| 2 | 3VSB01001-0 | * 气缸盖总成 | * CYLINDER HEAD ASSY | 1 |
| 3 | 3VS-07810-0 | * 凸轮轴总成 | * CAMSHAFT ASSY | 1 |
| 4 | 3H8-07025-0 | * 油封 18-35-8 | * OIL SEAL 18-35-8 | 1 |
| 5 | 3VS-07935-0 | * 摇臂 | * ROCKER ARM | 6 |
| 6 | 3R0-07238-0 | * 调节螺钉 | * ADJUSTING SCREW | 6 |
| 7 | 3H8-07237-0 | * 调节螺母 | * ADJUSTING NUT | 6 |
| 8 | 3VS-07920-0 | * 摇臂轴 Φ13-234 | * ROCKER ARM SHAFT Φ13-234 | 1 |
| 9 | 3VS-07925-0 | * 摇臂轴弹簧 | * ROCKER SHAFT SPRING | 3 |
| 10 | 3R3-07227-0 | * 垫圈 13.2-21.8-2 | * WASHER 13.2-21.8-2 | 3 |
| 11 | 3VS-07939-0 | * 轴环 | * COLLAR | 2 |
| 12 | 3RS-07903-0 | * 阀门弹簧 | * VALVE SPRING | 6 |
| 13 | 3RS-07905-0 | * 阀门弹簧座 | * VALVE SPRING SEAT | 6 |
| 14 | 3R3-07204-0 | * 进气阀杆油封 | * INTAKE VALVE STEM SEAL | 3 |
| 15 | 3R3-07206-0 | * 排气阀杆密封 | * EXHAUST VALVE STEM SEAL | 3 |
| 16 | 3VS-07600-0 | * 机油泵总成 | * OIL PUMP ASSY | 1 |
| 17 | 910103-5635 | 螺栓 | * BOLT | 3 |
| 18 | 3VS-07653-0 | * 机油泵垫片 | * OIL PUMP GASKET | 1 |
| 23 | 3VS-07960-0 | * 挺杆 | * LIFTER | 1 |
| 24 | 3RT-07939-0 | * 轴环 | * COLLAR | 3 |
| 25 | 3KM-01142-0 | 阳极螺塞总成 | ANODE PLUG ASSY | 2 |
| 26 | 3P0-01143-0 | * 阳极塞 | * ANODE PLUG | 1 |
| 27 | 3T5-10046-0 | * O型圈1.9-13 | * O-RING 1.9-13 | 1 |
| 28 | 3P0-60218-0 | * 阳极 | * ANODE | 1 |
| 29 | 921503-0530 | * 螺钉 | * SCREW | 1 |
| 30 | 3H8-01013-0 | 气缸盖螺栓8-60 | CYLINDER HEAD BOLT 8-60 | 8 |
| 31 | 9161G9-0630 | 螺栓 | BOLT | 3 |
| 32 | 940103-0600 | 垫圈 | WASHER | 3 |
| 33 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 2 |
| 34 | 3VSB01020-0 | 气缸盖罩组件 | CYLINDER HEAD COVER ASSY | 1 |
| 35 | 3VS-01024-1 | 气缸盖罩垫片 | CYLINDER HEAD COVER GASKET | 1 |
| 36 | 910103-5620 | 螺栓 | BOLT | 6 |
| 37 | 3VS-07731-0 | 呼吸室盖 | BREATHER CHAMBER COVER | 1 |
| 38 | 921521-0408 | 螺钉 | SCREW | 5 |
| 39 | 3R0-71015-1 | 机油加注口盖 | OIL FILLER CAP | 1 |
| 40 | 3R0-07422-0 | O型圈 3.1-24.4 | O-RING 3.1-24.4 | 1 |
| 41 | 9701-1-1103 | 火花塞 (DCPR6E) | SPARK PLUG (DCPR6E) | 3 |
| 42 | 3VT-07735-0 | 呼吸管 Φ12-415 | BREATHER HOSE Φ12-415 | 1 |
| 43 | 3VS-07734-0 | 呼吸管（带保护套） | BREATHER HOSE W/PROTECTOR | 1 |
| 44 | 3VS-01005-0 | 气缸盖衬垫 | CYLINDER HEAD GASKET | 1 |
| 45 | 940221-0800 | 垫圈 | WASHER | 8 |
| 46 | 3RS-07895-1 | 进气阀套件 | INTAKE VALVE KIT | 1 |
| 47 | 3RS-07901-0 | * 进气阀 | * INTAKE VALVE | 1 |
| 50 | 3RS-07896-1 | 排气阀套件 | EXHAUST VALVE KIT | 1 |
| 51 | 3RS-07902-0 | * 排气阀 | * EXHAUST VALVE | 1 |
| 52 | 3GT-07921-0 | * 固定座 | * RETAINER | 1 |
| 53 | 3KY-07923-0 | * 开口销 | * COTTER | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

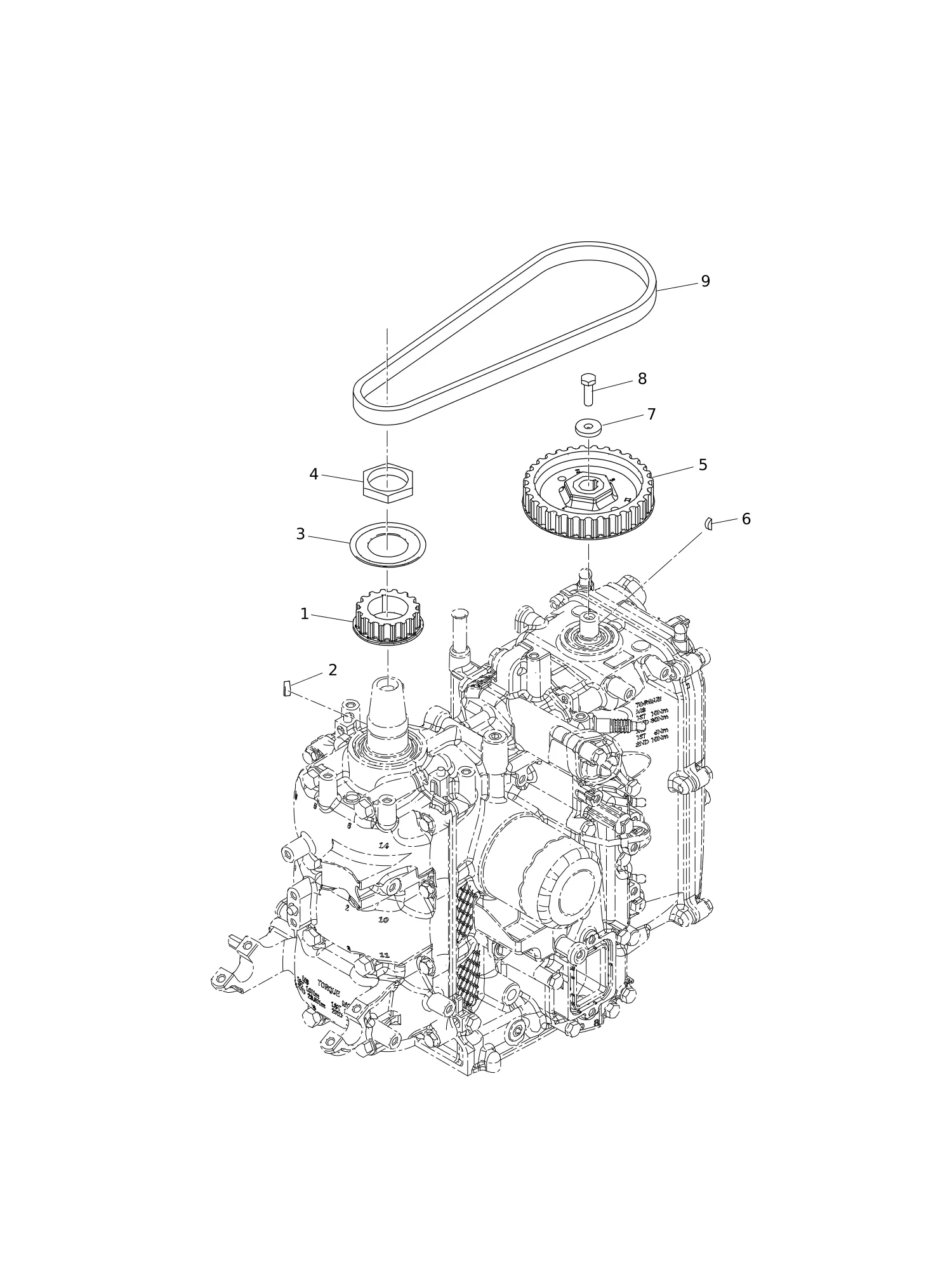

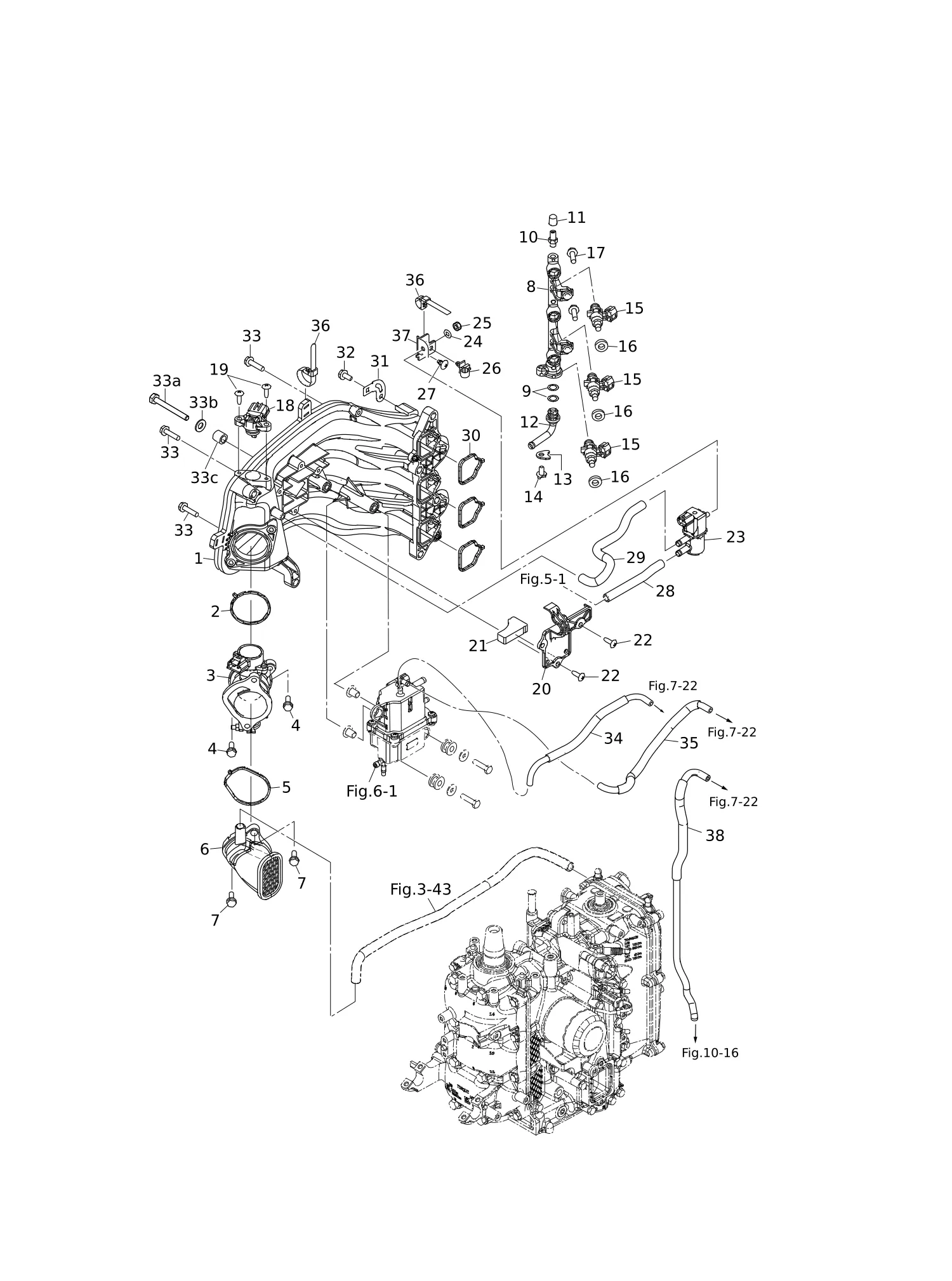

| 1 | 3VS-10060-0 | 驱动皮带轮 | DRIVE PULLEY | 1 |
| 3 | 3VS-10063-0 | 皮带导轮 t=1.0 | BELT GUIDE t=1.0 | 1 |
| 4 | 3T5-10068-2 | 螺母 | NUT | 1 |
| 5 | 3VS-10062-0 | 从动皮带轮 | DRIVEN PULLEY | 1 |
| 6 | 309-00131-0 | 键 10-3.7-3 | KEY 10-3.7-3 | 1 |
| 7 | 3H8-10066-0 | 垫片 6.5-19-3.2 | WASHER 6.5-19-3.2 | 1 |
| 8 | 3AA-60108-0 | 预涂层螺栓6-20 | PRE-COATED BOLT 6-20 | 1 |
| 9 | 3VS-10045-0 | 正时皮带 | TIMING BELT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3VS-02091-0 | 进气歧管 | INTAKE MANIFOLD | 1 |
| 2 | 3VS-10104-0 | 衬垫 | GASKET | 1 |
| 3 | 3VS-10100-0 | 节气门体总成 φ35 | THROTTLE BODY ASSY φ35 | 1 |
| 5 | 3VS-02418-0 | 衬垫 | GASKET | 1 |
| 6 | 3VS-02409-0 | 进气消声器总成 | INTAKE SILENCER ASSY | 1 |
| 8 | 3VS-10201-0 | 燃油轨 | FUEL RAIL | 1 |
| 9 | 3T5-10162-0 | O型圈1.9-9.8 | O-RING 1.9-9.8 | 2 |
| 10 | 3T5-10098-1 | 阀门总成（压力检测） | VALVE ASSY (PRESSURE CHECK) | 1 |
| 11 | 3T5-10099-0 | 盖帽 | CAP | 1 |
| 12 | 3T5-10161-0 | 管接头 8-6-13 | NIPPLE 8-6-13 | 1 |
| 13 | 3T5-10169-0 | 固定板 | HOLDING PLATE | 1 |
| 15 | 3VS-10300-0 | 喷油器总成 | FUEL INJECTOR ASSY | 3 |
| 16 | 3VS-10323-0 | 密封环 Φ8.5-5.5 | SEAL RING Φ8.5-5.5 | 3 |
| 17 | 910103-5620 | 螺栓 | BOLT | 2 |
| 18 | 3RS-10214-0 | 进气压力传感器 | MAP SENSOR | 1 |
| 20 | 3VT-02415-0 | 进气消声器盖 | INTAKE SILENCER COVER | 1 |
| 21 | 3AC-10130-0 | 空气滤清器 | AIR FILTER | 1 |
| 22 | 3VU-02423-0 | 自攻螺钉 M5-16 | TAPPING SCREW M5-16 | 4 |
| 23 | 3VS-10211-0 | 怠速控制阀 | ISC VALVE | 1 |
| 25 | 930103-0600 | 螺母 | NUT | 1 |
| 26 | 3KY-84398-0 | 箍带 | BAND | 1 |
| 27 | 3VT-02423-0 | 自攻螺钉 6-12 | TAPPING SCREW 6-12 | 1 |
| 28 | 3VS-10212-0 | 软管 8-12_L=45 | HOSE 8-12_L=45 | 1 |
| 29 | 3VT-10212-0 | 软管 8-12_L=205_40 | HOSE 8-12_L=205_40 | 1 |
| 30 | 3VS-02104-0 | 进气歧管垫片 | INTAKE MANIFOLD GASKET | 3 |
| 31 | 3VS-06869-0 | 支架 t=1.2 | BRACKET t=1.2 | 1 |
| 32 | 910103-5612 | 螺栓 | BOLT | 1 |
| 33c | 3VS-02605-0 | 垫圈 6.5-13-55 | SPACER 6.5-13-55 | 1 |
| 33 | 910103-5625 | 螺栓 | BOLT | 5 |
| 33a | 916103-0680 | 螺栓 | BOLT | 1 |
| 33b | 940103-0600 | 垫圈 | WASHER | 1 |
| 34 | 3VS-10185-0 | 通风软管带保护套 | VENT HOSE W/PROTECTOR | 1 |
| 35 | 3RS-10185-0 | 通风软管带保护套 | VENT HOSE W/PROTECTOR | 1 |
| 36 | 3VS-84398-0 | 箍带 | BAND | 2 |
| 37 | 3VS-02107-0 | 怠速控制阀支架 t=2 | ISC VALVE STAY t=2 | 1 |
| 38 | 3RT-10185-0 | 通风软管带保护套 | VENT HOSE W/PROTECTOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

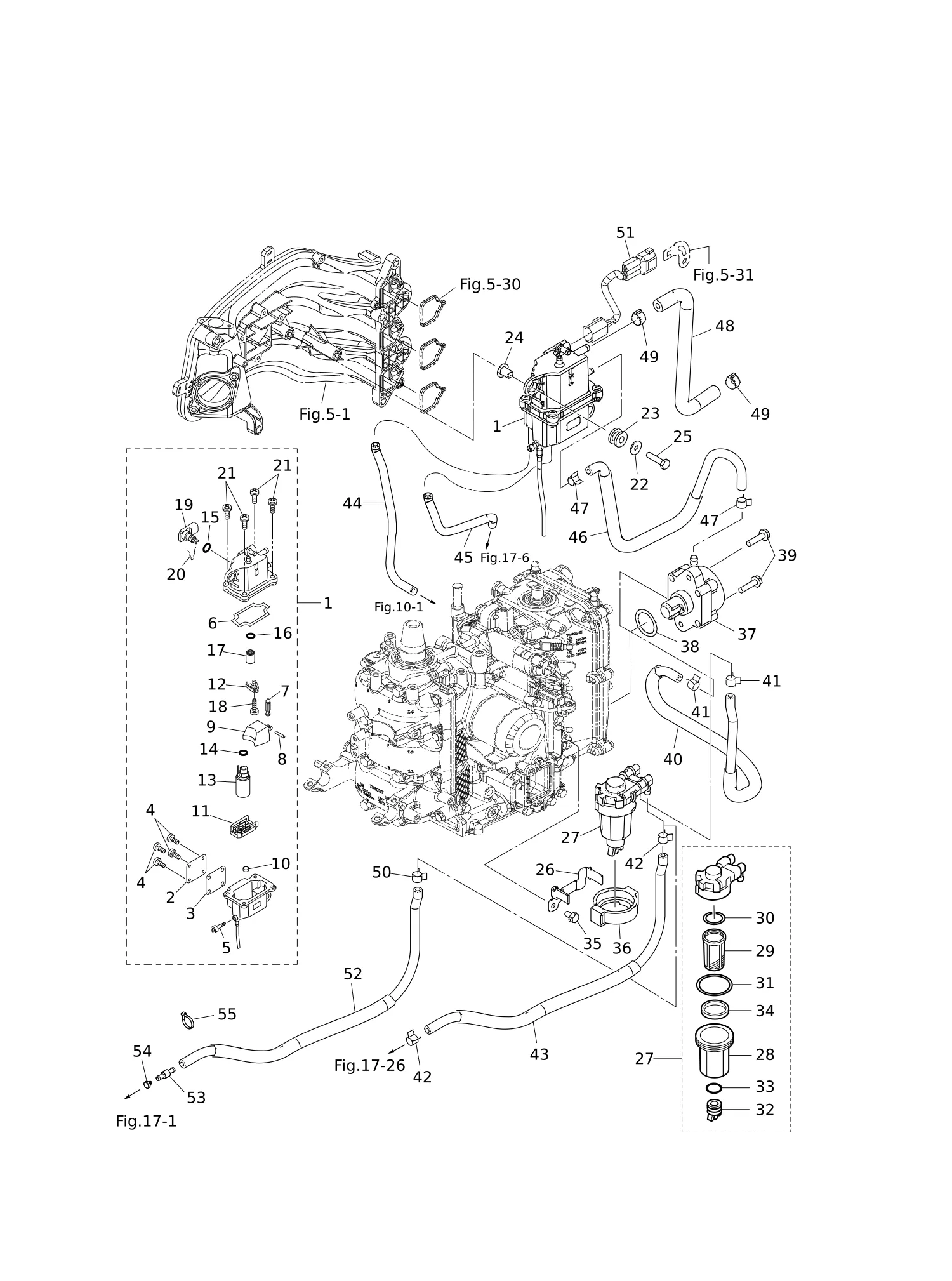

| 1 | 3RS-10150-0 | 蒸汽分离器总成 | VAPOR SEPARATOR ASSY | 1 |
| 2 | 3RS-10179-0 | * 盖板 | * COVER | 1 |
| 3 | 31H-10180-0 | * 密封件 | * SEAL | 1 |
| 5 | 3RS-03292-0 | * 放油螺钉 | * DRAIN SCREW | 1 |
| 6 | 3RS-04116-0 | * 衬垫 | * GASKET | 1 |
| 7 | 3RS-03239-0 | * 浮子阀总成 | * FLOAT VALVE ASSY | 1 |
| 8 | 3RS-03232-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 9 | 3RS-03230-0 | * 浮子 | * FLOAT | 1 |
| 10 | 3RS-04314-0 | * 护孔环 | * GROMMET | 1 |
| 11 | 3RS-04322-0 | * 滤清器(进口) | * FILTER (INLET) | 1 |
| 12 | 3RS-10157-0 | * 支架 | * HOLDER | 1 |
| 13 | 3RS-04302-0 | * 燃油供给泵 | * FUEL FEED PUMP | 1 |
| 14 | 3RS-03116-0 | * O型圈 | * O-RING | 1 |
| 15 | 3RT-03116-0 | * O型圈 | * O-RING | 1 |
| 16 | 3RS-10095-0 | * O型圈 | * O-RING | 1 |
| 17 | 3RS-10154-0 | * 燃油调节器 | * FUEL REGULATOR | 1 |
| 18 | 921503-0408 | * 螺钉 | * SCREW | 1 |
| 19 | 3RS-10172-0 | * VST连接器 | * VST CONNECTOR | 1 |
| 20 | 3RS-03244-0 | * 卡扣 | * CLIP | 1 |
| 21 | 921503-0516 | * 螺钉 | * SCREW | 4 |
| 22 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 2 |
| 23 | 3KY-06920-0 | 橡胶支座 | RUBBER MOUNT | 2 |
| 24 | 3RS-76079-0 | 轴环 | COLLAR | 2 |
| 25 | 910103-0625 | 螺栓 | BOLT | 2 |
| 26 | 3RS-02239-0 | 板 | PLATE | 1 |
| 27 | 3RS-02230-0 | 燃油滤清器总成 | FUEL FILTER ASSY | 1 |
| 28 | 3RS-02237-0 | * 杯状件 | * CUP | 1 |
| 29 | 3B7-02234-0 | * 滤清器 | * FILTER | 1 |
| 30 | 3B7-02236-0 | * O型圈 | * O-RING | 1 |
| 31 | 3RS-02235-0 | * O型圈 | * O-RING | 1 |
| 32 | 3RS-02253-0 | * 排水阀 | * DRAIN VALVE | 1 |
| 33 | 3RS-02258-0 | * 密封件 | * SEAL | 1 |
| 34 | 3RS-02229-0 | * 浮子 | * FLOAT | 1 |
| 35 | 910103-5612 | 螺栓 | BOLT | 1 |
| 36 | 3RS-02232-0 | 燃油滤清器固定座 | FUEL FILTER HOLDER | 1 |
| 37 | 3H8-04000-1 | 燃油泵总成 | FUEL PUMP ASSY | 1 |
| 38 | 3H8-62415-0 | O型圈 3.5-25.7 | O-RING 3.5-25.7 | 1 |
| 39 | 910103-5625 | 螺栓 | BOLT | 2 |
| 40 | 3VS-02166-0 | 带保护套燃油软管 | FUEL HOSE W/PROTECTOR | 1 |
| 40 | 3VT-02204-0 | 燃油软管 | FUEL HOSE | 1 |
| 43 | 3VS-02160-0 | 带保护套燃油软管 | FUEL HOSE W/PROTECTOR | 1 |
| 43 | 3VU-04080-0 | 带保护套燃油软管 | FUEL HOSE W/PROTECTOR | 1 |
| 44 | 3KY-65212-0 | 水管 | WATER HOSE | 1 |
| 45 | 3RT-65212-0 | 水管 | WATER HOSE | 1 |
| 46 | 3VS-04077-0 | 带保护套燃油软管 | FUEL HOSE W/PROTECTOR | 1 |
| 46 | 3VS-04080-0 | 带保护套燃油软管 | FUEL HOSE W/PROTECTOR | 1 |
| 48 | 3VS-02168-0 | 带保护套燃油软管 | FUEL HOSE W/PROTECTOR | 1 |
| 49 | 3AC-10087-0 | 夹箍φ16.8 | CLAMP φ16.8 | 2 |
| 50 | 3GT-35143-0 | 卡环 φ9.4 | CLIP φ9.4 | 1 |
| 51 | 3VT-06987-0 | 适配线 L=200 | ADAPTER CORD L=200 | 1 |
| 52 | 3VT-02160-0 | 带保护套燃油软管 | FUEL HOSE W/PROTECTOR | 1 |
| 52 | 3VV-04080-0 | 带保护套燃油软管 | FUEL HOSE W/PROTECTOR | 1 |
| 53 | 3VS-70235-0 | 燃油软管接头 | FUEL HOSE JOINT | 1 |
| 54 | 3T1-03813-0 | 塞 | PLUG | 1 |
| 55 | 3T5-84398-0 | 箍带 104 | BAND 104 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

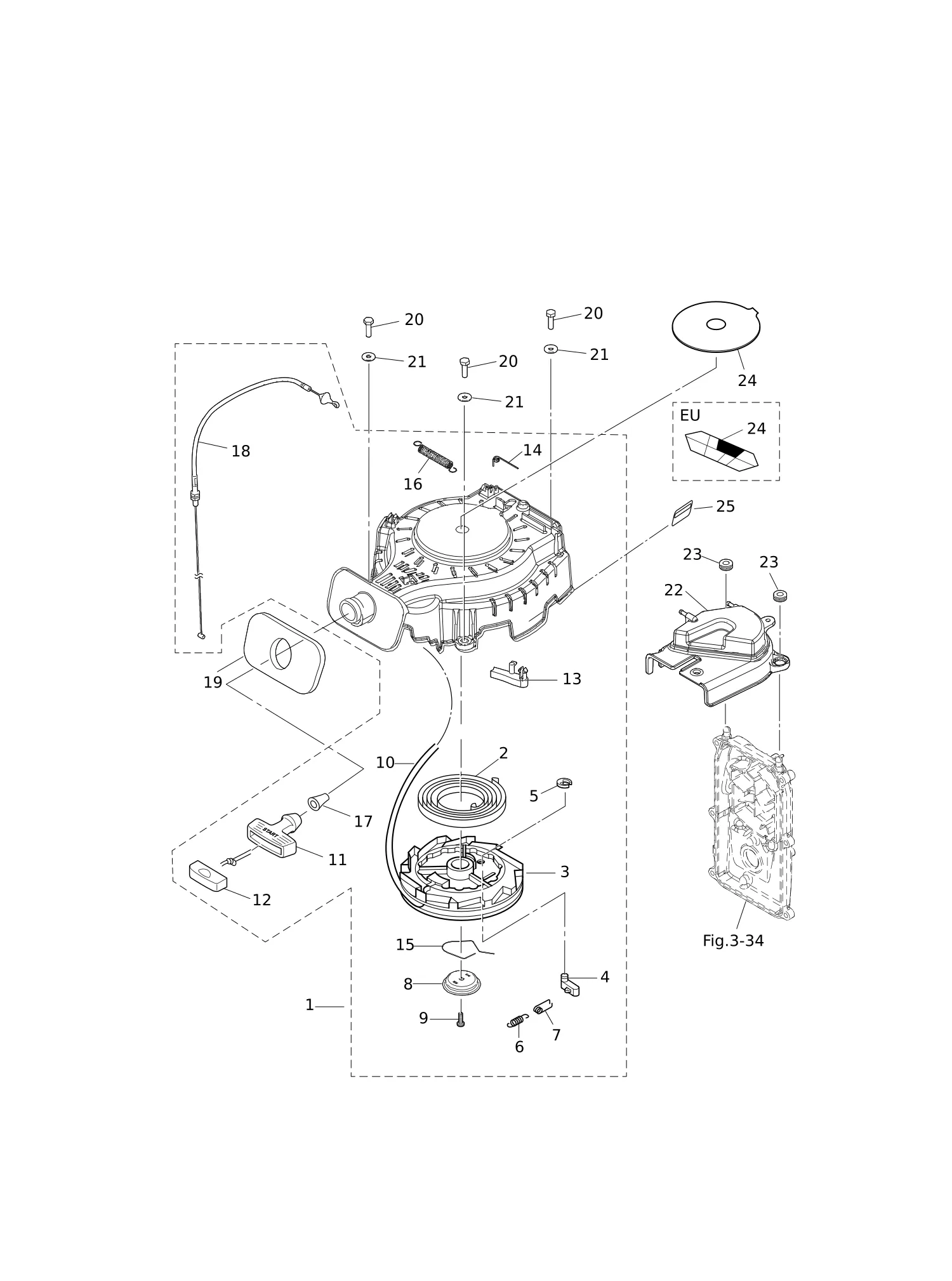

| 1 | 3VS-05090-0 | 反冲启动器总成 | RECOIL STARTER ASSY | 1 |
| 2 | 3H8-05004-0 | * 启动弹簧 | * STARTER SPRING | 1 |
| 3 | 3R3-05106-0 | * 卷轴 | * REEL | 1 |
| 4 | 3R3-05003-0 | * 棘轮 | * RATCHET | 1 |
| 5 | 3R3-05011-0 | * E型卡环 d=10 | * E-RING d=10 | 1 |
| 6 | 3R3-05012-0 | * 回位弹簧 | * RETURN SPRING | 1 |
| 7 | 3H8-05123-1 | * 回位弹簧 | * RETURN SPRING | 1 |
| 8 | 3R3-05006-0 | * 摩擦板 | * FRICTION PLATE | 1 |
| 9 | 3SA-05913-0 | * 自攻螺钉 | * TAPPING SCREW | 1 |
| 10 | 3R3-05013-0 | * 启动绳 φ5-1800 | * STARTER ROPE φ5-1800 | 1 |
| 11 | 3RS-05019-0 | * 启动手柄 | * STARTER HANDLE | 1 |
| 12 | 3AB-05131-0 | * 绳索锚定器 | * ROPE ANCHOR | 1 |
| 13 | 3R3-05252-0 | * 启动器锁 | * STARTER LOCK | 1 |
| 14 | 3R3-05216-0 | * 启动器锁弹簧 | * STARTER LOCK SPRING | 1 |
| 15 | 3R3-05007-1 | * 摩擦弹簧 | * FRICTION SPRING | 1 |
| 16 | 3AC-05258-0 | * 启动器锁凸轮弹簧 | * STARTER LOCK CAM SPRING | 1 |
| 17 | 3LD-05912-0 | * 密封件 | * SEAL | 1 |
| 18 | 3VS-05207-0 | * 启动器锁线 | * STARTER LOCK WIRE | 1 |
| 19 | 3VS-67503-0 | 启动器密封件 | STARTER SEAL | 1 |
| 20 | 3AL-60108-0 | 预涂层螺栓6-20 | PRE-COATED BOLT 6-20 | 3 |
| 21 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 3 |
| 22 | 3VM-06308-0 | 皮带罩 | BELT COVER | 1 |
| 23 | 172-36008-0 | 索环 13-2 | GROMMET 13-2 | 2 |
| 24 | 3NV-72181-1 | 警示标贴(B型) | CAUTION DECAL (B) | 1 |
| 24 | 3PA-72181-1 | 警示标贴(B型) | CAUTION DECAL (B) | 1 |
| 25 | 3UR-72187-1 | 警示标贴(SIGP型) | CAUTION DECAL (SIGP) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

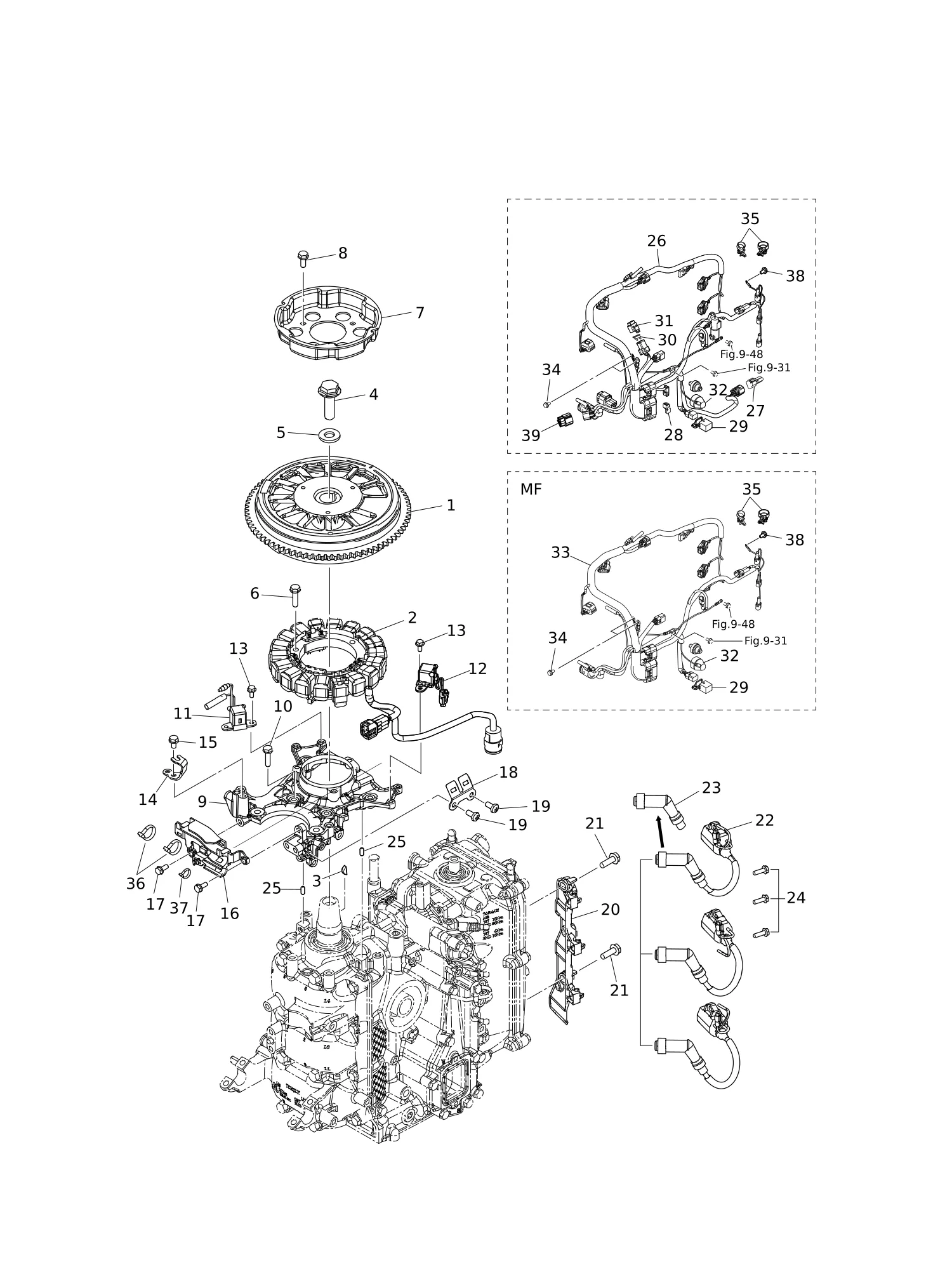

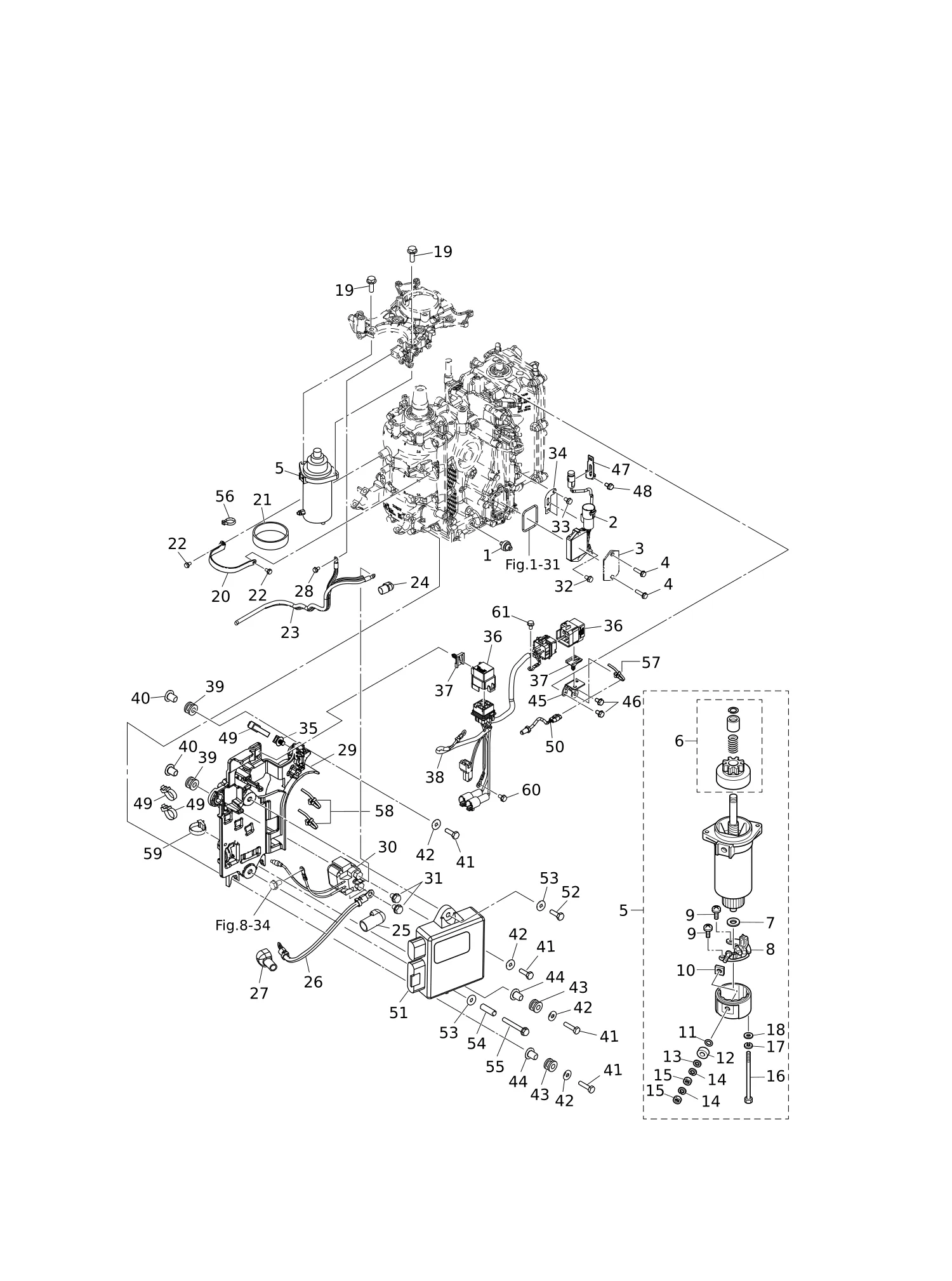

| 1 | 3VS-06191-0 | 带齿轮飞轮 | FLYWHEEL W/GEAR | 1 |
| 2 | 3VS-06023-0 | 交流发电机总成 | ALTERNATOR ASSY | 1 |
| 2 | 3VT-06023-0 | 交流发电机总成 | ALTERNATOR ASSY | 1 |
| 3 | 3T5-10131-0 | 键 t=4 | KEY t=4 | 1 |
| 4 | 3VS-06864-0 | 螺栓 | BOLT | 1 |
| 5 | 3SS-01116-0 | 垫片 13-26-3.2 | WASHER 13-26-3.2 | 1 |
| 7 | 3R0-05901-1 | 启动器皮带轮 | STARTER PULLEY | 1 |
| 9 | 3VS-06008-0 | 线圈支架 | COIL BRACKET | 1 |
| 10 | 910103-5625 | 螺栓 | BOLT | 4 |
| 11 | 3VS-06071-0 | 脉冲线圈 | PULSAR COIL | 1 |
| 12 | 3VT-06071-0 | 脉冲线圈 | PULSAR COIL | 1 |
| 13 | 910103-5512 | 螺栓 | BOLT | 4 |
| 14 | 3VS-69000-0 | 启动锁电缆支架 | STARTER LOCK CABLE BRACKET | 1 |
| 16 | 3VS-06281-0 | 电缆端子座 | CABLE TERMINAL HOLDER | 1 |
| 17 | 910103-5616 | 螺栓 | BOLT | 2 |
| 18 | 3VS-76064-0 | 保险丝支架 | FUSE HOLDER BRACKET | 1 |
| 19 | 921503-0510 | 螺钉 | SCREW | 2 |
| 20 | 3VT-06901-0 | 支架 | BRACKET | 1 |
| 22 | 3VS-06469-0 | 带帽点火线圈 | IGNITION COIL W/R-CAP | 3 |
| 23 | 3VS-06999-0 | * 带电阻火花塞帽 | * PLUG CAP W/RESISTANCE | 1 |
| 24 | 910103-5620 | 螺栓 | BOLT | 3 |
| 25 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 2 |
| 26 | 3VS-10205-0 | 电控单元线束总成 | ECU CORD ASSY | 1 |
| 27 | 3RS-01047-0 | 塞 | PLUG | 1 |
| 28 | 3VS-01047-0 | 塞 | PLUG | 1 |
| 29 | 3KY-76037-0 | 电缆端子插头 | CABLE TERMINAL PLUG | 1 |
| 30 | 3T5-76247-0 | 20安保险丝 | FUSE 20A | 2 |
| 31 | 1E0-34093-0 | 盖帽(Y型) | CAP (Y) | 1 |
| 32 | 3KY-07612-0 | 索环/护孔圈 | GROMMET | 1 |
| 33 | 3VU-10205-0 | 电控单元线束总成 | ECU CORD ASSY | 1 |
| 35 | 3KY-84398-0 | 箍带 | BAND | 2 |
| 36 | 3VS-84398-0 | 箍带 | BAND | 2 |
| 37 | 369-84398-1 | 箍带 202 | BAND 202 | 1 |
| 38 | 910103-5612 | 螺栓 | BOLT | 1 |
| 39 | 3VT-01047-0 | 塞 | PLUG | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3KY-07611-1 | 油压开关 | OIL PRESSURE SWITCH | 1 |
| 2 | 3VS-76060-0 | 整流器总成 | RECTIFIER COMPLETE | 1 |
| 3 | 3VS-76036-0 | 盖板 | COVER | 1 |
| 4 | 910103-5616 | 螺栓 | BOLT | 2 |
| 4 | 910103-5625 | 螺栓 | BOLT | 2 |
| 5 | 3GF-76010-1 | 启动马达总成 | STARTER MOTOR ASSY | 1 |
| 6 | 3GF-76015-1 | * 小齿轮总成 | * PINION ASSY | 1 |
| 7 | 3GF-75015-0 | * 垫圈 | * WASHER | 1 |
| 8 | 3GF-75014-0 | * 碳刷架总成 | * BRUSH HOLDER ASSY | 1 |
| 9 | 921521-6408 | * 螺钉 | * SCREW | 2 |
| 10 | 3GF-75017-0 | * 衬套 2 | * BUSHING 2 | 1 |
| 11 | 3GF-75018-0 | * O型圈 | * O-RING | 1 |
| 12 | 3GF-75016-0 | * 衬套 1 | * BUSHING 1 | 1 |
| 13 | 940103-0600 | * 垫圈 | * WASHER | 2 |
| 14 | 941303-0600 | * 弹簧垫圈 | * SPRING WASHER | 2 |
| 15 | 930203-0600 | 螺母 | * NUT | 2 |
| 16 | 3GF-75019-0 | 螺栓 | * BOLT | 2 |
| 17 | 941321-0500 | * 弹簧垫圈 | * SPRING WASHER | 2 |
| 18 | 940221-0500 | * 垫圈 | * WASHER | 2 |
| 19 | 910103-5825 | 螺栓 | BOLT | 2 |
| 20 | 3VS-76009-0 | 启动马达固定带 | STARTER MOTOR BAND | 1 |
| 21 | 3C8-76007-0 | 减震器 | DAMPER | 1 |
| 23 | 3AC-76120-0 | 蓄电池电缆 L=2500 | BATTERY CABLE L=2500 | 1 |
| 24 | 3BJ-76145-0 | 端子盖 15.5-20-28 | TERMINAL CAP 15.5-20-28 | 1 |
| 25 | 3AA-76145-0 | 端子盖 13-13-28 | TERMINAL CAP 13-13-28 | 1 |
| 26 | 3VS-76141-0 | 启动电缆 | STARTER CABLE | 1 |
| 27 | 3Y0-76145-0 | 端子盖 8-18-28 | TERMINAL CAP 8-18-28 | 1 |
| 29 | 3VS-06903-0 | 电机支架 | ELECTRIC BRACKET | 1 |
| 30 | 3VS-76040-0 | 启动器电磁阀 | STARTER SOLENOID | 1 |
| 31 | 910103-5610 | 螺栓 | BOLT | 2 |
| 34 | 3VS-06975-0 | 板 | PLATE | 1 |
| 35 | 3SS-67113-0 | 支架 | MOUNT | 1 |
| 36 | 3VS-06330-0 | 继电器 | RELAY | 2 |
| 37 | 3VS-06916-0 | 卡扣 | CLIP | 2 |
| 38 | 3VS-06987-1 | 适配线 | ADAPTER CORD | 1 |
| 41 | 910103-0625 | 螺栓 | BOLT | 5 |
| 43 | 3KY-06920-0 | 橡胶支座 | RUBBER MOUNT | 2 |
| 44 | 3RS-76079-0 | 轴环 | COLLAR | 2 |
| 45 | 3VT-06322-0 | 板 | PLATE | 1 |
| 47 | 3VS-06322-0 | 板 | PLATE | 1 |
| 50 | 3VS-72510-0 | 发动机温度传感器 | ENGINE TEMP SENSOR | 1 |
| 51 | 3VS-06402-0 | 带警示标贴电控单元总成(30) | ECU ASSY W/CAUTION DECAL (30) | 1 |
| 51 | 3VT-06402-0 | 带警示标贴电控单元总成(25) | ECU ASSY W/CAUTION DECAL (25) | 1 |
| 51 | 3VU-06402-0 | 带警示标贴电控单元总成(30) | ECU ASSY W/CAUTION DECAL (30) | 1 |
| 51 | 3VV-06402-0 | 带警示标贴电控单元总成(25) | ECU ASSY W/CAUTION DECAL (25) | 1 |
| 52 | 910103-0620 | 螺栓 | BOLT | 1 |
| 53 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 2 |
| 54 | 3B2-06162-0 | 垫圈 6.2-9-27 | SPACER 6.2-9-27 | 1 |
| 55 | 910103-5650 | 螺栓 | BOLT | 1 |
| 56 | 3T5-84398-0 | 箍带 104 | BAND 104 | 1 |
| 58 | 3SS-84398-0 | 箍带 | BAND | 2 |
| 59 | 3VS-84398-0 | 箍带 | BAND | 1 |
| 61 | 910103-5612 | 螺栓 | BOLT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1a | 3RS-00062-0 | * 密封塞 | * SEALING PLUG | 1 |

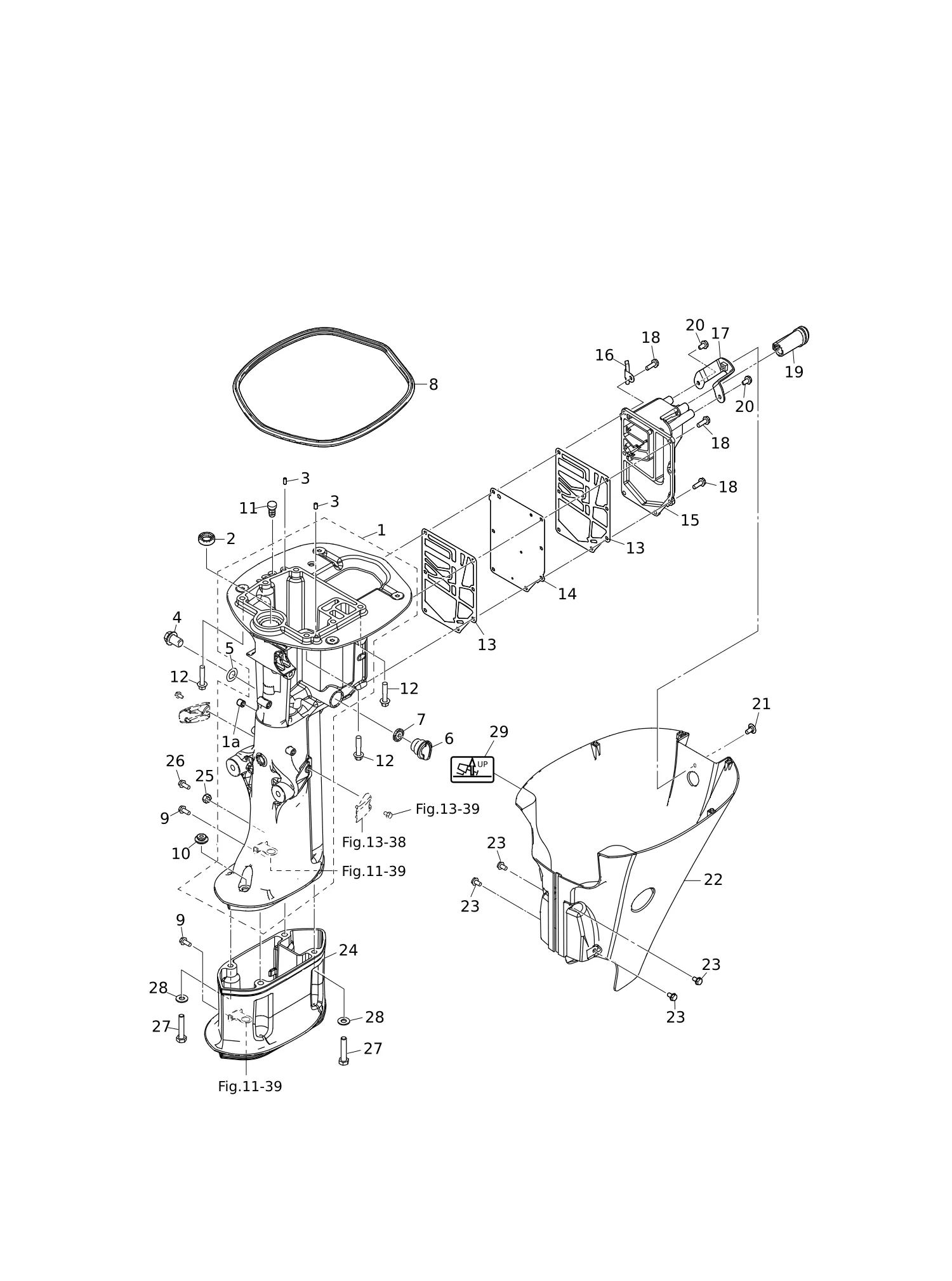

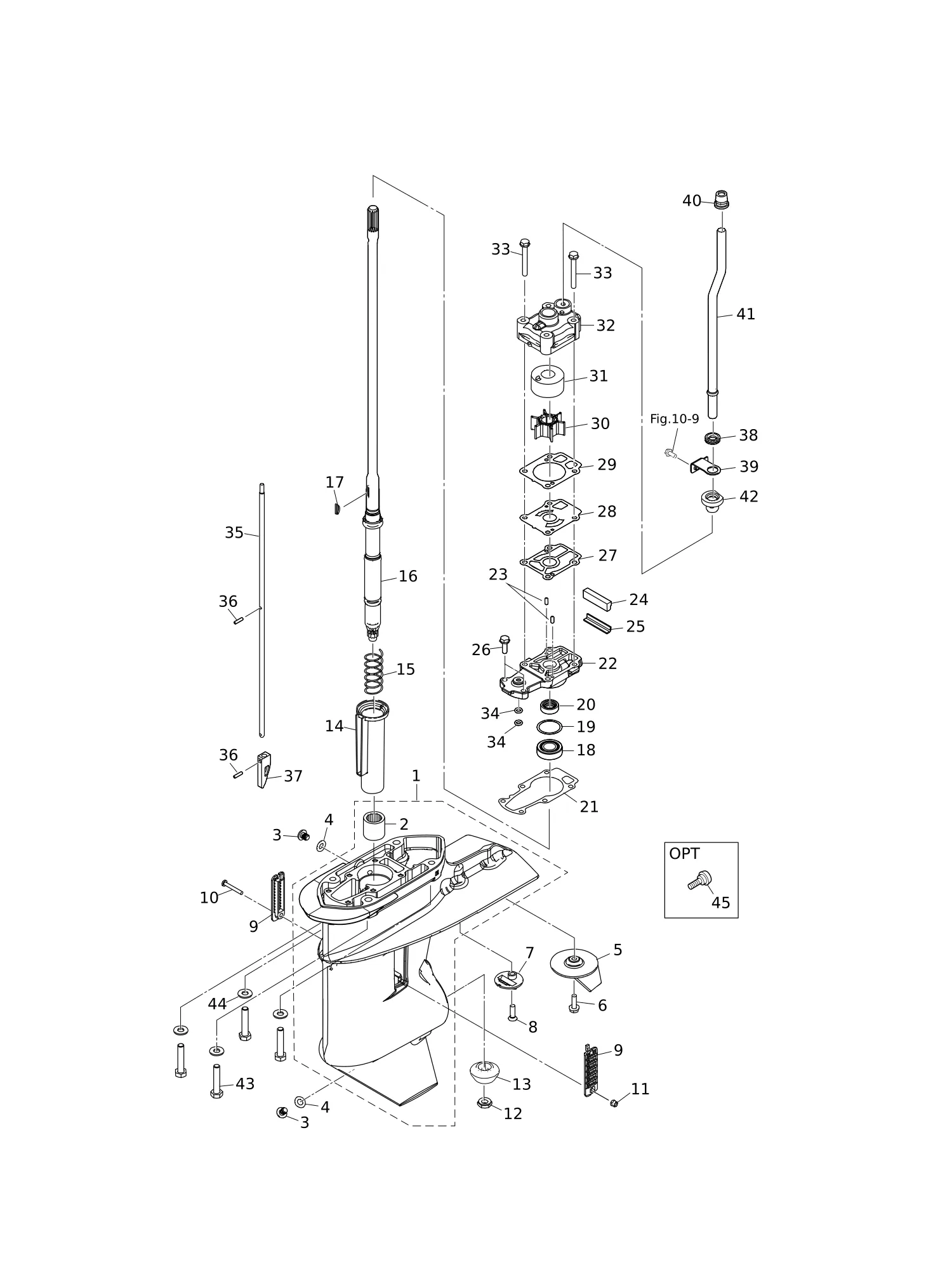

| 1 | 3VSQ61020-1 | 驱动轴壳体总成(S) | DRIVE SHAFT HOUSING ASSY (S) | 1 |
| 1 | 3VSQ61030-0 | 驱动轴壳体总成(L) | DRIVE SHAFT HOUSING ASSY (L) | 1 |
| 1 | 3VSW61020-1 | 驱动轴壳体总成(S) | DRIVE SHAFT HOUSING ASSY (S) | 1 |
| 1 | 3VSW61030-0 | 驱动轴壳体总成(L) | DRIVE SHAFT HOUSING ASSY (L) | 1 |
| 2 | 346-01215-0 | 油封 15.8-28-6 | OIL SEAL 15.8-28-6 | 1 |
| 3 | 3B2-01111-0 | 定位销6-16 | DOWEL PIN 6-16 | 2 |
| 4 | 3R3-07705-1 | 放油螺栓14-14 | DRAIN BOLT 14-14 | 1 |
| 5 | 3R3-07406-0 | 垫片 14.5-24-1 | WASHER 14.5-24-1 | 1 |
| 6 | 3RS-72404-0 | 冲洗连接器盖 | FLUSHING CONNECTOR CAP | 1 |
| 7 | 3RS-67147-0 | 密封环 | SEAL RING | 1 |
| 8 | 3VS-67116-0 | 发动机基座密封件 | ENGINE BASEMENT SEAL | 1 |
| 10 | 3RS-66043-0 | 索环/护孔圈 | GROMMET | 1 |
| 11 | 3A3-60984-0 | 副进水口软管塞 | SUB-WATER INLET HOSE PLUG | 1 |
| 12 | 3VS-61017-0 | 螺栓8-P1.25 | BOLT 8-P1.25 | 6 |
| 13 | 3VS-61220-0 | 怠速排气口垫片 | IDLE EXHAUST PORT GASKET | 2 |
| 14 | 3VS-61221-0 | 怠速排气板 | IDLE EXHAUST PLATE | 1 |
| 15 | 3VSQ61208-0 | 怠速排气口盖 | IDLE EXHAUST PORT COVER | 1 |
| 15 | 3VSW61208-0 | 怠速排气口盖 | IDLE EXHAUST PORT COVER | 1 |
| 16 | 3RS-01138-0 | 管接头 | NIPPLE | 1 |
| 17 | 3VS-61214-0 | 挡板支架 | APRON STAY | 1 |
| 18 | 9101E3-5620 | 螺栓 | BOLT | 7 |
| 19 | 3VS-61212-0 | 索环/护孔圈 | GROMMET | 1 |
| 21 | 3VS-05254-0 | 台阶螺栓 | SHOULDER BOLT | 1 |
| 22 | 3VSQ61210-0 | 挡板 | APRON | 1 |
| 22 | 3VSW61210-0 | 挡板 | APRON | 1 |
| 23 | 9101E3-5612 | 螺栓 | BOLT | 4 |
| 24 | 3VSQ61110-0 | 延伸壳体 | EXTENSION HOUSING | 1 |
| 25 | 9301E3-0600 | 螺母 | NUT | 1 |
| 26 | 9101E3-5616 | 螺栓 | BOLT | 1 |
| 27 | 9161E3-0840 | 螺栓 | BOLT | 4 |
| 28 | 3P0-66233-0 | 垫片 8.1-16-1.5 | WASHER 8.1-16-1.5 | 4 |
| 29 | 3H6-67572-1 | 存放标识 | STORAGE DECAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3VSQ60000-1 | 齿轮箱总成 | GEAR CASE ASSY | 1 |
| 1 | 3VSW60000-1 | 齿轮箱总成 | GEAR CASE ASSY | 1 |
| 2 | 3VS-60211-0 | * 滚柱轴承 | * ROLLER BEARING | 1 |
| 3 | 332-60005-3 | 塞 8-8 | PLUG 8-8 | 2 |
| 4 | 332-60006-1 | 衬垫8.1-15-1 | GASKET 8.1-15-1 | 2 |
| 5 | 3C8-60217-1 | 配平片 | TRIM TAB | 1 |
| 6 | 910103-5620 | 螺栓 | BOLT | 1 |
| 7 | 369-60206-0 | 滤水器 | WATER STRAINER | 1 |
| 8 | 9218E3-0620 | 螺钉 | SCREW | 1 |
| 9 | 362-60206-1 | 滤水器 | WATER STRAINER | 2 |
| 10 | 921503-0430 | 螺钉 | SCREW | 1 |
| 11 | 930403-0400 | 尼龙螺母 4-P0.7 | NYLON NUT 4-P0.7 | 1 |
| 12 | 346-64027-1 | 螺母 | NUT | 1 |
| 13 | 3NV-64020-0 | 锥齿轮B | BEVEL GEAR B | 1 |
| 14 | 3VS-64328-0 | 驱动轴弹簧导套 | DRIVE SHAFT SPRING GUIDE | 1 |
| 15 | 3VS-64327-0 | 驱动轴弹簧 | DRIVE SHAFT SPRING | 1 |
| 16 | 3VS-64301-0 | 驱动轴(S) | DRIVE SHAFT (S) | 1 |
| 16 | 3VS-64302-0 | 驱动轴(L) | DRIVE SHAFT (L) | 1 |
| 16 | 3VS-64303-0 | 驱动轴(UL) | DRIVE SHAFT (UL) | 1 |
| 17 | 332-65022-0 | 键 20-4.6-2 | KEY 20-4.6-2 | 1 |
| 18 | 346-60213-0 | 圆锥滚子轴承 32004 | TAPERED ROLLER BEARING 32004 | 1 |
| 19 | 346-64081-0 | 垫片 35-41.9-0.1 | SHIM 35-41.9-0.1 | 1 |
| 19 | 346-64082-0 | 垫片 35-41.9-0.15 | SHIM 35-41.9-0.15 | 1 |
| 19 | 346-64083-0 | 垫片 35-41.9-0.3 | SHIM 35-41.9-0.3 | 1 |
| 19 | 346-64084-0 | 垫片 35-41.9-0.5 | SHIM 35-41.9-0.5 | 1 |
| 20 | 346-65013-0 | 油封 17-30-9 | OIL SEAL 17-30-9 | 1 |
| 21 | 3VS-65020-0 | 泵壳垫片(下) | PUMP CASE GASKET (LOWER) | 1 |
| 22 | 3VS-65017-0 | 泵壳(下) | PUMP CASE (LOWER) | 1 |
| 23 | 334-65012-0 | 定位销4-10 | DOWEL PIN 4-10 | 2 |
| 24 | 3KY-60041-0 | 水封橡胶 | WATER SEAL RUBBER | 1 |
| 25 | 3KY-60042-0 | 水封板 | WATER SEAL PLATE | 1 |
| 26 | 9101E3-5620 | 螺栓 | BOLT | 2 |
| 27 | 348-65029-1 | 导板垫片 | GUIDE PLATE GASKET | 1 |
| 28 | 3R0-65025-0 | 水泵导板 | WATER PUMP GUIDE PLATE | 1 |
| 29 | 3R0-65018-0 | 泵壳垫片 | PUMP CASE GASKET | 1 |
| 30 | 3NV-65021-0 | 水泵叶轮 | WATER PUMP IMPELLER | 1 |
| 31 | 3R0-65011-0 | 泵壳衬套 | PUMP CASE LINER | 1 |
| 32 | 3R0-65016-0 | 泵壳(上) | PUMP CASE (UPPER) | 1 |
| 33 | 9101E3-5652 | 螺栓 | BOLT | 4 |
| 34 | 332-66021-0 | O型圈 2.4-5.8 | O-RING 2.4-5.8 | 2 |
| 35 | 3VS-66012-0 | 凸轮杆(短) | CAM ROD (S) | 1 |
| 35 | 3VS-66013-0 | 凸轮杆(长) | CAM ROD (L) | 1 |
| 35 | 3VS-66014-0 | 凸轮杆(超长) | CAM ROD (UL) | 1 |
| 36 | 951407-0312 | 弹簧销 3-12 | SPRING PIN 3-12 | 2 |
| 37 | 3AC-66011-2 | 离合器凸轮 | CLUTCH CAM | 1 |
| 38 | 3KY-65204-0 | 水管辅助支架 | WATER PIPE AUXILIARY MOUNT | 1 |
| 39 | 3VS-65203-0 | 锁紧板 | LOCK PLATE | 1 |
| 40 | 3KY-65206-0 | 水管密封件(上) | WATER PIPE SEAL (UPPER) | 1 |
| 41 | 3VS-65100-0 | 水管(短) | WATER PIPE (S) | 1 |
| 41 | 3VS-65110-0 | 水管(左) | WATER PIPE (L) | 1 |
| 41 | 3VS-65120-0 | 水管(左上) | WATER PIPE (UL) | 1 |
| 42 | 3B7-65014-0 | 水管密封件(下) | WATER PIPE SEAL (LOWER) | 1 |
| 43 | 9161E3-0840 | 螺栓 | BOLT | 4 |
| 44 | 9401E3-0800 | 垫圈 | WASHER | 4 |
| 45 | 346-60984-0 | 副进水口软管塞 | SUB-WATER INLET HOSE PLUG | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

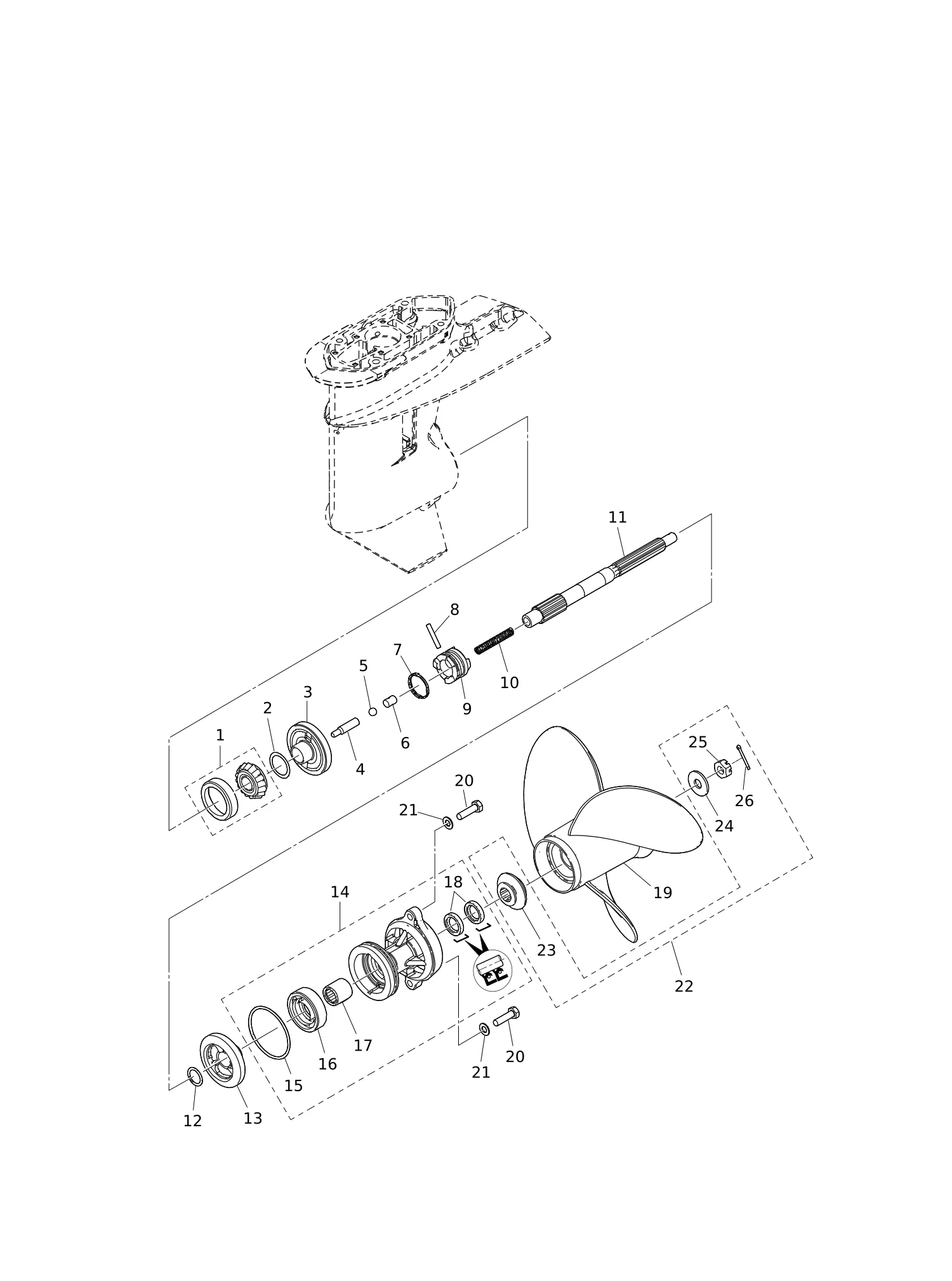

| 1 | 346-60215-0 | 圆锥滚子轴承 30205 | TAPERED ROLLER BEARING 30205 | 1 |
| 2 | 369-64081-1 | 垫片 26.5-34.8-0.1 | SHIM 26.5-34.8-0.1 | 1 |
| 2 | 369-64082-1 | 垫片 26.5-34.8-0.15 | SHIM 26.5-34.8-0.15 | 1 |
| 3 | 3NV-64010-1 | 锥齿轮总成(A) | BEVEL GEAR ASSY (A) | 1 |
| 4 | 3C8-64223-1 | 推杆 | PUSH ROD | 1 |
| 5 | 965002-0803 | 钢球 3/8英寸 | BALL 3/8 | 1 |
| 6 | 350-64222-1 | 弹簧挡圈 | SPRING RETAINER | 1 |
| 7 | 346-64219-0 | 卡扣 | SNAP | 1 |
| 8 | 346-64218-0 | 销钉 | PIN | 1 |
| 9 | 3AC-64215-1 | 离合器 | CLUTCH | 1 |
| 10 | 332-64221-0 | 弹簧 | SPRING | 1 |
| 11 | 3VS-64211-0 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 12 | 346-64032-0 | 垫片 18.1-24-1.5 | WASHER 18.1-24-1.5 | 1 |
| 13 | 3NV-64030-0 | 锥齿轮C | BEVEL GEAR C | 1 |
| 14 | 3VSQ60100-0 | 螺旋桨轴套总成 | PROPELLER SHAFT HOUSING ASSY | 1 |
| 14 | 3VSW60100-0 | 螺旋桨轴套总成 | PROPELLER SHAFT HOUSING ASSY | 1 |
| 15 | 332-60103-0 | * O型圈 3-62.5 | * O-RING 3-62.5 | 1 |
| 16 | 9601-0-6205 | * 球轴承 6205 | * BALL BEARING 6205 | 1 |
| 17 | 346-60102-0 | * 滚柱轴承 18-25-2.5 | * ROLLER BEARING 18-25-2.5 | 1 |
| 18 | 3AC-60111-0 | * 油封 18-28-8 | * OIL SEAL 18-28-8 | 2 |
| 19 | 346B64106-5 | 螺旋桨总成(8英寸) | PROPELLER ASSY (8) | 1 |
| 19 | 349B64529-1 | 螺旋桨总成(14) | PROPELLER ASSY (14) | 1 |
| 19 | 3R0B64518-1 | 螺旋桨总成(9英寸) | PROPELLER ASSY (9) | 1 |
| 19 | 3R0B64521-1 | 螺旋桨总成(10) | PROPELLER ASSY (10) | 1 |
| 19 | 3R0B64523-1 | 螺旋桨总成(11) | PROPELLER ASSY (11) | 1 |
| 19 | 3R0B64525-1 | 螺旋桨总成(12) | PROPELLER ASSY (12) | 1 |
| 19 | 3R0B64527-1 | 螺旋桨总成(13) | PROPELLER ASSY (13) | 1 |
| 20 | 9101E3-0830 | 螺栓 | BOLT | 2 |
| 21 | 9402E3-0800 | 垫圈 | WASHER | 2 |
| 22 | 3NV-87326-0 | 螺旋桨五金件套件 | PROPELLER HARDWARE KIT | 1 |
| 23 | 3NV-64231-0 | * 推力支架4D | * THRUST HOLDER 4D | 1 |
| 24 | 346-64124-5 | * 垫圈 12.5-32-2.5 | * WASHER 12.5-32-2.5 | 1 |
| 25 | 346-64121-5 | * 螺旋桨螺母 | * PROPELLER NUT | 1 |
| 26 | 951503-0322 | * 开口销 3-22 | * SPLIT PIN 3-22 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

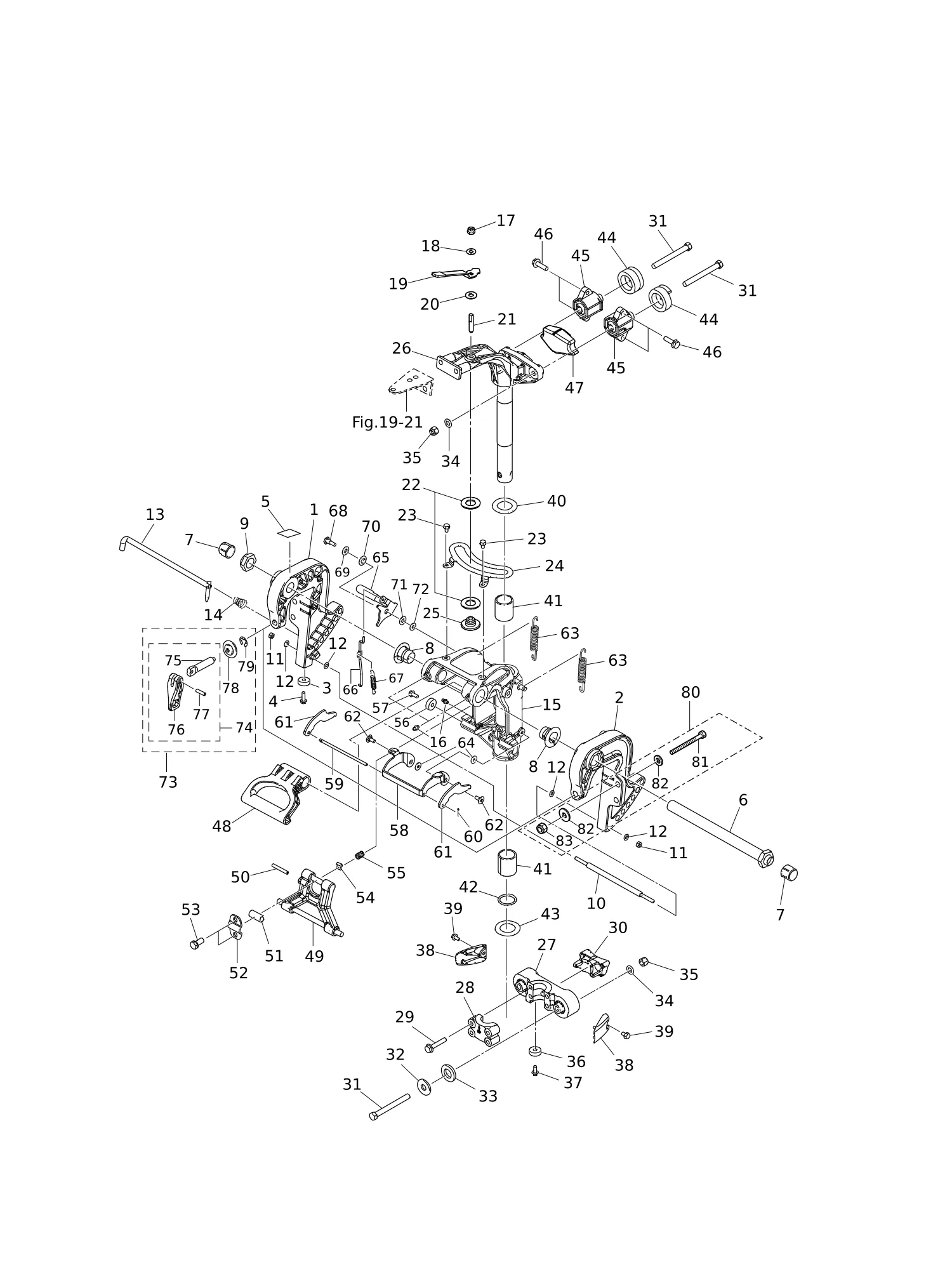

| 1 | 3AEQ62112-3 | 夹紧支架(右) | CLAMP BRACKET (R) | 1 |
| 2 | 3AEQ62113-3 | 卡箍支架 (左) | CLAMP BRACKET (L) | 1 |
| 4 | 910103-5620 | 螺栓 | BOLT | 1 |
| 5 | 3AA-72049-0 | 副驾驶贴花 | CO-PILOT DECAL | 1 |
| 6 | 3VT-62191-0 | 旋转支架轴总成 | SWIVEL BRACKET SHAFT ASSY | 1 |
| 7 | 346-62127-0 | 盖形螺母 | CAP NUT | 2 |
| 8 | 349-62126-0 | 衬套 | BUSHING | 2 |
| 9 | 346-62124-1 | 尼龙螺母 7/8-14 | NYLON NUT 7/8-14 | 1 |
| 10 | 346-62117-1 | 间隔块 | DISTANCE PIECE | 1 |
| 11 | 930103-0600 | 螺母 | NUT | 2 |
| 12 | 9401E3-0600 | 垫圈 | WASHER | 4 |
| 13 | 345-62121-1 | 推力杆 | THRUST ROD | 1 |
| 14 | 345-62122-2 | 推力杆弹簧 | THRUST ROD SPRING | 1 |
| 15 | 3VSQ62309-0 | 旋转支架总成 | SWIVEL BRACKET ASSY | 1 |
| 16 | 344-67177-1 | 黄油嘴 | GREASE FITTING | 3 |
| 19 | 3VS-62441-0 | 摩擦杆 | FRICTION LEVER | 1 |
| 20 | 3R3-62443-0 | 垫圈 8.1-20-0.8 | WASHER 8.1-20-0.8 | 1 |
| 21 | 3VS-62445-0 | 螺栓 | BOLT | 1 |
| 22 | 3VS-62449-0 | 圆盘 | DISC | 2 |
| 23 | 910103-5612 | 螺栓 | BOLT | 2 |
| 24 | 3VS-62447-0 | 板 | PLATE | 1 |
| 25 | 3VS-62400-0 | 摩擦杆支架 | FRICTION LEVER BRACKET | 1 |
| 26 | 3VTQ62010-0 | 转向轴总成 | STEERING SHAFT ASSY | 1 |
| 26 | 3VTW62010-0 | 转向轴总成 | STEERING SHAFT ASSY | 1 |
| 27 | 3VSQ61302-0 | 橡胶支座(下) | RUBBER MOUNT (LOWER) | 1 |
| 27 | 3VSW61302-0 | 橡胶支座(下) | RUBBER MOUNT (LOWER) | 1 |
| 28 | 3VSQ61411-0 | 支架托架 | MOUNT BRACKET | 1 |
| 28 | 3VSW61411-0 | 支架托架 | MOUNT BRACKET | 1 |
| 29 | 9101E3-5845 | 螺栓 | BOLT | 4 |
| 30 | 3VS-61336-0 | 下减震器 | DAMPER (LOWER) | 1 |
| 31 | 3VS-61307-0 | 螺栓 | BOLT | 4 |
| 32 | 3VS-61334-0 | 垫片 10.5-34-3 | WASHER 10.5-34-3 | 2 |
| 33 | 3C7-61338-0 | 减震器 21-36-5 | DAMPER 21-36-5 | 2 |
| 34 | 9402E3-1000 | 垫圈 | WASHER | 4 |
| 35 | 3C8-62098-0 | 尼龙螺母 10-P1.25 | NYLON NUT 10-P1.25 | 4 |
| 38 | 3VSQ61227-0 | 盖板螺栓 | BOLT COVER | 2 |
| 38 | 3VSW61227-0 | 盖板螺栓 | BOLT COVER | 2 |
| 39 | 9101E3-5612 | 螺栓 | BOLT | 2 |
| 40 | 353-62423-1 | 上止推板31.1-50-2 | THRUST PLATE (UPPER) 31.1-50-2 | 1 |
| 41 | 353-62417-0 | 衬套 30-36-41 | BUSHING 30-36-41 | 2 |
| 42 | 353-62415-0 | O型圈 3.5-29.7 | O-RING 3.5-29.7 | 1 |
| 43 | 3VS-62424-0 | 下止推板30.7-50-2 | THRUST PLATE (LOWER) 30.7-50-2 | 1 |
| 44 | 3RS-61333-0 | 上减震器 | DAMPER (UPPER) | 2 |
| 45 | 3VS-61301-0 | 橡胶支座(上) | RUBBER MOUNT (UPPER) | 2 |
| 46 | 9101E3-5830 | 螺栓 | BOLT | 4 |
| 47 | 3VS-61337-0 | 上减震器 | DAMPER (UPPER) | 1 |
| 48 | 3AA-61199-0 | 搬运把手 | CARRYING HANDLE | 1 |
| 49 | 349Q62993-3 | 倾斜止动器 | TILT STOPPER | 1 |
| 50 | 951403-0640 | 弹簧销 | SPRING PIN | 1 |
| 51 | 346-62437-0 | 衬套 10.2-12-29.5 | BUSHING 10.2-12-29.5 | 1 |
| 52 | 3AC-62439-0 | 定位板 | SETTING PLATE | 1 |
| 53 | 3VS-63201-0 | 螺栓 | BOLT | 2 |
| 54 | 346-62438-0 | 定位片 | SETTING PIECE | 1 |
| 55 | 3C8-62421-1 | 摩擦弹簧 | FRICTION SPRING | 1 |
| 56 | 338-60218-2 | 阳极块 | ANODE | 1 |
| 57 | 910103-5616 | 螺栓 | BOLT | 1 |
| 58 | 3VS-66313-0 | 倒车锁臂 | REVERSE LOCK ARM | 1 |
| 59 | 346-66321-0 | 倒挡锁杆 | REVERSE LOCK ROD | 1 |
| 60 | 951503-0212 | 开口销2-12 | SPLIT PIN 2-12 | 1 |
| 61 | 3VS-66322-0 | 倒车锁 | REVERSE LOCK | 2 |
| 62 | 3VS-05254-0 | 台阶螺栓 | SHOULDER BOLT | 2 |
| 63 | 3VS-66332-0 | 倒挡锁弹簧(左) | REVERSE LOCK SPRING (L) | 2 |
| 65 | 3VS-66311-0 | 倒车锁杆 | REVERSE LOCK LEVER | 1 |
| 66 | 349-66312-0 | 倒车锁连杆 | REVERSE LOCK LINK | 1 |
| 67 | 346-66323-1 | 倒车锁杆弹簧 | REVERSE LOCK LEVER SPRING | 1 |
| 68 | 3AL-05254-0 | 台阶螺栓6-8 | SHOULDER BOLT 6-8 | 1 |
| 69 | 940103-0800 | 垫圈 | WASHER | 1 |
| 70 | 3AL-05212-0 | 衬套 8.1-20 | BUSHING 8.1-20 | 1 |
| 71 | 3AA-83719-0 | 垫圈 8.5-18-1.6 | WASHER 8.5-18-1.6 | 1 |
| 72 | 3R0-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 1 |
| 73 | 3RSQ62105-1 | 夹紧螺丝套件 | CLAMP SCREW KIT | 2 |
| 74 | 3RSQ62108-0 | * 卡箍螺丝总成 | * CLAMP SCREW ASSY | 1 |
| 75 | 3RS-62106-0 | 夹紧螺钉 | ** CLAMP SCREW | 1 |
| 76 | 3RSQ62102-0 | 夹紧螺钉手柄 | ** CLAMP SCREW HANDLE | 1 |
| 77 | 951403-0622 | ** 弹簧销 | ** SPRING PIN | 1 |
| 78 | 332-62101-1 | * 卡箍螺丝垫片 | * CLAMP SCREW PAD | 1 |
| 79 | 945303-0500 | * E型卡环 d=5 | * E-RING d=5 | 1 |
| 80 | 3AL-72120-0 | 索具螺栓套装 | RIGGING BOLT SET | 1 |
| 81 | 9161E3-0885 | 螺栓 | * BOLT | 2 |
| 82 | 9401E3-0800 | * 垫圈 | * WASHER | 4 |
| 83 | 930403-0800 | 尼龙螺母 8-P1.25 | * NYLON NUT 8-P1.25 | 2 |

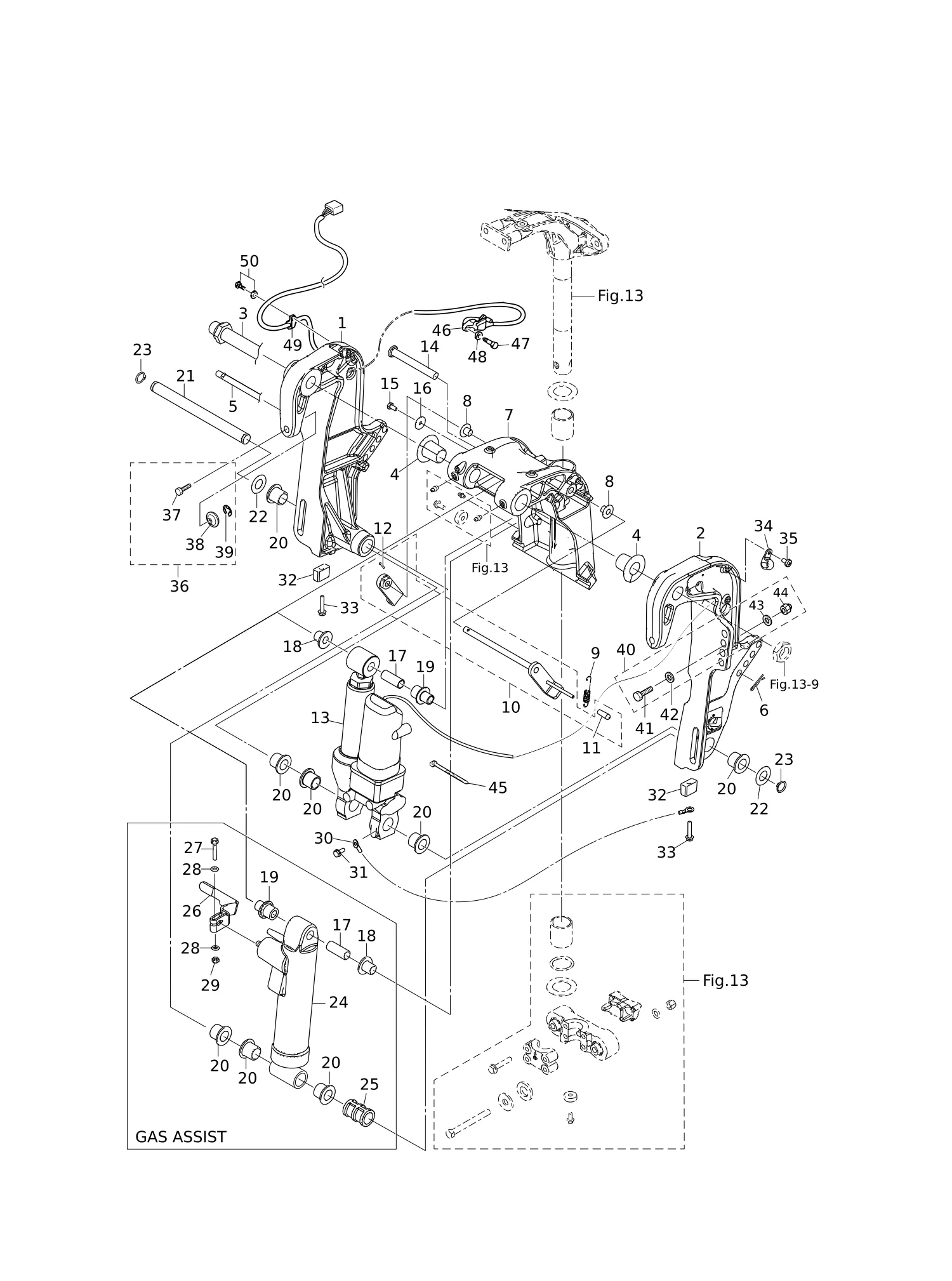

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3AEQ77211-2 | 夹紧支架(动力升降倾斜装置-右) | CLAMP BRACKET (PTT-R) | 1 |
| 1 | 3AEW77211-2 | 夹紧支架(动力升降倾斜装置-右) | CLAMP BRACKET (PTT-R) | 1 |
| 2 | 3AEQ77212-4 | 卡箍支架 (动力升降倾斜装置-左) | CLAMP BRACKET (PTT-L) | 1 |
| 2 | 3AEW77212-4 | 卡箍支架 (动力升降倾斜装置-左) | CLAMP BRACKET (PTT-L) | 1 |
| 3 | 3VS-62191-0 | 旋转支架轴总成 | SWIVEL BRACKET SHAFT ASSY | 1 |
| 4 | 3VS-77213-0 | 衬套 | BUSHING | 2 |
| 5 | 3R0-77118-0 | 动力升降倾斜推力杆 | PTT THRUST ROD | 1 |
| 6 | 951603-1000 | 弹性销 | SNAP PIN | 1 |
| 7 | 3VSQ77208-0 | 旋转支架总成 | SWIVEL BRACKET ASSY | 1 |
| 7 | 3VSW77208-0 | 旋转支架总成 | SWIVEL BRACKET ASSY | 1 |
| 8 | 353-63207-0 | 轴环 10.2-12-12 | COLLAR 10.2-12-12 | 2 |
| 9 | 3R0-62473-0 | 倾斜止动弹簧 | TILT STOPPER SPRING | 1 |
| 10 | 3AC-62466-1 | 倾斜止动器套件 | TILT STOPPER KIT | 1 |
| 10 | 3GF-62466-1 | 倾斜止动器套件 | TILT STOPPER KIT | 1 |
| 11 | 369-62433-1 | * 倾斜止动握把 | * TILT STOPPER GRIP | 1 |
| 12 | 951403-3516 | * 弹簧销 3.5-16 | * SPRING PIN 3.5-16 | 1 |
| 13 | 3VS-77151-0 | 动力倾斜总成 | PT ASSY | 1 |
| 14 | 3VS-77071-0 | 气缸销(上) | CYLINDER PIN (UPPER) | 1 |
| 15 | 9101E3-0612 | 螺栓 | BOLT | 1 |
| 16 | 345-05122-1 | 垫片 6.5-23-1.5 | WASHER 6.5-23-1.5 | 1 |
| 17 | 3R0-77075-0 | 衬套 13-16-40 | BUSHING 13-16-40 | 1 |
| 18 | 3R0-77076-0 | 衬套 13-17-19.5 | BUSHING 13-17-19.5 | 1 |
| 19 | 3VS-77076-0 | 衬套 | BUSHING | 1 |
| 20 | 3C8-77076-1 | 衬套 18-24-22 | BUSHING 18-24-22 | 5 |
| 21 | 3KY-77101-0 | 气缸销(下) | CYLINDER PIN (LOWER) | 1 |
| 22 | 3R0-77112-0 | 垫片 18.2-34-1 | WASHER 18.2-34-1 | 2 |
| 23 | 945103-1800 | C形环 d=18 | C-RING d=18 | 2 |
| 24 | 3R0Q77601-2 | 气体减震器 | GAS SHOCK ABSORBER | 1 |
| 25 | 3VT-77105-0 | 轴环 | COLLAR | 1 |
| 26 | 3VM-66311-0 | 倒车锁杆 | REVERSE LOCK LEVER | 1 |
| 27 | 3V2-60001-0 | 螺栓6-35 | BOLT 6-35 | 1 |
| 28 | 940103-0600 | 垫圈 | WASHER | 2 |
| 29 | 930103-0600 | 螺母 | NUT | 1 |
| 30 | 398-62396-1 | 接地线 L=130 | GROUND L=130 | 1 |
| 31 | 910103-5612 | 螺栓 | BOLT | 1 |
| 32 | 3B7-60218-1 | 阳极块 | ANODE | 2 |
| 33 | 910103-5630 | 螺栓 | BOLT | 2 |
| 34 | 345-06915-0 | 卡箍 6.5-14L | CLAMP 6.5-14L | 1 |
| 36 | 3RS-77217-1 | 夹紧螺丝套件 | CLAMP SCREW KIT | 2 |
| 37 | 3RS-77216-0 | * 卡箍螺丝(动力升降倾斜) | * CLAMP SCREW (PTT) | 1 |
| 38 | 332-62101-1 | * 卡箍螺丝垫片 | * CLAMP SCREW PAD | 1 |
| 39 | 945303-0500 | * E型卡环 d=5 | * E-RING d=5 | 1 |
| 40 | 3AM-72120-0 | 索具螺栓套装 | RIGGING BOLT SET | 1 |
| 41 | 3C7-62133-2 | 螺栓 12-105 P1.25 | * BOLT 12-105 P1.25 | 4 |
| 42 | 353-61334-0 | * 垫圈 13-34-3 | * WASHER 13-34-3 | 4 |
| 43 | 9401E3-1200 | * 垫圈 | * WASHER | 4 |
| 44 | 3R0-61324-0 | 尼龙螺母 12-P1.25 | * NYLON NUT 12-P1.25 | 4 |
| 45 | 1H2-31534-0 | 引线带箍300 | BAND LEAD WIRE 300 | 1 |
| 46 | 3Z4-72574-0 | 配平传感器 L=1700 | TRIM SENSOR L=1700 | 1 |
| 47 | 910103-0620 | 螺栓 | BOLT | 2 |
| 48 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 2 |
| 49 | 336-06973-0 | 卡箍 6-9.5L | CLAMP 6-9.5L | 1 |
| 50 | 921503-5612 | 螺钉 | SCREW | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

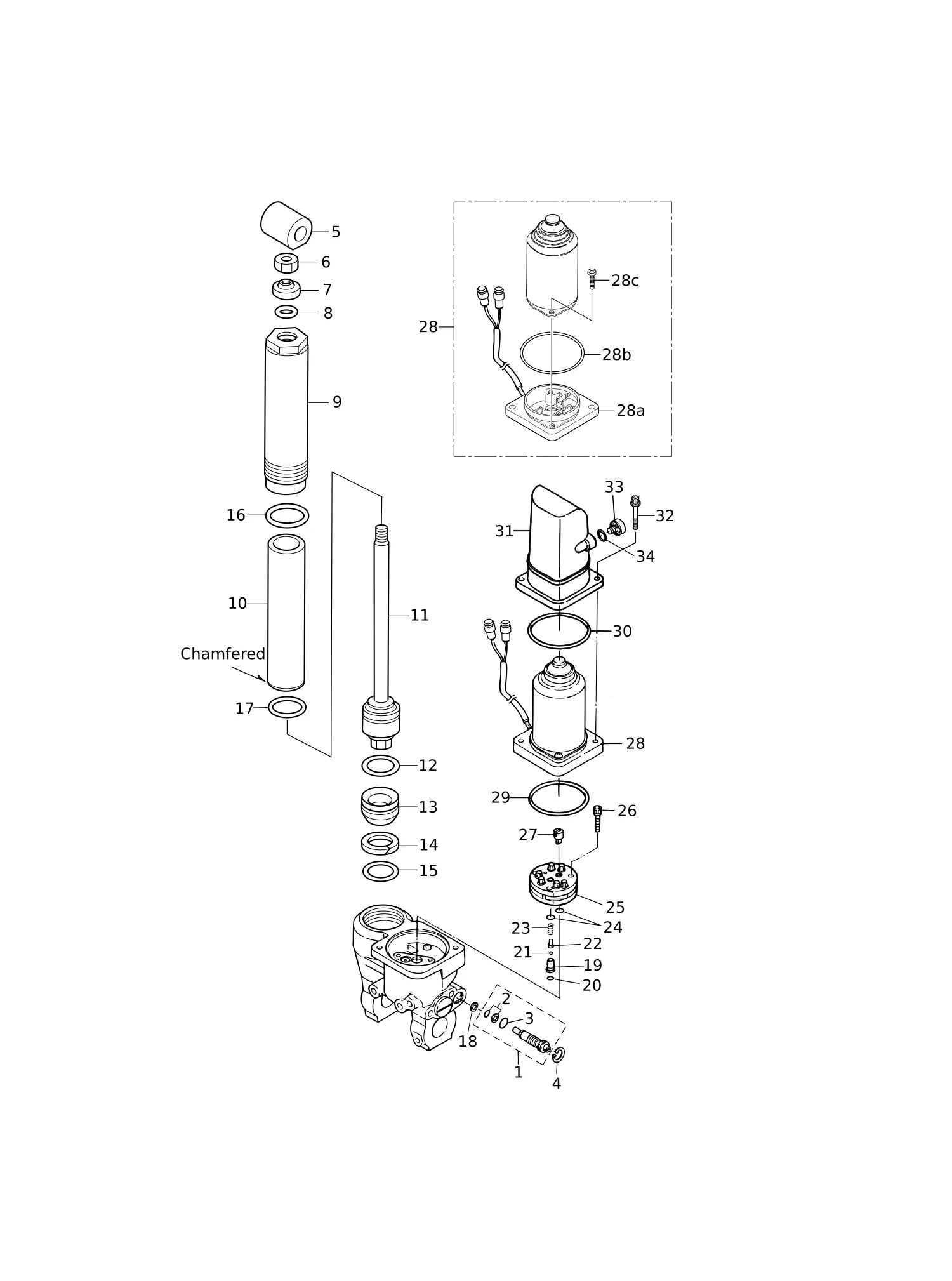

| 1 | 3AC-77175-0 | 手动阀总成 | MANUAL VALVE ASSY | 1 |
| 2 | 3R0-77409-0 | * 密封套件 | * SEAL SET | 1 |
| 3 | 3R0-77177-0 | * O型圈 2.4-9.8 | * O-RING 2.4-9.8 | 1 |
| 4 | 3R0-77171-0 | C形环 | C-RING | 1 |
| 5 | 3AD-77367-0 | 接头 | JOINT | 1 |
| 6 | 3AC-77374-0 | 螺母 | NUT | 1 |
| 7 | 3AC-77382-0 | 防尘密封 | DUST SEAL | 1 |
| 8 | 3AC-77384-0 | O型圈 2.4-12.3 | O-RING 2.4-12.3 | 1 |
| 9 | 3AC-77361-0 | 气缸 | CYLINDER | 1 |
| 10 | 3AC-77363-0 | 内管 | INNER TUBE | 1 |
| 11 | 3AC-77365-0 | 活塞连杆总成 | PISTON ROD ASSY | 1 |
| 12 | 3AC-77375-0 | O型圈2-28.5 | O-RING 2-28.5 | 1 |
| 13 | 3AC-77377-0 | 自由活塞 | FREE PISTON | 1 |
| 14 | 3AC-77376-0 | 挡圈/支撑环 | BACK-UP RING | 1 |
| 15 | 3AC-77398-0 | O型圈 2.4-27.7 | O-RING 2.4-27.7 | 1 |
| 16 | 3AC-77392-0 | O型圈2-43.5 | O-RING 2-43.5 | 1 |
| 17 | 3AC-77383-0 | O型圈2-34.5 | O-RING 2-34.5 | 1 |
| 18 | 3AC-77173-0 | 密封垫圈 | SEAL WASHER | 1 |
| 19 | 3AC-77453-0 | 阀座 | VALVE SEAT | 1 |
| 20 | 3R0-77451-0 | O型圈1.5-3.5 | O-RING 1.5-3.5 | 1 |
| 21 | 3R0-77457-0 | 钢球 | BALL | 1 |
| 22 | 3AC-77454-0 | 弹簧座 | SPRING SEAT | 1 |
| 23 | 3R0-77455-0 | 弹簧 | SPRING | 1 |
| 24 | 3B7-77433-0 | O型圈1.5-6.5 | O-RING 1.5-6.5 | 2 |
| 25 | 3R0-77430-0 | 泵 | PUMP | 1 |
| 26 | 3B7-77431-1 | 螺栓 | BOLT | 3 |
| 27 | 3E0-77163-0 | 联轴器 | COUPLING | 1 |
| 28 | 3VS-77180-0 | 马达总成 | MOTOR ASSY | 1 |
| 28b | 3VS-77182-0 | * O型圈 | * O-RING | 1 |
| 28c | 3VS-77189-0 | * 螺钉 | * SCREW | 2 |
| 28a | 3VS-77192-0 | * 电机支架总成 | * MOTOR BRACKET ASSY | 1 |
| 29 | 3R0-77167-0 | O型圈2-62.5 | O-RING 2-62.5 | 1 |
| 30 | 3C8-77182-0 | O型圈 2.4-66.6 | O-RING 2.4-66.6 | 1 |
| 31 | 3R0-77165-0 | 储备油箱 | RESERVE TANK | 1 |
| 32 | 3R0-77159-0 | 螺栓 | BOLT | 2 |
| 33 | 3R0-77168-0 | 盖帽 | CAP | 1 |
| 34 | 3R0-77169-0 | O型圈1.9-9.8 | O-RING 1.9-9.8 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

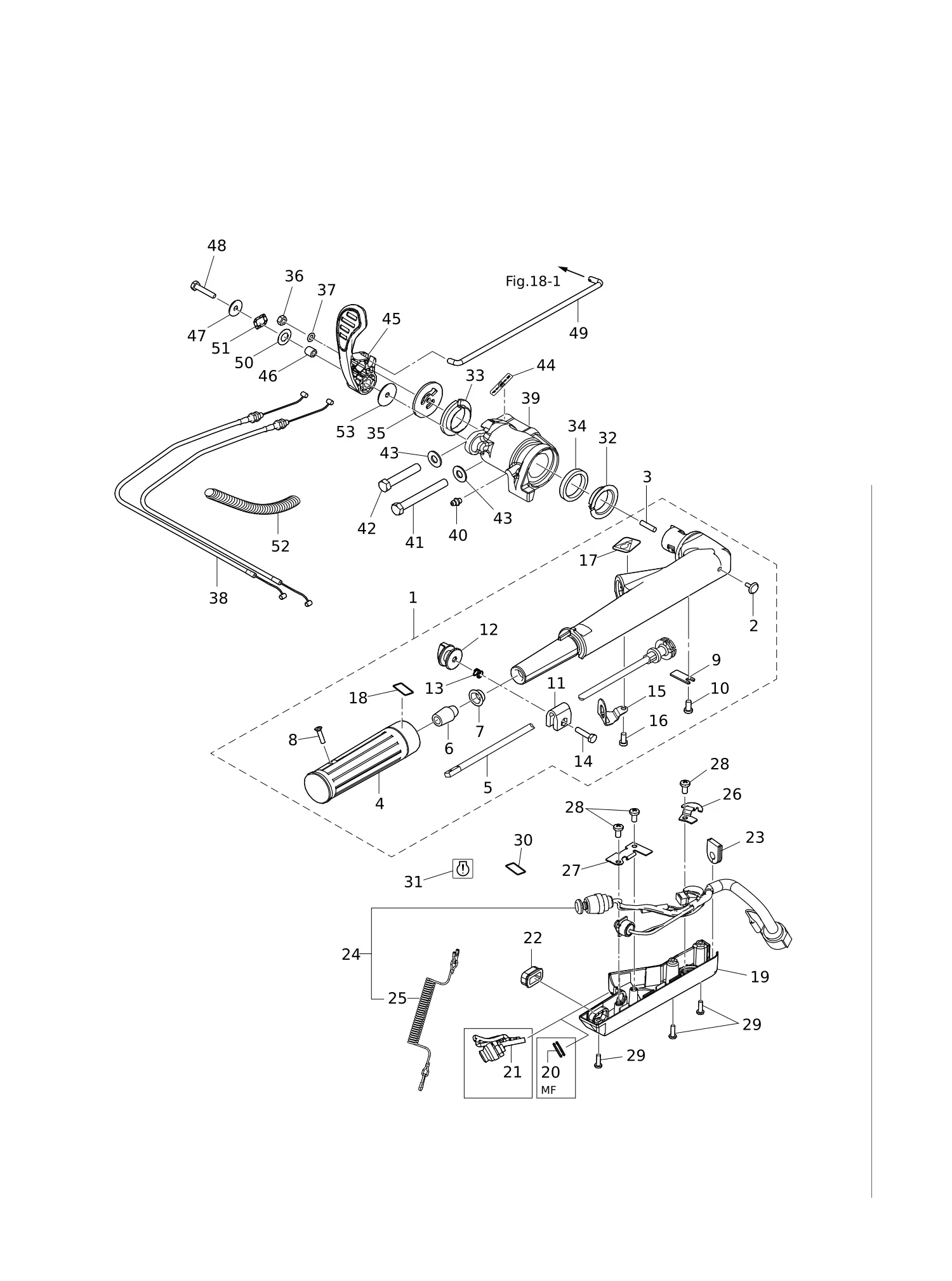

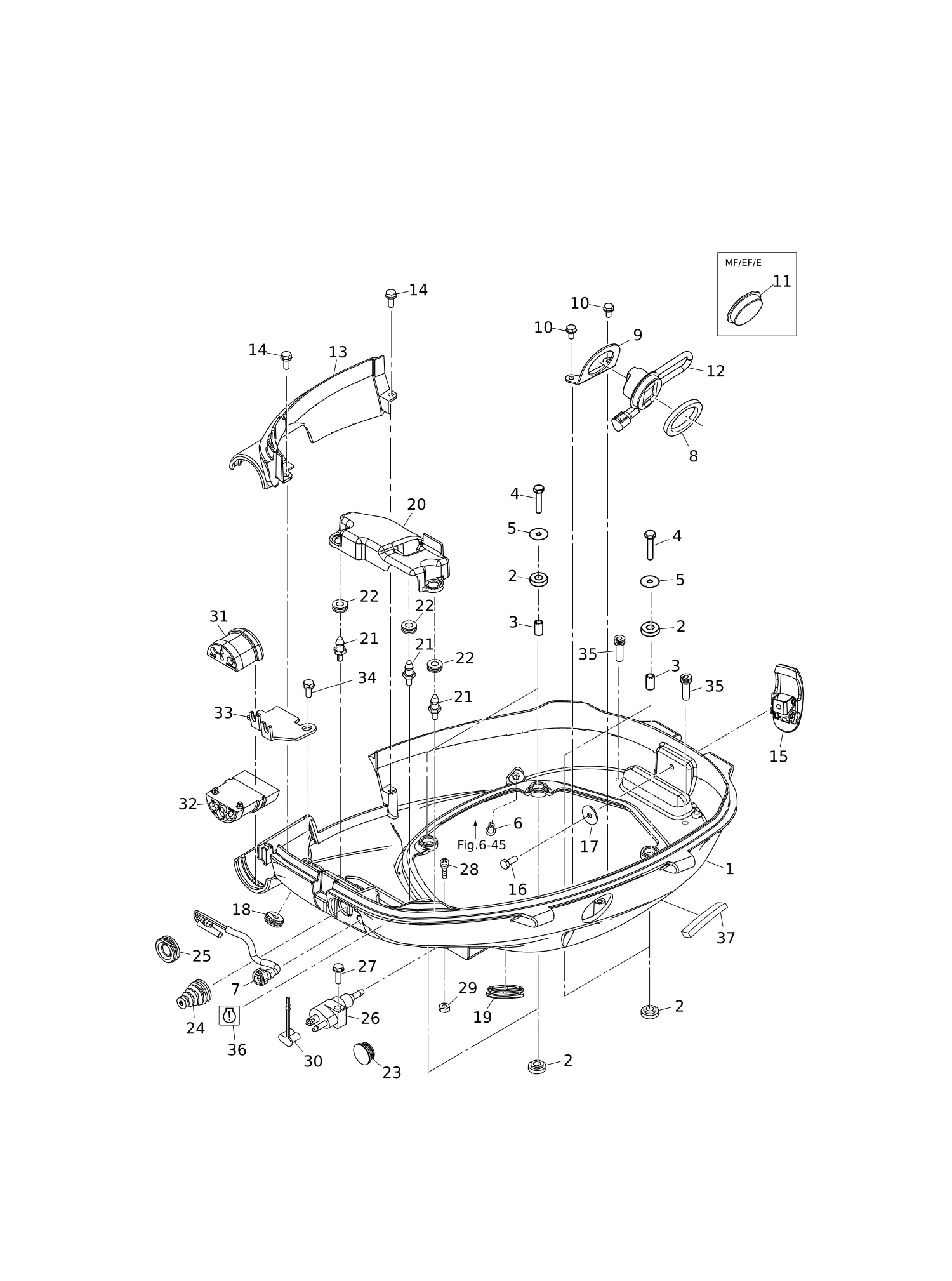

| 1 | 3VSQ63003-0 | 舵柄总成 | TILLER HANDLE ASSY | 1 |
| 1 | 3VSW63003-0 | 舵柄总成 | TILLER HANDLE ASSY | 1 |
| 2 | 350-67154-0 | * 塑料铆钉 6.5 | * PLASTIC RIVET 6.5 | 1 |
| 3 | 3B2-63104-1 | * 双头螺柱 | * STUD | 1 |
| 4 | 3R3-63012-0 | * 手柄 | * GRIP | 1 |
| 5 | 3V1-63041-0 | * 节气门轴 | * THROTTLE SHAFT | 1 |
| 6 | 3H6-63048-0 | * 节气门轴缓冲器 | * THROTTLE SHAFT DAMPER | 1 |
| 7 | 3H6-63510-0 | * 衬套 14-15.8-7 | * BUSHING 14-15.8-7 | 1 |
| 8 | 921803-0520 | * 螺钉 | * SCREW | 1 |
| 9 | 3B2-63063-0 | * 节气门轴支撑 | * THROTTLE SHAFT SUPPORT | 1 |
| 11 | 3V1-63035-1 | * 摩擦片 | * FRICTION PIECE | 1 |
| 12 | 3V1-63077-0 | * 调节螺母 | * ADJUSTING NUT | 1 |
| 13 | 3V1-63036-0 | * 弹簧 | * SPRING | 1 |
| 14 | 910103-0625 | 螺栓 | * BOLT | 1 |
| 15 | 3VT-06869-0 | * 支架 | * BRACKET | 1 |
| 16 | 9215E3-0612 | * 螺钉 | * SCREW | 1 |
| 17 | 3AC-72200-0 | * 停机开关标贴 | * STOP SWITCH DECAL | 1 |
| 18 | 3NV-72019-0 | * 油门标识贴 | * THROTTLE DECAL | 1 |
| 19 | 3VS-63320-0 | 舵柄罩 | TILLER HANDLE COVER | 1 |
| 20 | 345-67117-0 | 索环 17-2.7 | GROMMET 17-2.7 | 1 |
| 21 | 3VS-76026-0 | 主开关总成 | MAIN SWITCH ASSY | 1 |
| 22 | 3VS-67117-0 | 索环/护孔圈 | GROMMET | 1 |
| 23 | 3VS-63624-0 | 索环/护孔圈 | GROMMET | 1 |
| 24 | 3VS-76115-0 | 线束总成 | CORD ASSY | 1 |
| 24 | 3VT-76115-0 | 线束总成 | CORD ASSY | 1 |
| 25 | 31H-06848-0 | * 停机开关拉绳总成 | * STOP SWITCH LANYARD ASSY | 1 |
| 26 | 3VS-63505-0 | 线缆固定座 | CABLE HOLDER | 1 |
| 27 | 3VV-62114-0 | 板 | PLATE | 1 |
| 28 | 3GR-05913-0 | 自攻螺钉 M6-18 | TAPPING SCREW M6-18 | 3 |
| 29 | 9215E3-0516 | 螺钉 | SCREW | 3 |
| 30 | 3VS-76195-0 | 怠速调节标贴 | IDLE CHANGE DECAL | 1 |
| 31 | 3VS-67587-0 | 启动标识贴 | START DECAL | 1 |
| 32 | 3V1-63102-0 | 衬套 | BUSHING | 1 |
| 33 | 3RS-63102-0 | 衬套 | BUSHING | 1 |
| 34 | 3RS-63108-0 | 垫圈 | WASHER | 1 |
| 35 | 3RS-63107-1 | 盖板 | COVER | 1 |
| 36 | 930103-0600 | 螺母 | NUT | 1 |
| 37 | 940203-0600 | 垫圈 | WASHER | 1 |
| 38 | 3VS-63600-0 | 节气门拉线 | THROTTLE WIRE | 2 |
| 39 | 3VSQ62001-0 | 转向支架 | STEERING BRACKET | 1 |
| 39 | 3VSW62001-0 | 转向支架 | STEERING BRACKET | 1 |
| 40 | 344-67177-1 | 黄油嘴 | GREASE FITTING | 1 |
| 41 | 3RS-63201-0 | 螺栓 | BOLT | 1 |
| 42 | 3RT-63201-0 | 螺栓 | BOLT | 1 |
| 43 | 9401E3-1000 | 垫圈 | WASHER | 2 |
| 44 | 3WL-67578-0 | 换挡标识贴 | SHIFT DECAL | 1 |
| 44 | 3YG-67578-0 | 换挡标识贴 | SHIFT DECAL | 1 |
| 45 | 3RS-66110-1 | 换挡杆 | SHIFT LEVER | 1 |
| 46 | 3H6-63619-1 | 轴套 6.5-10.5-10 | COLLAR 6.5-10.5-10 | 1 |
| 47 | 346-67115-0 | 垫片 6.5-21-1 | WASHER 6.5-21-1 | 1 |
| 48 | 9101E3-0620 | 螺栓 | BOLT | 1 |
| 49 | 3VS-66134-0 | 换挡杆连杆 | SHIFT LEVER ROD | 1 |
| 50 | 3RS-61315-0 | 垫圈 | WASHER | 1 |
| 51 | 3RS-05259-0 | 波形垫圈 | WAVE WASHER | 1 |
| 52 | 3VT-06133-0 | 保护套 | PROTECTOR | 1 |
| 53 | 3RS-67115-0 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3VSQ67100-0 | 下罩壳 | BOTTOM COWL | 1 |
| 1 | 3VSW67100-0 | 下罩壳 | BOTTOM COWL | 1 |
| 2 | 346-67113-0 | 8.5-14-2.5支架 | MOUNT 8.5-14-2.5 | 8 |
| 3 | 346-67114-1 | 垫圈 6.2-9-15.7 | SPACER 6.2-9-15.7 | 4 |
| 4 | 9101E3-0630 | 螺栓 | BOLT | 4 |
| 5 | 346-67115-0 | 垫片 6.5-21-1 | WASHER 6.5-21-1 | 4 |
| 6 | 3T1-01138-0 | 管接头 6-8-11 | NIPPLE 6-8-11 | 1 |
| 7 | 3R3-71040-0 | 指示灯总成 | PILOT LAMP ASSY | 1 |
| 8 | 3F3-72616-1 | 衬垫 | GASKET | 1 |
| 8 | 3VS-72616-0 | 衬垫 | GASKET | 1 |
| 9 | 3VS-72617-0 | 动力升降倾斜装置开关总成支架 | PTT SWITCH ASSY BRACKET | 1 |
| 10 | 910103-5612 | 螺栓 | BOLT | 2 |
| 11 | 3KY-72618-0 | 索环/护孔圈 | GROMMET | 1 |
| 12 | 3AC-72615-0 | 动力升降倾斜装置开关总成 | PTT SWITCH ASSY | 1 |
| 13 | 3VSQ67483-0 | 遥控线缆支架盖 | REMOTE CONT CABLE STAY COVER | 1 |
| 13 | 3VSW67483-0 | 遥控线缆支架盖 | REMOTE CONT CABLE STAY COVER | 1 |
| 15 | 3AA-67120-1 | 整流罩锁扣总成 | COWL LATCH ASSY | 1 |
| 16 | 910103-0616 | 螺栓 | BOLT | 1 |
| 17 | 345-05122-1 | 垫片 6.5-23-1.5 | WASHER 6.5-23-1.5 | 1 |
| 18 | 3KY-67117-0 | 索环/护孔圈 | GROMMET | 1 |
| 19 | 3R3-66226-0 | 衬套 40-18-3 | GROMMET 40-18-3 | 1 |
| 20 | 3VS-06285-0 | 电缆端子座盖 | CABLE TERMINAL HOLDER COVER | 1 |
| 21 | 3VS-36056-0 | 挂钩 M6-12-P1.0 | HOOK M6-12-P1.0 | 3 |
| 22 | 172-36008-0 | 索环 13-2 | GROMMET 13-2 | 3 |
| 23 | 3VS-67129-0 | 索环/护孔圈 | GROMMET | 1 |
| 24 | 3RS-66260-1 | 索环/护孔圈 | GROMMET | 1 |
| 25 | 345-67161-0 | 索环 22-3 | GROMMET 22-3 | 1 |
| 26 | 394-70260-1 | 燃油接头（公头） | FUEL CONNECTOR (MALE) | 1 |
| 27 | 9101E3-5620 | 螺栓 | BOLT | 1 |
| 28 | 9215E3-0616 | 螺钉 | SCREW | 1 |
| 29 | 9301E3-0600 | 螺母 | NUT | 1 |
| 30 | 3H6-70262-0 | 燃油接头护套 | FUEL CONNECTOR PROTECTOR | 1 |
| 31 | 3VS-83732-0 | 索环/护孔圈 | GROMMET | 1 |
| 32 | 3VT-83732-0 | 索环/护孔圈 | GROMMET | 1 |
| 33 | 3VS-83734-0 | 线缆夹 | CABLE CLIP | 1 |
| 34 | 910103-5616 | 螺栓 | BOLT | 1 |
| 35 | 3B7-67179-0 | 放油塞(发动机底座) | DRAIN PLUG (ENGINE BASEMENT) | 2 |
| 36 | 3AC-76190-0 | 警告标贴 | WARNING DECAL | 1 |
| 37 | 3T1-61213-0 | 密封件 | SEAL | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

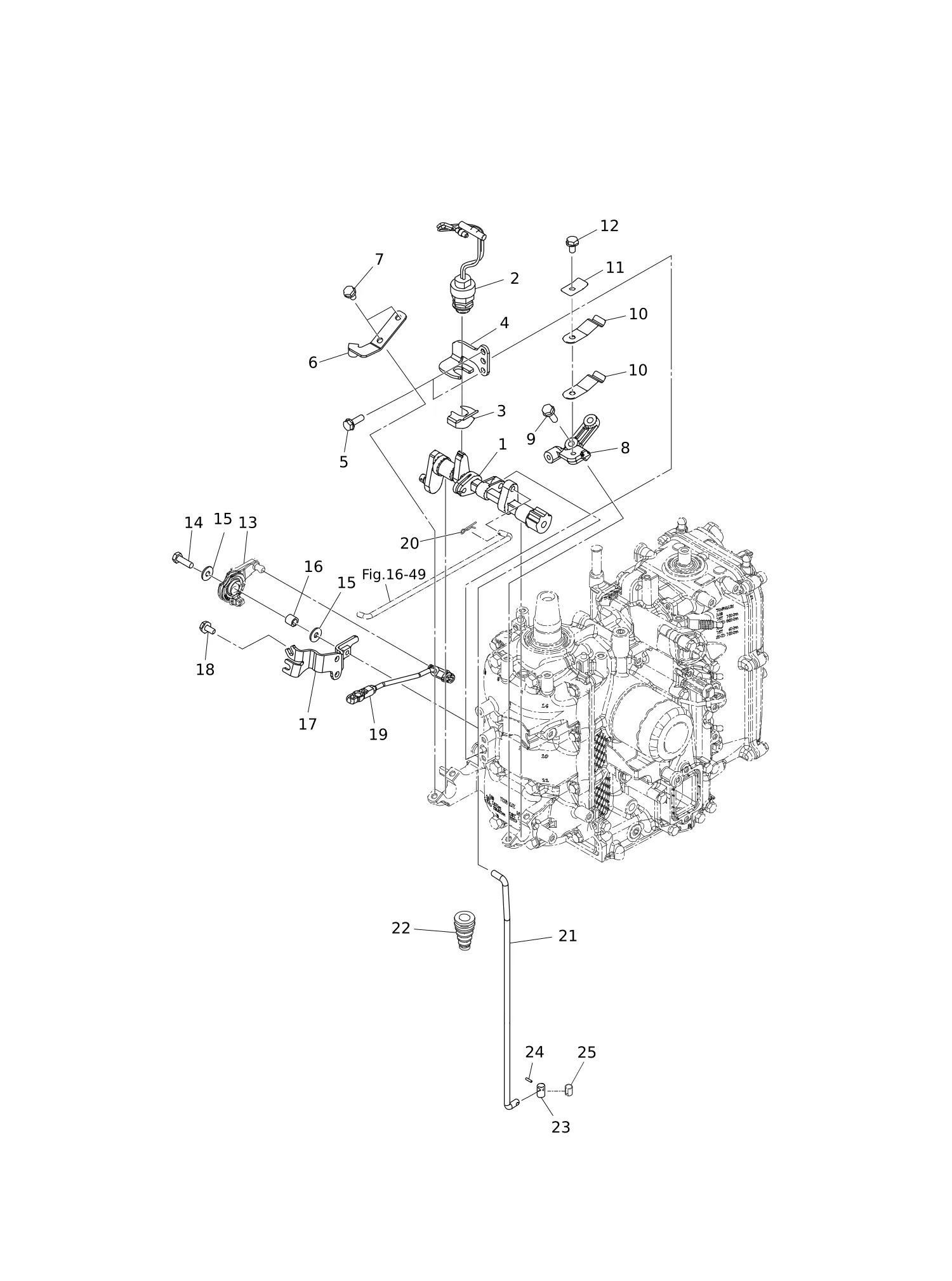

| 1 | 3VS-66130-0 | 换挡杆轴总成 | SHIFT LEVER SHAFT ASSY | 1 |
| 2 | 3NV-76080-0 | 空档开关 | NEUTRAL SWITCH | 1 |
| 3 | 3VS-76083-0 | 空档开关执行器 | NEUTRAL SWITCH ACTUATOR | 1 |
| 4 | 3VS-76081-0 | 空档开关支架 | NEUTRAL SWITCH BRACKET | 1 |
| 5 | 910103-5616 | 螺栓 | BOLT | 2 |
| 6 | 3VS-66145-0 | 支架 | HOLDER | 1 |
| 8 | 3RT-66145-0 | 支架 | HOLDER | 1 |
| 9 | 910103-5620 | 螺栓 | BOLT | 2 |
| 10 | 3GF-66113-1 | 换挡定位弹簧 | SHIFT DETENT SPRING | 2 |
| 11 | 3Y1-66117-0 | 换挡定位支架 t=0.8 | SHIFT DETENT SUPPORTER t=0.8 | 1 |
| 13 | 3VS-63622-0 | 节气门鼓轮总成 | THROTTLE DRUM ASSY | 1 |
| 14 | 910103-0620 | 螺栓 | BOLT | 1 |
| 15 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 2 |
| 16 | 3KY-76079-0 | 轴套 6.5-10.5-9.3 | COLLAR 6.5-10.5-9.3 | 1 |
| 17 | 3VS-63508-0 | 节气门拉线支架 | THROTTLE WIRE BRACKET | 1 |
| 18 | 910103-5612 | 螺栓 | BOLT | 2 |
| 19 | 3VS-63610-0 | 油门连杆总成 | LINK ROD ASSY (THROTTLE) | 1 |
| 20 | 951603-0600 | 弹性销d=6 | SNAP PIN d=6 | 1 |
| 21 | 3VS-66211-0 | 换挡连杆 | SHIFT ROD | 1 |
| 22 | 3M2-66226-0 | 索环 17-3 | GROMMET 17-3 | 1 |
| 23 | 3VS-66241-0 | 换挡杆接头 | SHIFT ROD JOINT | 1 |
| 24 | 951403-0312 | 弹簧销 3-12 | SPRING PIN 3-12 | 1 |
| 25 | 3VS-66247-0 | 换挡杆接头卡扣 | SHIFT ROD JOINT RETAINER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

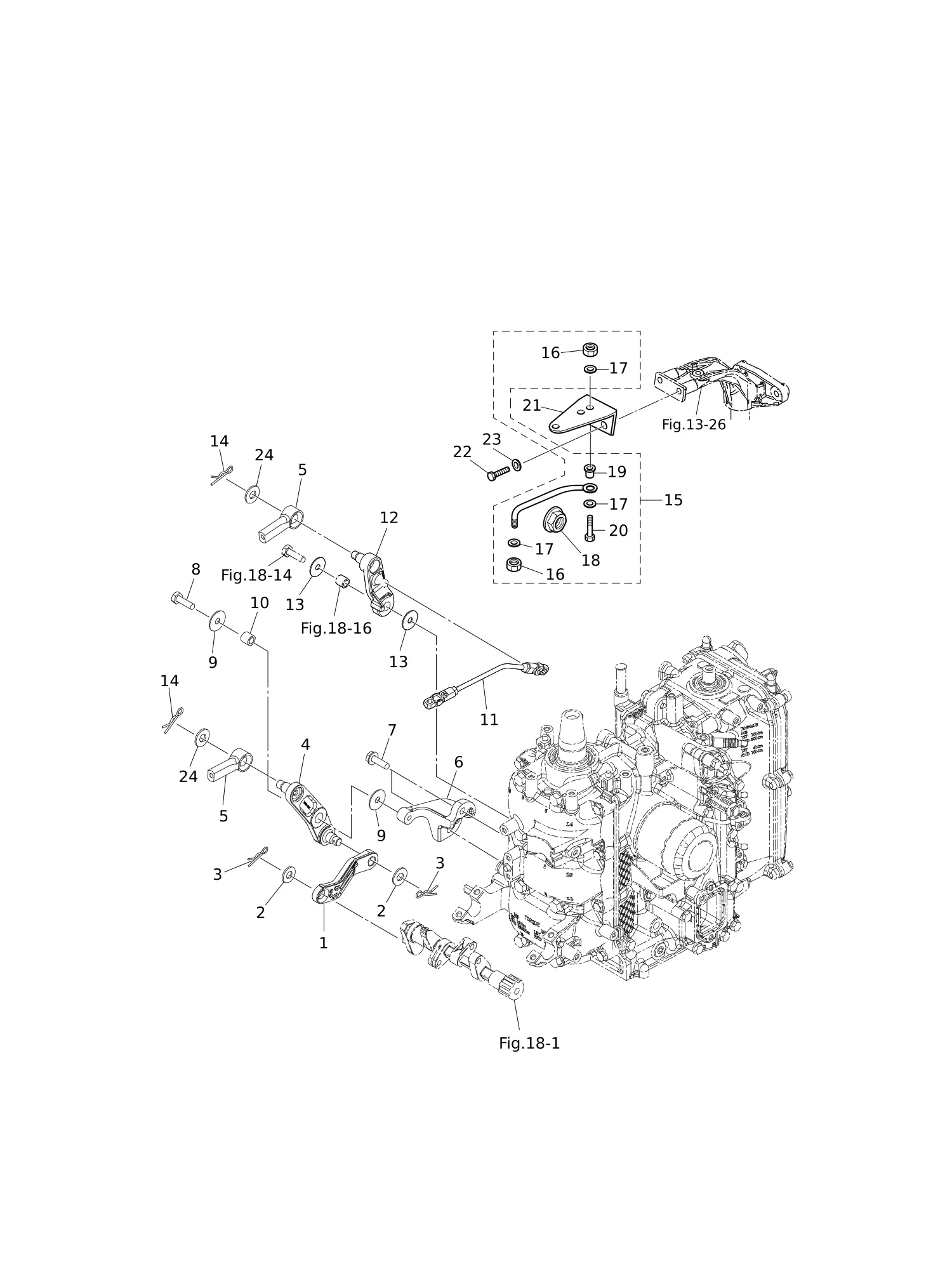

| 1 | 3VT-66134-0 | 换挡杆连杆 | SHIFT LEVER ROD | 1 |
| 4 | 3VT-66122-0 | 换挡臂 | SHIFT ARM | 1 |
| 5 | 3B7-83715-2 | 线缆接头 | CABLE JOINT | 2 |
| 6 | 3VS-66126-0 | 换挡臂支架 | SHIFT ARM BRACKET | 1 |
| 7 | 910103-5620 | 螺栓 | BOLT | 2 |
| 8 | 910103-0620 | 螺栓 | BOLT | 1 |
| 10 | 3KY-76079-0 | 轴套 6.5-10.5-9.3 | COLLAR 6.5-10.5-9.3 | 1 |
| 11 | 3VT-63610-0 | 油门连杆总成 | LINK ROD ASSY (THROTTLE) | 1 |
| 12 | 3VT-63751-0 | 节气门臂 | THROTTLE ARM | 1 |
| 13 | 346-67115-0 | 垫片 6.5-21-1 | WASHER 6.5-21-1 | 2 |
| 14 | 951603-0800 | 弹性销 d=8 | SNAP PIN d=8 | 2 |
| 15 | 3VS-84905-0 | 转向拉杆总成 | DRAG LINK ASSY | 1 |
| 16 | 353-84918-0 | 尼龙螺母 3/8-24UNF | * NYLON NUT 3/8-24UNF | 2 |
| 17 | 353-84916-0 | * 垫圈 9.6-18-2 | * WASHER 9.6-18-2 | 3 |
| 18 | 3F3-84908-0 | * 密封环 | * SEAL RING | 1 |
| 19 | 3B7-84914-0 | * 衬套 9.6-19-19 | * SPACER 9.6-19-19 | 1 |
| 20 | 353-84917-0 | 螺栓 3/8-45 | * BOLT 3/8-45 | 1 |
| 21 | 3VS-83830-0 | 转向钩板 | STEERING HOOK PLATE | 1 |
| 22 | 911103-1030 | 螺栓 | BOLT | 2 |
| 23 | 940103-1000 | 垫圈 | WASHER | 2 |
| 24 | 3AA-83719-0 | 垫圈 8.5-18-1.6 | WASHER 8.5-18-1.6 | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

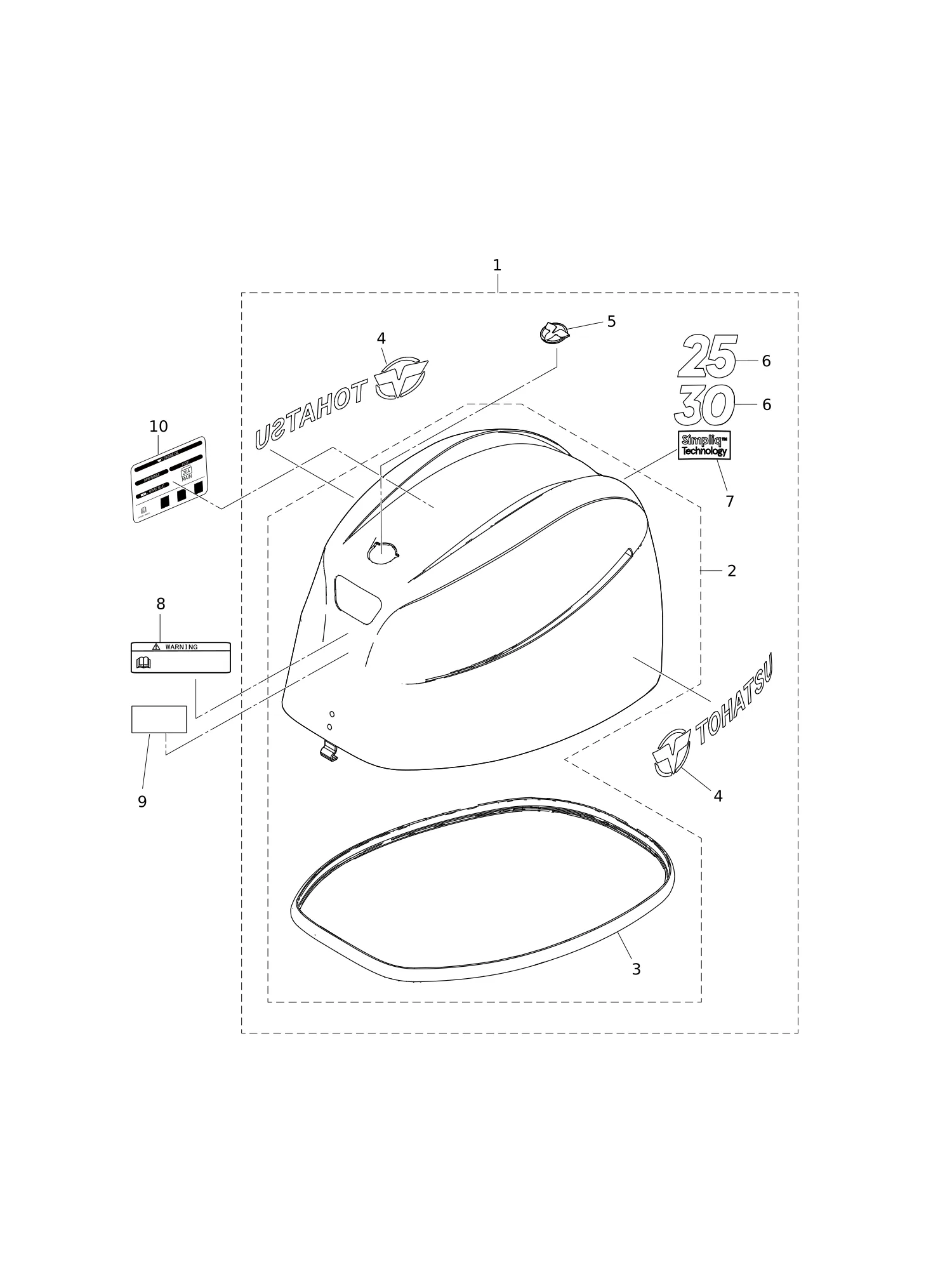

| 1 | 3VSQ67645-1 | 顶罩总成 | TOP COWL ASSY | 1 |
| 1 | 3ZBW67645-1 | 顶罩总成 | TOP COWL ASSY | 1 |
| 2 | 3VSQ67640-0 | * 顶罩分总成 | * TOP COWL SUB-ASSY | 1 |
| 2 | 3VSW67640-0 | * 顶罩分总成 | * TOP COWL SUB-ASSY | 1 |
| 3 | 3VS-67501-0 | 顶罩密封条 | ** TOP COWL SEAL | 1 |
| 4 | 3SS-67541-0 | * 侧标识贴 | * SIDE DECAL | 2 |
| 4 | 3UG-67541-0 | * 侧标识贴 | * SIDE DECAL | 2 |
| 5 | 3VT-67580-0 | * 标志贴花 | * LOGO DECAL | 1 |
| 6 | 3VS-67536-0 | * 后贴花 (30) | * REAR DECAL (30) | 1 |
| 6 | 3VT-67536-0 | * 后贴花 (25) | * REAR DECAL (25) | 1 |
| 6 | 3ZB-67536-0 | * 后贴花 (30) | * REAR DECAL (30) | 1 |
| 6 | 3ZD-67536-0 | * 后贴花 (25) | * REAR DECAL (25) | 1 |
| 7 | 3VS-67538-0 | * SIMPLIQ标识贴 | * SIMPLIQ DECAL | 1 |
| 7 | 3ZB-67538-0 | * SIMPLIQ标识贴 | * SIMPLIQ DECAL | 1 |
| 8 | 3WL-72180-0 | 警示标贴(A型) | CAUTION DECAL (A) | 1 |
| 8 | 3YG-72180-0 | 警示标贴(A型) | CAUTION DECAL (A) | 1 |
| 9 | 3F0-72185-0 | 警示标贴 | CAUTION DECAL | 1 |
| 10 | 3VS-38136-1 | 维护标签 | MAINTENANCE LABEL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

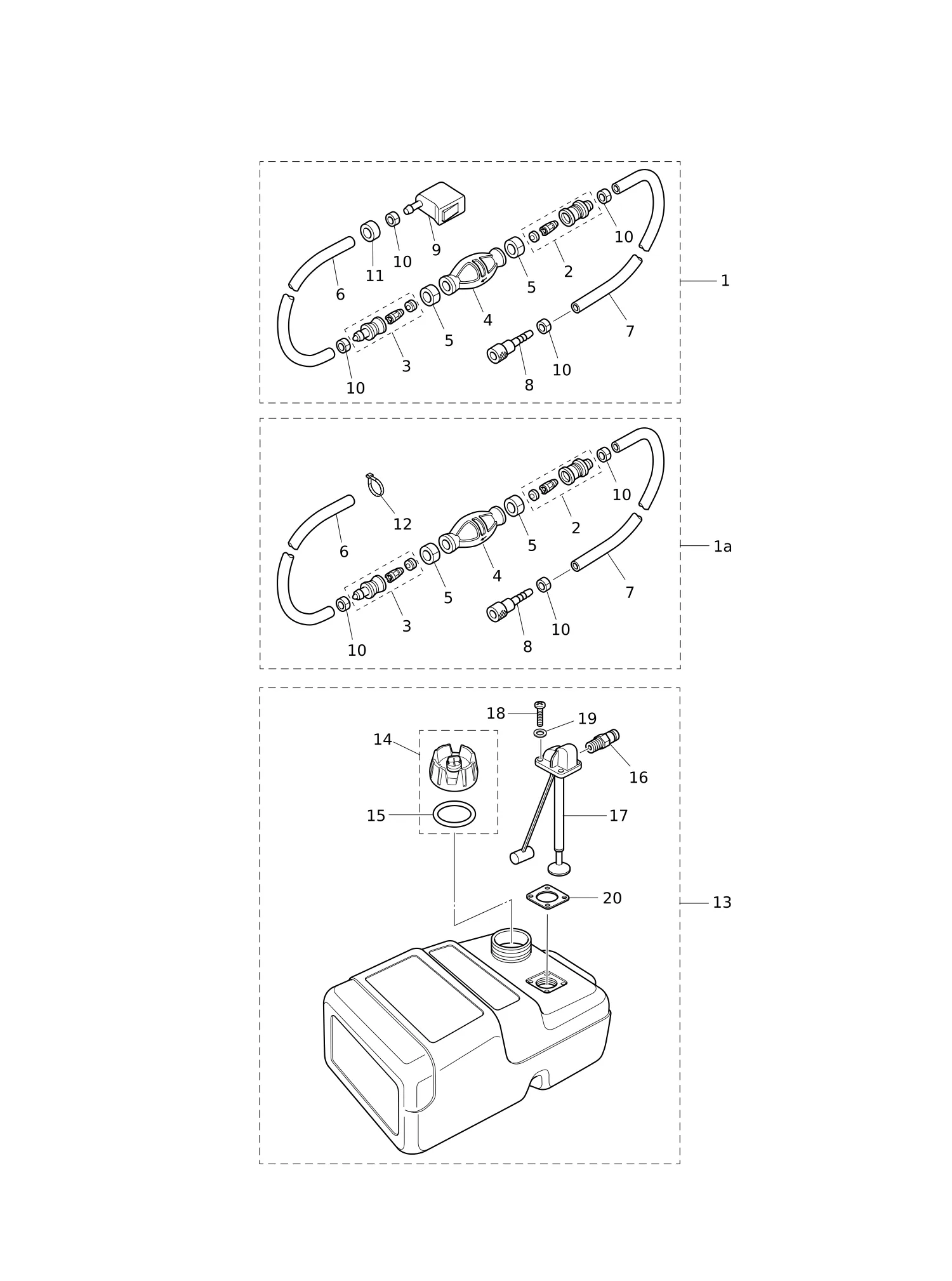

| 1 | 3AD-70200-2 | 手动泵球总成 | PRIMER BULB ASSY | 1 |
| 1 | 3H6-70200-2 | 手动泵球总成 | PRIMER BULB ASSY | 1 |
| 1a | 3VS-70232-0 | 带箍手动泵球总成 | PRIMER BULB ASSY W/BAND | 1 |
| 2 | 3C7-70220-1 | * 接头组件(进口) | * JOINT ASSY (INLET) | 1 |
| 3 | 3C7-70224-1 | * 接头组件(出口) | * JOINT ASSY (OUTLET) | 1 |
| 4 | 3C7-70211-1 | * 注油球 | * PRIMER BULB | 1 |
| 4 | 3GF-70211-1 | * 注油球 | * PRIMER BULB | 1 |
| 5 | 3C7-70217-0 | * 卡箍 | * CLAMP | 2 |
| 6 | 3GF-70241-1 | * 低渗透软管 L=700 | * LOW PERMEATION HOSE L=700 | 1 |
| 6 | 98AB-70-700 | * 软管 | * HOSE | 1 |
| 7 | 3GF-70240-1 | * 低渗透软管 L=1600 | * LOW PERMEATION HOSE L=1600 | 1 |
| 7 | 98AB-701600 | * 软管 | * HOSE | 1 |
| 8 | 3GF-70281-0 | * 燃油接头 | * FUEL CONNECTOR | 1 |
| 9 | 3GR-70250-0 | * 燃油接头 | * FUEL CONNECTOR | 1 |
| 10 | 332-70201-0 | * 卡箍 | * CLAMP | 4 |
| 11 | 3GR-70280-0 | * 燃油接头标记 | * FUEL CONNECTOR MARK | 1 |
| 12 | 3T5-84398-0 | 箍带 104 | * BAND 104 | 1 |
| 13 | 3KZ-70177-0 | 25升燃油箱总成 | FUEL TANK ASSY 25L | 1 |
| 14 | 3RS-70020-0 | * 燃油箱盖总成 | * FUEL TANK CAP ASSY | 1 |
| 15 | 3RS-70021-0 | 油箱盖衬垫 | ** TANK FILLER CAP GASKET | 1 |
| 16 | 3E0-70270-0 | * 快速接头(公) | * QUICK-CONNECTOR (MALE) | 1 |
| 17 | 3AC-70157-0 | * 带油量计的燃油吸油总成 | * FUEL PICK-UP ASSY W/GAUGE | 1 |
| 18 | 3AC-70140-0 | * 螺钉 | * SCREW | 4 |
| 19 | 3AC-70145-0 | * 垫圈 | * WASHER | 4 |
| 20 | 3AC-70150-0 | * 衬垫 | * GASKET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

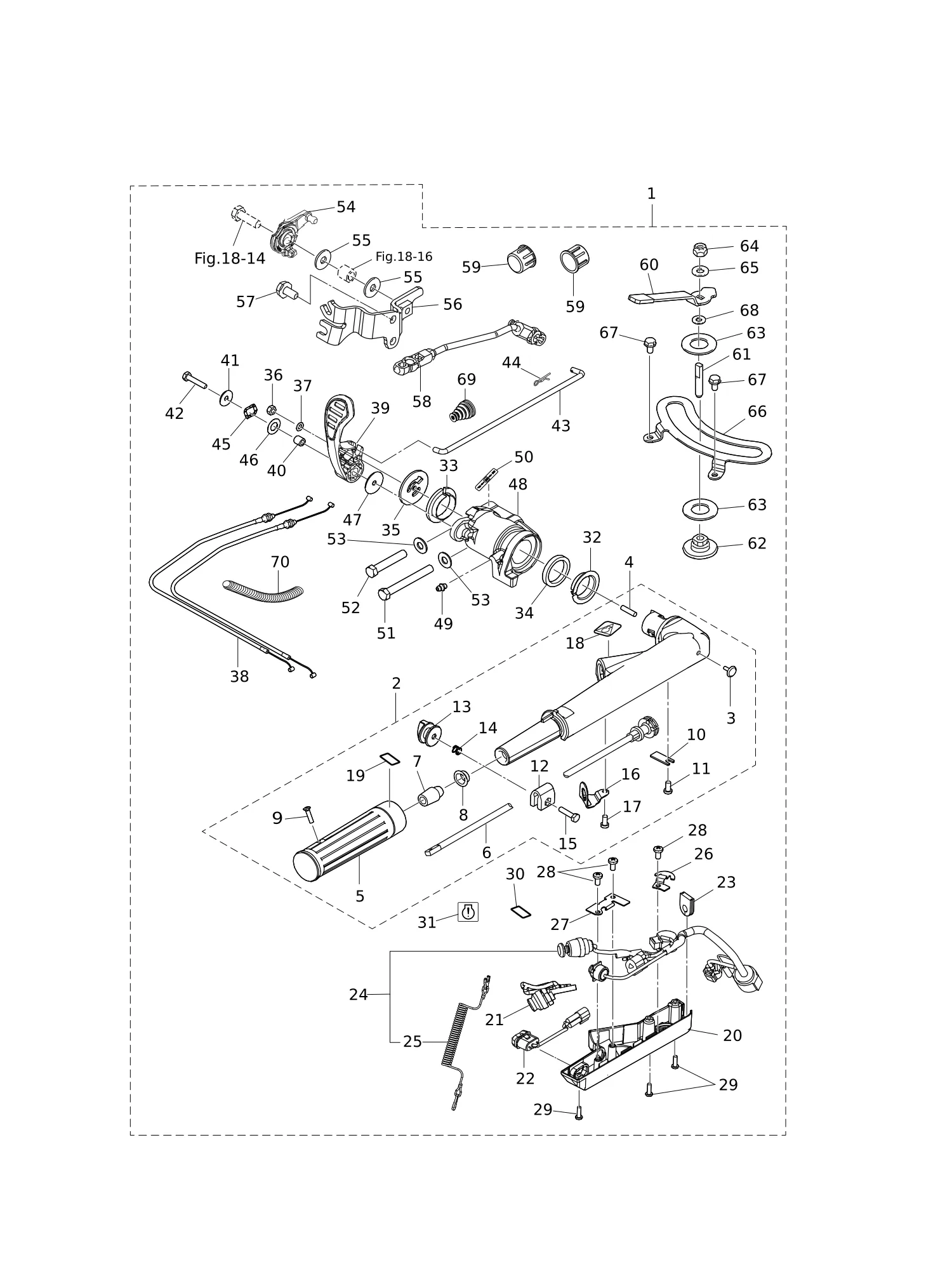

| 1 | 3VSQ63007-0 | 舵柄套件(基础型) | TILLER HANDLE KIT (BASIC) | 1 |
| 2 | 3VSQ63003-0 | * 舵柄手柄总成 | * TILLER HANDLE ASSY | 1 |
| 3 | 350-67154-0 | 塑料铆钉 6.5 | ** PLASTIC RIVET 6.5 | 1 |
| 4 | 3B2-63104-1 | 螺柱 | ** STUD | 1 |
| 5 | 3R3-63012-0 | 手柄 | ** GRIP | 1 |
| 6 | 3V1-63041-0 | 油门轴 | ** THROTTLE SHAFT | 1 |
| 7 | 3H6-63048-0 | 油门轴缓冲器 | ** THROTTLE SHAFT DAMPER | 1 |
| 8 | 3H6-63510-0 | 衬套 14-15.8-7 | ** BUSHING 14-15.8-7 | 1 |
| 9 | 921803-0520 | 螺钉 | ** SCREW | 1 |
| 10 | 3B2-63063-0 | 油门轴支架 | ** THROTTLE SHAFT SUPPORT | 1 |
| 12 | 3V1-63035-1 | ** 摩擦片 | ** FRICTION PIECE | 1 |
| 13 | 3V1-63077-0 | 调节螺母 | ** ADJUSTING NUT | 1 |
| 14 | 3V1-63036-0 | ** 弹簧 | ** SPRING | 1 |
| 15 | 910103-0625 | 螺栓 | ** BOLT | 1 |
| 16 | 3VT-06869-0 | 支架 | ** BRACKET | 1 |
| 17 | 9215E3-0612 | 螺钉 | ** SCREW | 1 |
| 18 | 3AC-72200-0 | 停机开关标贴 | ** STOP SWITCH DECAL | 1 |
| 19 | 3NV-72019-0 | 油门标贴 | ** THROTTLE DECAL | 1 |
| 20 | 3VS-63320-0 | * 舵柄手柄盖 | * TILLER HANDLE COVER | 1 |
| 21 | 3VS-76026-0 | * 主开关总成 | * MAIN SWITCH ASSY | 1 |
| 22 | 3VS-72615-0 | * 动力升降倾斜开关总成 | * PTT SWITCH ASSY | 1 |
| 23 | 3VS-63624-0 | * 护孔环 | * GROMMET | 1 |
| 24 | 3VT-76115-0 | * 绳索总成 | * CORD ASSY | 1 |
| 25 | 31H-06848-0 | 停机开关拉绳总成 | ** STOP SWITCH LANYARD ASSY | 1 |
| 26 | 3VS-63505-0 | * 线缆固定座 | * CABLE HOLDER | 1 |
| 27 | 3VV-62114-0 | * 板 | * PLATE | 1 |
| 28 | 3GR-05913-0 | * 自攻螺钉 M6-18 | * TAPPING SCREW M6-18 | 3 |
| 29 | 9215E3-0516 | * 螺钉 | * SCREW | 3 |
| 30 | 3VS-76195-0 | * 怠速调节标贴 | * IDLE CHANGE DECAL | 1 |
| 31 | 3VS-67587-0 | * 启动标识贴 | * START DECAL | 1 |
| 32 | 3V1-63102-0 | * 衬套 | * BUSHING | 1 |
| 33 | 3RS-63102-0 | * 衬套 | * BUSHING | 1 |
| 34 | 3RS-63108-0 | * 垫圈 | * WASHER | 1 |
| 35 | 3RS-63107-1 | * 盖板 | * COVER | 1 |
| 36 | 930103-0600 | 螺母 | * NUT | 1 |
| 37 | 940203-0600 | * 垫圈 | * WASHER | 1 |
| 38 | 3VS-63600-0 | * 节气门拉线 | * THROTTLE WIRE | 2 |
| 39 | 3RS-66110-1 | * 换挡杆 | * SHIFT LEVER | 1 |
| 40 | 3H6-63619-1 | * 轴环 6.5-10.5-10 | * COLLAR 6.5-10.5-10 | 1 |
| 41 | 346-67115-0 | * 垫圈 6.5-21-1 | * WASHER 6.5-21-1 | 1 |
| 42 | 9101E3-0620 | 螺栓 | * BOLT | 1 |
| 43 | 3VS-66134-0 | * 换挡杆 | * SHIFT LEVER ROD | 1 |
| 44 | 951603-0600 | * 弹性销 d=6 | * SNAP PIN d=6 | 1 |
| 45 | 3RS-05259-0 | * 波形垫圈 | * WAVE WASHER | 1 |
| 46 | 3RS-61315-0 | * 垫圈 | * WASHER | 1 |
| 47 | 3RS-67115-0 | * 垫圈 6.5-30-1 | * WASHER 6.5-30-1 | 1 |
| 48 | 3VSQ62001-0 | * 转向支架 | * STEERING BRACKET | 1 |
| 49 | 344-67177-1 | * 黄油嘴 | * GREASE FITTING | 1 |
| 50 | 3WL-67578-0 | * 换挡标贴 | * SHIFT DECAL | 1 |
| 51 | 3RS-63201-0 | 螺栓 | * BOLT | 1 |
| 52 | 3RT-63201-0 | 螺栓 | * BOLT | 1 |
| 53 | 9401E3-1000 | * 垫圈 | * WASHER | 2 |
| 54 | 3VS-63622-0 | * 节气门鼓轮总成 | * THROTTLE DRUM ASSY | 1 |
| 55 | 3C8-66308-0 | * 垫圈 6-16-1.5 | * WASHER 6-16-1.5 | 2 |
| 56 | 3VS-63508-0 | * 节气门拉线支架 | * THROTTLE WIRE BRACKET | 1 |
| 58 | 3VS-63610-0 | * 连杆总成 (节气门) | * LINK ROD ASSY (THROTTLE) | 1 |
| 59 | 346-62127-0 | * 盖形螺母 | * CAP NUT | 2 |
| 60 | 3VS-62441-0 | * 摩擦杆 | * FRICTION LEVER | 1 |
| 61 | 3VS-62445-0 | 螺栓 | * BOLT | 1 |
| 62 | 3VS-62400-0 | * 摩擦杆支架 | * FRICTION LEVER BRACKET | 1 |
| 63 | 3VS-62449-0 | * 圆盘 | * DISC | 2 |
| 64 | 930403-0800 | 尼龙螺母 8-P1.25 | * NYLON NUT 8-P1.25 | 1 |
| 65 | 940103-0800 | * 垫圈 | * WASHER | 1 |
| 66 | 3VS-62447-0 | * 板 | * PLATE | 1 |
| 67 | 910103-5612 | 螺栓 | * BOLT | 2 |
| 68 | 3R3-62443-0 | * 垫圈 8.1-20-0.8 | * WASHER 8.1-20-0.8 | 1 |
| 69 | 3RS-66260-1 | * 护孔环 | * GROMMET | 1 |
| 70 | 3VT-06133-0 | * 保护罩 | * PROTECTOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

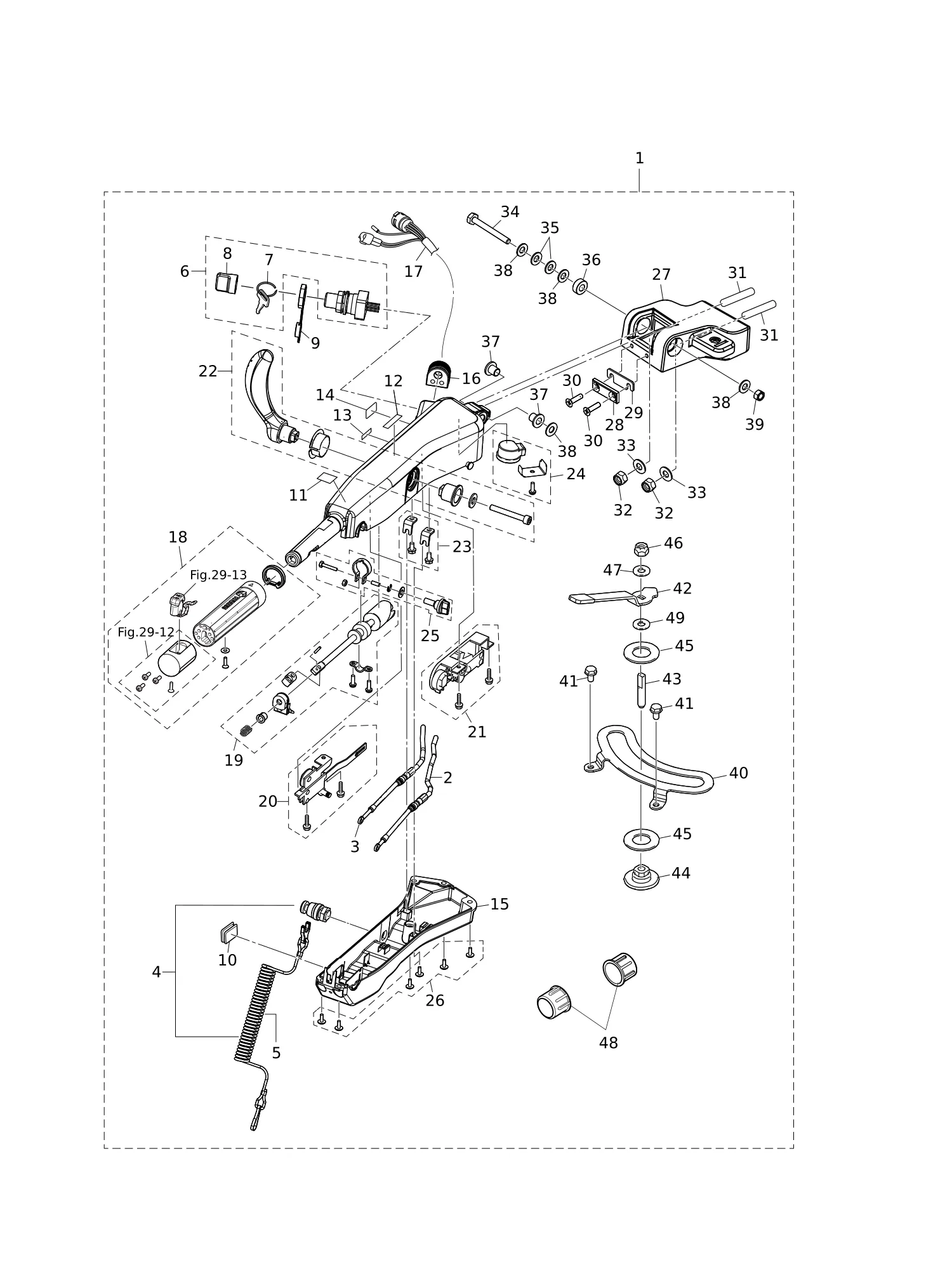

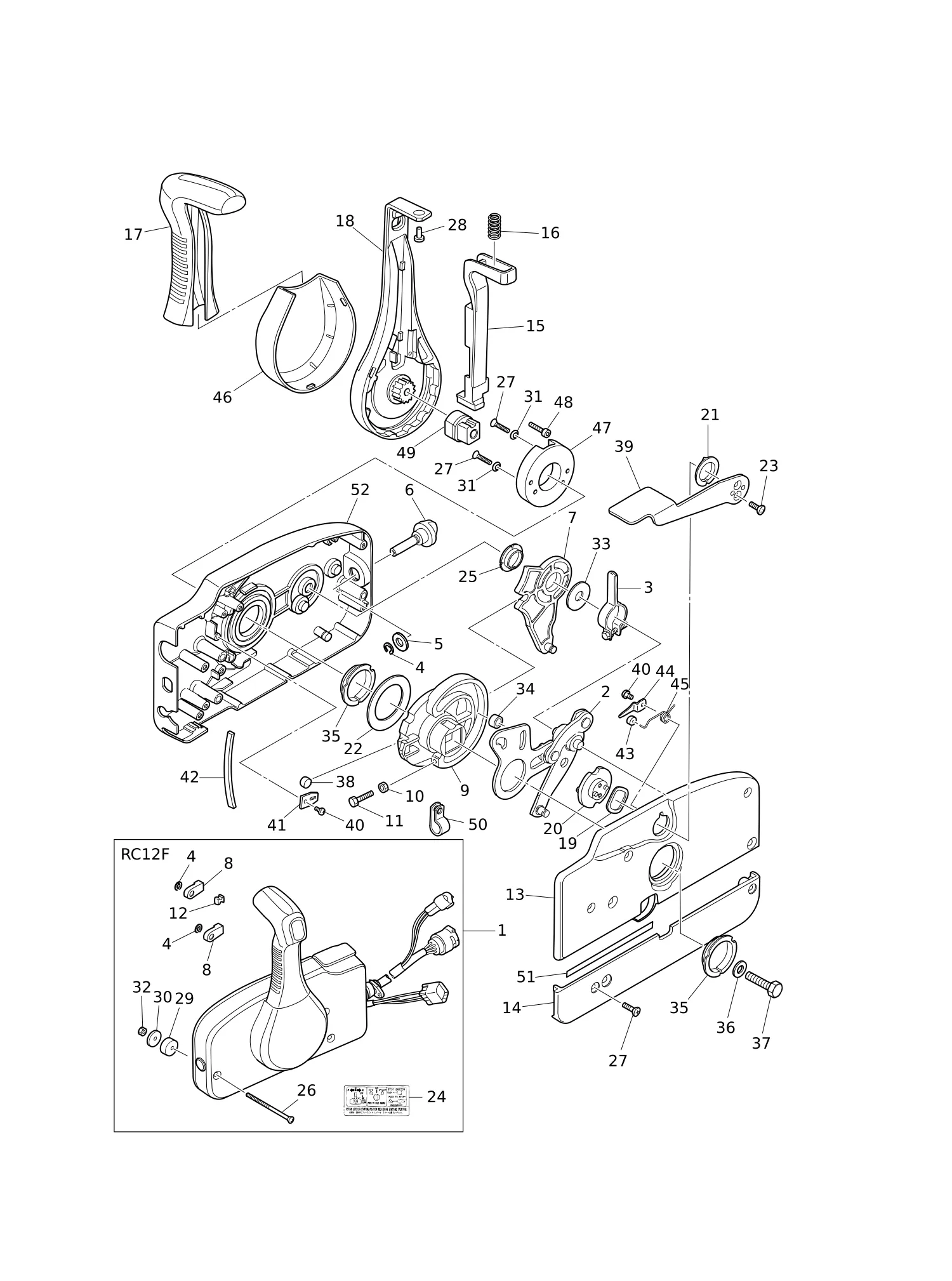

| 1 | 3VVQ63000-0 | 舵柄套件 | TILLER HANDLE KIT | 1 |
| 1 | 3VVW63000-0 | 舵柄套件 | TILLER HANDLE KIT | 1 |
| 2 | 3VV-63600-0 | * 节气门拉线 | * THROTTLE WIRE | 1 |
| 3 | 3VV-66196-0 | * 换挡拉索 | * SHIFT CABLE | 1 |
| 4 | 398-06830-0 | * 停机开关总成 | * STOP SWITCH ASSY | 1 |
| 5 | 353-06821-0 | 停机开关拉绳总成 | ** STOP SWITCH LANYARD ASSY | 1 |
| 6 | 3GF-76020-0 | * 主开关总成 | * MAIN SWITCH ASSY | 1 |
| 7 | 3GF-76217-0 | 主开关钥匙 | ** MAIN SWITCH KEY | 1 |
| 7 | 3GF-76218-0 | 主开关钥匙 | ** MAIN SWITCH KEY | 1 |
| 7 | 3GF-76219-0 | 主开关钥匙 | ** MAIN SWITCH KEY | 1 |
| 8 | 3GF-76205-0 | 主开关钥匙防尘盖 | ** MAIN SWITCH KEY COVERING CAP | 1 |
| 9 | 3T5-76022-0 | * 主开关帽 (防水) | * MAIN SWITCH CAP (WATERPROOF) | 1 |
| 10 | 3AH-63624-0 | * 护孔环 | * GROMMET | 1 |
| 11 | 3GF-72019-1 | * 油门标识贴 | * THROTTLE DECAL | 1 |
| 12 | 3GF-67578-2 | * 换挡标贴 | * SHIFT DECAL | 1 |
| 13 | 3GF-72200-1 | * 停机开关标贴 | * STOP SWITCH DECAL | 1 |
| 14 | 3GF-84339-1 | * 操作说明标贴 | * INSTRUCTION DECAL | 1 |
| 15 | 3UR-63320-0 | * 舵柄手柄盖 | * TILLER HANDLE COVER | 1 |
| 16 | 3GF-63624-0 | * 护孔环 | * GROMMET | 1 |
| 17 | 3VV-76119-0 | * 绳索总成 | * CORD ASSY | 1 |
| 18 | 3UR-63193-0 | * 手柄零件套件 | * GRIP PARTS KIT | 1 |
| 19 | 3UR-63062-0 | * 节气门轴套件 | * THROTTLE SHAFT KIT | 1 |
| 20 | 3GF-63067-0 | * 节气门连杆总成 | * THROTTLE LINK ASSY | 1 |
| 21 | 3GF-66160-0 | * 换挡单元总成 | * SHIFT UNIT ASSY | 1 |
| 22 | 3GF-66158-0 | * 换挡杆套件 | * SHIFT LEVER KIT | 1 |
| 23 | 3GF-66198-0 | * 线缆支架套件 | * CABLE BRACKET KIT | 1 |
| 24 | 3GF-76175-0 | * 蜂鸣器套件 | * BUZZER KIT | 1 |
| 25 | 3GF-63032-0 | * 油门摩擦总成 | * THROTTLE FRICTION ASSY | 1 |
| 26 | 3GF-63205-0 | * 螺钉套件 | * SCREW SET | 1 |
| 27 | 3AHQ62001-1 | * 转向支架 | * STEERING BRACKET | 1 |
| 27 | 3AHW62001-1 | * 转向支架 | * STEERING BRACKET | 1 |
| 28 | 3VS-63025-0 | * 隔套 | * SPACER | 1 |
| 29 | 3VV-63025-0 | * 隔套 | * SPACER | 1 |
| 30 | 9216E3-0625 | * 螺钉 | * SCREW | 2 |
| 31 | 3GF-62097-0 | * 双头螺柱 M10-45 P1.25 | * STUD M10-45 P1.25 | 2 |
| 32 | 3C8-62098-0 | 尼龙螺母 10-P1.25 | * NYLON NUT 10-P1.25 | 2 |
| 34 | 3GF-63201-0 | 螺栓 10-80 P1.25 | * BOLT 10-80 P1.25 | 1 |
| 35 | 3GF-63305-0 | * 锥形弹簧垫圈 10.5-21-2.3 | * CONICAL SPRING WASHER 10.5-21-2.3 | 2 |
| 36 | 3GF-63025-0 | * 隔套 10.5-23-9 | * SPACER 10.5-23-9 | 1 |
| 37 | 3GF-63102-0 | * 衬套 10.5-12.7-13.5 | * BUSHING 10.5-12.7-13.5 | 2 |
| 38 | 9401E3-1000 | * 垫圈 | * WASHER | 4 |
| 39 | 3GF-63310-0 | * 锁紧螺母 10-P1.25 | * LOCK NUT 10-P1.25 | 1 |
| 40 | 3VS-62447-0 | * 板 | * PLATE | 1 |
| 41 | 910103-5612 | 螺栓 | * BOLT | 2 |
| 42 | 3VS-62441-0 | * 摩擦杆 | * FRICTION LEVER | 1 |
| 43 | 3VS-62445-0 | 螺栓 | * BOLT | 1 |
| 44 | 3VS-62400-0 | * 摩擦杆支架 | * FRICTION LEVER BRACKET | 1 |
| 45 | 3VS-62449-0 | * 圆盘 | * DISC | 2 |
| 46 | 930403-0800 | 尼龙螺母 8-P1.25 | * NYLON NUT 8-P1.25 | 1 |
| 47 | 940103-0800 | * 垫圈 | * WASHER | 1 |
| 48 | 346-62127-0 | * 盖形螺母 | * CAP NUT | 2 |
| 49 | 3R3-62443-0 | * 垫圈 8.1-20-0.8 | * WASHER 8.1-20-0.8 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3U2B84500-1 | 遥控头总成(RC12F) | REMOTE CONTROL HEAD ASSY (RC12F) | 1 |
| 2 | 3A3-84365-1 | * 节气门摇臂 | * THROTTLE ARM | 1 |
| 3 | 3A3-84428-0 | * 油门摩擦摇臂 | * THROTTLE FRICTION ARM | 1 |
| 4 | 945303-0600 | * E型卡环 d=6 | * E-RING d=6 | 3 |
| 5 | 353-84394-0 | * 垫圈 | * WASHER | 1 |
| 6 | 3U2-84427-0 | * 调节螺钉 | * ADJUSTING SCREW | 1 |
| 7 | 3A3-84381-0 | * 换挡齿轮总成 | * SHIFT GEAR ASSY | 1 |
| 8 | 3A3-83314-2 | * 线缆端子 | * CABLE TERMINAL | 2 |
| 9 | 3A3-84364-2 | * 驱动齿轮 | * DRIVE GEAR | 1 |
| 10 | 930103-0500 | 螺母 | * NUT | 1 |
| 11 | 910103-0525 | 螺栓 | * BOLT | 1 |
| 12 | 3A3-84376-0 | * 护孔环 | * GROMMET | 1 |
| 13 | 3U2B84441-0 | * 后壳体 | * REAR HOUSING | 1 |
| 14 | 3U2B84366-0 | * 后盖板 | * REAR PANEL | 1 |
| 15 | 3U2-84401-0 | * 空档锁止臂 | * NEUTRAL LOCK ARM | 1 |
| 16 | 3A3-84403-0 | * 空档锁止弹簧 | * NEUTRAL LOCK SPRING | 1 |
| 17 | 3U2-84404-0 | * 手柄 | * GRIP | 1 |
| 18 | 3U2-84343-0 | * 控制杆 | * CONTROL LEVER | 1 |
| 19 | 3A3-84368-0 | * 波形垫圈 | * WAVE WASHER | 1 |
| 20 | 3A3-84391-0 | * 自由节流鼓 | * FREE THROTTLE DRUM | 1 |
| 21 | 3A3-84435-0 | * 衬套 | * BUSHING | 1 |
| 22 | 3A3-84422-0 | * 推力板 | * THRUST PLATE | 1 |
| 23 | 921603-0512 | * 螺钉 | * SCREW | 2 |
| 24 | 3VK-84339-1 | * 操作说明标贴 | * INSTRUCTION DECAL | 1 |
| 25 | 3A3-84432-0 | * 衬套 | * BUSHING | 1 |
| 26 | 3U2-84375-0 | * 螺钉 | * SCREW | 3 |
| 27 | 3VK-84375-0 | * 螺钉 | * SCREW | 7 |
| 28 | 3VL-84375-0 | * 螺钉 | * SCREW | 1 |
| 29 | 3A3-84374-0 | * 隔套 | * SPACER | 3 |
| 30 | 353-84371-0 | * 垫圈 | * WASHER | 3 |
| 31 | 3U2-84371-0 | * 垫圈 | * WASHER | 2 |
| 32 | 930103-0600 | 螺母 | * NUT | 3 |
| 33 | 3A3-84383-0 | * 垫圈 | * WASHER | 1 |
| 34 | 3A3-84421-0 | * 滚轮 | * ROLLER | 1 |
| 35 | 3U2-84431-0 | * 衬套 | * BUSHING | 2 |
| 36 | 940103-0800 | * 垫圈 | * WASHER | 1 |
| 37 | 3U2-84442-0 | 螺栓 | * BOLT | 1 |
| 38 | 353-84388-0 | * 定位滚轮 | * DETENT ROLLER | 1 |
| 39 | 3U2B84312-0 | * 自由节流杆 | * FREE THROTTLE LEVER | 1 |
| 40 | 921503-0406 | * 螺钉 | * SCREW | 3 |
| 41 | 3A3-84423-0 | * 定位器挡圈 | * DETENT RETAINER | 1 |
| 42 | 3A3-84307-0 | * 定位弹簧 | * DETENT SPRING | 6 |
| 43 | 3A3-84424-0 | * 自由节流滚轮 | * FREE THROTTLE ROLLER | 1 |
| 44 | 3A3-84426-0 | * 滚柱保持架 | * ROLLER RETAINER | 1 |
| 45 | 3A3-84425-0 | * 自由节流弹簧 | * FREE THROTTLE SPRING | 1 |
| 46 | 3U2-63107-0 | * 盖板 | * COVER | 1 |
| 47 | 3U2-63506-0 | * 支架 | * HOLDER | 1 |
| 48 | 3U2-84917-0 | 螺栓 | * BOLT | 1 |
| 49 | 3U2-77367-0 | * 接头 | * JOINT | 1 |
| 50 | 3U2-06973-0 | * 卡箍 | * CLAMP | 1 |
| 51 | 3U2-72187-0 | * 警示标贴(SIGP) | * CAUTION DECAL (SIGP) | 1 |
| 52 | 3U2B84440-0 | * 前壳体 | * FRONT HOUSING | 1 |

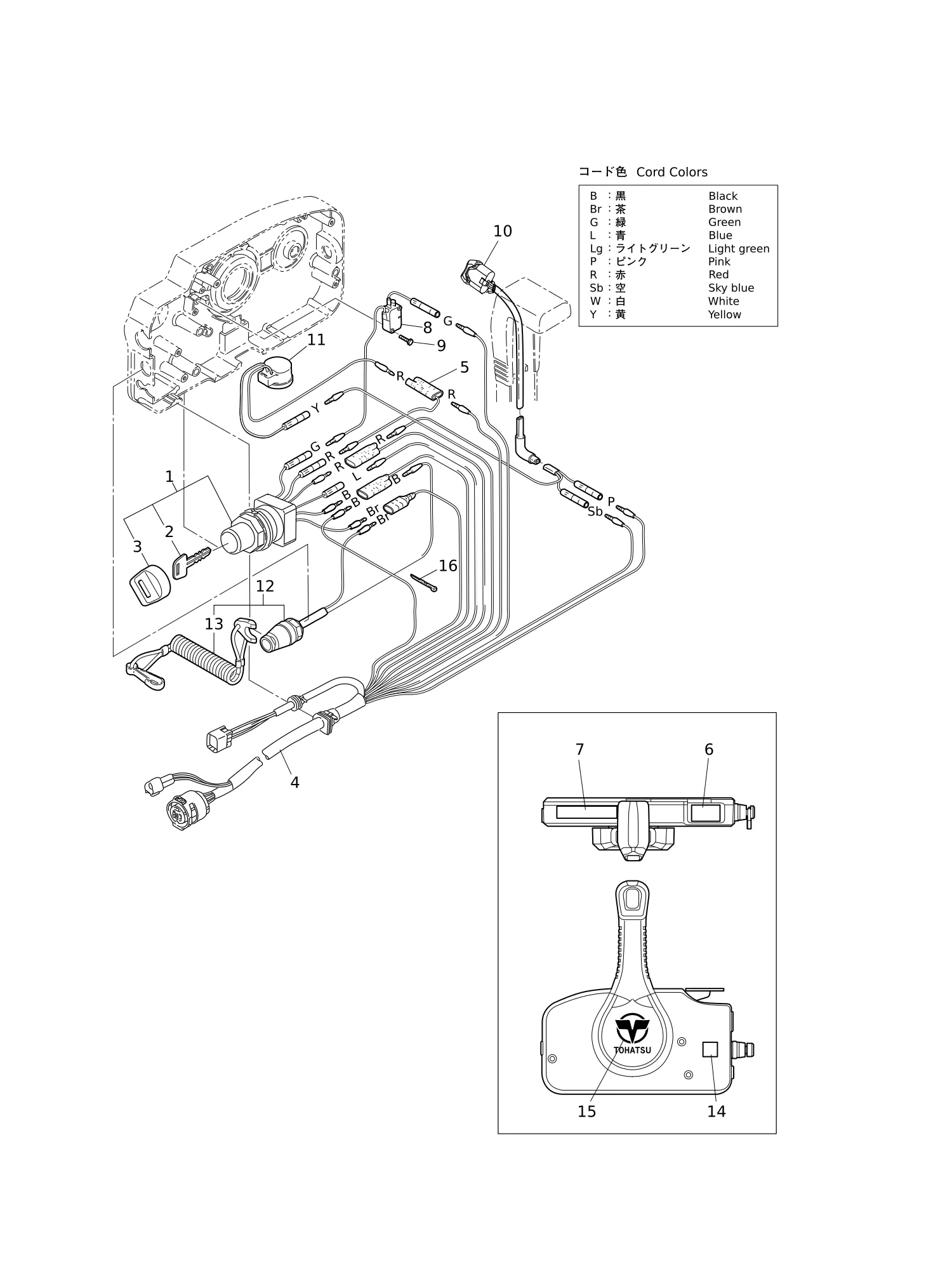

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3GF-76020-0 | 主开关总成 | MAIN SWITCH ASSY | 1 |
| 2 | 3GF-76217-0 | * 主开关钥匙 | * MAIN SWITCH KEY | 1 |
| 2 | 3GF-76218-0 | * 主开关钥匙 | * MAIN SWITCH KEY | 1 |
| 2 | 3GF-76219-0 | * 主开关钥匙 | * MAIN SWITCH KEY | 1 |
| 3 | 3GF-76205-0 | * 主开关钥匙盖帽 | * MAIN SWITCH KEY COVERING CAP | 1 |
| 4 | 3T5-76115-1 | 线束总成 L=6200 | CORD ASSY L=6200 | 1 |
| 5 | 353-72546-0 | 辅助拉绳(红) 长200 | ASSIST CORD (RED) L=200 | 1 |
| 6 | 3U2-84331-0 | 操纵杆贴花 | DECAL (LEVER) | 1 |
| 7 | 3U2-84336-1 | 挡位标识贴 | SHIFT POSITION DECAL | 1 |
| 8 | 3T5-76086-0 | 空档开关(遥控型) | NEUTRAL SWITCH (REMOTE CONT) | 1 |
| 9 | 921503-5316 | 螺钉 | SCREW | 2 |
| 10 | 3U2-72615-0 | 动力升降倾斜装置开关总成 | PTT SWITCH ASSY | 1 |
| 11 | 3C8-76171-0 | 过热报警器 | OVERHEAT BUZZER | 1 |
| 12 | 3A3-06830-0 | 停止开关总成 | STOP SWITCH ASSY | 1 |
| 13 | 31H-06848-0 | * 停机开关拉绳总成 | * STOP SWITCH LANYARD ASSY | 1 |
| 14 | 3U2-72200-0 | 停止开关贴花 | STOP SWITCH DECAL | 2 |
| 15 | 3U2-84334-0 | 遥控标识贴花 | REMOTE CONTROL LOGO DECAL | 1 |
| 16 | 3U2-84398-0 | 箍带 | BAND | 5 |

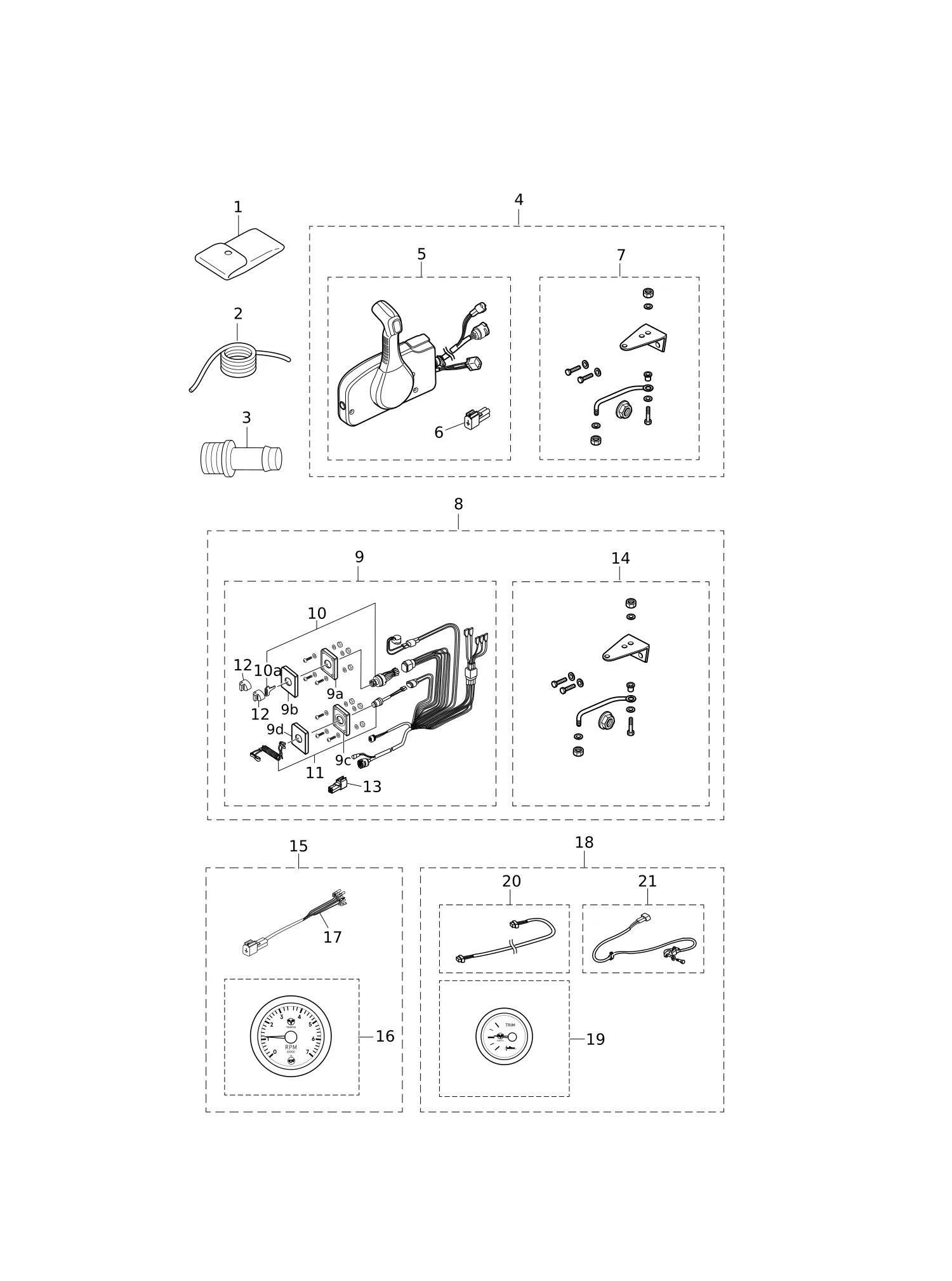

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3BJ-72100-1 | 工具包 | TOOL KIT | 1 |
| 2 | 3B7-72201-0 | 安全绳φ5-1600 | SAFETY ROPE φ5-1600 | 1 |
| 3 | 3T1-72405-0 | 软管接头(水工) | HOSE JOINT (WATER-WORKS) | 1 |
| 4 | 3VS-84555-0 | 通用侧装预装配套件 | PRE-RIGGING KIT (GENERIC SIDE) | 1 |
| 5 | 3VS-83900-0 | * 带4针插头遥控头 | * REMOTE CONTROL HEAD W/4P PLUG | 1 |
| 8 | 3VT-84556-0 | 通用平装预装配套件 | PRE-RIGGING KIT (GENERIC FLUSH) | 1 |
| 9a | 3UR-06869-0 | 支架 | ** BRACKET | 1 |
| 9b | 3UR-76201-0 | 主开关面板 | ** MAIN SWITCH PANEL | 1 |
| 9 | 3VT-84560-0 | * 操舵索具套件 | * RIGGING CORD KIT | 1 |
| 9c | 3YU-06869-0 | 支架 | ** BRACKET | 1 |
| 9d | 3YU-06882-0 | 停机开关面板 | ** STOP SWITCH PANEL | 1 |
| 10a | 353-76203-1 | 主开关钥匙 F-301 | *** MAIN SWITCH KEY F-301 | 1 |
| 10a | 353-76203-2 | 主开关钥匙 F-302 | *** MAIN SWITCH KEY F-302 | 1 |
| 10a | 353-76203-3 | 主开关钥匙 F-303 | *** MAIN SWITCH KEY F-303 | 1 |
| 10 | 3UR-76020-0 | 主开关总成 | ** MAIN SWITCH ASSY | 1 |
| 11 | 3Y9-06830-0 | 停机开关总成 | ** STOP SWITCH ASSY | 1 |
| 12 | 353-76205-1 | 主开关钥匙防尘盖 | ** MAIN SWITCH KEY COVERING CAP | 2 |
| 13 | 3VS-76037-0 | 电缆端子插头 | ** CABLE TERMINAL PLUG | 1 |
| 14 | 3VS-83880-0 | * 遥控装置总成 | * REMOTE CONTROL FITTING ASSY | 1 |
| 15 | 3VS-72680-1 | 转速表全套组件 | TACHOMETER COMPLETE KIT | 1 |
| 16 | 3PA-72638-2 | * 转速表套件 | * TACHOMETER KIT | 1 |
| 17 | 3KY-72539-0 | * 转速表引线 L=2000 | * TACHOMETER LEAD WIRE L=2000 | 1 |
| 18 | 3VS-72685-1 | 配平表完整套件 | TRIM METER COMPLETE KIT | 1 |
| 19 | 3UR-72523-3 | * 配平表套件 | * TRIM METER KIT | 1 |
| 20 | 3T1-72573-1 | * 延长线(配平传感器) L=6000 | * EXTENSION CORD (TRIM SENSOR) L=6000 | 1 |
| 21 | 3KY-72575-0 | * 配平传感器套件 | * TRIM SENSOR KIT | 1 |

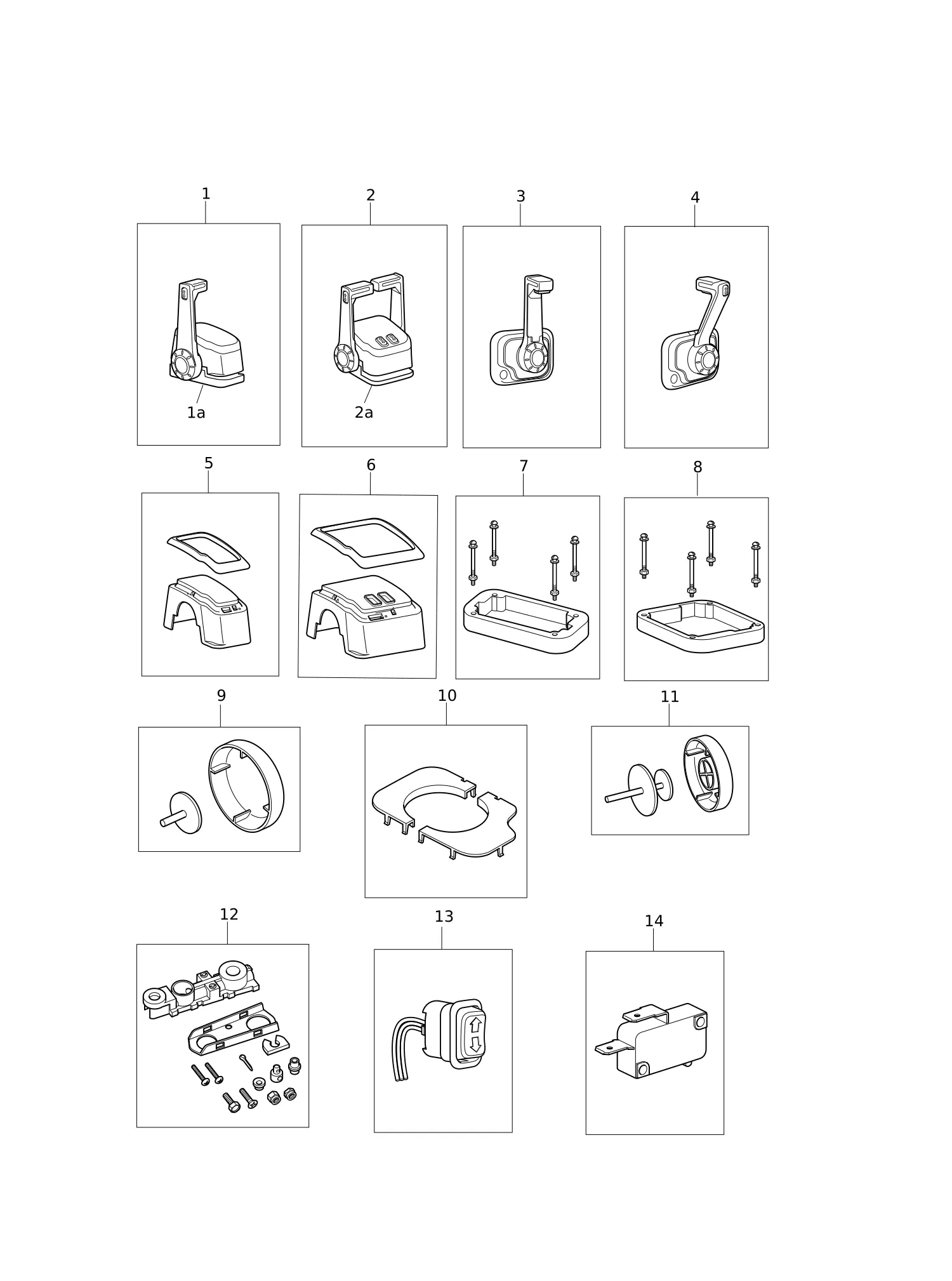

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3U3-84490-2 | 控制头总成(顶部单控) | CONTROL HEAD ASSY (TOP-SINGLE) | 1 |
| 1a | 3U3-84543-0 | 底座饰圈 | * BASE BEZEL | 1 |
| 2 | 3U3-84540-1 | 控制头总成(顶部双控) | CONTROL HEAD ASSY (TOP-TWIN) | 1 |
| 2a | 3U6-84543-0 | 底座饰圈 | * BASE BEZEL | 1 |
| 3 | 3U3-84620-1 | 控制头总成(中控台) | CONT HEAD ASSY (CENTER CONSOLE) | 1 |
| 4 | 3U3-84600-2 | 控制头总成(嵌入式) | CONT HEAD ASSY (FLUSH MOUNT) | 1 |
| 5 | 3U3-84541-1 | 装饰盖套件 | BEZEL COVER KIT | 1 |
| 6 | 3U6-84541-1 | 装饰盖套件 | BEZEL COVER KIT | 1 |
| 7 | 3U3-84373-0 | 垫圈套装 | SPACER SET | 1 |
| 8 | 3U6-84373-0 | 垫圈套装 | SPACER SET | 1 |
| 9 | 3U3-84313-0 | 节气门自由按钮 | FREE THROTTLE BUTTON | 1 |
| 10 | 3U8-84541-1 | 装饰盖套件 | BEZEL COVER KIT | 1 |
| 11 | 3U8-84313-0 | 节气门自由按钮 | FREE THROTTLE BUTTON | 1 |
| 12 | 3U3-83710-0 | 电缆接头总成 | CABLE JOINT ASSY | 1 |
| 13 | 3U3-72560-0 | 动力升降倾斜装置开关总成 | PTT SWITCH ASSY | 1 |
| 14 | 3U3-76086-0 | 空档开关(遥控型) | NEUTRAL SWITCH (REMOTE CONT) | 1 |

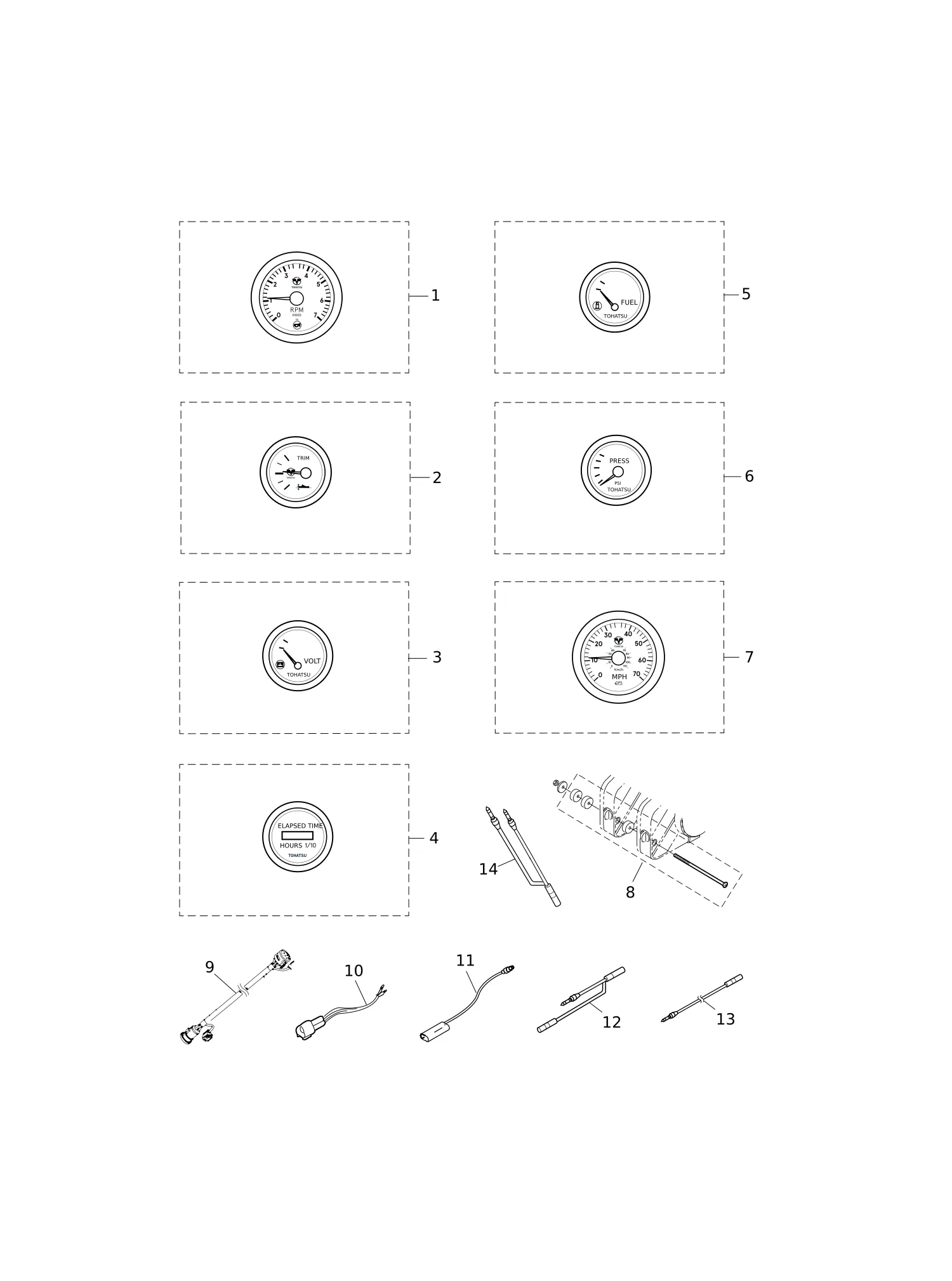

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3PA-72638-2 | 转速表组件 | TACHOMETER KIT | 1 |
| 1 | 3PB-72638-2 | 转速表组件 | TACHOMETER KIT | 1 |
| 2 | 3UR-72523-3 | 配平表套件 | TRIM METER KIT | 1 |
| 2 | 3WA-72523-3 | 配平表套件 | TRIM METER KIT | 1 |
| 3 | 3UR-72531-1 | 电压表套件 | VOLTMETER KIT | 1 |
| 3 | 3WA-72531-1 | 电压表套件 | VOLTMETER KIT | 1 |
| 4 | 3UR-72532-1 | 计时器套件 | HOUR METER KIT | 1 |
| 4 | 3WA-72532-1 | 计时器套件 | HOUR METER KIT | 1 |
| 5 | 3UR-72600-1 | 燃油表套件 | FUEL METER KIT | 1 |
| 5 | 3WA-72600-1 | 燃油表套件 | FUEL METER KIT | 1 |
| 6 | 3UR-72527-3 | 水压表套件 | WATER PRESSURE METER KIT | 1 |
| 6 | 3WA-72527-3 | 水压表套件 | WATER PRESSURE METER KIT | 1 |
| 7 | 3KY-72673-1 | 速度表套件(70英里/时) | SPEEDOMETER KIT (70MPH) | 1 |
| 7 | 3UW-72673-1 | 速度表套件(70英里/时) | SPEEDOMETER KIT (70MPH) | 1 |
| 8 | 3A3-81301-0 | 双联遥控套件 | TWIN REMOTE CONTROL KIT | 1 |
| 9 | 3KY-76114-0 | 延长线 L=4000 (8针+3针) | EXTENSION CORD L=4000 (8P+3P) | 1 |
| 9 | 3SS-76114-0 | 延长线 L=6000 (8针+3针) | EXTENSION CORD L=6000 (8P+3P) | 1 |
| 9 | 3ZG-76114-0 | 延长线 L=9000 (8针+3针) | EXTENSION CORD L=9000 8P+3P) | 1 |
| 10 | 3VS-72569-0 | 延长线(动力升降倾斜装置) | EXTENSION CORD (PTT) | 1 |
| 11 | 353-72546-0 | 辅助拉绳(红) 长200 | ASSIST CORD (RED) L=200 | 1 |
| 11 | 353-72547-0 | 辅助拉绳(蓝) 长200 | ASSIST CORD (BLU) L=200 | 1 |
| 11 | 353-72548-0 | 辅助拉绳(黑) 长200 | ASSIST CORD (BLK) L=200 | 1 |
| 12 | 3KY-72546-0 | 辅助拉绳(红) | ASSIST CORD (RED) | 1 |
| 13 | 3KY-72538-0 | 速度表引线 | SPEEDOMETER LEAD WIRE | 1 |
| 14 | 3SS-76049-0 | 导线 | LEAD WIRE | 1 |

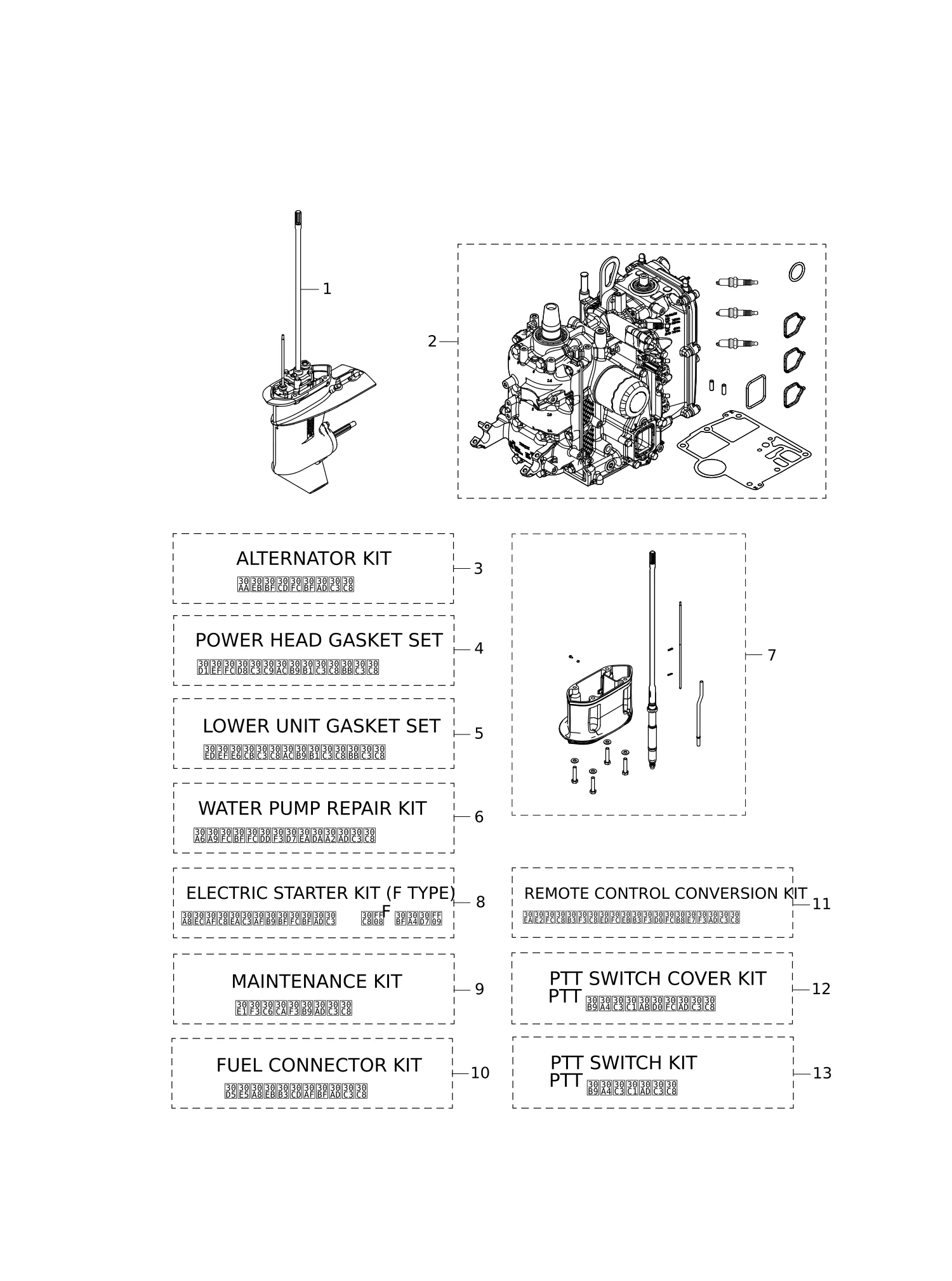

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3VSQ87301-1 | 下部单元总成 (S) | LOWER UNIT ASSY (S) | 1 |
| 1 | 3VSQ87302-1 | 下部单元总成 (L) | LOWER UNIT ASSY (L) | 1 |
| 1 | 3VSQ87304-1 | 下部单元总成 (UL) | LOWER UNIT ASSY (UL) | 1 |
| 1 | 3VSW87301-1 | 下部单元总成 (S) | LOWER UNIT ASSY (S) | 1 |
| 1 | 3VSW87302-1 | 下部单元总成 (L) | LOWER UNIT ASSY (L) | 1 |
| 2 | 3VSB87090-1 | 发动机短缸体套件 | ENGINE SHORT BLOCK KIT | 1 |
| 3 | 3VS-06128-0 | 交流发电机套件 | ALTERNATOR KIT | 1 |
| 3 | 3VS-76160-0 | * 整流器套件 | * RECTIFIER KIT | 1 |
| 3 | 3VS-76161-0 | ** 延长线 | ** EXTENSION CORD | 1 |
| 4 | 1BM-02305-0 | * 排气盖衬垫 | * EXHAUST COVER GASKET | 1 |
| 4 | 346-01032-0 | * 节温器盖衬垫 | * THERMOSTAT CAP GASKET | 1 |
| 4 | 3BJ-00121-0 | * 油封 | * OIL SEAL | 1 |
| 4 | 3H8-07025-0 | * 油封 | * OIL SEAL | 1 |
| 4 | 3H8-62415-0 | * O型圈 | * O-RING | 1 |
| 4 | 3R0-07422-0 | * O型圈 | * O-RING | 1 |
| 4 | 3R3-00121-0 | * 油封 | * OIL SEAL | 1 |
| 4 | 3VS-01005-0 | * 气缸盖垫片 | * CYLINDER HEAD GASKET | 1 |
| 4 | 3VS-01024-1 | * 气缸盖罩衬垫 | * CYLINDER HEAD COVER GASKET | 1 |
| 4 | 3VS-01303-0 | * 发动机底座衬垫 t=0.5 | * ENGINE BASEMENT GASKET t=0.5 | 1 |
| 4 | 3VS-02104-0 | * 进气歧管垫片 | * INTAKE MANIFOLD GASKET | 3 |
| 4 | 3VS-02418-0 | * 衬垫 | * GASKET | 1 |
| 4 | 3VS-07653-0 | * 机油泵垫片 | * OIL PUMP GASKET | 1 |
| 4 | 3VS-10104-0 | * 衬垫 | * GASKET | 1 |
| 4 | 3VS-87121-2 | 动力头衬垫套装 | POWER HEAD GASKET SET | 1 |
| 5 | 332-60103-0 | * O型圈 | * O-RING | 1 |
| 5 | 332-66021-0 | * O型圈 | * O-RING | 2 |
| 5 | 346-65013-0 | * 油封 | * OIL SEAL | 1 |
| 5 | 3AC-60111-0 | * 油封 | * OIL SEAL | 2 |
| 5 | 3VS-65020-0 | * 泵壳衬垫(下) | * PUMP CASE GASKET (LOWER) | 1 |
| 5 | 3VS-87321-0 | 下部单元衬垫套件 | LOWER UNIT GASKET SET | 1 |
| 6 | 3VS-87322-0 | 水泵维修套件 | WATER PUMP REPAIR KIT | 1 |
| 7 | 3P0-66233-0 | * 垫圈 | * WASHER | 4 |
| 7 | 3VS-64303-0 | * 驱动轴（上长） | * DRIVE SHAFT (UL) | 1 |
| 7 | 3VS-65120-0 | * 水管 (上左) | * WATER PIPE (UL) | 1 |
| 7 | 3VS-66014-0 | * 凸轮杆(上左) | * CAM ROD (UL) | 1 |
| 7 | 3VSQ61110-0 | * 延伸壳体 | * EXTENSION HOUSING | 1 |
| 7 | 3VSQ87314-0 | 延伸壳体套件(超长) | EXTENSION HOUSING KIT (UL) | 1 |
| 7 | 3VSW61110-0 | * 延伸壳体 | * EXTENSION HOUSING | 1 |
| 7 | 3VSW87314-0 | 延伸壳体套件(超长) | EXTENSION HOUSING KIT (UL) | 1 |
| 7 | 9101E3-5616 | 螺栓 | * BOLT | 1 |
| 7 | 9161E3-0840 | 螺栓 | * BOLT | 4 |
| 7 | 9301E3-0600 | 螺母 | * NUT | 1 |
| 7 | 951407-0312 | * 弹簧销 3-12 | * SPRING PIN 3-12 | 2 |
| 8 | 1E0-34093-0 | 盖帽(Y型) | ** CAP (Y) | 1 |
| 8 | 369-84398-1 | 箍带 202 | * BAND 202 | 1 |
| 8 | 3AA-76145-0 | * 端子盖 | * TERMINAL CAP | 1 |
| 8 | 3AC-76120-0 | 蓄电池电缆 | * BATTERY CABLE | 1 |
| 8 | 3BJ-76145-0 | * 端子盖 | * TERMINAL CAP | 1 |
| 8 | 3C8-76007-0 | * 减震器 | * DAMPER | 1 |
| 8 | 3GF-76010-1 | * 启动电机总成 | * STARTER MOTOR ASSY | 1 |
| 8 | 3KY-07612-0 | 索环/护孔圈 | ** GROMMET | 1 |
| 8 | 3KY-76037-0 | 电缆端子插头 | ** CABLE TERMINAL PLUG | 1 |
| 8 | 3NV-76080-0 | * 空档开关 | * NEUTRAL SWITCH | 1 |
| 8 | 3RS-01047-0 | * 塞 | * PLUG | 1 |
| 8 | 3SS-84398-0 | 带箍 | ** BAND | 1 |
| 8 | 3T5-76247-0 | ** 保险丝 | ** FUSE | 2 |
| 8 | 3VS-01047-0 | * 塞 | * PLUG | 1 |
| 8 | 3VS-06023-0 | * 交流发电机总成 | * ALTERNATOR ASSY | 1 |
| 8 | 3VS-06322-0 | 板 | ** PLATE | 1 |
| 8 | 3VS-06975-0 | 板 | ** PLATE | 1 |
| 8 | 3VS-10205-0 | * ECU线束总成 | * ECU CORD ASSY | 1 |
| 8 | 3VS-76009-0 | * 启动电机带 | * STARTER MOTOR BAND | 1 |
| 8 | 3VS-76026-0 | * 主开关总成 | * MAIN SWITCH ASSY | 1 |
| 8 | 3VS-76040-0 | * 启动电磁阀 | * STARTER SOLENOID | 1 |
| 8 | 3VS-76060-0 | 整流器总成 | ** RECTIFIER COMPLETE | 1 |
| 8 | 3VS-76064-0 | 保险丝支架 | ** FUSE HOLDER BRACKET | 1 |
| 8 | 3VS-76067-0 | 整流器总成衬垫 | ** RECTIFIER COMPLETE GASKET | 1 |
| 8 | 3VS-76081-0 | * 空档开关支架 | * NEUTRAL SWITCH BRACKET | 1 |
| 8 | 3VS-76083-0 | * 空档开关执行器 | * NEUTRAL SWITCH ACTUATOR | 1 |
| 8 | 3VS-76141-0 | * 启动电缆 | * STARTER CABLE | 1 |
| 8 | 3VS-76300-1 | 电动启动器套件(F) | ELECTRIC STARTER KIT (F) | 1 |
| 8 | 3VS-84398-0 | * 箍带 | * BAND | 1 |
| 8 | 3VT-01047-0 | * 塞 | * PLUG | 1 |
| 8 | 3Y0-76145-0 | * 端子盖 | * TERMINAL CAP | 1 |
| 8 | 910103-5610 | 螺栓 | * BOLT | 2 |
| 8 | 910103-5612 | 螺栓 | ** BOLT | 1 |
| 8 | 910103-5625 | 螺栓 | ** BOLT | 2 |
| 8 | 910103-5825 | 螺栓 | * BOLT | 2 |
| 8 | 921503-0512 | 螺钉 | ** SCREW | 2 |
| 9 | 332-60006-1 | * 衬垫 | * GASKET | 2 |
| 9 | 332-65022-0 | * 键 | * KEY | 1 |
| 9 | 338-60218-2 | * 阳极 | * ANODE | 2 |
| 9 | 348-65029-1 | * 导板垫片 | * GUIDE PLATE GASKET | 1 |
| 9 | 3BJ-07615-0 | * 机油滤清器 | * OIL FILTER | 1 |
| 9 | 3C8-60217-1 | * 配平片 | * TRIM TAB | 1 |
| 9 | 3NV-65021-0 | * 水泵叶轮 | * WATER PUMP IMPELLER | 1 |
| 9 | 3P0-60218-0 | * 阳极 | * ANODE | 2 |
| 9 | 3R0-65011-0 | * 泵壳衬套 | * PUMP CASE LINER | 1 |
| 9 | 3R0-65018-0 | * 泵壳衬垫 | * PUMP CASE GASKET | 1 |
| 9 | 3R0-65025-0 | * 水泵导板 | * WATER PUMP GUIDE PLATE | 1 |
| 9 | 3R3-07406-0 | * 垫圈 | * WASHER | 1 |
| 9 | 3T5-10046-0 | * O型圈1.9-13 | * O-RING 1.9-13 | 2 |
| 9 | 3VS-87500-1 | 维护套件 | MAINTENANCE KIT | 1 |
| 9 | 951403-0312 | * 弹簧销 | * SPRING PIN | 1 |
| 9 | 951503-0322 | * 开口销 | * SPLIT PIN | 1 |
| 9 | 9701-1-1103 | * 火花塞 (DCPR6E) | * SPARK PLUG (DCPR6E) | 3 |
| 10 | 394-70260-1 | * 燃油接头（公） | * FUEL CONNECTOR (MALE) | 1 |
| 10 | 3GR-70250-0 | * 燃油接头 | * FUEL CONNECTOR | 1 |
| 10 | 3GT-35143-0 | * 卡扣 | * CLIP | 1 |
| 10 | 3H6-70262-0 | * 燃油接头保护套 | * FUEL CONNECTOR PROTECTOR | 1 |
| 10 | 3T5-84398-0 | * 箍带 | * BAND | 1 |
| 10 | 3VS-70249-0 | 燃油接头套件 | FUEL CONNECTOR KIT | 1 |
| 10 | 3VU-04080-0 | * 带保护套燃油软管 | * FUEL HOSE W/PROTECTOR | 1 |
| 10 | 9101E3-5620 | 螺栓 | * BOLT | 1 |
| 11 | 345-67161-0 | * 衬套 22-3 | * GROMMET 22-3 | 1 |
| 11 | 346-67115-0 | * 垫圈 6.5-21-1 | * WASHER 6.5-21-1 | 2 |
| 11 | 3AA-83719-0 | * 垫圈 8.5-18-1.6 | * WASHER 8.5-18-1.6 | 2 |
| 11 | 3B7-83715-2 | * 线缆接头 | * CABLE JOINT | 2 |
| 11 | 3KY-76079-0 | * 轴环 6.5-10.5-9.3 | * COLLAR 6.5-10.5-9.3 | 1 |
| 11 | 3VS-66126-0 | * 换挡臂支架 | * SHIFT ARM BRACKET | 1 |
| 11 | 3VS-83734-0 | * 线缆夹 | * CABLE CLIP | 1 |
| 11 | 3VS-83879-1 | 遥控转换套件 | REMOTE CONTROL CONVERSION KIT | 1 |
| 11 | 3VS-83880-0 | * 遥控装置总成 | * REMOTE CONTROL FITTING ASSY | 1 |
| 11 | 3VT-63610-0 | * 连杆总成 (节气门) | * LINK ROD ASSY (THROTTLE) | 1 |
| 11 | 3VT-63751-0 | * 节气门摇臂 | * THROTTLE ARM | 1 |
| 11 | 3VT-66122-0 | * 换挡臂 | * SHIFT ARM | 1 |
| 11 | 3VT-66134-0 | * 换挡杆 | * SHIFT LEVER ROD | 1 |
| 11 | 910103-0620 | 螺栓 | * BOLT | 1 |
| 11 | 910103-5616 | 螺栓 | * BOLT | 1 |
| 11 | 910103-5620 | 螺栓 | * BOLT | 2 |
| 11 | 951603-0800 | * 弹性销 d=8 | * SNAP PIN d=8 | 2 |
| 12 | 3UR-72601-0 | 动力升降倾斜装置开关盖套装 | PTT SWITCH COVER KIT | 1 |
| 13 | 3UR-72609-0 | 动力升降倾斜装置开关套装 | PTT SWITCH KIT | 1 |
