东发 Tohatsu MFS25/30C 2015 - 爆炸图零件明细

四冲程 4-Stroke · 2015 年 · 手册号 002-21050-0AD · 共 27 个部位 · 1023 条零件

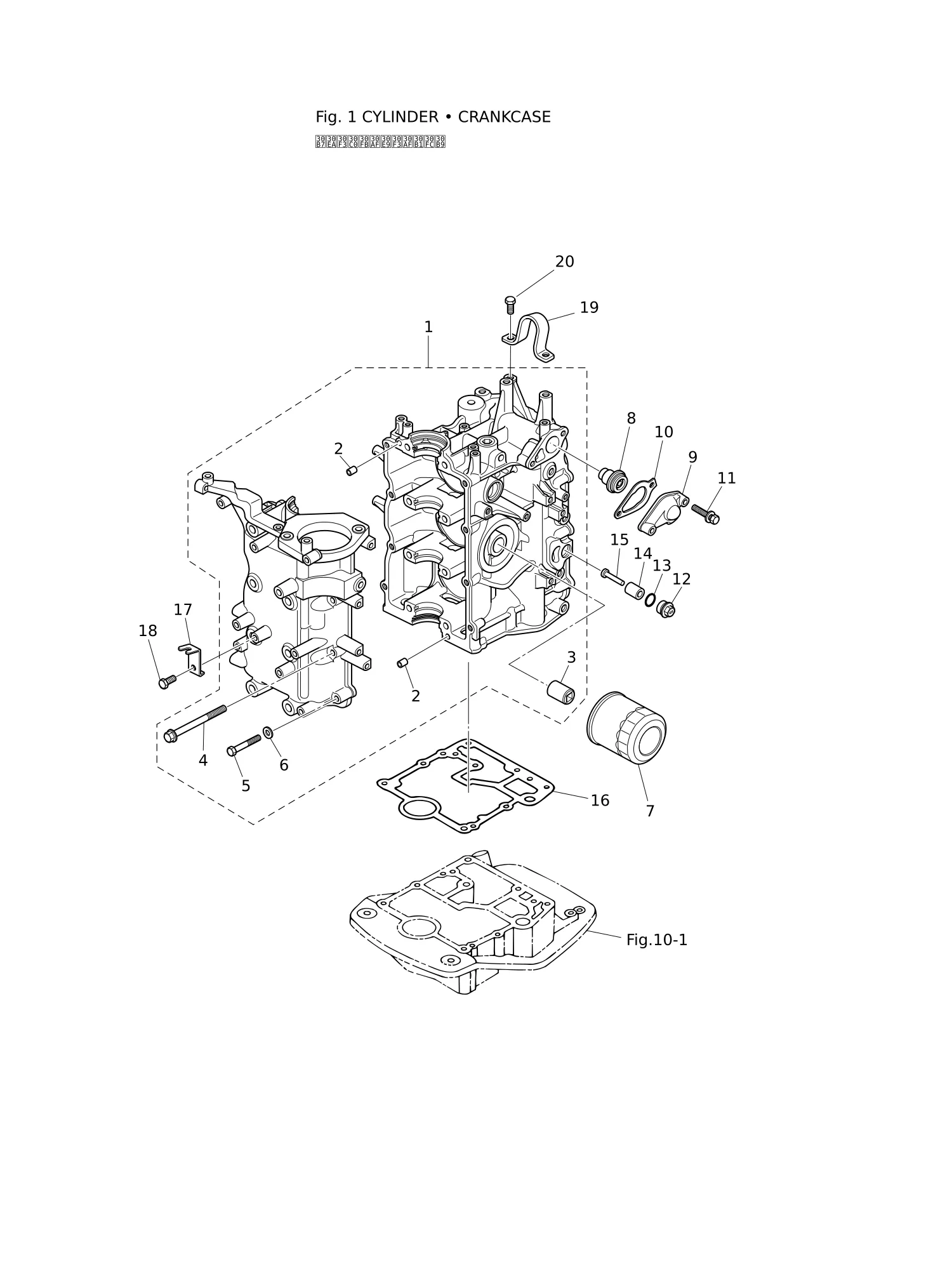

图 01气缸·曲轴箱 CYLINDER · CRANK CASE

REF	零件编号	中文名称	英文名称	数量
1	3NVB01100-0	气缸体与曲轴箱总成	CYL BLOCK & CRANKCASE ASSY	1
2	345-01111-0	* 定位销 6-12	* DOWEL PIN 6-12	2
3	3H8-07636-0	* 机油滤清器螺栓	* OIL FILTER BOLT	1
4	3R0-01113-1	* 螺栓 8-90	* BOLT 8-90	8
5	9161F9-0640	螺栓	* BOLT	8
6	9401E3-0600	* 垫圈	* WASHER	8
7	3BJ-07615-0	机油滤清器	OIL FILTER	1
8	3SA-01030-0	节温器	THERMOSTAT	1
9	3H6B01031-0	节温器盖	THERMOSTAT CAP	1
10	346-01032-0	节温器盖垫片	THERMOSTAT CAP GASKET	1
11	9101E3-5630	螺栓	BOLT	2
12	3P0-01143-0	阳极螺塞	ANODE PLUG	2
13	3T5-10046-0	O型圈1.9-13	O-RING 1.9-13	2
14	3P0-60218-0	阳极块	ANODE	2
15	921503-0530	螺钉	SCREW	2
16	3R0-01303-0	发动机基座垫片	ENGINE BASEMENT GASKET	1
17	3AC-69000-0	启动锁电缆支架	STARTER LOCK CABLE BRACKET	1
18	910103-0612	螺栓	BOLT	1
19	3C7-01513-2	吊架	HANGER	1
20	9101F4-5820	螺栓	BOLT	2

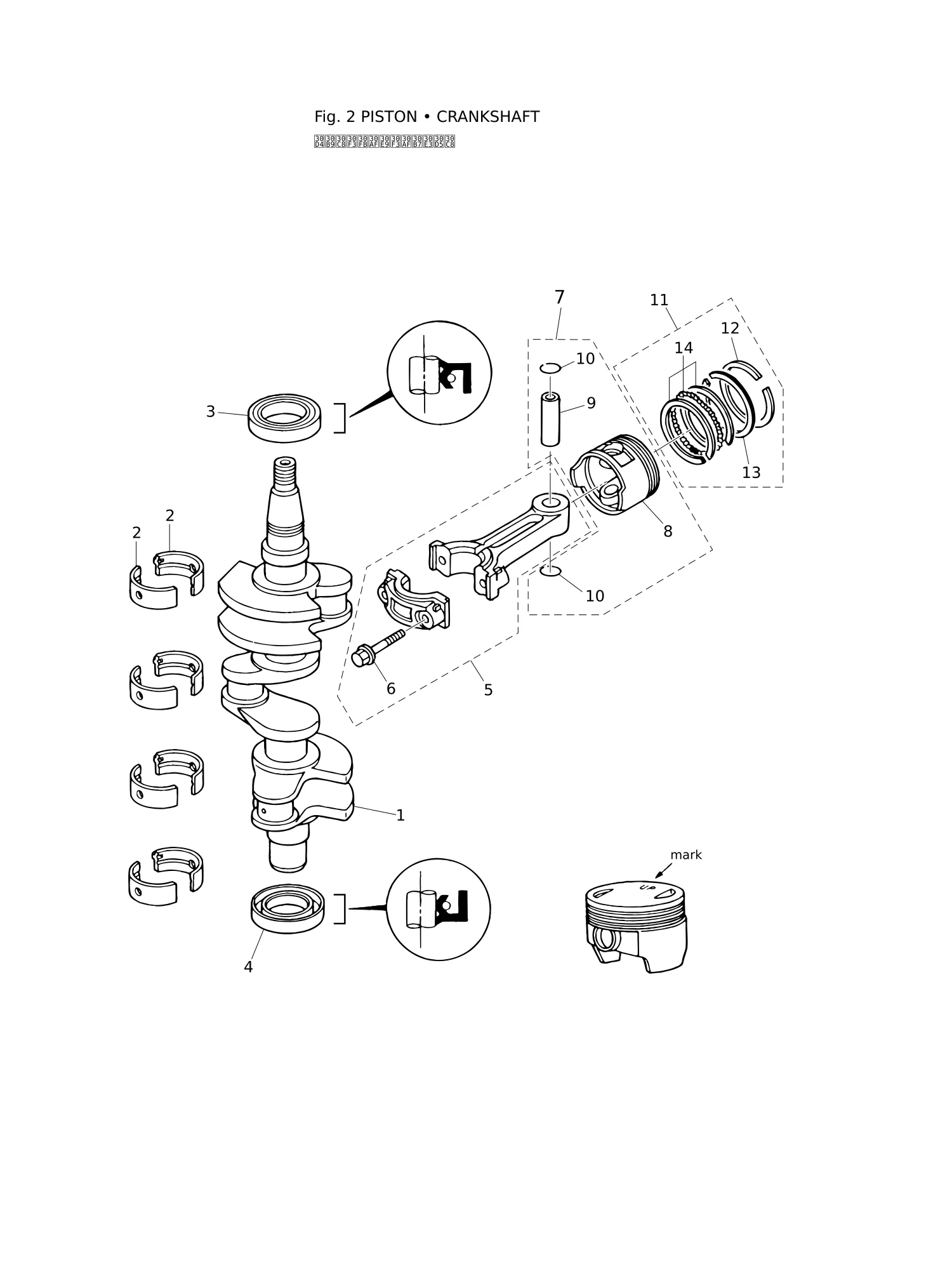

图 02活塞·曲轴 PISTON · CRANK SHAFT

REF	零件编号	中文名称	英文名称	数量
1	3AC-00030-1	曲轴总成	CRANKSHAFT ASSY	1
2	3AE-07407-0	滑动轴承	PLAIN SHAFT BEARING	1
2	3AE-07408-0	滑动轴承	PLAIN SHAFT BEARING	1
3	3R0-00122-0	油封 38-50-8	OIL SEAL 38-50-8	1
4	3R0-00121-0	油封 35-50-8	OIL SEAL 35-50-8	1
5	3R0-00040-0	连杆总成	CONNECTING ROD ASSY	3
6	3H6-00059-0	* 连杆螺栓	* CONNECTING ROD BOLT	2
7	3FS-87130-0	活塞修理包	PISTON REPAIR KIT	3
8	3AE-00001-1	* 活塞	* PISTON	1
9	3AE-00021-0	* 活塞销	* PISTON PIN	1
10	3H6-00024-0	* 活塞销卡簧	* PISTON PIN CLIP	2
11	3FS-87123-0	活塞环组	PISTON RING SET	3
12	3AC-00011-0	* 活塞环	* PISTON RING	1
13	3AC-00012-0	* 活塞环	* PISTON RING	1
14	3AC-00013-0	* 油环	* PISTON RING-OIL	1

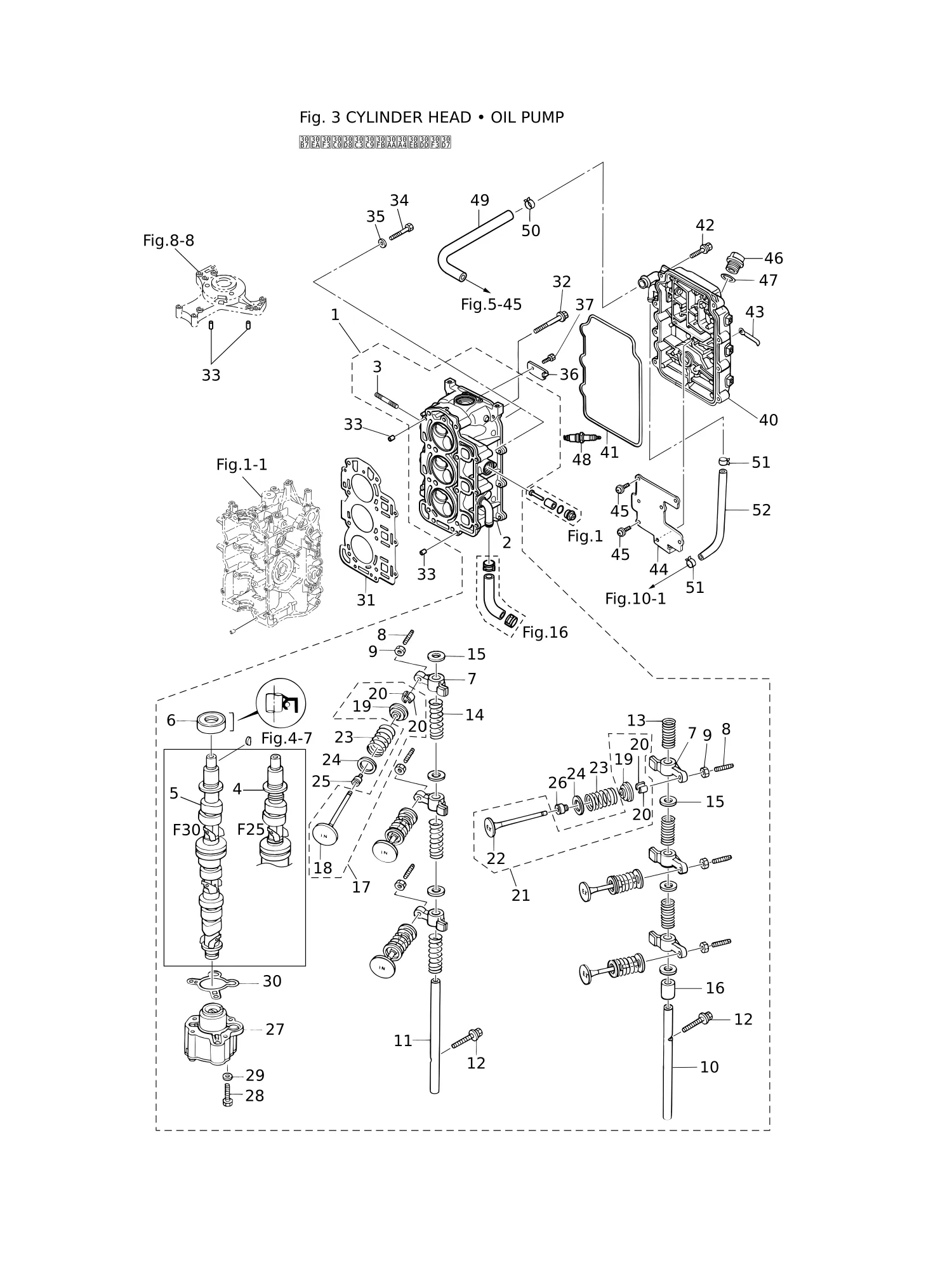

图 03气缸盖·机油泵 CYLINDER HEAD · OIL PUMP

REF	零件编号	中文名称	英文名称	数量
1	3NVB01000-0	气缸盖总成	CYLINDER HEAD COMPLETE	1
1	3NWB01000-0	气缸盖总成	CYLINDER HEAD COMPLETE	1
2	3NVB01001-0	* 气缸盖总成	* CYLINDER HEAD ASSY	1
3	9153F4-0635	* 双头螺柱	* STUD	3
4	3AD-07010-1	* 凸轮轴总成	* CAMSHAFT ASSY	1
5	3AC-07010-1	* 凸轮轴总成	* CAMSHAFT ASSY	1
6	3H8-07025-0	* 油封 18-35-8	* OIL SEAL 18-35-8	1
7	3AE-07235-0	* 摇臂	* ROCKER ARM	6
8	3R0-07238-0	* 调节螺钉	* ADJUSTING SCREW	6
9	3H8-07237-0	* 调节螺母	* ADJUSTING NUT	6
10	3AE-07220-0	* 摇臂轴	* ROCKER ARM SHAFT	1
11	3AE-07226-0	* 摇臂轴	* ROCKER ARM SHAFT	1
12	910124-5635	螺栓	* BOLT	2
13	3H8-07225-0	* 摇臂轴弹簧 L=30	* ROCKER SHAFT SPRING L=30	3
14	3H8-07229-0	* 摇臂轴弹簧 L=50	* ROCKER SHAFT SPRING L=50	3
15	3R3-07227-0	* 垫圈 13.2-21.8-2	* WASHER 13.2-21.8-2	6
16	3H8-07239-0	* 轴环 13.1-15.9-22.5	* COLLAR 13.1-15.9-22.5	1
17	3AE-07895-0	* 进气阀套件	* INTAKE VALVE KIT	1
18	3AE-07901-0	进气阀	** INTAKE VALVE	1
19	3AE-07921-0	挡圈	** RETAINER	1
20	3AE-07923-0	开口销	** COTTER	2
21	3AE-07896-0	* 排气阀套件	* EXHAUST VALVE KIT	1
22	3AE-07902-0	** 排气阀	** EXHAUST VALVE	1
23	3AE-07203-0	* 阀门弹簧 L=35	* VALVE SPRING L=35	6
24	3H6-07205-0	* 阀门弹簧座	* VALVE SPRING SEAT	6
25	3R3-07204-0	* 进气阀杆油封	* INTAKE VALVE STEM SEAL	3
26	3R3-07206-0	* 排气阀杆密封	* EXHAUST VALVE STEM SEAL	3
27	3AE-07600-0	* 机油泵总成	* OIL PUMP ASSY	1
28	9101F4-0645	螺栓	* BOLT	3
30	3R0-07639-0	* O型圈 φ1.9	* O-RING φ1.9	1
31	3AD-01005-0	气缸盖衬垫	CYLINDER HEAD GASKET	1
32	3H8-01013-0	气缸盖螺栓8-60	CYLINDER HEAD BOLT 8-60	8
33	345-01111-0	定位销6-12	DOWEL PIN 6-12	4
34	9161F4-0653	螺栓	BOLT	3
35	9401E3-0600	垫圈	WASHER	3
36	3R0-01094-0	板	PLATE	1
37	910121-0612	螺栓	BOLT	1
40	3ACB01020-0	气缸盖罩组件	CYLINDER HEAD COVER ASSY	1
41	3R0-01024-0	气缸盖罩垫片	CYLINDER HEAD COVER GASKET	1
42	9101F4-5630	螺栓	BOLT	8
43	3T4-06972-1	卡箍 6.5-87P	CLAMP 6.5-87P	2
44	3R0-07431-0	呼吸室盖	BREATHER CHAMBER COVER	1
45	921521-5508	螺钉	SCREW	7
46	3R0-71015-1	机油加注口盖	OIL FILLER CAP	1
47	3R0-07422-0	O型圈 3.1-24.4	O-RING 3.1-24.4	1
48	9701-1-1103	火花塞 (DCPR6E)	SPARK PLUG (DCPR6E)	3
49	3AC-07435-0	呼吸管	BREATHER HOSE	1
51	3R0-07737-1	卡环 φ15.5	CLIP φ15.5	2
52	98AM120-290	软管	HOSE	1

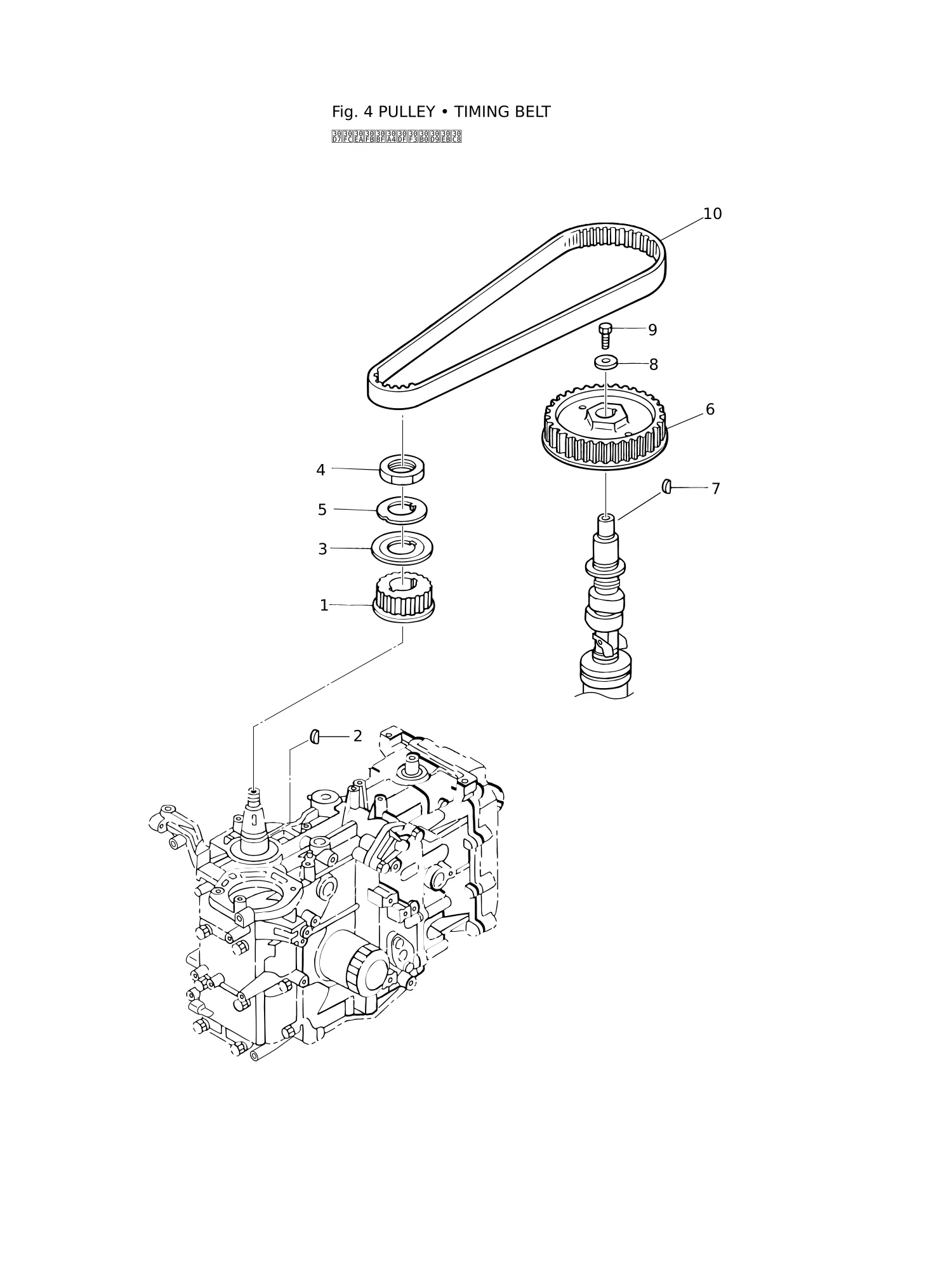

图 04皮带轮·正时皮带 PULLEY · TIMING BELT

REF	零件编号	中文名称	英文名称	数量
1	3R0-10060-0	驱动皮带轮	DRIVE PULLEY	1
2	3T5-10131-0	键 13.4-5-4	KEY 13.4-5-4	1
3	3R0-10063-0	皮带导轮	BELT GUIDE	1
4	3R0-10068-0	螺母	NUT	1
5	3R0-10069-0	锁紧垫圈	LOCK WASHER	1
6	3H8-10062-2	从动皮带轮	DRIVEN PULLEY	1
7	309-00131-0	键 10-3.7-3	KEY 10-3.7-3	1
8	3H8-10066-0	垫片 6.5-19-3.2	WASHER 6.5-19-3.2	1
9	3AA-60108-0	预涂层螺栓6-20	PRE-COATED BOLT 6-20	1
10	3AC-10045-0	正时皮带	TIMING BELT	1

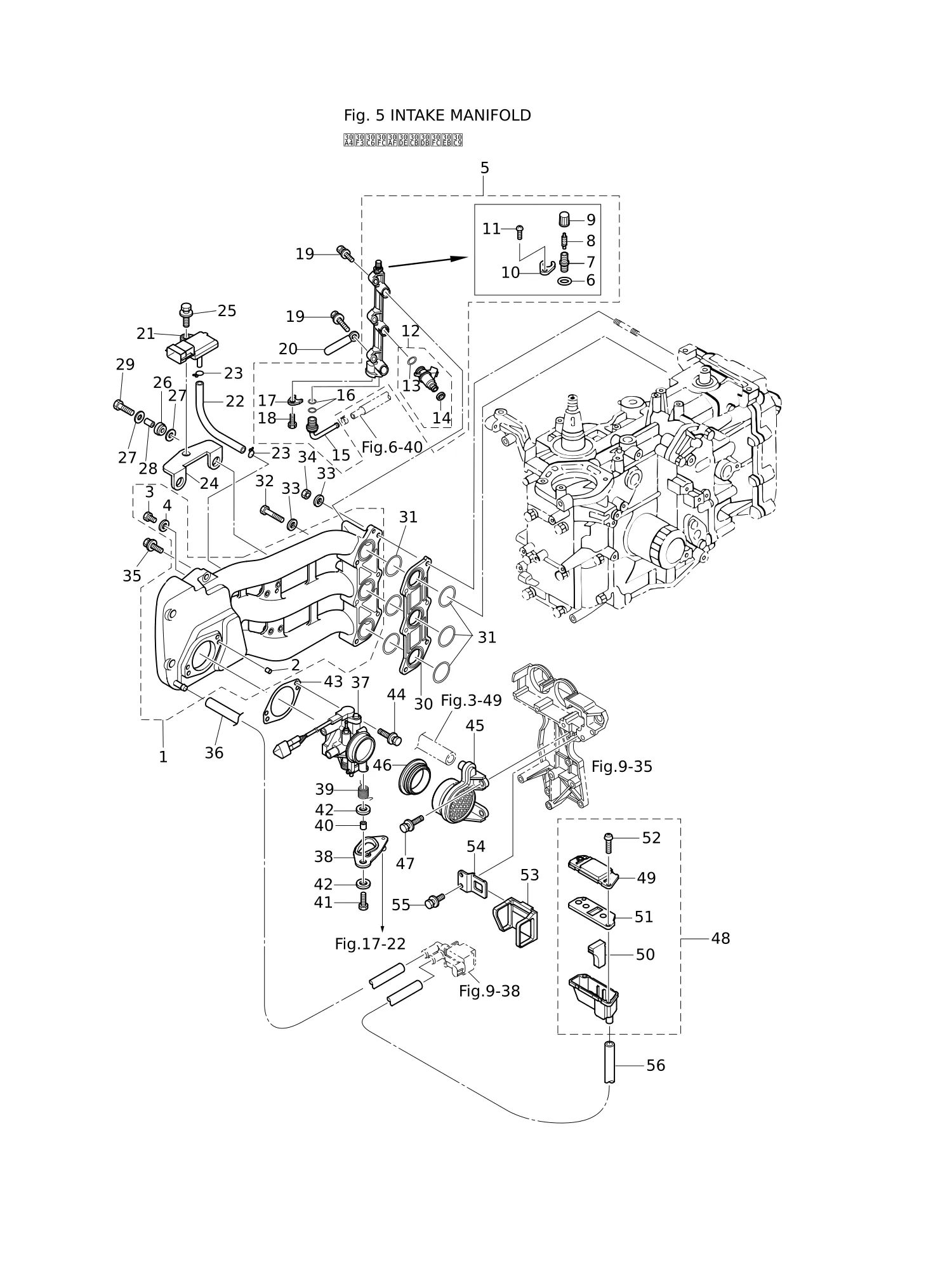

图 05进气歧管 INTAKE MANIFOLD

REF	零件编号	中文名称	英文名称	数量
1	3AC-02010-1	进气歧管总成	INTAKE MANIFOLD ASSY	1
2	345-01111-0	* 定位销 6-12	* DOWEL PIN 6-12	2
3	3R0-02095-0	螺栓 5-10	* BOLT 5-10	1
4	3R0-02112-0	* 垫圈 5.3-12-1	* WASHER 5.3-12-1	1
5	3AC-10200-0	燃油轨总成	FUEL RAIL ASSY	1
6	3AC-10162-0	* O型圈1.9-4.8	* O-RING 1.9-4.8	1
7	3AC-77367-0	* 接头	* JOINT	1
8	3AC-10098-0	* 阀门总成(压力检测)	* VALVE ASSY (PRESSURE CHECK)	1
9	3AC-10099-0	* 盖帽	* CAP	1
10	3AC-10169-0	* 固定板	* HOLDING PLATE	1
11	921503-0410	* 螺钉	* SCREW	1
12	3AC-10300-1	* 喷油器总成	* FUEL INJECTOR ASSY	3
13	3AC-10304-1	O型圈 3.6-6.5	** O-RING 3.6-6.5	1
14	3AC-10303-1	O型圈	** O-RING	1
15	3AC-10161-0	接头 8-6-13	* NIPPLE 8-6-13	1
16	3T5-10162-0	* O型圈1.9-9.8	* O-RING 1.9-9.8	2
17	3T5-10169-0	* 固定板	* HOLDING PLATE	1
20	309-06972-0	卡箍 6.5-47.5P	CLAMP 6.5-47.5P	1
21	3AC-10214-0	进气压力传感器	MAP SENSOR	1
22	98AL-40-110	软管	HOSE	1
23	338-01133-0	卡环 φ7	CLIP φ7	2
24	3AC-07233-0	板	PLATE	1
25	910103-5616	螺栓	BOLT	1
26	3AC-06920-0	橡胶支座 11.8-14-1.5	RUBBER MOUNT 11.8-14-1.5	2
27	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	4
28	3A0-76079-0	轴套 6.2-9-7.4	COLLAR 6.2-9-7.4	2
29	910103-0620	螺栓	BOLT	2
30	3AC-03952-0	绝缘体	INSULATOR	1
31	3AC-02012-0	O型圈1.9-31.2	O-RING 1.9-31.2	6
32	9161F4-0653	螺栓	BOLT	3
33	940103-0600	垫圈	WASHER	6
34	930103-0600	螺母	NUT	3
36	3AC-02203-0	燃油软管	FUEL HOSE	1
37	3AC-10100-1	节气门体总成	THROTTLE BODY ASSY	1
37	3AD-10100-1	节气门体总成	THROTTLE BODY ASSY	1
38	3AC-63749-0	节气门凸轮总成	THROTTLE CAM ASSY	1
38	3AD-63749-0	节气门凸轮总成	THROTTLE CAM ASSY	1
39	3AC-63727-1	弹簧	SPRING	1
40	353-76079-0	轴套 6.2-9-9.3	COLLAR 6.2-9-9.3	1
41	910103-0625	螺栓	BOLT	1
42	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	2
43	3AC-10104-0	衬垫	GASKET	1
44	910103-5625	螺栓	BOLT	2
45	3AD-02409-0	进气消声器总成	INTAKE SILENCER ASSY	1
46	3AC-02418-0	衬垫	GASKET	1
47	910103-5620	螺栓	BOLT	2
48	3AC-02409-0	进气消声器总成	INTAKE SILENCER ASSY	1
49	3AC-02416-0	* 进气消声器盖	* INTAKE SILENCER COVER	1
50	3AC-10130-0	* 空气滤清器	* AIR FILTER	1
51	3AC-02414-0	* 进气消声器垫片	* INTAKE SILENCER GASKET	1
52	3AC-05913-0	* 自攻螺钉 5-16	* TAPPING SCREW 5-16	4
53	3AC-63624-0	索环/护孔圈	GROMMET	1
54	3AC-63737-0	撑杆	STAY	1
55	910103-5612	螺栓	BOLT	2
56	3AD-02203-0	燃油软管	FUEL HOSE	1

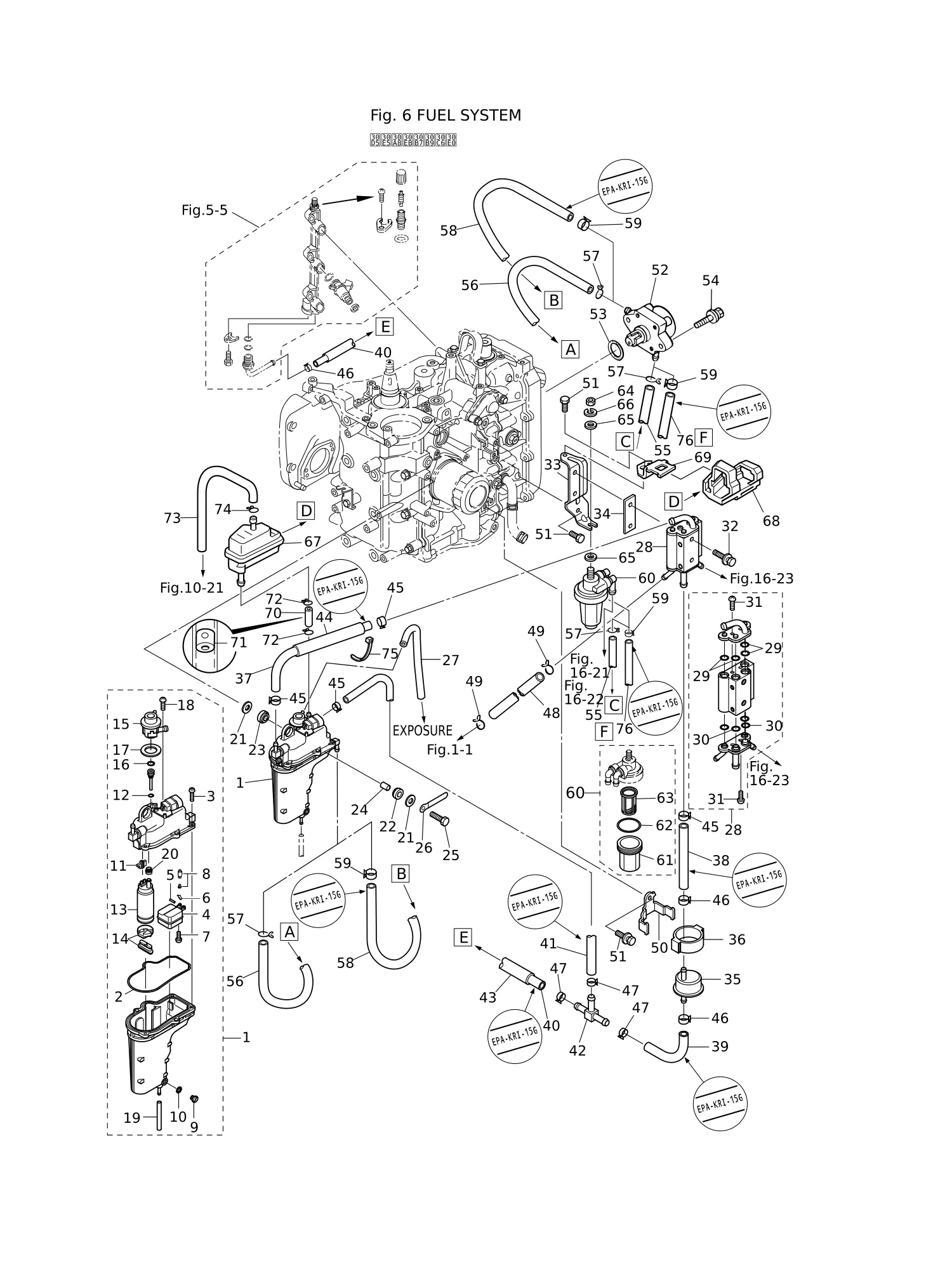

图 06燃油系统 FUEL SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	3AC-10150-0	蒸汽分离器总成	VAPOR SEPARATOR ASSY	1
2	3AC-03235-0	* O型圈	* O-RING	1
3	921503-6416	* 螺钉	* SCREW	5
4	3AC-03230-0	* 浮子	* FLOAT	1
5	3F3-03232-0	* 浮子臂销	* FLOAT ARM PIN	1
6	344-03244-0	* 卡扣	* CLIP	1
7	921503-0408	* 螺钉	* SCREW	1
8	3R3-03239-0	* 浮子阀总成	* FLOAT VALVE ASSY	1
9	3AC-03292-0	* 放油螺钉	* DRAIN SCREW	1
10	3AC-03116-0	* O型圈	* O-RING	1
11	3AC-06952-0	* 端子座	* TERMINAL HOLDER	1
12	3AD-03116-0	* O型圈	* O-RING	1
13	3AC-04310-0	* 燃油供给泵总成	* FUEL FEED PUMP ASSY	1
14	3AC-04322-0	* 滤清器(进口)	* FILTER (INLET)	1
15	3AC-10154-0	* 燃油调节器	* FUEL REGULATOR	1
16	3AC-10095-0	* O型圈	* O-RING	1
17	3AC-04313-0	* 护孔环 10.4-4	* GROMMET 10.4-4	1
18	3AC-03234-0	* 螺钉	* SCREW	2
19	98AB-30-300	* 软管	* HOSE	1
20	3AD-04319-0	* 护孔环	* GROMMET	1
21	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	6
22	346-67113-0	8.5-14-2.5支架	MOUNT 8.5-14-2.5	3
23	3B7-06920-0	橡胶支座 8.5-14-2.5	RUBBER MOUNT 8.5-14-2.5	3
24	346-67114-1	垫圈 6.2-9-15.7	SPACER 6.2-9-15.7	3
25	910103-0630	螺栓	BOLT	3
26	3T4-06972-1	卡箍 6.5-87P	CLAMP 6.5-87P	1
27	98AB-30-540	软管	HOSE	1
28	3AC-10175-0	燃油冷却器总成	FUEL COOLER ASSY	1
29	3AC-10046-0	* O型圈1.9-7.8	* O-RING 1.9-7.8	9
30	3AC-10164-0	* O型圈1.9-6.8	* O-RING 1.9-6.8	2
31	921503-6410	* 螺钉	* SCREW	4
32	910103-5635	螺栓	BOLT	2
33	3AC-02239-0	板	PLATE	1
34	3AC-10019-0	衬垫	GASKET	1
35	3ACB10143-0	高压燃油滤清器	HIGH PRESSURE FUEL FILTER	1
36	3AC-10145-0	燃油滤清器橡胶座	FUEL FILTER RUBBER MOUNT	1
37	3AD-02209-0	低渗透软管 L=190	LOW PERMEATION HOSE L=190	1
38	3AC-02209-0	低渗透软管 L=140	LOW PERMEATION HOSE L=140	1
39	3AC-02210-0	低渗透软管 L=100	LOW PERMEATION HOSE L=100	1
40	3AL-02210-0	低渗透软管 L=340	LOW PERMEATION HOSE L=340	1
41	3AD-02210-0	低渗透软管 L=300	LOW PERMEATION HOSE L=300	1
42	3AC-70013-0	管接头	PIPE JOINT	1
43	3AD-06157-0	保护套 φ18-240	PROTECTOR φ18-240	1
44	3AD-06133-0	保护套 φ18-130	PROTECTOR φ18-130	1
45	3AC-10087-0	夹箍φ16.8	CLAMP φ16.8	4
46	3AC-09056-1	卡扣φ13.5	CLIP φ13.5	3
47	3T5-10086-0	卡箍 21/32	CLAMP 21/32	3
48	3NV-65210-0	冷却软管	COOLING HOSE	1
50	3AC-10144-0	燃油滤清器卡箍	FUEL FILTER BAND	1
51	910103-5616	螺栓	BOLT	3
52	3H8-04000-1	燃油泵总成	FUEL PUMP ASSY	1
53	3H8-62415-0	O型圈 3.5-25.7	O-RING 3.5-25.7	1
54	910103-5625	螺栓	BOLT	2
55	98AB-50-370	软管	HOSE	1
56	98AB-50-600	软管	HOSE	1
58	3NW-04055-0	低渗透软管	LOW PERMEATION HOSE	1
59	3GT-35143-0	卡环 φ9.4	CLIP φ9.4	4
60	3AD-02230-0	燃油滤清器总成	FUEL FILTER ASSY	1
61	3AD-02237-0	* 杯状件	* CUP	1
62	3AD-02235-0	* O型圈	* O-RING	1
63	3AD-02234-0	* 滤清器	* FILTER	1
64	930103-0800	螺母	NUT	1
65	940103-0800	垫圈	WASHER	2
66	941303-0800	弹簧垫圈	SPRING WASHER	1
67	3AC-10320-0	通风装置总成	AIR VENT ASSY	1
68	3AC-06302-0	橡胶支座	RUBBER MOUNT	1
69	3AC-76174-0	撑杆	STAY	1
70	98AB-50-040	软管	HOSE	1
71	3AD-10170-0	节流孔	ORIFICE	1
72	338-02215-0	卡扣φ10	CLIP φ10	2
73	98AL-40-620	软管	HOSE	1
74	338-01133-0	卡环 φ7	CLIP φ7	1
75	369-84398-0	箍带 158	BAND 158	1
76	3NV-04055-0	低渗透软管	LOW PERMEATION HOSE	1

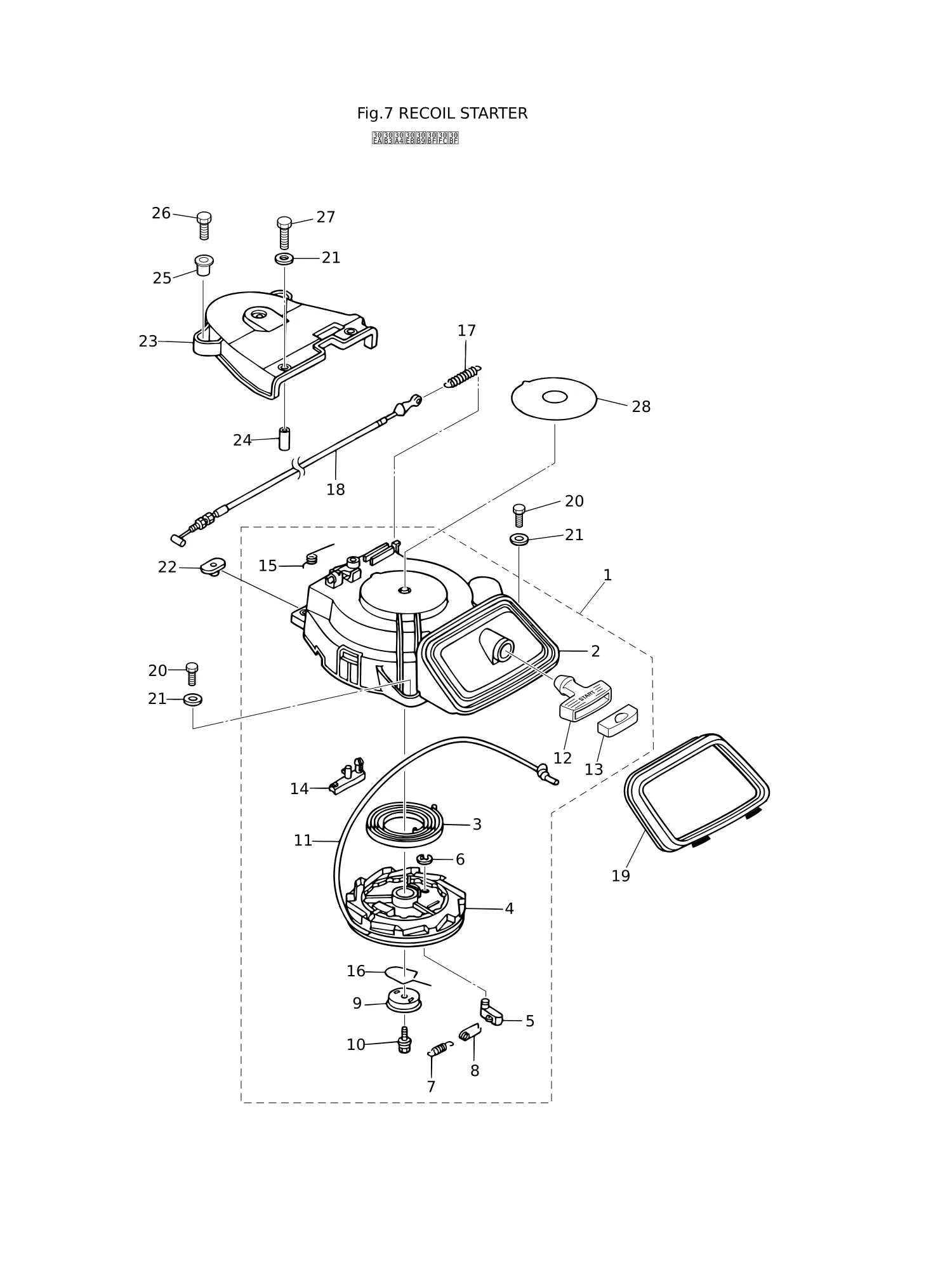

图 07反冲启动器 RECOIL STARTER

REF	零件编号	中文名称	英文名称	数量
1	3AC-05090-0	反冲启动器总成	RECOIL STARTER ASSY	1
2	3AC-05105-0	* 启动器外壳	* STARTER CASE	1
3	3H8-05004-0	* 启动弹簧	* STARTER SPRING	1
4	3R3-05106-0	* 卷轴	* REEL	1
5	3R3-05003-0	* 棘轮	* RATCHET	1
6	3R3-05011-0	* E型卡环 d=10	* E-RING d=10	1
7	3R3-05012-0	* 回位弹簧	* RETURN SPRING	1
8	3H8-05123-1	* 回位弹簧	* RETURN SPRING	1
9	3R3-05006-0	* 摩擦板	* FRICTION PLATE	1
10	3R3-05138-0	螺栓	* BOLT	1
11	3R3-05013-0	* 启动绳 φ5-1800	* STARTER ROPE φ5-1800	1
12	3AC-05019-0	* 启动手柄	* STARTER HANDLE	1
13	3AB-05131-0	* 绳索锚定器	* ROPE ANCHOR	1
14	3R3-05252-0	* 启动器锁	* STARTER LOCK	1
15	3R3-05216-0	* 启动器锁弹簧	* STARTER LOCK SPRING	1
16	3R3-05007-0	* 摩擦弹簧	* FRICTION SPRING	1
17	3AC-05258-0	启动锁凸轮弹簧	STARTER LOCK CAM SPRING	1
18	3AC-05207-0	启动锁线	STARTER LOCK WIRE	1
19	3NV-67503-0	启动器密封件	STARTER SEAL	1
20	3AL-60108-0	预涂层螺栓6-20	PRE-COATED BOLT 6-20	3
21	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	2
22	3F3-76042-2	螺母	NUT	2
23	3R3-06308-0	皮带罩	BELT COVER	1
24	3A0-76079-0	轴套 6.2-9-7.4	COLLAR 6.2-9-7.4	2
25	3BJ-06283-0	轴套 6.1-9-7.4	COLLAR 6.1-9-7.4	2
26	910103-0620	螺栓	BOLT	2
27	910103-0625	螺栓	BOLT	2
28	3NV-72181-0	警示标贴(B型)	CAUTION DECAL (B)	1
28	3PA-72181-0	警示标贴(B型)	CAUTION DECAL (B)	1

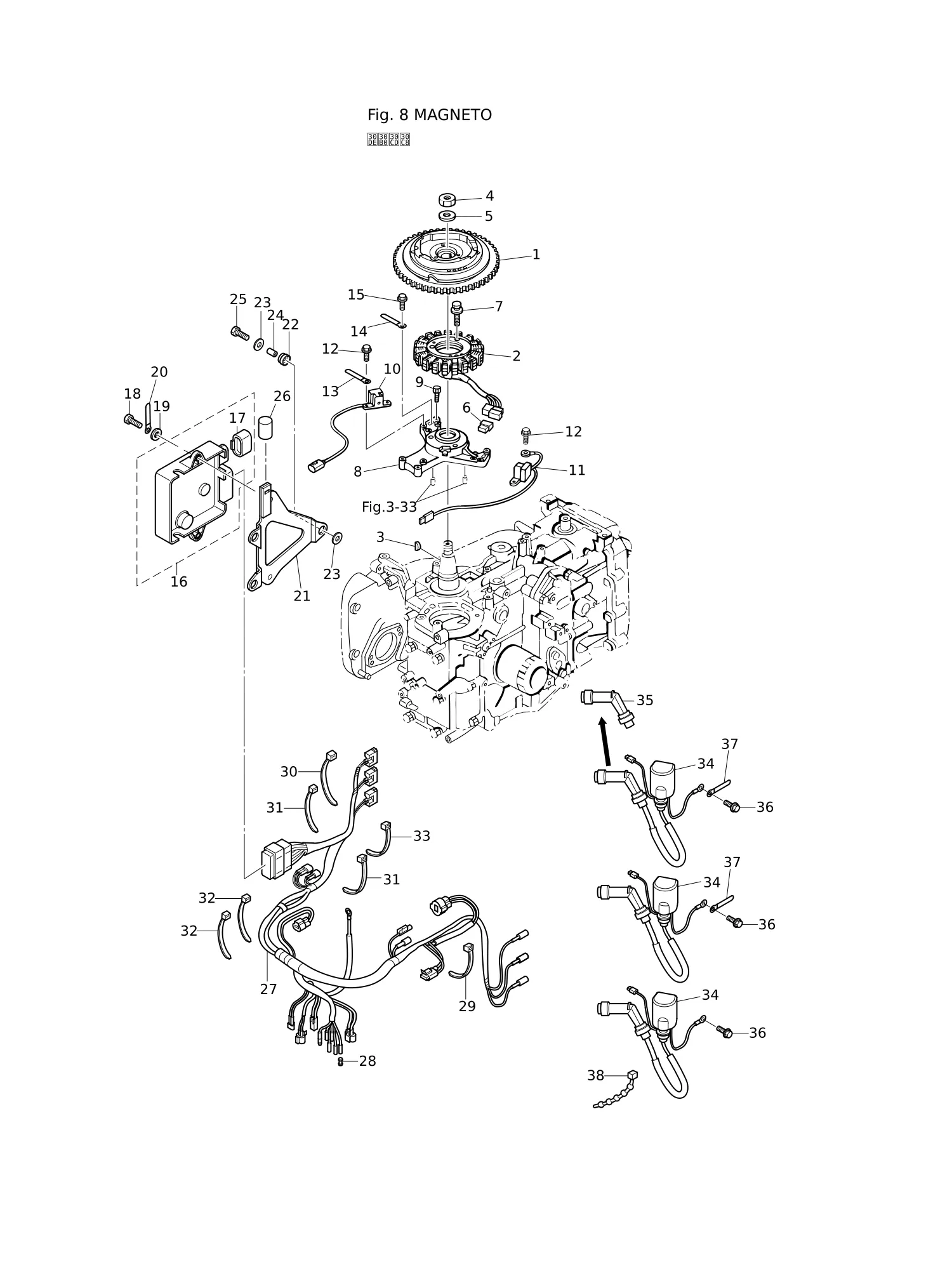

图 08磁电机 MAGNETO

REF	零件编号	中文名称	英文名称	数量
1	3AD-06101-0	飞轮总成	FLYWHEEL ASSY	1
2	3AC-06123-0	交流发电机总成	ALTERNATOR ASSY	1
3	334-00131-0	键 19-7-5	KEY 19-7-5	1
4	353-00132-0	螺母 18-P1.5	NUT 18-P1.5	1
5	353-00133-0	垫片 19-34-3	WASHER 19-34-3	1
6	3AC-01047-0	塞	PLUG	1
7	3AD-06864-0	预涂层螺栓6-25	PRE-COATED BOLT 6-25	3
8	3AC-06008-1	线圈支架	COIL BRACKET	1
9	3AC-06864-0	预涂层螺栓6-30	PRE-COATED BOLT 6-30	3
10	3AC-06071-0	脉冲线圈#1	PULSAR COIL #1	1
11	3AD-06071-0	脉冲线圈#2	PULSAR COIL #2	1
12	910103-5512	螺栓	BOLT	4
14	398-06972-0	卡箍 6.5-67P	CLAMP 6.5-67P	1
15	910103-5612	螺栓	BOLT	1
16	3NV-06401-0	电控单元总成(30)	ECU ASSY　（30）	1
16	3NW-06401-0	电控单元总成(25)	ECU ASSY　（25）	1
16	3PA-06401-0	电控单元总成(30 EU)	ECU ASSY　（30　EU）	1
16	3PB-06401-0	电控单元总成(25 EU)	ECU ASSY　（25　EU）	1
17	3AC-03169-0	* 塞	* PLUG	1
18	910103-0616	螺栓	BOL	2
20	3T4-06972-1	卡箍 6.5-87P	CLAMP 6.5-87P	1
21	3AC-10204-0	电控单元支架总成	ECU BRACKET ASSY	1
22	3AC-06920-0	橡胶支座 11.8-14-1.5	RUBBER MOUNT 11.8-14-1.5	3
23	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	6
24	3A0-76079-0	轴套 6.2-9-7.4	COLLAR 6.2-9-7.4	3
25	910103-0620	螺栓	BOLT	3
26	3AC-06133-0	保护套 φ8-22	PROTECTOR φ8-22	1
27	3AC-10205-0	电控单元线束总成	ECU CORD ASSY	1
27	3NV-10205-0	电控单元线束总成	ECU CORD ASSY	1
28	3A3-76037-0	电缆端子插头	CABLE TERMINAL PLUG	2
30	3T5-84398-0	箍带 104	BAND 104	2
32	369-84398-0	箍带 158	BAND 158	4
33	3AC-76091-0	导线束200	LEAD WIRE BAND 200	1
34	3AC-06469-0	带帽点火线圈	IGNITION COIL W/R-CAP	3
35	3AC-06999-0	* 带电阻火花塞帽	* PLUG CAP W/RESISTANCE	1
36	910103-5620	螺栓	BOLT	3
37	309-06972-0	卡箍 6.5-47.5P	CLAMP 6.5-47.5P	2
38	336-76091-0	导线束100	LEAD WIRE BAND 100	1

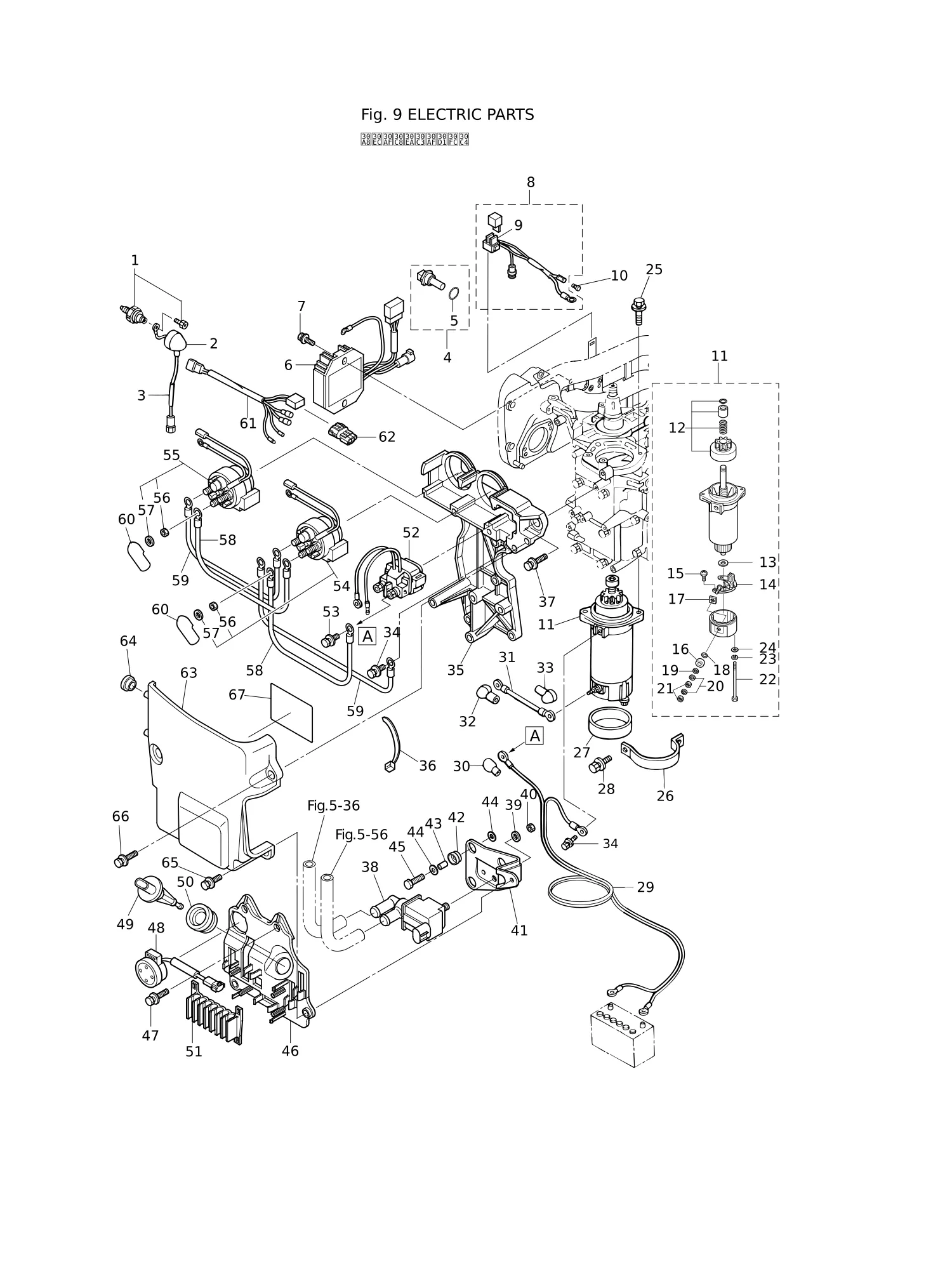

图 09电气部件 ELECTRIC PARTS

REF	零件编号	中文名称	英文名称	数量
1	3H6-07611-0	油压开关	OIL PRESSURE SWITCH	1
2	3KY-07612-0	索环/护孔圈	GROMMET	1
3	3AC-07613-0	油压开关引线 L=160	OIL PRESSURE SWITCH LEAD WIRE L=160	1
4	3Y9-72514-0	水温传感器	WATER TEMPERATURE SENSOR	1
5	3G9-66136-0	* O型圈2-10	* O-RING 2-10	1
6	3AC-76065-2	整流器总成	RECTIFIER COMPLETE	1
8	3AC-76066-0	保险丝总成	FUSE WIRE ASSY	1
9	3T5-76247-0	* 保险丝 20A	* FUSE 20A	2
10	3A3-76037-0	电缆端子插头	CABLE TERMINAL PLUG	1
11	3C8-76010-1	启动马达总成	STARTER MOTOR ASSY	1
12	3C8-76015-0	* 小齿轮总成	* PINION ASSY	1
13	3C8-75015-0	* 垫圈	* WASHER	1
14	3C8-75014-0	* 碳刷架总成	* BRUSH HOLDER ASSY	1
15	921521-6408	* 螺钉	* SCREW	2
16	3C8-75016-0	* 衬套	* BUSHING	1
17	3C8-75017-0	* 衬套	* BUSHING	1
18	3C8-75018-0	* O型圈	* O-RING	1
21	930203-0600	螺母	* NUT	2
22	3C8-75019-0	螺栓	* BOLT	2
23	941321-0500	* 弹簧垫圈	* SPRING WASHER	2
24	940221-0500	* 垫圈	* WASHER	2
25	910103-5830	螺栓	BOLT	2
26	3R0-76009-0	启动马达固定带	STARTER MOTOR BAND	1
27	3C8-76007-0	减震器	DAMPER	1
28	910103-5820	螺栓	BOLT	2
29	3AC-76120-0	蓄电池电缆 L=2500	BATTERY CABLE L=2500	1
30	3AA-76145-0	端子盖 13-13-28	TERMINAL CAP 13-13-28	1
31	3R3-76141-0	启动电缆 L=270	STARTER CABLE L=270	1
33	3Y0-76145-0	端子盖 8-18-28	TERMINAL CAP 8-18-28	1
34	910103-5612	螺栓	BOLT	2
35	3AC-06901-0	支架	BRACKET	1
36	3T5-84398-0	箍带 104	BAND 104	2
38	3AC-10211-0	怠速控制阀	ISC VALVE	1
39	940103-0600	垫圈	WASHER	1
41	3AC-02501-0	板	PLATE	1
42	3AC-06920-0	橡胶支座 11.8-14-1.5	RUBBER MOUNT 11.8-14-1.5	3
43	3A0-76079-0	轴套 6.2-9-7.4	COLLAR 6.2-9-7.4	3
44	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	6
45	910103-0620	螺栓	BOLT	3
46	3AC-62004-0	线束固定座	CORD HOLDER	1
47	910103-5625	螺栓	BOLT	3
48	3AC-76171-0	过热报警器	OVERHEAT BUZZER	1
49	3AC-10215-0	进气温度传感器	MAT SENSOR	1
50	3AC-04319-0	衬套 8-2.5	GROMMET 8-2.5	1
51	3AC-06135-0	支架	HOLDER	1
52	3H8-76040-0	启动器电磁阀	STARTER SOLENOID	1
53	910103-5610	螺栓	BOLT	2
54	3AC-72580-0	动力升降倾斜装置电磁阀开关(A)	PTT SOLENOID SWITCH (A)	1
55	3AC-72581-0	动力升降倾斜装置电磁阀开关(B)	PTT SOLENOID SWITCH (B)	1
56	930103-0600	螺母	* NUT	3
57	941303-0600	* 弹簧垫圈	* SPRING WASHER	3
58	3C7-72583-0	电磁开关线束(B) L=150	SOLENOID SWITCH CORD (B) L=150	2
59	3C8-72583-1	电磁开关线束(B) L=150	SOLENOID SWITCH CORD (B) L=150	2
60	3Y1-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	2
61	3AC-72569-0	延长线(动力升降倾斜装置)	EXTENSION CORD (PTT)	1
62	3AD-01047-0	塞	PLUG	1
63	3AC-06919-0	盖板总成	COVER ASSY	1
64	309-65032-0	索环 10.2-8	GROMMET 10.2-8	2
65	910103-5616	螺栓	BOLT	1
66	910103-5620	螺栓	BOLT	1
67	3AC-72028-0	接线图标签	WIRING DIAGRAM DECAL	1

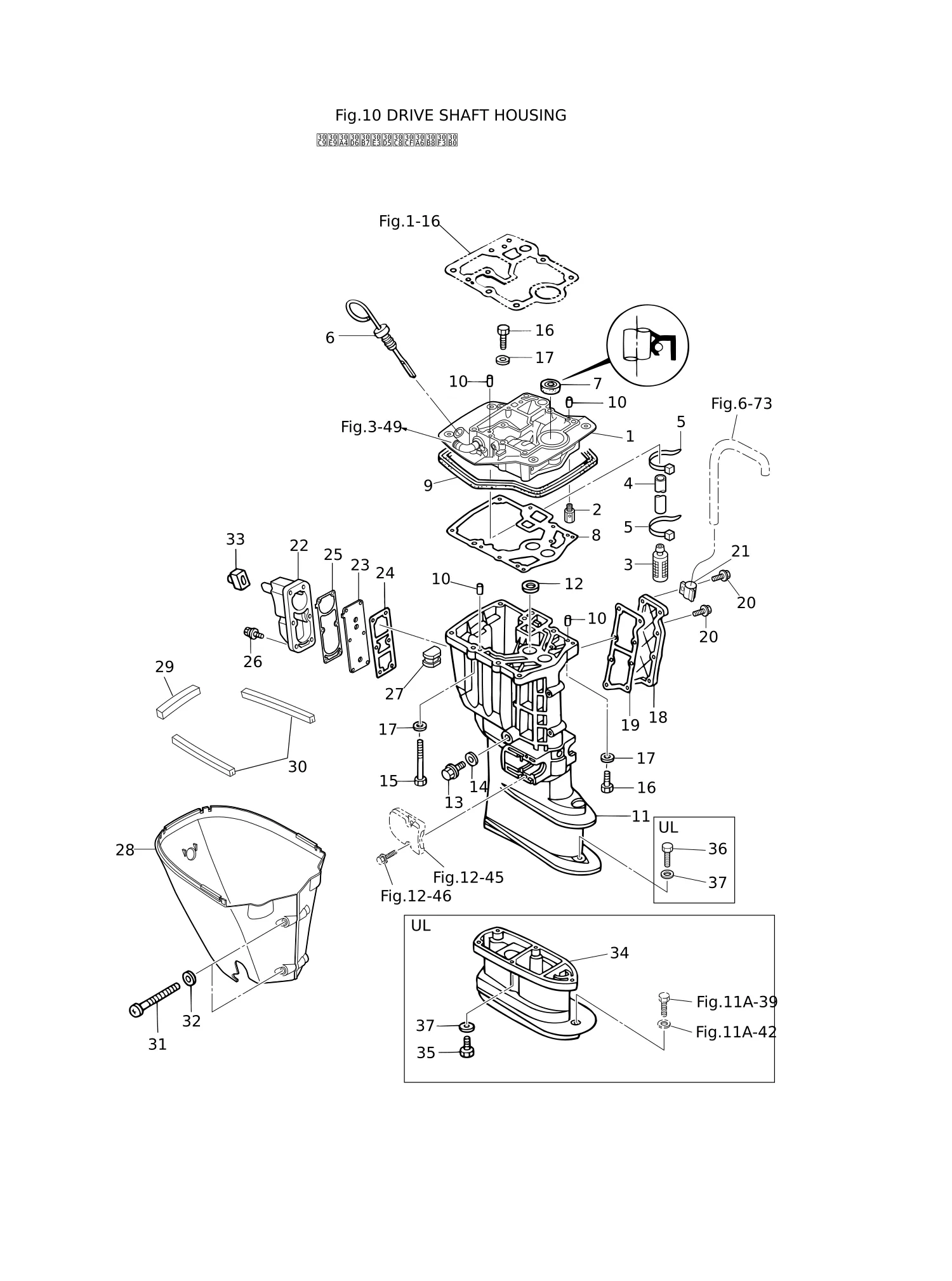

图 10驱动轴壳体 DRIVE SHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	3NVB01300-0	发动机基座总成	ENGINE BASEMENT ASSY	1
2	3V2-07620-0	柱塞总成	PLUNGER ASSY	1
3	3R3-07710-1	机油滤网总成	OIL STRAINER ASSY	1
4	98AH-95-220	软管	HOSE	1
5	369-84398-0	箍带 158	BAND 158	2
6	3AC-07421-0	油位计	OIL LEVEL GAUGE	1
7	346-01215-0	油封 16-28-6	OIL SEAL 16-28-6	1
8	3R0-61012-0	驱动轴壳体衬垫	DRIVE SHAFT HOUSING GASKET	1
9	3R0-67116-0	发动机基座密封件	ENGINE BASEMENT SEAL	1
10	345-01111-0	定位销6-12	DOWEL PIN 6-12	4
11	3AEQ61191-2	驱动轴壳体(S)	DRIVE SHAFT HOUSING (S)	1
11	3AEQ61192-2	驱动轴壳体(L)	DRIVE SHAFT HOUSING (L)	1
12	3R0-65207-0	水管堵头	WATER PIPE STOPPER	1
13	3R3-07405-1	放油螺栓14-20	DRAIN BOLT 14-20	1
14	3R3-07406-0	垫片 14.5-24-1	WASHER 14.5-24-1	1
15	3B7-61017-3	螺栓8-105	BOLT 8-105	6
16	3R0-61017-1	螺栓8-40	BOLT 8-40	3
17	9401E3-0800	垫圈	WASHER	9
18	3R0Q61028-0	盖板	COVER	1
19	3R0-61029-0	衬垫	GASKET	1
20	9101E3-5618	螺栓	BOLT	8
21	345-06915-0	卡箍 6.5-14L	CLAMP 6.5-14L	1
22	3ACQ61208-0	怠速排气口盖	IDLE EXHAUST PORT COVER	1
23	3AC-62114-0	板	PLATE	1
24	3R0-61207-0	怠速排气口垫片	IDLE EXHAUST PORT GASKET	1
25	3AC-61220-1	怠速排气口垫片	IDLE EXHAUST PORT GASKET	1
26	9101E3-5620	螺栓	BOLT	6
27	3AC-61182-0	索环/护孔圈	GROMMET	1
28	3NVQ61210-0	挡板	APRON	1
29	3F3-67213-1	密封件	SEAL	1
30	3T1-61213-0	密封件	SEAL	2
31	3AC-61217-0	自攻螺钉 M6-60	TAPPING SCREWM 6-60	2
32	9401E3-0600	垫圈	WASHER	2
33	3NV-61212-0	索环/护孔圈	GROMMET	1
34	346Q61110-5	延伸壳体	EXTENSION HOUSING	1
35	9161E3-0835	螺栓	BOLT	4
36	9161E3-0845	螺栓	BOLT	1
37	3P0-66233-0	垫片 8.1-16-1.5	WASHER 8.1-16-1.5	5

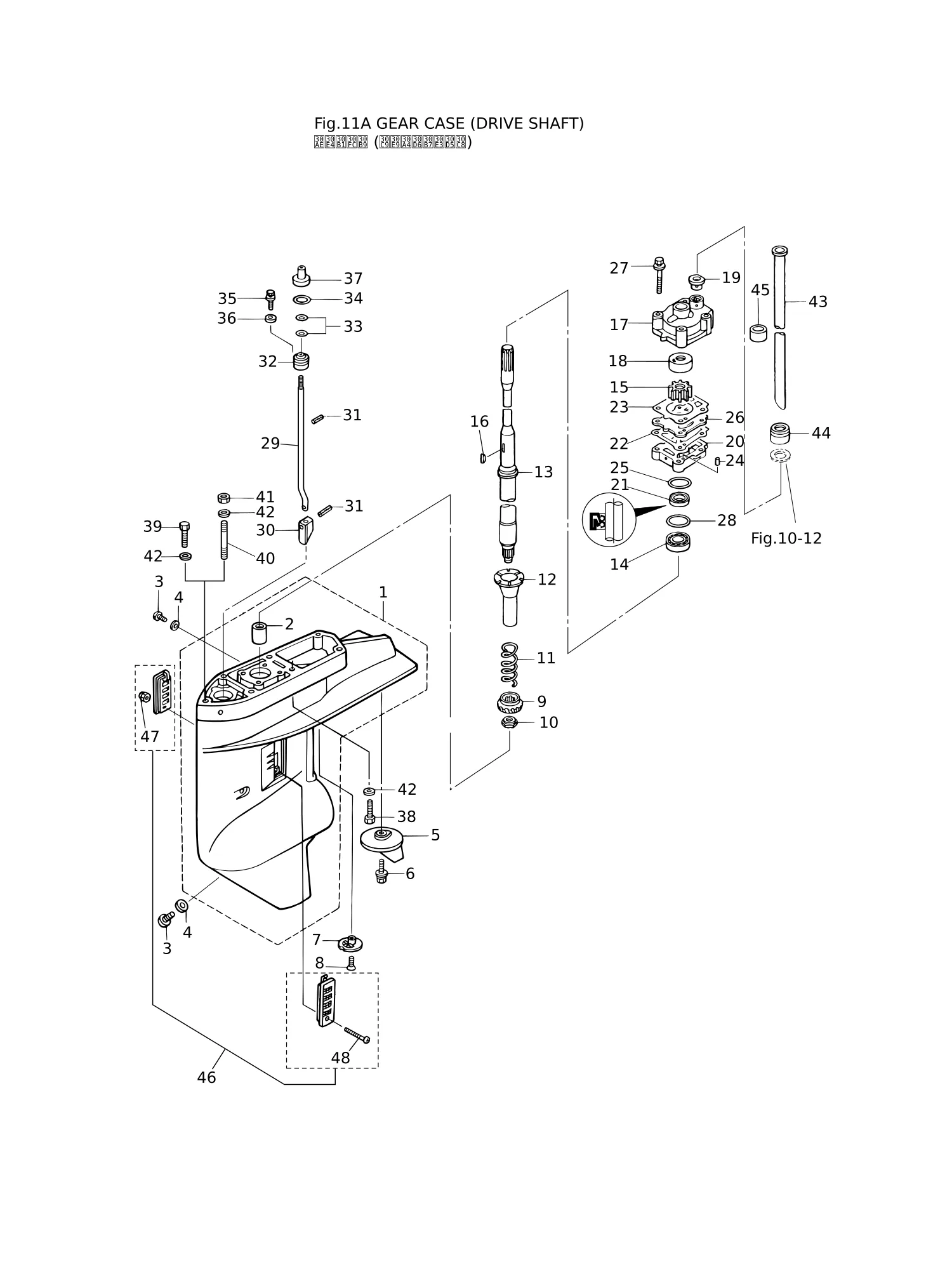

图 11驱动轴齿轮箱 GEAR CASE (DRIVE SHAFT)

REF	零件编号	中文名称	英文名称	数量
1	3AEQ60000-2	齿轮箱总成	GEAR CASE ASSY	1
2	3AE-60211-0	* 滚柱轴承 20-27-30	* ROLLER BEARING 20-27-30	1
3	332-60005-2	塞 8-8	PLUG 8-8	2
4	332-60006-0	衬垫8.1-15-1	GASKET 8.1-15-1	2
5	3C8-60217-1	配平片	TRIM TAB	1
6	910103-5620	螺栓	BOLT	1
7	369-60206-0	滤水器	WATER STRAINER	1
8	9218E3-0620	螺钉	SCREW	1
9	3NV-64020-0	锥齿轮B	BEVEL GEAR B	1
10	346-64027-1	螺母	NUT	1
11	346-64327-0	驱动轴弹簧	DRIVE SHAFT SPRING	1
12	346-64328-0	驱动轴弹簧导套	DRIVE SHAFT SPRING GUIDE	1
13	346-64302-5	驱动轴(L)	DRIVE SHAFT (L)	1
13	346-64303-5	驱动轴(UL)	DRIVE SHAFT (UL)	1
13	3R0-64301-0	驱动轴(S)	DRIVE SHAFT (S)	1
14	346-60213-0	圆锥滚子轴承 32004	TAPERED ROLLER BEARING 32004	1
15	345-65021-0	水泵叶轮	WATER PUMP IMPELLER	1
16	332-65022-0	键 20-4.6-2	KEY 20-4.6-2	1
17	3R0-65016-0	泵壳(上)	PUMP CASE (UPPER)	1
18	3R0-65011-0	泵壳衬套	PUMP CASE LINER	1
19	3B7-65014-0	水管密封件(下)	WATER PIPE SEAL (LOWER)	1
20	346-65017-2	泵壳(下)	PUMP CASE (LOWER)	1
21	346-65013-0	油封 17-30-9	OIL SEAL 17-30-9	1
22	348-65029-1	导板垫片	GUIDE PLATE GASKET	1
23	3R0-65018-0	泵壳垫片	PUMP CASE GASKET	1
24	334-65012-0	定位销4-10	DOWEL PIN 4-10	2
25	336-62415-0	O型圈 3.5-36	O-RING 3.5-36	1
26	3R0-65025-0	水泵导板	WATER PUMP GUIDE PLATE	1
27	9101E3-5652	螺栓	BOLT	4
28	346-64081-0	垫片 35-41.9-0.1	SHIM 35-41.9-0.1	1
28	346-64082-0	垫片 35-41.9-0.15	SHIM 35-41.9-0.15	1
28	346-64083-0	垫片 35-41.9-0.3	SHIM 35-41.9-0.3	1
28	346-64084-0	垫片 35-41.9-0.5	SHIM 35-41.9-0.5	1
29	3NV-66012-0	凸轮杆(短)	CAM ROD (S)	1
29	3NV-66013-0	凸轮杆(长)	CAM ROD (L)	1
29	3NV-66014-0	凸轮杆(超长)	CAM ROD (UL)	1
30	3AC-66011-1	离合器凸轮	CLUTCH CAM	1
31	951407-0312	弹簧销 3-12	SPRING PIN 3-12	2
32	3R0-66031-0	凸轮杆衬套	CAM ROD BUSHING	1
33	332-66021-0	O型圈 2.4-5.8	O-RING 2.4-5.8	2
34	3C8-66032-0	O型圈 3.5-21.7	O-RING 3.5-21.7	1
35	9101E3-5612	螺栓	BOLT	1
36	3R0-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
37	346-66037-0	凸轮杆固定座	CAM ROD HOLDER	1
38	9161E3-0840	螺栓	BOLT	4
39	9161E3-0845	螺栓	BOLT	1
40	9153E3-0830	螺柱	STUD	1
41	9301E3-0800	螺母	NUT	1
42	9401E3-0800	垫圈	WASHER	5
43	3R0-65100-0	水管(短)	WATER PIPE (S)	1
43	3R0-65110-0	水管(左)	WATER PIPE (L)	1
43	3R0-65120-0	水管(左上)	WATER PIPE (UL)	1
44	3R0-65206-0	水管密封件(上)	WATER PIPE SEAL (UPPER)	1
45	98AM120-015	软管	HOSE	1
46	3A1-60235-0	滤水器组件	WATER STRAINER SET	1
47	930403-0400	尼龙螺母 4-P0.7	* NYLON NUT 4-P0.7	1
48	9215E3-0430	* 螺钉	* SCREW	1

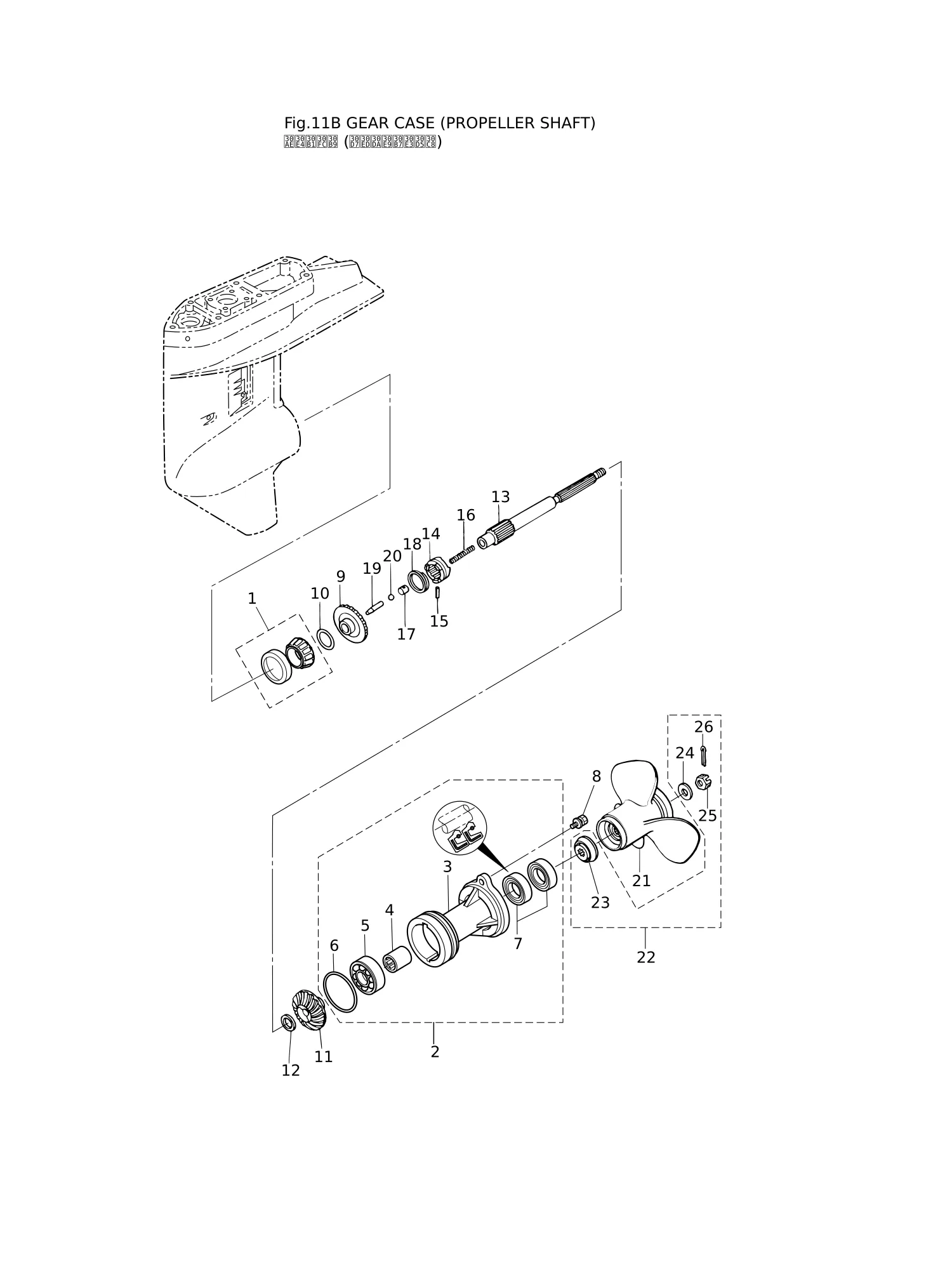

图 12螺旋桨轴齿轮箱 GEAR CASE (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
1	346-60215-0	圆锥滚子轴承 30205	TAPERED ROLLER BEARING 30205	1
2	349Q60100-7	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
3	346Q60101-8	* 螺旋桨轴套	* PROPELLER SHAFT HOUSING	1
4	346-60102-0	* 滚柱轴承 18-25-2.5	* ROLLER BEARING 18-25-2.5	1
5	9601-0-6205	* 球轴承 6205	* BALL BEARING 6205	1
6	332-60103-0	* O型圈 3-62.5	* O-RING 3-62.5	1
7	3AC-60111-0	* 油封 18-28-8	* OIL SEAL 18-28-8	2
8	9101E3-5830	螺栓	BOLT	2
9	3NV-64010-0	锥齿轮总成(A)	BEVEL GEAR ASSY (A)	1
10	369-64081-1	垫片 26.5-34.8-0.1	SHIM 26.5-34.8-0.1	1
10	369-64082-1	垫片 26.5-34.8-0.15	SHIM 26.5-34.8-0.15	1
11	3NV-64030-0	锥齿轮C	BEVEL GEAR C	1
12	346-64032-0	垫片 18-24-1.5	WASHER 18-24-1.5	1
13	346-64211-6	螺旋桨轴	PROPELLER SHAFT	1
14	3AC-64215-1	离合器	CLUTCH	1
15	346-64218-0	销钉	PIN	1
16	332-64221-0	弹簧	SPRING	1
17	350-64222-1	弹簧挡圈	SPRING RETAINER	1
18	346-64219-0	卡扣	SNAP	1
19	3C8-64223-1	推杆	PUSH ROD	1
20	965002-0803	钢球 3/8英寸	BALL 3/8	1
21	346B64106-5	螺旋桨总成(8英寸)	PROPELLER ASSY (8")	1
21	349B64529-1	螺旋桨总成(14英寸)	PROPELLER ASSY (14")	1
21	3R0B64518-0	螺旋桨总成(9英寸)	PROPELLER ASSY (9")	1
21	3R0B64521-0	螺旋桨总成(10英寸)	PROPELLER ASSY (10")	1
21	3R0B64523-0	螺旋桨总成(11英寸)	PROPELLER ASSY (11")	1
21	3R0B64525-0	螺旋桨总成(12英寸)	PROPELLER ASSY (12")	1
21	3R0B64527-0	螺旋桨总成(13英寸)	PROPELLER ASSY (13")	1
22	3R0-87326-0	螺旋桨五金件套件	PROPELLER HARDWARE KIT	1
23	346-64231-5	* 推力支架	* THRUST HOLDER	1
24	346-64124-5	* 垫圈 12.5-32-2.5	* WASHER 12.5-32-2.5	1
25	346-64121-5	* 螺旋桨螺母	* PROPELLER NUT	1
26	951503-0322	* 开口销 3-22	* SPLIT PIN 3-22	1

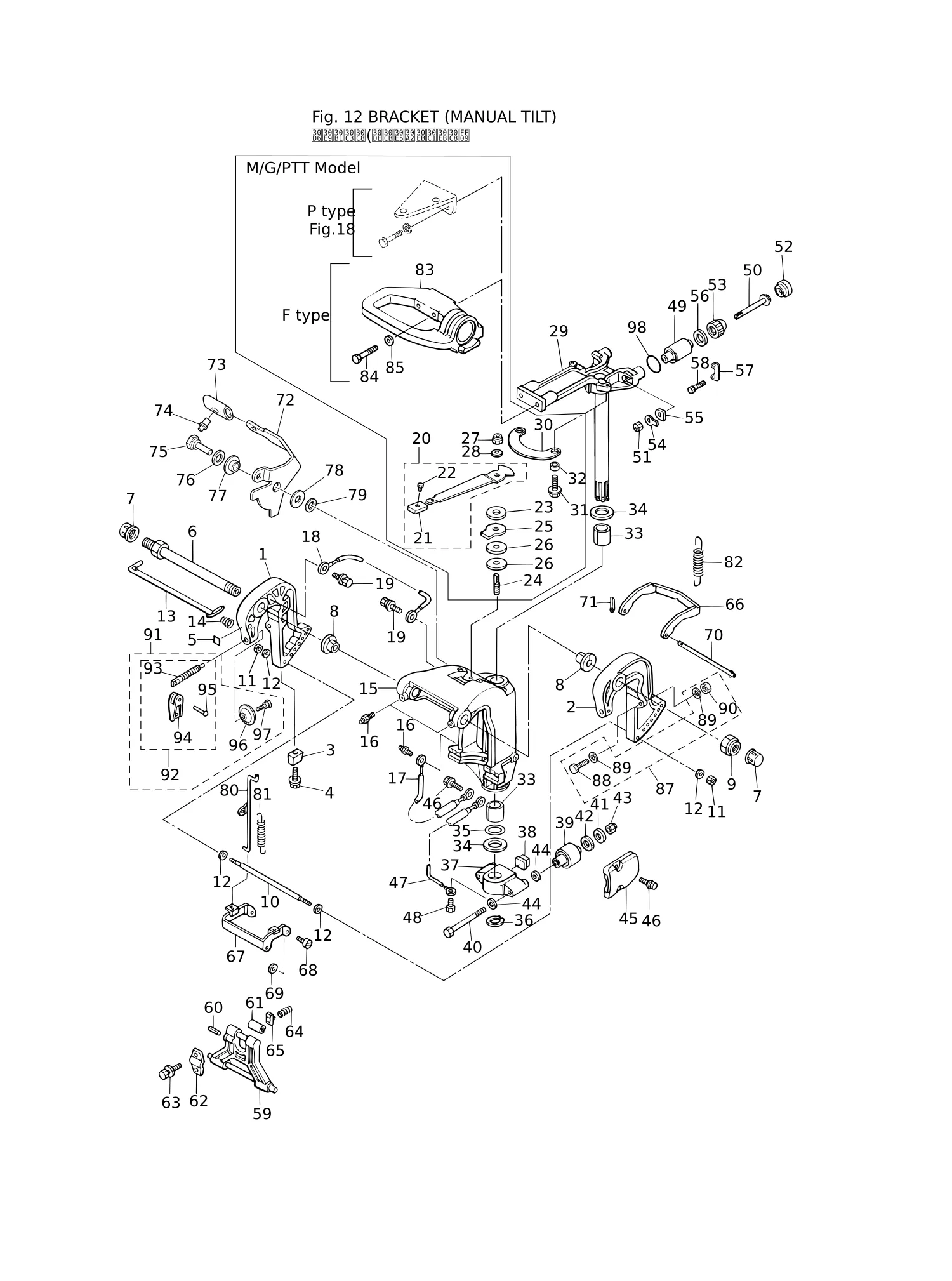

图 13支架(手动倾斜) BRACKET (MANUAL TILT)

REF	零件编号	中文名称	英文名称	数量
1	3AEQ62112-2	夹紧支架(右)	CLAMP BRACKET (R)	1
2	3AEQ62113-2	卡箍支架 (左)	CLAMP BRACKET (L)	1
3	3B7-60218-1	阳极块	ANODE	1
4	910103-5630	螺栓	BOLT	1
5	3H8-72049-0	副驾驶贴花	CO-PILOT DECAL	1
6	3AC-62191-0	旋转支架轴总成	SWIVEL BRACKET SHAFT ASSY	1
7	346-62127-0	盖形螺母	CAP NUT	2
8	349-62126-0	衬套	BUSHING	2
9	346-62124-1	尼龙螺母 7/8-14	NYLON NUT 7/8-14	1
10	346-62117-1	间隔块	DISTANCE PIECE	1
11	9301E3-0600	螺母	NUT	2
12	9401E3-0600	垫圈	WASHER	4
13	345-62121-1	推力杆	THRUST ROD	1
14	345-62122-2	推力杆弹簧	THRUST ROD SPRING	1
15	3AEQ62310-2	旋转支架	SWIVEL BRACKET	1
16	344-67177-1	黄油嘴	GREASE FITTING	3
17	3C8-62396-1	接地线 L=210	GROUND L=210	1
18	398-62396-1	接地线 L=130	GROUND L=130	1
20	3AC-62450-0	摩擦杆总成	FRICTION LEVER ASSY	1
21	3AC-63012-0	* 手柄	* GRIP	1
23	3R3-62443-0	垫圈 8.1-20-0.8	WASHER 8.1-20-0.8	1
24	3R3-62445-0	螺栓 M8-P1.25	BOLT M8 P1.25	1
25	3R3-62448-1	垫圈 8.5-38-3	WASHER 8.5-38-3	1
26	3R3-62449-0	圆盘8.5-38-2	DISC 8.5-38-2	2
27	930403-0800	尼龙螺母 8-P1.25	NYLON NUT 8-P1.25	1
29	3AHQ62010-0	转向轴总成	STEERING SHAFT ASSY	1
30	3AC-62447-0	板	PLATE	1
31	910103-5616	螺栓	BOLT	2
32	3AC-63619-0	轴套 6.5-10.7-6.5	COLLAR 6.5-10.7-6.5	2
33	353-62417-0	衬套 30-36-41	BUSHING 30-36-41	2
34	353-62423-1	上止推板31-50-2	THRUST PLATE (UPPER) 31-50-2	2
35	353-62415-0	O型圈 3.5-29.7	O-RING 3.5-29.7	1
36	945103-2800	C形环 d=28	C-RING d=28	1
37	3AEQ61411-1	支架托架	MOUNT BRACKET	1
38	3C8-61336-0	下减震器	DAMPER (LOWER)	1
39	3C8-61302-1	橡胶支座(下)	RUBBER MOUNT (LOWER)	2
40	3R0-61321-0	螺栓 12-143	BOLT 12-143	2
41	353-61334-0	垫片 13-34-3	WASHER 13-34-3	2
42	3C7-61338-0	减震器 21-36-5	DAMPER 21-36-5	2
43	3R0-61324-0	尼龙螺母 12-P1.25	NYLON NUT 12-P1.25	2
44	9402E3-1200	垫圈	WASHER	4
45	3R0Q61342-0	支架固定板(下)	MOUNT HOLDING PLATE (LOWER)	2
46	9101E3-5620	螺栓	BOLT	4
47	3A3-62396-1	接地线 L=110	GROUND L=110	1
48	910103-5612	螺栓	BOLT	1
49	3R0-61301-1	橡胶支座(上)	RUBBER MOUNT (UPPER)	2
50	3R0-61307-0	螺栓 10-111	BOLT 10-111	2
51	930103-1000	螺母 10-P1.5	NUT 10-P1.5	2
52	3R0-61333-0	上减震器	DAMPER (UPPER)	2
53	3R0-61337-1	上减震器	DAMPER (UPPER)	2
54	3R0-61323-0	锁紧板	LOCK PLATE	2
55	345-61322-2	垫圈10.1-18-2.5	WASHER 10.1-18-2.5	2
56	3R0-61335-0	锁紧板	LOCK PLATE	2
57	3R0-61312-1	橡胶支座固定器	RUBBER MOUNT RETAINER	2
58	9101E3-0620	螺栓	BOLT	4
59	349Q62993-2	倾斜止动器	TILT STOPPER	1
60	951403-0640	弹簧销	SPRING PIN	1
61	346-62437-0	衬套 10.2-12-29.5	BUSHING 10.2-12-29.5	1
62	3AC-62439-0	定位板	SETTING PLATE	1
63	3AC-63201-0	螺栓 10-25	BOLT 10-25	2
64	3C8-62421-1	摩擦弹簧	FRICTION SPRING	1
65	346-62438-0	定位片	SETTING PIECE	1
66	346-66322-0	倒车锁	REVERSE LOCK	1
67	349-66313-0	倒车锁臂	REVERSE LOCK ARM	1
68	336-66319-1	枢轴螺栓	PIVOT BOLT	2
70	346-66321-0	倒挡锁杆	REVERSE LOCK ROD	1
71	951503-0212	开口销2-12	SPLIT PIN 2-12	1
72	3P0-66311-0	倒车锁杆	REVERSE LOCK LEVER	1
73	3AL-66333-0	倒车锁杆握把	REVERSE LOCK LEVER GRIP	1
74	346-66334-0	止动块	STOPPER	1
75	3AL-05254-0	台阶螺栓6-8	SHOULDER BOLT 6-8	1
76	940103-0800	垫圈	WASHER	1
77	3AL-05212-0	衬套 8.1-20	BUSHING 8.1-20	1
78	3AA-83719-0	垫圈 8.5-18-1.6	WASHER 8.5-18-1.6	1
79	3R0-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
80	349-66312-0	倒车锁连杆	REVERSE LOCK LINK	1
81	346-66323-1	倒车锁杆弹簧	REVERSE LOCK LEVER SPRING	1
82	346-66331-0	倒挡锁弹簧(S型)	REVERSE LOCK SPRING (S)	1
82	3R0-66332-0	倒挡锁弹簧(左)	REVERSE LOCK SPRING (L)	1
83	3R3Q62001-0	转向支架	STEERING BRACKET	1
84	3R3-62094-2	螺栓 10-80	BOLT 10-80	2
85	9401E3-1000	垫圈	WASHER	2
87	3AC-72120-0	索具螺栓套装	RIGGING BOLT SET	1
88	9161E3-0885	螺栓	* BOLT	2
89	9401E3-0800	* 垫圈	* WASHER	4
90	9301E3-0800	螺母	* NUT	2
91	3AAQ62105-0	夹紧螺丝套件	CLAMP SCREW KIT	2
92	3AAQ62108-0	* 卡箍螺丝总成	* CLAMP SCREW ASSY	1
93	3AA-62106-0	夹紧螺钉	** CLAMP SCREW	1
94	332Q62102-1	夹紧螺钉手柄	** CLAMP SCREW HANDLE	1
95	3C8-62104-2	铆钉 3-22	** RIVET 3-22	1
96	332-62101-1	* 卡箍螺丝垫片	* CLAMP SCREW PAD	1
97	3C8-62107-0	* 肩螺栓	* SHOULDER BOLT	1
98	3NV-62415-0	O型圈	O-RING	2

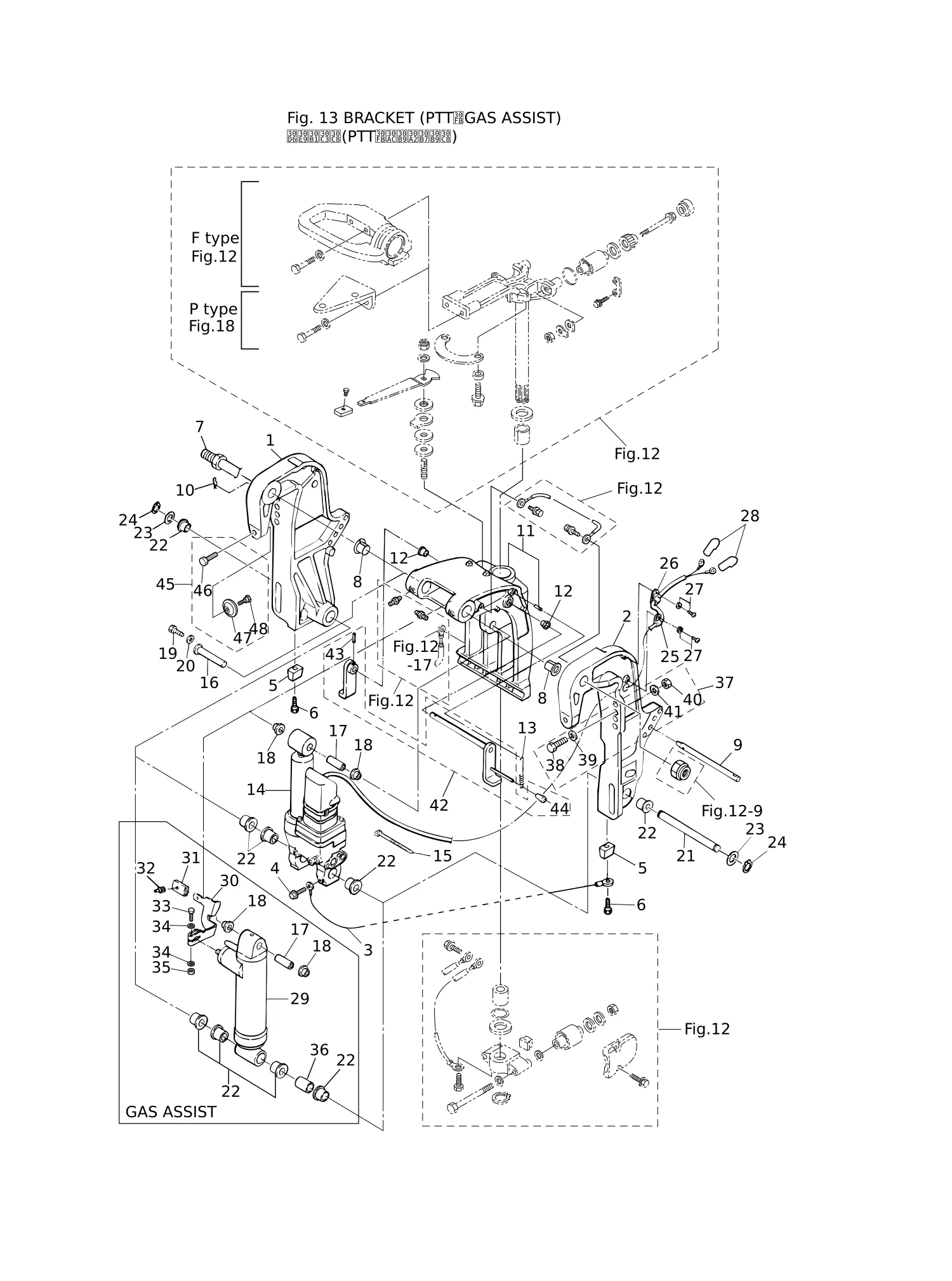

图 14支架（PTT·气体辅助） BRACKET (PTT · GAS ASSIST)

REF	零件编号	中文名称	英文名称	数量
1	3AEQ77211-1	夹紧支架(动力升降倾斜装置-右)	CLAMP BRACKET (PTT-R)	1
1	3AFQ77211-1	夹紧支架(动力升降倾斜装置-右)	CLAMP BRACKET (PTT-R)	1
2	3AEQ77212-2	卡箍支架 (动力升降倾斜装置-左)	CLAMP BRACKET (PTT-L)	1
2	3AFQ77212-2	卡箍支架 (动力升降倾斜装置-左)	CLAMP BRACKET (PTT-L)	1
3	398-62396-1	接地线 L=130	GROUND L=130	1
4	910103-5612	螺栓	BOLT	1
5	3B7-60218-1	阳极块	ANODE	2
6	910103-5630	螺栓	BOLT	2
7	3AD-62191-0	旋转支架轴总成	SWIVEL BRACKET SHAFT ASSY	1
8	3C8-77213-0	衬套	BUSHING	2
9	3R0-77118-0	动力升降倾斜推力杆	PTT THRUST ROD	1
10	951603-1000	弹性销	SNAP PIN	1
11	3ACQ77208-2	旋转支架总成	SWIVEL BRACKET ASSY	1
12	353-63207-0	轴环 10.2-12-12	COLLAR 10.2-12-12	2
13	3R0-62473-0	倾斜止动弹簧	TILT STOPPER SPRING	1
14	3AC-77151-1	动力倾斜总成	PT ASSY	1
15	1H2-31534-0	导线束300	LEAD WIRE BAND 300	1
16	3KY-77071-0	气缸销(上)	CYLINDER PIN (UPPER)	1
17	3R0-77075-0	衬套 13-16-40	BUSHING 13-16-40	1
18	3R0-77076-0	衬套 13-17-19.5	BUSHING 13-17-19.5	2
19	910103-0612	螺栓	BOLT	1
20	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	1
21	3KY-77101-0	气缸销(下)	CYLINDER PIN (LOWER)	1
22	3C8-77076-1	衬套 18-24-22	BUSHING 18-24-22	6
23	3R0-77112-0	垫片 18.2-34-1	WASHER 18.2-34-1	2
24	945103-1800	C形环 d=18	C-RING d=18	2
25	336-06973-0	卡箍 6-9.5L	CLAMP 6-9.5L	1
26	345-06915-0	卡箍 6.5-14L	CLAMP 6.5-14L	1
27	921503-5612	螺钉	SCREW	2
28	3Y1-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	2
29	3R0Q77601-2	气体减震器	GAS SHOCK ABSORBER	1
30	3R0-66311-0	倒车锁杆	REVERSE LOCK LEVER	1
31	3AL-66333-0	倒车锁杆握把	REVERSE LOCK LEVER GRIP	1
32	346-66334-0	止动块	STOPPER	1
33	3V2-60001-0	螺栓6-35	BOLT 6-35	1
34	9401E3-0600	垫圈	WASHER	2
35	9301E3-0600	螺母	NUT	1
36	3R0-77105-0	轴套 18.2-21.7-30	COLLAR 18.2-21.7-30	1
37	3AD-72120-0	索具螺栓套装	RIGGING BOLT SET	1
38	3C7-62133-2	螺栓 12-105 P1.25	* BOLT 12-105 P1.25	4
39	353-61334-0	* 垫圈 13-34-3	* WASHER 13-34-3	4
40	3C7-62139-1	螺母 12-P1.25	* NUT 12-P1.25	4
41	9401E3-1200	* 垫圈	* WASHER	4
42	3AC-62466-1	倾斜止动器套件	TILT STOPPER KIT	1
42	3GF-62466-1	倾斜止动器套件	TILT STOPPER KIT	1
43	951403-3516	* 弹簧销 3.5-16	* SPRING PIN 3.5-16	1
44	369-62433-1	* 倾斜止动握把	* TILT STOPPER GRIP	1
45	3C8-77217-0	夹紧螺丝套件	CLAMP SCREW KIT	2
46	3C8-77216-0	* 卡箍螺丝(动力升降倾斜)	* CLAMP SCREW (PTT)	1
47	332-62101-1	* 卡箍螺丝垫片	* CLAMP SCREW PAD	1
48	3C8-62107-0	* 肩螺栓	* SHOULDER BOLT	1

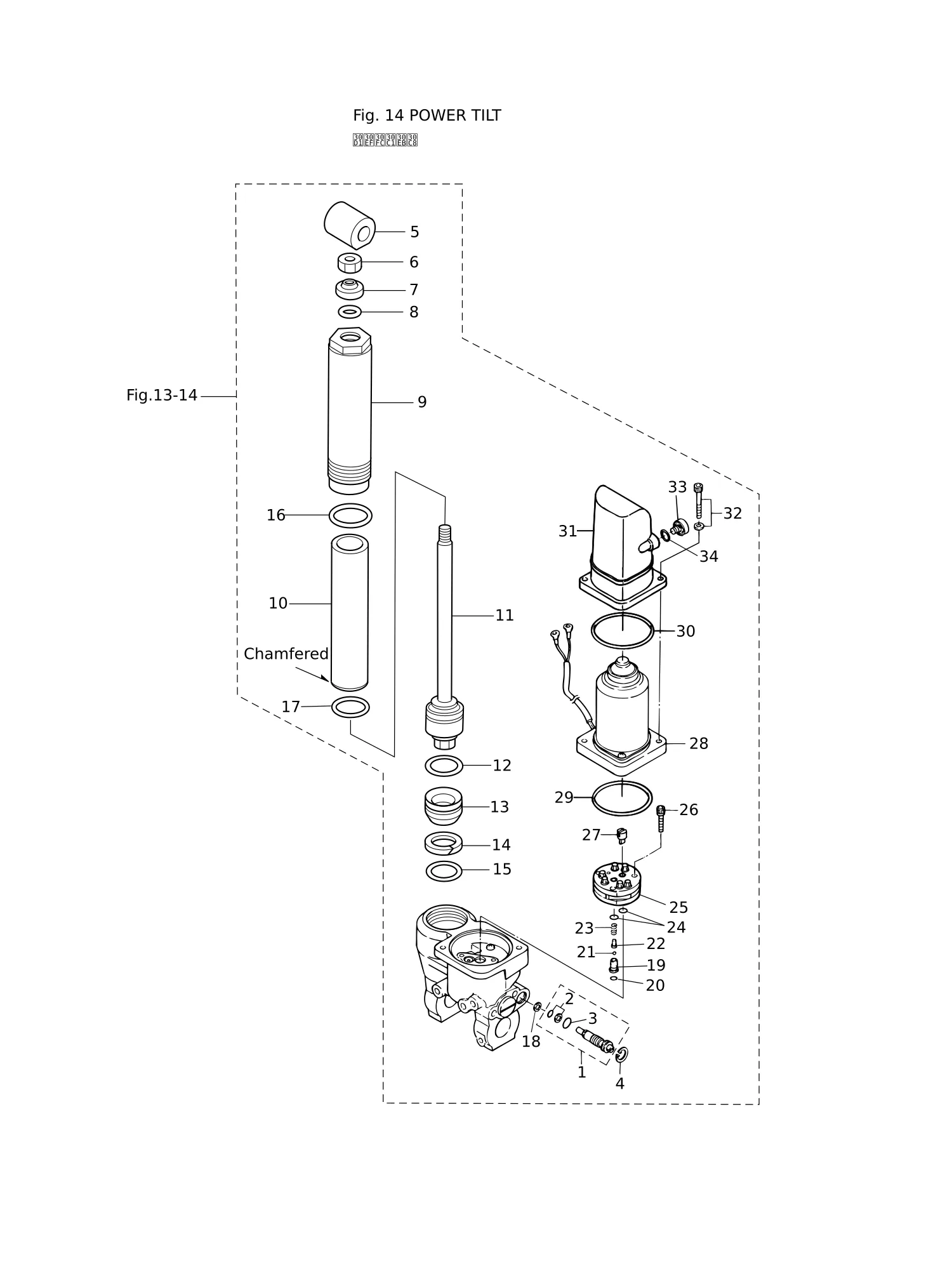

图 15动力倾斜装置 POWER TILT

REF	零件编号	中文名称	英文名称	数量
1	3AC-77175-0	手动阀总成	MANUAL VALVE ASSY	1
2	3R0-77409-0	* 密封套件	* SEAL SET	1
3	3R0-77177-0	* O型圈 2.4-9.8	* O-RING 2.4-9.8	1
4	3Z5-77171-0	C形环	C-RING	1
5	3AD-77367-0	接头	JOINT	1
6	3AC-77374-0	螺母	NUT	1
7	3AC-77382-0	防尘密封	DUST SEAL	1
8	3AC-77384-0	O型圈 2.4-12.3	O-RING 2.4-12.3	1
9	3AC-77361-0	气缸	CYLINDER	1
10	3AC-77363-0	内管	INNER TUBE	1
11	3AC-77365-0	活塞连杆总成	PISTON ROD ASSY	1
12	3AC-77375-0	O型圈2-28.5	O-RING 2-28.5	1
13	3AC-77377-0	自由活塞	FREE PISTON	1
14	3AC-77376-0	挡圈/支撑环	BACK-UP RING	1
15	3AC-77398-0	O型圈 2.4-27.7	O-RING 2.4-27.7	1
16	3AC-77392-0	O型圈2-43.5	O-RING 2-43.5	1
17	3AC-77383-0	O型圈2-34.5	O-RING 2-34.5	1
18	3AC-77173-0	密封垫圈	SEAL WASHER	1
19	3AC-77453-0	阀座	VALVE SEAT	1
20	3R0-77451-0	O型圈1.5-3.5	O-RING 1.5-3.5	1
21	3R0-77457-0	钢球	BALL	1
22	3AC-77454-0	弹簧座	SPRING SEAT	1
23	3R0-77455-0	弹簧	SPRING	1
24	3B7-77433-0	O型圈1.5-6.5	O-RING 1.5-6.5	2
25	3R0-77430-0	泵	PUMP	1
26	3B7-77431-1	螺栓	BOLT	3
27	3E0-77163-0	联轴器	COUPLING	1
28	3AC-77180-0	马达总成	MOTOR ASSY	1
29	3R0-77167-0	O型圈2-62.5	O-RING 2-62.5	1
30	3C8-77182-0	O型圈 2.4-66.6	O-RING 2.4-66.6	1
31	3R0-77165-0	储备油箱	RESERVE TANK	1
32	3R0-77159-0	螺栓	BOLT	2
33	3R0-77168-0	盖帽	CAP	1
34	3R0-77169-0	O型圈1.9-9.8	O-RING 1.9-9.8	1

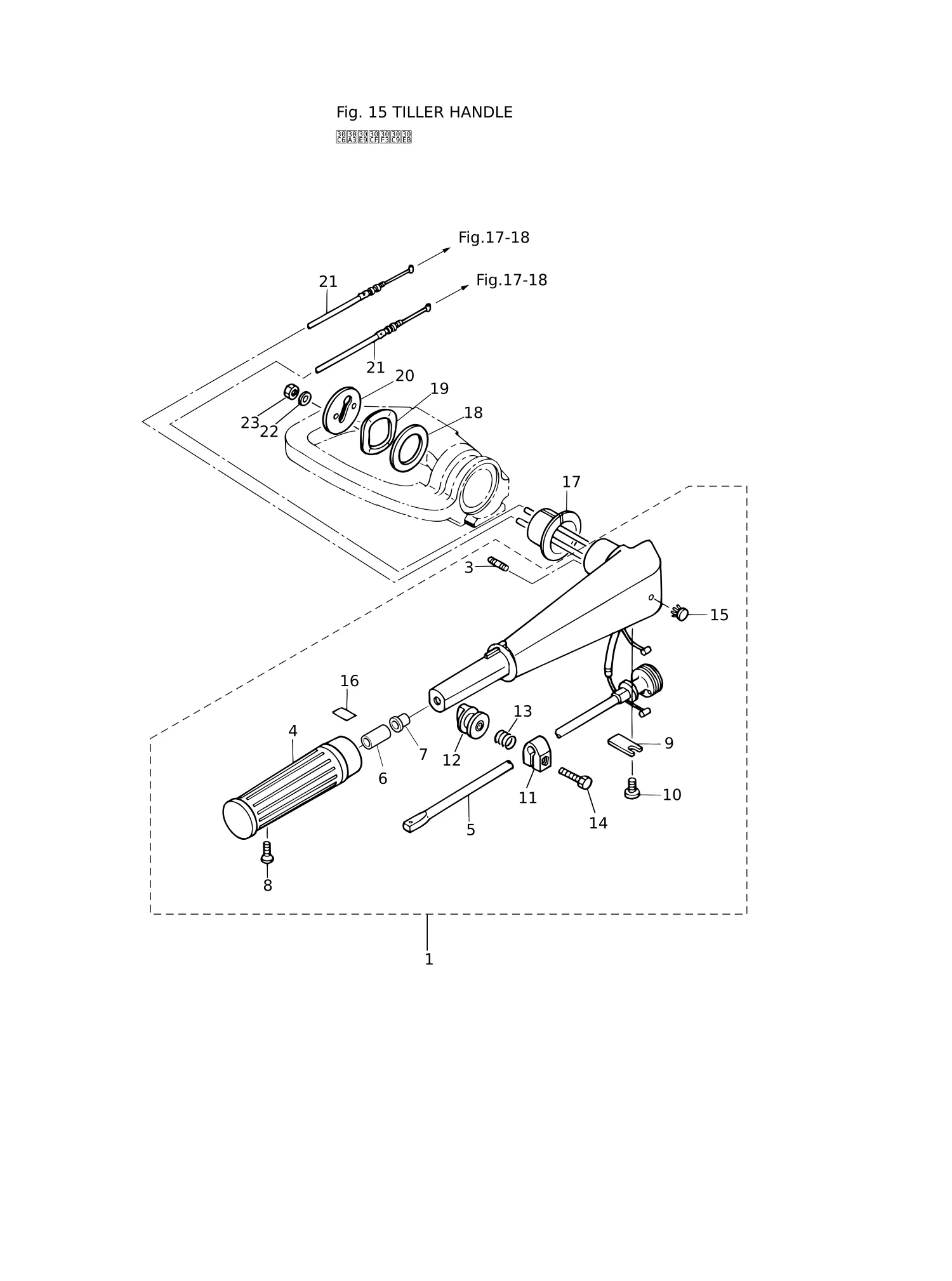

图 16舵柄 TILLER HANDLE

REF	零件编号	中文名称	英文名称	数量
1	3ACQ63005-1	舵柄分总成	TILLER HANDLE SUB-ASSY	1
3	3B2-63104-1	* 双头螺柱	* STUD	2
4	3R3-63012-0	* 手柄	* GRIP	1
5	3R3-63041-0	* 节气门轴	* THROTTLE SHAFT	1
6	345-63048-0	* 节气门轴缓冲器	* THROTTLE SHAFT DAMPER	1
7	350-63046-0	* 衬套 8.4-10-11	* BUSHING 8.4-10-11	1
8	921803-0525	* 螺钉	* SCREW	1
9	3B2-63063-0	* 节气门轴支撑	* THROTTLE SHAFT SUPPORT	1
10	9215E3-0612	* 螺钉	* SCREW	1
11	3V1-63035-1	* 摩擦片	* FRICTION PIECE	1
12	3V1-63077-0	* 调节螺母	* ADJUSTING NUT	1
13	3V1-63036-0	* 弹簧	* SPRING	1
14	9101E3-0625	螺栓	* BOLT	1
15	350-67154-0	* 塑料铆钉 6.5	* PLASTIC RIVET 6.5	1
16	3AC-72019-0	* 油门标识贴	* THROTTLE DECAL	1
17	3R3-63102-0	衬套	BUSHING	1
18	3R3-63108-0	垫片 39-52-1	WASHER 39-52-1	1
19	3R3-63109-0	波形垫圈 39.5-52-1.2	WAVE WASHER 39.5-52-1.2	1
20	3R3-63107-0	盖板	COVER	1
21	3NW-63600-0	节气门拉线	THROTTLE WIRE	2
22	940103-0600	垫圈	WASHER	2
23	930103-0600	螺母	NUT	2

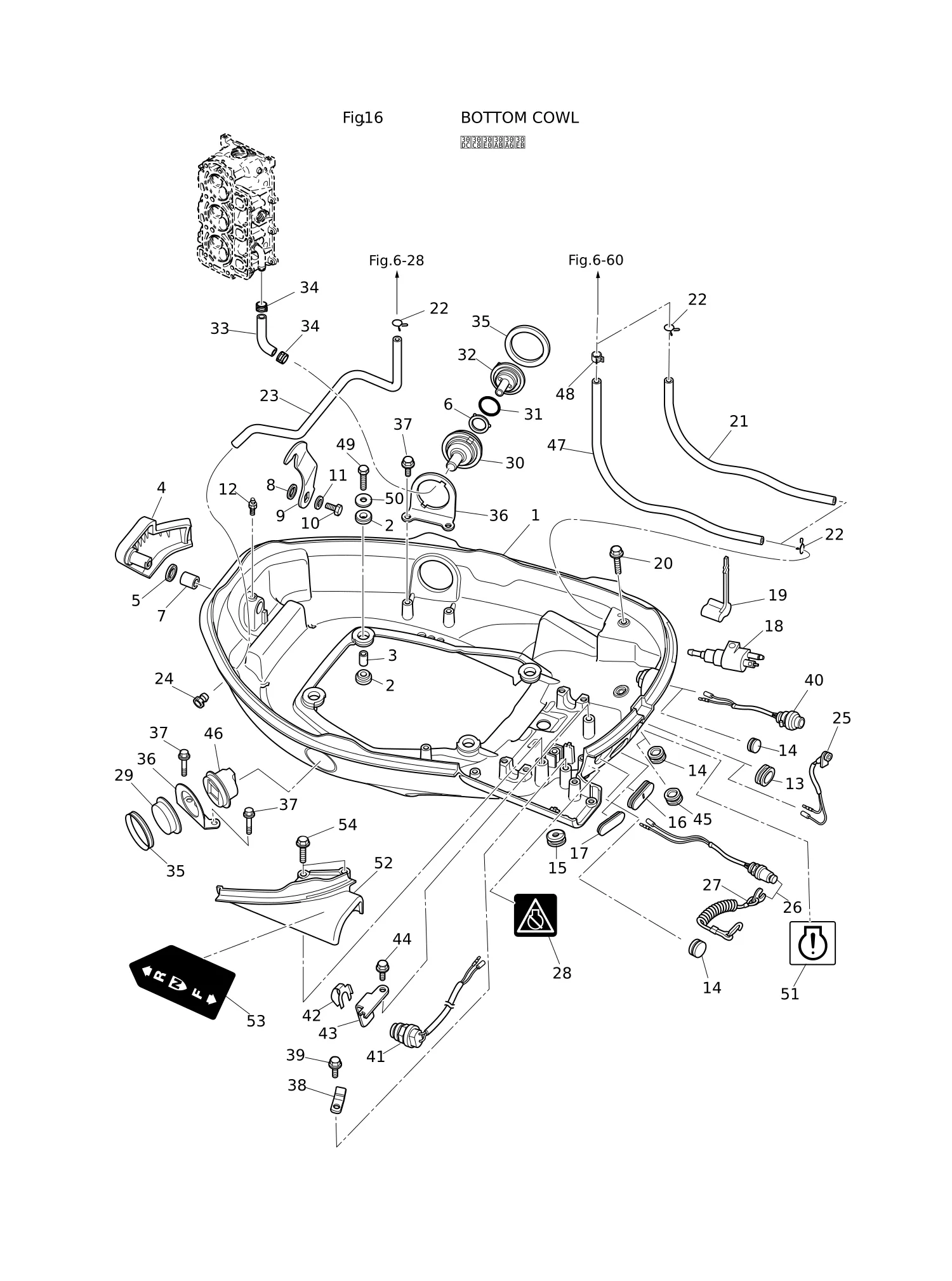

图 17下罩壳 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	3NVQ67100-0	下罩壳	BOTTOM COWL	1
2	346-67113-0	8.5-14-2.5支架	MOUNT 8.5-14-2.5	8
3	346-67114-1	垫圈 6.2-9-15.7	SPACER 6.2-9-15.7	4
4	3NV-67141-0	挂钩杆	HOOK LEVER	1
5	338-67147-0	密封环 13.8-22-3.7	SEAL RING 13.8-22-3.7	1
6	3T1-67147-0	密封环	SEAL RING	1
7	350-67105-0	挂钩杆衬套 14-16.5-17.7	HOOK LEVER BUSHING 14-16.5-17.7	1
8	941403-1400	波形垫圈 d=14	WAVE WASHER d=14	1
9	3NV-67142-0	盖板挂钩	COVER HOOK	1
10	9101E3-0612	螺栓	BOLT	1
11	3R0-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
12	344-67177-1	黄油嘴	GREASE FITTING	1
13	3R3-67162-0	索环 25-15-3	GROMMET 25-15-3	1
14	345-67117-0	索环 17-2.7	GROMMET 17-2.7	3
15	3KY-67117-0	索环/护孔圈	GROMMET	1
16	3NW-63624-0	索环/护孔圈	GROMMET	1
17	3NV-63624-0	索环/护孔圈	GROMMET	1
18	394-70260-0	燃油接头（公头）	FUEL CONNECTOR (MALE)	1
19	3H6-70262-0	燃油接头护套	FUEL CONNECTOR PROTECTOR	1
21	98AB-50-400	软管	HOSE	1
22	338-02215-0	卡扣φ10	CLIP φ10	3
23	98AR-50-480	软管	HOSE	1
24	3T1-01138-0	管接头 6-8-11	NIPPLE 6-8-11	1
25	3R3-71040-0	指示灯总成	PILOT LAMP ASSY	1
26	398-06830-0	停止开关总成	STOP SWITCH ASSY	1
27	353-06821-0	* 停机开关拉绳总成	* STOP SWITCH LANYARD ASSY	1
28	3AC-72200-0	停止开关贴花	STOP SWITCH DECAL	1
29	3KY-72618-0	索环/护孔圈	GROMMET	1
30	3T1-72403-0	冲洗连接器	FLUSHING CONNECTOR	1
31	3R0-07422-0	O型圈 3.1-24.4	O-RING 3.1-24.4	1
32	3T1-72404-0	冲洗连接器盖	FLUSHING CONNECTOR CAP	1
33	3FW-72410-0	冲洗软管	FLUSHING HOSE	1
34	3T1-07737-1	卡环 φ17.8	CLIP φ17.8	2
35	3F3-72616-1	衬垫	GASKET	2
36	3NV-72617-0	动力升降倾斜装置开关总成支架	PTT SWITCH ASSY BRACKET	2
38	3NV-63628-0	卡箍	CLAMP	1
40	3AA-76026-0	主开关总成	MAIN SWITCH ASSY	1
41	3NV-76080-0	空档开关	NEUTRAL SWITCH	1
42	398-76083-0	空档开关执行器	NEUTRAL SWITCH ACTUATOR	1
43	3NV-76081-0	空档开关支架	NEUTRAL SWITCH BRACKET	1
44	9101E3-5616	螺栓	BOLT	1
45	338-67163-0	索环 18-2.5	GROMMET 18-2.5	1
46	3AC-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
47	3NW-04055-0	低渗透软管	LOW PERMEATION HOSE	1
48	3GT-35143-0	卡环 φ9.4	CLIP φ9.4	1
49	9101E3-0630	螺栓	BOLT	4
50	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	4
51	3AC-76190-0	警告标贴	WARNING DECAL	1
52	3NVQ67483-0	遥控线缆支架	REMOTE CONT CABLE STAY	1
53	3NV-67578-0	换挡标识贴	SHIFT DECAL	1
54	9101E3-5630	螺栓	BOLT	2

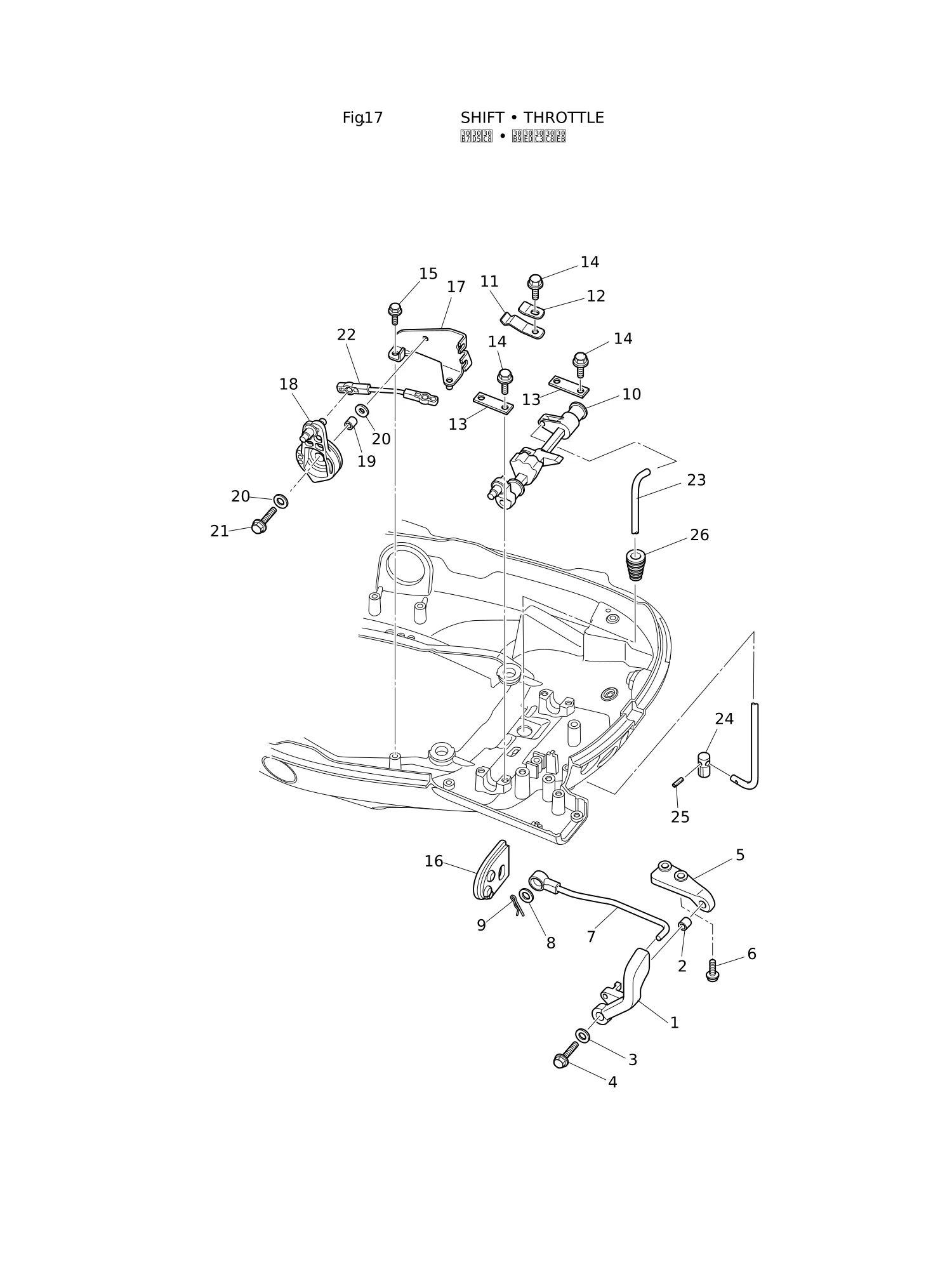

图 18换挡·油门 SHIFT · THROTTLE

REF	零件编号	中文名称	英文名称	数量
1	3Y3-66110-0	换挡杆	SHIFT LEVER	1
2	3H6-63619-1	轴套 6.5-10.5-10	COLLAR 6.5-10.5-10	1
3	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	1
4	9101E3-0625	螺栓	BOLT	1
5	3NVQ67480-0	换挡杆支架	SHIFT LEVER BRACKET	1
6	9101E3-5616	螺栓	BOLT	2
7	3NW-66134-0	换挡杆连杆	SHIFT LEVER ROD	1
8	3AA-83719-0	垫圈 8.5-18-1.6	WASHER 8.5-18-1.6	1
9	951603-0800	弹性销 d=8	SNAP PIN d=8	2
10	3NV-66130-0	换挡杆轴总成	SHIFT LEVER SHAFT ASSY	1
11	3GF-66113-1	换挡杆止动块	SHIFT LEVER STOPPER	1
12	3C8-66116-0	换挡杆止动块	SHIFT LEVER STOPPER	1
13	3V1-66145-0	支架	HOLDER	2
15	9101E3-5612	螺栓	BOLT	2
16	3NV-63621-0	索环/护孔圈	GROMMET	1
17	3NV-63508-0	节气门拉线支架	THROTTLE WIRE BRACKET	1
18	3NV-63622-0	节气门鼓轮总成	THROTTLE DRUM ASSY	1
19	3KY-76079-0	轴套 6.5-10.5-9.3	COLLAR 6.5-10.5-9.3	1
20	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	2
21	910103-0620	螺栓	BOLT	1
22	3NV-63617-0	节气门拉杆	THROTTLE ROD	1
23	3R0-66211-0	换挡连杆	SHIFT ROD	1
24	3AL-66241-1	换挡杆接头	SHIFT ROD JOINT	1
25	951403-0312	弹簧销 3-12	SPRING PIN 3-12	1
26	3M2-66226-0	索环 17-3	GROMMET 17-3	1

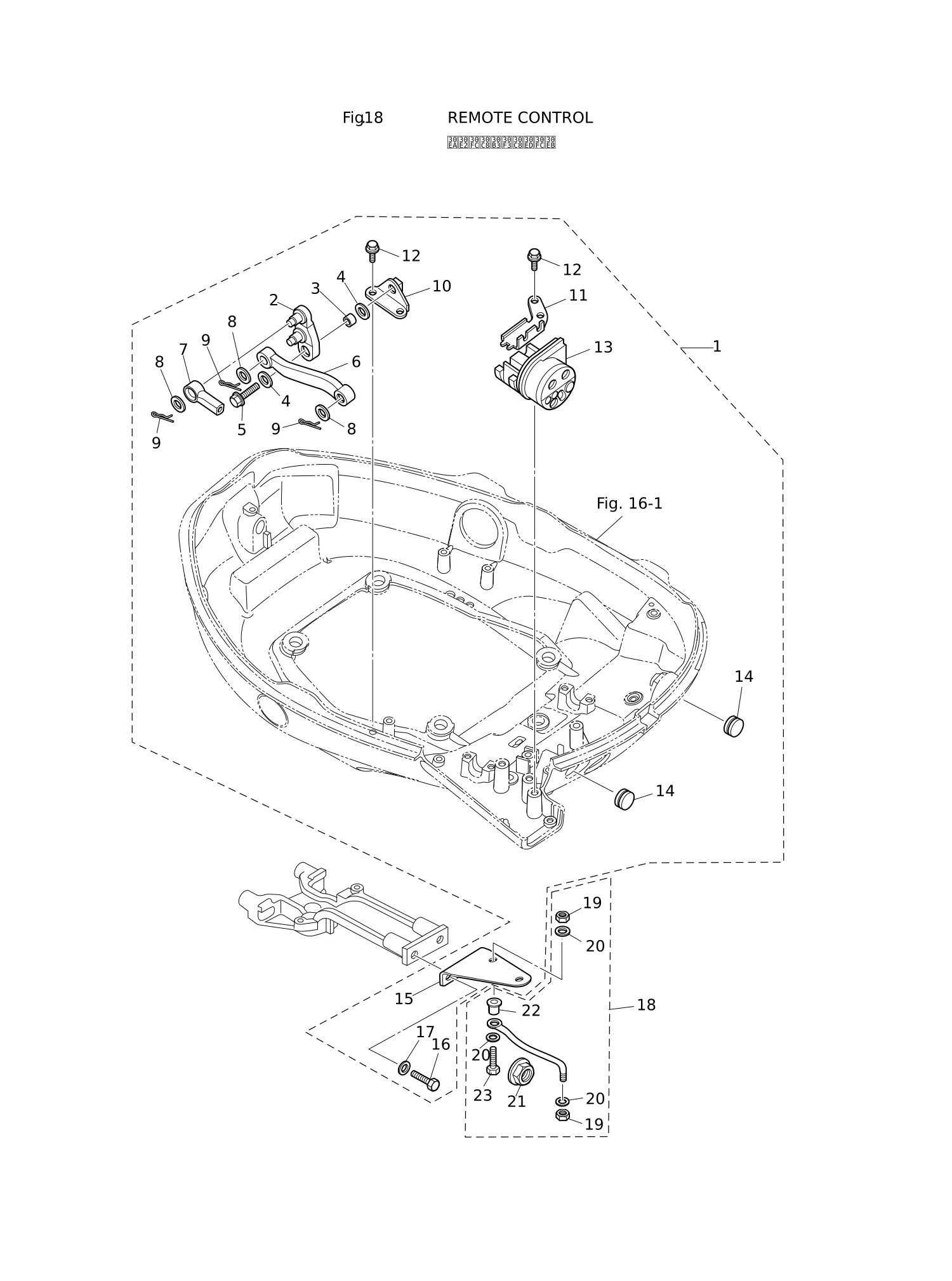

图 19遥控装置 REMOTE CONTROL

REF	零件编号	中文名称	英文名称	数量
1	3NV-83880-0	遥控装置总成	REMOTE CONTROL FITTING ASSY	1
2	3NV-66122-0	* 换挡臂	* SHIFT ARM	1
3	3KY-76079-0	* 轴环 6.5-10.5-9.3	* COLLAR 6.5-10.5-9.3	1
4	3R0-66308-0	* 垫圈 6-16-1.5	* WASHER 6-16-1.5	2
5	9101E3-5620	螺栓	* BOLT	1
6	3NV-66134-0	* 换挡杆	* SHIFT LEVER ROD	1
7	3B7-83715-2	* 线缆接头	* CABLE JOINT	2
8	3AA-83719-0	* 垫圈 8.5-18-1.6	* WASHER 8.5-18-1.6	3
9	951603-0800	* 弹性销 d=8	* SNAP PIN d=8	3
10	3R0-66126-0	* 支架	* BRACKET	1
11	3NV-83734-0	* 线缆夹	* CABLE CLIP	1
12	9101E3-5616	螺栓	* BOLT	4
13	3NV-83732-0	* 护孔环	* GROMMET	1
14	345-67117-0	* 护孔环 17-2.7	* GROMMET 17-2.7	2
15	3NV-83830-0	* 转向钩板	* STEERING HOOK PLATE	1
16	910103-1030	螺栓	* BOLT	2
17	940103-1000	* 垫圈	* WASHER	2
18	3FW-84905-0	转向拉杆总成	DRAG LINK ASSY	1
19	353-84918-0	尼龙螺母 3/8-24UNF	* NYLON NUT 3/8-24UNF	2
20	353-84916-0	* 垫圈 9.6-18-2	* WASHER 9.6-18-2	3
21	3F3-84908-0	* 密封环	* SEAL RING	1
22	3FW-84914-0	* 隔套	* SPACER	1
23	3E0-84917-0	螺栓 3/8-50	* BOLT 3/8-50	1

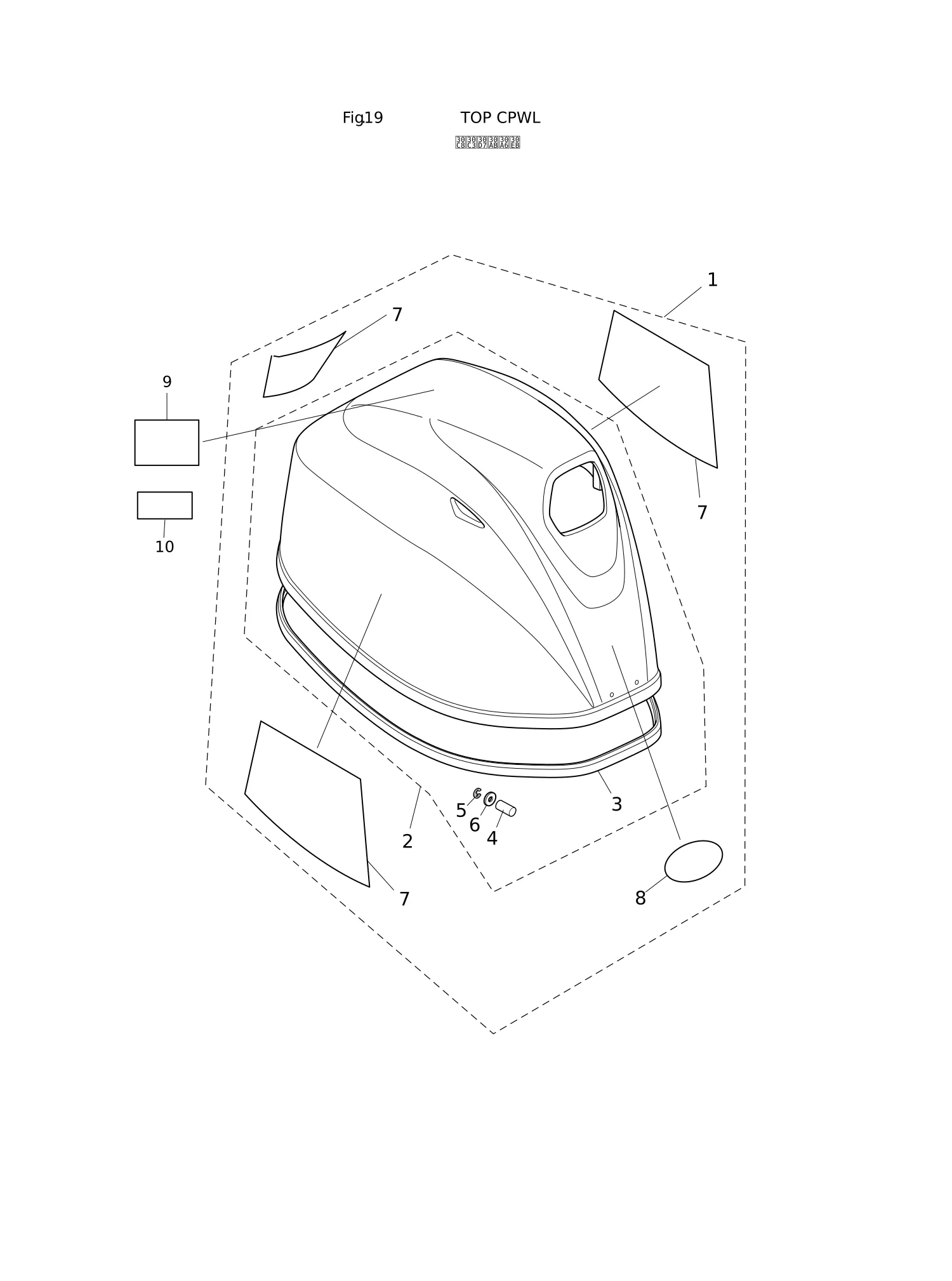

图 20顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	3NVQ67645-0	顶罩总成(维修)	TOP COWL ASSY (SERVICE)	1
2	3NVQ67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
3	3NV-67501-0	顶罩密封条	** TOP COWL SEAL	1
4	3R0-67517-0	滚轮 6.1-14.7-14	** ROLLER 6.1-14.7-14	1
5	945303-0500	** E型卡环 d=5	** E-RING d=5	1
6	346-67115-0	垫圈 6.5-21-1	** WASHER 6.5-21-1	1
7	3NV-87801-0	* 贴花套装 MFS30C	* DECAL SET MFS30C	1
7	3NW-87801-0	* 贴花套装 MFS25C	* DECAL SET MFS25C	1
8	3KY-67531-0	* 前贴花	* FRONT DECAL	1
9	3R0-72180-0	警示标贴(A型)	CAUTION DECAL (A)	1
10	3AC-72185-0	警示标贴	CAUTION DECAL	1

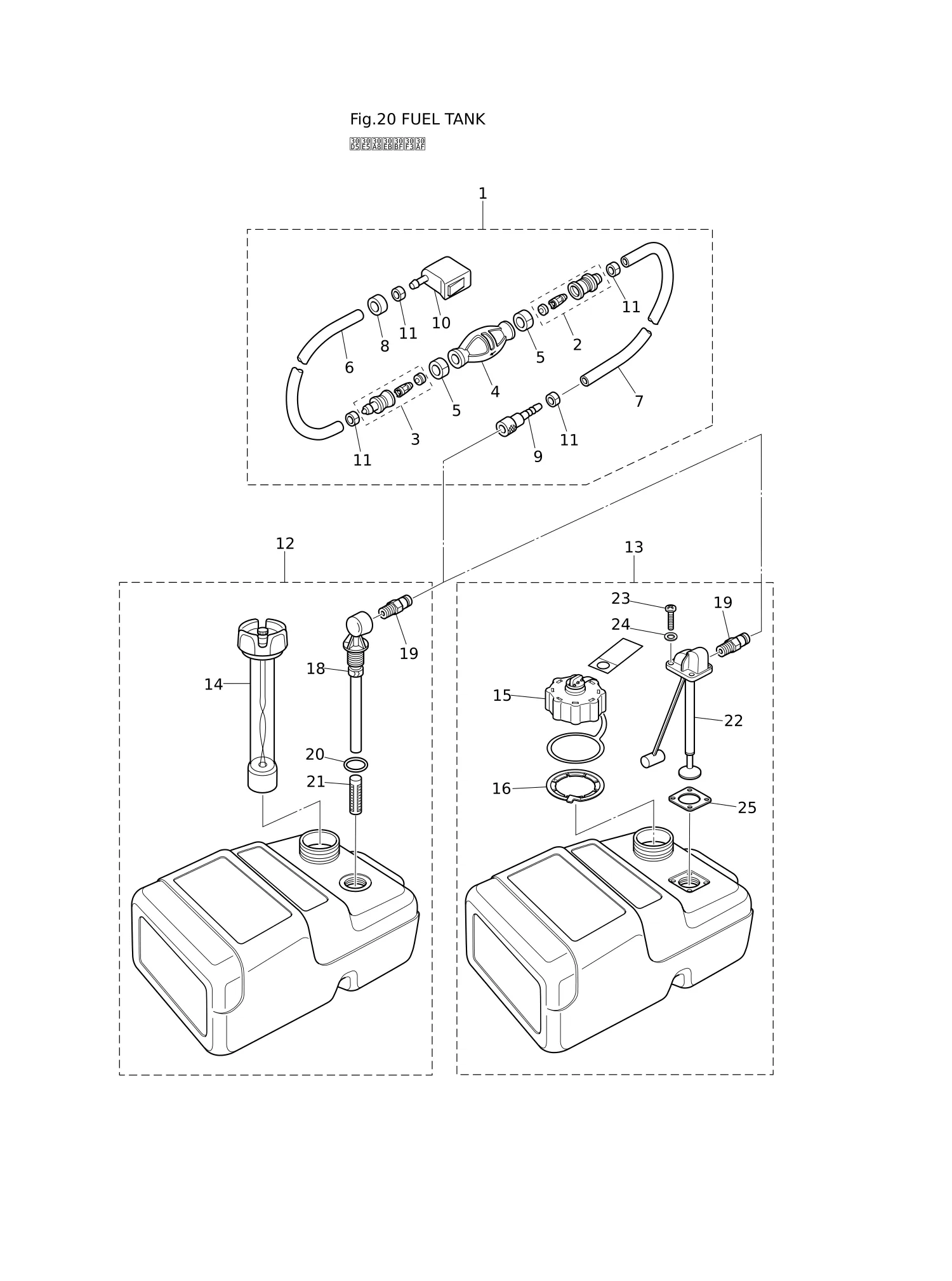

图 21燃油箱 FUEL TANK

REF	零件编号	中文名称	英文名称	数量
1	3AD-70200-2	手动泵球总成	PRIMER BULB ASSY	1
1	3H6-70200-2	手动泵球总成	PRIMER BULB ASSY	1
2	3C7-70220-1	* 接头组件(进口)	* JOINT ASSY (INLET)	1
3	3C7-70224-1	* 接头组件(出口)	* JOINT ASSY (OUTLET)	1
4	3C7-70211-1	* 注油球	* PRIMER BULB	1
4	3GF-70211-1	* 注油球	* PRIMER BULB	1
5	3C7-70217-0	* 卡箍	* CLAMP	2
6	3GF-70241-1	* 低渗透软管 L=700	* LOW PERMEATION HOSE L=700	1
6	98AB-70-700	* 软管	* HOSE	1
7	3GF-70240-1	* 低渗透软管 L=1600	* LOW PERMEATION HOSE L=1600	1
7	98AB-701600	* 软管	* HOSE	1
8	3GR-70280-0	* 燃油接头标记	* FUEL CONNECTOR MARK	1
9	3GF-70281-0	* 燃油接头	* FUEL CONNECTOR	1
10	3GR-70250-0	* 燃油接头	* FUEL CONNECTOR	1
11	332-70201-0	* 卡箍	* CLAMP	4
12	3C7-70177-1	25升燃油箱总成	FUEL TANK ASSY 25L	1
13	3AC-70177-2	25升燃油箱总成	FUEL TANK ASSY 25L	1
14	3C7-70050-1	* 燃油表通气盖总成（25升）	* FUEL GAUGE VENT CAP ASSY (25L)	1
15	3AC-70052-1	* 燃油箱盖总成	* FUEL TANK CAP ASSY	1
16	3AC-70055-0	* 挡圈	* RETAINING RING	1
18	3C7-70155-0	* 吸油弯管总成(25升)	* PICK-UP ELBOW ASSY (25L)	1
19	3E0-70270-0	* 快速接头(公)	* QUICK-CONNECTOR (MALE)	1
20	3C7-70199-0	* O型圈	* O-RING	1
21	3C7-70113-0	* 滤清器	* FILTER	1
22	3AC-70157-0	* 带油量计的燃油吸油总成	* FUEL PICK-UP ASSY W/GAUGE	1
23	3AC-70140-0	* 螺钉	* SCREW	4
24	3AC-70145-0	* 垫圈	* WASHER	4
25	3AC-70150-0	* 衬垫	* GASKET	1

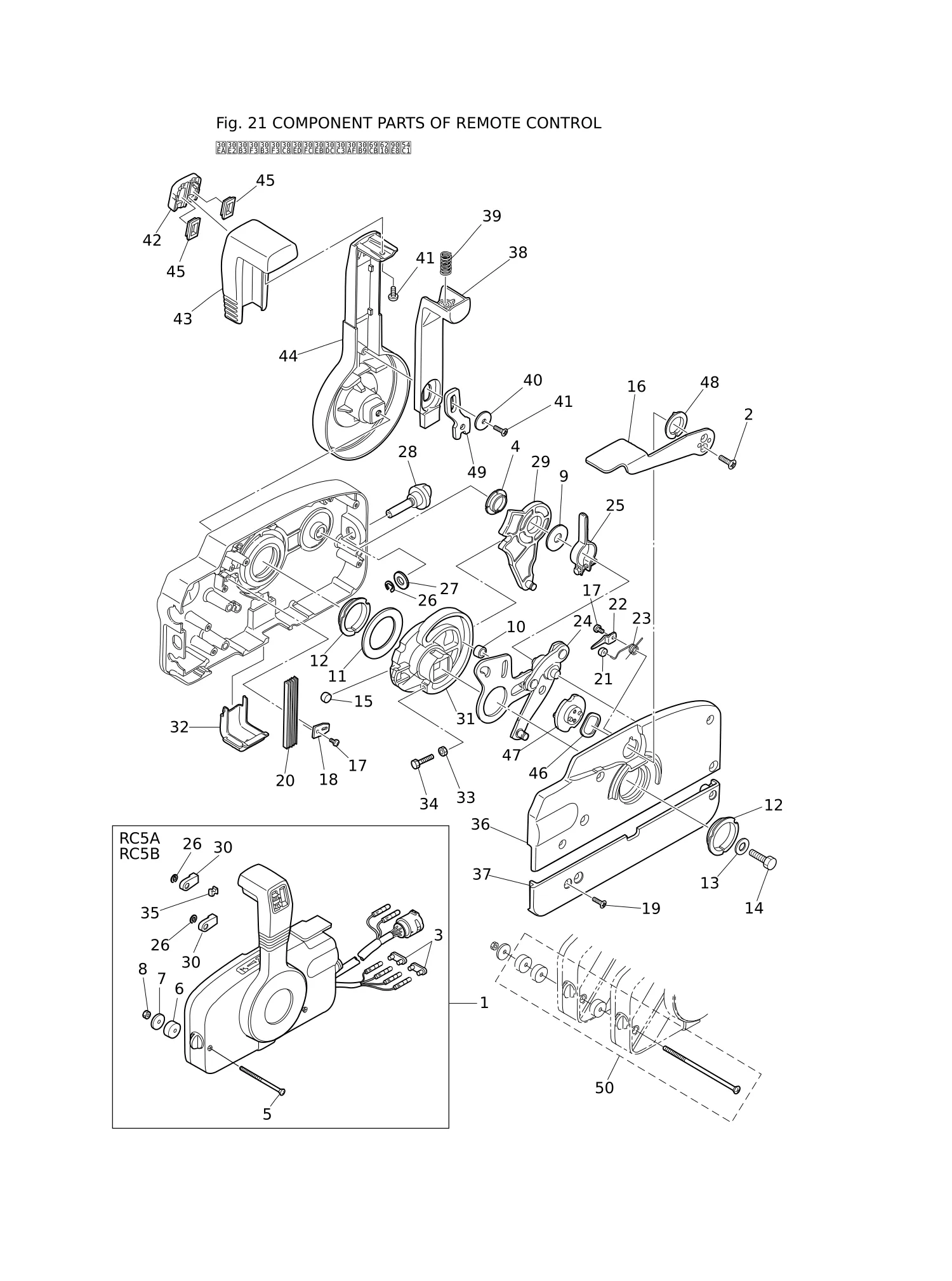

图 22遥控器零部件 COMPONENT PARTS OF REMOTE CONTROL

REF	零件编号	中文名称	英文名称	数量
1	3ACQ84330-0	遥控头总成(RC5A)	REMOTE CONTROL HEAD ASSY (RC5A)	1
1	3B7Q84340-3	遥控头总成(RC5B)	REMOTE CONTROL HEAD ASSY (RC5B)	1
2	921603-0512	* 螺钉	* SCREW	2
3	353-76037-0	* 线缆端子塞	* CABLE TERMINAL PLUG	2
4	3A3-84432-0	* 衬套	* BUSHING	1
5	3A3-84375-0	* 螺钉	* SCREW	3
6	3A3-84374-0	* 隔套	* SPACER	3
7	353-84371-0	* 垫圈	* WASHER	3
8	930103-0600	螺母	* NUT	3
9	3A3-84383-0	* 垫圈	* WASHER	1
10	3A3-84421-0	* 滚轮	* ROLLER	1
11	3A3-84422-0	* 推力板	* THRUST PLATE	1
12	3A3-84431-0	* 衬套	* BUSHING	2
13	940103-0800	* 垫圈	* WASHER	1
14	3A3-84442-0	螺栓	* BOLT	1
15	353-84388-0	* 定位滚轮	* DETENT ROLLER	1
16	3B7Q84312-0	* 自由节流杆	* FREE THROTTLE LEVER	1
17	921503-0406	* 螺钉	* SCREW	2
18	3A3-84423-0	* 定位器挡圈	* DETENT RETAINER	1
19	921603-0518	* 螺钉	* SCREW	5
20	3A3-84307-0	* 定位弹簧	* DETENT SPRING	5
21	3A3-84424-0	* 自由节流滚轮	* FREE THROTTLE ROLLER	1
22	3A3-84426-0	* 滚柱保持架	* ROLLER RETAINER	1
23	3A3-84425-0	* 自由节流弹簧	* FREE THROTTLE SPRING	1
24	3A3-84365-1	* 节气门摇臂	* THROTTLE ARM	1
25	3A3-84428-0	* 油门摩擦摇臂	* THROTTLE FRICTION ARM	1
26	945303-0600	* E型卡环 d=6	* E-RING d=6	3
27	353-84394-0	* 垫圈	* WASHER	1
28	3A3-84427-0	* 调节螺钉	* ADJUST SCREW	1
29	3A3-84381-0	* 换挡齿轮总成	* SHIFT GEAR ASSY	1
30	3A3-83314-2	* 线缆端子	* CABLE TERMINAL	2
31	3A3-84364-2	* 驱动齿轮	* DRIVE GEAR	1
32	3A3-84429-0	* 线束盖	* WIRE COVER	1
33	930103-0500	螺母	* NUT	1
34	910103-0525	螺栓	* BOLT	1
35	3A3-84376-0	* 护孔环	* GROMMET	1
36	3B7Q84441-0	* 后壳体	* REAR HOUSING	1
37	3B7Q84366-0	* 后盖板	* REAR PANEL	1
38	3A3-84401-0	* 空档锁止臂	* NEUTRAL LOCK ARM	1
39	3A3-84403-0	* 空档锁止弹簧	* NEUTRAL LOCK SPRING	1
40	3A3-84407-0	* 垫圈	* WASHER	1
41	921503-0510	* 螺钉	* SCREW	2
42	3A3-84451-0	* 倾斜开关盖	* TILT SWITCH COVER	1
43	3A3-84404-0	* 手柄	* GRIP	1
44	3B7Q84343-0	* 控制杆	* CONTROL LEVER	1
45	3A3-84452-0	* 倾斜开关塞	* TILT SWITCH PLUG	2
46	3A3-84368-0	* 波形垫圈	* WAVE WASHER	1
47	3A3-84391-0	* 自由节流鼓	* FREE THROTTLE DRUM	1
48	3A3-84435-0	* 衬套	* BUSHING	1
49	3A3-84406-0	* 板	* PLATE	1
50	3A3-81301-0	双联遥控套件	TWIN REMOTE CONTROL KIT	1

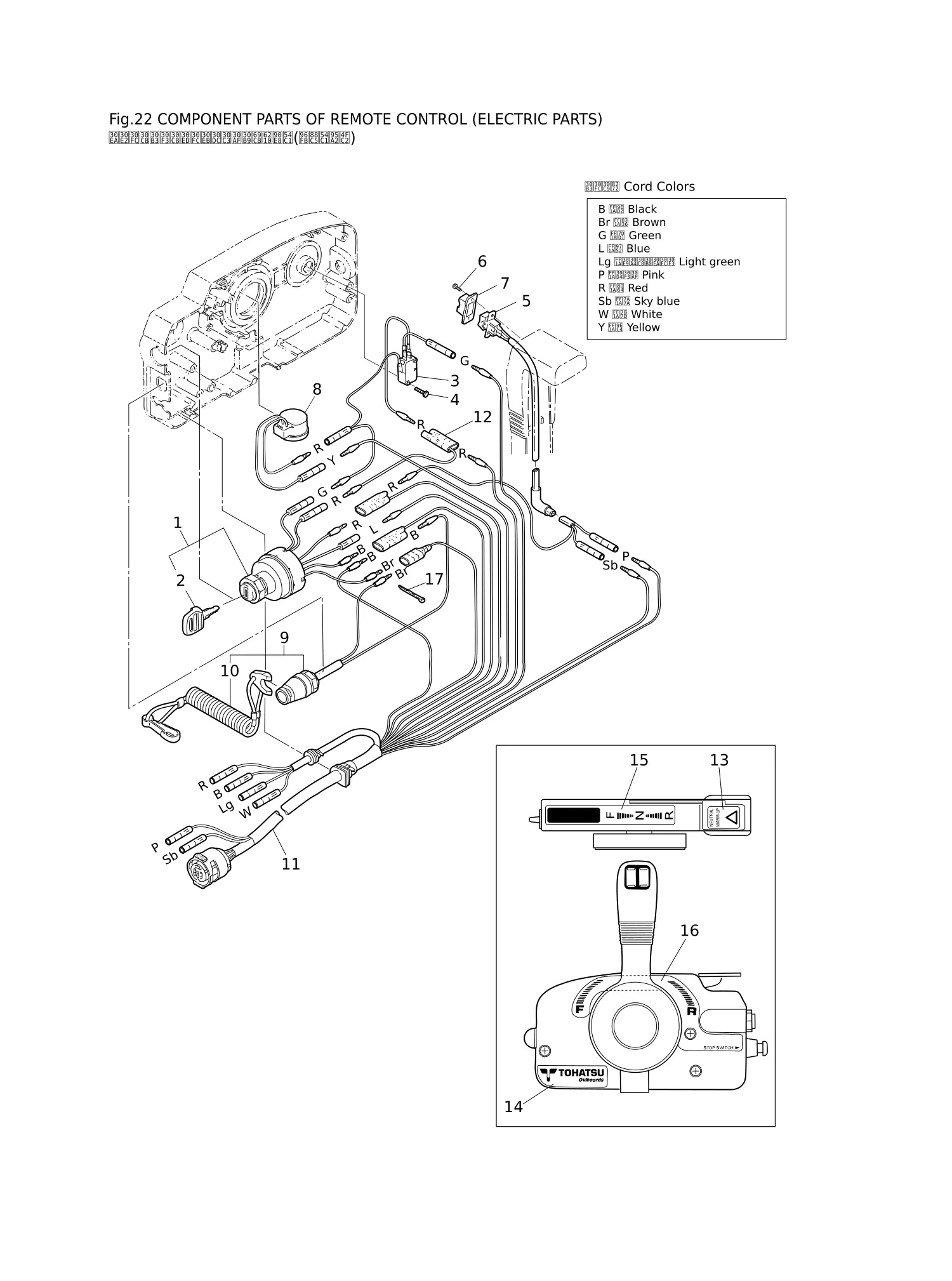

图 23遥控器零部件(电气部件) COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)

REF	零件编号	中文名称	英文名称	数量
1	353-76020-3	主开关总成	MAIN SWITCH ASSY	1
2	3F3-76217-0	* 主开关钥匙 No.301	* MAIN SWITCH KEY No.301	1
2	3F3-76218-0	* 主开关钥匙 No.302	* MAIN SWITCH KEY No.302	1
2	3F3-76219-0	* 主开关钥匙 No.303	* MAIN SWITCH KEY No.303	1
3	3A3-76086-1	空档开关(遥控型)	NEUTRAL SWITCH (REMOTE CONT)	1
4	921503-5316	螺钉	SCREW	2
5	3A3-72560-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
6	921503-0206	螺钉	SCREW	2
7	3A3-72591-0	动力升降倾斜装置开关盖	PTT SWITCH COVER	1
8	3C8-76171-0	过热报警器	OVERHEAT BUZZER	1
9	3A3-06830-0	停止开关总成	STOP SWITCH ASSY	1
10	353-06821-0	* 停机开关拉绳总成	* STOP SWITCH LANYARD ASSY	1
11	3A3-76115-1	线束总成 L=6200	CORD ASSY L=6200	1
12	353-72546-0	辅助拉绳(红) 长200	ASSIST CORD (RED) L=200	1
13	3N5-84331-0	操纵杆贴花	DECAL (LEVER)	1
14	3N5-84333-0	东发贴花	DECAL (TOHATSU)	1
15	3N5-84336-0	挡位标识贴	SHIFT POSITION DECAL	1
16	3N5-84465-0	挡位侧标识贴	SHIFT POSITION SIDE DECAL	1
17	3A3-84398-0	箍带	BAND	2

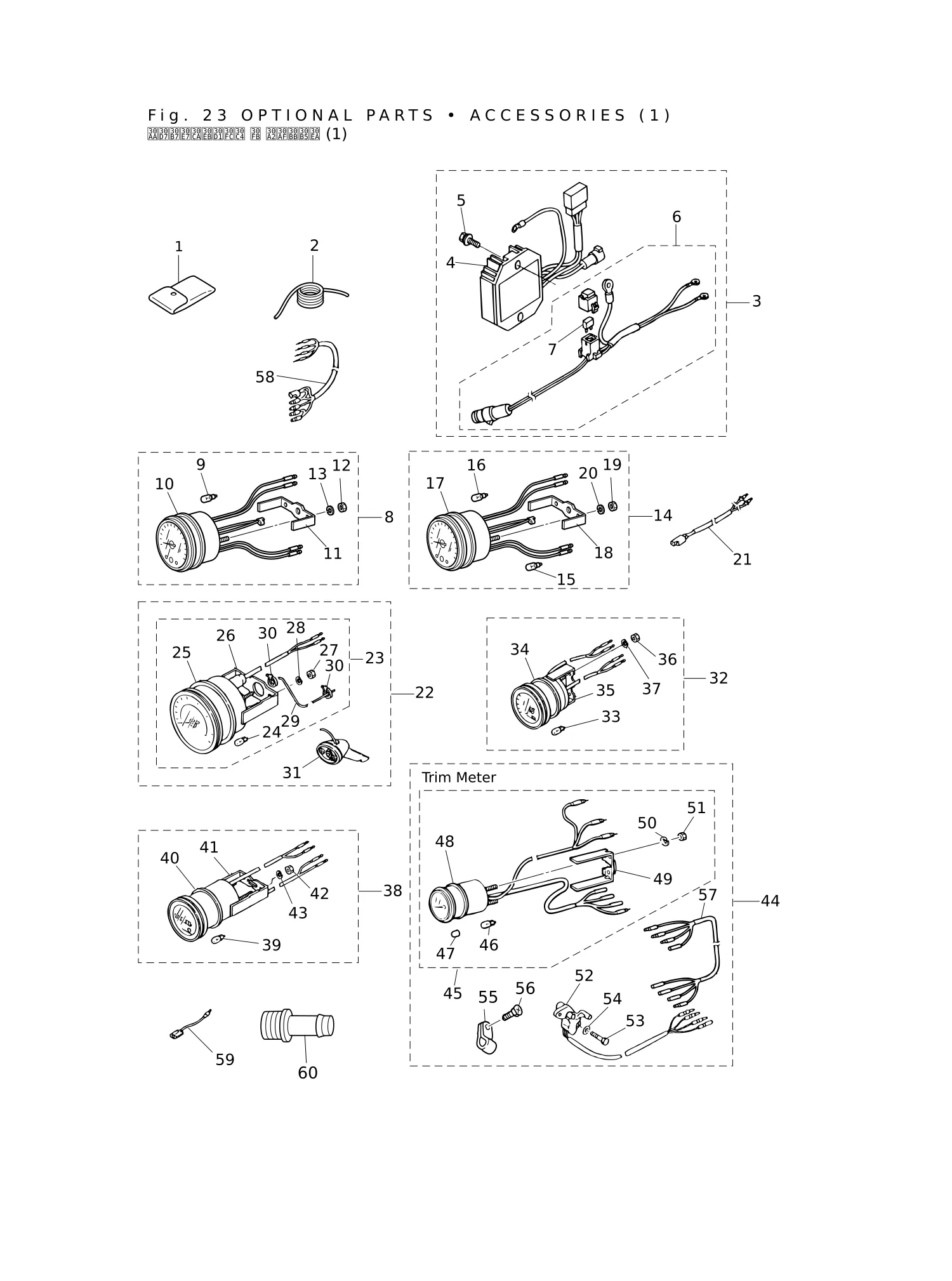

图 24选装配件(1) OPTIONAL PARTS · ACCESSORIES (1)

REF	零件编号	中文名称	英文名称	数量
1	3BJ-72100-0	工具包	TOOL KIT	1
2	3B7-72201-0	安全绳φ5-1600	SAFETY ROPE φ5-1600	1
3	3AC-76160-2	整流器套件	RECTIFIER KIT	1
4	3AC-76065-2	* 整流器总成	* RECTIFIER COMPLETE	1
5	910103-5625	螺栓	* BOLT	2
6	3AC-76161-0	* 延长线 L=3000	* EXTENSION CORD L=3000	1
7	3T5-76247-0	** 保险丝 20A	** FUSE 20A	2
8	3B7-72530-2	转速表总成	TACHOMETER ASSY	1
14	3N8-72640-1	带油压灯的转速表	TACHOMETER W/OIL LAMP	1
15	3B7-72658-0	* 油量灯泡 12V-1.7W	* OIL BULB 12V-1.7W	1
19	930103-0500	螺母	* NUT	2
21	361-72539-0	转速表导线 L=6000	TACHOMETER LEAD WIRE L=6000	1
22	3E0-72522-0	速度表套件(50英里/时)	SPEEDOMETER KIT (50MPH)	1
22	3E0-72644-0	速度表套件(75英里/时)	SPEEDOMETER KIT (75MPH)	1
23	3E0-72648-0	* 速度表总成 (50英里/小时)	* SPEEDOMETER ASSY (50MPH)	1
23	3E0-72649-0	* 速度表总成 (75英里/小时)	* SPEEDOMETER ASSY (75MPH)	1
24	3B7-72659-0	仪表灯泡 12V-1.8W	** METER BULB 12V-1.8W	1
25	3B7-72656-0	仪表阻尼器	** METER DAMPER	1
26	3B7-72661-0	** 安装板	** FITTING PLATE	1
27	930203-0500	螺母	** NUT	2
28	941303-0500	** 弹簧垫圈	** SPRING WASHER	2
29	3B7-72650-0	** 速度表软管 L=6000	** SPEEDOMETER TUBE L=6000	1
30	3B7-72651-0	** 速度表传动带	** SPEEDOMETER BAND	2
31	3B7-72643-0	* 速度表传感器	* SPEEDOMETER SENSOR	1
32	3E0-72529-0	电压表总成	VOLTMETER ASSY	1
38	3E0-72524-0	计时器总成	HOUR METER ASSY	1
39	3B7-72657-0	* 仪表灯泡 12V-1.7W	* METER BULB 12V-1.7W	1
41	3B7-72662-0	* 安装板	* FITTING PLATE	1
44	3R0-72525-2	配平表套件	TRIM METER KIT	1
45	3T1-72571-0	* 配平表总成	* TRIM METER ASSY	1
46	3T1-72659-0	仪表灯泡 12V-1.7W	** METER BULB 12V-1.7W	1
47	3T1-72653-0	仪表灯泡盖	** METER BULB CAP	1
48	3B7-72655-0	仪表阻尼器	** METER DAMPER	1
49	3T1-72665-0	** 安装板	** FITTING PLATE	1
50	941303-0400	** 弹簧垫圈	** SPRING WASHER	2
51	930203-0400	螺母	** NUT	2
52	3Z4-72574-0	* 配平传感器 L=1700	* TRIM SENSOR L=1700	1
53	910103-0620	螺栓	* BOLT	2
54	3C8-66308-0	* 垫圈 6-16-1.5	* WASHER 6-16-1.5	2
55	336-06973-0	* 卡箍 6-9.5L	* CLAMP 6-9.5L	1
56	921503-5612	* 螺钉	* SCREW	1
57	3T1-72573-0	* 延长线(配平传感器) L=6000	* EXTENSION CORD (TRIM SENSOR) L=6000	1
58	3R0-72537-1	仪表引线 长2000mm	METER LEAD WIRE L=2000	1
59	353-72546-0	辅助拉绳(红) 长200	ASSIST CORD (RED) L=200	1
59	353-72547-0	辅助拉绳(蓝) 长200	ASSIST CORD (BLU) L=200	1
59	353-72548-0	辅助拉绳(黑) 长200	ASSIST CORD (BLK) L=200	1
60	3T1-72405-0	软管接头(水工)	HOSE JOINT (WATER-WORKS)	1

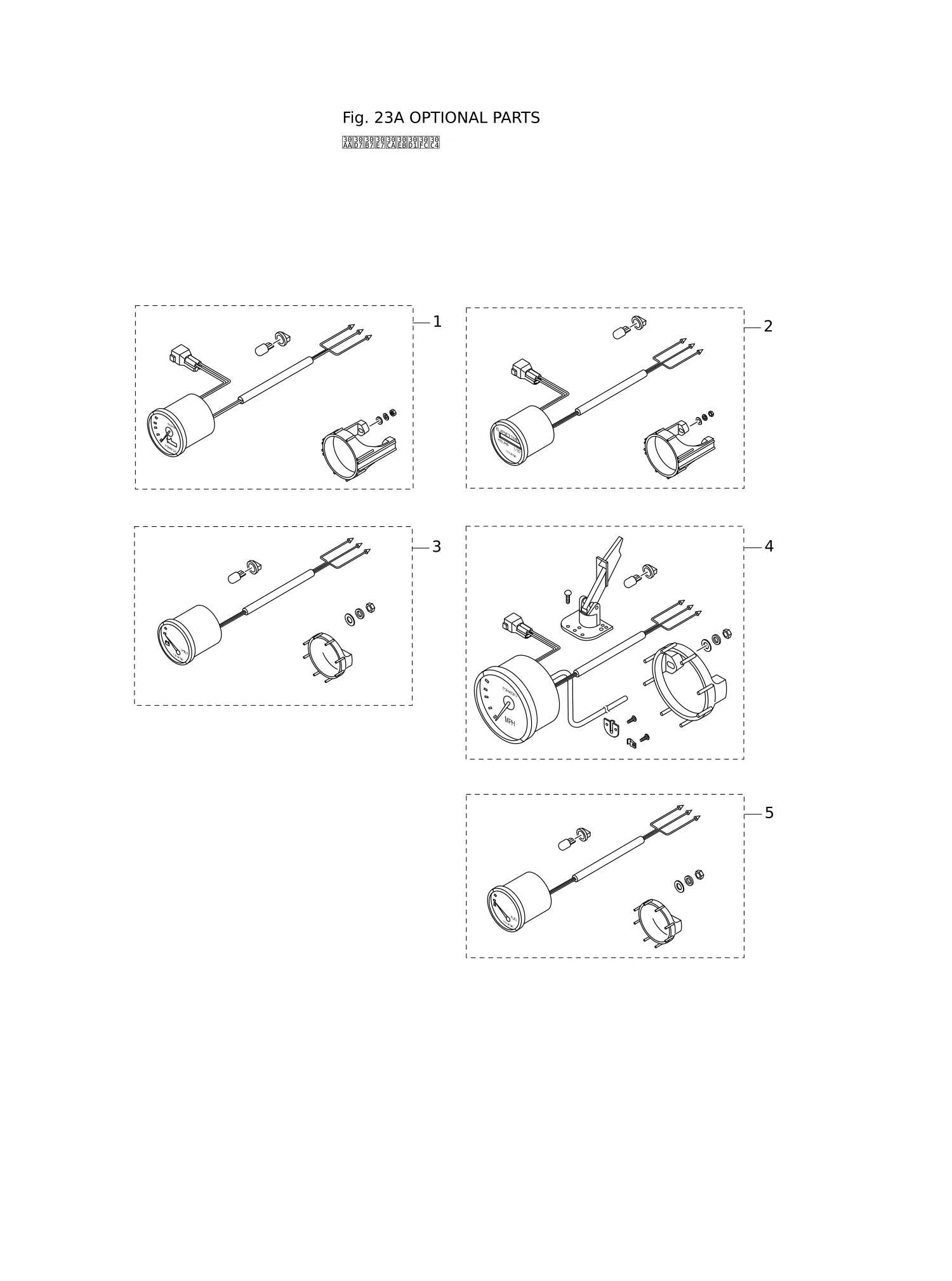

图 25选装件(2) OPTIONAL PARTS (2)

REF	零件编号	中文名称	英文名称	数量
1	3GF-72571-0	配平表套件	TRIM METER KIT	1
1	3GL-72571-0	配平表套件	TRIM METER KIT	1
2	3GF-72524-0	计时器总成	HOUR METER ASSY	1
2	3GL-72524-0	计时器总成	HOUR METER ASSY	1
3	3GF-72529-0	电压表总成	VOLTMETER ASSY	1
3	3GL-72529-0	电压表总成	VOLTMETER ASSY	1
4	3GF-72672-0	速度表套件(60英里/时)	SPEEDOMETER KIT (60MPH)	1
4	3GL-72672-0	速度表套件(60英里/时)	SPEEDOMETER KIT (60MPH)	1
5	3GF-72596-0	燃油表总成	FUEL METER ASSY	1
5	3GL-72596-0	燃油表总成	FUEL METER ASSY	1

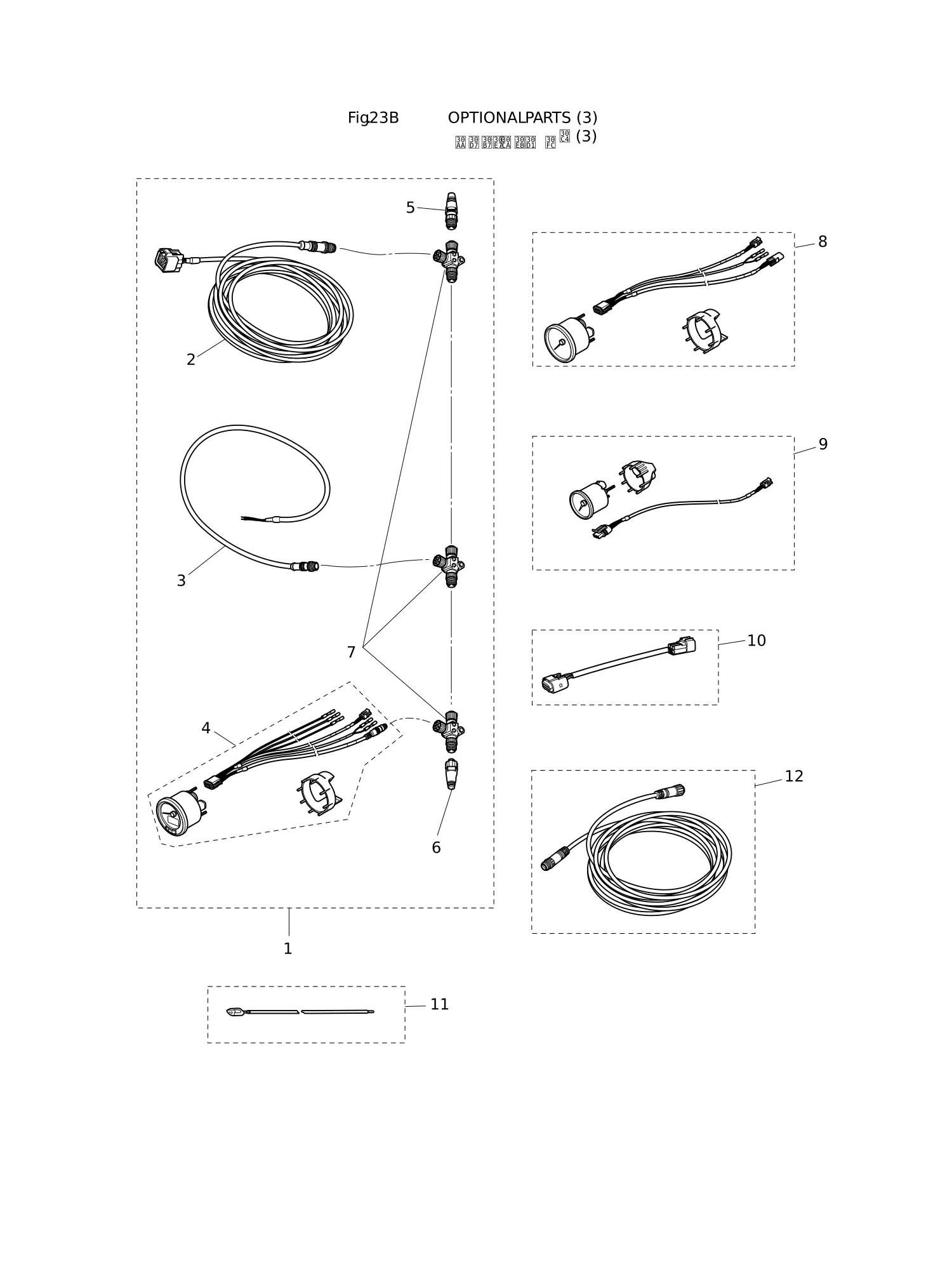

图 26选装件(3) OPTIONAL PARTS (3)

REF	零件编号	中文名称	英文名称	数量
1	3KY-72637-0	TOCS启动器套件	TOCS STARTER KIT	1
2	3KY-76131-0	* 发动机垂吊电缆	* ENGINE DROP CABLE	1
3	3KY-76120-0	蓄电池电缆	* BATTERY CABLE	1
4	3KY-72638-0	* 转速表套件	* TACHOMETER KIT	1
5	3KY-76153-0	* 终端接头(公)	* TERMINATOR (MALE)	1
6	3KY-76152-0	* 终端接头(母)	* TERMMINATOR (FEMALE)	1
7	3KY-76151-0	* 三通接头	* TEE CONNECTOR	3
8	3KY-72672-0	速度表套件(60英里/时)	SPEEDOMETER KIT (60MPH)	1
9	3KY-72523-0	配平表套件	TRIM METER KIT	1
9	3KY-72531-0	电压表套件	VOLTMETER KIT	1
9	3KY-72600-0	燃油表套件	FUEL METER KIT	1
10	3NV-76133-0	接口电缆	INTERFACE CABLE	1
11	3KY-72573-0	延长线(配平传感器)	EXTENSION CORD (TRIM SENSOR)	1
12	3KY-76132-0	主干电缆	BACKBONE CABLE	1

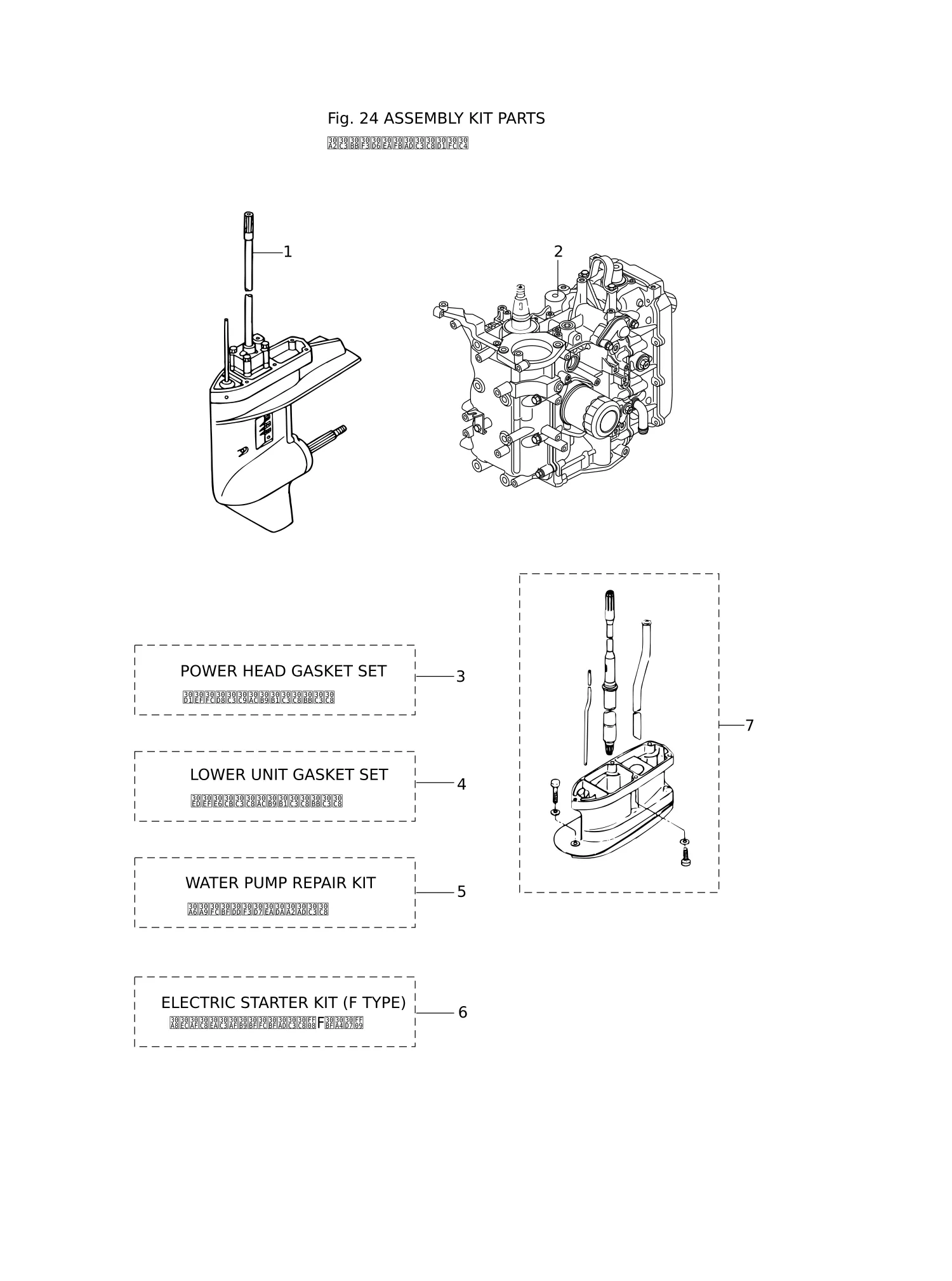

图 27套件零件总成 ASSEMBLY · KIT PARTS

REF	零件编号	中文名称	英文名称	数量
1	3NVQ87301-0	下部单元总成 (S)	LOWER UNIT ASSY (S)	1
1	3NVQ87302-0	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	3NVQ87304-0	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
2	3NVB87090-0	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
2	3NWB87090-0	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
3	346-01032-0	* 节温器盖衬垫	* THERMOSTAT CAP GASKET	1
3	346-01215-0	* 油封 16-28-6	* OIL SEAL 16-28-6	1
3	3AC-02012-0	* O型圈1.9-31.2	* O-RING 1.9-31.2	6
3	3AC-10104-0	* 衬垫	* GASKET	1
3	3AC-87121-1	动力头衬垫套装	POWER HEAD GASKET SET	1
3	3AD-01005-0	* 气缸盖垫片	* CYLINDER HEAD GASKET	1
3	3H8-07025-0	* 油封 18-35-8	* OIL SEAL 18-35-8	1
3	3R0-00121-0	* 油封 35-50-8	* OIL SEAL 35-50-8	1
3	3R0-00122-0	* 油封 38-50-8	* OIL SEAL 38-50-8	1
3	3R0-01024-0	* 气缸盖罩衬垫	* CYLINDER HEAD COVER GASKET	1
3	3R0-01303-0	* 发动机底座衬垫	* ENGINE BASEMENT GASKET	1
3	3R0-07422-0	* O型圈 3.1-24.4	* O-RING 3.1-24.4	1
3	3R0-07639-0	* O型圈 φ1.9	* O-RING φ1.9	1
3	3R0-61012-0	* 驱动轴壳体衬垫	* DRIVE SHAFT HOUSING GASKET	1
3	3R3-01144-0	* 衬垫	* GASKET	1
4	332-60006-0	* 衬垫 8.1-15-1	* GASKET 8.1-15-1	2
4	332-60103-0	* O型圈 3-62.5	* O-RING 3-62.5	1
4	332-66021-0	* O型圈 2.4-5.8	* O-RING 2.4-5.8	2
4	336-62415-0	* O型圈 3.5-36	* O-RING 3.5-36	1
4	346-65013-0	* 油封 17-30-9	* OIL SEAL 17-30-9	1
4	3AC-60111-0	* 油封 18-28-8	* OIL SEAL 18-28-8	2
4	3C8-66032-0	* O型圈 3.5-21.7	* O-RING 3.5-21.7	1
4	3R0-87321-1	下部单元衬垫套件	LOWER UNIT GASKET SET	1
5	332-65022-0	* 键 20-4.6-2	* KEY 20-4.6-2	1
5	345-65021-0	* 水泵叶轮	* WATER PUMP IMPELLER	1
5	348-65029-1	* 导板垫片	* GUIDE PLATE GASKET	1
5	3R0-65011-0	* 泵壳衬套	* PUMP CASE LINER	1
5	3R0-65018-0	* 泵壳衬垫	* PUMP CASE GASKET	1
5	3R0-65025-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
5	3R0-87322-0	水泵维修套件	WATER PUMP REPAIR KIT	1
6	398-76083-0	* 空档开关执行器	* NEUTRAL SWITCH ACTUATOR	1
6	3AA-76026-0	* 主开关总成	* MAIN SWITCH ASSY	1
6	3AA-76145-0	* 端子盖 13-13-28	* TERMINAL CAP 13-13-28	1
6	3AC-76065-2	* 整流器总成	* RECTIFIER COMPLETE	1
6	3AC-76066-0	* 保险丝线束总成	* FUSE WIRE ASSY	1
6	3AC-76120-0	蓄电池电缆 L=2500	* BATTERY CABLE L=2500	1
6	3C8-76007-0	* 减震器	* DAMPER	1
6	3C8-76010-1	* 启动电机总成	* STARTER MOTOR ASSY	1
6	3H8-76040-0	* 启动电磁阀	* STARTER SOLENOID	1
6	3NV-76080-0	* 空档开关	* NEUTRAL SWITCH	1
6	3NV-76081-0	* 空档开关支架	* NEUTRAL SWITCH BRACKET	1
6	3NV-76300-0	电动启动器套件(F)	ELECTRIC STARTER KIT (F)	1
6	3R0-76009-0	* 启动电机带	* STARTER MOTOR BAND	1
6	3R3-76141-0	* 启动电缆 L=270	* STARTER CABLE L=270	1
6	3Y0-76145-0	* 端子盖 8-18-28	* TERMINAL CAP 8-18-28	1
6	3Y1-76145-0	* 端子盖 8-13-28	* TERMINAL CAP 8-13-28	1
6	910103-5820	螺栓	* BOLT	2
6	910103-5830	螺栓	* BOLT	2
6	9101E3-5616	螺栓	* BOLT	1
7	346-64303-5	* 驱动轴（上长）	* DRIVE SHAFT (UL)	1
7	346-66037-0	* 凸轮杆支架	* CAM ROD HOLDER	1
7	346Q61110-5	* 延伸壳体	* EXTENSION HOUSING	1
7	3NV-66014-0	* 凸轮杆(上左)	* CAM ROD (UL)	1
7	3NVQ87314-0	延伸壳体套件(超长)	EXTENSION HOUSING KIT (UL)	1
7	3P0-66233-0	* 垫圈 8.1-16-1.5	* WASHER 8.1-16-1.5	5
7	3R0-65120-0	* 水管 (上左)	* WATER PIPE (UL)	1
7	9161E3-0835	螺栓	* BOLT	4
7	9161E3-0845	螺栓	* BOLT	1
7	951407-0312	* 弹簧销 3-12	* SPRING PIN 3-12	1
