四冲程 4-Stroke · 2020 年 · 手册号 002-21052-0BX · 共 17 个部位 · 412 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

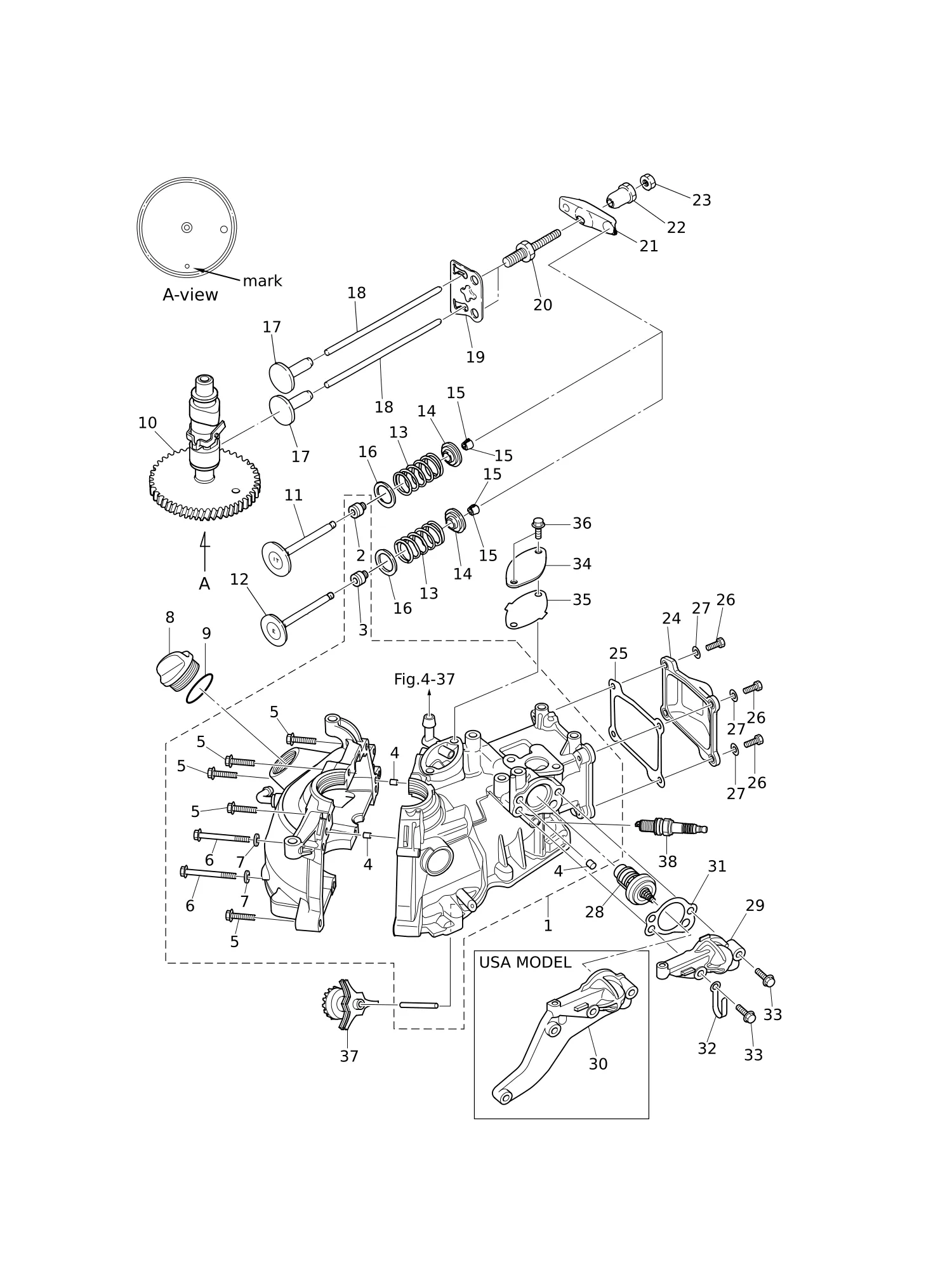

| 1 | 3GTB01100-2 | 气缸体与曲轴箱总成 | CYL BLOCK & CRANKCASE ASSY | 1 |
| 2 | 3R3-07204-0 | * 进气阀杆油封 | * INTAKE VALVE STEM SEAL | 1 |
| 3 | 3R3-07206-0 | * 排气阀杆密封 | * EXHAUST VALVE STEM SEAL | 1 |
| 4 | 345-01111-0 | * 定位销 6-12 | * DOWEL PIN 6-12 | 3 |
| 5 | 9101F4-5635 | 螺栓 | * BOLT | 6 |
| 6 | 9161F9-0675 | 螺栓 | * BOLT | 2 |
| 7 | 9401E3-0600 | * 垫圈 | * WASHER | 2 |
| 8 | 3R0-71015-1 | 机油加注口盖 | OIL FILLER CAP | 1 |
| 9 | 3R0-07422-0 | O型圈 3.1-24.4 | O-RING 3.1-24.4 | 1 |
| 10 | 3GT-07810-1 | 凸轮轴总成 | CAMSHAFT ASSY | 1 |
| 11 | 3AB-07201-0 | 进气阀 | INTAKE VALVE | 1 |
| 12 | 3V1-07202-0 | 排气阀 | EXHAUST VALVE | 1 |
| 13 | 3AE-07203-0 | 阀门弹簧 L=35 | VALVE SPRING L=35 | 2 |
| 14 | 3GT-07921-0 | 固定座 | RETAINER | 2 |
| 15 | 3KY-07923-0 | 开口销 | COTTER | 4 |
| 16 | 3GR-07905-0 | 阀门弹簧座 | VALVE SPRING SEAT | 2 |
| 17 | 3AB-07231-0 | 挺杆 | LIFTER | 2 |
| 18 | 3H6-07232-0 | 推杆 | PUSH ROD | 2 |
| 19 | 3AB-07233-0 | 板 | PLATE | 1 |
| 20 | 3H6-07234-0 | 枢轴螺栓 | PIVOT BOLT | 2 |
| 21 | 3AB-07235-0 | 摇臂 | ROCKER ARM | 2 |
| 22 | 3H6-07236-0 | 枢轴 | PIVOT | 2 |
| 23 | 3H6-07937-0 | 调节螺母 | ADJUSTING NUT | 2 |
| 24 | 3ABB01021-0 | 气缸盖罩 | CYLINDER HEAD COVER | 1 |
| 25 | 3AB-01024-1 | 气缸盖罩垫片 | CYLINDER HEAD COVER GASKET | 1 |
| 26 | 910103-0616 | 螺栓 | BOLT | 4 |
| 27 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 4 |
| 28 | 3H6-01030-0 | 节温器 | THERMOSTAT | 1 |
| 29 | 3ABB01031-0 | 节温器盖 | THERMOSTAT CAP | 1 |
| 30 | 3GTB01031-0 | 节温器盖 | THERMOSTAT CAP | 1 |
| 31 | 3AB-01032-0 | 节温器盖垫片 | THERMOSTAT CAP GASKET | 1 |
| 32 | 398-06972-0 | 卡箍 6.5-67P | CLAMP 6.5-67P | 1 |
| 33 | 9101E3-5630 | 螺栓 | BOLT | 2 |
| 34 | 3AB-07431-0 | 呼吸室盖 | BREATHER CHAMBER COVER | 1 |
| 35 | 3AB-07432-0 | 衬垫 | GASKET | 1 |
| 36 | 910103-5616 | 螺栓 | BOLT | 2 |
| 37 | 3AB-07640-0 | 挡油环 | SLINGER | 1 |
| 38 | 9701-1-1103 | 火花塞 (DCPR6E) | SPARK PLUG(DCPR6E) | 1 |

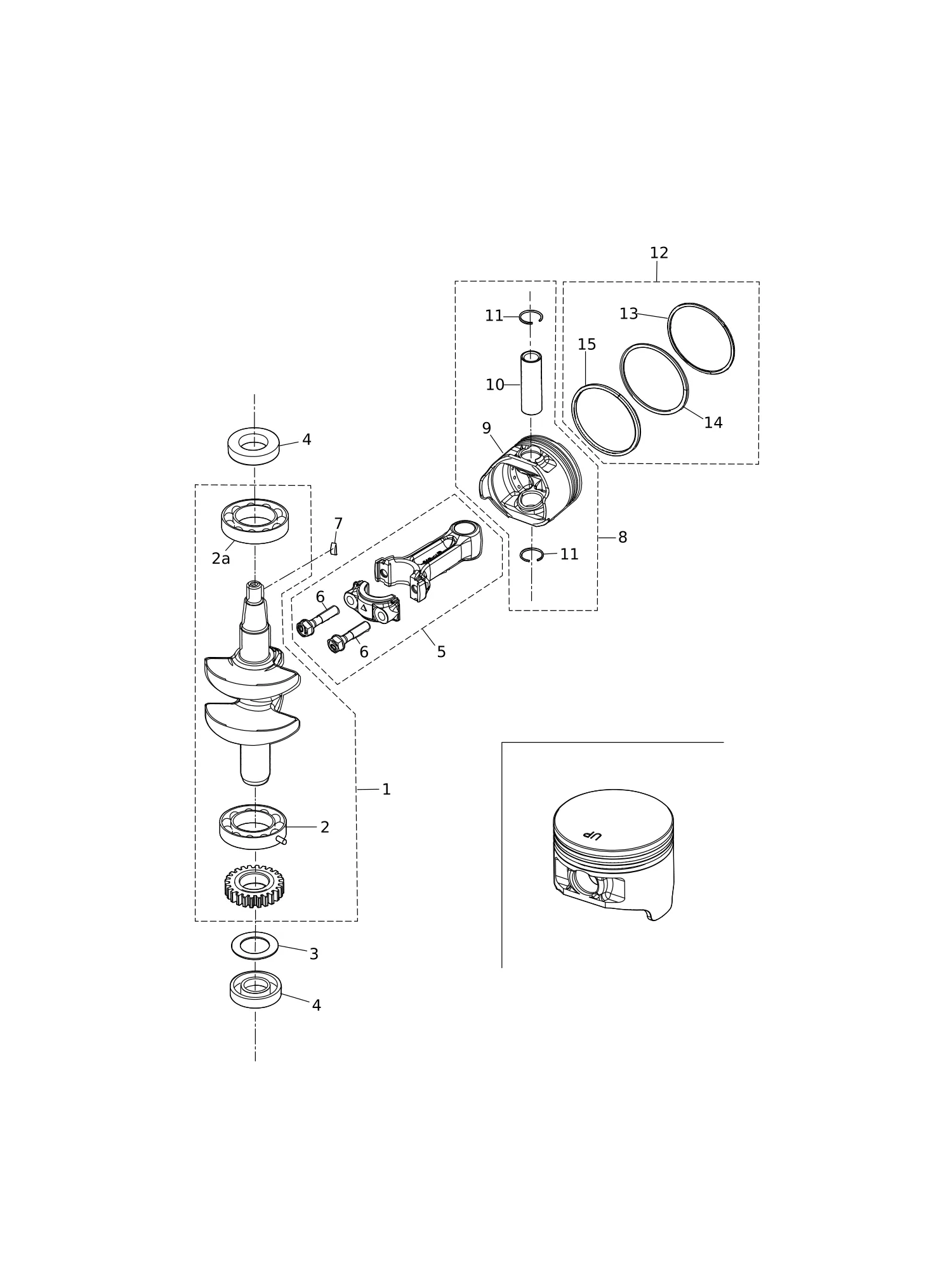

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3AB-00070-1 | 带齿轮曲轴总成 | CRANKSHAFT ASSY W/GEAR | 1 |
| 2a | 9601-3-6204 | * 球轴承 6204 | * BALL BEARING 6204 | 1 |
| 2 | 9603-3-6204 | * 球轴承 6204 | * BALL BEARING 6204 | 1 |
| 3 | 3AB-00115-0 | 止推板20.2-32-1 | THRUST PLATE 20.2-32-1 | 1 |
| 4 | 3AB-00121-0 | 油封 20-35-7 | OIL SEAL 20-35-7 | 2 |
| 5 | 3AB-00040-2 | 连杆总成 | CONNECTING ROD ASSY | 1 |
| 6 | 3AB-00059-0 | * 连杆螺栓 | * CONNECTING ROD BOLT | 2 |
| 7 | 309-00131-0 | 键 10-3.7-3 | KEY 10-3.7-3 | 1 |
| 8 | 3GT-87130-0 | 活塞修理包 | PISTON REPAIR KIT | 1 |
| 9 | 3AB-00001-1 | * 活塞 | * PISTON | 1 |
| 10 | 332-00021-1 | * 活塞销 | * PISTON PIN | 1 |
| 11 | 350-00024-1 | * 活塞销卡簧 | * PISTON PIN CLIP | 2 |
| 12 | 3FK-87123-0 | 活塞环组 | PISTON RING SET | 1 |
| 13 | 3V1-00011-0 | * 活塞环 | * PISTON RING | 1 |
| 14 | 3V1-00012-0 | * 活塞环 | * PISTON RING | 1 |
| 15 | 3V1-00013-0 | * 油环 | * PISTON RING-OIL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

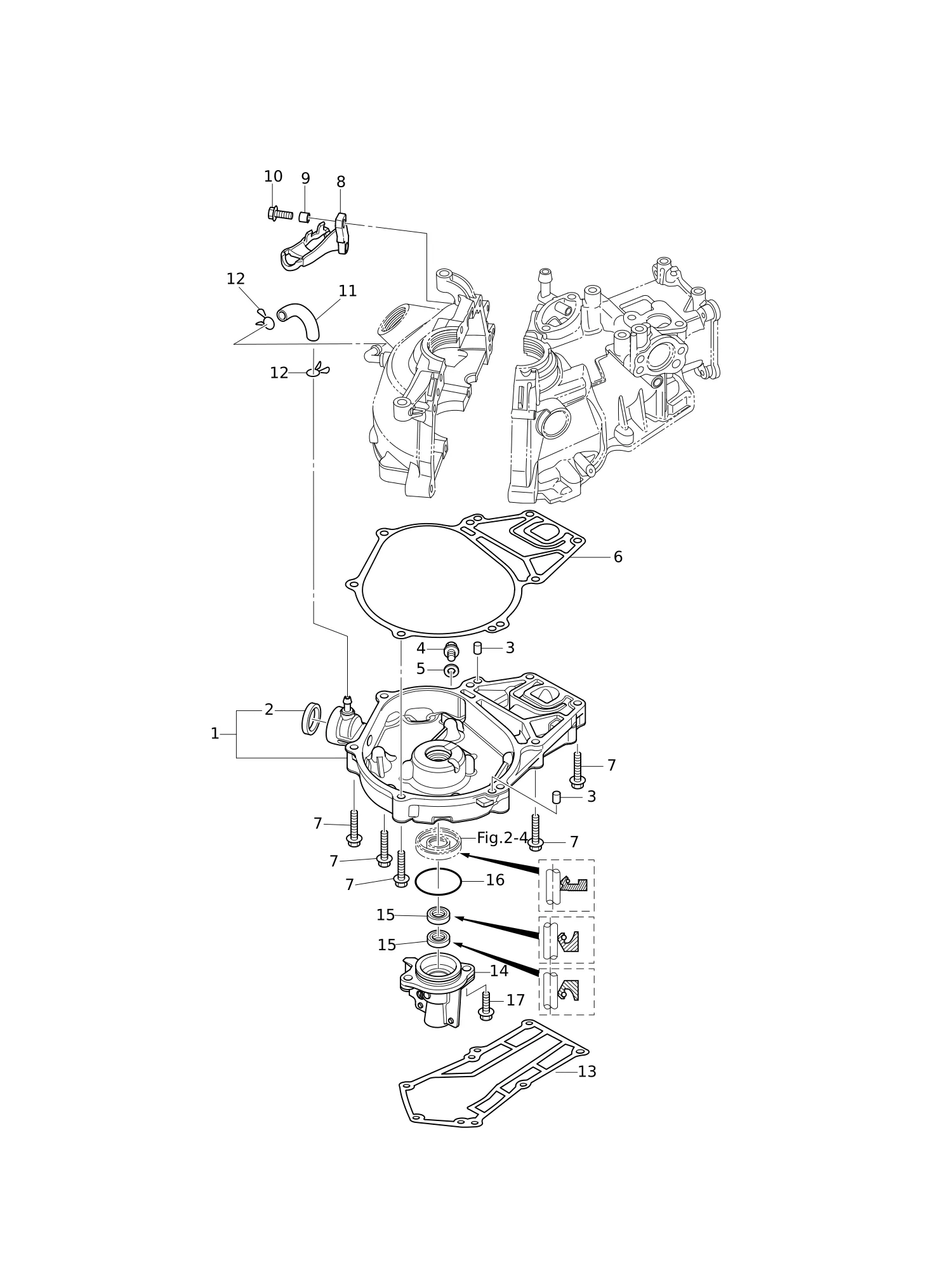

| 1 | 3ABB07400-0 | 油底壳总成 | OILPAN ASSY | 1 |
| 2 | 3AB-07421-0 | * 油位观察窗 | * OIL SIGHT GAUGE | 1 |
| 3 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 2 |
| 4 | 3H6-07705-1 | 放油螺栓10-14 P1.25 | DRAIN BOLT 10-14 P1.25 | 1 |
| 5 | 3H6-07406-0 | 垫圈10.2-19-1 | WASHER 10.2-19-1 | 1 |
| 6 | 3AB-07402-0 | 油底壳垫片 | OILPAN GASKET | 1 |
| 7 | 9101F4-5635 | 螺栓 | BOLT | 8 |
| 8 | 3GT-05101-0 | 支架 | BRACKET | 1 |
| 9 | 3A0-76079-0 | 轴套 6.2-9-7.4 | COLLAR 6.2-9-7.4 | 2 |
| 10 | 910103-5620 | 螺栓 | BOLT | 2 |
| 11 | 98AB-50-080 | 软管 | HOSE | 1 |
| 12 | 338-02215-0 | 卡扣φ10 | CLIP φ10 | 2 |
| 13 | 3AB-61012-0 | 驱动轴壳体衬垫 | DRIVE SHAFT HOUSING GASKET | 1 |
| 14 | 3AB-01210-0 | 曲轴箱盖 | CRANKCASE HEAD | 1 |
| 15 | 3AB-01215-0 | 油封 10.1-20-7 | OIL SEAL 10.1-20-7 | 2 |
| 16 | 3V1-02012-0 | O型圈 2.4-35.2 | O-RING 2.4-35.2 | 1 |
| 17 | 9101E3-5620 | 螺栓 | BOLT | 2 |

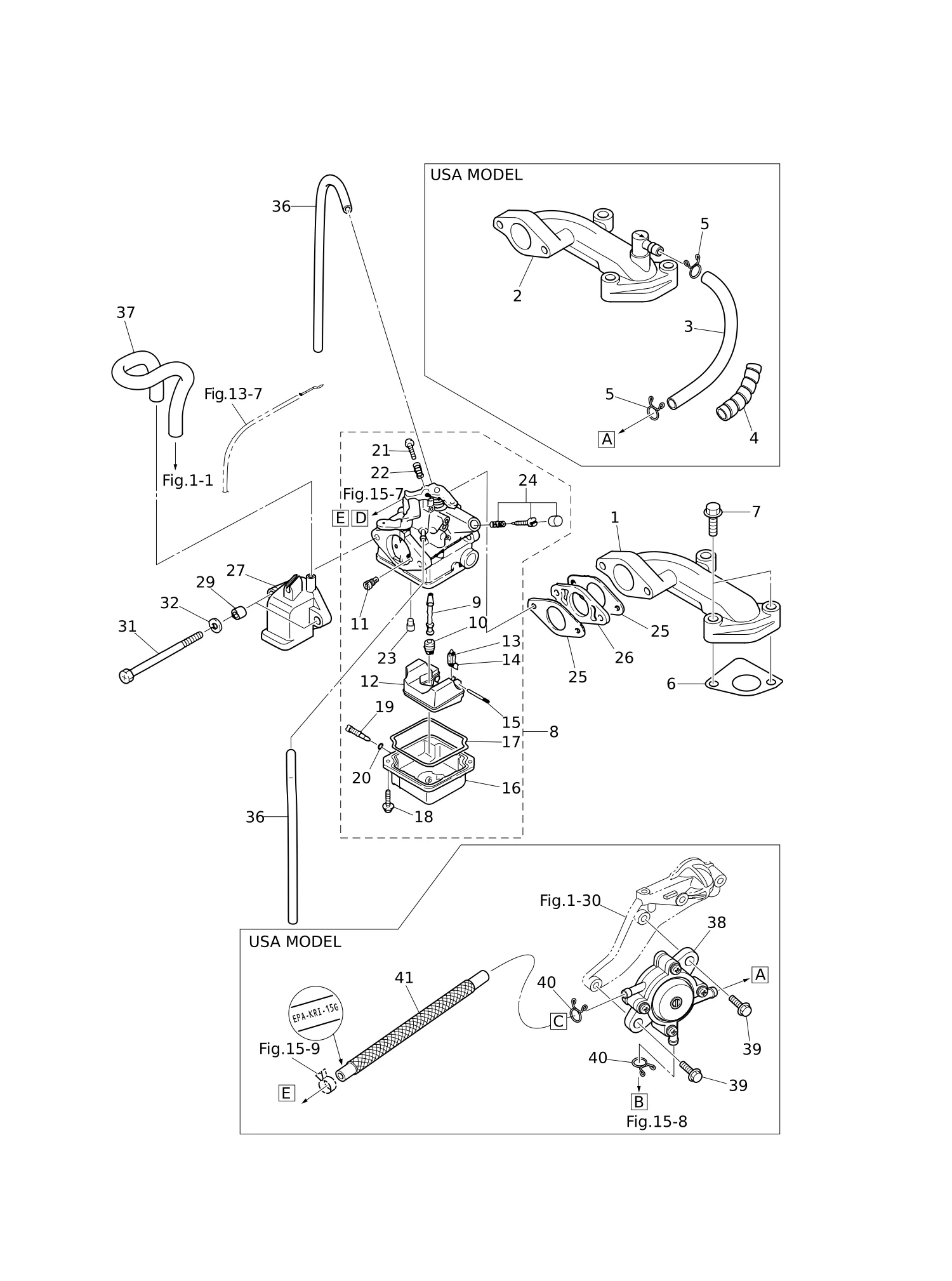

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3BRB02091-1 | 进气歧管 | INTAKE MANIFOLD | 1 |
| 2 | 3GTB02010-1 | 进气歧管总成 | INTAKE MANIFOLD ASSY | 1 |
| 3 | 98AB-70-185 | 软管 | HOSE | 1 |
| 4 | 3V1-76148-0 | 螺旋管保护套φ10-100 | SPIRAL TUBE PROTECTOR φ10-100 | 1 |
| 5 | 3C7-02215-0 | 卡扣φ12 | CLIP φ12 | 2 |
| 6 | 3AB-02104-0 | 进气歧管垫片 | INTAKE MANIFOLD GASKET | 1 |
| 7 | 9101F4-5630 | 螺栓 | BOLT | 2 |
| 8 | 3GT-03200-0 | 化油器总成 | CARBURETOR ASSY | 1 |
| 8 | 3WD-03200-0 | 化油器总成 | CARBURETOR ASSY | 1 |
| 8 | 3WE-03200-0 | 化油器总成 | CARBURETOR ASSY | 1 |
| 9 | 3GT-03252-0 | * 主喷管 | * MAIN NOZZLE | 1 |
| 9 | 3GU-03252-0 | * 主喷管 | * MAIN NOZZLE | 1 |
| 9 | 3R4-03252-0 | * 主喷管 | * MAIN NOZZLE | 1 |
| 10 | 3AU-04468-0 | * 主量孔 (#68) | * MAIN JET (#68) | 1 |
| 10 | 3DJ-04458-0 | * 主量孔 (#58) | * MAIN JET (#58) | 1 |
| 10 | 3R1-03251-0 | * 主量孔 (#65) | * MAIN JET (#65) | 1 |
| 11 | 3GT-04915-0 | * 低速空气喷嘴 (#115) | * SLOW AIR JET (#115) | 1 |
| 11 | 3GT-04925-0 | * 低速空气喷嘴 (#125) | * SLOW AIR JET (#125) | 1 |
| 11 | 3GU-04930-0 | * 低速空气喷嘴(#130) | * SLOW AIR JET (#130) | 1 |
| 12 | 3GT-03231-0 | * 浮子 | * FLOAT | 1 |
| 13 | 3H6-03240-0 | * 浮子阀 | * FLOAT VALVE | 1 |
| 14 | 3H6-03244-0 | * 卡扣 | * CLIP | 1 |
| 15 | 3H6-03232-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 16 | 3GT-03221-0 | * 浮子室 | * FLOAT CHAMBER | 1 |
| 17 | 3H6-03222-0 | * 浮子室O型圈 | * FLOAT CHAMBER O-RING | 1 |
| 18 | 922503-6412 | * 螺钉 | * SCREW | 2 |
| 19 | 3H6-03292-0 | * 放油螺钉 | * DRAIN SCREW | 1 |
| 20 | 3H6-03293-0 | * O型圈 | * O-RING | 1 |
| 21 | 3AB-03265-0 | * 止动螺钉 | * STOP SCREW | 1 |
| 22 | 3H6-03267-0 | * 弹簧 | * SPRING | 1 |
| 23 | 3GT-03256-0 | * 橡胶帽 | * RUBBER CAP | 1 |
| 24 | 3AB-03266-0 | * 调节螺钉 | * PILOT SCREW | 1 |
| 24 | 3AS-03266-0 | * 调节螺钉 | * PILOT SCREW | 1 |
| 25 | 3H6-02011-0 | 化油器垫片 | CARBURETOR GASKET | 2 |
| 26 | 3H6-03952-1 | 绝缘体 | INSULATOR | 1 |
| 27 | 3GR-02409-0 | 进气消声器总成 | INTAKE SILENCER ASSY | 1 |
| 29 | 3A0-76079-0 | 轴套 6.2-9-7.4 | COLLAR 6.2-9-7.4 | 2 |
| 31 | 9161F1-0685 | 螺栓 | BOLT | 2 |
| 32 | 940103-0600 | 垫圈 | WASHER | 2 |
| 36 | 98AB-30-230 | 软管 | HOSE | 2 |
| 37 | 3AB-07435-0 | 呼吸管 | BREATHER HOSE | 1 |
| 38 | 3GT-04000-0 | 燃油泵总成 | FUEL PUMP ASSY | 1 |
| 39 | 910103-5620 | 螺栓 | BOLT | 2 |
| 40 | 338-02215-0 | 卡扣φ10 | CLIP φ10 | 2 |
| 41 | 3GT-02161-0 | 带保护套燃油软管 L=390 | FUEL HOSE W/PROTECTOR L=390 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

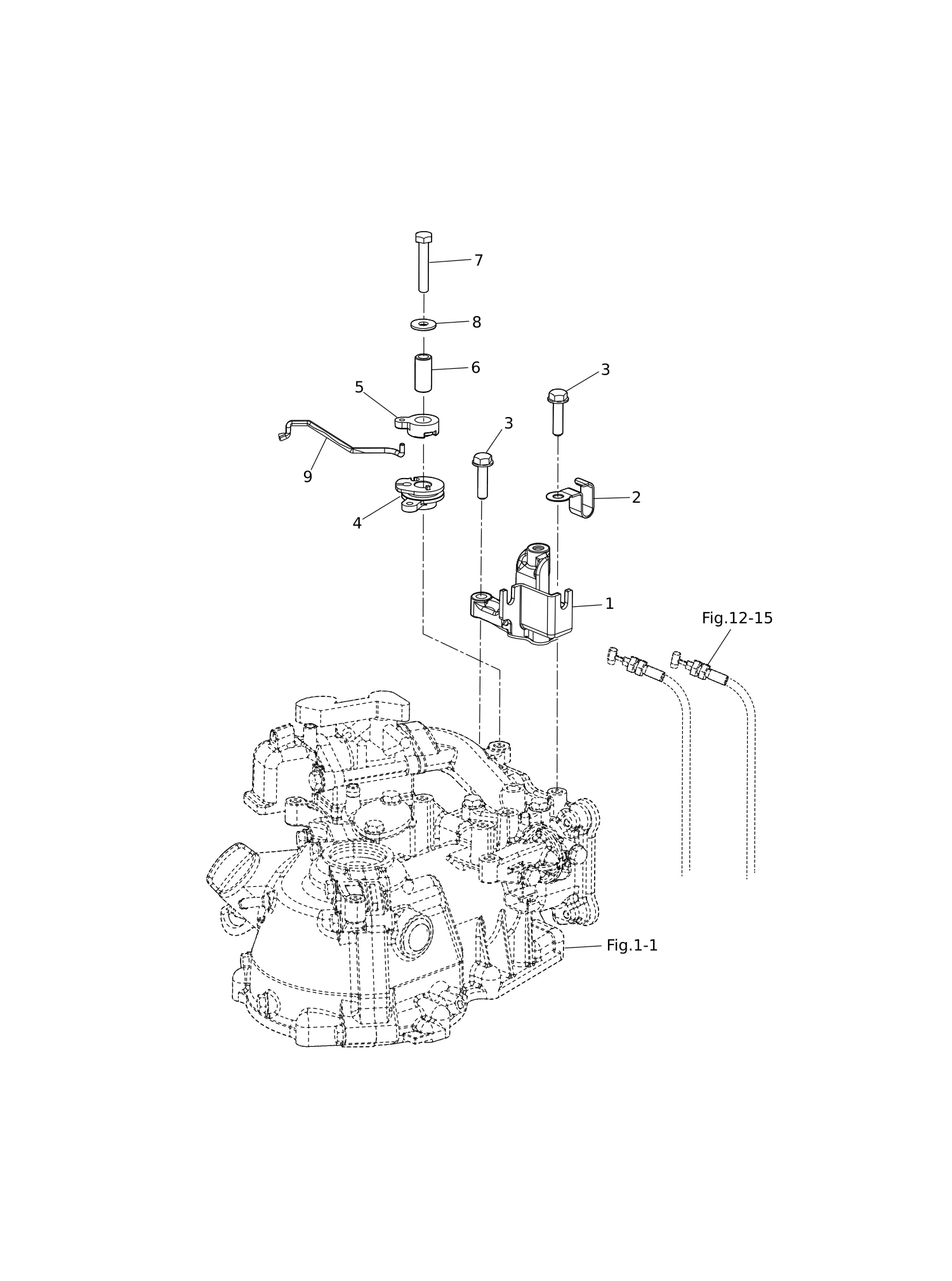

| 1 | 3ABB63508-0 | 节气门拉线支架 | THROTTLE WIRE BRACKET | 1 |
| 2 | 398-06972-0 | 卡箍 6.5-67P | CLAMP 6.5-67P | 1 |
| 3 | 910103-5625 | 螺栓 | BOLT | 2 |
| 4 | 3H6-63611-0 | 节气门鼓轮 | THROTTLE DRUM | 1 |
| 5 | 3H6-63612-0 | 节气门开启器 | THROTTLE OPENER | 1 |
| 6 | 3H6-63618-0 | 轴套 6.5-10.5-22.6 | COLLAR 6.5-10.5-22.6 | 1 |
| 7 | 910103-0635 | 螺栓 | BOLT | 1 |
| 8 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 1 |
| 9 | 3AB-63617-0 | 节气门拉杆 | THROTTLE ROD | 1 |

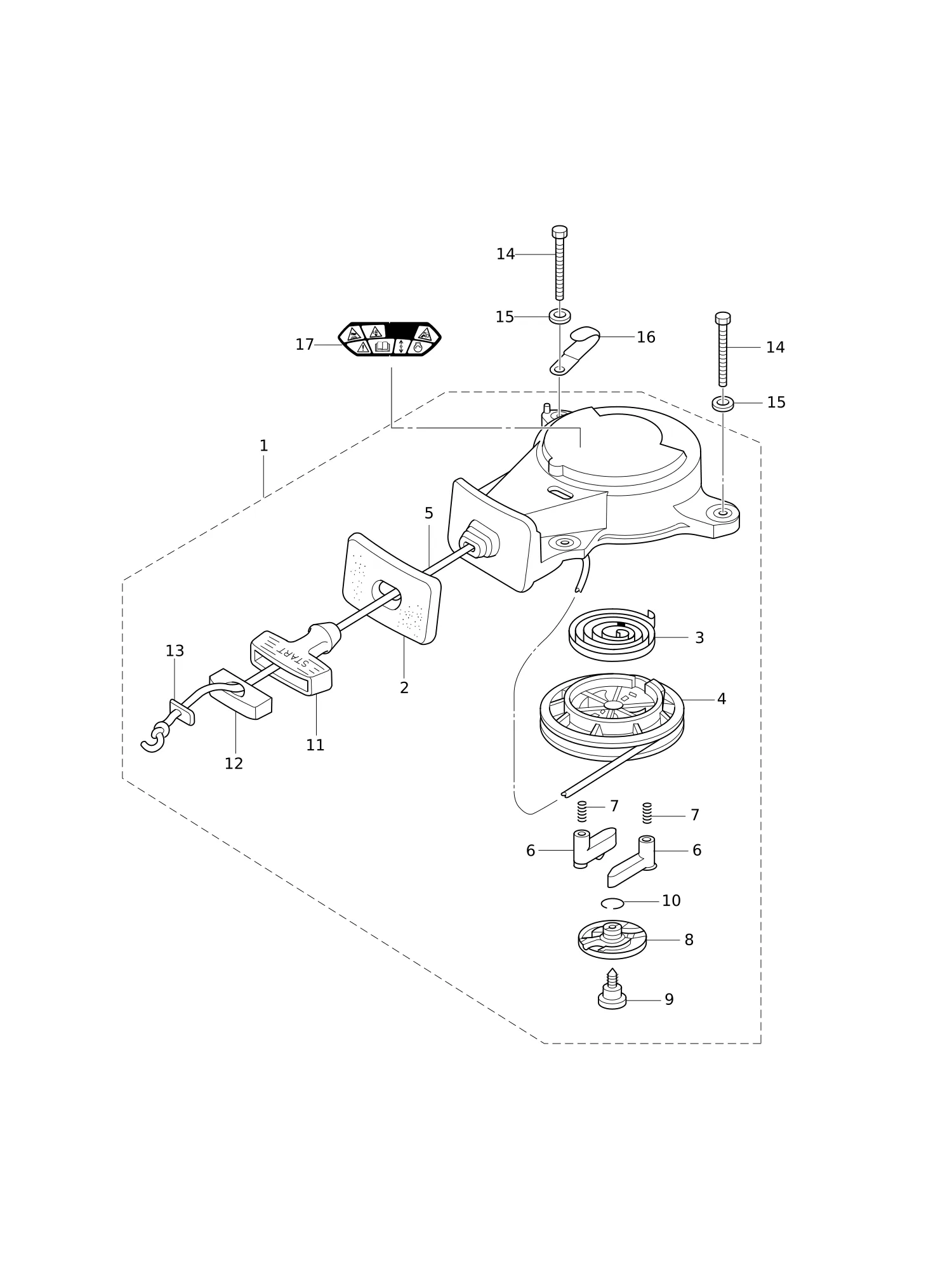

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3AB-05090-0 | 反冲启动器总成 | RECOIL STARTER ASSY | 1 |
| 2 | 3AA-67503-0 | * 启动器密封件 | * STARTER SEAL | 1 |
| 3 | 3AB-05004-0 | * 启动弹簧 | * STARTER SPRING | 1 |
| 4 | 3AB-05104-0 | * 卷轴 | * REEL | 1 |
| 5 | 3AB-05013-0 | * 启动绳 φ3.5-1200 | * STARTER ROPE φ3.5-1200 | 1 |
| 6 | 3AB-05003-0 | * 棘轮 | * RATCHET | 2 |
| 7 | 3AB-05012-0 | * 回位弹簧 | * RETURN SPRING | 2 |
| 8 | 3AB-05006-0 | * 摩擦板 | * FRICTION PLATE | 1 |
| 9 | 3AB-05138-0 | 螺栓 | * BOLT | 1 |
| 10 | 3AB-05007-0 | * 摩擦弹簧 | * FRICTION SPRING | 1 |
| 11 | 3AB-05019-0 | * 启动手柄 | * STARTER HANDLE | 1 |
| 12 | 3AB-05131-0 | * 绳索锚定器 | * ROPE ANCHOR | 1 |
| 13 | 3AB-05134-0 | * 绳索锚定板 | * ROPE ANCHOR PLATE | 1 |
| 14 | 3GT-60108-0 | 预涂层螺栓6-60 | PRE-COATED BOLT 6-60 | 3 |
| 15 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 3 |
| 16 | 398-06972-0 | 卡箍 6.5-67P | CLAMP 6.5-67P | 1 |
| 17 | 3PA-72181-1 | 警示标贴(B型) | CAUTION DECAL (B) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

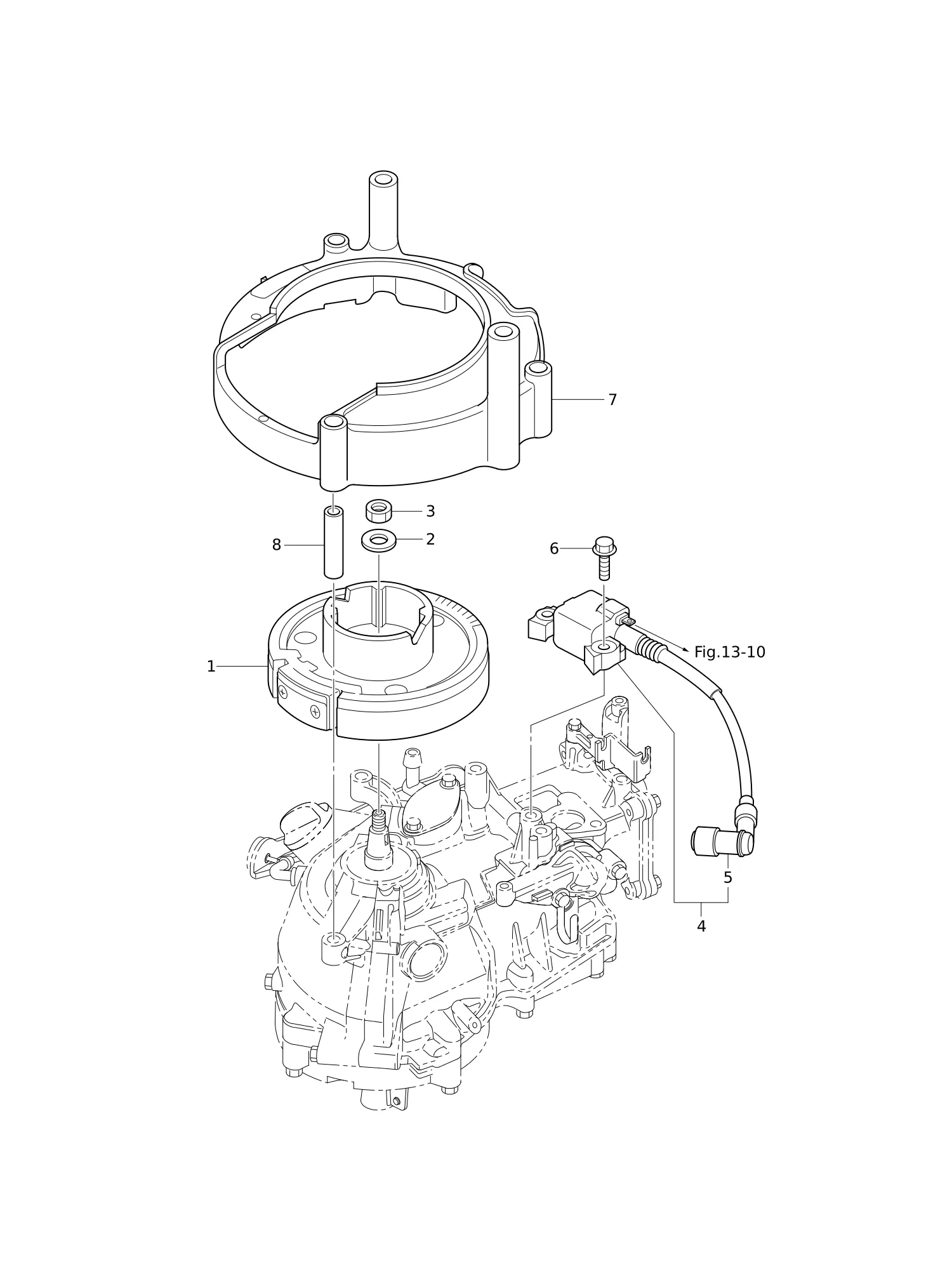

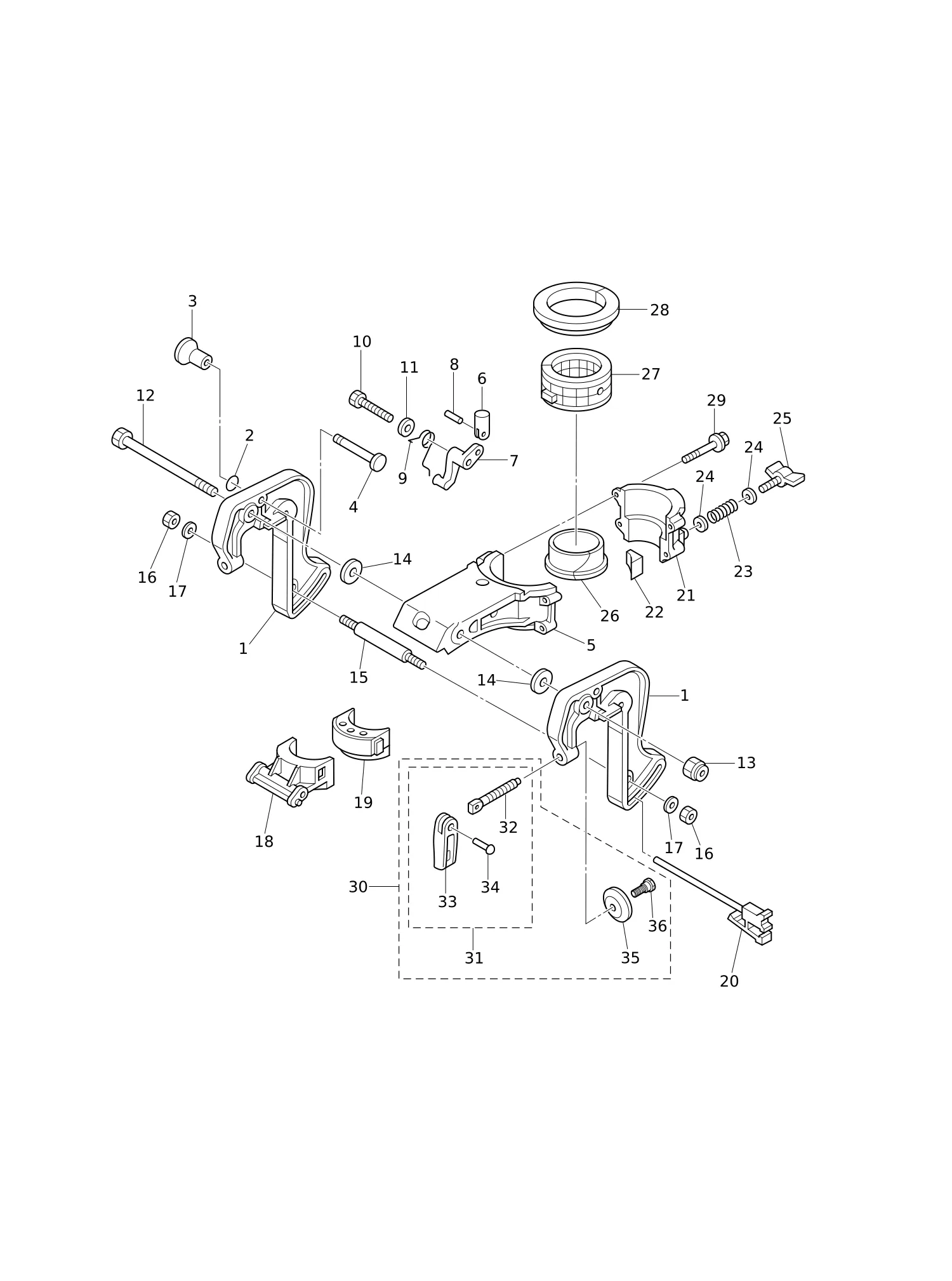

| 1 | 3GT-06001-0 | 飞轮 | FLYWHEEL | 1 |
| 2 | 940121-1000 | 垫圈 | WASHER | 1 |
| 3 | 309-00132-0 | 螺母 10-P1.25 | NUT 10-P1.25 | 1 |
| 4 | 3GT-06041-0 | 带帽点火器 | IGNITER W/R-CAP | 1 |
| 5 | 3H6-06999-0 | * 带电阻火花塞帽 | * PLUG CAP W/RESISTANCE | 1 |
| 6 | 910103-5625 | 螺栓 | BOLT | 2 |
| 7 | 3AB-06300-1 | 齿圈盖总成 | RING GEAR COVER ASSY | 1 |
| 8 | 3AB-06303-1 | 轴套 6.2-9-35 | COLLAR 6.2-9-35 | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

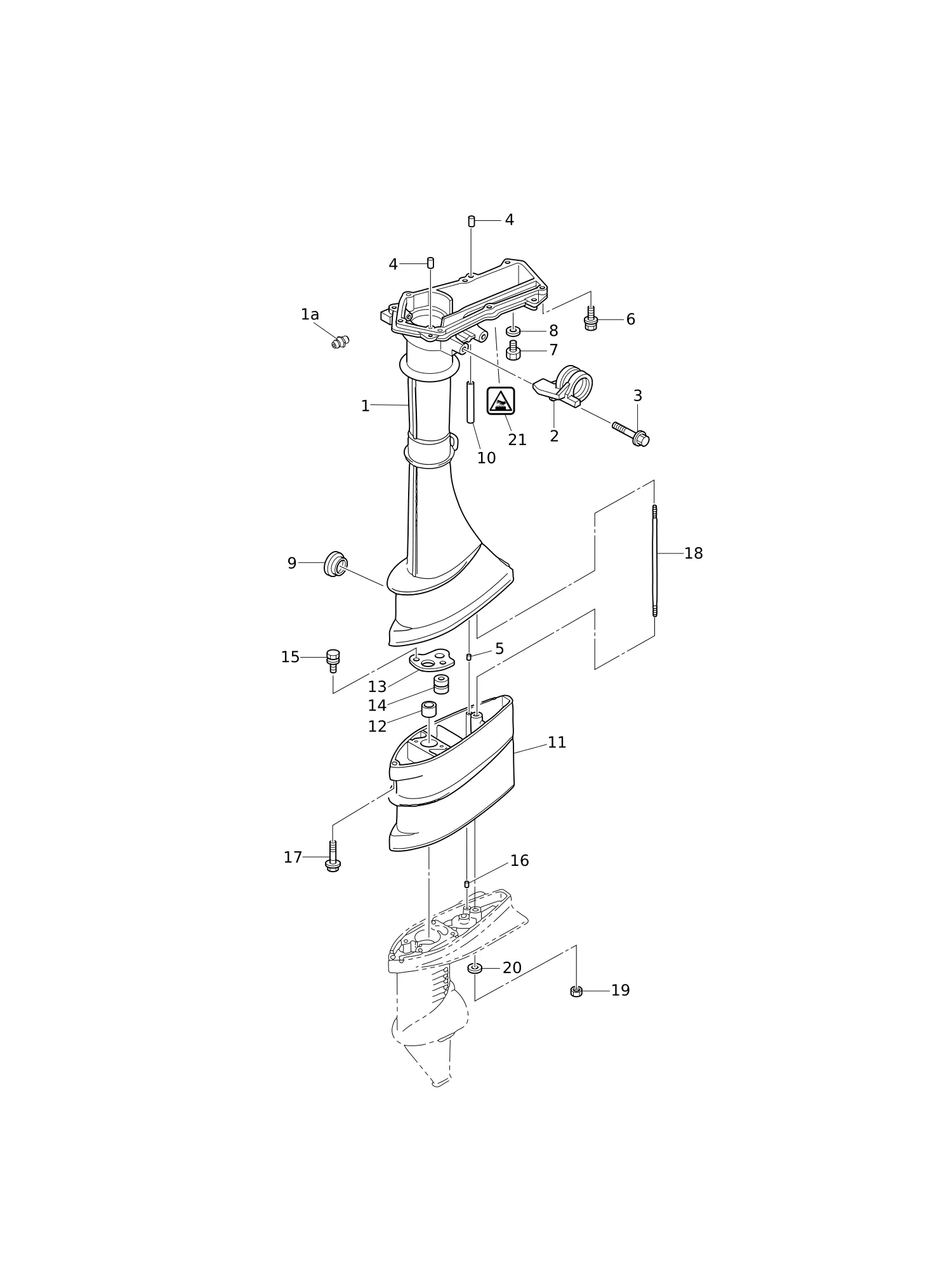

| 1a | 344-67177-1 | 黄油嘴 | GREASE FITTING | 1 |
| 1 | 3ABQ61020-3 | 驱动轴壳体总成(S) | DRIVE SHAFT HOUSING ASSY (S) | 1 |
| 2 | 3ABQ62001-1 | 转向支架 | STEERING BRACKET | 1 |
| 3 | 9101E3-5835 | 螺栓 | BOLT | 2 |
| 4 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 2 |
| 6 | 9101E3-5630 | 螺栓 | BOLT | 7 |
| 7 | 9106E3-0808 | 螺栓 | BOLT | 1 |
| 8 | 332-60006-1 | 衬垫 | GASKET | 1 |
| 9 | 369-61016-0 | 索环 29-3 | GROMMET 29-3 | 1 |
| 10 | 98AB-30-050 | 软管 | HOSE | 1 |
| 11 | 3ABQ61100-0 | 延伸壳体 | EXTENSION HOUSING | 1 |
| 12 | 3AB-60003-0 | 驱动轴衬套 | DRIVE SHAFT BUSHING | 1 |
| 13 | 3AB-64332-0 | 止动块 | STOPPER | 1 |
| 14 | 172-36008-0 | 索环 13-2 | GROMMET 13-2 | 1 |
| 15 | 9101E3-5612 | 螺栓 | BOLT | 2 |
| 16 | 3AB-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 1 |
| 17 | 3GU-60001-0 | 螺栓6-30 | BOLT 6-30 | 1 |
| 18 | 3F0-61101-1 | 螺柱6-171 | STUD 6-171 | 1 |
| 19 | 9301E3-0600 | 螺母 | NUT | 1 |
| 20 | 9401E3-0600 | 垫圈 | WASHER | 1 |
| 21 | 3GR-76191-0 | 高温警示标贴 | HIGH TEMPERATURE CAUTION DECAL | 1 |

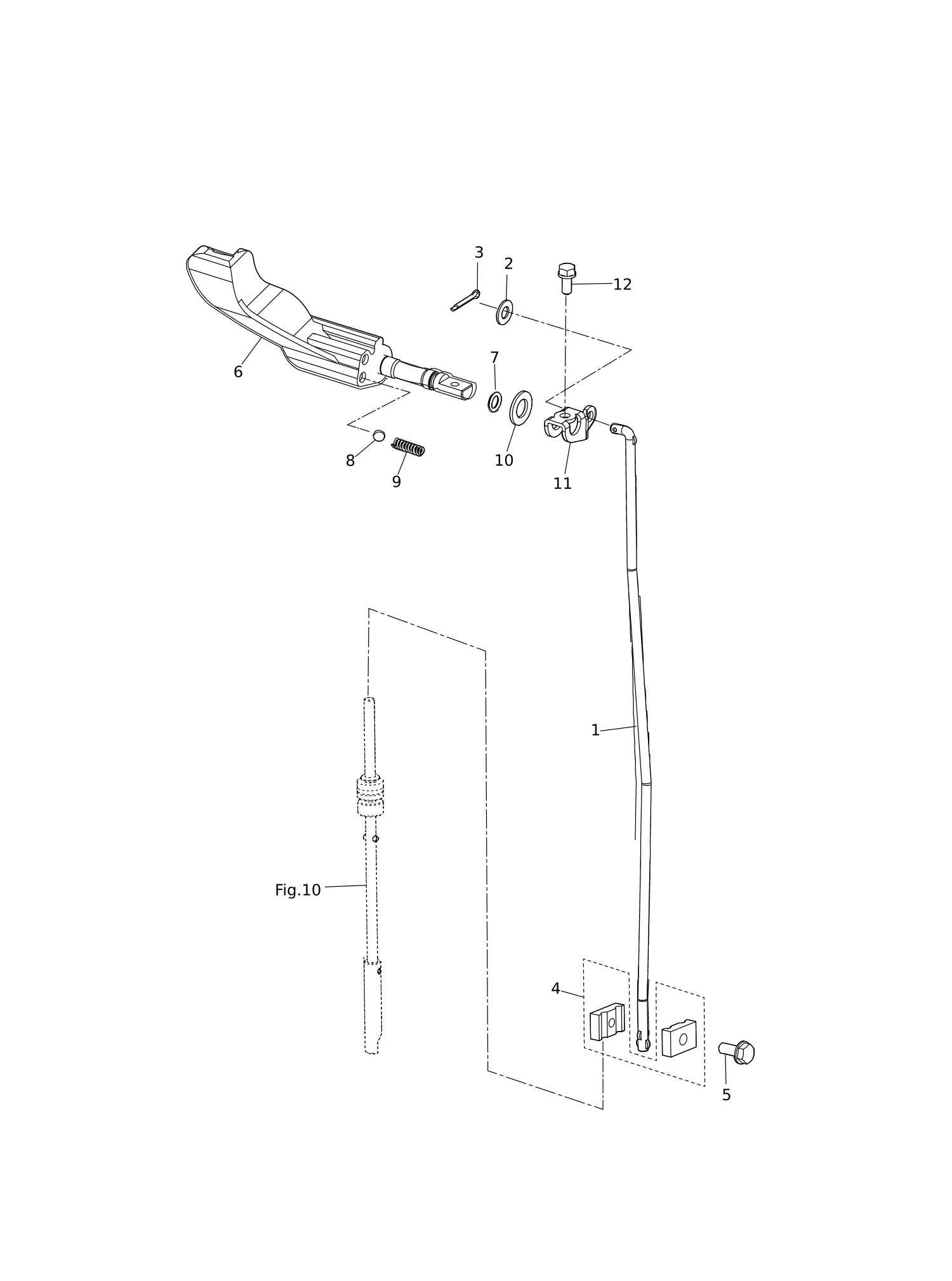

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3AB-66214-0 | 换挡连杆(短) | SHIFT ROD (S) | 1 |
| 2 | 940103-0600 | 垫圈 | WASHER | 1 |
| 3 | 951503-0212 | 开口销2-12 | SPLIT PIN 2-12 | 1 |
| 4 | 369-66241-0 | 换挡杆接头总成 | SHIFT ROD JOINT ASSY | 1 |
| 5 | 910103-5616 | 螺栓 | BOLT | 1 |
| 6 | 3AB-66130-1 | 换挡杆轴总成 | SHIFT LEVER SHAFT ASSY | 1 |
| 7 | 345-66021-0 | O型圈1.9-6.8 | O-RING 1.9-6.8 | 1 |
| 8 | 369-66116-0 | 陶瓷球7.7 | CERAMIC BALL 7.7 | 1 |
| 9 | 369-66112-1 | 弹簧 | SPRING | 1 |
| 10 | 332-61315-0 | 垫圈10.5-18-1.5 | WASHER 10.5-18-1.5 | 1 |
| 11 | 3AB-66225-0 | 换挡杆手柄 | SHIFT ROD LEVER | 1 |
| 12 | 910903-6512 | 螺栓 | BOLT | 1 |

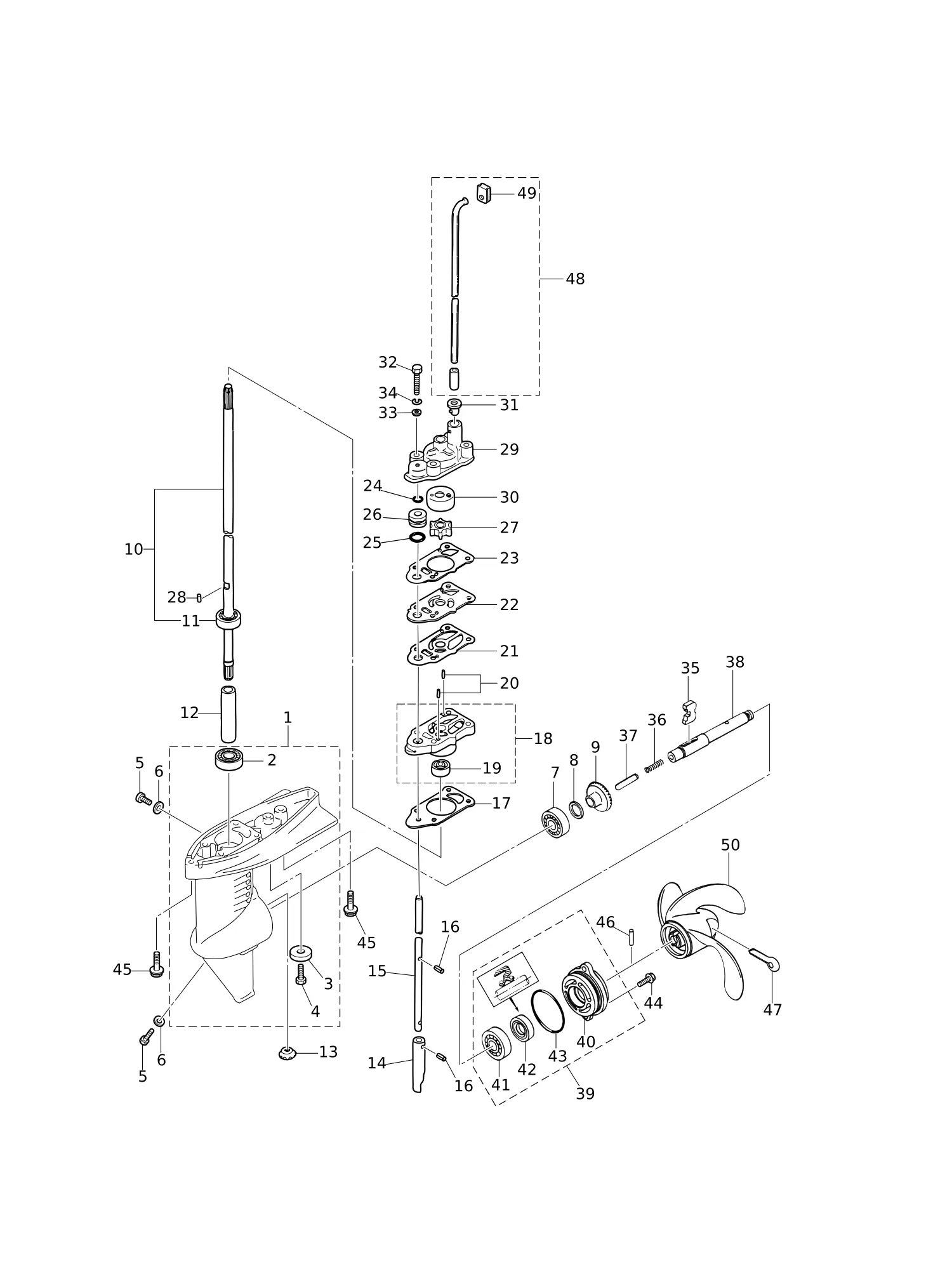

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3BMQ60000-2 | 齿轮箱总成 | GEAR CASE ASSY | 1 |
| 3 | 338-60218-2 | * 阳极 | * ANODE | 1 |
| 4 | 910103-0616 | 螺栓 | * BOLT | 1 |
| 5 | 332-60005-2 | 塞 8-8 | PLUG 8-8 | 2 |
| 6 | 332-60006-1 | 衬垫 | GASKET | 2 |
| 7 | 9601-0-6004 | 滚珠轴承 6004 | BALL BEARING 6004 | 1 |
| 8 | 369-64014-0 | 垫片 21-28-0.1 | SHIM 21-28-0.1 | 1 |
| 8 | 369-64015-0 | 垫片 21-28-0.15 | SHIM 21-28-0.15 | 1 |
| 9 | 3GR-64010-0 | 锥齿轮总成(A) | BEVEL GEAR ASSY (A) | 1 |
| 10 | 3F0-64301-0 | 驱动轴总成(S) | DRIVE SHAFT ASSY (S) | 1 |
| 10 | 3F0-64302-0 | 驱动轴总成(L) | DRIVE SHAFT ASSY (L) | 1 |
| 11 | 9601-0-6000 | * 球轴承 6000 | * BALL BEARING 6000 | 1 |
| 12 | 3F0-64321-0 | 垫片 10.1-15-72 | SPACER 10.1-15-72 | 1 |
| 13 | 3GR-64020-0 | 锥齿轮B | BEVEL GEAR B | 1 |
| 14 | 3F0-66011-0 | 离合器凸轮 | CLUTCH CAM | 1 |
| 15 | 3F0-66012-0 | 凸轮杆(短) | CAM ROD (S) | 1 |
| 15 | 3F0-66013-0 | 凸轮杆(长) | CAM ROD (L) | 1 |
| 16 | 951407-0308 | 弹簧销 3-8 | SPRING PIN 3-8 | 2 |
| 17 | 3F0-65020-0 | 泵壳垫片(下) | PUMP CASE GASKET (LOWER) | 1 |
| 18 | 3H2-65040-1 | 泵壳总成(下) | PUMP CASE ASSY (LOWER) | 1 |
| 19 | 3F0-60223-0 | * 油封 10-22-8 | * OIL SEAL 10-22-8 | 1 |
| 20 | 3B2-65022-0 | 键 φ3-11 | KEY φ3-11 | 2 |
| 21 | 3F0-65029-0 | 导板垫片 | GUIDE PLATE GASKET | 1 |
| 22 | 3AB-65025-0 | 水泵导板 | WATER PUMP GUIDE PLATE | 1 |
| 23 | 3F0-65018-0 | 泵壳垫片 | PUMP CASE GASKET | 1 |
| 24 | 369-66021-1 | O型圈 2.5-4.9 | O-RING 2.5-4.9 | 1 |
| 25 | 301-66023-0 | O型圈 2.4-9.5 | O-RING 2.4-9.5 | 1 |
| 26 | 3F0-66031-0 | 凸轮杆衬套 | CAM ROD BUSHING | 1 |
| 27 | 369-65021-1 | 水泵叶轮 | WATER PUMP IMPELLER | 1 |
| 28 | 369-65022-0 | 键 φ2-11 | KEY φ2-11 | 1 |
| 29 | 3F0-65016-0 | 泵壳(上) | PUMP CASE (UPPER) | 1 |
| 30 | 3F0-65011-0 | 泵壳衬套 | PUMP CASE LINER | 1 |
| 31 | 3F0-65032-0 | 索环/护孔圈 | GROMMET | 1 |
| 32 | 9161E3-0645 | 螺栓 | BOLT | 4 |
| 33 | 940103-0600 | 垫圈 | WASHER | 4 |
| 34 | 941303-0600 | 弹簧垫圈 | SPRING WASHER | 4 |
| 35 | 3F0-64215-0 | 离合器 | CLUTCH | 1 |
| 36 | 3F0-64221-0 | 弹簧 | SPRING | 1 |
| 37 | 3F0-64223-0 | 推杆 | PUSH ROD | 1 |
| 38 | 3F0-64211-0 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 39 | 3F0Q87323-1 | 螺旋桨轴套总成 | PROPELLER SHAFT HOUSING ASSY | 1 |
| 40 | 3F0Q60101-1 | * 螺旋桨轴套 | * PROPELLER SHAFT HOUSING | 1 |
| 41 | 9601-0-6001 | * 球轴承 6001 | * BALL BEARING 6001 | 1 |
| 42 | 309-60111-0 | * 油封 12-24-8 | * OIL SEAL 12-24-8 | 1 |
| 43 | 345-65015-0 | * O型圈 3.2-47 | * O-RING 3.2-47 | 1 |
| 44 | 9101E3-5620 | 螺栓 | BOLT | 2 |
| 45 | 3GU-60001-0 | 螺栓6-30 | BOLT 6-30 | 2 |
| 46 | 309-64126-1 | 剪切销4-24型 | SHEAR PIN 4-24 | 1 |
| 47 | 951503-0435 | 开口销4-35 | SPLIT PIN 4-35 | 1 |
| 48 | 3AB-65191-0 | 水管总成(短) | WATER PIPE ASSY (S) | 1 |
| 48 | 3AB-65192-0 | 水管总成(左) | WATER PIPE ASSY (L) | 1 |
| 49 | 3AB-65031-0 | * 护孔环 | * GROMMET | 1 |
| 50 | 309-64106-0 | 螺旋桨总成(6英寸) | PROPELLER ASSY (6") | 1 |
| 50 | 314-64103-0 | 螺旋桨总成(4.5英寸) | PROPELLER ASSY (4.5") | 1 |
| 50 | 3F0-64101-0 | 螺旋桨总成(7英寸) | PROPELLER ASSY (7") | 1 |
| 50 | 3F0B64512-0 | 螺旋桨总成(6英寸) | PROPELLER ASSY (6") | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3ABQ62111-2 | 卡箍支架 | CLAMP BRACKET | 1 |
| 2 | 301-66023-0 | O型圈 2.4-9.5 | O-RING 2.4-9.5 | 1 |
| 3 | 309-62463-0 | 旋钮 | KNOB | 1 |
| 4 | 3AB-62464-3 | 倾斜止动器 | TILT STOPPER | 1 |
| 5 | 3ABQ62391-1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 6 | 3AB-66334-1 | 止动块 | STOPPER | 1 |
| 7 | 3AB-63068-0 | 操纵杆 | LEVER | 1 |
| 8 | 951403-0212 | 弹簧销 2-12 | SPRING PIN 2-12 | 1 |
| 9 | 3AB-66336-0 | 弹簧 | SPRING | 1 |
| 10 | 9161E3-0650 | 螺栓 | BOLT | 1 |
| 12 | 309-62115-2 | 螺栓8-122 | BOLT 8-122 | 1 |
| 13 | 930403-0800 | 尼龙螺母 8-P1.25 | NYLON NUT 8-P1.25 | 1 |
| 14 | 307-62116-1 | 垫圈 8.5-28-1 | WASHER 8.5-28-1 | 2 |
| 15 | 309-62117-1 | 间隔块 | DISTANCE PIECE | 1 |
| 16 | 930103-0600 | 螺母 | NUT | 2 |
| 18 | 3AB-62212-0 | 推力支架 | THRUST SUPPORTER | 1 |
| 19 | 3AB-61336-1 | 下减震器 | DAMPER (LOWER) | 1 |
| 20 | 3F0-62160-0 | 推力杆总成 | THRUST ROD ASSY | 1 |
| 21 | 3ABQ62392-1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 22 | 309-62441-2 | 摩擦片 | FRICTION PIECE | 1 |
| 23 | 309-62446-1 | 弹簧 | SPRING | 1 |
| 24 | 9401E3-0600 | 垫圈 | WASHER | 2 |
| 25 | 3GT-62442-0 | 摩擦旋钮 | FRICTION KNOB | 1 |
| 26 | 3AB-62321-1 | 衬套 | BUSHING | 1 |
| 27 | 393-62416-1 | 衬套 | BUSHING | 1 |
| 28 | 3H6-62325-0 | 止推衬套 | THRUST BUSHING | 1 |
| 29 | 3V1-60001-1 | 螺栓6-35 | BOLT 6-35 | 4 |
| 30 | 3GTQ62105-1 | 夹紧螺丝套件 | CLAMP SCREW KIT | 2 |
| 31 | 3GTQ62108-1 | * 卡箍螺丝总成 | * CLAMP SCREW ASSY | 1 |
| 32 | 369-62106-1 | 夹紧螺钉 | ** CLAMP SCREW | 1 |
| 33 | 3ABQ62102-0 | 夹紧螺钉手柄 | ** CLAMP SCREW HANDLE | 1 |
| 34 | 3C8-62104-2 | 铆钉 3-22 | ** RIVET 3-22 | 1 |
| 35 | 332-62101-1 | * 卡箍螺丝垫片 | * CLAMP SCREW PAD | 1 |
| 36 | 3C8-62107-0 | * 肩螺栓 | * SHOULDER BOLT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

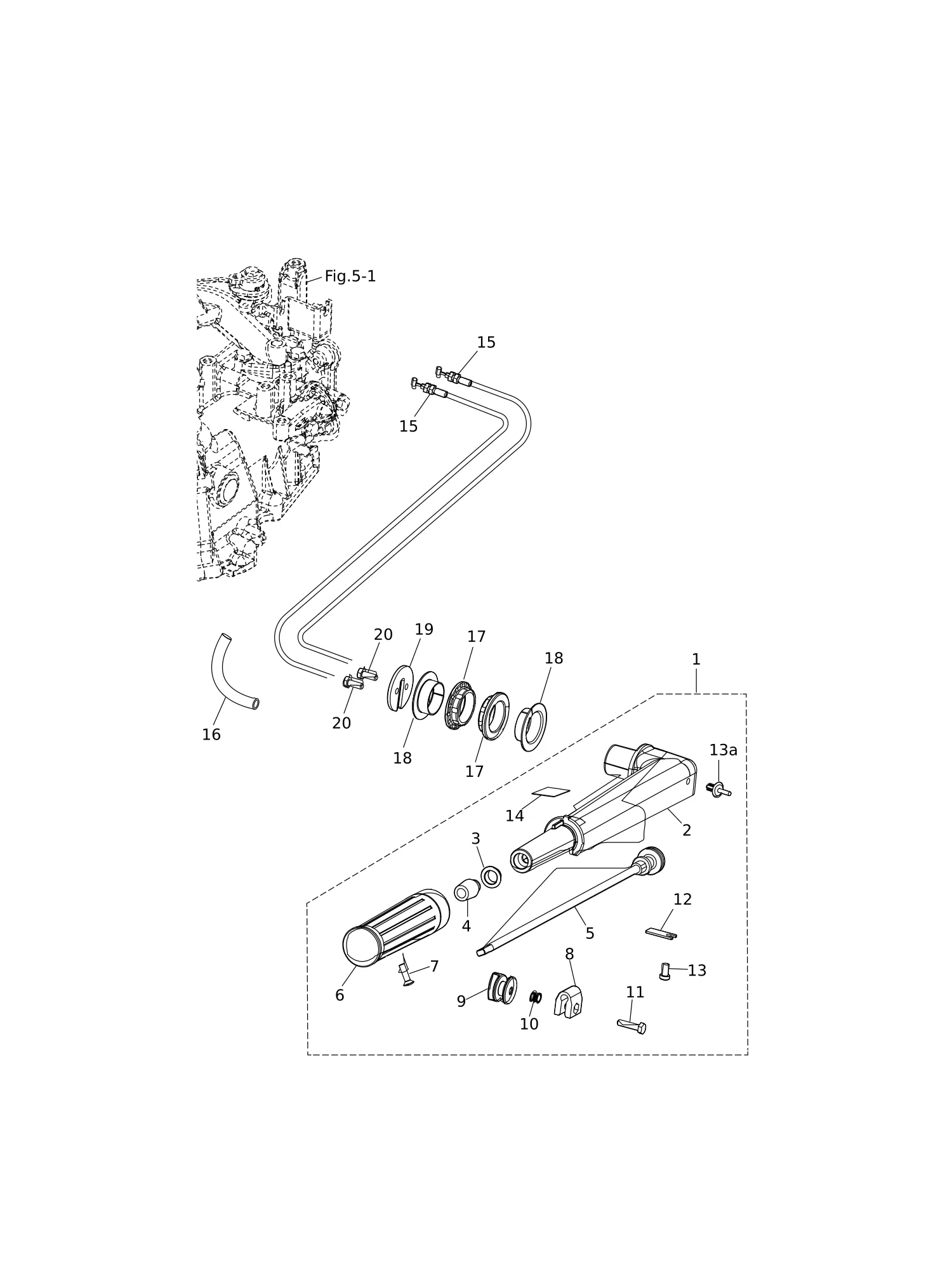

| 1 | 3WEQ63003-0 | 舵柄总成 | TILLER HANDLE ASSY | 1 |
| 2 | 3V1Q63011-3 | * 舵柄手柄 | * TILLER HANDLE | 1 |
| 3 | 3H6-63510-0 | * 衬套 14-15.8-7 | * BUSHING 14-15.8-7 | 1 |
| 4 | 3H6-63048-0 | * 节气门轴缓冲器 | * THROTTLE SHAFT DAMPER | 1 |
| 5 | 3V1-63041-0 | * 节气门轴 | * THROTTLE SHAFT | 1 |
| 6 | 3R3-63012-0 | * 手柄 | * GRIP | 1 |
| 7 | 9208E3-0518 | * 螺钉 | * SCREW | 1 |
| 8 | 3V1-63035-1 | * 摩擦片 | * FRICTION PIECE | 1 |
| 9 | 3V1-63077-0 | * 调节螺母 | * ADJUSTING NUT | 1 |
| 10 | 3V1-63036-0 | * 弹簧 | * SPRING | 1 |
| 11 | 910103-0625 | 螺栓 | * BOLT | 1 |
| 12 | 3B2-63063-0 | * 节气门轴支撑 | * THROTTLE SHAFT SUPPORT | 1 |
| 13a | 350-67154-0 | * 塑料铆钉 6.5 | * PLASTIC RIVET 6.5 | 1 |
| 13 | 921503-0612 | * 螺钉 | * SCREW | 1 |
| 14 | 3V9-72019-0 | * 油门标识贴 | * THROTTLE DECAL | 1 |
| 15 | 3V1-63600-0 | 节气门拉线 | THROTTLE WIRE | 2 |
| 16 | 3H9-70313-0 | 燃油软管保护套 | FUEL HOSE PROTECTOR | 1 |
| 17 | 3AB-63102-0 | 衬套 | BUSHING | 2 |
| 18 | 3BR-63102-1 | 衬套 32-34-11.8 | BUSHING 32-34-11.8 | 2 |
| 19 | 3V1-63107-0 | 盖板 | COVER | 1 |
| 20 | 9101E3-0616 | 螺栓 | BOLT | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

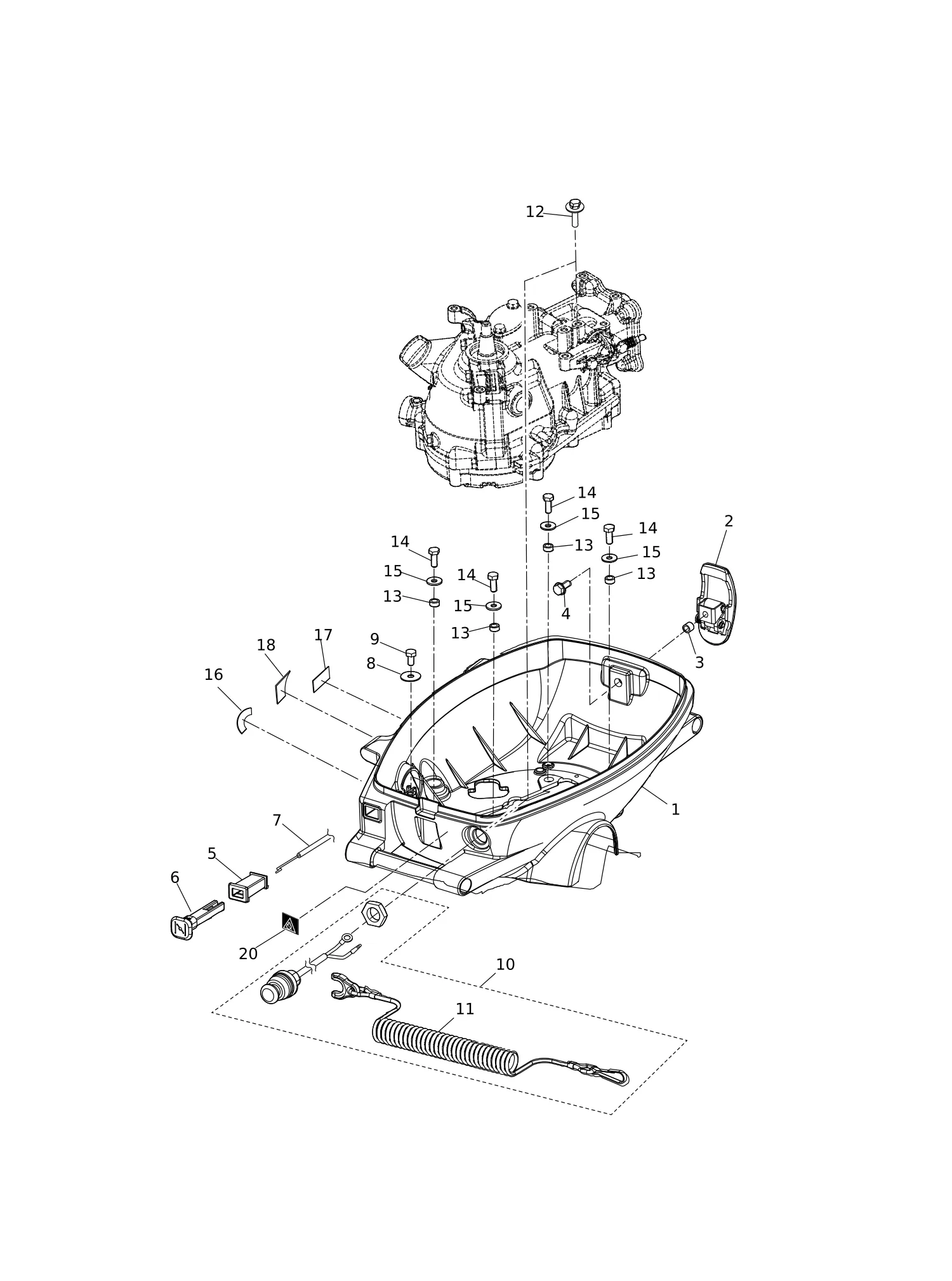

| 1 | 3WEQ67100-0 | 下罩壳 | BOTTOM COWL | 1 |
| 2 | 3GT-67120-1 | 整流罩锁扣总成 | COWL LATCH ASSY | 1 |
| 3 | 3A0-76079-0 | 轴套 6.2-9-7.4 | COLLAR 6.2-9-7.4 | 1 |
| 4 | 910103-5616 | 螺栓 | BOLT | 1 |
| 5 | 3AB-67104-0 | 阻风门拉杆衬套 | CHOKE ROD BUSHING | 1 |
| 6 | 3H6-67151-1 | 阻风门拉杆 | CHOKE ROD | 1 |
| 7 | 3LR-67197-0 | 阻风门拉线 | CHOKE WIRE | 1 |
| 8 | 346-67115-0 | 垫片 6.5-21-1 | WASHER 6.5-21-1 | 1 |
| 9 | 910103-0612 | 螺栓 | BOLT | 1 |
| 10 | 3GR-06870-0 | 停止开关总成 | STOP SWITCH ASSY | 1 |
| 11 | 353-06821-0 | * 停机开关拉绳总成 | * STOP SWITCH LANYARD ASSY | 1 |
| 12 | 910103-5612 | 螺栓 | BOLT | 1 |
| 13 | 353-06283-0 | 轴套 6.4-10-4.7 | COLLAR 6.4-10-4.7 | 4 |
| 14 | 9101E3-0616 | 螺栓 | BOLT | 4 |
| 15 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 4 |
| 16 | 3WE-67578-0 | 换挡标识贴 | SHIFT DECAL | 1 |
| 17 | 3WE-72024-0 | 燃油杆标贴 | FUEL LEVER DECAL | 1 |
| 18 | 3WE-72046-0 | 油位标贴 | OIL LEVEL DECAL | 1 |
| 20 | 3AC-72200-0 | 停止开关贴花 | STOP SWITCH DECAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

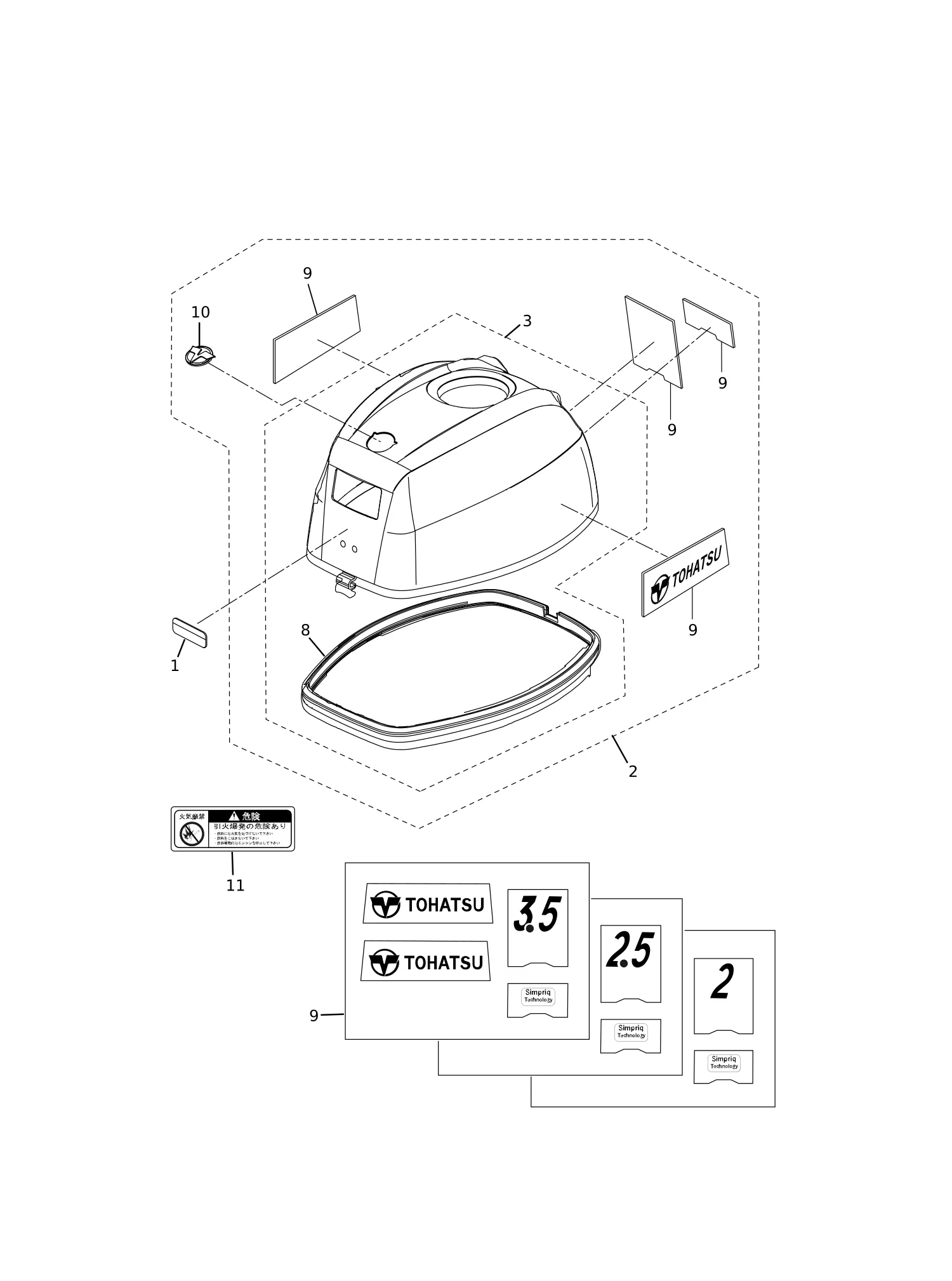

| 1 | 3F0-72185-0 | 警示标贴 | CAUTION DECAL | 1 |
| 1 | 3WE-72180-0 | 警示标贴(A型) | CAUTION DECAL (A) | 1 |
| 2 | 3WEQ67645-0 | 顶罩总成 | TOP COWL ASSY | 1 |
| 3 | 3WEQ67640-0 | * 顶罩分总成 | * TOP COWL SUB-ASSY | 1 |
| 8 | 3GT-67501-0 | 顶罩密封条L=1100 | ** TOP COWL SEAL L=1100 | 1 |
| 9 | 3WD-87801-0 | * 贴花套装(MFS2.5C) | * DECAL SET(MFS2.5C) | 1 |
| 9 | 3WE-87801-0 | * 贴花套装(MFS3.5C) | * DECAL SET(MFS3.5C) | 1 |
| 9 | 3WH-87801-0 | * 贴花套装(MFS2C) | * DECAL SET(MFS2C) | 1 |
| 10 | 3WE-67580-0 | * 标志贴花 | * LOGO DECAL | 1 |
| 11 | 3C7-72191-0 | 警示标贴(PL-B型) | CAUTION DECAL (PL-B) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

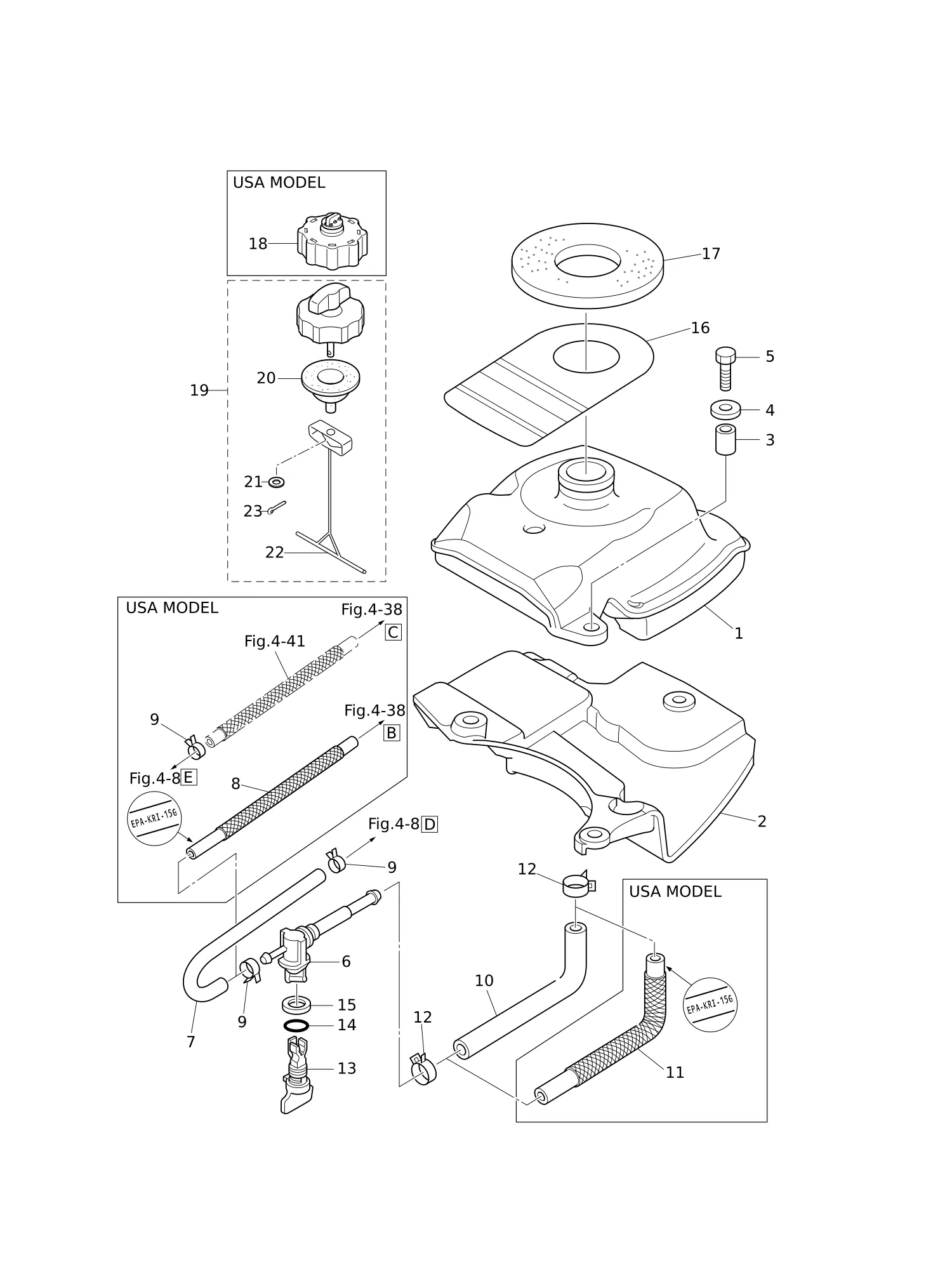

| 1 | 3AB-70310-3 | 燃油箱总成 | FUEL TANK ASSY | 1 |
| 1 | 3GT-70310-1 | 燃油箱总成 | FUEL TANK ASSY | 1 |
| 2 | 3AB-06846-1 | 盖板 | COVER | 1 |
| 3 | 3T5-76079-0 | 轴套 6.2-9-10.7 | COLLAR 6.2-9-10.7 | 3 |
| 4 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 3 |
| 5 | 910103-0625 | 螺栓 | BOLT | 3 |
| 6 | 369-70311-0 | 燃油旋塞总成 | FUEL COCK ASSY | 1 |
| 7 | 3GT-70326-0 | 燃油软管155-20-20 | FUEL HOSE 155-20-20 | 1 |
| 8 | 3GT-02165-0 | 带保护套燃油软管 L=340 | FUEL HOSE W/PROTECTOR L=340 | 1 |
| 9 | 3GT-35143-0 | 卡环 φ9.4 | CLIP φ9.4 | 2 |
| 10 | 3GT-70325-0 | 燃油软管 长215 | FUEL HOSE L=215 | 1 |
| 11 | 3GT-02175-0 | 带保护套燃油软管 L=215 | FUEL HOSE W/PROTECTOR L=215 | 1 |
| 12 | 3AB-02215-1 | 卡扣φ15 | CLIP φ15 | 2 |
| 13 | 3GT-70062-0 | 燃油旋塞旋钮 | FUEL COCK KNOB | 1 |
| 14 | 3G9-66136-0 | O型圈2-10 | O-RING 2-10 | 1 |
| 15 | 369-70063-0 | 密封环 | SEAL RING | 1 |
| 16 | 3GT-72183-0 | 警示标签(B型) | CAUTION TAG (B) | 1 |
| 17 | 3AB-70036-1 | 燃油箱密封件 | FUEL TANK SEAL | 1 |
| 18 | 3GT-70321-0 | 燃油箱盖总成 | FUEL TANK CAP ASSY | 1 |
| 19 | 3GP-70020-0 | 燃油箱盖总成 | FUEL TANK CAP ASSY | 1 |
| 20 | 3GR-70021-0 | * 油箱加注口盖垫片 | * TANK FILLER CAP GASKET | 1 |
| 21 | 940103-0400 | * 垫圈 | * WASHER | 1 |
| 22 | 3H9-70095-0 | * 挂钩 | * HOOK | 1 |
| 23 | 951503-1610 | * 开口销 1.6-10 | * SPLIT PIN 1.6-10 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

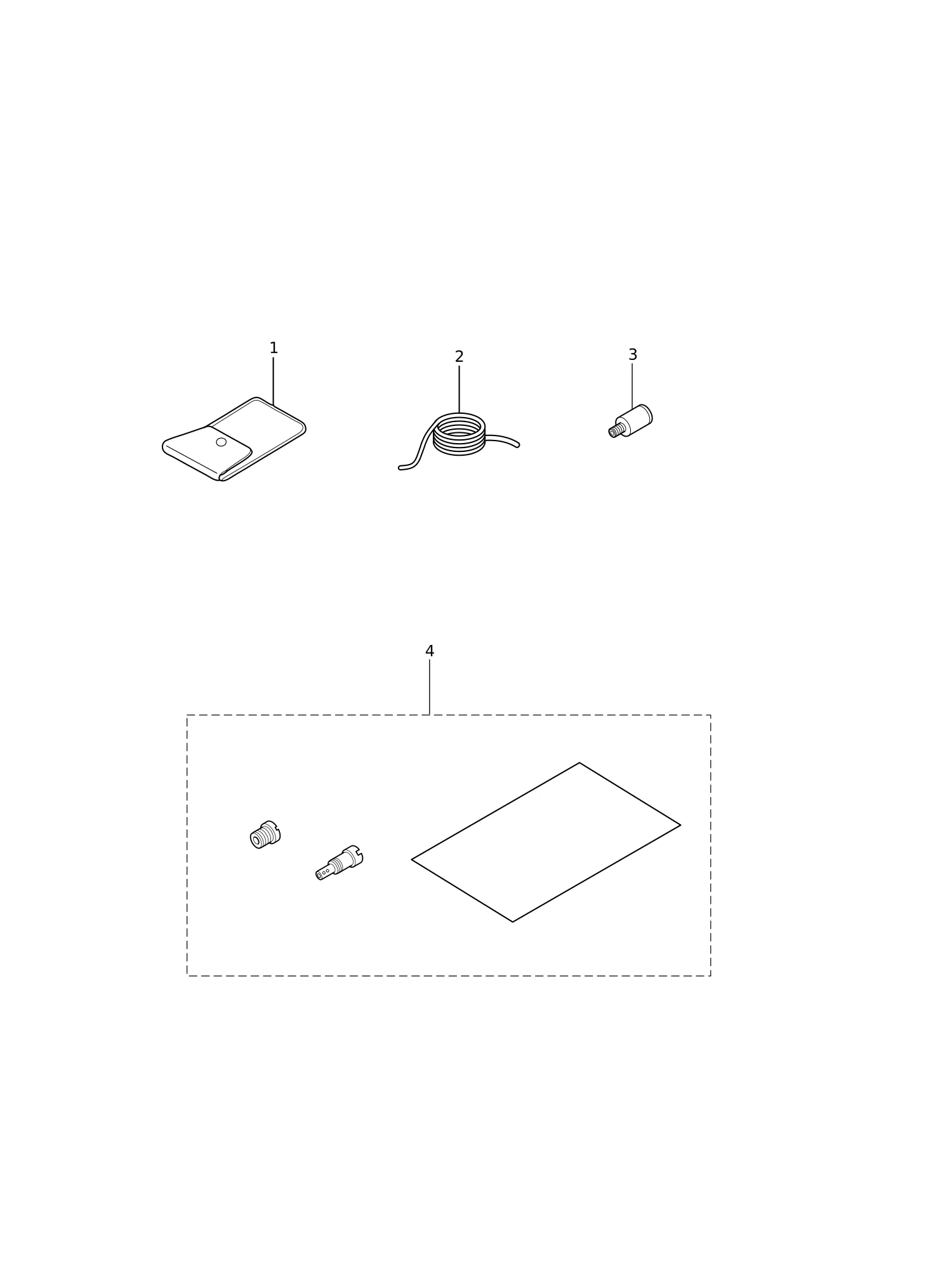

| 1 | 3BJ-72100-0 | 工具包 | TOOL KIT | 1 |
| 2 | 312-72201-0 | 安全绳φ4-1000 | SAFETY ROPE φ4-1000 | 1 |
| 3 | 336-60007-0 | 冲洗塞 | FLUSHING PLUG | 1 |
| 4 | 3GU-10230-0 | 海拔调节套件 | ALTITUDE ADJUSTMENT KIT | 1 |
| 4 | 3LR-10230-0 | 海拔调节套件 | ALTITUDE ADJUSTMENT KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

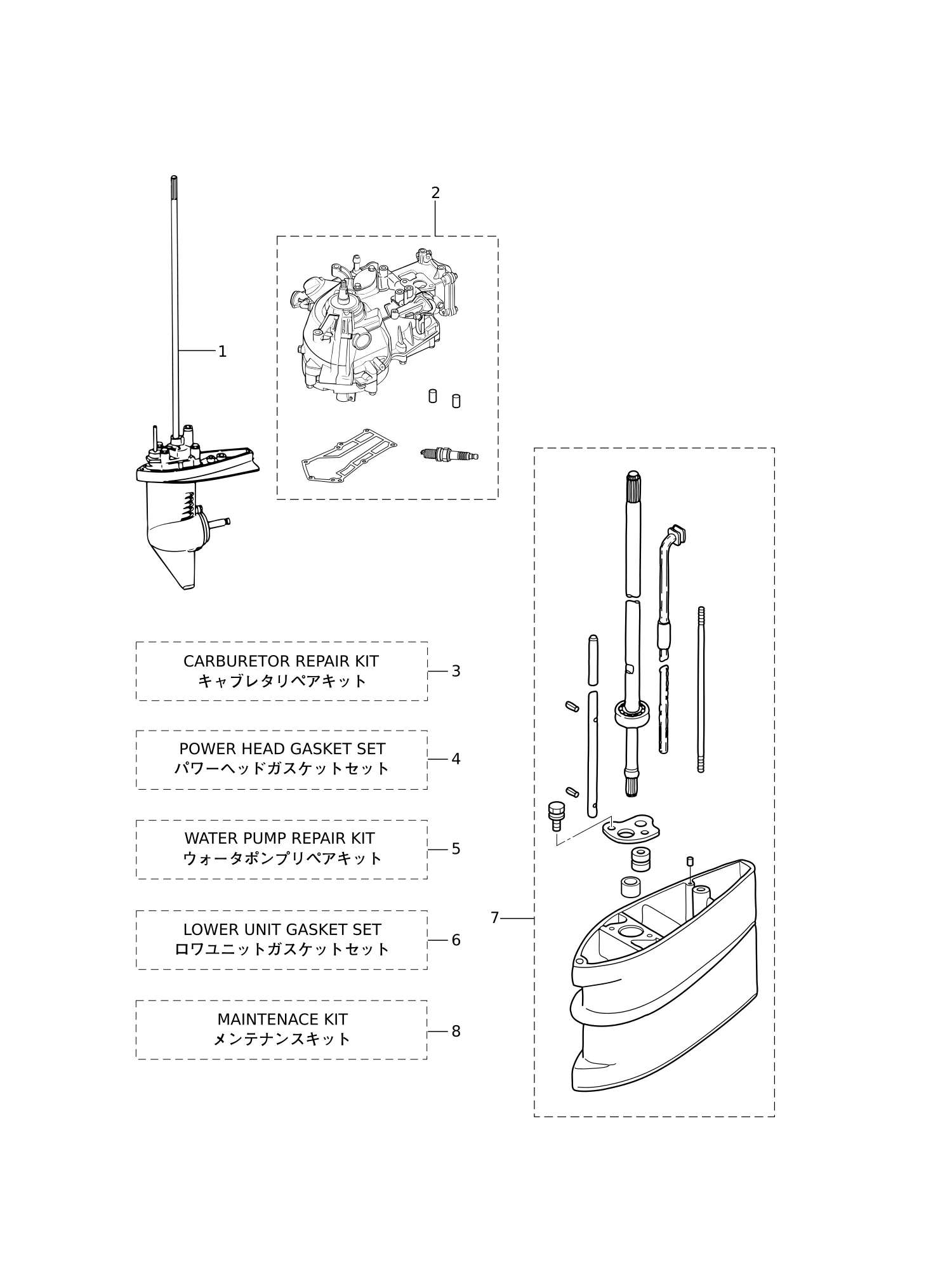

| 1 | 3BMQ87301-3 | 下部单元总成 (S) | LOWER UNIT ASSY (S) | 1 |
| 1 | 3BMQ87302-3 | 下部单元总成 (L) | LOWER UNIT ASSY (L) | 1 |
| 2 | 3GTB87090-5 | 发动机短缸体套件 | ENGINE SHORT BLOCK KIT | 1 |
| 2 | 3GUB87090-0 | 发动机短缸体套件 | ENGINE SHORT BLOCK KIT | 1 |
| 3 | 3GT-03231-0 | * 浮子 | * FLOAT | 1 |
| 3 | 3GT-87122-1 | 化油器修理包 | CARBURETOR REPAIR KIT | 1 |
| 3 | 3H6-03222-0 | * 浮子室O型圈 | * FLOAT CHAMBER O-RING | 1 |
| 3 | 3H6-03232-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 3 | 3H6-03240-0 | * 浮子阀 | * FLOAT VALVE | 1 |
| 3 | 3H6-03244-0 | * 卡扣 | * CLIP | 1 |
| 3 | 922503-6412 | * 螺钉 | * SCREW | 2 |
| 4 | 3AB-00121-0 | * 油封 20-35-7 | * OIL SEAL 20-35-7 | 2 |
| 4 | 3AB-01024-1 | * 气缸盖罩衬垫 | * CYLINDER HEAD COVER GASKET | 1 |
| 4 | 3AB-01032-0 | * 节温器盖衬垫 | * THERMOSTAT CAP GASKET | 1 |
| 4 | 3AB-01215-0 | * 油封 10.1-20-7 | * OIL SEAL 10.1-20-7 | 2 |
| 4 | 3AB-02104-0 | * 进气歧管垫片 | * INTAKE MANIFOLD GASKET | 1 |
| 4 | 3AB-07402-0 | * 油底壳衬垫 | * OILPAN GASKET | 1 |
| 4 | 3AB-07432-0 | * 衬垫 | * GASKET | 1 |
| 4 | 3AB-61012-0 | * 驱动轴壳体衬垫 | * DRIVE SHAFT HOUSING GASKET | 1 |
| 4 | 3AB-87121-0 | 动力头衬垫套装 | POWER HEAD GASKET SET | 1 |
| 4 | 3H6-02011-0 | * 化油器衬垫 | * CARBURETOR GASKET | 2 |
| 4 | 3H6-03293-0 | * O型圈 | * O-RING | 1 |
| 4 | 3R0-07422-0 | * O型圈 3.1-24.4 | * O-RING 3.1-24.4 | 1 |
| 4 | 3V1-02012-0 | * O型圈 2.4-35.2 | * O-RING 2.4-35.2 | 1 |
| 5 | 3AB-87322-0 | 水泵维修套件 | WATER PUMP REPAIR KIT | 1 |
| 6 | 301-66023-0 | * O型圈 2.4-9.5 | * O-RING 2.4-9.5 | 1 |
| 6 | 309-60111-0 | * 油封 12-24-8 | * OIL SEAL 12-24-8 | 1 |
| 6 | 345-65015-0 | * O型圈 3.2-47 | * O-RING 3.2-47 | 1 |
| 6 | 369-66021-1 | * O型圈 2.5-4.9 | * O-RING 2.5-4.9 | 1 |
| 6 | 3F0-60223-0 | * 油封 10-22-8 | * OIL SEAL 10-22-8 | 1 |
| 6 | 3F0-65020-0 | * 泵壳衬垫(下) | * PUMP CASE GASKET (LOWER) | 1 |
| 6 | 3F0-87321-0 | 下部单元衬垫套件 | LOWER UNIT GASKET SET | 1 |
| 7 | 172-36008-0 | * 护孔环 13-2 | * GROMMET 13-2 | 1 |
| 7 | 3AB-01111-0 | * 定位销 6-12 | * DOWEL PIN 6-12 | 1 |
| 7 | 3AB-60003-0 | * 驱动轴衬套 | * DRIVE SHAFT BUSHING | 1 |
| 7 | 3AB-64332-0 | * 止动块 | * STOPPER | 1 |
| 7 | 3AB-65192-0 | * 水管总成 (左) | * WATER PIPE ASSY (L) | 1 |
| 7 | 3ABQ61100-0 | * 延伸壳体 | * EXTENSION HOUSING | 1 |
| 7 | 3ABQ87312-3 | 延伸壳体套件(左) | EXTENSION HOUSING KIT (L) | 1 |
| 7 | 3F0-61101-1 | * 双头螺柱 6-171 | * STUD 6-171 | 1 |
| 7 | 3F0-64302-0 | * 驱动轴总成（下长） | * DRIVE SHAFT ASSY (L) | 1 |
| 7 | 3F0-66013-0 | * 凸轮杆(左) | * CAM ROD (L) | 1 |
| 7 | 3GU-60001-0 | 螺栓 6-30 | * BOLT 6-30 | 1 |
| 7 | 9101E3-5612 | 螺栓 | * BOLT | 2 |
| 7 | 930103-0600 | 螺母 | NUT | 1 |
| 7 | 9401E3-0600 | * 垫圈 | * WASHER | 1 |
| 7 | 951407-0308 | * 弹簧销 3-8 | * SPRING PIN 3-8 | 2 |
| 8 | 309-64126-1 | * 剪切销 4-24 | * SHEAR PIN 4-24 | 1 |
| 8 | 332-60006-1 | * 衬垫 | * GASKET | 2 |
| 8 | 338-60218-2 | * 阳极 | * ANODE | 1 |
| 8 | 369-65021-1 | * 水泵叶轮 | * WATER PUMP IMPELLER | 1 |
| 8 | 369-65022-0 | * 键 φ2-11 | * KEY φ2-11 | 1 |
| 8 | 3AB-65025-0 | * 水泵导板 | * WATER PUMP GUIDE PLATE | 1 |
| 8 | 3F0-65011-0 | * 泵壳衬套 | * PUMP CASE LINER | 1 |
| 8 | 3F0-65018-0 | * 泵壳衬垫 | * PUMP CASE GASKET | 1 |
| 8 | 3F0-65029-0 | * 导板垫片 | * GUIDE PLATE GASKET | 1 |
| 8 | 3GT-87500-0 | MFS2/2.5/3.5B维护套件 | MAINTENANCE KIT FOR MFS2/2.5/3.5B | 1 |
| 8 | 3H6-07406-0 | * 垫圈 10.2-19-1 | * WASHER 10.2-19-1 | 1 |
| 8 | 951503-0435 | * 开口销 4-35 | * SPLIT PIN 4-35 | 1 |
| 8 | 9701-1-1103 | * 火花塞 (DCPR6E) | * SPARK PLUG(DCPR6E) | 1 |
