两冲程 TLDI · 2014 年 · 手册号 002-21048-6 · 共 9 个部位 · 276 条零件

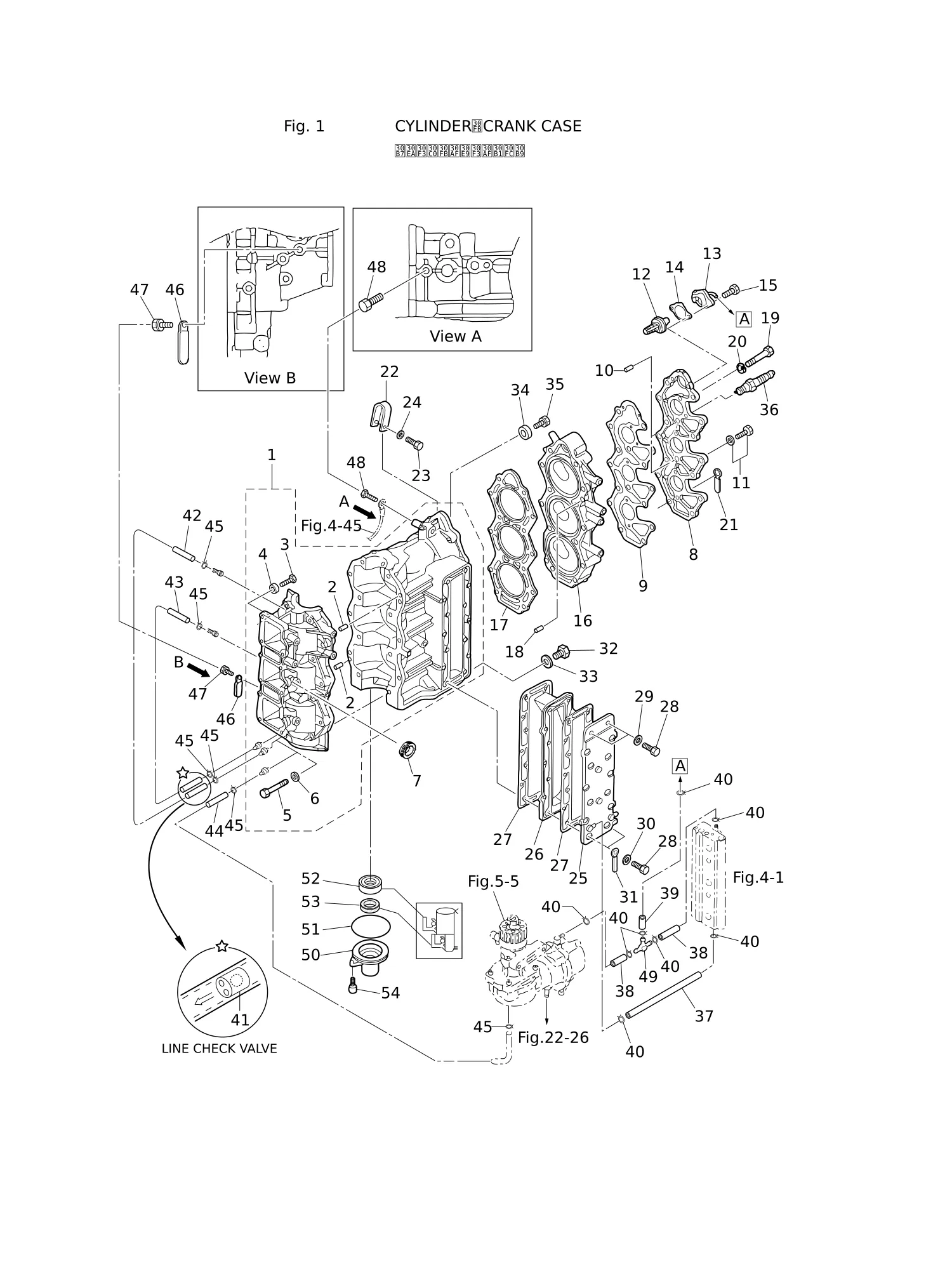

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3T5B01100-0 | 气缸体与曲轴箱总成 | CYL BLOCK & CRANKCASE ASSY | 1 |
| 3 | 910103-0618 | 螺栓 | * BOLT | 1 |
| 4 | 353-76079-0 | * 轴环 6.2-9-9.3 | * COLLAR 6.2-9-9.3 | 1 |
| 5 | 916124-0845 | 螺栓 | * BOLT | 14 |
| 7 | 3B7-76093-0 | 索环 25-5 | GROMMET 25-5 | 1 |
| 8 | 3T5B01021-0 | 气缸盖罩 | CYLINDER HEAD COVER | 1 |
| 9 | 3T5-01024-0 | 气缸盖罩垫片 | CYLINDER HEAD COVER GASKET | 1 |
| 10 | 334-65012-0 | 定位销4-10 | DOWEL PIN 4-10 | 2 |
| 11 | 910121-5620 | 螺栓 | BOLT | 4 |
| 12 | 345-01030-0 | 节温器 | THERMOSTAT | 1 |
| 13 | 3T5B01031-1 | 节温器盖总成 | THERMOSTAT CAP ASSY | 1 |
| 14 | 3T5-01032-0 | 节温器盖垫片 | THERMOSTAT CAP GASKET | 1 |
| 15 | 9101E3-5625 | 螺栓 | BOLT | 2 |
| 16 | 3GFB01091-0 | 气缸盖 | CYLINDER HEAD | 1 |
| 17 | 3T5-01005-0 | 气缸盖衬垫 | CYLINDER HEAD GASKET | 1 |
| 18 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 2 |
| 19 | 916189-0865 | 螺栓 | BOLT | 14 |
| 20 | 345-01015-0 | 垫圈 8.5-19.5-3.2 | WASHER 8.5-19.5-3.2 | 14 |
| 21 | 3T5-06971-1 | 卡箍 8.5-85P | CLAMP 8.5-85P | 1 |
| 22 | 3C8-01513-1 | 吊架 | HANGER | 1 |
| 23 | 9101F4-0835 | 螺栓 | BOLT | 1 |
| 24 | 940121-0800 | 垫圈 | WASHER | 1 |
| 25 | 3Z5B02300-1 | 排气盖总成 | EXHAUST COVER ASSY | 1 |
| 26 | 3C8-02302-0 | 排气内盖 | EXHAUST COVER (INNER) | 1 |
| 27 | 3C8-02305-2 | 排气盖垫片 | EXHAUST COVER GASKET | 2 |
| 28 | 9161F9-0630 | 螺栓 | BOLT | 14 |
| 29 | 940103-0600 | 垫圈 | WASHER | 2 |
| 30 | 940121-0600 | 垫圈 | WASHER | 12 |
| 31 | 3T4-06972-1 | 卡箍 6.5-87P | CLAMP 6.5-87P | 1 |
| 32 | 9106E3-0808 | 螺栓 | BOLT | 1 |
| 33 | 332-60006-0 | 衬垫8.1-15-1 | GASKET 8.1-15-1 | 1 |
| 34 | 338-60218-2 | 阳极块 | ANODE | 1 |
| 36 | 9701-1-1111 | 火花塞 (IZFR6Q) | SPARK PLUG (IZFR6Q) | 3 |
| 37 | 98AB-50-250 | 软管 | HOSE | 1 |
| 38 | 98AB-50-075 | 软管 | HOSE | 2 |
| 39 | 98AB-50-115 | 软管 | HOSE | 1 |
| 40 | 338-02215-0 | 卡扣φ10 | CLIP φ10 | 8 |
| 41 | 393-01160-0 | 止回阀 | CHECK VALVE | 2 |
| 42 | 98AL-40-355 | 软管 | HOSE | 1 |
| 43 | 98AL-40-205 | 软管 | HOSE | 1 |
| 44 | 98AL-40-335 | 软管 | HOSE | 1 |
| 45 | 338-01133-0 | 卡环 φ7 | CLIP φ7 | 6 |
| 46 | 309-06972-0 | 卡箍 6.5-47.5P | CLAMP 6.5-47.5P | 1 |
| 47 | 910103-0610 | 螺栓 | BOLT | 1 |
| 48 | 910103-5610 | 螺栓 | BOLT | 1 |
| 49 | 3T7-01175-0 | 管接头总成(止回阀) | NIPPLE ASSY (CHECK VALVE) | 1 |
| 50 | 3C8-01291-0 | 曲轴箱盖 | CRANKCASE HEAD | 1 |
| 51 | 346-01216-0 | O型圈1.7-59 | O-RING 1.7-59 | 1 |
| 52 | 3T5-00122-0 | 油封 25-40-8 | OIL SEAL 25-40-8 | 1 |
| 53 | 3C8-01215-0 | 油封 16-28-7 | OIL SEAL 16-28-7 | 1 |
| 54 | 910103-5620 | 螺栓 | BOLT | 2 |

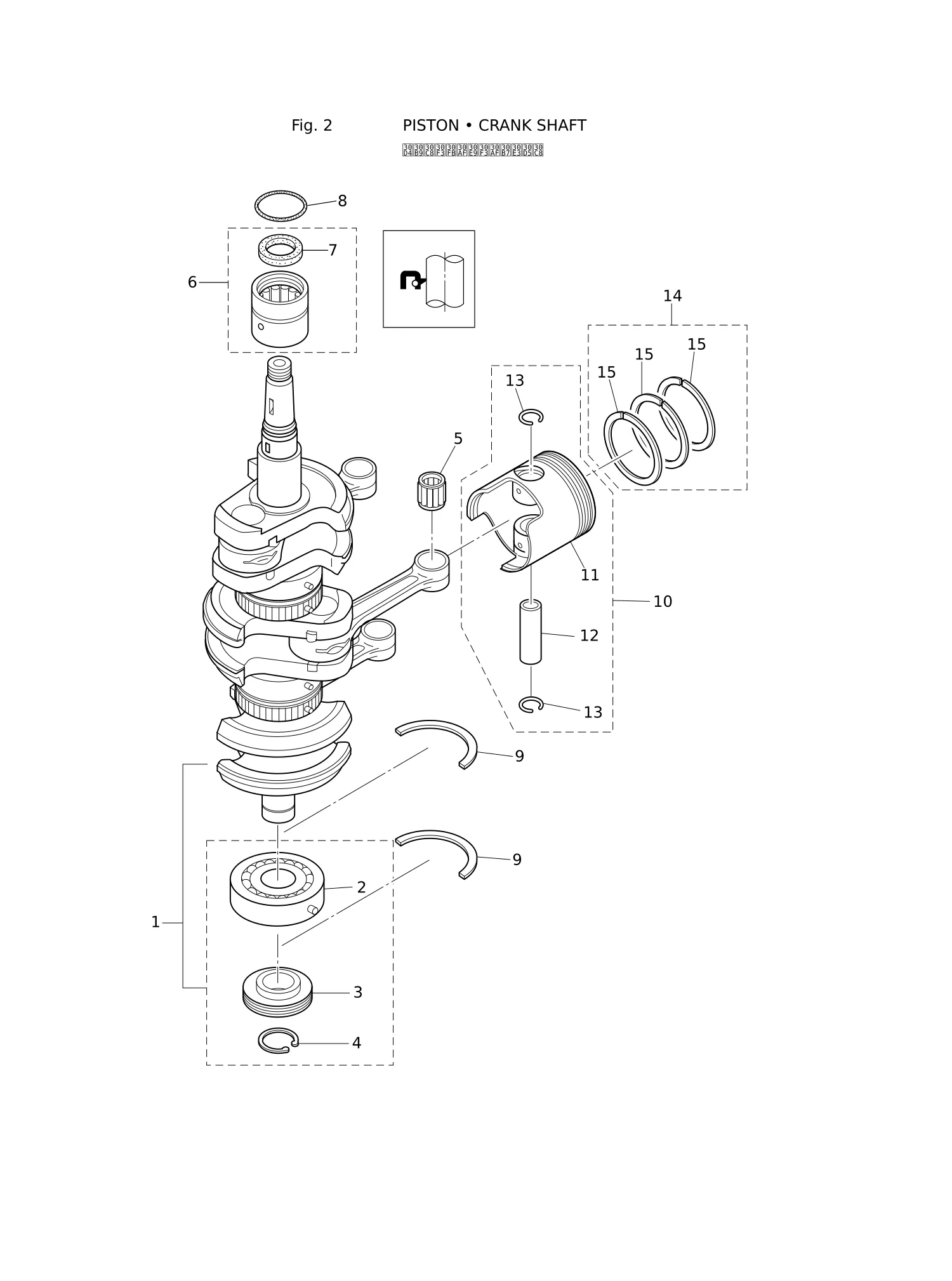

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3T5-00050-1 | 带齿轮曲轴总成 | CRANKSHAFT ASSY W/GEAR | 1 |
| 2 | 3J2-00114-0 | * 主轴承 6305 | * MAIN BEARING 6305 | 1 |
| 3 | 3C8-09060-0 | * 机油泵驱动齿轮 | * OIL PUMP DRIVE GEAR | 1 |
| 4 | 945107-2500 | * C形环 | * C-RING | 1 |
| 5 | 345-00042-0 | 滚柱轴承 17-21-27 | ROLLER BEARING 17-21-27 | 3 |
| 6 | 3T5-00113-0 | 主轴承 | MAIN BEARING | 1 |
| 7 | 3T5-00121-0 | * 油封 36-46-6 | * OIL SEAL 36-46-6 | 1 |
| 8 | 353-00108-0 | O型圈 2.4-44.7 | O-RING 2.4-44.7 | 1 |
| 9 | 346-00115-0 | 止推板 | THRUST PLATE | 2 |
| 10 | 3GF-87130-0 | 活塞修理包 | PISTON REPAIR KIT | 3 |
| 10 | 3GF-87131-0 | 活塞修理包（0.5加大） | PISTON REPAIR KIT (0.5 O/S) | 3 |
| 11 | 3GF-00001-1 | * 活塞 | * PISTON | 1 |
| 11 | 3GF-00004-1 | * 活塞 (0.5 加大) | * PISTON (0.5 O/S) | 1 |
| 12 | 3C8-00021-1 | * 活塞销 | * PISTON PIN | 1 |
| 13 | 334-00024-1 | * 活塞销卡簧 | * PISTON PIN CLIP | 2 |
| 14 | 3GF-87123-0 | 活塞环组 | PISTON RING SET | 3 |
| 14 | 3GF-87124-0 | 活塞环组（0.5加大） | PISTON RING SET (0.5 O/S) | 3 |
| 15 | 3T5-00011-0 | * 活塞环 | * PISTON RING | 3 |
| 15 | 3T5-00014-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 3 |

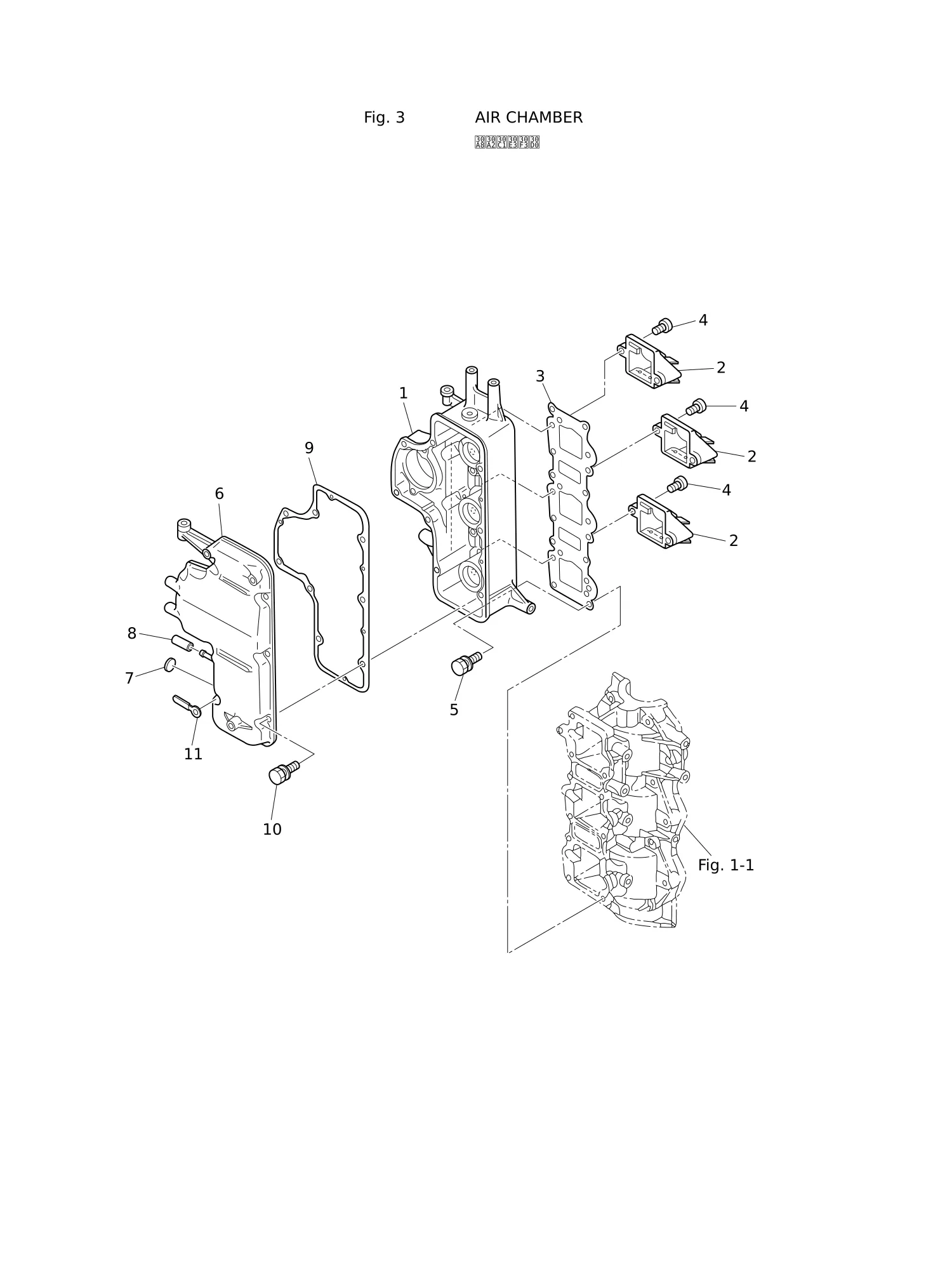

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3T5B02240-0 | 气室总成 | AIR CHAMBER ASSY | 1 |
| 2 | 3T5-02100-1 | 簧片阀总成 | REED VALVE ASSY | 3 |
| 3 | 3T5-02104-2 | 进气歧管垫片 | INTAKE MANIFOLD GASKET | 1 |
| 4 | 921521-6516 | 螺钉 | SCREW | 6 |
| 5 | 3T5-02241-0 | 螺栓6-25 | BOLT 6-25 | 12 |
| 6 | 3GFB02246-0 | 气室盖总成 | AIR CHAMBER COVER ASSY | 1 |
| 7 | 345-76092-0 | 索环/护孔圈 | GROMMET | 1 |
| 8 | 3GF-01139-0 | 密封盖 | SEALING CAP | 1 |
| 9 | 3T5-02245-0 | 气室盖衬垫 | AIR CHAMBER COVER GASKET | 1 |
| 10 | 910103-5625 | 螺栓 | BOLT | 8 |
| 11 | 3Z5-06972-1 | 卡箍 7-120P | CLAMP 7-120P | 1 |

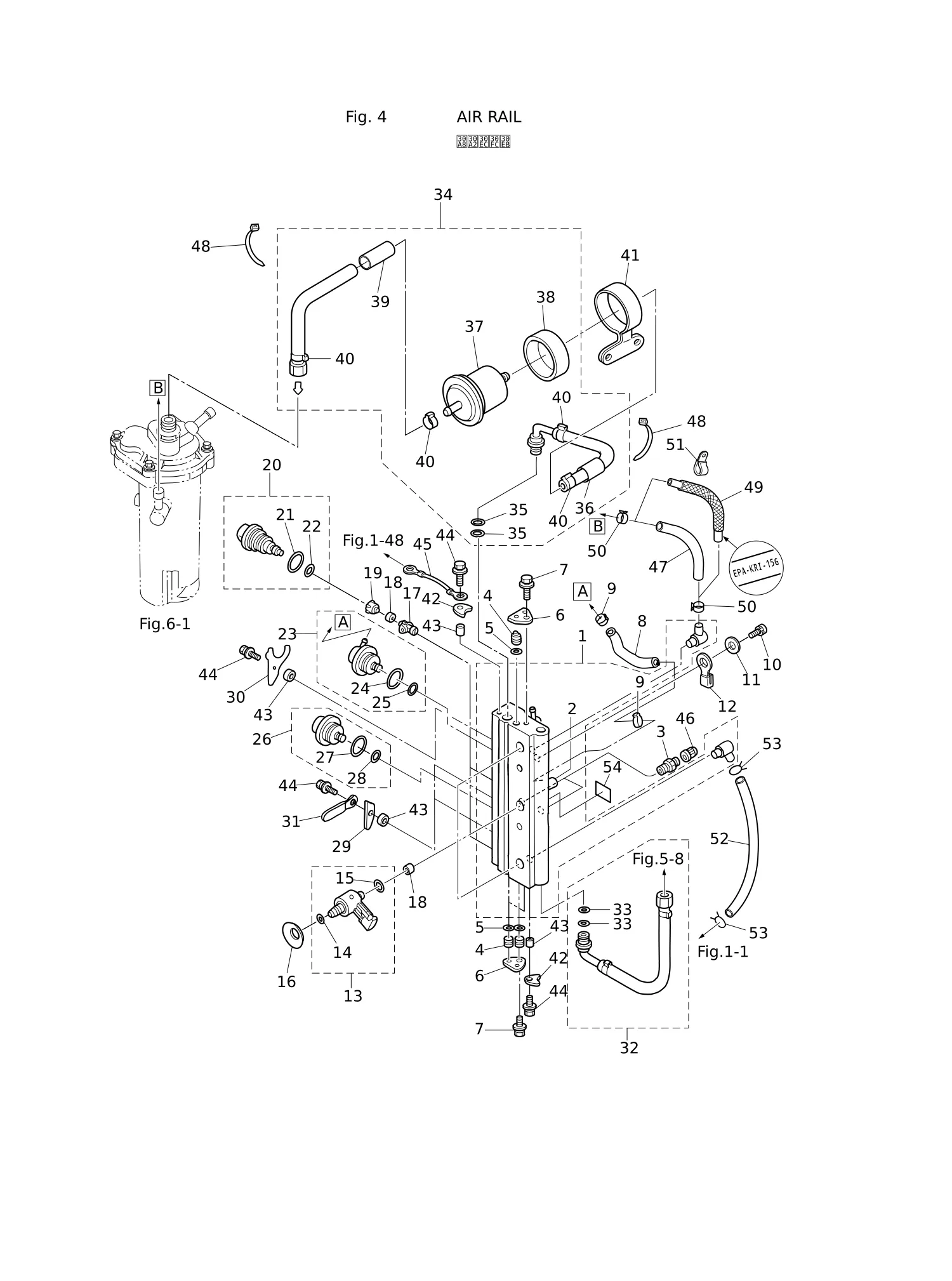

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3T5-10080-1 | 空气导轨总成 | AIR RAIL ASSY | 1 |
| 2 | 3T5-10166-0 | 接头 | * NIPPLE | 1 |
| 3 | 3T5-10098-0 | 阀门总成（压力检测） | VALVE ASSY (PRESSURE CHECK) | 2 |
| 4 | 3T5-10167-0 | 塞 10.5 | PLUG 10.5 | 3 |
| 5 | 3T5-10164-1 | O型圈1.9-6.8 | O-RING 1.9-6.8 | 3 |
| 6 | 3T5-10165-0 | 堵头塞 | PLUG STOPPER | 2 |
| 7 | 910103-6612 | 螺栓 | BOLT | 2 |
| 8 | 98AY-45-105 | 软管 | HOSE | 1 |
| 9 | 3T5-10091-0 | 卡箍 29/64 | CLAMP 29/64 | 2 |
| 10 | 910103-0865 | 螺栓 | BOLT | 2 |
| 11 | 940103-0800 | 垫圈 | WASHER | 2 |
| 12 | 3T5-06972-1 | 卡箍 8.5-70P | CLAMP 8.5-70P | 1 |
| 13 | 3GF-10310-0 | 空气喷射器总成 | AIR INJECTOR COMPLETE | 3 |
| 14 | 3T5-10317-0 | * O型圈 | * O-RING | 1 |
| 15 | 3Y9-10311-1 | * O型圈 2.4-9.6 | * O-RING 2.4-9.6 | 1 |
| 16 | 3Y9-10312-0 | 碟形弹簧 | DISC SPRING | 3 |
| 17 | 3T5-10314-0 | 喷油器嵌件 | FUEL INJECTOR INSERT | 3 |
| 18 | 3T5-10316-0 | 密封件 | SEAL | 6 |
| 19 | 3T5-10315-0 | 喷油器转接座 | FUEL INJECTOR ADAPTER | 3 |
| 20 | 3T5-10300-0 | 喷油器总成 | FUEL INJECTOR ASSY | 3 |
| 21 | 3T5-10304-0 | * O型圈 2.8-20.2 | * O-RING 2.8-20.2 | 1 |
| 22 | 3T5-10303-0 | * O型圈 3.5-7.5 | * O-RING 3.5-7.5 | 1 |
| 23 | 3T5-10148-0 | 燃油调节器总成 | FUEL REGULATOR ASSY | 1 |
| 26 | 3GF-10090-0 | 空气调节器总成 | AIR REGULATOR ASSY | 1 |
| 27 | 3T5-10095-0 | * O型圈 2.5-20 | * O-RING 2.5-20 | 1 |
| 28 | 3T5-10094-0 | * O型圈 2.5-5 | * O-RING 2.5-5 | 1 |
| 29 | 3T5-10302-0 | 固定板 | HOLDING PLATE | 2 |
| 30 | 3Y9-10302-0 | 固定板 | HOLDING PLATE | 1 |
| 31 | 309-06972-0 | 卡箍 6.5-47.5P | CLAMP 6.5-47.5P | 1 |
| 32 | 3T5-10088-0 | 空气软管总成 | AIR HOSE ASSY | 1 |
| 34 | 3GF-10089-0 | 燃油软管总成 | FUEL HOSE ASSY | 1 |
| 35 | 3T5-10162-0 | * O型圈1.9-9.8 | * O-RING 1.9-9.8 | 2 |
| 36 | 3Z4-06157-0 | * 防护罩 φ18-135 | * PROTECTOR φ18-135 | 1 |
| 37 | 3T5B10143-0 | * 高压燃油滤清器 | * HIGH PRESSURE FUEL FILTER | 1 |
| 38 | 3T5-10145-0 | * 燃油滤清器橡胶座 | * FUEL FILTER RUBBER MOUNT | 1 |
| 39 | 3U1-06157-0 | * 防护罩 φ18-150 | * PROTECTOR φ18-150 | 1 |
| 40 | 3T5-10086-0 | * 卡箍 21/32 | * CLAMP 21/32 | 4 |
| 41 | 3Z5-10144-0 | 燃油滤清器卡箍 | FUEL FILTER BAND | 1 |
| 42 | 3T5-10169-0 | 固定板 | HOLDING PLATE | 2 |
| 43 | 3T5-10153-0 | 轴环 6.7-12.7-3 | COLLAR 6.7-12.7-3 | 5 |
| 44 | 910103-6616 | 螺栓 | BOLT | 5 |
| 45 | 3A3-62396-1 | 接地线 L=110 | GROUND L=110 | 1 |
| 46 | 3T5-10099-0 | 盖帽 | CAP | 2 |
| 47 | 98AB-50-530 | 软管 | HOSE | 1 |
| 48 | 3Z0-84398-0 | 箍带 203 | BAND 203 | 4 |
| 49 | 3GJ-02165-1 | 带保护套燃油软管 | FUEL HOSE W/PROTECTOR | 1 |
| 50 | 3AB-35143-0 | 卡环 φ9.4 | CLIP φ9.4 | 2 |
| 51 | 345-06915-0 | 卡箍 6.5-14L | CLAMP 6.5-14L | 1 |
| 52 | 98AB-50-280 | 软管 | HOSE | 1 |
| 53 | 338-02215-0 | 卡扣φ10 | CLIP φ10 | 2 |
| 54 | 3T5-72196-0 | 空气导轨标牌 | AIR RAIL DECAL | 1 |

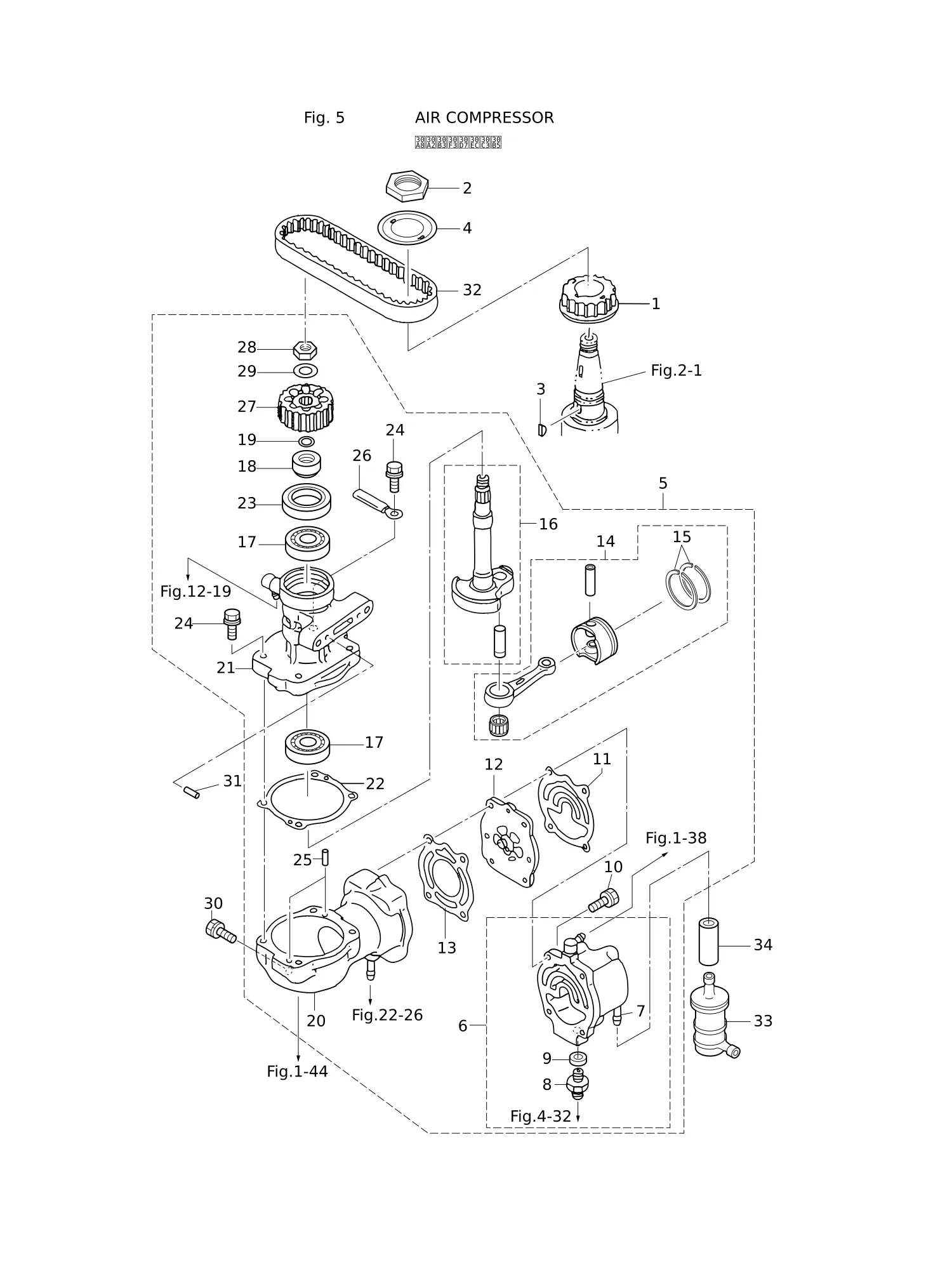

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3T5-10060-0 | 驱动皮带轮 | DRIVE PULLEY | 1 |
| 2 | 3T5-10068-2 | 螺母 | NUT | 1 |
| 3 | 3T5-10131-0 | 键 t=4 | KEY ｔ=4 | 1 |
| 4 | 3T5-10063-0 | 皮带导轮 | BELT GUIDE | 1 |
| 5 | 3GFB10000-0 | 空气压缩机总成 | AIR COMPRESSOR ASSY | 1 |
| 6 | 3GFB10009-0 | * 压缩机缸头总成 | * COMPRESSOR HEAD ASSY | 1 |
| 7 | 3T1-02093-1 | 管接头 | ** NIPPLE | 1 |
| 8 | 3T5-04308-0 | 适配器 | ** ADAPTER | 1 |
| 9 | 3T5-04309-0 | 垫圈 10.2-17-2 | ** WASHER 10.2-17-2 | 1 |
| 10 | 910124-7630 | 螺栓 | * BOLT | 4 |
| 11 | 3T5-10012-1 | * 衬垫 | * GASKET | 1 |
| 12 | 3T5-10010-0 | * 簧片阀总成 | * REED VALVE ASSY | 1 |
| 13 | 3T5-10019-0 | * 衬垫 | * GASKET | 1 |
| 14 | 3GF-87330-0 | * 活塞连杆总成 | * PISTON & CONNECTING ROD ASSY | 1 |
| 15 | 3T5-10025-0 | 空气压缩机活塞环 | ** AIR COMPRESSOR PISTON RING | 2 |
| 16 | 3GF-87331-0 | * 压缩机曲轴总成 | * COMPRESSOR CRANKSHAFT ASSY | 1 |
| 17 | 9601-0-6203 | * 球轴承 6203 | * BALL BEARING 6203 | 2 |
| 18 | 3T1-10042-0 | * 轴环 13.5-25-13 | * COLLAR 13.5-25-13 | 1 |
| 19 | 3T5-10046-0 | * O型圈1.9-13 | * O-RING 1.9-13 | 1 |
| 20 | 3GFB10048-0 | * 空气压缩机气缸总成 | * AIR COMPRESSOR CYLINDER ASSY | 1 |
| 21 | 3T5B10051-0 | * 空气压缩机壳体总成 | * AIR COMPRESSOR HOUSING ASSY | 1 |
| 22 | 3T5-10054-0 | * 衬垫 | * GASKET | 1 |
| 23 | 3T5-10041-0 | * 油封 25-45-7 | * OIL SEAL 25-45-7 | 1 |
| 24 | 910103-5625 | 螺栓 | * BOLT | 4 |
| 26 | 309-06972-0 | * 卡箍 6.5-47.5P | * CLAMP 6.5-47.5P | 1 |
| 27 | 3T5-10062-0 | * 从动皮带轮 | * DRIVEN PULLEY | 1 |
| 28 | 309-00132-0 | 螺母 10-P1.25 | * NUT 10-P1.25 | 1 |
| 29 | 3B7-01116-0 | * 垫圈 10.5-20-3.2 | * WASHER 10.5-20-3.2 | 1 |
| 30 | 910103-7835 | 螺栓 | BOLT | 3 |
| 31 | 334-65012-0 | 定位销4-10 | DOWEL PIN 4-10 | 2 |
| 32 | 3T5-10061-0 | 传动皮带 | DRIVE BELT | 1 |
| 33 | 3GF-10130-0 | 空气滤清器总成 | AIR FILTER ASSY | 1 |
| 34 | 98AT130-060 | 软管 | HOSE | 1 |

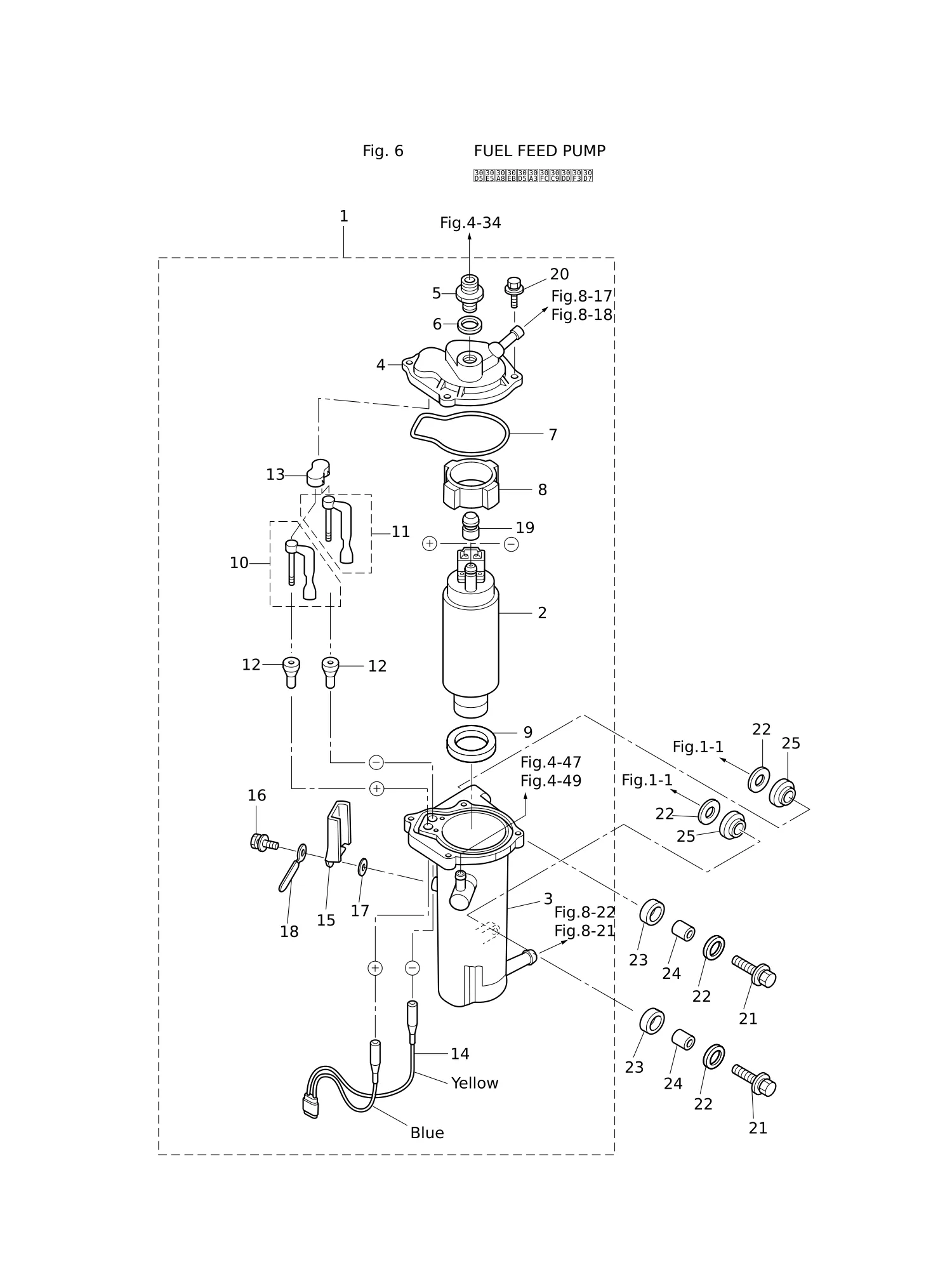

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3T5-04310-0 | 燃油供给泵总成 | FUEL FEED PUMP ASSY | 1 |
| 2 | 3T5-04302-0 | * 燃油供给泵 | * FUEL FEED PUMP | 1 |
| 3 | 3T5-04311-0 | * 壳体总成 | * CASE ASSY | 1 |
| 4 | 3T5-04312-0 | * 上壳体总成 | * UPPER CASE ASSY | 1 |
| 5 | 3T5-04308-0 | * 转接器 | * ADAPTER | 1 |
| 6 | 3T5-04309-0 | * 垫圈 10.2-17-2 | * WASHER 10.2-17-2 | 1 |
| 7 | 3T5-04116-0 | * 衬垫 | * GASKET | 1 |
| 8 | 3T5-04313-0 | * 护孔环 | * GROMMET | 1 |
| 9 | 3T5-04314-0 | * 护孔环 | * GROMMET | 1 |
| 10 | 3T5-04236-0 | * 线缆端子总成(正极) | * CABLE TERMINAL ASSY (POSITIVE) | 1 |
| 11 | 3T5-04237-0 | * 线缆端子总成(负极) | * CABLE TERMINAL ASSY (NEGATIVE) | 1 |
| 12 | 3T5-04317-0 | * 护孔环 | * GROMMET | 2 |
| 13 | 3T5-04318-0 | * 护孔环 | * GROMMET | 1 |
| 14 | 3T5-04238-0 | * 绳索 | * CORD | 1 |
| 15 | 3T5-04239-0 | * 绳索护套 | * CORD COVER | 1 |
| 16 | 910103-5512 | 螺栓 | * BOLT | 1 |
| 17 | 940103-0500 | * 垫圈 | * WASHER | 1 |
| 18 | 309-06972-0 | * 卡箍 6.5-47.5P | * CLAMP 6.5-47.5P | 1 |
| 19 | 3T5-04319-0 | * 护孔环 | * GROMMET | 1 |
| 20 | 910103-6518 | 螺栓 | * BOLT | 4 |
| 21 | 910103-6630 | 螺栓 | BOLT | 2 |
| 22 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 4 |
| 23 | 3F3-06920-0 | 橡胶支座 8.5-12-2 | RUBBER MOUNT 8.5-12-2 | 2 |
| 24 | 346-67114-1 | 垫圈 6.2-9-15.7 | SPACER 6.2-9-15.7 | 2 |
| 25 | 3T5-06920-0 | 橡胶支座 8.5-18-7 | RUBBER MOUNT 8.5-18-7 | 2 |

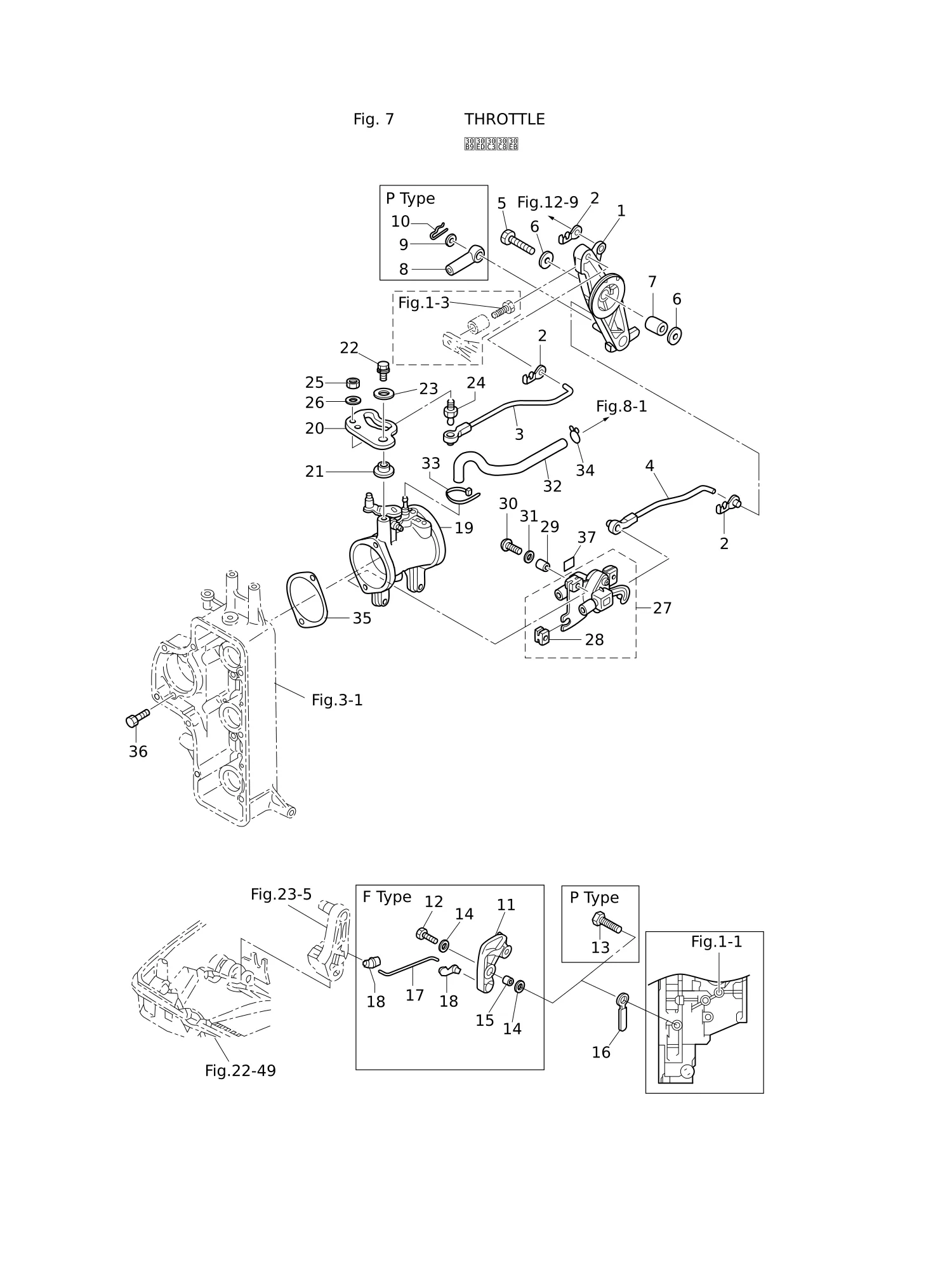

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3C8-63711-1 | 提前臂 | ADVANCER ARM | 1 |
| 2 | 3C8-63733-0 | 5-3连杆卡扣 | ROD SNAP 5-3 | 3 |
| 3 | 3T5-63702-1 | 油门连杆总成 | LINK ROD ASSY (THROTTLE) | 1 |
| 4 | 3T5-10109-1 | 节气门位置传感器连杆总成 | LINK ROD ASSY (TPS) | 1 |
| 5 | 910103-0635 | 螺栓 | BOLT | 1 |
| 7 | 3C8-63732-0 | 轴套 6.2-12-17 | COLLAR 6.2-12-17 | 1 |
| 8 | 3B7-83715-2 | 线缆接头 | CABLE JOINT | 1 |
| 9 | 3AA-83719-0 | 垫圈 8.5-18-1.6 | WASHER 8.5-18-1.6 | 1 |
| 10 | 951603-0800 | 弹性销 d=8 | SNAP PIN d=8 | 1 |
| 11 | 3C8-05213-0 | 节气门限位臂 | THROTTLE LIMITER ARM | 1 |
| 12 | 9101F4-0625 | 螺栓 | BOLT | 1 |
| 13 | 910103-0610 | 螺栓 | BOLT | 1 |
| 15 | 353-76079-0 | 轴套 6.2-9-9.3 | COLLAR 6.2-9-9.3 | 1 |
| 16 | 398-06972-0 | 卡箍 6.5-67P | CLAMP 6.5-67P | 1 |
| 17 | 3C8-05221-0 | 节气门限位杆 3.5-56 | THROTTLE LIMITER ROD 3.5-56 | 1 |
| 18 | 3C8-05223-0 | 3.5-4连杆卡扣 | ROD SNAP 3.5-4 | 2 |
| 19 | 3GF-10100-0 | 节气门体总成 | THROTTLE BODY ASSY | 1 |
| 19 | 3GG-10100-0 | 节气门体总成 | THROTTLE BODY ASSY | 1 |
| 19 | 3GM-10100-0 | 节气门体总成 | THROTTLE BODY ASSY | 1 |
| 20 | 3T5-63718-0 | 节气门凸轮 | THROTTLE CAM | 1 |
| 21 | 3T5-63721-0 | 衬套 6-24-7 | BUSHING 6-24-7 | 1 |
| 22 | 910103-6618 | 螺栓 | BOLT | 1 |
| 23 | 346-67115-0 | 垫片 6.5-21-1 | WASHER 6.5-21-1 | 1 |
| 24 | 346-05228-1 | 球头关节 | BALL JOINT | 1 |
| 25 | 930203-0600 | 螺母 | NUT | 1 |
| 26 | 940103-0600 | 垫圈 | WASHER | 1 |
| 27 | 3T5-10110-0 | 节气门位置传感器总成 | TPS ASSY | 1 |
| 28 | 3T5-10107-0 | * 橡胶支座 | * RUBBER MOUNT | 3 |
| 29 | 3T5-10128-0 | 轴套 4.2-6-10.5 | COLLAR 4.2-6-10.5 | 3 |
| 30 | 921503-6420 | 螺钉 | SCREW | 3 |
| 31 | 3T5-10129-0 | 垫片 4.2-12.5-0.8 | WASHER 4.2-12.5-0.8 | 3 |
| 32 | 98AB-30-310 | 软管 | HOSE | 1 |
| 33 | 3T5-84398-0 | 箍带 104 | BAND 104 | 1 |
| 34 | 338-01133-0 | 卡环 φ7 | CLIP φ7 | 1 |
| 35 | 3T5-10104-0 | 衬垫 | GASKET | 1 |
| 36 | 3T5-02241-0 | 螺栓6-25 | BOLT 6-25 | 2 |
| 37 | 3T5-72195-0 | 节气门位置传感器标贴 | TPS DECAL | 1 |

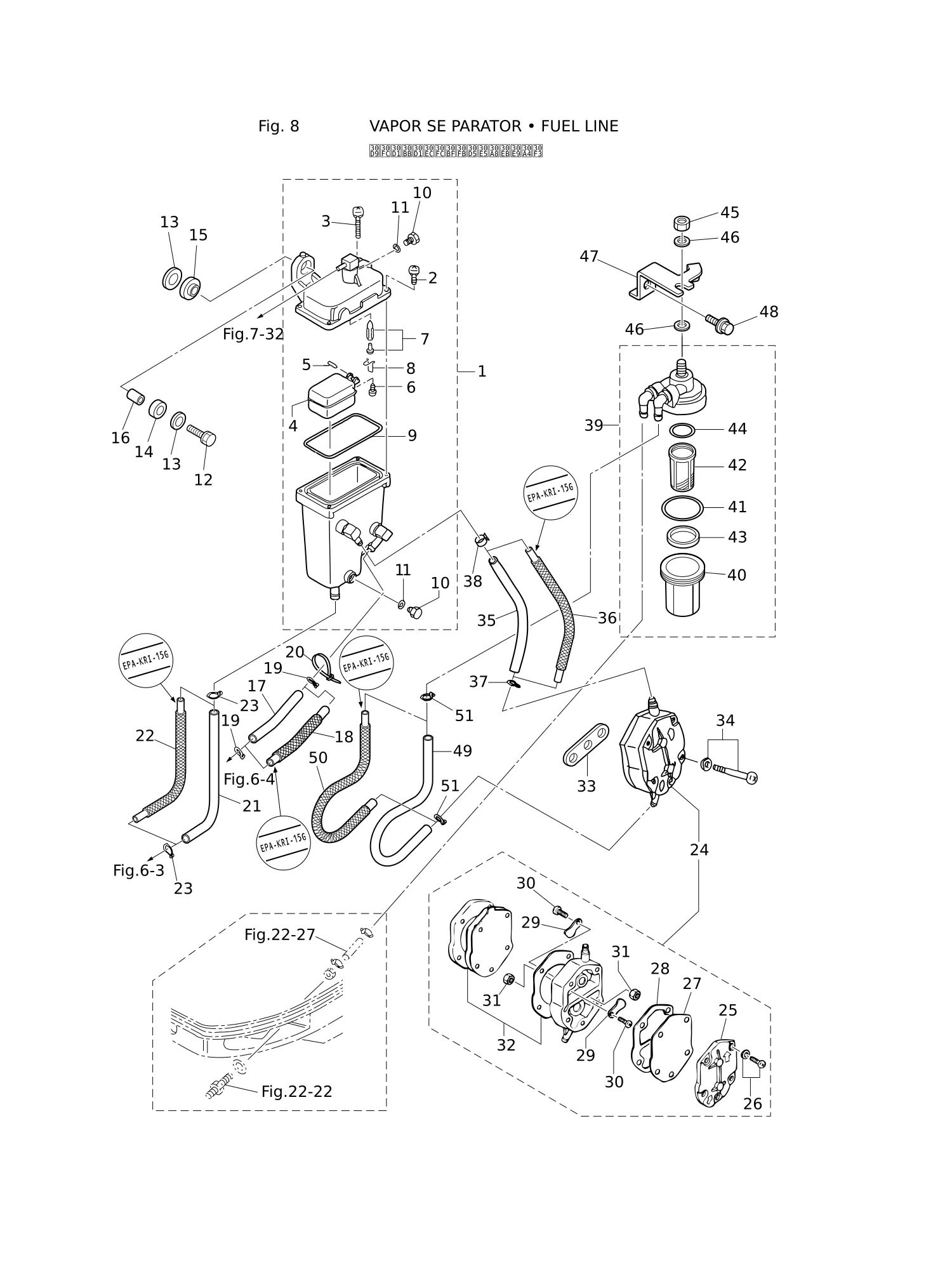

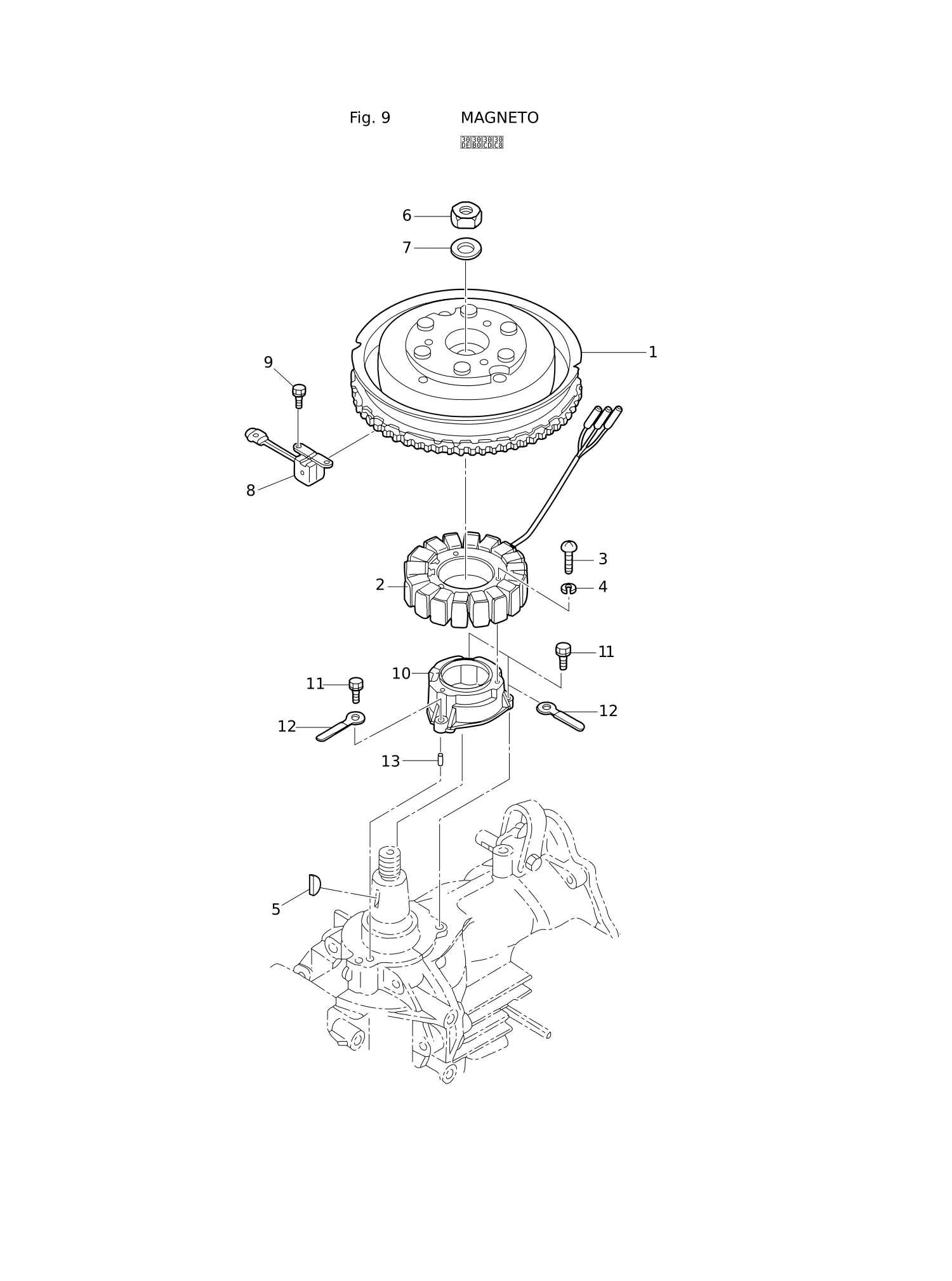

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3T5-10150-1 | 蒸汽分离器总成 | VAPOR SEPARATOR ASSY | 1 |
| 2 | 922531-6414 | * 螺钉 | * SCREW | 3 |
| 3 | 921503-6430 | * 螺钉 | * SCREW | 1 |
| 4 | 3T5-03230-0 | * 浮子 | * FLOAT | 1 |
| 5 | 3F3-03232-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 6 | 921503-0408 | * 螺钉 | * SCREW | 1 |
| 7 | 3R3-03239-0 | * 浮子阀总成 | * FLOAT VALVE ASSY | 1 |
| 8 | 344-03244-0 | * 卡扣 | * CLIP | 1 |
| 9 | 3T5-03235-0 | * O型圈 | * O-RING | 1 |
| 10 | 345-03292-0 | * 放油螺钉 | * DRAIN SCREW | 2 |
| 11 | 336-03293-0 | * O型圈 | * O-RING | 2 |
| 12 | 910103-6630 | 螺栓 | BOLT | 2 |
| 13 | 346-67115-0 | 垫片 6.5-21-1 | WASHER 6.5-21-1 | 4 |
| 14 | 346-67113-0 | 8.5-14-2.5支架 | MOUNT 8.5-14-2.5 | 2 |
| 15 | 3B7-06920-0 | 橡胶支座 8.5-14-2.5 | RUBBER MOUNT 8.5-14-2.5 | 2 |
| 16 | 346-67114-1 | 垫圈 6.2-9-15.7 | SPACER 6.2-9-15.7 | 2 |
| 17 | 98AB-50-075 | 软管 | HOSE | 1 |
| 18 | 3GA-02165-0 | 带保护套燃油软管 L=75 | FUEL HOSE W/PROTECTOR L=75 | 1 |
| 20 | 3T5-84398-0 | 箍带 104 | BAND 104 | 1 |
| 21 | 98AB-70-180 | 软管 | HOSE | 1 |
| 22 | 3GF-02170-1 | 带保护套燃油软管 L=180 | FUEL HOSE W/PROTECTOR L=180 | 1 |
| 23 | 3C7-02215-0 | 卡扣φ12 | CLIP φ12 | 2 |
| 24 | 356-04000-1 | 燃油泵总成 | FUEL PUMP ASSY | 1 |
| 25 | 334-04004-0 | * 泵盖 | * PUMP COVER | 1 |
| 26 | 9225F2-6528 | * 螺钉 | * SCREW | 3 |
| 27 | 334-04005-0 | * 泵膜片 | * PUMP DIAPHRAGM | 1 |
| 28 | 334-04007-0 | * 隔膜垫片 | * DIAPHRAGM GASKET | 1 |
| 29 | 356-04044-0 | * 止回阀 | * CHECK VALVE | 2 |
| 30 | 921722-0306 | * 螺钉 | * SCREW | 2 |
| 31 | 930222-0300 | 螺母 | * NUT | 2 |
| 32 | 356-04030-0 | * 隔膜垫片套装 | * DIAPHRAGM GASKET SET | 1 |
| 33 | 346-04901-2 | 衬垫 | GASKET | 1 |
| 34 | 910103-6640 | 螺栓 | BOLT | 2 |
| 35 | 98AB-50-190 | 软管 | HOSE | 1 |
| 36 | 3GG-02165-1 | 带保护套燃油软管 L=190 | FUEL HOSE W/PROTECTOR L=190 | 1 |
| 38 | 3AB-35143-0 | 卡环 φ9.4 | CLIP φ9.4 | 1 |
| 39 | 3T5-02230-0 | 燃油滤清器总成 | FUEL FILTER ASSY | 1 |
| 40 | 3B7-02237-0 | * 杯状件 | * CUP | 1 |
| 41 | 3B7-02235-0 | * O型圈 | * O-RING | 1 |
| 42 | 3B7-02234-0 | * 滤清器 | * FILTER | 1 |
| 43 | 3T5-02229-0 | * 浮子 | * FLOAT | 1 |
| 44 | 3B7-02236-0 | * O型圈 | * O-RING | 1 |
| 45 | 930103-0800 | 螺母 | NUT | 1 |
| 46 | 940103-0800 | 垫圈 | WASHER | 2 |
| 47 | 3GF-02239-0 | 板 | PLATE | 1 |
| 48 | 910103-6614 | 螺栓 | BOLT | 1 |
| 49 | 98AB-50-260 | 软管 | HOSE | 1 |
| 50 | 3GF-02165-0 | 带保护套燃油软管 L=260 | FUEL HOSE W/PROTECTOR L=260 | 1 |
| 51 | 338-02215-0 | 卡扣φ10 | CLIP φ10 | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|
