两冲程 2-Stroke · 2024 年 · 手册号 002-21043-0BD · 共 3 个部位 · 107 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

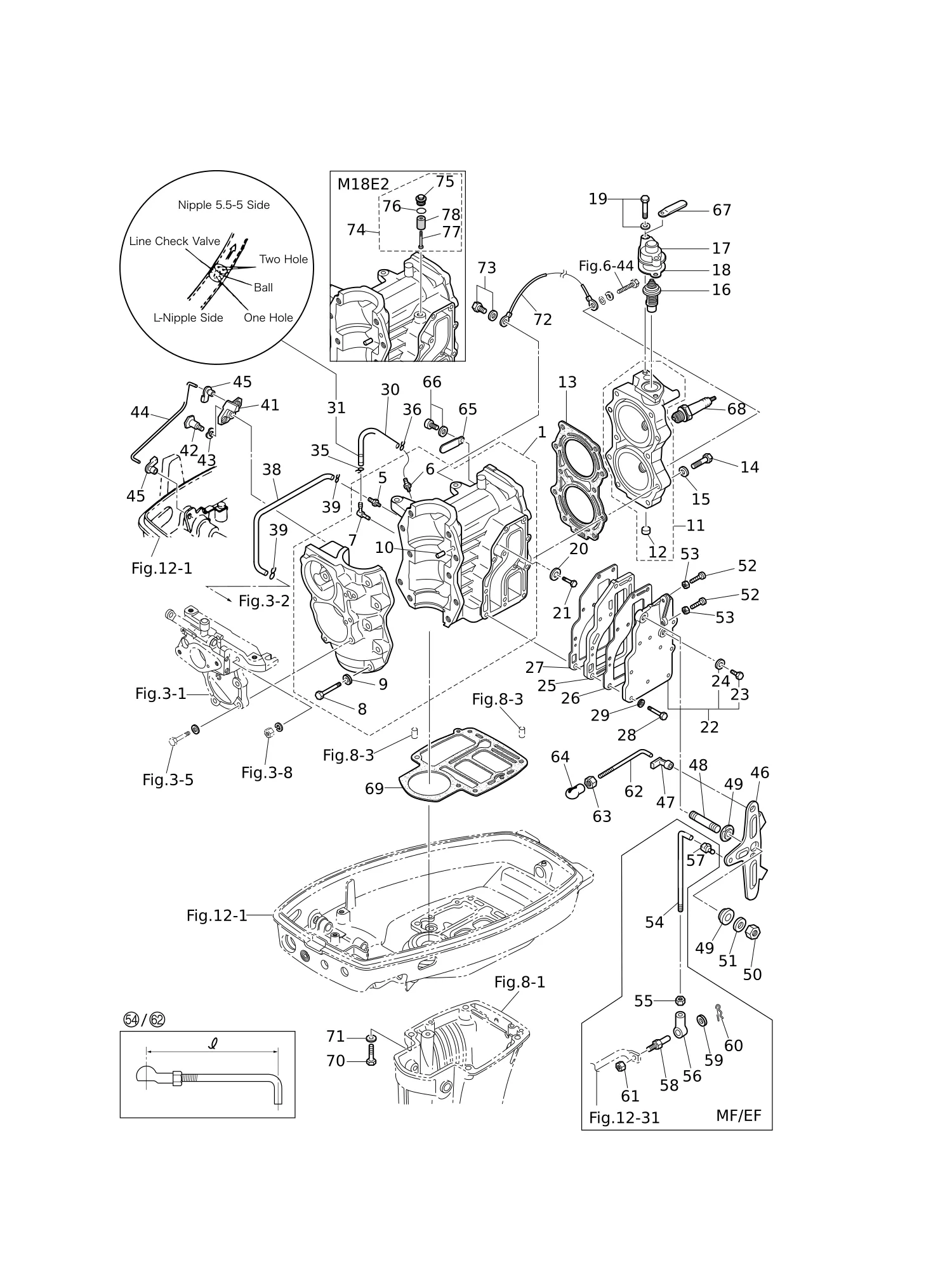

| 1 | 362B01100-5 | 气缸体与曲轴箱总成 | CYL BLOCK & CRANKCASE ASSY | 1 |
| 1 | 3G2B01100-2 | 气缸体与曲轴箱总成 | CYL BLOCK & CRANKCASE ASSY | 1 |
| 5 | 338-01131-1 | 接头 4.8-5 | * NIPPLE 4.8-5 | 1 |
| 6 | 393-01131-0 | 接头 5.5-5 | * NIPPLE 5.5-5 | 1 |
| 7 | 393-01137-0 | 接头 5-4-5 | * NIPPLE 5-4-5 | 1 |
| 8 | 916124-0845 | 螺栓 | * BOLT | 10 |
| 9 | 940121-0800 | * 垫圈 | * WASHER | 10 |
| 10 | 345-01111-0 | * 定位销 6-12 | * DOWEL PIN 6-12 | 2 |
| 11 | 397B01001-0 | 气缸盖总成 | CYLINDER HEAD ASSY | 1 |
| 11 | 398B01001-1 | 气缸盖总成 | CYLINDER HEAD ASSY | 1 |
| 12 | 350-01093-0 | * 韦尔奇塞 | * WELCH PLUG | 1 |
| 13 | 351-01005-1 | 气缸盖衬垫 | CYLINDER HEAD GASKET | 1 |
| 13 | 3M4-01005-0 | 气缸盖衬垫 | CYLINDER HEAD GASKET | 1 |
| 14 | 3M3-01012-0 | 气缸盖螺栓 | CYLINDER HEAD BOLT | 10 |
| 15 | 940103-0800 | 垫圈 | WASHER | 10 |
| 16 | 350-01030-1 | 节温器 | THERMOSTAT | 1 |
| 17 | 3H6B01031-0 | 节温器盖 | THERMOSTAT CAP | 1 |
| 18 | 346-01032-0 | 节温器盖垫片 | THERMOSTAT CAP GASKET | 1 |
| 19 | 910114-5630 | 螺栓 | BOLT | 2 |
| 20 | 338-60218-2 | 阳极块 | ANODE | 1 |
| 21 | 910103-0616 | 螺栓 | BOLT | 1 |
| 22 | 350B02300-1 | 排气盖总成 | EXHAUST COVER ASSY | 1 |
| 23 | 9106E3-0808 | 螺栓 | * BOLT | 1 |
| 24 | 332-60006-1 | * 衬垫 8.1-15-1 | * GASKET 8.1-15-1 | 1 |
| 25 | 350B02302-1 | 排气内盖 | EXHAUST COVER (INNER) | 1 |
| 26 | 350-02305-2 | 排气盖垫片 | EXHAUST COVER GASKET | 1 |
| 27 | 350-02306-2 | 排气盖垫片 | EXHAUST COVER GASKET | 1 |
| 28 | 3NT-02319-0 | 螺栓25mm | BOLT 25mm | 11 |
| 29 | 940103-0600 | 垫圈 | WASHER | 11 |
| 30 | 98AL-40-270 | 软管 | HOSE | 1 |
| 31 | 393-01160-0 | 止回阀 | CHECK VALVE | 1 |
| 35 | 3T5-01133-0 | 卡环 φ8 | CLIP φ8 | 1 |
| 38 | 98AB-30-270 | 软管 | HOSE | 1 |
| 39 | 338-01133-0 | 卡环 φ7 | CLIP φ7 | 2 |
| 41 | 350-05211-0 | 节气门限位臂 | THROTTLE LIMITER ARM | 1 |
| 42 | 3M3-05227-0 | 节气门限位轴 | THROTTLE LIMITER SHAFT | 1 |
| 43 | 941403-0800 | 波形垫圈 d=8 | WAVE WASHER d=8 | 1 |
| 44 | 350-05222-0 | 启动锁杆 | STARTER LOCK ROD | 1 |
| 45 | 345-05223-1 | 3.5-2连杆卡扣 | ROD SNAP 3.5-2 | 2 |
| 46 | 350-63711-2 | 提前臂 | ADVANCER ARM | 1 |
| 48 | 3KM-63104-0 | 螺柱 | STUD | 1 |
| 49 | 345-63713-0 | 衬套 8-14-4 | BUSHING 8-14-4 | 2 |
| 50 | 930403-0800 | 尼龙螺母 8-P1.25 | NYLON NUT 8-P1.25 | 1 |
| 51 | 940203-0800 | 垫圈 8.4-15.5-1.6 | WASHER 8.4-15.5-1.6 | 1 |
| 52 | 921503-0525 | 螺钉 | SCREW | 2 |
| 54 | 398-63717-1 | 连杆5-65L | ROD 5-65L | 1 |
| 56 | 346-05234-0 | φ5连杆接头 | ROD JOINT φ5 | 1 |
| 57 | 3B7-63733-0 | 5-2.5连杆卡扣 | ROD SNAP 5-2.5 | 1 |
| 58 | 353-83728-1 | 销钉 | PIN | 1 |
| 59 | 3AA-83719-0 | 垫圈 8.5-18-1.6 | WASHER 8.5-18-1.6 | 1 |
| 60 | 951603-0800 | 弹性销 d=8 | SNAP PIN d=8 | 1 |
| 61 | 930103-0600 | 螺母 | NUT | 1 |
| 62 | 350-63715-1 | 连杆5-60L | ROD 5-60L | 1 |
| 63 | 930103-0500 | 螺母 | NUT | 1 |
| 64 | 3B7-05243-0 | 球头连接器 | BALL JOINT CONNECTOR | 1 |
| 67 | 398-06972-1 | 卡箍 6.5-67P | CLAMP 6.5-67P | 1 |
| 68 | 9701-1-1015 | 火花塞 (BR7HS-10) | SPARK PLUG (BR7HS-10) | 2 |
| 69 | 3M3-01303-0 | 发动机基座垫片 | ENGINE BASEMENT GASKET | 1 |
| 70 | 3KK-01012-0 | 气缸盖螺栓 | CYLINDER HEAD BOLT | 4 |
| 71 | 9401E3-0800 | 垫圈 | WASHER | 4 |
| 72 | 3B7-76142-1 | 接地电缆 L=120 | GROUND CABLE L=120 | 1 |
| 73 | 910103-5612 | 螺栓 | BOLT | 1 |
| 74 | 3KM-01142-0 | 阳极螺塞总成 | ANODE PLUG ASSY | 1 |
| 75 | 3P0-01143-0 | * 阳极塞 | * ANODE PLUG | 1 |
| 76 | 3T5-10046-0 | * O型圈1.9-13 | * O-RING 1.9-13 | 1 |
| 77 | 921503-0530 | * 螺钉 | * SCREW | 1 |
| 78 | 3P0-60218-0 | * 阳极 | * ANODE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 350-00115-0 | 止推板 | THRUST PLATE | 1 |
| 2 | 350-00107-0 | 止推板 | THRUST PLATE | 1 |
| 3 | 3M2-00122-0 | 油封 25-62-9.5 | OIL SEAL 25-62-9.5 | 1 |
| 4 | 362-00128-0 | 油封环 34-56.5-7.5 | OIL SEALING RING 34-56.5-7.5 | 1 |
| 5 | 3M3-00042-0 | 滚柱轴承 14-18-20 | ROLLER BEARING 14-18-20 | 2 |

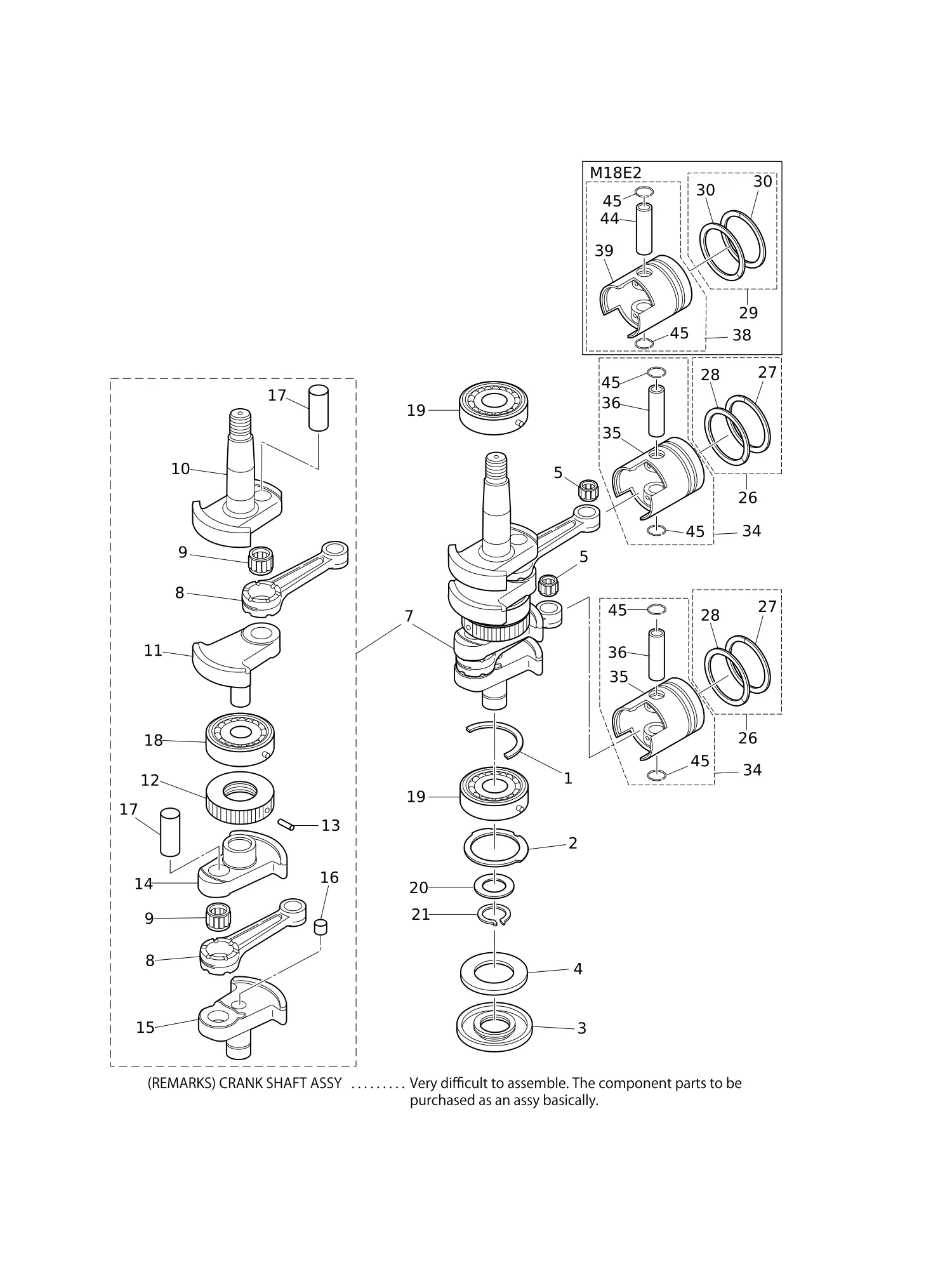

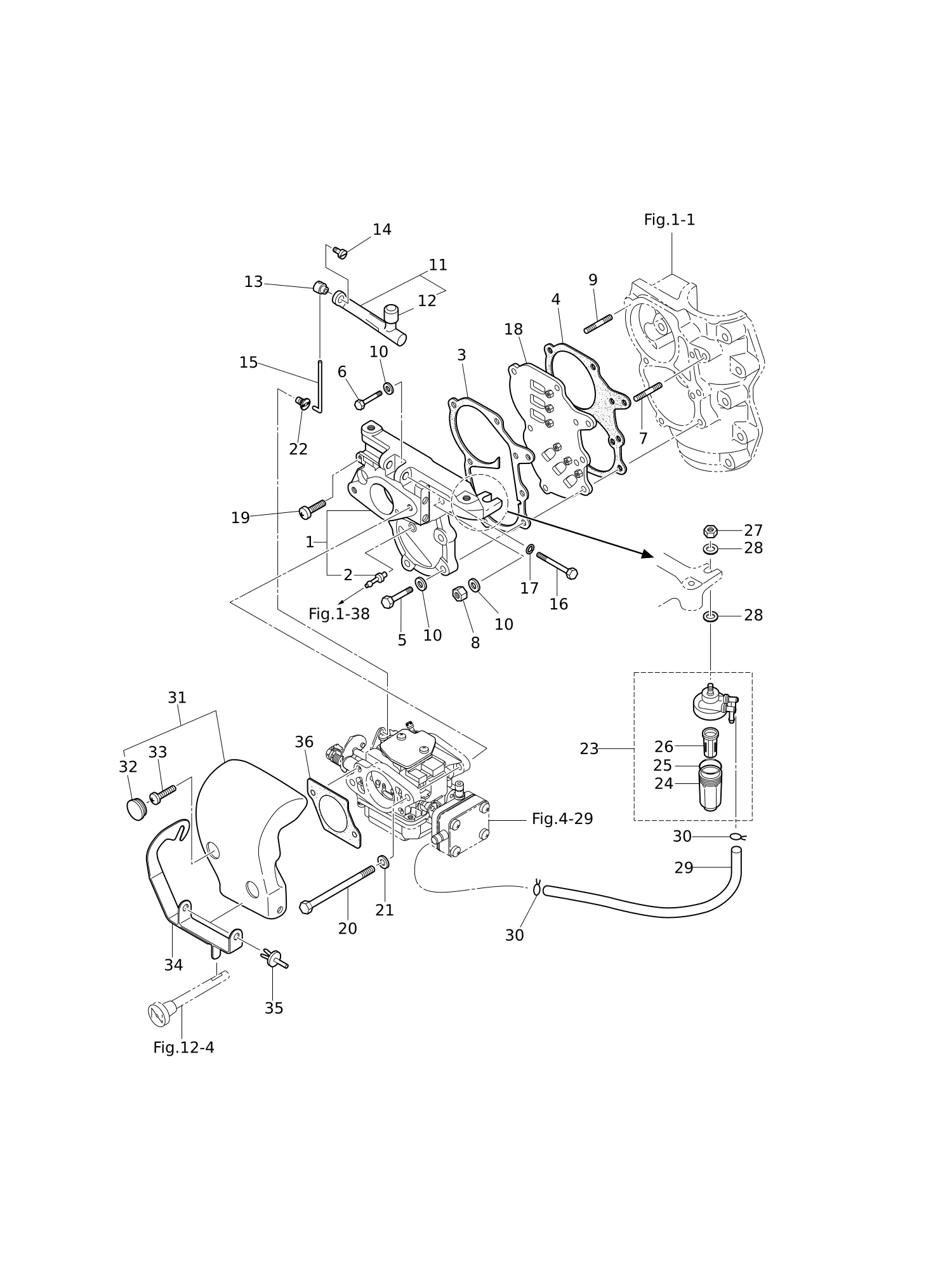

| 7 | 3M2-00069-1 | 曲轴分总成 | CRANKSHAFT SUB-ASSY | 1 |
| 8 | 350-00040-0 | * 连杆 | * CONNECTING ROD | 2 |
| 9 | 3G4-00043-0 | * 滚柱轴承 20-26-16 | * ROLLER BEARING 20-26-16 | 2 |
| 10 | 3M2-00031-1 | * 曲轴A型 | * CRANKSHAFT A | 1 |
| 11 | 350-00032-1 | * 曲轴B型 | * CRANKSHAFT B | 1 |
| 12 | 350-00051-1 | * 迷宫密封 | * LABYRINTH PACKING | 1 |
| 13 | 951407-0308 | * 弹簧销 3-8 | * SPRING PIN 3-8 | 1 |
| 14 | 350-00033-1 | * 曲轴C型 | * CRANKSHAFT C | 1 |
| 15 | 350-00034-2 | * 曲轴D型 | * CRANKSHAFT D | 1 |
| 16 | 350-00062-0 | * 密封塞 | * SEALING PLUG | 1 |
| 17 | 350-00061-1 | * 曲柄销 | * CRANK PIN | 2 |
| 19 | 9603-3-6305 | 滚珠轴承 | BALL BEARING | 2 |
| 20 | 346-00116-0 | 垫片 25.2-34-1.6 | SPACER 25.2-34-1.6 | 1 |
| 21 | 945102-2500 | C形环 | C-RING | 1 |
| 26 | 3M2-87123-0 | 活塞环组 | PISTON RING SET | 2 |
| 26 | 3M2-87124-0 | 活塞环组（0.5加大） | PISTON RING SET (0.5 O/S) | 2 |
| 27 | 3G2-00011-0 | * 活塞环 | * PISTON RING | 1 |
| 27 | 3G2-00014-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 1 |
| 28 | 351-00011-0 | * 活塞环 | * PISTON RING | 1 |
| 28 | 351-00014-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 1 |
| 29 | 3M4-87123-0 | 活塞环组 | PISTON RING SET | 2 |
| 29 | 3M4-87124-0 | 活塞环组（0.5加大） | PISTON RING SET (0.5 O/S) | 2 |
| 30 | 350-00011-0 | * 活塞环 | * PISTON RING | 2 |
| 30 | 350-00014-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 2 |
| 34 | 3M2-87130-0 | 活塞修理包 | PISTON REPAIR KIT | 2 |
| 34 | 3M2-87131-0 | 活塞修理包（0.5加大） | PISTON REPAIR KIT (0.5 O/S) | 2 |
| 35 | 351-00001-2 | * 活塞 | * PISTON | 1 |
| 35 | 351-00004-2 | * 活塞 (0.5 加大) | * PISTON (0.5 O/S) | 1 |
| 36 | 332-00021-1 | * 活塞销 | * PISTON PIN | 1 |
| 38 | 3M4-87130-0 | 活塞修理包 | PISTON REPAIR KIT | 2 |
| 38 | 3M4-87131-0 | 活塞修理包（0.5加大） | PISTON REPAIR KIT (0.5 O/S) | 2 |
| 39 | 350-00001-1 | * 活塞 | * PISTON | 1 |
| 39 | 350-00004-1 | * 活塞 (0.5 加大) | * PISTON (0.5 O/S) | 1 |
| 44 | 350-00021-1 | * 活塞销 | * PISTON PIN | 1 |
| 45 | 350-00024-1 | * 活塞销卡簧 | * PISTON PIN CLIP | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|
