两冲程 2-Stroke · 2013 年 · 手册号 002-21043-9 · 共 16 个部位 · 715 条零件

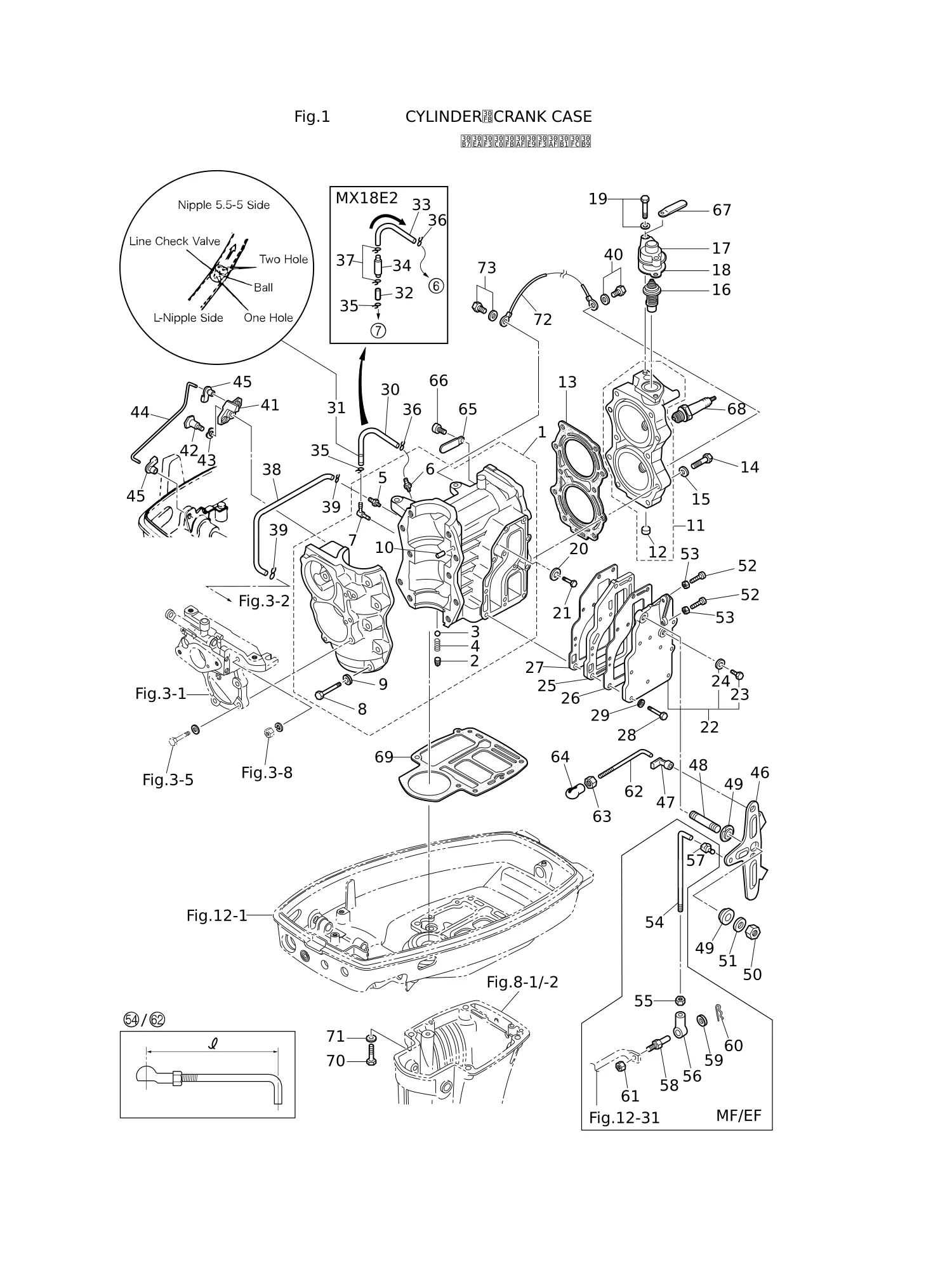

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 362B01100-3 | 气缸体与曲轴箱总成 | CYL BLOCK & CRANKCASE ASSY | 1 |
| 1 | 3G2B01100-2 | 气缸体与曲轴箱总成 | CYL BLOCK & CRANKCASE ASSY | 1 |
| 1 | 3LDJ01100-0 | 气缸体与曲轴箱总成 | CYL BLOCK & CRANKCASE ASSY | 1 |
| 2 | 350-00063-0 | * 密封塞 4.9-4 | * SEALING PLUG 4.9-4 | 1 |
| 3 | 332-01121-1 | 尼龙球 3/16 | * NYLON BALL 3/16 | 1 |
| 4 | 332-01122-0 | * 弹簧 | * SPRING | 1 |
| 5 | 338-01131-1 | 接头 4.8-5 | * NIPPLE 4.8-5 | 1 |
| 6 | 393-01131-0 | 接头 5.5-5 | * NIPPLE 5.5-5 | 1 |
| 7 | 393-01137-0 | 接头 | * NIPPLE | 1 |
| 8 | 916124-0845 | 螺栓 | * BOLT | 10 |
| 9 | 940121-0800 | * 垫圈 | * WASHER | 10 |
| 10 | 345-01111-0 | * 定位销 6-12 | * DOWEL PIN 6-12 | 2 |
| 11 | 397B01001-0 | 气缸盖总成 | CYLINDER HEAD ASSY | 1 |
| 11 | 398B01001-1 | 气缸盖总成 | CYLINDER HEAD ASSY | 1 |
| 11 | 3LDJ01001-0 | 气缸盖总成 | CYLINDER HEAD ASSY | 1 |
| 12 | 350-01093-0 | * 韦尔奇塞 | * WELCH PLUG | 1 |
| 13 | 350-01005-1 | 气缸盖衬垫 | CYLINDER HEAD GASKET | 1 |
| 13 | 351-01005-1 | 气缸盖衬垫 | CYLINDER HEAD GASKET | 1 |
| 14 | 3M3-01012-0 | 气缸盖螺栓 | CYLINDER HEAD BOLT | 10 |
| 16 | 350-01030-1 | 节温器 | THERMOSTAT | 1 |
| 17 | 3H6B01031-0 | 节温器盖 | THERMOSTAT CAP | 1 |
| 17 | 3H6J01031-0 | 节温器盖 | THERMOSTAT CAP | 1 |
| 18 | 346-01032-0 | 节温器盖垫片 | THERMOSTAT CAP GASKET | 1 |
| 19 | 9101F4-5630 | 螺栓 | BOLT | 2 |
| 20 | 338-60218-2 | 阳极块 | ANODE | 1 |
| 21 | 910103-0616 | 螺栓 | BOLT | 1 |
| 22 | 350B02300-1 | 排气盖总成 | EXHAUST COVER ASSY | 1 |
| 22 | 350J02300-1 | 排气盖总成 | EXHAUST COVER ASSY | 1 |
| 23 | 9106E3-0808 | 螺栓 | * BOLT | 1 |
| 24 | 332-60006-0 | * 衬垫 8.1-15-1 | * GASKET 8.1-15-1 | 1 |
| 25 | 350B02302-1 | 排气内盖 | EXHAUST COVER (INNER) | 1 |
| 25 | 350J02302-1 | 排气内盖 | EXHAUST COVER (INNER) | 1 |
| 26 | 350-02305-2 | 排气盖垫片 | EXHAUST COVER GASKET | 1 |
| 27 | 350-02306-2 | 排气盖垫片 | EXHAUST COVER GASKET | 1 |
| 28 | 9101F4-0625 | 螺栓 | BOLT | 11 |
| 29 | 9401E3-0600 | 垫圈 | WASHER | 11 |
| 30 | 98AL-40-270 | 软管 | HOSE | 1 |
| 31 | 393-01160-0 | 止回阀 | CHECK VALVE | 1 |
| 32 | 98AL-40-030 | 软管 | HOSE | 1 |
| 33 | 98AL-40-220 | 软管 | HOSE | 1 |
| 34 | 3LC-01160-0 | 止回阀 | CHECK VALVE | 1 |
| 35 | 3T5-01133-0 | 卡环 φ8 | CLIP φ8 | 1 |
| 37 | 369-70098-2 | 卡环 φ7 | CLIP φ7 | 2 |
| 38 | 98AB-30-270 | 软管 | HOSE | 1 |
| 39 | 338-01133-0 | 卡环 φ7 | CLIP φ7 | 2 |
| 41 | 350-05211-0 | 节气门限位臂 | THROTTLE LIMITER ARM | 1 |
| 42 | 350-05227-1 | 节气门限位轴 | THROTTLE LIMITER SHAFT | 1 |
| 43 | 941403-0800 | 波形垫圈 d=8 | WAVE WASHER d=8 | 1 |
| 44 | 350-05222-0 | 启动锁杆 | STARTER LOCK ROD | 1 |
| 45 | 345-05223-1 | 3.5-2连杆卡扣 | ROD SNAP 3.5-2 | 2 |
| 46 | 350-63711-1 | 提前臂 | ADVANCER ARM | 1 |
| 48 | 915221-0823 | 螺柱 | STUD | 1 |
| 49 | 345-63713-0 | 衬套 8-14-4 | BUSHING 8-14-4 | 2 |
| 50 | 930403-0800 | 尼龙螺母 8-P1.25 | NYLON NUT 8-P1.25 | 1 |
| 51 | 334-66233-0 | 垫片 8.1-16-1.5 | WASHER 8.1-16-1.5 | 1 |
| 52 | 921503-0525 | 螺钉 | SCREW | 2 |
| 54 | 398-63717-1 | 连杆5-65L | ROD 5-65L | 1 |
| 56 | 346-05234-0 | φ5连杆接头 | ROD JOINT φ5 | 1 |
| 57 | 3B7-63733-0 | 5-2.5连杆卡扣 | ROD SNAP 5-2.5 | 1 |
| 58 | 353-83728-1 | 销钉 | PIN | 1 |
| 59 | 3AA-83719-0 | 垫圈 8.5-18-1.6 | WASHER 8.5-18-1.6 | 1 |
| 60 | 951603-0800 | 弹性销 d=8 | SNAP PIN d=8 | 1 |
| 61 | 930103-0600 | 螺母 | NUT | 1 |
| 62 | 350-63715-1 | 连杆5-60L | ROD 5-60L | 1 |
| 63 | 930103-0500 | 螺母 | NUT | 1 |
| 64 | 3B7-05243-0 | 球头连接器 | BALL JOINT CONNECTOR | 1 |
| 66 | 921503-0610 | 螺钉 | SCREW | 1 |
| 67 | 398-06972-0 | 卡箍 6.5-67P | CLAMP 6.5-67P | 1 |
| 68 | 9701-1-1010 | 火花塞 (BP7HS10) | SPARK PLUG (BP7HS10) | 2 |
| 68 | 9701-1-1015 | 火花塞 (BR7HS10) | SPARK PLUG (BR7HS10) | 2 |
| 69 | 3M3-01303-0 | 发动机基座垫片 | ENGINE BASEMENT GASKET | 1 |
| 70 | 3M3-61017-1 | 螺栓8-45 | BOLT 8-45 | 4 |
| 71 | 9401E3-0800 | 垫圈 | WASHER | 4 |
| 72 | 3B7-76142-1 | 接地电缆 L=120 | GROUND CABLE L=120 | 1 |
| 73 | 910103-5612 | 螺栓 | BOLT | 1 |

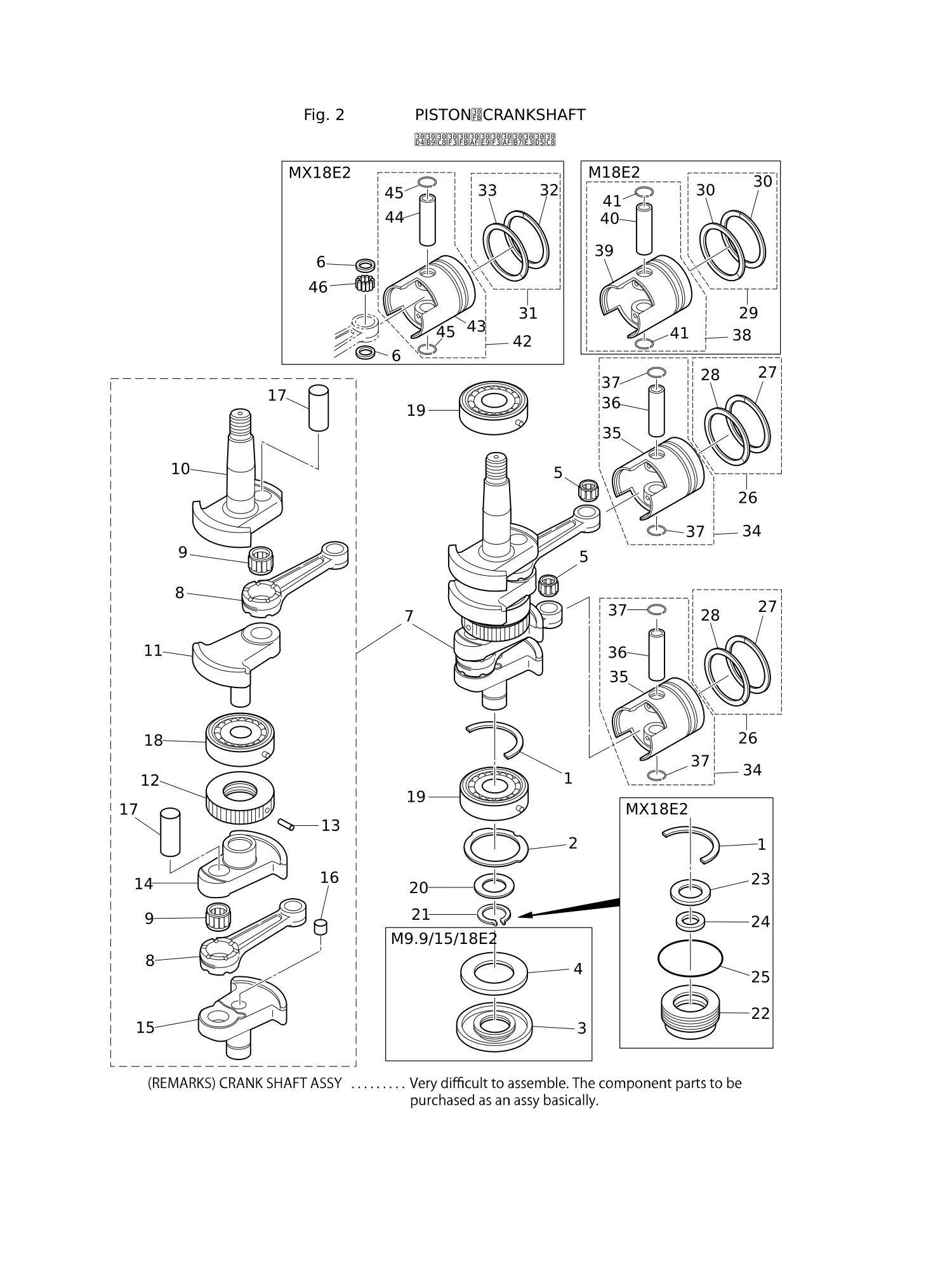

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 350-00115-0 | 止推板 | THRUST PLATE | 2 |
| 2 | 350-00107-0 | 止推板 | THRUST PLATE | 1 |
| 3 | 3M2-00122-0 | 油封 25-62-9.5 | OIL SEAL 25-62-9.5 | 1 |
| 4 | 362-00128-0 | 油封环 | OIL SEALING RING | 1 |
| 5 | 3M3-00042-0 | 滚柱轴承 14-18-20 | ROLLER BEARING 14-18-20 | 2 |
| 6 | 3LD-00046-0 | 小端轴承垫圈 | SMALL END BEARING WASHER | 4 |
| 7 | 3M2-00069-1 | 曲轴分总成 | CRANKSHAFT SUB-ASSY | 1 |
| 8 | 350-00040-0 | * 连杆 | * CONNECTING ROD | 2 |
| 9 | 3G4-00043-0 | * 滚柱轴承 20-26-16 | * ROLLER BEARING 20-26-16 | 2 |
| 10 | 3M2-00031-1 | * 曲轴A型 | * CRANKSHAFT A | 1 |
| 11 | 350-00032-1 | * 曲轴B型 | * CRANKSHAFT B | 1 |
| 12 | 350-00051-1 | * 迷宫密封 | * LABYRINTH PACKING | 1 |
| 13 | 951407-0308 | * 弹簧销 3-8 | * SPRING PIN 3-8 | 1 |
| 14 | 350-00033-1 | * 曲轴C型 | * CRANKSHAFT C | 1 |
| 15 | 350-00034-2 | * 曲轴D型 | * CRANKSHAFT D | 1 |
| 16 | 350-00062-0 | * 密封塞 | * SEALING PLUG | 1 |
| 17 | 350-00061-1 | * 曲柄销 | * CRANK PIN | 2 |
| 19 | 9603-3-6305 | 滚珠轴承 | BALL BEARING | 2 |
| 20 | 346-00116-0 | 垫片 25.2-34-1.6 | SPACER 25.2-34-1.6 | 1 |
| 21 | 945102-2500 | C形环 | C-RING | 1 |
| 22 | 3LD-01291-0 | 曲轴箱盖 | CRANKCASE HEAD | 1 |
| 23 | 3LD-00121-0 | 油封 25-47-6 | OIL SEAL 25-47-6 | 1 |
| 24 | 350-01215-1 | 油封 12.8-25-7 | OIL SEAL 12.8-25-7 | 1 |
| 25 | 338-01403-0 | O型圈2-55.5 | O-RING 2-55.5 | 1 |
| 26 | 3M2-87123-0 | 活塞环组 | PISTON RING SET | 2 |
| 26 | 3M2-87124-0 | 活塞环组（0.5加大） | PISTON RING SET (0.5 O/S) | 2 |
| 27 | 3G2-00011-0 | * 活塞环 | * PISTON RING | 1 |
| 27 | 3G2-00014-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 1 |
| 28 | 351-00011-0 | * 活塞环 | * PISTON RING | 1 |
| 28 | 351-00014-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 1 |
| 29 | 3M4-87123-0 | 活塞环组 | PISTON RING SET | 2 |
| 29 | 3M4-87124-0 | 活塞环组（0.5加大） | PISTON RING SET (0.5 O/S) | 2 |
| 31 | 3LD-87123-1 | 活塞环组 | PISTON RING SET | 2 |
| 31 | 3LD-87124-1 | 活塞环组（0.5加大） | PISTON RING SET (0.5 O/S) | 2 |
| 32 | 3LD-00011-0 | * 活塞环 | * PISTON RING | 1 |
| 32 | 3LD-00014-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 1 |
| 33 | 350-00011-0 | * 活塞环 | * PISTON RING | 1 |
| 33 | 350-00014-0 | * 活塞环 (0.5 加大) | * PISTON RING (0.5 O/S) | 1 |
| 34 | 3M2-87130-0 | 活塞修理包 | PISTON REPAIR KIT | 2 |
| 34 | 3M2-87131-0 | 活塞修理包（0.5加大） | PISTON REPAIR KIT (0.5 O/S) | 2 |
| 35 | 351-00001-2 | * 活塞 | * PISTON | 1 |
| 35 | 351-00004-2 | * 活塞 (0.5 加大) | * PISTON (0.5 O/S) | 1 |
| 36 | 332-00021-1 | * 活塞销 | * PISTON PIN | 1 |
| 38 | 3M4-87130-0 | 活塞修理包 | PISTON REPAIR KIT | 2 |
| 38 | 3M4-87131-0 | 活塞修理包（0.5加大） | PISTON REPAIR KIT (0.5 O/S) | 2 |
| 39 | 350-00001-1 | * 活塞 | * PISTON | 1 |
| 39 | 350-00004-1 | * 活塞 (0.5 加大) | * PISTON (0.5 O/S) | 1 |
| 42 | 3LD-87130-0 | 活塞修理包 | PISTON REPAIR KIT | 2 |
| 42 | 3LD-87131-0 | 活塞修理包（0.5加大） | PISTON REPAIR KIT (0.5 O/S) | 2 |
| 43 | 3LD-00001-0 | * 活塞 | * PISTON | 1 |
| 43 | 3LD-00004-0 | * 活塞 (0.5 加大) | * PISTON (0.5 O/S) | 1 |
| 44 | 350-00021-1 | * 活塞销 | * PISTON PIN | 1 |
| 45 | 350-00024-1 | * 活塞销卡簧 | * PISTON PIN CLIP | 2 |
| 46 | 3LD-00090-0 | 滚针轴承组 | NEEDLE ROLLER SET | 2 |

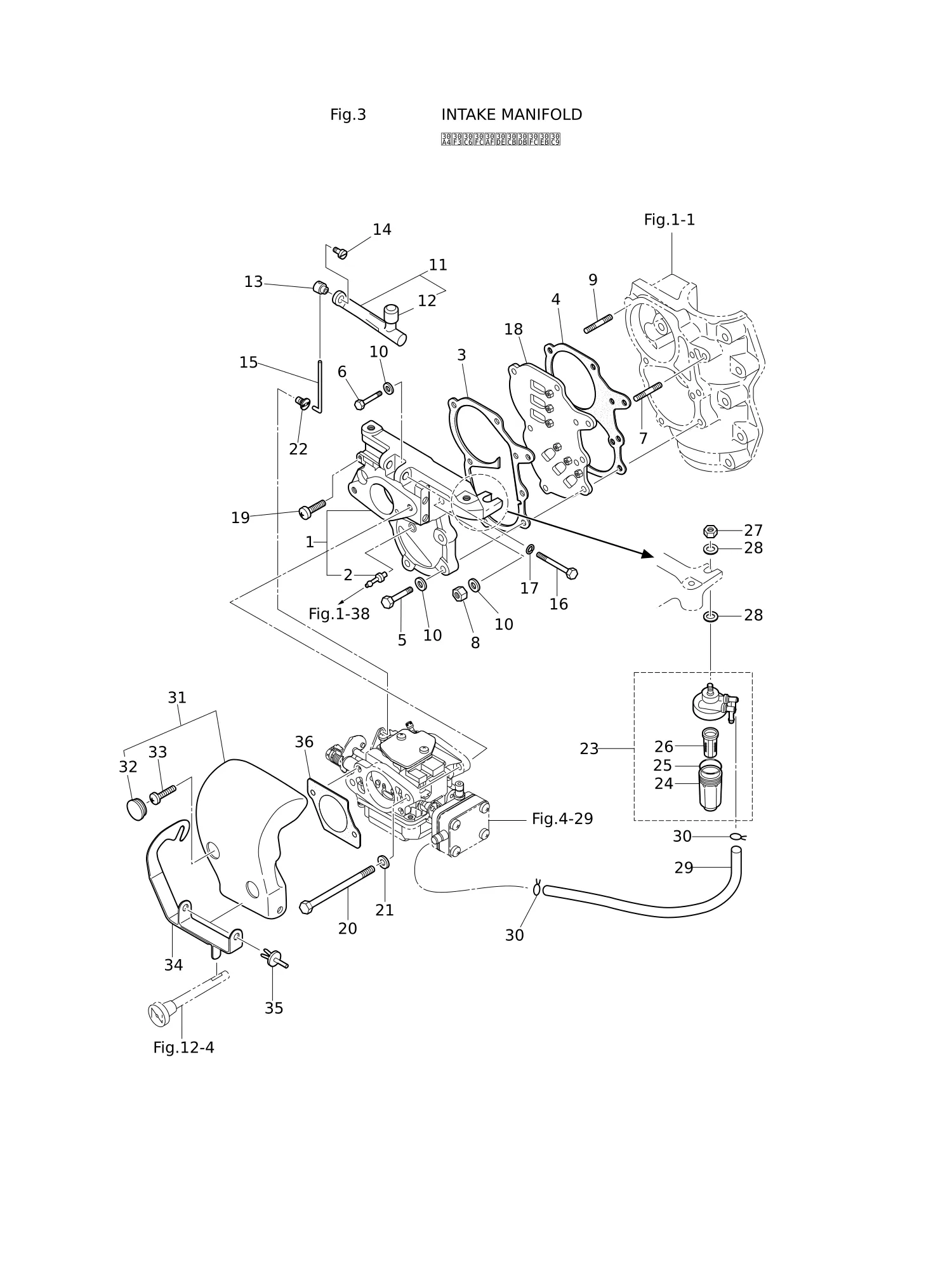

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3M2B02010-1 | 进气歧管总成 | INTAKE MANIFOLD ASSY | 1 |
| 1 | 3M2J02010-1 | 进气歧管总成 | INTAKE MANIFOLD ASSY | 1 |
| 2 | 338-01131-1 | 接头 4.8-5 | * NIPPLE 4.8-5 | 1 |
| 3 | 350-02104-2 | 进气歧管垫片 | INTAKE MANIFOLD GASKET | 1 |
| 4 | 350-02105-3 | 进气歧管垫片 | INTAKE MANIFOLD GASKET | 1 |
| 5 | 916124-0628 | 螺栓 | BOLT | 4 |
| 6 | 916124-0635 | 螺栓 | BOLT | 1 |
| 7 | 915324-0625 | 螺柱 | STUD | 1 |
| 8 | 930121-0600 | 螺母 | NUT | 2 |
| 9 | 915324-0630 | 螺柱 | STUD | 1 |
| 10 | 940121-0600 | 垫圈 | WASHER | 7 |
| 11 | 3M2-03167-0 | 节气门杠杆总成 | THROTTLE LEVER ASSY | 1 |
| 12 | 3M2-03171-0 | * 节气门滚轮 | * THROTTLE ROLLER | 1 |
| 13 | 350-03176-0 | 节气门杠杆端头 | THROTTLE LEVER END | 1 |
| 14 | 910903-0506 | 螺栓 | BOLT | 1 |
| 15 | 350-03174-0 | 连杆 | ROD | 1 |
| 16 | 916103-0550 | 螺栓 | BOLT | 1 |
| 17 | 941303-0500 | 弹簧垫圈 | SPRING WASHER | 1 |
| 18 | 362-02100-1 | 簧片阀总成 | REED VALVE ASSY | 1 |
| 19 | 9215F1-0620 | 螺钉 | SCREW | 1 |
| 20 | 916103-0680 | 螺栓 | BOLT | 2 |
| 21 | 940103-0600 | 垫圈 | WASHER | 2 |
| 22 | 3G2-67196-0 | 3.4-1.6连杆卡扣 | ROD SNAP 3.4-1.6 | 1 |
| 23 | 3AD-02230-0 | 燃油滤清器总成 | FUEL FILTER ASSY | 1 |
| 24 | 3AD-02237-0 | * 杯状件 | * CUP | 1 |
| 25 | 3AD-02235-0 | * O型圈 | * O-RING | 1 |
| 26 | 3AD-02234-0 | * 滤清器 | * FILTER | 1 |
| 27 | 930103-0800 | 螺母 | NUT | 1 |
| 28 | 334-66233-0 | 垫片 8.1-16-1.5 | WASHER 8.1-16-1.5 | 2 |
| 29 | 98AB-50-220 | 软管 | HOSE | 1 |
| 30 | 338-02215-0 | 卡扣φ10 | CLIP φ10 | 2 |
| 31 | 3G2-02411-0 | 进气消声器 | INTAKE SILENCER | 1 |
| 32 | 345-67117-0 | * 护孔环 17-2.7 | * GROMMET 17-2.7 | 2 |
| 33 | 922553-0512 | 螺钉 | SCREW | 2 |
| 34 | 3G2-67152-0 | 阻风门操纵杆 | CHOKE LEVER | 1 |
| 35 | 350-67154-0 | 塑料铆钉 6.5 | PLASTIC RIVET 6.5 | 2 |
| 36 | 3G2-02414-1 | 进气消声器垫片 | INTAKE SILENCER GASKET | 1 |

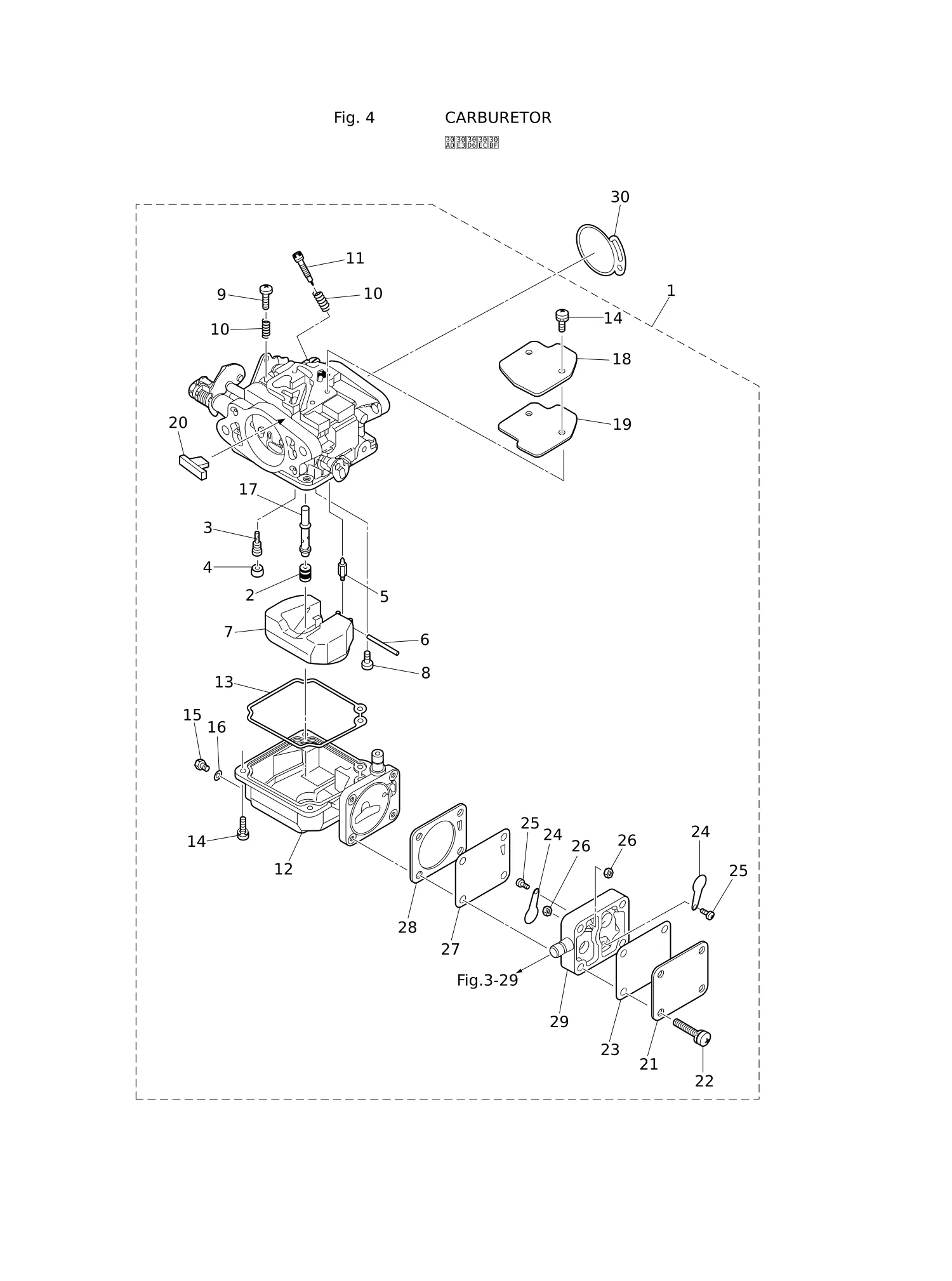

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3G2-03100-5 | 化油器总成 | CARBURETOR ASSY | 1 |
| 1 | 3LD-03100-0 | 化油器总成 | CARBURETOR ASSY | 1 |
| 1 | 3M2-03100-2 | 化油器总成 | CARBURETOR ASSY | 1 |
| 2 | 3C8-03441-0 | * 主量孔 (#122) | * MAIN JET (#122) | 1 |
| 2 | 3M2-03151-0 | * 主量孔 (#110) | * MAIN JET (#110) | 1 |
| 2 | 3M2-04616-0 | * 主量孔 (#116) | * MAIN JET (#116) | 1 |
| 3 | 3LD-04562-0 | * 低速喷嘴(#62) | * SLOW JET (#62) | 1 |
| 3 | 3M2-03152-0 | * 低速喷嘴(#80) | * SLOW JET (#80) | 1 |
| 3 | 3M2-04560-0 | * 低速喷嘴(#60) | * SLOW JET (#60) | 1 |
| 4 | 3C8-03169-0 | * 塞 | * PLUG | 1 |
| 5 | 3E3-03147-0 | * 浮子阀 | * FLOAT VALVE | 1 |
| 5 | 3LD-03147-0 | * 浮子阀 | * FLOAT VALVE | 1 |
| 6 | 3C8-03126-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 7 | 3C8-03125-0 | * 浮子 | * FLOAT | 1 |
| 8 | 921722-0410 | * 螺钉 | * SCREW | 1 |
| 9 | 3C8-03179-1 | * 止动螺钉 | * STOP SCREW | 1 |
| 10 | 3C8-03157-0 | * 弹簧 | * SPRING | 2 |
| 11 | 3G2-03156-0 | * 调节螺钉 | * ADJUST SCREW | 1 |
| 12 | 3G2-03120-0 | * 浮子室 | * FLOAT CHAMBER | 1 |
| 13 | 3C8-03121-0 | * 浮子室垫片 | * FLOAT CHAMBER GASKET | 1 |
| 14 | 922503-0410 | * 螺钉 | * SCREW | 6 |
| 15 | 910306-0405 | 螺栓 | * BOLT | 1 |
| 16 | 3C8-03193-0 | * 衬垫 | * GASKET | 1 |
| 17 | 3G2-03141-0 | * 主喷管 | * MAIN NOZZLE | 1 |
| 17 | 3M2-03141-0 | * 主喷管 | * MAIN NOZZLE | 1 |
| 18 | 3C8-03181-0 | * 化油器盖 | * CARBURETOR COVER | 1 |
| 19 | 3C8-03182-0 | * 化油器盖垫片 | * CARBURETOR COVER GASKET | 1 |
| 20 | 3C8-03180-0 | * 橡胶塞 | * RUBBER PLUG | 1 |
| 21 | 3C8-04004-0 | * 泵盖 | * PUMP COVER | 1 |
| 22 | 3E3-64333-0 | * 预涂螺钉 | * PRE-COATED SCREW | 4 |
| 23 | 3C8-04018-0 | * 泵盖衬垫 | * PUMP COVER GASKET | 1 |
| 24 | 350-04014-0 | * 止回阀 | * CHECK VALVE | 2 |
| 25 | 921703-0305 | * 螺钉 | * SCREW | 2 |
| 26 | 930203-0300 | 螺母 | * NUT | 2 |
| 27 | 350-04005-0 | * 泵膜片 | * PUMP DIAPHRAGM | 1 |
| 28 | 3C8-04028-0 | * 泵体衬垫 | * PUMP BODY GASKET | 1 |
| 29 | 3C8-04002-0 | * 泵体 | * PUMP BODY | 1 |
| 30 | 3C8-02011-0 | 化油器垫片 | CARBURETOR GASKET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

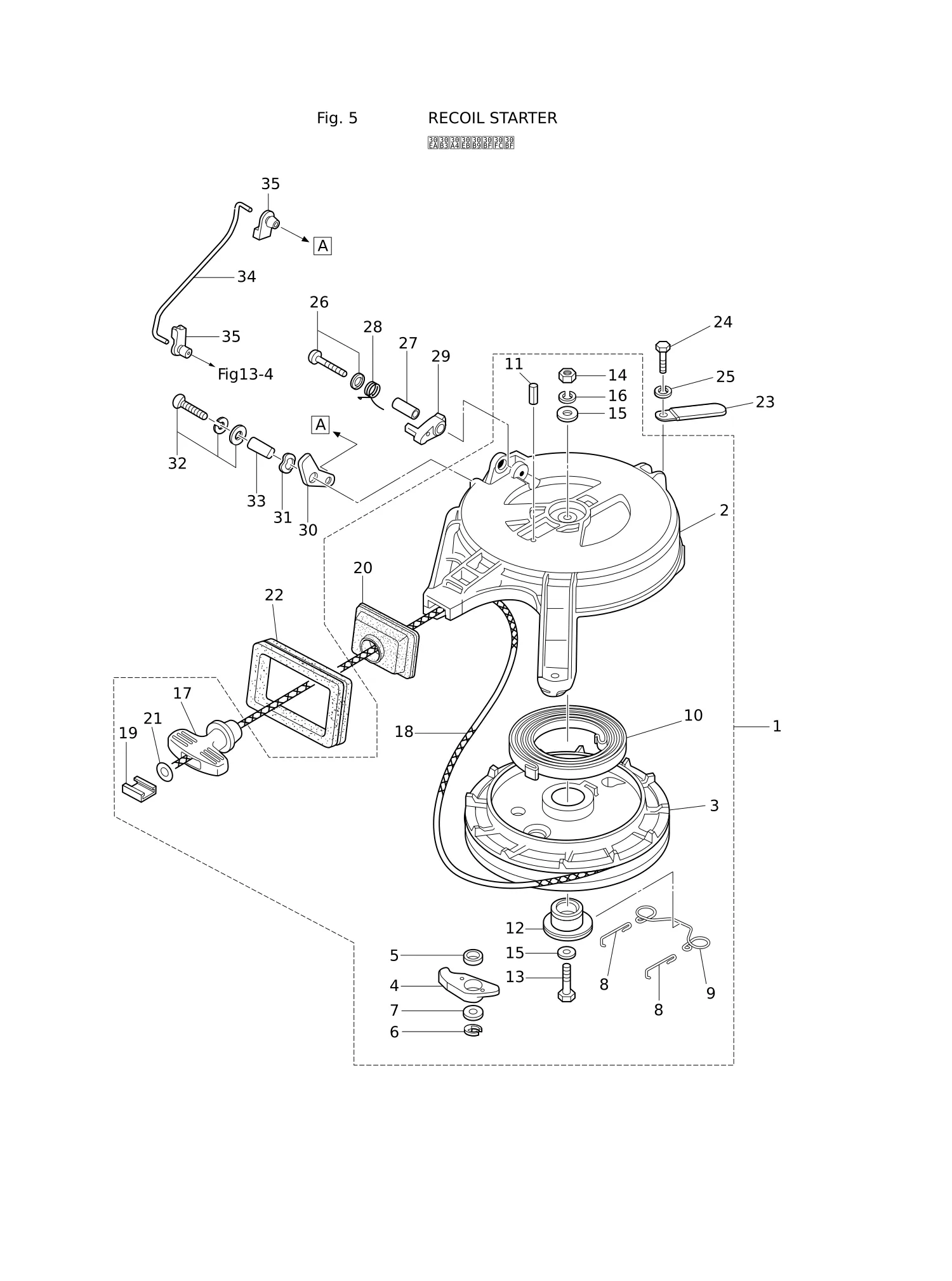

| 1 | 350-05000-2 | 反冲启动器总成 | RECOIL STARTER ASSY | 1 |
| 2 | 350-05105-0 | * 启动器外壳 | * STARTER CASE | 1 |
| 3 | 350-05104-1 | * 卷轴总成 | * REEL ASSY | 1 |
| 4 | 345-05003-1 | * 棘轮 | * RATCHET | 1 |
| 5 | 345-05135-1 | * 衬套 14.7-15.9-6 | * BUSHING 14.7-15.9-6 | 1 |
| 6 | 945303-0500 | * E型卡环 d=5 | * E-RING d=5 | 1 |
| 7 | 346-67115-0 | * 垫圈 6.5-21-1 | * WASHER 6.5-21-1 | 1 |
| 8 | 350-05123-0 | * 回位弹簧 | * RETURN SPRING | 2 |
| 9 | 350-05124-0 | * 回位弹簧 | * RETURN SPRING | 1 |
| 10 | 345-05004-1 | * 启动弹簧 | * STARTER SPRING | 1 |
| 11 | 951403-0316 | * 弹簧销 3-16 | * SPRING PIN 3-16 | 1 |
| 12 | 350-05132-0 | * 启动轴 | * STARTER SHAFT | 1 |
| 13 | 9101F4-0635 | 螺栓 | * BOLT | 1 |
| 14 | 930103-0600 | 螺母 | * NUT | 1 |
| 15 | 940121-0600 | * 垫圈 | * WASHER | 2 |
| 16 | 941322-0600 | * 弹簧垫圈 | * SPRING WASHER | 1 |
| 17 | 338-05019-0 | * 启动手柄 | * STARTER HANDLE | 1 |
| 18 | 350-05013-1 | * 启动绳 φ5-1600 | * STARTER ROPE φ5-1600 | 1 |
| 19 | 338-05131-0 | * 绳索锚定器 | * ROPE ANCHOR | 1 |
| 20 | 350-05116-1 | * 密封板 | * SEALING PLATE | 1 |
| 21 | 350-05136-0 | * O型圈 2.5-4.5 | * O-RING 2.5-4.5 | 1 |
| 22 | 3KM-67503-0 | 启动器密封件 | STARTER SEAL | 1 |
| 23 | 309-06972-0 | 卡箍 6.5-47.5P | CLAMP 6.5-47.5P | 1 |
| 24 | 9101F4-0630 | 螺栓 | BOLT | 3 |
| 25 | 940103-0600 | 垫圈 | WASHER | 3 |
| 26 | 921503-5430 | 螺钉 | SCREW | 1 |
| 27 | 338-05255-0 | 轴套 4-6-21 | COLLAR 4-6-21 | 1 |
| 28 | 338-05216-0 | 启动锁弹簧 | STARTER LOCK SPRING | 1 |
| 29 | 338-05252-0 | 启动锁 | STARTER LOCK | 1 |
| 30 | 350-05253-0 | 启动锁凸轮 | STARTER LOCK CAM | 1 |
| 31 | 941403-0800 | 波形垫圈 d=8 | WAVE WASHER d=8 | 1 |
| 32 | 921503-7616 | 螺钉 | SCREW | 1 |
| 33 | 3M2-05215-0 | 轴套 6.1-8-4 | COLLAR 6.1-8-4 | 1 |
| 34 | 350-05217-0 | 启动锁杆 | STARTER LOCK ROD | 1 |
| 35 | 345-05223-1 | 3.5-2连杆卡扣 | ROD SNAP 3.5-2 | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

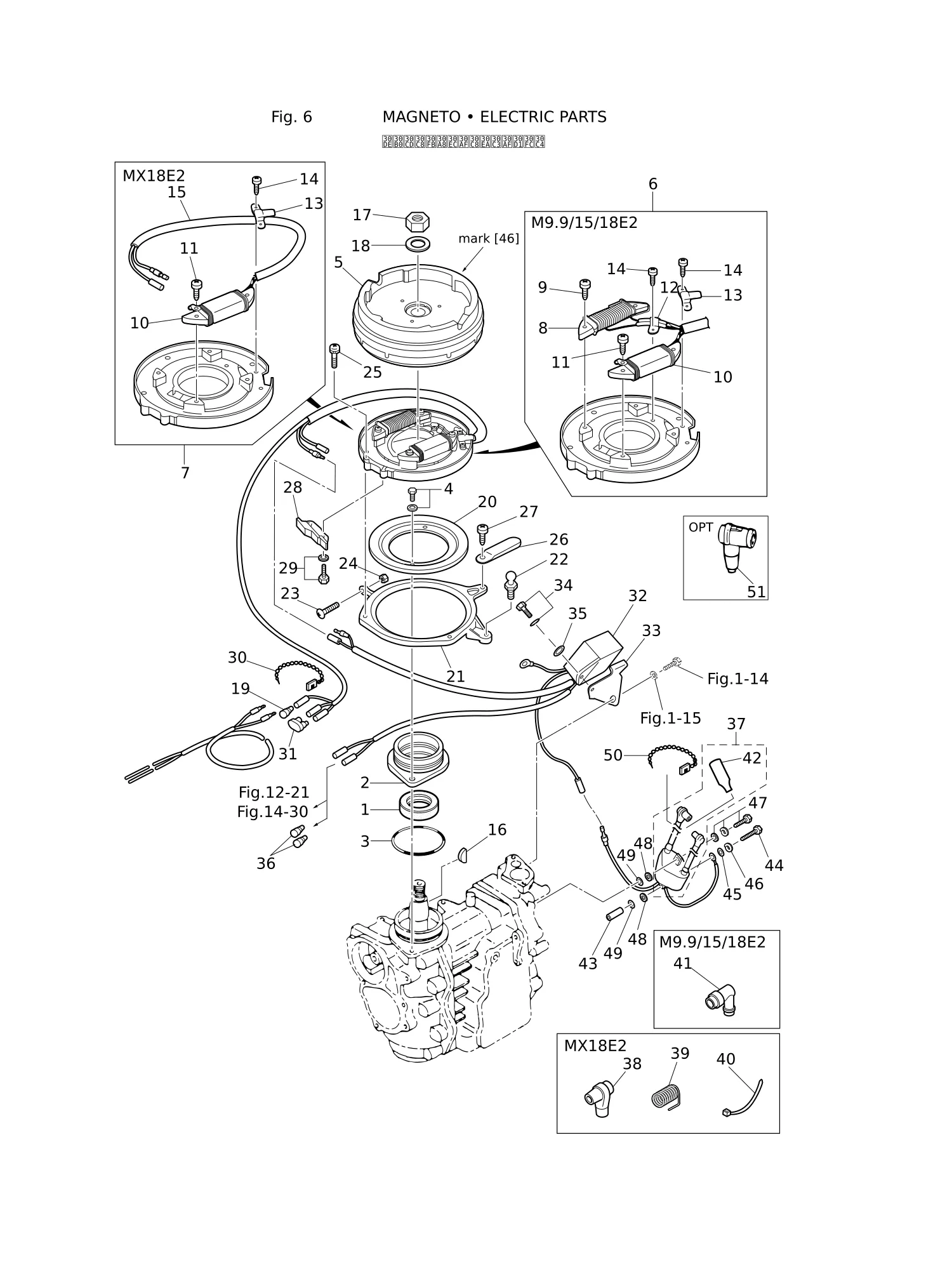

| 1 | 350-00121-0 | 油封 25-45-8 | OIL SEAL 25-45-8 | 1 |
| 2 | 350-01401-0 | 磁电机底座 | MAGNETO BASEMENT | 1 |
| 3 | 338-01403-0 | O型圈2-55.5 | O-RING 2-55.5 | 1 |
| 4 | 910121-6620 | 螺栓 | BOLT | 2 |
| 5 | 3M3-06001-1 | 飞轮 | FLYWHEEL | 1 |
| 6 | 3G2-06002-1 | 带交流发电机线圈板总成 | COIL PLATE ASSY W/ALTERNATOR | 1 |
| 7 | 3LD-06102-0 | 线圈板总成 | COIL PLATE ASSY | 1 |
| 8 | 3G2-06023-1 | * 交流发电机总成 | * ALTERNATOR ASSY | 1 |
| 9 | 921521-6530 | * 螺钉 | * SCREW | 2 |
| 10 | 3G3-06021-1 | * 励磁线圈 | * EXCITER COIL | 1 |
| 11 | 921521-6525 | * 螺钉 | * SCREW | 2 |
| 12 | 3G2-06025-1 | * 支架 | * HOLDER | 1 |
| 13 | 350-06025-0 | * 支架 | * HOLDER | 1 |
| 14 | 921521-6406 | * 螺钉 | * SCREW | 2 |
| 15 | 3LD-06133-0 | * 保护罩 | * PROTECTOR | |
| 16 | 334-00131-0 | 键 | KEY | 1 |
| 17 | 931121-1600 | 螺母 | NUT | 1 |
| 18 | 334-00133-0 | 垫片 17-30-1.6 | WASHER 17-30-1.6 | 1 |
| 20 | 346-63722-2 | 导板 | GUIDE PLATE | 1 |
| 21 | 350-63723-0 | 定位环 | SETTING RING | 1 |
| 22 | 346-05228-1 | 球头关节 | BALL JOINT | 1 |
| 23 | 921503-0525 | 螺钉 | SCREW | 1 |
| 24 | 930103-0500 | 螺母 | NUT | 1 |
| 25 | 921521-6510 | 螺钉 | SCREW | 4 |
| 26 | 309-06972-0 | 卡箍 6.5-47.5P | CLAMP 6.5-47.5P | 1 |
| 27 | 921503-5510 | 螺钉 | SCREW | 1 |
| 28 | 364-63718-0 | 节气门凸轮 | THROTTLE CAM | 1 |
| 28 | 3LD-63718-0 | 节气门凸轮 | THROTTLE CAM | 1 |
| 28 | 3M3-63718-0 | 节气门凸轮 | THROTTLE CAM | 1 |
| 29 | 910103-5514 | 螺栓 | BOLT | 2 |
| 31 | 353-76037-0 | 电缆端子插头 | CABLE TERMINAL PLUG | 1 |
| 32 | 3G2-06060-2 | CD单元 | CD UNIT | 1 |
| 33 | 3G2-06061-0 | CD单元支架 | CD UNIT BRACKET | 1 |
| 34 | 910103-5614 | 螺栓 | BOLT | 1 |
| 35 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 1 |
| 36 | 3A3-76037-0 | 电缆端子插头 | CABLE TERMINAL PLUG | 2 |
| 37 | 3LD-06049-0 | 带标签点火线圈总成 | IGNITION COIL ASSY W/LABEL | 1 |
| 37 | 3M3-06048-2 | 带标签点火线圈总成 | IGNITION COIL ASSY W/LABEL | 1 |
| 38 | 3M2-06921-0 | * 火花塞帽 | * PLUG CAP | 2 |
| 39 | 3M2-06926-0 | * 火花塞帽端子 | * PLUG CAP TERMINAL | 2 |
| 40 | 3T5-84398-0 | 箍带 104 | * BAND 104 | 2 |
| 41 | 346-06999-0 | * 带电阻火花塞帽 | * PLUG CAP W/RESISTANCE | 2 |
| 42 | 3C8-72181-0 | * 警示标贴(B) | * CAUTION DECAL (B) | 1 |
| 43 | 128-02605-1 | 垫圈 6-8-28.5 | SPACER 6-8-28.5 | 1 |
| 44 | 910103-0660 | 螺栓 | BOLT | 1 |
| 46 | 941303-0600 | 弹簧垫圈 | SPRING WASHER | 1 |
| 47 | 910103-7630 | 螺栓 | BOLT | 2 |
| 48 | 151-33159-0 | 衬垫6.2-11-1 | GASKET 6.2-11-1 | 2 |
| 49 | 940103-0600 | 垫圈 | WASHER | 2 |
| 50 | 336-76091-0 | 导线束100 | LEAD WIRE BAND 100 | 1 |
| 51 | 3C7-06921-0 | 带电阻火花塞帽 | PLUG CAP W/RESISTANCE | 2 |

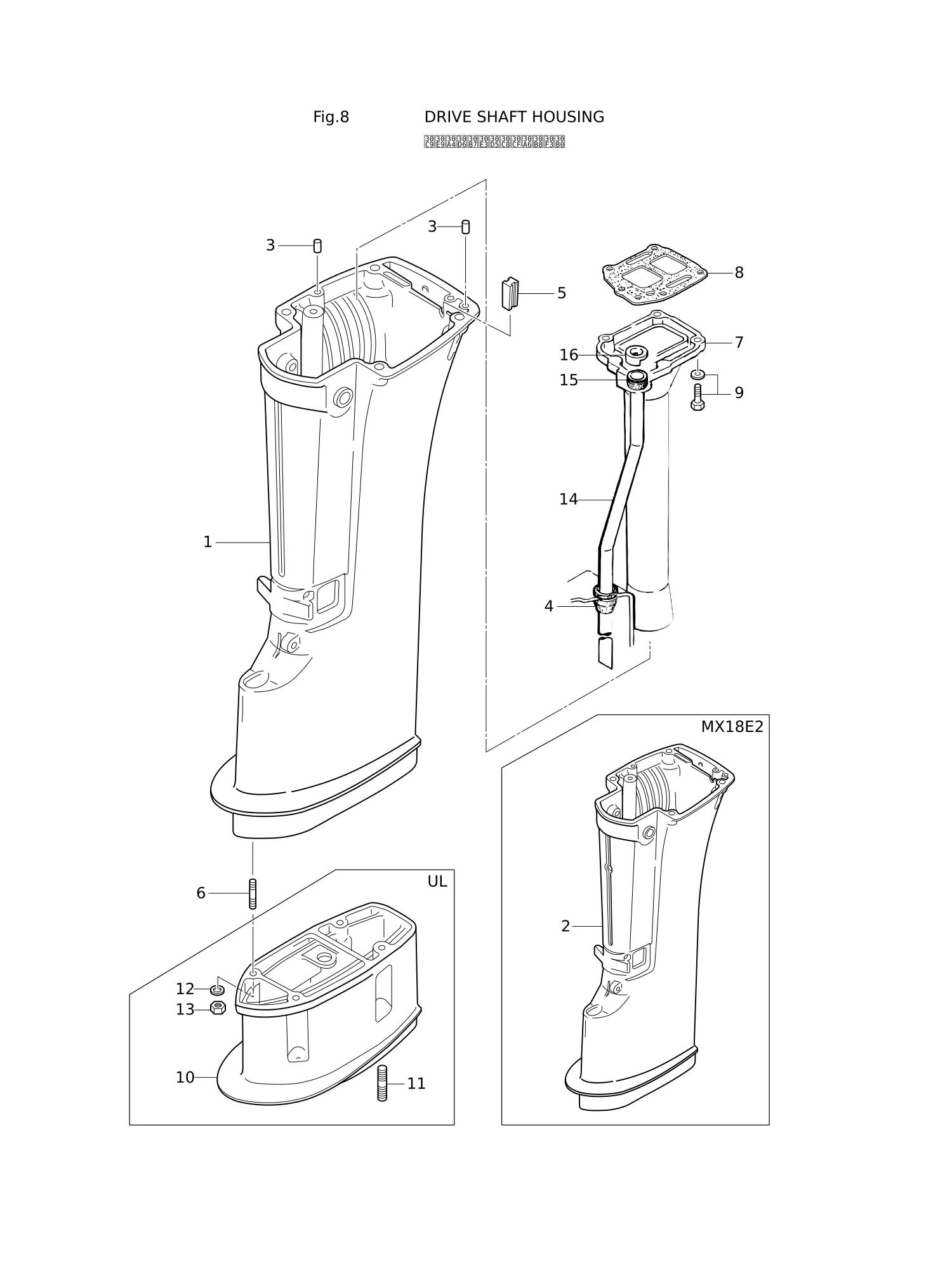

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 350Q61191-3 | 驱动轴壳体(S) | DRIVE SHAFT HOUSING (S) | 1 |
| 1 | 350Q61192-3 | 驱动轴壳体(L) | DRIVE SHAFT HOUSING (L) | 1 |
| 2 | 3LDQ61191-0 | 驱动轴壳体(S) | DRIVE SHAFT HOUSING (S) | 1 |
| 2 | 3LDQ61192-0 | 驱动轴壳体(L) | DRIVE SHAFT HOUSING (L) | 1 |
| 3 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 4 |
| 4 | 350-65204-0 | 水管辅助支架 | WATER PIPE AUXILIARY MOUNT | 1 |
| 5 | 398-61207-0 | 怠速排气口衬套 | IDLE EXHAUST PORT GROMMET | 1 |
| 7 | 362-02311-0 | 排气管 | EXHAUST PIPE | 1 |
| 8 | 362-02312-2 | 排气管垫片 | EXHAUST PIPE GASKET | 1 |
| 9 | 910103-5625 | 螺栓 | BOLT | 5 |
| 10 | 350Q61110-0 | 延伸壳体 | EXTENSION HOUSING | 1 |
| 11 | 9153E3-0825 | 螺柱 | STUD | 4 |
| 12 | 3P0-66233-0 | 垫片 8.1-16-1.5 | WASHER 8.1-16-1.5 | 4 |
| 13 | 930103-0800 | 螺母 | NUT | 4 |
| 14 | 350-65100-0 | 水管(短) | WATER PIPE (S) | 1 |
| 14 | 350-65110-0 | 水管(左) | WATER PIPE (L) | 1 |
| 14 | 350-65120-0 | 水管(左上) | WATER PIPE (UL) | 1 |
| 15 | 350-65206-0 | 水管密封件(上) | WATER PIPE SEAL (UPPER) | 1 |
| 16 | 350-65205-0 | 轴环 | COLLAR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

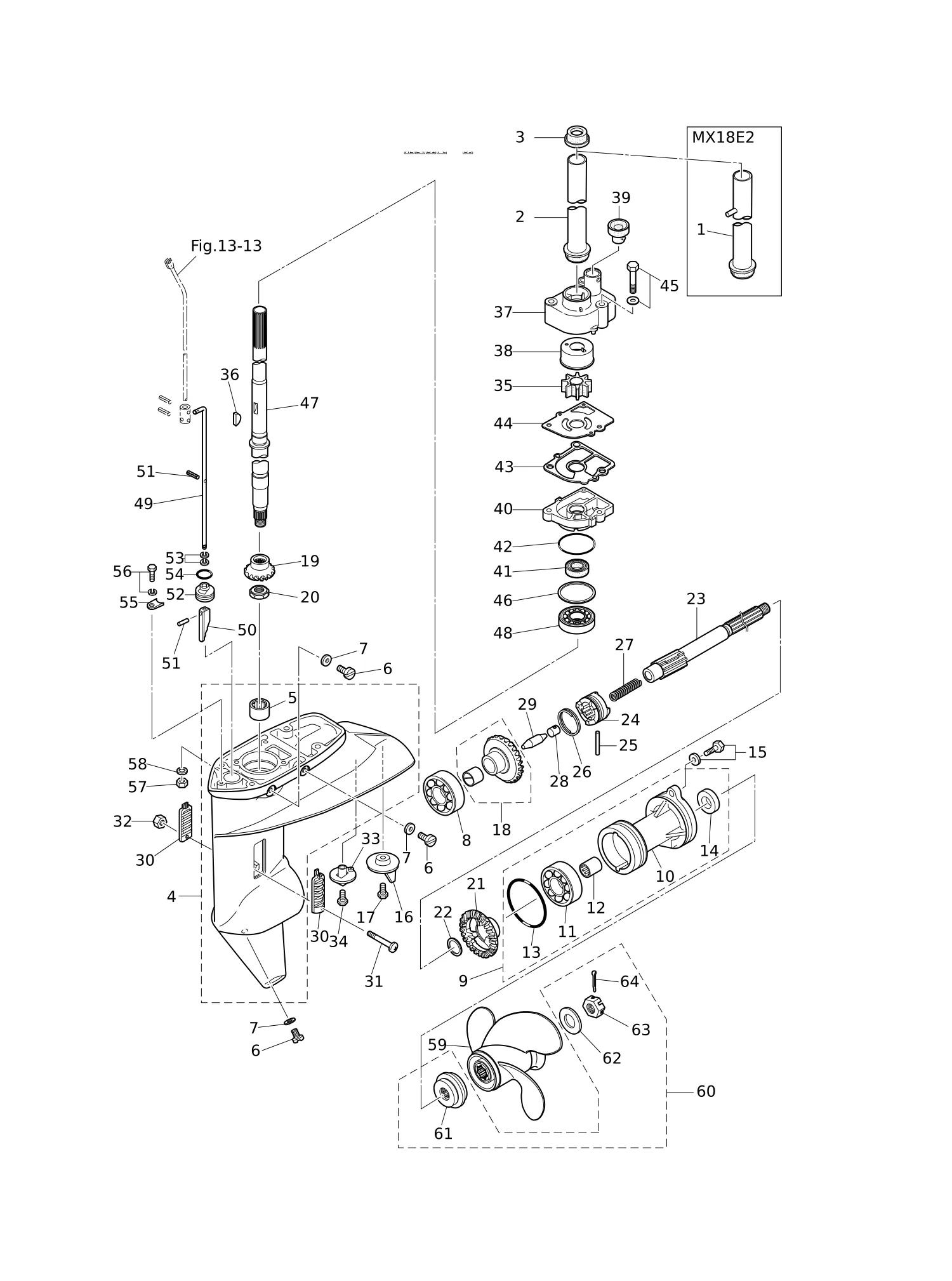

| 1 | 3LD-64325-0 | 加固管总成 | GIRD PIPE ASSY | 1 |
| 2 | 350-64322-0 | 加固管 | GIRD PIPE | 1 |
| 3 | 350-64326-1 | 索环/护孔圈 | GROMMET | 1 |
| 4 | 3V9Q60000-1 | 齿轮箱总成 | GEAR CASE ASSY | 1 |
| 5 | 350-60211-0 | * 滚柱轴承 16-24-20 | * ROLLER BEARING 16-24-20 | 1 |
| 6 | 332-60005-2 | 塞 8-8 | PLUG 8-8 | 3 |
| 7 | 332-60006-0 | 衬垫8.1-15-1 | GASKET 8.1-15-1 | 3 |
| 9 | 398Q60100-2 | 螺旋桨轴套总成 | PROPELLER SHAFT HOUSING ASSY | 1 |
| 10 | 3BKQ60101-1 | * 螺旋桨轴套 | * PROPELLER SHAFT HOUSING | 1 |
| 11 | 9601-0-6205 | * 球轴承 6205 | * BALL BEARING 6205 | 1 |
| 12 | 362-60211-0 | * 滚柱轴承 17-24-20 | * ROLLER BEARING 17-24-20 | 1 |
| 13 | 121-32071-0 | * O型圈 2.4-59.6 | * O-RING 2.4-59.6 | 1 |
| 14 | 346-65013-0 | * 油封 17-30-9 | * OIL SEAL 17-30-9 | 1 |
| 15 | 3BJ-60108-0 | 预涂层螺栓 | PRE-COATED BOLT | 2 |
| 16 | 3V1-60217-0 | 配平片 | TRIM TAB | 1 |
| 17 | 910103-5620 | 螺栓 | BOLT | 1 |
| 18 | 350-64010-0 | 锥齿轮总成(A) | BEVEL GEAR ASSY (A) | 1 |
| 19 | 350-64020-0 | 锥齿轮B | BEVEL GEAR B | 1 |
| 20 | 346-64027-1 | 螺母 | NUT | 1 |
| 21 | 362-64030-0 | 锥齿轮C | BEVEL GEAR C | 1 |
| 22 | 350-64032-0 | 垫片 17.1-22-1.5 | WASHER 17.1-22-1.5 | 1 |
| 23 | 362-64211-2 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 24 | 362-64215-0 | 离合器 | CLUTCH | 1 |
| 25 | 350-64218-0 | 销 φ5-30 | PIN φ5-30 | 1 |
| 26 | 350-64219-0 | 卡扣 | SNAP | 1 |
| 27 | 332-64221-0 | 弹簧 | SPRING | 1 |
| 28 | 350-64222-1 | 弹簧挡圈 | SPRING RETAINER | 1 |
| 29 | 350-64223-1 | 推杆 | PUSH ROD | 1 |
| 30 | 362-60206-1 | 滤水器 | WATER STRAINER | 2 |
| 31 | 921503-0430 | 螺钉 | SCREW | 1 |
| 32 | 930403-0400 | 尼龙螺母 4-P0.7 | NYLON NUT 4-P0.7 | 1 |
| 33 | 369-60206-0 | 滤水器 | WATER STRAINER | 1 |
| 34 | 921803-0620 | 螺钉 | SCREW | 1 |
| 35 | 334-65021-0 | 水泵叶轮 | WATER PUMP IMPELLER | 1 |
| 36 | 350-65022-0 | 键 φ2-16 | KEY φ2-16 | 1 |
| 37 | 350-65016-1 | 泵壳(上) | PUMP CASE (UPPER) | 1 |
| 38 | 350-65011-1 | 泵壳衬套 | PUMP CASE LINER | 1 |
| 39 | 350-65014-0 | 水管密封件(下) | WATER PIPE SEAL (LOWER) | 1 |
| 40 | 3BJ-65017-0 | 泵壳(下) | PUMP CASE (LOWER) | 1 |
| 41 | 332-60223-0 | 油封 13.8-26-9.5 | OIL SEAL 13.8-26-9.5 | 1 |
| 43 | 3FS-65029-0 | 导板垫片 | GUIDE PLATE GASKET | 1 |
| 44 | 350-65025-0 | 水泵导板 | WATER PUMP GUIDE PLATE | 1 |
| 45 | 9101F4-5652 | 螺栓 | BOLT | 3 |
| 46 | 346-64081-0 | 垫片 35-41.9-0.1 | SHIM 35-41.9-0.1 | 1 |
| 46 | 346-64082-0 | 垫片 35-41.9-0.15 | SHIM 35-41.9-0.15 | 1 |
| 46 | 346-64083-0 | 垫片 35-41.9-0.3 | SHIM 35-41.9-0.3 | 1 |
| 46 | 346-64084-0 | 垫片 35-41.9-0.5 | SHIM 35-41.9-0.5 | 1 |
| 47 | 350-64301-0 | 驱动轴(S) | DRIVE SHAFT (S) | 1 |
| 47 | 350-64302-0 | 驱动轴(L) | DRIVE SHAFT (L) | 1 |
| 47 | 350-64303-0 | 驱动轴(UL) | DRIVE SHAFT (UL) | 1 |
| 48 | 9601-0-6302 | 滚珠轴承 6302 | BALL BEARING 6302 | 1 |
| 49 | 398-66012-0 | 凸轮杆(短) | CAM ROD (S) | 1 |
| 49 | 398-66013-0 | 凸轮杆(长) | CAM ROD (L) | 1 |
| 49 | 398-66014-0 | 凸轮杆(超长) | CAM ROD (UL) | 1 |
| 50 | 3C8-66011-0 | 离合器凸轮 | CLUTCH CAM | 1 |
| 51 | 951407-0312 | 弹簧销 3-12 | SPRING PIN 3-12 | 2 |
| 52 | 398-66031-0 | 凸轮杆衬套 | CAM ROD BUSHING | 1 |
| 53 | 332-66021-0 | O型圈 2.4-5.8 | O-RING 2.4-5.8 | 2 |
| 54 | 336-62415-0 | O型圈 3.5-36 | O-RING 3.5-36 | 1 |
| 55 | 332-66033-0 | 止动块 | STOPPER | 1 |
| 56 | 910103-6512 | 螺栓 | BOLT | 1 |
| 57 | 930103-0800 | 螺母 | NUT | 4 |
| 58 | 3P0-66233-0 | 垫片 8.1-16-1.5 | WASHER 8.1-16-1.5 | 4 |
| 59 | 362B64107-1 | 螺旋桨总成(6英寸) | PROPELLER ASSY (6") | 1 |
| 59 | 3BAB64516-1 | 螺旋桨总成(8英寸) | PROPELLER ASSY (8") | 1 |
| 59 | 3BAB64518-1 | 螺旋桨总成(9英寸) | PROPELLER ASSY (9") | 1 |
| 59 | 3BAB64521-1 | 螺旋桨总成(10英寸) | PROPELLER ASSY (10") | 1 |
| 59 | 3BAB64524-1 | 螺旋桨总成(11.5英寸) | PROPELLER ASSY (11.5") | 1 |
| 60 | 3V9-87326-0 | 螺旋桨五金件套件 | PROPELLER HARDWARE KIT | 1 |
| 61 | 362-64231-0 | * 推力支架 | * THRUST HOLDER | 1 |
| 62 | 346-64124-5 | * 垫圈 12.5-32-2.5 | * WASHER 12.5-32-2.5 | 1 |
| 63 | 346-64121-5 | * 螺旋桨螺母 | * PROPELLER NUT | 1 |
| 64 | 951503-0322 | * 开口销 3-22 | * SPLIT PIN 3-22 | 1 |

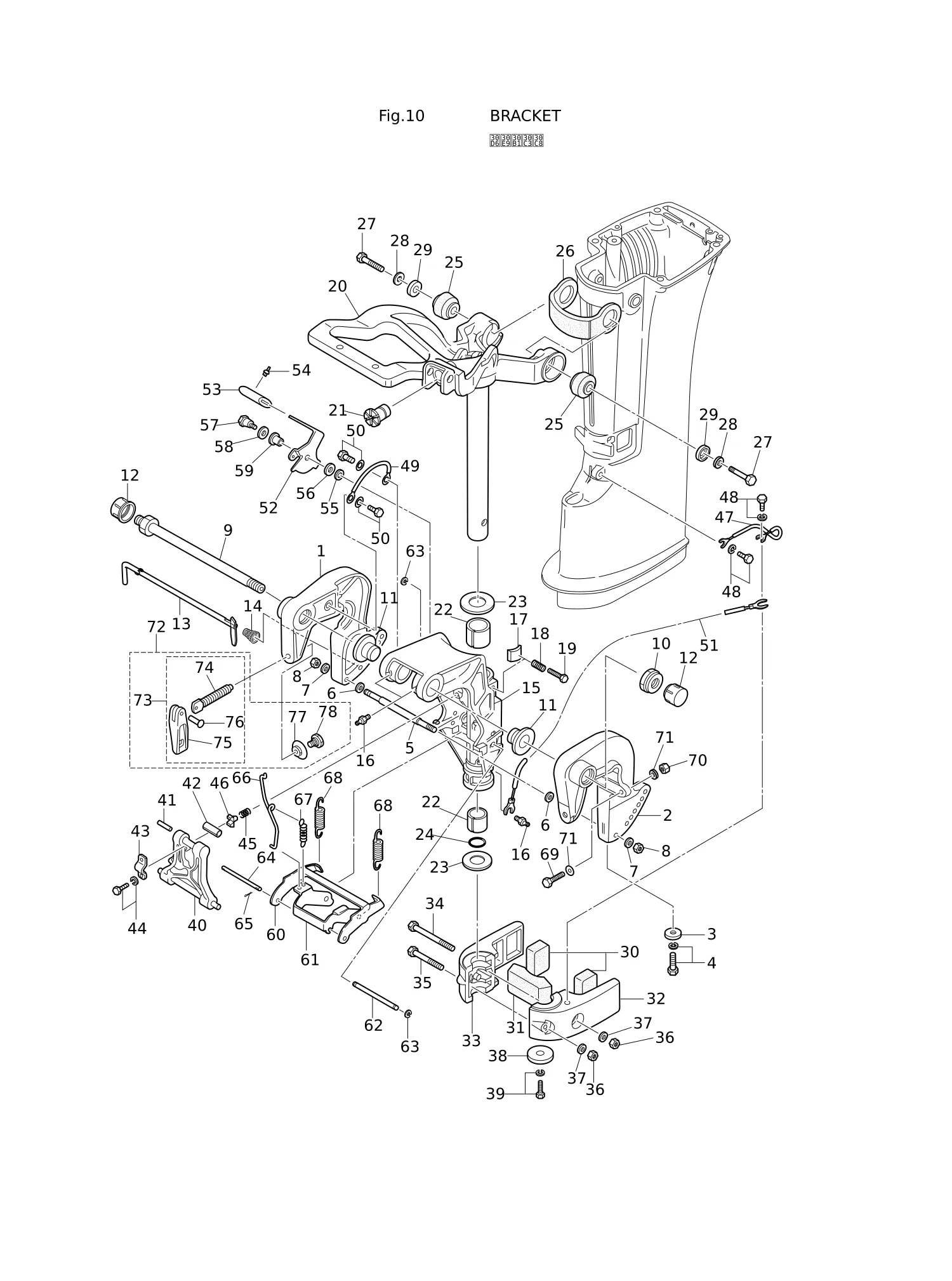

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3V6Q62112-2 | 夹紧支架(右) | CLAMP BRACKET (R) | 1 |
| 2 | 3V6Q62113-1 | 卡箍支架 (左) | CLAMP BRACKET (L) | 1 |
| 5 | 3V6-62117-0 | 间隔块 | DISTANCE PIECE | 1 |
| 7 | 9401E3-0600 | 垫圈 | WASHER | 2 |
| 8 | 930103-0600 | 螺母 | NUT | 2 |
| 9 | 3AC-62191-0 | 旋转支架轴总成 | SWIVEL BRACKET SHAFT ASSY | 1 |
| 10 | 346-62124-1 | 尼龙螺母 7/8-14 | NYLON NUT 7/8-14 | 1 |
| 11 | 349-62126-0 | 衬套 | BUSHING | 2 |
| 12 | 346-62127-0 | 盖形螺母 | CAP NUT | 2 |
| 13 | 350-62121-2 | 推力杆 | THRUST ROD | 1 |
| 14 | 369-62122-2 | 推力杆弹簧 | THRUST ROD SPRING | 1 |
| 15 | 3G2Q62310-1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 16 | 344-67177-1 | 黄油嘴 | GREASE FITTING | 3 |
| 17 | 345-62441-0 | 摩擦片 | FRICTION PIECE | 1 |
| 18 | 346-62421-1 | 摩擦弹簧 | FRICTION SPRING | 1 |
| 19 | 9101E3-0830 | 螺栓 | BOLT | 1 |
| 20 | 350Q62010-2 | 转向轴总成 | STEERING SHAFT ASSY | 1 |
| 21 | 350-63064-0 | 万向小齿轮 | UNIVERSAL PINION | 1 |
| 22 | 350-62417-0 | 衬套 24-30-30 | BUSHING 24-30-30 | 2 |
| 23 | 350-62423-0 | 上止推板 | THRUST PLATE (UPPER) | 2 |
| 24 | 350-62415-0 | O型圈 3.5-22 | O-RING 3.5-22 | 1 |
| 25 | 350-61301-0 | 橡胶支座(上) | RUBBER MOUNT (UPPER) | 2 |
| 26 | 350-61337-0 | 上减震器 | DAMPER (UPPER) | 1 |
| 27 | 398-61307-0 | 螺栓 10-45 | BOLT 10-45 | 2 |
| 28 | 940103-1000 | 垫圈 | WASHER | 2 |
| 29 | 398-61308-2 | 垫圈 | WASHER | 2 |
| 30 | 350-61302-0 | 橡胶支座(下) | RUBBER MOUNT (LOWER) | 2 |
| 31 | 350-61336-0 | 下减震器 | DAMPER (LOWER) | 1 |
| 32 | 350Q61402-1 | 支架托架(左) | MOUNT BRACKET (L) | 1 |
| 33 | 350Q61401-0 | 支架托架(右) | MOUNT BRACKET (R) | 1 |
| 34 | 9161E3-0885 | 螺栓 | BOLT | 1 |
| 35 | 9161E3-0855 | 螺栓 | BOLT | 1 |
| 37 | 3P0-66233-0 | 垫片 8.1-16-1.5 | WASHER 8.1-16-1.5 | 2 |
| 38 | 338-60218-2 | 阳极块 | ANODE | 1 |
| 39 | 910103-5620 | 螺栓 | BOLT | 1 |
| 40 | 3G2Q62993-1 | 倾斜止动器 | TILT STOPPER | 1 |
| 41 | 951403-0540 | 弹簧销 | SPRING PIN | 1 |
| 42 | 350-62437-0 | 衬套 8.2-10-26.5 | BUSHING 8.2-10-26.5 | 1 |
| 43 | 350-62439-1 | 定位板 | SETTING PLATE | 1 |
| 44 | 9101E3-5818 | 螺栓 | BOLT | 2 |
| 45 | 3C8-62421-1 | 摩擦弹簧 | FRICTION SPRING | 1 |
| 46 | 346-62438-0 | 定位片 | SETTING PIECE | 1 |
| 48 | 910103-5610 | 螺栓 | BOLT | 2 |
| 49 | 398-62396-1 | 接地线 L=130 | GROUND L=130 | 1 |
| 50 | 9101E3-5612 | 螺栓 | BOLT | 2 |
| 51 | 3A3-62396-1 | 接地线 L=110 | GROUND L=110 | 1 |
| 52 | 3G2-66311-1 | 倒车锁杆 | REVERSE LOCK LEVER | 1 |
| 53 | 3AL-66333-0 | 倒车锁杆握把 | REVERSE LOCK LEVER GRIP | 1 |
| 54 | 346-66334-0 | 止动块 | STOPPER | 1 |
| 55 | 3R0-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 1 |
| 56 | 3AA-83719-0 | 垫圈 8.5-18-1.6 | WASHER 8.5-18-1.6 | 1 |
| 57 | 3AL-05254-0 | 台阶螺栓6-8 | SHOULDER BOLT 6-8 | 1 |
| 59 | 3AL-05212-0 | 衬套 8.1-20 | BUSHING 8.1-20 | 1 |
| 60 | 3G2-66351-0 | 倒车锁(右) | REVERSE LOCK (R) | 1 |
| 61 | 3G2-66313-1 | 倒车锁臂 | REVERSE LOCK ARM | 1 |
| 62 | 3G2-66319-1 | 倒挡锁轴 | REVERSE LOCK SHAFT | 1 |
| 63 | 945303-0600 | E型卡环 d=6 | E-RING d=6 | 2 |
| 64 | 3G2-66321-0 | 倒挡锁杆 | REVERSE LOCK ROD | 1 |
| 65 | 951503-0212 | 开口销2-12 | SPLIT PIN 2-12 | 1 |
| 66 | 3G2-66312-1 | 倒车锁连杆 | REVERSE LOCK LINK | 1 |
| 67 | 350-66315-0 | 倒挡锁弹簧 | REVERSE LOCK SPRING | 1 |
| 68 | 3G2-66331-0 | 倒挡锁弹簧(S型) | REVERSE LOCK SPRING (S) | 2 |
| 69 | 910103-0885 | 螺栓 | BOLT | 2 |
| 70 | 930103-0800 | 螺母 | NUT | 2 |
| 71 | 940103-0800 | 垫圈 | WASHER | 4 |
| 72 | 3V1Q62105-0 | 夹紧螺丝套件 | CLAMP SCREW KIT | 2 |
| 73 | 3V1Q62108-0 | * 卡箍螺丝总成 | * CLAMP SCREW ASSY | 1 |
| 74 | 3V1-62106-0 | 夹紧螺钉 | ** CLAMP SCREW | 1 |
| 75 | 332Q62102-1 | 夹紧螺钉手柄 | ** CLAMP SCREW HANDLE | 1 |
| 76 | 3C8-62104-2 | 铆钉 3-22 | ** RIVET 3-22 | 1 |
| 77 | 332-62101-1 | * 卡箍螺丝垫片 | * CLAMP SCREW PAD | 1 |
| 78 | 3C8-62107-0 | * 肩螺栓 | * SHOULDER BOLT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

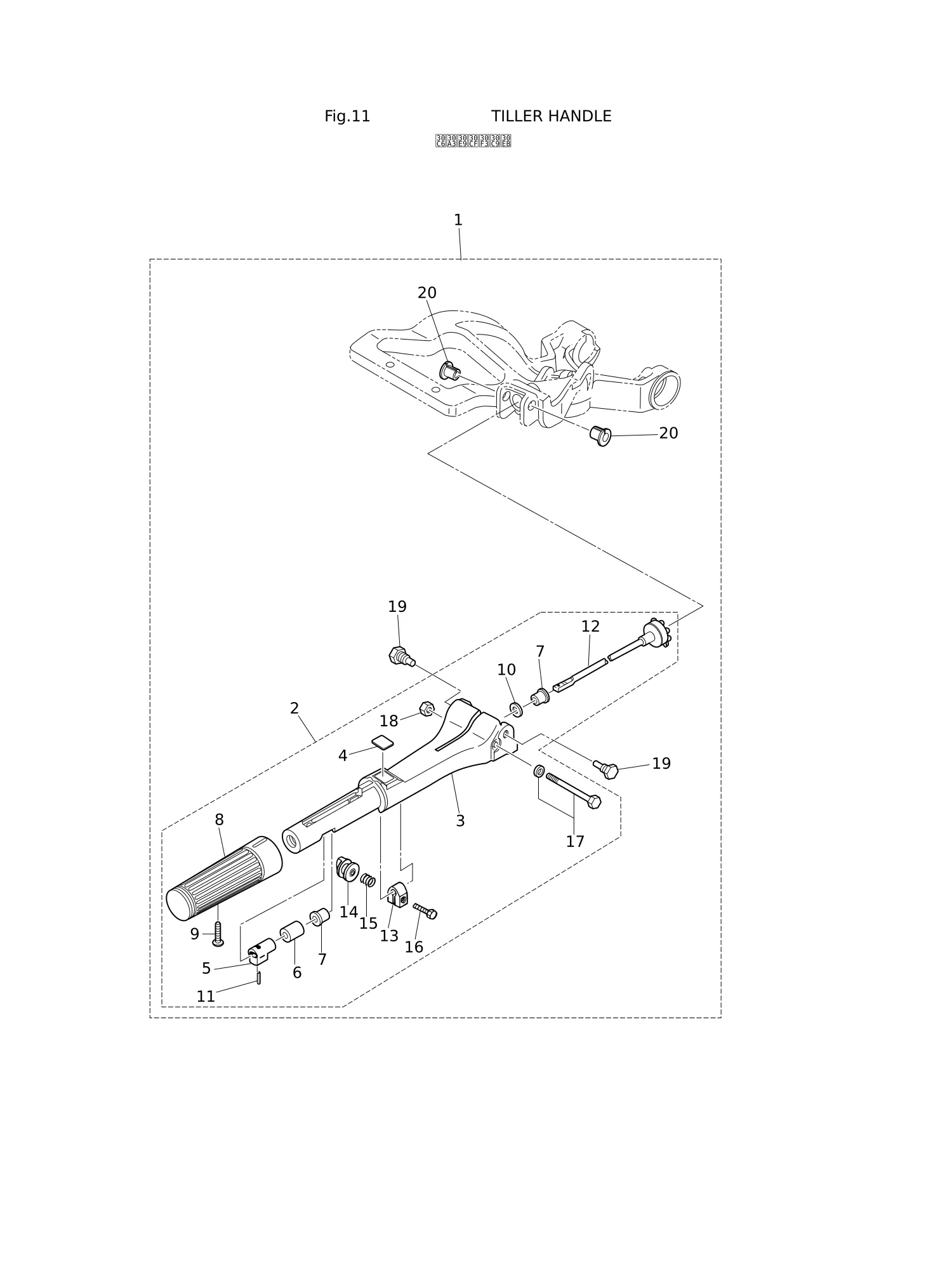

| 1 | 398Q63003-1 | 舵柄总成 | TILLER HANDLE ASSY | 1 |
| 2 | 3M3Q63005-1 | * 舵柄手柄分总成 | * TILLER HANDLE SUB-ASSY | 1 |
| 3 | 398Q63011-1 | 舵柄把手 | ** TILLER HANDLE | 1 |
| 4 | 369-72019-1 | 油门标贴 | ** THROTTLE DECAL | 1 |
| 5 | 398-63053-0 | ** 隔套 | ** SPACER | 1 |
| 6 | 345-63048-0 | 油门轴缓冲器 | ** THROTTLE SHAFT DAMPER | 1 |
| 7 | 350-63046-0 | 衬套 8.4-10-11 | ** BUSHING 8.4-10-11 | 2 |
| 8 | 398-63012-0 | 手柄 | ** GRIP | 1 |
| 9 | 921803-0525 | 螺钉 | ** SCREW | 1 |
| 10 | 941403-1000 | 波形垫圈 d=10 | ** WAVE WASHER d=10 | 1 |
| 11 | 951403-0310 | ** 弹簧销 3-10 | ** SPRING PIN 3-10 | 1 |
| 12 | 398-63041-0 | 油门轴 | ** THROTTLE SHAFT | 1 |
| 13 | 3V1-63035-1 | ** 摩擦片 | ** FRICTION PIECE | 1 |
| 14 | 3V1-63077-0 | 调节螺母 | ** ADJUSTING NUT | 1 |
| 15 | 3V1-63036-0 | ** 弹簧 | ** SPRING | 1 |
| 16 | 9101E3-0625 | 螺栓 | ** BOLT | 1 |
| 17 | 9101E3-5675 | 螺栓 | ** BOLT | 1 |
| 18 | 930403-0600 | 尼龙螺母 6-P1.0 | ** NYLON NUT 6-P1.0 | 1 |
| 19 | 346-63201-2 | 螺栓 | * BOLT | 2 |
| 20 | 345-63207-0 | * 轴环 9.8-12.7-7.5 | * COLLAR 9.8-12.7-7.5 | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

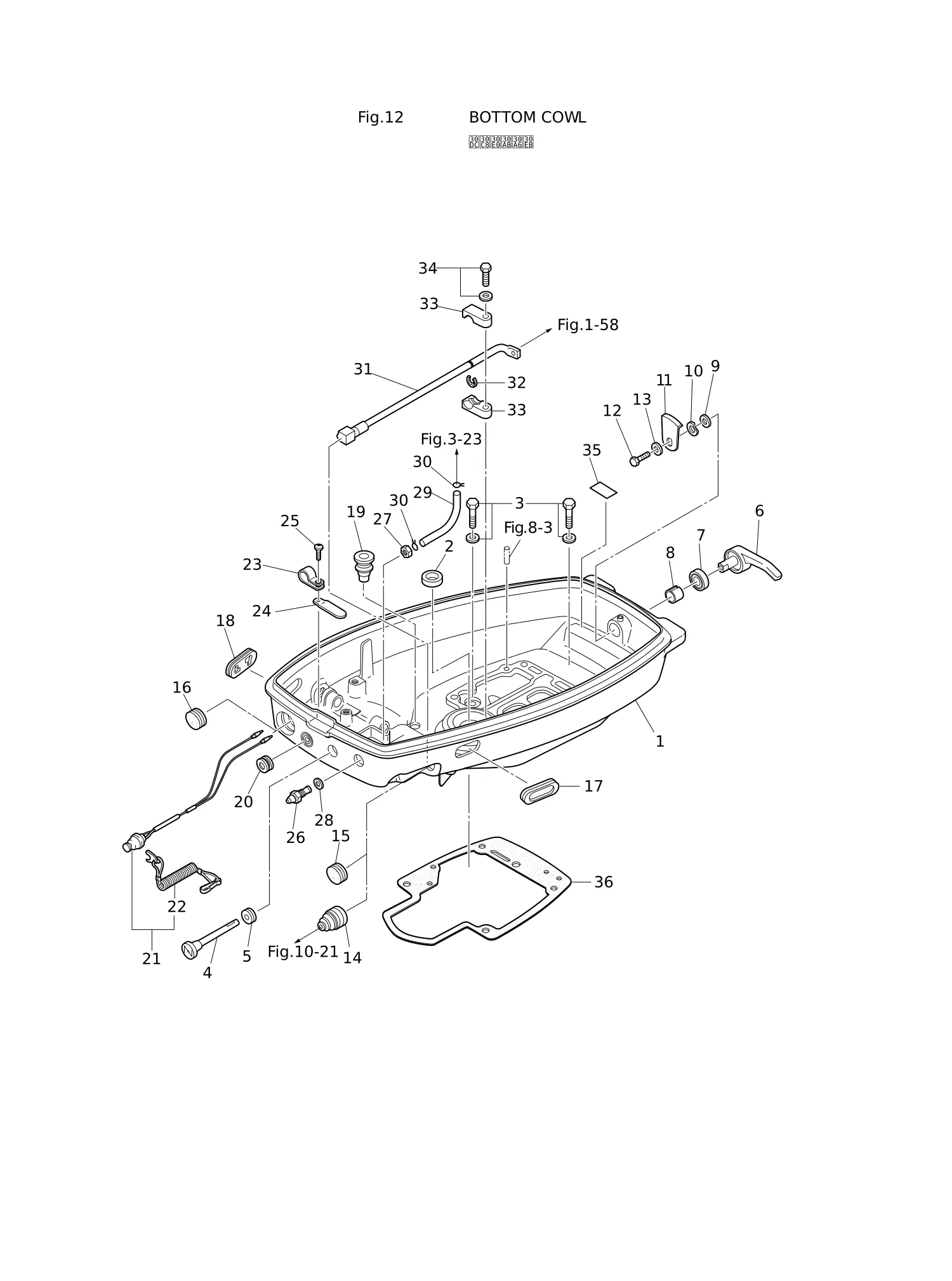

| 1 | 350Q67100-5 | 下罩壳 | BOTTOM COWL | 1 |
| 1 | 3LDQ67100-0 | 下罩壳 | BOTTOM COWL | 1 |
| 2 | 350-01215-1 | 油封 12.8-25-7 | OIL SEAL 12.8-25-7 | 1 |
| 3 | 9101E3-5620 | 螺栓 | BOLT | 2 |
| 4 | 3G2-67151-1 | 阻风门拉杆 | CHOKE ROD | 1 |
| 5 | 350-67104-0 | 阻风门拉杆衬套 | CHOKE ROD BUSHING | 1 |
| 6 | 338Q67141-0 | 挂钩杆 | HOOK LEVER | 1 |
| 7 | 338-67147-0 | 密封环 13.8-22-3.7 | SEAL RING 13.8-22-3.7 | 1 |
| 8 | 350-67105-0 | 挂钩杆衬套 14-16.5-17.7 | HOOK LEVER BUSHING 14-16.5-17.7 | 1 |
| 9 | 3C8-67146-0 | 垫片 14-22-1 | WASHER 14-22-1 | 1 |
| 10 | 941403-1400 | 波形垫圈 d=14 | WAVE WASHER d=14 | 1 |
| 11 | 345-67142-1 | 盖板挂钩 | COVER HOOK | 1 |
| 12 | 910103-0612 | 螺栓 | BOLT | 1 |
| 13 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 1 |
| 14 | 345-66226-0 | 索环 17-3 | GROMMET 17-3 | 1 |
| 16 | 345-67117-0 | 索环 17-2.7 | GROMMET 17-2.7 | 1 |
| 17 | 346-67165-0 | 索环/护孔圈 | GROMMET | 1 |
| 18 | 353-67162-0 | 索环/护孔圈 | GROMMET | 1 |
| 19 | 3M2-66226-0 | 索环 17-3 | GROMMET 17-3 | 1 |
| 20 | 345-76023-0 | 索环 22-2.5 | GROMMET 22-2.5 | 1 |
| 21 | 398-06830-0 | 停止开关总成 | STOP SWITCH ASSY | 1 |
| 22 | 353-06821-0 | * 停机开关拉绳总成 | * STOP SWITCH LANYARD ASSY | 1 |
| 23 | 309-06972-0 | 卡箍 6.5-47.5P | CLAMP 6.5-47.5P | 1 |
| 23 | 336-06973-0 | 卡箍 6-9.5L | CLAMP 6-9.5L | 1 |
| 24 | 398-06972-0 | 卡箍 6.5-67P | CLAMP 6.5-67P | 2 |
| 25 | 921503-5612 | 螺钉 | SCREW | 1 |
| 26 | 3B2-70260-1 | 燃油接头（公头） | FUEL CONNECTOR (MALE) | 1 |
| 27 | 332-70261-0 | 螺母 10-P1.25 | NUT 10-P1.25 | 1 |
| 28 | 336-70112-0 | 衬垫10.2-16-0.5 | GASKET 10.2-16-0.5 | 1 |
| 29 | 98AB-50-185 | 软管 | HOSE | 1 |
| 30 | 338-02215-0 | 卡扣φ10 | CLIP φ10 | 2 |
| 31 | 350-63061-1 | 节气门轴 | THROTTLE SHAFT | 1 |
| 32 | 945303-0600 | E型卡环 d=6 | E-RING d=6 | 1 |
| 33 | 350-63063-0 | 节气门轴支架 | THROTTLE SHAFT SUPPORT | 2 |
| 34 | 910103-7630 | 螺栓 | BOLT | 1 |
| 35 | 361-72026-0 | 火花塞贴花 (BR7HS10) | SPARK PLUG DECAL (BR7HS10) | 1 |
| 35 | 369-72025-0 | 火花塞贴花 (BP7HS10) | SPARK PLUG DECAL (BP7HS10) | 1 |
| 36 | 350-61012-2 | 驱动轴壳体衬垫 | DRIVE SHAFT HOUSING GASKET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

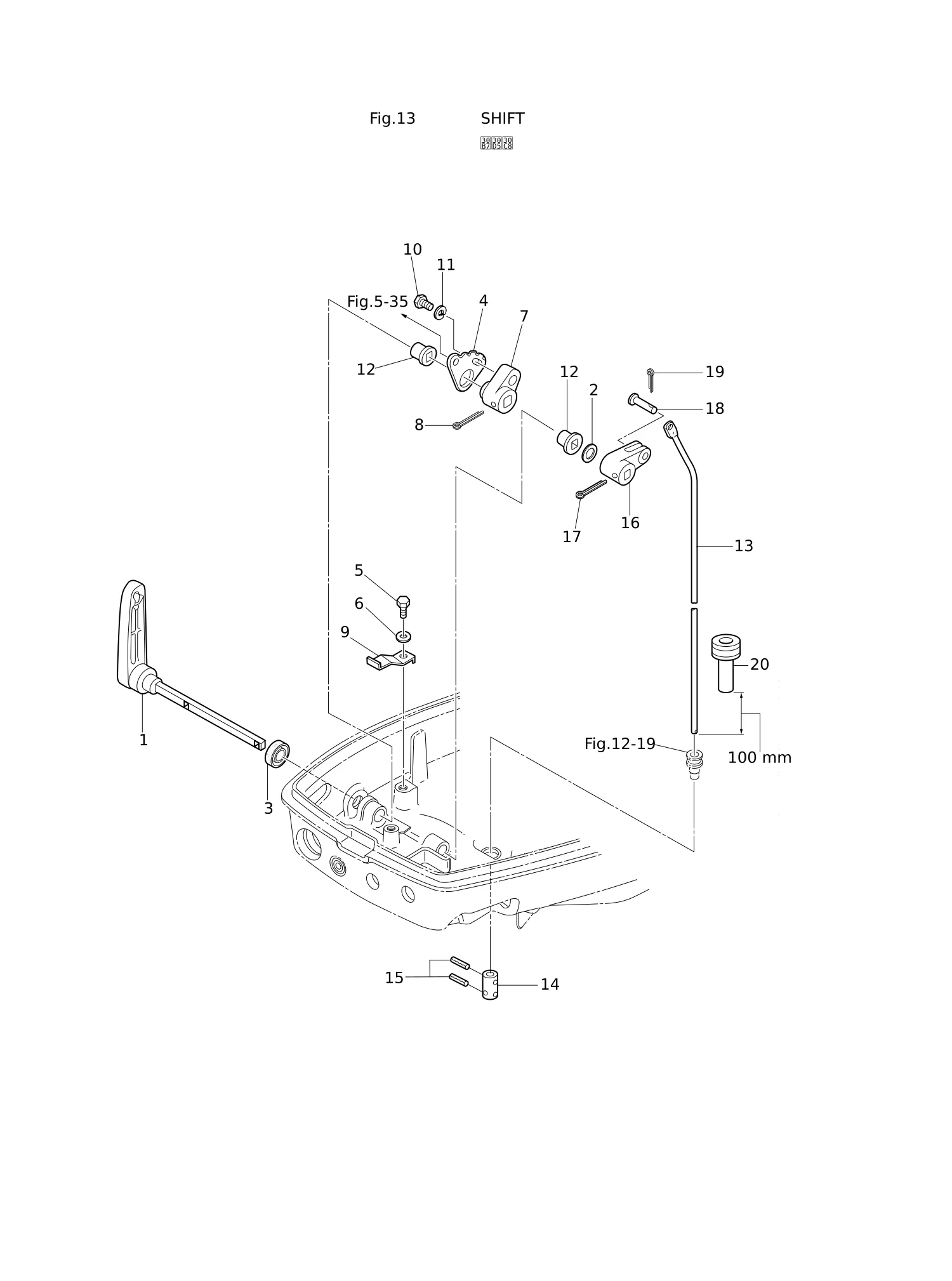

| 1 | 350-66110-0 | 换挡杆 | SHIFT LEVER | 1 |
| 2 | 941403-1200 | 波形垫圈 d=12 | WAVE WASHER d=12 | 1 |
| 3 | 3K9-66137-0 | 油封 14-20-4.5 | OIL SEAL 14-20-4.5 | 1 |
| 4 | 350-66121-0 | 换挡杆止动块 | SHIFT LEVER STOPPER | 1 |
| 6 | 940103-0600 | 垫圈 | WASHER | 1 |
| 7 | 350-66115-0 | 换挡杆止动调节器 | SHIFT LEVER STOP ADJUST | 1 |
| 8 | 951503-2522 | 开口销2.5-22 | SPLIT PIN 2.5-22 | 1 |
| 9 | 350-66112-0 | 换挡杆止动块 | SHIFT LEVER STOPPER | 1 |
| 10 | 9101F4-0616 | 螺栓 | BOLT | 1 |
| 11 | 941303-0600 | 弹簧垫圈 | SPRING WASHER | 1 |
| 12 | 350-67101-0 | 衬套 | BUSHING | 2 |
| 13 | 350-66214-0 | 换挡连杆(短) | SHIFT ROD (S) | 1 |
| 13 | 350-66215-0 | 换挡连杆(长) | SHIFT ROD (L) | 1 |
| 14 | 350-66241-0 | 换挡杆接头 | SHIFT ROD JOINT | 1 |
| 15 | 951403-0312 | 弹簧销 3-12 | SPRING PIN 3-12 | 2 |
| 16 | 350-66225-0 | 换挡杆手柄 | SHIFT ROD LEVER | 1 |
| 17 | 951503-2520 | 开口销2.5-20 | SPLIT PIN 2.5-20 | 1 |
| 18 | 350-66223-0 | 销钉 | PIN | 1 |
| 19 | 951503-1610 | 开口销1.6-10 | SPLIT PIN 1.6-10 | 1 |
| 20 | 3B7-67179-0 | 放油塞(发动机底座) | DRAIN PLUG (ENGINE BASEMENT) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

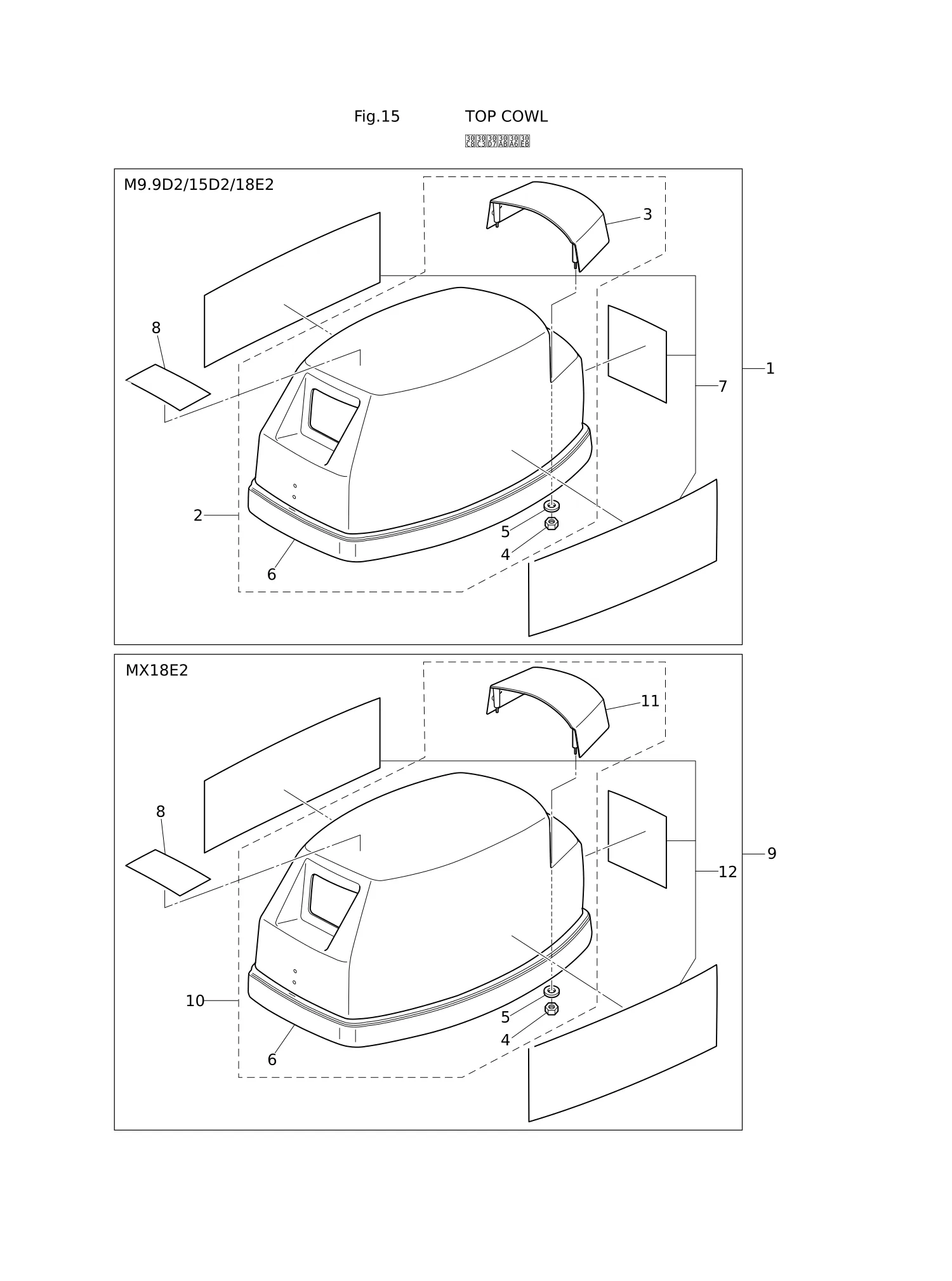

| 1 | 3M3Q67645-4 | 顶罩总成 | TOP COWL ASSY | 1 |
| 2 | 3M3Q67640-3 | * 顶罩分总成 | * TOP COWL SUB-ASSY | 1 |
| 3 | 3M2Q67521-1 | 倾斜把手 | ** TILT HANDLE | 1 |
| 4 | 930403-0600 | 尼龙螺母 6-P1.0 | ** NYLON NUT 6-P1.0 | 4 |
| 5 | 3C8-66308-0 | 垫圈 6-16-1.5 | ** WASHER 6-16-1.5 | 4 |
| 6 | 3LD-67501-0 | 顶罩密封条 | ** TOP COWL SEAL | 1 |
| 7 | 3M2-87801-1 | * 标牌套装(M9.9D2) | * DECAL SET (M9.9D2) | 1 |
| 7 | 3M3-87801-1 | * 标牌套装(M15D2) | * DECAL SET (M15D2) | 1 |
| 7 | 3M4-87801-1 | * 标牌套装(M18E2) | * DECAL SET (M18E2) | 1 |
| 8 | 3C7-72180-3 | * 警示标贴(A) | * CAUTION DECAL (A) | 1 |
| 9 | 3LDH67500-2 | 顶罩总成 | TOP COWL ASSY | 1 |
| 10 | 3M3H67640-3 | * 顶罩分总成 | * TOP COWL SUB-ASSY | 1 |
| 11 | 3M2H67521-1 | 倾斜把手 | ** TILT HANDLE | 1 |
| 12 | 3LD-87801-0 | * 贴花套装 (MX18E2) | * DECAL SET (MX18E2) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

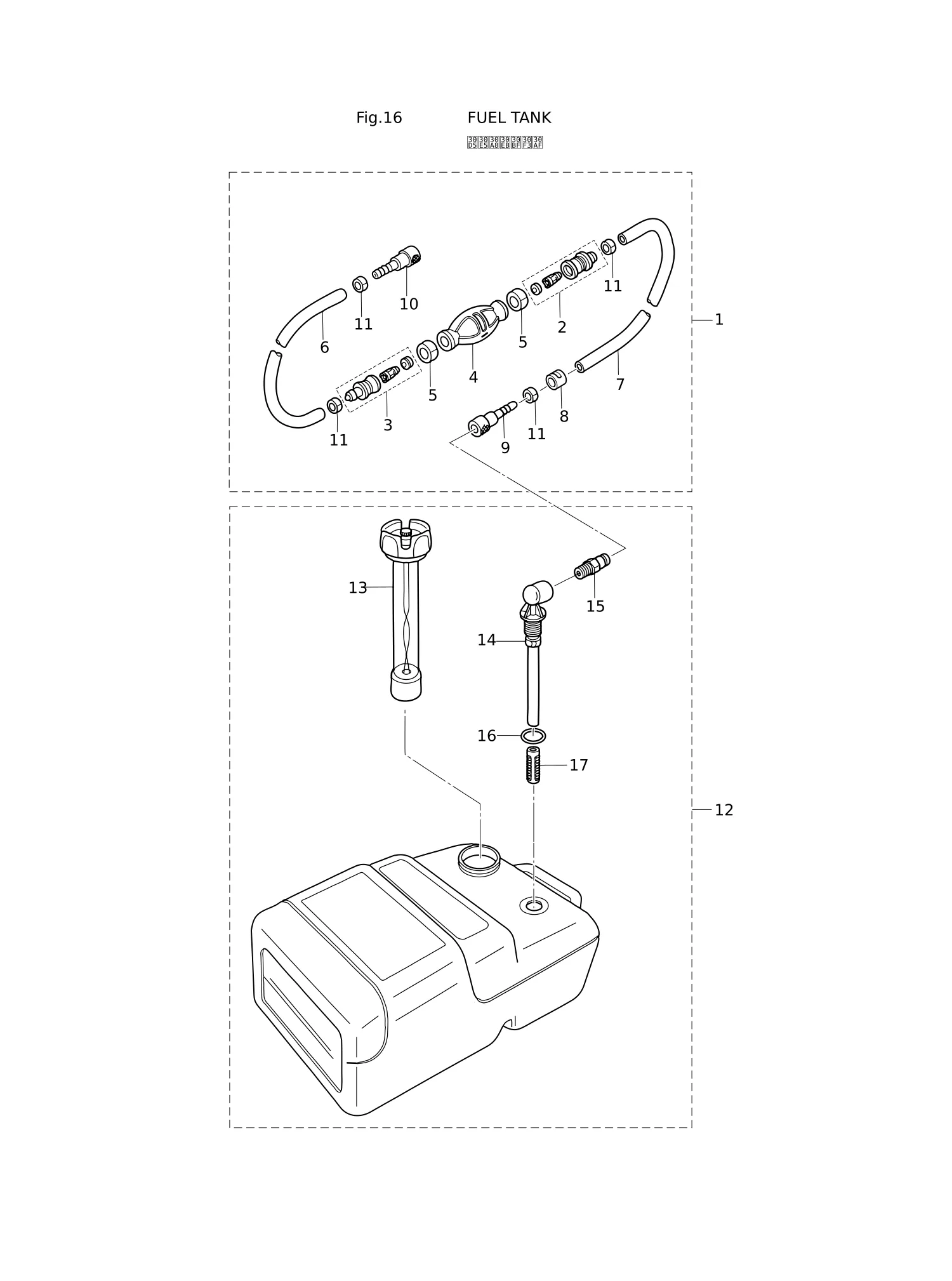

| 1 | 3B7-70200-4 | 手动泵球总成 | PRIMER BULB ASSY | 1 |
| 2 | 3C7-70220-1 | * 接头组件(进口) | * JOINT ASSY (INLET) | 1 |
| 3 | 3C7-70224-1 | * 接头组件(出口) | * JOINT ASSY (OUTLET) | 1 |
| 4 | 3C7-70211-1 | * 注油球 | * PRIMER BULB | 1 |
| 5 | 3C7-70217-0 | * 卡箍 | * CLAMP | 2 |
| 6 | 98AB-70-700 | * 软管 | * HOSE | 1 |
| 7 | 98AB-701600 | * 软管 | * HOSE | 1 |
| 8 | 3B7-70280-1 | * 燃油接头标记 | * FUEL CONNECTOR MARK | 1 |
| 9 | 3GF-70281-0 | * 燃油接头 | * FUEL CONNECTOR | 1 |
| 10 | 3GF-70250-0 | * 燃油接头 | * FUEL CONNECTOR | 1 |
| 11 | 332-70201-0 | * 卡箍 | * CLAMP | 4 |
| 12 | 3C7-70177-1 | 25升燃油箱总成 | FUEL TANK ASSY 25L | 1 |
| 13 | 3C7-70050-1 | * 燃油表通气盖总成（25升） | * FUEL GAUGE VENT CAP ASSY (25L) | 1 |
| 14 | 3C7-70155-0 | * 吸油弯管总成(25升) | * PICK-UP ELBOW ASSY (25L) | 1 |
| 15 | 3E0-70270-0 | * 快速接头(公) | * QUICK-CONNECTOR (MALE) | 1 |
| 16 | 3C7-70199-0 | * O型圈 | * O-RING | 1 |
| 17 | 3C7-70113-0 | * 滤清器 | * FILTER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

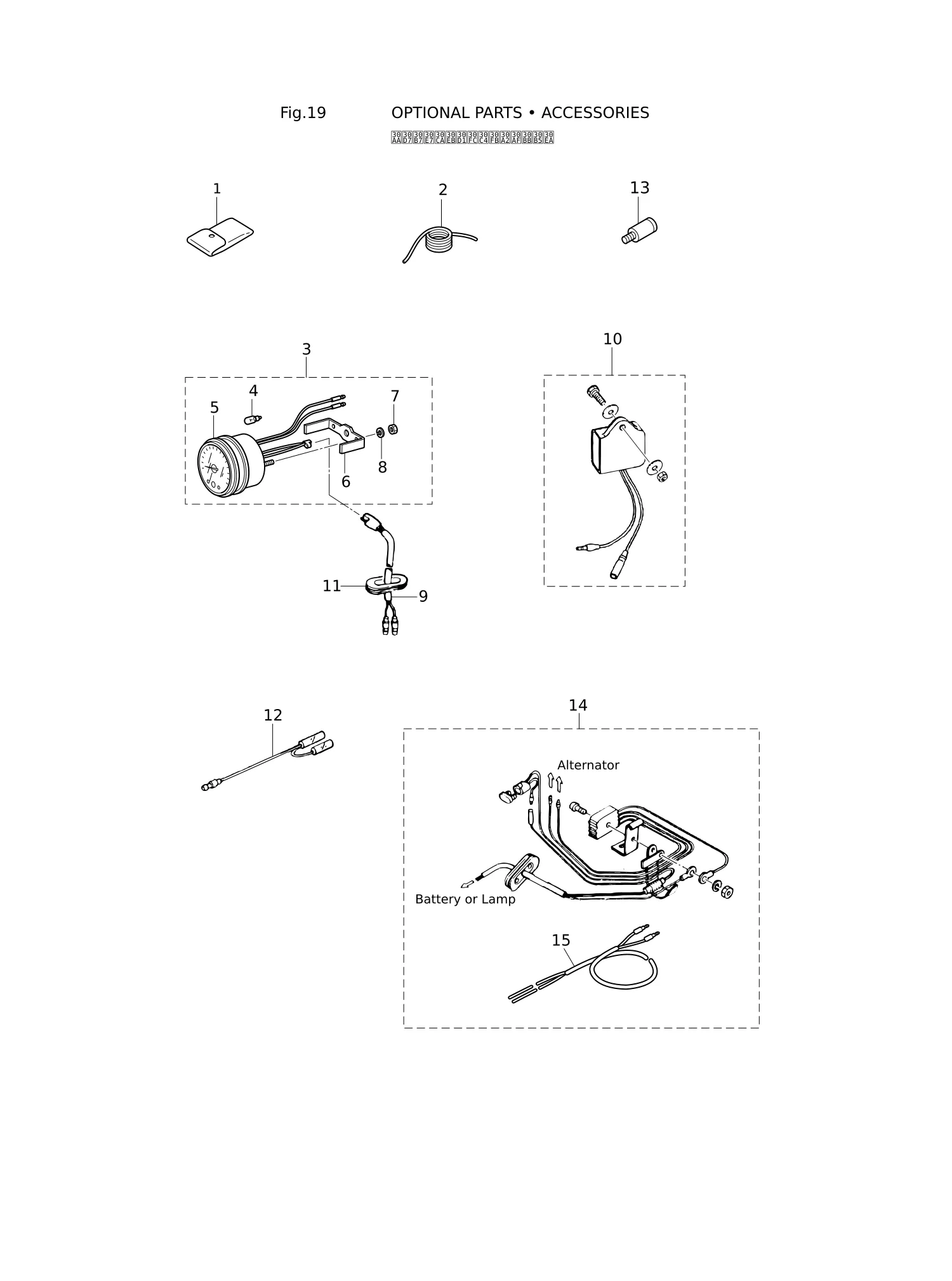

| 1 | 3C8-72100-1 | 工具包 | TOOL KIT | 1 |
| 2 | 3B7-72201-0 | 安全绳 φ6-1600 | SAFETY ROPE φ6-1600 | 1 |
| 3 | 3B7-72530-2 | 转速表总成 | TACHOMETER ASSY | 1 |
| 4 | 3B7-72659-0 | * 仪表灯泡 12V-1.8W | * METER BULB 12V-1.8W | 1 |
| 5 | 3B7-72656-0 | * 仪表缓冲器 | * METER DAMPER | 1 |
| 6 | 3B7-72661-0 | * 安装板 | * FITTING PLATE | 1 |
| 7 | 930103-0500 | 螺母 | * NUT | 2 |
| 8 | 941303-0500 | * 弹簧垫圈 | * SPRING WASHER | 2 |
| 9 | 361-72539-0 | 转速表导线 L=6000 | TACHOMETER LEAD WIRE L=6000 | 1 |
| 10 | 3P0-72679-0 | 转速表单元组件 | TACHOMETER UNIT KIT | 1 |
| 11 | 345-67169-0 | 索环/护孔圈 | GROMMET | 1 |
| 12 | 361-72542-0 | 分离线 | SEPARATE CORD | 1 |
| 12 | 361-72543-0 | 分离线 | SEPARATE CORD | 1 |
| 13 | 336-60007-0 | 冲洗塞 | FLUSHING PLUG | 1 |
| 14 | 346-76160-2 | 整流器套件 | RECTIFIER KIT | 1 |
| 15 | 361-76161-0 | * 延长线 | * EXTENSION CORD | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

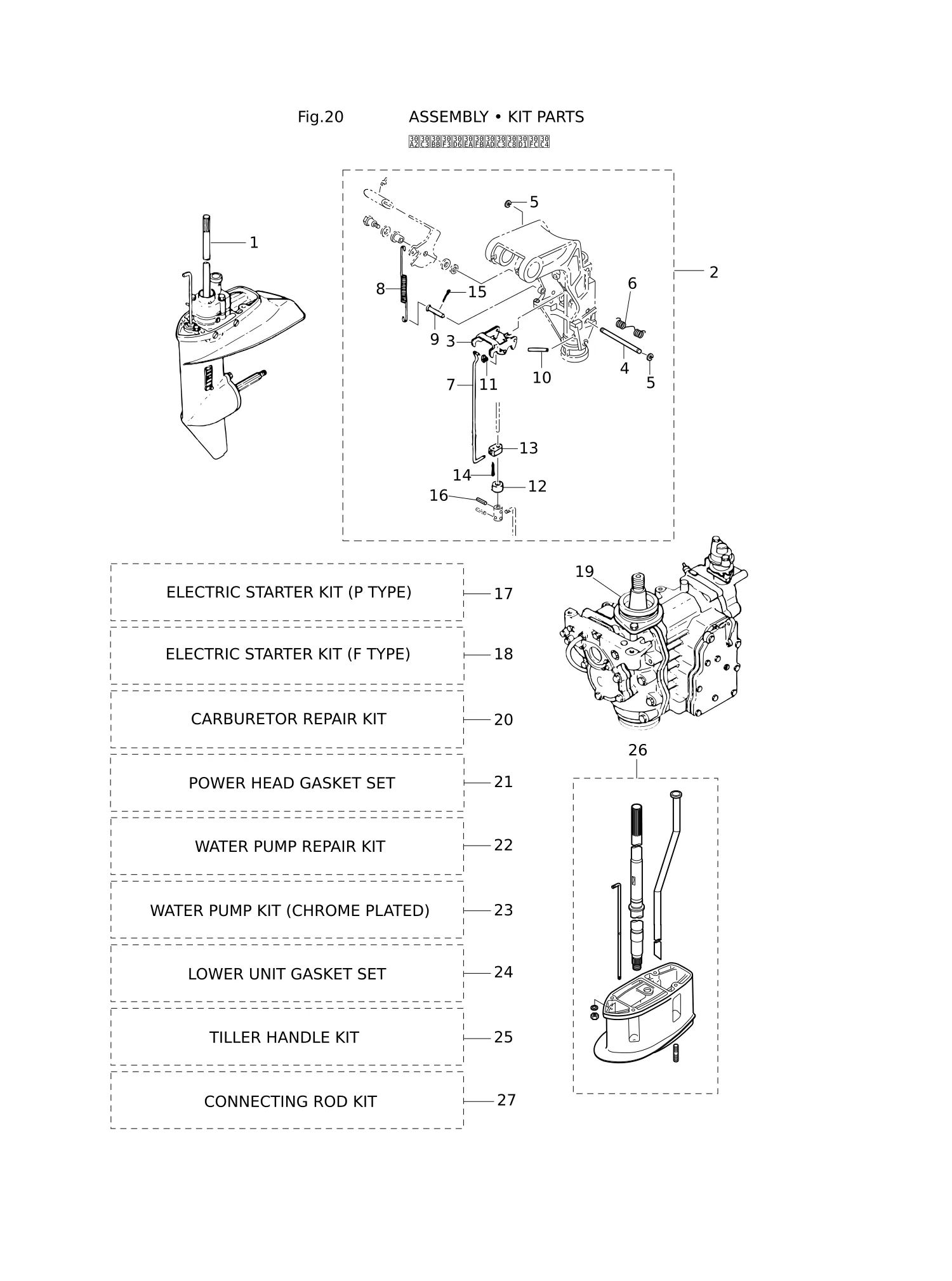

| 1 | 398Q87301-4 | 下部单元总成 (S) | LOWER UNIT ASSY (S) | 1 |
| 1 | 398Q87302-4 | 下部单元总成 (L) | LOWER UNIT ASSY (L) | 1 |
| 1 | 398Q87304-4 | 下部单元总成 (UL) | LOWER UNIT ASSY (UL) | 1 |
| 2 | 3G2-66901-0 | 倒挡锁换挡杆套件 | REVERSE LOCK SHIFT LEVER KIT | 1 |
| 3 | 3B2-66322-1 | * 倒挡锁 | * REVERSE LOCK | 1 |
| 4 | 3G2-66324-0 | * 倒挡锁轴 | * REVERSE LOCK SHAFT | 1 |
| 5 | 945303-0500 | * E型卡环 d=5 | * E-RING d=5 | 2 |
| 6 | 369-62434-0 | * 弹簧 | * SPRING | 1 |
| 7 | 3G2-66305-0 | * 倒挡锁连杆 | * REVERSE LOCK LINK | 1 |
| 8 | 3G2-62434-0 | * 弹簧 | * SPRING | 1 |
| 9 | 350-66223-0 | * 销 | * PIN | 1 |
| 10 | 951403-0535 | * 弹簧销 | * SPRING PIN | 1 |
| 11 | 345-05224-0 | * 连杆卡扣 5-2.5 | * ROD SNAP 5-2.5 | 1 |
| 12 | 350-66337-0 | * 衬套 6.1-12-12 | * SPACER 6.1-12-12 | 1 |
| 13 | 350-66302-0 | * 倒挡锁连杆接头 | * REVERSE LOCK LINK JOINT | 1 |
| 14 | 951503-0212 | * 开口销 2-12 | * SPLIT PIN 2-12 | 1 |
| 15 | 951503-1610 | * 开口销 1.6-10 | * SPLIT PIN 1.6-10 | 1 |
| 17 | 345-76023-0 | * 衬套 22-2.5 | * GROMMET 22-2.5 | 1 |
| 17 | 361-76050-0 | * 阻风门电磁阀 | * CHOKE SOLENOID | 1 |
| 17 | 398-76049-0 | * 引线 | * LEAD WIRE | 1 |
| 17 | 3C7-03271-1 | * O型圈1.5-2.5 | * O-RING 1.5-2.5 | 1 |
| 17 | 3G2-76055-2 | * 阻风门电磁阀支架 | * CHOKE SOLENOID BRACKET | 1 |
| 17 | 3G2-76057-1 | * 阻风门电磁阀挂钩 | * CHOKE SOLENOID HOOK | 1 |
| 17 | 3G2-76100-5 | 电动启动器套件(P) | ELECTRIC STARTER KIT (P) | 1 |
| 17 | 921503-6408 | * 螺钉 | * SCREW | 3 |
| 17 | 921503-6512 | * 螺钉 | * SCREW | 2 |
| 17 | 951403-0312 | * 弹簧销 3-12 | * SPRING PIN 3-12 | 1 |
| 18 | 309-06972-0 | * 卡箍 6.5-47.5P | * CLAMP 6.5-47.5P | 1 |
| 18 | 346-76039-1 | * 开关保护罩 | * SWITCH PROTECTOR | 1 |
| 18 | 346-76040-0 | * 启动电磁阀 | * STARTER SOLENOID | 1 |
| 18 | 350-76010-0 | * 启动电机总成 | * STARTER MOTOR ASSY | 1 |
| 18 | 350-76011-0 | * 启动电机支架 | * STARTER MOTOR BRACKET | 1 |
| 18 | 350-76081-0 | * 空档开关支架 | * NEUTRAL SWITCH BRACKET | 1 |
| 18 | 353-84398-0 | 箍带 100 | * BAND 100 | 1 |
| 18 | 361-76026-0 | * 主开关总成 | * MAIN SWITCH ASSY | 1 |
| 18 | 398-06972-0 | * 卡箍 6.5-67P | * CLAMP 6.5-67P | 2 |
| 18 | 398-76080-0 | * 空档开关 | * NEUTRAL SWITCH | 1 |
| 18 | 398-76083-0 | * 空档开关执行器 | * NEUTRAL SWITCH ACTUATOR | 1 |
| 18 | 3A3-76145-0 | * 端子盖 | * TERMINAL CAP | 2 |
| 18 | 3B2-76062-0 | * 保险丝线束总成 L=355 | * FUSE WIRE ASSY L=355 | 1 |
| 18 | 3B2-76120-1 | 蓄电池电缆 L=2000 | * BATTERY CABLE L=2000 | 1 |
| 18 | 3B2-76147-2 | * 启动电缆 L=200 | * STARTER CABLE L=200 | 1 |
| 18 | 3B7-63731-0 | * 垫圈 12.5-24-1 | * WASHER 12.5-24-1 | 1 |
| 18 | 3B7-76145-0 | * 端子盖 | * TERMINAL CAP | 1 |
| 18 | 3G2-76060-0 | * 整流器总成 | * RECTIFIER COMPLETE | 1 |
| 18 | 3G2-76142-0 | * 接地电缆 | * GROUND CABLE | 1 |
| 18 | 3G2-76300-4 | 电动启动器套件(F) | ELECTRIC STARTER KIT (F) | 1 |
| 18 | 3M3-06091-1 | * 飞轮(带齿轮) | * FLYWHEEL W/GEAR | 1 |
| 18 | 3M4-76084-0 | * 隔套 12-14-2.2 | * SPACER 12-14-2.2 | 1 |
| 18 | 910103-5612 | 螺栓 | * BOLT | 1 |
| 18 | 910103-6618 | 螺栓 | * BOLT | 1 |
| 18 | 916103-0830 | 螺栓 | * BOLT | 4 |
| 18 | 921503-0525 | * 螺钉 | * SCREW | 1 |
| 18 | 921503-6612 | * 螺钉 | * SCREW | 2 |
| 18 | 941303-0500 | * 弹簧垫圈 | * SPRING WASHER | 1 |
| 18 | 941303-0800 | * 弹簧垫圈 | * SPRING WASHER | 4 |
| 19 | 3LDJ87090-1 | 发动机短缸体套件 | ENGINE SHORT BLOCK KIT | 1 |
| 19 | 3M5B87090-A | 发动机短缸体套件 | ENGINE SHORT BLOCK KIT | 1 |
| 19 | 3M7B87090-B | 发动机短缸体套件 | ENGINE SHORT BLOCK KIT | 1 |
| 20 | 3C8-03125-0 | * 浮子 | * FLOAT | 1 |
| 20 | 3C8-03126-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 20 | 3C8-03169-0 | * 塞 | * PLUG | 1 |
| 20 | 3C8-03182-0 | * 化油器盖垫片 | * CARBURETOR COVER GASKET | 1 |
| 20 | 3E3-03147-0 | * 浮子阀 | * FLOAT VALVE | 1 |
| 20 | 3G2-87122-1 | 化油器修理包 | CARBURETOR REPAIR KIT | 1 |
| 20 | 922503-0410 | * 螺钉 | * SCREW | 6 |
| 21 | 338-01403-0 | * O型圈2-55.5 | * O-RING 2-55.5 | 2 |
| 21 | 346-01032-0 | * 节温器盖衬垫 | * THERMOSTAT CAP GASKET | 1 |
| 21 | 350-00121-0 | * 油封 25-45-8 | * OIL SEAL 25-45-8 | 1 |
| 21 | 350-01005-1 | * 气缸盖垫片 | * CYLINDER HEAD GASKET | 1 |
| 21 | 350-01215-1 | * 油封 12.8-25-7 | * OIL SEAL 12.8-25-7 | 1 |
| 21 | 350-02104-2 | * 进气歧管垫片 | * INTAKE MANIFOLD GASKET | 1 |
| 21 | 350-02105-3 | * 进气歧管垫片 | * INTAKE MANIFOLD GASKET | 1 |
| 21 | 350-02305-2 | * 排气盖衬垫 | * EXHAUST COVER GASKET | 1 |
| 21 | 350-02306-2 | * 排气盖衬垫 | * EXHAUST COVER GASKET | 1 |
| 21 | 350-61012-2 | * 驱动轴壳体衬垫 | * DRIVE SHAFT HOUSING GASKET | 1 |
| 21 | 351-01005-1 | * 气缸盖垫片 | * CYLINDER HEAD GASKET | 1 |
| 21 | 3C8-02011-0 | * 化油器衬垫 | * CARBURETOR GASKET | 1 |
| 21 | 3C8-03121-0 | * 浮子室垫片 | * FLOAT CHAMBER GASKET | 1 |
| 21 | 3C8-03193-0 | * 衬垫 | * GASKET | 1 |
| 21 | 3G2-02414-1 | * 进气消声器垫片 | * INTAKE SILENCER GASKET | 1 |
| 21 | 3G2-87121-7 | 动力头衬垫套装 | POWER HEAD GASKET SET | 1 |
| 21 | 3G4-87121-7 | 动力头衬垫套装 | POWER HEAD GASKET SET | 1 |
| 21 | 3LD-00121-0 | * 油封 25-47-6 | * OIL SEAL 25-47-6 | 1 |
| 21 | 3LD-87121-0 | 动力头衬垫套装 | POWER HEAD GASKET SET | 1 |
| 21 | 3M2-00122-0 | * 油封 25-62-9.5 | * OIL SEAL 25-62-9.5 | 1 |
| 21 | 3M3-01303-0 | * 发动机底座衬垫 | * ENGINE BASEMENT GASKET | 1 |
| 22 | 350-65011-1 | * 泵壳衬套 | * PUMP CASE LINER | 1 |
| 22 | 350-65022-0 | * 键 φ2-16 | * KEY φ2-16 | 1 |
| 22 | 350-65025-0 | * 水泵导板 | * WATER PUMP GUIDE PLATE | 1 |
| 22 | 362-87322-1 | 水泵维修套件 | WATER PUMP REPAIR KIT | 1 |
| 22 | 9101E3-5652 | 螺栓 | * BOLT | 3 |
| 23 | 334-65021-0 | * 水泵叶轮 | * WATER PUMP IMPELLER | 1 |
| 23 | 362-65231-1 | 水泵套件(镀铬) | WATER PUMP KIT (CHROME PLATED) | 1 |
| 23 | 362-65238-0 | * 泵壳衬套 | * PUMP CASE LINER | 1 |
| 23 | 362-65239-0 | * 水泵导板 | * WATER PUMP GUIDE PLATE | 1 |
| 24 | 121-32071-0 | * O型圈 2.4-59.6 | * O-RING 2.4-59.6 | 1 |
| 24 | 332-60006-0 | * 衬垫 8.1-15-1 | * GASKET 8.1-15-1 | 3 |
| 24 | 332-60223-0 | * 油封 13.8-26-9.5 | * OIL SEAL 13.8-26-9.5 | 1 |
| 24 | 332-66021-0 | * O型圈 2.4-5.8 | * O-RING 2.4-5.8 | 2 |
| 24 | 336-62415-0 | * O型圈 3.5-36 | * O-RING 3.5-36 | 2 |
| 24 | 346-65013-0 | * 油封 17-30-9 | * OIL SEAL 17-30-9 | 1 |
| 24 | 362-02312-2 | * 排气管衬垫 | * EXHAUST PIPE GASKET | 1 |
| 24 | 398-87321-3 | 下部单元衬垫套件 | LOWER UNIT GASKET SET | 1 |
| 24 | 3FS-65029-0 | * 导板垫片 | * GUIDE PLATE GASKET | 1 |
| 25 | 345-66226-0 | * 护孔环 17-3 | * GROMMET 17-3 | 1 |
| 25 | 346-67165-0 | * 护孔环 | * GROMMET | 1 |
| 25 | 350-63061-1 | * 节气门轴 | * THROTTLE SHAFT | 1 |
| 25 | 350-63063-0 | * 节气门轴支撑 | * THROTTLE SHAFT SUPPORT | 2 |
| 25 | 350-63064-0 | * 通用小齿轮 | * UNIVERSAL PINION | 1 |
| 25 | 353-67162-0 | * 护孔环 | * GROMMET | 1 |
| 25 | 353-83728-1 | * 销 | * PIN | 1 |
| 25 | 398-63717-1 | * 连杆 5-65L | * ROD 5-65L | 1 |
| 25 | 398Q63000-3 | 舵柄套件 | TILLER HANDLE KIT | 1 |
| 25 | 398Q63003-1 | * 舵柄手柄总成 | * TILLER HANDLE ASSY | 1 |
| 25 | 3AA-83719-0 | * 垫圈 8.5-18-1.6 | * WASHER 8.5-18-1.6 | 1 |
| 25 | 3B7-63733-0 | * 连杆卡扣 5-2.5 | * ROD SNAP 5-2.5 | 1 |
| 25 | 910103-7630 | 螺栓 | * BOLT | 1 |
| 25 | 930103-0500 | 螺母 | * NUT | 1 |
| 25 | 930103-0600 | 螺母 | * NUT | 1 |
| 25 | 945303-0600 | * E型卡环 d=6 | * E-RING d=6 | 1 |
| 25 | 951603-0800 | * 弹性销 d=8 | * SNAP PIN d=8 | 1 |
| 26 | 350-64303-0 | * 驱动轴（上长） | * DRIVE SHAFT (UL) | 1 |
| 26 | 350-65120-0 | * 水管 (上左) | * WATER PIPE (UL) | 1 |
| 26 | 350Q61110-0 | * 延伸壳体 | * EXTENSION HOUSING | 1 |
| 26 | 398-66014-0 | * 凸轮杆(上左) | * CAM ROD (UL) | 1 |
| 26 | 398Q87314-0 | 延伸壳体套件(超长) | EXTENSION HOUSING KIT (UL) | 1 |
| 26 | 3P0-66233-0 | * 垫圈 8.1-16-1.5 | * WASHER 8.1-16-1.5 | 4 |
| 26 | 9153E3-0825 | * 双头螺柱 | * STUD | 4 |
| 26 | 930103-0800 | 螺母 | * NUT | 4 |
| 27 | 350-00040-0 | * 连杆 | * CONNECTING ROD | 1 |
| 27 | 350-00061-1 | * 曲柄销 | * CRANK PIN | 1 |
| 27 | 3G4-00043-0 | * 滚柱轴承 20-26-16 | * ROLLER BEARING 20-26-16 | 1 |
| 27 | 3LD-00039-0 | 连杆套件 | CONNECTING ROD KIT | 1 |
| 27 | 3LD-00046-0 | * 小端轴承垫圈 | * SMALL END BEARING WASHER | 2 |
| 27 | 3LD-00090-0 | * 滚针轴承组 | * NEEDLE ROLLER SET | 1 |
