东发 Tohatsu M40/50D2/MW50D2 2020 - 爆炸图零件明细

两冲程 2-Stroke · 2020 年 · 手册号 002-21038-0BX · 共 29 个部位 · 1004 条零件

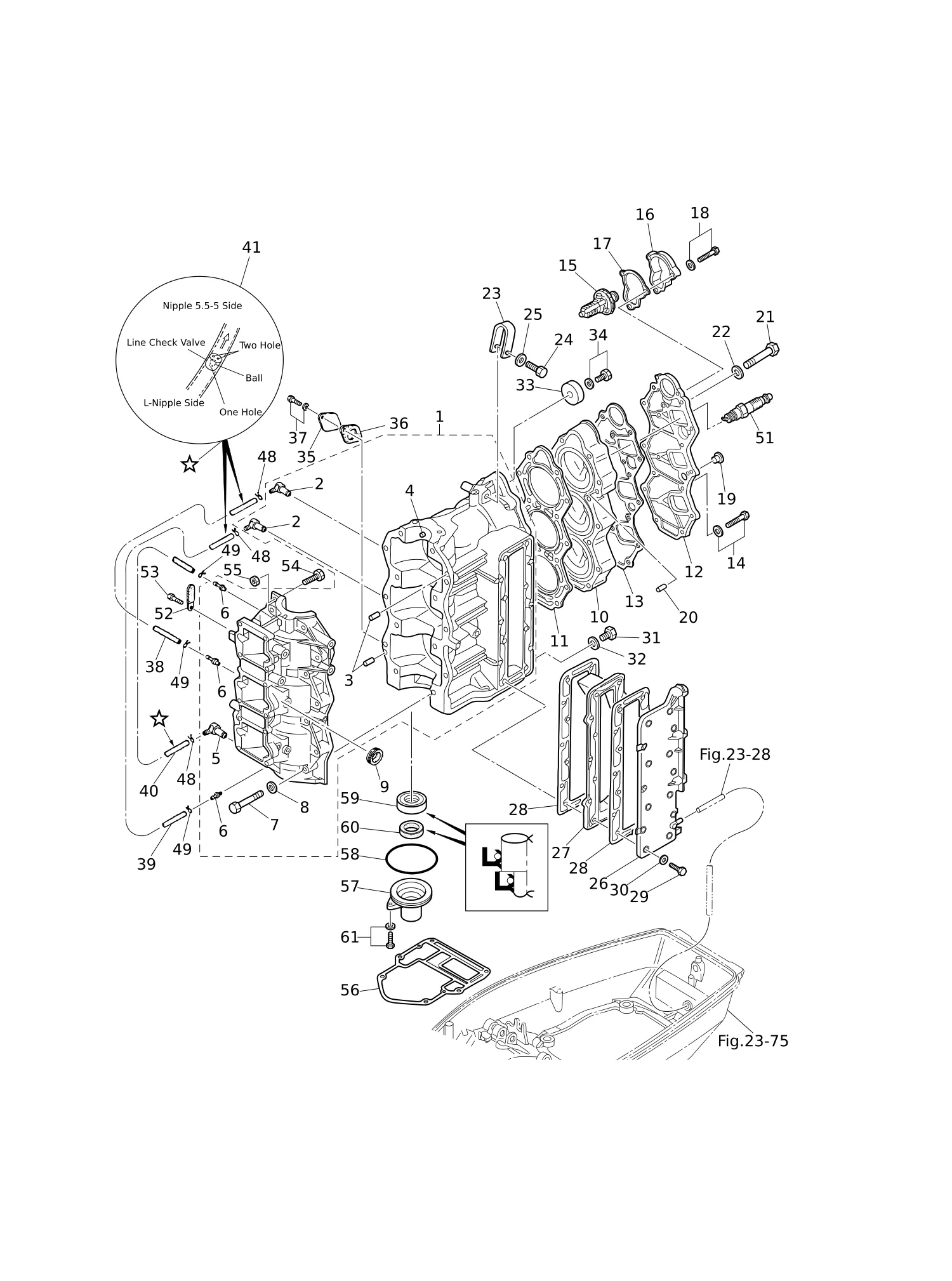

图 01气缸·曲轴箱 CYLINDER · CRANK CASE

REF	零件编号	中文名称	英文名称	数量
1	3C8B01105-1	气缸体与曲轴箱总成	CYL BLOCK & CRANKCASE ASSY	1
1	3E3B01105-1	气缸体与曲轴箱总成	CYL BLOCK & CRANKCASE ASSY	1
4	345-00117-0	* 定位销	* DOWEL PIN	1
5	393-01137-0	接头 5-4-5	* NIPPLE 5-4-5	1
6	393-01131-0	接头 5.5-5	* NIPPLE 5.5-5	3
7	916124-0845	螺栓	* BOLT	14
9	3B7-76093-0	索环 25-5	GROMMET 25-5	1
10	3C8B01001-2	气缸盖	CYLINDER HEAD	1
11	3C8-01005-5	气缸盖衬垫	CYLINDER HEAD GASKET	1
12	3C8B01021-0	气缸盖罩	CYLINDER HEAD COVER	1
13	3C8-01024-2	气缸盖罩垫片	CYLINDER HEAD COVER GASKET	1
14	9101E3-5620	螺栓	BOLT	4
15	353-01030-0	节温器	THERMOSTAT	1
16	353B01031-0	节温器盖	THERMOSTAT CAP	1
17	353-01032-0	节温器盖垫片	THERMOSTAT CAP GASKET	1
18	9101E3-5625	螺栓	BOLT	3
19	3B7-01046-0	塞	PLUG	1
20	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
21	3C8-01012-0	气缸盖螺栓	CYLINDER HEAD BOLT	14
22	3C8-01015-0	垫圈 8.5-19.5-3.2	WASHER 8.5-19.5-3.2	14
23	3C8-01513-1	吊架	HANGER	1
24	9101F4-0835	螺栓	BOLT	1
25	940121-0800	垫圈	WASHER	1
26	3C8B02301-1	排气外盖	EXHAUST COVER (OUTER)	1
27	3C8-02302-0	排气内盖	EXHAUST COVER (INNER)	1
28	3C8-02305-2	排气盖垫片	EXHAUST COVER GASKET	2
29	9161F9-0630	螺栓	BOLT	14
30	940103-0600	垫圈	WASHER	14
31	9106E3-0808	螺栓	BOLT	1
32	332-60006-1	衬垫	GASKET	1
33	338-60218-2	阳极块	ANODE	1
35	3C8-09081-1	盖板	COVER	1
36	3C8-09082-2	衬垫	GASKET	1
37	910103-5616	螺栓	BOLT	2
38	98AL-40-160	软管	HOSE	1
39	98AL-40-220	软管	HOSE	1
40	98AL-40-330	软管	HOSE	1
41	393-01160-0	止回阀	CHECK VALVE	3
48	3T5-01133-0	卡环 φ8	CLIP φ8	3
49	338-01133-0	卡环 φ7	CLIP φ7	3
51	9701-1-1015	火花塞 (BR7HS-10)	SPARK PLUG(BR7HS-10)	3
51	9701-1-1016	火花塞 (BR8HS-10)	SPARK PLUG(BR8HS-10)	3
52	3PR-06972-0	卡箍 6.5-47.5P	CLAMP 6.5-47.5P	1
53	910103-5612	螺栓	BOLT	1
54	910103-0630	螺栓	BOLT	1
55	930103-0600	螺母	NUT	1
56	3C8-01303-4	发动机基座垫片	ENGINE BASEMENT GASKET	1
57	3C8-01291-0	曲轴箱盖	CRANKCASE HEAD	1
58	346-01216-0	O型圈1.7-59	O-RING 1.7-59	1
59	334-00122-0	油封 25-40-8	OIL SEAL 25-40-8	1
60	3C8-01215-0	油封 16-28-7	OIL SEAL 16-28-7	1
61	910103-5620	螺栓	BOLT	2

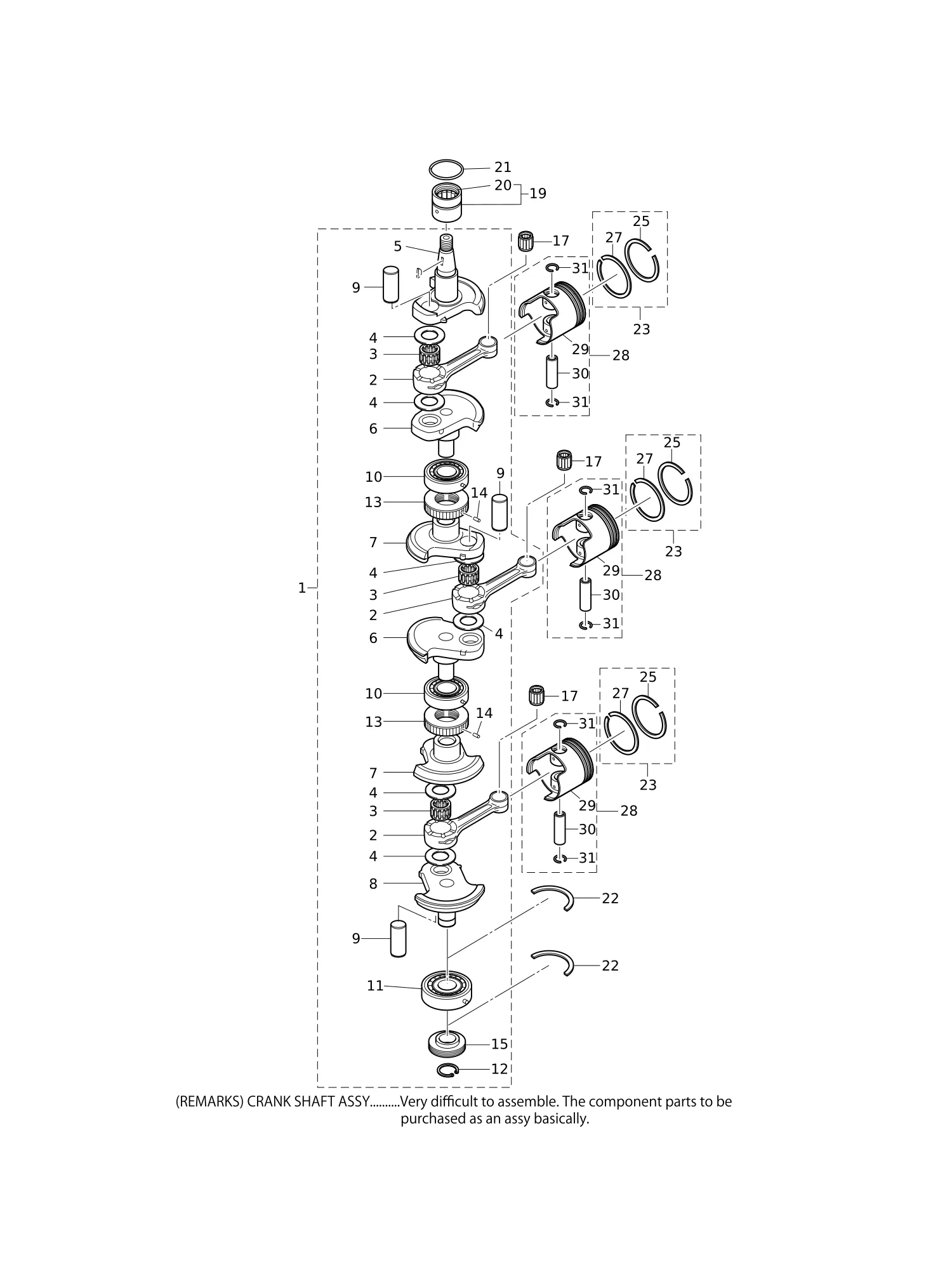

图 02活塞·曲轴 PISTON · CRANK SHAFT

REF	零件编号	中文名称	英文名称	数量
1	3E5-00050-1	带齿轮曲轴总成	CRANKSHAFT ASSY W/GEAR	1
2	345-00040-1	* 连杆	* CONNECTING ROD	3
3	345-00043-0	* 滚柱轴承 25-32-20	* ROLLER BEARING 25-32-20	3
4	345-00045-0	大端轴承垫片	* BIG END BEARING WASHER	6
5	3C8-00031-1	* 曲轴A型	* CRANKSHAFT A	1
6	3C8-00032-0	* 曲轴B型	* CRANKSHAFT B	2
7	3C8-00033-0	* 曲轴C型	* CRANKSHAFT C	2
8	3C8-00034-0	* 曲轴D型	* CRANKSHAFT D	1
9	348-00061-1	* 曲柄销	* CRANK PIN	3
10	3C8-00114-0	* 主轴承 6305R	* MAIN BEARING 6305R	2
11	3J2-00114-0	* 主轴承 6305	* MAIN BEARING 6305	1
12	945107-2500	* C形环 d=25	* C-RING d=25	1
13	3C8-00051-2	* 迷宫密封	* LABYRINTH PACKING	2
14	951407-0308	* 弹簧销 3-8	* SPRING PIN 3-8	2
15	3C8-09060-0	* 机油泵驱动齿轮	* OIL PUMP DRIVE GEAR	1
17	345-00042-0	滚柱轴承 17-21-27	ROLLER BEARING 17-21-27	3
19	3C8-00113-0	主轴承	MAIN BEARING	1
20	3C8-00121-0	* 油封 32-42-6	* OIL SEAL 32-42-6	1
21	3C8-00108-0	O型圈 2.4-39.7	O-RING 2.4-39.7	1
22	346-00115-0	止推板	THRUST PLATE	2
23	3E3-87123-0	活塞环组	PISTON RING SET	3
23	3E3-87124-0	活塞环组（0.5加大）	PISTON RING SET (0.5 O/S)	3
25	356-00011-0	* 活塞环	* PISTON RING	1
25	356-00014-0	* 活塞环 (0.5 加大)	* PISTON RING (0.5 O/S)	1
27	346-00011-0	* 活塞环	* PISTON RING	1
27	346-00014-0	* 活塞环 (0.5 加大)	* PISTON RING (0.5 O/S)	1
28	3E3-87130-0	活塞修理包	PISTON REPAIR KIT	3
28	3E3-87131-0	活塞修理包（0.5加大）	PISTON REPAIR KIT (0.5 O/S)	3
29	3C8-00001-4	* 活塞	* PISTON	1
29	3C8-00004-4	* 活塞 (0.5 加大)	* PISTON (0.5 O/S)	1
30	3C8-00021-1	* 活塞销	* PISTON PIN	1
31	334-00024-1	* 活塞销卡簧	* PISTON PIN CLIP	2

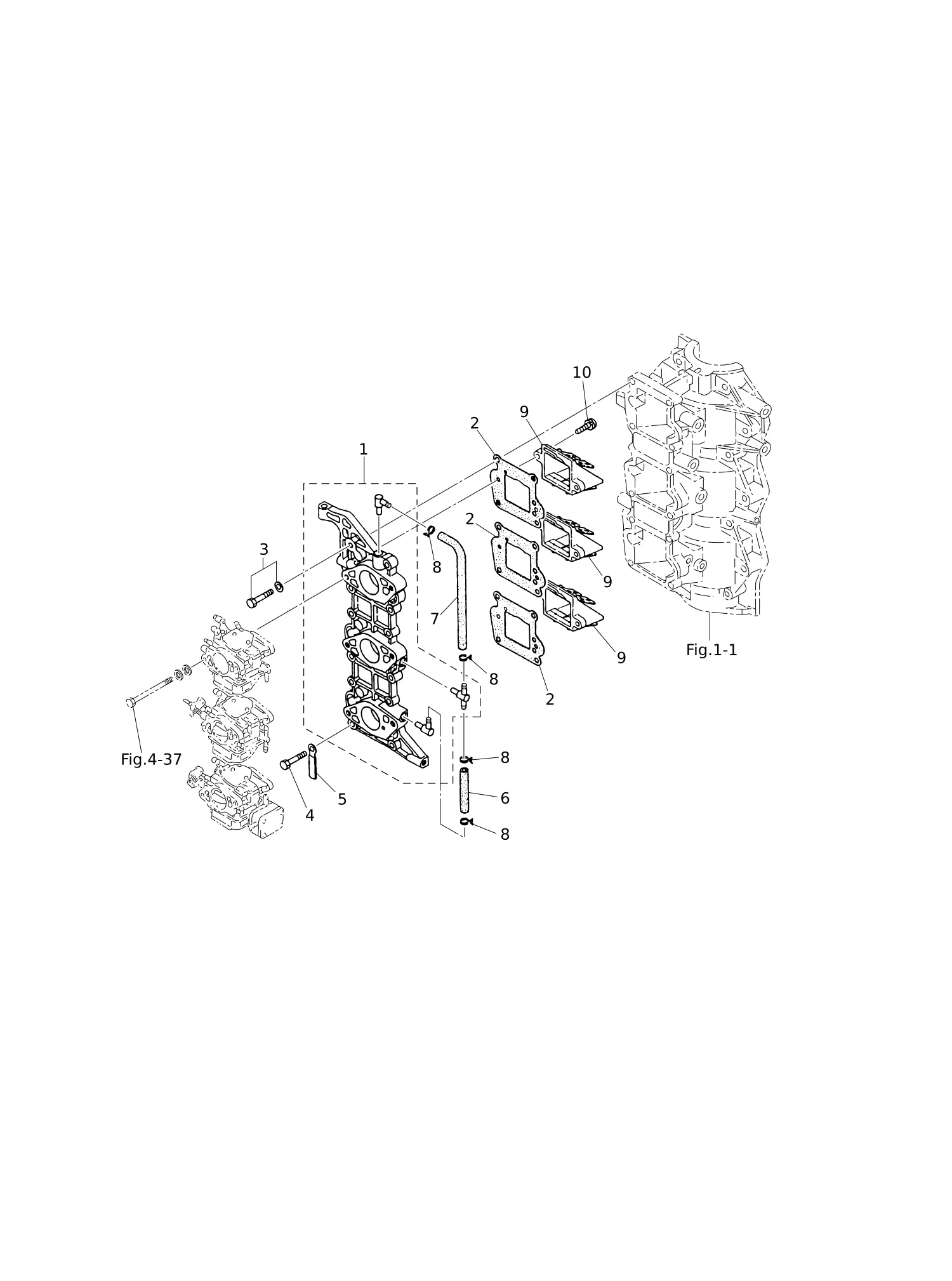

图 03进气歧管·簧片阀 INTAKE MANIFOLD · REED VALVE

REF	零件编号	中文名称	英文名称	数量
1	3C8B02020-0	进气歧管总成	INTAKE MANIFOLD ASSY	1
1	3E3B02020-0	进气歧管总成	INTAKE MANIFOLD ASSY	1
2	3C8-02104-2	进气歧管垫片	INTAKE MANIFOLD GASKET	3
3	910103-5625	螺栓	BOLT	11
4	910103-0625	螺栓	BOLT	1
5	3PR-06972-0	卡箍 6.5-47.5P	CLAMP 6.5-47.5P	1
6	98AB-50-065	软管	HOSE	1
7	98AB-50-155	软管	HOSE	1
8	338-02215-0	卡扣φ10	CLIP φ10	4
9	3C8-02100-1	簧片阀总成	REED VALVE ASSY	3
9	3T5-02100-1	簧片阀总成	REED VALVE ASSY	3
10	921521-6516	螺钉	SCREW	6

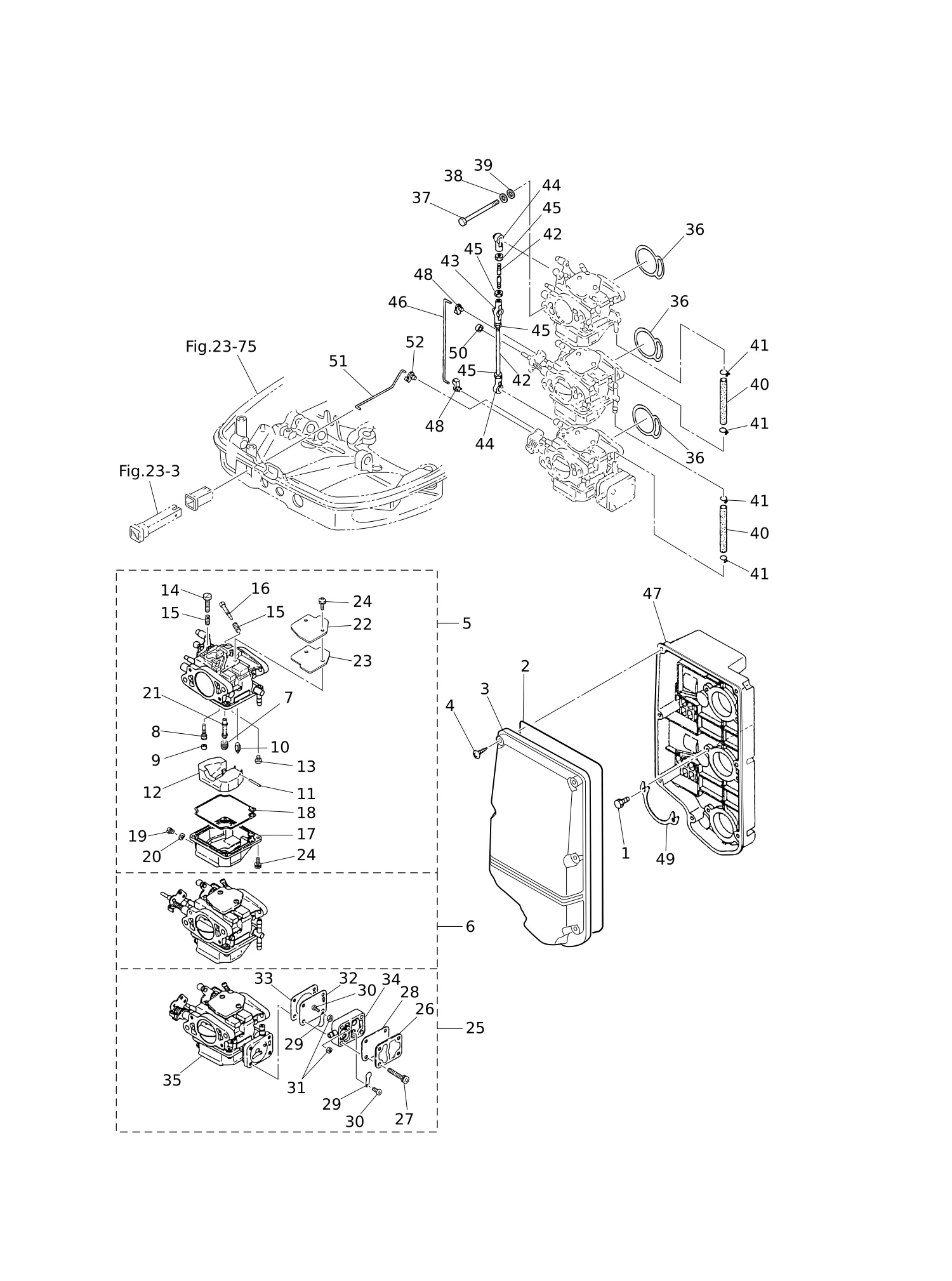

图 04进气消声器·化油器 INTAKE SILENCER · CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	3C8-02420-0	螺栓5-16	BOLT 5-16	6
2	3C8-02418-0	衬垫	GASKET	1
3	3C8-02415-0	进气消声器盖	INTAKE SILENCER COVER	1
4	3F3-02423-0	自攻螺钉 5-30	TAPPING SCREW 5-30	7
5	3C8-03200-5	化油器总成	CARBURETOR ASSY	1
5	3E3-03200-4	化油器总成	CARBURETOR ASSY	1
6	3C8-03207-5	化油器总成(第二代)	CARBURETOR ASSY (SECOND)	1
6	3E3-03207-4	化油器总成(第二代)	CARBURETOR ASSY (SECOND)	1
7	3C8-03441-0	* 主量孔 (#122)	* MAIN JET (#122)	1
7	3E3-03151-1	* 主量孔 (#135)	* MAIN JET (#135)	1
7	3E3-03445-0	* 主量孔 (#132)	* MAIN JET (#132)	1
8	3C8-03152-1	* 低速喷嘴(#66)	* SLOW JET (#66)	1
8	3M2-03152-0	* 低速喷嘴(#80)	* SLOW JET (#80)	1
9	3C8-03169-0	* 塞	* PLUG	1
10	3E3-03147-0	* 浮子阀	* FLOAT VALVE	1
11	3C8-03126-0	* 浮子臂销	* FLOAT ARM PIN	1
12	3C8-03125-0	* 浮子	* FLOAT	1
13	921722-0410	* 螺钉	* SCREW	1
14	3C8-03179-1	* 止动螺钉	* STOP SCREW	1
15	3C8-03157-0	* 弹簧	* SPRING	2
16	3C8-03156-0	* 调节螺钉	* ADJUST SCREW	1
17	3C8-03120-0	* 浮子室	* FLOAT CHAMBER	1
18	3C8-03121-0	* 浮子室垫片	* FLOAT CHAMBER GASKET	1
19	910306-0405	螺栓	* BOLT	1
20	3C8-03193-0	* 衬垫	* GASKET	1
21	3C8-03141-0	* 主喷管	* MAIN NOZZLE	1
21	3E3-03141-0	* 主喷管	* MAIN NOZZLE	1
22	3C8-03181-0	* 化油器盖	* CARBURETOR COVER	1
23	3C8-03182-0	* 化油器盖垫片	* CARBURETOR COVER GASKET	1
24	922503-6410	* 螺钉	* SCREW	6
25	3C8-03210-5	化油器总成(第三代)	CARBURETOR ASSY (THIRD)	1
25	3E3-03210-4	化油器总成(第三代)	CARBURETOR ASSY (THIRD)	1
26	3C8-04004-0	* 泵盖	* PUMP COVER	1
27	3E3-64333-0	* 预涂螺钉	* PRE-COATED SCREW	4
28	3C8-04018-0	* 泵盖衬垫	* PUMP COVER GASKET	1
29	350-04014-0	* 止回阀	* CHECK VALVE	2
30	921703-0305	* 螺钉	* SCREW	2
31	930203-0300	螺母	* NUT	2
32	350-04005-0	* 泵膜片	* PUMP DIAPHRAGM	1
33	3C8-04028-0	* 泵体衬垫	* PUMP BODY GASKET	1
34	3C8-04002-0	* 泵体	* PUMP BODY	1
35	3C8-03123-0	* 下浮子室	* LOWER FLOAT CHAMBER	1
36	3C8-02011-0	化油器垫片	CARBURETOR GASKET	3
36	3E3-02011-0	化油器垫片	CARBURETOR GASKET	3
37	916103-0685	螺栓	BOLT	6
38	941303-0600	弹簧垫圈	SPRING WASHER	6
39	940103-0600	垫圈	WASHER	6
40	98AB-50-080	软管	HOSE	2
41	338-02215-0	卡扣φ10	CLIP φ10	4
42	348-63717-1	连杆5-68	ROD 5-68	2
43	3B7-05229-0	球头连接器	BALL JOINT CONNECTOR	1
44	3B7-05243-0	球头连接器	BALL JOINT CONNECTOR	2
45	930103-0500	螺母	NUT	4
46	3C8-67191-2	阻风门拉杆3-90	CHOKE ROD 3-90	1
47	3C8-02411-0	进气消声器	INTAKE SILENCER	1
47	3E3-02411-0	进气消声器	INTAKE SILENCER	1
49	3C8-02417-0	进气消声器锁板	INTAKE SILENCER LOCK PLATE	3
50	353-03271-0	止动块	STOPPER	1
51	3C8-67192-0	阻风门拉杆	CHOKE ROD	1
52	346-67196-1	3-B连杆卡扣	ROD SNAP 3-B	1

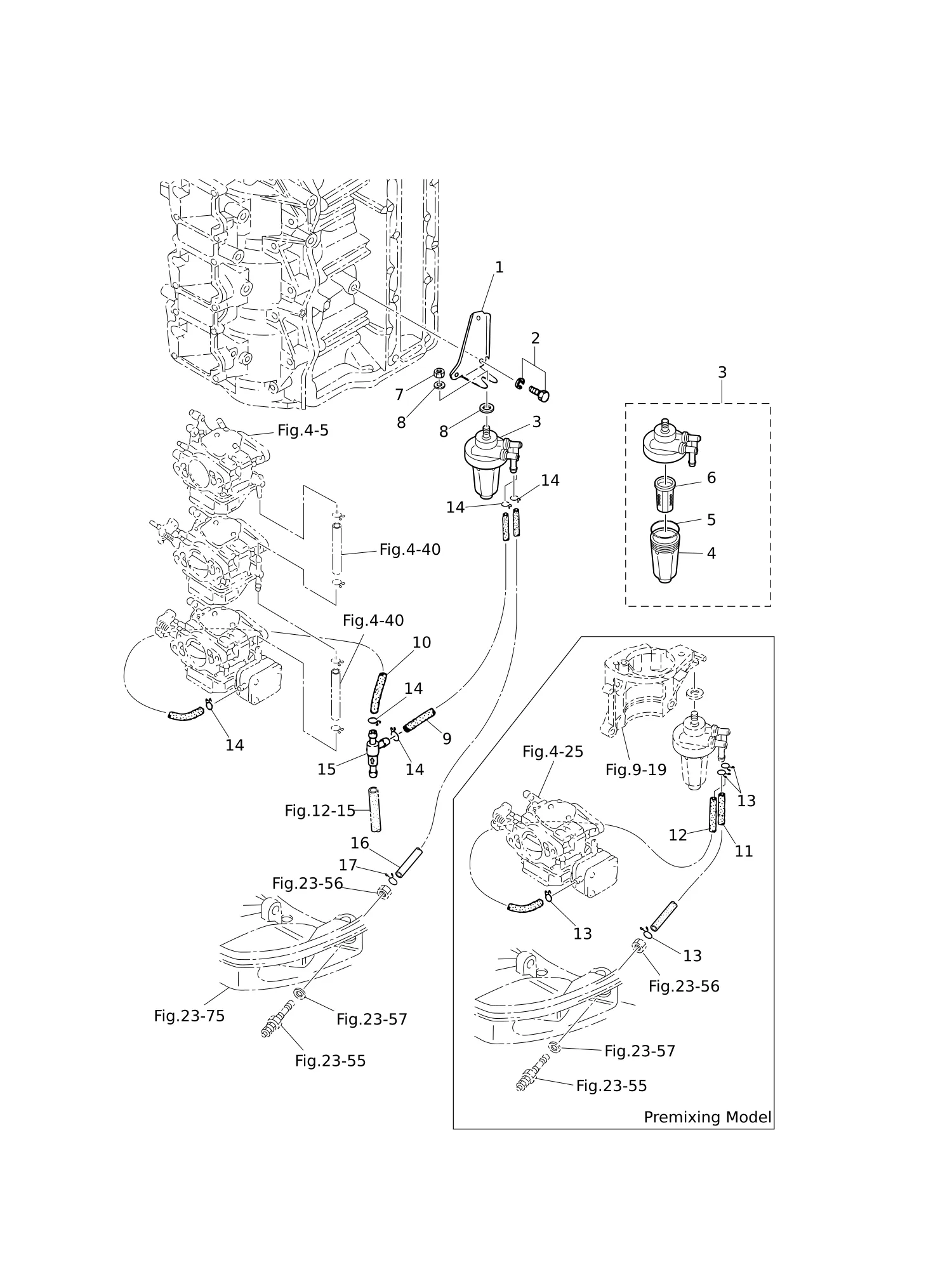

图 05燃油管 FUEL LINE

REF	零件编号	中文名称	英文名称	数量
1	3C8-71035-0	机油滤清器支架	OIL FILTER BRACKET	1
2	910103-5610	螺栓	BOLT	1
2	910103-6614	螺栓	BOLT	2
3	3AD-02230-0	燃油滤清器总成	FUEL FILTER ASSY	1
4	3AD-02237-0	* 杯状件	* CUP	1
5	3AD-02235-0	* O型圈	* O-RING	1
6	3AD-02234-0	* 滤清器	* FILTER	1
7	930103-0800	螺母	NUT	1
8	940103-0800	垫圈	WASHER	2
9	98AB-50-300	软管	HOSE	1
10	98AB-50-200	软管	HOSE	1
11	98AB-50-350	软管	HOSE	1
12	98AB-50-530	软管	HOSE	1
15	3C8-09075-0	止回阀总成	CHECK VALVE COMPLETE	1
16	98AB-50-215	软管	HOSE	1
17	338-02215-0	卡扣φ10	CLIP φ10	1

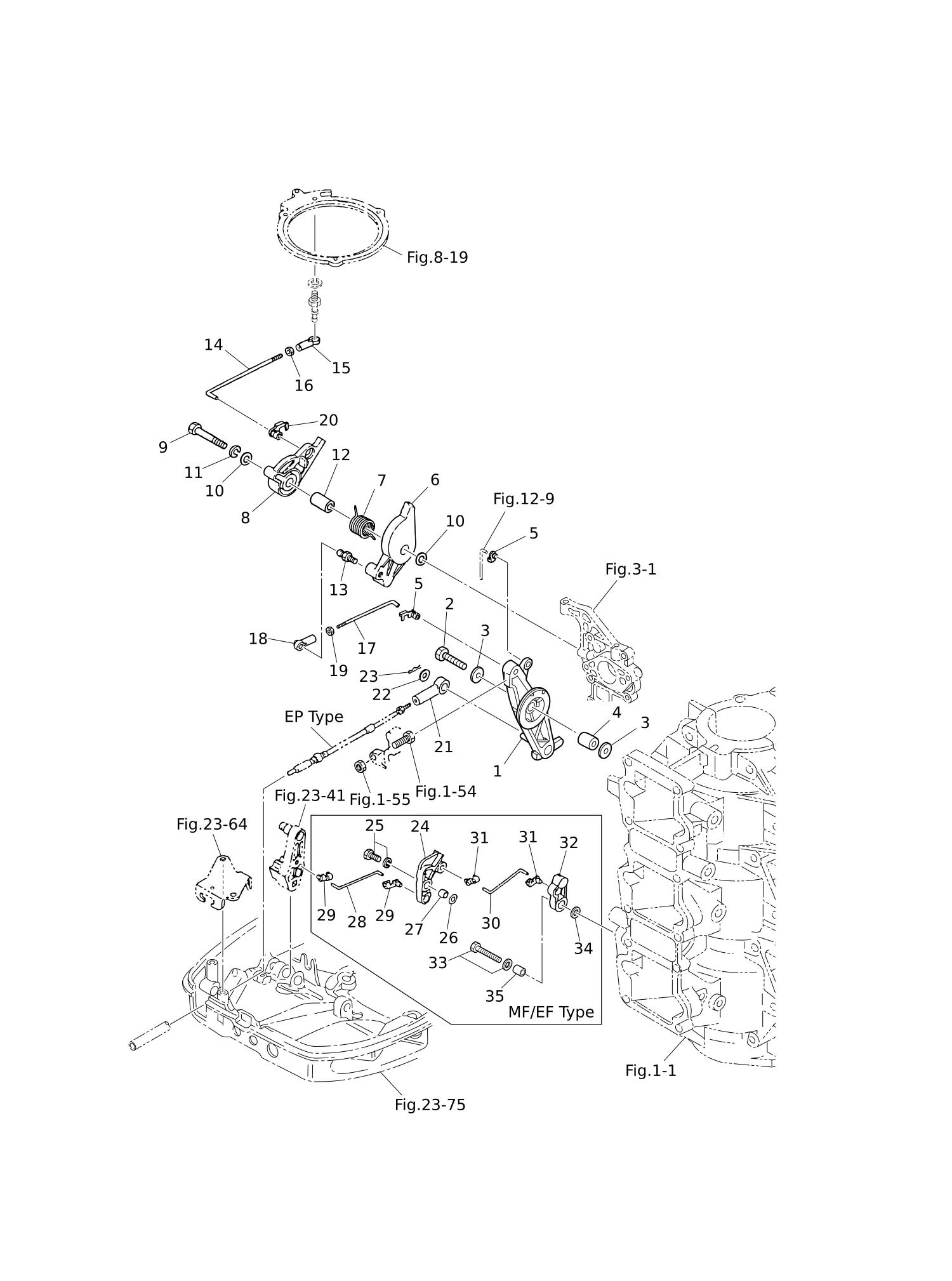

图 06节气门 THROTTLE

REF	零件编号	中文名称	英文名称	数量
1	3C8-63711-1	提前臂	ADVANCER ARM	1
2	910103-0635	螺栓	BOLT	1
3	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	2
4	3C8-63732-0	轴套 6.2-12-17	COLLAR 6.2-12-17	1
6	3C8-63704-0	节气门凸轮	THROTTLE CAM	1
6	3E3-63718-1	节气门凸轮	THROTTLE CAM	1
7	3E3-63727-0	弹簧	SPRING	1
8	3E3-63712-0	提前杆	ADVANCER LEVER	1
9	910103-0640	螺栓	BOLT	1
10	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	2
11	941303-0600	弹簧垫圈	SPRING WASHER	1
12	3E3-63721-0	轴套 6.5-10.5-26.3	COLLAR 6.5-10.5-26.3	1
13	346-05228-1	球头关节	BALL JOINT	1
14	3E5-63715-1	连杆5-90	ROD 5-90	1
17	3E3-63709-1	节气门拉杆 5-105	THROTTLE ROD 5-105	1
18	3B7-05243-0	球头连接器	BALL JOINT CONNECTOR	1
19	930103-0500	螺母	NUT	1
20	3C8-63733-0	5-3连杆卡扣	ROD SNAP 5-3	1
21	3B7-83715-2	线缆接头	CABLE JOINT	1
22	3AA-83719-0	垫圈 8.5-18-1.6	WASHER 8.5-18-1.6	1
23	951603-0800	弹性销 d=8	SNAP PIN d=8	1
24	3C8-05213-0	节气门限位臂	THROTTLE LIMITER ARM	1
30	3C8-05221-0	节气门限位杆 3.5-56	THROTTLE LIMITER ROD 3.5-56	1
31	3C8-05223-0	3.5-4连杆卡扣	ROD SNAP 3.5-4	1
32	3C8-05211-0	启动锁臂	STARTER LOCK ARM	1
33	910103-5625	螺栓	BOLT	1
34	940103-0600	垫圈	WASHER	1
35	353-76079-0	轴套 6.2-9-9.3	COLLAR 6.2-9-9.3	1

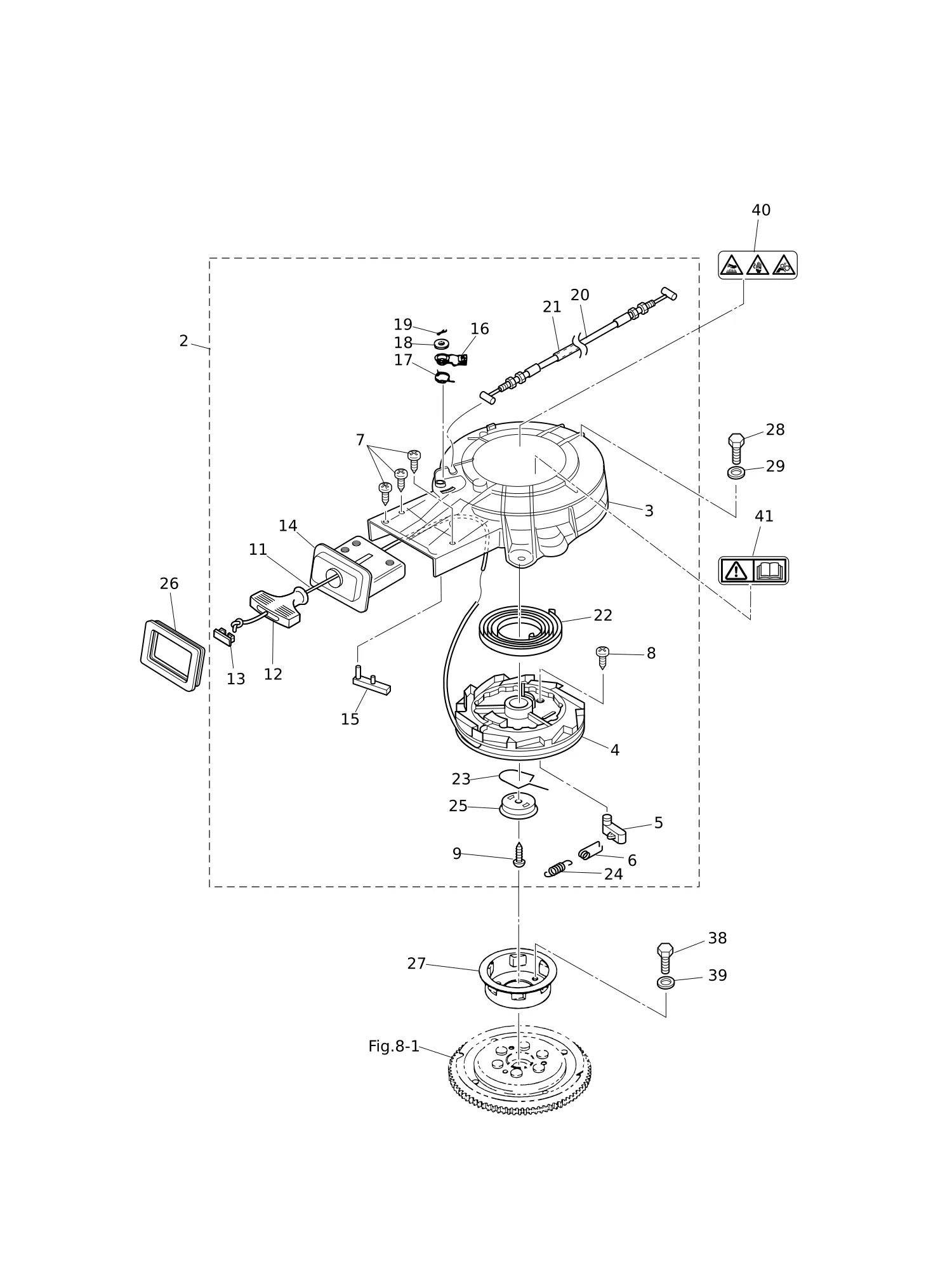

图 07反冲启动器 RECOIL STARTER

REF	零件编号	中文名称	英文名称	数量
2	3TW-05000-0	反冲启动器总成	RECOIL STARTER ASSY	1
3	3TW-05105-0	** 启动器外壳	** STARTER CASE	1
4	3TW-05106-0	卷盘总成	** REEL ASSY	1
5	3R3-05003-0	棘轮	** RATCHET	1
6	3TW-05123-0	回位弹簧	** RETURN SPRING	1
7	3TW-05913-0	自攻螺钉	** TAPPING SCREW	3
8	3TW-06437-0	自攻螺钉6-25	** TAPPING SCREW 6-25	1
9	3TY-05913-0	自攻螺钉	** TAPPING SCREW	1
11	3TW-05013-0	** 启动拉绳	** STARTER ROPE	1
12	3C8-05019-0	** 启动手柄	** STARTER HANDLE	1
13	3R3-05131-0	绳索锚	** ROPE ANCHOR	1
14	3TW-05014-0	导绳器	** ROPE GUIDE	1
15	3C8-05252-0	** 启动器锁扣	** STARTER LOCK	1
16	3C8-05253-0	** 启动器锁凸轮	** STARTER LOCK CAM	1
17	3C8-05216-0	** 启动器锁弹簧	** STARTER LOCK SPRING	1
18	3C8-05237-0	垫圈	** WASHER	1
19	951503-1520	** 开口销	** SPLIT PIN	1
20	3C8-05217-0	** 启动器锁线	** STARTER LOCK WIRE	1
21	3C8-05238-0	管路	** PIPE	1
22	3TW-05004-0	** 启动器弹簧	** STARTER SPRING	1
23	3TW-05007-0	** 摩擦弹簧	** FRICTION SPRING	1
24	3TW-05012-0	回位弹簧	** RETURN SPRING	1
25	3TW-05006-0	** 摩擦盘	** FRICTION PLATE	1
26	3TW-67503-0	* 启动器密封件	* STARTER SEAL	1
27	3TW-05901-0	启动器皮带轮	STARTER PULLEY	1
28	3AL-60108-0	预涂层螺栓6-20	PRE-COATED BOLT 6-20	3
29	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	3
38	9101F4-0818	螺栓	BOLT	3
39	940103-0800	垫圈	WASHER	3
40	314-72185-0	警示标贴	CAUTION DECAL	1
41	3F0-72185-0	警示标贴	CAUTION DECAL	1

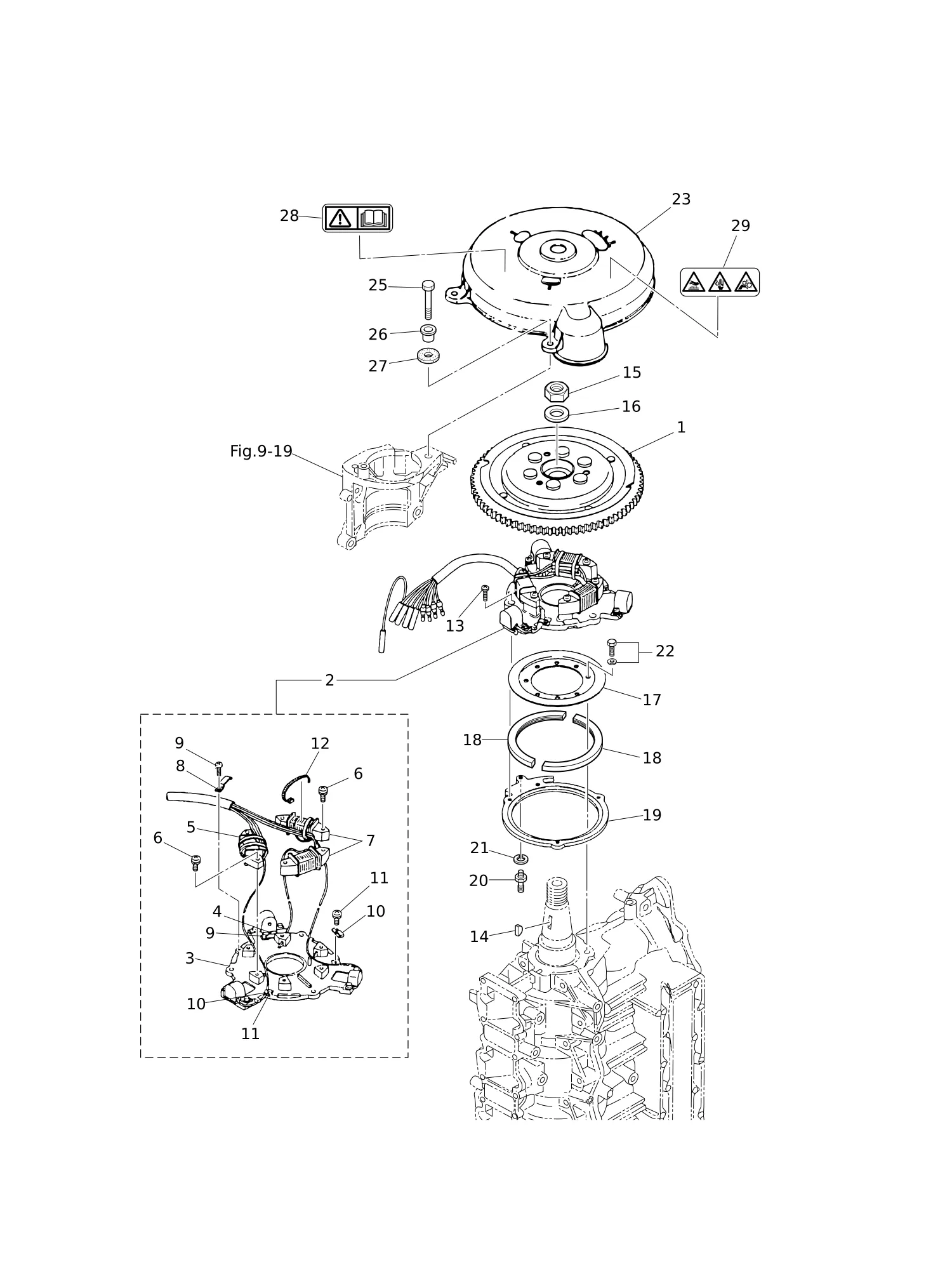

图 08磁电机 MAGNETO

REF	零件编号	中文名称	英文名称	数量
1	3C8-06101-1	带齿圈飞轮	FLYWHEEL W/RING GEAR	1
2	3C8-06103-3	带交流发电机线圈板总成	COIL PLATE ASSY W/ALTERNATOR	1
3	3C8-06130-2	* 脉冲线圈与板总成	* PULSAR COIL & PLATE ASSY	1
4	3B7-06131-0	* 脉冲线圈支架	* PULSAR HOLDER	1
5	3C8-06120-1	* 励磁线圈	* EXCITER COIL	1
6	921521-6630	* 螺钉	* SCREW	6
7	3C8-06123-1	* 交流发电机总成	* ALTERNATOR ASSY	1
8	3B7-06135-0	* 支架	* HOLDER	1
9	921521-0406	* 螺钉	* SCREW	2
10	3B7-06132-0	* 卡箍	* CLAMP	2
11	921521-6406	* 螺钉	* SCREW	2
12	3B7-06133-0	* 箍带	* BAND	3
13	921503-6510	螺钉	SCREW	3
14	334-00131-0	键 19-7-5	KEY 19-7-5	1
15	353-00132-0	螺母 18-P1.5	NUT 18-P1.5	1
16	353-00133-0	垫片 19-34-3	WASHER 19-34-3	1
17	3C8-63722-0	导板	GUIDE PLATE	1
18	3C8-63725-0	导板盖	GUIDE PLATE COVER	2
19	3C8-63723-0	定位环	SETTING RING	1
20	346-05228-1	球头关节	BALL JOINT	1
21	941303-0600	弹簧垫圈	SPRING WASHER	1
22	910121-6616	螺栓	BOLT	3
23	3C8-06301-0	齿圈盖	RING GEAR COVER	1
25	910103-0625	螺栓	BOLT	3
26	3GF-06304-0	轴环 9.1-16-10.8	COLLAR 9.1-16-10.8	3
27	3B7-06305-0	橡胶支座 9-16-4.3	RUBBER MOUNT 9-16-4.3	3
28	3F0-72185-0	警示标贴	CAUTION DECAL	1
29	314-72185-0	警示标贴	CAUTION DECAL	1

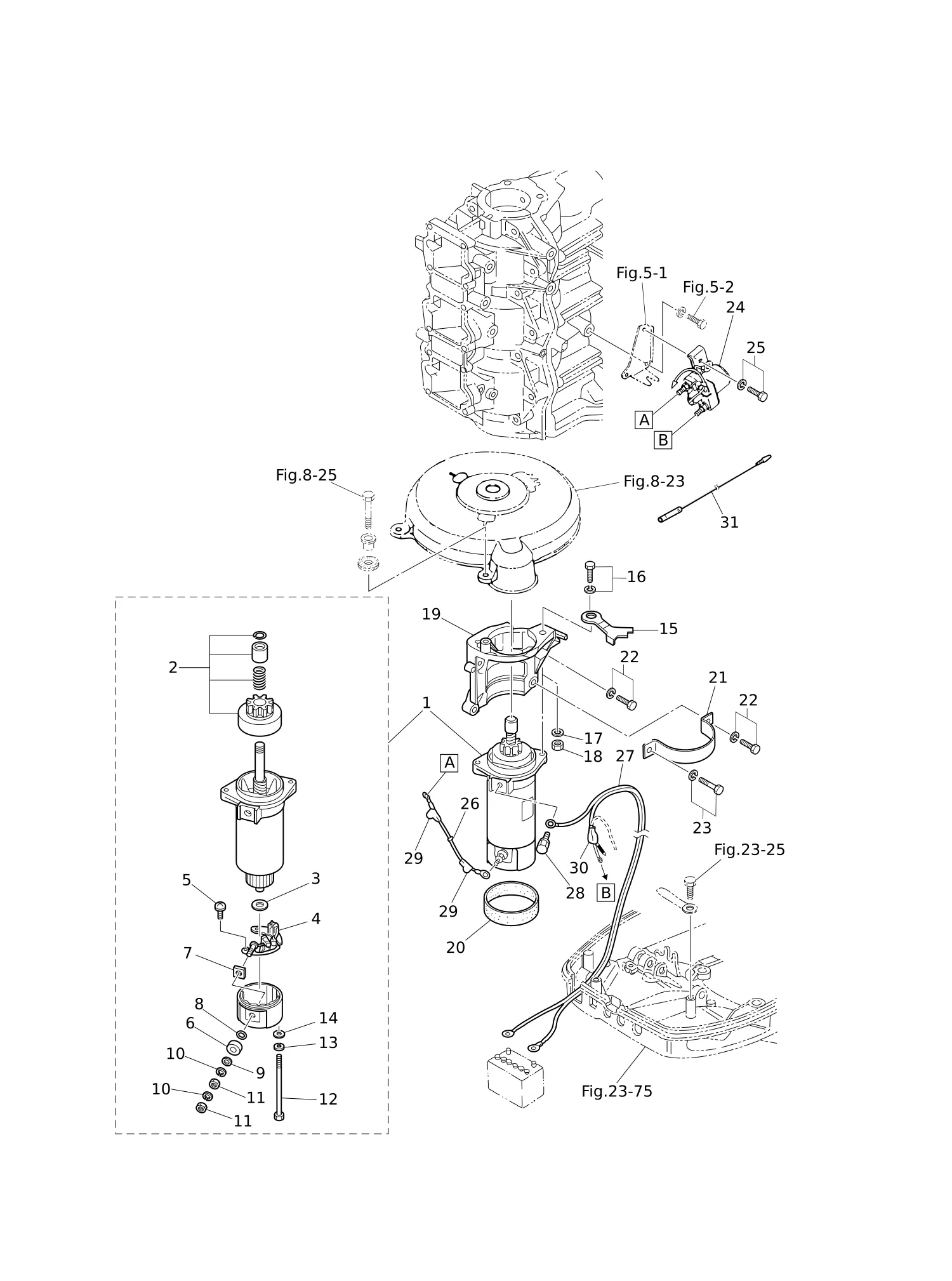

图 09电气部件(启动电机) ELECTRIC PARTS (STARTER MOTOR)

REF	零件编号	中文名称	英文名称	数量
1	3GF-76010-0	启动马达总成	STARTER MOTOR ASSY	1
2	3GF-76015-0	* 小齿轮总成	* PINION ASSY	1
3	3GF-75015-0	* 垫圈	* WASHER	1
4	3GF-75014-0	* 碳刷架总成	* BRUSH HOLDER ASSY	1
5	921521-6408	* 螺钉	* SCREW	2
6	3GF-75016-0	* 衬套 1	* BUSHING 1	1
7	3GF-75017-0	* 衬套 2	* BUSHING 2	1
8	3GF-75018-0	* O型圈	* O-RING	1
9	940103-0600	* 垫圈	* WASHER	2
10	941303-0600	* 弹簧垫圈	* SPRING WASHER	2
11	930203-0600	螺母	* NUT	2
12	3GF-75019-0	螺栓	* BOLT	2
13	941321-0500	* 弹簧垫圈	* SPRING WASHER	2
14	940221-0500	* 垫圈	* WASHER	2
15	3C8-06105-0	线圈板止动器	COIL PLATE STOPPER	1
16	910103-5825	螺栓	BOLT	2
17	940103-0800	垫圈	WASHER	1
18	930103-0800	螺母	NUT	1
19	3C8B05101-0	支架	BRACKET	1
20	3C8-76007-0	减震器	DAMPER	1
21	3C8-76009-0	启动马达固定带	STARTER MOTOR BAND	1
22	910103-6825	螺栓	BOLT	4
23	910103-6820	螺栓	BOLT	1
24	346-76040-0	启动器电磁阀	STARTER SOLENOID	1
25	910103-5616	螺栓	BOLT	1
25	910103-6616	螺栓	BOLT	1
26	3C8-76141-1	启动电缆 L=160	STARTER CABLE L=160	1
27	3B7-76120-2	蓄电池电缆 L=3000	BATTERY CABLE L=3000	1
28	910103-6612	螺栓	BOLT	1
29	3A3-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	2
30	3B7-76145-0	端子盖 8-13-30	TERMINAL CAP 8-13-30	1
31	3C8-76049-0	导线	LEAD WIRE	1

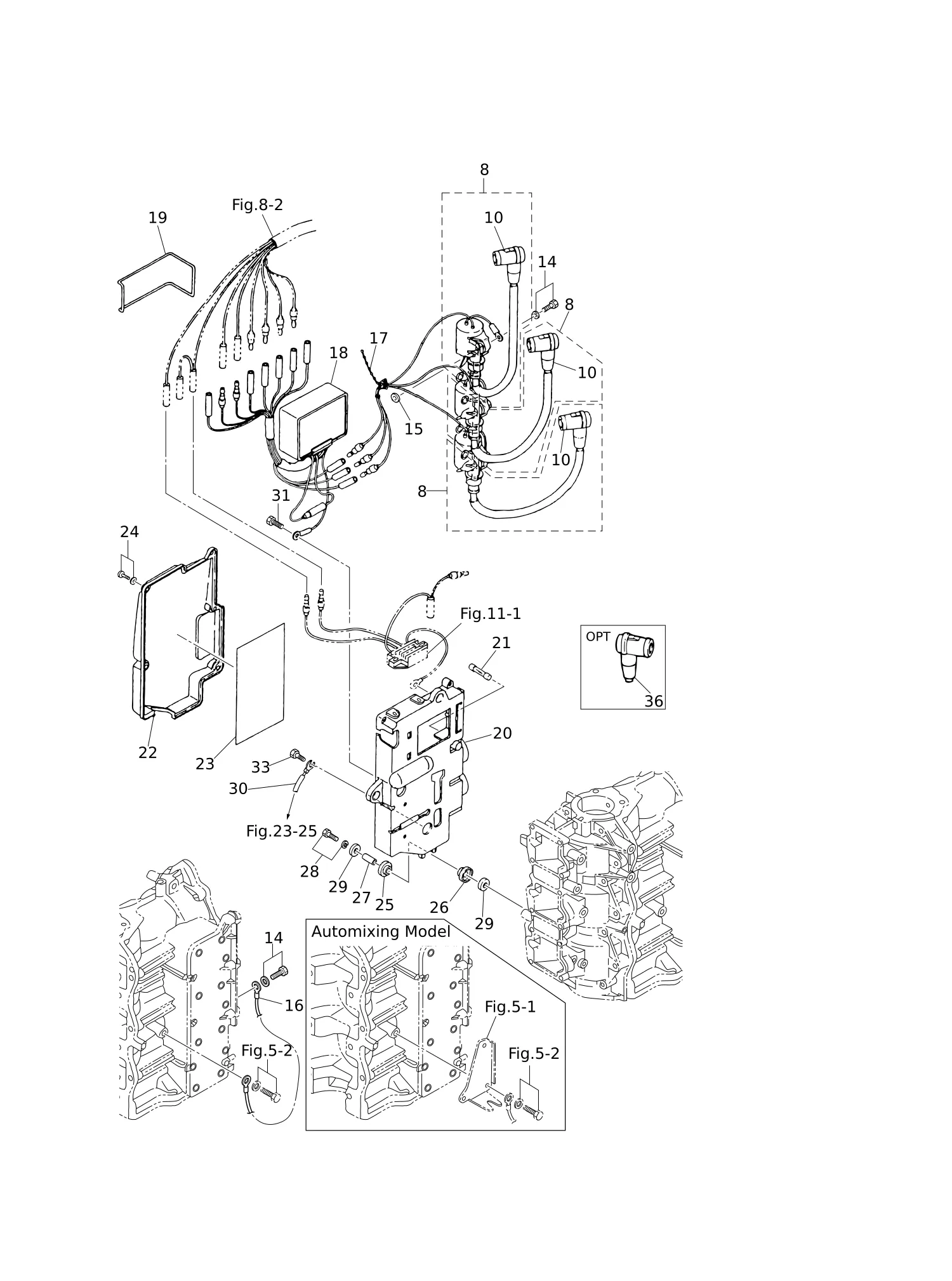

图 10电气部件(电容放电单元) ELECTRIC PARTS (C.D. UNIT)

REF	零件编号	中文名称	英文名称	数量
8	3C7-06040-0	带帽点火线圈	IGNITION COIL W/R-CAP	3
10	346-06999-0	* 带电阻火花塞帽	* PLUG CAP W/RESISTANCE	1
14	910103-5620	螺栓	BOLT	3
15	151-33159-0	衬垫6.2-11-1	GASKET 6.2-11-1	3
16	3C7-76142-1	接地电缆 L=170	GROUND CABLE L=170	1
17	3T5-84398-0	箍带 104	BAND 104	1
18	3C8-06160-1	CD单元	CD UNIT	1
19	3TW-60103-0	O型圈 3.1-94.4	O-RING 3.1-94.4	1
20	3C8B06901-1	支架	BRACKET	1
21	353-76213-0	备用保险丝 20A	SPARE FUSE 20A	1
22	3C8-06902-0	盖板	COVER	1
23	3C8-72028-0	接线图标签	WIRING DIAGRAM DECAL	1
24	921503-5514	螺钉	SCREW	5
25	346-67113-0	8.5-14-2.5支架	MOUNT 8.5-14-2.5	3
26	3B7-06920-0	橡胶支座 8.5-14-2.5	RUBBER MOUNT 8.5-14-2.5	3
27	346-67114-1	垫圈 6.2-9-15.7	SPACER 6.2-9-15.7	3
28	910103-5630	螺栓	BOLT	3
29	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	6
30	3N4-76142-1	接地电缆 L=270	GROUND CABLE L=270	1
31	910103-0612	螺栓	BOLT	1
33	910403-0612	螺栓	BOLT	2
36	3C7-06921-0	带电阻火花塞帽	PLUG CAP W/RESISTANCE	3

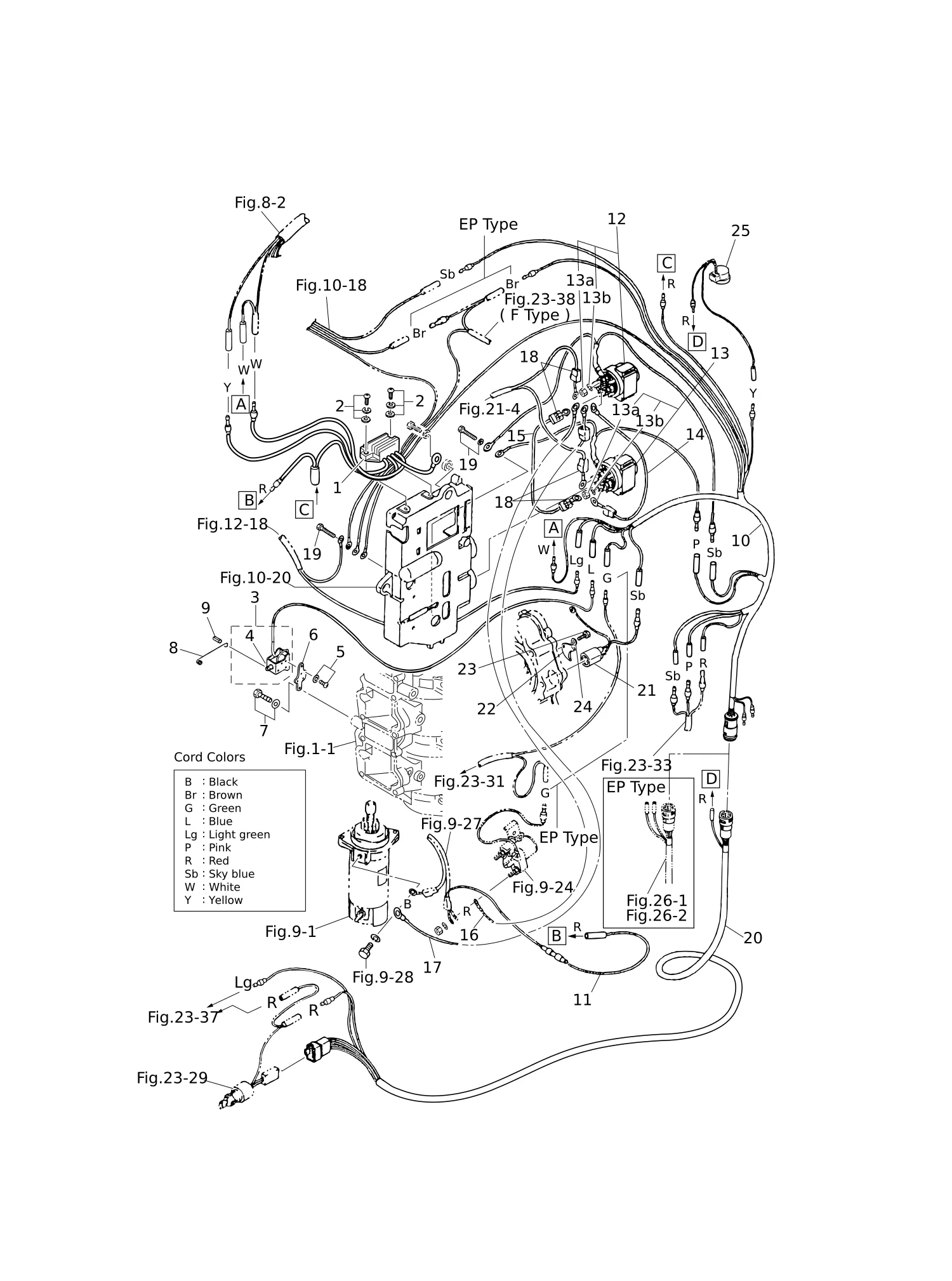

图 11电气部件(示意图) ELECTRIC PARTS (DIAGRAM)

REF	零件编号	中文名称	英文名称	数量
1	3B7-76065-5	整流器总成	RECTIFIER COMPLETE	1
2	921503-7625	螺钉	SCREW	2
3	361-76050-0	阻风门电磁阀	CHOKE SOLENOID	1
4	361-76073-0	* 柱塞	* PLUNGER	1
5	921503-6408	螺钉	SCREW	3
6	3C8-76055-1	阻风门电磁阀支架	CHOKE SOLENOID BRACKET	1
7	910103-6616	螺栓	BOLT	2
8	3C8-76057-0	阻风门电磁阀挂钩	CHOKE SOLENOID HOOK	1
9	951403-0312	弹簧销 3-12	SPRING PIN 3-12	1
10	3C8-76110-0	线束总成	CORD ASSY	1
11	353-76062-1	保险丝总成 L=900 20A	FUSE WIRE ASSY L=900 20A	1
12	3C8-72580-0	动力升降倾斜装置电磁阀开关(A)	PTT SOLENOID SWITCH (A)	1
13	3C8-72581-0	动力升降倾斜装置电磁阀开关(B)	PTT SOLENOID SWITCH (B)	1
13a	930103-0600	螺母	* NUT	3
14	3C8-72582-0	电磁开关线束(A) L=80	SOLENOID SWITCH CORD (A) L=80	1
15	3C8-72583-1	电磁开关线束(B) L=150	SOLENOID SWITCH CORD (B) L=150	1
16	3C8-72588-0	电磁开关线束(C) L=900	SOLENOID SWITCH CORD (C) L=900	1
17	3C8-72589-0	电磁开关线束(C) L=1100	SOLENOID SWITCH CORD (C) L=1100	1
18	3A3-76145-0	端子盖 8-13-28	TERMINAL CAP 8-13-28	4
19	910403-0612	螺栓	BOLT	2
20	3C8-76119-0	线束总成	CORD ASSY	1
21	3C8-76172-1	过热传感器总成	OVERHEAT SENSOR ASSY	1
22	353-66024-0	止动块	STOPPER	1
23	910103-0620	螺栓	BOLT	1
24	941303-0600	弹簧垫圈	SPRING WASHER	1
25	3C8-76171-0	过热报警器	OVERHEAT BUZZER	1

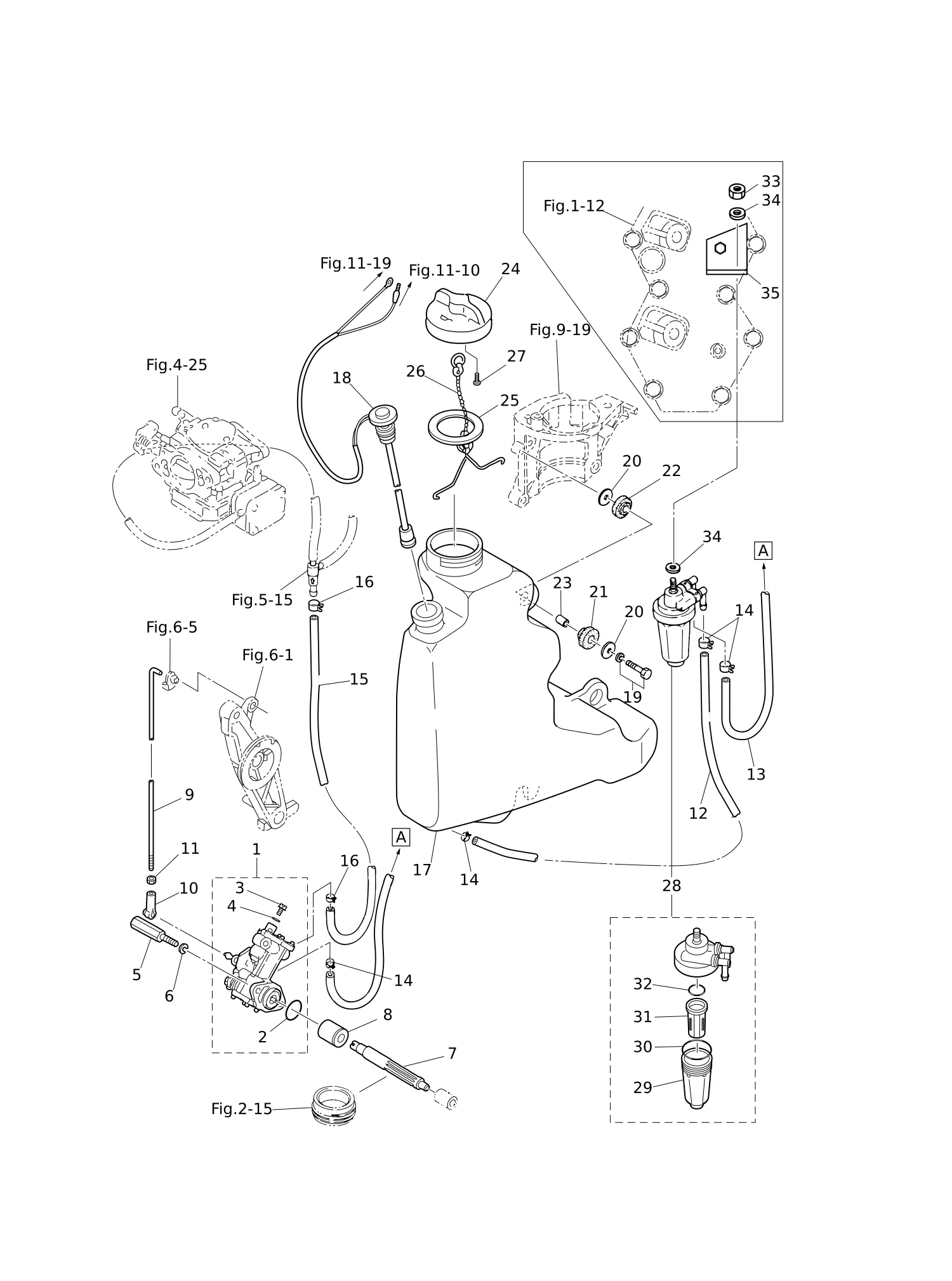

图 12油泵（自动混合型） OIL PUMP (AUTO MIXING MODEL)

REF	零件编号	中文名称	英文名称	数量
1	3C8-09000-1	油泵总成	OIL PUMP ASSY	1
2	3B7-09002-0	* O型圈1.6-19.2	* O-RING 1.6-19.2	1
3	3B7-09004-0	* 通气螺栓	* AIR VENT BOLT	1
4	3B7-09006-0	* 垫圈	* WASHER	1
5	3C8-09050-1	油泵螺栓	OIL PUMP BOLT	2
6	941303-0600	弹簧垫圈	SPRING WASHER	2
7	3C8-09065-0	油泵从动齿轮	OIL PUMP DRIVEN GEAR	1
8	3C8-09069-0	衬套 9-20-20.8	BUSHING 9-20-20.8	1
9	3C8-09053-1	油泵连杆	OIL PUMP ROD	1
10	3B7-05243-0	球头连接器	BALL JOINT CONNECTOR	1
11	930103-0500	螺母	NUT	1
12	99AA-6-0700	管	PIPE	1
13	99AA-6-0400	管	PIPE	1
14	3GT-35143-0	卡环 φ9.4	CLIP φ9.4	4
15	99AA-4-0230	管	PIPE	1
16	3C7-09056-1	卡环 φ8.5	CLIP φ8.5	2
17	3C8-71010-1	油箱	OIL TANK	1
18	3C8-71020-1	油位传感器	OIL LEVEL SENSOR	1
19	910103-6630	螺栓	BOLT	3
20	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	6
21	346-67113-0	8.5-14-2.5支架	MOUNT 8.5-14-2.5	3
22	3B7-06920-0	橡胶支座 8.5-14-2.5	RUBBER MOUNT 8.5-14-2.5	3
23	346-67114-1	垫圈 6.2-9-15.7	SPACER 6.2-9-15.7	3
24	3C8-71015-0	机油加注口盖	OIL FILLER CAP	1
25	3C8-71016-0	衬垫36-52-2	GASKET 36-52-2	1
26	3C8-71017-0	盖钩	CAP HOOK	1
27	3C8-71018-0	油箱盖止回阀	OIL TANK CAP CHECK VALVE	1
28	3C7-71030-0	机油滤清器总成	OIL FILTER ASSY	1
29	3B7-02237-0	* 杯状件	* CUP	1
30	3B7-02235-0	* O型圈	* O-RING	1
31	3C7-71033-0	* 滤清器	* FILTER	1
32	3B7-02236-0	* O型圈	* O-RING	1
33	930103-0800	螺母	NUT	1
34	940103-0800	垫圈	WASHER	2
35	3E3-71035-0	机油滤清器支架	OIL FILTER BRACKET	1

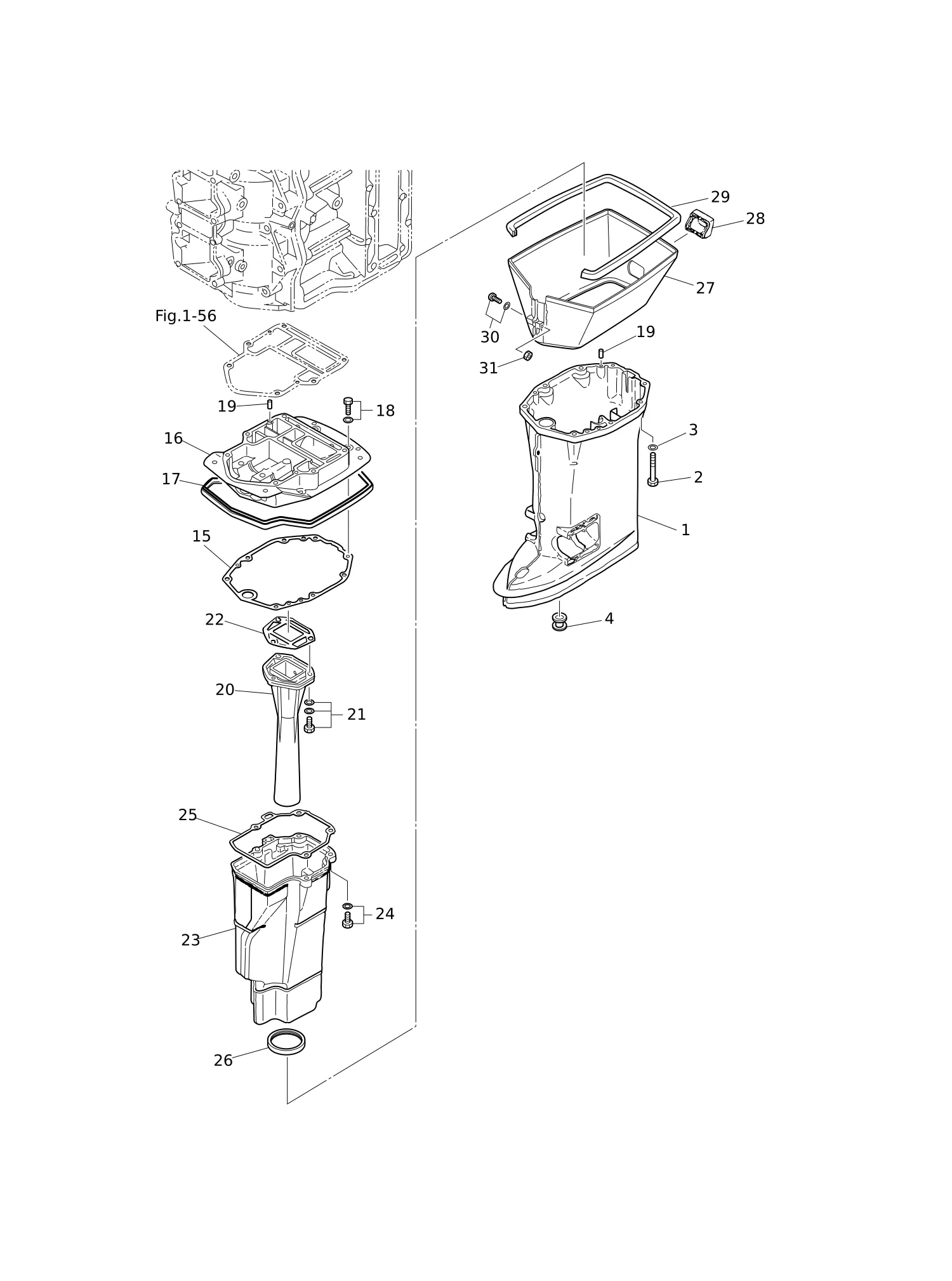

图 13驱动轴壳体 DRIVE SHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	3C8Q61191-3	驱动轴壳体(S)	DRIVE SHAFT HOUSING (S)	1
1	3C8Q61192-4	驱动轴壳体(L)	DRIVE SHAFT HOUSING (L)	1
2	3MC-61017-0	螺栓	BOLT	6
3	9401E3-0800	垫圈	WASHER	6
4	346-65204-0	水管辅助支架	WATER PIPE AUXILIARY MOUNT	1
15	3C8-61012-2	驱动轴壳体衬垫	DRIVE SHAFT HOUSING GASKET	1
16	3C8Q01301-0	发动机基座	ENGINE BASEMENT	1
17	3C8-67116-0	发动机底座密封件 L=805	ENGINE BASEMENT SEAL L=805	1
18	910103-5625	螺栓	BOLT	4
19	345-01111-0	定位销6-12	DOWEL PIN 6-12	4
20	3C8-02311-1	排气管	EXHAUST PIPE	1
21	3C8-02319-0	螺栓8-30	BOLT 8-30	3
22	3C8-02312-2	排气管垫片	EXHAUST PIPE GASKET	1
23	3C8-61180-0	排气壳体	EXHAUST HOUSING	1
24	3C8-61184-0	螺栓8-30	BOLT 8-30	4
25	3C8-61181-2	排气壳体垫片	EXHAUST HOUSING GASKET	1
26	3C8-61182-0	索环/护孔圈	GROMMET	1
27	3C8Q61210-1	挡板	APRON	1
28	3C8-61212-0	索环/护孔圈	GROMMET	1
29	3C8-61213-1	密封件	SEAL	1
30	9215E3-5540	螺钉	SCREW	1
31	930403-0500	尼龙螺母 5-P0.8	NYLON NUT 5-P0.8	1

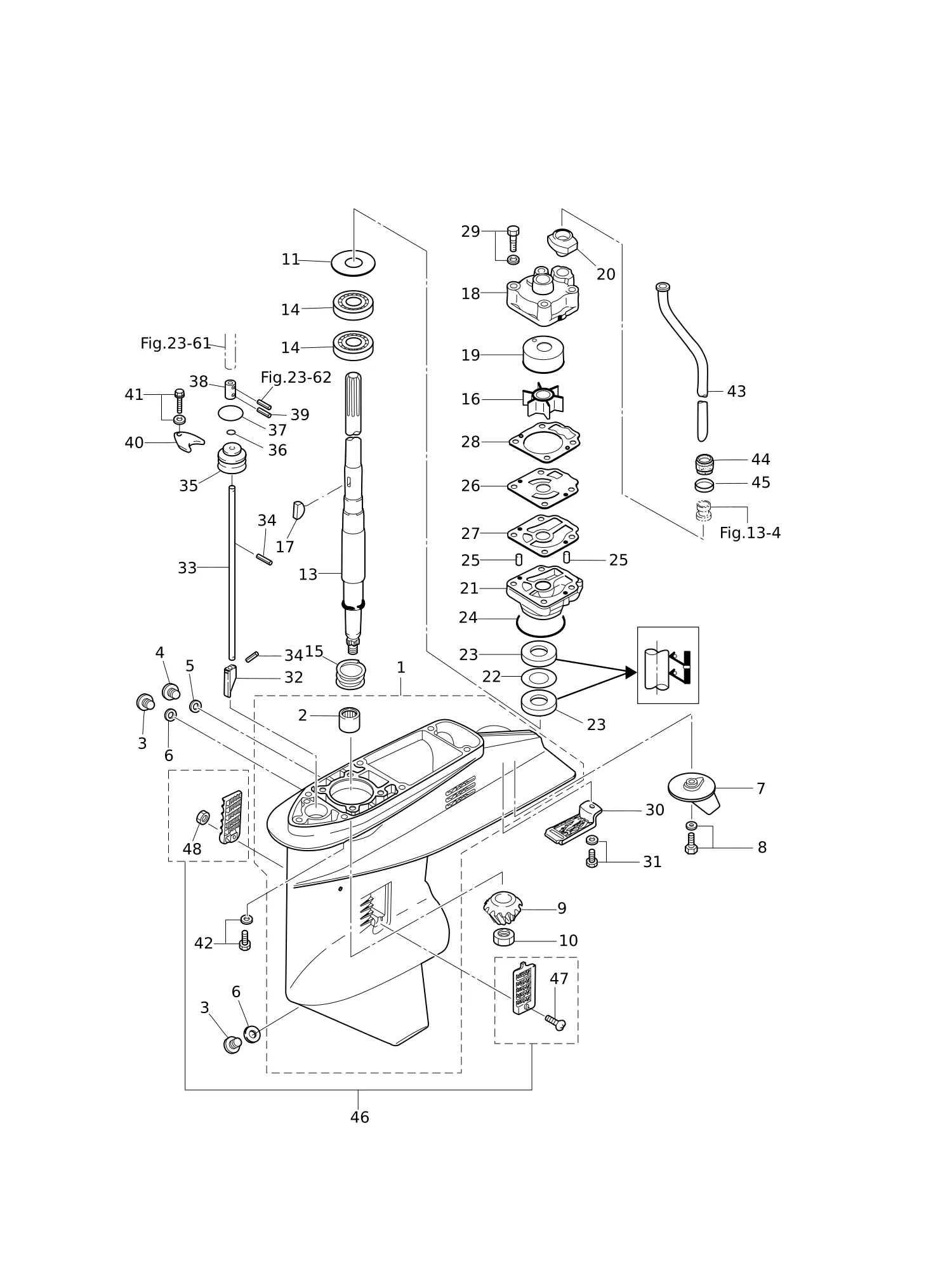

图 14驱动轴齿轮箱 M40/50D2 GEAR CASE (DRIVE SHAFT) M40/50D2

REF	零件编号	中文名称	英文名称	数量
1	3C8Q60000-1	齿轮箱总成	GEAR CASE ASSY	1
2	345-60211-0	* 滚柱轴承 22-30-30	* ROLLER BEARING 22-30-30	1
3	332-60005-2	塞 8-8	PLUG 8-8	2
4	3B7-60015-1	塞 M10×1.25	PLUG M10P1.25	1
5	3B7-60016-1	衬垫10.1-15-1	GASKET 10.1-15-1	1
6	332-60006-1	衬垫	GASKET	2
7	3C8-60217-1	配平片	TRIM TAB	1
8	910103-5620	螺栓	BOLT	1
9	3C8-64020-2	锥齿轮B	BEVEL GEAR B	1
10	3C8-64027-0	螺母	NUT	1
11	345-64081-0	垫片 41-51.5-0.1	SHIM 41-51.5-0.1	1
11	345-64082-0	垫片 41-51.5-0.15	SHIM 41-51.5-0.15	1
11	345-64083-0	垫片 41-51.5-0.3	SHIM 41-51.5-0.3	1
11	345-64084-0	垫片 41-51.5-0.5	SHIM 41-51.5-0.5	1
13	3C8-64301-0	驱动轴(S)	DRIVE SHAFT (S)	1
13	3C8-64302-0	驱动轴(L)	DRIVE SHAFT (L)	1
14	3C8-60213-0	滚珠轴承 6304	BALL BEARING 6304	2
15	3C8-64327-0	驱动轴弹簧	DRIVE SHAFT SPRING	1
16	3C8-65021-2	水泵叶轮	WATER PUMP IMPELLER	1
17	332-65022-0	键 20-4.6-2	KEY 20-4.6-2	1
18	3T5-65016-0	泵壳(上)	PUMP CASE (UPPER)	1
19	3T5-65011-0	泵壳衬套	PUMP CASE LINER	1
20	3C8-65014-0	水管密封件(下)	WATER PIPE SEAL (LOWER)	1
21	3C8-65017-1	泵壳(下)	PUMP CASE (LOWER)	1
22	3C8-64084-0	垫片 32.9-26-0.5	SHIM 32.9-26-0.5	1
23	3C8-60223-0	油封 17-33-6	OIL SEAL 17-33-6	2
24	345-65015-0	O型圈 3.2-47	O-RING 3.2-47	1
25	334-65012-0	定位销4-10	DOWEL PIN 4-10	1
26	3C8-65025-0	水泵导板	WATER PUMP GUIDE PLATE	1
27	3C8-65029-3	导板垫片	GUIDE PLATE GASKET	1
28	3T5-65018-2	泵壳垫片	PUMP CASE GASKET	1
29	9101E3-5855	螺栓	BOLT	4
30	3C8-60204-0	副进水口滤网	SUB-WATER INLET STRAINER	1
31	910103-5616	螺栓	BOLT	1
32	3C8-66011-0	离合器凸轮	CLUTCH CAM	1
33	3C8-66012-0	凸轮杆(短)	CAM ROD (S)	1
33	3C8-66013-0	凸轮杆(长)	CAM ROD (L)	1
34	951407-0312	弹簧销 3-12	SPRING PIN 3-12	2
35	3C8-66031-1	凸轮杆衬套	CAM ROD BUSHING	1
36	332-66021-0	O型圈 2.4-5.8	O-RING 2.4-5.8	1
37	3C8-66032-0	O型圈 3.5-21.7	O-RING 3.5-21.7	1
38	3C8-66241-0	换挡杆接头	SHIFT ROD JOINT	1
39	951403-0312	弹簧销 3-12	SPRING PIN 3-12	1
40	353-66024-0	止动块	STOPPER	1
41	9101E3-5612	螺栓	BOLT	1
42	9101E3-5835	螺栓	BOLT	6
43	3C8-65100-0	水管(短)	WATER PIPE (S)	1
43	3C8-65110-0	水管(左)	WATER PIPE (L)	1
44	345-65206-0	水管密封件(上)	WATER PIPE SEAL (UPPER)	1
45	345-65205-0	轴环 18-20-4.5	COLLAR 18-20-4.5	1
46	3C8-60205-1	滤水器组件	WATER STRAINER SET	1
47	921503-0438	* 螺钉	* SCREW	1
48	930403-0400	尼龙螺母 4-P0.7	* NYLON NUT 4-P0.7	1

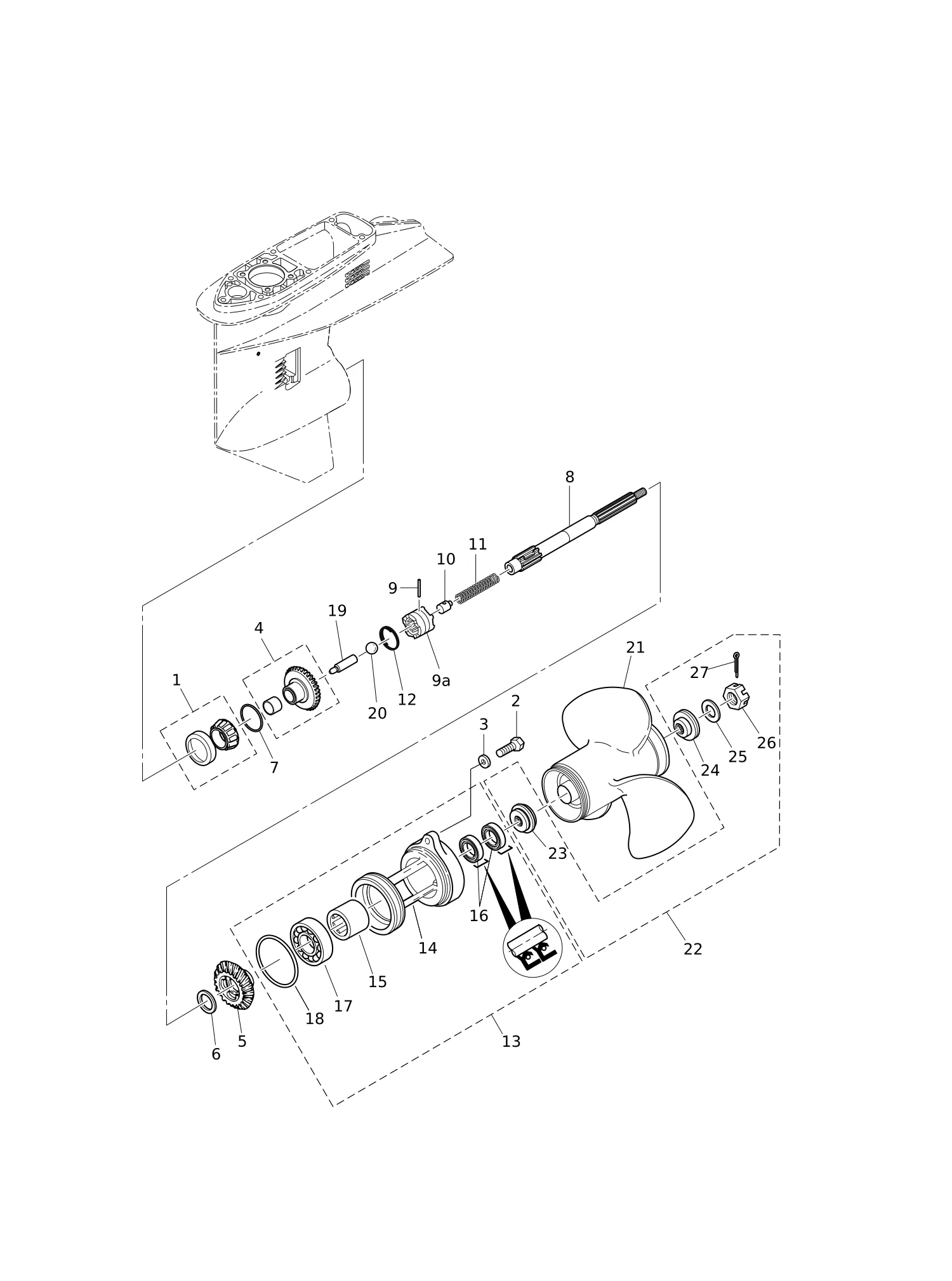

图 15螺旋桨轴齿轮箱 M40/50D2 GEAR CASE (PROPELLER SHAFT) M40/50D2

REF	零件编号	中文名称	英文名称	数量
1	345-60215-0	圆锥滚子轴承 32007	TAPERED ROLLER BEARING 32007	1
2	3C8-60108-2	预涂层螺栓6-25 6-25	PRE-COATED BOLT 6-25 6-25	2
3	9401E3-0600	垫圈	WASHER	2
4	3C8-64010-1	锥齿轮总成(A)	BEVEL GEAR ASSY (A)	1
5	3C8-64030-0	锥齿轮C	BEVEL GEAR C	1
6	345-64032-0	垫片 22.1-28-3	WASHER 22.1-28-3	1
7	353-64036-0	垫片 36-44-0.3	SHIM 36-44-0.3	1
7	353-64037-0	垫片 36-44-0.15	SHIM 36-44-0.15	1
7	353-64038-0	垫片 36-44-0.1	SHIM 36-44-0.1	1
8	3C8-64211-0	螺旋桨轴	PROPELLER SHAFT	1
9a	3C8-64215-2	离合器	CLUTCH	1
9	3C8-64217-0	销钉	PIN	1
10	3C8-64222-0	弹簧挡圈	SPRING RETAINER	1
11	3C8-64221-0	弹簧	SPRING	1
12	3C8-64219-1	卡扣	SNAP	1
13	3C8Q60100-1	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
14	3C8Q60101-1	* 螺旋桨轴套	* PROPELLER SHAFT HOUSING	1
15	345-60211-0	* 滚柱轴承 22-30-30	* ROLLER BEARING 22-30-30	1
16	3F3-60223-0	* 油封 22-37-8	* OIL SEAL 22-37-8	2
17	9601-0-6007	* 球轴承 6007	* BALL BEARING 6007	1
18	345-60103-0	* O型圈 3.5-69.4	* O-RING 3.5-69.4	1
19	3C8-64223-1	推杆	PUSH ROD	1
20	965002-0803	钢球 3/8英寸	BALL 3/8	1
21	348B64108-1	螺旋桨总成(7英寸)	PROPELLER ASSY (7")	1
21	3T5B64518-1	螺旋桨总成(9英寸)	PROPELLER ASSY (9)	1
21	3T5B64523-1	螺旋桨总成(11)	PROPELLER ASSY (11)	1
21	3T5B64525-1	螺旋桨总成(12)	PROPELLER ASSY (12)	1
21	3T5B64527-1	螺旋桨总成(13)	PROPELLER ASSY (13)	1
21	3T5B64529-1	螺旋桨总成(14英寸)	PROPELLER ASSY (14")	1
21	3T5B64532-1	螺旋桨总成(15)	PROPELLER ASSY (15)	1
22	3TW-87326-0	螺旋桨五金件套件	PROPELLER HARDWARE KIT	1
23	3C8-64231-0	* 推力支架	* THRUST HOLDER	1
24	3TW-64232-0	* 止动块	* STOPPER	1
25	3TW-64124-0	* 垫圈 17-40-3	* WASHER 17-40-3	1
26	353-64121-0	* 螺旋桨螺母M16P1.5	* PROPELLER NUT M16P1.5	1
27	951503-0325	* 开口销 3-25	* SPLIT PIN 3-25	1

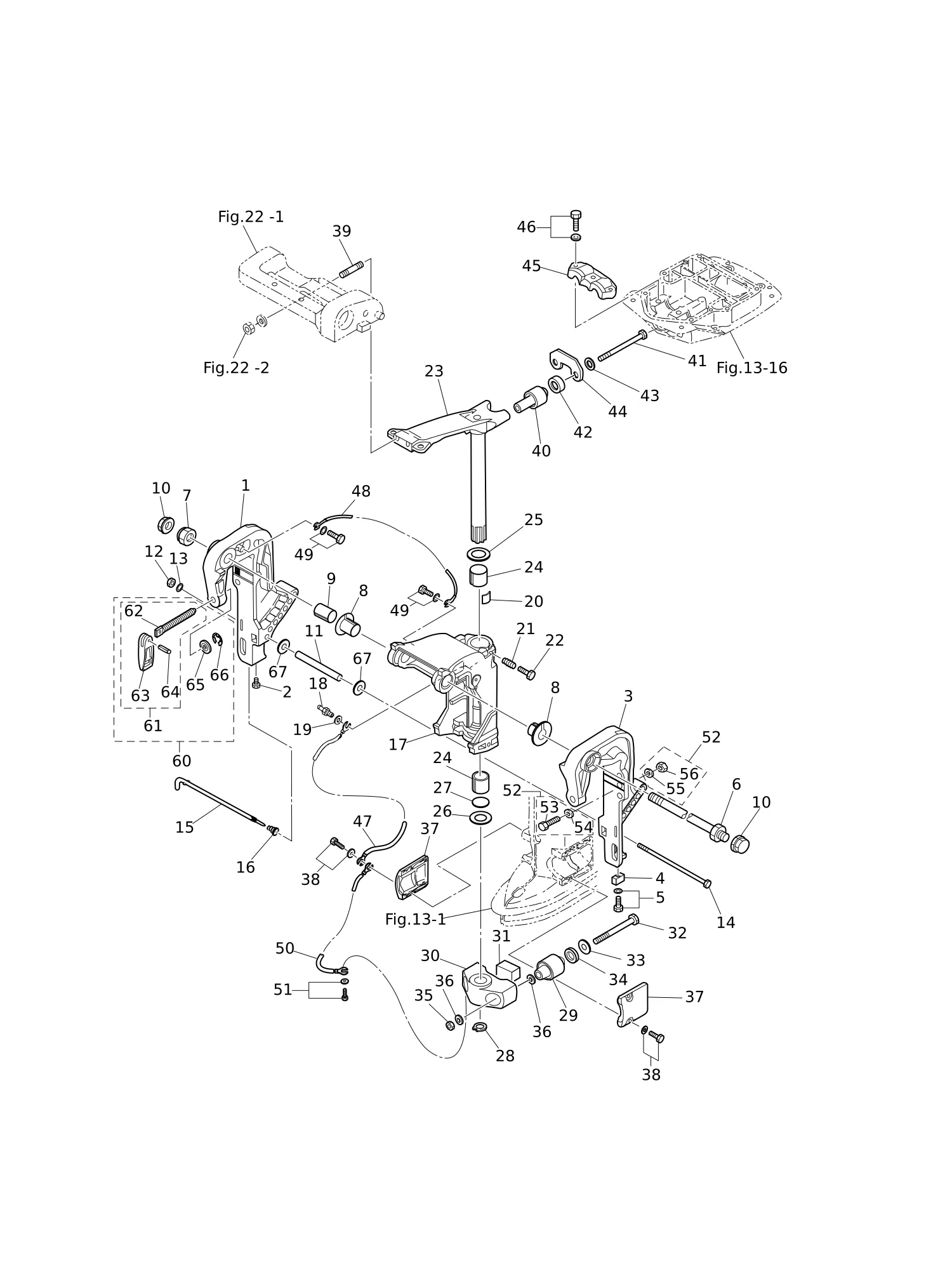

图 18支架(手动倾斜) BRACKET (MANUAL TILT)

REF	零件编号	中文名称	英文名称	数量
1	3C8Q62112-2	夹紧支架(右)	CLAMP BRACKET (R)	1
2	9101E3-0612	螺栓	BOLT	1
3	3C8Q62113-2	卡箍支架 (左)	CLAMP BRACKET (L)	1
4	3B7-60218-1	阳极块	ANODE	1
5	910103-5630	螺栓	BOLT	1
6	3AC-62191-0	旋转支架轴总成	SWIVEL BRACKET SHAFT ASSY	1
7	346-62124-1	尼龙螺母 7/8-14	NYLON NUT 7/8-14	1
8	349-62126-0	衬套	BUSHING	2
9	3C8-62132-0	衬套 22-25-35.5	BUSHING 22-25-35.5	1
10	346-62127-0	盖形螺母	CAP NUT	2
11	3C8-62117-1	间隔块9.4-13.8-116	DISTANCE PIECE 9.4-13.8-116	1
12	930103-0800	螺母	NUT	1
14	3C8-62120-1	螺栓8-170	BOLT 8-170	1
15	3C8-62121-1	推力杆	THRUST ROD	1
16	345-62122-2	推力杆弹簧	THRUST ROD SPRING	1
17	3C8Q62310-3	旋转支架	SWIVEL BRACKET	1
18	344-67177-1	黄油嘴	GREASE FITTING	1
19	940103-0600	垫圈	WASHER	1
20	345-62441-0	摩擦片	FRICTION PIECE	1
21	346-62421-1	摩擦弹簧	FRICTION SPRING	1
22	9101E3-0830	螺栓	BOLT	1
23	3E3Q62010-1	转向轴总成	STEERING SHAFT ASSY	1
24	345-62417-0	衬套 26-32	BUSHING 26-32	2
25	3A0-62423-2	上止推板27-50-1	THRUST PLATE (UPPER) 27-50-1	1
26	346-62424-1	下止推板26.5-46-1	THRUST PLATE (LOWER) 26.5-46-1	1
27	3H8-62415-0	O型圈 3.5-25.7	O-RING 3.5-25.7	1
28	945103-2500	C形环 d=25	C-RING d=25	1
29	3C8-61302-1	橡胶支座(下)	RUBBER MOUNT (LOWER)	2
30	3C8Q61411-3	支架托架	MOUNT BRACKET	1
31	3C8-61336-0	下减震器	DAMPER (LOWER)	1
32	3C8-61321-1	螺栓 12-114.5	BOLT 12-114.5	2
34	3C7-61338-0	减震器 21-36-5	DAMPER 21-36-5	2
35	930403-1200	尼龙螺母 12-P1.75	NYLON NUT 12-P1.75	2
36	9402E3-1200	垫圈	WASHER	4
37	3C8Q61342-0	支架固定板(下)	MOUNT HOLDING PLATE (LOWER)	2
38	9101E3-5620	螺栓	BOLT	4
39	3C8-62097-0	螺柱10-50 P1.25	STUD 10-50 P1.25	2
40	3E3-61301-2	橡胶支座(上)	RUBBER MOUNT (UPPER)	2
41	353-61307-1	螺栓3/8-100	BOLT 3/8-100	2
42	3E3-61333-0	上减震器	DAMPER (UPPER)	2
43	353-61335-0	垫圈10-29-3	WASHER 10-29-3	2
44	3E3-61335-0	锁紧板	LOCK PLATE	1
45	3C8-61341-0	支架固定板(上)	MOUNT HOLDING PLATE (UPPER)	1
46	9101E3-5835	螺栓	BOLT	3
47	3C8-62396-1	接地线 L=210	GROUND L=210	1
48	398-62396-1	接地线 L=130	GROUND L=130	1
50	3A3-62396-1	接地线 L=110	GROUND L=110	1
51	910103-5612	螺栓	BOLT	1
52	3C8-72120-0	索具螺栓套装	RIGGING BOLT SET	1
53	3C7-62133-2	螺栓 12-105 P1.25	* BOLT 12-105 P1.25	4
54	353-61334-0	* 垫圈 13-34-3	* WASHER 13-34-3	4
55	940103-1200	* 垫圈	* WASHER	4
56	3C7-62139-1	螺母 12-P1.25	* NUT 12-P1.25	4
60	3RSQ62105-1	夹紧螺丝套件	CLAMP SCREW KIT	2
61	3RSQ62108-0	* 卡箍螺丝总成	* CLAMP SCREW ASSY	1
62	3RS-62106-0	夹紧螺钉	** CLAMP SCREW	1
63	3RSQ62102-0	夹紧螺钉手柄	** CLAMP SCREW HANDLE	1
64	951403-0622	** 弹簧销	** SPRING PIN	1
65	332-62101-1	* 卡箍螺丝垫片	* CLAMP SCREW PAD	1
66	945303-0500	* E型卡环 d=5	* E-RING d=5	1
67	9402E3-0800	垫圈	WASHER	2

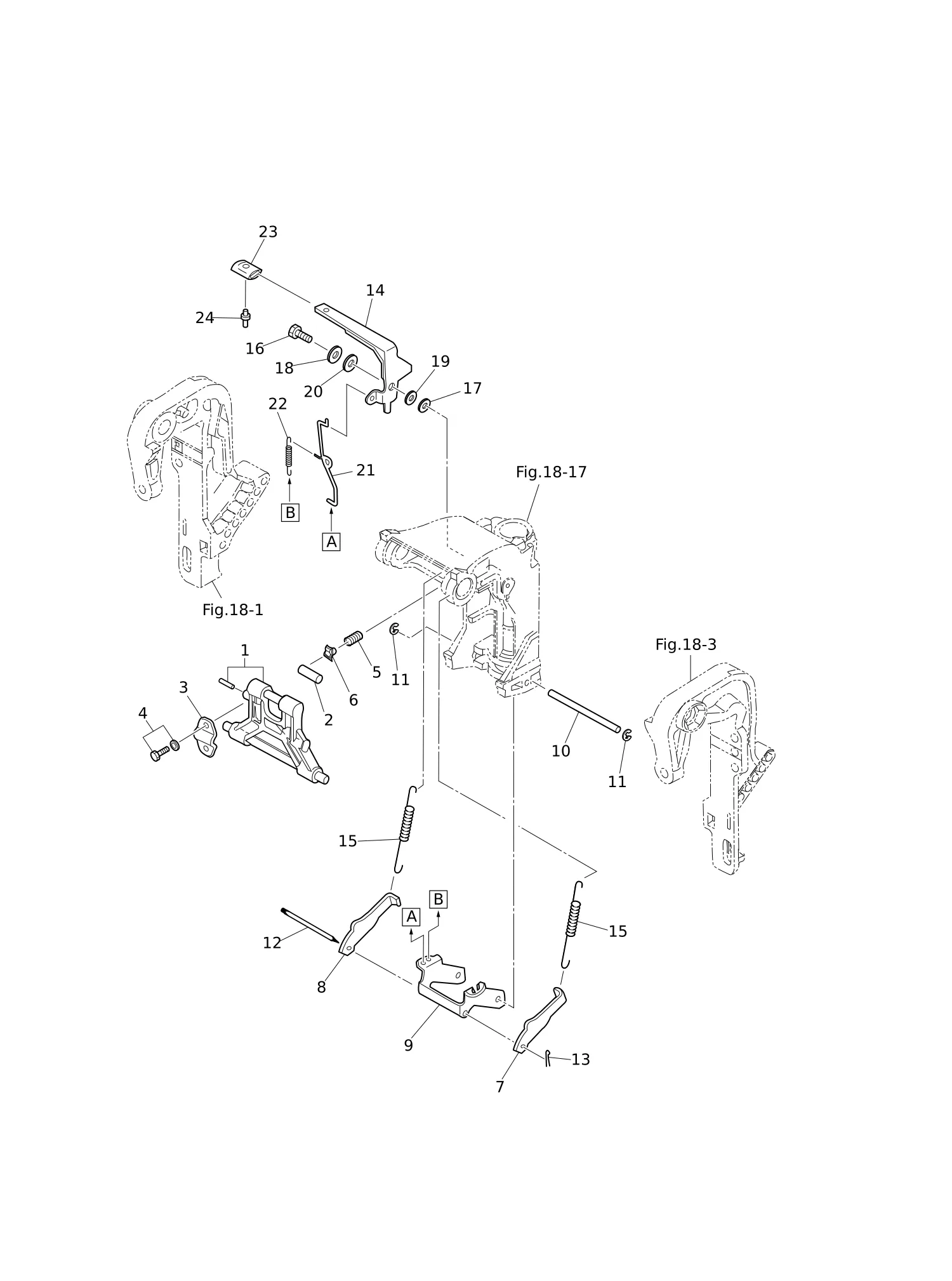

图 19手动倾斜装置 MANUAL TILT

REF	零件编号	中文名称	英文名称	数量
1	3C8Q62431-1	倾斜止动器总成	TILT STOPPER ASSY	1
2	346-62437-0	衬套 10.2-12-29.5	BUSHING 10.2-12-29.5	1
3	346-62439-1	定位板	SETTING PLATE	1
4	9101E3-5820	螺栓	BOLT	2
5	3C8-62421-1	摩擦弹簧	FRICTION SPRING	1
6	346-62438-0	定位片	SETTING PIECE	1
7	3C8-66352-2	倒车锁(左)	REVERSE LOCK (L)	1
8	3C8-66351-2	倒车锁(右)	REVERSE LOCK (R)	1
9	3C8-66313-4	倒车锁臂	REVERSE LOCK ARM	1
10	3C8-66319-1	倒挡锁轴	REVERSE LOCK SHAFT	1
11	945303-0600	E型卡环 d=6	E-RING d=6	2
12	3C8-66321-0	倒挡锁杆	REVERSE LOCK ROD	1
13	951503-0212	开口销2-12	SPLIT PIN 2-12	1
14	3E3-62436-1	倾斜止动杆	TILT STOPPER LEVER	1
15	3C8-66331-2	倒挡锁弹簧(S型)	REVERSE LOCK SPRING (S)	2
15	3C8-66332-2	倒挡锁弹簧(左)	REVERSE LOCK SPRING (L)	2
16	3AL-05254-0	台阶螺栓6-8	SHOULDER BOLT 6-8	1
17	3R0-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
18	940103-0800	垫圈	WASHER	1
19	3AL-05212-0	衬套 8.1-20	BUSHING 8.1-20	1
20	3AA-83719-0	垫圈 8.5-18-1.6	WASHER 8.5-18-1.6	1
21	3C8-66318-1	连杆	LINK	1
22	3C8-66336-0	弹簧	SPRING	1
23	346-66333-0	倒车锁杆握把	REVERSE LOCK LEVER GRIP	1
24	346-66334-0	止动块	STOPPER	1

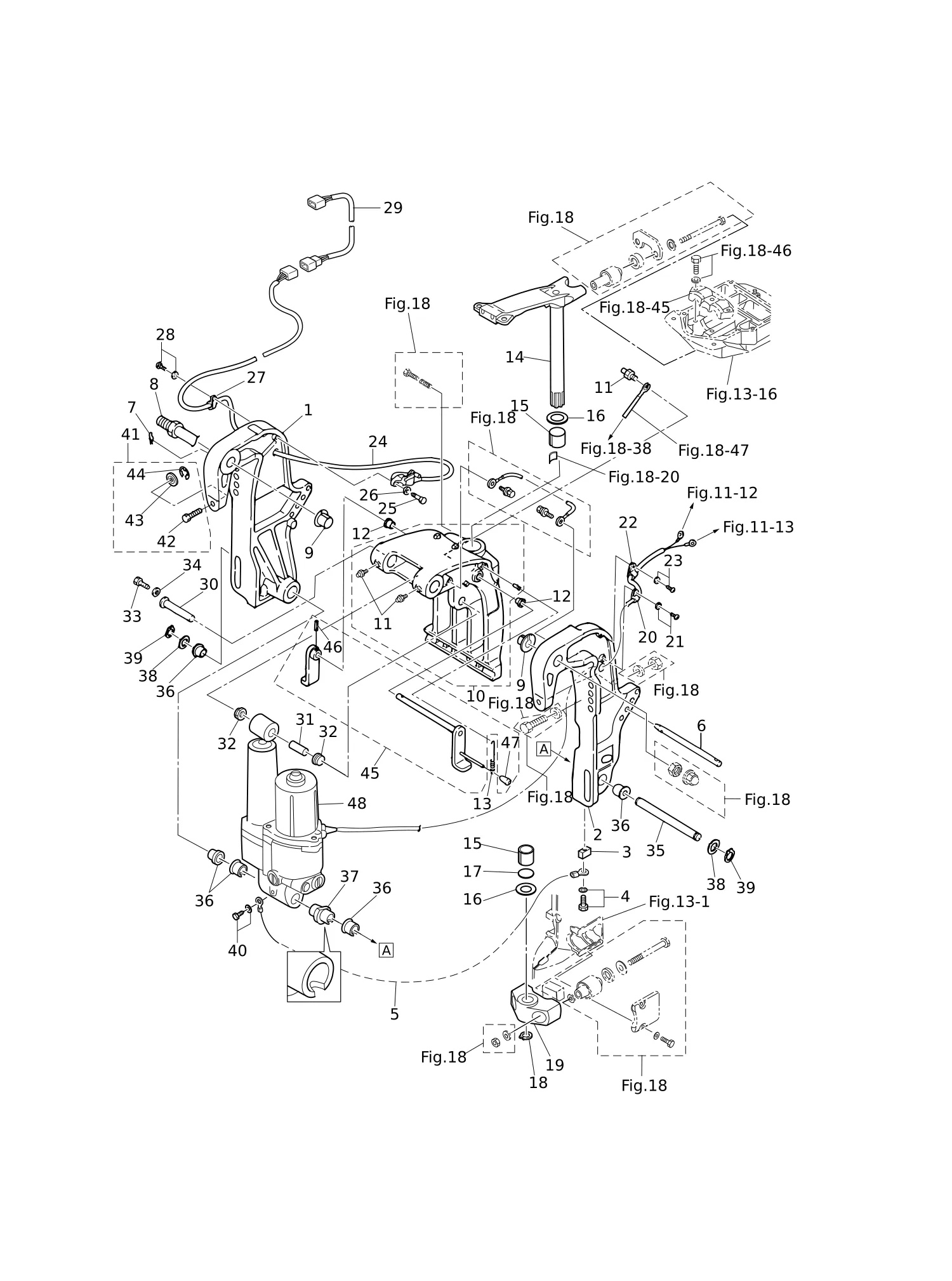

图 20支架(动力升降倾斜装置) BRACKET (POWER TRIM & TILT)

REF	零件编号	中文名称	英文名称	数量
1	3GFQ77211-0	夹紧支架(动力升降倾斜装置-右)	CLAMP BRACKET (PTT-R)	1
2	3GFQ77212-0	卡箍支架 (动力升降倾斜装置-左)	CLAMP BRACKET (PTT-L)	1
3	3B7-60218-1	阳极块	ANODE	2
4	910103-5630	螺栓	BOLT	2
5	398-62396-1	接地线 L=130	GROUND L=130	1
6	3R0-77118-0	动力升降倾斜推力杆	PTT THRUST ROD	1
7	951603-1000	弹性销	SNAP PIN	1
8	3AD-62191-0	旋转支架轴总成	SWIVEL BRACKET SHAFT ASSY	1
9	3C8-77213-0	衬套	BUSHING	2
10	3GFQ77208-1	旋转支架总成	SWIVEL BRACKET ASSY	1
11	344-67177-1	* 黄油嘴	* GREASE FITTING	3
12	353-63207-0	轴环 10.2-12-12	COLLAR 10.2-12-12	2
13	3R0-62473-0	倾斜止动弹簧	TILT STOPPER SPRING	1
14	3GFQ62010-1	转向轴总成	STEERING SHAFT ASSY	1
15	353-62417-0	衬套 30-36-41	BUSHING 30-36-41	2
16	353-62423-1	上止推板31-50-2	THRUST PLATE (UPPER) 31-50-2	2
17	353-62415-0	O型圈 3.5-29.7	O-RING 3.5-29.7	1
18	945103-2800	C形环 d=28	C-RING d=28	1
19	3Z5Q61411-1	支架托架	MOUNT BRACKET	1
22	345-06915-0	卡箍 6.5-14L	CLAMP 6.5-14L	1
24	3Z4-72574-0	配平传感器 L=1700	TRIM SENSOR L=1700	1
25	910103-0620	螺栓	BOLT	2
26	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	2
27	336-06973-0	卡箍 6-9.5L	CLAMP 6-9.5L	1
28	921503-5612	螺钉	SCREW	1
29	3T1-72573-0	延长线(配平传感器) L=6000	EXTENSION CORD (TRIM SENSOR) L=6000	1
30	3KY-77071-0	气缸销(上)	CYLINDER PIN (UPPER)	1
31	3R0-77075-0	衬套 13-16-40	BUSHING 13-16-40	1
32	3R0-77076-0	衬套 13-17-19.5 13-17-19.5	BUSHING 13-17-19.5 13-17-19.5	2
33	9101E3-0612	螺栓	BOLT	1
34	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	1
35	3KY-77101-0	气缸销(下)	CYLINDER PIN (LOWER)	1
36	3C8-77076-1	衬套 18-24-22	BUSHING 18-24-22	5
37	3Z5-77103-0	衬套 18-24-57.5 18-24-60	BUSHING 18-24-57.5 18-24-60	1
38	3R0-77112-0	垫片 18.2-34-1	WASHER 18.2-34-1	2
39	945103-1800	C形环 d=18	C-RING d=18	2
40	910103-5612	螺栓	BOLT	1
41	3RS-77217-0	夹紧螺丝套件	CLAMP SCREW KIT	2
42	3RS-77216-0	* 卡箍螺丝(动力升降倾斜)	* CLAMP SCREW (PTT)	1
43	332-62101-1	* 卡箍螺丝垫片	* CLAMP SCREW PAD	1
44	945303-0600	* E型卡环 d=6	* E-RING d=6	1
45	3GF-62466-1	倾斜止动器套件	TILT STOPPER KIT	1
46	951403-3516	* 弹簧销 3.5-16	* SPRING PIN 3.5-16	1
47	369-62433-1	* 倾斜止动握把	* TILT STOPPER GRIP	1
48	3E5-77150-2	动力升降倾斜总成	PTT ASSY	1

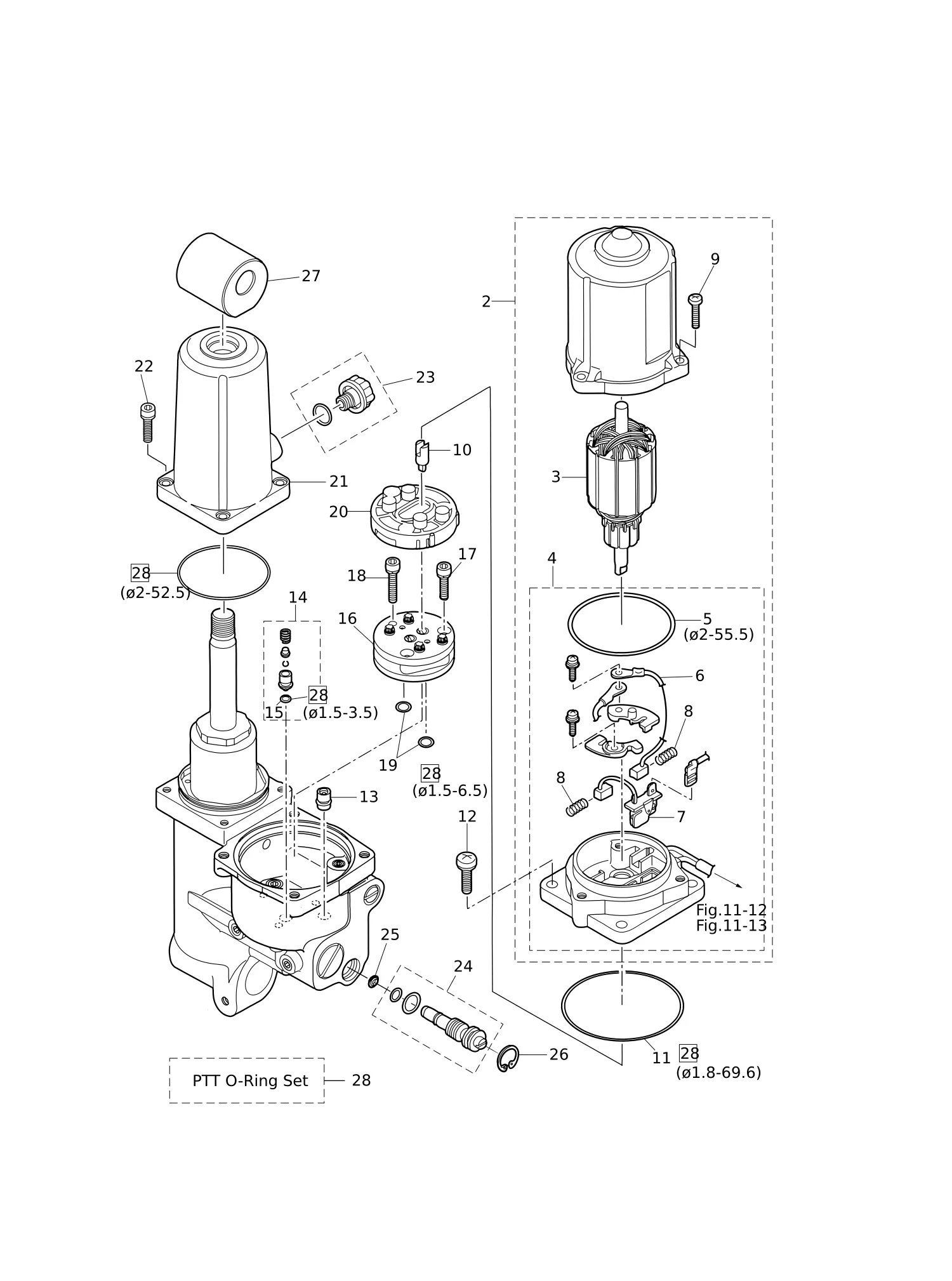

图 21动力升降倾斜装置 POWER TRIM & TILT

REF	零件编号	中文名称	英文名称	数量
2	3E5-77180-0	马达总成	MOTOR ASSY	1
3	3Z5-77190-0	* 电枢总成	* ARMATURE ASSY	1
4	3E5-77192-0	* 电机支架总成	* MOTOR BRACKET ASSY	1
5	3Z5-77182-0	O型圈 2-55.5	** O-RING 2-55.5	1
6	3E0-77183-0	电刷	** BRUSH	1
7	3Z5-77191-0	断路器	** BREAKER	1
8	3E0-77184-0	电刷弹簧	** BRUSH SPRING	2
9	921503-0520	* 螺钉	* SCREW	3
10	3Z5-77166-0	联轴器	COUPLING	1
11	3B7-77167-0	O型圈1.8-69.6	O-RING 1.8-69.6	1
12	3Z5-77194-0	螺钉	SCREW	4
13	3Z5-77460-0	阀门总成	VALVE ASSY	1
14	3Z5-77450-0	安全阀总成	RELIEF VALVE ASSY	1
15	3R0-77451-0	* O型圈1.5-3.5	* O-RING 1.5-3.5	1
16	3B7-77430-0	泵	PUMP	1
17	3B7-77432-1	螺栓	BOLT	2
18	3B7-77431-1	螺栓	BOLT	1
19	3B7-77433-0	O型圈1.5-6.5	O-RING 1.5-6.5	2
20	3B7-77434-1	过滤器	FILTER	1
21	3Z5-77165-1	储备油箱	RESERVE TANK	1
22	3Z5-77159-0	螺栓	BOLT	4
23	3Z5-77221-0	盖帽总成	CAP ASSY	1
24	3Z5-77175-0	手动阀总成	MANUAL VALVE ASSY	1
25	3R0-77173-0	密封垫圈	SEAL WASHER	1
26	3Z5-77171-0	C形环	C-RING	1
27	3Z5-77367-0	接头	JOINT	1
28	3Z5-77225-0	动力升降倾斜装置O型圈套装	PTT O-RING SET	1

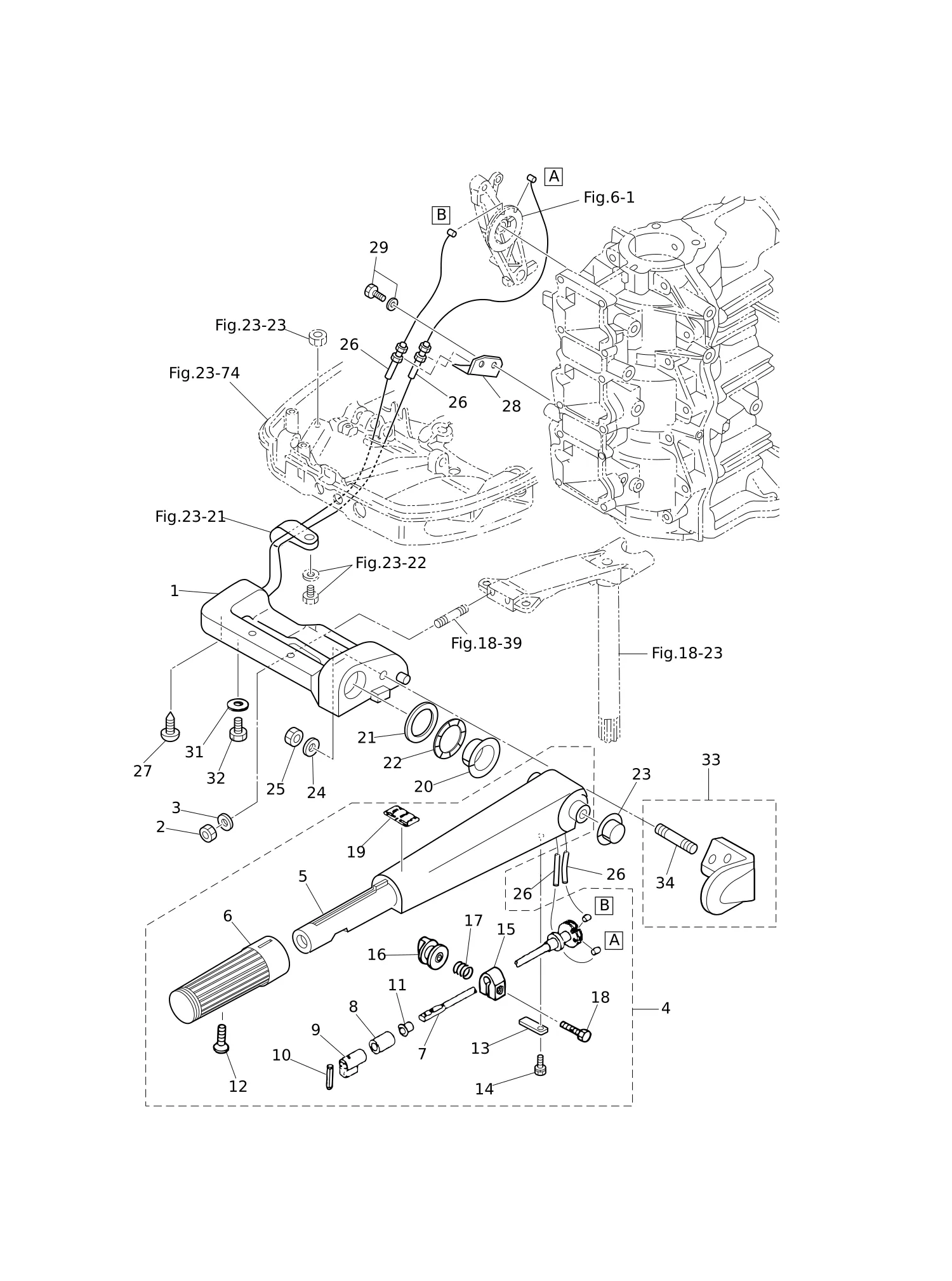

图 22舵柄(F型) TILLER HANDLE (F TYPE)

REF	零件编号	中文名称	英文名称	数量
1	3E3Q62001-0	转向支架	STEERING BRACKET	1
2	3C8-62098-0	尼龙螺母 10-P1.25	NYLON NUT 10-P1.25	2
3	9402E3-1000	垫圈	WASHER	2
4	3C8Q63003-1	舵柄总成	TILLER HANDLE ASSY	1
5	3C8Q63011-2	* 舵柄手柄	* TILLER HANDLE	1
6	398-63012-0	* 手柄	* GRIP	1
7	3C8-63041-1	* 节气门轴	* THROTTLE SHAFT	1
8	345-63048-0	* 节气门轴缓冲器	* THROTTLE SHAFT DAMPER	1
9	398-63053-0	* 隔套	* SPACER	1
10	951403-0310	* 弹簧销 3-10	* SPRING PIN 3-10	1
11	350-63046-0	* 衬套 8.4-10-11	* BUSHING 8.4-10-11	1
12	921803-0525	* 螺钉	* SCREW	1
13	3C8-63063-0	* 节气门轴支撑	* THROTTLE SHAFT SUPPORT	1
14	9101E3-5612	螺栓	* BOLT	1
15	3V1-63035-1	* 摩擦片	* FRICTION PIECE	1
16	3V1-63077-0	* 调节螺母	* ADJUSTING NUT	1
17	3V1-63036-0	* 弹簧	* SPRING	1
18	910103-0625	螺栓	* BOLT	1
19	369-72019-1	* 油门标识贴	* THROTTLE DECAL	1
20	3C8-63101-0	衬套	BUSHING	1
21	3B2-63108-0	垫片 30-45-1	WASHER 30-45-1	1
22	3B2-63109-0	波形垫圈 30-45-1.2	WAVE WASHER 30-45-1.2	1
23	3C8-63102-1	衬套	BUSHING	1
24	9401E3-1000	垫圈	WASHER	1
25	930103-1000	螺母 10-P1.5	NUT 10-P1.5	1
26	3C8-63600-1	节气门拉线	THROTTLE WIRE	2
27	3C8-63607-0	卡扣	CLIP	1
28	3C8-63508-1	节气门拉线支架	THROTTLE WIRE BRACKET	1
29	910103-5614	螺栓	BOLT	2
31	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
32	910103-0610	螺栓	BOLT	1
33	3E5Q63028-1	舵柄支架总成	TILLER HANDLE HOLDER ASSY	1
34	9153E3-1022	* 双头螺柱	* STUD	1

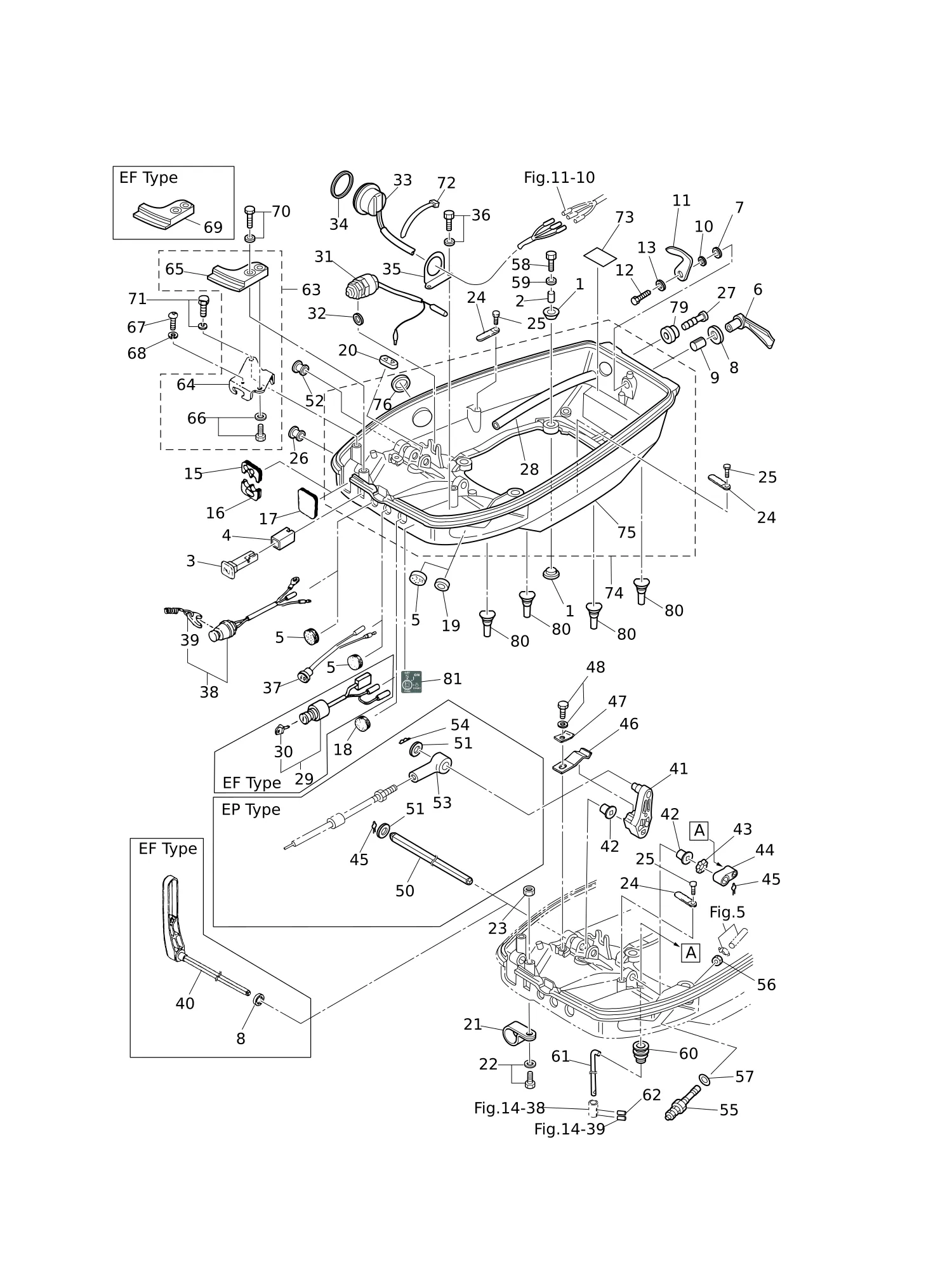

图 23下罩壳·换挡 BOTTOM COWL · SHIFT

REF	零件编号	中文名称	英文名称	数量
1	346-67113-0	8.5-14-2.5支架	MOUNT 8.5-14-2.5	8
2	346-67114-1	垫圈 6.2-9-15.7	SPACER 6.2-9-15.7	4
3	3C8-67151-2	阻风门拉杆	CHOKE ROD	1
4	3C8-67156-0	衬套	BUSHING	1
5	345-67117-0	索环 17-2.7	GROMMET 17-2.7	3
6	3C8Q67141-0	挂钩杆	HOOK LEVER	1
7	3C8-67146-0	垫片 14-22-1	WASHER 14-22-1	1
8	338-67147-0	密封环 13.8-22-3.7	SEAL RING 13.8-22-3.7	2
9	369-67105-0	挂钩杆衬套	HOOK LEVER BUSHING	1
10	941403-1400	波形垫圈 d=14	WAVE WASHER d=14	1
11	3MC-67142-0	盖板挂钩	COVER HOOK	1
12	910103-0612	螺栓	BOLT	1
13	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
15	3C8-83732-0	索环/护孔圈	GROMMET	1
16	3C8-76116-1	索环/护孔圈	GROMMET	1
17	3C8-67162-1	索环/护孔圈	GROMMET	1
18	345-76092-0	索环 20-3	GROMMET 20-3	1
19	338-67163-0	索环 18-2.5	GROMMET 18-2.5	1
20	3C8-63621-0	索环 30-12-2.5	GROMMET 30-12-2.5	1
20	3C8-63624-0	索环 30-12-2.5	GROMMET 30-12-2.5	1
21	345-06915-0	卡箍 6.5-14L	CLAMP 6.5-14L	1
23	930103-0600	螺母	NUT	1
24	3PR-06972-0	卡箍 6.5-47.5P	CLAMP 6.5-47.5P	2
25	910103-5610	螺栓	BOLT	2
26	3B2-67187-0	索环 16-17.5	GROMMET 16-17.5	1
27	3T1-01138-0	管接头 6-8-11	NIPPLE 6-8-11	1
28	98AB-50-260	软管	HOSE	1
29	3C8-76020-2	主开关总成	MAIN SWITCH ASSY	1
30	3F3-76217-0	* 主开关钥匙 No.301	* MAIN SWITCH KEY No.301	1
30	3F3-76218-0	* 主开关钥匙 No.302	* MAIN SWITCH KEY No.302	1
30	3F3-76219-0	* 主开关钥匙 No.303	* MAIN SWITCH KEY No.303	1
31	3C8-76080-2	空档开关	NEUTRAL SWITCH	1
32	3B7-63731-0	垫片 12.5-24-1	WASHER 12.5-24-1	1
33	3E0-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1
34	3F3-72616-1	衬垫	GASKET	1
35	3GF-72617-0	动力升降倾斜装置开关总成支架	PTT SWITCH ASSY BRACKET	1
36	910103-6614	螺栓	BOLT	2
37	3C8-71040-0	指示灯总成	PILOT LAMP ASSY	1
38	3C8-06820-0	停止开关总成	STOP SWITCH ASSY	1
39	353-06821-0	* 停机开关拉绳总成	* STOP SWITCH LANYARD ASSY	1
40	3E3-66110-0	换挡杆	SHIFT LEVER	1
41	3C8-66122-1	换挡臂	SHIFT ARM	1
42	350-67101-0	衬套	BUSHING	2
43	941403-1200	波形垫圈 d=12	WAVE WASHER d=12	1
44	3C8-66225-0	换挡杆手柄	SHIFT ROD LEVER	1
45	951703-0800	弹性挡圈 d=8	SNAP RETAINER d=8	2
46	3C8-66113-1	换挡定位弹簧	SHIFT DETENT SPRING	1
47	3C8-66117-0	换挡定位支架	SHIFT DETENT SUPPORTER	1
50	3C8-66135-0	换挡杆轴	SHIFT LEVER SHAFT	1
51	3AA-83719-0	垫圈 8.5-18-1.6	WASHER 8.5-18-1.6	2
52	3B7-01046-0	塞	PLUG	1
53	3B7-83715-2	线缆接头	CABLE JOINT	1
54	951603-0800	弹性销 d=8	SNAP PIN d=8	1
55	3B2-70260-1	燃油接头（公头）	FUEL CONNECTOR (MALE)	1
56	332-70261-0	螺母 10-P1.25	NUT 10-P1.25	1
57	336-70112-0	衬垫10.2-16-0.5	GASKET 10.2-16-0.5	1
58	9101E3-0630	螺栓	BOLT	4
59	346-67115-0	垫片 6.5-21-1	WASHER 6.5-21-1	4
60	3M2-66226-0	索环 17-3	GROMMET 17-3	1
61	3C8-66211-0	换挡连杆	SHIFT ROD	1
62	951403-0312	弹簧销 3-12	SPRING PIN 3-12	1
63	3C8Q83737-0	线缆夹支架总成	CABLE CLIP BRACKET ASSY	1
64	3Z5-83738-0	* 离合器线卡扣支架	* CLUTCH CABLE CLIP BRACKET	1
66	910103-5612	螺栓	* BOLT	1
67	3C8-83821-0	螺钉 4-20 P0.5	SCREW 4-20 P0.5	1
68	941303-0400	弹簧垫圈	SPRING WASHER	1
69	3C8Q76118-0	卡箍	CLAMP	1
70	910103-5625	螺栓	BOLT	1
71	910103-5616	螺栓	BOLT	1
72	369-84398-1	箍带 202	BAND 202	1
73	361-72026-0	火花塞贴花 (BR7HS-10)	SPARK PLUG DECAL (BR7HS-10)	1
73	3A3-72026-0	火花塞贴花 (BR8HS-10)	SPARK PLUG DECAL (BR8HS-10)	1
74	3C8Q67110-1	带密封圈下罩壳	BOTTOM COWL W/GROMMET	1
75	3C8Q67100-2	* 下罩壳	* BOTTOM COWL	1
76	3F3-72618-0	* 衬套 47-2.5	* GROMMET 47-2.5	1
79	369-66043-1	索环 10.7-3.5	GROMMET 10.7-3.5	1
80	3TW-67179-0	放油塞	DRAIN PLUG	4
81	3C8-84339-0	说明标贴	INSTRUCTION DECAL	1

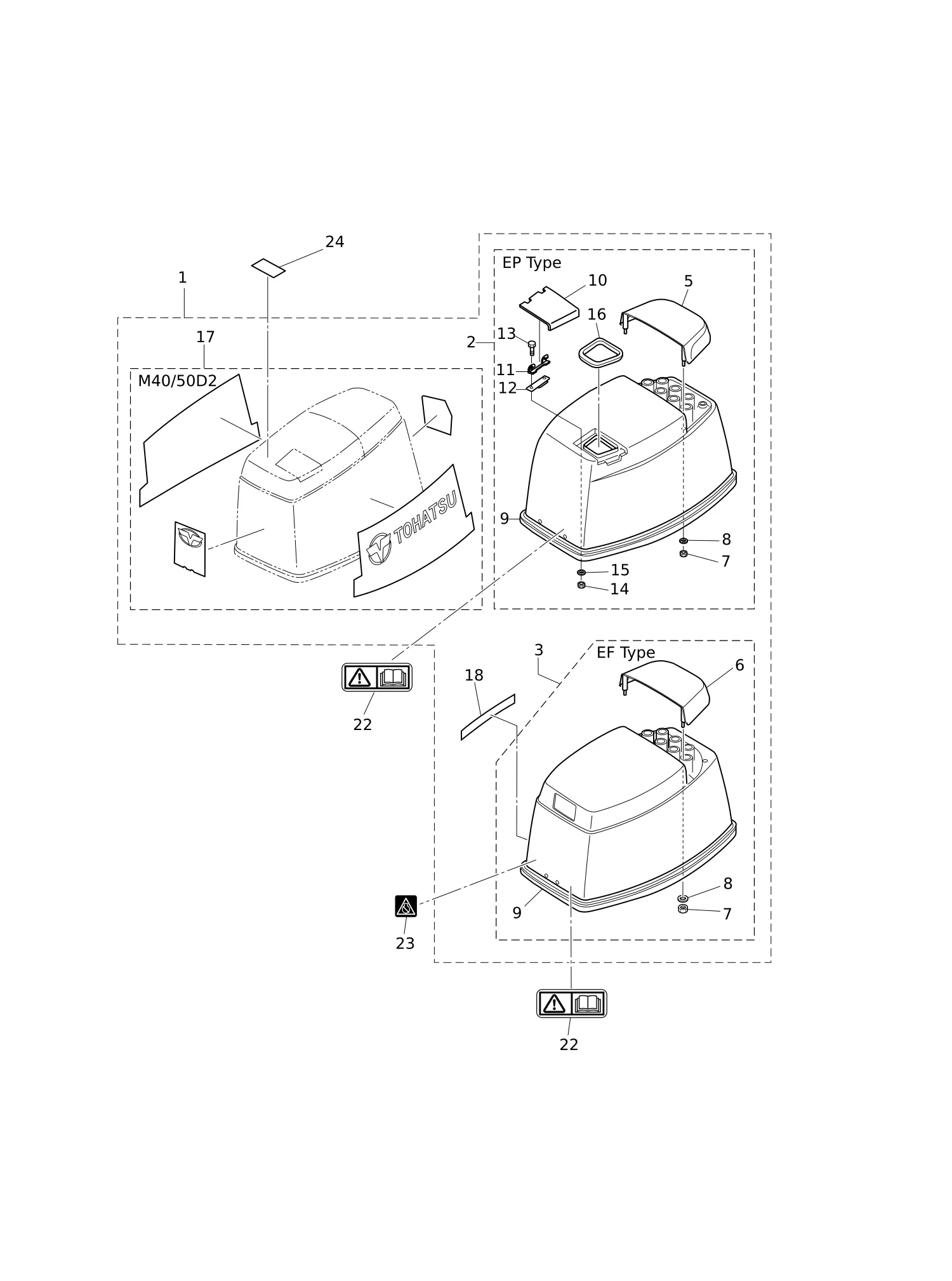

图 24顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	3C8Q67645-9	顶罩总成	TOP COWL ASSY	1
1	3E3Q67645-9	顶罩总成	TOP COWL ASSY	1
2	3GFQ67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
3	3TYQ67640-0	* 顶罩分总成	* TOP COWL SUB-ASSY	1
5	3E3Q67521-1	倾斜把手	** TILT HANDLE	1
6	3TWQ67521-0	倾斜把手	** TILT HANDLE	1
7	930403-0600	尼龙螺母 6-P1.0	** NYLON NUT 6-P1.0	4
8	3C8-66308-0	垫圈 6-16-1.5	** WASHER 6-16-1.5	4
9	3C8-67501-1	顶罩密封条	** TOP COWL SEAL	1
10	3E3Q67210-1	** 加注口盖	** FILLER LID	1
11	3B7-67211-0	** 加注口盖铰链	** FILLER LID HINGE	1
12	3C8-67212-1	** 弹簧	** SPRING	1
13	910103-0614	螺栓	** BOLT	2
14	930103-0600	螺母	** NUT	2
15	941303-0600	** 弹簧垫圈	** SPRING WASHER	2
16	3E3-67213-0	密封件 L=275	** SEAL L=275	1
17	3C8-87801-4	* 标牌套装(M40D2)	* DECAL SET (M40D2) (M40D2)	1
17	3E3-87801-4	* 标牌套装(M50D2)	* DECAL SET (M50D2) (M50D2)	1
18	3C8-67578-2	* 换挡标贴	* SHIFT DECAL	1
22	3F0-72185-0	警示标贴	CAUTION DECAL	1
23	3AC-72200-0	停止开关贴花	STOP SWITCH DECAL	1
24	3B7-72043-0	机油警示贴纸	OIL CAUTION DECAL	1

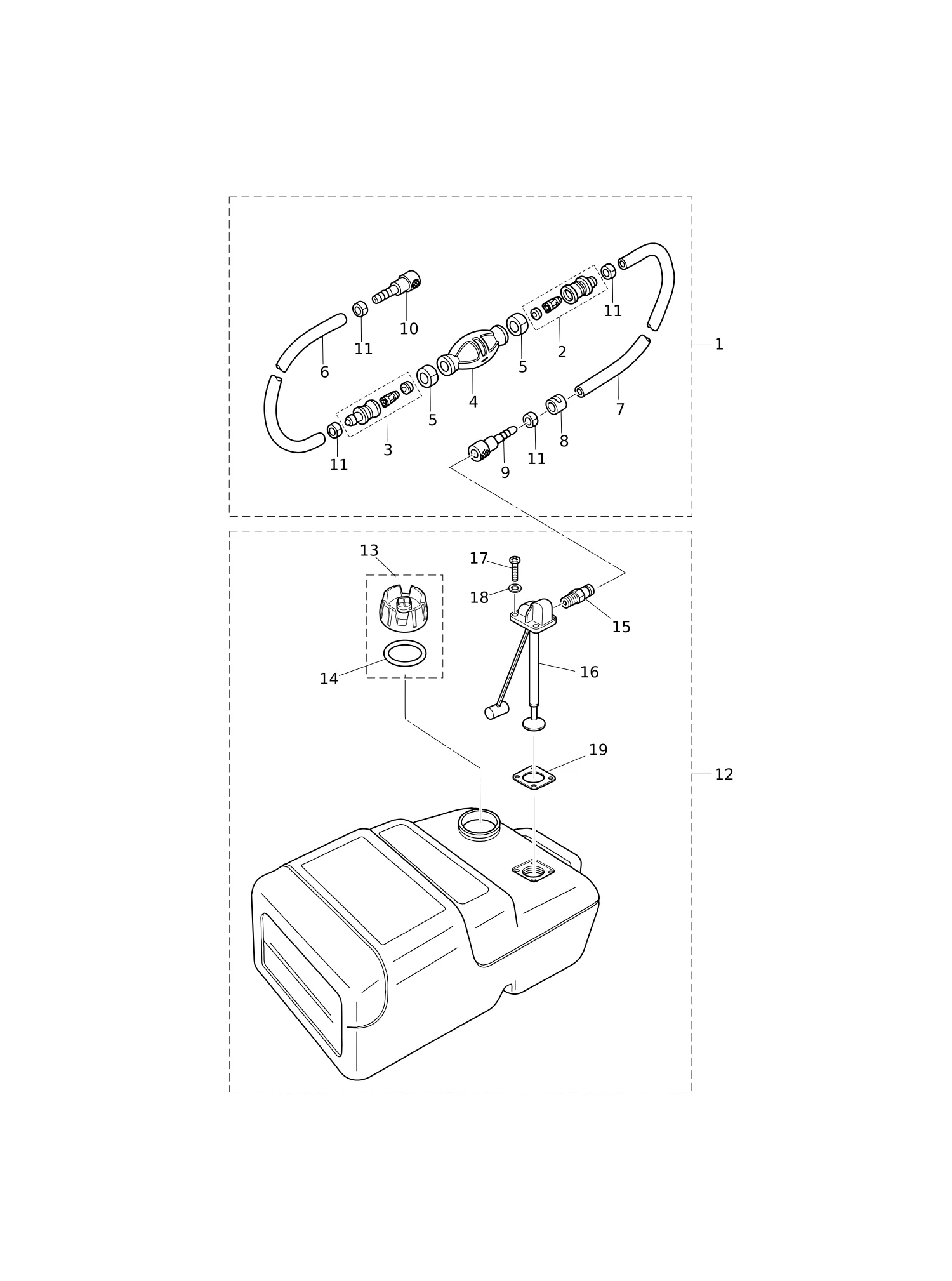

图 25燃油箱 FUEL TANK

REF	零件编号	中文名称	英文名称	数量
1	3B7-70200-5	手动泵球总成	PRIMER BULB ASSY	1
2	3C7-70220-1	* 接头组件(进口)	* JOINT ASSY (INLET)	1
3	3C7-70224-1	* 接头组件(出口)	* JOINT ASSY (OUTLET)	1
4	3C7-70211-1	* 注油球	* PRIMER BULB	1
5	3C7-70217-0	* 卡箍	* CLAMP	2
6	98AB-70-700	* 软管	* HOSE	1
7	98AB-701600	* 软管	* HOSE	1
8	3B7-70280-1	* 燃油接头标记	* FUEL CONNECTOR MARK	1
9	3GF-70281-0	* 燃油接头	* FUEL CONNECTOR	1
10	3GF-70250-1	* 燃油接头	* FUEL CONNECTOR	1
11	332-70201-0	* 卡箍	* CLAMP	4
12	3KZ-70177-0	25升燃油箱总成	FUEL TANK ASSY 25L	1
13	3RS-70020-0	* 燃油箱盖总成	* FUEL TANK CAP ASSY	1
14	3RS-70021-0	油箱盖衬垫	** TANK FILLER CAP GASKET	1
15	3E0-70270-0	* 快速接头(公)	* QUICK-CONNECTOR (MALE)	1
16	3AC-70157-0	带油量计的燃油吸油总成	FUEL PICK-UP ASSY W/GAUGE	1
17	3AC-70140-0	* 螺钉	* SCREW	4
18	3AC-70145-0	* 垫圈	* WASHER	4
19	3AC-70150-0	* 衬垫	* GASKET	1

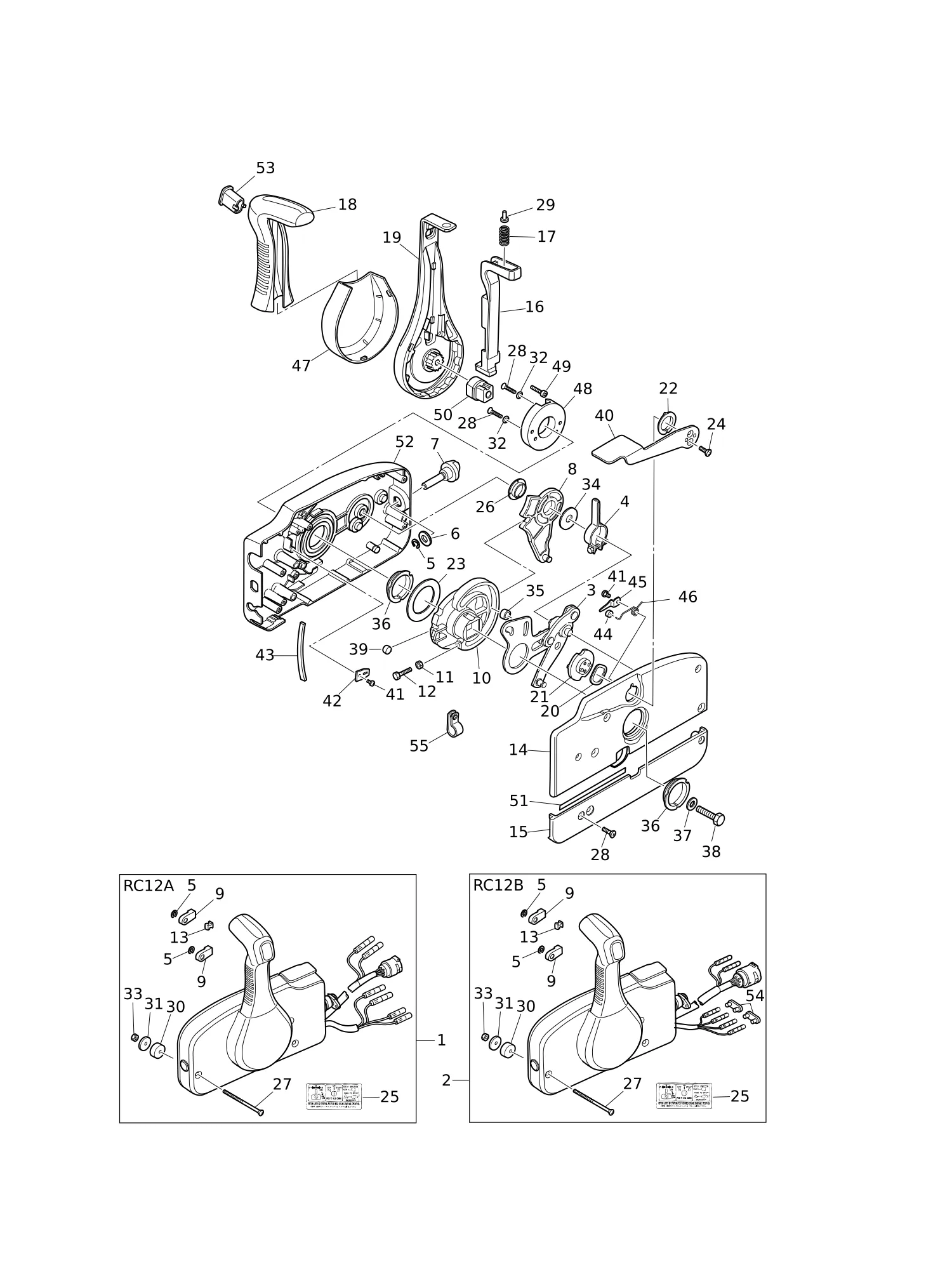

图 26遥控器零部件 COMPONENT PARTS OF REMOTE CONTROL

REF	零件编号	中文名称	英文名称	数量
1	3U2B84330-0	遥控头总成(RC12A)	REMOTE CONTROL HEAD ASSY(RC12A)	1
2	3U2B84340-0	遥控头总成(RC12B)	REMOTE CONTROL HEAD ASSY(RC12B)	1
3	3A3-84365-1	* 节气门摇臂	* THROTTLE ARM	1
4	3A3-84428-0	* 油门摩擦摇臂	* THROTTLE FRICTION ARM	1
5	945303-0600	* E型卡环 d=6	* E-RING d=6	3
6	353-84394-0	* 垫圈	* WASHER	1
7	3U2-84427-0	* 调节螺钉	* ADJUSTING SCREW	1
8	3A3-84381-0	* 换挡齿轮总成	* SHIFT GEAR ASSY	1
9	3A3-83314-2	* 线缆端子	* CABLE TERMINAL	2
10	3A3-84364-2	* 驱动齿轮	* DRIVE GEAR	1
11	930103-0500	螺母	* NUT	1
12	910103-0525	螺栓	* BOLT	1
13	3A3-84376-0	* 护孔环	* GROMMET	1
14	3U2B84441-0	* 后壳体	* REAR HOUSING	1
15	3U2B84366-0	* 后盖板	* REAR PANEL	1
16	3U2-84401-0	* 空档锁止臂	* NEUTRAL LOCK ARM	1
17	3A3-84403-0	* 空档锁止弹簧	* NEUTRAL LOCK SPRING	1
18	3U2-84404-0	* 手柄	* GRIP	1
19	3U2-84343-0	* 控制杆	* CONTROL LEVER	1
20	3A3-84368-0	* 波形垫圈	* WAVE WASHER	1
21	3A3-84391-0	* 自由节流鼓	* FREE THROTTLE DRUM	1
22	3A3-84435-0	* 衬套	* BUSHING	1
23	3A3-84422-0	* 推力板	* THRUST PLATE	1
24	921603-0512	* 螺钉	* SCREW	2
25	3U2-84339-0	* 操作说明标贴	* INSTRUCTION DECAL	1
26	3A3-84432-0	* 衬套	* BUSHING	1
27	3U2-84375-0	* 螺钉	* SCREW	3
28	3VK-84375-0	* 螺钉	* SCREW	7
29	3VL-84375-0	* 螺钉	* SCREW	1
30	3A3-84374-0	* 隔套	* SPACER	3
31	353-84371-0	* 垫圈	* WASHER	3
32	3U2-84371-0	* 垫圈	* WASHER	2
33	930103-0600	螺母	* NUT	3
34	3A3-84383-0	* 垫圈	* WASHER	1
35	3A3-84421-0	* 滚轮	* ROLLER	1
36	3U2-84431-0	* 衬套	* BUSHING	2
37	940103-0800	* 垫圈	* WASHER	1
38	3U2-84442-0	螺栓	* BOLT	1
39	353-84388-0	* 定位滚轮	* DETENT ROLLER	1
40	3U2B84312-0	* 自由节流杆	* FREE THROTTLE LEVER	1
41	921503-0406	* 螺钉	* SCREW	3
42	3A3-84423-0	* 定位器挡圈	* DETENT RETAINER	1
43	3A3-84307-0	* 定位弹簧	* DETENT SPRING	6
44	3A3-84424-0	* 自由节流滚轮	* FREE THROTTLE ROLLER	1
45	3A3-84426-0	* 滚柱保持架	* ROLLER RETAINER	1
46	3A3-84425-0	* 自由节流弹簧	* FREE THROTTLE SPRING	1
47	3VK-63107-0	* 盖板	* COVER	1
48	3U2-63506-0	* 支架	* HOLDER	1
49	3U2-84917-0	螺栓	* BOLT	1
50	3U2-77367-0	* 接头	* JOINT	1
51	3U2-72187-0	* 警示标贴(SIGP)	* CAUTION DECAL(SIGP)	1
52	3U2B84440-0	* 前壳体	* FRONT HOUSING	1
53	3U2-84452-0	* 倾斜开关塞	* TILT SWITCH PLUG	1
54	353-76037-0	* 线缆端子塞	* CABLE TERMINAL PLUG	2
55	3U2-06973-0	* 卡箍	* CLAMP	1

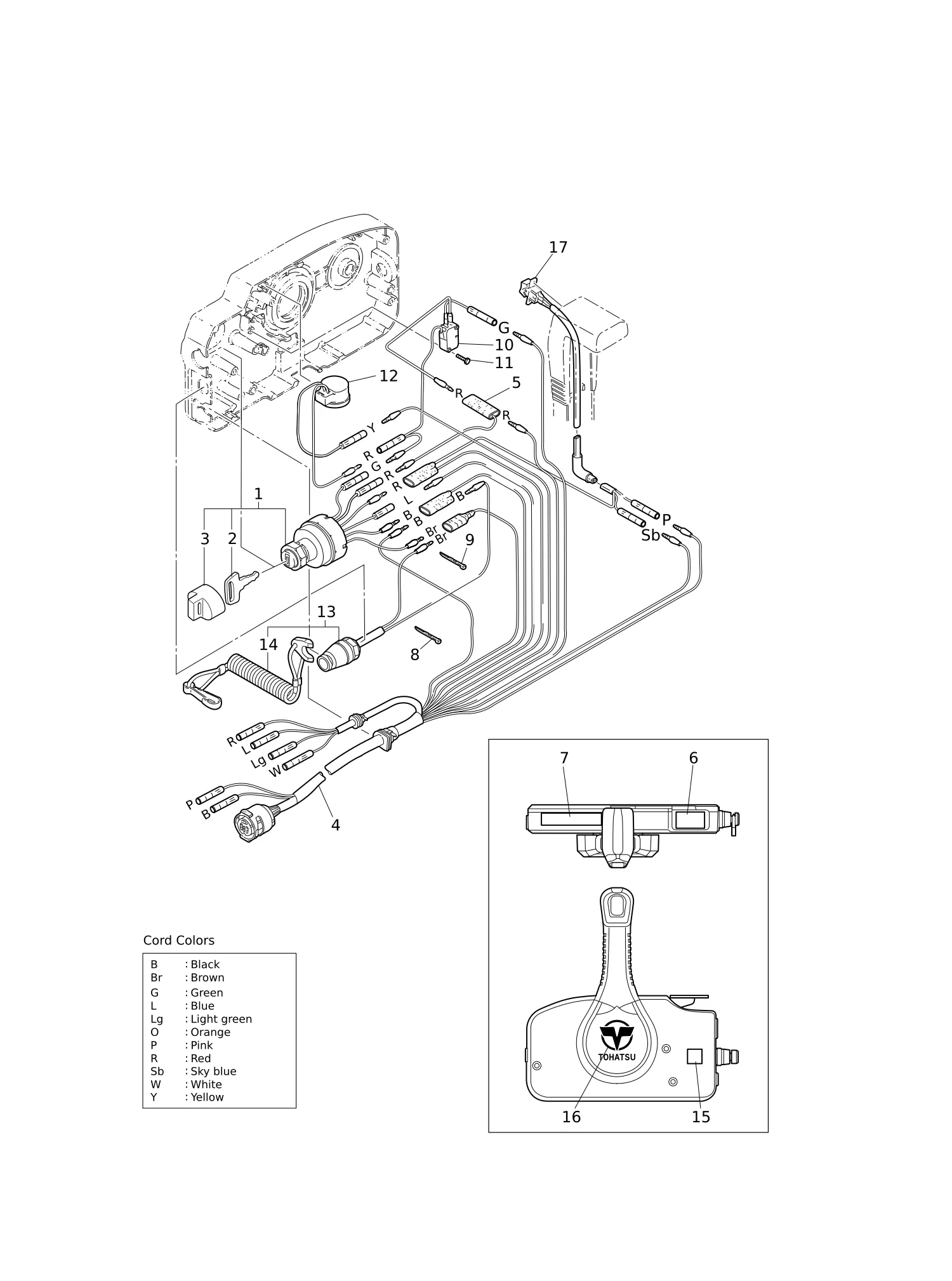

图 27遥控器零部件(电气部件) COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)

REF	零件编号	中文名称	英文名称	数量
1	3GF-76020-0	主开关总成	MAIN SWITCH ASSY	1
2	3GF-76217-0	* 主开关钥匙	* MAIN SWITCH KEY	1
2	3GF-76218-0	* 主开关钥匙	* MAIN SWITCH KEY	1
2	3GF-76219-0	* 主开关钥匙	* MAIN SWITCH KEY	1
3	3GF-76205-0	* 主开关钥匙盖帽	* MAIN SWITCH KEY COVERING CAP	1
4	3A3-76115-1	线束总成 L=6200	CORD ASSY L=6200	1
5	353-72546-0	辅助拉绳(红) 长200	ASSIST CORD (RED) L=200	1
6	3U2-84331-0	操纵杆贴花	DECAL (LEVER)	1
7	3U2-84336-0	挡位标识贴	SHIFT POSITION DECAL	1
9	3U2-84398-0	箍带	BAND	4
10	3A3-76086-1	空档开关(遥控型)	NEUTRAL SWITCH (REMOTE CONT)	1
11	921503-5316	螺钉	SCREW	2
12	3C8-76171-0	过热报警器	OVERHEAT BUZZER	1
13	3A3-06830-0	停止开关总成	STOP SWITCH ASSY	1
14	353-06821-0	* 停机开关拉绳总成	* STOP SWITCH LANYARD ASSY	1
15	3U2-72200-0	停止开关贴花	STOP SWITCH DECAL	2
16	3U2-84334-0	遥控标识贴花	REMOTE CONTROL LOGO DECAL	1
17	3U2-72615-0	动力升降倾斜装置开关总成	PTT SWITCH ASSY	1

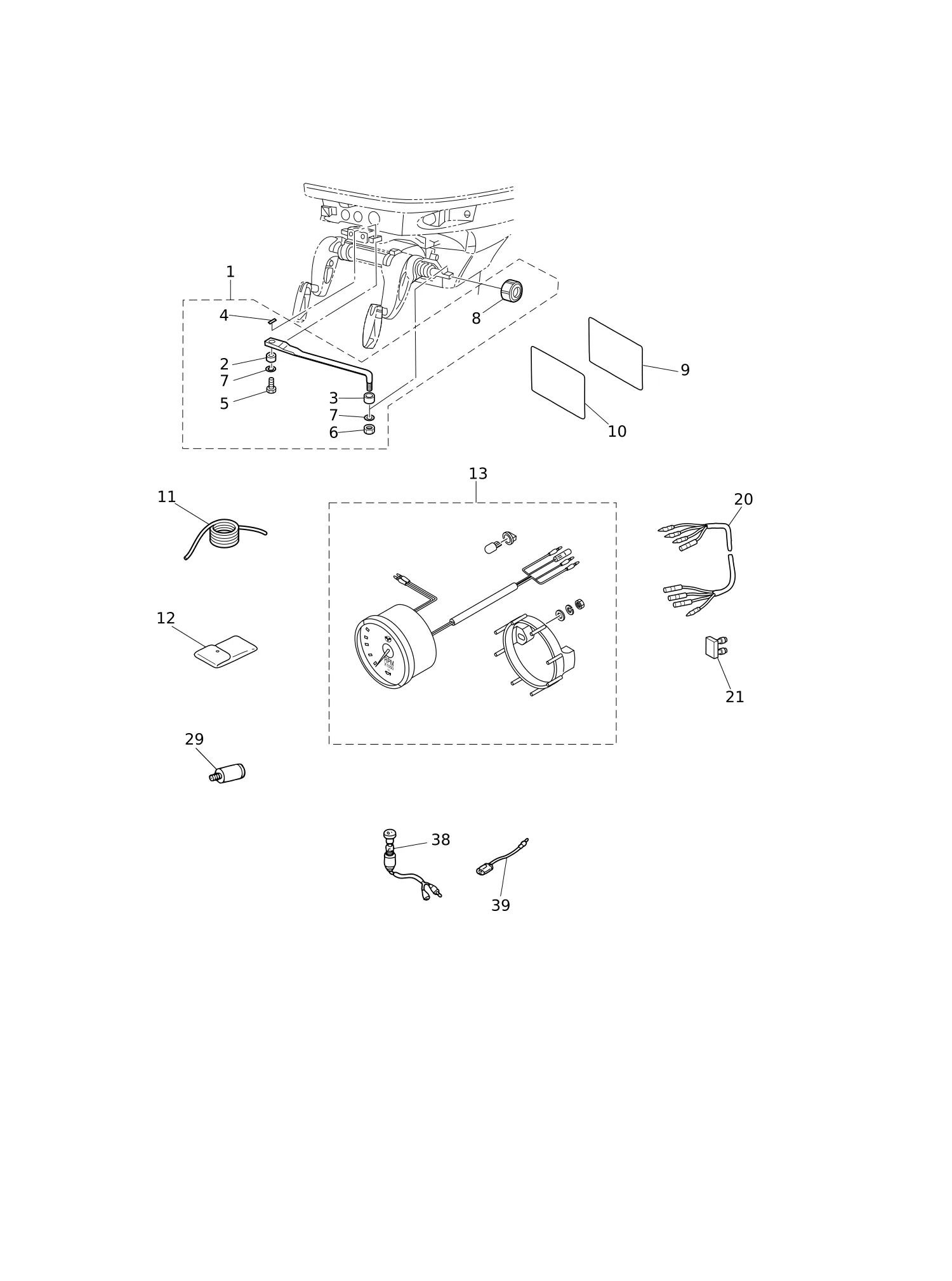

图 28附件(1) ACCESSORIES (1)

REF	零件编号	中文名称	英文名称	数量
1	3C8-84910-2	转向拉杆总成	DRAG LINK ASSY	1
2	3C8-84914-1	* 轴环 9.6-13-6.5	* COLLAR 9.6-13-6.5	1
3	3C8-84916-0	* 轴环 9.6-19-6	* COLLAR 9.6-19-6	1
4	951503-0215	* 开口销	* SPLIT PIN	1
5	3C8-84917-0	螺栓 3/8-19	* BOLT 3/8-19	1
6	353-84918-0	尼龙螺母 3/8-24UNF	* NYLON NUT 3/8-24UNF	1
7	353-84916-0	* 垫圈 9.6-18-2	* WASHER 9.6-18-2	2
8	3F3-84908-0	* 密封环	* SEAL RING	1
9	3B7-72043-0	机油警示贴纸	OIL CAUTION DECAL	1
10	3C8-72051-0	蜂鸣器警示贴纸	BUZZER CAUTION DECAL	1
11	3B7-72201-0	安全绳φ5-1600	SAFETY ROPE φ5-1600	1
12	3C8-72100-1	工具包	TOOL KIT	1
13	3PA-72638-0	转速表组件	TACHOMETER KIT	1
13	3PB-72638-0	转速表组件	TACHOMETER KIT	1
20	3A3-72537-1	仪表引线 长2000mm	METER LEAD WIRE L=2000	1
21	353-76037-0	电缆端子插头	CABLE TERMINAL PLUG	1
29	3B7-60007-0	冲洗塞	FLUSHING PLUG	1
38	353-72521-1	仪表灯开关	METER LAMP SWITCH	1
39	353-72546-0	辅助拉绳(红) 长200	ASSIST CORD (RED) L=200	1
39	353-72547-0	辅助拉绳(蓝) 长200	ASSIST CORD (BLU) L=200	1
39	353-72548-0	辅助拉绳(黑) 长200	ASSIST CORD (BLK) L=200	1

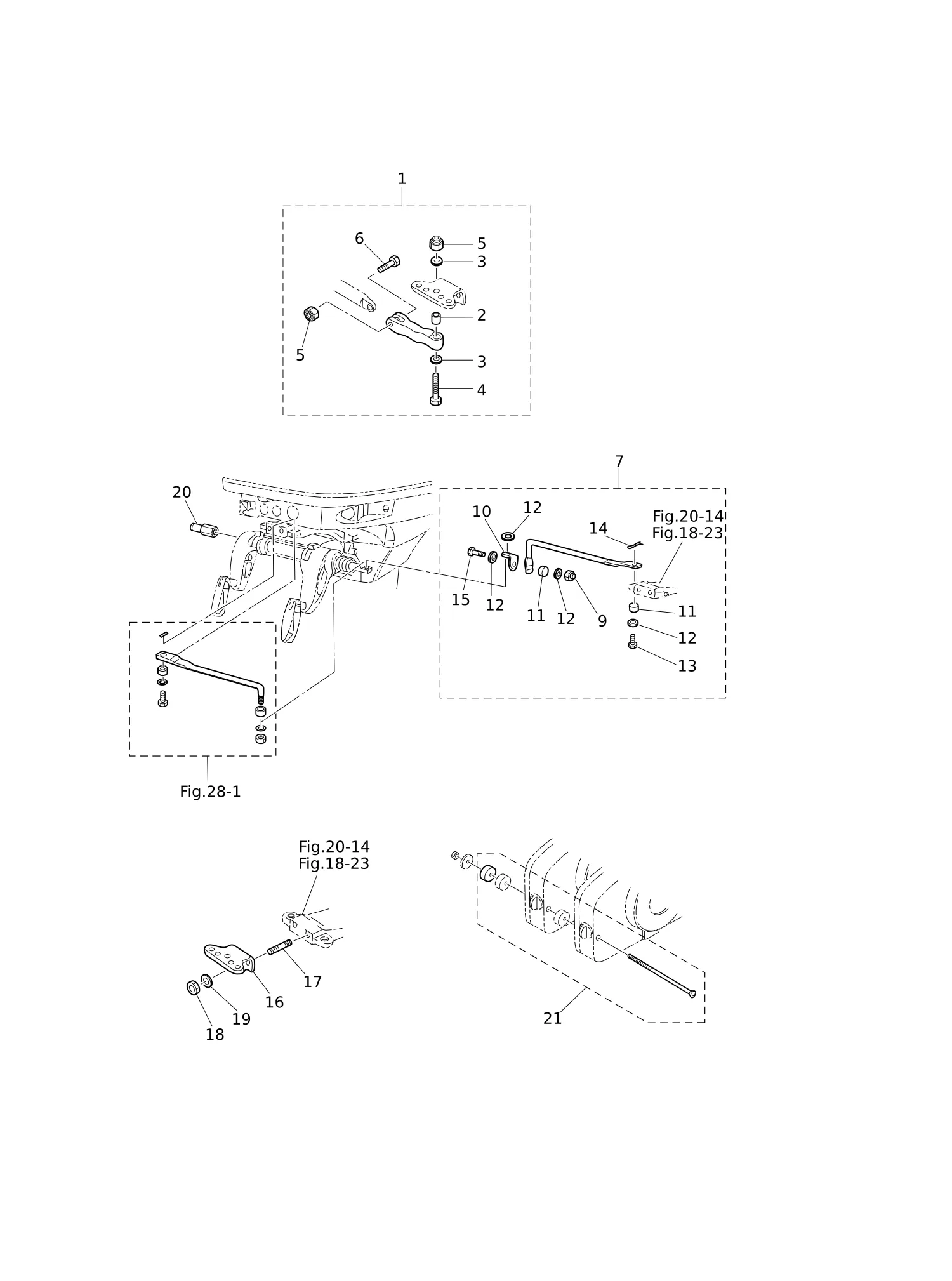

图 30选装件(3) OPTIONAL PARTS (3)

REF	零件编号	中文名称	英文名称	数量
1	3C8Q84960-0	U型接头总成	CLEVIS ASSY	1
2	3C8-84962-0	* 轴环 9.6-13-20.5	* COLLAR 9.6-13-20.5	1
4	3C8-84963-0	螺栓 3/8-43	* BOLT 3/8-43	1
6	3C8-84964-0	螺栓 3/8-35	* BOLT 3/8-35	1
7	3C8-84900-1	拉杆套件	TIE BAR KIT	1
9	353-84918-0	尼龙螺母 3/8-24UNF	* NYLON NUT 3/8-24UNF	1
10	3C8-84936-0	* 转向杆接头	* STEERING ROD JOINT	1
11	3C8-84914-1	* 轴环 9.6-13-6.5	* COLLAR 9.6-13-6.5	2
12	353-84916-0	* 垫圈 9.6-18-2	* WASHER 9.6-18-2	4
13	3C8-84917-0	螺栓 3/8-19	* BOLT 3/8-19	1
14	951503-0215	* 开口销	* SPLIT PIN	1
15	3C8-84937-0	螺栓 3/8-30	* BOLT 3/8-30	1
16	3E3-84830-0	转向钩	STEERING HOOK	1
17	3E3-62097-0	螺柱10-25 P1.25	STUD 10-25 P1.25	2
18	3C8-62098-0	尼龙螺母 10-P1.25	NYLON NUT 10-P1.25	2
19	940203-1000	垫圈	WASHER	2
20	353-84904-0	转向拉杆垫片	DRAG LINK SPACER	1
21	3A3-81301-0	双联遥控套件	TWIN REMOTE CONTROL KIT	1

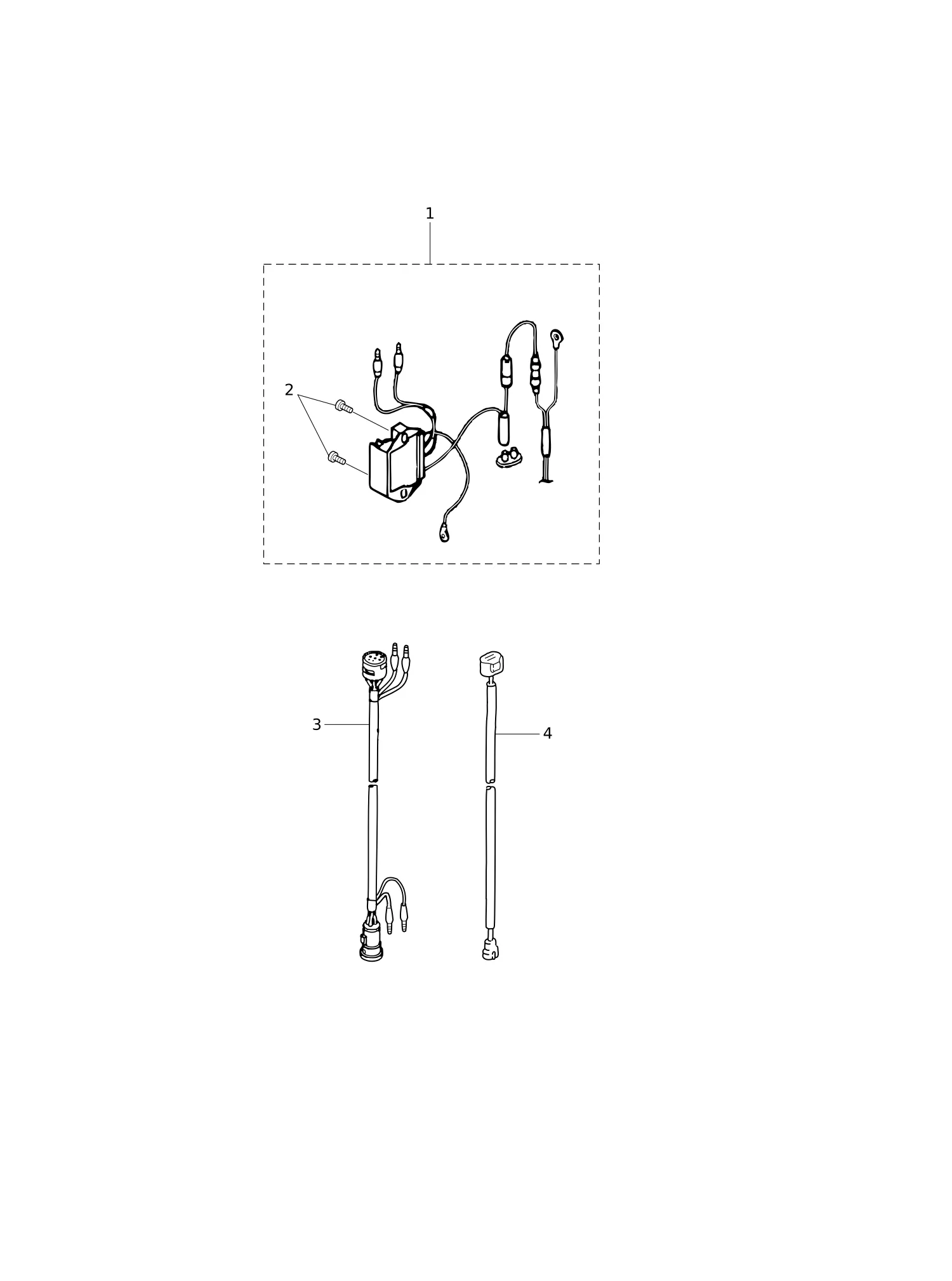

图 32选装件(5) OPTIONAL PARTS (5)

REF	零件编号	中文名称	英文名称	数量
1	3C8-76160-3	整流器套件	RECTIFIER KIT	1
2	921503-7625	* 螺钉	* SCREW	2
3	3A3-76114-0	延长线 L=2000	EXTENSION CORD L=2000	1
4	3Z4-72573-0	延长线(配平传感器) L=2000	EXTENSION CORD (TRIM SENSOR) L=2000	1

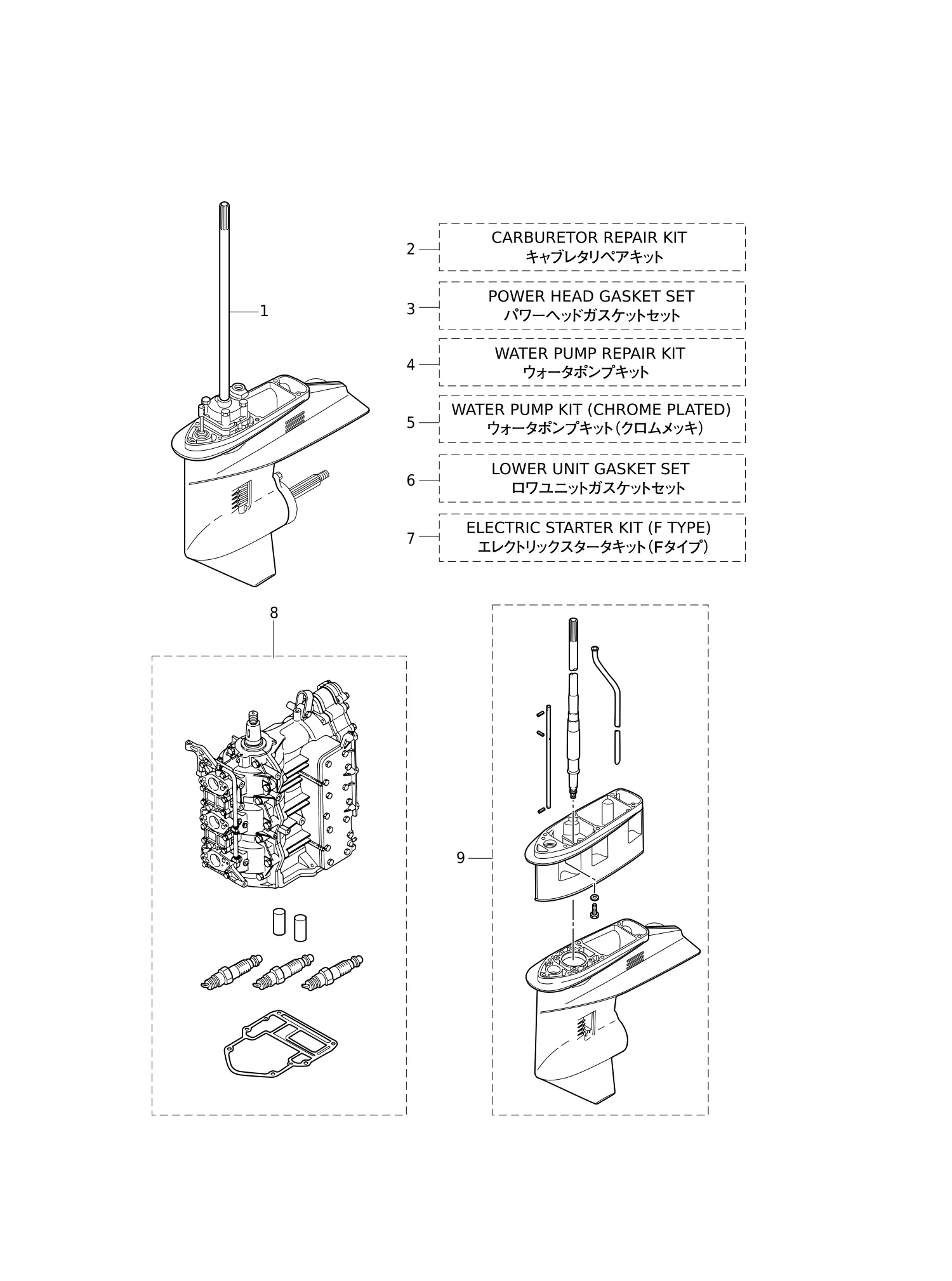

图 33套件零件总成 ASSEMBLY · KIT PARTS

REF	零件编号	中文名称	英文名称	数量
1	3T5Q87301-6	下部单元总成 (S)	LOWER UNIT ASSY (S)	1
1	3T5Q87302-6	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
2	3C8-03121-0	* 浮子室垫片	* FLOAT CHAMBER GASKET	3
2	3C8-03125-0	* 浮子	* FLOAT	3
2	3C8-03126-0	* 浮子臂销	* FLOAT ARM PIN	3
2	3C8-03169-0	* 塞	* PLUG	3
2	3C8-03181-0	* 化油器盖	* CARBURETOR COVER	3
2	3C8-03182-0	* 化油器盖垫片	* CARBURETOR COVER GASKET	3
2	3C8-03193-0	* 衬垫	* GASKET	3
2	3C8-87122-2	化油器修理包	CARBURETOR REPAIR KIT	1
2	3E3-02011-0	* 化油器衬垫	* CARBURETOR GASKET	3
2	3E3-03147-0	* 浮子阀	* FLOAT VALVE	3
2	922503-6410	* 螺钉	* SCREW	18
3	151-33159-0	* 衬垫 6.2-11-1	* GASKET 6.2-11-1	3
3	334-00122-0	* 油封 25-40-8	* OIL SEAL 25-40-8	1
3	346-01216-0	* O型圈1.7-59	* O-RING 1.7-59	1
3	353-01032-0	* 节温器盖衬垫	* THERMOSTAT CAP GASKET	1
3	3AD-02235-0	* O型圈	* O-RING	1
3	3B7-02235-0	* O型圈	* O-RING	1
3	3B7-02236-0	* O型圈	* O-RING	1
3	3C8-00108-0	* O型圈 2.4-39.7	* O-RING 2.4-39.7	1
3	3C8-01005-5	* 气缸盖垫片	* CYLINDER HEAD GASKET	1
3	3C8-01024-2	* 气缸盖罩衬垫	* CYLINDER HEAD COVER GASKET	1
3	3C8-01215-0	* 油封 16-28-7	* OIL SEAL 16-28-7	1
3	3C8-01303-4	* 发动机底座衬垫	* ENGINE BASEMENT GASKET	1
3	3C8-02011-0	* 化油器衬垫	* CARBURETOR GASKET	3
3	3C8-02104-2	* 进气歧管垫片	* INTAKE MANIFOLD GASKET	3
3	3C8-02305-2	* 排气盖衬垫	* EXHAUST COVER GASKET	2
3	3C8-09082-2	* 衬垫	* GASKET	1
3	3C8-87121-C	动力头衬垫套装	POWER HEAD GASKET SET	1
4	332-65022-0	* 键 20-4.6-2	* KEY 20-4.6-2	1
4	3C8-65025-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
4	3T5-65011-0	* 泵壳衬套	* PUMP CASE LINER	1
4	3T5-87322-3	水泵维修套件	WATER PUMP REPAIR KIT	1
4	9101E3-5855	螺栓	* BOLT	4
5	3C8-65021-2	* 水泵叶轮	* WATER PUMP IMPELLER	1
5	3C8-65239-1	* 水泵导板	* WATER PUMP GUIDE PLATE	1
5	3Z5-65231-1	水泵套件(镀铬)	WATER PUMP KIT (CHROME PLATED)	1
5	3Z5-65238-1	* 泵壳衬套	* PUMP CASE LINER	1
6	332-60006-1	* 衬垫	* GASKET	2
6	332-66021-0	* O型圈 2.4-5.8	* O-RING 2.4-5.8	1
6	345-60103-0	* O型圈 3.5-69.4	* O-RING 3.5-69.4	1
6	345-65015-0	* O型圈 3.2-47	* O-RING 3.2-47	1
6	3B7-60016-1	* 衬垫 10.1-15-1	* GASKET 10.1-15-1	1
6	3C8-02312-2	* 排气管衬垫	* EXHAUST PIPE GASKET	1
6	3C8-60223-0	油封 17-33-6	OIL SEAL 17-33-6	2
6	3C8-61012-2	* 驱动轴壳体衬垫	* DRIVE SHAFT HOUSING GASKET	1
6	3C8-61181-2	* 排气壳体衬垫	* EXHAUST HOUSING GASKET	1
6	3C8-65029-3	* 导板垫片	* GUIDE PLATE GASKET	1
6	3C8-66032-0	* O型圈 3.5-21.7	* O-RING 3.5-21.7	1
6	3F3-60223-0	* 油封 22-37-8	* OIL SEAL 22-37-8	2
6	3T5-65018-2	* 泵壳衬垫	* PUMP CASE GASKET	1
6	3T5-87321-3	下部单元衬垫套件	LOWER UNIT GASKET SET	1
7	346-76040-0	* 启动电磁阀	* STARTER SOLENOID	1
7	353-76062-1	* 保险丝组件 L=900 20A	* FUSE WIRE ASSY L=900 20A	1
7	3A3-76145-0	* 端子盖 8-13-28	* TERMINAL CAP 8-13-28	2
7	3B7-63731-0	* 垫圈 12.5-24-1	* WASHER 12.5-24-1	1
7	3B7-76065-5	* 整流器总成	* RECTIFIER COMPLETE	1
7	3B7-76093-0	* 衬套 25-5	* GROMMET 25-5	1
7	3B7-76120-2	蓄电池电缆 L=3000	* BATTERY CABLE L=3000	1
7	3C8-71035-0	* 机油滤清器支架	* OIL FILTER BRACKET	1
7	3C8-76007-0	* 减震器	* DAMPER	1
7	3C8-76009-0	* 启动电机带	* STARTER MOTOR BAND	1
7	3C8-76020-2	* 主开关总成	* MAIN SWITCH ASSY	1
7	3C8-76080-2	* 空档开关	* NEUTRAL SWITCH	1
7	3C8-76110-0	* 绳索总成	* CORD ASSY	1
7	3C8-76119-0	* 绳索总成	* CORD ASSY	1
7	3C8-76141-1	* 启动电缆 L=160	* STARTER CABLE L=160	1
7	3C8-76300-4	电动启动器套件(F)	ELECTRIC STARTER KIT (F)	1
7	3GF-76010-0	* 启动电机总成	* STARTER MOTOR ASSY	1
7	3PR-06972-0	* 卡箍 6.5-47.5P	* CLAMP 6.5-47.5P	1
7	910103-5825	螺栓	* BOLT	2
7	910103-6614	螺栓	* BOLT	2
7	910103-6616	螺栓	* BOLT	1
7	910103-6820	螺栓	* BOLT	1
7	910403-0612	螺栓	* BOLT	1
7	910403-5612	螺栓	* BOLT	1
7	921503-7625	* 螺钉	* SCREW	2
8	3C8B87090-F	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
8	3E3B87090-D	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
9	346-65204-0	* 水管辅助支架	* WATER PIPE AUXILIARY MOUNT	1
9	346-66037-0	* 凸轮杆支架	* CAM ROD HOLDER	1
9	353-66024-0	* 止动块	* STOPPER	1
9	3C8-64303-0	* 驱动轴（上长）	* DRIVE SHAFT (UL)	1
9	3C8-65120-0	* 水管 (上左)	* WATER PIPE (UL)	1
9	3C8-66014-0	* 凸轮杆(上左)	* CAM ROD (UL)	1
9	3C8Q60090-1	* 齿轮箱总成	* GEAR CASE ASSY	1
9	3C8Q61110-0	* 延伸壳体	* EXTENSION HOUSING	1
9	3C8Q87314-2	延伸壳体套件(超长)	EXTENSION HOUSING KIT (UL)	1
9	910103-5612	螺栓	* BOLT	1
9	9101E3-5835	螺栓	* BOLT	6
9	951403-0312	* 弹簧销 3-12	* SPRING PIN 3-12	2
9	951407-0312	* 弹簧销 3-12	* SPRING PIN 3-12	2
