东发 Tohatsu M4C/5B 2018 - 爆炸图零件明细

两冲程 2-Stroke · 2018 年 · 手册号 002-21005-0AH · 共 16 个部位 · 572 条零件

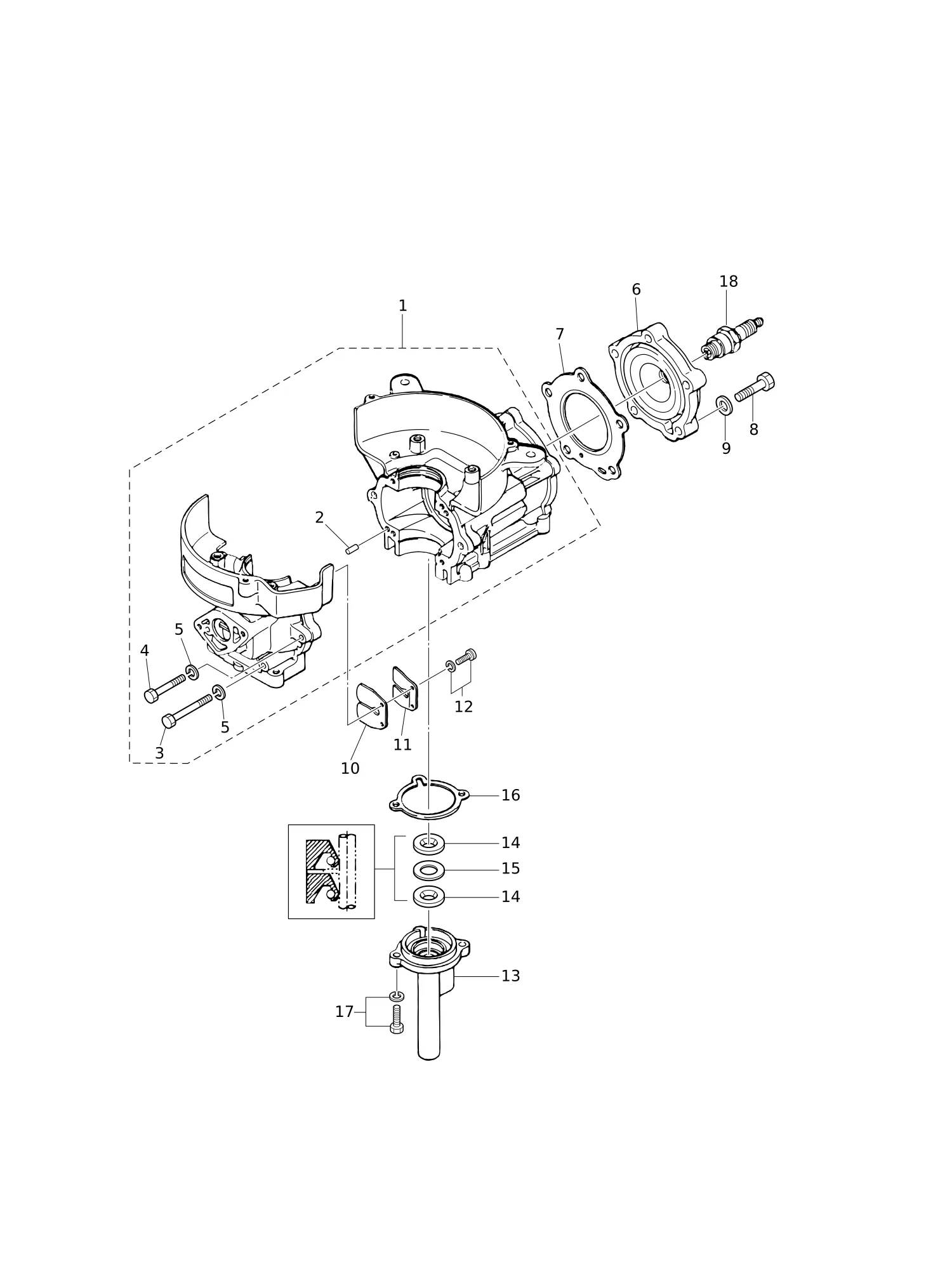

图 01气缸·曲轴箱 CYLINDER · CRANK CASE

REF	零件编号	中文名称	英文名称	数量
1	369B01100-2	气缸体与曲轴箱总成	CYL BLOCK & CRANKCASE ASSY	1
2	345-01111-0	* 定位销 6-12	* DOWEL PIN 6-12	2
3	916124-0653	螺栓	* BOLT	4
4	916124-0630	螺栓	* BOLT	2
5	941322-0600	* 弹簧垫圈	* SPRING WASHER	6
6	369B01001-1	气缸盖	CYLINDER HEAD	1
7	369-01005-2	气缸盖衬垫	CYLINDER HEAD GASKET	1
8	9161F4-0835	螺栓	BOLT	5
9	940124-0800	垫圈	WASHER	5
10	369-02111-0	簧片阀	REED VALVE	1
11	369-02113-0	簧片阀限位块	REED VALVE STOPPER	1
11	393-02113-0	簧片阀限位块	REED VALVE STOPPER	1
12	921521-6410	螺钉	SCREW	2
13	369-01210-4	曲轴箱盖	CRANKCASE HEAD	1
14	369-01215-0	油封 10.1-25-7	OIL SEAL 10.1-25-7	2
15	369-01217-0	垫片 19-24.8-1	SPACER 19-24.8-1	1
16	369-01214-0	曲轴箱盖垫片	CRANKCASE HEAD GASKET	1
17	910103-6620	螺栓	BOLT	2
18	9701-1-1014	火花塞 (BPR7HS-10)	SPARK PLUG(BPR7HS-10)	1

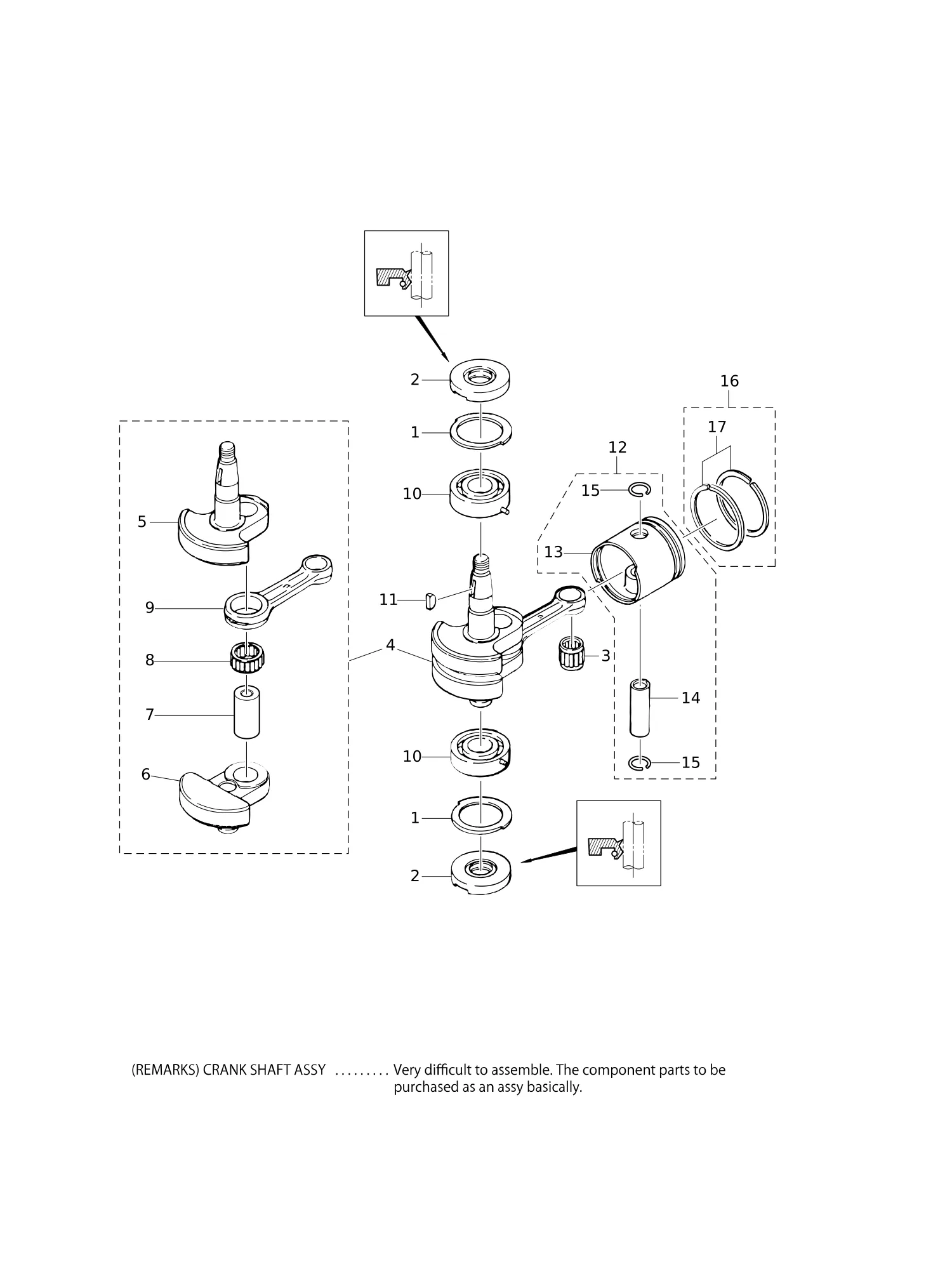

图 02活塞·曲轴 PISTON · CRANK SHAFT

REF	零件编号	中文名称	英文名称	数量
1	369-00115-0	止推板	THRUST PLATE	2
2	369-00122-0	油封 20-47-8	OIL SEAL 20-47-8	2
3	350-00042-0	滚柱轴承 14-18-20	ROLLER BEARING 14-18-20	1
4	369-00069-0	曲轴分总成	CRANKSHAFT SUB-ASSY	1
5	369-00031-0	* 曲轴A型	* CRANKSHAFT A	1
6	369-00034-0	* 曲轴D型	* CRANKSHAFT D	1
7	369-00061-1	* 曲柄销	* CRANK PIN	1
8	369-00043-0	* 滚柱轴承 20-26-12	* ROLLER BEARING 20-26-12	1
9	369-00040-0	* 连杆	* CONNECTING ROD	1
10	9603-3-6204	滚珠轴承 6204	BALL BEARING 6204	2
11	338-00131-0	键	KEY	1
12	369-87130-0	活塞修理包	PISTON REPAIR KIT	1
12	369-87131-0	活塞修理包（0.5加大）	PISTON REPAIR KIT (0.5 O/S)	1
13	369-00001-1	* 活塞	* PISTON	1
13	369-00004-1	* 活塞 (0.5 加大)	* PISTON (0.5 O/S)	1
14	369-00021-1	* 活塞销	* PISTON PIN	1
15	350-00024-1	* 活塞销卡簧	* PISTON PIN CLIP	2
16	369-87123-0	活塞环组	PISTON RING SET	1
16	369-87124-0	活塞环组（0.5加大）	PISTON RING SET (0.5 O/S)	1
17	351-00011-0	* 活塞环	* PISTON RING	2
17	351-00014-0	* 活塞环 (0.5 加大)	* PISTON RING (0.5 O/S)	2

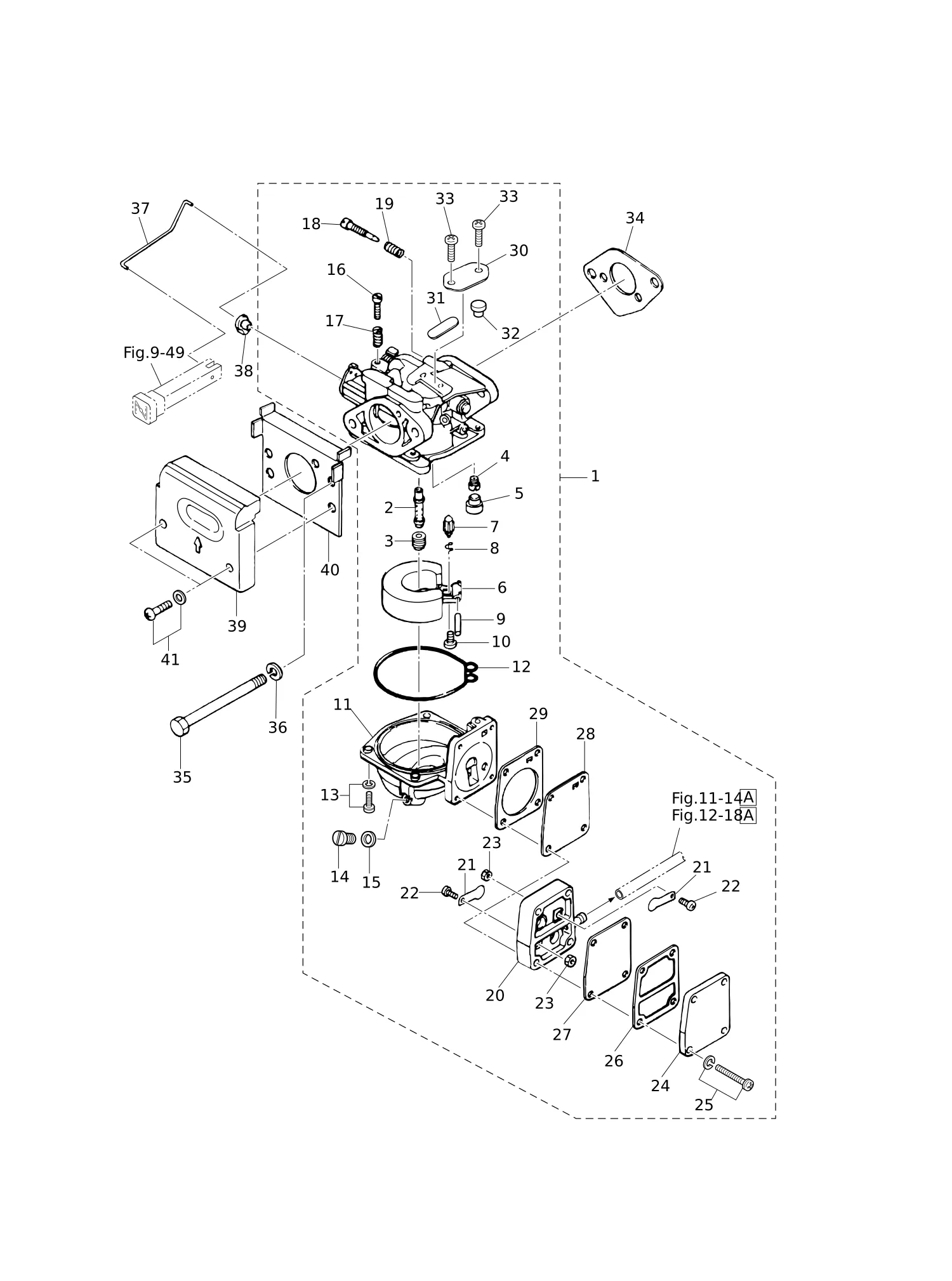

图 03化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	369-03200-2	化油器总成	CARBURETOR ASSY	1
1	393-03200-2	化油器总成	CARBURETOR ASSY	1
2	369-03252-1	* 主喷管	* MAIN NOZZLE	1
3	369-03251-0	* 主量孔 (#78)	* MAIN JET (#78)	1
4	369-03254-0	* 低速喷嘴(#55)	* SLOW JET (#55)	1
4	393-03254-0	* 低速喷嘴(#52)	* SLOW JET (#52)	1
5	346-03256-0	* 橡胶帽	* RUBBER CAP	1
6	369-03231-0	* 浮子	* FLOAT	1
7	369-03240-0	* 浮子阀	* FLOAT VALVE	1
8	344-03244-0	* 卡扣	* CLIP	1
9	346-03232-0	* 浮子臂销	* FLOAT ARM PIN	1
10	921521-0408	* 螺钉	* SCREW	1
11	369-03221-0	* 浮子室	* FLOAT CHAMBER	1
12	369-03222-0	* 浮子室O型圈	* FLOAT CHAMBER O-RING	1
13	922503-6412	* 螺钉	* SCREW	4
14	369-03292-0	* 放油螺钉	* DRAIN SCREW	1
15	369-03293-1	* 衬垫	* GASKET	1
16	346-03265-0	* 止动螺钉	* STOP SCREW	1
17	346-03267-0	* 弹簧	* SPRING	1
18	356-03266-0	* 调节螺钉	* PILOT SCREW	1
18	3B2-03266-0	* 调节螺钉	* PILOT SCREW	1
19	356-03268-0	* 弹簧	* SPRING	1
20	369-03304-0	* 泵体	* PUMP BODY	1
21	369-03305-0	* 止回阀	* CHECK VALVE	2
22	921821-0306	* 螺钉	* SCREW	2
23	930121-0300	螺母	* NUT	2
24	369-03301-0	* 泵盖	* PUMP COVER	1
25	922553-6423	* 螺钉	* SCREW	4
26	369-03302-0	* 泵盖衬垫	* PUMP COVER GASKET	1
27	369-03303-0	* 隔膜A	* DIAPHRAGM A	1
28	369-03306-0	* 隔膜B	* DIAPHRAGM B	1
29	369-03307-0	* 泵体衬垫	* PUMP BODY GASKET	1
30	369-03181-0	* 化油器盖	* CARBURETOR COVER	1
31	369-03182-0	* 化油器盖垫片	* CARBURETOR COVER GASKET	1
32	369-03183-0	* 化油器盖垫片	* CARBURETOR COVER GASKET	1
33	369-03186-0	* 螺钉	* SCREW	2
34	369-02011-0	化油器垫片	CARBURETOR GASKET	1
35	9161F1-0685	螺栓	BOLT	2
36	941322-0600	弹簧垫圈	SPRING WASHER	2
37	393-67192-0	阻风门拉杆	CHOKE ROD	1
38	346-67196-1	3-B连杆卡扣	ROD SNAP 3-B	1
39	369-02501-2	板	PLATE	1
40	369-02503-2	支架	HOLDER	1
41	921503-5418	螺钉	SCREW	2

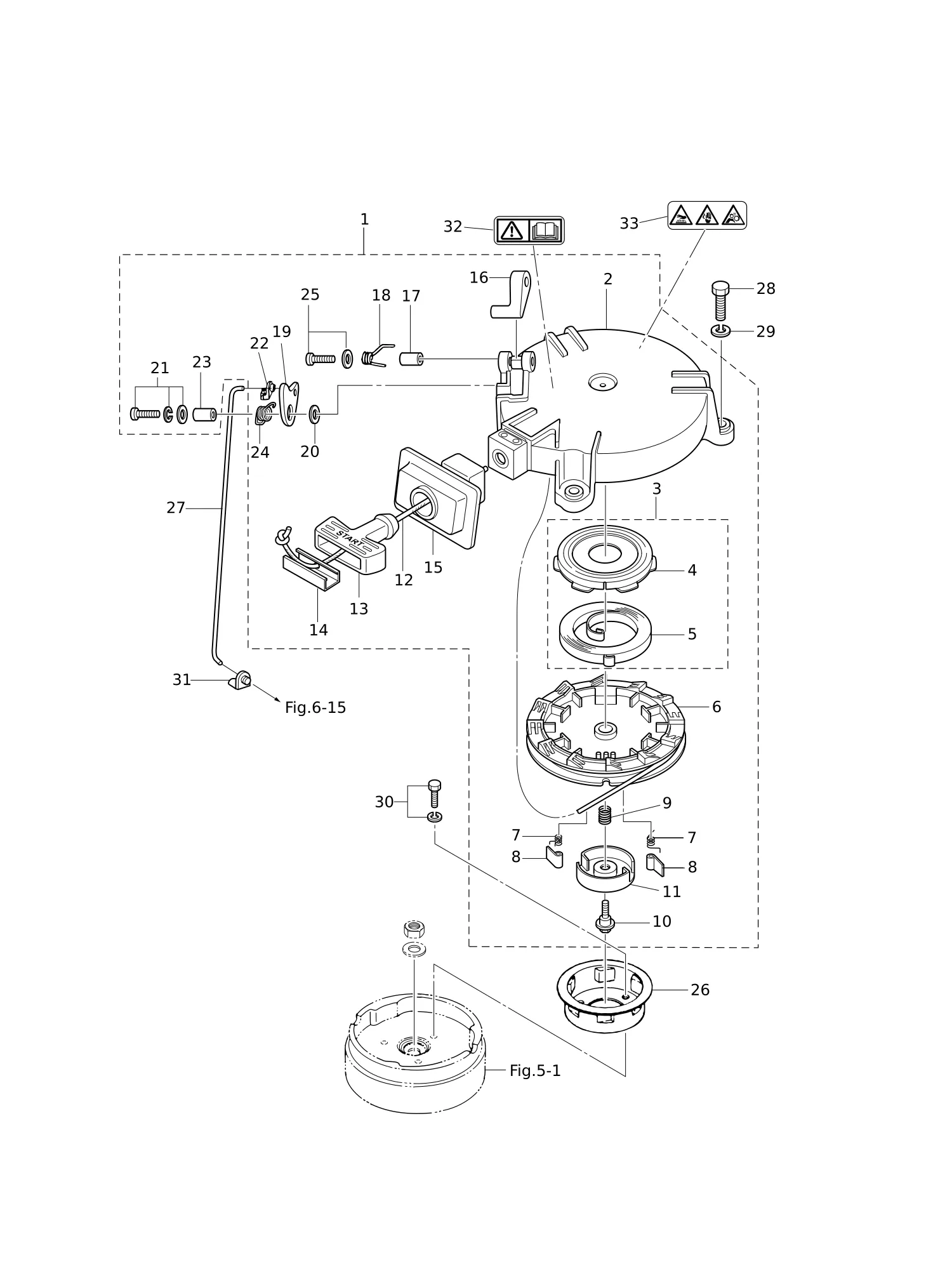

图 04反冲启动器·启动锁 RECOIL STARTER · STARTER LOCK

REF	零件编号	中文名称	英文名称	数量
1	3AS-05090-1	反冲启动器总成	RECOIL STARTER ASSY	1
2	3R1-05105-0	* 启动器外壳	* STARTER CASE	1
3	3R1-05010-0	* 启动弹簧组	* STARTER SPRING SET	1
4	3R1-05125-0	* 启动弹簧壳	* STARTER SPRING CASE	1
5	3R1-05004-0	* 启动弹簧	* STARTER SPRING	1
6	3R1-05104-0	* 卷轴	* REEL	1
7	3R1-05012-0	* 回位弹簧	* RETURN SPRING	2
8	3R1-05003-2	* 棘轮	* RATCHET	2
9	3R1-05007-0	* 摩擦弹簧	* FRICTION SPRING	1
10	3R1-05138-1	螺栓 5-10-6.8-7.8	* BOLT 5-10-6.8-7.8	1
11	3R1-05006-2	* 摩擦板	* FRICTION PLATE	1
12	3R1-05013-0	* 启动绳 φ4.5-1620	* STARTER ROPE φ4.5-1620	1
13	3R1-05019-0	* 启动手柄	* STARTER HANDLE	1
14	3R1-05131-1	* 绳索锚定器	* ROPE ANCHOR	1
15	3R1-05116-0	* 密封板	* SEALING PLATE	1
16	3R1-05252-0	* 启动器锁	* STARTER LOCK	1
17	3R1-05255-0	* 轴环 4-6-21	* COLLAR 4-6-21	1
18	3R1-05216-0	* 启动器锁弹簧	* STARTER LOCK SPRING	1
19	3R1-05253-0	* 启动器锁凸轮	* STARTER LOCK CAM	1
20	940103-0600	* 垫圈	* WASHER	1
21	921503-7616	* 螺钉	* SCREW	1
22	3R1-05223-0	* 连杆卡扣 3.5-2	* ROD SNAP 3.5-2	1
23	3R1-05215-0	* 轴环 6.1-8-6.5	* COLLAR 6.1-8-6.5	1
24	3R1-05258-0	* 启动器锁凸轮弹簧	* STARTER LOCK CAM SPRING	1
25	921503-5430	* 螺钉	* SCREW	1
26	3R1-05901-0	启动器皮带轮	STARTER PULLEY	1
27	369-05217-1	启动锁杆	STARTER LOCK ROD	1
28	9101F4-0623	螺栓	BOLT	3
29	941303-0600	弹簧垫圈	SPRING WASHER	3
30	910121-6612	螺栓	BOLT	3
31	345-05223-1	3.5-2连杆卡扣	ROD SNAP 3.5-2	1
32	3F0-72185-0	警示标贴	CAUTION DECAL	1
33	314-72185-0	警示标贴	CAUTION DECAL	1

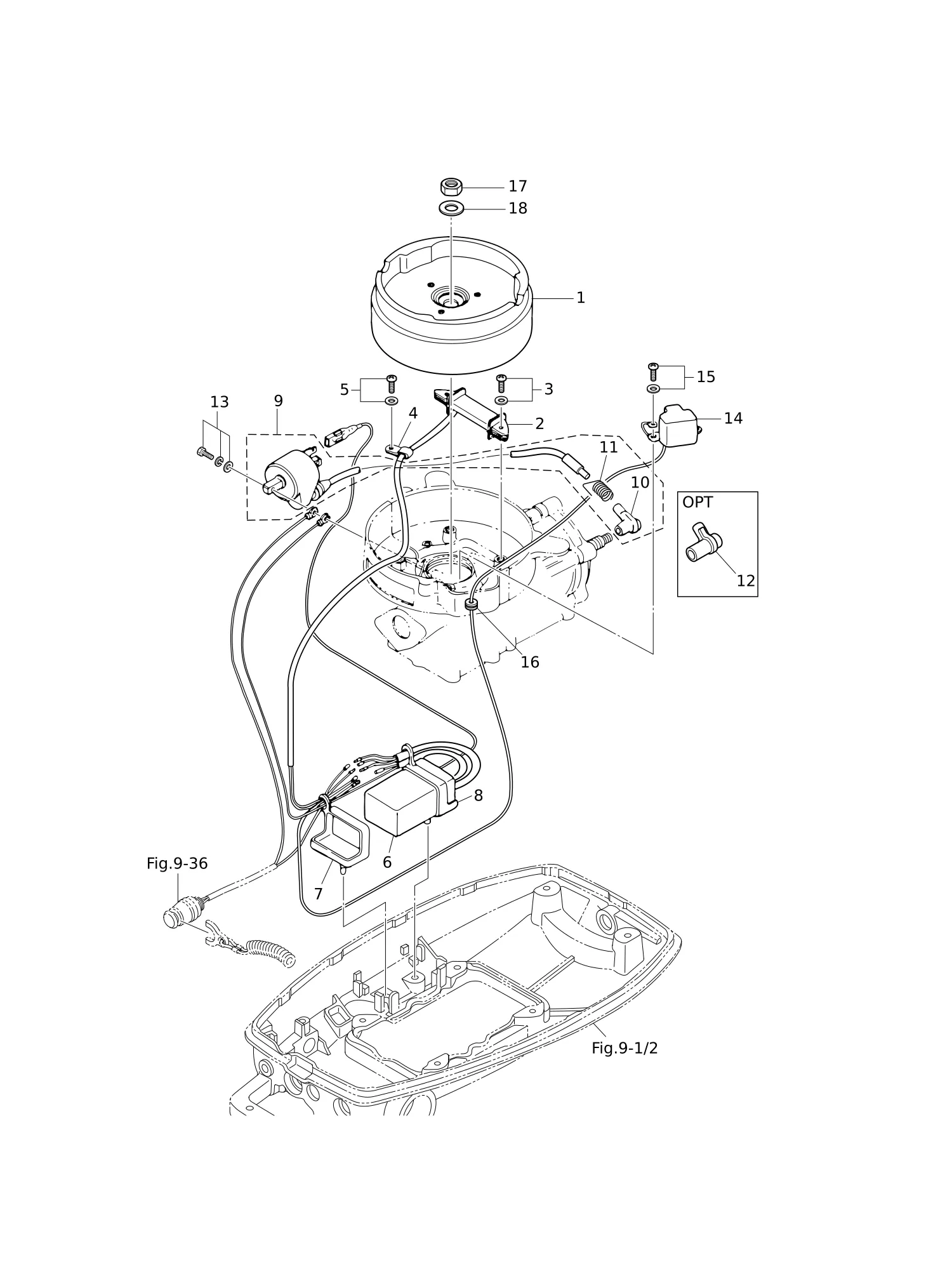

图 05磁电机 MAGNETO

REF	零件编号	中文名称	英文名称	数量
1	369-06001-1	飞轮	FLYWHEEL	1
2	369-06021-0	励磁线圈	EXCITER COIL	1
3	921521-6520	螺钉	SCREW	2
4	369-06915-0	卡箍 4.2-3-8	CLAMP 4.2-3-8	1
5	921521-6408	螺钉	SCREW	1
6	369-06060-1	CD单元	CD UNIT	1
7	3H6-06907-0	橡胶减震器	RUBBER DAMPER	1
8	3H6-06906-0	橡胶减震器	RUBBER DAMPER	1
9	3F9-06050-0	带帽点火线圈	IGNITION COIL W/CAP	1
10	3M2-06921-0	* 火花塞帽	* PLUG CAP	1
11	3M2-06926-0	* 火花塞帽端子	* PLUG CAP TERMINAL	1
12	3C7-06921-0	带电阻火花塞帽	PLUG CAP W/RESISTANCE	1
13	910121-7622	螺栓	BOLT	2
14	369-06071-0	脉冲线圈	PULSAR COIL	1
15	921521-6412	螺钉	SCREW	2
16	369-06908-0	衬套 φ11.2	GROMMET φ11.2	1
17	369-00132-0	螺母 12-P1.25	NUT 12-P1.25	1
18	940121-1200	垫圈	WASHER	1

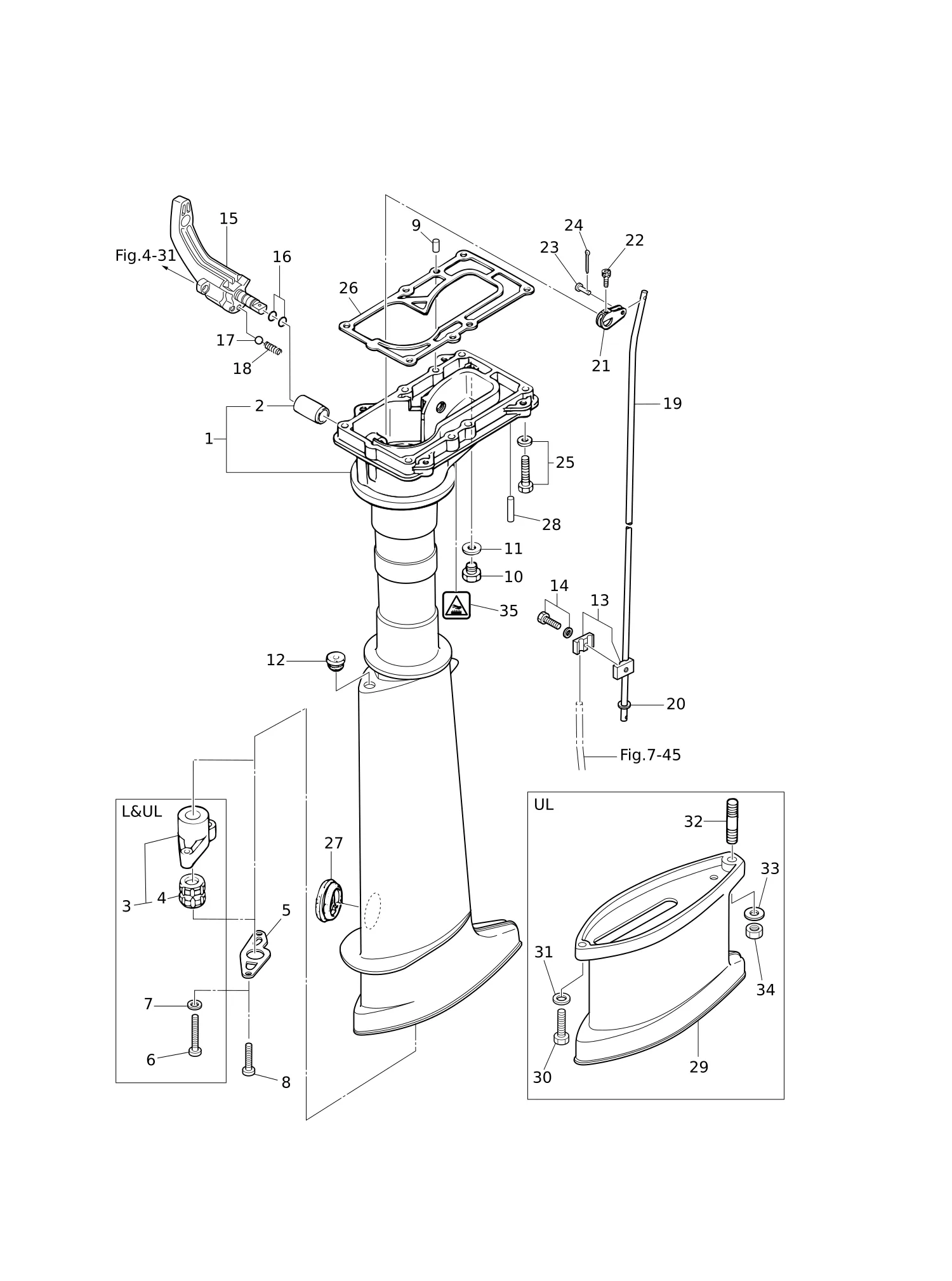

图 06驱动轴外壳·换挡机构 DRIVE SHAFT HOUSING · SHIFT

REF	零件编号	中文名称	英文名称	数量
1	369Q61020-4	驱动轴壳体总成(S)	DRIVE SHAFT HOUSING ASSY (S)	1
1	369Q61030-6	驱动轴壳体总成(L)	DRIVE SHAFT HOUSING ASSY (L)	1
2	301-61021-0	* 衬套	* BUSHING	1
3	369-64331-2	驱动轴衬套总成	DRIVE SHAFT BUSHING ASSY	1
4	369-60003-0	* 驱动轴衬套	* DRIVE SHAFT BUSHING	1
5	369-64332-1	止动块	STOPPER	1
6	3H6-64333-1	预涂层螺钉5-25	PRE-COATED SCREW 5-25	2
7	9401E3-0500	垫圈	WASHER	2
8	921553-0510	螺钉	SCREW	2
9	345-01111-0	定位销6-12	DOWEL PIN 6-12	2
10	9106E3-0808	螺栓	BOLT	1
11	332-60006-0	衬垫8.1-15-1	GASKET 8.1-15-1	1
12	369-66043-1	索环 10.7-3.5	GROMMET 10.7-3.5	1
13	369-66241-0	换挡杆接头总成	SHIFT ROD JOINT ASSY	1
14	910103-5616	螺栓	BOLT	1
15	369-66110-4	换挡杆	SHIFT LEVER	1
16	301-66136-0	O型圈1.9-8.8	O-RING 1.9-8.8	2
17	369-66116-0	陶瓷球7.7	CERAMIC BALL 7.7	1
18	369-66112-1	弹簧	SPRING	1
19	369-66214-0	换挡连杆(短)	SHIFT ROD (S)	1
19	369-66215-0	换挡连杆(长)	SHIFT ROD (L)	1
21	369-66225-0	换挡杆手柄	SHIFT ROD LEVER	1
22	910903-6416	螺栓	BOLT	1
23	369-66223-0	销钉	PIN	1
24	951503-1210	开口销	SPLIT PIN	1
25	9101E3-5630	螺栓	BOLT	6
26	369-61012-2	驱动轴壳体衬垫	DRIVE SHAFT HOUSING GASKET	1
27	369-61016-0	索环 29-3	GROMMET 29-3	1
28	369-61097-0	出水软管	WATER OUTLET HOSE	1
29	369Q61110-2	延伸壳体	EXTENSION HOUSING	1
30	9161E3-0625	螺栓	BOLT	1
31	9401E3-0600	垫圈	WASHER	1
32	9152E3-0825	螺柱	STUD	1
33	9401E3-0800	垫圈	WASHER	1
34	930103-0800	螺母	NUT	1
35	3GR-76191-0	高温警示标贴	HIGH TEMPERATURE CAUTION DECAL	1

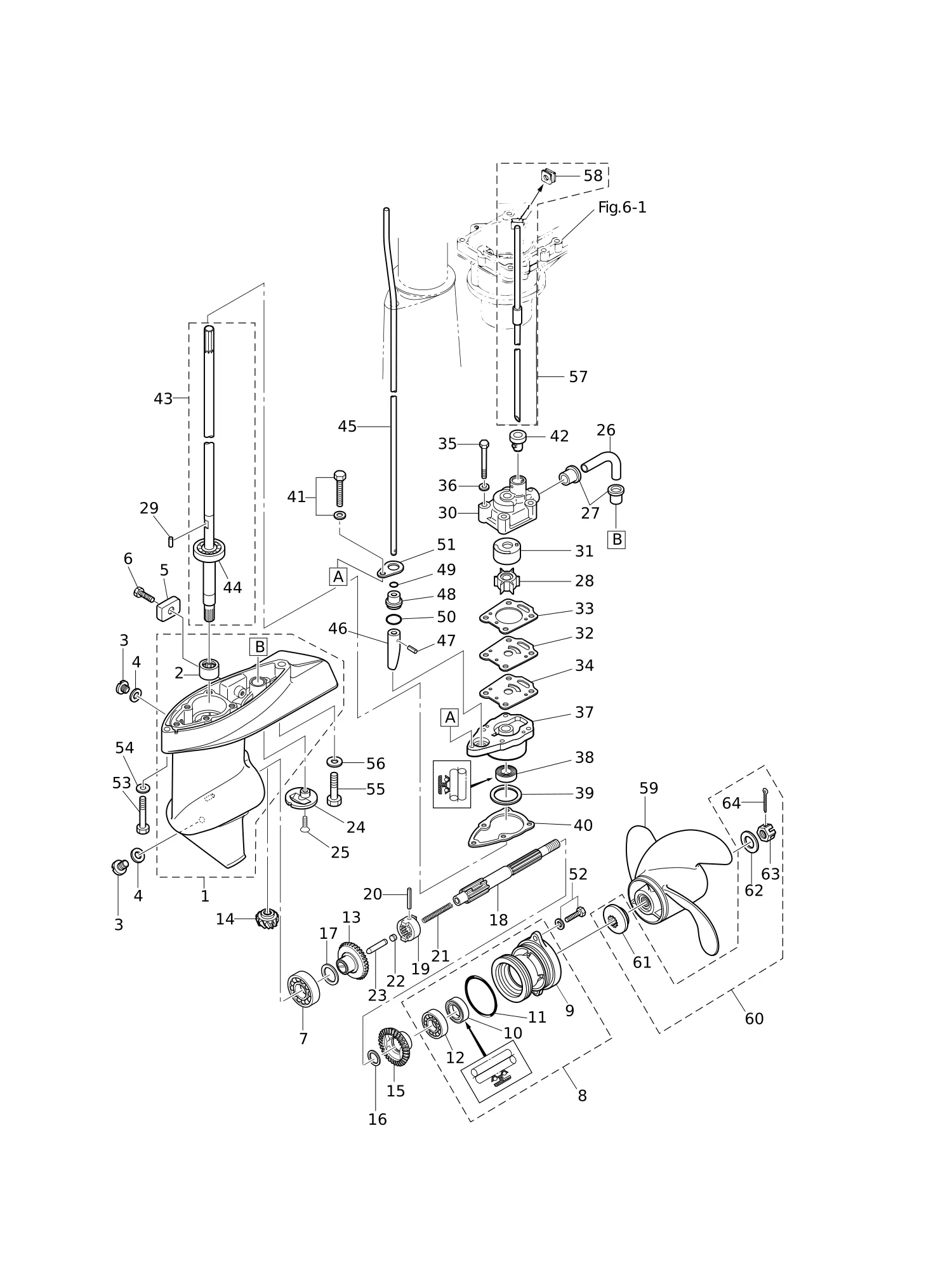

图 07齿轮箱 GEAR CASE

REF	零件编号	中文名称	英文名称	数量
1	369Q60000-3	齿轮箱总成	GEAR CASE ASSY	1
2	369-60211-0	* 滚柱轴承 14-20-12	* ROLLER BEARING 14-20-12	1
3	332-60005-2	塞 8-8	PLUG 8-8	2
4	332-60006-0	衬垫8.1-15-1	GASKET 8.1-15-1	2
5	3H6-60218-0	阳极块	ANODE	1
6	910103-0616	螺栓	BOLT	1
7	9601-0-6004	滚珠轴承 6004	BALL BEARING 6004	1
8	369Q87323-1	螺旋桨轴套总成	PROPELLER SHAFT HOUSING ASSY	1
9	369Q60101-1	* 螺旋桨轴套	* PROPELLER SHAFT HOUSING	1
10	369-60111-0	* 油封 15-28-10	* OIL SEAL 15-28-10	1
11	345-65015-0	* O型圈 3.2-47	* O-RING 3.2-47	1
12	9601-0-6002	* 球轴承 6002	* BALL BEARING 6002	1
13	3GR-64010-0	锥齿轮总成(A)	BEVEL GEAR ASSY (A)	1
14	3GR-64020-0	锥齿轮B	BEVEL GEAR B	1
15	3GR-64089-0	锥齿轮总成(C)	BEVEL GEAR ASSY (C)	1
16	369-64032-0	垫片 15.2-19-1.9	WASHER 15.2-19-1.9	1
17	369-64014-0	垫片 21-28-0.1	SHIM 21-28-0.1	1
17	369-64015-0	垫片 21-28-0.15	SHIM 21-28-0.15	1
18	369-64211-1	螺旋桨轴	PROPELLER SHAFT	1
19	301-64215-1	离合器	CLUTCH	1
20	301-64217-0	销 3.5-28	PIN 3.5-28	1
21	393-64221-0	弹簧	SPRING	1
22	369-64222-0	弹簧挡圈	SPRING RETAINER	1
23	369-64223-0	推杆	PUSH ROD	1
24	369-60206-0	滤水器	WATER STRAINER	1
25	921803-0620	螺钉	SCREW	1
26	369-65035-0	水管(下)	WATER PIPE (LOWER)	1
27	369-65036-0	密封件	SEAL	2
28	369-65021-1	水泵叶轮	WATER PUMP IMPELLER	1
29	369-65022-0	键 φ2-11	KEY φ2-11	1
30	369-65016-0	泵壳(上)	PUMP CASE (UPPER)	1
31	369-65011-0	泵壳衬套	PUMP CASE LINER	1
32	369-65025-0	水泵导板	WATER PUMP GUIDE PLATE	1
33	369-65018-0	泵壳垫片	PUMP CASE GASKET	1
34	369-65029-0	导板垫片	GUIDE PLATE GASKET	1
36	940103-0600	垫圈	WASHER	4
37	369-65017-1	泵壳(下)	PUMP CASE (LOWER)	1
38	369-60223-0	油封 10-24-8	OIL SEAL 10-24-8	1
39	369-64081-1	垫片 26.5-34.8-0.1	SHIM 26.5-34.8-0.1	1
39	369-64082-1	垫片 26.5-34.8-0.15	SHIM 26.5-34.8-0.15	1
40	369-65020-0	泵壳垫片(下)	PUMP CASE GASKET (LOWER)	1
41	910103-5625	螺栓	BOLT	1
42	369-65014-0	水管密封件(下)	WATER PIPE SEAL (LOWER)	1
43	369-64301-0	驱动轴总成(S)	DRIVE SHAFT ASSY (S)	1
43	369-64302-0	驱动轴总成(L)	DRIVE SHAFT ASSY (L)	1
43	369-64303-0	驱动轴总成(UL)	DRIVE SHAFT ASSY (UL)	1
44	9601-0-6300	* 球轴承 6300	* BALL BEARING 6300	1
45	369-66012-1	凸轮杆(短)	CAM ROD (S)	1
45	369-66013-1	凸轮杆(长)	CAM ROD (L)	1
45	369-66014-2	凸轮杆(超长)	CAM ROD (UL)	1
46	369-66011-0	离合器凸轮	CLUTCH CAM	1
47	951407-0310	弹簧销 3-10	SPRING PIN 3-10	1
48	369-66031-0	凸轮杆衬套	CAM ROD BUSHING	1
49	369-66021-1	O型圈 2.5-4.9	O-RING 2.5-4.9	1
50	332-66032-0	O型圈 2.4-15.4	O-RING 2.4-15.4	1
51	369-66033-0	止动块	STOPPER	1
52	9101E3-5616	螺栓	BOLT	2
53	9161E3-0645	螺栓	BOLT	1
54	9401E3-0600	垫圈	WASHER	1
55	9161E3-0835	螺栓	BOLT	1
56	9401E3-0800	垫圈	WASHER	1
57	369-65100-0	水管总成(短)	WATER PIPE ASSY (S)	1
57	369-65110-0	水管总成(左)	WATER PIPE ASSY (L)	1
57	369-65120-0	水管总成(左上)	WATER PIPE ASSY (UL)	1
58	369-65195-0	* 护孔环 10-2	* GROMMET 10-2	1
59	369B64518-1	螺旋桨总成(9英寸)	PROPELLER ASSY (9")	1
59	393B64512-1	螺旋桨总成(6英寸)	PROPELLER ASSY (6")	1
59	3R1B64514-2	螺旋桨总成(7英寸)	PROPELLER ASSY (7)	1
59	3R1B64516-2	螺旋桨总成(8英寸)	PROPELLER ASSY (8)	1
60	3H6-87326-0	螺旋桨五金件套件	PROPELLER HARDWARE KIT	1
61	3AS-64230-0	* 推力支架总成	* THRUST HOLDER ASSY	1
62	369-64124-0	* 垫圈 10.5-28-2	* WASHER 10.5-28-2	1
63	369-64121-0	* 螺旋桨螺母	* PROPELLER NUT	1
64	951503-0318	* 开口销 3-18	* SPLIT PIN 3-18	1

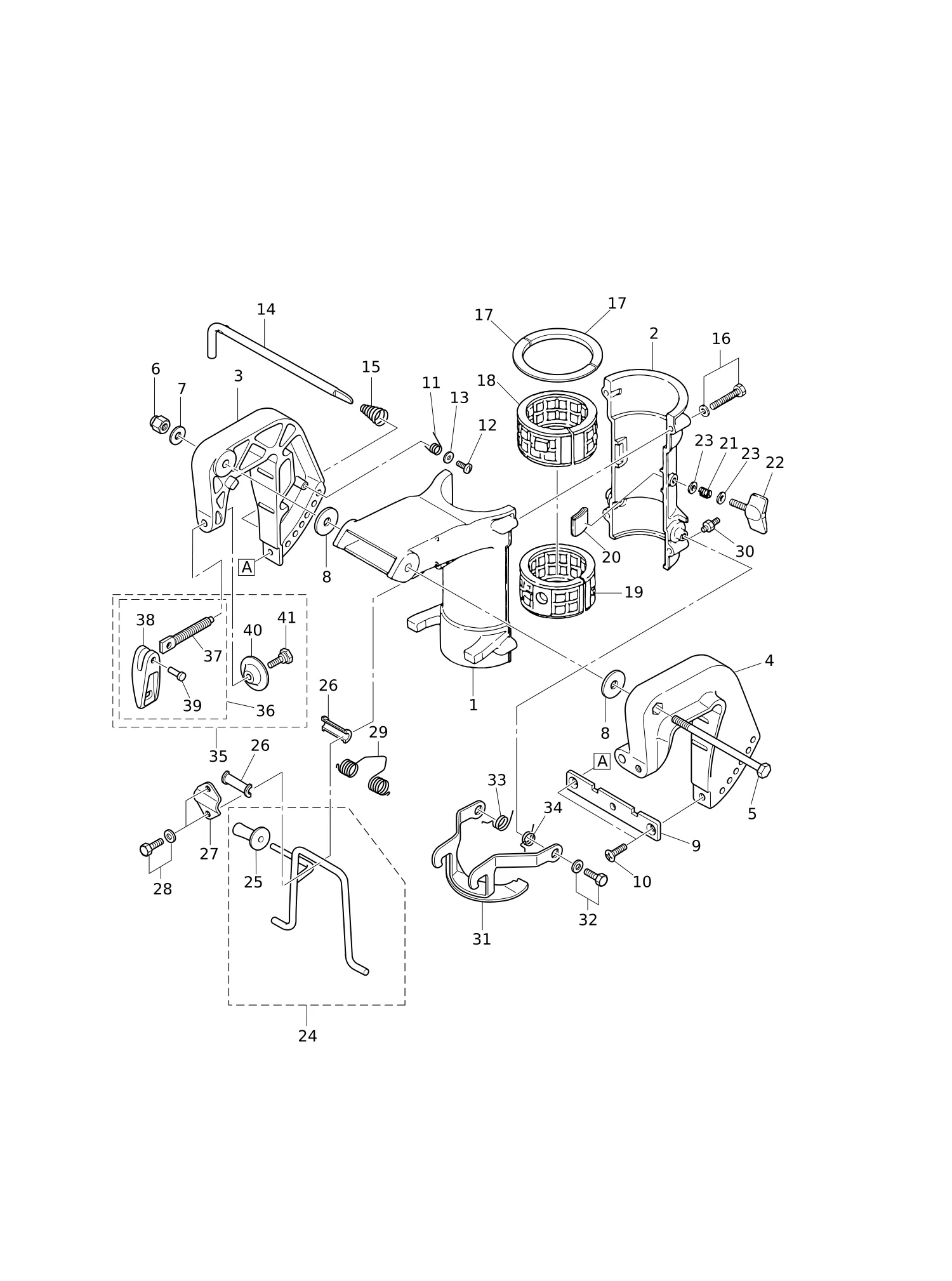

图 08支架·倒挡锁臂 BRACKET · REVERSE LOCK ARM

REF	零件编号	中文名称	英文名称	数量
1	369Q62391-2	旋转支架	SWIVEL BRACKET	1
2	393Q62392-1	旋转支架	SWIVEL BRACKET	1
3	369Q62112-3	夹紧支架(右)	CLAMP BRACKET (R)	1
4	369Q62113-2	卡箍支架 (左)	CLAMP BRACKET (L)	1
5	309-62115-2	螺栓8-122	BOLT 8-122	1
6	930403-0800	尼龙螺母 8-P1.25	NYLON NUT 8-P1.25	1
7	9401E3-0800	垫圈	WASHER	1
8	307-62116-1	垫圈 8.5-28-1	WASHER 8.5-28-1	2
9	369-62118-0	隔板	DISTANCE PLATE	1
10	9216E3-0612	螺钉	SCREW	2
11	369-62146-1	船尾支架弹簧	STERN BRACKET SPRING	1
12	921703-0406	螺钉	SCREW	1
13	369-62147-0	垫片 4.3-16-1.5	WASHER 4.3-16-1.5	1
14	350-62121-2	推力杆	THRUST ROD	1
15	369-62122-2	推力杆弹簧	THRUST ROD SPRING	1
16	9101E3-5635	螺栓	BOLT	4
17	369-62422-0	上止推板	THRUST PLATE (UPPER)	2
18	393-62416-1	衬套	BUSHING	1
19	393-62417-1	衬套	BUSHING	1
20	369-62441-1	摩擦片	FRICTION PIECE	2
21	309-62446-1	弹簧	SPRING	1
22	3GT-62442-0	摩擦旋钮	FRICTION KNOB	1
23	9401E3-0600	垫圈	WASHER	2
24	3AS-62431-0	倾斜止动器总成	TILT STOPPER ASSY	1
25	3AS-62433-0	* 倾斜止动握把	* TILT STOPPER GRIP	1
26	393-62437-1	衬套	BUSHING	2
27	369-62439-1	定位板	SETTING PLATE	1
28	9101E3-5612	螺栓	BOLT	2
29	369-62434-0	弹簧	SPRING	1
30	344-67177-1	黄油嘴	GREASE FITTING	2
31	369-66313-0	倒车锁臂	REVERSE LOCK ARM	1
32	9101E3-5614	螺栓	BOLT	2
33	369-66338-0	倒挡锁弹簧(右)	REVERSE LOCK SPRING (R)	1
34	369-66339-0	倒挡锁弹簧(左)	REVERSE LOCK SPRING (L)	1
35	3GTQ62105-1	夹紧螺丝套件	CLAMP SCREW KIT	2
36	3GTQ62108-1	* 卡箍螺丝总成	* CLAMP SCREW ASSY	1
37	369-62106-1	夹紧螺钉	** CLAMP SCREW	1
38	3ABQ62102-0	夹紧螺钉手柄	** CLAMP SCREW HANDLE	1
39	3C8-62104-2	铆钉 3-22	** RIVET 3-22	1
40	332-62101-1	* 卡箍螺丝垫片	* CLAMP SCREW PAD	1
41	3C8-62107-0	* 肩螺栓	* SHOULDER BOLT	1

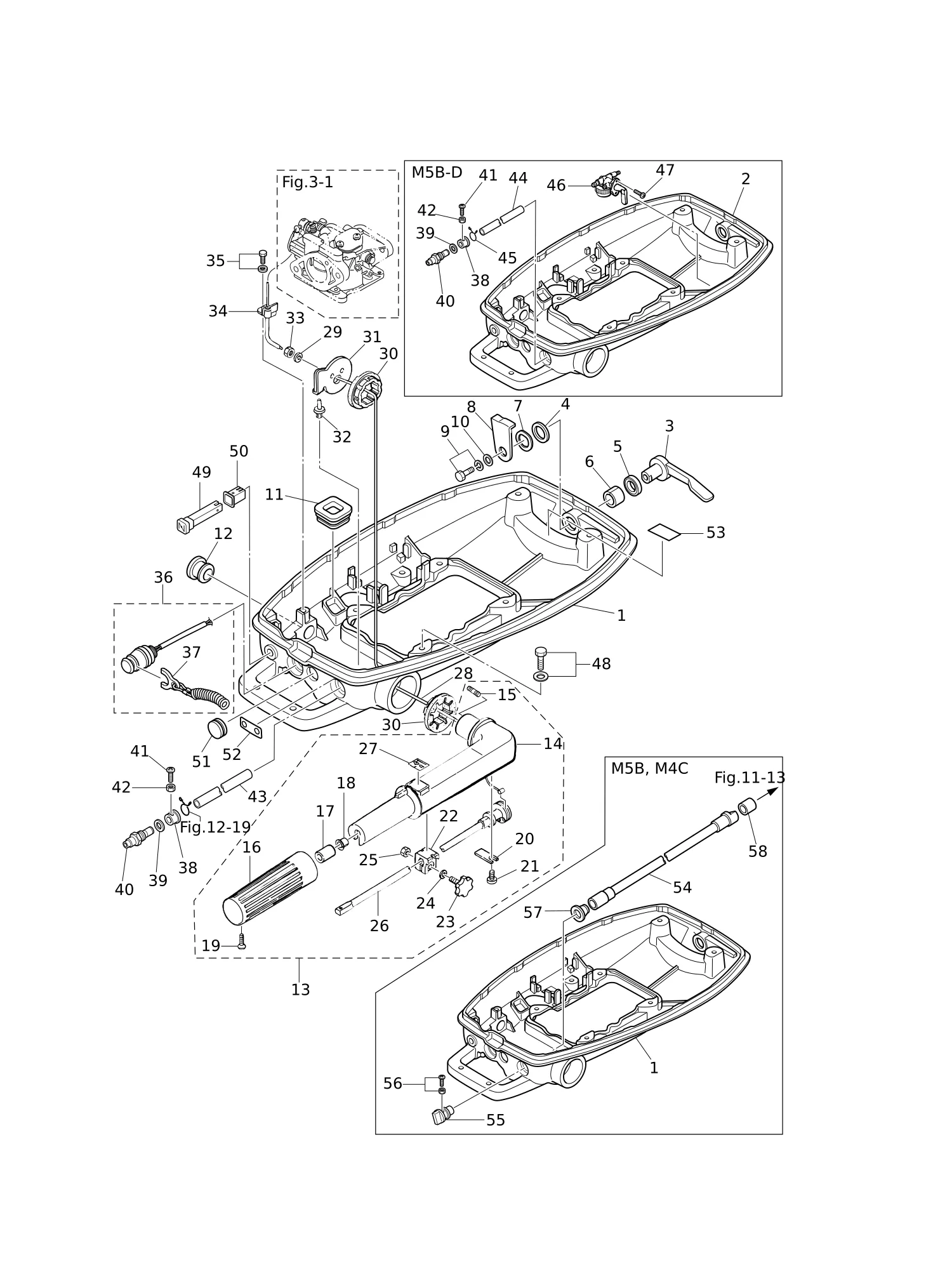

图 09下罩壳·舵柄 BOTTOM COWL · TILLER HANDLE

REF	零件编号	中文名称	英文名称	数量
1	369Q67100-3	下罩壳	BOTTOM COWL	1
2	393Q67100-3	下罩壳	BOTTOM COWL	1
3	369Q67141-1	挂钩杆	HOOK LEVER	1
4	3C8-67146-0	垫片 14-22-1	WASHER 14-22-1	1
5	338-67147-0	密封环 13.8-22-3.7	SEAL RING 13.8-22-3.7	1
6	369-67105-0	挂钩杆衬套	HOOK LEVER BUSHING	1
7	941403-1400	波形垫圈 d=14	WAVE WASHER d=14	1
8	369-67142-0	盖板挂钩	COVER HOOK	1
9	910103-6612	螺栓	BOLT	1
10	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	1
11	369-67188-0	索环 18-7	GROMMET 18-7	1
12	369-67187-0	索环 16-15.5	GROMMET 16-15.5	1
13	369Q63010-1	舵柄总成	TILLER HANDLE ASSY	1
14	3B2Q63011-1	* 舵柄手柄	* TILLER HANDLE	1
15	3B2-63104-1	* 双头螺柱	* STUD	2
16	369-63012-1	* 手柄	* GRIP	1
17	345-63048-0	* 节气门轴缓冲器	* THROTTLE SHAFT DAMPER	1
18	350-63046-0	* 衬套 8.4-10-11	* BUSHING 8.4-10-11	1
19	920803-0518	* 螺钉	* SCREW	1
20	3B2-63063-0	* 节气门轴支撑	* THROTTLE SHAFT SUPPORT	1
21	9215E3-0612	* 螺钉	* SCREW	1
22	3B2-63035-1	* 摩擦片	* FRICTION PIECE	1
23	3B2-63034-0	* 调节螺钉 M6-16	* ADJUSTING SCREW M6-16	1
24	940103-0600	* 垫圈	* WASHER	1
26	3B2-63041-0	* 节气门轴	* THROTTLE SHAFT	1
27	369-72019-1	* 油门标识贴	* THROTTLE DECAL	1
28	369-63600-1	节气门拉线	THROTTLE WIRE	1
29	941303-0600	弹簧垫圈	SPRING WASHER	2
30	369-63102-0	衬套	BUSHING	2
31	369-63103-2	转向手柄限位器	STEERING HANDLE STOPPER	1
32	350-67154-0	塑料铆钉 6.5	PLASTIC RIVET 6.5	1
33	930103-0600	螺母	NUT	2
34	369-63508-0	节气门拉线支架	THROTTLE WIRE BRACKET	1
35	910121-6612	螺栓	BOLT	1
36	3D5-06870-0	停止开关总成	STOP SWITCH ASSY	1
37	353-06821-0	* 停机开关拉绳总成	* STOP SWITCH LANYARD ASSY	1
38	369-70263-0	衬套	BUSHING	1
39	941303-1000	弹簧垫圈	SPRING WASHER	1
40	3B2-70260-1	燃油接头（公头）	FUEL CONNECTOR (MALE)	1
41	921503-0414	螺钉	SCREW	1
42	930103-0400	螺母	NUT	1
43	98AB-50-200	软管	HOSE	1
44	98AB-50-110	软管	HOSE	1
45	338-02215-0	卡扣φ10	CLIP φ10	1
46	394-70311-0	燃油旋塞总成	FUEL COCK ASSY	1
47	921803-0410	螺钉	SCREW	2
48	9101E3-5616	螺栓	BOLT	4
49	369-67151-2	阻风门拉杆	CHOKE ROD	1
50	393-67104-0	阻风门拉杆衬套	CHOKE ROD BUSHING	1
51	345-67117-0	索环 17-2.7	GROMMET 17-2.7	1
52	369-72016-0	燃油液位标贴	FUEL LEVEL DECAL	1
53	369-72026-0	火花塞贴花 (BPR7HS10)	SPARK PLUG DECAL (BPR7HS10)	1
54	369-70061-0	燃油阀杆	FUEL COCK ROD	1
55	369-70062-0	燃油旋塞旋钮	FUEL COCK KNOB	1
56	921503-6410	螺钉	SCREW	1
57	369-70063-0	密封环	SEAL RING	1
58	353-72544-1	燃油阀杆软管	FUEL COCK ROD HOSE	1

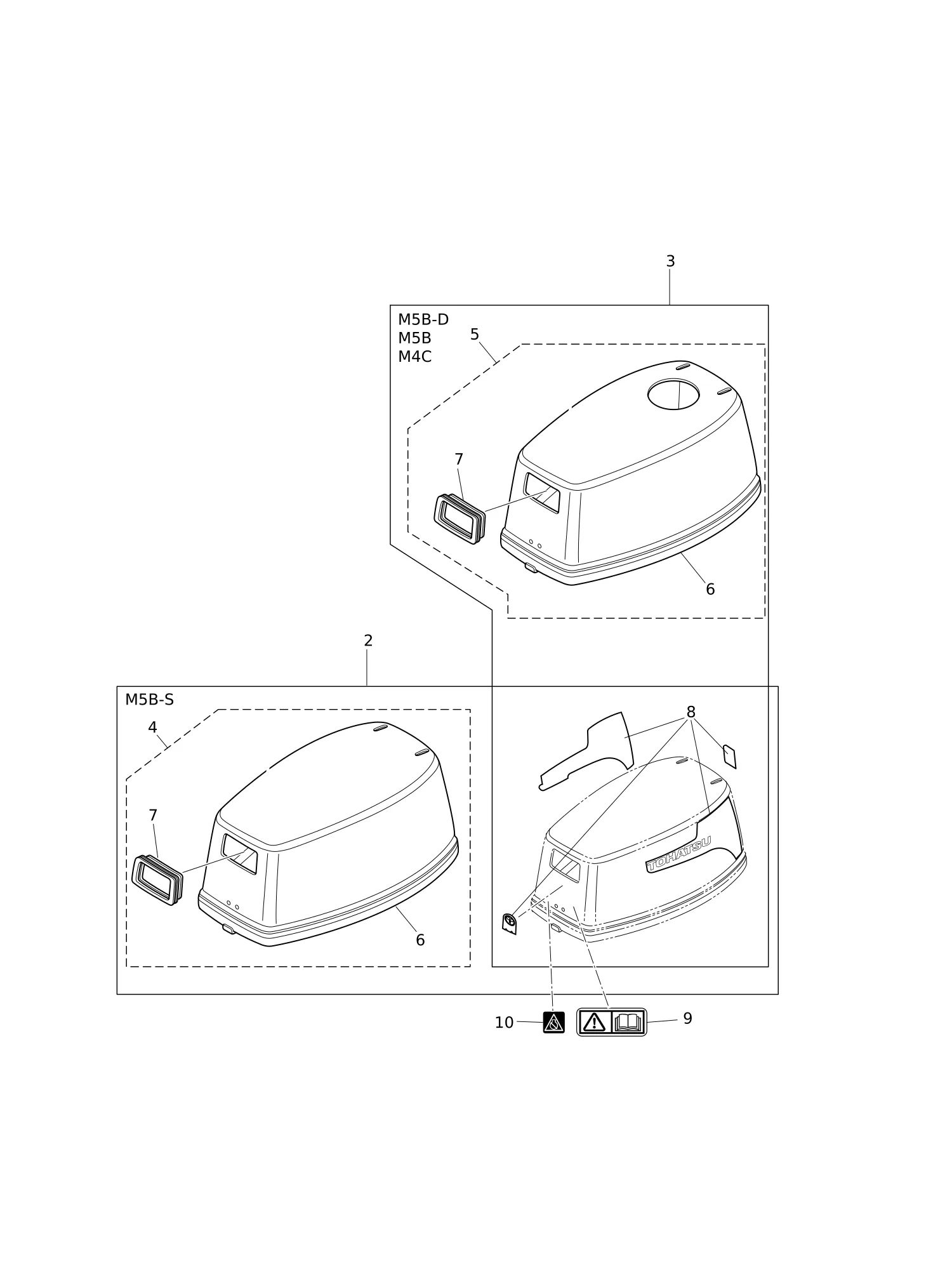

图 10顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
2	369Q67560-6	顶罩总成	TOP COWL ASSY	1
3	369Q67645-2	顶罩总成	TOP COWL ASSY	1
4	3X3Q67640-1	* 顶罩分总成	* TOP COWL SUB-ASSY	1
5	369Q67640-2	* 顶罩分总成	* TOP COWL SUB-ASSY	1
6	394-67501-1	顶罩密封条	** TOP COWL SEAL	1
7	3B2-67503-0	** 启动器油封	** STARTER SEAL	1
8	369-87801-4	* 标牌套装(M5B)	* DECAL SET (M5B) (M5B)	1
8	3F9-87801-3	* 标牌套装(M4C)	* DECAL SET (M4C) (M4C)	1
9	3F0-72185-0	警示标贴	CAUTION DECAL	1
10	3AC-72200-0	停止开关贴花	STOP SWITCH DECAL	1

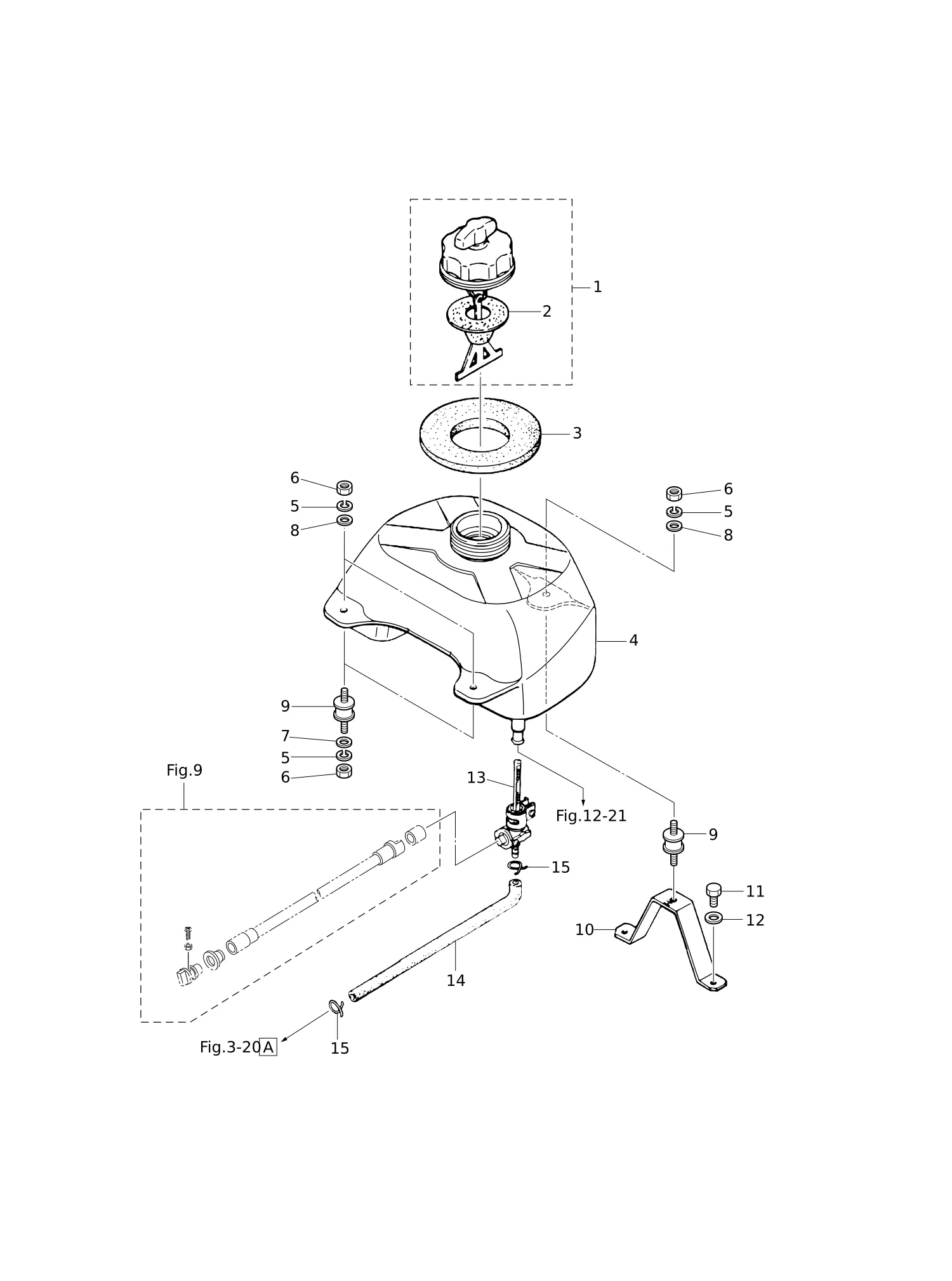

图 11一体式燃油箱（M4C·M5B-D·M5B） INTEGRAL FUEL TANK（M4C · M5B-D · M5B）

REF	零件编号	中文名称	英文名称	数量
1	393-70020-6	燃油箱盖总成	FUEL TANK CAP ASSY	1
2	3D6-70021-0	* 油箱加注口盖垫片	* TANK FILLER CAP GASKET	1
3	369-70036-2	燃油箱密封件	FUEL TANK SEAL	1
4	369-70316-4	燃油箱	FUEL TANK	1
5	941303-0600	弹簧垫圈	SPRING WASHER	5
6	930103-0600	螺母	NUT	5
7	3C8-66308-0	垫片 6-16-1.5	WASHER 6-16-1.5	2
8	345-05122-1	垫片 6.5-23-1.5	WASHER 6.5-23-1.5	3
9	369-70057-0	燃油箱支架	FUEL TANK MOUNT	3
9	3F9-70057-0	燃油箱支架	FUEL TANK MOUNT	3
10	369-70312-1	燃油箱撑杆	FUEL TANK STAY	1
11	9101F4-0616	螺栓	BOLT	2
12	940103-0600	垫圈	WASHER	2
13	369-70311-0	燃油旋塞总成	FUEL COCK ASSY	1
14	369-70315-0	燃油软管	FUEL HOSE	1
15	338-02215-0	卡扣φ10	CLIP φ10	2

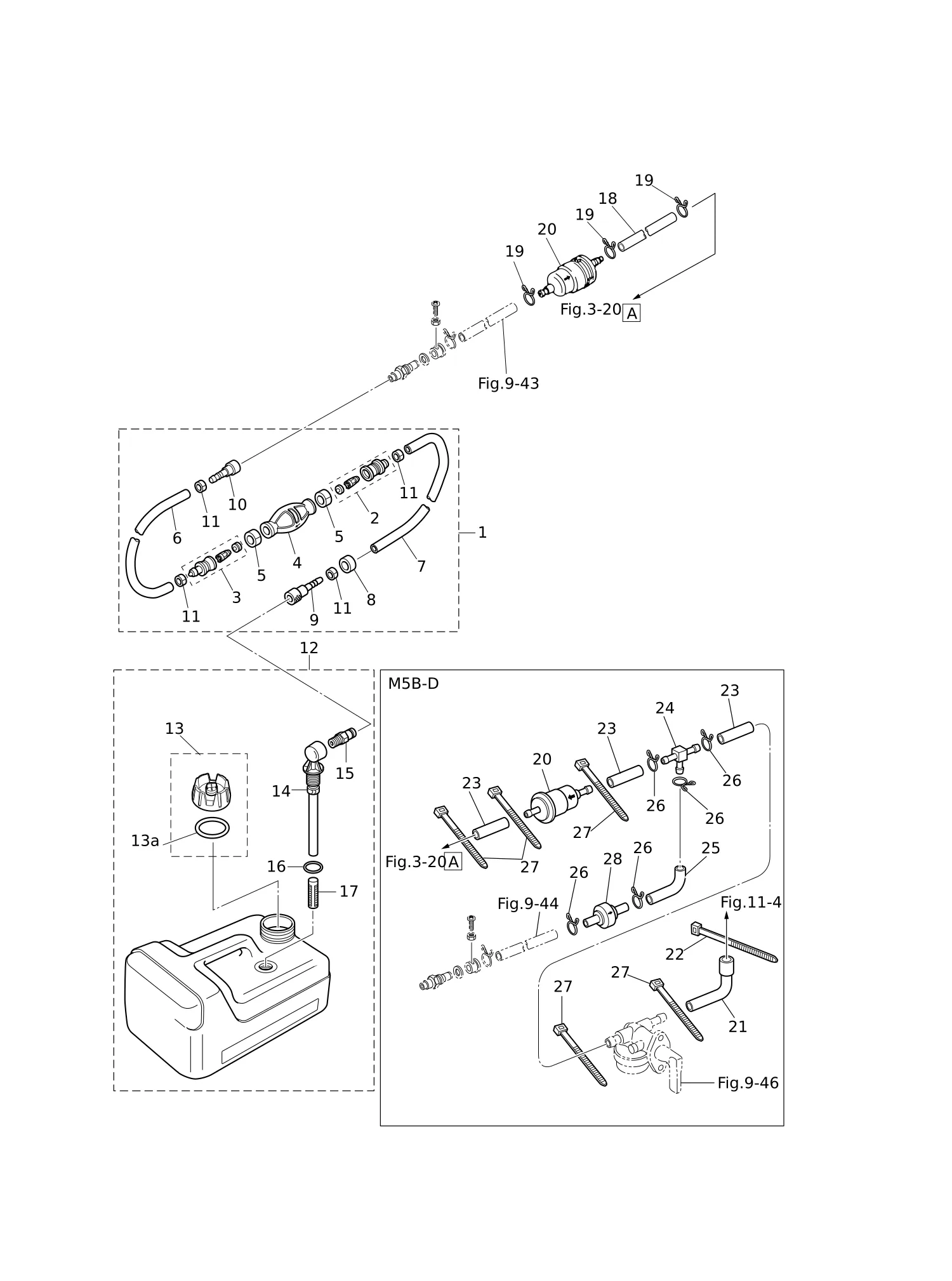

图 12独立燃油箱·双燃料（M5B-D·M5B-S型） SEPARATE FUEL TANK · DUAL FUEL(M5B-D · M5B-S)

REF	零件编号	中文名称	英文名称	数量
1	3B7-70200-5	手动泵球总成	PRIMER BULB ASSY	1
2	3C7-70220-1	* 接头组件(进口)	* JOINT ASSY (INLET)	1
3	3C7-70224-1	* 接头组件(出口)	* JOINT ASSY (OUTLET)	1
4	3C7-70211-1	* 注油球	* PRIMER BULB	1
5	3C7-70217-0	* 卡箍	* CLAMP	2
6	98AB-70-700	* 软管	* HOSE	1
7	98AB-701600	* 软管	* HOSE	1
8	3B7-70280-1	* 燃油接头标记	* FUEL CONNECTOR MARK	1
9	3GF-70281-0	* 燃油接头	* FUEL CONNECTOR	1
10	3GF-70250-1	* 燃油接头	* FUEL CONNECTOR	1
11	332-70201-0	* 卡箍	* CLAMP	4
12	3RS-70167-0	12升燃油箱总成	FUEL TANK ASSY 12L	1
13	3RS-70020-0	* 燃油箱盖总成	* FUEL TANK CAP ASSY	1
13a	3RS-70021-0	油箱盖衬垫	** TANK FILLER CAP GASKET	1
14	3B2-70155-0	* 吸油弯管总成(12升)	* PICK-UP ELBOW ASSY (12L)	1
15	3E0-70270-0	* 快速接头(公)	* QUICK-CONNECTOR (MALE)	1
16	3C7-70199-0	* O型圈	* O-RING	1
17	3C7-70113-0	* 滤清器	* FILTER	1
18	98AB-50-150	软管	HOSE	1
20	369-02230-0	燃油滤清器总成	FUEL FILTER ASSY	1
21	394-70315-0	燃油软管	FUEL HOSE	1
23	98AB-50-035	软管	HOSE	3
24	394-70013-0	管接头 4-4	PIPE JOINT 4-4	1
25	394-70325-0	燃油软管	FUEL HOSE	1
26	338-02215-0	卡扣φ10	CLIP φ10	5
27	3F9-84398-0	箍带 205	BAND 205	5
28	394-70327-0	止回阀	NON-RETURN VALVE	1

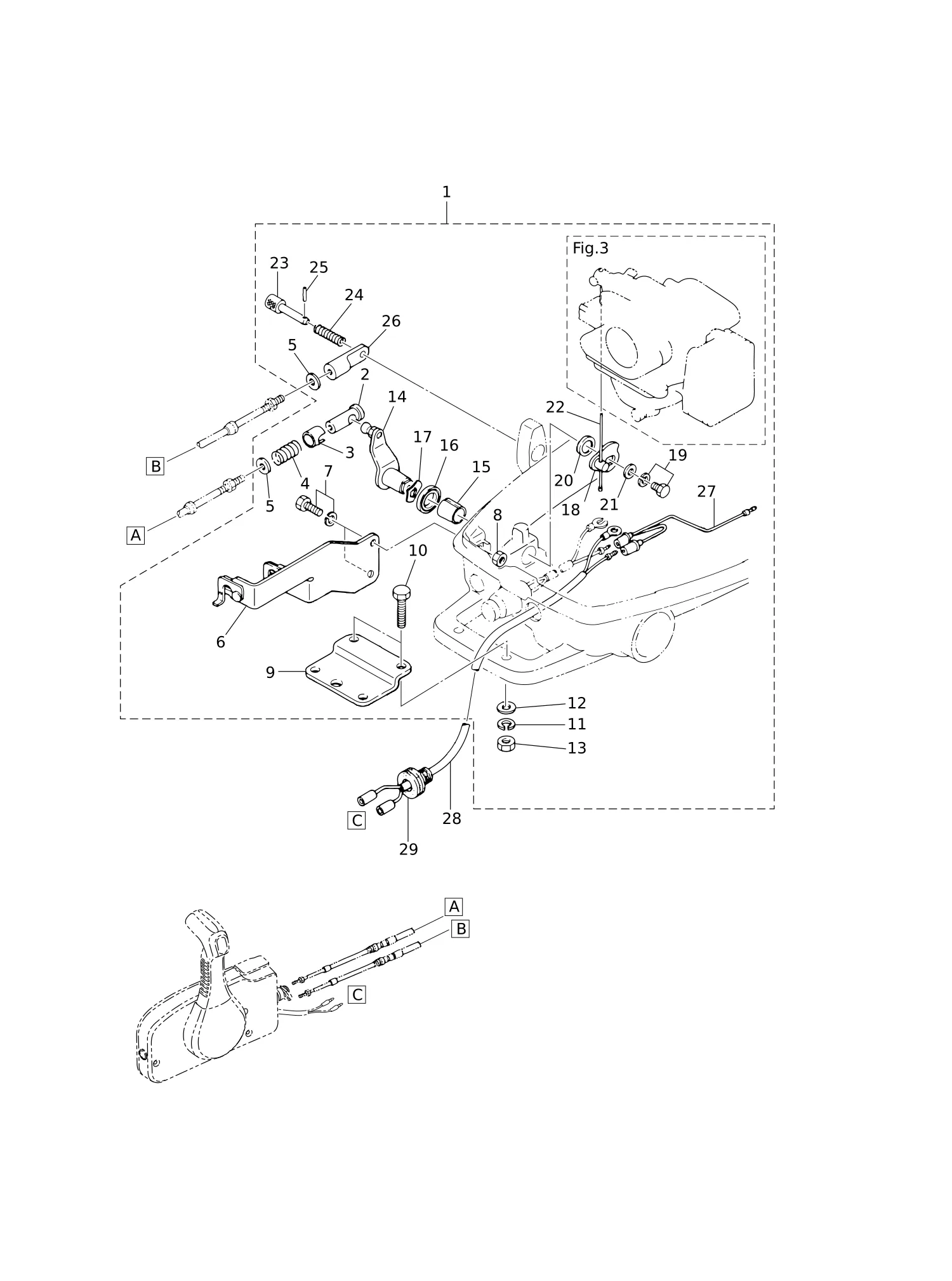

图 13选装件(1)附件(遥控装置) OPTIONAL PARTS (1) ACCESSORIES (REMOTE CONTROL)

REF	零件编号	中文名称	英文名称	数量
1	369-83880-2	遥控装置总成	REMOTE CONTROL FITTING ASSY	1
2	3A1-83722-0	* 球头关节座	* BALL JOINT HOLDER	1
3	332-83723-0	* 支架盖	* HOLDER CAP	1
4	332-83724-0	* 弹簧	* SPRING	1
5	332-83725-0	* 垫圈 5.5-14-1.2	* WASHER 5.5-14-1.2	2
6	369-83820-0	* 线缆夹总成	* CABLE CLIP ASSY	1
7	910103-6616	螺栓	* BOLT	2
8	930103-0600	螺母	* NUT	2
9	369-83830-2	* 转向钩板	* STEERING HOOK PLATE	1
10	910103-0830	螺栓	* BOLT	2
11	941303-0800	* 弹簧垫圈	* SPRING WASHER	2
12	940103-0800	* 垫圈	* WASHER	2
13	930103-0800	螺母	* NUT	2
14	369-83726-0	* 油门杆	* THROTTLE LEVER	1
15	369-67105-0	* 钩杆衬套	* HOOK LEVER BUSHING	1
16	338-67147-0	* 密封环 13.8-22-3.7	* SEAL RING 13.8-22-3.7	1
17	941403-1400	* 波形垫圈 d=14	* WAVE WASHER d=14	1
18	369-83887-0	* 油门杆	* THROTTLE LEVER	1
19	910103-6612	螺栓	* BOLT	1
20	369-83888-0	* 轴环 13.5-18-2.5	* COLLAR 13.5-18-2.5	1
21	3C8-66308-0	* 垫圈 6-16-1.5	* WASHER 6-16-1.5	1
22	369-83863-0	* 节气门拉线(遥控)	* THROTTLE WIRE (REMOTE CONTROL)	1
23	332-83728-0	* 销	* PIN	1
24	332-83729-0	* 弹簧	* SPRING	1
25	951403-0212	* 弹簧销 2-12	* SPRING PIN 2-12	1
26	369-83715-1	* 线缆接头	* CABLE JOINT	1
27	369-83883-0	* 分离线	* SEPARATE CORD	1
28	369-83846-0	遥控急停拉绳 L=2000	REMOTE CONTROL STOP CORD L=2000	1
28	369-83848-0	遥控急停拉绳 L=3200	REMOTE CONTROL STOP CORD L=3200	1
28	369-83853-0	遥控急停拉绳 L=3900	REMOTE CONTROL STOP CORD L=3900	1
28	369-83858-0	遥控急停拉绳 L=5900	REMOTE CONTROL STOP CORD L=5900	1
29	345-66226-0	索环 17-3	GROMMET 17-3	1

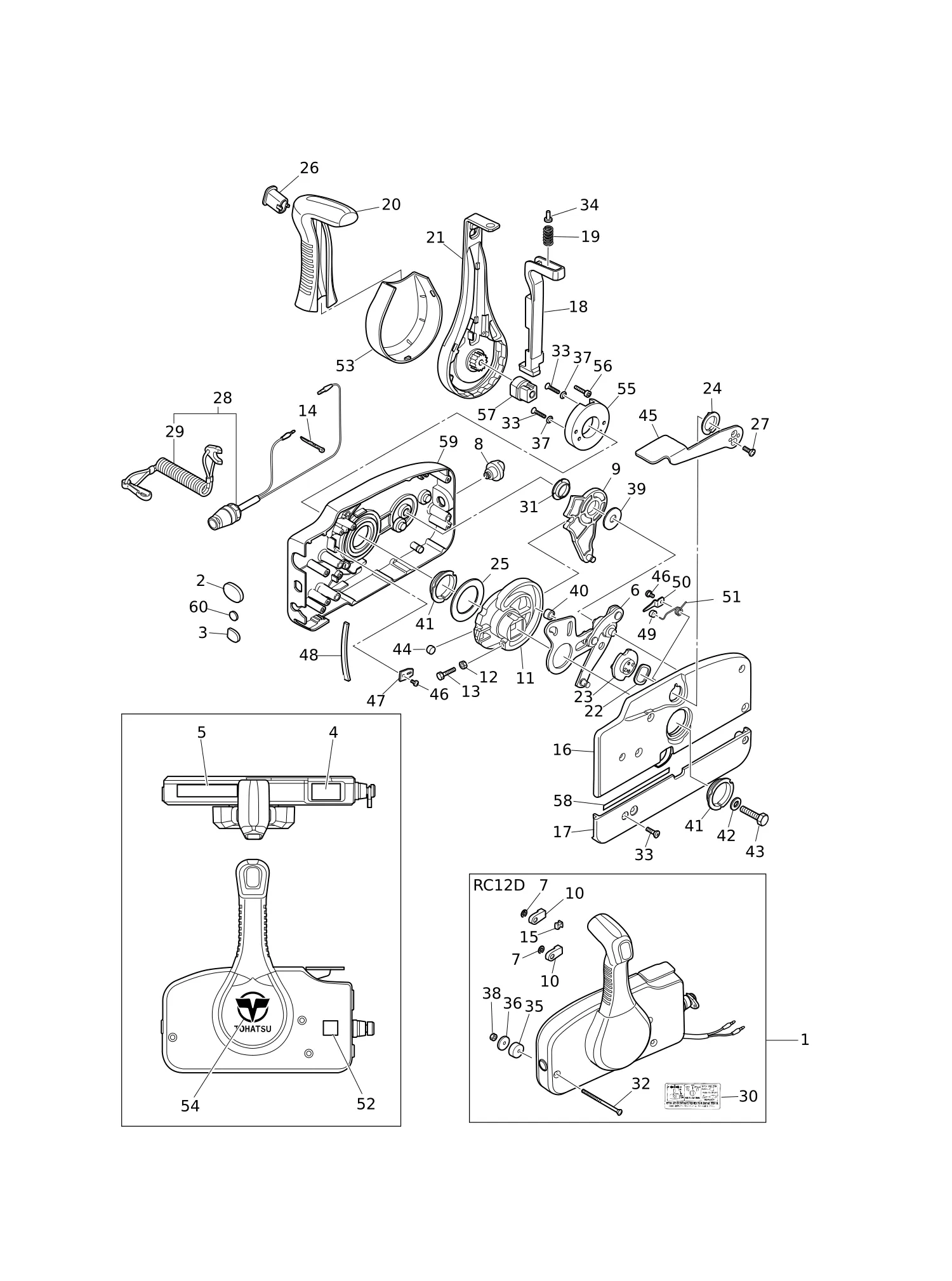

图 14选装件(2)遥控箱 OPTIONAL PARTS (2) REMOTE CONTROL BOX

REF	零件编号	中文名称	英文名称	数量
1	3U2B84360-0	遥控头总成(RC12D)	REMOTE CONTROL HEAD ASSY(RC12D)	1
2	3U2-84416-0	* 护孔环	* GROMMET	1
3	353-84321-0	* 护孔环	* GROMMET	1
4	3U2-84331-0	* 标牌(操纵杆)	* DECAL (LEVER)	1
5	3U2-84336-0	* 档位标识贴	* SHIFT POSITION DECAL	1
6	3A3-84365-1	* 节气门摇臂	* THROTTLE ARM	1
7	945303-0600	* E型卡环 d=6	* E-RING d=6	2
8	3U2-84414-0	* 护孔环	* GROMMET	1
9	3A3-84381-0	* 换挡齿轮总成	* SHIFT GEAR ASSY	1
10	3A3-83314-2	* 线缆端子	* CABLE TERMINAL	2
11	3A3-84364-2	* 驱动齿轮	* DRIVE GEAR	1
12	930103-0500	螺母	* NUT	1
13	910103-0525	螺栓	* BOLT	1
14	3U2-84398-0	* 箍带	* BAND	3
15	3A3-84376-0	* 护孔环	* GROMMET	1
16	3U2B84441-0	* 后壳体	* REAR HOUSING	1
17	3U2B84366-0	* 后盖板	* REAR PANEL	1
18	3U2-84401-0	* 空档锁止臂	* NEUTRAL LOCK ARM	1
19	3A3-84403-0	* 空档锁止弹簧	* NEUTRAL LOCK SPRING	1
20	3U2-84404-0	* 手柄	* GRIP	1
21	3U2-84343-0	* 控制杆	* CONTROL LEVER	1
22	3A3-84368-0	* 波形垫圈	* WAVE WASHER	1
23	3A3-84391-0	* 自由节流鼓	* FREE THROTTLE DRUM	1
24	3A3-84435-0	* 衬套	* BUSHING	1
25	3A3-84422-0	* 推力板	* THRUST PLATE	1
26	3U2-84452-0	* 倾斜开关塞	* TILT SWITCH PLUG	1
27	921603-0512	* 螺钉	* SCREW	2
28	3A3-06830-0	* 停机开关总成	* STOP SWITCH ASSY	1
29	353-06821-0	停机开关拉绳总成	** STOP SWITCH LANYARD ASSY	1
30	3U2-84339-0	* 操作说明标贴	* INSTRUCTION DECAL	1
31	3A3-84432-0	* 衬套	* BUSHING	1
32	3U2-84375-0	* 螺钉	* SCREW	3
33	3VK-84375-0	* 螺钉	* SCREW	7
34	3VL-84375-0	* 螺钉	* SCREW	1
35	3A3-84374-0	* 隔套	* SPACER	3
36	353-84371-0	* 垫圈	* WASHER	3
37	3U2-84371-0	* 垫圈	* WASHER	2
38	930103-0600	螺母	* NUT	3
39	3A3-84383-0	* 垫圈	* WASHER	1
40	3A3-84421-0	* 滚轮	* ROLLER	1
41	3U2-84431-0	* 衬套	* BUSHING	2
42	940103-0800	* 垫圈	* WASHER	1
43	3U2-84442-0	螺栓	* BOLT	1
44	353-84388-0	* 定位滚轮	* DETENT ROLLER	1
45	3U2B84312-0	* 自由节流杆	* FREE THROTTLE LEVER	1
46	921503-0406	* 螺钉	* SCREW	3
47	3A3-84423-0	* 定位器挡圈	* DETENT RETAINER	1
48	3A3-84307-0	* 定位弹簧	* DETENT SPRING	5
49	3A3-84424-0	* 自由节流滚轮	* FREE THROTTLE ROLLER	1
50	3A3-84426-0	* 滚柱保持架	* ROLLER RETAINER	1
51	3A3-84425-0	* 自由节流弹簧	* FREE THROTTLE SPRING	1
52	3U2-72200-0	* 停机开关标贴	* STOP SWITCH DECAL	2
53	3VK-63107-0	* 盖板	* COVER	1
54	3U2-84334-0	* 遥控标识贴花	* REMOTE CONTROL LOGO DECAL	1
55	3U2-63506-0	* 支架	* HOLDER	1
56	3U2-84917-0	螺栓	* BOLT	1
57	3U2-77367-0	* 接头	* JOINT	1
58	3U2-72187-0	* 警示标贴(SIGP)	* CAUTION DECAL(SIGP)	1
59	3U2B84440-0	* 前壳体	* FRONT HOUSING	1
60	369-84418-0	* 护孔环	* GROMMET	1

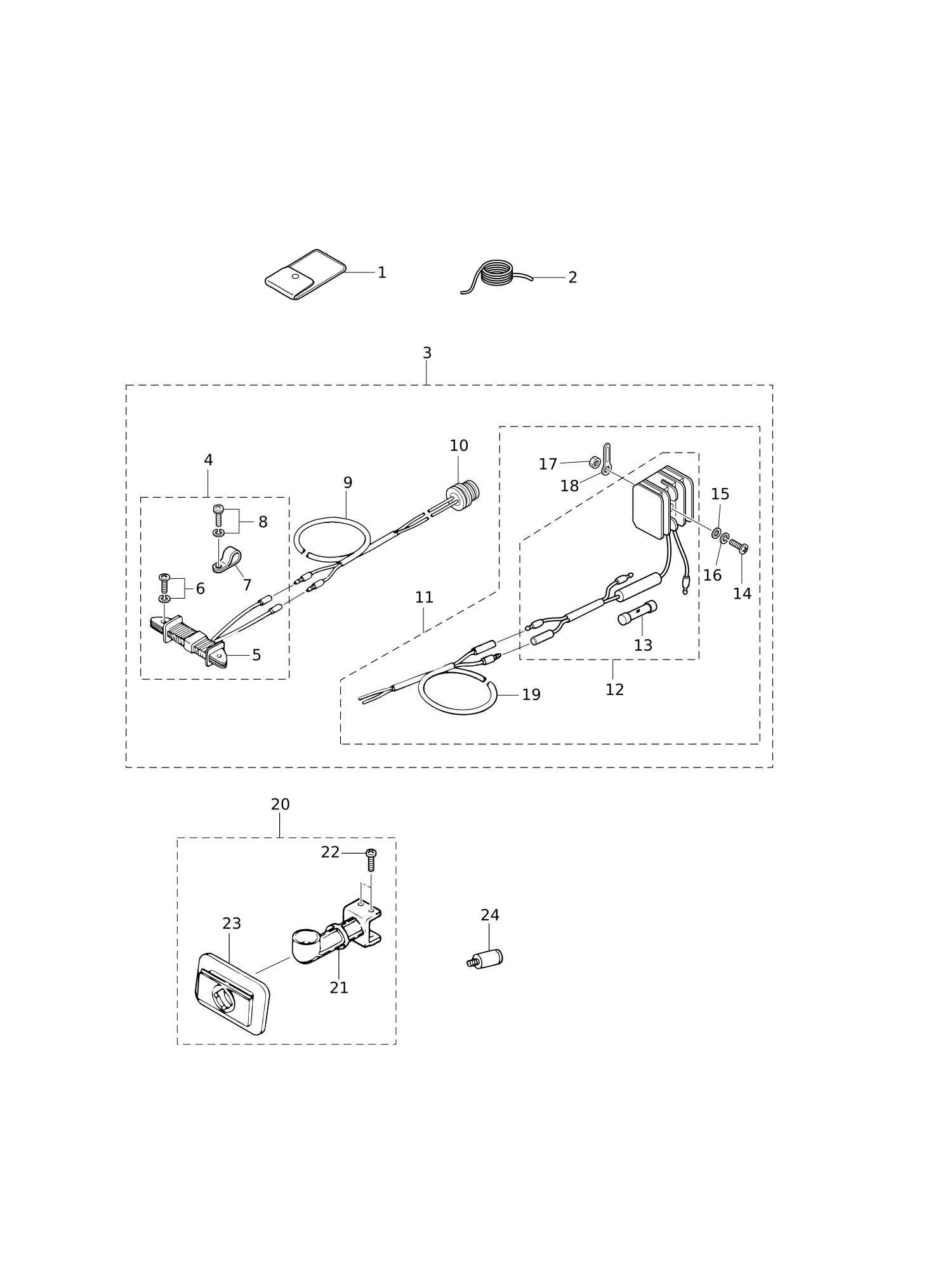

图 15选装件(3)附件 OPTIONAL PARTS (3) ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
1	369-72100-0	工具包	TOOL KIT	1
2	312-72201-0	安全绳φ4-1000	SAFETY ROPE φ4-1000	1
3	399-76101-0	照明套件	LIGHTING KIT	1
4	3H6-06128-0	* 交流发电机套件	* ALTERNATOR KIT	1
5	399-06023-1	交流发电机总成 (60W)	** ALTERNATOR ASSY (60W)	1
6	921521-6520	螺钉	** SCREW	2
7	369-06915-0	卡箍 4.2-3-8	** CLAMP 4.2-3-8	1
8	921521-6408	螺钉	** SCREW	1
9	369-76167-0	* 延长线(照明) L=2000	* EXTENSION CORD (LIGHT) L=2000	1
10	345-66226-0	* 护孔环 17-3	* GROMMET 17-3	1
11	3H6-76160-0	* 整流器套件	* RECTIFIER KIT	1
12	369-76060-1	整流器总成	** RECTIFIER COMPLETE	1
13	334-76211-0	保险丝 10A	*** FUSE 10A	1
14	921503-0525	螺钉	** SCREW	1
15	940103-0500	垫圈	** WASHER	1
16	941303-0500	** 弹簧垫圈	** SPRING WASHER	1
17	930103-0500	螺母	** NUT	1
18	353-06972-0	卡箍 7-80P	** CLAMP 7-80P	1
19	369-76161-0	** 延长线	** EXTENSION CORD	1
20	399B05180-0	垂直启动器套件	VERTICAL STARTER KIT	1
21	369B05911-0	* 垂直启动器导杆	* VERTICAL STARTER GUIDE	1
22	369-05913-0	* 自攻螺钉 M6-12	* TAPPING SCREW M6-12	4
23	3B2-05912-0	* 密封件	* SEAL	1
24	336-60007-0	冲洗塞	FLUSHING PLUG	1

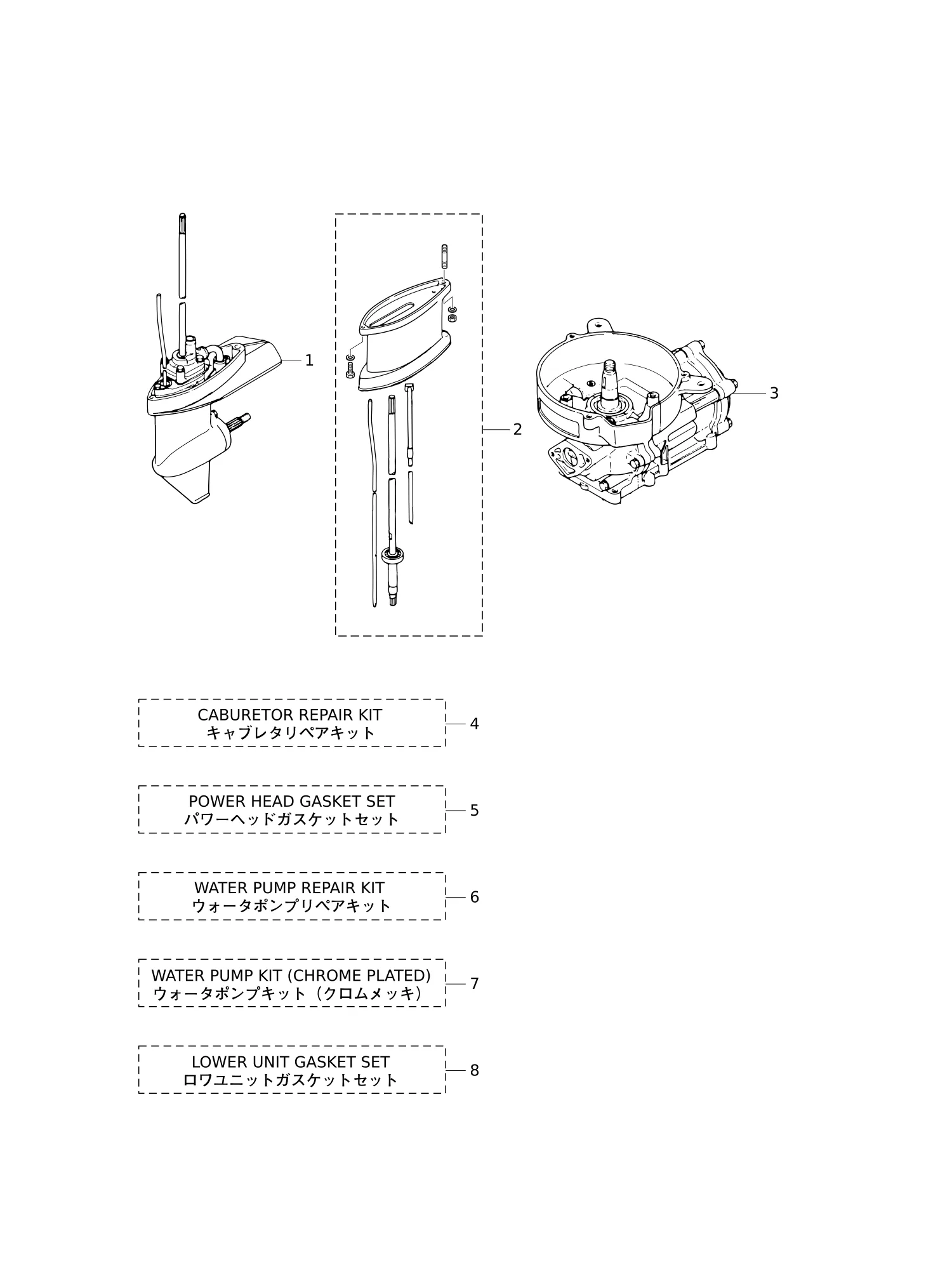

图 16套件零件总成 ASSEMBLY · KIT PARTS

REF	零件编号	中文名称	英文名称	数量
1	369Q87301-5	下部单元总成 (S)	LOWER UNIT ASSY (S)	1
1	369Q87302-5	下部单元总成 (L)	LOWER UNIT ASSY (L)	1
1	369Q87304-3	下部单元总成 (UL)	LOWER UNIT ASSY (UL)	1
2	369-64303-0	* 驱动轴总成（上长）	* DRIVE SHAFT ASSY (UL)	1
2	369-65120-0	* 水管总成 (上左)	* WATER PIPE ASSY (UL)	1
2	369-66014-2	* 凸轮杆(上左)	* CAM ROD (UL)	1
2	369Q61110-2	* 延伸壳体	* EXTENSION HOUSING	1
2	369Q87314-4	延伸壳体套件(超长)	EXTENSION HOUSING KIT (UL)	1
2	9152E3-0825	* 双头螺柱	* STUD	1
2	9161E3-0625	螺栓	* BOLT	1
2	930103-0800	螺母	* NUT	1
2	9401E3-0600	* 垫圈	* WASHER	1
2	9401E3-0800	* 垫圈	* WASHER	1
3	369B87090-5	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
3	3F9B87090-5	发动机短缸体套件	ENGINE SHORT BLOCK KIT	1
4	344-03244-0	* 卡扣	* CLIP	1
4	346-03232-0	* 浮子臂销	* FLOAT ARM PIN	1
4	346-03256-0	* 橡胶帽	* RUBBER CAP	1
4	369-03182-0	* 化油器盖垫片	* CARBURETOR COVER GASKET	1
4	369-03183-0	* 化油器盖垫片	* CARBURETOR COVER GASKET	1
4	369-03186-0	* 螺钉	* SCREW	2
4	369-03231-0	* 浮子	* FLOAT	1
4	369-03240-0	* 浮子阀	* FLOAT VALVE	1
4	369-03302-0	* 泵盖衬垫	* PUMP COVER GASKET	1
4	369-03303-0	* 隔膜A	* DIAPHRAGM A	1
4	369-03306-0	* 隔膜B	* DIAPHRAGM B	1
4	369-03307-0	* 泵体衬垫	* PUMP BODY GASKET	1
4	369-87122-1	化油器修理包	CARBURETOR REPAIR KIT	1
4	921521-0408	* 螺钉	* SCREW	1
4	922503-6412	* 螺钉	* SCREW	4
4	922553-6423	* 螺钉	* SCREW	4
5	369-00122-0	* 油封 20-47-8	* OIL SEAL 20-47-8	2
5	369-01005-2	* 气缸盖垫片	* CYLINDER HEAD GASKET	1
5	369-01214-0	* 曲轴箱缸头垫片	* CRANKCASE HEAD GASKET	1
5	369-01215-0	* 油封 10.1-25-7	* OIL SEAL 10.1-25-7	2
5	369-02011-0	* 化油器衬垫	* CARBURETOR GASKET	1
5	369-03222-0	* 浮子室O型圈	* FLOAT CHAMBER O-RING	1
5	369-03293-1	* 衬垫	* GASKET	1
5	369-61012-2	* 驱动轴壳体衬垫	* DRIVE SHAFT HOUSING GASKET	1
5	369-87121-5	动力头衬垫套装	POWER HEAD GASKET SET	1
6	369-65011-0	* 泵壳衬套	* PUMP CASE LINER	1
6	369-65022-0	* 键 φ2-11	* KEY φ2-11	1
6	369-65025-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
6	369-87322-1	水泵维修套件	WATER PUMP REPAIR KIT	1
6	9161E3-0645	螺栓	* BOLT	4
6	940103-0600	* 垫圈	* WASHER	4
7	369-65021-1	* 水泵叶轮	* WATER PUMP IMPELLER	1
7	369-65231-0	水泵套件(镀铬)	WATER PUMP KIT (CHROME PLATED)	1
7	369-65238-0	* 泵壳衬套	* PUMP CASE LINER	1
7	369-65239-0	* 水泵导板	* WATER PUMP GUIDE PLATE	1
8	332-60006-0	* 衬垫 8.1-15-1	* GASKET 8.1-15-1	2
8	332-66032-0	* O型圈2.4-15.4	* O-RING 2.4-15.4	1
8	345-65015-0	* O型圈 3.2-47	* O-RING 3.2-47	1
8	369-60111-0	* 油封 15-28-10	* OIL SEAL 15-28-10	1
8	369-60223-0	* 油封 10-24-8	* OIL SEAL 10-24-8	1
8	369-65018-0	* 泵壳衬垫	* PUMP CASE GASKET	1
8	369-65020-0	* 泵壳衬垫(下)	* PUMP CASE GASKET (LOWER)	1
8	369-65029-0	* 导板垫片	* GUIDE PLATE GASKET	1
8	369-66021-1	* O型圈 2.5-4.9	* O-RING 2.5-4.9	1
8	369-87321-0	下部单元衬垫套件	LOWER UNIT GASKET SET	1
