两冲程 2-Stroke · 2025 年 · 手册号 002-21040-0BE · 共 13 个部位 · 357 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

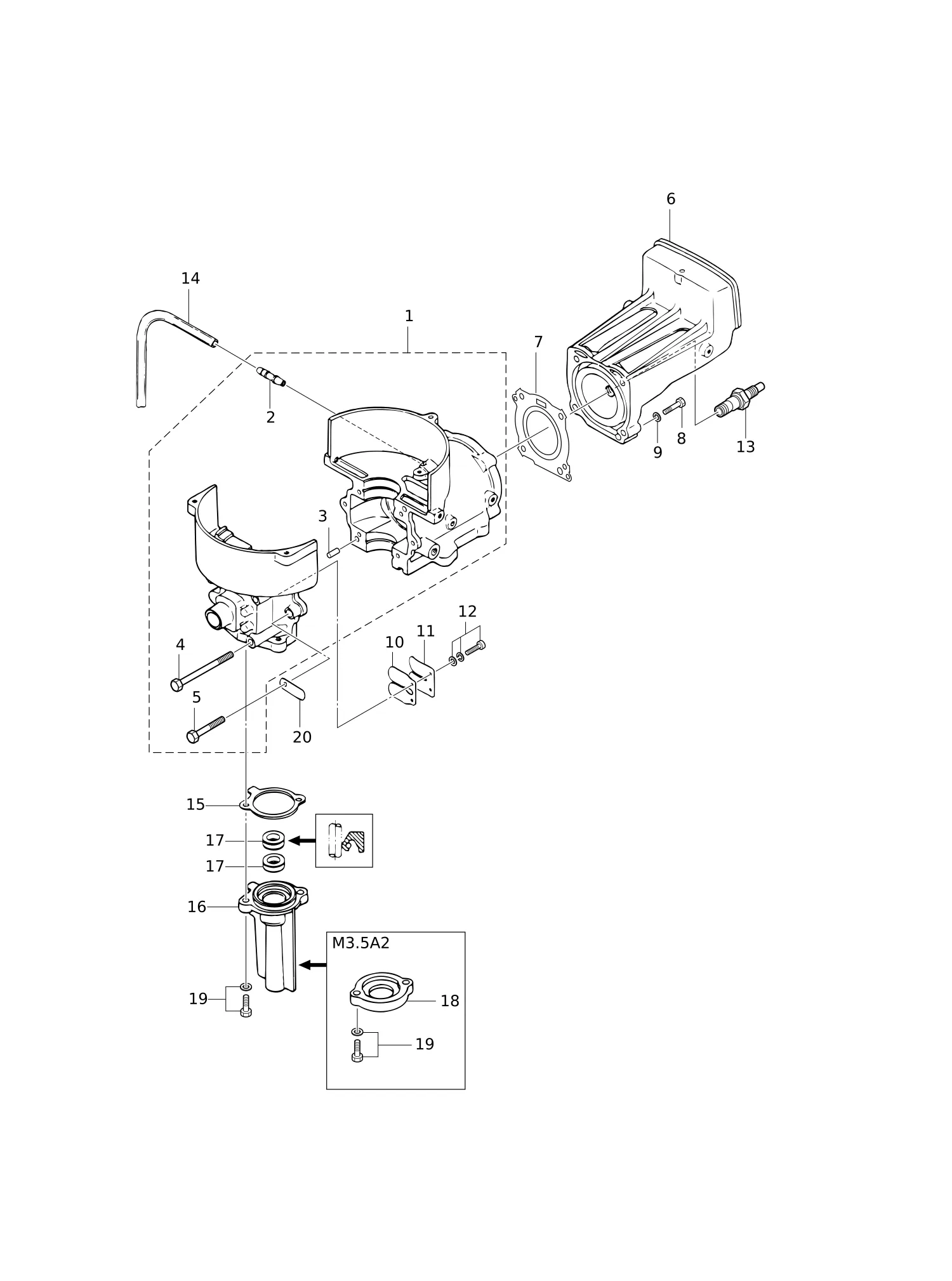

| 1 | 309B01100-3 | 气缸体与曲轴箱总成 | CYL BLOCK & CRANKCASE ASSY | 1 |
| 1 | 3F0B01100-1 | 气缸体与曲轴箱总成 | CYL BLOCK & CRANKCASE ASSY | 1 |
| 2 | 393-01131-0 | 接头 5.5-5 | * NIPPLE 5.5-5 | 1 |
| 3 | 345-01111-0 | * 定位销 6-12 | * DOWEL PIN 6-12 | 2 |
| 4 | 916124-0665 | 螺栓 | * BOLT | 4 |
| 5 | 910124-0630 | 螺栓 | * BOLT | 2 |
| 6 | 3F0B01091-0 | 气缸盖 | CYLINDER HEAD | 1 |
| 7 | 3F0-01005-0 | 气缸盖衬垫 | CYLINDER HEAD GASKET | 1 |
| 8 | 9161G9-0630 | 螺栓 | BOLT | 4 |
| 9 | 940121-0600 | 垫圈 | WASHER | 4 |
| 10 | 309-02111-0 | 簧片阀 | REED VALVE | 1 |
| 11 | 309-02113-0 | 簧片阀限位块 | REED VALVE STOPPER | 1 |
| 12 | 921521-7412 | 螺钉 | SCREW | 2 |
| 13 | 9701-1-1013 | 火花塞 (BPR6HS-10) | SPARK PLUG (BPR6HS-10) | 1 |
| 14 | 98AB-30-150 | 软管 | HOSE | 1 |
| 15 | 3F0-01214-0 | 曲轴箱盖垫片 | CRANKCASE HEAD GASKET | 1 |
| 16 | 3F0-01210-1 | 曲轴箱盖 | CRANKCASE HEAD | 1 |
| 17 | 3F0-01215-0 | 油封 10.1-20-7 | OIL SEAL 10.1-20-7 | 2 |
| 18 | 309-01210-1 | 曲轴箱盖 | CRANKCASE HEAD | 1 |
| 19 | 910103-5618 | 螺栓 | BOLT | 2 |
| 20 | 3PR-06972-0 | 卡箍 6.5-47.5P | CLAMP 6.5-47.5P | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 309-00106-0 | 止推板 | THRUST PLATE | 1 |
| 2 | 309-00107-0 | 止推板 | THRUST PLATE | 1 |
| 2 | 3F0-00107-0 | 止推板 | THRUST PLATE | 1 |
| 3 | 309-00121-0 | 油封 20-42-8 | OIL SEAL 20-42-8 | 1 |
| 4 | 309-00122-0 | 油封 15-35-15 | OIL SEAL 15-35-15 | 1 |
| 5 | 3F0-00122-0 | 油封 17-40-8 | OIL SEAL 17-40-8 | 1 |

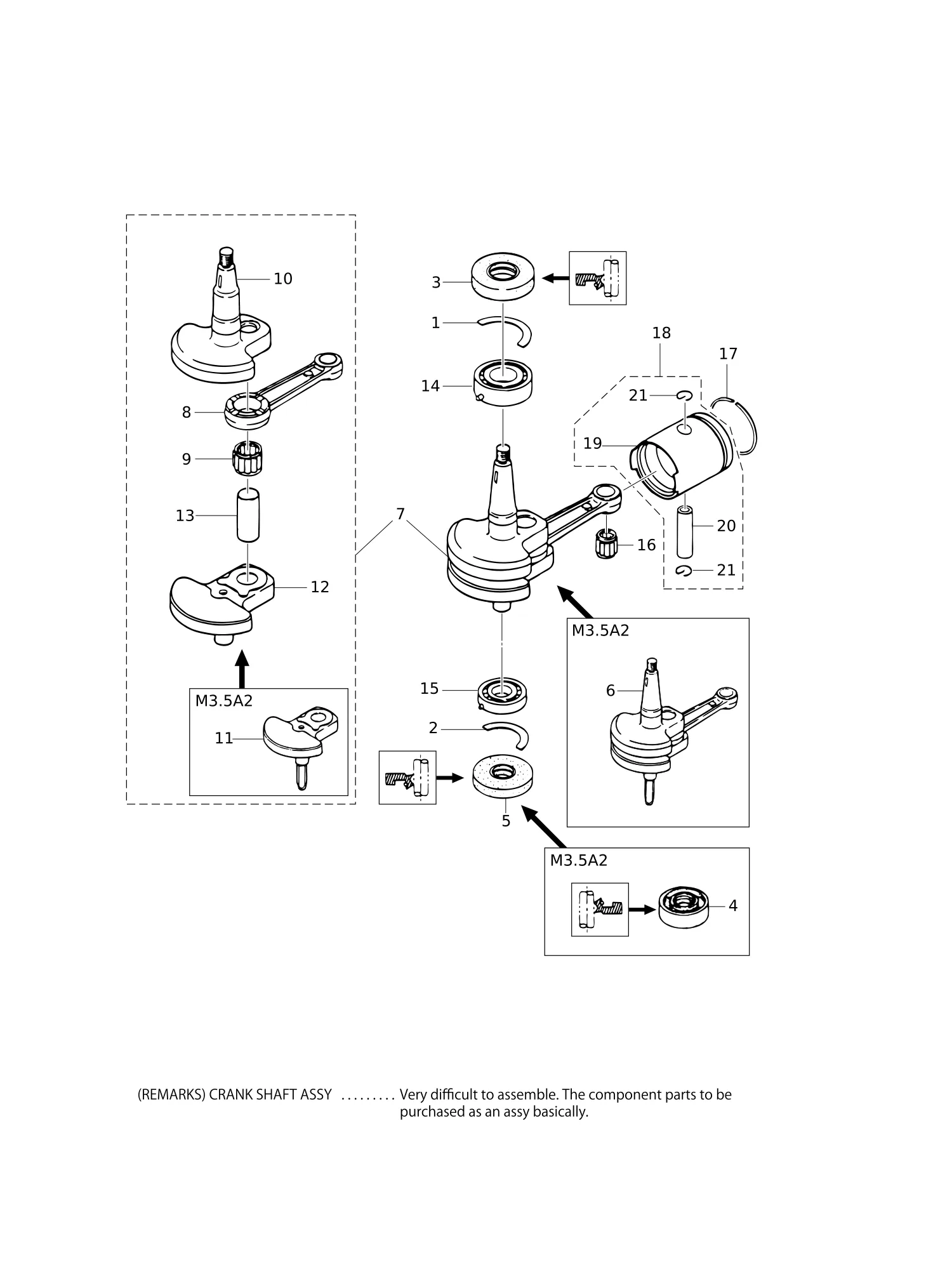

| 6 | 309-00069-0 | 曲轴分总成 | CRANKSHAFT SUB-ASSY | 1 |
| 7 | 3F0-00069-0 | 曲轴分总成 | CRANKSHAFT SUB-ASSY | 1 |
| 8 | 309-00040-0 | * 连杆 | * CONNECTING ROD | 1 |
| 9 | 309-00043-0 | * 滚柱轴承 16-22-12 | * ROLLER BEARING 16-22-12 | 1 |
| 10 | 309-00031-0 | * 曲轴A型 | * CRANKSHAFT A | 1 |
| 11 | 309-00034-0 | * 曲轴D型 | * CRANKSHAFT D | 1 |
| 12 | 3F0-00034-0 | * 曲轴D型 | * CRANKSHAFT D | 1 |
| 13 | 309-00061-1 | * 曲柄销 | * CRANK PIN | 1 |
| 14 | 3F0-00113-0 | 主轴承6004 | MAIN BEARING 6004 | 1 |
| 15 | 9643-3-6202 | 滚珠轴承 6202 | BALL BEARING 6202 | 1 |
| 15 | 9643-3-6203 | 滚珠轴承 6203 | BALL BEARING 6203 | 1 |
| 16 | 309-00042-0 | 滚柱轴承 10.5-14-15 | ROLLER BEARING 10.5-14-15 | 1 |
| 17 | 302-00011-0 | 活塞环 | PISTON RING | 1 |
| 17 | 302-00014-0 | 活塞环（0.5加大） | PISTON RING (0.5 O/S) | 1 |
| 18 | 309-87130-0 | 活塞修理包 | PISTON REPAIR KIT | 1 |
| 18 | 309-87131-0 | 活塞修理包（0.5加大） | PISTON REPAIR KIT (0.5 O/S) | 1 |
| 19 | 309-00001-1 | * 活塞 | * PISTON | 1 |
| 19 | 309-00004-1 | * 活塞 (0.5 加大) | * PISTON (0.5 O/S) | 1 |
| 20 | 309-00021-1 | * 活塞销 | * PISTON PIN | 1 |
| 21 | 309-00024-1 | * 活塞销卡簧 | * PISTON PIN CLIP | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

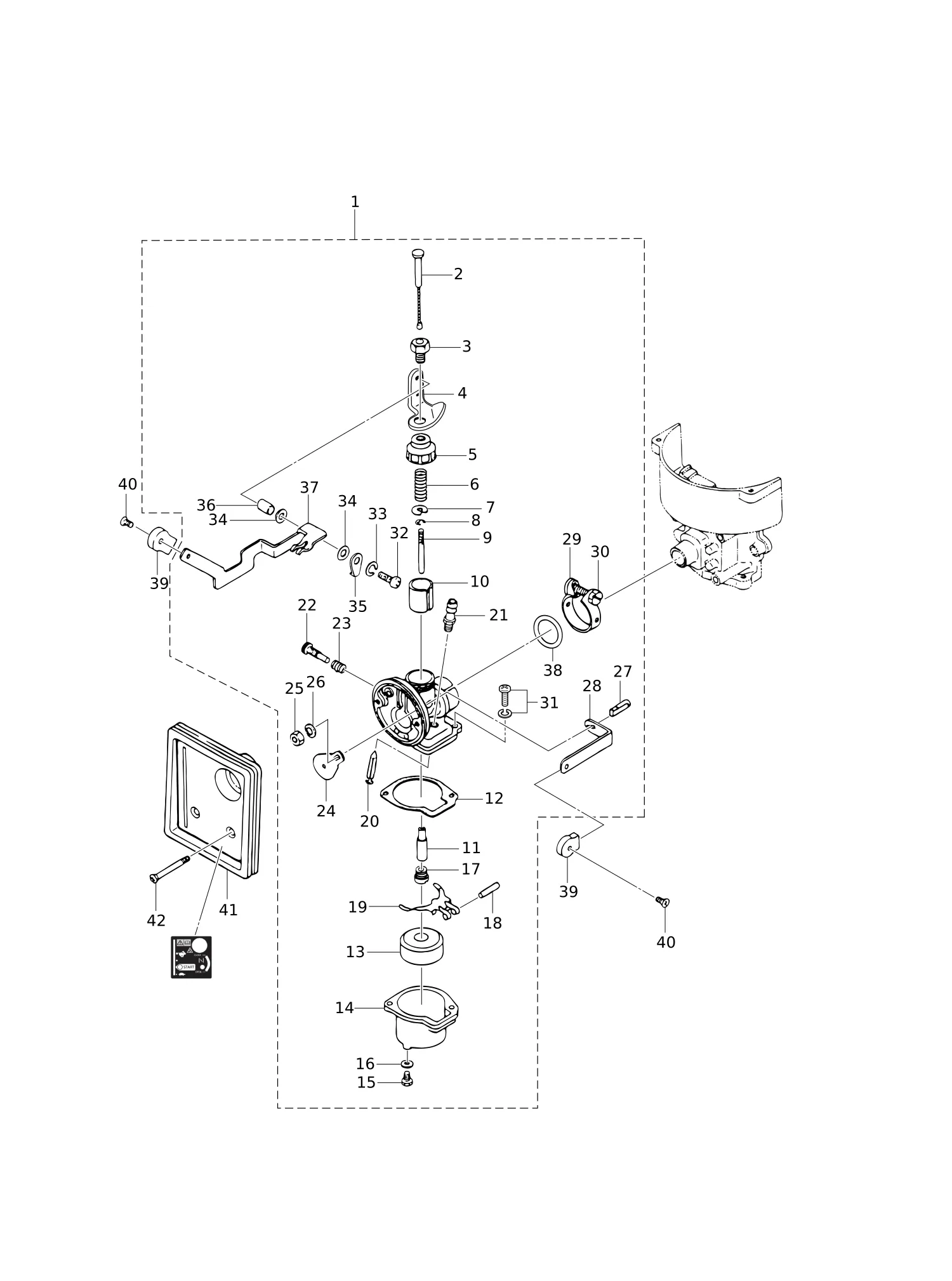

| 1 | 3F0-03100-6 | 化油器总成 | CARBURETOR ASSY | 1 |
| 2 | 309-03170-0 | * 节气门拉线总成 | * THROTTLE WIRE ASSY | 1 |
| 3 | 309-03178-0 | * 螺钉 | * SCREW | 1 |
| 4 | 309-03173-1 | * 节气门杆支架 | * THROTTLE LEVER HOLDER | 1 |
| 5 | 309-03101-0 | * 化油器本体盖 | * CARBURETOR BODY CAP | 1 |
| 6 | 309-03107-0 | * 节气门阀弹簧 | * THROTTLE VALVE SPRING | 1 |
| 7 | 309-03108-0 | * 弹簧座 | * SPRING RECEIVER | 1 |
| 8 | 309-03154-0 | * 量孔针阀卡簧 | * JET NEEDLE CLIP | 1 |
| 9 | 3F0-03153-3 | * 量孔针阀 (#256) | * JET NEEDLE (#256) | 1 |
| 10 | 309-03106-1 | * 节气门阀 | * THROTTLE VALVE | 1 |
| 11 | 309-03155-2 | * 针阀喷口 | * NEEDLE JET | 1 |
| 12 | 309-03121-0 | * 浮子室垫片 | * FLOAT CHAMBER GASKET | 1 |
| 13 | 309-03125-0 | * 浮子 | * FLOAT | 1 |
| 14 | 309-03120-0 | * 浮子室 | * FLOAT CHAMBER | 1 |
| 15 | 309-03192-0 | * 放油螺钉 | * DRAIN SCREW | 1 |
| 16 | 309-03193-0 | * 衬垫 | * GASKET | 1 |
| 17 | 309-03151-3 | * 主量孔 (#86) | * MAIN JET (#86) | 1 |
| 18 | 309-03126-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 19 | 309-03127-1 | * 浮子铰链 | * FLOAT HINGE | 1 |
| 20 | 309-03147-1 | * 浮子阀 | * FLOAT VALVE | 1 |
| 21 | 3D7-03148-1 | * 针阀座 L=32 | * NEEDLE VALVE SEAT L=32 | 1 |
| 22 | 309-03156-0 | * 调节螺钉 | * ADJUST SCREW | 1 |
| 23 | 309-03157-0 | * 弹簧 | * SPRING | 1 |
| 24 | 309-03161-0 | * 阻风门板 | * CHOKE PLATE | 1 |
| 25 | 332-03104-0 | * 阻风门板螺母 | * CHOKE PLATE NUT | 1 |
| 26 | 941303-0600 | * 弹簧垫圈 | * SPRING WASHER | 1 |
| 27 | 309-03163-0 | * 快门螺栓 | * SHUTTER BOLT | 1 |
| 28 | 309-03164-0 | * 快门杆 | * SHUTTER LEVER | 1 |
| 29 | 309-03113-0 | * 化油器本体箍带 | * CARBURETOR BODY BAND | 1 |
| 30 | 309-03114-0 | * 化油器本体箍带螺栓 | * CARBURETOR BODY BAND BOLT | 1 |
| 31 | 921532-6410 | * 螺钉 | * SCREW | 2 |
| 32 | 921532-0510 | * 螺钉 | * SCREW | 1 |
| 33 | 309-03177-0 | * 节气门杆垫圈 | * THROTTLE LEVER WASHER | 1 |
| 34 | 309-03175-0 | * 节气门杆垫片 | * THROTTLE LEVER GASKET | 2 |
| 35 | 309-03176-1 | * 节气门杆端头 | * THROTTLE LEVER END | 1 |
| 36 | 309-03174-1 | * 油门杆套环 | * THROTTLE LEVER COLLAR | 1 |
| 37 | 309-03172-1 | * 油门杆 | * THROTTLE LEVER | 1 |
| 38 | 309-03116-2 | * O型圈 2.4-15.7 | * O-RING 2.4-15.7 | 1 |
| 39 | 309-03401-0 | 旋钮 | KNOB | 2 |
| 40 | 921603-0305 | 螺钉 | SCREW | 2 |
| 41 | 3F0B02496-3 | 带标牌化油器盖 | CARBURETOR COVER W/DECAL | 1 |
| 42 | 921603-0435 | 螺钉 | SCREW | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

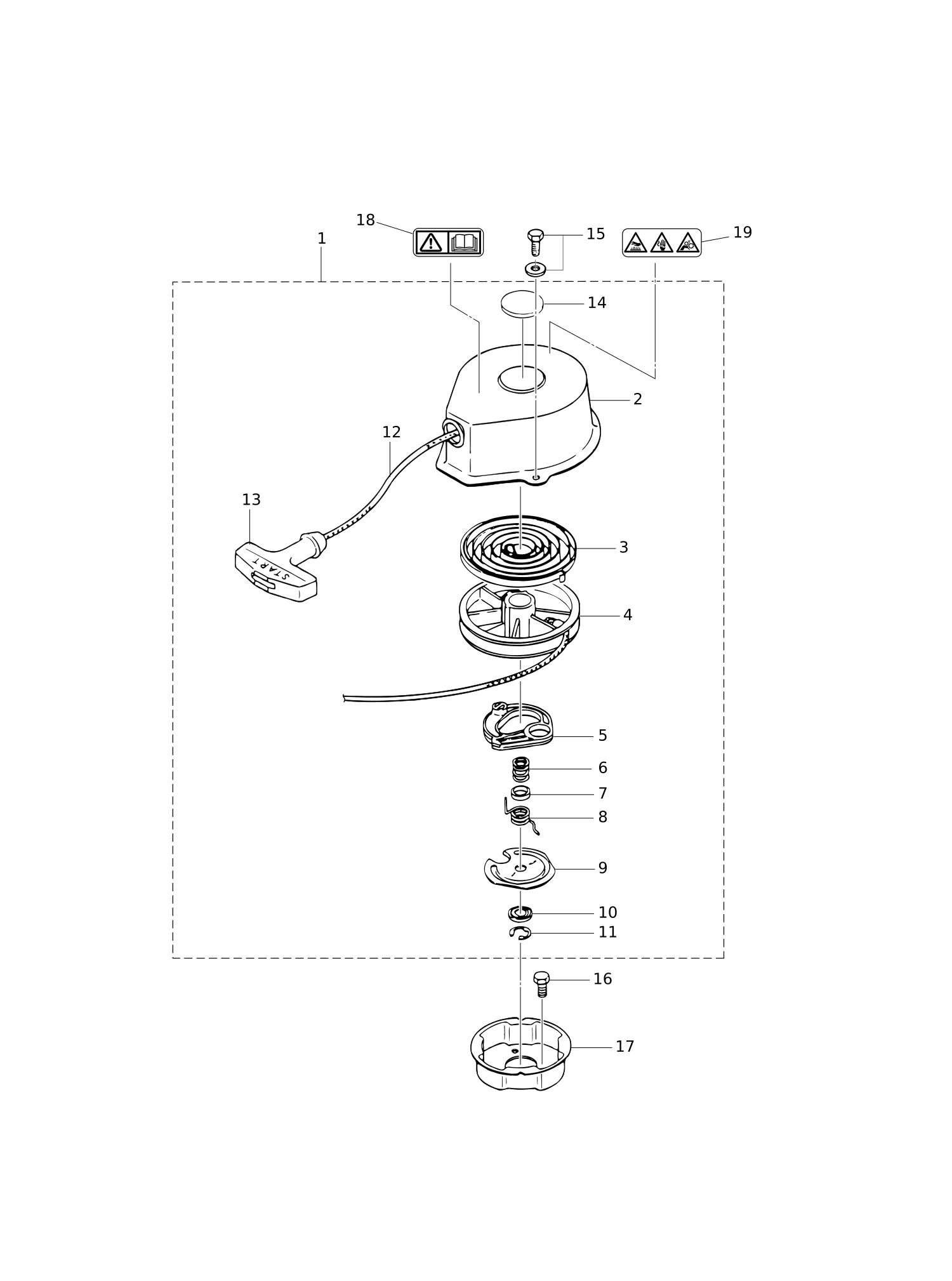

| 1 | 312-05000-0 | 反冲启动器总成 | RECOIL STARTER ASSY | 1 |
| 2 | 312-05001-0 | * 启动器外壳 | * STARTER CASE | 1 |
| 3 | 307-05004-0 | * 启动弹簧 | * STARTER SPRING | 1 |
| 4 | 307-05104-0 | * 卷轴 | * REEL | 1 |
| 5 | 307-05003-0 | * 棘轮 | * RATCHET | 1 |
| 6 | 307-05007-0 | * 摩擦弹簧 | * FRICTION SPRING | 1 |
| 7 | 307-05021-0 | * 弹簧盖 | * SPRING COVER | 1 |
| 8 | 307-05012-0 | * 回位弹簧 | * RETURN SPRING | 1 |
| 9 | 307-05006-0 | * 摩擦板 | * FRICTION PLATE | 1 |
| 10 | 307-05027-0 | * 止推垫圈 | * THRUST WASHER | 1 |
| 11 | 307-05011-0 | * E型卡环 | * E-RING | 1 |
| 12 | 307-05013-0 | * 启动绳 φ4-1250 | * STARTER ROPE φ4-1250 | 1 |
| 13 | 307-05019-0 | * 启动手柄 | * STARTER HANDLE | 1 |
| 14 | 309-05028-0 | * 垫块 | * PAD | 1 |
| 15 | 910103-5612 | 螺栓 | BOLT | 2 |
| 16 | 910121-0612 | 螺栓 | BOLT | 3 |
| 17 | 309-05901-1 | 启动器皮带轮 | STARTER PULLEY | 1 |
| 18 | 3F0-72185-0 | 警示标贴 | CAUTION DECAL | 1 |
| 19 | 314-72185-0 | 警示标贴 | CAUTION DECAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

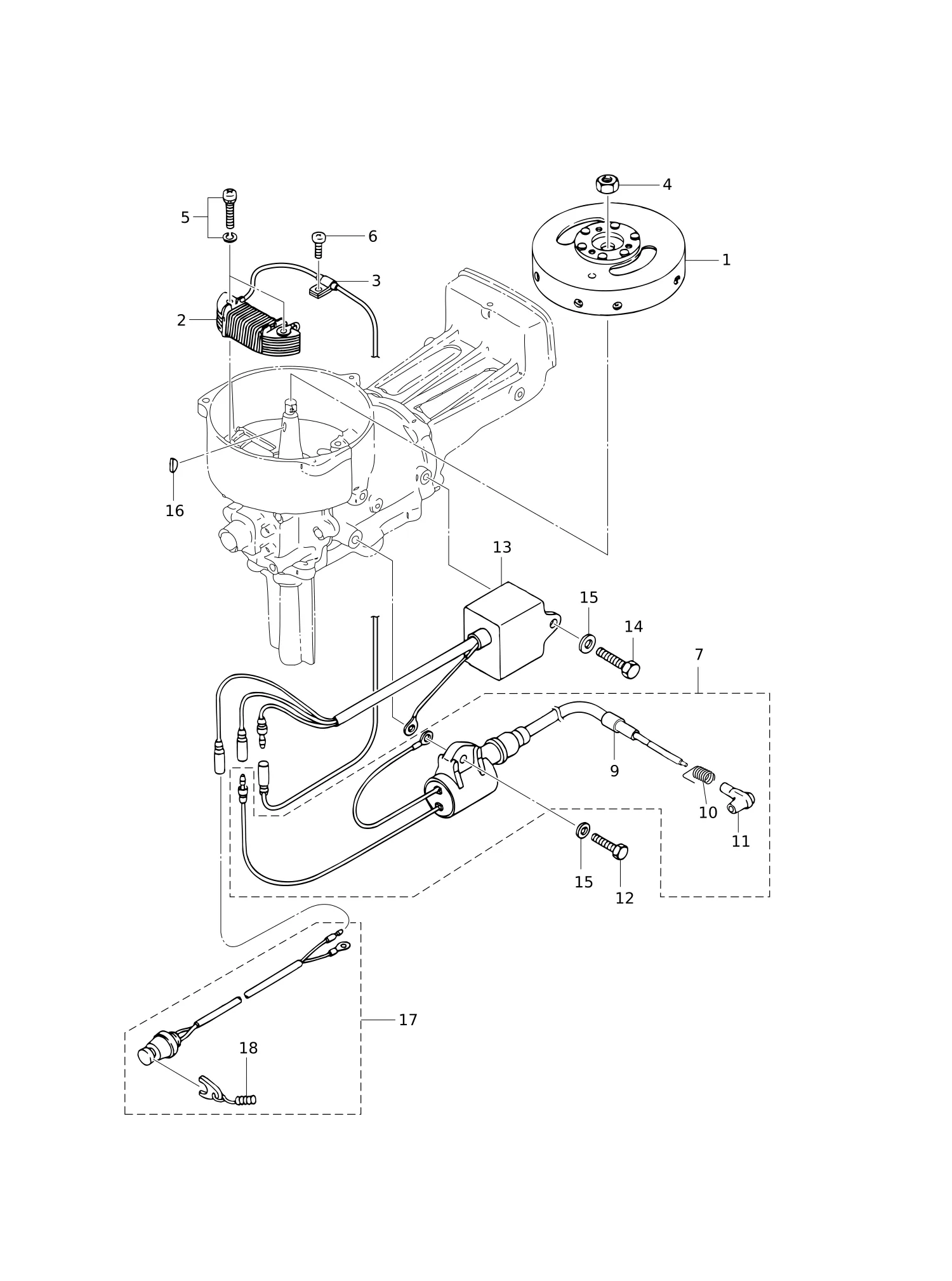

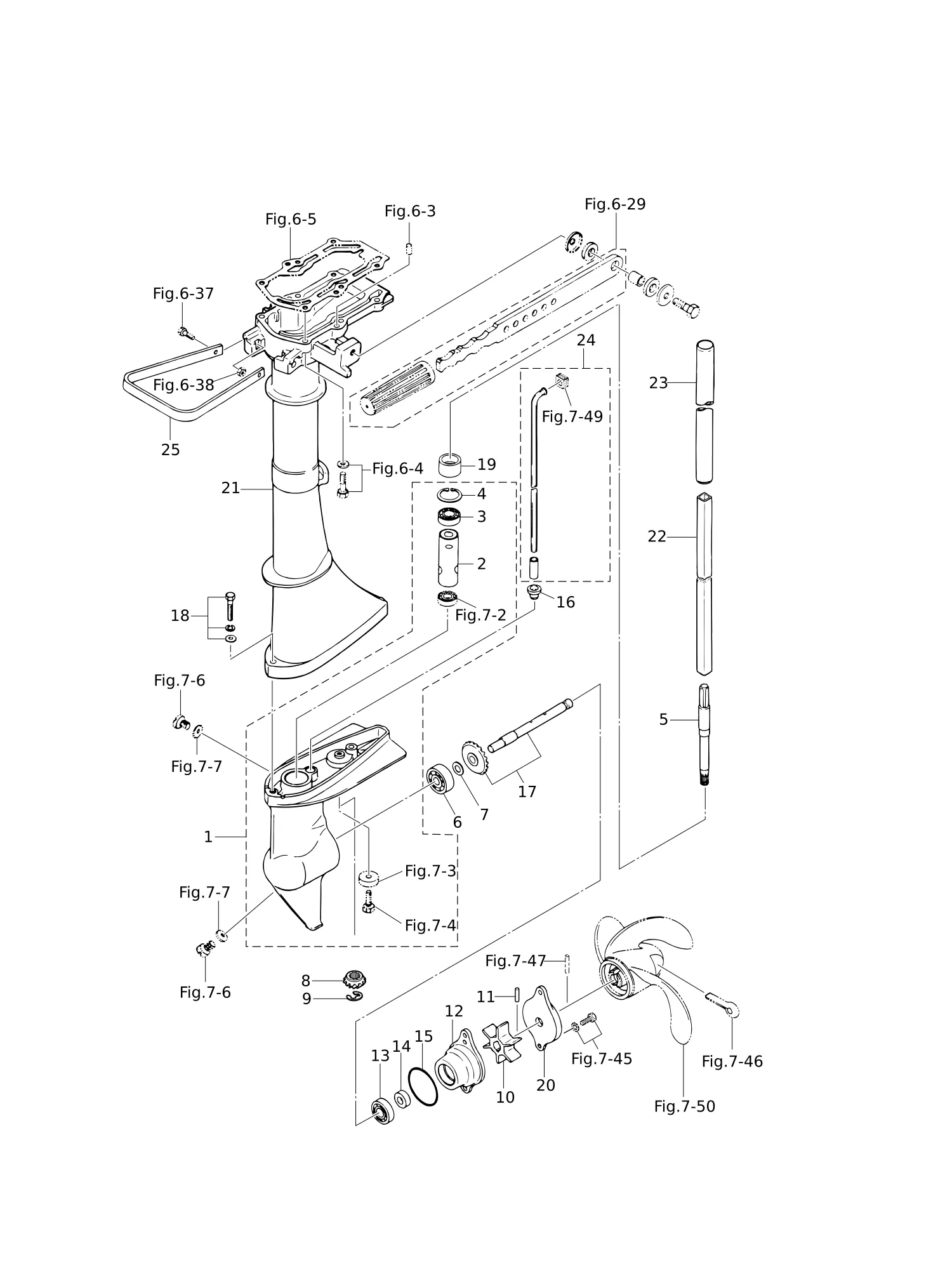

| 1 | 3F0-06101-0 | 飞轮总成 | FLYWHEEL ASSY | 1 |
| 2 | 3F0-06120-0 | 励磁线圈 | EXCITER COIL | 1 |
| 3 | 3F0-06915-0 | 卡箍 | CLAMP | 1 |
| 4 | 309-00132-0 | 螺母 10-P1.25 | NUT 10-P1.25 | 1 |
| 5 | 921521-6520 | 螺钉 | SCREW | 2 |
| 6 | 921521-0510 | 螺钉 | SCREW | 1 |
| 7 | 369-06050-3 | 带帽点火线圈 | IGNITION COIL W/CAP | 1 |
| 9 | 3F0-06157-0 | * 保护罩 | * PROTECTOR | 1 |
| 10 | 3M2-06926-0 | * 火花塞帽端子 | * PLUG CAP TERMINAL | 1 |
| 11 | 3M2-06921-0 | * 火花塞帽 | * PLUG CAP | 1 |
| 12 | 910103-0620 | 螺栓 | BOLT | 1 |
| 13 | 3F0-06060-0 | CD单元 | CD UNIT | 1 |
| 14 | 910103-0616 | 螺栓 | BOLT | 1 |
| 15 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 2 |
| 16 | 309-00131-0 | 键 10-3.7-3 | KEY 10-3.7-3 | 1 |
| 17 | 3D5-06870-0 | 停止开关总成 | STOP SWITCH ASSY | 1 |
| 18 | 31H-06848-0 | * 停机开关拉绳总成 | * STOP SWITCH LANYARD ASSY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9101E3-7635 | 螺栓 | BOLT | 2 |

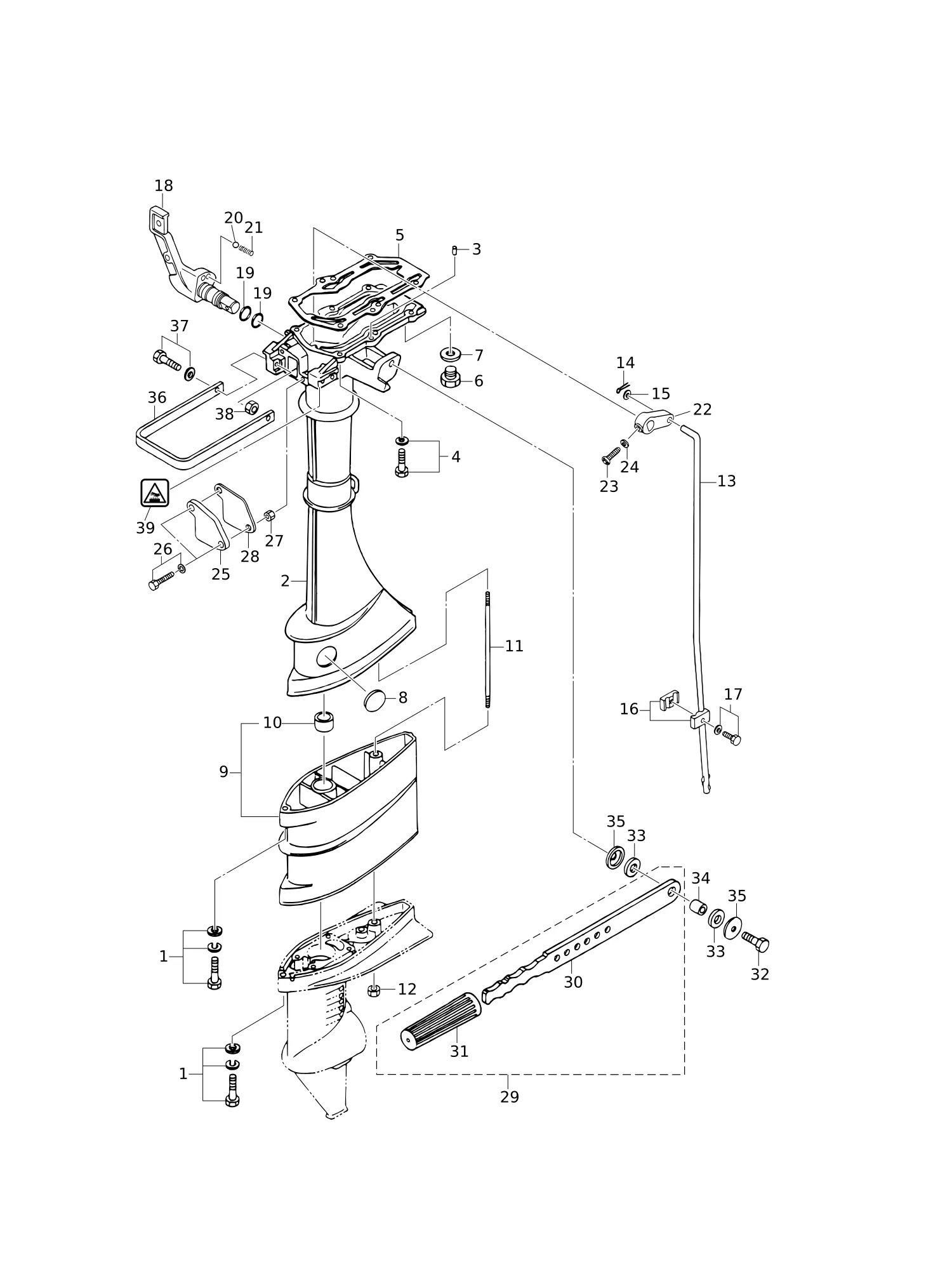

| 2 | 3F0Q61020-2 | 驱动轴壳体(S) | DRIVE SHAFT HOUSING (S) | 1 |
| 3 | 345-01111-0 | 定位销6-12 | DOWEL PIN 6-12 | 2 |
| 5 | 309-61012-3 | 驱动轴壳体衬垫 | DRIVE SHAFT HOUSING GASKET | 1 |
| 6 | 9106E3-0808 | 螺栓 | BOLT | 1 |
| 7 | 332-60006-1 | 衬垫8.1-15-1 | GASKET 8.1-15-1 | 1 |
| 8 | 369-61016-0 | 索环 29-3 | GROMMET 29-3 | 1 |
| 9 | 3F0Q61102-2 | 延伸壳体总成(长) | EXTENSION HOUSING ASSY (L) | 1 |
| 10 | 369-60003-0 | * 驱动轴衬套 | * DRIVE SHAFT BUSHING | 1 |
| 11 | 3F0-61101-1 | 螺柱6-171 | STUD 6-171 | 1 |
| 13 | 3F0-66214-0 | 换挡连杆(短) | SHIFT ROD (S) | 1 |
| 14 | 951503-0212 | 开口销2-12 | SPLIT PIN 2-12 | 1 |
| 15 | 940103-0500 | 垫圈 | WASHER | 1 |
| 16 | 369-66241-0 | 换挡杆接头总成 | SHIFT ROD JOINT ASSY | 1 |
| 17 | 910103-5616 | 螺栓 | BOLT | 1 |
| 18 | 3F0-66110-0 | 换挡杆 | SHIFT LEVER | 1 |
| 19 | 3G9-66136-0 | O型圈2-10 | O-RING 2-10 | 2 |
| 20 | 369-66116-0 | 陶瓷球7.7 | CERAMIC BALL 7.7 | 1 |
| 21 | 369-66112-1 | 弹簧 | SPRING | 1 |
| 22 | 3F0-66225-0 | 换挡杆手柄 | SHIFT ROD LEVER | 1 |
| 23 | 3F0-66227-0 | 自攻螺丝 4-20 | TAPPING SCREW 4-20 | 1 |
| 24 | 940103-0400 | 垫圈 | WASHER | 1 |
| 25 | 3F0Q66228-0 | 盖板 | COVER | 1 |
| 26 | 9101E3-5616 | 螺栓 | BOLT | 2 |
| 28 | 3F0-66229-1 | 衬垫 | GASKET | 1 |
| 29 | 309Q63010-0 | 舵柄总成 | TILLER HANDLE ASSY | 1 |
| 30 | 309Q63011-0 | * 舵柄手柄 | * TILLER HANDLE | 1 |
| 31 | 309-63012-0 | * 手柄 | * GRIP | 1 |
| 32 | 910103-0830 | 螺栓 | BOLT | 1 |
| 33 | 309-63024-0 | 舵柄缓冲器 | TILLER HANDLE DAMPER | 2 |
| 34 | 309-63025-0 | 垫圈 8.4-12-14.2 | SPACER 8.4-12-14.2 | 1 |
| 35 | 345-67115-0 | 垫片 6.5-21-1 | WASHER 6.5-21-1 | 2 |
| 36 | 3F0Q67521-0 | 搬运把手 | CARRYING HANDLE | 1 |
| 37 | 9101E3-5625 | 螺栓 | BOLT | 2 |
| 38 | 9301E3-0600 | 螺母 | NUT | 2 |
| 39 | 3GR-76191-0 | 高温警示标贴 | HIGH TEMPERATURE CAUTION DECAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

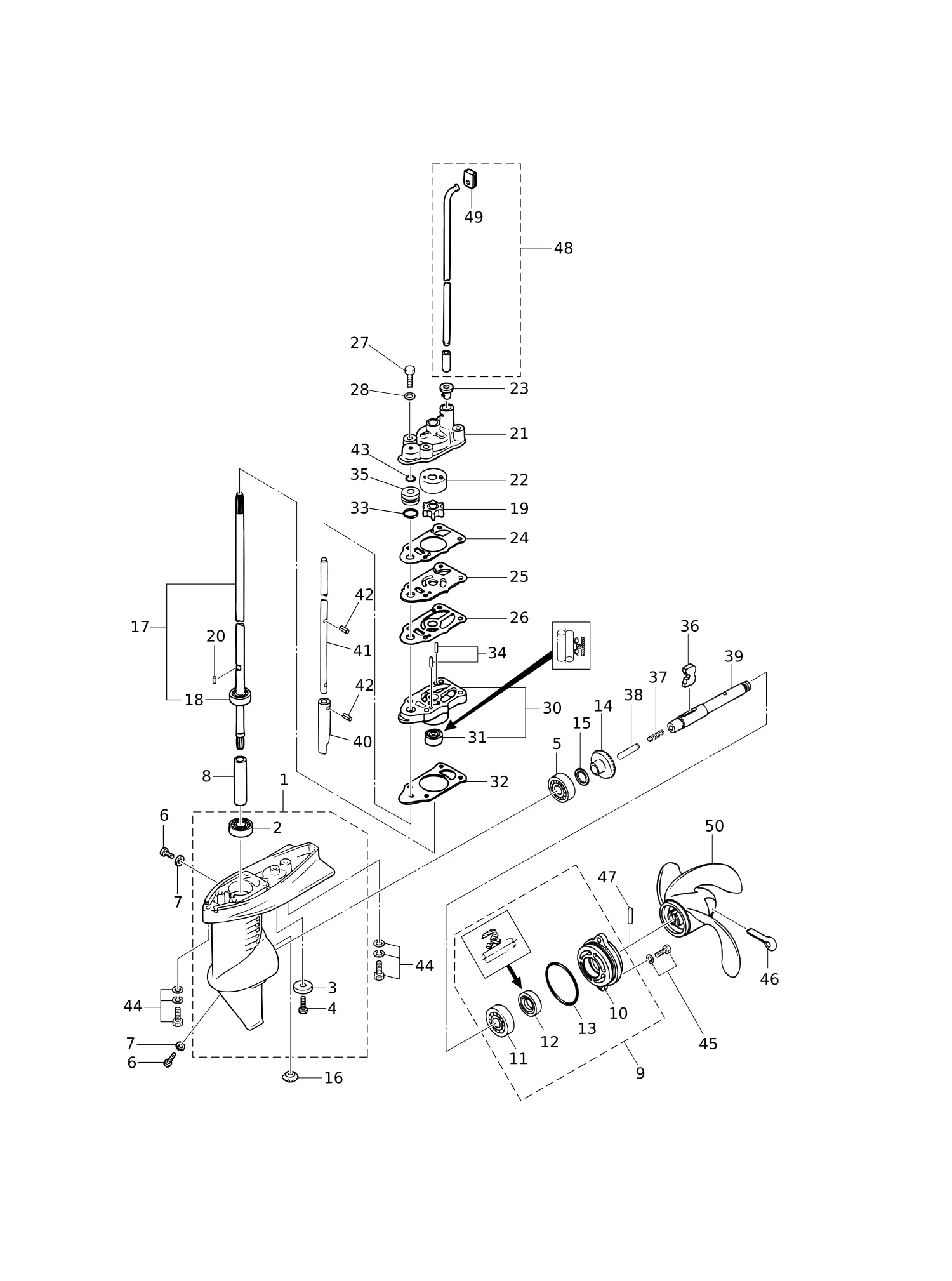

| 1 | 3ARQ60000-1 | 齿轮箱总成 | GEAR CASE ASSY | 1 |
| 3 | 338-60218-2 | * 阳极 | * ANODE | 1 |
| 4 | 910103-0616 | 螺栓 | * BOLT | 1 |
| 5 | 9601-0-6004 | 滚珠轴承 6004 | BALL BEARING 6004 | 1 |
| 6 | 332-60005-3 | 塞 8-8 | PLUG 8-8 | 2 |
| 7 | 332-60006-1 | 衬垫8.1-15-1 | GASKET 8.1-15-1 | 2 |
| 8 | 3F0-64321-0 | 垫片 10.1-15-72 | SPACER 10.1-15-72 | 1 |
| 9 | 3F0Q87323-1 | 螺旋桨轴套总成 | PROPELLER SHAFT HOUSING ASSY | 1 |
| 10 | 3F0Q60101-1 | * 螺旋桨轴套 | * PROPELLER SHAFT HOUSING | 1 |
| 11 | 9601-0-6001 | * 球轴承 6001 | * BALL BEARING 6001 | 1 |
| 12 | 309-60111-0 | * 油封 12-24-8 | * OIL SEAL 12-24-8 | 1 |
| 13 | 345-65015-0 | * O型圈 3.2-47 | * O-RING 3.2-47 | 1 |
| 14 | 3GR-64010-0 | 锥齿轮总成(A) | BEVEL GEAR ASSY (A) | 1 |
| 15 | 369-64014-0 | 垫片 21-28-0.1 | SHIM 21-28-0.1 | 1 |
| 15 | 369-64015-0 | 垫片 21-28-0.15 | SHIM 21-28-0.15 | 1 |
| 16 | 3GR-64020-0 | 锥齿轮B | BEVEL GEAR B | 1 |
| 17 | 3F0-64301-0 | 驱动轴总成(S) | DRIVE SHAFT ASSY (S) | 1 |
| 17 | 3F0-64302-0 | 驱动轴总成(L) | DRIVE SHAFT ASSY (L) | 1 |
| 18 | 9601-0-6000 | * 球轴承 6000 | * BALL BEARING 6000 | 1 |
| 19 | 369-65021-1 | 水泵叶轮 | WATER PUMP IMPELLER | 1 |
| 20 | 369-65022-0 | 键 φ2-11 | KEY φ2-11 | 1 |
| 21 | 3F0-65016-0 | 泵壳(上) | PUMP CASE (UPPER) | 1 |
| 22 | 3F0-65011-0 | 泵壳衬套 | PUMP CASE LINER | 1 |
| 23 | 3F0-65032-0 | 索环/护孔圈 | GROMMET | 1 |
| 24 | 3F0-65018-0 | 泵壳垫片 | PUMP CASE GASKET | 1 |
| 25 | 3F0-65025-0 | 水泵导板 | WATER PUMP GUIDE PLATE | 1 |
| 26 | 3F0-65029-0 | 导板垫片 | GUIDE PLATE GASKET | 1 |
| 27 | 9161E3-0645 | 螺栓 | BOLT | 4 |
| 28 | 940103-0600 | 垫圈 | WASHER | 4 |
| 30 | 3H2-65040-1 | 泵壳总成(下) | PUMP CASE ASSY (LOWER) | 1 |
| 31 | 3F0-60223-0 | * 油封 10-22-8 | * OIL SEAL 10-22-8 | 1 |
| 32 | 3F0-65020-0 | 泵壳垫片(下) | PUMP CASE GASKET (LOWER) | 1 |
| 33 | 301-66023-0 | O型圈 2.4-9.5 | O-RING 2.4-9.5 | 1 |
| 34 | 3B2-65022-0 | 键 φ3-11 | KEY φ3-11 | 2 |
| 35 | 3F0-66031-0 | 凸轮杆衬套 | CAM ROD BUSHING | 1 |
| 36 | 3F0-64215-0 | 离合器 | CLUTCH | 1 |
| 37 | 3F0-64221-0 | 弹簧 | SPRING | 1 |
| 38 | 3F0-64223-0 | 推杆 | PUSH ROD | 1 |
| 39 | 3F0-64211-0 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 40 | 3F0-66011-0 | 离合器凸轮 | CLUTCH CAM | 1 |
| 41 | 3F0-66012-0 | 凸轮杆(短) | CAM ROD (S) | 1 |
| 41 | 3F0-66013-0 | 凸轮杆(长) | CAM ROD (L) | 1 |
| 42 | 951407-0308 | 弹簧销 3-8 | SPRING PIN 3-8 | 2 |
| 43 | 369-66021-1 | O型圈 2.5-4.9 | O-RING 2.5-4.9 | 1 |
| 44 | 9101E3-7635 | 螺栓 | BOLT | 2 |
| 45 | 9101E3-5620 | 螺栓 | BOLT | 2 |
| 46 | 951503-0435 | 开口销4-35 | SPLIT PIN 4-35 | 1 |
| 47 | 309-64126-1 | 剪切销4-24型 | SHEAR PIN 4-24 | 1 |
| 48 | 3F0-65100-0 | 水管总成(短) | WATER PIPE ASSY (S) | 1 |
| 48 | 3F0-65110-0 | 水管总成(左) | WATER PIPE ASSY (L) | 1 |
| 49 | 309-65031-1 | * 护孔环 10.6-10.4-4 | * GROMMET 10.6-10.4-4 | 1 |
| 50 | 309-64106-0 | 螺旋桨总成(6英寸) | PROPELLER ASSY (6") | 1 |
| 50 | 314-64103-0 | 螺旋桨总成(4.5英寸) | PROPELLER ASSY (4.5") | 1 |
| 50 | 3F0-64101-0 | 螺旋桨总成(7英寸) | PROPELLER ASSY (7") | 1 |
| 50 | 3F0B64512-0 | 螺旋桨总成(6英寸) | PROPELLER ASSY (6") | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 309Q60000-2 | 齿轮箱总成 | GEAR CASE ASSY | 1 |
| 2 | 309-64321-1 | * 隔套 | * SPACER | 1 |
| 4 | 945002-2800 | * C形环 d=28 | * C-RING d=28 | 1 |
| 5 | 309-64311-1 | 下驱动轴 | DRIVE SHAFT (LOWER) | 1 |
| 6 | 9601-0-6300 | 滚珠轴承 6300 | BALL BEARING 6300 | 1 |
| 7 | 309-64014-0 | 垫片 17.5-10.2-0.2 | SHIM 17.5-10.2-0.2 | 1 |
| 7 | 309-64015-0 | 垫片 17.5-10.2-0.1 | SHIM 17.5-10.2-0.1 | 1 |
| 7 | 309-64017-0 | 垫片 17.5-10.2-0.05 | SHIM 17.5-10.2-0.05 | 1 |
| 8 | 309-64020-0 | 锥齿轮B | BEVEL GEAR B | 1 |
| 9 | 945307-0700 | E型卡环 d=7 | E-RING d=7 | 1 |
| 10 | 309-65021-1 | 水泵叶轮 | WATER PUMP IMPELLER | 1 |
| 11 | 309-65022-0 | 键 φ4-15 | KEY φ4-15 | 1 |
| 12 | 309Q65010-1 | 水泵壳体 | WATER PUMP CASE | 1 |
| 13 | 9601-0-6001 | 滚珠轴承 6001 | BALL BEARING 6001 | 1 |
| 14 | 309-60111-0 | 油封 12-24-8 | OIL SEAL 12-24-8 | 1 |
| 15 | 309-65015-0 | O型圈1.5-47.75 | O-RING 1.5-47.75 | 1 |
| 16 | 309-65032-0 | 索环 10.2-8 | GROMMET 10.2-8 | 1 |
| 17 | 309-64210-0 | 螺旋桨轴总成 | PROPELLER SHAFT ASSY | 1 |
| 18 | 9101E3-7630 | 螺栓 | BOLT | 2 |
| 19 | 309-60223-0 | 油封 13-28.1-18 | OIL SEAL 13-28.1-18 | 1 |
| 20 | 309Q60101-1 | 水泵壳体盖 | WATER PUMP CASE COVER | 1 |
| 21 | 309Q61020-2 | 驱动轴壳体(S) | DRIVE SHAFT HOUSING (S) | 1 |
| 21 | 309Q61030-2 | 驱动轴壳体(L) | DRIVE SHAFT HOUSING (L) | 1 |
| 22 | 309-64312-1 | 上驱动轴(S) | DRIVE SHAFT (UPPER S) | 1 |
| 22 | 309-64313-1 | 上驱动轴(L) | DRIVE SHAFT (UPPER L) | 1 |
| 23 | 309-64322-0 | 加固管 | GIRD PIPE | 1 |
| 23 | 309-64323-0 | 加固管 | GIRD PIPE | 1 |
| 24 | 309-65100-0 | 水管总成(短) | WATER PIPE ASSY (S) | 1 |
| 24 | 309-65110-0 | 水管总成(左) | WATER PIPE ASSY (L) | 1 |
| 25 | 309Q67521-0 | 搬运把手 | CARRYING HANDLE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

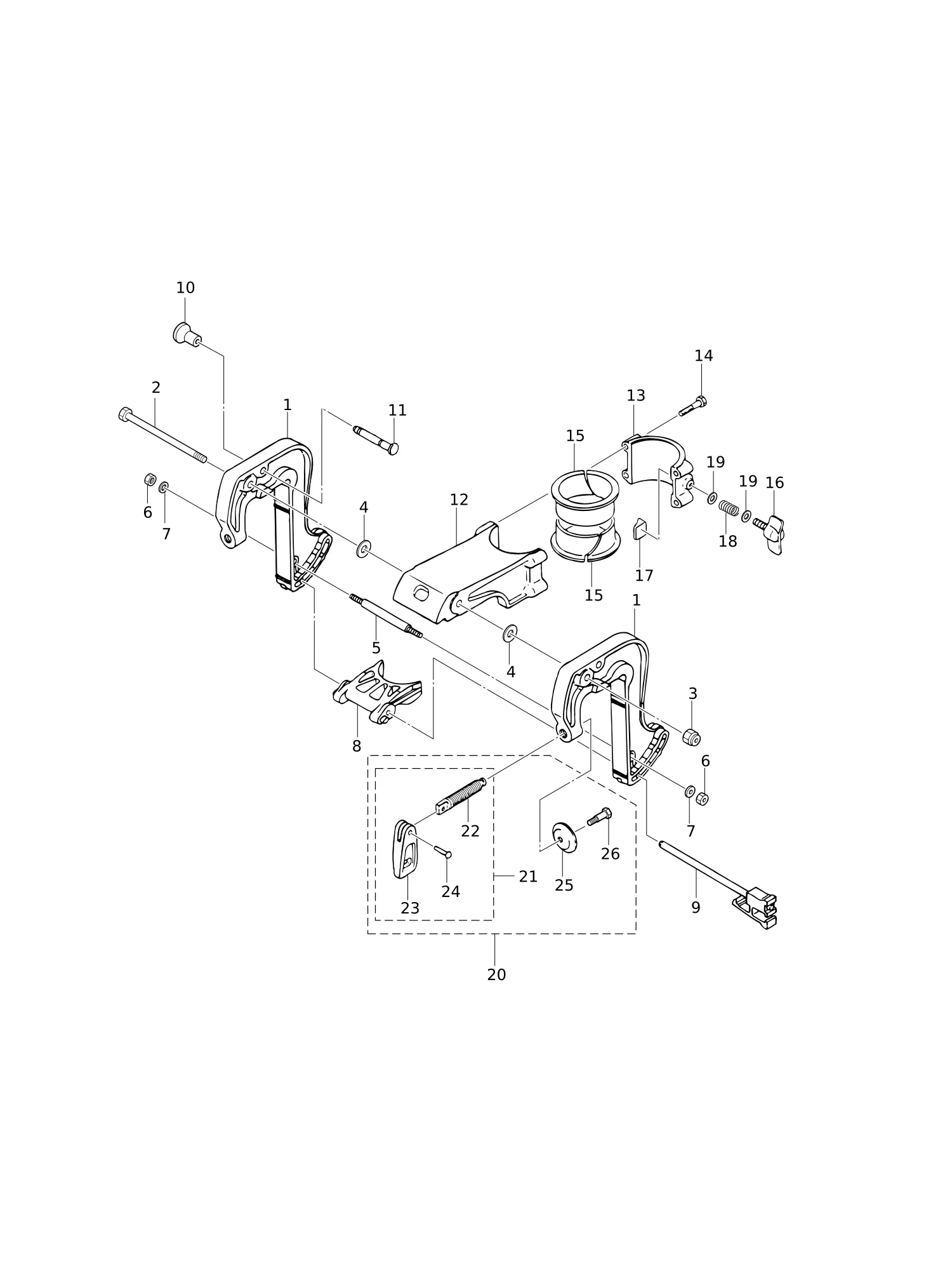

| 1 | 309Q62111-4 | 卡箍支架 | CLAMP BRACKET | 1 |
| 2 | 309-62115-2 | 螺栓8-122 | BOLT 8-122 | 1 |
| 3 | 930403-0800 | 尼龙螺母 8-P1.25 | NYLON NUT 8-P1.25 | 1 |
| 4 | 307-62116-1 | 垫圈 8.5-28-1 | WASHER 8.5-28-1 | 2 |
| 5 | 309-62117-1 | 间隔块 | DISTANCE PIECE | 1 |
| 6 | 930103-0600 | 螺母 | NUT | 2 |
| 8 | 309-62212-2 | 推力支架 | THRUST SUPPORTER | 1 |
| 9 | 3F0-62160-0 | 推力杆总成 | THRUST ROD ASSY | 1 |
| 10 | 309-62463-0 | 旋钮 | KNOB | 1 |
| 11 | 309-62464-2 | 倾斜止动器 | TILT STOPPER | 1 |
| 12 | 309Q62391-1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 13 | 309Q62392-1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 14 | 9101E3-0630 | 螺栓 | BOLT | 4 |
| 15 | 309-62321-1 | 衬套 | BUSHING | 2 |
| 16 | 3GT-62442-0 | 摩擦旋钮 | FRICTION KNOB | 1 |
| 17 | 309-62441-2 | 摩擦片 | FRICTION PIECE | 1 |
| 18 | 309-62446-1 | 弹簧 | SPRING | 1 |
| 19 | 9401E3-0600 | 垫圈 | WASHER | 2 |
| 20 | 3GTQ62105-1 | 夹紧螺丝套件 | CLAMP SCREW KIT | 2 |
| 21 | 3GTQ62108-1 | * 卡箍螺丝总成 | * CLAMP SCREW ASSY | 1 |
| 22 | 369-62106-1 | 夹紧螺钉 | ** CLAMP SCREW | 1 |
| 23 | 3ABQ62102-0 | 夹紧螺钉手柄 | ** CLAMP SCREW HANDLE | 1 |
| 24 | 3C8-62104-2 | 铆钉 3-22 | ** RIVET 3-22 | 1 |
| 25 | 332-62101-1 | * 卡箍螺丝垫片 | * CLAMP SCREW PAD | 1 |
| 26 | 3C8-62107-0 | * 肩螺栓 | * SHOULDER BOLT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

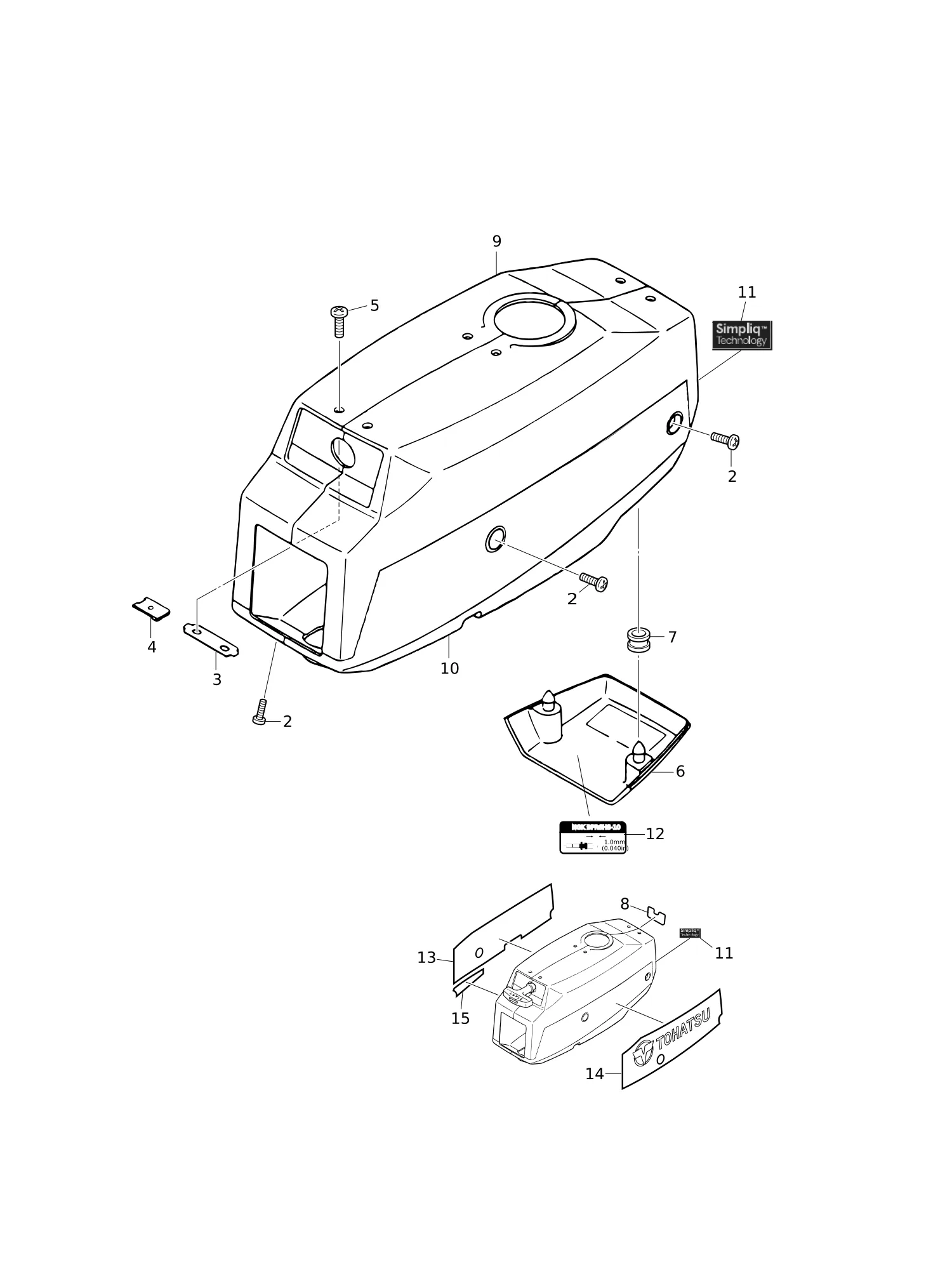

| 2 | 9215E3-0612 | 螺钉 | SCREW | 6 |
| 3 | 309-67006-0 | 顶罩连接板 | TOP COWL JOINT PLATE | 4 |
| 4 | 309-67007-0 | 螺母 | NUT | 8 |
| 5 | 921603-0510 | 螺钉 | SCREW | 8 |
| 6 | 309Q06927-1 | 盖板 | COVER | 1 |
| 7 | 307-67005-0 | 索环 16-5-2.5 | GROMMET 16-5-2.5 | 2 |
| 8 | 314-67536-1 | 后部贴花(3.5马力) | REAR DECAL (3.5) | 1 |
| 9 | 3F0Q67090-0 | 顶罩(右) | TOP COWL (R) | 1 |
| 10 | 3F0Q67093-0 | 顶罩(左) | TOP COWL (L) | 1 |
| 11 | 314-67538-0 | 简标贴花 | SIMPLIQ DECAL | 1 |
| 12 | 309-72026-1 | 火花塞贴花 | SPARK PLUG DECAL | 1 |
| 13 | 309-67542-9 | 右侧贴花 | SIDE DECAL (R) | 1 |
| 14 | 309-67543-9 | 左侧贴花 | SIDE DECAL (L) | 1 |
| 15 | 314-67578-2 | 换挡标识贴 | SHIFT DECAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

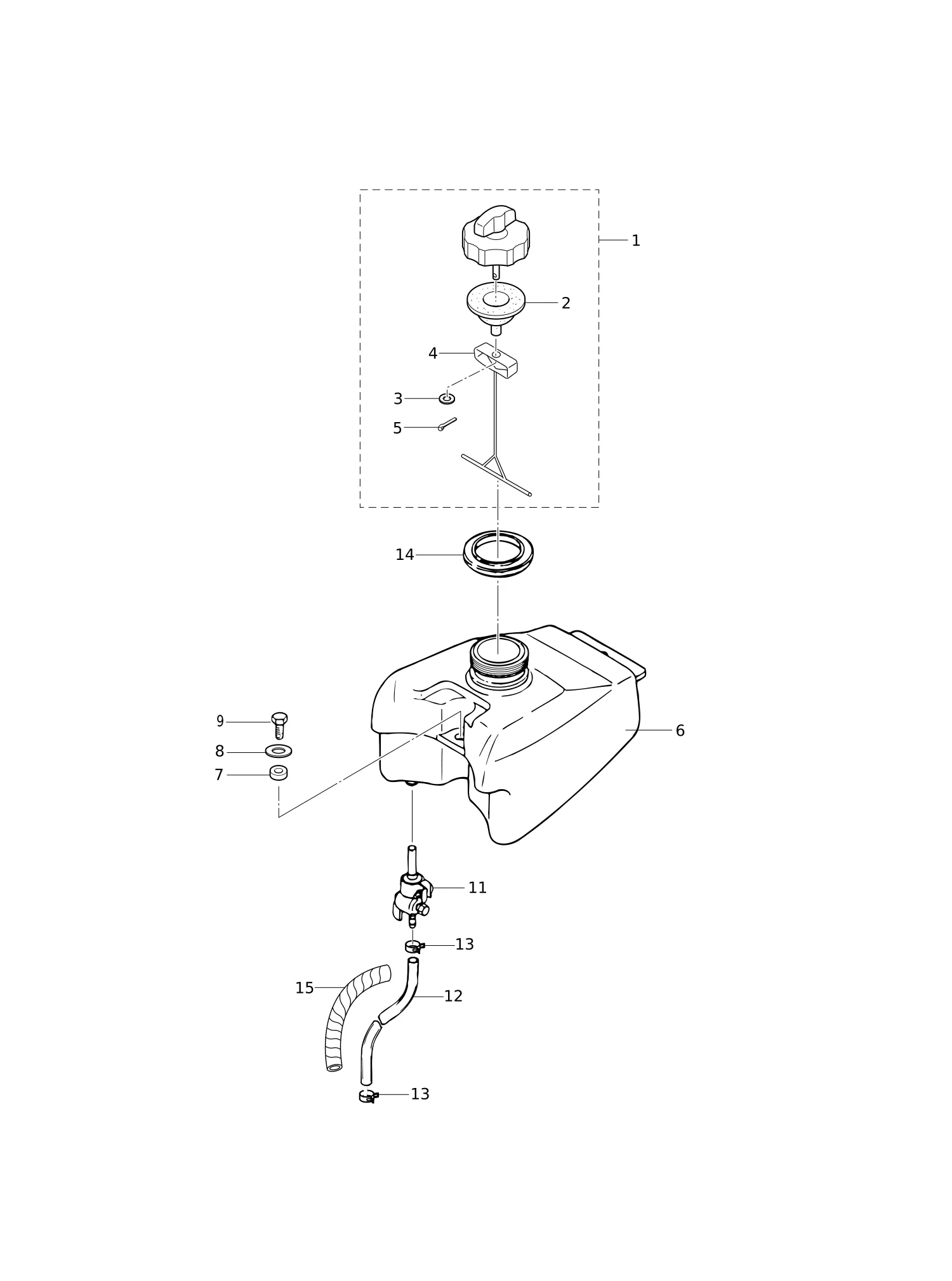

| 1 | 3GP-70020-0 | 燃油箱盖总成 | FUEL TANK CAP ASSY | 1 |
| 2 | 3GR-70021-0 | * 油箱加注口盖垫片 | * TANK FILLER CAP GASKET | 1 |
| 3 | 940103-0400 | * 垫圈 | * WASHER | 1 |
| 4 | 3H9-70095-0 | * 挂钩 | * HOOK | 1 |
| 5 | 951503-1610 | * 开口销 1.6-10 | * SPLIT PIN 1.6-10 | 1 |
| 6 | 309-70010-3 | 燃油箱 | FUEL TANK | 1 |
| 7 | 309-70015-0 | 垫圈 7.2-10-6 | SPACER 7.2-10-6 | 2 |
| 8 | 3C8-66308-0 | 垫片 6-16-1.5 | WASHER 6-16-1.5 | 2 |
| 9 | 910103-0620 | 螺栓 | BOLT | 2 |
| 11 | 309-70011-0 | 燃油旋塞总成 | FUEL COCK ASSY | 1 |
| 12 | 309-70315-0 | 燃油软管 | FUEL HOSE | 1 |
| 13 | 3GT-35143-0 | 卡环 φ9.4 | CLIP φ9.4 | 2 |
| 14 | 309-70036-0 | 燃油箱密封件 | FUEL TANK SEAL | 1 |
| 15 | 309-06157-0 | 保护套 L=220 | PROTECTOR L=220 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

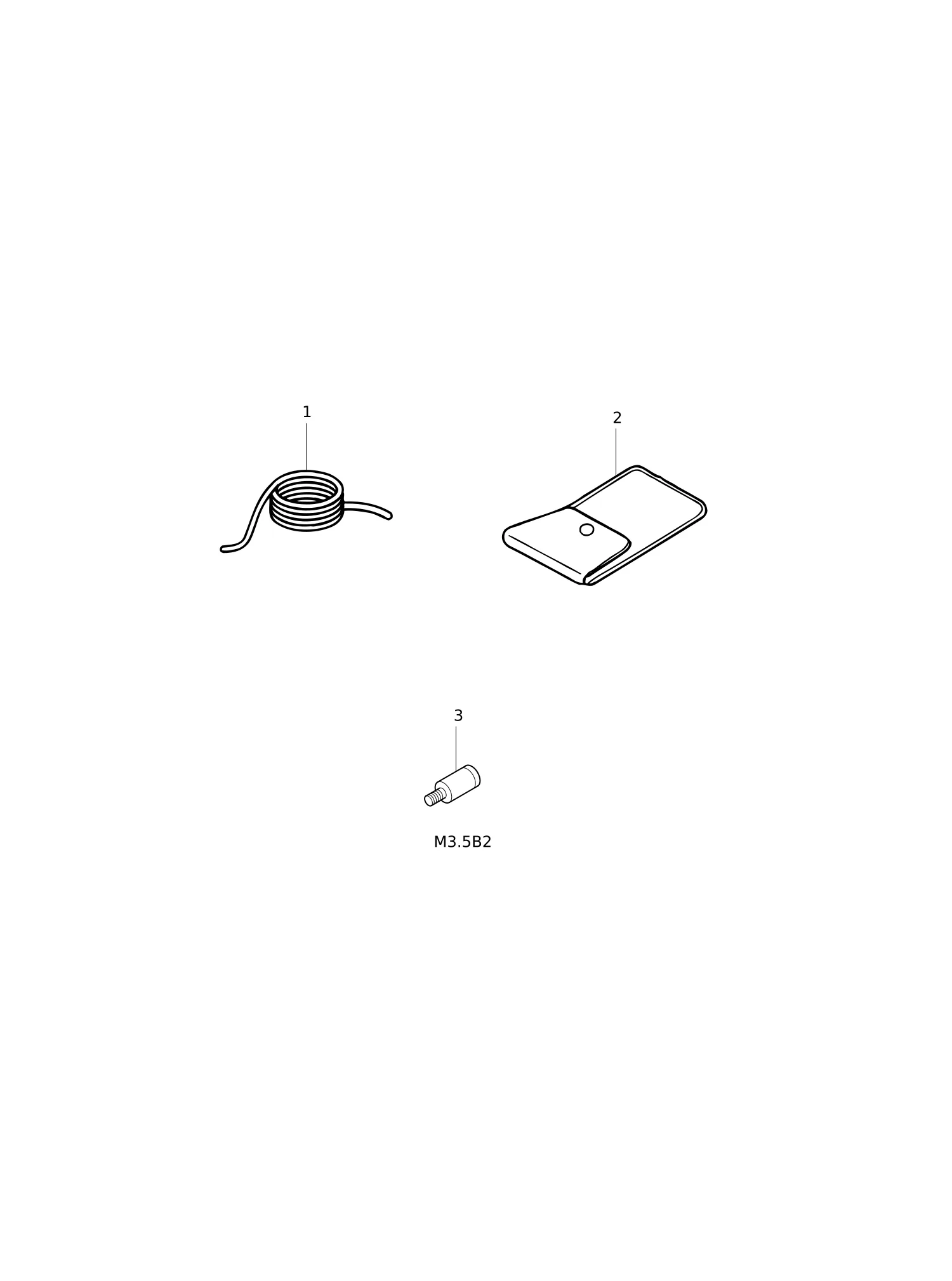

| 1 | 312-72201-0 | 安全绳φ4-1000 | SAFETY ROPE φ4-1000 | 1 |
| 2 | 312-72100-1 | 工具包 | TOOL KIT | 1 |
| 3 | 336-60007-0 | 冲洗塞 | FLUSHING PLUG | 1 |

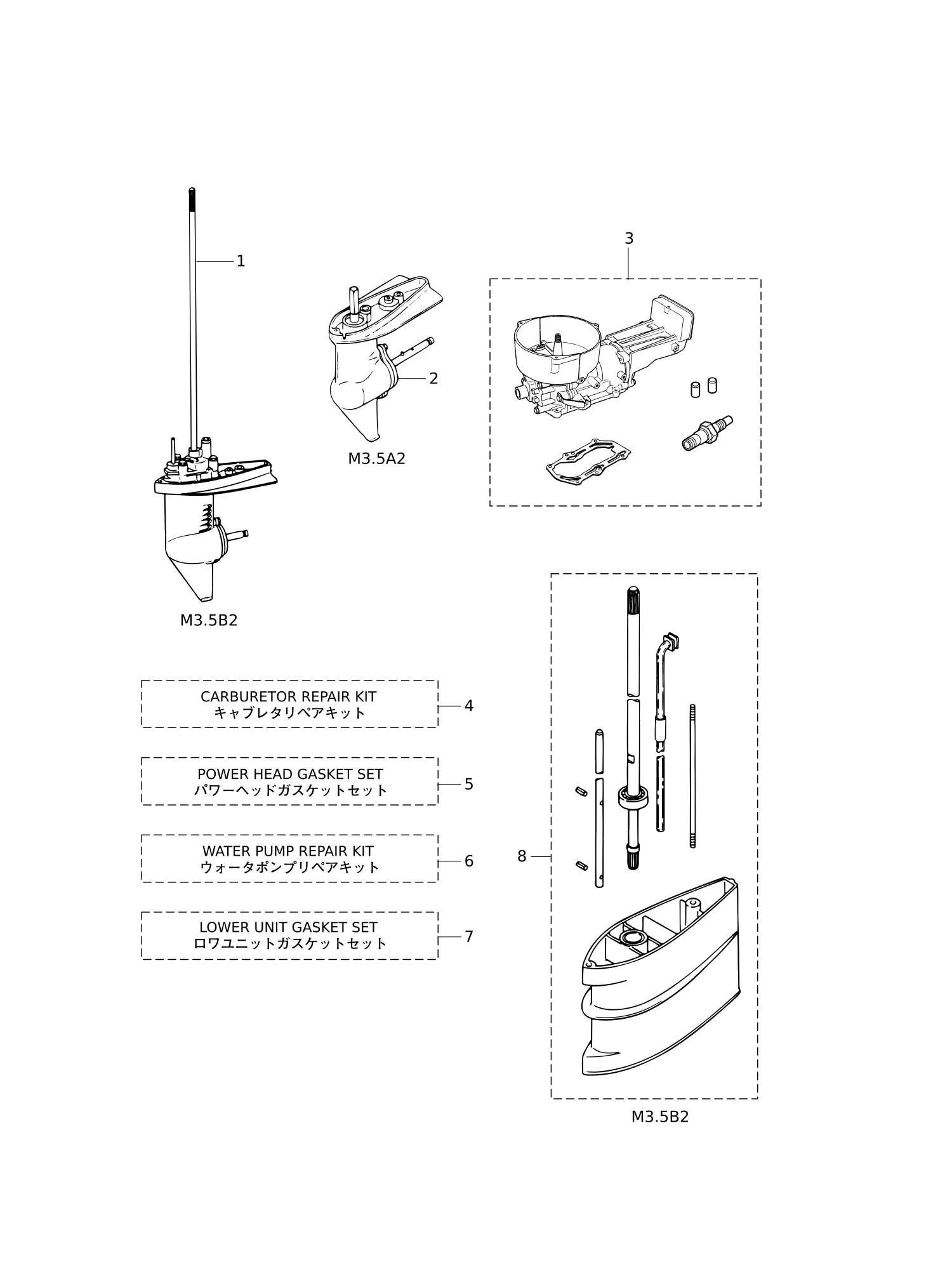

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 3ARQ87301-2 | 下部单元总成 (S) | LOWER UNIT ASSY (S) | 1 |
| 1 | 3ARQ87302-2 | 下部单元总成 (L) | LOWER UNIT ASSY (L) | 1 |
| 2 | 309Q87301-1 | 下部单元总成 (S) | LOWER UNIT ASSY (S) | 1 |
| 3 | 309B87090-8 | 发动机短缸体套件 | ENGINE SHORT BLOCK KIT | 1 |
| 3 | 3F0B87090-6 | 发动机短缸体套件 | ENGINE SHORT BLOCK KIT | 1 |
| 4 | 309-03116-2 | * O型圈 2.4-15.7 | * O-RING 2.4-15.7 | 1 |
| 4 | 309-03121-0 | * 浮子室垫片 | * FLOAT CHAMBER GASKET | 1 |
| 4 | 309-03125-0 | * 浮子 | * FLOAT | 1 |
| 4 | 309-03126-0 | * 浮子臂销 | * FLOAT ARM PIN | 1 |
| 4 | 309-03127-1 | * 浮子铰链 | * FLOAT HINGE | 1 |
| 4 | 309-03147-1 | * 浮子阀 | * FLOAT VALVE | 1 |
| 4 | 309-03154-0 | * 量孔针阀卡簧 | * JET NEEDLE CLIP | 1 |
| 4 | 309-03156-0 | * 调节螺钉 | * ADJUST SCREW | 1 |
| 4 | 309-03193-0 | * 衬垫 | * GASKET | 1 |
| 4 | 3D7-03148-1 | * 针阀座 L=32 | * NEEDLE VALVE SEAT L=32 | 1 |
| 4 | 3F0-03153-3 | * 量孔针阀 (#256) | * JET NEEDLE (#256) | 1 |
| 4 | 3F0-87122-4 | 化油器修理包 | CARBURETOR REPAIR KIT | 1 |
| 4 | 921532-6410 | * 螺钉 | * SCREW | 2 |
| 5 | 309-00121-0 | * 油封 20-42-8 | * OIL SEAL 20-42-8 | 1 |
| 5 | 309-00122-0 | * 油封 15-35-15 | * OIL SEAL 15-35-15 | 1 |
| 5 | 309-61012-3 | * 驱动轴壳体衬垫 | * DRIVE SHAFT HOUSING GASKET | 1 |
| 5 | 309-87121-4 | 动力头衬垫套装 | POWER HEAD GASKET SET | 1 |
| 5 | 3F0-00122-0 | * 油封 17-40-8 | * OIL SEAL 17-40-8 | 1 |
| 5 | 3F0-01005-0 | * 气缸盖垫片 | * CYLINDER HEAD GASKET | 1 |
| 5 | 3F0-01214-0 | * 曲轴箱缸头垫片 | * CRANKCASE HEAD GASKET | 1 |
| 5 | 3F0-01215-0 | * 油封 10.1-20-7 | * OIL SEAL 10.1-20-7 | 1 |
| 5 | 3F0-87121-4 | 动力头衬垫套装 | POWER HEAD GASKET SET | 1 |
| 6 | 3F0-65011-0 | * 泵壳衬套 | * PUMP CASE LINER | 1 |
| 6 | 3F0-65025-0 | * 水泵导板 | * WATER PUMP GUIDE PLATE | 1 |
| 6 | 3F0-87322-1 | 水泵维修套件 | WATER PUMP REPAIR KIT | 1 |
| 6 | 9161E3-0645 | 螺栓 | * BOLT | 4 |
| 6 | 940103-0600 | * 垫圈 | * WASHER | 4 |
| 7 | 301-66023-0 | * O型圈 2.4-9.5 | * O-RING 2.4-9.5 | 1 |
| 7 | 309-60111-0 | * 油封 12-24-8 | * OIL SEAL 12-24-8 | 1 |
| 7 | 309-65015-0 | * O型圈1.5-47.75 | * O-RING 1.5-47.75 | 1 |
| 7 | 309-87321-0 | 下部单元衬垫套件 | LOWER UNIT GASKET SET | 1 |
| 7 | 332-60006-1 | * 衬垫 8.1-15-1 | * GASKET 8.1-15-1 | 2 |
| 7 | 345-65015-0 | * O型圈 3.2-47 | * O-RING 3.2-47 | 1 |
| 7 | 369-65021-1 | * 水泵叶轮 | * WATER PUMP IMPELLER | 1 |
| 7 | 369-65022-0 | * 键 φ2-11 | * KEY φ2-11 | 1 |
| 7 | 369-66021-1 | * O型圈 2.5-4.9 | * O-RING 2.5-4.9 | 1 |
| 7 | 3F0-60223-0 | * 油封 10-22-8 | * OIL SEAL 10-22-8 | 1 |
| 7 | 3F0-65018-0 | * 泵壳衬垫 | * PUMP CASE GASKET | 1 |
| 7 | 3F0-65020-0 | * 泵壳衬垫(下) | * PUMP CASE GASKET (LOWER) | 1 |
| 7 | 3F0-65029-0 | * 导板垫片 | * GUIDE PLATE GASKET | 1 |
| 7 | 3F0-87321-0 | 下部单元衬垫套件 | LOWER UNIT GASKET SET | 1 |
| 8 | 3F0-61101-1 | * 双头螺柱 6-171 | * STUD 6-171 | 1 |
| 8 | 3F0-64302-0 | * 驱动轴总成（下长） | * DRIVE SHAFT ASSY (L) | 1 |
| 8 | 3F0-65110-0 | * 水管总成 (左) | * WATER PIPE ASSY (L) | 1 |
| 8 | 3F0-66013-0 | * 凸轮杆(左) | * CAM ROD (L) | 1 |
| 8 | 3F0Q61102-2 | * 延伸壳体总成(L) | * EXTENSION HOUSING ASSY (L) | 1 |
| 8 | 3F0Q87312-1 | 延伸壳体套件(左) | EXTENSION HOUSING KIT (L) | 1 |
| 8 | 9101E3-7635 | 螺栓 | * BOLT | 1 |
| 8 | 9301E3-0600 | 螺母 | * NUT | 1 |
| 8 | 951407-0308 | * 弹簧销 3-8 | * SPRING PIN 3-8 | 2 |
