铃木 Suzuki DT 75 1997 - 爆炸图零件明细

1997 年 · 共 49 个部位 · 1226 条零件

1气缸2曲轴3进气壳体-排气盖4化油器6燃油泵(1988至1994款)6A燃油泵(1995至1997款)7机油泵(1988至1994)7A机油泵(1995至1997)8水泵9油门联动杆10离合器11启动马达12磁电机13点火线圈14电气部件15继电器16线束17夹紧支架(1988-1994款)17A夹紧支架(1995-1997款)18旋转支架(1988-1994款)18A旋转支架(1995款)18B旋转支架(1996-1997款)19动力单元(1988至1989)20动力单元(1990至1994)20A动力单元(1995至1997)21倾斜缸(1988至1994款)22升降油缸(1988-1994款)22A升降油缸(1995-1997款)23发动机支架24驱动轴壳体25齿轮箱26变速箱27下盖28发动机罩(1988年款)29发动机罩(1989至1994年款)30A发动机罩(1995至1997年款)32机油箱(1988至1994款)32A机油箱(1995至1997款)33遥控装置(1988至1992款)34遥控装置(1993至1997款)35拉杆36选配:电动系统37选配: 仪表38选配: 开关面板39选配: 舵柄(1988至1992款)40选配: 舵柄(1993至1995款)41选配: 舵柄(1996至1997款)42垫片套装43选配件

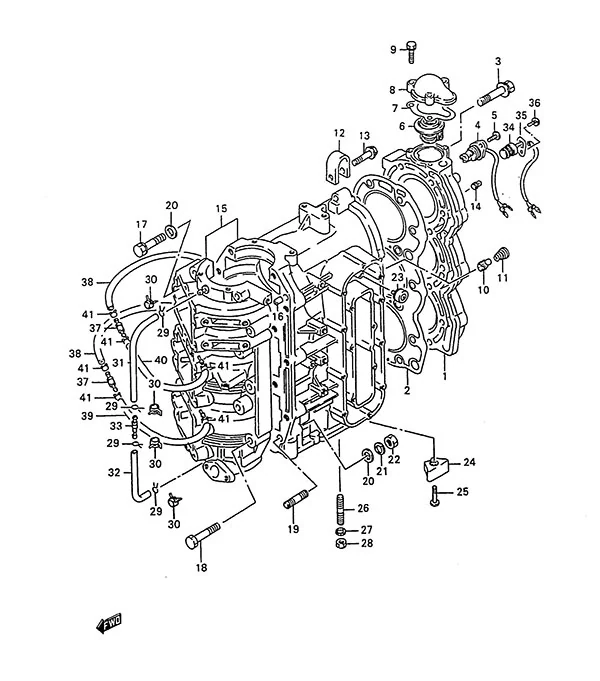

图 1气缸 Cylinder
气缸 Cylinder
REF零件编号中文名称英文名称数量
111111-95630-0ED气缸盖(停产)Cylinder Head (NLA)1
211141-95621气缸盖垫片Cylinder Head Gasket1
301560-10557螺栓BOLT14
503212-0516B螺钉SCREW2
717685-95510节温器盖衬垫Thermostat Cover Gasket1
817681-95502-0ED节温器盖(停产)Thermostat Cover (NLA)1
901550-06307螺栓BOLT3
1017611-95201旁通水阀Water Bypass Valve1
1109441-12001弹簧(不锈钢)Spring (SUS)1
1211291-94402发动机吊钩(停产)Engine Hook (NLA)1
1301550-08357螺栓BOLT1
1409246-04005塞子Plug1
1511301-95606-0ED气缸总成(停产)Cylinder Assembly (NLA)1
1604211-09109定位销DOWEL PIN2
1701560-10457螺栓(10x45)(停产)Bolt (10x45) (NLA)3
1801560-10557螺栓BOLT10
1901421-10457双头螺栓BOLT,STUD1
2008322-01107垫片Washer1
2108321-01107锁紧垫圈Lock Washer1
2208310-00107螺母Nut1
2311130-94600锌阳极Zinc Anode1
2411281-87D00锌阳极Zinc Anode1
2509126-06005螺钉(6x30)Screw (6x30)1
2609108-08137双头螺栓(8x40)Stud Bolt (8x40)1
2709162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)1
2809140-08023-XC0螺母(8mm)Nut (8mm)1
2909401-06101卡箍Clamp4
3009401-06405卡箍Clamp4
3109355-30001-600软管(3×7×600)Hose (3x7x600)1
3209355-30001-600软管(3×7×600)Hose (3x7x600)1
3316710-95211止回阀Check Valve1
3434850-95D30温度传感器总成Heat Sensor Assembly1
3534853-94700温度传感器支架Heat Sensor Supporter1
3609125-06069螺钉(6x12)Screw (6x12)2

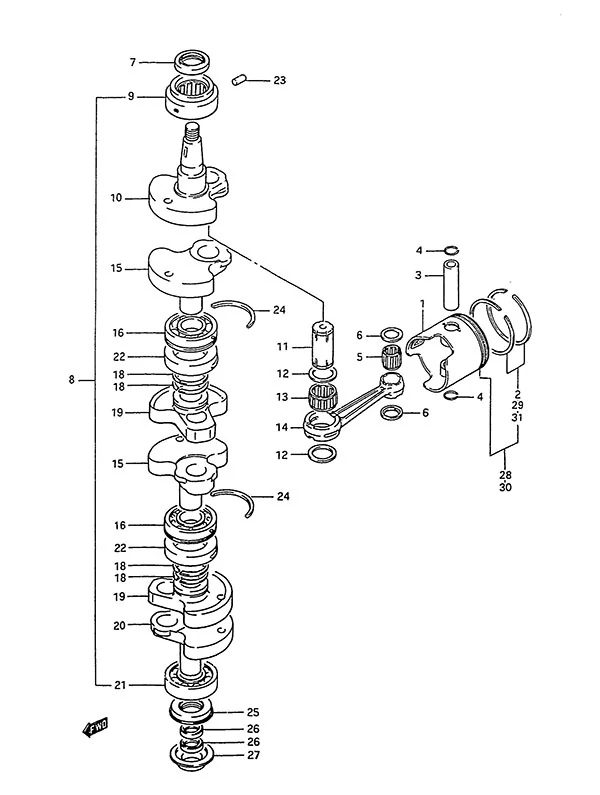

图 2曲轴 Crankshaft
曲轴 Crankshaft
REF零件编号中文名称英文名称数量
112110-95516活塞Piston3
212140-95302活塞环组(停产)Piston Ring Set (NLA)3
312151-87E01活塞销Piston Pin3
409381-20004卡簧Circlip6
509263-20034RN 20x25x27.9轴承RN 20x25x27.9 Bearing3
609169-20001垫片Washer6
709283-30029油封Oil Seal1
812200-95640曲轴总成(停产)Crankshaft Assembly (NLA)1
909264-40001轴承(40x72x33)(停产)Bearing (40x72x33) (NLA)1
1012221-95503上曲轴(停产)Upper Crankshaft (NLA)1
1112211-95503曲轴销Crankshaft Pin3
1309263-28018RN 26x37x20.8轴承RN 26x37x20.8 Bearing3
1412161-95301连杆Connecting Rod3
1512231-95502中间上曲轴(停产)Middle Upper Crankshaft (NLA)2
1609269-30012轴承(30x72x19)(停产)Bearing (30x72x19)(NLA)2
1812323-95600环形密封圈Ring Seal4
1912232-95600中间曲轴轮(停产)Middle Crankshaft Wheel (NLA)2
2012240-95504下曲轴(停产)Lower Crankshaft (NLA)1
2109262-30055B1 30x72x19轴承B1 30x72x19 Bearing1
2212324-95600外密封圈Outer Seal2
2304221-04089销 4×8PIN 4X81
2409390-72008C形环C Ring2
2509283-30077油封(30x55x8)Oil Seal (30x55x8x)1
2609282-20003油封(20x30x6)(停产)Oil Seal (20x30x6)(NLA)2
2711431-95502油封下部壳体Under Oil Seal Housing1
2812100-95331-025活塞及环组件(加大0.25)(停产)Piston & Ring Set (OS:0.25)(NLA)3
2912140-95320-025活塞环组(加大0.25)(停产)Piston Ring Set (OS:0.25)(NLA)3
3012100-95331-050活塞及环组件(加大0.50)(停产)Piston & Ring Set (OS:0.50) (NLA)3
3112140-95320-050活塞环组(加大0.50)Piston Ring Set (OS:0.50)3

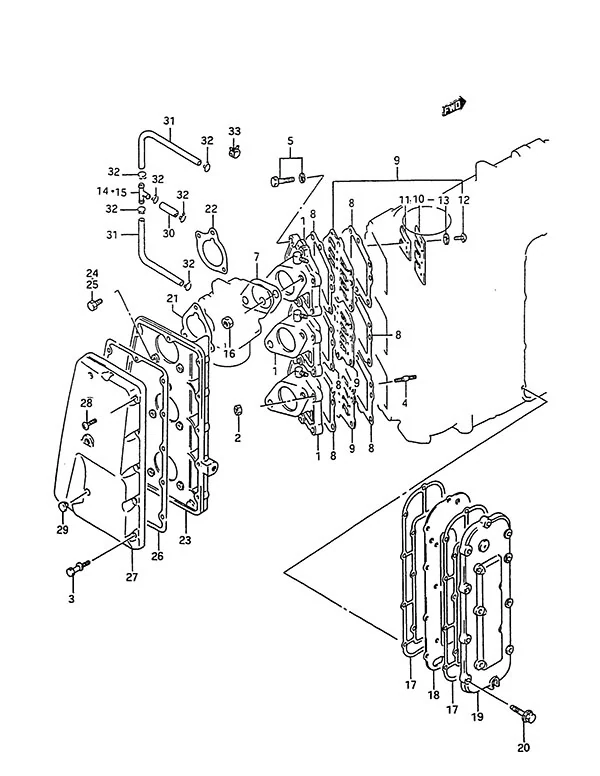

图 3进气壳体-排气盖 Inlet Case - Exhaust Cover
进气壳体-排气盖 Inlet Case - Exhaust Cover
REF零件编号中文名称英文名称数量
208316-10067螺母Nut6
309139-05041螺钉(停产)Screw (NLA)1
401421-06257双头螺栓BOLT, STUD6
501570-06307螺栓(停产)Bolt (NLA)12
713125-93010化油器衬垫Carburetor Gasket3
813121-95520进气壳体垫片(停产)Inlet Case Gasket (NLA)6
913150-95510簧片阀总成(停产)Reed Valve Assembly (NLA)3
1013152-95500簧片阀限位器(停产)Reed Valve Stopper (NLA)12
1113153-95501簧片阀Reed Valve12
1202112-0306B螺钉SCREW24
1308321-2103B锁紧垫圈Lock Washer24
1409367-06002三通3 Way1
1509367-08004三通3 Way1
1608316-10087螺母Nut6
1714151-95611排气盖衬垫Exhaust Cover Gasket2
1814131-95600排气板(停产)Exhaust Plate (NLA)1
1914141-95600-0ED排气盖(停产)Exhaust Cover (NLA)1
2001550-06307螺栓BOLT15
2113855-93310消声器垫片(停产)Silencer Gasket (NLA)3
2313811-94713消声器壳体(停产)Silencer Case (NLA)1
2401550-06167螺栓BOLT8
2613853-94710消声器盖垫片(停产)Silencer Cover Gasket (NLA)1
713812-94700消声器盖(停产)Silencer Cover (NLA)1
2802142-05207螺钉SCREW10
2909250-15010塞子Plug3
3209401-08410卡扣Clip6
3309401-11415卡扣Clip6

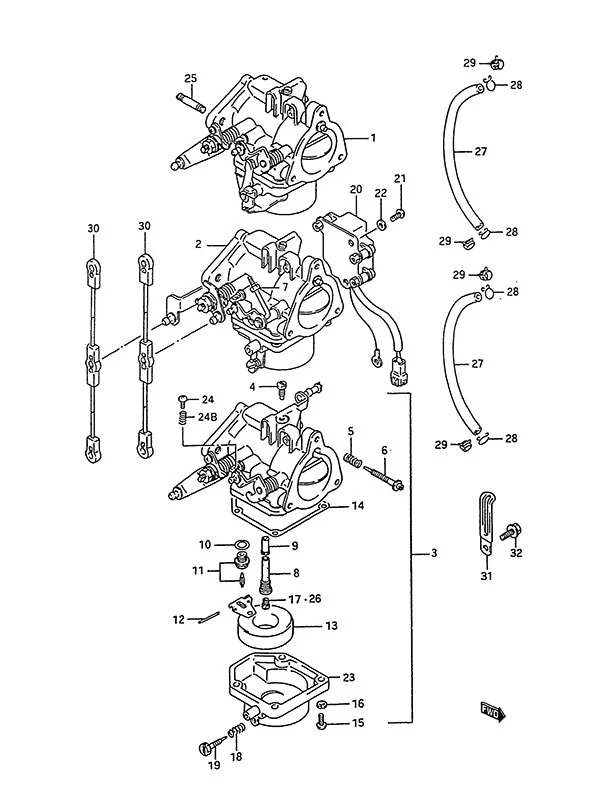

图 4化油器 Carburetor
化油器 Carburetor
REF零件编号中文名称英文名称数量
113201-956R1化油器上部总成(停产)Top Carburetor Assembly (NLA)1
313203-956R1第三化油器总成（停产）3rd Carburetor Assembly (NLA)1
513271-93311空气调节螺钉弹簧Air Screw Spring3
613269-93311引导空气调节螺钉Pilot Air Screw3
713582-95216螺母(停产)Nut (NLA)1
813236-96300主喷管Main Nozzle3
913237-94400上部喷嘴Upper Nozzle3
1013392-58600气门座垫片Valve Seat Gasket3
1113370-28110针阀总成Needle Valve Assembly3
1213254-98300浮子销Float Pin3
1313250-93012化油器浮子Carburetor Float3
1413251-93320浮子室衬垫Float Chamber Gasket3
1513249-95520螺钉(停产)Screw (NLA)12
1609162-05002锁紧垫圈Lock Washer12
1813271-93311空气调节螺钉弹簧Air Screw Spring3
1913616-94500放油螺栓Drain Bolt3
2037810-95606节气门阀传感器总成Throttle Valve Sensor Assembly1
2109125-05050螺钉(5x8)Screw (5x8)2
2208322-01057垫片Washer2
2313240-94600浮子室总成Float Chamber Assembly3
2413267-93900螺钉Screw1
2501411-08207双头螺栓(停产)Stud Bolt (NLA)3
2709352-50006-600软管(5x9x600)Hose (5x9x600)2
2809401-08410卡扣Clip4
2909401-08411卡扣Clip4
3013510-94700油门拉杆总成(停产)Throttle Rod Assembly (NLA)2
3201550-06127螺栓BOLT1
3313910-94701化油器修理包Carburetor Repair Kit3

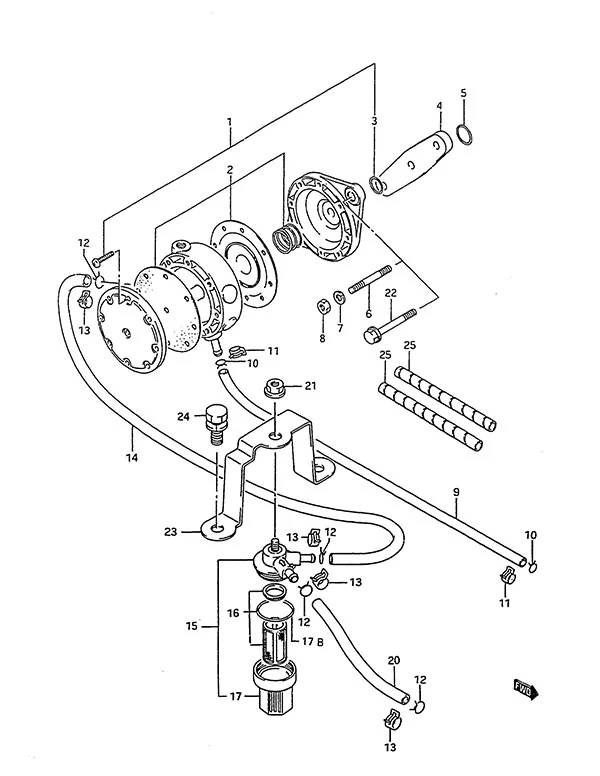

图 6燃油泵(1988至1994款) Fuel Pump(1988 to 1994)
燃油泵(1988至1994款) Fuel Pump(1988 to 1994)
REF零件编号中文名称英文名称数量
115100-9560V燃油泵总成(停产)Fuel Pump Assembly (NLA)1
215100-7281V燃油泵膜片组Fuel Pump Diaphragm Set1
315165-93010燃油泵O型圈Fuel Pump O-Ring1
415322-93000燃油泵绝缘件(停产)Fuel Pump Insulator(NLA)1
509280-12012O型圈O-Ring1
601421-06257双头螺栓BOLT, STUD2
708321-01067锁紧垫圈Lock Washer2
808310-00067螺母Nut2
909352-50006-00B软管(5x9x2000)Hose (5x9x2000)1
1009401-08410卡扣Clip2
1109401-08411卡扣Clip2
1209401-10401燃油软管卡箍Fuel Hose Clamp4
1309401-10409卡扣Clip4
1409352-70119-600软管(7X11X600)HOSE(7X11X600)1
1515410-95541燃油滤清器总成Fuel Filter Assy1
1715413-93400燃油滤清器杯(停产)Fuel Strainer Cup (NLA)1
2009352-70119-600软管(7X11X600)HOSE(7X11X600)1
2108316-10087螺母Nut1
2201550-06307螺栓BOLT2
2315421-95513燃油滤清器支架Fuel Filter Bracket1
2409117-06040-XC0螺栓(6x15)Bolt (6x15)2
2516911-92E20防护罩Protector2

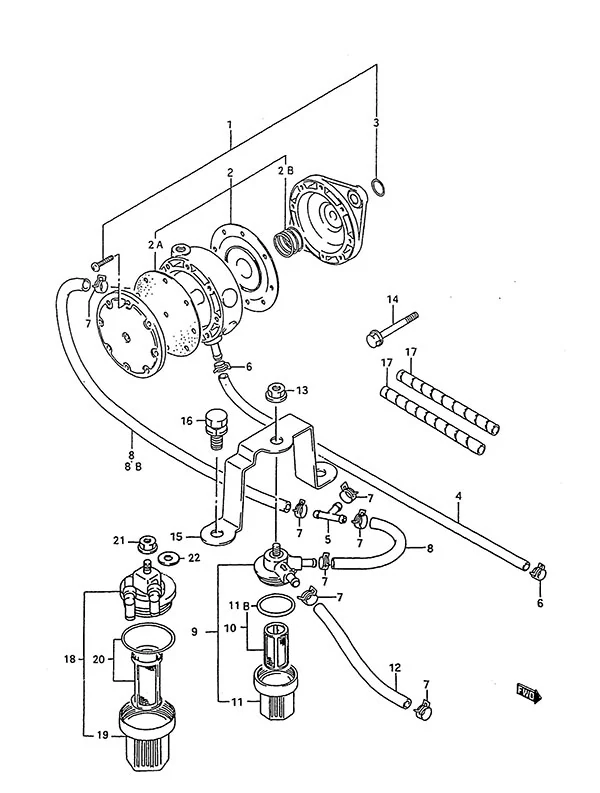

图 6A燃油泵(1995至1997款) Fuel Pump(1995 to 1997)
燃油泵(1995至1997款) Fuel Pump(1995 to 1997)
REF零件编号中文名称英文名称数量
115100-9560V燃油泵总成(停产)Fuel Pump Assembly (NLA)1
215100-7281V燃油泵膜片组Fuel Pump Diaphragm Set1
315165-93010燃油泵O型圈Fuel Pump O-Ring1
409352-50006-00B软管(5x9x2000)Hose (5x9x2000)1
509367-08005三通3 Way1
609401-08411卡扣Clip2
709401-10409卡扣Clip6
915410-95541燃油滤清器总成Fuel Filter Assy1
1015430-93411燃油滤清器粗滤组件Fuel Filter Strainer Set1
1115413-93400燃油滤清器杯(停产)Fuel Strainer Cup (NLA)1
1209352-70119-600软管(7X11X600)HOSE(7X11X600)1
1308316-10087螺母Nut1
1402162-06207螺钉SCREW2
1515421-95513燃油滤清器支架Fuel Filter Bracket1
1716911-92E20防护罩Protector2
1815410-95541燃油滤清器总成Fuel Filter Assy1
1915413-87D10燃油滤清器杯Fuel Strainer Cup1
2015430-87D10燃油滤清器粗滤组件Fuel Filter Strainer Set1
2108316-10087螺母Nut1
2208322-01087垫片Washer1

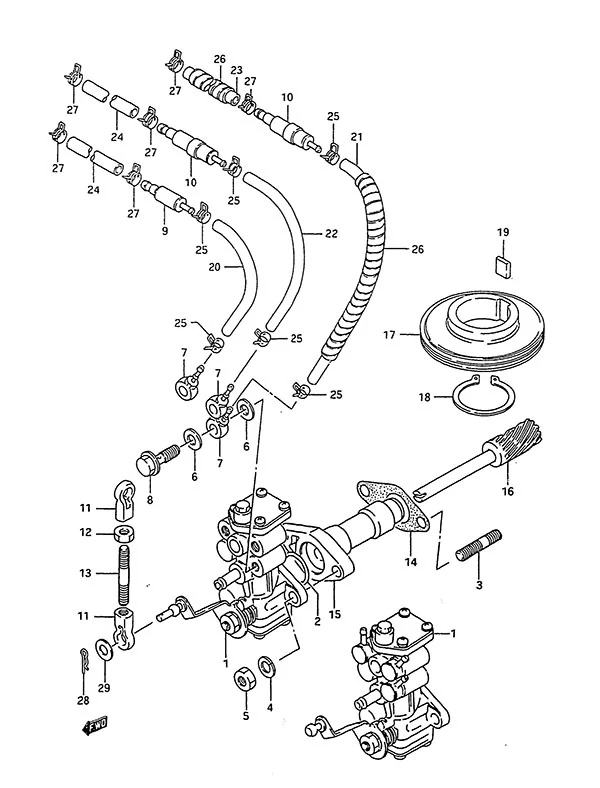

图 7机油泵(1988至1994) Oil Pump(1988 to 1994)
机油泵(1988至1994) Oil Pump(1988 to 1994)
REF零件编号中文名称英文名称数量
116100-95531机油泵总成Oil Pump Assembly1
216198-87D00机油泵O型圈Oil Pump O-Ring1
301421-06307螺柱BOLTSTUD2
409162-06006锁紧垫圈Lock Washer2
509140-06013螺母(停产)Nut (NLA)2
609168-06023垫片Gasket6
709363-02002联管节Union3
809360-06012联管螺栓Union Bolt3
916710-92E01机油止回阀(单)Oil Check Valve (Single)1
1016710-94641机油止回阀(双)Oil Check Valve (Double)2
1119131-95502连接器Connector2
1209140-05005螺母Nut1
1316411-95500控制杆(停产)Control Rod (NLA)1
1416731-95520机油泵固定座衬垫（停产）Oil Pump Retainer Gasket (NLA)1
1516340-95520从动齿轮固定器(停产)Driven Gear Retainer (NLA)1
1616331-95511机油泵从动齿轮Oil Pump Driven Gear1
1716321-95502机油泵驱动齿轮Oil Pump Drive Gear1
1808331-31309卡簧CIRCLIP1
1909421-10001钥匙(停产)Key (NLA)1
2309351-50803-00B软管(5x8x2000)Hose (5x8x2000)1
2409351-50803-00B软管(5x8x2000)Hose (5x8x2000)2
2509401-06405卡箍Clamp6
2616911-92E20防护罩Protector3
2709401-08409卡箍Clamp6
2816195-87D00弹性销Snap Pin1
2913432-33100垫片Washer1

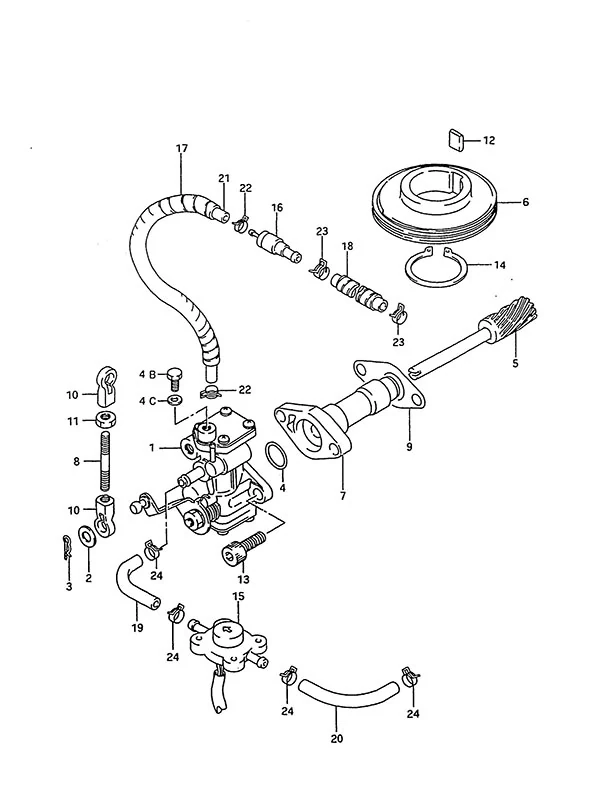

图 7A机油泵(1995至1997) Oil Pump(1995 to 1997)
机油泵(1995至1997) Oil Pump(1995 to 1997)
REF零件编号中文名称英文名称数量
116100-95E10机油泵总成(停产)Oil Pump Assembly (NLA)1
213432-33100垫片Washer1
316195-87D00弹性销Snap Pin1
416198-87D00机油泵O型圈Oil Pump O-Ring1
516321-95502机油泵驱动齿轮Oil Pump Drive Gear1
616331-95511机油泵从动齿轮Oil Pump Driven Gear1
716340-95520从动齿轮固定器(停产)Driven Gear Retainer (NLA)1
819171-92D10机油泵控制杆（停产）Oil Pump Control Rod (NLA)1
916731-95520机油泵固定座衬垫（停产）Oil Pump Retainer Gasket (NLA)1
1019131-95502连接器Connector2
1109140-05005螺母Nut1
1209421-10001钥匙(停产)Key (NLA)1
1307130-06307螺栓BOLT2
1408331-31309卡簧CIRCLIP1
1516250-94710机油滤清器/流量传感器Oil Filter/Flow Sensor1
1716911-92E20防护罩Protector1
1809351-50803-00B软管(5x8x2000)Hose (5x8x2000)1
1909352-50006-600软管(5x9x600)Hose (5x9x600)1
2009352-50006-600软管(5x9x600)Hose (5x9x600)1
2109355-25705-600软管(2.5×7×600)Hose (2.5x7x600)1
2209401-06405卡箍Clamp2
2309401-08409卡箍Clamp2
2409401-08411卡扣Clip4

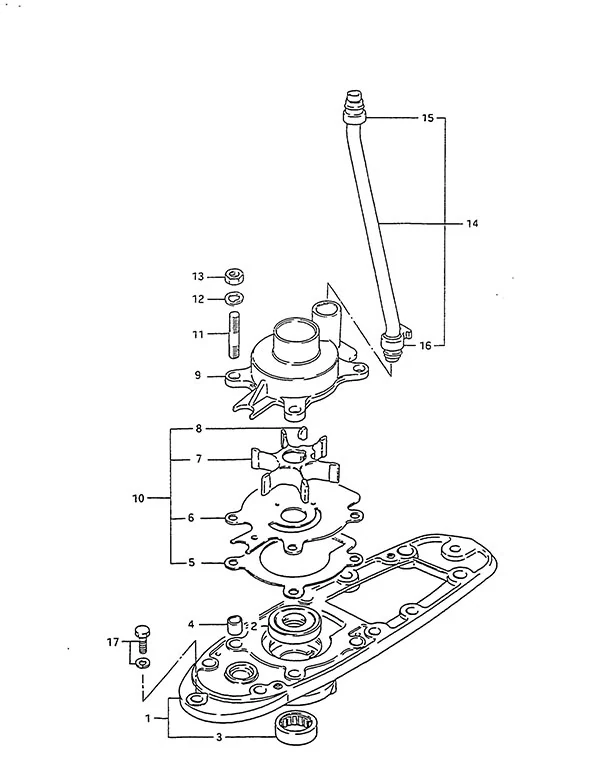

图 8水泵 Water Pump
水泵 Water Pump
REF零件编号中文名称英文名称数量
156130-95511-0ED驱动轴壳体(停产)Drive Shaft Housing (NLA)1
309263-25025轴承(25x33x15)Bearing (25x33x15)1
409206-11016销 (11x12) (停产)Pin (11x12) (NLA)4
517472-95200水泵板衬垫Water Pump Plate Gasket1
617471-95504水泵板Water Pump Plate1
717461-95302水泵叶轮Water Pump Impeller1
809420-04005钥匙Key1
1017400-95351DT75/DT85水泵维修套件Water Pump Repair Kit DT75 / DT851
1109108-08088双头螺栓(停产)Stud Bolt (NLA)4
1209162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)4
1417560-95503水管(左)(停产)Water Tube (L)(NLA)1
1517563-95500水管衬套(停产)Water Tube Bushing (NLA)1
1617564-95502水泵衬套Water Pump Bushing1
1709117-08047螺栓(8x30)Bolt (8x30)1

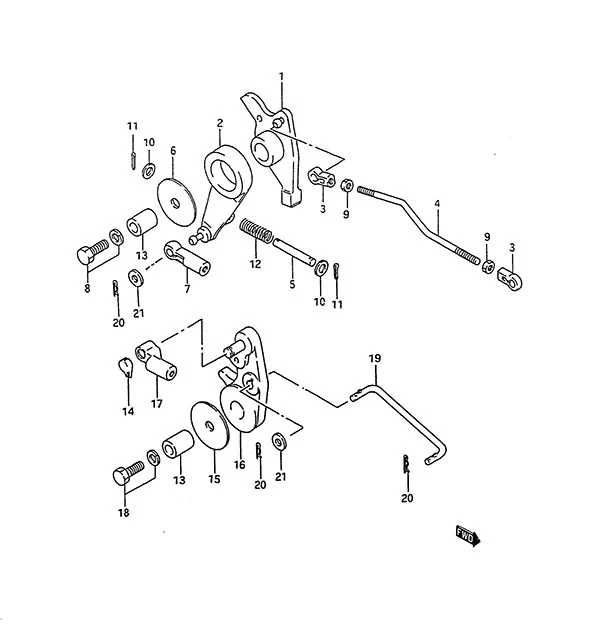

图 9油门联动杆 Throttle Link
油门联动杆 Throttle Link
REF零件编号中文名称英文名称数量
119121-95600节气门控制杆(停产)Throttle Control Lever (NLA)1
319131-95502连接器Connector2
419135-95621油门杆连杆(停产)Throttle Lever Rod (NLA)1
519137-94700节气门杆缓冲销(停产)Throttle Lever Damper Pin (NLA)1
619211-95600油门杆垫片(停产)Throttle Lever Washer (NLA)1
767466-95200电缆接头Cable Connector1
809117-08071螺栓(8x35)Bolt (8x35)1
909140-05005螺母Nut2
1009160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
1109204-01002开口销Cotter Pin2
1209440-09021弹簧Spring1
1309180-08150垫片(8.1x15x17)(停产)Spacer (8.1x15x17) (NLA)2
1419113-95300连接器帽Connector Cap1
1519211-95600油门杆垫片(停产)Throttle Lever Washer (NLA)1
1623211-95601离合器控制臂(停产)Clutch Control Arm (NLA)1
1767467-95201电缆接头Cable Connector1
1809117-08071螺栓(8x35)Bolt (8x35)1
1923111-94701离合器连杆(停产)Clutch Link (NLA)1
2009385-06003销 (停产)Pin (NLA)3
2108322-01067垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)3

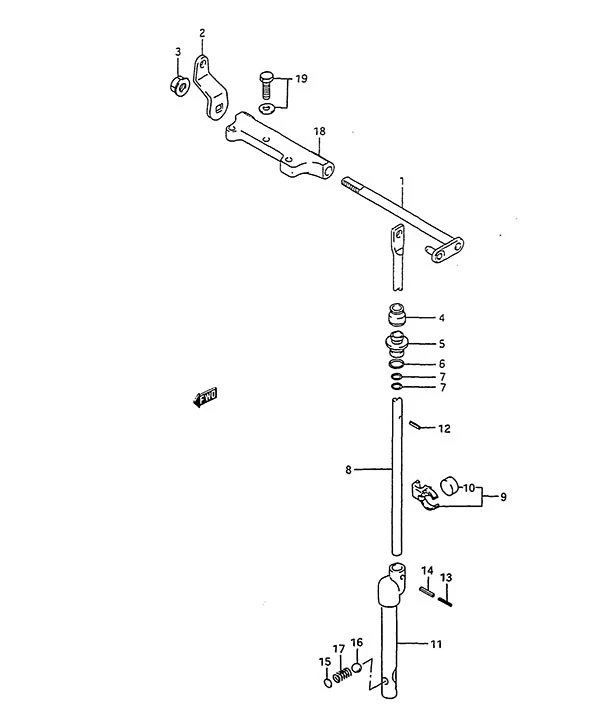

图 10离合器 Clutch
离合器 Clutch
REF零件编号中文名称英文名称数量
121210-94703离合器轴Clutch Shaft1
221213-94700离合器轴侧臂Clutch Shaft Side Arm1
308319-31087螺母Nut1
609280-11005换挡杆O型圈Shift Rod O-Ring1
709280-08005O型圈O-Ring2
825111-95502换挡拉杆(停产)Shift Rod (NLA)1
925230-94300齿轮箱磁铁组Gear Case Magnet Set1
1025232-94300齿轮箱磁铁Gear Case Magnet1
1125310-95540换挡凸轮Shift Cam1
1209205-02004弹簧销(2.5x12)Spring Pin (2.5x12)1
1309205-02012弹簧销#2(停产)Spring Pin #2 (NLA)1
1409205-03023销Pin1
1521121-93300离合器缺口板Clutch Notch Plate1
1609260-10005钢球Ball1
1709440-07033凸轮槽口弹簧Cam Notch Spring1
1821311-94702离合器轴固定座(停产)Clutch Shaft Holder (NLA)1
1909116-06204螺栓(6x20)Bolt (6x20)3

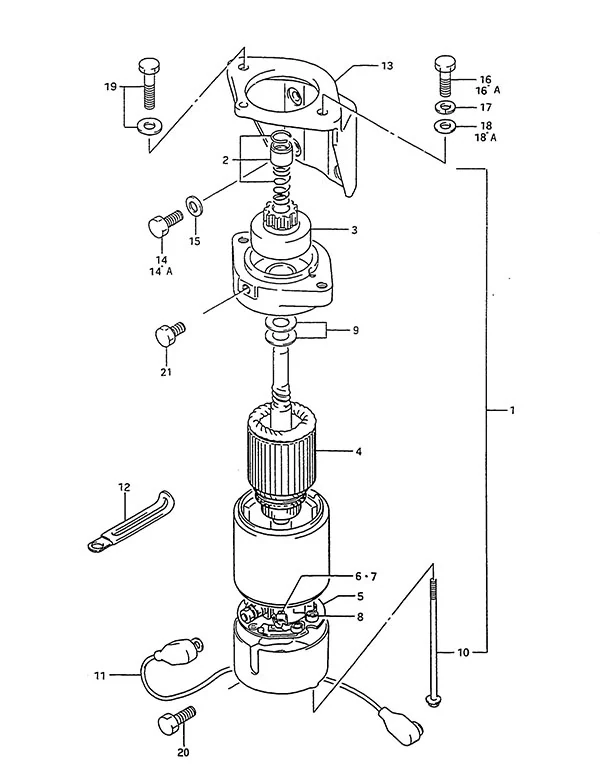

图 11启动马达 Starting Motor
启动马达 Starting Motor
REF零件编号中文名称英文名称数量
131100-95601启动马达总成（停产）Starter Motor Assembly (NLA)1
231312-94601小齿轮止动器套件Pinion Stopper Set1
331320-95240小齿轮总成(停产)Pinion Assembly (NLA)1
431310-94600电枢(停产)Armature (NLA)1
531173-95310电刷架Brush Holder1
631131-95310正极电刷Brush (+)2
731131-95241电刷Brush1
831135-95310弹簧(停产)Spring (NLA)3
931360-87D00垫圈套件 (停产)Washer Kit (NLA)1
1031281-94700贯穿螺栓(停产)Through Bolt (NLA)2
1133820-95601启动副电缆总成(停产)Starter Sub Cable Assembly (NLA)1
1209404-10205夹具(停产)Clamp (NLA)1
1331911-95600-0ED启动马达支架(停产)Starting Motor Bracket (NLA)1
1401500-08207螺栓BOLT4
1508322-01087垫片Washer4
1601500-08257螺栓BOLT1
1708321-01087锁紧垫圈Lock Washer1
1808322-01087垫片Washer1
1901550-08357螺栓BOLT1
2001550-08207螺栓BOLT1
2101550-08167螺栓BOLT1
图 12磁电机 Magneto

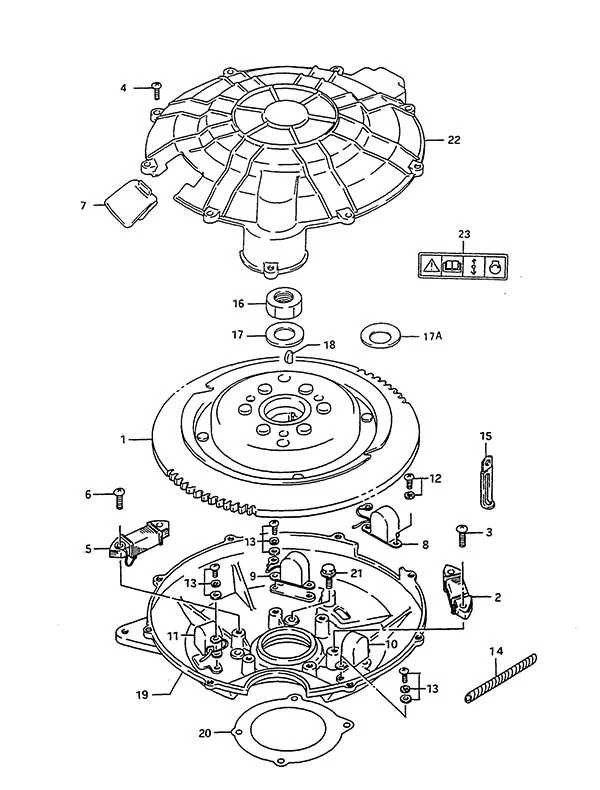

磁电机 Magneto
REF零件编号中文名称英文名称数量
302112-36257螺钉SCREW2
602112-36207螺钉(停产)Screw (NLA)2
711422-94700盖帽(停产)Cap (NLA)1
932160-947101号点火正时线圈(停产)Ignition Timing Coil #1 (NLA)1
1032170-947102号点火正时线圈Ignition Timing Coil #21
1132180-94710#3 点火正时线圈(停产)#3 Ignition Timing Coil (NLA)1
1202112-35127螺钉 5×12SCREW 5X122
1302112-75107螺钉(停产)Screw (NLA)6
1433833-91J00管(6x8x250)Tube (6x8x250)1
1609140-18007螺母(停产)Nut (NLA)1
1709160-18011垫片Washer1
1808341-310595mm半圆键Woodruff Key 5mm1
1911411-95601-0ED上部油封壳体(停产)Upper Oil Seal Housing (NLA)1
2011421-95610上油封壳衬垫Upper Oil Seal Hsg Gasket1
2101550-06167螺栓BOLT4
2211511-95600磁电机盖(停产)Magneto Cover (NLA)1
2369711-93E11标签 (S.I.G.P)Label (S.I.G.P)1
图 13点火线圈 Ignition Coil

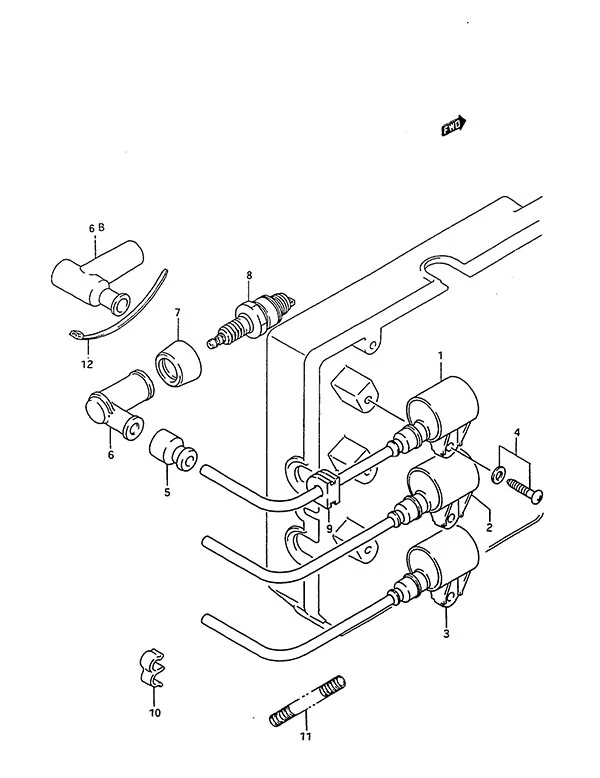

点火线圈 Ignition Coil
REF零件编号中文名称英文名称数量
133410-95D11点火线圈组件Ignition Coil Assembly1
233410-95D11点火线圈组件Ignition Coil Assembly1
333430-95600点火线圈组件Ignition Coil Assembly1
403242-05253螺钉(停产)Screw (NLA)3
533542-38B00火花塞帽密封件Spark Plug Cap Seal3
633510-95520火花塞帽Spark Plug Cap3
733541-93950火花塞密封圈Spark Plug Seal3
809482-00370NGK BR8HS火花塞NGK BR8HS Spark Plug3
909309-06007索环(停产)Grommet (NLA)3
1009408-00033卡箍Clamp1
1133446-98E20高压保护管(停产)High Tension Protect Tube (NLA)1
1209407-14403卡箍(长:125)Clamp (L:125)3

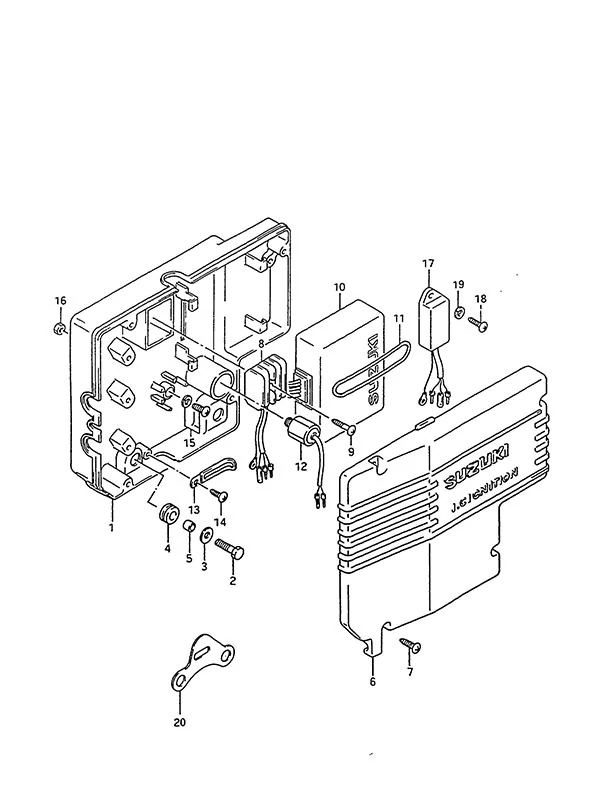

图 14电气部件 Electrical
电气部件 Electrical
REF零件编号中文名称英文名称数量
132890-95611电器部件支架(停产)Electric Parts Holder (NLA)1
201550-06207螺栓BOLT4
309160-06052垫片Washer4
409320-08001缓冲垫Cushion4
509180-06248垫片Spacer4
632891-95601电器部件支架罩(停产)Electric Parts Holder Cover (NLA)1
703212-0516B螺钉SCREW4
1109280-70005O型圈O-Ring2
1403212-0512B螺钉SCREW1
1502112-36207螺钉(停产)Screw (NLA)1
1608310-00067螺母Nut1
1734250-87D11转速表控制单元(停产)Tachometer Control Unit (NLA)1
1803212-0516B螺钉SCREW1
1908322-01057垫片Washer1
2034853-94600发动机温度传感器支架(停产)Engine Temp Support (NLA)1

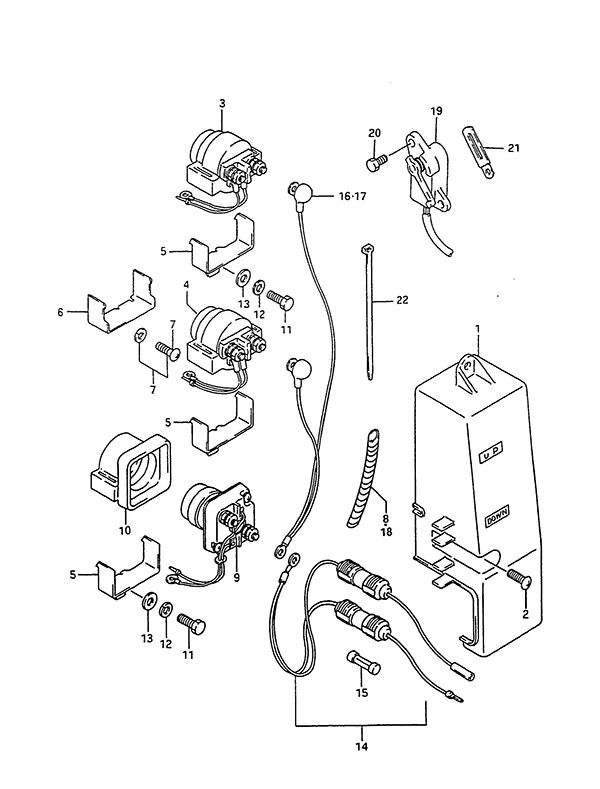

图 15继电器 Relay
继电器 Relay
REF零件编号中文名称英文名称数量
131810-95600电机继电器盖(停产)Motor Relay Cover (NLA)1
202112-06167螺钉 6×16SCREW 6X162
702112-36167螺钉SCREW3
833833-91J00管(6x8x250)Tube (6x8x250)1
931800-94401启动继电器Starter Relay1
1038422-94520继电器缓冲垫(停产)Relay Damper (NLA)1
1101550-06167螺栓BOLT1
1209160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)1
1309162-06006锁紧垫圈Lock Washer1
1436740-94771保险丝盒总成(停产)Fuse Case Assembly (NLA)1
1509481-2500125安培保险丝25 Amp Fuse1
1633831-95600动力升降倾斜装置继电器电缆(停产)PTT Relay Cable (NLA)1
1733832-95601动力升降倾斜装置继电器接地电缆(停产)PTT Relay Ground Cable (NLA)1
1833833-91J00管(6x8x250)Tube (6x8x250)1
2009100-06113螺栓(6x16)Bolt (6x16)2

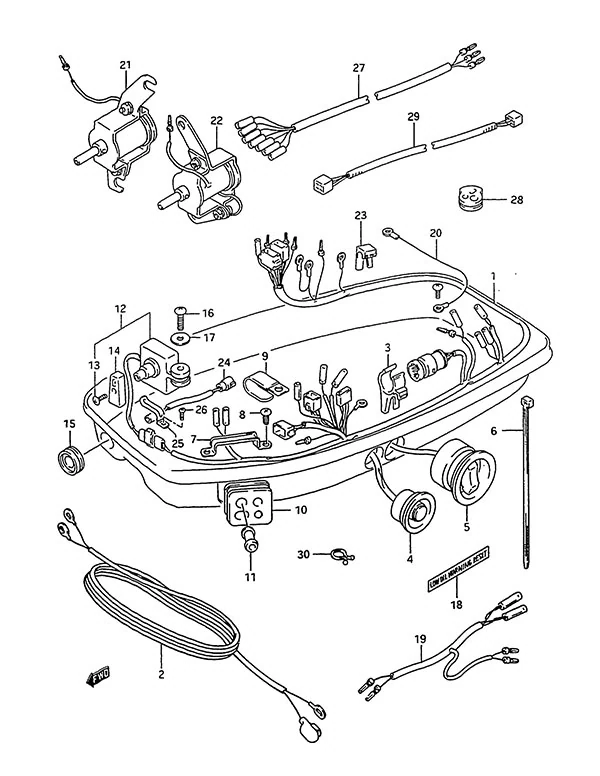

图 16线束 Harness
线束 Harness
REF零件编号中文名称英文名称数量
233810-95602启动马达电缆Starter Motor Cable1
336616-95301连接器支架Connector Holder1
437930-95612机油报警复位开关总成Oil Warning Reset Switch Assembly1
537850-95612动力升降倾斜装置开关总成PTT Switch Assembly1
736659-95501夹具(停产)Clamp (NLA)1
809125-06067螺钉(6x16)Screw (6x16)2
909403-17312通气软管夹箍CLAMP,BREATHER1
1036656-94701电缆护圈Cable Grommet1
1136664-95600指示器线束护套(停产)Indicator Wire Grommet (NLA)1
1302112-0408A螺钉SCREW1
1437921-95D00旋钮(停产)Knob (NLA)1
1537925-95D00点火正时开关缓冲垫(停产)Ignition Timing Switch Cushion (NLA)1
1603112-05203螺钉(停产)Screw (NLA)1
1709160-05043垫圈 (5.5x16x1.2)Washer (5.5x16x1.2)1
1837935-95602低油位警告复位标签(停产)Low Oil Warning Reset Label (NLA)1
1936645-94712继电器控制线(停产)Relay Control Lead (NLA)1
2036895-94700导线(停产)Lead (NLA)1
2138600-95520阻风门电磁阀总成(停产)Choke Solenoid Assembly (NLA)1
2336641-95500线束固定器(停产)Wiring Harness Stopper (NLA)3
2437940-94701点火正时电阻(停产)Ignition Timing Resistor (NLA)1
2736630-92E00仪表线束总成Instrument Wire Assembly1
2836658-95600电缆护圈(停产)Cable Grommet (NLA)1
2936682-92E00线束Wire Harness1

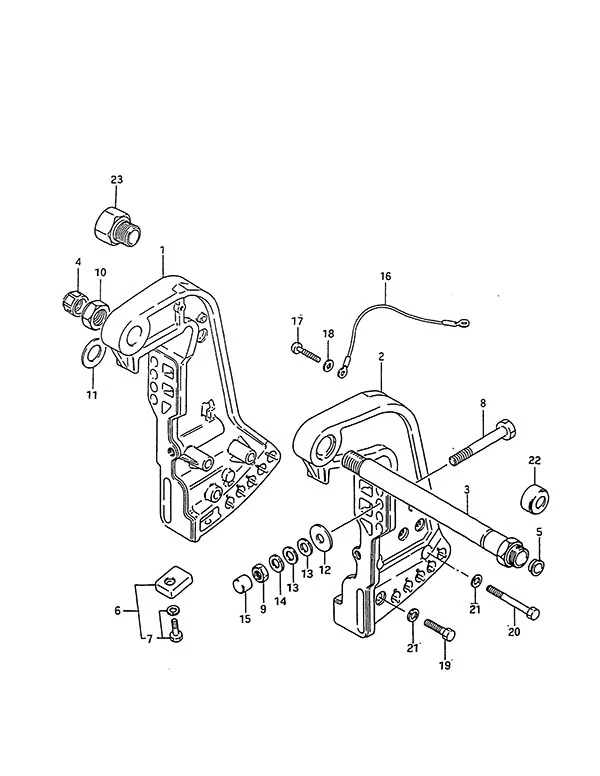

图 17夹紧支架(1988-1994款) Clamp Bracket(1988 to 1994)
夹紧支架(1988-1994款) Clamp Bracket(1988 to 1994)
REF零件编号中文名称英文名称数量
141111-95602-0ED右舷夹紧支架 (停产)Starboard Clamp Bracket (NLA)1
241121-95610-0ED左舷夹箍支架(停产)Port Clamp Bracket (NLA)1
341130-95541夹具支架轴Clamp Bracket Shaft1
441151-94500夹具支架轴帽Clamp Bracket Shaft Cap1
541152-94500夹具支架轴塞Clamp Bracket Shaft Plug1
655320-95311锌阳极Zinc Anode2
709116-06094螺栓(6x15)Bolt (6x15)2
809100-12093艉板螺栓(12x100)Transom Bolt (12x100)4
909140-12028螺母Nut4
1009159-22006螺母Nut1
1109160-22046垫圈 (停产)Washer (NLA)1
1209160-12044垫圈 (12.5x35x3.2)Washer (12.5x35x3.2)4
1309160-12066垫圈 (12.5x22x2.5)Washer (12.5x22x2.5)6
1409162-12005锁紧垫圈Lock Washer4
1541153-94500艉板螺栓帽Transom Bolt Cap4
1636894-94401导线(长195)Wire Lead (L:195)1
1709125-05050螺钉(5x8)Screw (5x8)2
1809161-05114垫圈 (5.2x11x1.0)Washer (5.2x11x1.0)2
1909100-10155螺栓(10x50)Bolt (10x50)2
2009100-10264螺栓(10x80)Bolt (10x80)4
2109162-10005锁紧垫圈Lock Washer6
2241161-94400转向拉索密封件Steering Cable Seal1
2341141-94300转向拉索固定件(停产)Steering Cable Attachment (NLA)1
2409159-12014螺母(12x17)Nut (12x17)4

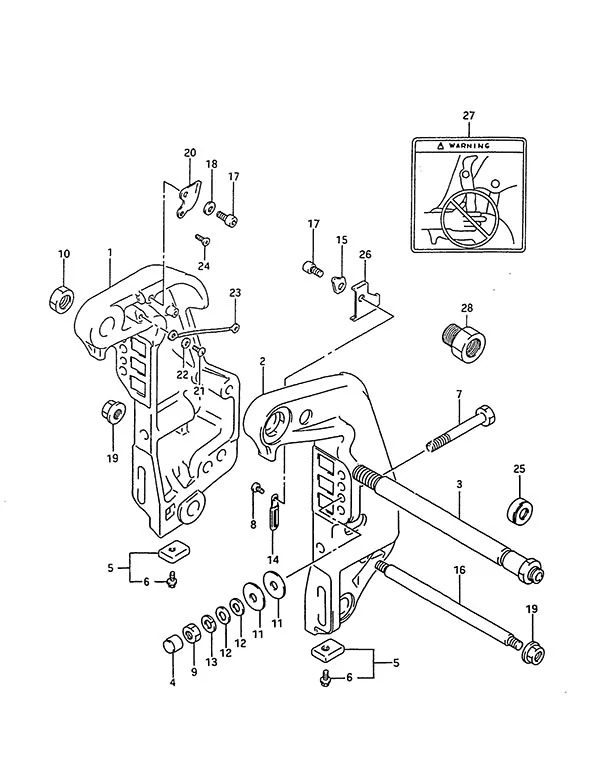

图 17A夹紧支架(1995-1997款) Clamp Bracket(1995 to 1997)
夹紧支架(1995-1997款) Clamp Bracket(1995 to 1997)
REF零件编号中文名称英文名称数量
141111-95E03-0ED右舷夹紧支架Starboard Clamp Bracket1
241121-95E20-0ED左舷夹箍支架(停产)Port Clamp Bracket (NLA)1
341130-95541夹具支架轴Clamp Bracket Shaft1
441153-94500艉板螺栓帽Transom Bolt Cap4
555320-95311锌阳极Zinc Anode2
609116-06094螺栓(6x15)Bolt (6x15)2
709100-12093艉板螺栓(12x100)Transom Bolt (12x100)4
809125-06063螺钉(6x10)Screw (6x10)1
909140-12028螺母Nut4
1009159-22006螺母Nut1
1109160-12044垫圈 (12.5x35x3.2)Washer (12.5x35x3.2)4
1209160-12066垫圈 (12.5x22x2.5)Washer (12.5x22x2.5)4
1309162-12005锁紧垫圈Lock Washer4
1541225-95E00倾斜止动板(停产)Tilt Stopper Plate (NLA)1
1645421-87D03倾斜锁定销Tilt Lock Pin1
1709106-10065螺栓 (10x20)Bolt (10x20)2
1909159-14020螺母(14mm)Nut (14mm)2
2041241-95E00倾斜锁杆导槽(停产)Tilt Lock Lever Guide (NLA)1
2109125-06063螺钉(6x10)Screw (6x10)1
2209161-06120垫圈 (6.3x12.5x1.0) (停产)Washer (6.3x12.5x1.0) (NLA)1
2336894-87D00导线(长195)Wire Lead (L:195)1
2409126-05007螺钉(5x12)Screw (5x12)1
2541161-94400转向拉索密封件Steering Cable Seal1
2641242-95E00倾斜锁臂导槽(停产)Tilt Lock Arm Guide (NLA)1
2741337-95E00倾斜锁定警示标记(停产)Tilt Lock Warning Mark (NLA)1
2841141-94300转向拉索固定件(停产)Steering Cable Attachment (NLA)1
2909159-12014螺母(12x17)Nut (12x17)4

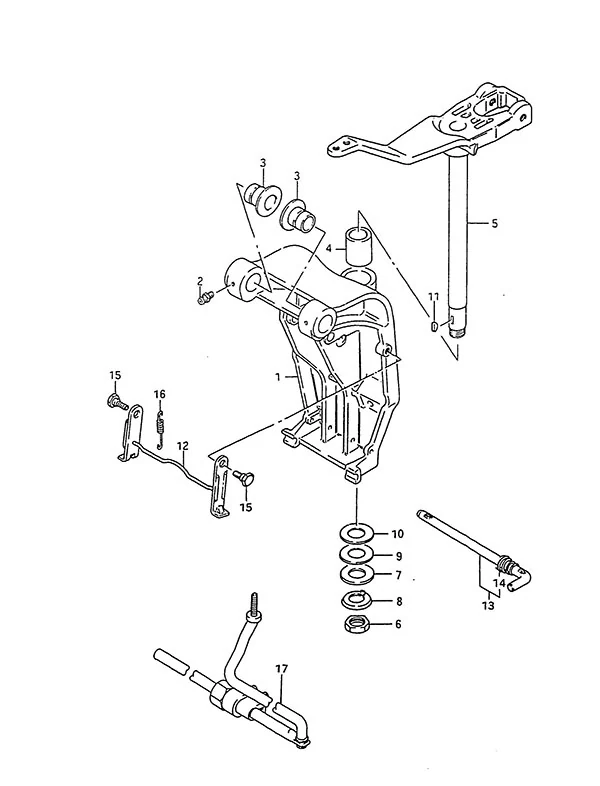

图 18旋转支架(1988-1994款) Swivel Bracket(1988 to 1994)
旋转支架(1988-1994款) Swivel Bracket(1988 to 1994)
REF零件编号中文名称英文名称数量
143111-95530-0ED旋转支架Swivel Bracket1
222511-99011黄油嘴Grease Nipple4
343211-95510衬套(停产)Bushing (NLA)2
443711-95500衬套(停产)Bushing (NLA)2
543750-95604-0ED转向支架(停产)Steering Bracket (NLA)1
609140-24010螺母Nut1
709160-25052垫圈 (停产)Washer (NLA)1
809166-25007垫圈 (停产)Washer (NLA)1
909181-26006垫片 (0.3mm) (停产)Shim (0.3) (NLA)1
1109420-05003钥匙(停产)Key (NLA)1
1241220-95501-0ED倾斜锁杆(停产)Tilt Lock Lever (NLA)1
1345420-95500倾斜锁定销Tilt Lock Pin1
1409441-24002弹簧(停产)Spring (NLA)1
1609443-10029倾斜锁定杆弹簧(停产)Tilt Lock Lever Spring (NLA)1
1743770-99E03转向张紧器总成Steering Tensioner Assembly1

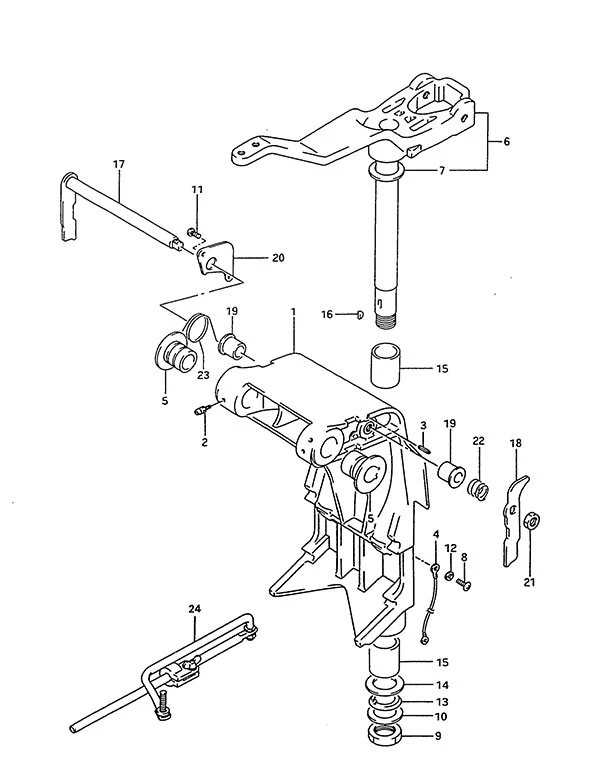

图 18A旋转支架(1995款) Swivel Bracket(1995)
旋转支架(1995款) Swivel Bracket(1995)
REF零件编号中文名称英文名称数量
143111-95E01-0ED旋转支架(停产)Swivel Bracket (NLA)1
222511-99011黄油嘴Grease Nipple1
309205-06013销Pin1
436894-94401导线(长195)Wire Lead (L:195)1
543211-95510衬套(停产)Bushing (NLA)2
643750-95604-0ED转向支架(停产)Steering Bracket (NLA)1
709160-25052垫圈 (停产)Washer (NLA)1
809125-05050螺钉(5x8)Screw (5x8)2
909140-24010螺母Nut1
1009160-25052垫圈 (停产)Washer (NLA)1
1109125-05050螺钉(5x8)Screw (5x8)2
1209161-05114垫圈 (5.2x11x1.0)Washer (5.2x11x1.0)2
1309166-25007垫圈 (停产)Washer (NLA)1
1409181-26006垫片 (0.3mm) (停产)Shim (0.3) (NLA)2
1509306-26005衬套(停产)Bushing (NLA)2
1609420-05003钥匙(停产)Key (NLA)1
1741220-95E00右舷倾斜锁定杆（停产）Starboard Tilt Lock Lever (NLA)1
1841221-95E31-01T左舷倾斜锁定杆(停产)Port Tilt Lock Lever (NLA)1
1941224-95E01倾斜止动杆衬套Tilt Stopper Rod Bushing1
2041227-95E00弹簧挡块 (停产)Spring Stopper (NLA)1
2109140-10032螺母Nut1
2209440-19028弹簧Spring1
2309444-34001弹簧(停产)Spring (NLA)1
2443770-99E03转向张紧器总成Steering Tensioner Assembly1

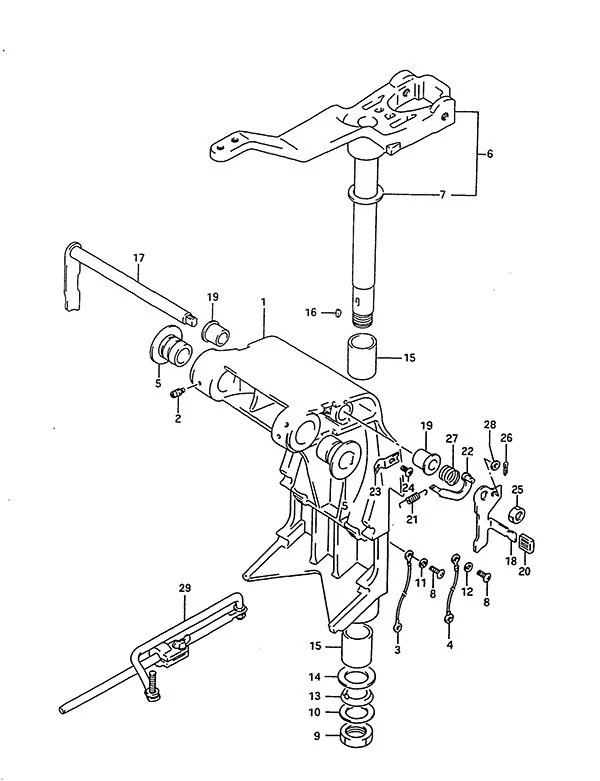

图 18B旋转支架(1996-1997款) Swivel Bracket(1996 to 1997)
旋转支架(1996-1997款) Swivel Bracket(1996 to 1997)
REF零件编号中文名称英文名称数量
143111-95E41-0ED旋转支架(停产)Swivel Bracket (NLA)1
222511-99011黄油嘴Grease Nipple4
336894-94401导线(长195)Wire Lead (L:195)1
436894-95201导线(长165)Wire Lead (L:165)1
543211-95510衬套(停产)Bushing (NLA)2
643750-95604-0ED转向支架(停产)Steering Bracket (NLA)1
709160-25052垫圈 (停产)Washer (NLA)1
809125-05050螺钉(5x8)Screw (5x8)3
909140-24010螺母Nut1
1009160-25052垫圈 (停产)Washer (NLA)1
1109161-05114垫圈 (5.2x11x1.0)Washer (5.2x11x1.0)2
1209161-05114垫圈 (5.2x11x1.0)Washer (5.2x11x1.0)1
1309166-25007垫圈 (停产)Washer (NLA)1
1409181-26006垫片 (0.3mm) (停产)Shim (0.3) (NLA)4
1509306-26005衬套(停产)Bushing (NLA)2
1609420-05003钥匙(停产)Key (NLA)1
1741220-95E13右舷倾斜锁定杆Starboard Tilt Lock Lever1
1841221-95E40左舷倾斜锁定杆Port Tilt Lock Lever1
1941224-95E01倾斜止动杆衬套Tilt Stopper Rod Bushing1
2041225-94401倾斜定位橡胶块RUBBER,TILT LOC1
2141228-95E00倾斜锁定杆弹簧(停产)Tilt Lock Lever Spring (NLA)1
2241230-95E00倾斜锁杆连杆Tilt Lock Lever Link1
2341233-95E10倾斜锁定弹簧支架Tilt Lock Spring Bracket1
2409125-06063螺钉(6x10)Screw (6x10)1
2509140-10032螺母Nut1
2609204-01006开口销Cotter Pin1
2709440-19028弹簧Spring1
2809160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)1
2943770-99E03转向张紧器总成Steering Tensioner Assembly1

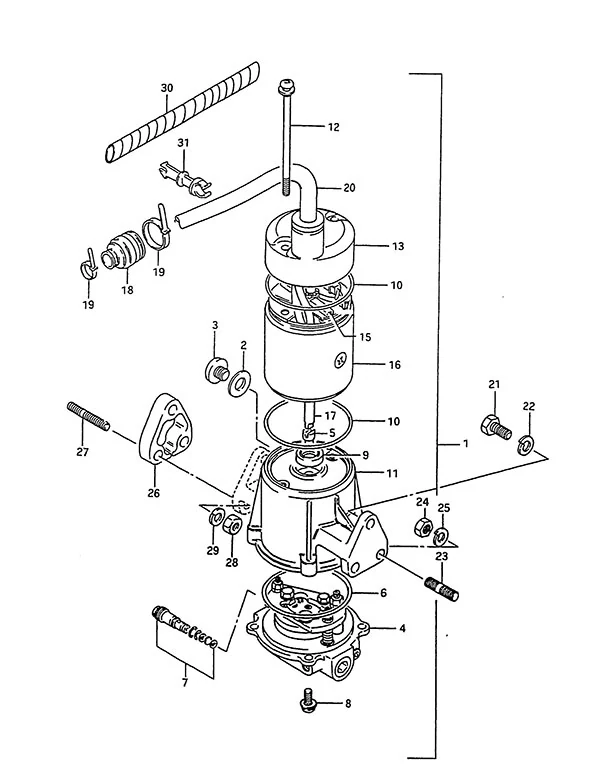

图 19动力单元(1988至1989) Power Unit(1988 to 1989)
动力单元(1988至1989) Power Unit(1988 to 1989)
REF零件编号中文名称英文名称数量
209168-10022放油塞垫片Drain Plug Gasket1
309248-10008放油塞Drain Plug1
448502-94530泵阀总成(停产)Pump & Valve Body (NLA)1
548583-94520驱动联轴节Drive Joint1
648585-94520阀体O型圈Valve Body O-Ring1
748550-94600手动阀释放装置Manual Valve Release1
809136-05041螺钉(5x20)Screw (5x20)4
909282-08003油封（停产件）Oil Seal (NLA)1
1009280-70005O型圈O-Ring2
1148570-94600-0ED储液罐总成(停产)Reservoir Assembly (NLA)1
1231281-94510贯穿螺栓Through Bolt2
1331170-94520-0ED上盖(停产)Upper Cover (NLA)1
1531133-94521电刷(停产)Brush (NLA)2
1631110-94520-0ED拨叉总成(停产)Yoke Assembly (NLA)1
1731311-94600电枢(停产)Armature (NLA)1
1833899-95500动力升降倾斜装置电缆密封件(停产)PTT Cable Seal (NLA)1
1909407-25402卡箍(长:248)Clamp (L:248)2
2033861-95600动力升降倾斜线缆(停产)PTT Cable (NLA)1
2109100-08219螺栓(8x20)(停产)Bolt (8x20) (NLA)1
2209162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)1
2309108-08130双头螺栓(8x20)Stud Bolt (8x20)2
2409140-08023-XC0螺母(8mm)Nut (8mm)2
2509162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)2
2648131-95200动力单元隔套(停产)Power Unit Spacer (NLA)1
2709108-08137双头螺栓(8x40)Stud Bolt (8x40)3
2809140-08023-XC0螺母(8mm)Nut (8mm)3
2909162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)3
3033833-91J00管(6x8x250)Tube (6x8x250)1
3133835-95500动力升降倾斜装置马达电缆夹(停产)PTT Motor Cable Clamp (NLA)1

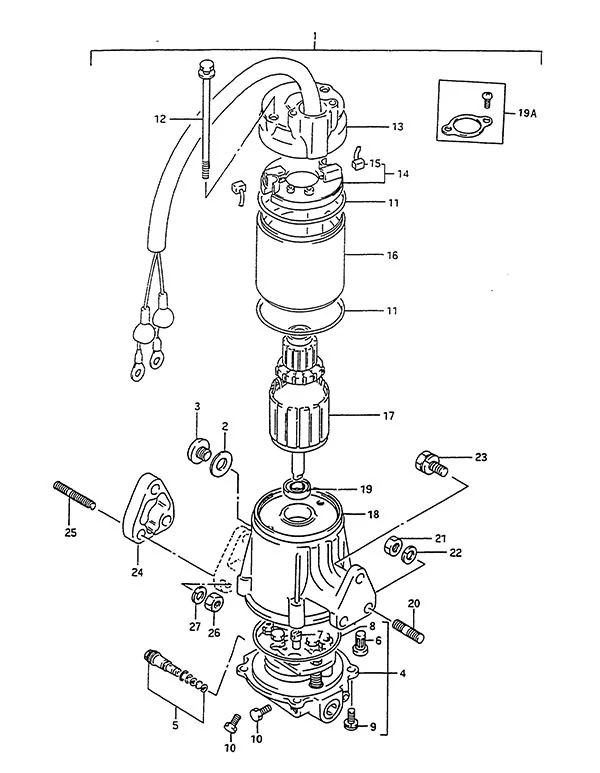

图 20动力单元(1990至1994) Power Unit(1990 to 1994)
动力单元(1990至1994) Power Unit(1990 to 1994)
REF零件编号中文名称英文名称数量
209280-09005O型圈O-Ring2
348511-95500加油口塞（停产）Oil Filler Plug (NLA)2
448502-94530泵阀总成(停产)Pump & Valve Body (NLA)1
548550-94600手动阀释放装置Manual Valve Release1
648581-94500动力升降倾斜装置泵滤清器(停产)PTT Pump Filter (NLA)1
748583-94520驱动联轴节Drive Joint1
848585-94520阀体O型圈Valve Body O-Ring1
909136-05041螺钉(5x20)Screw (5x20)4
1048586-94500塞子Plug2
1109280-70005O型圈O-Ring2
1231281-94610贯穿螺栓(停产)Through Bolt (NLA)1
1331170-94610-0ED动力升降倾斜装置马达盖(停产)PTT Motor Cover (NLA)1
1431173-94620电刷架Brush Holder1
1531133-94610电刷Brush2
1631110-94610-0ED拨叉总成(停产)Yoke Assembly (NLA)1
1731311-94610电枢(停产)Armature (NLA)1
1848570-94610-0ED储液罐总成(停产)Reservoir Assembly (NLA)1
1933799-94610油封Oil Seal1
2009108-08130双头螺栓(8x20)Stud Bolt (8x20)2
2109140-08023-XC0螺母(8mm)Nut (8mm)4
2209162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)2
2309117-08046螺栓(停产)Bolt (NLA)1
2448131-95200动力单元隔套(停产)Power Unit Spacer (NLA)1
2509108-08137双头螺栓(8x40)Stud Bolt (8x40)3
2609140-08023-XC0螺母(8mm)Nut (8mm)3
2709162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)3

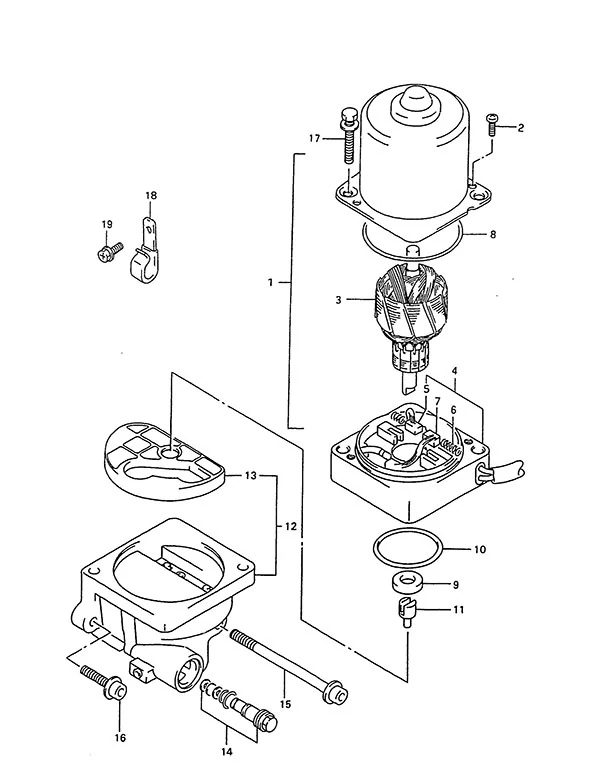

图 20A动力单元(1995至1997) Power Unit(1995 to 1997)
动力单元(1995至1997) Power Unit(1995 to 1997)
REF零件编号中文名称英文名称数量
138100-95E01-0ED动力升降倾斜装置马达总成PTT Motor Assembly1
231111-87D60螺钉Screw2
331311-95E00电枢(停产)Armature (NLA)1
431173-95E01电刷架总成Brush Holder Assembly1
531133-95E00电刷Brush1
631135-97E00弹簧Spring2
731136-94900断路器(停产)Breaker (NLA)1
831123-87D60O型圈O-Ring1
933799-97E00油封Oil Seal1
1048585-95E00O型圈O-Ring1
1148583-95E00驱动联轴节Drive Joint1
1248502-95E00动力升降倾斜装置泵总成PTT Pump Assembly1
1348582-95E01滤清器Filter1
1448864-95E00手动阀组Manual Valve Set1
1548862-95E00螺栓Bolt1
1648862-95E10螺栓Bolt1
1731281-95E00贯穿螺栓Through Bolt2
1809403-17304卡箍Clamp1
1902162-06127螺栓BOLT1

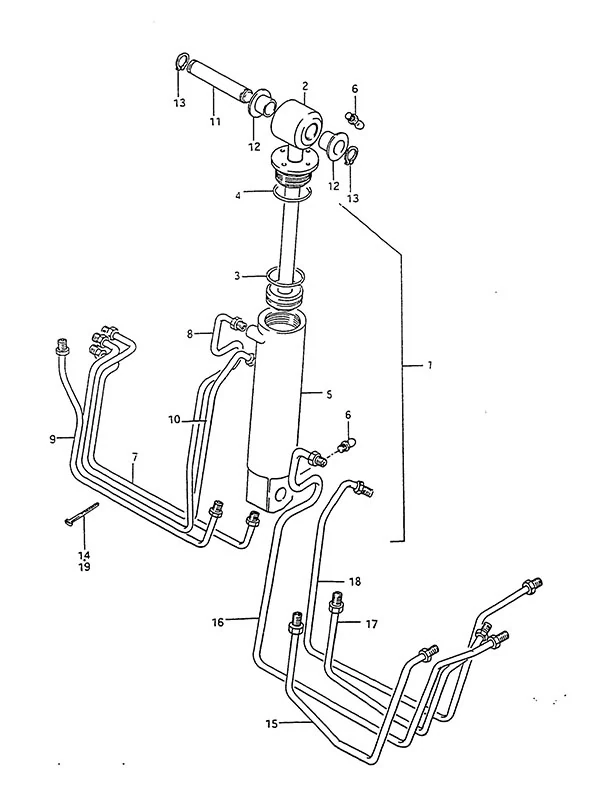

图 21倾斜缸(1988至1994款) Tilt Cylinder(1988 to 1994)
倾斜缸(1988至1994款) Tilt Cylinder(1988 to 1994)
REF零件编号中文名称英文名称数量
148400-94511-0ED倾斜油缸总成(停产)Tilt Cylinder Assembly (NLA)1
248401-94501活塞连杆分总成Piston & Rod Sub Assembly1
348427-94500倾斜活塞O型圈(停产)Tilt Piston O-Ring (NLA)1
448433-94500O型圈(停产)O-Ring (NLA)1
548441-94510气缸套筒(停产)Cylinder Tube (NLA)1
622511-99011黄油嘴Grease Nipple2
748720-94521倾斜进油管(停产)Tilt Inlet Tube (NLA)1
848730-94521倾斜装置出口管(停产)Tilt Outlet Tube (NLA)1
948740-94521升降进油管(停产)Trim Inlet Tube (NLA)1
1048750-94521升降出油管(停产)Trim Outlet Tube (NLA)1
1148321-94510倾斜油缸轴Tilt Cylinder Shaft1
1209306-16003衬套Bushing2
1309380-16003卡簧Circlip2
1409407-14403卡箍(长:125)Clamp (L:125)6
1548720-94580倾斜进油管(停产)Tilt Inlet Tube (NLA)1
1648730-94580倾斜装置出口管(停产)Tilt Outlet Tube (NLA)1
1748740-94580升降进油管(停产)Trim Inlet Tube (NLA)1
1848750-94580升降出油管(停产)Trim Outlet Tube (NLA)1
1909407-14403卡箍(长:125)Clamp (L:125)6

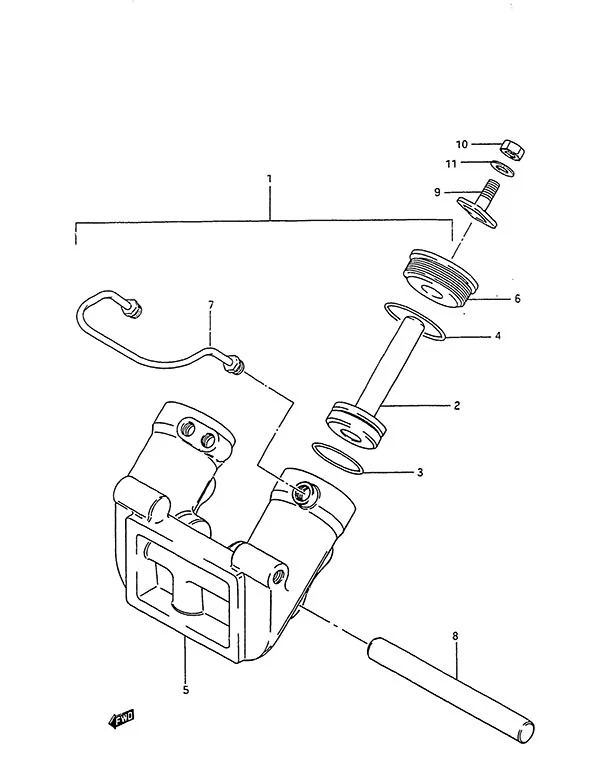

图 22升降油缸(1988-1994款) Trim Cylinder(1988 to 1994)
升降油缸(1988-1994款) Trim Cylinder(1988 to 1994)
REF零件编号中文名称英文名称数量
148600-94511-0ED升降油缸总成(停产)Trim Cylinder Assembly (NLA)1
248601-94501活塞与活塞杆总成(停产)Piston & Piston Rod Assembly (NLA)2
348627-94500升降活塞O型圈Trim Piston O-Ring4
448633-94500升降油缸O型圈Trim Cylinder O-Ring4
548641-94510升降油缸(停产)Trim Cylinder (NLA)1
648630-94500升降油缸盖Trim Cylinder Head2
748760-94501升降油缸出油管(停产)Trim Cylinder Outlet Tube (NLA)1
848121-94510倾斜油缸下轴(停产)Tilt Cylinder Lower Shaft (NLA)1
948311-94501升降油缸柱塞垫Trim Cylinder Ram Pad2
1009140-08023-XC0螺母(8mm)Nut (8mm)2
1109162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)2

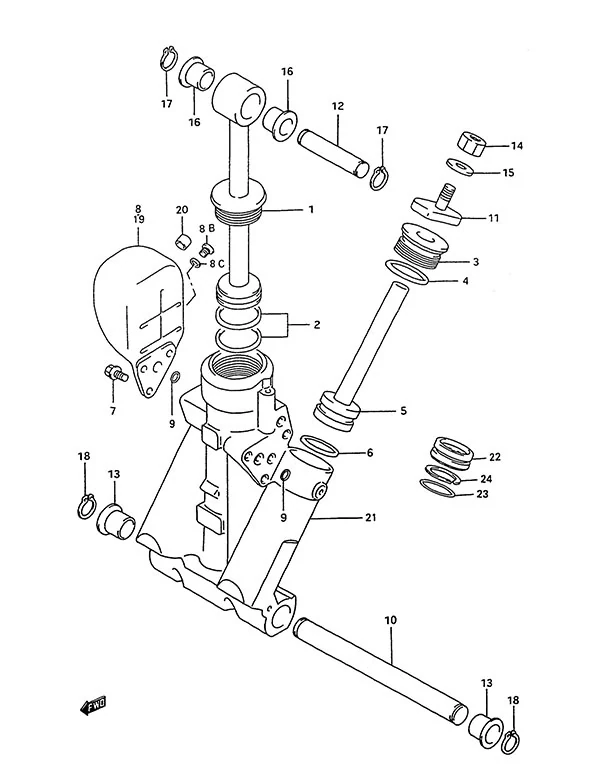

图 22A升降油缸(1995-1997款) Trim Cylinder(1995 to 1997)
升降油缸(1995-1997款) Trim Cylinder(1995 to 1997)
REF零件编号中文名称英文名称数量
148401-95E00活塞连杆分总成Piston & Rod Sub Assembly1
248627-95E00O型圈套件O-Ring Set1
348630-95E00升降油缸盖Trim Cylinder Head2
448633-95E00升降头O型圈(停产)Trim Head O-Ring (NLA)2
548601-95E00活塞与柱塞总成(停产)Piston & Ram Assembly (NLA)2
648627-95E00O型圈套件O-Ring Set2
748861-95E00储液罐螺栓(停产)Reservoir Bolt (NLA)3
848570-95E01储液罐总成Reservoir Assembly1
948588-95E00O型圈O-Ring5
1048121-95E00倾斜缸轴(停产)Tilt Cylinder Shaft (NLA)1
1148311-94501升降油缸柱塞垫Trim Cylinder Ram Pad2
1248321-87D03倾斜缸上轴Tilt Cylinder Upper Shaft1
1348326-95E00倾斜油缸下衬套Tilt Cylinder Lower Bushing2
1409140-08023-XC0螺母(8mm)Nut (8mm)2
1509162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)2
1609306-17001衬套Bushing2
1709380-17009卡簧Circlip2
809380-22015卡簧Circlip2
1948570-95E01储液罐总成Reservoir Assembly1
2048572-95E00盖帽Cap1
2148641-95E00动力升降倾斜装置油缸PTT Cylinder1
2248650-94900自由活塞Free Piston1
2348405-87D00倾斜装置O型圈套装Tilt O-Ring Set1
2448615-97E00活塞环组Piston Ring Set1

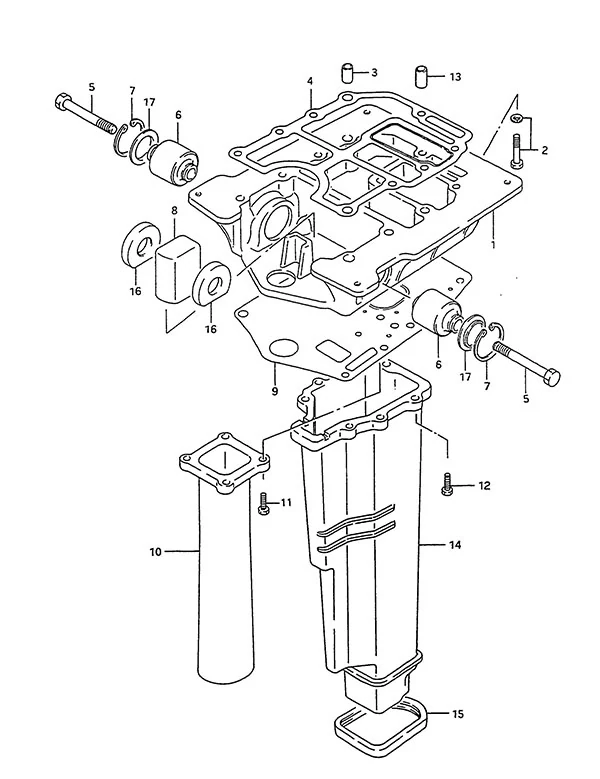

图 23发动机支架 Engine Holder
发动机支架 Engine Holder
REF零件编号中文名称英文名称数量
151111-95602-0ED发动机支架(停产)Engine Holder (NLA)1
209117-08071螺栓(8x35)Bolt (8x35)2
309206-11004销 (11x14)Pin (11x14)2
451211-95630发动机支架衬垫(停产)Engine Holder Gasket (NLA)1
509100-12052螺栓(12x70)Bolt (12x70)2
709381-38002卡簧(停产)Circlip (NLA)2
854135-95200上推力座（停产）Upper Thrust Mount (NLA)1
952113-95630驱动轴壳体衬垫Drive Shaft Housing Gasket1
1014211-95602排气管Exhaust Tube1
1109117-06049螺栓(6x25)Bolt (6x25)4
1209117-06049螺栓(6x25)Bolt (6x25)7
1309206-11017销 (11x20)Pin (11x20)1
1452311-94701排气管壳体(左)(停产)Exhaust Tube Housing (L) (NLA)1
1552332-94711排气管密封件Exhaust Tube Seal1
1654140-95270上部安装止动件(停产)Upper Mount Stopper (NLA)2
1754411-95600上部安装垫片(停产)Upper Mount Washer (NLA)2

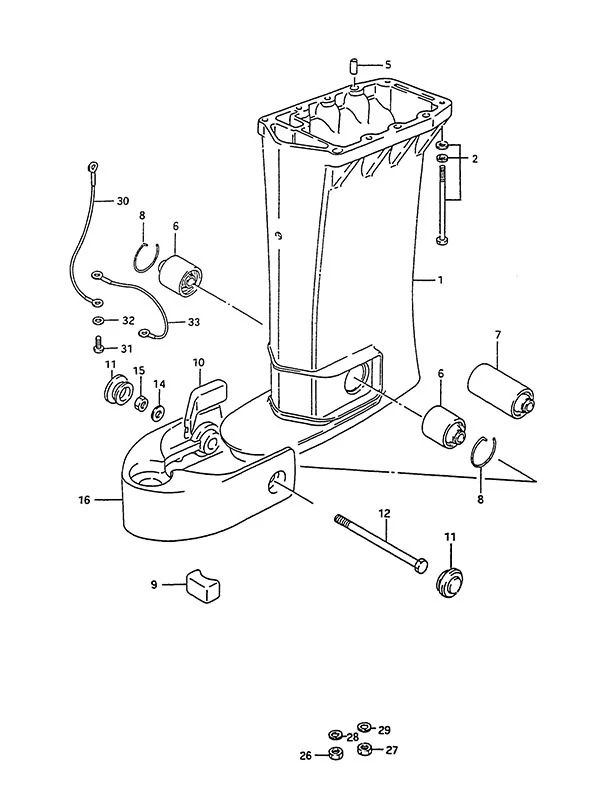

图 24驱动轴壳体 Drive Shaft Housing
驱动轴壳体 Drive Shaft Housing
REF零件编号中文名称英文名称数量
152111-95660-0ED驱动轴外壳(停产)Driveshaft Housing (NLA)1
209118-08102-XC0螺栓(8x100)Bolt (8x100)8
509206-11004销 (11x14)Pin (11x14)2
654160-95600下支架(停产)Lower Mount (NLA)2
754160-95510下支架(停产)Lower Mount (NLA)1
809387-46001定位环(停产)Set Ring (NLA)2
1054167-95500下侧支架(停产)Lower Side Mount (NLA)2
1154311-95210-0ED盖帽(停产)Cap (NLA)2
1209116-12008螺栓(12x145)(停产)Bolt (12x145) (NLA)1
1409160-12066垫圈 (12.5x22x2.5)Washer (12.5x22x2.5)1
1509140-12029螺母Nut1
1654210-95210-0ED下支架托架(停产)Lower Mount Bracket (NLA)1
2609140-08023-XC0螺母(8mm)Nut (8mm)4
2709140-10031螺母(10mm)Nut (10mm)5
2809162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)4
3036894-95201导线(长165)Wire Lead (L:165)1
3109125-05050螺钉(5x8)Screw (5x8)2
3209161-05114垫圈 (5.2x11x1.0)Washer (5.2x11x1.0)2
3336894-94401导线(长195)Wire Lead (L:195)1

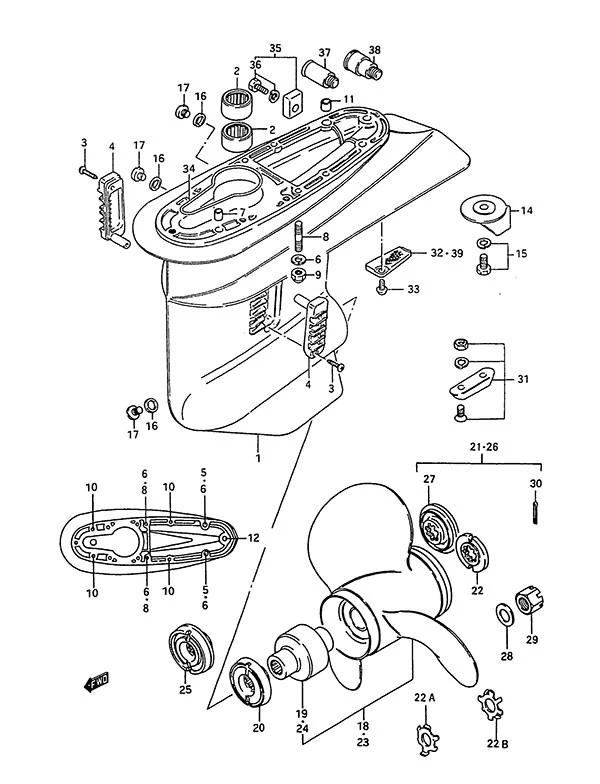

图 25齿轮箱 Gear Case
齿轮箱 Gear Case
REF零件编号中文名称英文名称数量
155100-95561-0ED齿轮箱壳体(停产)Gear Case Housing (NLA)1
209263-29004RN 29x38x20轴承RN 29x38x20 Bearing2
303142-04259螺钉SCREW2
417631-94600水滤器Water Filter2
509117-08038螺栓(8x45)Bolt (8x45)2
609162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)2
709206-11016销 (11x12) (停产)Pin (11x12) (NLA)1
809108-08154螺柱(停产)Stud (NLA)2
909140-08023-XC0螺母(8mm)Nut (8mm)2
1009116-10150螺栓(10x55)Bolt (10x55)4
1109206-13017销 (13x20)Pin (13x20)1
1209117-10024-XC0螺栓 (10x100) (停产)Bolt (10x100) (NLA)1
1455125-95500平衡调整片锌阳极Trim Tab Zinc Anode1
1509117-08109螺栓(8x16)Bolt (8x16)1
1609168-10022放油塞垫片Drain Plug Gasket3
1709248-10008放油塞Drain Plug3
1958120-95500U型螺旋桨衬套Type U Propeller Bushing1
2157630-95500螺旋桨五金套件(DT75/DT85/DT90/DT100/DT115/DT140 DF60/DF70 U型)Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 U-Style1
2257633-95501螺旋桨螺母隔套Propeller Nut Spacer1
2458120-94520螺旋桨衬套(停产)Propeller Bushing (NLA)1
2657630-94500螺旋桨五金件套件 DT75/DT85/DT90/DT100/DT115/DT140/DF60/DF70 V型Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 V-Style1
2757633-94500螺旋桨螺母隔套Propeller Nut Spacer1
2809160-18028垫圈 (18.5x31x1.0)Washer (18.5x31x1.0)1
2909141-18005螺母(18mm)Nut (18mm)1
3009204-03003螺旋桨螺母开口销Prop Nut Cotter Pin1
3155300-95500锌阳极Zinc Anode1
3217635-95501副水滤清器(停产)Sub Water Filter (NLA)1
3309125-06053螺钉(6x16)Screw (6x16)1
3455122-95500齿轮箱密封环 (停产)Gear Case Seal Ring (NLA)1
3555320-95311锌阳极Zinc Anode1
3609116-06094螺栓(6x15)Bolt (6x15)1
3755181-95200冲洗软管接头Flush Hose Attachment1
3855182-95200冲洗软管接头(停产)Flush Hose Attachment (NLA)1
3917635-95510副水密封板Sub Water Seal Plate1

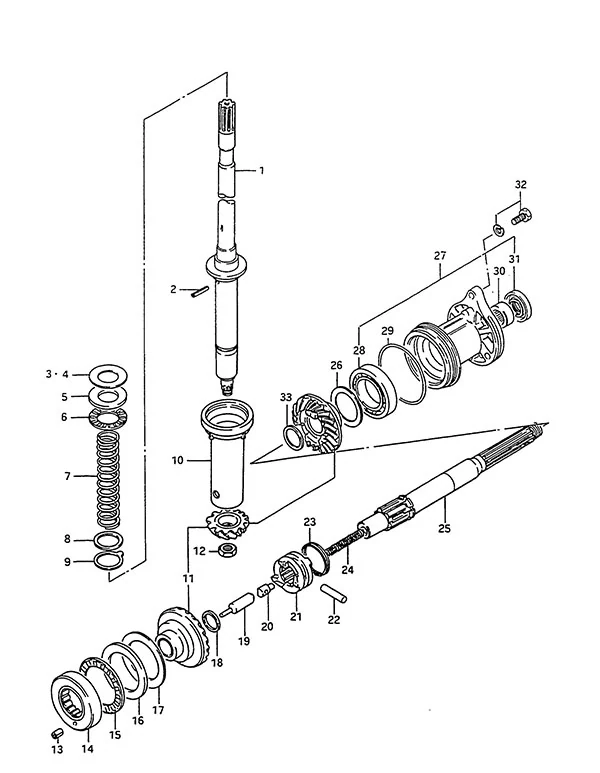

图 26变速箱 Transmission
变速箱 Transmission
REF零件编号中文名称英文名称数量
157110-95508驱动轴(长型)(停产)Drive Shaft (L) (NLA)1
209205-03028销Pin1
509160-32005推力垫圈(4.25)Thrust Washer (4.25)1
609263-30046轴承(30x52x8)Bearing (30x52x8)1
709440-30003弹簧(停产)Spring (NLA)1
809160-30027垫圈 (停产)Washer (NLA)1
909167-31001推力垫圈(停产)Thrust Washer (NLA)1
1057133-95501驱动轴弹簧挡圈(停产)Drive Shaft Spring Collar (NLA)1
1209140-14021螺母Nut1
1309205-05006销 (停产)Pin (NLA)1
1509269-60001轴承(60x85x3.0)Bearing (60x85x3.0)1
1609160-60002推力垫圈(停产)Thrust Washer (NLA)1
1809181-25018推力垫圈(停产)Thrust Washer (NLA)1
1957631-95542推杆Push Rod1
2057632-95502推销Push Pin1
2157621-95511离合器换挡拨叉(停产)Clutch Dog Shifter (NLA)1
2209202-06028离合器换挡拨叉销Clutch Dog Shifter Pin1
2309440-48003离合器换挡拨叉弹簧Clutch Dog Shifter Spring1
2409440-11020弹簧Spring1
2756120-95505-0ED螺旋桨轴轴承座(停产)Propeller Shaft Bearing Housing (NLA)1
2808113-60097B1 45X75X16轴承B1 45X75X16 BEA1
2909280-85001O型圈O-Ring1
3009263-28011RN 28x35x16轴承(停产)RN 28x35x16 Bearing (NLA)2
3109282-28002油封Oil Seal2
3209117-08047螺栓(8x30)Bolt (8x30)2

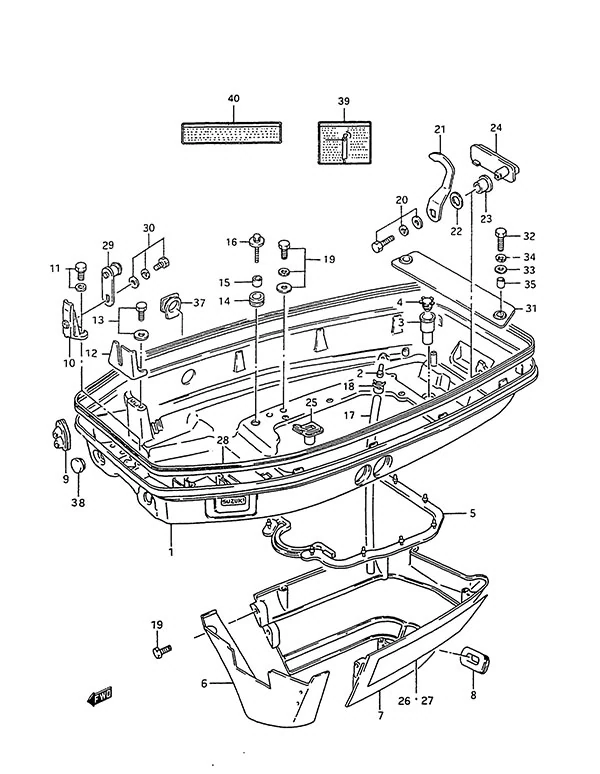

图 27下盖 Lower Cover
下盖 Lower Cover
REF零件编号中文名称英文名称数量
161110-96X55-0ED发动机下盖(停产)Lower Engine Cover (NLA)1
261155-94500检视管Water Inspection Tube1
361139-94511放油管Drain Tube1
413979-37400放油管固定座(停产)Drain Tube Retainer (NLA)1
561113-95205下盖下部密封件Under Cover Lower Seal1
661131-95201-0ED前部下护板(停产)Lower Front Under Cover (NLA)1
761141-95204-0ED下后底盖(停产)Lower Rear Under Cover (NLA)1
861142-95201下盖下部护孔环(停产)Under Cover Lower Grommet (NLA)1
967331-95210索环Grommet1
1061116-94702发动机罩支架(停产)Engine Cover Bracket (NLA)1
1267271-95213遥控装置固定座(停产)Remocon Holder (NLA)1
1309116-06094螺栓(6x15)Bolt (6x15)2
1409320-10502缓冲垫Cushion4
1509180-06289垫片Spacer4
1609118-06093螺栓(6x25)(停产)Bolt (6x25) (NLA)4
1709352-50006-600软管(5x9x600)Hose (5x9x600)1
1809401-08411卡扣Clip2
1909138-06037螺栓(6x20)Bolt (6x20)6
2009118-06095螺栓(6x12)Bolt (6x12)1
2161631-95310发动机下盖挂钩Lower Engine Cover Hook1
2209164-13005波形垫圈Wave Washer1
2309306-13007衬套Bushing1
2461645-90J01-0ED前挂钩操纵杆Front Hook Lever1
2523131-95501离合器推杆防尘套Clutch Rod Boot1
2861112-95208下盖上部密封件(停产)Under Cover Upper Seal (NLA)1
2961610-95514紧固件Fastener1
3002162-06127螺栓BOLT1
3161138-95600水盖 (停产)Water Cover (NLA)1
3309160-06094垫圈 (6.5x15x1.0)Washer (6.5x15x1.0)2
3409162-06006锁紧垫圈Lock Washer2
3509180-06200索环(停产)Grommet (NLA)2
3761124-95200下盖护孔环Lower Cover Grommet1
3809250-21003塞子Plug1
3941336-95E01倾斜锁定标记(停产)Tilt Lock Mark (NLA)1
4048171-95E00动力升降倾斜装置标记(停产)PTT Mark (NLA)1

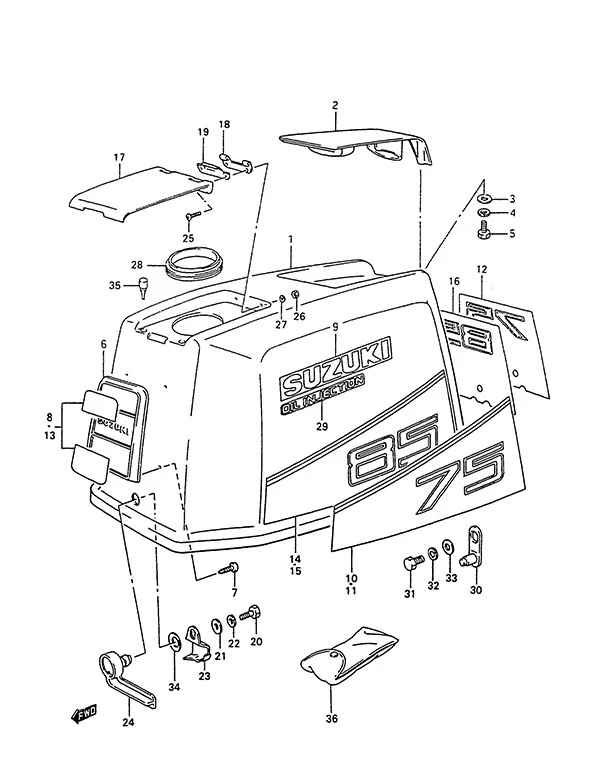

图 28发动机罩(1988年款) Engine Cover(1988)
发动机罩(1988年款) Engine Cover(1988)
REF零件编号中文名称英文名称数量
161410-95671-0ED发动机罩(停产)Engine Cover (NLA)1
261431-95501-0ED倾斜手柄(停产)Tilt Up Handle (NLA)1
309160-06036垫圈 (6.5x18x1.5)Washer (6.5x18x1.5)4
409162-06006锁紧垫圈Lock Washer4
501550-06167螺栓BOLT4
661421-94421-019前徽标Front Emblem1
703241-0510A螺钉SCREW1
968112-43400-019铃木徽标Suzuki Emblem2
1061443-95660-70G右舷发动机盖贴花 (停产)Starboard Engine Cover Decal (NLA)1
1761481-95522-0ED机油箱加注口盖Oil Tank Filler Lid1
1861482-94510加油口盖铰链Oil Filler Lid Hinge1
1961485-95500加油口盖弹簧Oil Filler Lid Spring1
2009100-06131螺栓(6x12)Bolt (6x12)1
2109160-06036垫圈 (6.5x18x1.5)Washer (6.5x18x1.5)1
2209162-06006锁紧垫圈Lock Washer1
2361641-94700前挂钩(停产)Front Hook (NLA)1
2461645-94701-0ED前挂钩操纵杆(停产)Front Hook Lever (NLA)1
2509125-06067螺钉(6x16)Screw (6x16)2
2609140-06020螺母(6mm)Nut (6mm)2
2709160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
2861414-95501加油口衬垫（停产）Oil Filler Gasket (NLA)1
2961442-94600-019注油标记(停产)Oil Injection Mark (NLA)2
3061610-94420紧固件Fastener1
3101500-06127螺栓BOLT1
3208321-01067锁紧垫圈Lock Washer1
3308322-01067垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)1
3409164-13005波形垫圈Wave Washer1
3509321-05019缓冲垫Cushion2
3609800-01016工具套装Tool Set1

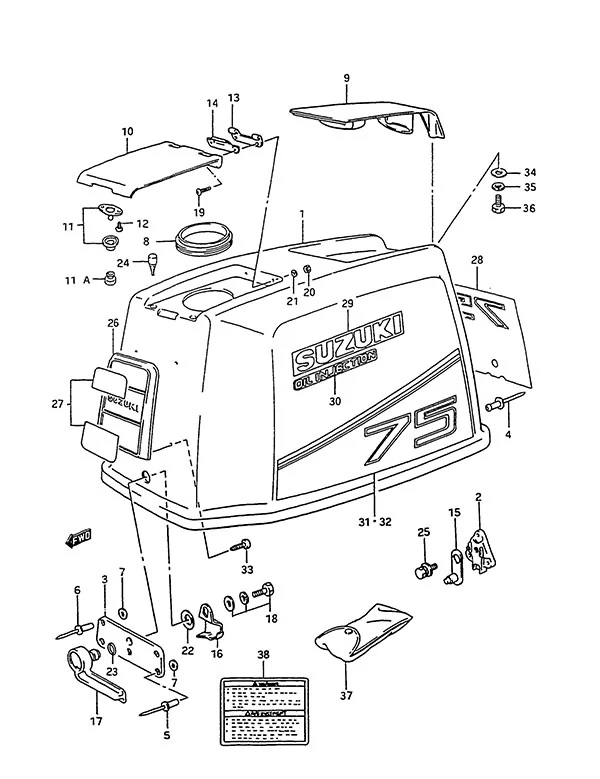

图 29发动机罩(1989至1994年款) Engine Cover(1989 to 1994)
发动机罩(1989至1994年款) Engine Cover(1989 to 1994)
REF零件编号中文名称英文名称数量
261621-96303紧固件支架(停产)Fastener Bracket (NLA)1
361651-94701前挂钩支架(停产)Front Hook Holder (NLA)1
409229-04025铆钉Rivet3
509229-04026铆钉(停产)Rivet (NLA)3
609229-04027铆钉(停产)Rivet (NLA)2
708322-01057垫片Washer5
861414-95501加油口衬垫（停产）Oil Filler Gasket (NLA)1
961431-95501-0ED倾斜手柄(停产)Tilt Up Handle (NLA)1
1061481-95522-0ED机油箱加注口盖Oil Tank Filler Lid1
1161670-94600油箱盖锁扣总成(停产)Oil Lid Striker Assy (NLA)1
1203241-0410A螺钉SCREW2
1361482-94510加油口盖铰链Oil Filler Lid Hinge1
1461485-95500加油口盖弹簧Oil Filler Lid Spring1
1561610-94420紧固件Fastener1
1661641-94700前挂钩(停产)Front Hook (NLA)1
1761645-94701-0ED前挂钩操纵杆(停产)Front Hook Lever (NLA)1
1809118-06095螺栓(6x12)Bolt (6x12)1
1909125-06067螺钉(6x16)Screw (6x16)2
2009140-06020螺母(6mm)Nut (6mm)2
2109160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
2209164-13005波形垫圈Wave Washer1
2309280-18004O型圈O-Ring1
2409321-05019缓冲垫Cushion2
2501550-06127螺栓BOLT1
2661421-94421-019前徽标Front Emblem1
2761422-95570-12R前徽标标记(停产)Front Emblem Mark (NLA)1
3161443-95660-70G右舷发动机盖贴花 (停产)Starboard Engine Cover Decal (NLA)1
3303241-0510A螺钉SCREW4
3409160-06036垫圈 (6.5x18x1.5)Washer (6.5x18x1.5)4
3509162-06006锁紧垫圈Lock Washer4
3601550-06167螺栓BOLT4
3709800-01016工具套装Tool Set1
3861581-98620发动机盖标签Engine Cover Label1

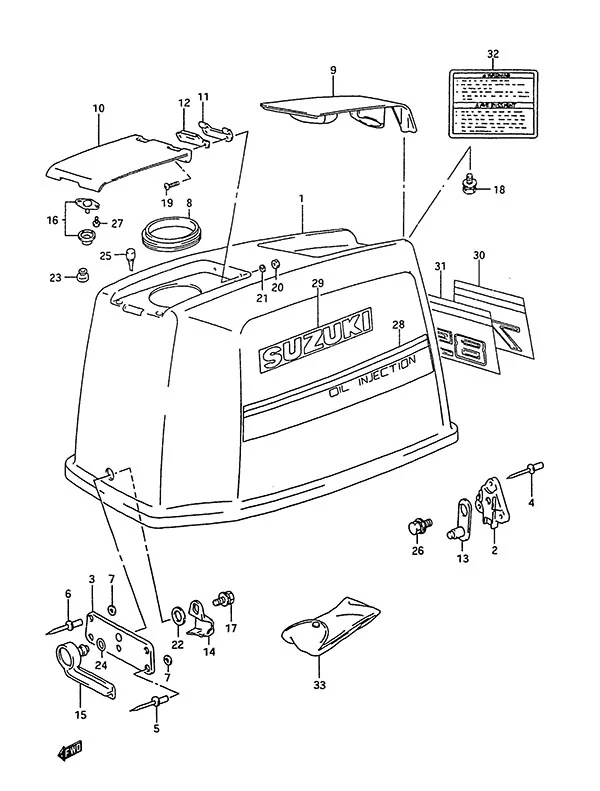

图 30A发动机罩(1995至1997年款) Engine Cover(1995 to 1997)
发动机罩(1995至1997年款) Engine Cover(1995 to 1997)
REF零件编号中文名称英文名称数量
161410-95800-0ED发动机罩(停产)Engine Cover (NLA)1
261621-96303紧固件支架(停产)Fastener Bracket (NLA)1
361651-94701前挂钩支架(停产)Front Hook Holder (NLA)1
409229-04025铆钉Rivet3
509229-04026铆钉(停产)Rivet (NLA)3
609229-04027铆钉(停产)Rivet (NLA)2
708322-01057垫片Washer5
861414-95501加油口衬垫（停产）Oil Filler Gasket (NLA)1
961431-95501-0ED倾斜手柄(停产)Tilt Up Handle (NLA)1
1061481-95522-0ED机油箱加注口盖Oil Tank Filler Lid1
1161482-94510加油口盖铰链Oil Filler Lid Hinge1
1261485-95500加油口盖弹簧Oil Filler Lid Spring1
1361610-94420紧固件Fastener1
1461641-94700前挂钩(停产)Front Hook (NLA)1
1561645-94701-0ED前挂钩操纵杆(停产)Front Hook Lever (NLA)1
1661670-94600油箱盖锁扣总成(停产)Oil Lid Striker Assy (NLA)1
1709118-06095螺栓(6x12)Bolt (6x12)1
1801550-06167螺栓BOLT4
2009140-06020螺母(6mm)Nut (6mm)2
2209164-13005波形垫圈Wave Washer1
2309250-12012盖帽(停产)Cap (NLA)1
2409280-13005O型圈O-Ring1
2509321-05019缓冲垫Cushion2
2602162-06127螺栓BOLT1
2703241-0410A螺钉SCREW2
2861440-96E10发动机盖条纹套装(停产)Engine Cover Stripe Set (NLA)1
2968111-42031-1RR铃木标志Suzuki Mark2
3061435-95E50后徽标（停产）Rear Emblem Mark (NLA)1
3261581-98620发动机盖标签Engine Cover Label1
3309800-01016工具套装Tool Set1

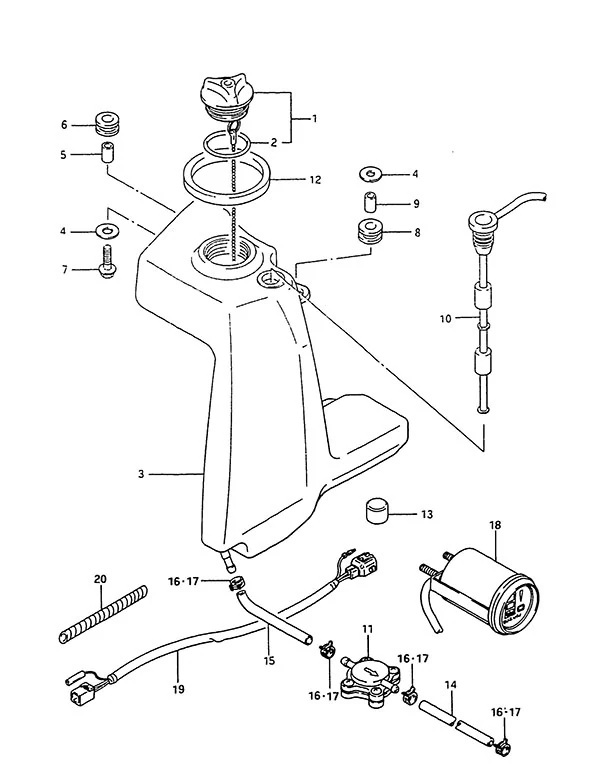

图 32机油箱(1988至1994款) Oil Tank(1988 to 1994)
机油箱(1988至1994款) Oil Tank(1988 to 1994)
REF零件编号中文名称英文名称数量
169201-95500铃木油箱盖(停产)Suzuki Oil Tank Cap (NLA)1
209280-41006O型圈O-Ring1
369101-95500机油箱（停产件）Oil Tank (NLA)1
409160-06084垫圈 (6.5x18x1.6)Washer (6.5x18x1.6)2
509180-06310垫片(6.5x10x10)Spacer (6.5x10x10)1
609320-10075缓冲垫Cushion1
701550-06257螺栓BOLT1
809320-12027缓冲垫Cushion1
909180-08301垫片Spacer1
1034860-94741油位开关总成Oil Level Switch Assembly1
1116250-94710机油滤清器/流量传感器Oil Filter/Flow Sensor1
1265281-95500机油箱护圈（停产件）Oil Tank Grommet (NLA)1
1309329-18002缓冲垫(停产)Cushion (NLA)1
1609401-08409卡箍Clamp4
1709401-08411卡扣Clip4
2033833-91J00管(6x8x250)Tube (6x8x250)1

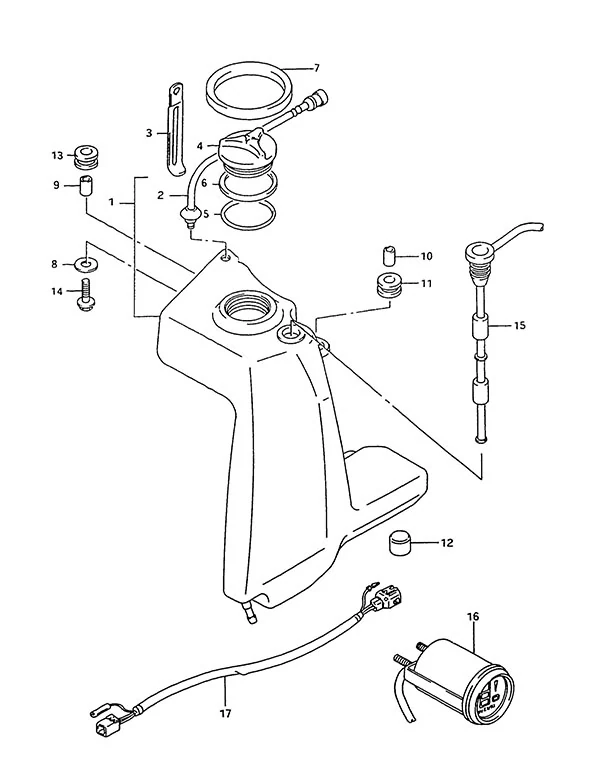

图 32A机油箱(1995至1997款) Oil Tank(1995 to 1997)
机油箱(1995至1997款) Oil Tank(1995 to 1997)
REF零件编号中文名称英文名称数量
169101-95500机油箱（停产件）Oil Tank (NLA)1
269220-94700机油箱通气孔Oil Tank Air Vent1
469201-95500铃木油箱盖(停产)Suzuki Oil Tank Cap (NLA)1
509280-41006O型圈O-Ring1
669241-95510机油箱盖垫片（停产件）Oil Tank Cap Gasket (NLA)1
765281-95500机油箱护圈（停产件）Oil Tank Grommet (NLA)1
809160-06084垫圈 (6.5x18x1.6)Washer (6.5x18x1.6)1
909180-06310垫片(6.5x10x10)Spacer (6.5x10x10)1
1009180-08301垫片Spacer1
1109320-12027缓冲垫Cushion1
1209329-18002缓冲垫(停产)Cushion (NLA)1
1309320-10075缓冲垫Cushion1
1402162-06257螺钉SCREW1
1534860-94741油位开关总成Oil Level Switch Assembly1
1634700-92E11监控仪表总成(停产)Monitor Gauge Assembly (NLA)1

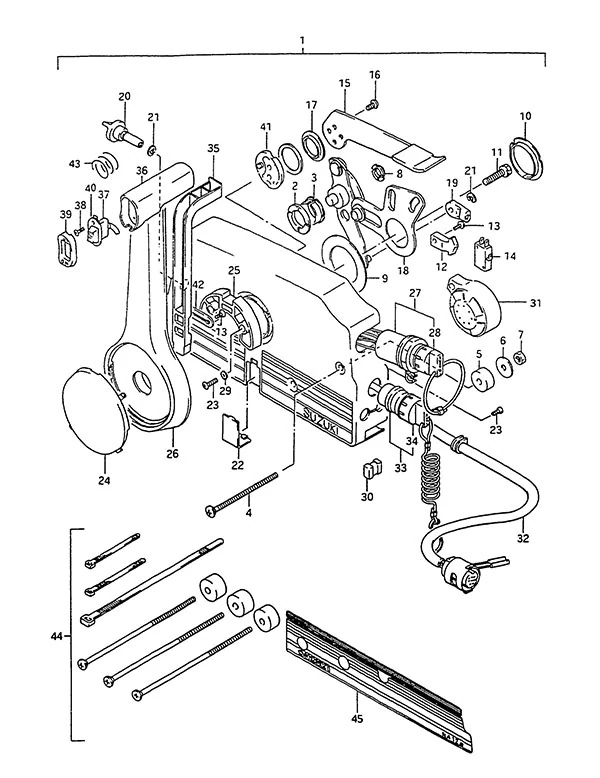

图 33遥控装置(1988至1992款) Remote Control(1988 to 1992)
遥控装置(1988至1992款) Remote Control(1988 to 1992)
REF零件编号中文名称英文名称数量
167200-87D61侧装控制箱(停产)Side Mount Control Box (NLA)1
267232-95600衬套Bushing1
367232-95620衬套(停产)Bushing (NLA)1
467296-95600螺钉Screw3
567294-95600垫片Spacer3
609160-06104垫圈 (6.5x24x2)Washer (6.5x24x2)3
709140-06020螺母(6mm)Nut (6mm)3
867232-95610衬套(停产)Bushing (NLA)1
967253-95600垫圈 (停产)Washer (NLA)1
1067252-95600衬套Bushing1
1109100-08232螺栓(8x30)Bolt (8x30)1
1267238-87D00驱动齿轮Drive Gear1
1367296-94300螺钉(4x10)Screw (4x10)3
1437721-94601空挡开关总成Neutral Switch Assembly1
1609126-05003螺钉(5x12)Screw (5x12)2
1767243-95600衬套(停产)Bushing (NLA)1
1867220-95620挡板总成Plate Assembly1
1967275-95600电缆端头Cable End2
2067223-95600制动调节旋钮Brake Adjustment Knob1
2167292-94300E型卡环E Ring3
2367296-95610螺钉Screw7
2567256-95600空挡锁支架Neutral Lock Holder1
2737110-99E02点火开关总成Ignition Switch Assembly1
2967297-95600垫片Washer2
3067273-95600垫片Spacer1
3138500-92X50警报蜂鸣器Warning Buzzer1
3236620-92E0021英尺主线束（停产）21' Main Wire Harness (NLA)1
3337820-92E05紧急停机开关总成Emergency Stop Switch Assembly1
3437823-94401紧急停机开关帽Emergency Stop Switch Cap1
3567255-95600空挡锁臂Neutral Lock Arm1
3667261-95600动力升降倾斜装置专用手柄握把Handle Grip for PTT1
3737860-94610升降开关总成Trim Switch Assembly1
3809139-02003螺钉(2x6)Screw (2x6)2
3967263-95600握把盖Grip Cap1
4037869-95590升降开关帽Trim Switch Cap1
4167245-95600自由节流鼓(停产)Free Throttle Drum (NLA)1
4267258-87D00空挡臂支架Neutral Arm Bracket1
4367259-87D00空挡臂弹簧（停产）Neutral Arm Spring (NLA)1
4467140-95600替代件67140-95601Replaced by 67140-956011
4567282-95610左舷标识贴(黑色)(停产)Port Decal (Black) (NLA)1

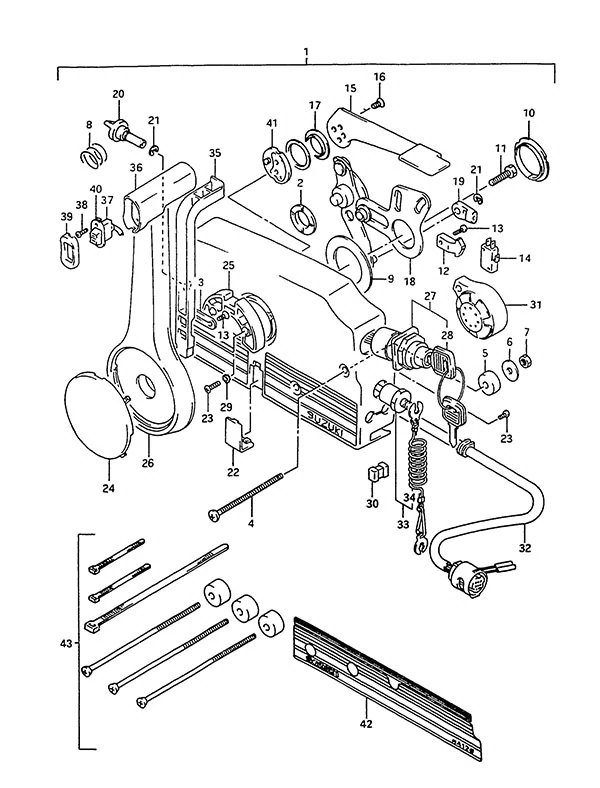

图 34遥控装置(1993至1997款) Remote Control(1993 to 1997)
遥控装置(1993至1997款) Remote Control(1993 to 1997)
REF零件编号中文名称英文名称数量
167200-87D61侧装控制箱(停产)Side Mount Control Box (NLA)1
267232-95600衬套Bushing1
367258-87D00空挡臂支架Neutral Arm Bracket1
467296-95600螺钉Screw3
567294-95600垫片Spacer3
609160-06104垫圈 (6.5x24x2)Washer (6.5x24x2)3
709140-06020螺母(6mm)Nut (6mm)3
867259-87D00空挡臂弹簧（停产）Neutral Arm Spring (NLA)1
967253-95600垫圈 (停产)Washer (NLA)1
1067252-95600衬套Bushing1
1109100-08232螺栓(8x30)Bolt (8x30)1
1267238-87D00驱动齿轮Drive Gear1
1367296-94300螺钉(4x10)Screw (4x10)3
1437721-94601空挡开关总成Neutral Switch Assembly1
1567241-95680自由节流杆(灰色)(停产)Free Throttle Lever (Gray) (NLA)1
1609126-05003螺钉(5x12)Screw (5x12)2
1767243-95600衬套(停产)Bushing (NLA)1
1867220-95620挡板总成Plate Assembly1
1967275-95600电缆端头Cable End2
2067223-95600制动调节旋钮Brake Adjustment Knob1
2167292-94300E型卡环E Ring3
2267267-95610电线护套(黑色)Wire Cover (Black)1
2367296-95610螺钉Screw7
2467257-95610操纵杆帽(黑色)Lever Cap (Black)1
2567256-95600空挡锁支架Neutral Lock Holder1
2667251-95680灰色手柄操纵杆(停产)Handle Lever (Gray) (NLA)1
2737110-99E02点火开关总成Ignition Switch Assembly1
2967297-95600垫片Washer2
3067273-95600垫片Spacer1
3138500-92X50警报蜂鸣器Warning Buzzer1
3236620-92E0021英尺主线束（停产）21' Main Wire Harness (NLA)1
3337820-92E05紧急停机开关总成Emergency Stop Switch Assembly1
3437823-92E02停机开关拉绳Stop Switch Lanyard1
3567255-95600空挡锁臂Neutral Lock Arm1
3667261-95600动力升降倾斜装置专用手柄握把Handle Grip for PTT1
3737860-94610升降开关总成Trim Switch Assembly1
3809139-02003螺钉(2x6)Screw (2x6)2
3967263-95600握把盖Grip Cap1
4037869-95590升降开关帽Trim Switch Cap1
4167245-95600自由节流鼓(停产)Free Throttle Drum (NLA)1
4267282-95610左舷标识贴(黑色)(停产)Port Decal (Black) (NLA)1
4367140-95600替代件67140-95601Replaced by 67140-956011

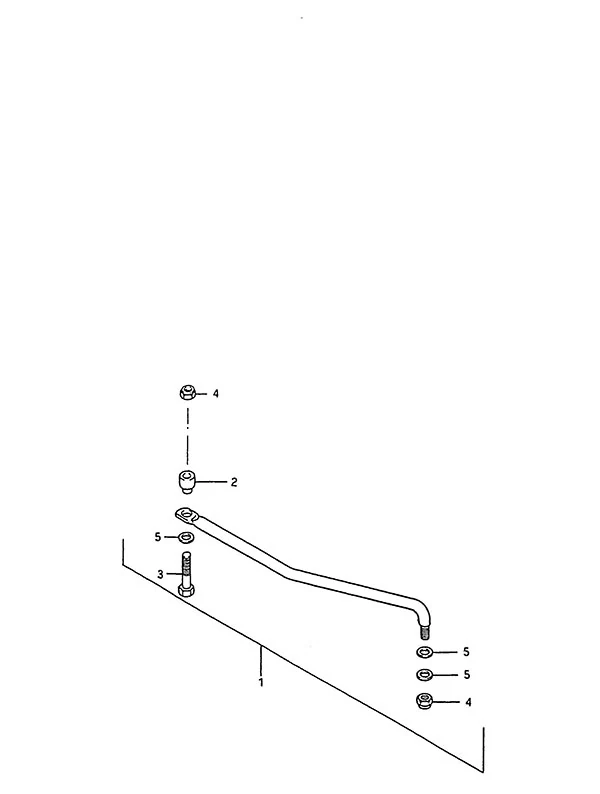

图 35拉杆 Tie Rod
拉杆 Tie Rod
REF零件编号中文名称英文名称数量
167701-95520转向拉杆总成(停产)Drag Link Assembly (NLA)1
267721-99E00转向拉杆隔套Drag Link Spacer1
367725-99E10替代件67725-99E20Replaced by 67725-99E201
467726-99E00锁紧螺母Lock Nut2
567728-99E00垫片Washer3

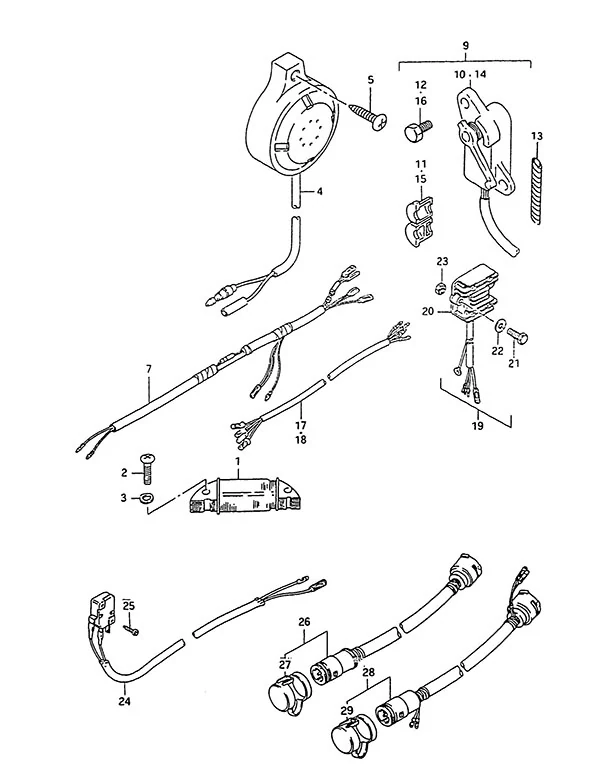

图 36选配:电动系统 Opt: Electrical
选配:电动系统 Opt: Electrical
REF零件编号中文名称英文名称数量
202112-062576X25十字螺丝6X25CROSS SCREW2
308321-01067锁紧垫圈Lock Washer2
438500-92X50警报蜂鸣器Warning Buzzer1
503142-06253螺钉(停产)Screw (NLA)1
734109-94500延长导线(停产)Extension Lead (NLA)1
934804-94701升降传感器套装(停产)Trim Sender Set (NLA)1
1034801-95241升降传感器(停产)Trim Sender (NLA)1
1134803-94500升降感应器护套(停产)Trim Sensor Grommet (NLA)1
1201550-06167螺栓BOLT2
1434804-94701升降传感器套装(停产)Trim Sender Set (NLA)1
1534803-94500升降感应器护套(停产)Trim Sensor Grommet (NLA)1
1601550-06167螺栓BOLT1
1736680-94600传感器延长线(S)(停产)Sender Extension Wire (S) (NLA)1
1932801-95601整流调节器套装(停产)Rectifier & Regulator Set (NLA)1
2032800-94700电压调节器总成(停产)Voltage Regulator Assembly (NLA)1
2102162-06207螺钉SCREW2
2208321-01067锁紧垫圈Lock Washer2
2308310-00067螺母Nut2
2437721-95500空挡开关总成Neutral Switch Assembly2
2502112-0316B螺钉SCREW4
2636620-95302线束延长件(停产)Wiring Harness Extension (NLA)1
2736631-94300盖帽Cap1
2836620-87D20线束延长件(停产)Wiring Harness Extension (NLA)1
2936631-94300盖帽Cap1

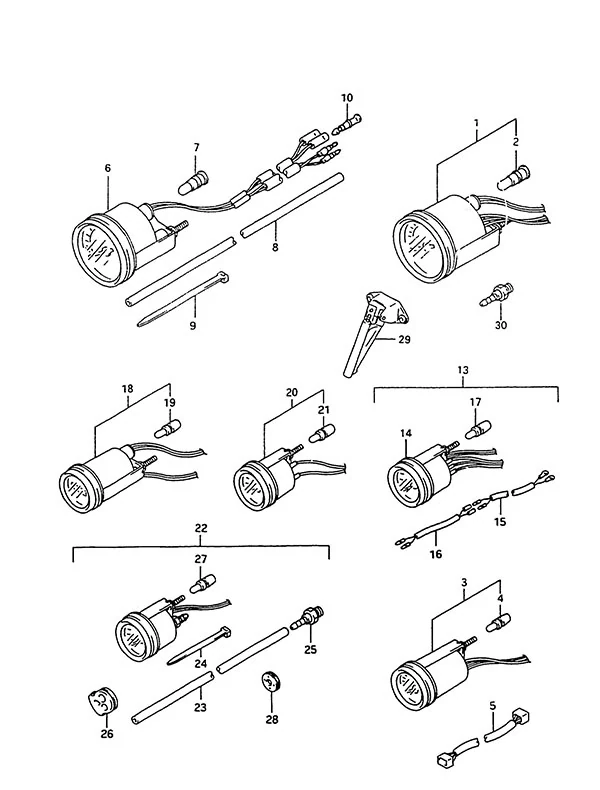

图 37选配: 仪表 Opt: Meter
选配: 仪表 Opt: Meter
REF零件编号中文名称英文名称数量
134200-92E02转速表(停产)Tachometer (NLA)1
209471-12179红色灯泡Bulb (Red)1
334800-92E00升降仪表总成(停产)Trim Meter Assembly (NLA)1
409471-12180灯泡(停产)Bulb (NLA)1
536682-92E00线束Wire Harness1
634100-92E00速度表(80英里)(停产)Speedometer (80mph) (NLA)1
709471-12179红色灯泡Bulb (Red)1
834191-92E00水压管Water Pressure Tubing1
909407-14407卡箍(长:140)Clamp (L:140)2
1036615-96300树脂端子Resin Terminal2
1334300-92E00燃油表组件(停产)Fuel Gauge Set (NLA)1
1434320-92E00燃油表(停产)Fuel Gauge (NLA)1
1534310-92E00燃油表导线(停产)Fuel Gauge Lead (NLA)1
1634360-92E00适配线束(停产)Adapter Harness (NLA)1
1709471-12180灯泡(停产)Bulb (NLA)1
1834500-92E00计时表(停产)Hour Meter (NLA)1
1909471-12180灯泡(停产)Bulb (NLA)1
2034600-92E00电压表(停产)Volt Meter (NLA)1
2109471-12180灯泡(停产)Bulb (NLA)1
2334191-92E00水压管Water Pressure Tubing1
2409407-14407卡箍(长:140)Clamp (L:140)2
2534652-92E00联管节(停产)Union (NLA)1
2636658-95600电缆护圈(停产)Cable Grommet (NLA)1
2709471-12180灯泡(停产)Bulb (NLA)1
2809320-08028索环Grommet1
2934190-87D00速度表传感器Speedometer Sensor1
3009362-09007联管节(停产)Union (NLA)1

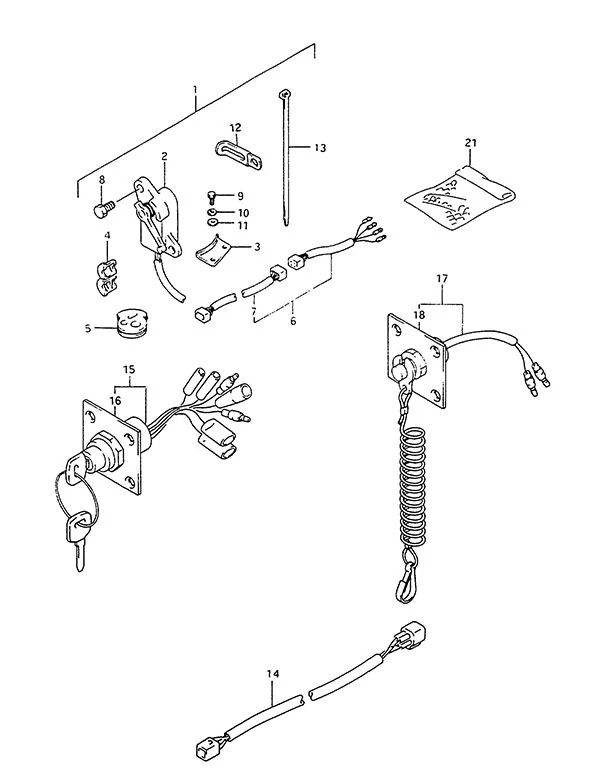

图 38选配: 开关面板 Opt: Switch Panel
选配: 开关面板 Opt: Switch Panel
REF零件编号中文名称英文名称数量
334802-95301动力升降倾斜附件(停产)PTT Attachment (NLA)1
434803-94500升降感应器护套(停产)Trim Sensor Grommet (NLA)1
536658-95600电缆护圈(停产)Cable Grommet (NLA)1
636680-92E00升降仪表线束总成(停产)Trim Meter Wire Assembly (NLA)1
736682-92E00线束Wire Harness1
809100-06113螺栓(6x16)Bolt (6x16)2
909100-06131螺栓(6x12)Bolt (6x12)2
1009162-06006锁紧垫圈Lock Washer2
1109160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
1537100-92E00点火开关面板总成(停产)Ignition Switch Panel Assembly (NLA)1
1637139-92E01单机点火开关面板Single Ingition Switch Panel1
1737803-92E00紧急停机开关总成(停产)Emergency Stop Switch Assembly (NLA)1
1837825-92E00紧急开关面板Emergency Switch Panel1
2136990-87D00端子套管套装Terminal & Sleeve Set1

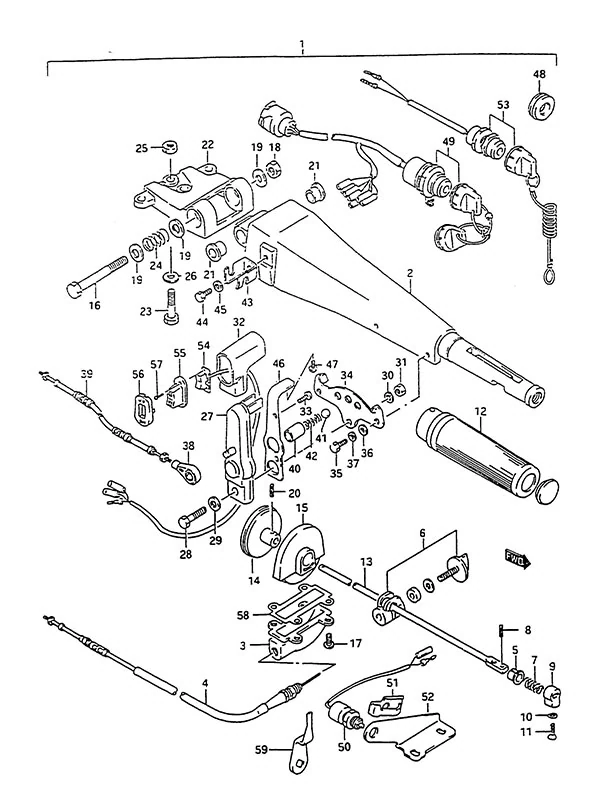

图 39选配: 舵柄(1988至1992款) Opt: Tiller Handle(1988 to 1992)
选配: 舵柄(1988至1992款) Opt: Tiller Handle(1988 to 1992)
REF零件编号中文名称英文名称数量
163001-95514-0ED舵柄手柄总成（停产）Tiller Handle Assembly (NLA)1
263111-95503-0ED舵柄手柄（停产）Tiller Handle (NLA)1
363121-95501-0ED舵柄手柄盖（停产）Tiller Handle Cover (NLA)1
463610-95511节气门拉线总成Throttle Cable Assembly1
563225-93200手柄杆衬套Handle Rod Bushing1
663240-96300手柄握把调节器Handle Grip Adjuster1
709440-12027弹簧Spring1
863227-93200手柄杆销Handle Rod Pin1
963223-92D00手柄杆止动器Handle Rod Stopper1
1009163-060016.4x12x0.5锁紧垫圈Lock Washer (6.4x12x0.5)1
1109126-06006螺钉(6x20)Screw (6x20)1
1263210-93E30手柄握把Handle Grip1
1363221-95500手柄杆(停产)Handle Rod (NLA)1
1463230-95501节气门拉线齿轮Throttle Cable Gear1
1563410-95500齿轮壳体 (停产)Gear Housing (NLA)1
1609100-10264螺栓(10x80)Bolt (10x80)1
1709125-06053螺钉(6x16)Screw (6x16)4
1809159-10050螺母Nut1
1909160-10114垫片(10.5x22x1.5)Washer (10.5x22x1.5)3
2009205-03012弹簧销 (3x16)Spring Pin (3x16)1
2243761-95502-0ED转向手柄支架(停产)Steering Handle Bracket (NLA)1
2343762-95500螺栓(停产)Bolt (NLA)2
2409440-22008弹簧Spring1
2543764-95500螺母(停产)Nut (NLA)2
2609160-10098垫片(10x18x1.0)Washer (10x18x1.0)2
2721111-95512离合器操纵杆(停产)Clutch Lever (NLA)1
2809111-08073螺栓(停产)Bolt (NLA)1
2909160-10097垫片(10.5x22x2.5)Washer (10.5x22x2.5)1
3009162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)1
3109140-08023-XC0螺母(8mm)Nut (8mm)1
3267261-95600动力升降倾斜装置专用手柄握把Handle Grip for PTT1
3309125-05042螺钉(5x10)Screw (5x10)1
3421112-95501离合器操纵杆板(停产)Clutch Lever Plate (NLA)1
3501550-06167螺栓BOLT2
3609160-06036垫圈 (6.5x18x1.5)Washer (6.5x18x1.5)2
3709162-06006锁紧垫圈Lock Washer2
3867467-94404电缆接头Cable Connector1
3923230-95500离合器拉线总成Clutch Cable Assembly1
4009180-11006隔套(停产)Spacer (NLA)1
4109260-14001离合器缺口滚珠(停产)Clutch Notch Ball (NLA)1
4209440-09021弹簧Spring1
4367341-94302遥控线缆固定座Remocon Cable Holder1
4401550-06167螺栓BOLT1
4509160-06085垫圈 (6.5x15x1.0)Washer (6.5x15x1.0)1
4621121-95502离合器操纵杆面板Clutch Lever Panel1
4703211-0410B螺钉SCREW2
4836656-94310延长线束导板(停产)Extension Harness Guide (NLA)1
4937110-94641点火开关总成(停产)Ignition Switch Assembly (NLA)1
5037721-95592空挡开关总成（停产）Neutral Switch Assembly (NLA)1
5137725-95300空挡开关执行器Neutral Switch Actuator1
5237726-95591空档开关支架(停产)Neutral Switch Bracket (NLA)1
5337820-94461紧急停机开关总成Emergency Stop Switch Assembly1
5437860-95590升降开关Trim Switch1
5537869-95590升降开关帽Trim Switch Cap1
5667263-95600握把盖Grip Cap1
5709139-02003螺钉(2x6)Screw (2x6)2
5863119-95500舵柄手柄盖垫片（停产）Tiller Handle Cover Gasket (NLA)1
5937729-95591空档开关拨杆(停产)Neutral Switch Lever (NLA)1

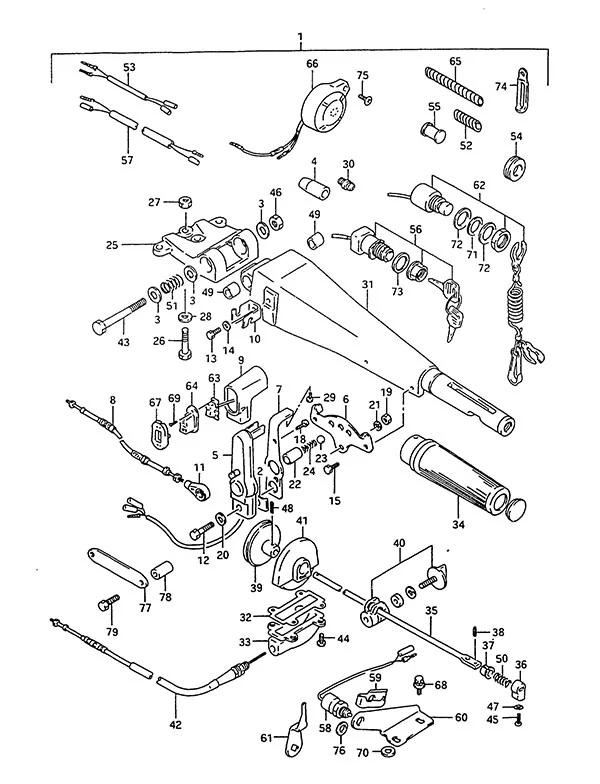

图 40选配: 舵柄(1993至1995款) Opt: Tiller Handle(1993 to 1995)
选配: 舵柄(1993至1995款) Opt: Tiller Handle(1993 to 1995)
REF零件编号中文名称英文名称数量
163001-95602-0ED舵柄手柄总成（停产）Tiller Handle Assembly (NLA)1
221115-95500离合器操纵杆螺栓板(停产)Clutch Lever Bolt Plate (NLA)1
309160-10114垫片(10.5x22x1.5)Washer (10.5x22x1.5)3
521111-95512离合器操纵杆(停产)Clutch Lever (NLA)1
621112-95501离合器操纵杆板(停产)Clutch Lever Plate (NLA)1
721121-95502离合器操纵杆面板Clutch Lever Panel1
823230-95500离合器拉线总成Clutch Cable Assembly1
967261-95600动力升降倾斜装置专用手柄握把Handle Grip for PTT1
1067341-94302遥控线缆固定座Remocon Cable Holder1
1167467-94404电缆接头Cable Connector1
1209111-08073螺栓(停产)Bolt (NLA)1
1301550-06167螺栓BOLT1
1409160-06085垫圈 (6.5x15x1.0)Washer (6.5x15x1.0)1
1501550-06167螺栓BOLT2
1809125-05042螺钉(5x10)Screw (5x10)1
1909140-08023-XC0螺母(8mm)Nut (8mm)1
2009160-10097垫片(10.5x22x2.5)Washer (10.5x22x2.5)1
2109162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)1
2209180-11006隔套(停产)Spacer (NLA)1
2309260-14001离合器缺口滚珠(停产)Clutch Notch Ball (NLA)1
2409440-09021弹簧Spring1
2543761-95502-0ED转向手柄支架(停产)Steering Handle Bracket (NLA)1
2643762-95500螺栓(停产)Bolt (NLA)2
2743764-95500螺母(停产)Nut (NLA)2
2809160-10098垫片(10x18x1.0)Washer (10x18x1.0)2
2903211-0410B螺钉SCREW2
3022511-99011黄油嘴Grease Nipple1
3163111-95503-0ED舵柄手柄（停产）Tiller Handle (NLA)1
3263119-95500舵柄手柄盖垫片（停产）Tiller Handle Cover Gasket (NLA)1
3363121-95501-0ED舵柄手柄盖（停产）Tiller Handle Cover (NLA)1
3463210-93E30手柄握把Handle Grip1
3563221-95500手柄杆(停产)Handle Rod (NLA)1
3663223-92D00手柄杆止动器Handle Rod Stopper1
3763225-93200手柄杆衬套Handle Rod Bushing1
3863227-93200手柄杆销Handle Rod Pin1
3963230-95501节气门拉线齿轮Throttle Cable Gear1
4063240-96300手柄握把调节器Handle Grip Adjuster1
4163410-95500齿轮壳体 (停产)Gear Housing (NLA)1
4263610-95511节气门拉线总成Throttle Cable Assembly1
4309100-10264螺栓(10x80)Bolt (10x80)1
4409125-06053螺钉(6x16)Screw (6x16)4
4509126-06015螺钉(6x23)Screw (6x23)1
4609159-10050螺母Nut1
4709163-060016.4x12x0.5锁紧垫圈Lock Washer (6.4x12x0.5)1
4809205-03012弹簧销 (3x16)Spring Pin (3x16)1
4909306-10009手柄衬套Handle Bushing4
5009440-12027弹簧Spring1
5109440-22008弹簧Spring1
5233833-91J00管(6x8x250)Tube (6x8x250)1
5336647-95600动力升降倾斜装置继电器导线(停产)PTT Relay Wire (NLA)1
5436656-94310延长线束导板(停产)Extension Harness Guide (NLA)1
5536663-94700线束帽(停产)Wiring Harness Cap (NLA)1
5637110-94641点火开关总成(停产)Ignition Switch Assembly (NLA)1
5737111-95310蜂鸣器导线(停产)Buzzer Lead (NLA)1
5837721-95592空挡开关总成（停产）Neutral Switch Assembly (NLA)1
5937725-95300空挡开关执行器Neutral Switch Actuator1
6037726-95591空档开关支架(停产)Neutral Switch Bracket (NLA)1
6137729-95591空档开关拨杆(停产)Neutral Switch Lever (NLA)1
6237820-92E05紧急停机开关总成Emergency Stop Switch Assembly1
6337860-95590升降开关Trim Switch1
6437869-95590升降开关帽Trim Switch Cap1
6533833-91J00管(6x8x250)Tube (6x8x250)1
6638500-92X50警报蜂鸣器Warning Buzzer1
6767263-95600握把盖Grip Cap1
6809118-06027螺栓(停产)Bolt (NLA)2
6909139-02003螺钉(2x6)Screw (2x6)2
7009160-06104垫圈 (6.5x24x2)Washer (6.5x24x2)1
7109160-12087垫片Washer1
7209160-12067垫圈 (12.5x23x1.0)Washer (12.5x23x1.0)2
7309160-25069垫片Washer1
7503142-05253螺钉(停产)Screw (NLA)1
7608322-01127垫片Washer1
7721113-95500挡板(停产)Plate (NLA)1
7821114-95500隔套(停产)Spacer (NLA)2
7909117-06035螺栓(停产)Bolt (NLA)2

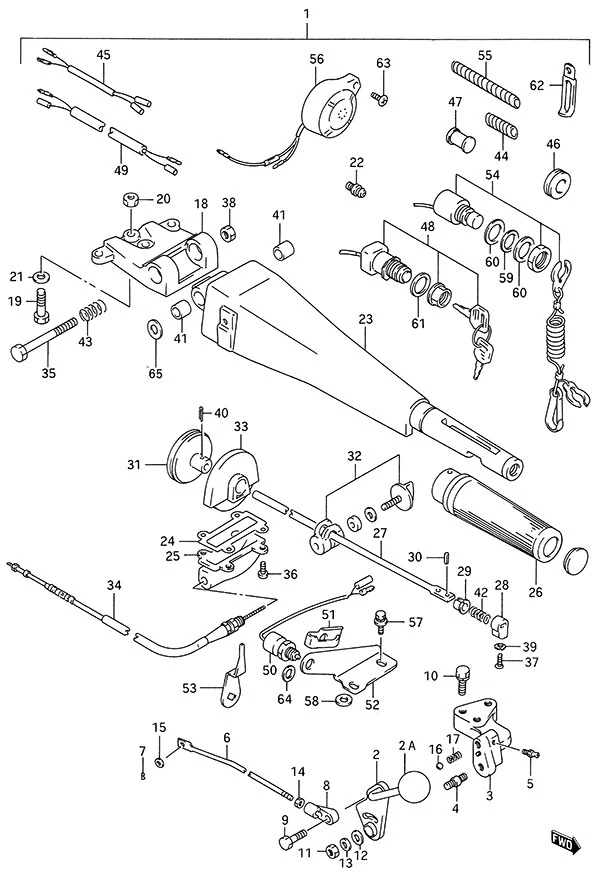

图 41选配: 舵柄(1996至1997款) Opt: Tiller Handle(1996 to 1997)
选配: 舵柄(1996至1997款) Opt: Tiller Handle(1996 to 1997)
REF零件编号中文名称英文名称数量
163001-95611-0ED舵柄手柄总成（停产）Tiller Handle Assembly (NLA)1
221110-94702离合器操纵杆(停产)Clutch Lever (NLA)1
321150-95214-0ED离合器操纵杆支架(停产)Clutch Lever Bracket (NLA)1
421211-95212离合器操纵杆轴(停产)Clutch Lever Shaft (NLA)1
522511-99011黄油嘴Grease Nipple1
623115-94720离合器操纵杆连杆(停产)Clutch Lever Link (NLA)1
709385-06003销 (停产)Pin (NLA)1
823312-95210离合器连杆连接器Clutch Link Connector1
909111-06064螺栓(6x17)Bolt (6x17)1
1009117-08109螺栓(8x16)Bolt (8x16)1
1109159-08059螺母Nut1
1209160-08081垫圈 (8.5x23x1.5)Washer (8.5x23x1.5)2
1309162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)1
1409140-05005螺母Nut1
1508322-01067垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)1
1609260-10005钢球Ball1
1709440-07021弹簧Spring1
1843761-95502-0ED转向手柄支架(停产)Steering Handle Bracket (NLA)1
1943762-95500螺栓(停产)Bolt (NLA)2
2043764-95500螺母(停产)Nut (NLA)2
2109160-10098垫片(10x18x1.0)Washer (10x18x1.0)2
2222511-99011黄油嘴Grease Nipple1
2363111-95503-0ED舵柄手柄（停产）Tiller Handle (NLA)1
2463119-95500舵柄手柄盖垫片（停产）Tiller Handle Cover Gasket (NLA)1
2563121-95501-0ED舵柄手柄盖（停产）Tiller Handle Cover (NLA)1
2663210-93E30手柄握把Handle Grip1
2763221-95500手柄杆(停产)Handle Rod (NLA)1
2863223-92D00手柄杆止动器Handle Rod Stopper1
2963225-93200手柄杆衬套Handle Rod Bushing1
3063227-93200手柄杆销Handle Rod Pin1
3163230-95501节气门拉线齿轮Throttle Cable Gear1
3263240-96300手柄握把调节器Handle Grip Adjuster1
3363410-95500齿轮壳体 (停产)Gear Housing (NLA)1
3463610-95511节气门拉线总成Throttle Cable Assembly1
3509100-10264螺栓(10x80)Bolt (10x80)1
3609125-06053螺钉(6x16)Screw (6x16)4
3709126-06015螺钉(6x23)Screw (6x23)1
3809159-10050螺母Nut1
3909163-060016.4x12x0.5锁紧垫圈Lock Washer (6.4x12x0.5)1
4009205-03012弹簧销 (3x16)Spring Pin (3x16)1
4109306-10009手柄衬套Handle Bushing1
4209440-12027弹簧Spring1
4309440-22008弹簧Spring1
4433833-91J00管(6x8x250)Tube (6x8x250)1
4536647-95600动力升降倾斜装置继电器导线(停产)PTT Relay Wire (NLA)1
4636656-94310延长线束导板(停产)Extension Harness Guide (NLA)1
4736663-94700线束帽(停产)Wiring Harness Cap (NLA)1
4837110-94641点火开关总成(停产)Ignition Switch Assembly (NLA)1
4937111-95310蜂鸣器导线(停产)Buzzer Lead (NLA)1
5037721-95592空挡开关总成（停产）Neutral Switch Assembly (NLA)1
5137725-95300空挡开关执行器Neutral Switch Actuator1
5237726-95591空档开关支架(停产)Neutral Switch Bracket (NLA)1
5337729-95591空档开关拨杆(停产)Neutral Switch Lever (NLA)1
5437820-92E05紧急停机开关总成Emergency Stop Switch Assembly1
5533833-91J00管(6x8x250)Tube (6x8x250)1
5638500-92X50警报蜂鸣器Warning Buzzer1
5709118-06027螺栓(停产)Bolt (NLA)2
5809160-06104垫圈 (6.5x24x2)Washer (6.5x24x2)1
5909160-12087垫片Washer1
6009160-12067垫圈 (12.5x23x1.0)Washer (12.5x23x1.0)2
6109160-25069垫片Washer1
6303142-05253螺钉(停产)Screw (NLA)1
6408322-01127垫片Washer1

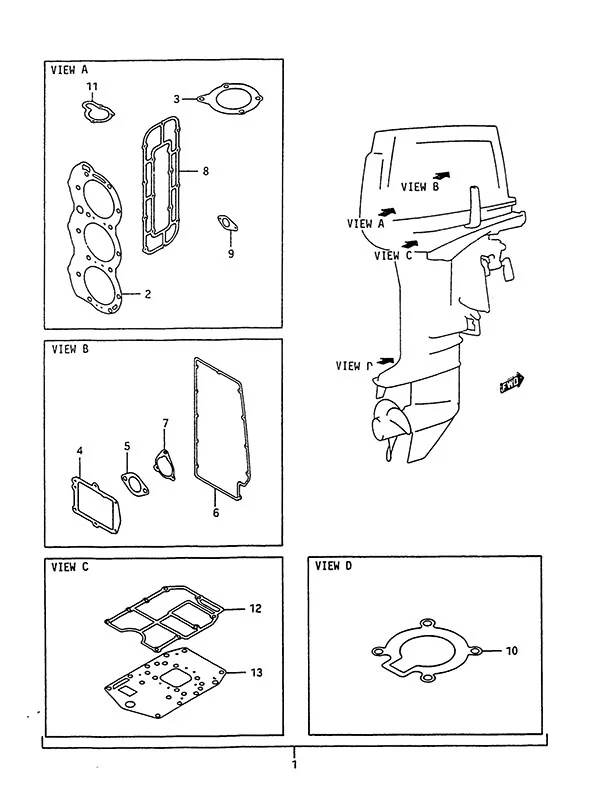

图 42垫片套装 Gasket Set
垫片套装 Gasket Set
REF零件编号中文名称英文名称数量
111403-95829发动机衬垫套装Engine Gasket Set1
211141-95621气缸盖垫片Cylinder Head Gasket1
311421-95610上油封壳衬垫Upper Oil Seal Hsg Gasket1
413121-95520进气壳体垫片(停产)Inlet Case Gasket (NLA)6
513125-93010化油器衬垫Carburetor Gasket3
613853-94710消声器盖垫片(停产)Silencer Cover Gasket (NLA)1
713855-93310消声器垫片(停产)Silencer Gasket (NLA)3
814151-95611排气盖衬垫Exhaust Cover Gasket1
916731-95520机油泵固定座衬垫（停产）Oil Pump Retainer Gasket (NLA)1
1017472-95200水泵板衬垫Water Pump Plate Gasket1
1117685-95510节温器盖衬垫Thermostat Cover Gasket1
1251211-95630发动机支架衬垫(停产)Engine Holder Gasket (NLA)1
1352113-95630驱动轴壳体衬垫Drive Shaft Housing Gasket1

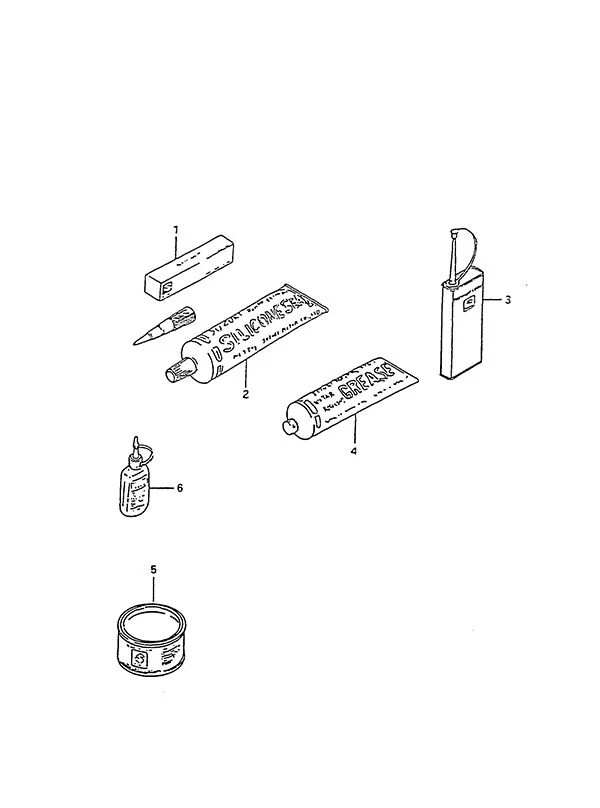

图 43选配件 Optional
选配件 Optional
REF零件编号中文名称英文名称数量
299000-31030液态衬垫(停产)Liguid Gasket (NLA)1
499000-25520防水润滑脂Water Resistant Grease1
599000-25490铃木Ecstar超级润滑脂CSuzuki Ecstar Super Grease C1
