铃木 Suzuki DT 65 1997 - 爆炸图零件明细

1997 年 · 共 51 个部位 · 1200 条零件

1气缸2曲轴3进气壳体5化油器6燃油泵(1988至1994款)6A燃油泵(1995至1997款)7机油泵(1988至1992)7A机油泵(1993至1997)8水泵9油门联动杆10启动马达11磁电机12点火系统13电气部件14升降继电器15电磁阀16线束18离合器20夹紧支架(1988-1994款)21夹紧支架(1995-1997款)22旋转支架(1988-1994款)23旋转支架(1995款)23A旋转支架(1996-1997款)24气缸支架25动力单元(1988至1990)26动力单元(1991至1994)27动力单元(1995至1997)28升降油缸(1988-1994款)29升降油缸(1995-1997款)30发动机支架31驱动轴壳体32齿轮箱33变速箱34下盖35发动机罩(1988年款)36发动机罩(1989至1994年款)37发动机罩(1995至1997年款)39燃油箱40机油箱(1988至1994款)41机油箱(1995至1997款)42遥控装置(1988至1992款)43遥控装置(1993至1997款)44仪表45面板开关46电气部件(1)47电气部件(2)48线束48A手柄(1996至1997款)49拉杆50垫片套装51选配件

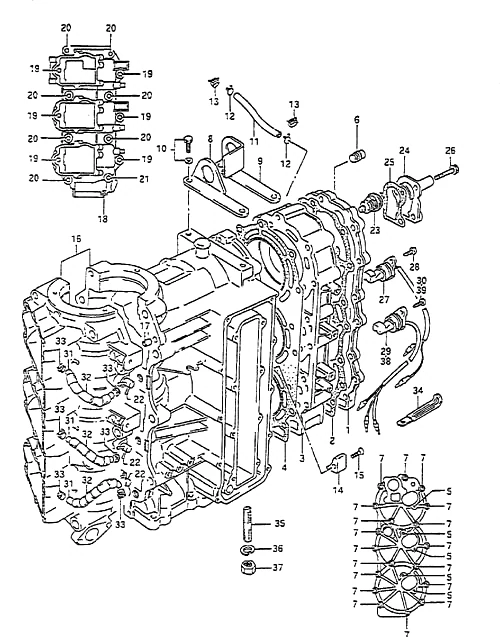

图 1气缸 Cylinder
气缸 Cylinder
REF零件编号中文名称英文名称数量
111161-94700-0ED气缸盖罩(停产)Cylinder Head Cover (NLA)1
211162-94730气缸盖罩衬垫Cylinder Head Cover Gasket1
311111-94702-0ED气缸盖(停产)Cylinder Head (NLA)1
411141-94720气缸盖垫片Cylinder Head Gasket1
501550-06307螺栓BOLT5
609246-04005塞子Plug1
701560-08757螺栓BOLT18
811291-94701-02M发动机吊钩(停产)Engine Hook (NLA)1
911290-94710-0ED发动机吊钩(停产)Engine Hook (NLA)1
1001550-08207螺栓BOLT2
1109352-50006-600软管(5x9x600)Hose (5x9x600)1
1209401-08410卡扣Clip2
1309401-08411卡扣Clip2
1411281-94400锌阳极Zinc Anode1
1509126-06005螺钉(6x30)Screw (6x30)1
1704211-09109定位销DOWEL PIN2
1801550-06407螺栓BOLT1
1901550-10407螺栓BOLT6
2001550-10657螺栓BOLT7
2101550-10857螺栓BOLT1
2216710-94420机油止回阀(停产)Oil Check Valve (NLA)3
2317670-93964节温器(50度)Thermostat (50c)1
2417681-94401-0ED节温器盖Thermostat Cover1
2517685-94410节温器垫片Thermostat Gasket1
2601550-06407螺栓BOLT3
2734870-94630冷却水传感器Cooling Water Sensor1
2803212-0512B螺钉SCREW2
2934870-94630冷却水传感器Cooling Water Sensor1
3003111-0516A螺钉SCREW2
3109351-25703-600软管(2.5×7×600)Hose (2.5x7x600)3
3216911-92E20防护罩Protector3
3309401-06405卡箍Clamp6
3509108-08137双头螺栓(8x40)Stud Bolt (8x40)1
3609162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)1
3709140-08023-XC0螺母(8mm)Nut (8mm)1
3834820-95D20气缸温度传感器Cylinder Temp Sensor1
3903241-0516A螺钉SCREW2

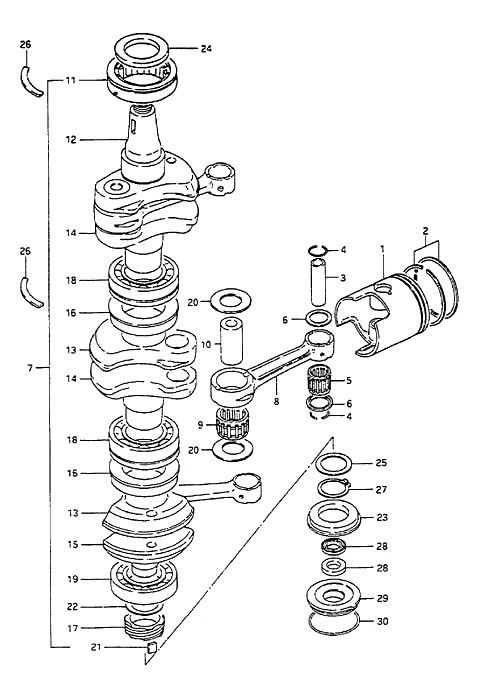

图 2曲轴 Crankshaft
曲轴 Crankshaft
REF零件编号中文名称英文名称数量
312151-94700活塞销Piston Pin3
409381-20003卡簧Circlip6
509263-20072轴承(20x26x24)Bearing (20x26x24)3
609169-20006垫片Washer6
712200-94714曲轴总成(停产)Crankshaft Assembly (NLA)1
812161-92L00连杆Connecting Rod3
909263-27005轴承(27x37x22)Bearing (27x37x22)3
1012211-94400曲柄销(停产)Crank Pin (NLA)3
1109264-35004轴承(35x72x23)Bearing (35x72x23)1
1212221-94702上曲轴(停产)Upper Crankshaft (NLA)1
1312232-94703中间下轮(停产)Middle Under Wheel (NLA)2
1412231-94703中间上轮(停产)Middle Upper Wheel (NLA)2
1512240-94701曲轴下部(停产)Under Crankshaft (NLA)1
1609289-45L01油封(45x72x12)Oil Seal (45x72x12)2
1716321-95301机油泵驱动齿轮（停产）Oil Pump Drive Gear (NLA)1
1809269-30012轴承(30x72x19)(停产)Bearing (30x72x19)(NLA)2
1909262-35L09轴承(35x72x17)Bearing (35x72x17)1
2009160-27008垫片Washer6
2109421-08001钥匙Key1
2209181-30212垫圈 (停产)Washer (NLA)1
2309283-30077油封(30x55x8)Oil Seal (30x55x8x)1
2409283-35L01曲轴油封Crankshaft Oil Seal1
2509181-30167垫片 (1.00mm)Shim (1.00)1
2609390-72008C形环C Ring2
2708331-31309卡簧CIRCLIP1
2809282-17009油封(17x28x6)Oil Seal (17x28x6)2
2911431-95300油封下部壳体(停产)Under Oil Seal Housing (NLA)1
3009280-50008O型圈O-Ring1

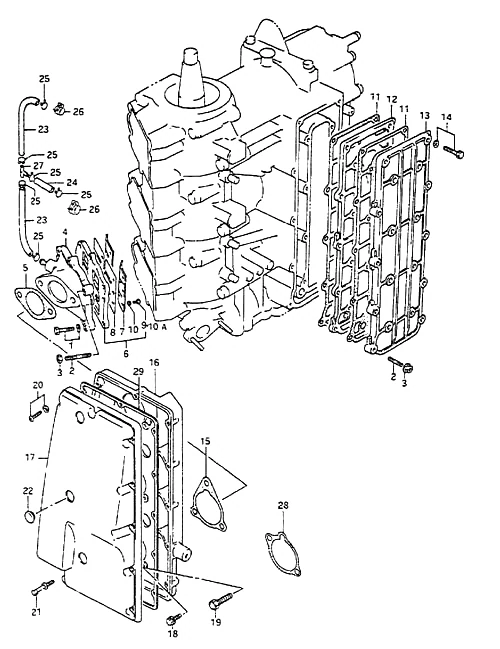

图 3进气壳体 Inlet Case
进气壳体 Inlet Case
REF零件编号中文名称英文名称数量
101550-06307螺栓BOLT12
201421-06257双头螺栓BOLT, STUD6
308316-10067螺母Nut6
413110-94700-0ED进气壳体(停产)Inlet Case (NLA)3
513125-95210化油器衬垫Carburetor Gasket3
613150-94720簧片阀总成Reed Valve Assembly3
713152-94720簧片阀限位器(停产)Reed Valve Stopper (NLA)6
813153-94700簧片阀Reed Valve6
902112-0306B螺钉SCREW18
1008321-2103B锁紧垫圈Lock Washer18
1114151-94712排气盖衬垫(停产)Exhaust Cover Gasket (NLA)2
1214131-94701排气板Exhaust Plate1
1314141-94700-0ED排气盖Exhaust Cover1
1401550-06307螺栓BOLT18
1613811-94700消声器壳体(停产)Silencer Case (NLA)1
1713812-94700消声器盖(停产)Silencer Cover (NLA)1
1801550-06167螺栓BOLT8
1901550-06167螺栓BOLT6
2002142-05207螺钉SCREW10
2109139-05041螺钉(停产)Screw (NLA)1
2209250-15010塞子Plug3
2309352-50006-600软管(5x9x600)Hose (5x9x600)2
2409352-50006-600软管(5x9x600)Hose (5x9x600)1
2509401-08410卡扣Clip6
2609401-08411卡扣Clip6
2709367-06002三通3 Way1
2813855-95210消声器垫片Silencer Gasket3
2913853-94710消声器盖垫片(停产)Silencer Cover Gasket (NLA)1

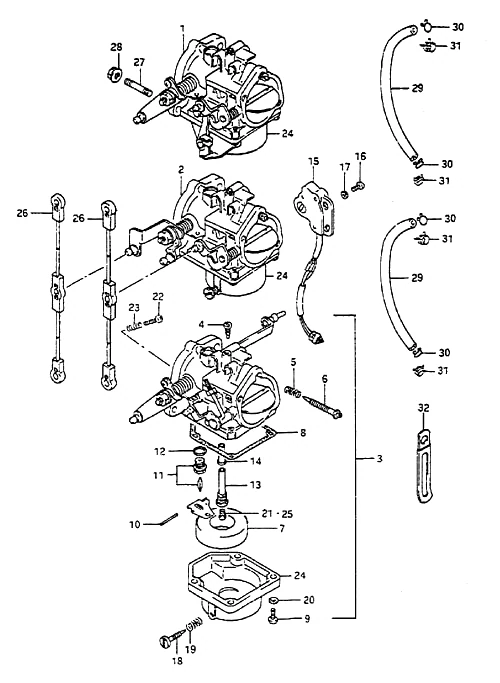

图 5化油器 Carburetor
化油器 Carburetor
REF零件编号中文名称英文名称数量
513271-93311空气调节螺钉弹簧Air Screw Spring3
613269-95210引导空气调节螺钉Pilot Air Screw3
713250-93012化油器浮子Carburetor Float3
813251-95220浮子室衬垫Float Chamber Gasket3
913249-95520螺钉(停产)Screw (NLA)12
1013254-98300浮子销Float Pin3
1113370-28110针阀总成Needle Valve Assembly3
1213392-58600气门座垫片Valve Seat Gasket3
1602112-04087螺钉 4×8SCREW 4X82
1708321-0104A锁紧垫圈Lock Washer2
1813616-94500放油螺栓Drain Bolt3
1913271-93311空气调节螺钉弹簧Air Screw Spring3
2008321-0105A锁紧垫圈Lock Washer12
2213534-95D00螺钉Screw1
2313268-96111弹簧Spring1
2413245-95210浮子室(停产)Float Chamber (NLA)3
2613510-94700油门拉杆总成(停产)Throttle Rod Assembly (NLA)2
2701411-08207双头螺栓(停产)Stud Bolt (NLA)3
2808316-10087螺母Nut6
2909352-50006-600软管(5x9x600)Hose (5x9x600)2
3009401-08410卡扣Clip4
3109401-08411卡扣Clip4
3313910-94400化油器修理包Carburetor Repair Kit3

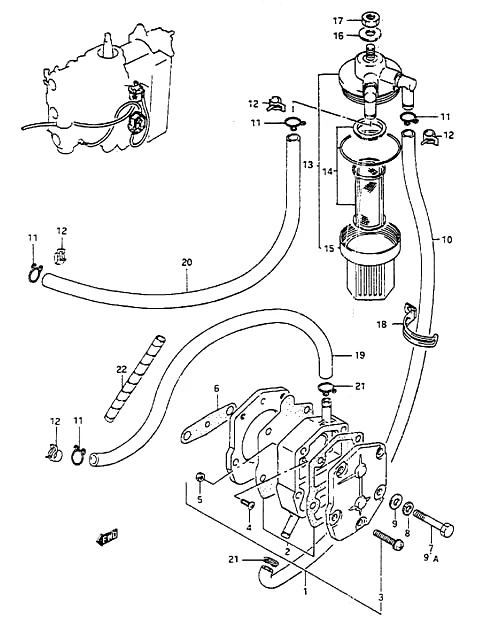

图 6燃油泵(1988至1994款) Fuel Pump(1988 to 1994)
燃油泵(1988至1994款) Fuel Pump(1988 to 1994)
REF零件编号中文名称英文名称数量
115100-94312燃油泵总成Fuel Pump Assembly1
215170-94312燃油泵膜片组Fuel Pump Diaphragm Set1
315851-94300燃油泵滤网Fuel Pump Screen3
415183-94301燃油泵螺丝Fuel Pump Screw2
515186-94300螺母Nut2
615321-99710燃油泵垫片Fuel Pump Gasket1
701500-0640B螺栓BOLT2
808321-01067锁紧垫圈Lock Washer2
908322-01067垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
1009352-50006-600软管(5x9x600)Hose (5x9x600)1
1109401-08410卡扣Clip4
1209401-08411卡扣Clip4
1315410-94401燃油滤清器Fuel Filter1
1515413-93400燃油滤清器杯(停产)Fuel Strainer Cup (NLA)1
1608322-01087垫片Washer1
1708310-00087螺母(8mm)Nut (8mm)1
1909352-50006-600软管(5x9x600)Hose (5x9x600)1
2009352-50006-600软管(5x9x600)Hose (5x9x600)1
2115331-94300卡扣Clip2
2216911-92E20防护罩Protector1

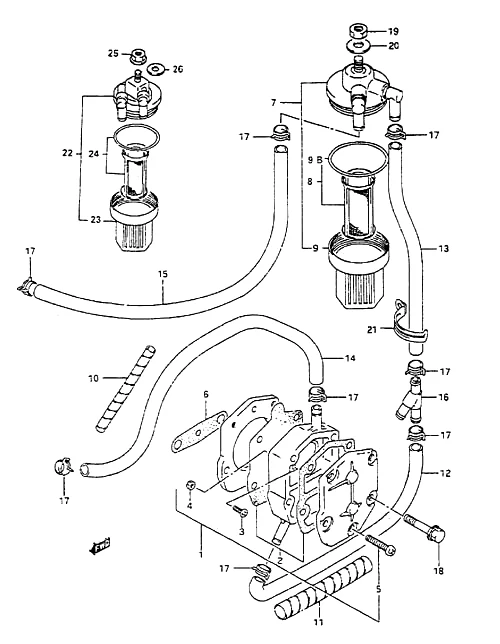

图 6A燃油泵(1995至1997款) Fuel Pump(1995 to 1997)
燃油泵(1995至1997款) Fuel Pump(1995 to 1997)
REF零件编号中文名称英文名称数量
115100-94312燃油泵总成Fuel Pump Assembly1
315183-94301燃油泵螺丝Fuel Pump Screw2
415186-94300螺母Nut2
515851-94300燃油泵滤网Fuel Pump Screen3
615321-99710燃油泵垫片Fuel Pump Gasket1
715410-94401燃油滤清器Fuel Filter1
815430-93411燃油滤清器粗滤组件Fuel Filter Strainer Set1
915413-93400燃油滤清器杯(停产)Fuel Strainer Cup (NLA)1
1016911-92E20防护罩Protector2
1116911-92E20防护罩Protector1
1209352-50006-600软管(5x9x600)Hose (5x9x600)1
1309352-50006-600软管(5x9x600)Hose (5x9x600)1
1409352-50006-600软管(5x9x600)Hose (5x9x600)1
1509352-50006-600软管(5x9x600)Hose (5x9x600)1
1609367-06005三通（停产）3 Way (NLA)1
1709401-08411卡扣Clip8
1801570-06407螺栓(停产)Bolt (NLA)2
1908310-00087螺母(8mm)Nut (8mm)1
2008322-01087垫片Washer1
2215410-94401燃油滤清器Fuel Filter1
2315413-87D10燃油滤清器杯Fuel Strainer Cup1
2415430-87D10燃油滤清器粗滤组件Fuel Filter Strainer Set1
2508310-00087螺母(8mm)Nut (8mm)1
2608322-01087垫片Washer1

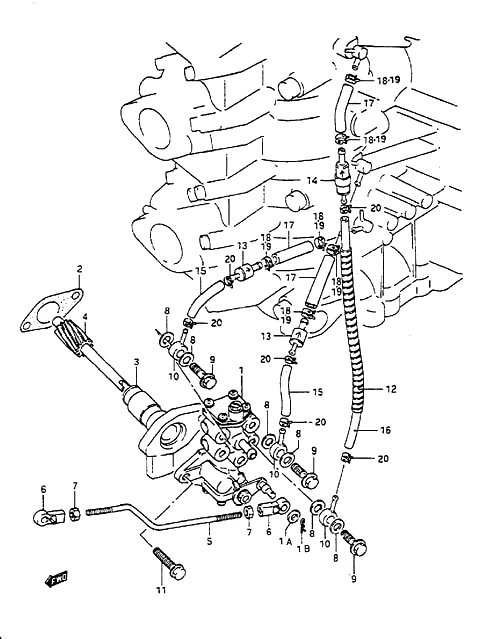

图 7机油泵(1988至1992) Oil Pump(1988 to 1992)
机油泵(1988至1992) Oil Pump(1988 to 1992)
REF零件编号中文名称英文名称数量
116100-94731机油泵总成(停产)Oil Pump Assembly (NLA)1
216731-95520机油泵固定座衬垫（停产）Oil Pump Retainer Gasket (NLA)1
316340-94710机油泵固定座（停产）Oil Pump Retainer (NLA)1
416331-95304机油泵从动齿轮（停产）Oil Pump Driven Gear (NLA)1
516411-94701机油泵控制杆（停产）Oil Pump Control Rod (NLA)1
619131-95502连接器Connector2
709140-05005螺母Nut2
809168-06023垫片Gasket6
909360-06012联管螺栓Union Bolt3
1009363-02002联管节Union3
1101550-06307螺栓BOLT2
1216911-92E20防护罩Protector5
1316710-92E01机油止回阀(单)Oil Check Valve (Single)2
1416710-94641机油止回阀(双)Oil Check Valve (Double)1
1709352-50006-600软管(5x9x600)Hose (5x9x600)3
1809401-08409卡箍Clamp6
1909401-08411卡扣Clip6
2009401-06405卡箍Clamp6

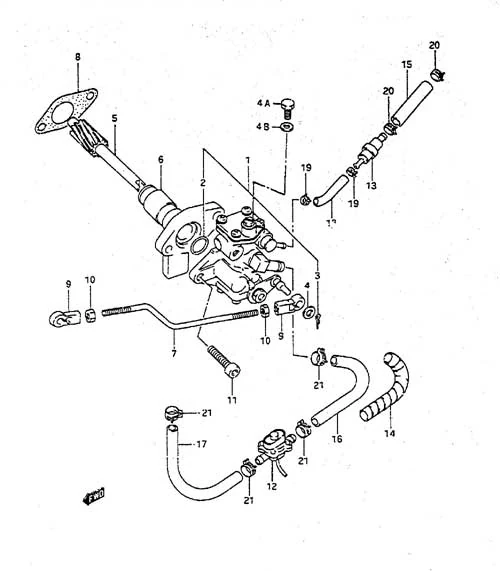

图 7A机油泵(1993至1997) Oil Pump(1993 to 1997)
机油泵(1993至1997) Oil Pump(1993 to 1997)
REF零件编号中文名称英文名称数量
216198-87D00机油泵O型圈Oil Pump O-Ring1
316195-87D00弹性销Snap Pin1
413432-33100垫片Washer1
516331-95304机油泵从动齿轮（停产）Oil Pump Driven Gear (NLA)1
616340-94710机油泵固定座（停产）Oil Pump Retainer (NLA)1
716411-94710机油泵控制杆（停产）Oil Pump Control Rod (NLA)1
816731-95520机油泵固定座衬垫（停产）Oil Pump Retainer Gasket (NLA)1
919131-95502连接器Connector2
1107130-06307螺栓BOLT2
1216250-94710机油滤清器/流量传感器Oil Filter/Flow Sensor1
1316710-94641机油止回阀(双)Oil Check Valve (Double)1
1416911-92E20防护罩Protector1
1509351-50803-00B软管(5x8x2000)Hose (5x8x2000)1
1609352-50006-600软管(5x9x600)Hose (5x9x600)1
1709352-50006-600软管(5x9x600)Hose (5x9x600)1
1809355-25705-600软管(2.5×7×600)Hose (2.5x7x600)1
1909401-06405卡箍Clamp2
2009401-08409卡箍Clamp2
2109401-08411卡扣Clip4

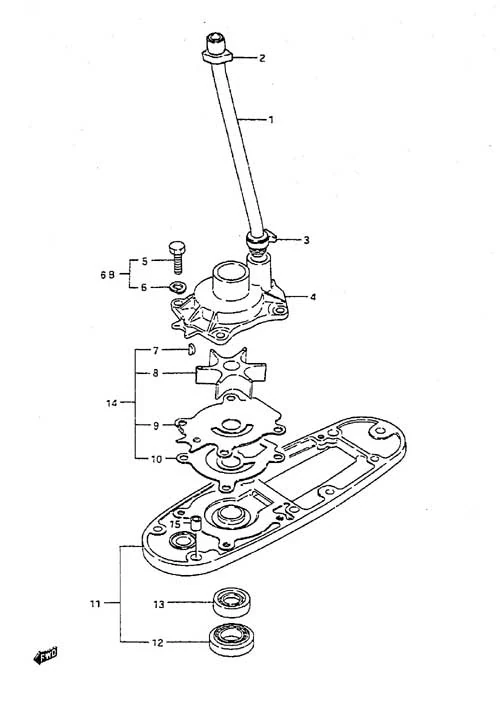

图 8水泵 Water Pump
水泵 Water Pump
REF零件编号中文名称英文名称数量
117560-95222水管(左)(停产)Water Tube (L) (NLA)1
217563-95500水管衬套(停产)Water Tube Bushing (NLA)1
317564-95502水泵衬套Water Pump Bushing1
417411-95206水泵壳体(停产)Water Pump Case (NLA)1
609162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)4
709420-04005钥匙Key1
817461-94701水泵叶轮Water Pump Impeller1
917471-95204水泵板Water Pump Plate1
1017472-95310水泵板衬垫Water Pump Plate Gasket1
1156130-95212-0ED驱动轴轴承座(停产)Drive Shaft Bearing Housing (NLA)1
1209265-17003轴承(17x47x15.25)(停产)Bearing (17x47x15.25) (NLA)1
1309289-17005油封（停产件）Oil Seal (NLA)1
1417400-94701DT55/DT65水泵维修套件Water Pump Repair Kit DT55/DT651
1509206-11016销 (11x12) (停产)Pin (11x12) (NLA)1

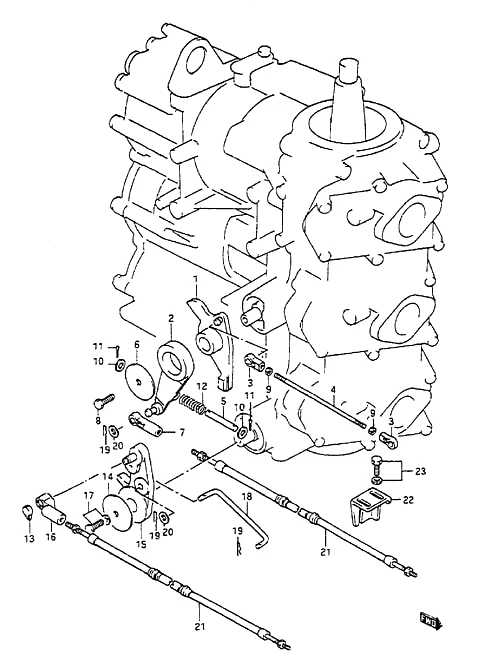

图 9油门联动杆 Throttle Link
油门联动杆 Throttle Link
REF零件编号中文名称英文名称数量
119121-94701节气门杆控制装置(停产)Throttle Lever Control (NLA)1
319131-95502连接器Connector2
419135-94400连杆Rod1
519137-94700节气门杆缓冲销(停产)Throttle Lever Damper Pin (NLA)1
619211-94700油门杆垫片(停产)Throttle Lever Washer (NLA)1
767466-95200电缆接头Cable Connector1
1109204-01002开口销Cotter Pin2
1209440-09021弹簧Spring1
1319113-95300连接器帽Connector Cap1
1419211-94700油门杆垫片(停产)Throttle Lever Washer (NLA)1
1523211-94702离合器控制臂(停产)Clutch Control Arm (NLA)1
1667467-95201电缆接头Cable Connector1
1709117-06040-XC0螺栓(6x15)Bolt (6x15)1
1823111-94701离合器连杆(停产)Clutch Link (NLA)1
1909385-06003销 (停产)Pin (NLA)2
1909385-06003销 (停产)Pin (NLA)2
2267271-95213遥控装置固定座(停产)Remocon Holder (NLA)1
2309116-06094螺栓(6x15)Bolt (6x15)2

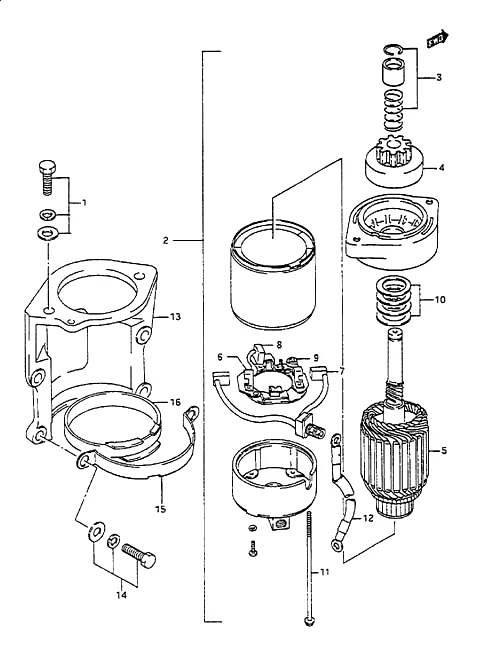

图 10启动马达 Starting Motor
启动马达 Starting Motor
REF零件编号中文名称英文名称数量
101580-08257螺栓BOLT2
231100-94702启动马达总成Starter Motor Assembly1
331312-94601小齿轮止动器套件Pinion Stopper Set1
431320-95240小齿轮总成(停产)Pinion Assembly (NLA)1
531310-94600电枢(停产)Armature (NLA)1
631173-95310电刷架Brush Holder1
731131-95310正极电刷Brush (+)2
831131-95241电刷Brush1
931135-95310弹簧(停产)Spring (NLA)3
1031360-87D00垫圈套件 (停产)Washer Kit (NLA)1
1131281-94700贯穿螺栓(停产)Through Bolt (NLA)2
1233820-89E01启动副电缆总成(停产)Starter Sub Cable Assy (NLA)1
1331911-94701-0ED启动马达支架(停产)Starting Motor Bracket (NLA)1
1401550-08257螺栓BOLT4
1531912-94701启动马达带(停产)Starting Motor Band (NLA)1
1631918-94701启动器减震器（停产）Starter Damper (NLA)1

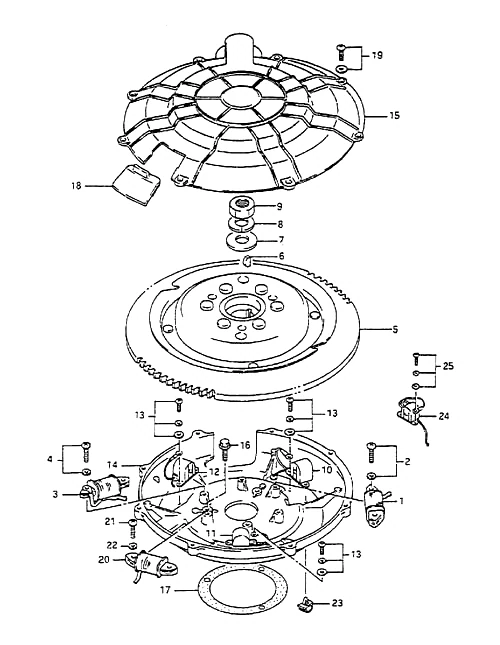

图 11磁电机 Magneto
磁电机 Magneto
REF零件编号中文名称英文名称数量
202112-36257螺钉SCREW2
402112-36207螺钉(停产)Screw (NLA)2
608341-310595mm半圆键Woodruff Key 5mm1
709160-18011垫片Washer1
809164-18001垫片Washer1
909140-18014螺母Nut1
1032160-947101号点火正时线圈(停产)Ignition Timing Coil #1 (NLA)1
1132140-94710电容充电线圈Capacitor Charge Coil1
1232180-94710#3 点火正时线圈(停产)#3 Ignition Timing Coil (NLA)1
1302112-75107螺钉(停产)Screw (NLA)6
1511421-94710磁电机盖(停产)Magneto Cover (NLA)1
1602162-06257螺钉SCREW3
1711413-94710上油封壳衬垫Upper Oil Seal Hsg Gasket1
1811422-94700盖帽(停产)Cap (NLA)1
2102112-062576X25十字螺丝6X25CROSS SCREW2
2208321-01067锁紧垫圈Lock Washer2
2309403-10313夹具(停产)Clamp (NLA)1
2432150-87E20齿轮计数器线圈 (停产)Gear Counter Coil (NLA)1
2502112-35127螺钉 5×12SCREW 5X122

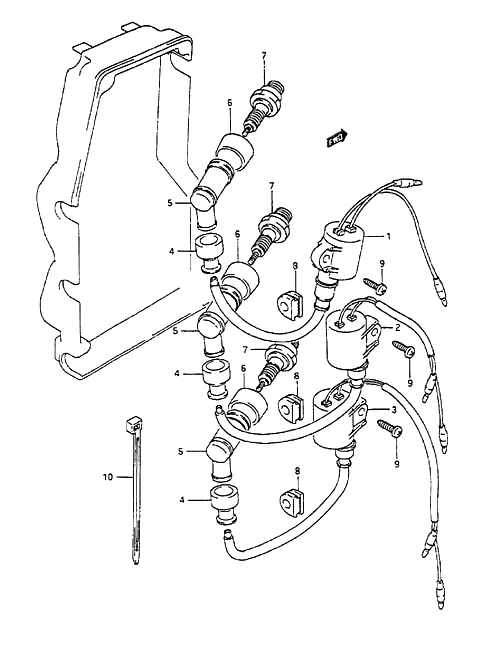

图 12点火系统 Ignition
点火系统 Ignition
REF零件编号中文名称英文名称数量
133410-95D11点火线圈组件Ignition Coil Assembly1
233410-95D11点火线圈组件Ignition Coil Assembly1
333410-95D11点火线圈组件Ignition Coil Assembly1
433542-38B00火花塞帽密封件Spark Plug Cap Seal3
633541-93950火花塞密封圈Spark Plug Seal3
809309-06007索环(停产)Grommet (NLA)3
1009407-10404卡箍(长:100)Clamp (L:100)3

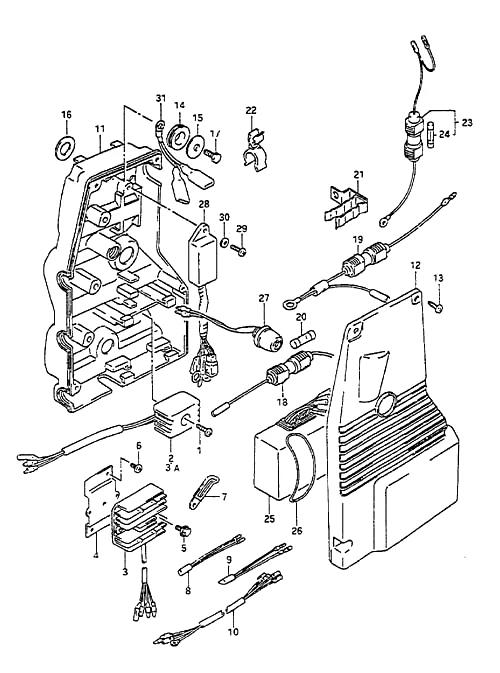

图 13电气部件 Electrical
电气部件 Electrical
REF零件编号中文名称英文名称数量
102142-05257螺钉 5×20SCREW 5 X 201
232800-95D02整流调节器总成Rectifier & Regulator Assembly1
332800-94620整流稳压器Rectifier & Regulator1
432801-94702整流调节器支架(停产)Rectifier & Regulator Bracket (NLA)1
501550-06127螺栓BOLT2
602112-051075X10十字槽螺钉5 X 10 CROSS SC2
709404-08205卡箍(长:62)Clamp (L:62)1
936840-95D00转速表导线Tachometer Lead1
1036810-94601整流器延长导线(停产)Rectifier Extension Lead (NLA)1
1303212-0516B螺钉SCREW4
1409320-12090缓冲垫Cushion3
1509160-12089垫片Washer3
1609160-06054垫圈 (6.5x22x1.6)Washer (6.5x22.1.6)3
1701550-06127螺栓BOLT3
1836740-94720保险丝盒总成(停产)Fuse Case Assembly (NLA)1
1936740-87D00保险丝盒总成(停产)Fuse Case Assembly (NLA)1
2009481-2000120安培保险丝20 Amp Fuse1
2136791-87E00保险丝盒支架(停产)Fuse Case Holder (NLA)1
2209408-00045卡箍Clamp1
2336740-94771保险丝盒总成(停产)Fuse Case Assembly (NLA)1
2409481-2500125安培保险丝25 Amp Fuse1
2737930-94706机油报警复位开关总成(停产)Oil Warning Reset Switch Assembly (NLA)1
2903212-0516B螺钉SCREW1
3008322-01057垫片Washer1
3133445-94710导线(停产)Lead (NLA)1

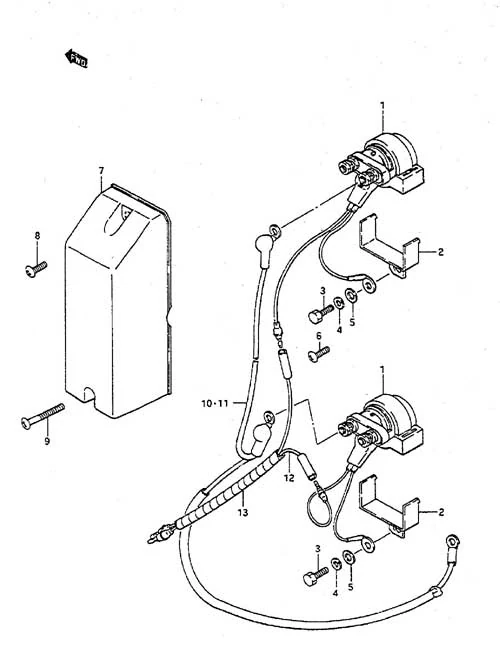

图 14升降继电器 Trim Relay
升降继电器 Trim Relay
REF零件编号中文名称英文名称数量
301550-06167螺栓BOLT2
409162-06006锁紧垫圈Lock Washer2
509160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
602112-36167螺钉SCREW2
738425-94701升降继电器盖(停产)Trim Relay Cover (NLA)1
1033831-94702动力升降倾斜装置继电器线束总成PTT Relay Cable Assembly1
1333833-91J00管(6x8x250)Tube (6x8x250)1

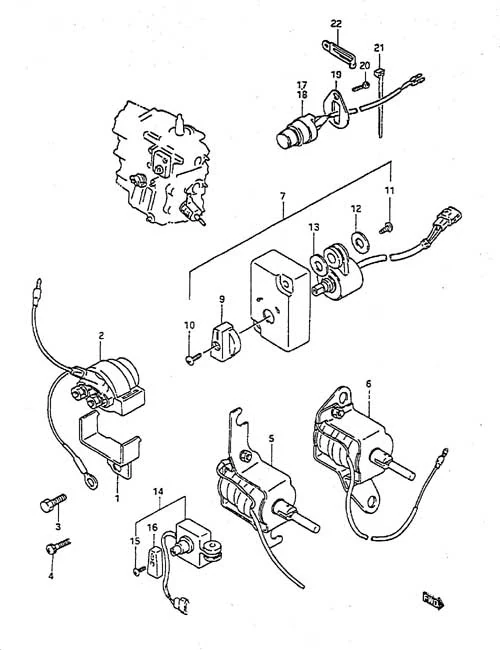

图 15电磁阀 Solenoid
电磁阀 Solenoid
REF零件编号中文名称英文名称数量
138412-94700继电器支架(停产)Relay Bracket (NLA)1
231800-94401启动继电器Starter Relay1
301580-06167螺栓BOLT1
402112-36167螺钉SCREW1
638600-95555阻风门电磁阀总成(停产)Choke Solenoid Assembly (NLA)1
737920-94710点火正时开关总成(停产)Ignition Timing Switch Assembly (NLA)1
937922-94610旋钮Knob1
1002112-04087螺钉 4×8SCREW 4X81
1103212-0512B螺钉SCREW1
1209160-05024垫圈 (5.5x16x1.5)Washer (5.5x16x1.5)1
1308322-01107垫片Washer1
1437920-95500点火正时开关总成(停产)Ignition Timing Switch Assembly (NLA)1
1502112-04087螺钉 4×8SCREW 4X81
1637921-95D00旋钮(停产)Knob (NLA)1
1734820-94600发动机温度传感器(停产)Engine Temp Sensor (NLA)1
1834850-94610温度传感器总成Heat Sensor Assy1
1934853-94700温度传感器支架Heat Sensor Supporter1
2009125-06069螺钉(6x12)Screw (6x12)2
2109407-25402卡箍(长:248)Clamp (L:248)4

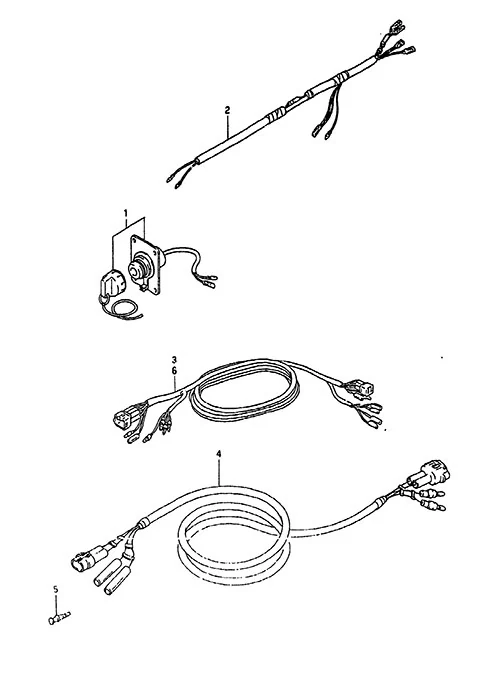

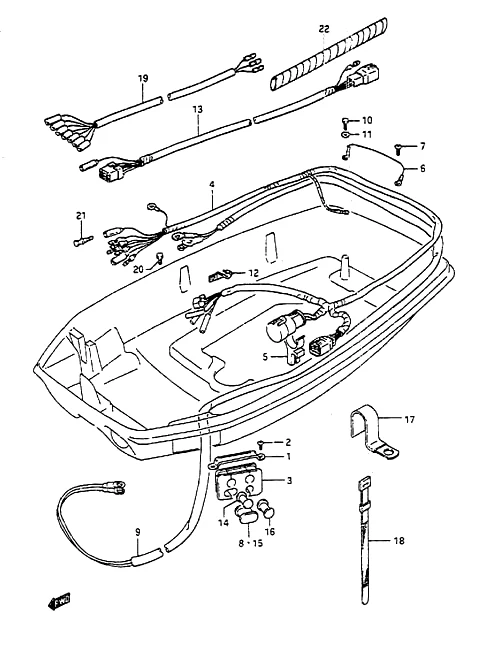

图 16线束 Harness
线束 Harness
REF零件编号中文名称英文名称数量
136659-95501夹具(停产)Clamp (NLA)1
209125-06067螺钉(6x16)Screw (6x16)2
336656-94701电缆护圈Cable Grommet1
536616-95301连接器支架Connector Holder1
636895-94700导线(停产)Lead (NLA)1
702142-06127螺钉 6×12SCREW 6X121
836664-94700索环(停产)Grommet (NLA)1
933810-94700启动马达电缆(停产)Starter Motor Cable (NLA)1
1109160-08082垫圈 (8.5x16x1.2)Washer (8.5x16x1.2)1
1209403-17312通气软管夹箍CLAMP,BREATHER1
1436661-95210动力升降倾斜装置电缆帽(停产)PTT Cable Cap (NLA)1
1809407-12402卡箍Clamp1
1936630-92E00仪表线束总成Instrument Wire Assembly1
2001550-08167螺栓BOLT1
2136615-96300树脂端子Resin Terminal1
2233833-91J00管(6x8x250)Tube (6x8x250)1

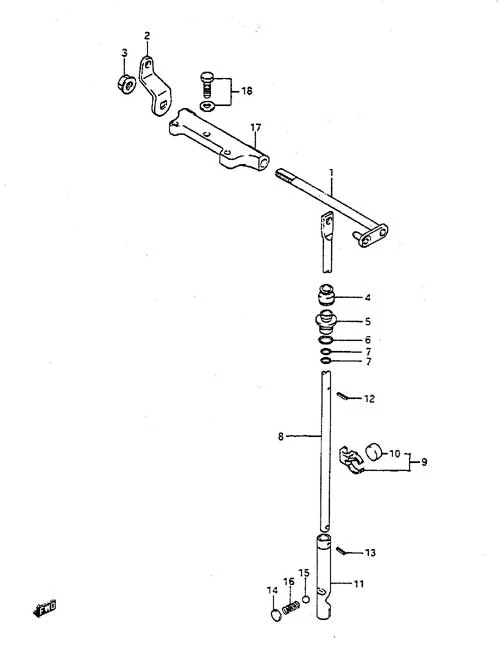

图 18离合器 Clutch
离合器 Clutch
REF零件编号中文名称英文名称数量
121210-94703离合器轴Clutch Shaft1
221213-94700离合器轴侧臂Clutch Shaft Side Arm1
308319-31087螺母Nut1
609280-11005换挡杆O型圈Shift Rod O-Ring1
709280-08005O型圈O-Ring2
825111-95204换挡拉杆(L型)Shift Rod (L)1
925230-94300齿轮箱磁铁组Gear Case Magnet Set1
1025232-94300齿轮箱磁铁Gear Case Magnet1
1125311-947V0换挡凸轮Shift Cam1
1209205-02004弹簧销(2.5x12)Spring Pin (2.5x12)1
1309205-03021弹簧销 (3.5x12)Spring Pin (3.5x12)1
1421121-93300离合器缺口板Clutch Notch Plate1
1509260-10005钢球Ball1
1609440-07033凸轮槽口弹簧Cam Notch Spring1
1721311-94702离合器轴固定座(停产)Clutch Shaft Holder (NLA)1
1809116-06204螺栓(6x20)Bolt (6x20)3

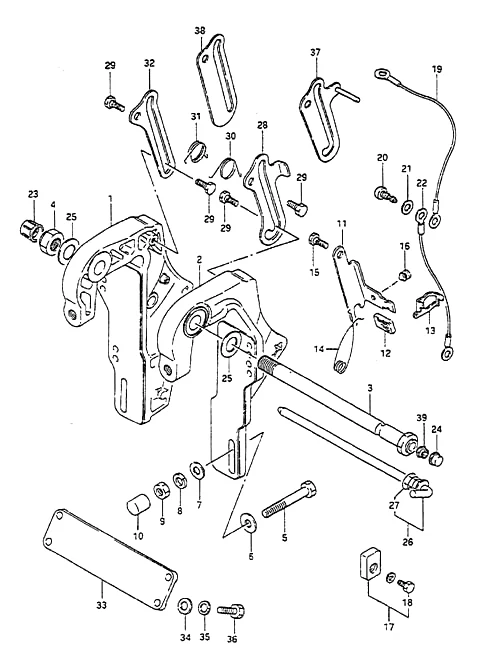

图 20夹紧支架(1988-1994款) Clamp Bracket(1988 to 1994)
夹紧支架(1988-1994款) Clamp Bracket(1988 to 1994)
REF零件编号中文名称英文名称数量
241121-95281-0ED左舷夹箍支架(停产)Port Clamp Bracket (NLA)1
341130-95292夹具支架轴Clamp Bracket Shaft1
409159-22006螺母Nut1
509100-12093艉板螺栓(12x100)Transom Bolt (12x100)4
609160-12044垫圈 (12.5x35x3.2)Washer (12.5x35x3.2)4
709160-12066垫圈 (12.5x22x2.5)Washer (12.5x22x2.5)4
809162-12005锁紧垫圈Lock Washer4
909140-12028螺母Nut4
1041153-94500艉板螺栓帽Transom Bolt Cap4
1141222-95260-0ED倾斜锁臂(停产)Tilt Lock Arm (NLA)1
1241225-94401倾斜定位橡胶块RUBBER,TILT LOC1
1341227-95250倾斜锁支架(停产)Tilt Lock Bracket (NLA)1
1441228-95250倾斜锁定弹簧(停产)Tilt Lock Spring (NLA)1
1509111-12008螺栓(停产)Bolt (NLA)2
1609321-06024缓冲垫(停产)Cushion (NLA)1
1755320-95311锌阳极Zinc Anode1
1809116-06094螺栓(6x15)Bolt (6x15)1
1936894-95201导线(长165)Wire Lead (L:165)1
2109161-05114垫圈 (5.2x11x1.0)Washer (5.2x11x1.0)2
2009125-05050螺钉(5x8)Screw (5x8)2
2236894-94401导线(长195)Wire Lead (L:195)1
2341151-94500夹具支架轴帽Clamp Bracket Shaft Cap1
2441152-94500夹具支架轴塞Clamp Bracket Shaft Plug1
2509160-22046垫圈 (停产)Washer (NLA)1
2645420-95250倾斜锁定销(停产)Tilt Lock Pin (NLA)1
2709441-21002弹簧(停产)Spring (NLA)1
2841200-95200倾斜臂总成(停产)Tilt Arm Assembly (NLA)1
2909111-12008螺栓(停产)Bolt (NLA)4
3009448-27010弹簧(停产)Spring (NLA)1
3109448-27011弹簧(停产)Spring (NLA)1
3241223-95210-0ED倾斜止动臂(停产)Tilt Stop Arm (NLA)1
3341311-95250-0ED夹具支架板(停产)Clamp Bracket Plate (NLA)1
3409160-10082垫片(10.5x19x2.0)Washer (10.5x19x2.0)4
3509162-10005锁紧垫圈Lock Washer4
3609100-10220螺栓 (10x35)Bolt (10x35)4
3941161-94400转向拉索密封件Steering Cable Seal1
4009140-10031螺母(10mm)Nut (10mm)4
4109159-12014螺母(12x17)Nut (12x17)0

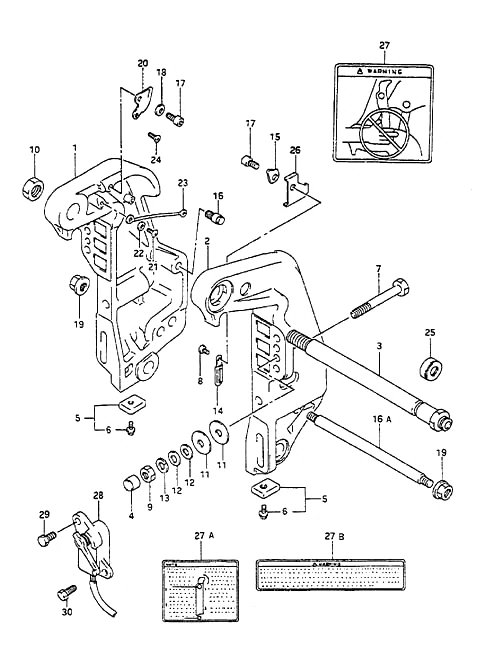

图 21夹紧支架(1995-1997款) Clamp Bracket(1995 to 1997)
夹紧支架(1995-1997款) Clamp Bracket(1995 to 1997)
REF零件编号中文名称英文名称数量
1309162-12005锁紧垫圈Lock Washer4
141111-95E03-0ED右舷夹紧支架Starboard Clamp Bracket1
241121-95E05-0ED左舷夹箍支架(停产)Port Clamp Bracket (NLA)1
341130-95541夹具支架轴Clamp Bracket Shaft1
441153-94500艉板螺栓帽Transom Bolt Cap4
555320-95311锌阳极Zinc Anode2
609116-06094螺栓(6x15)Bolt (6x15)2
709100-12093艉板螺栓(12x100)Transom Bolt (12x100)4
809125-06063螺钉(6x10)Screw (6x10)1
909140-12028螺母Nut4
1009159-22006螺母Nut1
1109160-12044垫圈 (12.5x35x3.2)Washer (12.5x35x3.2)4
1209160-12066垫圈 (12.5x22x2.5)Washer (12.5x22x2.5)4
1541225-95E00倾斜止动板(停产)Tilt Stopper Plate (NLA)1
1709106-10065螺栓 (10x20)Bolt (10x20)2
1809160-10082垫片(10.5x19x2.0)Washer (10.5x19x2.0)1
1909159-14020螺母(14mm)Nut (14mm)2
2041241-95E00倾斜锁杆导槽(停产)Tilt Lock Lever Guide (NLA)1
2109125-06063螺钉(6x10)Screw (6x10)1
2209161-06120垫圈 (6.3x12.5x1.0) (停产)Washer (6.3x12.5x1.0) (NLA)1
2336894-87D00导线(长195)Wire Lead (L:195)1
2409126-05007螺钉(5x12)Screw (5x12)1
2541161-94400转向拉索密封件Steering Cable Seal1
2641242-95E00倾斜锁臂导槽(停产)Tilt Lock Arm Guide (NLA)1
2741337-95E00倾斜锁定警示标记(停产)Tilt Lock Warning Mark (NLA)1
2834801-94710升降传感器Trim Sender1
2901550-06167螺栓BOLT1
3009100-06131螺栓(6x12)Bolt (6x12)1
3109159-12014螺母(12x17)Nut (12x17)4

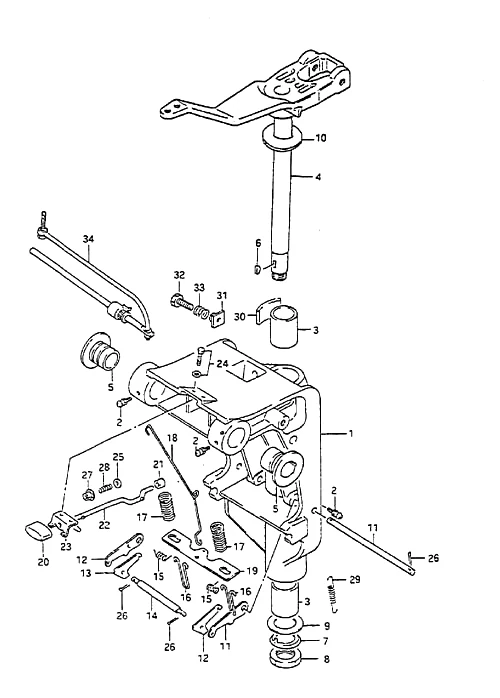

图 22旋转支架(1988-1994款) Swivel Bracket(1988 to 1994)
旋转支架(1988-1994款) Swivel Bracket(1988 to 1994)
REF零件编号中文名称英文名称数量
143111-95252-0ED旋转支架(左)(停产)Swivel Bracket (L) (NLA)1
222511-99011黄油嘴Grease Nipple4
309306-26005衬套(停产)Bushing (NLA)2
443750-95253-0ED转向支架(L型)(停产)Steering Bracket (L) (NLA)1
543211-95250衬套(停产)Bushing (NLA)2
609420-05003钥匙(停产)Key (NLA)1
709166-25007垫圈 (停产)Washer (NLA)1
809140-24010螺母Nut1
1009160-25052垫圈 (停产)Washer (NLA)2
1145245-95202倒挡锁止臂轴Reverse Lock Arm Shaft1
1245241-95202倒挡锁止臂连杆(停产)Reverse Lock Arm Link (NLA)2
1345231-95201倒挡锁止臂(停产)Reverse Lock Arm (NLA)2
1445243-95201销 (停产)Pin (NLA)1
1509448-12018弹簧(停产)Spring (NLA)2
1645244-95200倒车锁止挡(停产)Reverse Lock Stopper (NLA)2
1709440-21005弹簧(停产)Spring (NLA)2
1845252-96303释放杆连杆Release Lever Link1
1945242-95251倒挡锁止臂板(停产)Reverse Lock Arm Plate (NLA)1
2045255-96302释放杆旋钮Release Lever Knob1
2145257-93900衬套Bushing1
2245260-95250释放杆(停产)Release Lever (NLA)1
2345311-93900-0ED释放杆支架(停产)Release Lever Bracket (NLA)1
2409116-05010螺栓(5x12)Bolt (5x12)2
2509160-04012垫圈 (4.2x10x1)Washer (4.2x10x1)1
2609204-01002开口销Cotter Pin3
2709319-04001衬套Bushing1
2809440-04021释放弹簧(停产)Release Spring (NLA)1
2909443-05013弹簧Spring1

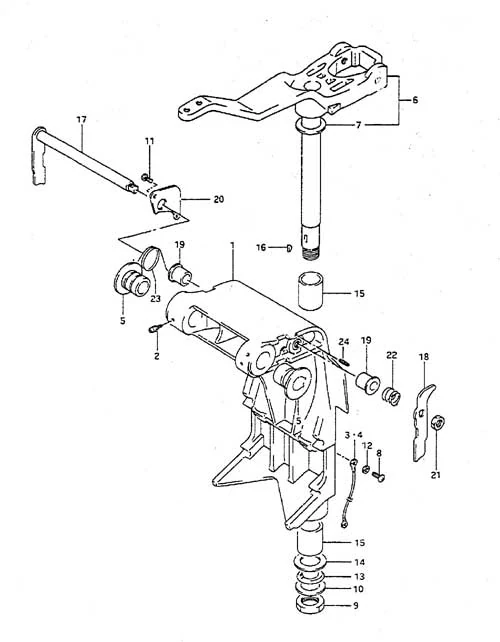

图 23旋转支架(1995款) Swivel Bracket(1995)
旋转支架(1995款) Swivel Bracket(1995)
REF零件编号中文名称英文名称数量
143111-95E01-0ED旋转支架(停产)Swivel Bracket (NLA)1
222511-99011黄油嘴Grease Nipple4
436894-94401导线(长195)Wire Lead (L:195)1
543211-95510衬套(停产)Bushing (NLA)2
643750-95253-0ED转向支架(L型)(停产)Steering Bracket (L) (NLA)1
709160-25052垫圈 (停产)Washer (NLA)1
809125-05050螺钉(5x8)Screw (5x8)2
909140-24010螺母Nut1
1009160-25052垫圈 (停产)Washer (NLA)1
1109125-05050螺钉(5x8)Screw (5x8)2
1209161-05114垫圈 (5.2x11x1.0)Washer (5.2x11x1.0)2
1309166-25007垫圈 (停产)Washer (NLA)1
1509306-26005衬套(停产)Bushing (NLA)2
1609420-05003钥匙(停产)Key (NLA)1
1741220-95E00右舷倾斜锁定杆（停产）Starboard Tilt Lock Lever (NLA)1
1841221-95E30左舷倾斜锁定杆(停产)Port Tilt Lock Lever (NLA)1
1941224-95E01倾斜止动杆衬套Tilt Stopper Rod Bushing1
2041227-95E00弹簧挡块 (停产)Spring Stopper (NLA)1
2109140-10032螺母Nut2
2209440-19028弹簧Spring1
2309444-34001弹簧(停产)Spring (NLA)1
2409205-06013销Pin1

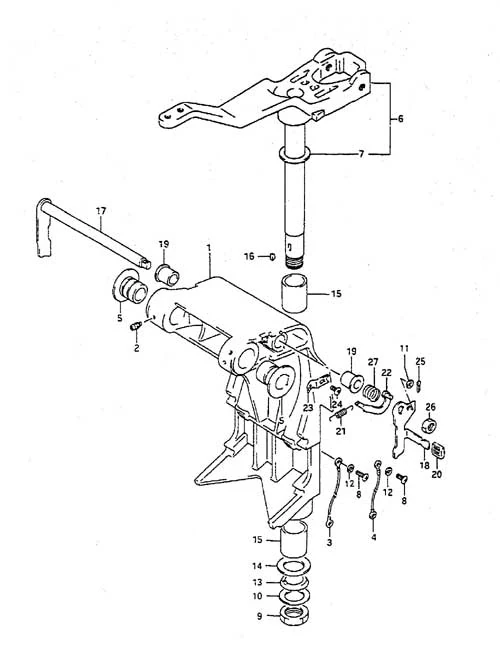

图 23A旋转支架(1996-1997款) Swivel Bracket(1996 to 1997)
旋转支架(1996-1997款) Swivel Bracket(1996 to 1997)
REF零件编号中文名称英文名称数量
143111-95E41-0ED旋转支架(停产)Swivel Bracket (NLA)1
222511-99011黄油嘴Grease Nipple4
336894-95201导线(长165)Wire Lead (L:165)1
436894-94401导线(长195)Wire Lead (L:195)1
543211-95510衬套(停产)Bushing (NLA)2
643750-95253-0ED转向支架(L型)(停产)Steering Bracket (L) (NLA)1
709160-25052垫圈 (停产)Washer (NLA)1
809125-05050螺钉(5x8)Screw (5x8)3
909140-24010螺母Nut1
1009160-25052垫圈 (停产)Washer (NLA)1
1109160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)1
1209161-05114垫圈 (5.2x11x1.0)Washer (5.2x11x1.0)3
1309166-25007垫圈 (停产)Washer (NLA)1
1409181-26006垫片 (0.3mm) (停产)Shim (0.3) (NLA)1
1509306-26005衬套(停产)Bushing (NLA)2
1609420-05003钥匙(停产)Key (NLA)1
1741220-95E13右舷倾斜锁定杆Starboard Tilt Lock Lever1
1841221-95E40左舷倾斜锁定杆Port Tilt Lock Lever1
1941224-95E01倾斜止动杆衬套Tilt Stopper Rod Bushing1
2041225-94401倾斜定位橡胶块RUBBER,TILT LOC1
2141228-95E00倾斜锁定杆弹簧(停产)Tilt Lock Lever Spring (NLA)1
2241230-95E00倾斜锁杆连杆Tilt Lock Lever Link1
2341233-95E10倾斜锁定弹簧支架Tilt Lock Spring Bracket1
2409125-06063螺钉(6x10)Screw (6x10)1
2509204-01006开口销Cotter Pin1
2609140-10032螺母Nut1
2709440-19028弹簧Spring1

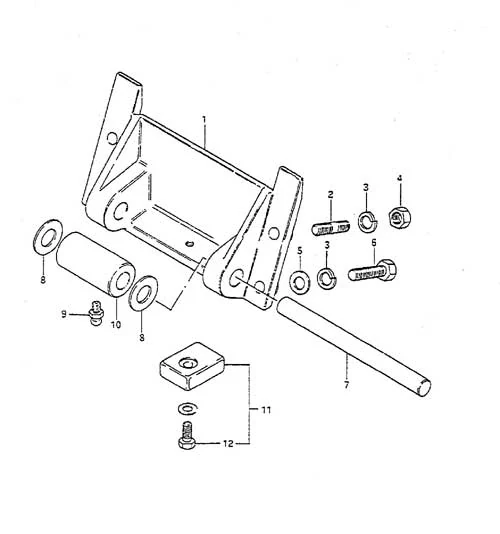

图 24气缸支架 Cylinder Support
气缸支架 Cylinder Support
REF零件编号中文名称英文名称数量
148111-95201-0ED油缸支架（停产）Oil Cylinder Support Bracket (NLA)1
209108-10061双头螺栓Stud Bolt2
309162-10005锁紧垫圈Lock Washer2
409140-10031螺母(10mm)Nut (10mm)2
509160-10082垫片(10.5x19x2.0)Washer (10.5x19x2.0)2
609100-10220螺栓 (10x35)Bolt (10x35)2
748121-95200机油缸轴(停产)Oil Cylinder Shaft (NLA)1
809160-15036垫圈 (停产)Washer (NLA)2
922511-99011黄油嘴Grease Nipple1
1048163-95200-0ED机油缸隔套(停产)Oil Cylinder Spacer (NLA)1
1155320-95311锌阳极Zinc Anode1
1209116-06094螺栓(6x15)Bolt (6x15)1

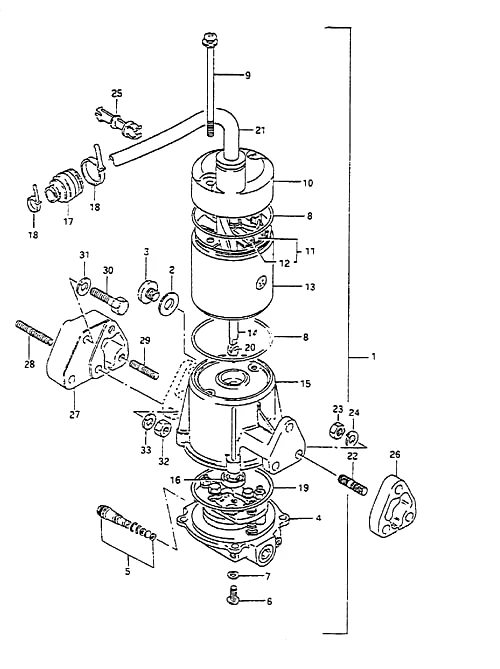

图 25动力单元(1988至1990) Power Unit(1988 to 1990)
动力单元(1988至1990) Power Unit(1988 to 1990)
REF零件编号中文名称英文名称数量
209168-10022放油塞垫片Drain Plug Gasket1
309248-10008放油塞Drain Plug1
448502-94530泵阀总成(停产)Pump & Valve Body (NLA)1
548550-94600手动阀释放装置Manual Valve Release1
609136-05041螺钉(5x20)Screw (5x20)4
709160-05032垫圈 (停产)Washer (NLA)4
809280-70005O型圈O-Ring2
931281-94510贯穿螺栓Through Bolt2
1031170-94520-0ED上盖(停产)Upper Cover (NLA)1
1131173-94521电刷架总成(停产)Brush Holder Assembly (NLA)1
1231133-94521电刷(停产)Brush (NLA)2
1331110-94520-0ED拨叉总成(停产)Yoke Assembly (NLA)1
1431311-94600电枢(停产)Armature (NLA)1
1548570-94600-0ED储液罐总成(停产)Reservoir Assembly (NLA)1
1609282-08003油封（停产件）Oil Seal (NLA)1
1733899-95500动力升降倾斜装置电缆密封件(停产)PTT Cable Seal (NLA)1
1809407-25402卡箍(长:248)Clamp (L:248)2
1948585-94520阀体O型圈Valve Body O-Ring1
2048583-94520驱动联轴节Drive Joint1
2133861-95600动力升降倾斜线缆(停产)PTT Cable (NLA)1
2209108-08137双头螺栓(8x40)Stud Bolt (8x40)3
2309140-08023-XC0螺母(8mm)Nut (8mm)3
2409162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)3
2533835-95500动力升降倾斜装置马达电缆夹(停产)PTT Motor Cable Clamp (NLA)1
2648131-95200动力单元隔套(停产)Power Unit Spacer (NLA)1
2748131-95281-0ED动力单元隔套(停产)Power Unit Spacer (NLA)1
2809108-08063双头螺栓(8x45)(停产)Stud Bolt (8x45) (NLA)1
2909108-08130双头螺栓(8x20)Stud Bolt (8x20)2
3009117-08056-XC0螺栓(8x40)Bolt (8x40)2
3209140-08023-XC0螺母(8mm)Nut (8mm)3
3309162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)3

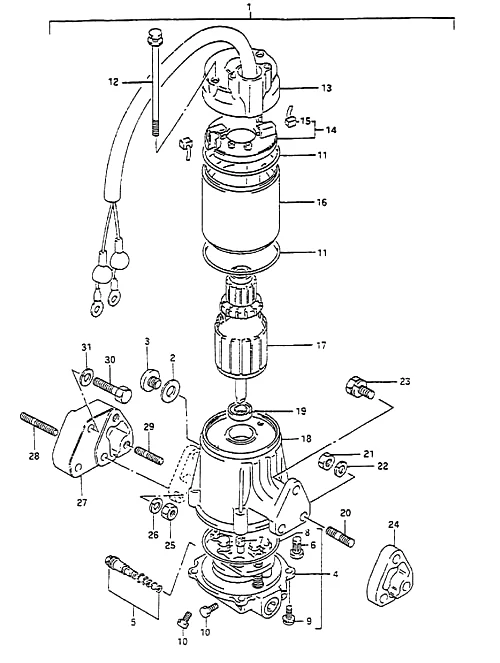

图 26动力单元(1991至1994) Power Unit(1991 to 1994)
动力单元(1991至1994) Power Unit(1991 to 1994)
REF零件编号中文名称英文名称数量
209280-09005O型圈O-Ring1
348511-95500加油口塞（停产）Oil Filler Plug (NLA)1
448502-94530泵阀总成(停产)Pump & Valve Body (NLA)1
548550-94600手动阀释放装置Manual Valve Release1
648581-94500动力升降倾斜装置泵滤清器(停产)PTT Pump Filter (NLA)1
748583-94520驱动联轴节Drive Joint1
848585-94520阀体O型圈Valve Body O-Ring1
909136-05041螺钉(5x20)Screw (5x20)4
1048586-94500塞子Plug1
1109280-70005O型圈O-Ring2
1231281-94610贯穿螺栓(停产)Through Bolt (NLA)2
1331170-94610-0ED动力升降倾斜装置马达盖(停产)PTT Motor Cover (NLA)1
1431173-94620电刷架Brush Holder1
1531133-94610电刷Brush2
1631110-94610-0ED拨叉总成(停产)Yoke Assembly (NLA)1
1731311-94610电枢(停产)Armature (NLA)1
1848570-94610-0ED储液罐总成(停产)Reservoir Assembly (NLA)1
1933799-94610油封Oil Seal1
2009108-08137双头螺栓(8x40)Stud Bolt (8x40)3
2109140-08023-XC0螺母(8mm)Nut (8mm)3
2209162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)3
2309117-08046螺栓(停产)Bolt (NLA)1
2448131-95200动力单元隔套(停产)Power Unit Spacer (NLA)1
2509140-08023-XC0螺母(8mm)Nut (8mm)3
2609162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)3
2748131-95281-0ED动力单元隔套(停产)Power Unit Spacer (NLA)1
2809108-08063双头螺栓(8x45)(停产)Stud Bolt (8x45) (NLA)1
2909108-08130双头螺栓(8x20)Stud Bolt (8x20)2
3009117-08056-XC0螺栓(8x40)Bolt (8x40)2

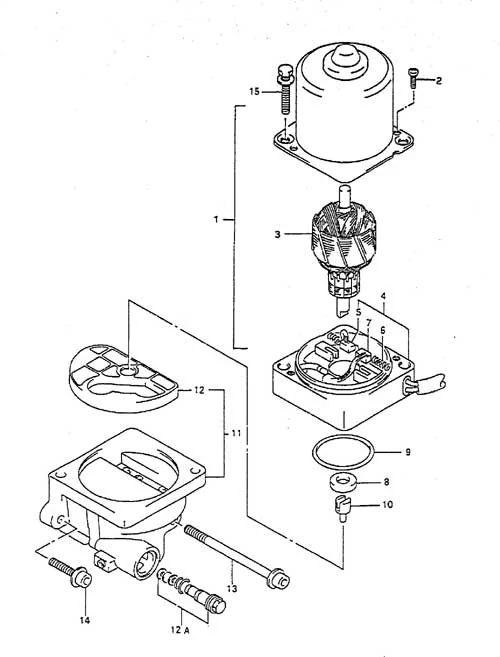

图 27动力单元(1995至1997) Power Unit(1995 to 1997)
动力单元(1995至1997) Power Unit(1995 to 1997)
REF零件编号中文名称英文名称数量
138100-95E01-0ED动力升降倾斜装置马达总成PTT Motor Assembly1
231111-87D60螺钉Screw2
331311-95E00电枢(停产)Armature (NLA)1
431173-95E01电刷架总成Brush Holder Assembly1
531133-95E00电刷Brush1
631135-97E00弹簧Spring2
731136-94900断路器(停产)Breaker (NLA)1
833799-97E00油封Oil Seal1
931123-87D60O型圈O-Ring1
1048583-95E00驱动联轴节Drive Joint1
1148502-95E00动力升降倾斜装置泵总成PTT Pump Assembly1
1248582-95E01滤清器Filter1
1348862-95E00螺栓Bolt1
1448862-95E10螺栓Bolt2
1531281-95E00贯穿螺栓Through Bolt2

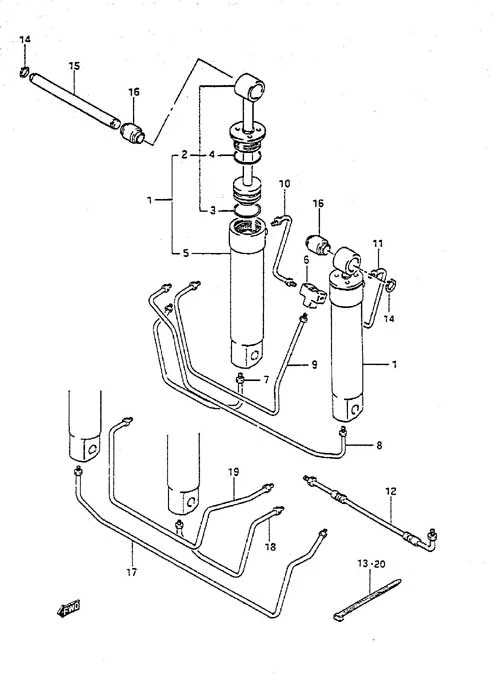

图 28升降油缸(1988-1994款) Trim Cylinder(1988 to 1994)
升降油缸(1988-1994款) Trim Cylinder(1988 to 1994)
REF零件编号中文名称英文名称数量
148600-95201-0ED升降倾斜油缸总成(停产)Trim & Tilt Cylinder Assy (NLA)2
248601-95200活塞(停产)Piston (NLA)2
348627-95510O型圈(停产)O-Ring (NLA)2
548641-95200气缸套筒(停产)Cylinder Tube (NLA)2
648711-95510三通接头（停产）3 Way Connector (NLA)1
748720-952001号进水管(停产)No. 1 Inlet Tube (NLA)1
848730-952002号进水管(停产)No. 2 Inlet Tube (NLA)1
948750-952021号出水管(停产)No. 1 Outlet Tube (NLA)1
1048760-952022号出水管(停产)No. 2 Outlet Tube (NLA)1
1148770-952023号出水管(停产)No. 3 Outlet Tube (NLA)1
1248790-95300动力升降软管(停产)Power Trim Hose (NLA)3
1309407-11401夹具(L:95)Clamp (L:95)4
1409380-12002卡环Snap Ring2
1548321-95200活塞杆销(停产)Piston Rod Pin (NLA)1
1609319-12041衬套Bushing2
1748720-952801号进水管(停产)No. 1 Inlet Tube (NLA)1
1848730-952802号进水管(停产)No. 2 Inlet Tube (NLA)1
1948750-95280出口管（停产）Outlet Tube (NLA)1
2009407-11401夹具(L:95)Clamp (L:95)4

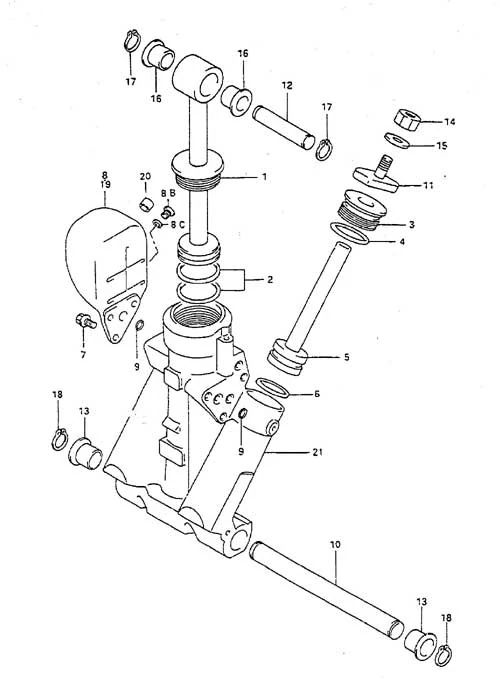

图 29升降油缸(1995-1997款) Trim Cylinder(1995 to 1997)
升降油缸(1995-1997款) Trim Cylinder(1995 to 1997)
REF零件编号中文名称英文名称数量
148401-95E00活塞连杆分总成Piston & Rod Sub Assembly1
248627-95E00O型圈套件O-Ring Set1
348630-95E00升降油缸盖Trim Cylinder Head2
448633-95E00升降头O型圈(停产)Trim Head O-Ring (NLA)2
548601-95E00活塞与柱塞总成(停产)Piston & Ram Assembly (NLA)2
648627-95E00O型圈套件O-Ring Set1
748861-95E00储液罐螺栓(停产)Reservoir Bolt (NLA)3
848570-95E01储液罐总成Reservoir Assembly1
948588-95E00O型圈O-Ring5
1048121-95E00倾斜缸轴(停产)Tilt Cylinder Shaft (NLA)1
1148311-94501升降油缸柱塞垫Trim Cylinder Ram Pad1
1248321-87D03倾斜缸上轴Tilt Cylinder Upper Shaft1
1348326-95E00倾斜油缸下衬套Tilt Cylinder Lower Bushing2
1409140-08023-XC0螺母(8mm)Nut (8mm)2
1509162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)2
1609306-17001衬套Bushing2
1709380-17009卡簧Circlip2
1809380-22015卡簧Circlip2
1948570-95E01储液罐总成Reservoir Assembly1
2048572-95E00盖帽Cap1
2148641-95E00动力升降倾斜装置油缸PTT Cylinder1

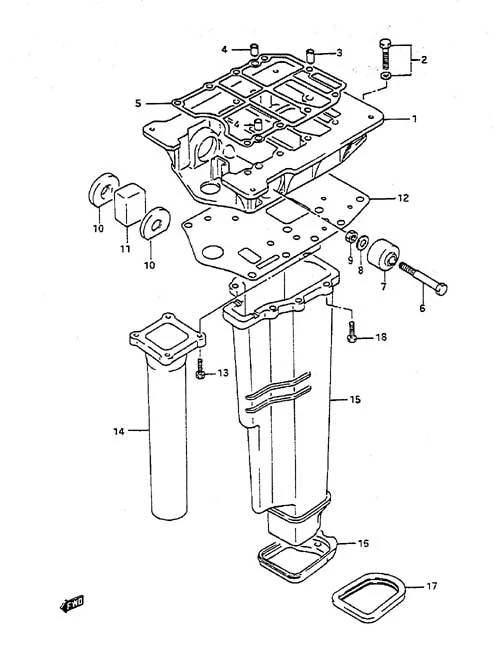

图 30发动机支架 Engine Holder
发动机支架 Engine Holder
REF零件编号中文名称英文名称数量
151111-94711-0ED发动机支架(停产)Engine Holder (NLA)1
209117-08047螺栓(8x30)Bolt (8x30)2
309206-11017销 (11x20)Pin (11x20)1
409206-11004销 (11x14)Pin (11x14)2
551211-94750发动机支架衬垫(停产)Engine Holder Gasket (NLA)1
609100-10208螺栓(10x70)Bolt (10x70)2
754130-95500上支架Upper Mount2
809160-10082垫片(10.5x19x2.0)Washer (10.5x19x2.0)2
909140-10031螺母(10mm)Nut (10mm)2
1054136-95501上部安装止动件(停产)Upper Mount Stopper (NLA)2
1154135-95200上推力座（停产）Upper Thrust Mount (NLA)1
1252113-94731驱动轴壳体衬垫(停产)Drive Shaft Housing Gasket (NLA)1
1309100-06122螺栓(6x20)Bolt (6x20)4
1414211-94701排气管(左)(停产)Exhaust Tube (L) (NLA)1
1552311-94701排气管壳体(左)(停产)Exhaust Tube Housing (L) (NLA)1
1752332-94711排气管密封件Exhaust Tube Seal1
1809100-06122螺栓(6x20)Bolt (6x20)7

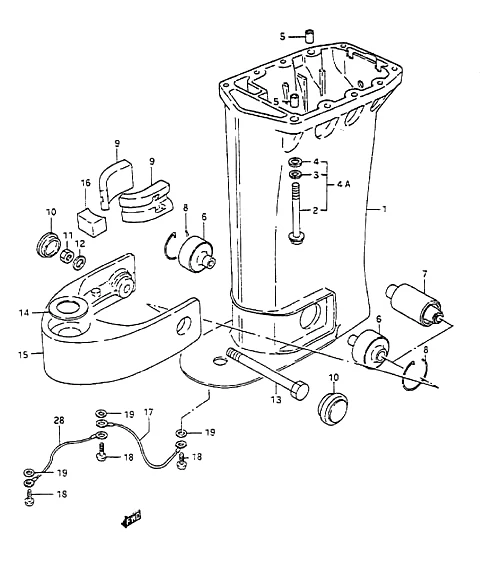

图 31驱动轴壳体 Drive Shaft Housing
驱动轴壳体 Drive Shaft Housing
REF零件编号中文名称英文名称数量
152111-94741-0ED驱动轴壳体(L型)(停产)Driveshaft Housing (L) (NLA)1
209100-08213螺栓(8x100)Bolt (8x100)8
309162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)8
409160-08082垫圈 (8.5x16x1.2)Washer (8.5x16x1.2)8
509206-11004销 (11x14)Pin (11x14)2
654160-95200下支架(停产)Lower Mount (NLA)2
809387-46001定位环(停产)Set Ring (NLA)2
954167-95500下侧支架(停产)Lower Side Mount (NLA)2
1054311-95210-0ED盖帽(停产)Cap (NLA)2
1109140-12029螺母Nut1
1209160-12066垫圈 (12.5x22x2.5)Washer (12.5x22x2.5)1
1309116-12008螺栓(12x145)(停产)Bolt (12x145) (NLA)1
1409160-25052垫圈 (停产)Washer (NLA)1
1554210-95210-0ED下支架托架(停产)Lower Mount Bracket (NLA)1
1654165-95200下推力支架Lower Thrust Mount1
1736894-95201导线(长165)Wire Lead (L:165)1
1809125-05050螺钉(5x8)Screw (5x8)3
1909161-05114垫圈 (5.2x11x1.0)Washer (5.2x11x1.0)3
2836894-94401导线(长195)Wire Lead (L:195)1

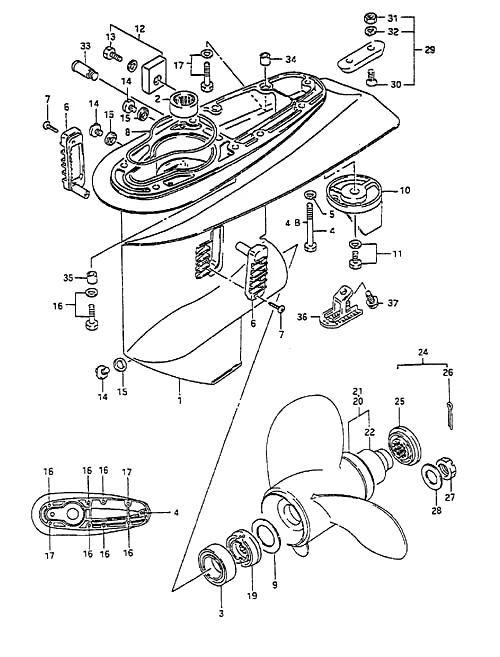

图 32齿轮箱 Gear Case
齿轮箱 Gear Case
REF零件编号中文名称英文名称数量
209263-26023轴承(26x34x30)Bearing (26x34x30)1
309265-30004轴承(30x62x17.25)Bearing (30x62x17.25)1
509162-10005锁紧垫圈Lock Washer1
617631-94600水滤器Water Filter2
703142-04259螺钉SCREW2
855122-95202齿轮箱密封环 (停产)Gear Case Seal Ring (NLA)1
1055125-95500平衡调整片锌阳极Trim Tab Zinc Anode1
1109117-08109螺栓(8x16)Bolt (8x16)1
1255320-95311锌阳极Zinc Anode1
1309116-06094螺栓(6x15)Bolt (6x15)1
1409248-10008放油塞Drain Plug3
1509168-10022放油塞垫片Drain Plug Gasket3
1609117-08038螺栓(8x45)Bolt (8x45)6
1709117-08063-XC0螺栓(8x50)Bolt (8x50)2
1957632-95330螺旋桨止动块STOPPER,PROPELL1
2258120-88L01螺旋桨衬套Propeller Bushing1
2457630-94301螺旋桨五金套件(DT40/DT55/DT65 DF40/DF50/DF60A机型)Propeller Hardware Kit DT40/DT55/DT65/ DF40/DF50/DF60A1
2609204-03003螺旋桨螺母开口销Prop Nut Cotter Pin1
2557633-94301螺旋桨螺母隔套Propeller Nut Spacer1
2709141-18005螺母(18mm)Nut (18mm)1
2809160-18028垫圈 (18.5x31x1.0)Washer (18.5x31x1.0)1
2955300-95500锌阳极Zinc Anode1
3009126-06006螺钉(6x20)Screw (6x20)2
3109140-06020螺母(6mm)Nut (6mm)2
3209162-06006锁紧垫圈Lock Washer2
3355181-95200冲洗软管接头Flush Hose Attachment1
3409206-11017销 (11x20)Pin (11x20)1
3509206-11016销 (11x12) (停产)Pin (11x12) (NLA)1
3617635-95301副水滤清器Sub Water Filter1
3709116-06094螺栓(6x15)Bolt (6x15)1
3825700-94700齿轮箱密封套件 DT55/DT65 (停产)Gear Case Seal Kit DT55 / DT65 (NLA)1

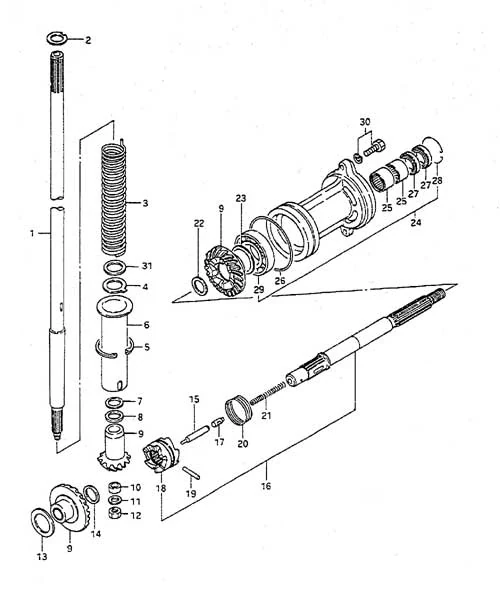

图 33变速箱 Transmission
变速箱 Transmission
REF零件编号中文名称英文名称数量
157110-94741驱动轴(长型)(停产)Drive Shaft (L) (NLA)1
209166-17004推力垫圈Thrust Washer1
309440-26002弹簧(停产)Spring (NLA)1
409167-20017垫圈 (停产)Washer (NLA)1
508331-41479卡簧Circlip1
657133-95200驱动轴弹簧挡圈(停产)Drive Shaft Spring Collar (NLA)1
709160-17029垫圈 (停产)Washer (NLA)1
957300-94843小齿轮与齿轮组Pinion & Gear Set1
1009180-12087小齿轮垫片Pinion Spacer1
1109181-10156垫片Washer1
1209140-10022小齿轮螺母(停产)Pinion Nut (NLA)1
1408211-20263推力垫圈(2.00)Thrust Washer (2.00)1
1557631-95303推杆Push Rod1
1757622-94700推销Push Pin1
1857621-94700离合器换挡拨叉(停产)Clutch Dog Shifter (NLA)1
1909202-06030停产件Discontinued1
2009440-40002离合器弹簧Clutch Dog Spring1
2109440-09022弹簧Spring1
2456120-95311-0ED螺旋桨轴轴承座(停产)Propeller Shaft Bearing Housing (NLA)1
2509263-22020轴承(22.225x28.575x19.05)Bearing (22.225x28.575.19.05)2
2609280-76006O型圈(停产)O-Ring (NLA)1
2709289-22007油封(21.2x35x5)Oil Seal (21.2x35x5)2
2809387-37001定位环(停产)Set Ring (NLA)1
2909262-35021-0A0轴承(35x62x14)Bearing (35x62x14)1
3009117-08047螺栓(8x30)Bolt (8x30)2
3109160-22030垫圈 (停产)Washer (NLA)1
3209141-18005螺母(18mm)Nut (18mm)1

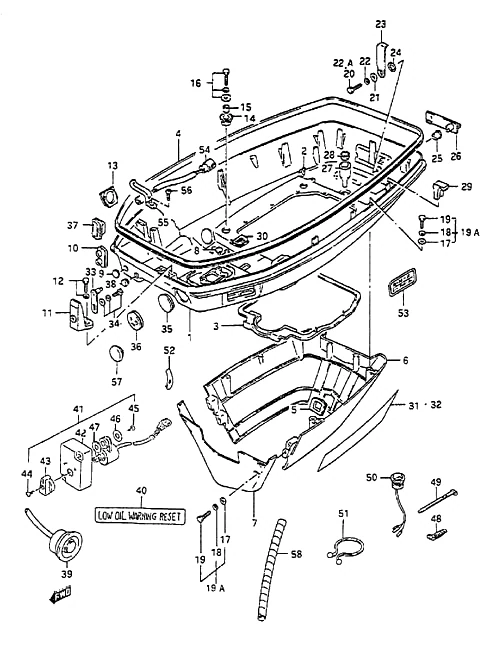

图 34下盖 Lower Cover
下盖 Lower Cover
REF零件编号中文名称英文名称数量
161110-96X54-0ED发动机下盖Lower Engine Cover1
261155-94500检视管Water Inspection Tube1
361113-95205下盖下部密封件Under Cover Lower Seal1
461112-95208下盖上部密封件(停产)Under Cover Upper Seal (NLA)1
561142-95201下盖下部护孔环(停产)Under Cover Lower Grommet (NLA)1
661141-95204-0ED下后底盖(停产)Lower Rear Under Cover (NLA)1
761131-95201-0ED前部下护板(停产)Lower Front Under Cover (NLA)1
809250-05003盖帽(停产)Cap (NLA)2
963725-95200索环(停产)Grommet (NLA)1
1067331-95210索环Grommet1
1161116-94702发动机罩支架(停产)Engine Cover Bracket (NLA)1
1209117-06046螺栓(6x20)(停产)Bolt (6x20) (NLA)2
1361124-95200下盖护孔环Lower Cover Grommet1
1409320-10502缓冲垫Cushion4
1509180-06289垫片Spacer4
1609118-06093螺栓(6x25)(停产)Bolt (6x25) (NLA)4
1709160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)8
1809162-06006锁紧垫圈Lock Washer8
1909138-06037螺栓(6x20)Bolt (6x20)8
2009100-06131螺栓(6x12)Bolt (6x12)8
2109160-06036垫圈 (6.5x18x1.5)Washer (6.5x18x1.5)1
2209162-06006锁紧垫圈Lock Washer1
2361631-95310发动机下盖挂钩Lower Engine Cover Hook1
2409164-13005波形垫圈Wave Washer1
2509306-13007衬套Bushing1
2661645-90J01-0ED前挂钩操纵杆Front Hook Lever1
2813979-37400放油管固定座(停产)Drain Tube Retainer (NLA)1
2936641-94710电缆止动器(停产)Cable Stopper (NLA)3
3023131-95501离合器推杆防尘套Clutch Rod Boot1
3161240-95900-70G下盖贴花套装(停产)Lower Cover Decal Set (NLA)1
3261231-95570-26G左舷下盖贴花(停产)Port Lower Cover Decal (NLA)1
3361610-95514紧固件Fastener1
3401550-06127螺栓BOLT1
3509250-30003盖帽Cap1
3636658-94701电缆护圈(停产)Cable Grommet (NLA)1
3937930-95612机油报警复位开关总成Oil Warning Reset Switch Assembly1
4037935-95602低油位警告复位标签(停产)Low Oil Warning Reset Label (NLA)1
4137920-95500点火正时开关总成(停产)Ignition Timing Switch Assembly (NLA)1
4237925-95D00点火正时开关缓冲垫(停产)Ignition Timing Switch Cushion (NLA)1
4337922-94610旋钮Knob1
4402112-04087螺钉 4×8SCREW 4X81
4509132-05039螺钉(停产)Screw (NLA)1
4609160-05024垫圈 (5.5x16x1.5)Washer (5.5x16x1.5)1
4708322-01107垫片Washer1
4909407-25402卡箍(长:248)Clamp (L:248)1
5037850-95612动力升降倾斜装置开关总成PTT Switch Assembly1
5261512-95600-064点火正时标记(停产)Ignition Timing Mark (NLA)1
5321131-94J00-YAY离合器换挡标记Clutch Shift Mark1
5437940-94701点火正时电阻(停产)Ignition Timing Resistor (NLA)1
5603241-0510A螺钉SCREW1
5709250-21003塞子Plug1
5833833-91J00管(6x8x250)Tube (6x8x250)1

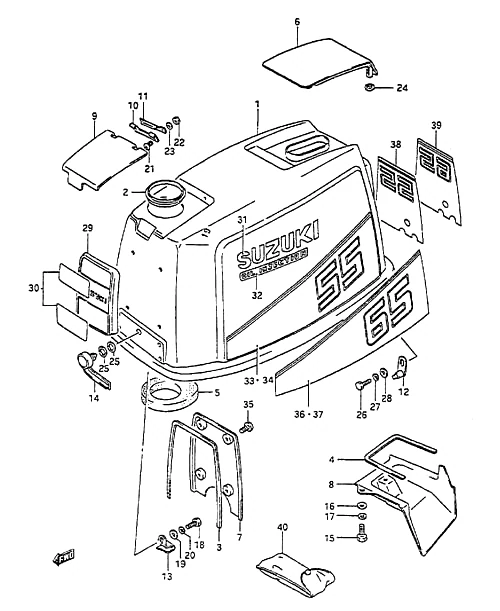

图 35发动机罩(1988年款) Engine Cover(1988)
发动机罩(1988年款) Engine Cover(1988)
REF零件编号中文名称英文名称数量
161400-94720-0ED发动机罩(停产)Engine Cover (NLA)1
261414-95501加油口衬垫（停产）Oil Filler Gasket (NLA)1
361415-94700进气隔音板Air Intake Insulator1
461415-94700进气隔音板Air Intake Insulator1
561417-94701机油箱盖隔热垫（停产件）Oil Tank Lid Insulator (NLA)1
661431-95202-0ED倾斜手柄(停产)Tilt Up Handle (NLA)1
761432-94700进气前盖(停产)Air Intake Front Cover (NLA)1
861433-94701进气内盖(停产)Air Intake Inner Cover (NLA)1
961481-95503-0ED机油箱加注口盖（停产件）Oil Tank Filler Lid (NLA)1
1061482-94510加油口盖铰链Oil Filler Lid Hinge1
1161485-95500加油口盖弹簧Oil Filler Lid Spring1
1261610-94420紧固件Fastener1
1361641-94700前挂钩(停产)Front Hook (NLA)1
1461645-94701-0ED前挂钩操纵杆(停产)Front Hook Lever (NLA)1
1509100-06122螺栓(6x20)Bolt (6x20)3
1609160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)3
1709162-06006锁紧垫圈Lock Washer3
1809100-06131螺栓(6x12)Bolt (6x12)1
1909160-06036垫圈 (6.5x18x1.5)Washer (6.5x18x1.5)1
2009162-06006锁紧垫圈Lock Washer1
2109125-06067螺钉(6x16)Screw (6x16)2
2209140-06020螺母(6mm)Nut (6mm)2
2309160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
2409161-06008垫圈 (停产)Washer (NLA)2
2509164-13005波形垫圈Wave Washer2
2601500-06127螺栓BOLT1
2708321-01067锁紧垫圈Lock Washer1
2808322-01067垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)1
2961421-94421-019前徽标Front Emblem1
3061422-95570-8EF前徽标标记(停产)Front Emblem Mark (NLA)1
3168112-43400-019铃木徽标Suzuki Emblem2
3261442-94600-019注油标记(停产)Oil Injection Mark (NLA)2
3503241-0516A螺钉SCREW4
3661443-94770-70G右舷发动机盖贴花 (停产)Starboard Engine Cover Decal (NLA)1
3761453-94770-70G左舷发动机罩贴花(停产)Port Engine Cover Decal (NLA)1
3961435-94770-70G后徽标（停产）Rear Emblem Mark (NLA)1
4009800-01016工具套装Tool Set1

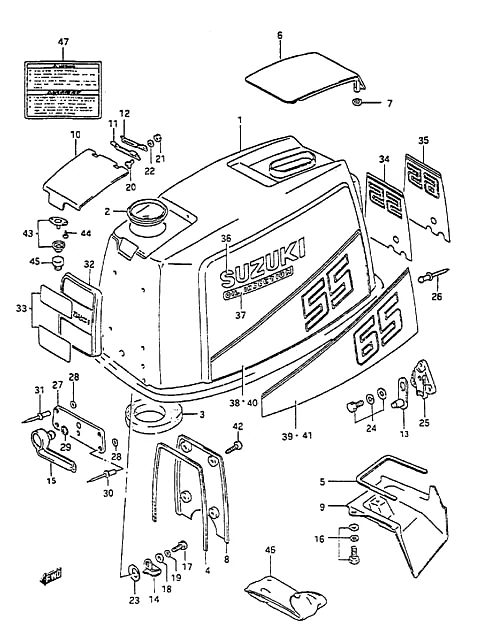

图 36发动机罩(1989至1994年款) Engine Cover(1989 to 1994)
发动机罩(1989至1994年款) Engine Cover(1989 to 1994)
REF零件编号中文名称英文名称数量
161400-94720-0ED发动机罩(停产)Engine Cover (NLA)1
261414-95501加油口衬垫（停产）Oil Filler Gasket (NLA)1
361417-94701机油箱盖隔热垫（停产件）Oil Tank Lid Insulator (NLA)1
461415-94700进气隔音板Air Intake Insulator1
561415-94700进气隔音板Air Intake Insulator1
661431-95202-0ED倾斜手柄(停产)Tilt Up Handle (NLA)1
709161-06008垫圈 (停产)Washer (NLA)2
861432-94700进气前盖(停产)Air Intake Front Cover (NLA)1
961433-94701进气内盖(停产)Air Intake Inner Cover (NLA)1
1061481-95503-0ED机油箱加注口盖（停产件）Oil Tank Filler Lid (NLA)1
1161482-94510加油口盖铰链Oil Filler Lid Hinge1
1261485-95500加油口盖弹簧Oil Filler Lid Spring1
1361610-94420紧固件Fastener1
1461641-94700前挂钩(停产)Front Hook (NLA)1
1561645-94701-0ED前挂钩操纵杆(停产)Front Hook Lever (NLA)1
1709100-06131螺栓(6x12)Bolt (6x12)1
1809160-06036垫圈 (6.5x18x1.5)Washer (6.5x18x1.5)1
1909162-06006锁紧垫圈Lock Washer1
2009125-06067螺钉(6x16)Screw (6x16)2
2109140-06020螺母(6mm)Nut (6mm)2
2209160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
2309164-13005波形垫圈Wave Washer1
2401550-06127螺栓BOLT2
2561621-96303紧固件支架(停产)Fastener Bracket (NLA)1
2609229-04025铆钉Rivet3
2761651-94701前挂钩支架(停产)Front Hook Holder (NLA)1
2808322-01057垫片Washer5
2909280-18004O型圈O-Ring1
3009229-04026铆钉(停产)Rivet (NLA)3
3109229-04027铆钉(停产)Rivet (NLA)2
3261421-94421-019前徽标Front Emblem1
3361422-95570-12R前徽标标记(停产)Front Emblem Mark (NLA)1
3561435-94790-70G后徽标（停产）Rear Emblem Mark (NLA)1
3661441-95560-764铃木标志Suzuki Mark2
3761442-94600-764注油标记Oil Injection Mark2
3961443-94770-70G右舷发动机盖贴花 (停产)Starboard Engine Cover Decal (NLA)1
4161453-94770-70G左舷发动机罩贴花(停产)Port Engine Cover Decal (NLA)1
4203241-0516A螺钉SCREW4
4361670-95300油箱盖锁扣总成(停产)Oil Lid Striker Assy (NLA)1
4409131-03007撞击螺丝(停产)Striker Screw (NLA)2
4509250-12012盖帽(停产)Cap (NLA)1
4609800-01016工具套装Tool Set1
4761581-98620发动机盖标签Engine Cover Label1

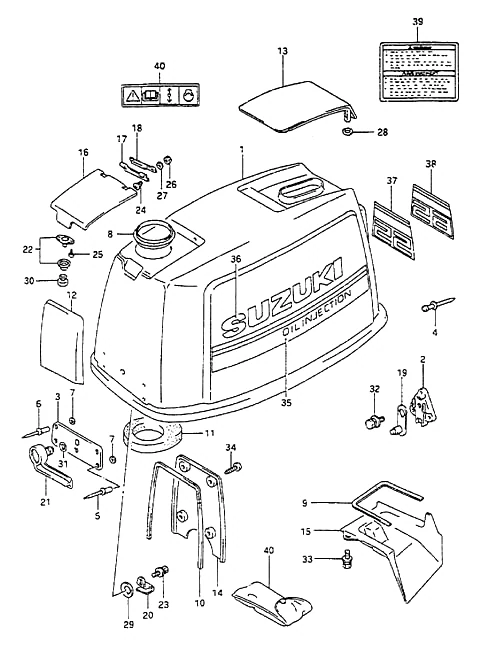

图 37发动机罩(1995至1997年款) Engine Cover(1995 to 1997)
发动机罩(1995至1997年款) Engine Cover(1995 to 1997)
REF零件编号中文名称英文名称数量
161400-94720-0ED发动机罩(停产)Engine Cover (NLA)1
261621-96303紧固件支架(停产)Fastener Bracket (NLA)1
361651-94701前挂钩支架(停产)Front Hook Holder (NLA)1
409229-04025铆钉Rivet3
509229-04026铆钉(停产)Rivet (NLA)3
609229-04027铆钉(停产)Rivet (NLA)2
708322-01057垫片Washer5
861414-95501加油口衬垫（停产）Oil Filler Gasket (NLA)1
961415-94700进气隔音板Air Intake Insulator1
1061415-94700进气隔音板Air Intake Insulator1
1161417-94701机油箱盖隔热垫（停产件）Oil Tank Lid Insulator (NLA)1
1261418-94700-0ED前部进气口Front Air Intake1
1361431-95202-0ED倾斜手柄(停产)Tilt Up Handle (NLA)1
1561432-94700进气前盖(停产)Air Intake Front Cover (NLA)1
1561433-94701进气内盖(停产)Air Intake Inner Cover (NLA)1
1661481-95503-0ED机油箱加注口盖（停产件）Oil Tank Filler Lid (NLA)1
1761482-94510加油口盖铰链Oil Filler Lid Hinge1
1861485-95500加油口盖弹簧Oil Filler Lid Spring1
1961610-94420紧固件Fastener1
2061641-94700前挂钩(停产)Front Hook (NLA)1
2161645-94701-0ED前挂钩操纵杆(停产)Front Hook Lever (NLA)1
2261670-95300油箱盖锁扣总成(停产)Oil Lid Striker Assy (NLA)1
2309118-06095螺栓(6x12)Bolt (6x12)1
2509131-03007撞击螺丝(停产)Striker Screw (NLA)2
2609140-06020螺母(6mm)Nut (6mm)2
2709160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
2909164-13005波形垫圈Wave Washer1
3009250-12012盖帽(停产)Cap (NLA)1
3109280-13005O型圈O-Ring1
3202162-06127螺栓BOLT1
3301550-06167螺栓BOLT3
3403241-0516A螺钉SCREW4
3561440-96E10发动机盖条纹套装(停产)Engine Cover Stripe Set (NLA)1
3668111-42031-1RR铃木标志Suzuki Mark2
3861435-96E60后徽标（停产）Rear Emblem Mark (NLA)1
3961581-98620发动机盖标签Engine Cover Label1
4069711-93E11标签 (S.I.G.P)Label (S.I.G.P)1
4109800-01016工具套装Tool Set1

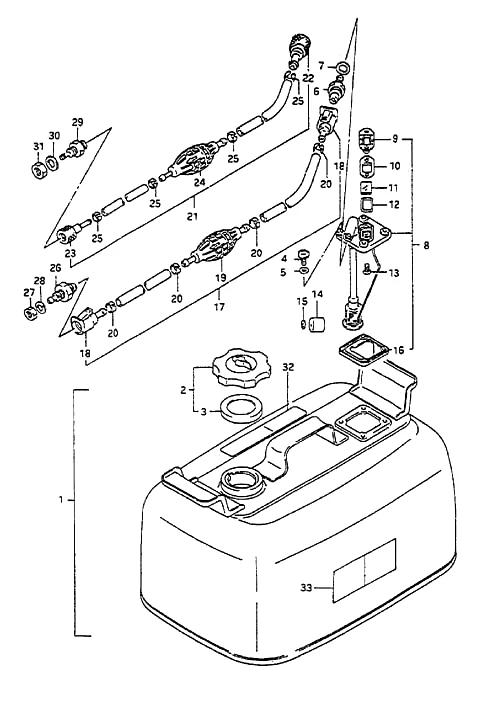

图 39燃油箱 Fuel Tank
燃油箱 Fuel Tank
REF零件编号中文名称英文名称数量
165800-92823油箱套装(停产)Fuel Tank Set (NLA)1
265510-92D00燃油箱盖总成Fuel Tank Cap Assembly1
365561-92D00油箱盖垫片Tank Cap Gasket1
402112-16167螺钉SCREW4
865850-92D01燃油表总成(停产)Fuel Gauge Assembly (NLA)1
1165853-92D00灯罩(停产)Lens (NLA)1
1303221-04083螺钉(停产)Screw (NLA)2
1465864-92D00浮子(停产)Float (NLA)1
1565866-92D00压紧螺母(停产)Push Nut (NLA)1
1665871-92D00垫片 (停产)Gasket (NLA)1
1765700-87D16燃油软管（停产）Fuel Hose (NLA)1
1865750-94404燃油软管接头Fuel Hose Connector2
2065781-98500软管卡箍Hose Clip4
2165700-87D85燃油软管Fuel Hose1
2265750-95501燃油软管接头（13mm）Fuel Hose Connector (13mm)1
2365750-98506燃油软管接头（11mm）Fuel Hose Connector (11mm)1
2465770-95540挤压泵 (停产)Squeeze Pump (NLA)1
2565781-98500软管卡箍Hose Clip4
2665720-94403燃油连接器Fuel Connector1
2708310-00107螺母Nut1
2808321-01107锁紧垫圈Lock Washer1
2965720-985L1燃油连接器(11mm)Fuel Connector (11mm)1
3009161-10007垫片Washer1
3108310-00107螺母Nut1
3265317-95260燃油容量标记(停产)Fuel Capacity Mark (NLA)1
3365316-93331燃油警示标记(停产)Fuel Caution Mark (NLA)1
3409408-00056卡扣Clip1

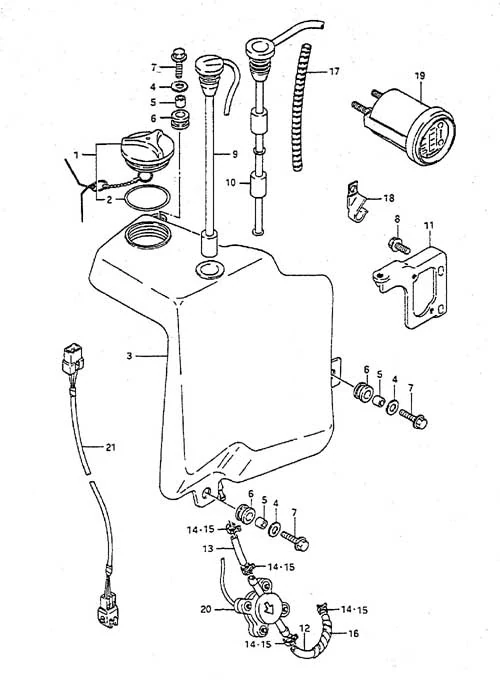

图 40机油箱(1988至1994款) Oil Tank(1988 to 1994)
机油箱(1988至1994款) Oil Tank(1988 to 1994)
REF零件编号中文名称英文名称数量
169201-95500铃木油箱盖(停产)Suzuki Oil Tank Cap (NLA)1
209280-41006O型圈O-Ring1
369101-94700机油箱套装Oil Tank Set1
409160-06084垫圈 (6.5x18x1.6)Washer (6.5x18x1.6)3
509180-06310垫片(6.5x10x10)Spacer (6.5x10x10)3
609320-10075缓冲垫Cushion3
701550-06257螺栓BOLT3
801550-06167螺栓BOLT2
1034860-94741油位开关总成Oil Level Switch Assembly1
1169311-94700机油箱支架（停产件）Oil Tank Support (NLA)1
1409401-08409卡箍Clamp4
1509401-08411卡扣Clip4
1616911-92E20防护罩Protector1
1733833-91J00管(6x8x250)Tube (6x8x250)1
1809403-12308夹具(停产)Clamp (NLA)1
2016250-94710机油滤清器/流量传感器Oil Filter/Flow Sensor1

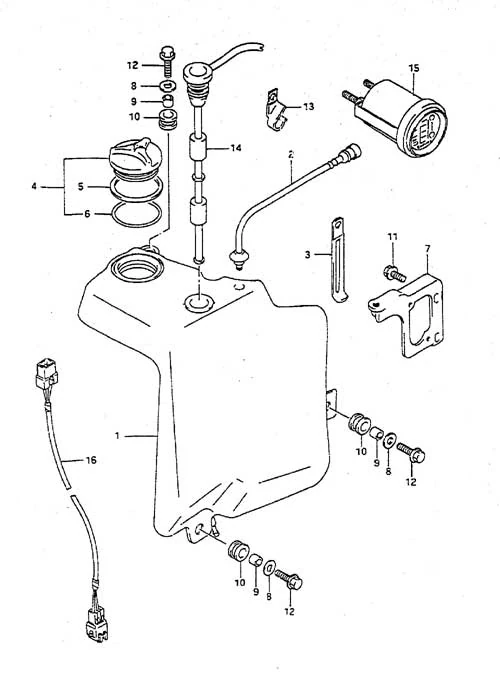

图 41机油箱(1995至1997款) Oil Tank(1995 to 1997)
机油箱(1995至1997款) Oil Tank(1995 to 1997)
REF零件编号中文名称英文名称数量
169101-94700机油箱套装Oil Tank Set1
269220-94700机油箱通气孔Oil Tank Air Vent1
309404-06208夹具(停产)Clamp (NLA)1
469201-95500铃木油箱盖(停产)Suzuki Oil Tank Cap (NLA)1
569241-95510机油箱盖垫片（停产件）Oil Tank Cap Gasket (NLA)1
609280-41006O型圈O-Ring1
769311-94700机油箱支架（停产件）Oil Tank Support (NLA)1
809160-06084垫圈 (6.5x18x1.6)Washer (6.5x18x1.6)3
909180-06310垫片(6.5x10x10)Spacer (6.5x10x10)3
1009320-10075缓冲垫Cushion3
1101550-06167螺栓BOLT2
1202162-06257螺钉SCREW3
1309403-12308夹具(停产)Clamp (NLA)1
1434860-94741油位开关总成Oil Level Switch Assembly1
1534700-92E11监控仪表总成(停产)Monitor Gauge Assembly (NLA)1

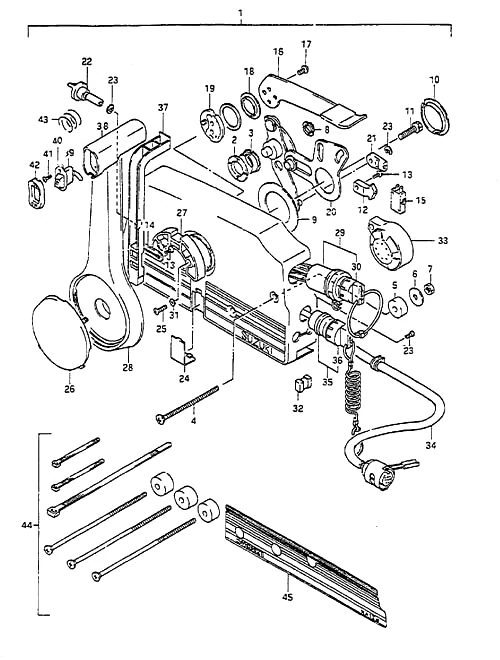

图 42遥控装置(1988至1992款) Remote Control(1988 to 1992)
遥控装置(1988至1992款) Remote Control(1988 to 1992)
REF零件编号中文名称英文名称数量
167200-87D61侧装控制箱(停产)Side Mount Control Box (NLA)1
267232-95600衬套Bushing1
367232-95620衬套(停产)Bushing (NLA)1
467296-95600螺钉Screw3
567294-95600垫片Spacer3
609160-06104垫圈 (6.5x24x2)Washer (6.5x24x2)3
709140-06020螺母(6mm)Nut (6mm)3
867232-95610衬套(停产)Bushing (NLA)1
967253-95600垫圈 (停产)Washer (NLA)1
1067252-95600衬套Bushing1
1109100-08232螺栓(8x30)Bolt (8x30)1
1267238-87D00驱动齿轮Drive Gear1
1367296-94300螺钉(4x10)Screw (4x10)3
1467258-87D00空挡臂支架Neutral Arm Bracket1
1537721-94601空挡开关总成Neutral Switch Assembly1
1709126-05003螺钉(5x12)Screw (5x12)2
1867243-95600衬套(停产)Bushing (NLA)1
1967245-95600自由节流鼓(停产)Free Throttle Drum (NLA)1
2067220-95620挡板总成Plate Assembly1
2167275-95600电缆端头Cable End2
2267223-95600制动调节旋钮Brake Adjustment Knob1
2367292-94300E型卡环E Ring3
2467267-95610电线护套(黑色)Wire Cover (Black)1
2567296-95610螺钉Screw7
2667257-95610操纵杆帽(黑色)Lever Cap (Black)1
2767256-95600空挡锁支架Neutral Lock Holder1
2867251-95680灰色手柄操纵杆(停产)Handle Lever (Gray) (NLA)1
2937110-99E02点火开关总成Ignition Switch Assembly1
3167297-95600垫片Washer2
3267273-95600垫片Spacer1
3338500-92X50警报蜂鸣器Warning Buzzer1
3436620-92E0021英尺主线束（停产）21' Main Wire Harness (NLA)1
3537820-92E05紧急停机开关总成Emergency Stop Switch Assembly1
3637823-94401紧急停机开关帽Emergency Stop Switch Cap1
3767255-95600空挡锁臂Neutral Lock Arm1
3937860-94610升降开关总成Trim Switch Assembly1
4037869-95590升降开关帽Trim Switch Cap1
4109139-02003螺钉(2x6)Screw (2x6)2
4267263-95600握把盖Grip Cap1
4367259-87D00空挡臂弹簧（停产）Neutral Arm Spring (NLA)1
4467140-95600替代件67140-95601Replaced by 67140-956011
4567282-95610左舷标识贴(黑色)(停产)Port Decal (Black) (NLA)1

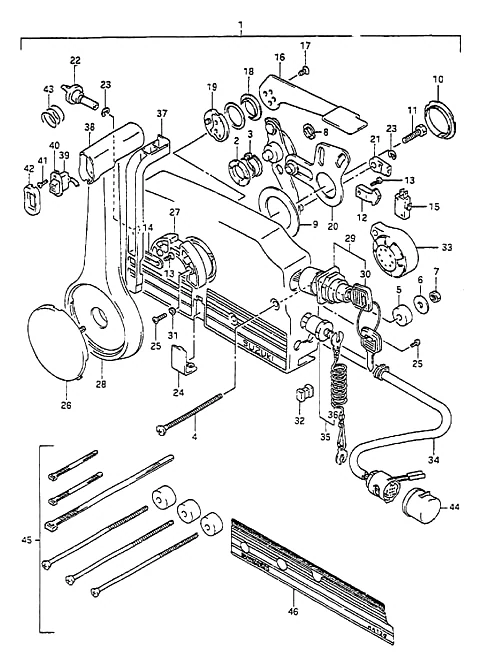

图 43遥控装置(1993至1997款) Remote Control(1993 to 1997)
遥控装置(1993至1997款) Remote Control(1993 to 1997)
REF零件编号中文名称英文名称数量
167200-87D61侧装控制箱(停产)Side Mount Control Box (NLA)1
267232-95600衬套Bushing1
367232-95620衬套(停产)Bushing (NLA)1
467296-95600螺钉Screw3
567294-95600垫片Spacer3
609160-06104垫圈 (6.5x24x2)Washer (6.5x24x2)3
709140-06020螺母(6mm)Nut (6mm)3
867232-95610衬套(停产)Bushing (NLA)1
967253-95600垫圈 (停产)Washer (NLA)1
1067252-95600衬套Bushing1
1109100-08232螺栓(8x30)Bolt (8x30)1
1267238-87D00驱动齿轮Drive Gear1
1367296-94300螺钉(4x10)Screw (4x10)3
1467258-87D00空挡臂支架Neutral Arm Bracket1
1537721-94601空挡开关总成Neutral Switch Assembly1
1667241-95680自由节流杆(灰色)(停产)Free Throttle Lever (Gray) (NLA)1
1709126-05003螺钉(5x12)Screw (5x12)2
1867243-95600衬套(停产)Bushing (NLA)1
1967245-95600自由节流鼓(停产)Free Throttle Drum (NLA)1
2067220-95620挡板总成Plate Assembly1
2167275-95600电缆端头Cable End2
2267223-95600制动调节旋钮Brake Adjustment Knob1
2367292-94300E型卡环E Ring3
2467267-95610电线护套(黑色)Wire Cover (Black)1
2567296-95610螺钉Screw7
2667257-95610操纵杆帽(黑色)Lever Cap (Black)1
2767256-95600空挡锁支架Neutral Lock Holder1
2867251-95680灰色手柄操纵杆(停产)Handle Lever (Gray) (NLA)1
2937110-99E02点火开关总成Ignition Switch Assembly1
3167297-95600垫片Washer2
3267273-95600垫片Spacer1
3338500-92X50警报蜂鸣器Warning Buzzer1
3436620-92E0021英尺主线束（停产）21' Main Wire Harness (NLA)1
3537820-92E05紧急停机开关总成Emergency Stop Switch Assembly1
3637823-92E02停机开关拉绳Stop Switch Lanyard1
3767255-95600空挡锁臂Neutral Lock Arm1
3867261-95600动力升降倾斜装置专用手柄握把Handle Grip for PTT1
3937860-94610升降开关总成Trim Switch Assembly1
4037869-95590升降开关帽Trim Switch Cap1
4109139-02003螺钉(2x6)Screw (2x6)2
4267263-95600握把盖Grip Cap1
4367259-87D00空挡臂弹簧（停产）Neutral Arm Spring (NLA)1
4436629-92E00连接器插头(停产)Connector Plug (NLA)1
4567140-95600替代件67140-95601Replaced by 67140-956011
4667282-95610左舷标识贴(黑色)(停产)Port Decal (Black) (NLA)1

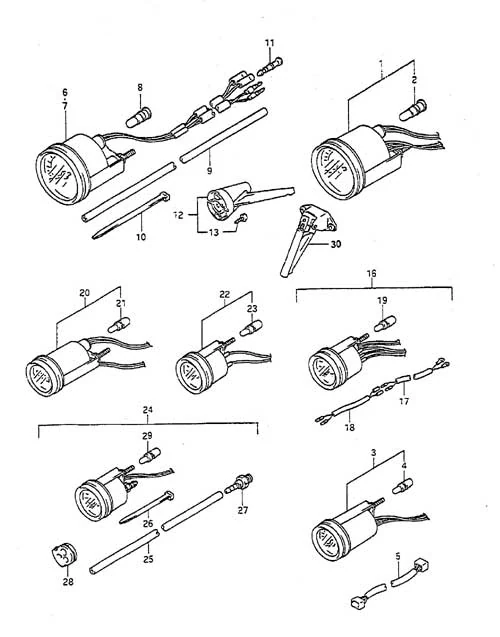

图 44仪表 Meter
仪表 Meter
REF零件编号中文名称英文名称数量
134200-92E01转速表(停产)Tachometer (NLA)1
209471-12179红色灯泡Bulb (Red)1
334800-92E00升降仪表总成(停产)Trim Meter Assembly (NLA)1
409471-12180灯泡(停产)Bulb (NLA)1
536682-92E00线束Wire Harness1
634100-92E00速度表(80英里)(停产)Speedometer (80mph) (NLA)1
734100-92E10速度表(50英里)(停产)Speedometer (50mph) (NLA)1
809471-12179红色灯泡Bulb (Red)1
934191-92E00水压管Water Pressure Tubing1
1009407-14407卡箍(长:140)Clamp (L:140)2
1136615-96300树脂端子Resin Terminal2
1634300-92E00燃油表组件(停产)Fuel Gauge Set (NLA)1
1734310-92E00燃油表导线(停产)Fuel Gauge Lead (NLA)1
1834360-92E00适配线束(停产)Adapter Harness (NLA)1
1909471-12180灯泡(停产)Bulb (NLA)1
2034500-92E00计时表(停产)Hour Meter (NLA)1
2109471-12180灯泡(停产)Bulb (NLA)1
2234600-92E00电压表(停产)Volt Meter (NLA)1
2309471-12180灯泡(停产)Bulb (NLA)1
2434650-92E00水压表(停产)Water Pressure Gauge (NLA)1
2534191-92E00水压管Water Pressure Tubing1
2609407-14407卡箍(长:140)Clamp (L:140)2
2734652-92E00联管节(停产)Union (NLA)1
2836658-95600电缆护圈(停产)Cable Grommet (NLA)1
2909471-12180灯泡(停产)Bulb (NLA)1
3034190-87D00速度表传感器Speedometer Sensor1

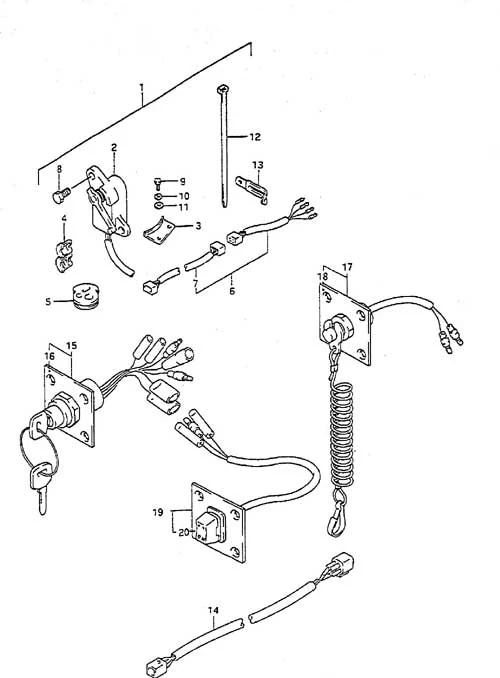

图 45面板开关 Panel Switch
面板开关 Panel Switch
REF零件编号中文名称英文名称数量
334802-95301动力升降倾斜附件(停产)PTT Attachment (NLA)1
434803-94500升降感应器护套(停产)Trim Sensor Grommet (NLA)1
536658-95600电缆护圈(停产)Cable Grommet (NLA)1
636680-92E00升降仪表线束总成(停产)Trim Meter Wire Assembly (NLA)1
736682-92E00线束Wire Harness1
809100-06113螺栓(6x16)Bolt (6x16)2
909100-06131螺栓(6x12)Bolt (6x12)2
1009162-06006锁紧垫圈Lock Washer2
1109160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
1537100-92E00点火开关面板总成(停产)Ignition Switch Panel Assembly (NLA)1
1537139-92E01单机点火开关面板Single Ingition Switch Panel1
1737803-92E00紧急停机开关总成(停产)Emergency Stop Switch Assembly (NLA)1
1837825-92E00紧急开关面板Emergency Switch Panel1
1937805-92E00动力升降倾斜开关套装(停产)PTT Switch Set (NLA)1
2037855-92E00动力升降倾斜开关面板(停产)PTT Switch Panel (NLA)1

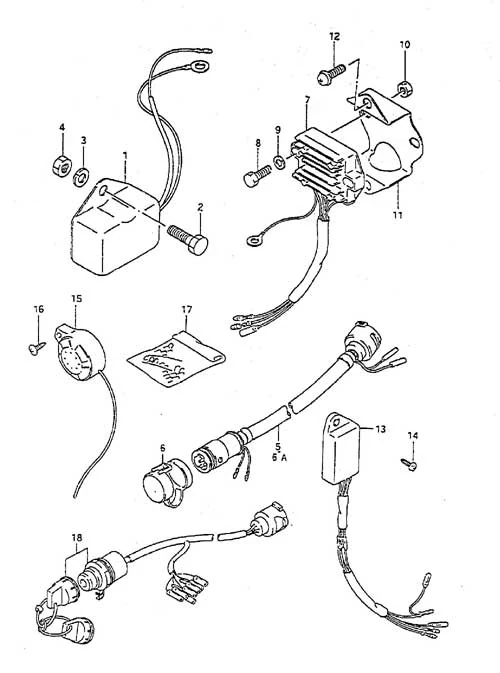

图 46电气部件(1) Electrical (1)
电气部件(1) Electrical (1)
REF零件编号中文名称英文名称数量
132500-95722电压调节器总成(停产)Voltage Regulator Assembly (NLA)1
201500-06127螺栓BOLT2
308321-01067锁紧垫圈Lock Washer2
408310-00067螺母Nut2
636631-94300盖帽Cap1
732800-94700电压调节器总成(停产)Voltage Regulator Assembly (NLA)1
801500-06207螺栓BOLT2
908321-01067锁紧垫圈Lock Washer2
1008310-00067螺母Nut2
1132590-94700电压调节器支架(停产)Voltage Regulator Bracket (NLA)1
1202142-06127螺钉 6×12SCREW 6X122
1334250-94703转速表控制单元(停产)Tachometer Control Unit (NLA)1
1403141-0516A螺钉SCREW1
1736990-87D00端子套管套装Terminal & Sleeve Set1

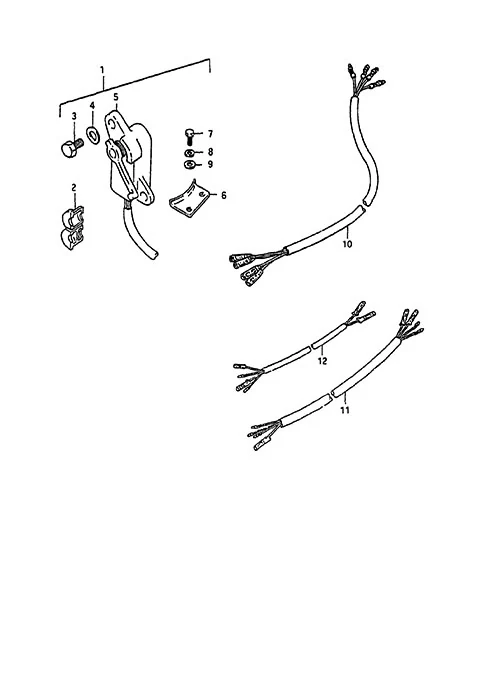

图 47电气部件(2) Electrical (2)
电气部件(2) Electrical (2)
REF零件编号中文名称英文名称数量
134804-94701升降传感器套装(停产)Trim Sender Set (NLA)1
234803-94500升降感应器护套(停产)Trim Sensor Grommet (NLA)1
301550-06167螺栓BOLT2
409160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
534804-94701升降传感器套装(停产)Trim Sender Set (NLA)1
634802-95301动力升降倾斜附件(停产)PTT Attachment (NLA)1
709100-06131螺栓(6x12)Bolt (6x12)2
809162-06006锁紧垫圈Lock Washer2
909160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
1136640-95500升降继电器线束(停产)Trim Relay Harness (NLA)1
1237853-95251升降开关线束(停产)Trim Switch Harness (NLA)1
图 48线束 Harness
线束 Harness
REF零件编号中文名称英文名称数量
134108-94510仪表开关总成(停产)Meter Switch Assembly (NLA)1
234109-94500延长导线(停产)Extension Lead (NLA)1
436670-94700线束延长件(停产)Wire Harness Extension (NLA)1
536615-96300树脂端子Resin Terminal2
636630-87D00仪表延长线束总成(停产)Meter Ext. Harness Assembly (NLA)1

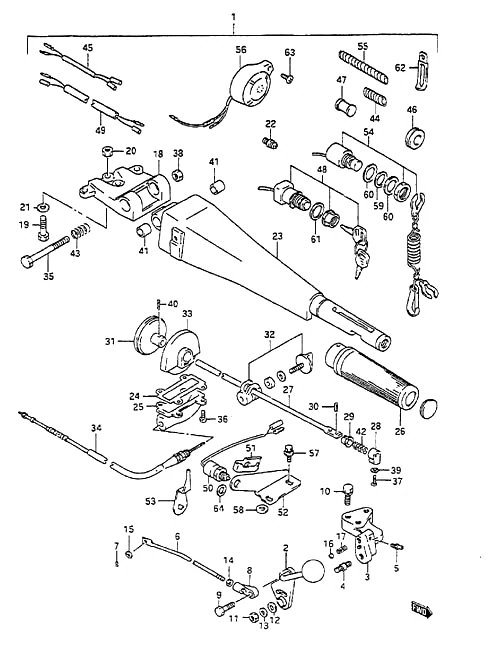

图 48A手柄(1996至1997款) Handle(1996 to 1997)
手柄(1996至1997款) Handle(1996 to 1997)
REF零件编号中文名称英文名称数量
163001-95610-0ED舵柄手柄总成（停产）Tiller Handle Assembly (NLA)1
221110-94702离合器操纵杆(停产)Clutch Lever (NLA)1
321150-95214-0ED离合器操纵杆支架(停产)Clutch Lever Bracket (NLA)1
421211-95212离合器操纵杆轴(停产)Clutch Lever Shaft (NLA)1
522511-99011黄油嘴Grease Nipple1
623115-94720离合器操纵杆连杆(停产)Clutch Lever Link (NLA)1
709385-06003销 (停产)Pin (NLA)1
823312-95210离合器连杆连接器Clutch Link Connector1
909111-06064螺栓(6x17)Bolt (6x17)1
1009117-08109螺栓(8x16)Bolt (8x16)1
1109159-08059螺母Nut1
1209160-08081垫圈 (8.5x23x1.5)Washer (8.5x23x1.5)2
1309162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)1
1409140-05005螺母Nut1
1508322-01067垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)1
1609260-10005钢球Ball1
1709440-07021弹簧Spring1
1843761-95501-0ED转向手柄支架(停产)Steering Handle Bracket (NLA)1
1943762-95500螺栓(停产)Bolt (NLA)2
2043764-95500螺母(停产)Nut (NLA)2
2109160-10098垫片(10x18x1.0)Washer (10x18x1.0)2
2222511-99011黄油嘴Grease Nipple1
2363111-95503-0ED舵柄手柄（停产）Tiller Handle (NLA)1
2463119-95500舵柄手柄盖垫片（停产）Tiller Handle Cover Gasket (NLA)1
2563121-95501-0ED舵柄手柄盖（停产）Tiller Handle Cover (NLA)1
2663210-93E30手柄握把Handle Grip1
2763221-95500手柄杆(停产)Handle Rod (NLA)1
2863223-92D00手柄杆止动器Handle Rod Stopper1
2963225-93200手柄杆衬套Handle Rod Bushing1
3063227-93200手柄杆销Handle Rod Pin1
3163230-95501节气门拉线齿轮Throttle Cable Gear1
3263240-96300手柄握把调节器Handle Grip Adjuster1
3363410-95500齿轮壳体 (停产)Gear Housing (NLA)1
3463610-95511节气门拉线总成Throttle Cable Assembly1
3509100-10264螺栓(10x80)Bolt (10x80)1
3609125-06053螺钉(6x16)Screw (6x16)4
3709126-06015螺钉(6x23)Screw (6x23)1
3809159-10050螺母Nut1
3909163-060016.4x12x0.5锁紧垫圈Lock Washer (6.4x12x0.5)1
4009205-03012弹簧销 (3x16)Spring Pin (3x16)1
4109306-10009手柄衬套Handle Bushing4
4209440-12027弹簧Spring1
4309440-22008弹簧Spring1
4433833-91J00管(6x8x250)Tube (6x8x250)1
4536647-95600动力升降倾斜装置继电器导线(停产)PTT Relay Wire (NLA)1
4636656-94310延长线束导板(停产)Extension Harness Guide (NLA)1
4736663-94700线束帽(停产)Wiring Harness Cap (NLA)1
4837110-94641点火开关总成(停产)Ignition Switch Assembly (NLA)1
4937111-95310蜂鸣器导线(停产)Buzzer Lead (NLA)1
5037721-95592空挡开关总成（停产）Neutral Switch Assembly (NLA)1
5137725-95300空挡开关执行器Neutral Switch Actuator1
5337729-95591空档开关拨杆(停产)Neutral Switch Lever (NLA)1
5437820-92E05紧急停机开关总成Emergency Stop Switch Assembly1
5533833-91J00管(6x8x250)Tube (6x8x250)1
5638500-92X50警报蜂鸣器Warning Buzzer1
5709118-06027螺栓(停产)Bolt (NLA)2
5809160-06104垫圈 (6.5x24x2)Washer (6.5x24x2)1
5909160-12087垫片Washer1
6009160-12067垫圈 (12.5x23x1.0)Washer (12.5x23x1.0)2
6109160-25069垫片Washer1
6303142-05253螺钉(停产)Screw (NLA)1

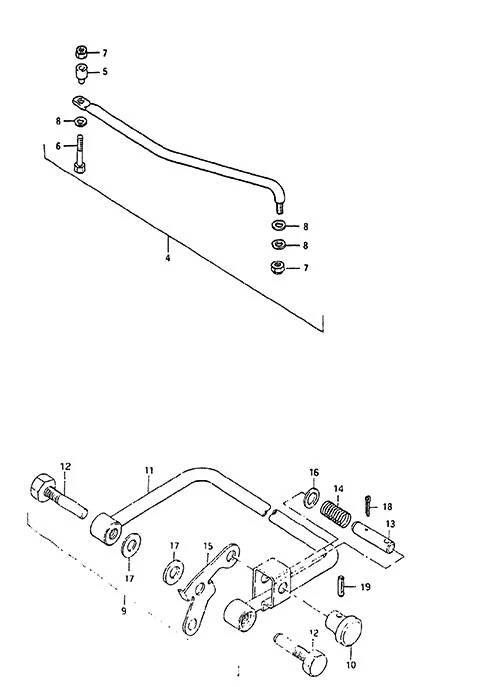

图 49拉杆 Tie Rod
拉杆 Tie Rod
REF零件编号中文名称英文名称数量
467701-95520转向拉杆总成(停产)Drag Link Assembly (NLA)1
567721-99E00转向拉杆隔套Drag Link Spacer1
667725-99E10替代件67725-99E20Replaced by 67725-99E201
767726-99E00锁紧螺母Lock Nut2
867728-99E00垫片Washer3
945600-95250拖车臂总成(停产)Trailer Arm Assembly (NLA)1
1041221-98400倾斜止动旋钮Tilt Stopper Knob1
1145610-95250拖车臂(停产)Trailering Arm (NLA)1
1245615-95250螺栓(停产)Bolt (NLA)2
1345621-95250销 (停产)Pin (NLA)1
1445622-95250弹簧(停产)Spring (NLA)1
1545631-95250锁臂板(停产)Lock Arm Plate (NLA)1
1609160-10082垫片(10.5x19x2.0)Washer (10.5x19x2.0)1
1709160-12066垫圈 (12.5x22x2.5)Washer (12.5x22x2.5)2
1809205-03012弹簧销 (3x16)Spring Pin (3x16)1
1809204-01002开口销Cotter Pin1

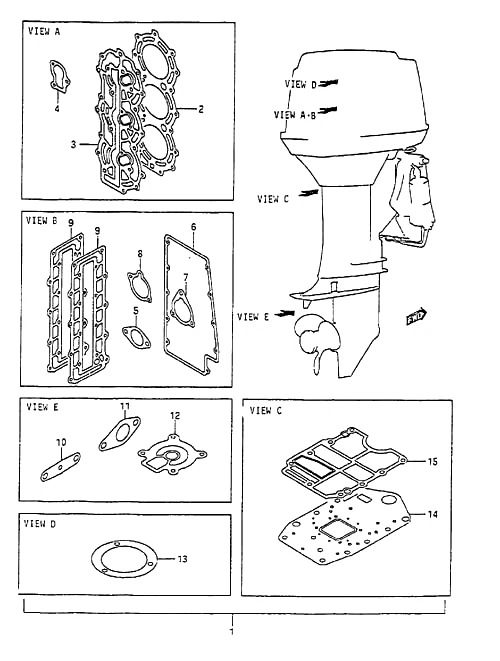

图 50垫片套装 Gasket Set
垫片套装 Gasket Set
REF零件编号中文名称英文名称数量
111400-94802发动机衬垫套装Engine Gasket Set1
211162-94730气缸盖罩衬垫Cylinder Head Cover Gasket1
311141-94720气缸盖垫片Cylinder Head Gasket1
417685-94410节温器垫片Thermostat Gasket1
513125-95210化油器衬垫Carburetor Gasket3
613853-94710消声器盖垫片(停产)Silencer Cover Gasket (NLA)1
813855-95210消声器垫片Silencer Gasket3
914151-94712排气盖衬垫(停产)Exhaust Cover Gasket (NLA)2
1015321-99710燃油泵垫片Fuel Pump Gasket1
1116731-95520机油泵固定座衬垫（停产）Oil Pump Retainer Gasket (NLA)1
1217472-95310水泵板衬垫Water Pump Plate Gasket1
1311413-94710上油封壳衬垫Upper Oil Seal Hsg Gasket1
1451211-94750发动机支架衬垫(停产)Engine Holder Gasket (NLA)1
1552113-94731驱动轴壳体衬垫(停产)Drive Shaft Housing Gasket (NLA)1

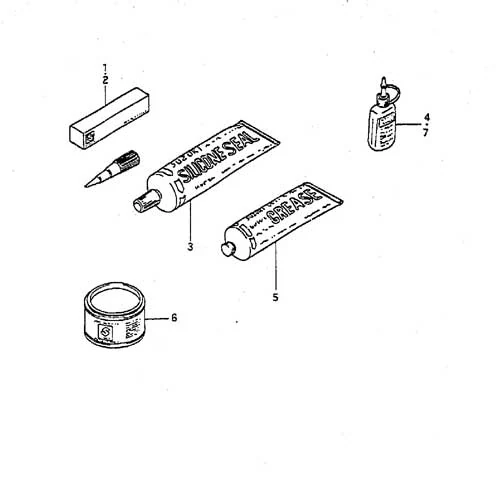

图 51选配件 Optional
选配件 Optional
REF零件编号中文名称英文名称数量
199000-31030液态衬垫(停产)Liguid Gasket (NLA)1
293691-80030铃木硅胶密封剂Suzuki Silicone Seal1
599000-25520防水润滑脂Water Resistant Grease1
699000-25490铃木Ecstar超级润滑脂CSuzuki Ecstar Super Grease C1
