舟一会 ZHOUYIHUI 船外机

铃木 Suzuki DT 4 1998 - 爆炸图零件明细

1998 年 · 共 35 个部位 · 613 条零件

1气缸盖3曲轴5化油器7燃油泵9水泵11反冲启动器13离合器14磁电机(1988至1996款)15磁电机(1997至1998年款)17夹具支架18旋转支架19驱动轴壳体20齿轮箱21变速箱22下盖(1988至1996款)23下盖(1997至1998款)25发动机罩(1988至1993年款)26发动机罩(1994至1996年款)27发动机罩(1997至1998年款)29油箱(1988至1993款)30油箱(1994至1998款)32燃油箱33舵柄(1988至1992款)34舵柄(1993至1998款)36选配:电动系统38选配:电动系统39选配: 燃油箱(1988至1992款)40选配: 燃油箱(1988至1992款)41选配: 燃油箱(1993至1998款)42选配: 遥控装置(1988至1992款)43选配: 遥控装置(1993至1998款)44选配: 遥控装置45选配: 遥控部件46选配: 衬垫套装48选配件
图 1气缸盖 Cylinder Head
气缸盖 Cylinder Head
REF零件编号中文名称英文名称数量
109103-06048螺栓(6x20)(停产)Bolt (6x20) (NLA)5
211161-98603-0ED气缸盖罩(停产)Cylinder Head Cover (NLA)1
311162-98610气缸盖罩衬垫Cylinder Head Cover Gasket1
516710-95D10机油止回阀Oil Check Valve1
604211-09109定位销DOWEL PIN2
701550-06357螺栓BOLT4
801550-06307螺栓BOLT2
1011251-98600-0ED右舷端口盖（停产）Starboard Port Cover (NLA)1
1111252-98600-0ED左舷端口盖(停产)Port Port Cover (NLA)1
1209103-06172螺栓(6x12)Bolt (6x12)4
1309280-32006O型圈O-Ring2
1411218-98601水套盖(停产)Water Jacket Cover (NLA)1
1509126-05003螺钉(5x12)Screw (5x12)2
1611219-98610水套垫片Water Jacket Gasket1
1713152-98300簧片阀限位器(停产)Reed Valve Stopper (NLA)1
1813153-98600簧片阀Reed Valve1
1902112-3308A螺钉SCREW2
2061181-98600下排水孔盖(停产)Lower Drain Hole Cover (NLA)1
2109355-25705-600软管(2.5×7×600)Hose (2.5x7x600)1
2209401-06101卡箍Clamp2

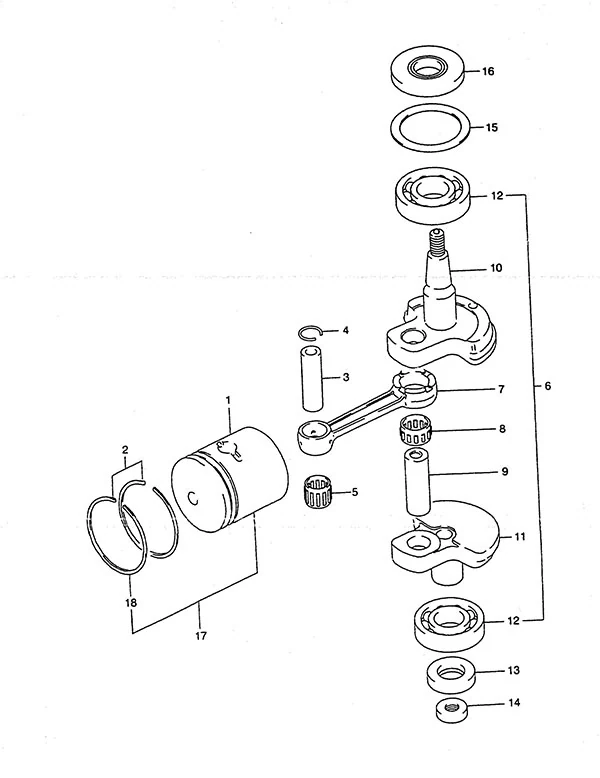

图 3曲轴 Crankshaft
曲轴 Crankshaft
REF零件编号中文名称英文名称数量
112110-98601活塞Piston1
212140-99604活塞环组Piston Ring Set1
312151-35400活塞销Piston Pin1
409381-12001活塞销卡簧Piston Pin Circlip2
509263-12023轴承(12x16x16)Bearing (12x16x16)1
612200-98604曲轴总成(停产)Crankshaft Assembly (NLA)1
712161-98602连杆Connecting Rod1
809263-17022轴承(17x23x13.8)Bearing (17x23x13.8)1
912211-96001曲轴销(停产)Crankshaft Pin (NLA)1
1012221-98600上曲轴(停产)Upper Crankshaft (NLA)1
1112240-98602曲轴下部(停产)Under Crankshaft (NLA)1
1209262-20069轴承(20x47x44)Bearing (20x47x44)2
1309283-20018油封(20x37x9)Oil Seal (20x37x9)1
1409283-10003油封Oil Seal1
1509160-38001垫片Washer1
1609283-20045曲轴油封Crankshaft Oil Seal1

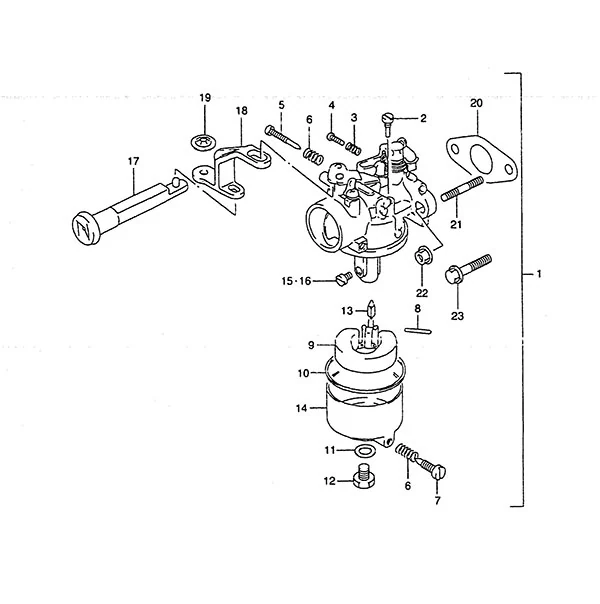

图 5化油器 Carburetor
化油器 Carburetor
REF零件编号中文名称英文名称数量
209492-45035引导喷嘴#45Pilot Jet #451
313268-92910弹簧Spring1
413534-98900螺钉Screw1
513269-98300引导空气调节螺钉(停产)Pilot Air Screw (NLA)1
613268-96111弹簧Spring2
713616-93900调节器Adjuster1
813254-98300浮子销Float Pin1
913250-98310化油器浮子Carburetor Float1
1013251-98300浮子室衬垫Float Chamber Gasket1
1113343-98520燃烧室衬垫螺栓Bolt Chamber Gasket1
1213613-98300螺栓(停产)Bolt (NLA)1
1313371-98300针阀Needle Valve1
1413245-98900浮子室Float Chamber1
1509491-97004主量孔#97.5Main Jet #97.51
1713631-98610阻风门杆旋钮(停产)Choke Lever Knob (NLA)1
1813633-98601阻风门杆(停产)Choke Lever (NLA)1
1909148-06008螺母Nut1
2013125-98310化油器衬垫Carburetor Gasket1
2301570-06207螺栓BOLT1

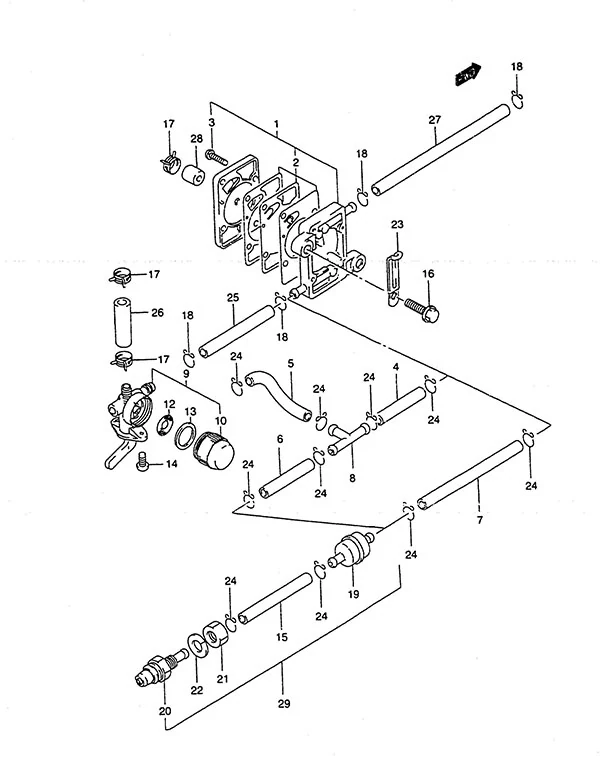

图 7燃油泵 Fuel Pump
燃油泵 Fuel Pump
REF零件编号中文名称英文名称数量
115100-98610燃油泵总成Fuel Pump Assembly1
215170-98110燃油泵膜片组Fuel Pump Diaphragm Set1
315251-98101螺钉(停产)Screw (NLA)4
409352-50006-600软管(5x9x600)Hose (5x9x600)1
509352-50006-600软管(5x9x600)Hose (5x9x600)1
609352-50006-600软管(5x9x600)Hose (5x9x600)1
709352-50006-600软管(5x9x600)Hose (5x9x600)1
809367-06002三通3 Way1
966100-98601燃油旋塞总成Fuel Cock Assembly1
1066171-98301燃油滤清器杯Fuel Filter Cup1
1266152-98300燃油旋塞滤清器Fuel Cock Filter1
1366273-98301燃油旋塞垫片Fuel Cock Gasket1
1402142-04127十字螺钉 4×12SCREW 4X12 CROS2
1509352-50006-600软管(5x9x600)Hose (5x9x600)1
1609103-06048螺栓(6x20)(停产)Bolt (6x20) (NLA)2
1709401-10411卡扣Clip3
1809401-08410卡扣Clip4
1915410-98500燃油滤清器Fuel Filter1
2109140-10032螺母Nut1
2208321-01107锁紧垫圈Lock Washer1
2409401-08410卡扣Clip10
2509352-50006-600软管(5x9x600)Hose (5x9x600)1
2709352-50006-600软管(5x9x600)Hose (5x9x600)1
2965700-98680遥控油箱软管套装(停产)Remote Tank Hose Set (NLA)1

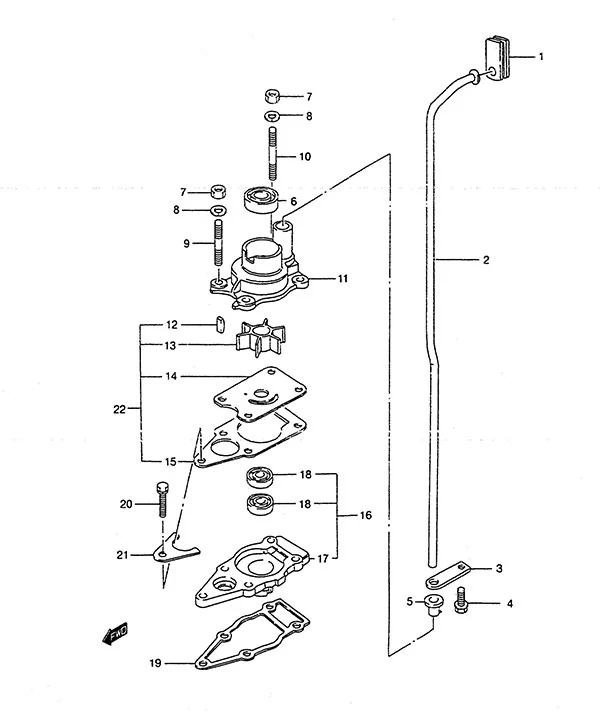

图 9水泵 Water Pump
水泵 Water Pump
REF零件编号中文名称英文名称数量
117563-98500水管护圈Water Tube Grommet1
317564-98600水管导套Water Tube Guide1
409117-06038螺栓(6x16)(停产)Bolt (6x16) (NLA)1
517415-98501水泵壳体护圈Water Pump Case Grommet1
609289-10002油封Oil Seal1
709140-06020螺母(6mm)Nut (6mm)4
809162-06006锁紧垫圈Lock Washer4
909108-06068双头螺栓(6x25)Stud Bolt (6x25)3
1209420-03002钥匙Key1
1317461-985M0水泵叶轮Water Pump Impeller1
1417471-98601水泵板Water Pump Plate1
1517472-98611水泵板衬垫Water Pump Plate Gasket1
1656130-98602驱动轴壳体Drive Shaft Housing1
1756134-98600驱动轴外壳(停产)Driveshaft Housing (NLA)1
1809282-10008油封(10x21x4.5)Oil Seal (10x21x4.5)2
1956132-98610驱动轴壳体衬垫Drive Shaft Housing Gasket1
2009117-06049螺栓(6x25)Bolt (6x25)1
2125215-98601换挡杆导套止动器Shift Rod Guide Stopper1
2217400-98652DT4/DT5水泵维修套件Water Pump Repair Kit DT4 / DT51

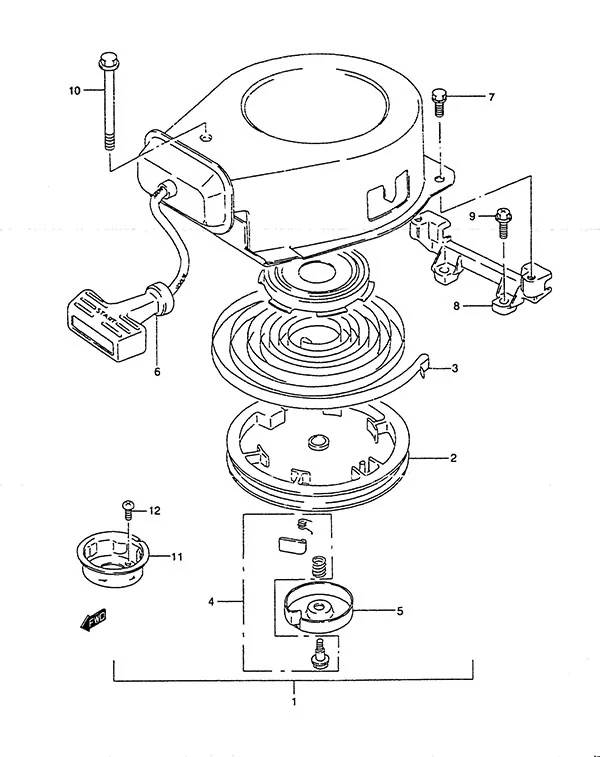

图 11反冲启动器 Recoil Starter
反冲启动器 Recoil Starter
REF零件编号中文名称英文名称数量
118100-98602反冲启动器总成Recoil Starter Assembly1
218121-90604启动卷盘Starter Reel1
318142-98600反冲弹簧Recoil Spring1
418130-98600棘轮套件（停产）Ratchet Set (NLA)1
518151-90600挡板(停产)Plate (NLA)1
618210-98600握把总成(停产)Grip Assembly (NLA)1
818711-986A0-0ED反冲启动器支撑架(停产)Recoil Starter Brace (NLA)1
902162-06207螺钉SCREW2
1009103-06159螺栓(6x75)(停产)Bolt (6x75) (NLA)1
1118411-98601启动器杯（停产）Starter Cup (NLA)1
1202112-06127螺钉SCREW3

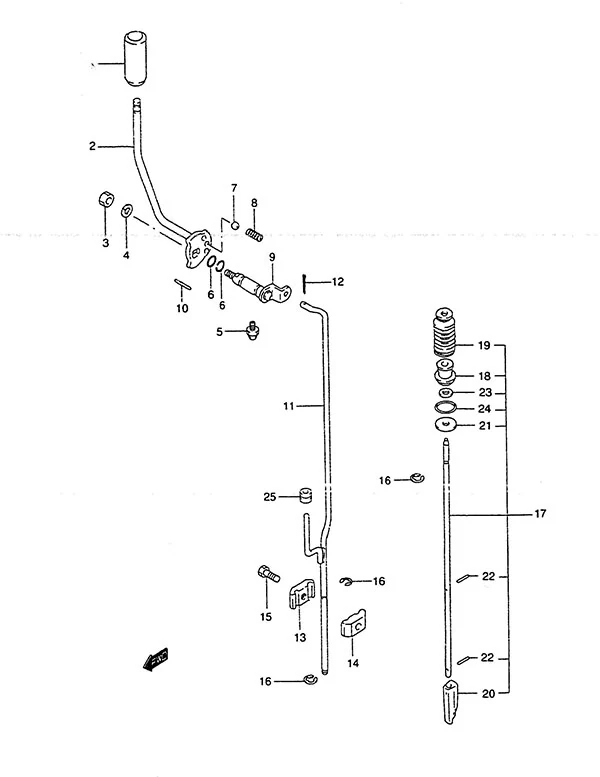

图 13离合器 Clutch
离合器 Clutch
REF零件编号中文名称英文名称数量
121141-98500离合器操纵杆旋钮Clutch Lever Knob1
221110-98503离合器操纵杆Clutch Lever1
309140-08023-XC0螺母(8mm)Nut (8mm)1
409162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)1
522511-99011黄油嘴Grease Nipple1
609280-09005O型圈O-Ring2
709260-10005钢球Ball1
809440-07021弹簧Spring1
921210-98601离合器操纵杆轴(停产)Clutch Lever Shaft (NLA)1
1009205-05014销Pin1
1209204-01002开口销Cotter Pin1
1323311-99001离合器推杆连接器Clutch Rod Connector1
1423321-99001离合器推杆连接器Clutch Rod Connector1
1509138-06037螺栓(6x20)Bolt (6x20)1
1609383-04002E型卡环E Ring3
1725100-98603换挡拉杆总成(停产)Shift Rod Assembly (NLA)1
1825211-98601换挡杆导套Shift Rod Guide1
1925222-93902换挡拉杆防尘套Shift Rod Boot1
2025311-93910换挡凸轮Shift Cam1
2109160-05501垫圈 (5.5x20x1.2)Washer (5.5x20x1.2)1
2209205-02006弹簧销 (2x12)Spring Pin (2x12)2
2309280-05008O型圈O-Ring1
2409280-15007O型圈O-Ring1
2509320-04010衬套Bushing1

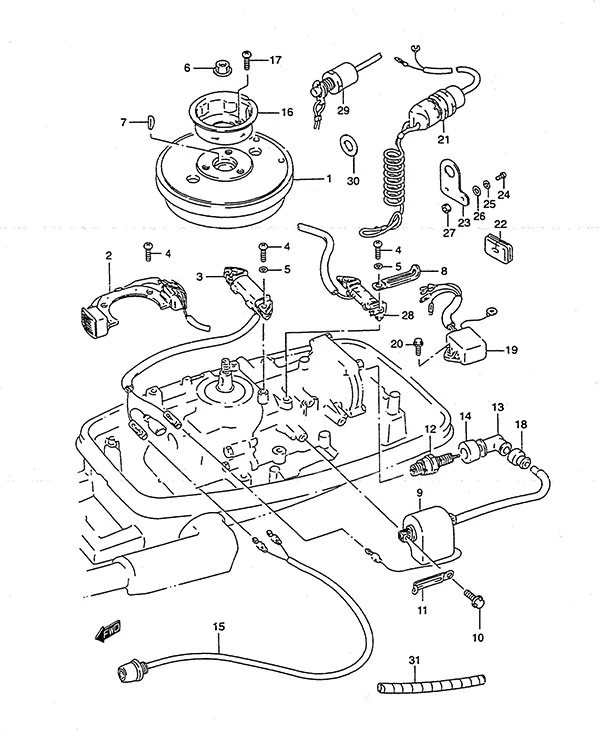

图 14磁电机(1988至1996款) Magneto(1988 to 1996)
磁电机(1988至1996款) Magneto(1988 to 1996)
REF零件编号中文名称英文名称数量
132102-98611飞轮(停产)Flywheel (NLA)1
232200-98610照明线圈(停产)Lighting Coil (NLA)1
332140-98611点火线圈Ignition Coil1
402112-05257螺钉 5×25SCREW 5X254
508321-0105A锁紧垫圈Lock Washer4
608316-1010B螺母Nut1
708341-31039半圆键Woodruff Key1
933410-98610点火线圈组件(停产)Ignition Coil Assembly (NLA)1
1009103-06048螺栓(6x20)(停产)Bolt (6x20) (NLA)2
1109404-06036卡箍(长:80)Clamp (L:80)1
1433541-93950火花塞密封圈Spark Plug Seal1
1537800-98572发动机停机开关总成(停产)Engine Stop Switch Assembly (NLA)1
1618411-98601启动器杯（停产）Starter Cup (NLA)1
1702112-06127螺钉SCREW3
1833542-38B00火花塞帽密封件Spark Plug Cap Seal1
1932900-98601CDI单元总成(停产)CDI Unit Assembly (NLA)1
2001550-06167螺栓BOLT1
2137830-89X51紧急开关总成(停产)Emergency Switch Assembly (NLA)1
2237824-92D00索环(停产)Grommet (NLA)1
2337950-93901开关支架(停产)Switch Bracket (NLA)1
2402112-0416A螺钉SCREW2
2508321-0104A锁紧垫圈Lock Washer2
2608322-01047垫片Washer2
2708310-0004A螺母Nut2
2832150-98600点火线圈(停产)Ignition Coil (NLA)1
2937830-89E04停机开关总成Stop Switch Assembly1
3009160-12067垫圈 (12.5x23x1.0)Washer (12.5x23x1.0)1
3133446-98E20高压保护管(停产)High Tension Protect Tube (NLA)1

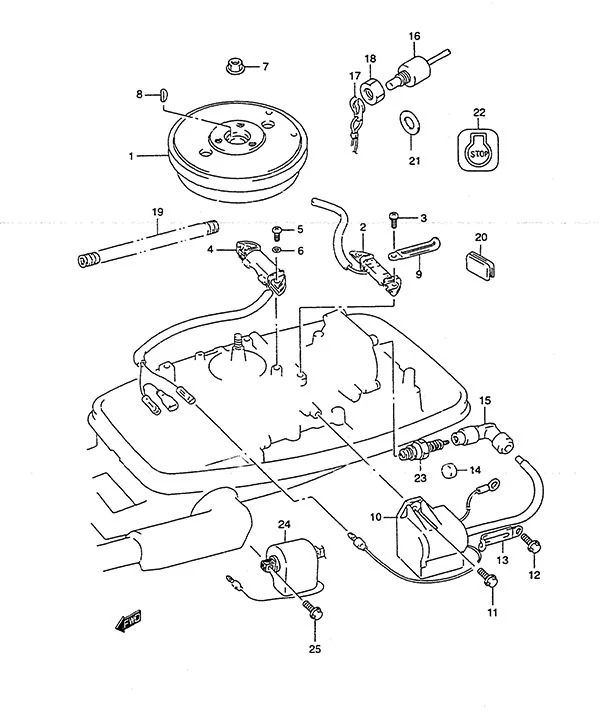

图 15磁电机(1997至1998年款) Magneto(1997 to 1998)
磁电机(1997至1998年款) Magneto(1997 to 1998)
REF零件编号中文名称英文名称数量
232140-98611点火线圈Ignition Coil1
302112-3520B螺钉SCREW2
432200-98600照明线圈Lighting Coil1
502112-0520B螺钉SCREW2
608321-0105A锁紧垫圈Lock Washer2
708316-1010B螺母Nut1
808341-31039半圆键Woodruff Key1
1033410-98620点火线圈组件(停产)Ignition Coil Assembly (NLA)1
1109103-06050螺栓(6x16)(停产)Bolt (6x16) (NLA)1
1209103-06049螺栓(6x12)(停产)Bolt (6x12) (NLA)1
1309404-06036卡箍(长:80)Clamp (L:80)1
1409329-06002缓冲垫(停产)Cushion (NLA)1
1533510-98601火花塞帽Spark Plug Cap1
1637830-89E04停机开关总成Stop Switch Assembly1
1737823-92E02停机开关拉绳Stop Switch Lanyard1
1837826-92E00螺母Nut1
1933446-98E20高压保护管(停产)High Tension Protect Tube (NLA)1
2039669-94400下盖塞Lower Cover Plug1
2109160-12067垫圈 (12.5x23x1.0)Washer (12.5x23x1.0)1
2237835-91J00-YAY止动标签Stop Label1
2309482-00359NGK BPR5HS火花塞NGK BPR5HS Spark Plug1
2433410-98600点火线圈组件(停产)Ignition Coil Assembly (NLA)1
2509103-06048螺栓(6x20)(停产)Bolt (6x20) (NLA)2

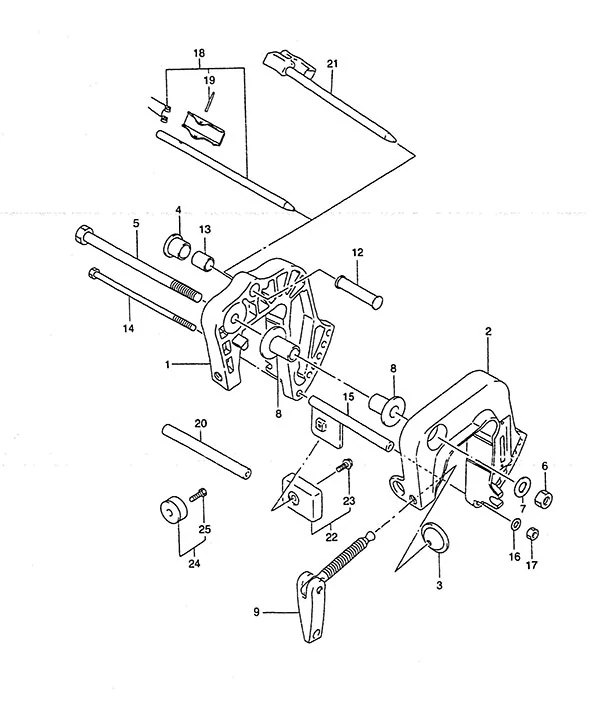

图 17夹具支架 Clamp Bracket
夹具支架 Clamp Bracket
REF零件编号中文名称英文名称数量
141111-98620-0ED右舷夹紧支架Starboard Clamp Bracket1
241121-98610-0ED左舷夹箍支架(停产)Port Clamp Bracket (NLA)1
341213-94J01夹紧板Clamp Plate2
441221-96301倾斜止动旋钮Tilt Stopper Knob1
509100-10217螺栓 (10x150)Bolt (10x150)1
609159-10050螺母Nut1
709160-10082垫片(10.5x19x2.0)Washer (10.5x19x2.0)1
809306-10011旋转支架衬套Swivel Bracket Bushing2
941210-986L1夹紧螺丝总成Clamp Screw Assembly2
1241222-93910倾斜止动销Tilt Stopper Pin1
1309303-14003衬套Bushing1
1409100-06177螺栓(6x140)Bolt (6x140)1
1541310-93901夹具支架连杆Clamp Bracket Rod1
1609162-06006锁紧垫圈Lock Washer1
1709140-06020螺母(6mm)Nut (6mm)1
1845420-92DL0倾斜锁定销Tilt Lock Pin1
1909205-03020销 (停产)Pin (NLA)1
2009180-06163垫片Spacer1
2145420-92DL0倾斜锁定销Tilt Lock Pin1
2255320-95311锌阳极Zinc Anode1
2309116-06094螺栓(6x15)Bolt (6x15)1
2411130-94600锌阳极Zinc Anode1
2509128-06021螺栓(6x14)Bolt (6x14)1

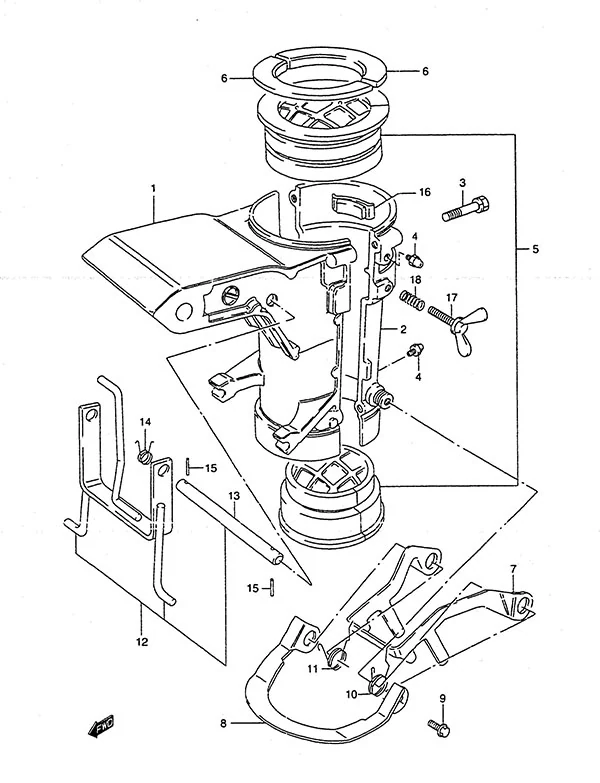

图 18旋转支架 Swivel Bracket
旋转支架 Swivel Bracket
REF零件编号中文名称英文名称数量
143111-98620-0ED旋转支架(停产)Swivel Bracket (NLA)1
243121-98620-0ED旋转支架盖(停产)Swivel Bracket Cover (NLA)1
309117-06043螺栓(6x40)Bolt (6x40)4
422511-99011黄油嘴Grease Nipple4
543710-98601转向轴套套装BUSH SET,STEERI1
643712-98601上衬套板Upper Bushing Plate2
745231-98601倒挡锁止臂(停产)Reverse Lock Arm (NLA)1
845232-98600倒车锁板(停产)Reverse Lock Plate (NLA)1
909116-06094螺栓(6x15)Bolt (6x15)2
1045211-98601右舷弹簧（停产）Starboard Spring (NLA)1
1145212-98601左舷弹簧(停产)Port Spring (NLA)1
1245700-98600-0ED浅水驱动总成Shallow Water Drive Assembly1
1309200-08045浅水驱动轴（停产）Shallow Water Drive Shaft (NLA)1
1445722-98600弹簧(停产)Spring (NLA)1
1509204-01002开口销Cotter Pin2
1643410-98600转向调节器(停产)Steering Adjuster (NLA)1
1709119-06060螺栓(6x23)Bolt (6x23)1
1809440-09042弹簧Spring1

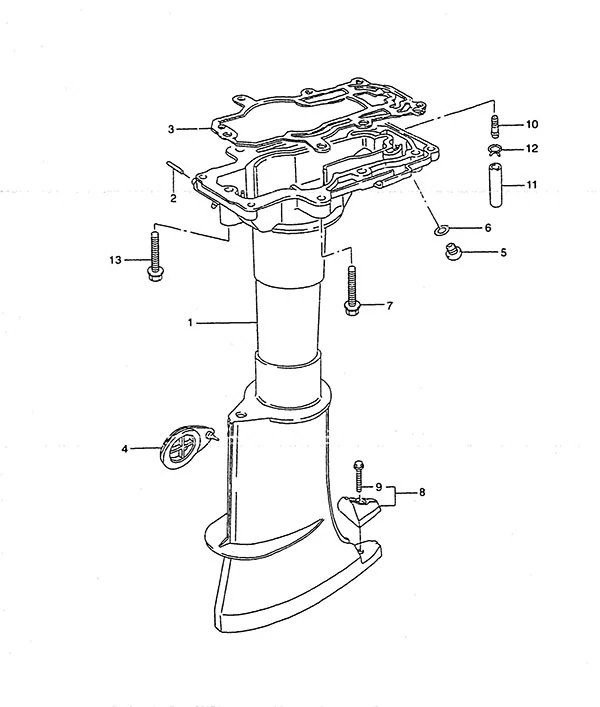

图 19驱动轴壳体 Drive Shaft Housing
驱动轴壳体 Drive Shaft Housing
REF零件编号中文名称英文名称数量
209205-10006销 (10.2x10)Pin (10.2x10)1
352113-98610驱动轴壳体衬垫Drive Shaft Housing Gasket1
452115-98600离合器调节孔盖Clutch Adjust Hole Cover1
509248-10008放油塞Drain Plug1
709118-08116螺栓(8x40)Bolt (8x40)6
609168-10022放油塞垫片Drain Plug Gasket1
855320-98600锌阳极Zinc Anode1
909116-06204螺栓(6x20)Bolt (6x20)1
1061155-94500检视管Water Inspection Tube1
1109352-50006-600软管(5x9x600)Hose (5x9x600)1
1209401-08410卡扣Clip1
1309118-08125螺栓(8x55)(停产)Bolt (8x55) (NLA)1

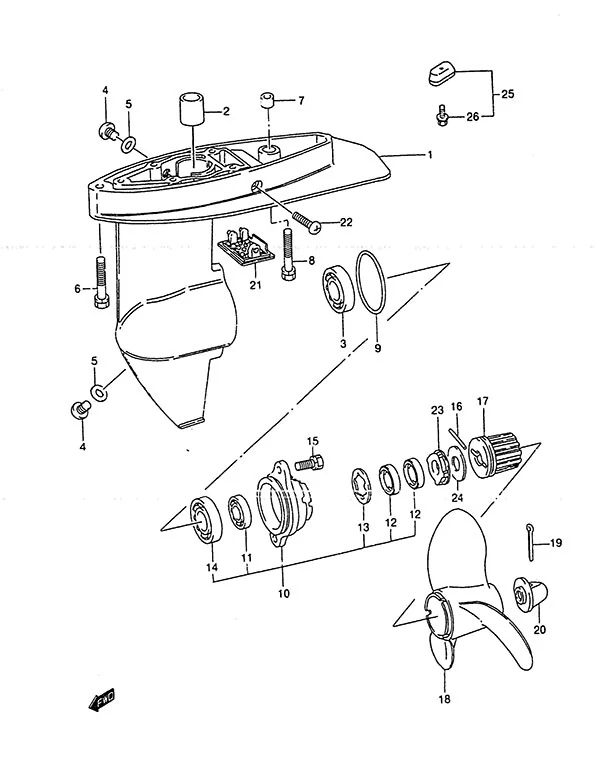

图 20齿轮箱 Gear Case
齿轮箱 Gear Case
REF零件编号中文名称英文名称数量
155110-98630-0ED齿轮箱壳体(停产)Gear Case Housing (NLA)1
259311-91J00小齿轮衬套Pinion Bushing1
409248-10008放油塞Drain Plug2
509168-10022放油塞垫片Drain Plug Gasket2
609117-08038螺栓(8x45)Bolt (8x45)1
709206-11006销 (8.4x11x8) (停产)Pin (8.4x11x8) (NLA)1
809117-08056-XC0螺栓(8x40)Bolt (8x40)1
909280-49002O型圈O-Ring1
1056120-91J10-0ED螺旋桨轴轴承座(停产)Propeller Shaft Bearing Housing (NLA)1
1109262-12001轴承(12x28x8)Bearing (12x28x8)1
1209282-12008油封(12x24x4.5)Oil Seal (12x24x4.5)2
1309167-23001垫片Washer1
1509117-06030螺栓(6x16)Bolt (6x16)2
1609202-04002剪切销Shear Pin1
1758120-98600C型螺旋桨衬套Type C Propeller Bushing1
1909204-03003螺旋桨螺母开口销Prop Nut Cotter Pin1
2058130-91JL0螺旋桨螺母Propeller Nut1
2117631-98600水滤器Water Filter1
2203212-0516B螺钉SCREW1
2356122-98602油封保护罩Oil Seal Protector1
2456123-986L0垫圈WASHER1
2555320-98400锌阳极Zinc Anode1
2609116-06094螺栓(6x15)Bolt (6x15)1

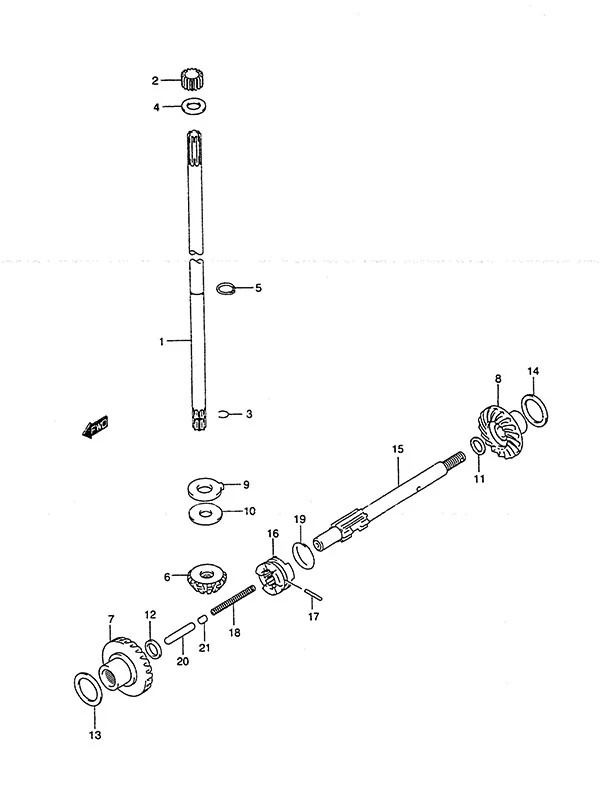

图 21变速箱 Transmission
变速箱 Transmission
REF零件编号中文名称英文名称数量
209320-11018衬套Bushing1
309380-10002卡环(停产)Snap Ring (NLA)1
409181-10167推力垫圈Thrust Washer1
508331-31109卡簧Circlip1
657311-98600小齿轮(停产)Pinion Gear (NLA)1
757510-98611前进齿轮(停产)Forward Gear (NLA)1
857521-98601倒挡齿轮(停产)Reverse Gear (NLA)1
909169-12002垫圈 (停产)Washer (NLA)1
1209181-12111推力垫圈(1.00)Thrust Washer (1.00)1
1557611-98602螺旋桨轴总成(停产)Propeller Shaft Assembly (NLA)1
1657621-98600离合器换挡拨叉(停产)Clutch Dog Shifter (NLA)1
1709202-04016销Pin1
1809440-05039弹簧Spring1
1909440-24007离合器弹簧(停产)Clutch Dog Spring (NLA)1
2057631-98601推杆Push Rod1
2157632-97L00推销Push Pin1

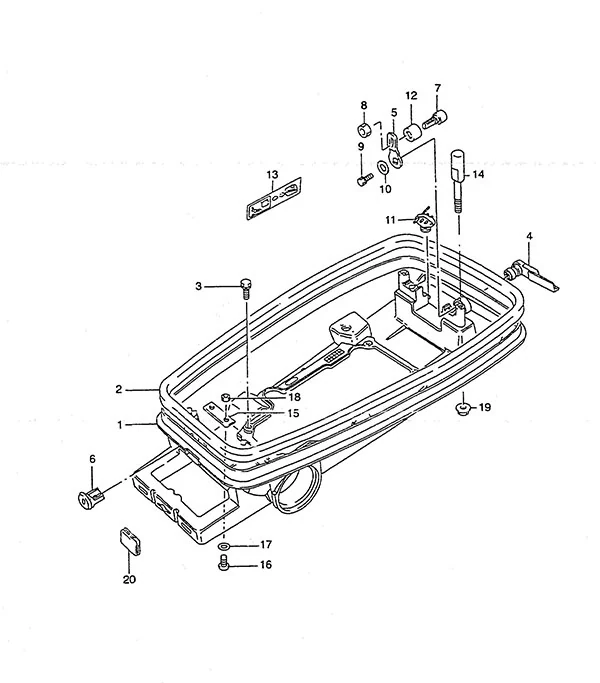

图 22下盖(1988至1996款) Lower Cover(1988 to 1996)
下盖(1988至1996款) Lower Cover(1988 to 1996)
REF零件编号中文名称英文名称数量
261112-98602发动机下盖橡胶垫(停产)Lower Engine Cover Rubber (NLA)1
309117-06040-XC0螺栓(6x15)Bolt (6x15)4
461633-98600挂钩杆(停产)Hook Lever (NLA)1
561631-98602下盖挂钩(停产)Lower Cover Hook (NLA)1
613632-93900索环Grommet1
761635-98602下挂钩销Lower Hook Pin1
909117-06040-XC0螺栓(6x15)Bolt (6x15)1
1009160-06052垫片Washer1
1161521-98400剪切销座（停产）Shear Pin Holder (NLA)1
1261636-98600下钩滚轮Lower Hook Roller1
1361211-98302-064燃油旋塞标记(停产)Fuel Cock Mark (NLA)1
1465196-98601燃油箱螺栓(停产)Fuel Tank Bolt (NLA)2
1561182-98601下盖板(停产)Lower Cover Plate (NLA)1
1602112-04087螺钉 4×8SCREW 4X82
1708321-0104A锁紧垫圈Lock Washer2
1808310-00047螺母Nut2
1908316-10067螺母Nut2
2039669-94400下盖塞Lower Cover Plug1

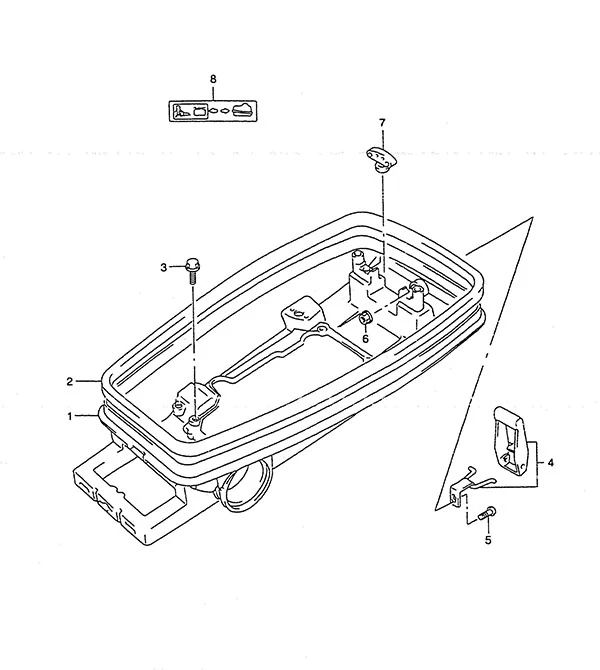

图 23下盖(1997至1998款) Lower Cover(1997 to 1998)
下盖(1997至1998款) Lower Cover(1997 to 1998)
REF零件编号中文名称英文名称数量
161111-986V0-0ED发动机下盖(停产)Lower Engine Cover (NLA)1
261112-98612发动机下盖橡胶垫Lower Engine Cover Rubber1
309117-06040-XC0螺栓(6x15)Bolt (6x15)4
461600-98800紧固件套装(停产)Fastener Set (NLA)1
502112-05167螺钉SCREW1
608310-00057螺母Nut1
761521-98400剪切销座（停产）Shear Pin Holder (NLA)1
861211-98302-064燃油旋塞标记(停产)Fuel Cock Mark (NLA)1

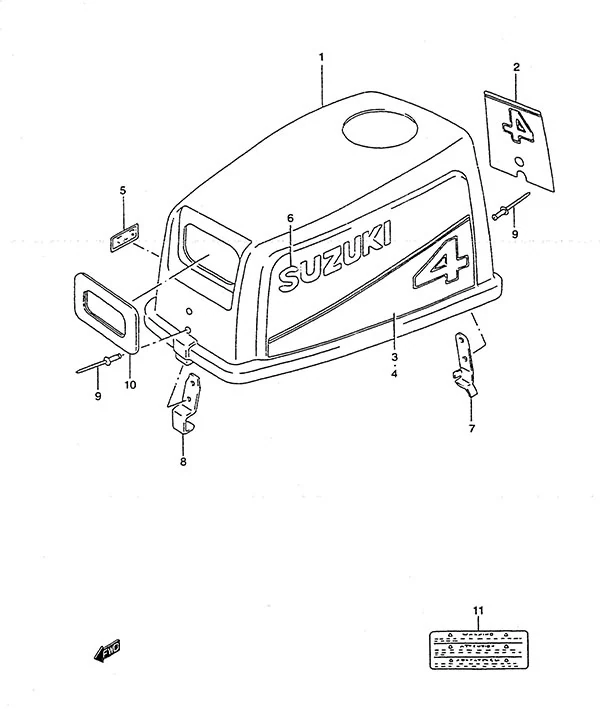

图 25发动机罩(1988至1993年款) Engine Cover(1988 to 1993)
发动机罩(1988至1993年款) Engine Cover(1988 to 1993)
REF零件编号中文名称英文名称数量
161410-98620-0EM发动机罩总成(停产)Engine Cover Assembly (NLA)1
261435-98640-70G发动机后盖标志（停产）Rear Engine Cover Mark (NLA)1
361443-98640-70G右舷发动机盖贴花 (停产)Starboard Engine Cover Decal (NLA)1
461453-98640-70G左舷发动机罩贴花(停产)Port Engine Cover Decal (NLA)1
521131-94J00-YAY离合器换挡标记Clutch Shift Mark1
668111-47C10-019铃木徽标Suzuki Emblem2
761611-98610上盖紧固件(停产)Upper Cover Fastener (NLA)1
861412-98601上盖挂钩(停产)Upper Cover Hook (NLA)1
909229-04020铆钉Rivet4
1061622-98600反冲启动器密封件(停产)Recoil Starter Seal (NLA)1
1161581-98620发动机盖标签Engine Cover Label1

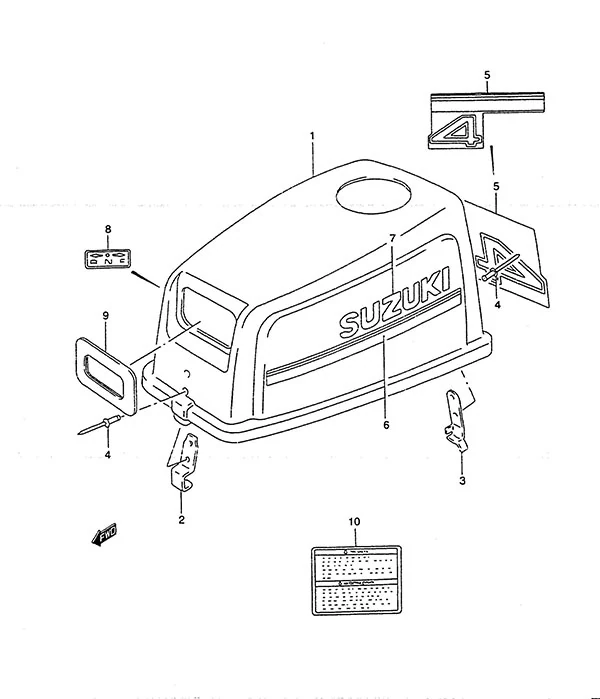

图 26发动机罩(1994至1996年款) Engine Cover(1994 to 1996)
发动机罩(1994至1996年款) Engine Cover(1994 to 1996)
REF零件编号中文名称英文名称数量
161410-98891-0EM发动机盖总成(停产)Engine Cover Set (NLA)1
261412-98601上盖挂钩(停产)Upper Cover Hook (NLA)1
361611-98610上盖紧固件(停产)Upper Cover Fastener (NLA)1
409229-04020铆钉Rivet4
561435-98670发动机后盖标志（停产）Rear Engine Cover Mark (NLA)1
661440-98600发动机盖条纹套装(停产)Engine Cover Stripe Set (NLA)1
768111-01C20-C4Z铃木徽标(停产)Suzuki Emblem (NLA)2
821131-94J00-YAY离合器换挡标记Clutch Shift Mark1
961622-98600反冲启动器密封件(停产)Recoil Starter Seal (NLA)1
1061581-98620发动机盖标签Engine Cover Label1

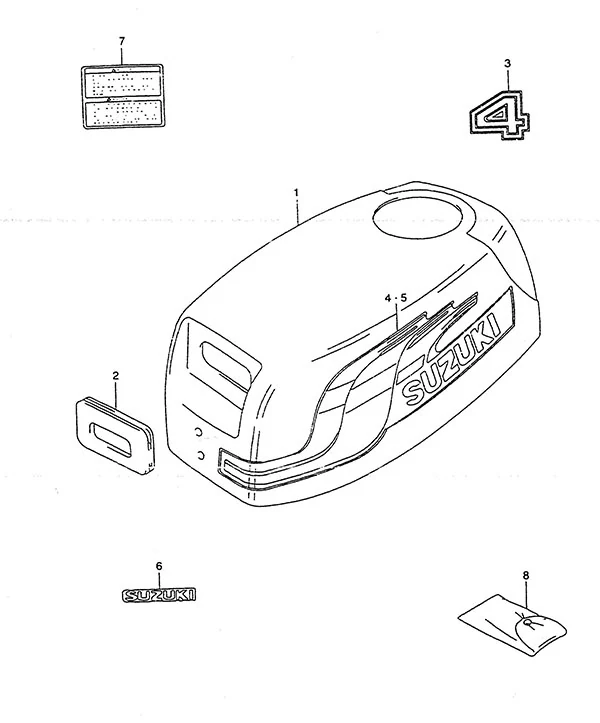

图 27发动机罩(1997至1998年款) Engine Cover(1997 to 1998)
发动机罩(1997至1998年款) Engine Cover(1997 to 1998)
REF零件编号中文名称英文名称数量
161400-98800-0EM发动机盖总成(停产)Engine Cover Set (NLA)1
261622-98600反冲启动器密封件(停产)Recoil Starter Seal (NLA)1
361435-98680发动机后盖标志（停产）Rear Engine Cover Mark (NLA)1
461443-986A0右舷发动机罩条纹Starboard Engine Cover Stripe1
561453-986A0左舷发动机罩条纹Port Engine Cover Stripe1
668166-98600-0JW铃木徽标(停产)Suzuki Emblem (NLA)1
761581-98620发动机盖标签Engine Cover Label1
809800-01016工具套装Tool Set1

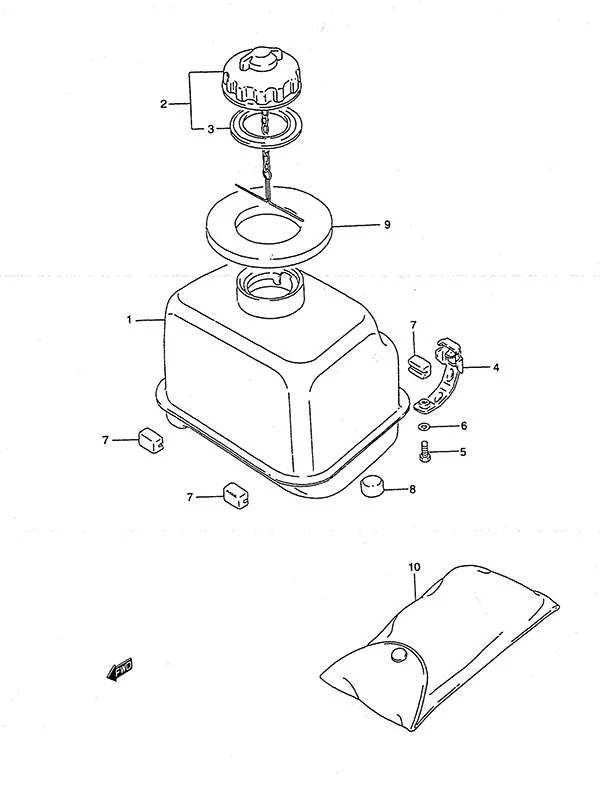

图 29油箱(1988至1993款) Fuel Tank(1988 to 1993)
油箱(1988至1993款) Fuel Tank(1988 to 1993)
REF零件编号中文名称英文名称数量
265510-98900燃油箱盖总成(停产)Fuel Tank Cap Assembly (NLA)1
365561-98600油箱盖垫片Tank Cap Gasket1
465261-98601燃油箱支架Fuel Tank Bracket2
509117-06049螺栓(6x25)Bolt (6x25)2
609162-06006锁紧垫圈Lock Washer2
765283-98600缓冲垫(停产)Cushion (NLA)4
809329-12006缓冲垫CUSHION3
965281-98601油箱密封圈(停产)Fuel Tank Grommet (NLA)1
1009800-01016工具套装Tool Set1

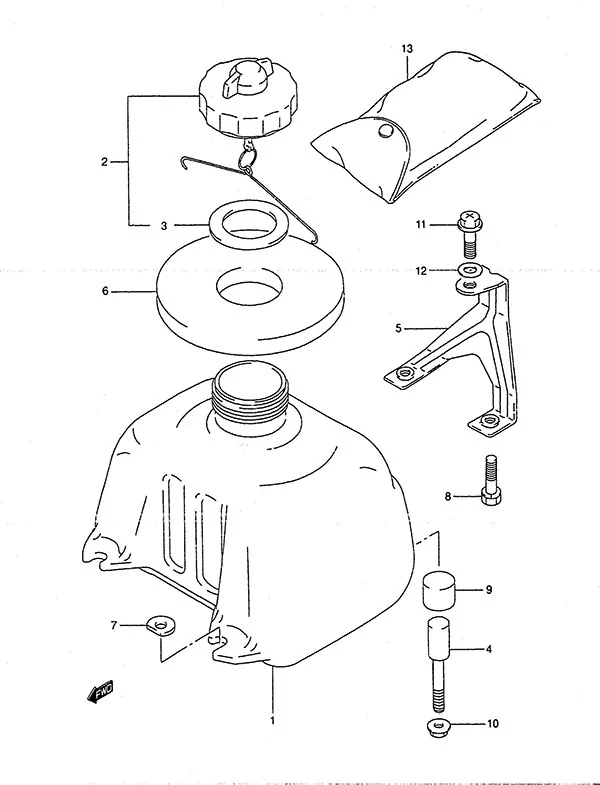

图 30油箱(1994至1998款) Fuel Tank(1994 to 1998)
油箱(1994至1998款) Fuel Tank(1994 to 1998)
REF零件编号中文名称英文名称数量
165111-98624燃油箱Fuel Tank1
265510-91J02燃油箱盖总成Fuel Tank Cap Assembly1
309168-32003油箱盖垫片Tank Cap Gasket1
409119-06097螺栓Bolt2
565260-98610燃油箱支架(停产)Fuel Tank Bracket (NLA)1
665281-98610油箱密封圈(停产)Fuel Tank Grommet (NLA)1
765284-98600油箱垫片(停产)Fuel Tank Washer (NLA)2
801570-06257螺栓BOLT2
909329-12006缓冲垫CUSHION3
1008316-10067螺母Nut2
1102162-06207螺钉SCREW1
1209160-06084垫圈 (6.5x18x1.6)Washer (6.5x18x1.6)1
1309800-01016工具套装Tool Set1

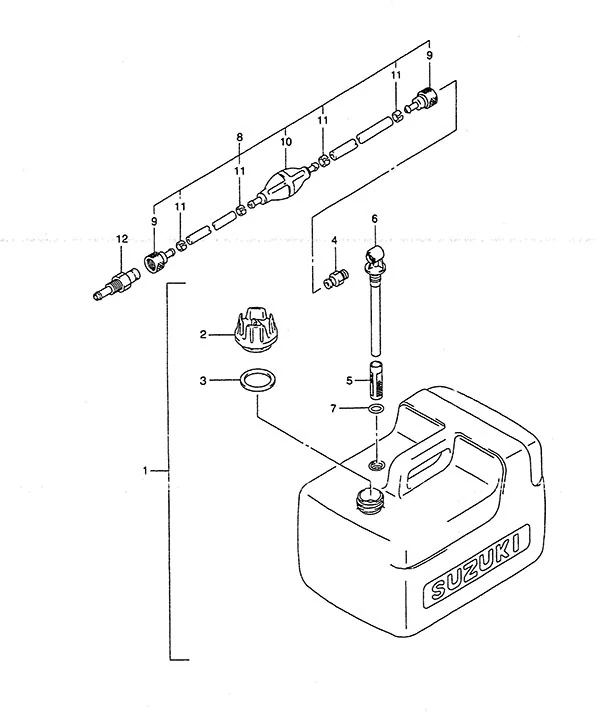

图 32燃油箱 Fuel Tank
燃油箱 Fuel Tank
REF零件编号中文名称英文名称数量
165000-99J013加仑燃油箱3 Gallon Fuel Tank1
265520-99100燃油箱盖(停产)Fuel Tank Cap (NLA)1
365561-95D00燃油箱盖垫片Fuel Tank Cap Gasket1
499105-00192油箱接头(11mm)Fuel Tank Connector (11mm)1
565831-95D00燃油出口滤清器Fuel Outlet Filter1
665890-99100出口总成Outlet Assembly1
765892-95D00燃油出口O型圈Fuel Outlet O-Ring1
865700-95D18燃油软管Fuel Hose1
965750-98506燃油软管接头（11mm）Fuel Hose Connector (11mm)2
1065770-99703挤压泵 (停产)Squeeze Pump (NLA)1
1165781-98500软管卡箍Hose Clip4
1265720-985L1燃油连接器(11mm)Fuel Connector (11mm)1

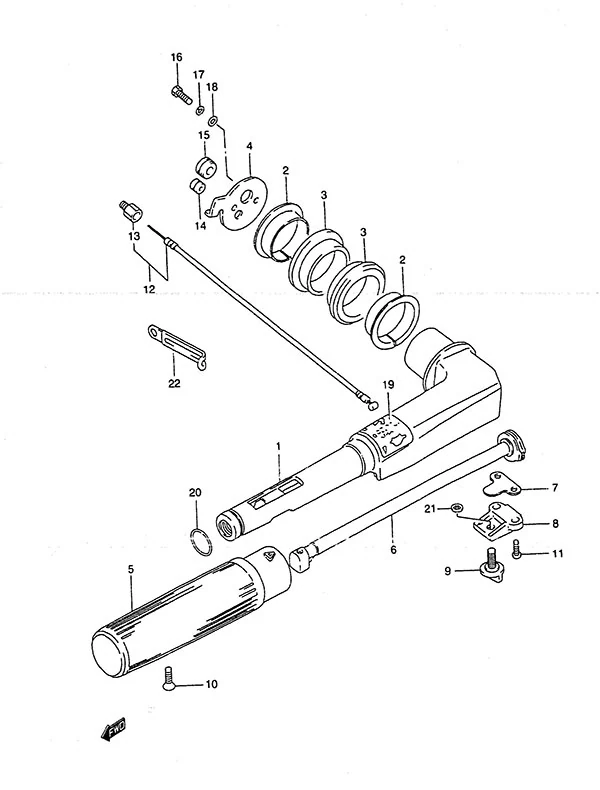

图 33舵柄(1988至1992款) Tiller Handle(1988 to 1992)
舵柄(1988至1992款) Tiller Handle(1988 to 1992)
REF零件编号中文名称英文名称数量
163111-98620-0ED舵柄手柄Tiller Handle1
263115-98600舵柄手柄衬套Tiller Handle Bushing2
363116-98603舵柄手柄安装座Tiller Handle Mount2
463125-98610舵柄止动器(停产)Tiller Handle Stopper (NLA)1
563210-93E30手柄握把Handle Grip1
663221-98600手柄杆(停产)Handle Rod (NLA)1
763225-98601节气门调节板Throttle Adjust Plate1
863241-986B0手柄杆支撑Handle Rod Support1
963244-986A0节气门调节旋钮Throttle Adjust Knob1
1009126-06006螺钉(6x20)Screw (6x20)1
1109136-05041螺钉(5x20)Screw (5x20)2
1263610-986A0节气门拉线总成Throttle Cable Assembly1
1363621-98600节气门拉线导槽Throttle Cable Guide1
1409308-05015索环Grommet1
1509308-05018索环(停产)Grommet (NLA)1
1601500-05127螺栓BOLT2
1708321-0105A锁紧垫圈Lock Washer2
1808322-01057垫片Washer2
1963215-93400手柄握把标记Handle Grip Mark1
2009280-20004O型圈O-Ring1
2109148-06008螺母Nut1
2209404-06036卡箍(长:80)Clamp (L:80)1
2363125-98611舵柄止动器(停产)Tiller Handle Stopper (NLA)1
2409250-13005塞子(停产)Plug (NLA)1
2501570-06167螺栓BOLT2

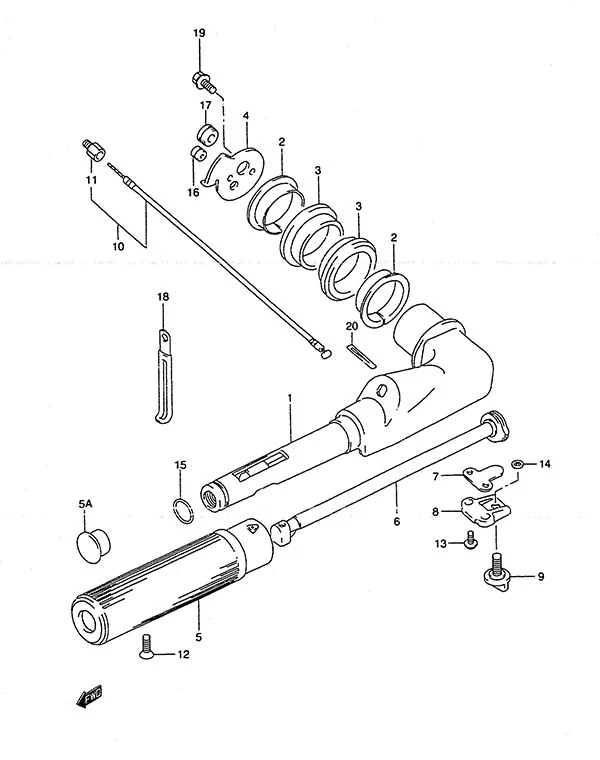

图 34舵柄(1993至1998款) Tiller Handle(1993 to 1998)
舵柄(1993至1998款) Tiller Handle(1993 to 1998)
REF零件编号中文名称英文名称数量
263115-98600舵柄手柄衬套Tiller Handle Bushing2
363116-98603舵柄手柄安装座Tiller Handle Mount2
563210-93E30手柄握把Handle Grip1
663221-98600手柄杆(停产)Handle Rod (NLA)1
763225-98601节气门调节板Throttle Adjust Plate1
863241-986B0手柄杆支撑Handle Rod Support1
963244-986A0节气门调节旋钮Throttle Adjust Knob1
1063610-986A0节气门拉线总成Throttle Cable Assembly1
1163621-98600节气门拉线导槽Throttle Cable Guide1
1209126-06015螺钉(6x23)Screw (6x23)1
1309136-05041螺钉(5x20)Screw (5x20)2
1409148-06008螺母Nut1
1509280-20004O型圈O-Ring1
1509308-05015索环Grommet1
1709308-05018索环(停产)Grommet (NLA)1
1809404-06036卡箍(长:80)Clamp (L:80)1
2063215-93110手柄握把标记Handle Grip Mark1
2163125-98611舵柄止动器(停产)Tiller Handle Stopper (NLA)1
2201570-06167螺栓BOLT2

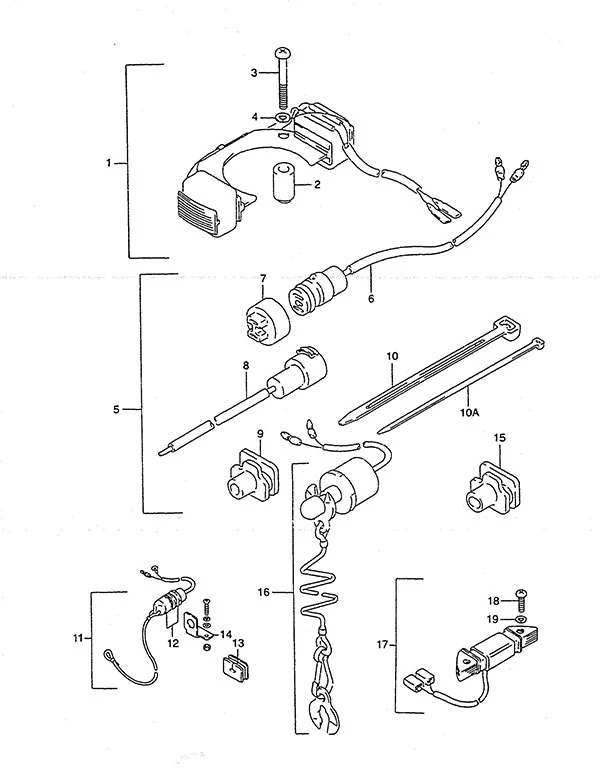

图 36选配:电动系统 Opt: Electrical
选配:电动系统 Opt: Electrical
REF零件编号中文名称英文名称数量
132200-98610照明线圈(停产)Lighting Coil (NLA)1
209180-05022隔套(停产)Spacer (NLA)1
302112-0530A螺钉Screw2
408321-0105A锁紧垫圈Lock Washer2
539600-93910插座总成(停产)Receptacle Set (NLA)1
639601-95D00照明插座总成Lighting Receptacle Assembly1
736634-93910连接器帽Connector Cap1
839602-93900灯线插头总成Lamp Cord Plug Assembly1
939603-94400插座护套(停产)Receptacle Grommet (NLA)1
1137802-98600紧急开关组件(停产)Emergency Switch Set (NLA)1
1237830-89X51紧急开关总成(停产)Emergency Switch Assembly (NLA)1
1337824-92D00索环(停产)Grommet (NLA)1
1437950-93901开关支架(停产)Switch Bracket (NLA)1
1537824-98100索环(停产)Grommet (NLA)1
1637802-93931紧急开关组件Emergency Switch Set1
1732200-98600照明线圈Lighting Coil1
1802112-0520B螺钉SCREW2
1908321-0105A锁紧垫圈Lock Washer2

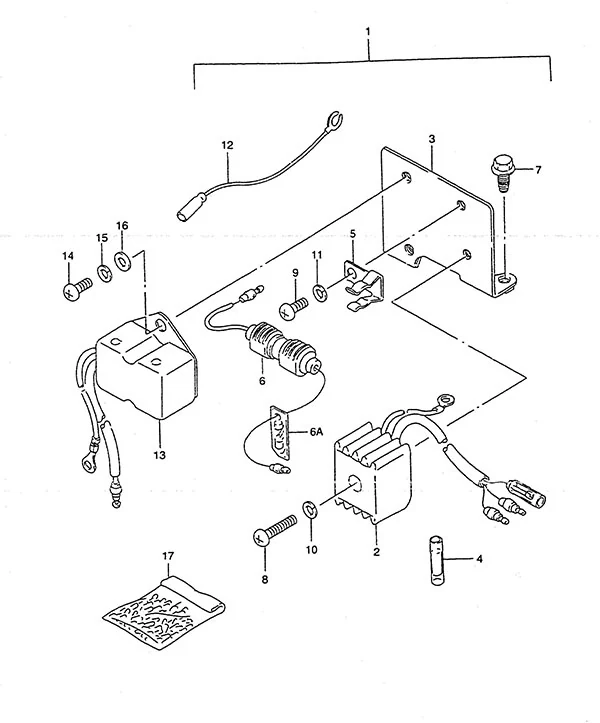

图 38选配:电动系统 Opt: Electrical
选配:电动系统 Opt: Electrical
REF零件编号中文名称英文名称数量
132801-98602整流器套装(停产)Rectifier Set (NLA)1
232800-95D02整流调节器总成Rectifier & Regulator Assembly1
332890-98600整流器支架(停产)Rectifier Bracket (NLA)1
437132-93700电线连接器Wire Connector1
536791-95200保险丝盒支架(停产)Fuse Case Holder (NLA)1
636740-95253保险丝盒总成Fuse Case Assembly1
709103-06049螺栓(6x12)(停产)Bolt (6x12) (NLA)2
802142-05257螺钉 5×20SCREW 5 X 201
902112-060876X8十字螺丝6X8 CROSS SCREW1
1008321-0105A锁紧垫圈Lock Washer1
1108321-01067锁紧垫圈Lock Washer1
1237801-98300导线(停产)Lead (NLA)1
1332500-95722电压调节器总成(停产)Voltage Regulator Assembly (NLA)1
1402112-06107螺钉SCREW2
1508321-01067锁紧垫圈Lock Washer2
1608322-01067垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
1736990-87D00端子套管套装Terminal & Sleeve Set1

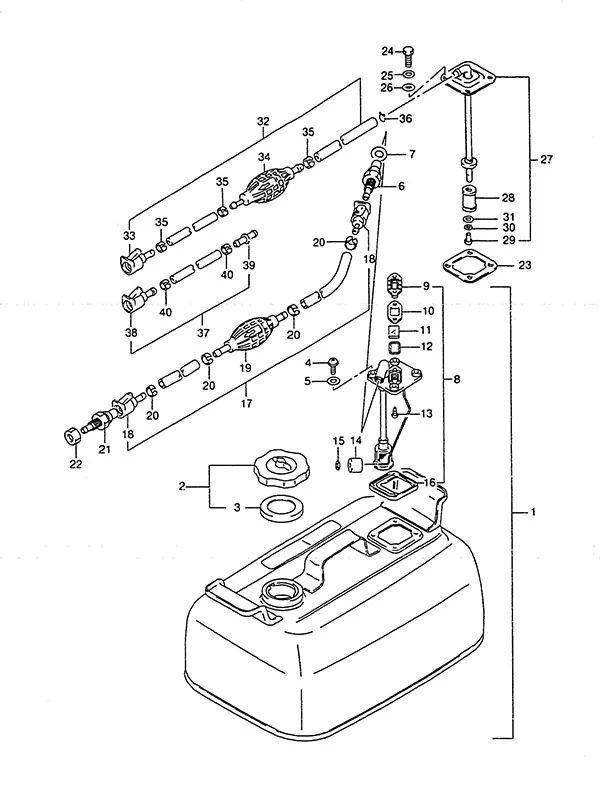

图 39选配: 燃油箱(1988至1992款) Opt: Fuel Tank(1988 to 1992)
选配: 燃油箱(1988至1992款) Opt: Fuel Tank(1988 to 1992)
REF零件编号中文名称英文名称数量
165800-92813油箱套装(停产)Fuel Tank Set (NLA)1
265510-92D00燃油箱盖总成Fuel Tank Cap Assembly1
365561-92D00油箱盖垫片Tank Cap Gasket1
402112-16167螺钉SCREW4
665720-94411燃油连接器(停产)Fuel Connector (NLA)1
865850-92D51燃油表总成(停产)Fuel Gauge Assembly (NLA)1
1165853-92D00灯罩(停产)Lens (NLA)1
1303222-04083螺钉(停产)Screw (NLA)2
1465864-92D00浮子(停产)Float (NLA)1
1565866-92D00压紧螺母(停产)Push Nut (NLA)1
1665871-92D00垫片 (停产)Gasket (NLA)1
1765700-87D16燃油软管（停产）Fuel Hose (NLA)1
1865750-94404燃油软管接头Fuel Hose Connector2
2065781-98500软管卡箍Hose Clip4
2165720-94403燃油连接器Fuel Connector1
2208310-00107螺母Nut1
2365871-93010燃油表衬垫Fuel Gauge Gasket1
2401500-06107螺栓BOLT4
2508322-01067垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)4
2765880-98500油箱出油总成(停产)Fuel Tank Outlet Assembly (NLA)1
2865830-93301燃油出口滤清器(停产)Fuel Outlet Filter (NLA)1
2902112-05087螺钉SCREW1
3008321-0105A锁紧垫圈Lock Washer1
3108322-01057垫片Washer1
3265700-98583燃油软管（停产）Fuel Hose (NLA)1
3365750-94404燃油软管接头Fuel Hose Connector1
3565781-98500软管卡箍Hose Clip3
3609401-11403燃油软管夹Fuel Hose Clip1
3765700-92D20燃油管接头(停产)Fuel Hose Joint (NLA)1
3865750-94404燃油软管接头Fuel Hose Connector1
3965779-93900燃油管联管节(停产)Fuel Hose Union (NLA)1
4065781-98500软管卡箍Hose Clip2

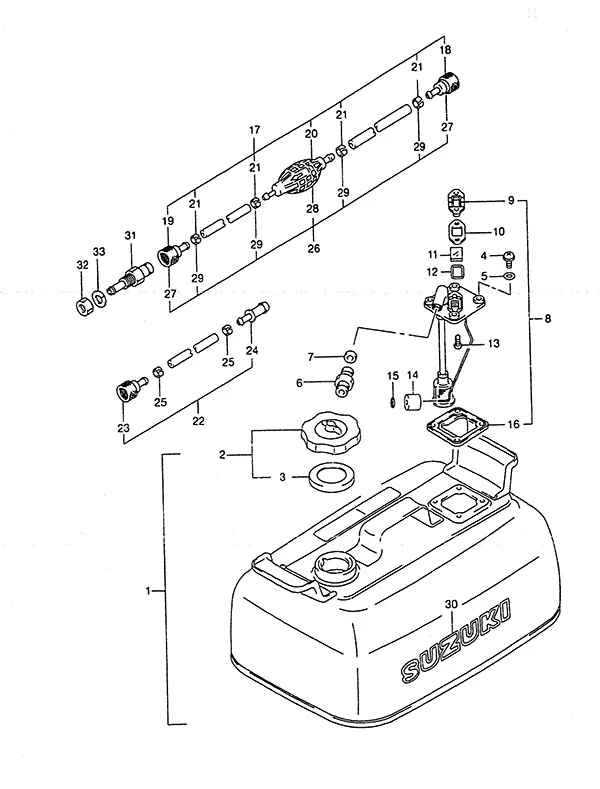

图 40选配: 燃油箱(1988至1992款) Opt: Fuel Tank(1988 to 1992)
选配: 燃油箱(1988至1992款) Opt: Fuel Tank(1988 to 1992)
REF零件编号中文名称英文名称数量
165800-92813油箱套装(停产)Fuel Tank Set (NLA)1
265510-92D00燃油箱盖总成Fuel Tank Cap Assembly1
365561-92D00油箱盖垫片Tank Cap Gasket1
402142-061676X16十字槽螺钉6 X 16 CROSS SC4
509168-06026垫片Gasket4
665740-95501油箱接头(13mm)Fuel Tank Connector (13mm)1
709168-12015-XC0垫片 (12.2x21x0.8)Gasket (12.2x21x0.8)1
865850-92D51燃油表总成(停产)Fuel Gauge Assembly (NLA)1
965855-92D10仪表盖 (停产)Gauge Cover (NLA)1
1065854-92D20灯罩衬垫(停产)Lens Gasket (NLA)1
1165853-92D00灯罩(停产)Lens (NLA)1
1265854-92D30灯罩衬垫(停产)Lens Gasket (NLA)1
1303222-04083螺钉(停产)Screw (NLA)2
1465864-92D00浮子(停产)Float (NLA)1
1565866-92D00压紧螺母(停产)Push Nut (NLA)1
1665871-92D00垫片 (停产)Gasket (NLA)1
1765700-87D85燃油软管Fuel Hose1
1865750-95501燃油软管接头（13mm）Fuel Hose Connector (13mm)1
1965750-98506燃油软管接头（11mm）Fuel Hose Connector (11mm)1
2065770-95540挤压泵 (停产)Squeeze Pump (NLA)1
2165781-98500软管卡箍Hose Clip4
2265700-92D30燃油管接头(停产)Fuel Hose Joint (NLA)1
2365750-98506燃油软管接头（11mm）Fuel Hose Connector (11mm)1
2465779-93900燃油管联管节(停产)Fuel Hose Union (NLA)1
2565781-98500软管卡箍Hose Clip2
2665700-95D18燃油软管Fuel Hose1
2765750-98506燃油软管接头（11mm）Fuel Hose Connector (11mm)2
2865770-99703挤压泵 (停产)Squeeze Pump (NLA)1
2965781-98500软管卡箍Hose Clip1
3061441-98500铃木标志(停产)Suzuki Mark (NLA)1
3165720-985L1燃油连接器(11mm)Fuel Connector (11mm)1
3209140-10032螺母Nut1
3308321-01107锁紧垫圈Lock Washer1

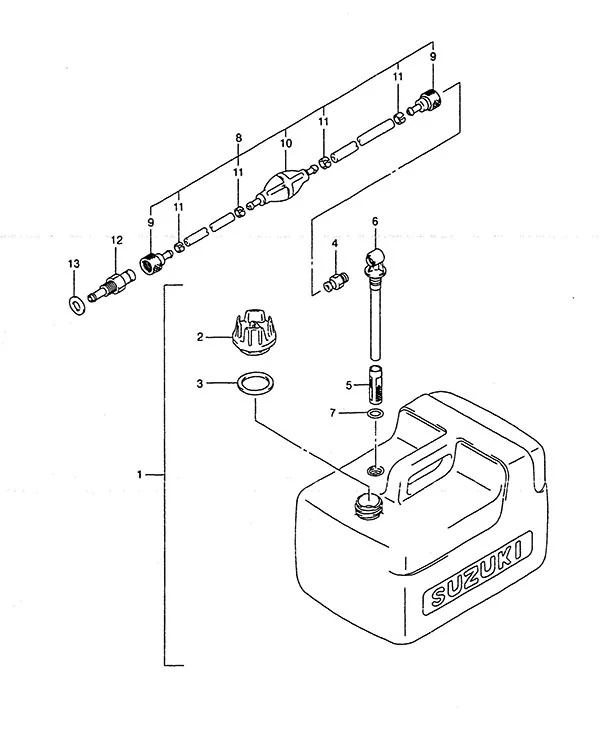

图 41选配: 燃油箱(1993至1998款) Opt: Fuel Tank(1993 to 1998)
选配: 燃油箱(1993至1998款) Opt: Fuel Tank(1993 to 1998)
REF零件编号中文名称英文名称数量
165000-99J013加仑燃油箱3 Gallon Fuel Tank1
265520-99100燃油箱盖(停产)Fuel Tank Cap (NLA)1
365561-95D00燃油箱盖垫片Fuel Tank Cap Gasket1
499105-00192油箱接头(11mm)Fuel Tank Connector (11mm)1
565831-95D00燃油出口滤清器Fuel Outlet Filter1
665890-99100出口总成Outlet Assembly1
765892-95D00燃油出口O型圈Fuel Outlet O-Ring1
865700-95D18燃油软管Fuel Hose1
965750-98506燃油软管接头（11mm）Fuel Hose Connector (11mm)2
1065770-99703挤压泵 (停产)Squeeze Pump (NLA)1
1165781-98500软管卡箍Hose Clip4
1265720-985L1燃油连接器(11mm)Fuel Connector (11mm)1
1309168-12015-XC0垫片 (12.2x21x0.8)Gasket (12.2x21x0.8)1

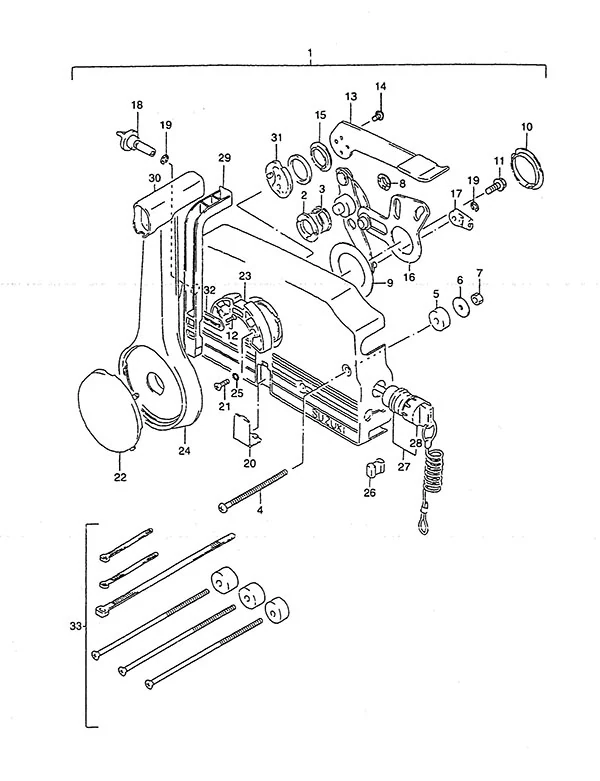

图 42选配: 遥控装置(1988至1992款) Opt: Remote Control(1988 to 1992)
选配: 遥控装置(1988至1992款) Opt: Remote Control(1988 to 1992)
REF零件编号中文名称英文名称数量
267232-95600衬套Bushing1
367232-95620衬套(停产)Bushing (NLA)1
467296-95600螺钉Screw3
567294-95600垫片Spacer3
609160-06104垫圈 (6.5x24x2)Washer (6.5x24x2)3
709140-06020螺母(6mm)Nut (6mm)3
867232-95610衬套(停产)Bushing (NLA)2
967253-95600垫圈 (停产)Washer (NLA)1
1067252-95600衬套Bushing2
1109100-08232螺栓(8x30)Bolt (8x30)1
1267296-94300螺钉(4x10)Screw (4x10)2
1409126-05003螺钉(5x12)Screw (5x12)2
1567243-95600衬套(停产)Bushing (NLA)1
1667220-95620挡板总成Plate Assembly1
1767275-95600电缆端头Cable End2
1867223-95600制动调节旋钮Brake Adjustment Knob1
1967292-94300E型卡环E Ring3
2167296-95610螺钉Screw7
2367256-95600空挡锁支架Neutral Lock Holder1
2567297-95600垫片Washer2
2667273-95600垫片Spacer1
2737820-92E05紧急停机开关总成Emergency Stop Switch Assembly1
2837823-94401紧急停机开关帽Emergency Stop Switch Cap1
2967255-95600空挡锁臂Neutral Lock Arm1
3067261-95610非动力升降倾斜装置手柄握把Handle Grip no PTT1
3167245-95600自由节流鼓(停产)Free Throttle Drum (NLA)1
3267258-87D00空挡臂支架Neutral Arm Bracket1
3367140-95600替代件67140-95601Replaced by 67140-956011

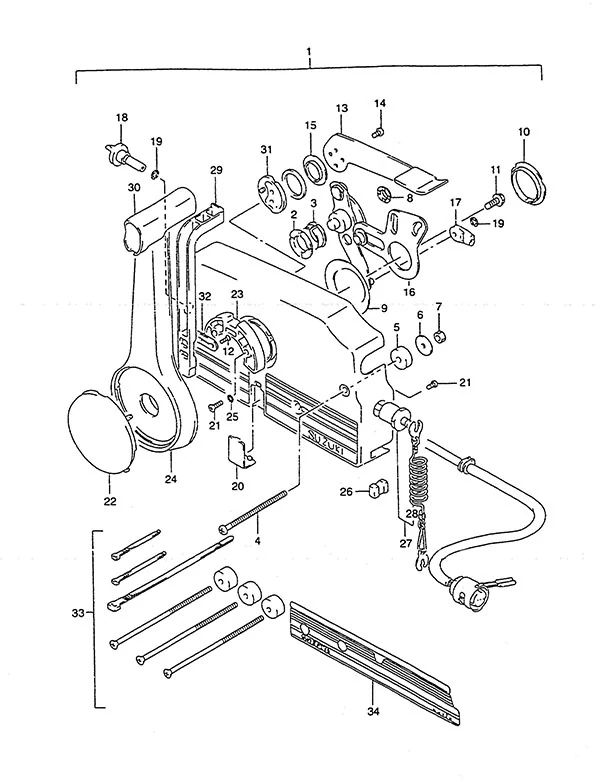

图 43选配: 遥控装置(1993至1998款) Opt: Remote Control(1993 to 1998)
选配: 遥控装置(1993至1998款) Opt: Remote Control(1993 to 1998)
REF零件编号中文名称英文名称数量
267232-95600衬套Bushing1
367232-95620衬套(停产)Bushing (NLA)1
467296-95600螺钉Screw3
567294-95600垫片Spacer3
609160-06104垫圈 (6.5x24x2)Washer (6.5x24x2)3
709140-06020螺母(6mm)Nut (6mm)3
867232-95610衬套(停产)Bushing (NLA)2
967253-95600垫圈 (停产)Washer (NLA)1
1067252-95600衬套Bushing2
1109100-08232螺栓(8x30)Bolt (8x30)1
1267296-94300螺钉(4x10)Screw (4x10)2
1367241-95680自由节流杆(灰色)(停产)Free Throttle Lever (Gray) (NLA)1
1409126-05003螺钉(5x12)Screw (5x12)2
1567243-95600衬套(停产)Bushing (NLA)1
1667220-95620挡板总成Plate Assembly1
1767275-95600电缆端头Cable End2
1867223-95600制动调节旋钮Brake Adjustment Knob1
1967292-94300E型卡环E Ring3
2067267-95610电线护套(黑色)Wire Cover (Black)1
2167296-95610螺钉Screw7
2267257-95610操纵杆帽(黑色)Lever Cap (Black)1
2367256-95600空挡锁支架Neutral Lock Holder1
2467251-95680灰色手柄操纵杆(停产)Handle Lever (Gray) (NLA)1
2567297-95600垫片Washer2
2667273-95600垫片Spacer1
2837823-92E02停机开关拉绳Stop Switch Lanyard1
2967255-95600空挡锁臂Neutral Lock Arm1
3067261-95610非动力升降倾斜装置手柄握把Handle Grip no PTT1
3167245-95600自由节流鼓(停产)Free Throttle Drum (NLA)1
3267258-87D00空挡臂支架Neutral Arm Bracket1
3367140-95600替代件67140-95601Replaced by 67140-956011
3467282-95610左舷标识贴(黑色)(停产)Port Decal (Black) (NLA)1

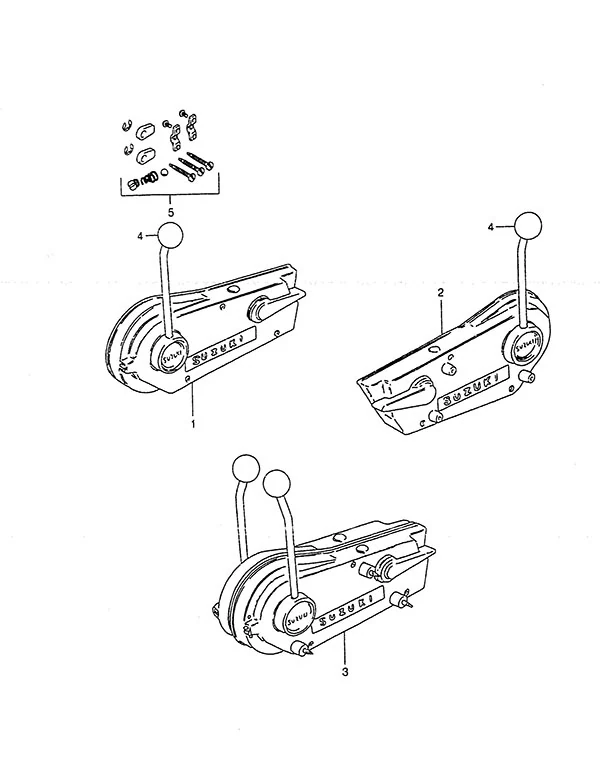

图 44选配: 遥控装置 Opt: Remote Control
选配: 遥控装置 Opt: Remote Control
REF零件编号中文名称英文名称数量
167200-95203侧装控制箱(停产)Side Mount Control Box (NLA)1
267200-95213侧装控制箱(停产)Side Mount Control Box (NLA)1
367200-95871侧装控制箱(停产)Side Mount Control Box (NLA)1
467214-95200控制箱旋钮(停产)Control Box Knob (NLA)1
567300-95810电缆支架套装Cable Holder Set1

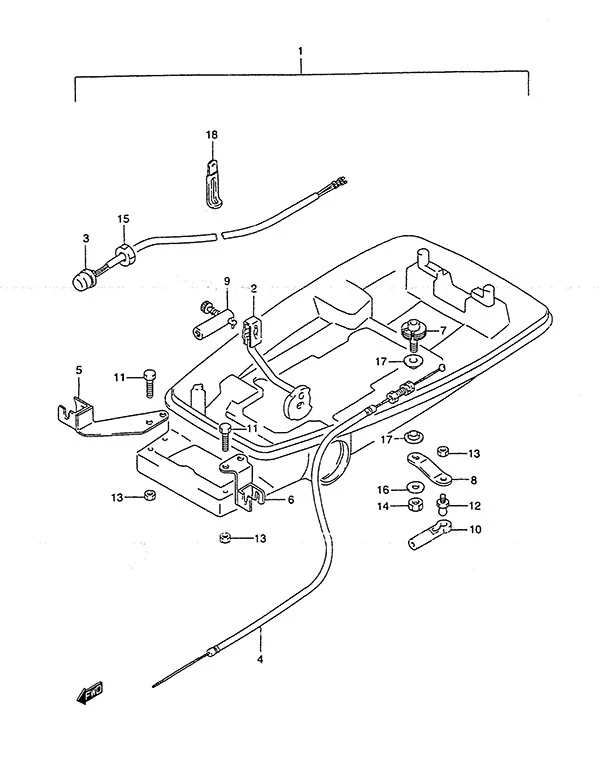

图 45选配: 遥控部件 Opt: Remote Control Parts
选配: 遥控部件 Opt: Remote Control Parts
REF零件编号中文名称英文名称数量
167130-98820遥控装置部件套装(停产)Remote Control Parts Set (NLA)1
221110-98650离合器操纵杆(停产)Clutch Lever (NLA)1
337800-93714发动机停机开关总成(停产)Engine Stop Switch Assembly (NLA)1
463610-98610节气门拉线总成(停产)Throttle Cable Assembly (NLA)1
567340-98600遥控线缆固定座(停产)Remocon Cable Holder (NLA)1
667340-98610遥控线缆固定座(停产)Remocon Cable Holder (NLA)1
767410-98600遥控节流轴(停产)Remocon Throttle Shaft (NLA)1
867412-98600遥控节流杆(停产)Remocon Throttle Lever (NLA)1
967440-93701离合器拉线导槽Clutch Cable Guide1
1067466-95200电缆接头Cable Connector1
1109100-06131螺栓(6x12)Bolt (6x12)4
1209119-06047枢轴球头Pivot Ball1
1309140-06020螺母(6mm)Nut (6mm)5
1409140-08023-XC0螺母(8mm)Nut (8mm)1
1509140-14030螺母(停产)Nut (NLA)1
1609160-08082垫圈 (8.5x16x1.2)Washer (8.5x16x1.2)1
1709306-08002衬套(停产)Bushing (NLA)2

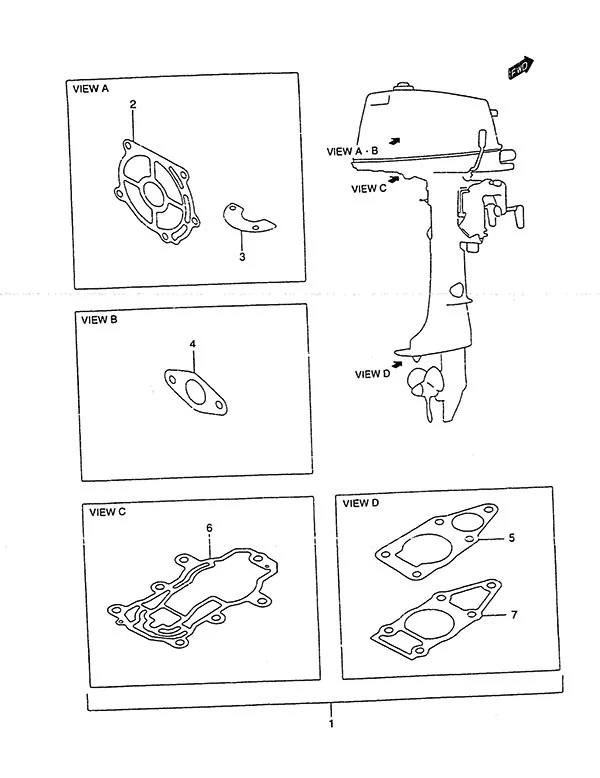

图 46选配: 衬垫套装 Opt: Gasket Set
选配: 衬垫套装 Opt: Gasket Set
REF零件编号中文名称英文名称数量
111400-98884发动机衬垫套装Engine Gasket Set1
211162-98610气缸盖罩衬垫Cylinder Head Cover Gasket1
311219-98610水套垫片Water Jacket Gasket1
413125-98310化油器衬垫Carburetor Gasket1
517472-98611水泵板衬垫Water Pump Plate Gasket1
652113-98610驱动轴壳体衬垫Drive Shaft Housing Gasket1
756132-98610驱动轴壳体衬垫Drive Shaft Housing Gasket1

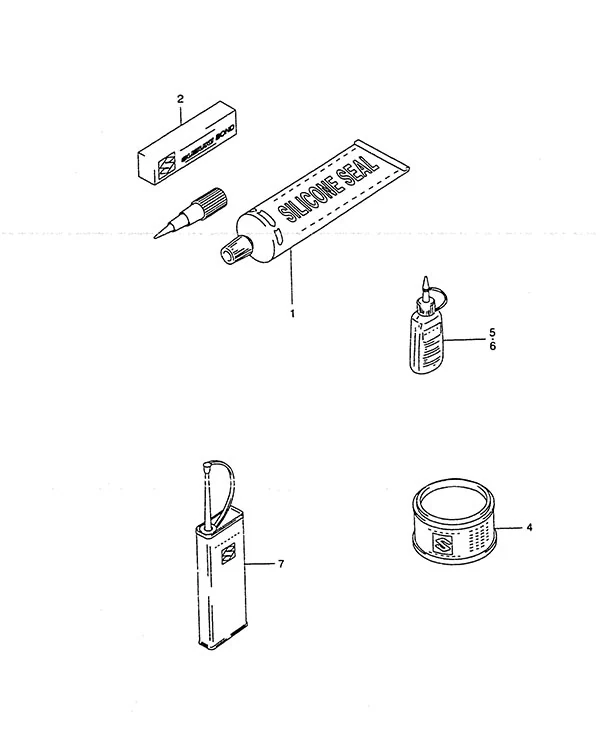

图 48选配件 Optional
选配件 Optional
REF零件编号中文名称英文名称数量
193691-80030铃木硅胶密封剂Suzuki Silicone Seal1
499000-25490铃木Ecstar超级润滑脂CSuzuki Ecstar Super Grease C1
