铃木 Suzuki DT 2 1997 - 爆炸图零件明细

1997 年 · 共 19 个部位 · 351 条零件

1气缸(1986至1989款)2气缸(1990至1997款)3曲轴4化油器(1986至1989款)5化油器(1990至1997款)6水泵7启动器(1986至1989款)8启动器(1990至1997款)9磁电机(1986至1989款)10磁电机(1990至1997款)11夹具支架12齿轮箱13变速箱14发动机罩(1986年款)15发动机罩(1987至1993年款)16发动机罩(1994至1996年款)17发动机罩(DT2.2型 1997年款)18燃油箱19选配件

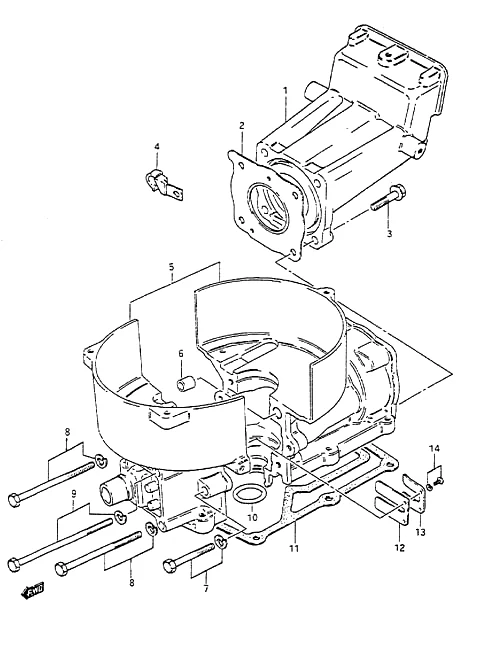

图 1气缸(1986至1989款) Cylinder(1986 to 1989)
气缸(1986至1989款) Cylinder(1986 to 1989)
REF零件编号中文名称英文名称数量
111111-98421-0ED气缸盖(停产)Cylinder Head (NLA)1
211141-98411气缸盖垫片Cylinder Head Gasket1
301550-06307螺栓BOLT4
409403-10312夹具(停产)Clamp (NLA)1
604211-09109定位销DOWEL PIN2
701550-06357螺栓BOLT2
801550-06657螺栓BOLT2
901550-06707螺栓BOLT2
1009280-20002O型圈O-Ring1
1152113-98411驱动轴壳体衬垫Drive Shaft Housing Gasket1
1213153-19012簧片阀Reed Valve1
1313152-19010簧片阀限位器(停产)Reed Valve Stopper (NLA)1
1402112-3308A螺钉SCREW2

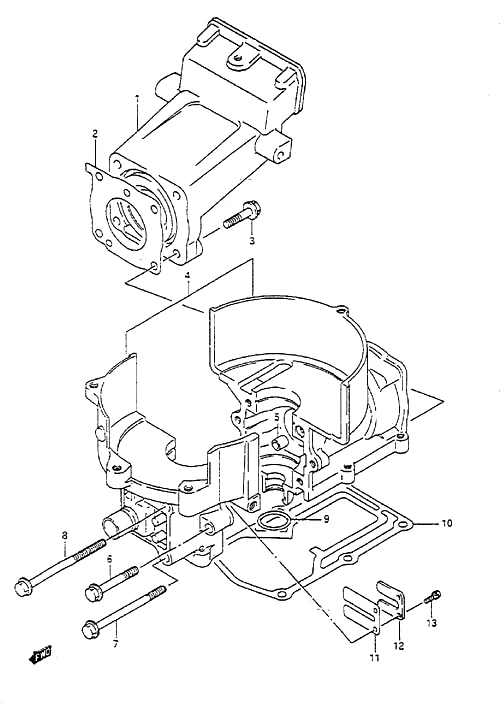

图 2气缸(1990至1997款) Cylinder(1990 to 1997)
气缸(1990至1997款) Cylinder(1990 to 1997)
REF零件编号中文名称英文名称数量
111111-98421-0ED气缸盖(停产)Cylinder Head (NLA)1
504211-09109定位销DOWEL PIN2
601550-06357螺栓BOLT2
801550-06707螺栓BOLT2
909280-20002O型圈O-Ring1
1052113-98411驱动轴壳体衬垫Drive Shaft Housing Gasket1
1113153-19012簧片阀Reed Valve1
1213152-19010簧片阀限位器(停产)Reed Valve Stopper (NLA)1
1302112-3308A螺钉SCREW2

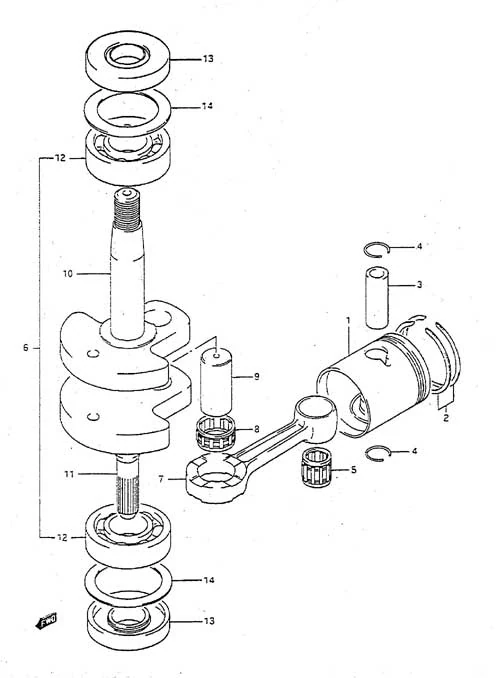

图 3曲轴 Crankshaft
曲轴 Crankshaft
REF零件编号中文名称英文名称数量
312151-04700活塞销Piston Pin1
409381-12001活塞销卡簧Piston Pin Circlip2
509263-12023轴承(12x16x16)Bearing (12x16x16)1
612200-98404曲轴总成(停产)Crankshaft Assembly (NLA)1
712161-98400连杆(停产)Connecting Rod (NLA)1
809263-15014RC15x21x10轴承RC 15x21x10 Bearing1
912211-04000曲轴销Crankshaft Pin1
1012221-98402上曲轴(停产)Upper Crankshaft (NLA)1
1209262-17023轴承(17x40x12)Bearing (17x40x12)2
1309283-17002替代件09283-17034Replaced by 09283-170342
1408211-32441推力垫圈Thrust Washer2

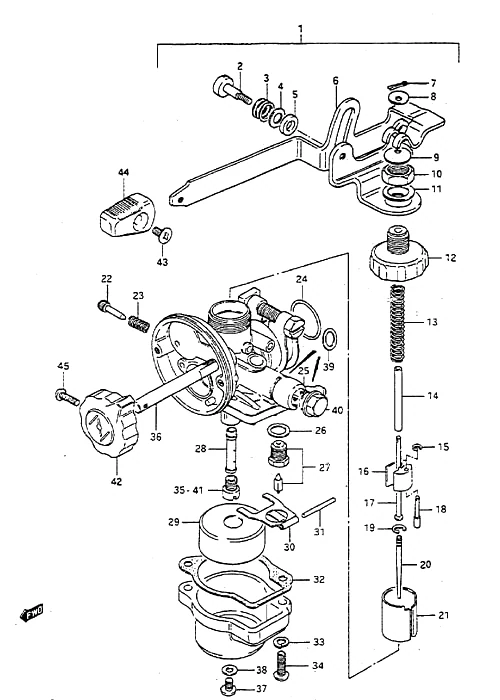

图 4化油器(1986至1989款) Carburetor(1986 to 1989)
化油器(1986至1989款) Carburetor(1986 to 1989)
REF零件编号中文名称英文名称数量
113200-984F1化油器总成(停产)Carburetor Assembly (NLA)1
213433-98410螺钉(停产)Screw (NLA)1
313426-98410锁紧垫圈(停产)Lock Washer (NLA)1
413615-98412垫圈 (停产)Washer (NLA)1
513432-33110垫片Washer1
613564-98411节气门杆(停产)Throttle Lever (NLA)1
704111-1210A销钉PIN1
813557-98410挡板(停产)Plate (NLA)1
913557-98430挡板(停产)Plate (NLA)1
1013567-98412螺母(停产)Nut (NLA)1
1113589-98411垫圈 (停产)Washer (NLA)1
1213265-98411化油器顶盖(停产)Carburetor Top (NLA)1
1313573-98411气门弹簧(停产)Valve Spring (NLA)1
1413552-98411油门拉杆(停产)Throttle Rod (NLA)1
1513533-98410E型卡环E Ring1
1613545-98410弹簧座 (停产)Spring Seat (NLA)1
1713552-98410油门拉杆(停产)Throttle Rod (NLA)1
1813563-98410销 (停产)Pin (NLA)1
1913394-40D00针阀卡簧Needle Clip1
2013383-98410喷油针阀Jet Needle1
2113551-98430节气门阀(停产)Throttle Valve (NLA)1
2213267-01010节气门限位螺钉Throttle Stop Screw1
2313268-01010止动螺钉弹簧Stop Screw Spring1
2409280-15024O型圈(外径1.9,内径O RING(D:1.9,ID1
2513376-98400化油器滤清器(停产)Carburetor Filter (NLA)1
2613392-01010气门座垫片Valve Seat Gasket1
2713370-23010针阀Needle Valve1
2809494-00179针阀喷口Needle Jet1
2913252-98430浮子Float1
3013253-98430浮子臂Float Arm1
3113254-98410浮子销Float Pin1
3213251-98421浮子室衬垫Float Chamber Gasket1
3308321-0104A锁紧垫圈Lock Washer2
3402112-0416A螺钉SCREW2
3509491-90006主量孔#90Main Jet #901
3613586-98410阻风门轴Choke Shaft1
3709125-05122螺钉Screw1
3813523-46110放油螺丝垫片Drain Screw Gasket1
3913292-98410垫圈 (停产)Washer (NLA)2
4013275-98411螺栓(停产)Bolt (NLA)1
4213631-98410阻风门旋钮Choke Knob1
4302122-03067螺钉SCREW1
4488851-64001油门联动杆旋钮Throttle Link Knob1
4502112-03107螺钉SCREW1

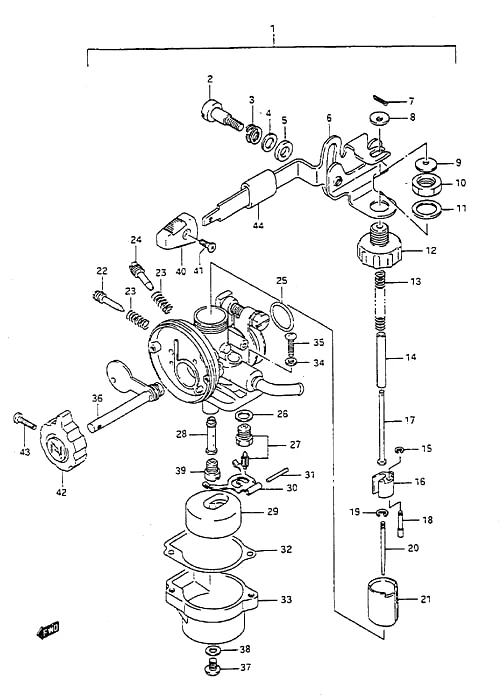

图 5化油器(1990至1997款) Carburetor(1990 to 1997)
化油器(1990至1997款) Carburetor(1990 to 1997)
REF零件编号中文名称英文名称数量
213433-98410螺钉(停产)Screw (NLA)1
313426-98410锁紧垫圈(停产)Lock Washer (NLA)1
413615-98412垫圈 (停产)Washer (NLA)1
513432-33110垫片Washer1
613564-98420节气门杆(停产)Throttle Lever (NLA)1
704111-1210A销钉PIN1
813557-98410挡板(停产)Plate (NLA)1
913557-98430挡板(停产)Plate (NLA)1
1013567-98412螺母(停产)Nut (NLA)1
1113589-98411垫圈 (停产)Washer (NLA)1
1213265-98411化油器顶盖(停产)Carburetor Top (NLA)1
1313573-98411气门弹簧(停产)Valve Spring (NLA)1
1413552-98411油门拉杆(停产)Throttle Rod (NLA)1
1513533-98410E型卡环E Ring1
1613545-98410弹簧座 (停产)Spring Seat (NLA)1
1713552-98410油门拉杆(停产)Throttle Rod (NLA)1
1813563-98410销 (停产)Pin (NLA)1
1913394-40D00针阀卡簧Needle Clip1
2213267-01010节气门限位螺钉Throttle Stop Screw1
2313268-01010止动螺钉弹簧Stop Screw Spring2
2413269-01010引导空气调节螺钉Pilot Air Screw1
2509280-15024O型圈(外径1.9,内径O RING(D:1.9,ID1
2613392-01010气门座垫片Valve Seat Gasket1
2713370-23010针阀Needle Valve1
2809494-00179针阀喷口Needle Jet1
2913252-98430浮子Float1
3013253-98430浮子臂Float Arm1
3113254-98410浮子销Float Pin1
3213251-98421浮子室衬垫Float Chamber Gasket1
3313245-98431浮子室(停产)Float Chamber (NLA)1
3408321-0104A锁紧垫圈Lock Washer2
3502112-0416A螺钉SCREW1
3613586-98410阻风门轴Choke Shaft1
3709125-05122螺钉Screw1
3813523-46110放油螺丝垫片Drain Screw Gasket1
4088851-64001油门联动杆旋钮Throttle Link Knob1
4102122-03067螺钉SCREW1
4213631-98410阻风门旋钮Choke Knob1
4302112-03107螺钉SCREW1
4409352-70104-600软管(7x10.2x600)Hose (7x10.2x600)1

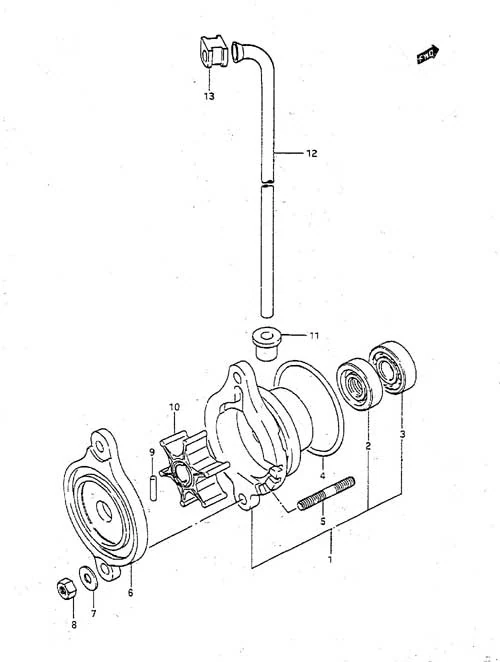

图 6水泵 Water Pump
水泵 Water Pump
REF零件编号中文名称英文名称数量
117410-98403-0ED水泵壳体(停产)Water Pump Case (NLA)1
209289-10005油封Oil Seal1
309262-10015B1 10x26x8轴承B1 10x26x8 Bearing1
409280-48002O型圈O-Ring1
509108-06063双头螺栓(6x12)Stud Bolt (6x12)2
617471-98400-0ED水泵壳体盖(停产)Water Pump Case Cover (NLA)1
709160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)2
809140-06020螺母(6mm)Nut (6mm)2
909202-02006销Pin1
1017461-985M0水泵叶轮Water Pump Impeller1
1109320-06028衬套Bushing1
1217561-98402水管Water Tube1
1309309-06005索环Grommet1

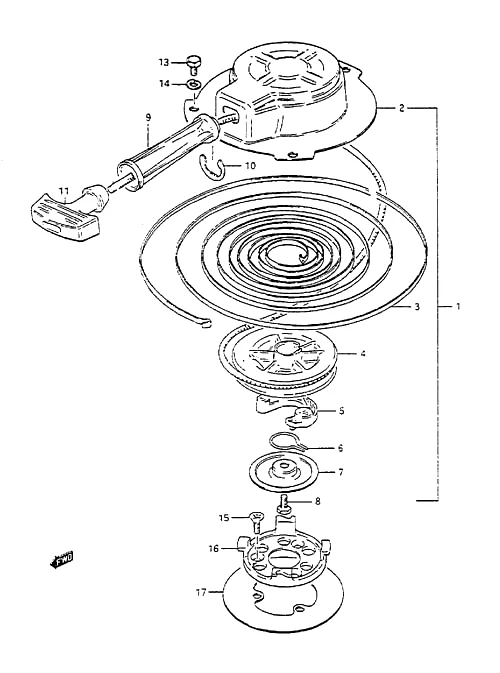

图 7启动器(1986至1989款) Starter(1986 to 1989)
启动器(1986至1989款) Starter(1986 to 1989)
REF零件编号中文名称英文名称数量
118100-98410反冲启动器总成Recoil Starter Assembly1
218111-98400启动器外壳（停产）Starter Case (NLA)1
318142-87600弹簧(停产)Spring (NLA)1
418121-98400启动卷盘(停产)Starter Reel (NLA)1
518131-98400启动棘轮(停产)Starter Rachet (NLA)1
618153-98410引导轴弹簧 (停产)Pilot Shaft Spring (NLA)1
718151-98400挡板(停产)Plate (NLA)1
818332-98400枢轴螺栓(停产)Pivot Bolt (NLA)1
918181-98400启动绳导向器(停产)Starter Rope Guide (NLA)1
1018183-98400启动器E形环（停产）Starter E Ring (NLA)1
1118210-93500握把总成(停产)Grip Assembly (NLA)1
1301500-06107螺栓BOLT2
1408321-01067锁紧垫圈Lock Washer2
1502122-06127螺钉SCREW3
1618411-98401启动器杯Starter Cup1
1732725-98401磁电机绝缘体(停产)Magneto Insulator (NLA)1

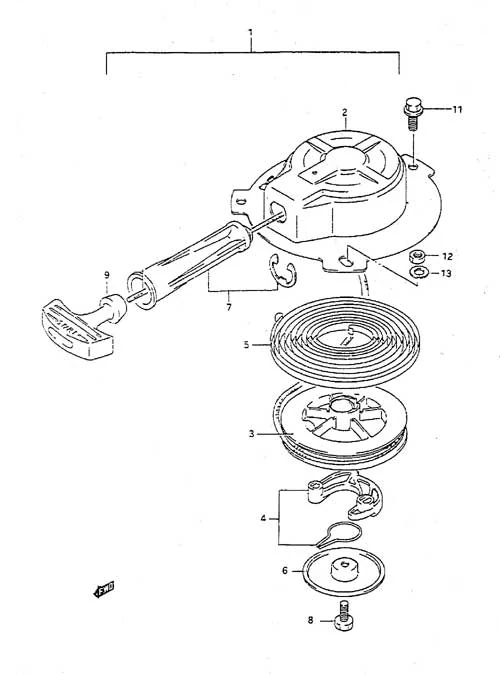

图 8启动器(1990至1997款) Starter(1990 to 1997)
启动器(1990至1997款) Starter(1990 to 1997)
REF零件编号中文名称英文名称数量
118100-98410反冲启动器总成Recoil Starter Assembly1
218110-98410反冲启动器壳体(停产)Recoil Starter Case (NLA)1
318121-98400启动卷盘(停产)Starter Reel (NLA)1
418130-98400棘轮套件（停产）Ratchet Set (NLA)1
518142-87600弹簧(停产)Spring (NLA)1
618151-98400挡板(停产)Plate (NLA)1
718190-98400导向套装(停产)Guide Set (NLA)1
818332-98400枢轴螺栓(停产)Pivot Bolt (NLA)1
918210-98400启动器手柄Starter Grip1
1309160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)1

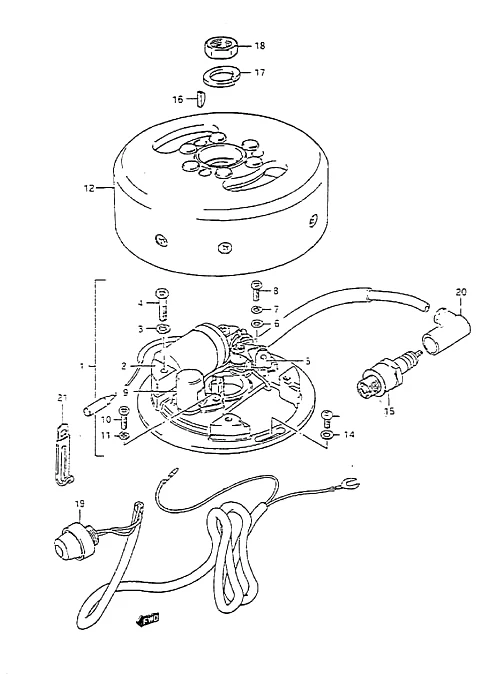

图 9磁电机(1986至1989款) Magneto(1986 to 1989)
磁电机(1986至1989款) Magneto(1986 to 1989)
REF零件编号中文名称英文名称数量
132101-98436定子总成(停产)Stator Assembly (NLA)1
232140-98431点火线圈Ignition Coil1
308321-0105A锁紧垫圈Lock Washer2
402112-05257螺钉 5×25SCREW 5X252
532240-98034触点总成Contact Point Assembly1
608322-01047垫片Washer1
708321-0104A锁紧垫圈Lock Washer1
802112-04107螺钉SCREW1
932341-98430冷凝器(停产)Condensor(NLA)1
1002112-04107螺钉SCREW1
1108321-0104A锁紧垫圈Lock Washer1
1232102-98431飞轮(停产)Flywheel (NLA)1
1302112-05127螺钉SCREW2
1408322-01057垫片Washer2
1509482-00289NGK B4HS火花塞NGK B4HS Spark Plug1
1608341-31039半圆键Woodruff Key1
1708321-01127锁紧垫圈Lock Washer1
1809140-12039螺母Nut1
1937800-93955发动机停机开关总成Engine Stop Switch Assembly1
2033510-95520火花塞帽Spark Plug Cap1

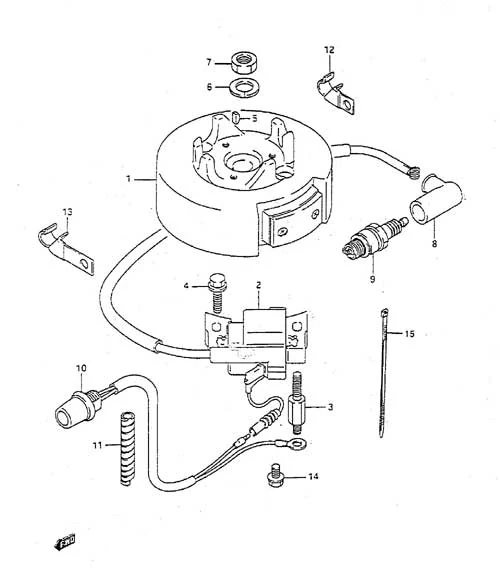

图 10磁电机(1990至1997款) Magneto(1990 to 1997)
磁电机(1990至1997款) Magneto(1990 to 1997)
REF零件编号中文名称英文名称数量
233410-98440点火线圈组件(停产)Ignition Coil Assembly (NLA)1
309108-06110双头螺栓(停产)Stud Bolt (NLA)1
401550-06257螺栓BOLT1
508341-31039半圆键Woodruff Key1
608321-0112A锁紧垫圈Lock Washer1
709140-12038螺母Nut1
1037800-98423发动机停机开关总成Engine Stop Switch Assembly1
1133833-91J00管(6x8x250)Tube (6x8x250)1
1209403-12308夹具(停产)Clamp (NLA)1
1309403-10312夹具(停产)Clamp (NLA)1
1401550-06107塞PLUG1
1509407-14403卡箍(长:125)Clamp (L:125)1

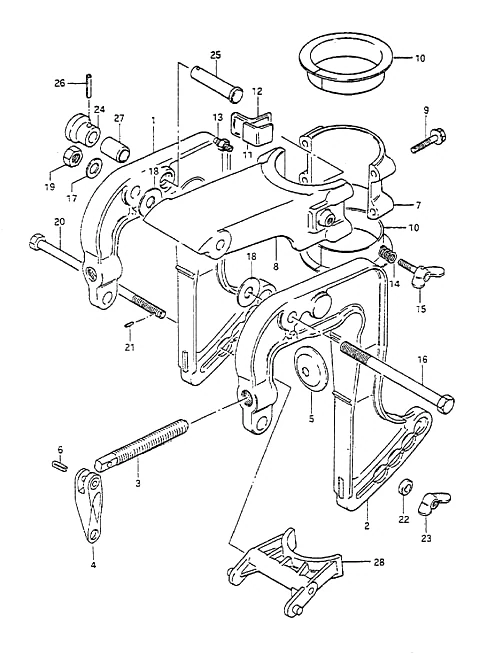

图 11夹具支架 Clamp Bracket
夹具支架 Clamp Bracket
REF零件编号中文名称英文名称数量
141101-98400-0ED右舷夹紧支架Starboard Clamp Bracket1
241102-98400-0ED左舷夹箍支架(停产)Port Clamp Bracket (NLA)1
341210-986L1夹紧螺丝总成Clamp Screw Assembly2
441210-986L1夹紧螺丝总成Clamp Screw Assembly2
541213-94J01夹紧板Clamp Plate2
743121-98404-0ED旋转支架盖(停产)Swivel Bracket Cover (NLA)1
843111-98410-0ED旋转支架(停产)Swivel Bracket (NLA)1
929103-94400螺栓(6x35)Bolt (6x35)4
1043711-98401转向衬套Steering Bushing2
1143415-98402转向板(停产)Steering Plate (NLA)1
1243416-98401调节器橡胶件Adjuster Rubber1
1322511-99011黄油嘴Grease Nipple1
1409440-09042弹簧Spring1
1509119-06059螺栓(停产)Bolt (NLA)1
1609100-08228螺栓(8x105)Bolt (8x105)1
1709160-08082垫圈 (8.5x16x1.2)Washer (8.5x16x1.2)1
1809160-08081垫圈 (8.5x23x1.5)Washer (8.5x23x1.5)2
1909159-08018螺母(8mm)(停产)Nut (8mm) (NLA)1
2009101-06009螺栓(6x115)Bolt (6x115)1
2209180-06132隔套(停产)Spacer (NLA)1
2309144-06004蝶形螺母Wing Nut1
2441221-98400倾斜止动旋钮Tilt Stopper Knob1
2509200-10011销 (停产)Pin (NLA)1
2609205-03012弹簧销 (3x16)Spring Pin (3x16)1
2709300-10006衬套(停产)Bushing (NLA)1
2845411-98410推力块Thrust Block1

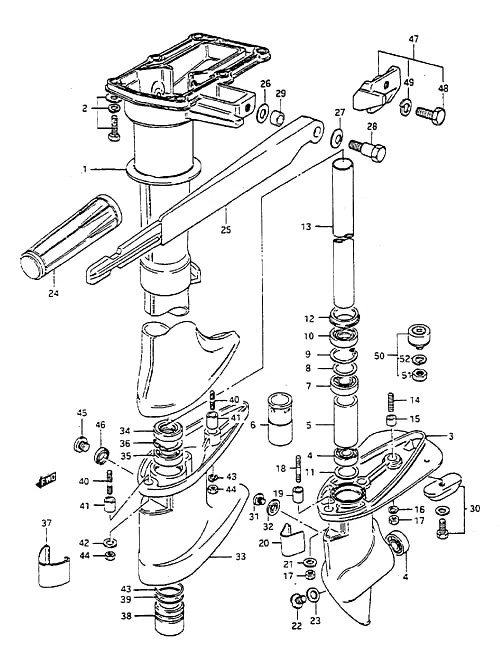

图 12齿轮箱 Gear Case
齿轮箱 Gear Case
REF零件编号中文名称英文名称数量
152111-98420-0ED驱动轴壳体(停产)Drive Shaft Housing (NLA)1
209118-06123螺栓(6x25)Bolt (6x25)6
409262-10015B1 10x26x8轴承B1 10x26x8 Bearing2
509180-19004隔套(停产)Spacer (NLA)1
657133-98400隔套(停产)Spacer (NLA)1
709262-12001轴承(12x28x8)Bearing (12x28x8)1
908331-41289卡簧Circlip1
1009289-12002油封(12x28x8)Oil Seal (12x28x8)1
1209320-20009衬套Bushing1
1357151-98400驱动轴密封管(停产)Drive Shaft Seal Pipe (NLA)1
1409108-06062双头螺栓(6x12)Stud Bolt (6x12)1
1509206-09007销 (停产)Pin (NLA)1
1609162-06006锁紧垫圈Lock Washer1
1709140-06020螺母(6mm)Nut (6mm)2
1809108-06063双头螺栓(6x12)Stud Bolt (6x12)1
1909206-09001销Pin1
2055112-98401-0ED齿轮箱盖(停产)Gear Case Cover (NLA)1
2109160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)1
2463211-98400手柄握把Handle Grip1
2563111-98403-0ED舵柄手柄（停产）Tiller Handle (NLA)1
2609160-08081垫圈 (8.5x23x1.5)Washer (8.5x23x1.5)1
2709164-10006垫片Washer2
2809111-08070螺栓Bolt1
2909306-10009手柄衬套Handle Bushing1
3055320-98400锌阳极Zinc Anode1
3352130-98401-0ED齿轮箱延长段(停产)Gear Case Extension (NLA)1
3409289-12002油封(12x28x8)Oil Seal (12x28x8)1
3509262-12001轴承(12x28x8)Bearing (12x28x8)1
3608331-41289卡簧Circlip1
3752133-98401-0ED延长盖(停产)Extension Cover (NLA)1
3852132-98400延长轴环(停产)Extension Collar (NLA)1
3909280-25005O型圈O-Ring2
4009108-06068双头螺栓(6x25)Stud Bolt (6x25)2
4109206-09010销 (停产)Pin (NLA)2
4209160-06082垫圈 (6.5x13x1.0)Washer (6.5x13x1.0)1
4309162-06006锁紧垫圈Lock Washer1
4409140-06020螺母(6mm)Nut (6mm)2
4509248-10008放油塞Drain Plug1
4609168-10022放油塞垫片Drain Plug Gasket1
4752120-98400-0ED手柄附件套装(停产)Handle Attachment Set (NLA)1
4809100-08219螺栓(8x20)(停产)Bolt (8x20) (NLA)1
4909162-080078.2x15.4x2.0锁紧垫圈Lock Washer (8.2x15.4x2.0)1
5055300-98400锌阳极(停产)Zinc Anode (NLA)1
5109140-06020螺母(6mm)Nut (6mm)1
5209162-06006锁紧垫圈Lock Washer1

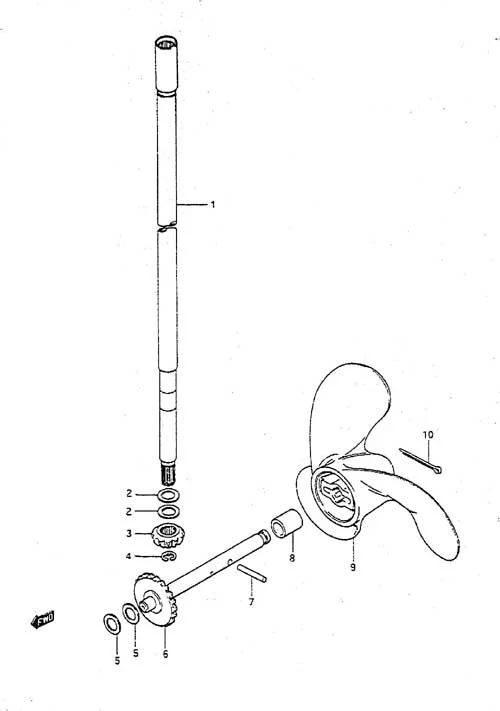

图 13变速箱 Transmission
变速箱 Transmission
REF零件编号中文名称英文名称数量
157110-98400驱动轴(停产)Drive Shaft (NLA)1
357311-98402小齿轮(停产)Pinion Gear (NLA)1
408332-1106AE型卡环E Ring1
657610-98403螺旋桨轴总成Propeller Shaft Assembly1
709202-04002剪切销Shear Pin1
809180-10138垫片Spacer1
1009204-02001开口销Cotter Pin1

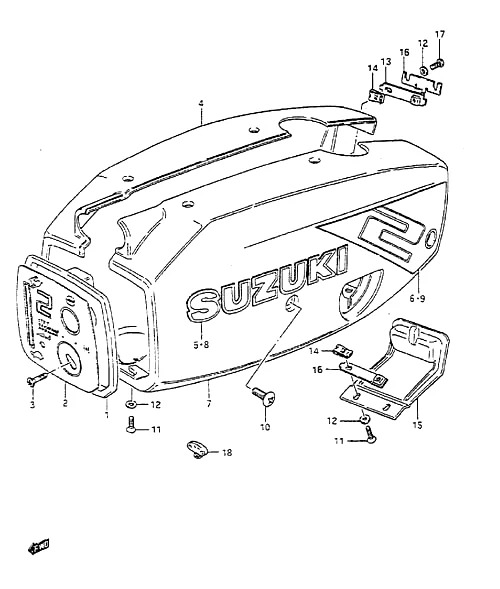

图 14发动机罩(1986年款) Engine Cover(1986)
发动机罩(1986年款) Engine Cover(1986)
REF零件编号中文名称英文名称数量
161420-98402发动机盖前徽标Engine Cover Front Emblem1
261422-98420-60K前徽标标记Front Emblem Mark1
309126-04003螺钉(4x35)Screw (4x35)2
461461-98430-02M右舷发动机盖 (停产)Starboard Engine Cover (NLA)1
568111-47C10-019铃木徽标Suzuki Emblem1
661443-98460-70G右舷发动机罩条纹（停产）Starboard Engine Cover Stripe (NLA)1
761471-98430-02M左舷发动机罩(停产)Port Engine Cover (NLA)1
868111-47C10-019铃木徽标Suzuki Emblem1
961453-98460-70G左舷发动机罩条纹(停产)Port Engine Cover Stripe (NLA)1
1009125-06067螺钉(6x16)Screw (6x16)4
1109125-05046螺钉(5x12)Screw (5x12)4
1209160-05032垫圈 (停产)Washer (NLA)4
1361490-98400发动机盖板Engine Cover Plate4
1409148-05011螺母Nut4
1561481-98410发动机盖铰链Engine Cover Hinge1
1661485-98401发动机盖铰链弹簧(停产)Engine Cover Hinge Spring (NLA)1
1709126-05003螺钉(5x12)Screw (5x12)6
1861521-98400剪切销座（停产）Shear Pin Holder (NLA)1

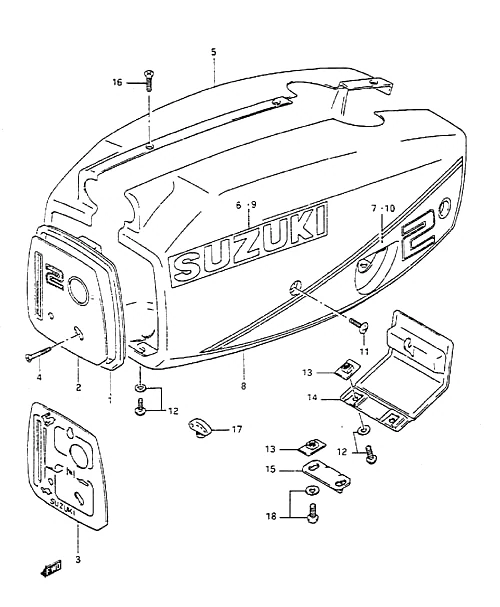

图 15发动机罩(1987至1993年款) Engine Cover(1987 to 1993)
发动机罩(1987至1993年款) Engine Cover(1987 to 1993)
REF零件编号中文名称英文名称数量
161420-98402发动机盖前徽标Engine Cover Front Emblem1
261422-98420-60K前徽标标记Front Emblem Mark1
361422-98420-60K前徽标标记Front Emblem Mark1
409126-04003螺钉(4x35)Screw (4x35)2
761443-98460-70G右舷发动机罩条纹（停产）Starboard Engine Cover Stripe (NLA)1
1061453-98460-70G左舷发动机罩条纹(停产)Port Engine Cover Stripe (NLA)1
1109125-06067螺钉(6x16)Screw (6x16)4
1209136-05008螺钉(5x12)Screw (5x12)4
1361490-98411发动机盖板Engine Cover Plate5
1461481-98430-0EM发动机盖铰链Engine Cover Hinge1
1561485-98410发动机盖铰链弹簧(停产)Engine Cover Hinge Spring (NLA)1
1609126-05007螺钉(5x12)Screw (5x12)3
1761521-98400剪切销座（停产）Shear Pin Holder (NLA)1
1802142-05087十字螺钉 5×8SCREW 5X8 CROSS2

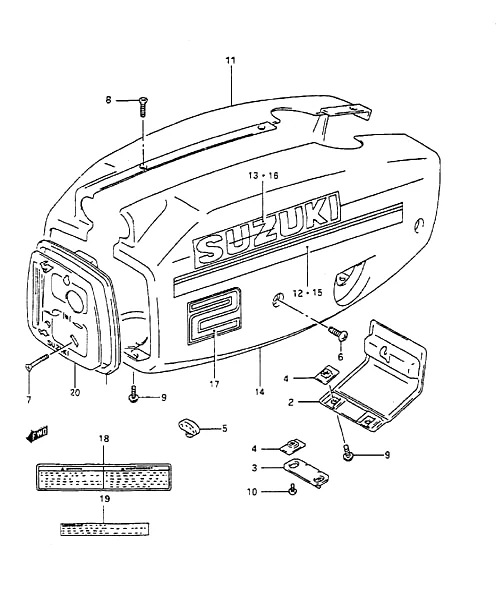

图 16发动机罩(1994至1996年款) Engine Cover(1994 to 1996)
发动机罩(1994至1996年款) Engine Cover(1994 to 1996)
REF零件编号中文名称英文名称数量
161420-98402发动机盖前徽标Engine Cover Front Emblem1
261481-98430-0EM发动机盖铰链Engine Cover Hinge1
361485-98410发动机盖铰链弹簧(停产)Engine Cover Hinge Spring (NLA)1
461490-98411发动机盖板Engine Cover Plate5
561521-98400剪切销座（停产）Shear Pin Holder (NLA)1
609125-06067螺钉(6x16)Screw (6x16)4
709126-04003螺钉(4x35)Screw (4x35)2
809126-05007螺钉(5x12)Screw (5x12)3
909136-05008螺钉(5x12)Screw (5x12)4
1002142-05087十字螺钉 5×8SCREW 5X8 CROSS2
1161460-98Y11-0EM右舷发动机盖 (停产)Starboard Engine Cover (NLA)1
1261443-98471右舷发动机罩条纹（停产）Starboard Engine Cover Stripe (NLA)1
1368111-01C20-C4Z铃木徽标(停产)Suzuki Emblem (NLA)1
1461400-98800-YR9发动机盖总成Engine Cover Set1
1561453-98471左舷发动机罩条纹(停产)Port Engine Cover Stripe (NLA)1
1668111-01C20-C4Z铃木徽标(停产)Suzuki Emblem (NLA)1
1761445-98470输出标贴（停产）Output Decal (NLA)2
1861581-98400安全警告标志(停产)Safety Warning Mark (NLA)1
1965893-92D01认证标签(停产)Certification Label (NLA)1
2061422-98420-60K前徽标标记Front Emblem Mark1

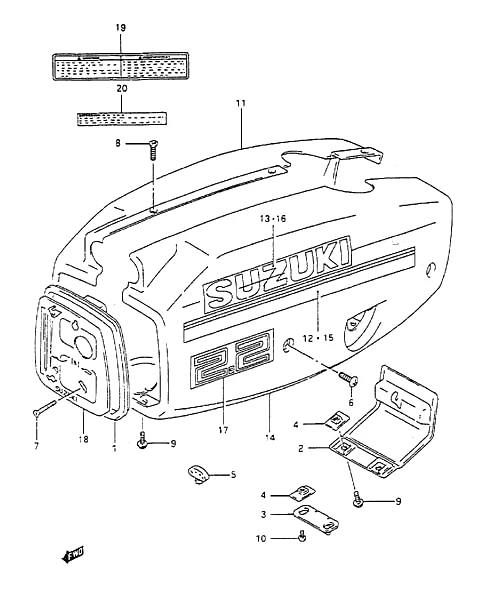

图 17发动机罩(DT2.2型 1997年款) Engine Cover(DT 2.2 1997)
发动机罩(DT2.2型 1997年款) Engine Cover(DT 2.2 1997)
REF零件编号中文名称英文名称数量
161420-98402发动机盖前徽标Engine Cover Front Emblem1
261481-98430-0EM发动机盖铰链Engine Cover Hinge1
361485-98410发动机盖铰链弹簧(停产)Engine Cover Hinge Spring (NLA)1
461490-98411发动机盖板Engine Cover Plate5
561521-98400剪切销座（停产）Shear Pin Holder (NLA)1
609125-06067螺钉(6x16)Screw (6x16)4
709126-04003螺钉(4x35)Screw (4x35)2
809126-05007螺钉(5x12)Screw (5x12)3
909136-05008螺钉(5x12)Screw (5x12)4
1002142-05087十字螺钉 5×8SCREW 5X8 CROSS2
1161460-98Y11-0EM右舷发动机盖 (停产)Starboard Engine Cover (NLA)1
1261443-98471右舷发动机罩条纹（停产）Starboard Engine Cover Stripe (NLA)1
1368111-01C20-C4Z铃木徽标(停产)Suzuki Emblem (NLA)1
1461400-98800-YR9发动机盖总成Engine Cover Set1
1561453-98471左舷发动机罩条纹(停产)Port Engine Cover Stripe (NLA)1
1668111-01C20-C4Z铃木徽标(停产)Suzuki Emblem (NLA)1
1761445-98480输出标贴（停产）Output Decal (NLA)2
1861422-98420-60K前徽标标记Front Emblem Mark1
1961581-98400安全警告标志(停产)Safety Warning Mark (NLA)1
2065893-92D01认证标签(停产)Certification Label (NLA)1

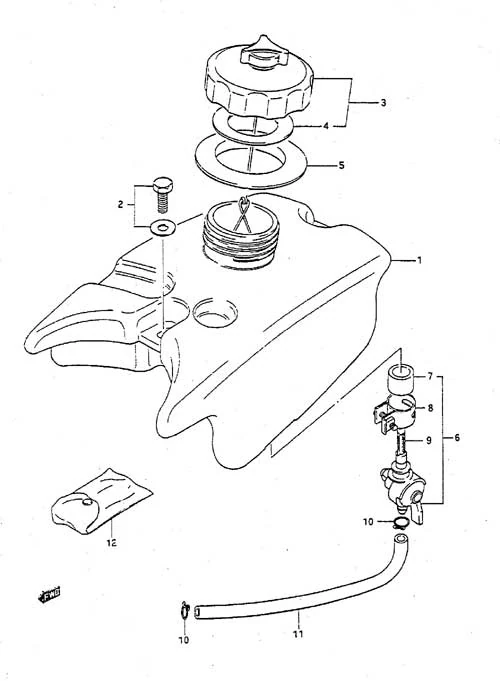

图 18燃油箱 Fuel Tank
燃油箱 Fuel Tank
REF零件编号中文名称英文名称数量
165111-98403燃油箱Fuel Tank1
201550-06167螺栓BOLT2
365510-91J02燃油箱盖总成Fuel Tank Cap Assembly1
409168-32003油箱盖垫片Tank Cap Gasket1
565281-98400油箱密封圈Fuel Tank Grommet1
666100-98402燃油旋塞总成Fuel Cock Assembly1
766142-98401替代件66142-98402Replaced by 66142-984021
866165-98401燃油旋塞卡箍(停产)Fuel Cock Clamp (NLA)1
966152-98400燃油滤清器Fuel Strainer1
1009401-08410卡扣Clip2

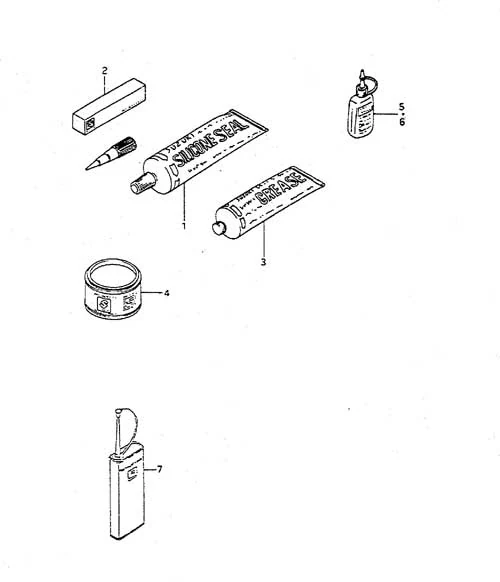

图 19选配件 Optional
选配件 Optional
REF零件编号中文名称英文名称数量
193691-80030铃木硅胶密封剂Suzuki Silicone Seal1
399000-25520防水润滑脂Water Resistant Grease1
499000-25490铃木Ecstar超级润滑脂CSuzuki Ecstar Super Grease C1
