舟一会 ZHOUYIHUI 船外机

百胜 T30 船外机 - 爆炸图零件明细

共 16 个部位 · 687 个零件编号 · 点击部位可快速跳转。电话咨询：+86 18658175361

部位目录点部位快速跳转共 16 个部位
01托架02操舵系统03水上装置壳体04底罩05控制系统06水下装置壳体&驱动系统07电气系统08曲轴&活塞09曲轴箱10燃油系统11进气系统12化油器总成13起动器14顶罩组件15燃油箱16操纵盒组件
图 1托架 BRACKET

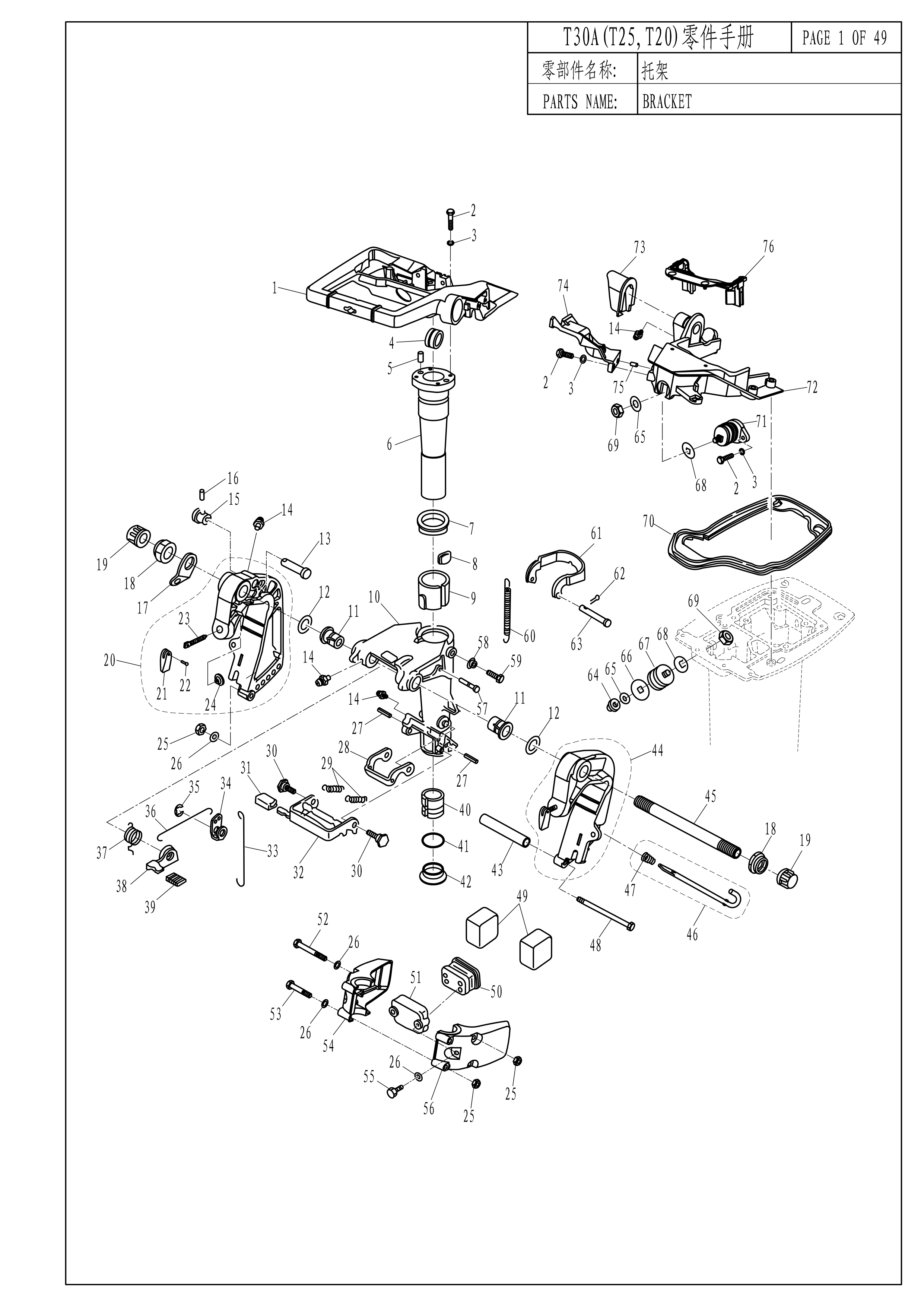

托架 BRACKET 爆炸图
REF零件编号中文名称英文名称数量轴型
1T20-01020001操舵托架STEER BRACKET ASSY1
2GB/T5783-M6x20六角螺栓M6x20BOLT M6x207
3GB/97.1-6平垫圈6WASHER 67
4T20-01000001托架橡胶圈RUBBER LO0P,BRACKET1
5F25-00000014定位销中8x12PINφ8x122
6T20-01020002操舵托架轴SHAFT,STEER BRACKET1
7T20-01000002旋转支架上垫圈UPPER WASHER,ROTARY BRACKET1
8T20-01000200上衬套锁紧块LOCKING BLOCK,UPPER BUSH1
9T20-01000003旋转支架上衬套UPPER BUSH,ROTARY BRACKET1
10T20-01010301旋转支架ROTARY BRACKET1
11F15-01010302螺管尼龙衬套BUSH,BOLT2
12F25-01010003螺管垫圈WASHER,BOLT2
13T20-01010202起翘限位轴LIMITED AXIS,TILT1
14JB/T7940.1-M6直通式压注油杯M6OILER M65
15T20-01010203起翘限位手柄LIMITING HANDLE,TILT1
16GB/T879.2-φ3x16轻型直槽弹性圆柱销φ3x16PINØ3X161
17F25-01010004双孔固定板PLATE,TWO HOLE1
18F15-01010007托架夹紧螺母CLAMP NUT,BRACKET2
19F25-01010011塑料装饰螺母NUT,PLASTIC2
20T20-01010200夹紧托架(右)组件BRACKET ASSY(RIGHT)1
21F4-01010004艉板夹紧手柄CLAMP HANDLE,STERN2
22F4-01010005艉板夹紧手柄铆钉RIVET,CLAMP HANDLE2
23F15-01010102艉板夹紧螺杆CLAMP SCREW2
24F4-01010003艉板夹紧圆盘CLAMP PAD2
25GB/T6170-M8六角螺母M8NUT M85
26GB/T97.1-8平垫圈8WASHER 87
27GB/T879.1-4x38重型直槽弹性圆柱销4x38PIN 4x382
28T20-01010305锁紧手柄内架INNER FRAME,LOCKED HANDLE1
29T20-01010304支撑架拉簧SPRING,SUPPORT2
30T20-01010303扁六角轴位螺钉BOLT2
31F15-01010305-3手柄护套JACKET,HANDLE1
32T20-01010302支撑架组件SUPPORT FRAME ASSY1
33T20-01010309锁紧手柄内架拉杆PULL ROD,INNER FRAME1
34T20-01010310拉杆支架BRACKET,PULL ROD1
35GB/T896-5开口挡圈5CIRCLIP 51
36T20-01010311拉杆拉簧SPRING,PULL ROD1
37T20-01010003角度锁紧手柄扭簧WREST SPRING,LOCKING HANDLE1
38T20-01010001角度锁紧手柄LOCKING HANDLE1
39T20-01010002角度锁紧手柄套JACKET,LOCKING HANDLE1
40T20-01000004旋转支架下衬套LOWER BUSH,ROTARY BRACKET1
41T20-01000005下衬套0型圈0-RING,LOWER BUSH1
42T20-01000006旋转支架下垫圈LOWER WASHER,ROTARY BRACKET1
43T20-01010004螺栓套管TUBE,BOLT1
44T20-01010100夹紧托架(左)组件BRACKET ASSY(LEFT)1
45F15-01010001夹紧托架双头螺管BOLT,CLAMP BRACKET1
46F15-01010400角度调整杆组件LIMITATIVE ROD ASSY1
47F15-01010402锥形弹簧CONICAL SPRING1
48GB/T5782-M8x155六角螺栓M8x155BOLT M8x1551
49T20-00000004左右减震块SHELL,ABSORBER2
50T20-00000006前减震块ABSORBER(FRONT)1
51T20-00000005前减震块外壳CASING,ABSORBER(FRONT)1
52GB/T5782-M8x105六角螺栓M8x105BOLT M8x1052
53GB/T5782-M8x70六角螺栓M8x70BOLT M8x702
54T20-00000003减震块外壳(右)SHELL(RIGHT),ABSORBER1
55GB/T5782-M8x25六角螺栓M8x25BOLT M8x252
56T20-00000011减震块外壳(左)SHELL(LEFT),ABSORBER1
57T20-01010312拉杆支架销轴SHAFT,BRACKET1
58F15-01010303锁紧螺栓密封圈GASKET1
59GB/T5787-M6x25六角法兰面螺栓M6x25BOLT M6x251
60T20-01010308外架拉簧PULL SPRING,OUTER FRAME1
61T20-01010306锁紧手柄外架组件FRAME ASSY,LOCKING HANDLE1
62GB/T91-φ1.2x12开口销φ1.2x12COTTER PIN φ2x121
63T20-01010307锁紧手柄销轴SHAFT,LOCKING HANDLE1
64GB/T923-M10x1.25盖形螺母M10x1.25CROWN NUT M10x1.252
65GB/T97.1-10平垫圈10WASHER 103
66T20-00000001减震器垫AGASKET A,ABSORBER2
67T20-00000100减震器组件ABSORBER ASSY2
68T20-00000002减震器垫BGASKET B,ABSORBER3
69GB/T6171-M10x1.25六角螺母M10x1.25NUT M10x1.253
70T20-00000007水上装置密封圈SEAL,UPPER CASING1
71T20-01000100变档支架减震器ABSORBER,BRACKET1
72T20-03000001变档支架BRACKET,SHIFT GEAR1
73T20-03000004变档手柄橡胶套HANDLE JACKET,SHIFT GEAR1
74T20-03000013底罩支撑架SUPPORT,BOTTOM COWLING1
75F15-00000006定位销φ6x12PINφ6x121
76T20-00000008变档支架减震垫GASKET,BRACKET1
图 2操舵系统 STEERING

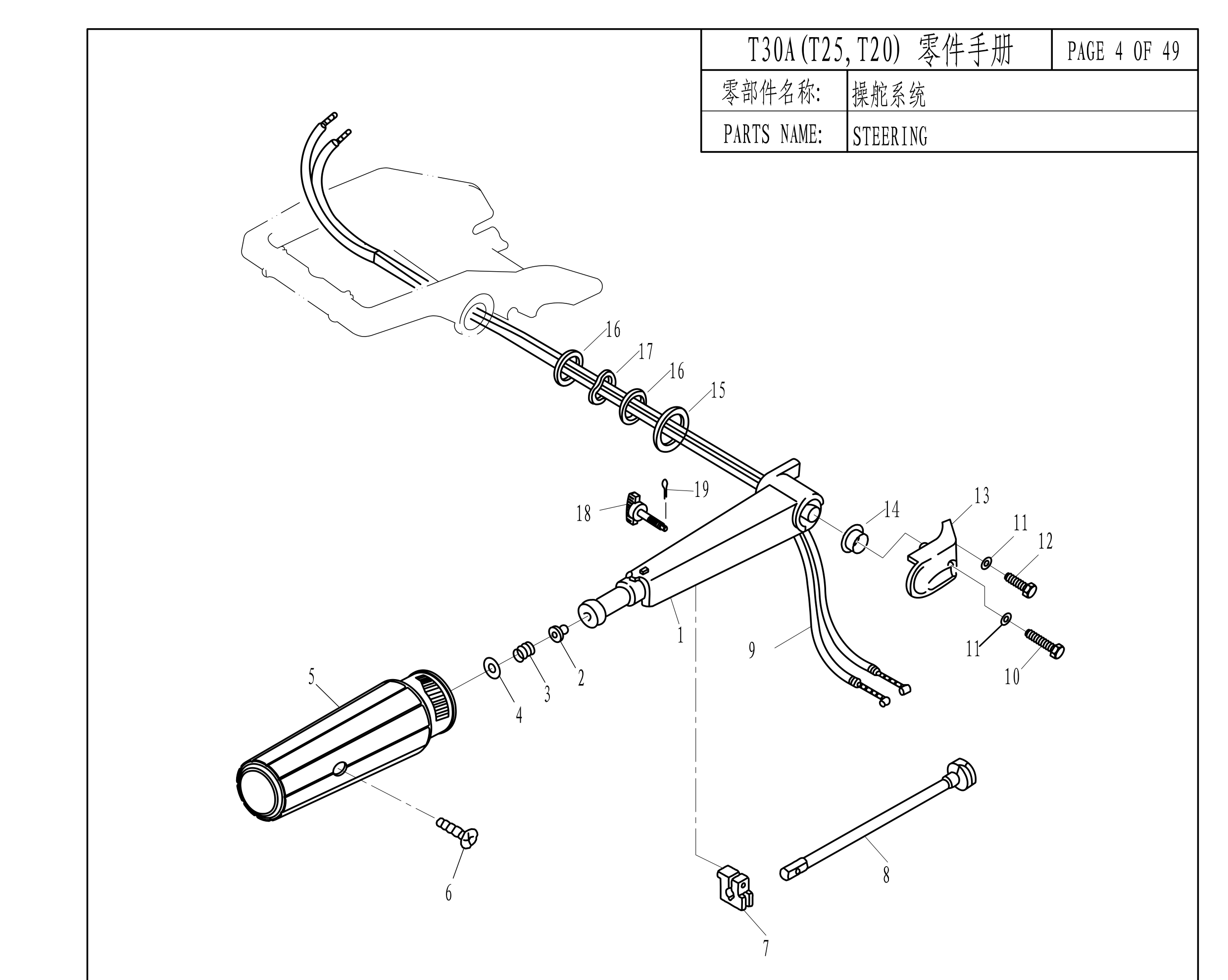

操舵系统 STEERING 爆炸图
REF零件编号中文名称英文名称数量轴型
1T20-01030001操舵手柄HANDLE,STERING1
2F4-01090006衬套BUSH1
3F4-01090007压缩弹簧SPRING,COMPRESSION1
4GB/T848-10小垫圈10SMALL WASHER 101
5T15-01020300操舵手柄塑胶套组件STEERING HANDLE ASSY1
6GB/T820-N5x25十字槽半沉头螺钉M5×25SCREW M5x251
7F4-01090003操舵手柄握把摩擦块FRICTION1
8T20-01030100节气门杆组件LEVER,THROTTLE ASSY1
9T20-01030300油门钢索组件THROTTLE CABLE ASSY2
10GB/T5782-M6x50六 角 螺 栓M6x50BOLT M6x501
11GB/T97.1-6平垫圈6WASHER 62
12GB/T5783-M6x20六角螺栓M6x20BOLT M6x201
13T20-01000007操舵手柄固定块FIXED BLOCK,STEERING HANDLE1
14T20-01000008手柄减磨圈WEARABLE LO0P,HANDLE1
15T20-01000009手柄衬套BUSH,HANDLE1
16T20-01000011衬套垫圈WASHER ,NYLON2
17T20-01000010波形垫圈WASHER ,WAVE1
18T20-01030200阻力调整旋钮组件BOLT,FRICTION ADJUSTING1
19GB/T91-1.6x12开 口 销O1.6x12COTTER PIN O1.6x121
图 3水上装置壳体 UPPER CASING

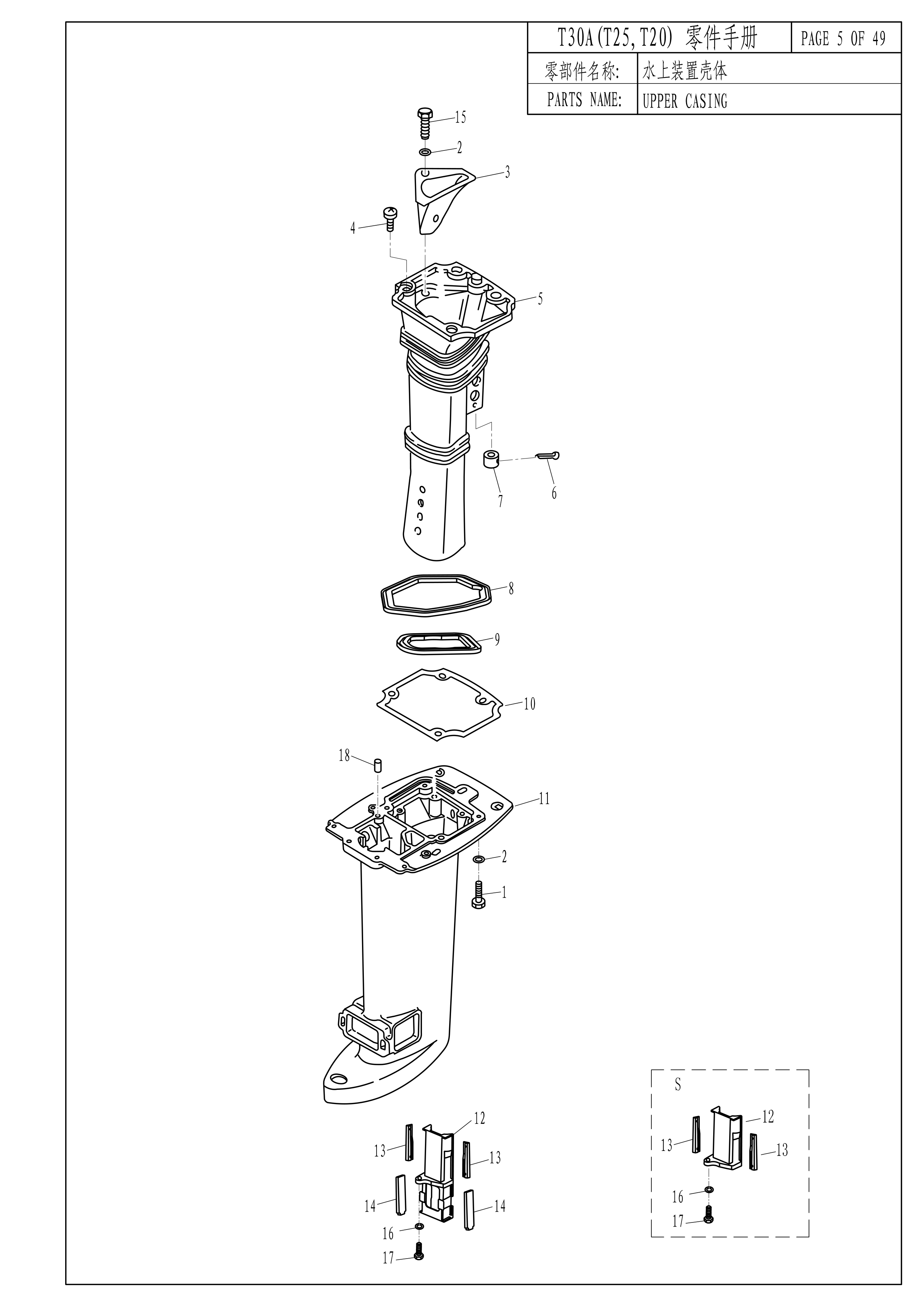

水上装置壳体 UPPER CASING 爆炸图
REF零件编号中文名称英文名称数量轴型
1GB/T5783-M8x30六角螺栓M8x30BOLT M8x306
2GB/T97.1-8平垫圈8WASHER 87
3T20-02000007歧管隔板PARTITION BOARD,MANIFOLD1
4GB/T818-M6x16十字槽盘头螺钉M6x16SCREW M6x164
5T20-02000002排气歧管OUTLET MANIFOLD1
6GB/T91-φ2.5x25开口销φ2.5x25COTTER PIN φ2.5x251
7T20-02000006尼龙堵塞NYLON JAM1
8T20-02000004排气歧管上密封圈UPPER SEAL,OUTLET MANIFOLD1
9T20-02000005排气歧管下密封圈LOWER SEAL,OUTLET MANIFOLD1
10T20-02000003排气歧管密封垫GASKET,OUTLET MANIFOLD1
11T20-02000001L水上装置壳体(长)UPPER CASING(L)1长轴 L
11T20-02000001S水上装置壳体(短)UPPER CASING(S)1短轴 S
12T20-02000008L排气隔板(长)EXHAUST CLAPBOARD(L)1长轴 L
12T20-02000008S排气隔板(短)EXHAUST CLAPBOARD(S)1短轴 S
13T20-02000009排气隔板上橡胶垫(A)UPPER GASKET(A)2
14T20-02000010排气隔板下橡胶垫LOWER GASKET2
15GB/T5783-M8x20六角螺栓M8x20BOLT M8x201
16GB/T97.1-85平垫圈6WASHER 61
17GB/T5783-M6x20六角螺栓M6x20BOLT M6x201
18F15-00000006定位销φ6x12DOWEL PIN φ6x122

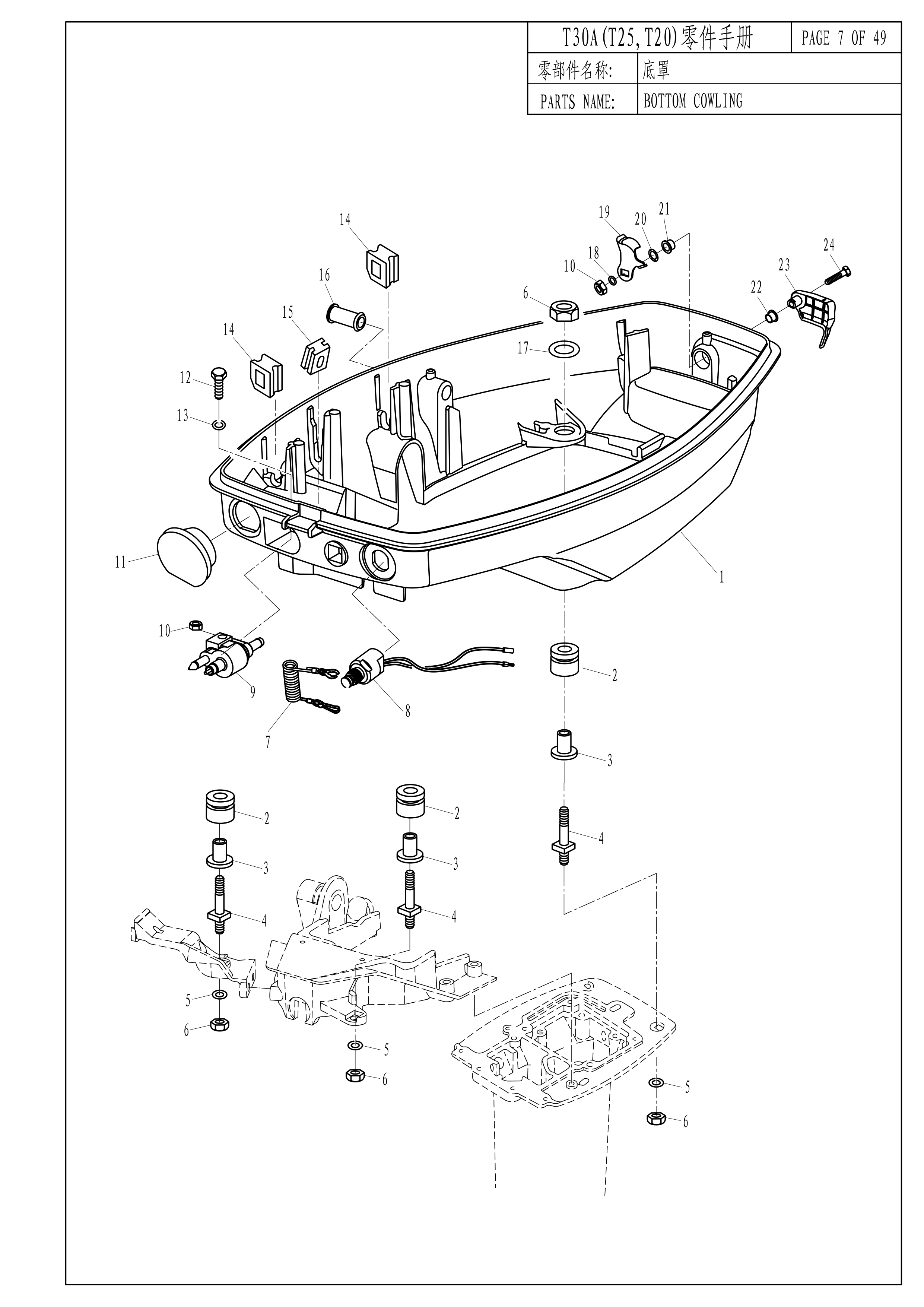

图 4底罩 BOTTOM COWLING
底罩 BOTTOM COWLING 爆炸图
REF零件编号中文名称英文名称数量轴型
1T20-04000001底罩BOTTOM COWLING1
2T20-04000001BW底罩(BW)BOTTOM COWLING(BW)1
3T20-04000003底罩减震圈DAMPER,BOTTOM COWLING4
4T20-04000002底罩垫管BUSH,BOTTOM COWLING4
5T20-04000014底罩支撑螺钉SUPPORT BOLT,BOTTOM COWLING4
6GB/97.1-8平垫圈8WASHER84
7GB/T6170-M8六角螺母M8NUT M88
8F4-01090401引擎停止安全索STOPER,HANG ROPE ASSY1
9T15-01020003急停开关组件ENGINE STOP SWITCH ASSY1
10F4-05000200燃油管接头组件FUEL CONNECTOR ASSY1
11GB/T6170-M6六角螺母M6NUT M62
12T15-03000005圆形堵头CIRCULAR PLUG1
13GB/T5783-M6x20六角螺栓M6x20BOLT M6x201
14GB/97.1-6平垫圈6WASHER 61
15T20-04000009橡胶线卡WIRE CLAMP,RUBBER2
16T20-04000008油门钢索护套JACKET,TIGHTWIRE1
17T20-04000005橡胶堵头RUBBER PLUG1
18F25-01010010厚垫片8THICK WASHER 84
19GB/96-6大垫圈6BIG WASHER 61
20T20-04000006顶罩锁紧块HOOK,LOCK1
21F15-05000023波形垫圈WAVE WASHER1
22F15-05000036顶罩锁紧手柄尼龙套BBUSHING B,LOCKING HANDLE1
23F15-05000022顶罩锁紧手柄尼龙套ABUSHING A,LOCKING HANDLE1
24T20-04000004顶罩锁紧手柄LOCKING HANDLE,TOP COWLING1
25GB/T5783-M6x25六角螺栓M6x25BOLT M6x251

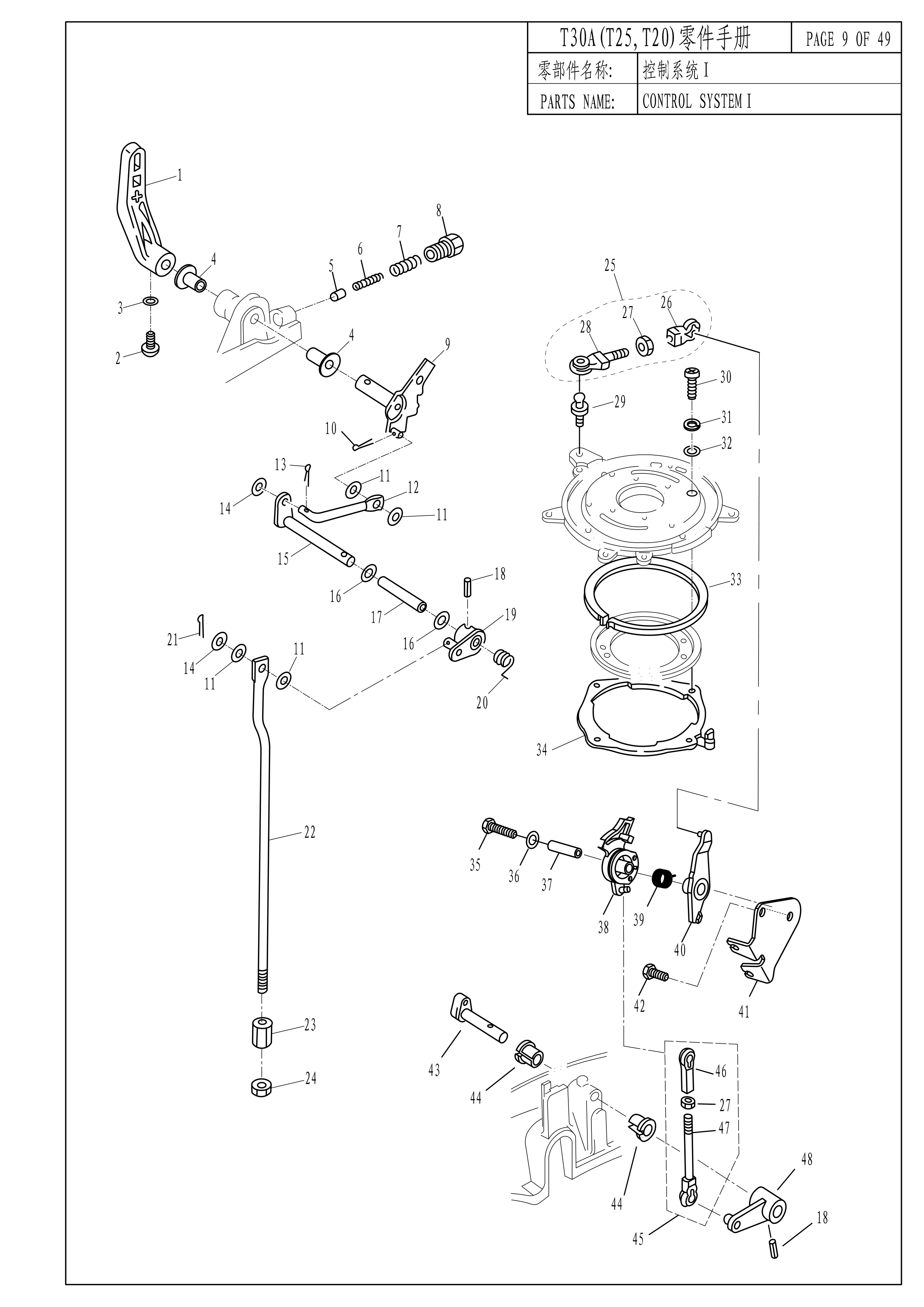

图 5控制系统 CONTROL SYSTEM I
控制系统 CONTROL SYSTEM I 爆炸图
REF零件编号中文名称英文名称数量轴型
1T20-03000005变档手柄HANDLE,SHIFT GEAR1
2GB/T823-M6x20十字槽小盘头螺钉N6x20SCREW M6x201
3GB/T97.1-6平垫圈6WASHER 61
4T20-03000015尼龙衬套NYLON BUSH2
5T20-03000006变档凸轮柱塞PLUNGER,SHIFT CAM1
6T20-03000008柱塞弹簧ASPRING A,PLUNGER1
7T20-03000009柱塞弹簧BSPRING B,PLUNGER1
8T20-03000007柱塞螺母NUT,PLUNGER1
9T20-03000300档位定位片组件LOCATING PLATE ASSY,SHIFT LEVER1
10GB/T91-φ1.2x14开口销φ1.2x14COTTER PIN φ1.2x141
11T20-03000011小轴尼龙垫圈NYLON WASHER,SMALL AXES4
12T20-03000010变档凸轮连杆CONNECTING ROD,SHIFT CAM1
13GB/T91-φ1.0x14开口销φ1.0x14COTTER PIN φ1.0x141
14GB/T848-5小垫圈5WASHER 52
15T20-03000100变档杆组件SHIFT LEVER ASSY1
16T20-03000002变档尼龙垫圈NYLON WASHER,SHIFT GEAR1
17T20-03000003变档轴套AXLE TUBE,SHIFT GEAR1
18GB/T879.1-φ4x16重型直槽弹性圆柱销φ4x16PIN φ4x162
19T20-03000200变档杆支座组件SEAT ASSY,SHIFT LEVER1
20T20-03000204变档杆扭簧WREST SPRING,SHIFT LEVER1
21GB/T91-φ1.6x12开口销φ1.6x12COTTER PIN φ1.6x121
22T20-03000012变档连接杆CONNECTING LEVER,SHIFT GEAR1
23F15-00000035柱状螺母NUT,PLUNGER1
24GB/T6170-M6六角螺母M6NUT M61
25T20-06050300磁电机连杆组件CONNECTING ROD ASSY,MAGNETO1
26T20-06050302连杆接头BTIE-IN B,CONNECTING ROD1
27GB/T6170-M5六角螺母M5NUT M52
28T20-06050301连杆接头ATIE-IN A,CONNECTING ROD1
29T20-06040007连杆接头TIE-IN,CONNECTING ROD1
30GB/T818-M5x12十字槽盘头螺钉M5x12BOLT M5x124
31GB/T93-5弹性垫圈5SPRING-WASHER 54
32GB/T97.1-5平垫圈5WASHER 54
33T20-06000023磁电机衬圈RETAINER,MAGNETO1
34T20-06000021磁电机挡板PLATE,MAGNETO1
35GB/T5782-M6x45六角螺栓M6x45BOLT M6x451
36T40-05070005油门执行器垫圈WASHER,ACCELEROGRAPH ACTUATOR1
37T20-06050002油门执行器衬管BUSH,ACCELEROGRAPH ACTUATOR1
38T20-06050100油门执行器主动滑轮组件CHAIN WHEEL ASSY,ACCELEROGRAPH1
39T20-06050003从动滑轮扭簧WREST SPRING,DRIVEN HEEL1
40T20-06050200从动滑轮组件DRIVEN WHEEL ASSY1
41T20-06050001油门执行器固定板PLATE,ACCELEROGRAPH ACTUATOR1
42GB/T5783-M6x12六角螺栓M6x12BOLT M6x121
43T20-04000202W油门控制轴SHAFT,ACCELEROGRAPH1
44T20-04000010W油门摆杆衬套SWING-ROD BUSH,ACCELEROGRAPH2
45T20-04000300W油门推杆组件PUSH ROD ASSY,ACCELEROGRAPH1
46T15-04040005触发线圈接头TIE-IN,PULSER COIL1
47T20-04000301W油门推杆PUSH ROD,ACCELEROGRAPH1
48T20-04000100W油门摆杆组件SWING-ROD ASSY,ACCELEROGRAPH1
49T20-04000800W变档控制接头组件J0INT ASSY,SHIFT GEAR1
50T20-04000801W变档控制销轴组件PIN ROLL ASSY,SHIFT GEAR1
51GB/T879.1-3x12轻型直槽弹性圆柱销3x12PIN 3x122
52T20-04000802W变档控制压缩弹簧CONPRESS SPRING,SHIFT GEAR1
53GB/T97.1-8平垫圈8WASHER 82
54T20-04000803W变档控制接头JOINT,SHIFT GEAR1
55GB/T5783-M6x16六角螺栓M6x16BOLT M6x162
56GB/T97.1-6平垫圈6WASHER 63
57T20-04000500W变档支架组件BRACKET ASSY,SHIFT GEAR1
58T20-04000700W油门控制接头组件JOINT ASSY,ACCELEROGRAPH1
59T20-04000701W油门控制销轴组件PIN ROLL ASSY,ACCELEROGRAPH1
60T20-04000702W油门控制压缩弹簧COMPRESS SPRING,ACCELEROGRAPH1
61T20-04000703W油门控制接头JOINT,ACCELEROGRAPH1
62GB/T5783-M6x12六角螺栓M6x12BOLT M6x121
63T20-04000201W油门控制手柄HANDLE CONTROL,ACCELEROGRAPH1
64T20-04000400W油门钢索支架组件BRACKET ASSY,ACCELEROGRAPH TIGHTWIRE1
65F25-07000006W非金属嵌件六角锁紧薄螺母3/8"THIN NUT 3/8"2
66GB/T97.1-85平垫圈10WASHER 104
67GB/T5782-M10x1.25x40六角螺栓M10x1.25x40BOLT M10x1.25x401
68T20-04000900W转向连杆组件LINK ROD ASSY1
69T20-04000902W转向连接板PLATE1
70F25-07000304W六角螺母3/8"NUT 3/8"1
71F25-07000303W螺栓垫管BUSH,BOLT1
72T20-04000901W转向连杆LINK ROD1
73F15-11020002W转向连杆螺栓BOLT,LINK ROD1
74GB/T889.1-M10x1.25非金属嵌件六角锁紧螺母M10x1.25NUT M10x1.251
图 6水下装置壳体&驱动系统 LOWER CASING &DRIVE I

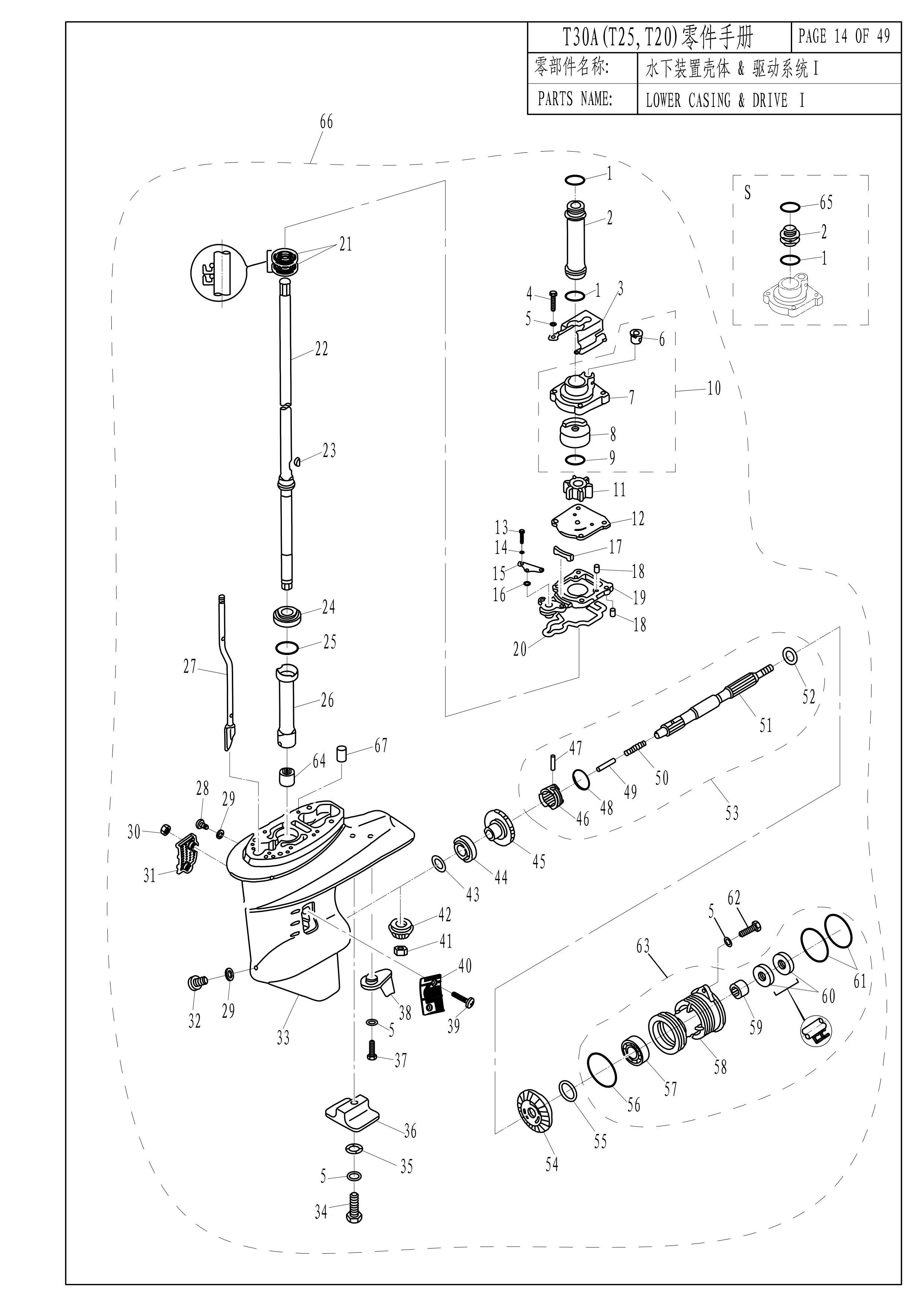

水下装置壳体&驱动系统 LOWER CASING &DRIVE I 爆炸图
REF零件编号中文名称英文名称数量轴型
1GB/T3452.1-25.8x2.650形圈25.8x2.650-RING 25.8x2.652
2F25-04000017L驱动轴尼龙套(长)TUBE,WATER(L1长轴 L
2F25-04000017S驱动轴尼龙套(短)TUBE,WATER(S1短轴 S
3F25-040000016泵壳异形固定板FIXED PLATE,WATER PUMP1长轴 L
4GB/T5782-M6x40六角螺栓M6×40BOLT M6x404
5GB/T97.1-6平垫圈6WASHER 68
6F25-04050004水管密封圈DAMPER ,WATER PIPE1
7F25-04050001水泵壳体SHELL,WATER PUMP1
8F25-04050002水泵内壳SHELL,INNER1
9F25-04050003水泵壳体0形密封圈0-RING1
10F25-04050000水泵壳体组件SHELL ASSY,WATER PUMP1
11F25-04040000水泵叶轮组件IMPELLER ASSY1
12F25-04000014外档板OUTER PLATE1
13GB/T5783-M6x25六角螺栓M6×25BOLT M6x252
14GB/T97.1-6平垫圈6WASHER 62
15F25-040000120形圈档板PLATE,0-RING1
16F15-060200040形密封圈0-RING1
17F25-04000013水封WATER SEAL1
18F25-04000007定位销Φ4x10PIN,DOWEL3
19F25-04000008驱动轴座BASE ,DRIVE SHAFT1
20F25-04000009异形密封圈SEAL1
21F25-04010003驱动轴油封22x36x6OIL SEAL,DRIVE SHAFT2
22F25-04010000L驱动轴组件(L)DRIVE SHAFT ASSY(L)1长轴 L
22F25-04010000S驱动轴组件(S)DRIVE SHAFT ASSY (S)1短轴 S
23F25-04000015半圆键SEMICIRCULAR KEY1
24HR32004XJ驱动轴圆锥滚子轴承HOUSING,BEARING1
25F25-04000003-1驱动轴填隙片(t:0.7毫米)SHIM(t:0.7mm
25F25-04000003-2驱动轴填隙片(t:1.0毫米)SHIM(t:1.0mm)
25F25-04000003-3驱动轴填隙片(t:1.1毫米)SHIM(t:1.1mm)
25F25-04000003-4驱动轴填隙片(t:1.2毫米)SHIM(t:1.2mm)
25F25-04000003-5驱动轴填隙片(t:1.3毫米)SHIM(t:1.3mm)
25F25-04000003-6驱动轴填隙片(t:1.4毫米)SHIM(t:1.4mm
25F25-04000003-7驱动轴填隙片(t:1.5毫米)SHIM(t:1.5mm
25F25-04000003-8驱动轴填隙片(t:1.6毫米)SHIM(t:1.6mm
26F25-04000002长尼龙套管BUSHING,NYLON1
27T20-05010000L变档凸轮组件(LCAM ASSY,SHIFT ROD(L)1长轴 L
27F25-04030001S变档凸轮组件(SCAM ASSY,SHIFT ROD(S)1短轴 S
28F4-03000023注油孔螺塞PLUG,HOLE OIL1
29F4-03000024注油孔螺塞垫圈GASKET2
30GB/T889.1-M5I型非金属嵌件六角锁紧螺母M5NUT,LOCKING M52
31F25-04000023进水口BWATER INLET "B"1
32F25-04000031放油螺塞PLUG,DRAIN1
33F25-04000001水下装置壳体LOWER CASING1
34GB/T5782-M6x35六角螺栓M6×35BOLT M6x351
35GB/T861.1-6内齿锁紧垫圈6LOCKING WASHER 61
36F15-06000004水下装置阳极ANODE,LOWER1
37GB/T5783-M6x20六角螺栓M6×20BOLT M6x201
38F25-04000021航向调整片TAB,COURSE1
39GB/T820-M5x30十字槽半沉头螺钉M5×30SCREW,PAN HEAD M5x301
40F25-04000022进水口AWATER INLET"A"1
41F25-04000006小齿轮螺母NUT,PINION1
42F25-04000005小齿轮PINION1
43F25-04000004-1正档齿轮填隙片(t:1.0毫米)SHIM(t:1.0mm)
44HR30205J圆锥滚子轴承TAPER ROLLER BEARING1
45F25-04020000正档齿轮组件GEAR,FORWARD1
46F25-04060003爪形离合器CLUTCH,DOG1
47F15-06070004离合器销PIN,CLUTCH1
48F15-06070005离合器簧环RING,CLUTCH1
49F25-04060006变档柱塞PLUNGER,SHIFT1
50F25-04060002离合器弹簧SPRING,CLUTCH1
51F25-04060001螺旋浆轴SHAFT,PROPELLER1
52F25-04060007倒档齿轮垫圈PLATE,REVERSE GEAR1
53F25-04060000螺旋浆轴组件PROPELLER SHAFT ASSY1
54F25-04070004倒档齿轮GEAR,REVERSE1
55F25-04070005-1倒档齿轮填隙片(t:1.0毫米)SHIM(t:1.0mm)
55F25-04070005-2倒档齿轮填隙片(t:1.1毫米)SHIM(t:1.1mm)
55F25-04070005-3倒档齿轮填隙片(t:1.2毫米)SHIM(t:1.2mm
55F25-04070005-4倒档齿轮填隙片(t:1.3毫米)SHIM(t:1.3mm
56F25-04070002水下装置壳体盖0形圈A0-RING A1
57GB/T276-6006/P6深沟球轴承6006BALL BEARING1
58F25-04070001水下装置壳体盖COVER,LOWER CASING1
59GB/T290-HK2016滚针轴承26x20x16ROLLER GEARING1
60F25-04070006油封20x34x6.5OIL SEAL2
61F25-04070003水下装置壳体盖0形圈B0-RING B2
62GB/T5783-M6x20六角头螺栓M6x20BOLT M6x202
63F25-04070000水下装置壳体盖组件COVER ASSY,LOWER CASING1
64GB/T290F-2020滚针轴承NEEDLE BEARING1
65GB/T3452.1-21.2x1.80形圈21.2x1.80-RING 21.2x1.81
66T20-05000000L水下装置壳体组件(长)LOWER CASING ASSY(L1长轴 L
66T20-05000000S水下装置壳体组件(短)LOWER CASING ASSY(S)1短轴 S
67F15-00000006定位销φ6x12DOWEL PIN p6x122
68F15-00000006定位销φ6x12PIN,DOWEL2
69T20-02000012进水管密封圈SEAL,INLET PIPE1
70T20-02000011L进水管 (L)WATER PIPE(L)1长轴 L
70T20-02000011S进水管 (S)WATER PIPE(S)短轴 S
71GB/T97.1-10平垫圈10WASHER 104
72F25-00000011凸缘螺栓M10x1.25x35BOLT4
73F25-04000024螺旋桨垫块SPACER,PROPELLER1
74T20-05000100螺旋桨体组件PROPELLER ASSY1
75F25-04000025花键垫块SPACER1
76GB/T97.1-14平垫圈14WASHER14
77F25-04000027开槽六角螺母NUT
78GB/T91-3.2x25开口销φ3.2x25COTTER PIN φ3.2x25

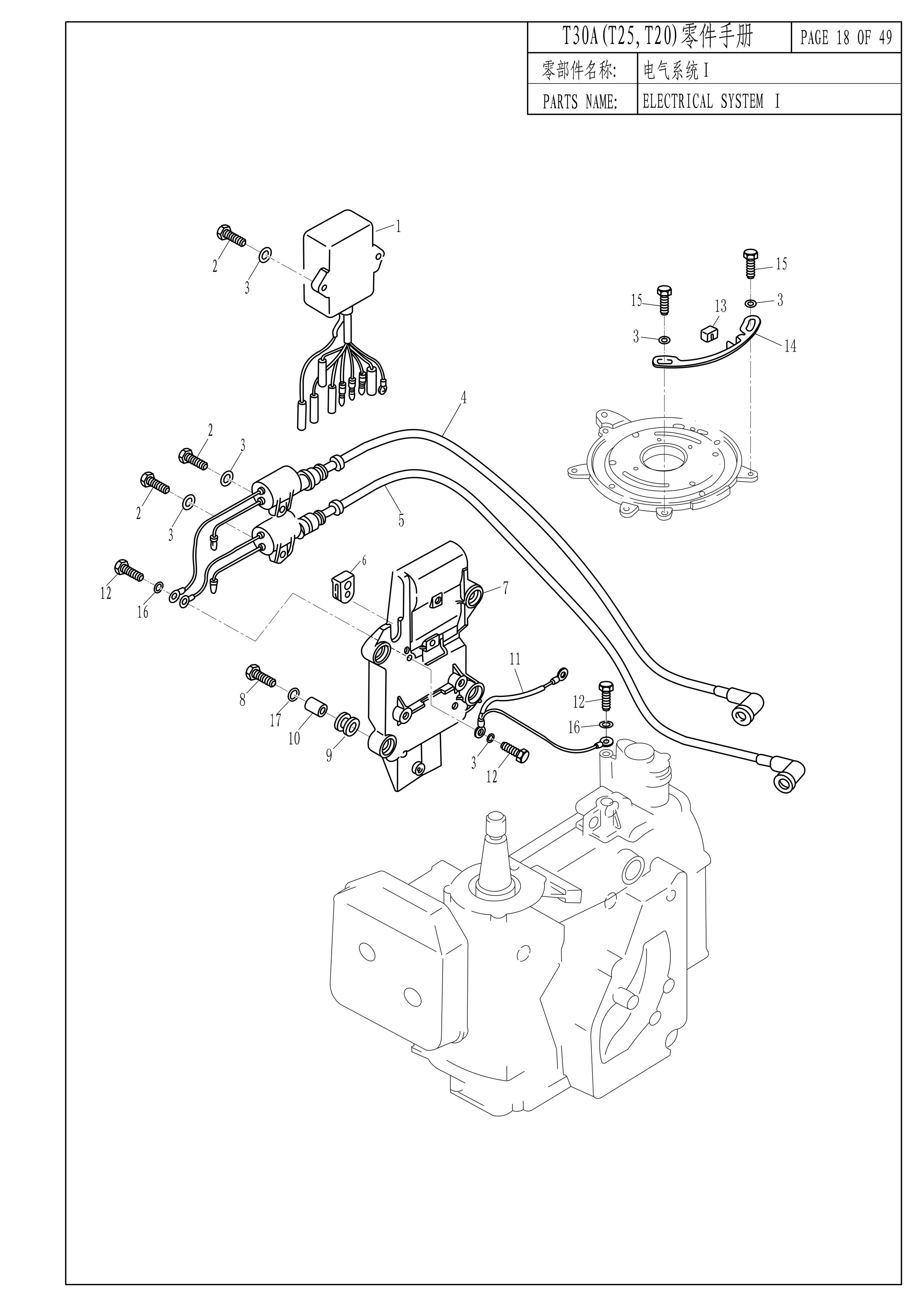

图 7电气系统 ELECTRICAL SYSTEM I
电气系统 ELECTRICAL SYSTEM I 爆炸图
REF零件编号中文名称英文名称数量轴型
1T20-06030100点火模块C.D.I UNIT ASS'Y1
2GB/T5783-M6x20六角螺栓M6x20BOLT M6x204
3GB/T97.1-6平垫圈6WASHER 67
4T20-06030002高压包AHIGH PRESSURE ASSY A1
5T20-06030003高压包BHIGH PRESSURE ASSY B1
6T20-06040010点火线卡CLIP,IGNITION1
7T20-06030001点火支架BRACKET,IGNITION1
8GB/T5783-M6x30六角螺栓M6X30BOLT M6x304
9T40-05000029点火器减震圈DAMPER,IGNITION4
10F4-04120003减震器垫管PIPE,IGNITION4
11T20-06030004接地导线WIRE,EARTH LEAD1
12GB/T5783-M6x12六角螺栓M6x12BOLT M6x123
13T20-06040009限位板橡胶套RUBBER BUSH,LIMITED PLATE1
14T20-06040008磁电机座限位板LIMITED PLATE,MAGNETO SEAT1
15GB/T5783-M6x10六角螺栓M6x10BOLT M6x102
16GB/T93-6弹性垫圈6SPRING-WASHER 62
17GB/T96-6大垫圈6BIG WASHER 64
18F15-07000006飞轮螺母NUT,FLYWHEEL1
19F15-07000005飞轮螺母垫圈WASHER,FLYWHEEL NUT1
20GB/T5783-M8x14六角螺栓M8x14BOLT M8x143
21GB/T97.1-8平垫圈8WASHER 83
22T20-06000031起动轴套PULLEY,STARTER1
23T20-06000600飞轮组件FLYWHEEL ASSY1
24T20-06040100触发线圈组件PULSER COIL ASSY2
25GB/T818-M4x12十字槽盘头螺钉M4x12SCREW M4x124
26GB/T93-4弹性垫圈4SPRING-WASHER 44
27T20-06040005触发线圈固定架FIXED FRAME,PULSER COIL1
28T20-06040002磁电机线圈COIL ASSY,MAGNETO1
29T20-06040003照明线圈LIGHTING COIL1
30GB/T818-M6x25十字槽盘头螺钉M6x25BOLT M6x254
31GB/T93-6弹性垫圈6SPRING-WASHER 64
32T20-06040006导线压板PLATE,LEAD1
33GB/T818-M4x6十字槽盘头螺钉M4X6BOLT M4x61
34T20-06040001磁电机座MAGNETO SEAT1
35T20-06040004导线橡胶套RUBBER JACKET,LEAD1
36T20-06000022磁电机座固定板FIXED PLATE,MAGNETO SEAT1
37GB/T818-M6x14十字槽盘头螺钉M6x14BOLT M6x144
38GB/T97.1-6平垫圈6WASHER 62
39T40-05000018飞轮半圆键SEMICIRCULAR KEY1
40T20-06040200供电线圈COIL,POWER SUPPLY1
41T20-06000600W飞轮组件FLYWHEEL ASSY1
42GB/T5783-M8x30六角螺栓M8x30BOLT M8x302
43GB/T97.1-8平垫圈8WASHER 82
44T20-06000015W电机固定板PLATE1
45GB/T97.1-6平垫圈6WASHER 64
46GB/T5782-M6x50六角螺栓M6x50BOLT M6x501
47GB/T5783-M6x30六角螺栓M6x30BOLT M6x302
48T20-06000900W启动电机STARTUP MOTOR1
49GB/T5782-M6x45六 角 螺 栓M6x45BOLT M6x451
50GB/T5783-M6x12六角螺栓M6x12BOLT M6x122
51GB/T97.1-6平垫圈6WASHER 63
52F15-07060001整流器组件RECTIFIER ASSY1
53F15-07150001W保险丝20AFUSE 20A1
54F25-05090100W熔断器组件FUSE ASSY1
55T20-04000011W温控器压板PLATE1
56T40-05000100温控器组件JOINT,SHIFT GEAR1
57F15-07150501W电机连接线护套COVERING,MOTOR SOURCE LINE3
58F15-07150300W启动电机继电器RELAY,MOTOR1
59GB/T5783-M6x35六角螺栓M6x35BOLT M6x351
60T20-07150301W继电器护套RELAY JACKET1
61T20-06000034W继电器固定板SUPPORTING PLATE,RELAY1
62T20-06000035W电源连接线CONNECTION LINE,POWER1
63T20-06000036W电机连接线CONNECTION LINE,MOTOR1
64F25-05170201W电源连接线护套ACOVERING,POWER SOURCE LINE1
65T20-06001100W控制线索组件COMMAND CLEW ASSY1
66GB/T6561-1986十字槽沉头自攻锁紧螺钉M6x25LOCKBOLT M6x251
67T20-04000012W橡胶护套RUBBER JACKET1
68T20-04000013W导线线卡CLIP,LINE1
69T20-04000014W线卡垫板CUSHIONY PLATE1
70F25-03000003圆形橡胶闷头RUBBER PLUG1
71F15-13000200W启动开关组件(BW)START SWITCH(BW)1
72T20-06000038W启动开关衬管(BWBUSH,START SWITCH(BW)1
73F8-03000003环形橡胶堵头A(BW)RUBBER PLUG A(BW)1

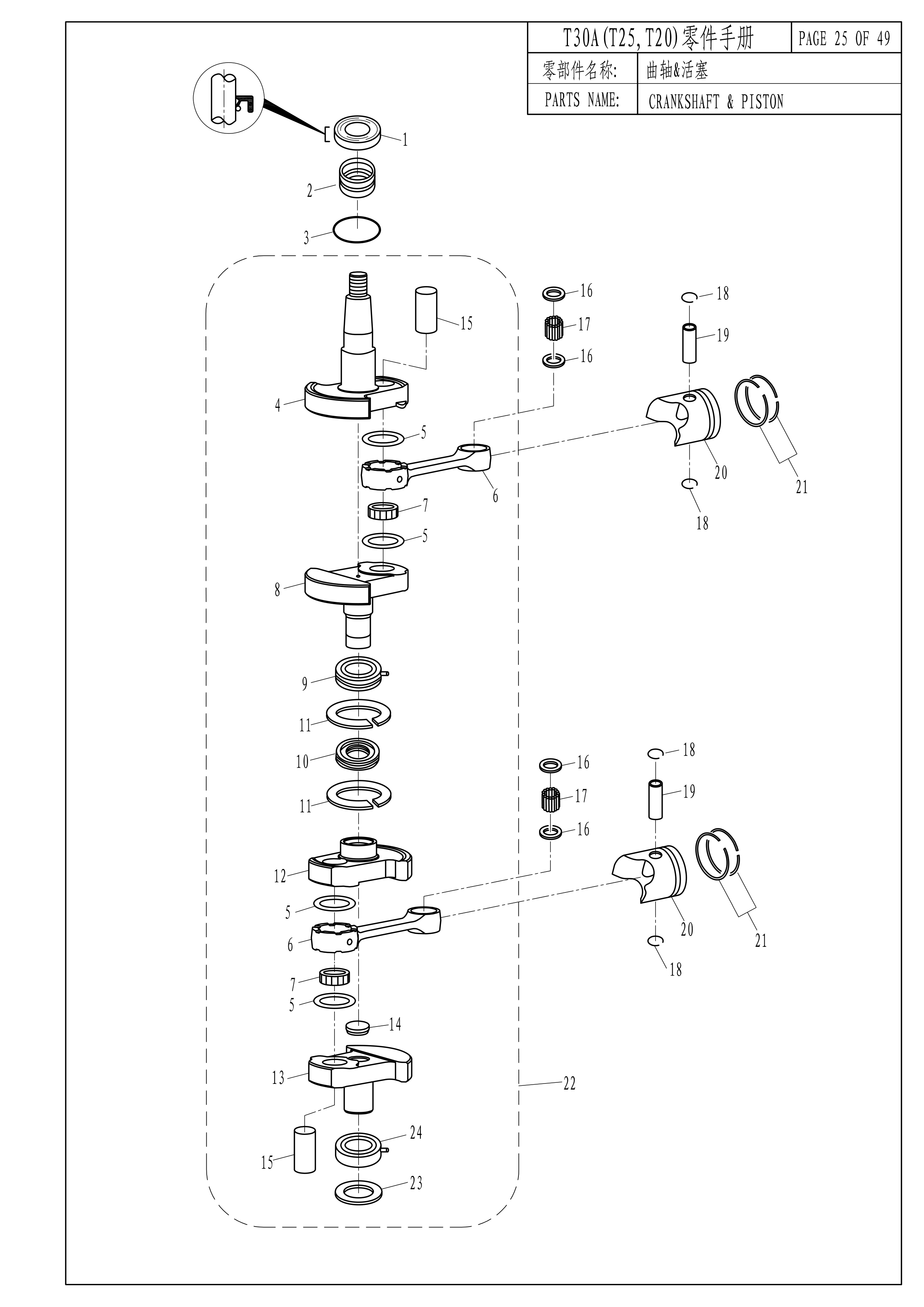

图 8曲轴&活塞 CRANKSHAFT&PISTON
曲轴&活塞 CRANKSHAFT&PISTON 爆炸图
REF零件编号中文名称英文名称数量轴型
1T20-06020111曲轴上油封OIL SEAL1
2PS365232滚针轴承(带销)QUILL BEARING(WITH PIN)1
3T20-060201150型圈45x2.650-RING 45x2.651
4T20-06020101曲轴甩块ASWING BLOCK A1
5T20-06020103连杆减磨片WEARING PIECE,CONNECTING ROD4
6T20-06020105连杆CONNECTING ROD2
7T20-06020104滚针轴承QUILL BEARING2
8T20-06020106曲轴甩块BSWING BLOCK B1
9T20-06020112深沟球轴承(带销，带槽QUILL BEARING(WITH PIN)1
10T20-06020108密封环SEAL RING1
11T20-06020107挡圈CIRCLIP2
12T20-06020109曲轴甩块CSWING BLOCK C1
13T20-06020110曲轴甩块DSWING BLOCK D1
14T20-06020113甩块堵头JAM,SWING BLOCK1
15T20-06020102曲柄销PIN,CRANKSHAFT2
16T20-06020005活塞垫圈WASHER,PISTON4
17T20-06020007圆头滚针Φ2x19.8NEEDLE ROLLER φ2xφ19.868
18T40-05020006活塞销挡圈CIRCLIP,PISTON PIN4
19T20-06020003活塞销PIN,PISTON2
20T20-06020002活塞PISTON2
21T20-06020004活塞环组件PISTON RING2
22T20-06020100曲轴连杆组件CRANKSHAFT ASSY1
23T20-06020001曲轴定位片LOCATING PIECE,CRANKSHAFT1
24T20-06020114深沟球轴承(带销)QUILL BEARING(WITH PIN)1

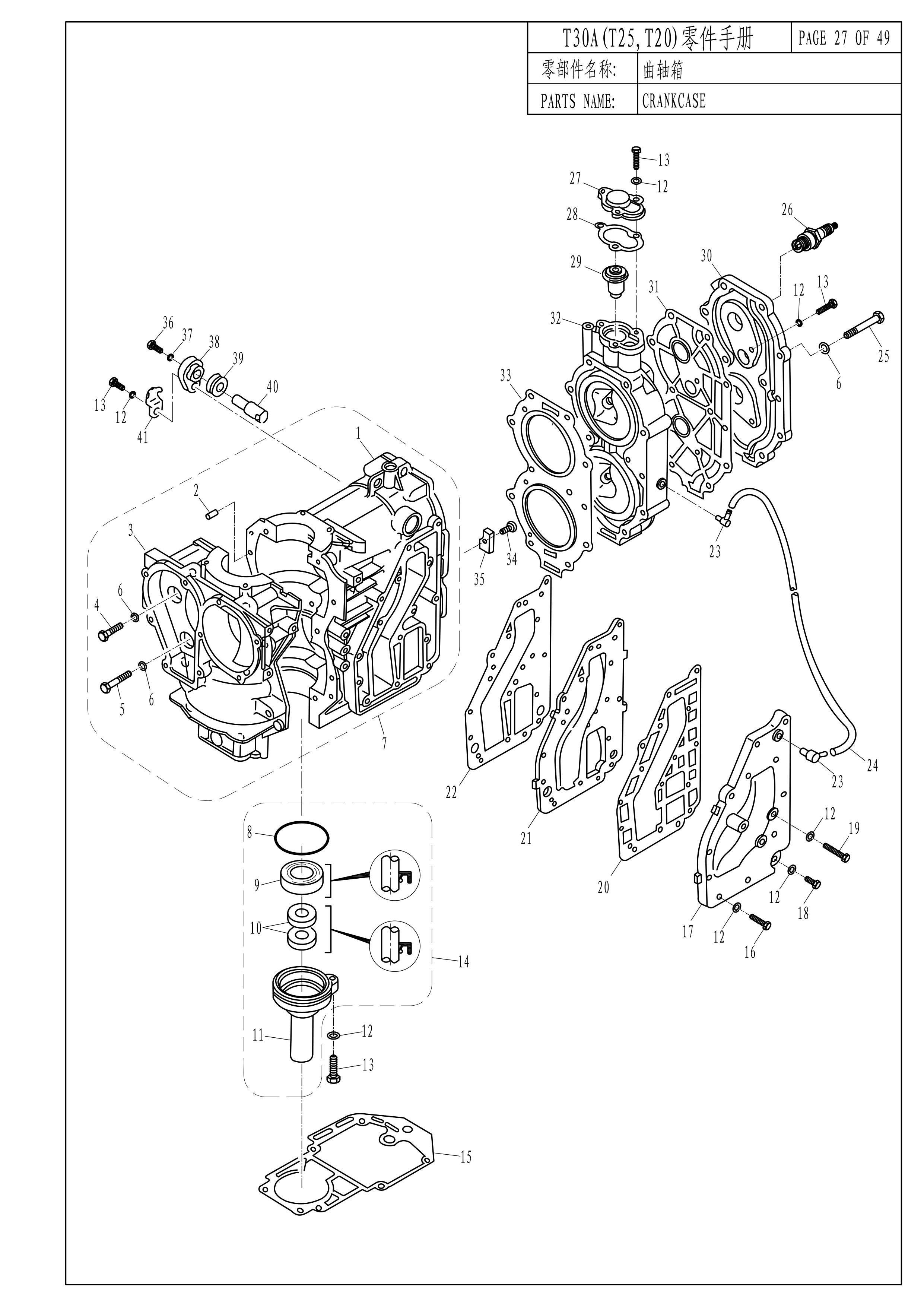

图 9曲轴箱 CRANKCASE
曲轴箱 CRANKCASE 爆炸图
REF零件编号中文名称英文名称数量轴型
1T20-06010100机体CYLINDER CASE1
2F15-00000006定位销Φ6x12DOWEL PIN Φ6x122
3T20-06010001机座CRANKCASE1
4T20-06010002六角螺栓M8x60BOLT M8x608
5T20-06010003六角螺栓M8x45BOLT M8x452
6GB/T97.1-8平垫圈8WASHER 821
7T20-06010000机体机座组件CRANKCASE ASSY1
8F15-06080002油封壳体0型圈0-RING1
9T20-06000803油封壳体油封OIL SEAL 25x48x81
10F25-02010002排气歧管座油封OIL SEAL2
11T20-06000801油封壳体CASING,OIL SEAL1
12GB/T97.1-6平垫圈6WASHER 621
13GB/T5783-M6x20六角螺栓M6x20BOLT M6x206
14T20-06000800油封壳体组件CASING ASSY,OIL SEAL1
15T20-00000009发动机密封垫GASKET,ENGINE1
16GB/T5783-M6x30六角螺栓M6x30BOLT M6x3011
17T20-06000009排气外盖OUTER COVER,EXHAUST1
18GB/T5783-M6x25六角螺栓M6x25BOLT M6x251
19GB/T5782-M6x50六角螺栓M6x50BOLT M6x503
20T20-06000010排气外盖密封垫GASKET,OUTER COVER1
21T20-06000008排气内盖INNER COVER,EXHAUST1
22T20-06000007排气内盖密封垫GASKET,INNER COVER1
23F15-04000005水嘴组件WATER NIPPLE ASSY2
24T20-06000011水管Φ10xΦ5x106WATER PIPE1
25T20-06000028六角螺栓M8x65BOLT M8x6511
26BPR7HS火花塞SPARK PLUG2
27T20-06000006节温器盖COVER,THERMOSTAT1
28T20-06000005节温器盖垫GASKET,THERMOSTAT COVER1
29T15-04000010节温器THERMOSTAT1
30T20-06000004气缸外盖OUTER COVER,CYLINDER1
31T20-06000003气缸盖垫GASKET,CYLINDER COVER1
32T20-06000002气缸盖CYLINDER COVER1
33T20-06000001缸头复合垫GASKET,CYLINDER HEAD1
34GB/T819.1-M6x20沉头螺钉M6x20BOLT M6x201
35T20-06000032机体阳极ANODE,CYLINDER CASE1
36GB/T818-M5x12十字槽盘头螺钉M5x12SCREW,PAN HEAD M5x121
37GB/T97.1-5平垫圈5WASHER 51
38F15-07010011阳极盖板COVER,ANODE1
39F15-07010009阳极密封圈SEAL,ANODE1
40F15-07010008机体阳极ANODE1
41F15-07010012阳极锁止片PLATE,ANODE1

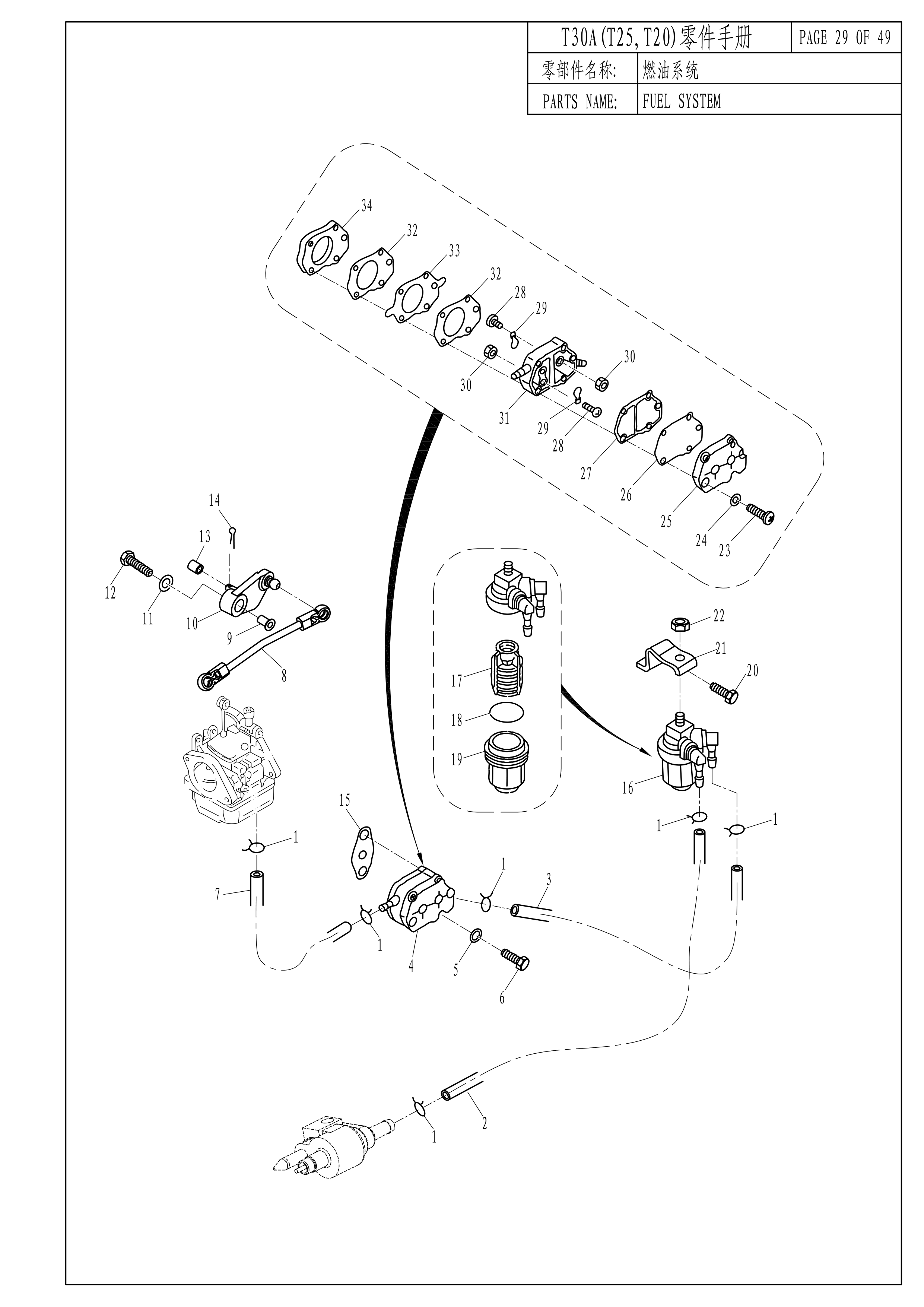

图 10燃油系统 FUEL SYSTEM
燃油系统 FUEL SYSTEM 爆炸图
REF零件编号中文名称英文名称数量轴型
1F4-04000030油管夹簧BSPRING,FUEL PIPE "B"6
2T20-06000020燃油管φ10xφ5x370PIPE,FUEL φ10xφ5x3701
3T20-06000018燃油定型管FUEL PIPE A1
4T40-05080000燃油泵组件FUEL PUMP ASSY1
5GB/T97.1-6平垫圈6WASHER 61
6GB/T5783-M6x40六角螺栓M6×40BOLT M6x402
7T20-06000019燃油定型管FUEL PIPE B1
8T20-06000400化油器连杆CONNECTING ROD,CARBURETOR1
9T20-06000303摆杆垫管BUSH,SWING SHAFT1
10T20-06000300油门摆杆组件SWING SHAFT ASSY,ACCELEROGRAPH1
11GB/T96-6大垫圈6BIG WASHER 61
12GB/T5783-M6x20六角螺栓M6x20BOLT M6x201
13T20-06000302摆杆滑轮PULLEY,SWING SHAFT1
14GB/T91-Φ1.6x12开口销Φ1.6x12COTTER PIN Φ1.6x121
15T40-05000024燃油泵密封垫GASKET,FUEL PUMP1
16F15-07080000滤油杯组件FILTER CUP ASSY1
17F15-07080001滤网架ELEMENT,FILTER1
18GB/T3452.1-φ32.5×1.8滤油杯密封圈φ32.5×1.8SEAL,FILTER CUP1
19F15-07080002滤杯CUP,FILTER1
20GB/T5783-M6x14六角螺栓M6x14BOLT M6x141
21T20-06000017滤油杯支架BRACKET,FILTER1
22GB/T6170-M8六角螺母M8NUT M81
23GB/T818-M5x30十字盘头螺钉M5x30SCREW M5x303
24GB/T93-5弹性垫圈5SPRING-WASHER 53
25T40-05080007燃油泵上盖UPPER COVER,FUEL PUMP1
26T40-05080006燃油泵上盖隔膜DIAPHRAGM,UPPER COVER1
27T40-05080005燃油泵上盖密封垫AIRPRO0F MAT,UPPER COVER1
28F4-04090011阀片螺钉M3x5SCREW,VALVE M3x52
29F4-04090005单向阀片UNILATERAL PLATE2
30GB/T6170-M3六角螺母M3NUT M32
31T40-05080004燃油泵壳FUEL PUMP SHELL1
32T40-05080002燃油泵下盖密封垫AIRPROOF MAT,LOWER COVER2
33T40-05080003燃油泵下盖隔膜DIAPHRAGM,LOWER COVER1
34T40-05080001燃油泵下盖LOWER COVER,FUEL PUMP1

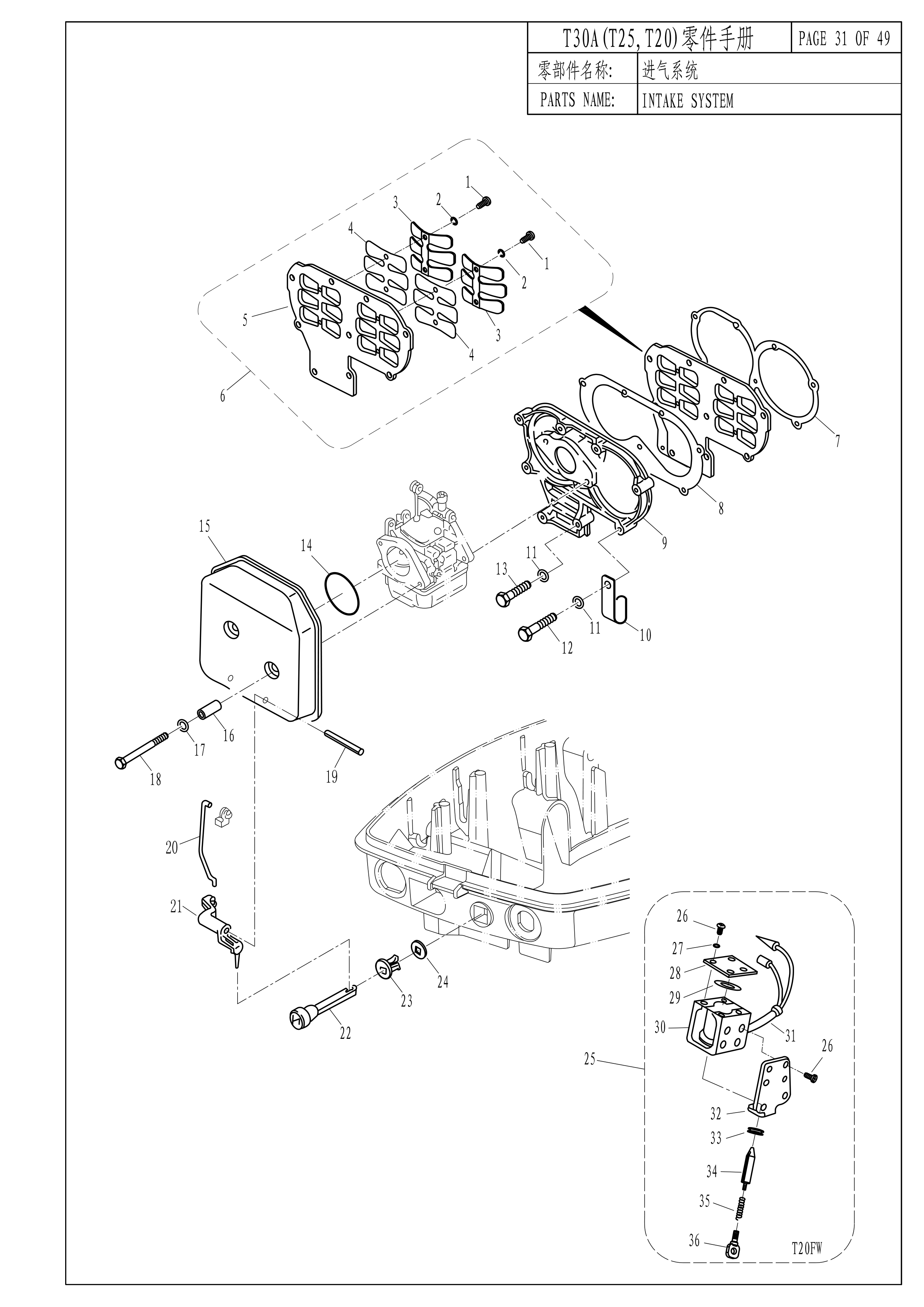

图 11进气系统 INTAKE SYSTEM
进气系统 INTAKE SYSTEM 爆炸图
REF零件编号中文名称英文名称数量轴型
1GB/T823-M5x10十字槽小盘头螺钉M5x10BOLT MSx104
2GB/T93-5弹性垫圈5SPRING-WASHER54
3T20-06000103A阀片限位板LIMITATIVE PLATE,VALVE2
4T20-06000102A进气阀片VALVE,INTAKE2
5T20-06000101A带密封环的进气阀座VALVE SEAT,INTAKE1
6T20-06000100A进气阀座组件VALVE SEAT ASSY,INTAKE1
7T20-06000012进气阀座密封垫AGASKET A,INTAKE VALVE SEAT1
8T20-06000036进气阀座密封垫CGASKET C,INTAKE VALVE SEAT1
9T20-06000014进气歧管MANIFOLD,INTAKE1
10T20-06000033卡箍CLIP1
11GB/T97.1-6平垫圈6WASHER 69
12GB/T5783-M6x35六角螺栓M6x35BOLT M6x357
13GB/T5783-M6x25六角螺栓M6x25BOLT M6x252
14GB/T3452.1-φ44x20形圈φ44x20-RING φ44x21
15T20-00000200进气消音器组件INTAKE SILENCER ASSY1
16T20-00000203进气消音器垫管COLLAR,INTAKE SILENCER2
17GB/T96-6大垫圈6BIG WASHER 62
18GB/T5782-M6x115六角螺栓M6x115BOLT M6x1152
19GB/T879.2-φ4x50轻型直槽弹性圆柱销φ4X50PIN φ4x501
20T20-00000010阻风门连杆CONNECTING ROD,AIR CHOKE1
21T20-00000205阻风门摆杆LEVER,AIR CHOKE1
22T20-04000007阻风门手柄HANDLE,AIR CHOKE1
23F15-05010001阻风门导向套ORIENTED BUSH,AIR CHOKE1
24T15-03010002阻风门橡胶套RUBBER BUSH,AIR CHOKE1
25T20-06001200W电磁吸铁组件ELECTROMAGNETIC MAGNET ASSY1
26GB/T818-M4x6十字槽盘头螺钉M4x6BOLT M4x68
27GB/T93-4弹性垫圈4SPRING-WASHER 44
28F15-11030200W线圈盖板组件COVER BOARD ASSY1
29F15-11030003W线圈减震垫GASKET1
30F15-11030002W电磁吸铁固定架FIXUP SHELF1
31F15-11030100W电磁吸铁线圈L00P,ELECTROMAGNETIC MAGNET1
32T20-06001201W电磁吸铁固定板FIXUP PLATE,ELECTROWAGNETIC MAGNET1
33T40-05000703W减震圈BDAMPER "B"1
34F15-11030301W吸铁铁芯IRON CORE1
35T20-06001203W铁芯连杆CONNECT POLE1
36T40-05000802W吸铁拉头H0OK,IRON CORE1

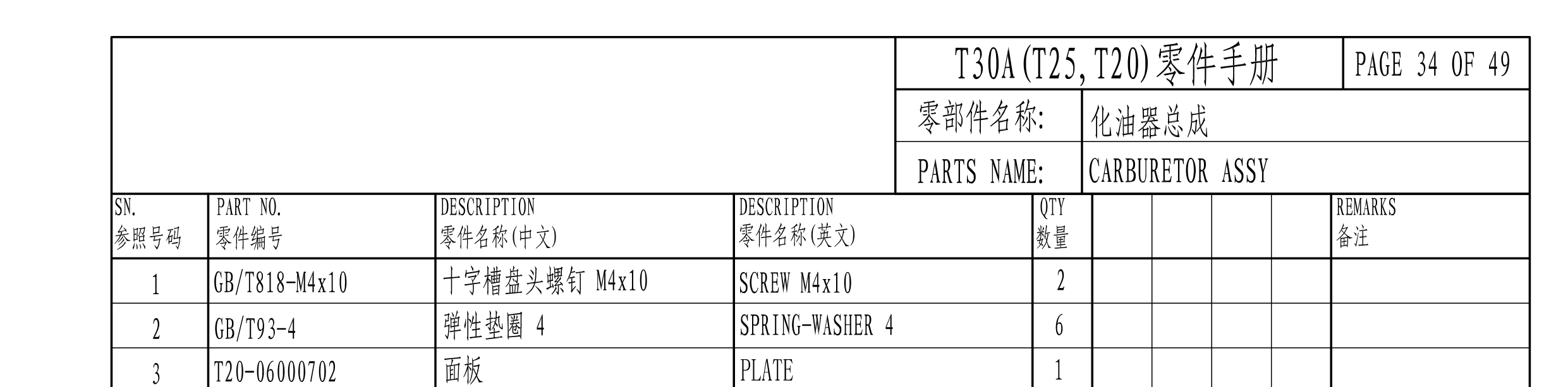

图 12化油器总成 CARBURETOR ASSY
化油器总成 CARBURETOR ASSY 爆炸图
REF零件编号中文名称英文名称数量轴型
1GB/T818-M4x10十字槽盘头螺钉M4x10SCREW M4x102
2GB/T93-4弹性垫圈4SPRING-WASHER 46
3T20-06000702面板PLATE1
4T20-06000703衬垫GASKET1
5T20-06000704怠速螺钉SCREW,AIR ADJUSTING1
6T20-06000705怠速螺钉弹簧SPRING,AIR ADJUSTING1
7T20-06000706油门止动螺钉BOLT1
8T20-06000707油门止动螺钉弹簧SPRIIG,THORTTEL1
9GB/T818-M5x10十字槽盘头螺钉M5x10SCREW M5x101
10GB/T96-5平垫圈5WASHER 51
11T20-06000708油门摆杆ACCELERATOR BAR1
12T20-06000710油门摆杆垫圈WASHER,ACCELERATOR BAR1
13T20-06000711油门摆杆扭簧WRING SPRING,ACCELERATOR BAR1
14GB/T818-M4x6十字槽盘头螺钉M4x6SCREW M4x61
15T20-06000720阻风门弹片SHRAPNEL,AIR CHOKE1
16T20-06000713油门控制器连杆接头TIE-IN1
17T20-06000712阻风门摆杆SWING LINK,AIR CHOKE1
18T20-06000714阻风门摆杆衬套BUSH,SWING LINK1
19GB/T818-M3x6十字槽盘头螺钉M3x6BOLT M3x64
20GB/T93-3弹性垫圈3SPRING-WASHER 34
21T20-06000715阻风门挡板APRON,AIR CHOKE1
22T20-06000716空气减速量孔SLOW JET1
23T20-06000717胶帽RUBBER CAP1
24T20-06000718主喷嘴MIAN NOZZLE1
25T20-06000719主量孔MIAN JET1
26T20-06000721针阀NEEDLE VALVE1
27T20-06000723浮子销PIN,FLOAT1
28GB/T818-M4x8十字槽盘头螺钉M4x8BOLT M4x81
29T20-06000722浮子FLOAT1
30T20-06000724油杯本体密封垫GASKET,OIL CUP1
31T20-06000725放油螺塞DRAIN SCREW1
32T20-06000726放油螺塞垫片GASKET1
33GB/T818-M4x12十字槽盘头螺钉M4x12BOLT M4x124
34T20-06000727油杯本体OIL CUP1
35T20-06000728阻风门摆杆扭簧WRING SPRING,WRING LINK1
36GB/T879.2-3轻型直槽弹性圆柱销3X12PIN 3x121
37GB/T896-4开口挡圈4CIRCLIP 41
38T20-06000729尼龙垫圈NYLON WASHER1
39T20-06000701化油器本体CARBURETOR BODY1
40T20-06000730油门挡板APRON,ACCELERATOR1
41T20-06000731化油器0型圈0-RING1
42T20-06000700化油器总成CARBURETOR ASSY1

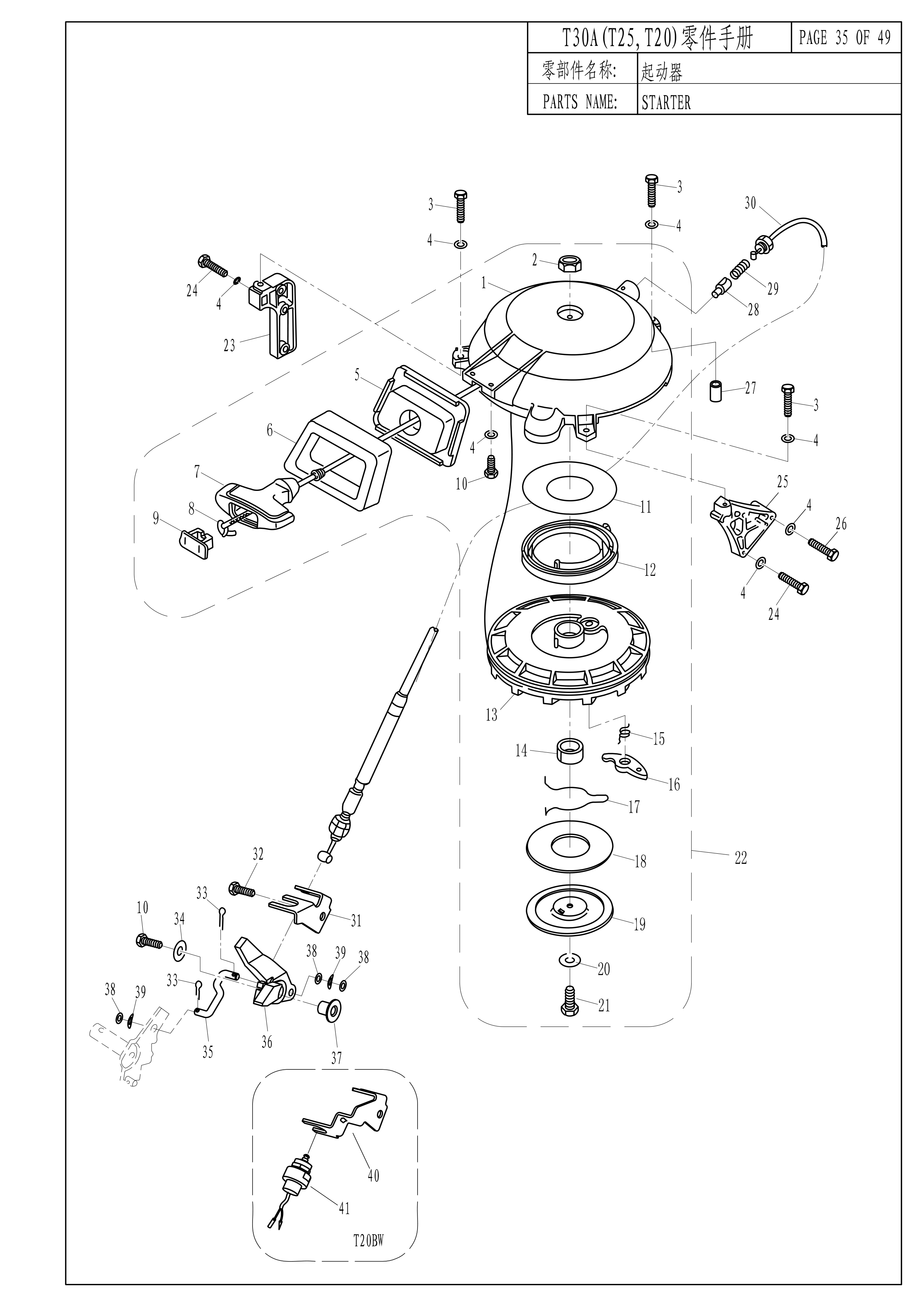

图 13起动器 STARTER
起动器 STARTER 爆炸图
REF零件编号中文名称英文名称数量轴型
1T20-06060001起动器外壳STARTER1
2GB/T6170-M8六角螺母M8NUT M81
3GB/T5783-M6x35六角螺栓M6x35BOLT M6x353
4GB/T97.1-6平垫圈6WASHER 610
5T20-06060002起动导向器GUIDE,STARTER1
6T20-06060012发泡密封圈SEAL,FROTHY RUBBER1
7F25-05160500起动手柄组件HANDLE ASSY,STARTER1
8F15-07130205起动绳(Φ5.5X1.80米)START LINE1
9F4-04130102起动手柄盖COVER,HANDLE1
10GB/T5783-M6x20六角螺栓M6x20BOLT M6x203
11T20-06060003减磨片ANTIFRICTION WASHER1
12T20-06060004涡形弹簧VOLUTE SPRING1
13T20-06060006起动轮WHEEL,START-UP1
14T20-06060005起动轮衬套BUSH,START-UP WHEEL1
15T20-06060008卡瓣扭簧SPRING,TENSION1
16T20-06060007起动卡瓣PAWL,DRIVE1
17T20-06060011压板弹簧SPRING,PLATE1
18T20-06060010起动轮减磨片ANTIFRICTION WASHER,START WHEEL1
19T20-06060009起动轮压板PLATE,START WHEEL1
20GB/T93-8弹性垫圈8SPRING-WASHER 81
21GB/T5783-M8x35六角螺栓M8x35BOLT M8x351
22T20-06060000起动器组件STARTER ASSY1
23T20-06000016起动器右支架BRACKET(RIGHT),STARTER1
24GB/T5783-M6x25六角螺栓M6x25BOLT M6x254
25T20-06000015起动器左支架BRACKET(LEFT),STARTER1
26GB/T5782-M6x45六角螺栓M6x45BOLT M6x451
27T20-06000030空心定位销Φ10x14HOLLOW PIN Φ10x141
28T20-06000502制动器接头TIE-IN,ARRESTER1
29T20-06000501制动器弹簧SPRING,ARRESTER1
30T20-06000500制动器钢索组件TIGHTWIRE ASSY,ARRESTER1
31T20-06000024制动器固定板PLATE,ARRESTER1
32GB/T5783-M6x10六角螺栓M6x10BOLT M6x101
33GB/T91-Φ1.2x12开口销Φ1.2x12COTTER PIN Φ1.2x122
34GB/T96-6大垫圈6BIG WASHER 61
35T20-06000027限位板连杆CONNECTING ROD,LIMITED PLATE1
36T20-06000025制动器限位板LIMITED PLATE,ARRESTER1
37T20-06000026制动器限位板垫管COLLAR,LIMITED PLATE1
38GB/T97.1-5平垫圈5WASHER 53
39GB/T860-5鞍形弹性垫圈5SPRING-WASHER 52
40T20-06000024W制动器固定板(BW)PLATE,ARRESTER(BW)1
41T20-06000037W微动开关(BW)SWITCH(BW1

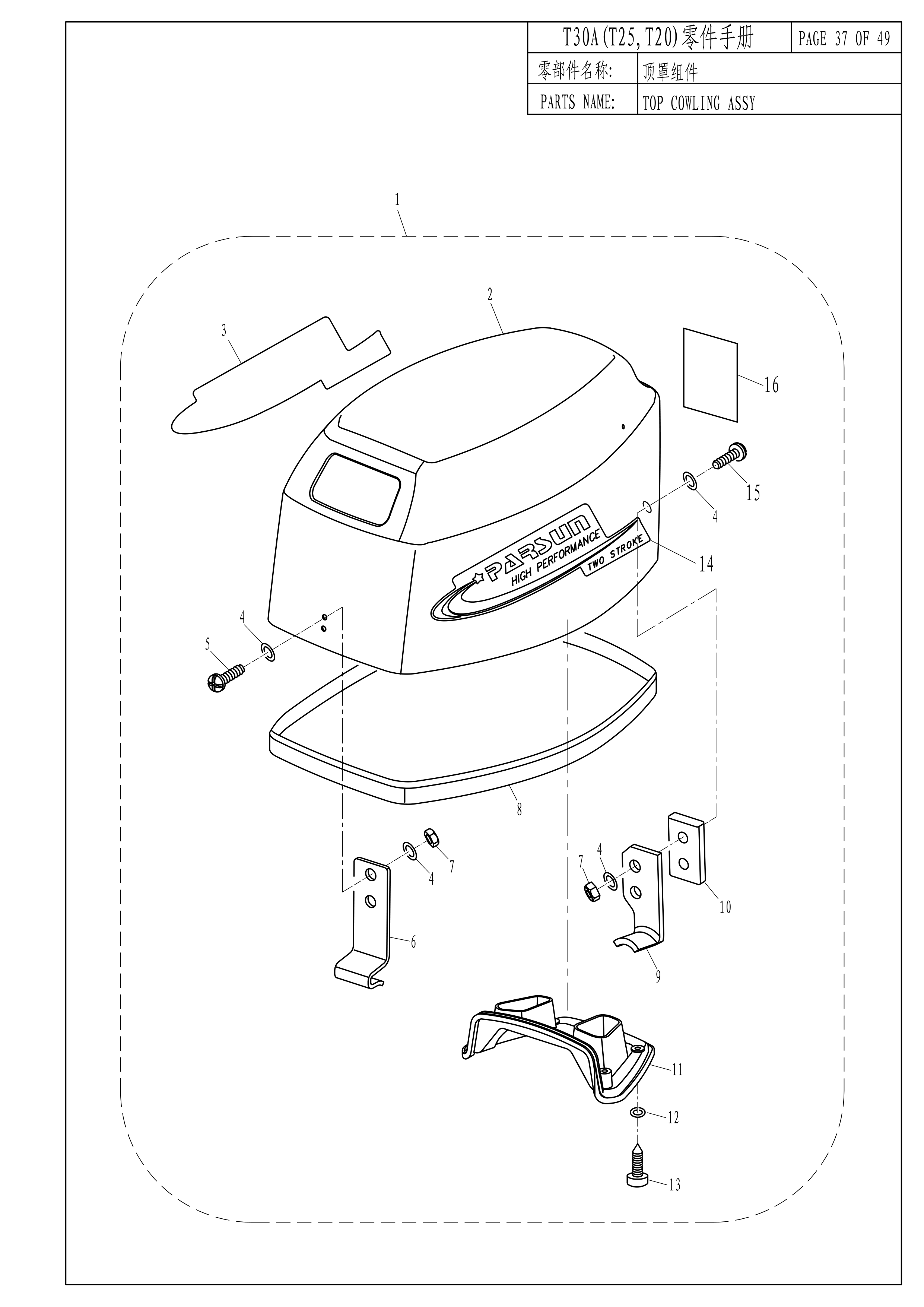

图 14顶罩组件 TOP COWLING ASSY
顶罩组件 TOP COWLING ASSY 爆炸图
REF零件编号中文名称英文名称数量轴型
1T20-07000000顶罩组件TOP COWLING ASSY1
2T20-07000001顶罩TOP COWLING1
3T40-08000002顶罩标贴(右)MARK(RIGHT),TOP COWLING1
4GB/T97.1-5平垫圈5WASHER 58
5GB/T818-M5x14十字槽盘头螺钉M5x14SCREW M5x142
6T20-07000004前挂钩FRONT POTHOOK1
7GB/T6170-M5六角螺母M5NUT M54
8T20-07000002顶罩密封橡胶条RUBBER SEAL,TOP COWLING1
9T20-07000005后挂钩BACK POTHOOK1
10F4-06000006挂钩垫PAD,POTHO0K1
11T20-07000003顶罩消音器盖SILENCER COVER,TOP COWLING1
12F4-06000004橡胶垫片RUBBER WASHER4
13GB/T845-ST4.8x15十字槽盘头自攻螺钉ST.8x15SCREW,TAPPING ST4.8x154
14T40-08000001顶罩标贴(左)MARK(LEFT),TOP COWLING1
15GB/T818-M5x20十字槽盘头螺钉M5x20SCREW M5x202
16T40-08000003顶罩标贴(后)MARK(BACK),TOP COWLING1

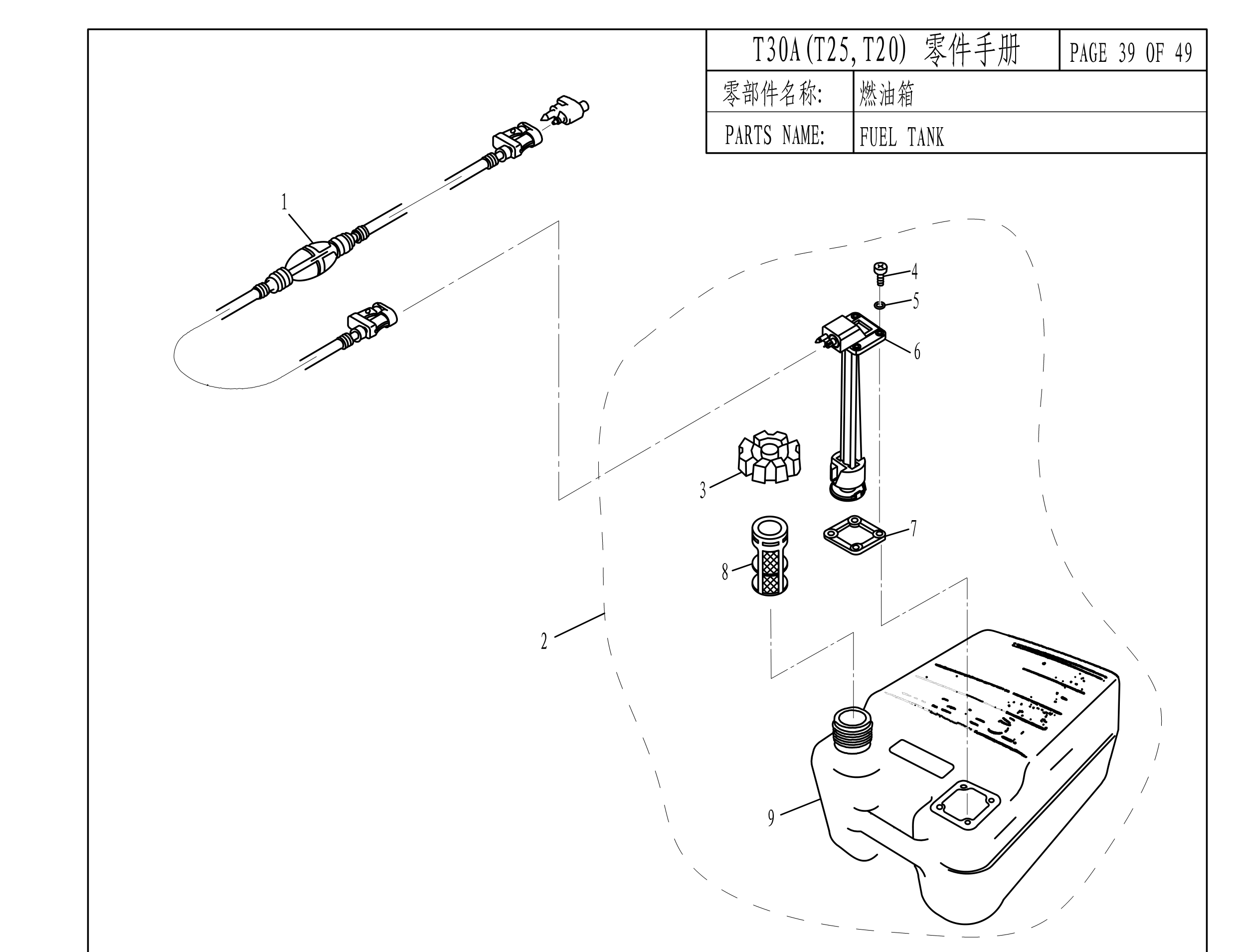

图 15燃油箱 FUEL TANK
燃油箱 FUEL TANK 爆炸图
REF零件编号中文名称英文名称数量轴型
1F15-09000000油管总成|OIL TUBE ASSY1
2F15-10000000油箱组件FUEL TANK ASSY1
3F15-10010000油箱盖组件COVER ASSY,FUEL TANK1
4GB/T818-M5x16十字槽盘头螺钉M5x16SCREW,PAN HEAD M5x164
5GB/T97.1-5平垫圈5WASHER 54
6F15-10020000油量计总成|OLEOMETER ASSY1
7F15-10000003衬垫GASKET1
8F15-10000002油箱滤网STRAINER1
9F15-10000001油箱本体FUEL TANK1

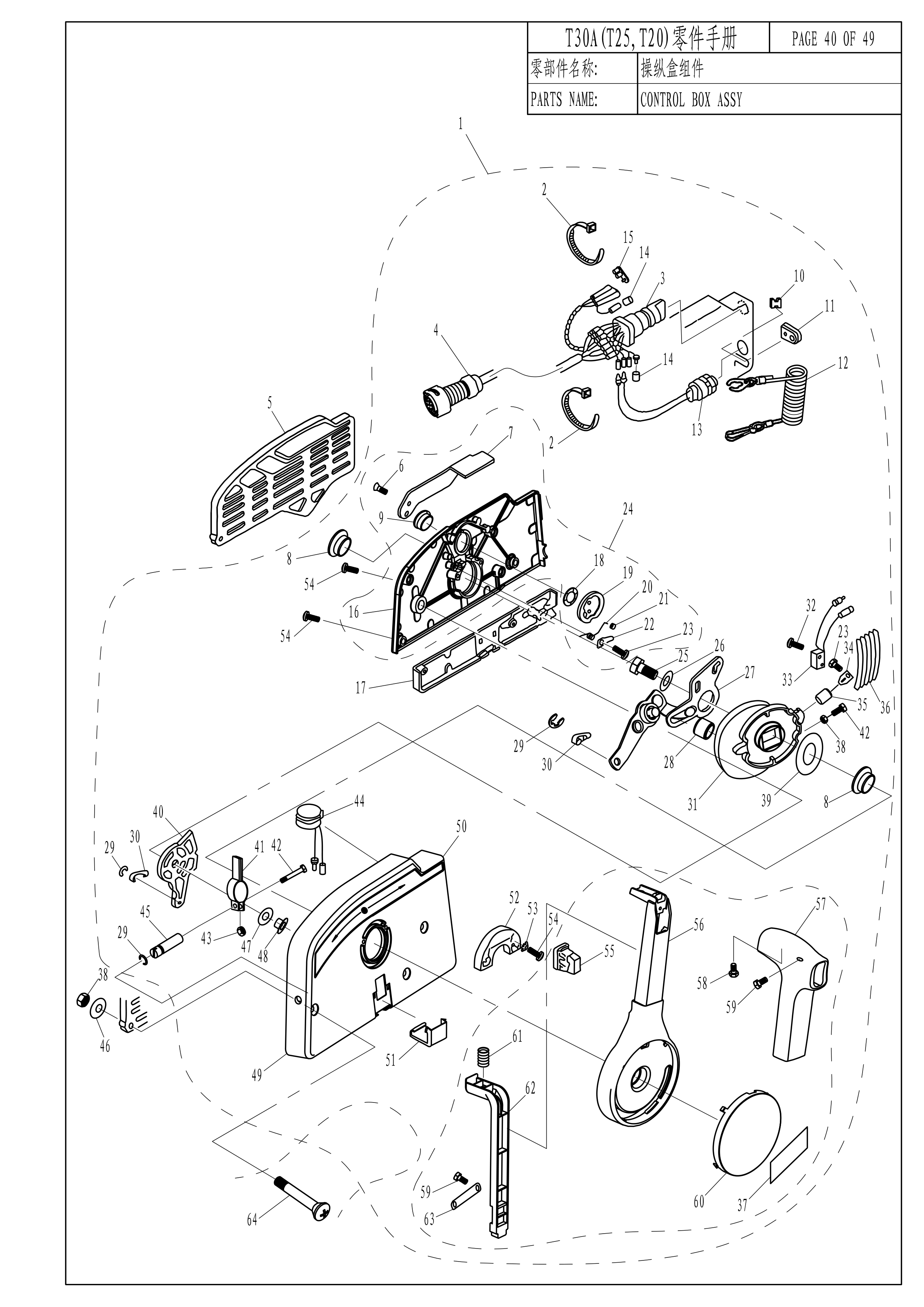

图 16操纵盒组件 CONTROL BOX ASSY
操纵盒组件 CONTROL BOX ASSY 爆炸图
REF零件编号中文名称英文名称数量轴型
1T20-13000000W操纵盒组件CONTROL BOX ASSY1
2HT2.5*60尼龙扎带CLAMP2
3F15-13000200W启动开关组件STARTING SWICH ASSY1
4F15-13000100W操纵线束组件CONTROLCABLE ASSY1
5F15-11000002W操纵盒安装板PLATE,CONTROL BOX1
6GB/T819.2-M5X12十字槽沉头螺钉M5×12SCREW PAN HEAD MSx122
7F15-13020007W油门微调手柄THROTTLE HANDLE,INCHING1
8F15-13000005W凸轮机构衬套BUSH,CAM2
9F15-13020006W微调手柄衬套BUSH,HANDLE1
10F15-11000001W钢索橡胶垫块BLOCK,RUBBER1
11F15-13000014W线索护套JACKET,CABLE1
12F4-01090401引擎停止安全索STOPER,HANG ROPE ASS'Y1
13F15-13020400W急停开关组件ENGINE STOP SWICH ASS'Y1
14F15-13000203W绝缘堵头BINSULATED PLUG "B"2
15F15-13000202W绝缘堵头AINSULATED PLUG "A"1
16F15-13020001W操纵盒盖COVER,CONTROL BOX1
17F15-13000013W操纵盒小盖板SMALL COVER,CONTROL BOX1
18F15-13020005W波形垫圈BWASHER"B',WAVE1
19F15-13020100W锁紧圆盘组件LOCKED DISK ASS'Y1
20F15-13020002W扭簧TORSION SPRING1
21F15-13020003W互锁滑轮EACH LOCKED PULLEY1
22F15-13020004W滑轮弹簧压板PLATE,PULLEY SPRING1
23GB/T818-M4X6十字槽盘头螺钉M4×6PAN HEAD SCREW M4×62
24F15-13020000W操纵盒盖组件COVER ASS'Y,CONTROL BOX1
25GB/T5783-M8X30六角螺栓M8×30BOLT M8×301
26GB/T97.1-8平垫圈8WASHER81
27T20-13000500W油门控制机构MACHINE,CONTROL ACCELEROGRAPH1
28F15-13000007W销轴垫圈WASHER1
29GB/T896-6开口挡圈6PIN,COTTER83
30F25-07000007W操控钢索接头BCONTROL CABLE TIE_IN"B2
31F15-13000002W凸轮机构CAM MECHANISM1
32GB/T818-M3X14十字槽盘头螺钉M3×14PAN HEAD SCREW M3×142
33F15-13000800W微动开关INCHING SWITCH1
34F15-13000003W档位弹簧片压板PLATE1
35F15-13000004W档位滑轮PULLEY1
36F15-13000001W档位弹簧片BSHIFT SPRING PLATE "B"5
37F15-12000016W标贴16MARK 161
38GB/T6170-M6六角螺母M6NUT M64
39F15-13000008W凸轮机构减磨片WEARABLE PLATE,CAMMACHANISM1
40F15-13000700W变档摆杆SHIFT SWING LINK1
41F15-13000601W调节器固定板组件ADJUSTER FASTNESS ASS'Y1
42GB/T5783-N5X25六角螺栓M5×25BOLT M5×252
43GB/T6170-M5六角螺母MSNUT MS2
44F15-13000300W蜂鸣器组件BUZZER ASS'Y1
45F15-13000602W调节器销轴ADJUSTER PIN1
46GB/T5287-6特大垫圈6BIG WASHER 63
47F15-13000006W摆杆减磨片WEARABLE PLATE1
48F15-13000011W变档摆杆衬套BUSH ,SHIFT SWING LINK1
49F15-13000012W操纵盒座BRACKET ,CONTROL BOX1
50F15-12000013W标贴13MARK 131
51F15-13000015W防水盖板COVER,WATERPRO0F1
52F15-13010010W操纵手柄限位块BLOCK ,CONTROL HANDLE1
53GB/T956.1-5锥形锁紧垫圈5WASHER,LOCKED 52
54GB/T819.2-MSX18十字槽沉头螺钉M5×18SCREW,PAN HEAD M5×187
55F15-13010003W起翘按钮堵头JAM,BUTTON2
56F15-13010001W操纵手柄CONTROL HANDLE1
57F15-13010002W操纵手把CONTROL HANDLEBAR1
58GB/T84.5-ST4.8X12十字槽盘头自攻螺钉ST4.8×12SCREW,PAN HEAD ST4.8x121
59GB/T818-M4X10十字槽盘头螺钉M4×10SCREW,PAN HEAD M4×103
60F15-13010009W操纵手柄盖OVER ,CONTROL HANDLE1
61F15-13010005W压缩弹簧SPRING,COMPRESSION1
62F15-13010004W操纵定位件PART ,0RIENTATION CONTROL1
63F15-13010008W定位件压板PLATE ,ORIENTATION PART1
64GB/T820-M6X90十字槽半沉头螺钉M6×90SCREW,PAN HEAD M6×903

需要购买以上零件？

舟一会 / Dimo Marine 供应 T30 整机及全部配件。零件详情请访问官网。

微信/电话：+86 18658175361　官网：https://dimo-marine.cn/

舟一会 / Dimo Marine　官网：https://dimo-marine.cn/
