百胜 T15BM 船外机 - 爆炸图零件明细

共 17 个部位 · 577 个零件编号 · 点击部位可快速跳转。电话咨询：+86 18658175361

部位目录点部位快速跳转共 17 个部位
01托架02操舵系统03水上装置壳体04底罩05控制系统06水下装置壳体&驱动系统07电气08进气系统09气缸&曲轴箱10曲轴&活塞11燃油系统12起动器组件13顶罩组件14化油器总成15控制系统(前操)16操纵盒组件17燃油箱

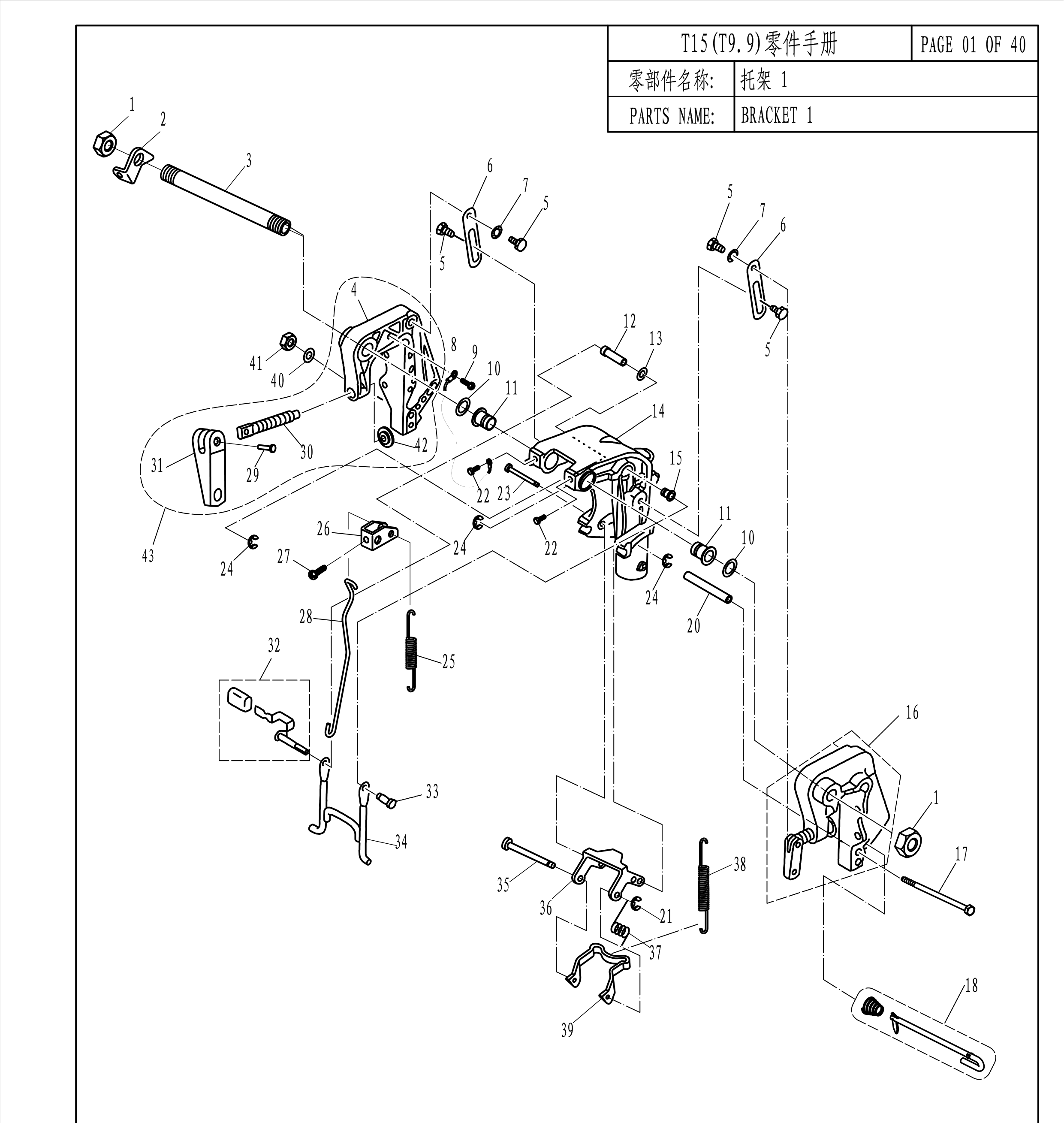

图 1托架 BRACKET 1
托架 BRACKET 1 爆炸图
REF零件编号中文名称英文名称数量轴型
1F15-01010007托架夹紧螺母NUT,SELF-LOCKING2
2F15-01010003双孔固定板PLATE,MOUNT DAMPER1
3F15-01010001夹紧托架双头螺管BOLT,CLAMP BRACKET1
4F15-01010201右夹紧托架BRACKET,RIGHT1
5F15-01010103扁六角轴位螺钉SCREW,FLAT HEXAGON4
6F15-01010105倾斜制动板PLATE,TILT STOPPER2
7F15-01010104波形垫圈WASHER,WAVE1
8F15-01010202接地钢索ATIGHTWIRE,EARTHING A1
9GB/T8123-M6x8十字槽小盘头螺钉M6x8SCREW M6x81
10F15-01010002螺管尼龙垫圈WASHER,NYLON2
11F15-01010302旋转支架螺管衬套BUSHING,ROTARY BRACKET2
12F15-01010308角度支撑定位轴套BUSHING,ORIENTATION1
13F15-01010309角度支撑尼龙片WASHER,NYLON1
14T15-01010301旋转支架BRACKET,ROTARY1
15F15-01010311角度支撑尼龙衬套BUSHING,NYLON1
16F15-01010100左夹紧托架组件LEFT BRACKET ASSY1
17GB/T5782-M6x145六角螺栓M6x145BOLT M6x1451
18F15-01010400角度限位杆组件LIMITATIVE ROD ASSY1
20F15-01010006螺栓套管TUBE,BOLT1
21GB/T896-4开口档圈4CIRCLIP 41
22GB/T818-M8x10十字槽盘头螺钉M8x10SCREW M8x102
23F15-01010316角度锁紧架长轴LONG SHAFT,LOCK ANGLE1
24GB/T896-5开口档圈5CIRCLIP53
25F15-01010304角度支撑架拉簧SPRING,TENSION1
26F15-01010306角度定位件LEVER,ANGLE ORIENTATION1
27GB/T818-M5x6十字槽盘头螺钉M5x6SCREWM5x61
28F15-01010307锁紧支架连杆ROD,TILT LOCK1
29F4-01010005艉板夹紧手柄铆钉RIVET,CLAMP HANDLE2
30F15-01010102艉板夹紧螺杆CLAMP BOLT,TRANSOM2
31F4-01010004艉板夹紧手柄CLAMP HANDLE,TRANSOM2
32F15-01010305角度锁紧手柄组件TILT LOCKED HANDLE ASSY1
33F15-01010312角度支撑定位轴SHAFT,STOPPER1
34F15-01010313角度支撑组件TILT LOCKED BRACKET ASSY1
35F15-01010317-3角度锁紧短轴TILT LOCKED SHAFT S1
36F15-01010317-2角度锁紧外架TILT LOCKED OUT BRACKET1
37F15-01010315角度锁紧架扭簧TORSION SPRING1
38F15-01010314角度锁紧架拉簧TENSION SPRING1
39F15-01010317-1角度锁紧内架TILT LOCKED INNER BRACKBT1
40GB/T848-6小垫圈6WASHER 61
41GB/T6170-M6六角螺母M6NUT M61
42F4-01010003艉板夹紧圆盘CLAMP PLATE,TRANSOM2
43F15-01010200右夹紧托架组件RIGHT BRACKET ASSY1
44GB/T6170-M8六角螺母M8NUT M82
45T15-00000001垫板PLATE1
46GB/T900-M8x50双头螺柱M8x50BOLT,DOUBLE HEAD2
47T15-02010000双孔减震器组件MOUNT DAMPER ASSY1
48GB/T5783-M6x18六角螺栓M6x18BOLT M6x183
49GB/T97.1-6平垫圈6WASHER 63
50T15-02000003水管密封圈上UPPER SEAL,WATER TUBE1
51T15-01010001操舵托架BRACKET,HELM1
52F15-01000003旋转支架上垫圈WASHER,UPPER1
53F15-01000001旋转支架上衬套BUSH,UPPER1
54F15-01000002上衬套锁紧块LOCKED PLATE,UPPER1
55F15-01010303锁紧螺栓密封圈SEAL,LOCK BOLT1
56GB/T5783-M6x20六角螺栓M6x20BOLT M6x201
57JB/T7940.1-M6直通式压注油杯M6GREASE CUP,DIRECT INFUSE M61
58F15-01000004旋转支架下衬套BRACKET BUSHING,LOWER1
59GB/T3452.1-30x3.55下衬套0形圈30×3.550-RING 30x3.551
60F15-01000006旋转支架下垫圈BRACKET WASHER,LOWER1
61T15-00000006左右减震块MOUNT DAMPER,LEPT AND RIGHT2
62T15-02000002双孔减震器垫GASKET,MOUNT DAMPER1
63T15-00000005减震块外壳SHELL,MOUNT DAMPER2
64T15-00000007前减震块MOUNT DAMPER,FRONT1
65T15-02010100接地钢索BTIGHTWIRE,EARTHING B1
66GB/T97.1-6平垫圈6WASHER 64
67GB/T5782-M6x75六角螺栓M6x75BOLT M6x752
68GB/T5782-M6x55六角螺栓M6x55BOLT M6x552
69GB/T6177-M6六角法兰面螺母M6NUT M64

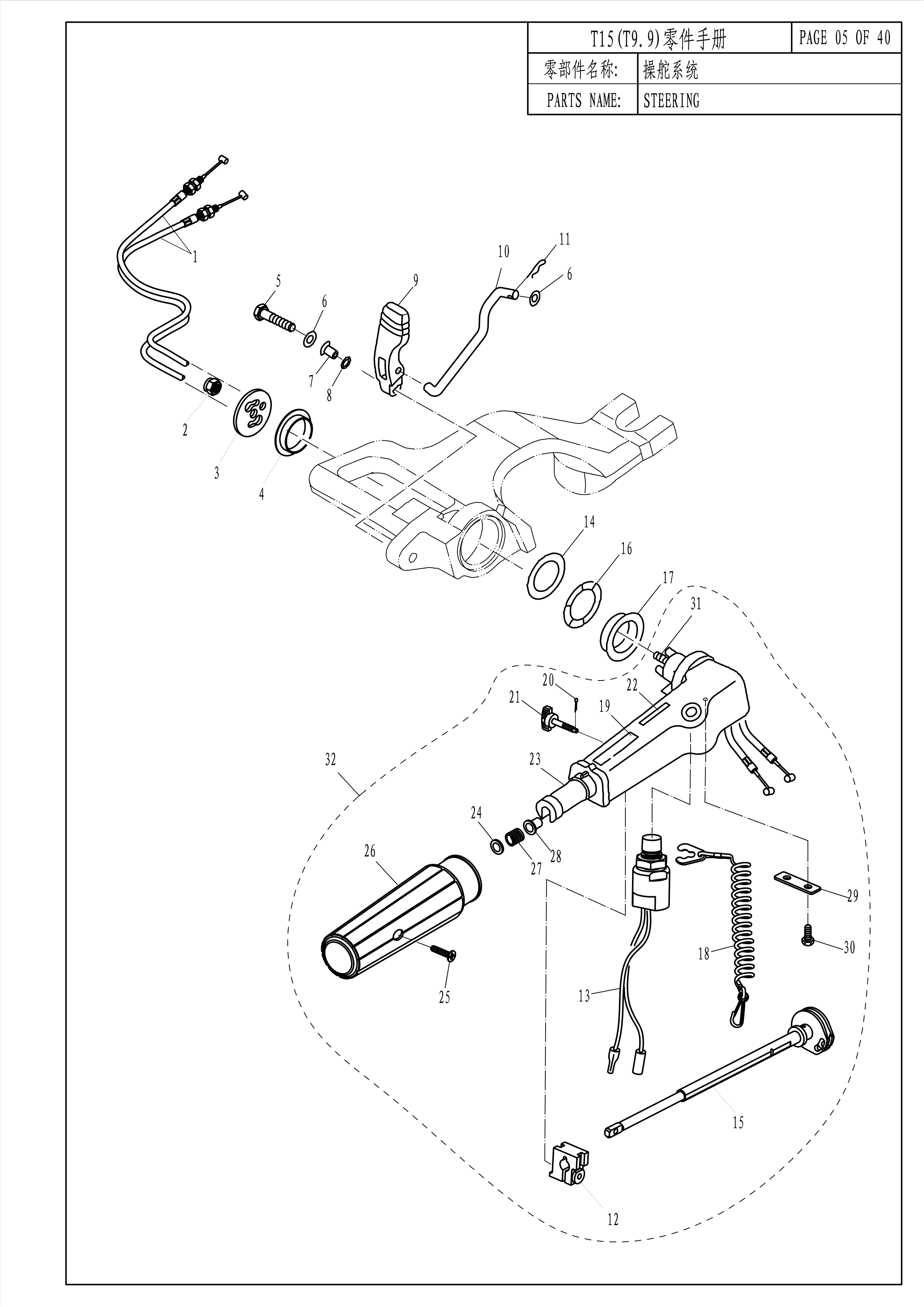

图 2操舵系统 STEERING
操舵系统 STEERING 爆炸图
REF零件编号中文名称英文名称数量轴型
1T15-01020100油门钢索组件THROTTLE CABLE ASSY2
2GB/T889.1-M81型非金属嵌件六角锁紧螺母M8LOCKING NUT M81
3T15-01000005手柄定位盖板PLATE,TILLER HANDLE1
4T15-01000004手柄衬套(低)HANDLE BUHING,LOWER1
5GB/T5783-M6x30六角头螺栓M6x30BOLT M6x301
6GB/T97.1-6平垫圈6WASHER 62
7F15-00000008凸缘垫管TUBE,FLANGE1
8F15-00000009波形垫圈WASHER,WAVE1
9T15-00000008变档手柄HANDLE,GEAR SHIFT1
10T15-00000003变档连杆SHIFT ROD1
11F15-00000012夹簧SPRING,CLAMP1
12F4-01090003操舵手柄握把摩擦块FRICTION BLOCK1
13T15-01020003急停开关组件ENGINE STOP SWITCH ASSY1
14T15-01000003衬套尼龙垫圈WASHER,NYLON1
15F4-01090100节气门杆组件THROTTLE LEVER ASSY1
16T15-01000002波形垫圈WASHER,WAVE1
17T15-01000001手柄衬套(高)HANDLE BUSHING,UPPER1
18F4-01090401引擎停止安全索STOPER,HANG ROPE ASSY1
19F4-08000104标贴4STICKER 41
20GB/T91-1.6x12开口销φ1.6x12COTTER PIN Φ1.6x121
21F4-01090200阻力调整旋钮组件BOLT,FRICTION ADJUSTING1
22F4-08000105标贴5STICKER 51
23T15-01020001操舵手柄HANDLE,STEERING1
24GB/T848-10小垫圈10SMALL WASHER 101
25GB/T820-M5x25十字槽半沉头螺钉M5x25SCREW M5x251
26T15-01020300操舵手柄塑胶套组件STEERING HANDLE ASSY1
27F4-01090007压缩弹簧SPRING,COMPRESSION1
28F4-01090006衬套BUSHING1
29T15-01020002节气门固定板FIXED PLATE,THROTTLE1
30GB/T818-M5x12十字槽盘头螺钉M5x12SCREWMSx122
31GB/T899-M8x25双头螺柱M8x25(A型)DOUBLE HEAD BOLT M8x251
32T15-01020000操舵手柄组件HANDLE,STEERING ASSY1
图 3水上装置壳体 UPPER CASING

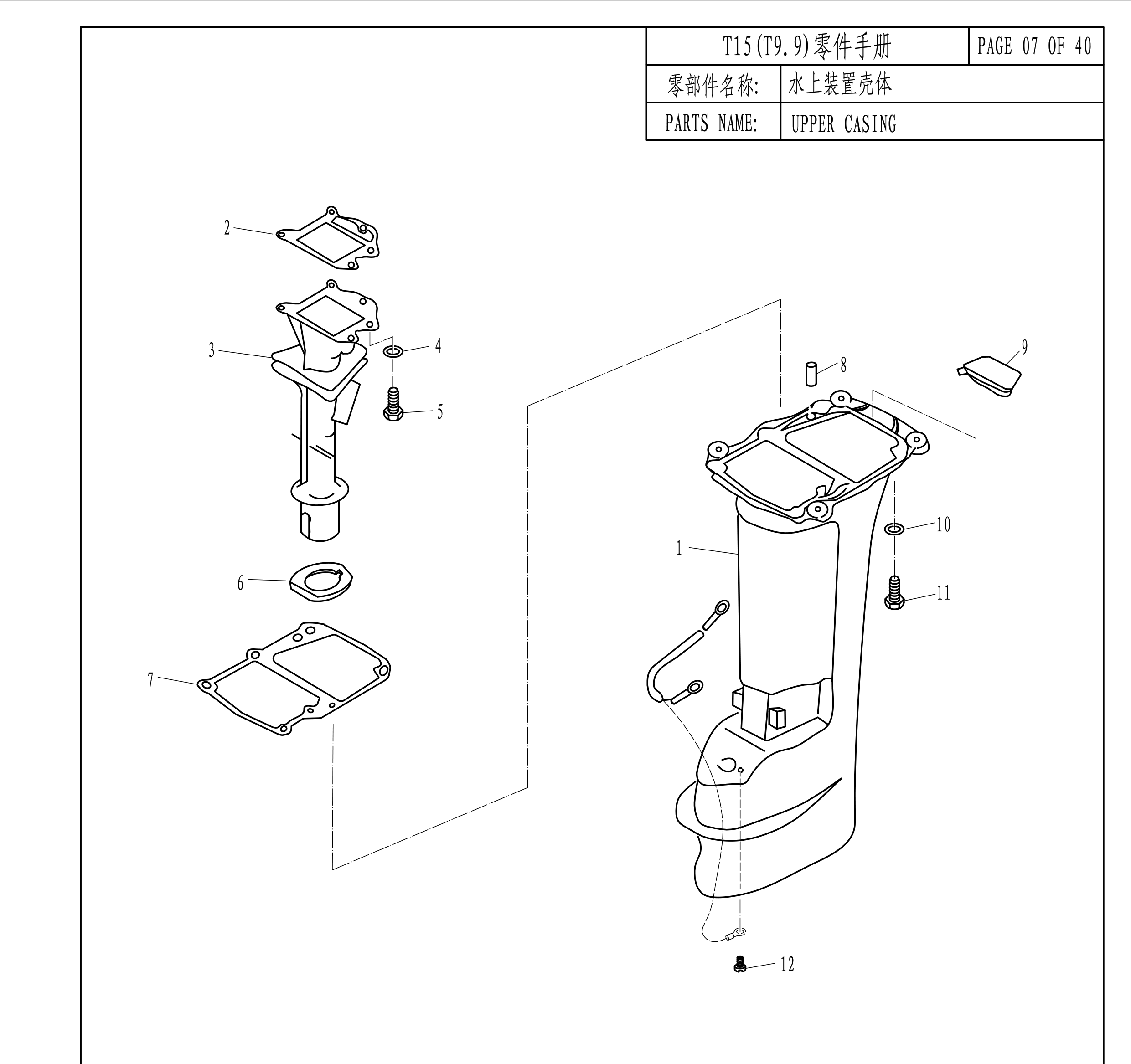

水上装置壳体 UPPER CASING 爆炸图
REF零件编号中文名称英文名称数量轴型
1T15-02000001L水上装置壳体(L)UPPER CASING(L)1长轴 L
1T15-02000001S水上装置壳体(S)UPPER CASING(S)短轴 S
2T15-04000026排气导管密封垫GASKET,EXHAUST PIPE1
3T15-04000027排气导管EXHAUST PIPE1
4GB/T97.1-6平垫圈6WASHER 65
5GB/T5783-M6x20六角螺栓M6x20BOLT M6x205
6T15-04000028排气导管减震圈DAMPER,EXHAUST PIPE1
7T15-00000004发动机密封垫GASKET,ENGINB1
8F15-00000006定位销φ6x12DOWEL PIN Φ6x122
9T15-02000005水上装置橡胶堵头RUBBER PLUG,UPPER CASING1
10GB/T97.1-8平垫圈8WASHER 86
11GB/T5783-M8x30六角螺栓M8x30BOLT M8x306
12GB/T818-M6x10十字槽盘头螺钉M6x10SCREW M6x101
图 4底罩 BOTTOM COWLING

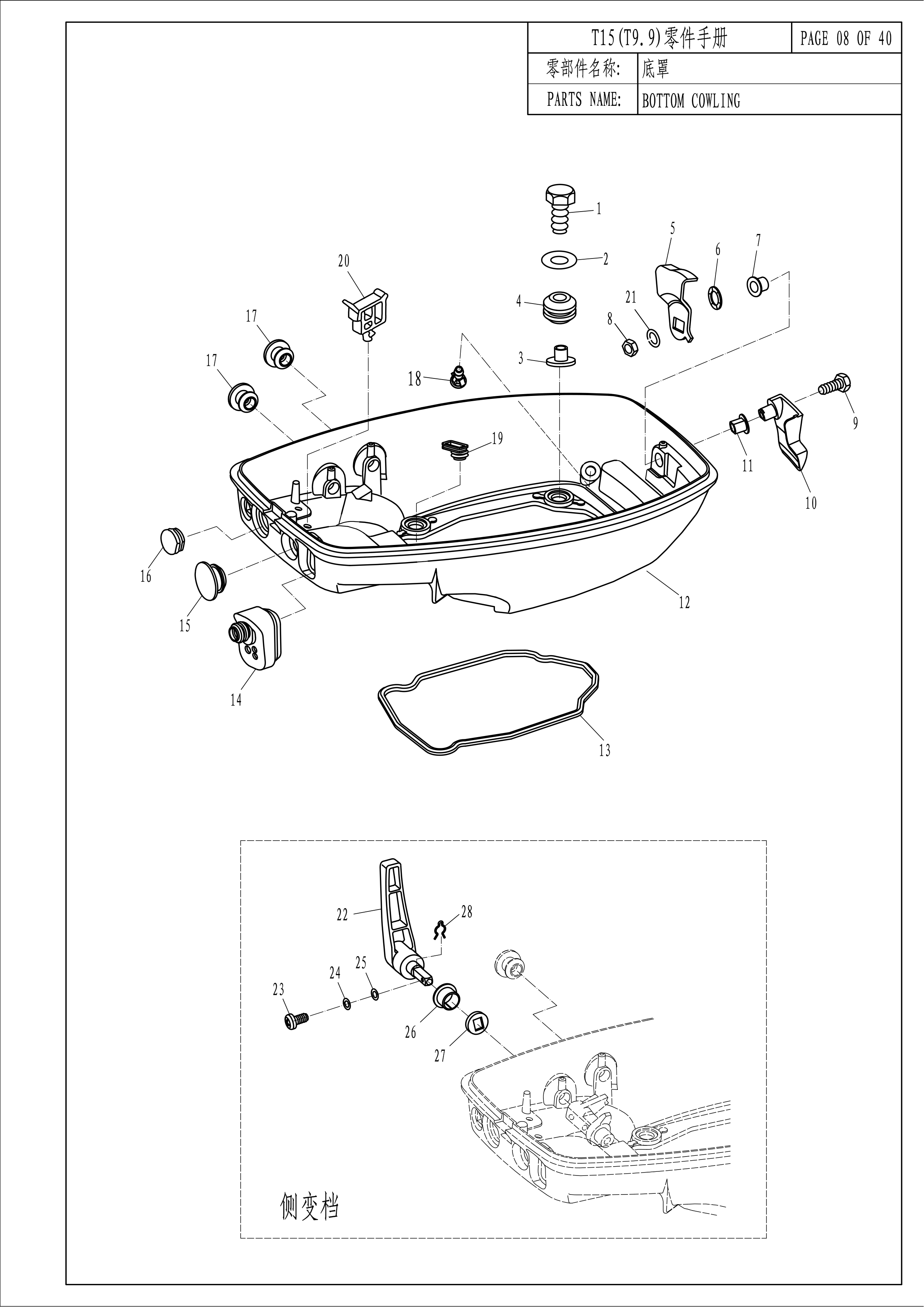

底罩 BOTTOM COWLING 爆炸图
REF零件编号中文名称英文名称数量轴型
1GB/T5783-M6x25六角螺栓M6x25BOLT M6x254
2GB/T97.1-6平垫圈6WASHER 64
3F15-05000005减震圈衬管LINER,SHOCK ABSORPTION4
4F15-05000004减震圈SHOCK ABSORPTION4
5T15-03000500顶罩锁紧块组件LOCKING ASSY,TOP COWLING1
6F15-05000023波形垫圈WASHER,WAVE1
7T15-03000012顶罩锁紧手柄尼龙衬套BBUSHING B1
8GB/T6170-M6六角螺母M6NUT M61
9GB/T5783-M6x25六角螺栓M6x25BOLT M6x251
10T15-03000011顶罩锁紧手柄HANDLE,TOP COWLING1
11T15-03000008顶罩锁紧手柄尼龙衬套ABUSHING A1
12T15-03000001底罩BOTTOM COWLING1
13T15-00000002底罩密封条SEAL,BOTTOM COWLING1
14T15-03000002波纹橡胶套SHEATH,WAVE1
15T15-03000007圆形橡胶堵塞BRUBBER PLUG,CIRCULAR B1
16F15-05000007圆形橡胶闷头RUBBER PLUG,CIRCULAR1
17T15-03000010圆形橡胶堵塞CRUBBER PLUG,CIRCULAR C2
18F15-05000009塑料出水嘴NIPPLE,PLASTIC1
19F15-05000033变档连接杆护套JACKET,SHIPT LEVER1
20F15-05000008方形线夹ACLAMP A1
21F15-05030002锁紧块盖板COVER,LOCKING BLOCK1
22T15-00000100-A变档手柄组件GEAE SHIFT HANDLE ASSY1
23GB/T818-M5x12十字槽盘头螺钉MSx12SCREW MSx121
24GB/T93-5弹性垫圈5SPRING WASHER 51
25GB/T97.1-5平垫圈5WASHER 51
26T15-00000101-A变档手柄衬套BUSHING,SHIFT GEAR HANDLE1
27T15-00000102-A变档手柄垫圈WASHER,SHIFT GEAR HANDLE1
28F8-03000005钢丝夹簧φ1.2CTRCLE φ1.21

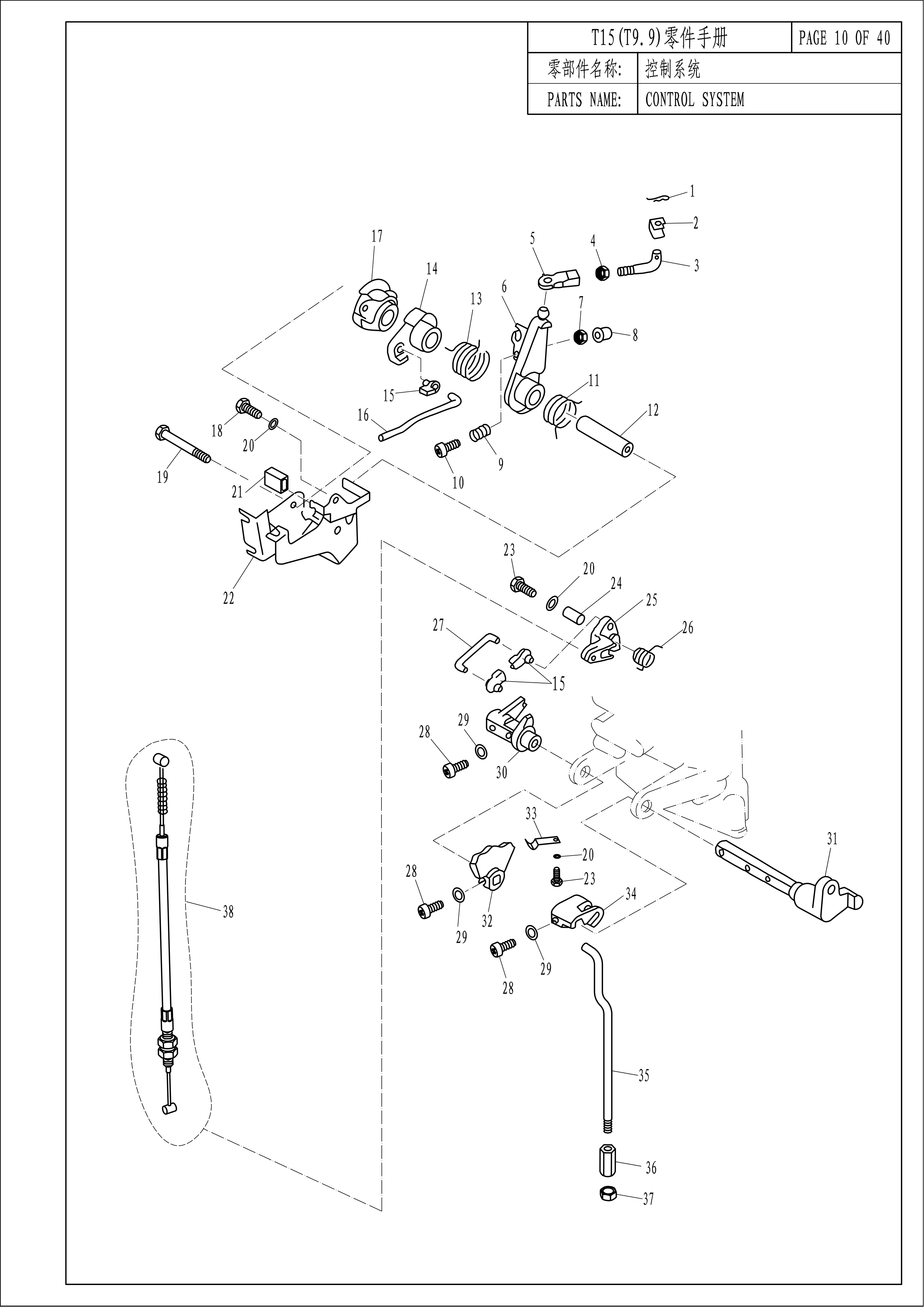

图 5控制系统 CONTROL SYSTEM
控制系统 CONTROL SYSTEM 爆炸图
REF零件编号中文名称英文名称数量轴型
1F25-05160002夹簧φ1COLLET Φ11
2T15-04040003触发线圈连杆固定件FIXED PART,ROD1
3T15-04040004触发线圈连杆ROD,IMPULSER COIL1
4GB/T6170-M5六角螺母M5NUT MS1
5T15-04040005触发线圈接头TIE-IN,IMPULSER COIL1
6T15-04030101油门执行器摇臂ROCKER,THROTTLE1
7GB/T6170-M6六角螺母M6NUT M61
8T15-04030103螺母护盖COVER,NUT1
9T15-04030102压缩弹簧COMPRESSION SPRING1
10GB/T818-M8x30十字槽盘头螺钉M6x30SCREW M6x301
11T15-04030007摇臂扭簧SWIST SPRING,ROCKER1
12T15-04030003油门执行器衬管BUSHING,THROTTLE1
13T15-04030006从动轮扭簧TORSIONAL SPRING,DRIVEN WEEEL1
14T15-04030005油门执行器从动滑轮DRIVEN PULLEY,THROTTLE1
15F15-07000016油门控制器连杆接头JOINT,THROTTLE CONTROL3
16T15-04000014油门控制连杆LINK,THROTTLE CONTROL1
17T15-04030004油门执行器主动滑轮DRIVE PULLEY,THROTTLE1
18GB/T5783-M6x12六角头螺栓M6x12BOLT M6x121
19GB/T5782-M6x65六角螺栓M6x65BOLT M6x651
20GB/T97.1-6平垫圈6WASHER 63
21T15-04030002油门执行器护套JACKET,THROTTLE CONTROL1
22T15-04030001油门执行器固定板FIXED PLATE,THROTTLE CONTROL1
23GB/T5783-M6x20六角头螺栓M6x20BOLT M6x202
24T15-04000022制动器垫管TUBE,DETENT1
25T15-04000020制动器摇臂BROCKER "B",DETENT1
26T15-04000021制动器扭簧TWIST SPRING,DETENT1
27T15-04000019制动器连杆CONNECTING ROD,DETENT1
28GB/T818-M5x12十字槽盘头螺钉MSx12SCREW MSx122
29GB/T97.1-5平垫圈5WASHER52
30T15-04000018制动器摇臂AROCK "A",DETENT1
31T15-04000600变档杆组件SHIFT ROD ASSY1
32T15-04000700变档支座BRACKET,SHIFT ROD1
33T15-04000016档位弹簧片SUPPORT SPRING1
34T15-04000017变档连杆座SHIFT ROD BASE1
35T15-04000029变档连接杆SHIFT ROD1
36F15-05000035柱状螺母COLUMNAR NUT1
37GB/T41-M6六角螺母M6NUT M61
38T15-04000800制动器钢索组件TIGHTWIRE ASSY,DETENT1

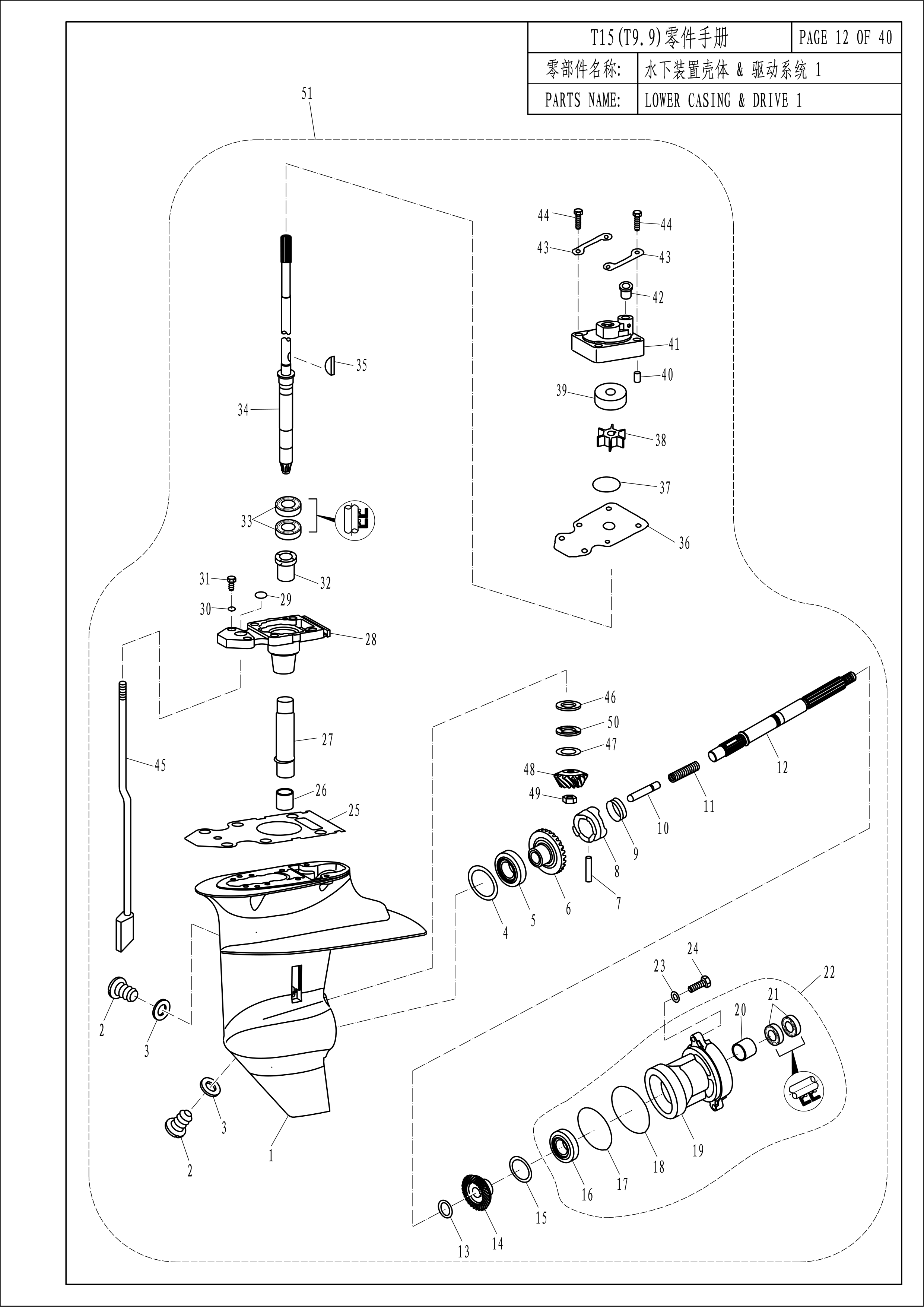

图 6水下装置壳体&驱动系统 LOWER CASING&DRIVE 1
水下装置壳体&驱动系统 LOWER CASING&DRIVE 1 爆炸图
REF零件编号中文名称英文名称数量轴型
1F15-06000001水下装置壳体GEAR CASE1
2F4-03000023注油孔螺塞PLUG,STRAIGHT SCREW2
3F4-03000024注油孔螺塞密封垫GASKET,STRAIGHT SCREW PLUG2
4F15-06000010-1正档齿轮填隙片(t:0.10毫米)SHIM(t:0.10mm)
4F15-06000010-2正档齿轮填隙片(t:0.30毫米)SHIM(t:0.30mm)
4F15-06000010-3正档齿轮填隙片(t:0.40毫米)SHIM(t:0.40mm)
4F15-06000010-4正档齿轮填隙片(t:0.50毫米)SHIM(t:0.50mm)
5NTN4T-302051L圆锥滚子轴承BEARING 302051长轴 L
6F15-06010000正档齿轮组件FORWARD GEAR ASSY1
7F15-06070004离合器销PIN,CLUTCH1
8F15-06070003爪形离合器CLUTCH1
9F15-06070005离合器环RING,CLUTCH1
10F15-06070006变档柱塞PLUNGER,SHIFT1
11F15-06070002离合器弹簧SPRING,CLUTCH1
12F15-06070001螺旋桨轴SHAFT,PROPELLER1
13F15-06070007倒档齿轮垫圈WASHER,REVERSE GEAR1
14F15-06080005倒档齿轮GEAR,REVERSE1
15F15-06080006-1倒档齿轮填隙片(t:0.10毫米)SHIM(t:0.10mm)
15F15-06080006-2倒档齿轮填隙片(t:0.20毫米)SHIM(t:0.20mm)
15F15-06080006-3倒档齿轮填隙片(t:0.30毫米)SHIM(t:0.30mm)
15F15-06080006-4倒档齿轮填隙片(t:0.40毫米)SHIM(t:0.40mm)
15F15-06080006-5倒档齿轮填隙片(t:0.50毫米)SHIM(t:0.50mm)
16GB/T276-6005深沟球轴承6005BEARING 60051
17F15-06080002水下壳体盖型圈A0-RING A,COVER1
18F15-06080003水下壳体盖型圈B0-RING B,COVER1
19F15-06080001水下装置壳体盖GEAR CASE GLAND1
20KOY017BM2312滚针轴承17BM2312BEARING 17BM23121
21F15-06080004螺旋桨轴油封17x30x6(单唇)OIL SEAL 17x30x62
22F15-06080000水下装置壳体盖组件GLAND ASSY,GEAR CASE1
23GB/T97.1-6平垫圈6WASHER 62
24GB/T5783-M6x20六角螺栓M6x20BOLT M6x202
25F15-06000005驱动轴座密封垫GASKET,DRIVE SHAPT BASE1
26NSKF1420滚针轴承F1420BEARING F14201
27F15-06000006长尼龙套管BUSHING,NYLON1
28F15-06020001驱动轴座BASE,DRIVE SHAFT1
29F15-060200040型圈0-RING1
30GB/T97.1-8平垫圈8WASHER 82
31GB/T5783-M8x25六角螺栓M8x25BOLT M8x252
32F15-06020002带挡边筒形轴承CYLINDRICAL BEARING1
33F15-06020003驱动轴油封20X30X6(单唇)OIL SEAL 20x30x62
34F15-06040000L驱动轴组件(L)DRIVE SHAFT ASSY(L)1长轴 L
34F15-06040000S驱动轴组件(S)DRIVE SHAFT ASSY (S)1短轴 S
35F15-06000013半圆键WOODRUFF KEY,FLYWHEL1
36F15-06000007外挡板GUIDE PLATE,WATER PUMP1
37JASOF404-31-45水泵壳O型密封圈31-450-RING F404-31-451
38F15-06050000水泵叶轮组件IMPELLER1
39F15-06060002水泵内壳INNER COVER,WATER PUMP1
40F15-000013定位销φ4x12DOWEL PIN φ4x122
41F15-06060001水泵壳体WATER PUMP HOUSING1
42F15-06060004泵壳水管密封圈SEAL,WATER [UMP HOUSING1
43F15-06000014泵壳固定板FIXED PLATE,WATER PUMP2
44GB/T5783-M8x45六角螺栓M8x45BOLT M8x454
45T15-08010000L变档凸轮组件(L)CAM ASSY,SHIFT ROD(L)1长轴 L
45T15-08010000S变档凸轮组件(S)CAM ASSY,SHIFT ROD(S)1短轴 S
46F15-06000020-1平面轴承垫片WASHER,BEARING1
47F15-06000009小齿轮填隙片(t:1.20毫米)SHIM,PINION(t:1.20mm)1
48F15-06000011小齿轮PINION1
49F15-06000012小齿轮螺母M8x1NUT,PINION M8x11
50TE15-04000018小齿轮垫片WASHER,PINION1
51T15-0800000L水下装置组件(L)GEAR CASE ASSY (L)1长轴 L
51T15-08000000S水下装置组件(S)GEAR CASE ASSY (S)1短轴 S
52GB/T820-M5x25十字槽半沉头螺钉M5x25SCREW M5x251
53F15-06000003进水口BWATER INLET B1
54GB/T5783-M6x30六角螺栓M6x30BOLT M6x301
55GB/T97.1-6平垫圈6WASHER 61
56GB/T861.1-6内齿锁紧垫圈6WASHER,INTERNAL TOOCH 61
57F15-06000004水下阳极ANODE1
58F15-06000015螺旋桨垫块CUSHION,PROPELLER1
59F20-04050000螺旋桨组件3-94"x12"PROPELLER ASSY 3-9先"x12"1
60GB/T96-10大垫圈10BIG WASHER 101
61F15-06000016开槽六角螺母CASTLE NUT1
62GB/T91-2.5x20开口销2.5x20PIN,COTTER 2.5x201
63GB/T5783-M8x30六角螺栓M8x30BOLT M8x304
64GB/T97.1-8平垫圈8WASHER 84
65P15-06020005橡胶密封条SEAL,RUBBER1
66F15-02000004水管导向橡胶圈RUBBER SEAL,WATER TUBE1
67T15-02000004L水管(L)TUBE,WATER(L)1长轴 L
67T15-02000004S水管(S)TUBE,WATER(S)1短轴 S
68F15-02000006水管方形密封圈QUADRATE SEAL,WATER TUBE1
69F15-00000013定位销φ4x12DOWEL PIN φ4x122
70GB/T6182-M5非金属嵌件六角锁紧螺母M5LOCK NUT M51
71F15-06000002进水口AWATER INLET A1
图 7电气 ELECTRICAL

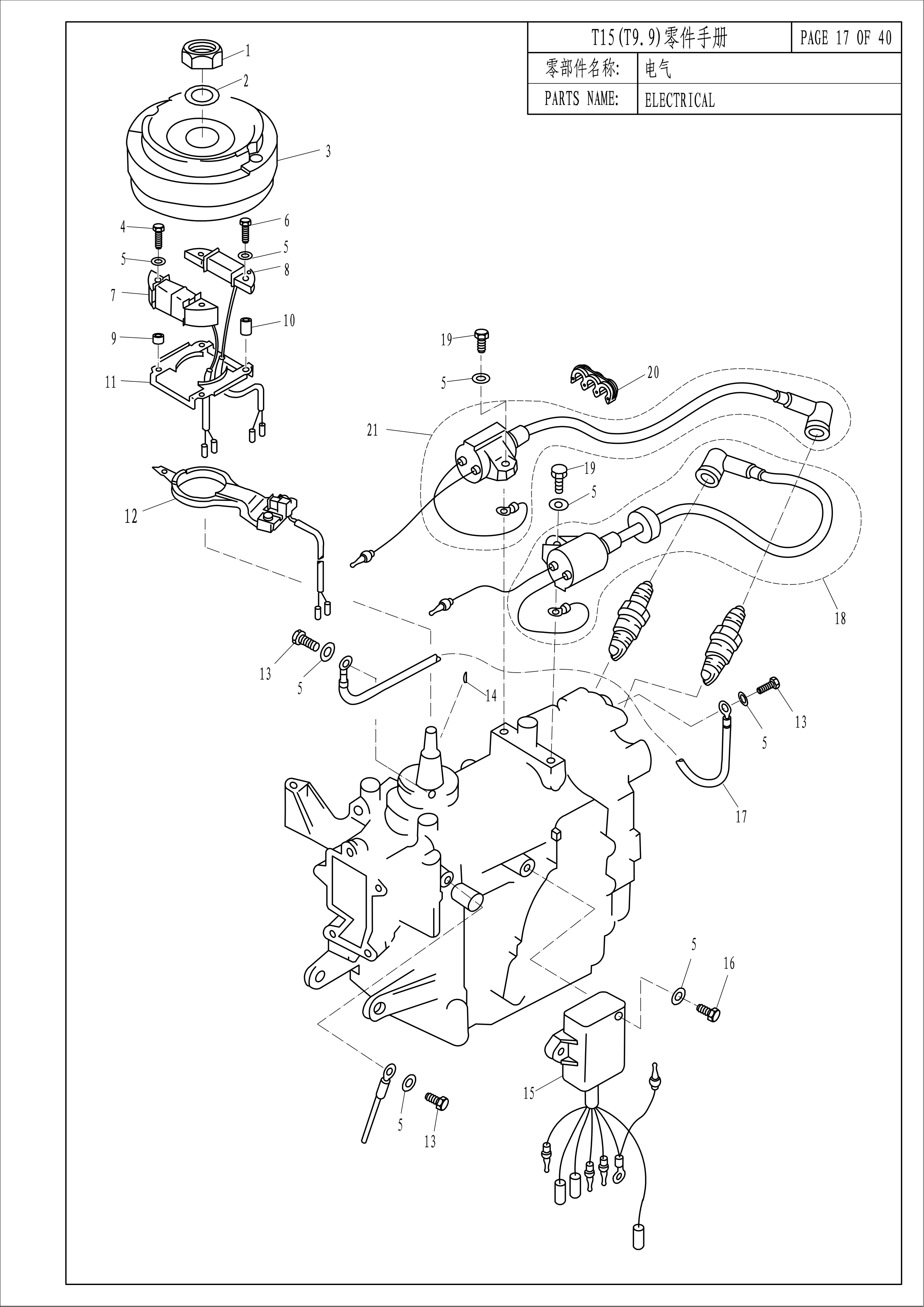

电气 ELECTRICAL 爆炸图
REF零件编号中文名称英文名称数量轴型
1T15-04000012飞轮螺母NUT,FLYWHBEL1
2T15-04000011飞轮螺母垫圈WASHER,FLYWHEEL NUT1
3T15-04000400飞轮组件FLYWHEEL ASSY1
4GB/T5783-M6x35六角螺栓M6x35BOLT M6x352
5GB/T91.7-6平垫圈6WASHER 611
6GB/T5783-M6x40六角螺栓M6x40BOLT M6x402
7T15-04000300供电线圈组件POWER SUPPLY COIL ASSY1
8T15-04000200充电线圈组件MAGNETO COIL ASSY1
9T15-04000008垫管A(低)BUSHING A(LOWER)2
10T15-04000009垫管B(高)BUSHING B(UPPER)2
11T15-04000007充电线圈固定板FIXED PLATE,MAGNETO COIL1
12T15-04040000触发线圈组件IMPULSER COIL1
13GB/T5783-M6x12六角螺栓M6x12BOLT M6x123
14F15-07000004飞轮半圆键WOODRUFF KEY,FLYWHEEL1
15T15-04000900点火模块C.D.I.UNIT ASSY1
16GB/T5783-M6x20六角螺栓M6x20BOLT M6x202
17T15-04000024接地导线GROUND WINE1
18T15-04001200高压包组件BIGNITION COIL ASSY B1
19GB/T5783-M6x18六角螺栓M6x18BOLT M6x182
20F25-05000016尼龙管夹CLAMP,NYLON1
21T15-04001100高压包组件AIGNITION COIL ASSY A1

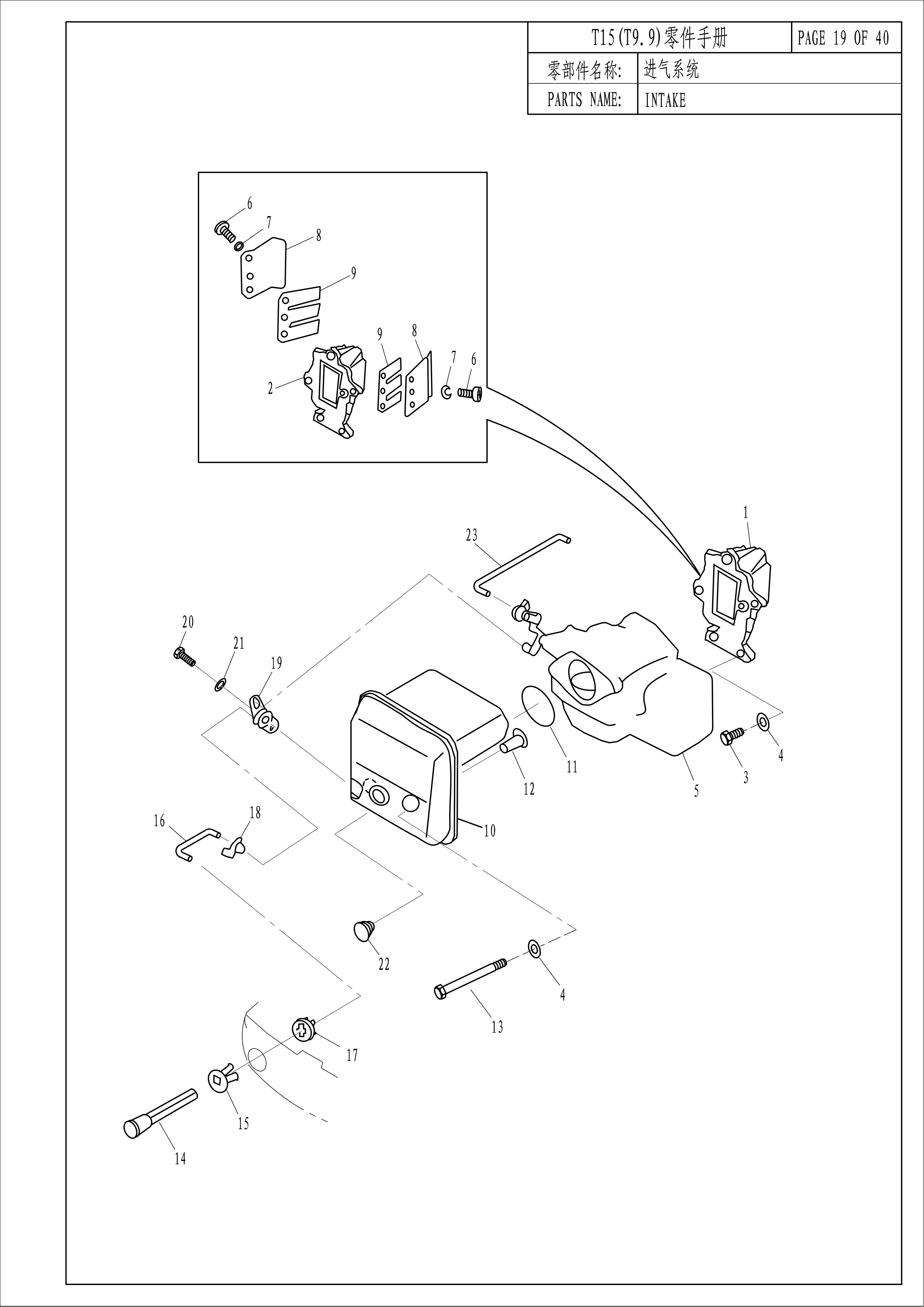

图 8进气系统 INTAKE
进气系统 INTAKE 爆炸图
REF零件编号中文名称英文名称数量轴型
1T15-04050000进气阀座组件INTAKE VALVE ASSY1
2T9.9-04050000进气阀座组件INTAKE VALVE ASSY1
3T15-04050100带密封环的进气阀座RETAINER,INTAKE VALVE1
4GB/T5783-M6x20六角螺栓M6x20BOLT M6x203
5GB/T91.7-6平垫圈6WASHER 65
6T15-04060000化油器组件CARBURETOR ASSY1
7GB/T823-H3x6十字槽小盘头螺钉M3x6SCREW M3x66
8GB/T93-3弹簧垫圈3SPRING WASHER 36
9T15-04050002进气阀片限位板LIMITATIVE PLATE,VALVE2
10T15-04000500进气消音器组件INTAKE MUFFLER1
11F4-040600020型圈φ35.2x1.90-RING φ35.2x1.91
12T15-04000504凸缘垫圈WASHER,FLANGE2
13GB/T5782-M6x115六角螺栓M6x115BOLT M6x1152
14T15-03010001阻风门手柄EANDLE,CHOKE1
15F15-05010001阻风门导向套COLLAR,CHOKE1
16T15-03010003阻风门连杆(短)ROD,CHOKE(S)1
17T15-03010002阻风门橡胶套RUBBER COLLAR,CHOKE1
18F15-07000016油门控制器连杆接头TIE-IN,THROTTLE CONTROL1
19T15-03010004阻风门摇臂ROCKER,CHOKE1
20GB/T845-ST4.8x16十字槽盘头自攻螺钉ST4.8x16SCREW,ST4.8x161
21GB/T96-5大垫圈5BIG WASHER 51
22T15-04000505进气消音器堵头PLUG,INTAKE MUFFLER1
23T15-04000015阻风门连杆(长)ROD,CHOKE(L)1

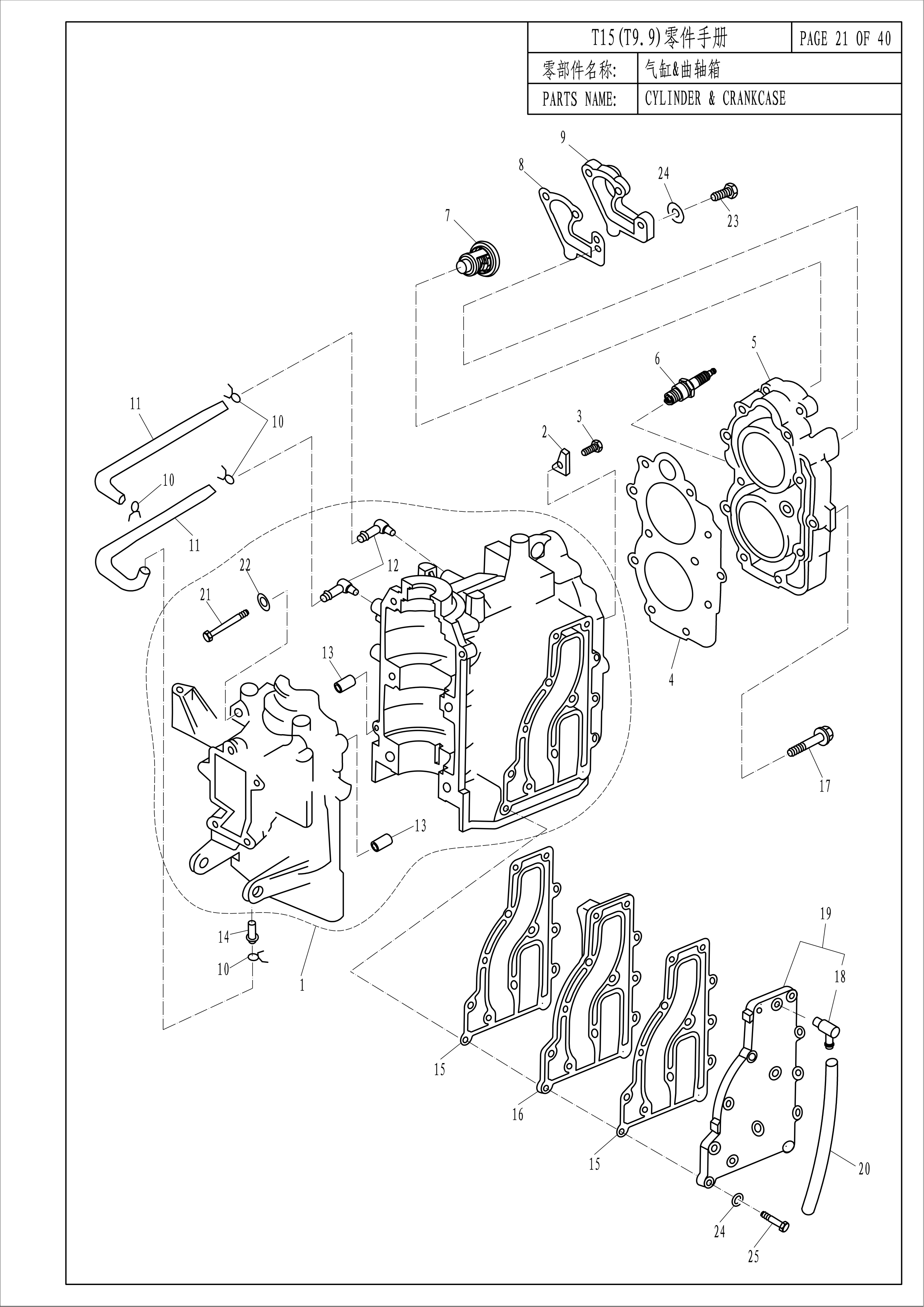

图 9气缸&曲轴箱 CYLINDER&CRANKCASE
气缸&曲轴箱 CYLINDER&CRANKCASE 爆炸图
REF零件编号中文名称英文名称数量轴型
1T15-07010000机体机座组件CRANKCASE ASSY1
2T15-04010103机体阳极ANODE1
3GB/T819.1-M5x15十字沉头螺钉M5x15SCREWM5x151
4T15-04000100缸头复合垫CASKET,CYLINDER HEAD1
5T15-04000001气缸盖CYLINDER COVER1
6NGKBPR7HS火花塞SPARK PLUG2
7T15-04000010节温器THERMOSTAT1
8T15-04000003节温器盖垫GASKET,THERMOSTAT1
9T15-04000004节温器盖COVER,THERMOSTAT1
10T15-04000013油管夹簧CCLIP C,FUEL PIPE4
11T15-04000005回气管φ7xφ2.5x212HOSE φ7xφ2.5x2122
12T15-04010200出水嘴组件WATER NOZZLE ASSY,OUT2
13F15-00000006定位销φ6X12DOWEL PIN φ6x122
14T15-04010202出水嘴WATER NOZZLE,OUT1
15T15-04010002排气盖板垫GASKET,BXHAUST COVER2
16T15-04010003排气内盖INNER COVER,EXHAUST1
17T15-04000002六角凸缘螺栓M7x1x35BOLT M7x1x3511
18F15-04000005水嘴组件WATER NOZZLE ASSY1
19T15-04010500排气外盖组件OUTER COVER ASSY,EXHAUST1
20T15-04000006回水管φ10xφ5x300HOSEφ10xφ5x3001
21GB/T5783-M8x60六角螺栓M8x60BOLT M8x606
22GB/T97.1-8平垫圈8WASHER86
23GB/T5783-M6x20六角螺栓M6x20BOLT M6x204
24GB/T97.1-6平垫圈6WASHER 617
25GB/T5783-M6x30六角螺栓M6x30BOLT M6x3013

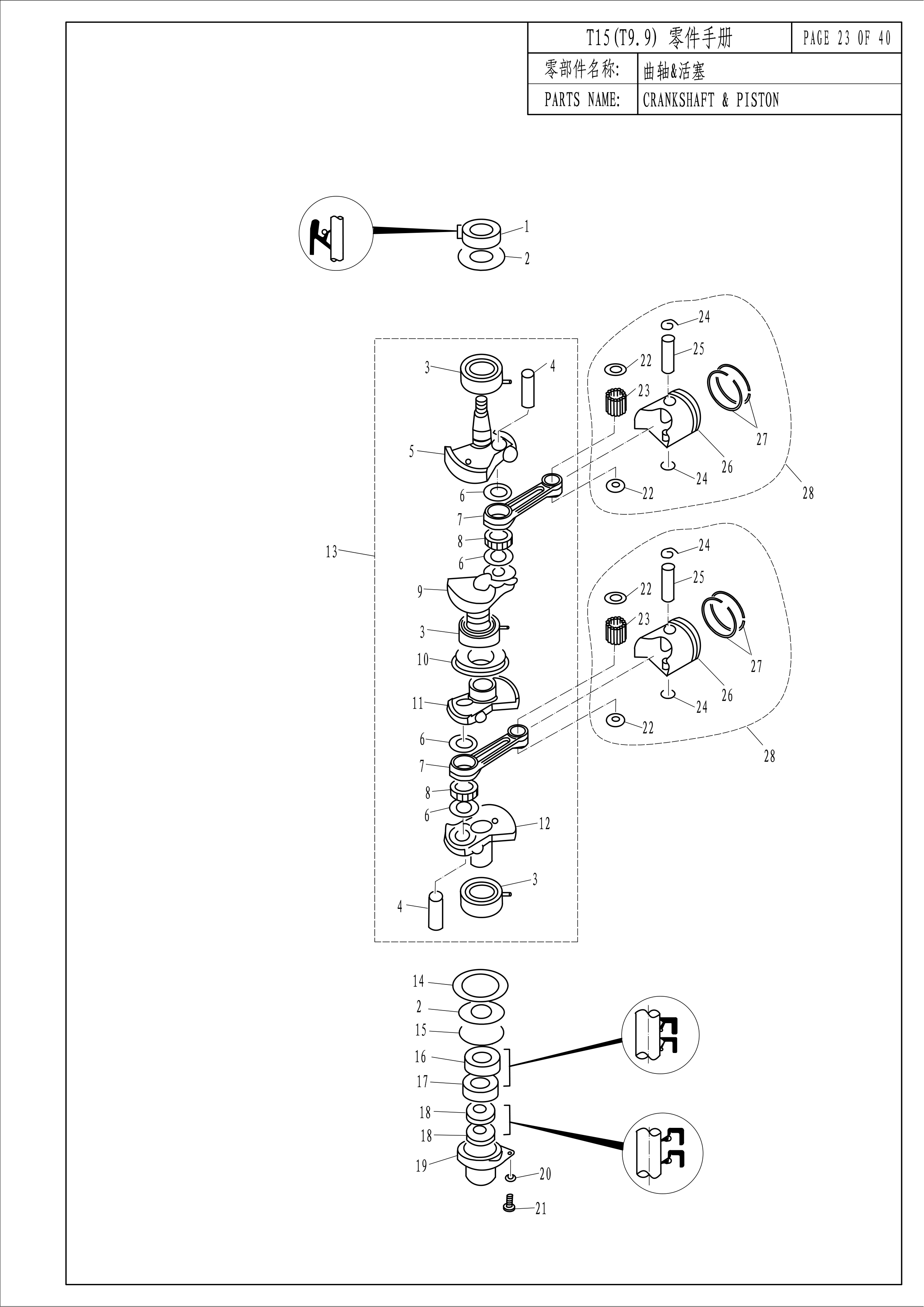

图 10曲轴&活塞 CRANKSHAFT&PISTON
曲轴&活塞 CRANKSHAFT&PISTON 爆炸图
REF零件编号中文名称英文名称数量轴型
1T15-04020107曲轴油封FPJ 23x36x13-2OIL SEAL23x36x13-21
2T15-04020002轴承盖板COVER PLATE,BEARING2
3KOYO6205LT深沟球轴承6205LTBEARING 6205 LT3
4T15-04020102曲轴销PIN,CRANKSHAFT2
5T15-04020106曲轴甩块DBLOCK,SWING D1
6T15-04020103连杆减磨片THRUST WASHER,CONNECTING ROD4
7T15-04020201A连杆CONNECTING ROD2
8T15-04020108滚针轴承NEEDLE ROLLERBEARING2
9T15-04020105曲轴甩块CBLOCK,SWING C1
10T15-04020300密封环座组件SEAL RETAINER ASSY1
11T15-04020104曲轴甩块BBLOCK,SWING B1
12T15-04020101曲轴甩块ABLOCK,SWING A1
13T15-04020000A曲轴连杆组件CRANK SHAFT ASSY1
14T15-04020001曲轴定位片FIXED WASHER,CRANKSHAFT1
15T15-04010402油封壳体0型环0-RING1
16T15-04010403油封壳体油封A25x38x7OIL SEAL A 25x38x71
17T15-04010404油封壳体油封B25x38x6OIL SEALB25x38x61
18F15-04000008骨架油封13x25x6OIL SEAL,SKELETON 13x25x62
19T15-04010401油封壳体SHELL,OIL SEAL1
20GB/T91.7-6平垫圈6WASHER 61
21GB/T5783-M6x16六角螺栓M6x16BOLT M6x161
22T15-04020205活塞垫圈WASHER,PISTON4
23T15-04020206滚针φ2x13.8 GZNEEDLE ROLLER φ2x13.850
24F15-07020005活塞销挡圈CIRCLIP4
25F15-07020006活塞销PIN,PISTON2
26T15-04020202活塞PISTON2
27T15-04020500活塞环组件PISTON RING ASSY2
28T15-04020400活塞组件PISTON ASSY2

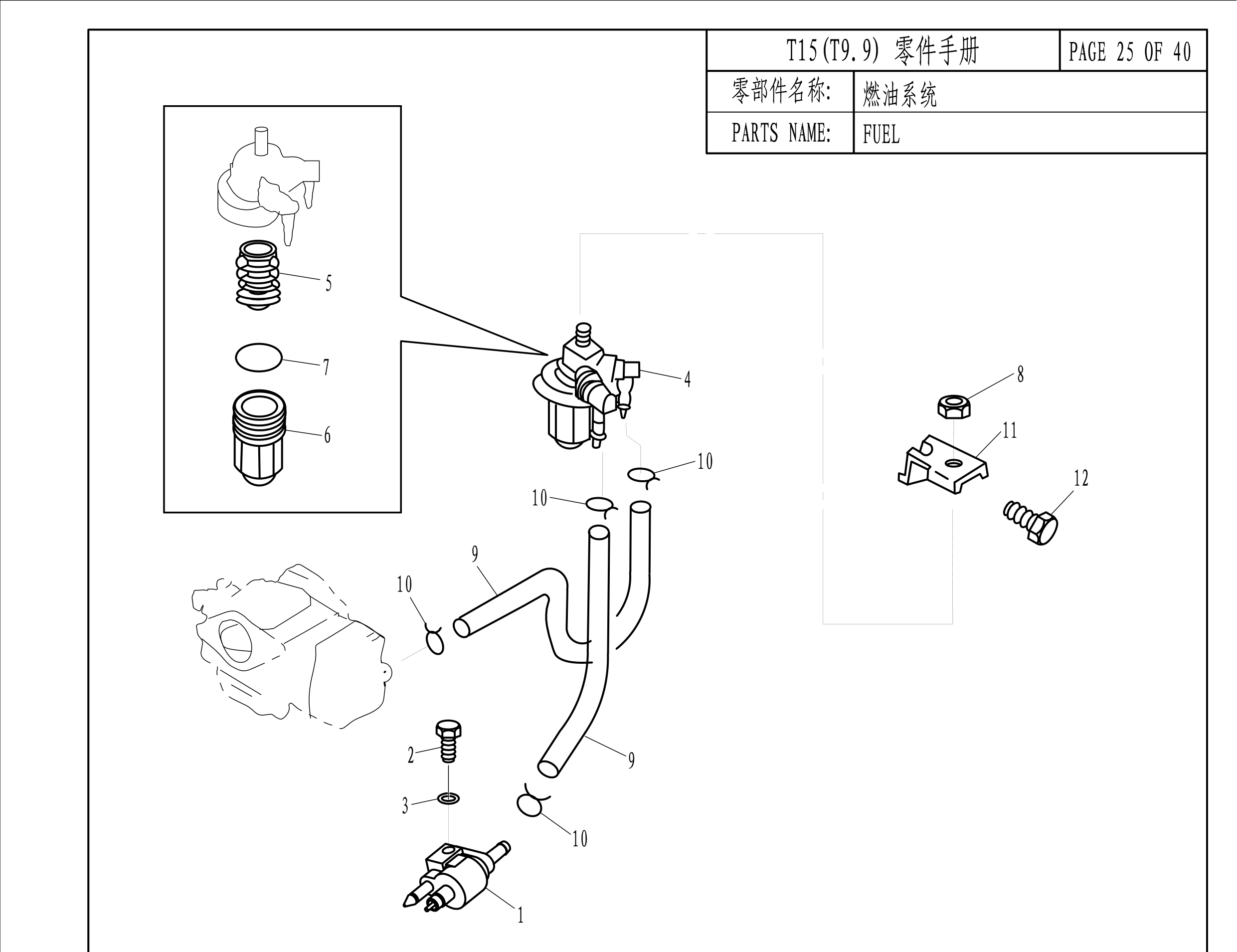

图 11燃油系统 FUEL SYSTEM
燃油系统 FUEL SYSTEM 爆炸图
REF零件编号中文名称英文名称数量轴型
1F4-05000200燃油管接头组件FUBL LIME COMECTOR(EMCIME,MALE)1
2GB/T5783-M6x20六角螺栓 M6x20BOLT M6x201
3GB/T97.1-6平垫圈6WASEER 61
4F15-07080000滤油杯组件FUEL FILTER ASSY1
5F15-07080001滤网架FILTER BRACKET1
6F15-07080002滤杯FLTERCUP1
7GB/T3452.1-32.5x1.8滤杯密封圈φ32.5x1.8|0-RING 32.5x1.81
8GB/T6170-M8六角螺母 M8NUT M81
9F40-0500021燃油定型管FUEL HOSE2
10F4-04000030油管夹簧BCLIP B,FUEL HOSE4
11T15-04023滤杯支架BRACKET,FILTER CUP1
12GB/T5783-H6x10六角螺栓 M6x10BOLT M6x101

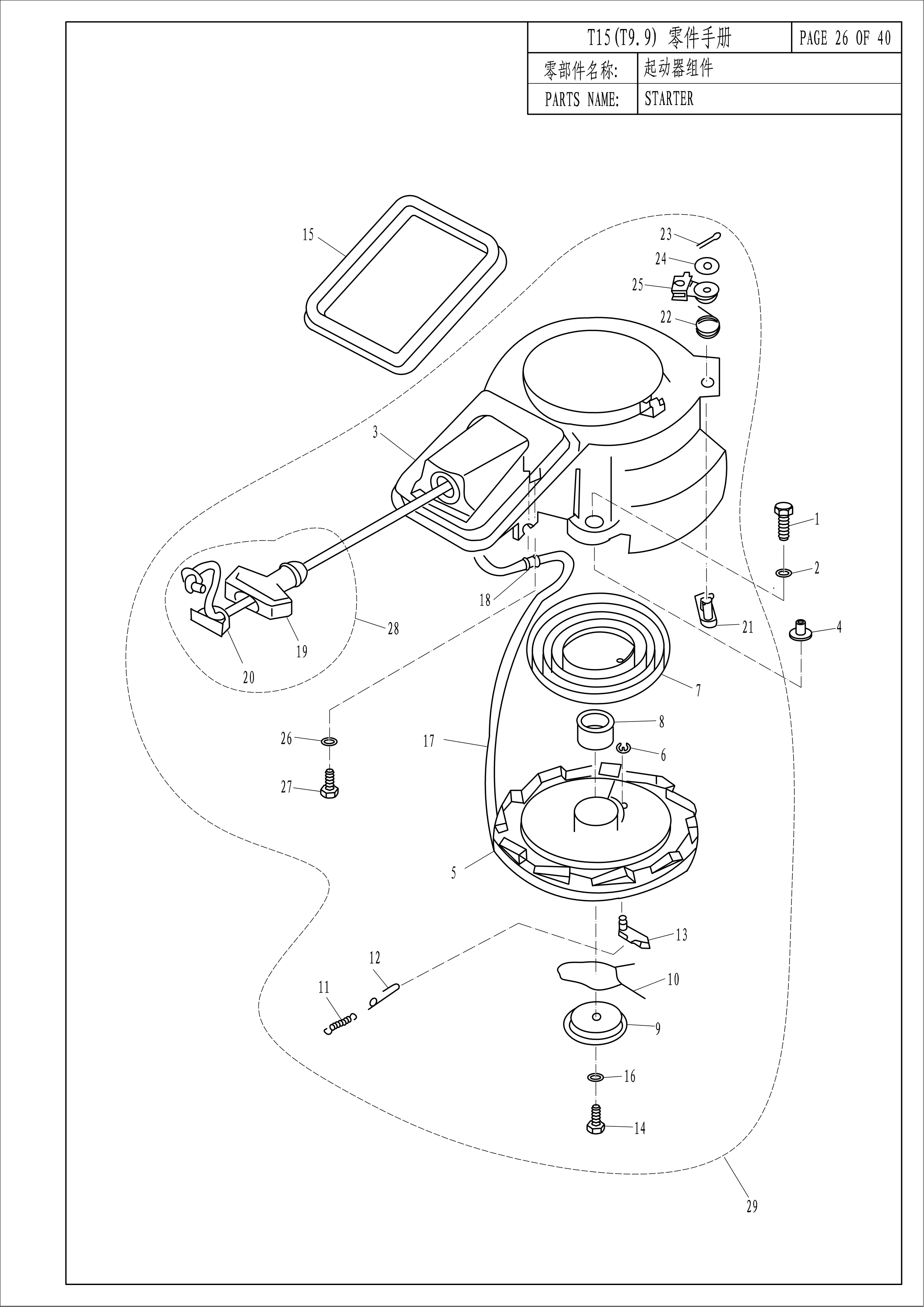

图 12起动器组件 STARTER
起动器组件 STARTER 爆炸图
REF零件编号中文名称英文名称数量轴型
1GB/T5783-M6x20六角螺栓M6x20BOLT M6x203
2GB/T97.1-6平垫圈6WASHER 63
3T15-04070101起动器外壳CASE,STARTER ASSY1
4T15-04070102带肩衬套BUSHING3
5F15-07130201起动轮START WHEEL1
6GB/T896-8开口挡圈8CIRCLIP81
7F15-07130107涡形弹簧SPRING,VOLUTE1
8T15-04070006起动轮减磨圈WASHER,START WHEEL1
9F15-07130001起动轮压板CLAMP PLATE,STARTER1
10F15-07130002起动压板夹簧SPRING,STARTER CLAMP PLATE1
11F15-07130203卡瓣拉簧SPRING,TENSION1
12F15-07130204卡瓣钢丝连杆LINK,PAWL1
13F15-07130202起动卡瓣PAWL,DRIVE1
14GB/T5783-M6x16六角头螺钉M6x16SCREW M6x161
15T15-04070005发泡密封圈SEAL,FORTHY RUBBER1
16GB/T97.1-6平垫圈6WASHER 61
17F15-07130205启动绳START ROPE1
18F4-04130013启动绳导向管COLLAR,START ROPE1
19F4-04130101启动手柄EANDLE,STARTER1
20F4-04130102启动手柄盖COVER,START HANDLE1
21T15-04070001制动器DETENT1
22T15-04070002制动器扭簧TWIST SPRING,DETENT1
23GB/T91-1.6x12开口销φ1.6x12PIN,COTTER φ1.6x121
24T15-04070004制动器垫圈WASHER,DETENT1
25T15-04070003制动器钢索摇臂ROCKER,DETENT1
26GB/T96-5大垫圈5BIG WASHER 51
27GB/T845-ST4.8x12十字槽盘头自攻螺钉ST4.8x12SCREW ST4.8x121
28F4-04130100起动手柄组件STARTER HADLE ASSY1
29T15-04070000起动器组件STARTER ASSY1

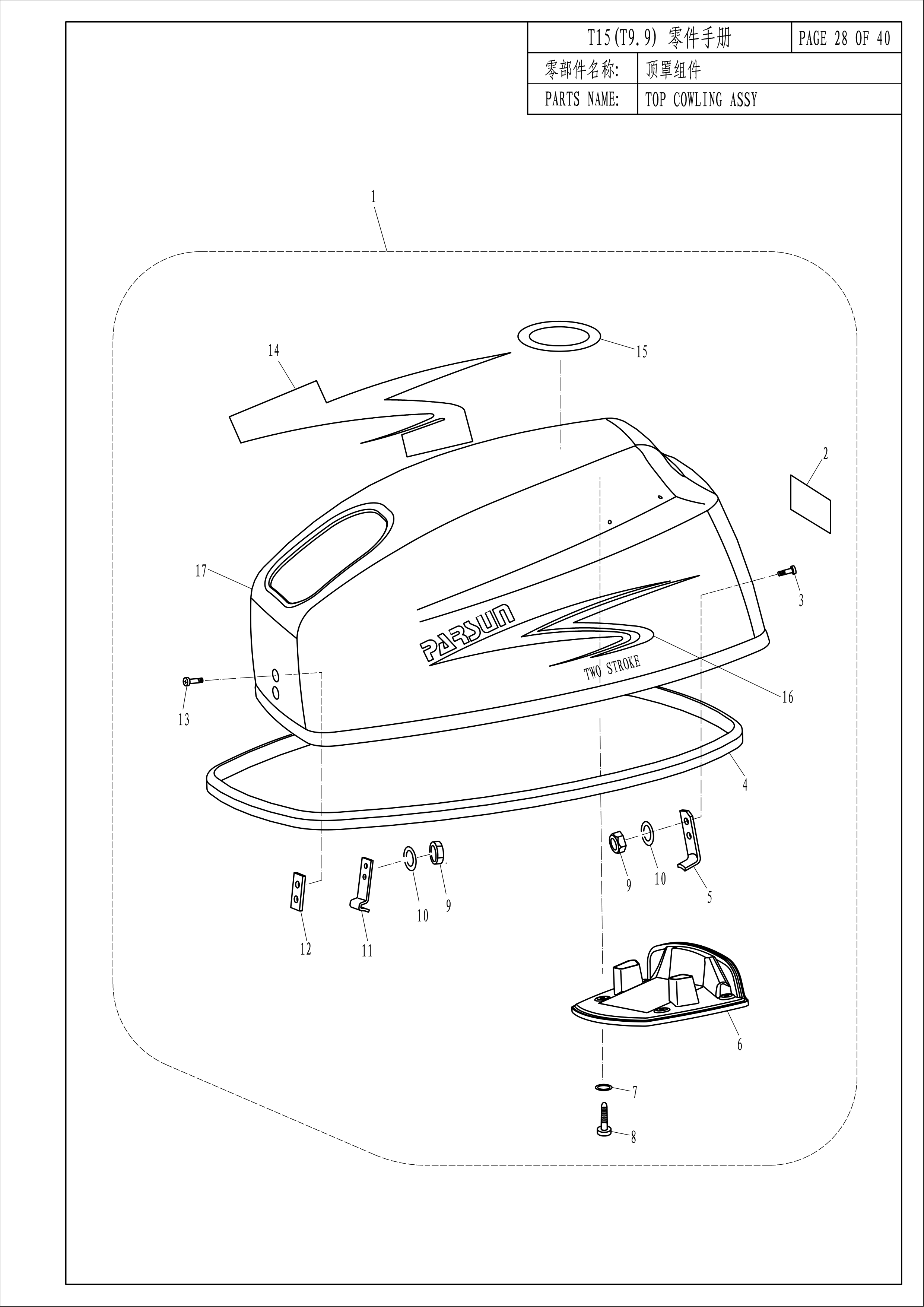

图 13顶罩组件 TOP COWLING ASSY
顶罩组件 TOP COWLING ASSY 爆炸图
REF零件编号中文名称英文名称数量轴型
1T15-05000000顶罩组件TOP COWLING ASSY1
2T15-06003标贴3STICKER 31
3GB/T818-M5x12十字槽盘头螺钉M5x12SCREW M5x122
4T15-05000002顶罩密封橡胶条SEAL1
5F4-06000005锁紧钩HOOK,LOCKING1
6T15-05000003顶罩消音器盖COVER,TOP COWLING MUFFLE1
7F4-06000004橡胶垫片RUBBER GASKET1
8GB/T845-ST4.8x16十字槽盘头自攻螺钉ST4.8x16SCREW ST4.8x164
9GB/T6170-M5六角螺母M5NUT M54
10GB/T97.1-5平垫圈5WASHER 54
11F15-08000004挂钩POTHOOK1
12F4-06000006挂钩垫CUSHION,POTHOOK1
13GB/T818-M5x20十字槽盘头螺钉M5x20SCREW M5x202
14T15-06000002标贴2STICKER 21
15T15-0600005标贴5STICKER 51
16T15-06000001标贴1STICKER 11
17T15-05000001顶罩TOP COWLING1

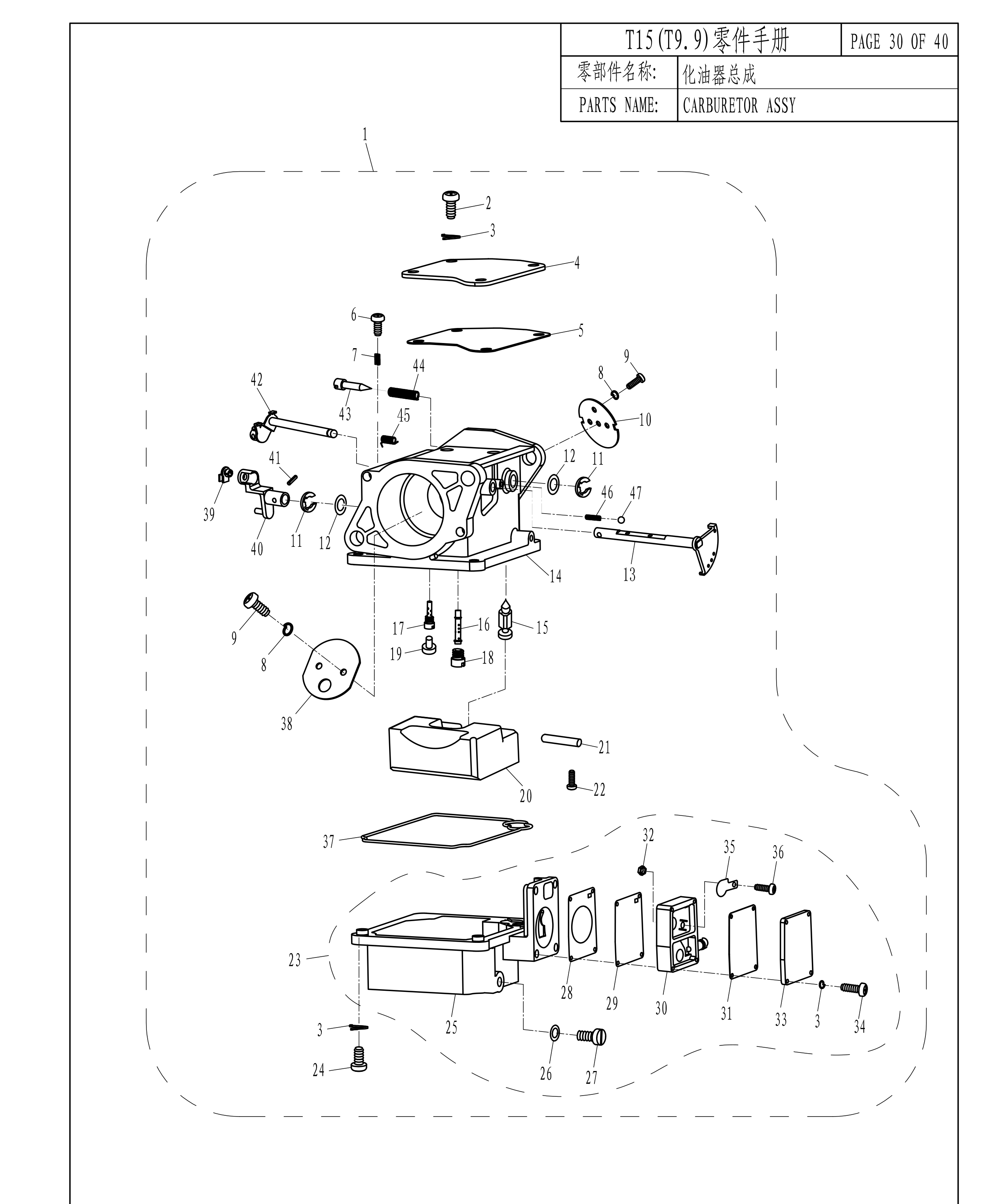

图 14化油器总成 CARBURETOR ASSY
化油器总成 CARBURETOR ASSY 爆炸图
REF零件编号中文名称英文名称数量轴型
1T15-04060000化油器总成CARBURETOR ASSY1
2GB/T818-M4x10十字槽盘头螺钉M4x10BOLT M4x104
3GB/T94.1-4弹性垫圈4SPRING WASHER 412
4T15-04060003面板PLATE1
5T15-04060002衬垫GASKET1
6T15-04060006油门止动螺钉BOLT1
7T15-04060007油门止动螺钉弹簧SPRING,THROTTLE1
8GB/T94.1-3弹性垫圈3SPRING WASHER 34
9GB/T818-M3x6十字槽盘头螺钉M3x6BOLT M3x61
10T15-04060104油门挡板APRON,THROTTLE1
11GB/T896-4开口挡圈4CIRCLIP 42
12T15-04060102摆杆尼龙衬圈WASHER2
13T15-04060201阻风门摆杆SWING LINK,CHOKE1
14T15-04060001化油器本体CARBURETOR BODY1
15T15-04060008针阀NEEDLE VALVE1
16T15-04060011主喷嘴MAIN NOZZLE1
17T15-04060013怠速量孔IDLE JET1
18T15-04060012主量孔MAIN JET1
19T15-04060014胶冒RUBBER CAP1
20T15-04060009浮子FLOAT1
21T15-04060010浮子销PIN,FLOAT1
22GB/T818-M4x8十字槽盘头螺钉M4x8SCREW M4x81
23T15-04060300油杯组件BODY,FLOAT CHAMBER1
24GB/T823-M4x14十字槽小盘头螺钉M4x14BOLT M4x144
25T15-04060301油杯本体CUP,FUEL PUMP1
26T15-04060017放油螺钉密封垫GASKET,FUEL DRAIN BOLT1
27T15-04060016放油螺钉FUEL DRAIN BOLT1
28T15-04060302燃油泵上隔膜UPPER DIAPHRAGM,FUEL PUMP1
29T15-04060303燃油泵壳密封垫GASKET,FUEL PUMP1
30T15-04060304燃油泵壳FUEL PUMP SHELL1
31T15-04060307燃油泵下隔膜LOWER DIAPHRAGM,FUEL PUMP1
32GB/T6170-M3六角螺母M3NUT M32
33T15-04060308燃油泵下盖LOWER COVER,FUEL PUMP1
34GB/T818-M4x22十字槽盘头螺钉M4x22SCREW M4x224
35T15-04060305单向阀片CHECK VALVE1
36T15-04060306阀片螺钉SCREW M3x51
37T15-04060015化油器密封圈GASKET,CARBURETOR1
38T15-04060202阻风门挡板APRON,CHOKE1
39T15-04060022油门控制连杆接头TIE-IN,THROTTLE CONTROL ROD1
40T15-04060205阻风门摆杆摇臂ROCKER ARM,CHOKE ROD1
41GB/T879.2-2x10轻型直槽弹性圆柱销2x10PIN 2x101
42T15-04060100油门摆杆组件THROTTLE BAR ASSY1
43T15-04060004怠速螺钉SCREW,AIR ADJUSTING1
44T15-04060005怠速螺钉弹簧SPRING,AIR ADJUSTING1
45T15-04060103油门摆杆扭簧SWIST SPRING1
46T15-04060203摆杆弹簧SWING LINK SPRING1
47T15-04060204摆杆钢珠SWING LINK BALL1

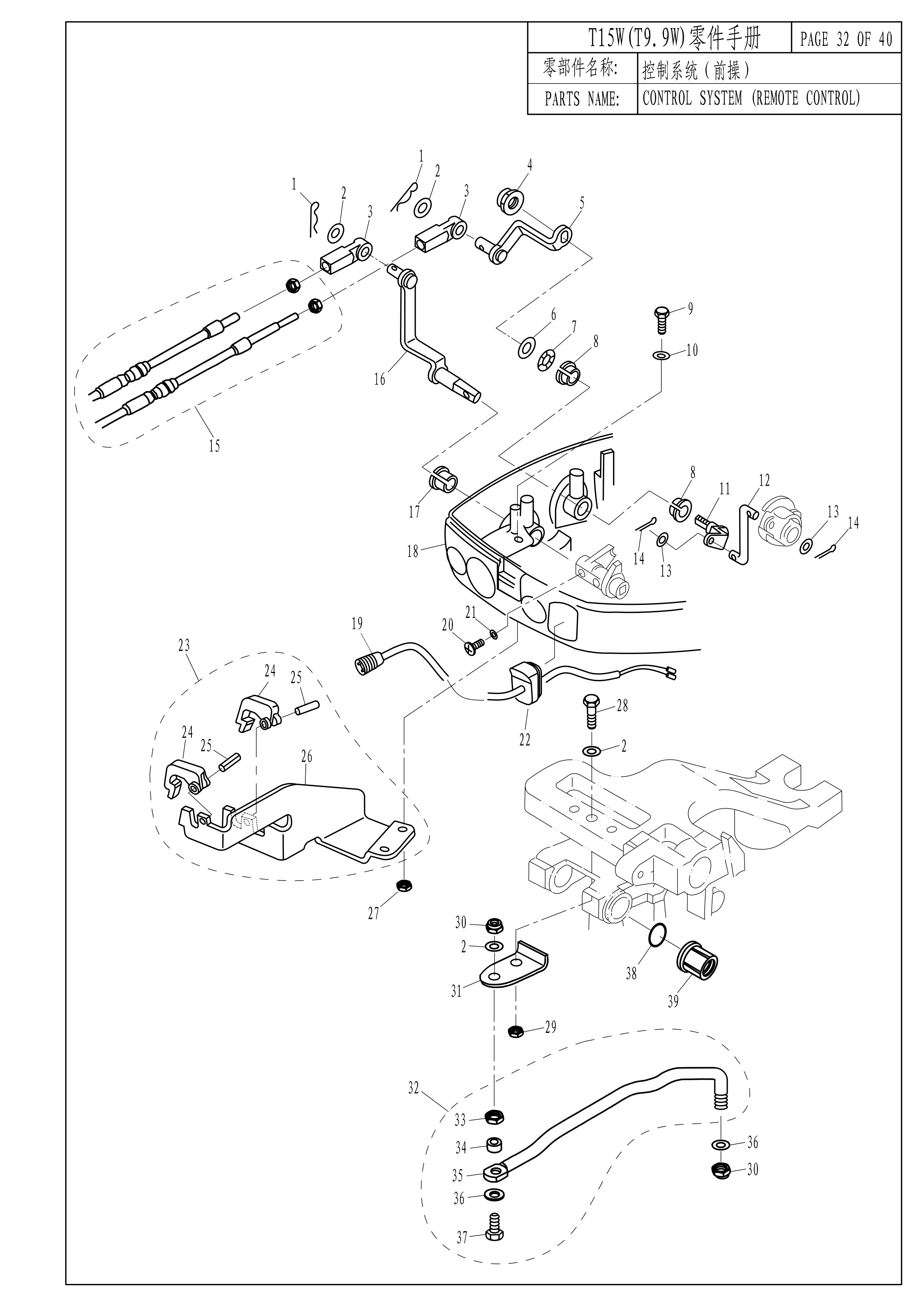

图 15控制系统(前操) CONTROL SYSTEM(REMOTE CONTROL)
控制系统(前操) CONTROL SYSTEM(REMOTE CONTROL) 爆炸图
REF零件编号中文名称英文名称数量轴型
1F15-00000012夹簧1.8SPRING,CLAMP 1.82
2GB/T97.1-8平垫圈8WASHER 84
3F25-07000005W操控钢索接头ATIE-IN A,CONTROL CABLE2
4GB/T889.1-M8x1.25I型非金属嵌件六角锁紧螺母M8x1.25LOCKING NUT M8x1.251
5T15-03000200W油门摆杆B组件SWING-ROD B ASSY1
6GB/T848-10小垫圈10SMALL WASHER 101
7T15-03000022W波形垫圈WASHER,WAVE1
8T15-03000021W油门摆杆衬套BUSH,SWING-ROD2
9GB/T5783-M6X16六角螺栓M6x16BOLT M6x162
10GB/T97.1-6平垫圈6WASHER 62
11T15-03000100W油门摆杆A组件SWING-ROD A ASSY1
12T15-03000024W油门连杆BLINK ROD B,THROTTLE1
13GB/T97.1-4平垫圈4WASHER 42
14GB/T6172.1-2x10开口销2x10PIN 2x102
15F15-11010000W操控钢索组件CONTROL CABLE ASSY1
16T15-03000300W变档摆杆组件SHIFT LEVER ASSY1
17T15-03000023W变档摆杆衬套BUSHING,SHIFT LEVER1
18T15-03000001W底罩BOTTOM COWLING1
19T15-13000500W控制线索CONTROL WIRE1
20GB/T818-M5x12十字槽盘头螺钉M5x12SCREW M5x121
21GB/T97.1-5平垫圈5WASHER 51
22T15-03000015W线索护套BUSHING,WIRE1
23T15-03000400W推拉索固定架组件MOUNTTNG BRACKET ASSY,CONTROL CABLE1
24F20-03000202W推拉索锁夹CLAMP,CONTROL CABLE2
25GB/T879.1-3x12轻型直槽弹性圆柱销3x12PIN 3x122
26T15-03000401W推拉索固定架MOUNTING BRACKET,CONTROL CABLE1
27GB/T6170-M6六角螺母M6NUT M62
28GB/T5783-M8x30六角螺栓M8x30BOLT M8x301
29GB/T6170-M8六角螺母M8NUT M81
30F25-07000006W非金属嵌件六角锁紧薄螺母3/8"THIN LOCKNUT 3/8"2
31F15-11020003W转向连接板PLATE1
32F15-11020000W转向连杆组件STEERING LINK ROD ASSY1
33F25-07000304W六角螺母3/8"NUT 3/8"1
34F25-07000303W螺栓垫管TUBE,BOLT1
35F15-11020001W转向连杆STEERING LINK ROD1
36GB/T97.1-10平垫圈10WASHER 102
37F15-11020002W转向连杆螺栓BOLT,STEERING LINK ROD1
38JASOF404-24-0160形密封圈0-RING1
39F25-01010012W塑料装饰螺母BPLASTIC NUT B1

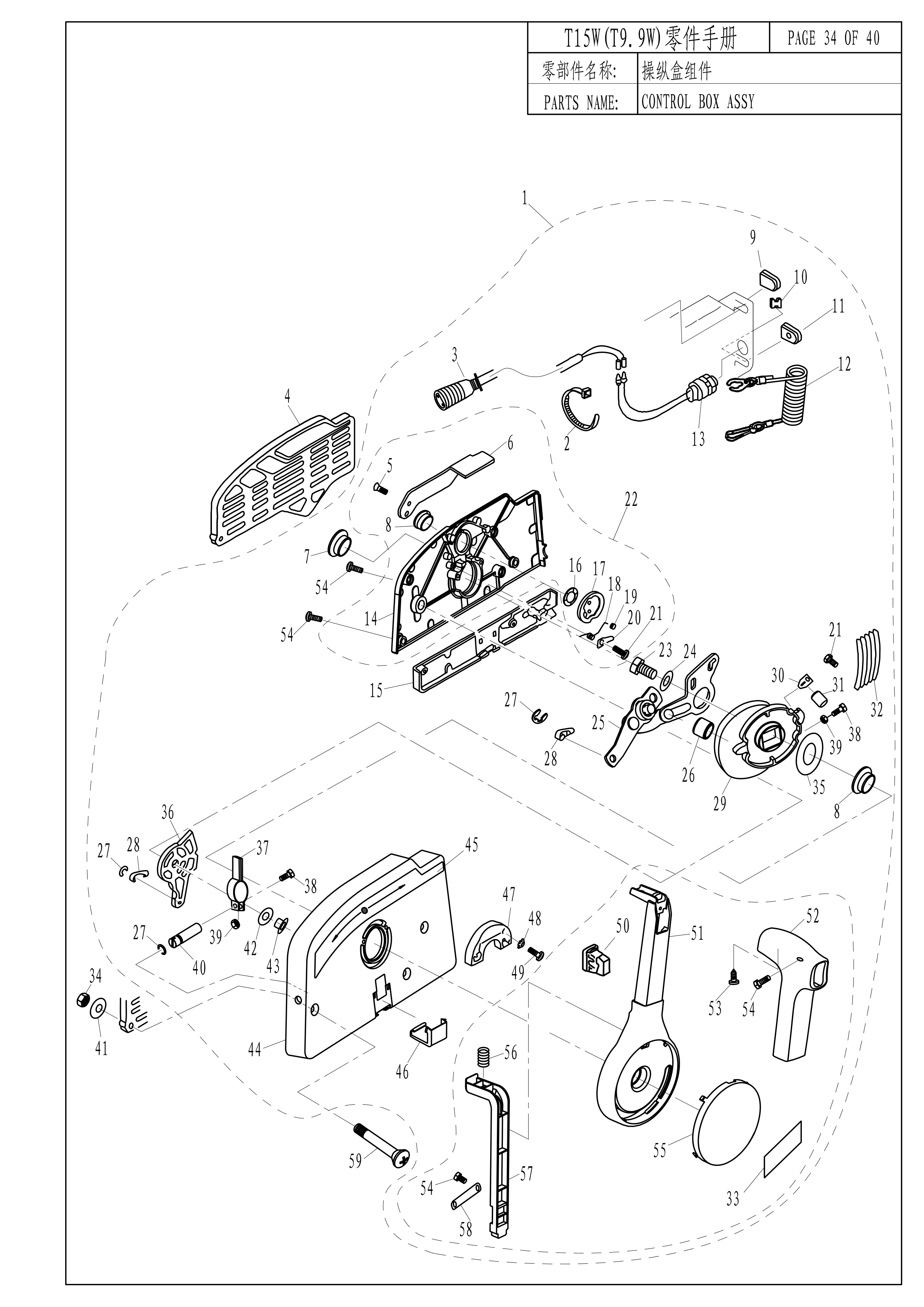

图 16操纵盒组件 CONTROL BOX ASSY
操纵盒组件 CONTROL BOX ASSY 爆炸图
REF零件编号中文名称英文名称数量轴型
1T15-10000000W操纵盒组件REMOTE CONTROL BOX1
2HT2.5*60尼龙扎带TIE,NYLON 60x2.52
3T15-10000100W操纵线索组件CONTROL WIRE ASSY1
4F15-11000002W操纵盒安装板MOUNT PLATE,CONTROL BOX1
5GB/T819.2-M5x12十字槽沉头螺钉M5x12SCREW M5X122
6F15-13020007W油门微调手柄NEUTRAL THROTTLE LEVER1
7F15-13000005W凸轮机构衬套BUSHING,CAM2
8F15-13020006W微调手柄衬套BUSHING,NEUTRAL THROTTLE LEVER1
9T15-10000001W操纵盒座橡胶闷头ARUBBER PLUG A1
10F15-11000001W钢索橡胶垫块RUBBER BLOCK1
11T15-10000002W操纵盒座橡胶闷头BRUBBER PLUG B1
12F4-01090401引擎停止安全索STOPER,HANG ROPE ASSY1
13F15-13000400W急停开关组件ENGINE STOP SWICH ASSY1
14F15-13020001W操纵盒盖COVER,CONTROL BOX1
15F15-13000013W操纵盒小盖板SMALL COVER,CONTROL BOX1
16F15-13020005W波形垫圈BWAVE WASHER B1
17F15-13020100W锁紧圆盘组件LOCKED DISK ASSY1
18F15-13020002W扭簧TORSION SPRING1
19F15-13020003W互锁滑轮LOCKED PULLEY1
20F15-13020004W滑轮弹簧压板SPRING PLATE,PULLEY1
21GB/T818-M4x6十字槽盘头螺钉M4x6SCREW M4x62
22F15-13020000W操纵盒盖组件COVER ASSY,CONTROL BOX1
23GB/T5783-M8x30六角螺栓M8x30BOLT M8x301
24GB/T97.1-8平垫圈8WASHER 81
25F15-13000500W油门控制机构MACHINE,THROTTLER CONTROL1
26F15-13000007W销轴垫圈WASHER1
27GB/T896-6开口挡圈6COTTER 63
28F25-07000007W操控钢索接头BCONTROL CABLE TIE-IN B2
29F15-13000002W凸轮机构CAM MECHANISM1
30F15-13000003W档位弹簧片压板SPRING PLATE1
31F15-13000004W档位滑轮PULLEY1
32F15-13000001W档位弹簧片BSHIFT SPRING LEAF B5
33F15-12000016W标贴16STICKER 161
34GB/T6170-M6六角螺母M6NUT M63
35F15-13000008W凸轮机构减磨片ANTIFRICATION WASHER,CAM1
36F15-13000700W变档摆杆SHIFT SWING LINK1
37F15-13000601W调节器固定板组件ADJUST FIXED PLATE1
38GB/T5783-M5x25六角螺栓M5x25BOLT M5x252
39GB/T6170-M5六角螺母M5NUT M52
40F15-13000602W调节器销轴ADJUSTER PIN1
41GB/T5287-6特大垫圈6BIG WASHER 63
42F15-13000006W摆杆减磨片ANTIFRICATION WAHSER,SHIFTING1
43F15-13000011W变档摆杆衬套BUSHING,SHIFT SWING LINK1
44F15-13000012W操纵盒座BASE,CONTROL BOX1
45F15-12000013W标贴13STICKER 131
46F15-13000015W防水盖板WATERPRO0F COVER1
47F15-13010010W操纵手柄限位块BLOCK,CONTROL HANDLE1
48GB/T956.1-5锥形锁紧垫圈5LOCKED WAHSER 52
49GB/T819.2-M5x18十字槽沉头螺钉M5x18SCREW M5x187
50F15-13010003W起翘按钮堵头PLUG,BUTTON2
51F15-13010001W操纵手柄HANDLE,CONTROL BOX1
52F15-13010002W操纵手把HANDLEBAR,CONTROL BOX1
53GB/T84.5-ST4.8x12十字槽盘头自攻螺钉ST4.8x12SCREW ST4.8x121
54GB/T818-M4x10十字槽盘头螺钉M4x10SCREW M4X103
55F15-13010009W操纵手柄盖COVER,CONTROL BOX HANDLE1
56F15-13010005W压缩弹簧COMPRESSION SPRING1
57F15-13010004W操纵定位件SPACER,CONTROL1
58F15-13010008W定位件压板PLATE,CONTROL SPACER1
59GB/T820-M6x90十字槽半沉头螺钉M6x90SCREW M6x903

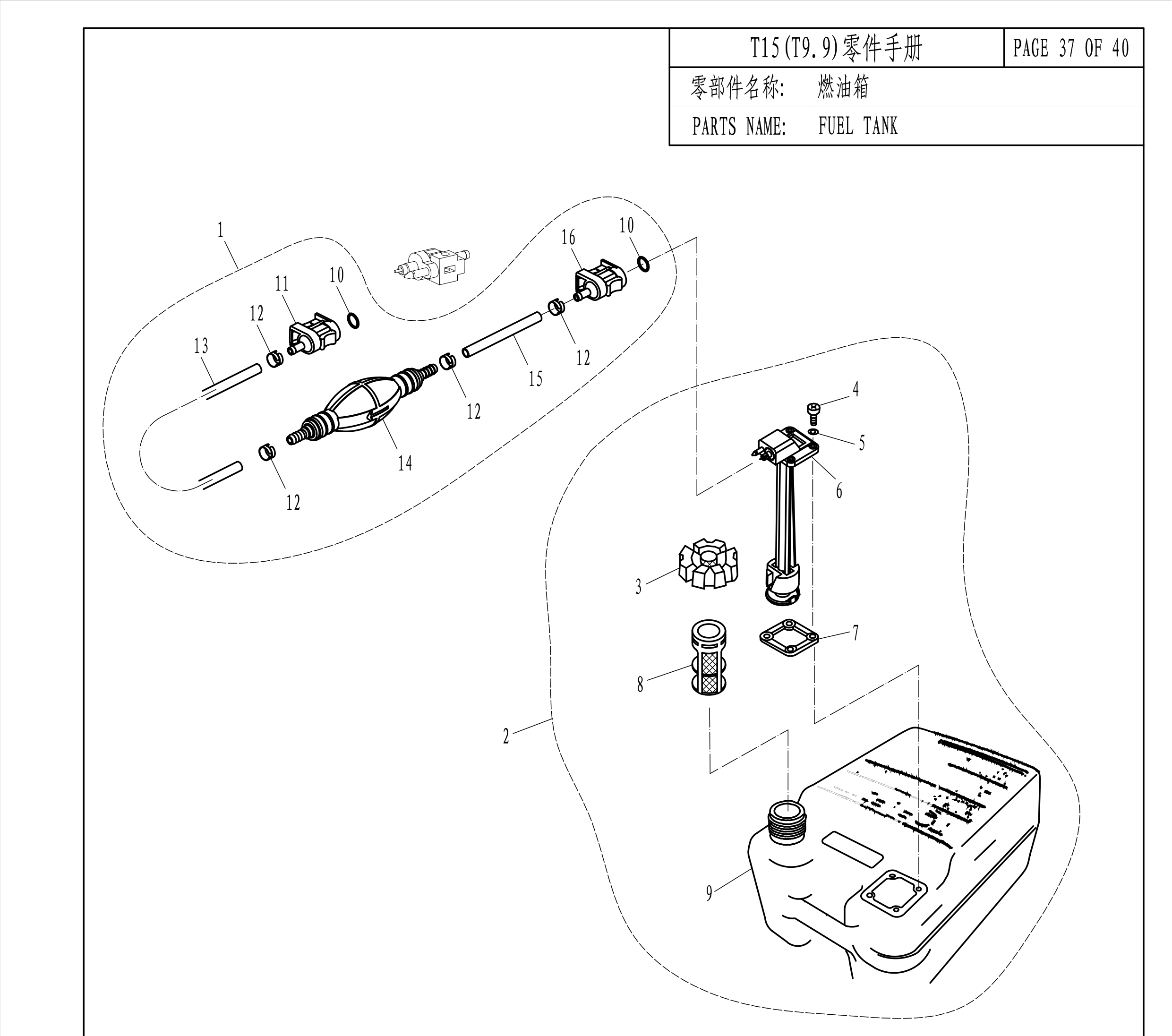

图 17燃油箱 FUEL TANK
燃油箱 FUEL TANK 爆炸图
REF零件编号中文名称英文名称数量轴型
1F15-09000000油管总成FUEL LINE ASSY1
2F15-10000000油箱组件FUEL TANK ASSY1
3F15-10010000油箱盖组件FUEL TANK CAP ASSY1
4GB/T818-M5x16十字槽盘头螺钉Mx16SCREW MSx164
5GB/T97.1-5平垫圈5WASHER 54
6F15-10020000油量计总成OLEOMETER ASSY1
7F15-10000003衬垫GASKET1
8F15-10000002油箱滤网STRAINER,FUEL TANK1
9F15-10000001油箱本体FUEL TANK1
10JASOF404-78-310形圈7.8x3.10-RING 7.8x3.12
11F15-09020000燃油接头组件(出)FUL LINE CONNECTOR(EMGINE SIDE,FEALE)1
12F15-09000003卡箍BCLAMP B4
13F15-09000001油管A(φ10xφ6φ2080)FUEL LINE A(φ10xφ6x2080)1
14F15-09030000手动油泵组件PRIMER BULB ASSY1
15F15-09000002油管B(φ10xφ6φ850)FUEL LINE B(φ10xφ6x850)1
16F15-09010000燃油接头组件(进)FLLINE CONNECTOR(FLTANK SIDE,FMALE)1

需要购买以上零件？

舟一会 / Dimo Marine 供应 T15BM 整机及全部配件。零件详情请访问官网。

微信/电话：+86 18658175361　官网：https://dimo-marine.cn/

舟一会 / Dimo Marine　官网：https://dimo-marine.cn/
