百胜 F8CBM 船外机 - 爆炸图零件明细

共 16 个部位 · 407 个零件编号 · 点击部位可快速跳转。电话咨询：+86 18658175361

部位目录点部位快速跳转共 16 个部位
01托架02操舵系统03水上装置壳体04底罩05控制系统06水下装置壳体&驱动系统07进气系统08气缸头09曲轴&活塞10曲轴箱11凸轮轴&阀12内燃油箱13燃油系统14起动器组件15顶罩组件16化油器总成

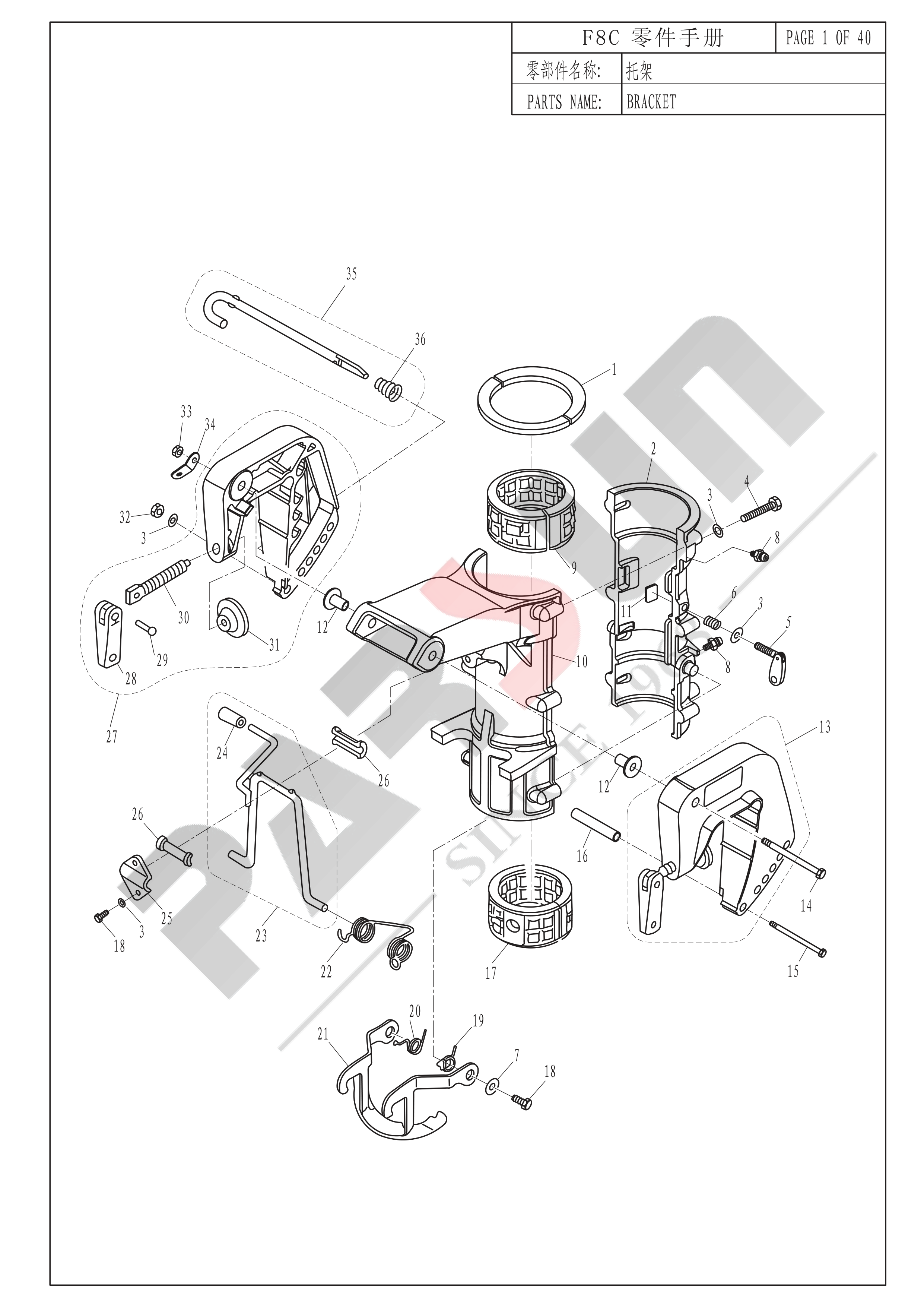

图 1托架 BRACKET
托架 BRACKET 爆炸图
REF零件编号中文名称英文名称数量轴型
1T5-01010003尼龙衬管NYLON GASKET2
2F6-01010101旋转支架盖COVER,ROTARY BRACKET1
3GB/T97.1-6平垫圈6WASHER 610
4GB/T5783-M6x35六角螺栓M6x35BOLT M6x356
5F2.6-01050100锁紧手柄组件LOCKED HANDLE ASSY1
6F2.6-01050002压缩弹簧COMPRESS SPRING1
7GB/T96-6大垫圈6BIG WASHER 63
8JB/T9740.1-M6直通式压注油杯M60ILER M62
9T5-01010004上减震圈UPPER ABSORBER1
10F6-01010001旋转支架座SEAT,ROTARY BRACKET1
11T5-01010100锁紧块组件LOCKED BLOCK ASSY2
12F4-01000003尼龙垫圈NYLON WASHER2
13F4-01010000夹紧托架(右)组件CLAMP BRACKET ASSY(RIGHT)1
14GB/T5782-M8x140六角螺栓M8x140BOLT M8x1401
15GB/T5782-M6x130六角螺栓M6x130BOLT M6x1301
16F8-01010001螺栓垫管TUBE,BOLT1
17T5-01010005下减震圈LOWER ABSORBER1
18GB/T5783-M6x12六角螺栓M6x12BOLT M6x124
19F4-01000007锁紧钩扭簧(右)WREST SPRING(RIGHT)1
20F4-01000006锁紧钩扭簧(左)WREST SPRING(LEFT)1
21T5-01010300起翘锁紧钩组件LOCKED HOOK ASSY,TILT1
22T5-01010002支撑架扭簧WREST SPRING,BRACKET1
23T5-01010400角度定位支撑架组件SUPPORT ASSY1
24F4-01030103手柄套HANDLE SHEATH1
25F8-01010105支撑架压板PRESS PLATE1
26F8-01010103支撑架尼龙衬套BUSHING,BRACKET2
27F4-01020000夹紧托架(左)组件CLAMP BRACKET ASSY(LEFT)1
28F4-01010004艉板夹紧手柄CLAMP HANDLE,STERN2
29F4-01010005艉板夹紧手柄铆钉RIVET,CLAMP HANDLE2
30F4-01010002艉板夹紧螺杆CLAMP SCREW2
31F4-01010003艉板夹紧圆盘CLAMP PAD2
32GB/T6170-M6六角螺母M6NUT M61
33GB/T889.1-M8I型非金属嵌件六角锁紧螺母M8LOCKING NUT M81
34F4-01000002双孔固定板PLATE,TWO HOLE1
35F8-01010200角度调整杆组件THRUST ROD ASSY1
36F4-01050002锥形弹簧CONICAL SPRING1

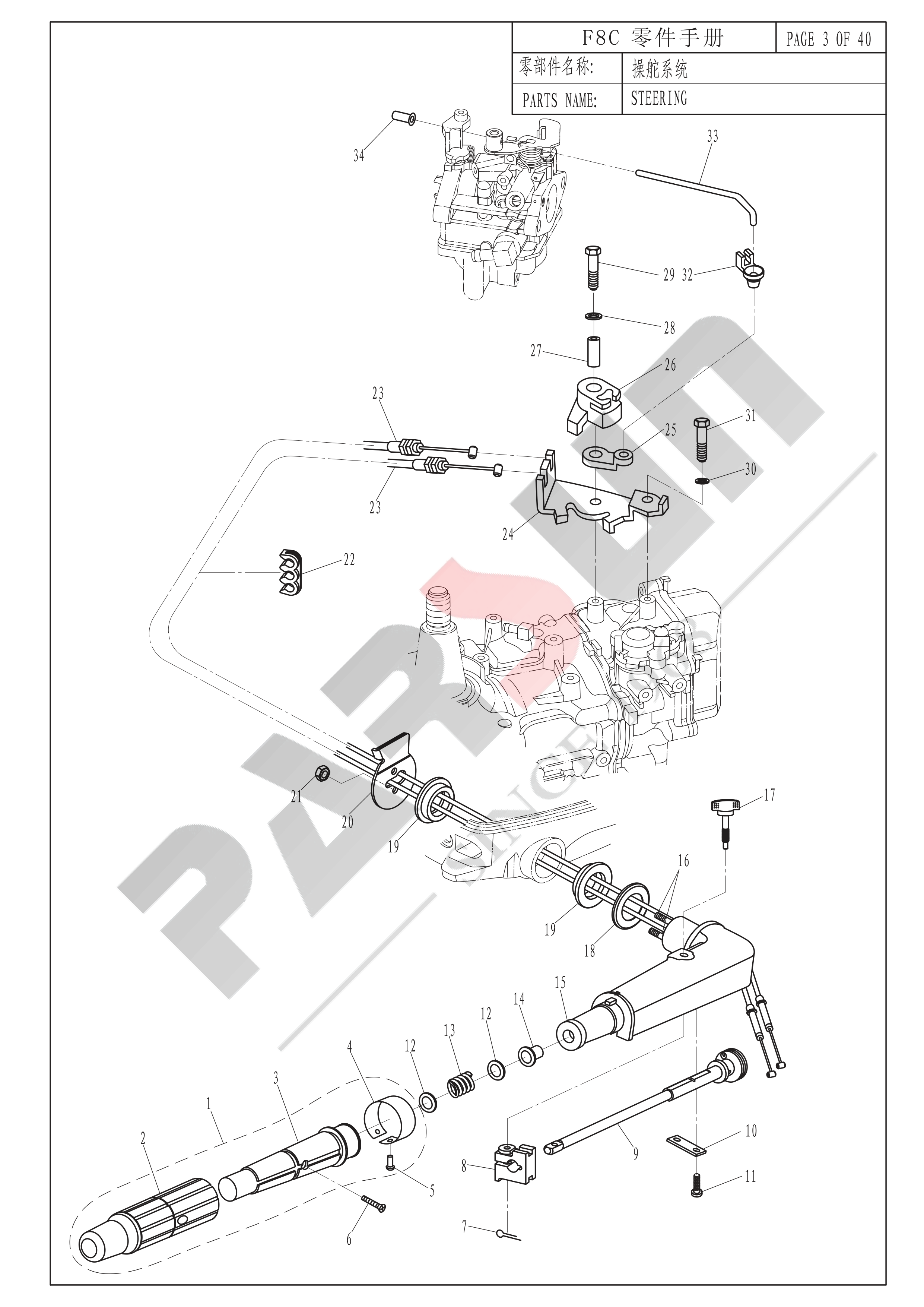

图 2操舵系统 STEERING
操舵系统 STEERING 爆炸图
REF零件编号中文名称英文名称数量轴型
1F4-01090300操舵手柄塑胶套组件STEERING HANDLE ASSY1
2F4-01090302操舵手柄橡胶套RUBBER,STEERING HANDLE1
3F4-01090301操舵手柄塑胶套GRIP,STEERING HARDLE1
4F4-01090303油门标志牌INDICATOR THROTTLE1
5GB/T827-2x5标牌铆钉Ø2x5RINET φ2x51
6GB/T820-M5x25十字槽半沉头螺钉M5x25SCREW M5X251
7GB/T91-1.6X12开口销1.6X12COTTER PIN 1.6X121
8F4-01090003握把摩擦块FRICTION1
9F6-01020100节气门杆组件LEVER,THROTTLE1
10T15-01020002节气门杆固定板FIXED PLATE1
11GB/T818-M5X12十字槽盘头螺钉M5X12SCREW M5X122
12GB/T848-10小垫圈10SMALL WASHER 102
13F4-01090007压缩弹簧SPRING1
14F4-01090006衬套BUSHING1
15F6-01020001操舵手柄STEERING HANDLE1
16GB/T899-M6x14A型双头螺柱M6x14STUD BOLT M6X142
17F4-01090200阻力调整旋钮BOLT,FRICTION ADJUSTING1
18F6-01000002减震圈盖板COVER1
19F6-01000001操舵手柄减震圈BUSHING,STEERING HANDLE2
20F6-01000003操舵手柄盖板组件STEERING HANDLE COVER ASSY1
21GB/T889.1-M6I型非金属嵌件六角锁紧螺母M6LOCKING NUT M62
22F25-05000016尼龙管夹CLAMP1
23F6-01020200油门钢索组件THROTTLE CABLE ASSY2
24F6-04000022油门执行器固定板FIXATION PLATE,ACCELEROGRAPH1
25F6-04000024油门执行器摆杆PULLEY,PASSIVITK1
26F6-04000023油门执行器主动滑轮PULLEY,DRIVE1
27F6-0400025油门执行器衬管BUSHING1
28GB/T96-6大垫圈6BIG WASHER 61
29GB/T5783-M6X35六角螺栓M6X35BOLT M6X351
30GB/T97.1-6平垫圈6WASHER 61
31GB/T5783-M6X10六角螺栓M6X10BOLT M6X101
32F15-07000016油门执行器连杆接头JOINT,ACCELEROGRAPH CONTROL1
33F6-04000027油门连杆LINK ROD,ACCELEROGRAPH CONTROL1
34F6-04000028连杆胶帽RUBBER CAP1

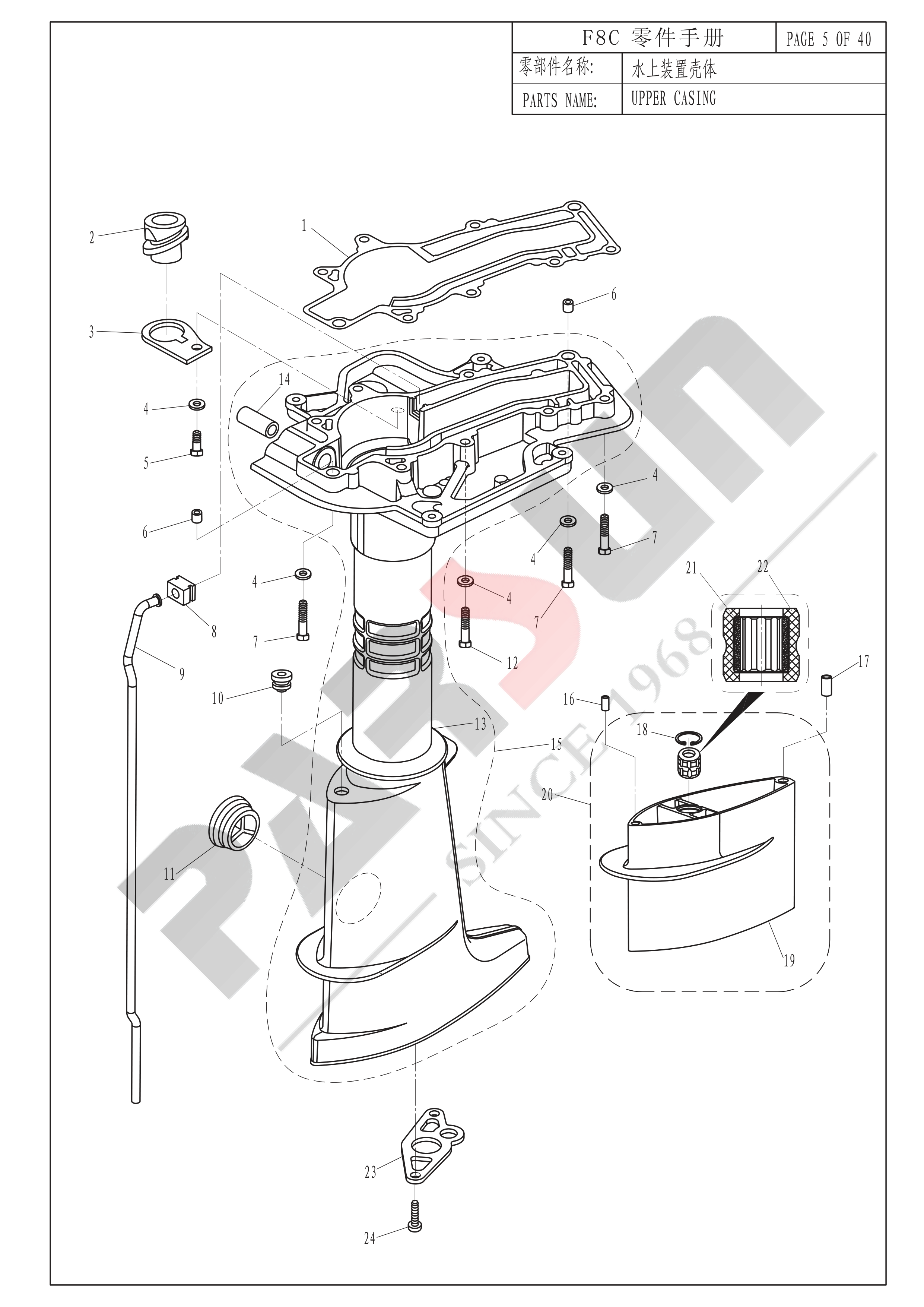

图 3水上装置壳体 UPPER CASING
水上装置壳体 UPPER CASING 爆炸图
REF零件编号中文名称英文名称数量轴型
1F6-00000001发动机密封垫GASKET,ENGINE1
2F6-02000003放油口胶套RUBBER SLEEVE,OIL OUTLET1
3F6-02000004胶套压板PRESSING PLATE1
4GB/T97.1-6平垫圈6WASHER 610
5GB/T5783-M6X14六角螺栓M6X14BOLT M6X141
6F4-00000001空心定位销Ø9X6.5X10HOLLOW PIN Ø9X6.5X102
7GB/T5782-M6X40六角螺栓M6X40BOLT M6X405
8F4-02040002工形橡胶圈RUBBER SEAL1
9F6-02000001L进水管A(长)WATER PIPE(L)1长轴 L
9F6-02000001S进水管A(短)WATER PIPE(S)1短轴 S
10F4-02000011变档轴密封圈SEAL,SHIFT ROD1
11F4-02000012水上装置橡胶堵头RUBBER PLUG,UPPER CASING1
12GB/T5782-M6X50六角螺栓M6X50BOLT M6X504
13F6-02000101水上装置壳体UPPER CASING1
14F4-02000002水上装置壳体铜套COPPER BUSH,UPPER CASING1
15F6-02000100水上装置壳体组件UPPER CASING ASSY1
16T5-00000001空心定位销Ø7.5HOLLOW PIN φ7.51
17T5-00000002空心定位销Ø9.5HOLLOW PIN Ø9.51
18GB/T893.1-22A型孔用弹性挡圈Ø22CRICLIP 221
19T5-02010001接长体EXTENSION1
20T5-02010000接长体组件EXTENSION ASSY1
21T5-02010002驱动轴衬套BUSHING,DRIVE SHAFT1
22F2.6-03020003L驱动轴衬套橡胶套RUBER BUSHING1长轴 L
23T5-02000008水管导向板ORIENTED PLARTE,WATER PIPE1
24GB/T818-M5X10十字槽盘头螺钉M5X10SCREW M5X102

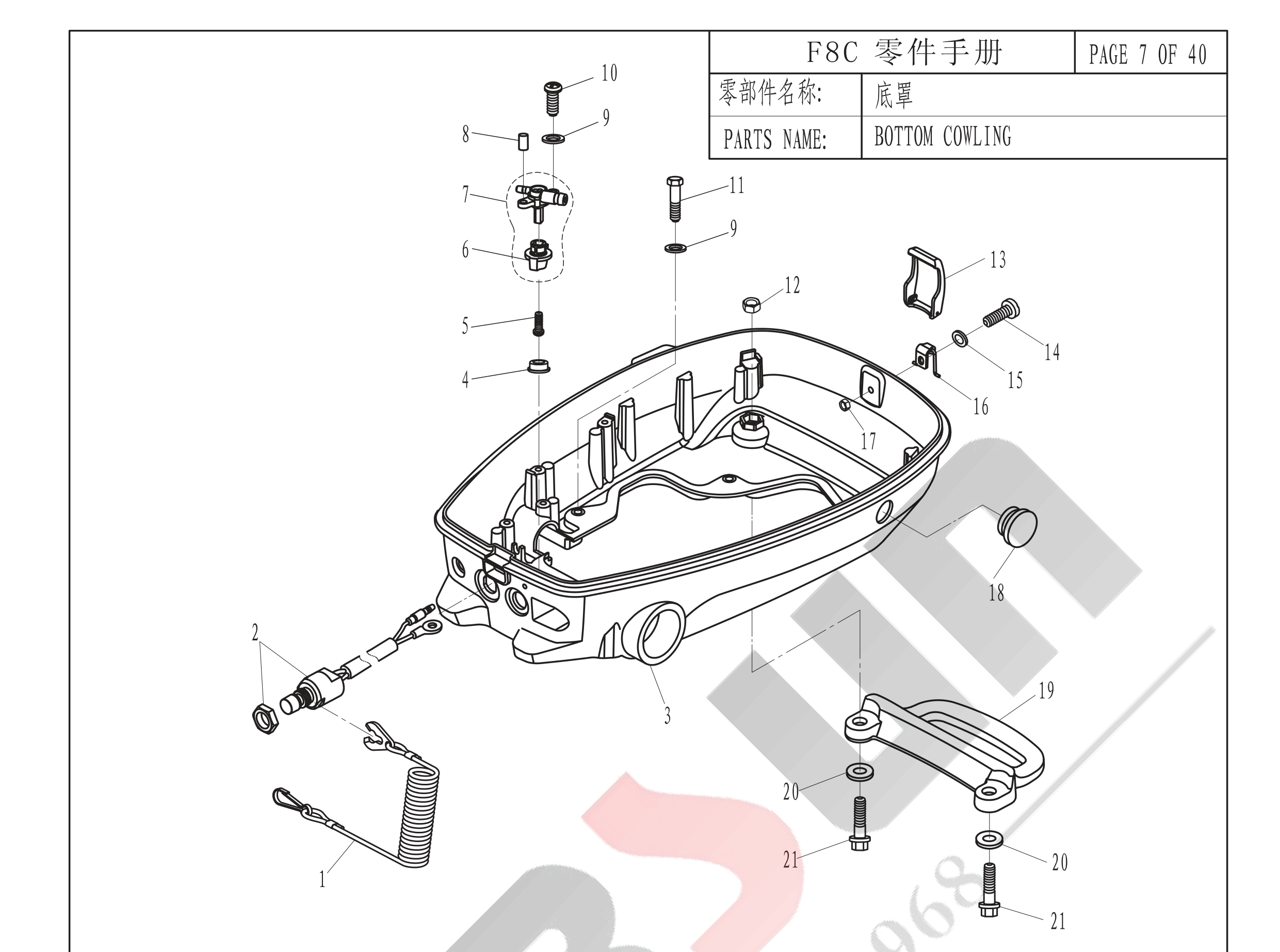

图 4底罩 BOTTOM COWLING
底罩 BOTTOM COWLING 爆炸图
REF零件编号中文名称英文名称数量轴型
1F4-01090401引擎停止安全索STOPER,HANG ROPE ASSY1
2T40-01020101急停开关组件ENGINE STOP SWITCH ASSY1
3F6-05000001底罩BOTTOM COWLING1
4F4-05000102旋钮堵塞PLUG,RUBBER1
5GB/T818-M4X12十字槽盘头螺钉M4X12SCREWM4X121
6F6-05000101油开关旋钮KNOP,OIL SWITCH1
7F6-05000100油开关OIL SWITCH ASSY1
8F15-0000006定位销Ø6X12PIN Ø6X121
9GB/T97.1-6平垫圈6WASHER 65
10GB/T818-M6X12十字槽盘头螺钉M6X12SCREW M6X121
11GB/T5783-M6X20六角螺栓M6X20BOLT M6X204
12GB/T6170-M8六角螺母M8NUT M82
13F4-05000023顶罩锁紧钩LOCKING HO0K1
14GB/T818-M5x16十字槽盘头螺钉M5x16SCREW M5x161
15GB/T97.1-5平垫圈5WASHER 51
16F4-05000020顶罩锁紧钩座组件SEAT,LOCKING HO0K1
17GB/T889.1-M5I型非金属嵌件六角锁紧螺母M5LOCKING NUT M51
18F4-05000013-2橡胶闷盖BCOVER,RUBBER1
19F6-05000009手把HANDLE1
20GB/T97.1-8平垫圈8WASHER82
21F25-01010303六角凸缘螺栓M8X20BOLT M8X202

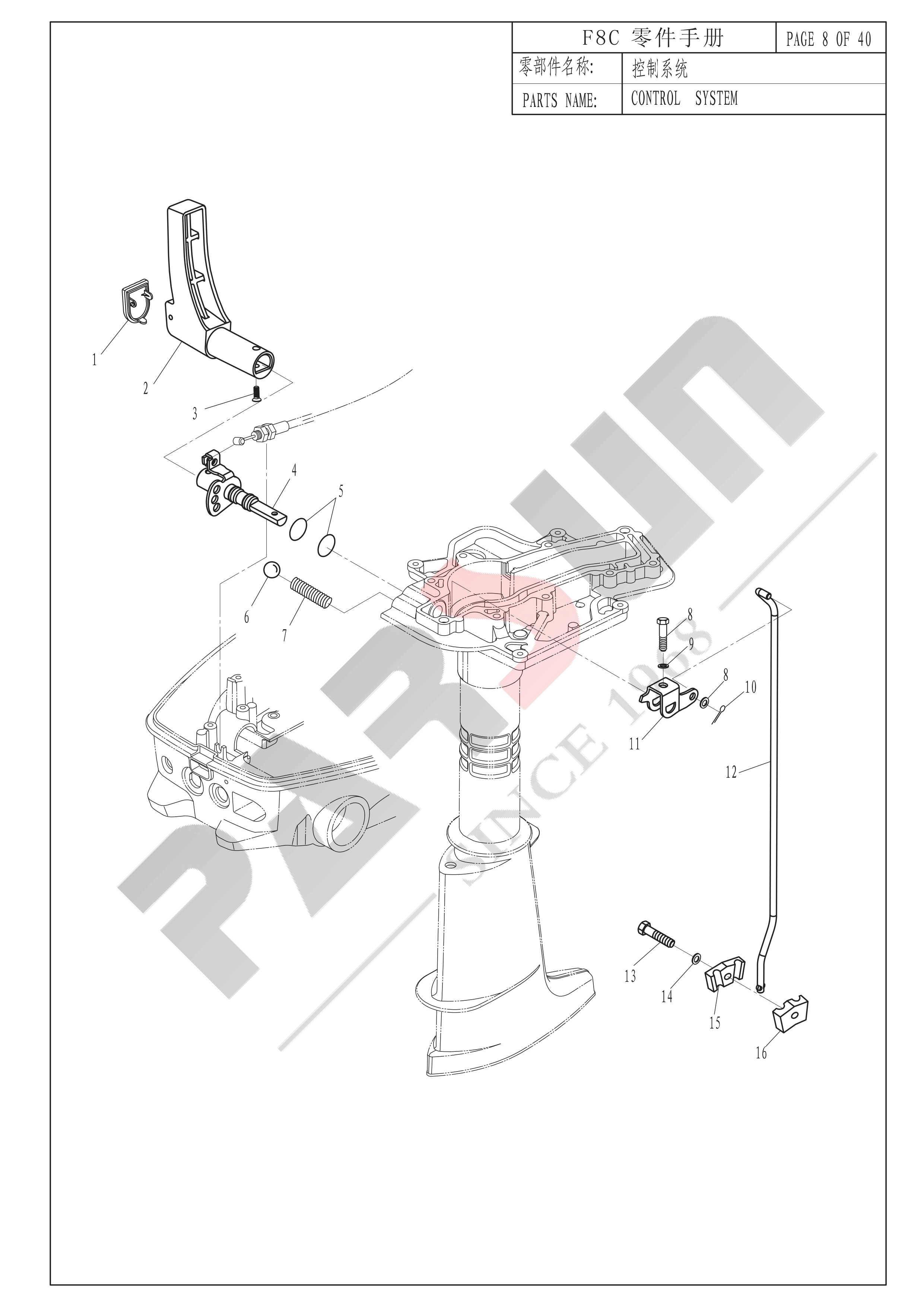

图 5控制系统 CONTROL SYSTEM
控制系统 CONTROL SYSTEM 爆炸图
REF零件编号中文名称英文名称数量轴型
1F6-02000005-1变档手柄盖COVER1
2F6-02000005变档手柄HANDLE,GEAR SHIFT1
3GB/T820-M5X20十字槽半沉头螺钉M5X20SCREW M5X201
4F6-02000200变档拨叉组件SHAFT,CHANGE1
5JISB2401-P90形密封圈P90 RING2
6GB/T308-8钢珠8BALL81
7F4-02000003变档弹簧SPRING,GEAR1
8GB/T5783-M5X25六角螺栓M5X25BOLT M5X251
9GB/T97.1-5平垫圈5WASHER 52
10GB/T91-1.6X12开口销1.6X12PIN,COTTER 1.6X121
11F4-02000006变档连杆支架LEVER,SHIFT ROD1
12F6-02000002变档连杆ROD,SHIFT1
13GB/T5783-M6X20六角螺栓M6X20BOLT M6X201
14F4-00000005大垫圈BIG WASHER1
15F2.6-00000001变档连杆连接器ACONNECTOR,SHIFT ROD"A"1
16F2.6-00000002变档连杆连接器BCONNECTOR,SHIFT ROD "B"1

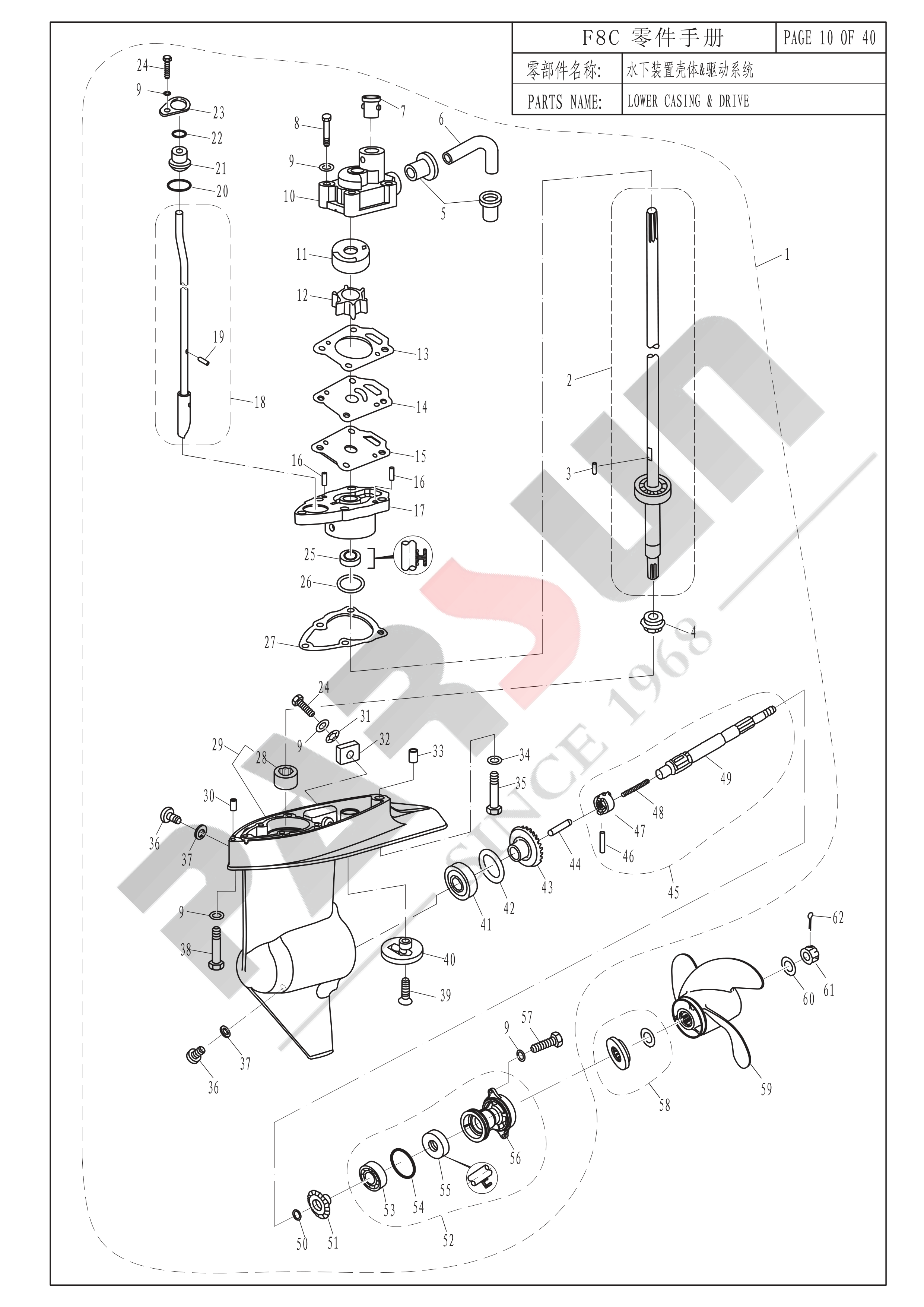

图 6水下装置壳体&驱动系统 LOWER CASING&DRIVE
水下装置壳体&驱动系统 LOWER CASING&DRIVE 爆炸图
REF零件编号中文名称英文名称数量轴型
1F6-03000000L水下装置壳体总成(L)LOWER CASING ASSY(L)1长轴 L
1F6-03000000S水下装置壳体总成(S)LOWER CASING ASSY(S)1短轴 S
2F6-03000100(L)驱动轴组件(L)DRIVE SHAFT ASSY(L)1长轴 L
2F6-03000100(S)驱动轴组件(S)DRIVE SHAFT ASSY(S)1短轴 S
3T5-03000009叶轮定位销DOWEL PIN,IMPELLER1
4T5-03000003小齿轮PINION1
5T5-03000013水管导向套ASEAL A,WATER PIPE2
6T5-03000012进水管BWATER PIPE B1
7T5-03000014水管导向套BSEAL B,WATER PIPE1
8GB/T5782-M6x45六角螺栓M6x45BOLT M6x454
9GB/T97.1-6平垫圈6WASHER 69
10F6-03000001水泵壳体WATER PUMP1
11F6-03000002水泵内壳INNER SHELL,WATER PUMP1
12T5-03000300水泵叶轮IMPELLER,WATER PUMP1
13F6-03000003外挡板上密封垫UPPER GASKET,OUTER PLATE1
14T5-03000007外挡板OUTER PLATE1
15T5-03000006外挡板下密封垫LOWER GASKET,OUTER PLATE1
16F25-04000007定位销04x10PIN 04x102
17T5-03000201水泵座WATER PUMP SEAT1
18T5-03000100(L)变档凸轮轴组件(L)CAM ASSY,SHIFT ROD(L)1长轴 L
18T5-03000100(S)变档凸轮轴组件(S)CAM ASSY,SHIFT ROD(S)1短轴 S
19GB/T879.2-1.5x12轻型直槽弹性圆柱销1.5X12PIN 1.5x12
20JISB2401P160型圈15.8x2.40-RING 15.8x2.41
21T5-03000020变档轴导向套ORIENTED BUSHING,SHIFT ROD1
22T5-03000022导向套密封圈BSEAL B,ORIENTED BUSHING1
23T5-03000023导向套固定板PLATE,ORIENTED BUSHING1
24GB/T5783-M6x16六角螺栓M6x16BOLT M6x162
25T5-03000202水泵座油封OIL SEAL,WATER PUMP SEAT1
26T5-03000004-1驱动轴填隙片0.10mmSHIM 0.10mm
26T5-03000004-2驱动轴填隙片0.15mmSHIM 0.15mm
27T5-03000005水泵座密封垫GASKET,WATER PUMP SEAT1
28TLA1412Z滚针轴承NEEDLE BEARING1
29T5-03000700水下装置壳体组件LOWER CASING ASSY1
30T5-00000001空心定位销Φ7.5x10HOLLOW PIN Φ7.5x101
31GB/T861.1-6内齿锁紧垫圈6LOCK WASHER 61
32T5-03000017水下阳极ANODE1
33T5-00000002空心定位销Φ9.5x10HOLLOW PIN Φ9.5x101
34GB/T97.1-8平垫圈8WASHER 81
35GB/T5782-M8x40六角螺栓M8x40BOLT M8x401短轴 S
35GB/T5782-M8x167六角螺栓M8x167BOLT M8x1671长轴 L
36F4-03000023注油孔螺栓PLUG,OIL HOSE2
37F4-03000024注油孔螺栓密封垫GASKET2
38GB/T5782-M6x45六角螺栓M6x45BOLT M6x451短轴 S
39GB/T820-M6x20十字槽半沉头螺钉M6x20SCREW M6x201
40T5-03000016进水口WATER INLET1
41GB/T276-6004深沟球轴承6004BEARING 60041
42F8-04000002-1正档齿轮填隙片0.10mmSHIM 0.10mm
42F8-04000002-2正档齿轮填隙片0.15mmSHIM 0.15mm
43T5-03010000正档齿轮组件FORWARD GEAR ASSY1
44T5-03000404离合器销PIN,CLUTCH1
45T5-03000400螺旋桨轴组件SHAFT ASSY,PROPELLER1
46GB/T879.1-3.5x28重型直槽弹性圆柱销3.5x28PIN 3.5x281
47T5-03000403爪形离合器CLUTCH,DOG1
48T5-03000402离合器弹簧SPRING,CLUTCH1
49T5-03000401螺旋桨轴SHAFT,PROPELLER1
50T5-03000015倒档齿轮垫圈WASHER,REVERSE GEAR1
51T5-03000600倒档齿轮组件REVERSE GEAR ASSY1
52T5-03000500水下装置壳体盖组件COVER ASSY,LOWER CASING1
53GB/T276-6002深沟球轴承6002BEARING 60021
54JASOF40431-0500形圈50x3.10-RING1
55F8-04040004螺旋桨轴油封15x28x10OIL SEAL1
56T5-03000501水下装置壳体盖COVER,LOWER CASING1
57GB/T5783-M6x20六角螺栓M6x20BOLT M6x202
58T5-03000800螺旋桨轴垫块组件CUSHION ASSY,PROPELLER SHAFT1
59F6-03010000螺旋桨组件PROPELLER ASSY1
60GB/T96-10大垫圈10WASHER 101
61F15-06000016开槽六角螺母NOTCH NUT1
62GB/T91-3.2x18开口销φ3.2x18PIN,COTTER φ3.2x181

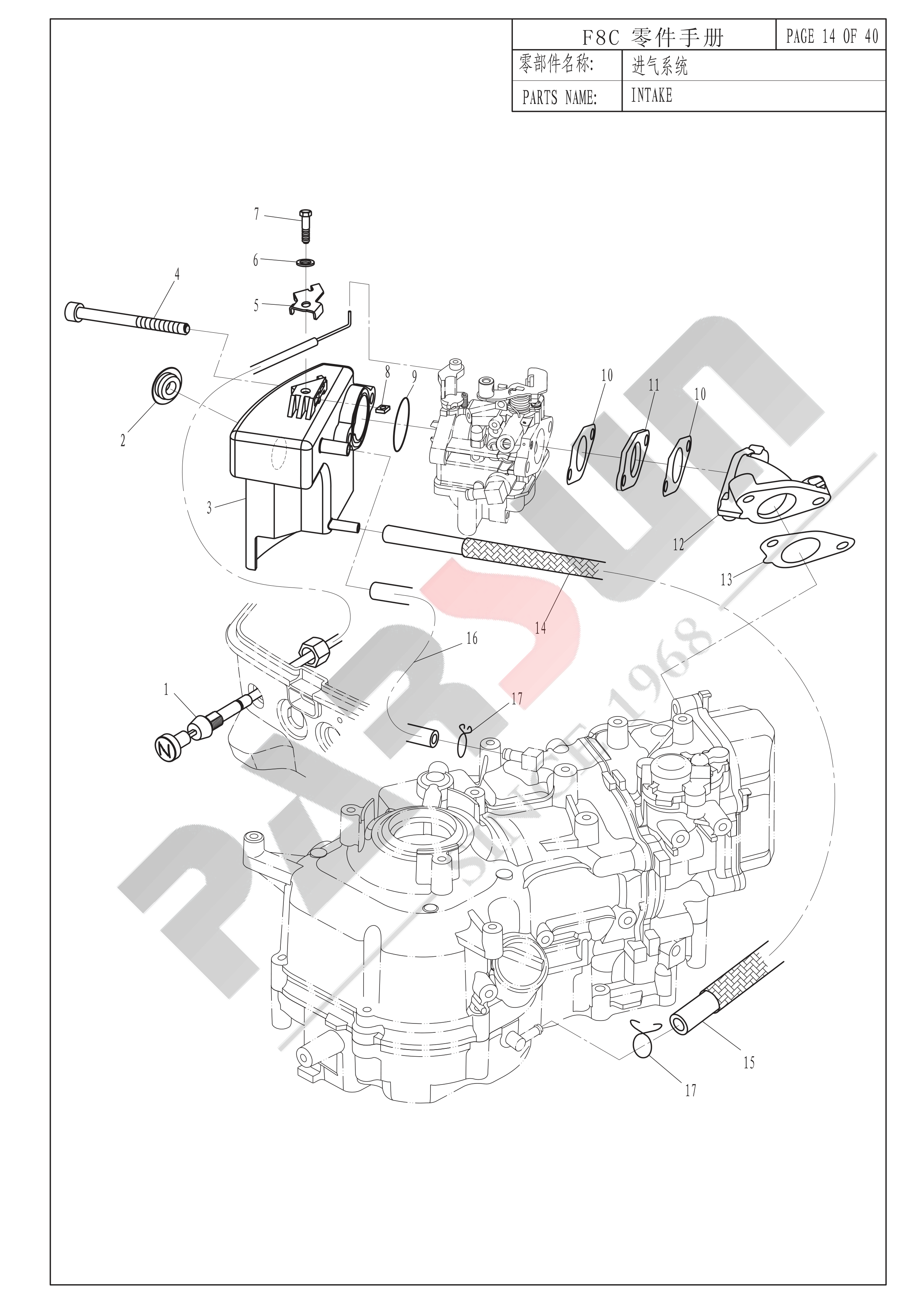

图 7进气系统 INTAKE
进气系统 INTAKE 爆炸图
REF零件编号中文名称英文名称数量轴型
1F6-05000200阻风门组件AIR CHOKE ASSY1
2F4-04110003消音器堵塞PLUG,INTAKE SILENCE1
3F6-04000200进气消音器组件INTAKE SILENCE ASSY1
4GB/T70.1-M6X85内六角螺栓M6X85BOLT M6X852
5F6-04000014阻风门压板PRESSING PLATE1
6GB/T97.1-5平垫圈5WASHER 51
7GB/T5783-M5X10六角螺栓M5X10BOLT M5X101
8GB/T39-M5方螺母M5SQUARE NUT M51
9GB/T3452-31.5X1.8进气消音器0形圈0 RING1
10F6-04000012化油器密封垫GASKET,CARBURETOR2
11F6-04000013化油器垫块GASKET,CARBURETOR1
12F6-04000011进气歧管MANIFOLD,INTAKE1
13F6-04000010进气歧管密封垫GASKET,INTAKE MANIFOLD1
14F6-04000302回油管护套JACKET,RETURN OIL PIPE1
15F6-04000301回油管Ø5XØ10X420PIPE,RETURN OIL1
16F6-04000019回油管BØ6XØ11X85PIPE "B",RETURN OIL1
17F4-04000030油管夹簧BBIG WASHER2

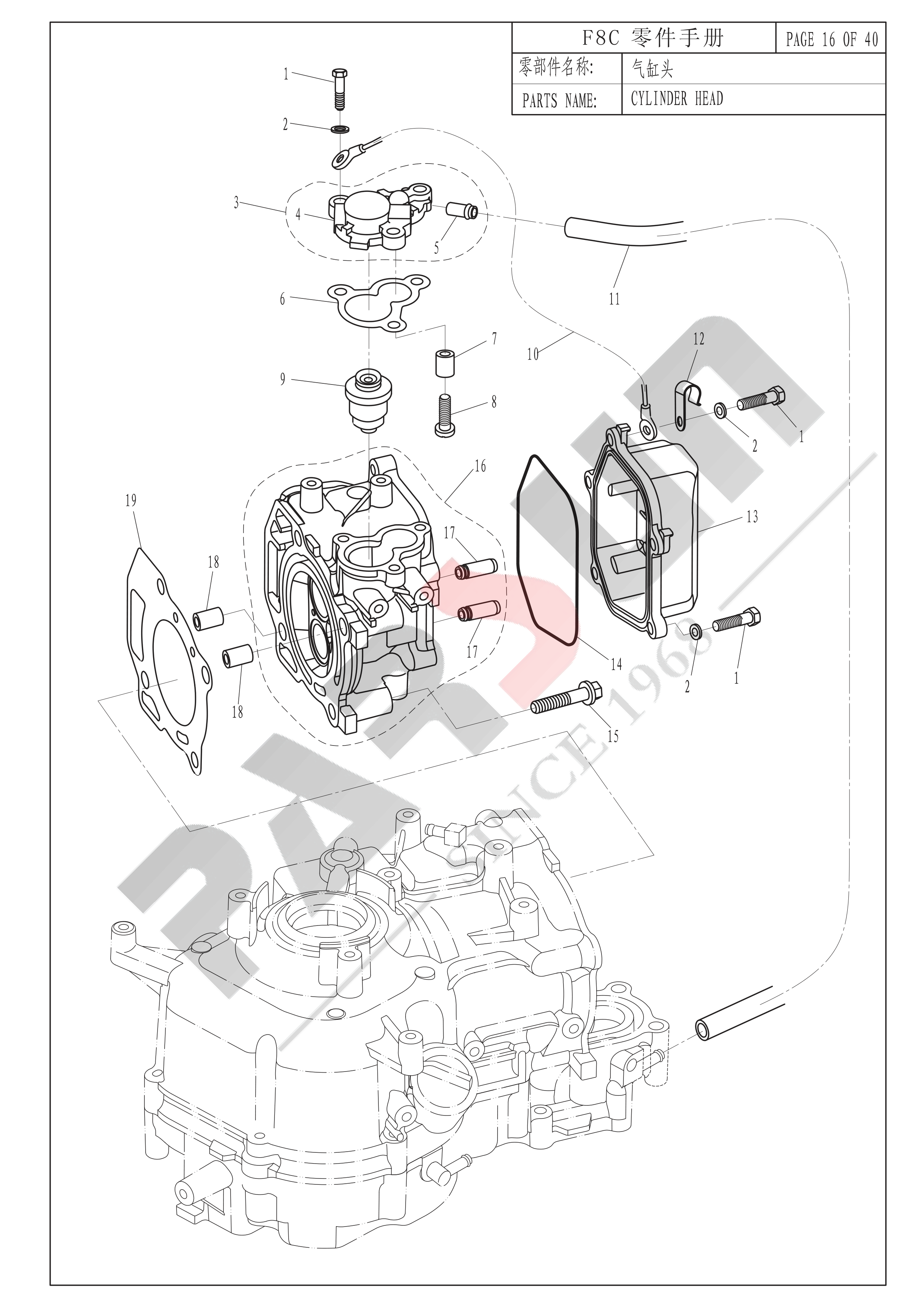

图 8气缸头 CYLINDER HEAD
气缸头 CYLINDER HEAD 爆炸图
REF零件编号中文名称英文名称数量轴型
1GB/T5783-M6X20六角螺栓M6X20BOLT M6X208
2GB/T97.1-6平垫圈6WASHER 68
3F4-04070000节温器盖组件THERMOSTAT COVER ASSY1
4F4-04070001节温器盖COVER,THERMOSTAT1
5F4-04010102气嘴NOZZLE1
6F4-04000011节温器盖密封垫GASKET,THEMOSTAT COVER1
7F4-04070003节温器盖阳极ANODE,THEMOSTAT COVER1
8GB/T818-M5X25十字槽盘头螺钉M5X25SCREW M5X251
9F15-07000031节温器(S60)THEMOSTAT(S60)1
10F6-04000009接地导线WIRE,LEAD1
11F6-04000020回水管φ5X10X250PIPE,RETURN WATER1
12T36-04000023线卡CLAMP1
13F6-04000004缸头罩COVER,CYLINDER HEAD1
14F6-04000005缸头罩密封圈SEAL RING1
15F4-04000034气缸头螺栓BOLT,CYLINDER HEAD4
16F6-04050100气缸头组件CYLINDER HEAD ASSY1
17F4-04080102气门导管GUIDE,VALVE2
18F4-04000003空心定位销Ø10X8.4X14HOLLOW PIN φ10X8.4X142
19F6-04000002缸头复合垫GASKET,CYLINDER HEAD1

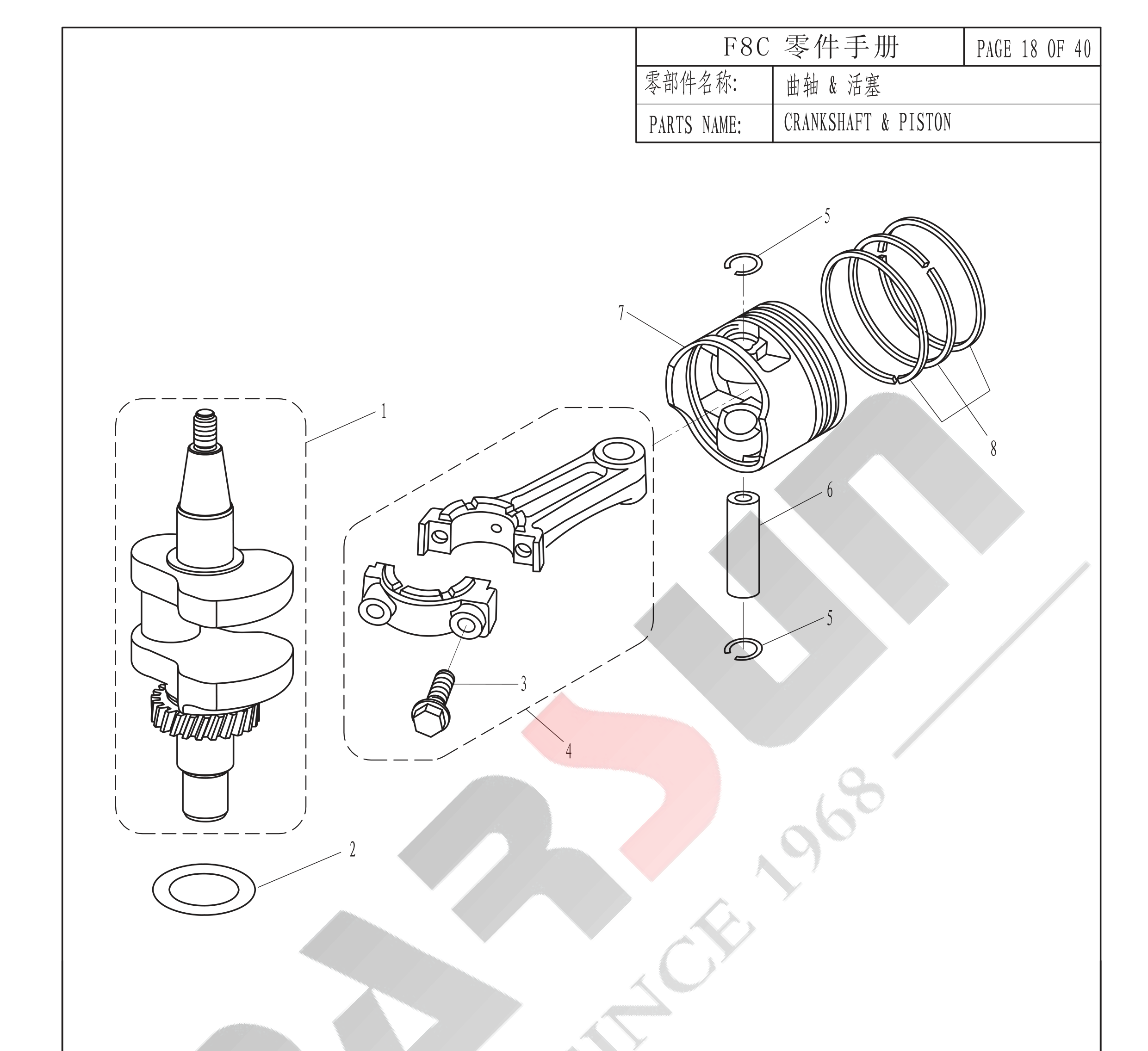

图 9曲轴&活塞 CRANKSHAFT&PISTON
曲轴&活塞 CRANKSHAFT&PISTON 爆炸图
REF零件编号中文名称英文名称数量轴型
1F6-04000100曲轴组件CRANK ASSY1
2F4-04000004箱盖减磨圈WASHER1
3F4-04020103连杆螺栓M7X35BOLT M7X352
4F6-04020100连杆组件ROD,CONNECTING1
5F6-04020004活塞销卡簧CIRCLIP2
6F6-04020003活塞销PIN,PISTON1
7F6-04020001活塞PISTON1
8F6-04020002活塞环组件PISTON RING ASSY1

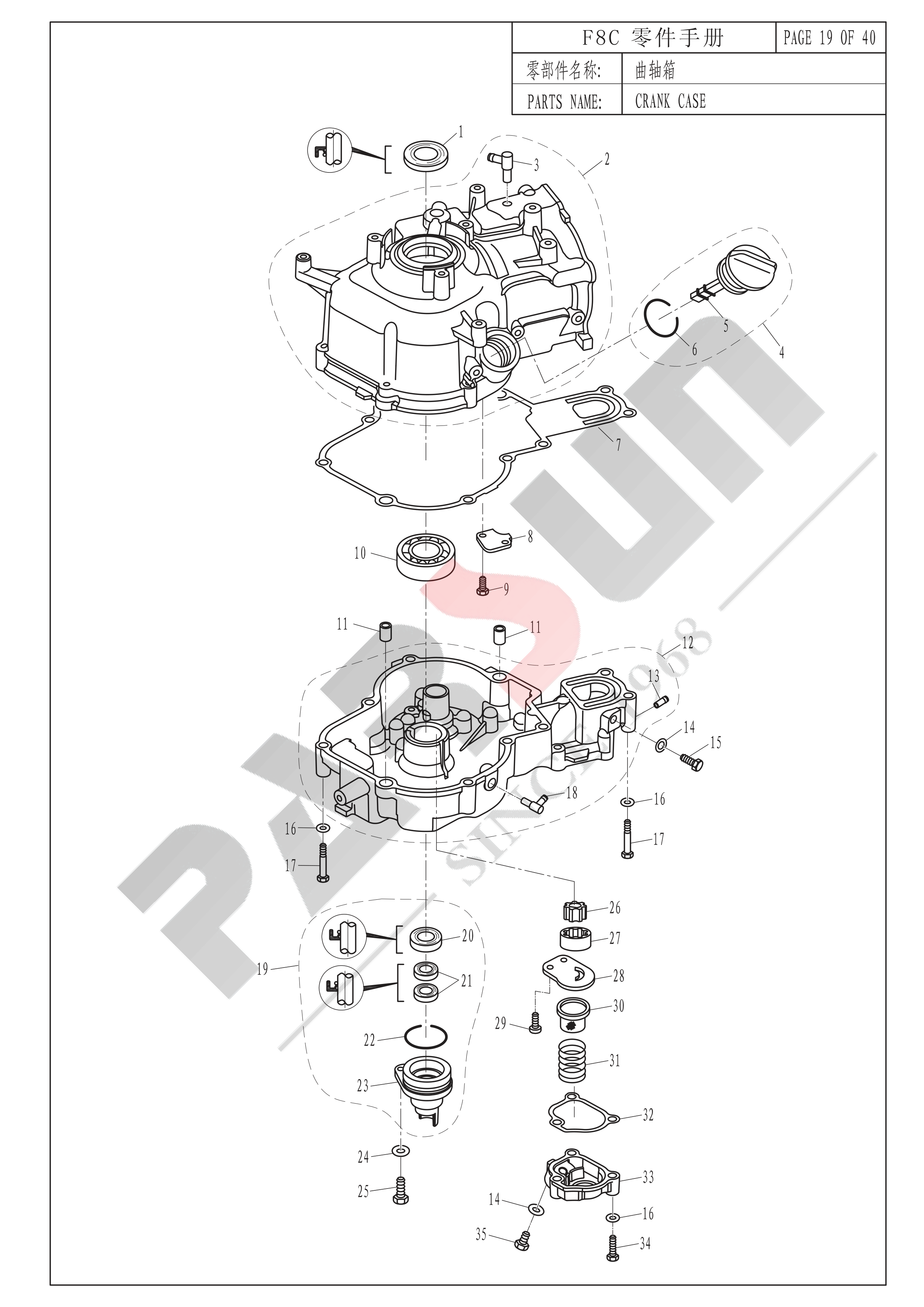

图 10曲轴箱 CRANKCASE
曲轴箱 CRANKCASE 爆炸图
REF零件编号中文名称英文名称数量轴型
1F4-04010004曲轴油封A 25x40x5OIL SEAL1
2F6-04010100曲轴箱体组件CRANK CASE ASSY1
3F8-05000700气嘴组件GAS NIPPLE ASSY1
4F4-04000010带尺机油盖组件PLUG WITH DIPSTICK ASSY1
5F4-04000007带尺机油盖PLUG WITH DIPSTICK1
6F4-04000008机油盖阻油圈0-RING1
7F6-04000001曲轴箱体复合垫COMPLEX GASKET,CRANKCASE1
8F6-04010004挡油板OIL BAFFLE PLATE1
9GB/T5783-M5x10六角螺栓M5x10BOLT M5x102
10NTN6205C3深沟球轴承6205C3BEARING 6205C31
11F4-04000003空心定位销φ10x8.4x14HOLLOW PIN φ10x8.4x142
12F6-04040100曲轴箱盖组件COVER,CRANK CASE1
13F4-04010102气嘴GAS NIPPLE1
14F4-04000006放油螺栓密封垫WASHER2
15GB/T5783-M8x14六角螺栓M8x14BOLT M8x141
16GB/T97.1-6平垫圈6WASHER 613
17T6-05000021发动机螺栓M6x50BOLT M6x5010
18F15-04000005水嘴WATER NIPPLE1
19F4-04060000油封壳体组件OIL SEAL SHELL ASSY1
20F2.6-04010001曲轴油封(B)20x30x7OIL SEAL 20x30x71
21F4-04060004驱动轴上油封10.8x21x7OIL SEAL 10.8x21x72
22GB/T3452.1-Ø32.5xφ1.8滤杯密封圈Φ32.5xφ1.8SEAL φ32.5xφ1.81
23F4-04060001油封壳体SHELL,OIL SEAL1
24GB/T97.1-8平垫圈8WASHER81
25GB/T5783-M8x20六角螺栓M8x20BOLT M8x201
26F6-04040002机油泵内转子INNER ROTOR,OIL PUMP1
27F6-04040003机油泵外转子OUTER ROTOR,OIL PUMP1
28F6-04040004油泵盖板COVER BOARD,OIL PUMP1
29GB/T818-M6x10十字槽盘头螺栓M6x10BOLT M6x102
30F6-04040006油泵滤网STRAINER,OIL PUMP1
31F6-04040007油泵弹簧SPRING,OIL PUMP1
32F6-04040005油泵密封垫GASKET,OIL PUMP1
33F6-04040008油泵盖COVER,OIL PUMP1
34GB/T5783-M6x35六角螺栓M6x35BOLT M6x353
35F6-04040009放油螺栓BOLT1

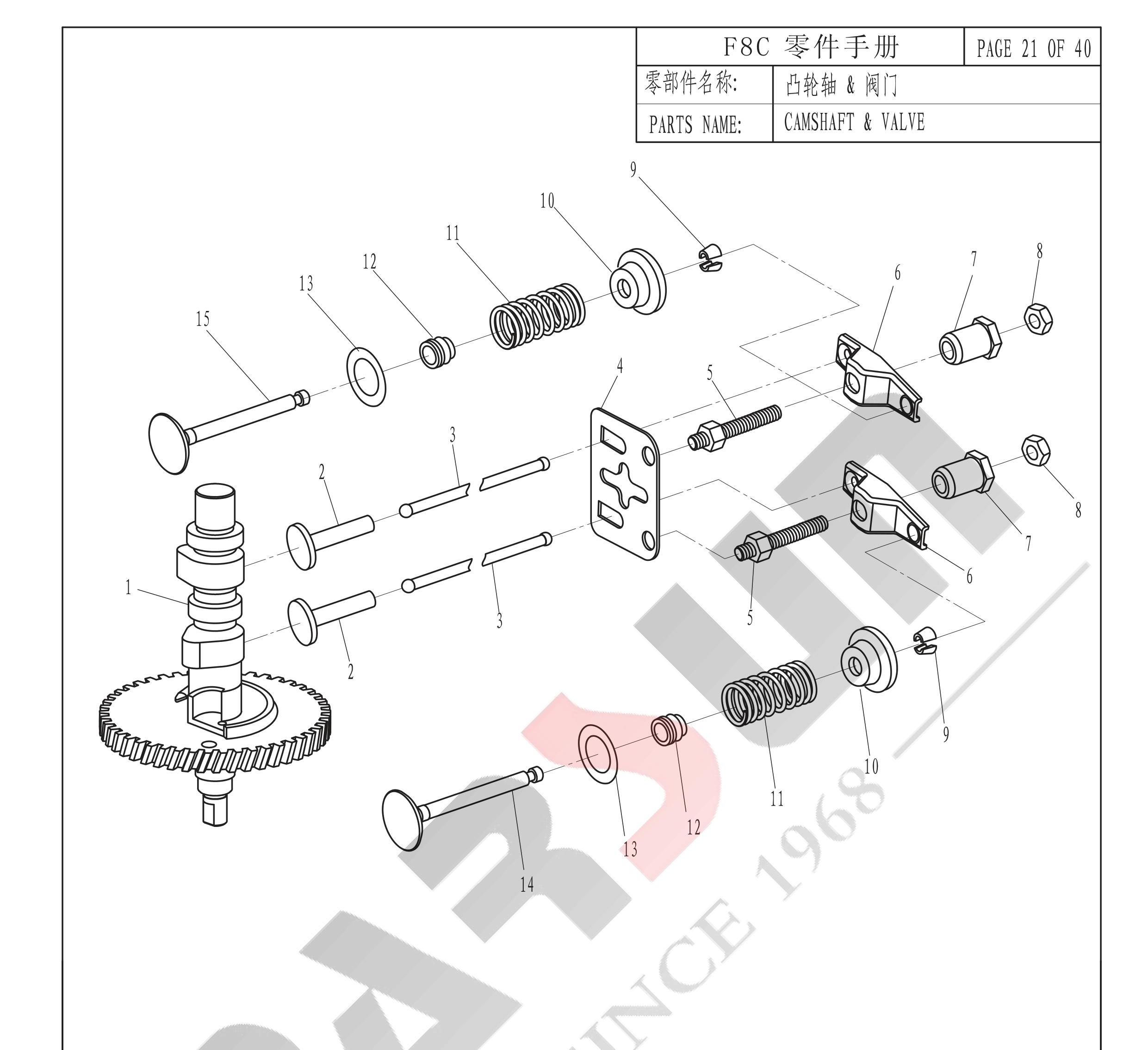

图 11凸轮轴&阀 CAMSHAFT&VALVE
凸轮轴&阀 CAMSHAFT&VALVE 爆炸图
REF零件编号中文名称英文名称数量轴型
1F6-04030000凸轮减压组件CAMSHAFT ASSY1
2166F-000001气门挺柱LIFTER,VALVE2
3F6-04000003气门推杆ROD,VALVE PUSH2
4F6-04050004导向板PLATE,PUSH ROD1
5166F-010008摇臂螺杆BOLT,ROCKER ARM2
6166F-010009气门摇臂ARM,VALVE ROCKER2
7166F-010010摇臂球座PIVOT,ROCKER ARM2
8166F-010011锁紧螺母M6X0.75LOCKNUT M6X0.752
9F8-05030007气门锁夹CLAMP,VALVE4
10F8-05030006气门弹簧座圈SEAT,YALVE SPRING2
11F6-04050003气门弹簧SPRING,VALVE2
12166F-010003气门油封OIL SEAL,VALVE2
13F4-04080007气门弹簧垫圈WASHER,VALVE SPRING2
14F6-04050002排气门D00R,EXHAUST1
15F6-04050001进气门D00R,INTAKE1

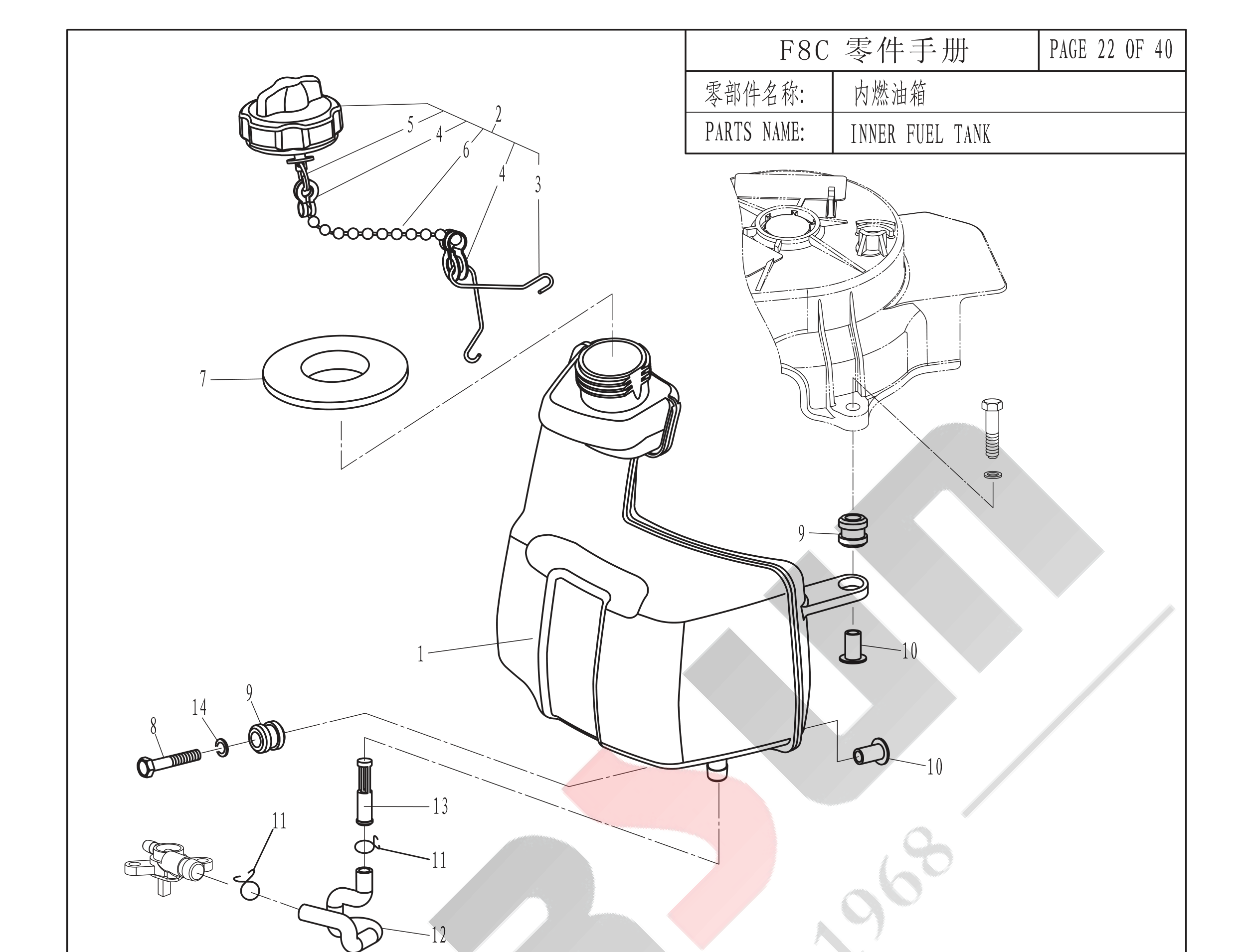

图 12内燃油箱 INNER FUEL TANK
内燃油箱 INNER FUEL TANK 爆炸图
REF零件编号中文名称英文名称数量轴型
1F4-04120001油箱TANK1
2F4-04120100油箱盖组件TANK COVER ASSY1
3F4-04120103防脱落扭簧SPRING,PREVENT DESQUAMATING1
4F4-04120105防脱落双环SHEET METAL,PREVENT DESQUAMATING2
5F4-04120106钢丝锁圈EYELET,STEEL WIRE1
6F4-04120104防脱链CHAIN,PREVENT DESQUAMATING1
7T5-04000015油箱口减震圈ABSORBER,TANK1
8GB/T5783-M6x25六角头螺栓M6×25BOLT M6X251
9F4-04120002油箱减震器DAMPER,TANK3
10F4-04120003减震器衬管BUSH,DAMPER3
11F4-05000010油管夹簧ACLIP,OIL PIPE A"2
12F6-05000003燃油定型管FPIPE,FUEL"F"1
13F4-04120005油箱滤油芯STRAINER,TANK1
14GB/T97.1-6平垫圈6WASHER 61

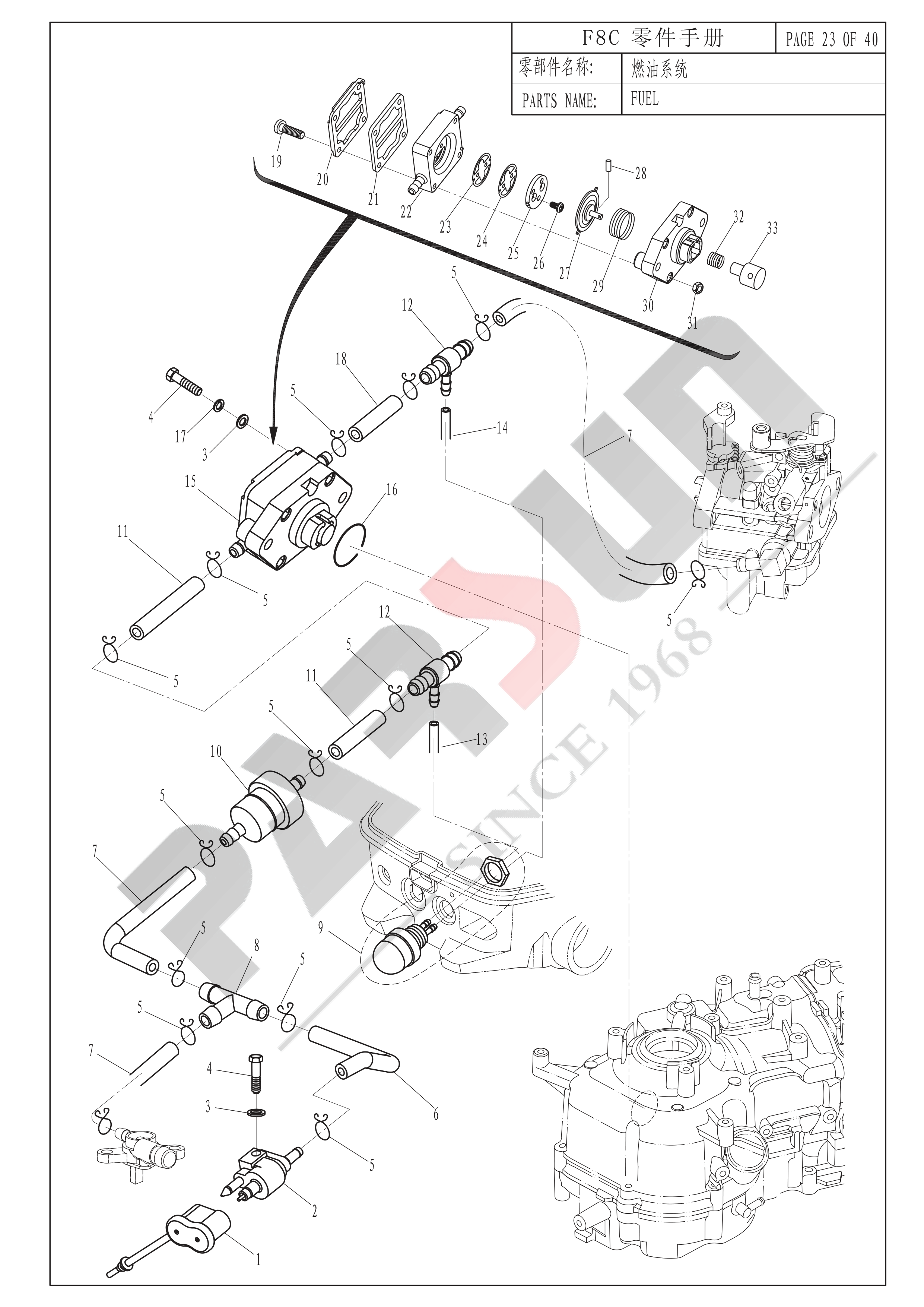

图 13燃油系统 FUEL
燃油系统 FUEL 爆炸图
REF零件编号中文名称英文名称数量轴型
1F6-05000006燃油接头护套RUBBER COVER1
2F4-05000200燃油管接头组件FUEL PIPE TIE-IN ASSY1
3GB/T97.1-6平垫圈6WASHER 63
4GB/T5783-M6X25六角螺栓M6X25BOLT M6X253
5F4-04000030油管夹簧BCLIP "B",FUEL PIPE14
6F6-05000002燃油定型管EFUEL PIPE "E"1
7F4-05000007燃油管CFUEL PIPE "C"3
8F15-05000011三通PIPE,JOINT 31
9F6-05010000手动油泵组件MANUAL PUMP ASSY1
10F4-05000300燃油过滤器组件FUEL FILTER ASSY1
11F6-04000017燃油管CØ5XØ10X60FUEL PIPE"C"Ø5XØ10X602
12F6-04000600三通PIPE,JOINT 32
13F6-04000018燃油管DØ2.5XØ7X240FUEL PIPE "D"φ2.5Xφ7X2401
14F6-04000016燃油管BØ2.5X07X500FUEL PIPE B"φ2.5X07X5001
15F4-04090000燃油泵组件FUEL PUMP ASSY1
16F4-04090009燃油泵座0形圈0 RING1
17GB/T93-6弹簧垫圈6SPRING WASHER 62
18F6-03000002燃油定型管PIPE1
19GB/T823-M4X25十字槽小盘头螺钉M4X25SCREW,SMALL PAN HEAD M4X254
20F4-04090003燃油泵盖COVER,FUEL PUMP1
21F4-04090004上隔膜DIAPHRAGM,TOP15
22F4-04090100A燃油泵壳FUEL PUMP SHELL1
23F4-04090001A瓣膜BVALVE "B"1
24F4-04090002A瓣膜AVALVE"A1
25F4-04090003A隔膜限位块LIMITING BLOCK,SEPTUM1
26GB/T819.2-M3X5十字槽沉头螺钉M3X5SCREW N3X52
27F4-04090100隔膜组件DIAPHRAGM ASSY1
28GB/T309-3X12滚针Ø3X12ROLLER NEEDLE Ø3X121
29F4-04090008隔膜弹簧SPRING,DIAPHRAGM1
30F4-04090001燃油泵座SEAT,FUEL PUMP1
31GB/T6170-M4六角螺母M4NUT M44
32F4-04090007柱塞弹簧SPRING ,PLUNGER1
33F4-04090006柱塞PLUNGER1

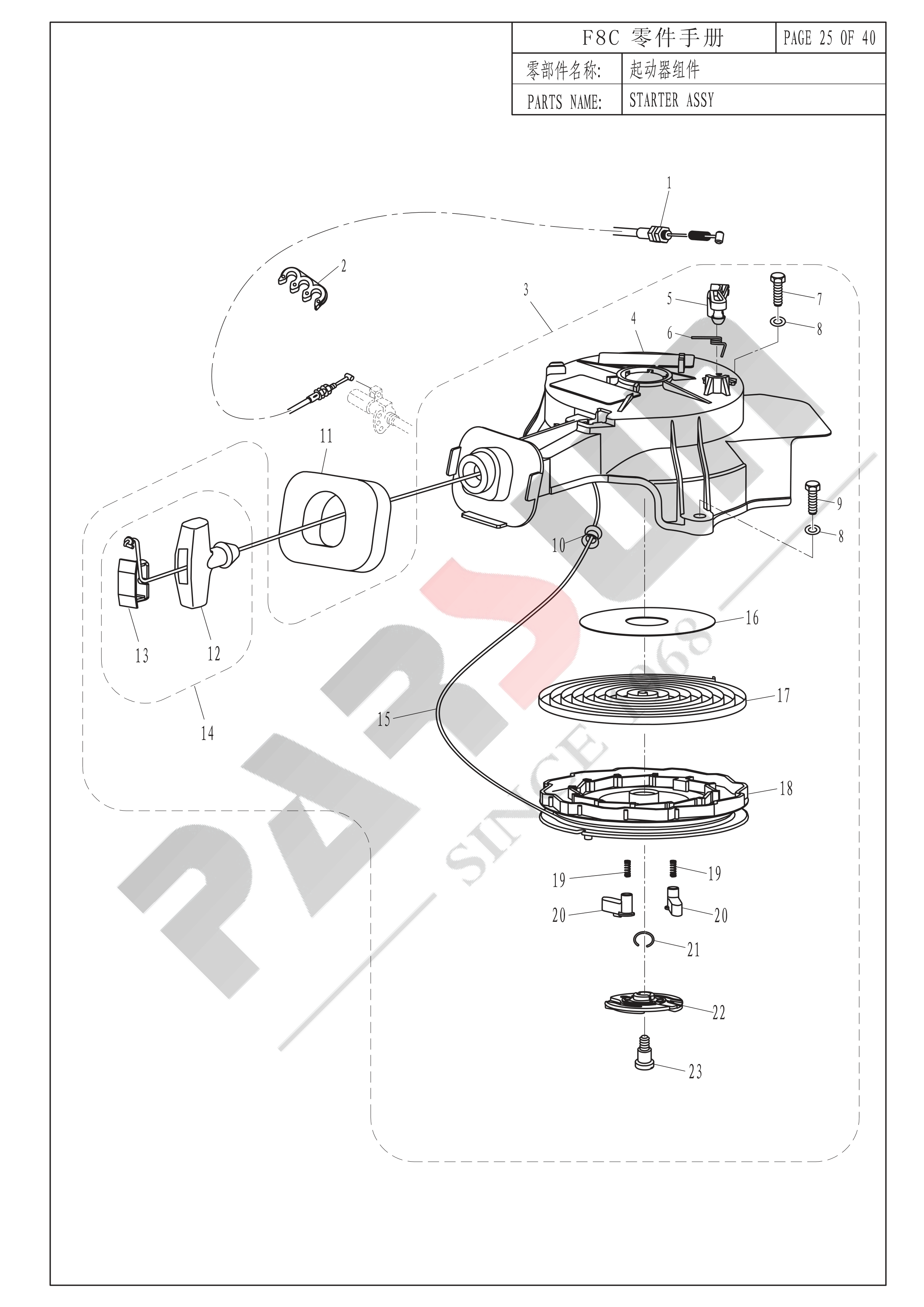

图 14起动器组件 STARTER ASSY
起动器组件 STARTER ASSY 爆炸图
REF零件编号中文名称英文名称数量轴型
1F6-05000010制动器钢索TIGHTWIRE,DETENT1
2F25-05000016尼龙管夹CLIP,NYLON1
3F6-04070000起动器组件STARTER ASSY1
4F6-04070001起动器外壳CASING,STARTER1
5F4-04130009制动器DETENT1
6F4-04130010制动器扭簧WREST SPRING,DETENT1
7GB/T5783-M6x20六角头螺栓M6x20BOLT M6x201
8GB/T97.1-6平垫圈6WASHER 63
9GB/T5783-M6x35六角头螺栓M6x35BOLT M6x352
10F4-04130013起动绳导管MEATUS,START ROPE1
11F6-04070003起动减震块ABSORBER,RUBBER1
12F4-04130101起动手柄HANDLE,STARTER1
13F4-04130102起动手柄盖COVER,STARTER HANDLE1
14F4-04130100起动手柄组件STARTER HADLE ASSY1
15F4-04130011锦纶编织线φ4.5x1.80mWIRE,STARTER1
16F4-04130014起动轮减磨片WASHER,THRUST1
17F4-04130005涡形弹簧SPRING,VOLUTE1
18F4-04130019起动轮WHELL,START-UP1
19F4-04130004卡瓣弹簧SPRING,DRIVE2
20F4-04130003卡瓣PAWL,DRIVE2
21F4-04130007起动压板夹簧SPRING,PLATE1
22F4-04130006起动压板PLATE,PRELL1
23F4-04130008起动压板螺钉BOLT,STARTER1

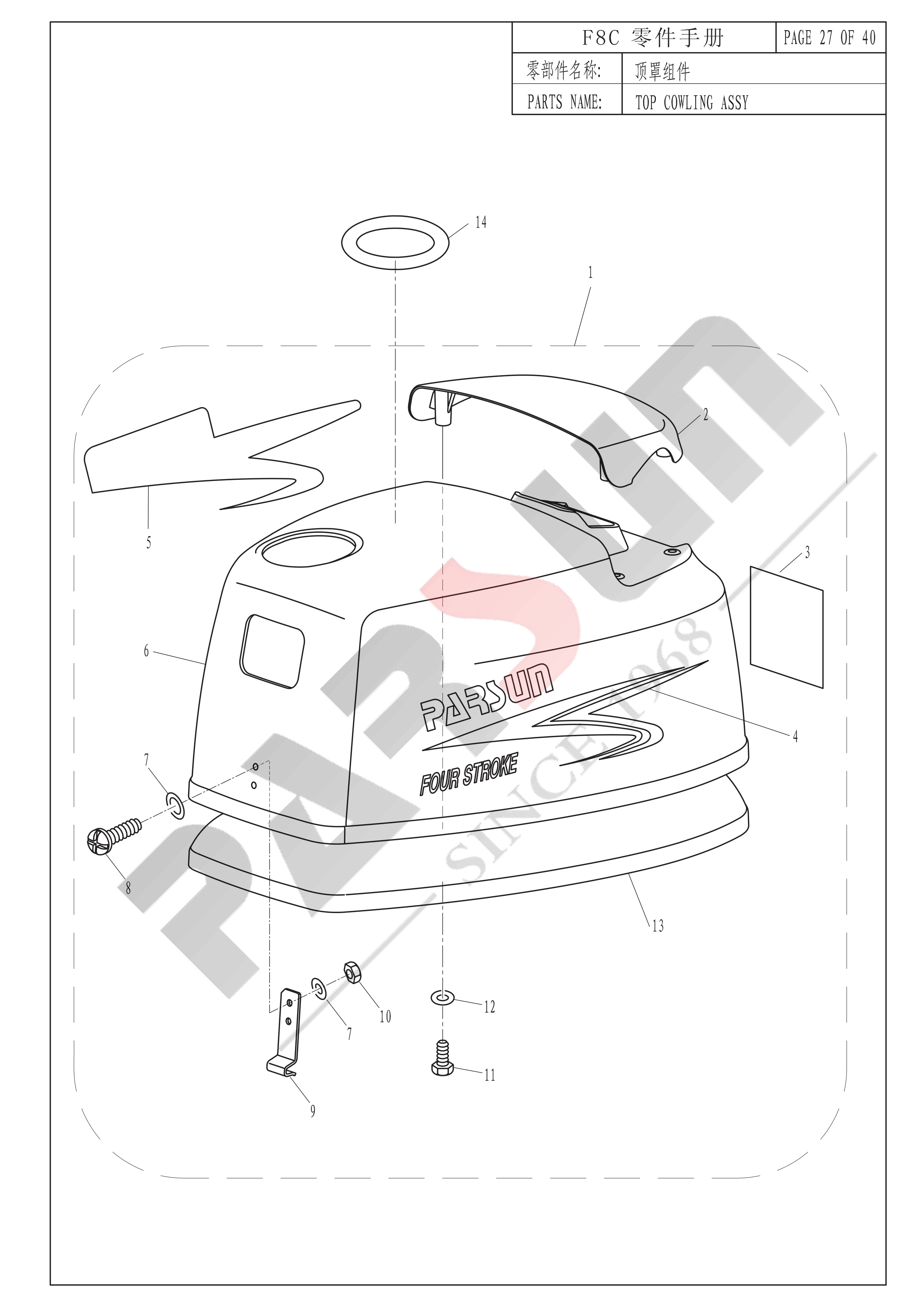

图 15顶罩组件 TOP COWLING ASSY
顶罩组件 TOP COWLING ASSY 爆炸图
REF零件编号中文名称英文名称数量轴型
1F6-06000000顶罩组件TOP COWLING ASSY1
2F6-06000004顶罩盖COVER,TOP COWLING1
3F8-08000006标贴6MARK 61
4F15-12000009标贴9MARK 91
5F15-12000010标贴10MARK 101
6F6-06000001顶罩TOP COWLING1
7GB/T97.1-5平垫圈5WASHER 54
8GB/T818-M5x14十字槽盘头螺钉M5x14SCREW,PAN HEAD M5x142
9T36-06000003前挂钩FRONT POTHO0K1
10GB/T6170-M5六角螺母M5NUT M52
11GB/T5783-M6x20六角螺栓M6x20BOLT M6x204
12GB/T97.1-6平垫圈6WASHER 64
13F6-06000002密封橡胶条SEAL1
14F4-08000019标贴3MARK 31

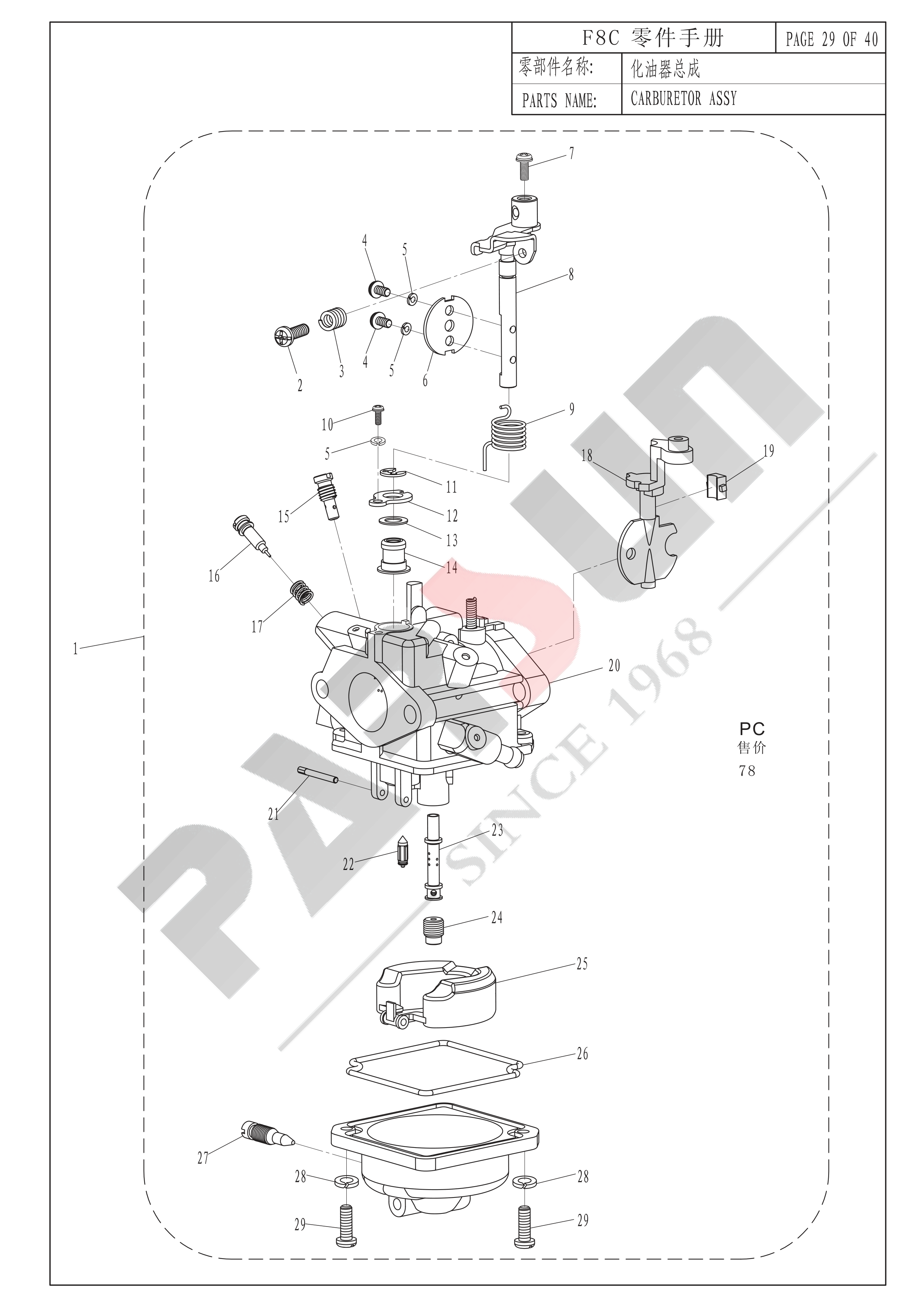

图 16化油器总成 CARBURETOR ASSY
化油器总成 CARBURETOR ASSY 爆炸图
REF零件编号中文名称英文名称数量轴型
1F6-04060000化油器总成CARBURETOR ASSY1
2F6-04060001怠速螺钉SCREW,AIR ADJUSTING1
3F6-04060002怠速螺钉弹簧SPRING1
4GB/T818-M3X6十字槽盘头螺钉M3X6SCREW M3X62
5GB/T93-3弹簧垫圈3SPRING WASHER 33
6F6-04060008油门挡板APRON,ACCELRATOR1
7GB/T818-M4X8十字槽盘头螺钉M4X8SCREW M4X81
8F6-04060100油门摆杆组件ACCELERATOR BAR ASSY1
9F6-04060002摆杆扭簧SPRING,SWING LINK1
10GB/T818-M3X8十字槽盘头螺钉M3X8SCREW M3X81
11F6-04060005摆杆压板PRESSING PLATE1
12GB/T896-4开口挡圈4CIRCLIP 41
13F6-04060004尼龙垫圈WASHER,NYLON1
14F6-04060003摆杆衬套BUSHING1
15F6-04060013空气减速螺钉JET,AIR ADJUSTING1
16F6-04060011混合比调整螺钉SCREW,MIXTURE1
17F6-04060012混合比调整螺钉弹簧SPRING1
18F6-04060009阻风门摆杆APRON,AIR CHOKE1
19F6-04060010阻风门限位块BLOCK,AIR CHOKE1
20F6-04060001化油器本体BODY,CARBURETOR1
21F6-04060016浮子销PIN,FLOAT1
22F6-04060014针阀NEEDLE VALVE1
23F6-04060017主喷管MAIN NOZZLE1
24F6-04060018主量孔MAIN JET1
25F6-04060015浮子FLOAT1
26F6-04060020油杯密封圈SEAL RING1
27F6-04060021放油螺钉SCREW,DRAIN1
28GB/T93-4弹簧垫圈4SPRING WASHER 42
29GB/T818-M4X12十字槽盘头螺钉M4X12SCREW M4X122

需要购买以上零件？

舟一会 / Dimo Marine 供应 F8CBM 整机及全部配件。零件详情请访问官网。

微信/电话：+86 18658175361　官网：https://dimo-marine.cn/

舟一会 / Dimo Marine　官网：https://dimo-marine.cn/
