水星 Mercury 9.9 HP 225.591990 225.591980 THRU 225.591980 - 爆炸图零件明细

Sears 系列 · Belgium - Cat.# 90-855600 · 共 16 个部位 · 472 条零件

1化油器(9.9马力型号)(1304-855772T)2夹紧支架 3机罩总成(上下)4曲轴与活塞 5气缸体总成 6驱动轴壳体 7燃油与循环系统 8燃油箱与管路总成(6.6加仑)9齿轮箱总成(驱动轴)10齿轮箱总成(螺旋桨轴)11点火系统 12杂项零件 13换挡连杆 14启动机组件 15转向手柄/旋转式油门 16旋转支架组件

图 1化油器(9.9马力型号)(1304-855772T) CARBURETOR (9.9 HP MODEL) (1304-855772T)

零件编号	中文名称	英文名称	数量
15969A3	甲板加油套件	DECK FILL KIT Oil	1
812497A2	二极管总成(双引擎)	DIODE ASSEMBLY (DUAL ENGINE)	1
44357A2	冲洗附件	FLUSHING ATTACHMENT	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
852400	冲洗接头	FLUSH COUPLING	1
19674A2	开关/拉绳套件	SWITCH/LANYARD KIT	1
88334A2	防腐电极套件	MERCATHODE KIT	1
86300A5	防腐电极监测器	MERCATHODE MONITOR	1
41729A3	软管延长套件	HOSE EXTENSION KIT	1
825191A1	索具软管套件	RIGGING HOSE KIT	1
17334A2	视觉警告系统(低油位/过热)	VISUAL WARNING SYSTEM (LOW OIL/OVERHEAT)	1

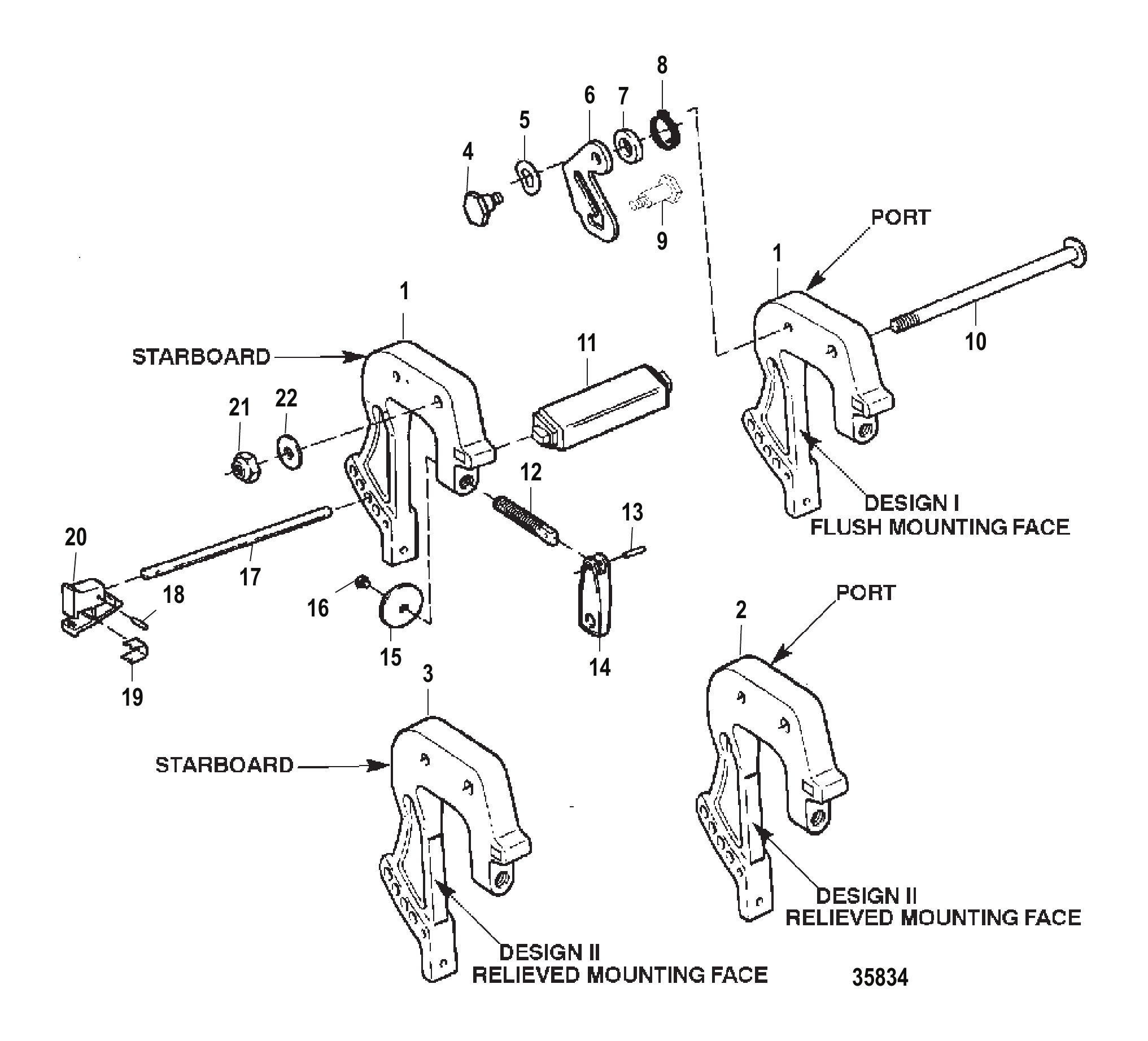

图 2夹紧支架 CLAMP BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	830295T1	艉支架(左右舷)(喷漆)	BRACKET Stern (Port & Starboard)(Painted)	2
1	850073T7	艉支架	BRACKET Stern	2
2	850073T6	艉支架(左舷)(喷漆)	BRACKET Stern (Port)(Painted)	1
3	850073T7	艉支架(右舷)(喷漆)	BRACKET Stern (Starboard)(Painted)	1
4	826248	艉支架专用螺钉	SCREW Stern Bracket Special)	2
5	F24074	艉支架地脚螺钉	FOOT Stern Bracket Screw	2
6	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
7	F424075T3		HANDLE Clamp Screw (Painted)	2
8	24198	滚动销	PIN Roll	2
9	830564	搬运手柄	HANDLE Carrying	1
10	851924A2	倾斜销总成-艉支架	PIN ASSEMBLY Tilt - Stern Bracket	1
11	851929	锁杆手柄	HANDLE Lock Bar	1
12	38489	滚动销	PIN Roll	1
13	F286461	倾斜销弹簧	SPRING Tilt Pin	1
14	F286422-1	螺钉(.312-18专用)	SCREW (.312-18 Special) (.312-18 Special)	1
15	819226	倾斜锁隔套	SPACER Tilt Lock	1
16	F429541	倾斜锁	LOCK Tilt	1
17	69150	波形垫圈	WAVE WASHER	1
18	F286544-1	倾斜锁弹簧	SPRING Tilt Lock	1
19	F617037	螺栓(.375-16x6.880)-艉支架枢轴	BOLT (.375-16 x 6.880) (.375-16 x 6.880)-Stern Bracket Pivot	1
20	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	1
21	F7026	螺母（0.375-16）	NUT (.375-16) (.375-16)	1
22	819707	倾斜锁销（0.250-20）	PIN Tilt Lock (.250-20)	1

图 3机罩总成(上下) COWL ASSEMBLY TOP AND BOTTOM

REF	零件编号	中文名称	英文名称	数量
1	820154A9	顶盖总成	TOP COWL ASSEMBLY	1
1	820154A8	顶盖总成	TOP COWL ASSEMBLY	1
2	F2211	不锈钢螺钉(#10-24 x .625)	SCREW (#10-24 x .625) Stainless Steel	4
3	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	4
4	F681269	倾斜手柄	HANDLE Tilt	1
5	F8143	垫圈	WASHER	4
6	F7009	螺母(#10-24)	NUT (#10-24)	4
7	F681026	锁扣滚轮螺钉	SCREW Latch Roller	1
8	F681759	锁扣滚轮	ROLLER Latch	1
9	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
9	8M0207776	螺母	NUT	1
10	82634213	后部标贴	DECAL (REAR)	1
11	82634211	右舷标贴	DECAL (STARBOARD)	1
11	82634212	左舷标贴	DECAL (PORT)	1
12	82408812	换挡贴花	DECAL Shift	1
13	8263425	前部标贴-启动说明	DECAL (FRONT)-Starter Instructions	1
14	835495A3	下罩总成(喷漆)	BOTTOM COWL ASSEMBLY (Painted)	1
15	F392756	下罩顶部密封条(4.075英尺卷材)(裁切3.783英尺)	SEAL Top Of Bottom Cowl (4.075 Ft. Bulk) (Cut 3.783 Ft)	1
16	8192813	下罩前板	PLATE Front - Bottom Cowl	1
17	18202	燃油连接器衬套	GROMMET Fuel Connector	1
18	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
18	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
19	15781A5	燃油接头(黄铜)	CONNECTOR Fuel - Brass	1
19	8M0182334	燃油接头	CONNECTOR FUEL	1
20	47579	堵头	PLUG	1
21	819486	底罩密封条	SEAL Bottom Cowl	1
22	935271	控制线束护圈	GROMMET Control Cable	1
22	93527002	护孔环	GROMMET	1
23	854239A1	罩锁手柄总成(喷漆)	HANDLE ASSEMBLY Cowl Latch (Painted)	1
24	812707	衬套	BUSHING	2
25	F2047	波形垫圈	WASHER Wave	1
26	F481777	凸轮锁轴	CAM Latch Shaft	1
26	8M0001081	凸轮	CAM	1
27	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	1
28	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
29	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
30	855600	零件手册9.9马力西尔斯	PARTS MANUAL 9.9 Hp Sears	1
31	85557736	EPA标签标贴(贴于上罩内侧)	DECAL EPA Label Information (Applied Inside The Top Cowl)	1

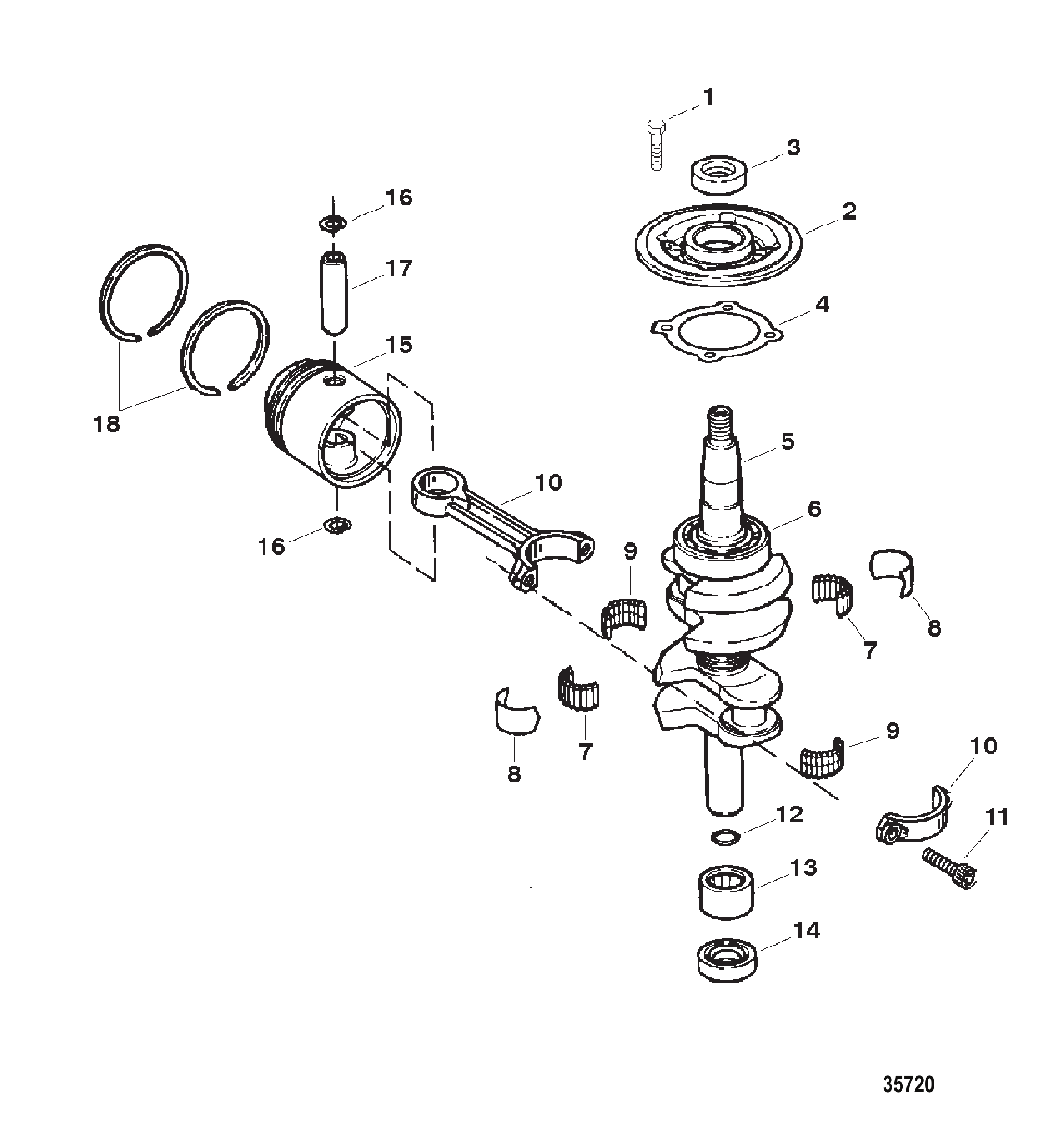

图 4曲轴与活塞 CRANKSHAFT AND PISTON

REF	零件编号	中文名称	英文名称	数量
1	F1914	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
2	817753A1	曲轴轴承保持架总成	CAGE ASSEMBLY Crankshaft Bearing	1
3	819801	曲轴上密封	SEAL Upper - Crankshaft	1
4	F286277	曲轴轴承保持架垫片	GASKET Crankshaft Bearing Cage	1
5	819803A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
6	F286028	滚珠轴承	BEARING Ball	1
7	F286571	滚柱套装(26件/套)	ROLLER SET (26 Per Set)	1
8	FA286155	中央主轴承衬套组	LINER SET Center Main Bearing	1
9	FA712228	滚柱组(2条-28件/条)	ROLLER SET (2 Strips-28 Per)	2
10	FS715016	连杆总成	CONNECTING ROD ASSEMBLY	2
11	F175634	螺钉	SCREW	4
12	32509	O型圈(.489x.070)	O-RING (.489 x .070)	1
13	F343014	曲轴下主轴承	BEARING Crankshaft Lower Main	1
14	819396	曲轴下端密封	SEAL Crankshaft Lower	1
15	819946A3	活塞套件	PISTON KIT	2
16	F31410	挡圈	RING Retaining	4
17	F712017	活塞销	PIN Piston	2
18	820484A1	活塞环组(2环)	RING SET Piston (2 Rings)	2
-	FG1036	短缸体垫片组	GASKET SET Short Block	1
-	819553A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
-	819553A15	短缸体总成	SHORT BLOCK ASSEMBLY	1

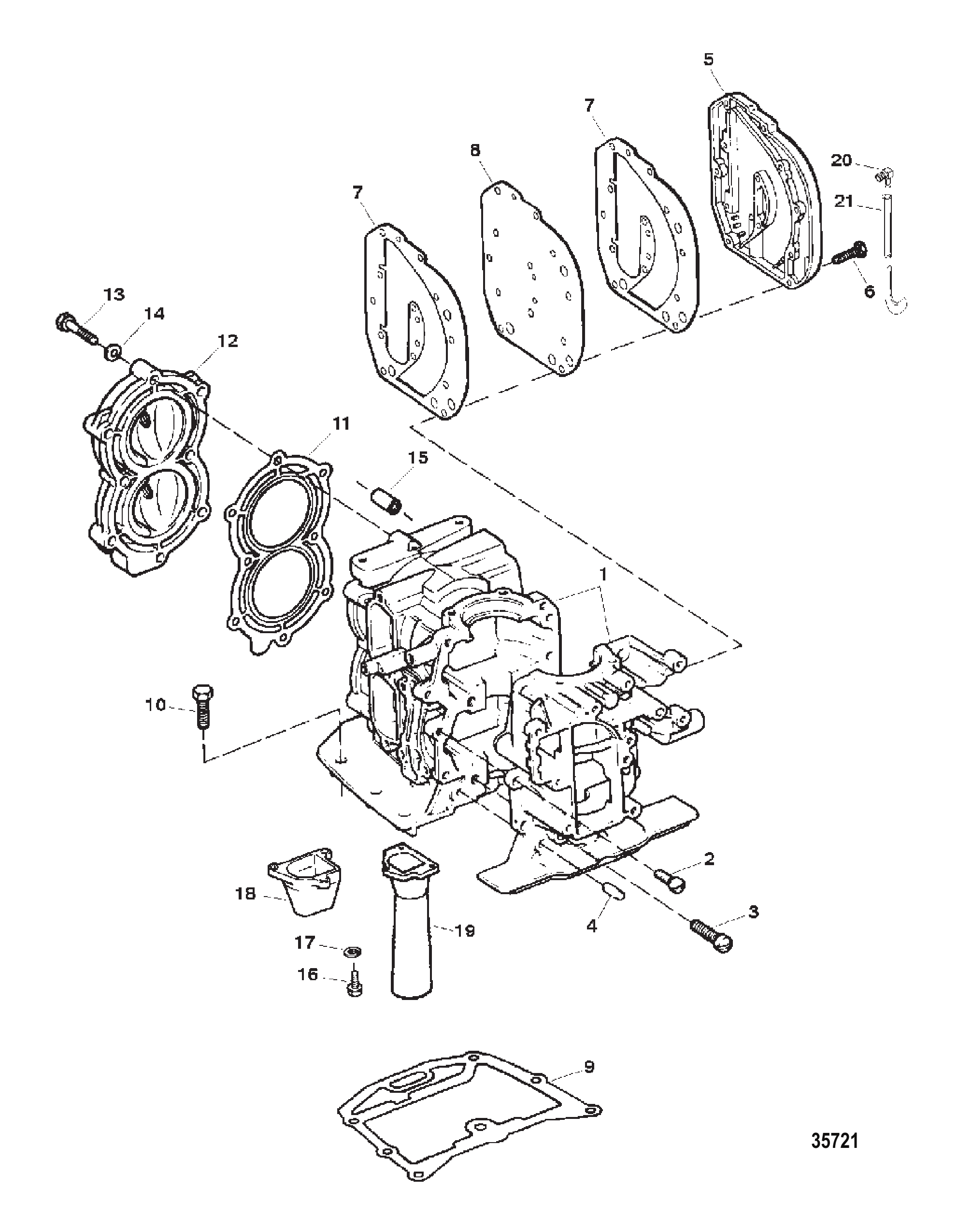

图 5气缸体总成 CYLINDER BLOCK ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	819553A15	短缸体总成(喷漆)	SHORT BLOCK ASSEMBLY (Painted)	1
1	819553A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	F1107	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	8
3	F1335	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
4	F8559	定位销	PIN Dowel	2
5	824141T1		COVER KIT Exhaust (Painted)	1
6	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	12
7	F715154	排气口盖垫片	GASKET Exhaust Port Cover	2
8	F715151	排气板	PLATE Exhaust	1
9	853957	气缸安装垫片	GASKET Cylinder Mounting	1
10	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
11	F286529-3	衬垫	GASKET	1
12	F703518T1	气缸盖(喷漆)	CYLINDER HEAD (Painted)	1
13	F901938-1		SCREW (.250-20 x .875) Cylinder Head	8
14	37998	垫圈	WASHER	8
15	F715943	气缸水套管	TUBE Cylinder Water Jacket	1
16	FG1036	短缸体垫片组	GASKET SET Short Block	1
17	F4876601	排气管	TUBE Exhaust	1
18	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	3
19	F2008	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	3
20	88780		ELBOW Tell-Tale Tubing (90 Degree)	1
20	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	1
21	5495025	管材(25英尺卷材)(裁切8英寸)	TUBING (25.00 Feet Bulk) (Cut 8.00 In.)	1
21	5495053	管材(53英尺散装)	TUBING (53.00 Feet Bulk)	1
-	FG1036	短缸体垫片组	GASKET SET Short Block	1
-	819553A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
-	819553A15	短缸体总成	SHORT BLOCK ASSEMBLY	1

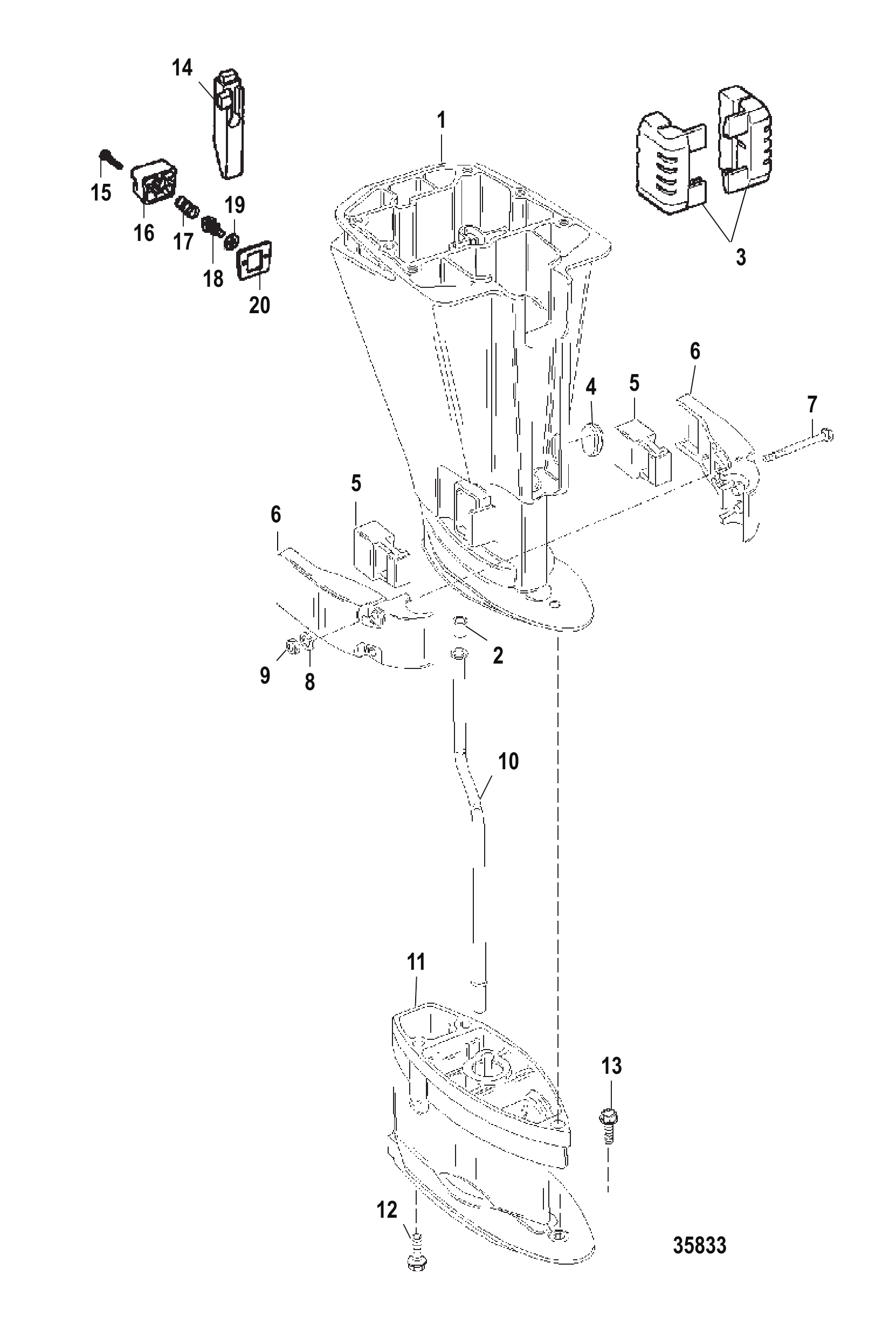

图 6驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	850182T	传动轴壳体总成(喷漆)	HOUSING ASSEMBLY Driveshaft (PAINTED)	1
2	42380	密封件	SEAL	1
2	42380001	水管密封件	SEAL Water Tube	1
3	F286347	上减震座	SHOCK MOUNT Upper	2
4	F46899-1	盖板	COVER	1
5	421892	支架	MOUNT	2
5	8M0039074	支架	MOUNT	2
6	42374T2	下减震支架(喷漆)	BRACKET Lower Shock Mount (PAINTED)	2
7	126711	螺丝(.250-20 x 3.00)	SCREW (.250-20 X 3.00)	2
8	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
9	64015	螺母 (.250-20)	NUT (.250-20)	2
10	850195	水管	TUBE Water	1
10	850205	水管	TUBE Water	1
11	12426T	延长壳体(喷漆)	HOUSING Extension (PAINTED)	1
12	8240717	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
13	82407110	螺钉(M8 x 50)	SCREW (M8 x 50)	1
14	823694	节温器插片	INSERT Thermostat	1
15	819382	螺丝(.250-20 x 1.00)	SCREW (.250-20 x 1.00) (.250-20 X 1.00)	2
16	819321	节温器盖	COVER Thermostat	1
17	819329	节温器弹簧	SPRING Thermostat	1
18	819550		THERMOSTAT (105 DEGREES)	1
19	F658504	垫圈	WASHER	1
20	819669	节温器盖衬垫	GASKET Thermostat Cover	1

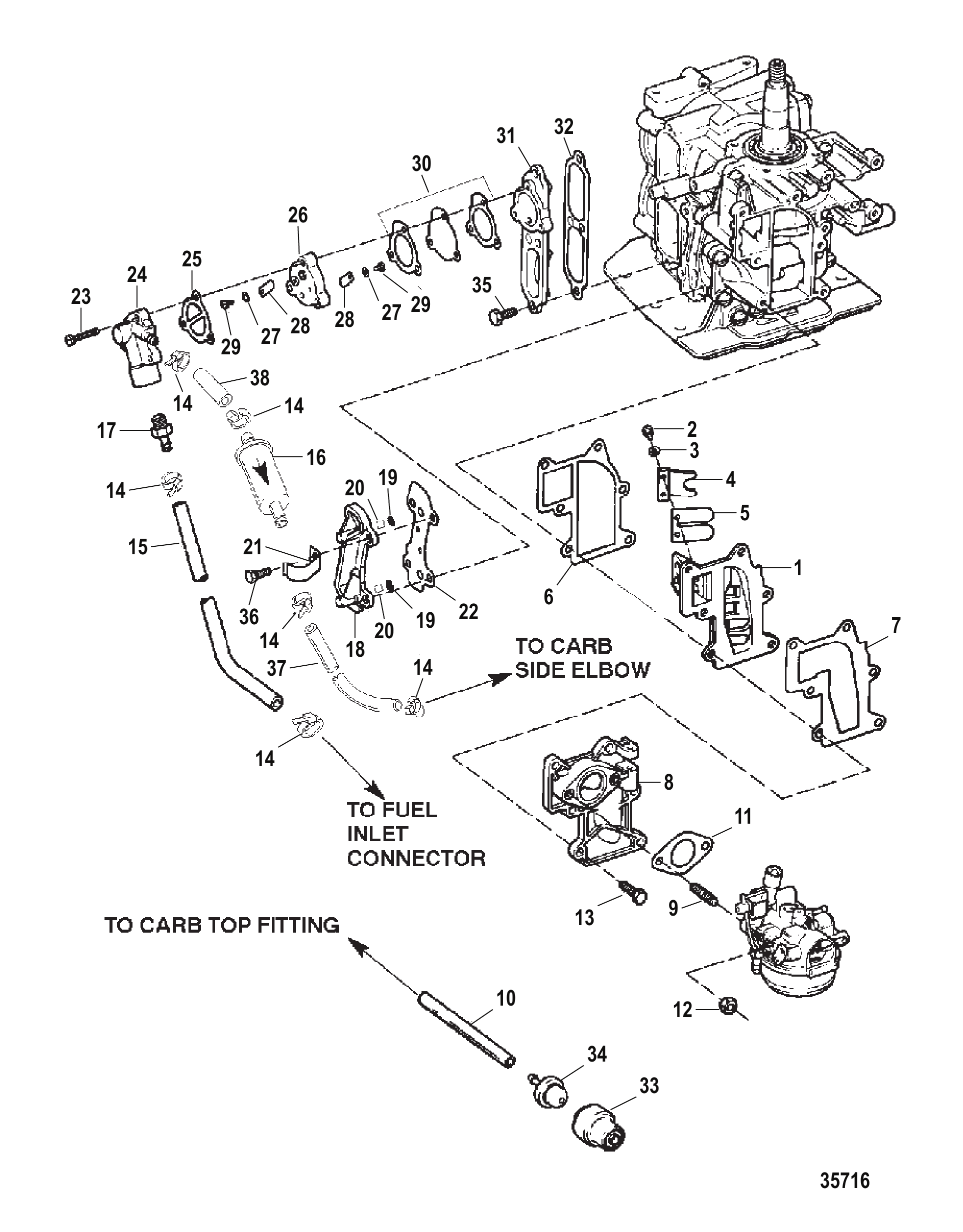

图 7燃油与循环系统 FUEL AND RECIRCULATION SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	FA715158	簧片阀板总成	PLATE ASSEMBLY Reed	1
2	28430	螺钉(#6-32 x .25)	SCREW (#6-32 x .25)	8
3	F1704	垫圈(#6内齿)	WASHER (#6 Internal)	8
4	F715161	簧片止挡	STOP Reed	4
5	F31160-2	簧片	REED	4
6	F286159-1	衬垫	GASKET	1
7	F715168	歧管垫片	GASKET Manifold	1
8	854240A1		MANIFOLD ASSEMBLY Carburetor (Painted)	1
9	826622		STUD (.250-20 x .910) (.250-20 x .910) With Dri Lok	2
10	819398T	软管(18英寸卷材)(裁切5.75英寸)-注油泡至化油器	HOSE (18.00 In. Bulk) (Cut 5.750 In.)-Primer Bulb to Carb	1
11	F18906	化油器衬垫	GASKET Carburetor	1
12	20890	螺母 (.250-20)	NUT (.250-20)	2
13	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	6
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	6
15	819398T	燃油软管(18英寸卷材)(裁切10.5英寸)	HOSE Fuel (18.00 In. Bulk) (Cut 10.500 In.)	1
16	828998	燃油滤清器	FILTER Fuel	1
17	850314	燃油泵接头	FITTING Fuel Pump	1
18	820070A3	气缸排水盖总成(喷漆)	COVER ASSEMBLY Cylinder Drain (Painted)	1
19	F429811	滤网	SCREEN	2
20	817741A1	止回阀套件	CHECK VALVE KIT	2
21	F286772-1	卡箍	CLAMP	1
22	825188	气缸排水盖垫片	GASKET Cylinder Drain Cover	1
23	F1069		SCREW (#10-24 x 1.062) (#10-24 x 1.062)	3
24	819993T2	燃油泵盖(喷漆)	COVER Fuel Pump (Painted)	1
25	F24748-2	燃油泵衬垫	GASKET Fuel Pump	1
26	F2A24757	燃油泵板总成	PLATE ASSEMBLY Fuel Pump	1
27	18552	垫圈	WASHER	2
28	F18160-3	簧片	REED	2
29	F1286	螺钉(#4-40x.187)	SCREW (#4-40 x .187)	2
30	818043A1	垫片/膜片组	GASKET/DIAPHRAGM SET	1
31	820116T	换气口盖	COVER Transfer Port	1
32	825183	换气口盖垫片	GASKET Transfer Port Cover	1
33	851934	注油泵盖	COVER Primer Bulb	1
34	F681046	注油泵球	BULB Primer	1
35	98254	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	4
36	F1922	螺丝 (.250-20 x .625)	SCREW (.250-20 x .625) (.250-20 x .625)	4
37	819398T	燃油软管(18英寸卷材)(裁切10.25英寸)	HOSE Fuel (18.00 In. Bulk) (Cut 10.250 In.)	1
38	819398T	燃油软管(18英寸整卷)(裁切4.00英寸)	HOSE Fuel (18.00 In. Bulk) (Cut 4.00 In.)	1
-	FK10294	化油器衬垫组	GASKET SET Carburetor	1
-	FG1036	短缸体垫片组	GASKET SET Short Block	1
-	819553A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
-	819553A15	短缸体总成	SHORT BLOCK ASSEMBLY	1

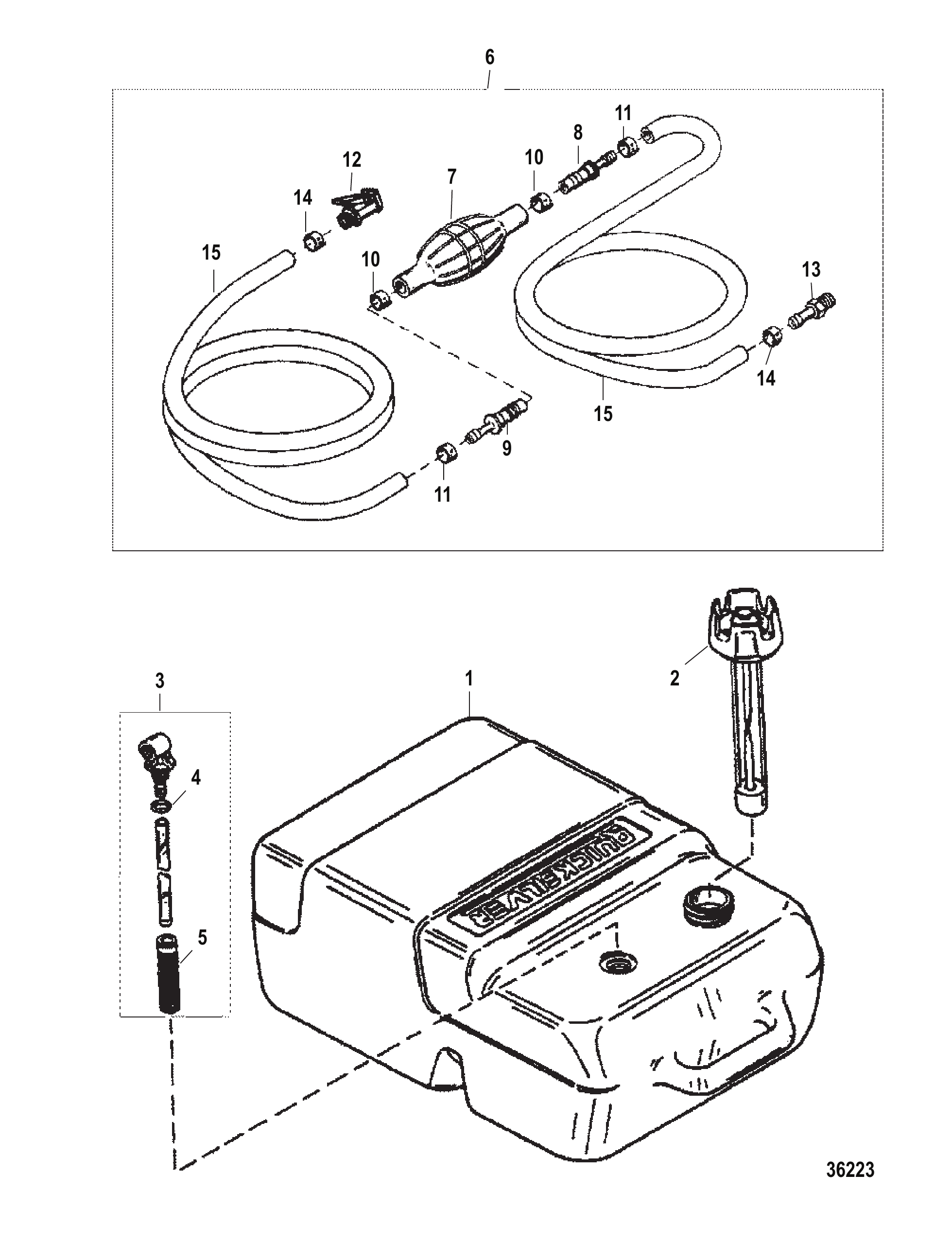

图 8燃油箱与管路总成(6.6加仑) Fuel Tank and Line Assembly (6.6 Gallon)

REF	零件编号	中文名称	英文名称	数量
1	823504A1	燃油箱总成-塑料6.6加仑	TANK ASSEMBLY Fuel - Plastic 6.6 Gallon	1
2	823536	油量表/油箱盖总成	GAUGE/CAP ASSEMBLY	1
2	816976Q1	燃油手动通气盖总成	CAP ASSEMBLY Fuel-Manual Vent	1
3	823532A1	燃油连接套件	CONNECTOR KIT Fuel	1
3	8M0175545	燃油连接套件 6.6	CONN KIT FUEL 6.6	1
4	823533	O型圈	O-RING	1
5	823534	滤网	SCREEN	1
6	17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
6	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
7	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
7	13330Q07	注油泵总成 - Quicksilver品牌	BULB ASSEMBLY Primer - Quicksilver Brand	1
8	13331A1		CHECK VALVE ASSEMBLY (INLET)	1
8	13331A3	止回阀总成	CHECK VALVE ASSEMBLY	1
9	13331A2		CHECK VALVE ASSEMBLY (OUTLET)	1
9	13331A4	止回阀总成	CHECK VALVE ASSEMBLY	1
10	4158210		CLAMP Nylon (LARGE)	2
11	415827		CLAMP Nylon (SMALL)	2
11	41582Q7	卡箍	CLAMP	2
12	13563A3	燃油管接头总成	FITTING ASSEMBLY Fuel Line	1
12	13563Q3	发动机端快速接头(水星)	QUICK DISCONNECT Engine End (Quicksilver)	1
13	897711	连接器(.250-18)	CONNECTOR (.250-18)	1
13	89771Q2	连接器(.250-18)	CONNECTOR (.250-18)	1
14	415827		CLAMP Nylon (SMALL)	2
14	41582Q7	卡箍	CLAMP	2
15	1678978	软管(9.00英尺整卷)	HOSE (9.00 Feet Bulk)	AR
15	85861079	软管(9.00英尺整卷)	HOSE (9.00 Feet Bulk)	AR
15	16789100	软管(100.00英尺整卷)	HOSE (100.00 Feet Bulk)	AR
15	858610100	软管(100.00英尺整卷)	HOSE (100.00 Feet Bulk)	AR

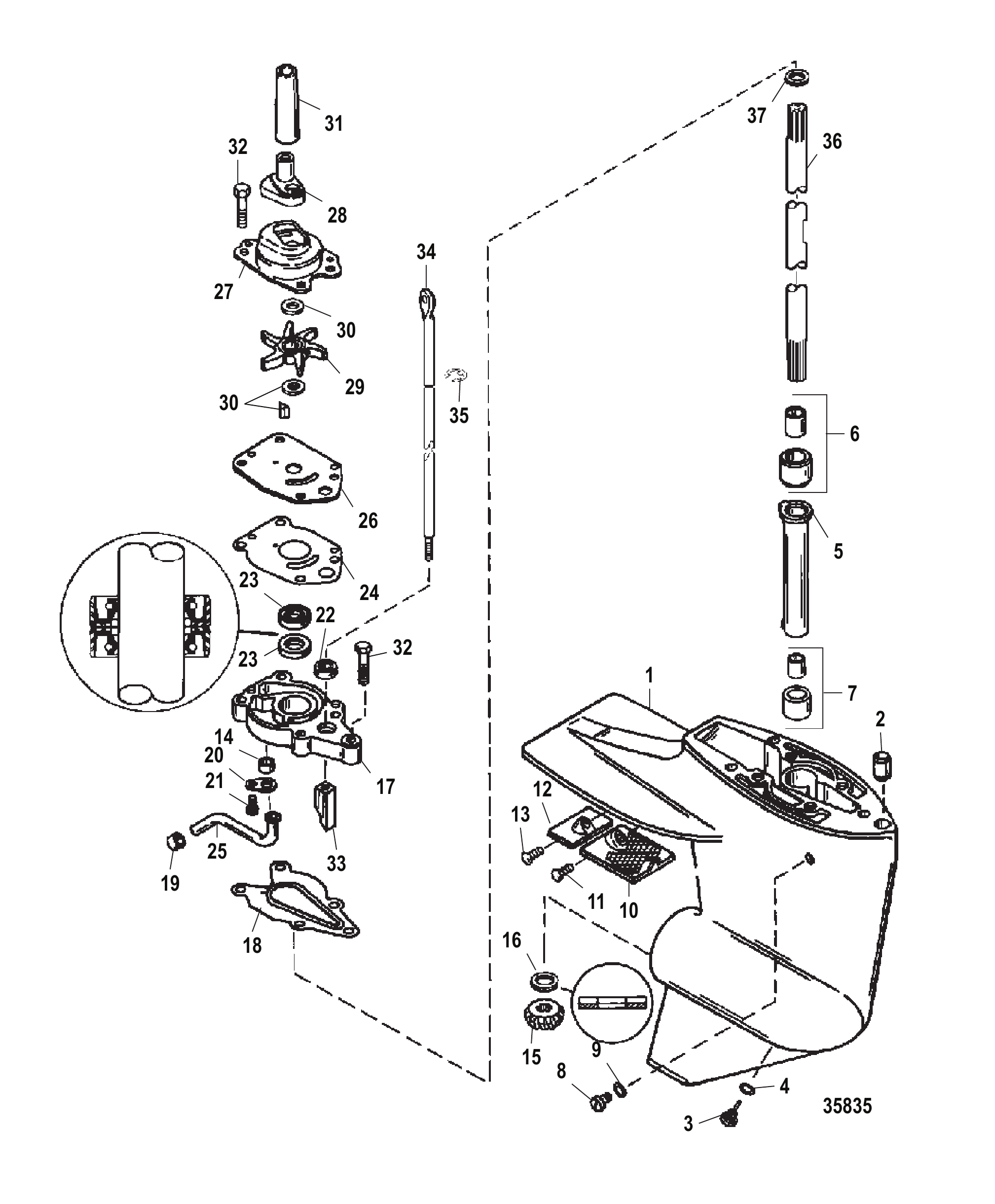

图 9齿轮箱总成(驱动轴) GEAR HOUSING ASSEMBLY (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
1	8833A30	齿轮箱总成(完整)(喷漆)	GEAR HOUSING ASSEMBLY (COMPLETE) (Painted)	1
1	8833A31	齿轮箱总成(完整)(喷漆)	GEAR HOUSING ASSEMBLY (COMPLETE) (Painted)	1
1	8833A29	齿轮箱总成(基础)(喷漆)	GEAR HOUSING ASSEMBLY (BASIC) (Painted)	1
2	12009	衬套 (0.31 x 0.45 x 0.50)	BUSHING (.31 x .45 x .50)	1
3	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
3	8M0058389	放油螺钉套件	SCREW KIT Drain	1
4	19183	纤维垫圈	WASHER Fiber	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	42086T	套筒	SLEEVE	1
6	850197A1	上套筒总成	SLEEVE ASSEMBLY Upper	1
7	850198A1	下套筒总成	SLEEVE ASSEMBLY Lower	1
8	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	19183	纤维垫圈	WASHER Fiber	1
9	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
10	421991	滤网	SCREEN	1
11	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
12	42121A2	阳极总成	ANODE ASSEMBLY	1
12	42121Q02	铝阳极@2	ANODE(ALUM) @2	1
13	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
14	42133	密封件	SEAL	1
15	8219251	小齿轮-13-26	GEAR Pinion - 13-26	1
16	41369	止推垫圈	WASHER Thrust	1
17	42040A5	水泵底座总成	BASE ASSEMBLY Water Pump	1
17	42040T5	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	192042	水泵底座衬垫	GASKET Water Pump Base	1
18	192043	衬垫	GASKET	1
19	33613	进水管密封	SEAL Water Inlet Tube	1
20	42375	水管固定座	RETAINER Water Tube	1
21	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
22	822236	四角密封环	QUAD RING	1
23	413651	油封	SEAL Oil	2
24	19202	水泵板衬垫	GASKET Water Pump Plate	1
24	19202001	衬垫	GASKET	1
25	42185A1	水管总成(含#14和#20)	TUBE ASSEMBLY Water (Includes #14 & #20)	1
26	42200	面板	FACE PLATE	1
27	42089A2		COVER ASSEMBLY (With Insert)	1
28	421021	密封件	SEAL	1
29	420382	叶轮	IMPELLER	1
29	42038Q02	叶轮	IMPELLER	1
30	42376A2		KEY ASSEMBLY (With Two Washers)	1
30	8M0173458	叶轮键	KEY IMPELLER	1
31	444671	水管导向器	GUIDE Water Tube	1
32	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	5
33	42039	换档凸轮	CAM Shift	1
34	850191	下换挡轴	SHIFT SHAFT Lower	1
34	850199	下换挡轴	SHIFT SHAFT Lower	1
35	42389	E型挡圈	E RING Retaining	1
36	850192	驱动轴	DRIVESHAFT	1
36	850201	驱动轴	DRIVESHAFT	1
37	822248	止推垫片	THRUST WASHER	1
-	41365A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	42089A5	水泵套件	PUMP KIT Water	1

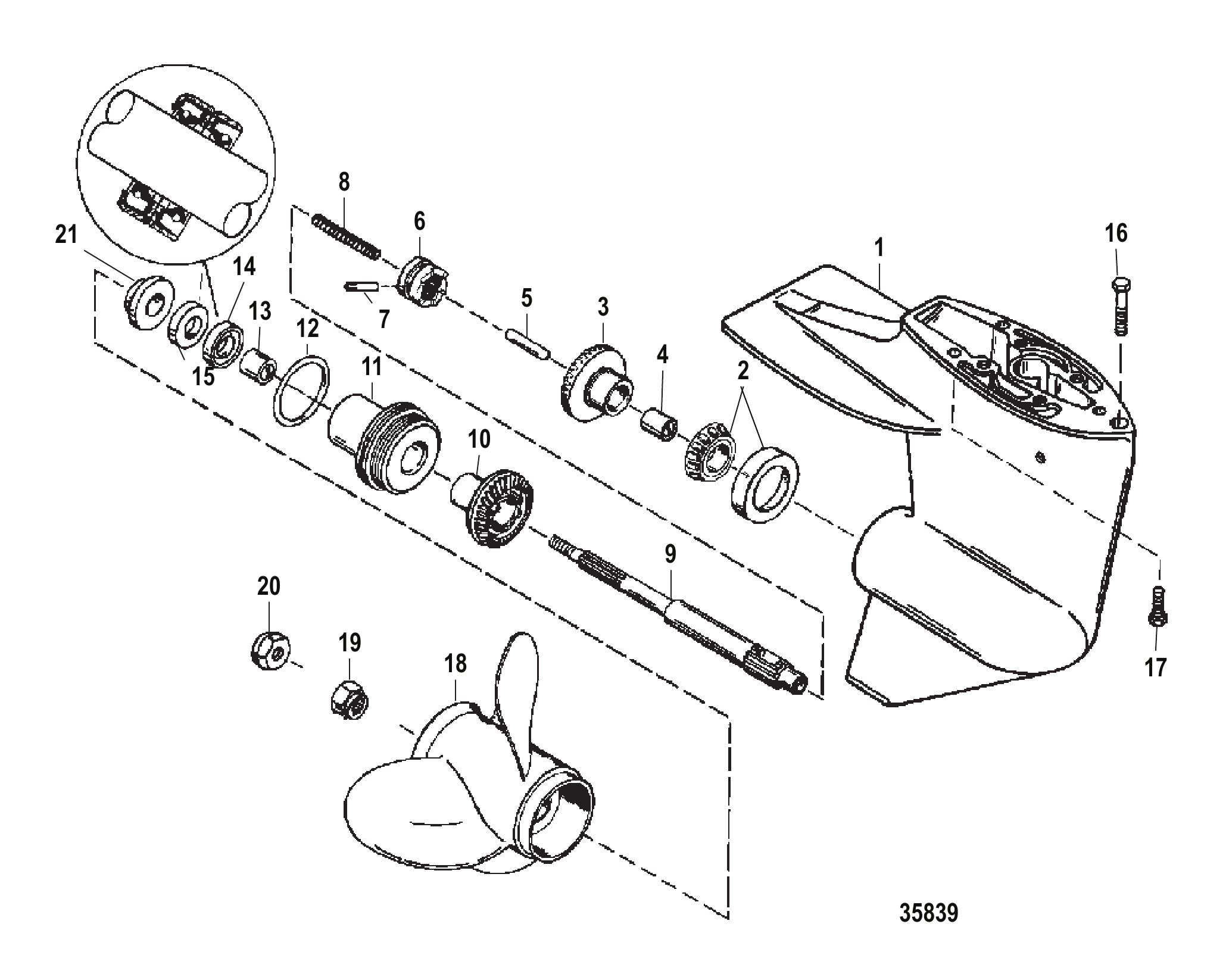

图 10齿轮箱总成(螺旋桨轴) GEAR HOUSING ASSEMBLY (PROPSHAFT)

REF	零件编号	中文名称	英文名称	数量
1	8833A30	齿轮箱总成(完整)(喷漆)	GEAR HOUSING ASSEMBLY (COMPLETE) (Painted)	1
1	8833A31	齿轮箱总成(完整)(喷漆)	GEAR HOUSING ASSEMBLY (COMPLETE) (Painted)	1
1	8833A29	齿轮箱总成(基础)(喷漆)	GEAR HOUSING ASSEMBLY (BASIC) (Painted)	1
2	821321A1	滚子轴承总成(锥形)	BEARING ASSEMBLY Roller (Cone & Cup)	1
3	821924A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
4	41367	衬套	BUSHING	1
5	813139	凸轮从动件	FOLLOWER Cam	1
6	821930A1	离合器总成	CLUTCH ASSEMBLY	1
7	823951	十字槽销	PIN Cross Grooved	1
8	42204	弹簧	SPRING	1
9	821929	螺旋桨轴	PROPELLER SHAFT	1
10	8219261	倒档齿轮-13/26	GEAR Reverse - 13/26	1
10	821926T1	倒档齿轮-13/26	GEAR Reverse - 13/26	1
11	42144A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
11	42144T3	轴承座	CARRIER Bearing	1
12	33145	O型圈(1.984x0.139)	O-RING (1.984 x .139)	1
12	8M0214923	O型圈(1.98x1.39)	O-RING (1.98 x 1.39)	1
13	821927	衬套	BUSHING	1
14	99325	油封	SEAL Oil	1
15	821928	油封	SEAL Oil	1
16	82407110	螺钉(M8 x 50)	SCREW (M8 x 50)	1
17	8240717	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
18	828156A12	黑锋螺旋桨9x9右旋铝3叶(标准)	BLACK MAX PROPELLER 9 X 9 RH AL 3 BL (Alum)(STANDARD)	1
18	828158A12	黑锋螺旋桨(铝)(9.00x10.500)	PROPELLER Black Max (Alum) (9.00 x 10.500)	OPT
18	828154A12	黑锋螺旋桨9x8右旋铝3叶(9.00x8.00)	BLACK MAX PROPELLER 9 X 8 RH AL 3 BL (Alum) (9.00 x 8.00)	OPT
18	828152A12	黑锋螺旋桨9.3x7右旋铝3叶	BLACK MAX PROPELLER 9.3 X 7 RH AL 3 BL (Alum)	OPT
18	828150A12	黑锋螺旋桨9.8x6.5右旋铝3叶	BLACK MAX PROPELLER 9.8 X 6.5 RH AL 3 BL (Alum)	OPT
18	828148A12	黑锋螺旋桨(铝)(9.750x5.500)	PROPELLER Black Max (Alum) (9.750 x 5.500)	OPT
18	828150A12	黑色MAX螺旋桨 9.8 x 6.5 右旋铝3叶	BLACK MAX PROPELLER 9.8 X 6.5 RH AL 3 BL	OPT
19	420911	隔套	SPACER	1
20	13914		NUT (M10) Propeller	1
20	40140	螺母(M10)	NUT (M10)	1
21	8219321		THRUST HUB (1.510 Dia.)	1
-	41365A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

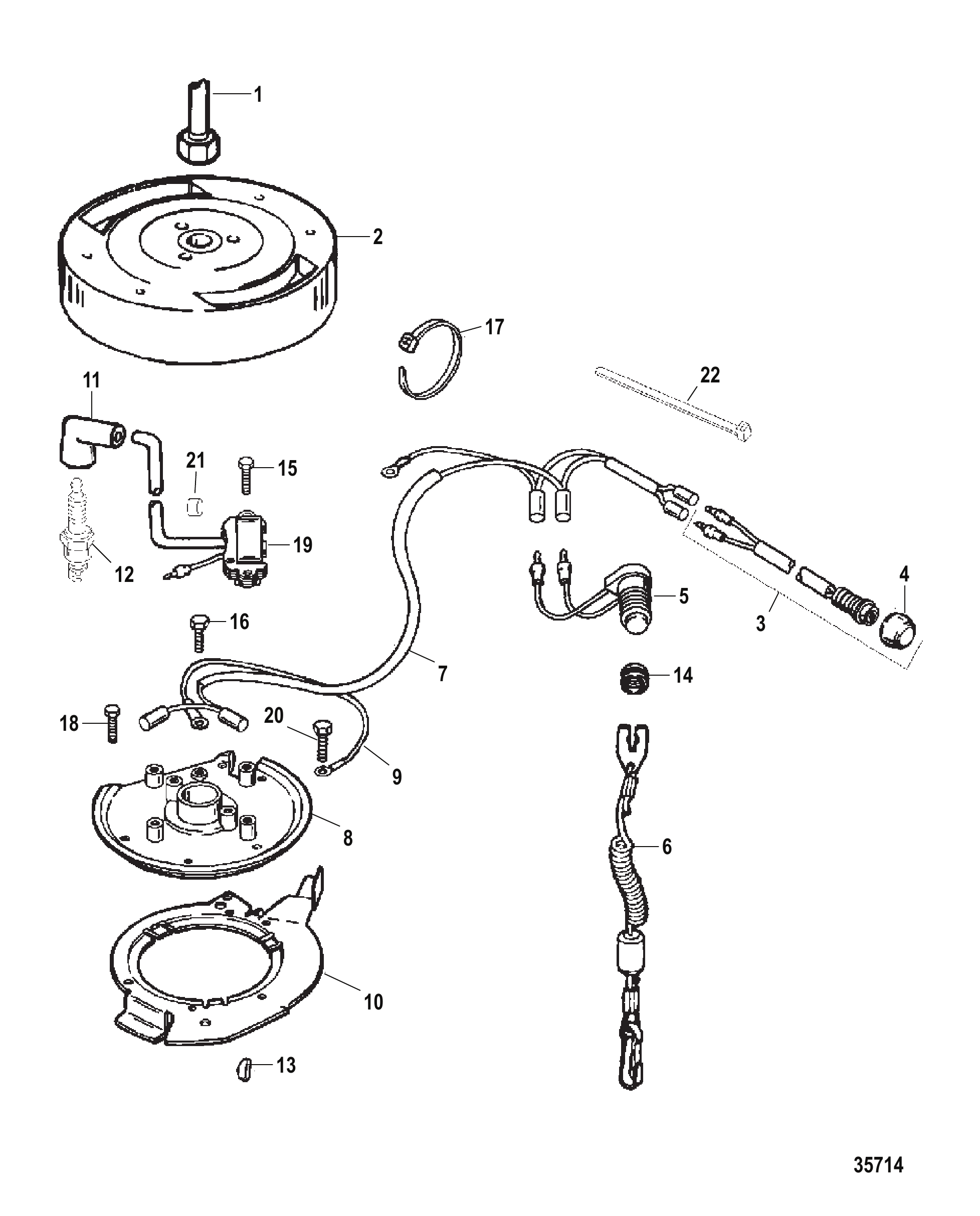

图 11点火系统 IGNITION SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	F681091	飞轮螺母	NUT Flywheel	1
2	824380T4	飞轮(喷漆)	FLYWHEEL (Painted)	1
3	824440A15	停机开关总成	SWITCH ASSEMBLY Stop	1
4	824466A3	停机开关盖总成	COVER ASSEMBLY Stop Switch	1
5	826214A1	紧急停止开关总成	SWITCH ASSEMBLY Emergency Stop	1
6	819399A1	拉绳总成	LANYARD ASSEMBLY	1
6	879104	带夹子的拉绳	LANYARD W/CLIP	1
7	819379A7	发动机停机线束总成	HARNESS ASSEMBLY Engine Stop	1
8	828243T	定子片套件	PLATE KIT Stator	1
9	60466A21	接地线总成	CABLE ASSEMBLY Ground	1
10	855352	节气门凸轮	CAM Throttle	1
11	63709A1		BOOT/TERMINAL KIT Spark Plug	2
12	312	火花塞(CHAMPION # L87YC)	SPARK PLUG (CHAMPION # L87YC)	2
12	327	火花塞(RFI)(冠军牌 RL87YC)	SPARK PLUG (RFI) (CHAMPION # RL87YC)	OPT
13	F458498-1	曲轴/飞轮键	KEY Crankshaft/Flywheel	1
14	855594		NUT (Special)-Stop Switch Sleeve	1
15	824353	螺钉(#8-32 x .750)-点火模块	SCREW (#8-32 x .750)-Ignition Module	6
16	824352	螺钉(#10-24 x .375)-接地	SCREW (#10-24 x .375) (#10-24 x .375)-Ground	1
17	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
18	824358		SCREW (#10-24 x .500) (#10-24 x .500)-Stator Plate	5
19	850899T	点火模块(按需剪线)	MODULE Ignition (Cut Wire as Req'd)	2
20	824358		SCREW (#10-24 x .500) (#10-24 x .500)-Ground	1
21	20117A1	点火电缆标记套件	MARKER SET Ignition Cables	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

图 12杂项零件 MISCELLANEOUS PARTS

REF	零件编号	中文名称	英文名称	数量
-	82793336	大马士革钢灰色喷漆 12盎司(355毫升)-喷罐装	PAINT Damascus Steel Gray 12 Oz. (355 ml)-Spray Can	AR
-	82793337	大马士革钢灰色油漆 0.5盎司(15毫升)-笔刷瓶装	PAINT Damascus Steel Gray .5 Oz. (15 ml)-Brush Bottle	AR
-	802878Q37	PAINT.6-ST/G@6	PAINT.6-ST/G@6	AR
-	81910712	透明丙烯酸喷漆 12盎司(355毫升)-加拿大喷罐(仅用于外罩)	PAINT Clear Acrylic 12 Oz. (355 ml)-Spray CANADA (For Cowl Only)	AR
-	82793353	PAINT-CLEAR @6	PAINT-CLEAR @6	AR
-	827889A2	遥控转向套件	STEERING KIT Remote	1
-	855642A1	遥控转换套件	CONVERSION KIT Remote Control	1
-	16903G20	遥控总成(手动启动)	REMOTE CONTROL ASSEMBLY (Manual Start)	1
-	850716A**	油门换挡线缆套装(**=3至60英尺)	CABLE SET Throttle & Shift (** = 3 Feet To 60 Feet)	AR

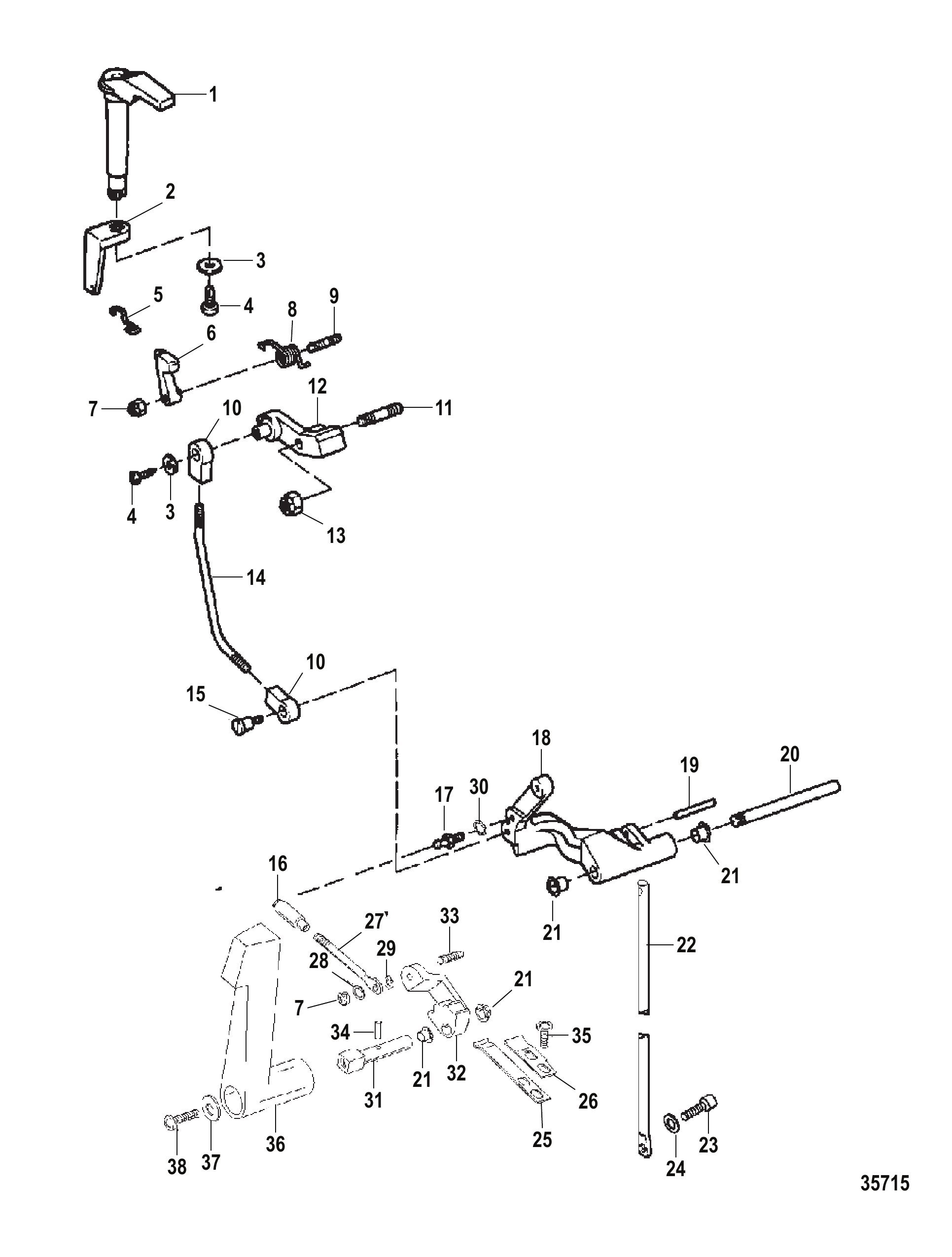

图 13换挡连杆 SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	F681490	启动滑轮联锁挡块	STOP Starter Pulley Interlock	1
2	F681003-1	启动联锁臂	ARM Starter Interlock	1
3	F8143	垫圈	WASHER	2
4	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
5	F681263-1	启动联锁连杆	LINK Starter Interlock	1
6	F681742	中间联锁杆	LEVER Intermediate Interlock	1
7	20110	螺母 (#10-32)	NUT (#10-32)	2
8	F681424	联锁杆弹簧	SPRING Interlock Lever	1
9	F681134	联锁杆螺柱	STUD Interlock Lever	1
10	816514	火花控制轴承	BEARING Spark Control	2
11	826590	防松螺柱(.250-20 x 1.690)	STUD (.250-20 x 1.690) (.250-20 X 1.690) WITH DRI LOK	1
12	824357	空档速度联锁杆	LEVER Neutral Speed Interlock	1
13	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
13	8M0207776	螺母	NUT	1
14	852369	联锁杆	ROD Interlock	1
15	819625	螺钉	SCREW	1
16	F286685	换挡杆连接器	CONNECTOR Gear Shift Rod	1
17	F98273	螺柱	STUD	1
18	855621T	换挡杆(喷漆)	LEVER Gear Shift (PAINTED)	1
19	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
20	F286871T	换挡杆销	PIN Gear Shift Lever	1
21	26841	衬套	BUSHING	4
22	850193	上换挡轴	SHIFT SHAFT Upper	1
23	F1976	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
24	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
25	39627	弹簧	SPRING	1
26	824994	板簧	SPRING Plate	1
27	850388	换挡杆连杆	LINK Shift Lever	1
28	F8048	弓形垫圈	WASHER Bowed	1
29	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	1
30	F8058	锁紧垫圈	LOCKWASHER	1
31	850386	换挡手柄轴	SHAFT Shift Handle	1
32	850387A1	定位凸轮杆总成	LEVER ASSEMBLY Detent Cam	1
33	846345	螺柱(#10-32 x .750)	STUD (#10-32 x .750)	1
34	25905	销	PIN	1
35	42813	螺钉(#10-32 x .380)	SCREW (#10-32 X .380) (#10-32 X .380)	2
36	852545	换挡手柄	HANDLE Shift	1
37	4002314	垫圈	WASHER	1
38	15124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
-	819553A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
-	819553A15	短缸体总成	SHORT BLOCK ASSEMBLY	1

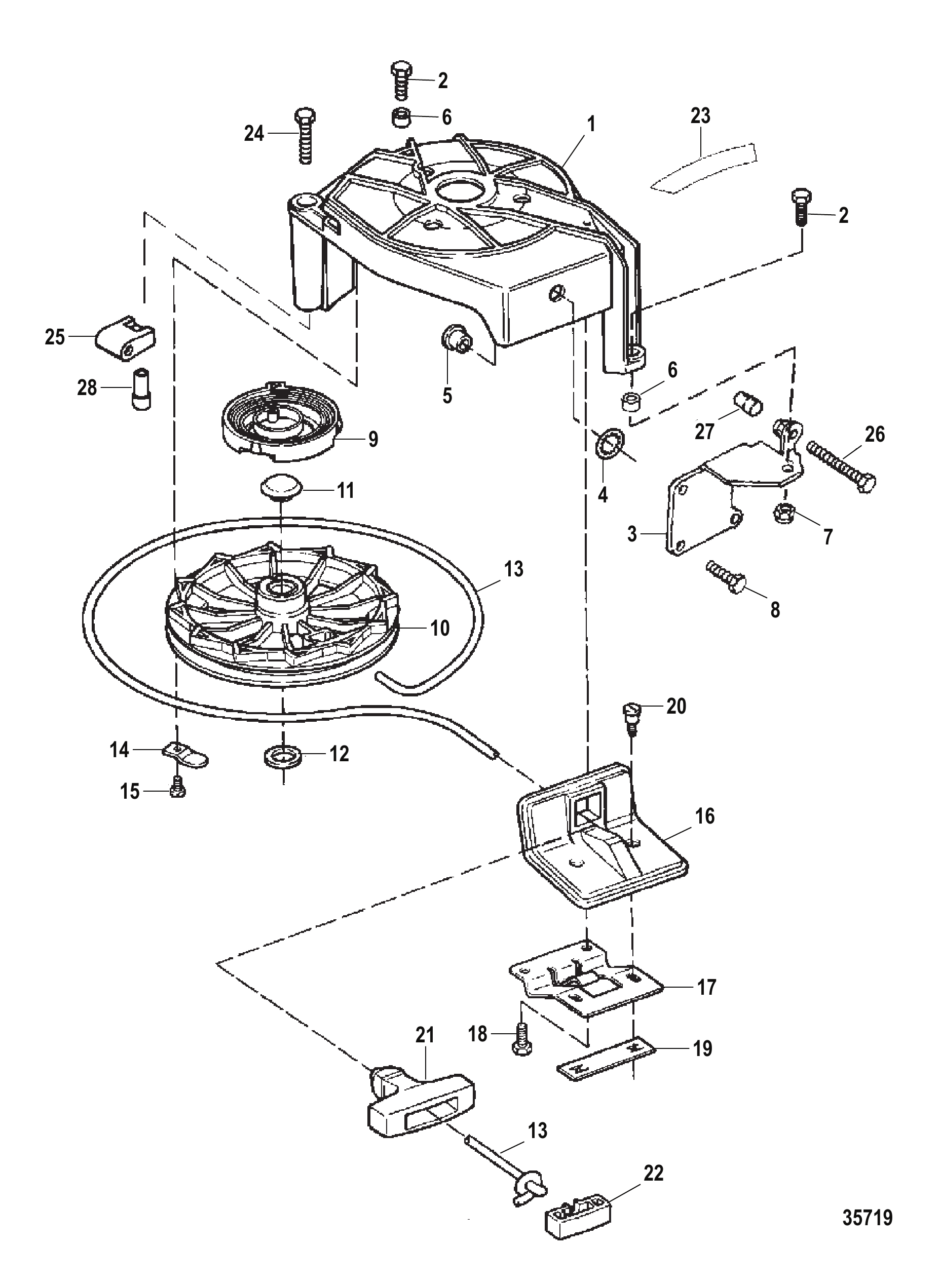

图 14启动机组件 STARTER COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	826693	启动器壳体	HOUSING Starter	1
2	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	2
3	826559A3	启动机壳体支架总成	BRACKET ASSEMBLY Starter Housing	1
4	818853	挡圈	RING Retaining	1
5	F681428	启动绳嵌件	INSERT Starter Rope	1
6	F681405T	启动器外壳嵌件	INSERT Starter Housing	2
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
7	8M0207776	螺母	NUT	1
8	F1922	螺钉(.250-20 x .625)	SCREW (.250-20 x .625) (.250-20 X .625)	4
9	F681970	启动器回位弹簧	SPRING Starter Rewind	1
10	42034A2	启动回绕滑轮总成(带轴承)	PULLEY ASSEMBLY Starter Rewind (WITH BEARING)	1
11	817362	盖帽	CAP	1
12	124941	滑轮轴承密封件	SEAL Pulley Bearing	1
13	12066A12	绳索(64.00/67.00英寸)	ROPE (64.00/67.00 INCHES)	1
13	12066T03	启动拉绳	ROPE-STARTER	1
14	F681592	启动滑轮固定座	RETAINER Starter Pulley	3
15	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	3
16	FA681630T	手柄支撑总成	SUPPORT ASSEMBLY Handle	1
17	F681090	手柄支撑板	PLATE Handle Support	1
18	F2210	螺钉(.250-14 x .500)	SCREW (.250-14 x .500)	2
19	F681874-1	手柄支撑板紧固件	FASTENER Handle Support Plate	1
20	819625	螺钉	SCREW	2
21	F681132	绳索手柄	HANDLE Rope	1
22	F681817	绳索手柄固定座	RETAINER Rope Handle	1
23	825149A1	换至空档贴花套件	DECAL KIT Shift to Neutral	1
24	F2030	螺钉 (.250-20 x 1.250) 不锈钢	SCREW (.250-20 x 1.250) Stainless Steel	1
25	830265	油门线固定座	RETAINER Throttle Cable	1
26	826676	怠速调节螺钉(.250-28 x 2.00)	SCREW (.250-28 x 2.00) (.250-28 X 2.00)-IDLE ADJUST	1
27	26852	尼龙帽	CAP Nylon	1
28	830196	节流电缆固定垫片	SPACER Throttle Cable Retainer	1

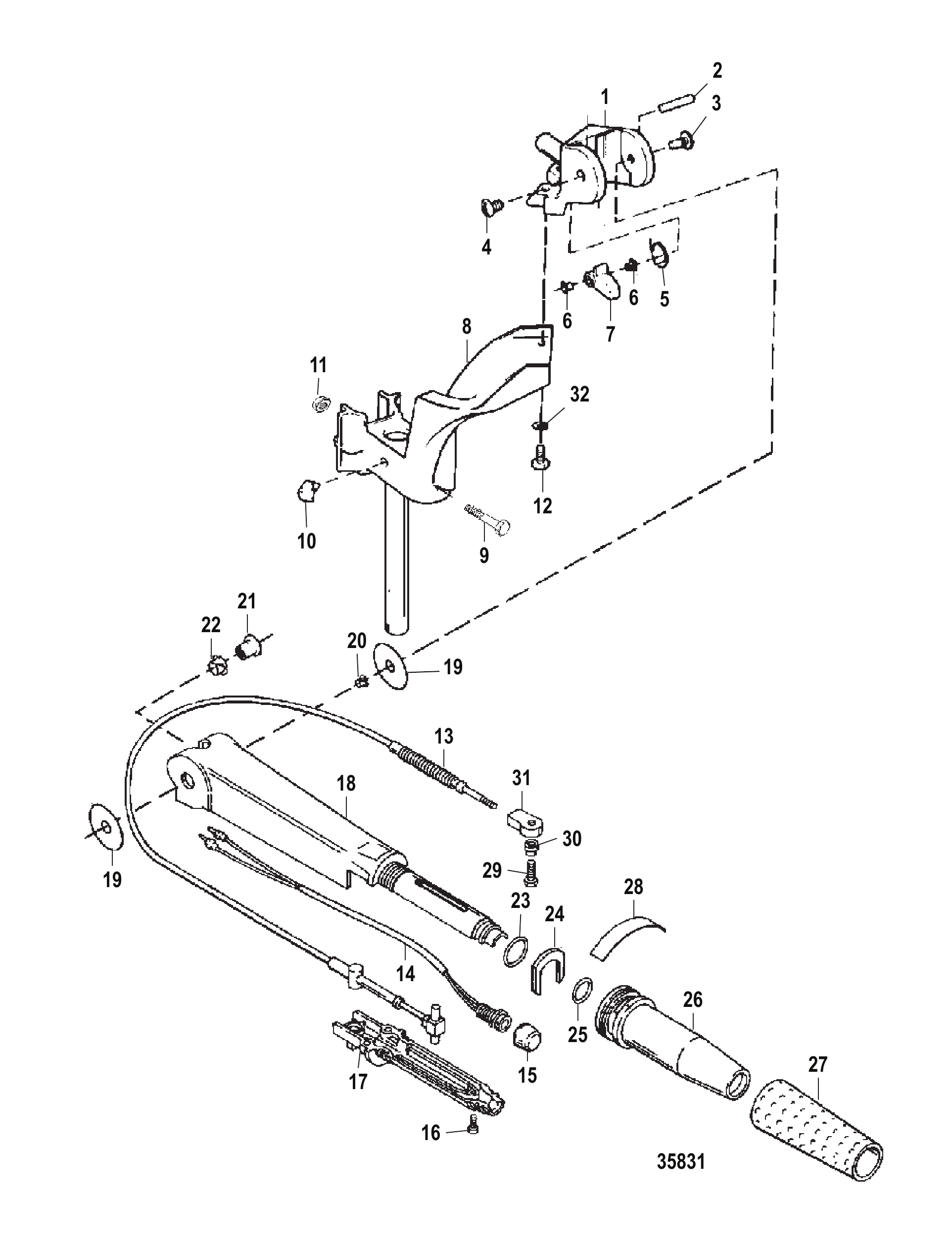

图 15转向手柄/旋转式油门 STEERING HANDLE/TWIST GRIP THROTTLE

REF	零件编号	中文名称	英文名称	数量
1	854730T	转向支架(喷漆)	BRACKET Steering (PAINTED)	1
2	F1807	槽销	PIN Groove	1
3	823595		SCREW (SPECIAL)-STEERING HANDLE PIVOT	1
4	823594		SCREW (SPECIAL)-STEERING HANDLE PIVOT	1
5	F286868	转向把手止动弹簧	SPRING Steering Handle Stop	1
6	26856	衬套	BUSHING	2
7	F286490T	转向把手止动块	STOP Steering Handle	1
8	819914A7	转向摇臂/转管总成(喷漆)	ARM/SWIVEL TUBE ASSEMBLY Steering (PAINTED)	1
9	828815	螺丝(.250-20x1.750)	SCREW (.250-20 x 1.750) (.250-20 X 1.750)	1
10	F286539	缓冲垫	BUMPER	1
11	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
11	8M0207776	螺母	NUT	1
12	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	2
13	826592	油门拉索总成	CABLE ASSEMBLY Throttle	1
14	824440A15	停机开关总成	SWITCH ASSEMBLY Stop	1
15	824466A3	停机开关盖总成	COVER ASSEMBLY Stop Switch	1
16	826575	螺钉(#8-32 x .625)	SCREW (#8-32 x .625) (#8-32 X .625)	3
17	827252	转向臂(下)	ARM Steering (LOWER)	1
17	827252T	下部臂	ARM-LOWER	1
18	826609T1	转向手柄(喷漆)	HANDLE Steering (PAINTED)	1
19	F286220	转向把手垫圈	WASHER Steering Handle	2
20	26856	衬套	BUSHING	1
21	F2862241	转向把手枢轴衬套	INSERT Steering Handle Pivot	1
22	812707	衬套	BUSHING	1
23	21836	O型圈(0.796x0.139)(大)	O-RING (.796 x .139) (LARGE)	1
23	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
24	F702178	握把固定座	RETAINER Grip	1
25	23145	O型圈(.984 x .139)(小)	O-RING (.984 x .139) (SMALL)	1
26	828070	转向手柄握把	GRIP Steering Handle	1
27	828406	油门/转向把手握把	GRIP Throttle/Steering Handle	1
28	F712894	速度/档位指示标贴	DECAL Speed/Shift Indicator	1
29	824352	螺钉(#10-24 x .375)	SCREW (#10-24 x .375) (#10-24 X .375)	1
30	826591	衬套	BUSHING	1
31	816514	火花控制轴承	BEARING Spark Control	1
32	72521	内齿锁紧垫圈(.312内径)	LOCKWASHER Internal Tooth (.312 INTERNAL)	2

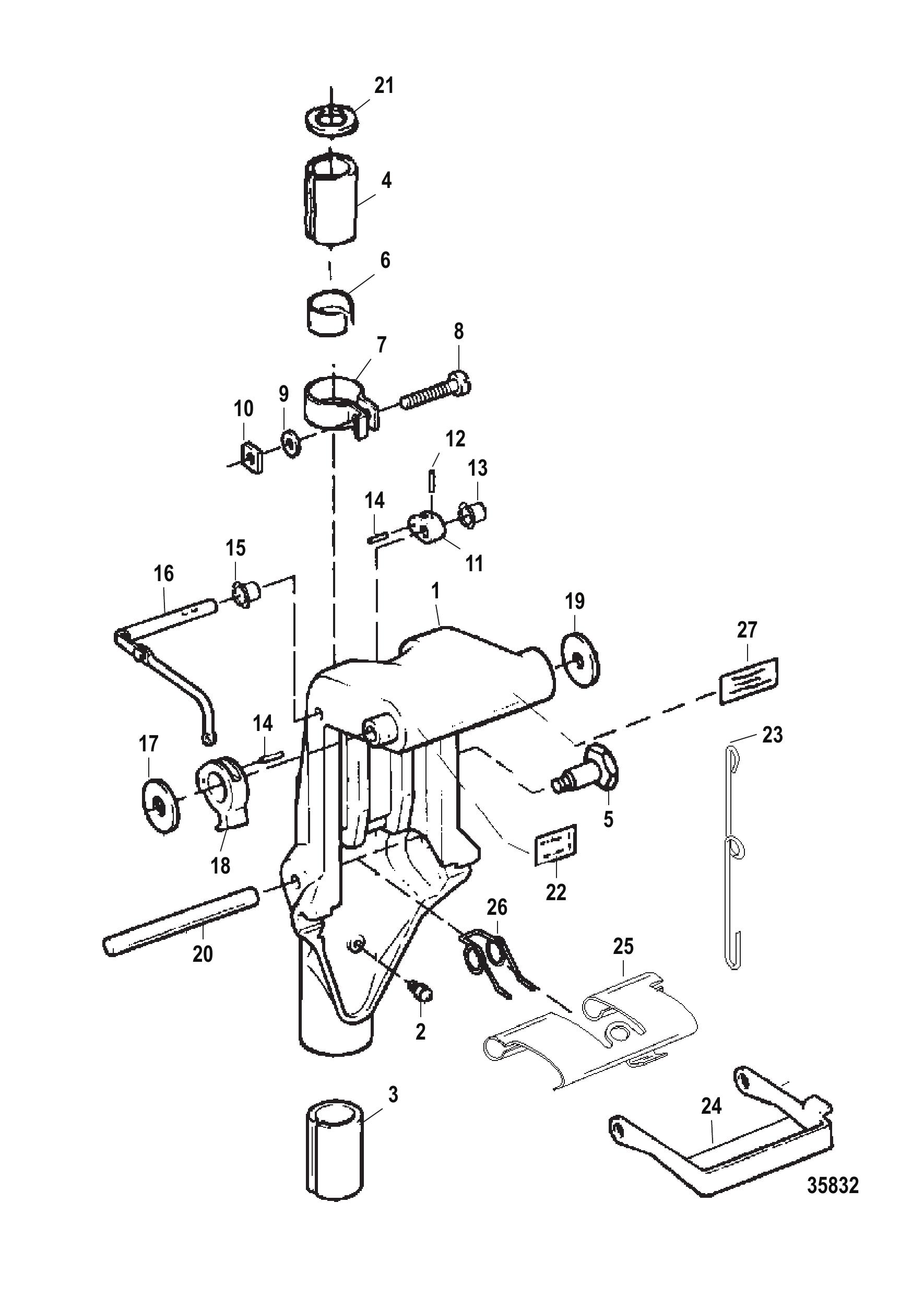

图 16旋转支架组件 SWIVEL BRACKET COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	819339A8	旋转支架套件(喷漆)	SWIVEL BRACKET KIT (PAINTED)	1
2	F213274	接头	FITTING	2
3	F286169	轴承	BEARING	1
4	F681169	轴承	BEARING	1
5	819707	倾斜锁定销	PIN Tilt Lock	1
6	F681631	摩擦块	SHOE Friction	1
7	F286573-1	转向摩擦夹	CLAMP Steering Friction	1
8	F1820	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
9	12038	垫圈	WASHER	1
9	8M0207778	垫圈（0.344×0.625×0.063英寸）	WASHER .344 x .625 x.063	1
10	F1608	螺母(.250-20)	NUT (.250-20) (.250-20)	1
11	F286364T	倒车锁杆	LEVER Reverse Lock	1
12	F8538	弹簧销	PIN Spring	1
13	26856	衬套	BUSHING	1
14	F1794	弹簧销	PIN Spring	2
15	F536813	衬套	BUSHING	1
16	820095A2	倒挡锁中间杆总成	LEVER ASSEMBLY Reverse Lock Intermediate	1
17	F2037	垫圈	WASHER	1
18	F286827	倒挡锁释放杆	LEVER Reverse Lock Release	1
19	F286286-1	垫圈	WASHER	1
20	F1806	槽销	PIN Groove	1
21	F286011	旋转支架垫圈	WASHER Swivel Bracket	1
22	8302531	倾斜释放标贴	DECAL Tilt Release	1
23	852528	倒挡锁连杆	LINK Reverse Lock Lever	1
24	8301111	浅水驱动支架	BRACKET Shallow Water Drive	1
25	850259	倒车锁	LOCK Reverse	1
26	F286300	倒挡锁弹簧	SPRING Reverse Lock	1
27	8180291	燃油混合比标贴	DECAL Fuel Mix	1
