水星 Mercury 25 HP 225.592500 THRU 225.592590 - 爆炸图零件明细

Sears 系列 · USA - Cat.# 90-854731 · 共 16 个部位 · 506 条零件

1化油器 2夹紧支架 3外罩总成（顶部与底部）4曲轴和活塞 5气缸体总成 6燃油系统 7燃油箱与管路总成(6.6加仑)8齿轮箱总成(驱动轴)9齿轮箱总成(螺旋桨轴)10点火系统 11簧片阀板/歧管总成 12维修/支撑材料 13换挡连杆 14启动机回绕组件 15旋转支架与驱动轴壳体 16舵柄手柄与油门联动装置

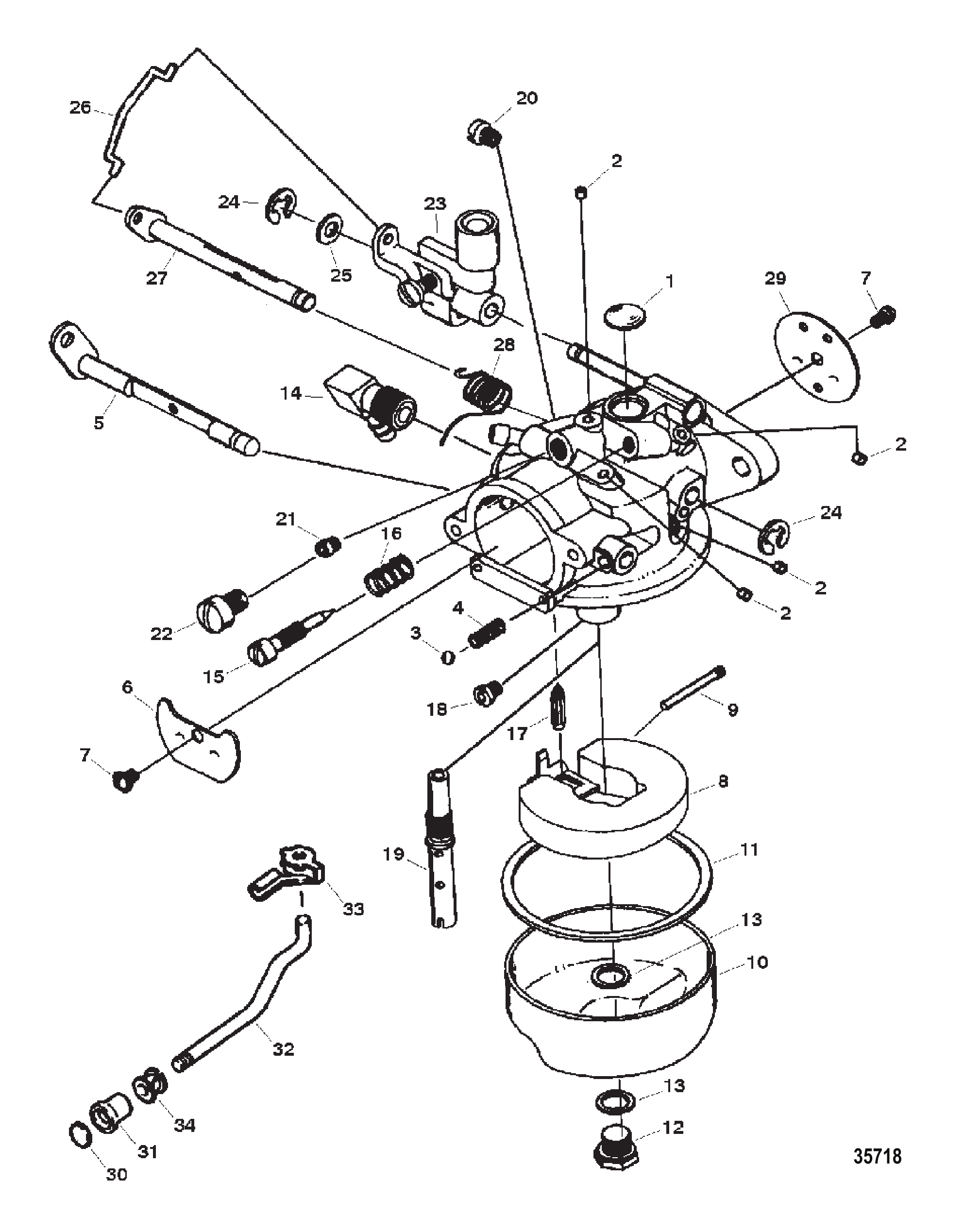

图 1化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
-	852550A1	化油器(FO-1D)	CARBURETOR (FO-1D)	1
1	FO16128	旁通室塞	PLUG By Pass Chamber	1
2	NSS		NOT SOLD SEPARATE BALL, Body Channel Plug	4
3	FO4784	阻风门摩擦球	BALL Choke Friction	1
4	FO8805	阻风门摩擦弹簧	SPRING Choke Friction	1
5	F10343	阻风门轴	SHAFT Choke	1
6	F10344	阻风门片	SHUTTER Choke	1
7	809441	百叶窗螺钉	SCREW Shutters	2
8	F10346	燃油杯浮子	FLOAT Fuel Bowl	1
8	891730A01	浮子套件	FLOAT KIT	1
9	FO13944	浮子销	PIN Float	1
10	FO15366	燃油杯	BOWL Fuel	1
11	FO15623	燃油杯衬垫	GASKET Fuel Bowl	1
12	5128	燃油杯螺钉	SCREW Fuel Bowl	1
13	FO2510	燃油杯衬垫	GASKET Fuel Bowl	2
14	854005	燃油弯头	ELBOW Fuel	1
15	F10268	怠速混合气螺钉	SCREW Idle Mixture	1
16	27160	怠速混合气螺钉弹簧	SPRING Idle Mixture Screw	1
17	F10265	进油针阀	NEEDLE Inlet	1
18	6030	主量孔(.070)(0-2500英尺)	JET (.070) Main (0 - 2500 Ft.)	1
18	6029	主量孔(.068)(2500-5000英尺)	JET (.068) Main (2500 - 5000 Ft.)	OPT
18	4215	主燃油喷嘴(.066)(5000-7500英尺)	JET Main Fuel (.066) Main (5000 - 7500 Ft.)	OPT
18	4216	主量孔(.064)(7500-10000英尺)	JET (.064) Main (7500 - 10000 Ft.)	OPT
19	FO15722	主喷嘴	NOZZLE Main	1
20	820578	怠速空气量孔(.048)	JET (.048)-Idle Air Bleed	1
21	F10273		JET (.047) Throttle	1
22	F10275	节气门量孔密封螺钉	SCREW Throttle Jet Sealing	1
23	F10290	节气门连杆	LINKAGE Throttle	1
24	809446	节气门连杆E型环	E-RING Throttle Linkage	2
25	F10242	节气门连杆轴垫圈	WASHER Throttle Linkage Shaft	1
26	809443	节气门轴钢丝	WIRE Throttle Shaft	1
27	F10349	油门轴	SHAFT Throttle	1
28	F10350	节气门轴弹簧	SPRING Throttle Shaft	1
29	F10351	节气门片	SHUTTER Throttle	1
30	F681677	阻风门杆衬套	INSERT Choke Rod	1
31	F286547	阻风门旋钮	KNOB Choke	1
32	819348	阻风门拉杆	ROD Choke	1
33	830569	阻风门杆固定座	RETAINER Choke Rod	1
34	F197319	阻风门杆衬套	BUSHING Choke Rod	1
-	FK10352	化油器衬垫组	GASKET SET Carburetor	1
-	854219A1	化油器维修套件	REPAIR KIT Carburetor	1

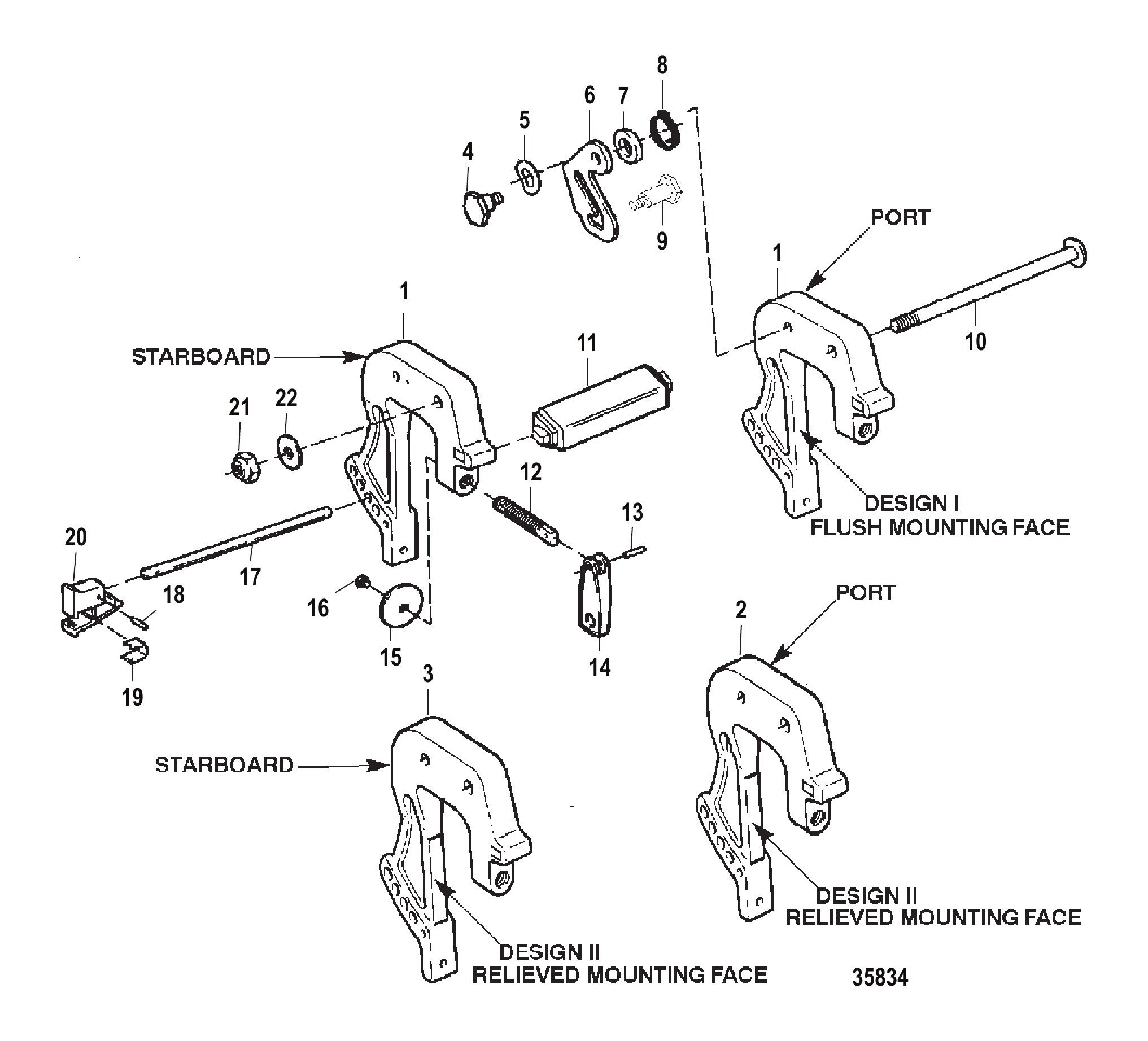

图 2夹紧支架 Clamp Brackets

REF	零件编号	中文名称	英文名称	数量
1	830295T1	艉支架(左右舷)(喷漆)	BRACKET Stern (Port & Starboard)(Painted)	2
1	850073T7	艉支架	BRACKET Stern	2
2	850073T6	艉支架(左舷)(喷漆)	BRACKET Stern (Port)(Painted)	1
3	850073T7	艉支架(右舷)(喷漆)	BRACKET Stern (Starboard)(Painted)	1
4	826248	艉支架专用螺钉	SCREW Stern Bracket Special)	2
5	F24074	艉支架地脚螺钉	FOOT Stern Bracket Screw	2
6	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
7	F424075T3		HANDLE Clamp Screw (Painted)	2
8	24198	滚动销	PIN Roll	2
9	830564	搬运手柄	HANDLE Carrying	1
10	851924A2	倾斜销总成-艉支架	PIN ASSEMBLY Tilt - Stern Bracket	1
11	851929	锁杆手柄	HANDLE Lock Bar	1
12	38489	滚动销	PIN Roll	1
13	F286461	倾斜销弹簧	SPRING Tilt Pin	1
14	F286422-1	螺钉(.312-18专用)	SCREW (.312-18 Special) (.312-18 Special)	1
15	819226	倾斜锁隔套	SPACER Tilt Lock	1
16	F429541	倾斜锁	LOCK Tilt	1
17	69150	波形垫圈	WAVE WASHER	1
18	F286544-1	倾斜锁弹簧	SPRING Tilt Lock	1
19	F617037	螺栓(.375-16x6.880)-艉支架枢轴	BOLT (.375-16 x 6.880) (.375-16 x 6.880)-Stern Bracket Pivot	1
20	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	1
21	F7026	螺母（0.375-16）	NUT (.375-16) (.375-16)	1
22	819707	倾斜锁销（0.250-20）	PIN Tilt Lock (.250-20)	1

图 3外罩总成（顶部与底部） Cowl Assembly Top and Bottom

REF	零件编号	中文名称	英文名称	数量
1	820154A9	顶盖总成	TOP COWL ASSEMBLY	1
1	820154A8	顶盖总成	TOP COWL ASSEMBLY	1
2	F2211	不锈钢螺钉(#10-24 x .625)	SCREW (#10-24 x .625) Stainless Steel	4
3	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	4
4	F681269	倾斜手柄	HANDLE Tilt	1
5	F8143	垫圈	WASHER	4
6	F7009	螺母(#10-24)	NUT (#10-24)	4
7	F681026	锁扣滚轮螺钉	SCREW Latch Roller	1
8	F681759	锁扣滚轮	ROLLER Latch	1
9	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
9	8M0207776	螺母	NUT	1
10	82634213	后部标贴	DECAL (REAR)	1
11	82634211	右舷标贴	DECAL (STARBOARD)	1
11	82634212	左舷标贴	DECAL (PORT)	1
12	82408812	换挡贴花	DECAL Shift	1
13	8263425	前部标贴-启动说明	DECAL (FRONT)-Starter Instructions	1
14	835495A3	下罩总成(喷漆)	BOTTOM COWL ASSEMBLY (Painted)	1
15	F392756	下罩顶部密封条(4.075英尺卷材)(裁切3.783英尺)	SEAL Top Of Bottom Cowl (4.075 Ft. Bulk) (Cut 3.783 Ft)	1
16	8192813	下罩前板	PLATE Front - Bottom Cowl	1
17	18202	燃油连接器衬套	GROMMET Fuel Connector	1
18	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
18	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
19	15781A5	燃油接头(黄铜)	CONNECTOR Fuel - Brass	1
19	8M0182334	燃油接头	CONNECTOR FUEL	1
20	47579	堵头	PLUG	1
21	819486	底罩密封条	SEAL Bottom Cowl	1
22	935271	控制线束护圈	GROMMET Control Cable	1
22	93527002	护孔环	GROMMET	1
23	854239A1	罩锁手柄总成(喷漆)	HANDLE ASSEMBLY Cowl Latch (Painted)	1
24	812707	衬套	BUSHING	2
25	F2047	波形垫圈	WASHER Wave	1
26	F481777	凸轮锁轴	CAM Latch Shaft	1
26	8M0001081	凸轮	CAM	1
27	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	1
28	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
29	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
30	855600	零件手册9.9马力西尔斯	PARTS MANUAL 9.9 Hp Sears	1
31	85557736	EPA标签标贴(贴于上罩内侧)	DECAL EPA Label Information (Applied Inside The Top Cowl)	1

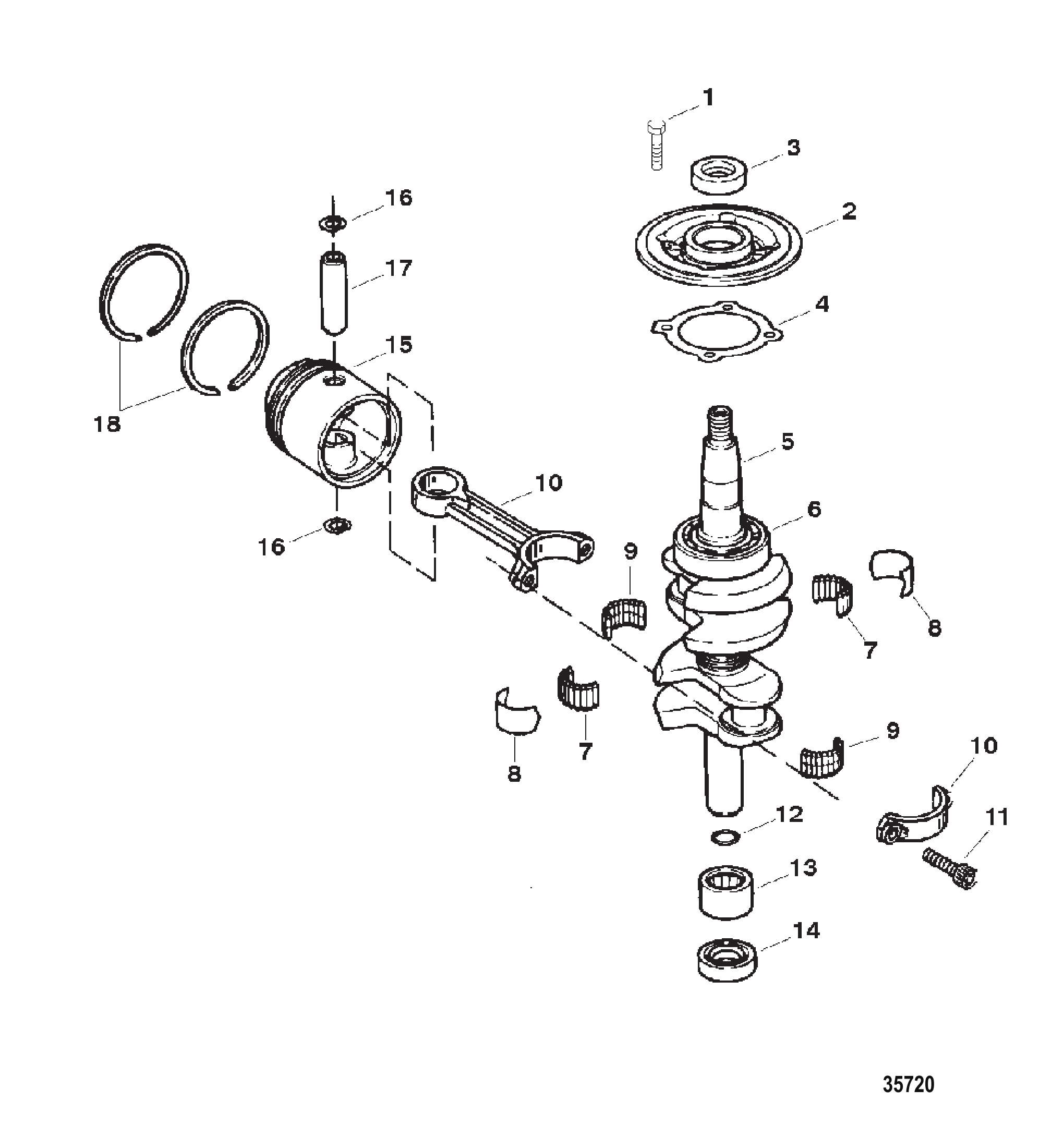

图 4曲轴和活塞 Crankshaft and Piston

REF	零件编号	中文名称	英文名称	数量
1	F1914	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
2	817753A1	曲轴轴承保持架总成	CAGE ASSEMBLY Crankshaft Bearing	1
3	819801	曲轴上密封	SEAL Upper - Crankshaft	1
4	F286277	曲轴轴承保持架垫片	GASKET Crankshaft Bearing Cage	1
5	819803A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
6	F286028	滚珠轴承	BEARING Ball	1
7	F286571	滚柱套装(26件/套)	ROLLER SET (26 Per Set)	1
8	FA286155	中央主轴承衬套组	LINER SET Center Main Bearing	1
9	FA712228	滚柱组(2条-28件/条)	ROLLER SET (2 Strips-28 Per)	2
10	FS715016	连杆总成	CONNECTING ROD ASSEMBLY	2
11	F175634	螺钉	SCREW	4
12	32509	O型圈(.489x.070)	O-RING (.489 x .070)	1
13	F343014	曲轴下主轴承	BEARING Crankshaft Lower Main	1
14	819396	曲轴下端密封	SEAL Crankshaft Lower	1
15	819946A3	活塞套件	PISTON KIT	2
16	F31410	挡圈	RING Retaining	4
17	F712017	活塞销	PIN Piston	2
18	820484A1	活塞环组(2环)	RING SET Piston (2 Rings)	2
-	FG1036	短缸体垫片组	GASKET SET Short Block	1
-	819553A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
-	819553A15	短缸体总成	SHORT BLOCK ASSEMBLY	1

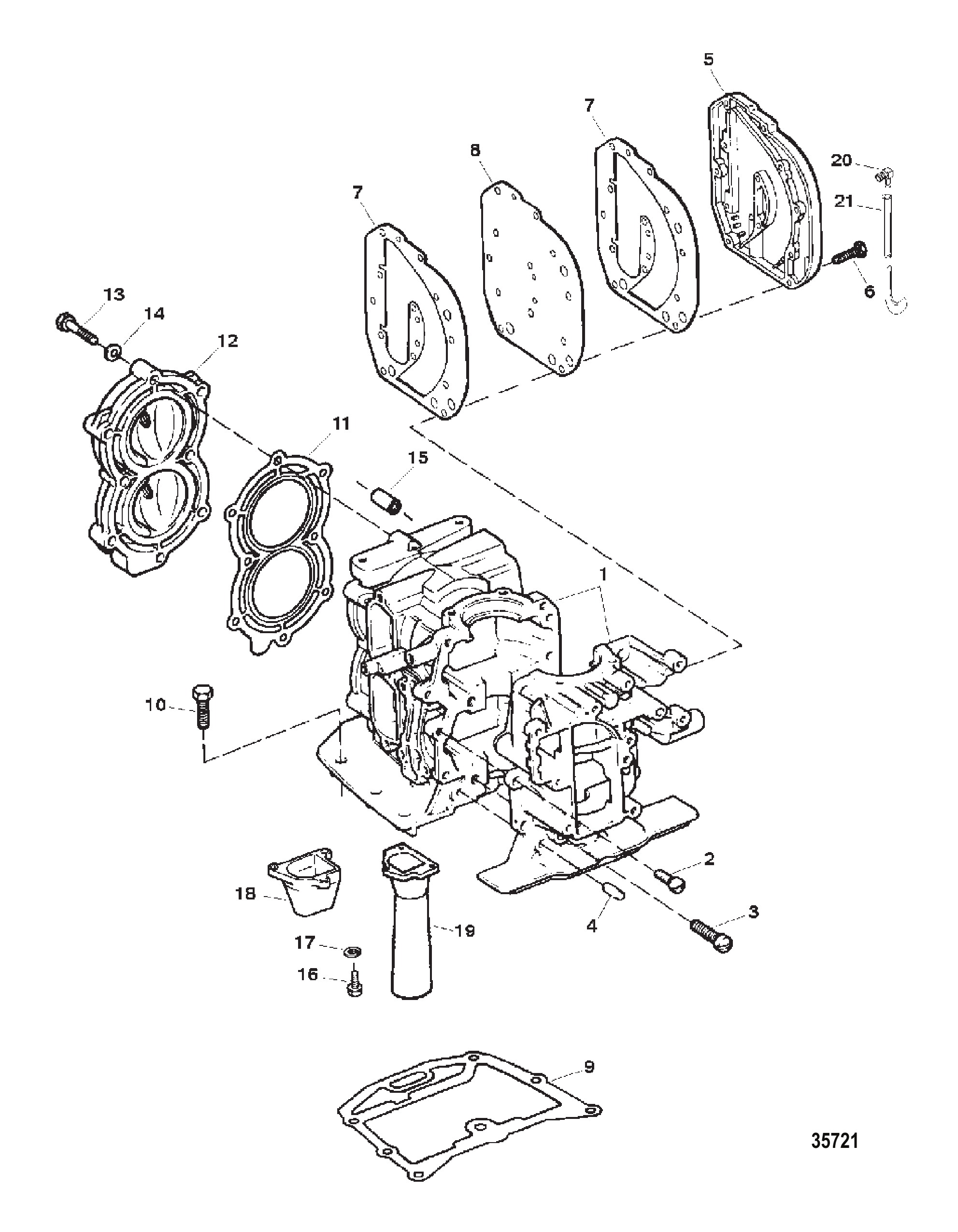

图 5气缸体总成 Cylinder Block Assembly

REF	零件编号	中文名称	英文名称	数量
1	819553A15	短缸体总成(喷漆)	SHORT BLOCK ASSEMBLY (Painted)	1
1	819553A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	F1107	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	8
3	F1335	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
4	F8559	定位销	PIN Dowel	2
5	824141T1		COVER KIT Exhaust (Painted)	1
6	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	12
7	F715154	排气口盖垫片	GASKET Exhaust Port Cover	2
8	F715151	排气板	PLATE Exhaust	1
9	853957	气缸安装垫片	GASKET Cylinder Mounting	1
10	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
11	F286529-3	衬垫	GASKET	1
12	F703518T1	气缸盖(喷漆)	CYLINDER HEAD (Painted)	1
13	F901938-1		SCREW (.250-20 x .875) Cylinder Head	8
14	37998	垫圈	WASHER	8
15	F715943	气缸水套管	TUBE Cylinder Water Jacket	1
16	FG1036	短缸体垫片组	GASKET SET Short Block	1
17	F4876601	排气管	TUBE Exhaust	1
18	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	3
19	F2008	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	3
20	88780		ELBOW Tell-Tale Tubing (90 Degree)	1
20	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	1
21	5495025	管材(25英尺卷材)(裁切8英寸)	TUBING (25.00 Feet Bulk) (Cut 8.00 In.)	1
21	5495053	管材(53英尺散装)	TUBING (53.00 Feet Bulk)	1
-	FG1036	短缸体垫片组	GASKET SET Short Block	1
-	819553A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
-	819553A15	短缸体总成	SHORT BLOCK ASSEMBLY	1

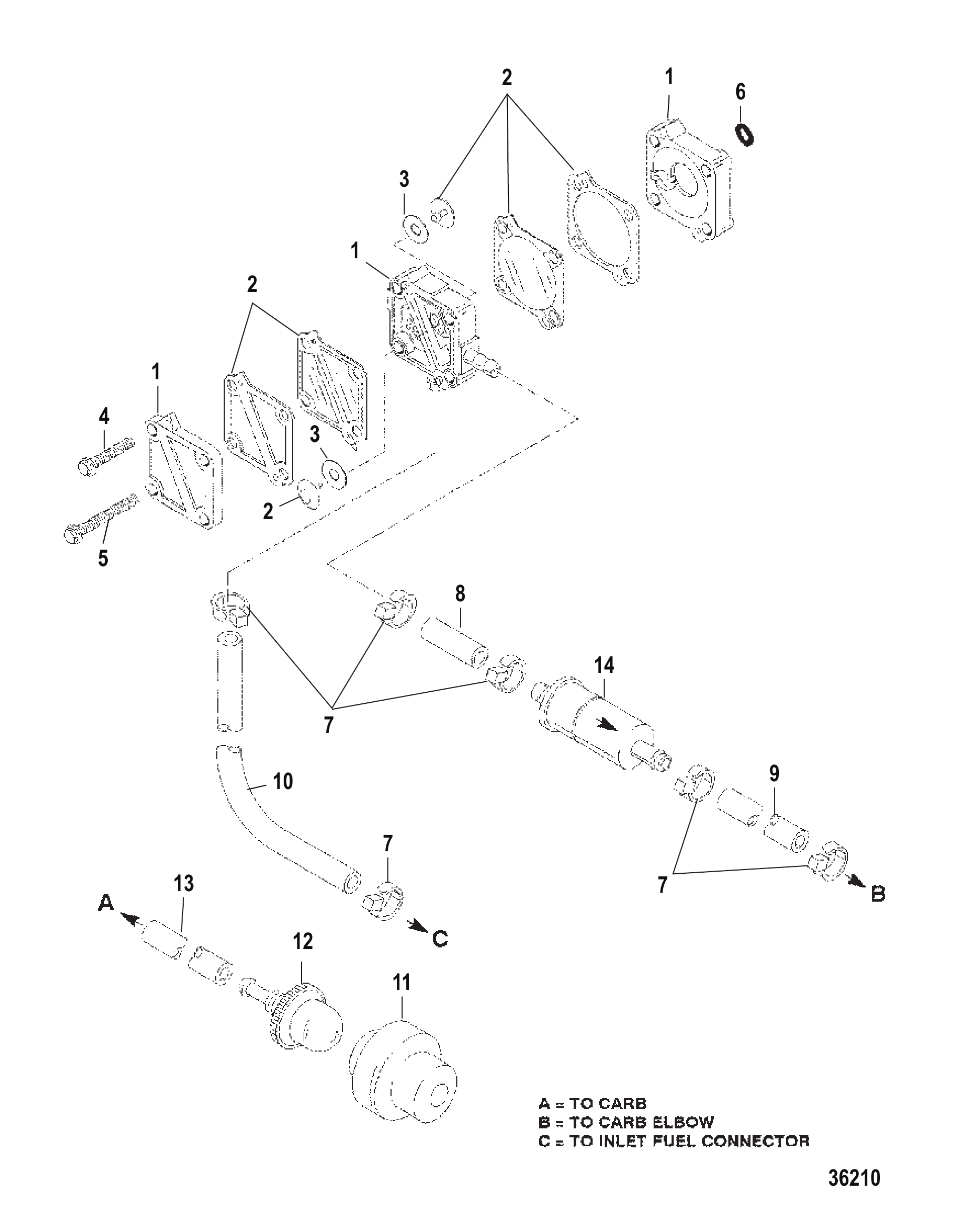

图 6燃油系统 Fuel System

REF	零件编号	中文名称	英文名称	数量
1	8192131	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	820748A1	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE WASHER	2
4	820749	螺钉(#10-24 X 1.250)	SCREW (#10-24 X 1.250)	2
5	819499	螺钉(#10-24 X 1.625)	SCREW (#10-24 X 1.625)	2
6	38933	O型圈	O-RING	1
7	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
8	819398T	软管	HOSE	1
9	819398T	软管	HOSE	1
10	819398T	软管	HOSE	1
11	851934	注油泵盖	COVER Primer Bulb	1
12	F681046	注油泵球	BULB Primer	1
13	819398T	软管	HOSE	1
14	816296	燃油滤清器	FILTER Fuel	1
14	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
-	809516A1	动力头衬垫套件	GASKET SET Powerhead	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

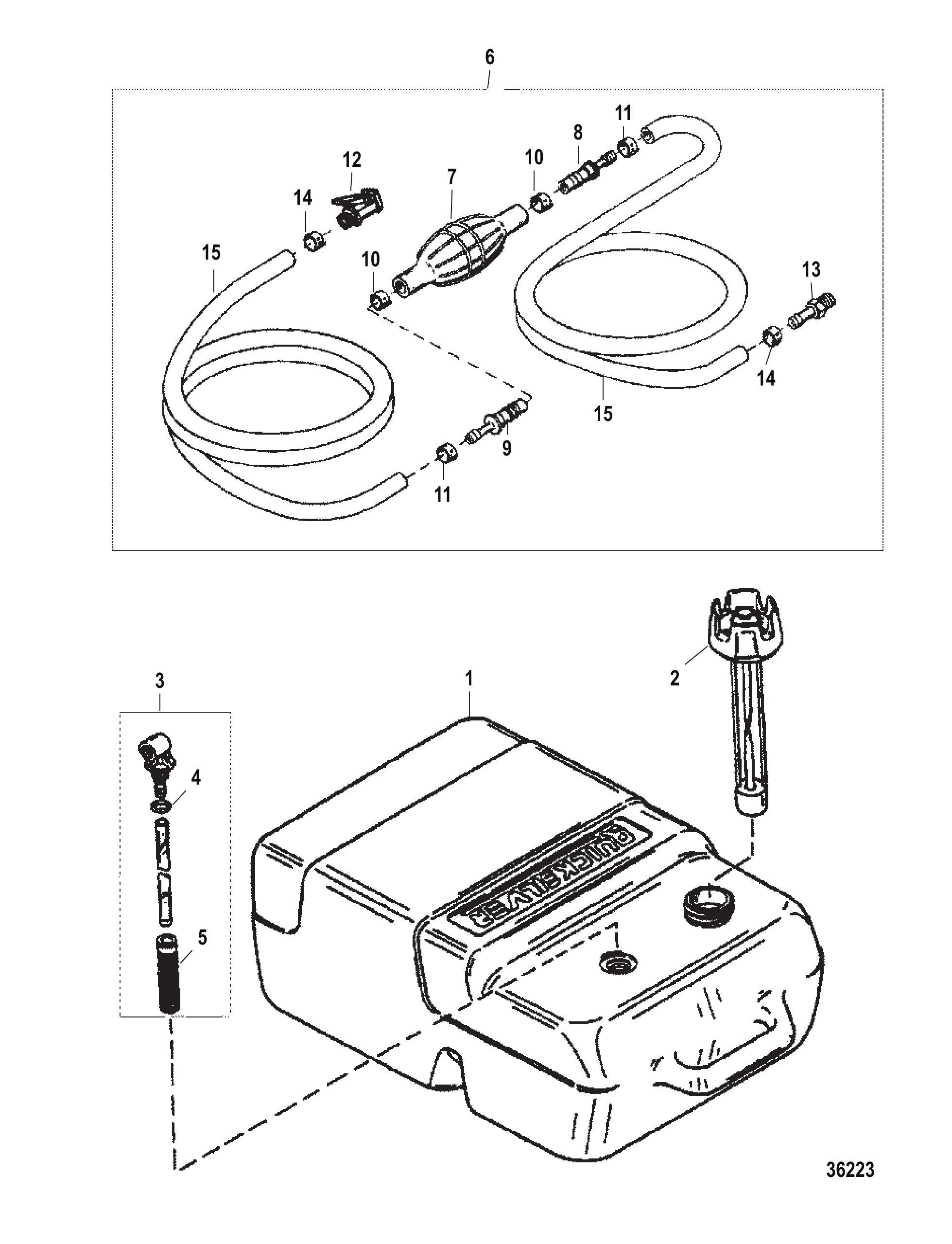

图 7燃油箱与管路总成(6.6加仑) Fuel Tank and Line Assembly (6.6 Gallon)

REF	零件编号	中文名称	英文名称	数量
1	823504A1	燃油箱总成-塑料6.6加仑	TANK ASSEMBLY Fuel - Plastic 6.6 Gallon	1
2	823536	油量表/油箱盖总成	GAUGE/CAP ASSEMBLY	1
2	816976Q1	燃油手动通气盖总成	CAP ASSEMBLY Fuel-Manual Vent	1
3	823532A1	燃油连接套件	CONNECTOR KIT Fuel	1
3	8M0175545	燃油连接套件 6.6	CONN KIT FUEL 6.6	1
4	823533	O型圈	O-RING	1
5	823534	滤网	SCREEN	1
6	17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
6	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
7	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
7	13330Q07	注油泵总成 - Quicksilver品牌	BULB ASSEMBLY Primer - Quicksilver Brand	1
8	13331A1		CHECK VALVE ASSEMBLY (INLET)	1
8	13331A3	止回阀总成	CHECK VALVE ASSEMBLY	1
9	13331A2		CHECK VALVE ASSEMBLY (OUTLET)	1
9	13331A4	止回阀总成	CHECK VALVE ASSEMBLY	1
10	4158210		CLAMP Nylon (LARGE)	2
11	415827		CLAMP Nylon (SMALL)	2
11	41582Q7	卡箍	CLAMP	2
12	13563A3	燃油管接头总成	FITTING ASSEMBLY Fuel Line	1
12	13563Q3	发动机端快速接头(水星)	QUICK DISCONNECT Engine End (Quicksilver)	1
13	897711	连接器(.250-18)	CONNECTOR (.250-18)	1
13	89771Q2	连接器(.250-18)	CONNECTOR (.250-18)	1
14	415827		CLAMP Nylon (SMALL)	2
14	41582Q7	卡箍	CLAMP	2
15	1678978	软管(9.00英尺整卷)	HOSE (9.00 Feet Bulk)	AR
15	85861079	软管(9.00英尺整卷)	HOSE (9.00 Feet Bulk)	AR
15	16789100	软管(100.00英尺整卷)	HOSE (100.00 Feet Bulk)	AR
15	858610100	软管(100.00英尺整卷)	HOSE (100.00 Feet Bulk)	AR

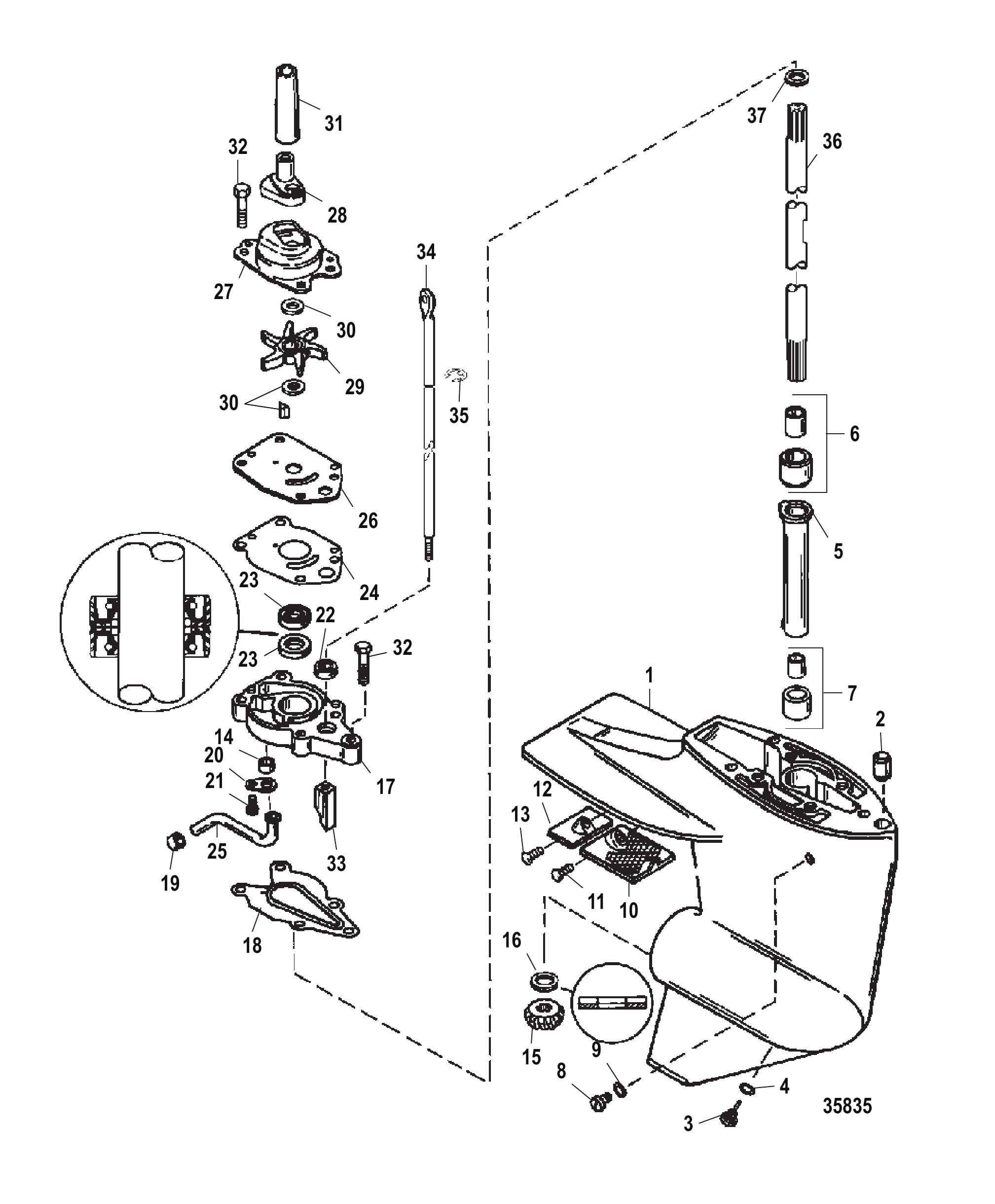

图 8齿轮箱总成(驱动轴) Gear Housing Assembly (Driveshaft)

REF	零件编号	中文名称	英文名称	数量
1	8833A30	齿轮箱总成(完整)(喷漆)	GEAR HOUSING ASSEMBLY (COMPLETE) (Painted)	1
1	8833A31	齿轮箱总成(完整)(喷漆)	GEAR HOUSING ASSEMBLY (COMPLETE) (Painted)	1
1	8833A29	齿轮箱总成(基础)(喷漆)	GEAR HOUSING ASSEMBLY (BASIC) (Painted)	1
2	12009	衬套 (0.31 x 0.45 x 0.50)	BUSHING (.31 x .45 x .50)	1
3	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
3	8M0058389	放油螺钉套件	SCREW KIT Drain	1
4	19183	纤维垫圈	WASHER Fiber	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	42086T	套筒	SLEEVE	1
6	850197A1	上套筒总成	SLEEVE ASSEMBLY Upper	1
7	850198A1	下套筒总成	SLEEVE ASSEMBLY Lower	1
8	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	19183	纤维垫圈	WASHER Fiber	1
9	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
10	421991	滤网	SCREEN	1
11	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
12	42121A2	阳极总成	ANODE ASSEMBLY	1
12	42121Q02	铝阳极@2	ANODE(ALUM) @2	1
13	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
14	42133	密封件	SEAL	1
15	8219251	小齿轮-13-26	GEAR Pinion - 13-26	1
16	41369	止推垫圈	WASHER Thrust	1
17	42040A5	水泵底座总成	BASE ASSEMBLY Water Pump	1
17	42040T5	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	192042	水泵底座衬垫	GASKET Water Pump Base	1
18	192043	衬垫	GASKET	1
19	33613	进水管密封	SEAL Water Inlet Tube	1
20	42375	水管固定座	RETAINER Water Tube	1
21	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
22	822236	四角密封环	QUAD RING	1
23	413651	油封	SEAL Oil	2
24	19202	水泵板衬垫	GASKET Water Pump Plate	1
24	19202001	衬垫	GASKET	1
25	42185A1	水管总成(含#14和#20)	TUBE ASSEMBLY Water (Includes #14 & #20)	1
26	42200	面板	FACE PLATE	1
27	42089A2		COVER ASSEMBLY (With Insert)	1
28	421021	密封件	SEAL	1
29	420382	叶轮	IMPELLER	1
29	42038Q02	叶轮	IMPELLER	1
30	42376A2		KEY ASSEMBLY (With Two Washers)	1
30	8M0173458	叶轮键	KEY IMPELLER	1
31	444671	水管导向器	GUIDE Water Tube	1
32	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	5
33	42039	换档凸轮	CAM Shift	1
34	850191	下换挡轴	SHIFT SHAFT Lower	1
34	850199	下换挡轴	SHIFT SHAFT Lower	1
35	42389	E型挡圈	E RING Retaining	1
36	850192	驱动轴	DRIVESHAFT	1
36	850201	驱动轴	DRIVESHAFT	1
37	822248	止推垫片	THRUST WASHER	1
-	41365A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	42089A5	水泵套件	PUMP KIT Water	1

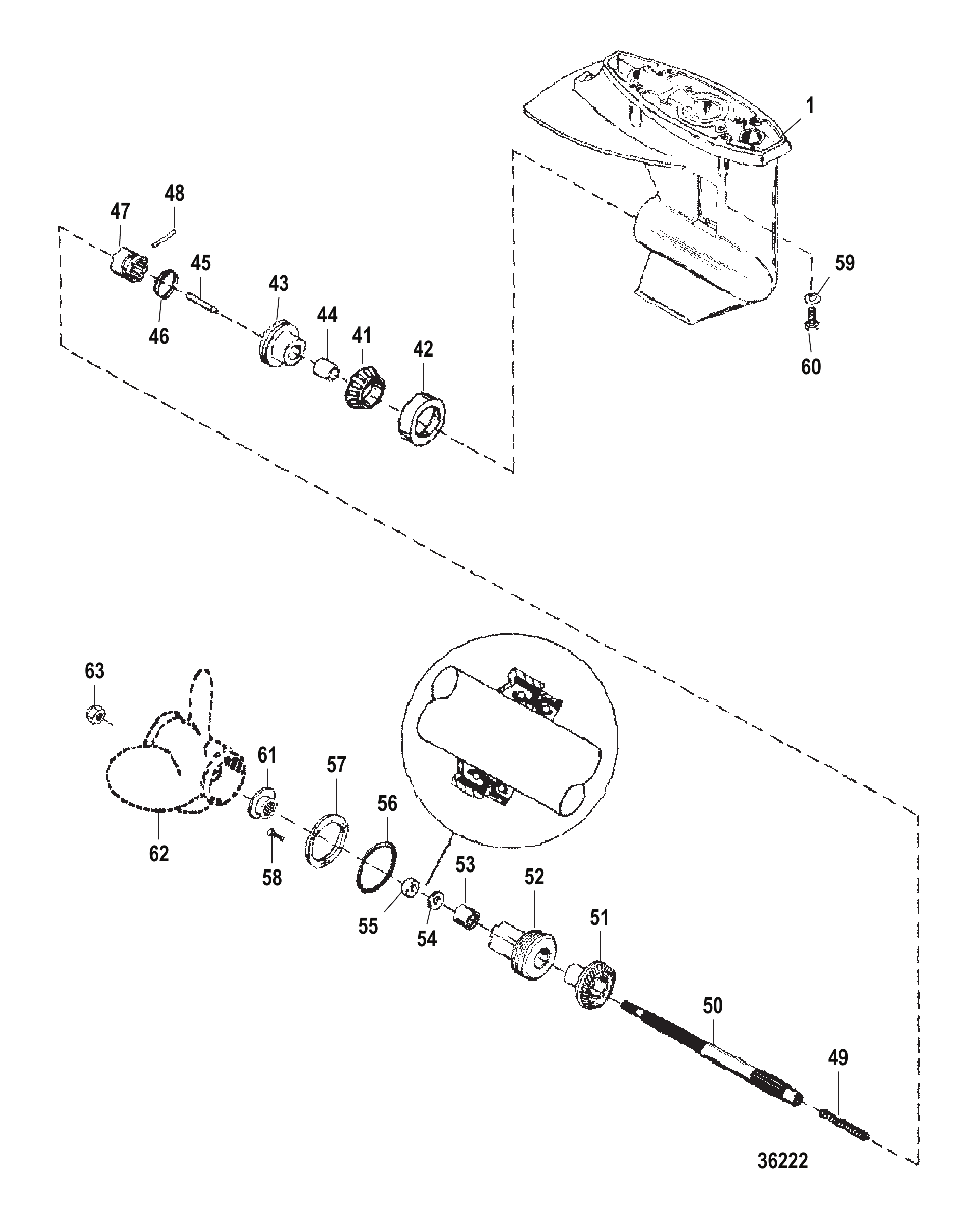

图 9齿轮箱总成(螺旋桨轴) Gear Housing Assembly (Propeller Shaft)

REF	零件编号	中文名称	英文名称	数量
1	8669A40	齿轮箱总成(喷漆)	GEAR HOUSING ASSEMBLY (PAINTED)	1
1	8669A41	齿轮箱总成(喷漆)	GEAR HOUSING ASSEMBLY (PAINTED)	1
1	8669A39	齿轮箱总成(喷漆)	GEAR HOUSING ASSEMBLY (PAINTED)	1
41	99328A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
41	8M0103470	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
42	NSS	滚子轴承杯(不单独销售)	NOT SOLD SEPARATE CUP, ROLLER BEARING	1
43	44213A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
43	44213T1	前进齿轮	GEAR Forward	1
44	85557	衬套	BUSHING	1
45	85094	凸轮从动件	FOLLOWER Cam	1
46	38114	弹簧	SPRING	1
47	410401	离合器	CLUTCH	1
47	41040T1	离合器	CLUTCH	1
48	85093	销	PIN	1
48	8M0020999	十字销	PIN CROSS	1
49	88680	弹簧	SPRING	1
50	8166231	螺旋桨轴	PROPELLER SHAFT	1
51	99542	倒挡齿轮	GEAR Reverse	1
51	99542T	倒挡齿轮	GEAR Reverse	1
52	99906A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	99906T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	21739	滚柱轴承	BEARING Roller	1
54	41132	油封(内)	SEAL Oil (INNER)	1
55	41131	油封(外)	SEAL Oil (OUTER)	1
55	8M0245761	油封	SEAL OIL	1
56	85549	O型圈	O-RING	1
57	87293	安装板	PLATE	1
58	90883	螺钉(M5 x 16)专用	SCREW (M5 x 16) SPECIAL	3
59	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	4
59	8M0214963	垫圈	WASHER	4
60	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	4
61	8M0027793	轮毂	HUB	1
61	858498	推力毂总成	THRUST HUB ASSEMBLY	1
62	19640A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	1
62	19642A40	螺旋桨	PROPELLER	OPT
62	19639A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	OPT
62	19638A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	OPT
62	19636A10	BLACK MAX螺旋桨	BLACK MAX PROPELLER	OPT
62	43592A5	螺旋桨	PROPELLER	OPT
62	43592A61	CII 10.38R18	CII 10.38R18	OPT
62	19644A5	复仇者螺旋桨	VENGEANCE PROPELLER	OPT
63	4011912	螺旋桨螺母(M12)	PROP NUT (M12)	OPT
63	88228	螺旋桨螺母(M12)	PROP NUT (M12)	1
-	85090A2	密封套件	SEAL KIT	1

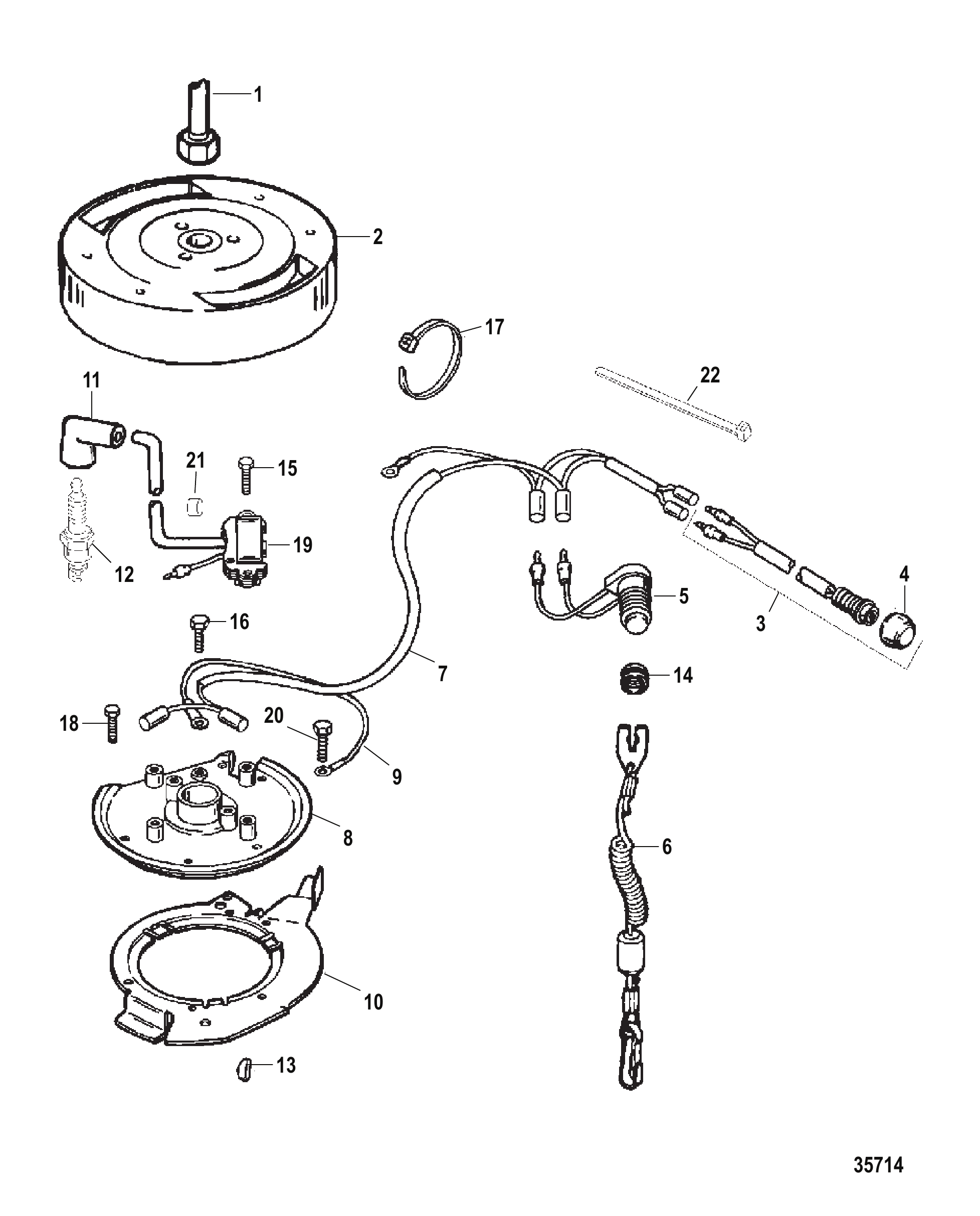

图 10点火系统 Ignition System

REF	零件编号	中文名称	英文名称	数量
1	F681091	飞轮螺母	NUT Flywheel	1
2	824380T4	飞轮(喷漆)	FLYWHEEL (Painted)	1
3	824440A15	停机开关总成	SWITCH ASSEMBLY Stop	1
4	824466A3	停机开关盖总成	COVER ASSEMBLY Stop Switch	1
5	826214A1	紧急停止开关总成	SWITCH ASSEMBLY Emergency Stop	1
6	819399A1	拉绳总成	LANYARD ASSEMBLY	1
6	879104	带夹子的拉绳	LANYARD W/CLIP	1
7	819379A7	发动机停机线束总成	HARNESS ASSEMBLY Engine Stop	1
8	828243T	定子片套件	PLATE KIT Stator	1
9	60466A21	接地线总成	CABLE ASSEMBLY Ground	1
10	855352	节气门凸轮	CAM Throttle	1
11	63709A1		BOOT/TERMINAL KIT Spark Plug	2
12	312	火花塞(CHAMPION # L87YC)	SPARK PLUG (CHAMPION # L87YC)	2
12	327	火花塞(RFI)(冠军牌 RL87YC)	SPARK PLUG (RFI) (CHAMPION # RL87YC)	OPT
13	F458498-1	曲轴/飞轮键	KEY Crankshaft/Flywheel	1
14	855594		NUT (Special)-Stop Switch Sleeve	1
15	824353	螺钉(#8-32 x .750)-点火模块	SCREW (#8-32 x .750)-Ignition Module	6
16	824352	螺钉(#10-24 x .375)-接地	SCREW (#10-24 x .375) (#10-24 x .375)-Ground	1
17	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
18	824358		SCREW (#10-24 x .500) (#10-24 x .500)-Stator Plate	5
19	850899T	点火模块(按需剪线)	MODULE Ignition (Cut Wire as Req'd)	2
20	824358		SCREW (#10-24 x .500) (#10-24 x .500)-Ground	1
21	20117A1	点火电缆标记套件	MARKER SET Ignition Cables	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

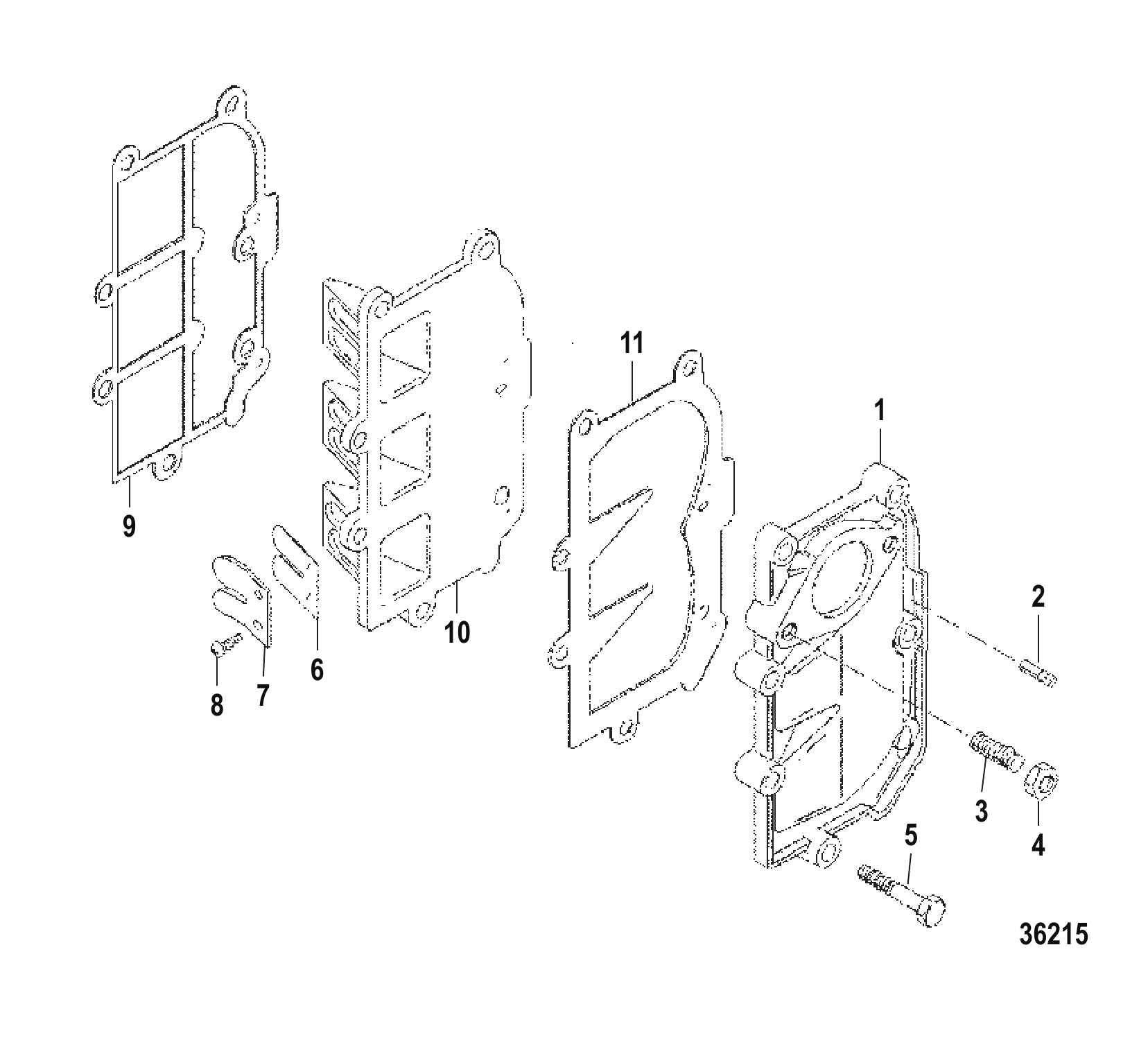

图 11簧片阀板/歧管总成 Reed Plate/Manifold Assembly

REF	零件编号	中文名称	英文名称	数量
1	819150A1	进气歧管总成(喷漆)	MANIFOLD ASSEMBLY Intake (PAINTED)	1
2	426981	止回阀	CHECK VALVE	2
2	426982	止回阀	CHECK VALVE	2
3	826622	双头螺柱(.250-20x.910)	STUD (.250-20 x .910)	2
4	20890	化油器安装螺母(.250-20)	NUT (.250-20) CARBURETOR MOUNT	2
5	F1581	螺钉（0.250-20×1.250）	SCREW (.250-20 X 1.250)	7
5	819110125	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	7
6	827308	簧片	REED	6
7	827307	簧片止挡	STOP Reed	6
8	819074	带锁紧垫圈的螺钉(#6-32 X .312)	SCREW WITH LOCKWASHER (#6-32 X .312)	12
9	819142	簧片阀衬垫	GASKET Reed Plate	1
10	819153T	簧片阀板	PLATE Reed	1
11	819141	进气歧管垫片	GASKET Intake Manifold	1
-	809516A1	动力头衬垫套件	GASKET SET Powerhead	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

图 12维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	854731	零件手册 25马力(1998年)西尔斯	PARTS MANUAL 25 Hp (1998) Sears	AR
-	830894R1	维修手册	SERVICE MANUAL	AR
-	82793336	大马士革钢灰色喷漆 12盎司(355毫升)-加拿大喷罐(12罐装)	PAINT Damascus Steel Gray 12 Oz. (355 ml)-Spray CANADA (Case of 12)	AR
-	802878Q36	PAINT-ST/GR @6	PAINT-ST/GR @6	AR
-	82793337	大马士革钢灰色油漆 0.5盎司(15毫升)-笔刷瓶装(12瓶装)	PAINT Damascus Steel Gray .5 Oz. (15 ml)-Brush Bottle (Box of 12)	AR
-	802878Q37	PAINT.6-ST/G@6	PAINT.6-ST/G@6	AR
-	81910712	透明丙烯酸喷漆 12盎司(355毫升)-加拿大喷罐(12罐装)(仅用于外罩)	PAINT Clear Acrylic 12 Oz. (355 ml)-Spray CANADA (Case of 12) (For Cowl Only)	AR
-	82793353	PAINT-CLEAR @6	PAINT-CLEAR @6	AR
-	820633	冲洗适配器	ADAPTER Flushing	1
-	827889A2	遥控转向套件	STEERING KIT Remote	1
-	830771A7	遥控转换套件	CONVERSION KIT Remote Control	1
-	16903G20	遥控总成(手动启动)	REMOTE CONTROL ASSEMBLY (Manual Start)	1
-	850716A**	油门换挡线缆套装(**=3至60英尺)	CABLE SET Throttle & Shift (** = 3 Feet To 60 Feet)	1

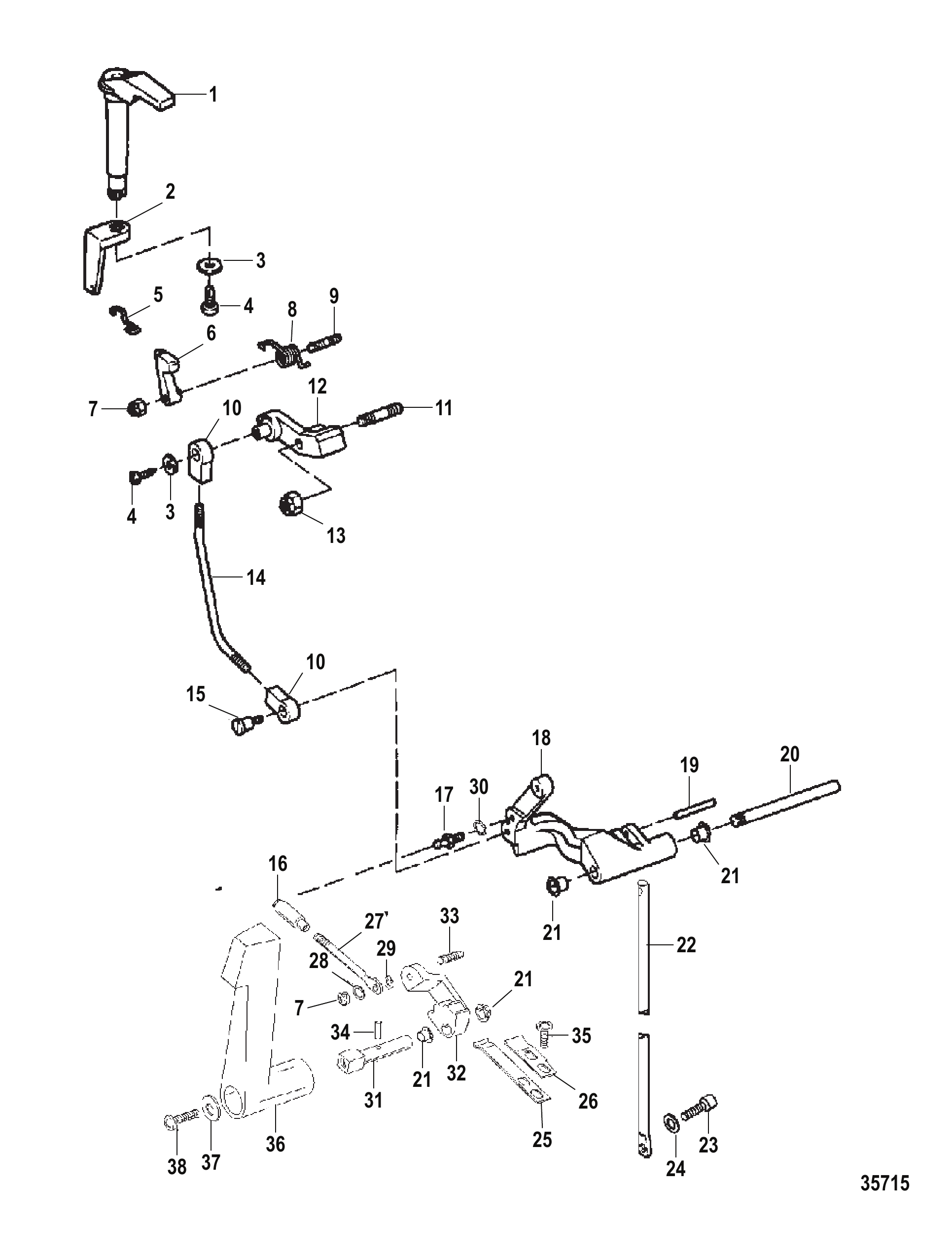

图 13换挡连杆 Shift Linkage

REF	零件编号	中文名称	英文名称	数量
1	F681490	启动滑轮联锁挡块	STOP Starter Pulley Interlock	1
2	F681003-1	启动联锁臂	ARM Starter Interlock	1
3	F8143	垫圈	WASHER	2
4	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
5	F681263-1	启动联锁连杆	LINK Starter Interlock	1
6	F681742	中间联锁杆	LEVER Intermediate Interlock	1
7	20110	螺母 (#10-32)	NUT (#10-32)	2
8	F681424	联锁杆弹簧	SPRING Interlock Lever	1
9	F681134	联锁杆螺柱	STUD Interlock Lever	1
10	816514	火花控制轴承	BEARING Spark Control	2
11	826590	防松螺柱(.250-20 x 1.690)	STUD (.250-20 x 1.690) (.250-20 X 1.690) WITH DRI LOK	1
12	824357	空档速度联锁杆	LEVER Neutral Speed Interlock	1
13	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
13	8M0207776	螺母	NUT	1
14	852369	联锁杆	ROD Interlock	1
15	819625	螺钉	SCREW	1
16	F286685	换挡杆连接器	CONNECTOR Gear Shift Rod	1
17	F98273	螺柱	STUD	1
18	855621T	换挡杆(喷漆)	LEVER Gear Shift (PAINTED)	1
19	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
20	F286871T	换挡杆销	PIN Gear Shift Lever	1
21	26841	衬套	BUSHING	4
22	850193	上换挡轴	SHIFT SHAFT Upper	1
23	F1976	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
24	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
25	39627	弹簧	SPRING	1
26	824994	板簧	SPRING Plate	1
27	850388	换挡杆连杆	LINK Shift Lever	1
28	F8048	弓形垫圈	WASHER Bowed	1
29	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	1
30	F8058	锁紧垫圈	LOCKWASHER	1
31	850386	换挡手柄轴	SHAFT Shift Handle	1
32	850387A1	定位凸轮杆总成	LEVER ASSEMBLY Detent Cam	1
33	846345	螺柱(#10-32 x .750)	STUD (#10-32 x .750)	1
34	25905	销	PIN	1
35	42813	螺钉(#10-32 x .380)	SCREW (#10-32 X .380) (#10-32 X .380)	2
36	852545	换挡手柄	HANDLE Shift	1
37	4002314	垫圈	WASHER	1
38	15124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
-	819553A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
-	819553A15	短缸体总成	SHORT BLOCK ASSEMBLY	1

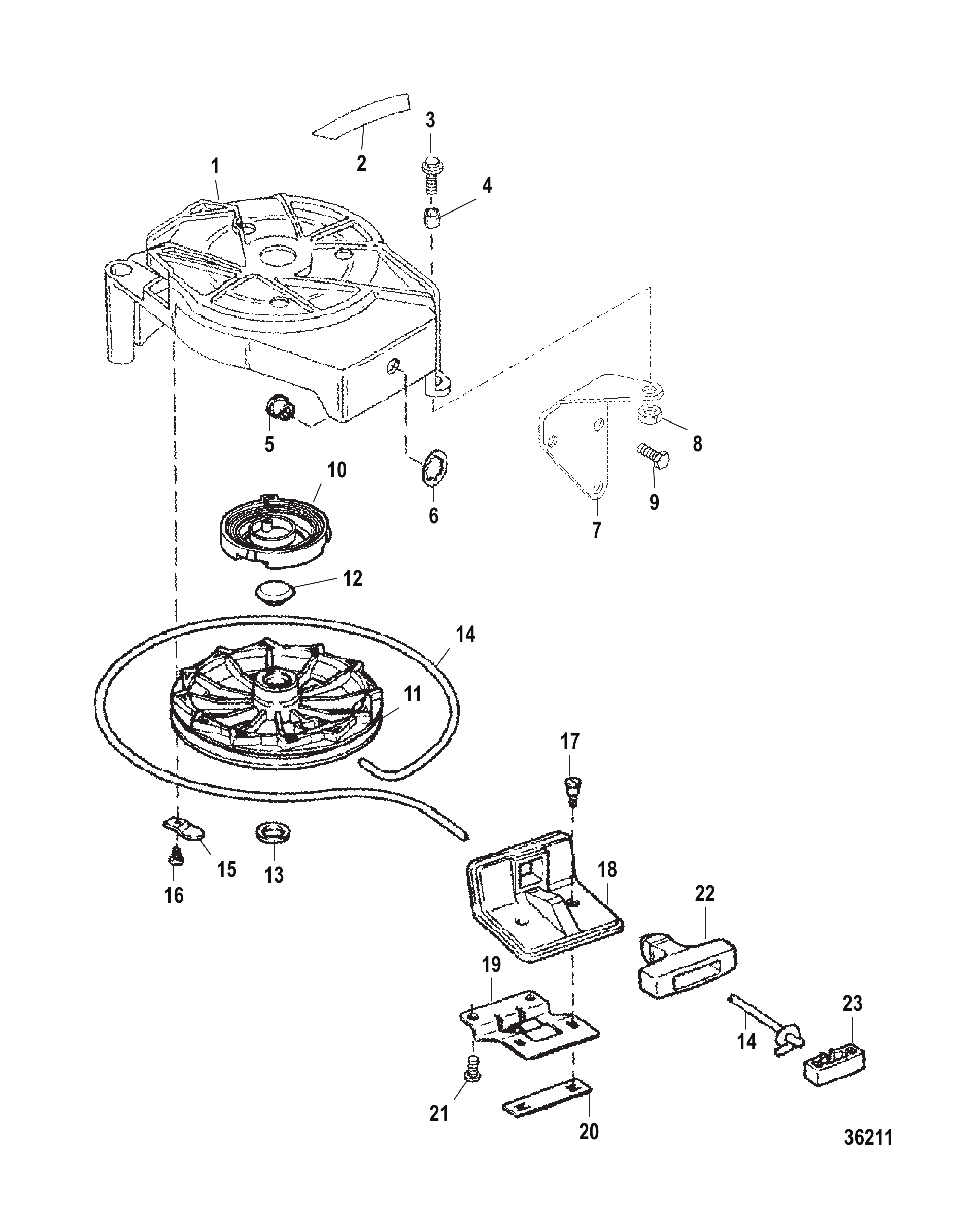

图 14启动机回绕组件 Starter Rewind Components

REF	零件编号	中文名称	英文名称	数量
1	F6814081	启动器壳体	HOUSING Starter	1
2	825149A1	换至空档贴花套件	DECAL KIT Shift to Neutral	1
3	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	3
4	F681405T	启动器外壳嵌件	INSERT Starter Housing	3
5	F681428	启动绳嵌件	INSERT Starter Rope	1
6	818853	挡圈	RING Retaining	1
7	819245T1	起动机壳体前支架(喷漆)	BRACKET Starter Housing - Front (PAINTED)	1
8	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
8	8M0207776	螺母	NUT	1
9	98254	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	3
10	F681970	启动器回位弹簧	SPRING Starter Rewind	1
11	42034A2	启动器回绕滑轮总成	PULLEY ASSEMBLY Starter Rewind	1
12	817362	盖帽	CAP	1
13	124941	滑轮轴承密封件	SEAL Pulley Bearing	1
14	F681232	绳索(64.00/67.00英寸)	ROPE (64.00/67.00 INCHES)	1
14	12066T03	启动拉绳	ROPE-STARTER	1
15	F681592	启动滑轮固定座	RETAINER Starter Pulley	3
16	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	3
17	819625	螺钉	SCREW	2
18	FA681630T	手柄支撑总成	SUPPORT ASSEMBLY Handle	1
19	8302821	手柄支撑板	PLATE Handle Support	1
20	F6818741	手柄支撑板紧固件	FASTENER Handle Support Plate	1
21	F2210	螺钉(.250-14 x .500)	SCREW (.250-14 x .500)	2
22	F681132	绳索手柄	HANDLE Rope	1
23	F681817	绳索手柄固定座	RETAINER Rope Handle	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

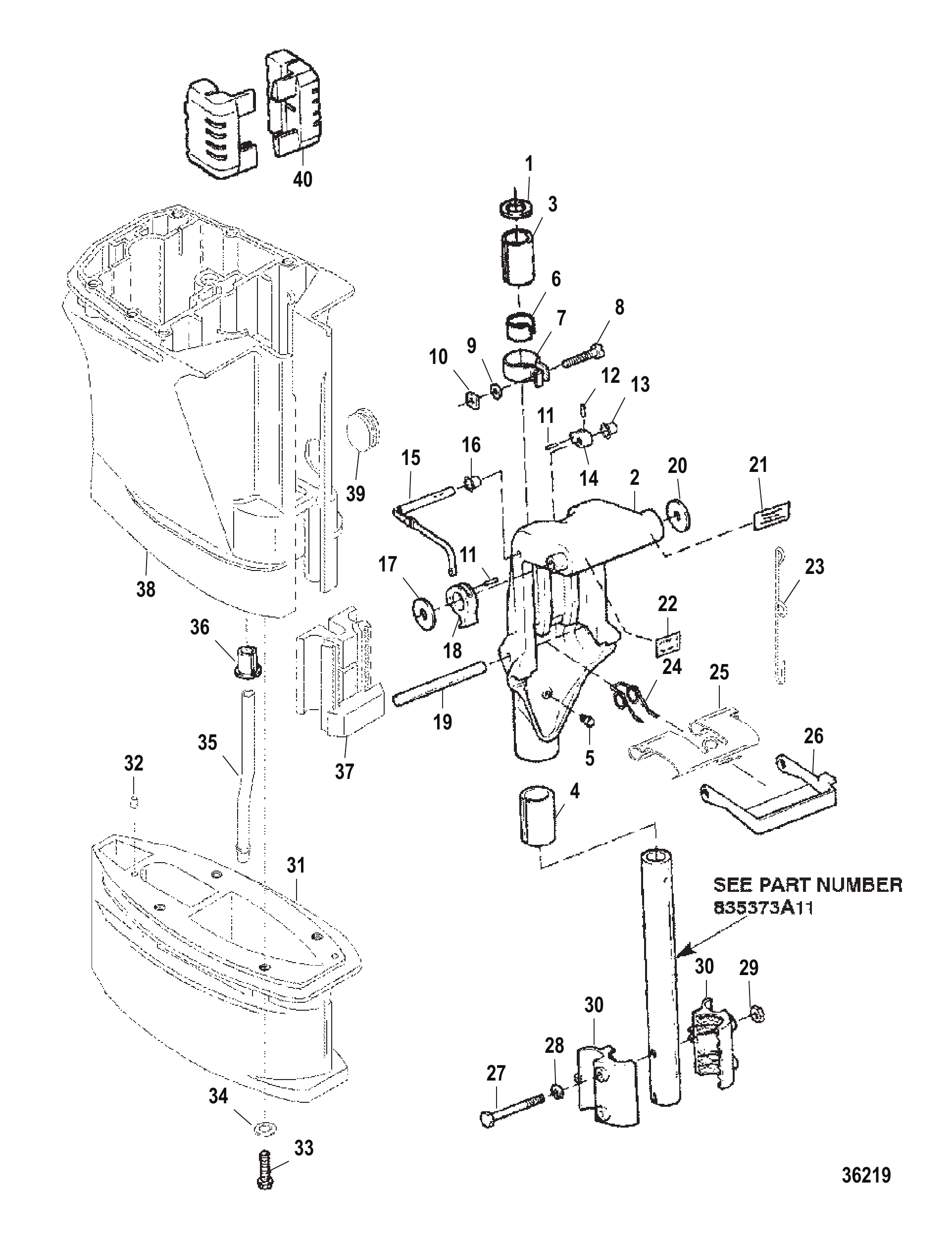

图 15旋转支架与驱动轴壳体 Swivel Bracket and Driveshft Housing

REF	零件编号	中文名称	英文名称	数量
1	F286011	旋转支架垫圈	WASHER Swivel Bracket	1
2	850049A8	旋转支架套件(喷漆)	SWIVEL BRACKET KIT (PAINTED)	1
3	F681169	轴承(1.125英寸)(顶部)	BEARING (1.125 INCHES) (TOP)	1
4	F286169	轴承(1.750英寸)(底部)	BEARING (1.750 INCHES) (BOTTOM)	1
5	F213274	接头	FITTING	2
6	F681631	摩擦块	SHOE Friction	1
7	F286573-1	转向摩擦夹	CLAMP Steering Friction	1
8	F1820	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
9	12038	垫圈	WASHER	1
9	8M0207778	垫圈（0.344×0.625×0.063英寸）	WASHER .344 x .625 x.063	1
10	F1608	螺母 (.250-20)	NUT (.250-20)	1
11	F1794	弹簧销	PIN Spring	2
12	F8538	弹簧销	PIN Spring	1
13	26856	衬套	BUSHING	1
14	833156	倒车锁杆	LEVER Reverse Lock	1
15	820095A2	倒挡锁中间杆总成	LEVER ASSEMBLY Reverse Lock Intermediate	1
16	F536813	衬套	BUSHING	1
17	F2037	垫圈	WASHER	1
18	F286827	倒挡锁释放杆	LEVER Reverse Lock Release	1
19	F1806	槽销	PIN Groove	1
20	F2037	垫圈	WASHER	1
21	8180291	燃油混合比标贴	DECAL Fuel Mix	1
22	8302531	倾斜释放标贴	DECAL Tilt Release	1
23	852528	倒挡锁连杆	LINK Reverse Lock Lever	1
24	F286300	倒挡锁弹簧	SPRING Reverse Lock	1
25	850259	倒车锁	LOCK Reverse	1
26	8301111	浅水驱动支架	BRACKET Shallow Water Drive	1
27	FA1844	螺丝套件(.250-20 x 2.375)	SCREW KIT (.250-20 x 2.375)	2
28	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
29	64015	螺母 (.250-20)	NUT (.250-20)	2
30	819320T3	减震器下支架(喷漆)	BRACKET Shock Mount Lower (PAINTED)	2
31	826361T4	隔套总成(喷漆)	SPACER ASSEMBLY (PAINTED)	1
32	85500	定位销(.187 x .530)	PIN Dowel (.187 x .530)	1
32	8M0084726	定位销	PIN Dowel	1
33	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	4
34	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	4
34	8M0214963	垫圈	WASHER	4
35	819149	进水管道	LINE Water Inlet	1
35	8191491	进水管道	LINE Water Inlet	1
36	F286914-1	进水管衬套	SLEEVE Water Inlet Line	1
37	8193192	下减震座	SHOCK MOUNT Lower	1
38	819215T5	传动轴壳体总成(喷漆)	HOUSING ASSEMBLY Driveshaft (PAINTED)	1
39	F46899-1	盖板	COVER	1
40	F517347	上减震座	SHOCK MOUNT Upper	2

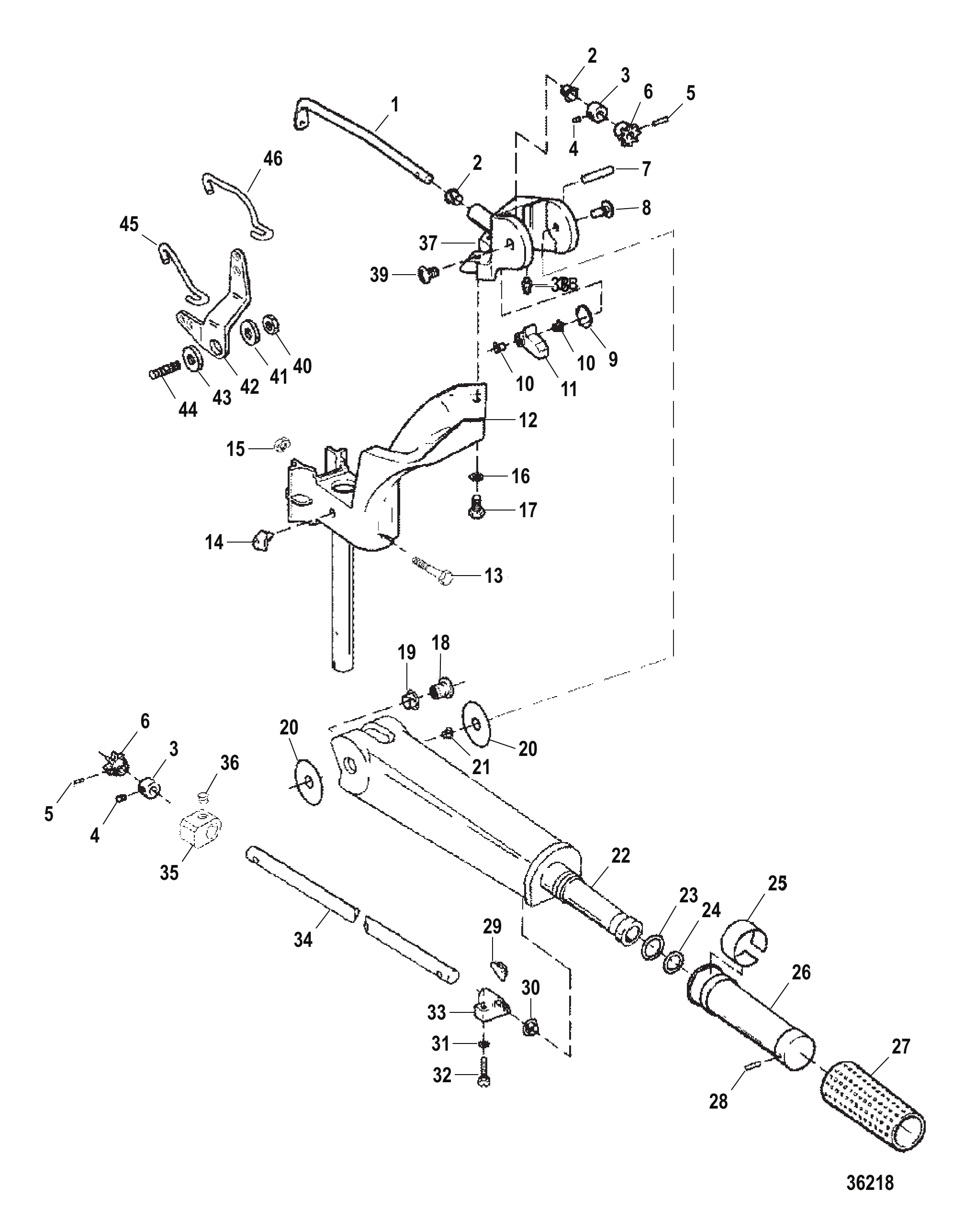

图 16舵柄手柄与油门联动装置 Tiller Handle and Throttle Linkage

REF	零件编号	中文名称	英文名称	数量
1	851928	油门控制轴	SHAFT Throttle Control	1
2	26841	衬套	BUSHING	2
3	FA343178	转向轴固定套件	RETAINER KIT Steering Shaft	2
4	832794	定位螺钉(.250-28 X .250)	SET SCREW (.250-28 X .250)	2
5	29908	销	PIN	2
6	8180091	转向轴齿轮	GEAR Steering Shaft	2
7	F1807	槽销	PIN Groove	1
8	823595	专用螺钉	SCREW (SPECIAL)	1
9	F286868	转向把手止动弹簧	SPRING Steering Handle Stop	1
10	26856	衬套	BUSHING	2
11	F286490T	转向把手止动块	STOP Steering Handle	1
12	835373A11	转向臂支架总成(喷漆)	BRACKET ASSEMBLY Steering Arm (PAINTED)	1
13	828815	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
14	F286539	缓冲垫	BUMPER	1
15	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
15	8M0207776	螺母	NUT	1
16	72521	内齿锁紧垫圈(.312内径)	LOCKWASHER Internal Tooth (.312 INTERNAL)	2
17	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	2
18	F2862241	转向把手枢轴衬套	INSERT Steering Handle Pivot	1
19	812707	衬套	BUSHING	1
20	F286220	转向把手垫圈	WASHER Steering Handle	2
21	26856	衬套	BUSHING	1
22	819279T3	转向手柄(喷漆)	HANDLE Steering (PAINTED)	1
23	21836	O型圈(0.796x0.139)(大)	O-RING (.796 x .139) (LARGE)	1
23	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
24	38101	O型圈(0.674x0.103)(小)	O-RING (.674 x .103) (SMALL)	1
25	F712894	速度/档位指示标贴	DECAL Speed/Shift Indicator	1
26	828406A1	油门把手总成	HANDLE/GRIP ASSEMBLY Throttle	1
27	828406	油门/转向把手握把	GRIP Throttle/Steering Handle	1
28	72255	滚动销	PIN Roll	1
29	819227	转向手柄楔块	WEDGE Steering Handle	1
30	97896	衬套	BUSHING	1
31	F8058	锁紧垫圈	LOCKWASHER	2
32	F1829	螺丝(#10-24x0.875)	SCREW (#10-24 x .875)	2
33	F4878161	轴承	BEARING	1
34	819160	转向手柄轴	SHAFT Steering Handle	1
35	832759	节气门止动块	STOP Throttle	1
36	832794	定位螺钉(.250-28 X .250)	SET SCREW (.250-28 X .250)	1
37	817751A12	转向臂支架总成(喷漆)	BRACKET ASSEMBLY Steering Arm (PAINTED)	1
38	F523274	润滑脂接头	FITTING Grease	1
39	823594	专用螺钉	SCREW (SPECIAL)	1
40	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
40	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
41	F286282	专用垫圈	WASHER (SPECIAL)	1
42	819148	磁电机控制杆	LEVER Magneto Control	1
43	F183813	控制杆轴承	BEARING Control Lever	1
44	834759	特殊双头螺柱（0.312-24×1.14）	STUD (.312-24 X 1.14) Special	1
45	826846	油门轴连杆	LINK Throttle Shaft	1
46	824142T	油门凸轮连杆	LINK Throttle Cam	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1
