Sears 系列 · USA - Cat.# 90-811286 · 共 51 个部位 · 2171 条零件

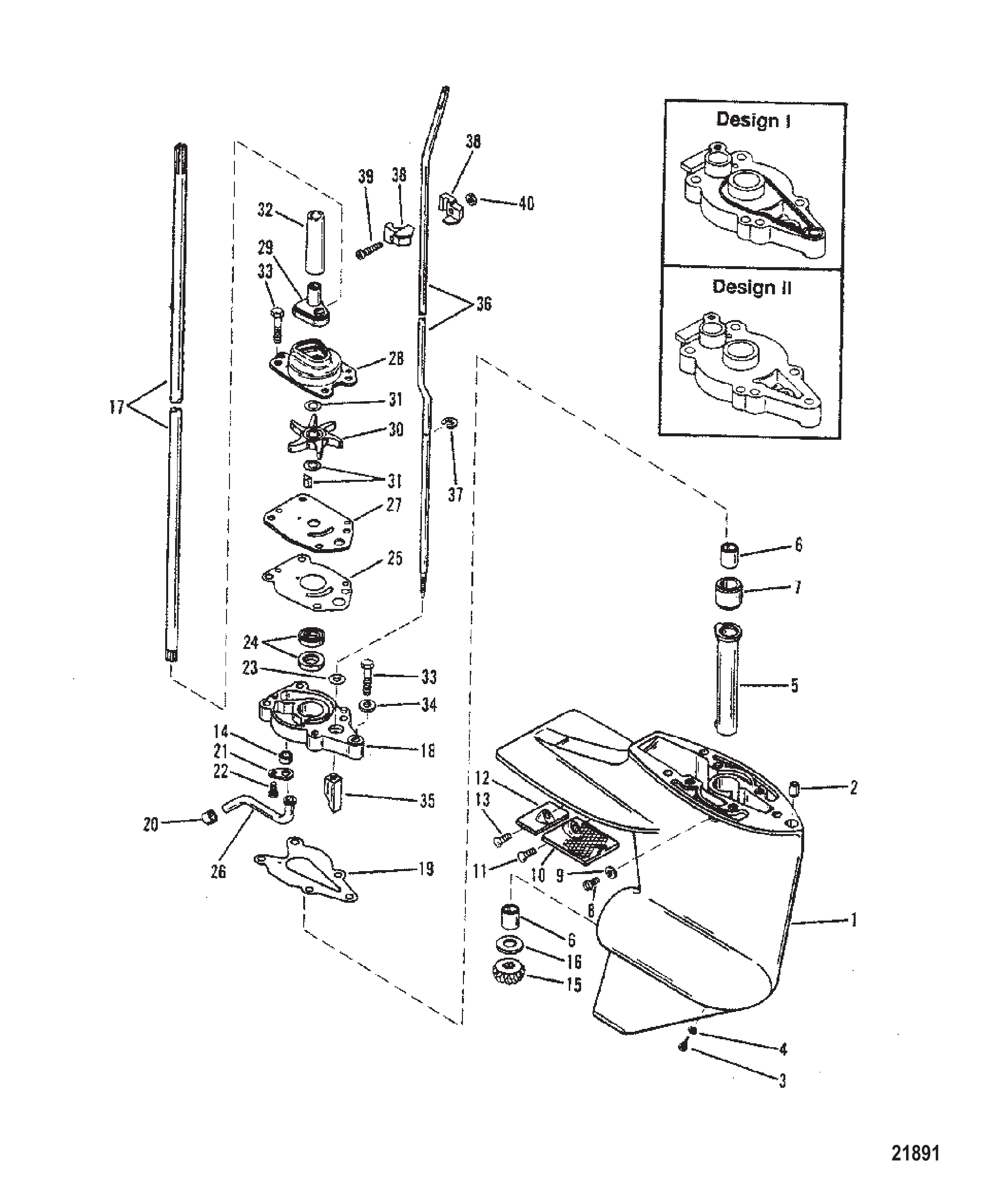

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

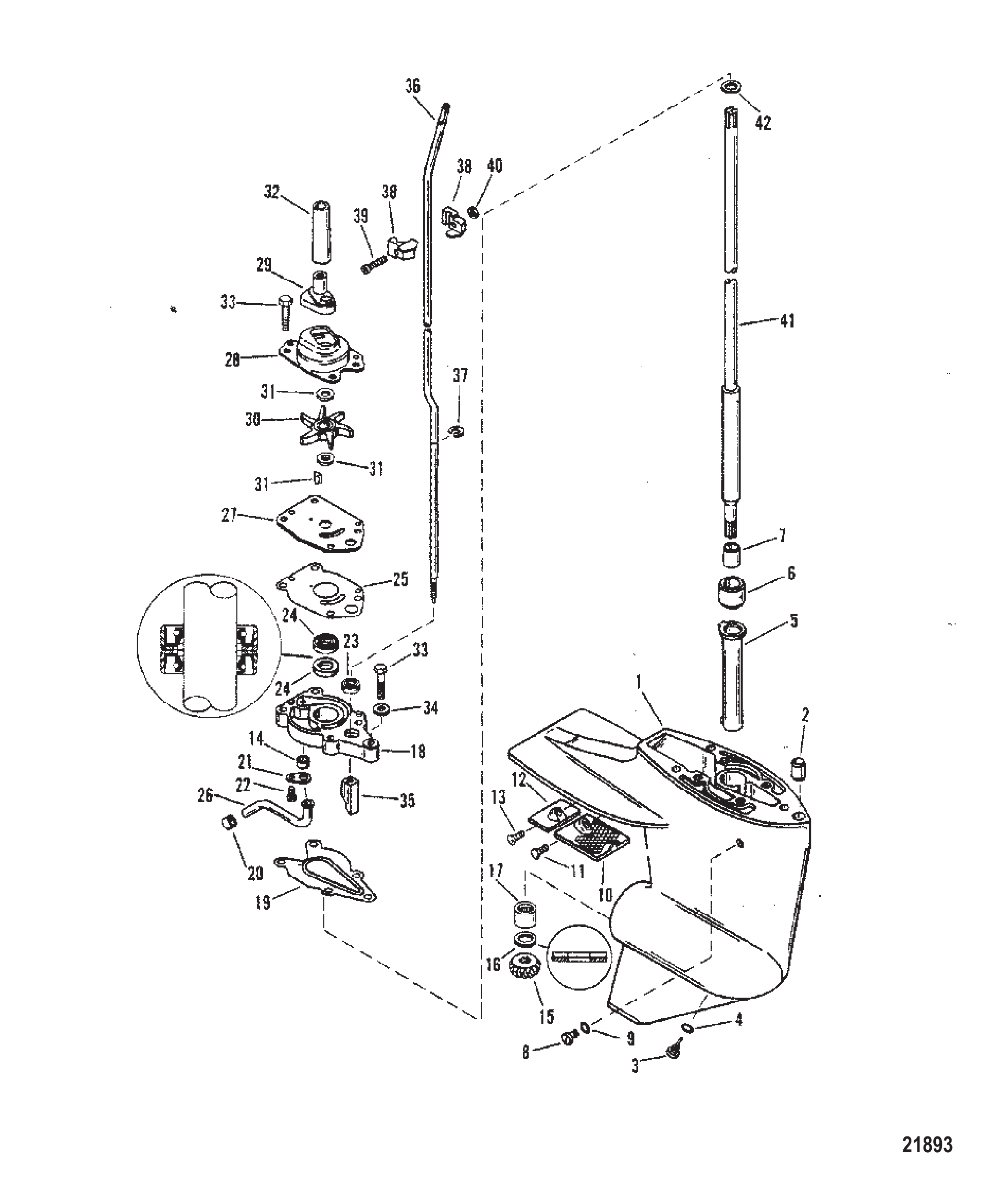

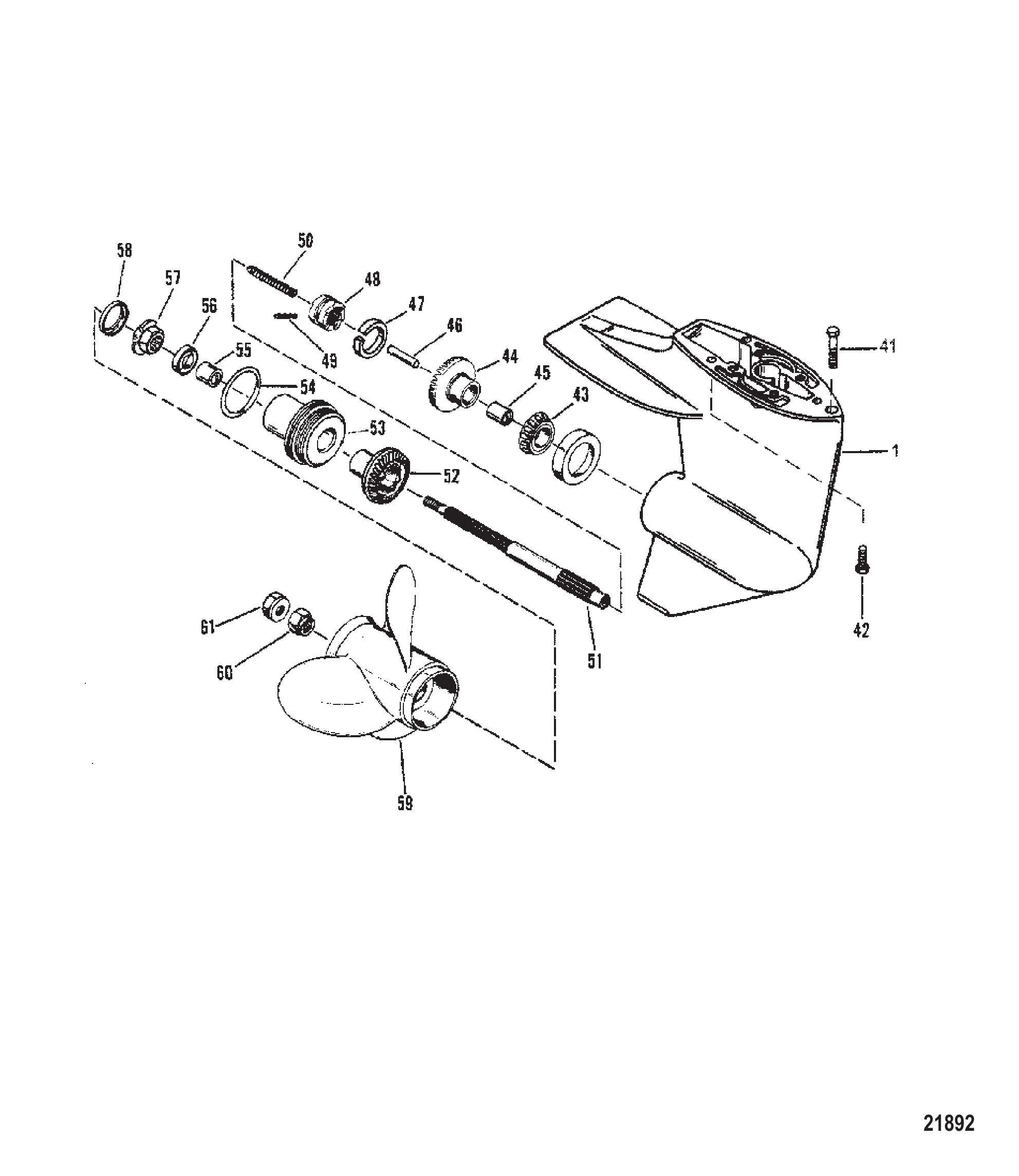

| - | 8833A13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833T13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A15 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833T15 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A14 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833T14 | 齿轮箱-短型-灰 | GEAR HSG-SHORT-GR | 1 |
| - | 8833A16 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833T16 | ORD 1666-8833T15 | ORD 1666-8833T15 | 1 |
| 1 | 8833A17 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083312 | GC BASIC9.9/15 4S | GC BASIC9.9/15 4S | 1 |
| 1 | 8833A18 | 齿轮箱总成基础型-灰色 | GEAR HOUSING ASSEMBLY Basic-Gray | 1 |
| 1 | 8833A17 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 2 | 12009 | 衬套 (0.31 x 0.45 x 0.50) | BUSHING (.31 x .45 x .50) | 1 |
| 3 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | 1 |
| 3 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 4 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 4 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 5 | 822244A1 | 衬套总成 | SLEEVE ASSEMBLY | 1 |
| 6 | 823944 | 套筒 | SLEEVE | 1 |
| 7 | 823943 | 衬套 | BUSHING | 1 |
| 8 | 79953 | 螺钉(0.375-16x0.250) | SCREW (.375-16 x .250) | 1 |
| 8 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 9 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 9 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 10 | 421991 | 滤网 | SCREEN | 1 |
| 11 | 13954 | 螺丝(0.250-14x0.88) | SCREW (.250-14 x .88) | 2 |
| 12 | 42121A2 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 12 | 42121Q02 | 铝阳极@2 | ANODE(ALUM) @2 | 1 |
| 13 | 13954 | 螺丝(0.250-14x0.88) | SCREW (.250-14 x .88) | 1 |
| 14 | 42133 | 密封件 | SEAL | 1 |
| 15 | 8219251 | 小齿轮-13-26 | GEAR Pinion - 13-26 | 1 |
| 16 | 41369 | 垫圈 | WASHER | 1 |
| 17 | 22756 | 滚柱轴承 | BEARING Roller | 1 |
| 18 | 42040A5 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 18 | 42040T5 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 19 | 192042 | 衬垫 | GASKET | 1 |
| 19 | 192043 | 衬垫 | GASKET | 1 |
| 20 | 33613 | 密封件 | SEAL | 1 |
| 21 | 42375 | 固定座 | RETAINER | 1 |
| 22 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 23 | 822236 | 四角密封环 | QUAD RING | 1 |
| 24 | 413651 | 油封 | SEAL Oil | 2 |
| 25 | 19202 | 水泵板衬垫 | GASKET Water Pump Plate | 1 |
| 25 | 19202001 | 衬垫 | GASKET | 1 |
| 26 | 42185A1 | 水管总成 | TUBE ASSEMBLY Water | 1 |
| 27 | 42200 | 面板 | FACE PLATE | 1 |
| 28 | 42089A2 | 盖总成 | COVER ASSEMBLY | 1 |
| 29 | 421021 | 密封件 | SEAL | 1 |
| 30 | 420382 | 叶轮 | IMPELLER | 1 |
| 30 | 42038Q02 | 叶轮 | IMPELLER | 1 |
| 31 | 42376A2 | 键总成 | KEY ASSEMBLY | 1 |
| 31 | 8M0173458 | 叶轮键 | KEY IMPELLER | 1 |
| 32 | 444671 | 导套 | GUIDE | 1 |
| 33 | 8248327 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 5 |
| 33 | 8M0214957 | 螺钉 | SCREW | 5 |
| 34 | 29245 | 垫圈（0.281 x 0.500 x 0.060）不锈钢（适用处使用） | WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE) | 1 |
| 34 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 35 | 42039 | 凸轮 | CAM | 1 |
| 36 | 42145 | 换档轴 | SHIFT SHAFT | 1 |
| 36 | 8M0026064 | 换档轴-短 | SHAFT-SHIFT SHORT | 1 |
| 36 | 42146 | 换档轴 | SHIFT SHAFT | 1 |
| 36 | 8M0026065 | 换档轴-长 | SHAFT-SHIFT-LONG | 1 |
| 37 | 42389 | E型卡环 | E RING | 1 |
| 38 | 42126 | 导套 | GUIDE | 2 |
| 38 | 8M0036770 | 导套 | GUIDE | 2 |
| 39 | 40011109 | 螺钉 (M5 x 25) 不锈钢 | SCREW (M5 x 25) Stainless Steel | 1 |
| 40 | 400633 | 螺母 (M5) | NUT (M5) | 1 |
| 40 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 41 | 823389 | 驱动轴 | DRIVESHAFT | 1 |
| 41 | 823390 | 驱动轴 | DRIVESHAFT | 1 |
| 42 | 822248 | 止推垫片 | THRUST WASHER | 1 |
| - | 42089A5 | 水泵套件 | PUMP KIT Water | 1 |
| - | 42364A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 41365A3 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

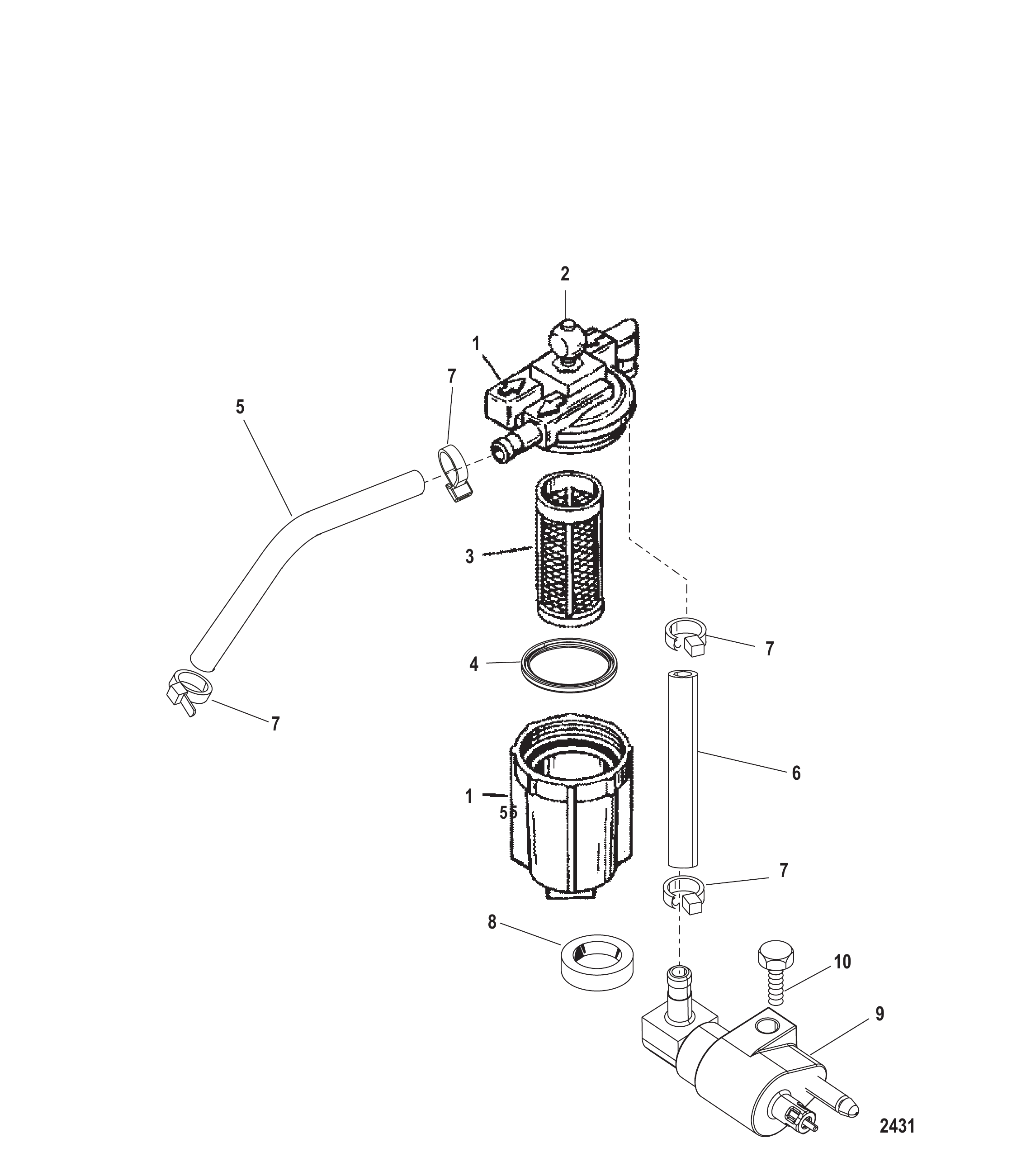

| 1 | 87946A15 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 1 | 889527A07 | 滤清器套件 | FILTER KIT | 1 |
| 2 | 91935 | 球形燃油滤清器 | BALL FUEL FILTER | 1 |
| 2 | 858731 | 球形燃油滤清器 | BALL Fuel Filter | 1 |
| 3 | 87946A3 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 3 | 87946Q04 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 4 | 98277 | 燃油滤清器密封件 | SEAL FUEL FILTER | 1 |
| 4 | 897536 | 密封件 | SEAL | 1 |
| 5 | 99127109 | 滤清器至化油器油管(57英寸散装) | LINE (57.00 Inches Bulk) FILTER TO CARBURETOR | 1 |
| 5 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 6 | 99127109 | 滤清器至适配器油管(57英寸散装) | LINE (57.00 Inches Bulk) FILTER TO ADAPTOR | 1 |
| 6 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 7 | 816311 | 燃油管束带(8英寸) | TIE STRAP (8.00 Inches) FUEL LINE | 4 |
| 7 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 8 | 18202 | 护孔环 | GROMMET | 1 |
| 9 | 15781A9 | 燃油连接器套件(90度)(新设计) | CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN) | 1 |
| 9 | 14187M | 直通连接器(旧设计) | CONNECTOR (STRAIGHT) (OLD DESIGN) | 1 |
| 10 | 4000331 | 适配器螺丝(M6x30) | SCREW (M6 x 30) ADAPTOR | AR |
| 10 | 4000330 | 适配器螺丝(M6x25) | SCREW (M6 x 25) ADAPTOR | AR |
| 10 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

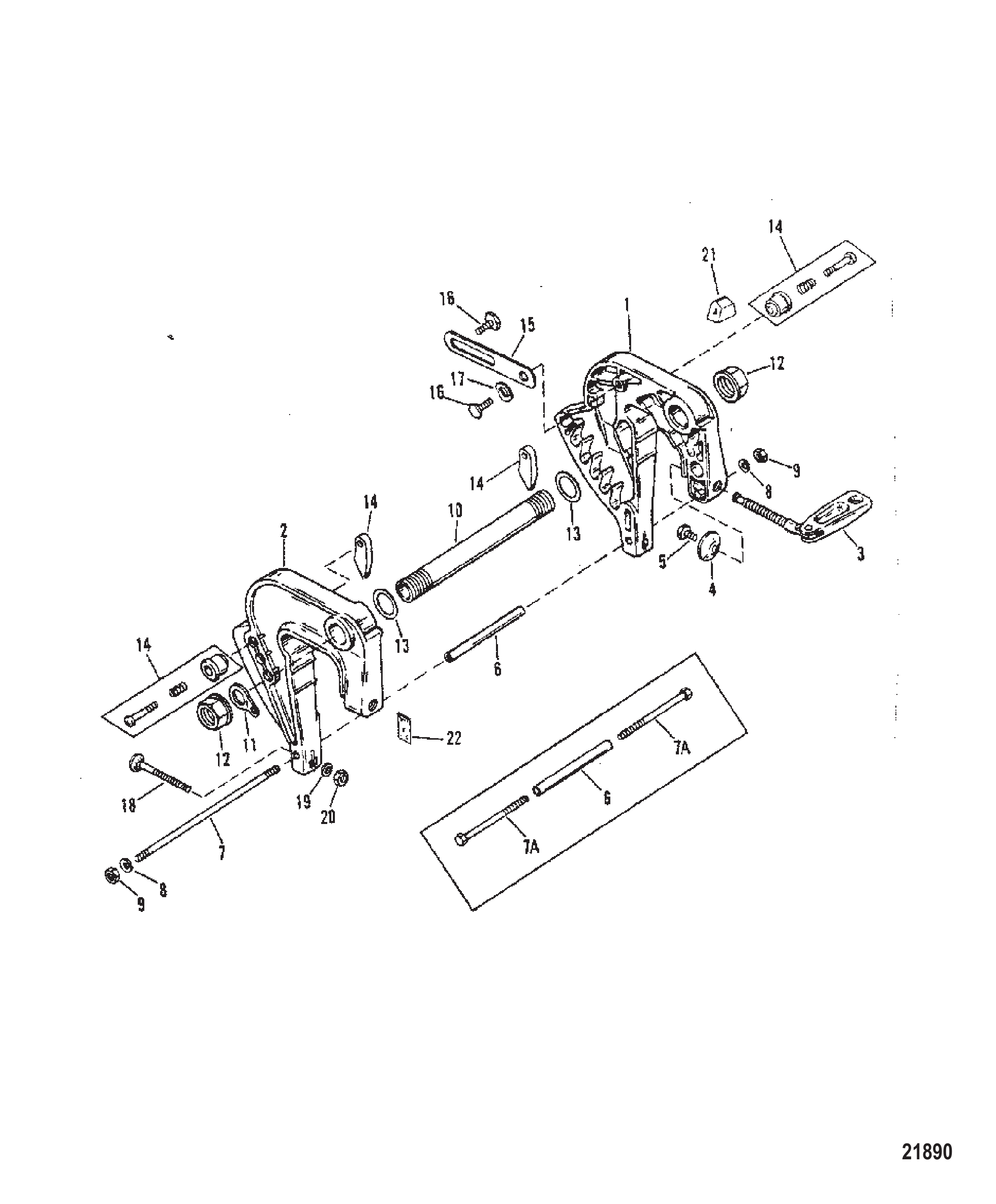

| 1 | 8894A5 | 夹具支架总成 (左舷) (黑色) | CLAMP BRACKET ASSEMBLY (PORT) (BLACK) | 1 |
| 1 | 8894A11 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 1 |
| 1 | 8894A6 | 夹具支架总成 (左舷) (灰色) | CLAMP BRACKET ASSEMBLY (PORT) (GRAY) | 1 |
| 1 | 8894A12 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 1 |
| 2 | 8892A3 | 夹具支架总成 (右舷) (黑色) | CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK) | 1 |
| 2 | 8894A11 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 1 |
| 2 | 8892A4 | 夹具支架总成 (右舷) (灰色) | CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY) | 1 |
| 2 | 8894A12 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 1 |
| 3 | 92767A1 | 蝶形螺丝总成 (14 mm) | THUMB SCREW ASSEMBLY (14 mm) | 2 |
| 3 | 92767A3 | 蝶形螺丝总成 (16 mm) | THUMB SCREW ASSEMBLY (16 mm) | 2 |
| 4 | 73719 | 蝶形螺丝垫圈 | WASHER THUMB SCREW | 2 |
| 4 | 818884 | 垫圈 | WASHER | 2 |
| 5 | 768041 | 垫圈固定螺丝 | SCREW WASHER ATTACHING | 2 |
| 5 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 6 | 43431 | 夹紧支架螺柱隔套 | SPACER CLAMP BRACKET STUD | 1 |
| 6 | 818539 | 隔套 | SPACER | 1 |
| 6 | 8M0084719 | 隔套 | SPACER | 1 |
| 7 | 42129 | 夹紧支架螺柱 | STUD CLAMP BRACKET | 1 |
| 7A | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 2 |
| 8 | 400256 | 夹紧支架螺柱防松垫圈(M6) | LOCKWASHER (M6) CLAMP BRACKET STUD | 2 |
| 9 | 400212 | 夹紧支架螺柱不锈钢螺母(M6) | NUT (M6) Stainless Steel CLAMP BRACKET STUD | 2 |
| 10 | 42078 | 倾斜管 | TILT TUBE | 1 |
| 11 | 30954 | 安全卡扣 | CLIP SAFETY | 1 |
| 11 | 8M0085928 | 卡扣 | CLIP | 1 |
| 12 | 93164 | 倾斜管螺母(.875) | NUT (.875) TILT TUBE | 2 |
| 13 | 71421 | 倾斜管尼龙垫圈 | WASHER Nylon TILT TUBE | 2 |
| 14 | 42390A1 | 倾斜回位杆总成 | LEVER ASSEMBLY Tilt Return | 2 |
| 15 | 90901 | 倾斜限位带-左舷侧 | STRAP TILT STOP - PORT SIDE | 1 |
| 16 | 42498 | 限位带至夹紧支架螺钉(M6x1.0) | SCREW (M6 x 1.0) STRAP TO CLAMP BRACKET | 2 |
| 17 | 31030 | 倾斜限位带螺钉波形垫圈 | WAVE WASHER TILT STOP STRAT SCREW | 1 |
| 18 | 43216 | 夹紧支架至艉板螺栓(.250-20x3.50) | BOLT (.250-20 x 3.50) CLAMP TO TRANSOM | 2 |
| 19 | 67983 | 夹紧支架螺栓垫圈 | WASHER CLAMP BRACKET BOLT | 2 |
| 21 | 814427 | 倾斜锁定滑块(新设计) | SHUTTLE TILT LOCK (NEW DESIGN) | 1 |
| 22 | 12869 | 倾斜位置标贴 | DECAL Tilt Position | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

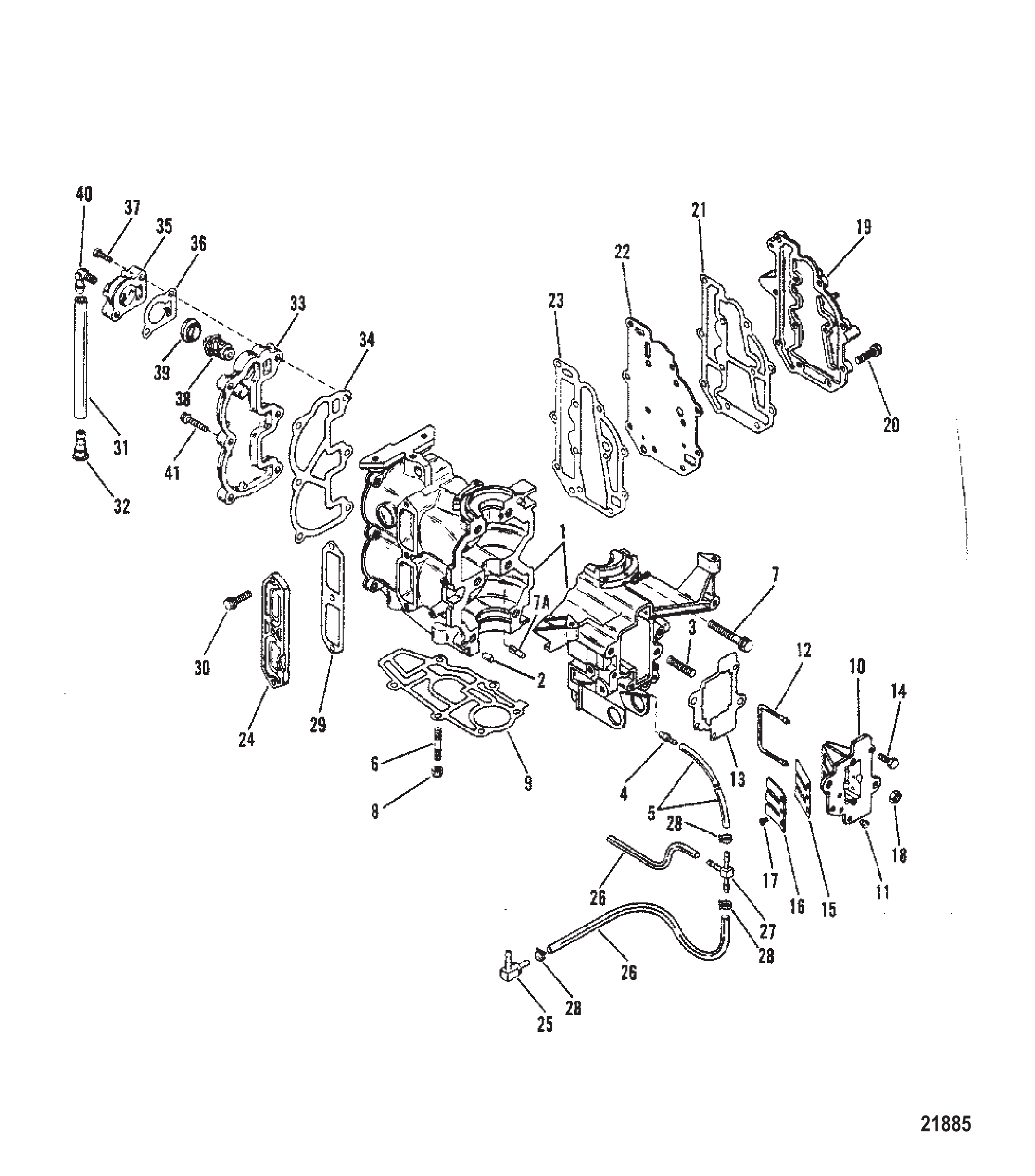

| 1 | 8473A13 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8473T20 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 8473A12 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8473T21 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 9727A2 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 9727T2 | 气缸体 | CYLINDER BLOCK | 1 |
| 2 | 85171 | 气缸体定位销 | PIN Dowel CYLINDER BLOCK | 2 |
| 3 | 42463 | 化油器螺柱 | STUD CARBURETOR | 2 |
| 3 | 424632 | 双头螺柱(M8x37.1) | STUD (M8 x 37.1) | 2 |
| 4 | 42698 | 泄放软管止回阀 | CHECK VALVE BLEED HOSE | 1 |
| 4 | 426982 | 止回阀 | CHECK VALVE | 1 |
| 5 | 1383556 | 泄放软管 | HOSE BLEED | 1 |
| 5 | 99130100 | 软管-48英寸 | TUBING-48 INCH | 1 |
| 6 | 42984 | 气缸体螺柱 | STUD CYLINDER BLOCK | 2 |
| 6 | 8161949 | 双头螺柱(M6 x 44) | STUD (M6 x 44) | 2 |
| 7 | 421251 | 螺钉(M8x55)曲轴箱至气缸体 | SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK | 6 |
| 7 | 42125 | 螺钉(M8x55) | SCREW (M8 x 55) | 6 |
| 7A | 17866 | 槽销 | PIN Groove | 1 |
| 8 | 400634 | 螺母(M6)气缸体螺柱 | NUT (M6) CYLINDER BLOCK STUD | 2 |
| 8 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 9 | 191861 | 动力头衬垫 | GASKET Powerhead | 1 |
| 10 | 42381A2 | 簧片阀总成 | REED BLOCK ASSEMBLY | 1 |
| 10 | 828435A3 | 簧片阀组 | REED BLOCK | 1 |
| 11 | 42657A1 | 止回阀 | CHECK VALVE | 1 |
| 11 | 42657A3 | 止回阀 | CHECK VALVE | 1 |
| 12 | 42137 | 簧片阀密封件 | SEAL REED BLOCK | 1 |
| 13 | 195981 | 簧片阀衬垫 | GASKET REED BLOCK | 1 |
| 13 | 195982 | 衬垫 | GASKET | 1 |
| 14 | 4000171 | 螺钉(M6x16)簧片阀 | SCREW (M6 x 16) REED BLOCK | 3 |
| 15 | 42044 | 簧片 | REED | 2 |
| 15 | 825141 | 簧片 | REED | 2 |
| 16 | 179031 | 簧片止挡 | STOP Reed | 2 |
| 16 | 828435A3 | 簧片阀组 | REED BLOCK | 2 |
| 17 | 4005764 | 螺钉(M3.5x8)簧片固定 | SCREW (M3.5 x 8) REED ATTACHING | 6 |
| 18 | 400213 | 螺母(M8)不锈钢化油器螺柱 | NUT (M8) Stainless Steel CARBURETOR STUD | 2 |
| 19 | 42521 | 排气盖 | COVER EXHAUST | 1 |
| 19 | 8M0048005 | 排气盖总成 | COVER EXHAUST MAN | 1 |
| 20 | 40062129 | 螺钉(M6x25)排气盖至气缸体 | SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK | 11 |
| 21 | 19185 | 排气盖衬垫 | GASKET EXHAUST COVER | 1 |
| 22 | 423651 | 挡板 | PLATE Baffle | 1 |
| 22 | 42365 | 挡板 | PLATE Baffle | 1 |
| 23 | 19184 | 挡板衬垫 | GASKET BAFFLE PLATE | 1 |
| 24 | 19107F1 | 进气盖 | COVER Intake | 1 |
| 25 | 56759 | 倒钩接头 | FITTING Barbed | 1 |
| 24 | 17863A1 | 进气盖总成 | COVER ASSEMBLY Intake | 1 |
| 25 | 15133 | 接头 | FITTING | 1 |
| 26 | 1383556 | 软管 | HOSE | 2 |
| 26 | 99130100 | 软管-48英寸 | TUBING-48 INCH | 2 |
| 27 | 59169 | 接头 | FITTING | 1 |
| 27 | 59169003 | 三通接头 | FITTING Tee | 1 |
| 28 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | AR |
| 29 | 192031 | 进气盖衬垫 | GASKET INTAKE COVER | 1 |
| 30 | 40062129 | 螺钉(M6x25)盖至气缸体 | SCREW (M6 x 25) COVER TO CYLINDER BLOCK | 3 |
| 31 | 99127109 | 示警管(57英寸散装) | LINE (57.00 Inches Bulk) TELL TALE | 1 |
| 31 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 32 | 94848 | 示警软管接头-底部罩 | FITTING TELL TALE HOSE-BOTTOM COWL | 1 |
| 33 | 8906A1 | 盖总成 | COVER ASSEMBLY | 1 |
| 33 | 8906A02 | 盖总成 | COVER ASSEMBLY | 1 |
| 34 | 192071 | 衬垫 | GASKET | 1 |
| 34 | 19207002 | 衬垫 | GASKET | 1 |
| 35 | 146732 | 节温器盖 | COVER THERMOSTAT | 1 |
| 35 | 8M0039352 | 盖板 | COVER | 1 |
| 36 | 192051 | 衬垫 | GASKET | 1 |
| 36 | 19205002 | 衬垫 | GASKET | 1 |
| 37 | 40062129 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 38 | 14586 | 节温器(120) | THERMOSTAT (120) | 1 |
| 39 | 62386 | 节温器衬垫 | GASKET THERMOSTAT | 1 |
| 39 | 8M0204714 | 衬垫@4 | GASKET @4 | 1 |
| 40 | 29111 | 连接器(直型)(新设计) | CONNECTOR (STRAIGHT)(NEW DESIGN) | 1 |
| 40 | 291112 | 接头 | FITTING | 1 |
| 40 | 99664 | 弯头(旧设计) | ELBOW (OLD DESIGN) | 1 |
| 40 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 41 | 40062129 | 螺钉(M6x25)盖固定 | SCREW (M6 x 25) COVER ATTACHING | 6 |

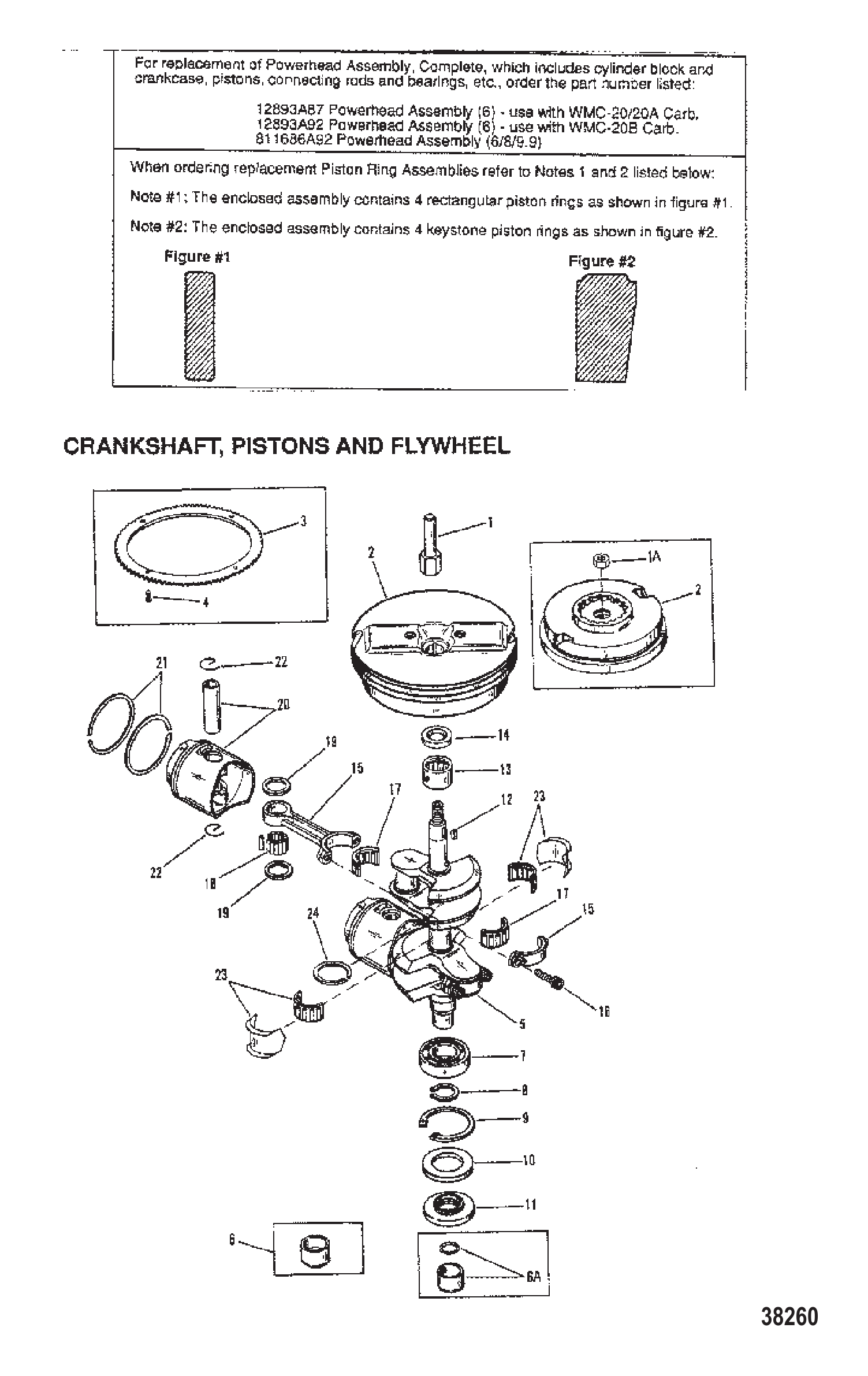

| - | 12893A87 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 12893T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 12893A92 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 12893T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 811686A92 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 811686T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 19072A88 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 19072T88 | 船用动力头 | POWERHEAD MARINE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8473A13 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8473T20 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 8473A12 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8473T21 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 9727A2 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 9727T2 | 气缸体 | CYLINDER BLOCK | 1 |
| 2 | 85171 | 气缸体定位销 | PIN Dowel CYLINDER BLOCK | 2 |
| 3 | 42463 | 化油器螺柱 | STUD CARBURETOR | 2 |
| 3 | 424632 | 双头螺柱(M8x37.1) | STUD (M8 x 37.1) | 2 |
| 4 | 42698 | 泄放软管止回阀 | CHECK VALVE BLEED HOSE | 1 |
| 4 | 426982 | 止回阀 | CHECK VALVE | 1 |
| 5 | 1383556 | 泄放软管 | HOSE BLEED | 1 |
| 5 | 99130100 | 软管-48英寸 | TUBING-48 INCH | 1 |
| 6 | 42984 | 气缸体螺柱 | STUD CYLINDER BLOCK | 2 |
| 6 | 8161949 | 双头螺柱(M6 x 44) | STUD (M6 x 44) | 2 |
| 7 | 421251 | 螺钉(M8x55)曲轴箱至气缸体 | SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK | 6 |
| 7 | 42125 | 螺钉(M8x55) | SCREW (M8 x 55) | 6 |
| 7A | 17866 | 槽销 | PIN Groove | 1 |
| 8 | 400634 | 螺母(M6)气缸体螺柱 | NUT (M6) CYLINDER BLOCK STUD | 2 |
| 8 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 9 | 191861 | 动力头衬垫 | GASKET Powerhead | 1 |
| 10 | 42381A2 | 簧片阀总成 | REED BLOCK ASSEMBLY | 1 |
| 10 | 828435A3 | 簧片阀组 | REED BLOCK | 1 |
| 11 | 42657A1 | 止回阀 | CHECK VALVE | 1 |
| 11 | 42657A3 | 止回阀 | CHECK VALVE | 1 |
| 12 | 42137 | 簧片阀密封件 | SEAL REED BLOCK | 1 |
| 13 | 195981 | 簧片阀衬垫 | GASKET REED BLOCK | 1 |
| 13 | 195982 | 衬垫 | GASKET | 1 |
| 14 | 4000171 | 螺钉(M6x16)簧片阀 | SCREW (M6 x 16) REED BLOCK | 3 |
| 15 | 42044 | 簧片 | REED | 2 |
| 15 | 825141 | 簧片 | REED | 2 |
| 16 | 179031 | 簧片止挡 | STOP Reed | 2 |
| 16 | 828435A3 | 簧片阀组 | REED BLOCK | 2 |
| 17 | 4005764 | 螺钉(M3.5x8)簧片固定 | SCREW (M3.5 x 8) REED ATTACHING | 6 |
| 18 | 400213 | 螺母(M8)不锈钢化油器螺柱 | NUT (M8) Stainless Steel CARBURETOR STUD | 2 |
| 19 | 42521 | 排气盖 | COVER EXHAUST | 1 |
| 19 | 8M0048005 | 排气盖总成 | COVER EXHAUST MAN | 1 |
| 20 | 40062129 | 螺钉(M6x25)排气盖至气缸体 | SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK | 11 |
| 21 | 19185 | 排气盖衬垫 | GASKET EXHAUST COVER | 1 |
| 22 | 423651 | 挡板 | PLATE Baffle | 1 |
| 22 | 42365 | 挡板 | PLATE Baffle | 1 |
| 23 | 19184 | 挡板衬垫 | GASKET BAFFLE PLATE | 1 |
| 24 | 19107F1 | 进气盖 | COVER Intake | 1 |
| 25 | 56759 | 倒钩接头 | FITTING Barbed | 1 |
| 24 | 17863A1 | 进气盖总成 | COVER ASSEMBLY Intake | 1 |
| 25 | 15133 | 接头 | FITTING | 1 |
| 26 | 1383556 | 软管 | HOSE | 2 |
| 26 | 99130100 | 软管-48英寸 | TUBING-48 INCH | 2 |
| 27 | 59169 | 接头 | FITTING | 1 |
| 27 | 59169003 | 三通接头 | FITTING Tee | 1 |
| 28 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | AR |
| 29 | 192031 | 进气盖衬垫 | GASKET INTAKE COVER | 1 |
| 30 | 40062129 | 螺钉(M6x25)盖至气缸体 | SCREW (M6 x 25) COVER TO CYLINDER BLOCK | 3 |
| 31 | 99127109 | 示警管(57英寸散装) | LINE (57.00 Inches Bulk) TELL TALE | 1 |
| 31 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 32 | 94848 | 示警软管接头-底部罩 | FITTING TELL TALE HOSE-BOTTOM COWL | 1 |
| 33 | 8906A1 | 盖总成 | COVER ASSEMBLY | 1 |
| 33 | 8906A02 | 盖总成 | COVER ASSEMBLY | 1 |
| 34 | 192071 | 衬垫 | GASKET | 1 |
| 34 | 19207002 | 衬垫 | GASKET | 1 |
| 35 | 146732 | 节温器盖 | COVER THERMOSTAT | 1 |
| 35 | 8M0039352 | 盖板 | COVER | 1 |
| 36 | 192051 | 衬垫 | GASKET | 1 |
| 36 | 19205002 | 衬垫 | GASKET | 1 |
| 37 | 40062129 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 38 | 14586 | 节温器(120) | THERMOSTAT (120) | 1 |
| 39 | 62386 | 节温器衬垫 | GASKET THERMOSTAT | 1 |
| 39 | 8M0204714 | 衬垫@4 | GASKET @4 | 1 |
| 40 | 29111 | 连接器(直型)(新设计) | CONNECTOR (STRAIGHT)(NEW DESIGN) | 1 |
| 40 | 291112 | 接头 | FITTING | 1 |
| 40 | 99664 | 弯头(旧设计) | ELBOW (OLD DESIGN) | 1 |
| 40 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 41 | 40062129 | 螺钉(M6x25)盖固定 | SCREW (M6 x 25) COVER ATTACHING | 6 |
| - | 12893A87 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 12893T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 12893A92 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 12893T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 811686A92 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 811686T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 19072A88 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 19072T88 | 船用动力头 | POWERHEAD MARINE | 1 |

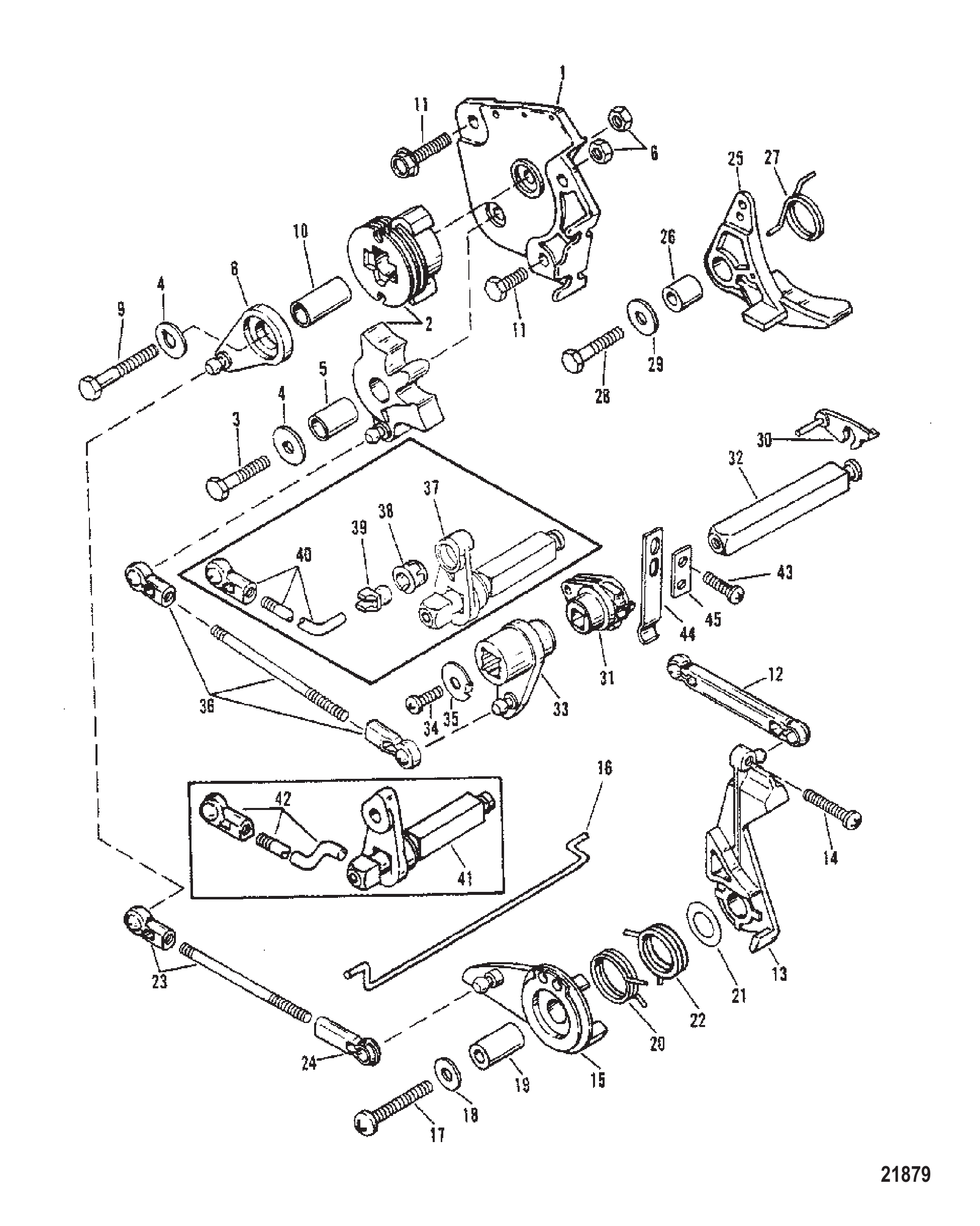

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

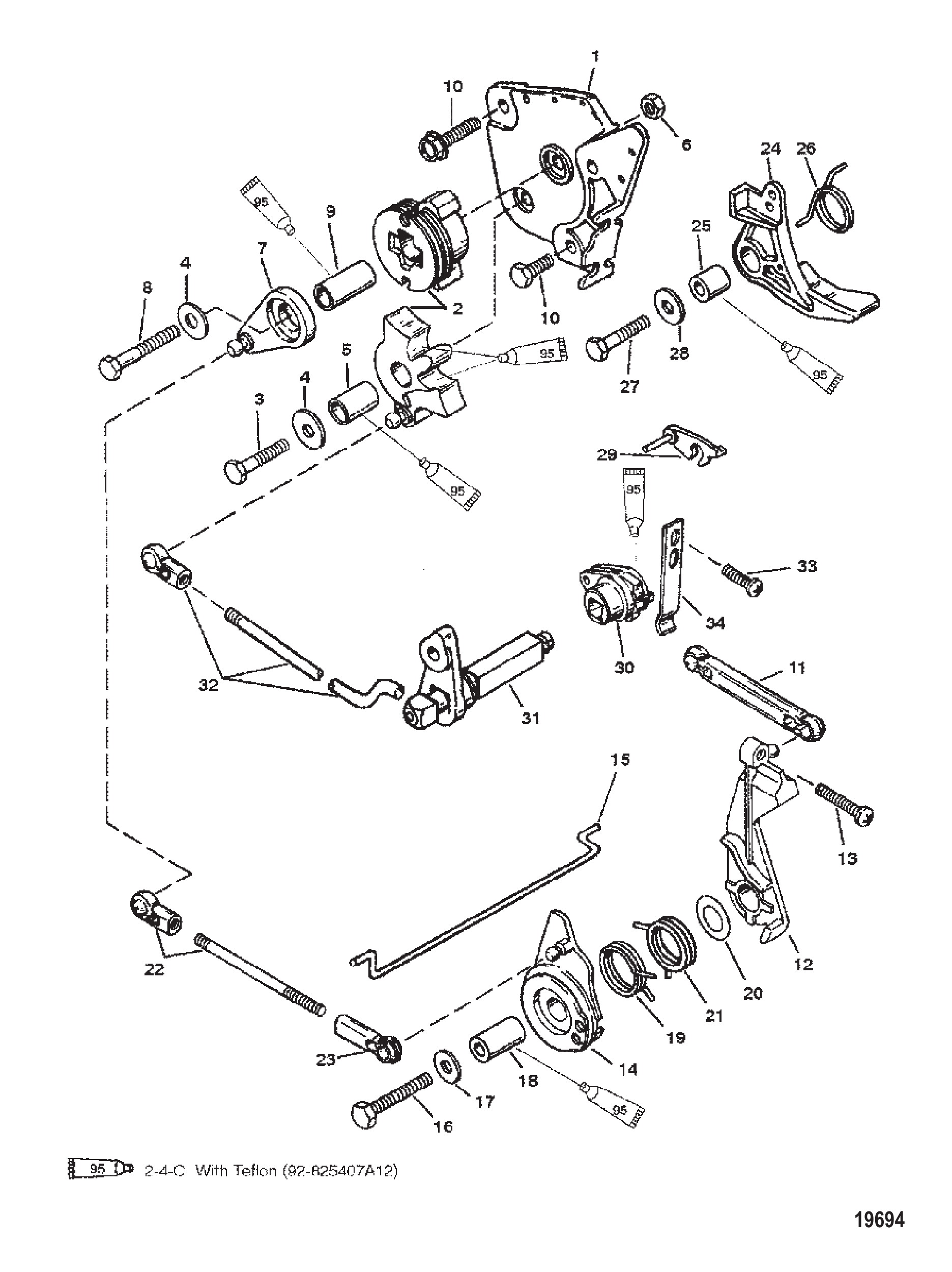

| 1 | 4000332 | 螺钉(M6x35) | SCREW (M6 x 35) | 1 |
| 2 | 42809 | 控制臂支架 | BRACKET Control Arm | 1 |
| 3 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 2 |
| 3 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 2 |
| 3 | 12132 | 垫圈(0.520x1.500x0.06) | WASHER (.520 x 1.500 x .06) | 1 |
| 3 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| 4 | 42806 | 衬套 | BUSHING | 1 |
| 4 | 823807 | 衬套 | BUSHING | 1 |
| 5 | 42810A2 | 控制臂 | CONTROL ARM | 1 |
| 5 | 42810A8 | 控制臂总成 | ARM ASSEMBLY Control | 1 |
| 5 | 42810A4 | 控制臂 | CONTROL ARM | 1 |
| 5 | 42810A8 | 控制臂总成 | ARM ASSEMBLY Control | 1 |
| 6 | 428071 | 节气门控制臂 | ARM Throttle Control | 1 |
| 6 | 428071 | 节气门控制臂 | ARM Throttle Control | 1 |
| 7 | 61319 | E型卡环 | E RING | 1 |
| 8 | 12136 | 衬套 | BUSHING | 1 |
| 8 | 889731 | 衬套 | BUSHING | 1 |
| 9 | 42800 | 杠杆 | LEVER | 1 |
| 10 | 21071 | 开口销 | COTTER PIN | 1 |
| 10 | 210711 | 开口销 | COTTER PIN | 1 |
| 11 | 42741 | 换挡连杆 | SHIFT LINK | 1 |
| 11 | 815550A1 | 换档轴 | SHIFT SHAFT | 1 |
| 5 | 42810A8 | 控制臂总成 | ARM ASSEMBLY Control | 1 |
| 8 | 12136 | 衬套 | BUSHING | 1 |
| 8 | 889731 | 衬套 | BUSHING | 1 |
| 10 | 21071 | 开口销 | COTTER PIN | 1 |
| 10 | 210711 | 开口销 | COTTER PIN | 1 |
| 12 | 8155691 | 换挡连杆 | SHIFT LINK | 1 |
| 12 | 878169 | 换挡连杆 | SHIFT LINK | 1 |
| 13 | 400634 | 螺母 (M6) | NUT (M6) | 1 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 428021 | 固定座 | RETAINER | 1 |
| 15 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 15 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 16 | 424291 | 固定座 | RETAINER | 2 |
| 17 | 11372 | 卡扣 | CLIP | 1 |
| 18 | 19385A2 | 节气门连杆总成 | LINK ASSEMBLY Throttle | 1 |
| 18 | 8M0084741 | 节气门连杆总成 | LINK ASY-THROTTLE | 1 |
| 19 | 19384 | 插座 | SOCKET | 1 |
| 19 | 8M0084742 | 插座 | SOCKET | 1 |
| 20 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 20 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 21 | 11371 | 锁紧垫圈（旧设计） | TAB WASHER (OLD DESIGN) | 1 |
| 22 | 4000171 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 23 | 42805A3 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 24 | 11373 | 锁销 | PIN Latch | 1 |
| 25 | 23928 | 销 | PIN | 1 |
| 25 | 239281 | 滚动销 | PIN Roll | 1 |
| 26 | 42975 | 传动螺钉 | DRIVE SCREW | 1 |
| 27 | 12134 | 波形垫圈 | WASHER Wave | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

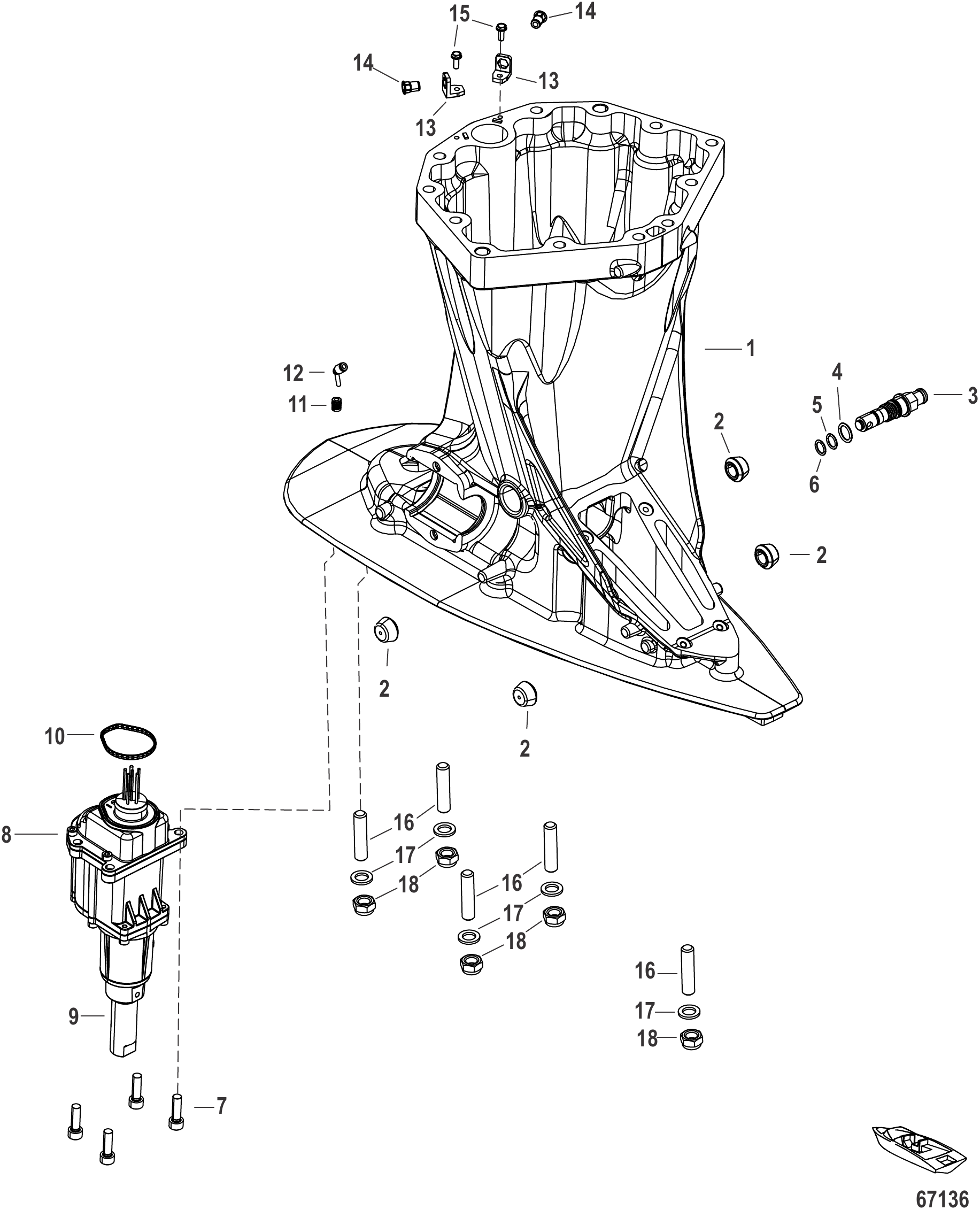

| 1 | 8M0142775 | 驱动轴壳体-黑色 | HOUSING Driveshaft, Black | 1 |
| 1 | 8M0145916 | 驱动轴壳体（银色） | HOUSING Driveshaft, Silver | 1 |
| 1 | 8M0228045 | 驱动轴壳体（银色） | HOUSING Driveshaft, Silver | 1 |
| 2 | 8M0142713 | 支撑盖帽 | CAP Chap Support | 4 |
| 3 | 8M0112869 | 油塞总成 | OIL PLUG ASSEMBLY | 1 |
| 4 | 85045 | O型圈(.551 x .070) | O-RING (.551 x .070) | 1 |
| 5 | 863006 | O型圈(10.82x1.78) | O-RING (10.82 x 1.78) | 1 |
| 6 | 8M0036228 | O型圈(8.1x1.6) | O-RING (8.1 X 1.6) | 1 |
| 7 | 8M0142829 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 4 |
| 8 | 8M0142253 | 换挡执行器 | SHIFT ACTUATOR | 1 |
| 8 | 8M0204944 | 换挡执行器 | SHIFT ACTUATOR | 1 |
| 9 | 8M0147857 | 联轴器轴 | SHAFT Coupling | 1 |
| 10 | 8M0142978 | 执行器密封件 | SEAL ACTUATOR | 1 |
| 11 | 8M0142714 | 接头 | FITTING | 1 |
| 12 | 8M0155119 | 乐可利接头 | FITTING Legris | 1 |
| 13 | 8M0142715 | 围嘴安装支架 | BRACKET Bib Mount | 2 |
| 14 | 8M0142716 | 嵌件 | INSERT | 2 |
| 15 | 40011106 | 不锈钢螺钉(M5x13) | SCREW (M5 x 13) Stainless Steel | 2 |
| 16 | 8M0008031 | 双头螺柱(M12 x 1.75 x 52) | STUD (M12 x 1.75 x 52) | 5 |
| 16 | 8M0142781 | 双头螺柱（M12×179） | STUD (M12 x 179) | 5 |
| 16 | 8M0142788 | 双头螺柱(M12x306) | STUD (M12 x 306) | 5 |
| 17 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 5 |
| 18 | 896895 | 螺母(M12) | NUT (M12) | 5 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

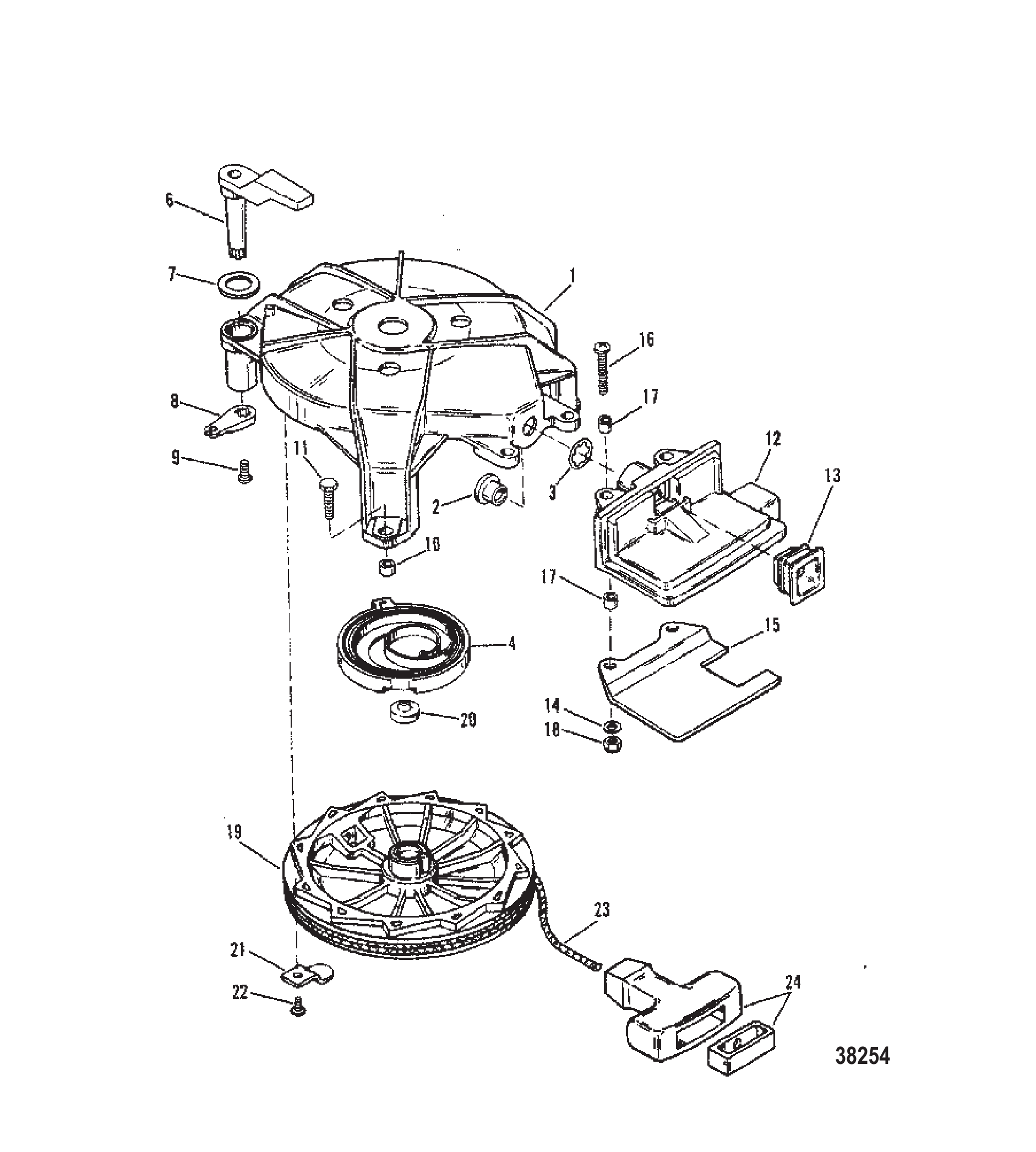

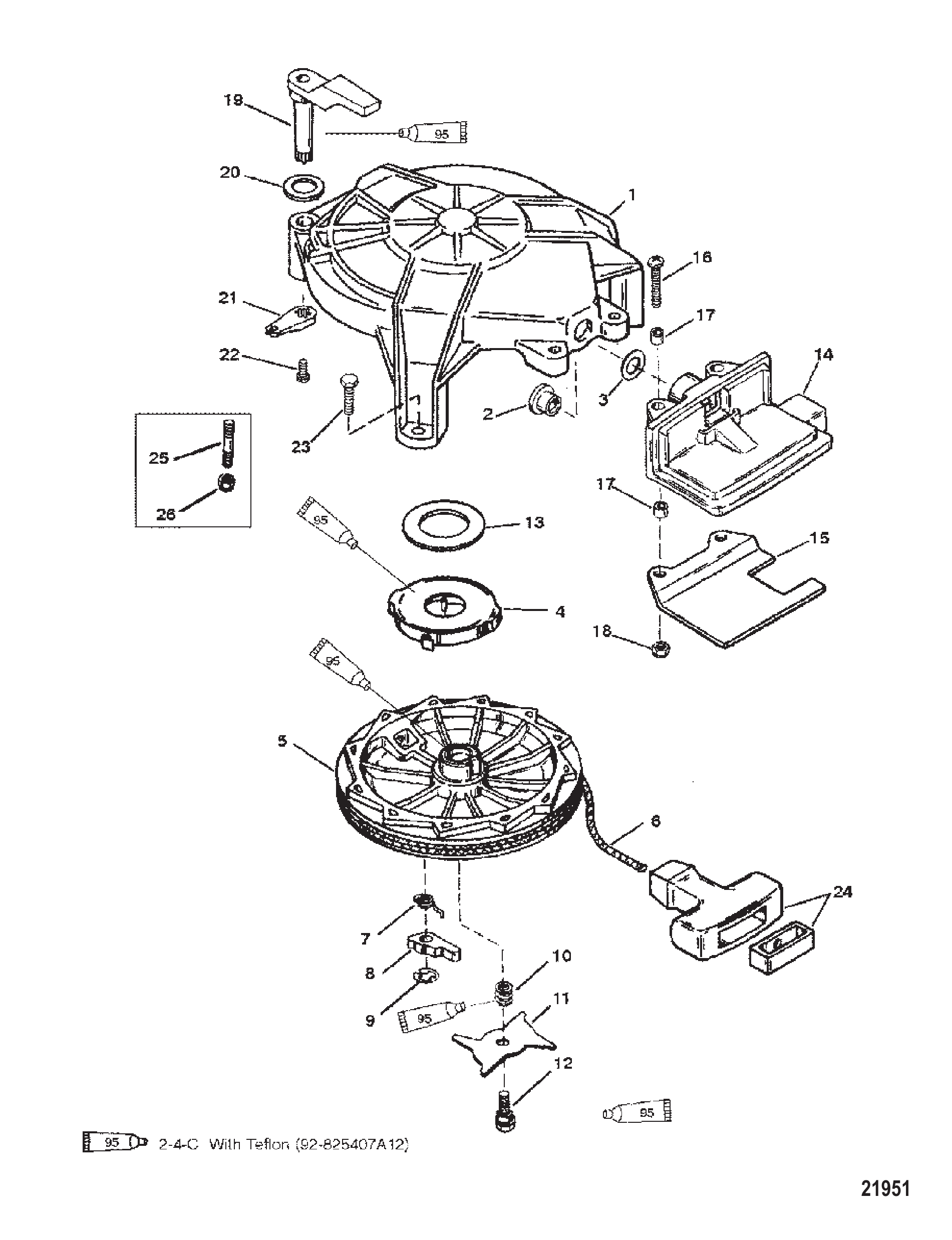

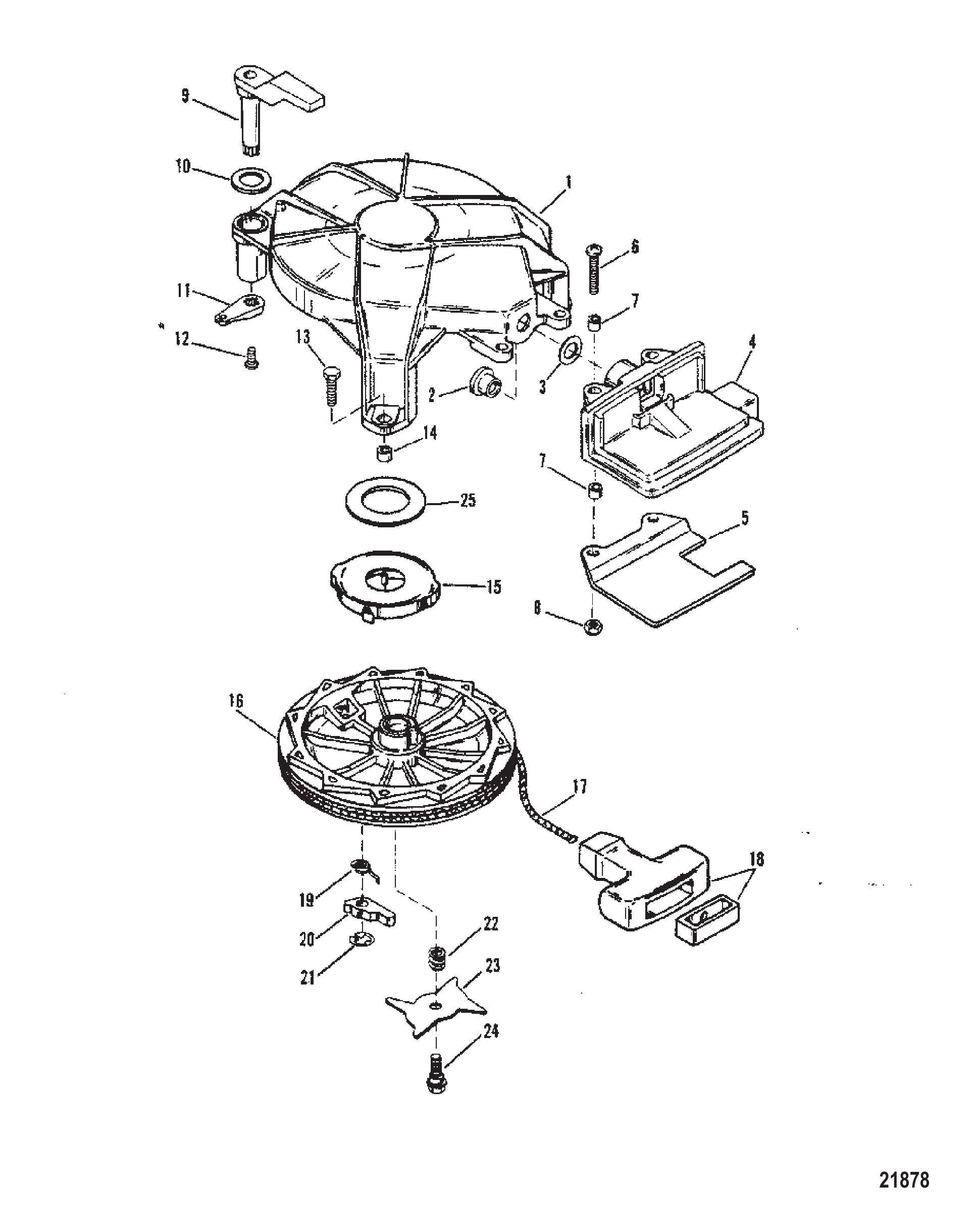

| 1 | 422071 | 启动器壳体 | HOUSING Starter | 1 |
| 1 | 42207T02 | ORD 8M0070659 | ORD 8M0070659 | 1 |
| 2 | 42690 | 衬套 | BUSHING | 1 |
| 2 | 8M0183792 | 绳索衬套 | ROPE BUSHING | 1 |
| 3 | 818853 | 挡圈 | RING Retaining | 1 |
| 4 | 19018 | 支架 | REST | 1 |
| 4 | 19018T | 支架-启动器手柄 | REST-STARTER HDL | 1 |
| 5 | 12674 | 支架 | SUPPORT | 1 |
| 6 | 40019111 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 2 |
| 7 | 309772 | 隔套 | SPACER | 4 |
| 8 | 400633 | 螺母 (M5) | NUT (M5) | 4 |
| 8 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 4 |
| 9 | 42171 | 锁杆 (上) | LEVER LOCK (UPPER) | 1 |
| 9 | 42171T | 杠杆 | LEVER | 1 |
| 10 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 10 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 11 | 42173 | 锁杆 (下) | LEVER LOCK (LOWER) | 1 |
| 11 | 42173T | 杠杆 | LEVER | 1 |
| 12 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 13 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 3 |
| 13 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 3 |
| 14 | 43787 | 启动器壳体螺钉隔套 | SPACER STARTER HOUSING SCREW | 3 |
| 15 | 86857 | 弹簧 | SPRING | 1 |
| 15 | 86857T01 | 弹簧 | SPRING | 1 |
| 16 | 420343 | 启动器滑轮 | PULLEY Starter | 1 |
| 16 | 42034T04 | 滑轮-启动器 | SHEAVE-STARTER | 1 |
| 17 | 12066A9 | 绳索 | ROPE | 1 |
| 17 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| 18 | 85174A1 | 手柄总成 | HANDLE ASSEMBLY | 1 |
| 19 | 86851 | 弹簧 | SPRING | 2 |
| 19 | 86851T02 | 弹簧 @2 | SPRING @2 | 2 |
| 20 | 86850 | 凸轮 | CAM | 2 |
| 20 | 868501 | 凸轮 | CAM | 2 |
| 21 | 86849 | 挡圈 | RING Retaining | 2 |
| 21 | 86849T01 | 环 @2 | RING @2 | 2 |
| 22 | 86852 | 弹簧 | SPRING | 1 |
| 22 | 868523 | 弹簧 | SPRING | 1 |
| 23 | 86853 | 凸轮 | CAM | 1 |
| 23 | 86853T01 | 凸轮 | CAM | 1 |
| 24 | 818838 | 螺钉 | SCREW | 1 |
| 24 | 826253 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 1 |
| 25 | 90478 | 垫 | PAD | 1 |
| 25 | 833161T | 毛毡垫 | PAD-FELT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

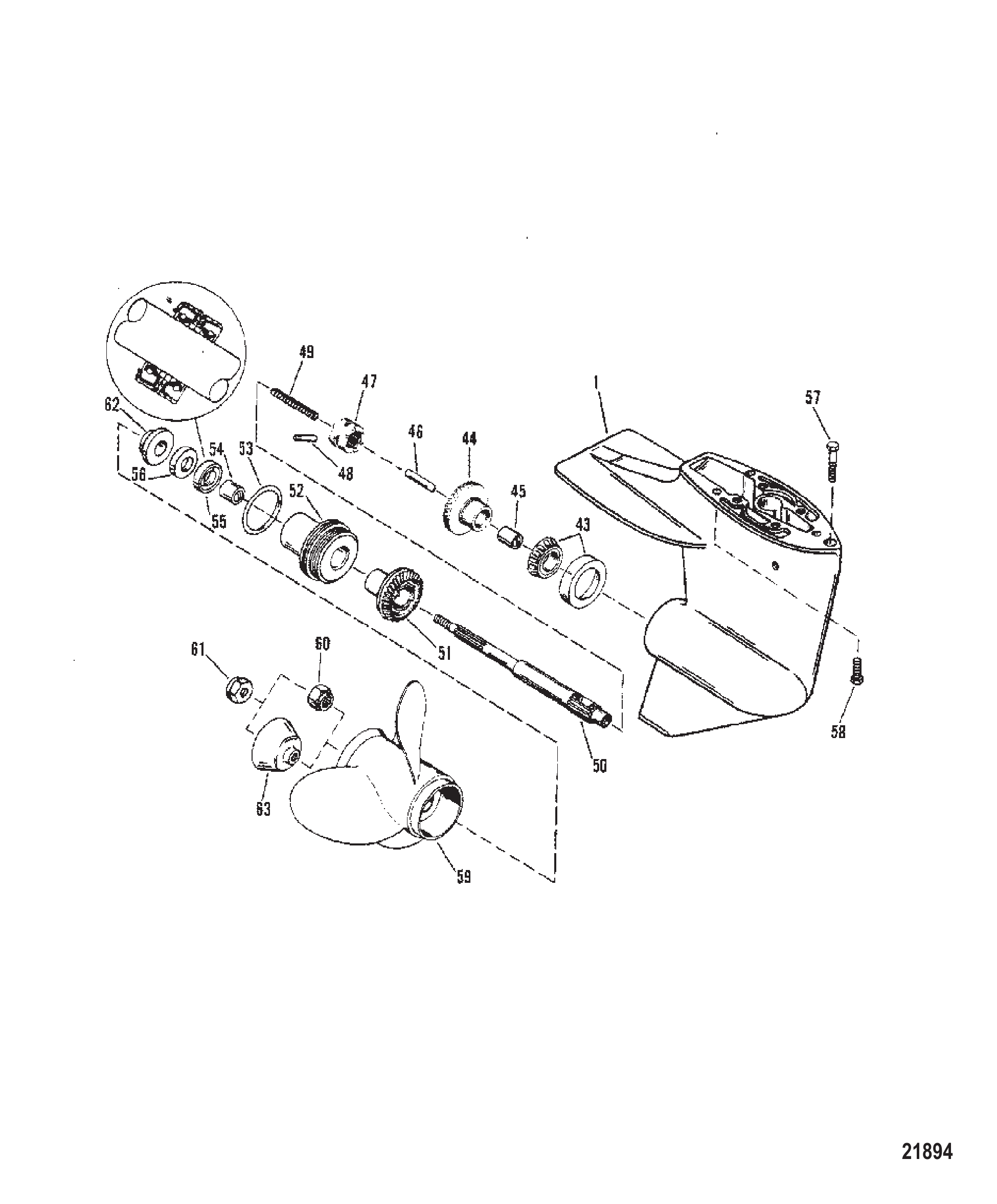

| - | 8833A13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833T13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A15 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833T15 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A14 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833T14 | 齿轮箱-短型-灰 | GEAR HSG-SHORT-GR | 1 |
| - | 8833A16 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833T16 | ORD 1666-8833T15 | ORD 1666-8833T15 | 1 |
| 1 | 8833A17 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083312 | GC BASIC9.9/15 4S | GC BASIC9.9/15 4S | 1 |
| 1 | 8833A18 | 齿轮箱总成基础型-灰色 | GEAR HOUSING ASSEMBLY Basic-Gray | 1 |
| 1 | 8833A17 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 43 | 821321A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 44 | 821924A1 | 前进齿轮总成 (26齿) | GEAR ASSEMBLY Forward (26 TEETH) | 1 |
| 45 | 41367 | 衬套 | BUSHING | 1 |
| 46 | 813139 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 47 | 821930A1 | 离合器总成 | CLUTCH ASSEMBLY | 1 |
| 48 | 823951 | 十字销 | PIN Cross | 1 |
| 49 | 42204 | 弹簧 | SPRING | 1 |
| 50 | 821929 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 51 | 8219261 | 倒档齿轮-13/26 | GEAR Reverse - 13/26 | 1 |
| 51 | 821926T1 | 倒档齿轮-13/26 | GEAR Reverse - 13/26 | 1 |
| 52 | 42144A3 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 52 | 42144T3 | 轴承座 | CARRIER Bearing | 1 |
| 53 | 33145 | O型圈(1.984x0.139) | O-RING (1.984 x .139) | 1 |
| 53 | 8M0214923 | O型圈(1.98x1.39) | O-RING (1.98 x 1.39) | 1 |
| 54 | 821927 | 衬套 | BUSHING | 1 |
| 55 | 99325 | 密封件 | SEAL | 1 |
| 56 | 821928 | 油封 | SEAL Oil | 1 |
| 57 | 82407110 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 1 |
| 58 | 8240717 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 2 |
| 59 | 828156A12 | 黑色MAX螺旋桨9x9右旋铝3叶 | BLACK MAX PROPELLER 9 X 9 RH AL 3 BL | 1 |
| 60 | 420911 | 隔套 | SPACER | 1 |
| 61 | 13914 | 螺母(M10) | NUT (M10) | 1 |
| 61 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 62 | 821932 | 推力毂 | THRUST HUB | 1 |
| 62 | 8219321 | 推力毂 | THRUST HUB | 1 |
| 63 | 822559A1 | 倒挡排气块杯总成 | CUP ASSEMBLY Reverse Exhaust Block | 1 |
| 63 | 822559Q01 | 杯套 | CUP | 1 |
| - | 42364A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 41365A3 | 密封套件 | SEAL KIT | 1 |

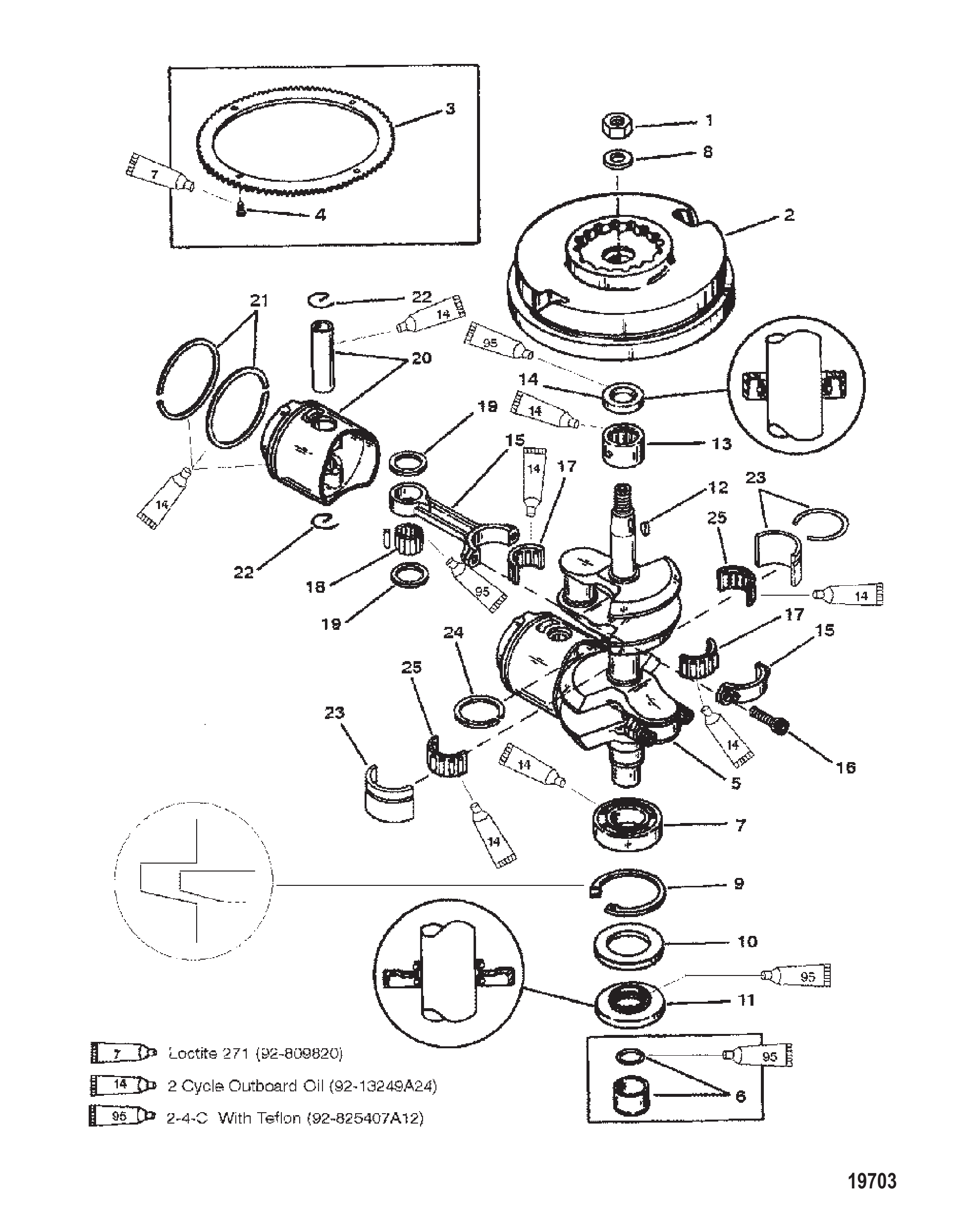

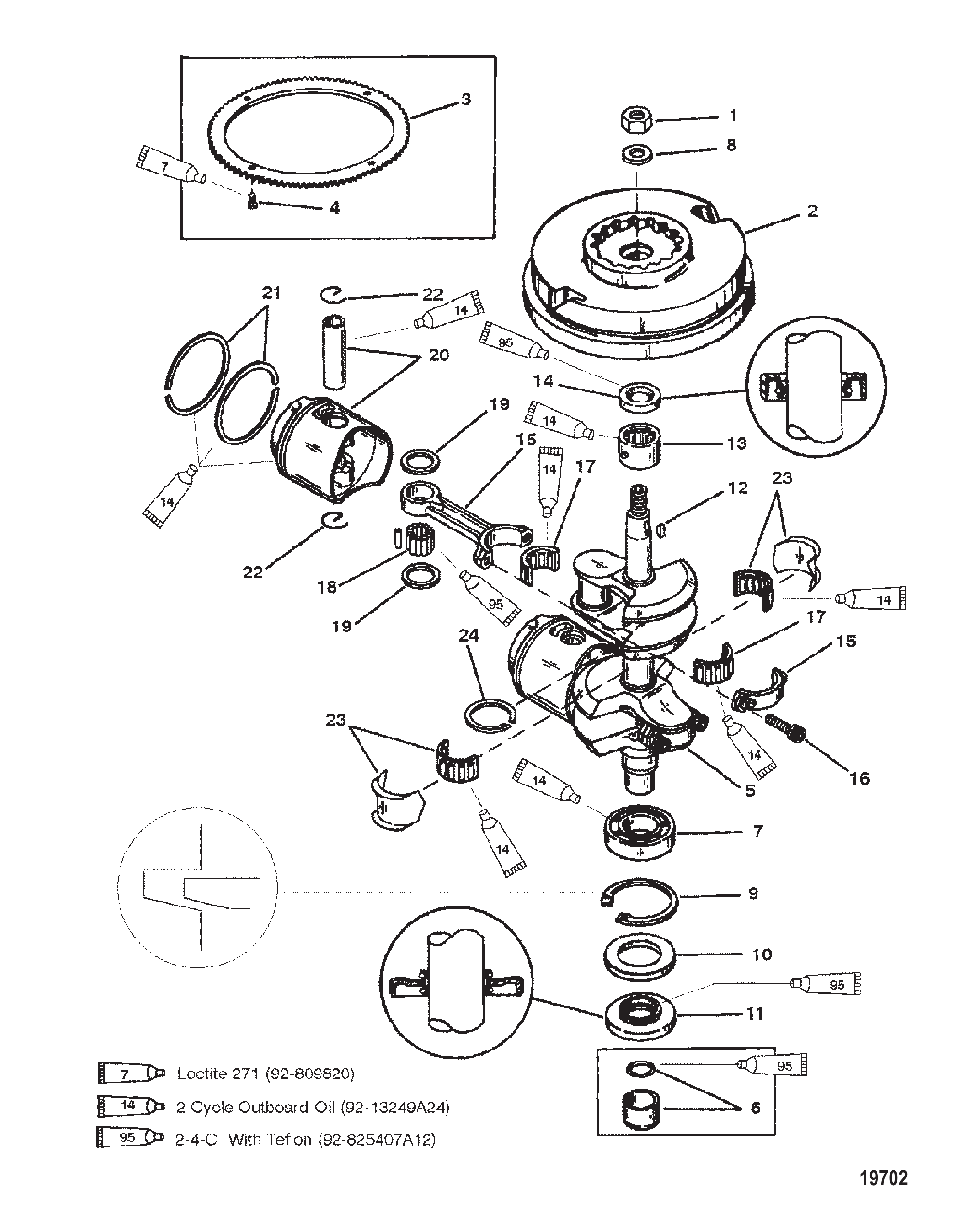

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

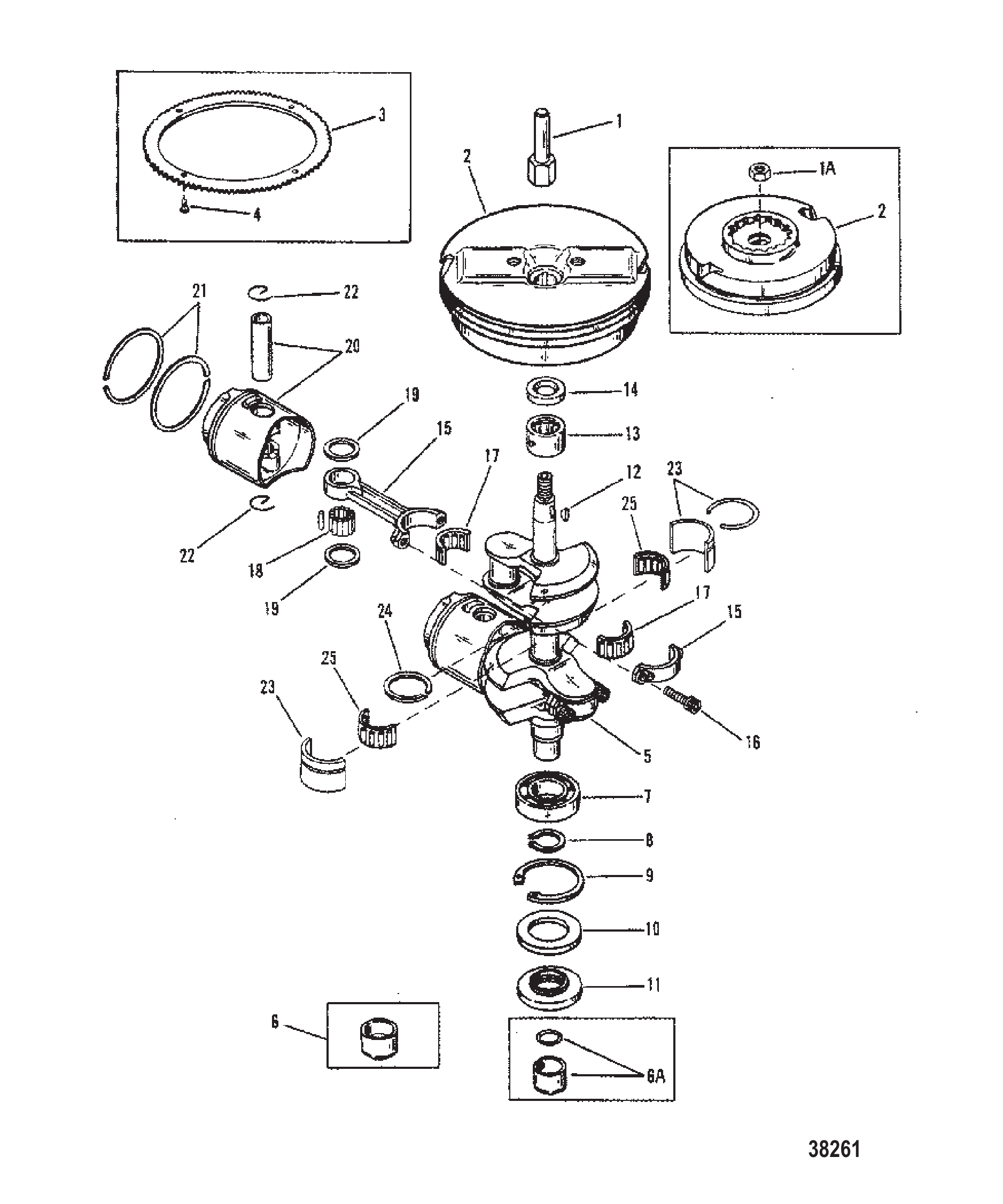

| 1 | 42691 | 飞轮轴 | SHAFT FLYWHEEL | 1 |
| 1A | 818591 | 螺母(M14) | NUT (M14) | 1 |
| 2 | 8908A2 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 2 | 859231T6 | 飞轮 | FLYWHEEL | 1 |
| 2 | 818540A2 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 2 | 859231T19 | 飞轮总成 | FLYWHEEL ASY | 1 |
| 3 | 99301 | 飞轮齿圈 | RING GEAR FLYWHEEL | 1 |
| 4 | 40039106 | 螺钉(M5×13)齿圈至飞轮 | SCREW (M5 x 13) RING GEAR TO FLYWHEEL | 4 |
| 4 | 88190313 | 螺钉 (M5 x 13) | SCREW (M5 x 13) | 4 |
| 5 | 8471A2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 5 | 8M0083309 | 曲轴总成 | CRANKSHAFT ASSY | 1 |
| 6 | 42890 | 曲轴油封(设计I型) | SEAL Oil CRANKSHAFT (DESIGN I) | 1 |
| 6 | 818630A1 | 套筒 | SLEEVE | 1 |
| 6A | 818630A1 | 套筒(含O型圈-设计II型) | SLEEVE (INCLUDES O-RING - DESIGN II) | 1 |
| 7 | 41341 | 曲轴下球轴承 | BEARING Ball CRANKSHAFT-LOWER | 1 |
| 8 | 20940 | 卡环-球轴承(小号)(旧设计) | RING Snap BALL BEARING (SMALL) (OLD DESIGN) | 1 |
| 9 | 42132 | 挡圈 | RING Retaining | 1 |
| 10 | 13031 | 下垫圈 | WASHER LOWER | 1 |
| 11 | 125661 | 下油封 | SEAL Oil - Lower | 1 |
| 12 | 20094 | 半圆键 | KEY Woodruff | 1 |
| 13 | 41342 | 曲轴上滚柱轴承 | BEARING Roller CRANKSHAFT-UPPER | 1 |
| 13 | 878158 | 滚柱轴承 | BEARING Roller | 1 |
| 14 | 125671 | 曲轴上油封 | SEAL Oil - Upper CRANKSHAFT | 1 |
| 15 | 8477A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 16 | 823460 | 连杆螺钉(M5x16) | SCREW (M5 x 16) CONNECTING ROD | 4 |
| 17 | 42076A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 3 |
| 18 | 42186 | 活塞端滚针轴承 | BEARING Needle PISTON END | 48 |
| 19 | 43348 | 推力轴承 | BEARING Thrust | 4 |
| 19 | 8M0012297 | 止推垫圈@2 | WASHER-THRST@2 | 4 |
| 20 | 9747A2 | 活塞总成(标准) | PISTON ASSEMBLY (STANDARD) | 2 |
| 20 | 9747T2 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 20 | 9747A4 | 活塞总成(.015加大) | PISTON ASSEMBLY (.015 O.S.) | 2 |
| 21 | 18212A4 | 活塞环组(标准) | RING SET Piston (STANDARD) | 1 |
| 21 | 18212A1 | 活塞环组(.015加大) | RING SET Piston (.015 O.S.) | 2 |
| 22 | 42202 | 锁紧环 | LOCK RING | 4 |
| 23 | 17794A1 | 轴承 | BEARING | 1 |
| 24 | 818901 | 主轴承油封 | SEAL MAIN BEARING | 1 |
| 25 | 42076A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| - | 19072A88 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 19072T88 | 船用动力头 | POWERHEAD MARINE | 1 |

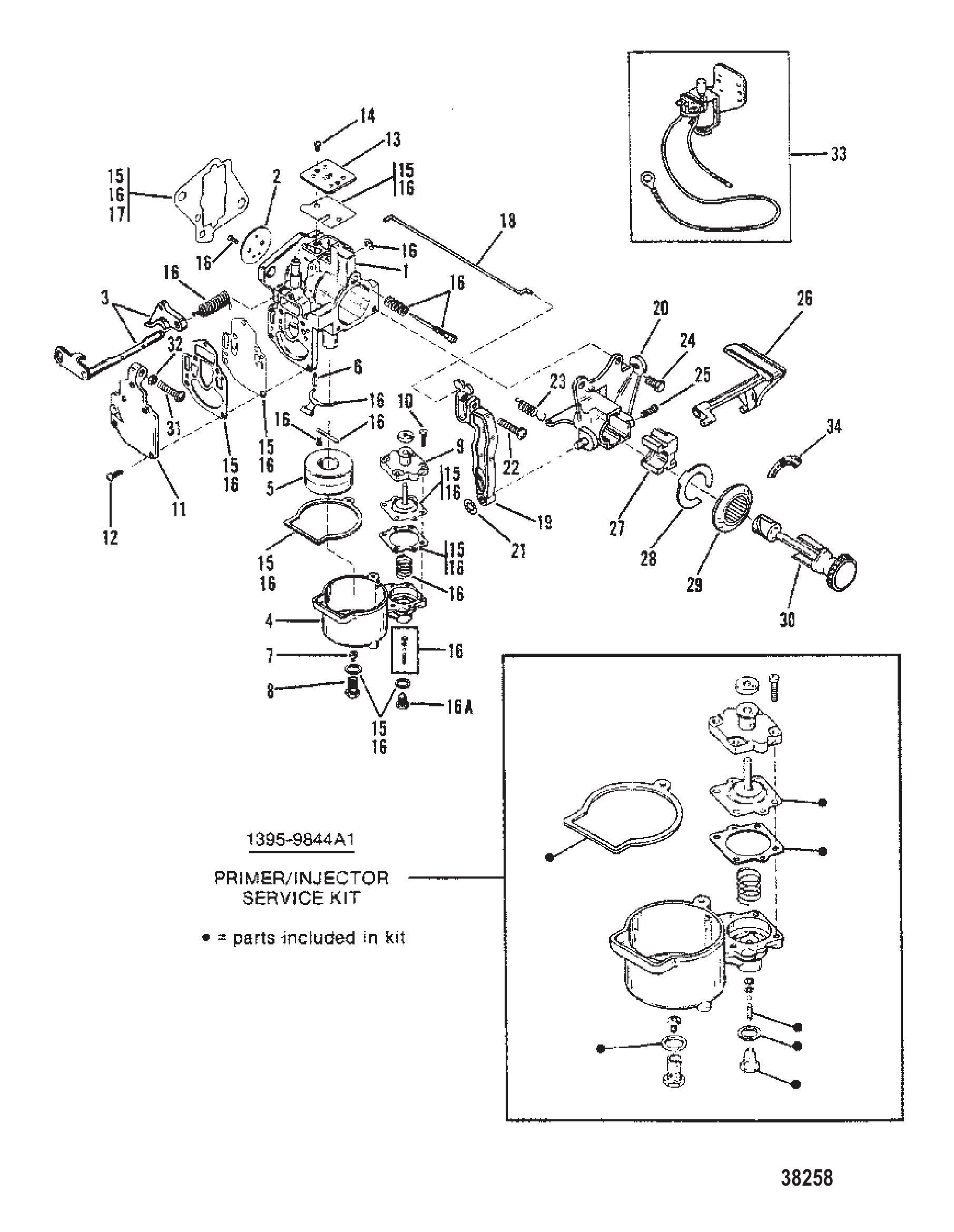

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

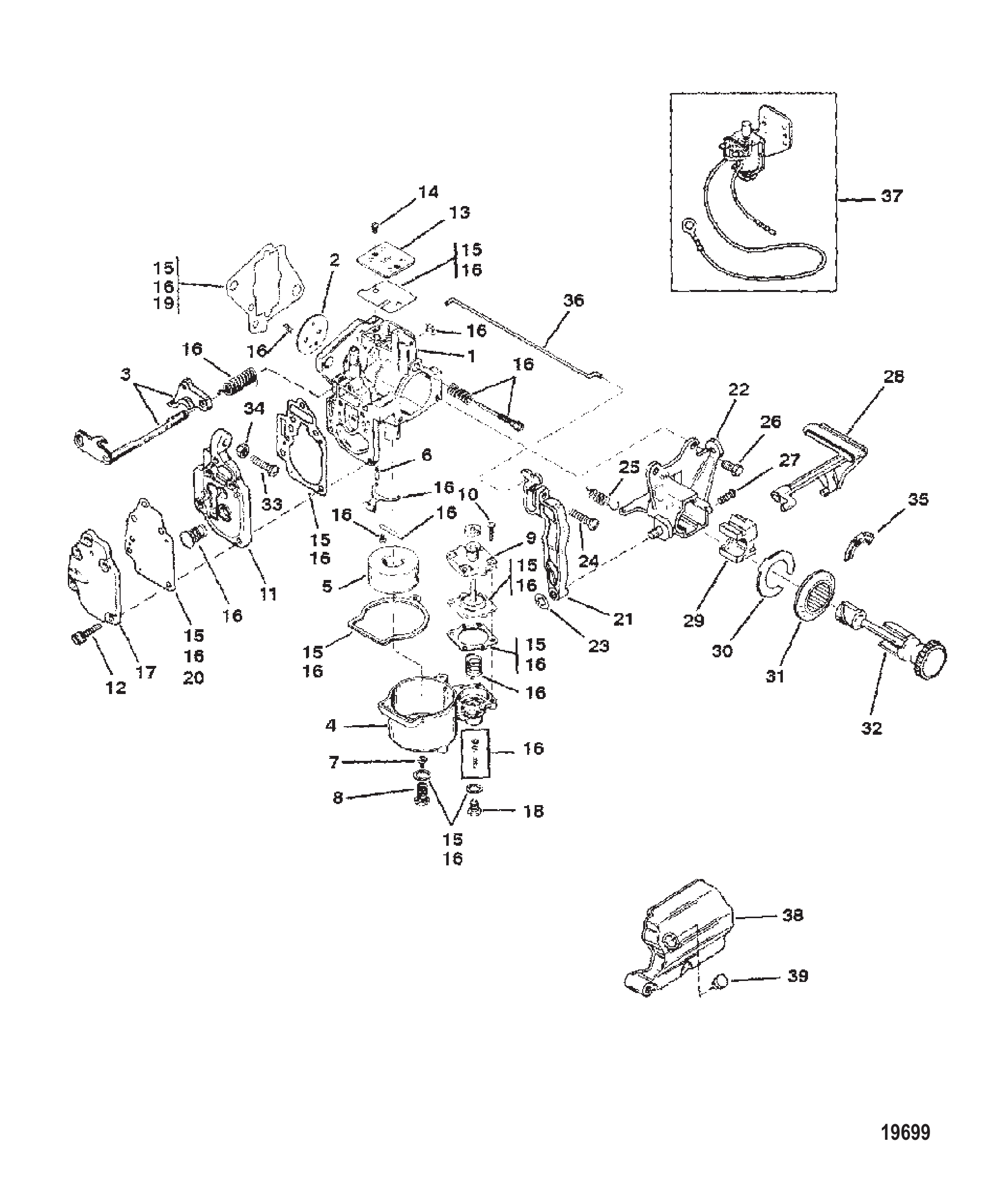

| 1 | 9726A3 | 化油器(WMC-39) | CARBURETOR (WMC-39) | 1 |
| 1 | 9726T19 | 化油器 | CARBURETOR | 1 |
| 2 | 19268 | 节气门阀(WMC-28) | VALVE Throttle (WMC-28) | 1 |
| 2 | 823716 | 节气门阀(WMC-39) | VALVE Throttle (WMC-39) | 1 |
| 3 | 19267 | 节气门轴(含螺钉和弹簧) | SHAFT Throttle (INCLS.SCREW & SPRING) | 1 |
| 4 | 9164 | 燃油杯 | BOWL Fuel | 1 |
| 5 | 9169 | 浮子 | FLOAT | 1 |
| 5 | 91691 | 浮子 | FLOAT | 1 |
| 6 | 9855 | 阀门 | VALVE | 1 |
| 6 | 803861 | 进油针阀 | VALVE Inlet Needle | 1 |
| 7 | 4215 | 燃油主量孔(.066) | JET Main Fuel (.066) | 1 |
| 8 | 9171 | 量孔固定塞 | PLUG JET RETAINER | 1 |
| 9 | 813618 | 膜片盖 | COVER DIAPHRAGM | 1 |
| 10 | 9697 | 膜片盖螺丝 | SCREW DIAPHRAGM COVER | 4 |
| 11 | 15827A1 | 本体 | BODY | 1 |
| 11 | 9702 | 盖/燃油泵套件 | COVER/FUEL PUMP KIT | 1 |
| 12 | 9643 | 燃油泵盖螺丝 | SCREW FUEL PUMP COVER | 5 |
| 13 | 9699 | 盖板 | PLATE COVER | 1 |
| 14 | 9696 | 盖板螺钉 | SCREW COVER PLATE | 2 |
| 15 | 9803 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 15 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 16 | 19269 | 维修零件包 | REPAIR PARTS KIT | 1 |
| 16 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 17 | 9637 | 燃油泵盖 | COVER FUEL PUMP | 1 |
| 18 | 9762 | 堵头 | PLUG | 1 |
| 19 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| 20 | 9635 | 膜片/衬垫 | DIAPHRAGM/GASKET | 1 |
| 21 | 128053 | 快怠速杆 | LEVER Fast Idle | 1 |
| 22 | 12803 | 启动泵支架 | BRACKET Primer | 1 |
| 23 | 97877 | 压入式螺母 | PUSH NUT | 1 |
| 23 | 821979 | 螺母 | NUT | 1 |
| 24 | 79964 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 24 | 12110 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 25 | 11277 | 张力弹簧 | SPRING Tension | 1 |
| 26 | 40056110 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 2 |
| 26 | 400018 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 27 | 79965 | 螺丝 (#8-32 x .500) 不锈钢 | SCREW (#8-32 x .500) Stainless Steel | 1 |
| 28 | 112731 | 启动泵杆 | LEVER Primer | 1 |
| 29 | 11280 | 凸轮块 | CAM BLOCK | 1 |
| 30 | 11278 | 固定夹 | CLIP Retaining | 1 |
| 31 | 12804A1 | 阻风门面板总成 | BEZEL ASSEMBLY Choke | 1 |
| 32 | 128022 | 启动泵旋钮 | PRIMER KNOB | 1 |
| 33 | 40056110 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 1 |
| 34 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 35 | 17442 | 盖板 | COVER | 1 |
| 36 | 47579 | 堵头 | PLUG | 1 |
| 37 | 445541 | 怠速线 | IDLE WIRE | 1 |
| 38 | 12970 | 贴纸 (慢/快) | DECAL (SLOW/FAST) | 1 |
| 38 | 129701 | 贴花 | DECAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42207A1 | 启动器壳体总成 | HOUSING ASSEMBLY STARTER | 1 |
| 2 | 42690 | 启动绳衬套 | BUSHING STARTER ROPE | 1 |
| 2 | 8M0183792 | 绳索衬套 | ROPE BUSHING | 1 |
| 3 | 42689 | 挡圈 | RING Retaining | 1 |
| 3 | 818853 | 挡圈 | RING Retaining | 1 |
| 4 | 42194A2 | 反冲启动器弹簧总成 | SPRING ASSEMBLY Recoil Starter | 1 |
| 6 | 42171 | 锁杆 (上) | LEVER LOCK (UPPER) | 1 |
| 6 | 42171T | 杠杆 | LEVER | 1 |
| 7 | 56681 | 垫圈 (.203 x .500 x .032) 上锁杆 | WASHER (.203 x .500 x .032) UPPER LOCK LEVER | 1 |
| 7 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 8 | 42173 | 锁杆 (下) | LEVER LOCK (LOWER) | 1 |
| 8 | 42173T | 杠杆 | LEVER | 1 |
| 9 | 48408 | 螺钉 (#10-16 x .500) 下锁杆 | SCREW (#10-16 x .500) LOWER LOCK LEVER | 1 |
| 10 | 43787 | 启动器壳体螺钉隔套 | SPACER STARTER HOUSING SCREW | 3 |
| 11 | 40011128 | 螺钉 (M6 x 20) 不锈钢启动器壳体固定 | SCREW (M6 x 20) Stainless Steel STARTER HOUSING ATTACHING | 3 |
| 11 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 3 |
| 12 | 42094 | 支架 | REST | 1 |
| 12 | 19018T | 支架-启动器手柄 | REST-STARTER HDL | 1 |
| 12 | 19018 | 支架 | REST | 1 |
| 12 | 19018T | 支架-启动器手柄 | REST-STARTER HDL | 1 |
| 13 | 44180 | 绳索衬套 | BUSHING Rope | 1 |
| 14 | 4002313 | 支架螺钉垫圈 | WASHER REST SCREW | 2 |
| 15 | 12674 | 支架 | SUPPORT | 1 |
| 16 | 40019111 | 螺钉 (M5 x 35) 支架至启动器壳体 | SCREW (M5 x 35) REST TO STARTER HOUSING | 2 |
| 17 | 309772 | 支架螺钉隔套 | SPACER REST SCREW | 4 |
| 18 | 400633 | 螺母 (M5) 支架螺钉 | NUT (M5) REST SCREW | 2 |
| 18 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 2 |
| 19 | 42034A1 | 启动器滑轮 | SHEAVE STARTER | 1 |
| 19 | 42034A2 | 启动器回绕滑轮总成 | PULLEY ASSEMBLY Starter Rewind | 1 |
| 20 | 427071 | 启动器滑轮盖 | CAP STARTER SHEAVE | 1 |
| 20 | 817362 | 启动器滑轮盖 (盖塞) | CAP STARTER SHEAVE (CAP PLUG) | 1 |
| 21 | 42209 | 启动器滑轮挡片 | TAB STARTER SHEAVE | 3 |
| 22 | 48408 | 螺钉 (#10-16 x .500) 挡片 | SCREW (#10-16 x .500) TAB | 3 |
| 23 | 12066A9 | 启动绳 | ROPE STARTER | 1 |
| 23 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| 24 | 85174A1 | 启动绳手柄总成 | HANDLE ASSEMBLY STARTER ROPE | 1 |

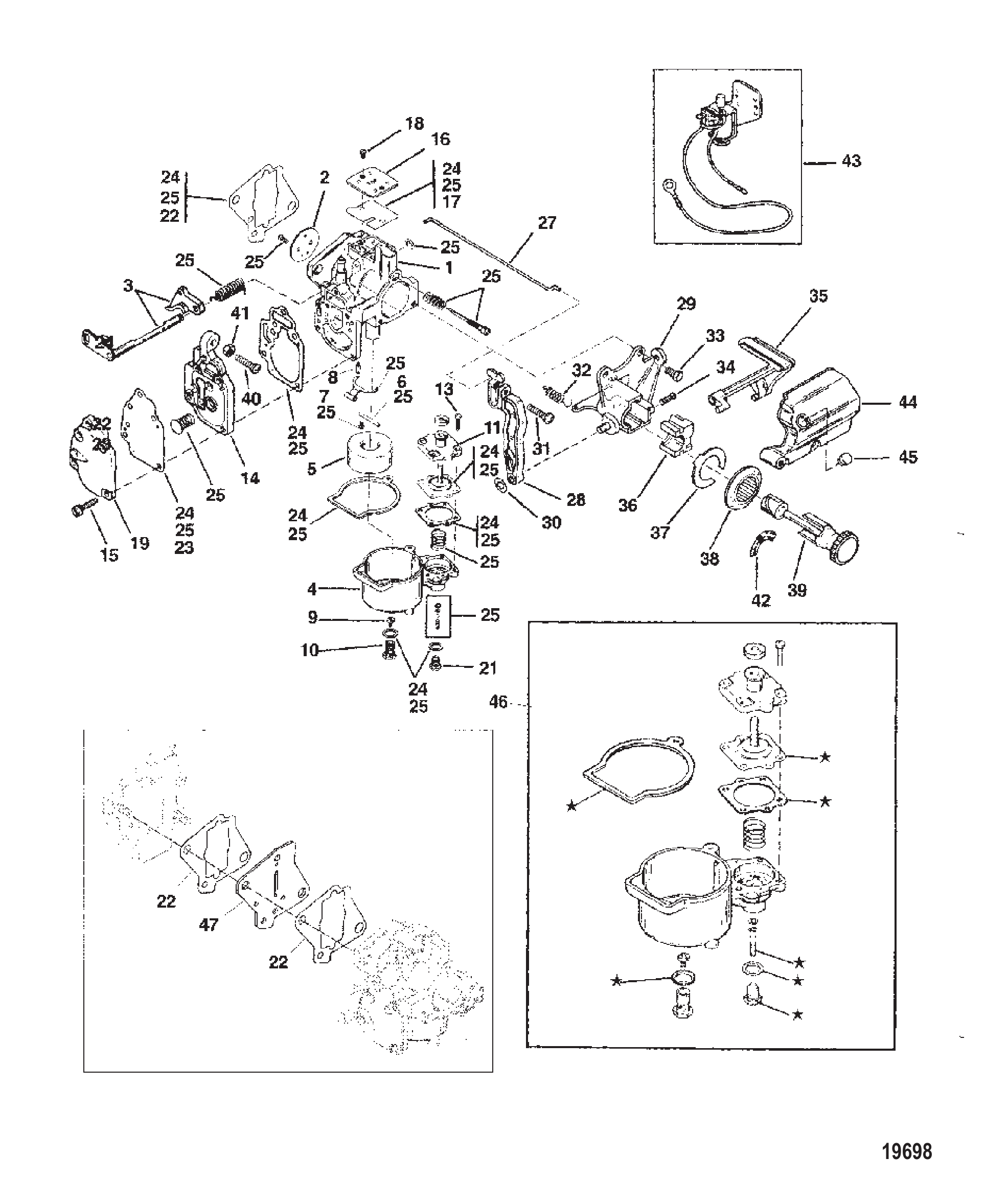

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

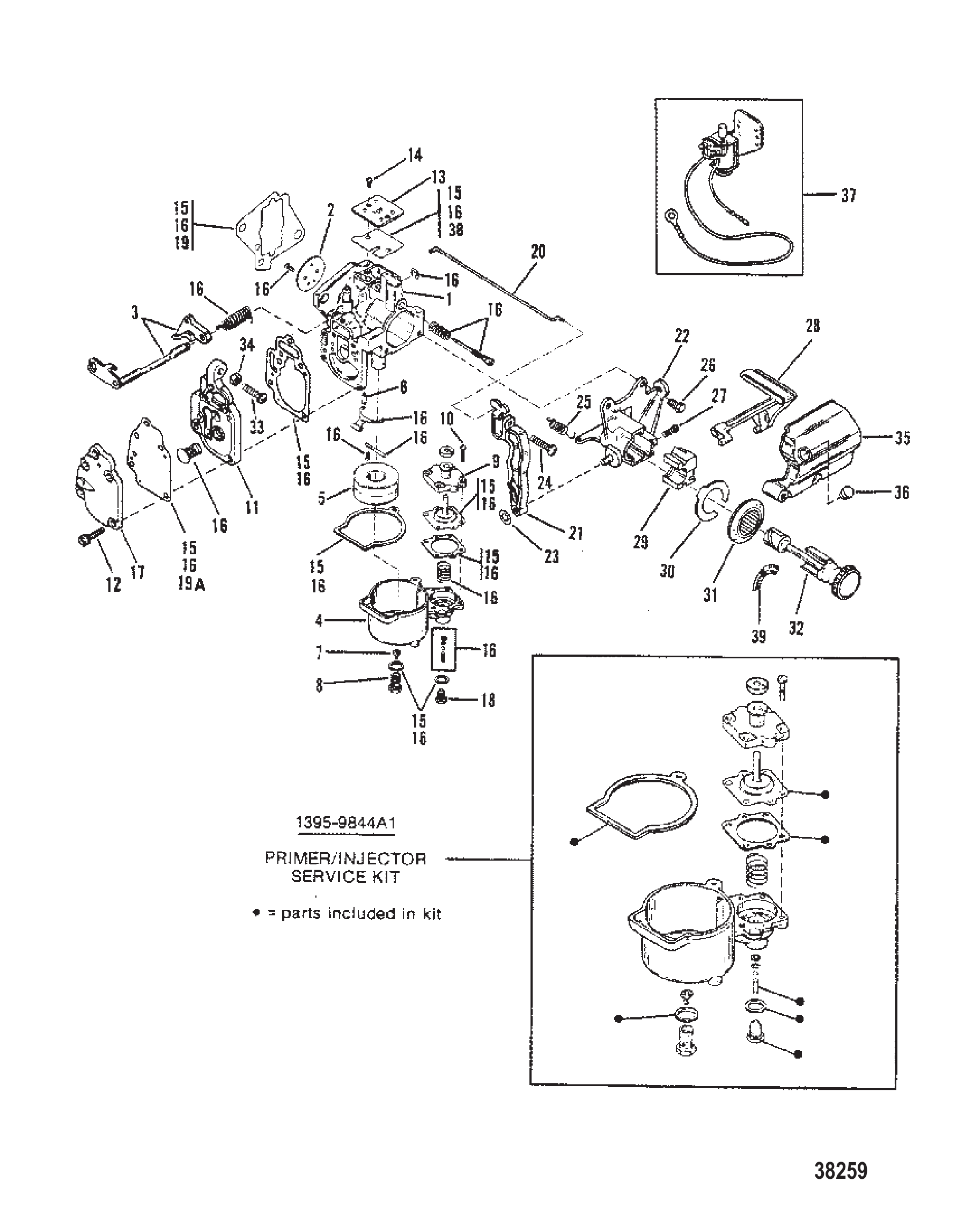

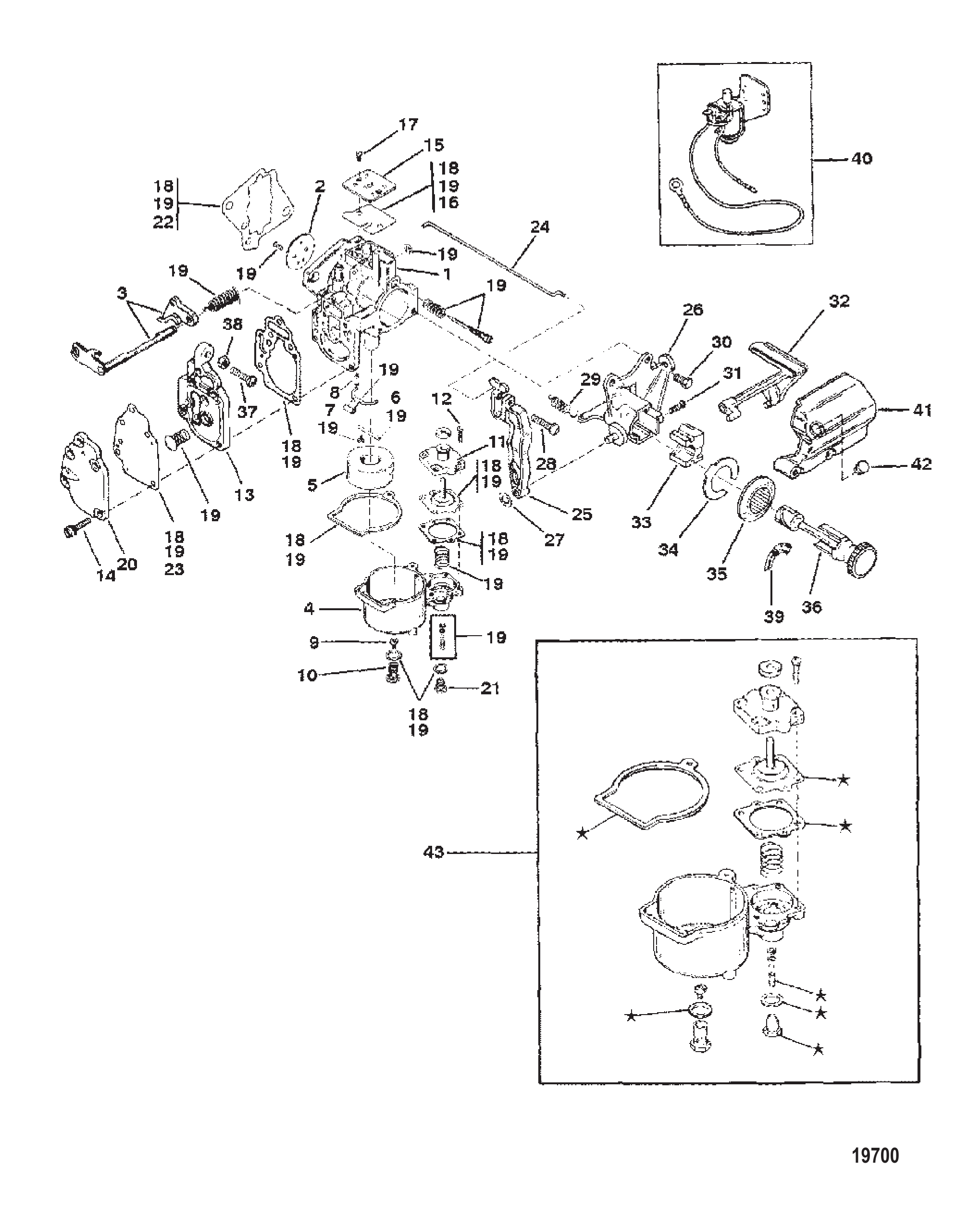

| 1 | 9266A14 | 化油器 | CARBURETOR | 1 |
| 1 | 9266A16 | 化油器 | CARBURETOR | 1 |
| 1 | 9503A13 | 化油器 | CARBURETOR | 1 |
| 1 | 8846A14 | 化油器 | CARBURETOR | 1 |
| 2 | 9473 | 油门阀 | VALVE Throttle | 1 |
| 2 | 94731 | 油门阀 | VALVE Throttle | 1 |
| 2 | 815133 | 油门阀 | VALVE Throttle | 1 |
| 3 | 9698 | 轴 | SHAFT | 1 |
| 3 | 96981 | 轴 | SHAFT | 1 |
| 3 | 813022 | 节气门轴 (含螺丝/弹簧) | SHAFT Throttle (INCL. SCREW/SPRING) | 1 |
| 4 | 9164 | 燃油杯 | BOWL Fuel | 1 |
| 5 | 91691 | 浮子 | FLOAT | 1 |
| 6 | F10064 | 轴 | SHAFT | 1 |
| 7 | 5902 | 螺钉(#6-32 x .187) | SCREW (#6-32 x .187) | 1 |
| 8 | 879194048 | 进气阀 | VALVE-INLET | 1 |
| 9 | 5315 | 主燃油喷嘴 (.042) | JET Main Fuel (.042) | 1 |
| 9 | 5317 | 量孔(.046) | JET (.046) | 1 |
| 9 | 6359 | 量孔(.052) | JET (.052) | 1 |
| 10 | 9171 | 堵头 | PLUG | 1 |
| 11 | 813618 | 盖板 | COVER | 1 |
| 12 | 823648 | 膜片盖 | COVER Diaphragm | 1 |
| 13 | 9697 | 螺钉 | SCREW | 4 |
| 14 | 15827A1 | 本体 | BODY | 1 |
| 15 | 9643 | 螺钉 | SCREW | 5 |
| 16 | 9699 | 安装板 | PLATE | 1 |
| 17 | 44426 | 衬垫 | GASKET | 1 |
| 18 | 9696 | 螺钉 | SCREW | 2 |
| 19 | 96371 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 20 | 9637 | 盖板 | COVER | 1 |
| 21 | 9762 | 堵头 | PLUG | 1 |
| 22 | 192061 | 化油器衬垫(适用时使用) | GASKET Carburetor (USE WHERE APPLICABLE) | 1 |
| 23 | 9635 | 膜片/衬垫 | DIAPHRAGM/GASKET | 1 |
| 24 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 25 | 96481 | 维修套件 | REPAIR KIT | 1 |
| 26 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 27 | 445541 | 怠速线 | IDLE WIRE | 1 |
| 28 | 128053 | 快怠速杆 | LEVER Fast Idle | 1 |
| 29 | 12803 | 启动泵支架 | BRACKET Primer | 1 |
| 30 | 821979 | 螺母 | NUT | 1 |
| 31 | 79964 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 32 | 11277 | 张力弹簧 | SPRING Tension | 1 |
| 33 | 400018 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 34 | 79965 | 螺丝 (#8-32 x .500) 不锈钢 | SCREW (#8-32 x .500) Stainless Steel | 1 |
| 35 | 112731 | 启动泵杆 | LEVER Primer | 1 |
| 36 | 11280 | 凸轮块 | CAM BLOCK | 1 |
| 37 | 11278 | 固定夹 | CLIP Retaining | 1 |
| 38 | 12804A1 | 阻风门面板总成 | BEZEL ASSEMBLY Choke | 1 |
| 39 | 128022 | 启动泵旋钮 | PRIMER KNOB | 1 |
| 40 | 40056110 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 1 |
| 41 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 42 | 12970 | 贴纸 (慢/快) | DECAL (SLOW/FAST) | 1 |
| 43 | 823433 | 电动阻风门 | CHOKE Electric | 1 |
| 44 | 174421 | 化油器盖 | COVER Carburetor | 1 |
| 45 | 47579 | 堵头 | PLUG | 1 |
| 46 | 9844A1 | 维修套件 注油器/喷油器 (内容物见图示-标星号部分) | SERVICE KIT Primer/Injector (See Illustration for Contents -Indicated by a Star) | 1 |
| 47 | 12750A1 | 限流板 | RESTRICTOR PLATE | 1 |
| - | 42364A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8833A13 | 齿轮箱总成(短型)-黑色 | GEAR HOUSING ASSEMBLY COMPLETE (SHORT)- BLACK | 1 |
| - | 8833T13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A15 | 齿轮箱总成(长型)黑色 | GEAR HOUSING ASSEMBLY COMPLETE (LONG) BLACK | 1 |
| - | 8833T15 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A14 | 齿轮箱总成(短型)-灰色 | GEAR HOUSING ASSEMBLY COMPLETE (SHORT)- GRAY | 1 |
| - | 8833T14 | 齿轮箱-短型-灰 | GEAR HSG-SHORT-GR | 1 |
| - | 8833A16 | 齿轮箱总成(长型)灰色 | GEAR HOUSING ASSEMBLY COMPLETE (LONG) GRAY | 1 |
| - | 8833T16 | ORD 1666-8833T15 | ORD 1666-8833T15 | 1 |
| 1 | 8833A17 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083312 | GC BASIC9.9/15 4S | GC BASIC9.9/15 4S | 1 |
| 1 | 8833A18 | 齿轮箱总成基础型-灰色 | GEAR HOUSING ASSEMBLY Basic-Gray | 1 |
| 1 | 8833A17 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 2 | 12009 | 齿轮箱衬套(0.31x0.45x0.50) | BUSHING (.31 x .45 x .50) GEAR HOUSING | 1 |
| 3 | 14834A1 | 螺钉 | SCREW | 1 |
| 3 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 4 | 805726 | 橡胶O型圈 | O-RING Rubber | 1 |
| 4 | 8M0204684 | 橡胶O型圈 | O-RING Rubber | 1 |
| 5 | 822244A1 | 衬套总成 | SLEEVE ASSEMBLY | 1 |
| 6 | 823944 | 套筒 | SLEEVE | 1 |
| 7 | 823943 | 衬套 | BUSHING | 1 |
| 8 | 28634A1 | 螺钉套件 | SCREW KIT | 1 |
| 8 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 9 | 805726 | 橡胶O型圈 | O-RING Rubber | 1 |
| 9 | 8M0204684 | 橡胶O型圈 | O-RING Rubber | 1 |
| 10 | 421991 | 滤网 | SCREEN | 1 |
| 11 | 13954 | 螺丝(0.250-14x0.88) | SCREW (.250-14 x .88) | 2 |
| 12 | 42121A2 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 12 | 42121Q02 | 铝阳极@2 | ANODE(ALUM) @2 | 1 |
| 13 | 13954 | 螺丝(0.250-14x0.88) | SCREW (.250-14 x .88) | 1 |
| 14 | 42133 | 密封件 | SEAL | 1 |
| 15 | 8219251 | 小齿轮-13-26 | GEAR Pinion - 13-26 | 1 |
| 16 | 41369 | 止推垫圈 | WASHER THRUST | 1 |
| 17 | 22756 | 滚柱轴承 | BEARING Roller | 1 |
| 18 | 42040A5 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 18 | 42040T5 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 19 | 192042 | 衬垫 | GASKET | 1 |
| 19 | 192043 | 衬垫 | GASKET | 1 |
| 20 | 33613 | 密封件 | SEAL | 1 |
| 21 | 42375 | 固定座 | RETAINER | 1 |
| 22 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 23 | 822236 | 四角密封环 | QUAD RING | 1 |
| 24 | 41365 | 油封 | SEAL Oil | 2 |
| 24 | 413651 | 油封 | SEAL Oil | 2 |
| 25 | 19202 | 水泵板衬垫 | GASKET Water Pump Plate | 1 |
| 25 | 19202001 | 衬垫 | GASKET | 1 |
| 26 | 42185A1 | 水管总成 | TUBE ASSEMBLY Water | 1 |
| 27 | 42200 | 面板 | FACE PLATE | 1 |
| 28 | 42089A2 | 盖总成 | COVER ASSEMBLY | 1 |
| 29 | 421021 | 密封件 | SEAL | 1 |
| 30 | 420382 | 叶轮 | IMPELLER | 1 |
| 30 | 42038Q02 | 叶轮 | IMPELLER | 1 |
| 31 | 42376A2 | 键总成 | KEY ASSEMBLY | 1 |
| 31 | 8M0173458 | 叶轮键 | KEY IMPELLER | 1 |
| 32 | 44467 | 导套 | GUIDE | 1 |
| 33 | 4000331 | 水泵螺丝(M6x30) | SCREW (M6 x 30) WATER PUMP | 5 |
| 34 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 34 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 35 | 42039 | 换档凸轮 | CAM SHIFT | 1 |
| 36 | 42145 | 换档轴(短) | SHIFT SHAFT (SHORT) | 1 |
| 36 | 8M0026064 | 换档轴-短 | SHAFT-SHIFT SHORT | 1 |
| 36 | 42146 | 换档轴(长) | SHIFT SHAFT (LONG) | 1 |
| 36 | 8M0026065 | 换档轴-长 | SHAFT-SHIFT-LONG | 1 |
| 37 | 42389 | E型卡环 | E RING | 1 |
| 38 | 42126 | 导套 | GUIDE | 2 |
| 38 | 8M0036770 | 导套 | GUIDE | 2 |
| 39 | 40056109 | 螺丝(M5 x 25) | SCREW (M5 x 25) | 1 |
| 39 | 40011109 | 螺钉 (M5 x 25) 不锈钢 | SCREW (M5 x 25) Stainless Steel | 1 |
| 40 | 400633 | 导向螺丝螺母(M5) | NUT (M5) GUIDE SCREW | 1 |
| 40 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 41 | 823389 | 驱动轴(短) | DRIVESHAFT (SHORT) | 1 |
| 41 | 823390 | 驱动轴(长型) | DRIVESHAFT (LONG) | 1 |
| 42 | 822248 | 止推垫片 | THRUST WASHER | 1 |
| - | 42364A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 41365A3 | 密封套件 | SEAL KIT | 1 |
| - | 42089A5 | 水泵套件 | PUMP KIT Water | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 818591 | 螺母(M14) | NUT (M14) | 1 |
| 2 | 818540A2 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 3 | 99301 | 齿圈 | RING GEAR | 1 |
| 4 | 40039106 | 螺钉 (M5 x 13) | SCREW (M5 x 13) | 4 |
| 5 | 8471A2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 6 | 818630A1 | 套筒 (含O型圈) | SLEEVE (INCLUDES O-RING) | 1 |
| 7 | 41341 | 滚珠轴承 | BEARING Ball | 1 |
| 8 | 824451 | 垫圈(内径.610x外径.890x厚度.062) | WASHER (.610 Inside Diamter x .890 Outside Diameter x .062) | 1 |
| 9 | 42132 | 挡圈 | RING Retaining | 1 |
| 10 | 13031 | 垫圈 | WASHER | 1 |
| 11 | 125661 | 下油封 | SEAL Oil - Lower | 1 |
| 12 | 20094 | 半圆键 | KEY Woodruff | 1 |
| 13 | 41342 | 滚柱轴承 | BEARING Roller | 1 |
| 14 | 125671 | 油封 - 上端 | SEAL Oil - Upper UPPER | 1 |
| 15 | 8477A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 16 | 823460 | 螺钉(M5×16) | SCREW (M5 x 16) | 4 |
| 17 | 42076A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 3 |
| 18 | 42186 | 滚针轴承 | BEARING Needle | 48 |
| 19 | 43348 | 推力轴承 | BEARING Thrust | 4 |
| 20 | 9747A2 | 活塞总成(标准) | PISTON ASSEMBLY (STANDARD) | 2 |
| 20 | 9747A4 | 活塞总成(.015加大) | PISTON ASSEMBLY (.015 O.S.) | 2 |
| 21 | 18212A4 | 活塞环组(标准) | RING SET Piston (STANDARD) | 1 |
| 21 | 18212A1 | 活塞环组(.015加大) | RING SET Piston (.015 O.S.) | 2 |
| 22 | 422021 | 锁紧环 | LOCK RING | 4 |
| 23 | 17794A1 | 轴承 | BEARING | 1 |
| 24 | 818901 | 密封件 | SEAL | 1 |
| 25 | 42076A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| - | 19072A88 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 19072A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 19072A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42691 | 飞轮轴 | SHAFT FLYWHEEL | 1 |
| 1A | 818591 | 螺母(M14) | NUT (M14) | 1 |
| 2 | 8908A2 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 2 | 859231T6 | 飞轮 | FLYWHEEL | 1 |
| 2 | 818540A2 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 2 | 859231T19 | 飞轮总成 | FLYWHEEL ASY | 1 |
| 3 | 99301 | 飞轮齿圈 | RING GEAR FLYWHEEL | 1 |
| 4 | 40039106 | 螺钉(M5×13)齿圈至飞轮 | SCREW (M5 x 13) RING GEAR TO FLYWHEEL | 4 |
| 4 | 88190313 | 螺钉 (M5 x 13) | SCREW (M5 x 13) | 4 |
| 5 | 8471A2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 5 | 8M0083309 | 曲轴总成 | CRANKSHAFT ASSY | 1 |
| 6 | 42890 | 油封(设计I型) | SEAL Oil (DESIGN I) | 1 |
| 6 | 818630A1 | 套筒 | SLEEVE | 1 |
| 6A | 818630A1 | 套筒(含O型圈-设计II型) | SLEEVE (INCLUDES O-RING - DESIGN II) | 1 |
| 7 | 41341 | 下球轴承 | BEARING Ball LOWER | 1 |
| 8 | 20940 | 卡环(小号)(旧设计) | RING Snap (SMALL) (OLD DESIGN) | 1 |
| 9 | 42132 | 挡圈 | RING Retaining | 1 |
| 10 | 13031 | 下垫圈 | WASHER LOWER | 1 |
| 11 | 125661 | 下油封 | SEAL Oil - Lower | 1 |
| 12 | 20094 | 半圆键 | KEY Woodruff | 1 |
| 13 | 41342 | 滚柱轴承 | BEARING Roller | 1 |
| 13 | 878158 | 滚柱轴承 | BEARING Roller | 1 |
| 14 | 125671 | 上油封 | SEAL Oil - Upper | 1 |
| 15 | 8477A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 16 | 823460 | 螺钉(M5×16) | SCREW (M5 x 16) | 4 |
| 17 | 42076A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 3 |
| 18 | 42186 | 活塞端滚针轴承 | BEARING Needle PISTON END | 48 |
| 19 | 43348 | 推力轴承 | BEARING Thrust | 4 |
| 19 | 8M0012297 | 止推垫圈@2 | WASHER-THRST@2 | 4 |
| 20 | 9756A2 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 20 | 9756T2 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 21 | 42079A4 | 环组件 | RING ASSEMBLY | 1 |
| 21 | 18514A4 | 活塞环组 | RING SET Piston | 1 |
| 22 | 42202 | 锁紧环 | LOCK RING | 4 |
| 23 | 41373A1 | 主轴承中心轴承套件 | BEARING KIT Center Main MAIN BEARING | 1 |
| 24 | 818901 | 主轴承油封 | SEAL MAIN BEARING | 1 |
| - | 12893A87 | 动力总成完整组件 | POWERHEAD ASSEMBLY COMPLETE | 1 |
| - | 12893T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 12893A92 | 动力总成完整组件 | POWERHEAD ASSEMBLY COMPLETE | 1 |
| - | 12893T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 811686A92 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 811686T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

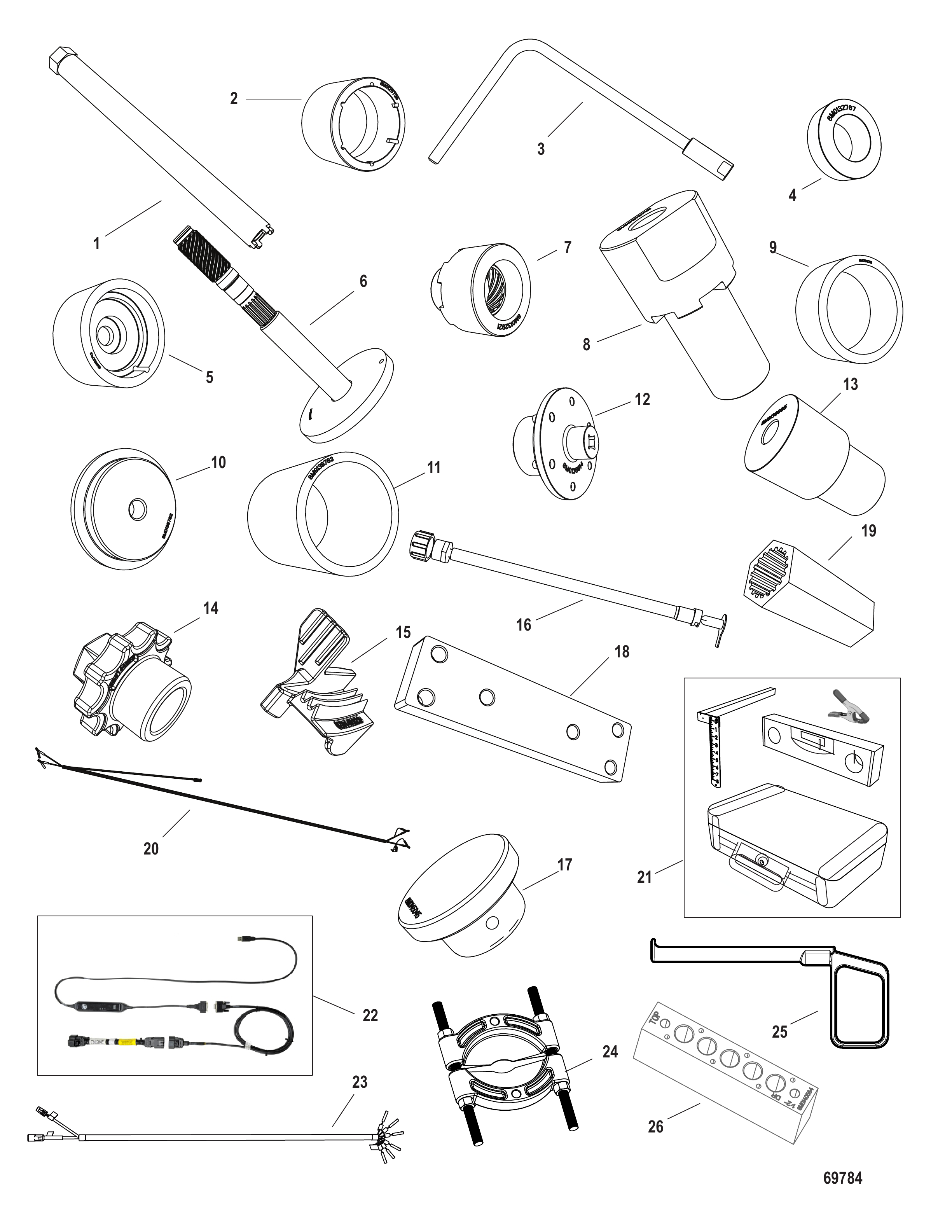

| - | 815366A3 | 电池隔离器套件 | ISOLATOR KIT Battery | 1 |
| - | 8M0094239 | 安装套件 KT-ISOLTR | INSTALL KT-ISOLTR | 1 |
| - | 58222A1 | 百分表工具 | DIAL INDICATOR TOOL | 1 |
| - | 89045 | 适配器 | ADAPTER | 1 |
| - | 890451 | 直流电压适配工具 | ADAPTER TOOL Direct Voltage | 1 |
| - | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| - | 73687A2 | 飞轮拉拔器套件 | PULLER KIT Flywheel | 1 |
| - | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 99750A1 | 万用表 | MULTI METER | 1 |
| - | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| - | 52024A1 | 开关总成 | SWITCH ASSEMBLY | 1 |
| - | 59339 | 维修用转速表 | SERVICE TACHOMETER | 1 |
| - | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | 63998A1 | 单腔间隙工具 | GAP TOOL Single Chamber | 1 |
| - | 850439 | 火花测试器 | SPARK TESTER | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | 14443A1 | 测试线束总成 | HARNESS ASSEMBLY Test | 1 |
| - | 99379 | 正时灯 | TIMING LIGHT | 1 |
| - | 29287 | 量规工具 | GAUGE TOOL | 1 |
| - | 55919 | 驱动头 | DRIVER HEAD | 1 |
| - | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| - | 73687A2 | 飞轮拉拔器套件 | PULLER KIT Flywheel | 1 |
| - | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 90455 | 吊环 | LIFTING EYE | 1 |
| - | 904551 | 吊环 | LIFTING EYE | 1 |
| - | 77109A3 | 安装工具套件 | INSTALLER KIT | 1 |
| - | 52952A1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | 52952T1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | 74607A3 | 活塞销安装套件 | INSTALLER KIT Piston Pin | 1 |
| - | 65494 | 环压缩工具(2.0升) | COMPRESSOR TOOL Ring (2.0L) | 1 |
| - | 65494T | 环压缩工具 | COMPRESSOR TOOL Ring | 1 |
| - | 818773 | 活塞环压缩工具(2.5升) | COMPRESSOR TOOL Piston Ring (2.5L) | 1 |
| - | 818773T | 活塞环压缩工具(3.50) | COMPRESSOR TOOL Piston Ring (3.50) | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | 30591A1 | 动力头支架工具 | STAND TOOL Powerhead | 1 |
| - | 30591T1 | 支架工具 | STAND TOOL | 1 |
| - | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| - | 66274 | 扭矩扳手(0-150磅英寸) | TORQUE WRENCH (0-150 lb-in) | 1 |
| - | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| - | 112301 | 对正工具 | ALIGNMENT TOOL | 1 |
| - | 99750A1 | 万用表 | MULTI METER | 1 |
| - | 52915A6 | 测试仪表套件 | TEST GAUGE KIT | 1 |
| - | 74951 | 扳手 | SPANNER WRENCH | 1 |
| - | 63209 | 加热灯 | HEAT LAMP | 1 |
| - | 44487A1 | 调整杆导向器拆卸工具 | REMOVER TOOL Trim Rod Guide | 1 |
| - | 44487T1 | 调整杆导向器拆卸工具 | REMOVER TOOL Trim Rod Guide | 1 |
| - | 44486A1 | 调整杆拆卸工具 | REMOVAL TOOL Trim Rod | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0145606 | 零件手册 250/300 4.6L V8 四冲程 VERADO/300 4.6L V8 四冲程 SEAPRO VERADO | PARTS MANUAL 250/300 4.6L V8 4 Stroke VERADO/300 4.6L V8 4 Stroke SEAPRO VERADO | 1 |
| - | 8M0142590 | 维修手册 4.6L V8 SeaPro | SERVICE MANUAL 4.6L V8 SeaPro | 1 |
| - | 8M0182077 | 维修手册 | SERVICE MANUAL | 1 |
| - | 8M0145935 | 安装手册 V8 AMS | INSTALLATION MANUAL V8 AMS | 1 |
| - | 8M0156798 | 安装手册 | MANUAL-INSTALL | 1 |
| - | 8M0145543 | 操作手册 V8 AMS DTS | OPERATION MANUAL V8 AMS DTS | 1 |
| - | 8M0175493 | 操作手册 | MANUAL-OPERATION | 1 |
| - | 8M0146617 | 诊断维修手册 | SERVICE MANUAL Diagnostic | 1 |
| - | 8M0182076 | 诊断手册 | DIAGNOSTIC MANUAL | 1 |
| - | NSS | 不单独销售贴纸, EPA | NOT SOLD SEPARATE DECAL, EPA | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 4000332 | 螺钉(M6x35) | SCREW (M6 x 35) | 1 |
| 2 | 42809 | 控制臂支架 | BRACKET Control Arm | 1 |
| 3 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 2 |
| 3 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 2 |
| 3 | 12132 | 垫圈(0.520x1.500x0.06) | WASHER (.520 x 1.500 x .06) | 1 |
| 3 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| 4 | 42806 | 衬套 | BUSHING | 1 |
| 4 | 823807 | 衬套 | BUSHING | 1 |
| 5 | 42810A2 | 控制臂 | CONTROL ARM | 1 |
| 5 | 42810A8 | 控制臂总成 | ARM ASSEMBLY Control | 1 |
| 5 | 42810A4 | 控制臂 | CONTROL ARM | 1 |
| 5 | 42810A8 | 控制臂总成 | ARM ASSEMBLY Control | 1 |
| 6 | 428071 | 节气门控制臂 | ARM Throttle Control | 1 |
| 6 | 428071 | 节气门控制臂 | ARM Throttle Control | 1 |
| 7 | 61319 | E型卡环 | E RING | 1 |
| 8 | 12136 | 衬套 | BUSHING | 1 |
| 8 | 889731 | 衬套 | BUSHING | 1 |
| 9 | 42800 | 杠杆 | LEVER | 1 |
| 10 | 21071 | 开口销 | COTTER PIN | 1 |
| 10 | 210711 | 开口销 | COTTER PIN | 1 |
| 11 | 42741 | 换挡连杆 | SHIFT LINK | 1 |
| 11 | 815550A1 | 换档轴 | SHIFT SHAFT | 1 |
| 5 | 42810A8 | 控制臂总成 | ARM ASSEMBLY Control | 1 |
| 8 | 12136 | 衬套 | BUSHING | 1 |
| 8 | 889731 | 衬套 | BUSHING | 1 |
| 10 | 21071 | 开口销 | COTTER PIN | 1 |
| 10 | 210711 | 开口销 | COTTER PIN | 1 |
| 12 | 8155691 | 换挡连杆 | SHIFT LINK | 1 |
| 12 | 878169 | 换挡连杆 | SHIFT LINK | 1 |
| 13 | 400634 | 螺母 (M6) | NUT (M6) | 1 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 428021 | 固定座 | RETAINER | 1 |
| 15 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 15 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 16 | 424291 | 固定座 | RETAINER | 2 |
| 17 | 11372 | 卡扣 | CLIP | 1 |
| 18 | 19385A2 | 节气门连杆总成 | LINK ASSEMBLY Throttle | 1 |
| 18 | 8M0084741 | 节气门连杆总成 | LINK ASY-THROTTLE | 1 |
| 19 | 19384 | 插座 | SOCKET | 1 |
| 19 | 8M0084742 | 插座 | SOCKET | 1 |
| 20 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 20 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 21 | 11371 | 锁紧垫圈（旧设计） | TAB WASHER (OLD DESIGN) | 1 |
| 22 | 4000171 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 23 | 42805A3 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 24 | 11373 | 锁销 | PIN Latch | 1 |
| 25 | 23928 | 销 | PIN | 1 |
| 25 | 239281 | 滚动销 | PIN Roll | 1 |
| 26 | 42975 | 传动螺钉 | DRIVE SCREW | 1 |
| 27 | 12134 | 波形垫圈 | WASHER Wave | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

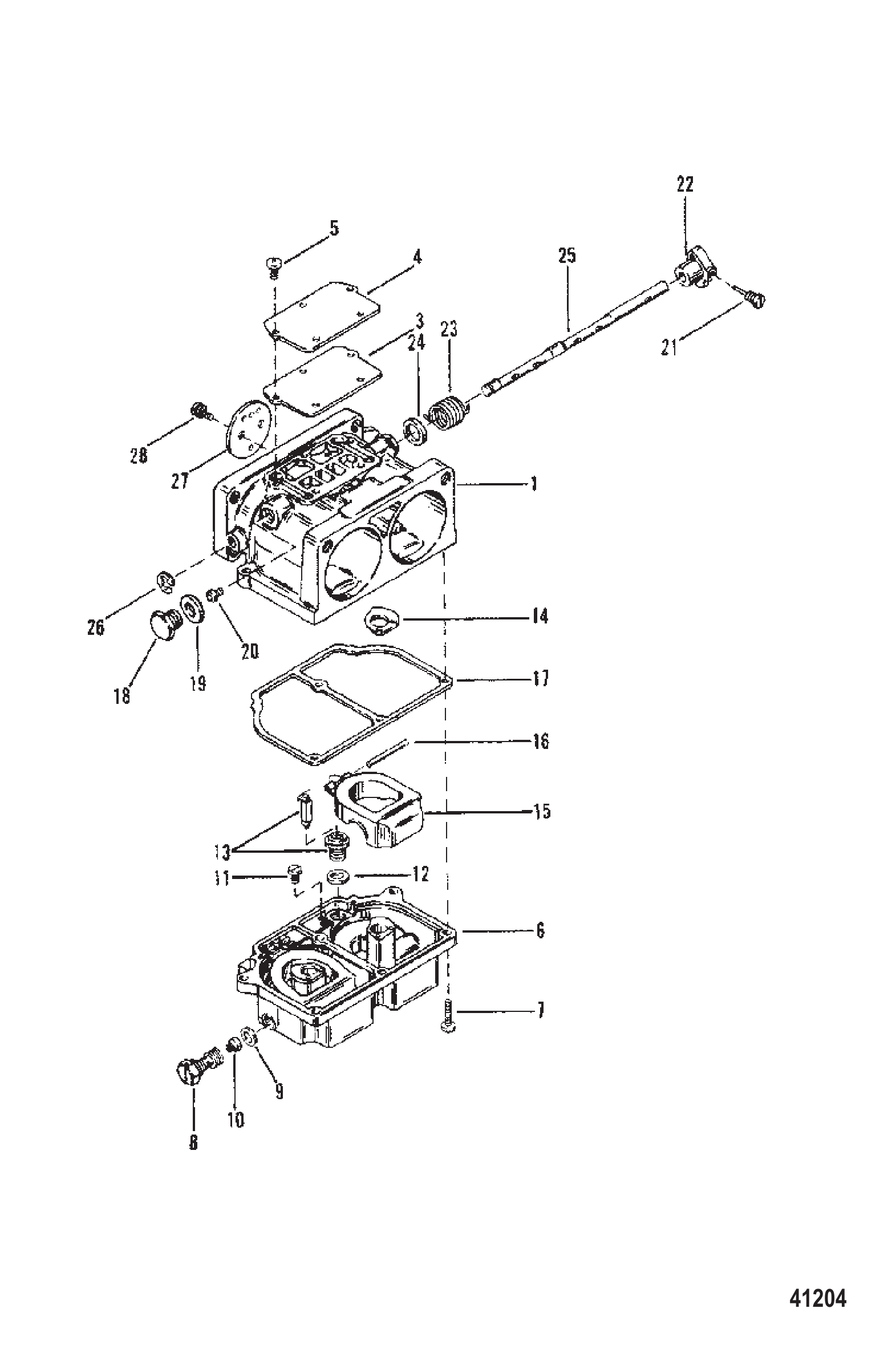

| 1 | 9242A10 | 化油器(上) | CARBURETOR (TOP) | 1 |
| 1 | 9242A11 | 化油器(中) | CARBURETOR (CENTER) | 1 |
| 1 | 9242A12 | 化油器(下) | CARBURETOR (BOTTOM) | 1 |
| 3 | NSS | NOT SOLD SEPARATE GASKET, COVER PLATE | 3 | |
| 4 | 6032 | 盖板 | PLATE COVER | 3 |
| 5 | NSS | 不单独销售螺丝,盖板 | NOT SOLD SEPARATE SCREW, COVER PLATE | 15 |
| 6 | 7823 | 燃油杯(顶部) | BOWL Fuel (TOP) | 1 |
| 6 | 7822 | 燃油杯(中部/底部) | BOWL Fuel (CENTER/BOTTOM) | 2 |
| 7 | NSS | 不单独销售螺丝,燃油碗 | NOT SOLD SEPARATE SCREW, FUEL BOWL | 18 |
| 8 | 6025 | 主量孔塞 | PLUG MAIN JET | 6 |
| 9 | NSS | 主量孔垫片(不单独销售) | NOT SOLD SEPARATE GASKET, MAIN JET | 6 |
| 10 | 4216 | 主量孔 (.064) | JET (.064) MAIN FUEL | 4 |
| 10 | 4215 | 燃油主量孔(.066) | JET Main Fuel (.066) | 2 |
| 11 | NSS | 不单独销售螺丝,浮子销 | NOT SOLD SEPARATE SCREW, FLOAT PIN | 6 |
| 12 | NSS | 不单独出售 衬垫、进油针阀及阀座组件 | NOT SOLD SEPARATE GASKET, INLET NEEDLE AND SEAT | 6 |
| 13 | 7824 | 进油针阀总成 | NEEDLE/SEAT ASSEMBLY Inlet | 6 |
| 14 | NSS | 不单独销售垫片,喷嘴座 | NOT SOLD SEPARATE GASKET, NOZZLE BOSS | 6 |
| 15 | 9267 | 浮子 | FLOAT | 6 |
| 16 | NSS | 不单独销售销,浮子杆 | NOT SOLD SEPARATE PIN, FLOAT LEVER | 6 |
| 17 | NSS | 燃油碗垫片(不单独销售) | NOT SOLD SEPARATE GASKET, FUEL BOWL | 3 |
| 18 | 4541 | 怠速空气量孔螺钉 | SCREW IDLE AIR BLEED JET | 6 |
| 19 | NSS | 不单独销售垫片,泄流量孔塞 | NOT SOLD SEPARATE GASKET, BLEED JET PLUG | 6 |
| 20 | 6030 | 怠速空气量孔(.070) | JET (.070) IDLE AIR BLEED | 6 |
| 21 | 6027 | 节气门杠杆螺钉 | SCREW THROTTLE LEVER | 3 |
| 22 | 37752 | 油门标识贴 | DECAL THROTTLE | 3 |
| 23 | NSS | NOT SOLD SEPARATE SPRING, THROTTLE RETURN | 3 | |
| 24 | 6031 | 节气门杠杆垫片 | SPACER THROTTLE LEVER | 3 |
| 25 | 6022 | 节流阀轴 | SHAFT THROTTLE | 3 |
| 26 | NSS | 节流阀轴环/挡圈（不单独销售） | NOT SOLD SEPARATE RING, RETAINER - THROTTLE SHAFT | 3 |
| 27 | 9416 | 油门阀 | VALVE Throttle | 6 |
| 28 | NSS | NOT SOLD SEPARATE SCREW, THROTTLE VALVE | 12 | |
| - | 6452 | 衬垫套件 | GASKET KIT | 1 |
| - | 8506 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9205A13 | 顶罩总成(黑色) | TOP COWL ASSEMBLY (BLACK) | 1 |
| 1 | 9420T10 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 9420A9 | 顶罩总成(灰色) | TOP COWL ASSEMBLY (GRAY) | 1 |
| 1 | 8M0094069 | 顶罩 | TOP COWL | 1 |
| 2 | 444621 | 密封件 | SEAL | 1 |
| 2 | 8M0043151 | 罩壳密封条 | COWL-SEAL | 1 |
| 3 | 13691A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 3 | 13691A02 | 隔音毯套装(预涂压敏胶) | SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive) | 1 |
| 4 | 16471A1 | 盖锁扣 | LATCH Cowl | 1 |
| 5 | 817104A3 | 罩壳锁扣总成 | LATCH ASSEMBLY Cowl | 1 |
| 6 | 180402 | 锁钩 | LATCH HOOK | 1 |
| 7 | 11354 | 后护板(黑色) | SHIELD REAR (BLACK) | 1 |
| 7 | 12873 | 后护板(灰色) | SHIELD REAR (GRAY) | 1 |
| 7 | 12873T | 护罩 | SHIELD | 1 |
| 8 | 400018 | 后护板螺钉(M5x12) | SCREW (M5 x 12) REAR SHIELD | 2 |
| 9 | 9204A1 | 底罩(黑色) | BOTTOM COWL (BLACK) | 1 |
| 9 | 9204A2 | 底罩(灰色) | BOTTOM COWL (GRAY) | 1 |
| 9A | 15061 | 堵头 | PLUG | 1 |
| 9A | 15061001 | 堵头 | PLUG | 1 |
| 10 | 12154 | 底罩塞(手动) | PLUG BOTTOM COWL (MANUAL) | 1 |
| 10 | 121532 | 底罩护线环(电动) | GROMMET Bottom Cowl (ELECTRIC) | 1 |
| 11 | 11083A6 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 12 | 15920A54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 12 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 13 | 120441 | 停止开关黄铜固定座 | RETAINER Brass STOP SWITCH | 1 |
| 13 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| 14 | 44461A1 | 罩壳锁杆 | LEVER Cowl Latch | 1 |
| 15 | 76470 | 罩壳锁杆衬套 | BUSHING COWL LATCH LEVEER | 1 |
| 16 | 11394 | 锁扣隔套 | SPACER LATCH | 1 |
| 17 | 40019130 | 锁扣与锁杆螺钉(M6x30) | SCREW (M6 x 30) LATCH AND LEVER | 1 |
| 17 | 40019131 | 锁扣与锁杆螺钉(M6x35) | SCREW (M6 x 35) LATCH AND LEVER | 1 |
| 18 | 69708 | 锁扣与锁杆螺钉波形垫圈 | WAVE WASHER LATCH AND LEVER SCREW | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9205A13 | 顶罩总成(黑色) | TOP COWL ASSEMBLY (BLACK) | 1 |
| 1 | 9420T10 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 9420A9 | 顶罩总成(灰色) | TOP COWL ASSEMBLY (GRAY) | 1 |
| 1 | 8M0094069 | 顶罩 | TOP COWL | 1 |
| 2 | 444621 | 密封件 | SEAL | 1 |
| 2 | 8M0043151 | 罩壳密封条 | COWL-SEAL | 1 |
| 3 | 13691A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 3 | 13691A02 | 隔音毯套装(预涂压敏胶) | SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive) | 1 |
| 4 | 16471A1 | 盖锁扣 | LATCH Cowl | 1 |
| 5 | 817104A3 | 罩壳锁扣总成 | LATCH ASSEMBLY Cowl | 1 |
| 6 | 180402 | 锁钩 | LATCH HOOK | 1 |
| 7 | 11354 | 后护板(黑色) | SHIELD REAR (BLACK) | 1 |
| 7 | 12873 | 后护板(灰色) | SHIELD REAR (GRAY) | 1 |
| 7 | 12873T | 护罩 | SHIELD | 1 |
| 8 | 400018 | 后护板螺钉(M5x12) | SCREW (M5 x 12) REAR SHIELD | 2 |
| 9 | 9204A1 | 底罩(黑色) | BOTTOM COWL (BLACK) | 1 |
| 9 | 9204A2 | 底罩(灰色) | BOTTOM COWL (GRAY) | 1 |
| 9A | 15061 | 堵头 | PLUG | 1 |
| 9A | 15061001 | 堵头 | PLUG | 1 |
| 10 | 12154 | 底罩塞(手动) | PLUG BOTTOM COWL (MANUAL) | 1 |
| 10 | 121532 | 底罩护线环(电动) | GROMMET Bottom Cowl (ELECTRIC) | 1 |
| 11 | 11083A6 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 12 | 15920A54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 12 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 13 | 120441 | 停止开关黄铜固定座 | RETAINER Brass STOP SWITCH | 1 |
| 13 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| 14 | 44461A1 | 罩壳锁杆 | LEVER Cowl Latch | 1 |
| 15 | 76470 | 罩壳锁杆衬套 | BUSHING COWL LATCH LEVEER | 1 |
| 16 | 11394 | 锁扣隔套 | SPACER LATCH | 1 |
| 17 | 40019130 | 锁扣与锁杆螺钉(M6x30) | SCREW (M6 x 30) LATCH AND LEVER | 1 |
| 17 | 40019131 | 锁扣与锁杆螺钉(M6x35) | SCREW (M6 x 35) LATCH AND LEVER | 1 |
| 18 | 69708 | 锁扣与锁杆螺钉波形垫圈 | WAVE WASHER LATCH AND LEVER SCREW | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0142775 | 驱动轴壳体-黑色 | HOUSING Driveshaft, Black | 1 |
| 1 | 8M0145916 | 驱动轴壳体（银色） | HOUSING Driveshaft, Silver | 1 |
| 1 | 8M0228045 | 驱动轴壳体（银色） | HOUSING Driveshaft, Silver | 1 |
| 2 | 8M0142713 | 支撑盖帽 | CAP Chap Support | 4 |
| 3 | 8M0112869 | 油塞总成 | OIL PLUG ASSEMBLY | 1 |
| 4 | 85045 | O型圈(.551 x .070) | O-RING (.551 x .070) | 1 |
| 5 | 863006 | O型圈(10.82x1.78) | O-RING (10.82 x 1.78) | 1 |
| 6 | 8M0036228 | O型圈(8.1x1.6) | O-RING (8.1 X 1.6) | 1 |
| 7 | 8M0142829 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 4 |
| 8 | 8M0142253 | 换挡执行器 | SHIFT ACTUATOR | 1 |
| 8 | 8M0204944 | 换挡执行器 | SHIFT ACTUATOR | 1 |
| 9 | 8M0147857 | 联轴器轴 | SHAFT Coupling | 1 |
| 10 | 8M0142978 | 执行器密封件 | SEAL ACTUATOR | 1 |
| 11 | 8M0142714 | 接头 | FITTING | 1 |
| 12 | 8M0155119 | 乐可利接头 | FITTING Legris | 1 |
| 13 | 8M0142715 | 围嘴安装支架 | BRACKET Bib Mount | 2 |
| 14 | 8M0142716 | 嵌件 | INSERT | 2 |
| 15 | 40011106 | 不锈钢螺钉(M5x13) | SCREW (M5 x 13) Stainless Steel | 2 |
| 16 | 8M0008031 | 双头螺柱(M12 x 1.75 x 52) | STUD (M12 x 1.75 x 52) | 5 |
| 16 | 8M0142781 | 双头螺柱（M12×179） | STUD (M12 x 179) | 5 |
| 16 | 8M0142788 | 双头螺柱(M12x306) | STUD (M12 x 306) | 5 |
| 17 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 5 |
| 18 | 896895 | 螺母(M12) | NUT (M12) | 5 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8833A9 | 齿轮箱总成完整组件(短型)(黑色) | GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (BLACK) | 1 |
| - | 8833T13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A10 | 齿轮箱总成完整组件(长型)(黑色) | GEAR HOUSING ASSEMBLY COMPLETE (LONG) (BLACK) | 1 |
| - | 8833T15 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A11 | 齿轮箱总成完整组件(短型)(灰色) | GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (GRAY) | 1 |
| - | 8833T14 | 齿轮箱-短型-灰 | GEAR HSG-SHORT-GR | 1 |
| - | 8833A12 | 齿轮箱总成完整组件(长型)(灰色) | GEAR HOUSING ASSEMBLY COMPLETE (LONG) (GRAY) | 1 |
| - | 8833T16 | ORD 1666-8833T15 | ORD 1666-8833T15 | 1 |
| 1 | 8833A1 | 齿轮箱总成(黑色) | GEAR HOUSING ASSEMBLY (BLACK) | 1 |
| 1 | 8833A4 | 齿轮箱总成(灰色) | GEAR HOUSING ASSEMBLY (GRAY) | 1 |
| 41 | 13403 | 螺钉 | SCREW | 1 |
| 41 | 82407110 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 1 |
| 42 | 13402 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 2 |
| 42 | 8240717 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 2 |
| 43 | 41347A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 43 | 821321A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 44 | 41371A1 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 45 | 41367 | 衬套 | BUSHING | 1 |
| 46 | 813139 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 47 | 32449 | 挡圈 | RING Retaining | 1 |
| 48 | 43217 | 离合器 | CLUTCH | 1 |
| 49 | 30535 | 十字销 | PIN Cross | 1 |
| 50 | 42204 | 弹簧 | SPRING | 1 |
| 51 | 41370 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 52 | 44115 | 倒挡齿轮 | GEAR Reverse | 1 |
| 52 | 44115T | 倒档齿轮 | REVERSE GEAR | 1 |
| 53 | 42144A2 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 53 | 42144T2 | 轴承座 | BEARING CARRIER | 1 |
| 54 | 33145 | O型圈(1.984x0.139) | O-RING (1.984 x .139) | 1 |
| 54 | 8M0214923 | O型圈(1.98x1.39) | O-RING (1.98 x 1.39) | 1 |
| 55 | 41368 | 衬套 | BUSHING | 1 |
| 56 | 66022 | 油封 | SEAL Oil | 1 |
| 57 | 42037 | 推力毂 | THRUST HUB | 1 |
| 58 | 42201 | 盖帽 | CAP | 1 |
| 59 | 42522A12 | 螺旋桨(9×9英寸) | PROPELLER (9" X 9") | 1 |
| 59 | 828156A12 | 黑色MAX螺旋桨9x9右旋铝3叶 | BLACK MAX PROPELLER 9 X 9 RH AL 3 BL | 1 |
| 59 | 17874A12 | 螺旋桨 (9"×10-1/2") | PROPELLER (9" X 10-1/2") | 1 |
| 59 | 828158A12 | 螺旋桨 Black Max | PROPELLER Black Max | 1 |
| 59 | 42524A12 | 螺旋桨 (SAILPOWER) | PROPELLER (SAILPOWER) | 1 |
| 59 | 828150A12 | 黑色MAX螺旋桨 9.8 x 6.5 右旋铝3叶 | BLACK MAX PROPELLER 9.8 X 6.5 RH AL 3 BL | 1 |
| 60 | 42091 | 隔套 | SPACER | 1 |
| 60 | 420911 | 隔套 | SPACER | 1 |
| 61 | 13914 | 螺母(M10) | NUT (M10) | 1 |
| 61 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| - | 42364A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 41365A3 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 86617A13 | 定子总成 | STATOR ASSEMBLY | 1 |
| 1 | 86617A20 | 定子总成 | STATOR ASSEMBLY | 1 |
| 2 | 4000120 | 螺丝(M5 x 25) | SCREW (M5 x 25) | 2 |
| 3 | 400018 | 螺钉 (M5 x 12) (手动) | SCREW (M5 x 12) (MANUAL) | 1 |
| 4 | 98450A5 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 4 | 98450A10 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 5 | 11100 | 触发线夹 | CLIP TRIGGER LEAD | 1 |
| 6 | 7452A15 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 6 | 7452A19 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 7 | 40019108 | 螺钉 (M5 x 20) 开关盒至气缸体 | SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK | 2 |
| 8 | 48408 | 螺钉 (#10-16 x .500) 接地线 | SCREW (#10-16 x .500) GROUND WIRE | 1 |
| 9 | 7370A13 | 点火线圈总成 | COIL ASSEMBLY Ignition | 2 |
| 9 | 8M0230859 | 点火线圈总成 | COIL IGNITION ASY | 2 |
| 10 | 40112 | 螺钉 (M6 x 45) 点火线圈 | SCREW (M6 x 45) IGNITION COIL | 2 |
| 11 | 88173 | 锁紧垫圈 | TAB WASHER | 2 |
| 12 | 88171 | 线圈衬套 | BUSHING COIL | 2 |
| 13 | 45076 | 螺母 (#10-32) 黄铜线圈端子 | NUT (#10-32) Brass COIL TERMINAL | 4 |
| 14 | 813715A2 | 高压线组 (5和8.25英寸) 高压 | CABLE SET High Tension (5 and 8.25 Inch) HIGH TENSION | 1 |
| 15 | 63709A1 | 火花塞护套/端子套件 | BOOT/TERMINAL KIT SPARK PLUG | 2 |
| 16 | 12343 | 火花塞 (NGK #BP8HS-10) | SPARK PLUG (NGK #BP8HS-10) | 2 |
| 16 | 8M0114745 | SP BP8HS-10 @4 | SP BP8HS-10 @4 | 2 |
| 16 | 8167372 | 火花塞 (NGK#BP8H-N-10) | SPARK PLUG (NGK#BP8H-N-10 | 2 |
| 16 | 816737Q | NGK BP8HN-10@10 | NGK BP8HN-10@10 | 2 |
| 16 | 14814548 | 火花塞 (NGK #BPZ8HS-10) (加拿大/比利时) | SPARK PLUG (NGK # BPZ8HS-10) (CAN./BEL.) | 2 |
| 16 | 938 | SP #QL78YC @4 | SP #QL78YC @4 | 2 |
| 16 | 8168372 | 火花塞 (NGK#BPZ-8H-N-10-加拿大/比利时) | SPARK PLUG (NGK#BPZ-8H-N-10-CAN/BEL.) | 2 |
| 16 | 938 | SP #QL78YC @4 | SP #QL78YC @4 | 2 |
| 16 | 19424 | 火花塞 (NGK#BP8HS-15) | SPARK PLUG (NGK#BP8HS-15) | 2 |
| 16 | 8M0114746 | SP BP8HS-15 @4 | SP BP8HS-15 @4 | 2 |
| 16 | 14814568 | 火花塞 (NGK#BPZ8HS-15) | SPARK PLUG (NGK#BPZ8HS-15) | 2 |
| 17 | 69355 | 扎带(5.50英寸) | TIE STRAP (5.50 Inches) | 1 |
| 17 | 8M0214940 | 扎带 | TIE STRAP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8846A16 | 化油器 | CARBURETOR | 1 |
| - | 8846A17 | 化油器 | CARBURETOR | 1 |
| - | 9726A5 | 化油器 | CARBURETOR | 1 |
| 2 | 94731 | 油门阀 | VALVE Throttle | 1 |
| 2 | 823716 | 油门阀 | VALVE Throttle | 1 |
| 3 | 813022 | 节气门轴 (含螺丝/弹簧) | SHAFT Throttle (INCL. SCREW/SPRING) | 1 |
| 3 | 19267 | 节气门轴 (含螺丝/弹簧) | SHAFT Throttle (INCL. SCREW/SPRING) | 1 |
| 4 | 9164 | 燃油杯 | BOWL Fuel | 1 |
| 5 | 91691 | 浮子 | FLOAT | 1 |
| 6 | F10064 | 轴 | SHAFT | 1 |
| 7 | 5902 | 螺钉(#6-32 x .187) | SCREW (#6-32 x .187) | 1 |
| 8 | 879194048 | 进气阀 | VALVE-INLET | 1 |
| 9 | 6246 | 量孔(.048) | JET (.048) | 1 |
| 9 | 6207 | 量孔(.072) | JET (.072) | 1 |
| 10 | 9171 | 堵头 | PLUG | 1 |
| 11 | 823648 | 膜片盖 | COVER Diaphragm | 1 |
| 12 | 9697 | 螺钉 | SCREW | 4 |
| 13 | 15827A1 | 本体 | BODY | 1 |
| 14 | 9643 | 螺钉 | SCREW | 5 |
| 15 | 9699 | 安装板 | PLATE | 1 |
| 16 | 44426 | 衬垫 | GASKET | 1 |
| 17 | 9696 | 螺钉 | SCREW | 2 |
| 18 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 19 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 20 | 9637 | 盖板 | COVER | 1 |
| 21 | 9762 | 堵头 | PLUG | 1 |
| 22 | 192061 | 化油器衬垫(适用时使用) | GASKET Carburetor (USE WHERE APPLICABLE) | 1 |
| 23 | 9635 | 膜片/衬垫 | DIAPHRAGM/GASKET | 1 |
| 24 | 445541 | 怠速线 | IDLE WIRE | 1 |
| 25 | 128053 | 快怠速杆 | LEVER Fast Idle | 1 |
| 26 | 12803 | 启动泵支架 | BRACKET Primer | 1 |
| 27 | 821979 | 螺母 | NUT | 1 |
| 28 | 79964 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 29 | 11277 | 张力弹簧 | SPRING Tension | 1 |
| 30 | 400018 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 31 | 79965 | 螺丝 (#8-32 x .500) 不锈钢 | SCREW (#8-32 x .500) Stainless Steel | 1 |
| 32 | 112731 | 启动泵杆 | LEVER Primer | 1 |
| 33 | 11280 | 凸轮块 | CAM BLOCK | 1 |
| 34 | 11278 | 固定夹 | CLIP Retaining | 1 |
| 35 | 12804A1 | 阻风门面板总成 | BEZEL ASSEMBLY Choke | 1 |
| 36 | 128022 | 启动泵旋钮 | PRIMER KNOB | 1 |
| 37 | 40056110 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 1 |
| 38 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 39 | 12970 | 贴纸 (慢/快) | DECAL (SLOW/FAST) | 1 |
| 40 | 823433 | 电动阻风门 | CHOKE Electric | 1 |
| 41 | 174421 | 化油器盖 | COVER Carburetor | 1 |
| 42 | 47579 | 堵头 | PLUG | 1 |
| 43 | 9844A1 | 维修套件 注油器/喷油器 (内容物见图示-标星号部分) | SERVICE KIT Primer/Injector (See Illustration for Contents-Indicated by a Star) | 1 |
| - | 42364A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 12750A1 | 限流板 | RESTRICTOR PLATE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 306641 | 倾斜管 | TILT TUBE | 1 |
| 2 | 93164 | 螺母 (0.875) | NUT (.875) | 2 |
| 3 | 113841 | 隔套 | SPACER | 1 |
| 4 | 11607 | 支架 | BRACKET | 1 |
| 5 | 4000354 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 2 |
| 6 | 56720 | 垫圈(0.330×0.750×0.060)不锈钢 | WASHER (.330 x .750 x .060) Stainless Steel | 2 |
| 7 | 400635 | 螺母 (M8) | NUT (M8) | 2 |
| 8 | 11606 | 拉杆 (右舷) | TIE ROD (STARBOARD) | 1 |
| 8 | 14071 | 拉杆 (左舷) | TIE ROD (PORT) | 1 |
| 9 | 29698 | 球头关节 | BALL JOINT | 1 |
| 10 | 71970 | 垫圈(0.390×0.546×0.12) | WASHER (.390 x .546 x .12) | 1 |
| 11 | 30521 | 垫圈(0.97×0.56×0.19) | WASHER (.97 x .56 x .19) | 1 |
| 12 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 3 |
| 13 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 14 | 66751 | 垫片(0.250x0.390x0.630)不锈钢 | SPACER (.250 x .390 x .630) Stainless Steel | 1 |
| 15 | 19624A1 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 818591 | 螺母(M14) | NUT (M14) | 1 |
| 2 | 818540A2 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 3 | 99301 | 齿圈 | RING GEAR | 1 |
| 4 | 40039106 | 螺钉 (M5 x 13) | SCREW (M5 x 13) | 4 |
| 5 | 8471A2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 6 | 818630A1 | 套筒 (含O型圈) | SLEEVE (INCLUDES O-RING) | 1 |
| 7 | 41341 | 滚珠轴承 | BEARING Ball | 1 |
| 8 | 824451 | 垫圈(内径.610x外径.890x厚度.062) | WASHER (.610 Inside Diamter x .890 Outside Diameter x .062) | 1 |
| 9 | 42132 | 挡圈 | RING Retaining | 1 |
| 10 | 13031 | 垫圈 | WASHER | 1 |
| 11 | 125661 | 下油封 | SEAL Oil - Lower | 1 |
| 12 | 20094 | 半圆键 | KEY Woodruff | 1 |
| 13 | 41342 | 滚柱轴承 | BEARING Roller | 1 |
| 14 | 125671 | 上油封 | SEAL Oil - Upper | 1 |
| 15 | 8477A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 16 | 823460 | 螺钉(M5×16) | SCREW (M5 x 16) | 4 |
| 17 | 42076A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 18 | 42186 | 滚针轴承 | BEARING Needle | 48 |
| 19 | 43348 | 推力轴承 | BEARING Thrust | 4 |
| 20 | 9756A2 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 21 | 18514A4 | 活塞环组 | RING SET Piston | 1 |
| 22 | 422021 | 锁紧环 | LOCK RING | 4 |
| 23 | 41373A1 | 中央主轴承套件 | BEARING KIT Center Main | 1 |
| 24 | 818901 | 密封件 | SEAL | 1 |
| - | 12893A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 811686A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 19072A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8150243 | 飞轮 | FLYWHEEL | 1 |
| 1 | 815024T05 | 飞轮 | FLYWHEEL | 1 |
| 1 | 815024T05 | 飞轮 | FLYWHEEL | 1 |
| 2 | 8537224 | 银色螺母 | NUT Silver | 1 |
| 2 | 851832001 | 金色螺母 | NUT Gold | 1 |
| 3 | 8537011 | 垫圈 | WASHER | 1 |
| 4 | 8230315 | 螺钉 | SCREW | 4 |
| 5 | 853737A3 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 5 | 853737T03 | 线圈板总成 | COIL PLATE ASSY | 1 |
| 6 | 160743 | 充电线圈 | COIL Charger | 1 |
| 7 | 8230312 | 螺钉 | SCREW | 2 |
| 8 | 8230314 | 螺钉 | SCREW | 3 |
| 9 | 853738 | 导线导向器 | GUIDE Wire | 1 |
| 10 | 803702 | 励磁线圈 | COIL Exciter Exciter | 1 |
| 10 | 803702T | 励磁线圈 | EXCITER COIL | 1 |
| 11 | 8230313 | 螺钉 | SCREW | 2 |
| 12 | 853711 | 导板 | GUIDE PLATE | 1 |
| 12 | 8M0107454 | 导板总成 | GUIDE PLATE ASSEMBLY | 1 |
| 13 | 853710 | 定位环 | SET RING | 1 |
| 14 | 162602 | 螺钉 | SCREW | 1 |
| 14 | 8230315 | 螺钉 | SCREW | 1 |
| 15 | 813275 | 卡箍 | CLAMP | 6 |
| 16 | 953953 | 卡扣 | CLIP | 1 |
| 17 | 160642 | 点火线圈 | COIL Ignition | 1 |
| 17 | 8M0047311 | 点火线圈 | COIL-IGNITION | 1 |
| 17 | 160643 | 点火线圈 | COIL Ignition | OPT |
| 17 | 8M0047311 | 点火线圈 | COIL-IGNITION | OPT |
| 18 | 853740 | 接地线 | GROUND WIRE | 1 |
| 19 | 823042 | 螺栓 | BOLT | 2 |
| 20 | 8537151 | 隔套 | SPACER | 2 |
| 21 | 400256 | 锁紧垫圈 (M6) | LOCKWASHER (M6) | 2 |
| 22 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 3 |
| 23 | 853739 | 电气安装板 | PLATE Electrical Mounting | 1 |
| 24 | 160613 | CD单元 | CD UNIT | 1 |
| 24 | 8M0180178 | CD单元 | CD UNIT | 1 |
| 25 | 8230421 | 螺栓 | BOLT | 4 |
| 26 | 953921 | 不锈钢垫圈 | WASHER Stainless Steel | 5 |
| 27 | 953923 | 橡胶垫圈 | WASHER Rubber (Rubber) | 3 |
| 28 | 952868 | 轴环 | COLLAR | 3 |
| 29 | 953924 | 橡胶垫圈 | WASHER (Rubber) (Rubber) | 3 |
| 30 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 30 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 31 | 853741 | 盖帽 | CAP | 1 |
| 32 | 160691 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 32 | 823037A2 | 停机开关总成-拉绳式 | SWITCH ASSEMBLY Stop - Lanyard | 1 |
| 33 | 16828 | 螺栓 | BOLT | 1 |
| 34 | 823037A2 | 停机开关总成-拉绳式 | SWITCH ASSEMBLY Stop - Lanyard | 1 |
| 35 | 823054 | 拉绳 | LANYARD | 1 |
| 36 | 8230316 | 螺钉 | SCREW | 2 |
| 37 | 953952 | 卡箍 | CLAMP | 1 |
| 38 | 168301 | 螺栓 | BOLT | 1 |
| 39 | 8537223 | 螺母 | NUT | 1 |
| 39 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9726A3 | 化油器 | CARBURETOR | 1 |
| 2 | 823716 | 油门阀 | VALVE Throttle | 1 |
| 3 | 19267 | 节气门轴 (含螺丝和弹簧) | SHAFT Throttle (INCLS. SCREW & SPRING) | 1 |
| 4 | 9164 | 燃油杯 | BOWL Fuel | 1 |
| 5 | 91691 | 浮子 | FLOAT | 1 |
| 6 | 879194048 | 进气阀 | VALVE-INLET | 1 |
| 7 | 4215 | 燃油主量孔(.066) | JET Main Fuel (.066) | 1 |
| 8 | 9171 | 堵头 | PLUG | 1 |
| 9 | 813618 | 盖板 | COVER | 1 |
| 10 | 9697 | 螺钉 | SCREW | 4 |
| 11 | 15827A1 | 本体 | BODY | 1 |
| 12 | 9643 | 螺钉 | SCREW | 5 |
| 13 | 9699 | 安装板 | PLATE | 1 |
| 14 | 9696 | 螺钉 | SCREW | 2 |
| 15 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 16 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 17 | 9637 | 盖板 | COVER | 1 |
| 18 | 9762 | 堵头 | PLUG | 1 |
| 19 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| 20 | 9635 | 膜片/衬垫 | DIAPHRAGM/GASKET | 1 |
| 21 | 128053 | 快怠速杆 | LEVER Fast Idle | 1 |
| 22 | 12803 | 启动泵支架 | BRACKET Primer | 1 |
| 23 | 821979 | 螺母 | NUT | 1 |
| 24 | 79964 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 25 | 11277 | 张力弹簧 | SPRING Tension | 1 |
| 26 | 400018 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 27 | 79965 | 螺丝 (#8-32 x .500) 不锈钢 | SCREW (#8-32 x .500) Stainless Steel | 1 |
| 28 | 112731 | 启动泵杆 | LEVER Primer | 1 |
| 29 | 11280 | 凸轮块 | CAM BLOCK | 1 |
| 30 | 11278 | 固定夹 | CLIP Retaining | 1 |
| 31 | 12804A1 | 阻风门面板总成 | BEZEL ASSEMBLY Choke | 1 |
| 32 | 128022 | 启动泵旋钮 | PRIMER KNOB | 1 |
| 33 | 40056110 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 1 |
| 34 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 35 | 12970 | 贴纸 (慢/快) | DECAL (SLOW/FAST) | 1 |
| 36 | 445541 | 怠速线 | IDLE WIRE | 1 |
| 37 | 823433 | 电动阻风门 | CHOKE Electric | 1 |
| 38 | 174421 | 化油器盖 | COVER Carburetor | 1 |
| 39 | 47579 | 堵头 | PLUG | 1 |
| - | 42364A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 95815 | 上盖 | COVER (TOP) | 1 |
| 2 | 95828 | 下盖 | COVER (BOTTOM) | 1 |
| 3 | 95810A1 | 启动开关总成 | SWITCH ASSEMBLY Start | 1 |
| 4 | 55741 | 护套 | BOOT | 1 |
| 4 | 55741001 | 护套 | BOOT | 1 |
| 5 | 88890A2 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 6 | 79139A20 | 电缆总成（红色） | CABLE ASSEMBLY (RED) | 1 |
| 10 | 95814 | 绑带 | STRAP | 1 |
| 11 | 95813 | 紧固件 | FASTENER | 1 |
| 12 | 40056108 | 螺钉（M5×20） | SCREW (M5 x 20) | 1 |
| 12 | 40019108 | 螺钉（M5×20） | SCREW (M5 x 20) | 1 |
| 13 | 4005727 | 螺钉 | SCREW | 2 |
| 14 | 45771 | 垫圈 | WASHER | 2 |
| 15 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 16 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 17 | 816770 | 整流器 | RECTIFIER | 1 |
| 17 | 8M0058226 | 整流器 | RECTIFIER | 1 |
| 18 | 48409 | 螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel | 2 |
| 19 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 3 |
| 20 | 96054 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 20 | 8M0185149 | 启动电磁阀 | SOLENOID START | 1 |
| 21 | 4000327 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 2 |
| 22 | 26419 | 黄铜螺母 (#8-32) | NUT (#8-32) Brass | 2 |
| 23 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 2 |
| 24 | 88809A5 | 电线总成（黄色） | WIRE ASSEMBLY (YELLOW) | 1 |
| 25 | 88439A8 | 电池电缆总成(红色) | CABLE ASSEMBLY Battery (RED) | 1 |
| 25 | 88439A27 | 电缆总成红色-电池 | CABLE ASSEMBLY Red - Battery | 1 |
| 25 | 88439A6 | 电池电缆总成(黑色) | CABLE ASSEMBLY Battery (BLACK) | 1 |
| 25 | 88439A28 | 电缆总成电池-黑色 | CABLE ASSEMBLY Battery - Black | 1 |
| 26 | 92439 | 支架(旧设计) | BRACKET (OLD DESIGN) | 1 |
| 27 | 4000327 | 螺钉(M6×14)(旧设计) | SCREW (M6 x 14) (OLD DESIGN) | 1 |
| 28 | 35044 | 垫圈(0.281×0.625×0.065)不锈钢(旧设计) | WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN) | 1 |
| 29 | 400212 | 螺母(M6)不锈钢(旧设计) | NUT (M6) Stainless Steel (OLD DESIGN) | 1 |
| 30 | 815504310 | 蜗轮卡箍(旧设计) | CLAMP Worm Gear (OLD DESIGN) | 1 |
| 31 | 86704A2 | 定子总成 | STATOR ASSEMBLY | 1 |
| 31 | 86704A10 | 辅助定子 | STATOR Auxiliary | 1 |
| 32 | 4000123 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 3 |
| 33 | 90983A1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 33 | 8M0033984 | 启动马达 | STARTER MOTOR | 1 |
| 34 | 96561 | 驱动套件 | DRIVE KIT | 1 |
| 35 | 96562 | 驱动器 | DRIVE | 1 |
| 36 | 96563 | 端盖 | END CAP | 1 |
| 36 | 96563T | 端盖 | END CAP | 1 |
| 37 | 96565 | 电枢 | ARMATURE | 1 |
| 38 | 96564 | 端盖 | END CAP | 1 |
| 38 | 96564T | 端盖 | END CAP | 1 |
| 39 | 96566 | 贯穿螺栓 | THRU BOLT | 1 |
| 40 | 421251 | 螺钉(M8x55) | SCREW (M8 x 55) | 2 |
| 40 | 42125 | 螺钉(M8x55) | SCREW (M8 x 55) | 2 |
| 41 | 424291 | 固定座 | RETAINER | 1 |
| 42 | 12334A2 | 发动机线束总成 | HARNESS ASSEMBLY Engine Wiring | 1 |
| 43 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 43 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 44 | 134731 | 保险丝座(旧设计) | HOLDER Fuse (OLD DESIGN) | 1 |
| 45 | 12152 | 固定座 | RETAINER | 1 |
| 46 | 92753 | 固定座 | RETAINER | 1 |
| 47 | 55098 | J型卡扣 | J CLIP | 1 |
| 47 | 8M0024808 | J型夹 | J-CLIP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 86617A13 | 定子总成 | STATOR ASSEMBLY | 1 |
| 1 | 86617A20 | 定子总成 | STATOR ASSEMBLY | 1 |
| 2 | 4000120 | 螺丝(M5 x 25) | SCREW (M5 x 25) | 2 |
| 3 | 400018 | 螺钉 (M5 x 12) (手动) | SCREW (M5 x 12) (MANUAL) | 1 |
| 4 | 98450A5 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 4 | 98450A10 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 5 | 11100 | 触发线夹 | CLIP TRIGGER LEAD | 1 |
| 6 | 7452A15 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 6 | 7452A19 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 7 | 40019108 | 螺钉 (M5 x 20) 开关盒至气缸体 | SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK | 2 |
| 8 | 48408 | 螺钉 (#10-16 x .500) 接地线 | SCREW (#10-16 x .500) GROUND WIRE | 1 |
| 9 | 7370A13 | 点火线圈总成 | COIL ASSEMBLY Ignition | 2 |
| 9 | 8M0230859 | 点火线圈总成 | COIL IGNITION ASY | 2 |
| 10 | 40112 | 螺钉 (M6 x 45) 点火线圈 | SCREW (M6 x 45) IGNITION COIL | 2 |
| 11 | 88173 | 锁紧垫圈 | TAB WASHER | 2 |
| 12 | 88171 | 线圈衬套 | BUSHING COIL | 2 |
| 13 | 45076 | 螺母 (#10-32) 黄铜线圈端子 | NUT (#10-32) Brass COIL TERMINAL | 4 |
| 14 | 813715A2 | 高压线组 (5和8.25英寸) 高压 | CABLE SET High Tension (5 and 8.25 Inch) HIGH TENSION | 1 |
| 15 | 63709A1 | 火花塞护套/端子套件 | BOOT/TERMINAL KIT SPARK PLUG | 2 |
| 16 | 12343 | 火花塞 (NGK #BP8HS-10) | SPARK PLUG (NGK #BP8HS-10) | 2 |
| 16 | 8M0114745 | SP BP8HS-10 @4 | SP BP8HS-10 @4 | 2 |
| 16 | 8167372 | 火花塞 (NGK#BP8H-N-10) | SPARK PLUG (NGK#BP8H-N-10 | 2 |
| 16 | 816737Q | NGK BP8HN-10@10 | NGK BP8HN-10@10 | 2 |
| 16 | 14814548 | 火花塞 (NGK #BPZ8HS-10) (加拿大/比利时) | SPARK PLUG (NGK # BPZ8HS-10) (CAN./BEL.) | 2 |
| 16 | 938 | SP #QL78YC @4 | SP #QL78YC @4 | 2 |
| 16 | 8168372 | 火花塞 (NGK#BPZ-8H-N-10-加拿大/比利时) | SPARK PLUG (NGK#BPZ-8H-N-10-CAN/BEL.) | 2 |
| 16 | 938 | SP #QL78YC @4 | SP #QL78YC @4 | 2 |
| 16 | 19424 | 火花塞 (NGK#BP8HS-15) | SPARK PLUG (NGK#BP8HS-15) | 2 |
| 16 | 8M0114746 | SP BP8HS-15 @4 | SP BP8HS-15 @4 | 2 |
| 16 | 14814568 | 火花塞 (NGK#BPZ8HS-15) | SPARK PLUG (NGK#BPZ8HS-15) | 2 |
| 17 | 69355 | 扎带(5.50英寸) | TIE STRAP (5.50 Inches) | 1 |
| 17 | 8M0214940 | 扎带 | TIE STRAP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42213A6 | 旋转管（黑色） | SWIVEL TUBE (BLACK) | 1 |
| 1 | 42213A14 | 旋转管更换件 | SWIVEL TUBE REPLACEMENT | 1 |
| 1 | 42213A7 | 旋转管（灰色） | SWIVEL TUBE (GRAY) | 1 |
| 1 | 42213A15 | 旋转管更换件 | SWIVEL TUBE REPLACEMENT | 1 |
| 1 | 42213A14 | 旋转管替换件（黑色） | SWIVEL TUBE REPLACEMENT (BLACK) | 1 |
| 1 | 42213A15 | 旋转管替换件（灰色） | SWIVEL TUBE REPLACEMENT (GRAY) | 1 |
| 1 | 42213A14 | 旋转管更换件 | SWIVEL TUBE REPLACEMENT | 1 |
| 2 | 74036 | 润滑脂接头 | FITTING Grease | 1 |
| 2 | 8M0169589 | 润滑脂接头 | FITTING Grease | 1 |
| 3 | NLA | 已停产支架（黑色）（订单号42213A14） | No Longer Available BRACKET (BLACK) (ORDER 42213A14) | 1 |
| 3 | NLA | 已停产支架（灰色）（订单号4213A15） | No Longer Available BRACKET (GRAY) (ORDER 4213A15) | 1 |
| 3 | 44397A15 | 支架总成（黑色） | BRACKET ASSEMBLY (BLACK) | 1 |
| 3 | 44397A16 | 支架总成（灰色） | BRACKET ASSEMBLY (GRAY) | 1 |
| 4 | 40019109 | 螺丝(M5 x 25) | SCREW (M5 x 25) | 3 |
| 4 | 4005688 | 螺钉（M4×20） | SCREW (M4 x 20) | 3 |
| 4 | 40011110 | 螺钉(M5×30不锈钢) | SCREW (M5 x 30) Stainless Steel | 3 |
| 5 | 177821 | 支架垫圈 | WASHER BRACKET | 1 |
| 5 | 177821 | 垫圈 | WASHER | 1 |
| 6 | 90068F2 | 支架螺母（黑色） | NUT BRACKET (BLACK) | 1 |
| 6 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 6 | 90068F3 | 支架螺母（1.00-14）（灰色） | NUT (1.00-14) BRACKET (GRAY) | 1 |
| 6 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 6 | 816880 | 螺母 | NUT | 1 |
| 7 | 85973 | 支架衬套 | BUSHING BRACKET | 1 |
| 7 | 817026 | 衬套 | BUSHING | 1 |
| 8 | 42210 | 油门拉索（舵柄换挡） | CABLE THROTTLE (TILLER HANDLE SHIFT) | 1 |
| 8 | 422111 | 油门拉索（侧换挡） | CABLE THROTTLE (SIDE SHIFT) | 1 |
| 9 | 400212 | 油门拉索不锈钢螺母（M6） | NUT (M6) Stainless Steel THROTTLE CABLE | AR |
| 10 | 99333A2 | 转向管总成 | TUBE ASSEMBLY STEERING | 1 |
| 11 | 14025A4 | 油门手柄总成（舵柄换挡） | HANDLE ASSEMBLY Throttle (TILLER HANDLE SHIFT) | 1 |
| 11 | 823609A10 | 停机开关套件-油门手柄 | SWITCH KIT Stop - Throttle Handle | 1 |
| 11 | 14170A5 | 油门手柄总成（侧换挡） | HANDLE ASSEMBLY Throttle (SIDE SHIFT) | 1 |
| 11 | 823609A10 | 停机开关套件-油门手柄 | SWITCH KIT Stop - Throttle Handle | 1 |
| 12 | 13239 | 油门贴花（贴于手柄） | DECAL THROTTLE (APPLY ON HANDLE) | 1 |
| 12 | 140121 | 油门贴花（贴于管身）（黑色） | DECAL THROTTLE (APPLY ON TUBE) (BLACK) | 1 |
| 12 | 140122 | 贴花（贴于管身-灰色3-1/3"×1-1/4"） | DECAL (APPLY ON TUBE - GRAY 3-1/3" X 1-1/4") | 1 |
| 12 | 140123 | 贴花（贴于管身-3.15"×2-1/2"） | DECAL (APPLY ON TUBE - 3.15"X 2-1/2") | 1 |
| 12 | 140124 | 贴花（国际符号） | DECAL (INTERNATIONAL SYMBOLS) | 1 |
| 13 | 37342 | 油门手柄螺钉（#12-14×0.375） | SCREW (#12-14 x .375) THROTTLE HANDLE | 1 |
| 14 | 823609A10 | 停机开关套件-油门手柄 | SWITCH KIT Stop - Throttle Handle | 1 |
| 15 | 11099A1 | 停机开关护套总成 | BOOT ASSEMBLY STOP SWITCH | 1 |
| 16 | 99589 | 橡胶握把 | GRIP RUBBER | 1 |
| 16 | 8M0221732 | 外握把 | GRIP OUTER | 1 |
| 17 | 8831A1 | 旋转支架总成（黑色） | SWIVEL BRACKET ASSEMBLY (BLACK) | 1 |
| 17 | 8831A13 | 旋转支架-黑色 | SWIVEL BRKT-BLACK | 1 |
| 17 | 8831A2 | 旋转支架总成（灰色） | SWIVEL BRACKET ASSEMBLY (GRAY) | 1 |
| 17 | 8831A14 | ORD 3402-8831A13 | ORD 3402-8831A13 | 1 |
| 18 | 74036 | 润滑脂接头 | FITTING Grease | 3 |
| 18 | 8M0169589 | 润滑脂接头 | FITTING Grease | 3 |
| 19 | 42140 | 上衬套 | BUSHING UPPER | 1 |
| 20 | 420801 | 推力轴承-上 | BEARING Thrust - Upper | 1 |
| 20 | 42080T01 | 轴承 | BEARING | 1 |
| 21 | 42139 | 下衬套 | BUSHING LOWER | 1 |
| 22 | 42077 | 密封件 | SEAL | 1 |
| 23 | 42373 | 下止推垫圈 | THRUST WASHER LOWER | 1 |
| 24 | 42124A1 | 副驾驶板总成 | PLATE ASSEMBLY CO-PILOT | 1 |
| 25 | 42141 | 倒挡锁钩 | HOOK REVERSE LOCK | 1 |
| 25 | 8M0075731 | 倒挡钩 | HOOK Reverse | 1 |
| 26 | 42127 | 倒挡钩弹簧 | SPRING REVERSE HOOK | 1 |
| 27 | 420822 | 支架 | BRACKET | 1 |
| 27 | 42082T04 | 支架 | BRACKET | 1 |
| 28 | 42130 | 弹簧 | SPRING | 1 |
| 28 | 421301 | 弹簧 | SPRING | 1 |
| 29 | 42081 | 销 | PIN | 1 |
| 29 | 420811 | 销 | PIN | 1 |
| 30 | 13194 | 挡圈 | RING Retaining | 2 |
| 31 | 42083 | 枢轴销 | PIN Pivot | 1 |
| 31 | 830741A1 | 枢轴销总成 | PIN ASSEMBLY Pivot | 1 |
| 32 | 8M0027716 | 枢轴销不锈钢垫圈（0.390×0.600×0.032） | WASHER (.390 x .600 x .032) Stainless Steel PIVOT PIN | 1 |
| 33 | 42128 | 弹簧 | SPRING | 1 |
| 34 | 42085F1 | 提手 | CARRYING HANDLE | 1 |
| 34 | 420852 | 手柄-黑色 | HANDLE-BLACK | 1 |
| 35 | 975501 | 管总成 | TUBE ASSEMBLY | 1 |
| 36 | 12602 | 护孔环 | GROMMET | 1 |
| 36 | 12602002 | 护孔环 | GROMMET | 1 |
| 37 | 19564 | 护孔环 | GROMMET | 1 |
| 37 | 8M0179867 | 护孔环 | GROMMET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42181 | 线缆支架 | BRACKET Cable | 1 |
| 2 | 4000117 | 螺钉（M5×20） | SCREW (M5 x 20) | 2 |
| 3 | 125732 | 杠杆 | LEVER | 1 |
| 3 | 421592 | 杠杆 | LEVER | 1 |
| 4 | 4000331 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 1 |
| 5 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 5 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 6 | 421581 | 衬套 | BUSHING | 1 |
| 7 | 42160 | 弹簧 | SPRING | 1 |
| 8 | 42156 | 杠杆 | LEVER | 1 |
| 9 | 42153 | 杠杆 | LEVER | 1 |
| 10 | 39627 | 弹簧 | SPRING | 1 |
| 11 | 39601 | 板（旧设计） | PLATE (OLD DESIGN) | 1 |
| 12 | 4000114 | 螺钉(M5×16) | SCREW (M5 x 16) | 2 |
| 12 | 400035 | 螺钉(M5×16) | SCREW (M5 x 16) | 2 |
| 12 | 400011 | 螺钉（M5×8） | SCREW (M5 x 8) | 2 |
| 13 | 42152 | 换挡轴（两件式） | SHIFT SHAFT (2 PIECE SHIFT SHAFT) | 1 |
| 14 | 421541 | 执行器（两件式换挡轴） | ACTUATOR (2 PIECE SHIFT SHAFT) | 1 |
| 15 | 815550A1 | 换挡轴（带球窝） | SHIFT SHAFT ( W/BALL SOCKET) | 1 |
| 16 | 8155501 | 换挡轴（无球窝） | SHIFT SHAFT (W/O BALL SOCKET) | 1 |
| 17 | 42157 | 换挡手柄（配合参考号13、14或15使用） | SHIFT HANDLE (USE W/REF. #13 & 14 OR 15) | 1 |
| 17 | 815550A1 | 换档轴 | SHIFT SHAFT | 1 |
| 17 | 421571 | 换挡手柄（配合参考号16使用） | SHIFT HANDLE (USE W/REF. #16) | 1 |
| 18 | 44459 | 护孔环 | GROMMET | 1 |
| 18 | 44459001 | 护孔环 | GROMMET | 1 |
| 19 | 12003 | 锁紧垫圈（旧设计） | TAB WASHER (OLD DESIGN) | 1 |
| 20 | 421671 | 正时连杆 | TIMING LINK | 1 |
| 21 | 421631 | 控制杆 | LEVER Control | 1 |
| 22 | 40056110 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 1 |
| 22 | 40019111 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 1 |
| 23 | 421662 | 执行器 | ACTUATOR | 1 |
| 24 | 42161 | 互锁连杆 | LINK INTERLOCK | 1 |
| 25 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 26 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 26 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 27 | 421621 | 衬套 | BUSHING | 1 |
| 28 | 13676 | 弹簧 | SPRING | 1 |
| 29 | 69708 | 波形垫圈 | WAVE WASHER | 1 |
| 30 | 42164 | 弹簧 | SPRING | 1 |
| 31 | 40056107 | 螺钉(M5×16) | SCREW (M5 x 16) | 1 |
| 32 | 42182 | 衬套 | BUSHING | 1 |
| 32 | 421821 | 衬套 | BUSHING | 1 |
| 33 | 42183 | 执行器 | ACTUATOR | 1 |
| 34 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 34 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 35 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 35 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 1 |
| 36 | 42184 | 连接杆 | LINK | 1 |
| 37 | 4002314 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0142969 | 换挡轴工具 | SHIFT SHAFT TOOL | 1 |
| 2 | 8M0142970 | 对正工具-预载驱动器 | ALIGNMENT TOOL Preload Driver | 1 |
| 3 | 8M0142973 | 换挡轴手柄工具 | SHIFT SHAFT HANDLE TOOL | 1 |
| 4 | 8M0142974 | 保持器压装夹具 | RETAINER PRESS FIXTURE | 1 |
| 5 | 8M0142976 | 工具-压装夹具底座 | TOOL Press Fixture Base | 1 |
| 6 | 8M0142983 | 轴工具-轴承座总成 | SHAFT TOOL Bearing Carrier Assembly | 1 |
| 7 | 8M0145393 | 工具-螺纹离合器总成 | TOOL Threaded Clutch Assembly | 1 |
| 8 | 8M0142559 | 齿轮总成固定夹具 | HOLDING FIXTURE Gear Assembly | 1 |
| 9 | 8M0142615 | 心轴-压装垫片 | MANDREL Press Spacer | 1 |
| 10 | 8M0142624 | 导板-轴承座 | GUIDE PLATE Bearing Carrier | 1 |
| 11 | 8M0142413 | 心轴-后齿轮轴承锥 | MANDREL Rear Gear Bearing Cone | 1 |
| 12 | 8M0142414 | 工具-齿轮总成驱动器 | TOOL Gear Assembly Driver | 1 |
| 13 | 8M0142636 | 轴承心轴 | BEARING MANDREL | 1 |
| 14 | 8M0146861 | 工具-飞轮 | TOOL Flywheel | 1 |
| 15 | 8M0146862 | 工具-张紧皮带 | TOOL Stretch Belt | 1 |
| 16 | 8M0129230 | 软管-放油 | HOSE Oil Drain | 1 |
| 17 | 8M0146935 | 安装工具-轴承卷轴 | INSTALLATION TOOL Bearing Spool | 1 |
| 18 | 8M0146936 | 拉拔器-上部支架 | BAR MOUNT PULLER Upper | 1 |
| 19 | 8M0147118 | 工具-推进轴 | TOOL Propshaft | 1 |
| 20 | 8M0147078 | 安装工具-配平线束 | INSTALLATION TOOL Trim Harness | 1 |
| 20 | 8M0193581 | 安装工具-配平线束 | INSTALLATION TOOL Trim Harness | 1 |
| 21 | 8M0130705 | 齿轮箱高度工具套件 | GEARCASE HEIGHT TOOL KIT | 1 |
| 22 | 8M0138392 | CDS-G3诊断工具套件 | DIAGNOSTIC TOOL KIT CDS -G3 | 1 |
| 22 | 8M0153916 | CDS G3诊断工具套件 | DIAGNOSTIC TOOL KIT CDS G3 | 1 |
| 23 | 8M0150597 | 工具-换挡执行器测试TEE线束 | TOOL-SHIFT ACTUATOR Test TEE Harness | 1 |
| 24 | 8M0160428 | 拉拔器板 | PULLER PLATE | 1 |
| 25 | 8M0163293 | 碎屑收集工具 | TOOL Chip Catcher | 1 |
| 26 | 8M0149526 | 钻模-2英寸5孔 | DRILL BLOCK 2 Inch, 5 Hole | 1 |
| NS | 883705T01 | 工具-发动机吊装带 | STRAP TOOL Engine Lifting | 1 |
| NS | 98234A2 | 钻孔夹具套件-艉板 | DRILL FIXTURE KIT Transom | 1 |
| NS | 8M0147671 | 工具-对正销上部支架 | TOOL ALIGNMENT PIN UPPER MOUNT | 1 |
| NS | 8M0145607 | 工具-拉杆器 | TOOL Bar Puller | 1 |
| NS | 8M0147116 | 工具-导向密封驱动器 | TOOL GUIDE SEAL DRIVER | 1 |
| NS | 8M0149553 | 工具-上部支架杆安装 | TOOL Upper Mount Rod Installation | 1 |
| NS | 8M0148868 | 扳手-AMS支架 | WRENCH AMS Mount | 1 |
| NS | 8M0148865 | 工具-齿轮安装 | TOOL Install Gear | 1 |
| NS | 8M0182653 | 工具-驱动对正 | TOOL Drive Alignment | 1 |
| - | 8M0235704 | 工具-动力输出轴套安装 | TOOL SLEEVE INSTALLATION PTO | 1 |
| - | 8M0235705 | 工具-耐磨轴套安装 | TOOL INSTALL WEAR SLEEVE | 1 |
| - | 8M0235706 | 工具-耐磨轴套安装 | TOOL INSTALL WEAR SLEEVE | 1 |
| - | 8M0235707 | 耐磨轴套安装 | INSTALL WEAR SLEEVE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 95845 | 电压调节器 | REGULATOR Voltage | 1 |
| 1 | 95845T | 电压调节器 | REGULATOR-VOLTAGE | 1 |
| 2 | 92799 | 螺钉(#10-16x1.12) | SCREW (#10-16 x 1.12) | 2 |
| 3 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 4 | 74725A2 | 线束总成(黑/红)(20英寸) | HARNESS ASSEMBLY (BLACK/RED) (20") | 1 |
| 5 | 71663 | 堵头 | PLUG | 1 |
| 6 | 65017A2 | 线束总成(黑/黑) | HARNESS ASSEMBLY (BLACK/BLACK) | 1 |
| 6 | 65017A10 | 电池端线束总成(黑/红)(62英寸) | HARNESS ASSEMBLY Battery End (BLACK/RED) (62") | 1 |
| 9 | 63813 | 端子排 | TERMINAL BLOCK | 1 |
| 9 | 638131 | 端子排 | TERMINAL BLOCK | 1 |
| 10 | 48409 | 螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel | 2 |
| 11 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9503A5 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9266A7 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9266T22 | 化油器 | CARBURETOR | 1 |
| 1 | 8846A8 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 8846A24 | 化油器维修包 | CARBURETOR KIT | 1 |
| 2 | 9473 | 油门阀 | VALVE Throttle | 1 |
| 3 | 9472 | 油门轴 | SHAFT Throttle | 1 |
| 3 | 804707 | 轴 | SHAFT | 1 |
| 4 | 9164 | 燃油杯 | BOWL Fuel | 1 |
| 5 | 9169 | 浮子 | FLOAT | 1 |
| 5 | 91691 | 浮子 | FLOAT | 1 |
| 6 | 9855 | 进油针阀 | VALVE INLET NEEDLE | 1 |
| 6 | 803861 | 进油针阀 | VALVE Inlet Needle | 1 |
| 7 | 9548 | 主燃油喷嘴(.039) | JET MAIN FUEL (.039) | 1 |
| 7 | 5317 | 主燃油喷嘴(.046) | JET (.046) MAIN FUEL | 1 |
| 7 | 5213 | 主量孔(.056) | JET Main (.056) | 1 |
| 8 | 9171 | 量孔固定塞 | PLUG JET RETAINER | 1 |
| 9 | 813618 | 膜片盖 | COVER DIAPHRAGM | 1 |
| 10 | 9174 | 膜片盖螺丝 | SCREW DIAPHRAGM COVER | 4 |
| 10 | 9697 | 螺钉 | SCREW | 4 |
| 11 | 9702 | 盖/燃油泵套件 | COVER/FUEL PUMP KIT | 1 |
| 12 | 9173 | 燃油泵盖螺丝 | SCREW FUEL PUMP COVER | 5 |
| 13 | 9177 | 盖板 | PLATE COVER | 1 |
| 14 | 9172 | 盖板螺钉 | SCREW COVER PLATE | 2 |
| 14 | 9696 | 螺钉 | SCREW | 2 |
| 15 | 9761 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 15 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 16 | 9475 | 维修零件包 | REPAIR PARTS KIT | 1 |
| 16 | 96481 | 维修套件 | REPAIR KIT | 1 |
| 16A | 9762 | 堵头 | PLUG | 1 |
| 17 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| 18 | 445541 | 怠速线 | IDLE WIRE | 1 |
| 19 | 128053 | 快怠速杆 | LEVER Fast Idle | 1 |
| 20 | 12803 | 启动泵支架 | BRACKET Primer | 1 |
| 21 | 97877 | 快怠速杠杆推螺母 | PUSH NUT FAST IDLE LEVER | 1 |
| 21 | 821979 | 螺母 | NUT | 1 |
| 22 | 79964 | 螺钉(#6-32 x .750)快怠速杠杆 | SCREW (#6-32 x .750) FAST IDLE LEVER | 1 |
| 22 | 12110 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 23 | 11277 | 张力弹簧 | SPRING Tension | 1 |
| 24 | 40056110 | 螺钉(M5 x 30)启动泵支架 | SCREW (M5 x 30) PRIMER BRACKET | 2 |
| 25 | 79965 | 螺钉(#8-32 x .500)不锈钢启动泵支架 | SCREW (#8-32 x .500) Stainless Steel PRIMER BRACKET | 1 |
| 26 | 112731 | 启动泵杆 | LEVER Primer | 1 |
| 27 | 11280 | 凸轮块 | CAM BLOCK | 1 |
| 28 | 11278 | 固定夹 | CLIP Retaining | 1 |
| 29 | 12804A1 | 阻风门面板总成 | BEZEL ASSEMBLY Choke | 1 |
| 30 | 12802 | 启动泵旋钮 | KNOB PRIMER | 1 |
| 30 | 128022 | 启动泵旋钮 | PRIMER KNOB | 1 |
| 31 | 40056110 | 螺钉(M5×30) 化油器止动 | SCREW (M5 x 30) STOP-CARBURETOR | 1 |
| 32 | 400211 | 螺母(M5)不锈钢 止动螺钉 | NUT (M5) Stainless Steel STOP CREW | 1 |
| 33 | 823433 | 电动阻风门 | CHOKE Electric | 1 |
| 34 | 12970 | 贴纸 (慢/快) | DECAL (SLOW/FAST) | 1 |
| 34 | 129701 | 贴花 | DECAL | 1 |
| - | 42364A91 | 衬垫套件 | GASKET SET | 1 |
| - | 42364A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42148 | 控制平台 | CONTROL PLATFORM | 1 |
| 1 | 421482 | 控制平台 | CONTROL PLATFORM | 1 |
| 2 | 94085A1 | 齿轮 | GEAR | 1 |
| 3 | 4000331 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 1 |
| 4 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 4 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 2 |
| 5 | 42149 | 短隔套 | SPACER (SHORT) | 1 |
| 5 | 856737 | 隔套 | SPACER | 1 |
| 6 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 8 | 42151 | 主操纵杆 | LEVER Primary | 1 |
| 9 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 10 | 42150 | 长隔套 | SPACER (LONG) | 1 |
| 10 | 856738 | 隔套 | SPACER | 1 |
| 11 | 4000171 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 12 | 421671 | 正时连杆 | TIMING LINK | 1 |
| 13 | 421631 | 控制杆 | LEVER Control | 1 |
| 14 | 40056110 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 1 |
| 14 | 40019111 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 1 |
| 15 | 421662 | 执行器 | ACTUATOR | 1 |
| 16 | 42161 | 互锁连杆 | LINK INTERLOCK | 1 |
| 17 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 18 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 18 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 19 | 421621 | 衬套 | BUSHING | 1 |
| 20 | 42164 | 弹簧 | SPRING | 1 |
| 21 | 69708 | 波形垫圈 | WAVE WASHER | 1 |
| 22 | 13676 | 弹簧 | SPRING | 1 |
| 23 | 19385A1 | 节气门连杆总成 | LINK ASSEMBLY Throttle | 1 |
| 23 | 8M0084745 | 节气门连杆总成 | LINK ASY-THROTTLE | 1 |
| 24 | 19384 | 插座 | SOCKET | 1 |
| 24 | 8M0084742 | 插座 | SOCKET | 1 |
| 25 | 42159 | 杠杆 | LEVER | 1 |
| 25 | 421592 | 杠杆 | LEVER | 1 |
| 26 | 421581 | 衬套 | BUSHING | 1 |
| 27 | 42160 | 弹簧 | SPRING | 1 |
| 28 | 4000331 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 1 |
| 29 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 29 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 30 | 42156 | 杠杆 | LEVER | 1 |
| 31 | 42153 | 杠杆 | LEVER | 1 |
| 32 | 42152 | 换挡轴（两件式） | SHIFT SHAFT (2 PIECE SHIFT SHAFT) | 1 |
| 33 | 421551 | 换挡杆(两件式换挡轴) | LEVER (2 PIECE SHIFT SHAFT) | 1 |
| 34 | 400035 | 螺钉(M5x16)(两件式换挡轴) | SCREW (M5 x 16) (2 PIECE SHIFT SHAFT) | 1 |
| 35 | 11371 | 锁紧垫圈(两件式换挡轴) | TAB WASHER (2 PIECE SHIFT SHAFT) | 1 |
| 36 | 1938511 | 换挡连杆(两件式换挡轴) | SHIFT LINK (2 PIECE SHIFT SHAFT) | 1 |
| 37 | 815550A1 | 换挡轴(整体式换挡轴) | SHIFT SHAFT (1 PIECE SHIFT SHAFT) | 1 |
| 38 | 93254 | 旋转底座(整体式换挡轴) | SWIVEL BASE (1 PIECE SHIFT SHAFT) | 1 |
| 39 | 93421 | 旋转球头(整体式换挡轴) | SWIVEL BALL (1 PIECE SHIFT SHAFT) | 1 |
| 40 | 1938522 | 快速连杆(整体式换挡轴) | SWIFT LINK (1 PIECE SHIFT SHAFT) | 1 |
| 40 | 815550A1 | 换档轴 | SHIFT SHAFT | 1 |
| 41 | 8155501 | 换档轴 | SHIFT SHAFT | 1 |
| 42 | 815567A1 | 换挡连杆 | SHIFT LINK | 1 |
| 42 | 815567T02 | 换挡连杆总成 | SHIFT LINK ASSY | 1 |
| 43 | 4000114 | 螺钉(M5×16) | SCREW (M5 x 16) | 2 |
| 43 | 400035 | 螺钉(M5×16) | SCREW (M5 x 16) | 2 |
| 43 | 400011 | 螺钉（M5×8） | SCREW (M5 x 8) | 2 |
| 44 | 39627 | 弹簧 | SPRING | 1 |
| 45 | 39601 | 板（旧设计） | PLATE (OLD DESIGN) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9503A11 | 化油器(6)(WMC-20B) | CARBURETOR (6)(WMC-20B) | 1 |
| 1 | 9503T21 | 化油器 (WMC-78A) | CARBURETOR (WMC-78A) | 1 |
| 1 | 9266A12 | 化油器(8)(WMC-18B) | CARBURETOR (8)(WMC-18B) | 1 |
| 1 | 9266T22 | 化油器 | CARBURETOR | 1 |
| 1 | 8846A14 | 化油器(9.9)(WMC-23) | CARBURETOR (9.9)(WMC-23) | 1 |
| 1 | 8846A24 | 化油器维修包 | CARBURETOR KIT | 1 |
| 2 | 9473 | 油门阀 | VALVE Throttle | 1 |
| 2 | 815133 | 节气门阀(WMC-23) | VALVE Throttle (WMC-23) | 1 |
| 3 | 9472 | 节气门轴(WMC-17/18/20) | SHAFT Throttle (WMC-17/18/20) | 1 |
| 3 | 804707 | 轴 | SHAFT | 1 |
| 3 | 9698 | 轴(WMC-17C/18A/18B/20A/20B) | SHAFT (WMC-17C/18A/18B/20A/20B) | 1 |
| 3 | 804707 | 轴 | SHAFT | 1 |
| 3 | 813022 | 节气门轴(WMC-23)(含螺钉/弹簧) | SHAFT Throttle (WMC-23)(INCL.SCREW/SPRING) | 1 |
| 4 | 9164 | 燃油杯 | BOWL Fuel | 1 |
| 5 | 9169 | 浮子 | FLOAT | 1 |
| 5 | 91691 | 浮子 | FLOAT | 1 |
| 6 | 9855 | 阀门 | VALVE | 1 |
| 6 | 803861 | 进油针阀 | VALVE Inlet Needle | 1 |
| 7 | 5315 | 主量孔(0.042)(6) | JET Main Fuel (.042) (6) | 1 |
| 7 | 5317 | 量孔(0.046)(8) | JET (.046) (8) | 1 |
| 7 | 5213 | 主量孔(0.056)(9.9) | JET Main (.056) (9.9) | 1 |
| 7 | 6359 | 量孔(0.052)(9.9) | JET (.052) (9.9) | 1 |
| 8 | 9171 | 量孔固定塞 | PLUG JET RETAINER | 1 |
| 9 | 813618 | 膜片盖 | COVER DIAPHRAGM | 1 |
| 10 | 9174 | 螺钉(WMC-17/18/20) | SCREW (WMC-17/18/20) | 4 |
| 10 | 9697 | 螺钉 | SCREW | 4 |
| 10 | 9697 | 螺钉(WMC-17B/17C/18A/18B/20A/20B/23) | SCREW (WMC-17B/17C/18A/18B/20A/20B/23) | 4 |
| 11 | 15827A1 | 本体 | BODY | 1 |
| 11 | 9702 | 盖/燃油泵套件 | COVER/FUEL PUMP KIT | 1 |
| 12 | 9643 | 燃油泵盖螺丝 | SCREW FUEL PUMP COVER | 5 |
| 13 | 9177 | 板(WMC-17/18/20) | PLATE (WMC-17/18/20) | 1 |
| 13 | 9699 | 板(WMC-17B/17C/18A/18B/20A/20B/23) | PLATE (WMC-17B/17C/18A/18B/20A/20B/23) | 1 |
| 14 | 9172 | 螺钉(WMC-17/18/20) | SCREW (WMC-17/18/20) | 2 |
| 14 | 9696 | 螺钉 | SCREW | 2 |
| 14 | 9696 | 螺钉(WMC-17B/17C/18A/18B/20A/20B/23) | SCREW (WMC-17B/17C/18A/18B/20A/20B/23) | 2 |
| 15 | 9725 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 15 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 16 | 9648 | 维修零件包 | REPAIR PARTS KIT | 1 |
| 16 | 96481 | 维修套件 | REPAIR KIT | 1 |
| 16 | 813023 | 维修套件(WMC-23) | REPAIR KIT (WMC-23) | 1 |
| 16 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 17 | 9637 | 燃油泵盖 | COVER FUEL PUMP | 1 |
| 18 | 9762 | 堵头 | PLUG | 1 |
| 19 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| 19A | 9635 | 膜片/衬垫 | DIAPHRAGM/GASKET | 1 |
| 20 | 445541 | 怠速线 | IDLE WIRE | 1 |
| 21 | 128053 | 快怠速杆 | LEVER Fast Idle | 1 |
| 22 | 12803 | 启动泵支架 | BRACKET Primer | 1 |
| 23 | 97877 | 压入式螺母 | PUSH NUT | 1 |
| 23 | 821979 | 螺母 | NUT | 1 |
| 24 | 79964 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 24 | 12110 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 25 | 11277 | 张力弹簧 | SPRING Tension | 1 |
| 26 | 40056110 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 2 |
| 26 | 400018 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 27 | 79965 | 螺丝 (#8-32 x .500) 不锈钢 | SCREW (#8-32 x .500) Stainless Steel | 1 |
| 28 | 112731 | 启动泵杆 | LEVER Primer | 1 |
| 29 | 11280 | 凸轮块 | CAM BLOCK | 1 |
| 30 | 11278 | 固定夹 | CLIP Retaining | 1 |
| 31 | 12804A1 | 阻风门面板总成 | BEZEL ASSEMBLY Choke | 1 |
| 32 | 128022 | 启动泵旋钮 | PRIMER KNOB | 1 |
| 33 | 40056110 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 1 |
| 33 | 92799 | 螺钉(#10-16x1.12) | SCREW (#10-16 x 1.12) | 1 |
| 34 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 35 | 17442 | 盖板 | COVER | 1 |
| 36 | 47579 | 堵头 | PLUG | 1 |
| 37 | 823433 | 电动阻风门 | CHOKE Electric | 1 |
| 38 | 44426 | 电控阻风门衬垫 | GASKET ELECTRIC CHOKE | 1 |
| 39 | 12970 | 贴纸 (慢/快) | DECAL (SLOW/FAST) | 1 |
| 39 | 129701 | 贴花 | DECAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8894A5 | 夹具支架总成 (左舷) (黑色) | CLAMP BRACKET ASSEMBLY (PORT) (BLACK) | 1 |
| 1 | 8894A11 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 1 |
| 1 | 8894A6 | 夹具支架总成 (左舷) (灰色) | CLAMP BRACKET ASSEMBLY (PORT) (GRAY) | 1 |
| 1 | 8894A12 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 1 |
| 2 | 8892A3 | 夹具支架总成 (右舷) (黑色) | CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK) | 1 |
| 2 | 8894A11 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 1 |
| 2 | 8892A4 | 夹具支架总成 (右舷) (灰色) | CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY) | 1 |
| 2 | 8894A12 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 1 |
| 3 | 92767A1 | 蝶形螺丝总成 (14 mm) | THUMB SCREW ASSEMBLY (14 mm) | 2 |
| 3 | 92767A3 | 蝶形螺丝总成 (16 mm) | THUMB SCREW ASSEMBLY (16 mm) | 2 |
| 4 | 73719 | 蝶形螺丝垫圈 | WASHER THUMB SCREW | 2 |
| 4 | 818884 | 垫圈 | WASHER | 2 |
| 5 | 768041 | 垫圈固定螺丝 | SCREW WASHER ATTACHING | 2 |
| 5 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 6 | 43431 | 夹紧支架螺柱隔套 | SPACER CLAMP BRACKET STUD | 1 |
| 6 | 818539 | 隔套 | SPACER | 1 |
| 6 | 8M0084719 | 隔套 | SPACER | 1 |
| 7 | 42129 | 夹紧支架螺柱 | STUD CLAMP BRACKET | 1 |
| 7A | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 2 |
| 8 | 400256 | 夹紧支架螺柱防松垫圈(M6) | LOCKWASHER (M6) CLAMP BRACKET STUD | 2 |
| 9 | 400212 | 夹紧支架螺柱不锈钢螺母(M6) | NUT (M6) Stainless Steel CLAMP BRACKET STUD | 2 |
| 10 | 42078 | 倾斜管 | TILT TUBE | 1 |
| 11 | 30954 | 安全卡扣 | CLIP SAFETY | 1 |
| 11 | 8M0085928 | 卡扣 | CLIP | 1 |
| 12 | 93164 | 倾斜管螺母(.875) | NUT (.875) TILT TUBE | 2 |
| 13 | 71421 | 倾斜管尼龙垫圈 | WASHER Nylon TILT TUBE | 2 |
| 14 | 42390A1 | 倾斜回位杆总成 | LEVER ASSEMBLY Tilt Return | 2 |
| 15 | 90901 | 倾斜限位带-左舷侧 | STRAP TILT STOP - PORT SIDE | 1 |
| 16 | 42498 | 限位带至夹紧支架螺钉(M6x1.0) | SCREW (M6 x 1.0) STRAP TO CLAMP BRACKET | 2 |
| 17 | 31030 | 倾斜限位带螺钉波形垫圈 | WAVE WASHER TILT STOP STRAT SCREW | 1 |
| 18 | 43216 | 夹紧支架至艉板螺栓(.250-20x3.50) | BOLT (.250-20 x 3.50) CLAMP TO TRANSOM | 2 |
| 19 | 67983 | 夹紧支架螺栓垫圈 | WASHER CLAMP BRACKET BOLT | 2 |
| 21 | 814427 | 倾斜锁定滑块(新设计) | SHUTTLE TILT LOCK (NEW DESIGN) | 1 |
| 22 | 12869 | 倾斜位置标贴 | DECAL Tilt Position | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 421481 | 控制平台 | CONTROL PLATFORM | 1 |
| 2 | 94085A1 | 齿轮 | GEAR | 1 |
| 3 | 826650 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 1 |
| 4 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 5 | 42149 | 短隔套 | SPACER (SHORT) | 1 |
| 6 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 7 | 42151 | 主操纵杆 | LEVER Primary | 1 |
| 8 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 9 | 42150 | 长隔套 | SPACER (LONG) | 1 |
| 10 | 4000171 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 11 | 421671 | 正时连杆 | TIMING LINK | 1 |
| 12 | 421631 | 控制杆 | LEVER Control | 1 |
| 13 | 40019111 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 1 |
| 14 | 421662 | 执行器 | ACTUATOR | 1 |
| 15 | 42161 | 互锁连杆 | LINK INTERLOCK | 1 |
| 16 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 17 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 18 | 421621 | 衬套 | BUSHING | 1 |
| 19 | 42164 | 弹簧 | SPRING | 1 |
| 20 | 69708 | 波形垫圈 | WAVE WASHER | 1 |
| 21 | 13676 | 弹簧 | SPRING | 1 |
| 22 | 19385A1 | 节气门连杆总成 | LINK ASSEMBLY Throttle | 1 |
| 23 | 19384 | 插座 | SOCKET | 1 |
| 24 | 421592 | 杠杆 | LEVER | 1 |
| 25 | 421581 | 衬套 | BUSHING | 1 |
| 26 | 42160 | 弹簧 | SPRING | 1 |
| 27 | 4000331 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 1 |
| 28 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 29 | 42156 | 杠杆 | LEVER | 1 |
| 30 | 42153 | 杠杆 | LEVER | 1 |
| 31 | 8155501 | 换档轴 | SHIFT SHAFT | 1 |
| 32 | 815567A1 | 换挡连杆 | SHIFT LINK | 1 |
| 33 | 400011 | 螺钉（M5×8） | SCREW (M5 x 8) | 2 |
| 34 | 39627 | 弹簧 | SPRING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 421811 | 线缆支架 | BRACKET Cable | 1 |
| 2 | 4000171 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 3 | 40056107 | 螺钉(M5×16) | SCREW (M5 x 16) | 1 |
| 4 | 4002314 | 垫圈 | WASHER | 1 |
| 5 | 421571 | 换挡手柄 | SHIFT HANDLE | 1 |
| 6 | 44459 | 护孔环 | GROMMET | 1 |
| 7 | 8155501 | 换档轴 | SHIFT SHAFT | 1 |
| 8 | 42156 | 杠杆 | LEVER | 1 |
| 9 | 42153 | 杠杆 | LEVER | 1 |
| 10 | 39627 | 弹簧 | SPRING | 1 |
| 11 | 400011 | 螺钉（M5×8） | SCREW (M5 x 8) | 2 |
| 12 | 421671 | 正时连杆 | TIMING LINK | 1 |
| 13 | 421631 | 控制杆 | LEVER Control | 1 |
| 14 | 40019111 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 1 |
| 15 | 69708 | 波形垫圈 | WAVE WASHER | 1 |
| 16 | 42164 | 弹簧 | SPRING | 1 |
| 17 | 13676 | 弹簧 | SPRING | 1 |
| 18 | 421662 | 执行器 | ACTUATOR | 1 |
| 19 | 421621 | 衬套 | BUSHING | 1 |
| 20 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 21 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 22 | 42161 | 互锁连杆 | LINK INTERLOCK | 1 |
| 23 | 421592 | 杠杆 | LEVER | 1 |
| 24 | 42160 | 弹簧 | SPRING | 1 |
| 25 | 4000331 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 1 |
| 26 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 27 | 421581 | 衬套 | BUSHING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 30664 | 管 | TUBE | 1 |
| 1 | 8M0041936 | 倾斜管 | TILT TUBE | 1 |
| 2 | 93164 | 螺母 (0.875) | NUT (.875) | 2 |
| 3 | 113841 | 隔套 | SPACER | 1 |
| 4 | 11607 | 支架 | BRACKET | 1 |
| 5 | 4000354 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 2 |
| 6 | 56720 | 垫圈(0.330×0.750×0.060)不锈钢 | WASHER (.330 x .750 x .060) Stainless Steel | 2 |
| 7 | 400635 | 螺母 (M8) | NUT (M8) | 2 |
| 7 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| 8 | 11606 | 拉杆 (右舷) | TIE ROD (STARBOARD) | 1 |
| 8 | 11606T | ORD 11606A 1 | ORD 11606A 1 | 1 |
| 9 | 29698 | 球头关节 | BALL JOINT | 1 |
| 10 | 71970 | 垫圈(0.390×0.546×0.12) | WASHER (.390 x .546 x .12) | 1 |
| 10 | 8M0109680 | 垫圈(0.39×0.546×0.12) | WASHER (.39 X .546 X.12) | 1 |
| 11 | 30521 | 垫圈(0.97×0.56×0.19) | WASHER (.97 x .56 x .19) | 1 |
| 12 | 34931 | 不锈钢垫圈(.406x.734x.063) | WASHER (.406 x .734 x .063) Stainless Steel | 3 |
| 13 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 13 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 14 | 66751 | 垫片(0.250x0.390x0.630)不锈钢 | SPACER (.250 x .390 x .630) Stainless Steel | 1 |
| 14 | 8M0151156 | 隔套 | SPACER | 1 |
| 15 | 78862A2 | 密封套件 | SEAL KIT | 1 |
| 15 | 19624A1 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8833A9 | 齿轮箱总成完整组件(短型)(黑色) | GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (BLACK) | 1 |
| - | 8833T13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A10 | 齿轮箱总成完整组件(长型)(黑色) | GEAR HOUSING ASSEMBLY COMPLETE (LONG) (BLACK) | 1 |
| - | 8833T15 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A11 | 齿轮箱总成完整组件(短型)(灰色) | GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (GRAY) | 1 |
| - | 8833T14 | 齿轮箱-短型-灰 | GEAR HSG-SHORT-GR | 1 |
| - | 8833A12 | 齿轮箱总成完整组件(长型)(灰色) | GEAR HOUSING ASSEMBLY COMPLETE (LONG) (GRAY) | 1 |
| - | 8833T16 | ORD 1666-8833T15 | ORD 1666-8833T15 | 1 |
| 1 | 8833A1 | 齿轮箱总成(黑色) | GEAR HOUSING ASSEMBLY (BLACK) | 1 |
| 1 | 8833A4 | 齿轮箱总成(灰色) | GEAR HOUSING ASSEMBLY (GRAY) | 1 |
| 2 | 12009 | 衬套 (0.31 x 0.45 x 0.50) | BUSHING (.31 x .45 x .50) | 1 |
| 3 | 67892 | 磁性螺钉 | SCREW Magnetic | 1 |
| 3 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 4 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 4 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 5 | 42086A1 | 衬套套件 | SLEEVE KIT | 1 |
| 6 | 41345 | 套筒 | SLEEVE | 2 |
| 7 | 42191 | 套筒 | SLEEVE | 1 |
| 7 | 42191001 | 套筒 | SLEEVE | 1 |
| 8 | 28653 | 螺丝(#10-32x0.25) | SCREW (#10-32 x 0.25) | 1 |
| 8 | 79953 | 螺钉(0.375-16x0.250) | SCREW (.375-16 x .250) | 1 |
| 8 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 9 | 19643 | 密封件(配10-32螺钉使用) | SEAL (USE WITH 10-32 SCREW) | 1 |
| 9 | 19183 | 纤维垫圈(配0.375-16×0.250螺钉使用) | WASHER Fiber (USE WITH .375-16 X .250 SCREW) | 1 |
| 9 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 10 | 421991 | 滤网 | SCREEN | 1 |
| 11 | 13954 | 螺丝(0.250-14x0.88) | SCREW (.250-14 x .88) | 1 |
| 12 | 42121A2 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 12 | 42121Q02 | 铝阳极@2 | ANODE(ALUM) @2 | 1 |
| 13 | 13954 | 螺丝(0.250-14x0.88) | SCREW (.250-14 x .88) | 1 |
| 14 | 42133 | 密封件 | SEAL | 1 |
| 15 | 420411 | 小齿轮 | GEAR Pinion | 1 |
| 16 | 41369 | 止推垫圈 | WASHER THRUST | 1 |
| 17 | 42192 | 驱动轴(短) | DRIVESHAFT (SHORT) | 1 |
| 17 | 42193 | 驱动轴(长型) | DRIVESHAFT (LONG) | 1 |
| 17 | 12367 | 驱动轴(加长型) | DRIVESHAFT (X-LONG) | 1 |
| 18 | 42040A3 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 18 | 42040T5 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 19 | NLA | No Longer Available GASKET (SEE DESIGN I DRAWING) | 1 | |
| 19 | 192041 | 衬垫(参见设计II图纸) | GASKET (SEE DESIGN II DRAWING) | 1 |
| 19 | 42040A3 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 20 | 33613 | 密封件 | SEAL | 1 |
| 21 | 42375 | 固定座 | RETAINER | 1 |
| 22 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 23 | 822236 | 四角密封环 | QUAD RING | 1 |
| 24 | 41365 | 油封 | SEAL Oil | 2 |
| 24 | 413651 | 油封 | SEAL Oil | 2 |
| 25 | 19202 | 水泵板衬垫 | GASKET Water Pump Plate | 1 |
| 25 | 19202001 | 衬垫 | GASKET | 1 |
| 26 | 42185A1 | 水管总成 | TUBE ASSEMBLY Water | 1 |
| 27 | 42200 | 面板 | FACE PLATE | 1 |
| 28 | 42089A2 | 盖总成 | COVER ASSEMBLY | 1 |
| 29 | 421021 | 密封件 | SEAL | 1 |
| 30 | 420382 | 叶轮 | IMPELLER | 1 |
| 30 | 42038Q02 | 叶轮 | IMPELLER | 1 |
| 31 | 42376A1 | 键总成 | KEY ASSEMBLY | 1 |
| 31 | 8M0173458 | 叶轮键 | KEY IMPELLER | 1 |
| 32 | 44467 | 导套 | GUIDE | 1 |
| 33 | 4000331 | 水泵螺丝(M6x30) | SCREW (M6 x 30) WATER PUMP | 5 |
| 34 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 34 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 35 | 42039 | 换档凸轮 | CAM SHIFT | 1 |
| 36 | 42145 | 换档轴(短) | SHIFT SHAFT (SHORT) | 1 |
| 36 | 8M0026064 | 换档轴-短 | SHAFT-SHIFT SHORT | 1 |
| 36 | 42146 | 换档轴(长) | SHIFT SHAFT (LONG) | 1 |
| 36 | 8M0026065 | 换档轴-长 | SHAFT-SHIFT-LONG | 1 |
| 36 | 12368 | 换挡轴(加长型) | SHIFT SHAFT (X-LONG) | 1 |
| 37 | 42389 | E型卡环 | E RING | 1 |
| 38 | 42126 | 导套 | GUIDE | 2 |
| 38 | 8M0036770 | 导套 | GUIDE | 2 |
| 39 | 40056109 | 螺丝(M5 x 25) | SCREW (M5 x 25) | 1 |
| 39 | 40011109 | 螺钉 (M5 x 25) 不锈钢 | SCREW (M5 x 25) Stainless Steel | 1 |
| 40 | 400633 | 导向螺丝螺母(M5) | NUT (M5) GUIDE SCREW | 1 |
| 40 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| - | 41365A3 | 密封套件 | SEAL KIT | 1 |
| - | 42089A5 | 水泵套件 | PUMP KIT Water | 1 |
| - | 42364A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 87946A15 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 1 | 889527A07 | 滤清器套件 | FILTER KIT | 1 |
| 2 | 91935 | 球形燃油滤清器 | BALL FUEL FILTER | 1 |
| 2 | 858731 | 球形燃油滤清器 | BALL Fuel Filter | 1 |
| 3 | 87946A3 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 3 | 87946Q04 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 4 | 98277 | 燃油滤清器密封件 | SEAL FUEL FILTER | 1 |
| 4 | 897536 | 密封件 | SEAL | 1 |
| 5 | 99127109 | 滤清器至化油器油管(57英寸散装) | LINE (57.00 Inches Bulk) FILTER TO CARBURETOR | 1 |
| 5 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 6 | 99127109 | 滤清器至适配器油管(57英寸散装) | LINE (57.00 Inches Bulk) FILTER TO ADAPTOR | 1 |
| 6 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 7 | 816311 | 燃油管束带(8英寸) | TIE STRAP (8.00 Inches) FUEL LINE | 4 |
| 7 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 8 | 18202 | 护孔环 | GROMMET | 1 |
| 9 | 15781A9 | 燃油连接器套件(90度)(新设计) | CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN) | 1 |
| 9 | 14187M | 直通连接器(旧设计) | CONNECTOR (STRAIGHT) (OLD DESIGN) | 1 |
| 10 | 4000331 | 适配器螺丝(M6x30) | SCREW (M6 x 30) ADAPTOR | AR |
| 10 | 4000330 | 适配器螺丝(M6x25) | SCREW (M6 x 25) ADAPTOR | AR |
| 10 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8833A13 | 齿轮箱总成(短型)黑色 | GEAR HOUSING ASSEMBLY COMPLETE (SHORT) BLACK | 1 |
| - | 8833T13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A15 | 齿轮箱总成(长型)黑色 | GEAR HOUSING ASSEMBLY COMPLETE (LONG) BLACK | 1 |
| - | 8833T15 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8833A14 | 齿轮箱总成(短型)灰色 | GEAR HOUSING ASSEMBLY COMPLETE (SHORT) GRAY | 1 |
| - | 8833T14 | 齿轮箱-短型-灰 | GEAR HSG-SHORT-GR | 1 |
| - | 8833A16 | 齿轮箱总成(长型)灰色 | GEAR HOUSING ASSEMBLY COMPLETE (LONG) GRAY | 1 |
| - | 8833T16 | ORD 1666-8833T15 | ORD 1666-8833T15 | 1 |
| 1 | 8833A17 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083312 | GC BASIC9.9/15 4S | GC BASIC9.9/15 4S | 1 |
| 1 | 8833A18 | 齿轮箱总成基础型-灰色 | GEAR HOUSING ASSEMBLY Basic-Gray | 1 |
| 1 | 8833A17 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 43 | 41347A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 43 | 821321A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 44 | 821924A1 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 45 | 41367 | 衬套 | BUSHING | 1 |
| 46 | 813139 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 47 | 821930 | 离合器 | CLUTCH | 1 |
| 47 | 821930A1 | 离合器总成 | CLUTCH ASSEMBLY | 1 |
| 48 | 823951 | 十字销 | PIN Cross | 1 |
| 49 | 42204 | 弹簧 | SPRING | 1 |
| 50 | 821929 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 51 | 8219261 | 倒档齿轮-13/26 | GEAR Reverse - 13/26 | 1 |
| 51 | 821926T1 | 倒档齿轮-13/26 | GEAR Reverse - 13/26 | 1 |
| 52 | 42144A3 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 52 | 42144T3 | 轴承座 | CARRIER Bearing | 1 |
| 53 | 33145 | O型圈(1.984x0.139) | O-RING (1.984 x .139) | 1 |
| 53 | 8M0214923 | O型圈(1.98x1.39) | O-RING (1.98 x 1.39) | 1 |
| 54 | 821927 | 衬套 | BUSHING | 1 |
| 55 | 99325 | 密封件 | SEAL | 1 |
| 56 | 821928 | 油封 | SEAL Oil | 1 |
| 57 | 13403 | 螺钉 | SCREW | 1 |
| 57 | 82407110 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 1 |
| 58 | 13402 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 2 |
| 58 | 8240717 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 2 |
| 59 | 42522A12 | 螺旋桨 (9 x 9) | PROPELLER (9 x 9) | 1 |
| 59 | 828156A12 | 黑色MAX螺旋桨9x9右旋铝3叶 | BLACK MAX PROPELLER 9 X 9 RH AL 3 BL | 1 |
| 59 | 42524A12 | 螺旋桨 (9.75 x 6.50) | PROPELLER (9.75 x 6.50) | 1 |
| 59 | 828150A12 | 黑色MAX螺旋桨 9.8 x 6.5 右旋铝3叶 | BLACK MAX PROPELLER 9.8 X 6.5 RH AL 3 BL | 1 |
| 60 | 420911 | 隔套 | SPACER | 1 |
| 61 | 13914 | 螺母(M10) | NUT (M10) | 1 |
| 61 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 62 | 821932 | 推力毂 | THRUST HUB | 1 |
| 63 | 822559 | 反向排气罩杯 | CUP Reverse Exhaust Block | 1 |
| 63 | 822559Q01 | 杯套 | CUP | 1 |
| - | 42364A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 41365A3 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 42207A6 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| - | 42207A7 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 1 | 8M0070659 | 手动启动器壳体总成 | HOUSING ASSEMLBY Manual Starter | 1 |
| 1 | 422072 | 启动器壳体 | HOUSING Starter | 1 |
| 1 | 42207T02 | ORD 8M0070659 | ORD 8M0070659 | 1 |
| 2 | 42690 | 衬套 | BUSHING | 1 |
| 2 | 8M0183792 | 绳索衬套 | ROPE BUSHING | 1 |
| 3 | 818853 | 挡圈 | RING Retaining | 1 |
| 4 | 868571 | 弹簧 | SPRING | 1 |
| 4 | 86857T01 | 弹簧 | SPRING | 1 |
| 5 | 4203450 | 启动器滑轮 | PULLEY Starter | 1 |
| 5 | 42034T04 | 滑轮-启动器 | SHEAVE-STARTER | 1 |
| 6 | 12066A9 | 绳索 | ROPE | 1 |
| 6 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| 7 | 86851 | 弹簧 | SPRING | 2 |
| 7 | 86851T02 | 弹簧 @2 | SPRING @2 | 2 |
| 8 | 868501 | 凸轮 | CAM | 2 |
| 9 | 868491 | 挡圈 | RING Retaining | 2 |
| 9 | 86849T01 | 环 @2 | RING @2 | 2 |
| 10 | 86852 | 弹簧 | SPRING | 1 |
| 10 | 868523 | 弹簧 | SPRING | 1 |
| 11 | 86853 | 凸轮 | CAM | 1 |
| 11 | 86853T01 | 凸轮 | CAM | 1 |
| 12 | 818838 | 螺钉 | SCREW | 1 |
| 12 | 826253 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 1 |
| 13 | 90478 | 垫 | PAD | 1 |
| 13 | 833161T | 毛毡垫 | PAD-FELT | 1 |
| 14 | 19018 | 支架 | REST | 1 |
| 14 | 19018T | 支架-启动器手柄 | REST-STARTER HDL | 1 |
| 15 | 12674 | 支架 | SUPPORT | 1 |
| 16 | 40019111 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 2 |
| 17 | 309772 | 隔套 | SPACER | 4 |
| 18 | 400633 | 螺母 (M5) | NUT (M5) | 2 |
| 18 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 2 |
| 19 | 42171 | 上操纵杆 | LEVER (UPPER) | 1 |
| 19 | 42171T | 杠杆 | LEVER | 1 |
| 20 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 20 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 21 | 42173 | 下操纵杆 | LEVER (LOWER) | 1 |
| 21 | 42173T | 杠杆 | LEVER | 1 |
| 22 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 23 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 3 |
| 23 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 3 |
| 24 | 85174A1 | 手柄总成 | HANDLE ASSEMBLY | 1 |
| 25 | 8161945 | 螺柱(M6×32) | STUD (M6 x 32) | 3 |
| 26 | 8268336 | 螺母 (M6) | NUT (M6) | 3 |
| 26 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0221496 | 存储罩 200-300马力 | COVER-STORAGE 200-300HP | 1 |
| - | 8M0228537 | 存储罩 200-300马力 白色 | COVER-STORAGE 200-300HP White | 1 |
| - | 8M0228520 | 通风罩 250马力 黑色 | COVER-VENTED 250HP Black | 1 |
| - | 8M0228521 | 通风罩 250马力 白色 | COVER-VENTED 250HP White | 1 |
| - | 8M0228522 | 通风罩 300马力 黑色 | COVER-VENTED 300HP Black | 1 |
| - | 8M0228523 | 通风罩 300马力 白色 | COVER-VENTED 300HP White | 1 |
| - | 8M0236724 | 快速冲洗连接套件 | FLUSH QUICK CONNECT KIT | 1 |
| - | 893395A01 | 嵌入式安装板 | PLATE Flush Mount | 1 |
| - | 875207 | 三通接头 | TEE Fitting | 1 |
| - | 892486K08 | 模拟转换套件 | CONVERSION KIT Analog | 1 |
| - | 899785K04 | 附件电源线束总成(30英尺) | HARNESS ASSEMBLY Accessory Power (30 Feet) | 1 |
| - | 880717A01 | 齿轮箱螺丝/密封套件 | SCREW/SEAL KIT Gearcase | 1 |
| - | 88439A50 | 电池电缆组 | CABLE SET Battery | 1 |
| - | 8M0210761 | 电池电缆组(12英尺) | CABLE SET (12 ft) Battery | 1 |
| - | 8M0133542 | 电池电缆套件(12英尺) | CABLE KIT (12 ft) Battery | 1 |
| - | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 44357T2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 881150Q1 | 双进水口冲洗套件 | FLUSH KIT Dual Water Pick Up | 1 |
| - | 881150K1 | 双进水口冲洗密封套件 | SEAL KIT Flush - Dual Water Pickup | 1 |
| - | 899712A01 | 连续性电缆套件 | CABLE KIT Continuity | 1 |
| - | 8M0133491 | 舵柄总成 大舵柄机械/动力转向 | TILLER HANDLE ASSEMBLY Big Tiller Mechanical/Power Steer | 1 |
| - | 8M0151561 | BT机械臂总成 | BT ARM ASY-MECH | 1 |
| - | 8M0133492 | 舵柄总成 大舵柄-DTS带动力转向 | TILLER HANDLE ASSEMBLY Big Tiller - DTS with Power Steer | 1 |
| - | 8M0151560 | BT臂总成-DTS | BT ARM ASSY-DTS | 1 |
| - | 8M0141907 | 油门换挡二代电缆套件 | CABLE KIT - THROTTLE AND SHIFT GEN II | 1 |
| - | 8M0131810 | MP警报罩套件(镀铬边框) | MP ALERT COWL KIT (Chrome Bezel) | 1 |
| - | 8M0072341 | MP警报边框-椭圆形(镀铬) | BEZEL MP Alert - Oval (Chrome) | 1 |
| - | 8M0138978 | MP警报边框(暖融白) | BEZEL MP Alert (Warm Fusion White) | 1 |
| - | 8M0143359 | 高级消音套件 | SOUND CONTROL KIT Advanced | 1 |
| - | 8M0142265 | 油位传感器 | SENSOR Oil Level | 1 |
| - | 8M0145987 | 重新供电方案线束套件 | HARNESS KIT Re-power Plan | 1 |
| - | 8M0142696 | 压力传感器-DTS | SENSOR Pressure-DTS | 1 |
| - | 8M0145165 | 模拟水压块套件 | BLOCK WATER PRESSURE KIT Analog | 1 |
| - | 8M0146953 | 大孔衬套-机械式 | GROMMET Large Hole, Mechanical | 1 |
| - | 8M0146954 | 大孔衬套-DTS CMS | GROMMET Large Hole, DTS CMS | 1 |
| - | 8M0146955 | 大孔衬套-DTS | GROMMET Large Hole, DTS | 1 |
| - | 825191A03 | 索具软管套件 | HOSE KIT Rigging | 1 |
| - | 8M0135386 | 船用燃油滤清器套件 | FUEL FILTER KIT Boat Mounted | 1 |
| - | 8M0126144 | 燃油滤清器 | FUEL FILTER | 1 |
| - | 8M0113732 | DTS清洁电源线束总成(14英尺) | HARNESS ASSEMBLY DTS, Clean Power, 14 Feet | 1 |
| - | 889244T01 | 线束总成 DTS清洁电源(25英尺) | HARNESS ASSEMBLY DTS Clean Power (25 Feet) | 1 |
| - | 8M0207790 | DTS清洁电源线束总成(25英尺) | HARNESS ASSEMBLY DTS Clean Power, 25 Feet | 1 |
| - | 8M0127682 | 操舵电源线束总成(15英尺) | POWER HARNESS ASSEMBLY Helm (15 feet) | 1 |
| - | 8M0127681 | 操舵电源线束总成(10英尺) | POWER HARNESS ASSEMBLY Helm (10 feet) | 1 |
| - | 896333T25 | 线束总成(25英尺) | HARNESS ASSEMBLY (25 Feet) | 1 |
| - | 896305001 | 支架 | BRACKET | 1 |
| - | 896392 | 垫圈 | WASHER | 1 |
| - | 67755A22 | 艉板螺栓套件(2.50英寸) | BOLT KIT Transom (2.50 Inch) | 1 |
| - | 67755A26 | 艉板螺栓套件(3.50英寸) | BOLT KIT Transom (3.50 Inch) | 1 |
| - | 67755A13 | 艉板螺栓套件(4.50英寸) | BOLT KIT Transom (4.50 Inch) | 1 |
| - | 67755A14 | 艉板螺栓套件(5.50英寸) | BOLT KIT Transom (5.50 Inch) | 1 |
| - | 67755A15 | 艉板螺栓套件(6.50英寸) | BOLT KIT Transom (6.50 Inch) | 1 |
| - | 67755A17 | 艉板螺栓套件(7.50英寸) | BOLT KIT Transom (7.50 Inch) | 1 |
| - | 67755A18 | 艉板螺栓套件(8.00英寸) | BOLT KIT Transom (8.00 Inches) | 1 |
| - | 8M0149614 | 艉板螺栓套件(8.00英寸) | BOLT KIT Transom (8.00 Inches) | 1 |
| - | 8M0109756 | 艉板螺栓双螺母套件 | DOUBLE NUT KIT Transom Bolt | 1 |
| - | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 1 |
| - | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 1 |
| - | 895062 | 垫圈 | WASHER | 1 |
| - | 8M0204704 | 垫圈 | WASHER | 1 |
| - | 82671117 | 螺母(.500-20) | NUT (.500-20) | 1 |
| - | 8M0097226 | 转速表套件 舵机安装 | TACHOMETER KIT Helm Mount | 1 |
| - | 8M0150994 | 接头连接套件 | FITTING CONNECTOR KIT | 1 |
| - | 8M0225356 | 卡箍套件 全套 | CLAMP KIT Clamp Kit-Complete | 1 |
| - | 8M0176702 | 发电机升级套件 | UPGRADE KIT Alternator | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8831A6 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 8831A7 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 8831A5 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 8831A8 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 8831A9 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 8831A10 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 2 | 74036 | 润滑脂接头 | FITTING Grease | 3 |
| 3 | 42124A2 | 副驾驶板总成 | PLATE ASSEMBLY Co-Pilot | 1 |
| 4 | 421402 | 轴承 | BEARING | 1 |
| 5 | 420801 | 推力轴承-上 | BEARING Thrust - Upper | 1 |
| 6 | 42139 | 衬套 | BUSHING | 1 |
| 7 | 42077 | 密封件 | SEAL | 1 |
| 8 | 42373 | 止推垫片 | THRUST WASHER | 1 |
| 9 | 421301 | 弹簧 | SPRING | 1 |
| 10 | 420824 | 支架 | BRACKET | 1 |
| 11 | 420811 | 销 | PIN | 1 |
| 12 | 421411 | 倒挡锁钩 | HOOK Reverse Lock | 1 |
| 13 | 42083 | 枢轴销 | PIN Pivot | 1 |
| 14 | 8M0027716 | 垫圈 (0.390 x 0.600 x 0.032) 不锈钢 | WASHER (.390 x .600 x .032) Stainless Steel | 1 |
| 15 | 830741A1 | 枢轴销总成 | PIN ASSEMBLY Pivot | 1 |
| 16 | NSS | 不单独销售 | NOT SOLD SEPARATE | 1 |
| 17 | 8M0027716 | 垫圈 (0.390 x 0.600 x 0.032) 不锈钢 | WASHER (.390 x .600 x .032) Stainless Steel | 1 |
| 18 | 42128 | 弹簧 | SPRING | 1 |
| 19 | 42085F4 | 提手 | CARRYING HANDLE | 1 |
| 19 | 42085F2 | 提手 | CARRYING HANDLE | 1 |
| 19 | 42085F3 | 提手 | CARRYING HANDLE | 1 |
| 20 | 42127 | 弹簧 | SPRING | 1 |
| 21 | 13194 | 挡圈 | RING Retaining | 2 |
| 22 | 821961 | 杆 | ROD | 1 |
| 23 | 8165621 | 圆盘 | DISC | 2 |
| 24 | 821958A1 | 板组件套件 | PLATE KIT | 1 |
| 25 | 82130014 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 2 |
| 26 | 821957 | 制动板 | BRAKE PLATE | 1 |
| 27 | 29330 | 垫圈 | WASHER | 1 |
| 28 | 821959 | 手柄 | HANDLE | 1 |
| 29 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 1 |
| - | 8237011 | 副驾驶贴花 | DECAL Co-Pilot | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42213A24 | 旋转头 | SWIVEL HEAD | 1 |
| 1 | 42213A25 | 旋转头 | SWIVEL HEAD | 1 |
| 1 | 42213A26 | 旋转头 | SWIVEL HEAD | 1 |
| 2 | 823939 | 衬套 | BUSHING | 2 |
| 3 | 822147 | 舵柄手柄板 | PLATE Tiller Handle | 1 |
| 3 | 8221471 | 安装板 | PLATE | 1 |
| 4 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 4 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 5 | 822145 | 垫圈 | WASHER | 2 |
| 6 | 826792 | 波形垫圈 | WAVE WASHER | 1 |
| 7 | 822146 | 垫圈 | WASHER | 1 |
| 8 | 821468A8 | 转向手柄臂总成 | ARM ASSEMBLY Steering Handle | 1 |
| 8 | 821468A9 | 转向手柄臂总成 | ARM ASSEMBLY Steering Handle | 1 |
| 9 | 822441 | 固定座 | RETAINER | 1 |
| 10 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 1 |
| 11 | 822148A3 | 盖板套件 | COVER KIT | 1 |
| 11 | 822148A2 | 盖板套件 | COVER KIT | 1 |
| 12 | 822150 | 滑轮 | PULLEY | 1 |
| 13 | NSS | 不单独出售-滑轮壳体(属于参考号11部件) | NOT SOLD SEPARATE Pulley Case (PART OF REF. #11) | 1 |
| 14 | 812832 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 15 | 432429 | 节气门拉索 | CABLE Throttle | 2 |
| 15 | 432426 | 节气门拉索 | CABLE Throttle | 2 |
| 16 | 9600910 | 套筒 | SLEEVE | 1 |
| 16 | 960099 | 套管(12.00英寸) | SLEEVE (12.00 Inches) | 1 |
| 17 | 8242002 | 贴花 | DECAL | 1 |
| 17 | 8242001 | 贴花 | DECAL | 1 |
| 18 | 99589 | 握把 | GRIP | 1 |
| 19 | 823609A1 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 20 | 821972 | 节气门旋钮 | KNOB Throttle | 1 |
| 21 | 821971 | 节气门锁 | LOCK Throttle | 1 |
| 22 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 1 |
| 23 | 822429 | 节气门手柄 | HANDLE Throttle | 1 |
| 23 | 821465 | 节气门手柄 | HANDLE Throttle | 1 |
| 24 | 821463A1 | 舵柄管 | TILLER TUBE | 1 |
| 25 | 96203 | 弹簧 | SPRING | 1 |
