Force 系列 · USA - Cat.# 90-803194R1 · 共 24 个部位 · 880 条零件

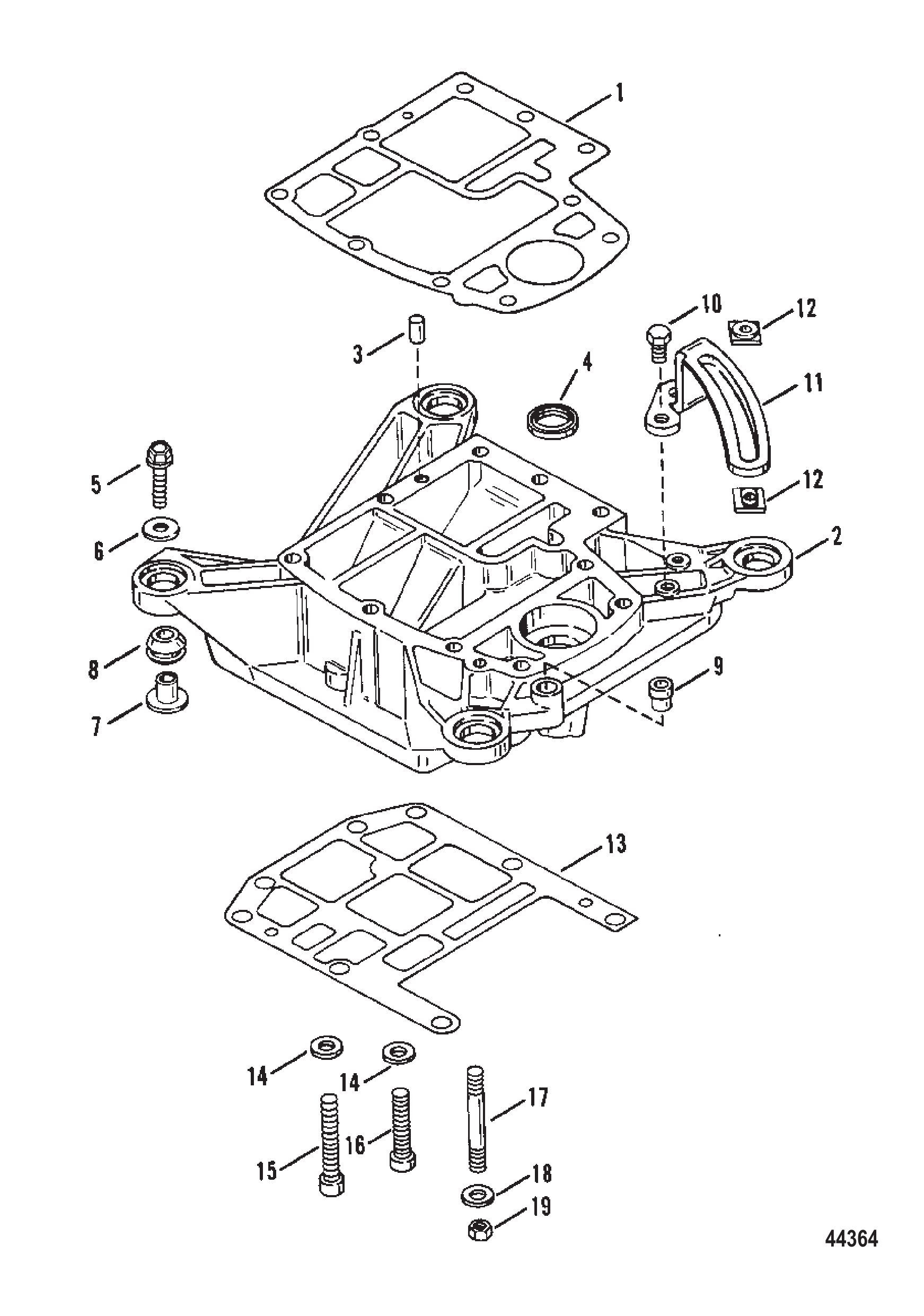

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 826549 | GASKET Powerhead to Upper Adapter Plate | 1 | |
| 2 | 820192A1 | 上适配板总成 | PLATE ASSEMBLY Upper Adapter | 1 |
| 3 | 23784 | 定位销 | PIN Dowel | 2 |
| 4 | 819740 | 传动轴密封件 | SEAL Driveshaft | 1 |
| 5 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 4 |
| 5 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 6 | 56720 | 垫圈(0.330×0.750×0.060)不锈钢 | WASHER (.330 x .750 x .060) Stainless Steel | 4 |
| 7 | 19064 | 适配板衬套 | BUSHING Adapter Plate Grommet | 4 |
| 8 | 825380 | 适配板衬套 | GROMMET Adapter Plate | 4 |
| 8 | 825380001 | 护孔环 | GROMMET | 4 |
| 9 | F40689-1 | 塔轴下轴承 | BEARING Towershaft Lower | 1 |
| 10 | 1993820 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 2 |
| 11 | 820280 | 换挡导轨 | SHIFT RAIL Shift | 1 |
| 12 | 820277 | 换挡滑块 | SLIDE Shift | 2 |
| 13 | 826550 | 适配板/传动轴壳体衬垫 | GASKET Adapter Plate/Driveshaft Housing | 1 |
| 14 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 10 |
| 15 | 19929325 | .325-16×3.25 螺钉 | SCREW (.325-16 x 3.25) | 3 |
| 16 | 19929175 | 螺钉 (.375-16 x 1.75) | SCREW (.375-16 x 1.75) | 7 |
| 17 | 8207021 | 双头螺柱(M10) | STUD (M10) | 8 |
| 18 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 8 |
| 18 | 8M0214963 | 垫圈 | WASHER | 8 |
| 19 | 13914 | 螺母(M10) | NUT (M10) | 8 |
| 19 | 40140 | 螺母(M10) | NUT (M10) | 8 |
| 20 | 818153A24 | 动力头总成 | POWERHEAD ASSEMBLY | AR |
| 20 | 818153T24 | 动力头总成 | POWERHEAD ASSY | AR |
| 21 | 809122A1 | 衬垫套件 | GASKET SET | AR |
| 21 | 809122A2 | 衬垫套件 | GASKET SET | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

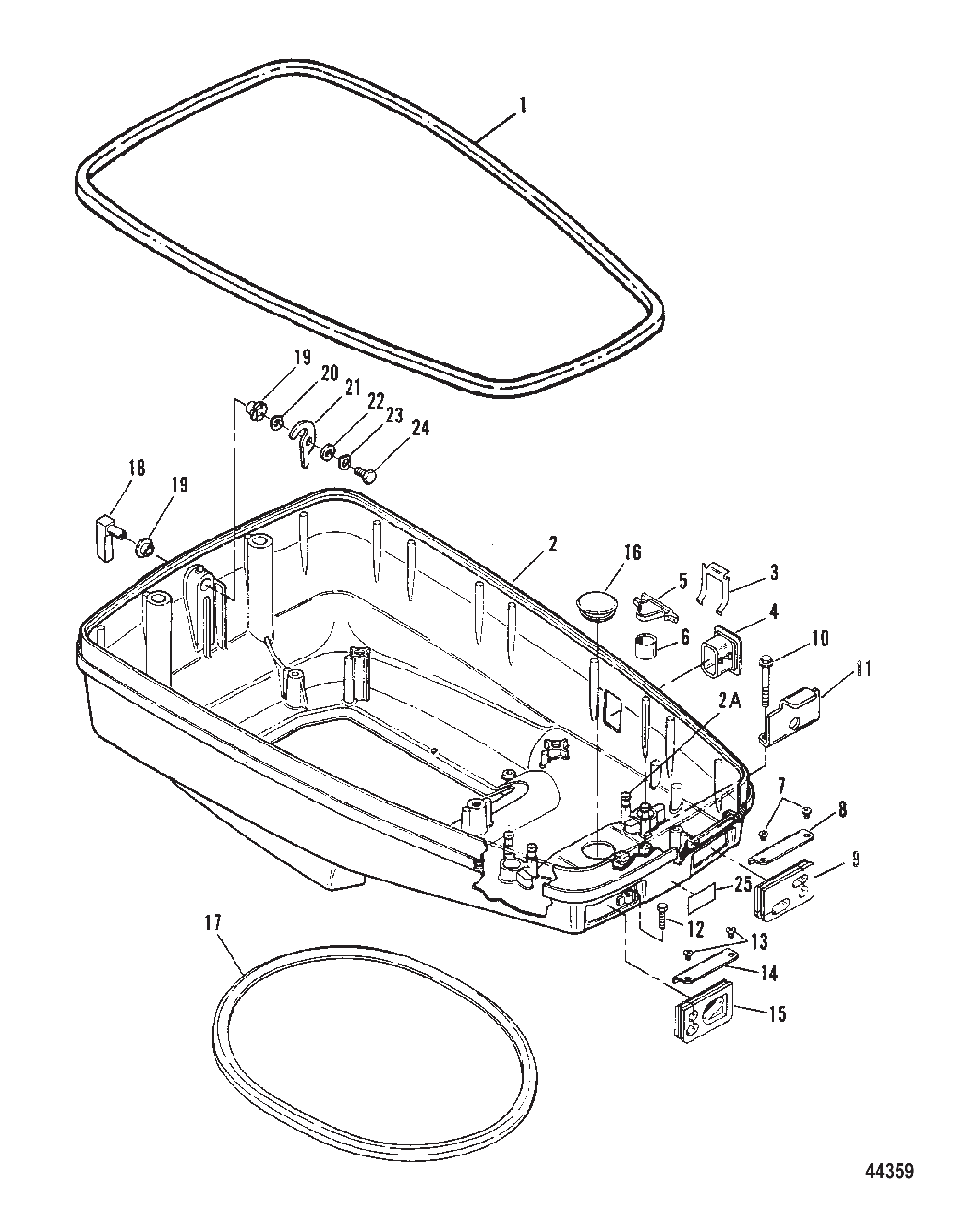

| 1 | F663756-1 | 罩盖支撑填料 | PACKING Cowl Support | 1 |
| 1 | 8197172 | 衬垫-81英寸 | PACKING-81 INCH | 1 |
| 2 | 819983F | 底罩总成(喷漆) | BOTTOM COWL ASSEMBLY Painted) | 1 |
| 2 | 819983T1 | 下罩总成 | COWL ASSY-BOTTOM | 1 |
| 2A | 42975 | 传动螺钉 | DRIVE SCREW | 4 |
| 3 | 8124431 | 固定座 | RETAINER | 1 |
| 3 | 8M0032848 | 开关固定座 | RETAINER Switch | 1 |
| 4 | 8128301 | 堵头 | PLUG | 1 |
| 4 | 812830T01 | 堵头 | PLUG | 1 |
| 5 | 820313 | 控制电缆锁扣 | LATCH Control Cable | 2 |
| 6 | 824015 | 筒形保持杯 | CUP Barrel Retainer | 2 |
| 7 | 40019104 | 螺钉（M5×8） | SCREW (M5 x 8) | 2 |
| 8 | 823551 | 进线密封保持架 | RETAINER Entry Cable Seal | 1 |
| 9 | 823550 | 遥控线密封件 | SEAL Remote Cables | 1 |
| 10 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 11 | F663480-1 | 前罩盖固定架 | RETAINER Cowl Front | 1 |
| 12 | 40011131 | 螺钉(M6x35)不锈钢燃油连接器 | SCREW (M6 x 35) Stainless Steel Fuel Connector | 1 |
| 13 | 40019104 | 螺钉（M5×8） | SCREW (M5 x 8) | 2 |
| 14 | 823551 | 进线密封保持架 | RETAINER Entry Cable Seal | 1 |
| 15 | 823549 | 燃油连接器及遥控线密封件 | SEAL Fuel Connector And Remote Cables | 1 |
| 16 | 8199541 | 堵头 | PLUG | 1 |
| 17 | 8136076 | 底罩密封条 | SEAL Bottom Cowl | 1 |
| 18 | 820000A4 | HANDLE ASSEMBLY (Painted) | 1 | |
| 18 | 820000A08 | 手柄总成-黑色 | HANDLE ASY-BLACK | 1 |
| 19 | 812707 | 衬套 | BUSHING | 2 |
| 20 | F2047 | 波形垫圈 | WASHER Wave | 1 |
| 21 | F481777 | 凸轮锁轴 | CAM Latch Shaft | 1 |
| 21 | 8M0001081 | 凸轮 | CAM | 1 |
| 22 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 22 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 23 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 24 | 28635 | 不锈钢螺丝(.250-20 x .620) | SCREW (.250-20 x .620) Stainless Steel | 1 |
| 25 | 818029 | 贴花 (燃油混合比) | DECAL (Fuel Mix) | 1 |
| 25 | 8180291 | 燃油混合比标贴 | DECAL Fuel Mix | 1 |
| 26 | 18286A40 | 开关总成 | SWITCH ASSEMBLY | OPT |
| 26 | 8M0235192 | 微调开关 | SWITCH TRIM | OPT |

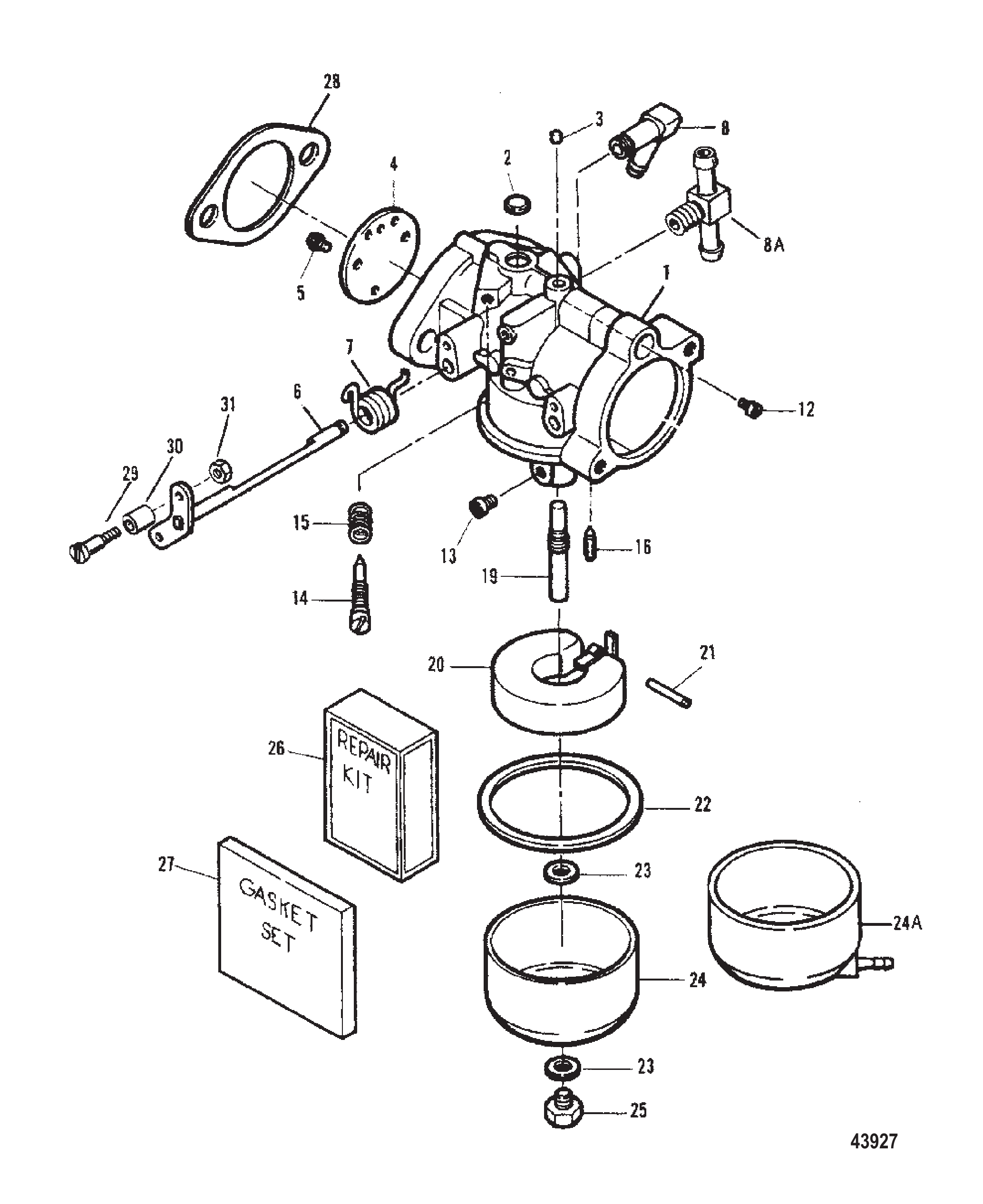

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8201991 | 化油器(上部)(WB-109B) | CARBURETOR (TOP) (WB-109B) | 1 |
| 1 | 8202021 | 化油器(中部/下部)(WB-108B) | CARBURETOR (CENTER/BOTTOM) (WB-108B) | 2 |
| 2 | FO16128 | 韦尔奇塞 | PLUG Welch | 1 |
| 3 | FO10588 | 杯形塞 | PLUG CUP | 4 |
| 4 | F10315 | 节气门片 | SHUTTER Throttle | 1 |
| 5 | F10328 | 百叶窗螺钉 | SCREW Shutter | 2 |
| 5 | 803176 | 螺钉-带补片 | SCREW-W/PATCH | 2 |
| 6 | F10305 | 油门轴 | SHAFT Throttle | 1 |
| 7 | F10334 | 节气门轴弹簧 | SPRING Throttle Shaft | 1 |
| 8 | F84314-2 | ELBOW (L) (TOP) | 1 | |
| 8A | F85314-1 | FITTING (T) (CENTER/BOTTOM) | 2 | |
| 8A | 64706001 | 三通接头 | FITTING Tee | 2 |
| 12 | 5317 | 怠速空气量孔(.046) | JET (.046) Idle Air | 1 |
| 13 | 3796 | 主喷油嘴(.076)(0-2500英尺) | JET (.076) Main Fuel (0 - 2500') | 1 |
| 13 | 3794 | 主喷油嘴(.074)(2500-5000英尺) | JET (.074) Main Fuel (2500 - 5000') | OPT. |
| 13 | 6207 | 主喷油嘴(.072)(5000-7500英尺) | JET (.072) Main Fuel (5000 - 7500') | OPT. |
| 13 | 6030 | 主喷油嘴(.070)(7500-10000英尺) | JET (.070) Main Fuel (7500 - 10000') | OPT. |
| 13 | 3794 | 主喷油嘴(.074)(0-2500英尺) | JET (.074) Main Fuel (0 - 2500') | 1 |
| 13 | 6207 | 主喷油嘴(.072)(2500-5000英尺) | JET (.072) Main Fuel (2500 - 5000') | OPT. |
| 13 | 6030 | 主喷油嘴(.070)(5000-7500英尺) | JET (.070) Main Fuel (5000 - 7500') | OPT. |
| 13 | 6029 | 主喷油嘴(.068)(7500-10000英尺) | JET (.068) Main Fuel (7500 - 10000') | OPT. |
| 14 | F10268 | 怠速混合气螺钉 | SCREW Idle Mixture | 1 |
| 15 | 27160 | 怠速混合气螺钉弹簧 | SPRING Idle Mixture Screw | 1 |
| 16 | FK10309 | 进油针阀组件 | NEEDLE AND SEAT Inlet | 1 |
| 16 | F10265 | 进油针阀 | NEEDLE Inlet | 1 |
| 19 | F10302 | 主喷嘴 | NOZZLE Main | 1 |
| 20 | F10346 | 燃油杯浮子 | FLOAT Fuel Bowl | 1 |
| 20 | 891730A01 | 浮子套件 | FLOAT KIT | 1 |
| 21 | FO13944 | 浮子销 | PIN Float | 1 |
| 22 | FO15623 | 燃油杯衬垫 | GASKET Fuel Bowl | 1 |
| 23 | FO2510 | 燃油杯衬垫 | GASKET Fuel Bowl | 2 |
| 24A | 820491 | 燃油杯 | BOWL Fuel | 1 |
| 24 | F10333 | 燃油杯 | BOWL Fuel | 2 |
| 25 | 5128 | 燃油杯螺钉 | SCREW Fuel Bowl | 1 |
| 26 | FK10357 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| 26 | 809735A1 | 维修套件 | REPAIR KIT | 1 |
| 27 | FK10323 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| 27 | 809736A1 | 衬垫套件 | GASKET SET | 1 |
| 28 | F85906 | 化油器衬垫 | GASKET Carburetor | 3 |
| 28 | 828925 | 衬垫 | GASKET | 3 |
| 29 | F333316 | 轴 | SHAFT | 1 |
| 29 | 830110 | 轴 | SHAFT | 1 |
| 30 | 819225 | 滚轮 | ROLLER | 1 |
| 31 | F1997 | 螺母（#8-32） | NUT (#8-32) | 1 |
| 31 | 8267094 | 螺母 @5 | NUT @5 | 1 |
| - | 818153A24 | 动力头总成 | POWERHEAD ASSEMBLY | - |
| - | 818153T24 | 动力头总成 | POWERHEAD ASSY | - |
| - | 809122A1 | 衬垫套件 | GASKET SET | - |
| - | 809122A2 | 衬垫套件 | GASKET SET | - |
| - | FK10357 | 化油器修理包 | REPAIR KIT Carb | - |
| - | 809735A1 | 维修套件 | REPAIR KIT | - |
| - | FK10323 | 化油器垫片套装 | GASKET SET Carb | 1 |
| - | 809736A1 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

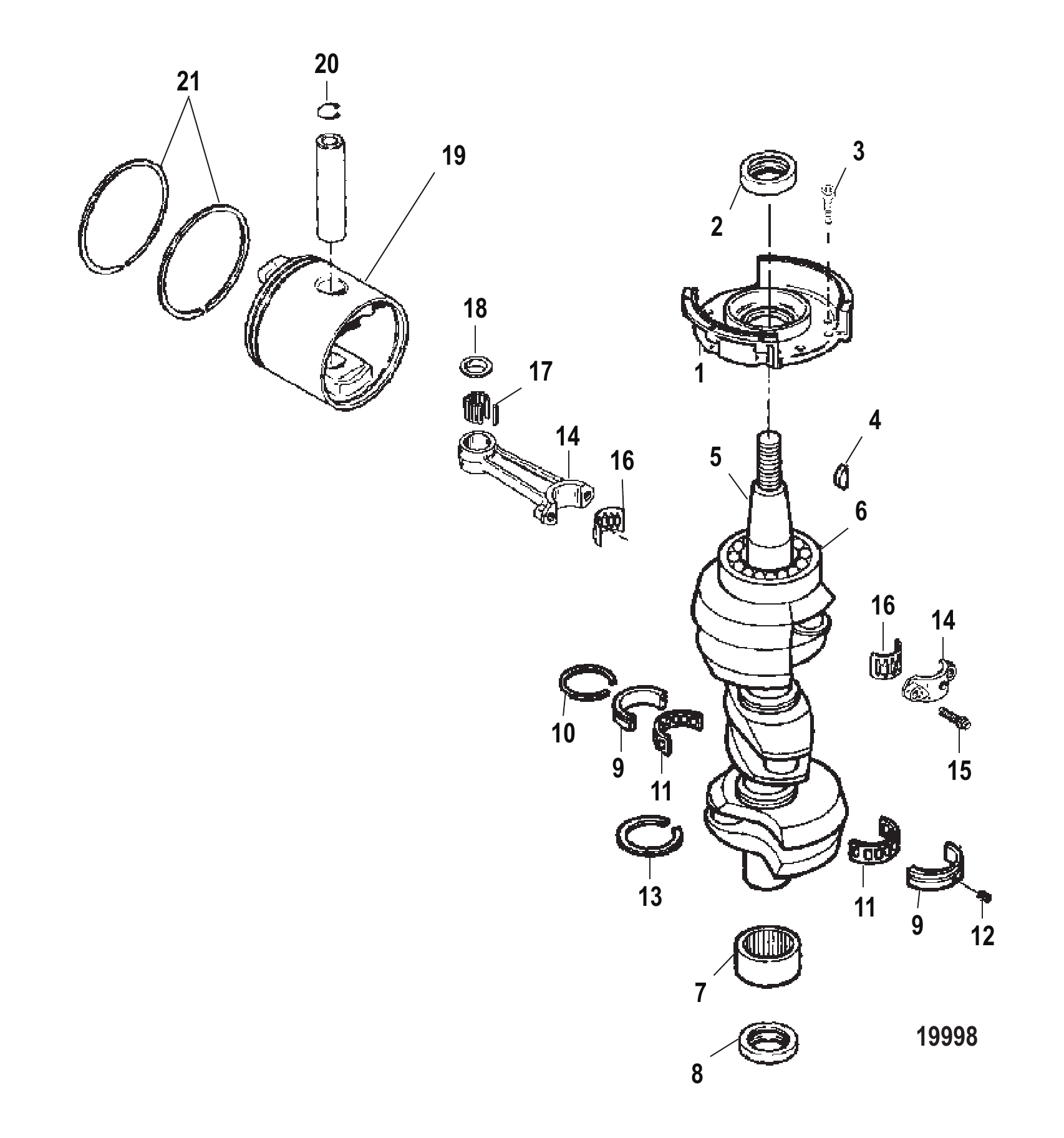

| 1 | 819312A3 | 保持架总成(曲轴上) | CAGE ASSEMBLY Crankshaft (Upper) | 1 |
| 1 | 819312T3 | 保持架总成-40/150 | CAGE ASSY-40/150 | 1 |
| 2 | 828626 | 油封(曲轴上) | SEAL Crankshaft (Upper) | 1 |
| 3 | 92160 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 5 |
| 4 | 91800 | 曲轴/飞轮伍德鲁夫键 | KEY Woodruff Crankshaft/Flywheel | 1 |
| 5 | 828305A1 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 5 | 828305T1 | 曲轴总成 | CRANKSHAFT ASSY | 1 |
| 6 | F284659-2 | 轴承(滚珠)(上) | BEARING Ball Ball (Upper) | 1 |
| 6 | 803893T | 滚珠轴承 | BEARING-BALL | 1 |
| 7 | 818050A3 | 轴承总成(下) | BEARING ASSEMBLY (Lower) | 1 |
| 7 | 818050T3 | 轴承总成 | BEARING ASSY | 1 |
| 8 | 828627 | 曲轴下端密封 | SEAL Crankshaft Lower | 1 |
| 9 | FA85655-1 | 轴承总成(中主) | BEARING ASSEMBLY (Center Main) | 2 |
| 9 | 803604T | 中央主轴承 | BEARING-CTR MAIN | 2 |
| 10 | F85410 | 卡环 | RING Snap | 2 |
| 11 | 819193 | 保持架/滚子组 | CAGE/ROLLER SET | 2 |
| 12 | 823605 | 定位销 | PIN Locating | 3 |
| 13 | F316579 | 曲轴箱密封件 | SEAL Crankcase | 2 |
| 14 | 9612A7 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 14 | 9612A6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 15 | 91012 | SCREW (.250-28 Special) Connecting Rod | 6 | |
| 16 | 17514A2 | 滚子轴承套件 | BEARING KIT Roller | 3 |
| 16 | 8M0234886 | 轴承保持架 | CAGE BEARING | 3 |
| 17 | 47270 | 滚针轴承 | BEARING Needle | 87 |
| 17 | 8M0214934 | 滚针轴承@200 | BRG-NEEDLE @200 | 87 |
| 18 | 812876 | 止推垫圈 | WASHER Thrust | 6 |
| 18 | 8M0012298 | 止推垫片 | THRUST WASHER | 6 |
| 19 | 828304A10 | 活塞套件 | PISTON KIT | 3 |
| 19 | 828304A13 | 标准活塞组件 | PISTON KIT-STD | 3 |
| 19 | 828304A11 | 活塞套件 | PISTON KIT | OPT |
| 19 | 828304A14 | 0.015加大活塞组件 | PISTON KIT-.015 | OPT |
| 19 | 828304A12 | 活塞套件 | PISTON KIT | OPT |
| 19 | 828304A15 | 活塞套件-.030 | PISTON KIT-.030 | OPT |
| 20 | 52035 | 锁环 | RING Lock | 6 |
| 20 | 857196 | 锁紧环 | LOCK RING | 6 |
| 21 | 828564A4 | 活塞环组(2环) | RING SET (2 Rings) | 3 |
| 21 | 828564A5 | 活塞环组(2环) | RING SET (2 Rings) | OPT |
| 21 | 828564A6 | 活塞环组(2环) | RING SET (2 Rings) | OPT |
| - | 809122A2 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818153A64 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

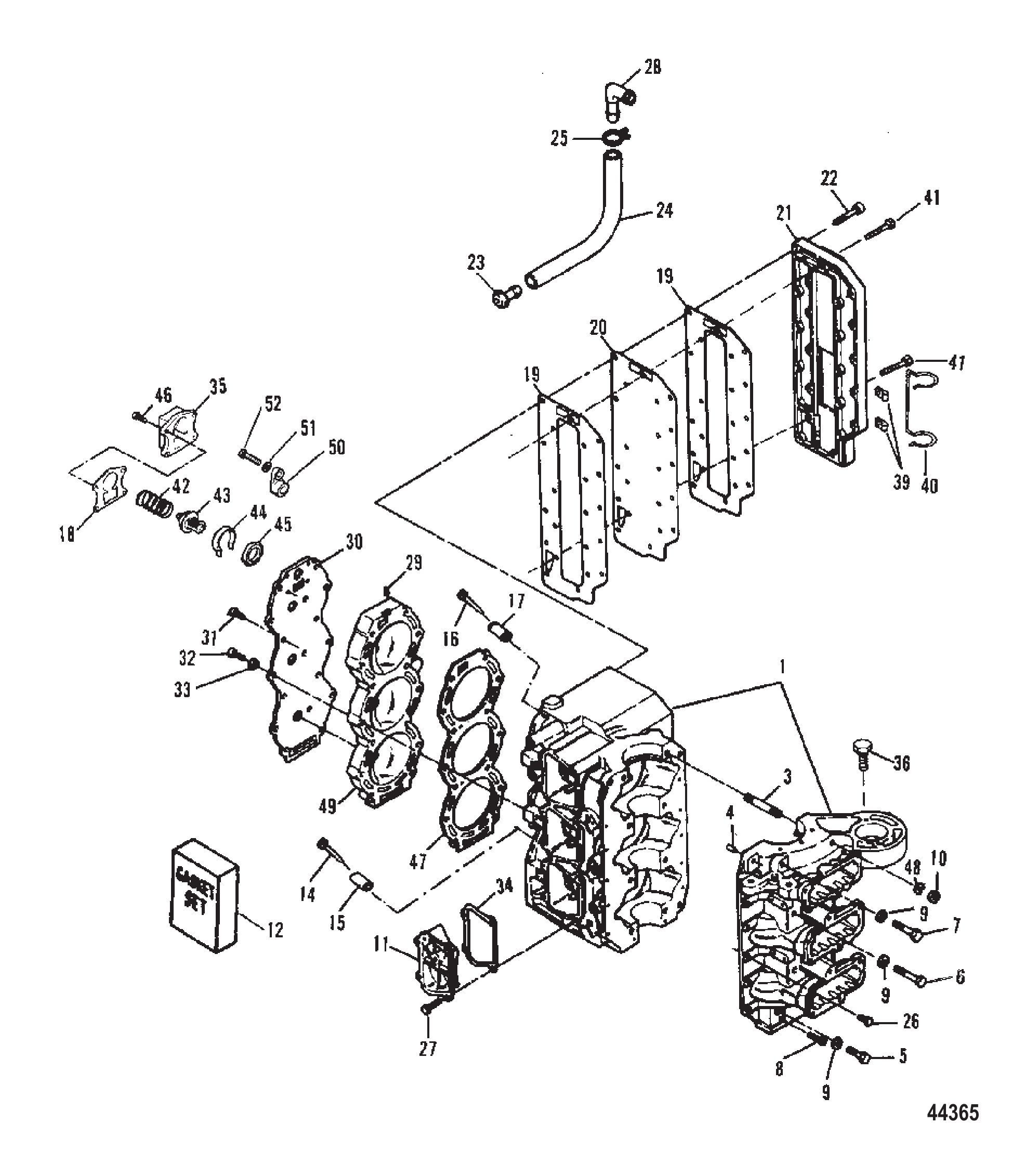

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| -- | 818153A24 | 动力头总成(喷漆) | POWERHEAD ASSEMBLY (Painted) | 1 |
| -- | 818153T24 | 动力头总成 | POWERHEAD ASSY | 1 |
| 1 | 818153A23 | 气缸体套件 | CYLINDER BLOCK KIT | 1 |
| 3 | 826394 | 双头螺柱(.375-16 x 3.843) | STUD (.375-16 x 3.843) | 1 |
| 3 | 8263942 | 螺柱 | STUD | 1 |
| 4 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 5 | 32132 | 螺钉(.375-16 x 1.750) | SCREW (.375-16 x 1.750) | 2 |
| 6 | 53734 | 螺钉 (.375-16 x 3.00) | SCREW (.375-16 x 3.00) | 4 |
| 7 | 47688 | 螺丝 (.375-16 x 2.750) | SCREW (.375-16 x 2.750) | 1 |
| 8 | 820589 | 螺丝(.250-20 x 1.250) | SCREW (.250-20 x 1.250) | 2 |
| 9 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 7 |
| 10 | 86226 | 螺母（.375-16） | NUT (.375-16) | 1 |
| 10 | 8M0204671 | 螺母 | NUT | 1 |
| 11 | 817790A1 | 换气口盖 | COVER Transfer Port | 2 |
| 12 | 809122A1 | 衬垫套件 | GASKET SET | 1 |
| 12 | 809122A2 | 衬垫套件 | GASKET SET | 1 |
| 14 | F719372 | 水套管销 | PIN Water Jacket Tube | 2 |
| 15 | F719418 | 水套管 | TUBE Water Jacket | 2 |
| 16 | F691372 | 水套管销(顶部) | PIN Water Jacket Tube (Top) | 1 |
| 17 | F719943 | 水套管(顶部) | TUBE Water Jacket (Top) | 1 |
| 18 | F476067 | 节温器盖衬垫 | GASKET Thermostat Cover | 1 |
| 18 | 828319 | 衬垫 | GASKET | 1 |
| 19 | 819023 | 排气口板衬垫 | GASKET Exhaust Port Plate | 2 |
| 19 | 8190231 | 衬垫 | GASKET | 2 |
| 20 | 8192831 | 排气口板 | PLATE Exhaust Port | 1 |
| 21 | F692152 | 排气口盖 | COVER Exhaust Port | 1 |
| 21 | 803932T | 排气盖 | COVER-EXHAUST | 1 |
| 22 | 76213 | 螺钉(.250-20 x 1.120) | SCREW (.250-20 x 1.120) | 21 |
| 23 | 813613 | 示踪接头 | FITTING Tell Tale | 1 |
| 24 | 99127109 | 管路(57英寸散装)按需裁切 | LINE (57.00 Inches Bulk) Cut as Required | 1 |
| 24 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 25 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 25 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 26 | 28636 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 10 |
| 27 | 98254 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 6 |
| 28 | 99664 | 弯头 | ELBOW | 1 |
| 28 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 29 | F722109-1 | 气缸盖尼龙塞 | PLUG (Nylon) Cylinder Head | 1 |
| 30 | F692995 | 气缸盖罩 | COVER Cylinder Head | 1 |
| 31 | 98254 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 3 |
| 32 | F1883 | 螺栓 (.312-18 x 2.375) | BOLT (.312-18 x 2.375) | 14 |
| 33 | 34437 | 垫圈 | WASHER | 14 |
| 34 | 820500 | 换气口盖垫片 | GASKET Transfer Port Cover | 2 |
| 34 | 820500A3 | 衬垫套件 | GASKET KIT | 2 |
| 35 | 819693 | 节温器盖(无指示孔) | COVER Thermostat (Without Telltale Hole) | 1 |
| 35 | 8196931 | 节温器盖(带指示孔) | COVER Thermostat (With Telltale Hole) | 1 |
| 36 | 28636 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 1 |
| 39 | 820437 | 固定卡扣 | CLIP Retainer | 2 |
| 40 | 92753 | 线束固定座 | RETAINER Wiring Harness | 1 |
| 41 | F901938-1 | 螺钉(.250-20 x .875) | SCREW (.250-20 x .875) | 2 |
| 42 | F664268 | 弹簧 | SPRING | 1 |
| 43 | F664068 | 节温器54°C(130°F) | THERMOSTAT 54°C (130°F) | 1 |
| 44 | F719902 | 隔套 | SPACER | 1 |
| 44 | 8283111 | 隔套 | SPACER | 1 |
| 45 | F664914 | 密封件（节温器） | SEAL Thermostat | 1 |
| 46 | 19927075 | 螺丝(0.250-20 x 0.75) | SCREW (.250-20 x .75) | 4 |
| 46 | 19932075 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 4 |
| 47 | 820438 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| 48 | 35048 | 锁紧垫圈 (.375) | LOCKWASHER (.375) | 1 |
| 49 | 819857A3 | 气缸盖套件 | CYLINDER HEAD KIT Cylinder | 1 |
| 50 | 44552 | 温控开关固定座 | RETAINER Thermoswitch | 1 |
| 50 | 889733 | 固定座 | RETAINER | 1 |
| 51 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 51 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 52 | 8128321 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 52 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| - | 818153A24 | 动力头总成 | POWERHEAD ASSEMBLY | - |
| - | 818153T24 | 动力头总成 | POWERHEAD ASSY | - |
| - | 809122A1 | 衬垫套件 | GASKET SET | - |
| - | 809122A2 | 衬垫套件 | GASKET SET | - |

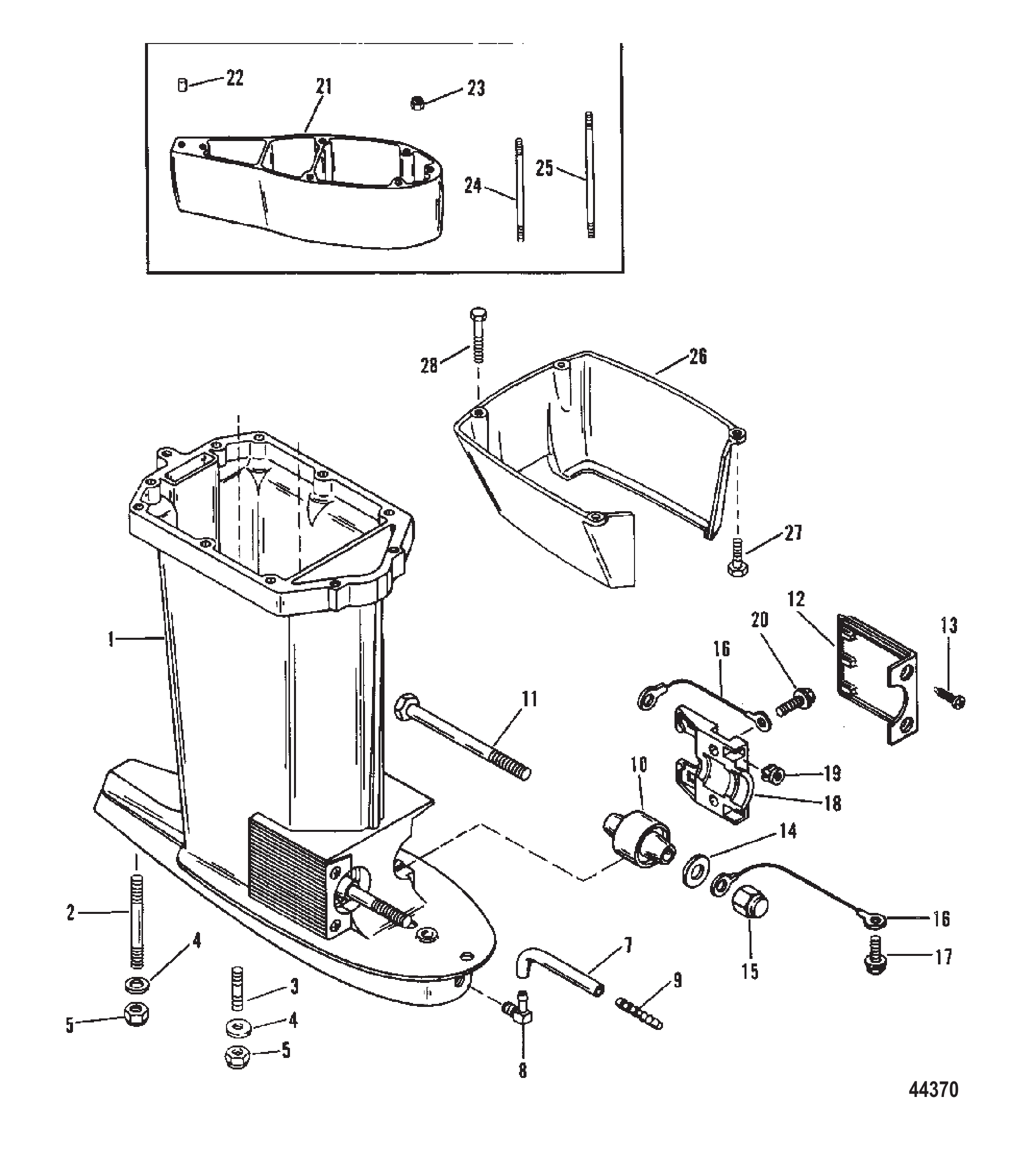

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8974A25 | 传动轴壳体套件(喷漆) | HOUSING KIT Driveshaft (Painted) | 1 |
| 1 | 8974A28 | 驱动轴壳体套件 | HOUSING KIT Driveshaft | 1 |
| 2 | 903501 | 双头螺柱(M10×100) | STUD (M10 x 100) | 1 |
| 3 | 9035012 | 双头螺柱(M10×63) | STUD (M10 x 63) | 4 |
| 4 | 43042 | 垫圈 | WASHER | 5 |
| 4 | 45176 | 垫圈(.453 x .812 x .105)不锈钢 | WASHER (.453 x .812 x .105) Stainless Steel | 5 |
| 5 | 13914 | 螺母(M10) | NUT (M10) | 5 |
| 5 | 40140 | 螺母(M10) | NUT (M10) | 5 |
| 7 | 85822A4 | 速度计传感器总成 | PICKUP ASSEMBLY Speedometer | 1 |
| 8 | 43335 | 90度接头(.125-27)尼龙 | CONNECTOR 90 Degree (.125-27) Nylon | 1 |
| 8 | 433351 | 90度接头-带防振密封 | CONNECTOR 90 Degree - With Vibraseal | 1 |
| 9 | 85822 | 直通接头 | CONNECTOR Straight | 1 |
| 9 | 85822T | 直通接头 | CONNECTOR Straight | 1 |
| 10 | 42930 | 支架(长型) | MOUNT (LONG) | 2 |
| 10 | 42930A1 | 下支架总成 | MOUNT ASSEMBLY Lower | 2 |
| 10 | 44343 | 支架(加长型) | MOUNT (X-LONG) | 2 |
| 10 | 44343T1 | 支架 | MOUNT | 2 |
| 11 | 42973 | 螺栓(M12×154) | BOLT (M12 x 154) | 2 |
| 11 | 898835001 | 螺钉(M12 x 154) | SCREW (M12 x 154) | 2 |
| 12 | 67077F2 | 盖板(喷漆) | COVER (Painted) | 2 |
| 12 | 8M4500752 | 盖板 | COVER | 2 |
| 13 | 88417 | 螺钉(#12-24×0.620) | SCREW (#12-24 x .620) | 4 |
| 14 | 30119 | 垫圈(外径0.875英寸) | WASHER (.875 Inch Outside Diameter) | 2 |
| 15 | 43528 | 螺母(M12) | NUT (M12) | 2 |
| 15 | 8M0204662 | 螺母 | NUT | 2 |
| 16 | 88238A1 | 接地线总成 | CABLE ASSEMBLY Ground | 2 |
| 16 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 2 |
| 17 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 18 | 93192 | 下支座夹箍 | CLAMP Lower Mount | 2 |
| 18 | 8M0036730 | 卡箍 | CLAMP | 2 |
| 19 | 35521 | 专用螺母 | NUT (Special) | 4 |
| 20 | 4010725 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 4 |
| 21 | 12092A12 | 垫片套件(喷漆) | SPACER KIT (Painted) | 1 |
| 21 | 12092A15 | 隔套套件 | SPACER KIT | 1 |
| 22 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 22 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 22 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 23 | 13914 | 螺母(M10) | NUT (M10) | 4 |
| 23 | 40140 | 螺母(M10) | NUT (M10) | 4 |
| 24 | 903503 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 25 | 903502 | 双头螺柱(M10×227) | STUD (M10 x 227) | 1 |
| 26 | 819955 | 装饰盖(喷漆) | TRIM COVER (Painted) | 1 |
| 26 | 819955T | 配平盖 | TRIM COVER | 1 |
| 27 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 28 | 82130050 | 螺钉(M6 x 50) | SCREW (M6 x 50) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

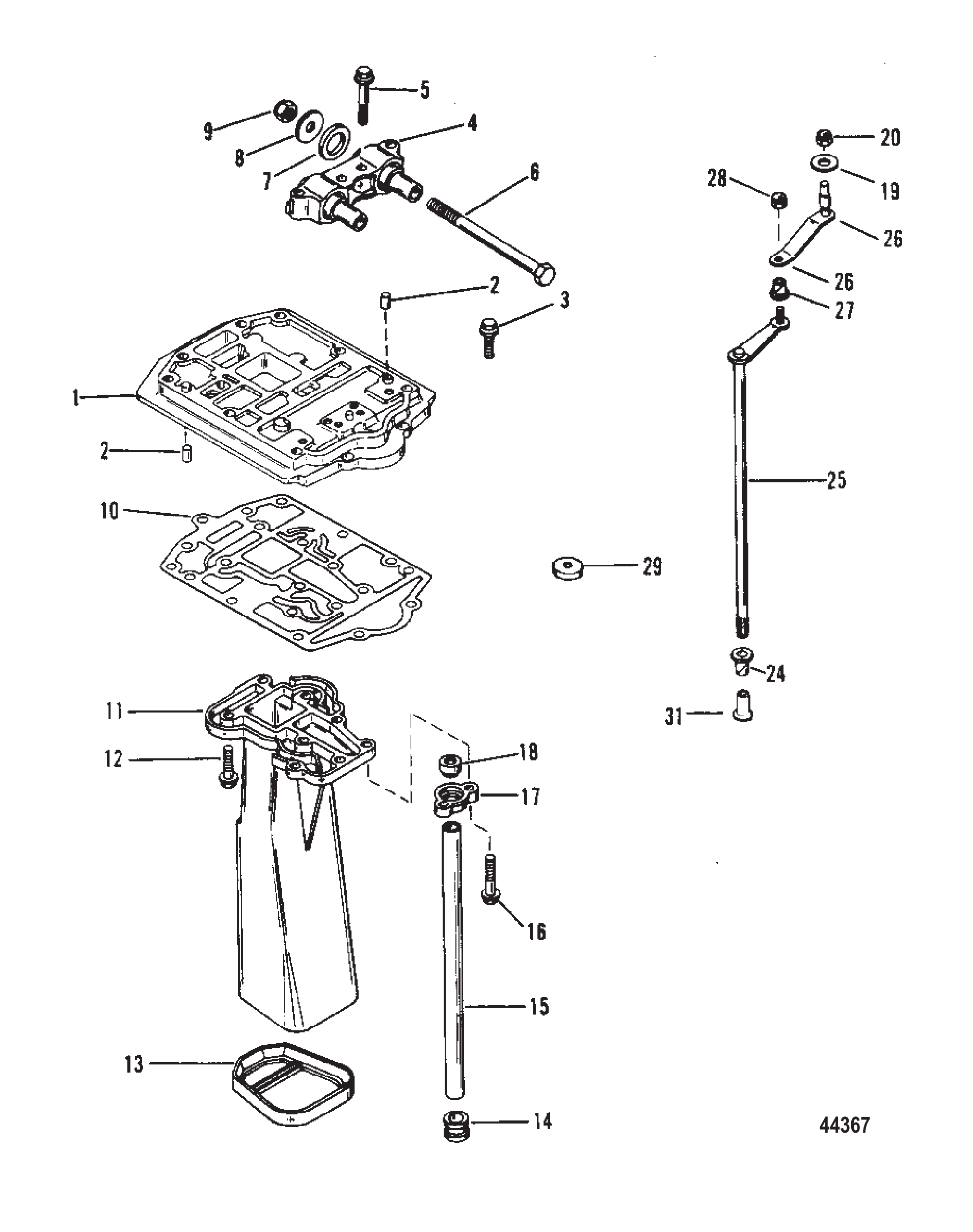

| 1 | 820194A1 | 排气板总成 | PLATE ASSEMBLY Exhaust | 1 |
| 2 | 23784 | 定位销 | PIN Dowel | 5 |
| 3 | 4008920 | 不锈钢螺钉(M8 x 20) | SCREW (M8 x 20) Stainless Steel | 3 |
| 4 | 429492 | 支架(2.375英寸)(长型) | MOUNT (2.375 Inch) (LONG) | 1 |
| 4 | 8M0021331 | ORD 881900T03 | ORD 881900T03 | 1 |
| 4 | 443442 | 支架(2.375英寸)(加长型) | MOUNT (2.375 Inch) (X-LONG) | 1 |
| 4 | 881900T03 | 支架 | MOUNT | 1 |
| 5 | 4010750 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 4 |
| 6 | 42974 | 螺栓(M12×175) | BOLT (M12 x 175) | 2 |
| 6 | 8M0238139 | 螺钉 | SCREW | 2 |
| 7 | 93416 | 垫圈 | WASHER | 2 |
| 7 | 32834 | 垫圈(0.9375x1.750x0.172) | WASHER (.9375 x 1.750 x .172) | 2 |
| 8 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 8 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 9 | 90099 | 螺母(M12) | NUT (M12) | 2 |
| 9 | 896963 | 螺母(M12) | NUT (M12) | 2 |
| 10 | 430086 | 排气板/排气管衬垫 | GASKET Exhaust Plate/Exhaust Tube | 1 |
| 11 | 429666 | 排气管 | TUBE Exhaust | 1 |
| 12 | 4010725 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 6 |
| 13 | 42962 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| 13 | 8M0039075 | 密封件 | SEAL | 1 |
| 14 | 894171 | 下端水管索环 | GROMMET Water Tube Lower | 1 |
| 14 | 89417004 | 护孔环 | GROMMET | 1 |
| 15 | 8246601 | 水管(长型) | TUBE Water (LONG) | 1 |
| 15 | 8M0042791 | 长型水管 | TUBE-WATER-LONG | 1 |
| 15 | 8246602 | 水管(加长型) | TUBE Water (X-LONG) | 1 |
| 15 | 8M0042792 | 水管-XL | TUBE-WATER-XL | 1 |
| 16 | 4010750 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 2 |
| 17 | 824661 | 水管夹 | CLAMP Water Tube | 1 |
| 18 | 814080 | 上水管密封件 | SEAL Water Tube Upper | 1 |
| 18 | 814080001 | 密封件 | SEAL | 1 |
| 19 | 35459 | 垫圈 | WASHER | 1 |
| 20 | 400634 | 螺母 (M6) | NUT (M6) | 1 |
| 20 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 24 | 48237 | 衬套 | BUSHING | 1 |
| 25 | 79932A9 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY Shift Shaft | 1 |
| 26 | 820278A1 | 换挡连杆总成 | LINK ASSEMBLY Shift | 1 |
| 27 | 48475 | 衬套 | BUSHING | 1 |
| 28 | 400634 | 螺母 (M6) | NUT (M6) | 1 |
| 28 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 29 | 43041 | 长隔套 | SPACER (LONG) | 1 |
| 29 | 813745 | 隔套 | SPACER | 1 |
| 29 | 11289 | SPACER (X-LONG) | 1 | |
| 31 | 43585 | 联轴器 | COUPLING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

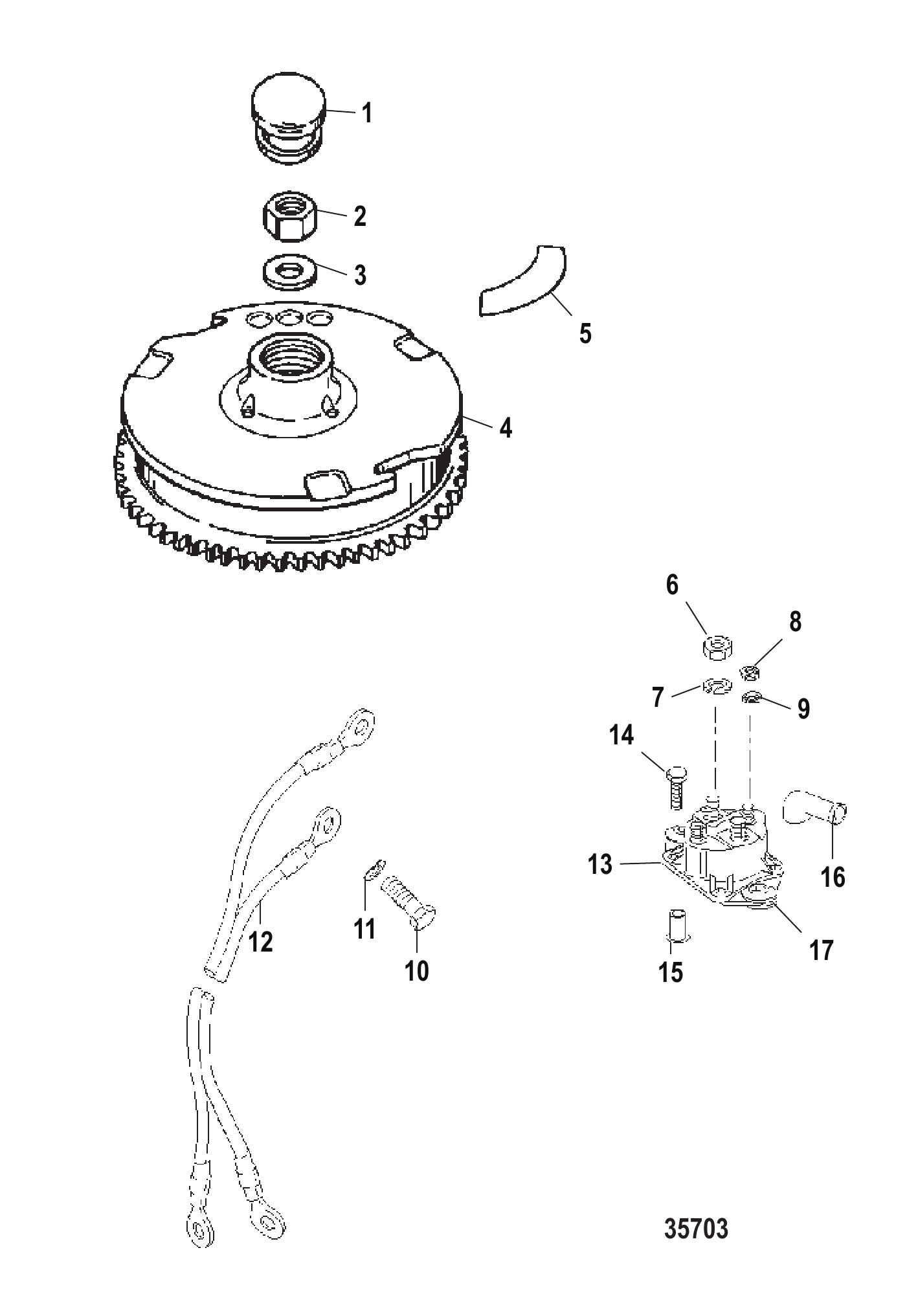

| 1 | 45907 | 黄色曲轴/飞轮塞 | PLUG Yellow Crankshaft/Flywheel | 1 |
| 2 | 42979 | 螺母(M16) | NUT (M16) | 1 |
| 3 | 68229 | 垫圈(.641 x 1.250 x .190) | WASHER (.641 x 1.250 x .190) | 1 |
| 3 | 33001 | 垫圈 | WASHER | 1 |
| 4 | 9008A54 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 4 | 859236T14 | 飞轮总成 | FLYWHEEL ASSY | 1 |
| 5 | 825149A1 | 换至空档贴花套件 | DECAL KIT Shift to Neutral | 1 |
| 6 | 68292 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 6 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 7 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 8 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 9 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| 10 | 39349 | 接地不锈钢螺钉(.312-18x.750) | SCREW (.312-18 x .750) Stainless Steel Ground | 1 |
| 11 | 53166 | 接地锁紧垫圈(.312) | LOCKWASHER (.312) Ground | 1 |
| 12 | 855844A1 | 电池电缆总成 | CABLE ASSEMBLY Battery | 1 |
| 12 | 8M0210761 | 电池电缆组(12英尺) | CABLE SET (12 ft) Battery | 1 |
| 13 | 817109A3 | 电磁阀组件 | SOLENOID KIT | 1 |
| 14 | 853652 | 螺丝（.250-20 x 1.125） | SCREW (.250-20 x 1.125) | 2 |
| 15 | 818968 | 衬套 | BUSHING | 2 |
| 15 | 8M0214955 | 衬套 | BUSHING | 2 |
| 16 | 830233 | 红色绝缘护套 | BOOT Insulator - Red | 1 |
| 17 | 822179 | 护孔环 | GROMMET | 2 |

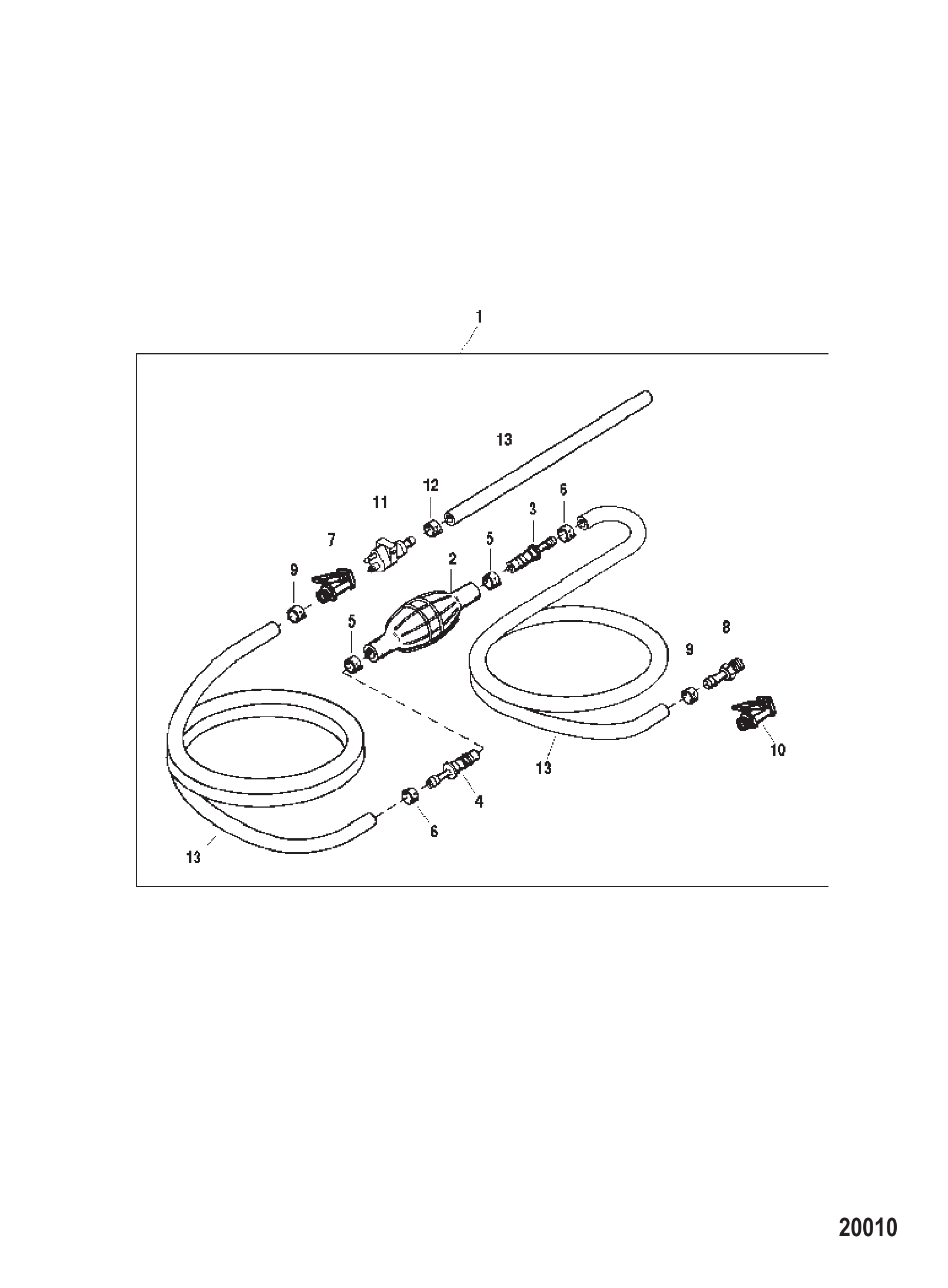

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 17146A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 877681Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 17146A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 1 | 877681Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 2 | 13330Q07 | 注油泵总成 - Quicksilver品牌 | BULB ASSEMBLY Primer - Quicksilver Brand | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 3 | 13331A3 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 4 | 13331A4 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 6 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 7 | 13563A3 | 发动机燃油管接头总成 | FITTING ASSEMBLY Fuel Line Engine | 1 |
| 7 | 13563Q3 | 发动机端快速接头(水星) | QUICK DISCONNECT Engine End (Quicksilver) | 1 |
| 8 | 897711 | 接头(.250-18)(黄铜)-燃油箱 | CONNECTOR (.250-18) (Brass)-Fuel Tank | 1 |
| 8 | 89771Q2 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 9 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 9 | 41582Q7 | 卡箍 | CLAMP | OPT |
| 9 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 1 | 827927A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 877680Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 827927A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 1 | 877680Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 7 | 13563A3 | 发动机燃油管接头总成 | FITTING ASSEMBLY Fuel Line Engine | 1 |
| 9 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 9 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 10 | 13563A7 | 燃油箱端燃油管接头总成 | FITTING ASSEMBLY Fuel Line Fuel Tank End | 1 |
| 10 | 13563Q7 | 燃油管接头总成 | FITTING ASSEMBLY Fuel Line | 1 |
| 1 | 822379A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 1 | 877683Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 9 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 9 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 1 | 16789A26 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 858610A32 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 7 | 13563A3 | 发动机燃油管接头总成 | FITTING ASSEMBLY Fuel Line Engine | 1 |
| 9 | F698772 | 蜗杆卡箍 | CLAMP Worm Gear | OPT |
| 11 | 816856A3 | 燃油接头总成-塑料 | CONNECTOR ASSEMBLY Fuel - Plastic | 1 |
| 11 | 816856Q3 | 燃油接头总成 | CONNECTOR ASSEMBLY Fuel | 1 |
| 12 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 12 | 41582Q7 | 卡箍 | CLAMP | OPT |
| 12 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 13 | 1678978 | 软管(9.00英尺整卷)(按需裁切) | HOSE (9.00 Feet Bulk) (Cut As Required) | AR |
| 13 | 85861079 | 软管(9.00英尺整卷) | HOSE (9.00 Feet Bulk) | AR |
| 13 | 16789100 | 软管(100.00英尺整卷)(按需裁切) | HOSE (100.00 Feet Bulk) (Cut As Required) | AR |
| 13 | 858610100 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |

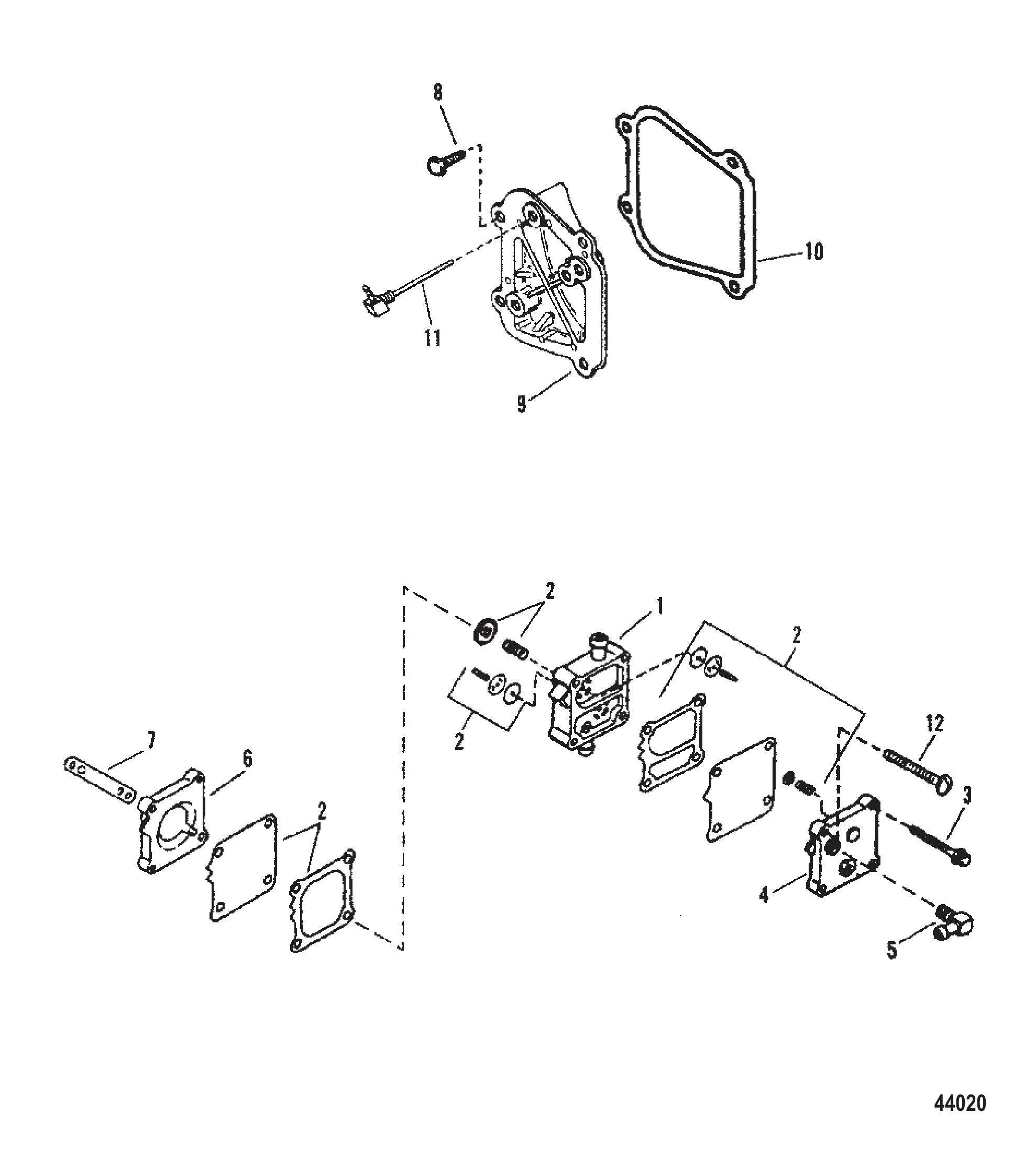

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 14360A49 | 燃油泵套件 | PUMP KIT Fuel | 1 |
| 1 | 14360A73 | 燃油泵套件 | PUMP KIT-FUEL | 1 |
| 2 | 42990A10 | 膜片组件 | DIAPHAGM KIT | 1 |
| 2 | 857005A1 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 3 | 82104540 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 2 |
| 4 | 987752 | 燃油泵板 | PLATE Fuel Pump | 1 |
| 5 | 99664 | 弯头 | ELBOW | 1 |
| 5 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 6 | 144303 | BASE Fuel Pump | 1 | |
| 7 | 987691 | 燃油泵底座衬垫 | GASKET Fuel Pump Base | 1 |
| 7 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 8 | 98254 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 4 |
| 9 | 8178702 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 9 | 8178703 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 10 | 820500 | 燃油泵盖衬垫 | GASKET Fuel Pump Cover | 1 |
| 10 | 820500A3 | 衬垫套件 | GASKET KIT | 1 |
| 11 | F743314 | 循环弯头 | ELBOW Recirculating | 1 |
| 12 | 827357 | 螺钉(#12-24x2.00) | SCREW (#12-24 x 2.00) | 2 |
| 13 | 818153A24 | 动力头总成 | POWERHEAD ASSEMBLY | - |
| 13 | 818153T24 | 动力头总成 | POWERHEAD ASSY | - |
| 14 | 809122A1 | 衬垫套件 | GASKET SET | - |
| 14 | 809122A2 | 衬垫套件 | GASKET SET | - |

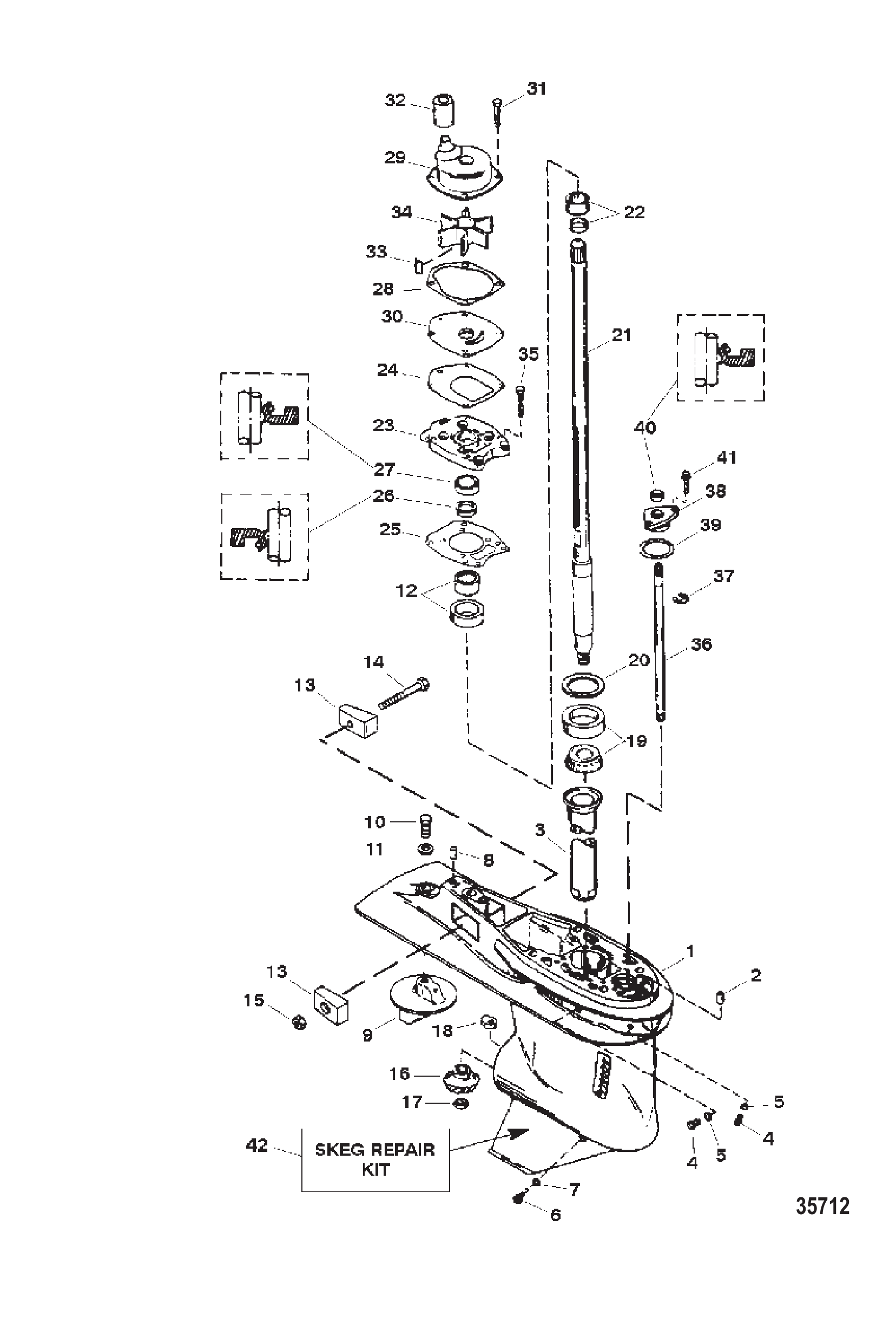

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9011G20 | 齿轮箱总成(完整)(喷漆) | GEAR HOUSING ASSEMBLY Complete (Painted) | 1 |
| 1 | 9011G75 | 齿轮箱套件 | GEAR HSG KIT | 1 |
| 1 | 9011G21 | 齿轮箱总成(完整)(喷漆) | GEAR HOUSING ASSEMBLY Complete (Painted) | 1 |
| 1 | 9011G78 | 齿轮箱套件-XLONG | GEAR HSG KT-XLONG | 1 |
| 1 | 9011G22 | 齿轮箱总成(基础)(喷漆) | GEAR HOUSING ASSEMBLY Basic (Painted) | 1 |
| 1 | 9011G66 | ORD 1667-9011J42 | ORD 1667-9011J42 | 1 |
| 2 | 43043 | PIN Dowel - With Hole (.375 x .625) (Front) | 1 | |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 43046 | 注油管 | TUBE Oiler | 1 |
| 4 | 79953A2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 2 |
| 4 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 2 |
| 5 | 19183 | 纤维密封垫圈 | WASHER Fiber Sealing | 2 |
| 5 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| 6 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | 1 |
| 6 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 7 | 19183 | 纤维密封垫圈 | WASHER Fiber Sealing | 1 |
| 7 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 8 | 43044 | PIN Dowel - Without Hole (.375 x .625) (Rear) | 1 | |
| 9 | 316405 | 平衡鳍板 | TRIM TAB | 1 |
| 9 | 8M0236553 | 平衡鳍板 | TRIM TAB | 1 |
| 10 | 825427 | 不锈钢螺钉(0.437-14x1.250) | SCREW (.437-14 x 1.250) Stainless Steel | 1 |
| 11 | 45176 | 垫圈(.453 x .812 x .105)不锈钢 | WASHER (.453 x .812 x .105) Stainless Steel | 1 |
| 12 | 43040A1 | 托架总成(带轴承) | CARRIER ASSEMBLY (With Bearing) | 1 |
| 12 | 43040T1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 13 | 826134 | 阳极块 | ANODE | 2 |
| 13 | 826134Q | 阳极块 | ANODE | 2 |
| 14 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 15 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 15 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 16 | 44484 | 齿轮(小齿轮)(13齿)(2.31:1速比) | GEAR Pinion (13 Teeth) (2.31:1 Ratio) | 1 |
| 16 | 44484T | 小齿轮(13齿) | GEAR Pinion (13 Teeth) | 1 |
| 17 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 18 | 850307 | 换挡凸轮控制 | CAM Shift Control | 1 |
| 19 | 42677A1 | 圆锥滚子轴承总成(内圈和外圈) | BEARING ASSEMBLY Taper Roller (Cone And Cup) | 1 |
| 20 | 44492A1 | 垫片组 | SHIM SET | 1 |
| 20 | 8M0063265 | 垫片组 | SHIM SET | 1 |
| 21 | 43031A1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 21 | 43032A4 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 22 | 42461A1 | 套筒/环套件 | SLEEVE/RING KIT | 1 |
| 23 | 43055A4 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 23 | 8M0113262 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 24 | 430331 | 衬垫 | GASKET | 1 |
| 25 | 430472 | 衬垫 | GASKET | 1 |
| 25 | 8M0214931 | 衬垫 | GASKET | 1 |
| 26 | 43036 | SEAL Oil (Lower) | 1 | |
| 27 | 43035 | SEAL Oil (Upper) | 1 | |
| 27 | 8M0245495 | 油封 | OIL SEAL | 1 |
| 28 | 817277 | 衬垫(也包含在水泵套件817275A2中) | GASKET (Also Included With Water Pump Kit 817275A2) | 1 |
| 28 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 29 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 30 | 8172761 | 面板 | FACEPLATE | 1 |
| 30 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 31 | 82684430 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 32 | 430232 | 水管密封件 | SEAL Water Tube | 1 |
| 33 | 43037 | 叶轮驱动键 | KEY Impeller Drive | 1 |
| 33 | 8M0204723 | 键 | KEY | 1 |
| 34 | 430262 | 叶轮 | IMPELLER | 1 |
| 34 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 35 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 6 |
| 36 | 853906A1 | 换档轴总成 | SHIFT SHAFT ASSEMBLY Shift | 1 |
| 36 | 853908A1 | 换档轴总成 | SHIFT SHAFT ASSEMBLY Shift | 1 |
| 37 | 29641 | E型卡环 | E RING | 1 |
| 38 | 43052A4 | 换挡轴衬套总成 | BUSHING ASSEMBLY Shift Shaft | 1 |
| 39 | 45710 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 39 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| 40 | 8164641 | 油封 | SEAL Oil | 1 |
| 40 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 41 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 42 | 15985A1 | 齿轮箱尾鳍修复套件 | SKEG KIT Gear Housing Repair | 1 |
| 42 | 15985A02 | 艉鳍替换件 | SKEG-REPLACEMENT | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |

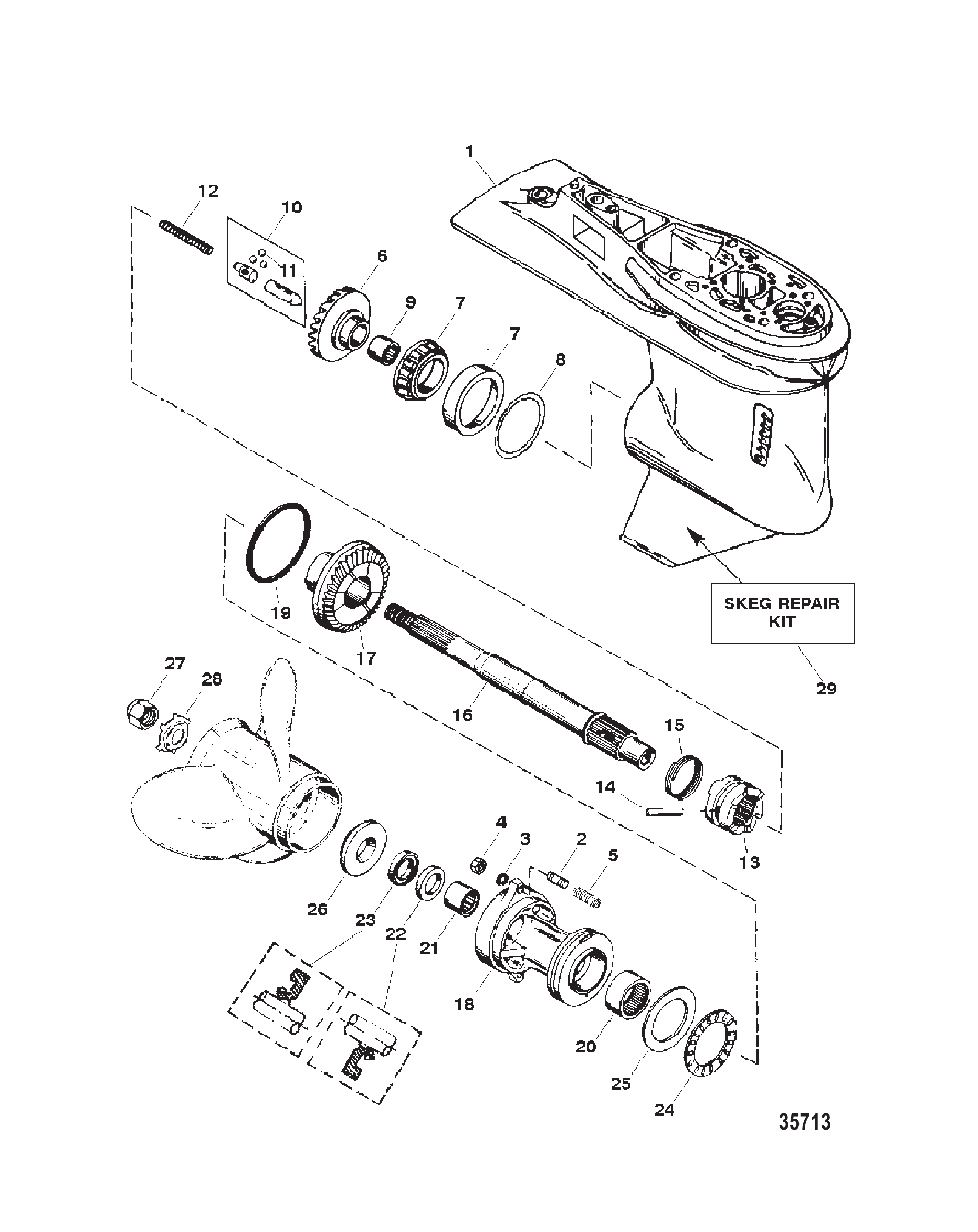

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9011G20 | 齿轮箱总成(完整)(喷漆) | GEAR HOUSING ASSEMBLY Complete (Painted) | 1 |
| 1 | 9011G75 | 齿轮箱套件 | GEAR HSG KIT | 1 |
| 1 | 9011G21 | 齿轮箱总成(完整)(喷漆) | GEAR HOUSING ASSEMBLY Complete (Painted) | 1 |
| 1 | 9011G78 | 齿轮箱套件-XLONG | GEAR HSG KT-XLONG | 1 |
| 1 | 9011G22 | 齿轮箱总成(基础)(喷漆) | GEAR HOUSING ASSEMBLY Basic (Painted) | 1 |
| 1 | 9011G66 | ORD 1667-9011J42 | ORD 1667-9011J42 | 1 |
| 2 | 429172 | 双头螺柱(M8×48) | STUD (M8 x 48) | 2 |
| 2 | 8M0034456 | 双头螺柱(M8×1.25×48) | STUD (M8 X 1.25 X 48) | 2 |
| 3 | 855941 | 垫圈(.323 x .590 x .112)不锈钢 | WASHER (.323 x .590 x .112) Stainless Steel | 2 |
| 4 | 401198 | 螺母 (M8) | NUT (M8) | 2 |
| 4 | 401378 | 螺母 (M8) | NUT (M8) | 2 |
| 5 | 8227731 | 螺纹嵌件 | INSERT Threaded | 2 |
| 6 | 850033A2 | 齿轮套件(前进档)(30齿)(2.31:1速比) | GEAR KIT Forward (30 Teeth) (2.31:1 Ratio) | 1 |
| 6 | 859472A3 | 前进齿轮总成-30齿 | GEAR ASSEMBLY Forward - 30 Teeth | 1 |
| 7 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 8 | 44491A1 | 垫片组 | SHIM SET | 1 |
| 8 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 9 | 30895 | 滚针轴承 | BEARING Needle | 1 |
| 9 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 10 | 850315A1 | 凸轮从动件套件 | FOLLOWER KIT Cam | 1 |
| 11 | 44530 | 钢球 | BALL | 3 |
| 12 | 850327 | 弹簧(凸轮随动件) | SPRING Cam Follower | 1 |
| 13 | 850048 | 离合器 | CLUTCH | 1 |
| 13 | 850048T | 离合器 | CLUTCH | 1 |
| 14 | 30632 | 十字销 | PIN Cross | 1 |
| 14 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 15 | 30893 | 离合器弹簧 | SPRING Clutch | 1 |
| 16 | 850308 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 16 | 8M0140445 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 17 | 850034 | 齿轮(倒档)(30齿)(2.31:1速比) | GEAR Reverse (30 Teeth) (2.31:1 Ratio) | 1 |
| 17 | 850034T | 倒车齿轮(30齿) | GEAR Reverse (30 Teeth) | 1 |
| 18 | 12596A2 | CARRIER ASSEMBLY Bearing (Painted) | 1 | |
| 18 | 8M0168901 | 轴承座总成 | CARRIER ASSY. | 1 |
| 19 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 19 | 8M0214974 | O型圈 | O RING | 1 |
| 20 | 12578 | 滚针轴承 | BEARING Needle | 1 |
| 20 | 12578T | 滚柱轴承 | BEARING Roller | 1 |
| 21 | 30956 | 滚针轴承 | BEARING Needle | 1 |
| 21 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 22 | 70080 | 油封(内) | SEAL Oil (Inner) | 1 |
| 22 | 8M0205728 | 密封件 | SEAL | 1 |
| 23 | 70081 | SEAL Oil (Outer) | 1 | |
| 23 | 8M0205729 | 密封件 | SEAL | 1 |
| 24 | 12576 | 推力轴承 | BEARING Thrust | 1 |
| 25 | 12577 | 止推垫片 | THRUST WASHER | 1 |
| 26 | 13191A1 | 止推垫片 | THRUST WASHER | 1 |
| 26 | 13191Q01 | 止推垫片 | THRUST WASHER | 1 |
| 27 | 52707A1 | 螺旋桨螺母套件(.750-16) | PROP NUT KIT (.750-16) Propeller | 1 |
| 27 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 28 | 816629 | 锁紧垫圈 | TAB WASHER | 1 |
| 28 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 29 | 15985A1 | 齿轮箱尾鳍修复套件 | SKEG KIT Gear Housing Repair | 1 |
| 29 | 15985A02 | 艉鳍替换件 | SKEG-REPLACEMENT | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |

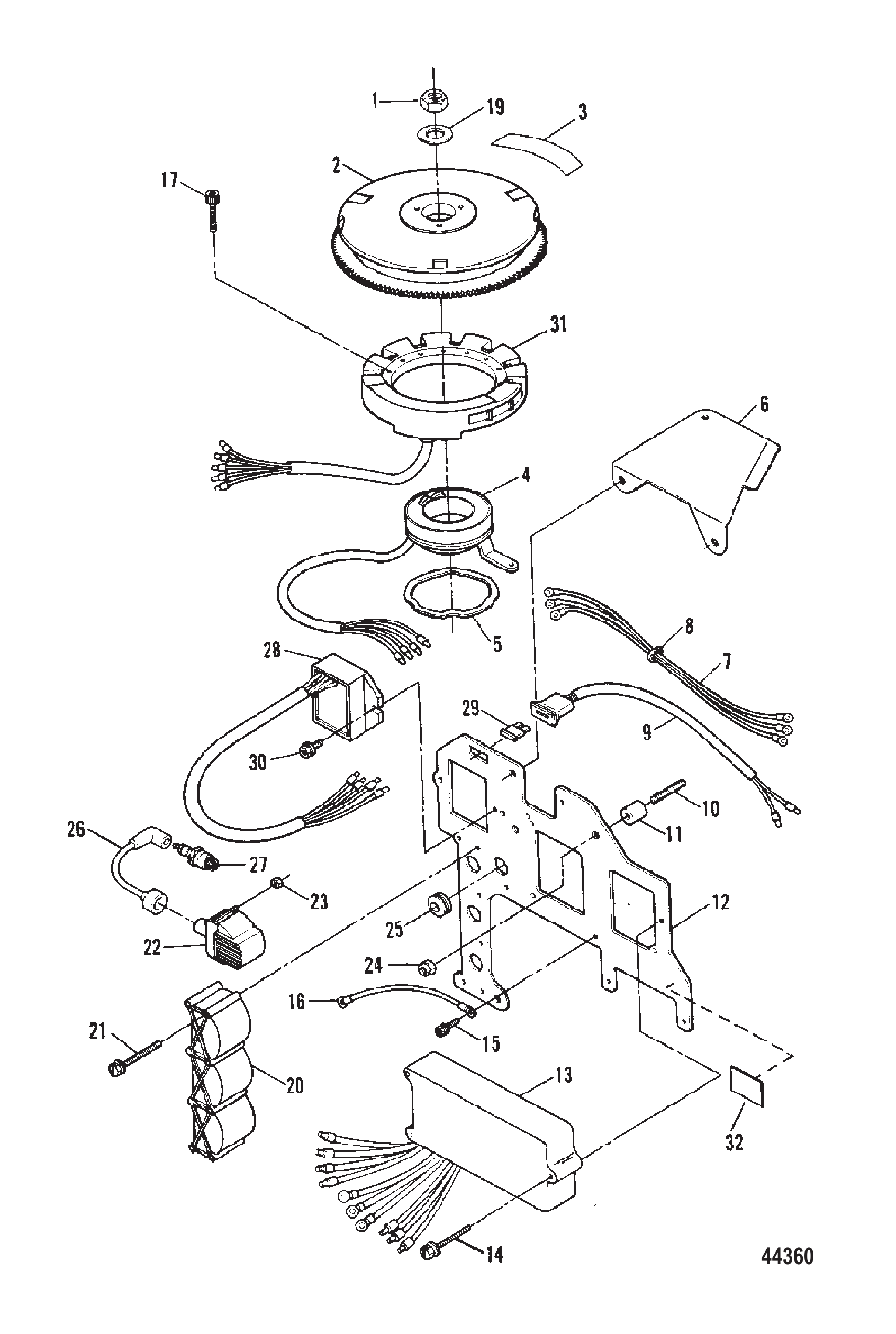

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F1968 | 螺母(.750-16) | NUT (.750-16) | 1 |
| 2 | 817494A2 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 2 | 859241T10 | 飞轮总成 | FLYWHEEL ASY | 1 |
| 3 | FA609853 | 换至空挡贴花 | DECAL Shift to Neutral | 1 |
| 3 | 825149A1 | 贴花套件 | DECAL KIT | 1 |
| 4 | 817029A9 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 5 | F2442 | 波形垫圈 | WASHER Wave | 1 |
| 6 | 819111 | GUARD Ignition Harness | 1 | |
| 7 | 817441A3 | HARNESS ASSEMBLY Ground | 1 | |
| 8 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 8 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 9 | 19637 | 保险丝插座 | SOCKET Fuse | 1 |
| 10 | 826393 | 双头螺柱(0.312-18 x 2.250) | STUD (.312-18 x 2.250) | 3 |
| 11 | F722932 | SPACER (.750) Electrical Bracket | 3 | |
| 12 | 8172686 | 点火安装板 | PLATE Ignition Mounting | 1 |
| 13 | 18495A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 14 | 812987 | 螺钉 (#10-24 x 1.250) | SCREW (#10-24 x 1.250) | 3 |
| 15 | 41805 | 螺钉 (#10-24 x 0.625) 水银开关及盖 | SCREW (#10-24 x .625) Mercury Switch and Cover | 1 |
| 16 | 88807A29 | 线缆总成(黑色) | CABLE ASSEMBLY (BLACK) | 1 |
| 17 | 19926100 | 螺丝（#10-24 x 1.00） | SCREW (#10-24 x 1.00) | 6 |
| 19 | 31247 | 垫圈 | WASHER | 1 |
| 20 | 43542 | 线圈盖 | COVER Coil | 1 |
| 21 | 817458 | 螺钉(#10-24 x 2.250) | SCREW (#10-24 x 2.250) | 6 |
| 22 | 7370A23 | 点火线圈总成 | COIL ASSEMBLY Ignition | 3 |
| 23 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 6 |
| 24 | F7006 | 螺母(.312-18) | NUT (.312-18) | 3 |
| 25 | 64872 | 护孔环 | GROMMET | 1 |
| 26 | 821945A28 | 高压线总成 | CABLE ASSEMBLY High Tension | 3 |
| 27 | 97180 | 火花塞 | SPARK PLUG | 3 |
| 27 | 14103550 | 火花塞 (NGK-BUZHW) | SPARK PLUG (NGK-BUZHW) | OPT. |
| 28 | 815279T4 | 电压调节器总成 | REGULATOR ASSEMBLY Voltage | 1 |
| 29 | 812619 | 黄色保险丝-20安培 | FUSE Yellow - 20 Ampere | 1 |
| 30 | 817504 | 螺钉（0.250-20 x 1.500）不锈钢 | SCREW (.250-20 x 1.500) Stainless Steel | 2 |
| 31 | 8778A29 | 定子总成 | STATOR ASSEMBLY | 1 |
| 32 | 819526 | 油门线调节标签 | DECAL Throttle Cable Adjustment | 1 |
| -- | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 10155990 | 用户手册 | OWNERS MANUAL | 1 |
| - | 832749R2 | 维修手册 F90/120 (1995至1998) | SERVICE MANUAL F90/120 (1995 Thru 1998) | 1 |
| - | 803194 | 零件目录 | PARTS CATALOG | 1 |
| - | 803194R1 | 零件手册 75/90马力Force | PARTS MANUAL 75/90 Hp Force | 1 |
| - | 82793336 | 大马士革钢灰色喷漆12盎司(355毫升)罐装 | PAINT Damascus Steel Gray 12 Ounce (355 ml) Spray Can | AR |
| - | 82793337 | 大马士革钢灰色漆0.5盎司(15毫升)笔刷瓶装 | PAINT Damascus Steel Gray .5 Ounce (15 ml) Brush Bottle | AR |
| - | 81910712 | 透明丙烯酸漆 12盎司(355毫升)喷雾装 加拿大(仅限外罩使用) | PAINT Clear Acrylic 12 Ounce (355 ml) Spray CANADA (For Cowl Only) | AR |

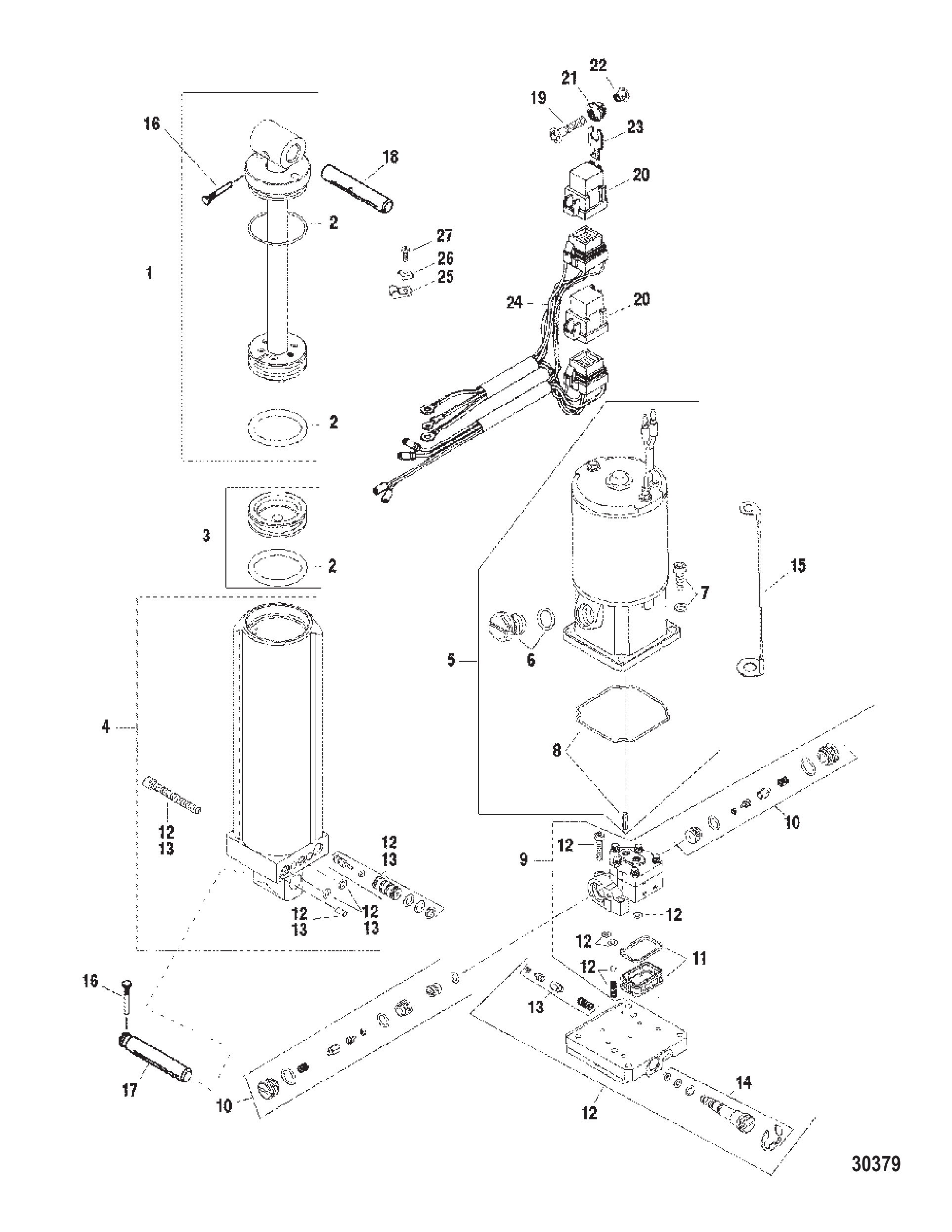

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| _ | 830250A3 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 1 | 811666A1 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 1 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 2 | 809872A2 | O型圈维修包 | O-RING KIT Rebuild | 1 |
| 2 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 3 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 3 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 4 | 811669A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893916A01 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 5 | 809885A1 | 电机套件 | MOTOR KIT | 1 |
| 5 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 6 | 8134351 | 储液罐塞 | PLUG Reservoir | 1 |
| 7 | 809876A1 | 螺钉套件 | SCREW KIT | 1 |
| 8 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 9 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 9 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 10 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 10 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| 11 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 11 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 12 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 12 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 13 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 13 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 14 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 14 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 15 | 88238A18 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| NS | 809880A1 | O型圈套件 | O-RING KIT | 1 |
| NS | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| 16 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 17 | 818898 | 锚销（下部） | PIN Anchor (Lower) | 1 |
| 18 | 996251 | 轴(上部) | SHAFT (Upper) | 1 |
| 18 | 99625002 | 轴 | SHAFT | 1 |
| 19 | 19932100 | 螺钉 (.250-20 x 1.00) | SCREW (.250-20 x 1.00) | 2 |
| 20 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 20 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 2 |
| 21 | 818967 | 继电器支架衬套 | GROMMET Relay Bracket | 2 |
| 21 | 8M0207785 | 护孔环 | GROMMET | 2 |
| 22 | 818968 | 衬套 | BUSHING | 2 |
| 22 | 8M0214955 | 衬套 | BUSHING | 2 |
| 23 | 828102 | 继电器安装支架 | BRACKET Relay Mount | 2 |
| 23 | 8M0207771 | 安装支架 | BRACKET Mounting | 2 |
| 24 | 819514A11 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 25 | 22740 | 升降索夹 | CLIP Trim Cable | 1 |
| 26 | 69205 | C形垫圈 | C WASHER | 1 |
| 26 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 27 | 812832 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 27 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

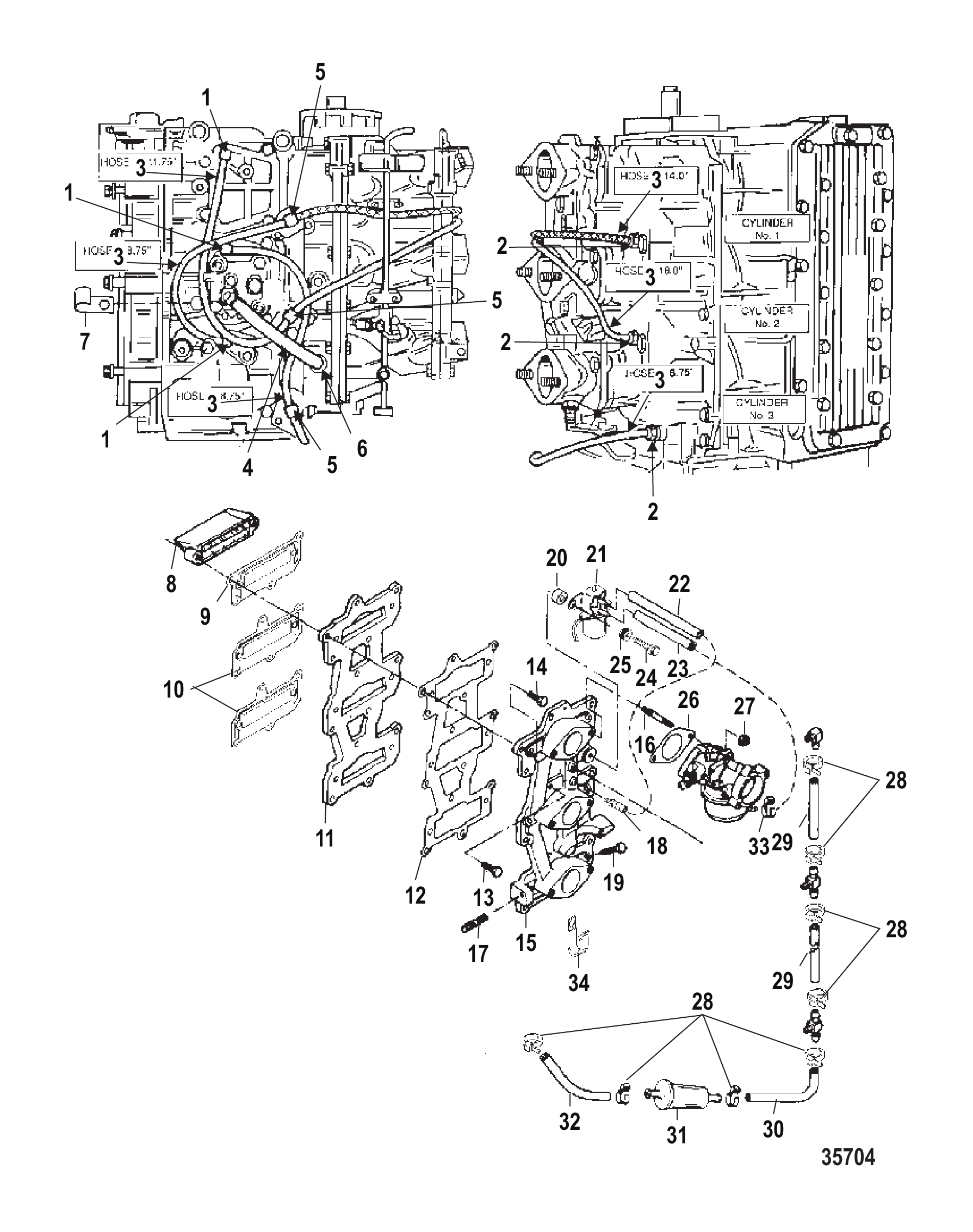

| 1 | F743314 | 循环弯头 | ELBOW Recirculating | 3 |
| 2 | 426585 | 止回阀 | CHECK VALVE | 3 |
| 3 | 99130122 | 油管(20.00英尺 散装) | TUBING (20.00 Feet Bulk) | 1 |
| 4 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 1 |
| 5 | 8207061 | 管件(T型)-止回阀 | FITTING (T)-Check Valve | 3 |
| 6 | 996641 | 弯头 | ELBOW | 1 |
| 7 | 55098 | J型卡扣 | J CLIP | 1 |
| 8 | 116452 | 簧片阀总成 | REED BLOCK ASSEMBLY | 3 |
| 9 | F85168-2 | 衬垫(顶部)-簧片阀块适配器 | GASKET (Top)-Reed Block Adapter | 1 |
| 10 | 819733 | 衬垫(中部/底部)-簧片阀块适配器 | GASKET (Center/Bottom)-Reed Block Adapter | 2 |
| 11 | 8197351 | 簧片阀适配器 | ADAPTER Reed Block | 1 |
| 12 | F85159-1 | 进气歧管垫片 | GASKET Intake Manifold | 1 |
| 13 | 819110125 | 螺丝(.250-20 x 1.250) | SCREW (.250-20 x 1.250) | 2 |
| 14 | 819110100 | 螺钉 (.250-20 x 1.00) | SCREW (.250-20 x 1.00) | 10 |
| 15 | 825195A2 | 进气歧管套件 | MANIFOLD KIT Intake | 1 |
| 16 | 8263881 | 双头螺柱(.312-18 x 1.250)带防松胶 | STUD (.312-18 x 1.250) With Dri Lok | 6 |
| 17 | F433209-1 | 双头螺柱(.250-20 x 1.250) | STUD (.250-20 x 1.250) (.250-20 x 1.250) | 1 |
| 18 | F695858 | 接头 | FITTING | 1 |
| 19 | 819110150 | 螺钉(.250-20 x 1.500) | SCREW (.250-20 x 1.500) | 6 |
| 20 | F694359 | 隔套 | SPACER | 1 |
| 21 | 819503 | 启动电磁阀 | SOLENOID Primer | 1 |
| 22 | 9912688 | 管材 (36.00英寸散装) | TUBING (36.00 Inches Bulk) | 1 |
| 23 | 9912688 | 管材 (36.00英寸散装) | TUBING (36.00 Inches Bulk) | 1 |
| 24 | 90192 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 1 |
| 25 | F694504 | 护孔环 | GROMMET | 1 |
| 26 | 828925 | 化油器衬垫 | GASKET Carburetor | 3 |
| 27 | 68292 | 螺母(.312-18) | NUT (.312-18) | 6 |
| 28 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 8 |
| 29 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 2 |
| 30 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 1 |
| 31 | 816296 | 燃油滤清器 | FILTER Fuel | 1 |
| 32 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 1 |
| 33 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| 34 | 65292 | J型卡扣 | J CLIP | 1 |
| - | 809122A2 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818153A64 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

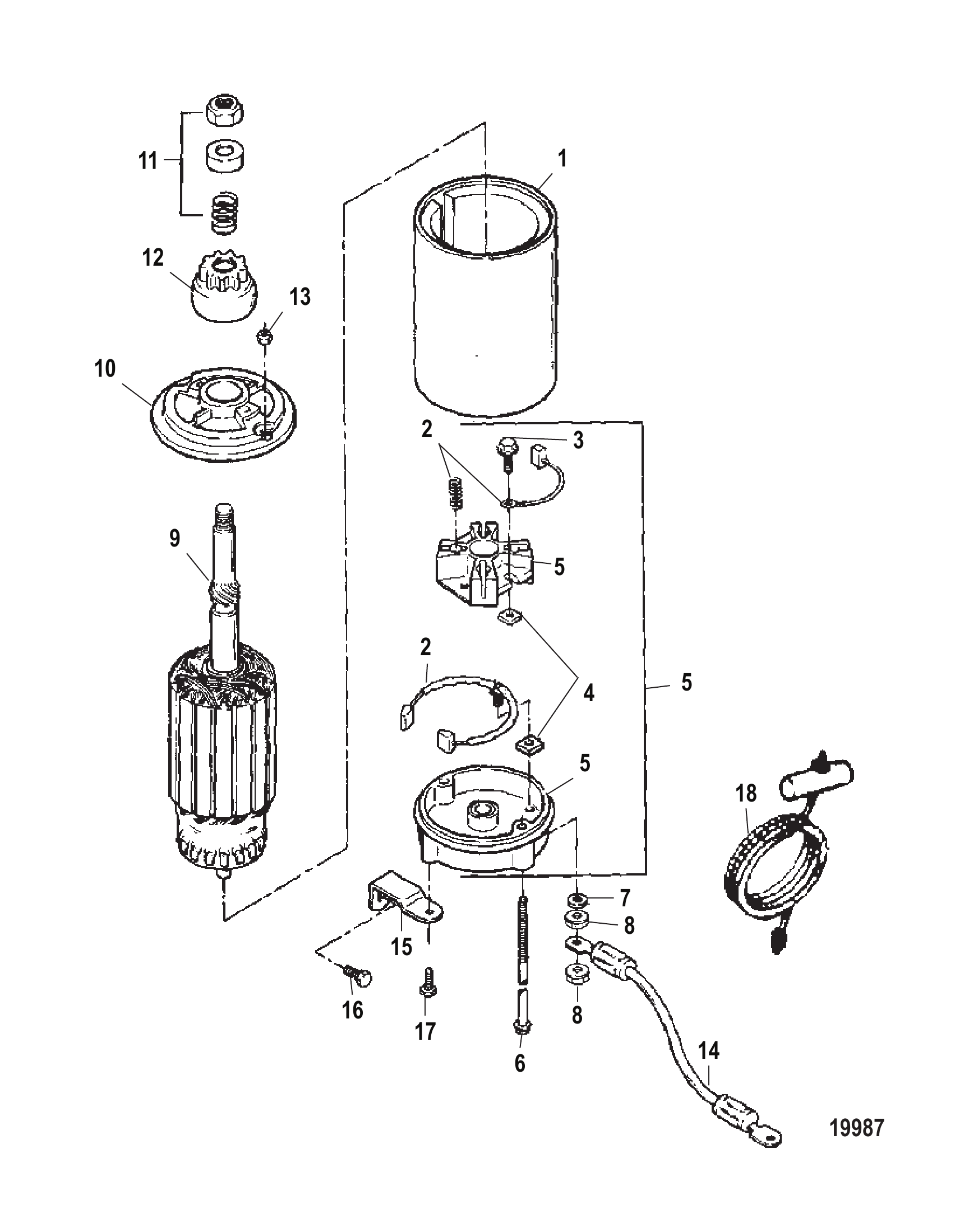

| 1 | 853869 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 853869T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 2 | F15190 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 3 | F15158 | 螺钉 | SCREW | 2 |
| 4 | F15159 | 绝缘体 | INSULATOR | 2 |
| 5 | F15189 | 端盖总成-换向器 | END CAP ASSEMBLY Commutator | 1 |
| 6 | F15178 | 贯穿螺栓 | THRU BOLT | 2 |
| 7 | F15160 | 垫圈 | WASHER | 1 |
| 8 | F15162 | 螺母 | NUT | 2 |
| 9 | F15177 | 电枢 | ARMATURE | 1 |
| 10 | F15176 | 端盖-驱动端 | END CAP Drive | 1 |
| 11 | 90644 | 驱动套件 | DRIVE KIT | 1 |
| 12 | 802587 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 13 | 828451 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 14 | 93388A6 | 线缆总成(5.500英寸)-启动器 | CABLE ASSEMBLY (5.500 Inches) Starter | 1 |
| 15 | F616675 | 启动机支架 | BRACKET Starter Mount | 1 |
| 16 | 19932062 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 1 |
| 17 | 19932062 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 1 |
| 18 | 47341A1 | 拉绳手柄套件（手动/应急启动） | ROPE AND HANDLE KIT Manual/Emergency Start Emergency Start | 1 |
| NS | 825064 | 贴纸-注意挂挡启动 | DECAL Caution Start In Gear | 1 |
| NS | 8272822 | 高压警告贴花 | DECAL Warning Hi Voltage | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

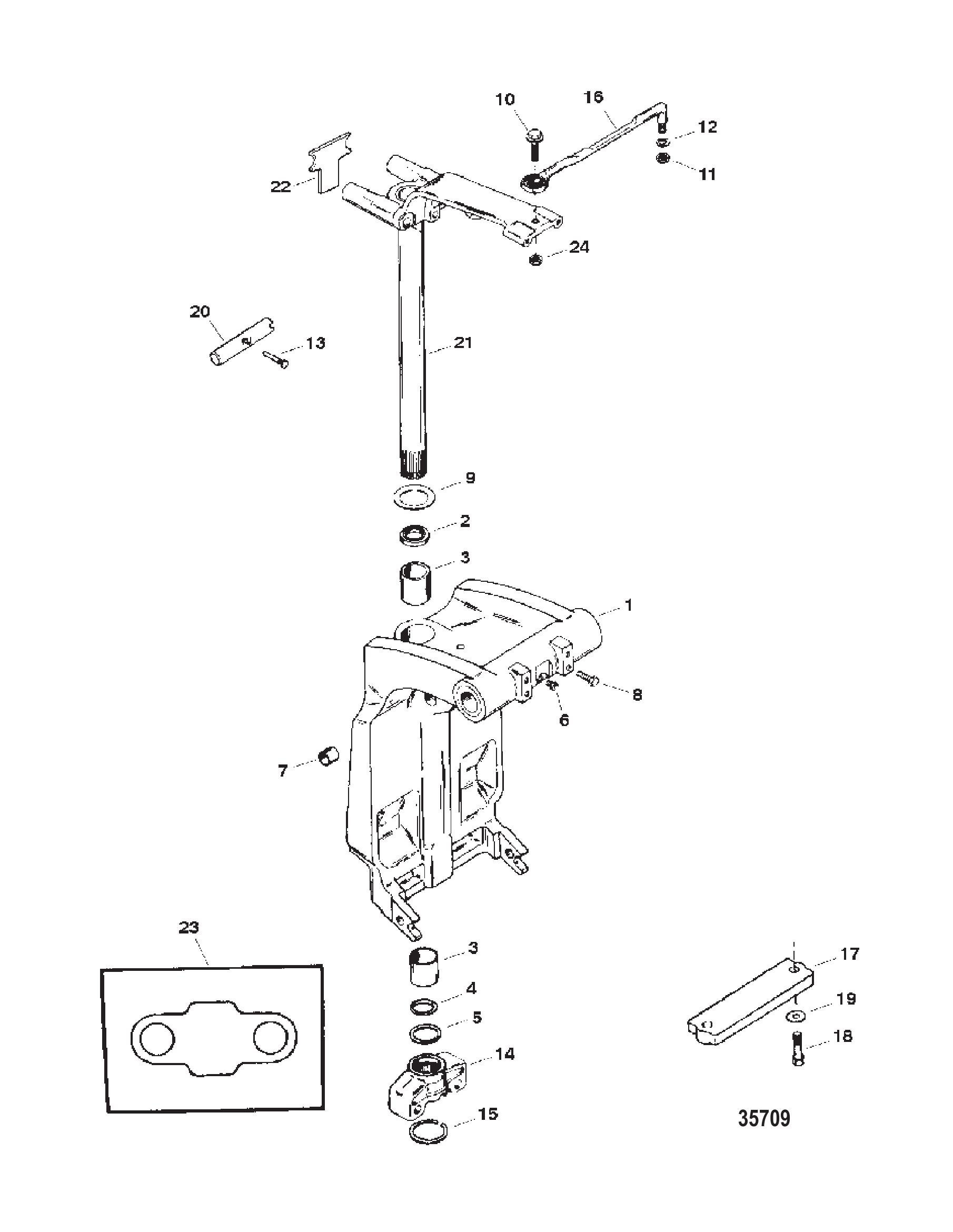

| 1 | 818904A4 | 旋转支架总成(喷漆) | BRACKET ASSEMBLY Swivel (Painted) | 1 |
| 2 | 87735 | 油封 | SEAL Oil | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 10 | 14000 | 螺钉(.375-24x1.25) | SCREW (.375-24 x 1.25) | 1 |
| 11 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 1 |
| 12 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 13 | 821539 | 三叶销 | PIN Trilobe | 1 |
| 14 | 42961A5 | 底部轭架总成(喷漆) | YOKE ASSEMBLY Bottom (Painted) | 1 |
| 15 | 67684 | 挡圈 | RING Retaining | 1 |
| 16 | 92876A1 | 转向连杆总成 | LINK ASSEMBLY Steering | 1 |
| 17 | 818298A1 | 阳极套件 | ANODE KIT | 1 |
| 18 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 19 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 20 | 996251 | 轴(上部) | SHAFT (UPPER) | 1 |
| 21 | 99661A31 | 旋转销总成(喷漆) | SWIVEL PIN ASSEMBLY (Painted) | 1 |
| 22 | 88882 | 上轭缓冲垫 | BUMPER Top Yoke | 1 |
| 23 | 11288 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 24 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 73687A2 | 飞轮拉拔器套件 | PULLER KIT Flywheel | 1 |
| - | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| - | 818494 | 专用螺钉 | SCREW Special | 1 |
| - | 52344 | 飞轮固定工具（齿型） | FLYWHEEL HOLDER TOOL Teeth Type Flywheel | 1 |
| - | FT2991 | 钢丝碳刷清洁器 | BRUSH Wire Carbon Remover | 1 |
| - | FT8914 | 曲轴轴承保持架密封拆卸工具 | REMOVER Seal Crankshaft Bearing Cage | 1 |
| - | FT8903 | 曲轴轴承保持架密封安装工具 | INSTALLER TOOL Seal Crankshaft Bearing Cage | 1 |
| - | 824892 | 手柄驱动器-配合FT8903使用 | HANDLE Driver-Use With FT8903 | 1 |
| - | FT8925 | 下曲轴密封安装工具 | INSTALLER TOOL Seal Lower Crankshaft | 1 |
| - | FT2953 | 连杆螺丝套筒 | SOCKET Connecting Rod Screws | 1 |
| - | 74607A3 | 活塞销安装套件 | INSTALLER KIT Piston Pin | 1 |
| - | FT2990-1 | 活塞与活塞销定位块 | BLOCK Piston And Piston Pin | 1 |
| - | 77109A2 | 活塞销锁环安装套件 | INSTALLER KIT Piston Pin Lock Ring | 1 |
| - | 69756 | O型圈（0.549 x 0.103） | O-RING (.549 x .103) | 1 |
| - | 98530 | 旋钮手柄 | KNOB Handle | 1 |
| - | 52952A1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | FT2996 | 活塞环压缩工具 | COMPRESSOR TOOL Piston Ring | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | 90455 | 吊环-曲轴端提升 | LIFTING EYE Lifting-Crankshaft End | 1 |
| - | 112301 | 动力升降倾斜装置校准工具 | ALIGNMENT TOOL Power Trim | 1 |
| - | 44486A1 | 调整杆拆卸工具 | REMOVAL TOOL Trim Rod | 1 |
| - | 44487A1 | 调整杆导向器拆卸工具 | REMOVER TOOL Trim Rod Guide | 1 |
| - | 52915A6 | 动力升降倾斜装置测试仪表套件 | TEST GAUGE KIT Power Trim | 1 |
| - | 11243 | 连接器(公头)-动力升降 | CONNECTOR Male-Power Trim | 1 |
| - | 74951 | 动力升降倾斜装置扳手 | SPANNER WRENCH Power Trim | 1 |
| - | 63209 | 加热灯 | HEAT LAMP | 1 |
| - | 12349A2 | 小齿轮定位工具 | LOCATION TOOL Pinion | 1 |
| - | 13945 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| - | 13949 | 油封安装工具 | DRIVER TOOL Oil Seal | 1 |
| - | 14308A1 | 轴承座圈工具 | RACE TOOL Bearing | 1 |
| - | 14309A1 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| - | 14310A1 | 磨损套筒安装工具 | INSTALLATION TOOL Wear Sleeve | 1 |
| - | 14311A2 | 轴承预紧工具 | PRE LOAD TOOL Bearing | 1 |
| - | 78473 | 背隙测量仪 | INDICATOR TOOL Backlash | 1 |
| - | 31106 | 轴承安装心轴杯 | MANDREL Bearing Driver Cup | 1 |
| - | 31108 | 油封安装工具 | DRIVER TOOL Oil Seal | 1 |
| - | 31229A7 | 轴承拉拔器套件 | PULLER KIT Bearing | 1 |
| - | 24156 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| - | 31229 | 轴 | SHAFT | 1 |
| - | 36569 | 驱动头工具 | DRIVE HEAD TOOL | 1 |
| - | 15755 | 心轴 | MANDREL | 1 |
| - | 37323 | 滚针轴承导杆工具 | DRIVER ROD TOOL Needle Bearings | 1 |
| - | 34569A1 | 滑动锤拉拔器总成 | PULLER ASSEMBLY Slide Hammer | 1 |
| - | 37241 | 通用拉拔板 | PULLER PLATE Universal Universal | 1 |
| - | 37350 | 导向垫圈 | PILOT WASHER | 1 |
| - | 46086A1 | 拉拔器爪头总成 | PULLER JAW ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 856875A1 | 安装工具-前进档轴承 | INSTALLATION TOOL Bearing Forward Gear | 1 |
| - | 56775 | 传动轴固定工具 | HOLDING TOOL Driveshaft | 1 |
| - | 58222A1 | 百分表工具 | DIAL INDICATOR TOOL | 1 |
| - | 83155 | 千分表转接套件 | ADAPTER KIT Dial Indicator | 1 |
| - | 83165M | 轴承拉拔器总成 | PULLER ASSEMBLY Bearing | 1 |
| - | 85716 | 拉拔螺栓工具-轴承座 | PULLER BOLT TOOL Bearing Carrier | 1 |
| - | 99379 | 点火正时灯 | TIMING LIGHT Ignition | 1 |
| - | 79250A2 | 水压表套件 | GAUGE KIT Water Pressure | 1 |
| - | 850439 | 点火系统火花测试器 | SPARK TESTER Ignition System | 1 |
| - | 59339 | 点火维修转速表 | SERVICE TACHOMETER Ignition | 1 |
| - | 99750A1 | 电气部件万用表 | MULTI METER Electrical Components | 1 |
| - | 825207A2 | 线束总成 | HARNESS ASSEMBLY | 1 |
| - | 58222A1 | 百分表工具 | DIAL INDICATOR TOOL | 1 |
| - | 825265A1 | COMPOUND (8 Ounce) Needle Bearings | 1 | |
| - | 850735A1 | 润滑脂-防腐蚀 | GREASE Anti Corrosion | 1 |
| - | 809825 | RTV硅胶(3盎司管)-金属蓝乐泰587 | RTV SILICONE (3 Ounce Tube) Metallic Blue Loctite 587 | 1 |
| - | 901132 | RTV #1473密封胶（2.8盎司） | SEALANT RTV #1473 (2.8 Ounce) | 1 |
| - | 809818 | 乐泰222螺纹锁固剂 10毫升 | LOCTITE 222 THREADLOCKER 10ml | 1 |
| - | 809821 | LOCTITE 242螺纹锁固剂 10毫升 | LOCTITE 242 THREADLOCKER 10ml | 1 |
| - | 809819 | 乐泰271螺纹锁固剂 10毫升 | LOCTITE 271 THREADLOCKER 10 ml | 1 |
| - | 809820 | 乐泰271螺纹锁固剂 50毫升 | LOCTITE 271 THREADLOCKER 50 ml | 1 |
| - | 809822 | 密封剂-管道用乐泰567(50毫升) | SEALANT Pipe - Loctite 567 (50 ml) | 1 |
| - | 809824 | 底漆乐泰(4.5盎司喷雾)绿色 | PRIMER Loctite (4.5 Ounce Aerosol) Green | 1 |
| - | 809825 | RTV硅胶 (3盎司管装) 金属蓝 | RTV SILICONE (3 Ounce Tube) Metallic Blue | 1 |
| - | 809826 | RTV硅胶(13盎司筒装)黑色 | RTV SILICONE (13 Ounce Cartridge) Black | 1 |
| - | 809833 | 乐泰RC 680密封胶（10毫升瓶装）绿色 | SEALANT Loctite RC 680 (10 ml Bottle) Green | 1 |
| - | 125642 | 衬垫套件主密封剂和底漆 (红色) | GASKET KIT Master Sealant And Primer (RED) | 1 |
| - | 809834 | 成型衬垫 (3盎司管装) (棕色) | FORM A GASKET (3 Ounce Tube) (BROWN) | 1 |
| - | 809828 | 衬垫清除剂 (12盎司喷雾) | REMOVER Gasket (12 Ounce Aerosol) | 1 |
| - | 809827 | 脱脂清洁剂 (19盎司喷雾) | DEGREASER AND CLEANER (19 Ounce Aerosol) | 1 |
| - | 342271 | 密封剂(16盎司) | SEALING COMPOUND (16 Ounce) | 1 |
| - | 850736A1 | 多功能润滑脂 2-4-C (8盎司管装) | MULTI LUBE 2 4 C (8 Ounce Tube) | 1 |
| - | 850737A1 | 齿轮润滑油(10盎司管)-高级 | GEAR LUBE (10 Ounce Tube) Premium | 1 |
| - | 90100A12 | 动力升降倾斜装置油-12瓶装 | OIL Power Trim And Tilt-Case of 12 | 1 |
| - | 13872A1 | 专用润滑脂101(8盎司管装) | SPECIAL LUBE 101 (8 Ounce Tube) | 1 |
| - | 257112 | 液态氯丁橡胶（1/2品脱） | NEOPRENE (1/2 Pint) Liquid | 1 |
| - | 98234A2 | 钻孔夹具套件-艉板 | DRILL FIXTURE KIT Transom | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

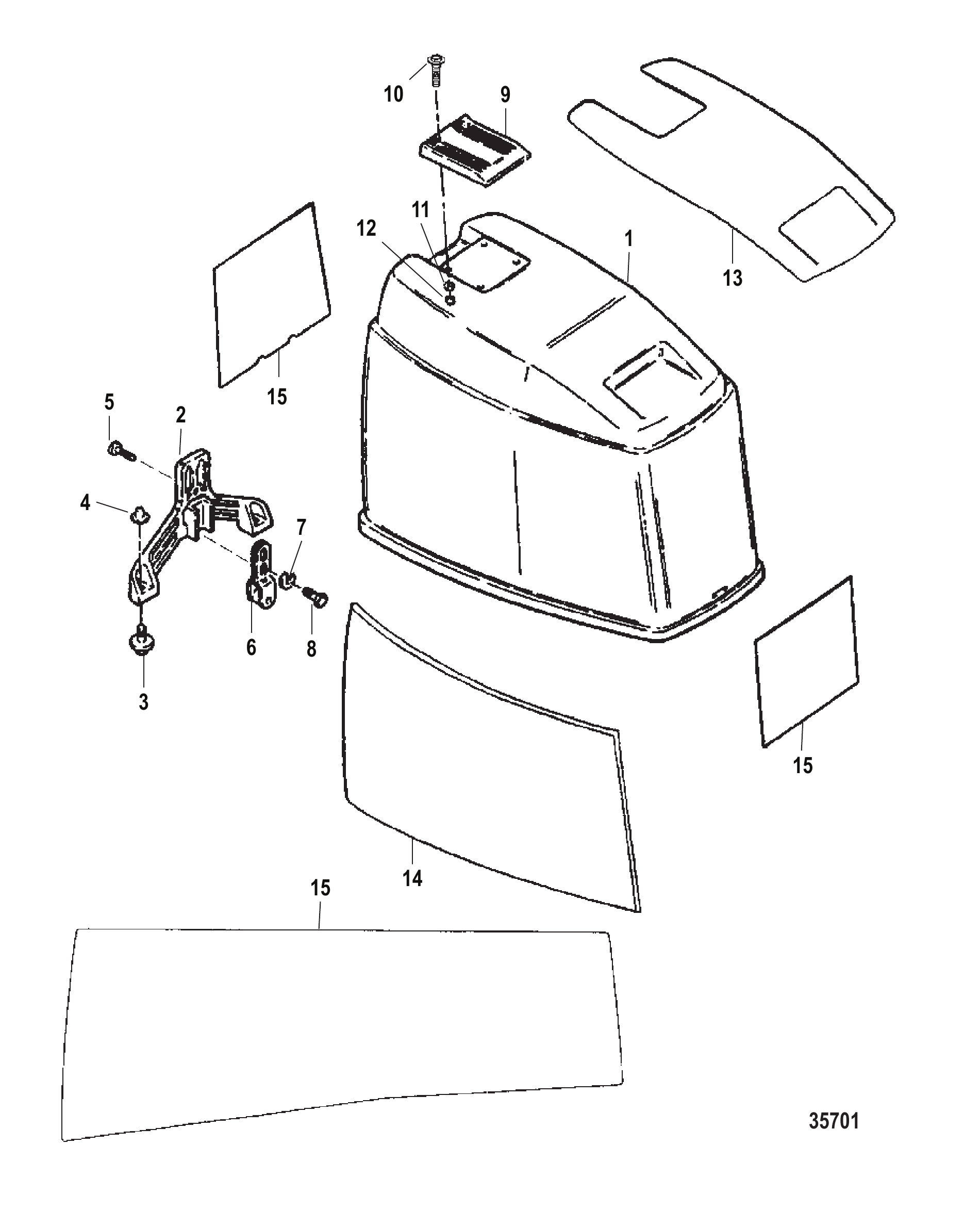

| 1 | 819364A9 | 顶罩总成 (喷漆) | TOP COWL ASSEMBLY (Painted) | 1 |
| 2 | 8198141 | 罩盖锁扣支架 | BRACKET Cowl Latch | 1 |
| 3 | F481434 | 罩盖锁扣导架 | GUIDE Cowl Latch Bracket | 2 |
| 4 | F2088 | 紧固件 | FASTENER | 2 |
| 5 | 28639 | 250-20×0.625 螺钉 | SCREW (250-20 x .625) | 3 |
| 6 | 18173 | 锁扣滚轮支架总成 | BRACKET ASSEMBLY Latch Roller | 1 |
| 7 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 8 | 90285 | 螺钉 (.312-18 x .625) | SCREW (.312-18 x .625) | 2 |
| 9 | 828477 | 倾斜手柄 | HANDLE Tilt | 1 |
| 10 | 828478 | 螺钉 (0.250-20 x 1.00) 不锈钢 | SCREW (.250-20 x 1.00) Stainless Steel | 4 |
| 11 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 12 | 56374 | 螺母 (.250-20) | NUT (.250-20) | 4 |
| 13 | 827291 | 隔音罩(上部) | BLANKET Sound Top | 1 |
| 14 | F663985 | 隔音垫-侧边-左舷或右舷 | BLANKET Sound - Side - Port or Starboard | 2 |
| 15 | 803188A99 | 贴花套件 | DECAL SET | 1 |
| 15 | 855398A98 | 贴花套件 | DECAL SET | 1 |
| NS | 803189A99 | 贴花套件 | DECAL SET | 1 |
| NS | 803909A99 | 贴花套件 | DECAL SET | 1 |
| NS | 852953A97 | 贴花套件 | DECAL SET | 1 |
| NS | 803910A99 | 贴花套件 | DECAL SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

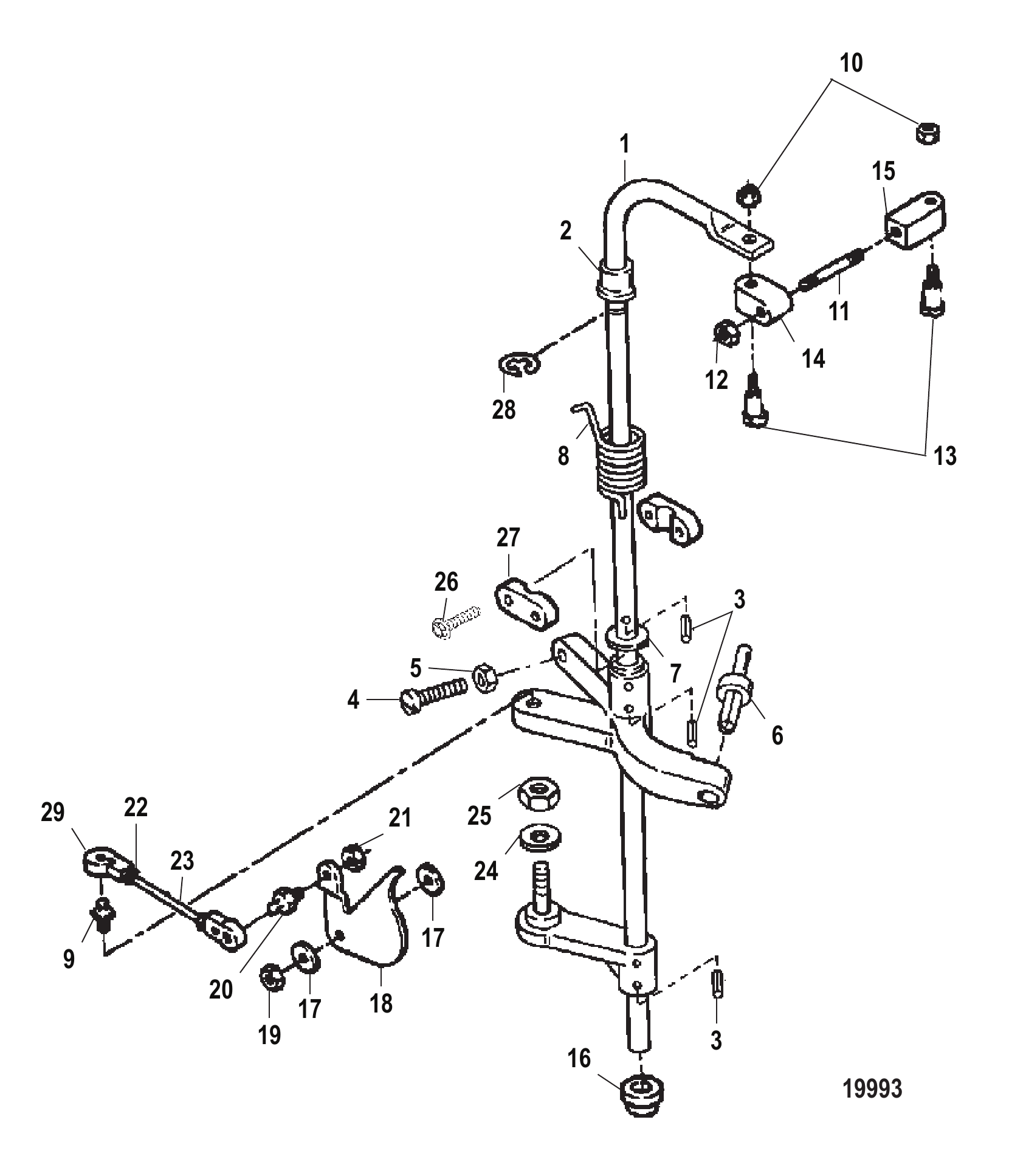

| 1 | 820302A1 | 塔轴总成 | TOWERSHAFT ASSEMBLY | 1 |
| 2 | 819513 | 衬套 上部 | BUSHING Upper | 1 |
| 3 | 38489 | 滚动销 | PIN Roll | 5 |
| 4 | F1504 | 螺丝(.250-20 x 1.250) | SCREW (.250-20 x 1.250) | 1 |
| 5 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 6 | F1727 | 尼龙铆钉 | RIVET (Nylon) | 1 |
| 7 | F1856 | 垫圈 | WASHER | 1 |
| 8 | 819533 | 节气门回位弹簧 | SPRING Throttle Return | 1 |
| 9 | 828514 | 螺纹球头 | BALL Threaded | 1 |
| 10 | F7009 | 螺母(#10-24) | NUT (#10-24) | 2 |
| 11 | F85445-1 | 火花控制杆 | ROD Spark Control Spark Control | 1 |
| 12 | F2015 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 13 | F499026 | 控制杆旋转端 | SWIVEL Control Rod End | 2 |
| 14 | F499035 | 控制杆端头(连接塔轴) | END Control Rod (To Towershaft) | 1 |
| 15 | F4990361 | 控制杆端头(连接触发器) | END Control Rod (To Trigger) | 1 |
| 16 | F40689-1 | 塔轴下轴承 | BEARING Towershaft Lower | 1 |
| 17 | F269319 | 节气门凸轮轴承 | BEARING Throttle Cam | 2 |
| 18 | 8191184 | 节气门凸轮 | CAM Throttle | 1 |
| 19 | 72008 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 20 | 828514 | 螺纹球头 | BALL Threaded | 1 |
| 21 | 20110 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 22 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 23 | 819002 | 油门连杆 | LINK Throttle | 1 |
| 24 | 35459 | 垫圈 | WASHER | 1 |
| 25 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 26 | 19961088 | 螺钉 (#10-24 x 0.880) | SCREW (#10-24 x .880) | 2 |
| 27 | F607689 | 轴承 | BEARING | 2 |
| 28 | 13194 | 挡圈 | RING Retaining | 1 |
| 29 | 830875 | 球窝接头 | SOCKET Ball | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828334F4 | 艉板支架(喷漆) | BRACKET Transom (Painted) | 1 |
| 2 | 828333A6 | 艉板支架总成(喷漆) | BRACKET ASSEMBLY Transom (Painted) | 1 |
| 3 | 98727 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 99170A2 | 倾斜管套件 | TUBE KIT Tilt | 1 |
| 5 | 34862 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 6 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 7 | 88750 | 波浪垫圈(1.62 x 1.05) | WASHER Wave (1.62 x 1.05) Wave | 2 |
| 8 | 30499 | 螺母(7/8-14) | NUT (7/8-14) | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 10 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 91962 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 12 | 821176A1 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 13 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 14 | 99633 | KNOB Tilt Lock Lever | 1 | |
| 15 | 99615 | 槽销 | PIN Groove | 1 |
| 16 | 830899 | 倾斜锁紧张力弹簧 | SPRING Tension Tilt Lock | 1 |
| 17 | 99617 | 槽销 | PIN Groove | 1 |
| 18 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 19 | 818771F8 | 锚定支架(喷漆) | BRACKET Anchor (Painted) | 1 |
| 20 | 4000377 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 21 | 4002319 | 垫圈 | WASHER | 6 |
| 22 | 40114 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
