水星 Mercury 90 H.P. (1996) 0E138600 THRU 0E202999 - 爆炸图零件明细

Force 系列 · USA - Cat.# 90-809757 · 共 29 个部位 · 1236 条零件

1适配板（上）2化油器 3外罩总成（底部）4外罩总成（顶部）5曲轴、活塞与连杆 6气缸体总成（序列号 0E138600 至 0E173408）7气缸体总成（序列号 0E173409 至 0E287999）8驱动轴壳体 9电气组件（飞轮与继电器）10电气组件（点火系统）11排气板 12燃油管路总成 13燃油泵总成 14齿轮箱总成（驱动轴）（3爪倒车离合器）15齿轮箱总成（驱动轴）（6爪倒车离合器）16齿轮箱总成（螺旋桨轴）（3爪倒车离合器）17齿轮箱总成（螺旋桨轴）（6爪倒车离合器）18齿轮箱标识 19进气罩/节气门连杆 20说明书与涂料 21动力平衡组件（设计I）22动力平衡组件（设计II）23簧片阀板/再循环系统 24启动器总成 25旋转支架与转向臂 26工具清单（专用）（1/2页）27工具清单（专用）（2/2页）28塔轴与油门联动装置 29艉板支架

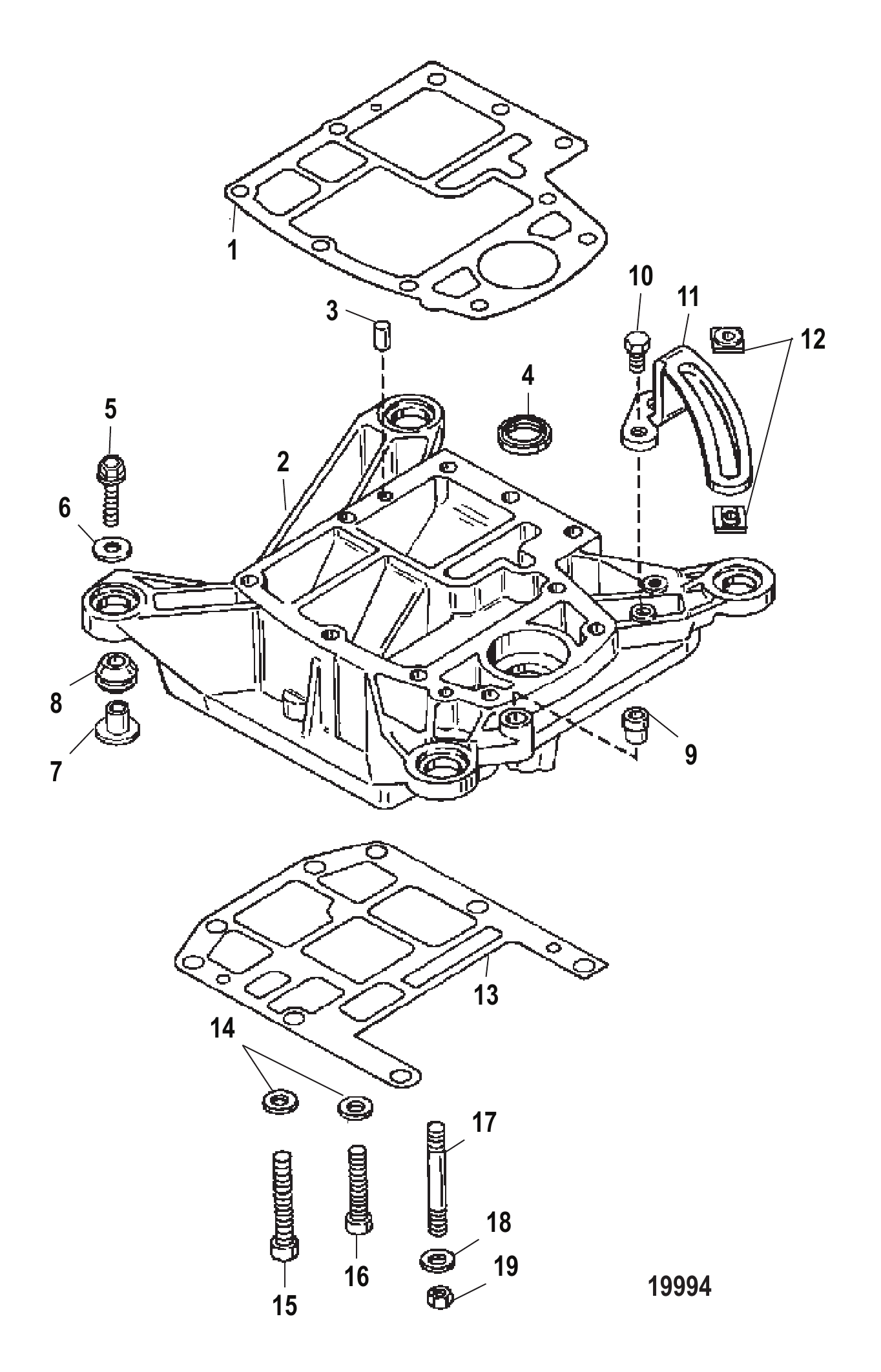

图 1适配板（上） Adapter Plate (Upper)

REF	零件编号	中文名称	英文名称	数量
1	826549	动力头至上适配板衬垫	GASKET Powerhead To Upper Adapter Plate	1
2	820192A1	上适配板总成	PLATE ASSEMBLY Upper Adapter	1
3	23784	定位销	PIN Dowel	2
4	819740	传动轴密封件	SEAL Driveshaft	1
5	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
5	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
6	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
7	19064	适配板衬套	BUSHING Adapter Plate Grommet	4
8	825380	适配板衬套	GROMMET Adapter Plate	4
8	825380001	护孔环	GROMMET	4
9	F40689-1	塔轴下轴承	BEARING Towershaft Lower	1
10	1993820	螺钉(M8 x 20)	SCREW (M8 x 20)	2
11	820280	换挡导轨	SHIFT RAIL Shift	1
12	820277	换挡滑块	SLIDE Shift	2
13	826550	衬垫(适配板/驱动轴壳体)	GASKET Adapter Plate / Driveshaft Housing	1
14	828271	垫圈	WASHER	10
15	19929325	.325-16×3.25 螺钉	SCREW (.325-16 x 3.25)	3
16	19929175	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	7
17	8207021	M10 双头螺柱	STUD (M10) (M10)	8
18	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	8
18	8M0214963	垫圈	WASHER	8
19	13914	螺母(M10)	NUT (M10)	8
19	40140	螺母(M10)	NUT (M10)	8
-	809122A2	动力头衬垫套件	GASKET SET Powerhead	1
-	818153A41	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A57	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1

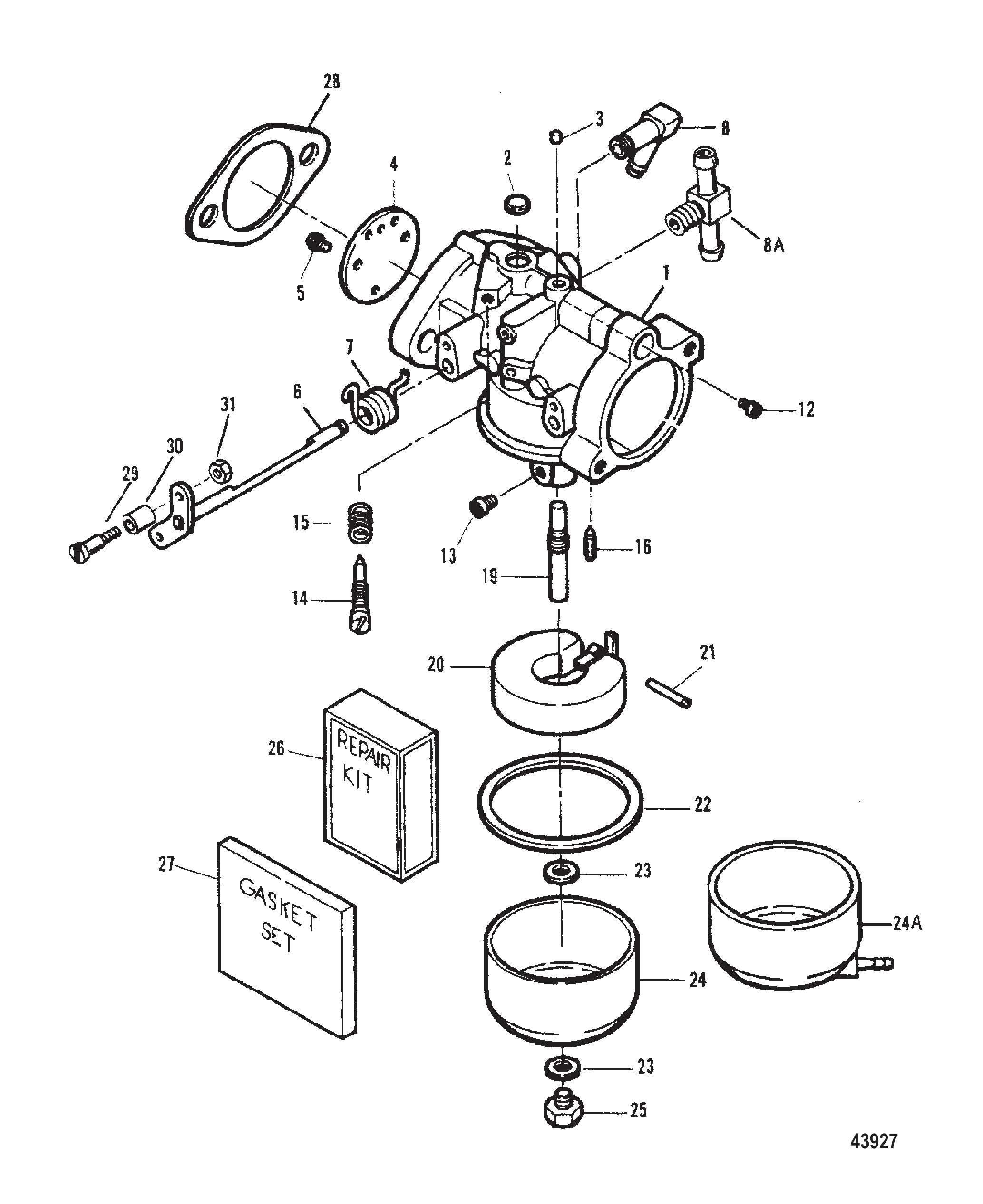

图 2化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	8201991	化油器(上部)(WB-109B)	CARBURETOR (TOP) (WB-109B)	1
1	8202021	化油器(中部/下部)(WB-108B)	CARBURETOR (CENTER/BOTTOM) (WB-108B)	2
2	FO16128	韦尔奇塞	PLUG Welch	1
3	FO10588	杯形塞	PLUG CUP	4
4	F10315	节气门片	SHUTTER Throttle	1
5	F10328	百叶窗螺钉	SCREW Shutter	2
5	803176	螺钉-带补片	SCREW-W/PATCH	2
6	F10305	油门轴	SHAFT Throttle	1
7	F10334	节气门轴弹簧	SPRING Throttle Shaft	1
8	F84314-2		ELBOW (L) (TOP)	1
8A	F85314-1		FITTING (T) (CENTER/BOTTOM)	2
8A	64706001	三通接头	FITTING Tee	2
12	5317	怠速空气量孔(.046)	JET (.046) Idle Air	1
13	3796	主喷油嘴(.076)(0-2500英尺)	JET (.076) Main Fuel (0 - 2500')	1
13	3794	主喷油嘴(.074)(2500-5000英尺)	JET (.074) Main Fuel (2500 - 5000')	OPT.
13	6207	主喷油嘴(.072)(5000-7500英尺)	JET (.072) Main Fuel (5000 - 7500')	OPT.
13	6030	主喷油嘴(.070)(7500-10000英尺)	JET (.070) Main Fuel (7500 - 10000')	OPT.
13	3794	主喷油嘴(.074)(0-2500英尺)	JET (.074) Main Fuel (0 - 2500')	1
13	6207	主喷油嘴(.072)(2500-5000英尺)	JET (.072) Main Fuel (2500 - 5000')	OPT.
13	6030	主喷油嘴(.070)(5000-7500英尺)	JET (.070) Main Fuel (5000 - 7500')	OPT.
13	6029	主喷油嘴(.068)(7500-10000英尺)	JET (.068) Main Fuel (7500 - 10000')	OPT.
14	F10268	怠速混合气螺钉	SCREW Idle Mixture	1
15	27160	怠速混合气螺钉弹簧	SPRING Idle Mixture Screw	1
16	FK10309	进油针阀组件	NEEDLE AND SEAT Inlet	1
16	F10265	进油针阀	NEEDLE Inlet	1
19	F10302	主喷嘴	NOZZLE Main	1
20	F10346	燃油杯浮子	FLOAT Fuel Bowl	1
20	891730A01	浮子套件	FLOAT KIT	1
21	FO13944	浮子销	PIN Float	1
22	FO15623	燃油杯衬垫	GASKET Fuel Bowl	1
23	FO2510	燃油杯衬垫	GASKET Fuel Bowl	2
24A	820491	燃油杯	BOWL Fuel	1
24	F10333	燃油杯	BOWL Fuel	2
25	5128	燃油杯螺钉	SCREW Fuel Bowl	1
26	FK10357	化油器维修套件	REPAIR KIT Carburetor	1
26	809735A1	维修套件	REPAIR KIT	1
27	FK10323	化油器衬垫组	GASKET SET Carburetor	1
27	809736A1	衬垫套件	GASKET SET	1
28	F85906	化油器衬垫	GASKET Carburetor	3
28	828925	衬垫	GASKET	3
29	F333316	轴	SHAFT	1
29	830110	轴	SHAFT	1
30	819225	滚轮	ROLLER	1
31	F1997	螺母（#8-32）	NUT (#8-32)	1
31	8267094	螺母 @5	NUT @5	1
-	818153A24	动力头总成	POWERHEAD ASSEMBLY	-
-	818153T24	动力头总成	POWERHEAD ASSY	-
-	809122A1	衬垫套件	GASKET SET	-
-	809122A2	衬垫套件	GASKET SET	-
-	FK10357	化油器修理包	REPAIR KIT Carb	-
-	809735A1	维修套件	REPAIR KIT	-
-	FK10323	化油器垫片套装	GASKET SET Carb	1
-	809736A1	衬垫套件	GASKET SET	1

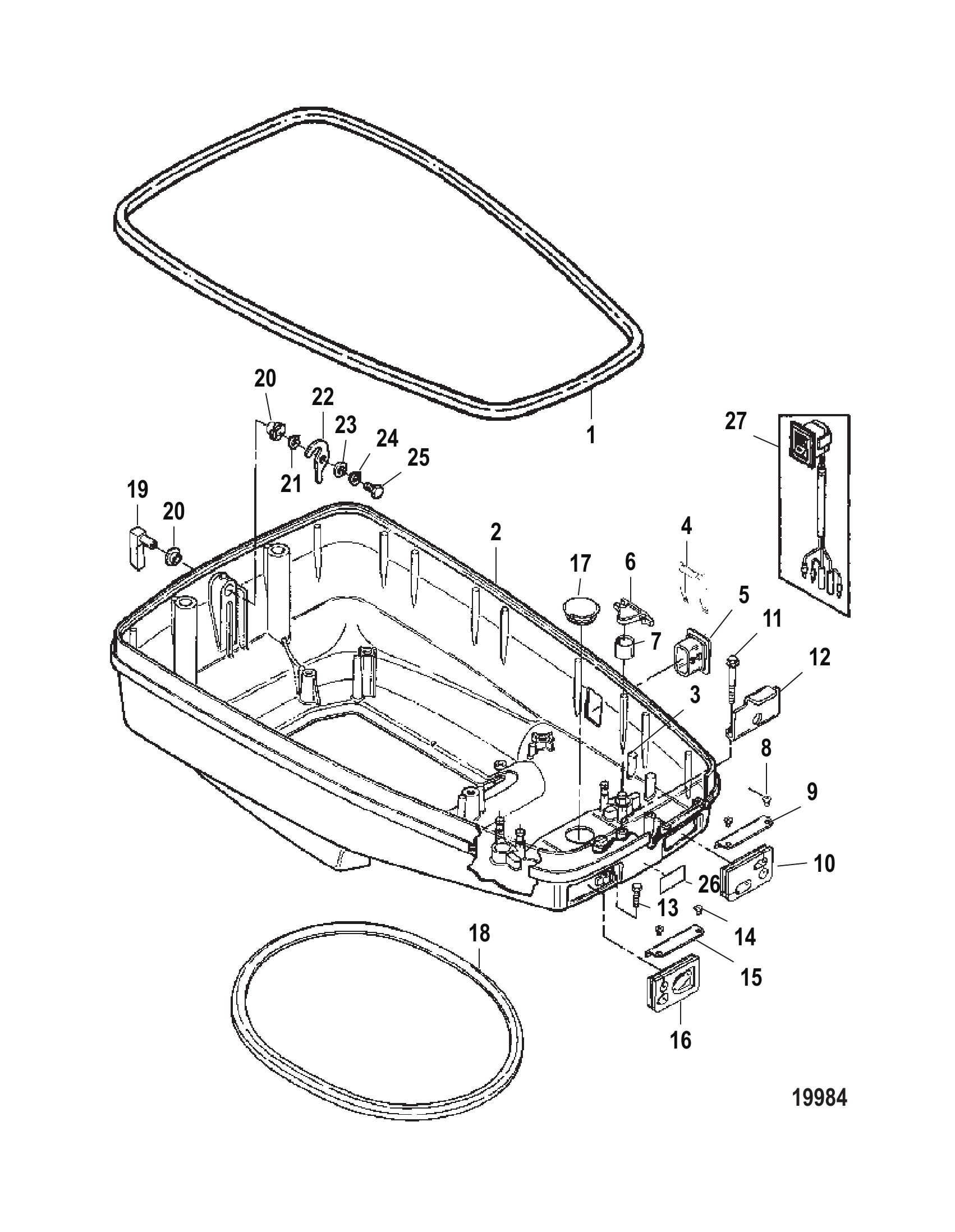

图 3外罩总成（底部） Cowl Assembly (Bottom)

REF	零件编号	中文名称	英文名称	数量
1	F663756-1	罩盖支撑填料	PACKING Cowl Support	1
1	8197172	衬垫-81英寸	PACKING-81 INCH	1
2	819983F	下罩总成	BOTTOM COWL ASSEMBLY	1
2	819983T1	下罩总成	COWL ASSY-BOTTOM	1
3	42975		DRIVE SCREW (Special)	4
4	8124431	固定座	RETAINER	1
4	8M0032848	开关固定座	RETAINER Switch	1
5	8128301	堵头	PLUG	1
5	812830T01	堵头	PLUG	1
6	820313	控制电缆锁扣	LATCH Control Cable	2
7	824015	筒形保持杯	CUP Barrel Retainer	2
8	40019104	螺钉（M5×8）	SCREW (M5 x 8)	2
9	823551	进线密封保持架	RETAINER Entry Cable Seal	1
10	823550	遥控线密封件	SEAL Remote Cables	1
11	40011127	螺钉 (M6 x 16) 不锈钢	SCREW (M6 x 16) Stainless Steel	2
11	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
12	F663480-1	保持器(前罩底部)	RETAINER Cowl Front Bottom	1
13	40011131	螺钉(M6x35)不锈钢燃油连接器	SCREW (M6 x 35) Stainless Steel Fuel Connector	1
14	40019104	螺钉（M5×8）	SCREW (M5 x 8)	2
15	823551	进线密封保持架	RETAINER Entry Cable Seal	1
16	823549	燃油连接器及遥控线密封件	SEAL Fuel Connector And Remote Cables	1
17	8199541	堵头	PLUG	1
18	8136076	底罩密封条	SEAL Bottom Cowl	1
19	820000A4	手柄总成	HANDLE ASSEMBLY	1
19	820000A08	手柄总成-黑色	HANDLE ASY-BLACK	1
20	812707	衬套	BUSHING	2
21	F2047	波形垫圈	WASHER Wave	1
22	F481777	凸轮锁轴	CAM Latch Shaft	1
22	8M0001081	凸轮	CAM	1
23	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
23	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
24	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
25	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
26	818029	贴花 (燃油混合比)	DECAL (Fuel Mix)	1
26	8180291	燃油混合比标贴	DECAL Fuel Mix	1
27	18286A40	开关总成(动力升降机型)	SWITCH ASSEMBLY (Power Trim Models)	OPT
27	8M0235192	微调开关	SWITCH TRIM	OPT

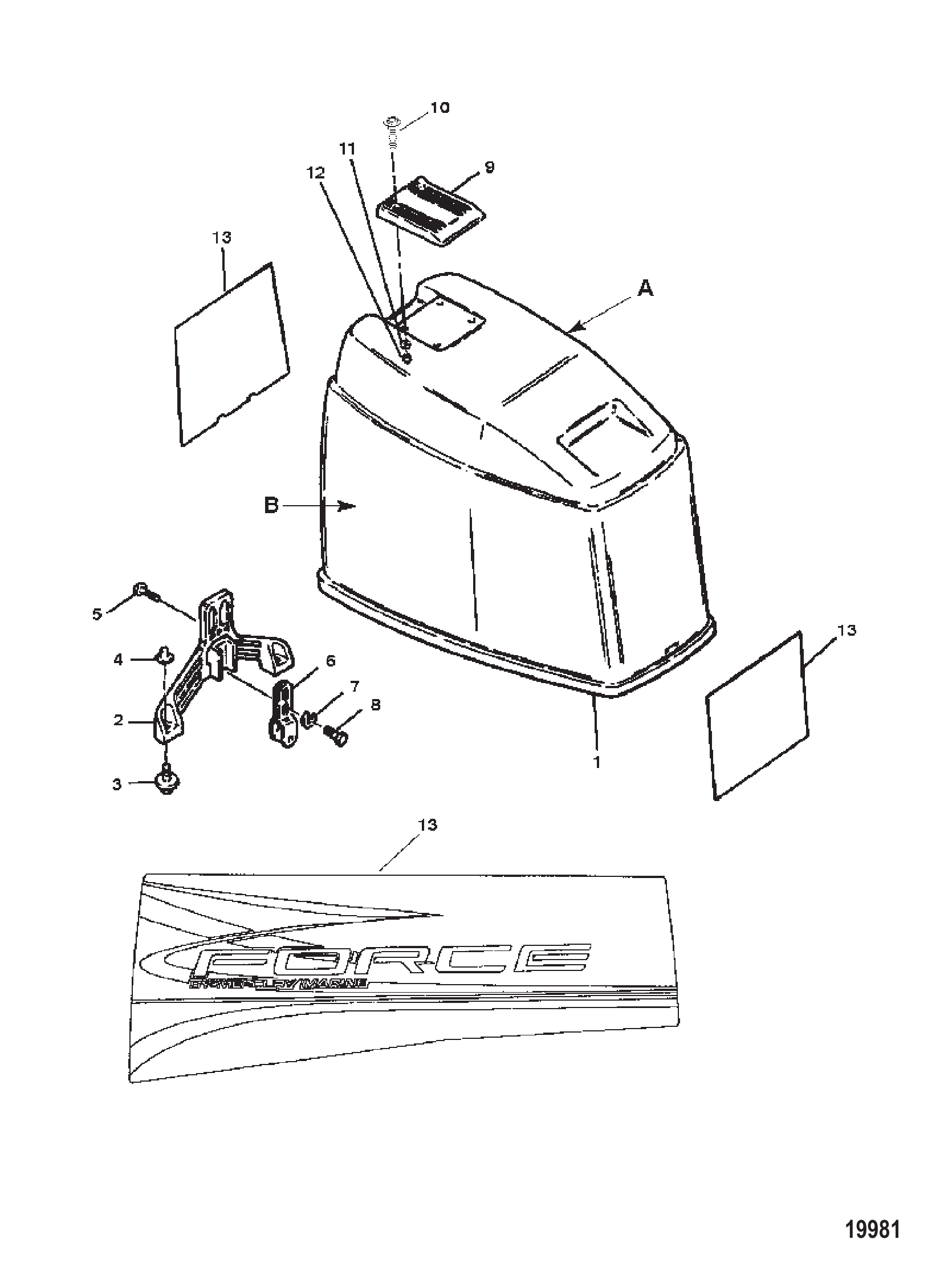

图 4外罩总成（顶部） Cowl Assembly (Top)

REF	零件编号	中文名称	英文名称	数量
1	819364A7	顶罩总成(上部)(无贴花)	TOP COWL ASSEMBLY Top (Without Decals)	1
1	819364T9	基本罩总成	COWL ASSY-BASIC	1
2	8198141	罩盖锁扣支架	BRACKET Cowl Latch	1
3	F481434	罩盖锁扣导架	GUIDE Cowl Latch Bracket	2
4	F2088	紧固件	FASTENER	2
4	91925	压入式螺母	PUSH NUT	2
5	28639	250-20×0.625 螺钉	SCREW (250-20 x .625)	3
6	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
6	893763	滚轮锁扣支架	BRACKET Roller Latch	1
7	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
8	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
9	828477	倾斜手柄	HANDLE Tilt	1
10	828478	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	4
11	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
11	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
12	56374	螺母 (.250-20)	NUT (.250-20)	4
12	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	4
NS	827291		BLANKET Sound (Top)	1
NS	F663985	隔音毯(左舷和右舷)	BLANKET Sound (Port And Starboard)	2
13	820737A95	贴花套件	DECAL SET	1
NS	809861A96	贴花套件	DECAL SET	1
NS	852953A97	贴花套件	DECAL SET	1
NS	852953A97	贴花套件	DECAL SET	1

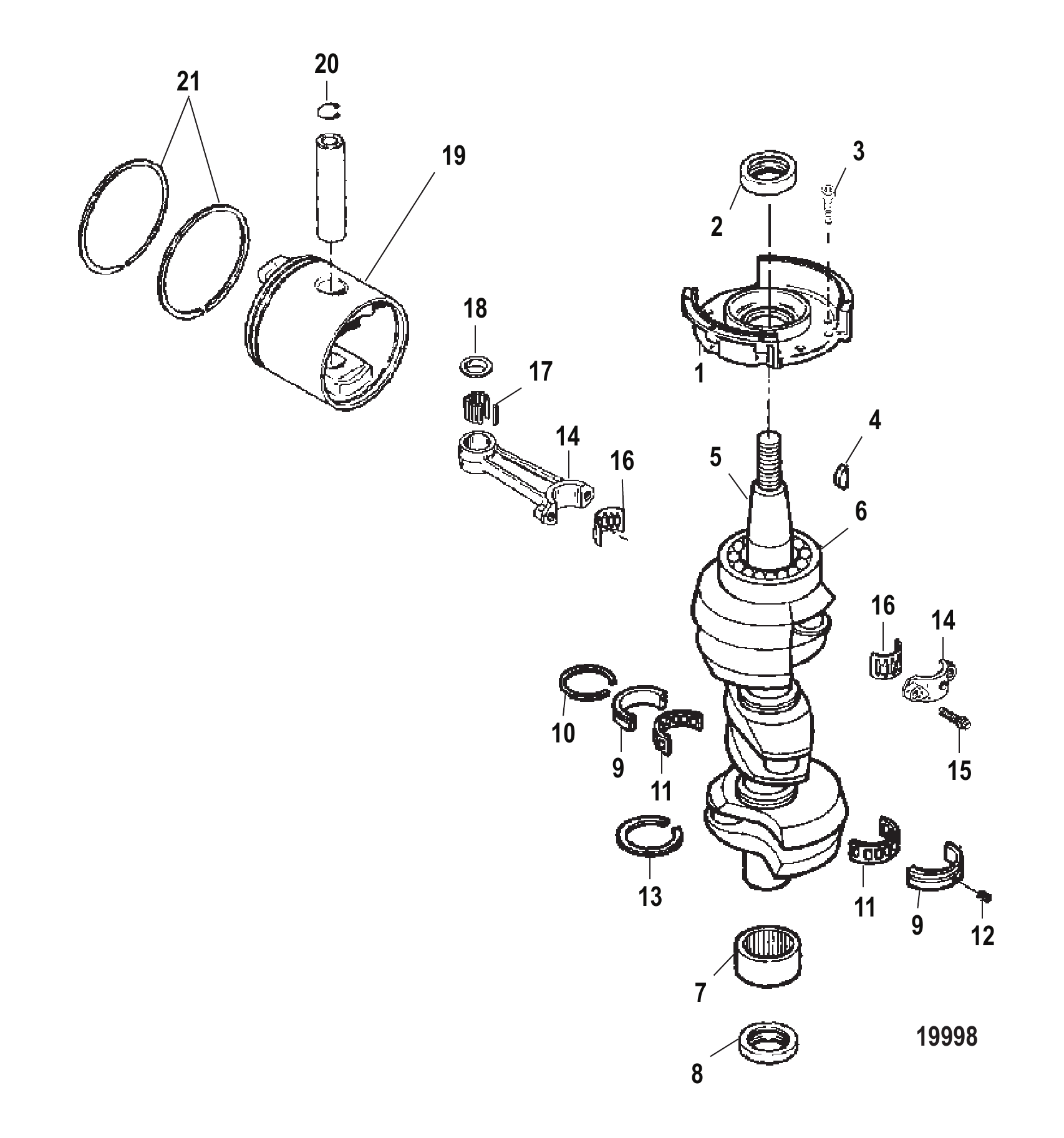

图 5曲轴、活塞与连杆 Crankshaft And Piston And Conn Rods

REF	零件编号	中文名称	英文名称	数量
1	819312A3	曲轴上端保持架总成	CAGE ASSEMBLY Crankshaft Upper	1
1	819312T3	保持架总成-40/150	CAGE ASSY-40/150	1
2	828626	曲轴上端油封	SEAL Crankshaft Upper	1
3	92160	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	5
4	91800	曲轴/飞轮半圆键	KEY Woodruff Crankshaft / Flywheel	1
5	828305A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	828305T1	曲轴总成	CRANKSHAFT ASSY	1
6	F284659-2	上滚珠轴承	BEARING Ball Upper	1
6	803893T	滚珠轴承	BEARING-BALL	1
7	818050A3	下端轴承总成	BEARING ASSEMBLY Lower	1
7	818050T3	轴承总成	BEARING ASSY	1
8	828627	曲轴下端密封	SEAL Crankshaft Lower	1
9	FA85655-1	中央主轴承总成	BEARING ASSEMBLY Center Main	2
9	803604T	中央主轴承	BEARING-CTR MAIN	2
10	F85410	卡环	RING Snap	2
11	819193	保持架/滚子组	CAGE/ROLLER SET	2
12	823605	定位销	PIN Locating	3
13	F316579	曲轴箱密封件	SEAL Crankcase	2
14	9612A2	连杆总成	CONNECTING ROD ASSEMBLY	3
14	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
15	91012		SCREW (.250-28 Special) Connecting Rod	6
16	17514A2	滚子轴承套件	BEARING KIT Roller	3
16	8M0234886	轴承保持架	CAGE BEARING	3
17	47270	滚针轴承	BEARING Needle	87
17	8M0214934	滚针轴承@200	BRG-NEEDLE @200	87
18	812876	止推垫圈	WASHER Thrust	6
18	8M0012298	止推垫片	THRUST WASHER	6
19	828304A2	活塞套件	PISTON KIT	3
19	828304A13	标准活塞组件	PISTON KIT-STD	3
19	828304A3	活塞套件	PISTON KIT	OPT
19	828304A14	0.015加大活塞组件	PISTON KIT-.015	OPT
19	828304A4	活塞套件	PISTON KIT	OPT
19	828304A15	活塞套件-.030	PISTON KIT-.030	OPT
20	52035	锁环	RING Lock	6
20	857196	锁紧环	LOCK RING	6
21	828565A1	活塞环组	RING SET	3
21	828564A4	活塞环组	RING SET	3
21	828565A2	活塞环组	RING SET	OPT
21	828564A5	活塞环组	RING SET	OPT
21	828565A3	活塞环组	RING SET	OPT
21	828564A6	活塞环组	RING SET	OPT
-	809122A2	动力头衬垫套件	GASKET SET Powerhead	1
-	818153A41	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A57	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1

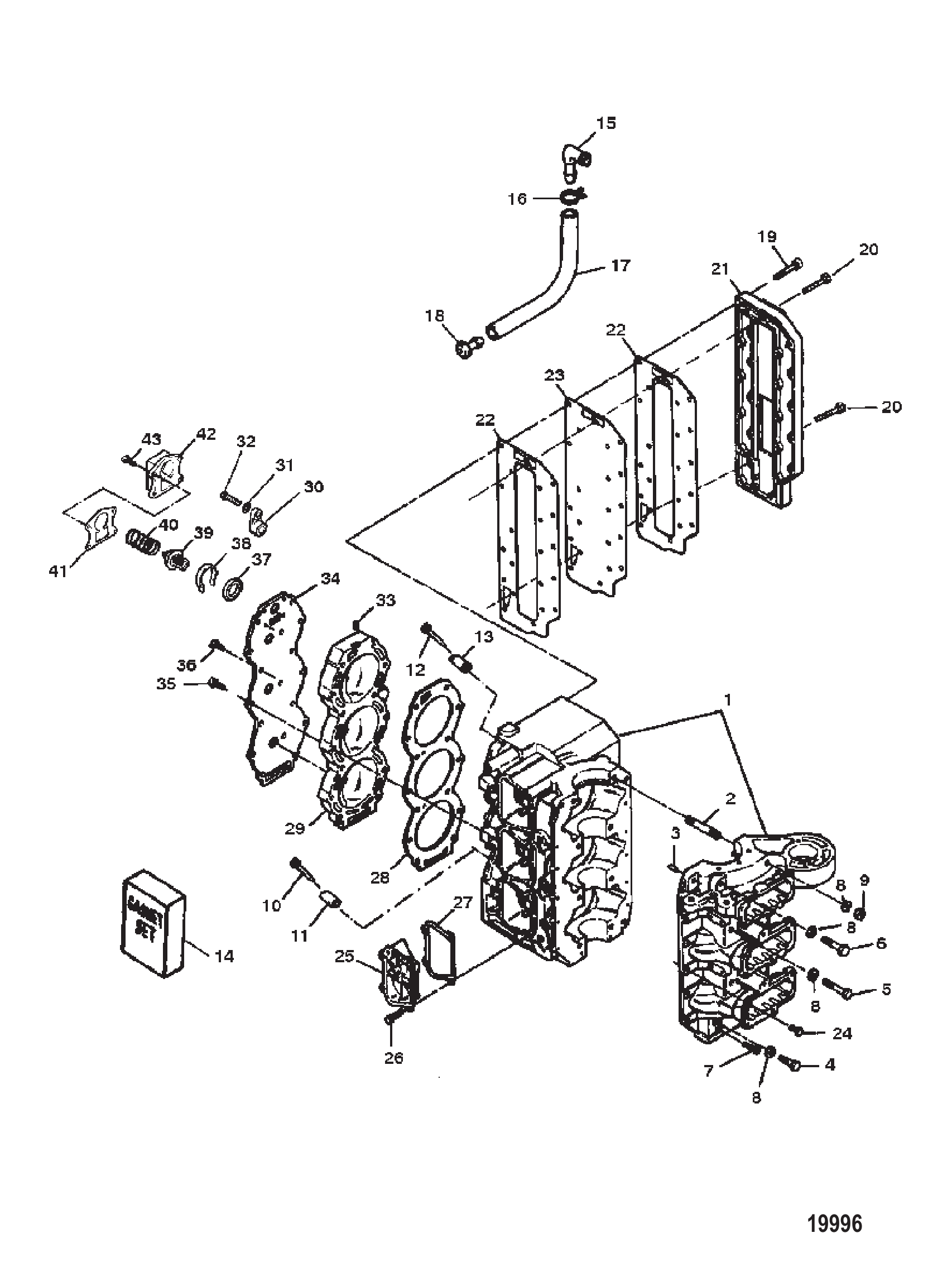

图 6气缸体总成（序列号 0E138600 至 0E173408） Cylinder Block Assembly (Serial # 0E138600 Thru 0E173408)

REF	零件编号	中文名称	英文名称	数量
1	818153A41	动力头总成(完整)	POWERHEAD ASSEMBLY (Complete)	1
1	818153A64	动力头总成	POWERHEAD ASSEMBLY	1
1	818153A39	气缸体套件	CYLINDER BLOCK KIT	1
1	818153A55	气缸体套件	CYLINDER BLOCK KIT	1
2	826394	双头螺柱(.375-16 x 3.843)	STUD (.375-16 x 3.843)	1
2	8263942	螺柱	STUD	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	32132	螺钉(.375-16 x 1.750)	SCREW (.375-16 x 1.750)	2
5	53734	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	4
6	47688	螺丝 (.375-16 x 2.750)	SCREW (.375-16 x 2.750)	1
7	820589	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	2
8	828271	垫圈	WASHER	8
9	86226	螺母（.375-16）	NUT (.375-16)	1
9	8M0204671	螺母	NUT	1
10	F719372	水套管销	PIN Water Jacket Tube	2
11	F719418	水套管	TUBE Water Jacket	2
12	F691372	水套管销(顶部)	PIN Water Jacket Tube (Top)	1
13	F719943	水套管(顶部)	TUBE Water Jacket (Top)	1
14	809122A2	动力头衬垫套件	GASKET SET Powerhead	1
15	99664	弯头	ELBOW	1
15	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
16	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
17	830756109	软管(57.00英寸散装)(裁切16.00英寸)	HOSE (57.00 Inches Bulk) (Cut 16.00 Inches)	1
17	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
18	813613	示踪接头	FITTING Tell Tale	1
19	819110125	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	21
20	819110150	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	2
21	F692152	排气口盖	COVER Exhaust Port	1
21	803932T	排气盖	COVER-EXHAUST	1
22	8190231	排气口板衬垫	GASKET Exhaust Port Plate	2
23	8192831	排气口板	PLATE Exhaust Port	1
24	819110075	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	12
25	8197373	换气口盖	COVER Transfer Port	2
26	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	8
27	8205002	换气口盖垫片	GASKET Transfer Port Cover	2
28	8204381	气缸盖衬垫	GASKET Cylinder Head	1
28	820438	衬垫	GASKET	1
29	819857A3	气缸盖套件	CYLINDER HEAD KIT Cylinder	1
30	44552	温控开关固定座	RETAINER Thermoswitch	1
30	889733	固定座	RETAINER	1
31	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
31	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
32	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
32	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	F722109-1	气缸盖尼龙塞	PLUG (Nylon) Cylinder Head	1
34	F692995	气缸盖罩	COVER Cylinder Head	1
35	79654	螺钉(.312-18 x 2.380)	SCREW (.312-18 x 2.380)	14
36	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	3
37	F664914	密封件（节温器）	SEAL Thermostat	1
38	828311	隔套	SPACER	1
38	8283111	隔套	SPACER	1
39	F664068	节温器54°C(130°F)	THERMOSTAT 54°C (130°F)	1
40	F664268	弹簧	SPRING	1
41	828319	节温器盖衬垫	GASKET Thermostat Cover	1
42	8196931	节温器盖	COVER Thermostat	1
43	19932075	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
-	809122A2	动力头衬垫套件	GASKET SET Powerhead	1

图 7气缸体总成（序列号 0E173409 至 0E287999） Cylinder Block Assembly (Serial # 0E173409 Thru 0E287999)

REF	零件编号	中文名称	英文名称	数量
1	818153A57	动力头总成(完整)	POWERHEAD ASSEMBLY (Complete)	1
1	818153A64	动力头总成	POWERHEAD ASSEMBLY	1
1	818153A55	气缸体套件	CYLINDER BLOCK KIT	1
2	826394	双头螺柱(.375-16 x 3.843)	STUD (.375-16 x 3.843)	1
2	8263942	螺柱	STUD	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	32132	螺钉(.375-16 x 1.750)	SCREW (.375-16 x 1.750)	2
5	53734	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	4
6	47688	螺丝 (.375-16 x 2.750)	SCREW (.375-16 x 2.750)	1
7	820589	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	2
8	828271	垫圈	WASHER	8
9	86226	螺母（.375-16）	NUT (.375-16)	1
9	8M0204671	螺母	NUT	1
10	F719372	水套管销	PIN Water Jacket Tube	2
11	F719418	水套管	TUBE Water Jacket	2
12	F691372	水套管销(顶部)	PIN Water Jacket Tube (Top)	1
13	F719943	水套管(顶部)	TUBE Water Jacket (Top)	1
14	809122A2	动力头衬垫套件	GASKET SET Powerhead	1
15	99664	弯头	ELBOW	1
15	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
16	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
17	830756109	软管(57.00英寸散装)(裁切16.00英寸)	HOSE (57.00 Inches Bulk) (Cut 16.00 Inches)	1
17	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
18	813613	示踪接头	FITTING Tell Tale	1
19	819110125	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	21
20	819110150	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	2
21	F692152	排气口盖	COVER Exhaust Port	1
21	803932T	排气盖	COVER-EXHAUST	1
22	8190231	排气口板衬垫	GASKET Exhaust Port Plate	2
23	8192831	排气口板	PLATE Exhaust Port	1
24	819110075	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	12
25	8197373	换气口盖	COVER Transfer Port	2
26	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	8
27	8205002	换气口盖垫片	GASKET Transfer Port Cover	2
28	8204381	气缸盖衬垫	GASKET Cylinder Head	1
28	820438	衬垫	GASKET	1
29	819857A3	气缸盖套件	CYLINDER HEAD KIT Cylinder	1
30	44552	温控开关固定座	RETAINER Thermoswitch	1
30	889733	固定座	RETAINER	1
31	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
31	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
32	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
32	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	F722109-1	气缸盖尼龙塞	PLUG (Nylon) Cylinder Head	1
34	F692995	气缸盖罩	COVER Cylinder Head	1
35	79654	螺钉(.312-18 x 2.380)	SCREW (.312-18 x 2.380)	14
36	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	3
37	F664914	密封件（节温器）	SEAL Thermostat	1
38	828311	隔套	SPACER	1
38	8283111	隔套	SPACER	1
39	F664068	节温器54°C(130°F)	THERMOSTAT 54°C (130°F)	1
40	F664268	弹簧	SPRING	1
41	828319	节温器盖衬垫	GASKET Thermostat Cover	1
42	8196931	节温器盖	COVER Thermostat	1
43	19932075	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
-	809122A2	动力头衬垫套件	GASKET SET Powerhead	1

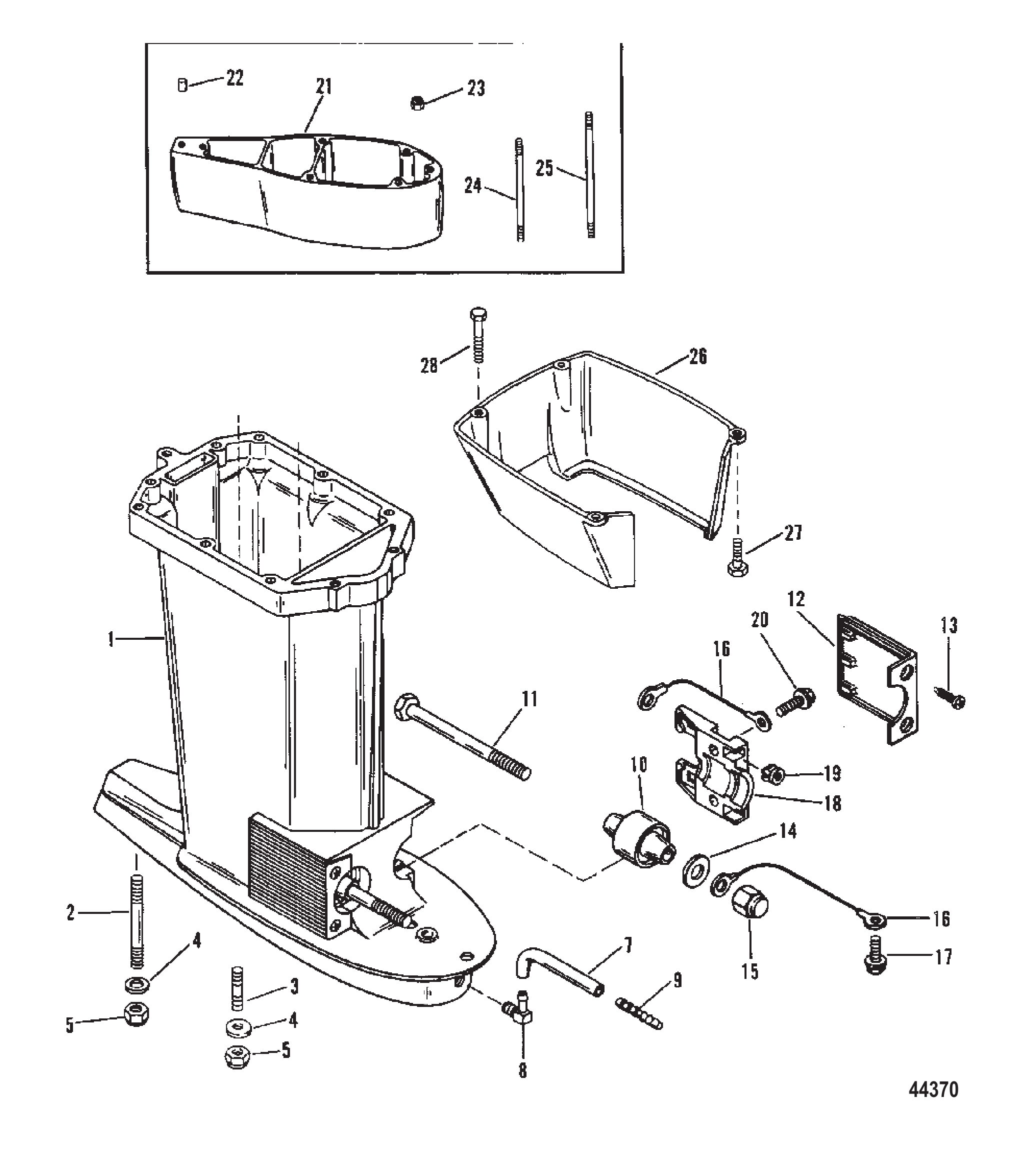

图 8驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	8974A25	传动轴壳体套件(喷漆)	HOUSING KIT Driveshaft (Painted)	1
1	8974A28	驱动轴壳体套件	HOUSING KIT Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
4	43042	垫圈	WASHER	5
4	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	5
5	13914	螺母(M10)	NUT (M10)	5
5	40140	螺母(M10)	NUT (M10)	5
7	85822A4	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
8	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
8	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
9	85822	直通接头	CONNECTOR Straight	1
9	85822T	直通接头	CONNECTOR Straight	1
10	42930	支架(长型)	MOUNT (LONG)	2
10	42930A1	下支架总成	MOUNT ASSEMBLY Lower	2
10	44343	支架(加长型)	MOUNT (X-LONG)	2
10	44343T1	支架	MOUNT	2
11	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
11	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
12	67077F2	盖板(喷漆)	COVER (Painted)	2
12	8M4500752	盖板	COVER	2
13	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
14	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
15	43528	螺母(M12)	NUT (M12)	2
15	8M0204662	螺母	NUT	2
16	88238A1	接地线总成	CABLE ASSEMBLY Ground	2
16	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
17	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
18	93192	下支座夹箍	CLAMP Lower Mount	2
18	8M0036730	卡箍	CLAMP	2
19	35521	专用螺母	NUT (Special)	4
20	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
21	12092A12	垫片套件(喷漆)	SPACER KIT (Painted)	1
21	12092A15	隔套套件	SPACER KIT	1
22	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
22	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
23	13914	螺母(M10)	NUT (M10)	4
23	40140	螺母(M10)	NUT (M10)	4
24	903503	双头螺柱(M10×190)	STUD (M10 x 190)	4
25	903502	双头螺柱(M10×227)	STUD (M10 x 227)	1
26	819955	装饰盖(喷漆)	TRIM COVER (Painted)	1
26	819955T	配平盖	TRIM COVER	1
27	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
28	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2

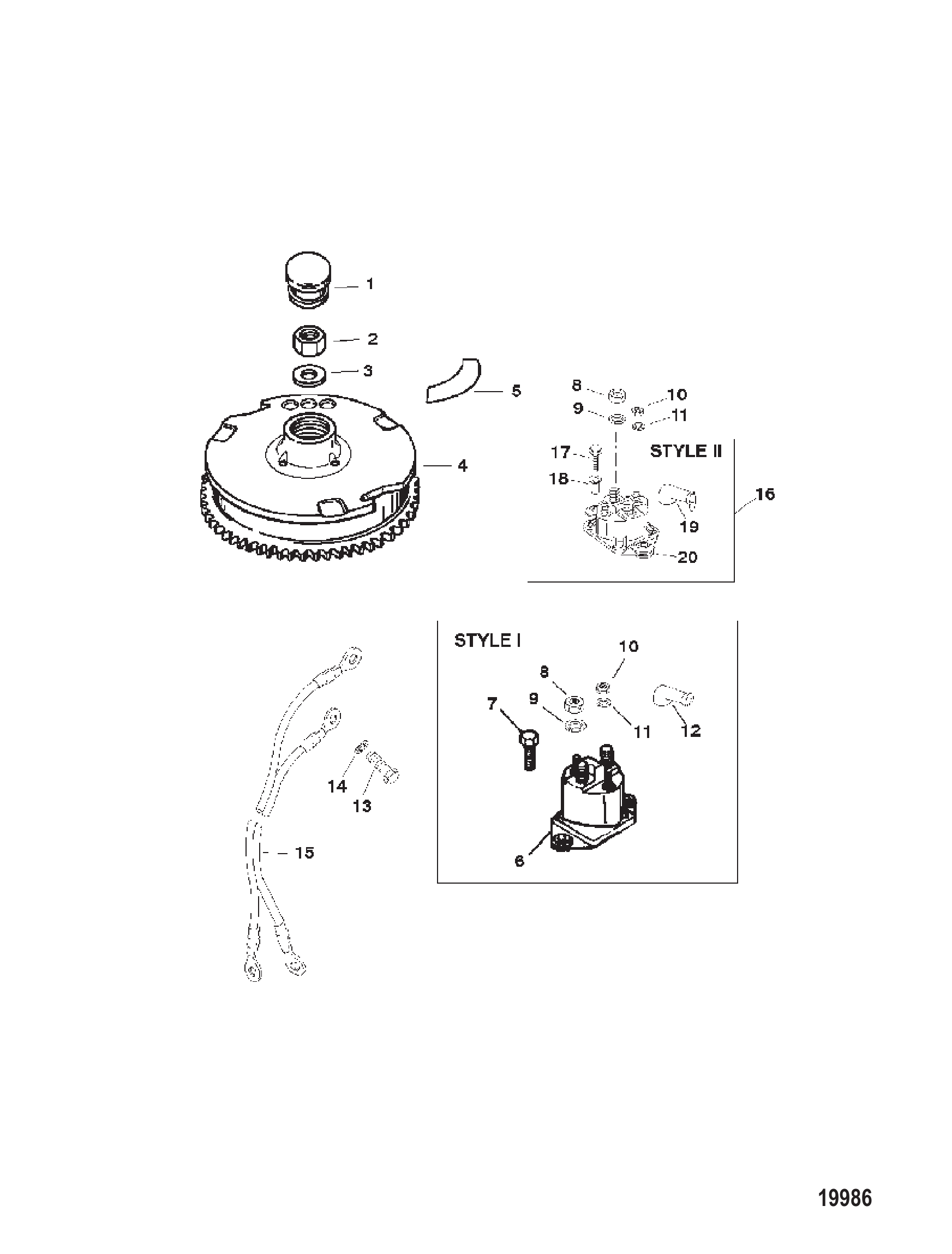

图 9电气组件（飞轮与继电器） Electrical Components (Flywheel And Relays)

REF	零件编号	中文名称	英文名称	数量
1	45907	黄色曲轴/飞轮塞	PLUG Yellow Crankshaft/Flywheel	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	9008A36	飞轮总成	FLYWHEEL ASSEMBLY	1
4	859236T14	飞轮总成	FLYWHEEL ASSY	1
5	FA609853		DECAL Shift To Neutral	1
5	825149A1	贴花套件	DECAL KIT	1
6	F460917-1	启动继电器(I型)	RELAY Starter (Style I)	1
6	817109A3	电磁阀组件	SOLENOID KIT	1
7	19932062	螺钉(.250-20x.620)(I型)	SCREW (.250-20 x .620) (Style I)	2
8	68292	螺母(.312-18)	NUT (.312-18)	2
8	8M0204668	螺母(.312-18)	NUT (.312-18)	2
9	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
10	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
11	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
12	830233	护套绝缘体-红色启动继电器	BOOT Insulator - Red Starter Relay	1
13	39349	接地不锈钢螺钉(.312-18x.750)	SCREW (.312-18 x .750) Stainless Steel Ground	1
14	53166	接地锁紧垫圈(.312)	LOCKWASHER (.312) Ground	1
15	F381896-4	电池电缆总成	CABLE ASSEMBLY Battery	1
15	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
16	817109A3	电磁阀套件(II型)	SOLENOID KIT (Style II)	1
17	853652	螺钉(.250-20x1.125)(II型)	SCREW (.250-20 x 1.125) (Style II)	2
18	818968	衬套(II型)	BUSHING (Style II)	2
18	8M0214955	衬套	BUSHING	2
19	830233	红色绝缘护套(II型)	BOOT Insulator - Red (Style II)	1
20	822179	索环(II型)	GROMMET (Style II)	2

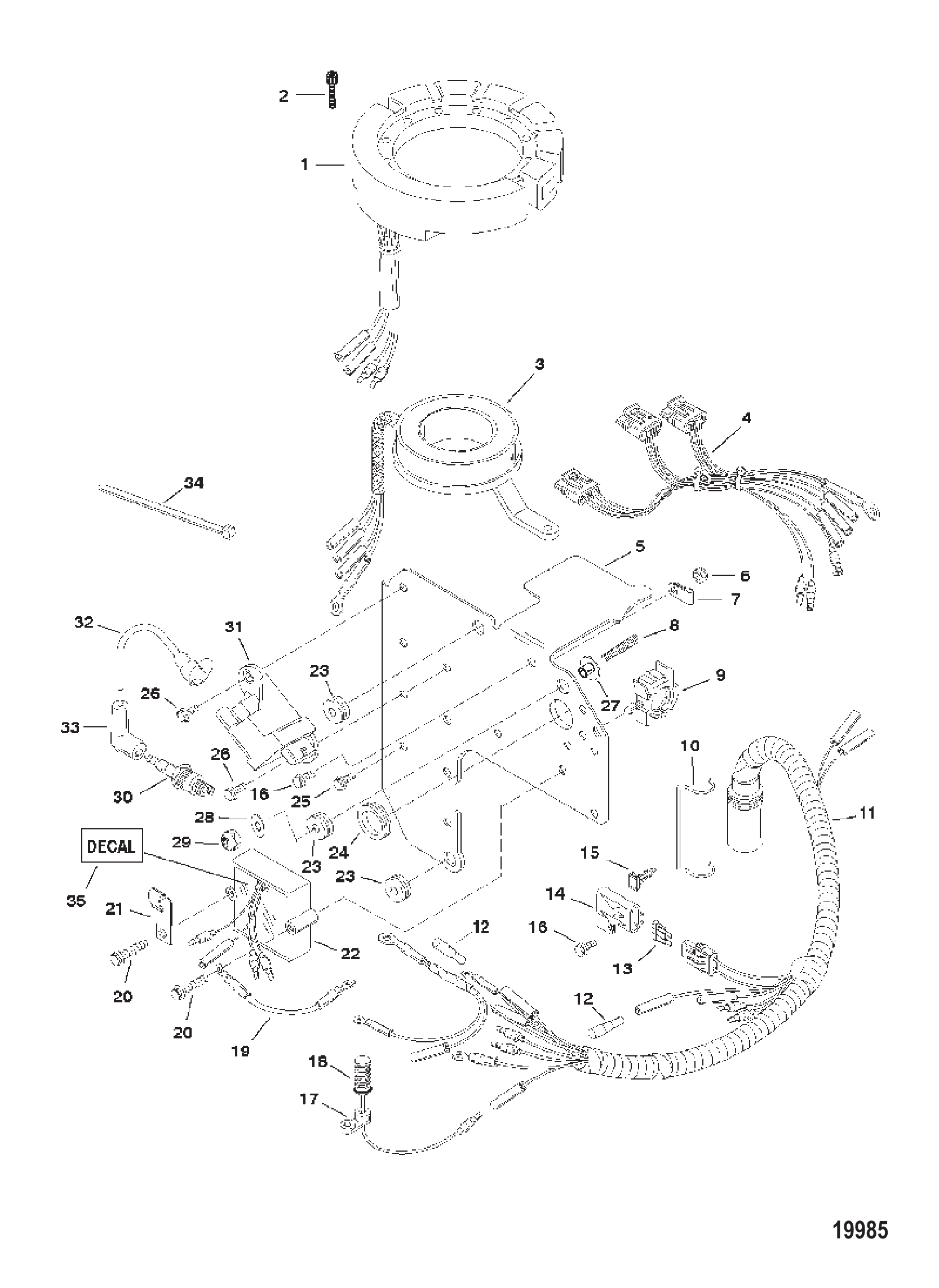

图 10电气组件（点火系统） Electrical Components (Ignition)

REF	零件编号	中文名称	英文名称	数量
1	9873A28	定子总成(黑色)	STATOR ASSEMBLY (Black)	1
1	832075A21	定子总成	STATOR ASSEMBLY	1
1	832075A4		IGNITION STATOR KIT (Red)	1
1	832075A21	定子总成	STATOR ASSEMBLY	1
2	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	6
3	828302A1	触发器总成	TRIGGER ASSEMBLY	1
4	828298A1	点火线束总成	HARNESS ASSEMBLY Ignition	1
5	8283121	点火组件板	PLATE Ignition Components	1
6	8268336	螺母 (M6)	NUT (M6)	2
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
7	820437	线束固定夹	CLIP Harness Retainer	2
8	830228	双头螺柱(.312-18/.250-28 x 1.750)	STUD (.312-18/.250-28 x 1.750)	3
8	8302281	螺柱	STUD	3
9	828791	线束压紧夹	CLIP Harness Hold Down	1
10	92753	线束固定座	RETAINER Harness	1
11	828297A1	线束总成	HARNESS ASSEMBLY	1
12	13541	公插头	PLUG Male	2
13	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
14	828054	保险丝盖	COVER Fuse	1
15	828991	保险丝固定夹	CLIP Fuse Holder	1
15	828991T	卡扣	CLIP	1
16	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	2
17	44552	温控开关至气缸头固定座	RETAINER Thermoswitch To Cylinder Head	1
17	889733	固定座	RETAINER	1
18	8190221	温控开关	THERMOSWITCH	1
18	819022T01	温控开关	THERMOSWITCH	1
19	88807A21	电缆总成(黑色)	CABLE ASSEMBLY (Black)	1
20	82129135	螺钉(M6x35)	SCREW (M6 x 35)	2
21	54457	J型卡扣	J CLIP	1
22	815279T5	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
22	883071A1	电压调节器组件-BULL	REG KIT-VOLT-BULL	1
23	822002	护孔环	GROMMET	3
24	828836	护孔环	GROMMET	1
25	4010620	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
26	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	6
27	822003	衬套	BUSHING	3
28	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
28	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	3
29	828451	螺母(.250-28)	NUT (.250-28)	3
30	827C	火花塞(冠军牌L76V)	SPARK PLUG (Champion # L76V)	3
30	896329827	SP #L76V @4	SP #L76V @4	3
30	898	火花塞(RFI)(冠军牌QL76V)	SPARK PLUG (RFI) (Champion # QL76V)	OPT
30	896329898	SP #QL76V @4	SP #QL76V @4	OPT
31	827509A4	CDM模块总成(按需裁线)	CDM MODULE ASSEMBLY (Cut Wire As Required)	3
31	827509A10	CDM模块总成	CDM MODULE ASSEMBLY	3
32	821945A61	高压电缆总成	CABLE ASSEMBLY Hi Tension	3
33	63709A1	护套/端子套件(高压电缆)	BOOT/TERMINAL KIT Hi-Tension Cable	3
34	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
35	819526	油门线调节标签	DECAL Throttle Cable Adjustment	1
-	818153A41	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A57	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1

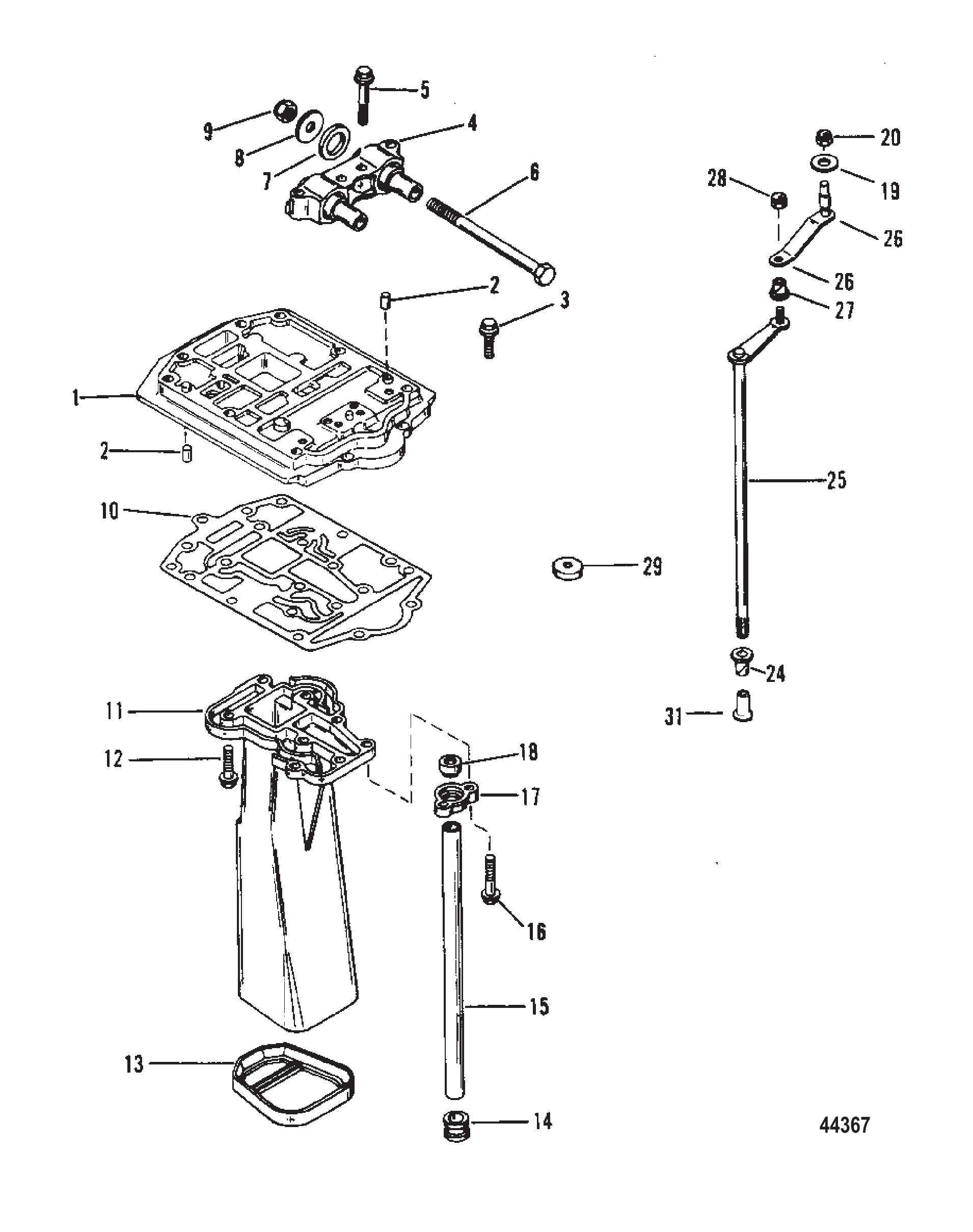

图 11排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	820194A1	排气板总成	PLATE ASSEMBLY Exhaust	1
2	23784	定位销	PIN Dowel	5
3	4008920	不锈钢螺钉(M8 x 20)	SCREW (M8 x 20) Stainless Steel	3
4	429492	支架(2.375英寸)(长型)	MOUNT (2.375 Inch) (LONG)	1
4	8M0021331	ORD 881900T03	ORD 881900T03	1
4	443442	支架(2.375英寸)(加长型)	MOUNT (2.375 Inch) (X-LONG)	1
4	881900T03	支架	MOUNT	1
5	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	4
6	42974	螺栓(M12×175)	BOLT (M12 x 175)	2
6	8M0238139	螺钉	SCREW	2
7	93416	垫圈	WASHER	2
7	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
8	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
9	90099	螺母(M12)	NUT (M12)	2
9	896963	螺母(M12)	NUT (M12)	2
10	430086	排气板/排气管衬垫	GASKET Exhaust Plate/Exhaust Tube	1
11	429666	排气管	TUBE Exhaust	1
12	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	6
13	42962	排气管密封件	SEAL Exhaust Tube	1
13	8M0039075	密封件	SEAL	1
14	894171	下端水管索环	GROMMET Water Tube Lower	1
14	89417004	护孔环	GROMMET	1
15	8246601	水管(长型)	TUBE Water (LONG)	1
15	8M0042791	长型水管	TUBE-WATER-LONG	1
15	8246602	水管(加长型)	TUBE Water (X-LONG)	1
15	8M0042792	水管-XL	TUBE-WATER-XL	1
16	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
17	824661	水管夹	CLAMP Water Tube	1
18	814080	上水管密封件	SEAL Water Tube Upper	1
18	814080001	密封件	SEAL	1
19	35459	垫圈	WASHER	1
20	400634	螺母 (M6)	NUT (M6)	1
20	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
24	48237	衬套	BUSHING	1
25	79932A9	换挡轴总成	SHIFT SHAFT ASSEMBLY Shift Shaft	1
26	820278A1	换挡连杆总成	LINK ASSEMBLY Shift	1
27	48475	衬套	BUSHING	1
28	400634	螺母 (M6)	NUT (M6)	1
28	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
29	43041	长隔套	SPACER (LONG)	1
29	813745	隔套	SPACER	1
29	11289		SPACER (X-LONG)	1
31	43585	联轴器	COUPLING	1

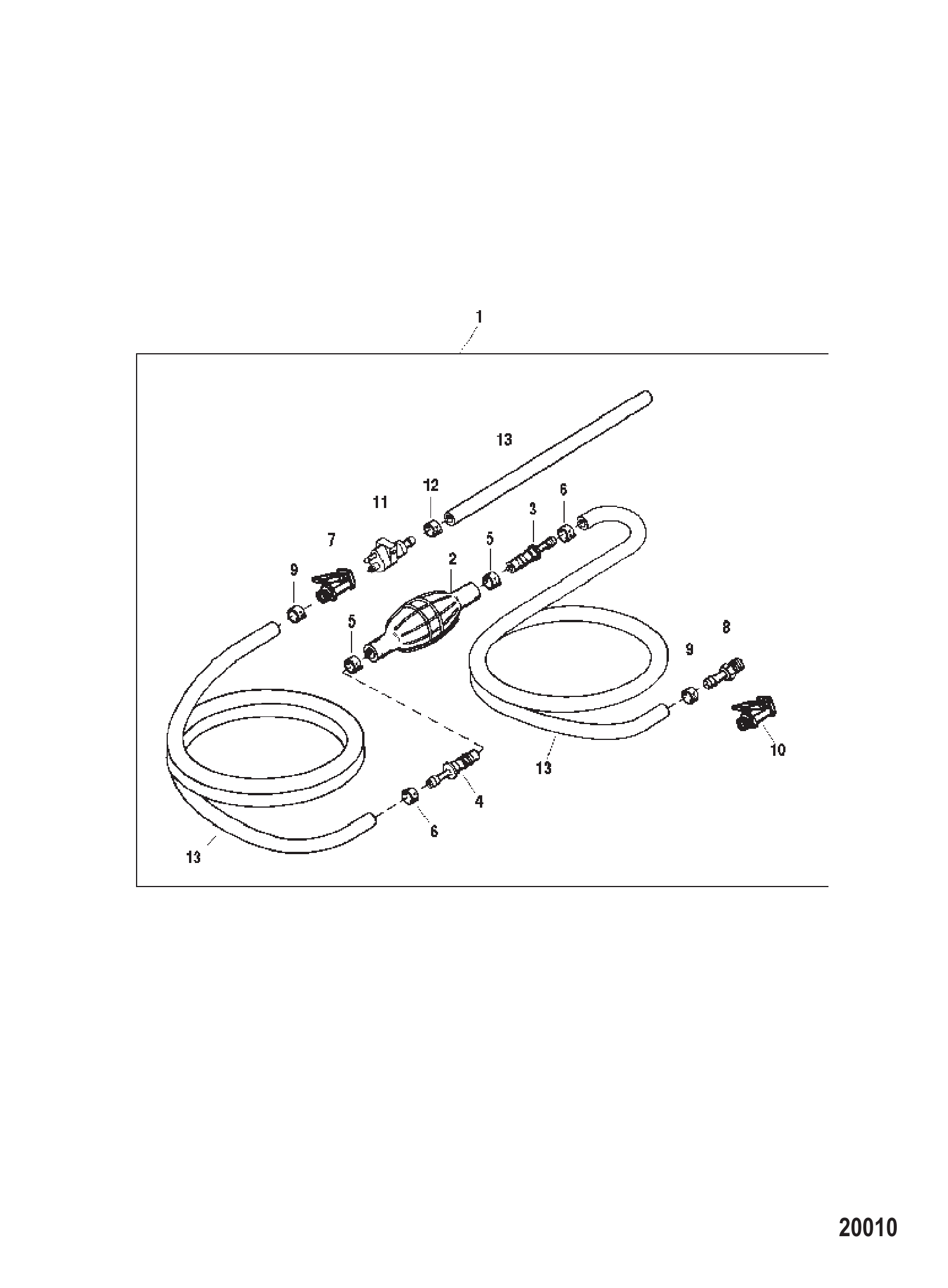

图 12燃油管路总成 Fuel Line Assembly

REF	零件编号	中文名称	英文名称	数量
1	17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
1	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
1	17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
1	877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
2	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
2	13330Q07	注油泵总成 - Quicksilver品牌	BULB ASSEMBLY Primer - Quicksilver Brand	1
3	13331A1	止回阀总成(进口)	CHECK VALVE ASSEMBLY (Inlet)	1
3	13331A3	止回阀总成	CHECK VALVE ASSEMBLY	1
4	13331A2	止回阀总成(出口)	CHECK VALVE ASSEMBLY (Outlet)	1
4	13331A4	止回阀总成	CHECK VALVE ASSEMBLY	1
5	4158210	尼龙卡箍(大)	CLAMP Nylon (Large)	2
6	415827	尼龙卡箍(小)	CLAMP Nylon (Small)	2
6	41582Q7	卡箍	CLAMP	2
7	13563A3	发动机燃油管接头总成	FITTING ASSEMBLY Fuel Line Engine	1
7	13563Q3	发动机端快速接头(水星)	QUICK DISCONNECT Engine End (Quicksilver)	1
8	897711	接头(.250-18)(黄铜)-燃油箱	CONNECTOR (.250-18) (Brass)-Fuel Tank	1
8	89771Q2	连接器(.250-18)	CONNECTOR (.250-18)	1
9	415827	尼龙卡箍	CLAMP Nylon	OPT
9	41582Q7	卡箍	CLAMP	OPT
9	F698772	蜗轮卡箍(不锈钢)	CLAMP Worm Gear (Stainless Steel)	OPT
1	827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
1	877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
1	827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
1	877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
2	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
3	13331A1	止回阀总成(进口)	CHECK VALVE ASSEMBLY (Inlet)	1
4	13331A2	止回阀总成(出口)	CHECK VALVE ASSEMBLY (Outlet)	1
5	4158210	尼龙卡箍(大)	CLAMP Nylon (Large)	2
6	415827	尼龙卡箍(小)	CLAMP Nylon (Small)	2
7	13563A3	发动机燃油管接头总成	FITTING ASSEMBLY Fuel Line Engine	1
9	415827	尼龙卡箍	CLAMP Nylon	OPT
9	F698772	蜗轮卡箍(不锈钢)	CLAMP Worm Gear (Stainless Steel)	OPT
10	13563A7	燃油箱端燃油管接头总成	FITTING ASSEMBLY Fuel Line Fuel Tank End	1
10	13563Q7	燃油管接头总成	FITTING ASSEMBLY Fuel Line	1
1	822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
1	877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
2	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
3	13331A1	止回阀总成(进口)	CHECK VALVE ASSEMBLY (Inlet)	1
4	13331A2	止回阀总成(出口)	CHECK VALVE ASSEMBLY (Outlet)	1
5	4158210	尼龙卡箍(大)	CLAMP Nylon (Large)	2
6	415827	尼龙卡箍(小)	CLAMP Nylon (Small)	2
9	415827	尼龙卡箍	CLAMP Nylon	OPT
9	F698772	蜗轮卡箍(不锈钢)	CLAMP Worm Gear (Stainless Steel)	OPT
1	16789A26	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
1	858610A32	燃油软管总成	HOSE ASSEMBLY Fuel	1
2	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
3	13331A1	止回阀总成(进口)	CHECK VALVE ASSEMBLY (Inlet)	1
4	13331A2	止回阀总成(出口)	CHECK VALVE ASSEMBLY (Outlet)	1
5	4158210	尼龙卡箍(大)	CLAMP Nylon (Large)	2
6	415827	尼龙卡箍(小)	CLAMP Nylon (Small)	2
7	13563A3	发动机燃油管接头总成	FITTING ASSEMBLY Fuel Line Engine	1
9	F698772	蜗杆卡箍	CLAMP Worm Gear	OPT
11	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
11	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
12	415827	尼龙卡箍	CLAMP Nylon	OPT
12	41582Q7	卡箍	CLAMP	OPT
12	F698772	蜗轮卡箍(不锈钢)	CLAMP Worm Gear (Stainless Steel)	OPT
13	1678978	软管(9.00英尺整卷)(按需裁切)	HOSE (9.00 Feet Bulk) (Cut As Required)	AR
13	85861079	软管(9.00英尺整卷)	HOSE (9.00 Feet Bulk)	AR
13	16789100	软管(100.00英尺整卷)(按需裁切)	HOSE (100.00 Feet Bulk) (Cut As Required)	AR
13	858610100	软管(100.00英尺整卷)	HOSE (100.00 Feet Bulk)	AR

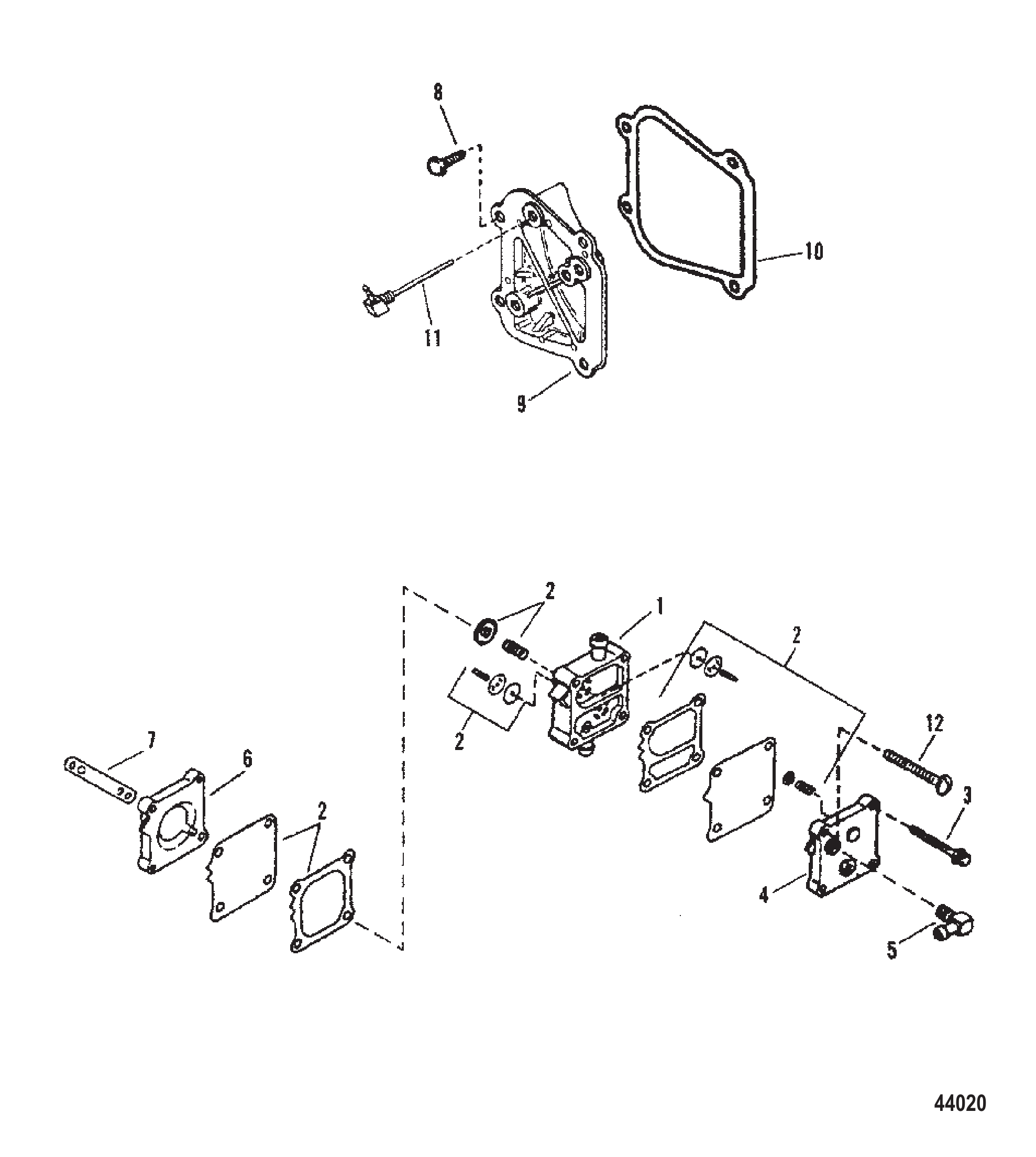

图 13燃油泵总成 Fuel Pump Assembly

REF	零件编号	中文名称	英文名称	数量
1	14360A49	燃油泵套件	PUMP KIT Fuel	1
1	14360A73	燃油泵套件	PUMP KIT-FUEL	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
4	987752	燃油泵板	PLATE Fuel Pump	1
5	99664	弯头	ELBOW	1
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	144303		BASE Fuel Pump	1
7	987691	燃油泵底座衬垫	GASKET Fuel Pump Base	1
7	8M0204705	衬垫@2	GASKET @2	1
8	98254	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	4
9	8178702	燃油泵盖	COVER Fuel Pump	1
9	8178703	燃油泵盖	COVER Fuel Pump	1
10	820500	燃油泵盖衬垫	GASKET Fuel Pump Cover	1
10	820500A3	衬垫套件	GASKET KIT	1
11	F743314	循环弯头	ELBOW Recirculating	1
12	827357	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
13	818153A24	动力头总成	POWERHEAD ASSEMBLY	-
13	818153T24	动力头总成	POWERHEAD ASSY	-
14	809122A1	衬垫套件	GASKET SET	-
14	809122A2	衬垫套件	GASKET SET	-

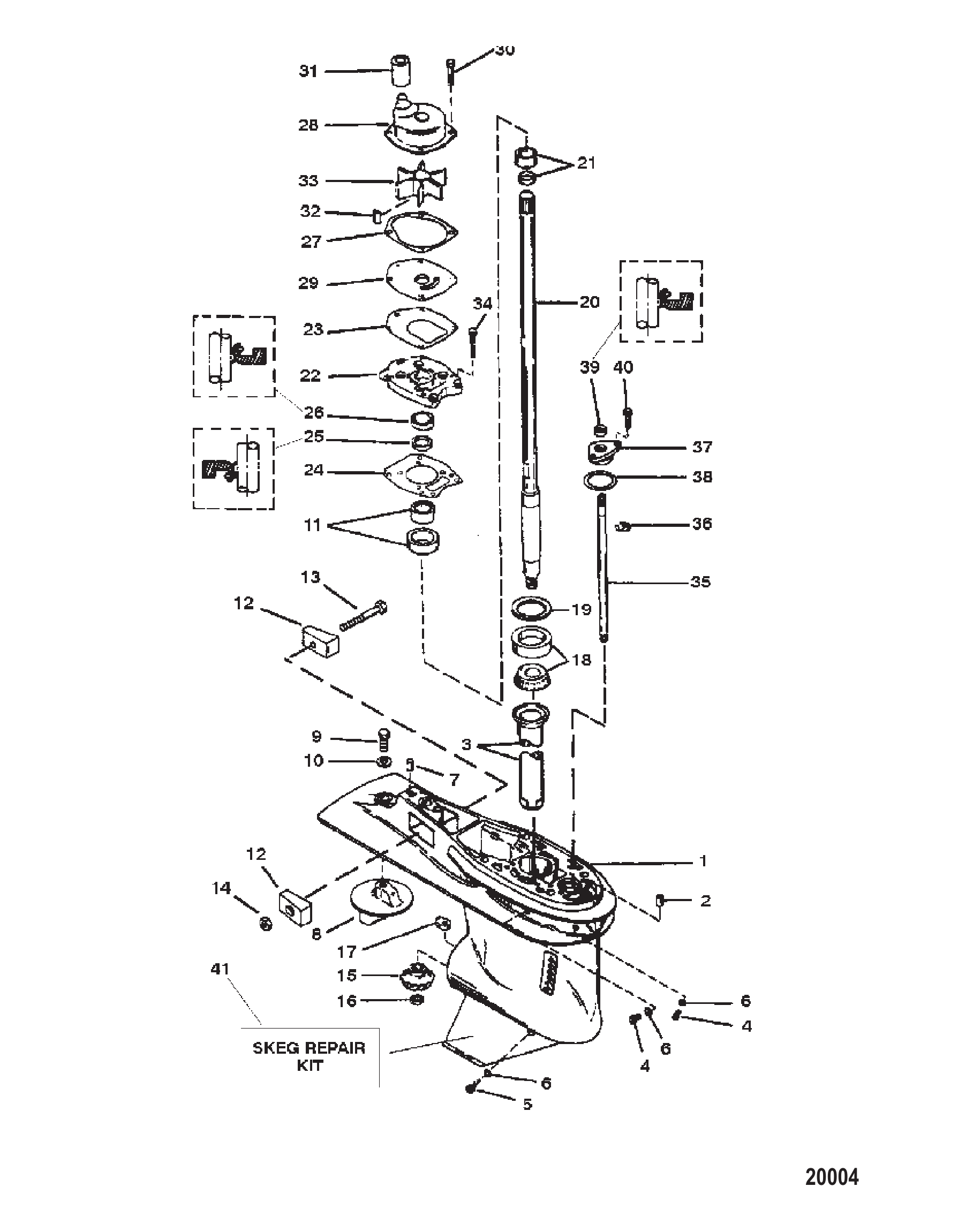

图 14齿轮箱总成（驱动轴）（3爪倒车离合器） Gear Housing Assembly (Driveshaft) (3 Jaw Reverse Clutch)

REF	零件编号	中文名称	英文名称	数量
1	9011A77	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G75	齿轮箱套件	GEAR HSG KIT	1
1	9011A89	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G78	齿轮箱套件-XLONG	GEAR HSG KT-XLONG	1
1	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T80	ORD 1667-9011T73	ORD 1667-9011T73	1
2	43043		PIN Dowel - With Hole (.375 x .625) (Front)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953A2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	2
4	79953Q04	放油螺钉套件	SCREW KIT Drain	2
5	67892A1		FITTING KIT Magnetic, Plug Fill/Drain (Magnetic)	1
5	8M0058389	放油螺钉套件	SCREW KIT Drain	1
6	19183	纤维密封垫圈	WASHER Fiber Sealing	3
6	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
7	43044		PIN Dowel - Without Hole (.375 x .625) (Rear)	1
8	316405	平衡鳍板	TRIM TAB	1
8	8M0236553	平衡鳍板	TRIM TAB	1
9	15942	螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250)	1
9	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
11	43040A1	托架总成	CARRIER ASSEMBLY	1
11	43040T1	托架总成	CARRIER ASSEMBLY	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	44484	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
15	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
16	826375	螺母(0.625-18)	NUT (.625-18)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	76039	换挡凸轮控制	CAM Shift Control	1
17	760394	换挡凸轮控制	CAM Shift Control	1
18	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
19	44492A1	垫片组	SHIM SET	1
19	8M0063265	垫片组	SHIM SET	1
20	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
22	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	430331	衬垫	GASKET	1
24	430472	衬垫	GASKET	1
24	8M0214931	衬垫	GASKET	1
25	43036		SEAL Oil (Lower)	1
26	43035		SEAL Oil (Upper)	1
26	8M0245495	油封	OIL SEAL	1
27	817277	衬垫	GASKET	1
27	8172771	水泵上垫片	GASKET Water Pump, Upper	1
28	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
29	817276	面板	FACEPLATE	1
29	8M0204709	面板	FACEPLATE	1
30	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
31	430232	水管密封件	SEAL Water Tube	1
32	43037	叶轮驱动键	KEY Impeller Drive	1
32	8M0204723	键	KEY	1
33	430262	叶轮	IMPELLER	1
33	43026T2	叶轮	IMPELLER	1
34	82684425	螺钉(M6x25)	SCREW (M6 x 25)	6
35	43048A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	43049A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	29641	E型卡环	E RING	1
37	43052A4	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
38	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
38	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
39	8164641	油封	SEAL Oil	1
39	8M0246145	油封	OIL SEAL	1
40	82684425	螺钉(M6x25)	SCREW (M6 x 25)	2
41	15985A1	齿轮箱尾鳍修复套件	SKEG KIT Gear Housing Repair	1
41	15985A02	艉鳍替换件	SKEG-REPLACEMENT	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1

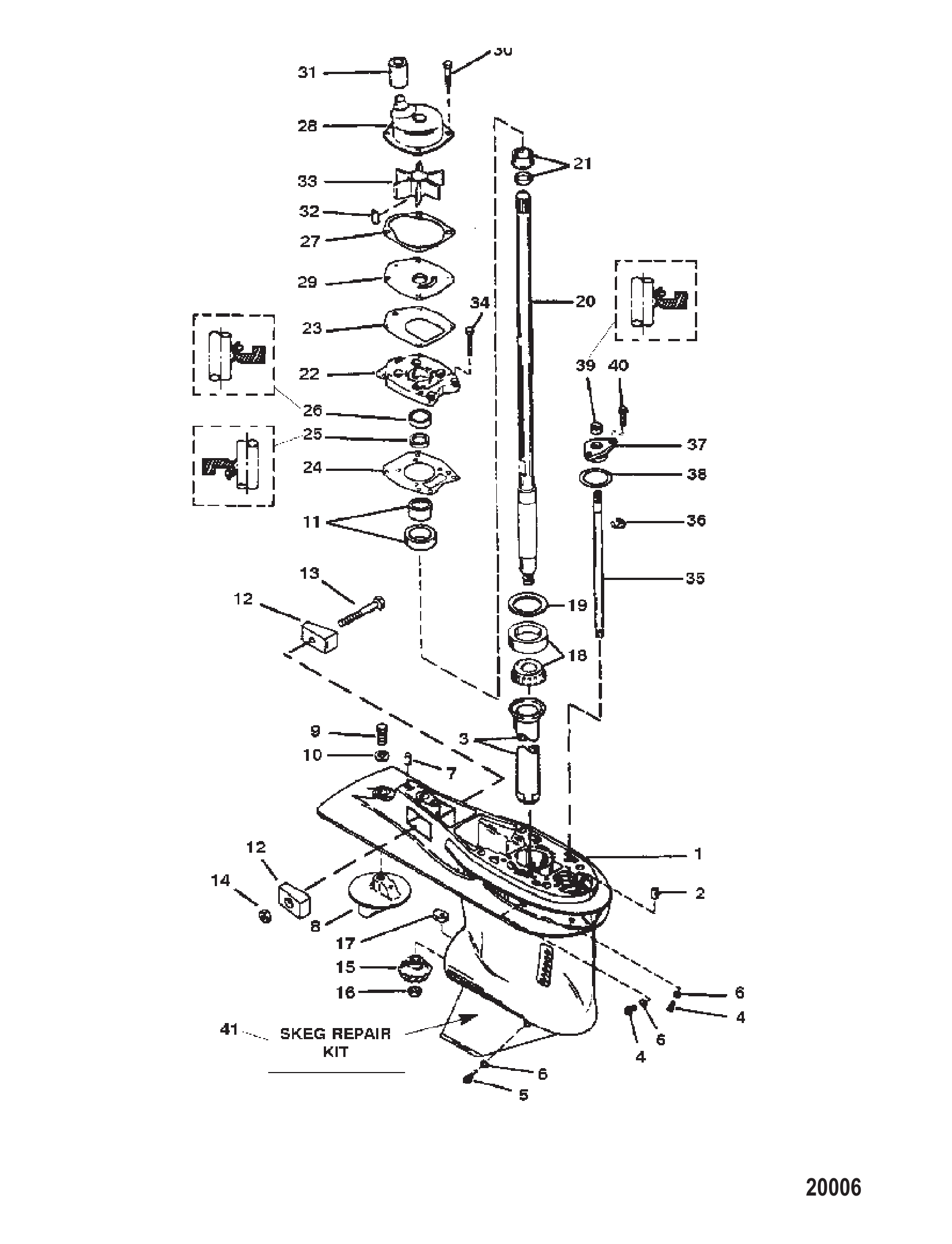

图 15齿轮箱总成（驱动轴）（6爪倒车离合器） Gear Housing Assembly (Driveshaft) (6 Jaw Reverse Clutch)

REF	零件编号	中文名称	英文名称	数量
1	9011G20	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G75	齿轮箱套件	GEAR HSG KIT	1
1	9011G21	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G78	齿轮箱套件-XLONG	GEAR HSG KT-XLONG	1
1	9011G22	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G66	ORD 1667-9011J42	ORD 1667-9011J42	1
2	43043		PIN Dowel - With Hole (.375 x .625) (Front)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953A2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	2
4	79953Q04	放油螺钉套件	SCREW KIT Drain	2
5	67892A1		FITTING KIT Magnetic, Plug Fill/Drain (Magnetic)	1
5	8M0058389	放油螺钉套件	SCREW KIT Drain	1
6	19183	纤维密封垫圈	WASHER Fiber Sealing	3
6	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
7	43044		PIN Dowel - Without Hole (.375 x .625) (Rear)	1
8	316405	平衡鳍板	TRIM TAB	1
8	8M0236553	平衡鳍板	TRIM TAB	1
9	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
11	43040A1	托架总成	CARRIER ASSEMBLY	1
11	43040T1	托架总成	CARRIER ASSEMBLY	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	44484	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
15	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	850307	换挡凸轮控制	CAM Shift Control	1
18	42677A1	圆锥滚子轴承总成(内圈和外圈)	BEARING ASSEMBLY Taper Roller (Cone And Cup)	1
19	44492A1	垫片组	SHIM SET	1
19	8M0063265	垫片组	SHIM SET	1
20	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
22	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	430331	衬垫	GASKET	1
24	430472	衬垫	GASKET	1
24	8M0214931	衬垫	GASKET	1
25	43036		SEAL Oil (Lower)	1
26	43035		SEAL Oil (Upper)	1
26	8M0245495	油封	OIL SEAL	1
27	817277	衬垫	GASKET	1
27	8172771	水泵上垫片	GASKET Water Pump, Upper	1
28	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
29	817276	面板	FACEPLATE	1
29	8M0204709	面板	FACEPLATE	1
30	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
31	430232	水管密封件	SEAL Water Tube	1
32	43037	叶轮驱动键	KEY Impeller Drive	1
32	8M0204723	键	KEY	1
33	430262	叶轮	IMPELLER	1
33	43026T2	叶轮	IMPELLER	1
34	82684425	螺钉(M6x25)	SCREW (M6 x 25)	6
35	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	853908A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	29641	E型卡环	E RING	1
37	43052A4	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
38	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
38	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
39	8164641	油封	SEAL Oil	1
39	8M0246145	油封	OIL SEAL	1
40	82684425	螺钉(M6x25)	SCREW (M6 x 25)	2
41	15985A1	齿轮箱尾鳍修复套件	SKEG KIT Gear Housing Repair	1
41	15985A02	艉鳍替换件	SKEG-REPLACEMENT	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1

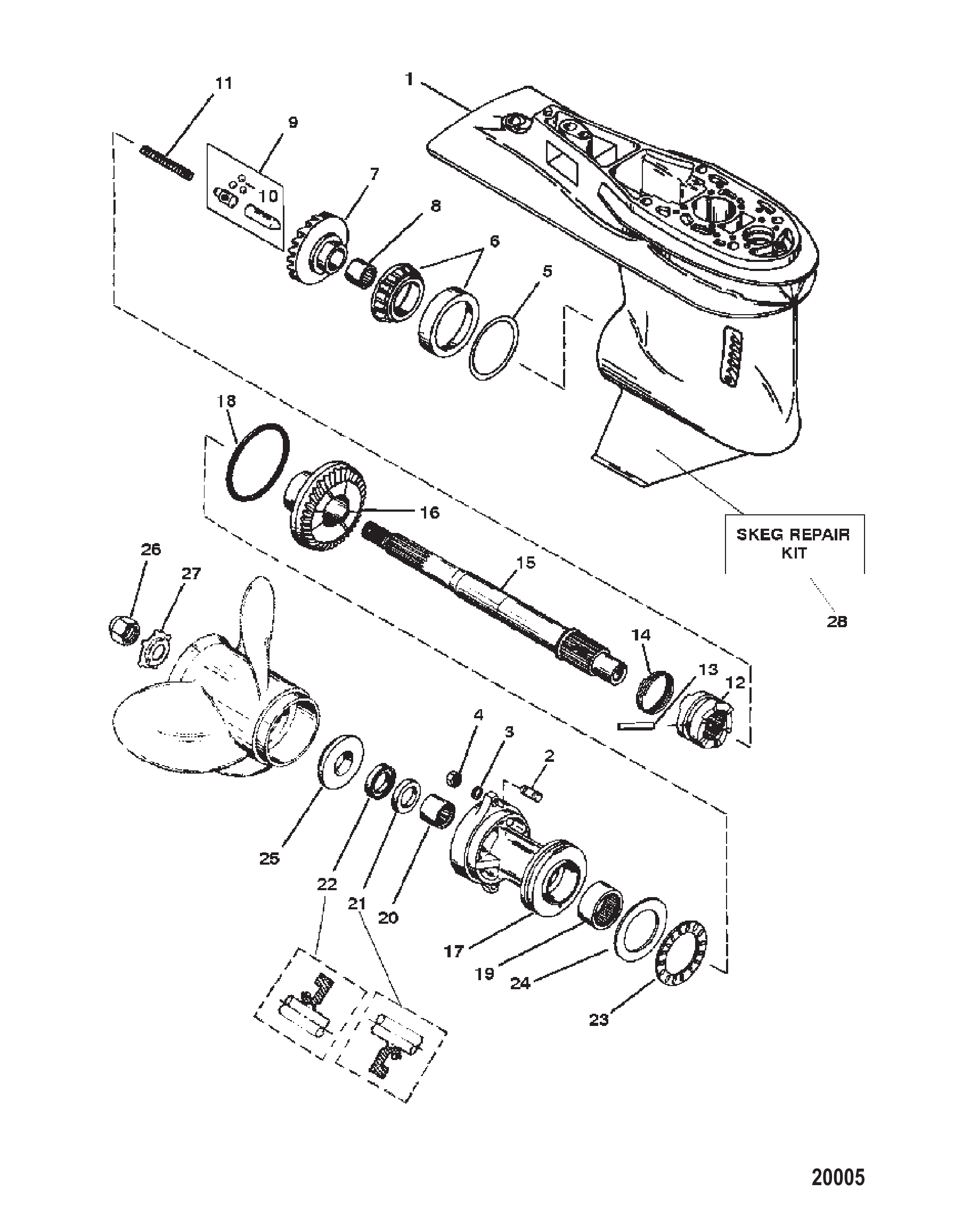

图 16齿轮箱总成（螺旋桨轴）（3爪倒车离合器） Gear Housing Assembly (Propshaft) (3 Jaw Reverse Clutch)

REF	零件编号	中文名称	英文名称	数量
1	9011A77	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G75	齿轮箱套件	GEAR HSG KIT	1
1	9011A89	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G78	齿轮箱套件-XLONG	GEAR HSG KT-XLONG	1
1	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T80	ORD 1667-9011T73	ORD 1667-9011T73	1
2	429174		STUD (M8 x 1.25 x 48) (M8 x 48)	2
2	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
3	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
3	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
4	401198	螺母 (M8)	NUT (M8)	2
4	401378	螺母 (M8)	NUT (M8)	2
5	44491A1	垫片组	SHIM SET	1
5	8M0063266	垫片组	SHIM SET	1
6	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
7	12634A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
7	12634T02	齿轮总成	GEAR ASSEMBLY	1
8	30895	滚针轴承	BEARING Needle	1
8	30895T	滚针轴承	BEARING Needle	1
9	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
9	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
10	44530	钢球	BALL	3
11	30622	弹簧(凸轮随动件)	SPRING Cam Follower	1
12	822539	离合器	CLUTCH	1
12	822539T	离合器	CLUTCH	1
13	30632	十字销	PIN Cross	1
13	8M0100263	十字销	PIN Cross	1
14	30893	离合器弹簧	SPRING Clutch	1
15	12238T	螺旋桨轴	PROPELLER SHAFT	1
16	12635	倒挡齿轮	GEAR Reverse	1
16	12635T	倒挡齿轮	GEAR-REVERSE	1
17	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
17	8M0168901	轴承座总成	CARRIER ASSY.	1
18	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
18	8M0214974	O型圈	O RING	1
19	12578	滚针轴承	BEARING Needle	1
19	12578T	滚柱轴承	BEARING Roller	1
20	30956	滚针轴承	BEARING Needle	1
20	30956T	滚针轴承	BEARING Needle	1
21	70080	油封(内)	SEAL Oil (Inner)	1
21	8M0205728	密封件	SEAL	1
22	70081		SEAL Oil (Outer)	1
22	8M0205729	密封件	SEAL	1
23	12576	推力轴承	BEARING Thrust	1
24	12577	止推垫片	THRUST WASHER	1
25	13191A1	止推垫片	THRUST WASHER	1
25	13191Q01	止推垫片	THRUST WASHER	1
26	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
26	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
27	816629	锁紧垫圈	TAB WASHER	1
27	816629Q	锁紧垫圈	TAB WASHER	1
28	15985A1	齿轮箱尾鳍修复套件	SKEG KIT Gear Housing Repair	1
28	15985A02	艉鳍替换件	SKEG-REPLACEMENT	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

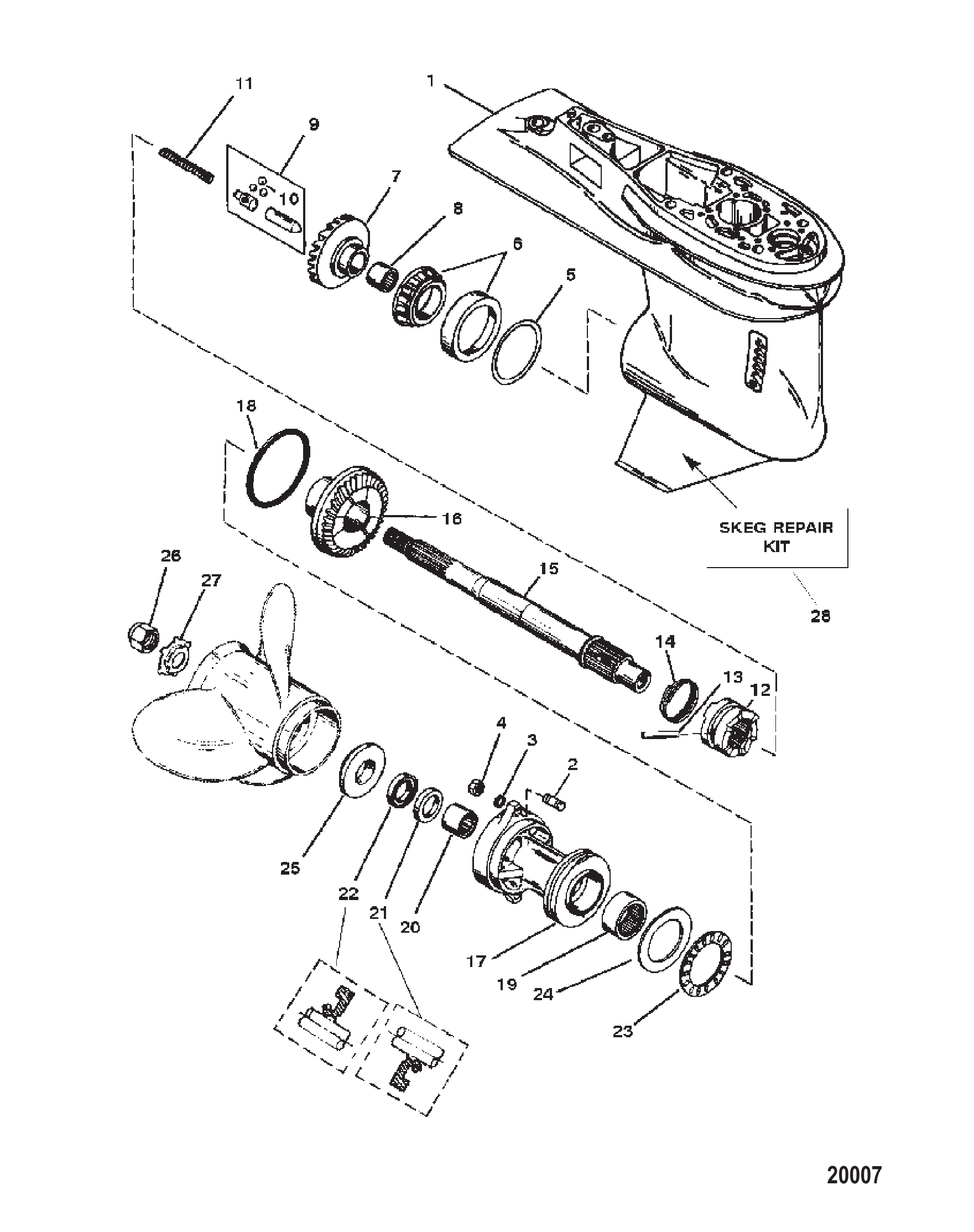

图 17齿轮箱总成（螺旋桨轴）（6爪倒车离合器） Gear Housing Assembly (Propshaft) (6 Jaw Reverse Clutch)

REF	零件编号	中文名称	英文名称	数量
1	9011G20	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G75	齿轮箱套件	GEAR HSG KIT	1
1	9011G21	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G78	齿轮箱套件-XLONG	GEAR HSG KT-XLONG	1
1	9011G22	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G66	ORD 1667-9011J42	ORD 1667-9011J42	1
2	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
2	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
3	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
3	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
4	401198	螺母 (M8)	NUT (M8)	2
4	401378	螺母 (M8)	NUT (M8)	2
5	850033A2	前进齿轮套件	GEAR KIT Forward	1
5	859472A3	前进齿轮总成-30齿	GEAR ASSEMBLY Forward - 30 Teeth	1
6	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
7	44491A1	垫片组	SHIM SET	1
7	8M0063266	垫片组	SHIM SET	1
8	30895	滚针轴承	BEARING Needle	1
8	30895T	滚针轴承	BEARING Needle	1
9	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
10	44530	钢球	BALL	3
11	850327	弹簧(凸轮随动件)	SPRING Cam Follower	1
12	850048	离合器	CLUTCH	1
12	850048T	离合器	CLUTCH	1
13	30632	十字销	PIN Cross	1
13	8M0100263	十字销	PIN Cross	1
14	30893	离合器弹簧	SPRING Clutch	1
15	850308	螺旋桨轴	PROPELLER SHAFT	1
15	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
16	850034	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
16	850034T	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
17	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
17	8M0168901	轴承座总成	CARRIER ASSY.	1
18	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
18	8M0214974	O型圈	O RING	1
19	12578	滚针轴承	BEARING Needle	1
19	12578T	滚柱轴承	BEARING Roller	1
20	30956	滚针轴承	BEARING Needle	1
20	30956T	滚针轴承	BEARING Needle	1
21	70080	油封(内)	SEAL Oil (Inner)	1
21	8M0205728	密封件	SEAL	1
22	70081		SEAL Oil (Outer)	1
22	8M0205729	密封件	SEAL	1
23	12576	推力轴承	BEARING Thrust	1
24	12577	止推垫片	THRUST WASHER	1
25	13191A1	止推垫片	THRUST WASHER	1
25	13191Q01	止推垫片	THRUST WASHER	1
26	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
26	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
27	816629	锁紧垫圈	TAB WASHER	1
27	816629Q	锁紧垫圈	TAB WASHER	1
28	15985A1	齿轮箱尾鳍修复套件	SKEG KIT Gear Housing Repair	1
28	15985A02	艉鳍替换件	SKEG-REPLACEMENT	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

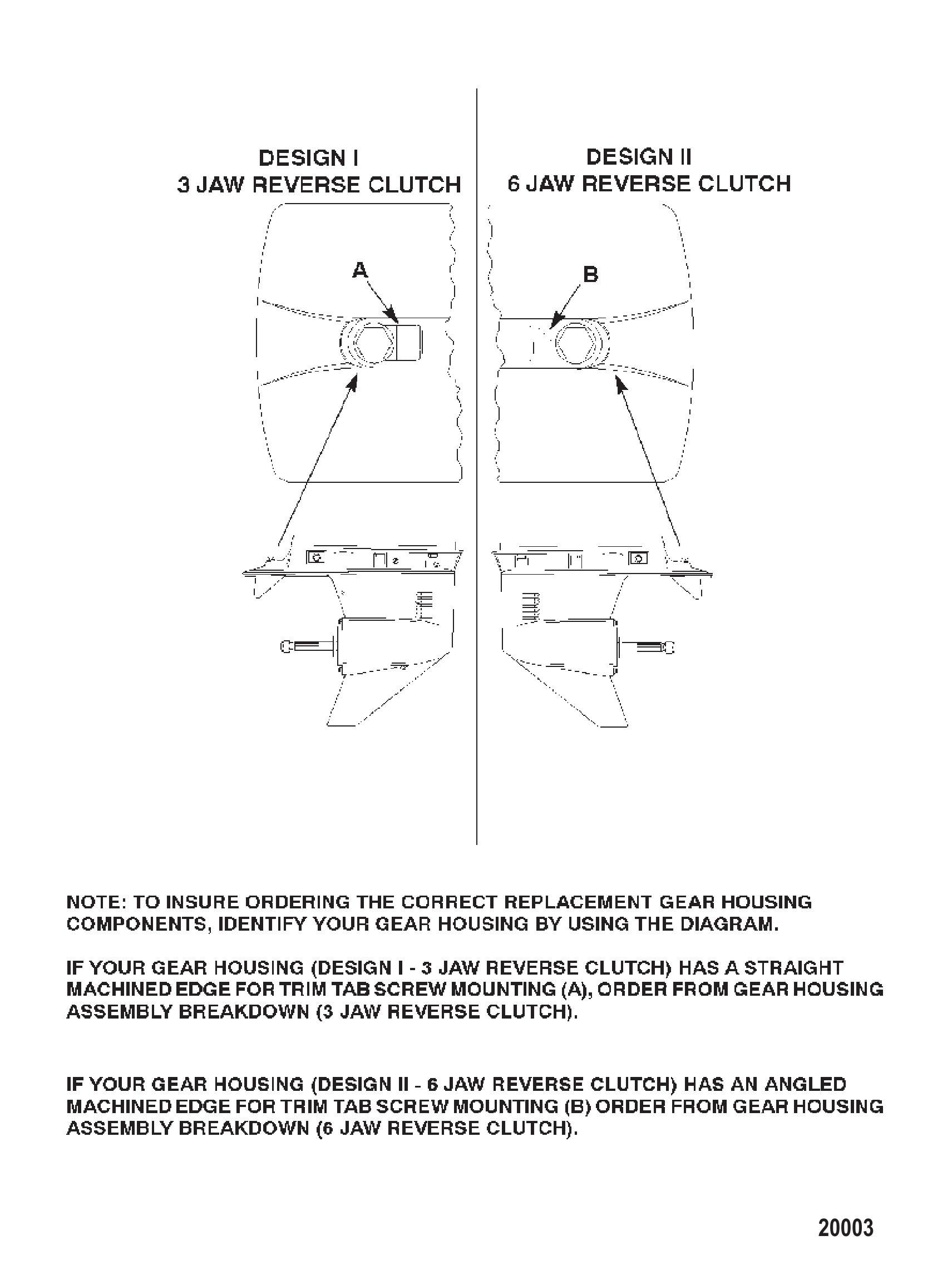

图 18齿轮箱标识 Gear Housing Identification

REF	零件编号	中文名称	英文名称	数量
-	9011A77	齿轮箱总成完整(长机型)	GEAR HOUSING ASSEMBLY Complete (Long Models)	1
-	9011G75	齿轮箱套件	GEAR HSG KIT	1
-	9011A89	齿轮箱总成（加长型）	GEAR HOUSING ASSEMBLY Complete (X Long Models)	1
-	9011G78	齿轮箱套件-XLONG	GEAR HSG KT-XLONG	1
-	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
-	9011T80	ORD 1667-9011T73	ORD 1667-9011T73	1
-	9011G20	齿轮箱总成完整(长机型)	GEAR HOUSING ASSEMBLY Complete (Long Models)	1
-	9011G75	齿轮箱套件	GEAR HSG KIT	1
-	9011G21	齿轮箱总成（加长型）	GEAR HOUSING ASSEMBLY Complete (X Long Models)	1
-	9011G78	齿轮箱套件-XLONG	GEAR HSG KT-XLONG	1
-	9011G22	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
-	9011G66	ORD 1667-9011J42	ORD 1667-9011J42	1

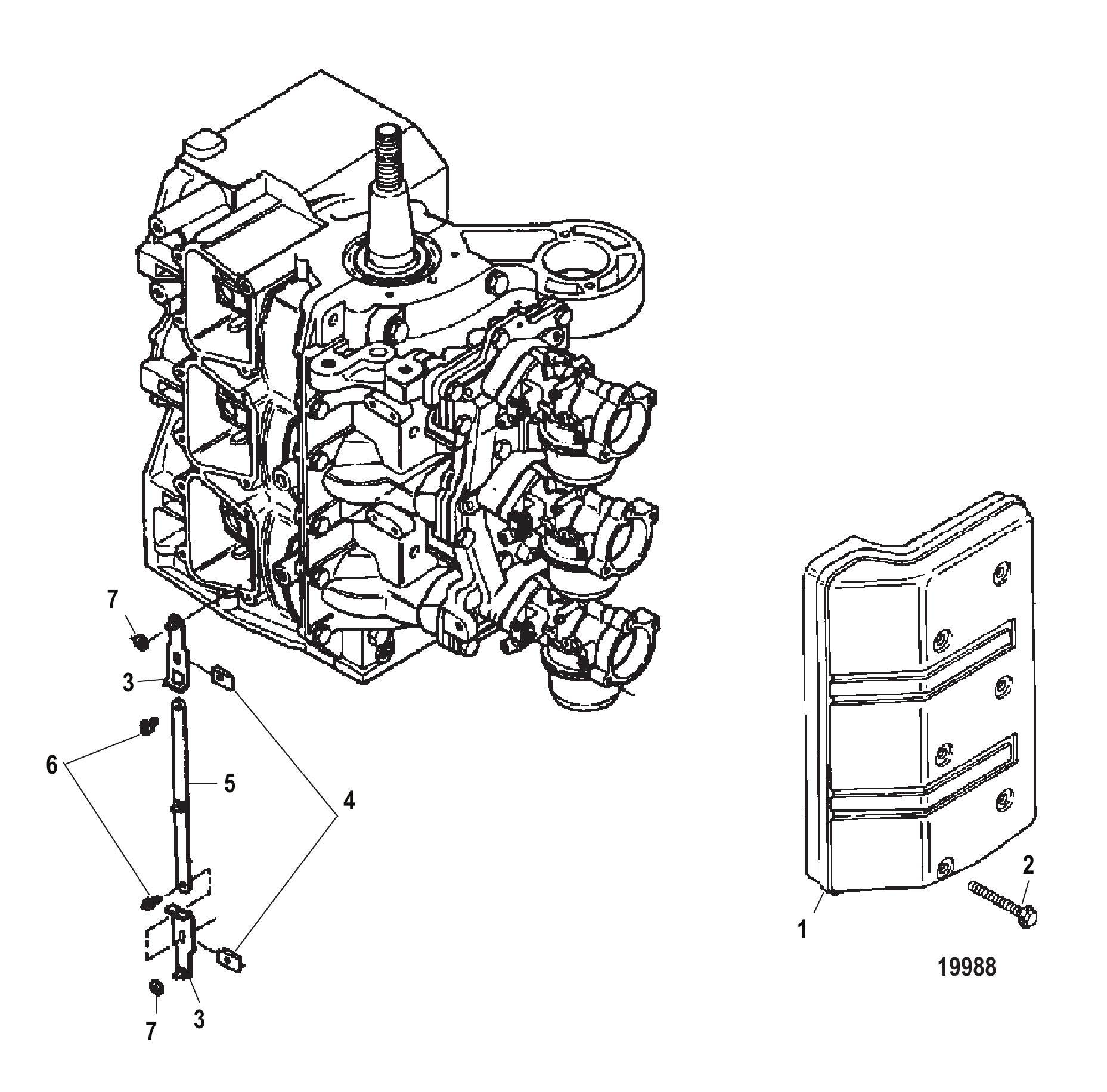

图 19进气罩/节气门连杆 Intake Cover / Throttle Linkage

REF	零件编号	中文名称	英文名称	数量
1	819987	消音器总成	ATTENUATOR ASSEMBLY Sound	1
2	19934175	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	6
3	FA85193	端部总成-化油器节气门拉杆	END ASSEMBLY Carburetor Throttle Tie	2
4	F1693	螺母（#8-32）	NUT (#8-32)	2
5	FA85511	杆总成-节气门	BAR ASSEMBLY Throttle	1
6	F1064	螺丝（#8-32×0.375）	SCREW (#8-32 x .375)	2
7	21058	E型挡圈	E RING Retaining	3

图 20说明书与涂料 Literature And Paint

REF	零件编号	中文名称	英文名称	数量
-	828993	用户手册	OWNERS MANUAL	1
-	10155970	用户手册	OWNERS MANUAL	1
-	10155970	用户手册	OWNERS MANUAL	1
-	832749	维修手册 F90/120 (1995至1998)	SERVICE MANUAL F90/120 (1995 Thru 1998)	1
-	832749R2	维修手册 F90/120 (1995至1998)	SERVICE MANUAL F90/120 (1995 Thru 1998)	1
-	809757	零件手册90马力Force	PARTS MANUAL 90 Hp Force	1
-	81825212	石墨灰丙烯酸漆	PAINT Graphite Gray Acrylic	AR
-	82793330	涂料-GRAPHI@6	PAINT-GRAPHI@6	AR
-	82532112	石墨灰丙烯酸漆	PAINT Graphite Gray Acrylic	AR
-	82793331	涂料.6-GRAP@6	PAINT.6-GRAP@6	AR
-	81910712	透明丙烯酸漆	PAINT Clear Acrylic	AR
-	82793353	PAINT-CLEAR @6	PAINT-CLEAR @6	AR

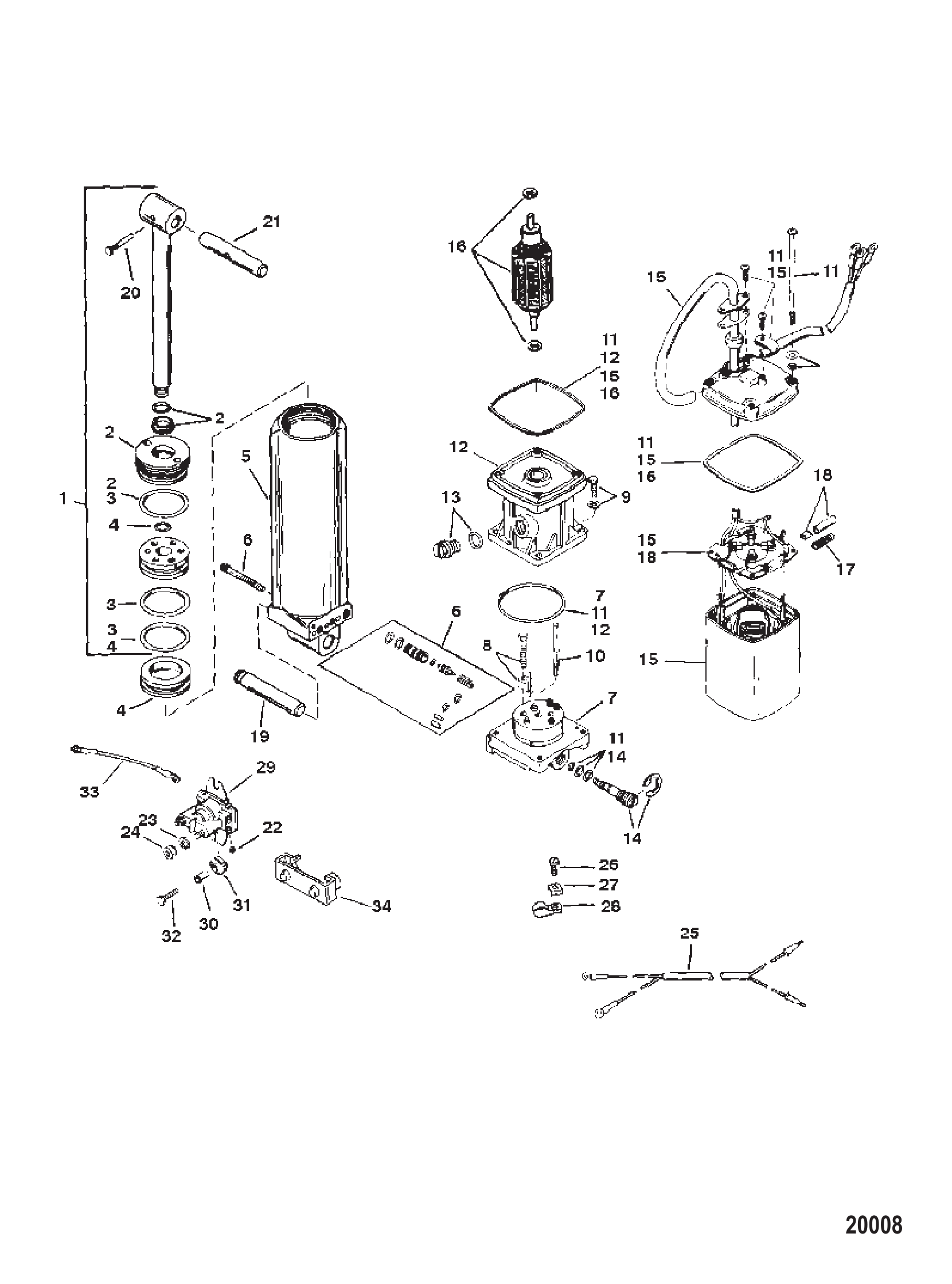

图 21动力平衡组件（设计I） Power Trim Components (Design I)

REF	零件编号	中文名称	英文名称	数量
-	824051	配平泵总成	PUMP ASSEMBLY Trim	1
-	8M0171817	完整调整套件	COMPLETE TRIM KIT	1
1	8116661	减震杆总成	SHOCK ROD ASSEMBLY	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813432A3	气缸密封套件	SEAL KIT Cylinder	1
4	810776	记忆活塞套件	PISTON KIT Memory	1
5	8116691	气缸总成配平	CYLINDER ASSEMBLY Trim	1
5	893916A01	气缸总成	CYLINDER ASSEMBLY	1
6	811678A5	螺钉与密封套件	SCREW AND SEAL KIT	1
6	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
7	8116707	泵/歧管套件	PUMP/MANIFOLD KIT	1
7	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
8	823180A1	摇臂套件	ROCKER ARM KIT	1
8	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
9	813436	螺丝套件（4件）	SCREW KIT (4 Pieces)	1
10	8116711	驱动轴	DRIVESHAFT	1
11	811626A3		SEAL KIT (With Case Bolts)	1
11	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
12	8116731	储液罐套件	RESERVOIR KIT	1
12	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
13	813435	塞套件	PLUG KIT	1
13	8134351	堵头	PLUG	1
14	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
14	893929A01	安全阀套件	VALVE KIT Relief	1
15	8116241	机架与磁场套件	FRAME AND FIELD KIT	1
15	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
16	8116271	电枢套件	ARMATURE KIT	1
16	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
17	12665	电刷弹簧套件	SPRING KIT Brush	1
18	811625	电刷卡套件	BRUSH CARD KIT	1
19	818898	锚销	PIN Anchor	1
20	821539	三叶销	PIN Trilobe	1
21	996251	轴	SHAFT	1
21	99625002	轴	SHAFT	1
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
23	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
24	64015	螺母 (.250-20)	NUT (.250-20)	4
25	17201A2	线缆总成(17.00英寸)配平	CABLE ASSEMBLY (17.00 Inches) Trim	1
26	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
26	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
27	69205	C形垫圈	C WASHER	1
27	8M0084613	C形垫圈	C-WASHER	1
28	22875	卡扣	CLIP	1
29	818997A1	电磁阀总成	SOLENOID ASSEMBLY	2
29	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	2
30	818968	衬套	BUSHING	3
30	8M0214955	衬套	BUSHING	3
31	818967	护孔环	GROMMET	3
31	8M0207785	护孔环	GROMMET	3
32	19932100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
33	87379A14		WIRE ASSEMBLY (2.750 Inches) (Red)	1
33	87379A46		CABLE ASSEMBLY (5.750 Inches) (Red)	1
33	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	2
34	97861		INSULATOR Solenoid	2

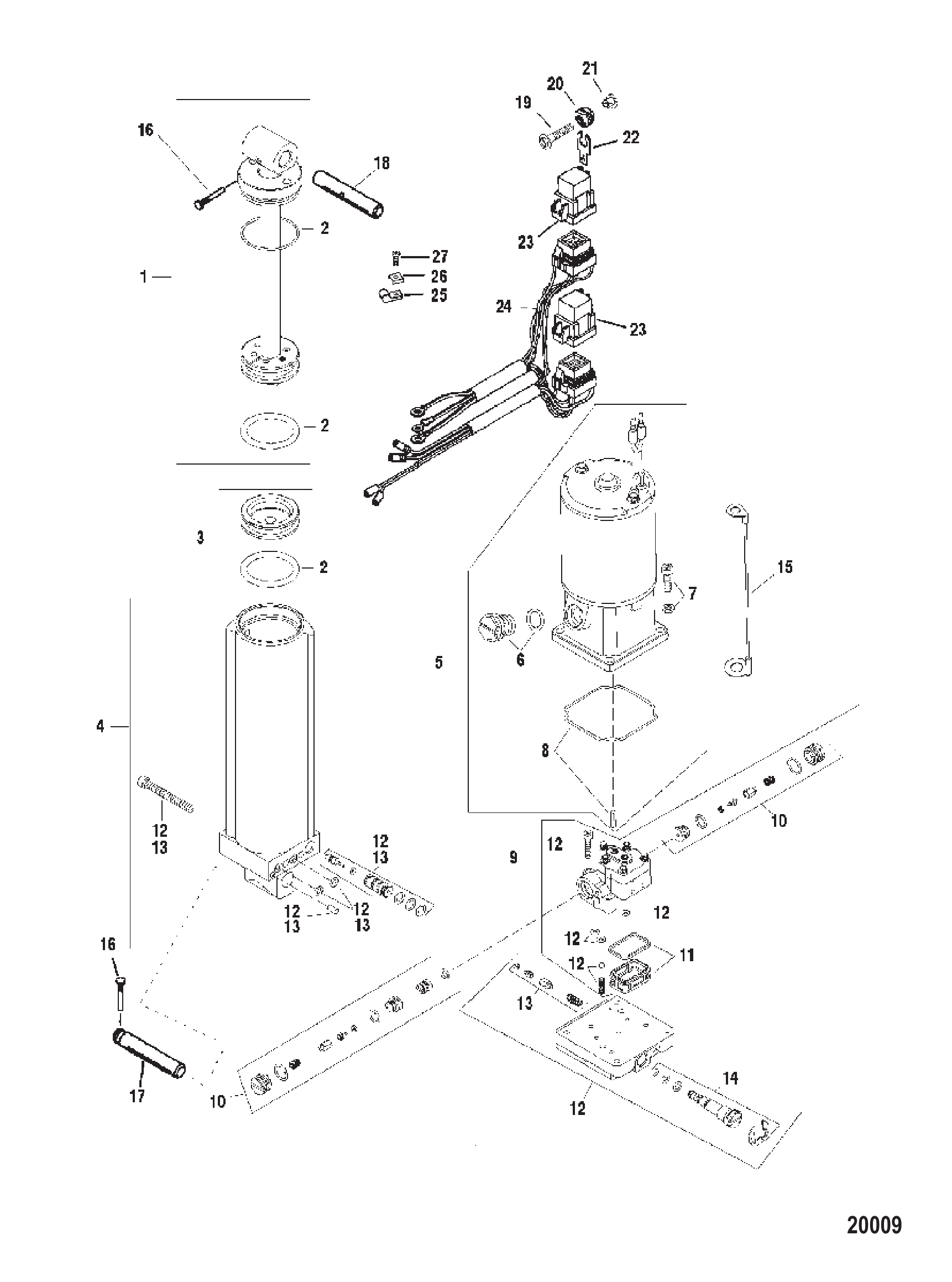

图 22动力平衡组件（设计II） Power Trim Components (Design II)

REF	零件编号	中文名称	英文名称	数量
-	830250A1	泵总成	PUMP ASSEMBLY	1
-	8M0171818	动力调整总成	POWER TRIM ASSY	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809885A1	电机套件	MOTOR KIT	1
5	893907A02	电机套件	MOTOR KIT	1
6	8134351	储液罐塞	PLUG Reservoir	1
7	809876A1	螺丝套件(4件)	SCREW KIT (Qty 4 Pieces)	1
8	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
9	809874A1	泵总成	PUMP ASSEMBLY	1
9	893906A02	泵总成	PUMP ASSEMBLY	1
10	809879A1	提升阀套件	POPPET KIT	1
10	893913A02	提升阀套件	POPPET KIT	1
11	809878A1	滤清器套件	FILTER KIT	1
11	893912A02	滤清器套件	FILTER KIT	1
12	809875A1	歧管套件	MANIFOLD KIT	1
12	893909A02	歧管套件	MANIFOLD KIT	1
13	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
13	893905A02	阀套件	VALVE KIT	1
14	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
14	893929A01	安全阀套件	VALVE KIT Relief	1
15	88238A18	接地线总成	CABLE ASSEMBLY Ground	1
NS	809880A1	O型圈套件（全套）	O-RING KIT (Complete)	1
NS	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销（下部）	PIN Anchor (Lower)	1
18	996251	轴(上部)	SHAFT (Upper)	1
18	99625002	轴	SHAFT	1
19	19932100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	2
20	818967	护孔环	GROMMET	2
20	8M0207785	护孔环	GROMMET	2
21	818968	衬套	BUSHING	2
21	8M0214955	衬套	BUSHING	2
22	828102	继电器支架	BRACKET Relay	2
22	8M0207771	安装支架	BRACKET Mounting	2
23	828151	继电器	RELAY	2
23	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
24	819514A11	升降线束总成	HARNESS ASSEMBLY Trim	1
25	22740	卡扣	CLIP	1
26	69205	C形垫圈	C WASHER	1
26	8M0084613	C形垫圈	C-WASHER	1
27	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
27	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1

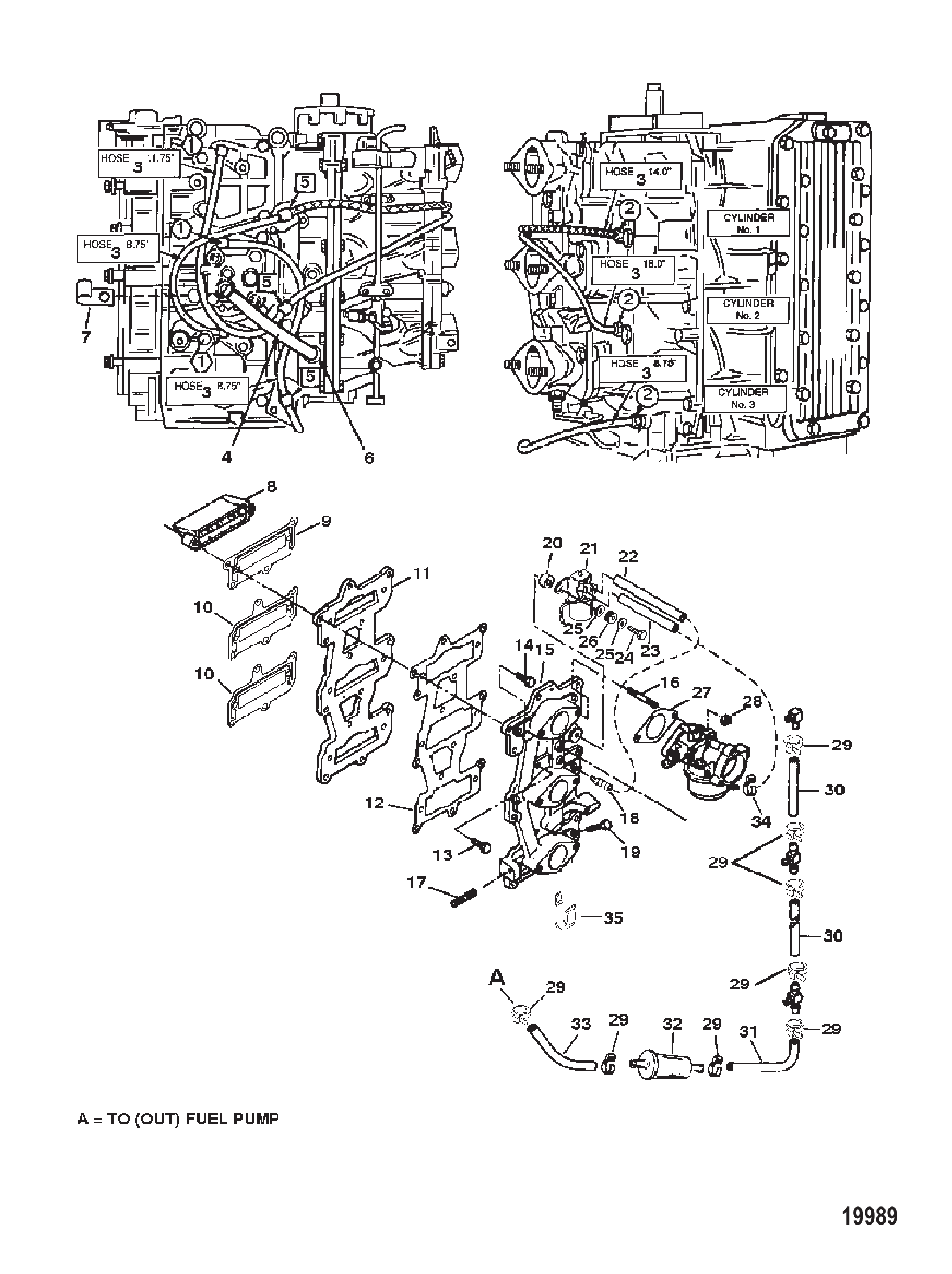

图 23簧片阀板/再循环系统 Reed Plate / Recirculation System

REF	零件编号	中文名称	英文名称	数量
1	F743314	循环弯头	ELBOW Recirculating	3
2	42658	止回阀	CHECK VALVE	3
2	426585	止回阀	CHECK VALVE	3
3	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	830756109	软管(57.00英寸散装)(裁切4.500英寸)	HOSE (57.00 Inches Bulk) (Cut 4.500 Inches)	1
4	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
5	820706	弯头(T型)止回阀	ELBOW (T Style) Check Valve	3
5	8207061	接头	FITTING	3
6	99664	弯头	ELBOW	1
6	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
7	55098	J型卡扣	J CLIP	1
7	8M0024808	J型夹	J-CLIP	1
8	116451	簧片阀总成	REED BLOCK ASSEMBLY	3
8	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	3
9	F85168-2	簧片阀适配器衬垫(顶部)	GASKET (Top) Reed Plate Adapter	1
10	819733	簧片阀适配器衬垫(中/底部)	GASKET (Center/Bottom) Reed Plate Adapter	2
11	8197351	簧片板适配器	ADAPTER Reed Plate	1
12	F85159-1	进气歧管垫片	GASKET Intake Manifold	1
13	819110125	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	2
14	819110100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	10
15	825195A2	进气歧管套件	MANIFOLD KIT Intake	1
16	826388	双头螺柱(0.312-18 x 1.250)	STUD (.312-18 x 1.250)	6
16	8263881	螺柱	STUD	6
17	F433209-1	双头螺栓(.250-20 x 1.250)	STUD (.250-20 x 1.250)	1
18	F695858	接头	FITTING	1
19	819110150	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	6
20	F694359	隔套	SPACER	1
21	819503	启动电磁阀	SOLENOID Primer	1
21	819503T6	电磁阀	SOLENOID	1
22	9912688	管材(36.00英寸散装)(裁切7.250英寸)	TUBING (36.00 Inches Bulk) (Cut 7.250 Inches)	1
23	9912688	管材(36.00英寸散装)(裁切5.250英寸)	TUBING (36.00 Inches Bulk) (Cut 5.250 Inches)	1
24	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
24	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	1
25	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	2
26	F694504	护孔环	GROMMET	1
27	828925	化油器衬垫	GASKET Carburetor	3
28	68292	螺母(.312-18)	NUT (.312-18)	6
28	8M0204668	螺母(.312-18)	NUT (.312-18)	6
29	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
29	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
30	830756109	软管(57.00英寸散装)(裁切3.380英寸)	HOSE (57.00 Inches Bulk) (Cut 3.380 Inches)	2
30	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
31	830756109	软管(57.00英寸整卷)(裁切21.00英寸)	HOSE (57.00 Inches Bulk) (Cut 21.00 Inches)	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
32	816296	燃油滤清器	FILTER Fuel	1
32	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
33	830756109	软管(57.00英寸散装)(裁切6.00英寸)(至燃油泵出口)	HOSE (57.00 Inches Bulk) (Cut 6.00 Inches) (To Fuel Pump Out)	1
33	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
34	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
35	65292	J型卡扣	J CLIP	1
35	8M0024808	J型夹	J-CLIP	1
-	809122A2	动力头衬垫套件	GASKET SET Powerhead	1
-	818153A41	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A57	动力头总成	POWERHEAD ASSEMBLY	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1

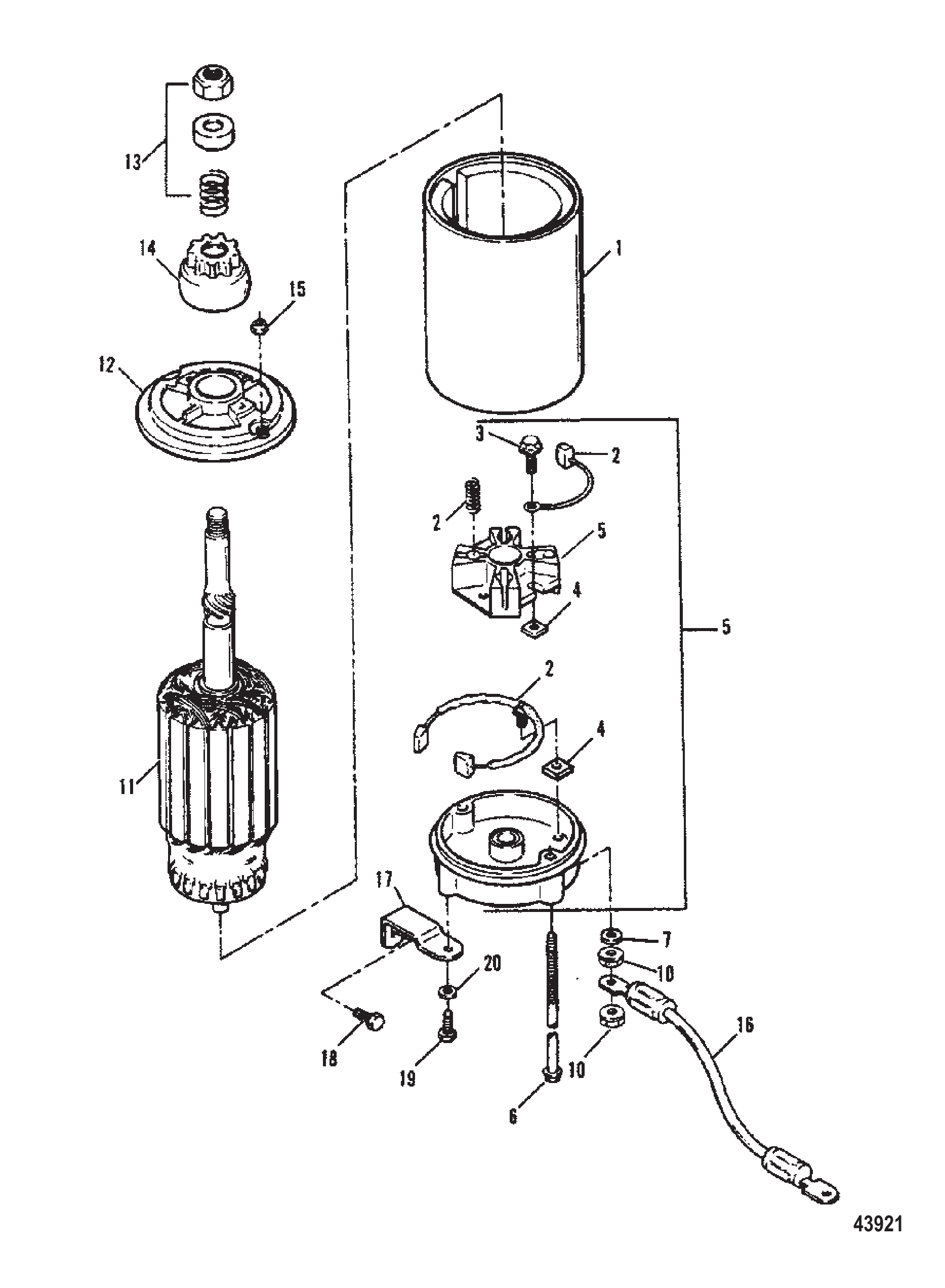

图 24启动器总成 Starter Assembly

REF	零件编号	中文名称	英文名称	数量
1	819085		STARTER MOTOR ASSEMBLY (SERVICES 50-F616955-1)	1
1	898265002	启动马达	STARTER MOTOR	1
2	F15190	电刷/弹簧套件	BRUSH/SPRING KIT	1
3	F15158	螺钉	SCREW	2
4	F15159	绝缘体	INSULATOR	2
4	57387	衬套	BUSHING	2
5	F15189	端盖总成-换向器	END CAP ASSEMBLY Commutator	1
6	F15178	贯穿螺栓	THRU BOLT	2
7	F15160	垫圈	WASHER	1
7	804700	垫圈	WASHER	1
10	F15162	螺母	NUT	2
11	F15177	电枢	ARMATURE	1
12	F15176	端盖-驱动端	END CAP Drive	1
12	803888T	驱动端盖	END CAP-DRIVE	1
13	90644	驱动套件	DRIVE KIT	1
14	819222	驱动总成	DRIVE ASSEMBLY	1
14	802587T01	驱动小齿轮	DRIVE-PINION	1
15	20361	螺母(.250-28)	NUT (.250-28)	2
15	8267089	螺母(.250-28)	NUT (.250-28)	2
16	F85908-1	启动电缆总成 (红色)	CABLE ASSEMBLY Starter (Red)	1
17	F616675	启动机支架	BRACKET Starter Mount	1
18	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
19	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
--	825064	警示贴花	DECAL Caution	1
--	881865	警示贴纸-挂档启动	DECAL Caution-Start in Gear	1
--	825066	警告标贴	DECAL Warning	1
--	8272822	警告标贴	DECAL Warning	1
--	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
--	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 25旋转支架与转向臂 Swivel Bracket And Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	818904A3	旋转支架总成(喷漆)	SWIVEL BRACKET ASSEMBLY (Painted)	1
1	818904T4	支架总成-钢/灰色	BRKT ASY-STEEL/GR	1
2	87735	油封	SEAL Oil	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
9	92876A12	连杆总成	LINK ROD ASSEMBLY	1
10	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
10	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
11	34863	螺母 (.375-24)	NUT (.375-24)	2
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
12	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
13	821539	三叶销	PIN Trilobe	1
14	42961A4	底部轭架总成(喷漆)	YOKE ASSEMBLY Bottom (Painted)	1
14	42961A5	轭架总成	YOKE ASSEMBLY	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER Thrust	1
22	818298A1	阳极套件	ANODE KIT	1
22	818298Q1	阳极套件	ANODE KIT	1
23	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
23	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
24	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
24	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	996251	轴(上部)	SHAFT (UPPER)	1
27	99625002	轴	SHAFT	1
28	99661A28	旋转销总成(喷漆)	SWIVEL PIN ASSEMBLY (Painted)	1
28	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
29	888821	缓冲垫(上轭架)(加长型)	BUMPER Top Yoke (X-LONG)	1
29	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
30	11288	缓冲垫(下轭架)(加长型)	BUMPER Bottom Yoke (X-LONG)	1
30	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1

图 26工具清单（专用）（1/2页） Tool List (Special) (Page 1 Of 2)

REF	零件编号	中文名称	英文名称	数量
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	818494	专用螺钉	SCREW Special	1
-	52344	飞轮固定工具（齿型）	FLYWHEEL HOLDER TOOL Teeth Type Flywheel	1
-	FT2991	钢丝碳刷清洁器	BRUSH Wire Carbon Remover	1
-	803504T	电刷	BRUSH	1
-	FT8914	曲轴轴承保持架密封拆卸工具	REMOVER Seal Crankshaft Bearing Cage	1
-	FT8903	曲轴轴承保持架密封安装工具	INSTALLER TOOL Seal Crankshaft Bearing Cage	1
-	FT8907	手柄(驱动器)(配合FT8903使用)	HANDLE Driver (Use With FT8903)	1
-	824892	手柄	HANDLE	1
-	FT8925	下曲轴密封安装工具	INSTALLER TOOL Seal Lower Crankshaft	1
-	FT2953	连杆螺丝套筒	SOCKET Connecting Rod Screws	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	FT2990-1	活塞与活塞销定位块	BLOCK Piston And Piston Pin	1
-	77109A2	活塞销锁环安装套件	INSTALLER KIT Piston Pin Lock Ring	1
-	69756	O型圈（0.549 x 0.103）	O-RING (.549 x .103)	1
-	98530	旋钮手柄	KNOB Handle	1
-	52952A1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	FT2996	活塞环压缩工具	COMPRESSOR TOOL Piston Ring Piston Rings	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring Piston Rings	1
-	90455	曲轴端吊环	LIFTING EYE Crankshaft End	1
-	904551	吊环	LIFTING EYE	1
-	112301	动力升降倾斜装置校准工具	ALIGNMENT TOOL Power Trim	1
-	44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1
-	44487A1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	52915A6	动力升降倾斜装置测试仪表套件	TEST GAUGE KIT Power Trim	1
-	11243	连接器(公头)-动力升降	CONNECTOR Male-Power Trim	1
-	74951	动力升降倾斜装置扳手	SPANNER WRENCH Power Trim	1
-	63209	加热灯	HEAT LAMP	1
-	12349A2	小齿轮定位工具	LOCATION TOOL Pinion	1
-	12349A05	小齿轮定位工具	TOOL Pinion Locating	1
-	13945	轴承安装工具	INSTALLATION TOOL Bearing	1
-	13949	油封安装工具	DRIVER TOOL Oil Seal	1
-	14308A1	轴承座圈工具	RACE TOOL Bearing	1
-	14308T02	轴承座圈驱动器	BEARING RACE DRIVER	1
-	14309A1	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14309T02	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14310A1	磨损套筒安装工具	INSTALLATION TOOL Wear Sleeve	1
-	14310T1	耐磨套驱动器	WEAR SLEEVE DRIVER	1
-	14311A2	轴承预紧工具	PRE LOAD TOOL Bearing	1
-	14311A04	预紧力工具	TOOL Preload	1
-	78473	背隙测量仪	INDICATOR TOOL Backlash	1
-	8M0053505	背隙指示工具	TOOL Indicator, Backlash	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	24156	螺母(0.625-18)	NUT (.625-18)	1
-	31229	轴	SHAFT	1
-	36569	驱动头工具	DRIVE HEAD TOOL	1
-	36569T	驱动头工具	DRIVE HEAD TOOL	1
-	15755	心轴	MANDREL	1
-	15755T	滚针轴承驱动器	NEEDLE BEARING DRIVER	1
-	37323	滚针轴承导杆工具	DRIVER ROD TOOL Needle Bearings	1

图 27工具清单（专用）（2/2页） Tool List (Special) (Page 2 Of 2)

REF	零件编号	中文名称	英文名称	数量
-	31106	轴承安装心轴杯	MANDREL Bearing Driver Cup	1
-	31106T	轴承安装心轴杯	MANDREL Bearing Driver Cup	1
-	31108	油封安装工具	DRIVER TOOL Oil Seal	1
-	31108T	油封驱动器	DRIVER Oil Seal	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	37241	通用拉拔器板	PULLER PLATE Universal (Universal)	1
-	37350	导向垫圈	PILOT WASHER	1
-	37350T	导向心轴	PILOT MANDREL	1
-	46086A1	拉拔器爪头总成	PULLER JAW ASSEMBLY	1
-	56775	传动轴固定工具	HOLDING TOOL Driveshaft	1
-	56775T	传动轴固定工具	HOLDING TOOL Driveshaft	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	83155	千分表转接套件	ADAPTER KIT Dial Indicator	1
-	8M0237356	适配器套件	ADAPTER KIT	1
-	83165M	轴承拉拔器总成	PULLER ASSEMBLY Bearing	1
-	83165T	拉拔器总成	PULLER ASSEMBLY	1
-	85716	拉拔螺栓工具-轴承座	PULLER BOLT TOOL Bearing Carrier	1
-	99379	点火正时灯	TIMING LIGHT Ignition	1
-	79250A2	水压表套件	GAUGE KIT Water Pressure	1
-	FT11295	点火系统火花测试器	SPARK TESTER Ignition System	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	59339	点火维修转速表	SERVICE TACHOMETER Ignition	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	99750A1	电气部件万用表	MULTI METER Electrical Components	1
-	825207A2	CDM测试线束总成	HARNESS ASSEMBLY CDM Tester	1
-	825265A1		COMPOUND (8 Ounce) Needle Bearings	1
-	802868A1	润滑剂	LUBRICANT	1
-	78376A6	防腐蚀润滑脂（8盎司）	GREASE (8 Ounce) Anti Corrosion	1
-	850735A1	润滑脂	GREASE	1
-	916011	红色RTV密封胶（10盎司）	SEALER Red RTV (10 Ounce)	1
-	809826	RTV硅胶(13盎司筒装)黑色	RTV SILICONE (13 Ounce Cartridge) Black	1
-	901132	RTV #1473密封胶（2.8盎司）	SEALANT RTV #1473 (2.8 Ounce)	1
-	809825	RTV硅胶 (3盎司管装) 金属蓝	RTV SILICONE (3 Ounce Tube) Metallic Blue	1
-	FT8936-1	乐泰RC 609密封胶	SEALANT Loctite RC 609	1
-	809833	乐泰RC 680密封胶（10毫升瓶装）绿色	SEALANT Loctite RC 680 (10 ml Bottle) Green	1
-	809833	乐泰RC 680密封胶（10毫升瓶装）绿色	SEALANT Loctite RC 680 (10 ml Bottle) Green	1
-	8230891	乐泰8831密封胶	SEALANT Loctite 8831	1
-	809820	乐泰271螺纹锁固剂 50毫升	LOCTITE 271 THREADLOCKER 50 ml	1
-	593271	LocQuic密封底漆（4.5盎司罐装）	SEALANT LocQuic Primer (4.5 Ounce Can)	1
-	809824	底漆乐泰(4.5盎司喷雾)绿色	PRIMER Loctite (4.5 Ounce Aerosol) Green	1
-	825407A12		MULTI LUBE 2 4 C (8 Ounce)-Case of 12	1
-	850736A1	多功能润滑脂 2-4-C (8盎司管装)	MULTI LUBE 2 4 C (8 Ounce Tube)	1
-	13872A1	专用润滑脂101(8盎司管装)	SPECIAL LUBE 101 (8 Ounce Tube)	1
-	802865Q1	专用润滑剂101	SPECIAL LUBE 101	1
-	257112	液态氯丁橡胶（1/2品脱）	NEOPRENE (1/2 Pint) Liquid	1
-	257113	氯丁橡胶(8盎司)	NEOPRENE (8 Ounce)	1
-	90100A12	动力升降/转向油（12瓶/箱）	OIL Power Trim/Steering (Case Of 12)	1
-	802880Q1	机油-P/T MQPT@12	OIL-P/T MQPT@12	1
-	98234A2	钻孔夹具套件-艉板	DRILL FIXTURE KIT Transom	1

图 28塔轴与油门联动装置 Towershaft And Throttle Linkage

REF	零件编号	中文名称	英文名称	数量
1	820302A1	塔轴总成	TOWERSHAFT ASSEMBLY	1
2	819513	衬套上部	BUSHING Upper	1
3	38489	滚动销	PIN Roll	5
4	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	1
5	64015	螺母 (.250-20)	NUT (.250-20)	1
6	F1727	尼龙铆钉	RIVET Nylon	1
7	F1856	垫圈	WASHER	1
8	819533	节气门回位弹簧	SPRING Throttle Return	1
9	8177471	带球头轴承	BEARING With Ball Joint	1
9	828514A1	球窝套件	BALL/SOCKET KIT	1
10	19931088	螺丝(#10-24x0.875)	SCREW (#10-24 x .875)	2
11	F40689-1	塔轴下轴承	BEARING Towershaft Lower	1
12	20110	螺母 (#10-32)	NUT (#10-32)	1
13	819002	油门连杆	LINK Throttle	1
14	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
15	8177471	带球头轴承	BEARING With Ball Joint	1
15	828514A1	球窝套件	BALL/SOCKET KIT	1
16	8191182	节气门凸轮	CAM Throttle	1
16	8191184	凸轮	CAM	1
17	F269319	节气门凸轮轴承	BEARING Throttle Cam	2
18	72008	螺母 (.250-20)	NUT (.250-20)	1
18	8267088	螺母 (.250-20)	NUT (.250-20)	1
19	13194	挡圈	RING Retaining	1
20	F499035	控制杆端头(连接塔轴)	END Control Rod (To Towershaft)	1
21	F499026	控制杆旋转端	SWIVEL Control Rod End	2
22	F7009	螺母(#10-24)	NUT (#10-24)	2
23	F499036-1	控制杆端头	END Control Rod	1
24	F85445-1	火花控制杆	ROD Spark Control	1
25	F2015	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	F607689	轴承	BEARING	2
27	35459	垫圈	WASHER	1
28	400634	螺母 (M6)	NUT (M6)	1
28	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1

图 29艉板支架 Transom Bracket

REF	零件编号	中文名称	英文名称	数量
1	8718F10	支架(右舷)(喷漆)	BRACKET Transom (STARBOARD) (Painted)	1
2	8716A10	支架总成(左舷)(喷漆)	BRACKET ASSEMBLY Transom (PORT) (Painted)	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
5	99170A2	倾斜管套件	TUBE KIT Tilt	1
5	826125A1	倾斜管	TILT TUBE	1
6	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
7	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
8	88750	波浪垫圈(1.62 x 1.05)	WASHER Wave (1.62 x 1.05) Wave	2
9	30499	螺母(7/8-14)	NUT (7/8-14)	1
9	858869	螺母 (.875-14)	NUT (.875-14)	1
10	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	螺母	NUT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
14	821176A1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	99611	波形垫圈	WAVE WASHER Wave	1
16	65830	尼龙衬套	NYLINER	2
17	99633		KNOB Tilt Lock Lever	1
18	99615	槽销	PIN Groove	1
19	99622	倾斜锁定张力弹簧	SPRING Tilt Lock Tension	1
20	99604	槽销	PIN Groove	1
21	96930A1	螺栓总成(3/8-24 x 9-1/2")	BOLT ASSEMBLY (3/8-24 x 9-1/2")	1
22	23161	螺母 (.375-24)	NUT (.375-24)	1
23	814207		STOP Tilt Lever	1
24	818771F7	锚定支架(喷漆)	BRACKET Anchor (Painted)	1
24	818771T8	ORD 818771T 1	ORD 818771T 1	1
25	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
26	400258	不锈钢锁紧垫圈 (M10)	LOCKWASHER (M10) Stainless Steel	6
27	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
