水星 Mercury 90 H.P. (1991-1994) 0E000001 THRU 0E093699 - 爆炸图零件明细

Force 系列 · USA - Cat.# 90-823424 · 共 40 个部位 · 1710 条零件

1下罩 2化油器 0E000001至0E009499 3化油器 0E009500至0E093699 4曲轴和活塞 5气缸体 6驱动轴壳体 7电气组件 8燃油泵总成 0E000001至0E065371 9燃油泵总成 0E065372至0E093699 10燃油箱与管路 11燃油箱及管路（塑料-6.6加仑）12齿轮箱 13换挡连杆（序列号0E000001至0E009499）14换挡连杆（序列号0E009500至0E093699）15点火组件（91E型号）16点火组件（91H至92C）17点火组件（序列号0E039024至0E093699）18进气罩 19过热报警器 20动力升降装置-第三代（子弹头连接器）21动力升降装置-第二代（子弹头连接器）22动力升降装置-第一代（卡口连接器）23螺旋桨-喇叭形轮毂 24泵/电机总成 25簧片阀板及再循环系统 0E009500 至 0E065371 26簧片阀板及再循环系统 0E065372 至 0E093699 27簧片阀板及再循环系统 91E 至 92C 28遥控装置 29维修/支撑材料 30启动器总成 31旋转/艉板支架（手动倾斜）32旋转/艉板支架（动力升降 33节温器 34节温器 91 E 型号 35倾斜油缸/马达/泵（设计I型）36专用工具 37顶罩 38塔轴与油门联动装置 0E000001 至 0E009499 39塔轴与油门联动装置 0E009500 至 0E093699 40升降油缸

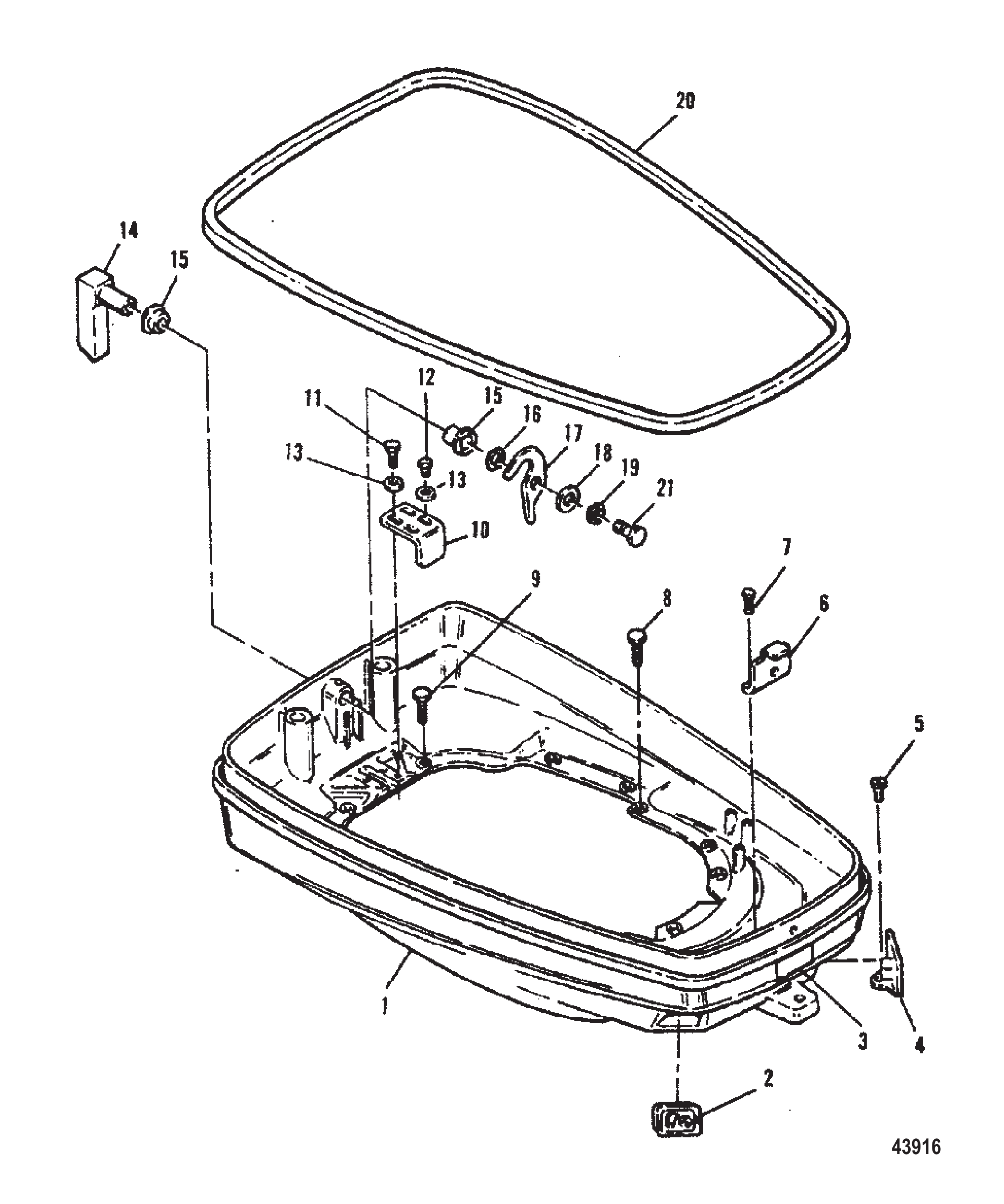

图 1下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	817606F	底罩支撑板(喷漆)	SUPPORT PLATE Bottom Cowl (PAINTED)	1
1	817606T	支撑板	PLATE-SUPPORT	1
2	8190062	电缆引入衬套	BUSHING CABLE ENTRY	1
3	818029	贴花 (燃油混合比)	DECAL (Fuel Mix)	1
3	8180291	燃油混合比标贴	DECAL Fuel Mix	1
4	828763	电缆引入衬套	BUSHING CABLE ENTRY	1
5	F1733	不锈钢螺钉(#10-24 x .562)	SCREW (#10-24 x .562) SS	3
5	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	3
6	F663480-1	前罩盖固定架	RETAINER Cowl Front	1
7	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	2
8	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	7
9	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	6
9	8M0214943	螺钉	SCREW	6
10	F335654-2	偏转限位器	STOP DEFLECTION	1
11	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
12	F1858	螺钉 (.625-18 x 1.00)	SCREW (.625-18 x 1.00)	2
13	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
14	820000A4	手柄总成 (喷漆)	HANDLE ASSEMBLY (PAINTED)	1
14	820000A08	手柄总成-黑色	HANDLE ASY-BLACK	1
15	812707	衬套	BUSHING	2
16	F2047	波形垫圈	WASHER Wave	1
17	F481777	凸轮锁轴	CAM Latch Shaft	1
17	8M0001081	凸轮	CAM	1
18	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
18	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
19	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
20	F663756-1	罩盖支撑填料	PACKING Cowl Support	1
20	8197172	衬垫-81英寸	PACKING-81 INCH	1
21	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1

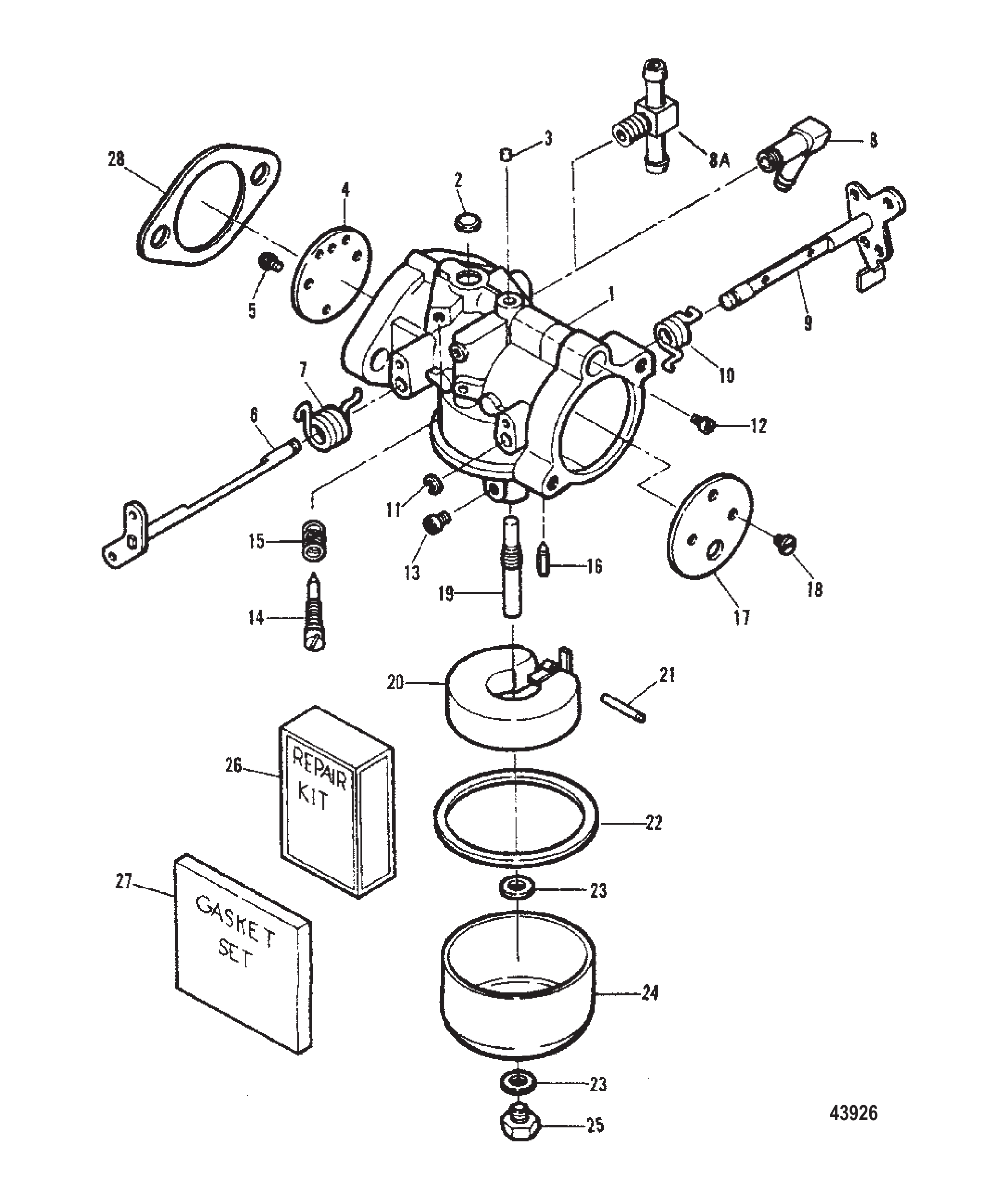

图 2化油器 0E000001至0E009499 Carburetor 0E000001 Thru 0E009499

REF	零件编号	中文名称	英文名称	数量
1	F831061-3	化油器(顶部 - WB-101C)	CARBURETOR (TOP - WB-101C)	1
1	803920T	顶部化油器	CARBURETOR-TOP	1
1	F832061-3	化油器(中/底部 - WB-100C)	CARBURETOR (CENTER/BOTTOM - WB-100C)	2
1	803921T	中/底部化油器	CARB-MID OR BOT	2
2	FO16128	韦尔奇塞	PLUG Welch	1
3	FO10588	堵头	PLUG	4
4	F10315	节气门片	SHUTTER Throttle	1
5	F10328	百叶窗螺钉	SCREW Shutter	2
5	803176	螺钉-带补片	SCREW-W/PATCH	2
6	F10305	油门轴	SHAFT Throttle	1
7	F10334	节气门轴弹簧	SPRING Throttle Shaft	1
8	F84314-2	弯头(L型)(顶部 - "L"型)	ELBOW (L) (Top - "L" Style)	1
8	F85314-1	接头(T型)(中/底部)	FITTING (T) (Center/Bottom)	2
8	64706001	三通接头	FITTING Tee	2
9	F10299	阻风门轴	SHAFT Choke	1
10	F10300	阻风门轴弹簧	SPRING Choke Shaft	1
11	F10241	阻风门轴E型卡环	E RING Choke Shaft	1
12	F10356	怠速空气量孔(.036)	JET IDLE AIR (.036)	1
13	3796	量孔(.076)(0-2500英尺)顶部化油器	JET (.076) (0 - 2500') Top Carb	1
13	3794	量孔(.074)(2500-5000英尺)顶部化油器	JET (.074) (2500 - 5000') Top Carb	OPT.
13	6207	量孔(.072)(5000-7500英尺)顶部化油器	JET (.072) 5000 - 7500') Top Carb	OPT.
13	6030	量孔(.070)(7500-10000英尺)顶部化油器	JET (.070) (7500 - 10000') Top Carb	OPT.
13	3794	主量孔(.074)(0-2500英尺)中/底部化油器	JET (.074) Main Fuel (0 - 2500') Center and Bottom Carbs	1
13	6207	量孔(.072)(2500-5000英尺)中/底部化油器	JET (.072) (2500 - 5000') Center and Bottom Carbs	OPT.
13	6030	量孔(.070)(5000-7500英尺)中/底部化油器	JET (.070) (5000 - 7500') Center and Bottom Carbs	OPT.
13	6029	量孔(.068)(7500-10000英尺)中/底部化油器	JET (.068) (7500 - 10000') Center and Bottom Carbs	OPT.
14	F10268	怠速混合气螺钉	SCREW Idle Mixture	1
15	27160	怠速混合气螺钉弹簧	SPRING Idle Mixture Screw	1
16	FK10309	进油针阀组件	NEEDLE AND SEAT Inlet	1
16	F10265	进油针阀	NEEDLE Inlet	1
17	F10355	阻风门片	SHUTTER Choke	1
18	F10328	百叶窗螺钉	SCREW Shutter	2
18	803176	螺钉-带补片	SCREW-W/PATCH	2
19	F10302	喷嘴	NOZZLE	1
20	F10346	燃油杯浮子	FLOAT Fuel Bowl	1
20	891730A01	浮子套件	FLOAT KIT	1
21	FO13944	浮子销	PIN Float	1
22	FO15623	燃油杯衬垫	GASKET Fuel Bowl	1
23	FO2510	燃油杯衬垫	GASKET Fuel Bowl	2
24	F10333	燃油杯	BOWL Fuel	1
25	5128	燃油杯螺钉	SCREW Fuel Bowl	1
26	FK10357	化油器维修套件	REPAIR KIT Carburetor	1
26	809735A1	维修套件	REPAIR KIT	1
27	FK10323	化油器衬垫组	GASKET SET Carburetor	1
27	809736A1	衬垫套件	GASKET SET	1
28	F85906	化油器衬垫	GASKET Carburetor	3
28	828925	衬垫	GASKET	3
-	FK10357	维修套件	REPAIR KIT	AR
-	809735A1	维修套件	REPAIR KIT	AR
-	FK10323	衬垫套件	GASKET SET	AR
-	809736A1	衬垫套件	GASKET SET	AR

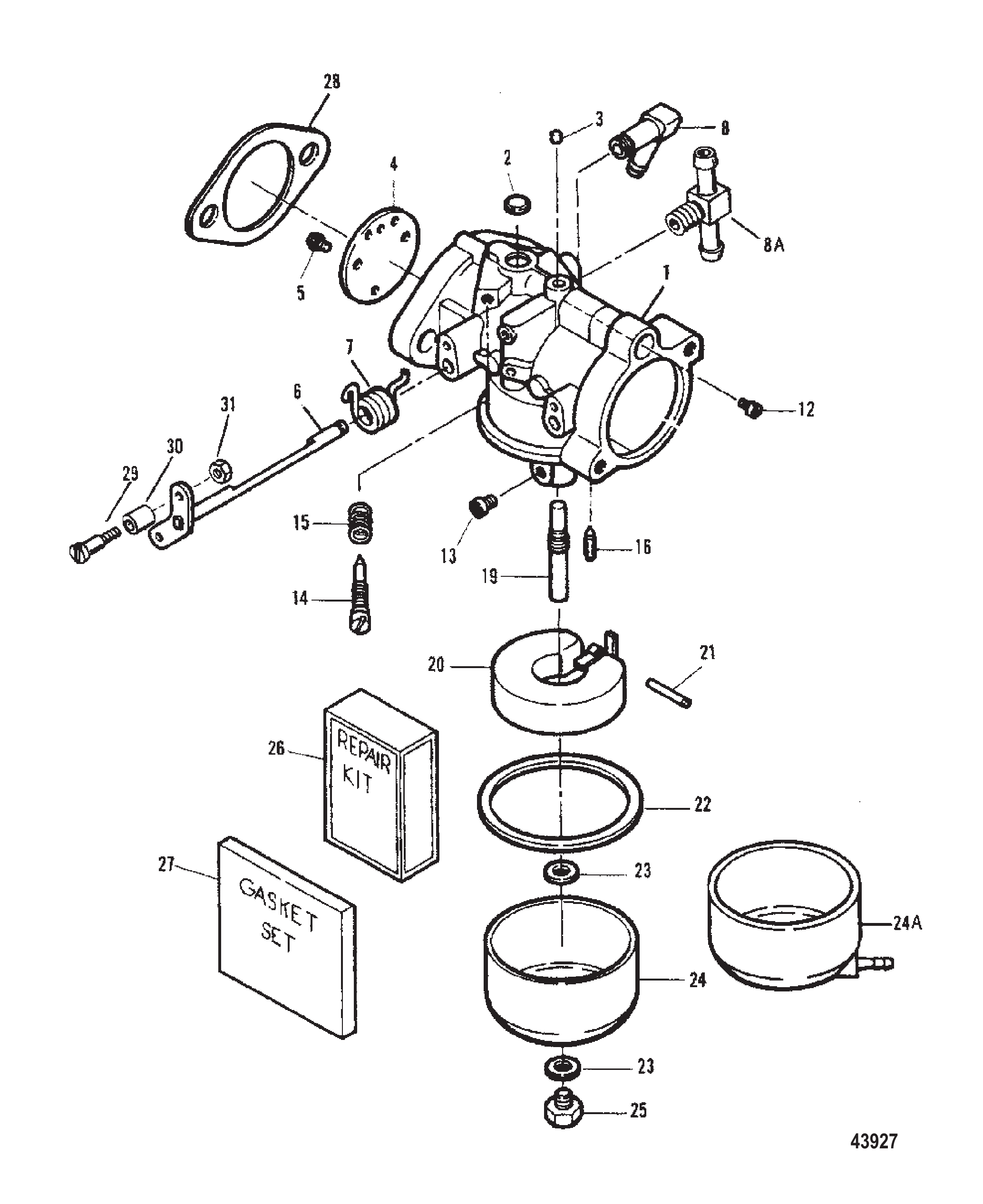

图 3化油器 0E009500至0E093699 Carburetor 0E009500 Thru 0E093699

REF	零件编号	中文名称	英文名称	数量
1	8201991	化油器(顶部 - WB-109B)	CARBURETOR (Top - WB-109B)	1
1	8202021	化油器(中/底部 - WB-108B)	CARBURETOR (Center/Bottom - WB-108B)	2
2	FO16128	韦尔奇塞	PLUG Welch	1
3	FO10588	堵头	PLUG	4
4	F10315	节气门片	SHUTTER Throttle	1
5	F10328	百叶窗螺钉	SCREW Shutter	2
5	803176	螺钉-带补片	SCREW-W/PATCH	2
6	F10305	油门轴	SHAFT Throttle	1
7	F10334	节气门轴弹簧	SPRING Throttle Shaft	1
8	F84314-2	弯头(L型)(顶部)	ELBOW (L) (Top)	1
8A	F85314-1	接头(T型)(中/底部)	FITTING (T) (Center/Bottom)	2
8A	64706001	三通接头	FITTING Tee	2
12	5317	怠速空气量孔(.046)	JET (.046) Idle Air	1
13	3796	量孔(.076)(0-2500英尺)顶部化油器	JET (.076) (0 - 2500') Top Carb	1
13	3794	量孔(.074)(2500-5000英尺)顶部化油器	JET (.074) (2500 - 5000') Top Carb	OPT.
13	6207	量孔(.072)(5000-7500英尺)顶部化油器	JET (.072) (5000 - 7500') Top Carb	OPT.
13	6030	量孔(.070)(7500-10000英尺)顶部化油器	JET (.070) (7500 - 10000') Top Carb	OPT.
13	3794	量孔(.074)(0-2500英尺)	JET (.074) (0 - 2500')	1
13	6207	量孔(.072)(2500-5000英尺)	JET (.072) (2500 - 5000')	OPT.
13	6030	量孔(.070)(5000-7500英尺)	JET (.070) (5000 - 7500')	OPT.
13	6029	量孔(.068)(7500-10000英尺)	JET (.068) (7500 - 10000')	OPT.
14	F10268	怠速混合气螺钉	SCREW Idle Mixture	1
15	27160	怠速混合气螺钉弹簧	SPRING Idle Mixture Screw	1
16	FK10309	进油针阀组件	NEEDLE AND SEAT Inlet	1
16	F10265	进油针阀	NEEDLE Inlet	1
19	F10302	主喷嘴	NOZZLE Main	1
20	F10346	燃油杯浮子	FLOAT Fuel Bowl	1
20	891730A01	浮子套件	FLOAT KIT	1
21	FO13944	浮子销	PIN Float	1
22	FO15623	燃油杯衬垫	GASKET Fuel Bowl	1
23	FO2510	燃油杯衬垫	GASKET Fuel Bowl	2
24A	820491	浮子室(顶部)	BOWL Fuel (Top)	1
24	F10333	浮子室(中/底部)	BOWL Fuel (Center/Bottom)	2
25	5128	燃油杯螺钉	SCREW Fuel Bowl	1
26	FK10357	化油器维修套件	REPAIR KIT Carburetor	1
26	809735A1	维修套件	REPAIR KIT	1
27	FK10323	化油器衬垫组	GASKET SET Carburetor	1
27	809736A1	衬垫套件	GASKET SET	1
28	F85906	化油器衬垫	GASKET Carburetor	3
28	828925	衬垫	GASKET	3
29	F333316	轴	SHAFT	1
29	830110	轴	SHAFT	1
30	819225	滚轮	ROLLER	1
31	F1997	螺母(#8-32)底部化油器	NUT (#8-32) Bottom Carburetor	1
31	8267094	螺母 @5	NUT @5	1
-	FK10357	维修套件	REPAIR KIT	AR
-	809735A1	维修套件	REPAIR KIT	AR
-	FK10323	衬垫套件	GASKET SET	AR
-	809736A1	衬垫套件	GASKET SET	AR

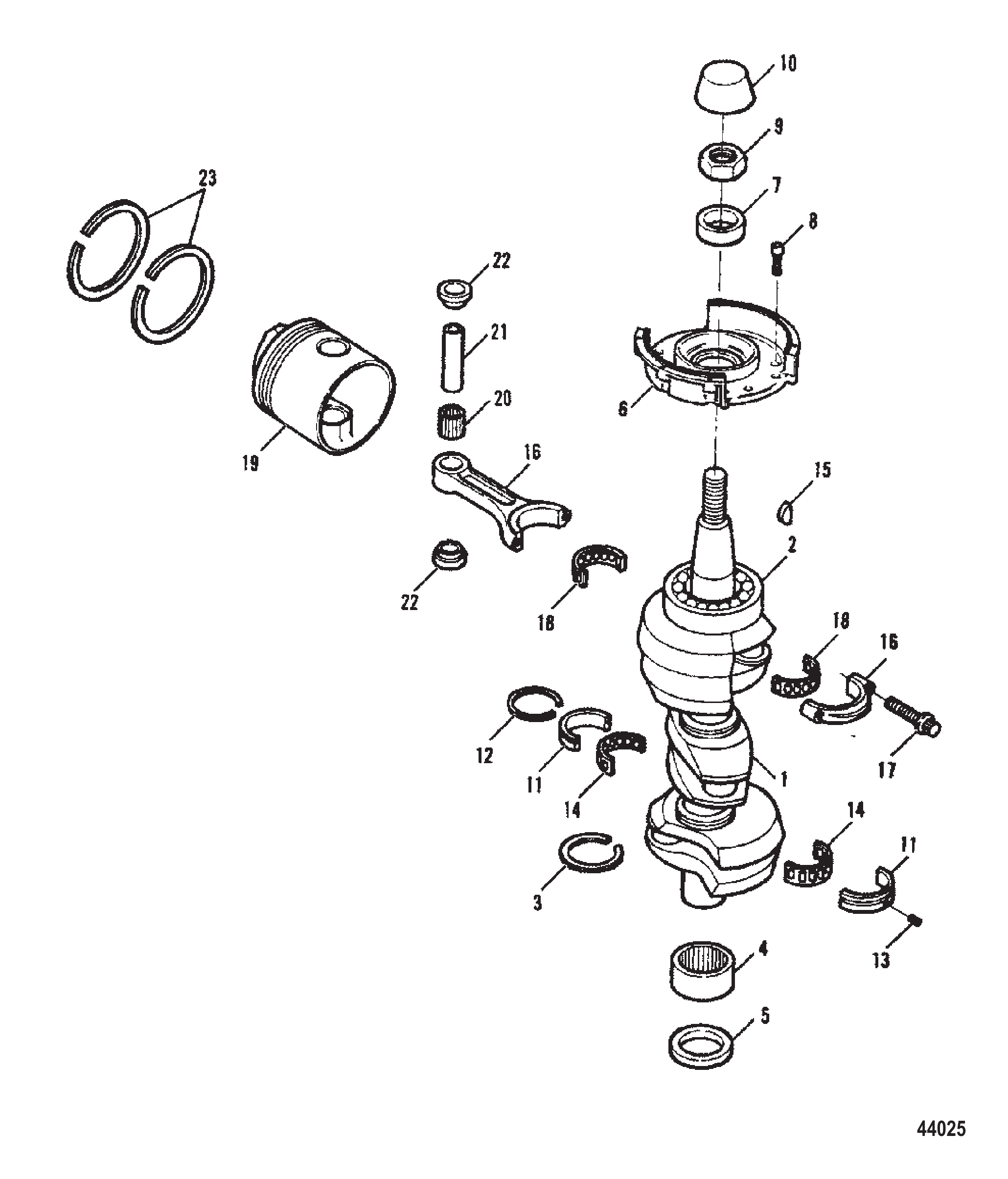

图 4曲轴和活塞 Crankshaft and Piston

REF	零件编号	中文名称	英文名称	数量
1	816989A5	曲轴套装	CRANKSHAFT KIT	1
2	F284659-2	上滚珠轴承	BEARING Ball Upper	1
2	803893T	滚珠轴承	BEARING-BALL	1
3	F316579	曲轴箱密封件	SEAL Crankcase	2
4	FA523014	曲轴下主轴承总成	BEARING ASSEMBLY Crankshaft Lower Main	1
4	818050T4	轴承总成	BEARING ASSY	1
5	F523146-1	密封件	SEAL	1
5	828627	密封件	SEAL	1
6	818070A1	轴承保持架总成(91E型号)	CAGE ASSEMBLY Bearing (91E MODELS)	1
6	819312A1	轴承保持架总成(91H/92C)	CAGE ASSEMBLY Bearing (91H/92C)	1
6	819312T4	保持架总成-70/150	CAGE ASSY-70/150	1
7	F523146-1	密封件	SEAL	1
7	828627	密封件	SEAL	1
8	92160	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	5
9	F1968	螺母(.750-16)	NUT (.750-16)	1
10	F2067	曲轴端塑料盖	CAP Plastisol Crankshaft End	1
11	FA85655-1	中央主轴承总成	BEARING ASSEMBLY Center Main	2
11	803604T	中央主轴承	BEARING-CTR MAIN	2
12	F85410	卡环	RING Snap	2
13	823605	定位销(压入缸体)	PIN Locating (Pressed into Block)	3
14	819193	保持架/滚子组	CAGE/ROLLER SET	2
15	F85498-1	飞轮键	FLYWHEEL KEY	1
16	818052A6	连杆总成	CONNECTING ROD ASSEMBLY	3
16	818052T6	连杆总成	CONN ROD ASSY	3
17	91012		SCREW (.250-28 Special) Connecting Rod	6
18	62596A2	连杆滚针轴承组	CAGE/ROLLER SET Connecting Rod	3
19	819690A1	活塞套件(标准)	PISTON KIT (Standard)	3
19	834797A4	标准活塞组件	PISTON KIT-STD	3
19	819690A2	活塞套件(加大0.010英寸)	PISTON KIT (.010 O.S.)	OPT.
19	834797A5	活塞套件-.010	PISTON KIT-.010	OPT.
19	819690A3	活塞套件(加大0.030英寸)	PISTON KIT (.030 O.S.)	OPT.
19	834797A6	活塞套件-.030	PISTON KIT-.030	OPT.
20	F335217-1	活塞销轴承(26)	BEARING (26), Piston Pin	3
21	F85017-3	活塞销	PIN Piston	3
22	826806	活塞销隔套	SPACER Piston Pin	6
23	820457A2	活塞环组(2环)(标准)	RING SET (2 RINGS), Piston (Standard)	3
23	820641A1	活塞环组(2环)(0.010加大)	RING SET (2 Rings), Piston (.010 O.S.)	OPT.
23	818129A2	活塞环组(2环)(0.030加大)	RING SET (2 Rings), Piston (.030 O.S.)	OPT.
-	FG1028-2	动力头衬垫套件	GASKET SET Powerhead	AR
-	809748A1	衬垫套件	GASKET SET	AR
-	820725A1	衬垫套件	GASKET SET	AR
-	817608A6	短缸体	SHORT BLOCK	AR
-	817608A22	动力头套件	POWERHEAD KIT	AR
-	817608A17	动力头总成	POWERHEAD ASSEMBLY	AR
-	817608A22	动力头套件	POWERHEAD KIT	AR

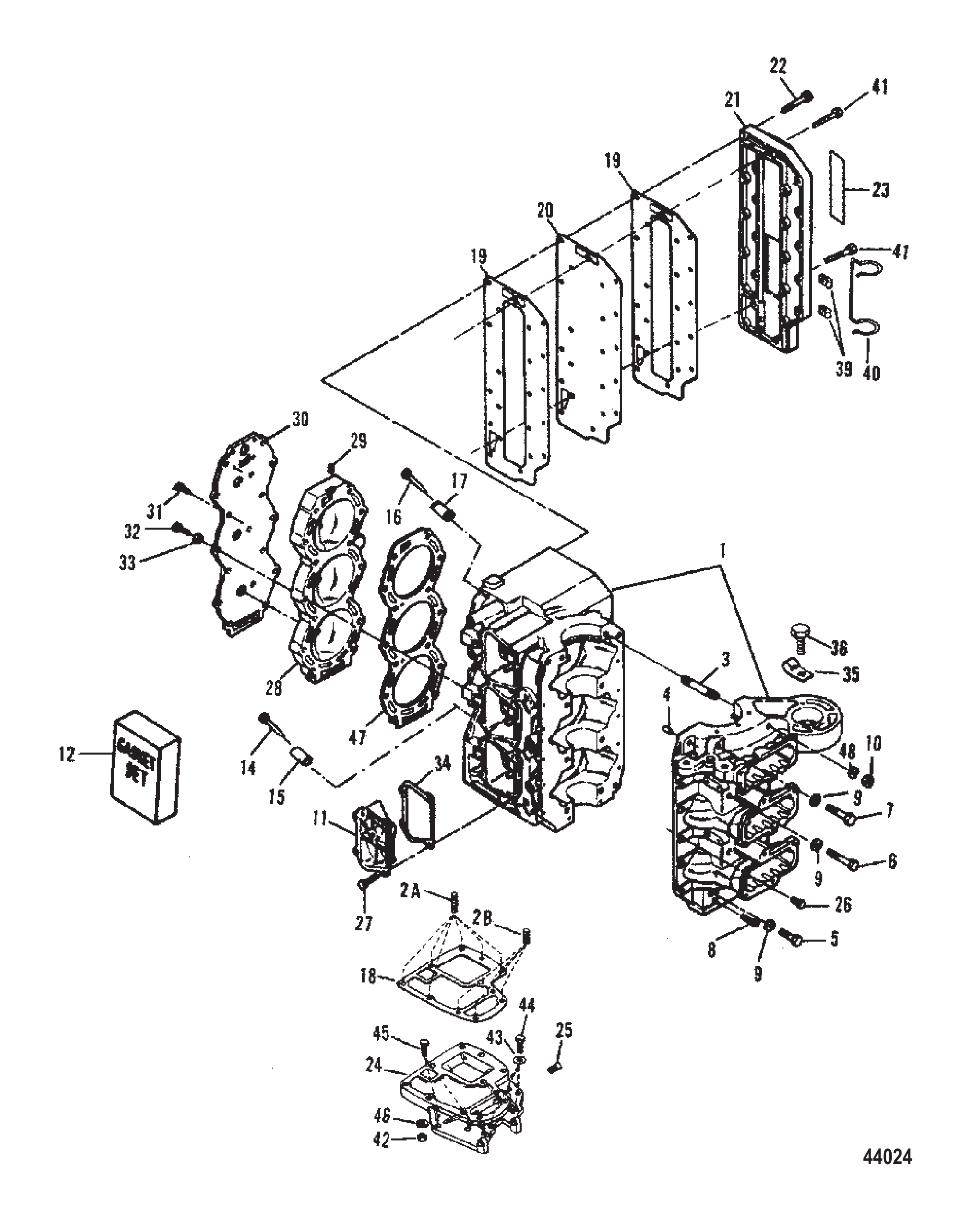

图 5气缸体 Cylinder Block

REF	零件编号	中文名称	英文名称	数量
--	817608A6	短缸体(喷漆)	SHORT BLOCK (PAINTED)	1
--	817608A22	动力头套件	POWERHEAD KIT	1
1	817881A5	气缸带盖	CYLINDER W/COVER	1
1	818153A23	气缸体套件	CYLINDER BLOCK KIT	1
1	817608A17	动力头总成(喷漆)	POWERHEAD ASSEMBLY (PAINTED)	1
1	817608A22	动力头套件	POWERHEAD KIT	1
1	817608A18	气缸体套件	CYLINDER BLOCK KIT	1
1	818153A23	气缸体套件	CYLINDER BLOCK KIT	1
2A	826391	双头螺柱(3/8-16 X 3.11英寸)带防松	STUD (3/8-16 X 3.11") WITH DRI LOC	6
2B	826395	双头螺柱(3/8-16 X 2-1/4英寸)带防松	STUD (3/8-16 X 2-1/4") WITH DRI LOC	4
2B	F85859	双头螺柱(.375-16 x 2.25)	STUD (.375-16 x 2.25)	4
3	826394	双头螺柱(.375-16 x 3.843)	STUD (.375-16 x 3.843)	1
3	8263942	螺柱	STUD	1
4	20433	定位销(.375 x 1.00)	PIN Dowel (.375 x 1.00)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	32132	螺钉(.375-16 x 1.750)	SCREW (.375-16 x 1.750)	2
6	53734	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	4
7	47688	螺丝 (.375-16 x 2.750)	SCREW (.375-16 x 2.750)	1
8	820589	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	2
9	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	7OR8
10	86226	螺母（.375-16）	NUT (.375-16)	1
10	8M0204671	螺母	NUT	1
11	817790A1	换气口盖	COVER Transfer Port	2
12	FG1028-2	动力头衬垫套件	GASKET SET Powerhead	1
12	809748A1	衬垫套件	GASKET SET	1
12	820725A1	衬垫套件	GASKET SET	1
14	F719372	水套管销	PIN Water Jacket Tube	2
15	F719418	水套管	TUBE Water Jacket	2
16	F691372	水套管销(顶部)	PIN Water Jacket Tube (Top)	1
17	F719943	水套管(顶部)	TUBE Water Jacket (Top)	1
18	819381	隔板衬垫	GASKET Spacer Plate	1
19	819023	排气口板衬垫	GASKET Exhaust Port Plate	2
19	8190231	衬垫	GASKET	2
20	8192831	排气口板	PLATE Exhaust Port	1
21	F692152	排气口盖	COVER Exhaust Port	1
21	803932T	排气盖	COVER-EXHAUST	1
22	76213	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	21
23	F529398-1	线路贴纸	DECAL Wiring	1
24	819750A1	隔板套件	PLATE KIT Spacer	1
25	F695275	管接头(.500-14)	FITTING (.500-14)	1
25	827976	接头	FITTING	1
26	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	10
27	98254	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	6
28	819857	气缸盖	CYLINDER HEAD	1
28	819857A3	气缸盖套件	CYLINDER HEAD KIT	1
29	F722109-1	堵头(尼龙)	PLUG (Nylon)	1
30	F692995	气缸盖罩	COVER Cylinder Head	1
31	98254	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	3
32	F1883	螺栓 (.312-18 x 2.375)	BOLT (.312-18 x 2.375)	14
33	34437	垫圈	WASHER	14
34	820500	换气口盖垫片	GASKET Transfer Port Cover	2
34	820500A3	衬垫套件	GASKET KIT	2
35	55098	J型卡扣	J CLIP	1
35	8M0024808	J型夹	J-CLIP	1
36	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
39	820437	固定卡扣	CLIP Retainer	2
40	92753	线束固定座	RETAINER Wiring Harness	1
41	F901938-1	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	2
42	68411	螺母（.375-16）	NUT (.375-16)	6
42	82670912	螺母(.375-16)不锈钢	NUT (.375-16) Stainless Steel	6
43	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
44	37612	螺钉 (.375-16 x 1.250)	SCREW (.375-16 x 1.250)	3
45	68101	螺钉(.375-16 x 1.375)	SCREW (.375-16 x 1.375)	2
46	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	5
47	820438	气缸盖衬垫	GASKET Cylinder Head	1
48	35048	锁紧垫圈 (.375)	LOCKWASHER (.375)	1
-	817608A6	短缸体	SHORT BLOCK	AR
-	817608A22	动力头套件	POWERHEAD KIT	AR
-	817608A17	动力头总成	POWERHEAD ASSEMBLY	AR
-	817608A22	动力头套件	POWERHEAD KIT	AR
-	FG1028-2	动力头衬垫套件	GASKET SET Powerhead	AR
-	809748A1	衬垫套件	GASKET SET	AR
-	820725A1	衬垫套件	GASKET SET	AR

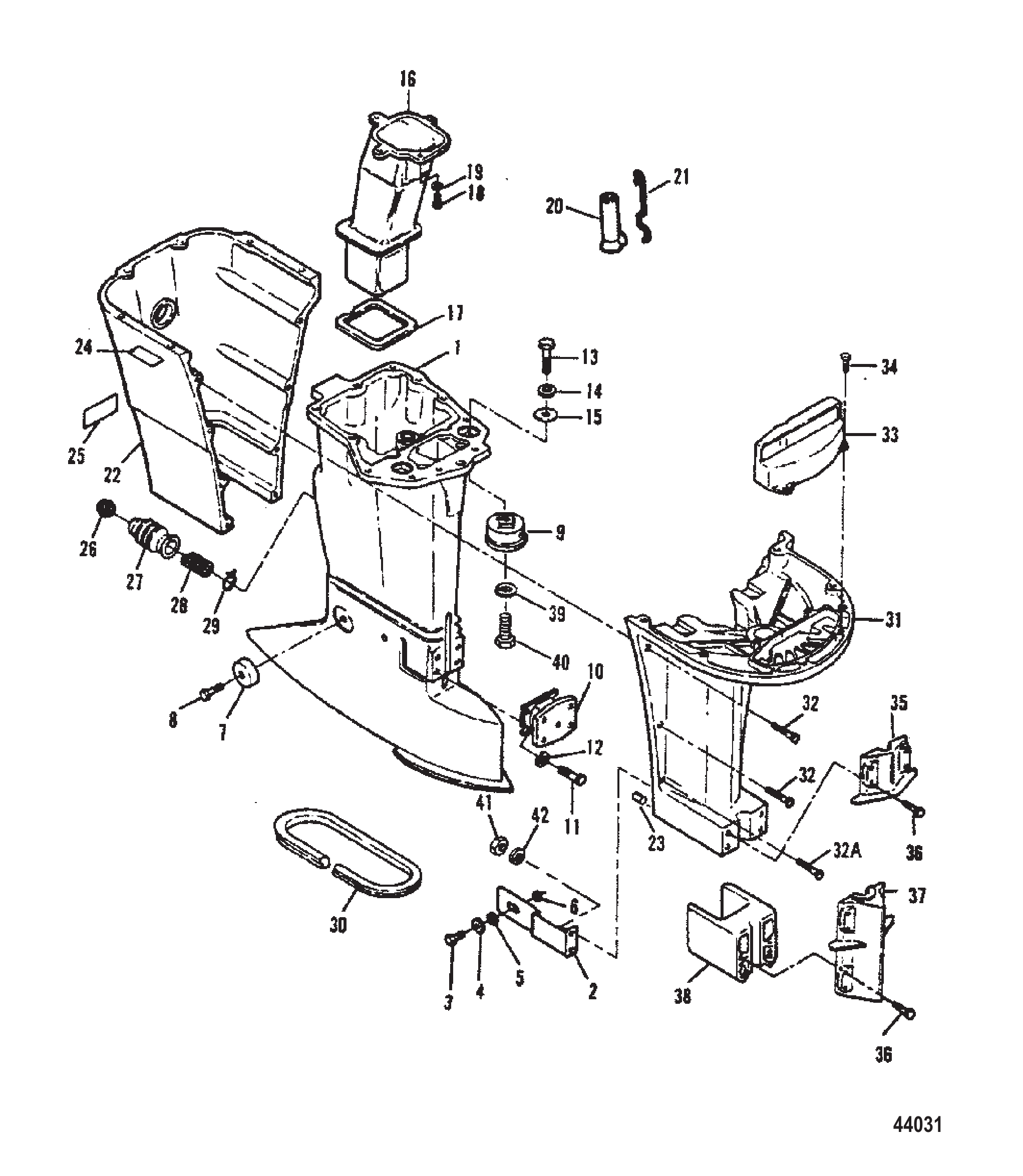

图 6驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	819432A2	传动轴壳体套件 - 20.00英寸(喷漆)	HOUSING KIT Driveshaft - 20.00 Inch (Painted)	1
1	819433A2	传动轴壳体套件 - 25.00英寸(喷漆)	HOUSING KIT Driveshaft - 25.00 Inch (Painted)	1
2	F720835-1	下减震器固定带	STRAP Shock Mount Lower	2
3	826377	螺钉 (.312-18X.75)	SCREW (.312-18X.75)	2
4	F513286	垫圈	WASHER	2
5	69150	波形垫圈	WAVE WASHER	2
6	F720201	隔套	SPACER	2
7	F438962	侧边下减震座	SHOCK MOUNT Side Lower	2
8	F1263	螺钉(0.312-18x0.562)不锈钢	SCREW (.312-18 x .562) SS	2
9	F699965-1	上减震器座	MOUNT Shock Upper	2
9	820632T	减震支架	MOUNT-SHOCK	2
10	F438346	下减震座	SHOCK MOUNT Lower	1
10	803714T	减震支架	MOUNT-SHOCK	1
11	F1822	螺钉 (0.312-18 x 0.875)	SCREW (.312-18 x .875)	4
11	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	4
12	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
13	19922075	螺钉(.375-16 x .75)	SCREW (.375-16 x .75)	2
14	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	2
15	FA85355-1	减震器上支架垫片套件	WASHER KIT Upper Shock Mount	2
16	F85660-1	排气管	TUBE Exhaust	1
17	F439736	排气管密封件	SEAL Exhaust Tube	1
18	19934075	螺钉(.250-20 X.75)	SCREW (.250-20 X.75)	4
18	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	4
19	26992	锁紧垫圈(.250)不锈钢(用于无防松螺钉)	LOCKWASHER (.250) Stainless Steel (For screws without Dri Loc)	4
20	816515	立管 92A至92C &	STANDPIPE 92A THRU 92C &	2
21	F686491	卡扣	CLIP	2
22	819317F	后盖(喷漆)	COVER Rear, Painted	1
22	819317T	机腿盖	COVER-LEG	1
23	F1664	弹簧销	PIN Spring	2
24	F717893	侧面标贴	DECAL Side	2
25	F716374	后标贴	DECAL Rear	1
26	816513	怠速排气套插入件	INSERT Idle Exhaust Boot	1
27	F85130	怠速排气套	BOOT Idle Exhaust	1
27	895012A01	排气护套套件	BOOT KIT-EXHAUST	1
28	F85380	怠速排气套弹簧	SPRING Idle Exhaust Boot	1
29	F85772	卡箍	CLAMP	1
30	F178323	驱动轴壳体密封件	SEAL Driveshaft Housing	1
31	FK719135F	前盖套件(喷漆)	COVER KIT Front, Painted	1
32	F2030	螺钉 (.250-20 x 1.250) 不锈钢	SCREW (.250-20 x 1.250) Stainless Steel	4
32A	F2288	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	2
33	FK692779	进气导流板	BAFFLE Air Intake	1
34	41772	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
35	F720606F	20英寸盖(喷漆)	CAP 20 Inch, Painted	1
36	F2312	螺钉(5/16-18X2.12)	SCREW (5/16-18X2.12)	4OR8
37	F721606F	25英寸盖(喷漆)	CAP 25 Inch, Painted	1
38	F631707F	25英寸减震座盖(喷漆)	COVER Shock Mount, 25 Inch, Painted	1
39	F8140	锁紧垫圈(.50)	LOCKWASHER (.50)	2
39	38829	锁紧垫圈(.500)	LOCKWASHER (.500)	2
40	826577	螺钉(.500-13X.875)	SCREW (.500-13X.875)	2
41	68292	螺母(.312-18)	NUT (.312-18)	4
41	8M0204668	螺母(.312-18)	NUT (.312-18)	4
42	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	4

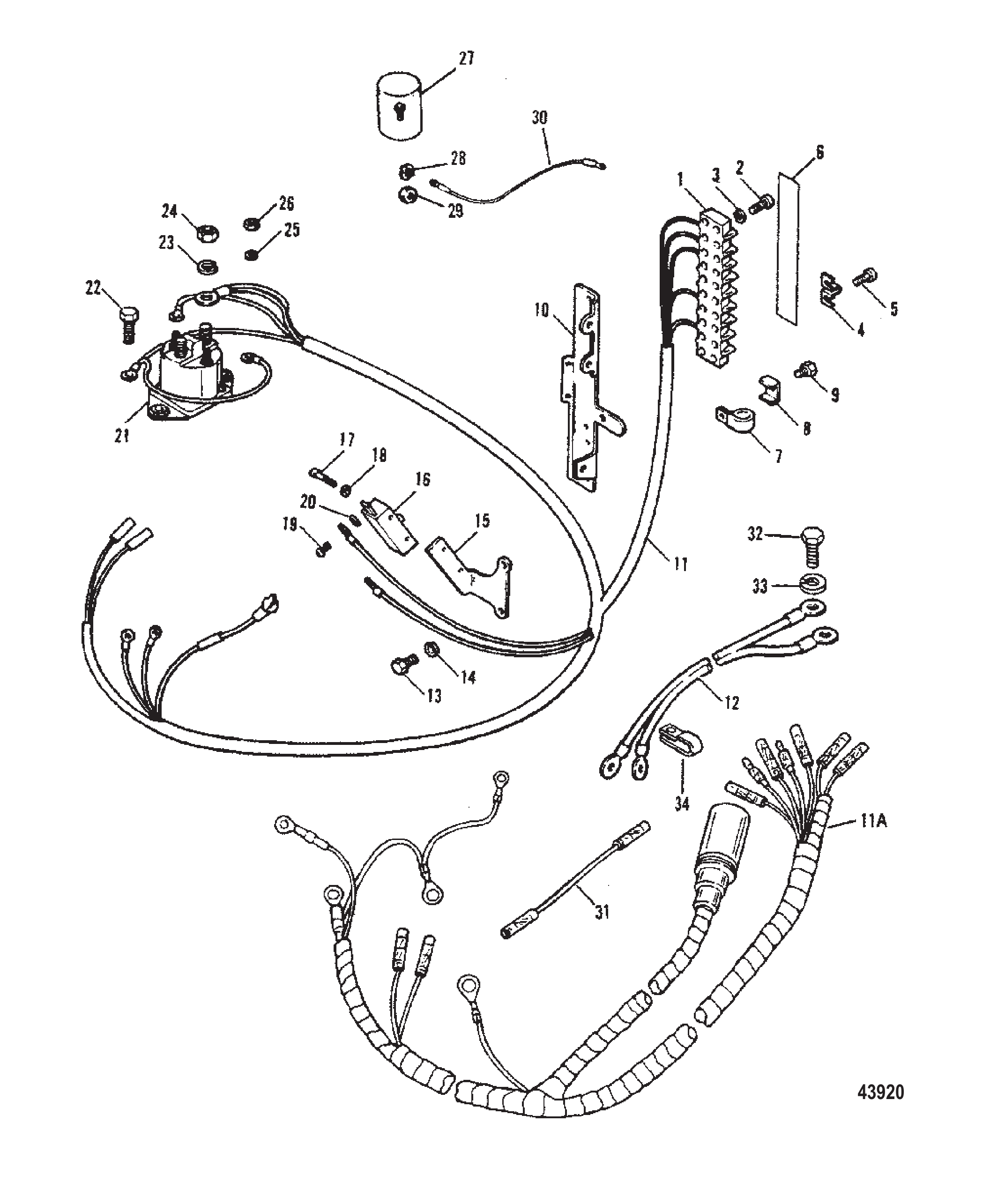

图 7电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	FA616497	端子块总成	BLOCK ASSEMBLY Terminal	1
2	41069	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
3	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
4	F307317	接地线夹	CLIP GROUND	2
5	41069	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
6	F529398-1	线路图贴花	DECAL WIRING	1
7	F289446-1	卡箍	CLAMP	1
8	F438668	拉线固定器	RETAINER CABLE	1
9	34939	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	1
10	F438493	接线端子支架	BRACKET TERMINAL BLOCK	1
11	817459A1	线束总成	HARNESS ASSEMBLY WIRING	1
11A	823392A1	线束总成	HARNESS ASSEMBLY WIRING	1
11A	827244A1	线束总成	HARNESS ASSEMBLY	1
12	F381896-4	电池电缆总成	CABLE ASSEMBLY Battery	1
12	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
13	F1532	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	2
13	819110100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	2
14	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
15	F749551-1	联锁开关支架	BRACKET INTERLOCK SWITCH	1
16	F84449	联锁开关	SWITCH INTERLOCK	1
17	F2193	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
18	27882	垫圈	WASHER	2
19	69080	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	2
20	F1704		WASHER (#6 INTERNAL)	2
21	F460917-1	启动继电器	RELAY STARTER	1
21	817109A3	电磁阀组件	SOLENOID KIT	1
22	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	2
23	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
24	68292	螺母(.312-18)	NUT (.312-18)	2
24	8M0204668	螺母(.312-18)	NUT (.312-18)	2
25	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
26	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
27	F654924-1	阻风门电磁阀	SOLENOID CHOKE	1
27	889273	电磁阀-阻风门	SOLENOID-CHOKE	1
28	F8056	锁紧垫圈(#8)	LOCKWASHER (#8)	1
29	F1647	螺母（#8-32）	NUT (#8-32)	1
30	819210A1	电线	WIRE	1
31	825275A1	线缆总成(黑/黄)	CABLE ASSEMBLY (BLACK/YELLOW)	1
32	F2000	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	1
32	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
33	53166		LOCKWASHER (.312) GROUND	1
34	F407446	蓄电池电缆卡箍	CLAMP BATTERY CABLE	1
--	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
--	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
--	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR

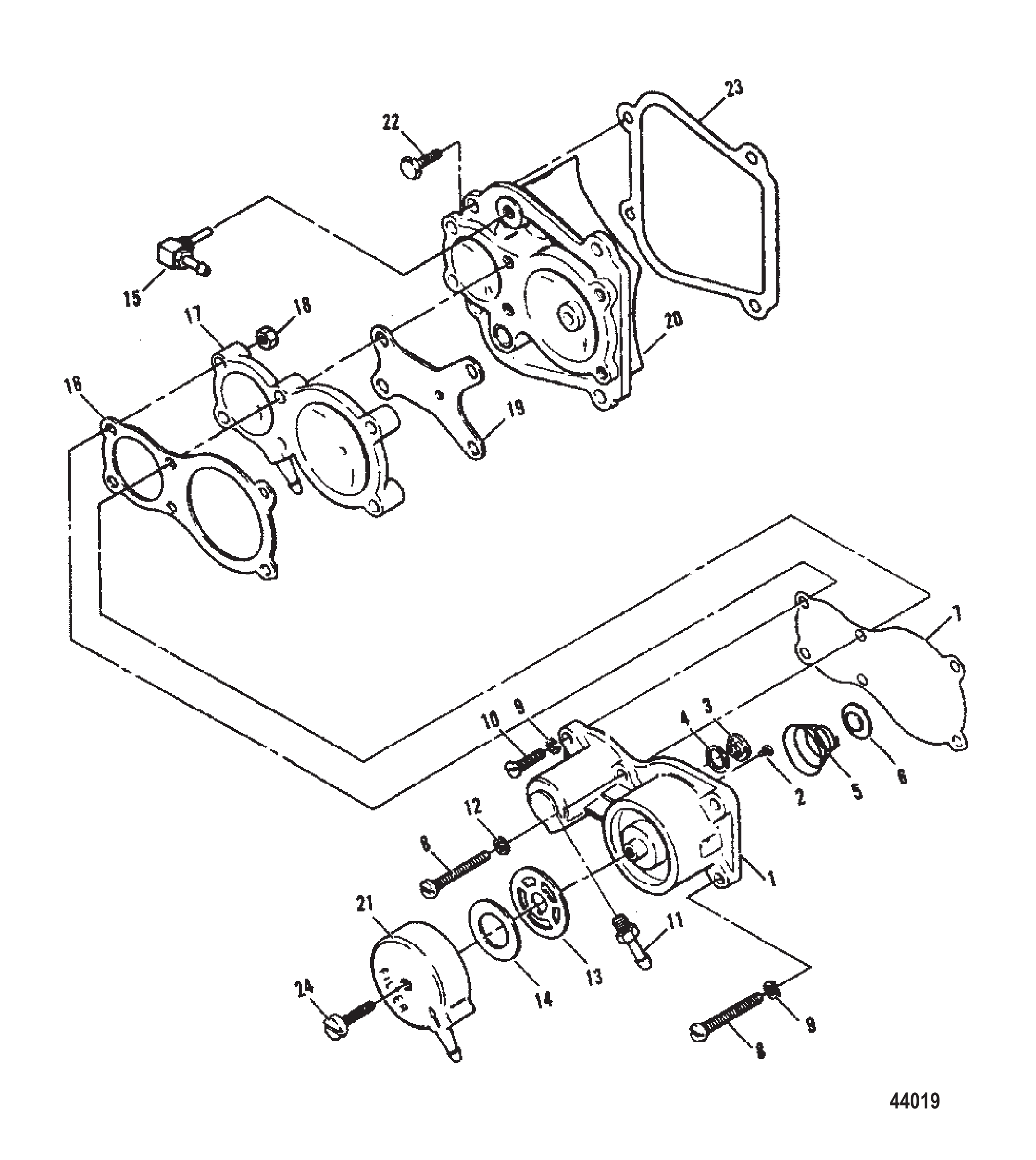

图 8燃油泵总成 0E000001至0E065371 Fuel Pump Assembly 0E000001 Thru 0E065371

REF	零件编号	中文名称	英文名称	数量
--	817919A1	燃油泵套件	PUMP KIT FUEL	1
--	820581A1	燃油泵套件	PUMP KIT FUEL	1
1	819843A1	燃油泵主体总成	BODY ASSEMBLY FUEL PUMP	1
1	819843T1	燃油泵总成	BODY ASSY-F/P	1
2	28430	螺钉(#6-32 x .25)	SCREW (#6-32 x .25)	2
3	F177330	阀门	VALVE	3
3	8M0082362	止回阀	CHECK VALVE	3
4	F84792		GASKET Center Valve	1
5	F686300	燃油泵增压弹簧	SPRING Fuel Pump Boost	1
6	F686096		RETAINER Booster Spring	1
7	F438747	隔膜	DIAPHRAGM	1
8	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	4
9	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
10	41069	螺钉(#10-24 x .750)(设计I型)	SCREW (#10-24 x .750) (DESIGN I)	2
10	55515	螺钉(#10-32 x .750)(设计II型)	SCREW (#10-32 x .750) (DESIGN II)	2
11	64705	接头	FITTING	1
12	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
13	823606	燃油泵杯衬垫	GASKET Fuel Pump Bowl	1
14	F438653		SCREEN Fuel Pump	1
15	F404314	弯头(1/4"直径)	ELBOW (1/4" DIA.)	1
15	F743314	弯头(1/8"直径)	ELBOW (1/8" DIA.)	1
16	820490	燃油泵衬垫	GASKET Fuel Pump	1
17	F658836	燃油泵隔套	SPACER Fuel Pump	1
18	79989	螺母(#10-24)不锈钢(设计I型)	NUT (#10-24) Stainless Steel (DESIGN I)	2
18	68219	螺母(#10-32)不锈钢(设计II型)	NUT (#10-32) Stainless Steel (DESIGN II)	2
19	F658803	燃油泵隔套垫片	GASKET Fuel Pump Spacer	1
20	817870A1	燃油泵盖套件(带塞)	COVER KIT (W/PLUG), Fuel Pump	1
21	817066	滤杯	BOWL	1
21	F695500	滤杯	BOWL	1
22	98254	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	4
23	820500	燃油泵盖衬垫	GASKET Fuel Pump Cover	1
23	820500A3	衬垫套件	GASKET KIT	1
24	56682	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	1
24	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	1
-	FG1028-2	动力头衬垫套件	GASKET SET Powerhead	AR
-	809748A1	衬垫套件	GASKET SET	AR
-	817608A6	短缸体	SHORT BLOCK	AR
-	817608A22	动力头套件	POWERHEAD KIT	AR

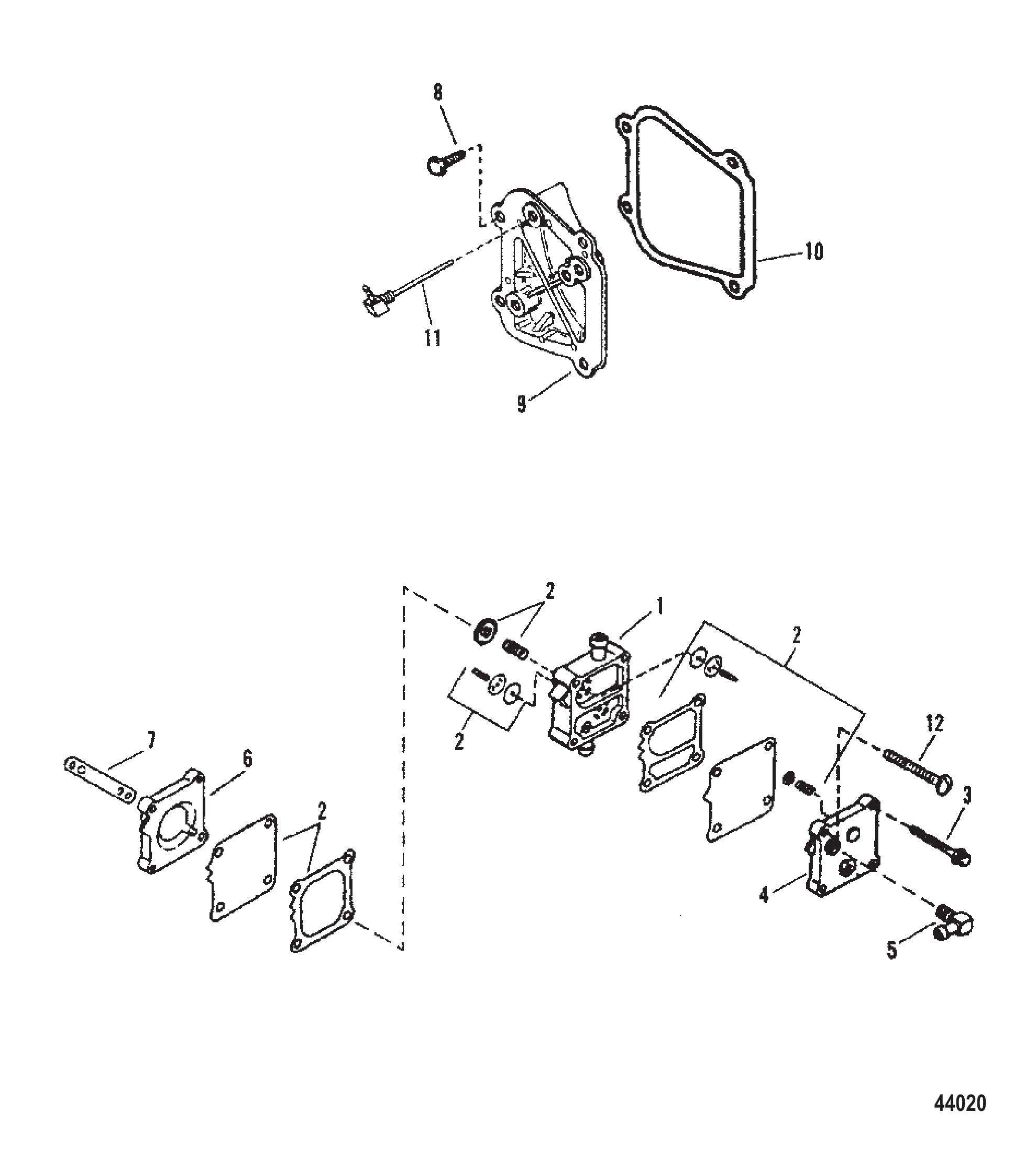

图 9燃油泵总成 0E065372至0E093699 Fuel Pump Assembly 0E065372 Thru 0E093699

REF	零件编号	中文名称	英文名称	数量
1	14360A49	燃油泵套件	PUMP KIT Fuel	1
1	14360A73	燃油泵套件	PUMP KIT-FUEL	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
4	987752	燃油泵板	PLATE Fuel Pump	1
5	99664	弯头	ELBOW	1
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	144303		BASE Fuel Pump	1
7	987691	燃油泵底座衬垫	GASKET Fuel Pump Base	1
7	8M0204705	衬垫@2	GASKET @2	1
8	98254	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	4
9	8178702	燃油泵盖	COVER Fuel Pump	1
9	8178703	燃油泵盖	COVER Fuel Pump	1
10	820500	燃油泵盖衬垫	GASKET Fuel Pump Cover	1
10	820500A3	衬垫套件	GASKET KIT	1
11	F743314	循环弯头	ELBOW Recirculating	1
12	16452	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
-	820725A1	衬垫套件	GASKET SET	AR
-	817608A17	动力头总成	POWERHEAD ASSEMBLY	AR
-	817608A22	动力头套件	POWERHEAD KIT	AR

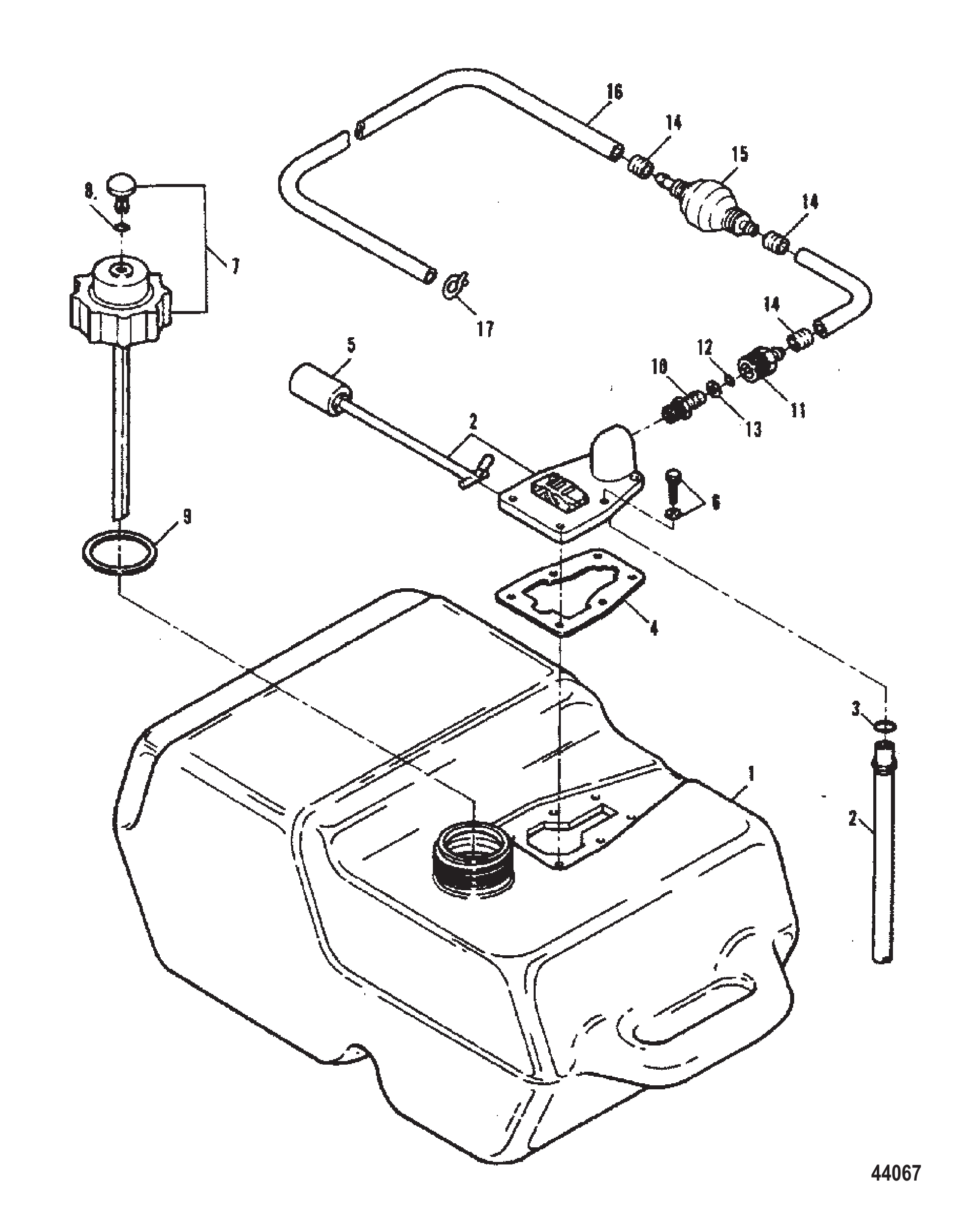

图 10燃油箱与管路 Fuel Tank and Line

REF	零件编号	中文名称	英文名称	数量
--	FS409752	燃油管路总成(完整)	LINE ASSEMBLY Fuel - Complete	1
--	877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
1	819039A1	油箱总成(完整)	TANK ASSEMBLY (COMPLETE)	1
1	823504A3	燃油箱总成	TANK ASSEMBLY Fuel	1
2	F17828	仪表总成	GAUGE ASSEMBLY	1
3	F17827	密封件	SEAL	1
4	F17823-1	衬垫	GASKET	1
5	F17826	浮子	FLOAT	1
6	F17824	螺钉	SCREW	6
7	F17821	盖帽	CAP	1
8	F17825	密封件	SEAL	1
9	F17822-1	衬垫	GASKET	1
10	F213238-2	燃油衬套	BUSHING Fuel	1
10	F213238Q2	衬套@2	BUSHING @2	1
11	F197787-3	燃油连接器	COUPLER Fuel FUEL	1
11	F197787Q3	燃油接头总成	COUPLER ASSEMBLY Fuel	1
12	F17815	小密封件	SEAL (SMALL)	1
13	F17816	大密封件	SEAL (LARGE)	1
14	415827	尼龙卡箍	CLAMP Nylon	3
14	41582Q7	卡箍	CLAMP	3
15	89396A38	注油泵总成	BULB ASSEMBLY Primer	1
15	89396Q01	注油球@4	PRIMER BULB @4	1
16	817738A1	燃油管路总成	LINE ASSEMBLY Fuel	1
17	63933	卡箍	CLAMP	1

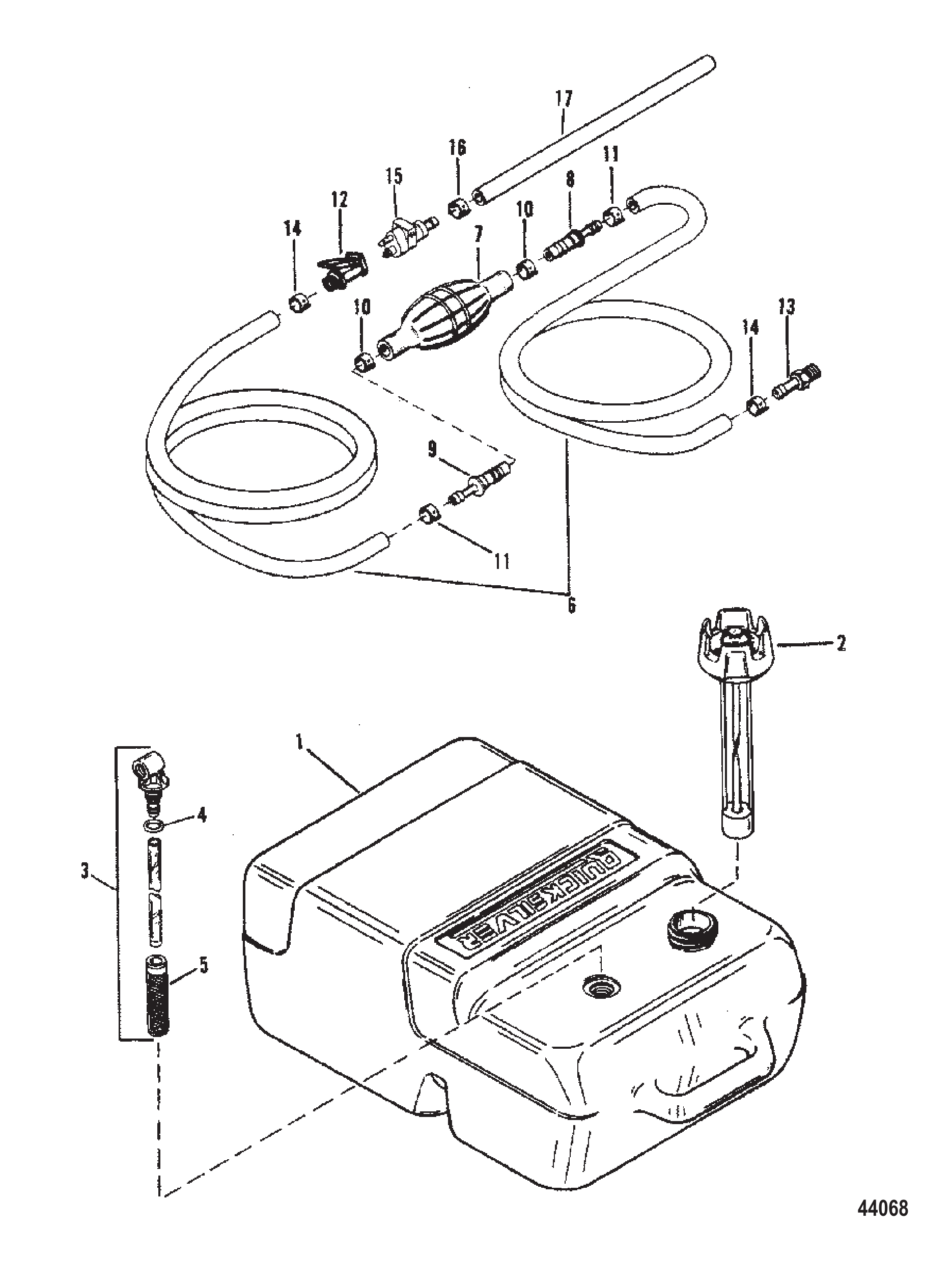

图 11燃油箱及管路（塑料-6.6加仑） Fuel Tank and Line (Plastic - 6.6 Gallon)

REF	零件编号	中文名称	英文名称	数量
--	823504A2	燃油箱总成(完整)	TANK ASSEMBLY Fuel (COMPLETE)	1
1	823504A1	燃油箱总成-塑料6.6加仑	TANK ASSEMBLY Fuel - Plastic 6.6 Gallon	1
1	859063A1	燃油箱总成	TANK ASSEMBLY Fuel	1
2	823536	油量表/油箱盖总成	GAUGE/CAP ASSEMBLY	1
2	816976Q1	燃油手动通气盖总成	CAP ASSEMBLY Fuel-Manual Vent	1
3	823532		CONNECTOR ASSEMBLY FUEL	1
3	8M0175545	燃油连接套件 6.6	CONN KIT FUEL 6.6	1
4	823533	O型圈	O-RING	1
5	823534	滤网	SCREEN FILTER	1
6	17146A8	燃油管路总成(8英尺)(.312内径)(30/60英寸)	LINE ASSEMBLY Fuel (8 Feet) (.312 I.D.) (30/60 Inches)	1
6	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
6	16789A26	燃油软管总成(8英尺)(.312内径)(18/72英寸)	HOSE ASSEMBLY Fuel (8 Feet) (.312 I.D.) (18/72 Inches)	1
6	858610A32	燃油软管总成	HOSE ASSEMBLY Fuel	1
7	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
7	13330Q07	注油泵总成 - Quicksilver品牌	BULB ASSEMBLY Primer - Quicksilver Brand	1
8	13331A1		CHECK VALVE ASSEMBLY (INLET)	1
8	13331A3	止回阀总成	CHECK VALVE ASSEMBLY	1
9	13331A2		CHECK VALVE ASSEMBLY (OUTLET)	1
9	13331A4	止回阀总成	CHECK VALVE ASSEMBLY	1
10	4158210		CLAMP Nylon (LARGE)	2
11	415827		CLAMP Nylon (SMALL)	2
11	41582Q7	卡箍	CLAMP	2
12	13563A3		FITTING ASSEMBLY Fuel Line ENGINE	1
12	13563Q3	发动机端快速接头(水星)	QUICK DISCONNECT Engine End (Quicksilver)	1
13	897711		CONNECTOR (.250-18) FUEL TANK	1
13	89771Q2	连接器(.250-18)	CONNECTOR (.250-18)	1
14	415827	尼龙卡箍	CLAMP Nylon	2
14	41582Q7	卡箍	CLAMP	2
13	897711		CONNECTOR (.250-18) FUEL TANK	1
13	89771Q2	连接器(.250-18)	CONNECTOR (.250-18)	1
14	F698772	蜗杆卡箍	CLAMP Worm Gear	1
15	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
15	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
16	415827	尼龙卡箍	CLAMP Nylon	1
16	41582Q7	卡箍	CLAMP	1
17	1678978	软管(9.00英尺整卷)按需裁切	HOSE (9.00 Feet Bulk) CUT AS REQ'D	AR
17	85861079	软管(9.00英尺整卷)	HOSE (9.00 Feet Bulk)	AR
--	16789100	软管(100.00英尺整卷)按需裁切	HOSE (100.00 Feet Bulk) CUT AS REQ'D	AR
--	858610100	软管(100.00英尺整卷)	HOSE (100.00 Feet Bulk)	AR

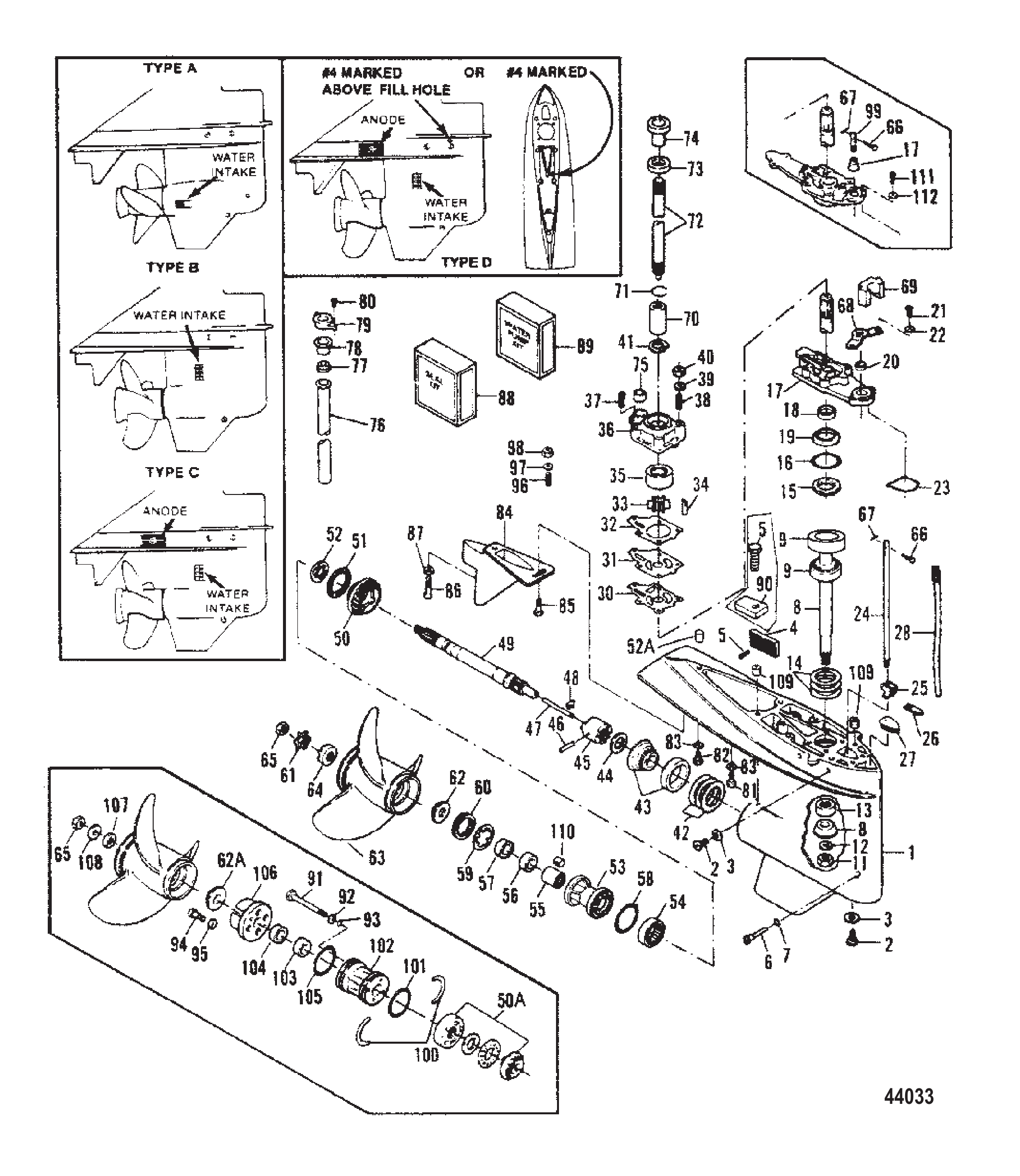

图 12齿轮箱 Gear Housing

REF	零件编号	中文名称	英文名称	数量
--	817925A5	齿轮箱总成(完整-喷漆-1.93:1)A&B型	GEAR HOUSING ASSEMBLY (COMPLETE-PAINTED-1.93:1) TYPE A & B	1
1	819190A3	齿轮箱套件(基础-喷漆)A&B型	GEAR HOUSING KIT (BASIC-PAINTED) TYPE A & B	1
1	817925A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
--	820588A1	齿轮箱总成(完整-喷漆-1.93:1)C型	GEAR HOUSING ASSEMBLY (COMPLETE-PAINTED-1.93:1) TYPE C	1
--	820588T1	GC 120 FORCE LG	GC 120 FORCE LG	1
1	819231A13	齿轮箱套件(基础-喷漆)C型	GEAR HOUSING KIT (BASIC-PAINTED) TYPE C	1
--	820588A1	齿轮箱总成(完整-喷漆-1.93:1)D型	GEAR HOUSING ASSEMBLY (COMP.-PAINTED-1.93:1) TYPE D	1
--	820588T1	GC 120 FORCE LG	GC 120 FORCE LG	1
--	820588A7	齿轮箱总成(高海拔)(喷漆-2.2:1)D型	GEAR HOUSING ASSEMBLY (HI-ALT) (PAINTED-2.2:1) TYPE D	1
--	820588T7	齿轮箱(2.2:1)	GEAR HSG-(2.2:1)	1
1	820588A6	齿轮箱套件(基础-喷漆)D型	GEAR HOUSING KIT (BASIC-PAINTED) TYPE D	1
2	F50109	螺钉	SCREW	3
2	79953Q04	放油螺钉套件	SCREW KIT Drain	3
3	19183	纤维垫圈	WASHER Fiber	3
3	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
4	819232	阳极(C&D型)	ANODE (TYPE C & D)	2
5	F2317	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	2
6	826374	换挡臂销(带防松)	PIN GEAR SHIFT ARM, W/DL	1
7	25007	O型圈	O-RING	1
8	FS694628	驱动轴下部	DRIVESHAFT LOWER	1
8	FS707628	驱动轴	DRIVESHAFT	1
8	FS707628	驱动轴下部	DRIVESHAFT LOWER	1
8	819738A2	驱动轴/齿轮下部总成	DRIVESHAFT/GEAR ASSEMBLY LOWER	1
8	820214A1	驱动轴/齿轮下部总成	DRIVESHAFT/GEAR ASSEMBLY LOWER	1
9	35924A1	轴承总成	BEARING ASSEMBLY	1
9	35924T1	轴承总成	BEARING ASSEMBLY	1
11	826375	螺母(0.625-18)	NUT (.625-18)	1
11	35921	螺母(0.625-18)	NUT (.625-18)	1
12	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
13	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
14	819415A1	垫片组	SHIM SET	AR
15	F694961-1	驱动轴上轴承保持架	RETAINER DRIVESHAFT BEARING UPPER	1
15	8245191	固定座	RETAINER	1
16	90011	O型圈(2.175 x .175)驱动轴盖	O-RING (2.175 x .175) DRIVESHAFT COVER	1
16	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
17	FK721706	盖(A型)	COVER (TYPE A)	1
17	818074A1	盖总成(B&C&D型)	COVER ASSEMBLY (TYPE B & C & D)	1
18	819740	驱动轴水泵密封件	SEAL DRIVESHAFT WATER PUMP	1
19	F694305	驱动轴密封圈	SEAL DRIVESHAFT	1
19	89238	油封	SEAL Oil	1
20	817472	换挡杆下部密封件	SEAL GEAR SHIFT ROD, LOWER	1
21	F1999	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	2
21	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	2
22	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
23	F707305	盖O型圈	O-RING COVER	1
24	F694705	换挡杆下部(A型)	ROD GEAR SHIFT, LOWER (TYPE A)	1
24	F523705-1	换挡杆下部(B&C&D型)	ROD GEAR SHIFT, LOWER (TYPE B & C & D)	1
25	FA84621-1	换挡联轴器	COUPLING GEAR SHIFT	1
26	F707885	皮托管塞固定座	RETAINER PITOT PLUG	1
27	F694226	皮托管塞	PLUG PITOT TUBE	1
27	892827	堵头	PLUG	1
28	85822A12	连接器总成	CONNECTOR ASSEMBLY	1
30	F694830	水泵下衬垫	GASKET WATER PUMP LOWER	1
31	F699562	水泵板	PLATE WATER PUMP	1
32	F694031	水泵上衬垫	GASKET WATER PUMP, UPPER	1
33	F694065	水泵叶轮	IMPELLER WATER PUMP	1
33	89984T3	叶轮	IMPELLER	1
34	F694498	驱动轴键	KEY DRIVESHAFT	1
35	F694564-1	水泵衬套	INSERT WATER PUMP	1
36	F694060-2	水泵壳体	BODY WATER PUMP	1
36	803757T	水泵壳体	BODY WATER PUMP	1
37	F2234	螺钉 (#10 x 1.125) (B&C&D型)	SCREW (#10 x 1.125) (TYPE B & C & D)	1
38	826372	双头螺柱 (.250-28X3.12) 带防松胶	STUD (.250-28X3.12) with Dri-Loc	4
38	306671	螺柱	STUD	4
39	71055	垫圈	WASHER	4
40	13438	螺母(.250-28)	NUT (.250-28)	4
40	8267119	螺母(.250-28)	NUT (.250-28)	4
41	F695830	衬垫	GASKET	1
42	819416A1	垫片组	SHIM SET	AR
43	FS694023	前进齿轮 (1.93:1 - A型)	GEAR FORWARD (1.93:1 - TYPE A)	1
43	816434A5	齿轮总成	GEAR ASSEMBLY	1
43	FS707023	前进齿轮 (1.93:1 - B&C型)	GEAR FORWARD (1.93:1 - TYPE B & C)	1
43	816434A5	齿轮总成	GEAR ASSEMBLY	1
43	816434A5	前进齿轮总成 (1.93:1 - D型)	GEAR ASSEMBLY FORWARD (1.93:1 - TYPE D)	1
43	819287A2	前进齿轮总成 (2.2:1 - C&D型)	GEAR ASSEMBLY FORWARD (2.2:1 - TYPE C & D)	1
44	819414A1	垫片组 (89A至92C型号)	SPACER SET (89A THRU 92C MODELS)	AR
45	816433	换挡离合器	CLUTCH SHIFT	1
45	816433T	离合器	CLUTCH	1
46	F2419	弹簧销	PIN Spring	1
46	8M0029889	滚销	PIN-ROLL	1
47	F84871-1	换挡销	PIN SHIFT	1
48	F90619-2	换挡拨叉	YOKE GEAR SHIFT	1
49	FA694098	螺旋桨轴总成 (A型)	PROPELLER SHAFT ASSEMBLY (TYPE A)	1
49	819284A3	螺旋桨轴总成 (B&C&D型)	PROPELLER SHAFT ASSEMBLY (TYPE B & C & D)	1
50A	F2A694662	倒挡齿轮总成 (1.93:1 - A型)	GEAR ASSEMBLY REVERSE (1.93:1 - TYPE A)	1
50A	803843T	后齿轮总成	GEAR ASSY -REAR	1
50	816435	倒挡齿轮 (1.93:1 - B&C&D型)	GEAR REVERSE (1.93:1 - TYPE B & C & D)	1
50	F722662	倒挡齿轮 (2.2:1 - C&D型)	GEAR REVERSE (2.2:1 - TYPE C & D)	1
51	12576	推力轴承	BEARING Thrust	1
52	F707902	止推环	RING THRUST	1
52A	F8580	定位销	PIN LOCATING	1
52A	8M0084726	定位销	PIN Dowel	1
53	FA707239	螺旋桨轴套筒	SPOOL PROP SHAFT	1
53	803906T	阀芯总成	SPOOL ASSY	1
54	12578	滚针轴承	BEARING Needle	1
54	12578T	滚柱轴承	BEARING Roller	1
55	30956	滚针轴承	BEARING Needle	1
55	30956T	滚针轴承	BEARING Needle	1
56	F697555	螺旋桨轴套筒油封	SEAL PROP SHAFT SPOOL	1
56	14077	油封	SEAL Oil	1
57	12224	防渔线缠绕螺旋桨轴套筒油封	SEAL Fish Line Cutting PROP SHAFT SPOOL	1
58	F707278	螺旋桨轴套筒油封	SEAL PROP SHAFT SPOOL	1
59	F707286	止推垫圈	WASHER TAB	1
60	819217	固定座	RETAINER	1
61	816629	锁紧垫圈	TAB WASHER	1
61	816629Q	锁紧垫圈	TAB WASHER	1
62A	F523099-1	垫片 (A型)	SPACER (TYPE A)	1
62	F698099-1	垫片 (B&C&D型)	SPACER (TYPE B & C & D)	1
62	803890T	止推垫片	THRUST WASHER	1
62	819057	垫片 (B&C&D型)	SPACER (TYPE B & C & D)	1
63	PROPELLER	螺旋桨 (参见附件指南-螺旋桨页的应用图表)	PROPELLER Reference Propeller Application Charts in Accessories Guide-Propeller Tab	1
64	F697299	垫圈 (B&C&D型)	WASHER (TYPE B & C & D)	1
64	F523282	垫圈 (B&C&D型)	WASHER (TYPE B & C & D)	1
65	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
65	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
66	F85372		PIN GEAR SHIFT ROD LOWER	1
67	F1015	开口销	COTTER PIN	1
68	819176	换挡杆油封固定座	RETAINER SHIFT ROD SEAL	1
69	F698735-1	排气密封	SEAL EXHAUST	1
70	F694125	驱动轴联轴器	COUPLING DRIVESHAFT	1
71	818826	挡圈	RING RETAINING	1
72	F694128	驱动轴 20.00英寸	DRIVESHAFT 20.00 Inch	1
72	F693128	驱动轴 25.00英寸	DRIVESHAFT 25.00 Inch	1
73	F438271	驱动轴花键油封座	RETAINER DRIVESHAFT SPLINE SEAL	1
74	819427	驱动轴花键油封	SEAL DRIVESHAFT SPLINE	1
75	F694735-1	水线密封	SEAL WATERLINE	1
76	F523244	进水软管 20英寸	LINE Water Inlet, 20 Inch	1
76	F500244	进水软管 25英寸	LINE Water Inlet, 25 Inch	1
77	817491	护圈 (内径0.56)	GROMMET (.56 Inside Diameter)	1
78	F84342	进水口上水线密封	SEAL INLET WATERLINE UPPER	1
79	F692117	水线支架	BRACKET WATERLINE	1
80	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
81	19924325	螺钉 (.312-18 x 3.75)	SCREW (.312-18 x 3.75)	6
81	F1491	螺钉 (.312-18 x 3.25)	SCREW (.312-18 x 3.25)	6
82	19924100	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	1
83	F506186	垫圈 (.340 x .734 x .105) 不锈钢	WASHER (.340 x .734 x .105) Stainless Steel	7
84	F523116-4	排气口	SNOUT EXHAUST	1
85	826377	螺钉 (.312-18X.75) 排气口用,带防松胶	SCREW (.312-18X.75) EXHAUST SNOUT, W/DL	1
86	19928100	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	1
87	F1856	垫圈	WASHER	1
88	FK1203-1	密封套件	SEAL KIT	1
89	FK1204-1	水泵套件	PUMP KIT Water	1
90	F707485	阳极 (B型)	ANODE (TYPE B)	1
91	F1885	螺栓 (5/16-18 X 4.25) (A型)	BOLT (5/16-18 X 4.25) (TYPE A)	4
92	12038	垫圈	WASHER	4
92	8M0207778	垫圈（0.344×0.625×0.063英寸）	WASHER .344 x .625 x.063	4
93	62702	O型圈(.301 x .070)	O-RING (.301 x .070)	4
93	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	4
94	F1112	螺钉 (.25-20 x .875) (A型)	SCREW (.25-20 x .875) (TYPE A)	2
95	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
96	F694211	螺柱	STUD	1
97	F8143	垫圈	WASHER	1
98	29488	螺母 (#10-32) (A型)	NUT (#10-32) (TYPE A)	1
98	8M0204718	螺母	NUT	1
99	F694615	中间换挡杆 -A型	ROD INTERMEDIATE SHIFT -TYPE A	1
100	F523411	挡圈 A型	RING Retaining TYPE A	1
101	32507	O型圈 (3.359 x .139)	O-RING (3.359 x .139)	1
102	F2A523239	螺旋桨轴套筒总成 A型	SPOOL ASSEMBLY PROPSHAFT TYPE A	1
102	803940T	阀芯总成	SPOOL ASSY	1
103	30956	滚针轴承 -A型	BEARING Needle ROLLER -TYPE A	1
103	30956T	滚针轴承	BEARING Needle	1
104	F506118-1	螺旋桨轴套筒油封 -A型	SEAL PROPSHAFT SPOOL -TYPE A	1
105	F24278	螺旋桨轴套筒油封 -A型	SEAL PROPSHAFT SPOOL -TYPE A	1
106	FA523485	防腐阳极 (A型)	ANODE Anti Corrosion (TYPE A)	1
107	F523282	花键垫圈 -A型	WASHER SPLINED -TYPE A	1
108	F8167	垫圈 (.750)	WASHER (.750)	1
109	F694043-2	套筒	SLEEVE	2
110	F8586	定位销	PIN Dowel	1
111	F1999	螺钉 (.250-20 x .875) A型	SCREW (.250-20 x .875) TYPE A	4
111	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	4
112	26992	锁紧垫圈 (.250) 不锈钢 A型	LOCKWASHER (.250) Stainless Steel TYPE A	4
--	F719735-1	排气密封 (非全型号适用)	SEAL EXHAUST (NOT ALL MODELS)	1
--	892991	排气密封	SEAL-EXHAUST	1
--	FK719059	齿轮箱尾鳍修理包	REPAIR KIT Gear Housing Skeg	AR
--	FK1203-1	密封套件	SEAL KIT	AR
--	FK1204-1	水泵套件	PUMP KIT Water	AR

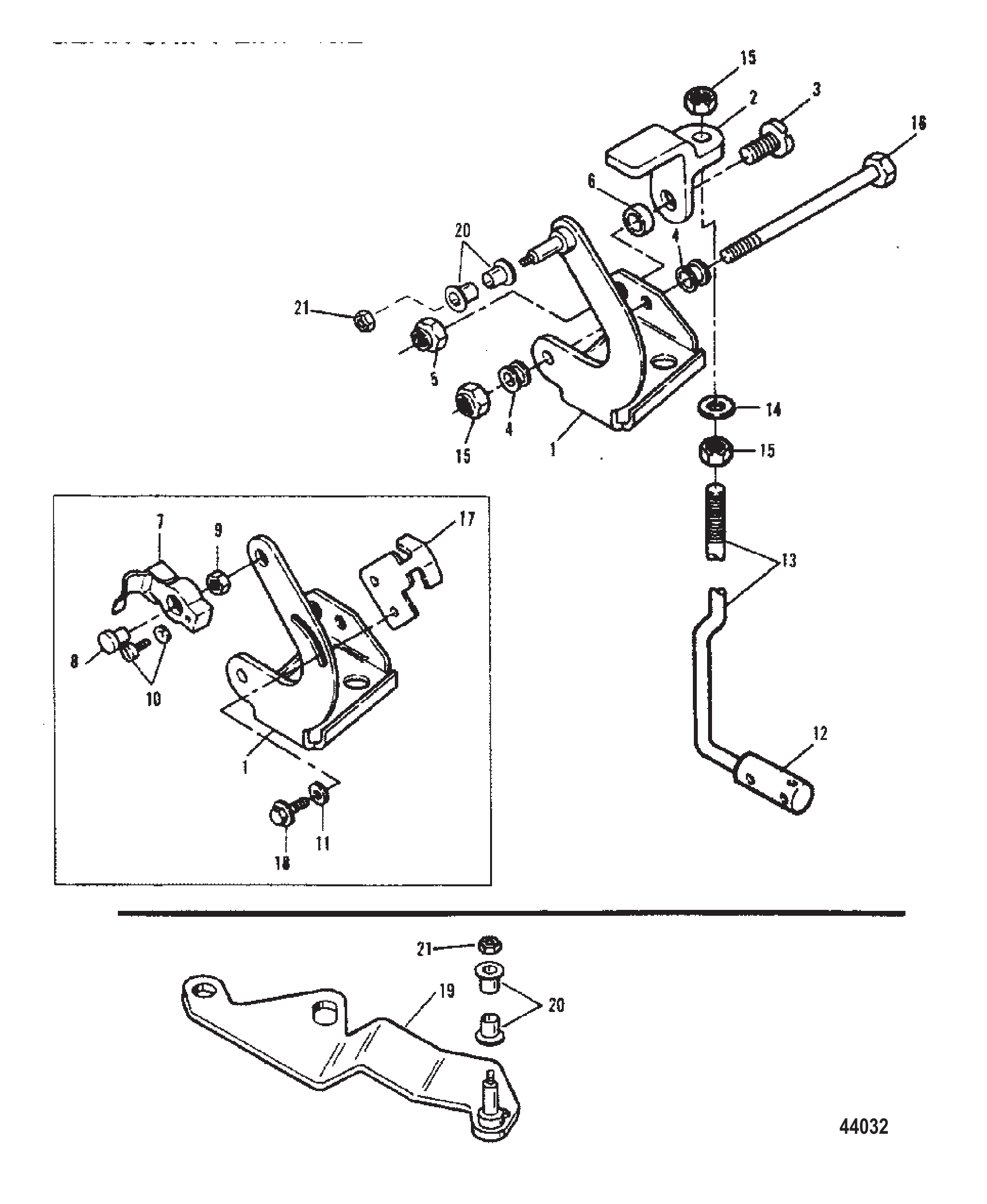

图 13换挡连杆（序列号0E000001至0E009499） Gear Shift Linkage (Serial No. 0E000001 Thru 0E009499)

REF	零件编号	中文名称	英文名称	数量
1	FA480876	换挡臂总成	ARM ASSEMBLY Gear Shift	1
2	8199321	互锁臂	ARM Interlock	1
3	F369887	肩部螺钉	SHOULDER SCREW	1
4	97896	衬套	BUSHING	2
5	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
5	8M0207776	螺母	NUT	1
6	F369610	轴承	BEARING	1
7	FK405020	旋转线夹	SWIVEL Cable Clamp	1
8	F405457	枢轴螺钉	SCREW Pivot	1
9	72008	螺母 (.250-20)	NUT (.250-20)	1
9	8267088	螺母 (.250-20)	NUT (.250-20)	1
10	F2217	螺钉 (10-24 x .375)	SCREW (10-24 x .375)	1
10	F2217-1	螺钉带锁紧垫圈 (#10-24 x .375)	SCREW AND LOCKWASHER (#10-24 x .375)	1
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	F85704	换挡杆联轴器	COUPLER Shift Rod	1
13	F85615-1	上换挡杆 20英寸	ROD Upper Shift Rod 20 Inch	1
13	F500615-2	上换挡杆(25.00英寸)	ROD Upper Gear Shift (25.00 Inch)	1
14	34437	垫圈	WASHER	1
15	F2108	螺母(5/16-18)	NUT (5/16-18)	3
16	F1885	螺栓 (5/16-18 X 4.25)	BOLT (5/16-18 X 4.25)	1
17	F480107-2	启动联锁凸轮	CAM Starter Interlock	1
18	F2217	螺钉 (10-24 x .375)	SCREW (10-24 x .375)	2
18	F2217-1	螺钉带锁紧垫圈 (#10-24 x .375)	SCREW AND LOCKWASHER (#10-24 x .375)	2

图 14换挡连杆（序列号0E009500至0E093699） Gear Shift Linkage (Serial No. 0E009500 Thru 0E093699)

REF	零件编号	中文名称	英文名称	数量
1	819469A1	换挡臂总成	ARM ASSEMBLY Gear Shift	1
2	8199321	互锁臂	ARM Interlock	1
3	F369887	肩部螺钉	SHOULDER SCREW	1
4	97896	衬套	BUSHING	2
5	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
5	8M0207776	螺母	NUT	1
6	F369610	轴承	BEARING	1
12	F85704	换挡杆联轴器	COUPLER Shift Rod	1
13	F85615-1	上换挡杆 20英寸	ROD Upper Shift Rod 20 Inch	1
13	F500615-2	上换挡杆(25.00英寸)	ROD Upper Gear Shift (25.00 Inch)	1
14	34437	垫圈	WASHER	1
15	F2108	螺母(5/16-18)	NUT (5/16-18)	3
16	F1885	螺栓 (5/16-18 X 4.25)	BOLT (5/16-18 X 4.25)	1
19	819457A4	节气门支架总成	BRACKET ASSEMBLY Throttle	1
20	819452	衬套	BUSHING	4
21	34059	螺母 (#10-32)	NUT (#10-32)	2
21	8267096	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2

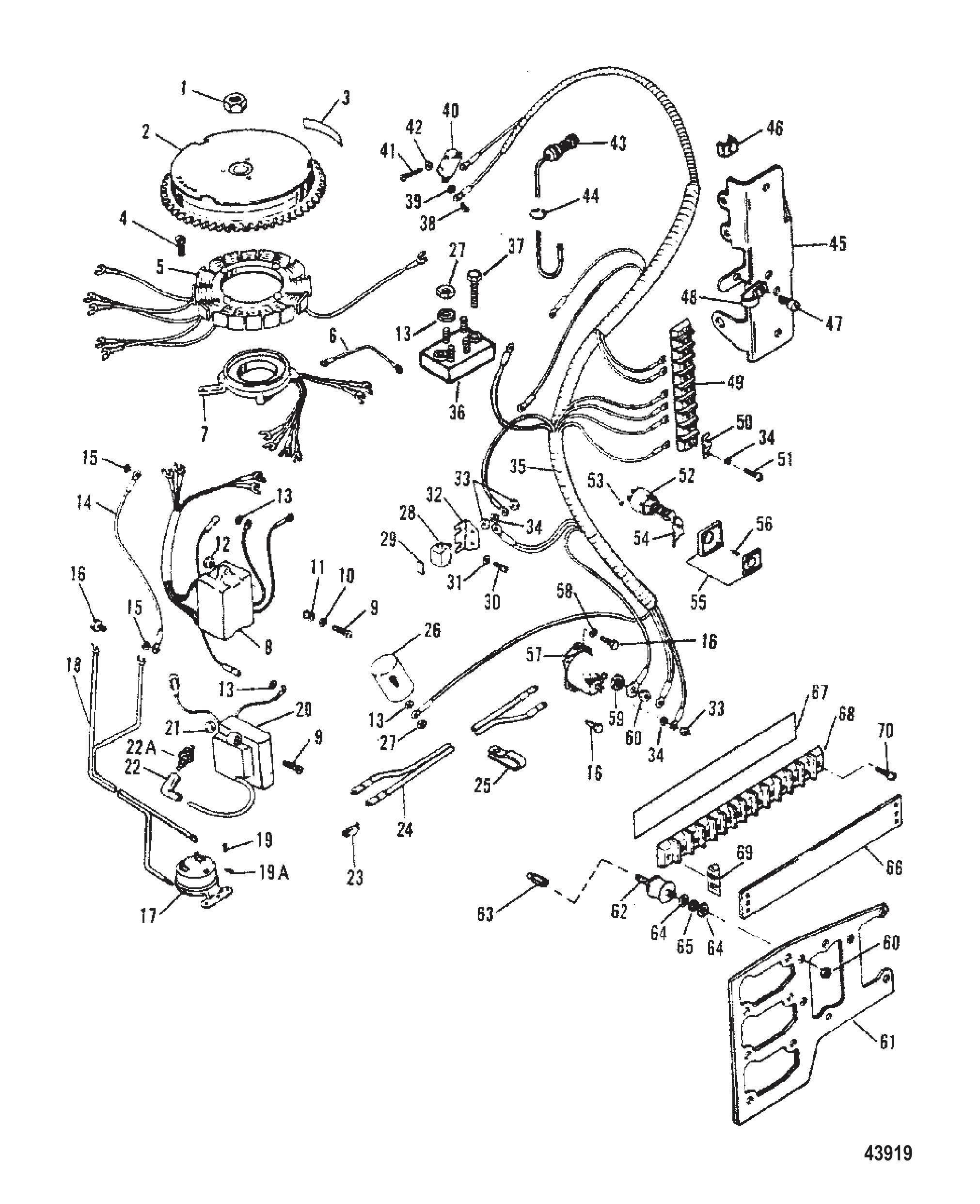

图 15点火组件（91E型号） Ignition Components (91E Models)

REF	零件编号	中文名称	英文名称	数量
1	F1968	螺母(.750-16)	NUT (.750-16)	1
2	817865A1	飞轮	FLYWHEEL	1
2	FA694097	飞轮套件	FLYWHEEL KIT	1
3	FA609853		DECAL SHIFT TO NEUTRAL	1
3	825149A1	贴花套件	DECAL KIT	1
4	F2200	螺钉 (#12-24 x 1.00) (12-24 X 1")	SCREW (#12-24 x 1.00) (12-24 X 1")	4
5	F663095-4	定子	STATOR	1
5	888793	定子总成	STATOR ASSY	1
6	F345683	接地线	WIRE GROUND	1
7	F653029-1	触发器	TRIGGER	1
7	888796	触发器总成	TRIGGER ASSY	1
8	F685301-2	CD单元总成(蓝色)	CD UNIT ASSEMBLY (BLUE)	1
8	888788	CD模块总成	CD MODULE ASSY	1
9	F2008	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	10
10	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	4
11	F475504	CD安装垫圈	GROMMET CD MOUNTING	4
12	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	4
12	8M0207776	螺母	NUT	4
13	F8056	锁紧垫圈(#8)	LOCKWASHER (#8)	5
14	F319908	接地线	WIRE GROUND	1
15	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	2
16	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	3
17	F5H043	过热报警器套件	BUZZER KIT Overheat	1
18	65017A24	蜂鸣器过热指示器线束总成	HARNESS ASSEMBLY BUZZER HEAT INDICATOR	1
19	F1741	螺钉(#8 x .750) 平头,不锈钢	SCREW (#8 x .750) Fill Head, SS	2
19A	69080	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	2
20	F684475-1	点火线圈(蓝色)按需剪线	COIL IGNITION (BLUE) CUT WIRE AS REQ'D	3
20	888791	点火线圈总成	COIL ASSY-IGN	3
21	64015	螺母 (.250-20)	NUT (.250-20)	6
22	FK1123	火花塞护套套件	BOOT KIT SPARK PLUG	3
22	63709A1	护套/端子套件	BOOT/TERMINAL KIT	3
22A	8180071	火花塞(CHAMPION # UL-18V)	SPARK PLUG (CHAMPION # UL-18V)	3
22A	896329824	SP #UL18V @4	SP #UL18V @4	3
23	F5H041	蓄电池接线端子套件	TERMINAL KIT Battery	1
24	F381896--	蓄电池电缆	CABLE BATTERY	1
25	F407446	卡箍	CLAMP	1
26	F654924-1	阻风门电磁阀	SOLENOID CHOKE	1
26	889273	电磁阀-阻风门	SOLENOID-CHOKE	1
27	F1647	螺母（#8-32）	NUT (#8-32)	8
28	F510460	断路器	BREAKER CIRCUIT	1
28	898103194	电路断路器	BREAKER-CIRCUIT	1
29	F510374-1	断路器标贴	DECAL CIRCUIT BREAKER	1
30	F1760	螺钉(#10-24 x .375)	SCREW (#10-24 x .375)	2
31	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
32	F91446-2	断路器支架	BRACKET CIRCUIT BREAKER	1
33	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	6
34	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	6
35	F653744-1	线束总成	HARNESS ASSEMBLY WIRING	1
36	F369450-1	整流器(矩形)	RECTIFIER (RECTANGULAR)	1
37	F1303	螺钉(#8-32 x .750)	SCREW (#8-32 x .750)	1
37	F2016	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
38	69080	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	6
39	F1704		WASHER (#6 INTERNAL)	6
40	F84449	空档联锁开关	SWITCH NEUTRAL INTERLOCK	1
41	F2016	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
42	27882	垫圈	WASHER	2
43	F629449-2	温控开关	THERMOSWITCH	1
44	F428096	挡圈	RING Retaining	1
45	F438493	接线端子支架	BRACKET TERMINAL BLOCK	1
46	F438668	电缆夹固定座	RETAINER CABLE CLAMP	1
47	34939	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	2
48	F289446-1	卡箍	CLAMP	1
49	FA616497	端子块总成	BLOCK ASSEMBLY Terminal	1
50	F307317	接地端子块夹	CLIP TERMINAL BLOCK GROUND	2
51	41069	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
52	F5H078	点火开关套件(含钥匙和螺钉)	SWITCH KIT Ignition - With Keys And Screws	1
53	F1280	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	6
53	8M0129582	螺钉	SCREW	6
54	8177821	钥匙组A型	KEY SET Stamped A	AR
54	8178831	钥匙组B型	KEY SET Stamped B	AR
54	8178911	钥匙组C型	KEY SET Stamped C	AR
54	8179281	钥匙组D型	KEY SET Stamped D	AR
54	8179291	钥匙组E型	KEY SET Stamped E	AR
55	F5H038	点火开关套件	SWITCH KIT IGNITION SWITCH	1
56	F1934	螺钉(#6 x 0.500)	SCREW (#6 x .500)	4
57	F460917-1	启动继电器	RELAY STARTER	1
57	817109A3	电磁阀组件	SOLENOID KIT	1
58	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
59	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
60	68292	螺母(.312-18)	NUT (.312-18)	5
60	8M0204668	螺母(.312-18)	NUT (.312-18)	5
61	FS663358	电气安装支架(喷漆)	BRACKET ELECTRICAL MOUNT (PAINTED)	1
62	819869	减震座	MOUNT SHOCK	3
63	F322273-1	螺柱	STUD	1
64	F8124	锁紧垫圈(0.312)(5/16"外齿)	LOCKWASHER (.312) (5/16" EXTERNAL)	6
65	F8090	垫圈	WASHER	3
66	F664672	接线端子盖	COVER TERMINAL BLOCK	1
67	F664025	绝缘板	PAN INSULATING	1
68	F664497	接线端子排	BLOCK Terminal	1
69	F664384	端子排盖卡扣	CLIP TERMINAL BLOCK COVER	2
70	41069	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
--	12066A9	应急启动绳	ROPE EMERGENCY STARTER	1
--	12066Q10	启动绳@2	ROPE-STARTER@2	1

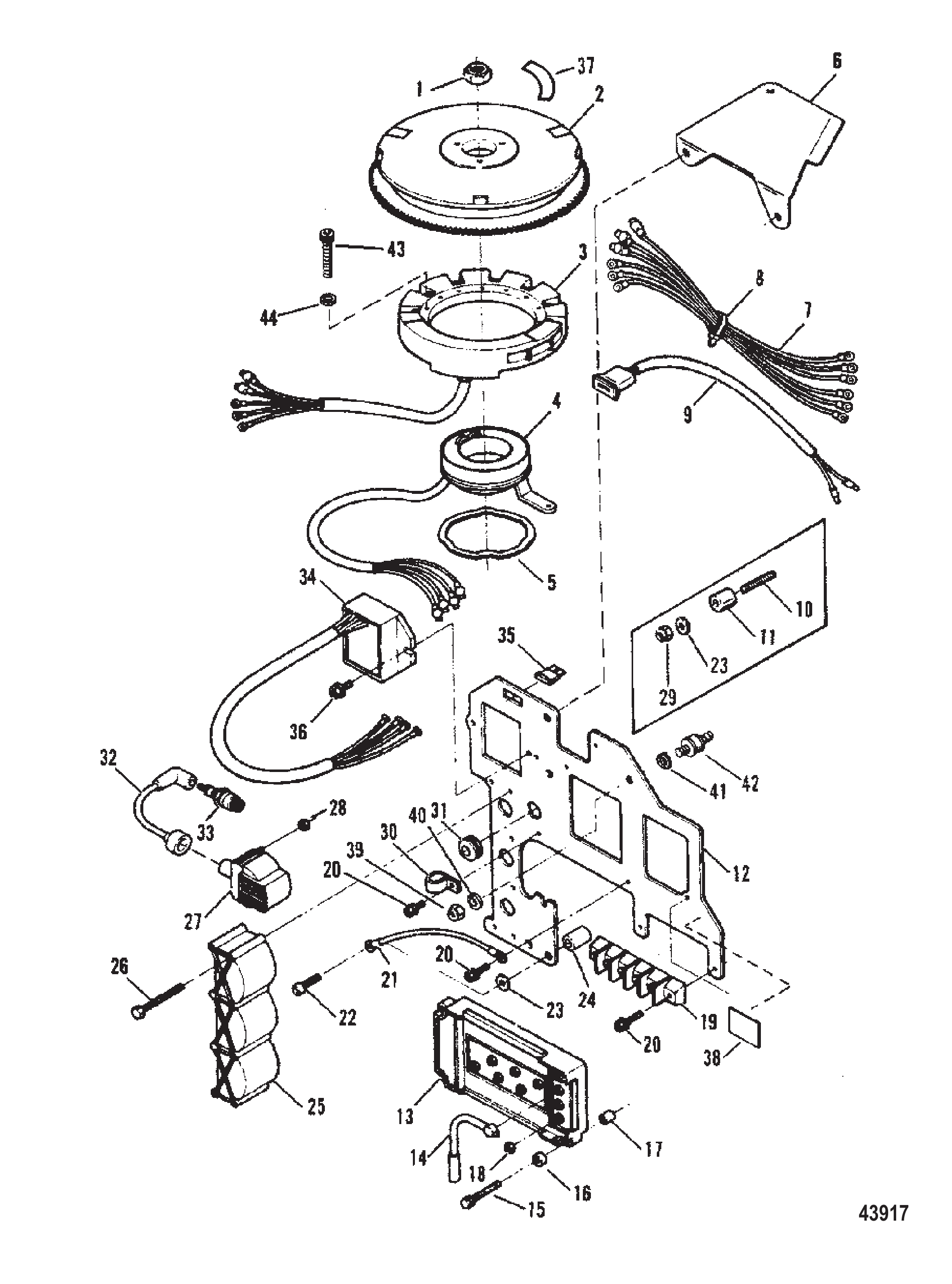

图 16点火组件（91H至92C） Ignition Components (91H Thru 92C)

REF	零件编号	中文名称	英文名称	数量
1	F1968	螺母(.750-16)	NUT (.750-16)	1
2	817494A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859241T10	飞轮总成	FLYWHEEL ASY	1
3	8778A10	定子总成(91H/92C)	STATOR ASSEMBLY (91H /92C)	1
3	8778A26	定子总成	STATOR ASSEMBLY	1
4	817029A3	触发器	TRIGGER	1
5	F2442	波形垫圈	WASHER WAVE	1
6	819111	点火防护罩	GUARD IGNITION	1
7	817441A1	线圈至开关盒线束总成	HARNESS ASSEMBLY COIL TO SWITCHBOX	1
8	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	19637	保险丝插座	SOCKET Fuse	1
10	F746210	双头螺柱(0.312-18 x 2.25)(91H至92C)	STUD (.312-18 x 2.25) (91H THRU 92C)	4
10	826393	双头螺柱(0.312-18 x 2.250)	STUD (.312-18 x 2.250)	4
11	F722932	垫片(0.750)(91H至92C)	SPACER (.750) (91H THRU 92C)	3
12	8172685	点火安装板	PLATE IGNITION MOUNT	1
12	8172686	安装板	PLATE	1
13	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	1
14	88807A34	适配器电缆总成	CABLE ASSEMBLY ADAPTER	1
15	812987	螺钉 (#10-24 x 1.250)	SCREW (#10-24 x 1.250)	2
16	94304	隔套	SPACER	2
17	91912	衬套	BUSHING	2
18	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	10
19	817492	4柱接线端子排(91H/92C)	TERMINAL BLOCK 4 Post TERMINAL (91H /92C)	1
20	41805	螺钉(#10-24 x 0.625)	SCREW (#10-24 x .625)	3/5
20	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	3/5
21	88807A29	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
22	F2192	内六角螺钉(0.250-20 x 1.750)(91H至92C)	SCREW (.250-20 x 1.750) Socket Head (91H THRU 92C)	1
23	71055	垫圈(91H至92C)	WASHER (91H THRU 92C)	1
24	F722452	垫片(91H至92C)	SPACER (91H THRU 92C)	1
25	43542	线圈盖	COVER Coil	1
26	817458	螺钉(#10-24 x 2.250)	SCREW (#10-24 x 2.250)	6
27	7370A23	点火线圈总成	COIL ASSEMBLY Ignition	3
27	8M0230859	点火线圈总成	COIL IGNITION ASY	3
28	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	6
29	F7006	螺母(0.312-18)(91H至92C)	NUT (.312-18) (91H THRU 92C)	6
29	8M0204646	螺母(.312-18)	NUT (.312-18)	6
30	63153	J型夹(91H至92C)	J CLIP (91H THRU 92C)	2
31	817491	护圈 (内径0.56)	GROMMET (.56 Inside Diameter)	1
32	821945A28	高压电缆总成	CABLE ASSEMBLY HIGH TENSION	3
32	821945T28	电缆总成	CABLE ASSY	3
33	827C	火花塞(CHAMPION # L-76V)	SPARK PLUG (CHAMPION # L-76V)	3
33	896329827	SP #L76V @4	SP #L76V @4	3
33	898	火花塞(RFI)(CHAMPION # QL-76V)	SPARK PLUG (RFI) (CHAMPION # QL-76V)	OPT.
33	896329898	SP #QL76V @4	SP #QL76V @4	OPT.
34	817411	整流器(91H/92C)	RECTIFIER (91H /92C)	1
34	830179A2	电压调节器套件-环形	VOLT/REG KIT-RING	1
34	8174111	整流器	RECTIFIER	1
34	883071A1	电压调节器组件-BULL	REG KIT-VOLT-BULL	1
35	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
36	817504	螺钉（0.250-20 x 1.500）不锈钢	SCREW (.250-20 x 1.500) Stainless Steel	2
36	817505	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	2
37	FA609853		DECAL SHIFT TO NEUTRAL	1
37	825149A1	贴花套件	DECAL KIT	1
38	819526	电缆调节标贴	DECAL CABLE ADJUSTMENT	1
39	68292	螺母(.312-18)	NUT (.312-18)	3
39	8M0204668	螺母(.312-18)	NUT (.312-18)	3
40	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
41	819869	减震座	MOUNT SHOCK	3
42	F8124	锁紧垫圈(0.312)(外齿)	LOCKWASHER (.312) (EXTERNAL)	3
43	76566	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	6
43	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	6
44	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	6
--	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR

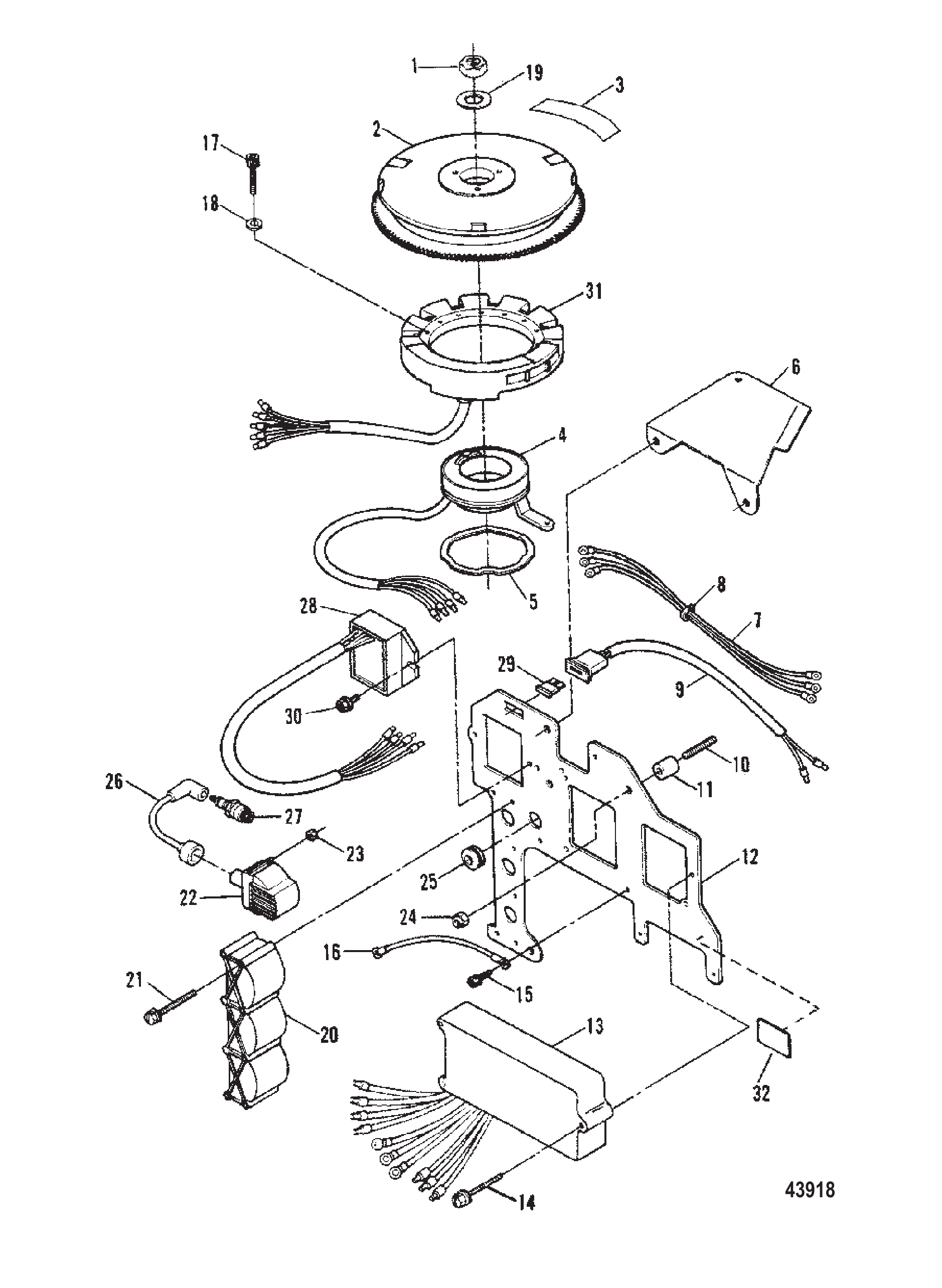

图 17点火组件（序列号0E039024至0E093699） Ignition Components Serial No. 0E039024 thru 0E093699

REF	零件编号	中文名称	英文名称	数量
1	F1968	螺母(.750-16)	NUT (.750-16)	1
2	817494A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859241T10	飞轮总成	FLYWHEEL ASY	1
3	FA609853		DECAL SHIFT TO NEUTRAL	1
3	825149A1	贴花套件	DECAL KIT	1
4	817029A9	触发器总成	TRIGGER ASSEMBLY	1
5	F2442	波形垫圈	WASHER WAVE	1
6	819111	点火线束护罩	GUARD IGNITION HARNESS	1
7	817441A3	接地线束总成	HARNESS ASSEMBLY GROUND	1
8	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
9	19637	保险丝插座	SOCKET Fuse	1
10	826393	双头螺柱(0.312-18 x 2.250)	STUD (.312-18 x 2.250)	4
10	826393	双头螺柱(0.312-18 x 2.250)	STUD (.312-18 x 2.250)	3
11	F722932	电气支架垫片(0.750)	SPACER (.750) ELECTRICAL BRACKET	4
11	F722932	电气支架垫片(0.750)	SPACER (.750) ELECTRICAL BRACKET	3
12	8172685	点火安装板	PLATE IGNITION MOUNTING	1
12	8172686	安装板	PLATE	1
13	18495A12	开关盒总成	SWITCHBOX ASSEMBLY	1
13	18495A26	开关盒总成	SWITCHBOX ASSEMBLY	1
14	812987	螺钉 (#10-24 x 1.250)	SCREW (#10-24 x 1.250)	3
15	41805	螺钉(#10-24 x 0.625)	SCREW (#10-24 x .625)	1
15	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	1
16	88807A29	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
17	76566	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	6
17	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	6
17	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	6
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	6
19	31247	垫圈	WASHER	1
20	43542	线圈盖	COVER COIL	1
21	817458	螺钉(#10-24 x 2.250)	SCREW (#10-24 x 2.250)	6
22	7370A23	点火线圈总成	COIL ASSEMBLY IGNITION	3
22	8M0230859	点火线圈总成	COIL IGNITION ASY	3
23	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	6
24	F7006	螺母(.312-18)	NUT (.312-18)	3
24	8M0204646	螺母(.312-18)	NUT (.312-18)	3
25	64872	护孔环	GROMMET	1
26	821945A28	高压电缆总成	CABLE ASSEMBLY HIGH TENSION	3
26	821945T28	电缆总成	CABLE ASSY	3
27	827C	火花塞(CHAMPION # L-76V)	SPARK PLUG (CHAMPION # L-76V)	3
27	896329827	SP #L76V @4	SP #L76V @4	3
27	898	火花塞(RFI)(CHAMPION # QL-76V)	SPARK PLUG (RFI) (CHAMPION # QL-76V)	OPT.
27	896329898	SP #QL76V @4	SP #QL76V @4	OPT.
28	8174111	整流器	RECTIFIER	1
28	883071A1	电压调节器组件-BULL	REG KIT-VOLT-BULL	1
28	815279T4	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
28	883071A1	电压调节器组件-BULL	REG KIT-VOLT-BULL	1
29	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
30	817505	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	2
30	817504	螺钉（0.250-20 x 1.500）不锈钢	SCREW (.250-20 x 1.500) Stainless Steel	2
31	8778A29	定子总成	STATOR ASSEMBLY	1
32	819526		DECAL THROTTLE CABLE ADJUSTMENT	1
--	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	3
--	817608A6	短缸体	SHORT BLOCK	AR
--	817608A22	动力头套件	POWERHEAD KIT	AR
--	817608A17	动力头总成	POWERHEAD ASSEMBLY	AR
--	817608A22	动力头套件	POWERHEAD KIT	AR

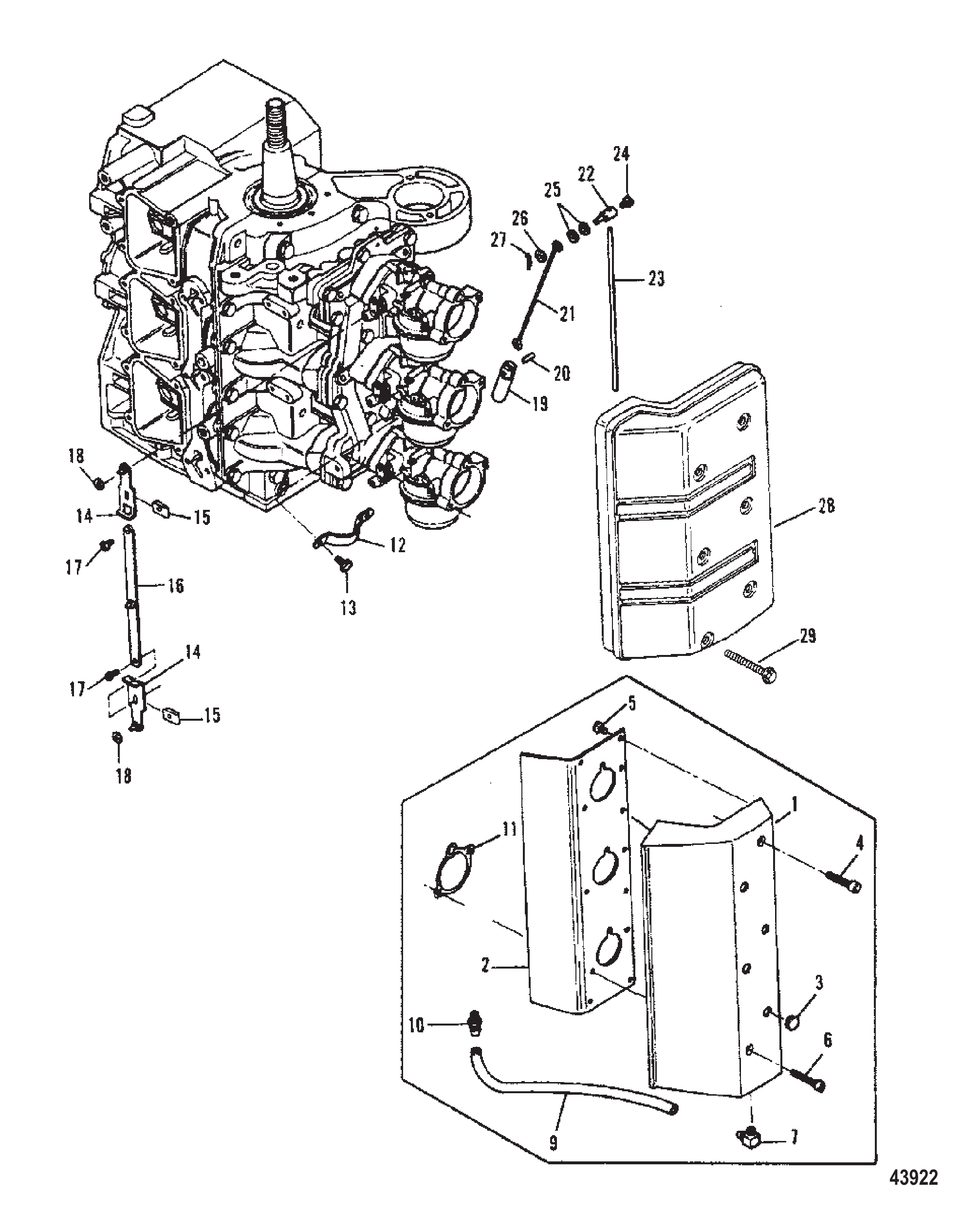

图 18进气罩 Intake Cover

REF	零件编号	中文名称	英文名称	数量
1	F695861	进气盖	COVER Intake	1
1	8197711	进气口	INTAKE-AIR	1
2	819772	进气盖适配器	ADAPTER Cover Intake	1
3	F53504	护孔环	GROMMET	3
4	816742	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	3
5	F1760	螺钉(#10-24 x .375)	SCREW (#10-24 x .375)	6
6	F2192	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	3
7	8181031	弯头	ELBOW	1
9	9912878	软管(0.187)(26英寸整卷)按需裁剪	HOSE (.187) (26.00 Inches Bulk) Cut as Required	1
10	FA698801	接头(带计量杯)	FITTING (W/Metering Cup)	1
11	F481836	化油器进气衬垫	GASKET Carburetor Intake	3
12	F85317-3	卡箍	CLAMP	1
13	98253	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	2
14	FA85193	端部总成	END ASSEMBLY	2
15	F1693	螺母（#8-32）	NUT (#8-32)	2
16	FA85511	杆总成-节气门	BAR ASSEMBLY Throttle	1
17	F1064	螺丝（#8-32×0.375）	SCREW (#8-32 x .375)	2
18	21058	E型挡圈	E RING Retaining	3
19	F391926-1	阻风门电磁阀柱塞	PLUNGER Choke Solenoid	1
20	F2033	槽销	PIN Groove	1
21	F85925	阻风门电磁阀杆	ROD Choke Solenoid	1
22	F184033-1	阻风门旋转杆	SWIVEL Choke Rod	3
23	F85509-1	阻风门连杆	LINK Choke	1
24	F1059	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	3
25	F184579	密封件	SEAL	6
25	68211	O型圈	O RING	6
26	27882	垫圈	WASHER	1
27	26953	开口销	COTTER PIN	1
28	819987	消音器总成	ATTENUATOR ASSEMBLY	1
29	19934175	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	6

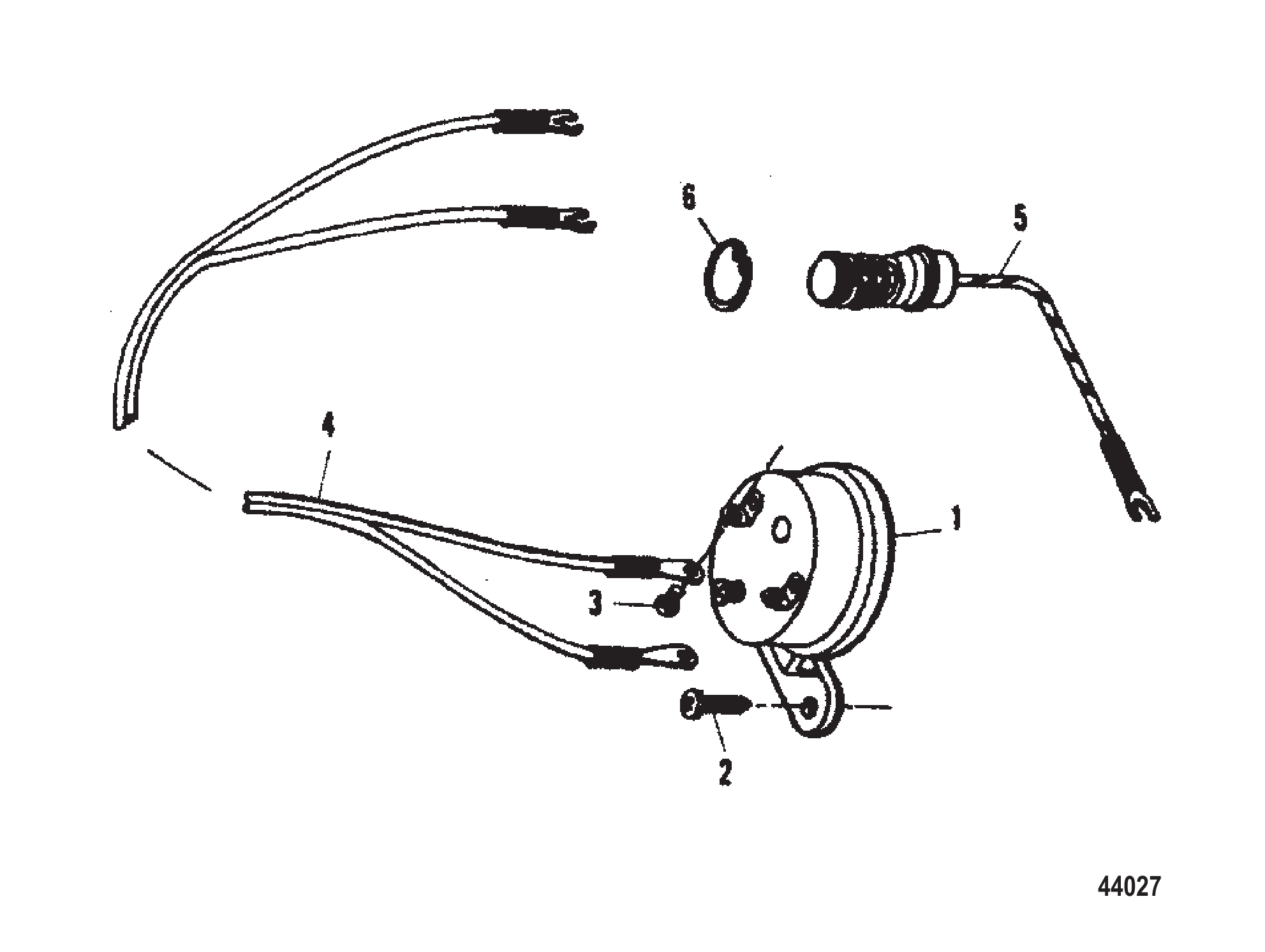

图 19过热报警器 Overheat Buzzer

REF	零件编号	中文名称	英文名称	数量
1	F5H043	过热蜂鸣器套件(91H至92C)	BUZZER KIT Overheat Heat Indicator 91H Thru 92C	1
2	F1741	螺钉(#8 x .750) 平头,不锈钢	SCREW (#8 x .750) Fill Head, SS	2
3	69080	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	2
4	65017A24	线束总成	HARNESS ASSEMBLY	1
5	F629449-2	温控开关	THERMOSWITCH	1
5	8190221	温控开关	THERMOSWITCH	1
5	819022T01	温控开关	THERMOSWITCH	1
6	F717096	挡圈	RING Retaining	1

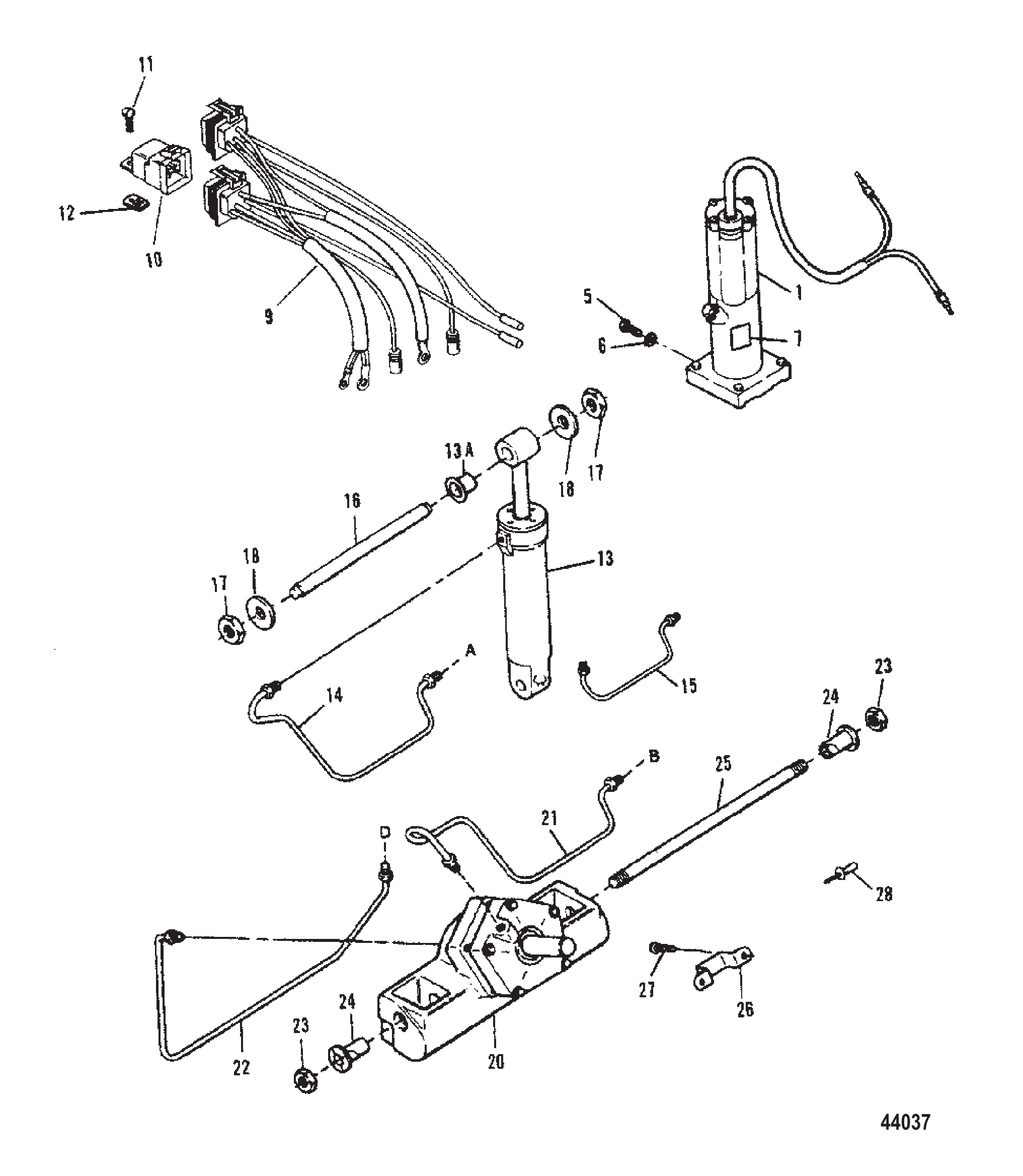

图 20动力升降装置-第三代（子弹头连接器） Power Trim-Design III With Bullet Connectors

REF	零件编号	中文名称	英文名称	数量
--	819762A7	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
--	819762A15	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	819480A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
5	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	2
6	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
7	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
9	819514A6	线束总成	HARNESS ASSEMBLY	1
9	819514A11	升降线束总成	HARNESS ASSEMBLY Trim	1
10	819509	继电器	RELAY	2
10	8M0052578	微调继电器总成	RELAY ASSY-TRIM	2
11	F1733	不锈钢螺钉(#10-24 x .562)	SCREW (#10-24 x .562) SS	2
11	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	2
12	819485	适配器板	PLATE ADAPTER	2
13	819108F	倾斜油缸总成(喷漆)	CYLINDER ASSEMBLY TILT (PAINTED)	1
13A	F178344	衬套	BUSHING	1
14	819422	液压管路(下降)	LINE HYDRAULIC (DOWN)	1
15	819423	液压管路(上升)	LINE HYDRAULIC (UP)	1
16	F449889	上部减震轴	SHAFT SHOCK UPPER	1
17	35778	螺母(.500-20)	NUT (.500-20)	2
17	826709117	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	2
18	F1960	垫圈	WASHER	2
20	818055A3	微调壳体总成	HOUSING ASSEMBLY TRIM	1
21	819421	液压管路(下降)	LINE HYDRAULIC (DOWN)	1
22	819420	液压管路(上升)	LINE HYDRAULIC (UP)	1
23	F7053	螺母 (.625-18) 黄铜	NUT (.625-18) Brass	2
24	F449362	微调壳体轴衬套	BUSHING TRIM HOUSING SHAFT	2
25	F449632	微调壳体轴	SHAFT TRIM HOUSING	1
26	F449354	推力支架	BRACKET THRUST	1
27	34939	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	2
28	F1966	堵头	PLUG	1
--	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
--	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

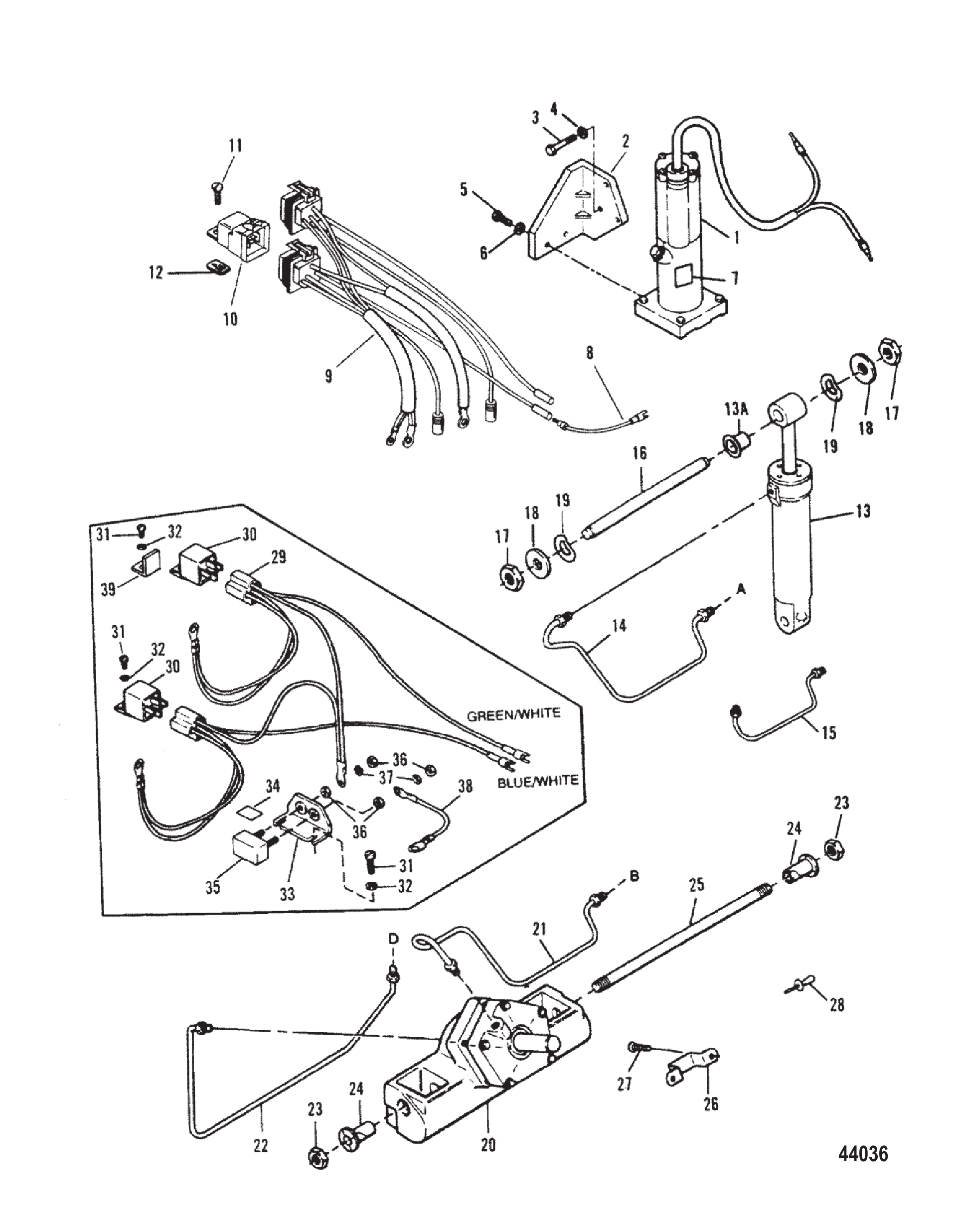

图 21动力升降装置-第二代（子弹头连接器） Power Trim-Design II With Bullet Connectors

REF	零件编号	中文名称	英文名称	数量
--	819762A4	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
--	819762A12	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	819480A1	泵/电机总成(子弹型)	PUMP/MOTOR ASSEMBLY (BULLET)	1
1	819480A2	泵/电机总成(卡口型)	PUMP/MOTOR ASSEMBLY (BAYONET)	1
1	853515A1	泵/电机套件	PUMP/MOTOR KIT	1
2	F743454F	安装支架(喷漆)	BRACKET MOUNT (PAINTED)	1
3	90086	螺钉(.312-18 x 1.500)	SCREW (.312-18 x 1.500)	3
3	840202	螺钉(.312-18 x 1.500)	SCREW (.312-18 x 1.500)	3
4	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
5	F1999	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	2
5	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	2
6	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
7	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
8	88819A2	线束总成(绿/白)	WIRE ASSEMBLY (Green/White)	1
8	88212A4	线束总成(蓝/白)	WIRE ASSEMBLY (Blue/White)	1
9	819514A1	线束总成	HARNESS ASSEMBLY	1
9	819514A11	升降线束总成	HARNESS ASSEMBLY Trim	1
10	819509	继电器	RELAY	2
10	8M0052578	微调继电器总成	RELAY ASSY-TRIM	2
11	F1733	不锈钢螺钉(#10-24 x .562)	SCREW (#10-24 x .562) SS	2
11	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	2
12	819485	适配器板	PLATE ADAPTER	2
13	819108F	倾斜油缸总成(喷漆)	CYLINDER ASSEMBLY TILT (PAINTED)	1
13A	F178344	衬套	BUSHING	1
14	F719758	液压管路(下降)	LINE HYDRAULIC (DOWN)	1
14	855935	液压管路	LINE-HYD	1
15	F719865	液压管路(上升)	LINE HYDRAULIC (UP)	1
16	F449889	上部减震轴	SHAFT SHOCK UPPER	1
17	35778	螺母(.500-20)	NUT (.500-20)	2
17	826709117	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	2
18	F1960	垫圈	WASHER	2
19	F1711	弓形垫圈	WASHER BOWED	2
20	818055A3	壳体总成(喷漆)	HOUSING ASSEMBLY (PAINTED)	1
21	F719254	液压管路(下降)	LINE HYDRAULIC (DOWN)	1
21	855936	液压管路	LINE-HYD	1
22	F719253	液压管路(上升)	LINE HYDRAULIC (UP)	1
23	F7053	螺母 (.625-18) 黄铜	NUT (.625-18) Brass	2
24	F449362	微调壳体轴衬套	BUSHING TRIM HOUSING SHAFT	2
25	F449632	微调壳体轴	SHAFT TRIM HOUSING	1
26	F449354	推力支架	BRACKET THRUST	1
27	34939	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	2
28	F1966	堵头	PLUG	1
29	FA663744	线束套件	WIRE KIT	1
30	F660917	继电器	RELAY	2
30	803632T	继电器	RELAY	2
31	F1760	螺钉(#10-24 x 0.375)卡口型	SCREW (#10-24 x .375) BAYONET MODELS	4
32	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	4
33	F91446-2	断路器支架卡口型	BRACKET CIRCUIT BREAKER BAYONET MODELS	1
34	F510374-1	断路器标贴卡口型	DECAL CIRCUIT BREAKER BAYONET MODELS	1
35	F510460	断路器卡口型	BREAKER CIRCUIT BAYONET MODELS	1
35	898103194	电路断路器	BREAKER-CIRCUIT	1
36	68219	螺母(#10-32)不锈钢卡口型	NUT (#10-32) Stainless Steel BAYONET MODELS	4
37	26996	锁紧垫圈(#10)不锈钢卡口型	LOCKWASHER (#10) Stainless Steel BAYONET MODELS	2
38	F660908	线束总成(红色)卡口型	WIRE ASSEMBLY (RED) BAYONET MODELS	1
39	F660978	继电器支架卡口型	BRACKET RELAY BAYONET MODELS	2

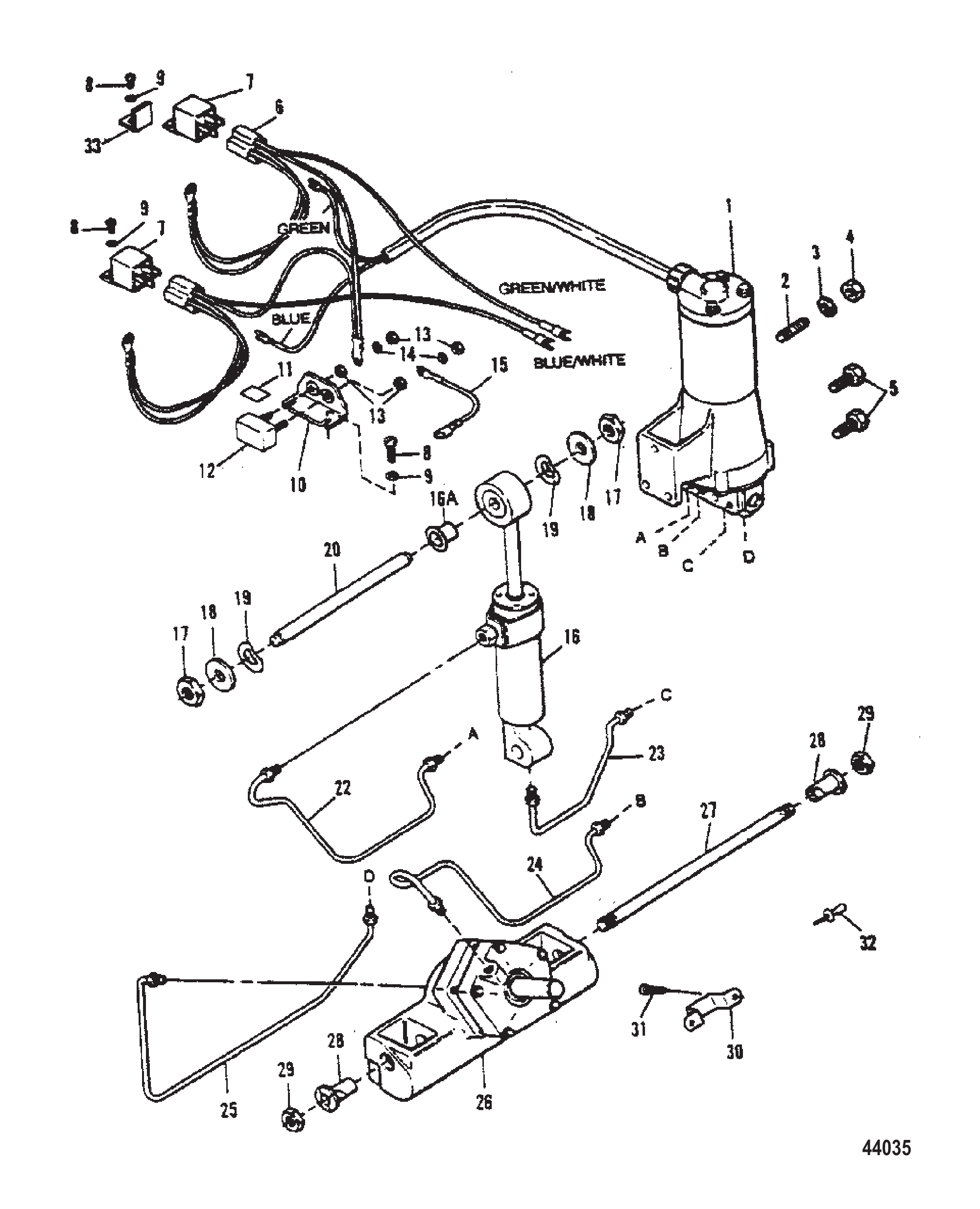

图 22动力升降装置-第一代（卡口连接器） Power Trim-Design I With Bayonet Connectors

REF	零件编号	中文名称	英文名称	数量
--	F5H196	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
--	819762A12	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	F694541-2	泵/电机总成(参见分解图)	PUMP/MOTOR ASSEMBLY See Pump/Motor Assembly Section for Breakdown	1
2	F660273	螺柱	STUD	1
2	827512	螺柱	STUD	1
3	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
4	68292	螺母(.312-18)	NUT (.312-18)	1
4	8M0204668	螺母(.312-18)	NUT (.312-18)	1
5	F1822	螺钉 (0.312-18 x 0.875)	SCREW (.312-18 x .875)	2
5	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	2
6	FA663744	线束套件	WIRE KIT	1
7	F660917	继电器	RELAY	2
7	803632T	继电器	RELAY	2
8	F1760	螺钉(#10-24 x .375)	SCREW (#10-24 x .375)	4
9	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	4
10	F91446-2	断路器支架	BRACKET CIRCUIT BREAKER	1
11	F510374-1	断路器标贴	DECAL CIRCUIT BREAKER	1
12	F510460	断路器	BREAKER CIRCUIT	1
12	898103194	电路断路器	BREAKER-CIRCUIT	1
13	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
14	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
15	F660908	线束总成(红色)	WIRE ASSEMBLY (RED)	1
16	819108F	倾斜油缸总成	CYLINDER ASSEMBLY TILT	1
16A	F178344	衬套	BUSHING	1
17	35778	螺母(.500-20)	NUT (.500-20)	2
17	826709117	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	2
18	F1710	垫圈	WASHER	2
19	F1711	弓形垫圈	WASHER BOWED	2
20	F449889	上部减震轴	SHAFT SHOCK UPPER	1
22	F660758	液压管路-上部(倾斜)	LINE HYDRAULIC, UPPER (TILT)	1
23	F660754	液压管路-下部(倾斜)	LINE HYDRAULIC, LOWER (TILT)	1
24	F660254	液压管路-上部(调整)	LINE HYDRAULIC, UPPER (TRIM)	1
25	F660253	液压管路-下部(调整)	LINE HYDRAULIC, LOWER (TRIM)	1
26	818055A3	壳体总成(喷漆)	HOUSING ASSEMBLY (PAINTED)	1
27	F449632	微调壳体轴	SHAFT TRIM HOUSING	1
28	F449362	微调壳体轴衬套	BUSHING TRIM HOUSING SHAFT	2
29	F7053	螺母 (.625-18) 黄铜	NUT (.625-18) Brass	2
30	F449354	推力支架	BRACKET THRUST	1
31	34939	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	2
32	F1966	堵头	PLUG	1
33	F660978	继电器支架	BRACKET RELAY	2

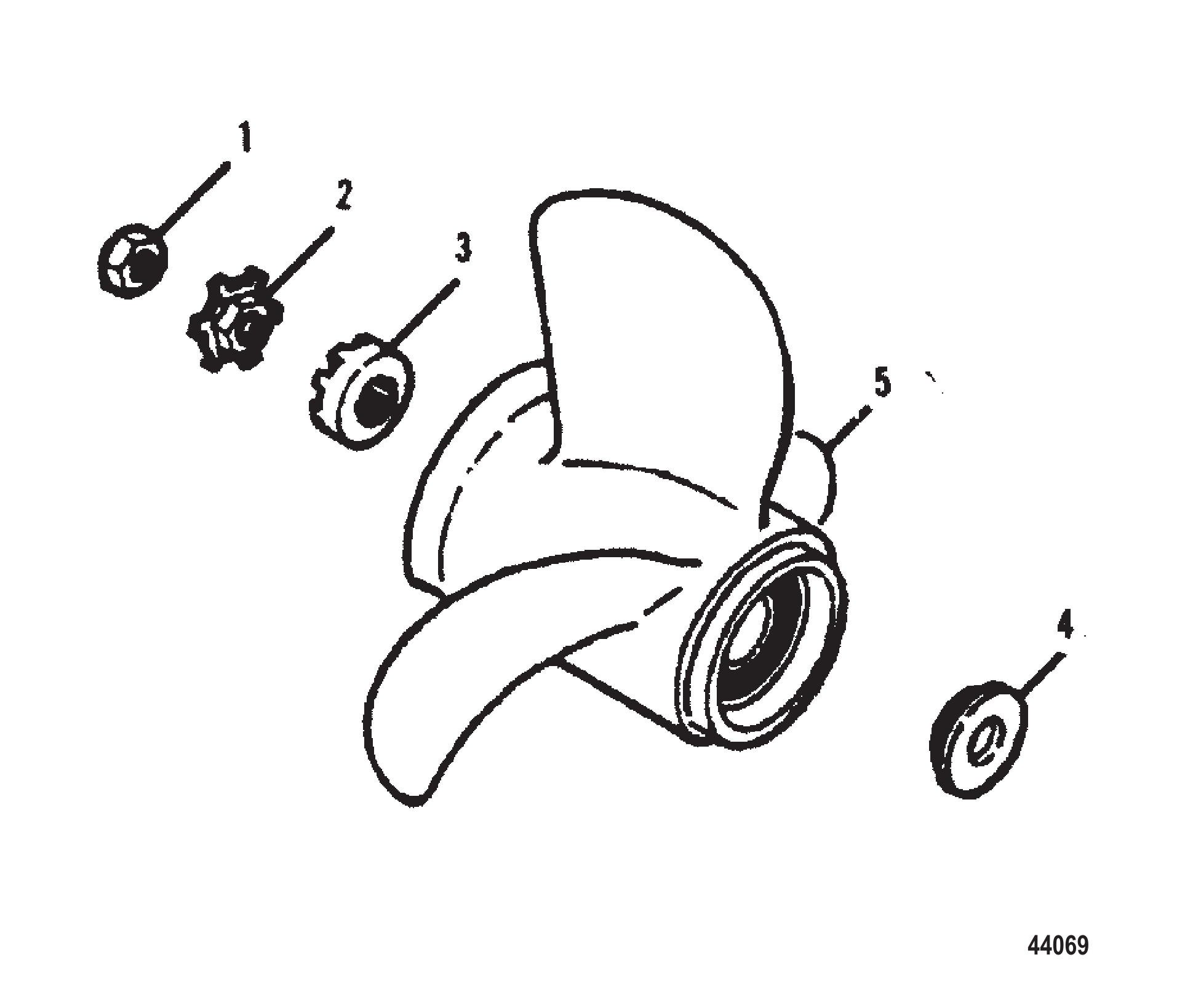

图 23螺旋桨-喇叭形轮毂 Propeller-Flared Hub

REF	零件编号	中文名称	英文名称	数量
1	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
1	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
2	816629	锁紧垫圈	TAB WASHER	1
2	816629Q	锁紧垫圈	TAB WASHER	1
3	F697299	花键垫圈	WASHER SPLINED	1
4	F698099-1	隔套	SPACER	1
4	803890T	止推垫片	THRUST WASHER	1

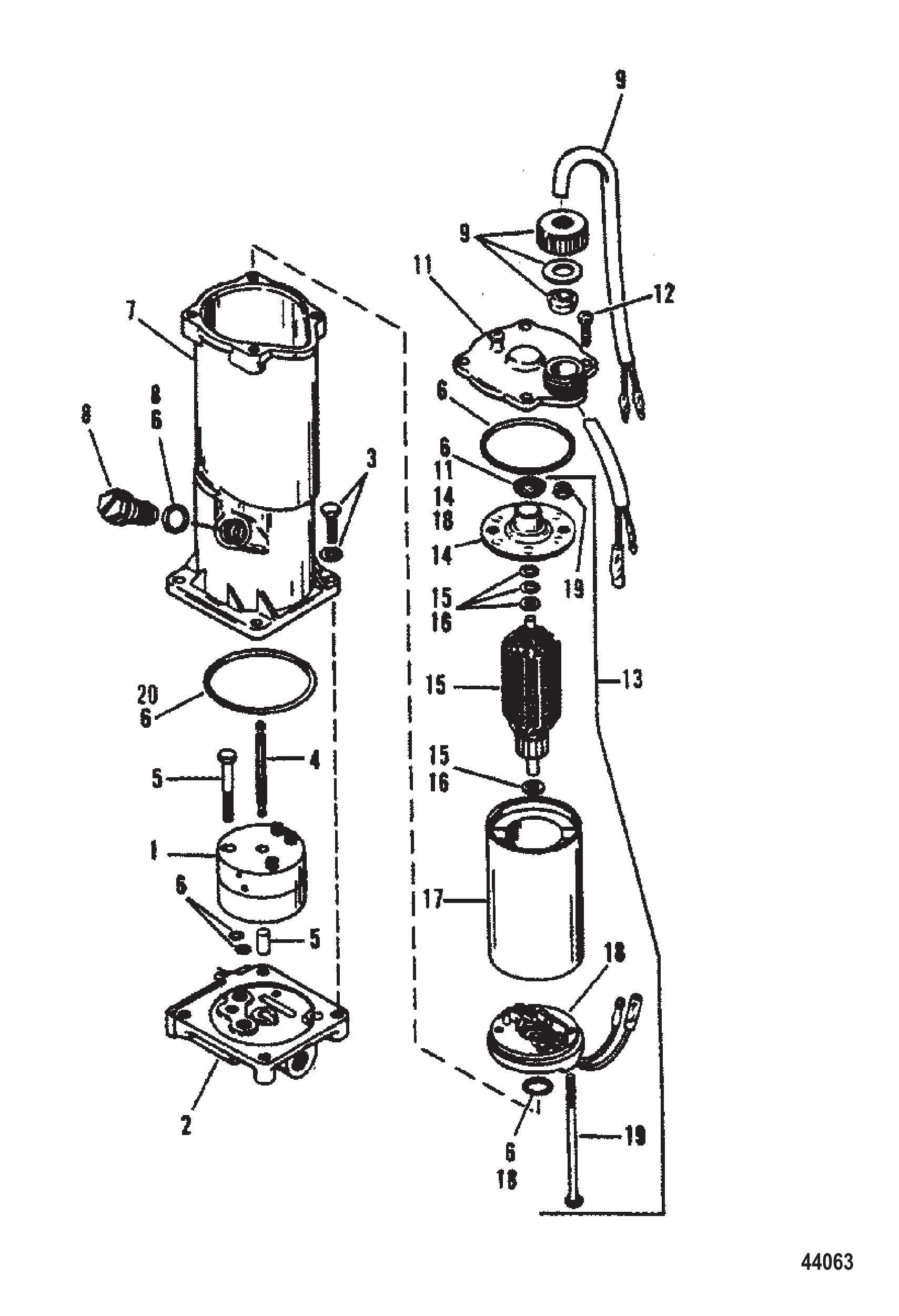

图 24泵/电机总成 Pump/Motor Assembly

REF	零件编号	中文名称	英文名称	数量
--	819480A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
1	811702	泵套件	PUMP KIT	1
2	823085	歧管套件	MANIFOLD KIT	1
2	819480A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
3	813436		SCREW KIT (4 pcs)	1
4	813437	驱动轴	DRIVESHAFT	1
5	811697	螺丝和销钉套件	SCREW AND PIN KIT	1
6	813439A2	密封套件	SEAL KIT	1
6	813439A3	O型圈套件	O RING KIT	1
7	813434A1	储液罐	RESERVOIR	1
8	813435	塞套件	PLUG KIT	1
8	8134351	堵头	PLUG	1
9	811698	线束总成	HARNESS ASSEMBLY	1
11	813445	储液罐盖套件	CAP KIT Reservoir	1
12	813446	螺钉(4件)	SCREW (4 pcs)	1
13	813447	电机套件	MOTOR KIT	1
14	813448	端盖	END CAP	1
15	813449A1	电枢	ARMATURE	1
16	813450	止推垫片套件	THRUST WASHER KIT	1
17	813451	外壳和磁铁套件	SHELL AND MAGNET KIT	1
18	813452	端架套件	END FRAME KIT	1
19	813453	螺栓螺母套件	BOLT AND NUT KIT	1
20	819638	O型圈	O-RING	1
20	813439A3	O型圈套件	O RING KIT	1

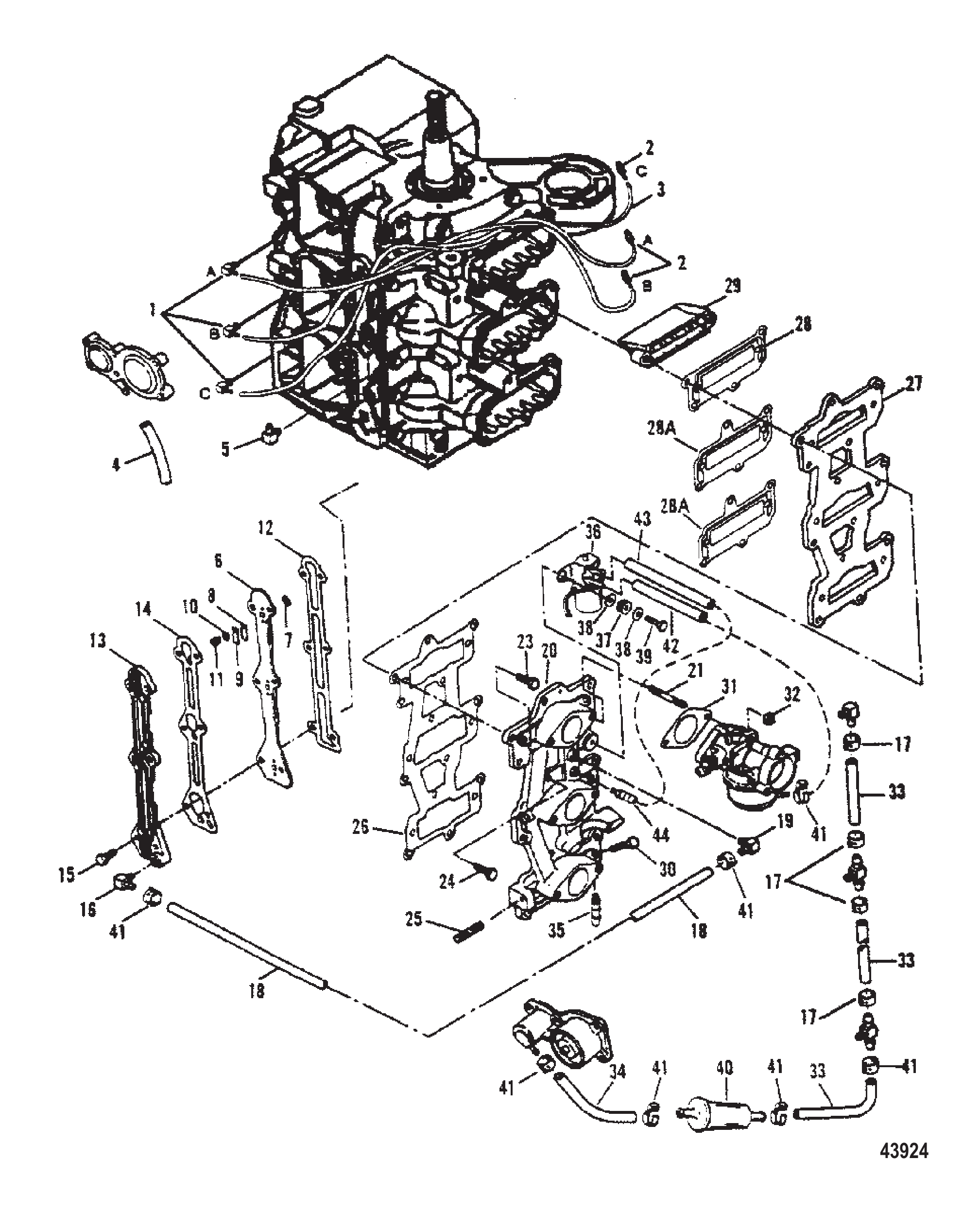

图 25簧片阀板及再循环系统 0E009500 至 0E065371 Reed Plate and Recirculation System 0E009500 Thru 0E065371

REF	零件编号	中文名称	英文名称	数量
1	F743314	循环弯头	ELBOW Recirculating	3
2	42658	止回阀	CHECK VALVE	3
2	426585	止回阀	CHECK VALVE	3
3	99130122	管材(20英尺散装)按需裁切	TUBING (20.00 Feet Bulk) Cut as Required	3
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
4	99127109	管路(57英寸散装)脉冲(4.5英寸)按需裁切	LINE (57.00 Inches Bulk) Impulse (4.5 In.) Cut as Required	1
4	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
5	F84314-2	弯头 (L型)	ELBOW (L)	1
6	F2A404757	气缸排水簧片阀总成	REED PLATE ASSEMBLY Cylinder Drain	1
7	F93811	滤网	SCREEN	3
8	F18160-3	簧片	REED	3
9	F93920	簧片止挡	STOP Reed	3
10	18552	垫圈	WASHER	3
11	F1286	螺钉(#4-40x.187)	SCREW (#4-40 x .187)	3
12	F85472-2	气缸放油盖衬垫	GASKET Cyliner Drain Cover	1
13	817787A1	盖总成-气缸排水	COVER ASSEMBLY Cylinder Drain	1
14	F85748-2		GASKET Cylinder Drain Reed Plate	1
15	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	6
15	8M0214943	螺钉	SCREW	6
16	88780	示流管弯头	ELBOW Tell-Tale Tubing	1
16	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	1
17	63933	卡箍	CLAMP	AR
18	99130122	管材(20英尺散装)(22.5英寸)按需裁切	TUBING (20.00 Feet Bulk) (22.5 In.) Cut as Required	1
18	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
19	88780	示流管弯头	ELBOW Tell-Tale Tubing	1
19	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	1
20	817959A5	进气歧管套件	MANIFOLD KIT Intake	1
21	826388	双头螺柱(0.312-18 x 1.250)	STUD (.312-18 x 1.250)	6
21	8263881	螺柱	STUD	6
23	F1532	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	10
23	819110100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	10
24	F2030	螺钉 (.250-20 x 1.250) 不锈钢	SCREW (.250-20 x 1.250) Stainless Steel	2
25	F433209-1	双头螺栓(.250-20 x 1.250)	STUD (.250-20 x 1.250)	1
26	F85159-1	进气歧管垫片	GASKET Intake Manifold	1
27	8197351	簧片板适配器	ADAPTER Reed Plate	1
28	F85168-2	簧片阀适配器衬垫(顶部)	GASKET (Top) Reed Plate Adapter	1
28A	819733	簧片阀适配器衬垫(中/底部)	GASKET (Center/Bottom) Reed Plate Adapter	2
29	11645	簧片阀组	REED BLOCK	3
29	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	3
30	F2050	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	6
30	819110150	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	6
31	F85906	化油器衬垫	GASKET Carburetor	3
31	828925	衬垫	GASKET	3
32	68292	螺母(.312-18)	NUT (.312-18)	6
32	8M0204668	螺母(.312-18)	NUT (.312-18)	6
33	99127109	管路(57英寸散装)(3.375英寸)按需裁切	LINE (57.00 Inches Bulk) (3.375 In.) Cut as Required	3
33	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	3
34	99127109	管路(57英寸散装)(17.75英寸)按需裁切	LINE (57.00 Inches Bulk) (17.75 In.) Cut as Required	1
34	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
35	FA698801	接头(带计量杯)	FITTING (W/Metering Cup)	1
36	819503	电磁阀	SOLENOID	1
36	819503T6	电磁阀	SOLENOID	1
37	F694504	护孔环	GROMMET	1
38	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	2
39	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
40	816296	燃油滤清器	FILTER Fuel	1
40	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
41	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
41	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
--	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
42	9912688	管材(36英寸散装)(5英寸)按需裁切	TUBING (36.00 Inches Bulk) (5 In.) Cut as Required	1
43	9912688	管材(36英寸散装)(7.25英寸)按需裁切	TUBING (36.00 Inches Bulk) (7.25 In.) Cut as Required	1
44	F695858	接头	FITTING	1
-	FG1028-2	动力头衬垫套件	GASKET SET Powerhead
-	809748A1	衬垫套件	GASKET SET
-	817608A6	短缸体	SHORT BLOCK
-	817608A22	动力头套件	POWERHEAD KIT

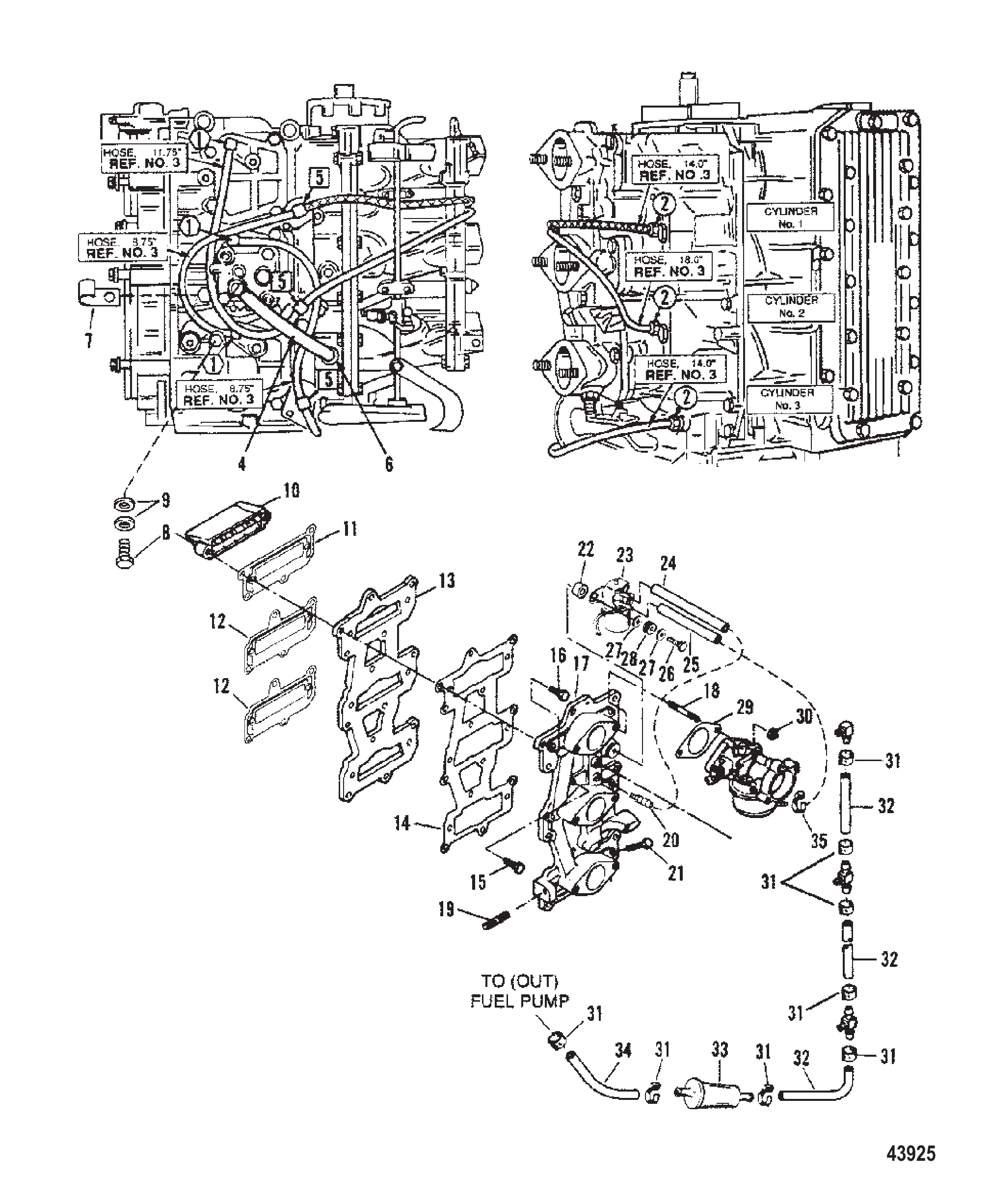

图 26簧片阀板及再循环系统 0E065372 至 0E093699 Reed Plate and Recirculation System 0E065372 Thru 0E093699

REF	零件编号	中文名称	英文名称	数量
1	F743314	循环弯头	ELBOW Recirculating	3
2	42658	止回阀	CHECK VALVE	3
2	426585	止回阀	CHECK VALVE	3
3	99130122	管材(20英尺散装)按需裁切	TUBING (20.00 Feet Bulk) Cut as Required	1
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	99127109	管路(57英寸散装)按需裁切	LINE (57.00 Inches Bulk) Cut as Required	1
4	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
5	820706	弯头止回阀	ELBOW Check Valve	3
5	8207061	接头	FITTING	3
6	99664	弯头	ELBOW	1
6	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
7	55098	J型卡扣	J CLIP	1
7	8M0024808	J型夹	J-CLIP	1
8	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
9	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	2
10	11645	簧片阀组	REED BLOCK	3
10	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	3
11	F85168-2	簧片阀适配器衬垫(顶部)	GASKET (Top) Reed Plate Adapter	1
12	819733	簧片阀适配器衬垫(中/底部)	GASKET (Center/Bottom) Reed Plate Adapter	2
13	8197351	簧片板适配器	ADAPTER Reed Plate	1
14	F85159-1	进气歧管垫片	GASKET Intake Manifold	1
15	F2030	螺钉 (.250-20 x 1.250) 不锈钢	SCREW (.250-20 x 1.250) Stainless Steel	2
16	F1532	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	10
16	819110100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	10
17	825195A1	进气歧管套件	MANIFOLD KIT Intake	1
17	825195A2	歧管套件	MANIFOLD KIT	1
18	826388	双头螺柱(0.312-18 x 1.250)	STUD (.312-18 x 1.250)	6
18	8263881	螺柱	STUD	6
19	826389	双头螺栓(.250-20 x 1.250)	STUD (.250-20 x 1.250)	1
19	F433209-1	双头螺栓(.250-20 x 1.250)	STUD (.250-20 x 1.250)	1
20	F695858	接头	FITTING	1
21	F2050	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	6
21	819110150	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	6
22	F694359	隔套	SPACER	1
23	819503	电磁阀	SOLENOID	1
23	819503T6	电磁阀	SOLENOID	1
24	9912688	管材(36英寸散装)(7.25英寸)按需裁切	TUBING (36.00 Inches Bulk) (7.25 In.) Cut as Required	1
25	9912688	管材(36英寸散装)(5英寸)按需裁切	TUBING (36.00 Inches Bulk) (5 In.) Cut as Required	1
26	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
27	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	2
28	F694504	护孔环	GROMMET	1
29	F85906	化油器衬垫	GASKET Carburetor	3
29	828925	衬垫	GASKET	3
30	68292	螺母(.312-18)	NUT (.312-18)	6
30	8M0204668	螺母(.312-18)	NUT (.312-18)	6
31	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
31	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
32	99127109	管路(57英寸散装)按需裁切	LINE (57.00 Inches Bulk) Cut as Required	1
32	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
33	816296	燃油滤清器	FILTER Fuel	1
33	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
34	99127109	管路(57英寸散装)(19英寸)按需裁切	LINE (57.00 Inches Bulk) (19 In. ) Cut as Required	1
34	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
35	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1

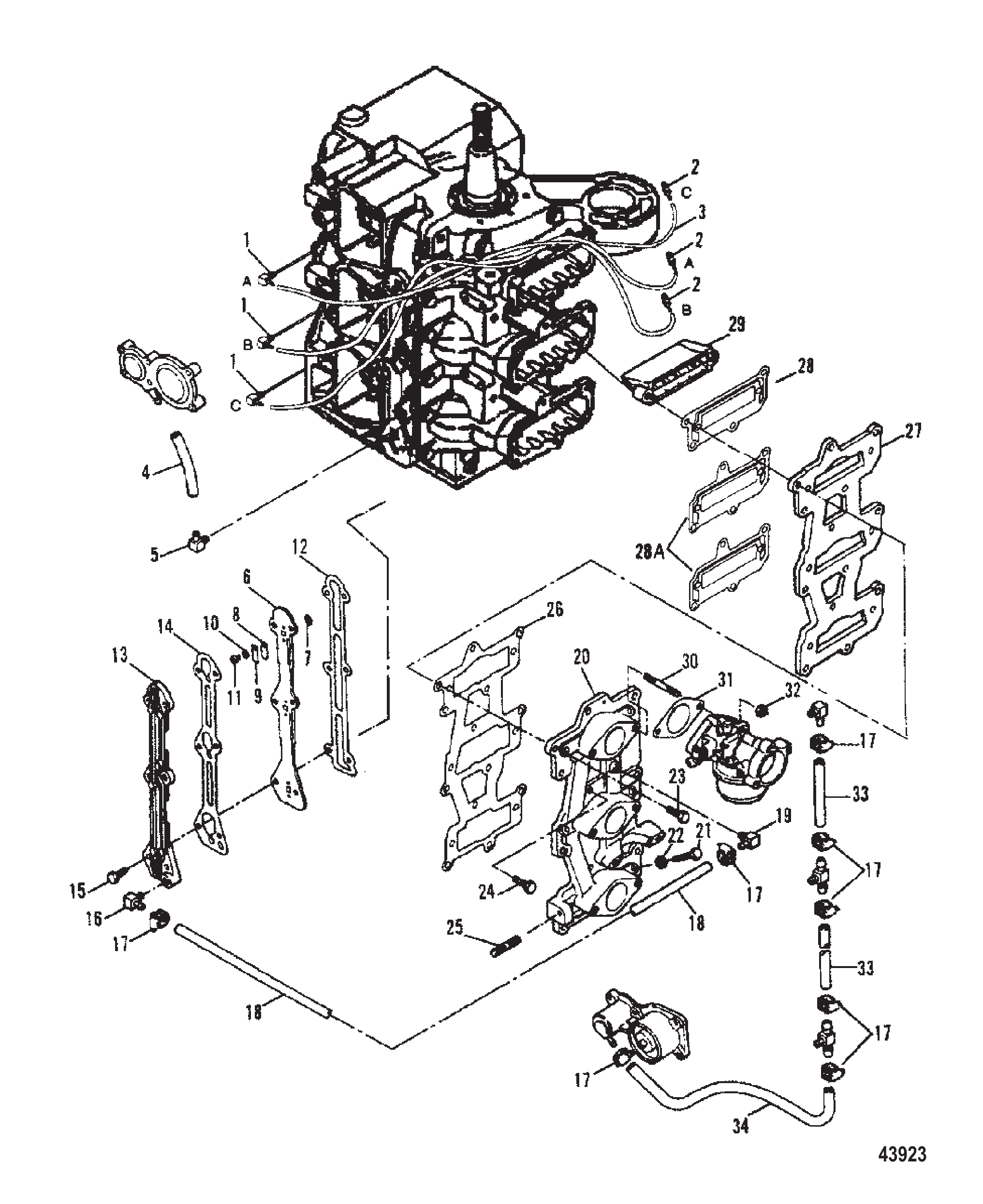

图 27簧片阀板及再循环系统 91E 至 92C Reed Plate and Recirculation System 91E Thru 92C

REF	零件编号	中文名称	英文名称	数量
1	F743314	循环弯头	ELBOW Recirculating	3
2	42658	止回阀	CHECK VALVE	3
2	426585	止回阀	CHECK VALVE	3
3	99130122	管材(20英尺散装)(2件18.5英寸,1件22英寸)按需裁切	TUBING (20.00 Feet Bulk) (2 PCS 18.5 In., 1 PC 22 In.) Cut as Required	3
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
4	1940964	软管(36英寸散装)脉冲(4.5英寸)按需裁切	HOSE (36.00 Inches Bulk) Impulse (4.5 In.) Cut as Required	1
4	8M0214996	软管	HOSE	1
5	F84314-2	弯头 (L型)	ELBOW (L)	1
6	F2A404757	气缸排水簧片阀总成	REED PLATE ASSEMBLY Cylinder Drain	1
7	F93811	滤网	SCREEN	3
8	F18160-3	簧片	REED	3
9	F93920	簧片止挡	STOP Reed	3
10	18552	垫圈	WASHER	3
11	F1286	螺钉(#4-40x.187)	SCREW (#4-40 x .187)	3
12	F85472-2	气缸排水盖垫片	GASKET Cylinder Drain Cover	1
13	817787A1	盖总成-气缸排水	COVER ASSEMBLY Cylinder Drain	1
14	F85748-2	气缸放油簧片阀衬垫	GASKET Cylinger Drain Reed Plate	1
15	F1532	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	6
15	819110100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	6
16	F404801	接头	FITTING	1
17	F698772	蜗杆卡箍	CLAMP Worm Gear	AR
18	9912878	软管(0.187)(26英寸散装)(22.5英寸)按需裁切	HOSE (.187) (26.00 Inches Bulk) (22.5 In.) Cut as Required	1
19	8181031	弯头	ELBOW	1
20	817959A3	进气歧管总成	MANIFOLD ASSEMBLY Intake	1
21	F2050	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	6
21	819110150	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	6
22	18678	垫圈	WASHER	1
23	F2008	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	7
24	F1699	六角头螺钉(0.250-20 x 1.125)	SCREW Hex Head (.250-20 x 1.125)	2
25	F433209-1	双头螺栓(.250-20 x 1.250)	STUD (.250-20 x 1.250)	1
26	F85159-1	进气歧管垫片	GASKET Intake Manifold	1
27	8197351	簧片板适配器	ADAPTER Reed Plate	1
28	F85168-2	簧片阀适配器衬垫(顶部)	GASKET (Top) Reed Plate Adapter	1
28	819733	簧片阀适配器衬垫(中/底部)	GASKET (Center/Bottom) Reed Plate Adapter	2
29	819071A2	簧片阀总成(91E至92A)	REED PLATE ASSEMBLY 91E Thru 92A)	3
29	11645	簧片阀块(92C)	REED BLOCK (92C)	3
29	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	3
30	826388	双头螺柱(0.312-18 x 1.250)	STUD (.312-18 x 1.250)	6
30	8263881	螺柱	STUD	6
31	F85906	化油器衬垫	GASKET Carburetor	3
31	828925	衬垫	GASKET	3
32	68292	螺母(.312-18)	NUT (.312-18)	6
32	8M0204668	螺母(.312-18)	NUT (.312-18)	6
33	99127109	管路(57英寸散装)(3.375英寸)按需裁切	LINE (57.00 Inches Bulk) (3.375 In.) Cut as Required	2
33	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
34	99127109	管路(57英寸散装)(17.75英寸)按需裁切	LINE (57.00 Inches Bulk) (17.75 In.) Cut as Required	1
34	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
--	FG1028-2	动力头衬垫套件	GASKET SET Powerhead
--	809748A1	衬垫套件	GASKET SET
-	820725A1	衬垫套件	GASKET SET

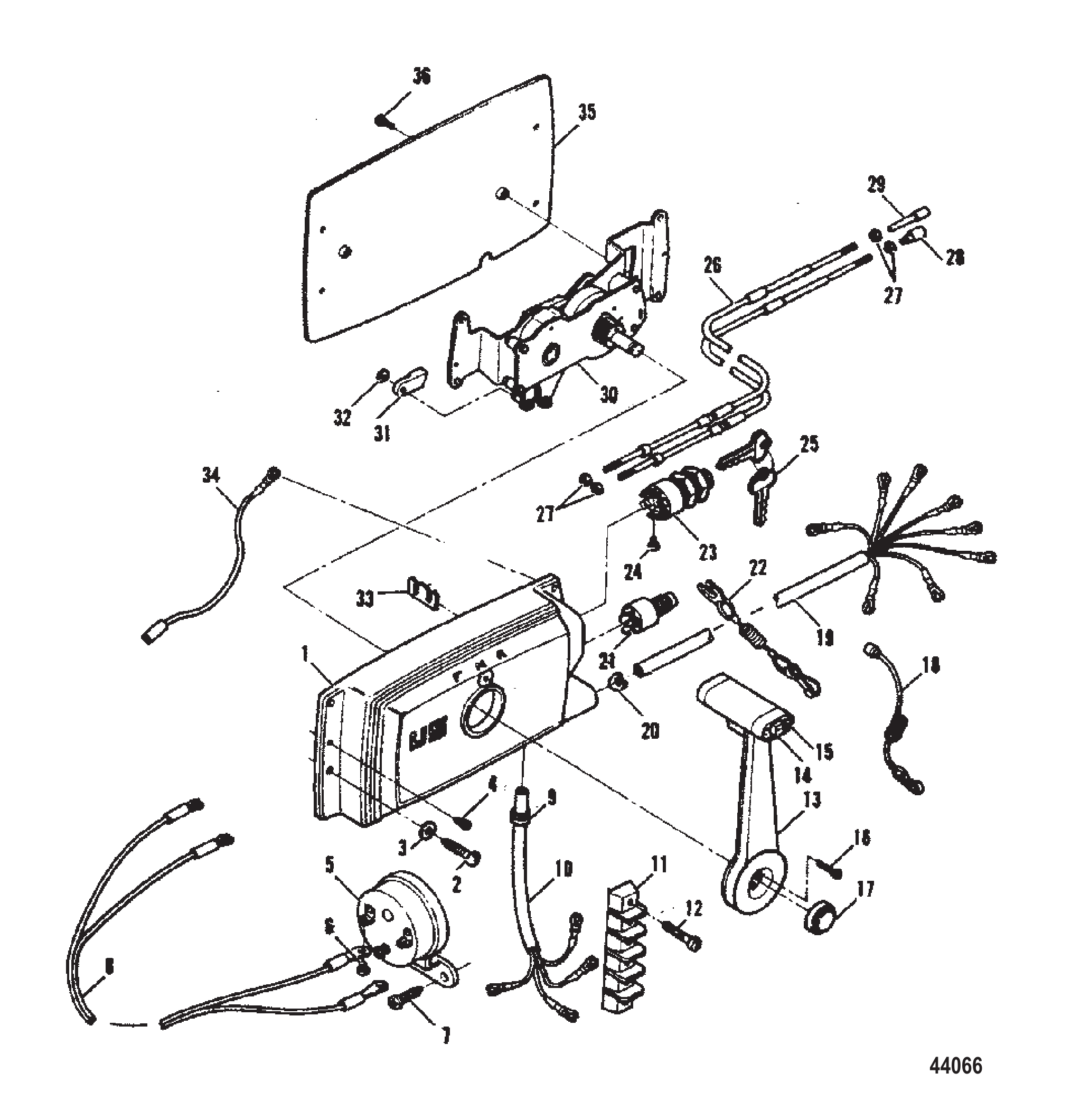

图 28遥控装置 Remote Control

REF	零件编号	中文名称	英文名称	数量
--	F5H267	遥控装置	REMOTE CONTROL	1
1	F660995	盖总成	COVER ASSEMBLY	1
2	F660732	螺钉	SCREW	4
3	F660595	垫圈	WASHER	4
4	F660480	螺钉	SCREW	2
5	F5H043	过热报警器套件	BUZZER KIT Overheat	1
6	69080	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	2
7	F1741	螺钉(#8 x .750) 平头,不锈钢	SCREW (#8 x .750) Fill Head, SS	2
8	65017A24	线束总成	HARNESS ASSEMBLY	1
9	F660504	护孔环	GROMMET	1
10	F660353	线束总成(5英尺)	CABLE ASSEMBLY (5 Feet)	1
11	817492	接线端子排4位	TERMINAL BLOCK 4 Post TERMINAL	1
12	F1741	螺钉(#8 x .750) 平头,不锈钢	SCREW (#8 x .750) Fill Head, SS	2
13	F660611	带微调开关的操纵杆总成	LEVER ASSEMBLY With Trim Switch	1
14	F17864	开关总成	SWITCH ASSEMBLY	1
15	F17863	按钮/面板套件	BUTTON/PLATE KIT	1
16	F660165	螺钉	SCREW	4
17	F660332	堵头	PLUG	1
18	FK681602	开关	SWITCH	1
19	819200A1	电缆总成(15.5英尺)	CABLE ASSEMBLY (15.50 Feet)	1
19	819200T1	线缆-15.5英尺	CABLE-15.5 FEET	1
19	819203A1	线缆组件(19英尺)	CABLE ASSEMBLY (19 Feet)	OPT.
19	819204A1	线缆组件(22英尺)	CABLE ASSEMBLY (22 Feet)	OPT.
19	819205A1	线缆组件(25英尺)	CABLE ASSEMBLY (25 Feet)	OPT.
19	F5H193	线束总成(7英尺)延长线	CABLE ASSEMBLY (7 Feet) Extension	OPT.
20	F660446	卡箍	CLAMP	1
21	FK681602	紧急停止开关	SWITCH EMERGENCY STOP	1
22	819399A1	拉绳总成(叉型)	LANYARD ASSEMBLY (FORK TYPE)	1
22	879104	带夹子的拉绳	LANYARD W/CLIP	1
23	F5H268	点火开关(短筒型)	SWITCH IGNITION, (SHORT BARREL)	1
24	F1280	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	6
24	8M0129582	螺钉	SCREW	6
25	819012	钥匙组(钢印51)	KEY SET Stamped 51	1
25	819013	钥匙组(钢印55)	KEY SET Stamped 55	1
25	819014	钥匙组(钢印65)	KEY SET Stamped 65	1
25	819015	钥匙组(钢印66)	KEY SET Stamped 66	1
25	819016	钥匙组(钢印67)	KEY SET Stamped 67	1
26	F195/__	油门/换档线缆组(指定长度__)	CABLE SET Thottle/Shift (SPECIFY LENGTH __)	1
27	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
28	F58685-2	换挡连接器	CONNECTOR SHIFT	1
29	FA58976-1	油门连接器	CONNECTOR THROTTLE	1
30	F660327	执行器总成	ACTUATOR ASSEMBLY	1
31	F660141-1	连接器	CONNECTOR	2
32	F660411	挡圈	RING RETAINING	2
33	F660642	固定座	RETAINER	1
34	F660664	电线	WIRE	1
35	F660911	安装板	PLATE	1
36	F660751	螺钉	SCREW	2
-	8177821	钥匙组A型	KEY SET Stamped A	AR
-	8178831	钥匙组B型	KEY SET Stamped B	AR
-	8178911	钥匙组C型	KEY SET Stamped C	AR
-	8179281	钥匙组D型	KEY SET Stamped D
-	8179291	钥匙组E型	KEY SET Stamped E	AR

图 29维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	819683	操作手册90-150马力	OPERATION MANUAL 90-150 Hp	1
-	819683930	操作手册90-150马力	OPERATION MANUAL 90-150 Hp	1
-	819683941	操作手册90-150马力	OPERATION MANUAL 90-150 Hp	1
-	823424	零件手册90马力Force	PARTS MANUAL 90 Hp Force	1
-	FOB4642	维修手册 F85/90/125 (1988-1991)	SERVICE MANUAL F85/90/125 (1988 Thru 1991)	1
-	823267	维修手册 F90/120 (1992至1994)	SERVICE MANUAL F90/120 (1992 Thru 1994)	1
-	81910412	灰色丙烯酸漆, 加拿大喷漆 (每箱12罐)	LACQUER GRAY ACRYLIC, SPRAY CANADA (12 PER CASE)	AR
-	81825212	石墨灰丙烯酸漆	PAINT Graphite Gray Acrylic	AR
-	82532112	石墨灰丙烯酸漆	PAINT Graphite Gray Acrylic	AR
-	82793331	涂料.6-GRAP@6	PAINT.6-GRAP@6	AR
-	81910712	透明丙烯酸漆	PAINT Clear Acrylic	AR
-	82793353	PAINT-CLEAR @6	PAINT-CLEAR @6	AR

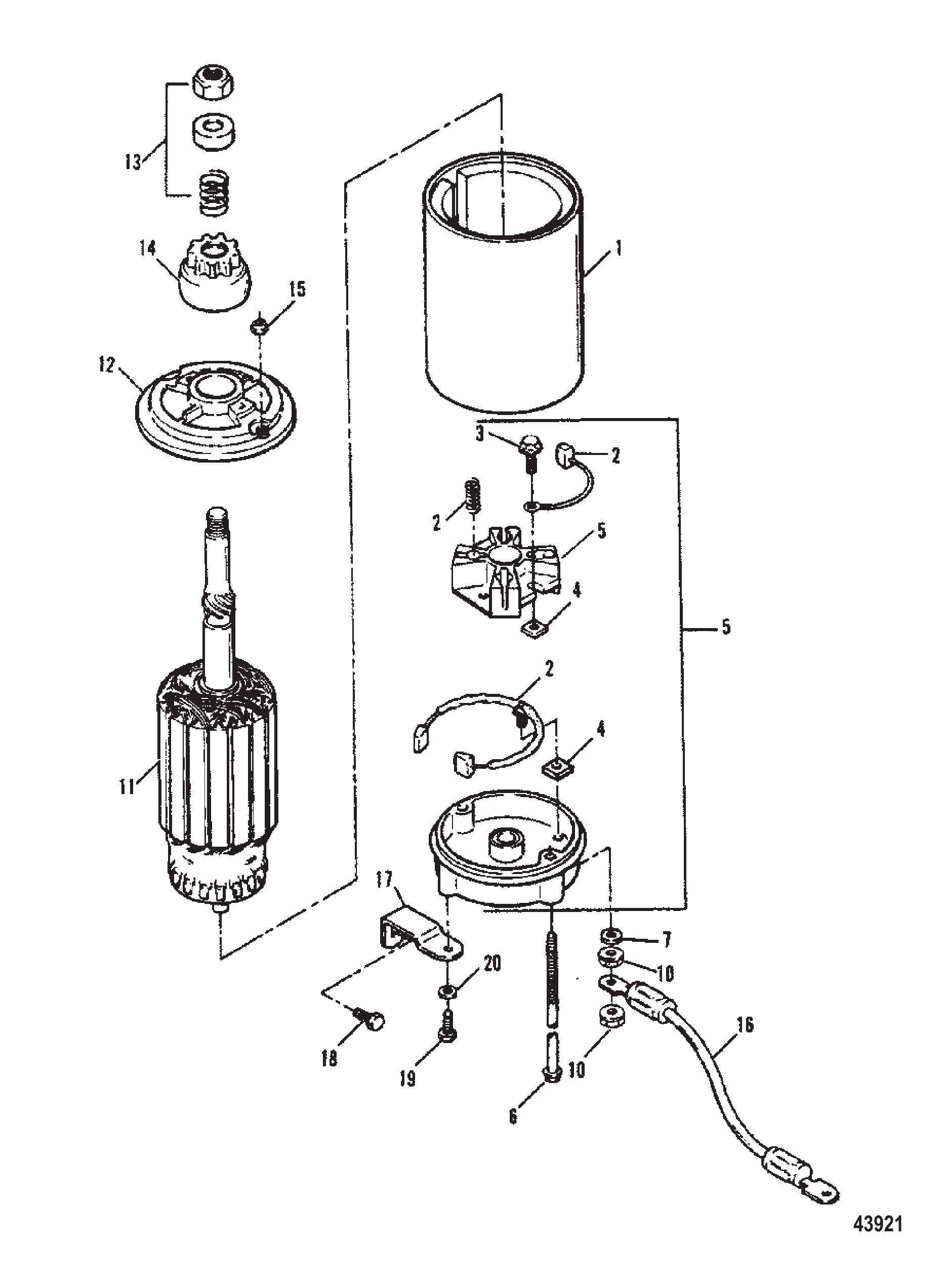

图 30启动器总成 Starter Assembly

REF	零件编号	中文名称	英文名称	数量
1	819085		STARTER MOTOR ASSEMBLY (SERVICES 50-F616955-1)	1
1	898265002	启动马达	STARTER MOTOR	1
2	F15190	电刷/弹簧套件	BRUSH/SPRING KIT	1
3	F15158	螺钉	SCREW	2
4	F15159	绝缘体	INSULATOR	2
4	57387	衬套	BUSHING	2
5	F15189	端盖总成-换向器	END CAP ASSEMBLY Commutator	1
6	F15178	贯穿螺栓	THRU BOLT	2
7	F15160	垫圈	WASHER	1
7	804700	垫圈	WASHER	1
10	F15162	螺母	NUT	2
11	F15177	电枢	ARMATURE	1
12	F15176	端盖-驱动端	END CAP Drive	1
12	803888T	驱动端盖	END CAP-DRIVE	1
13	90644	驱动套件	DRIVE KIT	1
14	819222	驱动总成	DRIVE ASSEMBLY	1
14	802587T01	驱动小齿轮	DRIVE-PINION	1
15	20361	螺母(.250-28)	NUT (.250-28)	2
15	8267089	螺母(.250-28)	NUT (.250-28)	2
16	F85908-1	启动电缆总成 (红色)	CABLE ASSEMBLY Starter (Red)	1
17	F616675	启动机支架	BRACKET Starter Mount	1
18	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
19	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
--	825064	警示贴花	DECAL Caution	1
--	881865	警示贴纸-挂档启动	DECAL Caution-Start in Gear	1
--	825066	警告标贴	DECAL Warning	1
--	8272822	警告标贴	DECAL Warning	1
--	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
--	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

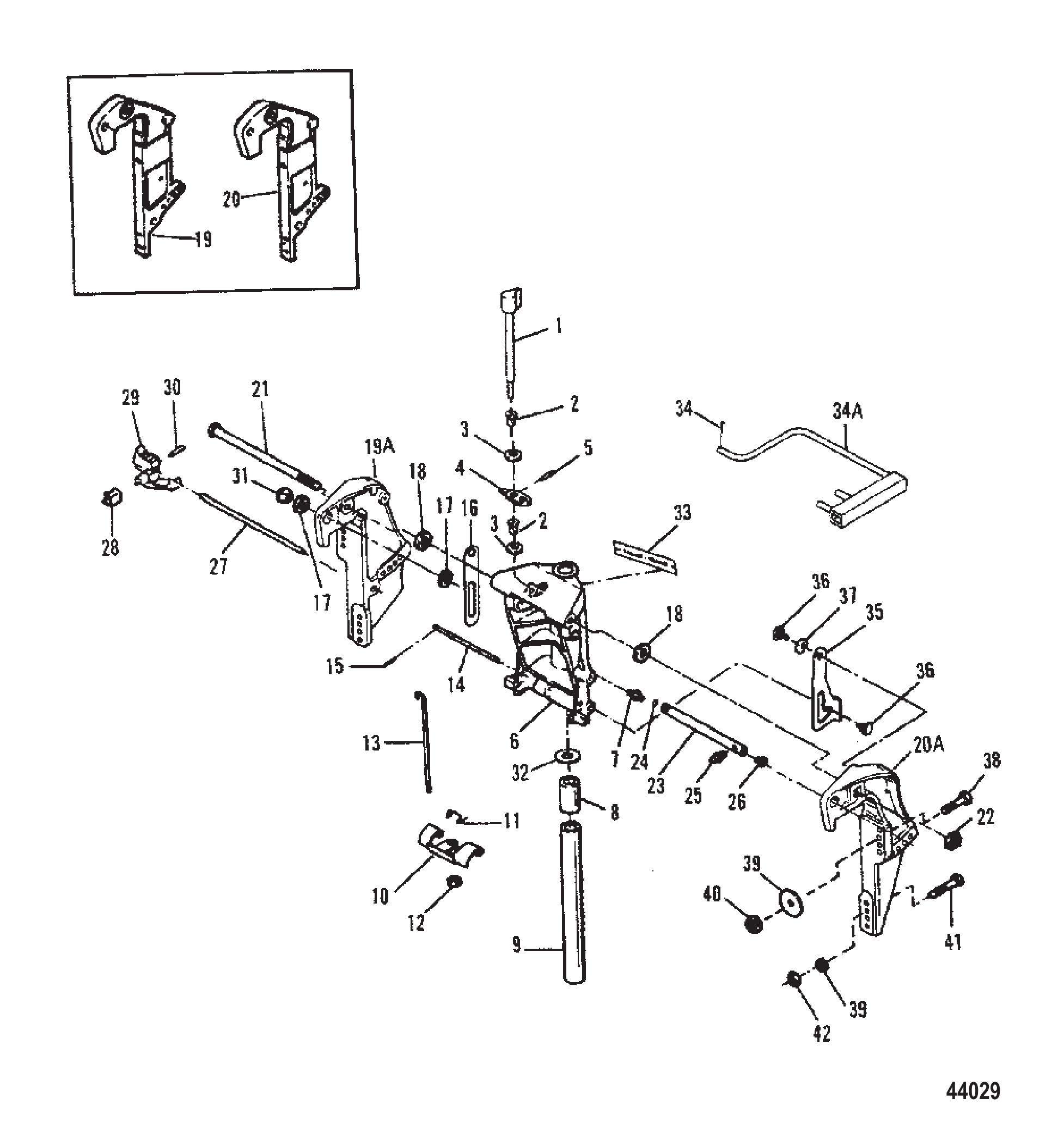

图 31旋转/艉板支架（手动倾斜） Swivel / Transom Brackets (Manual Tilt)

REF	零件编号	中文名称	英文名称	数量
1	817946A2	倒车锁手柄及轴	HANDLE AND SHAFT Reverse Lock	1
2	26856	衬套	BUSHING	2
3	821027	压入式螺母	PUSH NUT	2
4	F369364	倒车锁臂	ARM Reverse Lock	1
5	F1836	弹簧销	PIN Spring	1
6	817783A5	带轴承和注油嘴的旋转支架 (喷漆)	SWIVEL BRACKET With Bearings And Grease Fitting (Painted)	1
7	F213274	润滑脂接头	FITTING Grease	3
8	819493	衬套	BUSHING	2
9	FS85019	主销 (20英寸)	KINGPIN (20 in.)	1
9	FA500019	主销总成 (25英寸)	KINGPIN ASSEMBLY (25 in.)	1
10	F369349	倒车锁	LOCK Reverse	1
11	F85300	倒挡锁弹簧	SPRING Reverse Lock	1
12	F1669	螺母（#6-32）	NUT (#6-32)	1
12	8M0207777	不锈钢螺母	NUT-SS	1
13	F369510	连接杆	LINK	1
14	F177350	销倒挡锁	PIN Reverse Lock	1
15	820026	销	PIN	1
16	823785	绑带 (右舷)	STRAP (Starboard)	1
17	F523280		NUT Steering Support Tube	2
18	F84286-1	垫圈	WASHER	4
19	820445F	船尾右舷支架 1991E至1992C	BRACKET Stern Starboard 1991E Thru 1992C	1
20	820446F	船尾左舷支架 1991E至1992C	BRACKET Stern Port 1991E Thru 1992C	1
19A	819424F	船尾右舷支架 1991E至1992C	BRACKET Stern Starboard 1991E Thru 1992C	1
19A	819424T	船尾支架-右舷	BRKT-STERN-STBD	1
20A	819425F	船尾左舷支架 1991E至1992C	BRACKET Stern Port 1991E Thru 1992C	1
20A	819425T	船尾支架-左舷	BRKT-STERN-PORT	1
21	F85037-1	船尾支架枢轴螺栓	BOLT Stern Bracket Pivot	1
22	28040	螺母(.500-20)	NUT (.500-20)	1
22	898832	螺母(.500-20)	NUT (.500-20)	1
23	818066A3	管总成	TUBE ASSEMBLY	1
24	F316599	转向管密封件	SEAL Steering Tube	1
24	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
25	F523274	润滑脂接头	FITTING Grease	1
26	F9052	塑料堵头	PLUG Plastic	1
27	FA438113	艉支架锁杆总成	LOCK BAR ASSEMBLY Stern Bracket	1
28	F286461		SPRING Lockbar Handle	1
29	816517	锁杆手柄	HANDLE Lockbar	1
30	25870	滚动销	PIN Roll	1
31	F9018	塑料盖	CAP Plastic	1
32	F84011	旋转支架垫圈	WASHER Swivel Bracket	1
33	819450	倒车锁贴花	DECAL Reverse Lock	1
34	819504A1	拖曳锁支架套件	BRACKET KIT Lock, Trailing	1
34	819504A2	支架套件	BRACKET KIT	1
34A	F525629	开口销	PIN Cotter	1
35	823786	绑带 (左舷)	STRAP (Port)	1
36	F85350-1	倾斜限位枢轴	PIVOT Tilt Stop	4
37	69150	波形垫圈	WAVE WASHER	2
38	F685632	螺栓 (.50-20 x 7.00) 不锈钢 (1/2-20 X 7") 1991E至1992C)	BOLT (.50-20 x 7.00) Stainless Steel (1/2-20 X 7") 1991E Thru 1992C)	2
39	FK684201	垫圈	WASHER	4
39	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
39	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
40	8M0027784	螺母	NUT	2
40	82671117	螺母(.500-20)	NUT (.500-20)	2
40	8M0027784	螺母	NUT	2
40	82671117	螺母(.500-20)	NUT (.500-20)	2
41	F2185	螺钉六角头(.375-16 x 3.50)不锈钢	SCREW Hex Head (.375-16 x 3.50) SS	2
41	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	2
41	8M0149747	螺钉	SCREW	2
42	86226	螺母（.375-16）	NUT (.375-16)	2
42	8M0204671	螺母	NUT	2

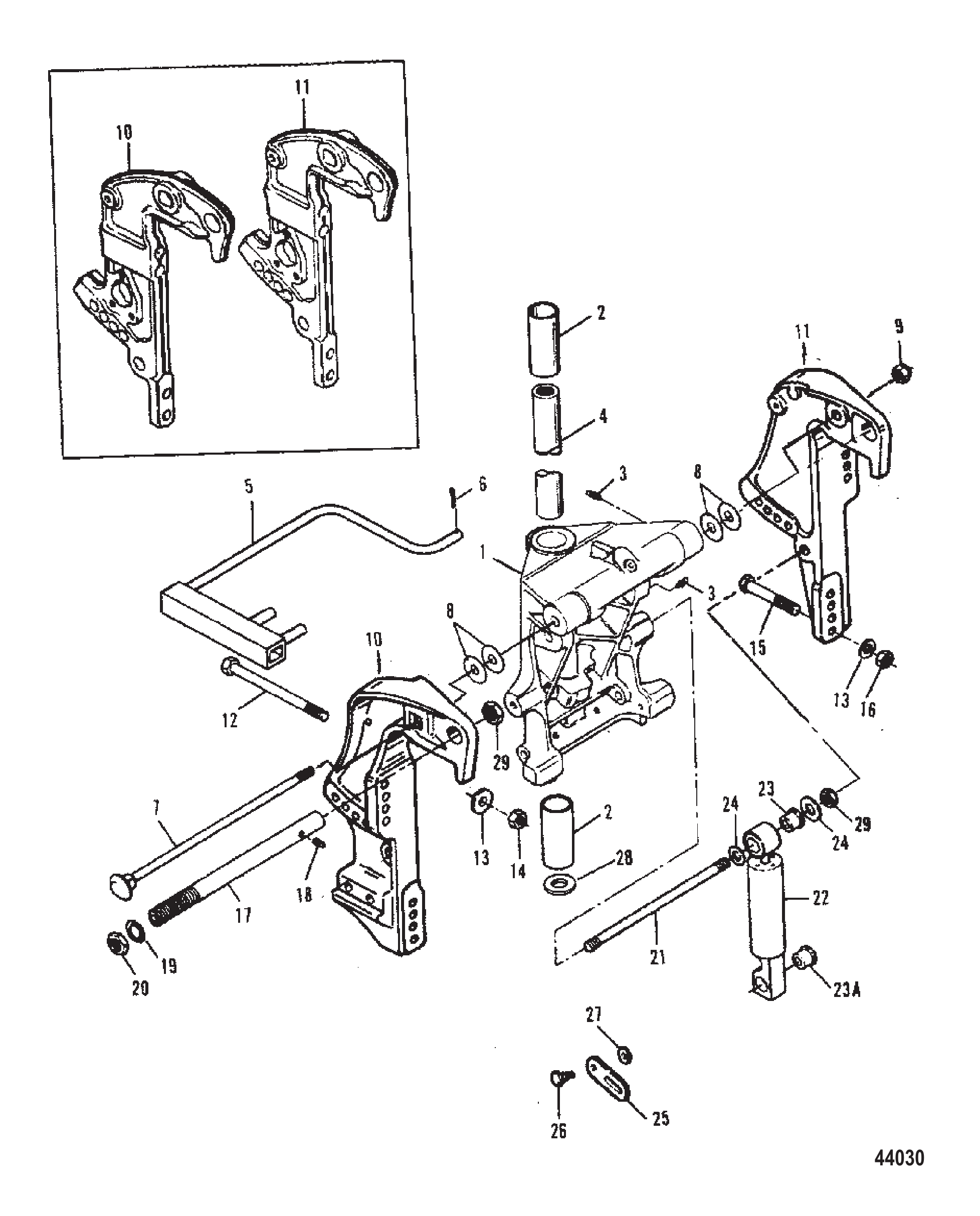

图 32旋转/艉板支架（动力升降 Swivel / Transom Brackets (Power Trim

REF	零件编号	中文名称	英文名称	数量
1	817783A5	带轴承和注油嘴的旋转支架 (喷漆)	SWIVEL BRACKET With Bearings And Grease Fitting Painted	1
2	819493	旋转支架衬套	BUSHING Swivel Bracket	2
3	F213274	润滑脂接头	FITTING Grease	3
4	FS85019	主销 (20英寸)	KINGPIN (20 in.)	1
4	FA500019	主销总成 (25英寸)	KINGPIN ASSEMBLY (25 in.)	1
5	819504A1	拖曳锁支架套件	BRACKET KIT Lock, Trailering	1
5	819504A2	支架套件	BRACKET KIT	1
6	F525629	开口销	PIN Cotter	1
7	F85037-1	船尾支架枢轴螺栓	BOLT Stern Bracket Pivot	1
8	F84286-1	垫圈	WASHER	4
9	28040	螺母(.500-20)	NUT (.500-20)	1
9	898832	螺母(.500-20)	NUT (.500-20)	1
10	820445F	船尾右舷支架	BRACKET Stern, Starboard	1
11	820446F	船尾左舷支架	BRACKET Stern, Port	1
10A	819424F	船尾右舷支架	BRACKET Stern, Starboard	1
10A	819424T	船尾支架-右舷	BRKT-STERN-STBD	1
11A	819425F	船尾左舷支架	BRACKET Stern, Port	1
11A	819425T	船尾支架-左舷	BRKT-STERN-PORT	1
12	F685632	螺栓 (.50-20 x 7.00) 不锈钢 (1/2-20 X 7)	BOLT (.50-20 x 7.00) Stainless Steel (1/2-20 X 7)	2
12	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	2
12	8M0149747	螺钉	SCREW	2
13	FK684201	垫圈	WASHER	4
13	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
13	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
14	8M0027784	螺母	NUT	2
14	82671117	螺母(.500-20)	NUT (.500-20)	2
15	F2428	螺钉 (3/8-16 X 5)	SCREW (3/8-16 X 5)	2
16	86226	螺母（.375-16）	NUT (.375-16)	2
16	8M0204671	螺母	NUT	2
17	818066A3	转向管总成	TUBE ASSEMBLY STEERING	1
18	F523274	润滑脂接头	FITTING Grease	1
19	F316599	转向管密封件	SEAL Steering Tube	1
19	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
20	F523280	转向管螺母	NUT Steering Tube	2
21	F449889		SHAFT Upper Shock	1
22	FS631962	减震器总成 (喷漆)	SHOCK ABSORBER ASSEMBLY (Painted)	1
22	FS719962	减震器总成	SHOCK ABSORBER ASSEMBLY	1
23	F178344	衬套上部	BUSHING Upper	1
23A	F449362	下轴套	BUSHING Lower	1
24	F1960	垫圈	WASHER	2
25	F694426	倾斜止动块 (非所有型号适用)	STOP Tilt (Not Used on all Models)	2
26	F85350-1	倾斜止动枢轴 (非所有型号适用)	PIVOT Tilt Stop (Not Used on all Models)	4
27	69150	波形垫圈 (非所有型号适用)	WAVE WASHER Not Used on all Models)	2
28	F84011	旋转支架垫圈	WASHER Swivel Bracket	1
29	35778	螺母(.500-20)	NUT (.500-20)	2
29	826709117	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	2

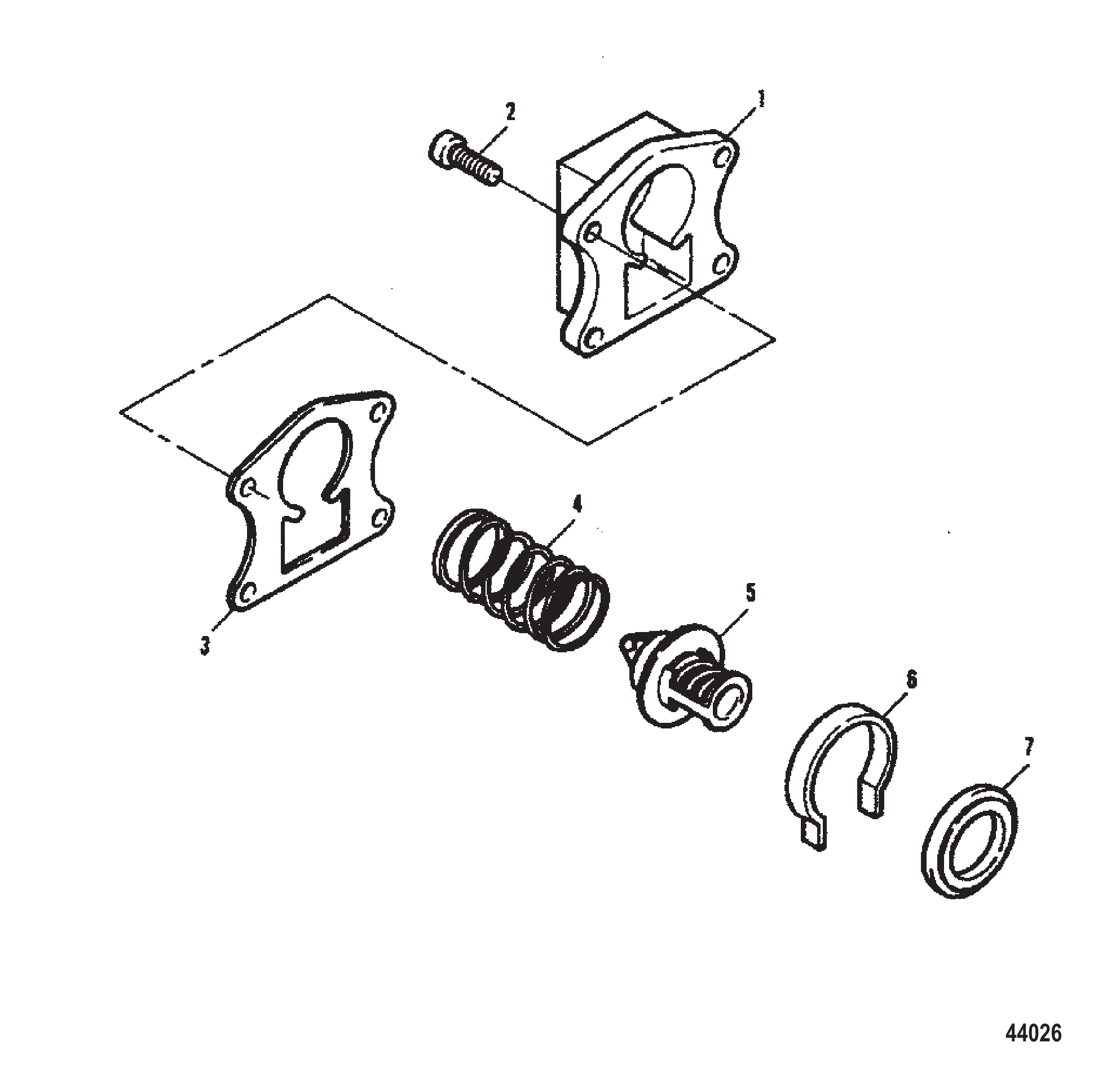

图 33节温器 Thermostat

REF	零件编号	中文名称	英文名称	数量
1	F476066-1	盖板	COVER	1
1	819693	盖板	COVER	1
2	19927075	螺丝(0.250-20 x 0.75)	SCREW (.250-20 x .75)	4
2	19932075	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
3	F476067	节温器盖衬垫	GASKET Thermostat Cover	1
3	828319	衬垫	GASKET	1
4	F692268	弹簧 (红色)	SPRING (RED)	1
5	F664068	节温器54°C(130°F)	THERMOSTAT 54°C (130°F)	1
6	F719902	隔套	SPACER	1
6	8283111	隔套	SPACER	1
7	F664914	密封件（节温器）	SEAL Thermostat	1

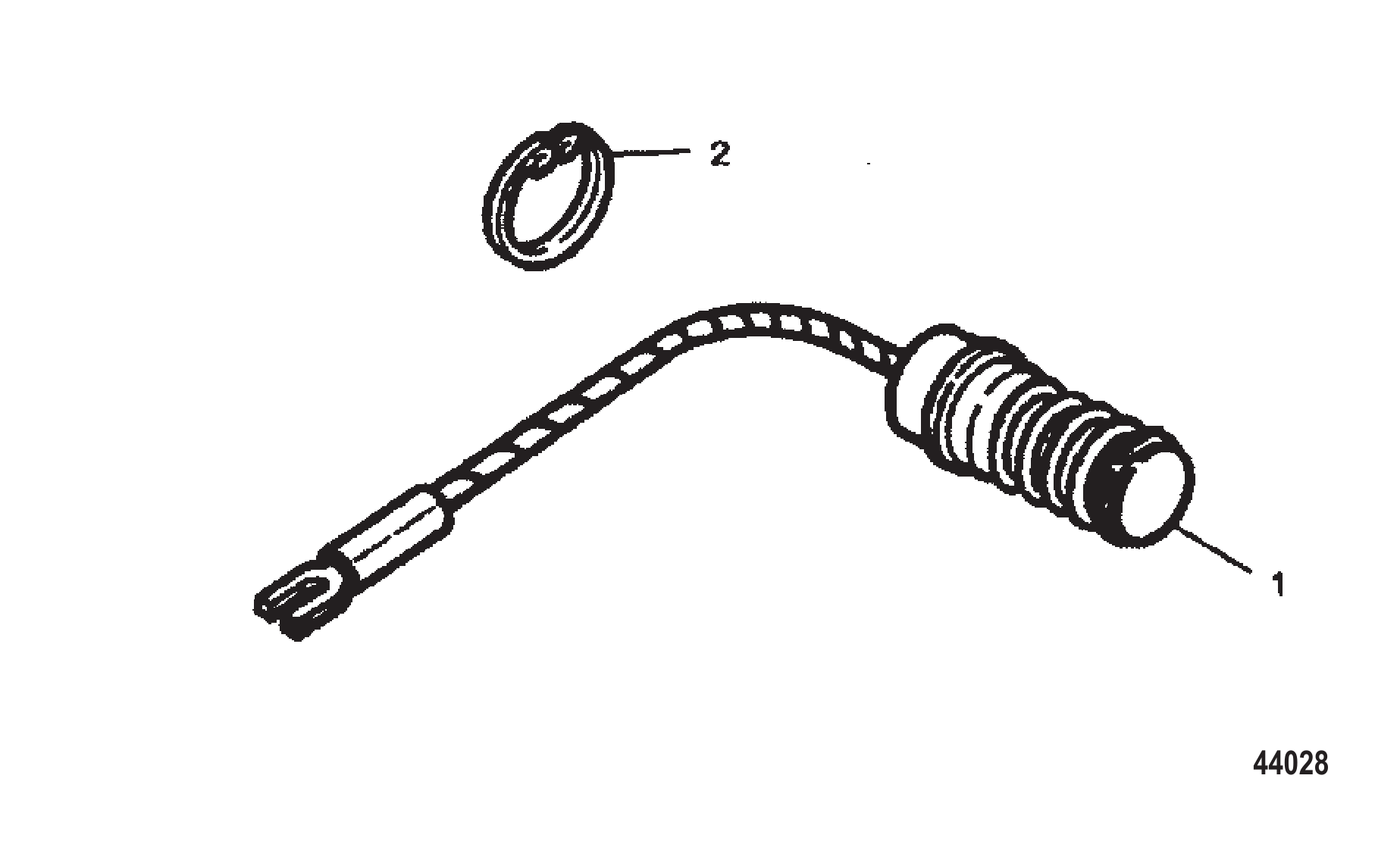

图 34节温器 91 E 型号 Thermostat 91 E Models

REF	零件编号	中文名称	英文名称	数量
1	819022	温控开关	THERMOSWITCH	1
2	F428096	挡圈	RING Retaining	1

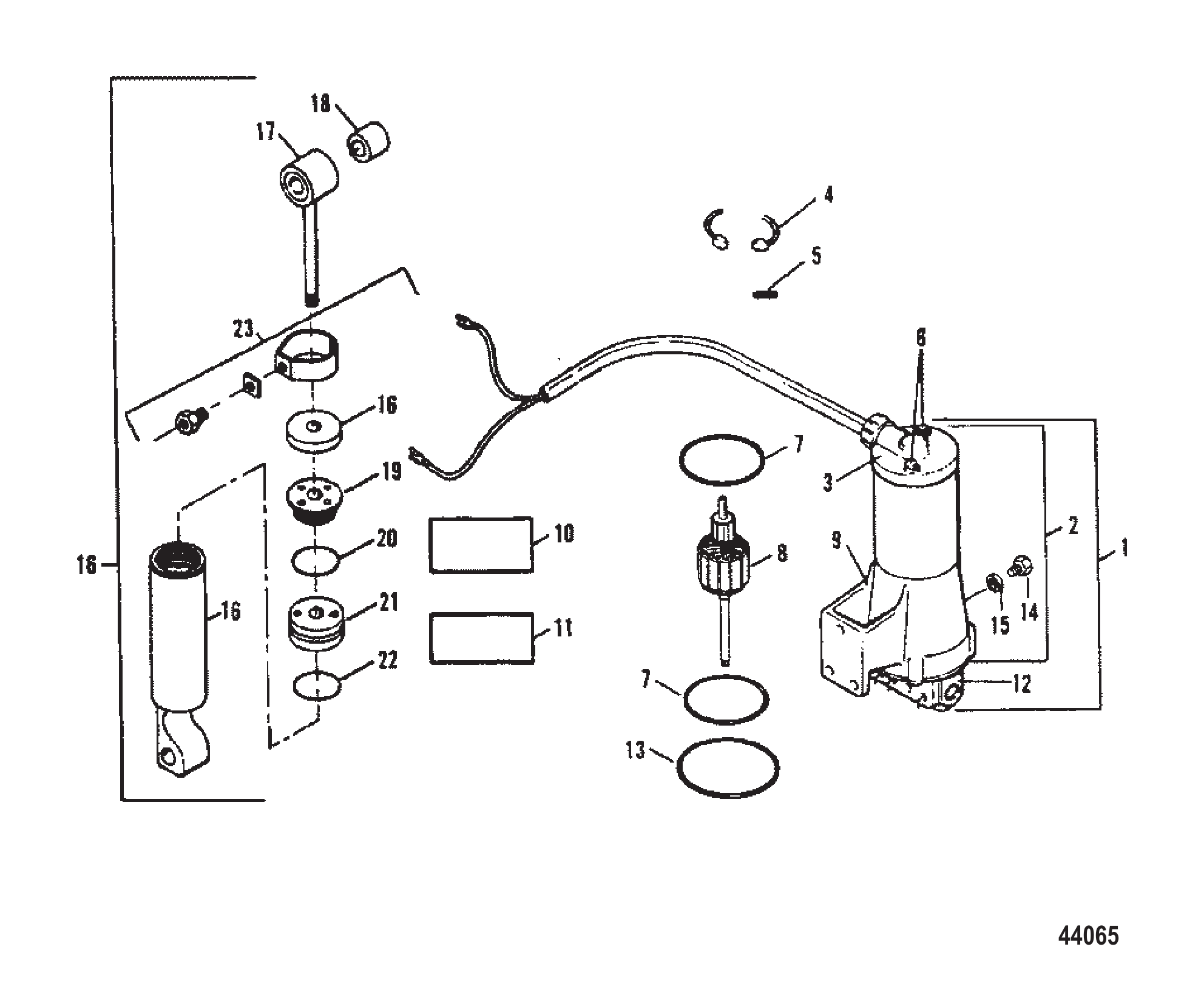

图 35倾斜油缸/马达/泵（设计I型） Tilt Cylinder / Motor / Pump (Design I)

REF	零件编号	中文名称	英文名称	数量
1	F694541-2	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
2	820545	马达/储液罐总成	MOTOR/RESERVOIR ASSEMBLY	1
3	F17624	头总成	HEAD ASSEMBLY	1
3	820545	马达/储液罐总成	MOTOR/RESERVOIR ASSEMBLY	1
4	8989	电刷套件	BRUSH KIT	1
5	2529	弹簧组	SPRING SET	1
6	820549	贯穿螺栓总成 (带密封件)	THRU BOLT ASSEMBLY With Seals	1
7	8992	O型圈	O-RING	2
8	820546	电枢	ARMATURE	1
8	820545	马达/储液罐总成	MOTOR/RESERVOIR ASSEMBLY	1
9	F17625	储液罐/支架总成	RESERVOIR/BRACKET ASSEMBLY	1
9	820545	马达/储液罐总成	MOTOR/RESERVOIR ASSEMBLY	1
10	820547	轴承及保持器套件	BEARING AND RETAINER KIT	1
11	820548	电枢轴密封套件	SEAL KIT ARMATURE SHAFT	1
12	820550	阀体/壳体总成	BODY/CASE ASSEMBLY VALVE	1
13	2525	O型圈 (3.125)	O-RING (3.125)	1
14	F17518	加注口盖	CAP FILLER	1
15	62702	O型圈(.301 x .070)	O-RING (.301 x .070)	1
15	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	1
16	819108F	倾斜油缸总成(喷漆)	CYLINDER ASSEMBLY TILT (PAINTED)	1
17	F2A654017	连杆总成	ROD ASSEMBLY	1
17	819365A2	气缸总成	CYLINDER ASSEMBLY	1
18	F178344	衬套	BUSHING	1
19	FA654055	头总成	HEAD ASSEMBLY	1
20	F654618	O型圈	O-RING	1
21	FA654015	活塞总成	PISTON ASSEMBLY	1
22	F654984	O型圈	O-RING	1
23	F2A654983	倾斜缸带总成	BAND ASSEMBLY TILT CYLINDER	1

图 36专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量
-	FT8948-1	飞轮轴承拉拔工具	PULLER TOOL Bearing FLYWHEEL	1
-	83164M	飞轮拉拔器	FLYWHEEL PULLER	1
-	F1800	螺栓(.250-20 x 7.00)	BOLT (.250-20 x 7.00)	2
-	F1972	螺钉(.250-20 x 2.500)	SCREW (.250-20 x 2.500)	3
-	4000358	螺钉(M8 x 50)	SCREW (M8 x 50)	3
-	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	3
-	F8012	垫圈(.203 x .469 x .049)	WASHER (.203 x .469 x .049)	2
-	25909	垫圈(.406 x .812 x .065)	WASHER (.406 x .812 x .065)	3
-	FT2991		BRUSH Wire CARBON REMOVER	1
-	803504T	电刷	BRUSH	1
-	FT8914		REMOVER Seal CRANKSHAFT CAGE	1
-	FT8903		INSTALLER TOOL Seal CRANKSHAFT CAGE	1
-	FT8907		HANDLE Driver USE WITH FT8903	1
-	824892	手柄	HANDLE	1
-	FT8925		INSTALLER TOOL Seal LOWER CRANKSHAFT	1
-	FT2953		SOCKET CONNECTING ROD SCREWS	1
-	FT2990-1	活塞与活塞销定位块	BLOCK Piston And Piston Pin	1
-	FT2996	活塞环压缩工具	COMPRESSOR TOOL Piston Ring	1
-	FT8926	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	FT8933	曲轴端吊钩	LIFTING HOOK CRANKSHAFT END	1
-	803505T	吊钩	HOOK-LIFTING	1
-	FT8900		PLIERS Hose Clamp FUEL LINE	1
-	FT8957		INSTALLER TOOL Seal SHIFT ROD	1
-	FT8919	离合器弹簧销冲具	PUNCH TOOL Spring Pin CLUTCH	1
-	FT11275	卷轴保持器扳手	SPANNER WRENCH SPOOL RETAINER	1
-	FT16813	前进齿轮轴承杯拆卸工具	REMOVER TOOL Bearing Cup FORWARD GEAR	1
-	FT16814	前进齿轮轴承杯安装工具	INSTALLER TOOL Bearing Cup FORWARD GEAR	1
-	FT16433	下驱动轴轴承拆卸工具	REMOVER TOOL Bearing LOWER DRIVESHAFT	1
-	FT16496	下驱动轴轴承安装工具	INSTALLER TOOL Bearing LOWER DRIVESHAFT	1
-	803986T	安装工具套件	INSTALLER KIT	1
-	FT11293	上驱动轴保持器扳手	WRENCH SPANNER, UPPER DRIVESHAFT RETAINER	1
-	43506T	轴承固定工具	RETAINING TOOL Bearing	1
-	FT16536	扭矩保持工具	HOLDING TOOL TORQUING	1
-	803887T	适配器工具	ADAPTER TOOL	1
-	FT11240	配平/倾斜缸扳手	WRENCH SPANNER, TRIM/TILT CYLINDER	1
-	FT8985	驱动轴密封安装工具	INSTALLER TOOL Seal DRIVESHAFT	1
-	FT11209	齿轮轴承座圈安装/拆卸导向套件	GUIDE SET INSTALLER/REMOVER, GEAR BEARING RACE	1
-	FT11292	驱动轴拆卸拉拔器总成	PULLER ASSEMBLY DRIVESHAFT REMOVER	1
-	803713T	拉拔器总成	PULLER ASSY	1
-	FT3012	密封安装工具	INSTALLER TOOL Seal	1
-	FT1081	卡环钳	PLIERS Snap Rings	1
-	FT8978-1	点火正时灯	TIMING LIGHT IGNITION	1
-	99379	正时灯	TIMING LIGHT	1
-	FT2951		TRACER TOOL Circuit Test ELECTRICAL SYSTEM	1
-	FT8950		TESTER KIT LOWER UNIT	1
-	FT11295		SPARK TESTER IGNITION SYSTEM	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	FT2938-1		CONTINUITY TESTER ELECTRICAL CIRCUITS	1
-	99750A1		MULTI METER ELECTRICAL COMPONENTS	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	FT2969	螺纹修复套件 (10-24)	HELI COIL KIT (10-24)	1
-	FT2970	螺纹修复套件 (1/4-20)	HELI COIL KIT (1/4-20)	1
-	FT2971	螺纹修复套件 (5/16-18)	HELI COIL KIT (5/16-18)	1
-	FT2948	螺纹修复套件 (3/8-16)	HELI COIL KIT (3/8-16)	1
-	825265A1	针轴承润滑脂 (8盎司)	COMPOUND (8 Ounce) NEEDLE BEARINGS	1
-	802868A1	润滑剂	LUBRICANT	1
-	FT2987-1	防粘润滑剂	LUBRICANT ANTI-SEEZ	1
-	898101390	防卡剂喷雾	ARESOL ANTI-SEIZE	1
-	FT8969	LPS #1润滑剂	LUBRICANT LPS #1	1
-	901132	密封胶 RTV #1473	SEALANT RTV #1473	1
-	809825	RTV硅胶 (3盎司管装) 金属蓝	RTV SILICONE (3 Ounce Tube) Metallic Blue	1
-	FT8936-1	乐泰RC 609密封胶	SEALANT Loctite RC 609	1
-	809833	乐泰RC 680密封胶（10毫升瓶装）绿色	SEALANT Loctite RC 680 (10 ml Bottle) Green	1
-	FT2962-2		SEALANT LOCTITE H	1
-	809818	乐泰222螺纹锁固剂 10毫升	LOCTITE 222 THREADLOCKER 10ml	1
-	8230891		SEALANT LOCTITE 8831	1
-	809820	乐泰271螺纹锁固剂 50毫升	LOCTITE 271 THREADLOCKER 50 ml	1
-	593271	底涂剂LocQuic Primer	SEALANT LocQuic Primer	1
-	809824	底漆乐泰(4.5盎司喷雾)绿色	PRIMER Loctite (4.5 Ounce Aerosol) Green	1

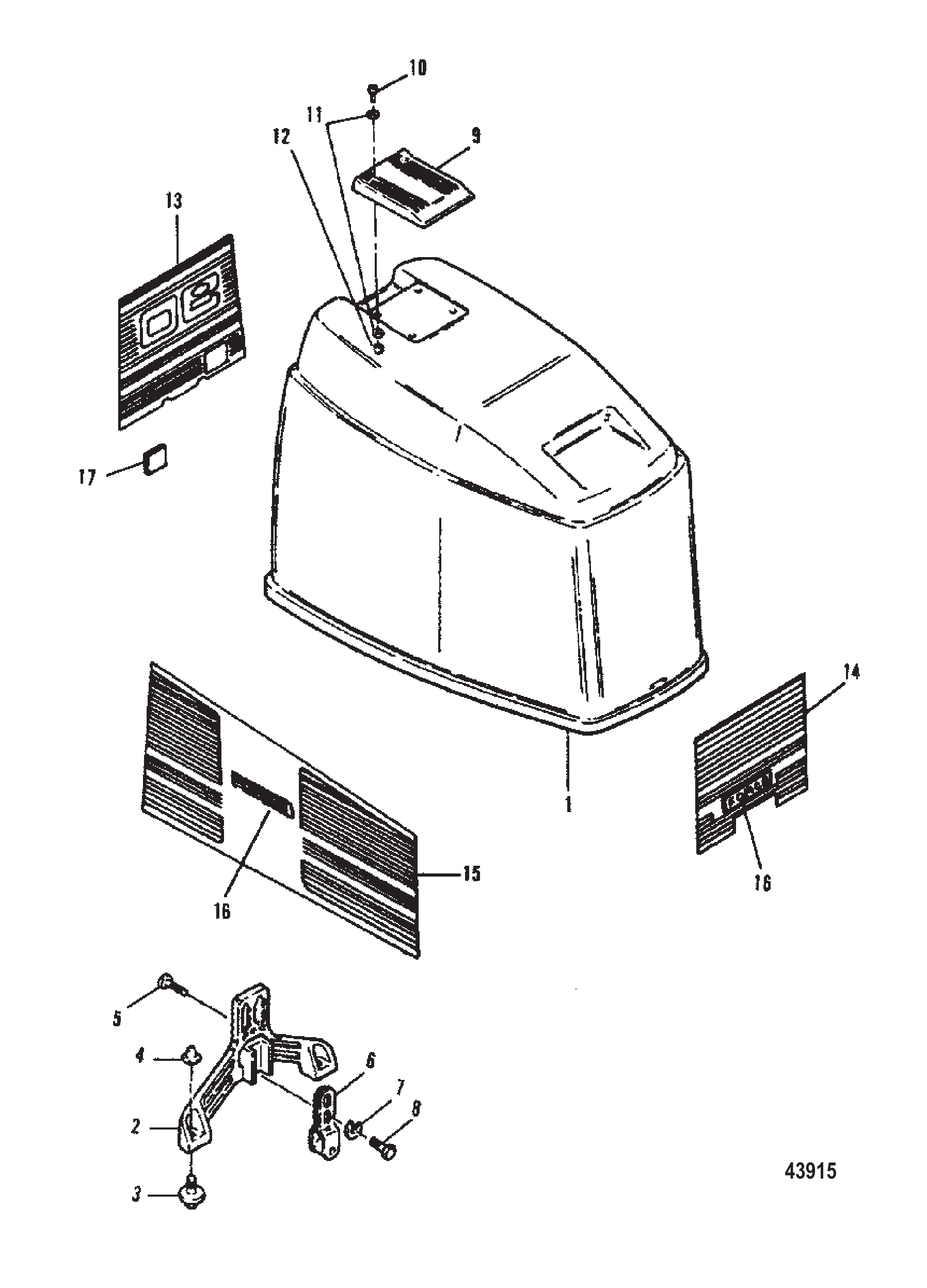

图 37顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
--	819645A1	顶罩总成完整 - 1992 Bayliner型号	TOP COWL ASSEMBLY Complete - 1992 Bayliner Models	1
--	819650A1	顶罩总成(完整)-1992 Maxum型号	TOP COWL ASSEMBLY Complete - 1992 Maxum Models	1
1	819364A3	顶罩上部总成(无贴花)(喷漆)	TOP COWL ASSEMBLY TOP (WITHOUT DECALS) (PAINTED)	1
1	819364T9	基本罩总成	COWL ASSY-BASIC	1
2	F663774-2	罩锁支架	BRACKET COWL LATCH	1
2	8198141	罩盖锁扣支架	BRACKET Cowl Latch	1
3	F481434	罩盖锁扣导架	GUIDE Cowl Latch Bracket	2
4	F2088	紧固件	FASTENER	2
4	91925	压入式螺母	PUSH NUT	2
5	28639	250-20×0.625 螺钉	SCREW (250-20 x .625)	3
6	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
6	893763	滚轮锁扣支架	BRACKET Roller Latch	1
7	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
8	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
9	816518	倾斜手柄	HANDLE TILT	1
9	828477	倾斜手柄	HANDLE Tilt	1
10	F2143	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	4
11	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
11	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
12	13855	螺母 (.250-20)	NUT (.250-20)	4
12	8267118	螺母 (.250-20)	NUT (.250-20)	4
--	F663984-1	顶部隔音毯	BLANKET SOUND, TOP	1
--	827291	隔音毯	BLANKET Sound	1
--	F663985	侧面隔音毯	BLANKET SOUND, SIDE	2
13	F743528	后贴花(1991款FORCE)	DECAL REAR (1991 MODELS) FORCE	1
14	F743892	前贴花(1991款FORCE)	DECAL FRONT (1991 MODELS) FORCE	1
15	F743396	右舷贴花(1991款FORCE)	DECAL STARBOARD (1991 MODELS) FORCE	1
15	F743397	左舷贴花(1991款FORCE)	DECAL PORT (1991 MODELS) FORCE	1
13	FX743528	后贴花(1991款BAYLINER)	DECAL REAR (1991 MODELS) BAYLINER	1
14	FX743892	前贴花(1991款BAYLINER)	DECAL FRONT (1991 MODELS) BAYLINER	1
15	FX743396	右舷贴花(1991款BAYLINER)	DECAL STARBOARD (1991 MODELS) BAYLINER	1
15	FX743397	左舷贴花(1991款BAYLINER)	DECAL PORT (1991 MODELS) BAYLINER	1
13	FZ743528	后贴花(1991款MAXUM)	DECAL REAR (1991 MODELS) MAXUM	1
14	FZ743892	前贴花(1991款MAXUM)	DECAL FRONT (1991 MODELS) MAXUM	1
15	FZ743396	右舷贴花(1991款MAXUM)	DECAL STARBOARD (1991 MODELS) MAXUM	1
15	FZ743397	左舷贴花(1991款MAXUM)	DECAL PORT (1991 MODELS) MAXUM	1
13	FP743528	后贴花(1992款)	DECAL REAR (1992 MODELS)	1
14	FP743892	前贴花(1992款)	DECAL FRONT (1992 MODELS)	1
15	FP743396	右舷贴花(1992款)	DECAL STARBOARD (1992 MODELS)	1
15	FP743397	左舷贴花(1992款)	DECAL PORT(1992 MODELS)	1
13	819570	后贴花(1992款)	DECAL REAR (1992 MODELS)	1
14	819571	前贴花(1992款)	DECAL FRONT (1992 MODELS)	1
15	819568	右舷贴花(1992款)	DECAL STARBOARD(1992 MODELS)	1
15	819569	左舷贴花(1992款)	DECAL PORT (1992 MODELS)	1
13	819591	后贴花(1992款)	DECAL REAR (1992 MODELS)	1
14	819592	前贴花(1992款)	DECAL FRONT (1992 MODELS)	1
15	819589	右舷贴花(1992款)	DECAL STARBOARD (1992 MODELS)	1
15	819590	左舷贴花(1992款)	DECAL PORT (1992 MODELS)	1
16	819169	FORCE徽章(银色)	MEDALLION F ORCE (SILVER)	1OR2
16	FZ721366	徽章(金色)	MEDALLION (GOLD)	2
17	8179851	US MARINE徽章(红色)	MEDALLION US MARINE (RED)	1
17	F694366-1	US MARINE徽章(银色)	MEDALLION US MARINE (SILVER)	1
17	FZ718366	US MARINE徽章(金色)	MEDALLION US MARINE (GOLD)	1
--	820512A93	FORCE贴花套装	DECAL SET FORCE	1
--	820513A93	贝灵翰贴花套装	DECAL SET BAYLINER	1
--	820513A94	贝灵翰贴花套装	DECAL SET BAYLINER	1

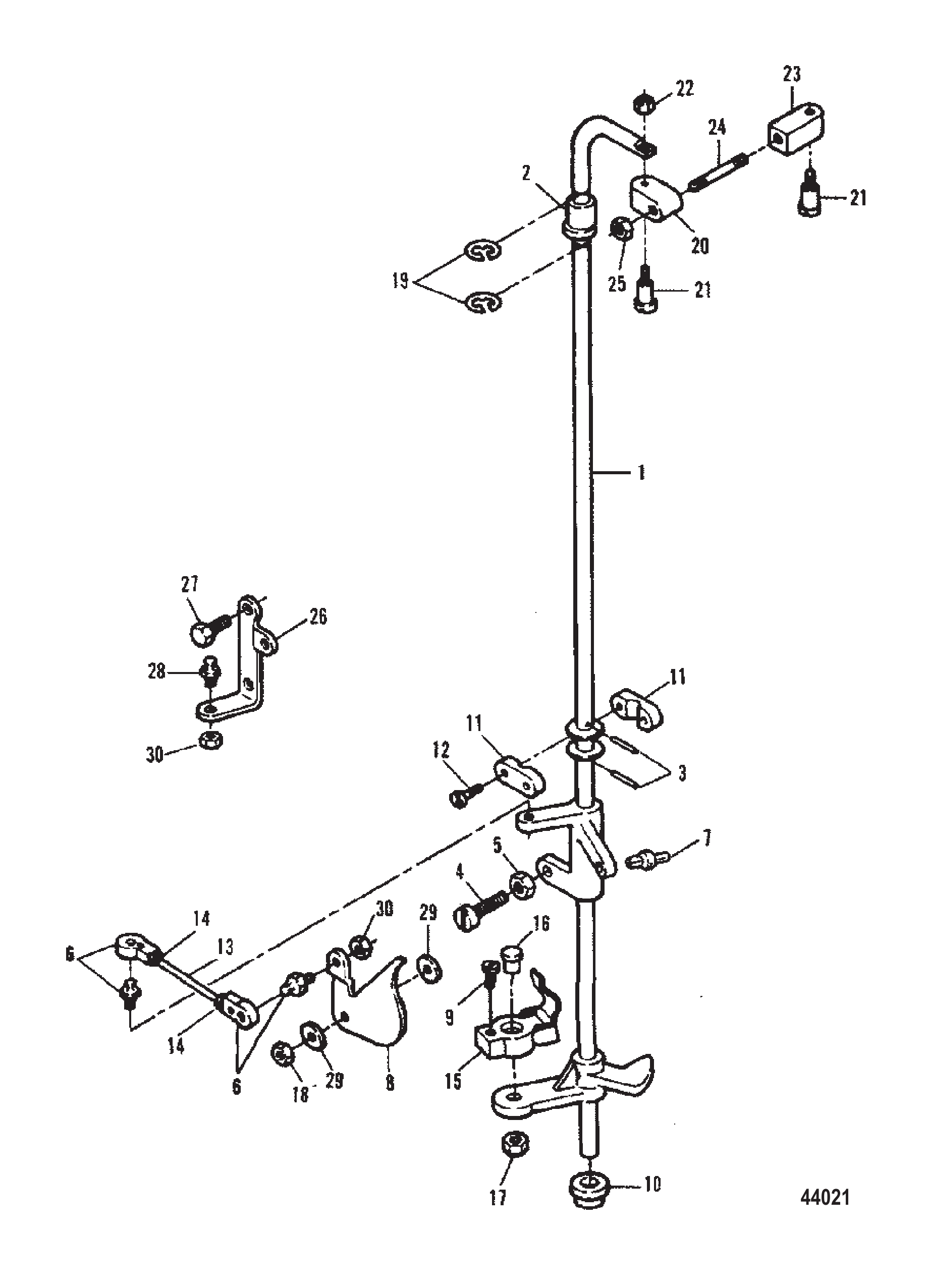

图 38塔轴与油门联动装置 0E000001 至 0E009499 Towershaft and Throttle Linkage 0E000001 Thru 0E009499

REF	零件编号	中文名称	英文名称	数量
1	819119A1	塔轴总成	TOWERSHAFT ASSEMBLY	1
2	819513	衬套	BUSHING	1
3	38489	滚动销	PIN Roll	5
4	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	1
5	64015	螺母 (.250-20)	NUT (.250-20)	1
6	8177471	带球头轴承	BEARING With Ball Joint	2
6	828514A1	球窝套件	BALL/SOCKET KIT	2
7	F1727	尼龙铆钉	RIVET Nylon	1
8	8191181	节气门凸轮	CAM Throttle	1
8	8191183	节气门凸轮-喷油嘴	CAM-THROTTLE-JET	1
9	F2217	螺钉(10-24 x 0.375)(10-24 x 3/8")	SCREW (10-24 x .375) (10-24 X 3/8")	1
9	F2217-1	螺钉带锁紧垫圈 (#10-24 x .375)	SCREW AND LOCKWASHER (#10-24 x .375)	1
10	F40689-1	塔轴下轴承	BEARING Towershaft Lower	1
11	F607689	塔轴轴承	BEARING Towershaft	2
12	F1829	螺丝(#10-24x0.875)	SCREW (#10-24 x .875)	2
13	819002	油门连杆	LINK Throttle	1
14	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
15	FK405020	旋转线夹	SWIVEL Cable Clamp	1
16	F405457	枢轴螺钉	SCREW Pivot	1
17	72008	螺母 (.250-20)	NUT (.250-20)	1
17	8267088	螺母 (.250-20)	NUT (.250-20)	1
18	72008	螺母 (.250-20)	NUT (.250-20)	1
18	8267088	螺母 (.250-20)	NUT (.250-20)	1
19	13194	挡圈	RING Retaining	2
20	F499035	控制杆端头	END Control Rod	1
21	F499026	旋转接头-塔轴	SWIVEL Towershaft	2
22	F7009	螺母(#10-24)	NUT (#10-24)	1
23	F499036-1	控制杆端头	END Control Rod	1
24	F85445-1	火花控制杆	ROD Spark Control	1
25	F2015	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	F85872-2	遥控支架	BRACKET Remote Control	1
27	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
28	F98273	杆端连接器螺柱	STUD Rod End Connector	2
29	F269319	节气门凸轮轴承	BEARING Throttle Cam	2
30	20110	螺母 (#10-32)	NUT (#10-32)	2

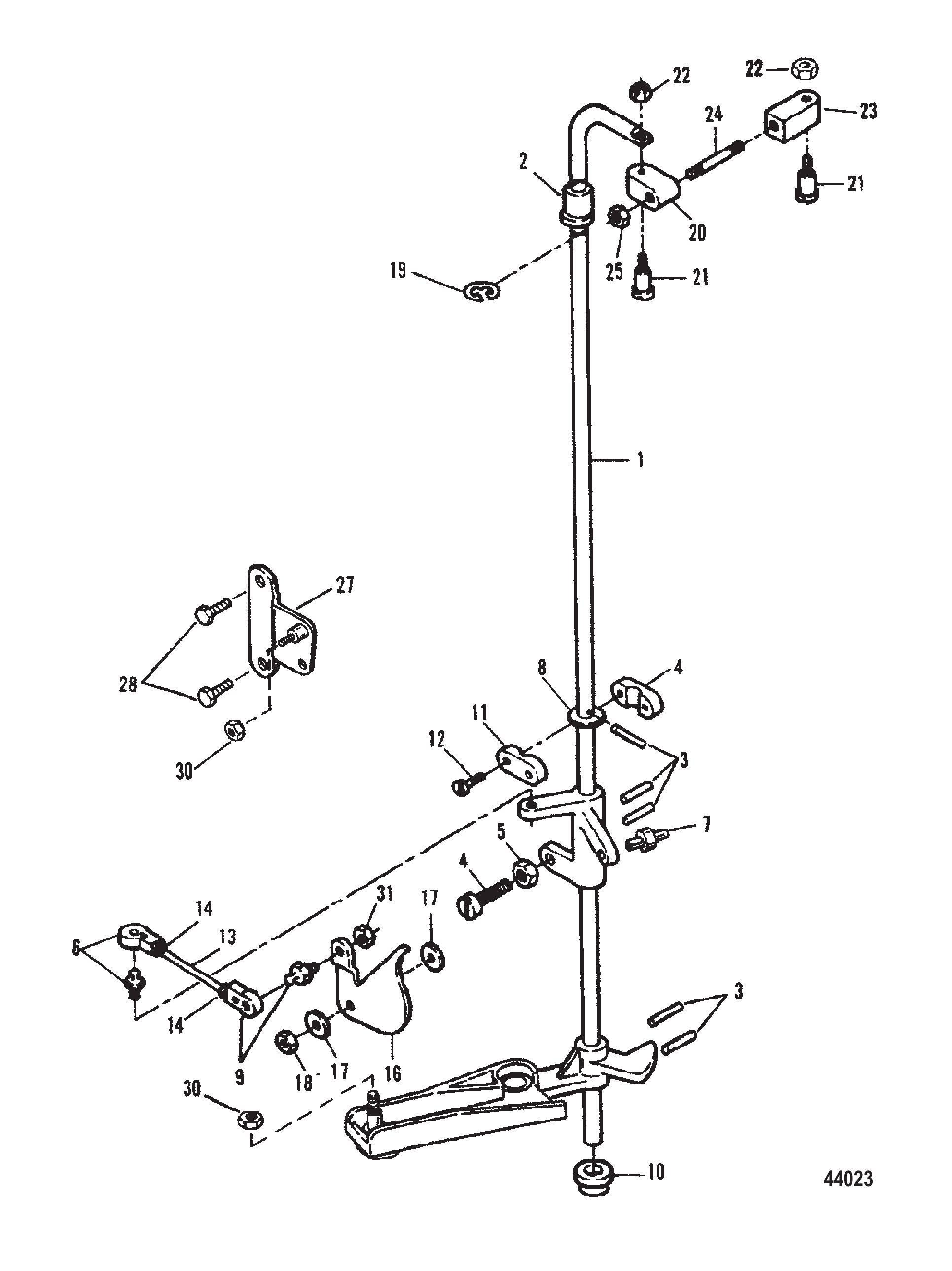

图 39塔轴与油门联动装置 0E009500 至 0E093699 TowerShaft and Throttle Linkage 0E009500 Thru 0E093699

REF	零件编号	中文名称	英文名称	数量
1	819119A2	塔轴总成	TOWERSHAFT ASSEMBLY	1
2	819513	衬套	BUSHING	1
3	38489	滚动销	PIN Roll	5
4	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	1
5	64015	螺母 (.250-20)	NUT (.250-20)	1
6	8177471	带球头轴承	BEARING With Ball Joint	1
6	828514A1	球窝套件	BALL/SOCKET KIT	1
7	F1727	尼龙铆钉	RIVET Nylon	1
8	F1856	垫圈	WASHER	1
9	8177471	带球头轴承	BEARING With Ball Joint	1
9	828514A1	球窝套件	BALL/SOCKET KIT	1
10	F40689-1	塔轴下轴承	BEARING Towershaft Lower	1
11	F607689	塔轴轴承	BEARING Towershaft	2
12	19931088	螺丝(#10-24x0.875)	SCREW (#10-24 x .875)	2
13	819002	油门连杆	LINK Throttle	1
14	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
16	8191182	节气门凸轮	CAM Throttle	1
16	8191184	凸轮	CAM	1
17	F269319	轴承	BEARING	2
18	72008	螺母 (.250-20)	NUT (.250-20)	1
18	8267088	螺母 (.250-20)	NUT (.250-20)	1
19	13194	挡圈	RING Retaining	1
20	F499035	控制杆端头	END Control Rod	1
21	F499026	旋转接头-塔轴	SWIVEL Towershaft	2
22	F7009	螺母(#10-24)	NUT (#10-24)	2
23	F499036-1	控制杆端头	END Control Rod	1
24	F85445-1	火花控制杆	ROD Spark Control	1
25	F2015	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
27	819458A1	遥控线缆支架总成	BRACKET ASSEMBLY Remote Cable	1
28	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
30	34059	螺母 (#10-32)	NUT (#10-32)	2
30	8267096	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
31	20110	螺母 (#10-32)	NUT (#10-32)	1

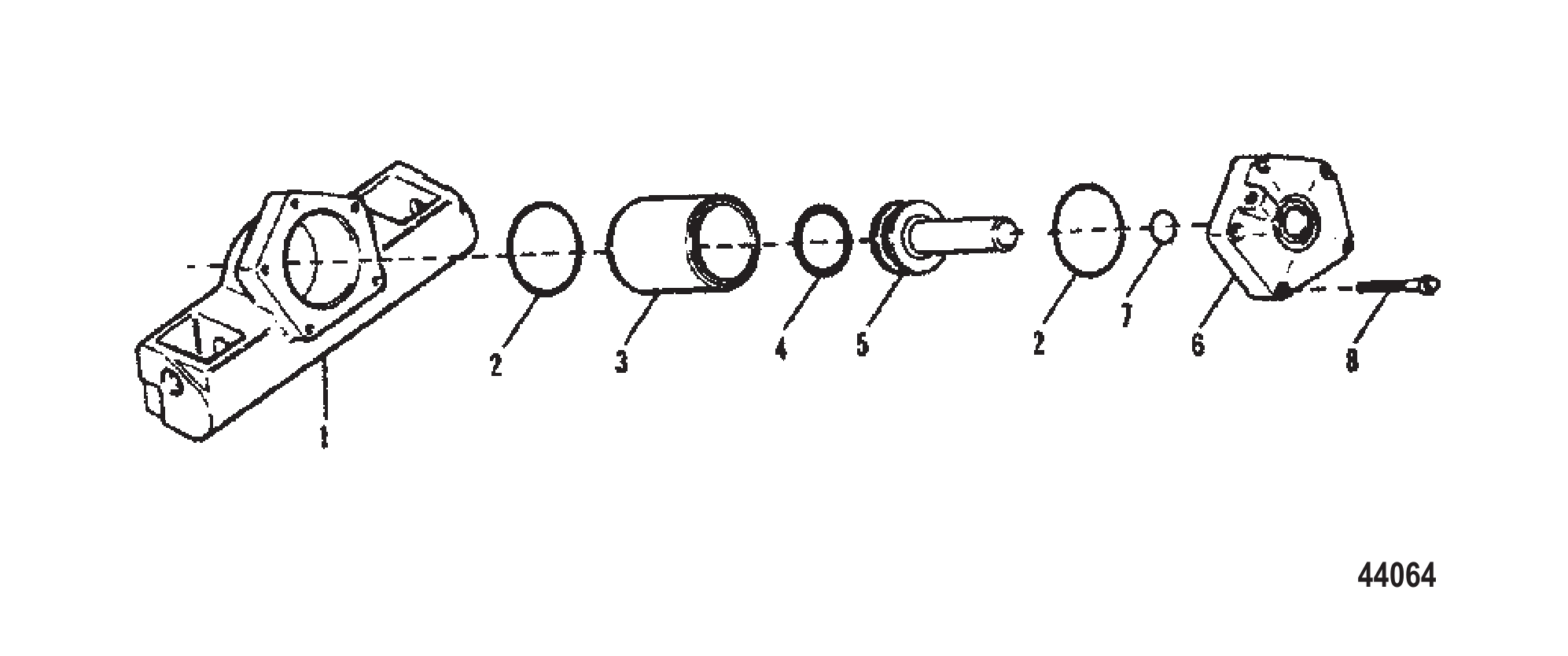

图 40升降油缸 Trim Cylinder

REF	零件编号	中文名称	英文名称	数量
1	818055F	平衡缸壳体(喷漆)	HOUSING TRIM CYLINDER (PAINTED)	1
2	F40278	O型圈	O-RING	2
3	F449010	平衡缸	CLYINDER TRIM	1
3	803823T	液压缸	CYLINDER HYD	1
4	F449278	活塞O型圈	O-RING PISTON	1
5	FA449015	动力平衡活塞总成	PISTON ASSEMBLY POWER TRIM	1
5	803481T	液压活塞总成	PISTON ASSY-HYD	1
6	817802A3	平衡缸盖总成(喷漆)	COVER ASSEMBLY TRIM HOUSING (PAINTED)	1
7	F449342	O型圈	O-RING	1
8	F1959	螺钉 (.25-20 X 1.75)	SCREW (.25-20 X 1.75)	5
