水星 Mercury 90 H.P. (1990) 908F90B & Up - 爆炸图零件明细

Force 系列 · Belgium - Cat.# FOB4494-1 · 共 27 个部位 · 1242 条零件

图 1附件 Accessories

REF	零件编号	中文名称	英文名称	数量
-	F5H173	冲洗适配器总成	ADAPTER ASSEMBLY Flushing	-
-	820634	冲洗附件	FLUSHING ATTACHMENT	-
-	F5H198	遥控器总成表面安装式	REMOTE CONTROL Complete SURFACE MOUNT	-
-	F5H267	遥控装置	REMOTE CONTROL	-
-	F5H080	控制器	CONTROL	-
-	F195	遥控线束套装(油门/换挡)	CABLE SET Remote Control - Thottle/Shift	-
-	F5H108	转向连接器	CONNECTOR Steering	-
-	F5H094	转向连杆套件	LINK KIT Steering	-
-	F5H018	双引擎连接杆	TIE BAR Dual Engine	-
-	F5H018-1	转向套件-双联	STEERING KIT-DUAL	-
-	F5H025	牺牲阳极防腐套件	ANODE KIT Sacrifical - Anti Corrosion	-
-	F5H043	过热报警器套件	BUZZER KIT Overheat	-
-	F5H161	仪表总成动力升降指示器	GAUGE ASSEMBLY Power Trim Indicator	-
-	820568A1	升降倾斜仪表	TRIM/TILT GAUGE	-
-	F5H044	倾斜限位套件	STOP KIT Tilt	-
-	F5H151	减震器套件	SHOCK ABSORBER KIT	-
-	F5H081	电池电缆总成	CABLE ASSEMBLY Battery	-
-	F5H157	电压表嵌入式	VOLTMETER FLUSH MOUNT	-
-	F5H021	延长电缆总成	CABLE ASSEMBLY Extension	-
-	F5H041	蓄电池接线端子套件	TERMINAL KIT Battery	-
-	F5H037	点烟器套件	LIGHTER KIT Cigar	-
-	F5H158	嵌入式燃油表总成	GAUGE ASSEMBLY Fuel - Flush Mount	-
-	F5H159	计时器	HOURMETER	-
-	F5H077	点火开关套件(含钥匙和螺钉)	SWITCH KIT Ignition - With Keys And Screws	-
-	F5H268	开关	SWITCH	-
-	F5H078	点火开关套件(含钥匙和螺钉)	SWITCH KIT Ignition - With Keys And Screws	-
-	F5H156	温度表	GAUGE Temperature	-
-	F5H167-2	仪表总成转速表-嵌入式	GAUGE ASSEMBLY Tachometer - Flush Mount	-
-	817030A1	转速表	TACHOMETER	-
-	F5H196	升降倾斜总成	TRIM AND TILT ASSEMBLY	-
-	819762A12	升降倾斜总成	TRIM AND TILT ASSEMBLY	-
-	F5H155	速度表	SPEEDOMETER	-
-	F5H154	仪表总成速度表	GAUGE ASSEMBLY Speedometer	-
-	F5H179	支架套件	BRACKET KIT	-
-	819504A2	支架套件	BRACKET KIT	-
-	F5H030	航行灯开关套件	SWITCH KIT RUNNING LIGHTS	-
-	F5H031	聚光灯开关套件	SWITCH KIT SPOT LIGHT	-
-	F5H032	雨刮开关套件	SWITCH KIT WIPER	-
-	F5H034	舱底泵开关套件	SWITCH KIT BILGE PUMP	-
-	F5H035	喇叭开关套件	SWITCH KIT HORN	-
-	F5H036	转速表转换开关套件	SWITCH KIT TACHOMETER TRANSFER	-
-	F5H039	仪表灯开关套件	SWITCH KIT INSTRUMENT LIGHT	-
-	F563	接线端子排套件	BLOCK KIT Terminal	-
-	F5H188	品脱装机油	OIL Pint Can	-
-	859038A24	ORD 92-802811Q 1	ORD 92-802811Q 1	-
-	F5H187	夸脱装机油	OIL Quart Bottles	-
-	859039A12	ORD 92-802813Q 1	ORD 92-802813Q 1	-
-	F5H223	齿轮油 US Marine舷外机专用	GEAR LUBE US Marine Outboard	-
-	F5H194-2	清漆	LACQUER Clear	-
-	81910712	透明丙烯酸漆	PAINT Clear Acrylic	-
-	F5H211	瓷漆 Maxum灰色	ENAMEL Maxum Gray	-
-	81825212	石墨灰丙烯酸漆	PAINT Graphite Gray Acrylic	-
-	F5H212	瓷漆灰色	ENAMEL Gray	-

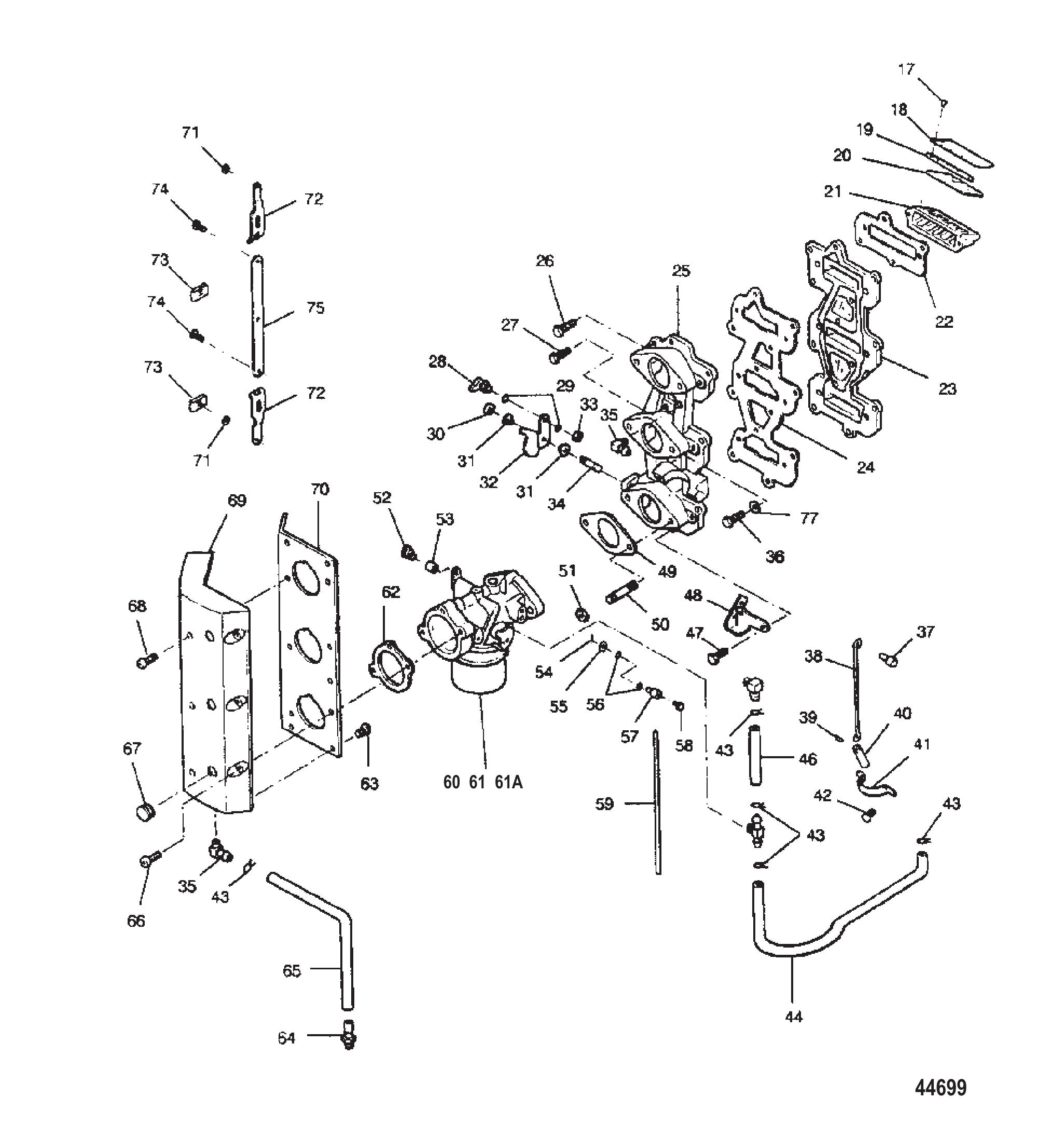

图 2适配器与簧片阀板 Adapter and Reed Plate

REF	零件编号	中文名称	英文名称	数量
17	F1755	螺钉与锁紧垫圈-圆头(6-32 x .312)	SCREW AND LOCKWASHER Round Head, (6 - 32 x .312) #6 - 32 x .312	18
17	819074	带锁紧垫圈的螺钉(#6-32 X .312)	SCREW WITH LOCKWASHER (#6-32 X .312)	18
18	F85161-1	簧片止挡	STOP Reed	6
19	F523451	间隔片-簧片止动	SPACER REED STOP	6
20	F530160	簧片(5瓣)	REED (5 PETAL)	6
21	818108A1	簧片阀板总成	REED PLATE ASSEMBLY	3
22	F85168-1	衬垫-簧片板适配器	GASKET Reed Plate Adaptor	3
22	F85168-2	衬垫	GASKET	3
23	F85162	簧片板适配器	ADAPTER Reed Plate	1
23	8197351	适配器	ADAPTER	1
24	F85159-1	进气歧管垫片	GASKET INTAKE MANIFOLD	1
25	817959A3	进气歧管总成	MANIFOLD ASSEMBLY Intake	1
26	F2008	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	7
27	F1699	六角头螺钉(0.250-20 x 1.125)	SCREW Hex Head (.250-20 x 1.125)	2
28	8177471	带球头轴承	BEARING With Ball Joint	1
28	828514A1	球窝套件	BALL/SOCKET KIT	1
29	F8058	锁紧垫圈	LOCKWASHER	2
30	F7008	螺母 (.250-20)	NUT (.250-20)	1
30	8267088	螺母 (.250-20)	NUT (.250-20)	1
31	F269319	轴承	BEARING	2
32	F85192-1	节气门凸轮	CAM Throttle	1
33	F1513	螺母 (#10-32)	NUT (#10-32)	1
33	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
34	F433209-1	双头螺栓(.250-20 x 1.250)	STUD (.250-20 x 1.250)	1
35	8181031	弯头	ELBOW	2
36	F2050	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	6
36	819110150	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	6
37	F85033	阻风门旋转杆	SWIVEL Choke Rod	1
38	F85925	阻风门电磁阀杆	ROD Choke Solenoid	1
39	F2033	槽销	PIN Groove	1
40	F391926-1	柱塞	PLUNGER	1
41	F85317-3	卡箍	CLAMP	1
42	F1236	螺钉 (.250-20 x .50)	SCREW (.250-20 x .50)	2
42	98253	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	2
43	F97772	卡箍	CLAMP	6
43	63933	卡箍	CLAMP	6
44	F438754	燃油管	LINE Fuel	1
44	82722881	软管 (38.00英寸散装)	HOSE (38.00 Inches Bulk)	1
46	F85253-1	燃油管路总成	LINE ASSEMBLY Fuel	2
46	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
47	F1532	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
47	819110100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
48	F480551-1	联锁开关支架	BRACKET Interlock Switch	1
49	F85906	衬垫	GASKET	3
49	828925	衬垫	GASKET	3
50	F40209	螺柱	STUD	6
50	8263881	螺柱	STUD	6
51	F1515	螺母(.312-18)	NUT (.312-18)	6
51	8M0204668	螺母(.312-18)	NUT (.312-18)	6
52	F333316	轴	SHAFT	1
52	830110	轴	SHAFT	1
53	F92759	滚轮	ROLLER	1
53	819225	滚轮	ROLLER	1
54	F1014	开口销	COTTER PIN	3
54	26953	开口销	COTTER PIN	3
55	F8088	垫圈	WASHER	3
55	27882	垫圈	WASHER	3
56	F184579	阻风门臂旋转密封	SEAL CHOKE ARM SWIVEL	6
56	68211	O型圈	O RING	6
57	F184033-1	旋转接头	SWIVEL	2
58	F1059	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	3
59	F85509	阻风门连杆	LINK Choke	1
59	F85509-1	阻风门连杆	LINK Choke	1
60	F831061-2	化油器(上) WB-101B	CARBURETOR (TOP) WB-101B	1
60	803920T	顶部化油器	CARBURETOR-TOP	1
61	F832061-2	化油器(中) WB-100B	CARBURETOR (MIDDLE) WB-100B	1
61	803921T	中/底部化油器	CARB-MID OR BOT	1
61A	F832061-2	化油器(下) WB-100B	CARBURETOR (BOTTOM) WB-100B	1
61A	803921T	中/底部化油器	CARB-MID OR BOT	1
62	F481836	衬垫	GASKET	3
63	F1760	螺钉(#10-24 x .375)	SCREW (#10-24 x .375)	6
64	817789A1	排水管接头总成	FITTING ASSEMBLY Drain	1
65	F63754	软管	HOSE	1
65	81902962	软管 (22.50英寸散装)	HOSE (22.50 Inches Bulk)	1
66	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	3
67	F53504	护孔环	GROMMET	3
68	F1072	SCREW (.250-20 x 1.75) Fill Head	SCREW (.250-20 x 1.75) Fill Head	3
69	F695861	进气盖	COVER INTAKE	1
69	8197711	进气口	INTAKE-AIR	1
70	F481567	化油器进气适配器	ADAPTER Carburetor Intake	1
70	819772	适配器	ADAPTER	1
71	F90807	挡圈	RING Retaining	3
71	21058	E型卡环	E RING	3
72	FA85193	端部总成	END ASSEMBLY	2
73	F1693	螺母（#8-32）	NUT (#8-32)	2
74	F1064	螺丝（#8-32×0.375）	SCREW (#8-32 x .375)	2
75	FA85511	杆总成-节气门	BAR ASSEMBLY Throttle	1
77	F8026	垫圈	WASHER	1
77	18678	垫圈	WASHER	1

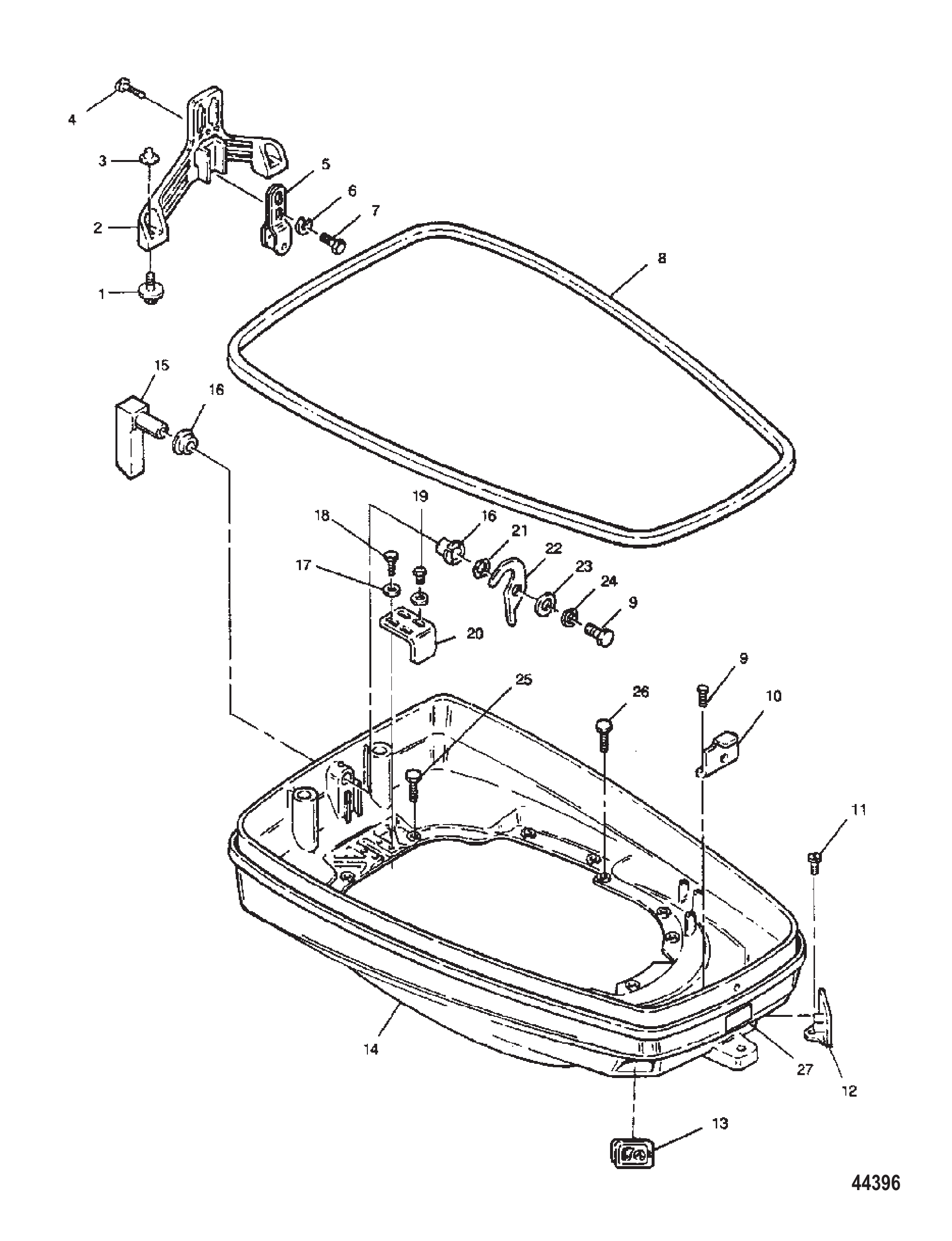

图 3底罩/支撑板 Bottom Cowl / Support Plate

REF	零件编号	中文名称	英文名称	数量
1	F481434	发动机罩锁扣支架导板	GUIDE Cowl Latch Bracket ENGINE COVER	2
2	F663774-1	发动机罩锁扣支架	BRACKET ENGINE COVER LATCH	1
2	8198141	罩盖锁扣支架	BRACKET Cowl Latch	1
3	F2088	紧固件	FASTENER	2
3	91925	压入式螺母	PUSH NUT	2
4	F1493	不锈钢螺钉(.250-20 x .625)	SCREW (.250-20 x .625) Stainless Steel	3
4	28639	250-20×0.625 螺钉	SCREW (250-20 x .625)	3
5	FA481743	带滚轮锁扣支架	BRACKET ROLLER LATCH W/ROLLER	1
5	893763	滚轮锁扣支架	BRACKET Roller Latch	1
6	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
6	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
7	F1857	不锈钢螺钉(.312-18 x .625)	SCREW (.312-18 x .625) SS	2
7	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
8	F663756-1	罩盖支撑填料	PACKING Cowl Support	1
8	8197172	衬垫-81英寸	PACKING-81 INCH	1
9	F1854	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	3
9	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	3
10	F663480-1	前罩盖固定架	RETAINER Cowl Front	1
11	F1733	不锈钢螺钉(#10-24 x .562)	SCREW (#10-24 x .562) SS	3
11	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	3
12	F549189-1	电缆衬套	BUSHING ELECTRIC CABLE	1
12	828763	衬套	BUSHING	1
13	F660189	电缆引入衬套	BUSHING CABLE ENTRY	1
13	8190062	衬套	BUSHING	1
14	F663038-1	支撑板	PLATE Support	1
14	817606T	支撑板	PLATE-SUPPORT	1
15	FA663469	发动机盖锁扣手柄总成	HANDLE ASSEMBLY Engine Cover Latch	1
15	820000A08	手柄总成-黑色	HANDLE ASY-BLACK	1
16	F286818	锁轴轴承	BEARING LATCH SHAFT	2
16	812707	衬套	BUSHING	2
17	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
17	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
18	F1857	不锈钢螺钉(.312-18 x .625)	SCREW (.312-18 x .625) SS	2
18	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
19	F1858	螺钉 (.625-18 x 1.00)	SCREW (.625-18 x 1.00)	2
20	F335654-2	停机开关	STOP	1
21	F2047	波形垫圈	WASHER Wave	1
22	F481777	凸轮锁轴	CAM Latch Shaft	1
22	8M0001081	凸轮	CAM	1
23	F8094	垫圈	WASHER	1
23	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
24	F8083	锁紧垫圈(0.250)	LOCKWASHER (.250)	1
24	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
25	F1203	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	6
25	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	6
26	F1238	螺钉 (.250-12 x .750)	SCREW (.250-12 x .750)	7
26	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	7
27	F703398	燃油混合比标贴	DECAL FUEL MIX	1
27	8180291	燃油混合比标贴	DECAL Fuel Mix	1

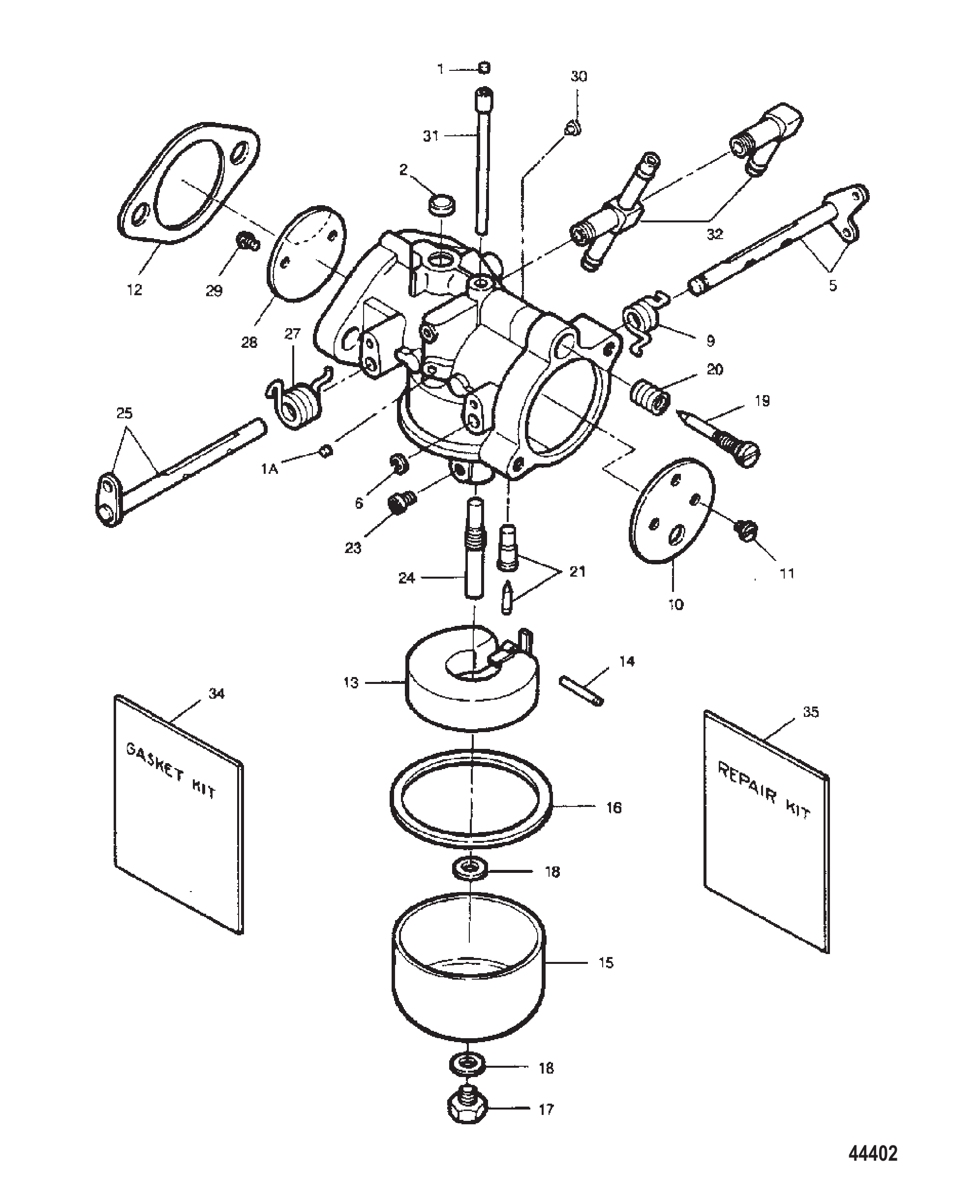

图 4化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	FO10588	堵头	PLUG	1
1A	FO10588	堵头	PLUG	1
2	FO16128	堵头	PLUG	1
5	F10299	阻风门轴	SHAFT CHOKE	1
6	F10241	E型卡环	E RING	1
9	F10300	弹簧	SPRING	1
10	F10301	阻风门挡板	SHUTTER CHOKE	1
11	FO8942	螺钉与锁紧垫圈	SCREW AND LOCKWASHER	2
11	803176	螺钉-带补片	SCREW-W/PATCH	2
12	F85906	衬垫	GASKET	1
12	828925	衬垫	GASKET	1
13	FO13554	浮子	FLOAT	1
13	891730A01	浮子套件	FLOAT KIT	1
14	FO13944	销	PIN	1
15	F10127	燃油杯	BOWL Fuel	1
15	F10333	滤杯	BOWL	1
16	FO15623	衬垫	GASKET	1
17	FO13945	燃油碗固定螺钉	SCREW Fuel Bowl Retaining	1
17	5128	螺钉	SCREW	1
18	FO2510	燃油杯衬垫	GASKET Fuel Bowl	2
19	F10307	螺钉	SCREW	1
20	FO11103	弹簧	SPRING	1
20	27160	弹簧	SPRING	1
21	FK10309	针阀与阀座	NEEDLE AND SEAT	1
21	F10265	进油针阀	NEEDLE Inlet	1
23	F10212	主量孔 (.074) 海平面-2500英尺	JET Main Fuel (.074) SEA LEVEL - 2500 FT.	1
23	3794	量孔(.074)	JET (.074)	1
-	F10270	主量孔 (.072) 2500-5000英尺	JET Main Fuel (.072) 2500 - 5000 FT.	1
-	6207	量孔(.072)	JET (.072)	1
-	F10214	主量孔 (.070) 5000-7500英尺	JET Main Fuel (.070) 5000 - 7500 FT.	1
-	6030	量孔(.070)	JET (.070)	1
-	F10215	主量孔 (.068) 7500-10000英尺	JET Main Fuel (.068) 7500 - 10000 FT.	1
-	6029	量孔(.068)	JET (.068)	1
24	F10302	喷嘴	NOZZLE	1
25	F10305	节流阀轴	SHAFT THROTTLE	1
27	F10312	弹簧	SPRING	1
28	F10315		SHUTTER THROTTLE	1
29	FO8942	螺钉与锁紧垫圈	SCREW AND LOCKWASHER	2
29	803176	螺钉-带补片	SCREW-W/PATCH	2
30	F10316	杯套	CUP	1
31	F10319	管	TUBE	1
32	F85314-1	T型接头(中/底部化油器)	FITTING (T) (MIDDLE & BOTTOM CARBS)	1
32	64706001	三通接头	FITTING Tee	1
-	F84314-2		ELBOW (L) (TOP CARB)	1
34	FK10323	衬垫套件	GASKET SET	1
34	809736A1	衬垫套件	GASKET SET	1
35	FK10324	维修套件	REPAIR KIT	1
-	F831061-2	化油器(上)	CARBURETOR (TOP)	1
-	803920T	顶部化油器	CARBURETOR-TOP	1
-	F832061-2	化油器(中)	CARBURETOR (Middle)	1
-	803921T	中/底部化油器	CARB-MID OR BOT	1
-	F832061-2	化油器(下)	CARBURETOR (Bottom)	1
-	803921T	中/底部化油器	CARB-MID OR BOT	1

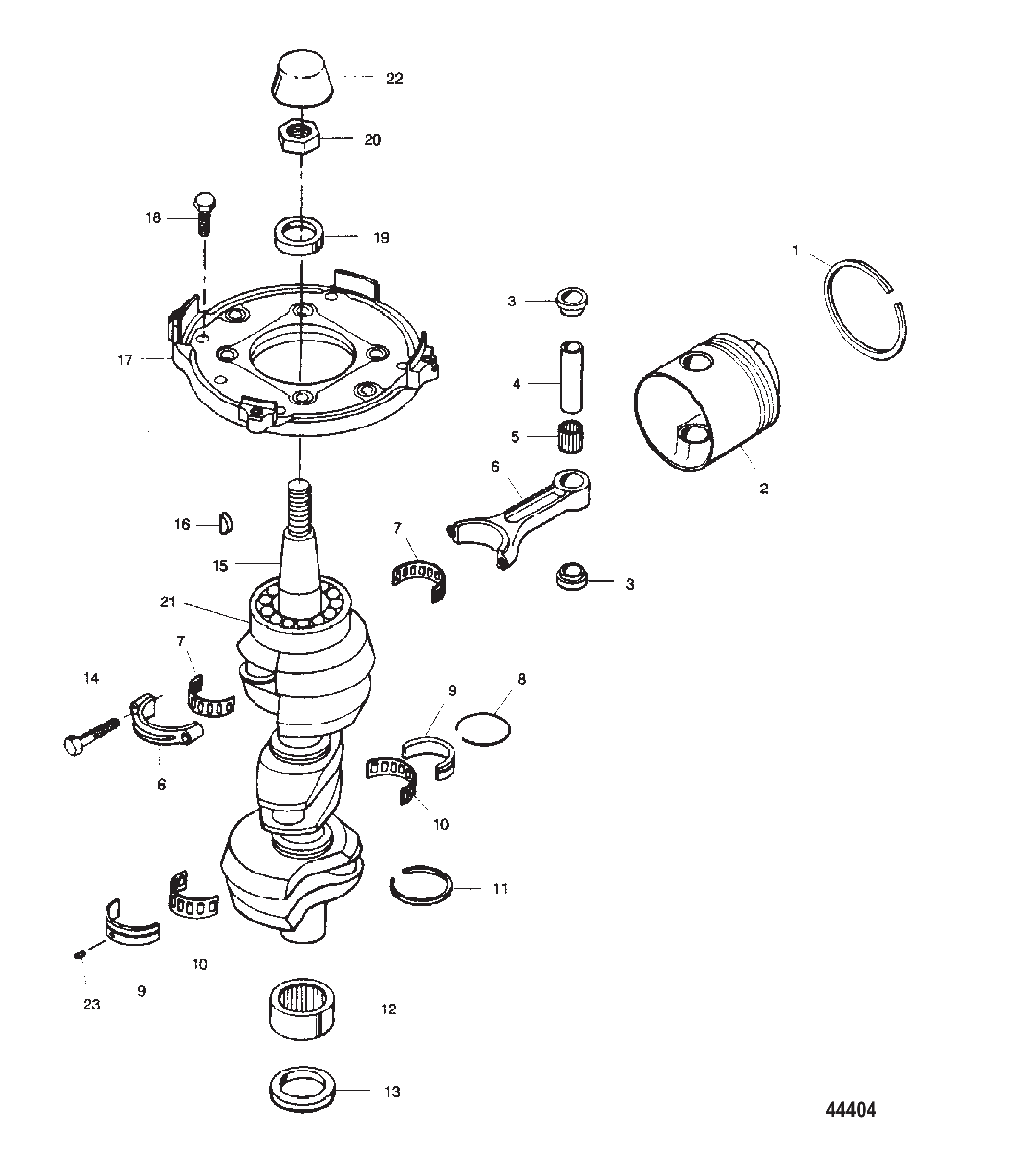

图 5曲轴和活塞 Crankshaft and Piston

REF	零件编号	中文名称	英文名称	数量
1	FA528260	活塞环套装-2缸(标准)	RING SET Piston - For 2 Cylinders (Standard)	3
1	820457A2	活塞环组	RING SET	3
-	FSA528260	活塞环组 - 0.010加大	RING SET Piston - .010 Oversize	3
-	820641A1	活塞环组	RING SET	3
-	817869A3	活塞环组 - 0.030加大	RING SET .030 OVERSIZE	3
2	F719015-1	标准活塞	PISTON STANDARD	3
2	834797A4	标准活塞组件	PISTON KIT-STD	3
-	819041A3	活塞总成 - 0.010加大	PISTON ASSEMBLY .010 Oversize	3
-	834797A5	活塞套件-.010	PISTON KIT-.010	3
-	819042A3	活塞总成 - 0.030加大	PISTON ASSEMBLY .030 Oversize	3
-	834797A6	活塞套件-.030	PISTON KIT-.030	3
3	F335215	活塞销隔套(2个/活塞)	SPACER PISTON PIN (2 PER PISTON)	6
3	826806	隔套	SPACER	6
4	F85017	活塞销	PIN Piston	3
4	F85017-3	销	PIN	3
5	F335217-1	轴承(26个/套)	BEARING (26 PER SET)	3
6	818052A4	连杆总成	CONNECTING ROD ASSEMBLY	3
6	818052T6	连杆总成	CONN ROD ASSY	3
7	FK85228-1	保持架与滚柱组(每套16个)	CAGE AND ROLLERS SET (16 Rollers Per Set)	3
7	62596A2	保持架/滚子组	CAGE/ROLLER SET	3
8	F85410	环	RING	2
9	FA85655-1	轴承总成	BEARING ASSEMBLY	2
9	803604T	中央主轴承	BEARING-CTR MAIN	2
10	F85571	中央主轴承总成	BEARING ASSEMBLY Center Main	2
10	819193	保持架/滚子组	CAGE/ROLLER SET	2
11	F316579	曲轴箱密封件	SEAL CRANKCASE	2
12	FA523014	曲轴下主轴承总成	BEARING ASSEMBLY Crankshaft Lower Main	1
12	818050T4	轴承总成	BEARING ASSY	1
13	F523146-1	曲轴下端密封件	SEAL CRANKSHAFT LOWER	1
13	828627	密封件	SEAL	1
14	F85634-2	螺钉	SCREW	6
14	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
15	FA85018-2	曲轴总成	CRANKSHAFT ASSEMBLY	1
15	816989A5	曲轴套装	CRANKSHAFT KIT	1
16	F85498-1	飞轮键	FLYWHEEL KEY	1
17	F2A615144	曲轴轴承保持架总成	CAGE ASSEMBLY Crankshaft Bearing	1
17	818070A1	保持架总成	CAGE ASSEMBLY	1
18	F2081	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	5
18	92160	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	5
19	F523146-1	曲轴上端密封件	SEAL CRANKSHAFT UPPER	1
19	828627	密封件	SEAL	1
20	F1968	螺母(.750-16)	NUT (.750-16)	1
21	F284659-2	上部滚珠轴承	BEARING Ball UPPER	1
21	803893T	滚珠轴承	BEARING-BALL	1
22	F2067	塑料溶胶盖	CAP Plastisol	1
23	F85909-1	轴承定位销(压入缸体)	PIN Bearing Locating (PRESSED INTO BLOCK)	3
23	823605	销	PIN	3

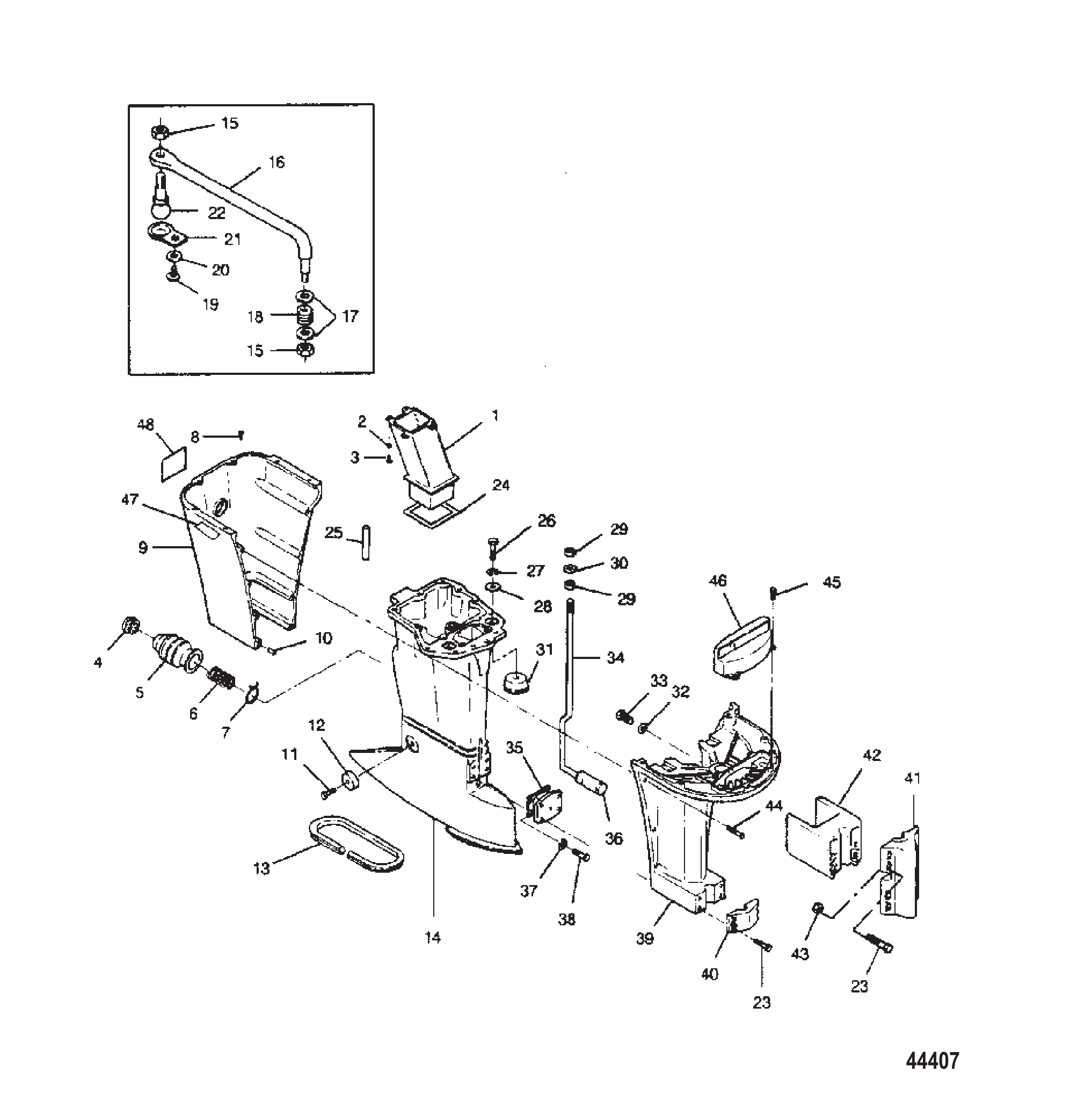

图 6驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	F85660-1	排气管	TUBE Exhaust	1
2	F8083	锁紧垫圈(0.250)	LOCKWASHER (.250)	4
2	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
3	F1864	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
3	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
4	F85258	嵌件	INSERT	1
4	816513	嵌件	INSERT	1
5	F85130	怠速排气套	BOOT IDLE EXHAUST	1
5	895012A01	排气护套套件	BOOT KIT-EXHAUST	1
6	F85380	弹簧	SPRING	1
7	F85772	卡箍	CLAMP	1
8	F1729	堵头	PLUG	2
9	F685145	机腿后盖	COVER MOTOR LEG REAR	1
9	819317T	机腿盖	COVER-LEG	1
10	F1664	弹簧销	PIN Spring	2
11	F1263	螺钉(0.312-18x0.562)不锈钢	SCREW (.312-18 x .562) SS	2
12	F438962	减震器支架侧下后减震	SHOCK MOUNT Side LOWER REAR SHOCK	2
13	F178323	密封件	SEAL	1
14	F523133-3	机腿(20英寸型号)	MOTOR LEG (20 INCH MODELS)	1
14	819432A2	传动轴壳体套件-20.00英寸	HOUSING KIT Driveshaft - 20.00 Inch	1
-	F631133-1	机腿(25英寸型号)	MOTOR LEG (25 INCH MODELS)	1
-	819433A2	传动轴壳体套件-25.00英寸	HOUSING KIT Driveshaft - 25.00 Inch	1
15	F2093	不锈钢螺母(.375-24)	NUT (.375-24) SS	2
15	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
16	F5H094	转向连杆套件	LINK KIT Steering	1
17	F8038	垫圈	WASHER	2
17	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
18	F523300-1	弹簧	SPRING	1
19	F1280	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	1
19	8M0129582	螺钉	SCREW	1
20	F8080	锁紧垫圈(#8)	LOCKWASHER (#8)	1
20	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	1
21	F523930	固定座	RETAINER	1
22	F523273	螺柱	STUD	1
23	F2312	螺钉(5/16-18X2.12)	SCREW (5/16-18X2.12)	4
24	F439736	排气管密封件	SEAL Exhaust Tube	1
25	F686660	立管	STAND TUBE	2
25	816515	立管 92A至92C &	STANDPIPE 92A THRU 92C &	2
26	F1871	螺钉(.375-16 x .750)	SCREW (.375-16 x .750)	4
26	98261	螺钉(.375-16 x .750)	SCREW (.375-16 x .750)	4
27	F2014	垫圈	WASHER	2
27	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
28	FA85355-1	减震器上支架垫片套件	WASHER KIT Upper Shock Mount	2
29	F2108	螺母(5/16-18)	NUT (5/16-18)	2
30	F1987	垫圈	WASHER	1
30	34437	垫圈	WASHER	1
31	F85965	减震器上支架	SHOCK MOUNT UPPER SHOCK	2
32	F1703	锁紧垫圈	LOCKWASHER	2
32	35048	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
33	F1871	螺钉(.375-16 x .750)	SCREW (.375-16 x .750)	4
33	98261	螺钉(.375-16 x .750)	SCREW (.375-16 x .750)	4
34	F85615-1	换挡杆上换挡杆(20英寸型号)	ROD Upper Shift Rod GEAR SHIFT UPPER (20 INCH MODELS)	1
-	F500615-1	换挡杆上换挡杆(25英寸型号)	ROD GEAR SHIFT UPPER (25 INCH MODELS)	1
-	F500615-2	上换挡杆(25.00英寸)	ROD Upper Gear Shift (25.00 Inch)	1
35	F438346	减震器下支架	SHOCK MOUNT LOWER SHOCK	1
35	803714T	减震支架	MOUNT-SHOCK	1
36	F85704	换挡杆联轴器	COUPLER GEAR SHIFT ROD	1
37	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
37	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
38	F1822	螺钉 (0.312-18 x 0.875)	SCREW (.312-18 x .875)	4
38	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	4
39	FA85135-5	机腿前盖总成	COVER ASSEMBLY Motor Leg FRONT	1
39	FK719135F	盖板套件	COVER KIT	1
40	F85606	主销盖(20英寸型号)	CAP Kingpin (20 INCH MODELS)	1
40	FK85606	主销盖套件	CAP KIT-KINGPIN	1
41	F694606	盖(25英寸型号)	CAP (25 INCH MODELS)	1
42	F631707	减震器下支架盖(25英寸型号)	COVER Lower Shock Mount (25 INCH MODELS)	1
42	F631707F	盖板	COVER	1
43	F1515	螺母(.312-18)	NUT (.312-18)	4
43	8M0204668	螺母(.312-18)	NUT (.312-18)	4
44	F2030	螺钉 (.250-20 x 1.250) 不锈钢	SCREW (.250-20 x 1.250) Stainless Steel	4
44	F2288	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	2
45	F1912	螺钉 (#10-24 x .50)	SCREW (#10-24 x .50)	4
46	F85779-1	进气导流板	BAFFLE AIR INTAKE	1
46	FK692779	挡板	BAFFLE	1
47	F716374	贴花(FORCE型号)	DECAL (FORCE MODELS)	2
-	F717374	贴花(BAYLINER & MAXUM型号)	DECAL (BAYLINER & MAXUM MODELS)	2
-	F716374	贴花	DECAL	2
48	F717893	贴花(BAYLINER & MAXUM型号)	DECAL (BAYLINER & MAXUM MODELS)	1

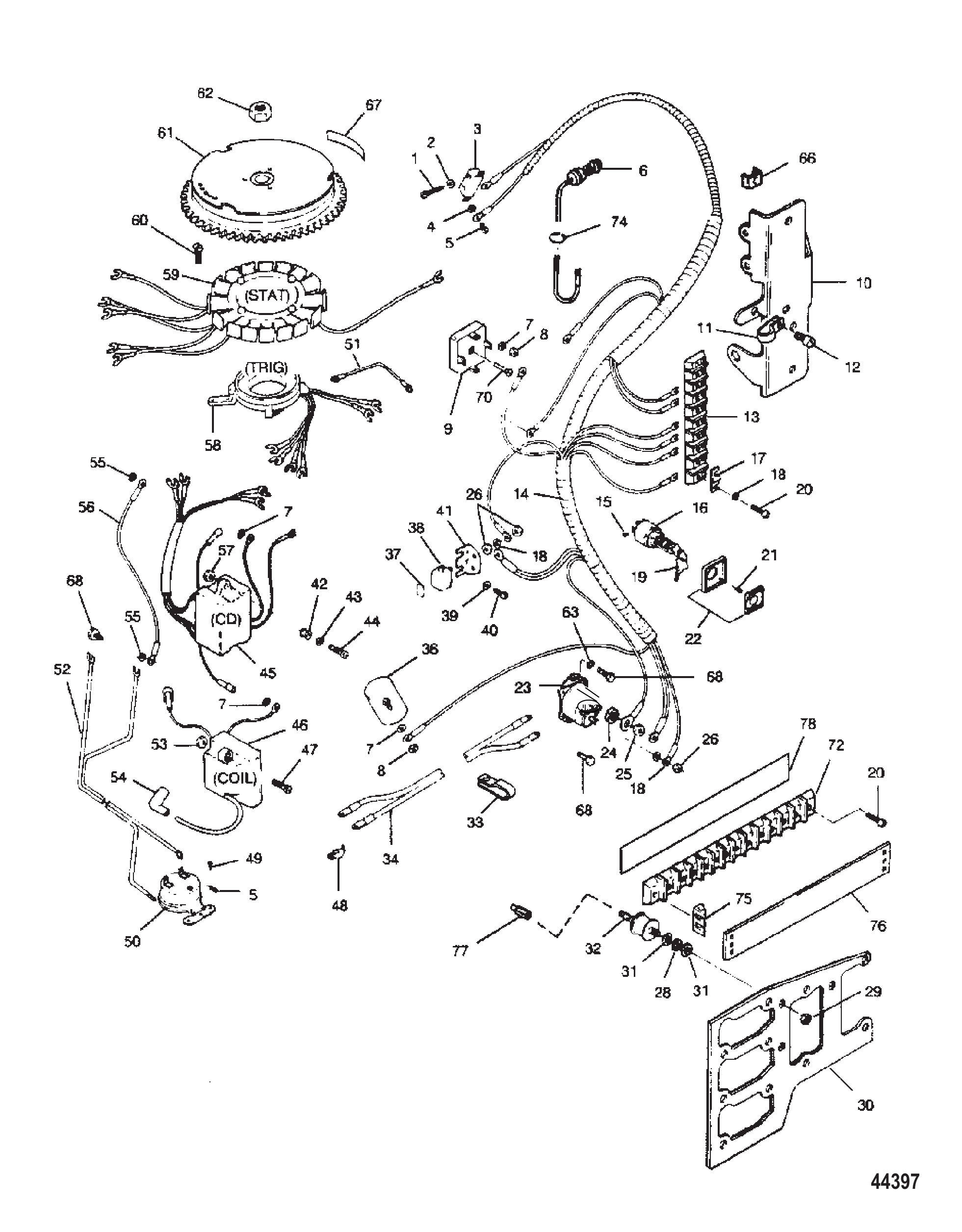

图 7电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	F2016	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
2	F8088	垫圈	WASHER	2
2	27882	垫圈	WASHER	2
3	F84449	开关	SWITCH	1
6	F629449-1	温控开关	THERMOSWITCH	1
6	F629449-2	温控开关	THERMOSWITCH	1
7	F8056	锁紧垫圈(#8)	LOCKWASHER (#8)	5
8	F1647	螺母（#8-32）	NUT (#8-32)	8
9	F369450	整流器	RECTIFIER	1
10	F438493	接线端子支架	BRACKET TERMINAL BLOCK	1
11	F289446-1	遥控电缆支架夹	CLAMP REMOTE ELEC. CABLE TO BRACKET	1
12	F1734	螺钉与锁紧垫圈(0.250-20 x 0.500)	SCREW AND LOCKWASHER (.250-20 x .500)	2
12	34939	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	2
13	FA616497	端子块总成	BLOCK ASSEMBLY Terminal	1
14	F653744-1	线束总成	HARNESS ASSEMBLY	1
15	F1280	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	6
15	8M0129582	螺钉	SCREW	6
16	F5H078	点火开关套件-含钥匙和螺钉(附件)	SWITCH KIT Ignition - With Keys And Screws (ACCESSORY ITEM)	1
17	F307317	接地端子块夹	CLIP TERMINAL BLOCK GROUND	2
18	F1975	锁紧垫圈(#10)	LOCKWASHER (#10)	6
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	6
19	8177821	钥匙组A型	KEY SET Stamped A	AR
-	8178831	钥匙组B型	KEY SET Stamped B	AR
-	8178911	钥匙组C型	KEY SET Stamped C	AR
-	8179281	钥匙组D型	KEY SET Stamped D	AR
-	8179291	钥匙组E型	KEY SET Stamped E	AR
-	FA27232	应急启动拉绳总成	ROPE ASSEMBLY Emergency Start	1
-	12066Q10	启动绳@2	ROPE-STARTER@2	1
20	F1648	螺钉(#10-24 x 0.750)	SCREW (#10 - 24 x .750)	2
20	41069	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
21	F1934	螺钉(#6 x 0.500)	SCREW (#6 x .500)	4
22	F5H038	开关套件(配件)	SWITCH KIT (ACCESSORY ITEM)	1
23	F460917-1	继电器	RELAY	1
23	817109A3	电磁阀组件	SOLENOID KIT	1
24	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
24	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
25	F1515	螺母(.312-18)	NUT (.312-18)	2
25	8M0204668	螺母(.312-18)	NUT (.312-18)	2
26	F1513	螺母 (#10-32)	NUT (#10-32)	6
26	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	6
28	F8090	垫圈	WASHER	3
29	F1515	螺母(.312-18)	NUT (.312-18)	3
29	8M0204668	螺母(.312-18)	NUT (.312-18)	3
30	FS663358	CD线圈支架	BRACKET (C.D. - COIL)	1
31	F8124	锁紧垫圈 (.312)	LOCKWASHER (.312)	6
32	F215962	CD单元减震座	SHOCK MOUNT (C.D. UNIT)	3
32	819869	支架	MOUNT	3
33	F407446	卡箍	CLAMP	1
34	F381896-4	电池电缆总成	CABLE ASSEMBLY Battery	1
34	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
36	F654924	阻风门电磁阀	SOLENOID Choke	1
36	889273	电磁阀-阻风门	SOLENOID-CHOKE	1
37	F510374-1	断路器标贴	DECAL CIRCUIT BREAKER	1
38	F510460	断电器	BREAKER	1
38	898103194	电路断路器	BREAKER-CIRCUIT	1
39	F8011	垫圈	WASHER	2
39	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
40	F1760	螺钉(#10-24 x .375)	SCREW (#10-24 x .375)	2
41	F91446-2	支架	BRACKET	1
42	F475504	护孔环	GROMMET	4
43	F8028	平垫圈	WASHER Plain	4
43	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	4
44	F2008	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
45	F685301-2	CD单元总成(蓝色)	CD UNIT ASSEMBLY (BLUE)	2
45	888788	CD模块总成	CD MODULE ASSY	2
46	F684475-1	线圈(蓝色)	COIL (BLUE)	3
46	888791	点火线圈总成	COIL ASSY-IGN	3
47	F2008	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	6
48	F5H041	蓄电池端子套件(配件)	TERMINAL KIT Battery (ACCESSORY ITEM)	1
49	F1741	螺钉(#8 x .750) 平头,不锈钢	SCREW (#8 x .750) Fill Head, SS	2
50	F5H043	过热蜂鸣器套件(配件)	BUZZER KIT Overheat (ACCESSORY ITEM)	1
51	F345683	接地线(整流器至起动机螺栓)	WIRE GROUND (RECTIFIER TO STARTER BOLT)	1
52	F404841	温度指示器线束总成	CABLE ASSEMBLY HEAT INDICATOR	1
52	65017A24	线束总成	HARNESS ASSEMBLY	1
53	F1341	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	6
53	64015	螺母 (.250-20)	NUT (.250-20)	6
54	FK1123	护套套件	BOOT KIT	3
54	63709A1	护套/端子套件	BOOT/TERMINAL KIT	3
55	F2106	内齿锁紧垫圈	LOCKWASHER Internal Tooth	2
55	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	2
56	F319908	导线(CD至线圈支架)	WIRE (C.D. - COIL BRACKET)	1
57	F1832	锁紧螺母 (.250-20)	NUT Lock (.250-20)	4
57	8M0207776	螺母	NUT	4
58	F653029-1	触发器	TRIGGER	1
58	888796	触发器总成	TRIGGER ASSY	1
59	F663095-3	定子	STATOR	1
59	888793	定子总成	STATOR ASSY	1
60	F2200	螺钉 (#12-24 x 1.00)	SCREW (#12-24 x 1.00)	4
61	817865A1	飞轮	FLYWHEEL	1
61	FA694097	飞轮套件	FLYWHEEL KIT	1
62	F1968	螺母(.750-16)	NUT (.750-16)	1
63	F8083	锁紧垫圈(0.250)	LOCKWASHER (.250)	1
63	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
66	F438668	固定座	RETAINER	1
67	FA609853	警告贴纸	DECAL WARNING	1
67	825149A1	贴花套件	DECAL KIT	1
68	F1705	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	3
68	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	3
70	F1303	螺钉(#8-32 x .750)	SCREW (#8-32 x .750)	1
71	F529398-1	3缸线束贴纸	DECAL 3 CYL. WIRING	1
72	F664497	端子排 (12位)	BLOCK Terminal (12 POSITION)	1
74	F428096	温控开关固定环	RING Retaining THERMOSWITCH	1
75	F664384	端子排盖卡扣	CLIP TERMINAL BLOCK COVER	2
76	F664672	端子排盖	COVER TERMINAL BLOCK COVER	1
77	F322273	螺柱	STUD	1
77	F322273-1	螺柱	STUD	1
78	F664025	绝缘板	PAN INSULATING	1
-	F1877	扎带	TIE STRAP	1
-	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

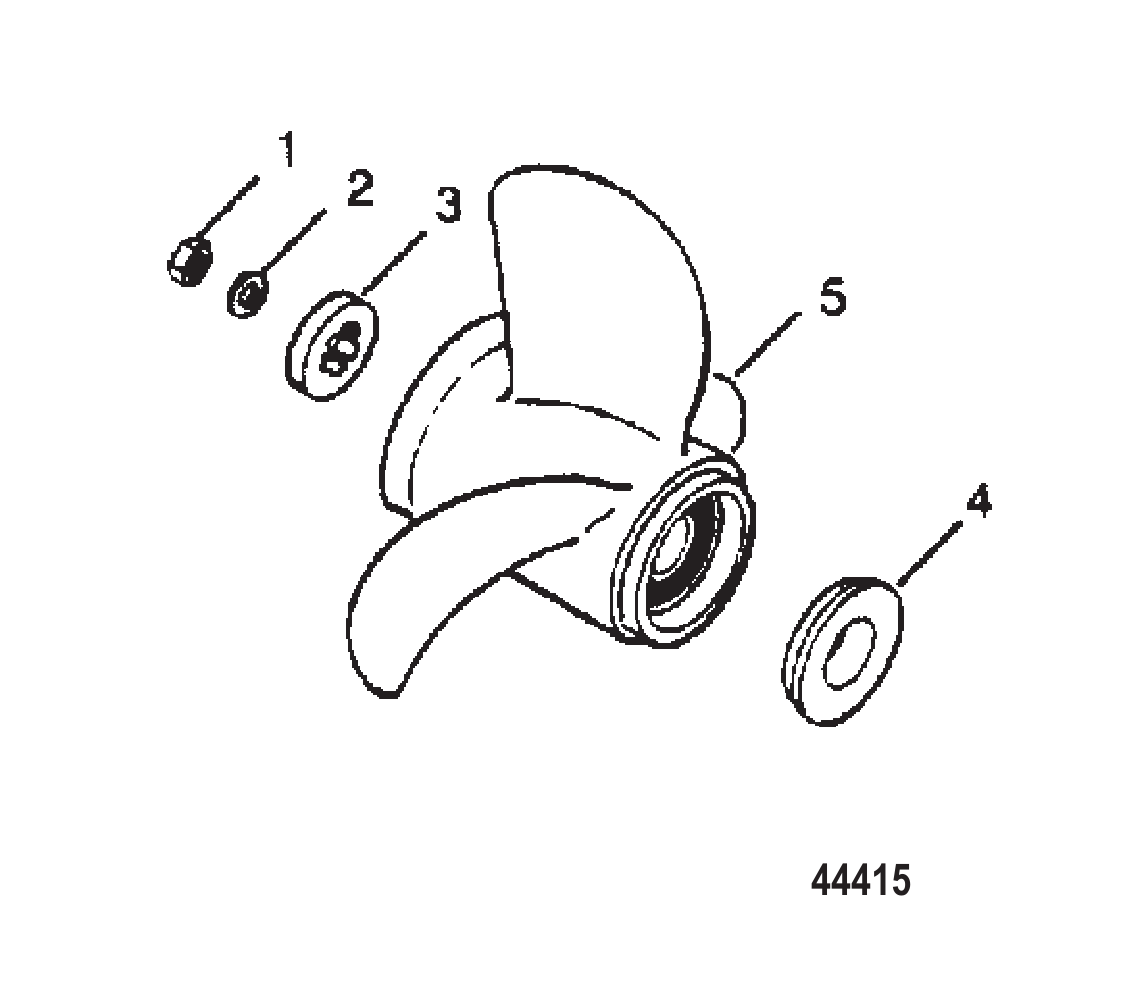

图 8喇叭形轮毂螺旋桨 Flared Hub Propeller

REF	零件编号	中文名称	英文名称	数量
1	F7048	螺母(0.625-18)	NUT (.625-18)	1
1	F7000	螺母(.750-16)	NUT (.750-16)	1
1	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
2	F1866	垫圈 (.625)	WASHER (.625)	1
2	F8167	垫圈 (.750)	WASHER (.750)	1
3	F523282	螺旋桨花键垫圈	WASHER PROP SPLINE	1
4	F694099	螺旋桨隔套	SPACER PROPELLER	1
4	F523099-1	隔套	SPACER	1

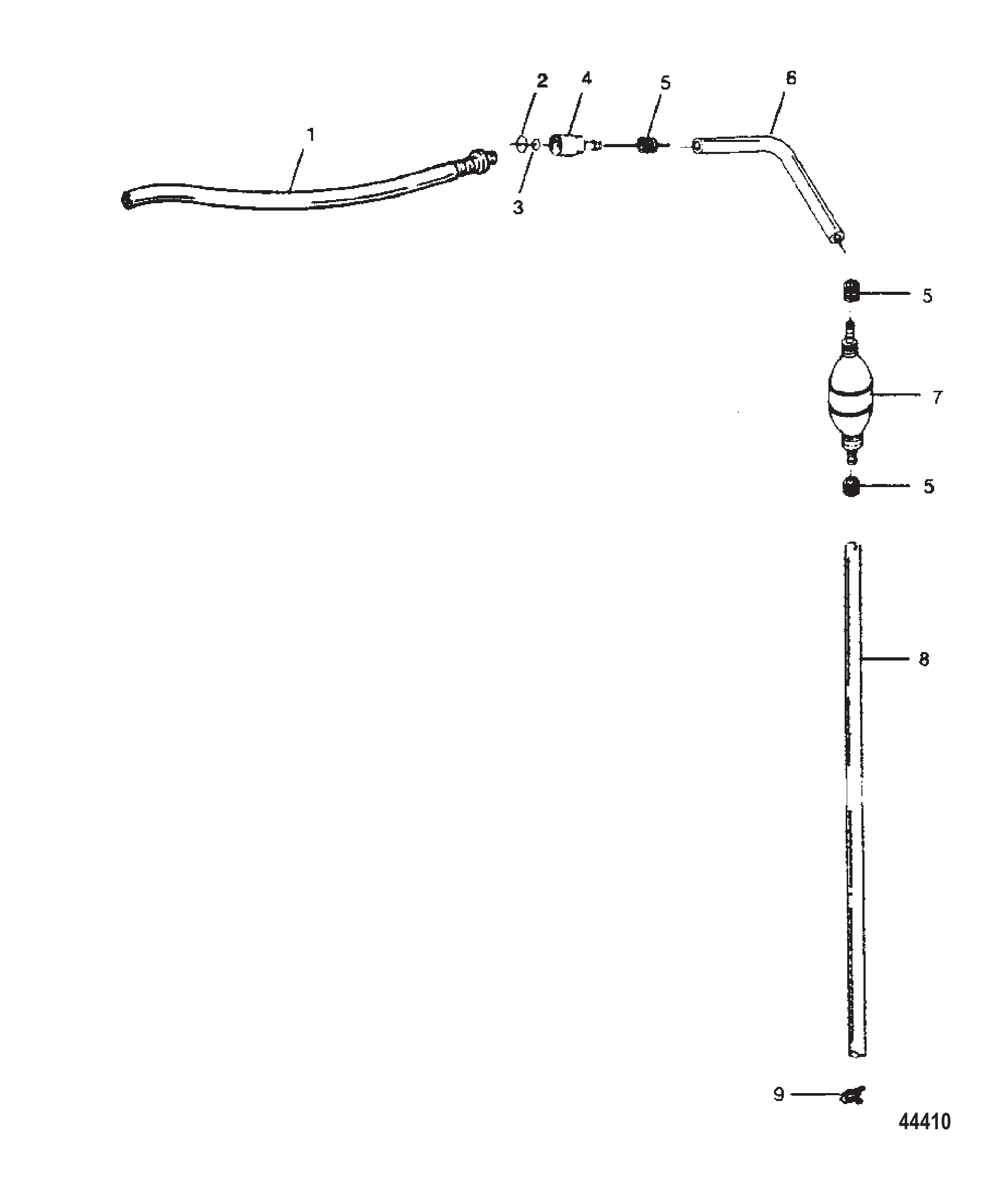

图 9燃油管 Fuel Line

REF	零件编号	中文名称	英文名称	数量
1	FA612754	燃油管总成 (支撑板至燃油泵)	LINE ASSEMBLY Fuel (SUPPORT PLATE TO FUEL PUMP)	1
1	820661A1	软管/接头套件	HOSE/COUPLER KIT	1
2	F17816	燃油管接头密封圈 (大)	SEAL FUEL LINE COUPLER (LARGE)	1
3	F17815	燃油管接头密封圈 (小)	SEAL FUEL LINE COUPLER (SMALL)	1
4	F197787-3	燃油管接头	COUPLER Fuel FUEL LINE	1
4	F197787Q3	燃油接头总成	COUPLER ASSEMBLY Fuel	1
5	F298788	套圈	FERRULE	1
5	41582Q7	卡箍	CLAMP	1
6	F458754	短软管	HOSE SHORT	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	89396A38	注油泵总成	BULB ASSEMBLY Primer	1
7	89396Q01	注油球@4	PRIMER BULB @4	1
8	817738A1	长燃油管路总成	LINE ASSEMBLY Fuel LONG	1
9	F97772	卡箍	CLAMP	1
9	63933	卡箍	CLAMP	1
-	FA630752	燃油管路总成	LINE ASSEMBLY Fuel	1
-	819380A7	软管	HOSE	1

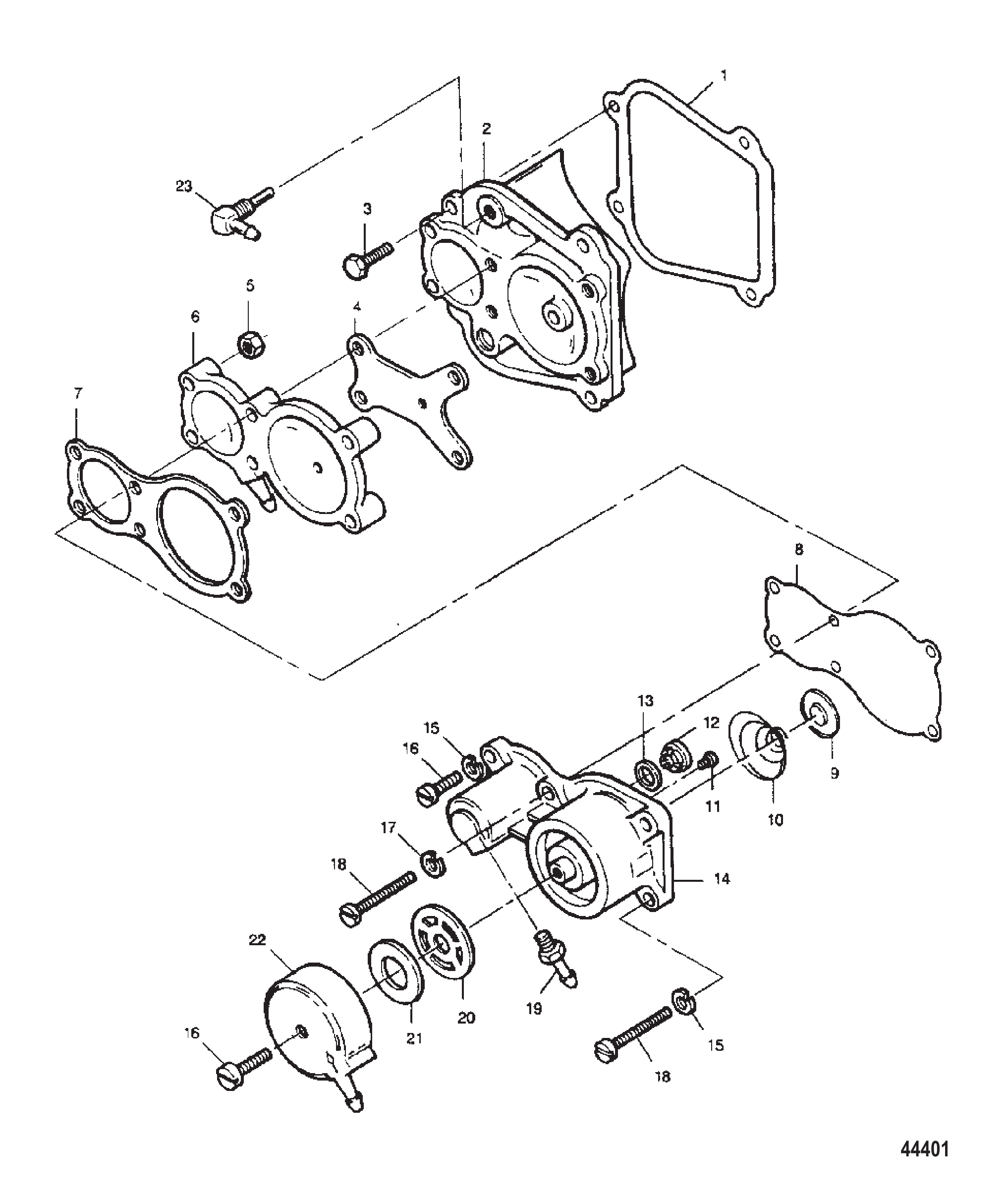

图 10燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	F40223	转换盖衬垫	GASKET TRANSFER COVER	5
1	820500A3	衬垫套件	GASKET KIT	5
2	817870A1	燃油泵盖套件(含塞)	COVER KIT FUEL PUMP W/PLUG	1
3	F1502	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	4
3	98254	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	4
4	F658803	隔板衬垫	GASKET SPACER PLATE	1
5	F1473	螺母(#10-24)	NUT (#10-24)	2
5	79989	螺母 (#10-24) 不锈钢	NUT (#10-24) Stainless Steel	2
6	F658836	隔套	SPACER	1
7	F438760	燃油泵垫片	GASKET FUEL PUMP	1
7	820490	衬垫	GASKET	1
8	F438747	燃油泵膜片	DIAPHRAGM FUEL PUMP	1
9	F686096	增压弹簧固定座	RETAINER BOOSTER SPRING	1
10	F686300	泵增压弹簧	SPRING PUMP BOOST	1
11	F1860	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	2
11	28430	螺钉(#6-32 x .25)	SCREW (#6-32 x .25)	2
12	F177330	燃油泵阀	VALVE FUEL PUMP	3
12	8M0082362	止回阀	CHECK VALVE	3
13	F84792	中央阀衬垫	GASKET CENTER VALVE	1
14	FA686431	燃油泵体	BODY FUEL PUMP	1
14	819843T1	燃油泵总成	BODY ASSY-F/P	1
15	F1975	锁紧垫圈(#10)	LOCKWASHER (#10)	2
15	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
16	F1648	螺钉(#10-24 x 0.750)	SCREW (#10 - 24 x .750)	3
16	41069	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	3
17	F8083	锁紧垫圈(0.250)	LOCKWASHER (.250)	4
17	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
18	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	4
19	F438801	弯头	ELBOW	1
19	64705	接头	FITTING	1
20	F438617	燃油泵碗衬垫	GASKET FUEL PUMP BOWL	1
20	823606	衬垫	GASKET	1
21	F438653	燃油泵滤网	SCREEN FUEL PUMP	1
22	F438500-1	燃油沉淀杯	BOWL FUEL SEDIMENT	1
22	817066	滤杯	BOWL	1
23	F404314	循环弯头	ELBOW RECIRCULATING	1
-	817919A1	泵套件	PUMP KIT	1

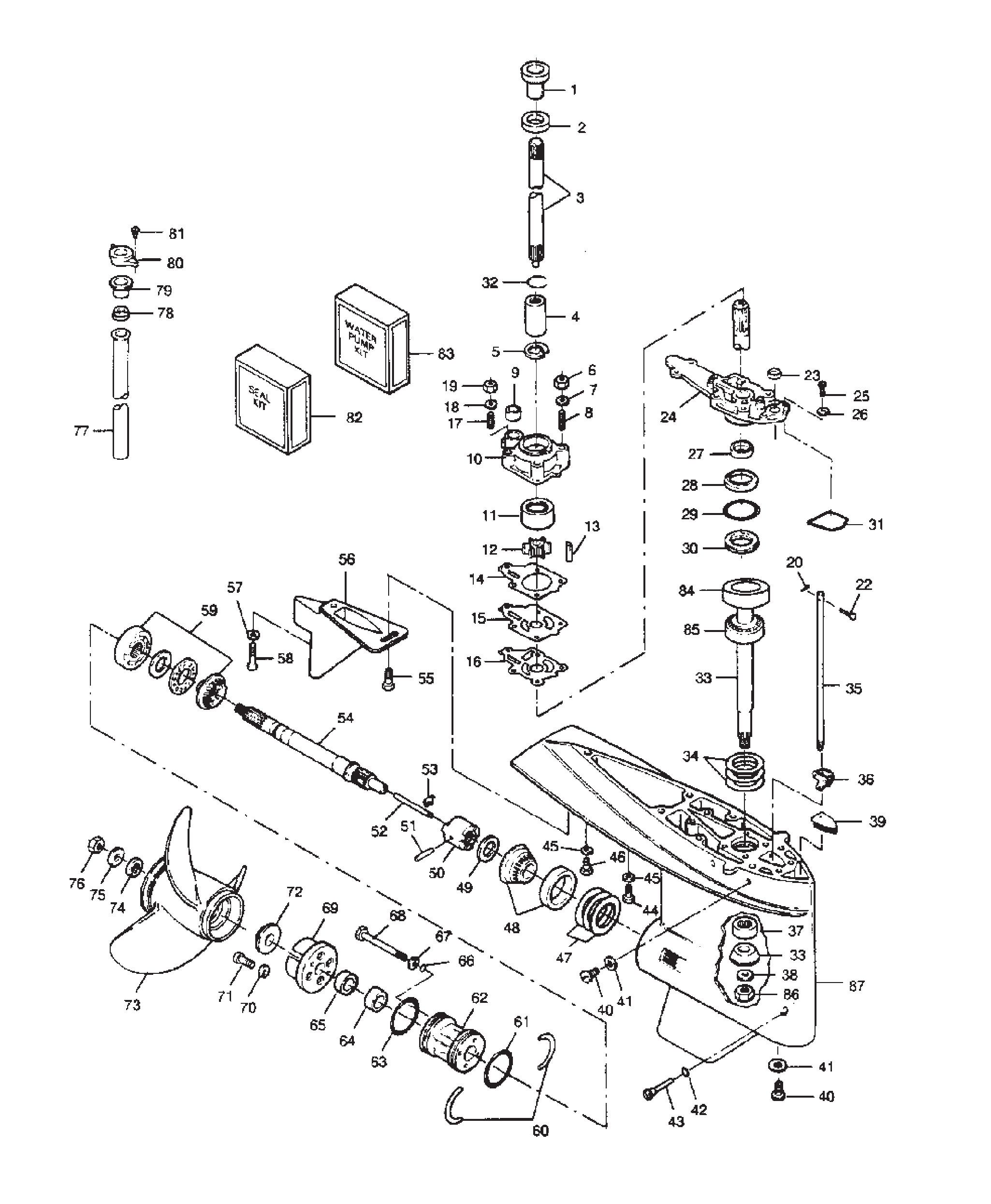

图 11齿轮箱 Gear Housing

REF	零件编号	中文名称	英文名称	数量
1	F438129	驱动轴花键油封	SEAL DRIVESHAFT SPLINE	1
1	819427	密封件	SEAL	1
2	F438271	驱动轴花键油封座	RETAINER DRIVESHAFT SPLINE SEAL	1
3	F694128	驱动轴 20.00英寸上段	DRIVESHAFT 20.00 Inch UPPER	1
-	F693128	驱动轴 25.00英寸上部	DRIVESHAFT 25.00 Inch UPPER	1
4	F694125	驱动轴联轴器	COUPLING DRIVESHAFT	1
5	F694736	密封件	SEAL	1
6	F7061	螺母(.250-28)	NUT (.250-28)	4
6	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	4
7	F2012	垫圈	WASHER	4
7	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
8	F694210	螺柱	STUD	4
8	306671	螺柱	STUD	4
9	F694735-1	水管密封件	SEAL WATER LINE	1
10	F694060-1	水泵壳体	BODY WATER PUMP	1
10	803757T	水泵壳体	BODY WATER PUMP	1
11	F694564-1	嵌件	INSERT	1
12	F694065	叶轮	IMPELLER	1
12	89984T3	叶轮	IMPELLER	1
13	F694498	键	KEY	1
14	F694031	衬垫	GASKET	1
15	F699562	安装板	PLATE	1
16	F694830	衬垫	GASKET	1
17	F694211	螺柱	STUD	1
18	F8143	垫圈	WASHER	1
19	F7062	螺母 (#10-32)	NUT (#10-32)	1
19	8M0204718	螺母	NUT	1
20	F1015	开口销	COTTER PIN	1
22	F85372	销	PIN	1
23	F338618-1	换挡杆油封	SEAL SHIFT ROD	1
23	817472	密封件	SEAL	1
24	FA721706	齿轮箱盖(含油封)	COVER GEAR HOUSING W/SEAL	1
25	F1999	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
25	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	4
26	F8083	锁紧垫圈(0.250)	LOCKWASHER (.250)	4
26	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
27	F694307	密封件	SEAL	1
27	819740	密封件	SEAL	1
28	F694305	密封件	SEAL	1
28	89238	油封	SEAL Oil	1
29	F74305	密封件	SEAL	1
29	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
30	F694961-1	固定座	RETAINER	1
30	8245191	固定座	RETAINER	1
31	F74305	密封件	SEAL	1
31	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
32	F695930	挡圈	RING RETAINING	1
32	818826	环	RING	1
33	FS694628	下传动轴带小齿轮	DRIVESHAFT LOWER W/PINION GEAR	1
33	FS707628	驱动轴	DRIVESHAFT	1
34	F9280	垫片 (.002)	SHIM (.002)	A/R
-	F9279	垫片 (.003)	SHIM (.003)	A/R
-	F9278	垫片 (0.005)	SHIM (.005)	A/R
-	F9277	垫片 (0.010)	SHIM (.010)	A/R
35	F523705	下换挡杆	ROD Lower Gear Shift	1
35	F523705-1	杆	ROD	1
36	FA84621-1	联轴器	COUPLING	1
37	F694057	轴承	BEARING	1
37	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
38	F694186	垫圈	WASHER	1
38	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
39	F694226	皮托管塞	PLUG PITOT	1
39	892827	堵头	PLUG	1
40	F50109	螺钉	SCREW	3
40	79953Q04	放油螺钉套件	SCREW KIT Drain	3
41	F8077	垫圈	WASHER	3
41	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
42	F498618	密封件	SEAL	1
42	25007	O型圈	O-RING	1
43	F498891	换挡臂枢轴销	PIN Gear Shift Arm Pivot	1
43	826374	销	PIN	1
44	F1491	螺钉 (.312-18 x 3.25)	SCREW (.312-18 x 3.25)	6
45	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	7
45	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	7
46	F1858	螺钉 (.625-18 x 1.00)	SCREW (.625-18 x 1.00)	1
47	F9284	垫片 (.002)	SHIM (.002)	A/R
-	F9283	垫片 (.003) (.003)	SHIM (.003) (.003)	A/R
-	F9282	垫片 (0.005)	SHIM (.005)	A/R
-	F9281	垫片 (0.010)	SHIM (.010)	A/R
48	FS694023	前进齿轮 (27齿)	GEAR FORWARD (27 TOOTH)	1
48	816434A5	齿轮总成	GEAR ASSEMBLY	1
49	F2310	垫片 (0.050)	SPACER (.050)	A/R
-	F2290	垫片 (0.060)	SPACER (.060)	A/R
-	F2291	垫片 (0.070)	SPACER (.070)	A/R
-	F2292	隔套 (.080)	SPACER (.080)	A/R
50	F694521	离合器	CLUTCH	1
50	816433T	离合器	CLUTCH	1
51	F2419	弹簧销	PIN Spring	1
51	8M0029889	滚销	PIN-ROLL	1
52	F84871-1	销	PIN	1
53	F90619-2	轭架	YOKE	1
54	FA694098	螺旋桨轴总成	PROPELLER SHAFT ASSEMBLY	1
55	F438930	固定座	RETAINER	1
55	826377	螺钉 (.312-18X.75)	SCREW (.312-18X.75)	1
56	F523116-3	排气口	SNOUT EXHAUST	1
56	F748116	排气口-L型驱动	SNOUT-EXH-L DRIVE	1
57	F1856	垫圈	WASHER	1
58	F1994	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	1
58	90073	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	1
59	F2A694662	倒档齿轮总成	GEAR ASSEMBLY REVERSE	1
59	803843T	后齿轮总成	GEAR ASSY -REAR	1
60	F523411	挡圈	RING Retaining	1
61	F84305	密封件	SEAL	1
61	32507	O型圈 (3.359 x .139)	O-RING (3.359 x .139)	1
62	F2A523239	螺旋桨轴总成(含轴承和油封)	SPOOL ASSEMBLY PROPELLER SHAFT W/BEARING AND SEALS	1
62	803940T	阀芯总成	SPOOL ASSY	1
63	F24278	密封件	SEAL	1
64	F523058	轴承	BEARING	1
64	30956T	滚针轴承	BEARING Needle	1
65	F506118-1	密封件	SEAL	1
66	F50342-1	密封件	SEAL	4
66	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	4
67	F1907	垫圈	WASHER	4
67	8M0207778	垫圈（0.344×0.625×0.063英寸）	WASHER .344 x .625 x.063	4
68	F1885	螺栓 (5/16-18 X 4.25)	BOLT (5/16-18 X 4.25)	4
69	FA523485	防腐阳极	ANODE Anti Corrosion	1
70	F8083	锁紧垫圈(0.250)	LOCKWASHER (.250)	2
70	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
71	F1112	螺钉 (.25-20 x .875)	SCREW (.25-20 x .875)	2
72	F698099	螺旋桨隔套	SPACER PROPELLER	1
72	803890T	止推垫片	THRUST WASHER	1
74	F697299	螺旋桨花键垫圈	WASHER PROP SPLINE	1
75	F697140	止推垫圈	WASHER TAB	1
75	816629Q	锁紧垫圈	TAB WASHER	1
76	F7000	螺母(.750-16)	NUT (.750-16)	1
76	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
77	F523244	进水软管 20英寸	LINE Water Inlet, 20 Inch	1
-	F500244	进水软管 25英寸	LINE Water Inlet, 25 Inch	1
78	F523899	水管护圈	GROMMET WATER LINE	1
78	817491	护圈 (内径0.56)	GROMMET (.56 Inside Diameter)	1
79	F84342	水管密封件	SEAL WATER LINE	1
80	F692117	水管支架	BRACKET WATER LINE	1
81	F1705	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
81	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
82	FK1203	密封套件	SEAL KIT	1
82	FK1203-1	密封套件	SEAL KIT	1
83	FK1204	水泵套件	PUMP KIT Water	1
83	FK1204-1	水泵套件	PUMP KIT Water	1
84	F694056	杯形轴承	CUP BEARING	1
84	35924A1	轴承总成	BEARING ASSEMBLY	1
85	F694058	轴承	BEARING	1
85	35924T1	轴承总成	BEARING ASSEMBLY	1
86	F694188	小齿轮螺母	NUT PINION GEAR	1
86	35921	螺母(0.625-18)	NUT (.625-18)	1
87	FA694054	下齿轮箱总成	GEAR HOUSING ASSEMBLY Lower	1
87	817925A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	817925A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1

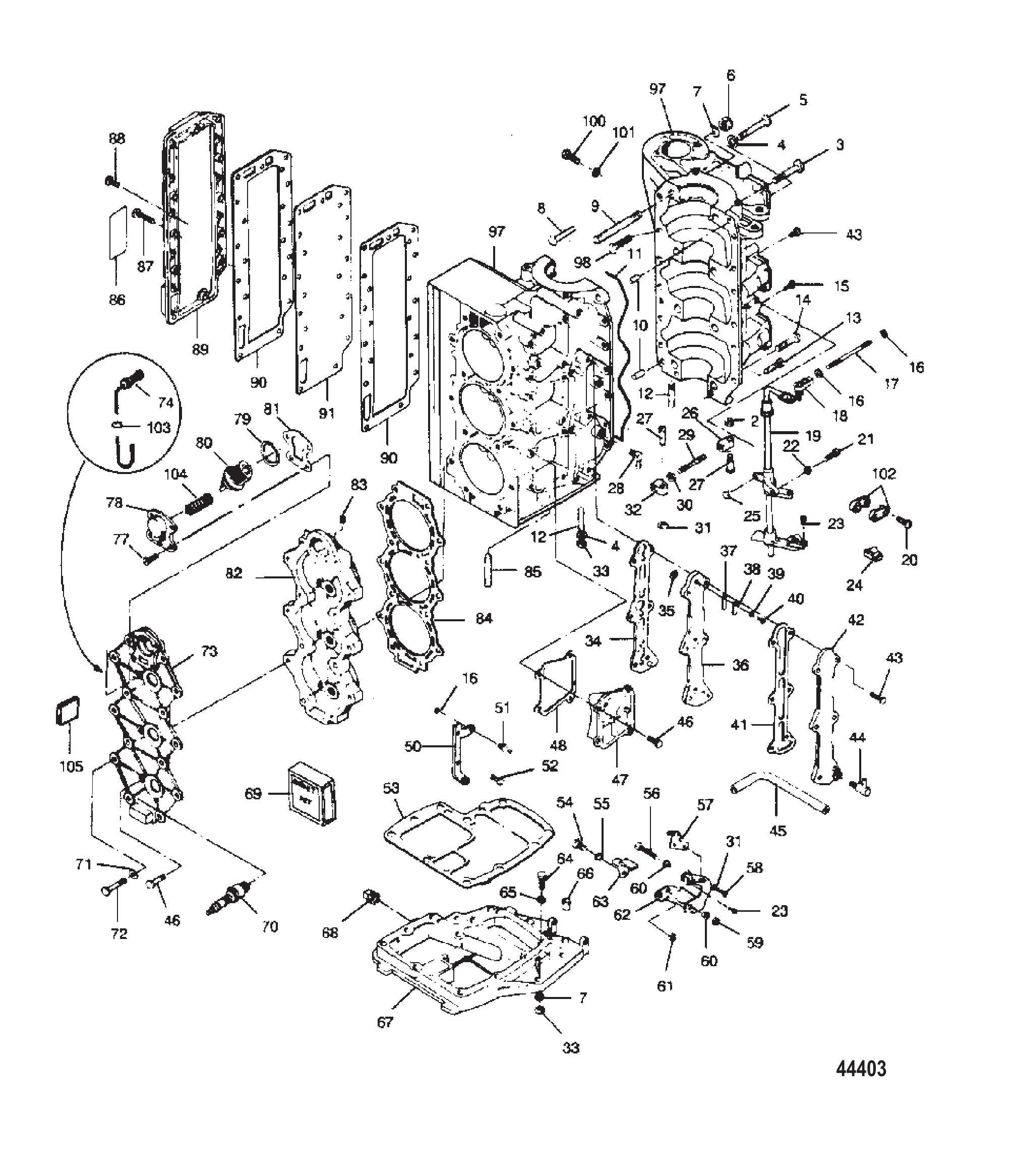

图 12动力头 Powerhead

REF	零件编号	中文名称	英文名称	数量
2	F7009	螺母(#10-24)	NUT (#10-24)	1
3	F1009	螺栓 (.375-16 x 2.75)	BOLT (.375-16 x 2.75)	1
3	47688	螺丝 (.375-16 x 2.750)	SCREW (.375-16 x 2.750)	1
4	F8038	垫圈	WASHER	4
4	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	4
5	F1873	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	4
5	53734	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	4
6	F1346	螺母 (.375-16) 不锈钢	NUT (.375-16) SS	1
6	8M0204671	螺母	NUT	1
7	F8095	垫圈	WASHER	14
7	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	14
8	F1864	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	9
8	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	9
9	F85210	螺柱	STUD	1
9	8263942	螺柱	STUD	1
10	F8563	定位销	PIN Dowel	2
10	20433	定位销(.375 x 1.00)	PIN Dowel (.375 x 1.00)	2
11	F698122	分型面密封	SEAL PARTING LINE	1
12	F85859	柱头螺栓 (.375-16 x 2.25) 前进	STUD (.375-16 x 2.25) FORWARD	4
13	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	2
14	F1872	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	2
14	32132	螺钉(.375-16 x 1.750)	SCREW (.375-16 x 1.750)	2
15	F1199	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	1
15	14168	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	1
16	F1804	螺母 (#10-32)	NUT (#10-32)	2
16	20110	螺母 (#10-32)	NUT (#10-32)	2
17	F85502	油门连杆	LINK Throttle	1
17	819002	连接杆	LINK	1
18	8177471	带球头轴承	BEARING With Ball Joint	1
18	828514A1	球窝套件	BALL/SOCKET KIT	1
19	817968A2	塔轴总成	TOWERSHAFT ASSEMBLY	1
20	F1829	螺丝(#10-24x0.875)	SCREW (#10-24 x .875)	2
21	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	1
22	F1341	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
22	64015	螺母 (.250-20)	NUT (.250-20)	1
23	F2217	螺钉 (10-24 x .375)	SCREW (10-24 x .375)	2
23	F2217-1	螺钉带锁紧垫圈 (#10-24 x .375)	SCREW AND LOCKWASHER (#10-24 x .375)	2
24	FK405020	旋转接头	SWIVEL	2
25	F1727	铆钉	RIVET	1
26	F499036	端盖	END	1
26	F499036-1	控制杆端头	END Control Rod	1
27	F499026	旋转接头	SWIVEL	2
28	F84314-2	弯头 (L型)	ELBOW (L)	1
29	F85445	分电器控制杆火花控制	ROD Distributor Control SPARK CONTROL	1
29	F85445-1	火花控制杆	ROD Spark Control	1
30	F2015	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	F2042	垫圈	WASHER	2
31	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
32	F499035	控制杆端部至触发器	END CONTROL ROD TO TRIGGER	1
33	F7004	螺母（.375-16）	NUT (.375-16)	10
33	82670912	螺母(.375-16)不锈钢	NUT (.375-16) Stainless Steel	10
34	F85748-2	气缸排水簧片阀衬垫	GASKET CYLINDER DRAIN REED PLATE	1
35	F93811	滤网	SCREEN	3
36	F2A404757	气缸排水簧片阀总成	REED PLATE ASSEMBLY Cylinder Drain	1
37	F18160-3	簧片	REED	3
38	F93920	簧片止挡	STOP Reed	3
39	F8003	垫圈	WASHER	3
39	18552	垫圈	WASHER	3
40	F1286	螺钉(#4-40x.187)	SCREW (#4-40 x .187)	3
41	F85472-2	气缸排水盖衬垫	GASKET CYLINDER DRAIN COVER	1
42	817787A1	盖总成-气缸排水	COVER ASSEMBLY Cylinder Drain	1
43	F1532	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	6
43	819110100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	6
44	F404801	接头	FITTING	1
45	F433253	软管	HOSE	1
45	81902962	软管 (22.50英寸散装)	HOSE (22.50 Inches Bulk)	1
46	F1502	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	3
46	98254	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	3
47	817790A1	盖板	COVER	2
48	F40223	换气口盖垫片	GASKET TRANSFER PORT COVER	3
48	820500A3	衬垫套件	GASKET KIT	3
50	FS85872-1	遥控线缆支架	BRACKET REMOTE CABLE	1
50	F85872-2	支架	BRACKET	1
51	F98273	螺柱	STUD	2
52	F1864	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
52	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
53	F85279-2	气缸排气上衬垫	GASKET Cylinder Exhaust UPPER	1
53	819381	衬垫	GASKET	1
54	F369887	肩部螺钉	SHOULDER SCREW	1
55	F369610	轴承	BEARING	1
56	F1885	螺栓 (5/16-18 X 4.25)	BOLT (5/16-18 X 4.25)	1
57	F480107-1	启动器联锁凸轮	CAM STARTER INTERLOCK	1
57	F480107-2	凸轮	CAM	1
58	F2089	螺钉 (10-24 x .312)	SCREW (10-24 x .312)	2
59	F2108	螺母(5/16-18)	NUT (5/16-18)	1
60	F85610	轴承	BEARING	2
60	97896	衬套	BUSHING	2
61	F1832	锁紧螺母 (.250-20)	NUT Lock (.250-20)	1
61	8M0207776	螺母	NUT	1
62	FA480876	换挡臂总成	ARM ASSEMBLY Gear Shift	1
63	F369977-1	联锁臂	INTERLOCK ARM	1
63	8199321	臂	ARM	1
64	F1869	螺栓 (.375-16 x 1.250)	BOLT (.375-16 x 1.250)	6
64	37612	螺钉 (.375-16 x 1.250)	SCREW (.375-16 x 1.250)	6
65	F1703	锁紧垫圈	LOCKWASHER	6
65	35048	锁紧垫圈 (.375)	LOCKWASHER (.375)	6
66	F40689-1	塔轴轴承	BEARING TOWERSHAFT	1
67	FA692680	隔板	SPACER PLATE	1
67	819750A1	板组件套件	PLATE KIT	1
68	F2090	堵头	PLUG	1
69	FG1028	衬垫套件	GASKET SET	1
69	809748A1	衬垫套件	GASKET SET	1
-	F40223	衬垫	GASKET	3
-	820500A3	衬垫套件	GASKET KIT	3
-	F664914		SEAL THERMOSTAT	1
-	F698122	密封件	SEAL	1
-	F692154-1	排气口板衬垫	GASKET Exhaust Port Plate	2
-	8190231	衬垫	GASKET	2
-	F85159-1	衬垫	GASKET	1
-	F85168-1	衬垫-簧片板适配器	GASKET Reed Plate Adaptor	3
-	F85168-2	衬垫	GASKET	3
-	F85279-2		GASKET Cylinder Exhaust Upper	1
-	819381	衬垫	GASKET	1
-	F85472-2	衬垫	GASKET	1
-	F85748-2	衬垫	GASKET	1
-	F85762	衬垫	GASKET	1
-	F85906	衬垫	GASKET	3
-	828925	衬垫	GASKET	3
-	F369529-1	气缸盖衬垫	GASKET Cylinder Head	1
-	820438	衬垫	GASKET	1
-	F476067	衬垫	GASKET	1
-	828319	衬垫	GASKET	1
-	F481836	衬垫	GASKET	3
70	FS467227	火花塞 (CHAMPION UL-18-V)	SPARK PLUG (CHAMPION UL-18-V)	3
70	896329824	SP #UL18V @4	SP #UL18V @4	3
71	F1987	垫圈	WASHER	14
71	34437	垫圈	WASHER	14
72	F1883	螺栓 (.312-18 x 2.375)	BOLT (.312-18 x 2.375)	14
73	F692995	气缸盖罩	COVER CYLINDER HEAD	1
74	F629449-1	温控开关	THERMOSWITCH	1
74	F629449-2	温控开关	THERMOSWITCH	1
77	F1110	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	4
77	20540	螺钉(.250-20 x .62)	SCREW (.250-20 x .62)	4
78	F476066-1	节温器盖	COVER THERMOSTAT	1
78	819693	盖板	COVER	1
79	F664914		SEAL THERMOSTAT	1
80	F664068	节温器54°C(130°F)	THERMOSTAT 54°C (130°F)	1
81	F476067	节温器盖衬垫	GASKET THERMOSTAT COVER	1
81	828319	衬垫	GASKET	1
82	F630518-1	气缸盖	HEAD CYLINDER	1
82	803933T	气缸盖	HEAD-CYLINDER	1
83	F19109	堵头	PLUG	1
83	47945	堵头	PLUG	1
84	F369529-1	气缸盖衬垫	GASKET Cylinder Head	1
84	820438	衬垫	GASKET	1
85	F693211-1	后柱头螺栓	STUD REAR	6
85	826391	螺柱	STUD	6
86	F529398-1	线路图贴花	DECAL WIRING	1
87	F1709	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	21
87	76213	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	21
88	F901938-1	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	2
89	F692152		COVER EXHAUST PORT	1
89	803932T	排气盖	COVER-EXHAUST	1
90	F692154-1	排气口板衬垫	GASKET Exhaust Port Plate	2
90	8190231	衬垫	GASKET	2
91	F692151	排气口挡板	PLATE EXHAUST PORT	1
91	8192831	安装板	PLATE	1
97	FA692010	气缸总成	CYLINDER ASSEMBLY	1
97	819080A6	气缸套件	CYLINDER KIT	1
-	FC692010	短缸体	SHORT BLOCK	1
-	817608A22	动力头套件	POWERHEAD KIT	1
98	F2008	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	2
100	F2000	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	1
100	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
101	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
101	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
102	FA607689	轴承套件	BEARING KIT	2
103	F428096	温控开关固定环	RING Retaining THERMOSWITCH	1
104	F692268	节温器弹簧	SPRING THERMOSTAT	1
105	F694366	贴花 "US MARINE"	DECAL "US MARINE"	1

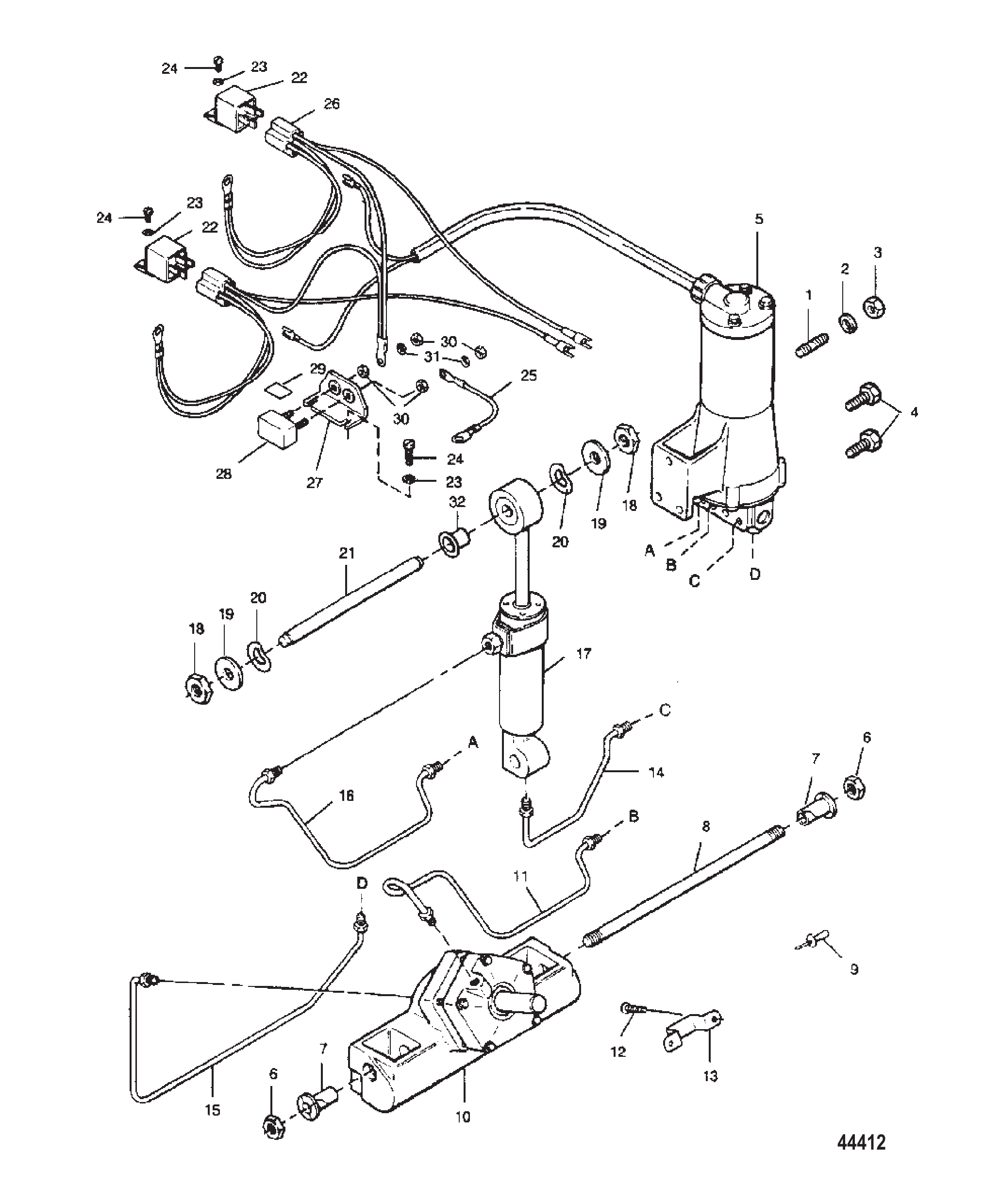

图 13动力升降 Power Trim

REF	零件编号	中文名称	英文名称	数量
1	F660273	螺柱	STUD	1
1	827512	螺柱	STUD	1
2	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
2	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
3	F1515	螺母(.312-18)	NUT (.312-18)	1
3	8M0204668	螺母(.312-18)	NUT (.312-18)	1
4	F1822	螺钉 (0.312-18 x 0.875)	SCREW (.312-18 x .875)	2
4	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	2
5	F694541-1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
5	F694541-2	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
6	F7053	螺母 (.625-18) 黄铜	NUT (.625-18) Brass	2
7	F449362	下轴衬套	BUSHING LOWER SHAFT	2
8	F449632	微调安装轴	SHAFT TRIM MOUNT	1
9	F1966	塑料塞	PLUG PLASTIC	1
10	818055A3	完整壳体总成	HOUSING ASSEMBLY COMPLETE	1
11	F660254	液压微调缸上油管	LINE UPPER HYDRAULIC TRIM CYLINDER	1
12	F1734	螺钉与锁紧垫圈(0.250-20 x 0.500)	SCREW AND LOCKWASHER (.250-20 x .500)	2
12	34939	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	2
13	F449354	推力支架	BRACKET THRUST	1
14	F660754	液压倾斜缸下油管	LINE LOWER HYDRAULIC TILT CYLINDER	1
15	F660253	液压微调缸下油管	LINE LOWER HYDRAULIC TRIM CYLINDER	1
16	F660758	液压倾斜缸上油管	LINE UPPER HYDRAULIC TILT CYLINDER	1
17	FS654381	气缸总成	CYLINDER ASSEMBLY	1
17	819365A2	气缸总成	CYLINDER ASSEMBLY	1
18	F1931	螺母(.500-20)	NUT (.500-20)	2
18	826709117	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	2
19	F1710	平垫圈	WASHER PLAIN	2
20	F1711	弓形弹簧垫圈	WASHER BOWED SPRING	2
21	F449889	上部减震轴	SHAFT UPPER SHOCK	1
22	F660917	动力微调继电器	RELAY POWER TRIM	2
22	803632T	继电器	RELAY	2
23	F8011	垫圈 #10	WASHER #10	4
23	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	4
24	F1760	螺钉(#10-24 x .375)	SCREW (#10-24 x .375)	4
25	F660908	红色线束总成	WIRE ASSEMBLY RED	1
26	FA663744	线束套件	WIRE KIT	1
27	F91446-2	支架	BRACKET	1
28	F510460	断路器	BREAKER CIRCUIT	1
28	898103194	电路断路器	BREAKER-CIRCUIT	1
29	F510374-1	断路器标贴	DECAL CIRCUIT BREAKER	1
30	F1513	螺母 (#10-32)	NUT (#10-32)	4
30	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
31	F1975	锁紧垫圈(#10)	LOCKWASHER (#10)	2
31	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
32	F178344	减震器衬套	BUSHING SHOCK ABSORBER	2
-	F5H196	升降倾斜总成	TRIM AND TILT ASSEMBLY	-
-	819762A12	升降倾斜总成	TRIM AND TILT ASSEMBLY	-

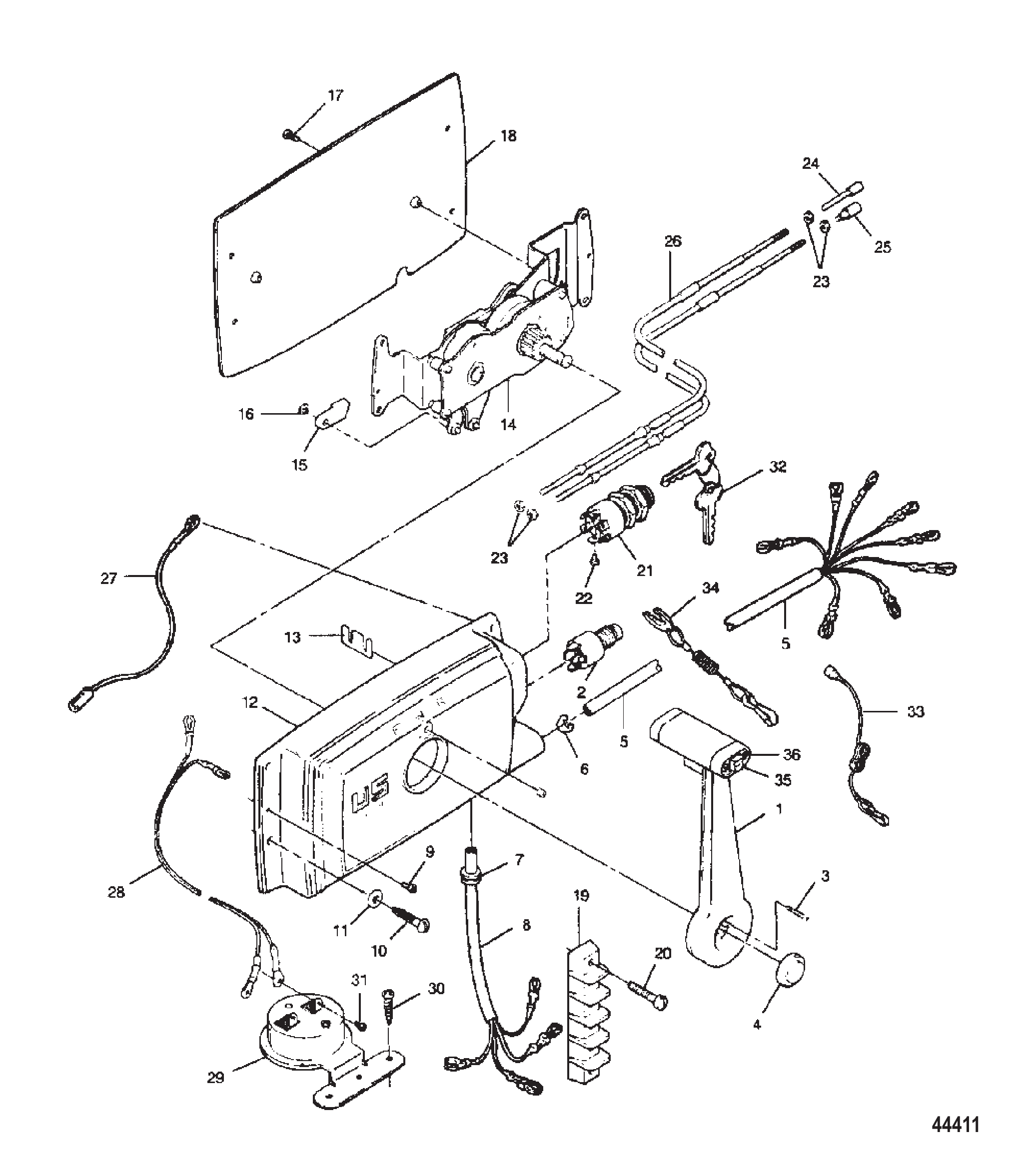

图 14遥控装置 Remote Control

REF	零件编号	中文名称	英文名称	数量
1	F660611	带微调开关的操纵杆总成	LEVER ASSEMBLY With Trim Switch	1
2	FK681602	开关(紧急停止)	SWITCH (EMERGENCY STOP)	1
3	F660165	螺钉(操纵杆至执行器)	SCREW (LEVER TO ACTUATOR)	4
4	F660332	插头(预热按钮)	PLUG (WARM-UP BUTTON)	1
5	F660843	电缆总成 (15.5英尺遥控电动，10线)	CABLE ASSEMBLY (15.50 ft Remote Electric, 10 Wire) (15.5 ft REMOTE ELECT.)	1
5	819200T1	线缆-15.5英尺	CABLE-15.5 FEET	1
-	F663843	电缆总成 (19英尺遥控电动，10线)	CABLE ASSEMBLY (19 ft Remote Electric, 10 Wire) (19 ft REMOTE ELECT. - 10 WIRE)	-
-	819203A1	线缆组件(19英尺)	CABLE ASSEMBLY (19 Feet)	-
-	F664843	电缆总成 (22英尺遥控电动，10线)	CABLE ASSEMBLY (22 ft Remote Electric, 10 Wire) (22 ft REMOTE ELECT. - 10 WIRE)	-
-	819204A1	线缆组件(22英尺)	CABLE ASSEMBLY (22 Feet)	-
-	F591843	电缆总成 (25英尺遥控电动，10线)	CABLE ASSEMBLY (25 ft Remote Electric, 10 Wire) (25 ft REMOTE ELECT. - 10 WIRE)	-
-	819205A1	线缆组件(25英尺)	CABLE ASSEMBLY (25 Feet)	-
-	F5H193	电缆总成 (7英尺延长线，用于10线遥控电动电缆)	CABLE ASSEMBLY (7 Feet) Extension FOR 10 WIRE REMOTE ELECTRIC CABLE)	-
6	F660446	线夹(遥控电缆)	CLAMP (REMOTE ELECT. CABLE)	1
7	F660504	护线环(遥控附件电缆)	GROMMET (REMOTE ACCESSORY CABLE)	1
8	F660353	线束总成(5英尺)	CABLE ASSEMBLY (5 Feet)	1
9	F660480	螺钉(盖板至执行器)	SCREW (COVER TO ACTUATOR)	2
10	F660732	螺钉(控制装置安装)	SCREW (CONTROL MOUNTING)	4
11	F660595	垫圈(控制安装螺钉)	WASHER (CONTROL MTG. SCREWS)	4
12	F660995	盖板总成(遥控装置)	COVER ASSEMBLY (ASSEMBLY - REMOTE CONTROL)	1
13	F660642	固定座(遥控器)	RETAINER (REMOTE CONTROL)	1
14	F660327	执行器总成(遥控装置)	ACTUATOR ASSEMBLY (ASSEMBLY - REMOTE CONTROL)	1
15	F660141-1	连接器(电缆-遥控装置)	CONNECTOR (CABLE - REMOTE CONTROL)	2
16	F660411	挡圈	RING (RETAINING)	2
17	F660751	螺钉(板至执行器)	SCREW (PLATE TO ACTUATOR)	2
18	F660911	板(遥控装置)	PLATE (REMOTE CONTROL)	1
19	F660497	端子排	BLOCK (TERMINAL)	1
19	817492	接线端子排4位	TERMINAL BLOCK 4 Post	1
20	F1741	螺钉(#8 x .750) 平头,不锈钢(端子排)	SCREW (#8 x .750) Fill Head, SS (TERMINAL BLOCK)	2
21	F5H077	点火开关套件-含钥匙和螺钉(附件)	SWITCH KIT Ignition - With Keys And Screws (ACCESSORY ITEM)	1
21	F5H268	开关	SWITCH	1
22	F1280	螺钉(#8-32 x .250)(点火开关线端子)	SCREW (#8-32 x .250) (IGN. SWITCH WIRE TERMINAL)	6
22	8M0129582	螺钉	SCREW	6
23	F1513	螺母(#10-32)(电缆端)	NUT (#10-32) (CABLE END)	4
23	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
24	FA58976-1	连接器(油门)	CONNECTOR (THROTTLE)	1
25	F58685-2	连接器(换挡)	CONNECTOR (SHIFT)	1
26	F195/__	油门/换挡线缆组(指定长度-X)	CABLE SET Thottle/Shift (SPECIFY LENGTH - X)	1
27	F660664	导线(点火开关至附件端子排)	WIRE (IGN. SWITCH TO ACC. TERMINAL BLOCK)	1
28	F404841	过热警报器线束总成	CABLE ASSEMBLY OVERHEAT BUZZER	1
28	65017A24	线束总成	HARNESS ASSEMBLY	1
29	F5H073-1		BUZZER KIT OVERHEAT (ACCESSORY ITEM)	1
30	F1741	螺钉(#8 x .750) 平头,不锈钢	SCREW (#8 x .750) Fill Head, SS	2
31	F1645	自攻螺钉(#6-32 x 0.250)不锈钢	SCREW (#6-32 x .250) Self Tapping, SS	8
31	69080	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	8
32	8177821	钥匙组A型	KEY SET Stamped A	1
-	8178831	钥匙组B型	KEY SET Stamped B	1
-	8178911	钥匙组C型	KEY SET Stamped C	1
-	8179281	钥匙组D型	KEY SET Stamped D	1
-	8179291	钥匙组E型	KEY SET Stamped E	1
33	F660329	拉绳急停开关(杯型)	LANYARD STOP SWITCH (CUP TYPE)	1
33	FK681602	开关	SWITCH	1
34	F702329	拉绳急停开关(叉型)	LANYARD STOP SWITCH (FORK TYPE)	1
34	879104	带夹子的拉绳	LANYARD W/CLIP	1
35	F17864	开关总成	SWITCH ASSEMBLY	1
36	F17863	按钮/面板套件	BUTTON/PLATE KIT	1
-	F5H198	完整遥控装置(含动力升降配线)	REMOTE CONTROL Complete WIRED FOR POWER TRIM	-
-	F5H267	遥控装置	REMOTE CONTROL	-

图 15维修保养材料 Service and Support Material

REF	零件编号	中文名称	英文名称	数量
-	819683	操作手册	OPERATION MANUAL	1
-	FOB4642	维修手册 F85/90/125 (1988-1991)	SERVICE MANUAL F85/90/125 (1988 Thru 1991)	1
-	FOB4494-1	零件手册 90马力B系列(1990)Force	PARTS MANUAL 90 Hp B-Models (1990) Force	1

图 16齿轮箱专用工具 Special Tools Gear Housing

REF	零件编号	中文名称	英文名称	数量
-	FT8948-1	轴承拉拔器	PULLER TOOL Bearing	-
-	83164M	飞轮拉拔器	FLYWHEEL PULLER	-
-	FT11209	导向器套件	GUIDE SET	-
-	FT8918	衬套导向安装工具	GUIDE SET TOOL Bushing	-
-	FT11207	拉拔器	PULLER	-
-	FT11205	下驱动轴轴承拆装工具	INSTALLER/REMOVER TOOL Lower Driveshaft Bearing	-
-	FT11204	前轴承杯安装工具	INSTALLER TOOL Front Bearing Cup	-
-	FT8957	密封安装工具	INSTALLER TOOL Seal	-
-	FT8985	密封安装工具	INSTALLER TOOL Seal	-
-	FT8925	密封安装工具	INSTALLER TOOL Seal	-
-	FT3012	密封安装工具	INSTALLER TOOL Seal	-
-	FT8907	驱动手柄	HANDLE Driver	-
-	824892	手柄	HANDLE	-
-	FT8919	弹簧销冲具	PUNCH TOOL Spring Pin	-
-	FT7848	适配器	ADAPTER	-
-	803603T	适配器	ADAPTER	-

图 17专用工具润滑剂与密封剂 Special Tools Lubricants and Sealants

REF	零件编号	中文名称	英文名称	数量
-	FT2961	润滑剂 RYKON #2EP润滑脂	LUBRICANT RYKON GREASE #2EP	-
-	802868A1	润滑剂	LUBRICANT	-
-	FT2987-1	防卡剂润滑剂	LUBRICANT ANTI-SEIZE	-
-	898101390	防卡剂喷雾	ARESOL ANTI-SEIZE	-
-	FT8969	润滑剂 7盎司 LPS-1	LUBRICANT 7 OZ. LPS-1	-
-	FT8955	密封胶 5盎司 EC-750工业密封剂	SEALANT 5 OZ. EC-750 INDUSTRIAL SEALANT	-
-	809825	RTV硅胶 (3盎司管装) 金属蓝	RTV SILICONE (3 Ounce Tube) Metallic Blue	-
-	FT8983	密封胶 3盎司 RTV现场成型垫片	SEALANT 3 OZ. RTV SEALANT FORM IN PLACE GASKETS	-
-	809825	RTV硅胶 (3盎司管装) 金属蓝	RTV SILICONE (3 Ounce Tube) Metallic Blue	-
-	FT8936-1	密封胶 Loctite RC 609固持胶 #75	SEALANT Loctite RC 609 RETAINING COMPOUND #75	-
-	809833	乐泰RC 680密封胶（10毫升瓶装）绿色	SEALANT Loctite RC 680 (10 ml Bottle) Green	-
-	FT2962-2	密封剂 50毫升 Loctite H非硬化型	SEALANT 50 CC LOCTITE H, NON-HARDENING GRADE	-
-	809818	乐泰222螺纹锁固剂 10毫升	LOCTITE 222 THREADLOCKER 10ml	-
-	FT2963-2	密封剂 2盎司 Loctite 271	SEALANT 2 OZ. LOCTITE 271	-
-	809820	乐泰271螺纹锁固剂 50毫升	LOCTITE 271 THREADLOCKER 50 ml	-
-	FT8935	快速固定剂T型	LOC QUICK T	-
-	809824	底漆乐泰(4.5盎司喷雾)绿色	PRIMER Loctite (4.5 Ounce Aerosol) Green	-

图 18动力头专用工具 Special Tools Powerhead

REF	零件编号	中文名称	英文名称	数量
-	FT2999	扭矩扳手 (0-600磅/英寸)	TORQUE WRENCH ( 0 - 600 lbs / in ) (0-600 LBS./IN.)	-
-	FT2991	钢丝刷	BRUSH Wire	-
-	803504T	电刷	BRUSH	-
-	FT8914	密封件拆卸工具	REMOVER Seal	-
-	FT8903	密封安装工具	INSTALLER TOOL Seal	-
-	FT8907	驱动手柄	HANDLE Driver	-
-	824892	手柄	HANDLE	-
-	FT8925	密封安装工具	INSTALLER TOOL Seal	-
-	FT2953	插座	SOCKET	-
-	FT2996	活塞环压缩工具	COMPRESSOR TOOL Piston Ring	-
-	FT8926	活塞环扩张工具	EXPANDER TOOL Piston Ring	-
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	-
-	FT8933	吊钩	LIFTING HOOK	-
-	803505T	吊钩	HOOK-LIFTING	-
-	FT8900	软管卡钳	PLIERS Hose Clamp	-

图 19专用工具测试设备 Special Tools Test Equipment

REF	零件编号	中文名称	英文名称	数量
-	FT2951	电路测试追踪器	TRACER TOOL Circuit Test	-
-	FTK8999	测试轮	TEST WHEEL	-
-	FT8950	测试套件	TESTER KIT	-
-	FT11260-1	火花测试器	SPARK TESTER	-
-	850439T1	八腔测试仪	TESTER Eight Chamber	-
-	FT2938-1	通断测试仪	CONTINUITY TESTER	-
-	FTA11259	万用表	MULTIMETER	-
-	99750A1	万用表	MULTI METER	-

图 20调校专用工具 Special Tools Tune-Up

REF	零件编号	中文名称	英文名称	数量
-	FT8978	动力正时灯	POWER TIMING LIGHT	-
-	99379	正时灯	TIMING LIGHT	-
-	FT8948-1	轴承拉拔器	PULLER TOOL Bearing	-
-	83164M	飞轮拉拔器	FLYWHEEL PULLER	-

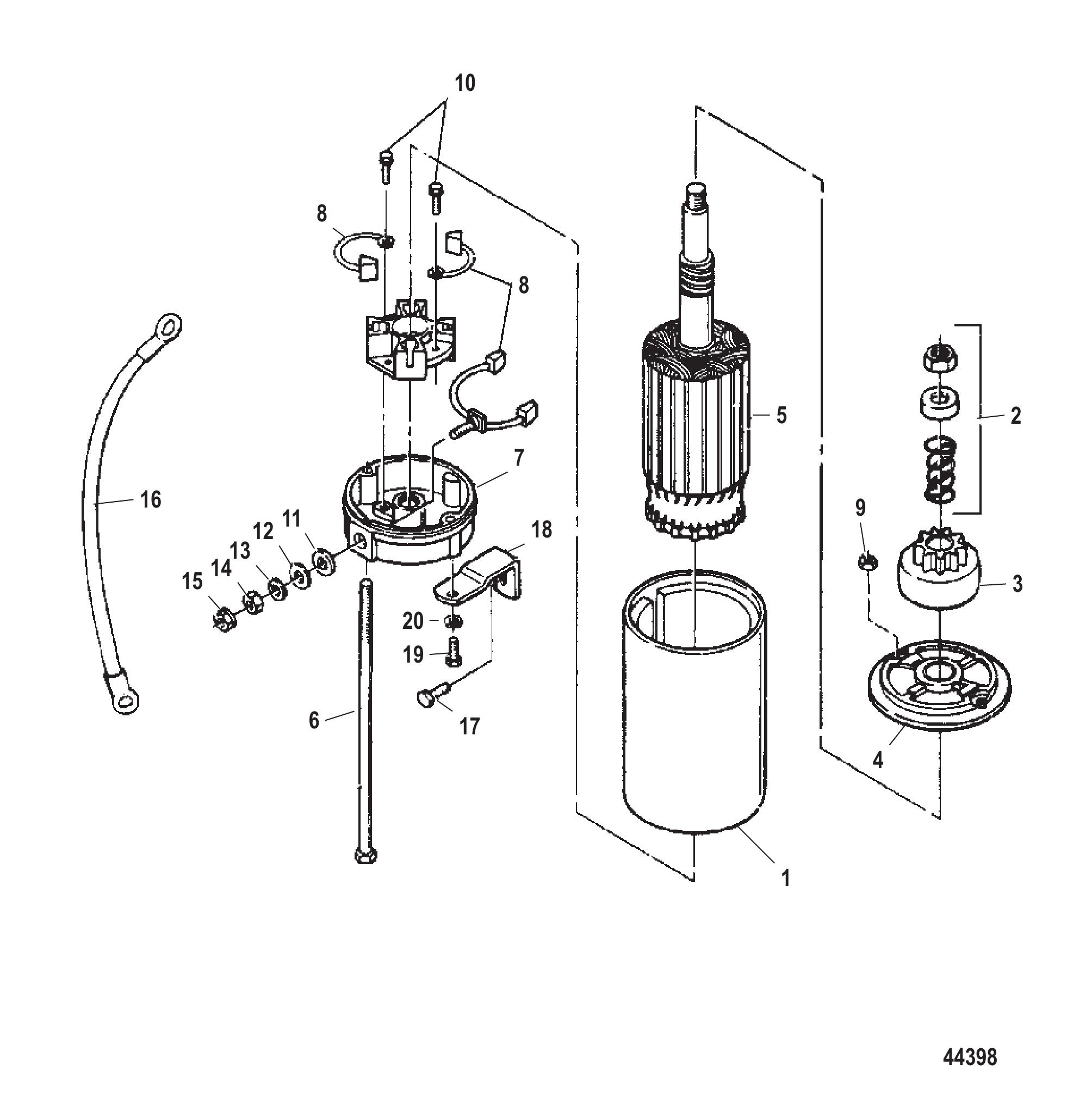

图 21启动机 Starter

REF	零件编号	中文名称	英文名称	数量
1	F616955	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	898265002	启动马达	STARTER MOTOR	1
2	F15174	驱动套件	DRIVE KIT	1
2	90644	驱动套件	DRIVE KIT	1
3	F15175	驱动总成	DRIVE ASSEMBLY	1
3	802587T01	驱动小齿轮	DRIVE-PINION	1
4	F15176	端盖	END CAP	1
4	803888T	驱动端盖	END CAP-DRIVE	1
5	F15177	电枢	ARMATURE	1
6	F15178	贯穿螺栓	THRU BOLT	1
7	F15179	盖帽	CAP	1
8	F15164	电刷套件	BRUSH KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	F1641	螺母	NUT	1
9	8267089	螺母(.250-28)	NUT (.250-28)	1
10	F15158	电刷架螺钉	SCREW BRUSH HOLDER	1
11	F15160	垫圈	WASHER	1
11	804700	垫圈	WASHER	1
12	F15161	垫圈	WASHER	1
12	38013	垫圈	WASHER	1
13	F8083	锁紧垫圈(0.250)	LOCKWASHER (.250)	1
13	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
14	F1341	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
14	64015	螺母 (.250-20)	NUT (.250-20)	1
15	F15162	螺母	NUT	1
16	F85908-1	启动机电缆总成	CABLE ASSEMBLY Starter	1
17	F1922	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
18	F616675	支架	BRACKET	1
19	F1854	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
19	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
20	F8083	锁紧垫圈(0.250)	LOCKWASHER (.250)	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1

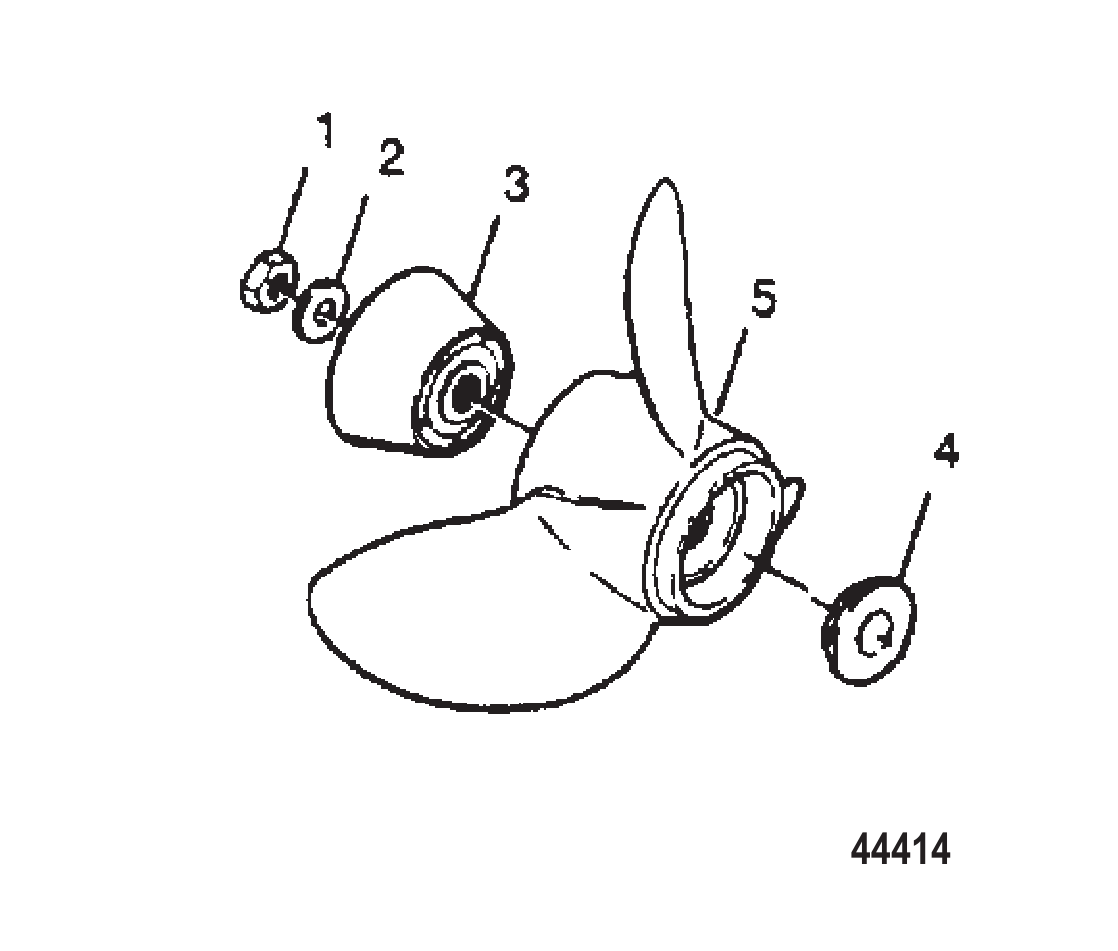

图 22直轮毂螺旋桨 Straight Hub Propeller

REF	零件编号	中文名称	英文名称	数量
1	F7000	螺母(.750-16)	NUT (.750-16)	1
1	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
1	F7048	螺母(0.625-18)	NUT (.625-18)	1
2	F8167	垫圈 (.750)	WASHER (.750)	1
2	F1866	垫圈 (.625)	WASHER (.625)	1
3	F532299	锥形垫圈	WASHER (FLARE)	1
4	F694099	螺旋桨隔套	SPACER PROPELLER	1
4	F523099-1	隔套	SPACER	1

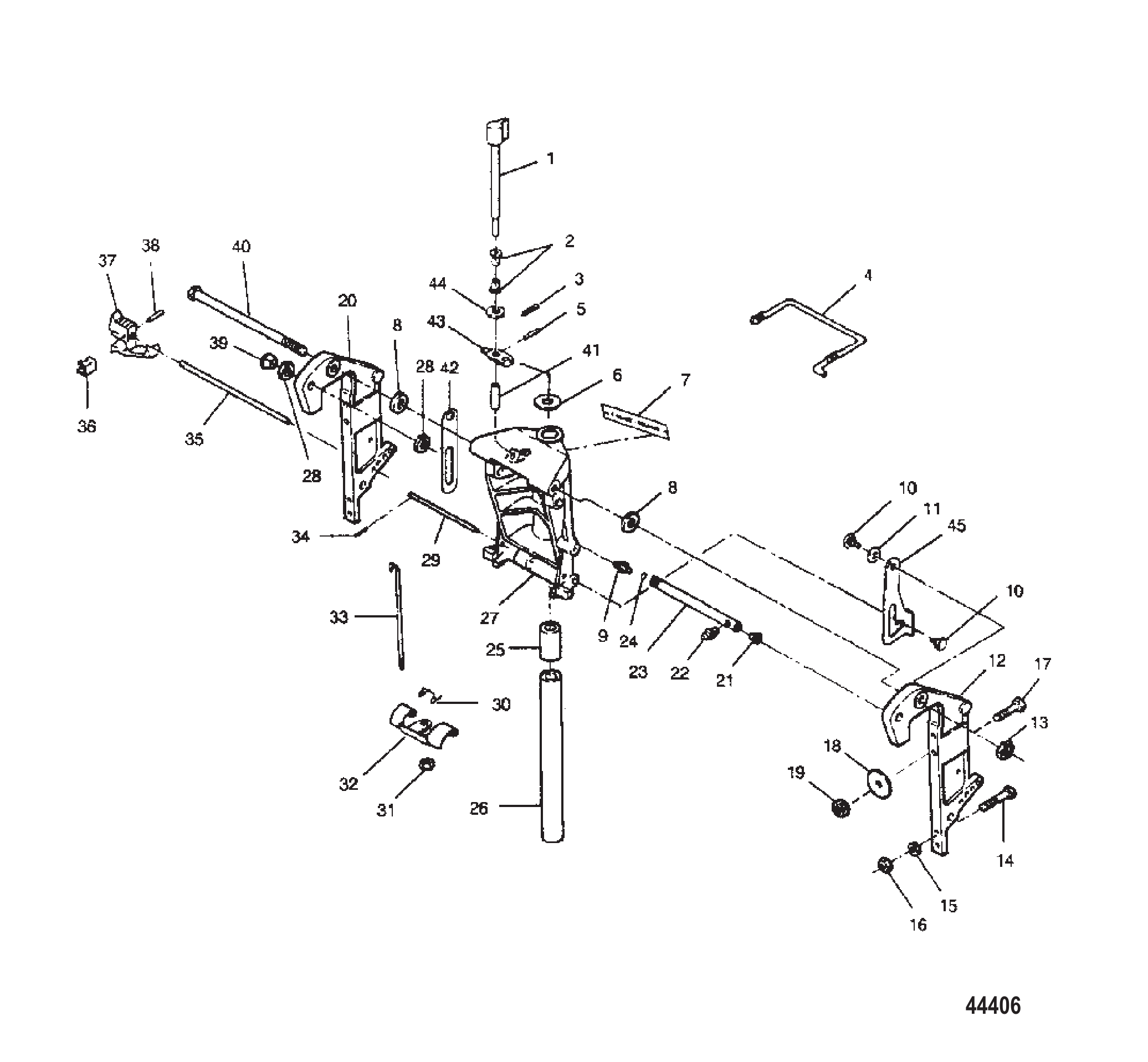

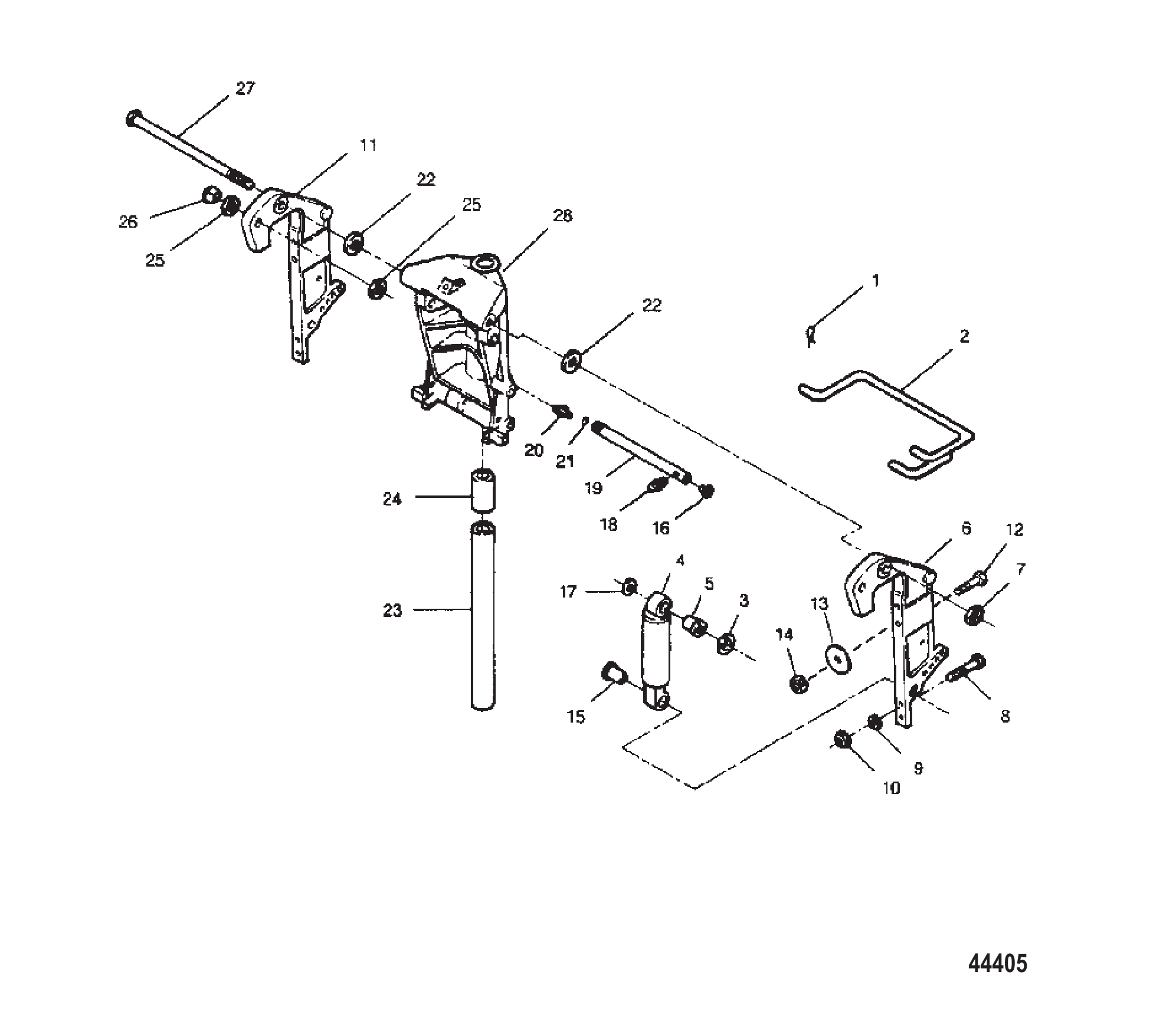

图 23旋转支架与艉板支架（动力升降型号） Swivel Bracket and Transom Bracket (Power Trim Models)

REF	零件编号	中文名称	英文名称	数量
1	F525629	销	PIN	1
2	F5H179	支架套件	BRACKET KIT	1
2	819504A2	支架套件	BRACKET KIT	1
3	F1710	垫圈	WASHER	4
4	FS631962	减震器总成	SHOCK ABSORBER ASSEMBLY	1
4	FS719962	减震器总成	SHOCK ABSORBER ASSEMBLY	1
5	F178344	衬套	BUSHING	1
6	F685532-1	船尾左舷支架	BRACKET Stern PORT	1
6	820446F	支架	BRACKET	1
7	F7012	锁紧螺母 (.50-20)	LOCKNUT (.50-20)	1
7	898832	螺母(.500-20)	NUT (.500-20)	1
8	F2185	螺钉六角头(.375-16 x 3.50)不锈钢	SCREW Hex Head (.375-16 x 3.50) SS	2
9	FK684201	垫圈	WASHER	2
10	F1346	螺母 (.375-16) 不锈钢	NUT (.375-16) SS	2
10	8M0204671	螺母	NUT	2
11	F685032-1	船尾右舷支架	BRACKET Stern STARBOARD	1
11	820445F	支架	BRACKET	1
12	F685632	螺栓 (.50-20 x 7.00) 不锈钢	BOLT (.50-20 x 7.00) Stainless Steel	2
13	F684201	垫圈	WASHER	2
13	FK684201	垫圈	WASHER	2
14	F7056	螺母(.50-20)	NUT (.50-20)	2
14	82671117	螺母(.500-20)	NUT (.500-20)	2
15	F449362	衬套	BUSHING	2
16	F9052	塑料堵头	PLUG Plastic	1
17	F1711	垫圈	WASHER	2
18	F523274	润滑脂接头	FITTING Grease	1
19	818066A3	转向支撑管总成	TUBE ASSEMBLY STEERING SUPPORT	1
20	F213274	接头	FITTING	3
21	F316599	密封件	SEAL	1
21	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
22	F84286-1	垫圈	WASHER	4
23	FS85019	主销(20英寸机型)	KINGPIN (20 INCH MODELS)	1
-	FA500019	主销总成(25英寸机型)	KINGPIN ASSEMBLY (25 INCH MODELS)	1
24	F438169	轴承	BEARING	2
24	819493	衬套	BUSHING	2
25	F523280	螺母	NUT	2
26	F9018	塑料盖	CAP Plastic	1
27	F85037-1	船尾支架枢轴螺栓	BOLT Stern Bracket Pivot	1
28	817783A5	带轴承和注油嘴的旋转支架	SWIVEL BRACKET With Bearings And Grease Fitting	1

图 24旋转支架与艉板支架（无动力升降） Swivel Bracket and Transom Bracket (Without Power Trim)

REF	零件编号	中文名称	英文名称	数量
1	817946A2	手柄与轴	HANDLE AND SHAFT	1
2	F197813	轴承	BEARING	2
2	26856	衬套	BUSHING	2
3	F1014	开口销	COTTER PIN	1
3	26953	开口销	COTTER PIN	1
4	F5H179	支架套件	BRACKET KIT	1
4	819504A2	支架套件	BRACKET KIT	1
5	F1836	弹簧销	PIN Spring	1
6	F84011	垫圈	WASHER	1
7	F529390-1	倒车锁止贴花	DECAL REVERSE LOCK	1
7	819450	贴花	DECAL	1
8	F84286-1	垫圈	WASHER	4
9	F213274	接头	FITTING	3
10	F85350-1	倾斜限位枢轴	PIVOT Tilt Stop	4
11	F1666	弓形弹簧垫圈	WASHER Bowed Spring	2
11	69150	波形垫圈	WAVE WASHER	2
12	F685532-1	船尾左舷支架	BRACKET Stern PORT	1
12	820446F	支架	BRACKET	1
13	F7012	锁紧螺母 (.50-20)	LOCKNUT (.50-20)	1
13	898832	螺母(.500-20)	NUT (.500-20)	1
14	F2185	螺钉六角头(.375-16 x 3.50)不锈钢	SCREW Hex Head (.375-16 x 3.50) SS	2
15	FK684201	垫圈	WASHER	2
16	F1346	螺母 (.375-16) 不锈钢	NUT (.375-16) SS	2
16	8M0204671	螺母	NUT	2
17	F685632	螺栓 (.50-20 x 7.00) 不锈钢	BOLT (.50-20 x 7.00) Stainless Steel	2
18	F684201	垫圈	WASHER	2
18	FK684201	垫圈	WASHER	2
19	F7056	螺母(.50-20)	NUT (.50-20)	2
19	82671117	螺母(.500-20)	NUT (.500-20)	2
20	F685032-1	船尾右舷支架	BRACKET Stern STARBOARD	1
20	820445F	支架	BRACKET	1
21	F9052	塑料堵头	PLUG Plastic	1
22	F523274	润滑脂接头	FITTING Grease	1
23	818066A3	转向支撑管总成	TUBE ASSEMBLY STEERING SUPPORT	1
24	F316599	转向支撑管密封件	SEAL STEERING SUPPORT TUBE	1
24	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
25	F438169	轴承	BEARING	2
25	819493	衬套	BUSHING	2
26	FS85019	主销(20英寸机型)	KINGPIN (20 INCH MODELS)	1
-	FA500019	主销总成(25英寸机型)	KINGPIN ASSEMBLY (25 INCH MODELS)	1
27	817783A5	带轴承和注油嘴的旋转支架	SWIVEL BRACKET With Bearings And Grease Fitting	1
28	F523280	转向支撑管螺母	NUT STEERING SUPPORT TUBE	2
29	F177350	销倒挡锁	PIN Reverse Lock	1
30	F85300	倒挡锁弹簧	SPRING Reverse Lock	1
31	F1669	螺母（#6-32）	NUT (#6-32)	1
31	8M0207777	不锈钢螺母	NUT-SS	1
32	F369349	倒车锁	LOCK Reverse	1
33	F369510	连接杆	LINK	1
34	F1744	弹簧销	PIN Spring	1
34	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
35	FA438113	艉支架锁杆总成	LOCK BAR ASSEMBLY Stern Bracket	1
36	F286461	锁杆手柄弹簧	SPRING LOCKBAR HANDLE	1
37	F433114	锁杆手柄	HANDLE LOCKBAR	1
37	816517	手柄	HANDLE	1
38	F1744	弹簧销	PIN Spring	1
38	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
39	F9018	塑料盖	CAP Plastic	1
40	F85037-1	船尾支架枢轴螺栓	BOLT Stern Bracket Pivot	1
41	F483884	轴承	BEARING	1
42	F85426	倾斜挡块	STOP Tilt	1
42	823785	绑带	STRAP	1
43	F369364	倒车锁臂	ARM Reverse Lock	1
44	F8094	垫圈	WASHER	1
44	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
45	F85541-1	倾斜锁	LOCK Tilt	1
45	823786	绑带	STRAP	1

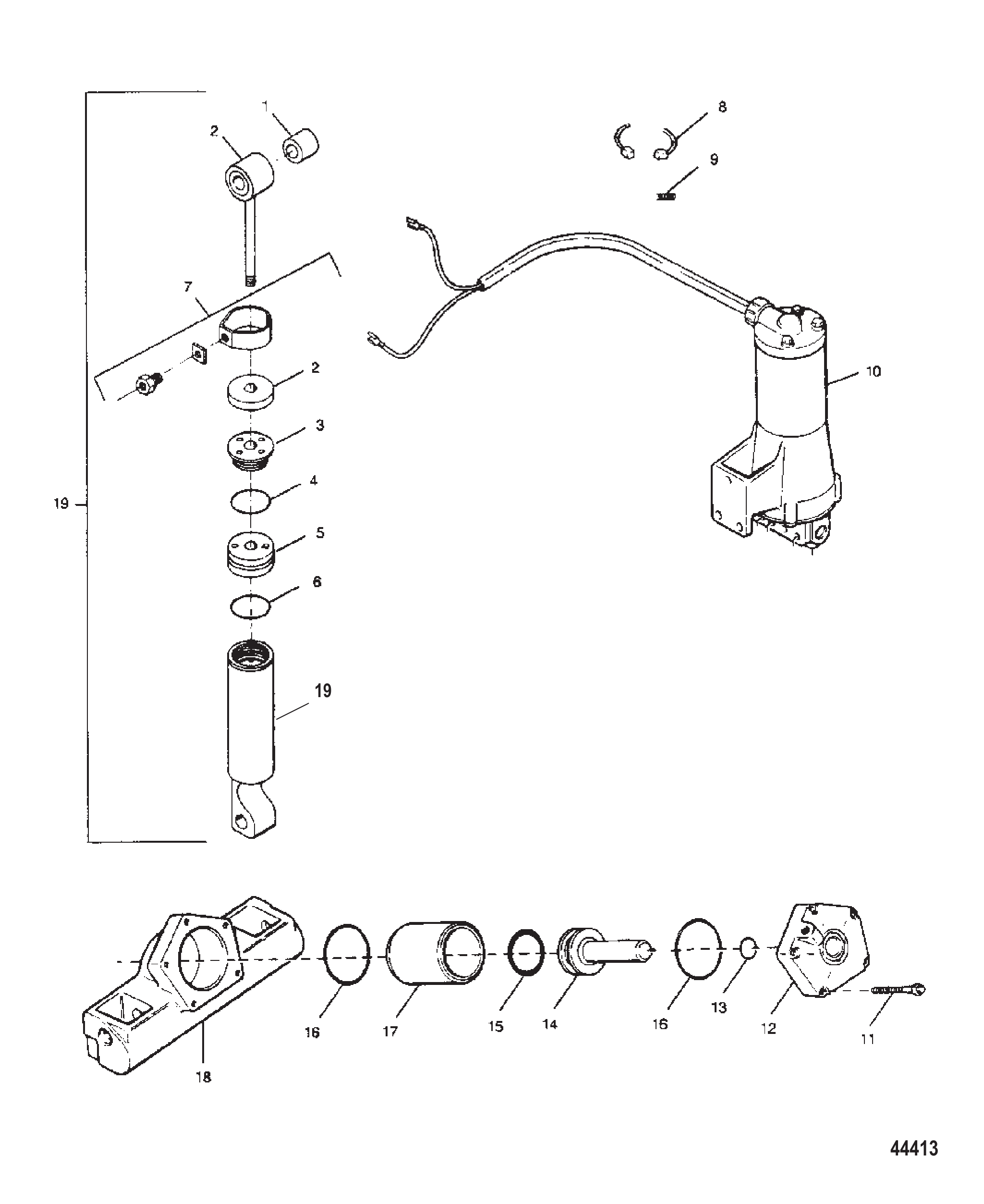

图 25倾斜油缸、升降油缸、电机与泵 Tilt Cylinder, Trim Cylinder, Motor and Pump

REF	零件编号	中文名称	英文名称	数量
1	F178344	衬套	BUSHING	1
2	F2A654017	连杆总成	ROD ASSEMBLY	-
2	819365A2	气缸总成	CYLINDER ASSEMBLY	-
3	FA654055	头总成	HEAD ASSEMBLY	1
4	F654618	O型圈	O-RING	1
5	FA654015	活塞总成	PISTON ASSEMBLY	1
6	F654984	O型圈	O-RING	1
7	F2A654983	带总成	BAND ASSEMBLY	1
8	F17611	电刷组	BRUSH SET	1
8	8989	电刷套件	BRUSH KIT	1
9	F17500	电刷弹簧组	SPRING SET BRUSH	1
9	2529	弹簧组	SPRING SET	1
11	F1959	螺钉 (.25-20 X 1.75)	SCREW (.25-20 X 1.75)	5
12	817802A3	盖总成	COVER ASSEMBLY	1
13	F449342	活塞轴O型圈	O-RING PISTON SHAFT	1
14	FA449015	活塞总成	PISTON ASSEMBLY	1
14	803481T	液压活塞总成	PISTON ASSY-HYD	1
15	F449278	O型圈	O-RING	1
16	F40278	气缸O型圈	O-RING CYLINDER	2
17	F449010	气缸	CLYINDER	1
17	803823T	液压缸	CYLINDER HYD	1
18	F449545-2	壳体	HOUSING	1
18	818055F	壳体	HOUSING	1
19	FS654381	气缸总成	CYLINDER ASSEMBLY	1
19	819365A2	气缸总成	CYLINDER ASSEMBLY	1

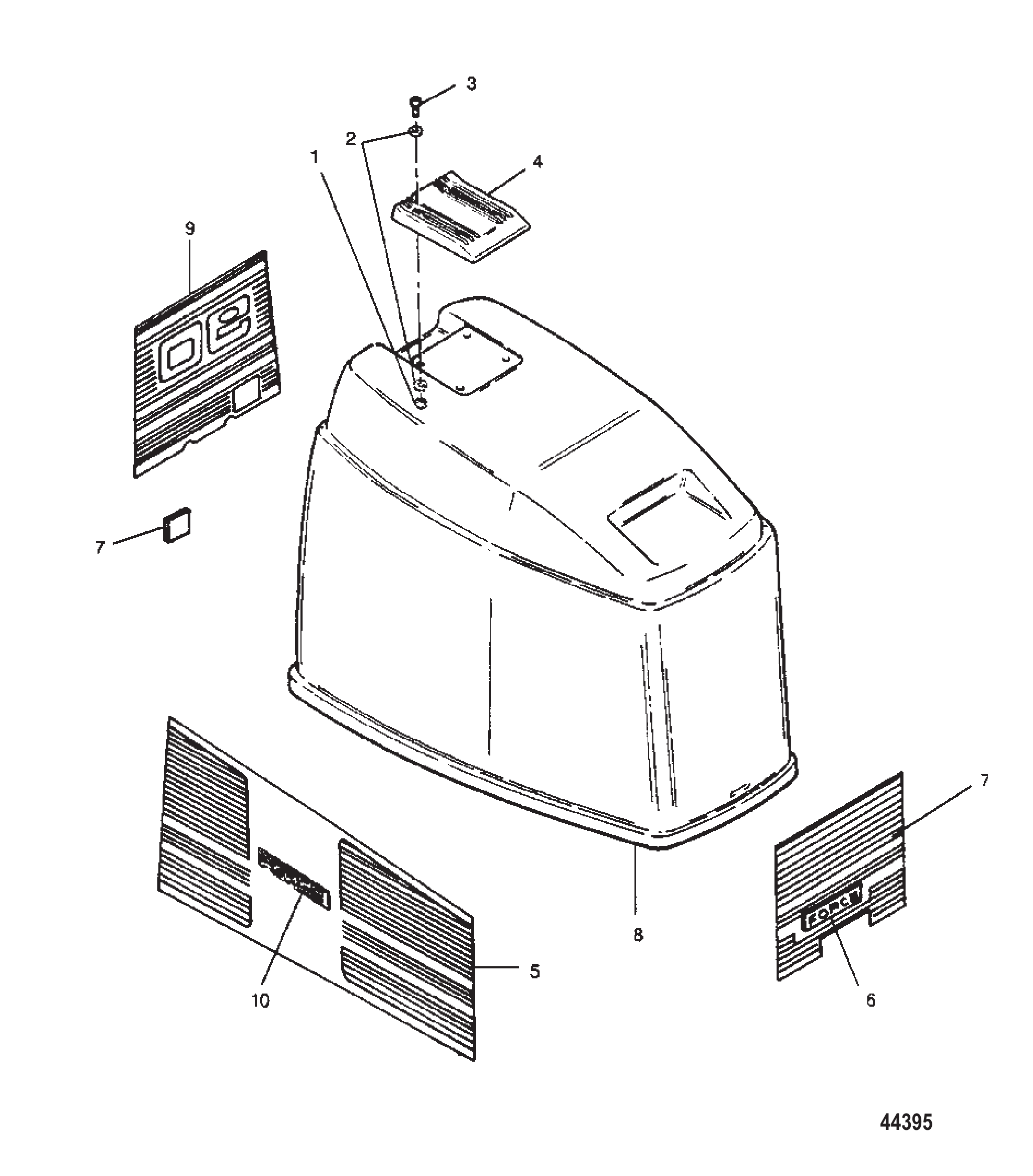

图 26顶罩（Bayliner/Maxum） Top Cowl Bayliner / Maxum

REF	零件编号	中文名称	英文名称	数量
1	F7060	螺母 (.250-20)	NUT (.250-20)	4
1	8267118	螺母 (.250-20)	NUT (.250-20)	4
2	F2012	垫圈	WASHER	8
2	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
3	F2143	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	4
4	F663269	倾斜手柄	HANDLE TILT	1
4	828477	倾斜手柄	HANDLE Tilt	1
5	FX719396	右舷贴花-Bayliner	DECAL STARBOARD-Bayliner	1
5	FZ719396	右舷贴花-Maxum	DECAL STARBOARD-Maxum	1
-	FX719397	左舷贴花-Bayliner	DECAL PORT-Bayliner	1
-	FZ719397	左舷贴花-Maxum	DECAL PORT-Maxum	1
6	FX719892	前部贴花-Bayliner	DECAL FRONT-Bayliner	1
6	FZ719892	前部贴花-Maxum	DECAL FRONT-Maxum	1
7	F694366	贴花 "US MARINE"	DECAL "US MARINE"	1
7	F694366-1	徽章	MEDALLION	1
8	FS663712	盖总成(无喷漆/贴花/五金件)	COVER ASSEMBLY (WITHOUT PAINT, DECALS OR HARDWARE)	1
8	819364T9	基本罩总成	COWL ASSY-BASIC	1
9	FX719528	后部贴花-Bayliner	DECAL REAR - Bayliner	1
9	FZ719528	后部贴花-Maxum	DECAL REAR - Maxum	1
10	F663366-1	徽章	MEDALLION	3
10	819169	徽章	MEDALLION	3
-	F663984-1	顶罩(未图示)	BLANKET TOP (NOT SHOWN)	1
-	827291	隔音毯	BLANKET Sound	1
-	F663985	侧罩(未图示)	BLANKET SIDE (NOT SHOWN)	2
-	818092A1	发动机顶盖总成 Bayliner-90马力	TOP ENGINE COVER Bayliner-90 Hp Complete	1
-	818098A1	顶盖总成 Maxum 90马力	TOP ENGINE COVER Maxum 90 Hp Complete	1

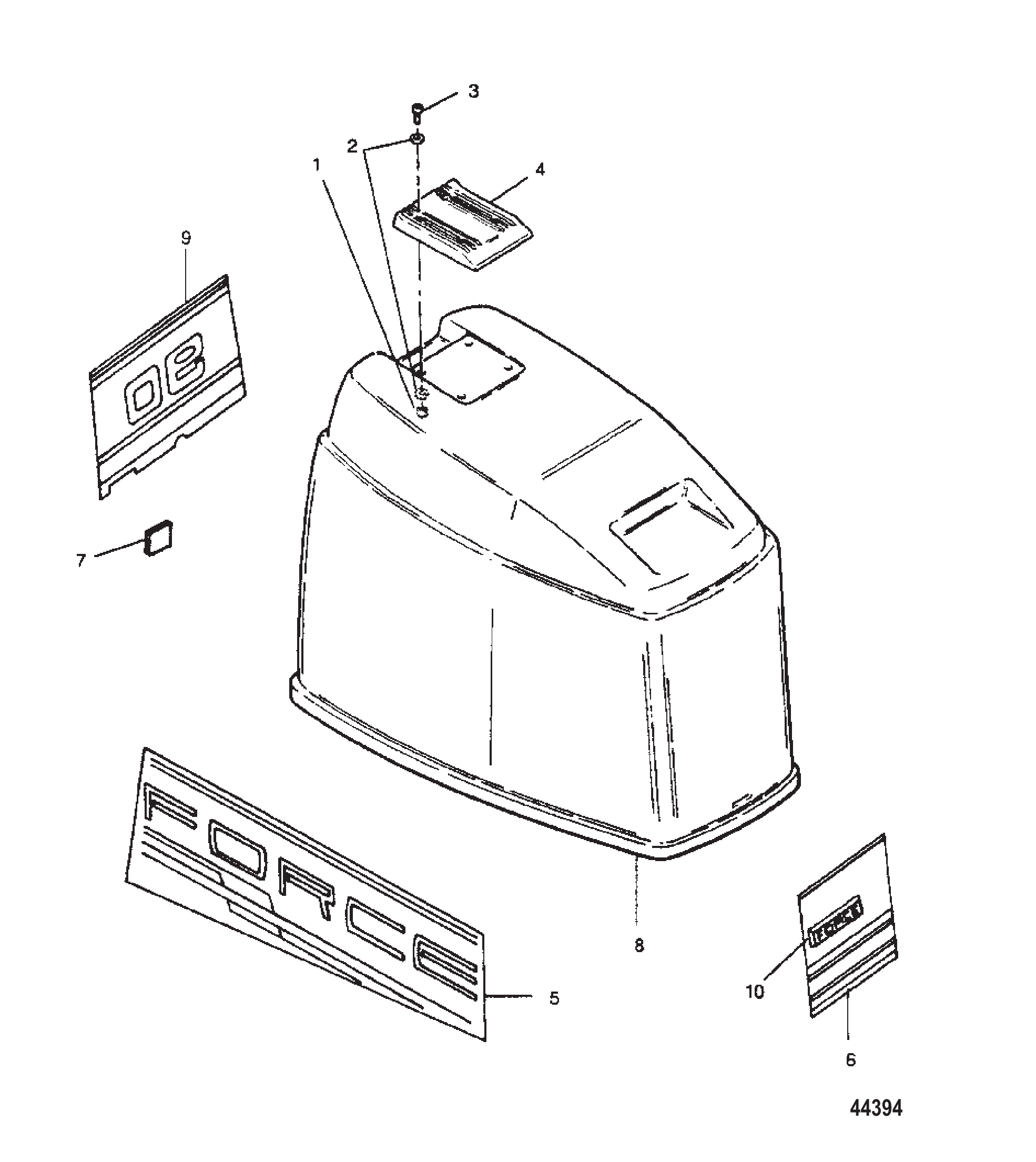

图 27顶罩（Force） Top Cowl Force

REF	零件编号	中文名称	英文名称	数量
1	F7060	螺母 (.250-20)	NUT (.250-20)	4
1	8267118	螺母 (.250-20)	NUT (.250-20)	4
2	F2012	垫圈	WASHER	8
2	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
3	F2143	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	4
4	F663269	倾斜手柄	HANDLE TILT	1
4	828477	倾斜手柄	HANDLE Tilt	1
5	F719396	右舷贴花	DECAL STARBOARD	1
-	F719397	左舷贴花	DECAL PORT	1
6	F719892	前标牌	DECAL FRONT	1
7	8179851	徽章 "US MARINE"	MEDALLION "US MARINE"	1
8	FS663712	盖总成	COVER ASSEMBLY	1
8	819364T9	基本罩总成	COWL ASSY-BASIC	1
-	F2C719712	盖板总成	COVER ASSEMBLY COMPLETE	1
9	F719528	后贴花	DECAL REAR	1
10	F663366-1	徽章	MEDALLION	1
10	819169	徽章	MEDALLION	1
-	F663984-1	顶罩(未图示)	BLANKET TOP (NOT SHOWN)	1
-	827291	隔音毯	BLANKET Sound	1
-	F663985	侧罩(未图示)	BLANKET SIDE (NOT SHOWN)	2
