Force 系列 · USA - Cat.# 90-855374R1 · 共 26 个部位 · 896 条零件

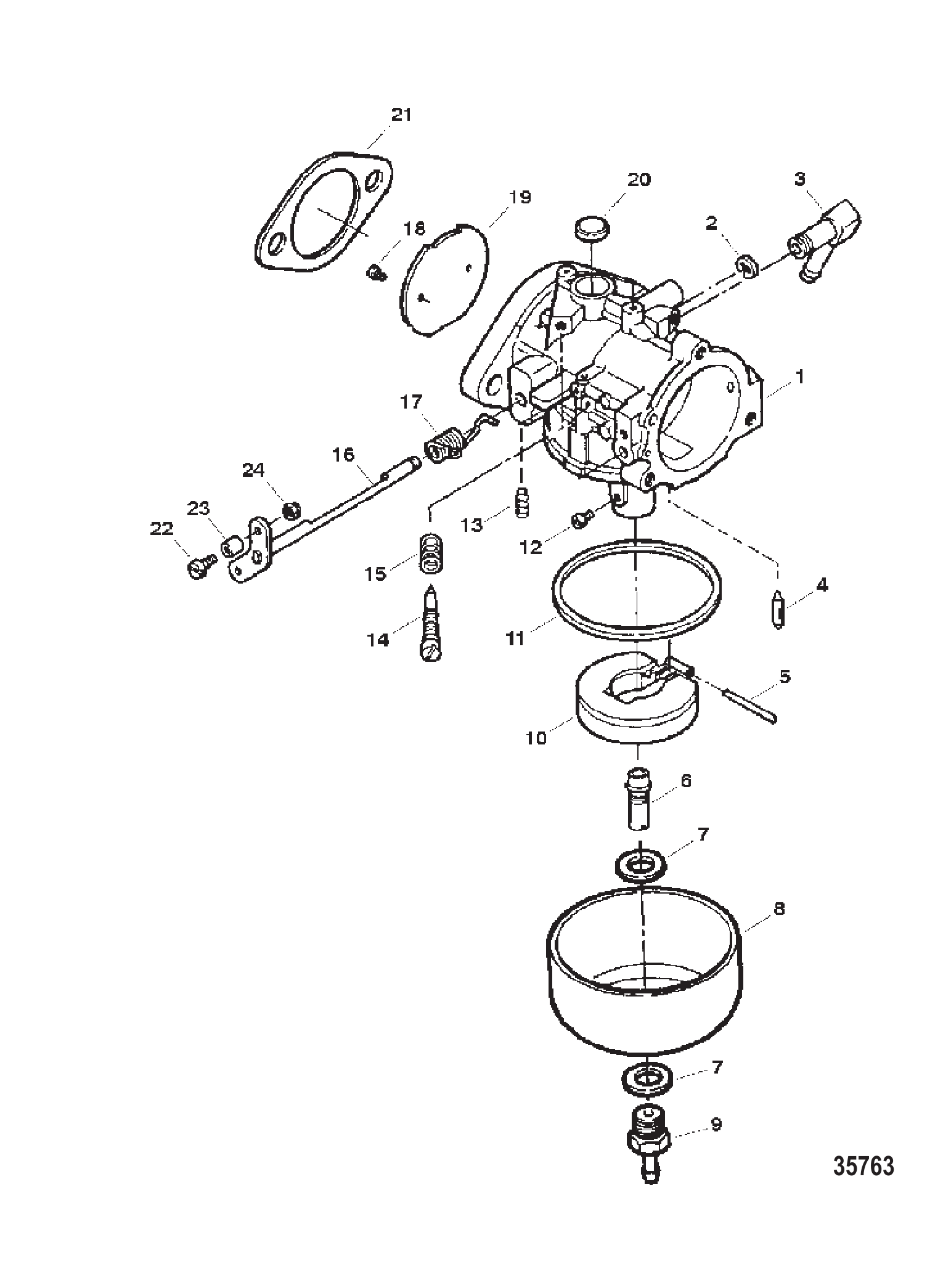

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 854446 | 化油器(TC-135A) | CARBURETOR (TC-135A) | 1 |
| 1 | 854447 | 化油器(TC-136A) | CARBURETOR (TC-136A) | 1 |
| 2 | FO16620 | 节气门轴E型卡环 | E RING Throttle Shaft | 1 |
| 3 | F84314-2 | 燃油弯头(左) | ELBOW (L) Fuel | 1 |
| 4 | F10265 | 进油针阀 | NEEDLE Inlet | 1 |
| 5 | FO13944 | 浮子销 | PIN Float | 1 |
| 6 | FO16133 | 主喷嘴 | NOZZLE Main | 1 |
| 7 | FO5323 | 燃油杯衬垫 | GASKET Fuel Bowl | 2 |
| 8 | FO16130 | 燃油杯 | BOWL Fuel | 1 |
| 9 | F10267 | 燃油杯螺钉组件 | SCREW ASSEMBLY Fuel Bowl | 1 |
| 10 | F10346 | 燃油杯浮子 | FLOAT Fuel Bowl | 1 |
| 10 | 891730A01 | 浮子套件 | FLOAT KIT | 1 |
| 11 | FO15623 | 燃油杯衬垫 | GASKET Fuel Bowl | 1 |
| 12 | 4217 | 主量孔(.062) | JET Main (.062) | 1 |
| 12 | 6487 | 主量孔(0.060) | JET Main (.060) | OPT |
| 12 | 809448 | 主量孔(.058) | JET Main (.058) | OPT |
| 12 | 5213 | 主量孔(.056) | JET Main (.056) | OPT |
| 12 | 5225 | 主量孔(.054) | JET Main (.054) | OPT |
| 12 | 6249 | 主喷口(.096) | JET Main (.096) | 1 |
| 12 | FO14191 | 主量孔(.094) | JET Main (.094) | OPT |
| 12 | 5733 | 主量孔 (.092) | JET Main (.092) | OPT |
| 12 | 6247 | 主量孔(0.090) | JET Main (.090) | OPT |
| 12 | FO13193 | 主量孔(.088) | JET Main (.088) | OPT |
| 13 | F10274 | 启动喷嘴 | NOZZLE Primer | 1 |
| 14 | F10268 | 怠速混合气螺钉 | SCREW Idle Mixture | 1 |
| 15 | 27160 | 怠速混合气螺钉弹簧 | SPRING Idle Mixture Screw | 1 |
| 16 | FO17884 | 节气门轴及杠杆 | SHAFT AND LEVER Throttle | 1 |
| 17 | FO16143 | 节气门轴弹簧 | SPRING Throttle Shaft | 1 |
| 18 | F10328 | 百叶窗螺钉 | SCREW Shutter | 2 |
| 18 | 803176 | 螺钉-带补片 | SCREW-W/PATCH | 2 |
| 19 | FO16142 | 节气门片 | SHUTTER Throttle | 1 |
| 20 | FO16128 | 韦尔奇塞 | PLUG Welch | 1 |
| 21 | F440906 | 化油器法兰衬垫 | GASKET Carburetor Flange | 1 |
| 22 | 830110 | 滚轮轴 | SHAFT Roller | 1 |
| 23 | 819225 | 节气门凸轮滚轮 | ROLLER Throttle Cam | 1 |
| 24 | F1997 | 螺母（#8-32） | NUT (#8-32) | 1 |
| 24 | 8267094 | 螺母 @5 | NUT @5 | 1 |
| - | 827688A1 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| - | FK10023 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| - | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

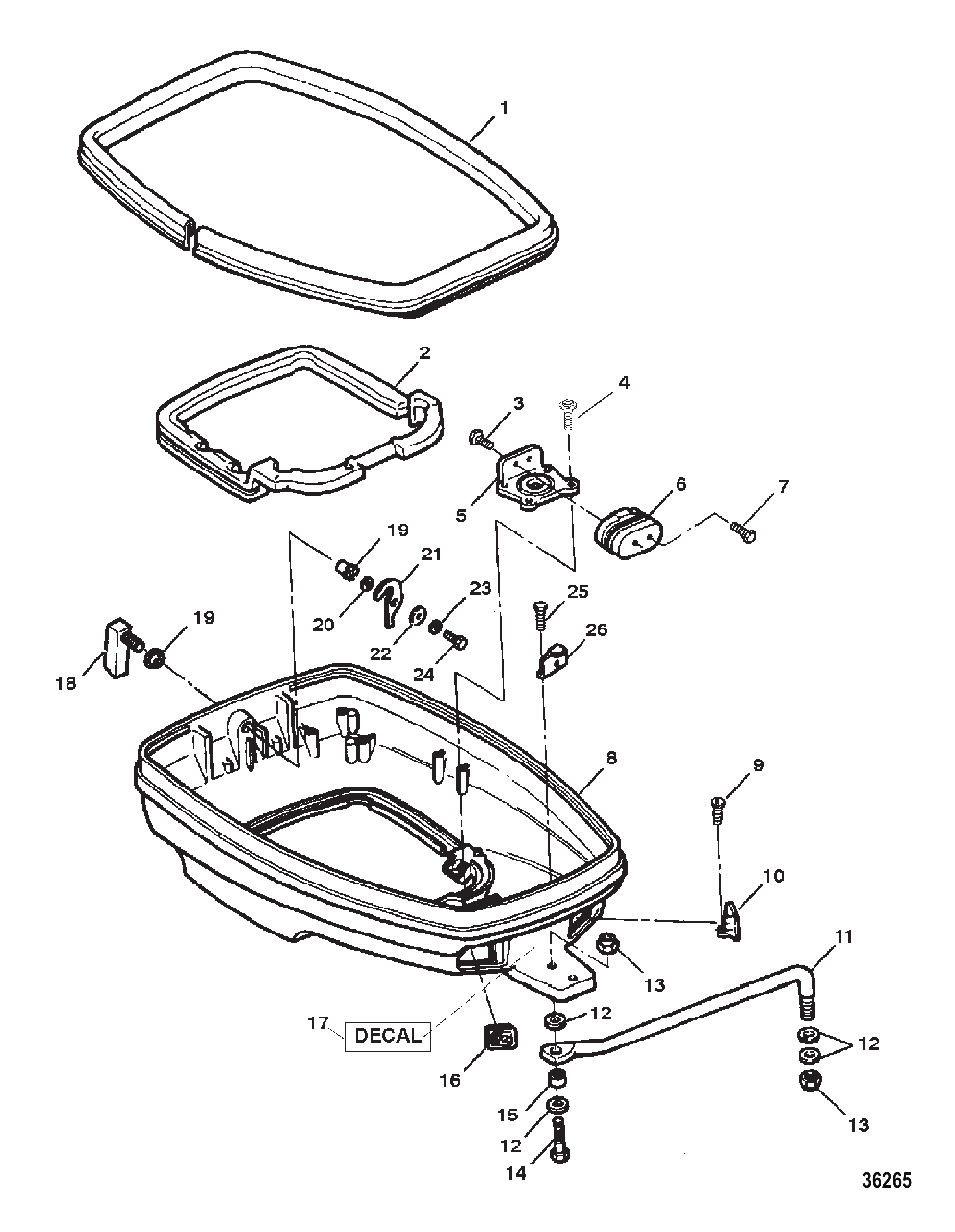

| 1 | F6637561 | 密封填料(81英寸散装) | PACKING (81.00 Inches Bulk) | 1 |
| 2 | F684989 | 底罩板密封件 | SEAL Bottom Cowl Plate | 1 |
| 3 | 826381 | 螺丝(0.250-28×0.625)带防松胶 | SCREW (.250-28 x .625) With Dri Lok | 2 |
| 4 | 819110100 | 螺钉 (.250-20 x 1.00) | SCREW (.250-20 x 1.00) | 4 |
| 5 | F684354 | 上减震器支架 | BRACKET Upper Shock Mount | 1 |
| 6 | F2039651 | 上减震器座 | MOUNT Shock Upper | 1 |
| 7 | 826376 | 螺丝(0.250-28×0.625)带防松胶 | SCREW (.250-28 x .625) With Dri Lok | 2 |
| 8 | 819372A3 | 底罩套件(喷漆) | BOTTOM COWL KIT Bottom (Painted) | 1 |
| 9 | 852453 | 螺钉(#10-24 x .560) | SCREW (#10-24 x .560) | 2 |
| 10 | 828763 | 线缆入口衬套 | BUSHING Cable Entry | 1 |
| 11 | F5H141 | 转向连杆套件 | LINK KIT Steering | 1 |
| 12 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 4 |
| 13 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 13 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 14 | 90072 | 螺钉(.375-24 x 1.750) | SCREW (.375-24 x 1.750) | 1 |
| 15 | F522359 | 转向连杆垫片 | SPACER Steering Link | 1 |
| 16 | 8190062 | 线缆入口衬套 | BUSHING Cable Entry | 1 |
| 17 | 8180291 | 燃油混合比标贴 | DECAL Fuel Mix | 1 |
| 18 | 820000A7 | 罩锁手柄总成(喷漆) | HANDLE ASSEMBLY Cowl Latch (Painted) | 1 |
| 18 | 820000A08 | 手柄总成-黑色 | HANDLE ASY-BLACK | 1 |
| 19 | 812707 | 衬套 | BUSHING | 2 |
| 20 | F2047 | 波形垫圈 | WASHER Wave | 1 |
| 21 | F481777 | 凸轮锁轴 | CAM Latch Shaft | 1 |
| 21 | 8M0001081 | 凸轮 | CAM | 1 |
| 22 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 22 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 23 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 24 | 19923062 | 螺丝(0.250-20×0.625)带防松胶 | SCREW (.250-20 x .625) With Dri Lok | 1 |
| 25 | 28635 | 不锈钢螺丝(.250-20 x .620) | SCREW (.250-20 x .620) Stainless Steel | 2 |
| 26 | F6634801 | 前罩盖固定架 | RETAINER Cowl Front | 1 |

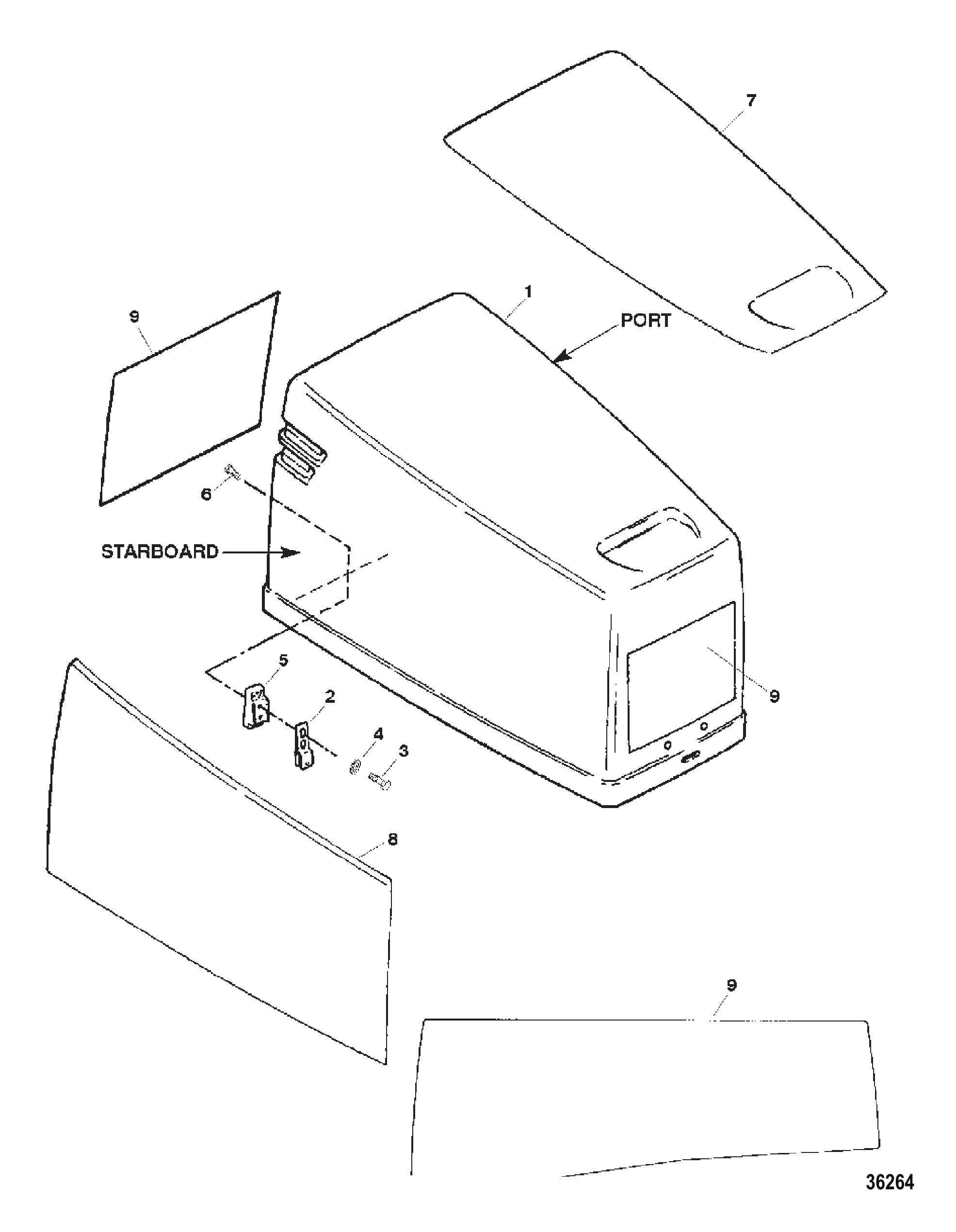

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 819046A7 | 顶罩总成 (喷漆) | TOP COWL ASSEMBLY (Painted) | 1 |
| 1 | 819046T7 | 基本罩总成 | COWL ASSY-BASIC | 1 |
| 2 | 18173 | 锁扣滚轮支架总成 | BRACKET ASSEMBLY Latch Roller | 1 |
| 2 | 893763 | 滚轮锁扣支架 | BRACKET Roller Latch | 1 |
| 3 | 90285 | 螺钉 (.312-18 x .625) | SCREW (.312-18 x .625) | 2 |
| 4 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 5 | F684774 | 后罩锁扣支架 | BRACKET Cowl Latch Rear | 1 |
| 6 | 28639 | 250-20×0.625 螺钉 | SCREW (250-20 x .625) | 2 |
| 7 | F749984 | 隔音毯 | BLANKET Sound | 1 |
| 8 | F749985 | 隔音毯 | BLANKET Sound | 2 |
| 9 | 855402A98 | 贴花套件 | DECAL SET | 1 |
| 9 | 852952A97 | 贴花套件 | DECAL SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

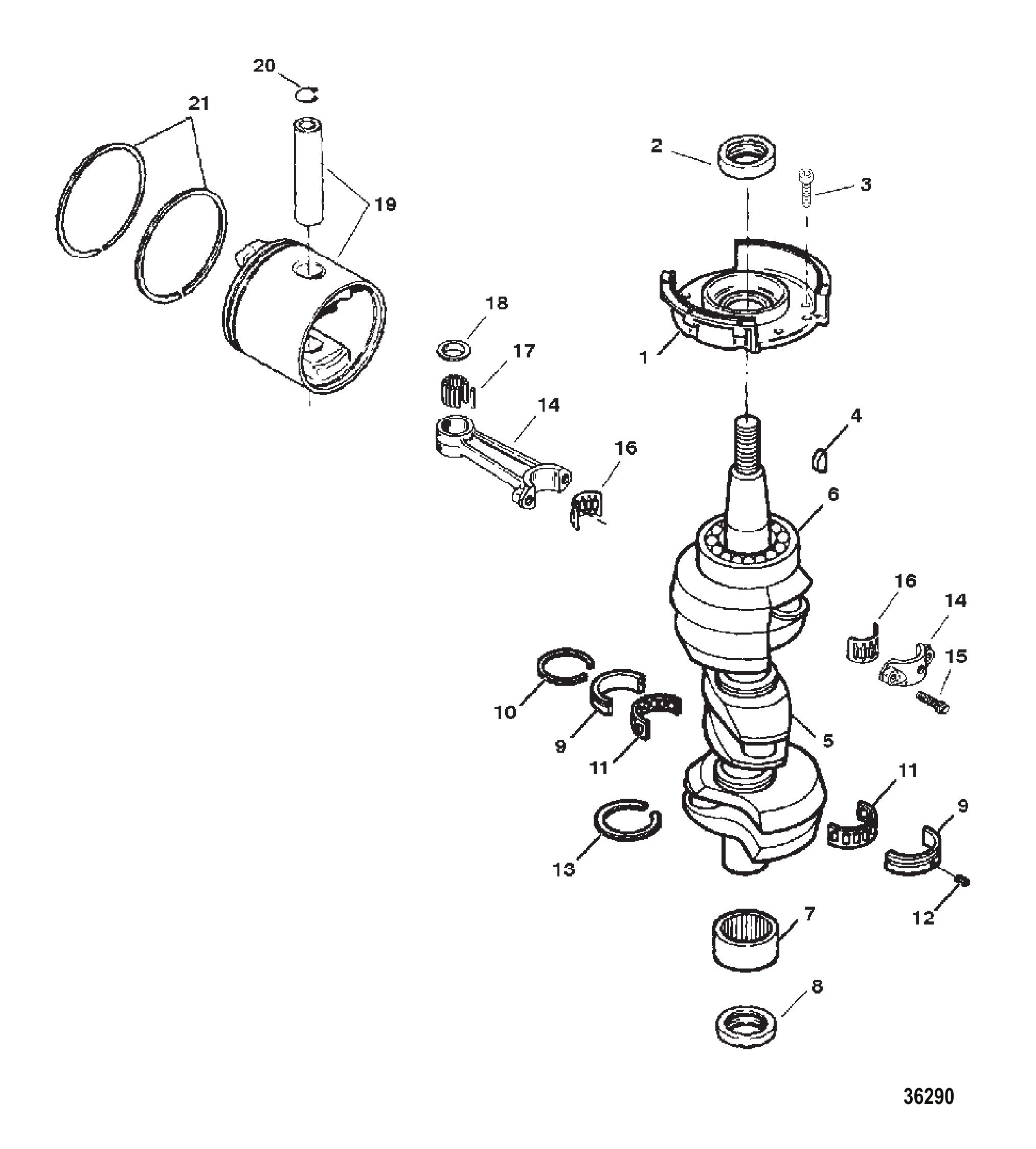

| 1 | 819312A3 | 曲轴上端保持架总成 | CAGE ASSEMBLY Crankshaft Upper | 1 |
| 1 | 819312T3 | 保持架总成-40/150 | CAGE ASSY-40/150 | 1 |
| 2 | 828626 | 曲轴上端油封 | SEAL Crankshaft Upper | 1 |
| 3 | 92160 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 5 |
| 4 | 91800 | 曲轴/飞轮伍德鲁夫键 | KEY Woodruff Crankshaft/Flywheel | 1 |
| 5 | 828448A1 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 5 | 828448T1 | 曲轴总成 | CRANKSHAFT ASSY | 1 |
| 6 | F284659-2 | 上滚珠轴承 | BEARING Ball Upper | 1 |
| 6 | 803893T | 滚珠轴承 | BEARING-BALL | 1 |
| 7 | 818050A4 | 下端轴承总成 | BEARING ASSEMBLY Lower | 1 |
| 7 | 818050T4 | 轴承总成 | BEARING ASSY | 1 |
| 8 | 828627 | 曲轴下端密封 | SEAL Crankshaft Lower | 1 |
| 9 | FA85655-1 | 中央主轴承总成 | BEARING ASSEMBLY Center Main | 2 |
| 9 | 803604T | 中央主轴承 | BEARING-CTR MAIN | 2 |
| 10 | F85410 | 卡环 | RING Snap | 2 |
| 11 | 819193 | 保持架/滚子组 | CAGE/ROLLER SET | 2 |
| 12 | 823605 | 定位销 | PIN Locating | 3 |
| 13 | F316579 | 曲轴箱密封件 | SEAL Crankcase | 2 |
| 14 | 9612A7 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 14 | 9612A6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 15 | 91012 | SCREW (.250-28 Special) Connecting Rod | 6 | |
| 16 | 17514A2 | 滚子轴承套件 | BEARING KIT Roller | 3 |
| 16 | 8M0234886 | 轴承保持架 | CAGE BEARING | 3 |
| 17 | 47270 | 滚针轴承 | BEARING Needle | 87 |
| 17 | 8M0214934 | 滚针轴承@200 | BRG-NEEDLE @200 | 87 |
| 18 | 812876 | 止推垫圈 | WASHER Thrust | 6 |
| 18 | 8M0012298 | 止推垫片 | THRUST WASHER | 6 |
| 19 | 828304A6 | 活塞套件 | PISTON KIT | 3 |
| 19 | 828304A13 | 标准活塞组件 | PISTON KIT-STD | 3 |
| 19 | 828304A7 | 活塞套件 | PISTON KIT | OPT |
| 19 | 828304A14 | 0.015加大活塞组件 | PISTON KIT-.015 | OPT |
| 19 | 828304A8 | 活塞套件 | PISTON KIT | OPT |
| 19 | 828304A15 | 活塞套件-.030 | PISTON KIT-.030 | OPT |
| 20 | 52035 | 锁环 | RING Lock | 6 |
| 20 | 857196 | 锁紧环 | LOCK RING | 6 |
| 21 | 828564A1 | 活塞环组(2环) | RING SET (2 Rings) | 3 |
| 21 | 828564A4 | 活塞环组 | RING SET | 3 |
| 21 | 828564A2 | 活塞环组(2环) | RING SET (2 Rings) | OPT |
| 21 | 828564A5 | 活塞环组 | RING SET | OPT |
| 21 | 828564A3 | 活塞环组(2环) | RING SET (2 Rings) | OPT |
| 21 | 828564A6 | 活塞环组 | RING SET | OPT |
| - | 855440A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818153A62 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

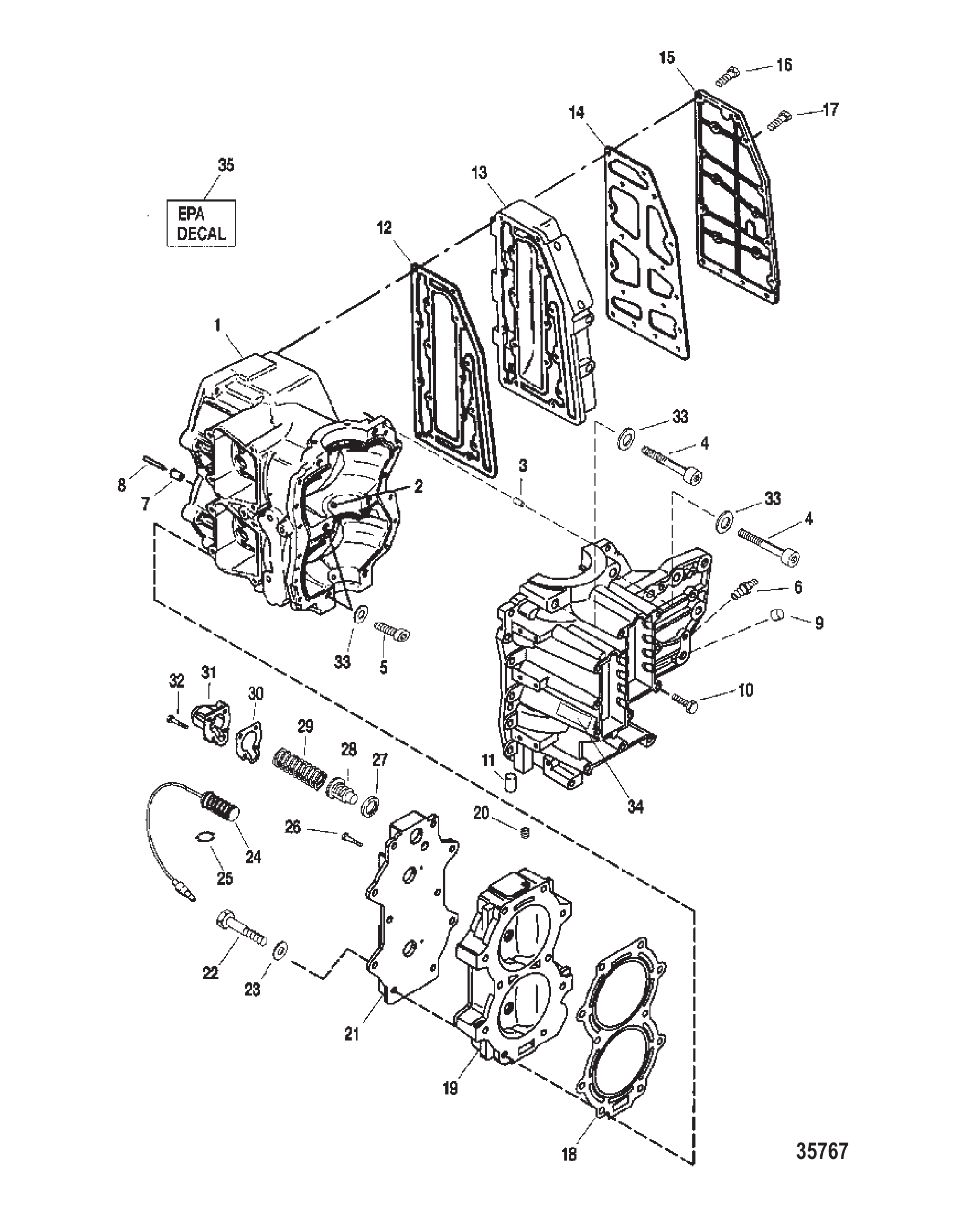

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 818152A29 | 动力头总成(喷漆) | POWERHEAD ASSEMBLY (Painted) | 1 |
| 1 | 818152A24 | 气缸套件 | CYLINDER KIT | 1 |
| 2 | 812870 | 中心主轴承定位销 | PIN Center Main Dowel | 2 |
| 2 | 8M0084653 | 定位销 | PIN - DOWEL | 2 |
| 3 | F8559 | 定位销 | PIN Dowel | 2 |
| 3 | 23784 | 定位销 | PIN Dowel | 2 |
| 4 | 834892 | 螺钉 (.375-16 x 3.00) | SCREW (.375-16 x 3.00) | 2 |
| 5 | 812567 | 螺丝(.375-16 x 1.625) | SCREW (.375-16 x 1.625) | 4 |
| 6 | 426582 | 止回阀 | CHECK VALVE | 1 |
| 6 | 426585 | 止回阀 | CHECK VALVE | 1 |
| 7 | 853660 | 水套管 | TUBE Water Jacket | 1 |
| 8 | F691372 | 水套管销 | PIN Water Jacket Tube | 1 |
| 9 | F433473 | 计量杯 | CUP Metering | 1 |
| NS | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| 10 | 819110075 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 10 |
| 10 | 819110088 | 螺钉(.250-20 x .875) | SCREW (.250-20 x .875) | 2 |
| 11 | 23784 | 定位销 | PIN Dowel | 2 |
| 12 | F691154 | 排气口板衬垫 | GASKET Exhaust Port Plate | 1 |
| 13 | 8199133 | 排气口板 | PLATE Exhaust Port | 1 |
| 13 | 819913T3 | 排气板 | PLATE-EXHAUST | 1 |
| 14 | F691153 | 排气口盖垫片 | GASKET Exhaust Port Cover | 1 |
| 15 | 8192691 | 排气口盖 | COVER Exhaust Port | 1 |
| 16 | 819110250 | 螺钉(.250-20 x 2.500) | SCREW (.250-20 x 2.500) | 15 |
| 17 | 819110075 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 2 |
| 18 | F691529-1 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| 19 | 8198501 | 气缸盖 | HEAD Cylinder | 1 |
| 20 | 328021 | 管塞(.125-27)(黄铜)-气缸盖 | PLUG Pipe (.125-27) (Brass)-Cylinder Head | 1 |
| 20 | 328022 | 黄铜管塞 (.125-27) | PLUG Pipe (.125-27) Brass | 1 |
| 21 | 819376 | 气缸盖罩 | COVER Cylinder Head | 1 |
| 22 | F2254 | 螺丝(.312-18 x 2.500) | SCREW (.312-18 x 2.500) | 10 |
| 23 | 34437 | 垫圈 | WASHER | 10 |
| 24 | 819502 | 温控开关(9.00英寸) | THERMOSWITCH (9.00 Inches) | 1 |
| 25 | F717096 | 挡圈 | RING Retaining | 1 |
| 26 | 819110062 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 2 |
| 27 | F658504 | 垫圈 节温器 | WASHER Thermostat | 1 |
| 28 | F97068-2 | 节温器54°C(130°F) | THERMOSTAT 54°C (130°F) | 1 |
| 28 | 895338 | 节温器 62°C (143°F) | THERMOSTAT 62°C (143°F) | 1 |
| 29 | 64878 | 节温器弹簧(黑色) | SPRING (Black) Thermostat | 1 |
| 30 | 819377 | 节温器盖衬垫 | GASKET Thermostat Cover | 1 |
| 31 | 8193751 | 节温器盖 | COVER Thermostat | 1 |
| 32 | 19926100 | 螺丝（#10-24 x 1.00） | SCREW (#10-24 x 1.00) | 4 |
| 33 | 828271 | 垫圈 | WASHER | 6 |
| 34 | 819526 | 油门线调节标签 | DECAL Throttle Cable Adjustment | 1 |
| 35 | 85698515 | EPA信息标签(贴于气缸体顶部) | DECAL EPA Label Information (Applied To The Top Of The Cylinder Block) | 1 |
| 35 | 856985A15 | REF SOB 09-18 | REF SOB 09-18 | 1 |
| - | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

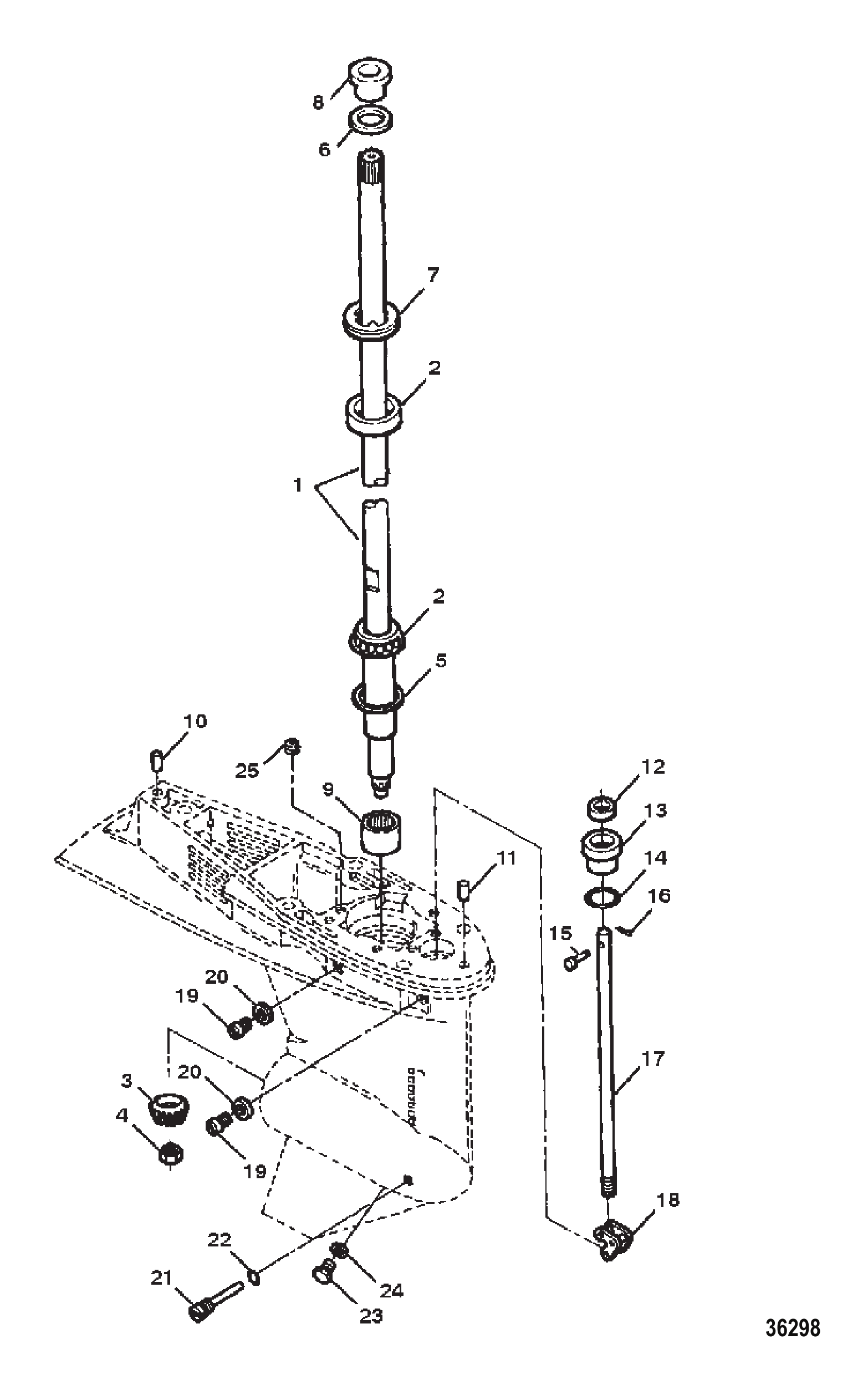

| 1 | 819051A1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 2 | 77420A1 | 滚子轴承总成(锥体与碗) | BEARING ASSEMBLY Roller (Cone And CUP) | 1 |
| 2 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 3 | 813694 | 小齿轮 | GEAR Pinion | 1 |
| 3 | 813694T | 小齿轮 | GEAR Pinion | 1 |
| 4 | 55910 | 特殊螺母(0.437-20) | NUT (.437-20) Special | 1 |
| 5 | 812770A1 | 驱动轴垫片组 | SHIM SET Driveshaft | 1 |
| 5 | 8M0063262 | 垫片组 | SHIM SET | 1 |
| 6 | F749271 | 驱动轴花键密封固定座 | RETAINER Driveshaft Spline Seal | 1 |
| 7 | 8128201 | 驱动轴专用螺母 | NUT (Special)-Driveshaft | 1 |
| 8 | 819427 | 驱动轴花键密封 | SEAL Driveshaft Spline | 1 |
| 9 | 812768 | 滚柱轴承 | BEARING Roller | 1 |
| 10 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 11 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 11 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 12 | 817472 | 换挡杆下密封 | SEAL Gear Shift Rod Lower | 1 |
| 13 | 8174731 | 换挡杆密封衬套 | BUSHING Shift Rod Seal | 1 |
| 14 | 45258 | 换挡杆O型圈(0.987×0.103) | O-RING (.987 x .103) Shift Rod | 1 |
| 15 | F85372 | 下换挡杆销 | PIN Gear Shift Rod Lower | 1 |
| 16 | F1015 | 开口销 | COTTER PIN Cotter | 1 |
| 17 | 817471 | 换挡杆 | ROD Gear Shift | 1 |
| 18 | 817475 | 下换挡杆臂总成 | ARM ASSEMBLY Lower Shift Rod | 1 |
| 19 | 79953A2 | SCREW KIT (.375-16 x .250) Special | 2 | |
| 19 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 2 |
| 20 | 19183 | 纤维密封垫圈 | WASHER Fiber Sealing | 2 |
| 20 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| 21 | 826374 | 换挡枢轴销-带防松胶 | PIN Shift Pivot-With Dri Lok | 1 |
| 22 | 25007 | O型圈 | O-RING | 1 |
| 23 | 67892A1 | 磁性配件套件/注油放油塞 | FITTING KIT Magnetic, Plug Fill/Drain Oil Drain | 1 |
| 23 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 24 | 19183 | 纤维密封垫圈 | WASHER Fiber Sealing | 1 |
| 24 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 25 | 56800 | 管塞 (.0625-27) | PLUG Pipe (.0625-27) | 1 |
| - | 814669A2 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 819123A7 | 齿轮箱总成(基础) | GEAR HOUSING ASSEMBLY (BASIC) | 1 |
| - | 819123T7 | 齿轮箱基础壳体 | GEAR HSG-BASIC | 1 |
| - | 819123A8 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY (COMPLETE) | 1 |
| - | 819123T8 | GC COMP 75 FOR LG | GC COMP 75 FOR LG | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

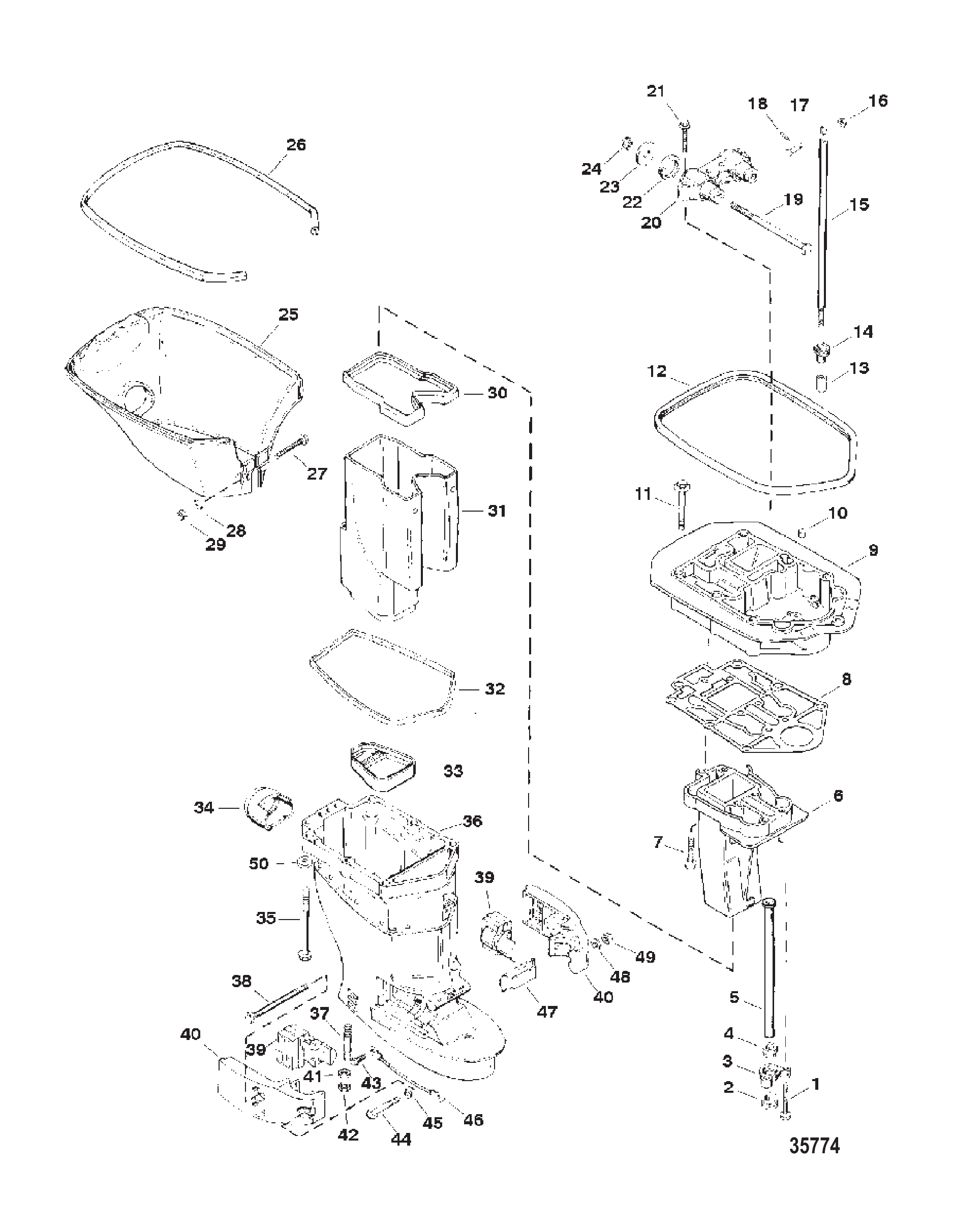

| 1 | 40011155 | 不锈钢螺钉(M8x55) | SCREW (M8 x 55) Stainless Steel | 2 |
| 2 | 93221 | 衬套 水管 | GROMMET Water Tube | 1 |
| 2 | 93221002 | 护孔环 | GROMMET | 1 |
| 3 | 99019 | 水管夹 | CLAMP Water Tube | 1 |
| 4 | 42941 | 水管密封件 | SEAL Water Tube | 1 |
| 4 | 42941001 | 水管密封件 | SEAL Water Tube | 1 |
| 5 | 430143 | 水管(14.650英寸) | TUBE Water (14.650 Inches) | 1 |
| 5 | 8M0042794 | 大型水管 | TUBE-WATER-LG | 1 |
| 6 | 8200691 | 排气管 | TUBE Exhaust | 1 |
| 7 | 40011153 | 不锈钢螺钉(M8x45) | SCREW (M8 x 45) Stainless Steel | 3 |
| 8 | 8267391 | 排气管/适配板衬垫 | GASKET Exhaust Tube/Adaptor Plate | 1 |
| 9 | 820268A1 | 下部适配板总成 | PLATE ASSEMBLY Adapter-Lower | 1 |
| 10 | 23784 | 定位销 | PIN Dowel | 4 |
| 11 | 4010875 | 不锈钢六角法兰螺钉(M10x75) | SCREW (M10 x 75) Hex Flange - Stainless Steel | 1 |
| 12 | 821510 | 底罩密封条 | SEAL Bottom Cowl | 1 |
| 12 | 8M0043148 | 底罩密封件 | SEAL-BOTTOM COWL | 1 |
| 13 | 822419 | 联轴器 | COUPLER | 1 |
| 14 | 822408 | 换挡轴护套 | GROMMET Shift Shaft | 1 |
| 14 | 822408001 | 护孔环 | GROMMET | 1 |
| 15 | 822418 | 上换挡轴 | SHIFT SHAFT Upper | 1 |
| 15 | 880042 | 换档轴 | SHIFT SHAFT | 1 |
| 16 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 1 |
| 17 | 822417 | 换挡连杆销 | PIN Shift Link | 1 |
| 18 | 21071 | 开口销 | COTTER PIN | 1 |
| 18 | 210711 | 开口销 | COTTER PIN | 1 |
| 19 | 822396 | 螺钉(M12x162) | SCREW (M12 x 162) | 2 |
| 19 | 8M0000520 | 螺栓 | BOLT | 2 |
| 20 | 812893 | 上部支架 | MOUNT Upper | 1 |
| 20 | 8M4501491 | 上部安装总成 | MOUNT UPPER ASM | 1 |
| 21 | 40011153 | 不锈钢螺钉(M8x45) | SCREW (M8 x 45) Stainless Steel | 4 |
| 22 | 934161 | 氯丁橡胶垫圈 | WASHER Neoprene | 2 |
| 22 | 32834 | 垫圈(0.9375x1.750x0.172) | WASHER (.9375 x 1.750 x .172) | 2 |
| 23 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 23 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 24 | 90099 | 螺母(M12) | NUT (M12) | 2 |
| 24 | 896963 | 螺母(M12) | NUT (M12) | 2 |
| 25 | 821512A7 | 装饰盖总成(喷漆) | TRIM COVER ASSEMBLY (Painted) | 1 |
| 25 | 821512A4 | 配平盖 | TRIM COVER | 1 |
| 26 | 822421 | 配平罩缓冲垫 | BUMPER Trim Cover | 1 |
| 26 | 8M0043155 | 上部配平缓冲器 | BUMPER-UPPER TRIM | 1 |
| 27 | 826173 | 螺钉(M5x0.8x60) | SCREW (M5 x .8 x 60) | 1 |
| 28 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 1 |
| 29 | 400263 | 螺母 (M5) | NUT (M5) | 1 |
| 30 | 8249423 | 排气斗密封件 | SEAL Exhaust Bucket | 1 |
| 31 | 824795 | 排气斗 | BUCKET Exhaust | 1 |
| 31 | 8M0036863 | 排气斗 | BUCKET-EXHAUST | 1 |
| 32 | 8270231 | 配平罩缓冲垫 | BUMPER Trim Cover | 1 |
| 32 | 8M0043170 | 缓冲垫 | BUMPER | 1 |
| 33 | 822395 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| 33 | 822395001 | 密封件 | SEAL | 1 |
| 34 | 822422 | 怠速泄压密封件 | SEAL Idle Relief | 1 |
| 34 | 822422001 | 怠速泄压密封件 | SEAL Idle Relief | 1 |
| 35 | 4000386 | 螺钉(M10 x 100) | SCREW (M10 x 100) | 6 |
| 36 | 821447A12 | 传动轴壳体总成(喷漆) | HOUSING ASSEMBLY Driveshaft (Painted) | 1 |
| 36 | 821447T12 | D型轴壳体总成 | D SHAFT HSG ASSY | 1 |
| 37 | 823984 | 螺柱（M10×50） | STUD (M10 x 50) | 1 |
| 38 | 824459120 | 螺钉（M8 x 120 不锈钢） | SCREW (M8 x 120) Stainless Steel | 2 |
| 39 | 8217812 | 支架 (下部) | MOUNT (LOWER) | 2 |
| 39 | 821781003 | 支架 | MOUNT | 2 |
| 40 | 821780F4 | 减震器盖(喷漆) | COVER Shock Mount (Painted) | 2 |
| 40 | 821780T4 | ORD 821780T 5 | ORD 821780T 5 | 2 |
| 41 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 1 |
| 41 | 8M0214963 | 垫圈 | WASHER | 1 |
| 42 | 13914 | 螺母(M10) | NUT (M10) | 1 |
| 42 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 43 | 817626 | 螺钉(#10-16×0.380) | SCREW (#10-16 x .380) | 1 |
| 43 | 878607 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 44 | 82445965 | 螺丝（M8×65，不锈钢） | SCREW (M8 x 65) Stainless Steel | 1 |
| 45 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 1 |
| 46 | 88238A11 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 47 | 8217821 | 缓冲垫(前) | BUMPER (FRONT) | 1 |
| 47 | 821782002 | 缓冲垫 | BUMPER | 1 |
| 48 | 36001 | 垫圈 | WASHER | 3 |
| 49 | 401198 | 螺母 (M8) | NUT (M8) | 3 |
| 49 | 401378 | 螺母 (M8) | NUT (M8) | 3 |
| 50 | 451751 | 垫圈(.406 x .750 x .104 - 黑色氧化) | WASHER (.406 x .750 x .104 - Black Oxide) | 6 |
| - | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

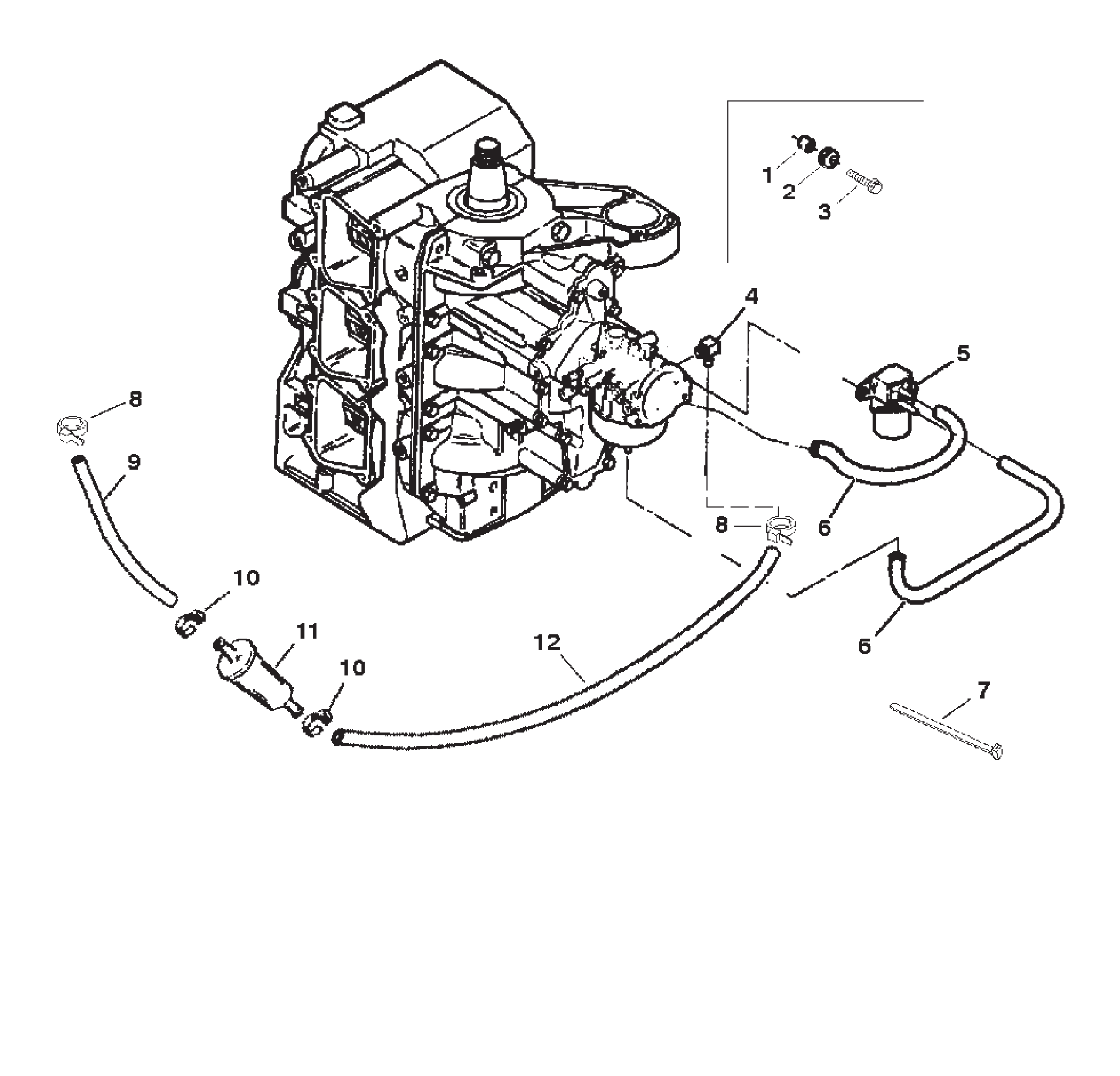

| 1 | F694359 | 隔套 | SPACER | 1 |
| 2 | F694504 | 护孔环 | GROMMET | 1 |
| 3 | 90192 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 1 |
| 4 | F84314-2 | 化油器(L型)弯头 | ELBOW (L) Carburetor | 1 |
| 5 | 819503 | 启动电磁阀 | SOLENOID Primer | 1 |
| 5 | 819503T6 | 电磁阀 | SOLENOID | 1 |
| 6 | 9912688 | 管材 (36.00英寸散装) | TUBING (36.00 Inches Bulk) | 1 |
| 7 | 56762 | 电磁阀软管扎带(4英寸) | TIE STRAP (4.00 Inches) Solenoid Hoses | AR |
| 8 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 8 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 9 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 1 |
| 9 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 10 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 10 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 11 | 816296 | 燃油滤清器 | FILTER Fuel | 1 |
| 11 | 816296Q03 | 燃油滤清器@3 | FILTER-FUEL @3 | 1 |
| 12 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 1 |
| 12 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

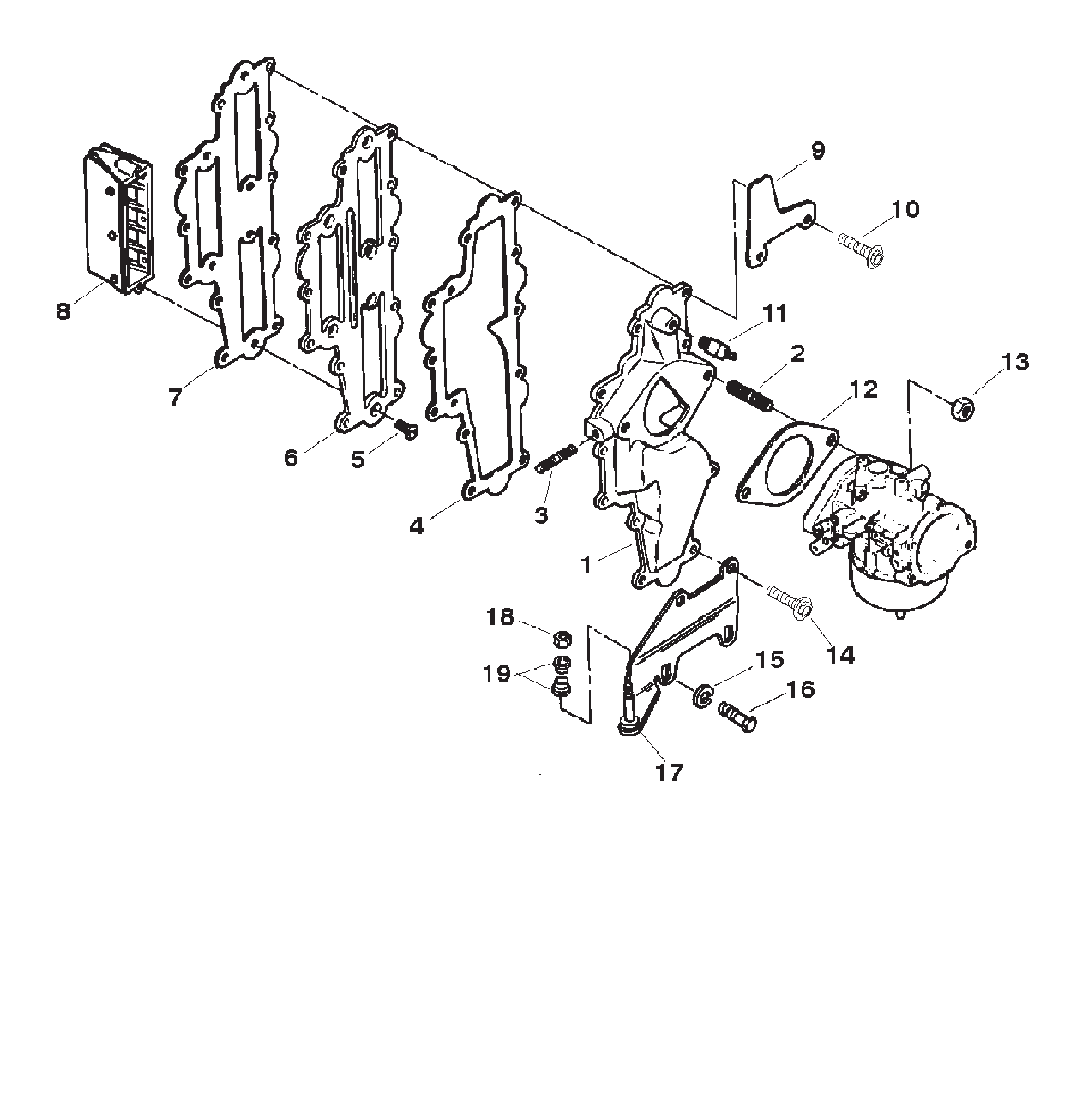

| 1 | FA749167 | 进气歧管套件 | MANIFOLD KIT Intake | 1 |
| 2 | 8263872 | 化油器双头螺栓(0.375-16×1.625) | STUD (.375-16 x 1.625) Carburetor | 2 |
| 3 | F433209-1 | 双头螺柱(.250-20 x 1.250)(.250-20 x 1.250)-节气门凸轮 | STUD (.250-20 x 1.250) (.250-20 x 1.250)-Throttle Cam | 1 |
| 4 | 8191141 | 进气歧管垫片 | GASKET Intake Manifold | 1 |
| 5 | 826380 | 螺丝(0.250-20×0.625)带防松胶 | SCREW (.250-20 x .625) With Dri Lok | 6 |
| 5 | F1831 | 螺钉 | SCREW | 6 |
| 6 | 820502 | 簧片阀适配器 | ADAPTER Reed Block | 1 |
| 7 | 819113 | 簧片阀适配器垫片 | GASKET Reed Block Adapter | 1 |
| 8 | 116452 | 簧片阀总成 | REED BLOCK ASSEMBLY | 3 |
| 8 | 855952T3 | 簧片阀总成 | REED BLOCK ASSEMBLY | 3 |
| 9 | F749894 | 正时指针 | POINTER Timing | 1 |
| 10 | 819110112 | 螺丝（.250-20 x 1.125） | SCREW (.250-20 x 1.125) | 2 |
| 11 | 88780 | 示流管弯头 | ELBOW Tell-Tale Tubing | 1 |
| 11 | 887801 | 弯头配件90度(.0625-27) | FITTING Elbow 90 Degree (.0625-27) | 1 |
| 12 | F440906 | 化油器衬垫 | GASKET Carburetor | 1 |
| 13 | 86226 | 螺母（.375-16） | NUT (.375-16) | 2 |
| 13 | 8M0204671 | 螺母 | NUT | 2 |
| 14 | 819110100 | 螺钉 (.250-20 x 1.00) | SCREW (.250-20 x 1.00) | 9 |
| 15 | F8124 | 锁紧垫圈(0.312外径) | LOCKWASHER (.312) (.312 External) | 2 |
| 16 | 19921075 | 螺丝(0.312-18×0.75)带防松胶 | SCREW (.312-18 x .75) With Dri Lok | 2 |
| 17 | 819459A1 | 遥控线缆支架总成 | BRACKET ASSEMBLY Remote Cable | 1 |
| 18 | 34059 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 18 | 8267096 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 1 |
| 19 | 819452 | 衬套 | BUSHING | 2 |
| - | 855440A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818153A62 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

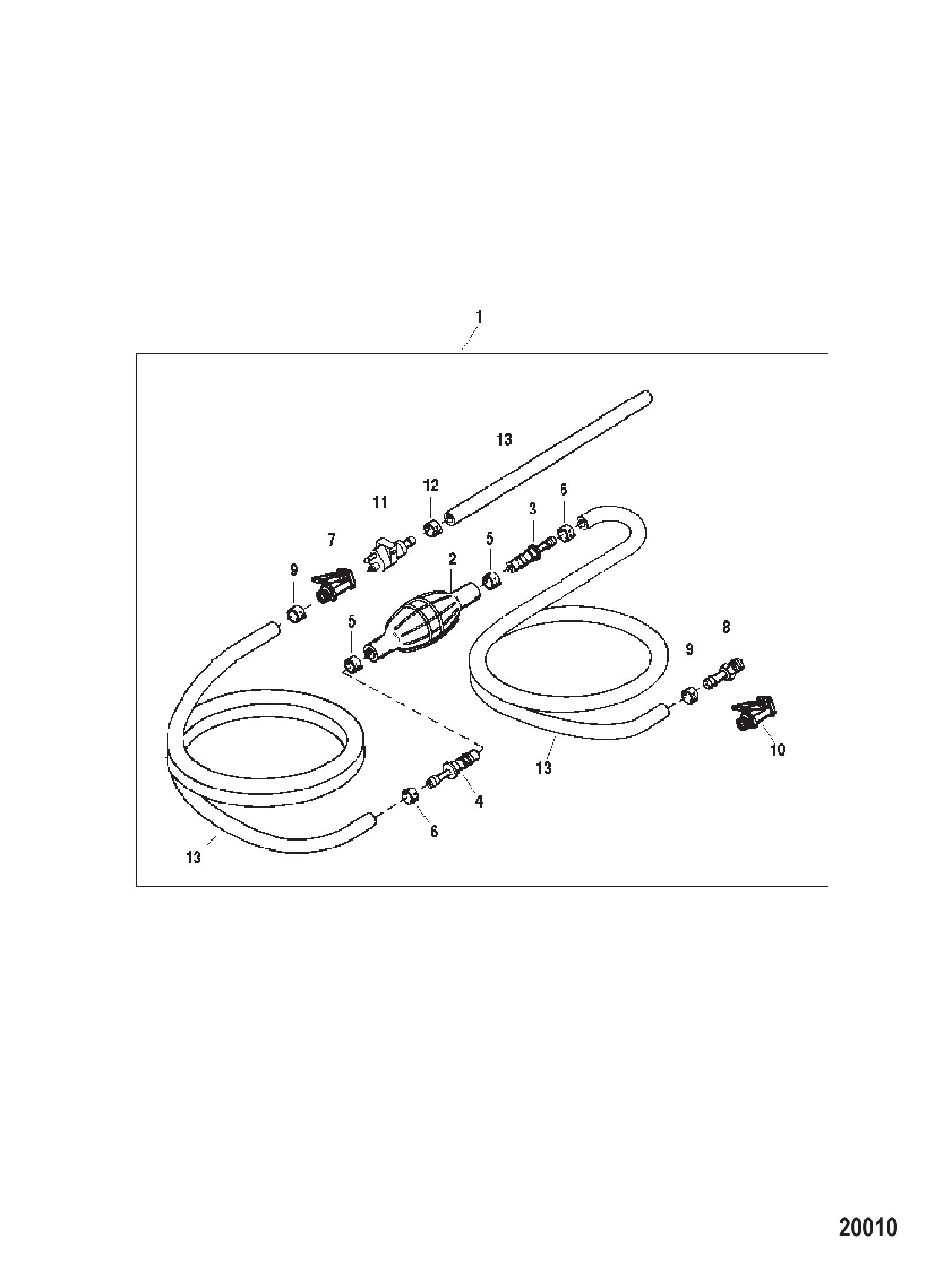

| 1 | 17146A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 877681Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 17146A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 1 | 877681Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 2 | 13330Q07 | 注油泵总成 - Quicksilver品牌 | BULB ASSEMBLY Primer - Quicksilver Brand | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 3 | 13331A3 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 4 | 13331A4 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 6 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 7 | 13563A3 | 发动机燃油管接头总成 | FITTING ASSEMBLY Fuel Line Engine | 1 |
| 7 | 13563Q3 | 发动机端快速接头(水星) | QUICK DISCONNECT Engine End (Quicksilver) | 1 |
| 8 | 897711 | 接头(.250-18)(黄铜)-燃油箱 | CONNECTOR (.250-18) (Brass)-Fuel Tank | 1 |
| 8 | 89771Q2 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 9 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 9 | 41582Q7 | 卡箍 | CLAMP | OPT |
| 9 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 1 | 827927A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 877680Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 827927A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 1 | 877680Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 7 | 13563A3 | 发动机燃油管接头总成 | FITTING ASSEMBLY Fuel Line Engine | 1 |
| 9 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 9 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 10 | 13563A7 | 燃油箱端燃油管接头总成 | FITTING ASSEMBLY Fuel Line Fuel Tank End | 1 |
| 10 | 13563Q7 | 燃油管接头总成 | FITTING ASSEMBLY Fuel Line | 1 |
| 1 | 822379A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 1 | 877683Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 9 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 9 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 1 | 16789A26 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 858610A32 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 7 | 13563A3 | 发动机燃油管接头总成 | FITTING ASSEMBLY Fuel Line Engine | 1 |
| 9 | F698772 | 蜗杆卡箍 | CLAMP Worm Gear | OPT |
| 11 | 816856A3 | 燃油接头总成-塑料 | CONNECTOR ASSEMBLY Fuel - Plastic | 1 |
| 11 | 816856Q3 | 燃油接头总成 | CONNECTOR ASSEMBLY Fuel | 1 |
| 12 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 12 | 41582Q7 | 卡箍 | CLAMP | OPT |
| 12 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 13 | 1678978 | 软管(9.00英尺整卷)(按需裁切) | HOSE (9.00 Feet Bulk) (Cut As Required) | AR |
| 13 | 85861079 | 软管(9.00英尺整卷) | HOSE (9.00 Feet Bulk) | AR |
| 13 | 16789100 | 软管(100.00英尺整卷)(按需裁切) | HOSE (100.00 Feet Bulk) (Cut As Required) | AR |
| 13 | 858610100 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |

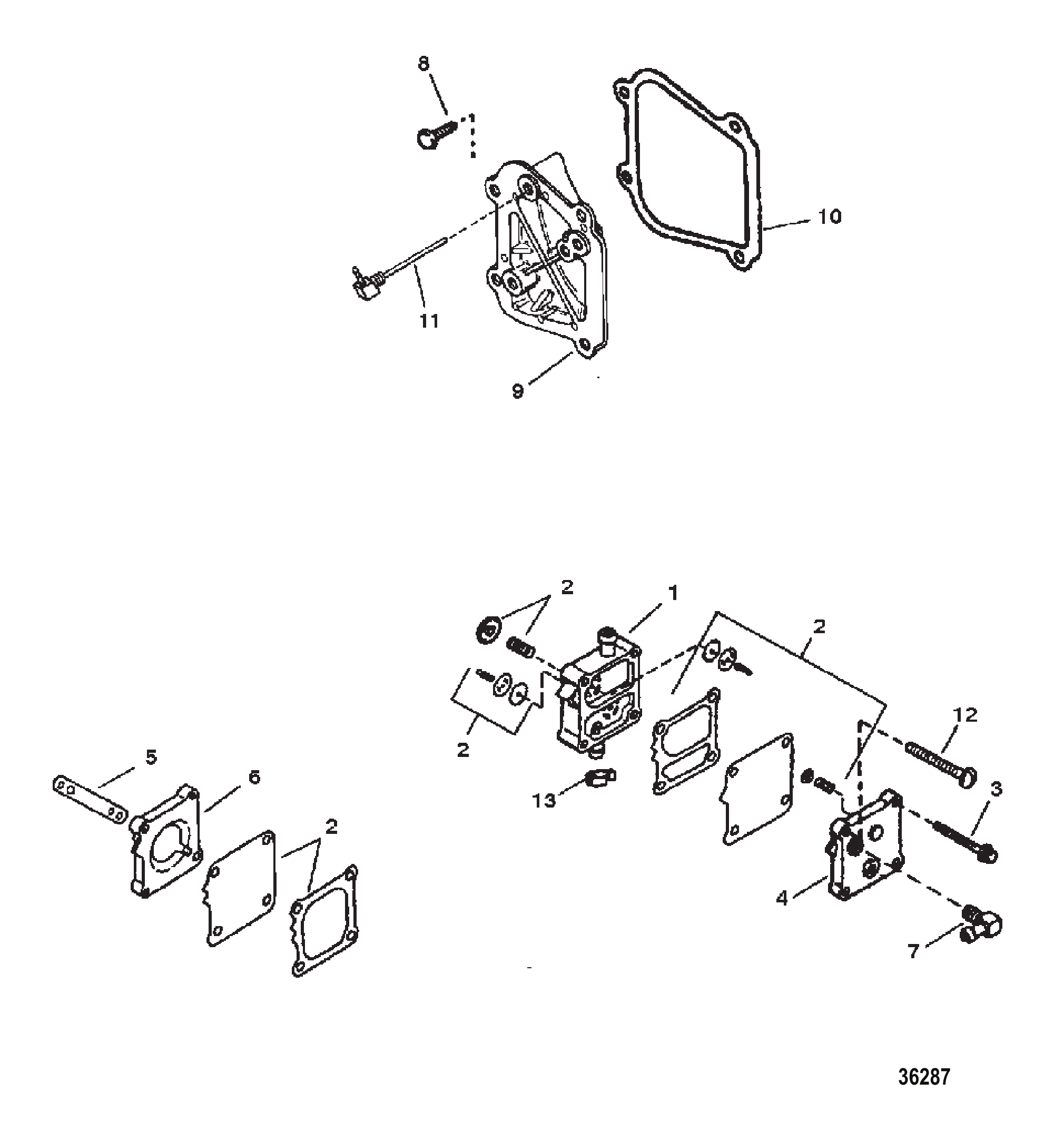

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 14360A49 | 燃油泵套件 | PUMP KIT Fuel | 1 |
| 1 | 14360A73 | 燃油泵套件 | PUMP KIT-FUEL | 1 |
| 2 | 42990A10 | 膜片组件 | DIAPHAGM KIT | 1 |
| 2 | 857005A1 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 3 | 82104540 | SCREW (M5 x 40) Fuel Pump | 2 | |
| 4 | 987752 | 燃油泵板 | PLATE Fuel Pump | 1 |
| 5 | 987691 | 燃油泵底座衬垫 | GASKET Fuel Pump Base | 1 |
| 5 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 6 | 144303 | BASE Fuel Pump | 1 | |
| 7 | 99664 | 弯头 | ELBOW | 1 |
| 7 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 8 | 819110062 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 4 |
| 9 | 8178702 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 9 | 8178703 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 10 | 8205002 | 转移孔与燃油泵盖垫片 | GASKET Transfer Port And Fuel Pump Covers | 3 |
| 11 | F743314 | 循环弯头 | ELBOW Recirculating | 1 |
| 12 | 827357 | 螺丝(#12-24×2.00)带防松胶 | SCREW (#12-24 x 2.00) With Dri Lok | 2 |
| 13 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 13 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| - | 855440A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818153A62 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 819123A8 | 齿轮箱总成(喷漆) | GEAR HOUSING ASSEMBLY (Painted) | 1 |
| 1 | 819123T8 | GC COMP 75 FOR LG | GC COMP 75 FOR LG | 1 |
| 1 | 819123A7 | 齿轮箱总成(喷漆) | GEAR HOUSING ASSEMBLY (Painted) | 1 |
| 1 | 819123T7 | 齿轮箱基础壳体 | GEAR HSG-BASIC | 1 |
| 2 | 818226A1 | 注油口密封/板套件 | SEAL/PLATE KIT Filler | 1 |
| 3 | 812769A1 | 前齿轮垫片组 | SHIM SET Front Gear | 1 |
| 3 | 8M0063263 | 垫片组 | SHIM SET | 1 |
| 4 | 819050A1 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 4 | 819050T1 | 前齿轮总成 | GEAR ASSY-FRONT | 1 |
| 5 | 21739 | 滚针轴承 | BEARING Roller Needle | 1 |
| 6 | 812767A1 | 圆锥滚子轴承总成(锥体与碗) | BEARING ASSEMBLY Taper Roller (Cone And CUP) | 1 |
| 6 | 8M0103476 | 轴承总成 | BEARING ASSY | 1 |
| 7 | 817474 | 换挡拨叉 | YOKE Gear Shift | 1 |
| 8 | 817470 | 换挡销 | PIN Shift | 1 |
| 9 | 817463 | 离合器 | CLUTCH | 1 |
| 10 | 817467 | 弹簧销 | PIN Spring | 1 |
| 11 | 817461 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 12 | 817684 | 倒挡齿轮 | GEAR Reverse | 1 |
| 12 | 817684T | 后齿轮 | GEAR-REAR | 1 |
| 13 | 20839 | 滚珠轴承 | BEARING Ball | 1 |
| 13 | 20839T | 滚珠轴承 | BEARING Ball | 1 |
| 14 | 19291A3 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 14 | 8M0168900 | 轴承座 | BEARING CARRIER | 1 |
| 15 | 815460 | O型圈 | O-RING | 1 |
| 16 | 21700 | 滚针轴承 | BEARING Needle | 1 |
| 17 | 69188 | 油封 | SEAL Oil | 1 |
| 17 | 8M0205511 | 油封 | SEAL Oil | 1 |
| 18 | 69189 | 油封(线切割) | SEAL Oil (LINE CUTTING) | 1 |
| 18 | 8M0203757 | 油封 | SEAL Oil | 1 |
| 19 | 4000353 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 2 |
| 20 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 2 |
| 20 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 21 | 17264T2 | 调整片 锌制 | TRIM TAB Zinc | 1 |
| 22 | 1993330 | 螺钉 (M10 x 1.5 x 30) | SCREW (M10 x 1.5 x 30) | 1 |
| 22 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 1 |
| 23 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 1 |
| 23 | 8M0214963 | 垫圈 | WASHER | 1 |
| 24 | 19925150 | 螺丝(.375-16 x 1.50)带防松胶 | SCREW (.375-16 x 1.50) With Dri Lok | 5 |
| 25 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 5 |
| 25 | 8M0214963 | 垫圈 | WASHER | 5 |
| - | 814669A2 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 819123A7 | 齿轮箱总成(基础) | GEAR HOUSING ASSEMBLY (BASIC) | 1 |
| - | 819123T7 | 齿轮箱基础壳体 | GEAR HSG-BASIC | 1 |
| - | 819123A8 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY (COMPLETE) | 1 |
| - | 819123T8 | GC COMP 75 FOR LG | GC COMP 75 FOR LG | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

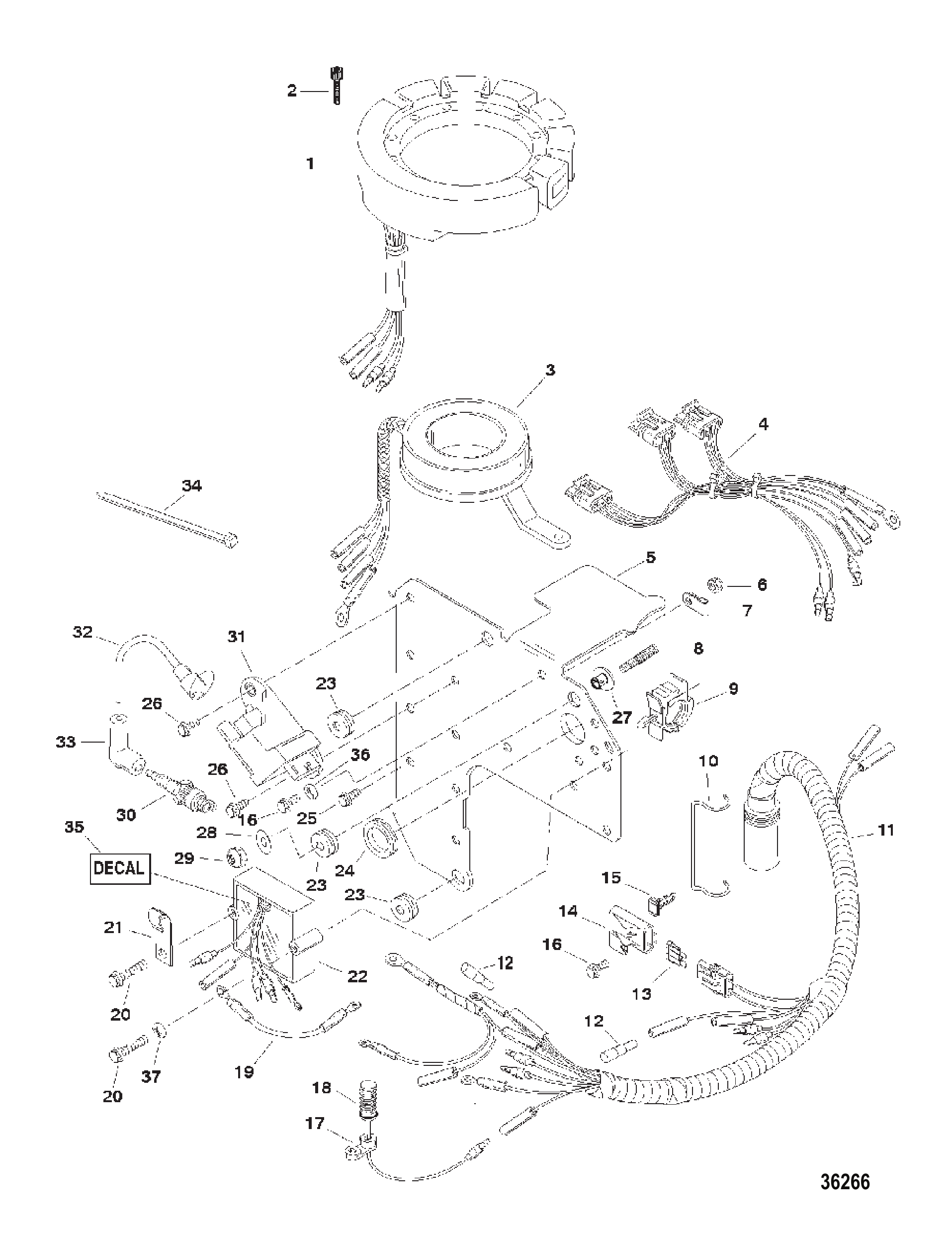

| 1 | 832075A4 | 点火定子套件(红色) | IGNITION STATOR KIT (RED) | 1 |
| 1 | 832075A21 | 定子总成 | STATOR ASSEMBLY | 1 |
| 2 | 19926100 | 螺丝(#10-24 x 1.00)带防松胶 | SCREW (#10-24 x 1.00) With Dri Lok | 6 |
| 3 | 828302A1 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 4 | 828298A1 | 点火线束总成 | HARNESS ASSEMBLY Ignition | 1 |
| 5 | 8283121 | 点火组件板 | PLATE Ignition Components | 1 |
| 6 | 8268336 | 螺母 (M6) | NUT (M6) | 2 |
| 6 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 7 | 820437 | 线束固定夹 | CLIP Harness Retainer | 2 |
| 8 | 830228 | 双头螺柱(.312-18/.250-28 x 1.750) | STUD (.312-18/.250-28 x 1.750) | 3 |
| 8 | 8302281 | 螺柱 | STUD | 3 |
| 9 | 828791 | 线束压紧夹 | CLIP Harness Hold Down | 1 |
| 10 | 92753 | 线束固定座 | RETAINER Harness | 1 |
| 11 | 828297A1 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 12 | 13541 | 公插头 | PLUG Male | 2 |
| 13 | 812619 | 黄色保险丝-20安培 | FUSE Yellow - 20 Ampere | 1 |
| 14 | 828054 | 保险丝盖 | COVER Fuse | 1 |
| 15 | 828991 | 保险丝固定夹 | CLIP Fuse Holder | 1 |
| 15 | 828991T | 卡扣 | CLIP | 1 |
| 16 | 82239312 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 17 | 44552 | 温控开关至气缸头固定座 | RETAINER Thermoswitch To Cylinder Head | 1 |
| 17 | 889733 | 固定座 | RETAINER | 1 |
| 18 | 8190221 | 温控开关 | THERMOSWITCH | 1 |
| 18 | 819022T01 | 温控开关 | THERMOSWITCH | 1 |
| 19 | 88807A21 | 电缆总成(黑色) | CABLE ASSEMBLY (Black) | 1 |
| 20 | 82129135 | 螺钉(M6x35) | SCREW (M6 x 35) | 2 |
| 21 | 54457 | J型卡扣 | J CLIP | 1 |
| 22 | 854514A1 | 电压调节器总成 | REGULATOR ASSEMBLY Voltage | 1 |
| 22 | 883071A1 | 电压调节器组件-BULL | REG KIT-VOLT-BULL | 1 |
| 23 | 822002 | 护孔环 | GROMMET | 3 |
| 24 | 828836 | 护孔环 | GROMMET | 1 |
| 25 | 4010620 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 26 | 82129116 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 6 |
| 27 | 822003 | 衬套 | BUSHING | 3 |
| 28 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 3 |
| 28 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 3 |
| 29 | 828451 | 螺母(.250-28) | NUT (.250-28) | 3 |
| 30 | 827C | 火花塞 | SPARK PLUG | 3 |
| 30 | 896329827 | SP #L76V @4 | SP #L76V @4 | 3 |
| 30 | 898 | 火花塞 | SPARK PLUG | OPT |
| 30 | 896329898 | SP #QL76V @4 | SP #QL76V @4 | OPT |
| 31 | 827509A10 | 点火CDM模块总成 | CDM MODULE ASSEMBLY Ignition | 3 |
| 32 | 821945A61 | 高压电缆总成 | CABLE ASSEMBLY Hi Tension | 3 |
| 32 | 857124A1 | 高压线总成 | CABLE ASSEMBLY Hi-Tension | 3 |
| 33 | 63709A1 | 点火电缆护套/端子套件 | BOOT/TERMINAL KIT Ignition Cable | 3 |
| 33 | 857074A1 | 点火电缆护套/端子套件 | BOOT/TERMINAL KIT Ignition Cable | 3 |
| 34 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 34 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 35 | 819526 | 油门线调节标签 | DECAL Throttle Cable Adjustment | 1 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 1 |
| 37 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 37 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| - | 818153A62 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 10154980 | 用户手册 | OWNERS MANUAL | 1 |
| - | 10154990 | 用户手册 | OWNERS MANUAL | 1 |
| - | 855373 | 零件目录 | PARTS CATALOG | 1 |
| - | 855373R2 | Force 40/50马力零件手册(1998-1999) | PARTS MANUAL Force 40/50 H.P. (1998-1999) | 1 |
| - | 855373R1 | 零件目录 | PARTS CATALOG | 1 |
| - | 855373R2 | Force 40/50马力零件手册(1998-1999) | PARTS MANUAL Force 40/50 H.P. (1998-1999) | 1 |
| - | 855373R2 | Force 40/50马力零件手册(1998-1999) | PARTS MANUAL Force 40/50 H.P. (1998-1999) | 1 |
| - | 831250 | 维修手册 | SERVICE MANUAL | 1 |
| - | 831250R1 | 维修手册 | SERVICE MANUAL | 1 |
| - | 831250R1 | 维修手册 | SERVICE MANUAL | 1 |
| - | 82793336 | 大马士革钢灰色喷漆12盎司(355毫升)罐装 | PAINT Damascus Steel Gray 12 Ounce (355 ml) Spray Can | AR |
| - | 802878Q36 | PAINT-ST/GR @6 | PAINT-ST/GR @6 | AR |
| - | 82793337 | 大马士革钢灰色漆0.5盎司(15毫升)笔刷瓶装 | PAINT Damascus Steel Gray .5 Ounce (15 ml) Brush Bottle | AR |
| - | 802878Q37 | PAINT.6-ST/G@6 | PAINT.6-ST/G@6 | AR |
| - | 81910712 | 透明丙烯酸喷漆12盎司(355毫升)罐装(仅用于外罩) | PAINT Clear Acrylic 12 Ounce (355 ml) Spray Can (For Cowl Only) | AR |
| - | 82793353 | PAINT-CLEAR @6 | PAINT-CLEAR @6 | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

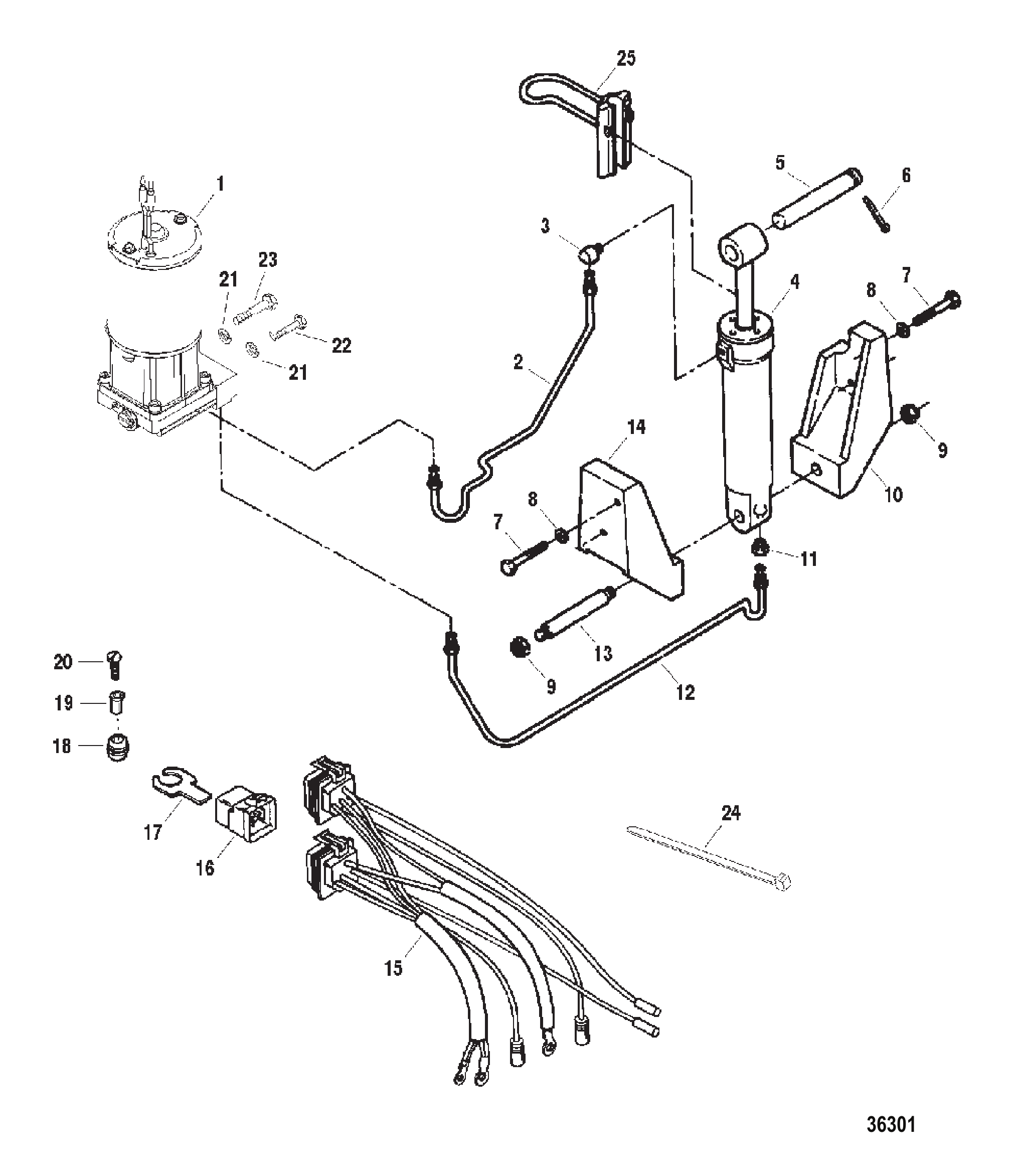

| - | 832021A6 | 升降倾斜总成(喷漆) | TRIM AND TILT ASSEMBLY (Painted) | 1 |
| 1 | 832021A9 | 泵/电机总成 | PUMP/MOTOR ASSEMBLY | 1 |
| 1 | 832021T9 | 泵/电机总成 | PUMP/MOTOR ASSEMBLY | 1 |
| 2 | 832989 | 液压管路(下行) | LINE Hydraulic (DOWN) | 1 |
| 3 | 45794 | 弯头 | ELBOW | 1 |
| 4 | F749381F1 | 升降倾斜油缸总成(喷漆) | CYLINDER ASSEMBLY Trim And Tilt (Painted) | 1 |
| 5 | F749440 | 油缸U型销(上) | PIN Cylinder Clevis (UPPER) | 1 |
| 6 | 89961 | 开口销 | PIN Cotter | 1 |
| 6 | 8M0214988 | 开口销 | PIN-COTTER | 1 |
| 7 | 19925175 | 螺丝(.375-16 x 1.75)带防松胶 | SCREW (.375-16 x 1.75) With Dri Lok | 4 |
| 8 | F8015 | 垫圈 | WASHER | 4 |
| 9 | 35778 | 螺母(.500-20) | NUT (.500-20) | 2 |
| 9 | 826709117 | 螺母(0.500-20)不锈钢 | NUT (.500-20) Stainless Steel | 2 |
| 10 | 819171F1 | 支架(喷漆) | BRACKET (Painted) | 1 |
| 10 | 819171T1 | 左舷支架 | BRACKET-PORT | 1 |
| 11 | 48166 | 接头 | FITTING | 1 |
| 12 | 8193281 | 液压管路(上行) | LINE Hydraulic (UP) | 1 |
| 13 | 820618 | 油缸U型销(下) | PIN Cylinder Clevis (LOWER) | 1 |
| 14 | 819172F1 | 支架(喷漆) | BRACKET (Painted) | 1 |
| 14 | 819172T1 | 右舷支架 | BRACKET-STBD | 1 |
| 15 | 819514A11 | 升降线束总成 | HARNESS ASSEMBLY Trim Wiring | 1 |
| 16 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 16 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 2 |
| 17 | 828102 | 继电器安装支架 | BRACKET Relay Mounting | 2 |
| 17 | 8M0207771 | 安装支架 | BRACKET Mounting | 2 |
| 18 | 818967 | 继电器支架衬套 | GROMMET Relay Bracket | 2 |
| 18 | 8M0207785 | 护孔环 | GROMMET | 2 |
| 19 | 818968 | 继电器支架衬套 | BUSHING Relay Bracket | 2 |
| 19 | 8M0214955 | 衬套 | BUSHING | 2 |
| 20 | 19932100 | 螺钉 (.250-20 x 1.00) | SCREW (.250-20 x 1.00) | 2 |
| 21 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 22 | 19923088 | 螺丝(.250-20 x .875)带防松胶 | SCREW (.250-20 x .875) With Dri Lok | 1 |
| 23 | 814127 | 螺钉(.250-20 x 1.875) | SCREW (.250-20 x 1.875) | 1 |
| 24 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | F5H272 | 拖车垫片套件 | SPACER KIT Trailering | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

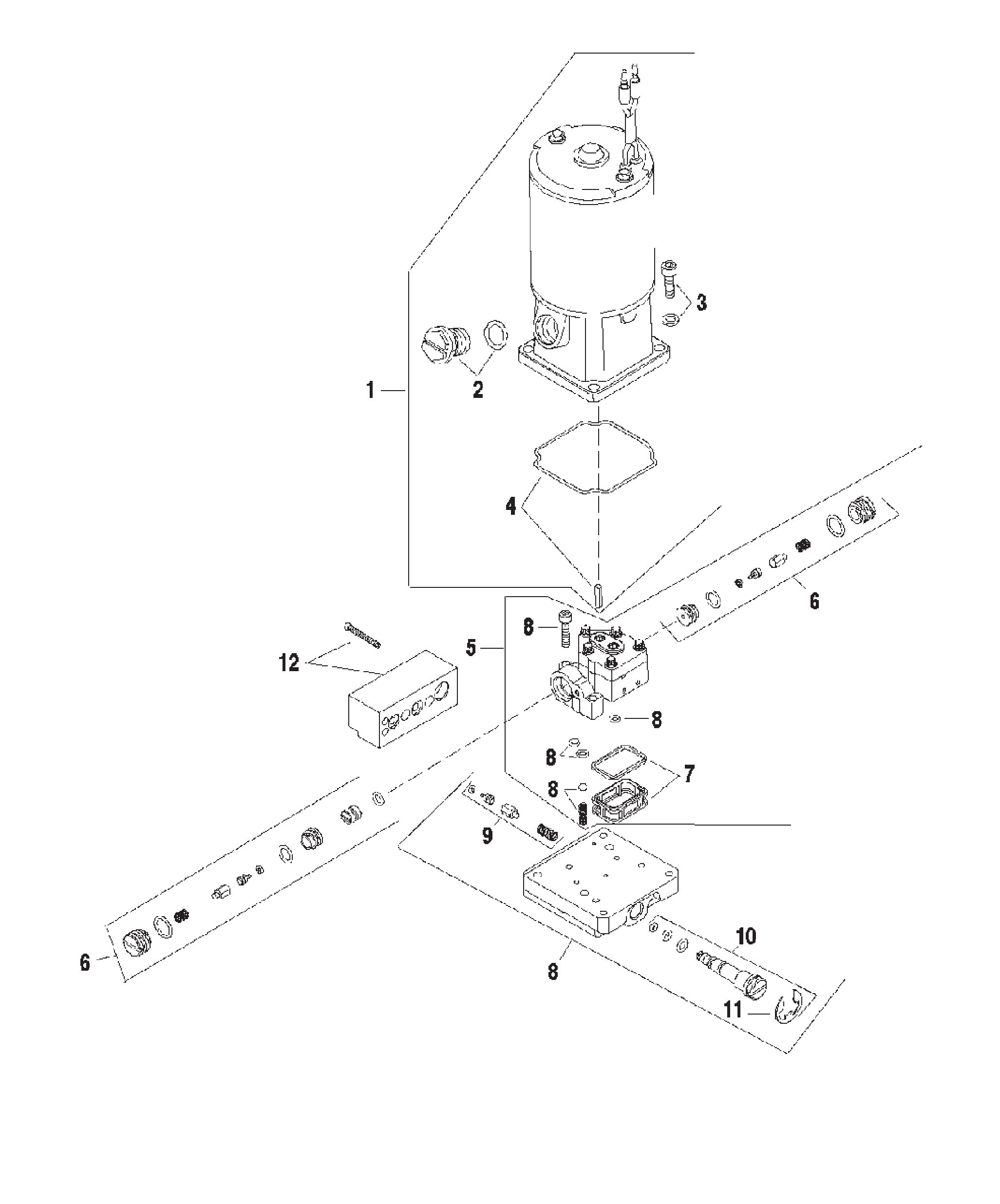

| - | 832021A9 | 动力升降倾斜泵/马达总成 | PUMP/MOTOR ASSEMBLY Power Trim And Tilt | 1 |
| - | 832021T9 | 泵/电机总成 | PUMP/MOTOR ASSEMBLY | 1 |
| 1 | 809885A1 | 电机套件 | MOTOR KIT | 1 |
| 1 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 2 | 8134351 | 储液罐塞 | PLUG Reservoir | 1 |
| 3 | 809876A1 | 螺丝套件(4件) | SCREW KIT (Qty 4 Pieces) | 1 |
| 4 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 5 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 5 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 6 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 6 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| 7 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 7 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 8 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 8 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 9 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 9 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 10 | 813442A2 | 手动泄压总成 | MANUAL RELEASE ASSEMBLY Relief | 1 |
| 10 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 11 | 812844 | E型卡环 | E RING | 1 |
| 11 | 815949001 | E形环 | E-RING | 1 |
| 12 | 809956A1 | 歧管转接套件 | ADAPTER KIT Manifold | 1 |
| 12 | 832021T9 | 泵/电机总成 | PUMP/MOTOR ASSEMBLY | 1 |
| NS | 809880A1 | O型圈套件（全套） | O-RING KIT (Complete) | 1 |
| NS | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

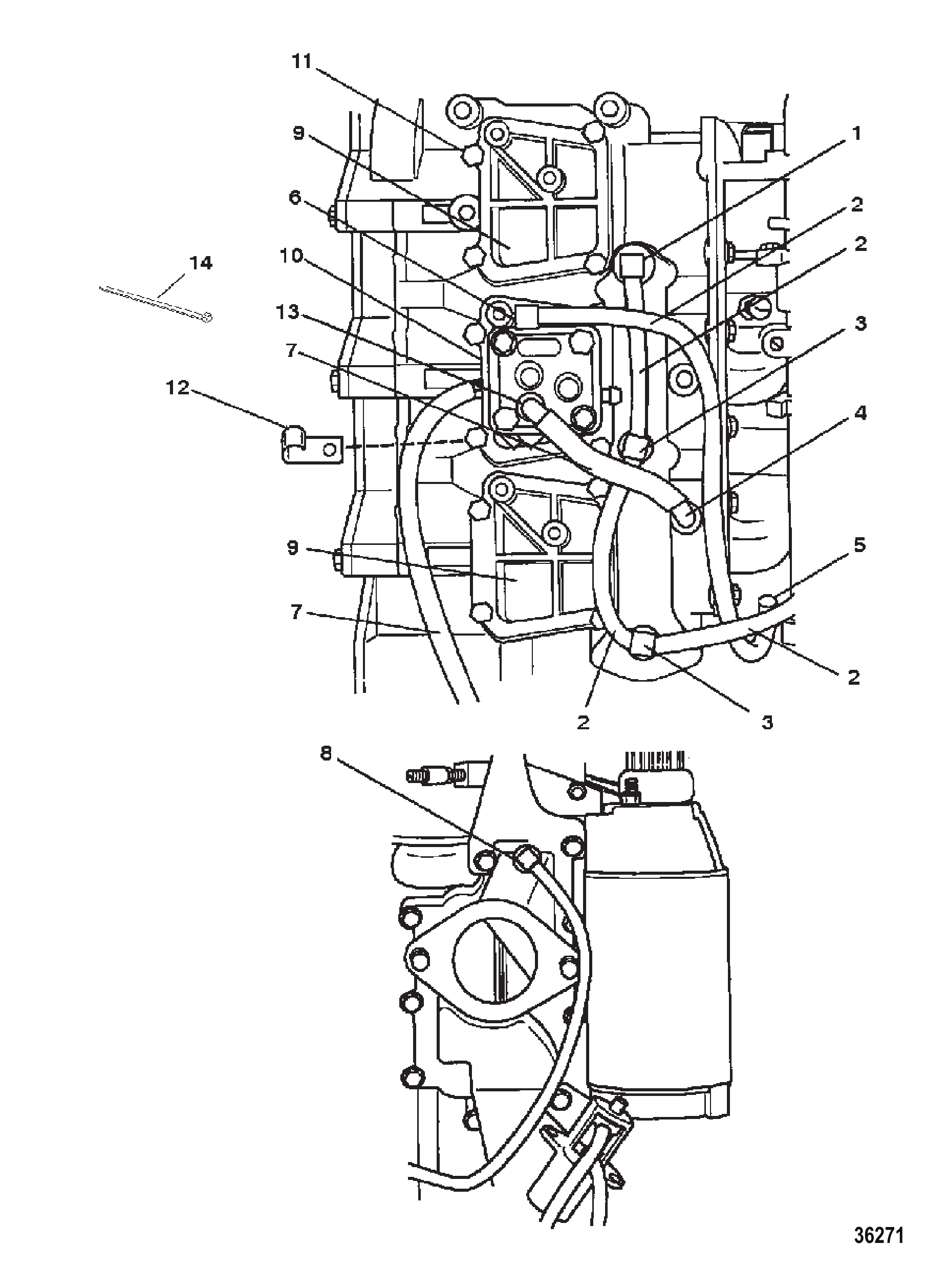

| 1 | 42864 | 止回接头(90度) | FITTING Check (90 Degree) | 1 |
| 1 | 428641 | 止回阀接头 | FITTING Check Valve | 1 |
| 2 | 99130122 | 油管(20.00英尺 散装) | TUBING (20.00 Feet Bulk) | 1 |
| 2 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 3 | 8207061 | 止回接头(T型) | FITTING Check (T) | 2 |
| 4 | 99664 | 弯头 | ELBOW | 1 |
| 4 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 5 | 426582 | 止回阀 | CHECK VALVE | 1 |
| 5 | 426585 | 止回阀 | CHECK VALVE | 1 |
| 6 | F743314 | 循环弯头 | ELBOW Recirculating | 1 |
| 7 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 1 |
| 7 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 8 | 88780 | 示流管歧管弯头 | ELBOW Tell-Tale Tubing Manifold | 1 |
| 8 | 887801 | 弯头配件90度(.0625-27) | FITTING Elbow 90 Degree (.0625-27) | 1 |
| 9 | 8196944 | 换气口盖 | COVER Transfer Port | 2 |
| 10 | 8178702 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 10 | 8178703 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 11 | 819110062 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 10 |
| 12 | 55098 | J型管夹 | J CLIP Hose Support | 1 |
| 12 | 8M0024808 | J型夹 | J-CLIP | 1 |
| 13 | 99664 | 弯头 | ELBOW | 1 |
| 13 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 14 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 14 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| - | 818153A62 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

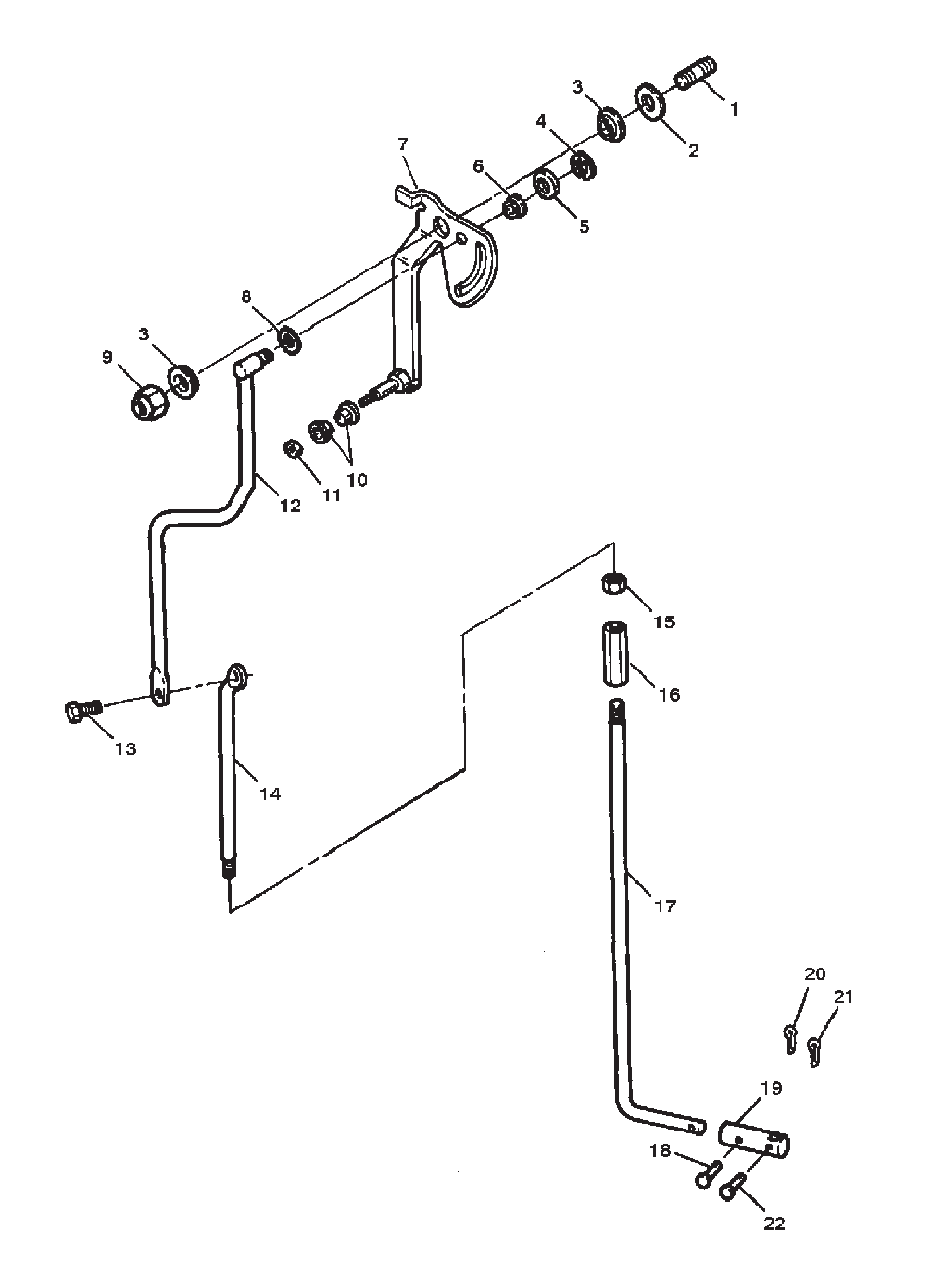

| 1 | 8263872 | 双头螺栓(.375-16 x 1.625) | STUD (.375-16 x 1.625) | 1 |
| 2 | 34931 | 不锈钢垫圈(.406x.734x.063) | WASHER (.406 x .734 x .063) Stainless Steel | 1 |
| 3 | F269052 | 换挡臂轴承 | BEARING Shift Arm | 2 |
| 4 | 13194 | 挡圈 | RING Retaining | 1 |
| 5 | 20546 | 垫片(.330 x .500 x .060) | WASHER (.330 x .500 x .060) | 1 |
| 6 | 97896 | 衬套 | BUSHING | 1 |
| 7 | 819468A1 | 换挡臂总成 | ARM ASSEMBLY Gear Shift | 1 |
| 8 | F8049 | 波形垫片 | WASHER Bowed Wave | 1 |
| 9 | 68411 | 螺母（.375-16） | NUT (.375-16) | 1 |
| 9 | 82670912 | 螺母(.375-16)不锈钢 | NUT (.375-16) Stainless Steel | 1 |
| 10 | 819452 | 衬套 | BUSHING | 2 |
| 11 | 34059 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 11 | 8267096 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 1 |
| 12 | 819511 | 上换挡杆 | ROD Upper Gear Shift | 1 |
| 13 | F2214 | 六角头螺钉带锁紧垫圈(.250-28 x .500) | SCREW AND LOCKWASHER Hex Head (.250-28 x .500) | 1 |
| 14 | F684611 | 换挡延长杆 | EXTENSION Gear Shift Extension | 1 |
| 15 | 68292 | 螺母(.312-18) | NUT (.312-18) | 1 |
| 15 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 1 |
| 16 | F141704 | COUPLER Gear Shift Rod | 1 | |
| 17 | 819318A1 | 换挡中间杆总成 | ROD ASSEMBLY Gear Shift Intermediate | 1 |
| 18 | F85372 | 下换挡杆销 | PIN Gear Shift Rod Lower | 1 |
| 19 | F749704 | 换挡杆联轴器 | COUPLING Gear Shift Rod | 1 |
| 20 | F1015 | 开口销 | COTTER PIN | 1 |
| 21 | F1015 | 开口销 | COTTER PIN | 1 |
| 22 | F85372 | 下换挡杆销 | PIN Gear Shift Rod Lower | 1 |
| - | 818153A62 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

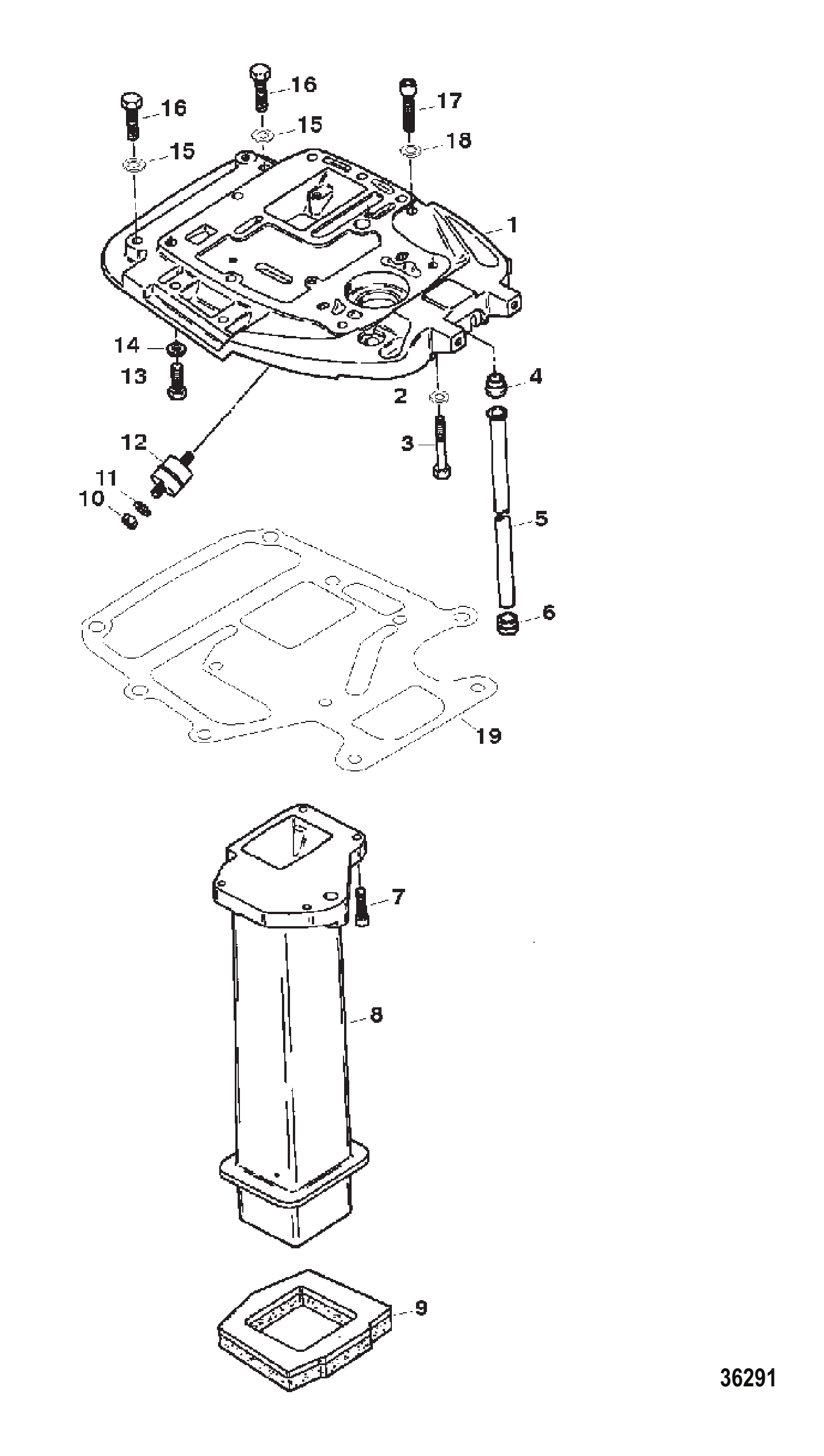

| 1 | 819079 | 间隔板 | PLATE Spacer | 1 |
| 1 | 819079T | 间隔板 | PLATE-SPACER | 1 |
| 2 | 4002317 | 垫圈 (8.90 X 17.0 X 1.9SS) | WASHER (8.90 X 17.0 X 1.9SS) | 2 |
| 3 | 19921238 | 螺丝(.312-18 x 2.38)带防松胶 | SCREW (.312-18 x 2.38) With Dri Lok | 2 |
| 4 | 42941 | 水管密封件 | SEAL Water Tube | 1 |
| 4 | 42941001 | 水管密封件 | SEAL Water Tube | 1 |
| 5 | 430145 | 水管 | TUBE Water | 1 |
| 6 | F84342 | 水管密封件 | SEAL Water Tube | 1 |
| 7 | 826371 | 螺丝(.312-18 x 1.250)带防松胶 | SCREW (.312-18 x 1.250) With Dri Lok | 4 |
| 7 | F430732 | 螺钉 (.312-18 x 1.250) 不锈钢 | SCREW (.312-18 x 1.250) Stainless Steel | 4 |
| 8 | 819047 | 排气管 | TUBE Exhaust | 1 |
| 9 | 8190661 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| 10 | 86226 | 螺母（.375-16） | NUT (.375-16) | 2 |
| 10 | 8M0204671 | 螺母 | NUT | 2 |
| 11 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 12 | F307962 | 减震器上支架 | SHOCK MOUNT Shock-Side Upper | 2 |
| 13 | 19925125 | 螺丝(.375-16 x 1.25)带防松胶 | SCREW (.375-16 x 1.25) With Dri Lok | 6 |
| 14 | 34931 | 不锈钢垫圈(.406x.734x.063) | WASHER (.406 x .734 x .063) Stainless Steel | 6 |
| 15 | 34931 | 不锈钢垫圈(.406x.734x.063) | WASHER (.406 x .734 x .063) Stainless Steel | 4 |
| 16 | 19922150 | 螺丝(.375-16 x 1.50)带防松胶 | SCREW (.375-16 x 1.50) With Dri Lok | 4 |
| 17 | 19929162 | 螺丝(.375-16 x 1.62)带防松胶 | SCREW (.375-16 x 1.62) With Dri Lok | 1 |
| 17 | 98749A01 | 螺丝-带说明书 | SCREW -PLUS INSTR | 1 |
| 18 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 1 |
| 19 | 8190494 | 排气衬垫 | GASKET Exhaust | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

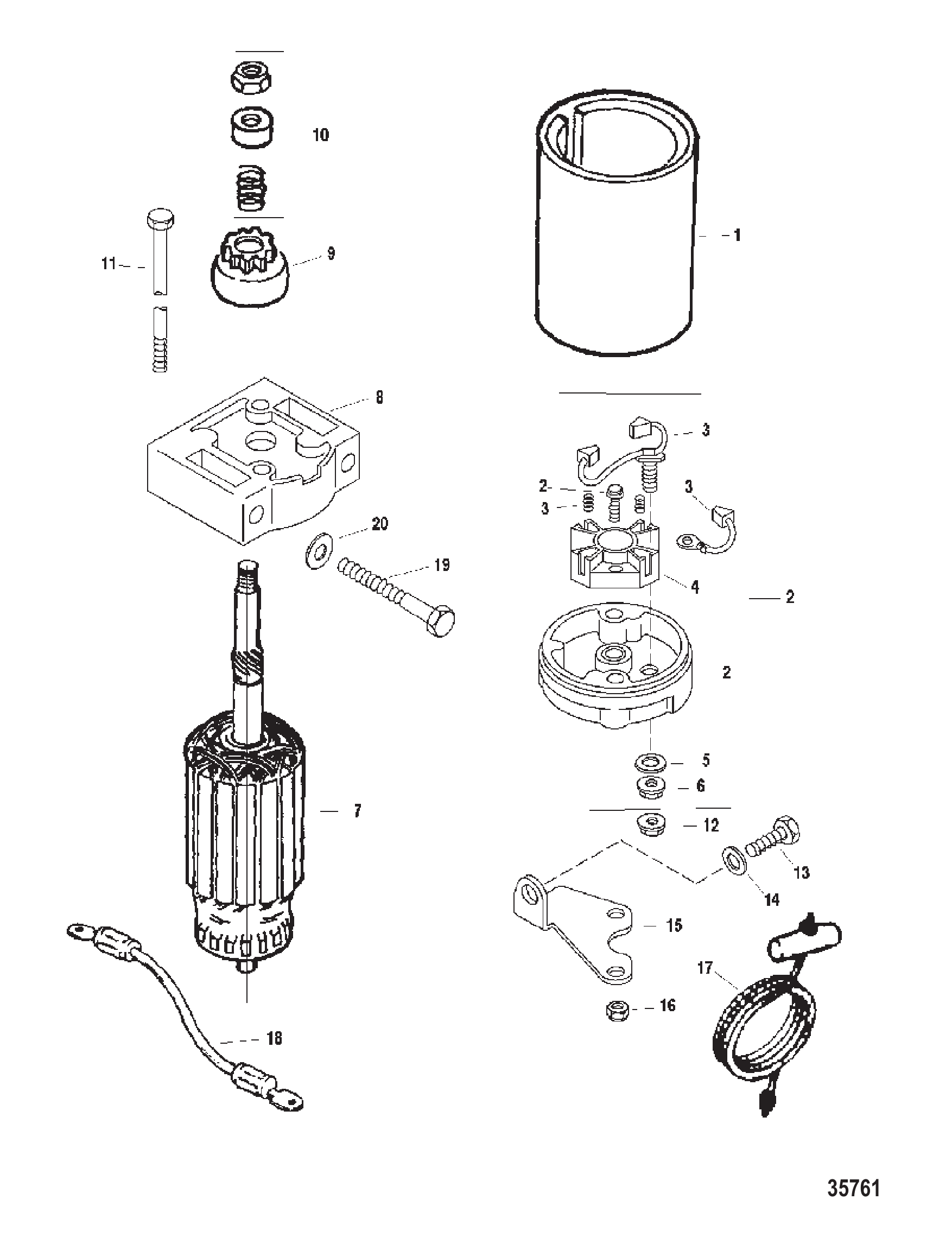

| 1 | 820193 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 820193003 | 启动器总成 | STARTER ASSY | 1 |
| 1 | 8201931 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 820193003 | 启动器总成 | STARTER ASSY | 1 |
| 1 | 820193T1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 820193003 | 启动器总成 | STARTER ASSY | 1 |
| 2 | 820595 | 通讯端盖总成 | CAP ASSEMBLY Comm End | 1 |
| 3 | F15190 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 4 | 61787 | 电刷架 | HOLDER Brush | 1 |
| 4 | 898265014 | 电刷支架 | HOLDER-BRUSH | 1 |
| 5 | F15160 | 绝缘垫圈 | WASHER Insulator | 1 |
| 5 | 804700 | 垫圈 | WASHER | 1 |
| 6 | F15162 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 7 | F15183 | 电枢 | ARMATURE | 1 |
| 8 | 820594 | 驱动端盖 | CAP Drive End | 1 |
| 9 | 811902 | 驱动小齿轮 | PINION Drive | 1 |
| 9 | 802665T | 小齿轮 | PINION | 1 |
| 9 | 802665 | 驱动小齿轮 | PINION Drive | 1 |
| 9 | 802665T | 小齿轮 | PINION | 1 |
| 9 | 802665T | 驱动小齿轮 | PINION Drive | 1 |
| 10 | 90643 | 驱动套件 | DRIVE KIT | 1 |
| 11 | 811903 | 贯穿螺栓 | THRU BOLT | 2 |
| 12 | F15162 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 13 | 39349 | 螺钉(.312-18×0.75)不锈钢 | SCREW (.312-18 x .750) Stainless Steel | 1 |
| 14 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) (.312) | 1 |
| 15 | 8192722 | 起动机支架 | BRACKET Starter Support | 1 |
| 16 | 20361 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 16 | 8267089 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 17 | 47341A1 | 拉绳手柄套件（手动/应急启动） | ROPE AND HANDLE KIT Manual/Emergency Start Emergency Start | 1 |
| 17 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 18 | 93388A8 | 电缆总成 (12.5英寸) 黑色 (12.500英寸)-起动机导线 | CABLE ASSEMBLY (12.5 Inchs) Black (12.500 Inches)-Starter Lead | 1 |
| 19 | F2185 | 螺钉 六角头(.375-16 x 3.50)不锈钢 | SCREW Hex Head (.375-16 x 3.50) SS | 2 |
| 20 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 2 |
| 20 | 8M0214963 | 垫圈 | WASHER | 2 |
| NS | 8272822 | 高压警告贴花 | DECAL Warning Hi Voltage | 1 |
| NS | 825064 | 贴纸-注意挂挡启动 | DECAL Caution Start In Gear | 1 |
| NS | 881865 | 警示贴纸-挂档启动 | DECAL Caution-Start in Gear | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

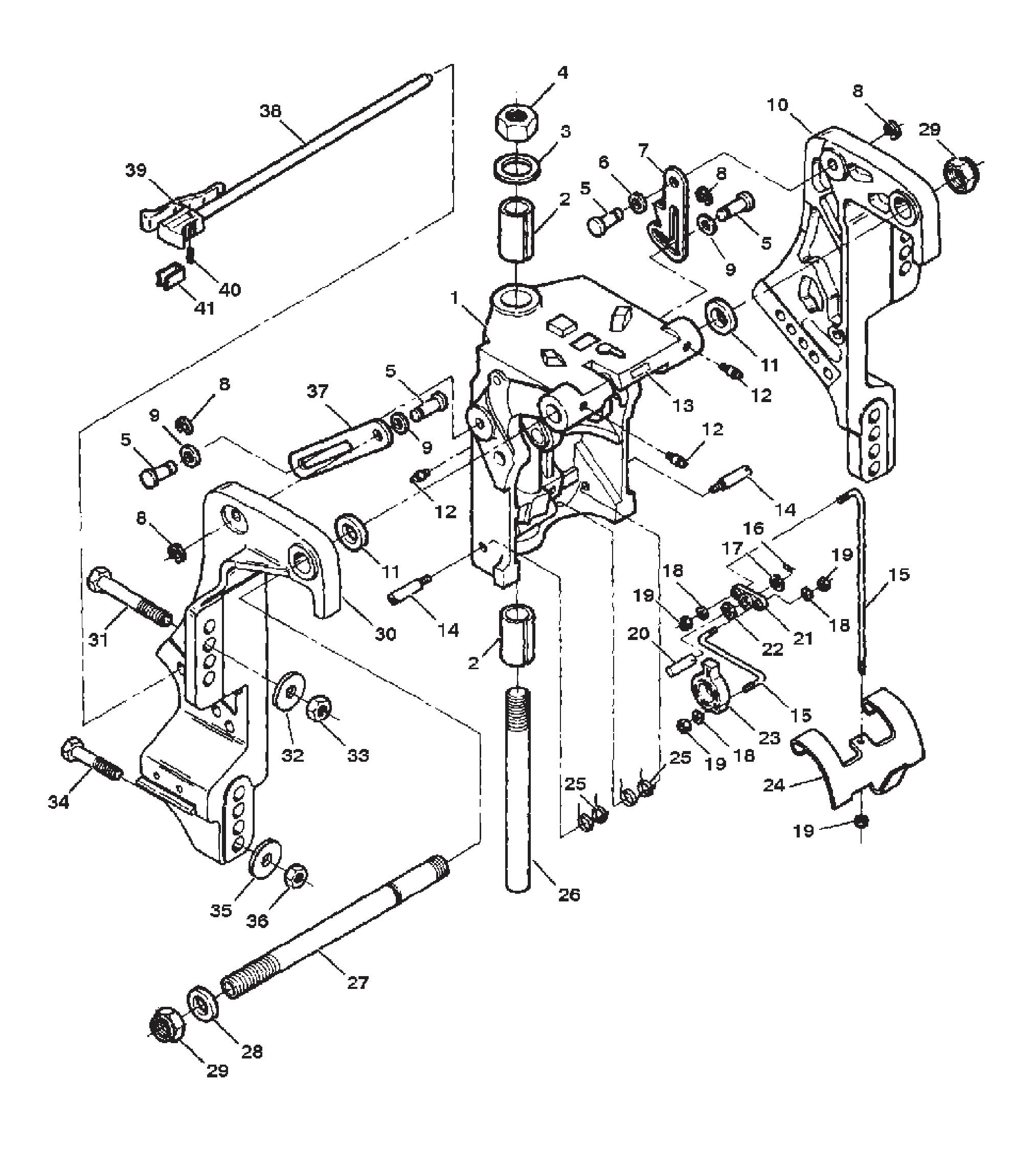

| 1 | 819128F2 | 旋转支架(喷漆) | BRACKET Swivel (Painted) | 1 |
| 2 | F191169-1 | 主销轴承 | BEARING Kingpin | 2 |
| 3 | F89011 | 垫圈 | WASHER | 1 |
| 3 | 69342 | 垫圈 | WASHER | 1 |
| 4 | F84280 | 主销专用螺母 | NUT (Special)-Kingpin | 1 |
| 5 | F749458 | 倾斜锁定销 | PIN Tilt Lock | 4 |
| 6 | 69708 | 波形垫圈 | WAVE WASHER | 2 |
| 7 | 820527 | 倾斜限位块(左舷) | STOP Tilt (PORT) | 1 |
| 8 | F749208 | 挡圈 | RING Retaining | 4 |
| 9 | 74758 | 垫圈(.469x.875x.063) | WASHER (.469 x .875 x .063) | 2 |
| 10 | 819325F2 | 船尾支架(左舷)(喷漆) | BRACKET Stern (PORT) (Painted) | 1 |
| 10 | 819325T2 | 船尾支架-左舷 | BRKT-STERN-PORT | 1 |
| 11 | F522286 | 酚醛垫片(1.40 x .89 x .094) | WASHER Phenolic (1.40 x .89 x .094) | 2 |
| 12 | F213274 | 润滑脂接头 | FITTING Grease | 3 |
| 13 | 830253 | 倾斜锁止贴纸 | DECAL Tilt Lock | 1 |
| 14 | 826578 | 倒挡锁销-带防松胶 | PIN Reverse Lock-With Dri Loc | 2 |
| 15 | 819702A1 | 倒挡锁连杆套件 | LINK KIT Reverse Lock | 1 |
| 16 | 26953 | 开口销 | COTTER PIN Cotter | 1 |
| 17 | 71055 | 垫圈 | WASHER | 1 |
| 18 | 27882 | 垫圈 | WASHER | 3 |
| 19 | F1669 | 螺母（#6-32） | NUT (#6-32) | 4 |
| 19 | 8M0207777 | 不锈钢螺母 | NUT-SS | 4 |
| 20 | F7495861 | 倒挡锁定轴 | SHAFT Reverse Lock | 1 |
| 21 | F749364 | 倒车锁臂 | ARM Reverse Lock | 1 |
| 22 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 22 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 23 | F749827 | 倒车锁杆 | LEVER Reverse Lock | 1 |
| 24 | 828986 | 倒车锁 | LOCK Reverse | 1 |
| 24 | 821805A1 | 倒车锁臂总成 | ARM ASSEMBLY Reverse Lock | 1 |
| 25 | F366300 | 倒挡锁弹簧 | SPRING Reverse Lock | 2 |
| 26 | 819331A1 | 主销总成 | KINGPIN ASSEMBLY | 1 |
| 27 | 819545A1 | 转向管套件 | TUBE KIT Steering | 1 |
| 28 | F316599 | 转向管密封件 | SEAL Steering Tube | 1 |
| 28 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 29 | 30499 | 螺母(7/8-14) | NUT (7/8-14) | 2 |
| 29 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 30 | 819324F1 | 船尾支架(右舷)(喷漆) | BRACKET Stern (STARBOARD) (Painted) | 1 |
| 30 | 819324T1 | 船尾支架-右舷 | BRKT-STERN-STBD | 1 |
| 31 | 92710 | 螺丝(.500-20 x 5.00) | SCREW (.500-20 x 5.00) | OPT |
| 32 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | OPT |
| 32 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | OPT |
| 33 | 91962 | 螺母(.500-20) | NUT (.500-20) | OPT |
| 34 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 2 |
| 34 | 8M0149747 | 螺钉 | SCREW | 2 |
| 35 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 35 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 36 | 91962 | 螺母(.500-20) | NUT (.500-20) | 2 |
| 37 | F3664331 | 停止倾斜装置(右舷) | STOP Tilt (STARBOARD) | 1 |
| 38 | FA658113 | 锁杆总成-船尾支架锁 | LOCK BAR ASSEMBLY Lock-Stern Bracket | 1 |
| 39 | 816517 | 锁杆手柄 | HANDLE Lock Bar | 1 |
| 40 | 25870 | 滚动销 | PIN Roll | 1 |
| 41 | F286461 | SPRING Lock Bar Handle | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

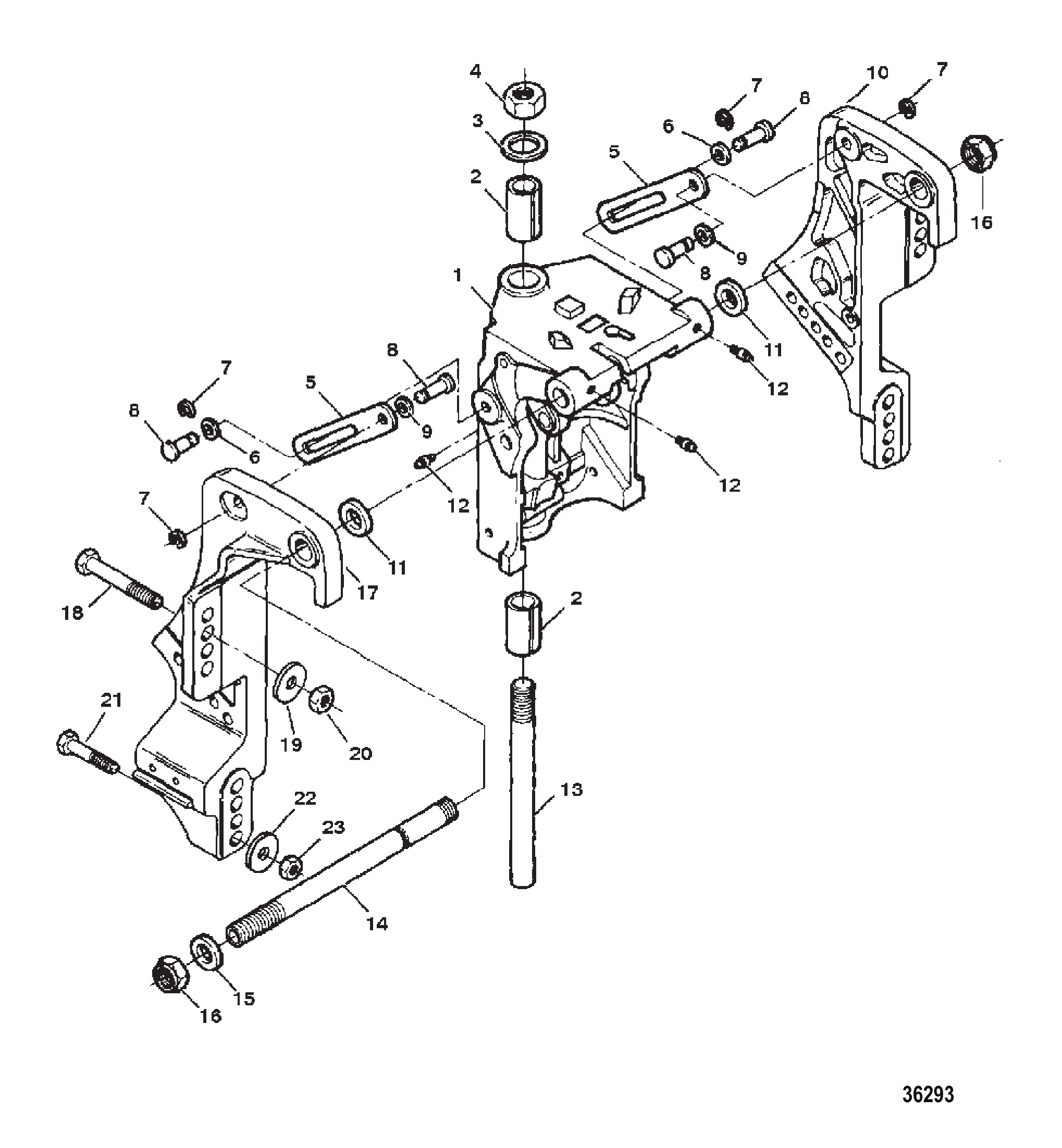

| 1 | 819128F2 | 旋转支架(喷漆) | BRACKET Swivel (Painted) | 1 |
| 2 | F191169-1 | 主销轴承 | BEARING Kingpin | 2 |
| 3 | F89011 | 垫圈 | WASHER | 1 |
| 3 | 69342 | 垫圈 | WASHER | 1 |
| 4 | F84280 | 主销专用螺母 | NUT (Special)-Kingpin | 1 |
| 5 | F3664331 | 倾斜挡块 | STOP Tilt | 2 |
| 6 | 74758 | 垫圈(.469x.875x.063) | WASHER (.469 x .875 x .063) | 2 |
| 7 | F749208 | 挡圈 | RING Retaining | 4 |
| 8 | F749458 | 倾斜锁定销 | PIN Tilt Lock | 4 |
| 9 | 69708 | 波形垫圈 | WAVE WASHER | 2 |
| 10 | 819325F2 | 船尾支架(左舷)(喷漆) | BRACKET Stern (PORT) (Painted) | 1 |
| 10 | 819325T2 | 船尾支架-左舷 | BRKT-STERN-PORT | 1 |
| 11 | F522286 | 酚醛垫片(1.40 x .89 x .094) | WASHER Phenolic (1.40 x .89 x .094) | 2 |
| 12 | F213274 | 润滑脂接头 | FITTING Grease | 3 |
| 13 | 819331A1 | 主销总成 | KINGPIN ASSEMBLY | 1 |
| 14 | 819545A1 | 转向管套件 | TUBE KIT Steering | 1 |
| 15 | F316599 | 转向管密封件 | SEAL Steering Tube | 1 |
| 15 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 16 | 30499 | 螺母(7/8-14) | NUT (7/8-14) | 2 |
| 16 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 17 | 819324F1 | 船尾支架(右舷)(喷漆) | BRACKET Stern (STARBOARD) (Painted) | 1 |
| 17 | 819324T1 | 船尾支架-右舷 | BRKT-STERN-STBD | 1 |
| 18 | 92710 | 螺丝(.500-20 x 5.00) | SCREW (.500-20 x 5.00) | OPT |
| 19 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | OPT |
| 19 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | OPT |
| 20 | 91962 | 螺母(.500-20) | NUT (.500-20) | OPT |
| 21 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 2 |
| 21 | 8M0149747 | 螺钉 | SCREW | 2 |
| 22 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 22 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 23 | 91962 | 螺母(.500-20) | NUT (.500-20) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 73687A2 | 飞轮拉拔器套件 | PULLER KIT Flywheel | 1 |
| - | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| - | 818494 | 专用螺钉 | SCREW Special | 1 |
| - | FT2991 | 钢丝碳刷清洁器 | BRUSH Wire Carbon Remover | 1 |
| - | 803504T | 电刷 | BRUSH | 1 |
| - | FT8914 | 曲轴笼密封拆卸器 | REMOVER Seal Crankshaft Cage | 1 |
| - | FT8903 | 曲轴笼密封安装工具 | INSTALLER TOOL Seal Crankshaft Cage | 1 |
| - | FT8907 | 手柄驱动器(配合FT8903使用) | HANDLE Driver Use With FT8903 | 1 |
| - | 824892 | 手柄 | HANDLE | 1 |
| - | FT8925 | 下曲轴密封安装工具 | INSTALLER TOOL Seal Lower Crankshaft | 1 |
| - | FT2953 | 连杆螺丝套筒 | SOCKET Connecting Rod Screws | 1 |
| - | 74607A3 | 活塞销安装套件 | INSTALLER KIT Piston Pin | 1 |
| - | 77109A3 | 活塞销锁环安装套件 | INSTALLER KIT Piston Pin Lock Ring | 1 |
| - | 69756 | O型圈（0.549 x 0.103） | O-RING (.549 x .103) | 1 |
| - | 98530 | 旋钮手柄 | KNOB Handle | 1 |
| - | 52952A1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | 52952T1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | FT2996 | 活塞环压缩工具 | COMPRESSOR TOOL Piston Ring | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | 90455 | 吊环-曲轴端 | LIFTING EYE -Crankshaft End | 1 |
| - | 904551 | 吊环 | LIFTING EYE | 1 |
| - | FT8900 | 软管卡箍钳-燃油管 | PLIERS Hose Clamp Fuel Line | 1 |
| - | FT8919 | 弹簧销冲具 | PUNCH TOOL Spring Pin | 1 |
| - | FT11293 | 扳手-上驱动轴固定器 | WRENCH Spanner-Upper Driveshaft Retainer | 1 |
| - | 43506T | 轴承固定工具 | RETAINING TOOL Bearing | 1 |
| - | FT11240 | 扳手-升降/倾斜油缸 | WRENCH Spanner-Trim/Tilt Cylinder | 1 |
| - | FT11209 | 导向套件-齿轮轴承座圈拆装工具 | GUIDE SET Installer/Remover-Gear Bearing Race | 1 |
| - | FT8901 | 固定器工具-指示器 | HOLDER TOOL Indicator | 1 |
| - | FT8902 | 百分表-螺旋桨轴 | DIAL INDICATOR Propshaft | 1 |
| - | FT11207 | 拉拔器-前进档轴承座圈 | PULLER Forward Gear Bearing Race | 1 |
| - | FT11296 | 安装工具-前进档轴承座圈 | INSTALLER Forward Gear Bearing Race | 1 |
| - | 803600T | 安装工具 | INSTALLER TOOL | 1 |
| - | FT11297 | 适配器-扭矩施加 | ADAPTER Torquing | 1 |
| - | 817005 | 安装工具-螺旋桨轴轴承 | INSTALLER TOOL Bearing Propshaft Bearing | 1 |
| - | 37323 | 驱动杆工具-螺旋桨轴滚针轴承 | DRIVER ROD TOOL Needle Bearings Propshaft | 1 |
| - | 817006 | 安装工具-水泵底座密封 | INSTALLER TOOL Water Pump Base Seal Seal | 1 |
| - | 46086A1 | 拉拔器爪总成-螺旋桨轴轴承座 | PULLER JAW ASSEMBLY Propshaft Bearing Carrier | 1 |
| - | 85716 | 拉拔螺栓工具-螺旋桨轴轴承座 | PULLER BOLT TOOL Bearing Carrier Propshaft Bearing Carrier | 1 |
| - | 24273 | 心轴-上驱动轴轴承 | MANDRELL Driveshaft Upper Bearing | 1 |
| - | 24273T | 心轴 | MANDREL | 1 |
| - | 37241 | 通用拉拔板-上驱动轴轴承 | PULLER PLATE Universal Driveshaft Upper Bearing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 819473A2 | 塔轴总成 | TOWERSHAFT ASSEMBLY | 1 |
| 2 | 819513 | 衬套-塔轴上段 | BUSHING Towershaft Upper | 1 |
| 3 | 38489 | 滚动销 | PIN Roll | 6 |
| 4 | F1504 | 螺丝(.250-20 x 1.250) | SCREW (.250-20 x 1.250) | 1 |
| 5 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 6 | 828514 | 螺纹球头 | BALL Threaded | 1 |
| 7 | F1856 | 垫圈 | WASHER | 2 |
| 8 | F1727 | 铆钉 | RIVET | 1 |
| 9 | F7009 | 螺母(#10-24) | NUT (#10-24) | 2 |
| 10 | F4990361 | 端头-控制杆(.250-28左旋) | END Control Rod (.250-28 LH) | 1 |
| 11 | F499026 | 旋转接头-塔轴 | SWIVEL Towershaft | 2 |
| 12 | F85445-1 | 火花控制杆 | ROD Spark Control Spark Control | 1 |
| 13 | F499035 | 控制杆端头 | END Control Rod | 1 |
| 14 | F2015 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 15 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 16 | 819002 | 油门连杆 | LINK Throttle | 1 |
| 17 | 828514 | 螺纹球头 | BALL Threaded | 1 |
| 18 | 20110 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 19 | F269319 | 节气门凸轮轴承 | BEARING Throttle Cam | 2 |
| 20 | 828950 | 节气门凸轮 | CAM Throttle | 1 |
| 21 | 72008 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 21 | 8267088 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 22 | F607689 | 轴承-塔轴中心 | BEARING Towershaft Center | 2 |
| 23 | F40689-1 | 塔轴下轴承 | BEARING Towershaft Lower | 1 |
| 24 | 34059 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 24 | 8267096 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 1 |
| 25 | 19961088 | 螺钉(#10-24 x .880)带防松胶 | SCREW (#10-24 x .880) With Dri Lok | 2 |
| 26 | 828636 | 支架 | BRACKET | 1 |
| 27 | 13194 | 挡圈 | RING Retaining | 1 |
| 28 | 34059 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 28 | 8267096 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 1 |
| 29 | 819110075 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 2 |
| 30 | 819458A2 | 遥控线缆支架总成 | BRACKET ASSEMBLY Remote Cable | 1 |
| 31 | 830875 | 球窝接头 | SOCKET Ball | 2 |
| 31 | 817428 | 插座 | SOCKET | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 812966A6 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 812966A12 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| 1 | 14334A2 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 1 | 14334A3 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 2 | 43023 | 水管密封件 | SEAL Water Tube | 1 |
| 2 | 8M0204658 | 密封件 | SEAL | 1 |
| 3 | 822189 | 水泵上衬垫 | GASKET Upper Water Pump | 1 |
| 4 | 19701 | 衬垫(下部) | GASKET (LOWER) | 1 |
| 4 | 8M0224241 | 衬垫 | GASKET | 1 |
| 5 | 19699 | 叶轮键 | KEY Impeller | 1 |
| 5 | 8M0032831 | 叶轮键 | KEY Impeller | 1 |
| 6 | 19453 | 水泵叶轮 | IMPELLER Water Pump | 1 |
| 6 | 19453T | 叶轮 | IMPELLER | 1 |
| 7 | 19700A1 | 水泵端盖 | FACE PLATE Water Pump | 1 |
| 7 | 19700A2 | 面板 | FACE PLATE | 1 |
| 8 | 812966A3 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 8 | 8M0245488 | 水泵底座 | BASE WATER PUMP | 1 |
| 9 | 30224 | O型圈 (1.859 x .139) | O-RING (1.859 x .139) | 1 |
| 9 | 8M0204651 | O型圈 | O-RING | 1 |
| 10 | 814670 | 油封 | SEAL Oil | 1 |
| 11 | 814669 | 油封 | SEAL Oil | 1 |
| 11 | 8M0245489 | 油封 | SEAL OIL | 1 |
| 12 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 6 |
| - | 814669A2 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 819123A7 | 齿轮箱总成(基础) | GEAR HOUSING ASSEMBLY (BASIC) | 1 |
| - | 819123T7 | 齿轮箱基础壳体 | GEAR HSG-BASIC | 1 |
| - | 819123A8 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY (COMPLETE) | 1 |
| - | 819123T8 | GC COMP 75 FOR LG | GC COMP 75 FOR LG | 1 |
