水星 Mercury 5 H.P. (1998) 0E288000 THRU 0E344999 - 爆炸图零件明细

Force 系列 · USA - Cat.# 90-855370R1 · 共 17 个部位 · 404 条零件

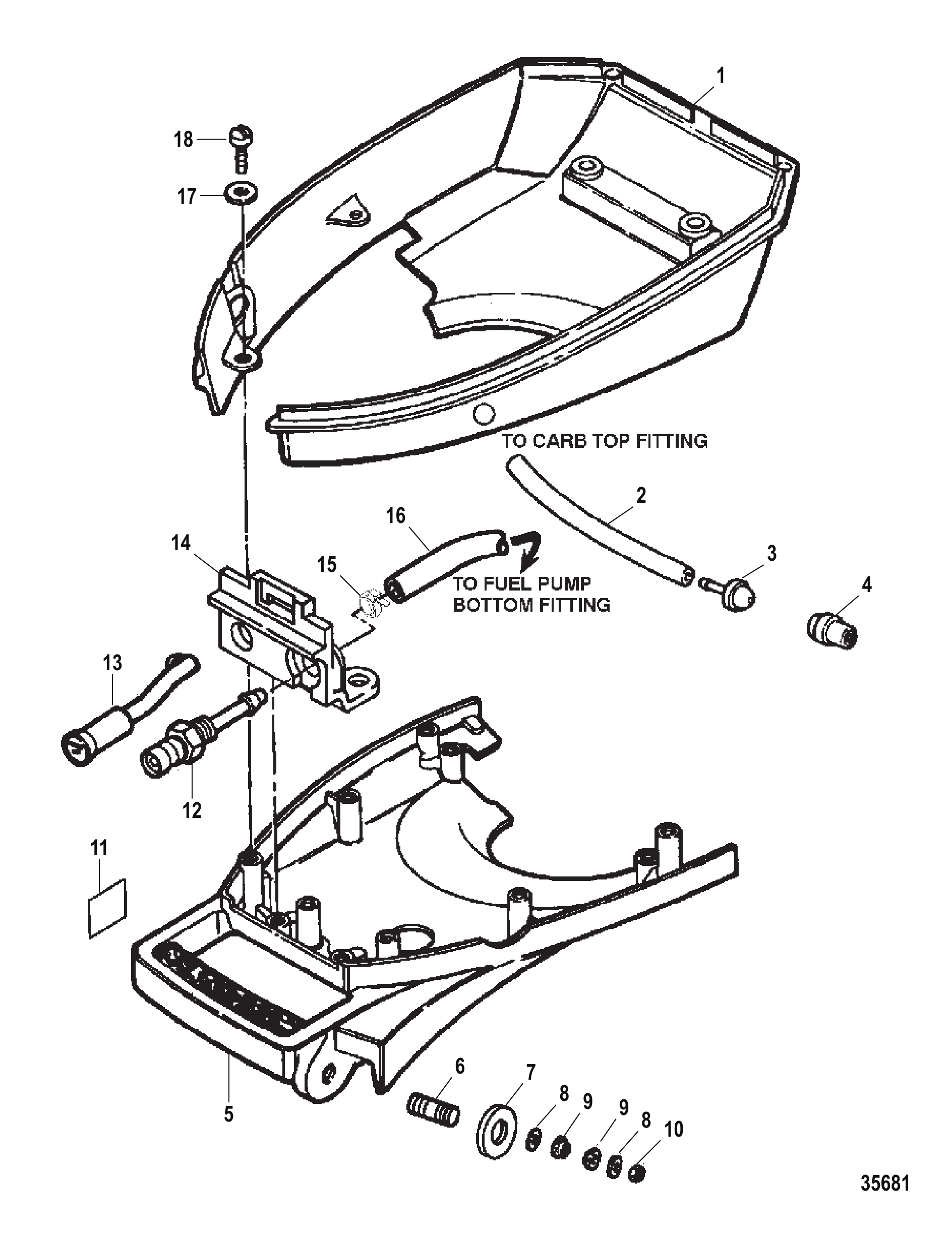

图 1底罩与支撑板 BOTTOM COWL AND SUPPORT PLATE

REF	零件编号	中文名称	英文名称	数量
1	820432T1	下罩 (喷漆)	COWL Bottom (Painted)	1
2	819398T	燃油软管 (18.00英寸散装)	HOSE Fuel (18.00 Inch Bulk)	1
3	F681046	注油泵球	BULB Primer	1
4	851934	注油泵盖	COVER Primer Bulb	1
5	F687038T1	支撑板 (喷漆)	PLATE Support (Painted)	1
6	827618	转向手柄螺柱	STUD Steering Handle	1
7	F286286-1	垫圈	WASHER	1
8	F8015	垫圈	WASHER	2
9	F521319		BUSHING Steering Handle	2
10	F1756	螺母（.375-16）	NUT (.375-16)	1
11	8180291	燃油混合比标贴	DECAL Fuel Mix	1
12	F197767-2	燃油衬套	BUSHING Fuel Fuel	1
13	F6875471	阻风门旋钮	KNOB Choke	1
14	F687163T	前盖	COVER Front	1
15	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
16	819398T	燃油软管 (18.00英寸散装)	HOSE Fuel (18.00 Inch Bulk)	1
17	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	4
18	F1035	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	4

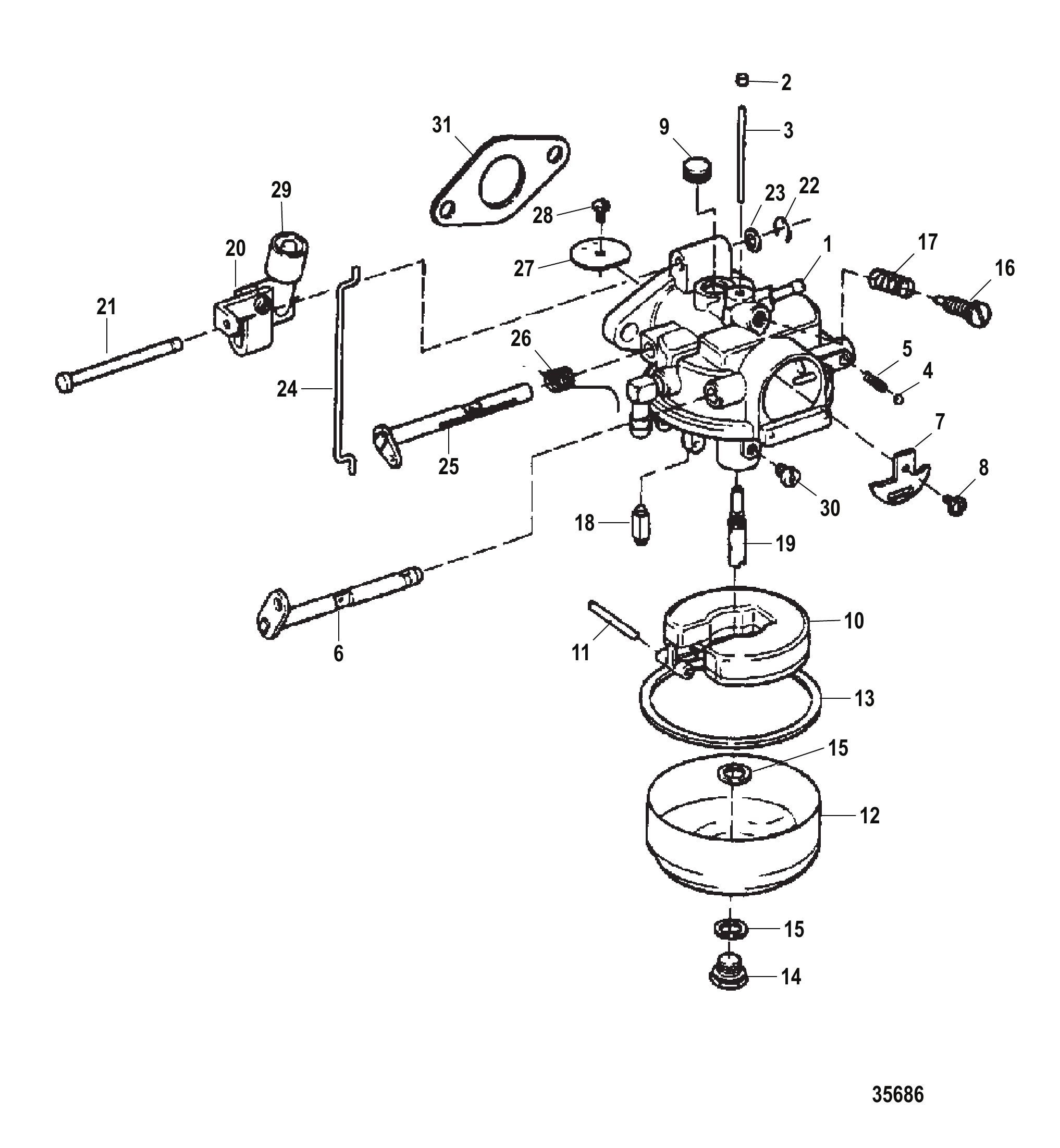

图 2化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	F712061	化油器 (HO-4A)	CARBURETOR (HO-4A)	1
2	FO10588	堵头	PLUG	1
3	F10235	旁通管	TUBE By Pass	1
4	FO4784	阻风门摩擦弹簧球	BALL Choke Friction Spring	1
5	FO8805	阻风门摩擦弹簧	SPRING Choke Friction	1
6	FO15736	阻风门轴/杠杆总成	SHAFT/LEVER ASSEMBLY Choke	1
7	FO15367	阻风门片	SHUTTER Choke	1
8	FO10280	百叶窗螺钉	SCREW Shutter	1
8	803176	螺钉-带补片	SCREW-W/PATCH	1
9	FO2531	旁通室韦尔奇螺塞	PLUG By Pass Chamber Welch	1
9	20011	韦尔奇塞	WELCH PLUG	1
10	F10346	燃油杯浮子	FLOAT Fuel Bowl	1
10	891730A01	浮子套件	FLOAT KIT	1
11	FO13944	浮子销	PIN Float	1
12	FO15366	燃油杯	BOWL Fuel	1
13	FO15623	燃油杯衬垫	GASKET Fuel Bowl	1
14	5128	燃油杯螺钉	SCREW Fuel Bowl	1
15	FO2510	燃油杯衬垫	GASKET Fuel Bowl	2
16	FO15520	怠速针阀	NEEDLE Idle	1
17	27160	怠速针阀弹簧	SPRING Idle Needle	1
18	F10265	进油针阀	NEEDLE Inlet	1
19	F10238	主喷嘴	NOZZLE Main	1
20	F10290	节气门连杆	LINKAGE Throttle	1
21	F10240	节气门连杆轴	SHAFT Throttle Linkage	1
22	F10241	节气门连杆轴E型环	E RING Throttle Linkage Shaft	1
23	F10242	节气门连杆轴垫圈	WASHER Throttle Linkage Shaft	1
24	F10338	节流轴连杆	LINKAGE Throttle Shaft	1
25	F10339	节气门轴/杠杆总成	SHAFT/LEVER ASSEMBLY Throttle	1
26	F10246	节流轴回位弹簧	SPRING Throttle Shaft Return Return	1
27	F10248	节气门片	SHUTTER Throttle	1
28	F10328	百叶窗螺钉	SCREW Shutter	1
28	803176	螺钉-带补片	SCREW-W/PATCH	1
29	FO10571	怠速螺钉	SCREW Idle Speed	1
30	F10337	主喷口	JET Main	1
30	2407	主燃油喷嘴 (.039)	JET Main Fuel (.039) Main	OPT
30	F10342	主喷口	JET Main	OPT
30	F10341	主喷口	JET Main	OPT
31	F18906	化油器衬垫	GASKET Carburetor	1
-	FK10295	化油器维修套件	REPAIR KIT Carburetor	1
-	FK10294	化油器衬垫组	GASKET SET Carburetor	1
-	FG10341	动力头衬垫套件	GASKET SET Powerhead	1

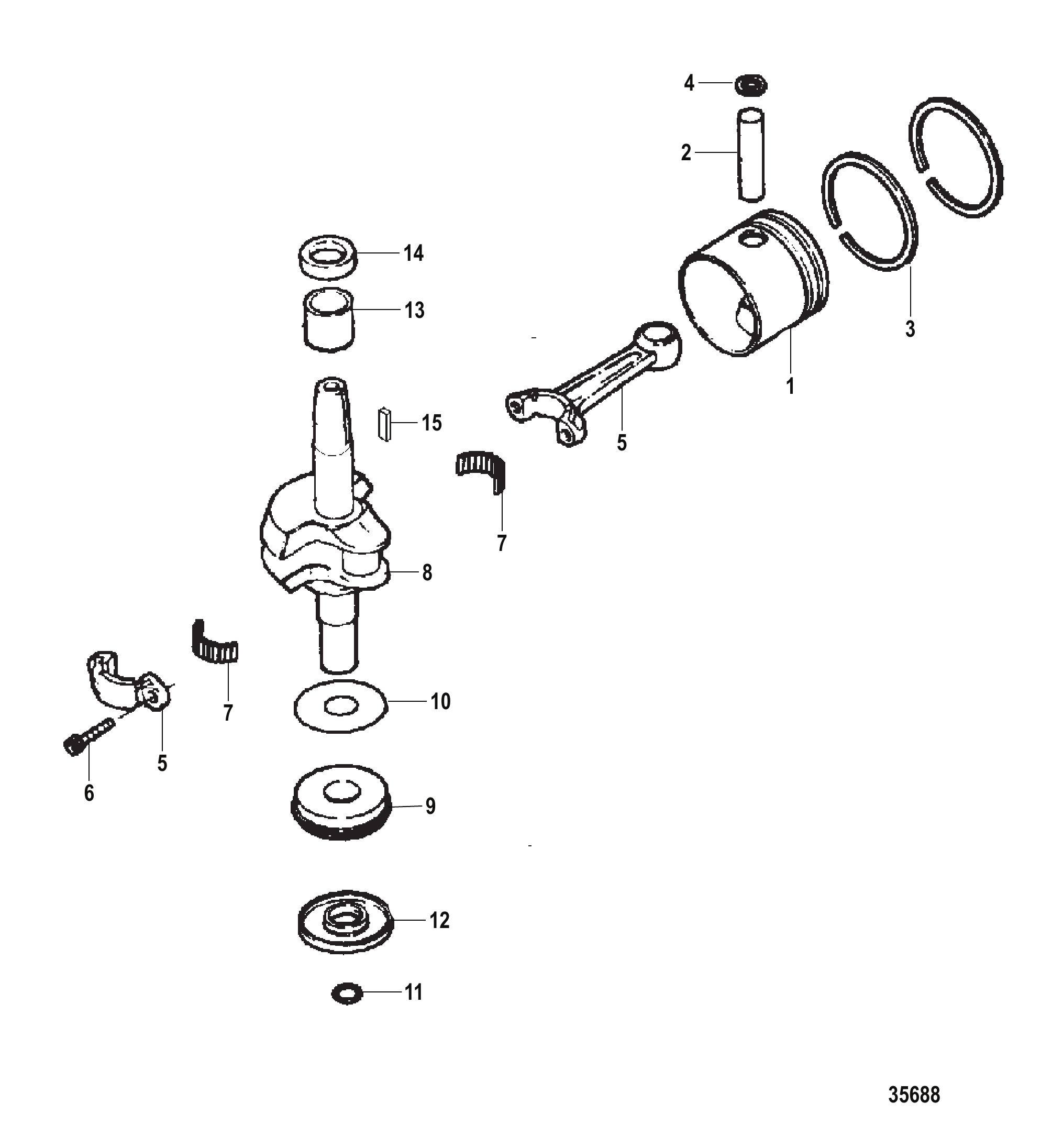

图 3曲轴与活塞 CRANKSHAFT AND PISTON

REF	零件编号	中文名称	英文名称	数量
1	819920A3	活塞套件	PISTON KIT	1
2	F712017	活塞销	PIN Piston	1
3	FA712260	活塞环组(2环)	RING SET Piston (2 Rings)	1
4	F31410	挡圈	RING Retaining	2
5	FS715016	连杆总成	CONNECTING ROD ASSEMBLY	1
6	F175634	螺钉	SCREW	2
7	FA712228	滚子组 (2条装) (28个/条)	ROLLER SET (2 Strips) (28 Per Strip)	1
8	FK527018	曲轴套装	CRANKSHAFT KIT	1
8	819797A1	曲轴总成	CRANKSHAFT ASSY	1
9	F521910		BEARING Crankshaft Lower	1
10	F521270	曲轴下端甩油环	SLINGER Crankshaft Lower	1
11	F521579		SEAL Crankshaft Spline	1
12	819798	曲轴下端密封	SEAL Crankshaft Lower	1
13	F521013		BEARING Crankshaft Upper	1
14	819799	曲轴上端油封	SEAL Crankshaft Upper	1
15	F687498	曲轴/飞轮键	KEY Crankshaft/Flywheel	1
-	FG10341	动力头衬垫套件	GASKET SET Powerhead	1
-	819854A5	动力头总成	POWERHEAD ASSEMBLY	1

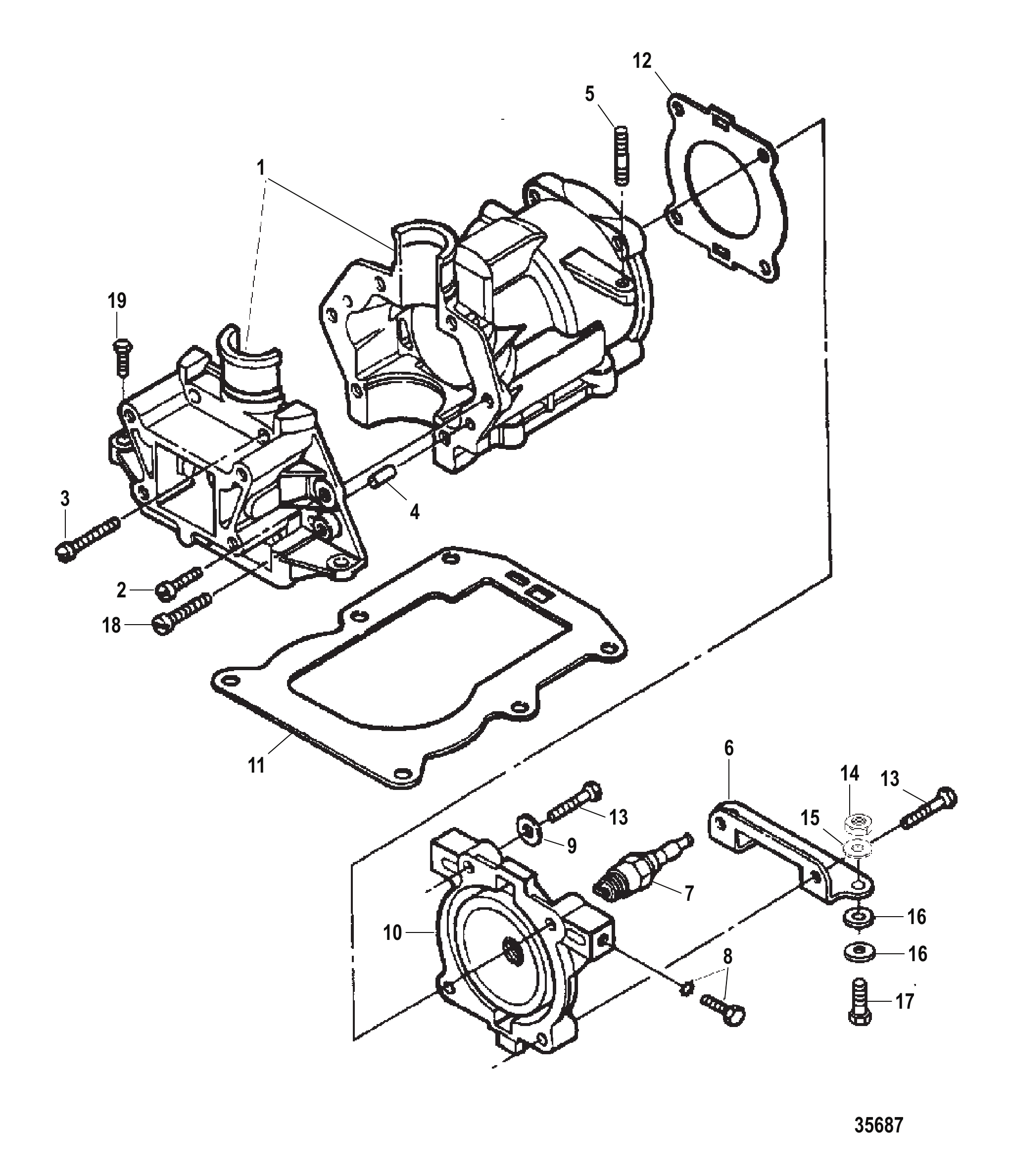

图 4气缸体总成 CYLINDER BLOCK ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	819854A5	动力头总成(喷漆)	POWERHEAD ASSEMBLY (Painted)	1
1	819854A1	气缸体套件	CYLINDER BLOCK KIT	1
2	F1107	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
3	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	4
4	F8559	定位销	PIN Dowel	2
NS	FG10341	动力头衬垫套件	GASKET SET Powerhead	1
5	827386	螺柱 (.250 x 1.250)-电缆固定器	STUD (.250 x 1.250)-Cable Retainer	1
6	F521774	下支架	BRACKET Lower	1
6	F521774T	下支架	BRACKET-LOWER	1
7	312	火花塞	SPARK PLUG	1
7	327	火花塞	SPARK PLUG	OPT
8	F1426	螺钉与锁紧垫圈 (.250-20 x .437)	SCREW AND LOCKWASHER (.250-20 x .437)	2
9	22937	垫圈	WASHER	2
10	819367T1	气缸盖 (喷漆)	HEAD Cylinder (Painted)	1
11	F521279-1	气缸排气衬垫	GASKET Cylinder Exhaust	1
12	F712529	气缸盖衬垫	GASKET Cylinder Head	1
13	F901938-1		SCREW (.250-20 x .875) Cylinder Head	4
14	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
14	8M0207776	螺母	NUT	2
15	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	2
16	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	4
17	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
18	F2040	螺钉 (.250-20 x .625)-接地线	SCREW (.250-20 x .625)-Ground Wire	1
19	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
-	FG10341	动力头衬垫套件	GASKET SET Powerhead	1
-	819854A5	动力头总成	POWERHEAD ASSEMBLY	1

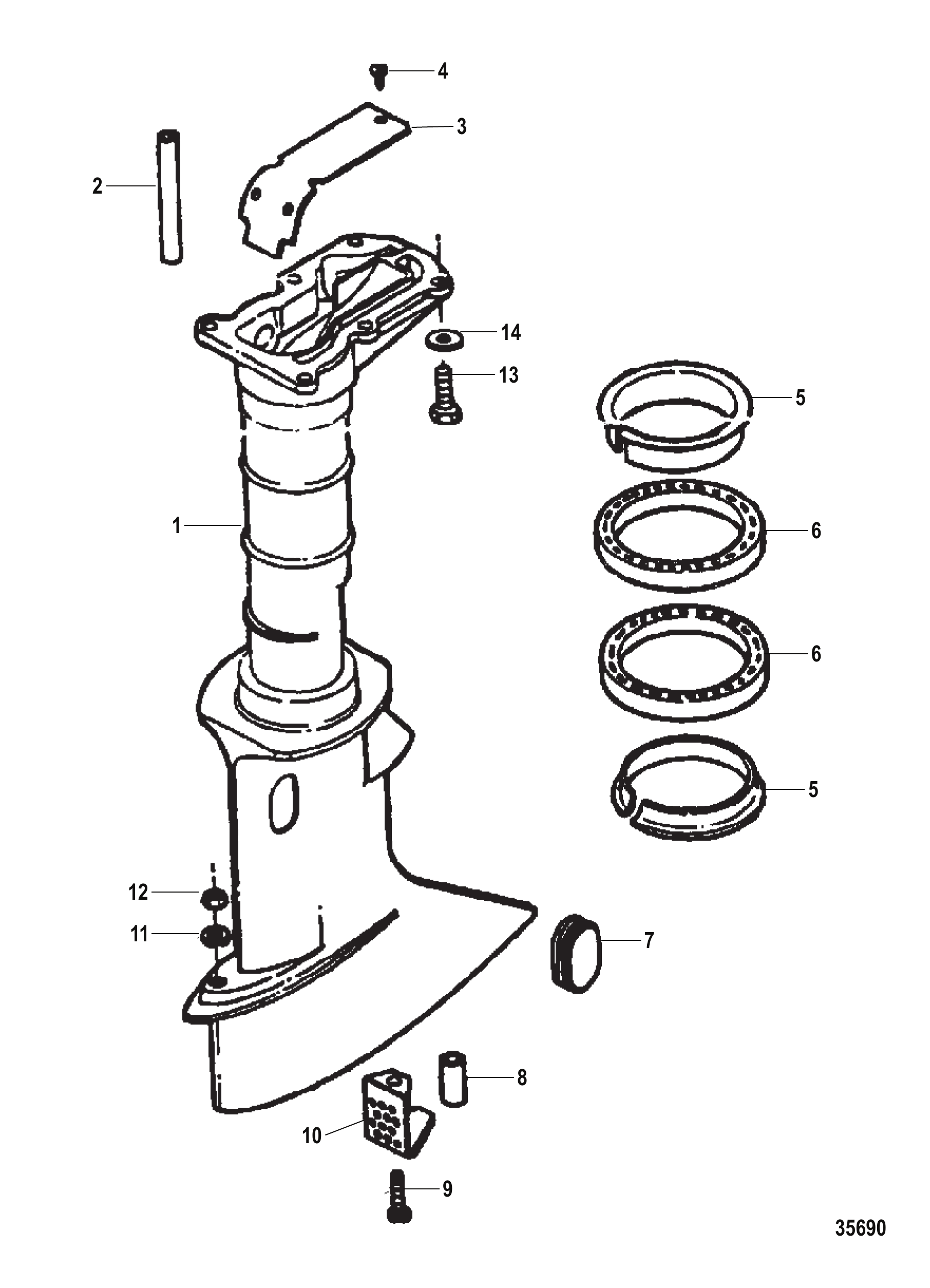

图 5驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	817940A7	传动轴壳体总成(喷漆)	HOUSING ASSEMBLY Driveshaft (Painted)	1
2	F521261		LINE Water Outlet	1
3	FA341151		PLATE KIT Exhaust	1
4	69080	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	3
5	F468169-1	旋转支架轴承	BEARING Swivel Bracket	2
6	FA468346	下部减震器安装套件	MOUNT KIT Shock Lower	2
6	820161	支架	MOUNT	2
7	F46899-1	盖板	COVER	1
8	F521727		SLEEVE Idle Baffle	1
9	F1747	螺钉 (#10-24 x 1.687)	SCREW (#10-24 x 1.687)	1
10	F521779		BAFFLE Idle Relief	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	64015	螺母 (.250-20)	NUT (.250-20)	1
13	F1914	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	6
14	22937	垫圈	WASHER	6

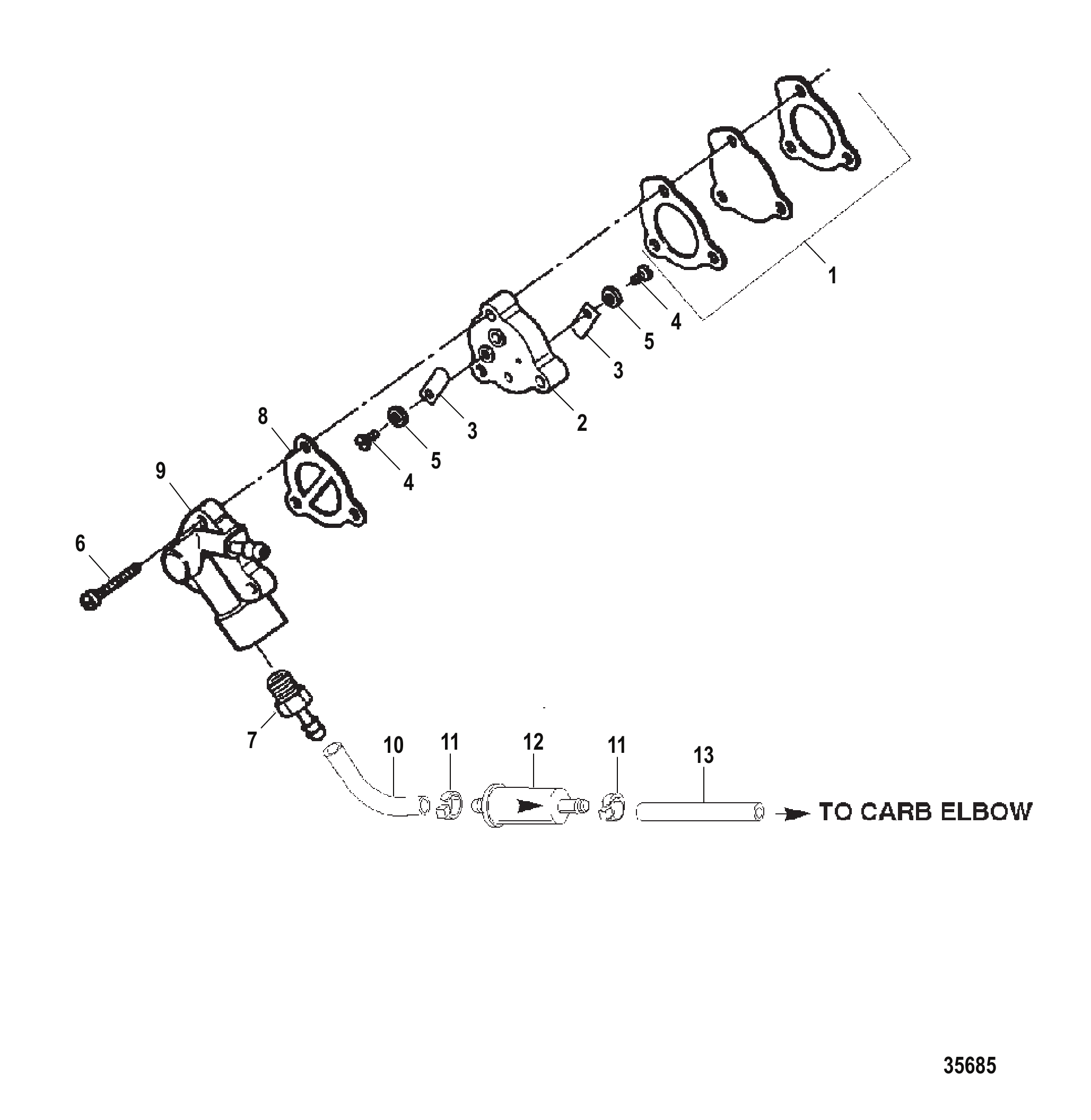

图 6燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	818043A1	垫片/膜片组	GASKET/DIAPHRAGM SET	1
2	F2A24757	燃油泵板总成	PLATE ASSEMBLY Fuel Pump	1
3	F18160-3	簧片	REED	2
4	F1286	螺钉(#4-40x.187)	SCREW (#4-40 x .187)	2
5	18552	垫圈	WASHER	2
6	F1069		SCREW (#10-24 x 1.062) (#10-24 x 1.062)	3
7	850314	燃油泵接头	FITTING Fuel Pump	1
8	F24748-2	燃油泵衬垫	GASKET Fuel Pump	1
9	819993T2	燃油泵盖	COVER Fuel Pump	1
10	819398T	燃油软管 (18.00英寸散装)	HOSE Fuel (18.00 Inch Bulk)	1
11	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
12	828998	燃油滤清器	FILTER Fuel	1
13	819398T	燃油软管 (18.00英寸散装)	HOSE Fuel (18.00 Inch Bulk)	1
-	819854A1	气缸体套件	CYLINDER BLOCK KIT	1
-	819854A5	动力头总成	POWERHEAD ASSEMBLY	1

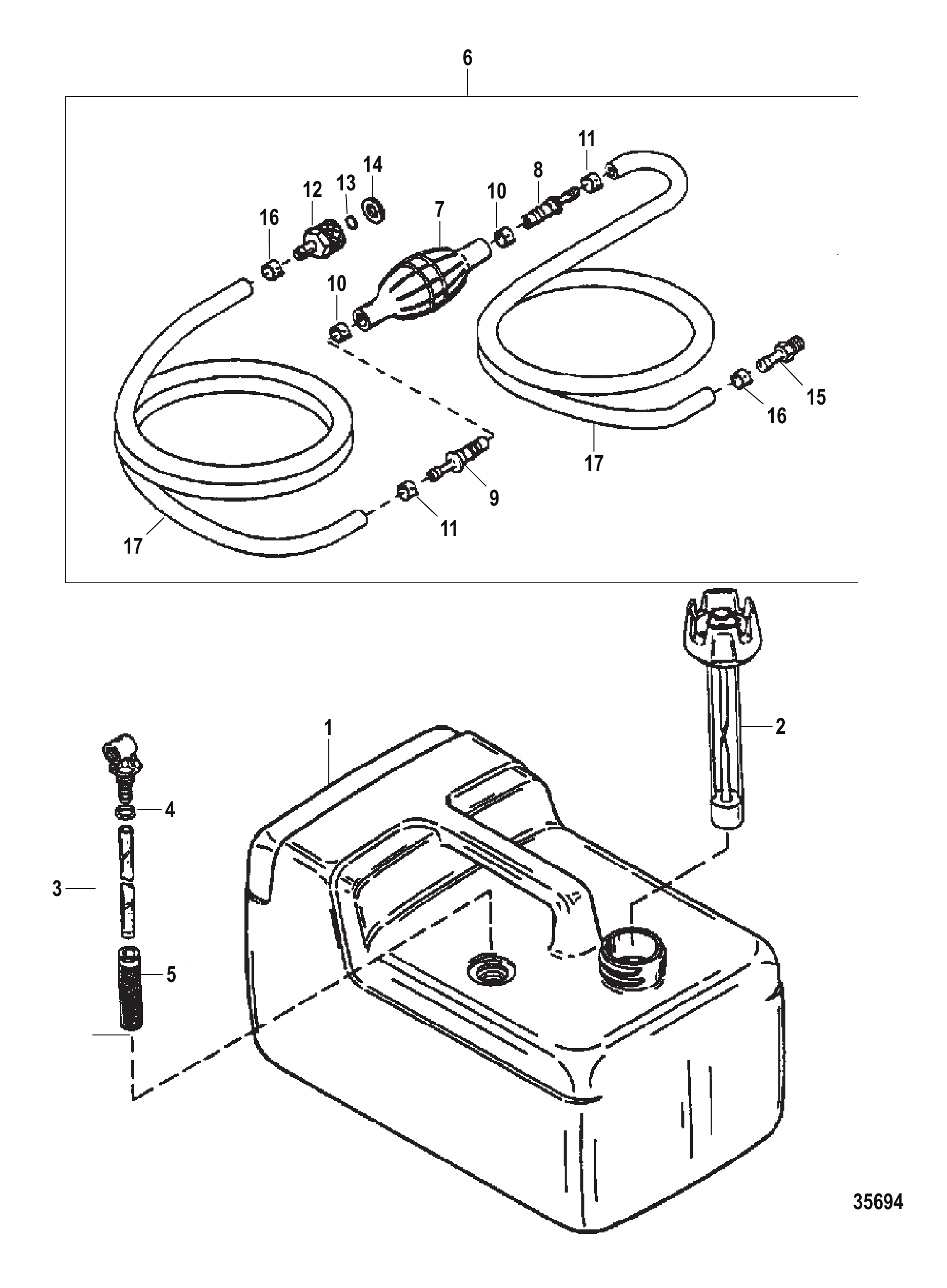

图 7燃油箱及管路总成（塑料-3.2加仑） FUEL TANK AND LINE ASSEMBLY (PLASTIC - 3.2 GALLON)

REF	零件编号	中文名称	英文名称	数量
1	823505A2	燃油箱总成	TANK ASSEMBLY Fuel	1
1	823505A1	燃油箱总成 (塑料 - 3.2加仑)	TANK ASSEMBLY Fuel (Plastic - 3.2 Gallon)	1
1	859061A1	燃油箱总成	TANK ASSEMBLY Fuel	1
2	823535	油量表/油箱盖总成	GAUGE/CAP ASSEMBLY	1
2	816976Q1	燃油手动通气盖总成	CAP ASSEMBLY Fuel-Manual Vent	1
3	823531A1	燃油连接套件	CONNECTOR KIT Fuel	1
3	8M0175544	燃油连接套件3.2	CONN KIT FUEL 3.2	1
4	823533	O型圈	O-RING	1
5	823534	燃油吸油滤网	SCREEN Fuel PickUP	1
6	820572A8	燃油管路总成	LINE ASSEMBLY Fuel	1
6	877684Q8	燃油软管总成	HOSE ASSEMBLY Fuel	1
7	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
7	13330Q07	注油泵总成 - Quicksilver品牌	BULB ASSEMBLY Primer - Quicksilver Brand	1
8	13331A1	止回阀总成 (进口)	CHECK VALVE ASSEMBLY Check (INLET)	1
8	13331A3	止回阀总成	CHECK VALVE ASSEMBLY	1
9	13331A2	止回阀总成 (出口)	CHECK VALVE ASSEMBLY Check (OUTLET)	1
9	13331A4	止回阀总成	CHECK VALVE ASSEMBLY	1
10	4158210		CLAMP Nylon (LARGE)	2
11	415827		CLAMP Nylon (SMALL)	2
11	41582Q7	卡箍	CLAMP	2
12	F197787-3	燃油发动机端联轴器	COUPLER Fuel Engine End	1
12	F197787Q3	燃油接头总成	COUPLER ASSEMBLY Fuel	1
13	F17815	联轴器密封件	SEAL Coupler	1
14	F17816	联轴器密封件	SEAL Coupler	1
15	897711	燃油管-油箱端接头(.250-18)	CONNECTOR (.250-18) Fuel Line-Fuel Tank End	1
15	89771Q2	连接器(.250-18)	CONNECTOR (.250-18)	1
16	415827	尼龙卡箍	CLAMP Nylon	2
16	41582Q7	卡箍	CLAMP	2
17	1678978	软管(9.00英尺整卷)	HOSE (9.00 Feet Bulk)	AR
17	85861079	软管(9.00英尺整卷)	HOSE (9.00 Feet Bulk)	AR
17	16789100	软管(100.00英尺整卷)	HOSE (100.00 Feet Bulk)	AR
17	858610100	软管(100.00英尺整卷)	HOSE (100.00 Feet Bulk)	AR

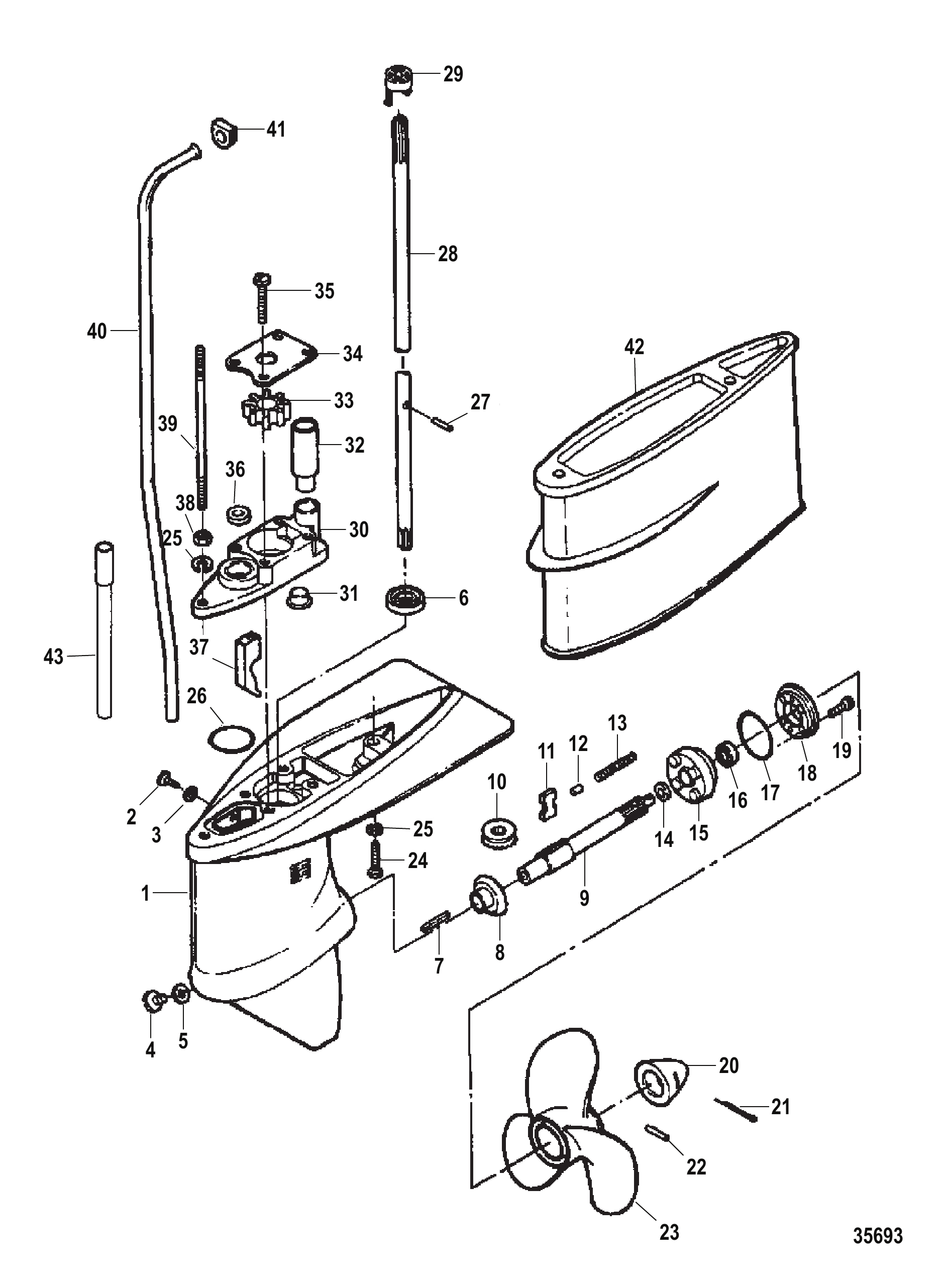

图 8齿轮箱总成 GEAR HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	820090A8	齿轮箱套件 (喷漆)	GEAR HOUSING KIT (Painted)	1
1	820090A7	齿轮箱套件 (喷漆)	GEAR HOUSING KIT (Painted)	1
2	F1077	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
3	F8074	垫圈	WASHER	1
4	F50109	螺钉	SCREW	1
4	79953Q04	放油螺钉套件	SCREW KIT Drain	1
5	19183	纤维垫圈	WASHER Fiber	1
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
6	F318307	传动轴密封件	SEAL Driveshaft	1
7	F521728	离合器换挡销	PIN Clutch Shift	1
8	819249A1	前齿轮总成	GEAR ASSEMBLY Front	1
9	F409098	螺旋桨轴	PROPELLER SHAFT	1
10	819250	小齿轮	GEAR Pinion	1
11	F409521	换挡离合器	CLUTCH Shift	1
12	F318372		PIN Clutch Guide	1
13	F409719	离合器弹簧	SPRING Clutch	1
14	F521099	螺旋桨轴轴承隔套	SPACER Propshaft Bearing	1
15	FA341298T	螺旋桨轴笼总成	CAGE ASSEMBLY Propshaft	1
16	F521307	螺旋桨轴油封	SEAL Propshaft	1
17	F521305	螺旋桨轴轴承笼油封	SEAL Propshaft Bearing Cage	1
18	F521296T1	螺旋桨轴笼固定器 (喷漆)	RETAINER Propshaft Cage (Painted)	1
19	F525457	轴承笼固定螺钉	SCREW Bearing Cage Retainer	4
20	817752A1	螺旋桨螺母套件	PROP NUT KIT Prop	1
21	45882	开口销	COTTER PIN Cotter	1
22	FA324101	螺旋桨剪切销套件 (3件含开口销)	SHEAR PIN KIT Prop (Pack of 3 With Cotter Pin)	1
23	820110A20	黑钻螺旋桨 (7.250 x 6.500 x 3)	BLACK DIAMOND PROPELLER (7.250 x 6.500 x 3)	1
24	14168	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	1
24	F1825	螺钉	SCREW	1
25	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
26	F521783	水泵体密封件	SEAL Water Pump Body	1
27	F390563	叶轮驱动销	PIN Impeller Drive	1
28	F521128	驱动轴	DRIVESHAFT	1
28	F341128	驱动轴	DRIVESHAFT	1
29	819330	驱动轴支撑轴承	BEARING Driveshaft Support	1
30	FA735060	水泵壳体总成	BODY ASSEMBLY Water Pump	1
31	F5212461	水泵塞	PLUG Water Pump	1
32	FA521735	水管密封套件	SEAL KIT Water Line	1
33	F521065-1	水泵叶轮	IMPELLER Water Pump	1
34	F521537		PLATE Water Pump Top	1
35	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	4
36	817472	换挡杆下部油封	SEAL Gearshift Rod Lower	1
37	F521721		CAM Clutch Shift	1
38	64015	螺母 (.250-20)	NUT (.250-20)	1
39	F601006	螺柱	STUD	1
39	F535006	螺柱	STUD	1
40	F521244-1	标准进水口管路	LINE Water Inlet - Standard Water	1
40	F341244-1	进水口管路	LINE Inlet Water Water	1
41	F521342-1	水管上部油封	SEAL Water Line Upper	1
42	F521845T1	延长件 (喷漆)	EXTENSION (Painted)	1
43	F469626	水管	LINE Water	1
-	FK1057	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	819026A1	水泵套件	PUMP KIT Water	1
-	F5H093T	长腿转换套件	CONVERSION KIT Long Leg	1

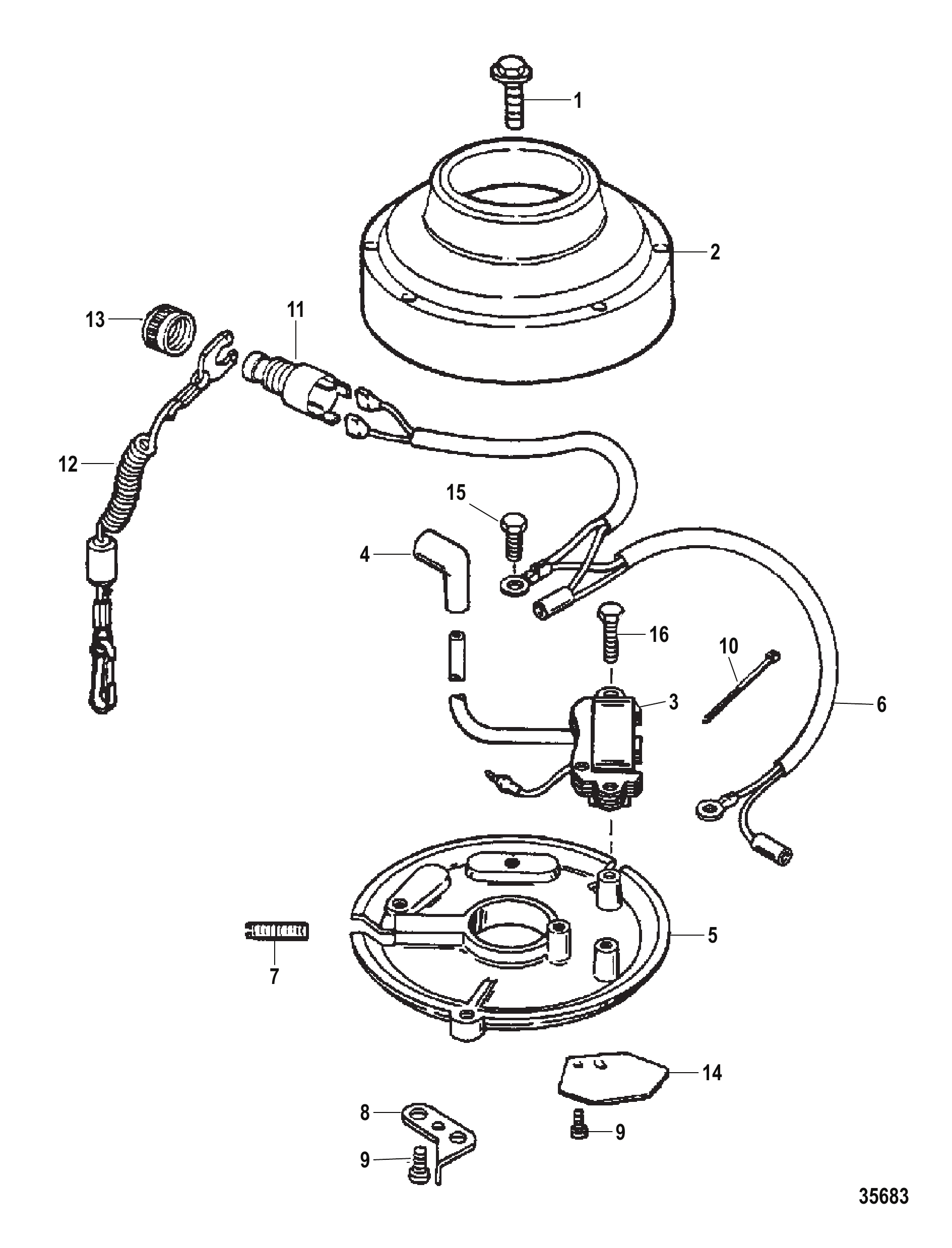

图 9点火系统 IGNITION SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	F521552		SCREW Flywheel	1
2	819363T1	飞轮(喷漆)	FLYWHEEL (Painted)	1
3	850899T	点火模块	MODULE Ignition	1
4	63709A1		BOOT/TERMINAL KIT Spark Plug	1
5	819345A2	定子板总成	PLATE ASSEMBLY Stator	1
6	824486A2	拉线总成	CABLE ASSEMBLY	1
7	824678	摩擦螺钉	SCREW Friction	1
8	F702505	高速限位器	STOP High Speed	1
9	34939	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	2
10	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
11	F687287	紧急停止开关	SWITCH Emergency Stop	1
12	819399A1	拉绳总成	LANYARD ASSEMBLY	1
12	879104	带夹子的拉绳	LANYARD W/CLIP	1
13	855594		NUT (Special)-Stop Switch Sleeve	1
14	F712192	节气门凸轮	CAM Throttle	1
15	824352		SCREW (#10-24 x .375) (#10-24 x .375)	1
16	824353	螺钉(#8-32 x .750)	SCREW (#8-32 x .750)	3

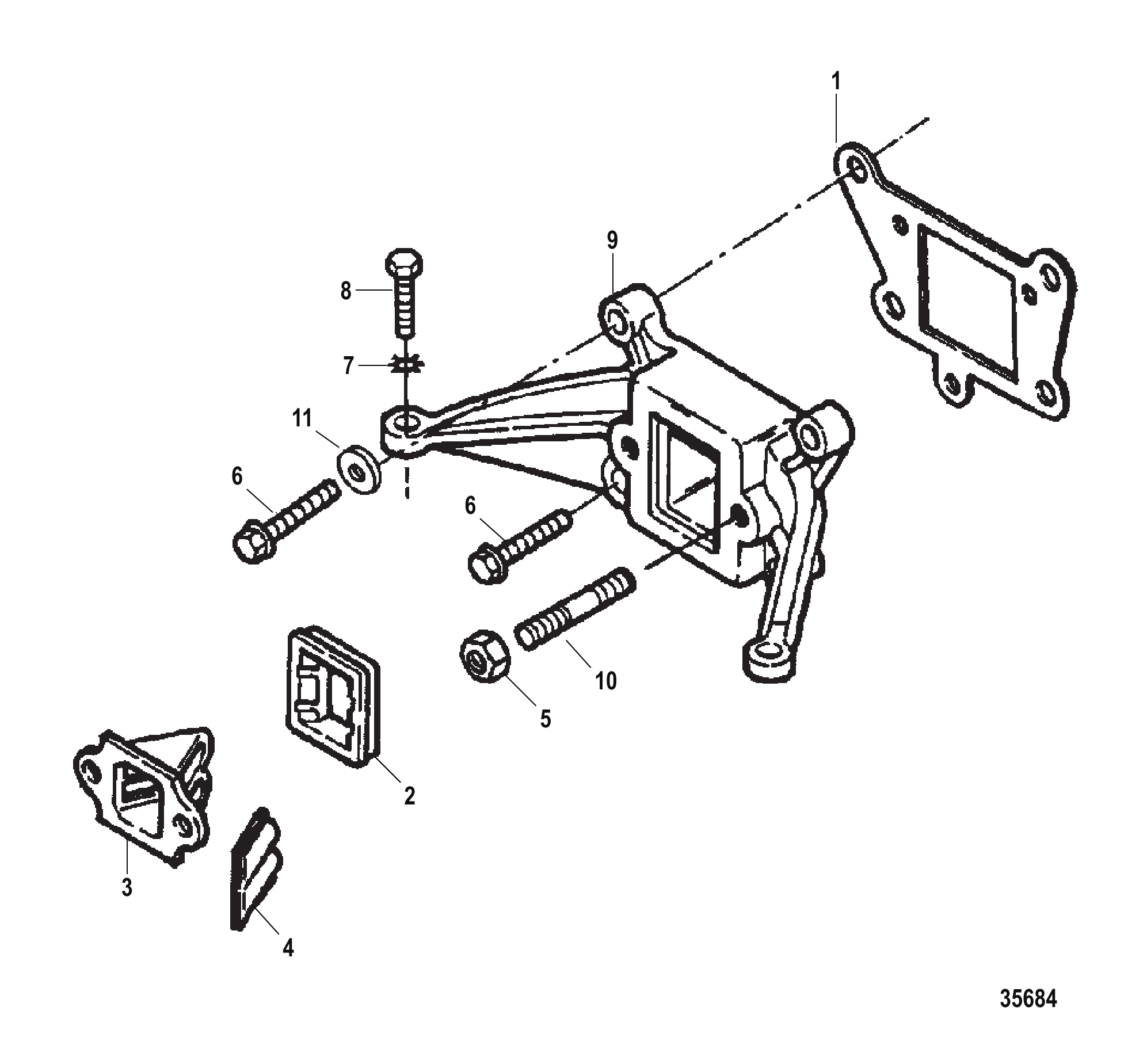

图 10进气系统 INTAKE SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	F521168	化油器适配器衬垫	GASKET Carburetor Adapter	1
2	F712504	簧片板衬套	GROMMET Reed Plate	1
3	819677	簧片阀板	PLATE Reed	1
4	F31160-2	簧片	REED	2
5	20890	螺母 (.250-20)	NUT (.250-20)	2
6	819110100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	4
7	F8060	锁紧垫圈 (.250外径)	LOCKWASHER (.250 External)	2
8	F2008	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	2
9	820097A1	化油器适配器总成 (喷漆)	ADAPTER ASSEMBLY Carburetor (Painted)	1
10	826625	螺柱 (.250-20 x 1.130) 带防松胶	STUD (.250-20 x 1.130) With Dri Lok	2
11	18678	垫圈	WASHER	2
-	FG10341	动力头衬垫套件	GASKET SET Powerhead	1
-	819854A5	动力头总成	POWERHEAD ASSEMBLY	1

图 11说明书与涂料 LITERATURE AND PAINT

REF	零件编号	中文名称	英文名称	数量
-	853346	维修手册	SERVICE MANUAL	1
-	853346R1	SM O/B F5 88-98	SM O/B F5 88-98	1
-	10178980	用户手册	OWNERS MANUAL	1
-	10178981	用户手册	OWNERS MANUAL	1
-	82793336	大马士革钢灰漆	PAINT Damascus Steel Gray	AR
-	802878Q36	PAINT-ST/GR @6	PAINT-ST/GR @6	AR
-	82793337	大马士革钢灰漆	PAINT Damascus Steel Gray	AR
-	802878Q37	PAINT.6-ST/G@6	PAINT.6-ST/G@6	AR
-	81910712	透明丙烯酸漆	PAINT Clear Acrylic	AR
-	82793353	PAINT-CLEAR @6	PAINT-CLEAR @6	AR

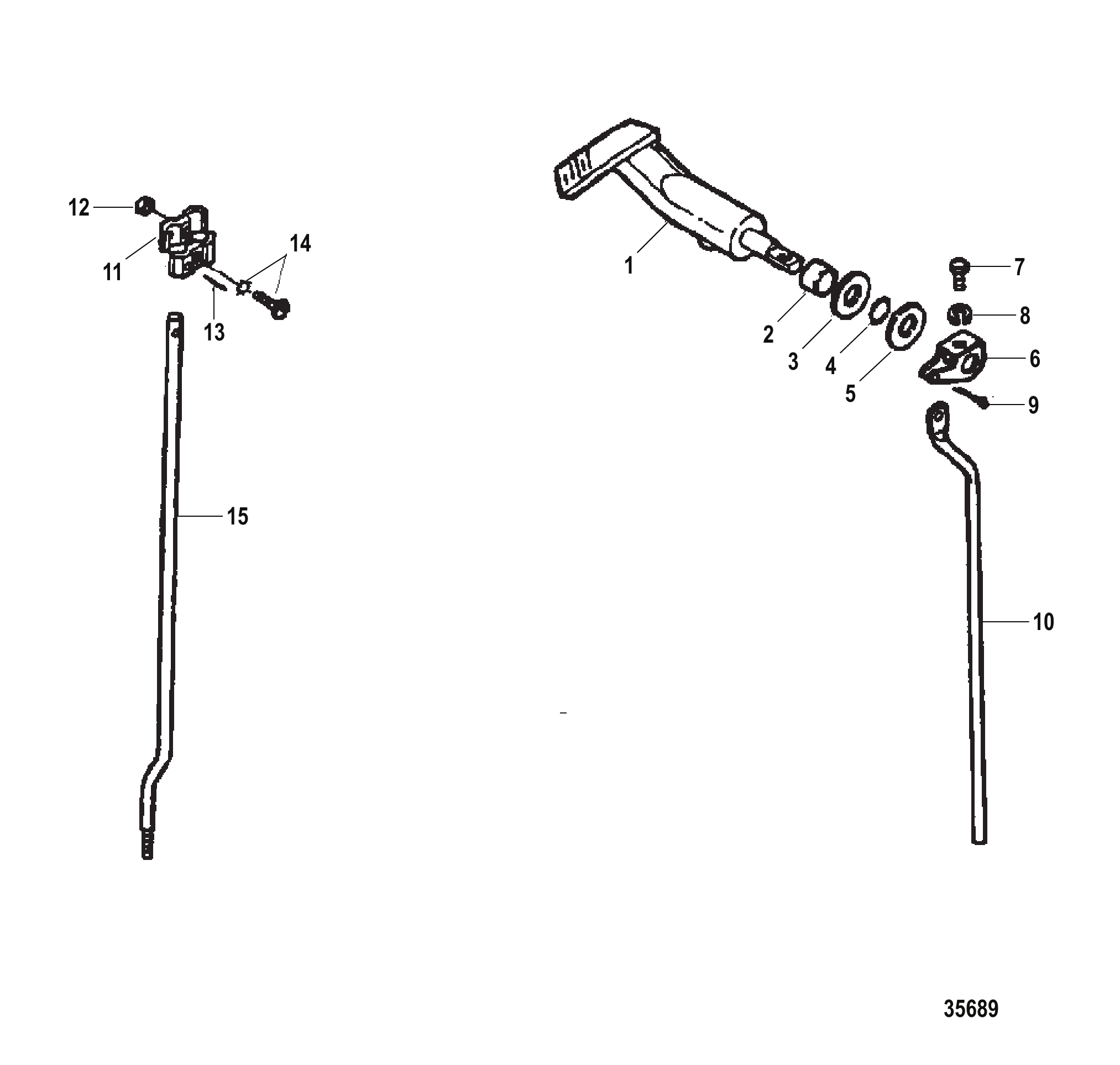

图 12换挡连杆 SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	820433T1	换挡手柄 (喷漆)	HANDLE Gear Shift (Painted)	1
2	F341610		BEARING Gear Shift Shaft	1
3	F269052	换挡臂轴承	BEARING Shift Arm	1
4	F19342	密封件	SEAL	1
5	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
6	F521621	换挡杆	LEVER Gear Shift	1
7	F2041	螺钉(#10-24 x .375)	SCREW (#10-24 x .375)	1
8	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	1
9	29908	滚动销	PIN Roll	1
10	F521615	换挡杆 (上部)	ROD Gear Shift (UPPER)	1
11	FK341704	换挡杆联轴器套件	COUPLING KIT Gear Shift Rod	1
12	F7009	螺母(#10-24)	NUT (#10-24)	1
13	F8538	弹簧销	PIN Spring	1
14	F1371	螺钉与锁紧垫圈 (#10-24 x .625)	SCREW AND LOCKWASHER (#10-24 x .625)	1
15	F5217051	换挡杆	ROD Gear Shift	1
15	F3327051	换挡杆	ROD Gear Shift	1
-	F5H093T	长腿转换套件	CONVERSION KIT Long Leg	1

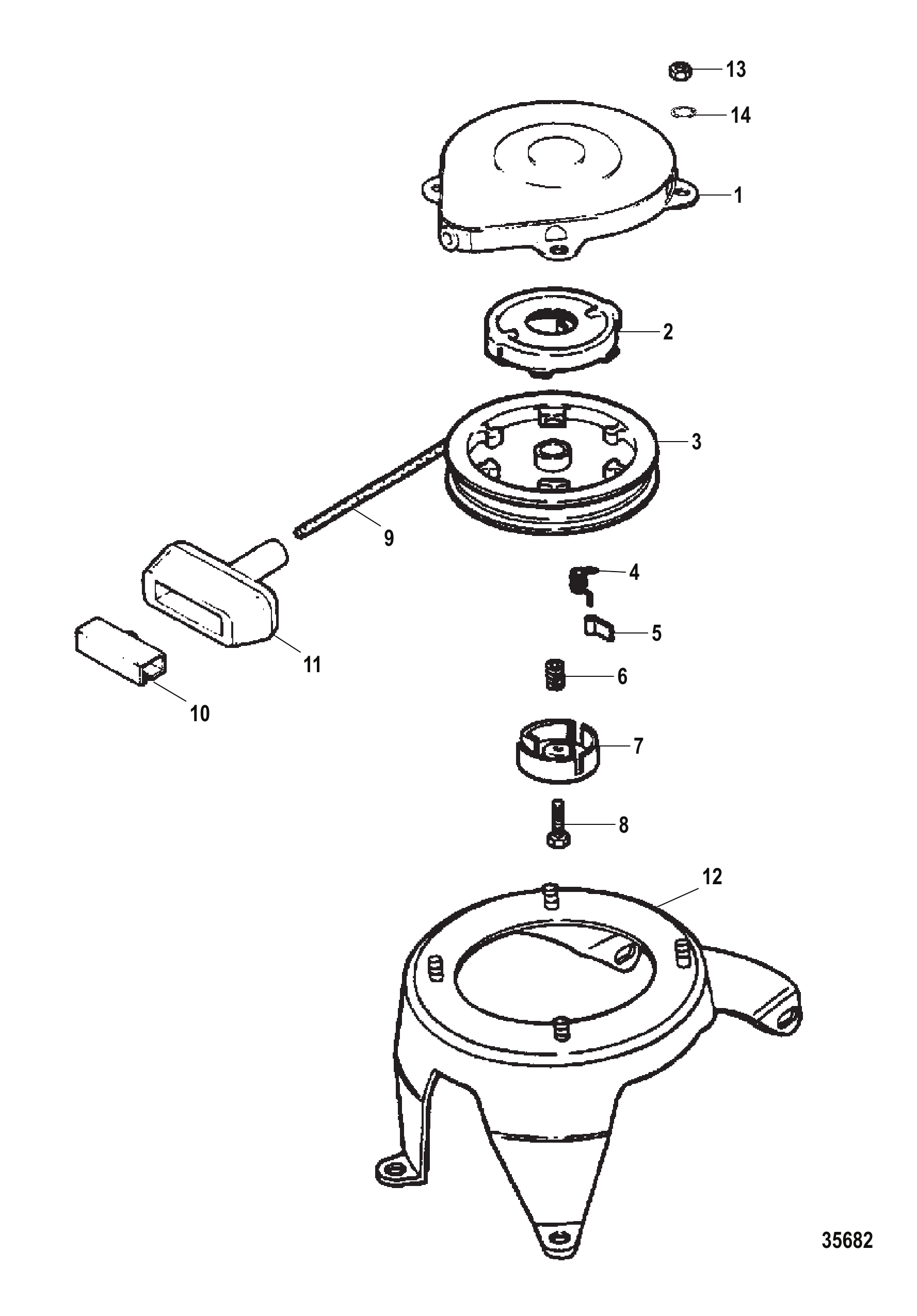

图 13起动机总成 STARTER ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	F687063	起动机总成回绕式	STARTER ASSEMBLY Rewind	1
2	F15584	弹簧与定位器	SPRING AND KEEPER	1
3	F15606	滑轮总成 (含轴承)	PULLEY ASSEMBLY (With Bearing)	1
4	F15605	卡爪弹簧	SPRING Dog	3
5	F250421	卡爪	DOG	3
6	F250003	弹簧	SPRING	1
7	F15604	卡爪固定器	RETAINER Dog	1
8	F15615	螺钉	SCREW	1
9	F15585	启动绳	ROPE Starter	1
10	F620817	启动绳固定器	RETAINER Starter Rope	1
11	F620132	启动绳手柄	HANDLE Starter Rope	1
12	F702427	启动机支架	BRACKET Starter Mount	1
12	F702427T	启动马达支架	BRKT-STARTER MT	1
13	64015	螺母 (.250-20)	NUT (.250-20)	4
14	21272	锁紧垫圈(0.250)	LOCKWASHER (.250)	4

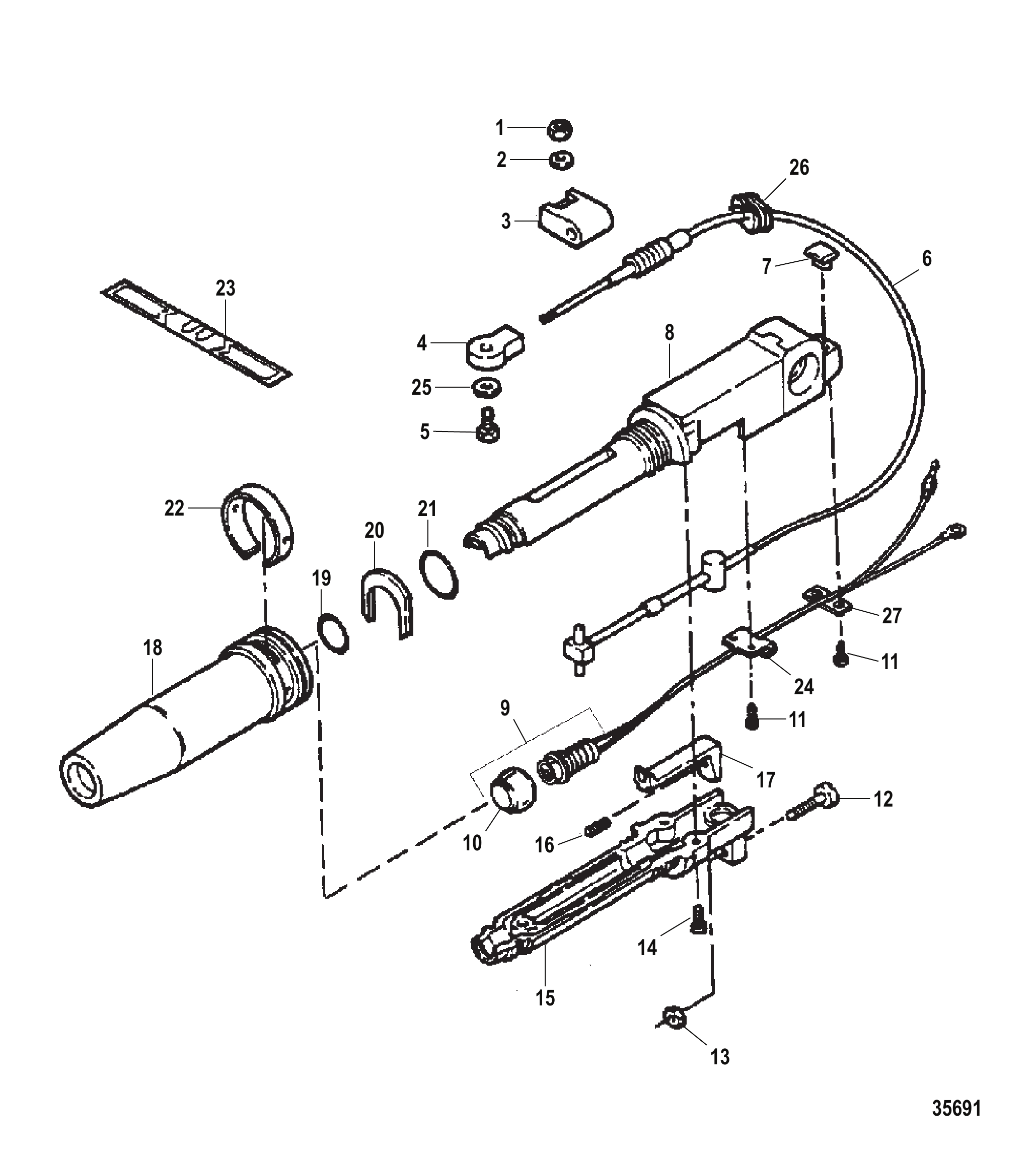

图 14转向手柄/旋转式油门 STEERING HANDLE/TWIST GRIP THROTTLE

REF	零件编号	中文名称	英文名称	数量
1	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
1	8M0207776	螺母	NUT	1
2	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
2	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
3	F702668	调速电缆固定器	RETAINER Speed Control Cable	1
4	F702035	连接器轴承 (#10-24右旋)	BEARING Connector (#10-24 RH)	1
5	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	1
6	F702444	油门拉索总成	CABLE ASSEMBLY Throttle	1
7	F702025	手柄缓冲垫	PAD Handle Bumper	1
8	F702079T1	转向臂 (上部) (喷漆)	ARM Steering (UPPER) (Painted)	1
9	824440A13	停止开关套件	SWITCH KIT Stop	1
10	824466A3	停机开关盖总成	COVER ASSEMBLY Stop Switch	1
11	F2230	螺钉 (#6-32 x .375)	SCREW (#6-32 x .375)	4
12	F521690-1	螺钉 (专用)-油门杆调节	SCREW (Special)-Throttle Lever Adjust	1
13	F7009	螺母(#10-24)	NUT (#10-24)	1
14	F2219	螺钉 (#8-18 x .750)	SCREW (#8-18 x .750)	3
15	827252	转向臂(下)	ARM Steering (LOWER)	1
15	827252T	下部臂	ARM-LOWER	1
16	F521199	节气门杆调节弹簧	SPRING Throttle Lever Adjust	1
17	F702198	怠速止动块	STOP Idle	1
18	828070	转向手柄握把	GRIP Steering Handle	1
19	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
19	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
20	F702178	握把固定座	RETAINER Grip	1
21	23145	O型圈(0.984×0.139)后握把	O-RING (.984 x .139) Grip Rear	1
22	F702687	手柄套环	COLLAR Handle	1
23	F712894	速度/档位指示标贴	DECAL Speed/Shift Indicator	1
24	F702384	固定座	RETAINER	1
25	824687	隔套	SPACER	1
26	F702504	护孔环	GROMMET	1
27	F702212	线缆夹板	PLATE Cable Clamp	1

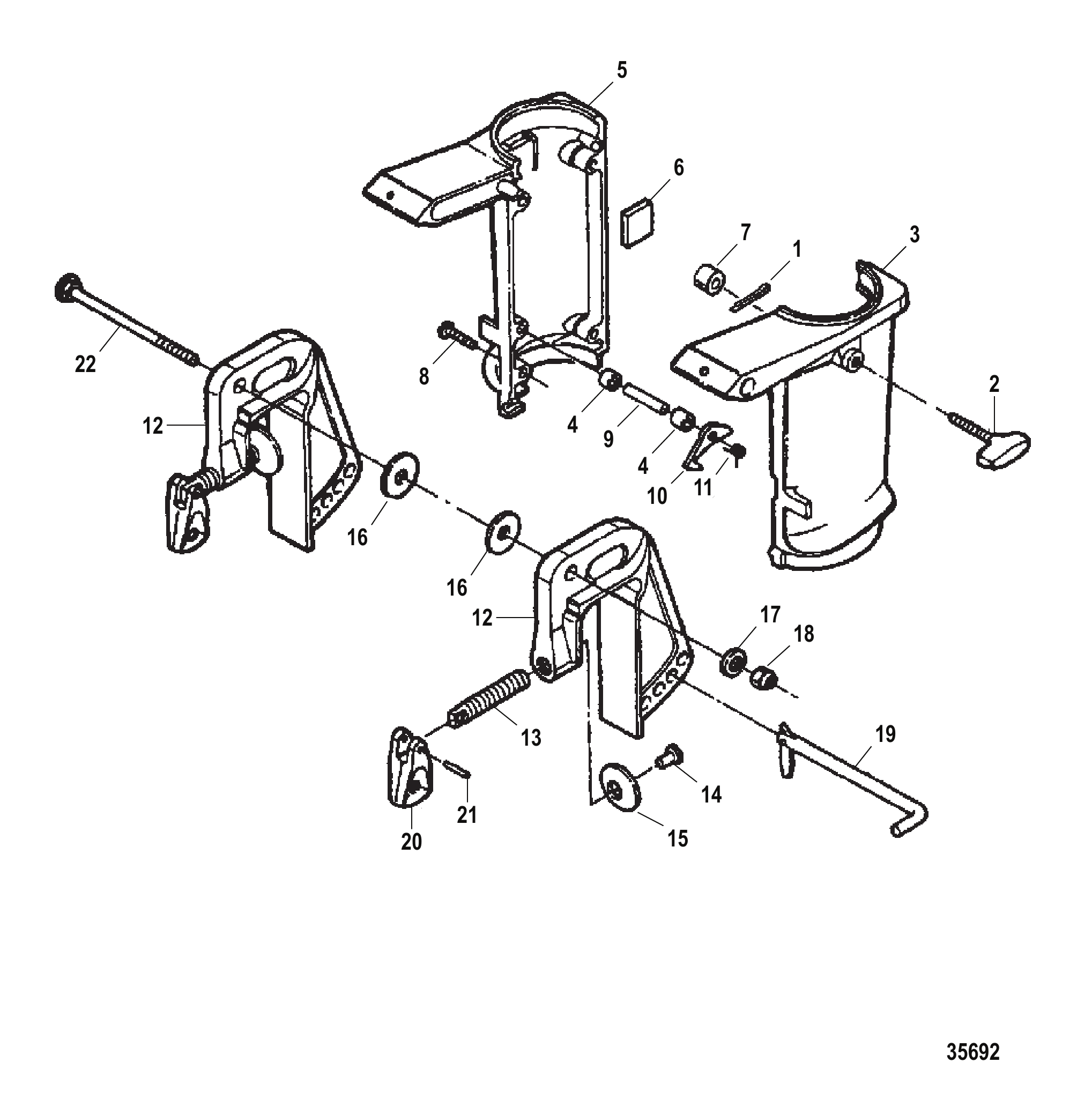

图 15旋转支架/夹紧支架 SWIVEL BRACKET/CLAMP BRACKET

REF	零件编号	中文名称	英文名称	数量
1	26953	开口销	COTTER PIN Cotter	1
2	F521514	转向摩擦旋钮	KNOB Steering Friction	1
3	817815A5	旋转支架(喷漆)	BRACKET Swivel (Painted)	1
4	26856	衬套	BUSHING	2
5	817816A7	旋转支架(喷漆)	BRACKET Swivel (Painted)	1
6	F5216611	旋转摩擦垫	PAD Swivel Friction	1
7	F521631		SHOE Swivel Friction	1
8	F2035	螺钉	SCREW	4
9	F468350	销 倒挡锁	PIN Reverse Lock	1
10	F468349	倒车锁	LOCK Reverse	1
11	F468300-1	倒挡锁弹簧	SPRING Reverse Lock	1
12	817850A6	船尾支架套件(喷漆)	BRACKET KIT Stern (Painted)	2
13	826248	艉支架螺钉	SCREW Stern Bracket	2
14	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
15	F24074	船尾支架地脚螺丝	FOOT Stern Bracket Screw Clampscrew	2
16	F2037	垫圈	WASHER	2
17	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	1
18	F7026	螺母（0.375-16）	NUT (.375-16) (.375-16)	1
19	817810A1	锁杆套件	LOCK BAR KIT	1
20	F424075T3	夹紧螺钉手柄	HANDLE Clamp Screw	2
21	24198	滚动销	PIN Roll	2
22	F468037-1	船尾支架枢轴螺栓	BOLT Stern Bracket Pivot	1

图 16专用工具 TOOLS SPECIAL

REF	零件编号	中文名称	英文名称	数量
-	FT8948-1	轴承拆卸工具 齿轮箱轴承保持架	PULLER TOOL Bearing Gear Housing Bearing Cage	1
-	83164M	飞轮拉拔器	FLYWHEEL PULLER	1
-	F1800	螺栓(.250-20 x 7.00)	BOLT (.250-20 x 7.00)	2
-	F1972	螺钉(.250-20 x 2.500)	SCREW (.250-20 x 2.500)	3
-	4000358	螺钉(M8 x 50)	SCREW (M8 x 50)	3
-	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	3
-	F8012	垫圈(.203 x .469 x .049)	WASHER (.203 x .469 x .049)	2
-	25909	垫圈(.406 x .812 x .065)	WASHER (.406 x .812 x .065)	3
-	FT2991	钢丝碳刷清洁器	BRUSH Wire Carbon Remover	1
-	803504T	电刷	BRUSH	1
-	FT2990-1	活塞与活塞销定位块	BLOCK Piston And Piston Pin	1
-	FT2997	活塞环压缩工具	COMPRESSOR TOOL Piston Ring	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	FT8900	软管卡钳	PLIERS Hose Clamp	1
-	FT8957	换挡杆油封安装工具	INSTALLER TOOL Seal Shift Rod	1
-	FT8919	弹簧销冲具	PUNCH TOOL Spring Pin	1
-	FT8998	飞轮拆卸螺丝	SCREW Knock Off-Flywheel	1
-	FT2989	飞轮楔形工具	WEDGE TOOL Flywheel	1
-	FT8929	连杆螺丝六角套筒适配器	ADAPTER/HEX BITS Conn Rod Screw	1
-	FT1749	卡环钳	PLIERS Snap Rings	1
-	FT2907	油封冲具	PUNCH TOOL Seal	1
-	FT11202	曲轴油封安装工具	INSTALLER TOOL Crankshaft Seals	1
-	FT11295	点火火花测试器	SPARK TESTER Ignition	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	830230T	八腔气隙设定工具-线圈至飞轮	AIR GAP TOOL Eight Chamber Air Cap Setting-Coil to Flywheel	1
-	99750A1	电子万用表	MULTI METER Electrical	1
-	FT8950	齿轮箱泄漏测试套件	TESTER KIT Gear Housing Leakage	1
-	FT2969	螺纹修复套件(#10-24)	HELI COIL KIT (#10-24)	1
-	FT2970	螺纹修复套件(.250-20)	HELI COIL KIT (.250-20)	1
-	FT2971	螺纹修复套件(.312-18)	HELI COIL KIT (.312-18)	1
-	FT2948	螺纹修复套件(.375-16)	HELI COIL KIT (.375-16)	1
-	825265A1		COMPOUND (8 Ounce) Needle Bearings	1
-	802868A1	润滑剂	LUBRICANT	1
-	FT2987-1	润滑剂	LUBRICANT	1
-	898101390	防卡剂喷雾	ARESOL ANTI-SEIZE	1
-	FT8969	润滑剂	LUBRICANT	1
-	901132	密封胶 RTV #1473	SEALANT RTV #1473	1
-	809825	RTV硅胶 (3盎司管装) 金属蓝	RTV SILICONE (3 Ounce Tube) Metallic Blue	1
-	FT8936-1	乐泰RC 609密封胶	SEALANT Loctite RC 609	1
-	809833	乐泰RC 680密封胶（10毫升瓶装）绿色	SEALANT Loctite RC 680 (10 ml Bottle) Green	1
-	FT2962-2	密封胶	SEALANT	1
-	809818	乐泰222螺纹锁固剂 10毫升	LOCTITE 222 THREADLOCKER 10ml	1
-	809820	乐泰271螺纹锁固剂50ml	LOCTITE 271 THREADLOCKER 50 ml Loctite 27131	1
-	809824	乐泰底漆(4.5盎司喷雾)绿色	PRIMER Loctite (4.5 Ounce Aerosol) Green Loctite 21348	1

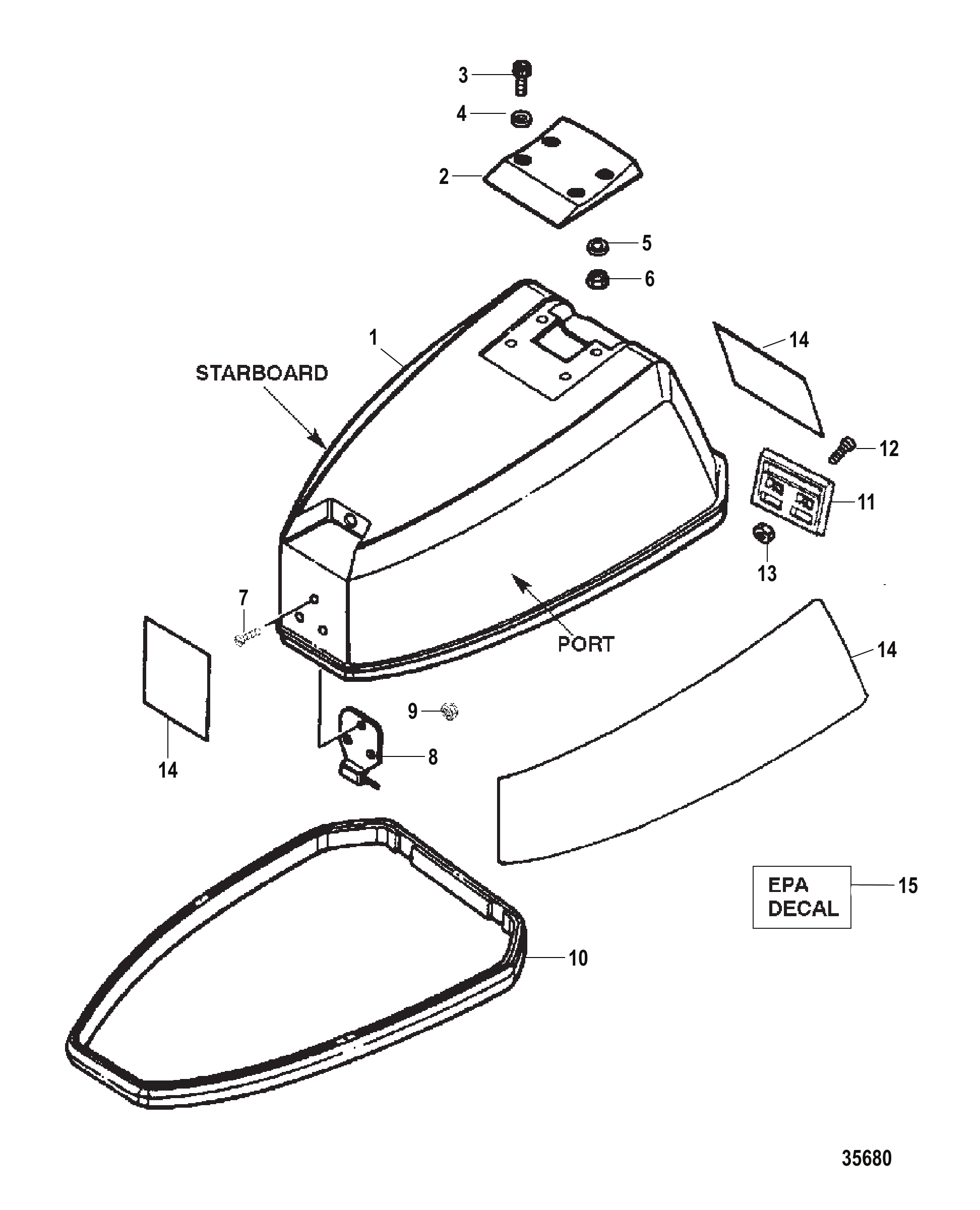

图 17顶盖总成 TOP COWL ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	820190A8	顶盖总成(喷漆)	TOP COWL ASSEMBLY Top (Painted)	1
2	F681269	倾斜手柄	HANDLE Tilt	1
3	F2211	不锈钢螺钉(#10-24 x .625)	SCREW (#10-24 x .625) Stainless Steel	4
4	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	4
5	F8143	垫圈	WASHER	4
6	F7009	螺母(#10-24)	NUT (#10-24)	4
7	41772	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	3
8	F702783	前挡圈	RETAINER Front	1
9	F7011	螺母(10-24)	NUT (10-24) (#10-24)	3
9	F7009	螺母(#10-24)	NUT (#10-24)	3
10	FK525713	密封套件(4英尺散装)	PACKING KIT (4.00 Feet Bulk)	1
11	820474A1	后部锁闩套件	LATCH KIT Rear	1
12	59771	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	2
13	90078	螺母 (#10-32)	NUT (#10-32)	2
14	855379A98	贴花套件(前-后-左舷-右舷)	DECAL SET (Front-Rear-Port-Starboard)	1
15	85557715	EPA标签信息贴花	DECAL EPA Label Information	1
15	855577A15	REF SOB 09-18	REF SOB 09-18	1
