Force 系列 · USA - Cat.# 90-855373R2 · 共 25 个部位 · 964 条零件

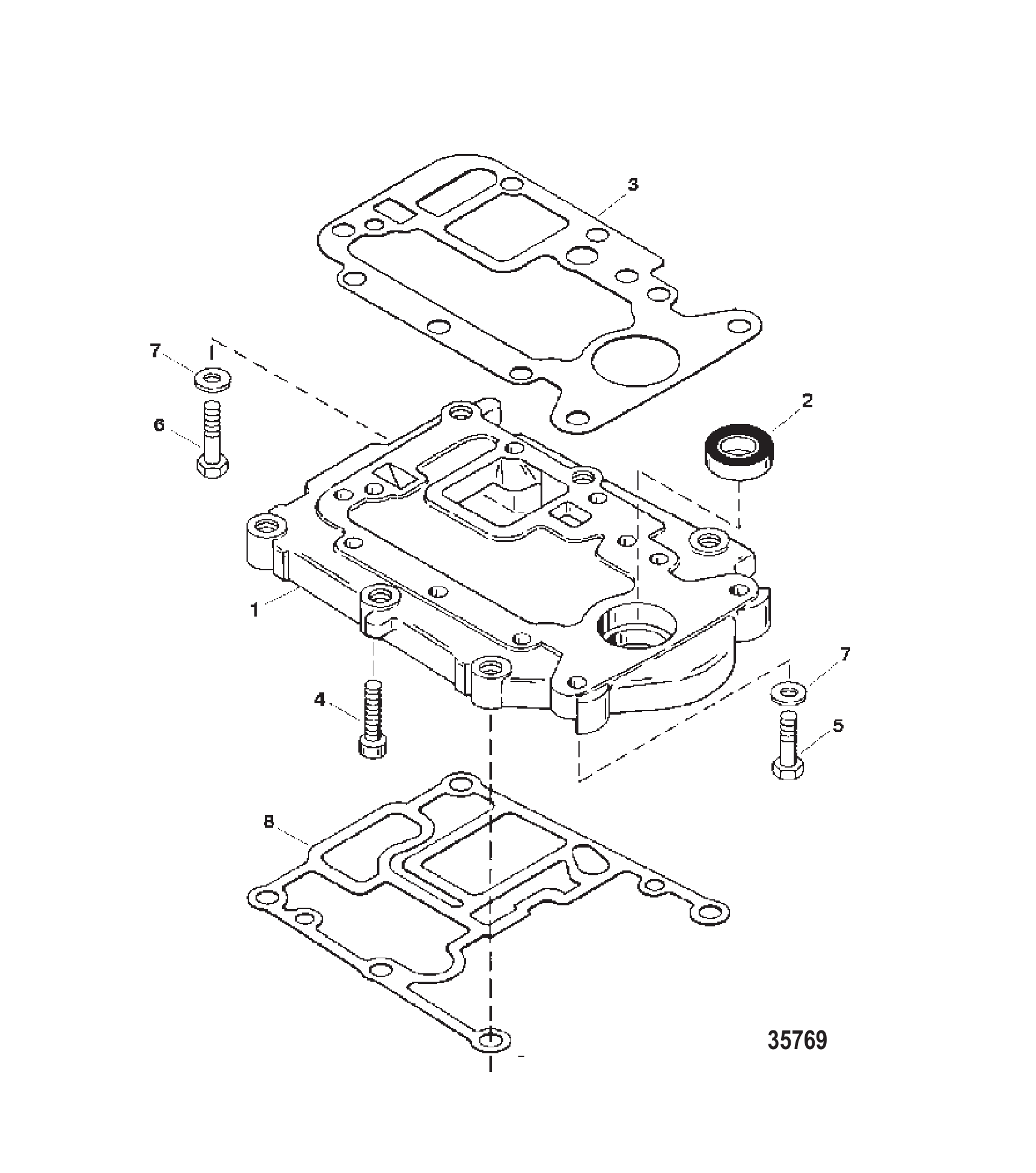

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 820228A2 | 上适配板总成 | ADAPTER PLATE ASSEMBLY Upper | 1 |
| 2 | 828932 | 驱动轴油封 | SEAL Oil Driveshaft | 1 |
| 3 | 8268712 | 适配板衬垫 | GASKET Adapter Plate | 1 |
| 4 | 19949088 | 螺钉(.250-20×0.880) | SCREW (.250-20 x .880) | 1 |
| 5 | 19921125 | 螺钉 (.312-18 x 1.25) | SCREW (.312-18 x 1.25) | 6 |
| 6 | 19921150 | 螺钉 (.312-18 x 1.500)带防松胶 | SCREW (.312-18 x 1.500) With Dri Lok | 2 |
| 7 | 34437 | 垫圈 | WASHER | 8 |
| 8 | 8267381 | 适配板衬垫 | GASKET Adapter Plate | 1 |
| - | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

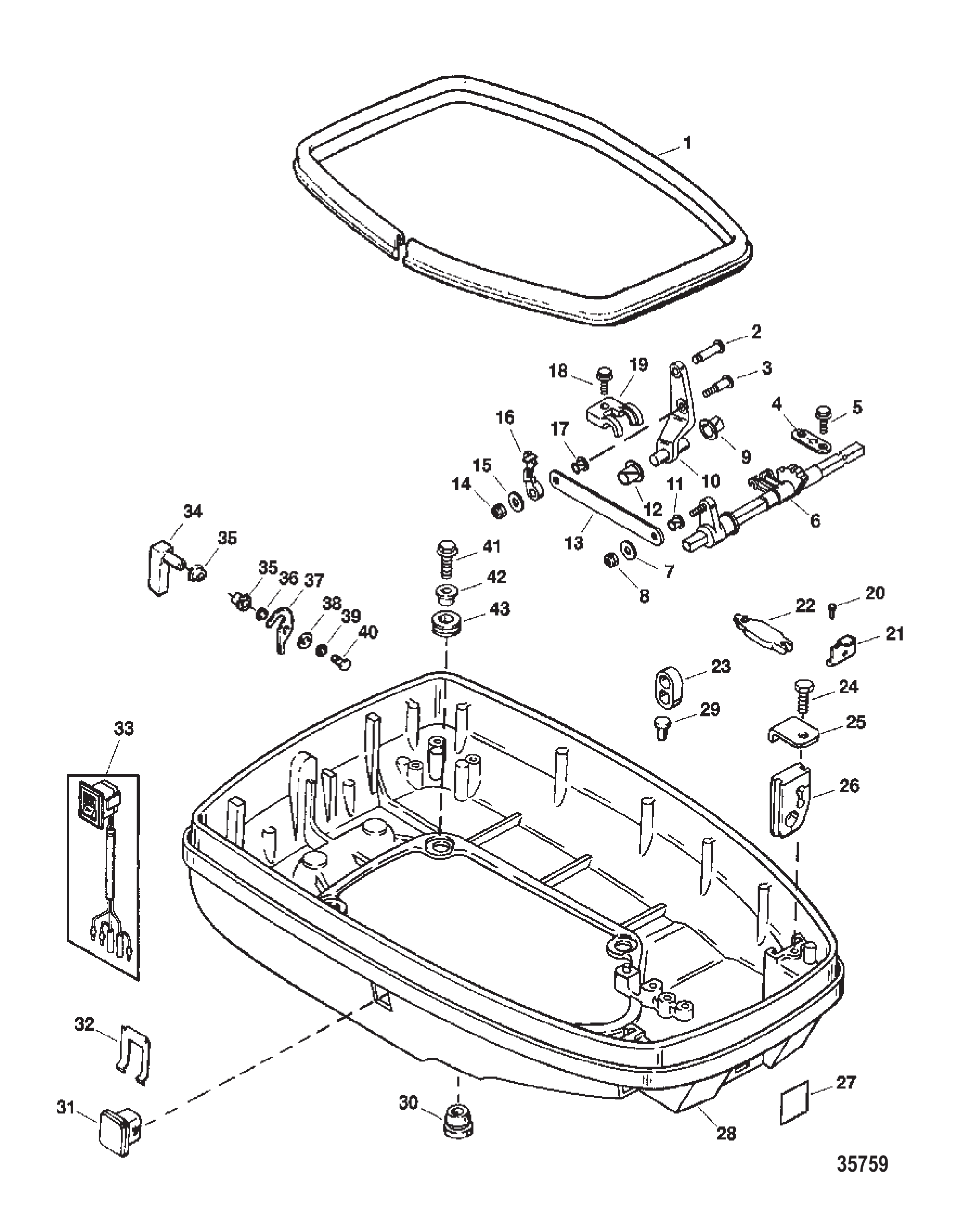

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F6637561 | 密封填料(81英寸散装) | PACKING (81.00 Inches Bulk) | 1 |
| 2 | 42927 | 嵌件 | INSERT | 1 |
| 3 | 8224561 | 电缆固定销 | PIN Cable Retainer | 1 |
| 4 | 8280471 | 水平换挡轴带 | STRAP Horizontal Shift Shaft | 2 |
| 5 | 40011127 | 螺钉 (M6 x 16) 不锈钢 | SCREW (M6 x 16) Stainless Steel | 2 |
| 5 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 6 | 821483A5 | 水平换挡轴总成 | SHIFT SHAFT ASSEMBLY Horizontal | 1 |
| 7 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 8 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 8 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 9 | 26954 | 衬套 | BUSHING | 1 |
| 10 | 8224671 | 中间杆 | LEVER Intermediate | 1 |
| 10 | 8M0041741 | 中间杆 | LEVER-INTERMEDIAT | 1 |
| 11 | 48475 | 衬套 | BUSHING | 1 |
| 12 | 26954 | 衬套 | BUSHING | 1 |
| 13 | 822470 | 换挡连杆 | SHIFT LINK Shift | 1 |
| 14 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 14 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 15 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 16 | 822459 | 遥控电缆固定座 | RETAINER Remote Cable | 1 |
| 17 | 48475 | 衬套 | BUSHING | 1 |
| 18 | 40011127 | 螺钉 (M6 x 16) 不锈钢 | SCREW (M6 x 16) Stainless Steel | 1 |
| 18 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 19 | 822469 | 中间杆端盖 | CAP Intermediate Lever | 1 |
| 19 | 8M0036802 | 中间盖 | CAP-INTERMEDIATE | 1 |
| 20 | 40011127 | 螺钉 (M6 x 16) 不锈钢 | SCREW (M6 x 16) Stainless Steel | 2 |
| 20 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 21 | F6634801 | 前罩固定座 | RETAINER Cowl-Front | 1 |
| 22 | 98889 | 控制电缆锁扣 | LATCH Control Cable | 1 |
| 23 | 39519 | 控制电缆固定杯 | CUP Control Cable Retainer | 1 |
| 24 | 40019104 | 螺钉（M5×8） | SCREW (M5 x 8) | 2 |
| 25 | 826742 | 电缆入口密封固定座 | RETAINER Cable Entry Seal | 2 |
| 26 | 820355 | 电缆入口密封件 | SEAL Cable Entry | 2 |
| 27 | 8180291 | 燃油混合比标贴 | DECAL Fuel Mix | 1 |
| 28 | 820186F2 | 下罩总成(喷漆) | BOTTOM COWL ASSEMBLY (Painted) | 1 |
| 28 | 820186T2 | 下罩总成 | COWL ASSY-BOTTOM | 1 |
| 29 | 42975 | 传动螺钉 | DRIVE SCREW | 2 |
| 30 | 19564 | 护孔环 | GROMMET | 1 |
| 30 | 8M0179867 | 护孔环 | GROMMET | 1 |
| 30 | 19565 | 护孔环 | GROMMET | OPT |
| 30 | 19565002 | 护孔环 | GROMMET | OPT |
| 31 | 8128301 | 堵头 | PLUG | 1 |
| 31 | 812830T01 | 堵头 | PLUG | 1 |
| 32 | 8124431 | 固定座 | RETAINER | 1 |
| 32 | 8M0032848 | 开关固定座 | RETAINER Switch | 1 |
| 33 | 850691 | 开关 | SWITCH | OPT |
| 33 | 8M0235192 | 微调开关 | SWITCH TRIM | OPT |
| 34 | 820000A7 | 罩锁手柄总成(喷漆) | HANDLE ASSEMBLY Cowl Latch (Painted) | 1 |
| 34 | 820000A08 | 手柄总成-黑色 | HANDLE ASY-BLACK | 1 |
| 35 | 812707 | 衬套 | BUSHING | 2 |
| 36 | F2047 | 波形垫圈 | WASHER Wave | 1 |
| 37 | F481777 | 凸轮锁轴 | CAM Latch Shaft | 1 |
| 37 | 8M0001081 | 凸轮 | CAM | 1 |
| 38 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 38 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 39 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 40 | 19923062 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 1 |
| 41 | 40011129 | 不锈钢螺钉(M6x25) | SCREW (M6 x 25) Stainless Steel | 4 |
| 42 | 822003 | 衬套 | BUSHING | 4 |
| 43 | 822002 | 护孔环 | GROMMET | 4 |

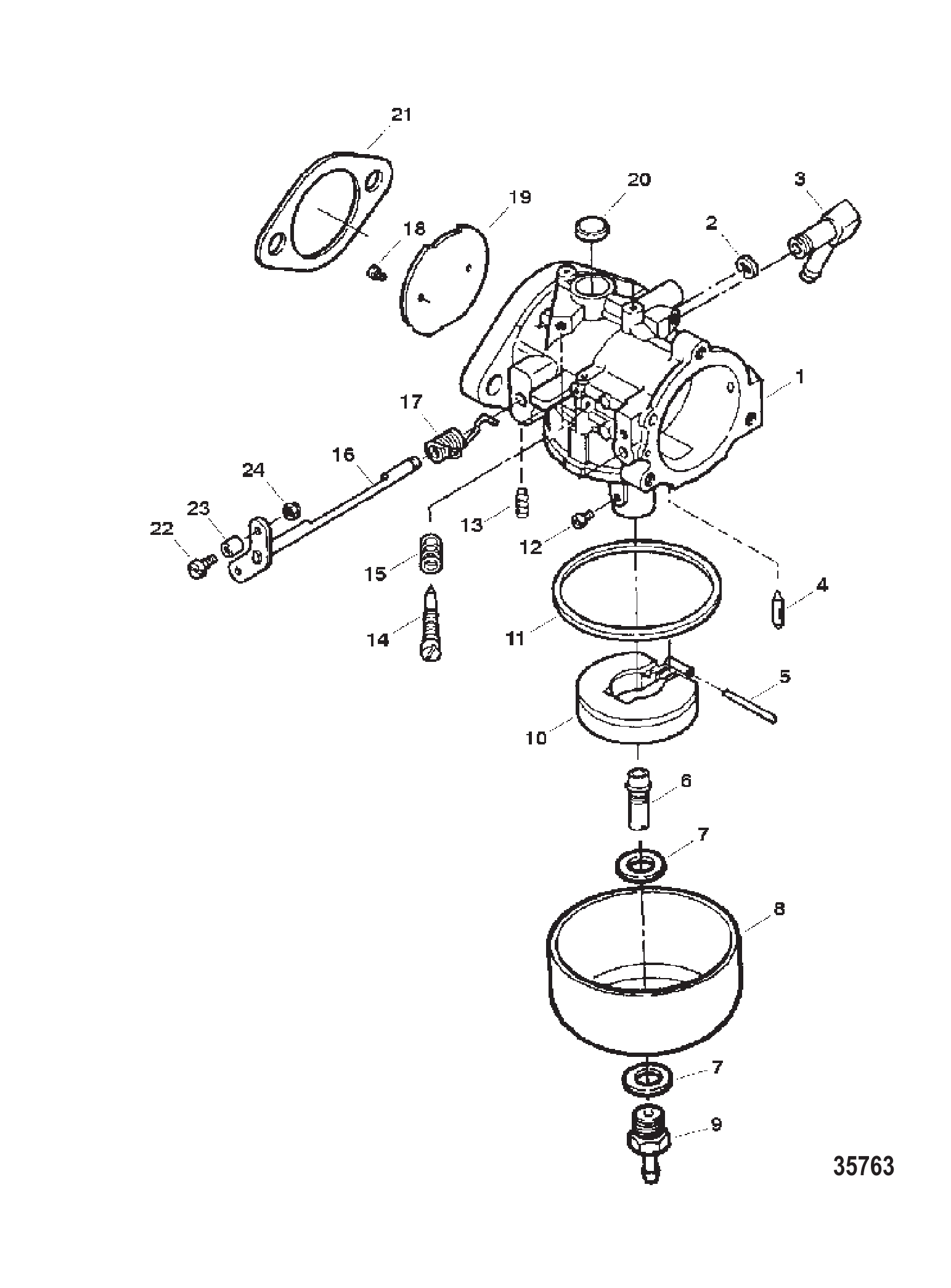

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 854446 | 化油器(TC-135A) | CARBURETOR (TC-135A) | 1 |
| 1 | 854447 | 化油器(TC-136A) | CARBURETOR (TC-136A) | 1 |
| 2 | FO16620 | 节气门轴E型卡环 | E RING Throttle Shaft | 1 |
| 3 | F84314-2 | 燃油弯头(左) | ELBOW (L) Fuel | 1 |
| 4 | F10265 | 进油针阀 | NEEDLE Inlet | 1 |
| 5 | FO13944 | 浮子销 | PIN Float | 1 |
| 6 | FO16133 | 主喷嘴 | NOZZLE Main | 1 |
| 7 | FO5323 | 燃油杯衬垫 | GASKET Fuel Bowl | 2 |
| 8 | FO16130 | 燃油杯 | BOWL Fuel | 1 |
| 9 | F10267 | 燃油杯螺钉组件 | SCREW ASSEMBLY Fuel Bowl | 1 |
| 10 | F10346 | 燃油杯浮子 | FLOAT Fuel Bowl | 1 |
| 10 | 891730A01 | 浮子套件 | FLOAT KIT | 1 |
| 11 | FO15623 | 燃油杯衬垫 | GASKET Fuel Bowl | 1 |
| 12 | 4217 | 主量孔(.062) | JET Main (.062) | 1 |
| 12 | 6487 | 主量孔(0.060) | JET Main (.060) | OPT |
| 12 | 809448 | 主量孔(.058) | JET Main (.058) | OPT |
| 12 | 5213 | 主量孔(.056) | JET Main (.056) | OPT |
| 12 | 5225 | 主量孔(.054) | JET Main (.054) | OPT |
| 12 | 6249 | 主喷口(.096) | JET Main (.096) | 1 |
| 12 | FO14191 | 主量孔(.094) | JET Main (.094) | OPT |
| 12 | 5733 | 主量孔 (.092) | JET Main (.092) | OPT |
| 12 | 6247 | 主量孔(0.090) | JET Main (.090) | OPT |
| 12 | FO13193 | 主量孔(.088) | JET Main (.088) | OPT |
| 13 | F10274 | 启动喷嘴 | NOZZLE Primer | 1 |
| 14 | F10268 | 怠速混合气螺钉 | SCREW Idle Mixture | 1 |
| 15 | 27160 | 怠速混合气螺钉弹簧 | SPRING Idle Mixture Screw | 1 |
| 16 | FO17884 | 节气门轴及杠杆 | SHAFT AND LEVER Throttle | 1 |
| 17 | FO16143 | 节气门轴弹簧 | SPRING Throttle Shaft | 1 |
| 18 | F10328 | 百叶窗螺钉 | SCREW Shutter | 2 |
| 18 | 803176 | 螺钉-带补片 | SCREW-W/PATCH | 2 |
| 19 | FO16142 | 节气门片 | SHUTTER Throttle | 1 |
| 20 | FO16128 | 韦尔奇塞 | PLUG Welch | 1 |
| 21 | F440906 | 化油器法兰衬垫 | GASKET Carburetor Flange | 1 |
| 22 | 830110 | 滚轮轴 | SHAFT Roller | 1 |
| 23 | 819225 | 节气门凸轮滚轮 | ROLLER Throttle Cam | 1 |
| 24 | F1997 | 螺母（#8-32） | NUT (#8-32) | 1 |
| 24 | 8267094 | 螺母 @5 | NUT @5 | 1 |
| - | 827688A1 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| - | FK10023 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| - | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821773F6 | 夹紧支架(左)(喷漆) | BRACKET Clamp (PORT) (Painted) | 1 |
| 2 | 821774F6 | 夹紧支架(右)(喷漆) | CLAMP BRACKET Clamp (STARBOARD) (Painted) | 1 |
| 2 | 821774T10 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 2 | 821774T10 | 夹紧支架总成(右)(喷漆) | BRACKET ASSEMBLY Clamp (STARBOARD) (Painted) | 1 |
| 3 | 86637 | 轴承 | BEARING | 1 |
| 3 | 823589 | 衬套 | BUSHING | 1 |
| 4 | 8224001 | 倾斜止动销 | PIN Tilt Stop | 1 |
| 4 | 8224002 | 倾斜止动销 | PIN Tilt Stop | 1 |
| 5 | 25319 | 滚销(.125 x 0.75英寸) | PIN (.125 x 0.75 Inches) Roll | 1 |
| 5 | 25810 | 滚动销 | PIN Roll | 1 |
| 6 | 822401 | 倾斜止动销帽 | CAP Tilt Stop Pin | 1 |
| 6 | 8224011 | 倾斜止动销帽 | CAP Tilt Stop Pin | 1 |
| 7 | 821457A1 | 倾斜锁销总成 | PIN ASSEMBLY Tilt Lock | 1 |
| 7 | 8M0026103 | 倾斜锁止销总成 | PIN ASY-TILT LOCK | 1 |
| 8 | 821461 | 倾斜锁销弹簧 | SPRING Tilt Lock Pin | 1 |
| 9 | 19624A1 | 密封套件 | SEAL KIT | 1 |
| 10 | 29619 | O型圈(0.583×0.103) | O-RING (.583 x .103) | 1 |
| 11 | 78861 | 隔套 | SPACER | 1 |
| 12 | 13914 | 螺母(M10) | NUT (M10) | 1 |
| 12 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 13 | 4002319 | 垫圈 | WASHER | 1 |
| 14 | 814259 | 螺钉 (.500-20 x 4.00) | SCREW (.500-20 x 4.00) | 2 |
| 15 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 15 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 16 | 8M0027784 | 螺母 | NUT | 2 |
| 16 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 2 |
| 17 | 824952 | 隔套 | SPACER | 1 |
| 18 | 823656 | 双头螺柱(M10x277) | STUD (M10 x 277) | 1 |
| 18 | 8M0034459 | 螺柱 | STUD | 1 |
| 19 | 825271 | 阳极块 | ANODE | 1 |
| 19 | 8252711 | 阳极块 | ANODE | 1 |
| 20 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 20 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 21 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 21 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 22 | 4002319 | 垫圈 | WASHER | 1 |
| 23 | 13914 | 螺母(M10) | NUT (M10) | 1 |
| 23 | 40140 | 螺母(M10) | NUT (M10) | 1 |

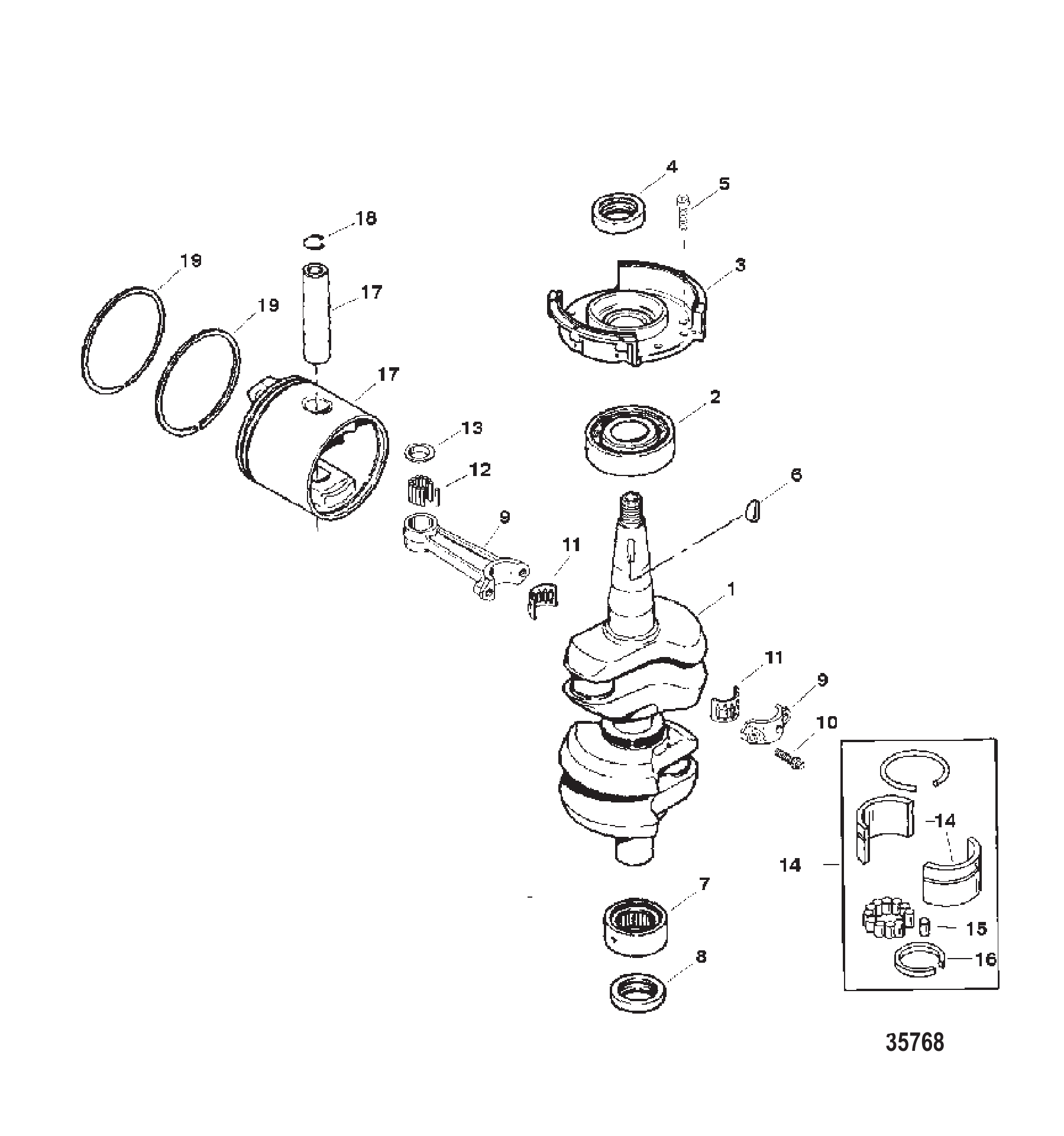

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 817398A4 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | F284659-2 | 上滚珠轴承 | BEARING Ball Upper | 1 |
| 2 | 803893T | 滚珠轴承 | BEARING-BALL | 1 |
| 3 | 819312A3 | 轴承保持架总成 | CAGE ASSEMBLY Bearing | 1 |
| 3 | 819312T3 | 保持架总成-40/150 | CAGE ASSY-40/150 | 1 |
| 4 | 828626 | 曲轴上端油封 | SEAL Crankshaft Upper | 1 |
| 5 | 92160 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 4 |
| 6 | 91800 | 曲轴/飞轮伍德鲁夫键 | KEY Woodruff Crankshaft/Flywheel | 1 |
| 7 | 812873A2 | 滚轮轴承/密封套件 | BEARING/SEAL KIT Roller | 1 |
| 8 | 819394 | 曲轴下端密封 | SEAL Crankshaft Lower | 1 |
| 9 | 9612A7 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 9 | 9612A6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 10 | 91012 | SCREW (.250-28 Special) Connecting Rod | 4 | |
| 11 | 17514A2 | 滚子轴承套件 | BEARING KIT Roller | 2 |
| 11 | 8M0234886 | 轴承保持架 | CAGE BEARING | 2 |
| 12 | 47270 | 滚针轴承 | BEARING Needle | 58 |
| 12 | 8M0214934 | 滚针轴承@200 | BRG-NEEDLE @200 | 58 |
| 13 | 812876 | 止推垫圈 | WASHER Thrust | 4 |
| 13 | 8M0012298 | 止推垫片 | THRUST WASHER | 4 |
| 14 | 827955A1 | 中心主轴承滚道/滚子组件 | RACE/ROLLER KIT Center Main | 1 |
| 15 | NSS | 滚轮(不单独销售) | NOT SOLD SEPARATE Roller | 14 |
| 16 | NSS | 密封环（不单独销售） | NOT SOLD SEPARATE Ring-Seal | 1 |
| 17 | 828304A6 | 活塞套件 | PISTON KIT | 2 |
| 17 | 828304A13 | 标准活塞组件 | PISTON KIT-STD | 2 |
| 17 | 828304A7 | 活塞套件 | PISTON KIT | OPT |
| 17 | 828304A14 | 0.015加大活塞组件 | PISTON KIT-.015 | OPT |
| 17 | 828304A8 | 活塞套件 | PISTON KIT | OPT |
| 17 | 828304A15 | 活塞套件-.030 | PISTON KIT-.030 | OPT |
| 18 | 52035 | 锁环 | RING Lock | 4 |
| 18 | 857196 | 锁紧环 | LOCK RING | 4 |
| 19 | 828564A1 | 活塞环组(2环) | RING SET (2 Rings) | 2 |
| 19 | 828564A4 | 活塞环组 | RING SET | 2 |
| 19 | 828564A2 | 活塞环组(2环) | RING SET (2 Rings) | OPT |
| 19 | 828564A5 | 活塞环组 | RING SET | OPT |
| 19 | 828564A3 | 活塞环组(2环) | RING SET (2 Rings) | OPT |
| 19 | 828564A6 | 活塞环组 | RING SET | OPT |
| - | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

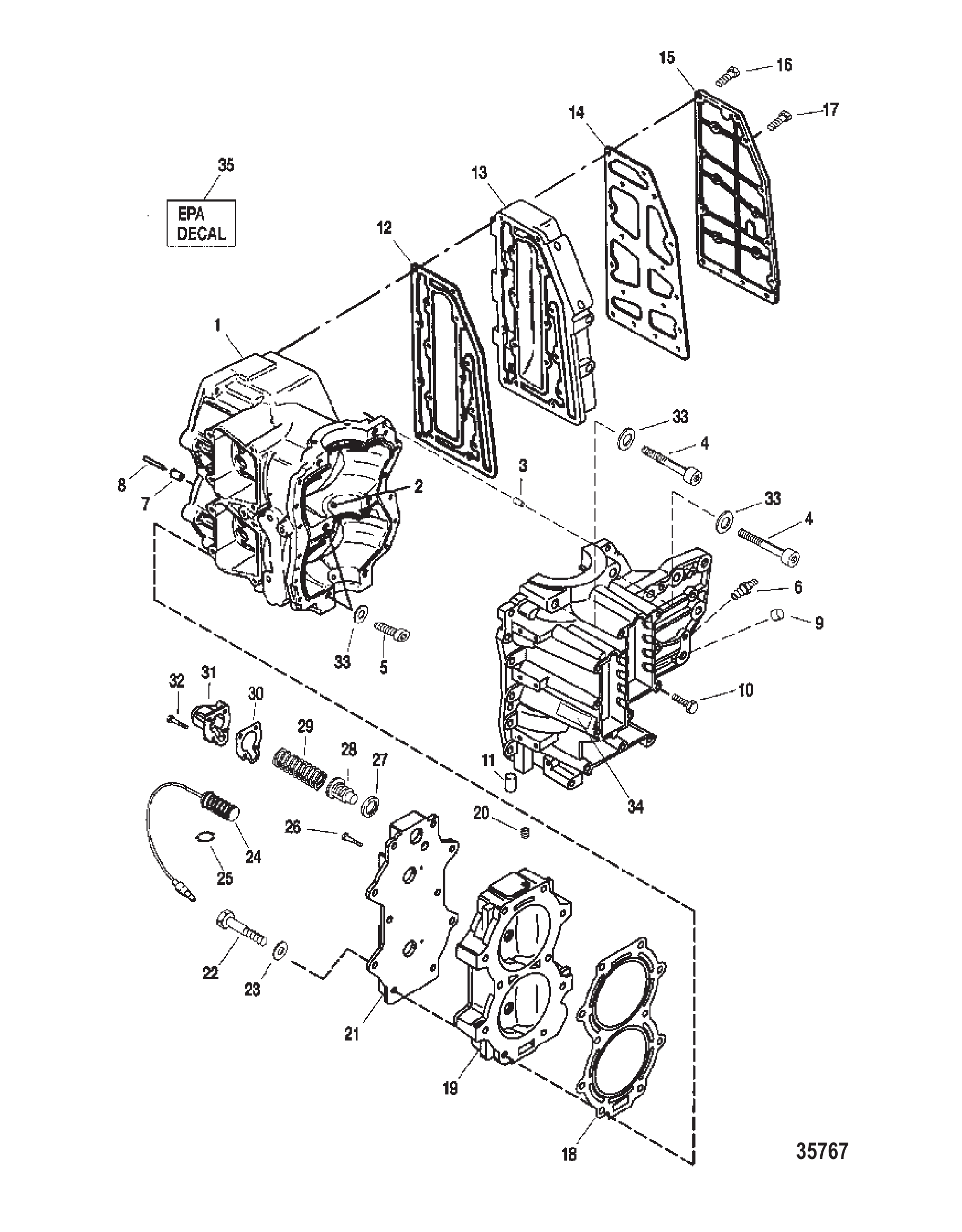

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 818152A29 | 动力头总成(喷漆) | POWERHEAD ASSEMBLY (Painted) | 1 |
| 1 | 818152A24 | 气缸套件 | CYLINDER KIT | 1 |
| 2 | 812870 | 中心主轴承定位销 | PIN Center Main Dowel | 2 |
| 2 | 8M0084653 | 定位销 | PIN - DOWEL | 2 |
| 3 | F8559 | 定位销 | PIN Dowel | 2 |
| 3 | 23784 | 定位销 | PIN Dowel | 2 |
| 4 | 834892 | 螺钉 (.375-16 x 3.00) | SCREW (.375-16 x 3.00) | 2 |
| 5 | 812567 | 螺丝(.375-16 x 1.625) | SCREW (.375-16 x 1.625) | 4 |
| 6 | 426582 | 止回阀 | CHECK VALVE | 1 |
| 6 | 426585 | 止回阀 | CHECK VALVE | 1 |
| 7 | 853660 | 水套管 | TUBE Water Jacket | 1 |
| 8 | F691372 | 水套管销 | PIN Water Jacket Tube | 1 |
| 9 | F433473 | 计量杯 | CUP Metering | 1 |
| NS | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| 10 | 819110075 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 10 |
| 10 | 819110088 | 螺钉(.250-20 x .875) | SCREW (.250-20 x .875) | 2 |
| 11 | 23784 | 定位销 | PIN Dowel | 2 |
| 12 | F691154 | 排气口板衬垫 | GASKET Exhaust Port Plate | 1 |
| 13 | 8199133 | 排气口板 | PLATE Exhaust Port | 1 |
| 13 | 819913T3 | 排气板 | PLATE-EXHAUST | 1 |
| 14 | F691153 | 排气口盖垫片 | GASKET Exhaust Port Cover | 1 |
| 15 | 8192691 | 排气口盖 | COVER Exhaust Port | 1 |
| 16 | 819110250 | 螺钉(.250-20 x 2.500) | SCREW (.250-20 x 2.500) | 15 |
| 17 | 819110075 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 2 |
| 18 | F691529-1 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| 19 | 8198501 | 气缸盖 | HEAD Cylinder | 1 |
| 20 | 328021 | 管塞(.125-27)(黄铜)-气缸盖 | PLUG Pipe (.125-27) (Brass)-Cylinder Head | 1 |
| 20 | 328022 | 黄铜管塞 (.125-27) | PLUG Pipe (.125-27) Brass | 1 |
| 21 | 819376 | 气缸盖罩 | COVER Cylinder Head | 1 |
| 22 | F2254 | 螺丝(.312-18 x 2.500) | SCREW (.312-18 x 2.500) | 10 |
| 23 | 34437 | 垫圈 | WASHER | 10 |
| 24 | 819502 | 温控开关(9.00英寸) | THERMOSWITCH (9.00 Inches) | 1 |
| 25 | F717096 | 挡圈 | RING Retaining | 1 |
| 26 | 819110062 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 2 |
| 27 | F658504 | 垫圈 节温器 | WASHER Thermostat | 1 |
| 28 | F97068-2 | 节温器54°C(130°F) | THERMOSTAT 54°C (130°F) | 1 |
| 28 | 895338 | 节温器 62°C (143°F) | THERMOSTAT 62°C (143°F) | 1 |
| 29 | 64878 | 节温器弹簧(黑色) | SPRING (Black) Thermostat | 1 |
| 30 | 819377 | 节温器盖衬垫 | GASKET Thermostat Cover | 1 |
| 31 | 8193751 | 节温器盖 | COVER Thermostat | 1 |
| 32 | 19926100 | 螺丝（#10-24 x 1.00） | SCREW (#10-24 x 1.00) | 4 |
| 33 | 828271 | 垫圈 | WASHER | 6 |
| 34 | 819526 | 油门线调节标签 | DECAL Throttle Cable Adjustment | 1 |
| 35 | 85698515 | EPA信息标签(贴于气缸体顶部) | DECAL EPA Label Information (Applied To The Top Of The Cylinder Block) | 1 |
| 35 | 856985A15 | REF SOB 09-18 | REF SOB 09-18 | 1 |
| - | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

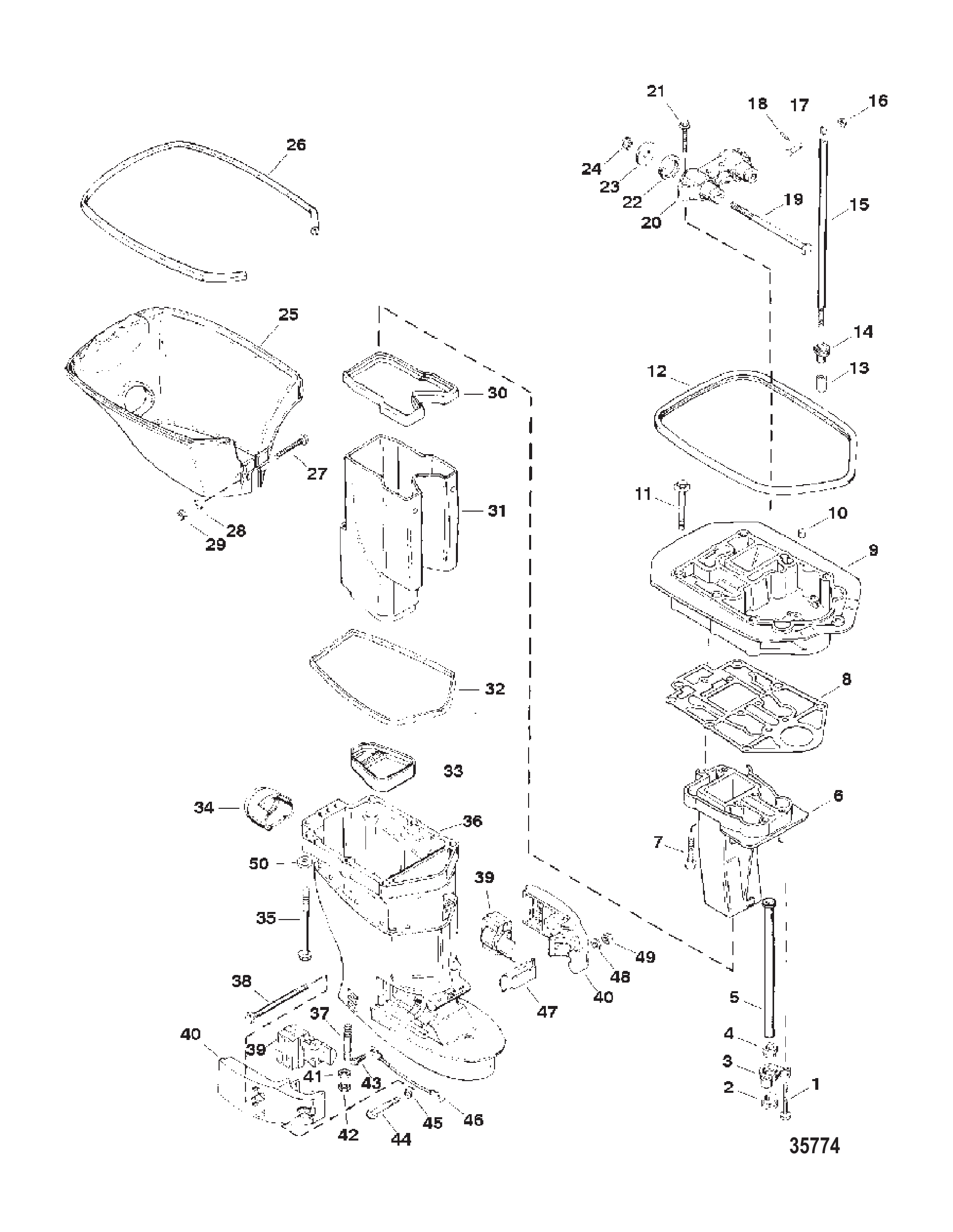

| 1 | 40011155 | 不锈钢螺钉(M8x55) | SCREW (M8 x 55) Stainless Steel | 2 |
| 2 | 93221 | 衬套 水管 | GROMMET Water Tube | 1 |
| 2 | 93221002 | 护孔环 | GROMMET | 1 |
| 3 | 99019 | 水管夹 | CLAMP Water Tube | 1 |
| 4 | 42941 | 水管密封件 | SEAL Water Tube | 1 |
| 4 | 42941001 | 水管密封件 | SEAL Water Tube | 1 |
| 5 | 430143 | 水管(14.650英寸) | TUBE Water (14.650 Inches) | 1 |
| 5 | 8M0042794 | 大型水管 | TUBE-WATER-LG | 1 |
| 6 | 8200691 | 排气管 | TUBE Exhaust | 1 |
| 7 | 40011153 | 不锈钢螺钉(M8x45) | SCREW (M8 x 45) Stainless Steel | 3 |
| 8 | 8267391 | 排气管/适配板衬垫 | GASKET Exhaust Tube/Adaptor Plate | 1 |
| 9 | 820268A1 | 下部适配板总成 | PLATE ASSEMBLY Adapter-Lower | 1 |
| 10 | 23784 | 定位销 | PIN Dowel | 4 |
| 11 | 4010875 | 不锈钢六角法兰螺钉(M10x75) | SCREW (M10 x 75) Hex Flange - Stainless Steel | 1 |
| 12 | 821510 | 底罩密封条 | SEAL Bottom Cowl | 1 |
| 12 | 8M0043148 | 底罩密封件 | SEAL-BOTTOM COWL | 1 |
| 13 | 822419 | 联轴器 | COUPLER | 1 |
| 14 | 822408 | 换挡轴护套 | GROMMET Shift Shaft | 1 |
| 14 | 822408001 | 护孔环 | GROMMET | 1 |
| 15 | 822418 | 上换挡轴 | SHIFT SHAFT Upper | 1 |
| 15 | 880042 | 换档轴 | SHIFT SHAFT | 1 |
| 16 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 1 |
| 17 | 822417 | 换挡连杆销 | PIN Shift Link | 1 |
| 18 | 21071 | 开口销 | COTTER PIN | 1 |
| 18 | 210711 | 开口销 | COTTER PIN | 1 |
| 19 | 822396 | 螺钉(M12x162) | SCREW (M12 x 162) | 2 |
| 19 | 8M0000520 | 螺栓 | BOLT | 2 |
| 20 | 812893 | 上部支架 | MOUNT Upper | 1 |
| 20 | 8M4501491 | 上部安装总成 | MOUNT UPPER ASM | 1 |
| 21 | 40011153 | 不锈钢螺钉(M8x45) | SCREW (M8 x 45) Stainless Steel | 4 |
| 22 | 934161 | 氯丁橡胶垫圈 | WASHER Neoprene | 2 |
| 22 | 32834 | 垫圈(0.9375x1.750x0.172) | WASHER (.9375 x 1.750 x .172) | 2 |
| 23 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 23 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 24 | 90099 | 螺母(M12) | NUT (M12) | 2 |
| 24 | 896963 | 螺母(M12) | NUT (M12) | 2 |
| 25 | 821512A7 | 装饰盖总成(喷漆) | TRIM COVER ASSEMBLY (Painted) | 1 |
| 25 | 821512A4 | 配平盖 | TRIM COVER | 1 |
| 26 | 822421 | 配平罩缓冲垫 | BUMPER Trim Cover | 1 |
| 26 | 8M0043155 | 上部配平缓冲器 | BUMPER-UPPER TRIM | 1 |
| 27 | 826173 | 螺钉(M5x0.8x60) | SCREW (M5 x .8 x 60) | 1 |
| 28 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 1 |
| 29 | 400263 | 螺母 (M5) | NUT (M5) | 1 |
| 30 | 8249423 | 排气斗密封件 | SEAL Exhaust Bucket | 1 |
| 31 | 824795 | 排气斗 | BUCKET Exhaust | 1 |
| 31 | 8M0036863 | 排气斗 | BUCKET-EXHAUST | 1 |
| 32 | 8270231 | 配平罩缓冲垫 | BUMPER Trim Cover | 1 |
| 32 | 8M0043170 | 缓冲垫 | BUMPER | 1 |
| 33 | 822395 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| 33 | 822395001 | 密封件 | SEAL | 1 |
| 34 | 822422 | 怠速泄压密封件 | SEAL Idle Relief | 1 |
| 34 | 822422001 | 怠速泄压密封件 | SEAL Idle Relief | 1 |
| 35 | 4000386 | 螺钉(M10 x 100) | SCREW (M10 x 100) | 6 |
| 36 | 821447A12 | 传动轴壳体总成(喷漆) | HOUSING ASSEMBLY Driveshaft (Painted) | 1 |
| 36 | 821447T12 | D型轴壳体总成 | D SHAFT HSG ASSY | 1 |
| 37 | 823984 | 螺柱（M10×50） | STUD (M10 x 50) | 1 |
| 38 | 824459120 | 螺钉（M8 x 120 不锈钢） | SCREW (M8 x 120) Stainless Steel | 2 |
| 39 | 8217812 | 支架 (下部) | MOUNT (LOWER) | 2 |
| 39 | 821781003 | 支架 | MOUNT | 2 |
| 40 | 821780F4 | 减震器盖(喷漆) | COVER Shock Mount (Painted) | 2 |
| 40 | 821780T4 | ORD 821780T 5 | ORD 821780T 5 | 2 |
| 41 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 1 |
| 41 | 8M0214963 | 垫圈 | WASHER | 1 |
| 42 | 13914 | 螺母(M10) | NUT (M10) | 1 |
| 42 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 43 | 817626 | 螺钉(#10-16×0.380) | SCREW (#10-16 x .380) | 1 |
| 43 | 878607 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 44 | 82445965 | 螺丝（M8×65，不锈钢） | SCREW (M8 x 65) Stainless Steel | 1 |
| 45 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 1 |
| 46 | 88238A11 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 47 | 8217821 | 缓冲垫(前) | BUMPER (FRONT) | 1 |
| 47 | 821782002 | 缓冲垫 | BUMPER | 1 |
| 48 | 36001 | 垫圈 | WASHER | 3 |
| 49 | 401198 | 螺母 (M8) | NUT (M8) | 3 |
| 49 | 401378 | 螺母 (M8) | NUT (M8) | 3 |
| 50 | 451751 | 垫圈(.406 x .750 x .104 - 黑色氧化) | WASHER (.406 x .750 x .104 - Black Oxide) | 6 |
| - | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

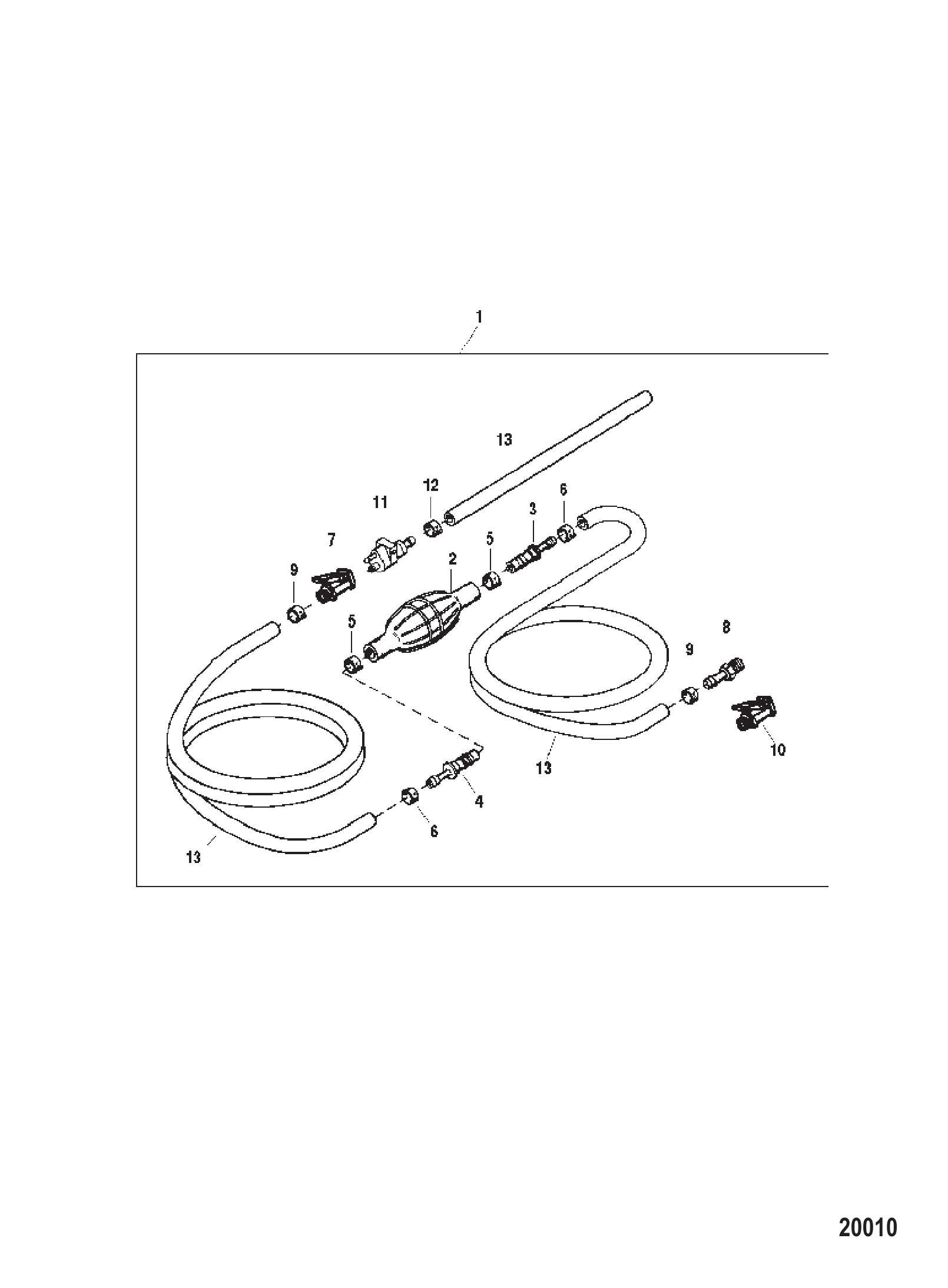

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 17146A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 877681Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 17146A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 1 | 877681Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 2 | 13330Q07 | 注油泵总成 - Quicksilver品牌 | BULB ASSEMBLY Primer - Quicksilver Brand | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 3 | 13331A3 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 4 | 13331A4 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 6 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 7 | 13563A3 | 发动机燃油管接头总成 | FITTING ASSEMBLY Fuel Line Engine | 1 |
| 7 | 13563Q3 | 发动机端快速接头(水星) | QUICK DISCONNECT Engine End (Quicksilver) | 1 |
| 8 | 897711 | 接头(.250-18)(黄铜)-燃油箱 | CONNECTOR (.250-18) (Brass)-Fuel Tank | 1 |
| 8 | 89771Q2 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 9 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 9 | 41582Q7 | 卡箍 | CLAMP | OPT |
| 9 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 1 | 827927A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 877680Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 827927A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 1 | 877680Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 7 | 13563A3 | 发动机燃油管接头总成 | FITTING ASSEMBLY Fuel Line Engine | 1 |
| 9 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 9 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 10 | 13563A7 | 燃油箱端燃油管接头总成 | FITTING ASSEMBLY Fuel Line Fuel Tank End | 1 |
| 10 | 13563Q7 | 燃油管接头总成 | FITTING ASSEMBLY Fuel Line | 1 |
| 1 | 822379A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 1 | 877683Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 9 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 9 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 1 | 16789A26 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 1 | 858610A32 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| 2 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 3 | 13331A1 | 止回阀总成(进口) | CHECK VALVE ASSEMBLY (Inlet) | 1 |
| 4 | 13331A2 | 止回阀总成(出口) | CHECK VALVE ASSEMBLY (Outlet) | 1 |
| 5 | 4158210 | 尼龙卡箍(大) | CLAMP Nylon (Large) | 2 |
| 6 | 415827 | 尼龙卡箍(小) | CLAMP Nylon (Small) | 2 |
| 7 | 13563A3 | 发动机燃油管接头总成 | FITTING ASSEMBLY Fuel Line Engine | 1 |
| 9 | F698772 | 蜗杆卡箍 | CLAMP Worm Gear | OPT |
| 11 | 816856A3 | 燃油接头总成-塑料 | CONNECTOR ASSEMBLY Fuel - Plastic | 1 |
| 11 | 816856Q3 | 燃油接头总成 | CONNECTOR ASSEMBLY Fuel | 1 |
| 12 | 415827 | 尼龙卡箍 | CLAMP Nylon | OPT |
| 12 | 41582Q7 | 卡箍 | CLAMP | OPT |
| 12 | F698772 | 蜗轮卡箍(不锈钢) | CLAMP Worm Gear (Stainless Steel) | OPT |
| 13 | 1678978 | 软管(9.00英尺整卷)(按需裁切) | HOSE (9.00 Feet Bulk) (Cut As Required) | AR |
| 13 | 85861079 | 软管(9.00英尺整卷) | HOSE (9.00 Feet Bulk) | AR |
| 13 | 16789100 | 软管(100.00英尺整卷)(按需裁切) | HOSE (100.00 Feet Bulk) (Cut As Required) | AR |
| 13 | 858610100 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

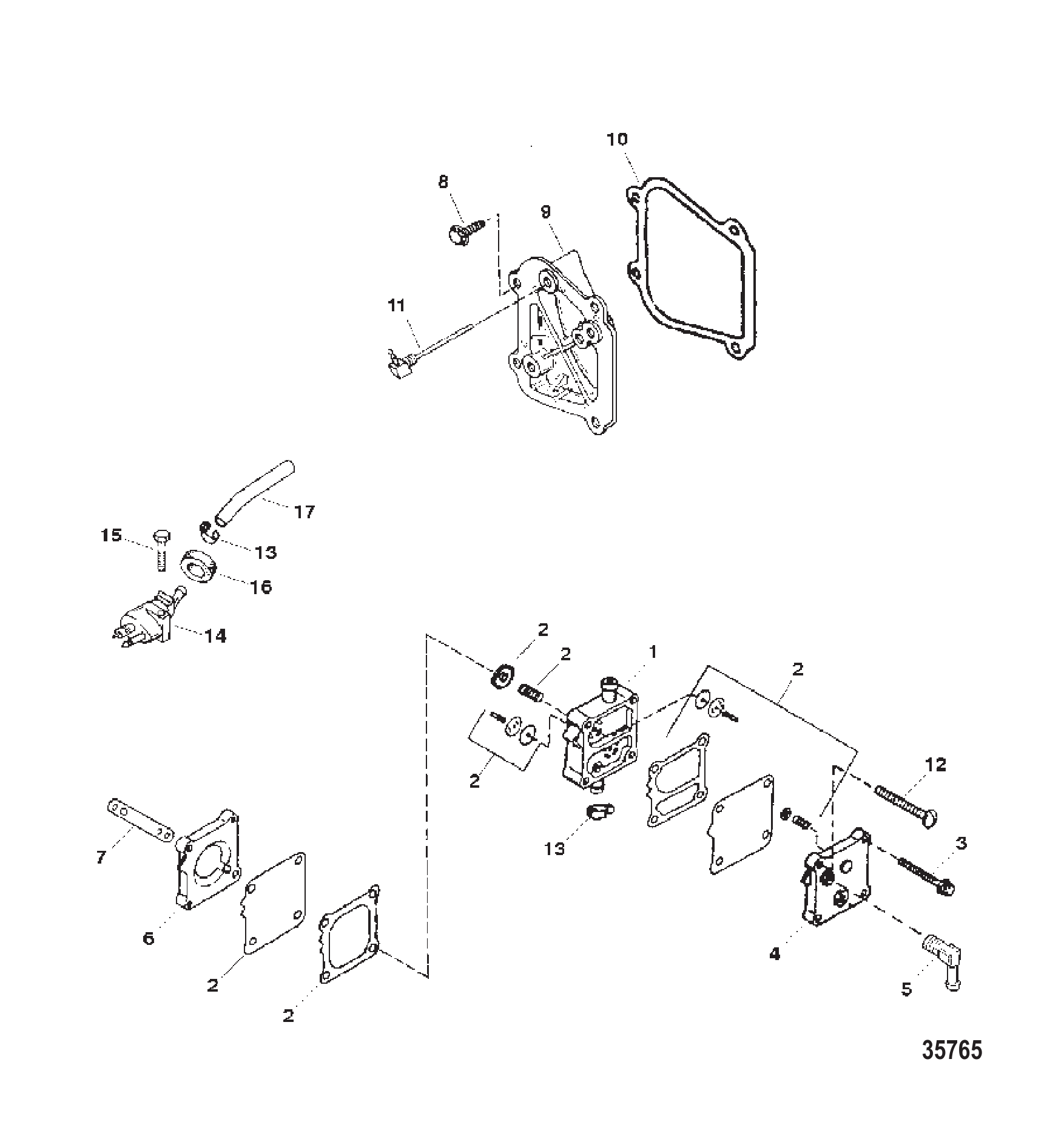

| 1 | 14360A49 | 燃油泵套件 | PUMP KIT Fuel | 1 |
| 1 | 14360A73 | 燃油泵套件 | PUMP KIT-FUEL | 1 |
| 2 | 42990A10 | 膜片组件 | DIAPHAGM KIT | 1 |
| 2 | 857005A1 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 3 | 82104540 | SCREW (M5 x 40) Fuel Pump | 2 | |
| 4 | 987752 | 燃油泵板 | PLATE Fuel Pump | 1 |
| 5 | 99664 | 弯头 | ELBOW | 1 |
| 5 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 6 | 144303 | BASE Fuel Pump | 1 | |
| 7 | 987691 | 燃油泵底座衬垫 | GASKET Fuel Pump Base | 1 |
| 7 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 8 | 819110062 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 4 |
| 9 | 8178702 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 9 | 8178703 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 10 | 8205002 | 燃油泵盖衬垫 | GASKET Fuel Pump Cover | 1 |
| 11 | F743314 | 循环弯头 | ELBOW Recirculating | 1 |
| 12 | 827357 | 螺钉(#12-24x2.00) | SCREW (#12-24 x 2.00) | 2 |
| 13 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 13 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 14 | 816856A1 | 燃油接头总成 | CONNECTOR ASSEMBLY Fuel | 1 |
| 14 | 816856T01 | 燃油接头 | CONNECTOR-FUEL | 1 |
| 15 | 4000332 | 螺钉(M6x35) | SCREW (M6 x 35) | 1 |
| 16 | 18202 | 燃油连接器衬套 | GROMMET Fuel Connector | 1 |
| 17 | 83075780 | 管材(28.00英寸散装) | TUBING (28.00 Inches Bulk) | 1 |
| 17 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| - | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

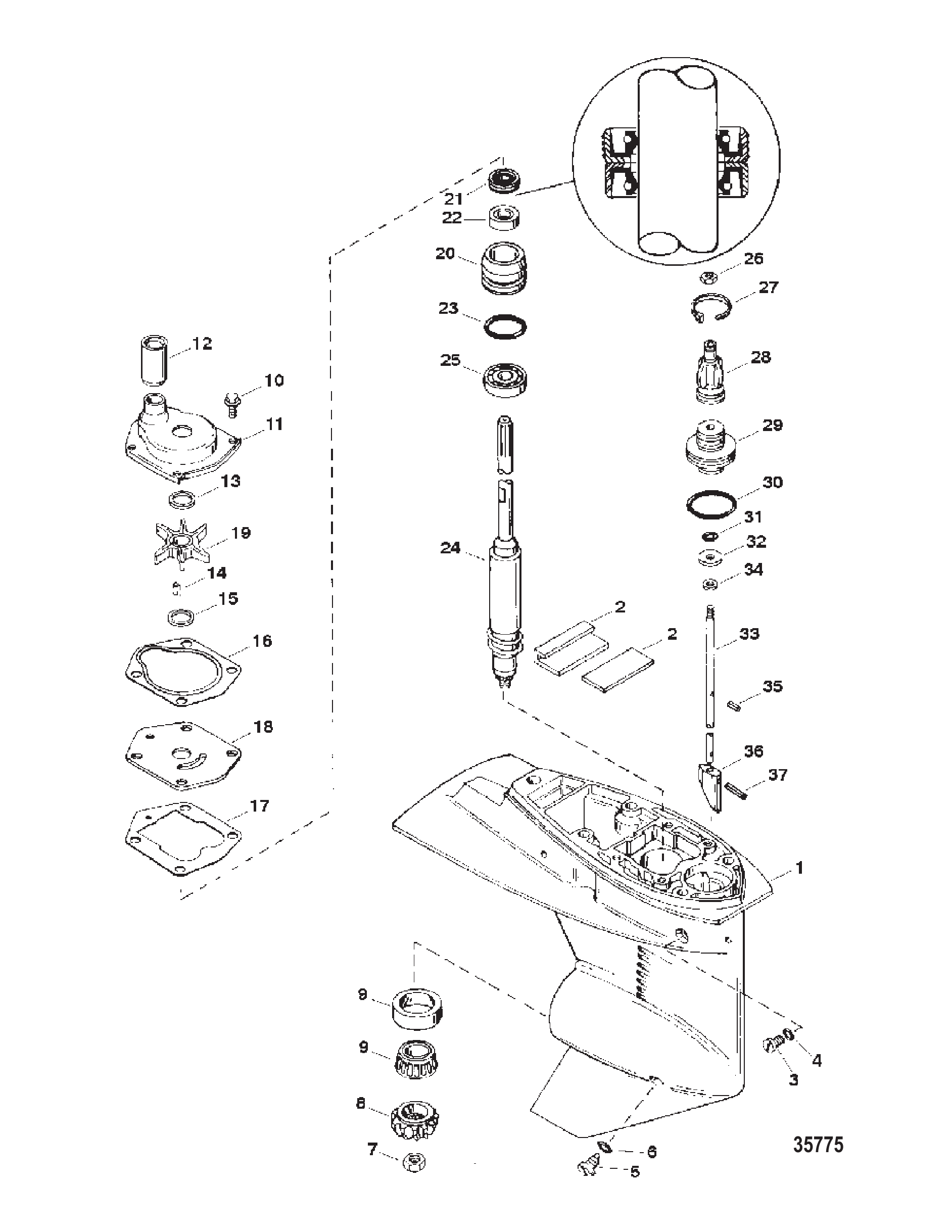

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821306A35 | 齿轮箱总成(喷漆) | GEAR HOUSING ASSEMBLY (Painted) | 1 |
| 1 | 821306T35 | ORD1682-821306T 6 | ORD1682-821306T 6 | 1 |
| 1 | 821306A34 | 齿轮箱总成(喷漆) | GEAR HOUSING ASSEMBLY (Painted) | 1 |
| 1 | 821306T12 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 818226A1 | 密封/板套件 | SEAL/PLATE KIT | 1 |
| 3 | 79953A2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 1 |
| 3 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 4 | 19183 | 纤维密封垫圈 | WASHER Fiber Sealing | 1 |
| 4 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 5 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | 1 |
| 5 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 6 | 19183 | 纤维密封垫圈 | WASHER Fiber Sealing | 1 |
| 6 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 7 | 55910 | 螺母(.437-20) | NUT (.437-20) | 1 |
| 8 | 8213261 | 小齿轮-13齿 | GEAR Pinion - 13 Teeth | 1 |
| 8 | 821326T1 | 小齿轮-13齿 | GEAR Pinion - 13 Teeth | 1 |
| 9 | 821321A2 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 10 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 11 | 821351A2 | 水泵总成 | PUMP ASSEMBLY Water Water | 1 |
| 11 | 821351A3 | 水泵上壳体总成 | HOUSING ASSEMBLY Water Pump Upper | 1 |
| 12 | 8235471 | 水管密封件 | SEAL Water Tube | 1 |
| 13 | 8M0027721 | 垫圈 | WASHER | 1 |
| 13 | 8M0204722 | 垫圈 | WASHER | 1 |
| 14 | 85119 | 叶轮驱动键 | KEY Impeller Drive | 1 |
| 14 | 8M0214993 | 键@5 | KEY @5 | 1 |
| 15 | 8M0027721 | 垫圈 | WASHER | 1 |
| 15 | 8M0204722 | 垫圈 | WASHER | 1 |
| 16 | 822189 | 水泵上衬垫 | GASKET Upper Water Pump | 1 |
| 17 | 822217 | 水泵下衬垫 | GASKET Lower Water Pump | 1 |
| 17 | 8M0214956 | 衬垫 | GASKET | 1 |
| 18 | 8213542 | 水泵端盖 | FACE PLATE Water Pump | 1 |
| 19 | 850893 | 叶轮 | IMPELLER | 1 |
| 19 | 8M0204712 | 叶轮 | IMPELLER | 1 |
| 20 | 821307A2 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 21 | 821309 | 油封 | SEAL Oil | 1 |
| 21 | 8M0248704 | 油封 | SEAL OIL | 1 |
| 22 | 821310 | 油封 | SEAL Oil | 1 |
| 23 | 821308 | O型圈(1.421 x 0.139) | O-RING (1.421 x .139) | 1 |
| 24 | 822159A1 | 长驱动轴 | DRIVESHAFT Long | 1 |
| 24 | 822159T1 | 驱动轴 | DRIVESHAFT | 1 |
| 25 | 821311 | 滚珠轴承 | BEARING Ball | 1 |
| 26 | 400212 | 螺母(M6)不锈钢(随零件号33提供) | NUT (M6) Stainless Steel (Included With Ref # 33) | 1 |
| 27 | 823548 | 扎带 | TIE STRAP | 1 |
| 27 | 823548T | 扎带 | TIE STRAP | 1 |
| 28 | 822158 | 换挡轴防尘套 | BOOT Shift Shaft | 1 |
| 29 | 821827 | 换挡轴固定座 | RETAINER Shift Shaft | 1 |
| 30 | 26855 | O型圈(1.609 x 0.139) | O-RING (1.609 x .139) | 1 |
| 31 | 85594 | O型圈(.239 x .174) | O-RING (.239 x .174) | 1 |
| 32 | 814803 | 垫圈 | WASHER | 1 |
| 33 | 821319A1 | 换档轴 | SHIFT SHAFT | 1 |
| 34 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 34 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 35 | 85593 | 滚销(.078 x .437) | PIN (.078 x .437) Roll | 1 |
| 36 | 8213161 | 换档凸轮 | CAM Shift | 1 |
| 37 | 822369 | 螺旋销(.125 x .625) | PIN (.125 x .625) Coil | 1 |
| - | 823547A2 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 821354A2 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |

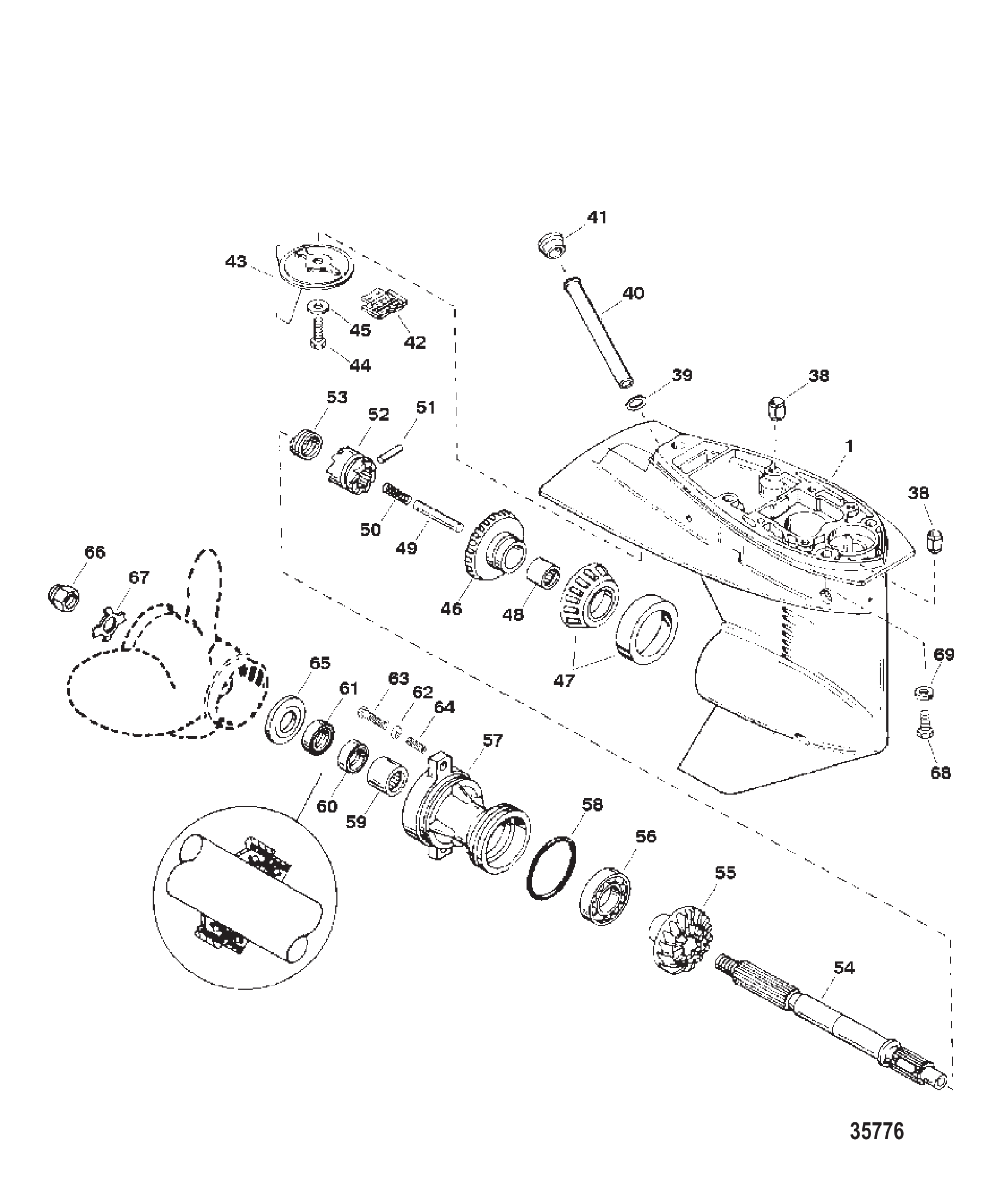

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821306A35 | 齿轮箱总成(喷漆) | GEAR HOUSING ASSEMBLY (Painted) | 1 |
| 1 | 821306T35 | ORD1682-821306T 6 | ORD1682-821306T 6 | 1 |
| 1 | 821306A34 | 齿轮箱总成(喷漆) | GEAR HOUSING ASSEMBLY (Painted) | 1 |
| 1 | 821306T12 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 38 | 821327 | 定位销 | PIN Dowel | 2 |
| 39 | 823942 | 水管衬垫 | GASKET Water Tube | 1 |
| 40 | 821828 | 水管 | TUBE Water | 1 |
| 40 | 8M0026108 | 管 | TUBE | 1 |
| 41 | 824928 | 橡胶塞 | PLUG Rubber | 1 |
| 41 | 824928001 | 橡胶塞 | PLUG Rubber | 1 |
| 42 | 821829 | 进水口滤网 | SCREEN Water Inlet | 1 |
| 43 | 822157C2 | 平衡鳍板 | TRIM TAB | 1 |
| 43 | 822157T2 | 平衡鳍板 | TRIM TAB | 1 |
| 44 | 82497020 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 45 | 72397 | 垫圈 | WASHER | 1 |
| 46 | 821315A1 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 46 | 821315T1 | 前进齿轮总成-26齿 | GEAR ASSEMBLY Forward - 26 Teeth | 1 |
| 47 | 99328A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 47 | 8M0103470 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 48 | 41326 | 滚柱轴承 | BEARING Roller | 1 |
| 49 | 821578 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 50 | 8261991 | 弹簧 | SPRING | 1 |
| 51 | 85093 | 十字销 | PIN Cross | 1 |
| 51 | 8M0020999 | 十字销 | PIN CROSS | 1 |
| 52 | 821314 | 离合器 | CLUTCH | 1 |
| 52 | 821314T | 离合器 | CLUTCH | 1 |
| 53 | 38114 | 离合器弹簧 | SPRING Clutch | 1 |
| 54 | 8215772 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 54 | 8M0140441 | 螺旋桨轴 | PROP SHAFT | 1 |
| 55 | 8213121 | 倒档齿轮-26齿 | GEAR Reverse - 26 Teeth | 1 |
| 55 | 821312T1 | 倒档齿轮-26齿 | GEAR Reverse - 26 Teeth | 1 |
| 56 | 20839 | 滚珠轴承 | BEARING Ball | 1 |
| 56 | 20839T | 滚珠轴承 | BEARING Ball | 1 |
| 57 | 19291A3 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 57 | 8M0168900 | 轴承座 | BEARING CARRIER | 1 |
| 58 | 815460 | O型圈 | O-RING | 1 |
| 59 | 21700 | 滚针轴承 | BEARING Needle | 1 |
| 60 | 69188 | 油封 | SEAL Oil | 1 |
| 60 | 8M0205511 | 油封 | SEAL Oil | 1 |
| 61 | 69189 | 油封 | SEAL Oil | 1 |
| 61 | 8M0203757 | 油封 | SEAL Oil | 1 |
| 62 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 2 |
| 62 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 62 | 855941 | 垫圈(.323 x .590 x .112)不锈钢 | WASHER (.323 x .590 x .112) Stainless Steel | 2 |
| 63 | 4000353 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 2 |
| 63 | 85594030 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 2 |
| 64 | 8227731 | 螺纹嵌件 | INSERT Threaded | 2 |
| 65 | 73345A1 | 止推垫片 | THRUST WASHER | 1 |
| 66 | 69578A1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| 66 | 69578Q1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| 67 | 76281 | 锁紧垫圈 | TAB WASHER | 1 |
| 67 | 8M0214942 | 锁紧垫片 | WASHER Tab | 1 |
| 68 | 4000380 | 螺丝(M10 x 45) | SCREW (M10 x 45) | 4 |
| 69 | 45176 | 垫圈(.453 x .812 x .105)不锈钢 | WASHER (.453 x .812 x .105) Stainless Steel | 4 |
| - | 823547A2 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |

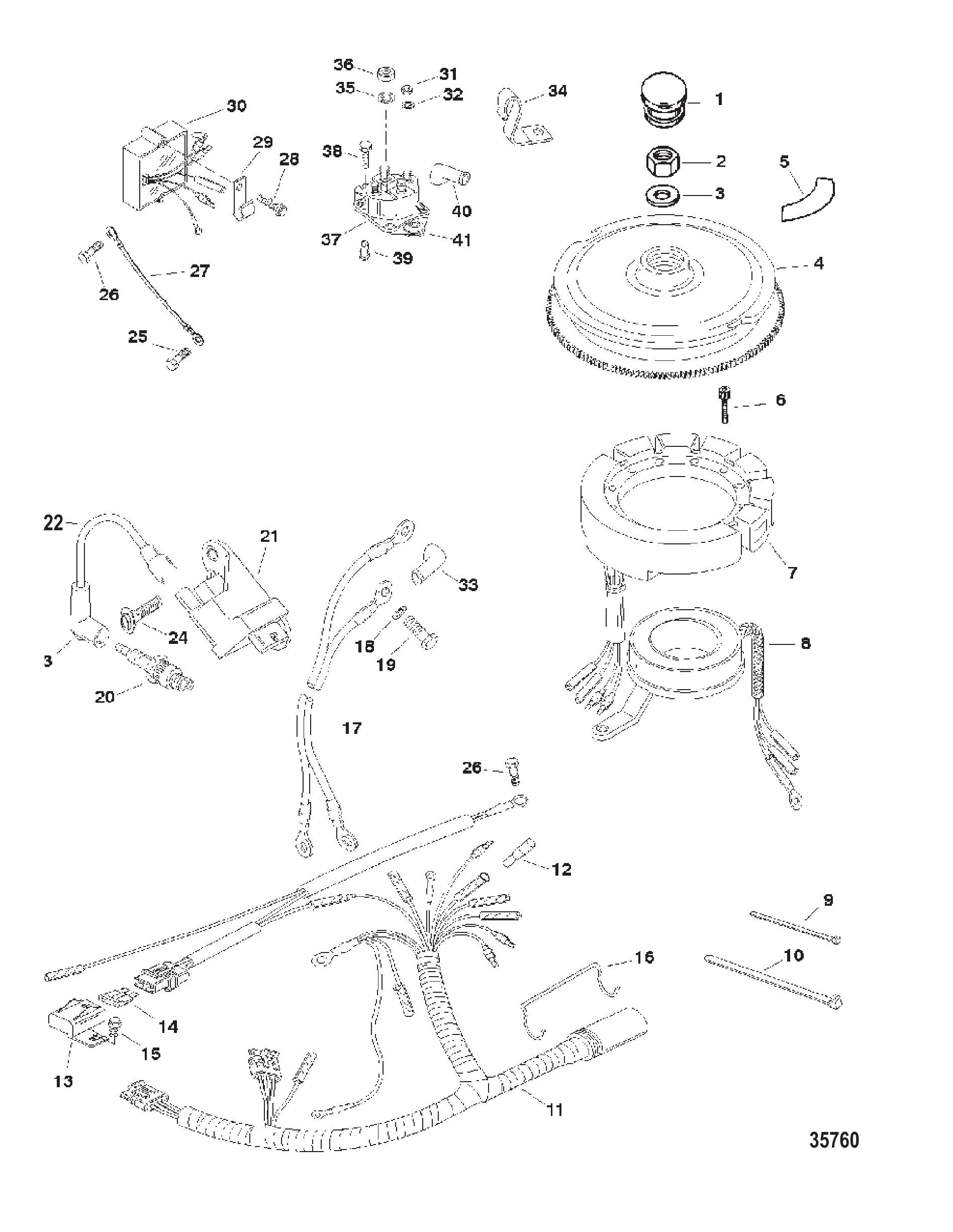

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 45907 | 黄色曲轴/飞轮塞 | PLUG Yellow Crankshaft/Flywheel | 1 |
| 2 | 42979 | 螺母(M16) | NUT (M16) | 1 |
| 3 | 68229 | 垫圈(.641 x 1.250 x .190) | WASHER (.641 x 1.250 x .190) | 1 |
| 3 | 33001 | 垫圈 | WASHER | 1 |
| 4 | 9008A34 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 4 | 9008A52 | 飞轮总成 | FLYWHEEL ASSY | 1 |
| 5 | 825149A1 | 换至空档贴花套件 | DECAL KIT Shift to Neutral | 1 |
| 6 | 19926100 | 螺丝（#10-24 x 1.00） | SCREW (#10-24 x 1.00) | 6 |
| 7 | 832075A4 | 点火定子套件 | IGNITION STATOR KIT | 1 |
| 7 | 832075A21 | 定子总成 | STATOR ASSEMBLY | 1 |
| 8 | 854509 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 8 | 855744A2 | 2缸触发器总成 | TRIGGER ASY-2 CYL | 1 |
| 9 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | AR |
| 10 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 10 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 11 | 828296A1 | 线束总成 | HARNESS ASSEMBLY Wiring | 1 |
| 12 | 13541 | 公插头 | PLUG Male | 1 |
| 13 | 828054 | 保险丝盖 | COVER Fuse | 1 |
| 14 | 812619 | 黄色保险丝-20安培 | FUSE Yellow - 20 Ampere | 1 |
| 15 | 812832 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 15 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 16 | 92753 | 线束接头固定座 | RETAINER Harness Connector | 1 |
| 17 | F3818964 | 电池电缆总成 | CABLE ASSEMBLY Battery | 1 |
| 18 | 53166 | 接地锁紧垫圈(.312) | LOCKWASHER (.312) Ground | 1 |
| 19 | 28782 | 接地螺丝(.312-18 x .880)不锈钢 | SCREW (.312-18 x .880) Stainless Steel Ground | 1 |
| 20 | 827C | 火花塞 | SPARK PLUG | 2 |
| 20 | 896329827 | SP #L76V @4 | SP #L76V @4 | 2 |
| 20 | 898 | 火花塞 | SPARK PLUG | 2 |
| 20 | 896329898 | SP #QL76V @4 | SP #QL76V @4 | 2 |
| 21 | 827509A10 | 点火CDM模块总成 | CDM MODULE ASSEMBLY Ignition | 2 |
| 22 | 821945A61 | 高压电缆总成 | CABLE ASSEMBLY Hi Tension | 1 |
| 22 | 857124A1 | 高压线总成 | CABLE ASSEMBLY Hi-Tension | 1 |
| 23 | 63709A1 | 点火电缆护套/端子套件 | BOOT/TERMINAL KIT Ignition Cable | 1 |
| 23 | 857074A1 | 点火电缆护套/端子套件 | BOOT/TERMINAL KIT Ignition Cable | 1 |
| 24 | 90192 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 4 |
| 25 | 40056105 | 接地电缆螺丝(M5 x 10) | SCREW (M5 x 10) Ground Cable | 1 |
| 26 | 817626 | 螺钉(#10-16×0.380) | SCREW (#10-16 x .380) | 2 |
| 26 | 878607 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 2 |
| 27 | 88807A36 | 排气盖接地电缆总成 | CABLE ASSEMBLY Ground-Exhaust Cover | 1 |
| 28 | 86885 | 螺钉（0.250-20 x 1.500）不锈钢 | SCREW (.250-20 x 1.500) Stainless Steel | 2 |
| 29 | 55098 | 电压调节器J型卡扣 | J CLIP Voltage Regulator | 1 |
| 29 | 8M0024808 | J型夹 | J-CLIP | 1 |
| 30 | 854514A1 | 电压调节器总成 | REGULATOR ASSEMBLY Voltage | 1 |
| 30 | 883071A1 | 电压调节器组件-BULL | REG KIT-VOLT-BULL | 1 |
| 31 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 32 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| 33 | 830233 | 启动继电器绝缘套-红色 | BOOT Insulator - Red Starter Relay Insulator | 1 |
| 34 | 65292 | 启动继电器J型卡扣 | J CLIP Starter Relay | 1 |
| 34 | 8M0024808 | J型夹 | J-CLIP | 1 |
| 35 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 36 | 68292 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 36 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 37 | 817109A3 | 启动电磁阀组件 | SOLENOID KIT Starter | 1 |
| 38 | 853652 | 螺丝（.250-20 x 1.125） | SCREW (.250-20 x 1.125) | 2 |
| 39 | 818968 | 衬套 | BUSHING | 2 |
| 39 | 8M0214955 | 衬套 | BUSHING | 2 |
| 40 | 830233 | 红色绝缘护套 | BOOT Insulator - Red | 1 |
| 41 | 822179 | 护孔环 | GROMMET | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 10154980 | 用户手册 | OWNERS MANUAL | 1 |
| - | 10154990 | 用户手册 | OWNERS MANUAL | 1 |
| - | 855373 | 零件目录 | PARTS CATALOG | 1 |
| - | 855373R2 | Force 40/50马力零件手册(1998-1999) | PARTS MANUAL Force 40/50 H.P. (1998-1999) | 1 |
| - | 855373R1 | 零件目录 | PARTS CATALOG | 1 |
| - | 855373R2 | Force 40/50马力零件手册(1998-1999) | PARTS MANUAL Force 40/50 H.P. (1998-1999) | 1 |
| - | 855373R2 | Force 40/50马力零件手册(1998-1999) | PARTS MANUAL Force 40/50 H.P. (1998-1999) | 1 |
| - | 831250 | 维修手册 | SERVICE MANUAL | 1 |
| - | 831250R1 | 维修手册 | SERVICE MANUAL | 1 |
| - | 831250R1 | 维修手册 | SERVICE MANUAL | 1 |
| - | 82793336 | 大马士革钢灰色喷漆12盎司(355毫升)罐装 | PAINT Damascus Steel Gray 12 Ounce (355 ml) Spray Can | AR |
| - | 802878Q36 | PAINT-ST/GR @6 | PAINT-ST/GR @6 | AR |
| - | 82793337 | 大马士革钢灰色漆0.5盎司(15毫升)笔刷瓶装 | PAINT Damascus Steel Gray .5 Ounce (15 ml) Brush Bottle | AR |
| - | 802878Q37 | PAINT.6-ST/G@6 | PAINT.6-ST/G@6 | AR |
| - | 81910712 | 透明丙烯酸喷漆12盎司(355毫升)罐装(仅用于外罩) | PAINT Clear Acrylic 12 Ounce (355 ml) Spray Can (For Cowl Only) | AR |
| - | 82793353 | PAINT-CLEAR @6 | PAINT-CLEAR @6 | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

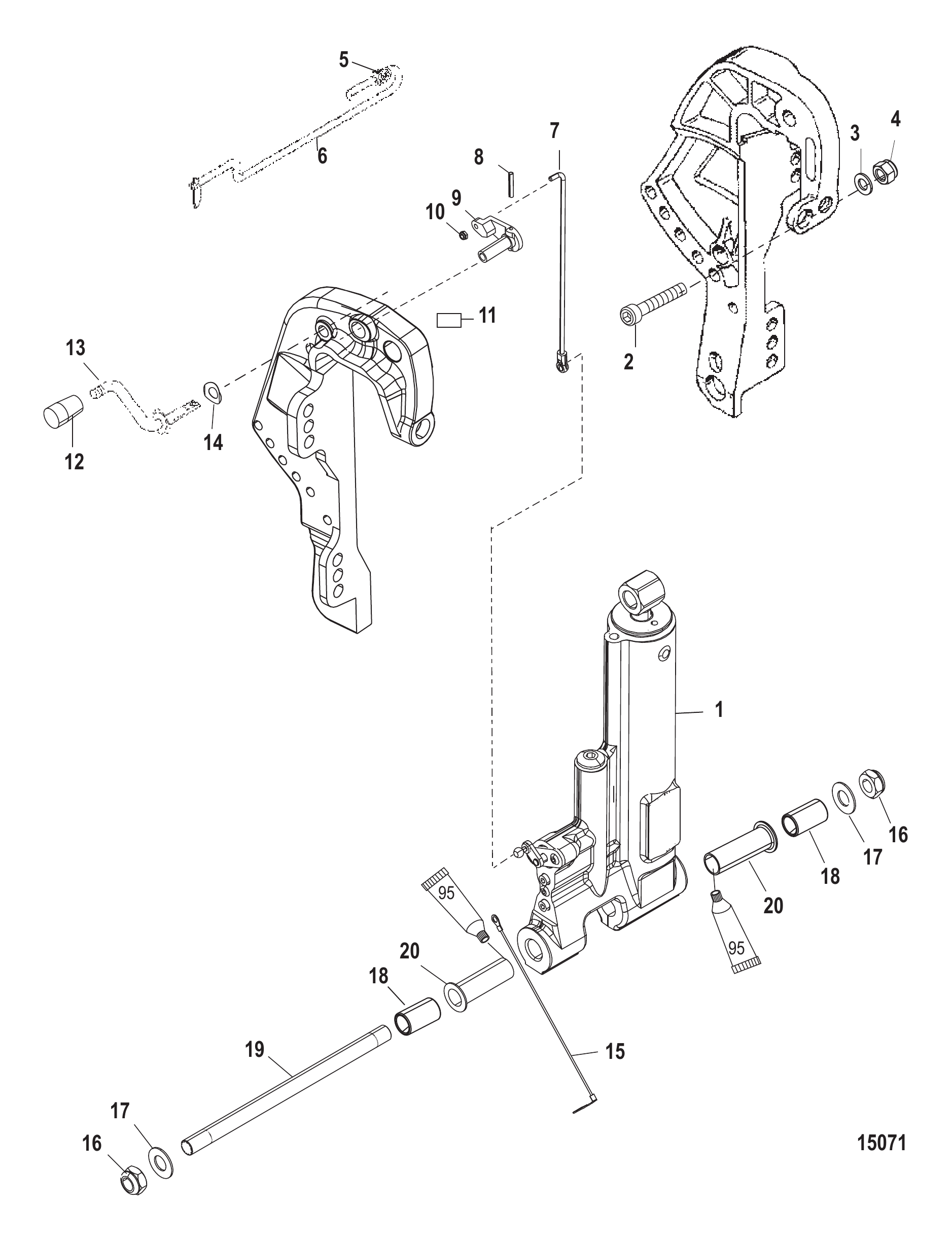

| _ | 828533A2 | 手动倾斜助力组件-气动辅助 | MANUAL TILT ASSIST KIT Gas Assist | 1 |
| 1 | 828533A1 | 气动辅助微调 | TRIM Gas Assist | 1 |
| 1 | 828533T1 | 配平装置 | TRIM | 1 |
| 2 | 4009040 | 不锈钢螺钉(M10x40) | SCREW (M10 x 40) Stainless Steel | 2 |
| 3 | 4002319 | 垫圈 | WASHER | 2 |
| 4 | 13914 | 螺母(M10) | NUT (M10) | 2 |
| 4 | 40140 | 螺母(M10) | NUT (M10) | 2 |
| 5 | 821461 | 弹簧 | SPRING | 1 |
| 6 | 853923A1 | 销 | PIN | 1 |
| 7 | 8289961 | 连接杆 | LINK | 1 |
| 8 | 25810 | 滚动销 | PIN Roll | 1 |
| 9 | 828930 | 杠杆臂 | ARM Lever | 1 |
| 10 | 46438 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 11 | 830253 | 倾斜锁止贴纸 | DECAL Tilt Lock | 1 |
| 12 | 19621 | 倾斜旋钮 | TILT KNOB | 1 |
| 12 | 8M0007469 | 倾斜旋钮 | KNOB Tilt | 1 |
| 13 | 828924 | 倾斜杆 | LEVER Tilt | 1 |
| 14 | 31030 | 波形垫圈 | WAVE WASHER | 1 |
| 15 | 88238A11 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 16 | 4013414 | 螺母(M14) | NUT (M14) | 2 |
| 16 | 826712 | 螺母 | NUT | 2 |
| 17 | 825190 | 垫圈 | WASHER | 2 |
| 18 | 822484 | 衬套 | BUSHING | 2 |
| 19 | 822481 | 锚定销(14毫米) | PIN Anchor (14 mm) | 1 |
| 19 | 822481001 | 销(14毫米) | PIN (14 mm) | 1 |
| 20 | 822482 | 衬套 | BUSHING | 2 |

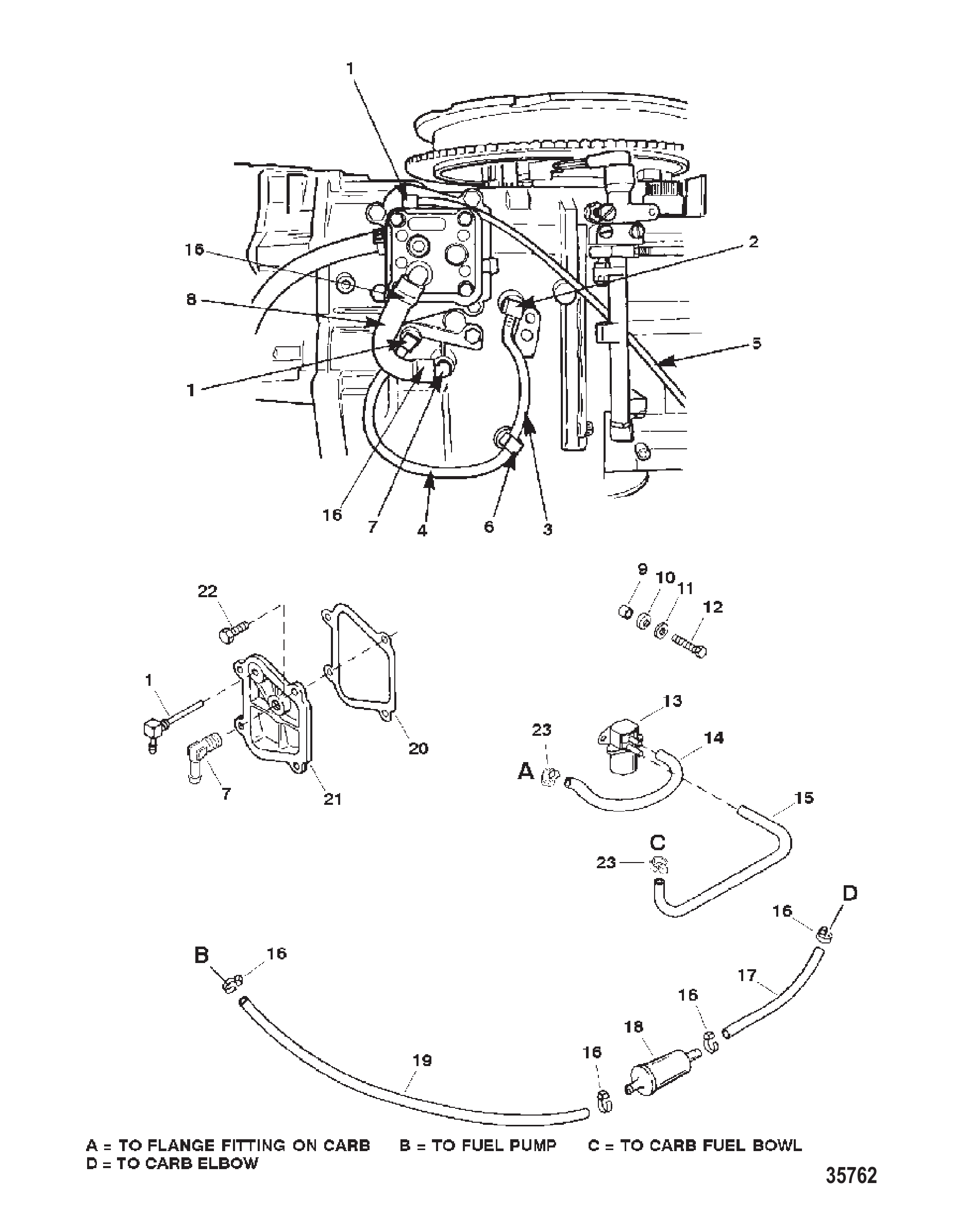

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F743314 | 循环弯头 | ELBOW Recirculating | 1 |
| 2 | 42864 | 90度弯头 | FITTING (90 Degree) | 1 |
| 2 | 428641 | 止回阀接头 | FITTING Check Valve | 1 |
| 3 | 99130122 | 油管(20.00英尺 散装) | TUBING (20.00 Feet Bulk) | 1 |
| 3 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 4 | 99130122 | 油管(20.00英尺 散装) | TUBING (20.00 Feet Bulk) | 1 |
| 4 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 5 | 99130122 | 油管(20.00英尺 散装) | TUBING (20.00 Feet Bulk) | 1 |
| 5 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 6 | 8207061 | T型接头 | FITTING (T) | 1 |
| 7 | 99664 | 弯头 | ELBOW | 1 |
| 7 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 8 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 1 |
| 8 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 9 | F694359 | 隔套 | SPACER | 1 |
| 10 | F694504 | 护孔环 | GROMMET | 1 |
| 11 | 35044 | 垫圈(0.281×0.625×0.065)不锈钢 | WASHER (.281 x .625 x .065) Stainless Steel | 1 |
| 12 | 45561 | 螺钉 (.250-20 x 1.12) | SCREW (.250-20 x 1.12) | 1 |
| 12 | 455611 | 螺钉(.250-20 x 1.120) | SCREW (.250-20 x 1.120) | 1 |
| 13 | 819503 | 启动电磁阀 | SOLENOID Primer | 1 |
| 13 | 819503T6 | 电磁阀 | SOLENOID | 1 |
| 14 | 9912688 | 管材 (36.00英寸散装) | TUBING (36.00 Inches Bulk) | 1 |
| 15 | 9912688 | 管材 (36.00英寸散装) | TUBING (36.00 Inches Bulk) | 1 |
| 16 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 6 |
| 16 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 6 |
| 17 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 1 |
| 17 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 18 | 816296 | 燃油滤清器 | FILTER Fuel | 1 |
| 18 | 816296Q03 | 燃油滤清器@3 | FILTER-FUEL @3 | 1 |
| 19 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 1 |
| 19 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 20 | 8205002 | 转移口衬垫 | GASKET Transfer Port | 1 |
| 21 | 817790A1 | 换气口盖 | COVER Transfer Port | 1 |
| 22 | 819110062 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 4 |
| 23 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| - | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

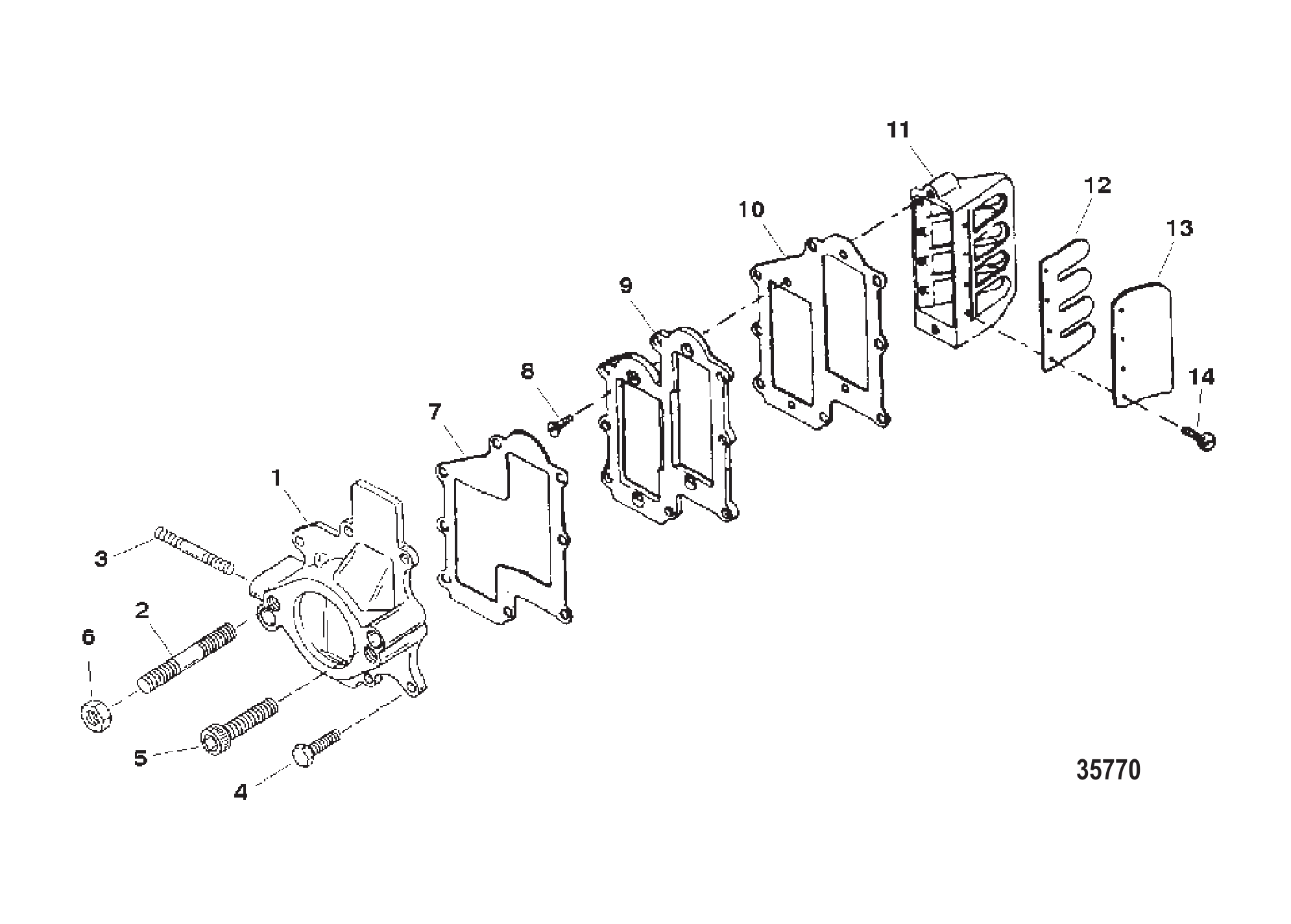

| 1 | 819410A3 | 化油器法兰适配组件 | ADAPTER KIT Carburetor Flange | 1 |
| 2 | 8263872 | 双头螺栓(.375-16 x 1.625) | STUD (.375-16 x 1.625) | 2 |
| 3 | F433209-1 | 双头螺柱(.250-20 x 1.250)(.250-20 x 1.250)-节气门凸轮 | STUD (.250-20 x 1.250) (.250-20 x 1.250)-Throttle Cam | 1 |
| 4 | 819110088 | 螺钉(.250-20 x .875) | SCREW (.250-20 x .875) | 6 |
| 5 | F2192 | 螺丝 (.250-20 x 1.750) | SCREW (.250-20 x 1.750) | 2 |
| 6 | 86226 | 螺母（.375-16） | NUT (.375-16) | 2 |
| 6 | 8M0204671 | 螺母 | NUT | 2 |
| 7 | F433168 | 化油器适配器衬垫 | GASKET Carburetor Adapter | 1 |
| 8 | 826379 | 螺钉 (#10-24 x .500) 带防松胶 | SCREW (#10-24 x .500) With Dri Lok | 4 |
| 9 | 8198071 | 导流板 | PLATE Deflector | 1 |
| 10 | F433406 | 导流板衬垫 | GASKET Deflector Plate | 1 |
| 11 | FA658158 | 簧片阀板 | REED PLATE | 2 |
| 12 | F316160 | 簧片 (4瓣) | REED (4 Petal) | 4 |
| 13 | F88161-4 | 止动簧片 | STOP Reed Reed | 4 |
| 14 | 819074 | SCREW WITH LOCKWASHER (#6-32 X .312) (#6-32 x .312) | 16 | |
| - | 855397A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

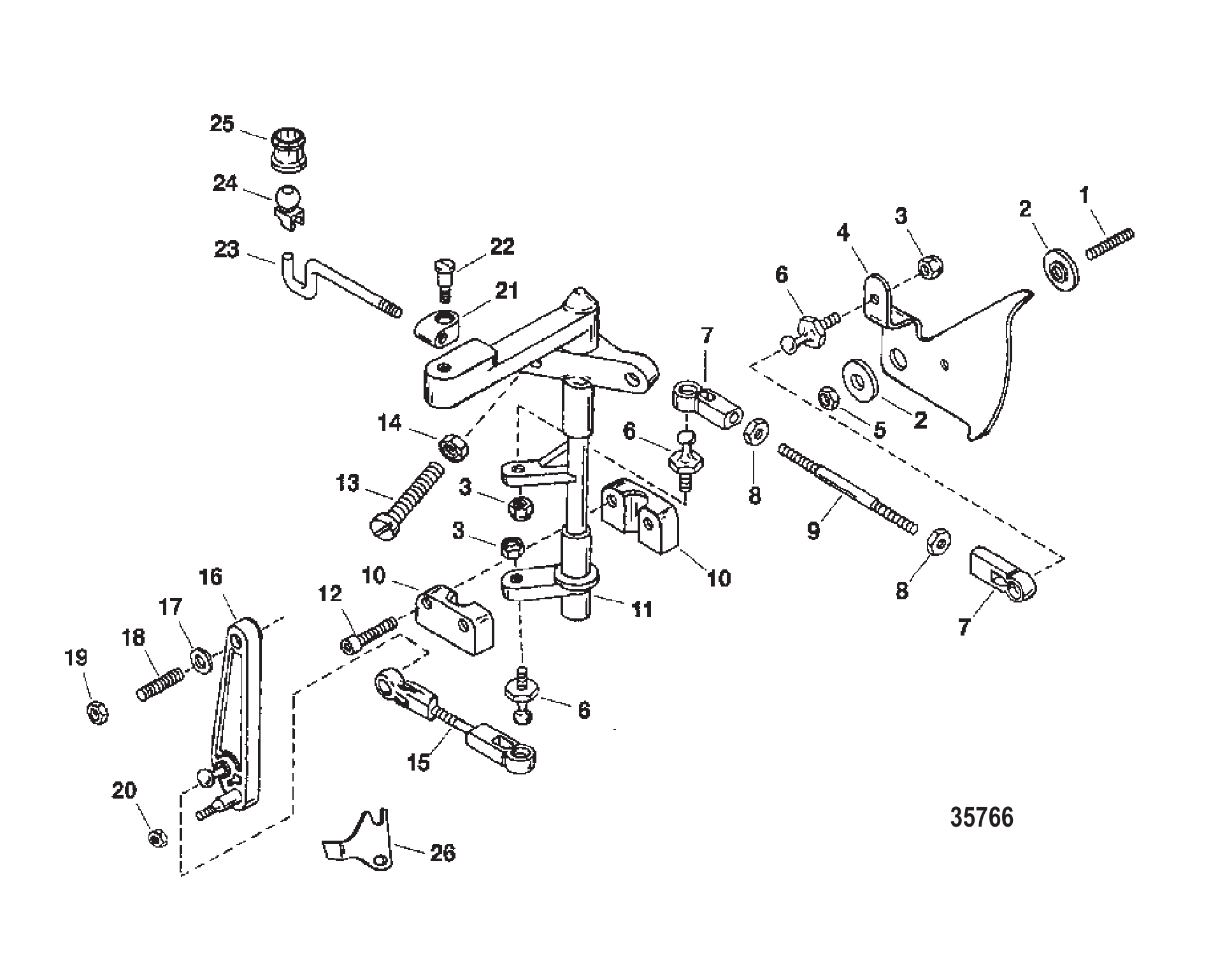

| 1 | F433209-1 | 双头螺柱(.250-20 x 1.250)(.250-20 x 1.250)-节气门凸轮 | STUD (.250-20 x 1.250) (.250-20 x 1.250)-Throttle Cam | 1 |
| 2 | F269319 | 节气门凸轮轴承 | BEARING Throttle Cam | 2 |
| 3 | 20110 | 螺母 (#10-32) | NUT (#10-32) | 3 |
| 4 | 819549 | 节气门凸轮 | CAM Throttle | 1 |
| 5 | 72008 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 5 | 8267088 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 6 | 828514 | 螺纹球头 (#10-32) | BALL Threaded (#10-32) | 3 |
| 7 | 817428 | 球窝接头 | SOCKET Ball | 2 |
| 8 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 9 | F718502 | 油门连杆 | LINK Throttle | 1 |
| 10 | 816957 | 塔轴轴承 | BEARING Towershaft | 4 |
| 11 | 826284 | 塔轴 | TOWERSHAFT | 1 |
| 12 | 19926100 | 螺丝（#10-24 x 1.00） | SCREW (#10-24 x 1.00) | 4 |
| 13 | F1504 | 螺丝(.250-20 x 1.250) | SCREW (.250-20 x 1.250) | 1 |
| 14 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 15 | 1938529 | 塔轴连杆总成 | LINK ASSEMBLY Towershaft Lever | 1 |
| 16 | 8262861 | 塔轴杠杆总成 | LEVER ASSEMBLY Towershaft | 1 |
| 17 | 34437 | 垫圈 | WASHER | 1 |
| 18 | 827425 | 双头螺柱 (.312-18 x 1.500) 带防松胶 | STUD (.312-18 x 1.500) With Dri Lok | 1 |
| 19 | 45592 | 螺母(.312-24) | NUT (.312-24) | 1 |
| 19 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| 20 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 20 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 21 | 828471 | 控制杆端头 | END Control Rod | 1 |
| 22 | F499026 | 控制杆旋转端 | SWIVEL Control Rod End | 1 |
| 23 | 828470 | 油门连杆 | LINK Throttle | 1 |
| 24 | 93421 | 旋转球头 | SWIVEL BALL | 1 |
| 25 | 93254 | 扳机手柄旋转座 | SWIVEL BASE Trigger Handle | 1 |
| 26 | 830121A1 | 节气门杠杆止动套件 | STOP KIT Throttle Lever | 1 |
| - | 818152A29 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

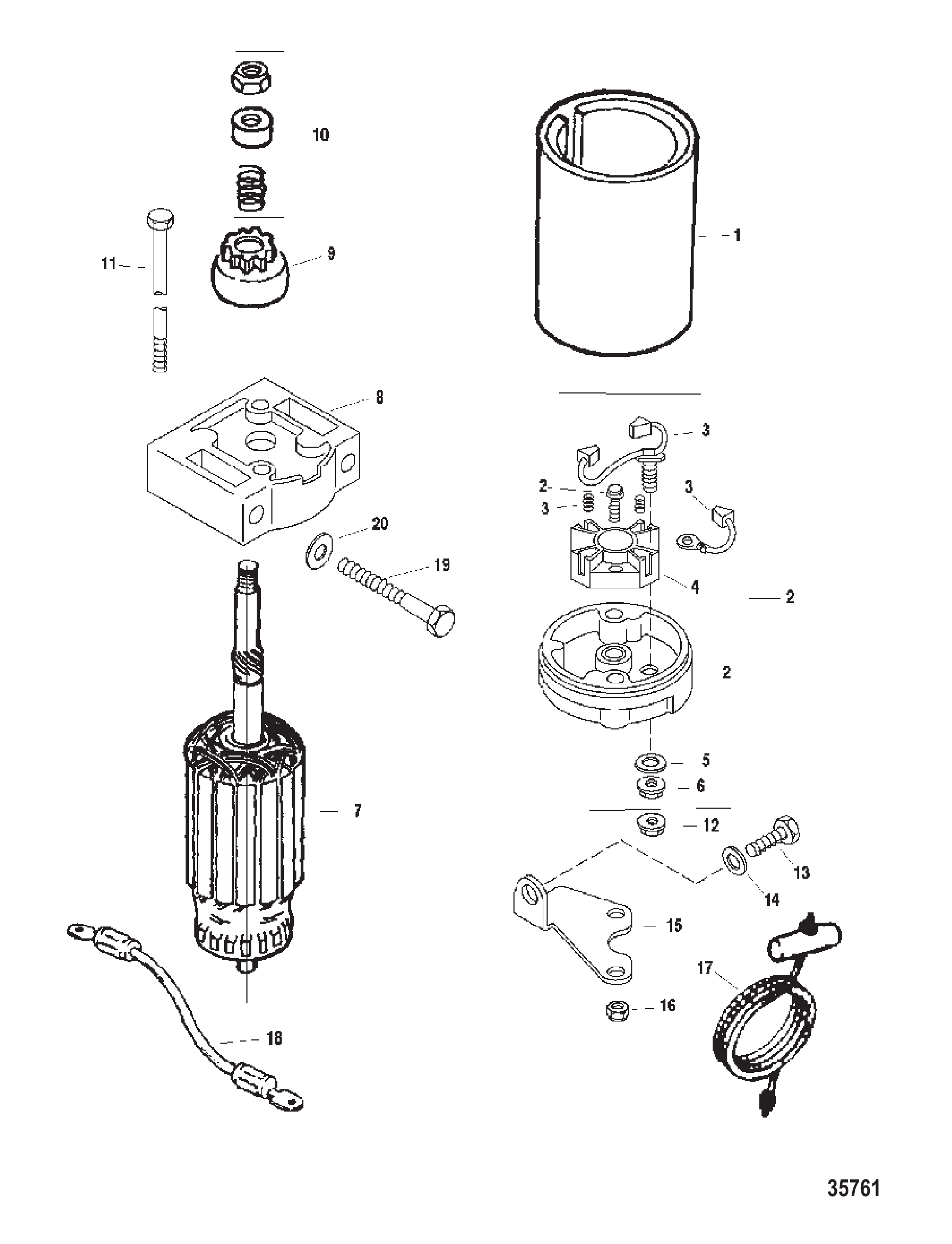

| 1 | 820193 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 820193003 | 启动器总成 | STARTER ASSY | 1 |
| 1 | 8201931 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 820193003 | 启动器总成 | STARTER ASSY | 1 |
| 1 | 820193T1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 820193003 | 启动器总成 | STARTER ASSY | 1 |
| 2 | 820595 | 通讯端盖总成 | CAP ASSEMBLY Comm End | 1 |
| 3 | F15190 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 4 | 61787 | 电刷架 | HOLDER Brush | 1 |
| 4 | 898265014 | 电刷支架 | HOLDER-BRUSH | 1 |
| 5 | F15160 | 绝缘垫圈 | WASHER Insulator | 1 |
| 5 | 804700 | 垫圈 | WASHER | 1 |
| 6 | F15162 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 7 | F15183 | 电枢 | ARMATURE | 1 |
| 8 | 820594 | 驱动端盖 | CAP Drive End | 1 |
| 9 | 811902 | 驱动小齿轮 | PINION Drive | 1 |
| 9 | 802665T | 小齿轮 | PINION | 1 |
| 9 | 802665 | 驱动小齿轮 | PINION Drive | 1 |
| 9 | 802665T | 小齿轮 | PINION | 1 |
| 9 | 802665T | 驱动小齿轮 | PINION Drive | 1 |
| 10 | 90643 | 驱动套件 | DRIVE KIT | 1 |
| 11 | 811903 | 贯穿螺栓 | THRU BOLT | 2 |
| 12 | F15162 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 13 | 39349 | 螺钉(.312-18×0.75)不锈钢 | SCREW (.312-18 x .750) Stainless Steel | 1 |
| 14 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) (.312) | 1 |
| 15 | 8192722 | 起动机支架 | BRACKET Starter Support | 1 |
| 16 | 20361 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 16 | 8267089 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 17 | 47341A1 | 拉绳手柄套件（手动/应急启动） | ROPE AND HANDLE KIT Manual/Emergency Start Emergency Start | 1 |
| 17 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 18 | 93388A8 | 电缆总成 (12.5英寸) 黑色 (12.500英寸)-起动机导线 | CABLE ASSEMBLY (12.5 Inchs) Black (12.500 Inches)-Starter Lead | 1 |
| 19 | F2185 | 螺钉 六角头(.375-16 x 3.50)不锈钢 | SCREW Hex Head (.375-16 x 3.50) SS | 2 |
| 20 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 2 |
| 20 | 8M0214963 | 垫圈 | WASHER | 2 |
| NS | 8272822 | 高压警告贴花 | DECAL Warning Hi Voltage | 1 |
| NS | 825064 | 贴纸-注意挂挡启动 | DECAL Caution Start In Gear | 1 |
| NS | 881865 | 警示贴纸-挂档启动 | DECAL Caution-Start in Gear | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

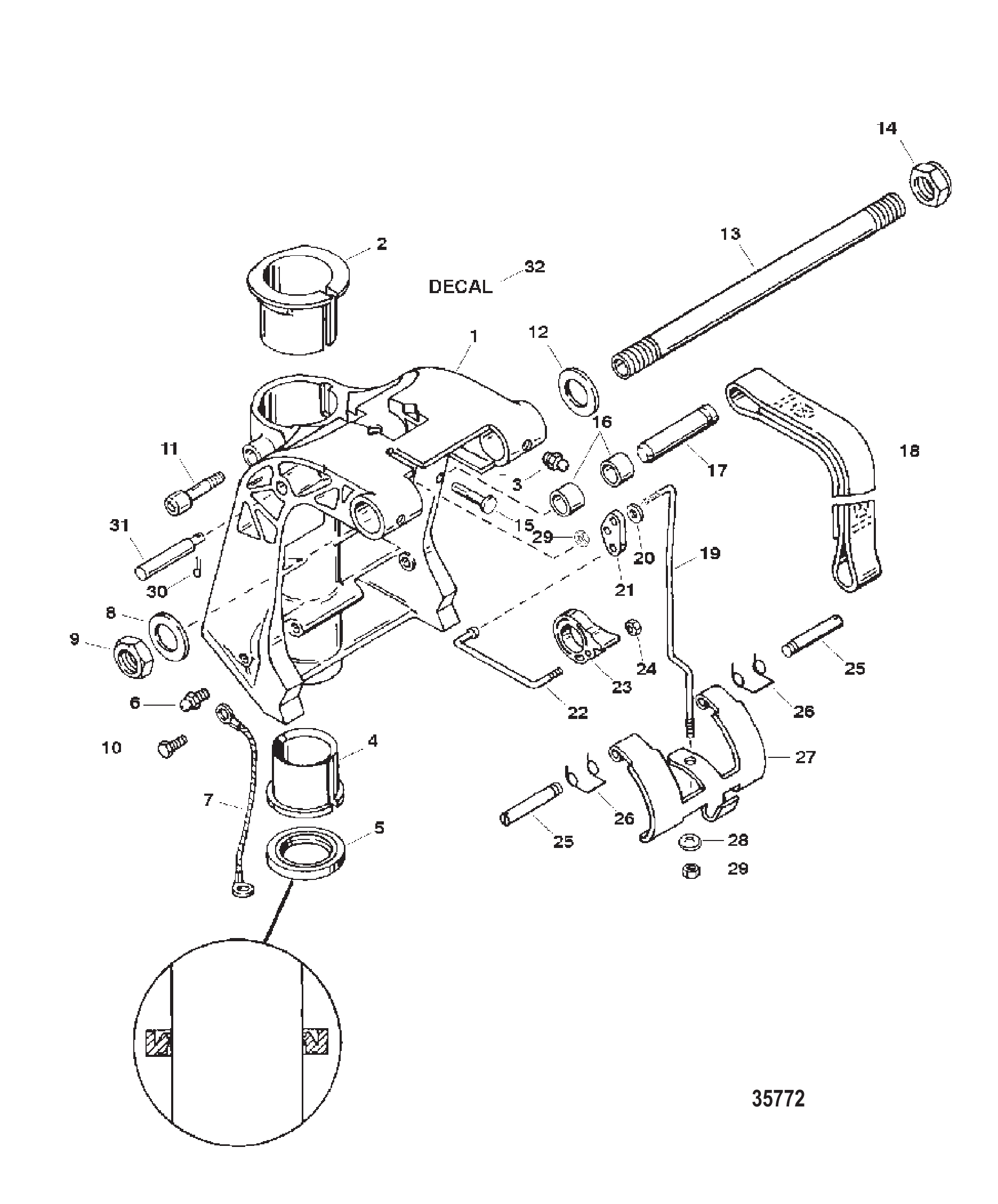

| 1 | 821772A6 | 旋转支架总成(喷漆) | BRACKET ASSEMBLY Swivel (Painted) | 1 |
| 1 | 827402T6 | ORD 3410-827402T5 | ORD 3410-827402T5 | 1 |
| 1 | 821772T10 | 旋转支架总成(喷漆) | BRACKET ASSEMBLY Swivel (Painted) | 1 |
| 1 | 827402T6 | ORD 3410-827402T5 | ORD 3410-827402T5 | 1 |
| 2 | 8217711 | 衬套 (上部) | BUSHING (UPPER) | 1 |
| 3 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 3 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 4 | 821777 | 衬套（下部） | BUSHING (LOWER) | 1 |
| 5 | 822404 | 密封件 | SEAL | 1 |
| 5 | 8M0205512 | 密封件 | SEAL | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 1 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 1 |
| 7 | 88238A11 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 8 | 19619 | 垫圈 | WASHER | 1 |
| 9 | 30499 | 螺母(7/8-14) | NUT (7/8-14) | 1 |
| 9 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 10 | 817626 | 螺钉 (#10-16 x .380) 接地带 | SCREW (#10-16 x .380) Ground Strap | 1 |
| 10 | 878607 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 11 | 4008910 | 螺钉（M8 X 10）不锈钢 | SCREW (M8 x 10) Stainless Steel | 1 |
| 12 | 19619 | 垫圈 | WASHER | 1 |
| 13 | 19614 | 倾斜管 | TILT TUBE | 1 |
| 13 | 8M0041938 | 倾斜管 | TILT TUBE | 1 |
| 14 | 30499 | 螺母(7/8-14) | NUT (7/8-14) | 1 |
| 14 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 15 | 821539 | 三叶销 | PIN Trilobe | 1 |
| 16 | 823507 | 衬套 | BUSHING | 2 |
| 17 | 822480 | 枢轴销（上部） | PIN Pivot (UPPER) | 1 |
| 18 | 8217751 | 拉带 倾斜止动 | STRAP Tilt Stop | 1 |
| 19 | 8218052 | 倒挡锁连杆 (.187直径) | LINK Reverse Lock (.187 Diameter) | 1 |
| 19 | 8M0026107 | 倒车锁连杆 | LINK-REVERSE LOCK | 1 |
| 20 | 71055 | 垫圈 | WASHER | 1 |
| 21 | 8251811 | 倒车锁臂 | ARM Reverse Lock | 1 |
| 21 | 825181003 | 倒车锁臂 | ARM-REVERSE LOCK | 1 |
| 22 | 821800 | 倒挡锁连杆 (上) | LINK Reverse Lock (UPPER) | 1 |
| 23 | 8217981 | 倒挡锁杠杆 (红色) | LEVER Reverse Lock (RED) | 1 |
| 24 | F1669 | 螺母（#6-32） | NUT (#6-32) | 1 |
| 24 | 8M0207777 | 不锈钢螺母 | NUT-SS | 1 |
| 25 | 826578 | 销 倒挡锁 | PIN Reverse Lock | 2 |
| 26 | F366300 | 倒挡锁弹簧 | SPRING Reverse Lock | 2 |
| 27 | 8289861 | 倒车锁 | LOCK Reverse | 1 |
| 28 | 27882 | 垫圈 | WASHER | 1 |
| 29 | 29488 | 螺母 (#10-32) | NUT (#10-32) | 2 |
| 29 | 8M0204718 | 螺母 | NUT | 2 |
| 30 | 27769 | 开口销 | COTTER PIN | 1 |
| 30 | 26811 | 开口销 | COTTER PIN | 1 |
| 31 | 821799 | 销轴 倒挡锁 | PIN Pivot Reverse Lock | 1 |
| 31 | 821799002 | 枢轴销 | PIN Pivot | 1 |
| 32 | 830253 | 倾斜锁止贴纸 | DECAL Tilt Lock | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

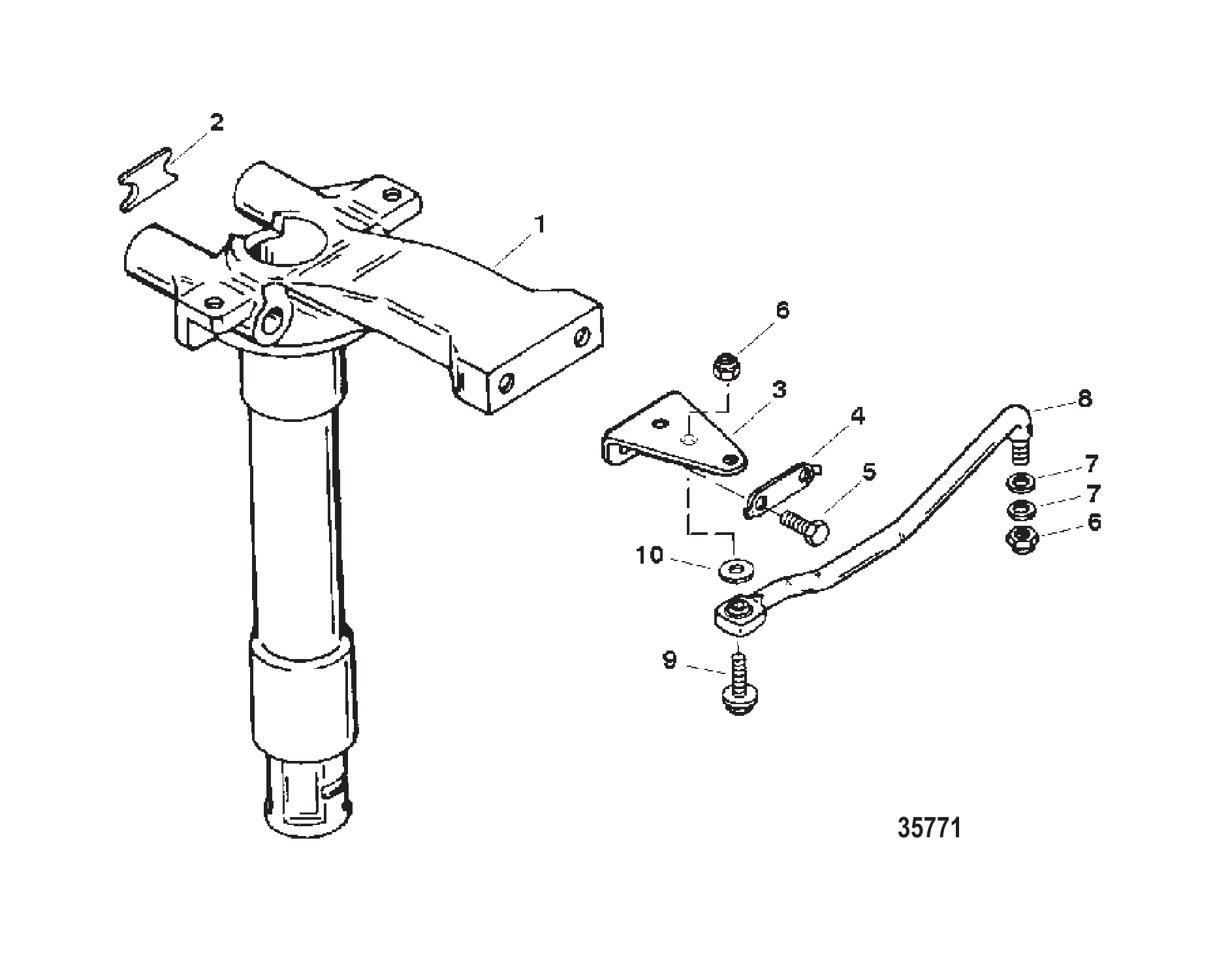

| 1 | 821769F4 | 旋转头 (喷漆) | SWIVEL HEAD (Painted) | 1 |
| 1 | 821769T4 | 旋转头-FORCE | SWIVEL HEAD-FORCE | 1 |
| 2 | 826658 | 缓冲垫 | BUMPER | 1 |
| 2 | 8M0156878 | 缓冲垫 | BUMPER | 1 |
| 3 | 816667F3 | 支架 | BRACKET | 1 |
| 3 | 8M0184092 | 支架 | BRACKET | 1 |
| 4 | 816669F1 | 锁紧垫圈 | TAB WASHER | 1 |
| 4 | 8M0009820 | 锁紧垫圈 | TAB WASHER | 1 |
| 5 | 4000377 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 2 |
| 6 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 6 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 7 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 8 | 196081 | 连杆 | LINK ROD | 1 |
| 8 | 19608A14 | 发动机转向安装套件 | ATTACHING KIT Engine Steering | 1 |
| 8 | 196091 | 连杆 | LINK ROD | OPT |
| 8 | 19609A6 | 转向安装套件 | ATTACHING KIT Steering | OPT |
| 9 | 14000 | 螺钉(.375-24x1.25) | SCREW (.375-24 x 1.25) | 1 |
| 9 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 10 | 71970 | 垫圈(0.390×0.546×0.12) | WASHER (.390 x .546 x .12) | 1 |
| 10 | 8M0109680 | 垫圈(0.39×0.546×0.12) | WASHER (.39 X .546 X.12) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 73687A2 | 飞轮拉拔器套件 | PULLER KIT Flywheel | 1 |
| - | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| - | 818494 | 专用螺钉 | SCREW Special | 1 |
| - | 52344 | 飞轮固定工具（齿型） | FLYWHEEL HOLDER TOOL Teeth Type Flywheel | 1 |
| - | 77109A2 | 活塞销锁环安装套件 | INSTALLER KIT Piston Pin Lock Ring | 1 |
| - | 69756 | O型圈（0.549 x 0.103） | O-RING (.549 x .103) | 1 |
| - | 98530 | 旋钮手柄 | KNOB Handle | 1 |
| - | 79250A2 | 水压表套件 | GAUGE KIT Water Pressure | 1 |
| - | 52952A1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | 52952T1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | FT2991 | 钢丝碳刷清洁器 | BRUSH Wire Carbon Remover | 1 |
| - | 803504T | 电刷 | BRUSH | 1 |
| - | FT2953 | 连杆螺丝套筒 | SOCKET Connecting Rod Screws | 1 |
| - | FT8925 | 主下密封安装工具 | INSTALLER TOOL Seal Lower Main Seal | 1 |
| - | FT2990-1 | 活塞与活塞销定位块 | BLOCK Piston And Piston Pin | 1 |
| - | 74607A3 | 活塞销安装套件 | INSTALLER KIT Piston Pin | 1 |
| - | FT2996 | 活塞环压缩工具 | COMPRESSOR TOOL Piston Ring | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | 90455 | 曲轴端吊环 | LIFTING EYE Crankshaft End | 1 |
| - | 904551 | 吊环 | LIFTING EYE | 1 |
| - | 74951 | 升降倾斜缸扳手 | SPANNER WRENCH Trim/Tilt Cylinder | 1 |
| - | 36571 | 驱动轴轴承导向垫片 | PILOT WASHER Driveshaft Bearing | 1 |
| - | 36571T | 导向垫圈 | PILOT WASHER | 1 |
| - | 826872 | 前进齿轮轴承安装工具 | INSTALLER TOOL Bearing Forward Gear Bearing | 1 |
| - | 85560 | 推力轴承 | BEARING Thrust | 1 |
| - | 14308A1 | 轴承座圈工具 | RACE TOOL Bearing | 1 |
| - | 14308T02 | 轴承座圈驱动器 | BEARING RACE DRIVER | 1 |
| - | 37241 | 通用轴承拉拔器板 | PULLER PLATE Universal Bearing Puller | 1 |
| - | 817007 | 轴承座密封安装工具 | INSTALLER TOOL Bearing Carrier Seal | 1 |
| - | 817007T | 密封安装工具 | INSTALLER TOOL Seal | 1 |
| - | 817011 | 滚针轴承安装工具 | INSTALLER TOOL Needle Bearing | 1 |
| - | 817011T | 滚针轴承安装工具 | INSTALLER TOOL Needle Bearing | 1 |
| - | 825196 | 传动轴固定工具 | HOLDING TOOL Driveshaft | 1 |
| - | 825197 | 油封心轴 | MANDREL Oil Seal | 1 |
| - | 825197T | 油封安装工具 | INSTALLER TOOL Oil Seal | 1 |
| - | 825198 | 小齿轮杯心轴 | MANDREL Pinion CUP | 1 |
| - | 825199 | 轴承导向杯 | PILOT Bearing CUP | 1 |
| - | 31229A7 | 轴承拉拔器套件 | PULLER KIT Bearing | 1 |
| - | 24156 | 螺母(0.625-18) | NUT (.625-18) | 2 |
| - | 34961 | 垫圈 (.625-18) | WASHER (.625-18) | 1 |
| - | 29310 | 安装板 | PLATE | 1 |
| - | 31229 | 轴 | SHAFT | 1 |
| - | 34569A1 | 滑动锤拉拔器总成 | PULLER ASSEMBLY Slide Hammer | 1 |
| - | 825200A1 | 弹簧钩具 | HOOK TOOL Spring | 1 |
| - | 828200 | 前进杯轴承安装工具 | INSTALLER Forward Cup Bearing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 99379 | 点火正时灯 | TIMING LIGHT Ignition | 1 |
| - | FT2951 | 电路追踪测试仪 | TRACER TOOL Circuit Test Electrical System | 1 |
| - | FT8950 | 下部单元测试套件 | TESTER KIT Lower Unit | 1 |
| - | 850439 | 点火系统火花测试器 | SPARK TESTER Ignition System | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | FT2938-1 | 电路通断测试仪 | CONTINUITY TESTER Electrical Circuits | 1 |
| - | 825207A2 | 线束总成 | HARNESS ASSEMBLY | 1 |
| - | 99750A1 | 电气部件万用表 | MULTI METER Electrical Components | 1 |
| - | 59339 | 维修用转速表 | SERVICE TACHOMETER Electrical Components | 1 |
| - | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| - | 58222A1 | 正时千分表工具 | DIAL INDICATOR TOOL Timing | 1 |
| - | FT2969 | 螺纹修复套件(#10-24) | HELI COIL KIT (#10-24) | 1 |
| - | FT2970 | 螺纹修复套件(.250-20) | HELI COIL KIT (.250-20) | 1 |
| - | FT2971 | 螺纹修复套件(.312-18) | HELI COIL KIT (.312-18) | 1 |
| - | FT2948 | 螺纹修复套件(.375-16) | HELI COIL KIT (.375-16) | 1 |
| - | 825265A1 | COMPOUND (8 Ounce) Needle Bearings | 1 | |
| - | 802868A1 | 润滑剂 | LUBRICANT | 1 |
| - | FT2987-1 | 润滑剂 | LUBRICANT | 1 |
| - | 898101390 | 防卡剂喷雾 | ARESOL ANTI-SEIZE | 1 |
| - | FT8969 | 润滑剂 | LUBRICANT | 1 |
| - | 809818 | 乐泰222螺纹锁固剂 10毫升 | LOCTITE 222 THREADLOCKER 10ml | 1 |
| - | 809821 | LOCTITE 242螺纹锁固剂 10毫升 | LOCTITE 242 THREADLOCKER 10ml | 1 |
| - | 809819 | 乐泰271螺纹锁固剂 10毫升 | LOCTITE 271 THREADLOCKER 10 ml | 1 |
| - | 809820 | 乐泰271螺纹锁固剂 50毫升 | LOCTITE 271 THREADLOCKER 50 ml | 1 |
| - | 809822 | 管螺纹密封剂 - Loctite 567 (50毫升) (白色) | SEALANT Pipe - Loctite 567 (50 ml) (WHITE) | 1 |
| - | 809824 | 底漆乐泰(4.5盎司喷雾)绿色 | PRIMER Loctite (4.5 Ounce Aerosol) Green | 1 |
| - | 809825 | RTV硅胶 (3盎司管装) 金属蓝 | RTV SILICONE (3 Ounce Tube) Metallic Blue | 1 |
| - | 809826 | RTV硅胶(13盎司筒装)黑色 | RTV SILICONE (13 Ounce Cartridge) Black | 1 |
| - | 809833 | 乐泰RC 680密封胶（10毫升瓶装）绿色 | SEALANT Loctite RC 680 (10 ml Bottle) Green | 1 |
| - | 125642 | 衬垫套件主密封剂和底漆 (红色) | GASKET KIT Master Sealant And Primer (RED) | 1 |
| - | 809834 | 成型衬垫 (3盎司管装) (棕色) | FORM A GASKET (3 Ounce Tube) (BROWN) | 1 |
| - | 809828 | 衬垫清除剂 (12盎司喷雾) | REMOVER Gasket (12 Ounce Aerosol) | 1 |
| - | 8098281 | 清除剂-GKT @10 | REMOVER-GKT @10 | 1 |
| - | 809827 | 脱脂清洁剂 (19盎司喷雾) | DEGREASER AND CLEANER (19 Ounce Aerosol) | 1 |
| - | 809827Q | ORD 92-809827Q01 | ORD 92-809827Q01 | 1 |
| - | 342271 | 密封剂(16盎司) | SEALING COMPOUND (16 Ounce) | 1 |
| - | 34227Q02 | 密封胶 | SEALING COMPOUND | 1 |
| - | 850736A1 | 多功能润滑脂 2-4-C (8盎司管装) | MULTI LUBE 2 4 C (8 Ounce Tube) | 1 |
| - | 8M0240200 | 润滑脂 2-4-C @12 | LUBE 2-4-C @12 | 1 |
| - | 90100A12 | 动力升降倾斜装置油-12瓶装 | OIL Power Trim And Tilt-Case of 12 | 1 |
| - | 802880Q1 | 机油-P/T MQPT@12 | OIL-P/T MQPT@12 | 1 |
| - | 13872A1 | 专用润滑脂101(8盎司管装) | SPECIAL LUBE 101 (8 Ounce Tube) | 1 |
| - | 802865Q1 | 专用润滑剂101 | SPECIAL LUBE 101 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 819748A6 | 顶罩总成 (喷漆) | TOP COWL ASSEMBLY (Painted) | 1 |
| 1 | 819748T6 | 基本罩总成 | COWL ASSY-BASIC | 1 |
| 2 | F684984 | 隔音罩(顶部) | BLANKET Sound (TOP) | 1 |
| 3 | F6849851 | 隔音罩(侧面) | BLANKET Sound (SIDE) | 2 |
| 4 | 828477 | 倾斜手柄 | HANDLE Tilt | 1 |
| 5 | 828478 | 螺钉 (0.250-20 x 1.00) 不锈钢 | SCREW (.250-20 x 1.00) Stainless Steel | 4 |
| 6 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 6 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 7 | 56374 | 螺母 (.250-20) | NUT (.250-20) | 4 |
| 7 | 8267098 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 4 |
| 8 | 28639 | 250-20×0.625 螺钉 | SCREW (250-20 x .625) | 2 |
| 9 | F684774 | 罩锁后支架 | BRACKET Cowl-Latch Rear | 1 |
| 10 | 18173 | 锁扣滚轮支架总成 | BRACKET ASSEMBLY Latch Roller | 1 |
| 10 | 893763 | 滚轮锁扣支架 | BRACKET Roller Latch | 1 |
| 11 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 12 | 90285 | 螺钉 (.312-18 x .625) | SCREW (.312-18 x .625) | 2 |
| 13 | 855393A98 | 贴花套件 | DECAL SET | 1 |
| 13 | 855394A98 | 贴花套件 | DECAL SET | 1 |
| 13 | 835012A96 | 贴花套件 | DECAL SET | 1 |
| NS | 852950A97 | 贴花套件 | DECAL SET | 1 |
| NS | 803908A99 | 贴花套件 | DECAL SET | 1 |
| NS | 852951A97 | 贴花套件 | DECAL SET | 1 |
| 14 | 85557718 | EPA信息标签 (贴于顶罩内顶部) | DECAL EPA Label Information (Applied To The Top Inside Of The Top Cowl) | 1 |
| 14 | 855577A18 | REF SOB 09-18 | REF SOB 09-18 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822344A5 | 液压动力升降 | POWER TRIM Hydraulic | 1 |
| 1 | 822344T14 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 2 | 827670A2 | 减震杆总成 | SHOCK ROD ASSEMBLY | 1 |
| 2 | 893931A01 | 减震杆总成 | SHOCK ROD ASSY | 1 |
| 3 | 827671A1 | 先导止回阀总成 | PILOT CHECK ASSEMBLY | 1 |
| 4 | 827672A1 | 倾斜泄压阀总成 | TILT RELIEF VALVE ASSEMBLY | 1 |
| 5 | 827673A1 | 吸入阀座总成 | SEAT ASSEMBLY Suction | 1 |
| 6 | 827674A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | 827675A1 | 电机总成 | MOTOR ASSEMBLY | 1 |
| 8 | 88238A15 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 9 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 9 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 10 | 812844 | E型卡环 | E RING | 1 |
| 10 | 815949001 | E形环 | E-RING | 1 |
| 11 | 811613 | 油箱堵头总成 | PLUG ASSEMBLY Reservoir | 1 |
| 12 | 827676 | 活塞记忆 | PISTON Memory | 1 |
| 13 | 827668A1 | O型圈套件 | O-RING KIT | 1 |
| 14 | 821509 | 继电器 微调 | RELAY Trim | 2 |
| 14 | 821509T01 | 继电器 | RELAY | 2 |
| 15 | 821382 | 继电器支架 | BRACKET Relay | 2 |
| 15 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 16 | 818967 | 继电器支架衬套 | GROMMET Relay Bracket | 2 |
| 16 | 8M0207785 | 护孔环 | GROMMET | 2 |
| 17 | 818968 | 衬套 | BUSHING Grommet | 2 |
| 17 | 8M0214955 | 衬套 | BUSHING | 2 |
| 18 | 40011129 | 不锈钢螺钉(M6x25) | SCREW (M6 x 25) Stainless Steel | 2 |
| 19 | 17201A7 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 20 | 819514A10 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| - | 822344A7 | 液压升降套件 (完整) | TRIM KIT Hydraulic (COMPLETE) | 1 |
| - | 822344A12 | 升降套件-FORCE | TRIM KIT-FORCE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822481 | 锚定销 (14毫米) 下枢轴 | PIN Anchor (14 mm) Lower Pivot | 1 |
| 1 | 822481001 | 销(14毫米) | PIN (14 mm) | 1 |
| 2 | 822482 | 衬套 | BUSHING | 2 |
| 3 | 822484 | 衬套 | BUSHING | 2 |
| 4 | 825190 | 垫圈 | WASHER | 2 |
| 5 | 4013414 | 螺母(M14) | NUT (M14) | 2 |
| 5 | 826712 | 螺母 | NUT | 2 |
| 6 | 4009040 | 不锈钢螺钉(M10x40) | SCREW (M10 x 40) Stainless Steel | 2 |
| 7 | 4002319 | 垫圈 | WASHER | 2 |
| 8 | 4011910 | 螺母(M10) | NUT (M10) | 2 |
| 8 | 4013710 | 螺母(M10) | NUT (M10) | 2 |
| 9 | 8128321 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 9 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 10 | 69205 | C形垫圈 | C WASHER | 1 |
| 10 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 11 | 22740 | 升降索夹 | CLIP Trim Cable | 2 |
| 12 | 821539 | 三叶销 | PIN Trilobe | 1 |
| 13 | 822480 | 枢轴销（上部） | PIN Pivot (UPPER) | 1 |
| - | 822344A7 | 液压升降套件 (完整) | TRIM KIT Hydraulic (COMPLETE) | 1 |
| - | 822344A12 | 升降套件-FORCE | TRIM KIT-FORCE | 1 |
