水星 Mercury 35 H.P. (1989) 357X9B & Up - 爆炸图零件明细

Force 系列 · Belgium - Cat.# 90-FOB4395 · 共 50 个部位 · 1837 条零件

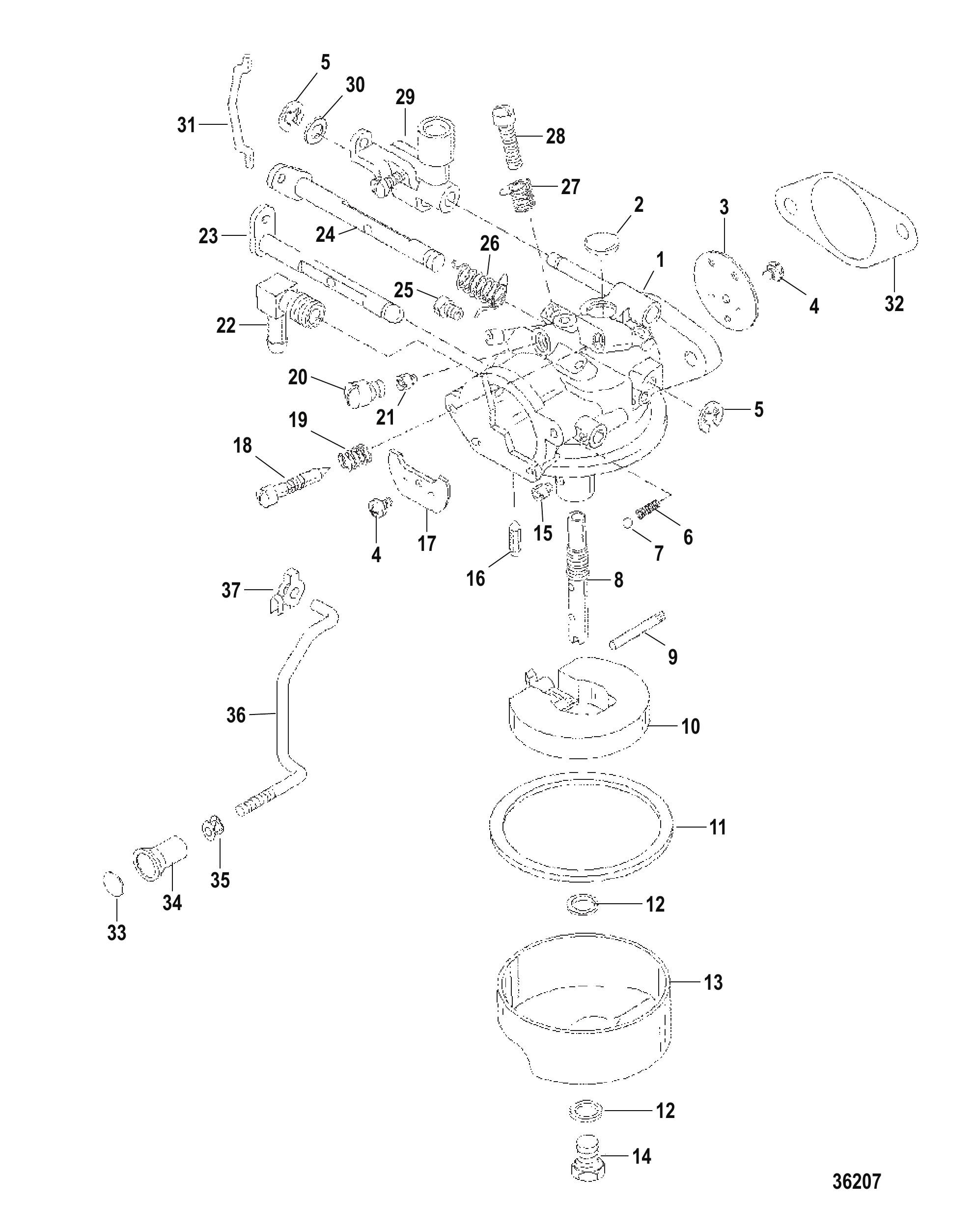

图 1化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	852551T1	化油器(FO-3D)	CARBURETOR (FO-3D)	1
2	FO16128	堵头	PLUG	1
3	809442	节气门片	SHUTTER Throttle	1
4	809441	百叶窗螺钉	SCREW Shutters	2
5	809446	节气门连杆E型环	E-RING Throttle Linkage	2
6	FO8805	阻风门摩擦弹簧	SPRING Choke Friction	1
7	FO4784	钢球	BALL	1
8	809624	主喷嘴	NOZZLE Main	1
9	FO13944	销	PIN	1
10	F10346	燃油杯浮子	FLOAT Fuel Bowl	1
11	FO15623	衬垫	GASKET	1
12	FO2510	燃油杯衬垫	GASKET Fuel Bowl	2
13	FO15366	燃油杯	BOWL Fuel	1
14	5128	螺钉	SCREW	1
15	809448	主量孔(.058)	JET Main (.058)	1
15	5213	主量孔(.056)	JET Main (.056)	OPT
15	5225	主量孔(.054)	JET Main (.054)	OPT
15	6359	量孔(.052)	JET (.052)	OPT
16	F10265	进油针阀	NEEDLE Inlet	1
17	F10344	阻风门片	SHUTTER Choke	1
18	F10268	螺钉	SCREW	1
19	27160	弹簧	SPRING	1
20	F10275	螺钉	SCREW	1
21	809625	节气门量孔(.046)	JET (.046)-THROTTLE	1
22	854005	燃油弯头	ELBOW Fuel	1
23	809440	阻风门轴及杆	SHAFT AND LEVER Choke	1
24	809439	节气门轴及杠杆	SHAFT AND LEVER Throttle	1
25	5225	主量孔怠速空气量孔（0.054）	JET Main (.054) IDLE AIR BLEED	1
26	F10350	节气门轴弹簧	SPRING Throttle Shaft	1
27	809445	怠速弹簧	SPRING Idle Speed	1
28	809444	怠速螺钉	SCREW Idle Speed	1
29	F10290	节气门连杆	LINKAGE Throttle	1
30	F10242	垫圈	WASHER	1
31	809443	节气门轴钢丝	WIRE Throttle Shaft	1
32	F715906	化油器安装垫片	GASKET Carburetor Mount	1
33	F681677	阻风门杆衬套	INSERT Choke Rod	1
34	F286547	阻风门旋钮	KNOB Choke	1
35	F197319	衬套	BUSHING	1
36	819154	阻风门拉杆	ROD Choke	1
37	830569	阻风门杆固定座	RETAINER Choke Rod	1
-	FK10352	化油器衬垫组	GASKET SET Carburetor	1
-	809449A1	化油器维修套件	REPAIR KIT Carburetor	1
-	809516A1	动力头衬垫套件	GASKET SET Powerhead	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

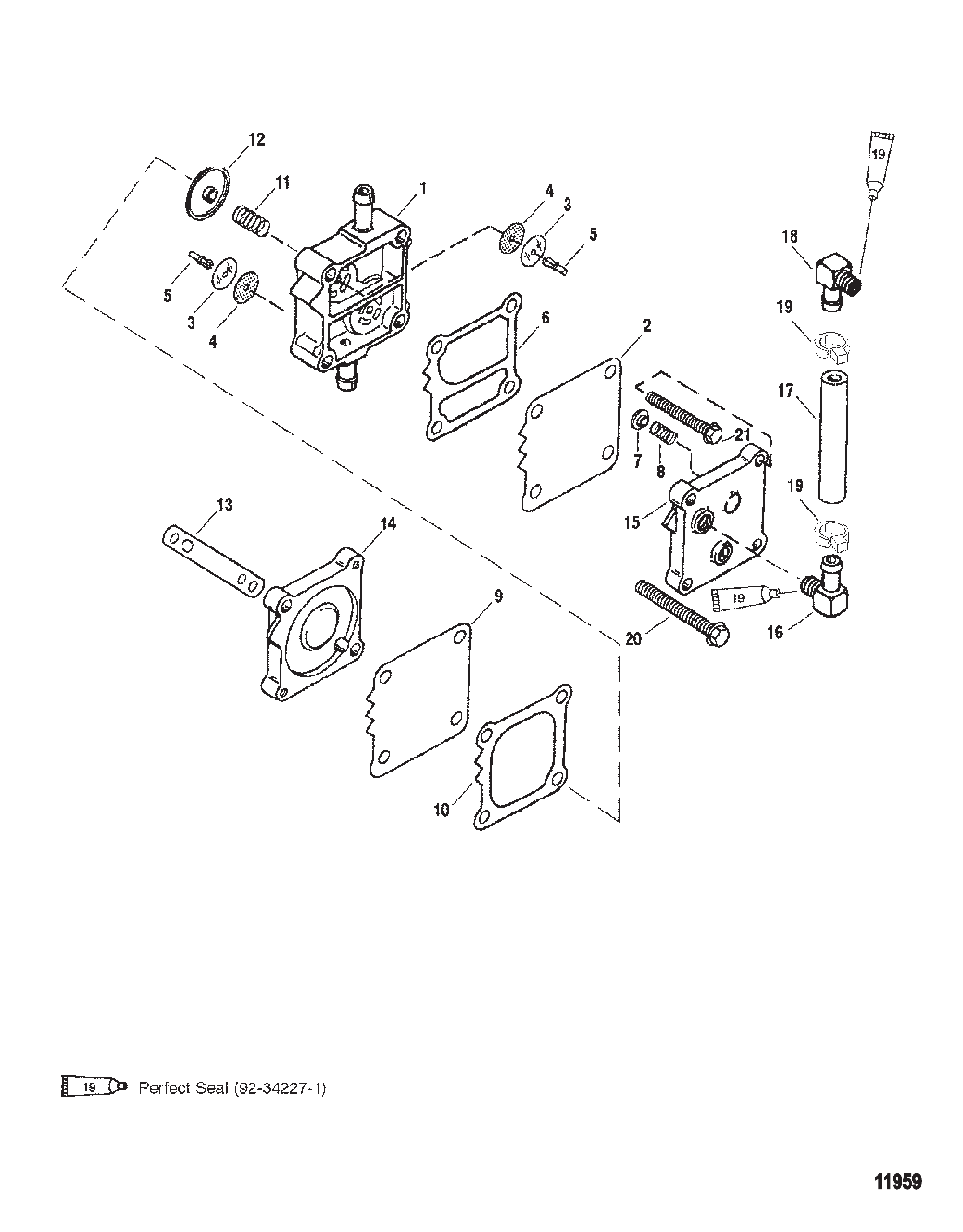

图 2燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

图 3发动机罩(蓝鳍型号) Engine Cover (Blue Fin Models)

REF	零件编号	中文名称	英文名称	数量
1	FS684712	盖总成	COVER ASSEMBLY	1
2	FX690892	贴花	DECAL	1
3	F685387-2	贴花	DECAL	2
4	FX690396	贴花	DECAL	1
4	FX690397	贴花	DECAL	1
6	F663366		MEDALLION Force (Force)	2
6	819169	徽章	MEDALLION	2
7	F1857	不锈钢螺钉(.312-18 x .625)	SCREW (.312-18 x .625) SS	2
7	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
8	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
8	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
9	F481743	滚轮支架	BRACKET Roller	1
9	893763	滚轮锁扣支架	BRACKET Roller Latch	1
10	F684774	支架	BRACKET	1
11	F1493	螺丝 (.250-20 x .625) 不锈钢	SCREW (.250-20 x .625) Stainless Steel (.250-20 x .625)	2
11	28639	250-20×0.625 螺钉	SCREW (250-20 x .625)	2
12	FX690528	贴花	DECAL	1
13	F663269	倾斜手柄	HANDLE Tilt	1
13	828477	倾斜手柄	HANDLE Tilt	1
14	F2143	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	4
15	F2012	垫圈	WASHER	8
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
16	F7060	螺母(.250-20)	NUT (.250-20) (.250-20)	4
16	8267118	螺母 (.250-20)	NUT (.250-20)	4
NS	F684984	覆盖件	BLANKET	1
NS	F684985	覆盖件	BLANKET	2
NS	F684985-1	侧盖板	BLANKET-SIDE	2

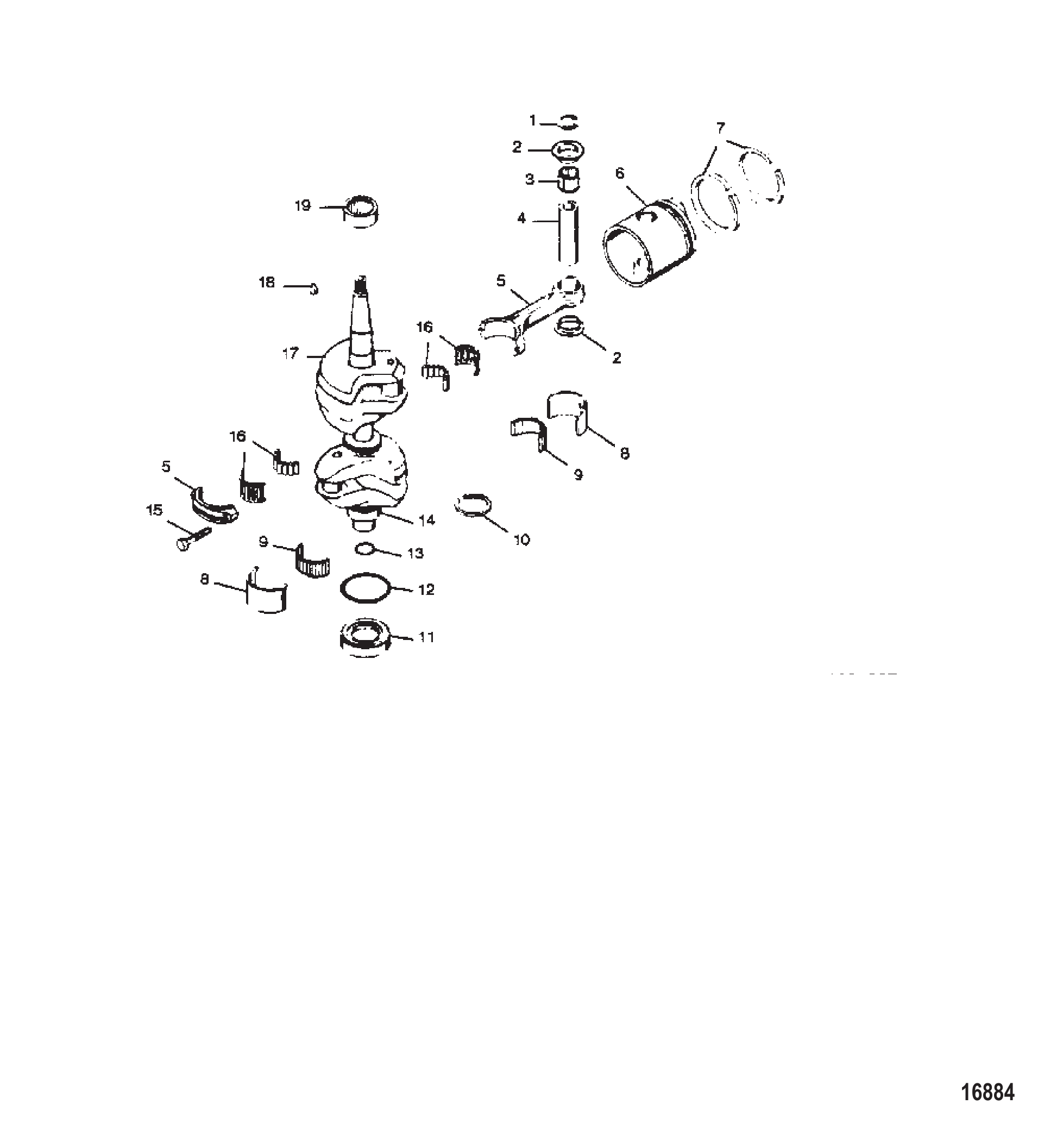

图 4曲轴与活塞组 Crankshaft and Piston Group

REF	零件编号	中文名称	英文名称	数量
1	F428096		RING Retaining Piston Pin	4
2	F366215	活塞销垫片	SPACER Pistion Pin	4
3	F335217-1		BEARING Piston Pin	2
4	F40017-2	活塞销	PIN Piston	2
5	818052A3	连杆总成	CONNECTING ROD ASSEMBLY	2
5	818052T6	连杆总成	CONN ROD ASSY	2
6	F513015-1	活塞	PISTON	2
6	FSA513015	活塞 (.010加大)	PISTON (.010 Oversize) (.010 Oversize)	2
6	834801A1	活塞套件-.010	PISTON KIT-.010	2
6	818126A1	活塞总成 (.030加大)	PISTON ASSEMBLY (.030 Oversize) (.030 Oversize)	2
6	834801A2	活塞套件-.030	PISTON KIT-.030	2
7	FA463260	活塞环组4件套	RING SET 4 - Piston (4 Per Set)	1
7	FSA463260	活塞环组2件套 (.010加大)	RING SET 2 - (.010 Oversize) (.010 Oversize) 2 Rings Per Set	2
7	818120A1	活塞环组2件套 (.030加大)	RING SET 2 - (.030 Oversize) (.030 Oversize) 2 Rings Per Set	2
8	FA458655		LINER Center Main (1 Set)	1
9	FA458571		ROLLER Center Main	1
10	F458579	曲轴箱密封件	SEAL Crankcase	1
11	F2A458581	轴环/密封件总成	COLLAR/SEAL ASSEMBLY	1
12	F455305		O-RING Crankshaft Collar	1
13	F458342		SEAL Crankshaft Spline	1
14	F286028	曲轴下主轴承	BEARING Ball Crankshaft Lower Main	1
15	F85634-2	连杆螺钉	SCREW Connecting Rod	4
15	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	4
16	FK85228-1	保持架与滚柱组(每套16个)	CAGE AND ROLLERS SET (16 Rollers Per Set)	2
16	62596A2	保持架/滚子组	CAGE/ROLLER SET	2
17	F2A683018	曲轴总成	CRANKSHAFT ASSEMBLY	1
18	F85498-1	飞轮键	FLYWHEEL KEY	1
19	F458028		BEARING Crankshaft Upper Main	1

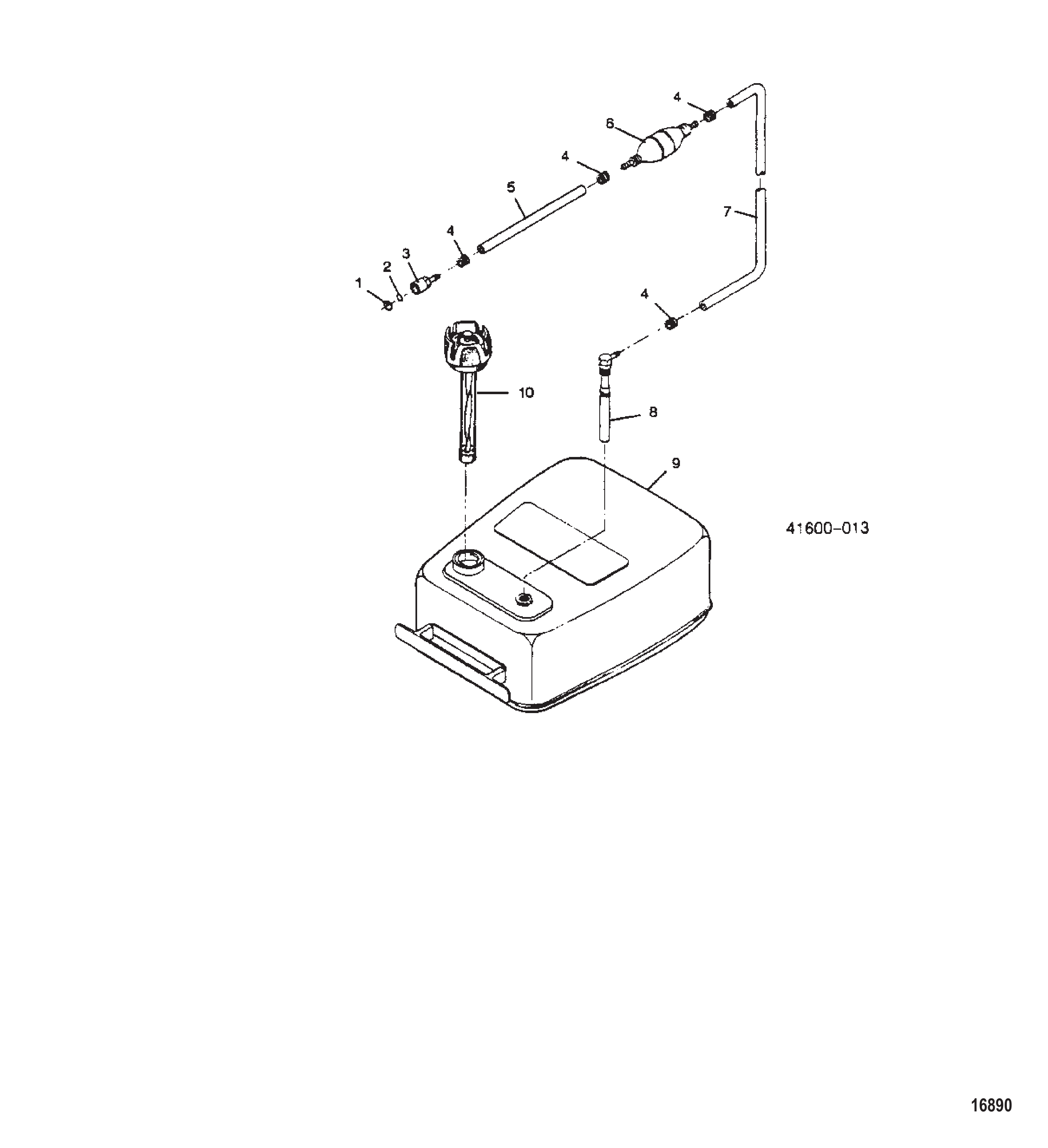

图 5燃油箱与管路 Fuel Tank and Line

REF	零件编号	中文名称	英文名称	数量
1	F17816	燃油管及接头密封 (大号)	SEAL Fuel Line And Coupler (Large)	1
2	F17815	燃油管及接头密封 (大号)	SEAL Fuel Line And Coupler (Large)	1
3	F197787-3	燃油接头	COUPLER Fuel	2
3	F197787Q3	燃油接头总成	COUPLER ASSEMBLY Fuel	2
4	F298788	套圈	FERRULE	4
4	41582Q7	卡箍	CLAMP	4
5	F84754-1	燃油管	LINE Fuel	1
5	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
6	F387766-1	燃油注油器球	BULB Fuel Primer	1
6	89396Q01	注油球@4	PRIMER BULB @4	1
7	817738A1	燃油管路总成	LINE ASSEMBLY Fuel	1
8	F487755	燃油箱适配器	ADAPTER Fuel Tank	1
9	F5H027-1	燃油箱总成 (配件)	TANK ASSEMBLY Fuel (Accessory Item)	1
9	823504A3	燃油箱总成	TANK ASSEMBLY Fuel	1
10	F409251-1	燃油表盖总成	CAP ASSEMBLY Fuel Gauge	1
NS	F17818		GASKET (Not Shown)	1
NS	FA409752	燃油管路总成 (完整,未图示)	LINE ASSEMBLY Fuel - Complete (Not Shown)	1
NS	877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
NS	FC409398	燃油箱贴纸-加拿大版 (未图示)	DECAL Fuel Tank - Canada (Not Shown)	1
NS	F310398		DECAL Warning (Not Shown)	1

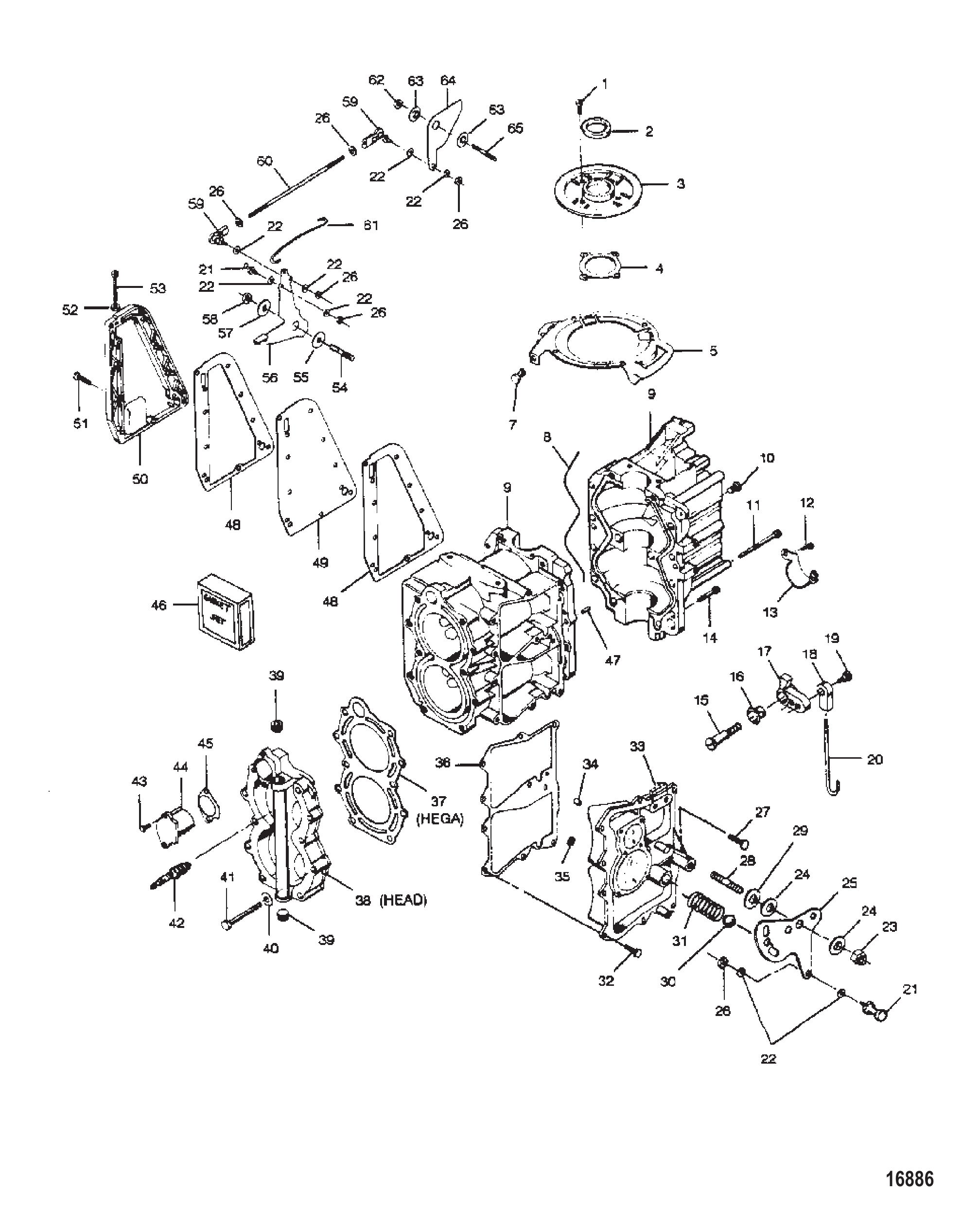

图 6动力头 Power Head

REF	零件编号	中文名称	英文名称	数量
1	F1107	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
2	F458146		SEAL Crankshaft Upper Main	1
3	FA458144	曲轴轴承保持架总成	CAGE ASSEMBLY Crankshaft Bearing	1
4	F458277	曲轴轴承保持架垫片	GASKET Crankshaft Bearing Cage	1
5	817833A1	磁电机定子环组件	RING ASSEMBLY Magneto Stator	1
7	F1727	铆钉	RIVET	1
8	F184122-1		SEAL Crankcase Parting Line	1
9	819466A2	气缸带曲轴箱盖	CYLINDER W/CRANKCASE COVER	1
9	817920A2	短缸体	SHORT BLOCK	1
10	F1864	螺钉(.250-20 x .750)	SCREW (.250-20 x .750) (.250-20 x .750)	8
10	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	8
11	F2005	螺钉(.3125-18 x 2.75)	SCREW (.312 - 18 x 2.750) (.3125-18 x 2.75)	2
12	F1689	螺钉(.250-20 x .500)	SCREW (.250 - 20 X .500) (.250-20 x .500)	2
12	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
13	F460317-1	电启动电磁阀卡箍	CLAMP Solenoid For Electric Start	1
13	F460317-2	卡箍	CLAMP	1
14	F2013	螺钉(.3125-18 x 2.75)	SCREW (.312 - 18 x 1.250) (.3125-18 x 2.75)	4
14	47819	螺钉	SCREW	4
15	F85026		SWIVEL Shift Interlock Lever	1
16	F307818	轴承	BEARING	1
16	26841	衬套	BUSHING	1
17	F458977-3	换挡联锁杆	LEVER Shift Interlock	1
18	F84035-2	换挡联锁杆轴承	BEARING Shift Interlock Rod	1
18	816514	火花控制轴承	BEARING Spark Control	1
19	F84026		SWIVEL Shift Interlock Bearing	1
19	819625	螺钉	SCREW	1
20	817805A1	换挡联锁杆	ROD Shift Interlock	1
21	F98273	螺柱	STUD	2
22	F8058	锁紧垫圈	LOCKWASHER	8
23	F7004	螺母（0.375-16）	NUT (.375-16) (.375-16)	1
23	82670912	螺母(.375-16)不锈钢	NUT (.375-16) Stainless Steel	1
24	F269052	轴承	BEARING	2
25	817808A2	换挡杆	LEVER Gear Shift	1
26	F1513	螺母 (#10-32)	NUT (#10-32) (#10-32)	6
26	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	6
27	F1922	螺丝 (.250-20 x .625)	SCREW (.250-20 x .625) (.250-20 x .625)	1
28	F440209	换挡杆螺柱	STUD Gear Shift Lever	1
28	8263872	双头螺栓(.375-16 x 1.625)	STUD (.375-16 x 1.625)	1
29	F2014	垫圈	WASHER	1
29	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
30	F458727		BALL Shift Lever Detent	1
31	F183300	换挡定位弹簧	SPRING Shift Detent	9
32	F1922	螺丝 (.250-20 x .625)	SCREW (.250-20 x .625) (.250-20 x .625)	9
33	FA659222	换气口盖	COVER Transfer Port	1
34	F213740-1	止回阀	CHECK VALVE	2
34	817741A1	止回阀套件	CHECK VALVE KIT	2
35	F429811		SCREEN Cylinder Drain	2
36	F458223	换气口盖垫片	GASKET Transfer Port Cover	1
36	819413	衬垫	GASKET	1
37	F513529	气缸盖衬垫	GASKET Cylinder Head	1
38	817843A1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
38	817843A2	气缸盖套件	HEAD KIT-CYLINDER	1
39	F458109		PLUG Cylinder Head	2
40	F1739		WASHER (Electric Start)	7
40	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	7
41	F458936		SCREW Cylinder Head	10
41	F1882	螺钉(.312-18 x 2.125)	SCREW (.312-18 x 2.125)	10
42	8179962	火花塞(L82C)	SPARK PLUG (L82C)	2
42	896323	SP #L82C @4	SP #L82C @4	2
42	NSS	不单独销售 火花塞(Champion QL-77-J4)加拿大专用(本地采购)	NOT SOLD SEPARATE Spark Plug (Champion QL-77-J4) For Canada (Obtain Locally)	2
43	F1854	螺丝 (.250-20 x .625)	SCREW (.250-20 x .625) (.250-20 x .625)	2
43	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	2
44	F458066	节温器盖	COVER Thermostat	1
45	F458067	节温器盖衬垫	GASKET Thermostat Cover	1
46	FG1014-1	衬垫套件	GASKET SET	1
46	FG1014-2	衬垫套件	GASKET SET	1
--	F84792	燃油泵阀门衬垫	GASKET Fuel Pump Vavlve	3
--	F433168	化油器适配器衬垫	GASKET Carburetor Adapter	1
--	F433406	导流板衬垫	GASKET Delector Plate	1
--	F438617	燃油泵杯衬垫	GASKET Fuel Pump Bowl	1
--	823606	衬垫	GASKET	1
--	F438760	燃油泵衬垫	GASKET Fuel Pump	1
--	820490	衬垫	GASKET	1
--	F458067	节温器盖衬垫	GASKET Thermostat Cover	1
--	F458154	排气口板衬垫	GASKET Exhaust Port Plate	2
--	819478	衬垫	GASKET	2
--	F458223	换气口盖衬垫	GASKET Transer Port Cover	1
--	819413	衬垫	GASKET	1
--	F458277	曲轴轴承保持架垫片	GASKET Crankshaft Bearing Cage	1
--	F458279	气缸排气衬垫	GASKET Cylinder Exhaust	1
--	F458453		GASKET Leg Exhaust	1
--	F513529	气缸盖衬垫	GASKET Cylinder Head	1
--	F85906	化油器衬垫	GASKET Carburetor	1
--	828925	衬垫	GASKET	1
--	F683279	气缸排气衬垫	GASKET Cylinder Exhaust	1
47	F8559	销	PIN	2
48	F458154	排气口板衬垫	GASKET Exhaust Port Plate	2
48	819478	衬垫	GASKET	2
49	F458151	排气口板	PLATE Exhaust Port	1
50	F458152-1	排气口盖	COVER Exhaust Port	1
51	F1532	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	10
51	819110100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	10
52	F1341	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
52	64015	螺母 (.250-20)	NUT (.250-20)	1
53	F1072	SCREW (.250-20 x 1.75) Fill Head	SCREW (.250-20 x 1.75) Fill Head	1
54	F286440		STUD Magneto Control Lever	1
55	F183813	控制杆轴承	BEARING Control Lever	1
56	F2A458081	磁电机控制杆总成	LEVER ASSEMBLY Magneto Control	1
57	F286282	垫圈	WASHER	1
58	F1803	螺母(.312-24)	NUT (.312-24)	1
59	F269141-1	球头关节组件	BALL JOINT ASSEMBLY Ball Assembly	2
59	828514A1	球窝套件	BALL/SOCKET KIT	2
60	F458502		ROD Throttle Cam	1
61	F458509	磁电机启动连杆	LINK Magneto Starter	1
62	F7008	螺母 (.250-20)	NUT (.250-20)	1
62	8267088	螺母 (.250-20)	NUT (.250-20)	1
63	F269319	节气门凸轮轴承	BEARING Throttle Cam	2
64	F458192	节气门凸轮	CAM Throttle	1
64	F458192-1	节气门凸轮	CAM-THROTTLE	1
65	F433209-1		STUD (.250-20 x 1.250) Throttle Cam	1

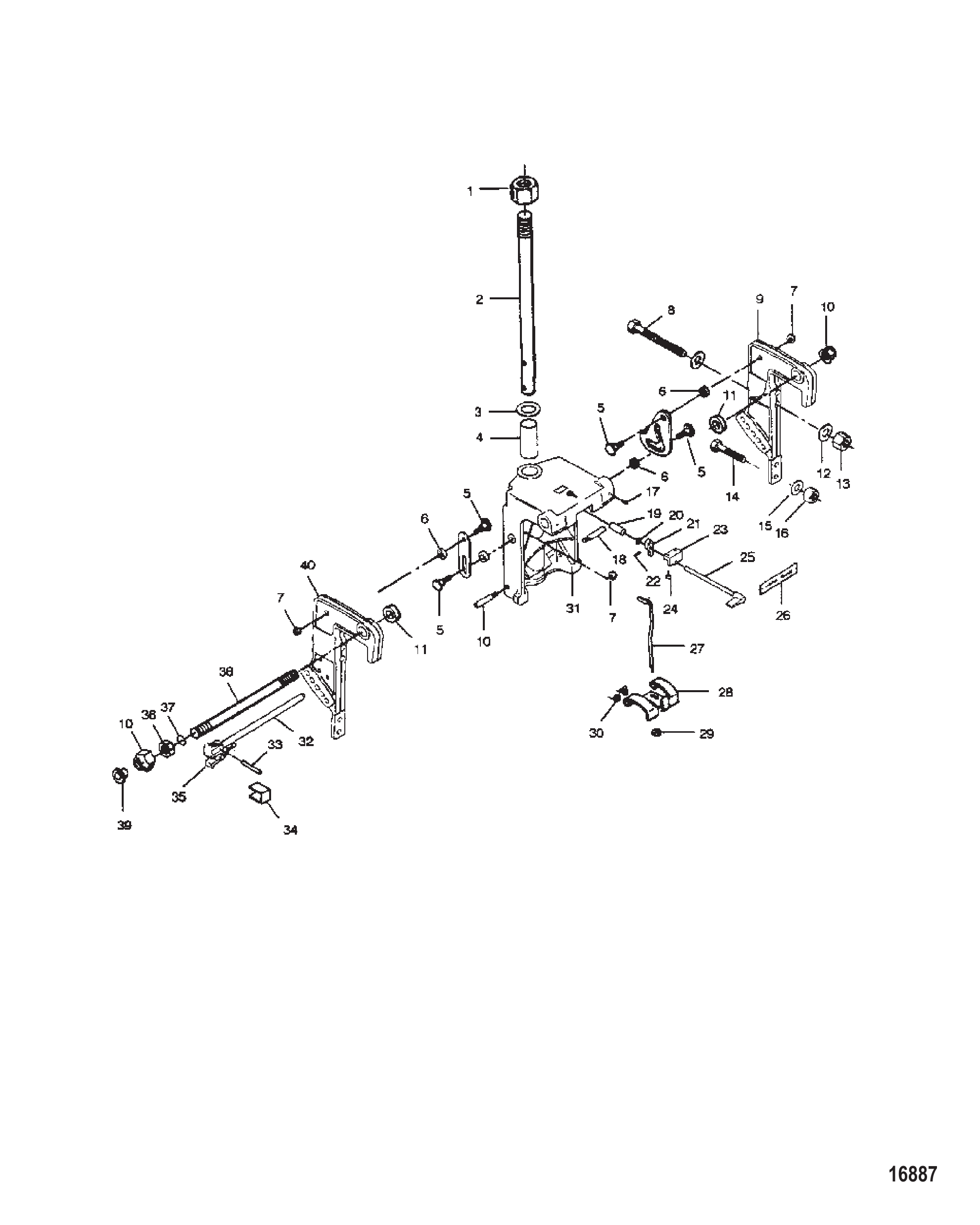

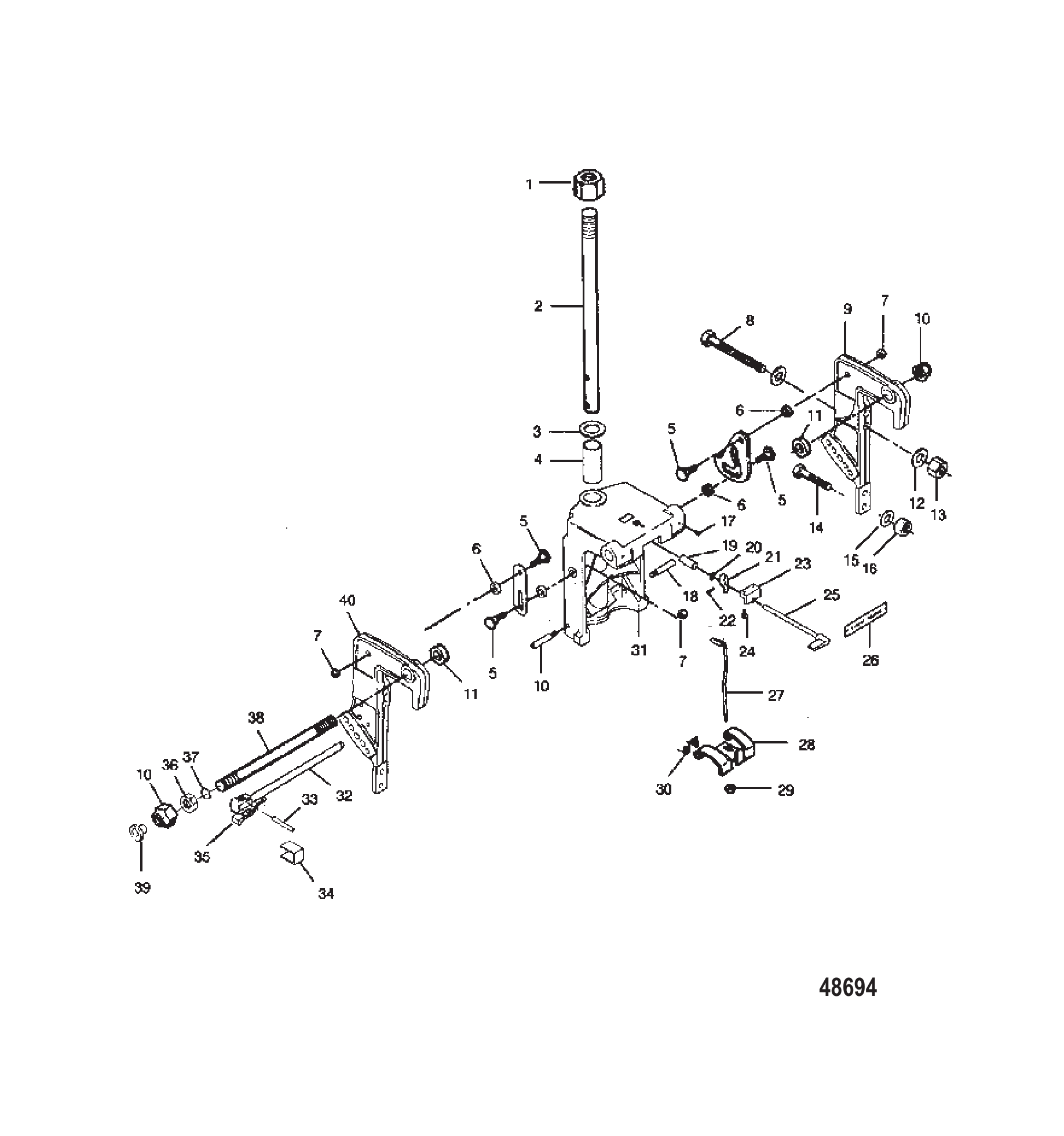

图 7旋转支架与船尾支架 Swivel Brackets and Stern Brackets

REF	零件编号	中文名称	英文名称	数量
1	F84280	主销螺母	NUT KINGPIN	1
2	819331A2	主销	KINGPIN	1
3	F89011	旋转支架垫圈	WASHER SWIVEL BRACKET	1
3	69342	垫圈	WASHER	1
4	F191169-1	旋转支架轴承	BEARING SWIVEL BRACKET	2
5	F366350-1	枢轴	PIVOT	4
6	F269929	隔套	SPACER	4
7	F7007	螺母	NUT	4
7	F7052	螺母	NUT	4
8	F685632	螺栓(.50-20 x 7.00)不锈钢长安装	BOLT (.50-20 x 7.00) Stainless Steel LONG MOUNTING	2
9	F684532	左舷船尾支架	BRACKET PORT STERN	1
10	F9018	塑料盖	CAP Plastic	2
11	F522286	酚醛垫圈(1.40 x .89 x .094)摩擦	WASHER Phenolic (1.40 x .89 x .094) FRICTION	2
12	F684201	垫圈	WASHER	2
12	FK684201	垫圈	WASHER	2
12	F684201	垫圈 1/2-20	WASHER 1/2 - 20	2
12	FK684201	垫圈	WASHER	2
14	F2185	螺钉 六角头(.375-16 x 3.50)不锈钢	SCREW Hex Head (.375-16 x 3.50) SS	2
15	F684415	垫圈	WASHER	2
16	F1346	螺母 (.375-16) 不锈钢	NUT (.375-16) SS	2
16	8M0204671	螺母	NUT	2
17	F213274	接头	FITTING	2
18	F366886	销	PIN	2
18	826578	销	PIN	2
19	F197813	倒挡锁轴轴承,后部	BEARING REVERSE LOCK SHAFT, REAR	1
19	26856	衬套	BUSHING	1
20	F2088	紧固件	FASTENER	2
20	91925	压入式螺母	PUSH NUT	2
21	F366364	倒挡锁臂	ARM REVERSE LOCK	1
22	F1836	弹簧销	PIN Spring	1
23	F522884	倒挡锁轴轴承,前部	BEARING REVERSE LOCK SHAFT, FRONT	1
24	F1733	不锈钢螺钉(#10-24 x .562)	SCREW (#10-24 x .562) SS	2
24	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	2
25	817944A2	手柄端轴带紧固件和后轴承	HANDLE END SHAFT W/FASTENERS AND REAR BEARING	1
26	F544390-1	倾斜锁贴花	DECAL TILT LOCK	1
27	F366510-1	倒挡锁止连杆	LINK REVERSE LOCK	1
28	F366349	倒车锁	LOCK REVERSE	1
28	821805A1	倒车锁臂总成	ARM ASSEMBLY Reverse Lock	1
29	F1669	螺母（#6-32）	NUT (#6-32)	1
29	8M0207777	不锈钢螺母	NUT-SS	1
30	F366300	倒挡锁定弹簧	SPRING REVERSE LOCK	2
31	A6580721	旋转支架	BRACKET SWIVEL	1
32	FA658113	锁杆总成	LOCK BAR ASSEMBLY	1
33	F1744	弹簧销	PIN Spring	1
33	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
34	F286461	弹簧锁杆手柄	SPRING LOCK BAR HANDLE	1
35	F433114	锁杆手柄	HANDLE LOCK BAR	1
35	816517	手柄	HANDLE	1
36	F1600	螺母 (.875-14)	NUT (.875-14)	2
36	858869	螺母 (.875-14)	NUT (.875-14)	2
37	F316599	枢轴管密封	SEAL PIVOT TUBE	1
37	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
38	F522125-1	枢轴管	TUBE PIVOT	1
38	819545A1	管套件	TUBE KIT	1
39	F9052	塑料堵头	PLUG Plastic	2
40	F684032	右舷船尾支架	BRACKET STARBOARD STERN	1

图 8专用工具测试设备 Special Tools Test Equipment

REF	零件编号	中文名称	英文名称	数量
-	FT11260	火花测试器	SPARK TESTER
-	FT2938-1	通断测试仪	CONTINUITY TESTER
-	FT2951	电路测试追踪器	TRACER TOOL Circuit Test
-	FT2955A	测试轮	TEST WHEEL
-	FT8950	测试套件	TESTER KIT
-	FTA11259	万用表	MULTIMETER
-	99750A1	万用表	MULTI METER
-	FT11201	适配器线束总成	HARNESS ASSEMBLY Adaptor

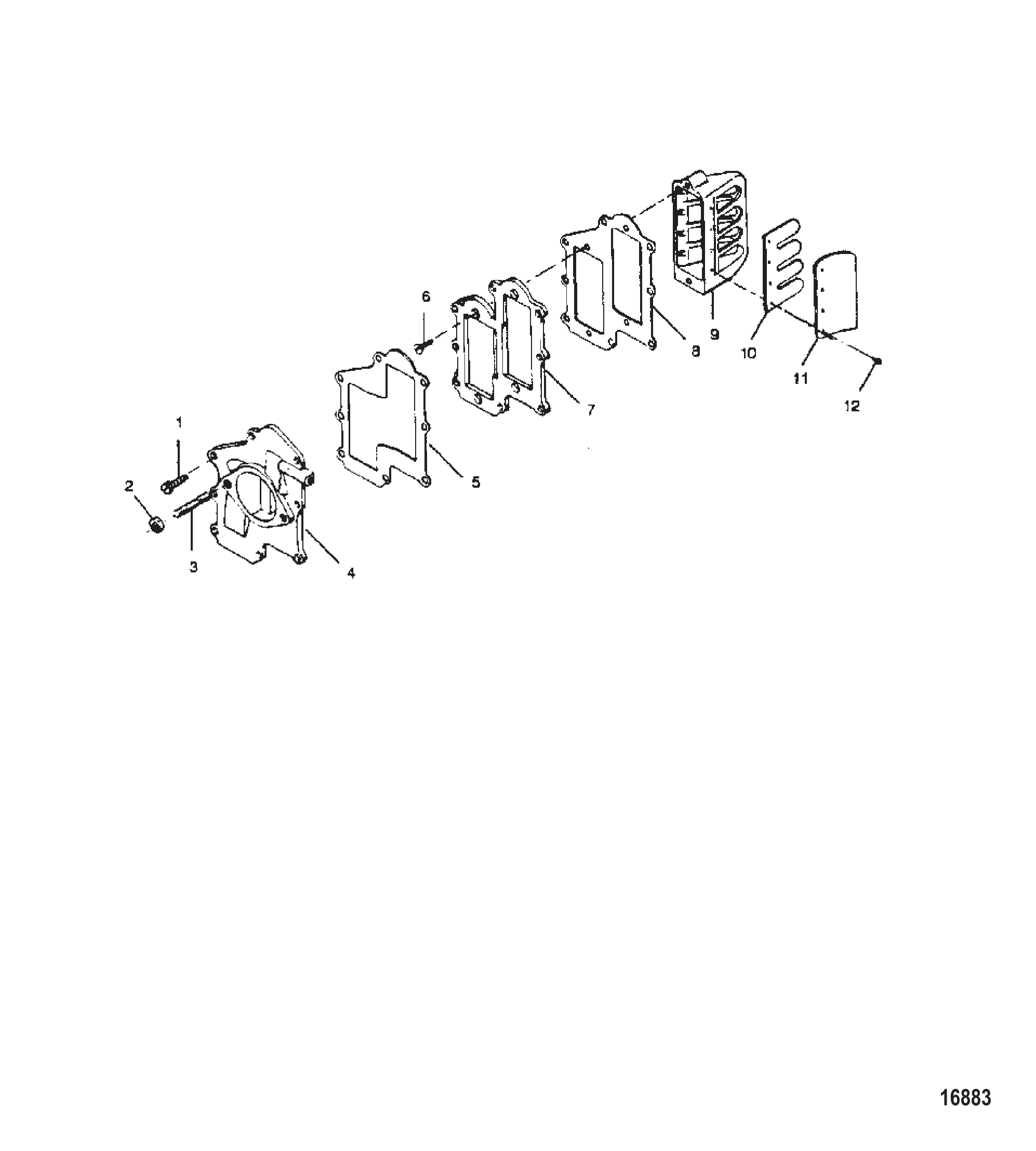

图 9簧片阀板 Reed Plate

REF	零件编号	中文名称	英文名称	数量
1	F2008	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	8
2	F1515	螺母(.312-18)	NUT (.312-18)	2
2	8M0204668	螺母(.312-18)	NUT (.312-18)	2
3	F40209	螺柱	STUD	2
3	8263881	螺柱	STUD	2
4	FA458167	化油器适配器总成	ADAPTER ASSEMBLY Carburetor	1
5	F433168	化油器适配器衬垫	GASKET Carburetor Adapter	1
6	F1141	螺钉(#10-24 x .500)	SCREW (10 - 24 x .500) (#10-24 x .500)	4
6	21424	螺钉	SCREW	4
7	F433404	导流板	PLATE Deflector	1
7	8198071	安装板	PLATE	1
8	F433406	导流板衬垫	GASKET Deflector Plate	1
9	A572158	簧片阀组件带计量杯	REED PLATE ASSEMBLY With Metering Cup	2
10	F316160	簧片	REED	4
11	F88161-4	簧片止挡	STOP Reed	4
12	F1755	圆头螺钉带锁紧垫圈(#6-32 x .3125)	SCREW AND LOCKWASHER Round Head, (6 - 32 x .312) (#6-32 x .3125)	16
12	819074	带锁紧垫圈的螺钉(#6-32 X .312)	SCREW WITH LOCKWASHER (#6-32 X .312)	16

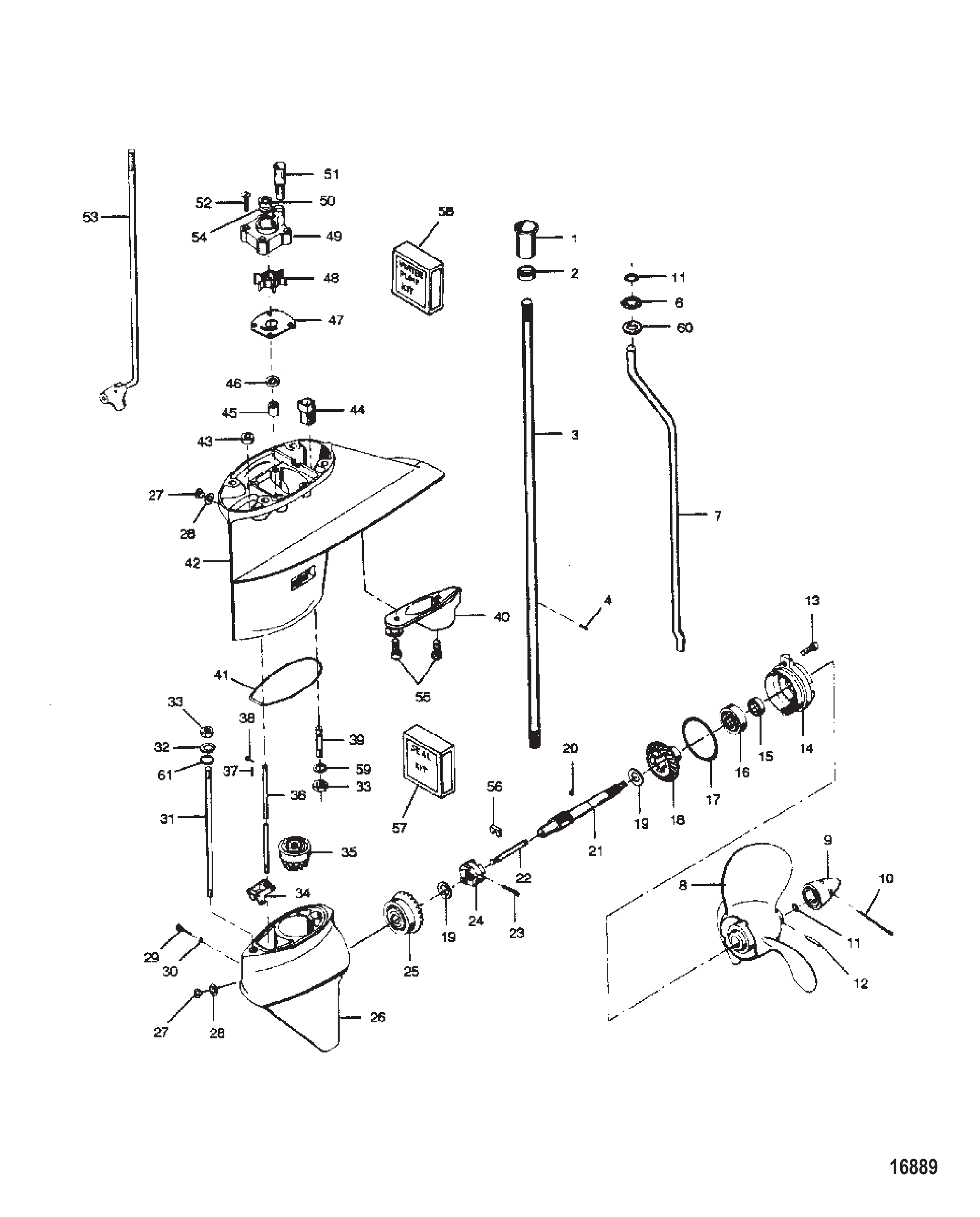

图 10齿轮箱 Gear Housing

REF	零件编号	中文名称	英文名称	数量
1	F338129-1	驱动轴花键密封	SEAL Driveshaft Spline	1
2	F338271	固定座	RETAINER	1
3	FA89128-1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
3	819826A1	驱动轴总成	DRIVESHAFT ASSY	1
4	F901563	水泵叶轮驱动销	PIN Drive Water Pump Impeller	1
6	F658208	挡圈	RING Retaining	1
7	817976A3	进水管道套件	LINE KIT Water Inlet	1
7	817976A4	进水管道套件	LINE KIT Water Inlet	1
8	NSS	螺旋桨不单独销售(见螺旋桨列表)	NOT SOLD SEPARATE Propeller (See Propeller Listing)	1
9	F94094-2	螺旋桨螺母	PROP NUT	1
9	FA94094-2	螺旋桨螺母套件	PROP NUT KIT	1
10	F1027	销(0.125x0.500)不锈钢	PIN (.125 x .500) SS (.125-.500)	1
10	8M0214988	开口销	PIN-COTTER	1
11	F40342	密封件	SEAL	3
11	201951	O型圈(0.487x0.103)	O-RING (.487 x .103)	3
12	FK247	剪切销套件(6件装)	SHEAR PIN KIT Pack of 6	1
13	F1263	螺钉(0.312-18x0.562)不锈钢	SCREW (.312-18 x .562) SS	2
14	F2A366298	螺旋桨轴轴承保持架总成	CAGE ASSEMBLY Propeller Shaft Bearing	1
14	817731A5	螺旋桨轴轴承保持架总成	CAGE ASSEMBLY Propshaft Bearing	1
15	F141118	螺旋桨轴密封	SEAL Propeller Shaft	1
15	819396	曲轴下端密封	SEAL Crankshaft Lower	1
16	F366058	螺旋桨轴滚珠轴承	BEARING Ball Propeller Shaft	1
16	820439A1	滚珠轴承套件	BEARING KIT-BALL	1
17	F141305	螺旋桨轴轴承保持架密封	SEAL Propeller Shaft Bearing Cage	1
17	88657	O型圈	O-RING	1
18	817806A2	后齿轮总成	GEAR ASSEMBLY Rear	1
18	819256T1	后齿轮总成-35	GEAR ASSY-REAR-35	1
19	F40717	锥齿轮止推垫圈	THRUST WASHER Bevel Gear	2
19	F40717-1	止推垫圈	WASHER-THRUST	2
20	F366727	螺旋桨轴滚珠	BALL Propeller Shaft	1
21	F287098-2	螺旋桨轴总成	PROPELLER SHAFT ASSEMBLY	1
21	819500A3	螺旋桨轴总成	PROPELLER SHAFT ASSEMBLY	1
22	F90871-3	换挡臂销	PIN Gear Shift Arm	1
23	F2097	弹簧销	PIN Spring	1
24	F99521-1	离合器	CLUTCH	1
24	819259T	离合器	CLUTCH	1
25	818006A2	前齿轮总成	GEAR ASSEMBLY Front	1
25	819255A3	前齿轮总成	GEAR ASSEMBLY Front	1
26	817804A2	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
26	817804A3	下齿轮箱总成	GEAR HOUSING ASSEMBLY Lower	1
--	FC683054	齿轮箱套件	GEAR HOUSING KIT	1
--	819384A1	齿轮箱套件	GEAR HOUSING KIT	1
27	F50109	齿轮箱螺钉	SCREW Gear Housing	2
27	79953Q04	放油螺钉套件	SCREW KIT Drain	2
28	F8077	齿轮箱塞垫圈	WASHER Gear Housing Plug	2
28	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
29	F498891	换挡臂枢轴销	PIN Gear Shift Arm Pivot	1
29	826374	销	PIN	1
30	F498618	O型密封圈	SEAL O-RING	1
30	25007	O型圈	O-RING	1
31	F97008-1	长螺柱	STUD Long	1
32	F2014	垫圈	WASHER	1
32	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
33	F1346	螺母 (.375-16) SS (.375-16)	NUT (.375-16) SS (.375-16)	2
33	8M0204671	螺母	NUT	2
34	FA435621	换挡臂总成	ARM ASSEMBLY Gear Shift	1
34	817796A2	换挡臂总成	ARM ASSEMBLY Gear Shift	1
35	F2A544266	小齿轮总成	GEAR ASSEMBLY Pinion	1
35	819257T1	小齿轮总成	GEAR ASSY-PINION	1
36	F435705	下换挡杆	ROD Lower Gear Shift	1
36	819295	换挡杆	ROD-GEAR SHIFT	1
37	F1015	开口销	COTTER PIN	1
38	F85372	下换挡杆销	PIN Gear Shift Rod Lower	1
39	F40008	短螺柱	STUD Short	1
39	F695273-1	螺柱	STUD	1
40	F435116	带说明书的排气口阳极/鼻部	ANODE/SNOUT Exhaust Snout With Literature	1
40	817795A1	阳极/鼻部套件	ANODE/SNOUT KIT	1
41	F435555	密封件	SEAL	1
41	841807	O型圈 (3.500 x .103)	O-RING (3.500 x .103)	1
42	FA684554	上齿轮箱总成	GEAR HOUSING ASSEMBLY Upper	1
42	817871A3	D轴壳体套件	HSG KIT-D SHAFT	1
43	F338618-1	下换挡杆密封	SEAL Shift Rod Lower	1
43	817472	密封件	SEAL	1
44	F435077	进水口滤网	SCREEN Water Inlet	1
44	819228	滤网	STRAINER	1
45	F435057	上驱动轴轴承	BEARING Driveshaft Upper	1
46	F40307-2	上驱动轴密封	SEAL Driveshaft Upper	1
47	F435562	后板	PLATE Back	1
47	F435562-1	水泵板	PLATE-W/P	1
48	F433065-2	水泵叶轮	IMPELLER Water Pump	1
49	FA463060	水泵壳体总成	BODY ASSEMBLY Water Pump	1
49	803824T	水泵体总成	BODY ASSY-W/P	1
50	F349307	水泵驱动轴密封	SEAL Driveshaft Water Pump	1
51	F485914	带说明书的进水管下部密封	SEAL Inlet Water Line, Lower With Literature	1
52	F2030	螺钉 (.250-20 x 1.250) 不锈钢	SCREW (.250-20 x 1.250) Stainless Steel	4
53	FA435616	中间换挡杆总成	ROD ASSEMBLY Intermediate Gear Shift	1
54	F485388	水泵盘	DISC Water Pump	1
55	F2008	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	2
56	F90619-2	轭架	YOKE	1
57	FK1074	下齿轮箱密封套件	SEAL KIT Lower Gear Housing	1
57	820645A1	密封套件	SEAL KIT	1
58	FK1073	水泵套件	PUMP KIT Water	1
--	F2030	螺钉 (.250-20 x 1.250) 不锈钢	SCREW (.250-20 x 1.250) Stainless Steel	4
--	F433065-2	水泵叶轮	IMPELLER Water Pump	1
--	F435562	水泵后板	PLATE Back Water Pump	1
--	F435562-1	水泵板	PLATE-W/P	1
--	F901563	驱动销	PIN Drive	1
--	FA463060	水泵壳体总成	BODY ASSEMBLY Water Pump	1
--	803824T	水泵体总成	BODY ASSY-W/P	1
59	F8065	锁紧垫圈 (.375)	LOCKWASHER (.375)	1
59	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	1
60	F691415	垫圈	WASHER	1
61	F24342	密封件	SEAL	1
61	62704	O型圈 (.362 x .103)	O-RING (.362 x .103)	1

图 11专用工具(动力头) Special Tools Power Head

REF	零件编号	中文名称	英文名称	数量
-	FT8932	吊钩	LIFTING HOOK
-	FT2989	飞轮楔形工具	WEDGE TOOL Flywheel
-	FT2910	防松螺母	KNOCK OFF NUT
-	803602T	拆卸工具	KNOCK OFF TOOL
-	FT8971	密封安装工具	INSTALLER TOOL Seal
-	FT8967	油封保护工具	PROTECTOR TOOL Seal
-	FT2953	插座	SOCKET
-	FT2990	活塞销拆卸工具	REMOVER TOOL Piston Pin
-	FT2990-1	活塞与活塞销定位块	BLOCK Piston And Piston Pin
-	FT8926	活塞环扩张工具	EXPANDER TOOL Piston Ring
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring
-	FT2996	活塞环压缩工具	COMPRESSOR TOOL Piston Ring
-	FT8977	密封环安装工具	INSTALLER TOOL Seal Collar
-	FT8976	油封保护工具	PROTECTOR TOOL Seal
-	FT2998	扭矩扳手(0-100磅/英尺)	TORQUE WRENCH ( 0 - 100 lbs / ft )
-	FT2999	扭矩扳手(0-600磅/英寸)	TORQUE WRENCH ( 0 - 600 lbs / in )
-	FT2991	钢丝刷	BRUSH Wire
-	803504T	电刷	BRUSH
-	FT8900	软管卡钳	PLIERS Hose Clamp
-	FT1749	卡环钳	PLIERS Snap Rings

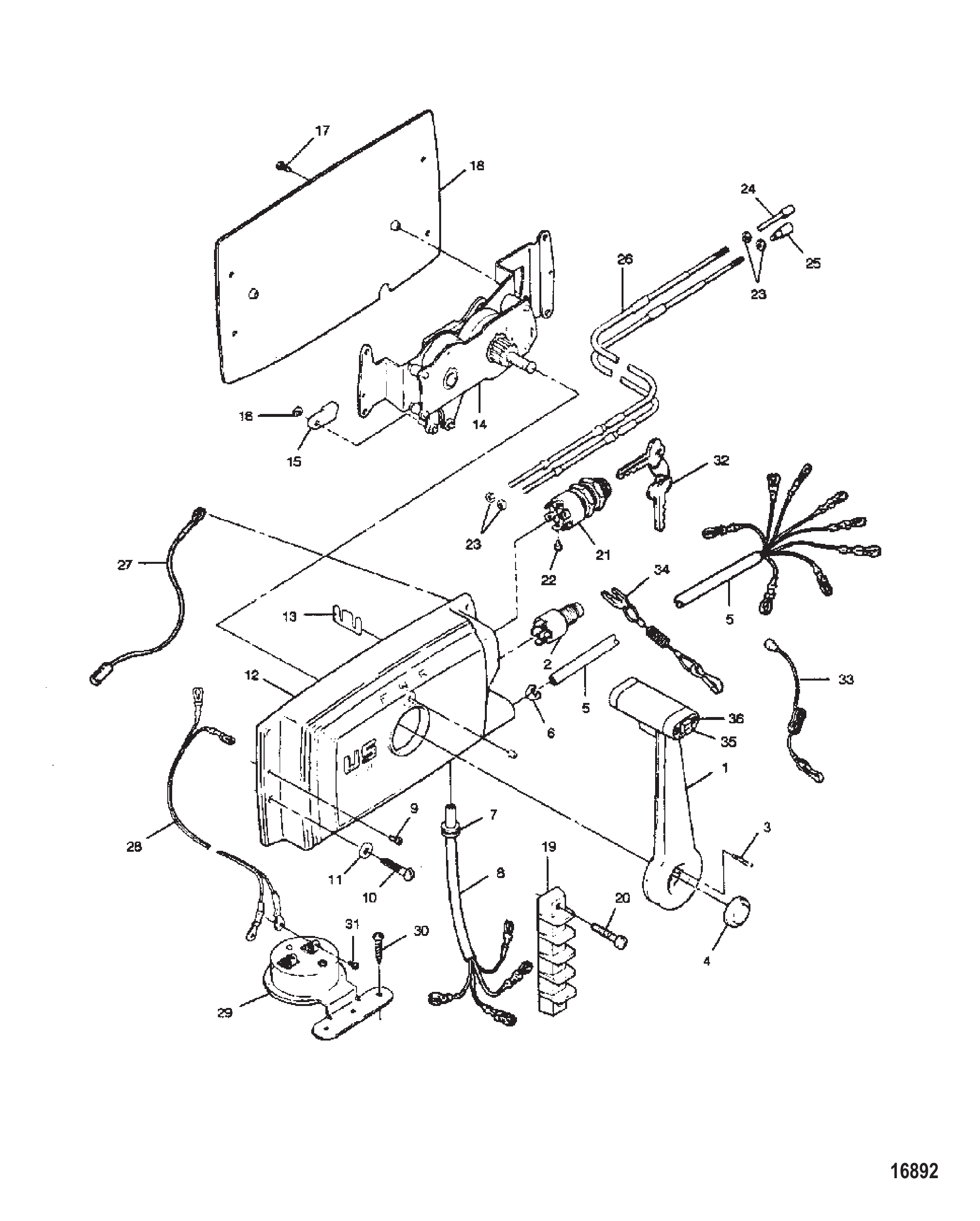

图 12遥控装置 Remote Control

REF	零件编号	中文名称	英文名称	数量
1	F660611	带微调开关的操纵杆总成	LEVER ASSEMBLY With Trim Switch	1
2	F681602	开关(紧急停止)	SWITCH (Emergency Stop)	1
2	FK681602	开关	SWITCH	1
3	F660165		SCREW (Lever To Actuator)	4
4	F660332	塞(预热底孔)	PLUG (Warm Up Bottom)	1
5	F660843	线缆组件(15.50英尺遥控电动10芯)	CABLE ASSEMBLY (15.50 ft Remote Electric, 10 Wire) (15.50 Feet - Remote Electric)	1
5	819200T1	线缆-15.5英尺	CABLE-15.5 FEET	1
5	F663843	线缆组件(19英尺遥控电动10芯)	CABLE ASSEMBLY (19 ft Remote Electric, 10 Wire) (19.00 Feet - Remote Electric - 10 Wire)	AR
5	819203A1	线缆组件(19英尺)	CABLE ASSEMBLY (19 Feet)	AR
5	F664843	线缆组件(22英尺遥控电动10芯)	CABLE ASSEMBLY (22 ft Remote Electric, 10 Wire) (22.00 Feet - Remote Electric - 10 WIRE)	AR
5	819204A1	线缆组件(22英尺)	CABLE ASSEMBLY (22 Feet)	AR
5	F591843	线缆组件(25英尺遥控电动10芯)	CABLE ASSEMBLY (25 ft Remote Electric, 10 Wire) (25.00 Feet - Remote Electric - 10 WIRE)	AR
5	819205A1	线缆组件(25英尺)	CABLE ASSEMBLY (25 Feet)	AR
5	F5H193	线缆组件(7英尺)延长线(10芯遥控电动线用)	CABLE ASSEMBLY (7 Feet) Extension (7.00 Feet Extension For 10 Wire Remote Electric Cable)	AR
6	F660446	卡箍(遥控电动线缆)	CLAMP (Remote Electric Cable)	1
7	F660504		GROMMET (Remote Accessory Cable)	1
8	F660353	线束总成(5英尺)	CABLE ASSEMBLY (5 Feet)	1
9	F660480		SCREW (Cover To Actuator)	2
10	F660732		SCREW (Control Mounting)	4
11	F660595	垫圈(控制安装螺钉)	WASHER (Control Mounting Screw)	4
12	F660995		COVER ASSEMBLY (Assembly - Remote Control)	1
13	F660642		RETAINER (Remote Cable)	1
14	F660327		ACTUATOR ASSEMBLY (Assembly - Remote Control)	1
15	F660141-1	连接器(线缆-遥控)	CONNECTOR (Cable - Remote Control)	2
16	F660411	挡圈	RING Retaining	2
17	F660751		SCREW (Plate To Actuator)	2
18	F660911		PLATE (Remote Control)	1
19	F660497		BLOCK (Terminal)	1
19	817492	接线端子排4位	TERMINAL BLOCK 4 Post	1
20	F1741		SCREW (#8 x .750) Fill Head, SS (Terminal Block)	2
21	F5H077	点火开关套件-含钥匙和螺钉(附件)	SWITCH KIT Ignition - With Keys And Screws (Accessory Item) With Items 22 And 32	1
21	F5H268	开关	SWITCH	1
22	F1280		SCREW (#8-32 x .250) (Ignition Switch Wire Terminal)	6
22	8M0129582	螺钉	SCREW	6
23	F1513		NUT (#10-32) (Cable End)	4
23	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
24	F58976-1	连接器(油门)	CONNECTOR (Throttle)	1
24	FA58976-1	连接器	CONNECTOR	1
25	F58685-2		CONNECTOR (Shift)	1
26	F195/__	油门/换挡线缆组(指定长度-XX)	CABLE SET Thottle/Shift (Specify Length - XX)	1
27	F660664	导线(点火开关至附件端子排)	WIRE (Ignition Switch To Accessory Terminal Block)	1
28	F404841		CABLE ASSEMBLY Overheat Buzzer	1
28	65017A24	线束总成	HARNESS ASSEMBLY	1
29	F5H073-1	过热蜂鸣器套件(附件)	BUZZER KIT Overheat (Accessory Item)	1
30	F1741	螺钉(#8 x .750) 平头,不锈钢	SCREW (#8 x .750) Fill Head, SS	2
31	F1645	自攻螺钉(#6-32 x .250)不锈钢圆头	SCREW (#6-32 x .250) Self Tapping, SS Round Head Self-Tapping (#6-32 x .250)	8
31	69080	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	8
32	8177821	钥匙组A型	KEY SET Stamped A	1
32	8178831	钥匙组B型	KEY SET Stamped B	1
32	8178911	钥匙组C型	KEY SET Stamped C	1
32	8179281	钥匙组D型	KEY SET Stamped D	1
32	8179291	钥匙组E型	KEY SET Stamped E	1
33	F660329		LANYARD Stop Switch (Cup Type)	1
33	FK681602	开关	SWITCH	1
34	F702329		LANYARD Stop Switch (Fork Type)	1
34	879104	带夹子的拉绳	LANYARD W/CLIP	1
35	F17864	开关总成	SWITCH ASSEMBLY	1
36	F17863	按钮/板套件(含橡胶护套)	BUTTON/PLATE KIT (Includes Rubber Boot)	1
-	F5H198		REMOTE CONTROL Complete Wired For Power Trim	-
-	F5H267	遥控装置	REMOTE CONTROL	-

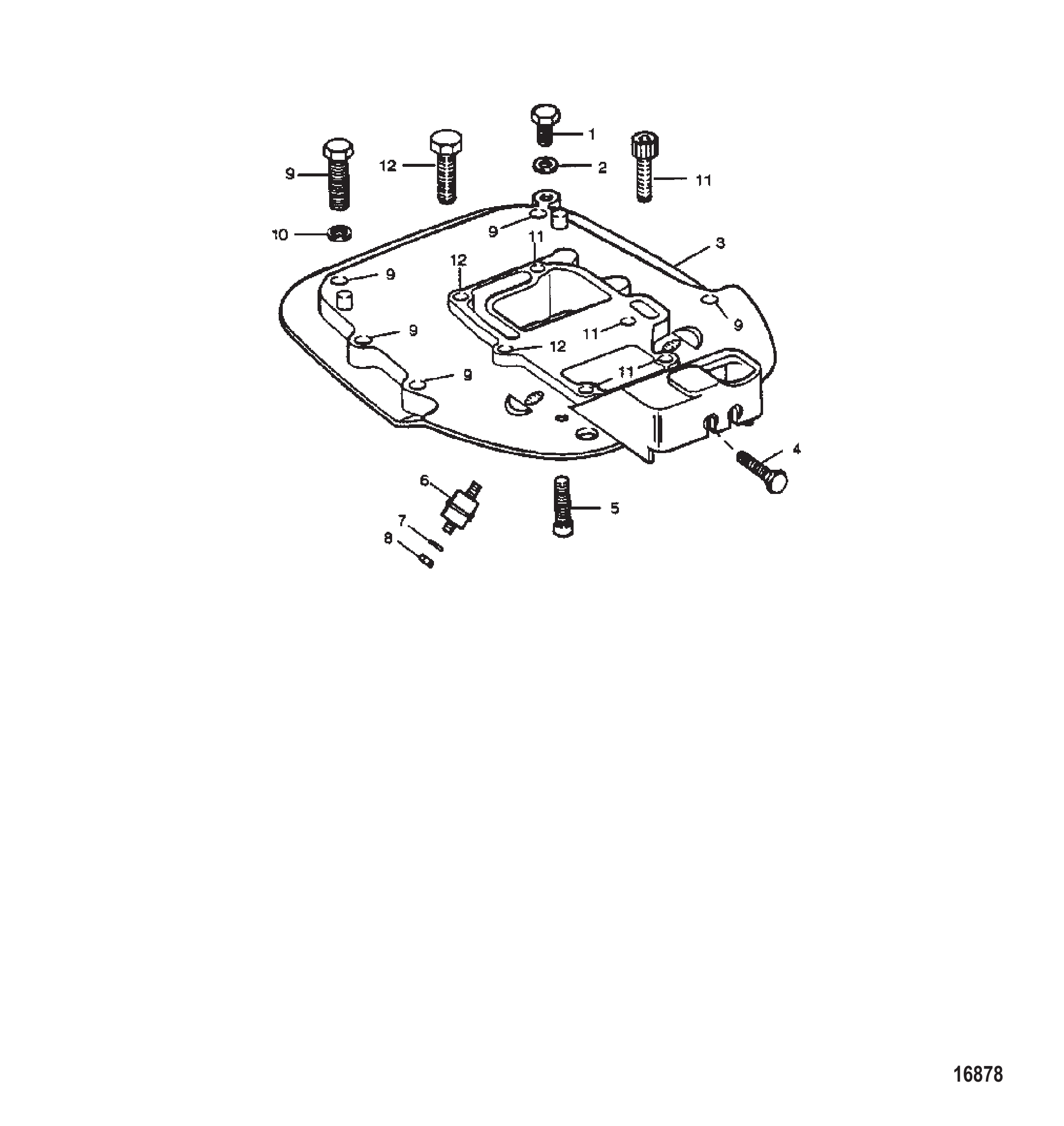

图 13隔板 Spacer Plate

REF	零件编号	中文名称	英文名称	数量
1	F1857	不锈钢螺钉(.312-18 x .625)	SCREW (.312-18 x .625) SS	1
2	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
2	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
3	F683680	间隔板	PLATE Spacer	1
4	F1211	螺钉带锁紧垫圈(.25-28 x .625)	SCREW AND LOCKWASHER (.250 - 28 x .625) (.25-28 x .625)	2
5	F430732	螺钉 (.312-18 x 1.250) 不锈钢	SCREW (.312-18 x 1.250) Stainless Steel	2
6	F307962		SHOCK MOUNT Side Upper	2
7	F8038	垫圈	WASHER	2
7	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
8	F1346	螺母 (.375-16) SS (.375-16)	NUT (.375-16) SS (.375-16)	2
8	8M0204671	螺母	NUT	2
9	F1005	螺钉(.375-16 x 1.500)	SCREW (.375 - 16 x 1.500) (.375-16 x 1.500)	5
9	34354	螺钉 (.375-16 x 1.50)	SCREW (.375-16 x 1.50)	5
10	F1703	锁紧垫圈	LOCKWASHER	5
10	35048	锁紧垫圈 (.375)	LOCKWASHER (.375)	5
11	F1257	螺钉 内六角头(.312-18 x 1.25)不锈钢	SCREW Socket Head (.312-18 x 1.25) SS	4
12	F1696	螺钉 (.312-18 x 1.750)	SCREW (.312 - 18 x 1.750) (.3125-18 x 1.75)	2
12	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2

图 14专用工具润滑剂与密封剂 Special Tools Lubricants and Sealants

REF	零件编号	中文名称	英文名称	数量
-	FT2961	润滑剂 RYKON #2EP润滑脂	LUBRICANT RYKON GREASE #2EP
-	FT2987-1	防卡剂润滑剂	LUBRICANT ANTI-SEIZE
-	898101390	防卡剂喷雾	ARESOL ANTI-SEIZE
-	FT8969	润滑剂 7盎司 LPS#1	LUBRICANT 7 OZ. LPS#1 LUBRICANT
-	FT8983	密封胶	SEALANT
-	809825	RTV硅胶 (3盎司管装) 金属蓝	RTV SILICONE (3 Ounce Tube) Metallic Blue
-	FT8936-1	乐泰RC 609密封胶	SEALANT Loctite RC 609
-	809833	乐泰RC 680密封胶（10毫升瓶装）绿色	SEALANT Loctite RC 680 (10 ml Bottle) Green
-	FT2962-1	密封剂 50毫升 Loctite H非硬化型	SEALANT 50 CC LOCTITE H, NON-HARDENING GRADE
-	809818	乐泰222螺纹锁固剂 10毫升	LOCTITE 222 THREADLOCKER 10ml
-	FT2963-2	密封剂 2盎司 Loctite 271	SEALANT 2 OZ. LOCTITE 271
-	809820	乐泰271螺纹锁固剂 50毫升	LOCTITE 271 THREADLOCKER 50 ml
-	FT8935	快速固定剂T型	LOC QUICK T
-	809824	底漆乐泰(4.5盎司喷雾)绿色	PRIMER Loctite (4.5 Ounce Aerosol) Green

图 15旋转支架与船尾支架 Swivel Bracket and Stern Brackets

REF	零件编号	中文名称	英文名称	数量
1	F84280		NUT Kingpin	1
2	F433019-1	主销	KINGPIN	1
2	819331A2	主销	KINGPIN	1
3	F89011	旋转支架垫圈	WASHER Swivel Bracket	1
3	69342	垫圈	WASHER	1
4	F191169-1	旋转支架轴承	BEARING Swivel Bracket	2
5	F366350-1	枢轴	PIVOT	4
6	F269929	隔套	SPACER	4
7	F7007	螺母	NUT	4
7	F7052	螺母	NUT	4
8	F685632		BOLT (.50-20 x 7.00) Stainless Steel Long Mounting	2
9	F684532		BRACKET Port Stern	1
10	F9018	塑料盖	CAP Plastic	2
11	F522286		WASHER Phenolic (1.40 x .89 x .094) Friction	2
12	F684201	垫圈	WASHER	2
12	FK684201	垫圈	WASHER	2
13	F7056	螺母 (.50-20)	NUT (.50-20) (.500-20)	2
13	82671117	螺母(.500-20)	NUT (.500-20)	2
14	F2185	螺钉 六角头(.375-16 x 3.50)不锈钢	SCREW Hex Head (.375-16 x 3.50) SS	2
15	F684415	垫圈	WASHER	2
16	F1346	螺母 (.375-16) SS (.375-16)	NUT (.375-16) SS (.375-16)	2
16	8M0204671	螺母	NUT	2
17	F213274	接头	FITTING	3
18	F366886	销	PIN	2
18	826578	销	PIN	2
19	F197813	倒挡锁轴轴承-后部	BEARING Reverse Lock Shaft - Rear	1
19	26856	衬套	BUSHING	1
20	F2088	紧固件	FASTENER	2
20	91925	压入式螺母	PUSH NUT	2
21	F366364	倒车锁臂	ARM Reverse Lock	1
22	F1836	弹簧销	PIN Spring	1
23	F522884	倒挡锁轴轴承-前部	BEARING Reverse Lock Shaft - Front	1
24	F1733	螺丝 (#10-24 x .5625) 不锈钢	SCREW (#10-24 x .562) SS (#10-24 x .5625)	2
24	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	2
25	F366827-2	端轴手柄带紧固件及后轴承	HANDLE End Shaft With Fasteners and Rear Bearing	1
25	817944A2	手柄	HANDLE	1
0037	1			DECAL Tilt Lock
27	F366510-1	倒车锁连杆	LINK Reverse Lock	1
28	F366349	倒车锁	LOCK Reverse	1
28	821805A1	倒车锁臂总成	ARM ASSEMBLY Reverse Lock	1
29	F1669	螺母（#6-32）	NUT (#6-32)	1
29	8M0207777	不锈钢螺母	NUT-SS	1
30	F366300	倒挡锁弹簧	SPRING Reverse Lock	2
31	A658072	旋转支架	BRACKET Swivel	1
32	FA658113	锁杆总成	LOCK BAR ASSEMBLY	1
33	F1744	弹簧销	PIN Spring	1
33	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
34	F286461		SPRING Lock Bar Handle	1
35	F433114	锁杆手柄	HANDLE Lock Bar	1
35	816517	手柄	HANDLE	1
36	F1600	螺母 (.875-14)	NUT (.875-14)	2
36	858869	螺母 (.875-14)	NUT (.875-14)	2
37	F316599		SEAL Pivot Tube	1
37	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
38	F522125-1		TUBE Pivot	1
38	819545A1	管套件	TUBE KIT	1
39	F9052	塑料堵头	PLUG Plastic	2
40	F684032		BRACKET Starboard Stern	1
41	F366426	左挡块	STOP Port	1
41	820527	停机开关	STOP	1
42	F366433	右挡块	STOP Starboard	1
42	F366433-1	停机开关	STOP	1

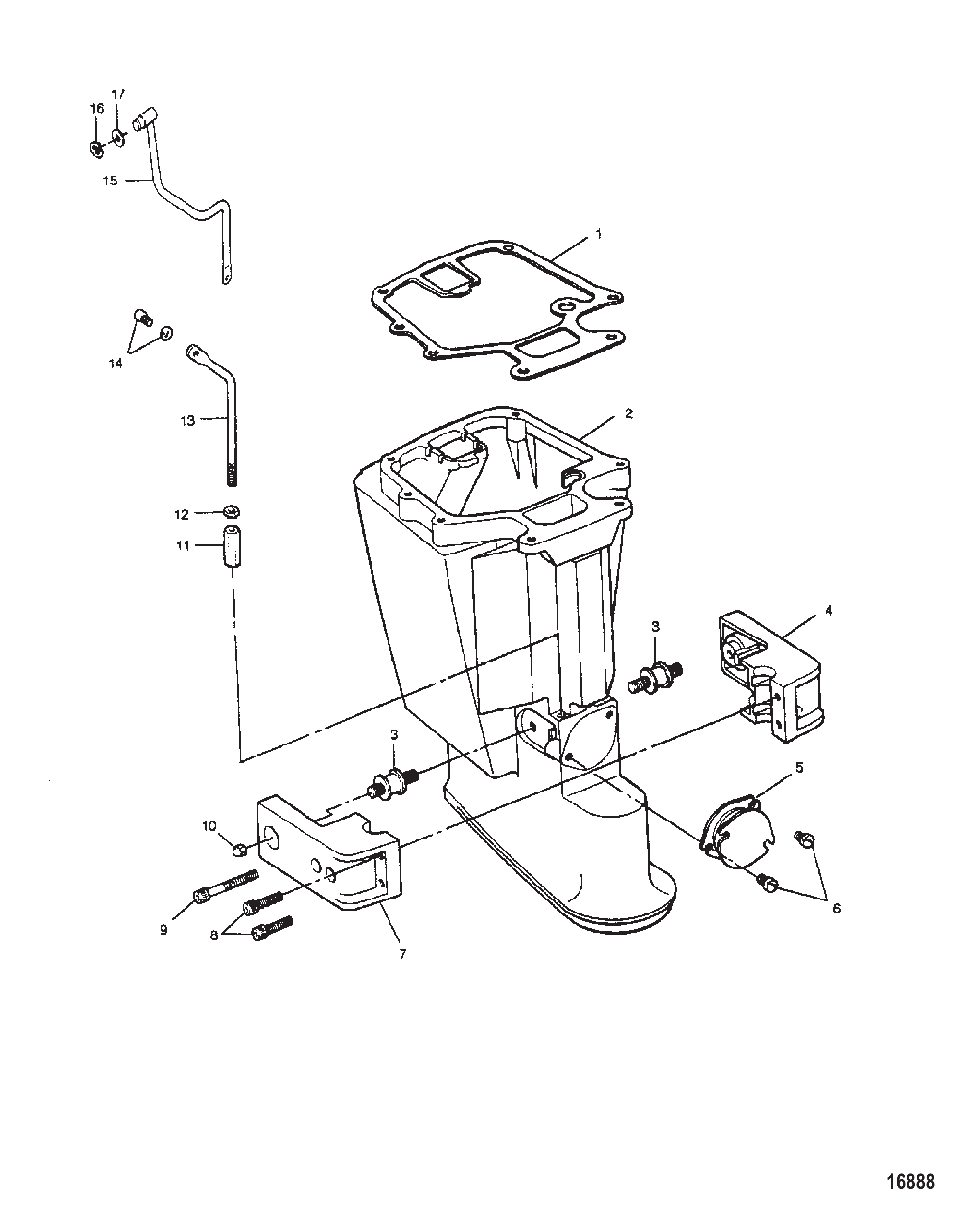

图 16机腿 Motor Leg

REF	零件编号	中文名称	英文名称	数量
1	F684453	衬垫套件 (上下)	GASKET Kit (Upper and Lower)	1
1	F683279	气缸排气衬垫(上部)	GASKET Cylinder Exhaust (Upper)	1
2	F684133-2	马达腿	MOTOR LEG	1
2	819173T	D型轴套	HOUSING-D SHAFT	1
3	F215962	减震器侧支架-下部	SHOCK MOUNT Side - Lower	2
3	819869	支架	MOUNT	2
4	F684973	减震器盖-左舷	COVER Shock Mount - Port	1
4	820442F1	盖板	COVER	1
5	F183346-1	减震器支架-下部	MOUNT Shock - Lower	1
6	F1129	SCREW Fill Head (.3125-18 x .500)	SCREW Fill Head (.3125-18 x .500)	4
7	F684972	减震器盖-右舷	COVER Shock Mount - Starboard	1
7	820441F1	盖板	COVER	1
8	F1636	螺钉(.375-16 x 1.25)	SCREW (.375 - 16 x 1.250) (.375-16 x 1.25)	2
8	830573	螺钉	SCREW	2
9	F1635	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	2
10	F1326	盖形螺母(.3125-18)不锈钢	NUT Acorn, (.312 - 18) SS (.3125-18)	2
10	826378	螺母	NUT	2
11	F141704		COUPLER Gear Shift Rod	1
12	F1349	螺母(.3125-18)不锈钢	NUT (.312 - 18) SS (.3125-18)	1
12	8M0204668	螺母(.312-18)	NUT (.312-18)	1
13	F684611	换挡杆延长件	EXTENSION Shift Rod	1
14	F2214	六角头螺钉带锁紧垫圈(.250-28 x .500)	SCREW AND LOCKWASHER Hex Head (.250-28 x .500)	1
15	F683615	换挡杆上部	ROD Gear Shift Upper	1
16	F185764	挡圈	RING Retaining	1
16	13194	挡圈	RING Retaining	1
17	F1987	垫圈	WASHER	1
17	34437	垫圈	WASHER	1

图 17附件 Accessories

REF	零件编号	中文名称	英文名称	数量
0	86306A01	适配器	ADAPTER	1
0	821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
0	8M0074845	ORD 8M0098264	ORD 8M0098264	1
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
0	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
0	883040A1	转速表模块套件	TACH MODULE KIT	1

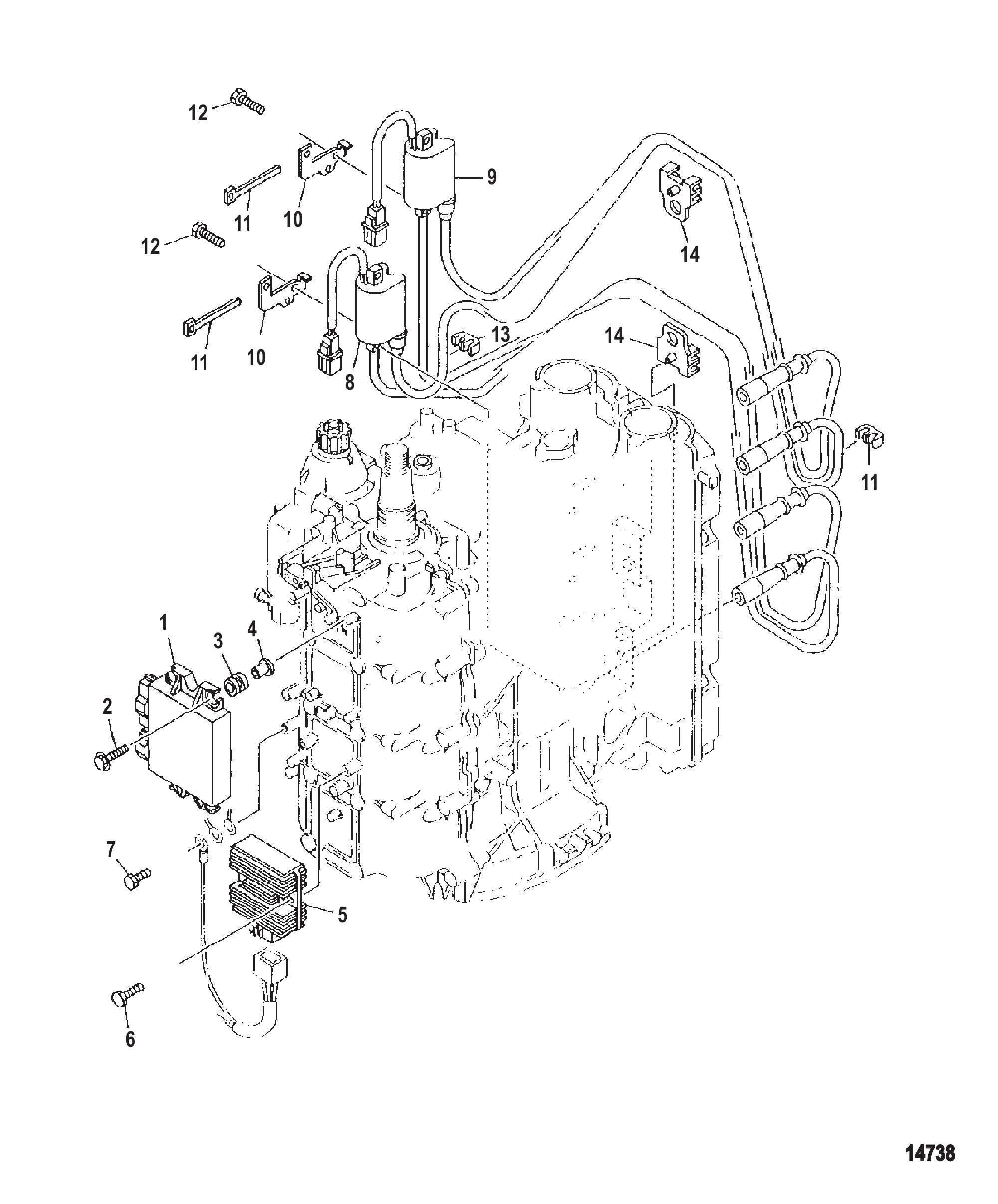

图 18点火组件 Ignition Components

REF	零件编号	中文名称	英文名称	数量
1	880891T11	发动机控制单元ECU	ECU Engine Control Unit	1
1	880891T1	发动机控制总成	CONTROL ASSEMBLY Engine	1
1	880891T14	发动机控制单元ECU	ECU Engine Control Unit	1
2	804270	螺栓(M6×28)	BOLT (M6 x 28)	4
3	881304	护孔环	GROMMET	4
4	82851M	衬套	BUSHING	4
4	804344003	轴环	COLLAR	4
5	881346T	整流器/调节器总成	RECTIFIER/REGULATOR ASSEMBLY	1
6	853536	螺栓(M6x25)	BOLT (M6 x 25)	2
7	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
8	880893T10	点火线圈	COIL Ignition	1
8	8M0123821	点火线圈	IGNITION COIL	1
9	880892T	点火线圈	COIL Ignition	1
9	8M0121257	点火线圈	IGNITION COIL	1
10	881345	安装板	PLATE	2
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
12	853536	螺栓(M6x25)	BOLT (M6 x 25)	4
13	804276	卡箍	CLAMP	2
14	804277	卡箍	CLAMP	2

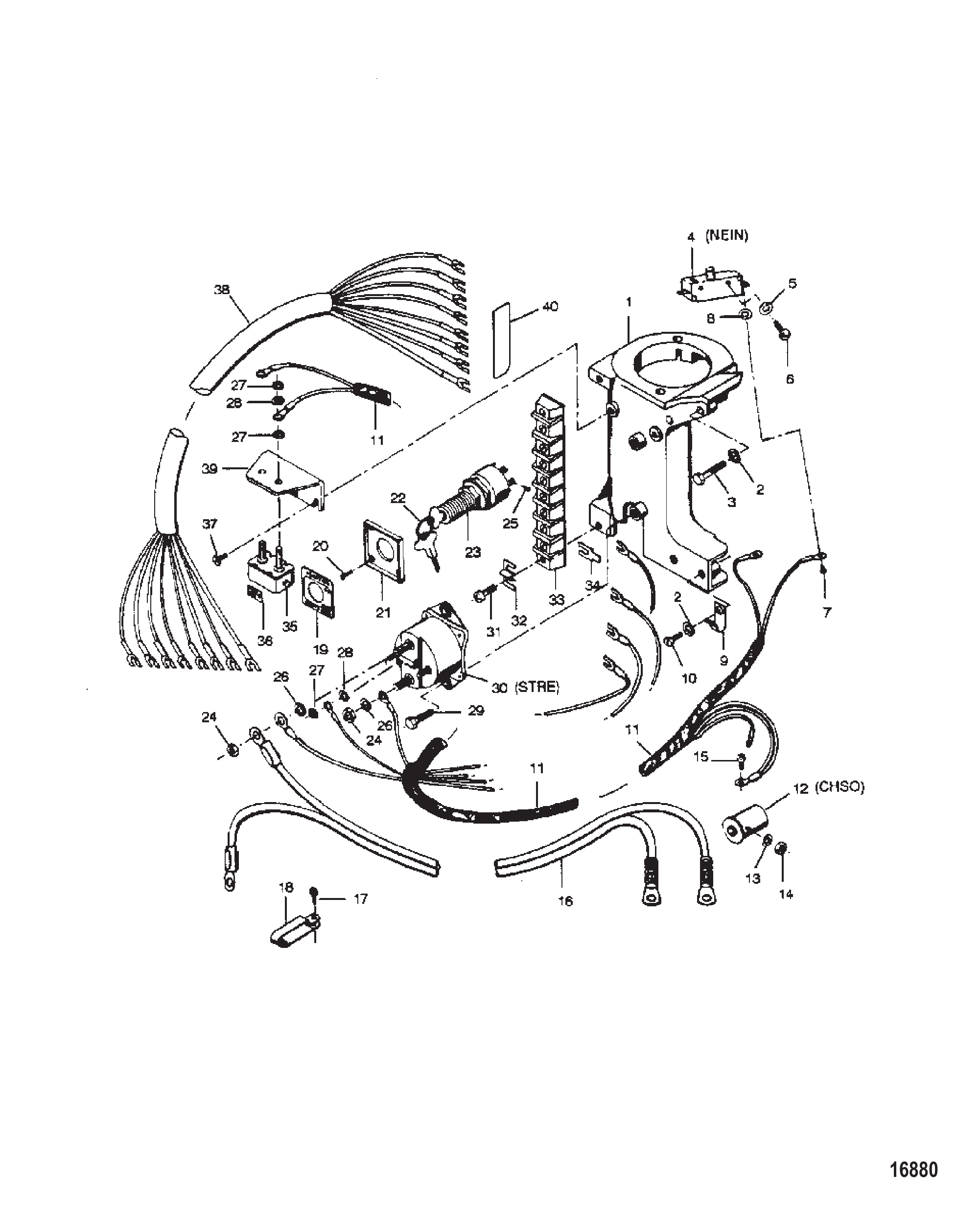

图 19电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	881363T	盖板	COVER	1
2	881364T2	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
2	881364T1	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
3	804291	保险丝20安培	FUSE 20 Ampere	4
3	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
4	80429110	30安保险丝	FUSE 30 Ampere	4
4	8M0057159	30A保险丝	FUSE-30A	4
0	891824010	保险丝盖	COVER Fuse	4
0	891824020	保险丝盖	COVER Fuse	4
5	804289	保险丝拔取器	PULLER Fuse	1
6	881362	支架	BRACKET	1
7	8813511	螺钉	SCREW	1
8	881352T	继电器	RELAY	1
8	8M0098898	继电器	RELAY	1
9	82214M	垫圈	WASHER	2
10	881355	锁紧垫圈	LOCKWASHER	2
10	82212M	锁紧垫圈	LOCKWASHER	2
11	881354	螺钉	SCREW	2
11	96671M	螺钉	SCREW	2
12	804284	护套	BOOT	2
12	804284001	护套	BOOT	2
13	881350T	继电器	RELAY	1
14	881351	螺钉	SCREW	1
15	881353	卡箍	CLAMP	1
16	8813511	螺钉	SCREW	1
17	881359T	支架	BRACKET	1
17	881363A01	盖/支架套件	COVER/BRACKET KIT	1
18	881361	卡箍	CLAMP	1
19	881360	卡箍	CLAMP	1
20	804270	螺栓(M6×28)	BOLT (M6 x 28)	5
21	881304	护孔环	GROMMET	5
22	82851M	衬套	BUSHING	5
22	804344003	轴环	COLLAR	5
23	881356T1	继电器总成	RELAY ASSEMBLY	1
23	882751A3	升降继电器套件	RELAY KIT Trim	1
24	881357	引线	LEAD WIRE	1
25	881358	盖帽	CAP	1
26	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	825702	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
27	8257021	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
28	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
29	88439A33	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
30	88439A10	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
31	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
32	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
32	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
33	858723T1	适配器/升降线束总成	HARNESS ASSEMBLY Adapter/Trim	1
34	858914T1	升降马达适配器线束总成	HARNESS ASSEMBLY Trim Motor Adaptor	1
35	858740T4	遥控适配器线束总成	HARNESS ASSEMBLY Adapter Assembly Remote	1
36	92753	固定座	RETAINER	1
37	859249T1	连接器	CONNECTOR	1
38	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
39	8272822	高压警告标贴	DECAL Warning High Voltage	1
40	881865	挂档启动警示标贴	DECAL Caution-Start in Gear Start in Gear	1
41	828151A2	升降继电器套件	TRIM RELAY KIT	1
41	882751A3	升降继电器套件	RELAY KIT Trim	1
42	826802A24	升降线束总成	HARNESS ASSEMBLY Trim	1
43	828151A1	继电器总成	RELAY ASSEMBLY	2
43	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
44	818967	护孔环	GROMMET	1
44	8M0207785	护孔环	GROMMET	1
45	818968	衬套	BUSHING	1
45	8M0214955	衬套	BUSHING	1
46	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
47	828102	支架	BRACKET	1
47	8M0207771	安装支架	BRACKET Mounting	1
48	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
49	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
49	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
50	823807	衬套	BUSHING	1

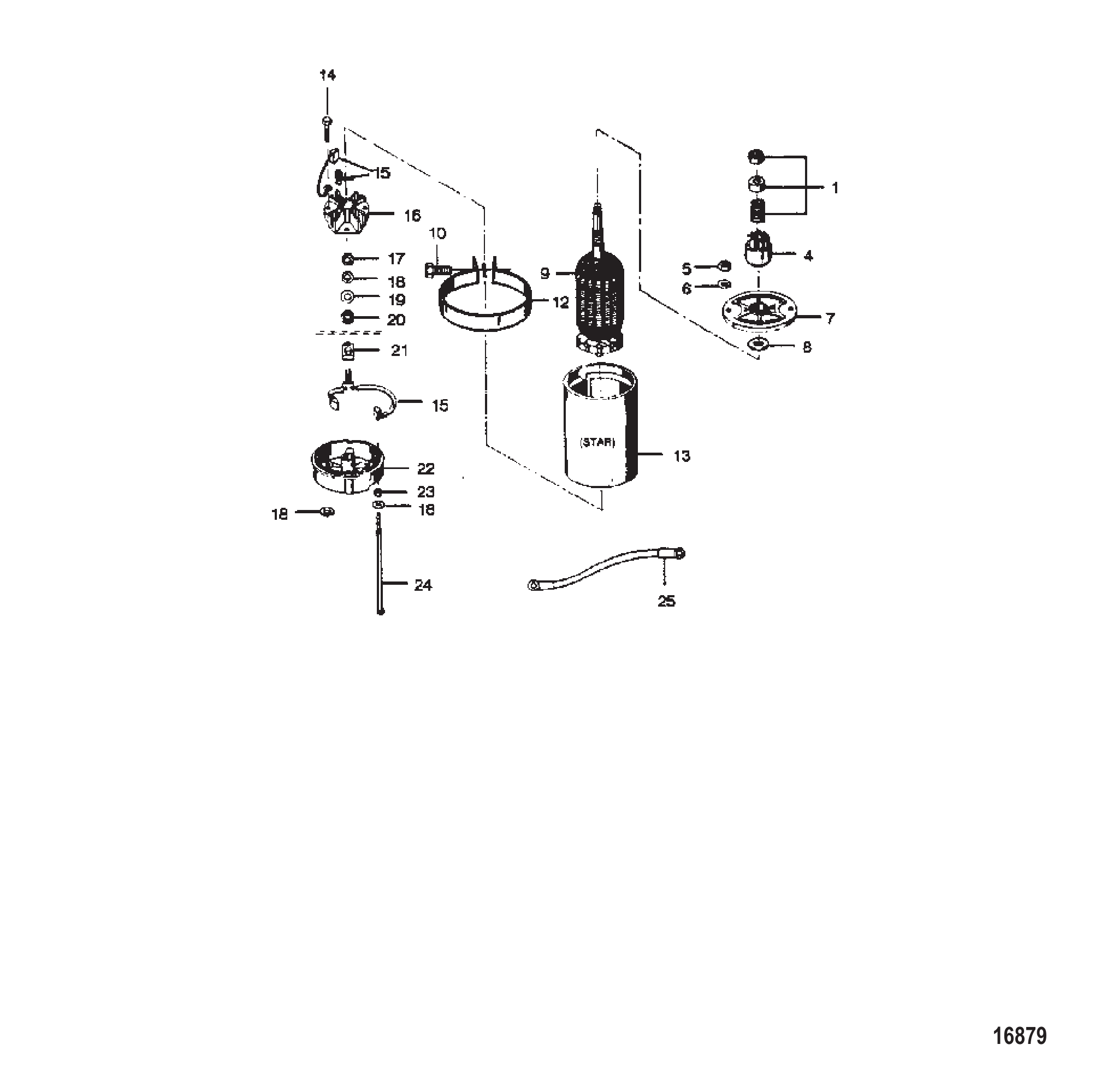

图 20电动启动机 Electric Starter

REF	零件编号	中文名称	英文名称	数量
1	F15328	固定套件	RETAINER KIT	1
4	F15150	驱动小齿轮	DRIVE Pinion	1
5	F1341	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel (1.25-20)	2
5	64015	螺母 (.250-20)	NUT (.250-20)	2
6	F8083	锁紧垫圈(0.250)	LOCKWASHER (.250)	2
6	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
7	F15154	驱动端盖	CAP Drive End Drive End	1
8	F15155	止推垫圈	WASHER Thrust	1
9	F15156-1	电枢	ARMATURE	1
10	F1705	螺丝 (.250-20 x .75)	SCREW (.250-20 x .750) (.250-20 x .75)	1
10	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
11	F8028	平垫圈	WASHER Plain	1
11	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	1
12	F460573		CLAMP Starter Motor	1
13	F514955		STARTER MOTOR ASSEMBLY (Not Shown)	1
13	803900T	启动器总成	STARTER ASSY	1
14	F15158		SCREW Brush Holder	2
15	F15164	电刷套件	BRUSH KIT	1
15	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
16	F15157	电刷架	HOLDER Brush	1
16	898265014	电刷支架	HOLDER-BRUSH	1
17	F15162		NUT Hot Lead	1
18	F15152	锁紧垫圈	LOCKWASHER	3
18	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	3
19	F15161	垫圈	WASHER	1
19	38013	垫圈	WASHER	1
20	F15160	垫圈	WASHER	1
20	804700	垫圈	WASHER	1
21	F15159	绝缘体	INSULATOR	1
21	57387	衬套	BUSHING	1
22	F15163		CAP Commutator End	1
23	F15153		SPACER WASHER Thru Bolt	1
24	F15151	贯穿螺栓	THRU BOLT	2
24	F15151-1	螺栓	BOLT	2
25	F85908-1	启动机电缆总成	CABLE ASSEMBLY Starter	1

图 21发动机罩(蓝鳍型号) Engine Cover Blue Fin Models

REF	零件编号	中文名称	英文名称	数量
1	FS684712	罩盖总成(未喷漆)	COVER ASSEMBLY (UNPAINTED)	1
-	818083A1	发动机罩总成(带贴花喷漆)	ENGINE COVER COMPLETE (PAINTED W/DECALS)
2	FX690892	前标牌	DECAL FRONT	1
3	F685387-2	美国船用标牌	DECAL US MARINE	2
4	FX690396	右舷侧标牌	DECAL STARBOARD SIDE	1
-	FX690397	左舷侧标牌	DECAL PORT SIDE	1
6	F663366	Force徽章	MEDALLION Force	2
6	819169	徽章	MEDALLION	2
7	F1857	不锈钢螺钉(.312-18 x .625)	SCREW (.312-18 x .625) SS	2
7	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
8	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
8	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
9	FA481743	滚轮支架	BRACKET ROLLER	1
9	893763	滚轮锁扣支架	BRACKET Roller Latch	1
10	F684774	支架	BRACKET	1
11	F1493	不锈钢螺钉(.250-20 x .625)	SCREW (.250-20 x .625) Stainless Steel	2
11	28639	250-20×0.625 螺钉	SCREW (250-20 x .625)	2
12	FX690528	后贴花	DECAL REAR	1
13	F663269	倾斜手柄	HANDLE TILT	1
13	828477	倾斜手柄	HANDLE Tilt	1
14	F2143	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	4
15	F2012	垫圈	WASHER	8
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
16	F7060	螺母 (.250-20)	NUT (.250-20)	4
16	8267118	螺母 (.250-20)	NUT (.250-20)	4
-	F684984	顶部消音罩(未图示)	BLANKET TOP SILENCER (NOT SHOWN)	1
-	F684985	侧面消音罩(未图示)	BLANKET SIDE SILENCER (NOT SHOWN)	2
-	F684985-1	侧盖板	BLANKET-SIDE	2

图 22专用工具(下部单元) Special Tools Lower Unit

REF	零件编号	中文名称	英文名称	数量
-	FT8948-1	轴承拉拔器	PULLER TOOL Bearing
-	83164M	飞轮拉拔器	FLYWHEEL PULLER
-	FT8919	弹簧销冲具	PUNCH TOOL Spring Pin
-	FT8907	驱动手柄	HANDLE Driver
-	824892	手柄	HANDLE
-	FT8918	衬套导向安装工具	GUIDE SET TOOL Bushing
-	FT8921	前轴承杯拆卸工具	REMOVER TOOL Front Bearing Cup
-	FT8904	前轴承杯安装工具	INSTALLER TOOL Front Bearing Cup
-	FT8972	密封安装工具	INSTALLER TOOL Seal
-	803506T	安装工具	INSTALLER TOOL
-	FT8957	密封安装工具	INSTALLER TOOL Seal
-	FT8963	轴承安装工具	INSTALLER TOOL Bearing
-	FT8964	轴承拆卸工具	REMOVER TOOL Bearing
-	FT3431	密封安装工具	INSTALLER TOOL Seal

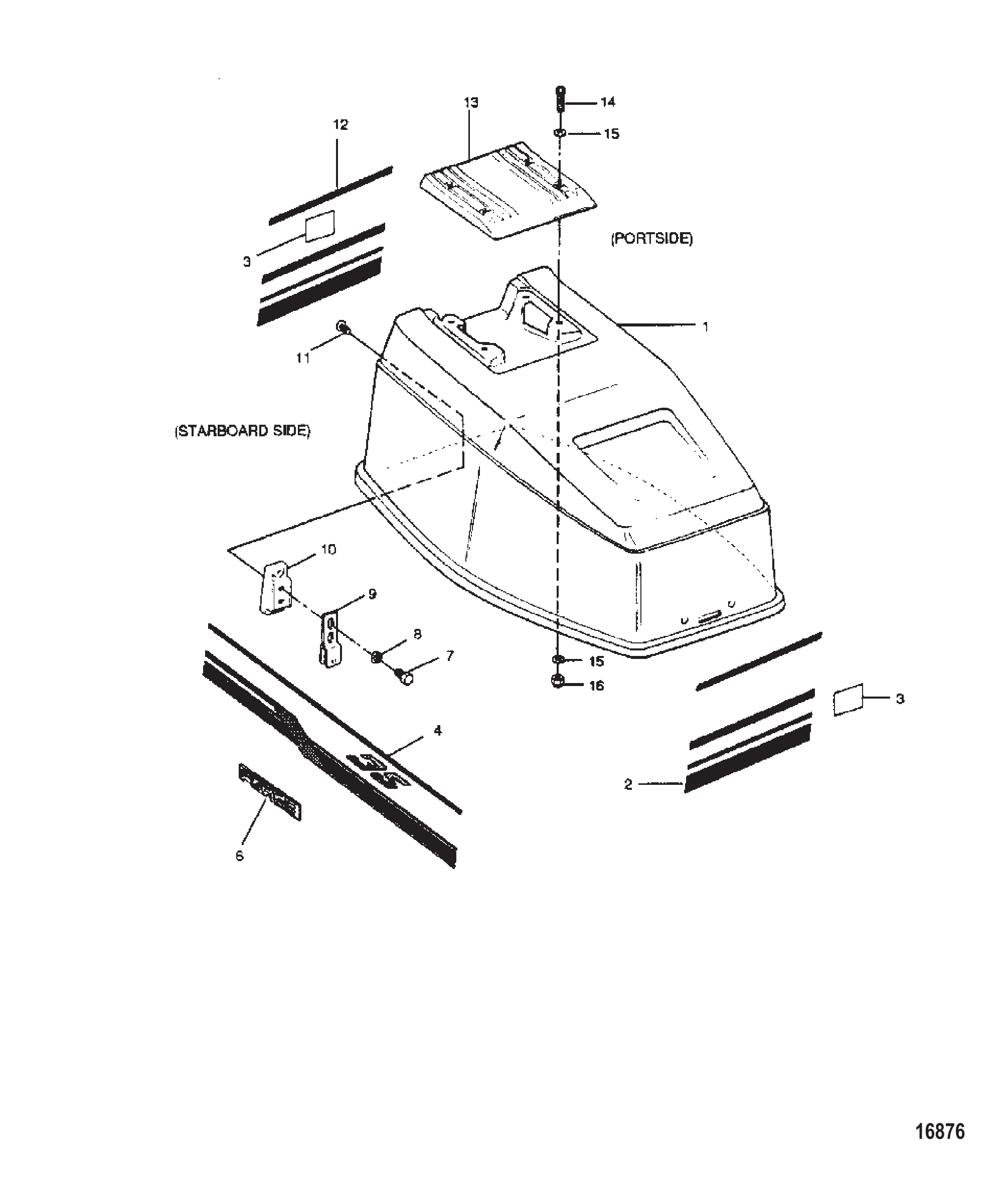

图 23发动机罩(Force型号) Engine Cover (Force Models)

REF	零件编号	中文名称	英文名称	数量
1	FS684712	盖总成	COVER ASSEMBLY	1
2	F690892	前贴花	DECAL Front	1
3	8179851	徽章	MEDALLION	2
4	F690396	右舷侧贴纸	DECAL Starboard Side	1
4	F690397	左舷侧贴纸	DECAL Port Side	1
6	F663366		MEDALLION Force (Force)	2
6	819169	徽章	MEDALLION	2
7	F1857	不锈钢螺钉(.312-18 x .625)	SCREW (.312-18 x .625) SS	2
7	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
8	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
8	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
9	F481743	滚轮支架	BRACKET Roller	1
9	893763	滚轮锁扣支架	BRACKET Roller Latch	1
10	F684774	支架	BRACKET	1
11	F1493	螺丝 (.250-20 x .625) 不锈钢	SCREW (.250-20 x .625) Stainless Steel (.250-20 x .625 )	2
11	28639	250-20×0.625 螺钉	SCREW (250-20 x .625)	2
12	F690528	后标贴	DECAL Rear	1
13	F663269	倾斜手柄	HANDLE Tilt	1
13	828477	倾斜手柄	HANDLE Tilt	1
14	F2143	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	4
15	F2012	垫圈	WASHER	8
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
16	F7060	螺母(.250-20)	NUT (.250-20) (.250-20)	4
16	8267118	螺母 (.250-20)	NUT (.250-20)	4
NS	F684984		BLANKET Top Silencer (Not Shown)	1
NS	F684985		BLANKET Side Silencer (Not Shown)	2
NS	F684985-1	侧盖板	BLANKET-SIDE	2

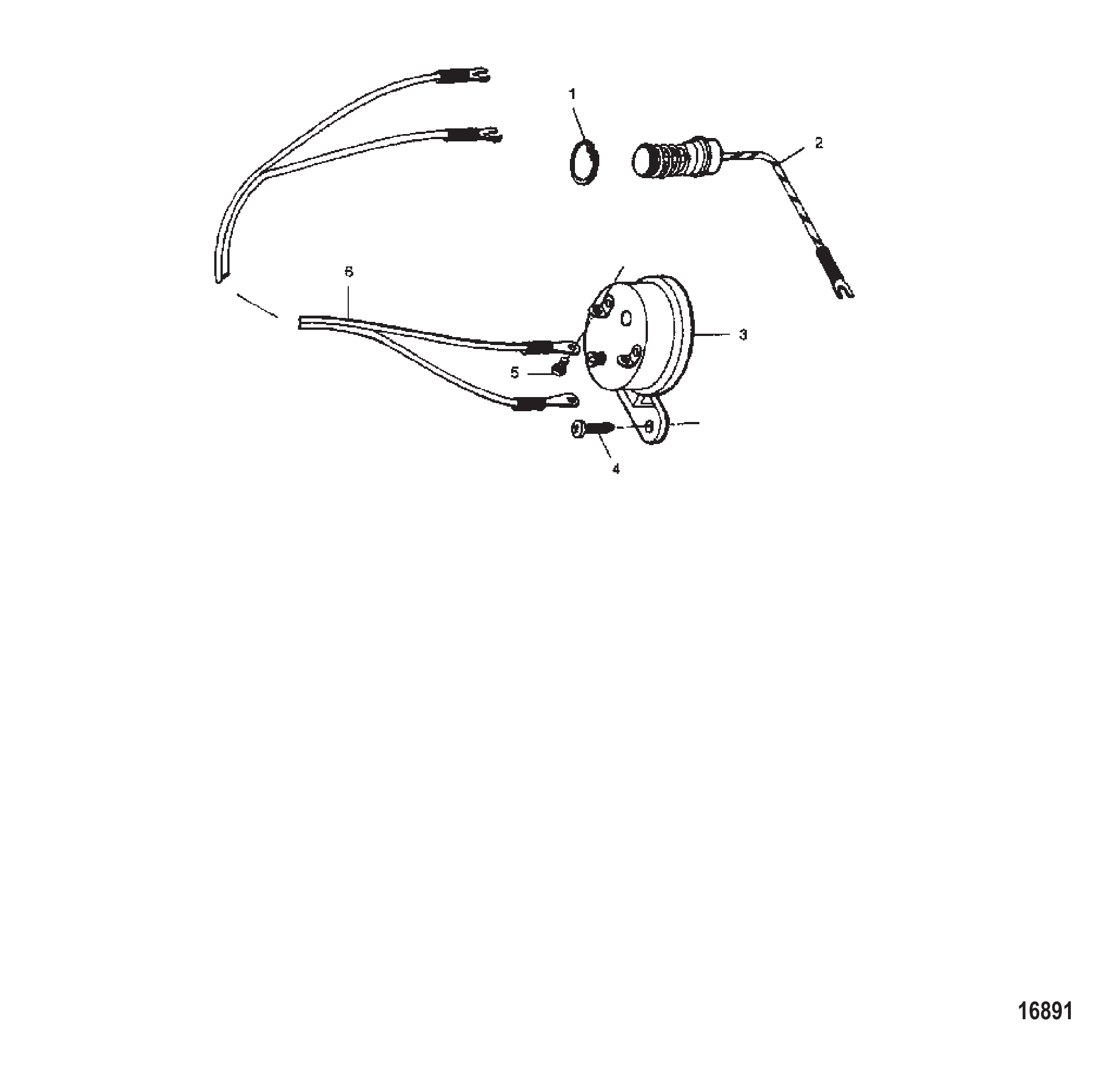

图 24过热报警器 Overheat Buzzer

REF	零件编号	中文名称	英文名称	数量
1	F428096	挡圈	RING Retaining	1
2	F683449-1	温控开关	THERMOSWITCH	1
2	F658449-2	温控开关	THERMOSWITCH	1
3	F5H073-1	蜂鸣器套件	BUZZER KIT	1
4	F1741	螺钉(#8 x .750) 平头,不锈钢	SCREW (#8 x .750) Fill Head, SS	2
5	F1645	自攻螺丝 (#6-32 x .250) 不锈钢	SCREW (#6-32 x .250) Self Tapping, SS (#6-32 x .250)	2
5	69080	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	2
6	F404841		CABLE ASSEMBLY Overheat Buzzer	1
6	65017A24	线束总成	HARNESS ASSEMBLY	1

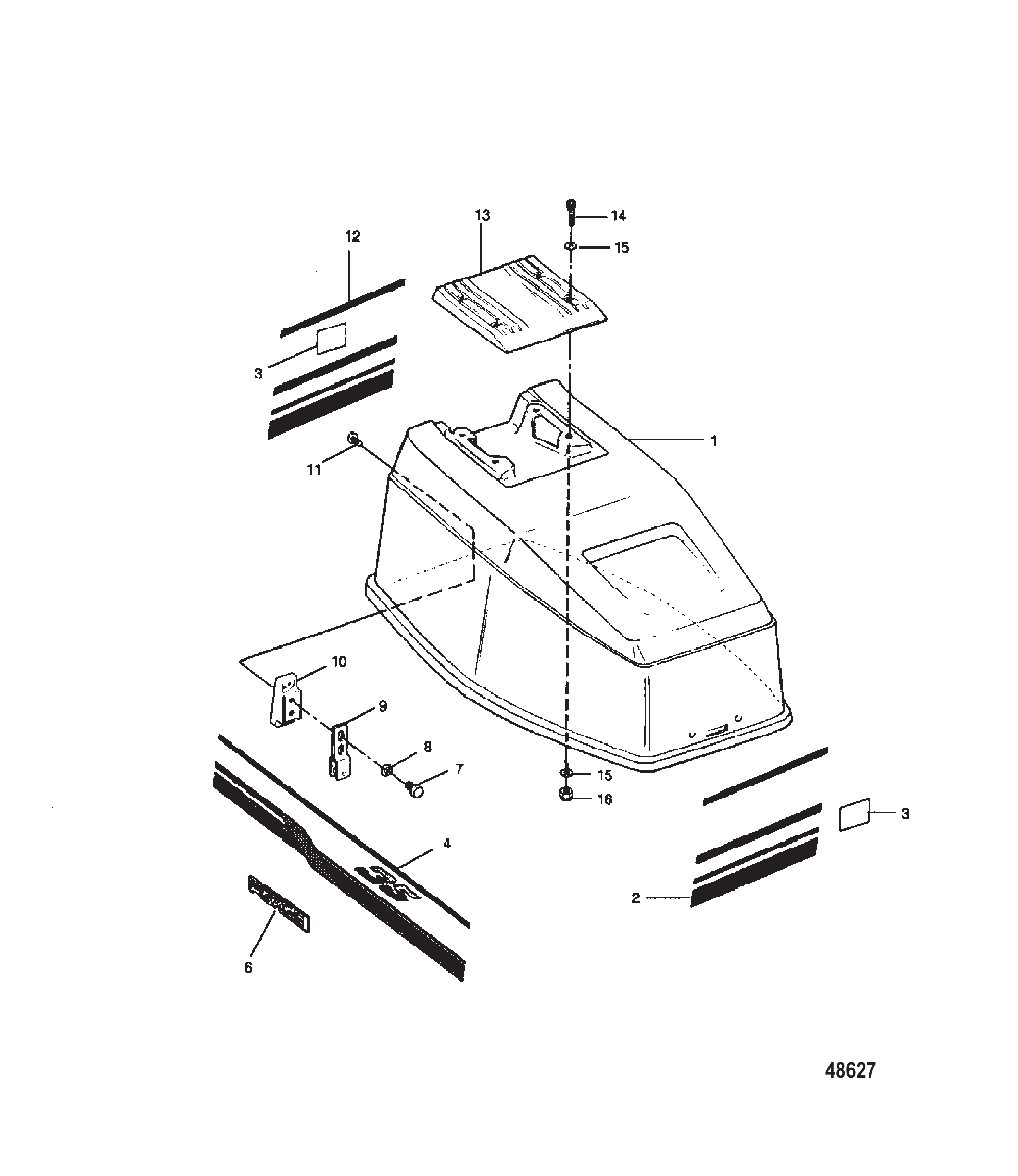

图 25发动机罩(Force型号) Engine Cover Force Models

REF	零件编号	中文名称	英文名称	数量
1	FS684712	罩盖总成(未喷漆)	COVER ASSEMBLY (UNPAINTED)	1
-	F2C690712	罩盖总成(带标牌喷漆版)	COVER ASSEMBLY (PAINTED W/DECALS)
2	F690892	前标牌	DECAL FRONT	1
3	8179851	US Marine徽章	MEDALLION US MARINE	2
4	F690396	右舷侧标牌	DECAL STARBOARD SIDE	1
-	F690397	左舷侧标牌	DECAL PORT SIDE	1
6	F663366	Force徽章	MEDALLION Force	2
6	819169	徽章	MEDALLION	2
7	F1857	不锈钢螺钉(.312-18 x .625)	SCREW (.312-18 x .625) SS	2
7	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
8	F8096	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
8	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
9	FA481743	滚轮支架	BRACKET ROLLER	1
9	893763	滚轮锁扣支架	BRACKET Roller Latch	1
10	F684774	支架	BRACKET	1
11	F1493	不锈钢螺钉(.250-20 x .625)	SCREW (.250-20 x .625) Stainless Steel	2
11	28639	250-20×0.625 螺钉	SCREW (250-20 x .625)	2
12	F690528	后贴花	DECAL REAR	1
13	F663269	倾斜手柄	HANDLE TILT	1
13	828477	倾斜手柄	HANDLE Tilt	1
14	F2143	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	4
15	F2012	垫圈	WASHER	8
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
16	F7060	螺母 (.250-20)	NUT (.250-20)	4
16	8267118	螺母 (.250-20)	NUT (.250-20)	4
-	F684984	顶部消音罩(未图示)	BLANKET TOP SILENCER (NOT SHOWN)	1
-	F684985	侧面消音罩(未图示)	BLANKET SIDE SILENCER (NOT SHOWN)	2
-	F684985-1	侧盖板	BLANKET-SIDE	2

图 26支撑板 Support Plate

REF	零件编号	中文名称	英文名称	数量
1	F684756-1		PACKING Support Plate	1
2	F684989		SEAL Support Plate	1
3	F683354	上部安装支架	BRACKET Upper Mount	1
4	F1211	螺钉及锁紧垫圈 (.250-28 x .625)	SCREW AND LOCKWASHER (.250 - 28 x .625) (.250-28 x .625)	2
5	F1532	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	4
5	819110100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	4
6	F203965		MOUNT Upper Shock	1
6	F203965-1	减震支架	MOUNT-SHOCK	1
7	F1854	螺丝 (.250-20 x .625)	SCREW (.250-20 x .625) (.250-20 x .625)	3
7	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	3
8	F663480-1		RETAINER Cowl Front Engine Cover	1
9	F8083	锁紧垫圈(0.250)	LOCKWASHER (.250)	1
9	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
10	F8094	垫圈	WASHER	1
10	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
11	F481777	凸轮锁紧轴	CAM Latch Shaft Latch Shaft	1
11	8M0001081	凸轮	CAM	1
12	F2047	波形垫圈	WASHER Wave	1
13	F286818		BEARING Latch Shaft	2
13	812707	衬套	BUSHING	2
14	FA663469	发动机盖锁扣手柄总成	HANDLE ASSEMBLY Engine Cover Latch	1
14	820000A08	手柄总成-黑色	HANDLE ASY-BLACK	1
15	F684038-1	支撑板	PLATE Support	1
15	819372A3	下罩套件	BOTTOM COWL KIT	1
16	F1733	螺丝 (#10-24 x .5625) 不锈钢	SCREW (#10-24 x .562) SS (#10-24 x .5625)	2
16	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	2
17	F549189	电缆入口衬套	BUSHING Electric Cable Entry	1
17	828763	衬套	BUSHING	1
18	F2093	不锈钢螺母(.375-24)	NUT (.375-24) SS	2
18	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
19	F8083	锁紧垫圈(0.250)	LOCKWASHER (.250)	4
19	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
20	F5H141	转向连杆套件	LINK KIT Steering	1
21	F2073	螺钉 (.375-24 x 1.75)	SCREW (.375 - 24 x 1.75) (.375-24 x 1.625)	1
21	90072	螺钉(.375-24 x 1.750)	SCREW (.375-24 x 1.750)	1
22	F522359	转向连杆垫片	SPACER Steering Link	1
23	F660189	线缆入口衬套	BUSHING Cable Entry	1
23	8190062	衬套	BUSHING	1
24	F5H084	拖行倾斜锁	TILT LOCK Trailering	1
24	F5H216	支架套件	BRACKET KIT	1
25	F684408	启动继电器盖	COVER Starter Relay	1
26	F1979	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
26	41772	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1

图 27维修保养材料 Service and Support Material

REF	零件编号	中文名称	英文名称	数量
-	10126980	用户手册	OWNERS MANUAL	1
-	824052R2	维修手册	SERVICE MANUAL	1
-	824052R3	SM O/B V6 135-225	SM O/B V6 135-225	1
-	808553A96	贴花套件	DECAL SET	1
-	808553A00	贴花套件	DECAL SET	1
-	809689A96	贴花套件	DECAL SET	1
-	804696A03	贴花套件	DECAL SET	1
-	808559A96	贴花套件	DECAL SET	1
-	855418A97	贴花套件	DECAL SET	1
-	809688A00	贴花套件	DECAL SET	1
-	808554A96	贴花套件	DECAL SET	1
-	812563A00	贴花套件	DECAL SET	1
-	808558A96	贴花套件	DECAL SET	1
-	808562A03	贴花套件	DECAL SET	1
-	813033A96	贴花套件	DECAL SET	1
-	813033A03	贴花套件	DECAL SET	1
-	809706A96	贴花套件	DECAL SET	1
-	809706A03	贴花套件	DECAL SET	1
-	808557A96	贴花套件	DECAL SET	1
-	808557A01	贴花套件	DECAL SET	1
-	808556A96	贴花套件	DECAL SET	1
-	808556A03	贴花套件	DECAL SET	1
-	808561A96	贴花套件	DECAL SET	1
-	808561A03	贴花套件	DECAL SET	1
-	813033A97	贴花套件	DECAL SET	1
-	813033A03	贴花套件	DECAL SET	1
-	809706A97	贴花套件	DECAL SET	1
-	809706A03	贴花套件	DECAL SET	1
-	808557A97	贴花套件	DECAL SET	1
-	808557A01	贴花套件	DECAL SET	1
-	855419A97	贴花套件	DECAL SET	1
-	855419A00	贴花套件	DECAL SET	1
-	808556A97	贴花套件	DECAL SET	1
-	808556A03	贴花套件	DECAL SET	1
-	808561A97	贴花套件	DECAL SET	1
-	808561A03	贴花套件	DECAL SET	1
-	824911A25	条纹贴纸(25英尺卷-需6英尺)	DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.)	1
-	808591A96	贴花套件	DECAL SET	1
-	808680A96	贴花套件	DECAL SET	1
-	808621A96	贴花套件	DECAL SET	1
-	808602A96	贴花套件	DECAL SET	1
-	808652A96	贴花套件	DECAL SET	1
-	808641A96	贴花套件	DECAL SET	1
-	85557713	EPA标签信息贴花	DECAL EPA Label Information	1
-	855577A13	REF SOB 09-18	REF SOB 09-18	1

图 28附件 Accessories

REF	零件编号	中文名称	英文名称	数量
-	15969A3	甲板加油套件	DECK FILL KIT Oil	1
-	44357A2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
-	877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
-	827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
-	877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
-	17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
-	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
-	17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
-	877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
-	822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
-	877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	86300A5	防腐电极监测器	MERCATHODE MONITOR	1
-	41729A3	软管延长套件	HOSE EXTENSION KIT	1
-	18286A18	微调开关套件(10.00英尺)带或不带舵柄	SWITCH KIT Trim (10.00 Feet) With Or With Out Tiller	1
-	17334A2	视觉警报系统 低油位/过热	VISUAL WARNING SYSTEM Low Oil/Overheat	1

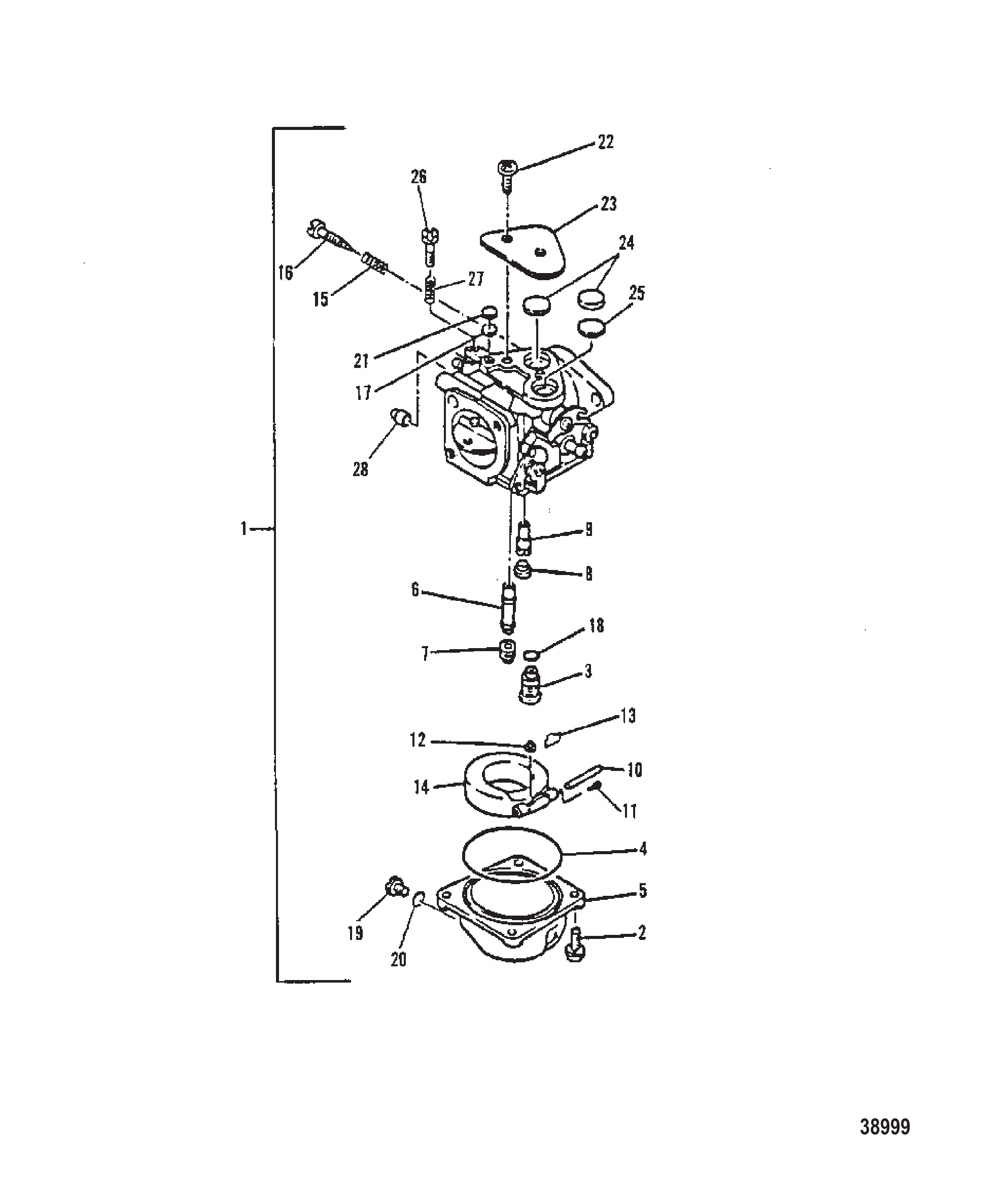

图 29化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	9660M	化油器总成	CARBURETOR ASSEMBLY	1
1	9676M	化油器总成	CARBURETOR ASSEMBLY	1
1	814564M	化油器	CARBURETOR	1
1	814565M	化油器	CARBURETOR	1
1	811361M	化油器	CARBURETOR	1
1	811363M	化油器	CARBURETOR	1
1	811362M	化油器	CARBURETOR	1
1	811364M	化油器	CARBURETOR	1
2	814566M	螺钉	SCREW	8
2	11796M	螺钉(M4 x 14)	SCREW (M4 x 14)	8
3	17050M	针阀组	NEEDLE VALVE SET	2
4	83362M	O型圈	O-RING	2
5	94495M	本体	BODY	2
6	97727M	喷嘴	NOZZLE	2
7	42437M	量孔(#170)	JET (#170)	2
8	83369M	盖帽	CAP	2
8	8M0080455	堵头	PLUG	2
9	42438M	量孔(#75)	JET (#75)	2
10	97730M	销	PIN	2
11	82500M	螺钉(M4 x 8)	SCREW (M4 x 8)	2
12	92639M	浮子销	PIN Float	2
13	82781M	卡扣	CLIP	2
13	8M0120624	卡箍@2	CLIP @2	2
14	83363M	浮子	FLOAT	2
14	891730A01	浮子套件	FLOAT KIT	2
15	94499M	弹簧	SPRING	2
16	17067M	螺钉	SCREW	2
17	97732M	安装板	PLATE	2
18	97070M	O型圈	O-RING	2
19	81293M	放油螺钉	SCREW Drain	2
20	94498M	O型圈	O-RING	2
21	97733M	填料	PACKING	2
22	19147M	螺钉	SCREW	4
23	97734M	安装板	PLATE	2
24	97735M	衬垫	GASKET	4
25	97736M	安装板	PLATE	2
26	81277M	螺钉(下部)	SCREW (LOWER)	1
27	82080M	弹簧(下部)	SPRING (LOWER)	1
28	19233M	轴套(下部)	COLLAR (LOWER)	1
-	17068M	化油器维修套件	REPAIR KIT Carburetor	1
