Force 系列 · USA - Cat.# 90-FOB4083 · 共 18 个部位 · 577 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | F5H081 | 电池电缆总成 | CABLE ASSEMBLY Battery | A/R |
| - | F5H019 | 牺牲阳极防腐套件 | ANODE KIT Sacrifical - Anti Corrosion | A/R |
| - | F5H025 | 牺牲阳极防腐套件 | ANODE KIT Sacrifical - Anti Corrosion | A/R |
| - | F5H021 | 延长电缆总成 | CABLE ASSEMBLY Extension | A/R |
| - | F71H26 | 蓄电池接线端子套件 | TERMINAL KIT Battery | A/R |
| - | 493 | 手柄 | HANDLE | A/R |
| - | F5H020 | 搬运手柄 | HANDLE Carrying | A/R |
| - | F861 | 冲洗适配器总成 | ADAPTER ASSEMBLY Flushing | A/R |
| - | F5H158 | 嵌入式燃油表总成 | GAUGE ASSEMBLY Fuel - Flush Mount | A/R |
| - | F5H028 | 传感器总成 | SENDING ASSEMBLY | A/R |
| - | F5H055 | 水泵套件 | PUMP KIT Water | A/R |
| - | F5H134 | 船用白色漆 | LACQUER Boat White | A/R |
| - | F5H026 | 6加仑钢制油箱 | STEEL 6 GALLON, STEEL | A/R |
| - | F5H040 | 12加仑钢制油箱 | STEEL 12 GALLON, STEEL | A/R |
| - | F5H029 | 油箱固定锚 | ANCHOR Fuel Tank | A/R |
| - | F5H082 | 电动遥控电缆总成 | CABLE ASSEMBLY Remote Electric | A/R |
| - | F5H070 | 电动遥控电缆总成 | CABLE ASSEMBLY Electric Remote | A/R |
| - | F762 | 电动遥控电缆总成 | CABLE ASSEMBLY Remote Electric | A/R |
| - | F5H155 | 速度表 | SPEEDOMETER | A/R |
| - | F5H072 | 过热报警器套件 | BUZZER KIT Overheat | A/R |
| - | F5H077 | 点火开关套件(含钥匙和螺钉) | SWITCH KIT Ignition - With Keys And Screws | A/R |
| - | F5H078 | 点火开关套件(含钥匙和螺钉) | SWITCH KIT Ignition - With Keys And Screws | A/R |
| - | FK1026 | 长腿转换套件 | CONVERSION KIT Long Leg | A/R |
| - | F5H159 | 计时器 | HOURMETER | A/R |
| - | F195 | 遥控线束套装(油门/换挡) | CABLE SET Remote Control - Thottle/Shift | A/R |
| - | F5H130-1 | 遥控器(单杆) | REMOTE CONTROL (SINGLE LEVER) | A/R |
| - | F590 | 嵌入式遥控器 | REMOTE CONTROL Flush Mount | A/R |
| - | F5H079 | 控制台安装式遥控器 | REMOTE CONTROL CONSOLE MOUNT | A/R |
| - | F5H090 | 控制台遥控启动套件(双引擎) | START KIT Remote CONSOLE MOUNT (TWIN ENGINES) | A/R |
| - | F5H087 | 手动舵柄套件 | TILLER KIT Manual | A/R |
| - | F5H120 | 遥控器背板 | BACK PLATE Remote Control | A/R |
| - | F166 | 双引擎连接杆 | TIE BAR Dual Engine | A/R |
| - | F5H059 | 舷外机多用润滑脂(克莱斯勒) | GREASE Multi Purpose - Chrysler Outboard | A/R |
| - | F5H060 | 霜白色漆 | LACQUER Frost White | A/R |
| - | F5H102 | 转向连杆套件 | LINK KIT Steering | A/R |
| - | F5H106 | 转向连杆套件 | LINK KIT Steering | A/R |
| - | F5H076 | 5英尺开关延长电缆总成 | CABLE ASSEMBLY 5 ft Switch Extension | A/R |
| - | F5H075 | 24英寸点火开关线束总成 | HARNESS ASSEMBLY 24 in Ignition Switch | A/R |
| - | F5H030 | 航行灯开关套件 | SWITCH KIT RUNNING LIGHTS | A/R |
| - | F5H034 | 舱底泵开关套件 | SWITCH KIT BILGE PUMP | A/R |
| - | F5H035 | 喇叭开关套件 | SWITCH KIT HORN | A/R |
| - | F5H036 | 转速表转换开关套件 | SWITCH KIT TACHOMETER TRANSFER | A/R |
| - | F5H038 | 点火开关套件 | SWITCH KIT IGNITION | A/R |
| - | F5H039 | 仪表开关套件 | SWITCH KIT INSTRUMENTS | A/R |
| - | F563 | 接线端子排套件 | BLOCK KIT Terminal | A/R |
| - | FOB4074 | 用户手册 | OWNERS MANUAL | A/R |
| - | FOB3870 | 维修手册 | SERVICE MANUAL | A/R |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

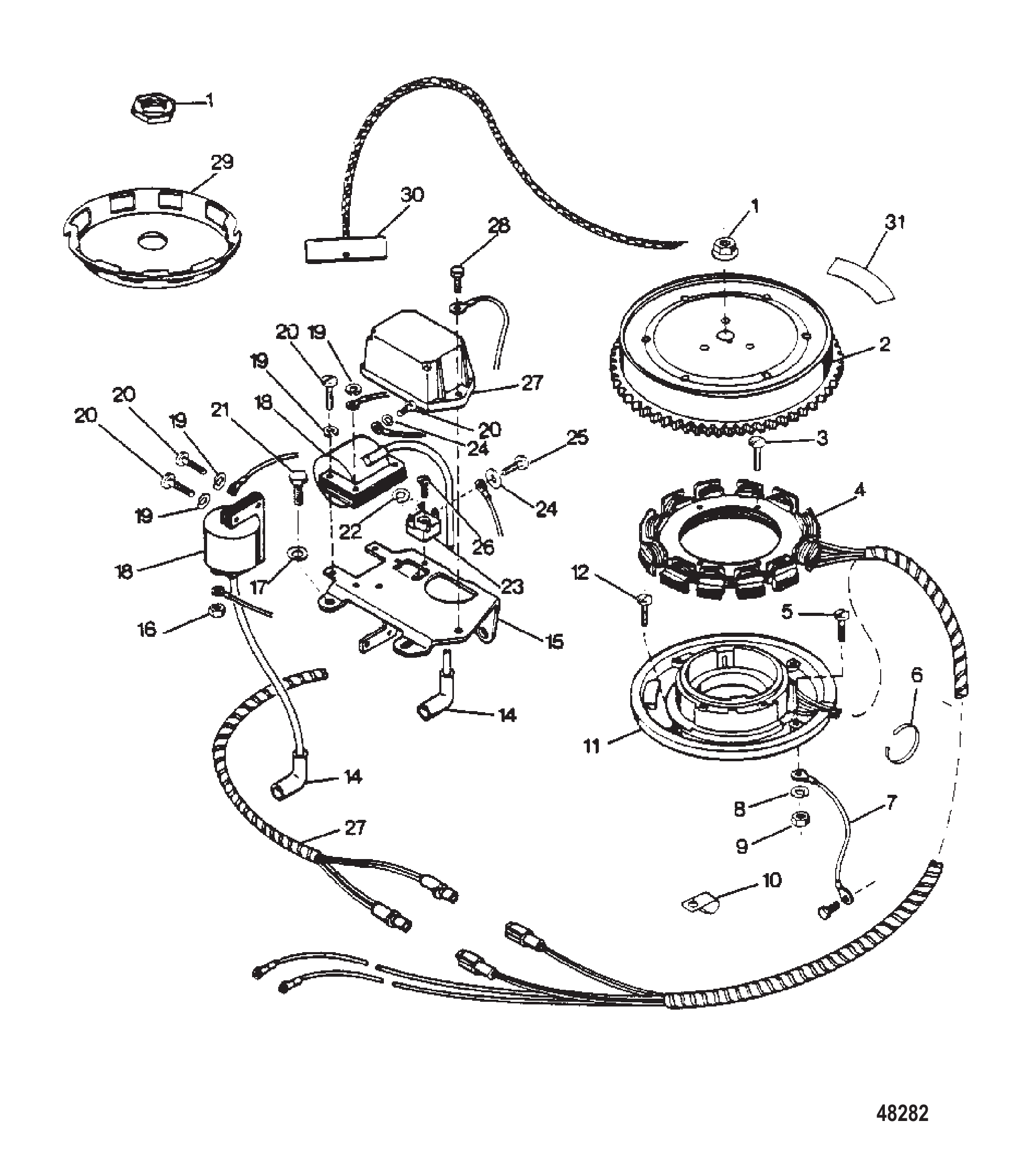

| 1 | F2021 | 飞轮螺母(.625 - 18) | NUT Flywheel, (.625 - 18) | 1 |
| 2 | F529097 | 飞轮 | FLYWHEEL | 1 |
| 3 | F1995 | 螺钉(10 - 24 X 1) | SCREW (10 - 24 X 1) | 4 |
| 4 | F529095 | 定子 | STATOR | 1 |
| 5 | F2010 | 螺钉(10 - 32 X .562) | SCREW (10 - 32 X .562) | 3 |
| 6 | F1877 | 扎带 | TIE STRAP | 1 |
| 7 | F460664 | 电线 | WIRE | 1 |
| 8 | F1975 | 锁紧垫圈(#10) | LOCKWASHER (#10) | 1 |
| 9 | F1513 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 10 | F286772-1 | 卡箍 | CLAMP | 1 |
| 11 | F529029 | 触发器定子总成 | STATOR ASSEMBLY Trigger | 1 |
| 12 | F1092 | 螺钉(10 - 32 X .625) | SCREW (10 - 32 X .625) | 1 |
| 14 | FK1123 | 护套套件 | BOOT KIT | 2 |
| 15 | F529358 | 电气部件支架 | BRACKET ELECTRICAL COMPONENTS | 1 |
| 16 | F1337 | 螺母(6-32) | NUT (6 - 32) | 2 |
| 17 | F2012 | 垫圈 | WASHER | 2 |
| 18 | F510475 | 点火线圈 | COIL Ignition | 2 |
| 19 | F1975 | 锁紧垫圈(#10) | LOCKWASHER (#10) | 8 |
| 20 | F1648 | 螺钉(#10-24 x 0.750) | SCREW (#10 - 24 x .750) | 8 |
| 21 | F1200 | 螺钉(0.250-20 x 0.500) | SCREW (.250 - 20 x .500) | 2 |
| 22 | F8078 | 锁紧垫圈 | LOCKWASHER | 1 |
| 23 | F650450 | 整流器 | RECTIFIER | 1 |
| 24 | F1704 | 垫圈 | WASHER | 2 |
| 25 | F1645 | 自攻螺钉(#6-32 x 0.250)不锈钢 | SCREW (#6-32 x .250) Self Tapping, SS | 4 |
| 26 | F1552 | 螺钉(#8-32 x .500) | SCREW (#8-32 x .500) | 1 |
| 27 | F529301 | CD模块 | CD MODULE | 1 |
| 28 | F1746 | 螺钉(0.250-28 x 0.625) | SCREW (.250 - 28 x .625) | 2 |
| 29 | FA458456 | 手启动器轴环 | COLLAR Hand Starter | 1 |
| 30 | FA27232 | 应急启动拉绳总成 | ROPE ASSEMBLY Emergency Start | 1 |
| 31 | FA606853 | 换挡警告控制贴花 | DECAL Shift Warning Control | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

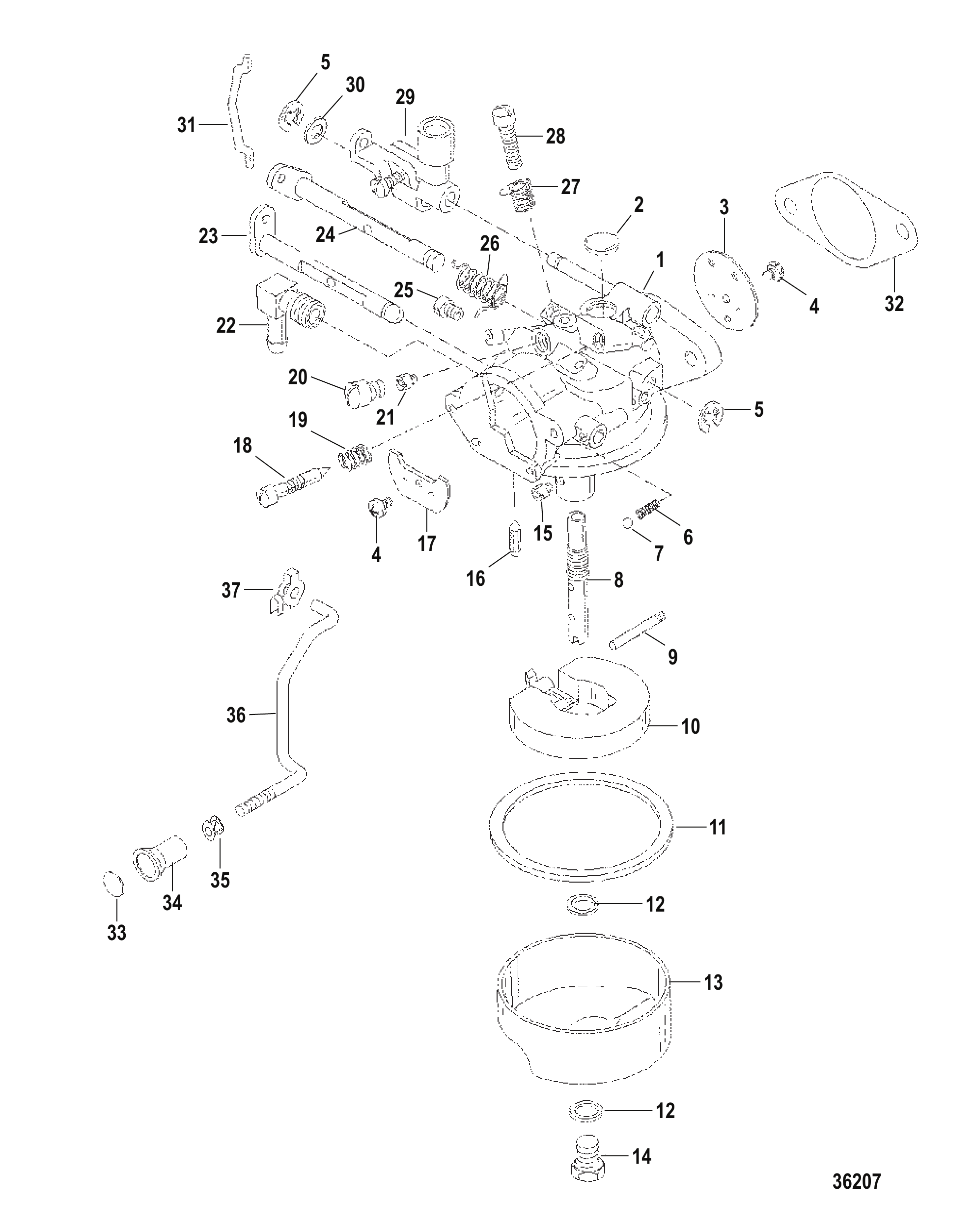

| 1 | 852551T1 | 化油器(FO-3D) | CARBURETOR (FO-3D) | 1 |
| 2 | FO16128 | 堵头 | PLUG | 1 |
| 3 | 809442 | 节气门片 | SHUTTER Throttle | 1 |
| 4 | 809441 | 百叶窗螺钉 | SCREW Shutters | 2 |
| 5 | 809446 | 节气门连杆E型环 | E-RING Throttle Linkage | 2 |
| 6 | FO8805 | 阻风门摩擦弹簧 | SPRING Choke Friction | 1 |
| 7 | FO4784 | 钢球 | BALL | 1 |
| 8 | 809624 | 主喷嘴 | NOZZLE Main | 1 |
| 9 | FO13944 | 销 | PIN | 1 |
| 10 | F10346 | 燃油杯浮子 | FLOAT Fuel Bowl | 1 |
| 11 | FO15623 | 衬垫 | GASKET | 1 |
| 12 | FO2510 | 燃油杯衬垫 | GASKET Fuel Bowl | 2 |
| 13 | FO15366 | 燃油杯 | BOWL Fuel | 1 |
| 14 | 5128 | 螺钉 | SCREW | 1 |
| 15 | 809448 | 主量孔(.058) | JET Main (.058) | 1 |
| 15 | 5213 | 主量孔(.056) | JET Main (.056) | OPT |
| 15 | 5225 | 主量孔(.054) | JET Main (.054) | OPT |
| 15 | 6359 | 量孔(.052) | JET (.052) | OPT |
| 16 | F10265 | 进油针阀 | NEEDLE Inlet | 1 |
| 17 | F10344 | 阻风门片 | SHUTTER Choke | 1 |
| 18 | F10268 | 螺钉 | SCREW | 1 |
| 19 | 27160 | 弹簧 | SPRING | 1 |
| 20 | F10275 | 螺钉 | SCREW | 1 |
| 21 | 809625 | 节气门量孔(.046) | JET (.046)-THROTTLE | 1 |
| 22 | 854005 | 燃油弯头 | ELBOW Fuel | 1 |
| 23 | 809440 | 阻风门轴及杆 | SHAFT AND LEVER Choke | 1 |
| 24 | 809439 | 节气门轴及杠杆 | SHAFT AND LEVER Throttle | 1 |
| 25 | 5225 | 主量孔怠速空气量孔（0.054） | JET Main (.054) IDLE AIR BLEED | 1 |
| 26 | F10350 | 节气门轴弹簧 | SPRING Throttle Shaft | 1 |
| 27 | 809445 | 怠速弹簧 | SPRING Idle Speed | 1 |
| 28 | 809444 | 怠速螺钉 | SCREW Idle Speed | 1 |
| 29 | F10290 | 节气门连杆 | LINKAGE Throttle | 1 |
| 30 | F10242 | 垫圈 | WASHER | 1 |
| 31 | 809443 | 节气门轴钢丝 | WIRE Throttle Shaft | 1 |
| 32 | F715906 | 化油器安装垫片 | GASKET Carburetor Mount | 1 |
| 33 | F681677 | 阻风门杆衬套 | INSERT Choke Rod | 1 |
| 34 | F286547 | 阻风门旋钮 | KNOB Choke | 1 |
| 35 | F197319 | 衬套 | BUSHING | 1 |
| 36 | 819154 | 阻风门拉杆 | ROD Choke | 1 |
| 37 | 830569 | 阻风门杆固定座 | RETAINER Choke Rod | 1 |
| - | FK10352 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| - | 809449A1 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| - | 809516A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

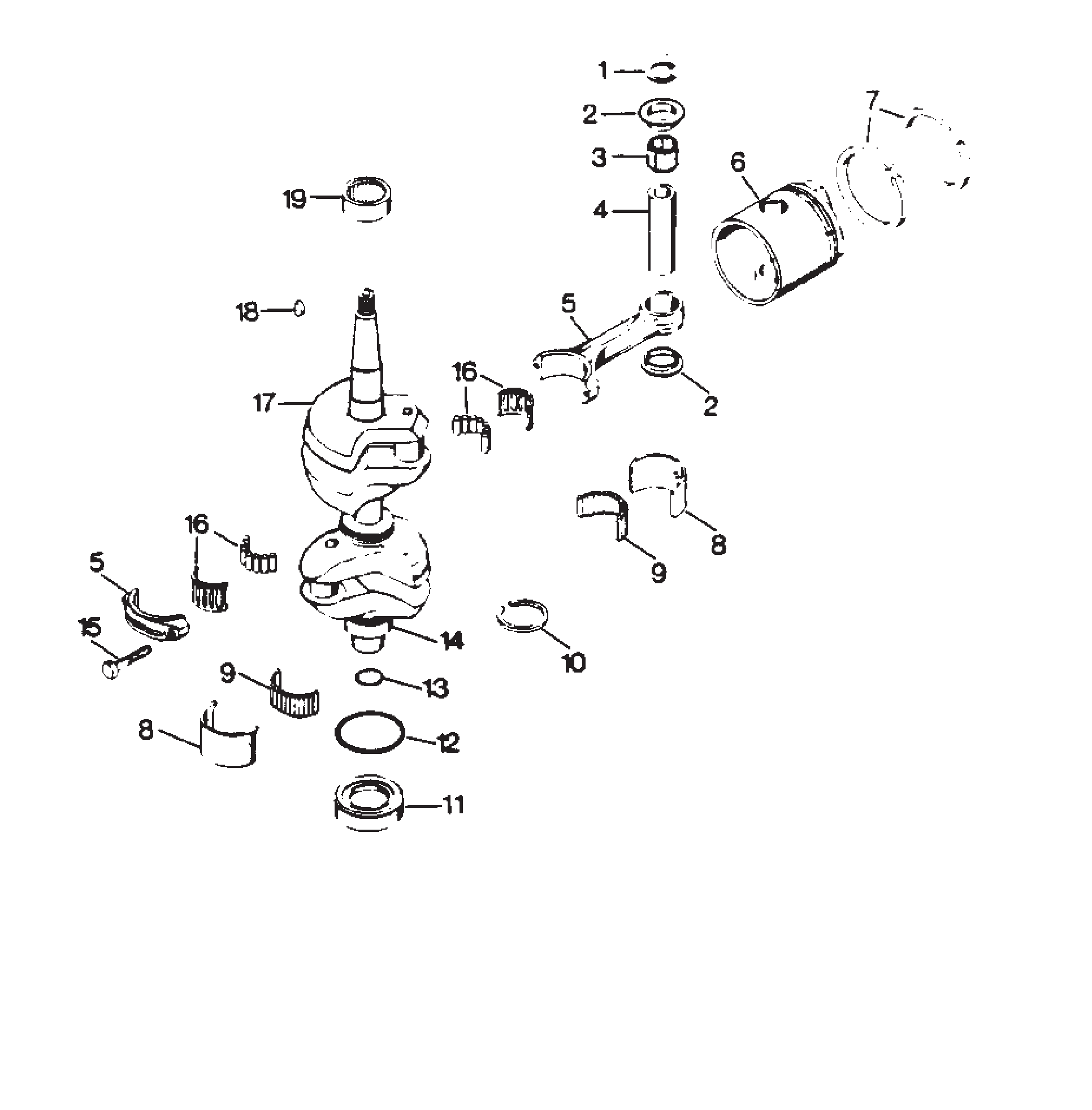

| 1 | F428096 | 活塞销固定环 | RING Retaining PISTON PIN | 4 |
| 2 | F366215 | 活塞销隔套 | SPACER PISTON PIN | 4 |
| 3 | F335217-1 | 活塞销轴承 | BEARING PISTON PIN | 2 |
| 4 | F40017-2 | 活塞销 | PIN Piston | 2 |
| 5 | 818052A4 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 6 | F513015-1 | 活塞 | PISTON | 2 |
| 7 | FA463260 | 活塞环组(4件) | RING SET 4 - Piston | 1 |
| 8 | FA458655 | 主轴承中衬套(1套) | LINER CENTER MAIN (1 SET) | 1 |
| 9 | FA458571 | 主轴承中滚柱 | ROLLER CENTER MAIN | 1 |
| 10 | F458579 | 曲轴箱密封件 | SEAL CRANKCASE | 1 |
| 11 | F2A458581 | 轴环/密封件总成 | COLLAR/SEAL ASSEMBLY | 1 |
| 12 | F455305 | 曲轴轴环O型圈 | O-RING CRANKSHAFT COLLAR | 1 |
| 13 | F458342 | 曲轴花键密封 | SEAL CRANKSHAFT SPLINE | 1 |
| 14 | F286028 | 滚珠轴承 | BEARING Ball | 1 |
| 15 | F85634-2 | 连杆螺钉 | SCREW CONNECTING ROD | 4 |
| 16 | FK85228-1 | 保持架与滚柱组(每套16个) | CAGE AND ROLLERS SET (16 Rollers Per Set) | 2 |
| 17 | 818061A1 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 18 | F85498-1 | 飞轮键 | FLYWHEEL KEY | 1 |
| 19 | F458028 | 曲轴上主轴承 | BEARING CRANKSHAFT UPPER MAIN | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

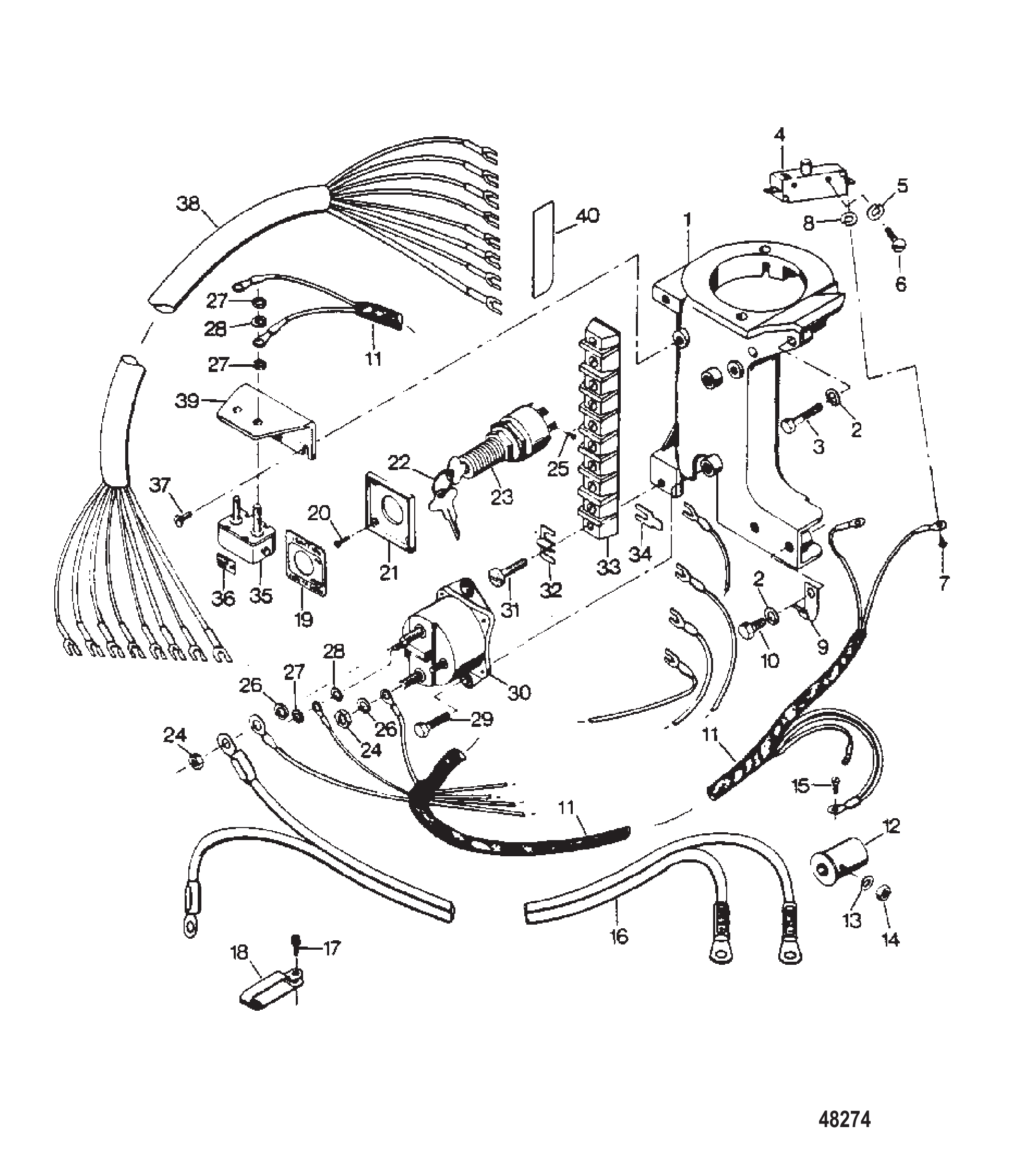

| 1 | F514427 | 启动电机支架 | BRACKET STARTER MOTOR | 1 |
| 2 | F8083 | 锁紧垫圈(0.250) | LOCKWASHER (.250) | 4 |
| 3 | F1699 | 六角头螺钉(0.250-20 x 1.125) | SCREW Hex Head (.250-20 x 1.125) | 3 |
| 4 | F84449 | 启动器联锁开关 | SWITCH STARTER INTERLOCK | 1 |
| 5 | F8088 | 垫圈 | WASHER | 2 |
| 6 | F2016 | 螺钉 (#6-32 x .875) | SCREW (#6-32 x .875) | 2 |
| 7 | F1645 | 自攻螺钉(#6-32 x 0.250)不锈钢 | SCREW (#6-32 x .250) Self Tapping, SS | 2 |
| 8 | F1704 | 垫圈 | WASHER | 2 |
| 9 | F286772-1 | 燃油泵至化油器软管卡箍 | CLAMP FUEL PUMP TO CARBURETOR HOSE | 1 |
| 10 | F1100 | 螺钉(0.250-20 x 0.125) | SCREW (.250 - 20 X .125) | 1 |
| 11 | F529744 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 12 | F85924 | 阻风门电磁阀 | SOLENOID Choke | 1 |
| 13 | F8056 | 锁紧垫圈(#8) | LOCKWASHER (#8) | 1 |
| 14 | F1647 | 螺母（#8-32） | NUT (#8-32) | 1 |
| 15 | F1077 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 1 |
| 16 | F381896-4 | 电池电缆总成 | CABLE ASSEMBLY Battery | 1 |
| 17 | F1734 | 螺钉与锁紧垫圈(0.250-20 x 0.500) | SCREW AND LOCKWASHER (.250-20 x .500) | 1 |
| 18 | F407446 | 蓄电池电缆卡箍 | CLAMP BATTERY CABLE | 1 |
| 19 | F412181-1 | 点火板-美国版 | PLATE IGNITION - USA | 1 |
| - | 8178921 | 点火板-加拿大版 | PLATE IGNITION - CANADA | 1 |
| 20 | F1934 | 螺钉(#6 x 0.500) | SCREW (#6 x .500) | 4 |
| 21 | F411420 | 开关板固定座 | RETAINER SWITCH PLATE | 1 |
| 22 | 8177821 | 钥匙组A型 | KEY SET Stamped A | 1 |
| - | 8178831 | 钥匙组B型 | KEY SET Stamped B | 1 |
| - | 8178911 | 钥匙组C型 | KEY SET Stamped C | 1 |
| - | 8179281 | 钥匙组D型 | KEY SET Stamped D | 1 |
| - | 8179291 | 钥匙组E型 | KEY SET Stamped E | 1 |
| 23 | F5H078 | 点火开关套件(含钥匙和螺钉) | SWITCH KIT Ignition - With Keys And Screws | 1 |
| 24 | F1515 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 25 | F1280 | 螺钉 (#8-32 x .250) | SCREW (#8-32 x .250) | 5 |
| 26 | F8096 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 27 | F1513 | 螺母 (#10-32) | NUT (#10-32) | 6 |
| 28 | F1975 | 锁紧垫圈(#10) | LOCKWASHER (#10) | 4 |
| 29 | F1854 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 2 |
| 30 | F460917 | 启动继电器 | RELAY Starter | 1 |
| 31 | F1648 | 螺钉(#10-24 x 0.750) | SCREW (#10 - 24 x .750) | 2 |
| 32 | F307317 | 接地端子块夹 | CLIP TERMINAL BLOCK GROUND | 1 |
| 33 | FA510497 | 端子块总成 | BLOCK ASSEMBLY Terminal | 1 |
| 34 | F296898 | 接线端子 | TERMINAL | 1 |
| 35 | F510460 | 断电器 | BREAKER | 1 |
| 36 | F510374 | 断路器贴花-美国版 | DECAL CIRCUIT BREAKER - USA | 1 |
| - | FC510374 | 断路器贴花-加拿大版 | DECAL CIRCUIT BREAKER - CANADA | 1 |
| 37 | F1733 | 不锈钢螺钉(#10-24 x .562) | SCREW (#10-24 x .562) SS | 2 |
| 38 | F85843-1 | 电动控制线束总成 | CABLE ASSEMBLY Electric Control | 1 |
| 39 | F91446-1 | 断路器支架 | BRACKET Circuit Breaker | 1 |
| 40 | FC529398 | 线路图贴花 | DECAL WIRING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

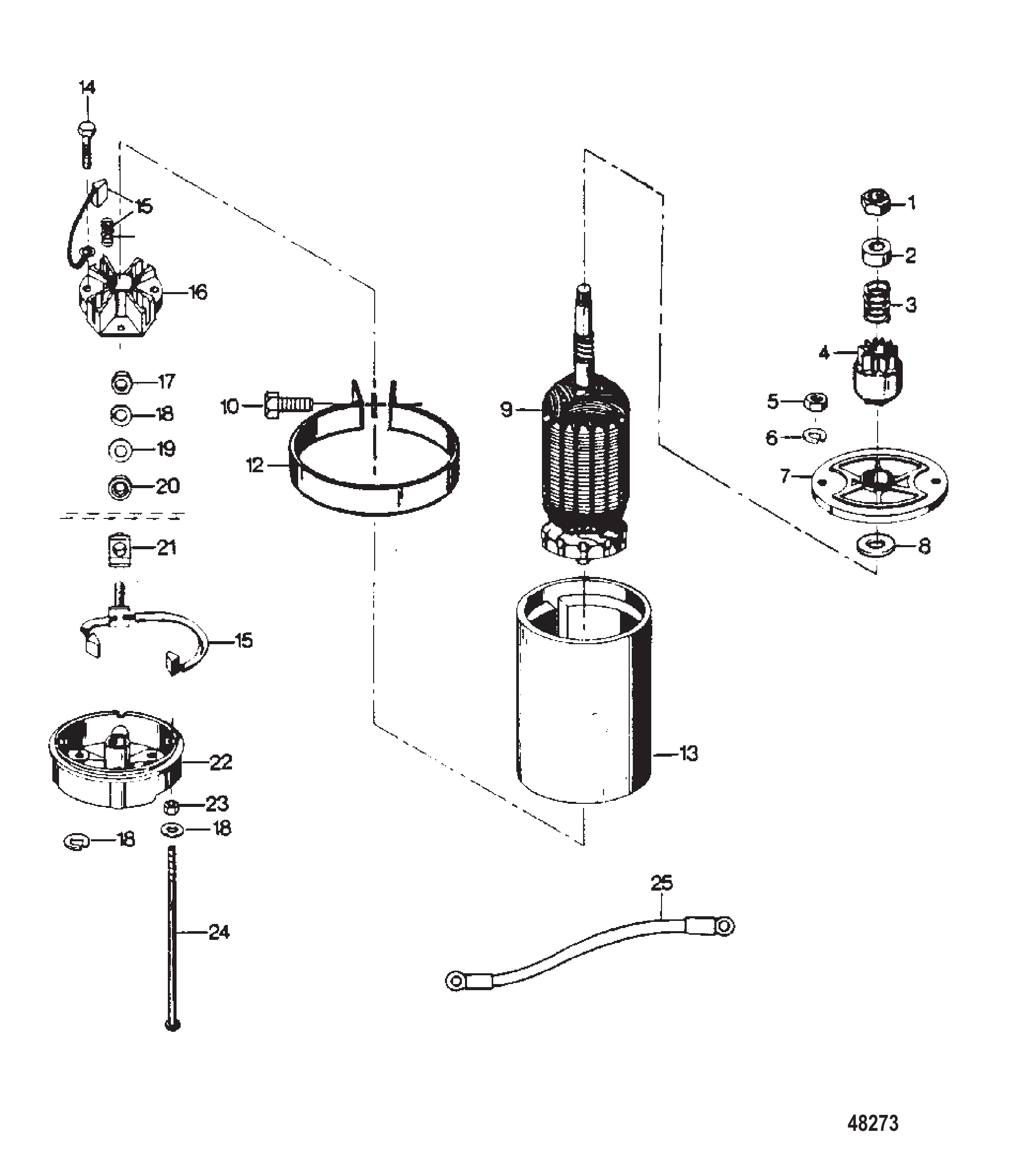

| 1 | F15147 | 小齿轮止动螺母 | STOP NUT Pinion | 1 |
| 2 | F15148 | 小齿轮止动件 | STOP Pinion | 1 |
| 3 | F15149 | 防漂移弹簧 | SPRING Anti-Drift | 1 |
| 4 | F15150 | 驱动小齿轮 | DRIVE Pinion | 1 |
| 5 | F1341 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 2 |
| 6 | F8083 | 锁紧垫圈(0.250) | LOCKWASHER (.250) | 2 |
| 7 | F15154 | 驱动端盖 | CAP Drive End | 1 |
| 8 | F15155 | 止推垫圈 | WASHER Thrust | 1 |
| 9 | F15156 | 电枢 | ARMATURE | 1 |
| 10 | F1705 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 1 |
| 11 | F8028 | 平垫圈 | WASHER Plain | 1 |
| 12 | F460573 | 启动电机卡箍 | CLAMP STARTER MOTOR | 1 |
| 14 | F15158 | 电刷架螺钉 | SCREW BRUSH HOLDER | 2 |
| 15 | F15164 | 电刷套件 | BRUSH KIT | 1 |
| 16 | F15157 | 电刷架 | HOLDER BRUSH | 1 |
| 17 | F15162 | 热线螺母 | NUT HOT LEAD | 1 |
| 18 | F15152 | 锁紧垫圈 | LOCKWASHER | 3 |
| 19 | F15161 | 垫圈 | WASHER | 1 |
| 20 | F15160 | 垫圈 | WASHER | 1 |
| 21 | F15159 | 绝缘体 | INSULATOR | 1 |
| 22 | F15163 | 换向器端盖 | CAP COMMUTATOR END | 1 |
| 23 | F15153 | 贯穿螺栓垫片隔套 | SPACER WASHER THRU BOLT | 1 |
| 24 | F15151 | 贯穿螺栓 | THRU BOLT | 2 |
| 25 | F85908-1 | 启动机电缆总成 | CABLE ASSEMBLY Starter | 1 |
| - | F514955 | 启动电机总成(未图示) | STARTER MOTOR ASSEMBLY (NOT SHOWN) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

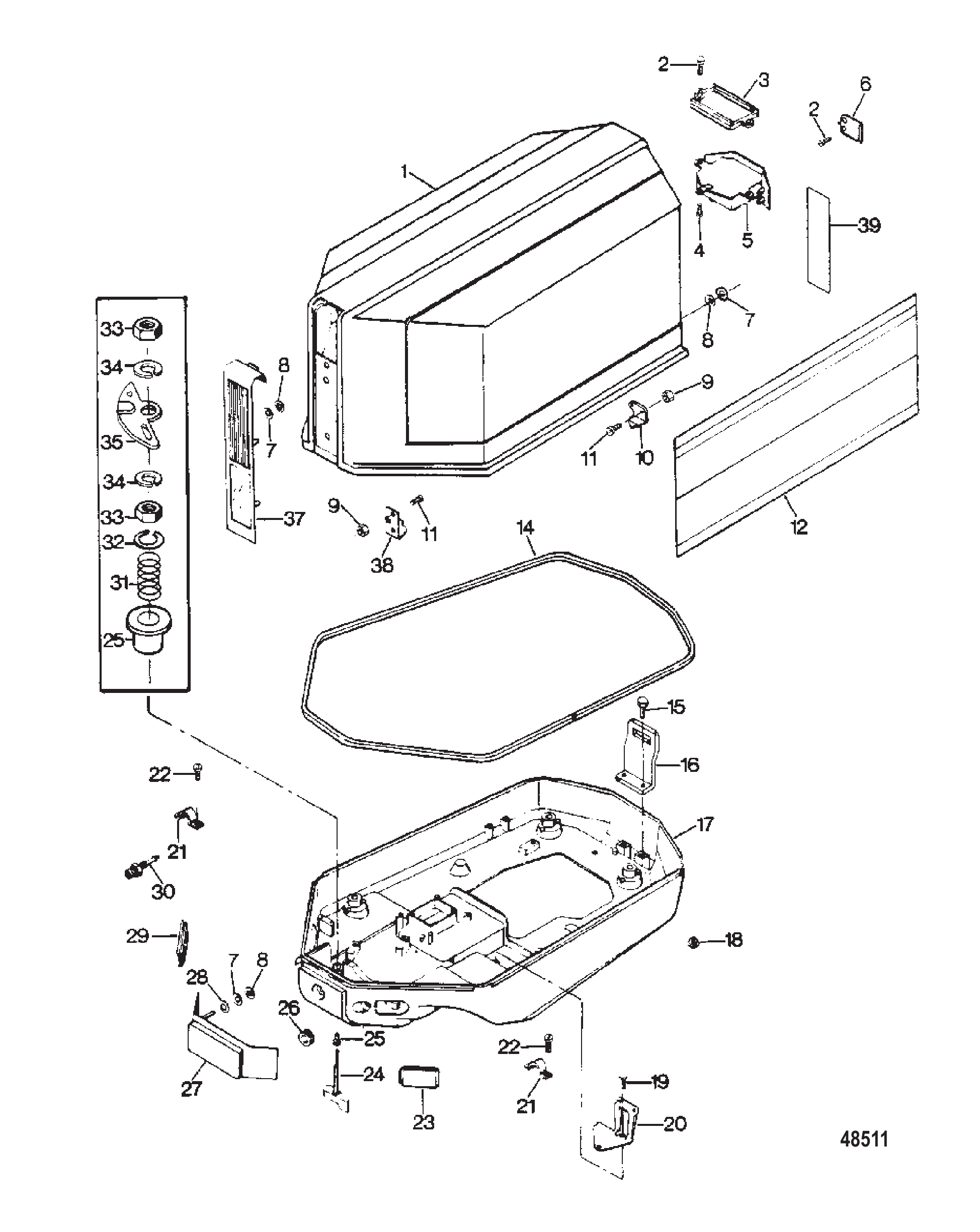

| 1 | 818015A1 | 发动机罩 | ENGINE COVER | 1 |
| - | F2C659712 | 盖总成 | COVER ASSEMBLY | 1 |
| 2 | F2066 | 螺钉(10 x 0.437) | SCREW (10 X .437) | 6 |
| 3 | F458245-1 | 挡板 | BAFFLE | 1 |
| 4 | F2025 | 螺钉(10 x 0.625) | SCREW (10 x .625) | 1 |
| 5 | 817842A1 | 倾斜手柄 | TILT HANDLE | 1 |
| 6 | F463864 | 倾斜手柄固定座 | RETAINER Tilt Handle | 2 |
| 7 | F85735-1 | 密封件 | SEAL | 5 |
| 8 | F1753 | 紧固件 | FASTENER | 5 |
| 9 | F7011 | 螺母 (10-24) | NUT (10-24) | 4 |
| 10 | FA458480 | 发动机盖后部固定器总成 | RETAINER ASSEMBLY Engine Cover - Rear | 1 |
| 11 | F1475 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 4 |
| 12 | F659397 | 发动机盖左舷贴花 | DECAL ENGINE COVER - PORT | 1 |
| - | F659396 | 右舷贴花 | DECAL STARBOARD | 1 |
| 14 | F85756 | 发动机盖支撑板密封垫 | PACKING Support Plate ENGINE COVER | 1 |
| 15 | F1922 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 2 |
| 16 | F461774 | 后部固定器支架 | BRACKET RETAINER REAR | 1 |
| 17 | F458038-2 | 支撑板 | PLATE Support | 1 |
| 18 | F1632 | 堵头 | PLUG | 1 |
| 19 | F1236 | 螺钉 (.250-20 x .50) | SCREW (.250-20 x .50) | 2 |
| 20 | F458371 | 遥控油门线支架 | BRACKET REMOTE THROTTLE CABLE | 1 |
| 21 | F154317 | 遥控线夹 | CLAMP REMOTE CABLE | 2 |
| 22 | F2107 | 螺钉与锁紧垫圈 (10 - 24 X .625) | SCREW AND LOCKWASHER (10 - 24 X .625) | 4 |
| 23 | F462840 | 遥控油门线护孔环 | GROMMET REMOTE THROTTLE CABLE | 1 |
| 24 | FA413469 | 盖锁手柄总成 | HANDLE ASSEMBLY Cover Latch | 1 |
| 25 | F307818 | 锁轴轴承 | BEARING LATCH SHAFT | 2 |
| 26 | F53504 | 支撑板护孔环 | GROMMET SUPPORT PLATE | 1 |
| 27 | 817813A1 | 盖支撑板 | COVER SUPPORT PLATE | 1 |
| 28 | F8011 | 垫圈 | WASHER | 1 |
| 29 | F462840 | 遥控换挡线护孔环 | GROMMET REMOTE SHIFT CABLE | 1 |
| 30 | F434767 | 燃油管衬套 | BUSHING FUEL LINE | 1 |
| 31 | F183300 | 锁轴弹簧 | SPRING LATCH SHAFT | 1 |
| 32 | F185764 | 挡圈 | RING Retaining | 1 |
| 33 | F1515 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 34 | F8096 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 35 | F89777-1 | 锁紧凸轮 | CAM Latch | 1 |
| 37 | FK603711 | 前板 | PLATE FRONT | 1 |
| 38 | FA458778 | 发动机盖前部固定器总成 | RETAINER ASSEMBLY ENGINE COVER FRONT | 1 |
| 39 | F659528 | 发动机盖后部贴花 | DECAL ENG. COVER REAR | 1 |

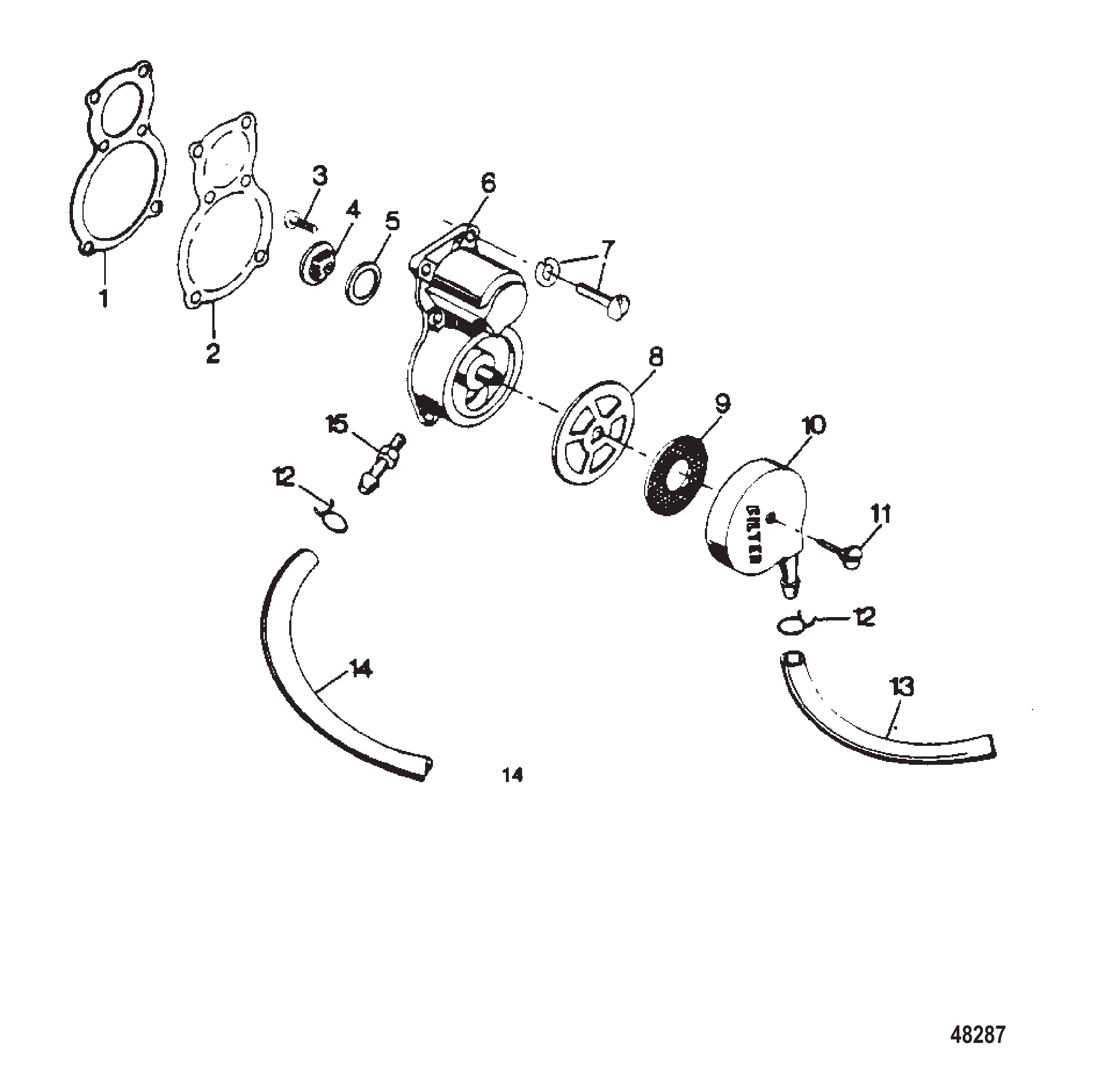

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F438760 | 衬垫 | GASKET | 1 |
| 2 | F438747 | 隔膜 | DIAPHRAGM | 1 |
| 3 | F1860 | 螺丝(#6-32 x .250) | SCREW (#6-32 x .250) | 2 |
| 4 | F177330 | 阀门 | VALVE | 3 |
| 5 | F84792 | 衬垫 | GASKET | 1 |
| 6 | FA438431 | 燃油泵体总成 | BODY ASSEMBLY Fuel Pump | 1 |
| 7 | F1108 | 填充头螺钉 (.250-20 x .750) | SCREW Fill Head (.250-20 x .750) | 6 |
| 8 | F438617 | 燃油泵碗衬垫 | GASKET FUEL PUMP BOWL | 1 |
| 9 | F438653 | 燃油泵滤网 | SCREEN FUEL PUMP | 1 |
| 10 | F438500 | 滤杯 | BOWL | 1 |
| 11 | F438165 | 燃油泵碗螺钉 | SCREW FUEL PUMP BOWL | 1 |
| 12 | F97772 | 卡箍 | CLAMP | 4 |
| 13 | FA85754-1 | 燃油泵至衬套软管 | HOSE FUEL PUMP TO BUSHING | 1 |
| 14 | F458754 | 燃油泵至化油器软管 | HOSE FUEL PUMP TO CARBURETOR | 1 |
| 15 | F438801 | 燃油泵体弯头 | ELBOW FUEL PUMP BODY | 1 |

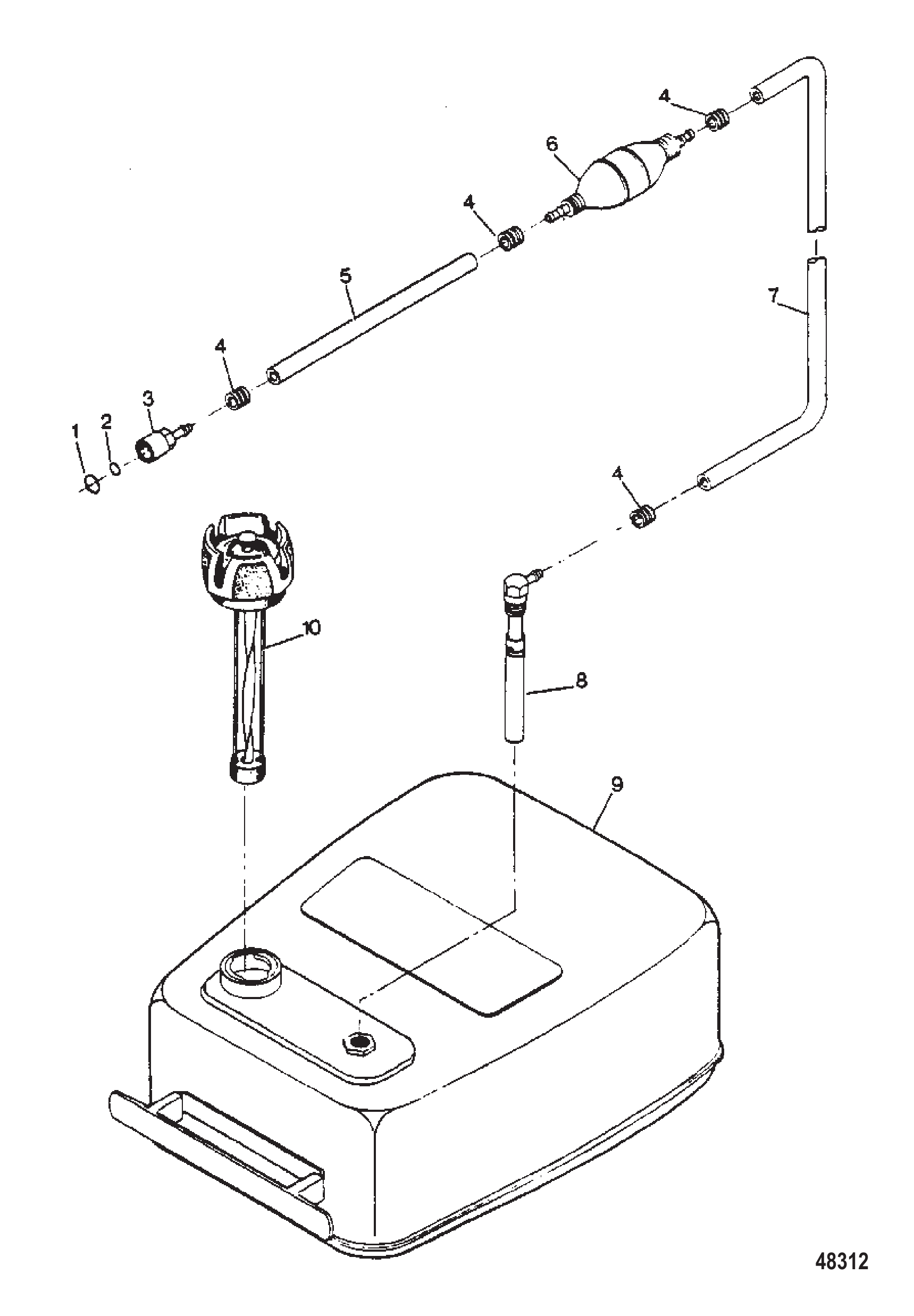

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F17816 | 燃油管接头密封圈 (大) | SEAL FUEL LINE COUPLER (LARGE) | 1 |
| 2 | F17815 | 燃油管接头密封圈 (小) | SEAL FUEL LINE COUPLER (SMALL) | 1 |
| 3 | F197787-3 | 燃油接头 | COUPLER Fuel | 2 |
| 4 | F298788 | 套圈 | FERRULE | 4 |
| 5 | FA84754-1 | 燃油管路套件 | LINE KIT Fuel | 1 |
| 6 | 89396A38 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 7 | 817738A1 | 长燃油管路总成 | LINE ASSEMBLY Fuel LONG | 1 |
| 8 | F487755 | 燃油箱适配器 | ADAPTER Fuel Tank | 1 |
| 9 | F5H027-1 | 燃油箱总成 | TANK ASSEMBLY Fuel | 1 |
| 10 | F409251-1 | 燃油表盖总成 | CAP ASSEMBLY Fuel Gauge | 1 |
| - | FS409752 | 燃油管路总成 - 完整 (未显示) | LINE ASSEMBLY Fuel - Complete (NOT SHOWN) | 1 |
| - | FC409398 | 便携油箱贴花 - 加拿大 (未显示) | DECAL TOTE TANK - CANADA (NOT SHOWN) | 1 |
| - | F310398 | 警告贴花 (未显示) | DECAL WARNING (NOT SHOWN) | 1 |
| - | F17818 | 衬垫 (未显示) | GASKET (NOT SHOWN) | 1 |

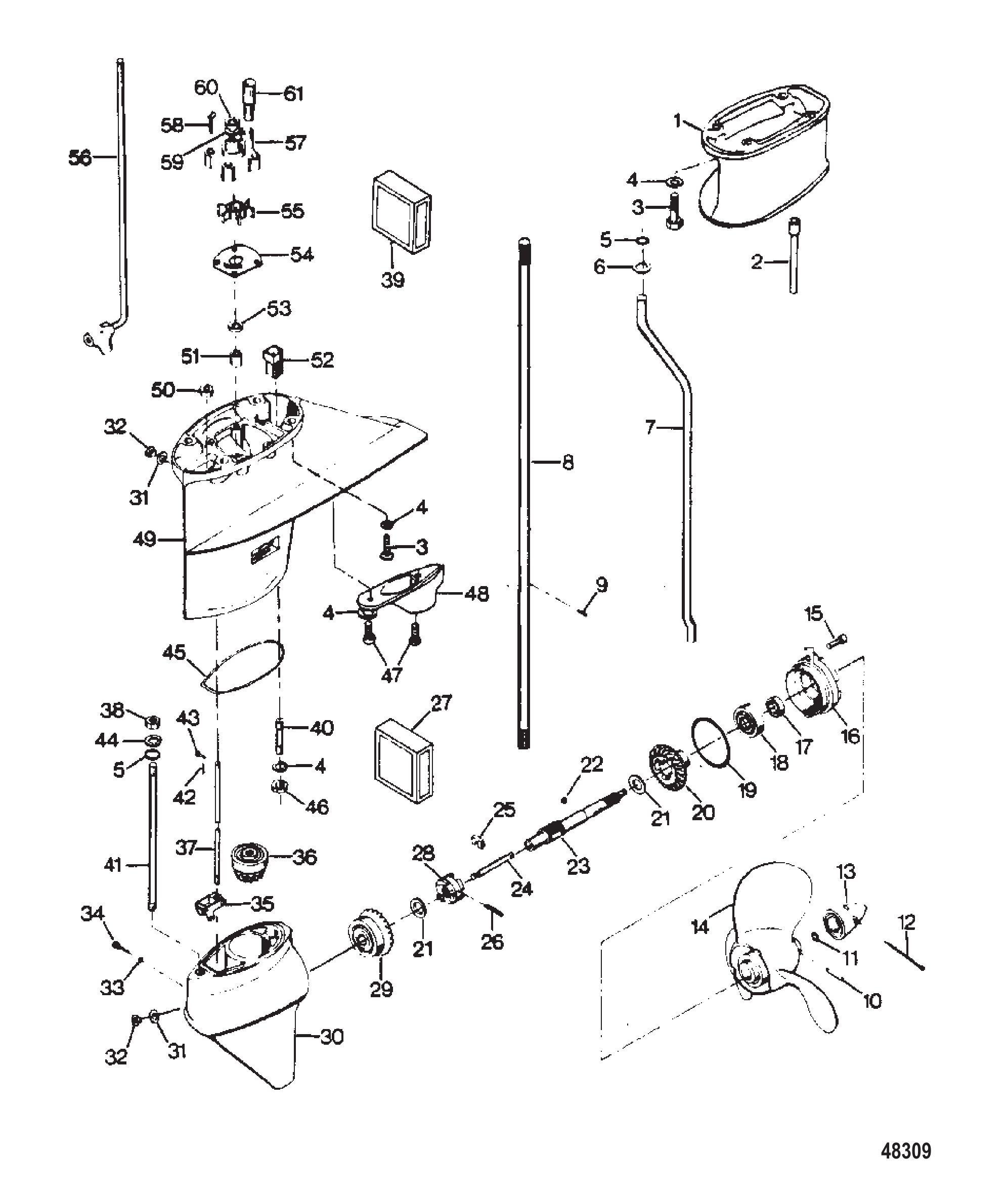

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F458845 | 发动机腿延长件 | EXTENSION MOTOR LEG | 1 |
| 2 | FS901244 | 进水口管路 - 延长进水口管路 | LINE Water Inlet - Extension INLET WATER LINE | 1 |
| 3 | F1929 | 螺钉 (.375 - 16 x 1.125) | SCREW (.375 - 16 x 1.125) | 8 |
| 4 | F8065 | 锁紧垫圈 (.375) | LOCKWASHER (.375) | 8 |
| 5 | F24342 | 进水口管路密封圈 | SEAL INLET WATER LINE | 2 |
| 6 | F2014 | 垫圈 | WASHER | 3 |
| 7 | F458244-1 | 进水管道 | LINE Water Inlet | 1 |
| 8 | F462128 | 驱动轴 | DRIVESHAFT | 1 |
| 9 | F901563 | PIN Drive WATER PUMP IMPELLER | 1 | |
| 10 | FK247 | SHEAR PIN KIT PACK OF 6 | 1 | |
| 11 | F40342 | 螺旋桨螺母密封圈 | SEAL PROPELLER NUT | 1 |
| 12 | F1027 | 销 (.125 x .500) 不锈钢 | PIN (.125 x .500) SS | 1 |
| 13 | FA94094-2 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| 14 | FP273 | 螺旋桨 (配件) | PROPELLER (ACCESSORY ITEM) | 1 |
| 15 | F1263 | 螺钉(0.312-18x0.562)不锈钢 | SCREW (.312-18 x .562) SS | 2 |
| 16 | 817731A5 | 螺旋桨轴轴承保持架总成 | CAGE ASSEMBLY Propshaft Bearing | 1 |
| 17 | F141118 | 螺旋桨轴油封 | SEAL PROPELLER SHAFT | 1 |
| 18 | F366058 | 螺旋桨轴球轴承 | BEARING Ball PROPELLER SHAFT | 1 |
| 19 | F141305 | SEAL PROPELLER SHAFT BEARING CAGE | 1 | |
| 20 | FA458662 | 后齿轮总成 | GEAR ASSEMBLY Rear | 1 |
| 21 | F40717 | 止推垫片 | THRUST WASHER | 2 |
| 22 | F366727 | BALL PROPELLER SHAFT | 1 | |
| 23 | 819500A3 | 螺旋桨轴总成 | PROPELLER SHAFT ASSEMBLY | 1 |
| 24 | F90871-3 | 换挡臂销 | PIN Gear Shift Arm | 1 |
| 25 | F90619-2 | 换挡臂轭 | YOKE GEAR SHIFT ARM | 1 |
| 26 | F2097 | 弹簧销 | PIN Spring | 1 |
| 27 | FK1068 | 下齿轮箱密封套件 | SEAL KIT Lower Gear Housing | 1 |
| 28 | F99521-1 | 离合器 | CLUTCH | 1 |
| 29 | FS458023 | 前齿轮总成 | GEAR ASSEMBLY Front | 1 |
| 30 | 817804A3 | 下齿轮箱总成 | GEAR HOUSING ASSEMBLY Lower | 1 |
| - | 817896A2 | 下部齿轮箱总成 (未显示) | GEAR HOUSING ASSEMBLY Lower (NOT SHOWN) | 1 |
| 31 | F8077 | WASHER GEAR HOUSING PLUG | 2 | |
| 32 | F50109 | SCREW GEAR HOUSING | 2 | |
| 33 | F498618 | O型密封圈 | SEAL "O" RING | 1 |
| 34 | F498891 | 换挡臂枢轴销 | PIN Gear Shift Arm Pivot | 1 |
| 35 | 817796A2 | 换挡臂总成 | ARM ASSEMBLY Gear Shift | 1 |
| 36 | F2A458266 | 小齿轮总成 | GEAR ASSEMBLY Pinion | 1 |
| 37 | F435705 | 下换挡杆 | ROD Lower Gear Shift | 1 |
| 38 | F7004 | 螺母（.375-16） | NUT (.375-16) | 1 |
| 39 | FK1053 | 水泵套件 | PUMP KIT Water | 1 |
| 40 | F40008 | STUD SHORT | 1 | |
| 41 | F97008-1 | STUD LONG | 1 | |
| 42 | F1015 | 开口销 | COTTER PIN | 1 |
| 43 | F85372 | PIN GEAR SHIFT ROD LOWER | 1 | |
| 44 | F2014 | 垫圈 | WASHER | 1 |
| 45 | F435555 | 齿轮箱密封件 | SEAL GEAR HOUSING | 1 |
| 46 | F1346 | 螺母 (.375-16) 不锈钢 | NUT (.375-16) SS | 1 |
| 47 | F2008 | 螺钉(.250-20 x .875) | SCREW (.250-20 x .875) | 2 |
| 48 | FA435116 | 鼻部 | SNOUT | 1 |
| 49 | FA502554 | 上齿轮箱总成 | GEAR HOUSING ASSEMBLY Upper | 1 |
| 50 | F338618-1 | SEAL SHIFT ROD LOWER | 1 | |
| 51 | F458057 | 上驱动轴轴承 | BEARING DRIVESHAFT UPPER | 1 |
| 52 | F435077 | 进水口滤网 | SCREEN WATER INLET | 1 |
| 53 | F458307 | 驱动轴密封圈 | SEAL DRIVESHAFT | 1 |
| 54 | F435562 | 后板 | PLATE Back | 1 |
| 55 | F462065 | 水泵叶轮 | IMPELLER Water Pump | 1 |
| 56 | FA435616 | 中间换挡杆总成 | ROD ASSEMBLY Intermediate Gear Shift | 1 |
| 57 | FA513060 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 58 | F2030 | 螺钉 (.250-20 x 1.250) 不锈钢 | SCREW (.250-20 x 1.250) Stainless Steel | 4 |
| 59 | F513388 | 水泵定位盘 | DISC WATER PUMP LOCATING | 1 |
| 60 | F458736 | 水泵密封圈 | SEAL WATER PUMP | 1 |
| 61 | FA510914 | 下部进水口管路密封圈 | SEAL Water Line INLET WATER LINE LOWER | 1 |

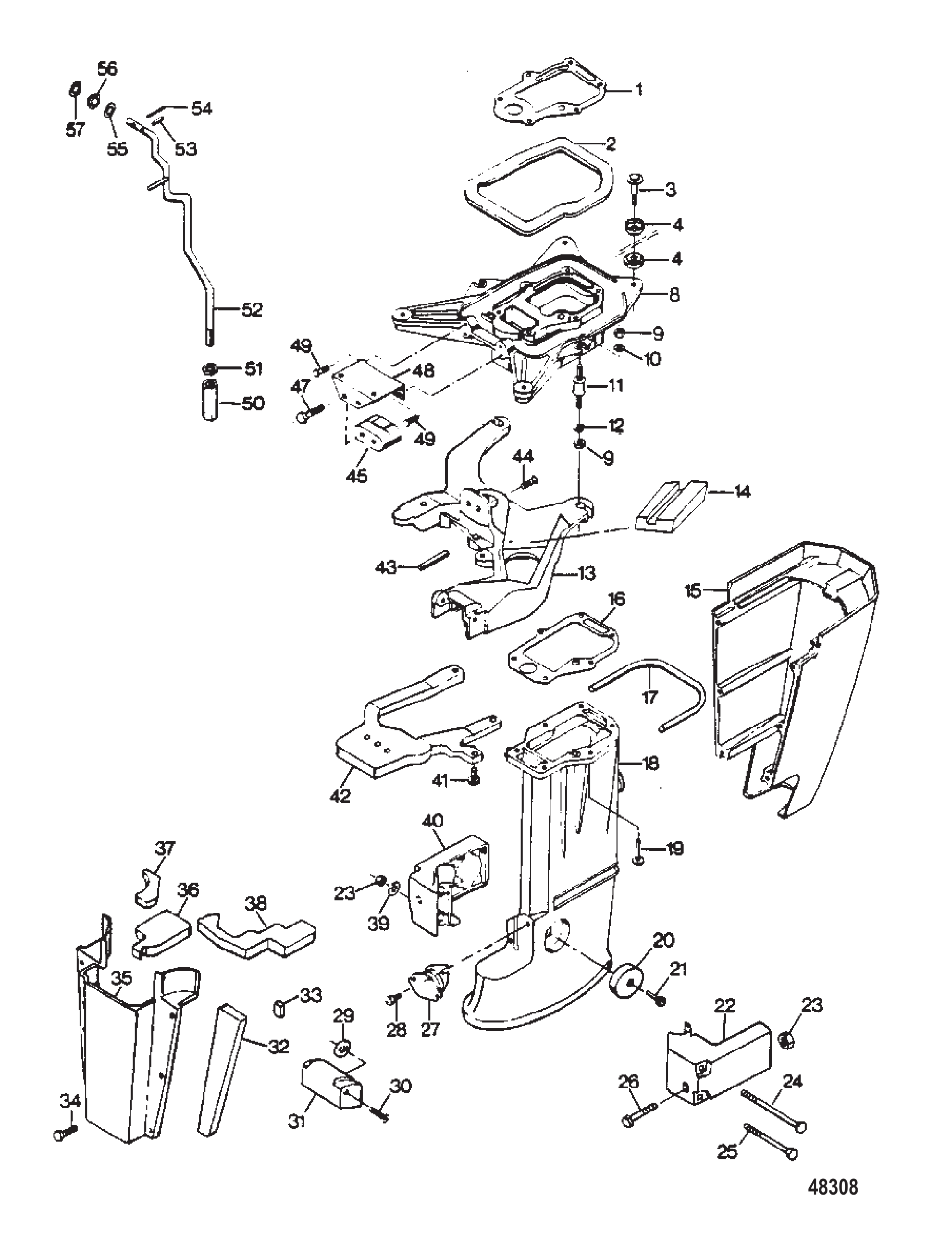

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F458279 | 气缸排气衬垫 | GASKET CYLINDER EXHAUST | 1 |
| 2 | F183756-1 | 支撑板密封垫 | PACKING SUPPORT PLATE | 1 |
| 3 | F458887 | 支撑板紧固件 | FASTENER SUPPORT PLATE | 4 |
| 4 | F458347 | 安装支撑板 | MOUNT SUPPORT PLATE | 8 |
| 8 | F458963 | 减震器安装板 | PLATE SHOCK MOUNT | 1 |
| 9 | F1346 | 螺母 (.375-16) 不锈钢 | NUT (.375-16) SS | 4 |
| 10 | F1778 | 垫圈 | WASHER | 2 |
| 11 | F458962 | 减震器 | SHOCK MOUNT | 2 |
| 12 | F458076 | 侧边减震器固定片 | TAB SHOCK MOUNT SIDE | 2 |
| 13 | 817809A1 | 主销安装板 | PLATE KINGPIN MOUNTING | 1 |
| 14 | F458345 | 主销安装板垫片 | PAD KINGPIN MOUNTING PLATE | 1 |
| 15 | 818057A1 | 后腿盖带衬垫 | LEG COVER REAR W/PACKING | 1 |
| 16 | F458453 | 腿排气衬垫 | GASKET LEG EXHAUST | 1 |
| 17 | F458322 | 后腿盖衬垫 | PACKING LEG COVER REAR | 2 |
| 18 | F458133 | 马达腿 | MOTOR LEG | 1 |
| 19 | F458166-2 | 马达腿至气缸螺钉 | SCREW MOTOR LEG TO CYLINDER | 6 |
| 20 | F462962 | 侧边减震器 | SHOCK MOUNT Side | 2 |
| 21 | F1263 | 螺钉(0.312-18x0.562)不锈钢 | SCREW (.312-18 x .562) SS | 2 |
| 22 | F458973-1 | 左舷减震器盖 | COVER SHOCK MOUNT PORT | 1 |
| 23 | F1515 | 螺母(.312-18) | NUT (.312-18) | 4 |
| 24 | F2006 | SCREW (.312 - 18 x 4.750) | SCREW (.312 - 18 x 4.750) | 1 |
| 25 | F2007 | SCREW (.312 - 18 x 4) | SCREW (.312 - 18 x 4) | 1 |
| 26 | F1696 | SCREW (.312 - 18 x 1.750) | SCREW (.312 - 18 x 1.750) | 2 |
| 27 | F183346-1 | 支架 | MOUNT | 1 |
| 28 | F1129 | SCREW Fill Head (.3125-18 x .500) | SCREW Fill Head (.3125-18 x .500) | 2 |
| 29 | F2018 | NUT Speed, (.250 - 20) | NUT Speed, (.250 - 20) | 2 |
| 30 | F2011 | SCREW (.250 - 20 x 1.250) | SCREW (.250 - 20 x 1.250) | 2 |
| 31 | FA460686 | 主销安装板盖 | COVER KINGPIN MOUNTING PLATE | 1 |
| 32 | F458312 | 侧腿盖衬垫 | PACKING LEG COVER SIDE | 2 |
| 33 | F458323-1 | 前腿盖衬垫 | PACKING LEG COVER FRONT | 3 |
| 34 | F1705 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 6 |
| 35 | 818056A2 | 前腿盖带衬垫 | LEG COVER FRONT W/PACKING | 1 |
| 36 | F458324 | 右舷前腿盖上衬垫 | PACKING LEG COVER FRONT UPPER-STARBOARD | 1 |
| 37 | F458315 | 侧腿上衬垫 | PACKING LEG COVER SIDE UPPER | 2 |
| 38 | F458320 | 左舷前腿上衬垫 | PACKING LEG COVER FRONT UPPER PORT | 3 |
| 39 | F8096 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 40 | F458972-1 | 右舷减震器盖 | COVER SHOCK MOUNT STARBOARD | 1 |
| 41 | F1745 | SCREW AND LOCKWASHER (.312 - 18 x 1) | SCREW AND LOCKWASHER (.312 - 18 x 1) | 3 |
| 42 | F385647 | 搬运手柄 | HANDLE Carrying | 1 |
| 43 | F1663 | 弹簧销 | PIN Spring SPRING | 1 |
| 44 | F1160 | 螺钉(.250-28 x .625) | SCREW (.250-28 x .625) | 2 |
| 45 | F203965 | 支架 | MOUNT | 1 |
| 47 | F1211 | SCREW AND LOCKWASHER (.250 - 28 x .625) | SCREW AND LOCKWASHER (.250 - 28 x .625) | 2 |
| 48 | F40956 | 减震器上推力支架 | BRACKET SHOCK MOUNT UPPER THRUST | 1 |
| 49 | F1922 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 4 |
| 50 | F141704 | 换挡杆联轴器 | COUPLER GEAR SHIFT ROD | 1 |
| 51 | F1349 | NUT (.312 - 18) SS | NUT (.312 - 18) SS | 1 |
| 52 | F458615 | 上换挡杆 | ROD Upper Gear Shift | 1 |
| 53 | F1978 | 弹簧销 | PIN Spring | 1 |
| 54 | F1020 | 开口销 | COTTER PIN | 1 |
| 55 | F8049 | 弓形垫圈 | WASHER Bowed | 1 |
| 56 | F85610 | 轴承 | BEARING | 2 |
| 57 | F1739 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

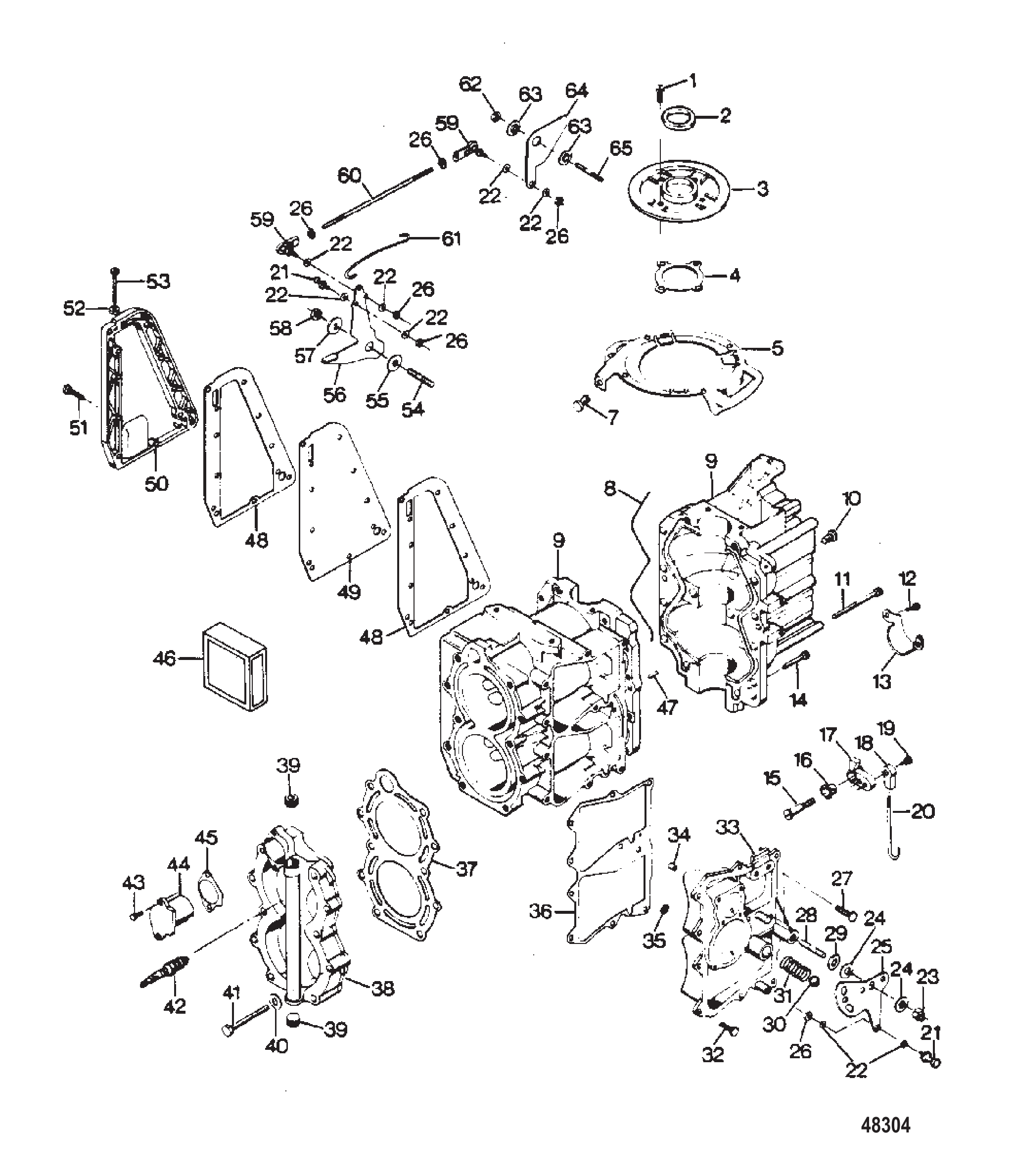

| 1 | F1107 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 4 |
| 2 | F458146 | 曲轴上主油封 | SEAL CRANKSHAFT UPPER MAIN | 1 |
| 3 | FA458144 | 曲轴轴承保持架总成 | CAGE ASSEMBLY Crankshaft Bearing | 1 |
| 4 | F458277 | 曲轴轴承保持架衬垫 | GASKET CRANKSHAFT BEARING CAGE | 1 |
| 5 | FA504082 | 磁电机定子环 | RING Magneto Stator | 1 |
| 7 | F1727 | 铆钉 | RIVET | 1 |
| 8 | F184122-1 | 曲轴箱分型线密封 | SEAL CRANKCASE PARTING LINE | 1 |
| 9 | FA573010 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| - | FC573010 | 短缸体总成 | SHORT BLOCK ASSEMBLY | 1 |
| 10 | F1864 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 8 |
| 11 | F2005 | SCREW (.312 - 18 x 2.750) | SCREW (.312 - 18 x 2.750) | 2 |
| 12 | F1689 | SCREW (.250 - 20 X .500) | SCREW (.250 - 20 X .500) | 2 |
| 13 | F460317 | 电启动电磁阀卡箍 | CLAMP SOLENOID FOR ELECTRIC START | 1 |
| 14 | F2013 | SCREW (.312 - 18 x 1.250) | SCREW (.312 - 18 x 1.250) | 4 |
| 15 | F85026 | 换挡互锁杆转轴 | SWIVEL SHIFT INTERLOCK LEVER | 1 |
| 16 | F307818 | 轴承 | BEARING | 1 |
| 17 | F458977-3 | 换挡联锁杆 | LEVER Shift Interlock | 1 |
| 18 | F84035-2 | 轴承 | BEARING | 1 |
| 19 | F84026 | 换挡互锁轴承转轴 | SWIVEL SHIFT INTERLOCK BEARING | 1 |
| 20 | 817805A1 | 换挡互锁杆说明书 | ROD SHIFT INTERLOCK LITERATURE | 1 |
| 21 | F98273 | 螺柱 | STUD | 2 |
| 22 | F8058 | 锁紧垫圈 | LOCKWASHER | 8 |
| 23 | F7004 | 螺母（.375-16） | NUT (.375-16) | 1 |
| 24 | F269052 | 轴承 | BEARING | 2 |
| 25 | 817808A2 | 换挡杆 | LEVER GEAR SHIFT | 1 |
| 26 | F1513 | 螺母 (#10-32) | NUT (#10-32) | 6 |
| 27 | F1922 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 1 |
| 28 | F440209 | 换挡杆螺柱 | STUD GEAR SHIFT LEVER | 1 |
| 29 | F2014 | 垫圈 | WASHER | 1 |
| 30 | F458727 | 换挡杆定位球 | BALL SHIFT LEVER DETENT | 1 |
| 31 | F183300 | 换挡定位弹簧 | SPRING SHIFT DETENT | 9 |
| 32 | F1922 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 9 |
| 33 | FA659222 | 换气口盖 | COVER Transfer Port | 1 |
| 34 | 817741A1 | 止回阀套件 | CHECK VALVE KIT | 2 |
| 35 | F429811 | 气缸排水滤网 | SCREEN CYLINDER DRAIN | 2 |
| 36 | F458223 | 换气口盖垫片 | GASKET TRANSFER PORT COVER | 1 |
| 37 | F513529 | 气缸盖衬垫 | GASKET CYLINDER HEAD | 1 |
| 38 | FA513518 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 39 | F458109 | 气缸盖塞 | PLUG CYLINDER HEAD | 2 |
| 40 | F1739 | 垫圈(电启动) | WASHER (ELECTRIC START) | 7 |
| 41 | F458936 | 气缸盖螺钉 | SCREW CYLINDER HEAD | 10 |
| 42 | 82370M | 火花塞(L82C) | SPARK PLUG (L82C) | 2 |
| - | FC503227 | PLUG (CHAMPION QL-77-J4) FOR CANADA | PLUG (CHAMPION QL-77-J4) FOR CANADA | 2 |
| 43 | F1854 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 2 |
| 44 | F458066 | 节温器盖 | COVER Thermostat | 1 |
| 45 | F458067 | 节温器盖衬垫 | GASKET THERMOSTAT COVER | 1 |
| 46 | FG1014 | 衬垫套件 | GASKET SET | 1 |
| - | F84792 | 燃油泵阀衬垫 | GASKET FUEL PUMP VALVE | 3 |
| - | F433168 | 化油器适配器衬垫 | GASKET Carburetor Adapter | 1 |
| - | F433406 | 导流板衬垫 | GASKET DEFLECTOR PLATE | 1 |
| - | F438617 | 燃油泵碗衬垫 | GASKET FUEL PUMP BOWL | 1 |
| - | F438760 | 燃油泵垫片 | GASKET FUEL PUMP | 1 |
| - | F458067 | 节温器盖衬垫 | GASKET THERMOSTAT COVER | 1 |
| - | F458154 | 排气口板衬垫 | GASKET EXHAUST PORT PLATE | 2 |
| - | F458223 | 换气口盖垫片 | GASKET TRANSFER PORT COVER | 1 |
| - | F458277 | 曲轴轴承保持架衬垫 | GASKET CRANKSHAFT BEARING CAGE | 1 |
| - | F458279 | 气缸排气衬垫 | GASKET CYLINDER EXHAUST | 1 |
| - | F458453 | 腿排气衬垫 | GASKET LEG EXHAUST | 1 |
| - | F513529 | 气缸盖衬垫 | GASKET CYLINDER HEAD | 1 |
| 47 | F8559 | 销 | PIN | 2 |
| 48 | F458154 | 排气口板衬垫 | GASKET EXHAUST PORT PLATE | 2 |
| 49 | F458151 | 排气口板 | PLATE Exhaust Port | 1 |
| 50 | F458152 | 排气口盖 | COVER Exhaust Port | 1 |
| 51 | F1532 | 螺钉 (.250-20 x 1.00) | SCREW (.250-20 x 1.00) | 10 |
| 52 | F1341 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 53 | F1072 | SCREW (.250-20 x 1.75) Fill Head | SCREW (.250-20 x 1.75) Fill Head | 1 |
| 54 | F286440 | 磁电机控制杆螺柱 | STUD MAGNETO CONTROL LEVER | 1 |
| 55 | F183813 | 控制杆轴承 | BEARING Control Lever | 1 |
| 56 | F2A458081 | 磁电机控制杆总成 | LEVER ASSEMBLY Magneto Control | 1 |
| 57 | F286282 | 垫圈 | WASHER | 1 |
| 58 | F1803 | 螺母(.312-24) | NUT (.312-24) | 1 |
| 59 | 8177471 | 带球头轴承总成 | BEARING With Ball Joint BALL ASSEMBLY | 2 |
| 60 | F458502 | 节气门凸轮杆 | ROD THROTTLE CAM | 1 |
| 61 | F458509 | 磁电机定子连杆 | LINK MAGNETO STATOR | 1 |
| 62 | F1910 | 螺母 | NUT | 1 |
| 63 | F269319 | BEARING THROTTLE CAM | 2 | |
| 64 | F458192 | 节气门凸轮 | CAM Throttle | 1 |
| 65 | F433209-1 | 节气门凸轮螺柱(.250-20 x 1.250) | STUD (.250-20 x 1.250) THROTTLE CAM | 1 |

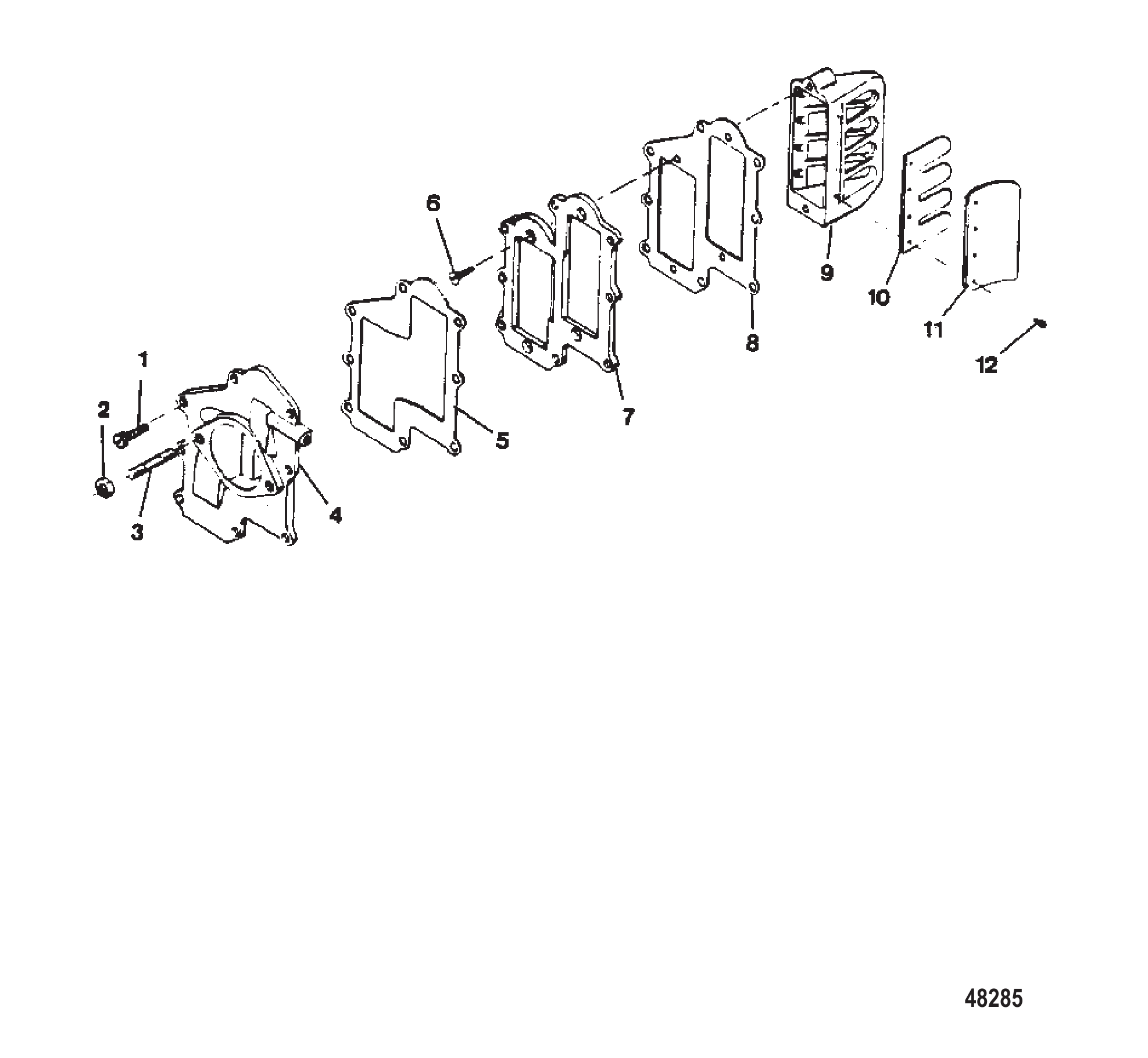

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F2008 | 螺钉(.250-20 x .875) | SCREW (.250-20 x .875) | 8 |
| 2 | F1515 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 3 | F40209 | 螺柱 | STUD | 2 |
| 4 | FA458167 | 化油器适配器总成 | ADAPTER ASSEMBLY Carburetor | 1 |
| 5 | F433168 | 化油器适配器衬垫 | GASKET Carburetor Adapter | 1 |
| 6 | F1141 | 螺钉(10-24 x .500) | SCREW (10 - 24 x .500) | 4 |
| 7 | F433404 | 导流板 | PLATE Deflector | 1 |
| 8 | F433406 | 导流板衬垫 | GASKET DEFLECTOR PLATE | 1 |
| 9 | FA572158 | 簧片阀板总成 | REED PLATE ASSEMBLY | 2 |
| 10 | F316160 | 簧片 | REED | 4 |
| 11 | F88161-4 | 簧片止挡 | STOP Reed | 4 |
| 12 | F1755 | 圆头螺钉及锁紧垫圈(6-32 x .312) | SCREW AND LOCKWASHER Round Head, (6 - 32 x .312) | 16 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | FT8948-1 | 轴承拉拔器 | PULLER TOOL Bearing | |
| - | FT8919 | 弹簧销冲具 | PUNCH TOOL Spring Pin | |
| - | FT8907 | 驱动手柄 | HANDLE Driver | |
| - | FT8918 | 衬套导向安装工具 | GUIDE SET TOOL Bushing | |
| - | FT8921 | 前轴承杯拆卸工具 | REMOVER TOOL Front Bearing Cup | |
| - | FT8904 | 前轴承杯安装工具 | INSTALLER TOOL Front Bearing Cup | |
| - | FT8972 | 密封安装工具 | INSTALLER TOOL Seal | |
| - | FT8957 | 密封安装工具 | INSTALLER TOOL Seal | |
| - | FT8963 | 轴承安装工具 | INSTALLER TOOL Bearing | |
| - | FT8964 | 轴承拆卸工具 | REMOVER TOOL Bearing | |
| - | FT3431 | 密封安装工具 | INSTALLER TOOL Seal |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | FT2961 | 润滑剂 RYKON #2EP润滑脂 | LUBRICANT RYKON GREASE #2EP | |
| - | FT2987-1 | 防卡剂润滑剂 | LUBRICANT ANTI-SEIZE | |
| - | FT8969 | 润滑剂 7盎司 LPS #1 | LUBRICANT 7 OZ. LPS #1 LUBRICANT | |
| - | FT8983 | 密封胶 | SEALANT | |
| - | FT8936-1 | 密封剂 Loctite RC 609 2毫升 #75固持胶 | SEALANT Loctite RC 609 2 CC LOCTITE RETAINING COMPOUND #75 | |
| - | FT2962-1 | 密封剂 50毫升 Loctite H非硬化型 | SEALANT 50 CC LOCTITE H, NON-HARDENING GRADE | |
| - | FT2963-2 | 密封剂 2盎司 Loctite 271 | SEALANT 2 OZ. LOCTITE 271 | |
| - | FT8935 | 快速固定剂T型 | LOC QUICK T |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | FT8932 | 吊钩 | LIFTING HOOK | |
| - | FT2989 | 飞轮楔形工具 | WEDGE TOOL Flywheel | |
| - | FT2910 | 防松螺母 | KNOCK OFF NUT | |
| - | FT8971 | 密封安装工具 | INSTALLER TOOL Seal | |
| - | FT8967 | 油封保护工具 | PROTECTOR TOOL Seal | |
| - | FT2953 | 插座 | SOCKET | |
| - | FT2990 | 活塞销拆卸工具 | REMOVER TOOL Piston Pin | |
| - | FT8926 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | |
| - | FT2996 | 活塞环压缩工具 | COMPRESSOR TOOL Piston Ring | |
| - | FT8977 | 密封环安装工具 | INSTALLER TOOL Seal Collar | |
| - | FT8976 | 油封保护工具 | PROTECTOR TOOL Seal | |
| - | FT2998 | 扭矩扳手(0-100磅/英尺) | TORQUE WRENCH ( 0 - 100 lbs / ft ) | |
| - | FT2999 | 扭矩扳手(0-600磅/英寸) | TORQUE WRENCH ( 0 - 600 lbs / in ) | |
| - | FT2991 | 钢丝刷 | BRUSH Wire | |
| - | FT8900 | 软管卡钳 | PLIERS Hose Clamp | |
| - | FT1749 | 卡环钳 | PLIERS Snap Rings |

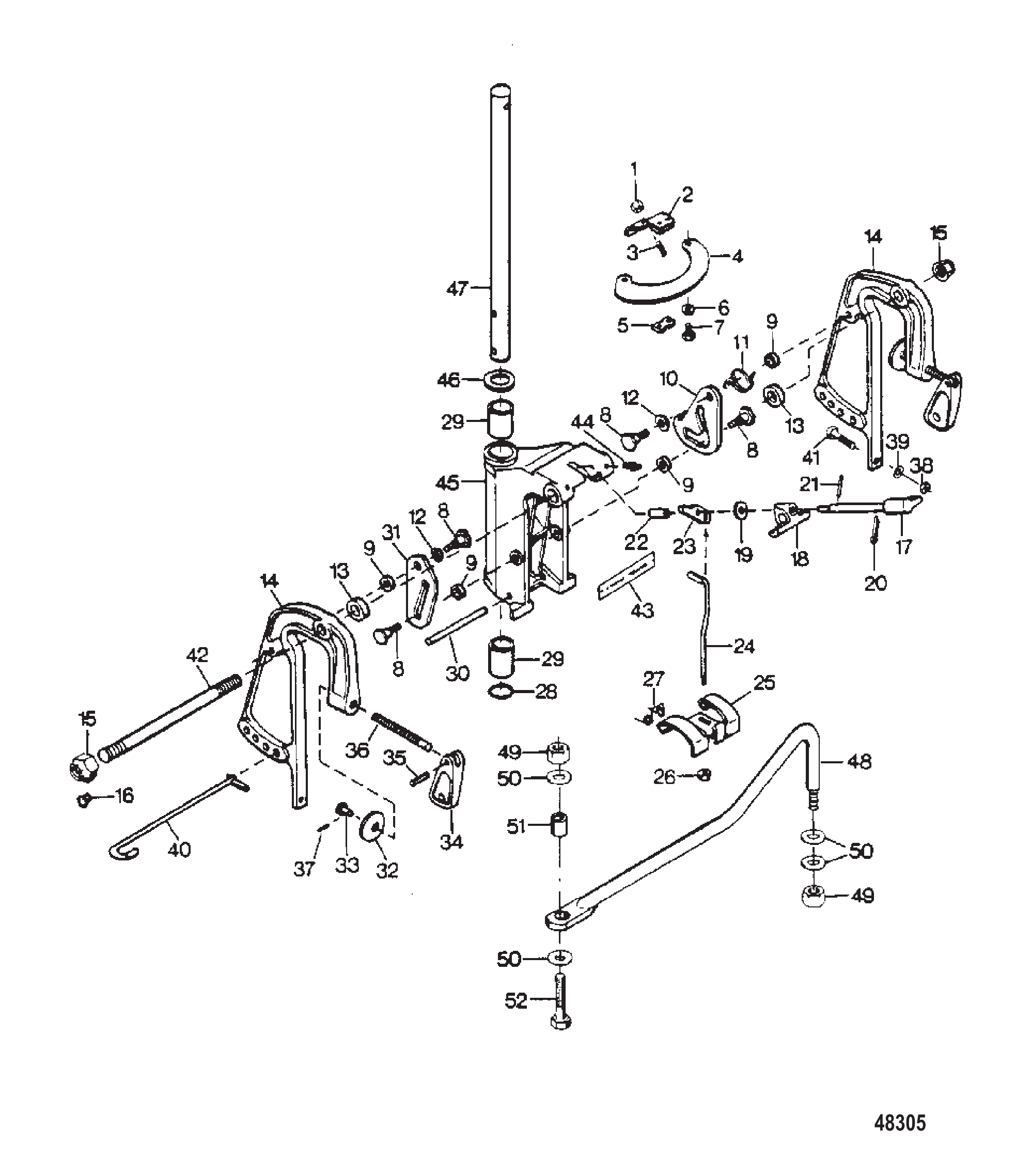

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F7024 | 螺母(.250-20) | NUT (.250 - 20) | 1 |
| 2 | 817882A1 | 摩擦蹄片调节臂 | FRICTION SHOE ADJUSTING ARM | 1 |
| 3 | F433209-1 | 旋转支架螺柱(.250-20 x 1.250) | STUD (.250-20 x 1.250) SWIVEL BRACKET | 1 |
| 4 | F901775 | 摩擦蹄片压板 | PLATE FRICTION SHOE | 1 |
| 5 | F901631-1 | 摩擦块 | SHOE Friction | 2 |
| 6 | F8083 | 锁紧垫圈(0.250) | LOCKWASHER (.250) | 2 |
| 7 | F1689 | SCREW (.250 - 20 X .500) | SCREW (.250 - 20 X .500) | 2 |
| 8 | F286422-1 | SCREW (.312-18 Special) TILT LOCK | 4 | |
| 9 | F286451 | 倾斜锁隔套 | SPACER Tilt Lock | 4 |
| 10 | F436541 | 倾斜锁 | LOCK Tilt | 1 |
| 11 | F286544-1 | 倾斜锁弹簧 | SPRING Tilt Lock | 1 |
| 12 | F1666 | 弓形弹簧垫圈 | WASHER Bowed Spring | 2 |
| 13 | F529286 | 旋转支架摩擦垫圈 | WASHER SWIVEL BRACKET FRICTION | 4 |
| 14 | FS602532 | 艉支架 | BRACKET Stern | 2 |
| 15 | F1600 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 16 | F4052 | 转向枢轴管塞 | PLUG PIVOT STEERING TUBE | 2 |
| 17 | F483827 | 倒挡锁止杆 | LEVER REVERSE LOCK | 1 |
| 18 | F529726 | 倒挡锁止轴承 | BEARING REVERSE LOCK | 1 |
| 19 | F8094 | 垫圈 | WASHER | 1 |
| 20 | F1014 | 开口销 | COTTER PIN | 1 |
| 21 | F1836 | 弹簧销 | PIN Spring | 1 |
| 22 | F483884 | 倒挡锁止轴承 | BEARING REVERSE LOCK | 1 |
| 23 | F366364 | 倒挡锁臂 | ARM REVERSE LOCK | 1 |
| 24 | F483510-1 | 倒挡锁止连杆 | LINK REVERSE LOCK | 1 |
| 25 | F483349-1 | 倒车锁 | LOCK Reverse | 1 |
| 26 | F1669 | 螺母（#6-32） | NUT (#6-32) | 1 |
| 27 | F483300 | 弹簧 | SPRING | 1 |
| 28 | F458783 | 旋转支架油封 | SEAL SWIVEL BRACKET | 1 |
| 29 | F901169-1 | 旋转支架轴承 | BEARING SWIVEL BRACKET | 2 |
| 30 | F2095 | 弹簧销 | PIN Spring | 1 |
| 31 | F385433 | 倾斜挡块 | STOP Tilt | 1 |
| 32 | F24074 | 艉支架地脚螺钉 | FOOT Stern Bracket Screw | 2 |
| 33 | F66480 | 螺柱 | STUD | 2 |
| 34 | F288075 | 艉支架夹紧螺钉手柄 | HANDLE Clamp Screw STERN BRACKET | 2 |
| 35 | F1638 | 弹簧销 | PIN Spring | 2 |
| 36 | 817776A3 | 夹紧螺钉总成 | CLAMP SCREW ASSEMBLY | 2 |
| 37 | F8537 | 弹簧销 | PIN Spring | 2 |
| 38 | F1515 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 39 | F1904 | 垫圈 | WASHER | 2 |
| 40 | FA324113 | 艉支架锁杆总成 | LOCK BAR ASSEMBLY Stern Bracket | 1 |
| 41 | F2027 | 螺钉(.312-18 x 3) | SCREW (.312 - 18 x 3) | 2 |
| 42 | F529125-1 | 转向枢轴管 | TUBE PIVOT STEERING | 1 |
| 43 | F529390-1 | 倒挡锁止标牌-美国版 | DECAL REVERSE LOCK - USA | 1 |
| 44 | F213274 | 接头 | FITTING | 3 |
| 45 | FA529072 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 46 | F901011 | 旋转支架垫圈 | WASHER SWIVEL BRACKET | 1 |
| 47 | F458019 | 主销 | KINGPIN | 1 |
| 48 | F5H102 | 转向连杆套件 | LINK KIT Steering | 1 |
| 49 | F2093 | 不锈钢螺母(.375-24) | NUT (.375-24) SS | 2 |
| 50 | F8038 | 垫圈 | WASHER | 4 |
| 51 | F523359 | 隔套 | SPACER | 1 |
| 52 | F2073 | 螺钉(.375-24 x 1.75) | SCREW (.375 - 24 x 1.75) | 1 |
