水星 Mercury 25 H.P. (1998) 0E288000 THRU 0E344999 - 爆炸图零件明细

Force 系列 · Australia - Cat.# 90-855372R1 · 共 19 个部位 · 576 条零件

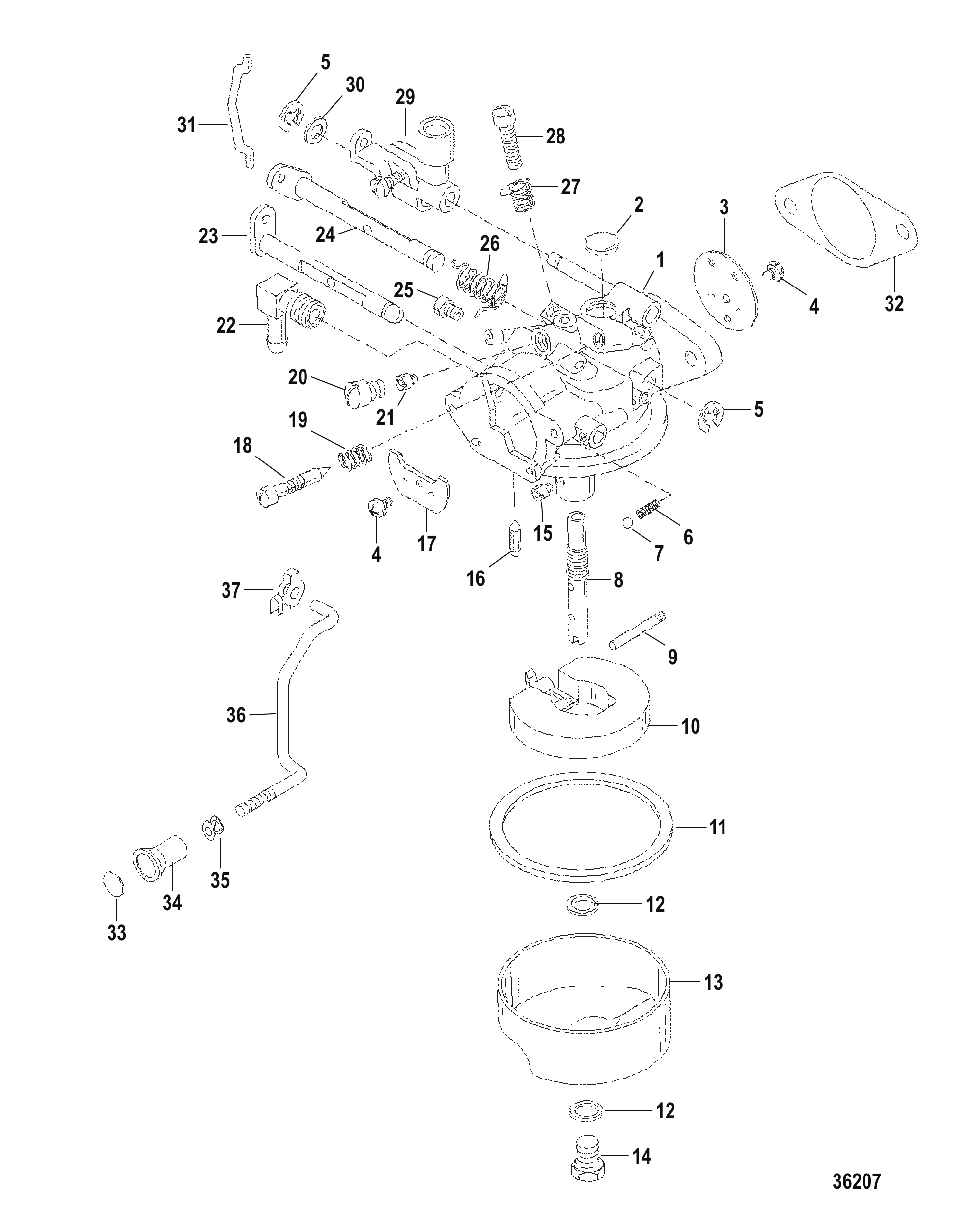

图 1化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	852551T1	化油器(FO-3D)	CARBURETOR (FO-3D)	1
2	FO16128	堵头	PLUG	1
3	809442	节气门片	SHUTTER Throttle	1
4	809441	百叶窗螺钉	SCREW Shutters	2
5	809446	节气门连杆E型环	E-RING Throttle Linkage	2
6	FO8805	阻风门摩擦弹簧	SPRING Choke Friction	1
7	FO4784	钢球	BALL	1
8	809624	主喷嘴	NOZZLE Main	1
9	FO13944	销	PIN	1
10	F10346	燃油杯浮子	FLOAT Fuel Bowl	1
11	FO15623	衬垫	GASKET	1
12	FO2510	燃油杯衬垫	GASKET Fuel Bowl	2
13	FO15366	燃油杯	BOWL Fuel	1
14	5128	螺钉	SCREW	1
15	809448	主量孔(.058)	JET Main (.058)	1
15	5213	主量孔(.056)	JET Main (.056)	OPT
15	5225	主量孔(.054)	JET Main (.054)	OPT
15	6359	量孔(.052)	JET (.052)	OPT
16	F10265	进油针阀	NEEDLE Inlet	1
17	F10344	阻风门片	SHUTTER Choke	1
18	F10268	螺钉	SCREW	1
19	27160	弹簧	SPRING	1
20	F10275	螺钉	SCREW	1
21	809625	节气门量孔(.046)	JET (.046)-THROTTLE	1
22	854005	燃油弯头	ELBOW Fuel	1
23	809440	阻风门轴及杆	SHAFT AND LEVER Choke	1
24	809439	节气门轴及杠杆	SHAFT AND LEVER Throttle	1
25	5225	主量孔怠速空气量孔（0.054）	JET Main (.054) IDLE AIR BLEED	1
26	F10350	节气门轴弹簧	SPRING Throttle Shaft	1
27	809445	怠速弹簧	SPRING Idle Speed	1
28	809444	怠速螺钉	SCREW Idle Speed	1
29	F10290	节气门连杆	LINKAGE Throttle	1
30	F10242	垫圈	WASHER	1
31	809443	节气门轴钢丝	WIRE Throttle Shaft	1
32	F715906	化油器安装垫片	GASKET Carburetor Mount	1
33	F681677	阻风门杆衬套	INSERT Choke Rod	1
34	F286547	阻风门旋钮	KNOB Choke	1
35	F197319	衬套	BUSHING	1
36	819154	阻风门拉杆	ROD Choke	1
37	830569	阻风门杆固定座	RETAINER Choke Rod	1
-	FK10352	化油器衬垫组	GASKET SET Carburetor	1
-	809449A1	化油器维修套件	REPAIR KIT Carburetor	1
-	809516A1	动力头衬垫套件	GASKET SET Powerhead	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

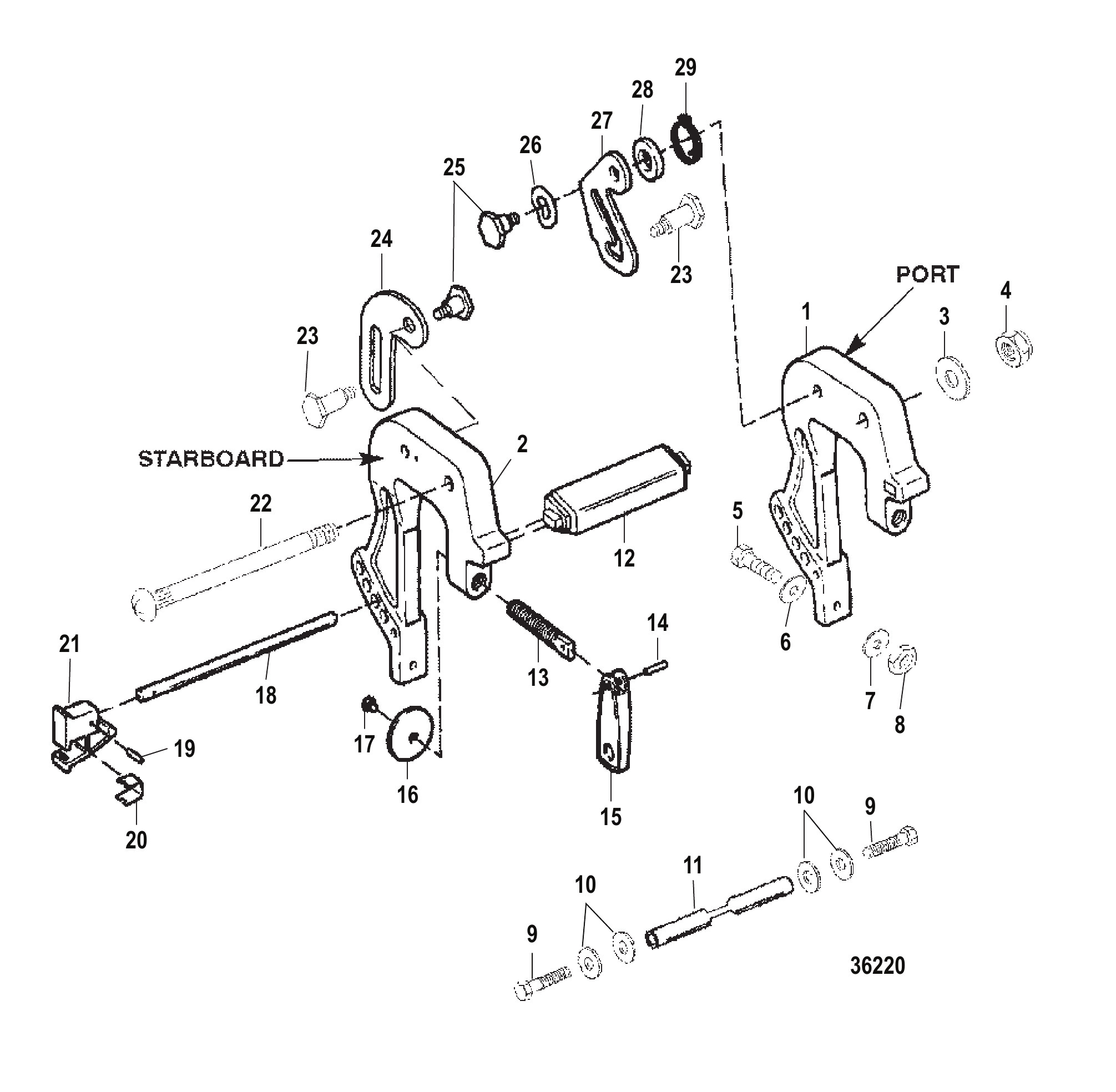

图 2夹紧支架 Clamp Brackets

REF	零件编号	中文名称	英文名称	数量
1	850073T6	艉支架(喷漆)(左舷)	BRACKET Stern (PAINTED) (PORT)	1
2	850073T7	艉支架(喷漆)(右舷)	BRACKET Stern (PAINTED) (STARBOARD)	1
3	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	1
4	F7026	螺母（.375-16）	NUT (.375-16)	1
5	832820	安装螺钉（0.250-20×3.00）	SCREW (.250-20 X 3.00)-MOUNTING	2
6	29245	不锈钢薄垫圈（0.281×0.500×0.060）-安装用	WASHER (.281 x .500 x .060) Stainless Steel (THIN)-MOUNTING	2
7	67983	垫圈	WASHER	2
8	13855	安装螺母（0.250-20）	NUT (.250-20) MOUNTING	2
9	4000332	螺钉(M6x35)	SCREW (M6 x 35)	2
10	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
11	852963	隔套	SPACER	1
12	830564	搬运手柄	HANDLE Carrying	1
13	826248	艉支架螺钉	SCREW Stern Bracket	2
14	24198	滚动销	PIN Roll	2
15	F424075T3	夹紧螺丝手柄(喷漆)	HANDLE Clamp Screw (PAINTED)	2
16	F24074	艉支架地脚螺钉	FOOT Stern Bracket Screw	2
17	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
18	851924A2	倾斜销总成-艉支架	PIN ASSEMBLY Tilt - Stern Bracket	1
19	38489	滚动销	PIN Roll	1
20	F286461	弹簧	SPRING	1
21	851929	锁杆手柄	HANDLE Lock Bar	1
22	850185	枢轴螺栓-艉支架（0.375-16×7.375）	BOLT Pivot - Stern Bracket (.375-16 X 7.375)	1
23	819707	倾斜锁销（0.250-20）	PIN Tilt Lock (.250-20)	2
24	826251	倾斜锁杆	LEVER Tilt Lock	1
25	F286422-1	特殊螺钉(.312-18)	SCREW (.312-18 Special)	2
26	69150	波形垫圈	WAVE WASHER	1
27	F429541	倾斜锁	LOCK Tilt	1
28	819226	倾斜锁隔套	SPACER Tilt Lock	1
29	F286544-1	倾斜锁弹簧	SPRING Tilt Lock	1

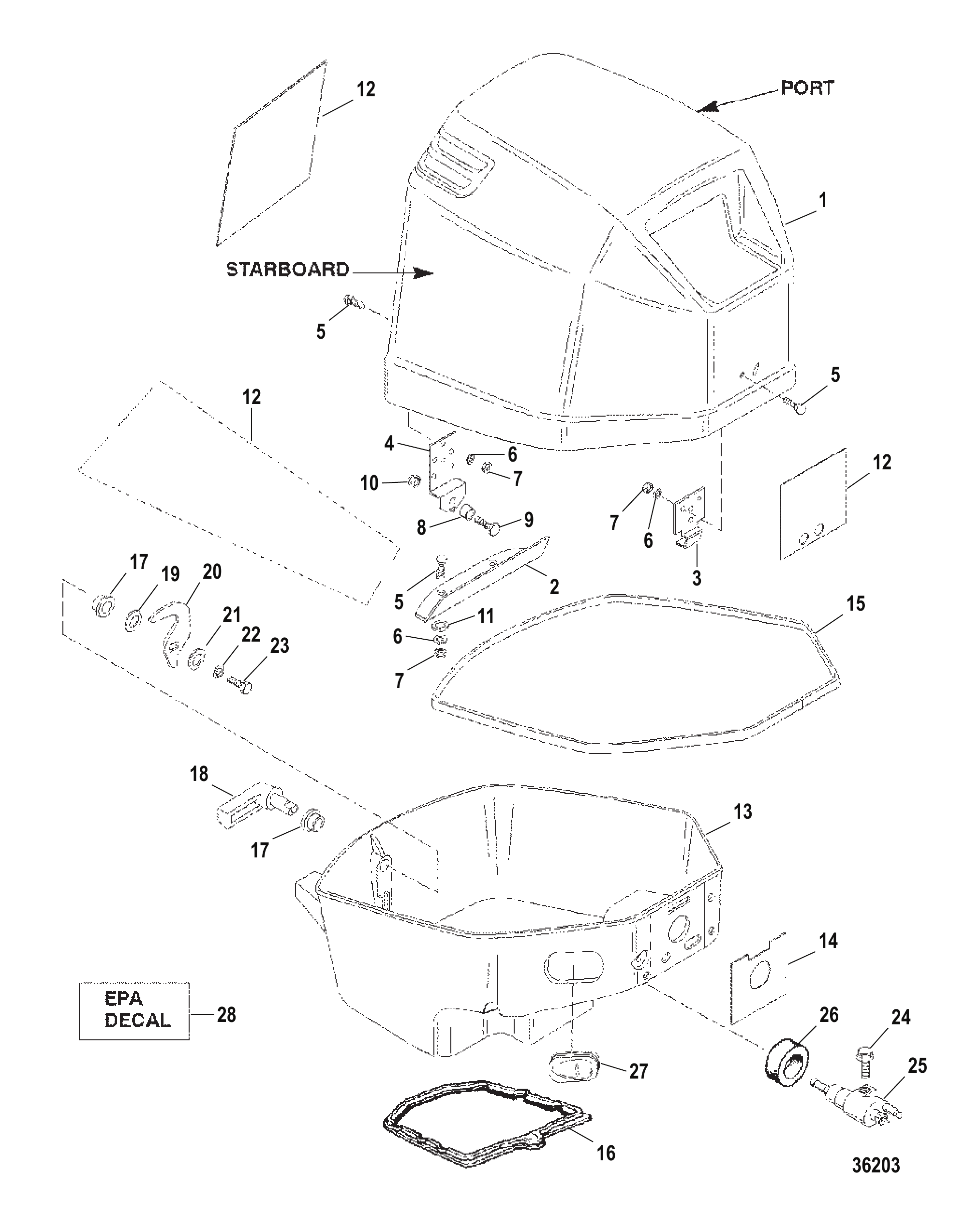

图 3机罩总成(上下) COWL ASSEMBLY TOP AND BOTTOM

REF	零件编号	中文名称	英文名称	数量
1	819135A7	上罩总成(喷漆)	TOP COWL ASSEMBLY (PAINTED)	1
2	819447	挡板	BAFFLE	1
3	819130	前支架	BRACKET Front	1
4	819371	后罩固定座	RETAINER Rear Cowl	1
5	835499	螺钉（#8-32×0.440）	SCREW (#8-32 X .440)	7
6	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	7
7	850042	螺母（#8-32）	NUT (#8-32)	7
8	F681759	锁扣滚轮	ROLLER Latch	1
9	F681026	特殊螺钉-锁扣滚轮	SCREW (SPECIAL)-LATCH ROLLER	1
10	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
11	F8155	垫圈	WASHER	2
12	854243A98	贴花套件	DECAL SET	1
NS	855377A98	贴花套件	DECAL SET	1
13	835495A3	底部罩盖总成 (喷漆)	BOTTOM COWL ASSEMBLY (PAINTED)	1
14	8192814	前挡板	PLATE Front	1
15	F392756	下盖顶部密封件	SEAL Top Of Bottom Cowl	1
16	827895	底罩密封条	SEAL Bottom Cowl	1
17	812707	衬套	BUSHING	2
18	854239A1	罩盖锁扣手柄总成(喷漆)	HANDLE ASSEMBLY Cowl Latch (PAINTED)	1
19	F2047	波形垫圈	WASHER Wave	1
20	F481777	凸轮锁轴	CAM Latch Shaft	1
21	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	1
22	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
23	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
24	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
25	15781A5	燃油接头(黄铜)	CONNECTOR Fuel - Brass	1
26	18202	护孔环	GROMMET	1
27	935271	控制线束护圈	GROMMET Control Cable	1
28	85557717	EPA标签信息贴花	DECAL EPA Label Information	1

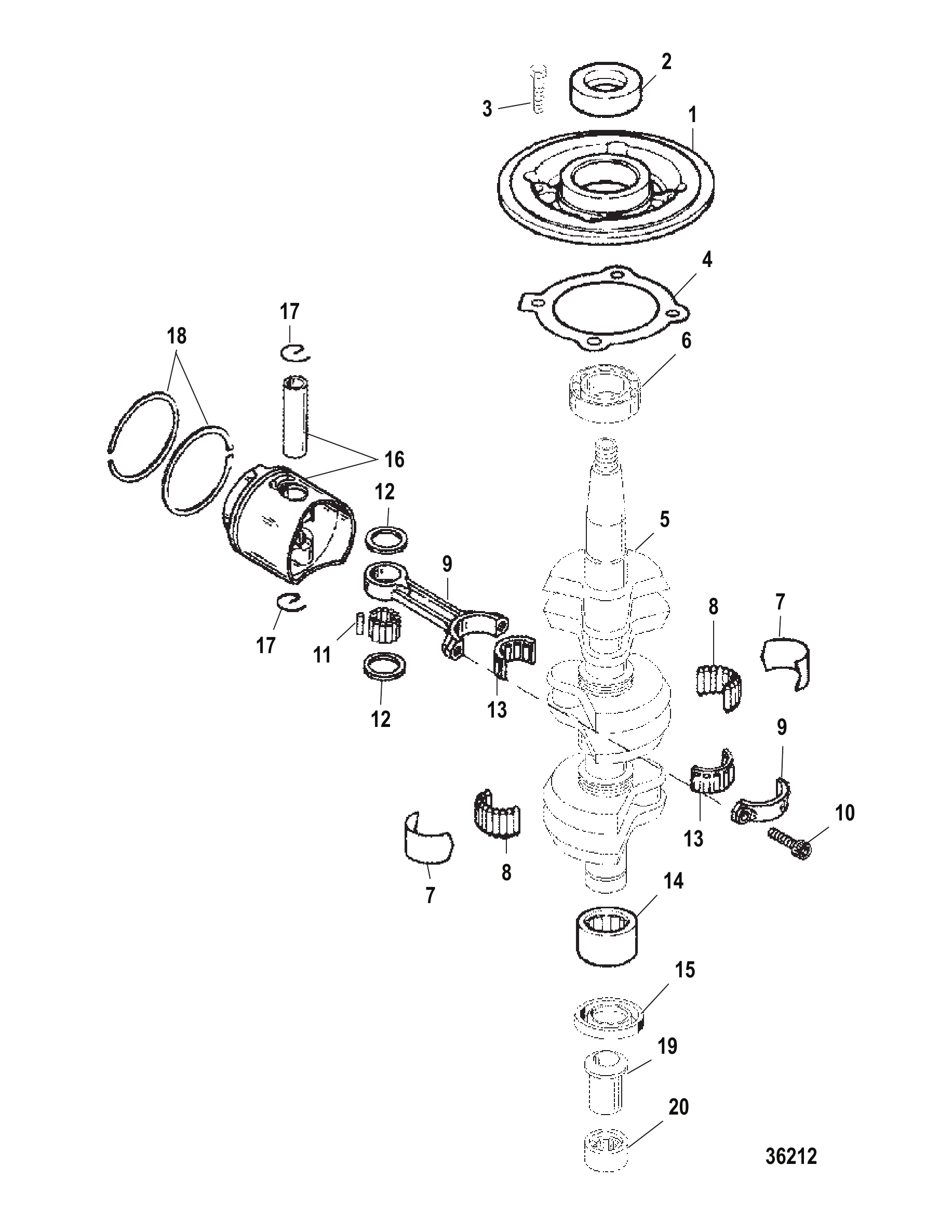

图 4曲轴和活塞 Crankshaft and Piston

REF	零件编号	中文名称	英文名称	数量
1	817753A4	曲轴保持架总成	CAGE ASSEMBLY Crankshaft	1
2	66302	油封	SEAL Oil	1
3	F1914	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
4	F286277	曲轴轴承保持架垫片	GASKET Crankshaft Bearing Cage	1
5	819044A3	曲轴总成	CRANKSHAFT ASSEMBLY	1
6	F286028	滚珠轴承	BEARING Ball	1
7	819239	中央主滚柱衬套	LINER Center Main Rollers	4
8	819238	滚柱(16个/条)	ROLLERS (16 PER STRIP)	4
9	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	3
10	823460	螺钉(M5×16)	SCREW (M5 x 16)	6
11	42186	滚针轴承	BEARING Needle	72
12	43348	推力轴承	BEARING Thrust	6
13	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
14	8191291	主轴承	BEARING Main	1
15	819214	曲轴下端密封	SEAL Crankshaft Lower	1
16	9747A8	活塞套件(标准)	PISTON KIT (STANDARD)	3
17	422021	锁紧环	LOCK RING	6
18	18213A1	活塞环套装(2环)(标准)	RING SET (2 RINGS) (STANDARD)	3
19	819293	驱动轴花键密封	SEAL Driveshaft Spline	1
20	8193101	驱动轴花键密封固定座	RETAINER Driveshaft Spline Seal	1
-	809516A1	动力头衬垫套件	GASKET SET Powerhead	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

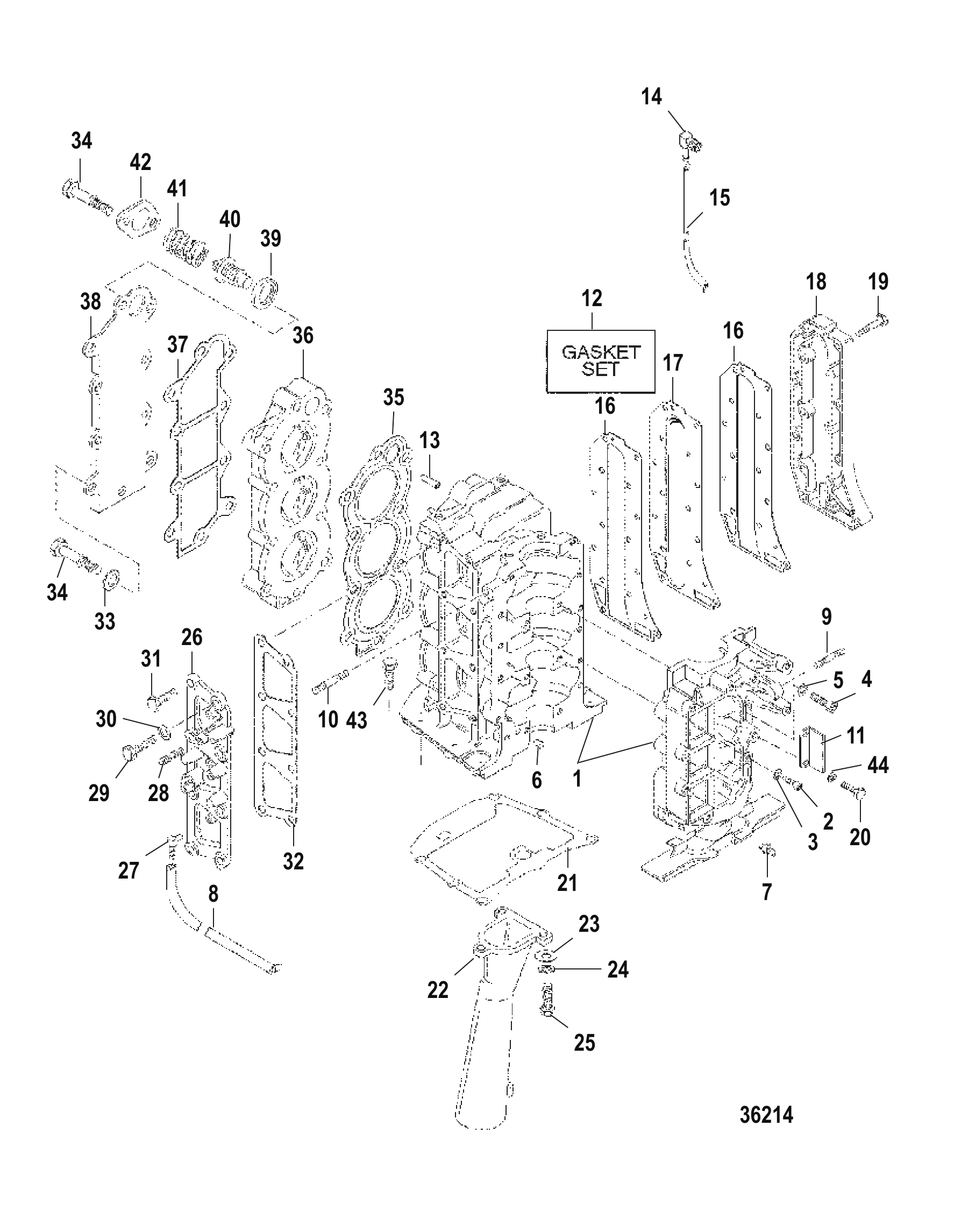

图 5气缸体总成 Cylinder Block Assembly

REF	零件编号	中文名称	英文名称	数量
1	819240A6	动力头总成(喷漆)	POWERHEAD ASSEMBLY (PAINTED)	1
1	819240A2	气缸总成(喷漆)	CYLINDER ASSEMBLY (PAINTED)	1
2	92160	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	11
3	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	11
4	54523	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
5	20084	垫圈（0.328×0.562×0.062）	WASHER (.328 x .562 x .062)	6
6	F8559	销	PIN	1
7	426582	止回阀	CHECK VALVE	1
8	99130122	油管(20.00英尺 散装)	TUBING (20.00 Feet Bulk)	1
9	834759	特殊螺柱(.312-24 x 1.14)	STUD (.312-24 X 1.14) Special (.312-24 X 1.14)	1
10	826590	防松螺柱(.250-20 x 1.690)	STUD (.250-20 x 1.690) (.250-20 X 1.690) WITH DRI LOK	1
11	834753	油门限位支架	BRACKET Throttle Stop	1
12	809516A1	动力头衬垫套件	GASKET SET Powerhead	1
13	819243	水套管	TUBE Water Jacket	1
14	88780	示流管弯头	ELBOW Tell-Tale Tubing	1
15	549507	示警软管(7.00英寸)	HOSE (7.00 INCHES)-TELL TALE	1
16	819140	排气盖衬垫	GASKET Exhaust Cover	2
17	819152	排气板	PLATE Exhaust	1
18	819136T	排气盖(喷漆)	COVER Exhaust (PAINTED)	1
19	F1581	螺钉(.250-20 x 1.250)	SCREW (.250-20 X 1.250) (.250-20 X 1.250)	14
20	90192	不锈钢接地线螺钉（0.250-20×0.750）	SCREW (.250-20 x .750) Stainless Steel GROUND WIRE	1
21	819498	气缸安装衬垫	GASKET Cylinder Mount	1
22	819157T1	排气管	TUBE Exhaust	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
24	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	3
25	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	3
26	819137T	换气口盖总成(喷漆)	COVER ASSEMBLY Transfer Port (PAINTED)	1
27	15133	接头	FITTING	3
28	F681134	联锁杆螺柱	STUD Interlock Lever	1
29	90192	不锈钢大圆头螺钉(.250-20 x .750)	SCREW (.250-20 x .750) Stainless Steel WASHER HEAD	1
30	28927	垫圈	WASHER	1
31	F1535	六角头螺钉(.250-20 x .750)	SCREW (.250-20 x .750) HEX HEAD	7
32	819143	换气口盖垫片	GASKET Transfer Port Cover	1
33	814806	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	8
34	F1882	螺钉(.312-18 x 2.125)	SCREW (.312-18 x 2.125)	10
35	8191382	气缸盖衬垫	GASKET Cylinder Head	1
36	819145T1	气缸盖(喷漆)	CYLINDER HEAD (PAINTED)	1
37	8191391	气缸盖罩衬垫	GASKET Cylinder Head Cover	1
38	819134T	气缸盖罩(喷漆)	COVER Cylinder Head (PAINTED)	1
39	F658504	垫圈	WASHER	1
40	F97068-2	节温器54°C(130°F)	THERMOSTAT 54°C (130°F)	1
41	819161	节温器弹簧	SPRING Thermostat	1
42	819439T	节温器盖(喷漆)	COVER Thermostat (PAINTED)	1
43	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
44	78968	内锁紧垫圈(.250)接地螺钉	LOCKWASHER Internal (.250) GROUND SCREW	1
-	809516A1	动力头衬垫套件	GASKET SET Powerhead	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

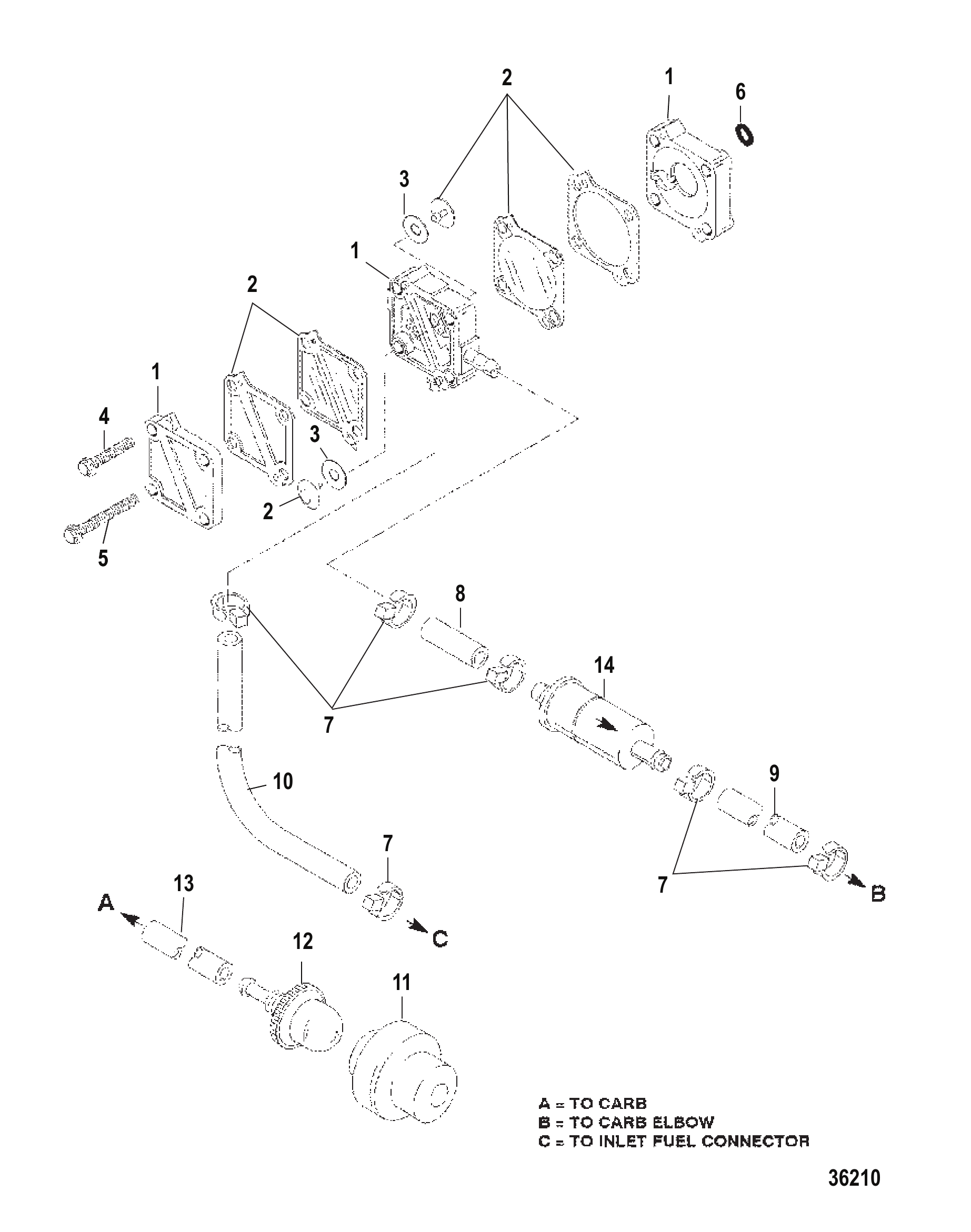

图 6燃油系统 Fuel System

REF	零件编号	中文名称	英文名称	数量
1	8192131	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	820748A1	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE WASHER	2
4	820749	螺钉(#10-24 X 1.250)	SCREW (#10-24 X 1.250)	2
5	819499	螺钉(#10-24 X 1.625)	SCREW (#10-24 X 1.625)	2
6	38933	O型圈	O-RING	1
7	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
8	819398T	软管	HOSE	1
9	819398T	软管	HOSE	1
10	819398T	软管	HOSE	1
11	851934	注油泵盖	COVER Primer Bulb	1
12	F681046	注油泵球	BULB Primer	1
13	819398T	软管	HOSE	1
14	816296	燃油滤清器	FILTER Fuel	1
-	809516A1	动力头衬垫套件	GASKET SET Powerhead	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

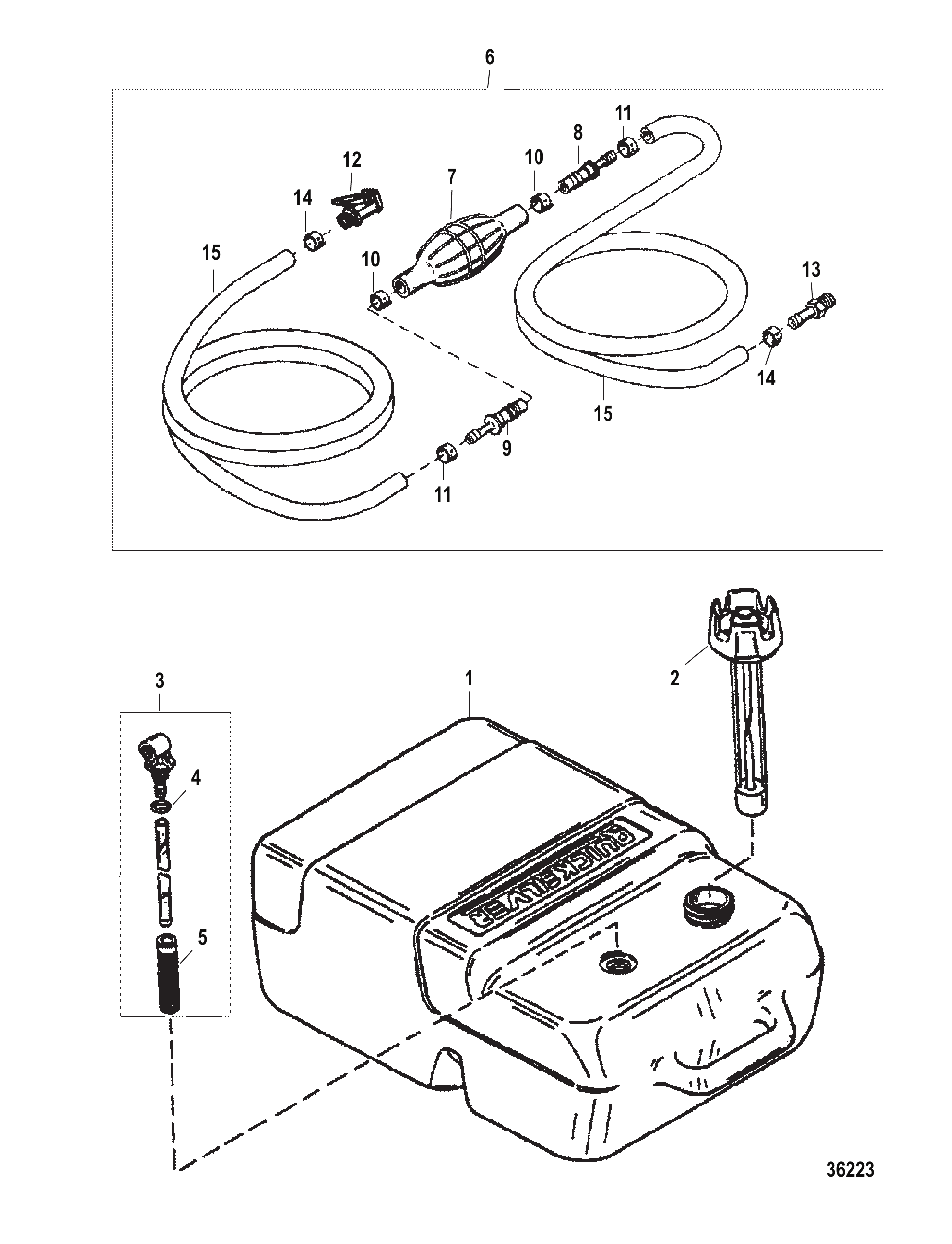

图 7燃油箱与管路总成(6.6加仑) Fuel Tank and Line Assembly (6.6 Gallon)

REF	零件编号	中文名称	英文名称	数量
1	823504A1	燃油箱总成-塑料6.6加仑	TANK ASSEMBLY Fuel - Plastic 6.6 Gallon	1
2	823536	油量表/油箱盖总成	GAUGE/CAP ASSEMBLY	1
3	823532A1	燃油连接套件	CONNECTOR KIT Fuel	1
4	823533	O型圈	O-RING	1
5	823534	滤网	SCREEN	1
6	17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
7	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
8	13331A1		CHECK VALVE ASSEMBLY (INLET)	1
9	13331A2		CHECK VALVE ASSEMBLY (OUTLET)	1
10	4158210		CLAMP Nylon (LARGE)	2
11	415827		CLAMP Nylon (SMALL)	2
12	13563A3	燃油管接头总成	FITTING ASSEMBLY Fuel Line	1
13	897711	连接器(.250-18)	CONNECTOR (.250-18)	1
14	415827		CLAMP Nylon (SMALL)	2
15	1678978	软管(9.00英尺整卷)	HOSE (9.00 Feet Bulk)	AR
15	16789100	软管(100.00英尺整卷)	HOSE (100.00 Feet Bulk)	AR

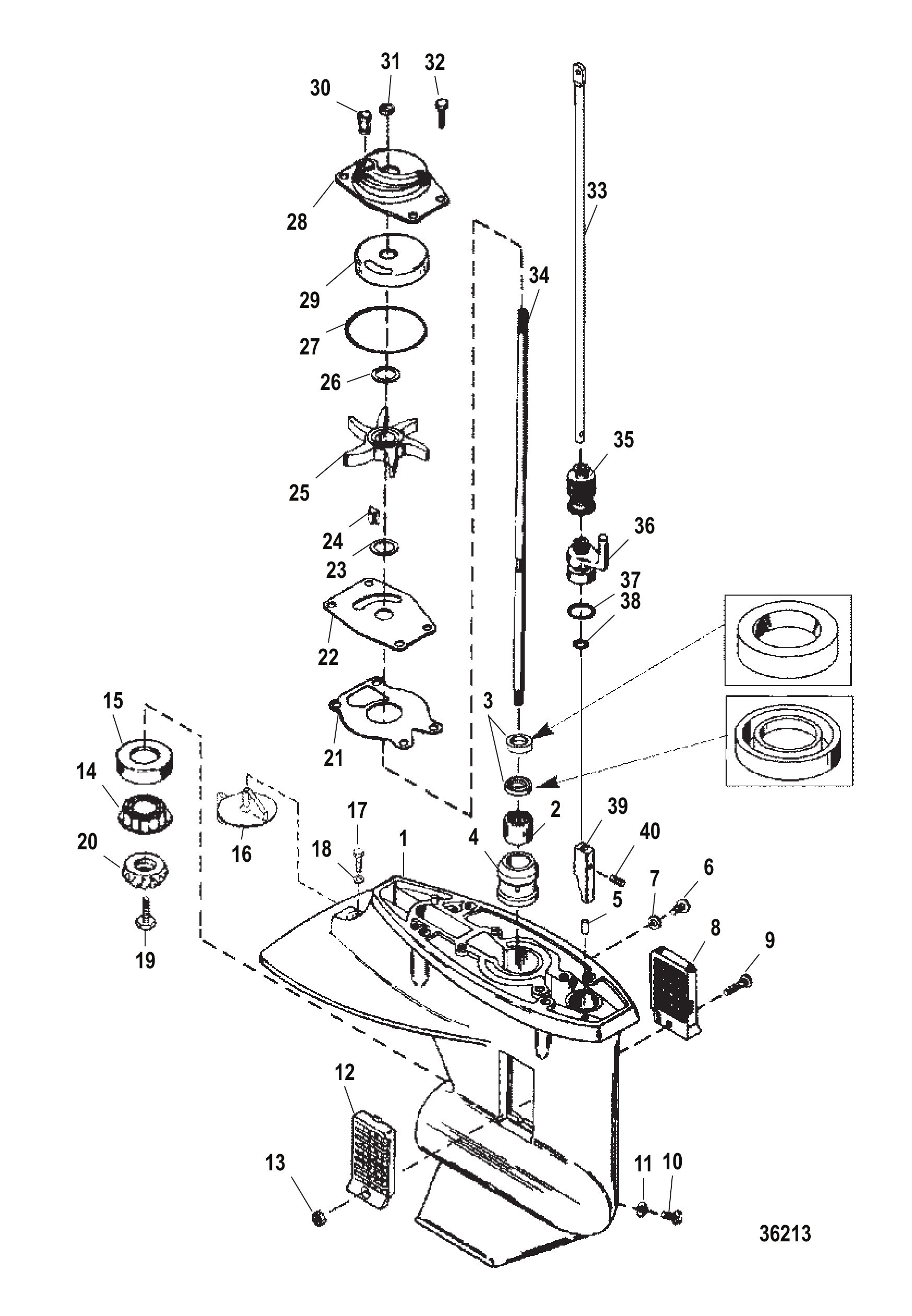

图 8齿轮箱总成(驱动轴) Gear Housing Assembly (Driveshaft)

REF	零件编号	中文名称	英文名称	数量
1	8669A40	齿轮箱总成(喷漆)	GEAR HOUSING ASSEMBLY (PAINTED)	1
1	8669A41	齿轮箱总成(喷漆)	GEAR HOUSING ASSEMBLY (PAINTED)	1
1	8669A39	齿轮箱总成(喷漆)	GEAR HOUSING ASSEMBLY (PAINTED)	1
2	NSS	套筒(不单独销售，随参考号#1提供)	NOT SOLD SEPARATE SLEEVE (INCLUDED WITH REF. #1)	1
3	99325	密封件	SEAL	2
4	41326	滚柱轴承	BEARING Roller	1
5	85500	定位销(.187 x .530)	PIN Dowel (.187 x .530)	1
6	79953A2	螺钉套件(.375-16 x .250)专用	SCREW KIT (.375-16 x .250) SPECIAL	1
7	19183	纤维垫圈	WASHER Fiber	1
8	41133	进水口滤网	SCREEN Water Inlet Port	1
9	40031112	螺钉(M5 x 40)	SCREW (M5 x 40)	1
10	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
11	19183	纤维垫圈	WASHER Fiber	1
12	41134	滤网(右舷)	SCREEN (STARBOARD)	1
13	400263	螺母 (M5)	NUT (M5)	1
14	98294A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
15	NSS	滚子轴承杯(不单独销售)	NOT SOLD SEPARATE CUP, ROLLER BEARING	1
16	984325	平衡鳍板	TRIM TAB	1
17	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
18	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	1
19	49908	螺钉(.250-28 x .750)	SCREW (.250-28 x .750)	1
20	98302	小齿轮	GEAR Pinion	1
21	993261	衬垫	GASKET	1
22	85083	面板	FACE PLATE	1
23	8M0027721	垫圈	WASHER	1
24	85119	键	KEY	1
25	850893	叶轮	IMPELLER	1
26	8M0027721	垫圈	WASHER	1
27	69202	O型圈	O-RING	1
28	99157A1	水泵总成	PUMP ASSEMBLY Water	1
29	NSS	水泵壳体嵌件(不单独销售)	NOT SOLD SEPARATE INSERT, WATER PUMP HOUSING	1
30	85090	密封件	SEAL	1
31	86203	O型圈	O-RING	1
32	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	4
33	853939	换挡杆	ROD Gear Shift	1
33	853940	换挡杆	ROD Gear Shift	1
34	827024T	驱动轴	DRIVESHAFT	1
34	827025T	驱动轴	DRIVESHAFT	1
35	85552	护套	BOOT	1
36	93878	固定座	RETAINER	1
37	35276	O型圈(.734 x .139)	O-RING (.734 x .139)	1
38	85594	O型圈(.239 x .174)	O-RING (.239 x .174)	1
39	85562A2	换挡凸轮	SHIFT CAM	1
40	85096	驱动销	PIN Drive	1
-	85090A2	密封套件	SEAL KIT	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1

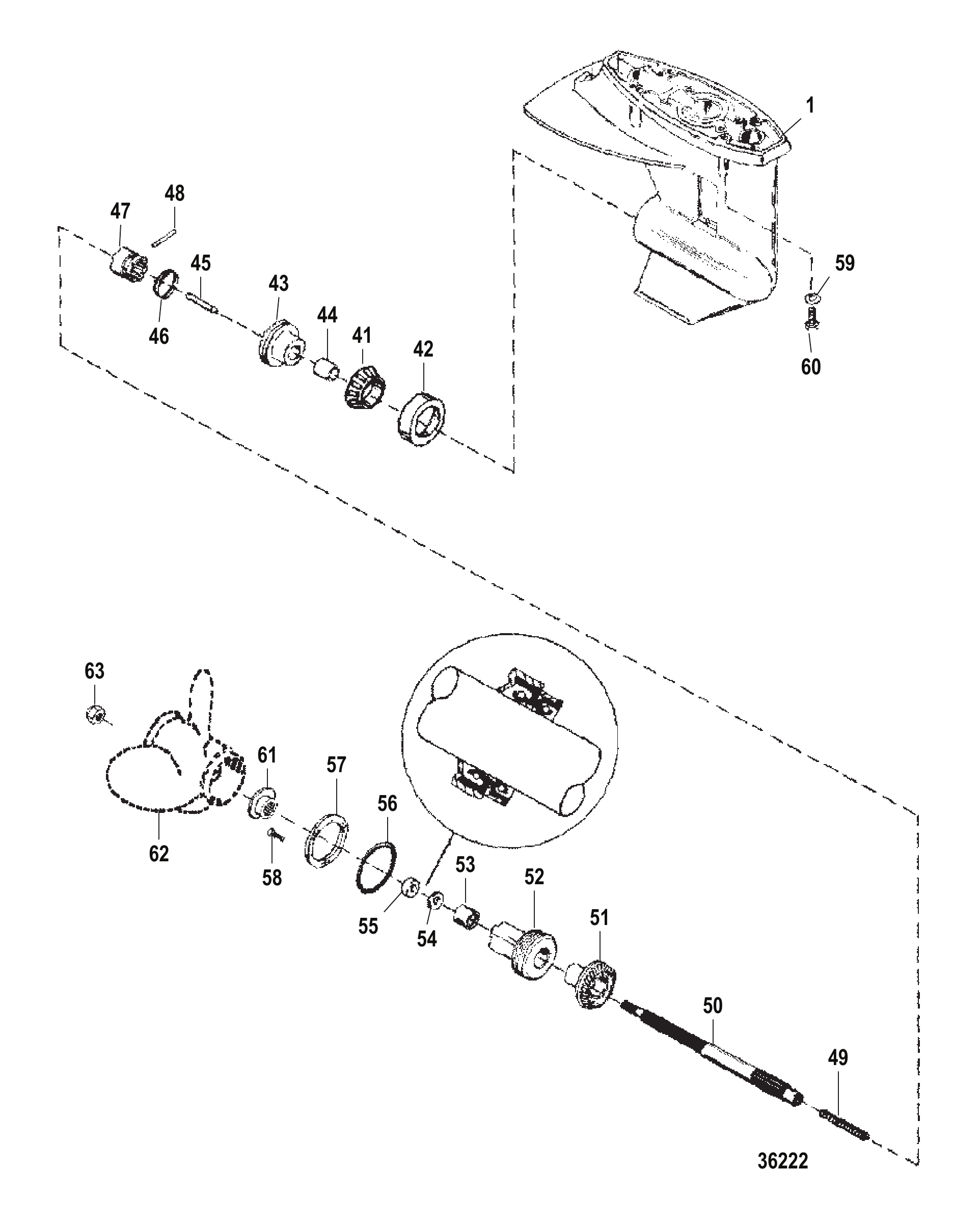

图 9齿轮箱总成(螺旋桨轴) Gear Housing Assembly (Propeller Shaft)

REF	零件编号	中文名称	英文名称	数量
1	8669A40	齿轮箱总成(喷漆)	GEAR HOUSING ASSEMBLY (PAINTED)	1
1	8669A41	齿轮箱总成(喷漆)	GEAR HOUSING ASSEMBLY (PAINTED)	1
1	8669A39	齿轮箱总成(喷漆)	GEAR HOUSING ASSEMBLY (PAINTED)	1
41	99328A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
42	NSS	滚子轴承杯(不单独销售)	NOT SOLD SEPARATE CUP, ROLLER BEARING	1
43	44213A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
44	85557	衬套	BUSHING	1
45	85094	凸轮从动件	FOLLOWER Cam	1
46	38114	弹簧	SPRING	1
47	410401	离合器	CLUTCH	1
48	85093	销	PIN	1
49	88680	弹簧	SPRING	1
50	8166231	螺旋桨轴	PROPELLER SHAFT	1
51	99542	倒挡齿轮	GEAR Reverse	1
52	99906A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	21739	滚柱轴承	BEARING Roller	1
54	41132	油封(内)	SEAL Oil (INNER)	1
55	41131	油封(外)	SEAL Oil (OUTER)	1
56	85549	O型圈	O-RING	1
57	87293	安装板	PLATE	1
58	90883	螺钉(M5 x 16)专用	SCREW (M5 x 16) SPECIAL	3
59	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	4
60	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	4
61	8M0027793	轮毂	HUB	1
62	19640A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	1
62	19642A40	螺旋桨	PROPELLER	OPT
62	19639A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	OPT
62	19638A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	OPT
62	19636A10	BLACK MAX螺旋桨	BLACK MAX PROPELLER	OPT
62	43592A5	螺旋桨	PROPELLER	OPT
62	19644A5	复仇者螺旋桨	VENGEANCE PROPELLER	OPT
63	4011912	螺旋桨螺母(M12)	PROP NUT (M12)	OPT
63	88228	螺旋桨螺母(M12)	PROP NUT (M12)	1
-	85090A2	密封套件	SEAL KIT	1

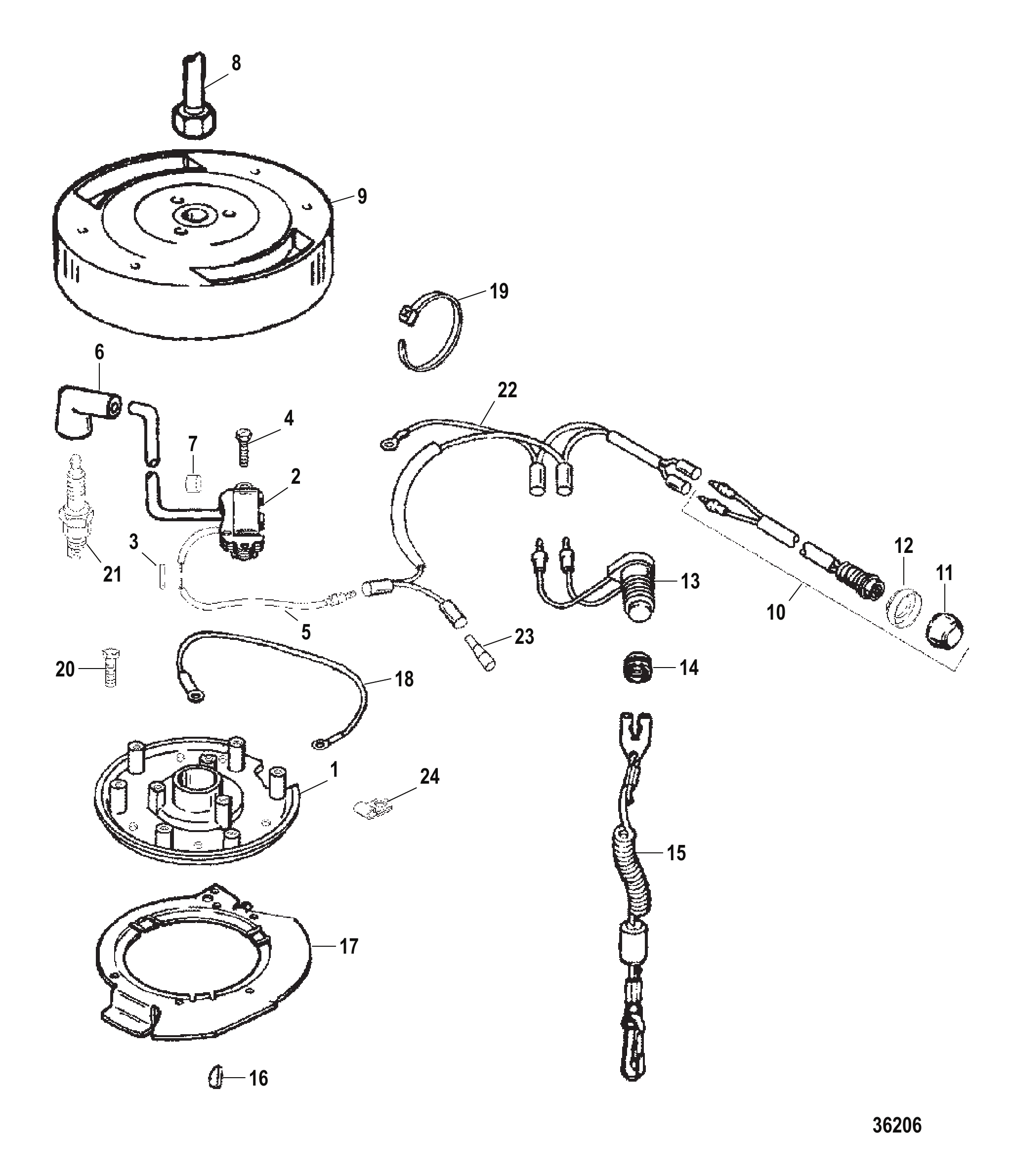

图 10点火系统 IGNITION SYSTEM

REF	零件编号	中文名称	英文名称	数量
-	819155A2	定子总成	STATOR ASSEMBLY	1
1	819155T	定子板	PLATE Stator	1
2	850899T1	点火模块套件	MODULE KIT Ignition	3
3	830865	连接器	CONNECTOR	AR
4	824353	螺钉(#8-32 X .750)-点火模块安装	SCREW (#8-32 X .750)-IGN MODULE MOUNT	9
5	12479A60	模块到线束电缆总成	CABLE ASSEMBLY Modules To Harness	1
6	63709A1	护套/端子套件	BOOT/TERMINAL KIT	3
7	20117A1	点火电缆标记套件(#1)(#2)(#3)	MARKER SET Ignition Cables (#1) (#2) (#3)	1
8	F681091	专用螺母-飞轮	NUT (SPECIAL)-FLYWHEEL	1
9	824380T4	飞轮(喷漆)	FLYWHEEL (PAINTED)	1
10	824440A14	停机开关总成	SWITCH ASSEMBLY Stop	1
11	824466A3	停机开关盖总成	COVER ASSEMBLY Stop Switch	1
12	824915	停机开关盖饰圈	BEZEL Stop Switch Cover	1
13	826214A1	紧急停止开关总成	SWITCH ASSEMBLY Emergency Stop	1
14	F681188	专用螺母-停机开关套筒	NUT (SPECIAL)-STOP SWITCH SLEEVE	1
15	819399A1	拉绳总成	LANYARD ASSEMBLY	1
16	F458498-1	曲轴/飞轮键	KEY Crankshaft/Flywheel	1
17	8278961	节气门凸轮	CAM Throttle	1
18	821375A44	接地线总成	CABLE ASSEMBLY Ground	1
19	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
19	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	824358	螺钉(#10-24 x .500)(#10-24 X .500)-定子板	SCREW (#10-24 x .500) (#10-24 X .500)-STATOR PLATE	5
21	811	火花塞	SPARK PLUG	3
21	874	火花塞	SPARK PLUG	OPT
22	79138A93	发动机停机线束总成	HARNESS ASSEMBLY Engine Stop	1
23	13541	公插头	PLUG Male	1
24	831275	卡箍	CLAMP	1

图 11说明书与涂料 LITERATURE AND PAINT

REF	零件编号	中文名称	英文名称	数量
-	10169980	用户手册	OWNERS MANUAL	1
-	830894R1	维修手册	SERVICE MANUAL	1
-	82793336	大马士革钢灰漆	PAINT Damascus Steel Gray	AR
-	82793337	大马士革钢灰漆	PAINT Damascus Steel Gray	AR
-	81910712	透明丙烯酸漆	PAINT Clear Acrylic	AR

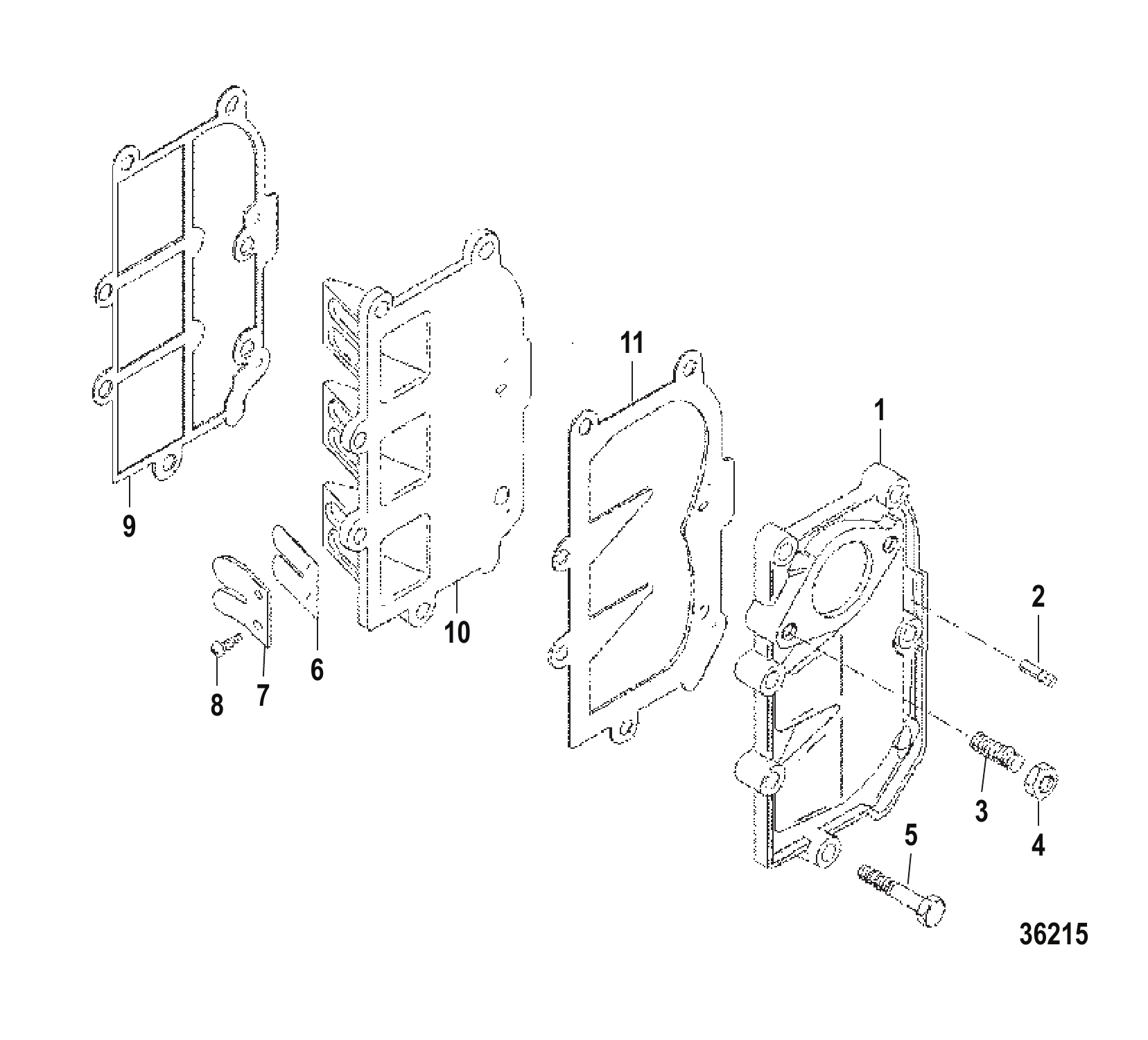

图 12簧片阀板/歧管总成 Reed Plate/Manifold Assembly

REF	零件编号	中文名称	英文名称	数量
1	819150A1	进气歧管总成(喷漆)	MANIFOLD ASSEMBLY Intake (PAINTED)	1
2	426981	止回阀	CHECK VALVE	2
3	826622	双头螺柱(.250-20x.910)	STUD (.250-20 x .910)	2
4	20890	化油器安装螺母(.250-20)	NUT (.250-20) CARBURETOR MOUNT	2
5	F1581	螺钉（0.250-20×1.250）	SCREW (.250-20 X 1.250)	7
6	827308	簧片	REED	6
7	827307	簧片止挡	STOP Reed	6
8	819074	带锁紧垫圈的螺钉(#6-32 X .312)	SCREW WITH LOCKWASHER (#6-32 X .312)	12
9	819142	簧片阀衬垫	GASKET Reed Plate	1
10	819153T	簧片阀板	PLATE Reed	1
11	819141	进气歧管垫片	GASKET Intake Manifold	1
-	809516A1	动力头衬垫套件	GASKET SET Powerhead	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

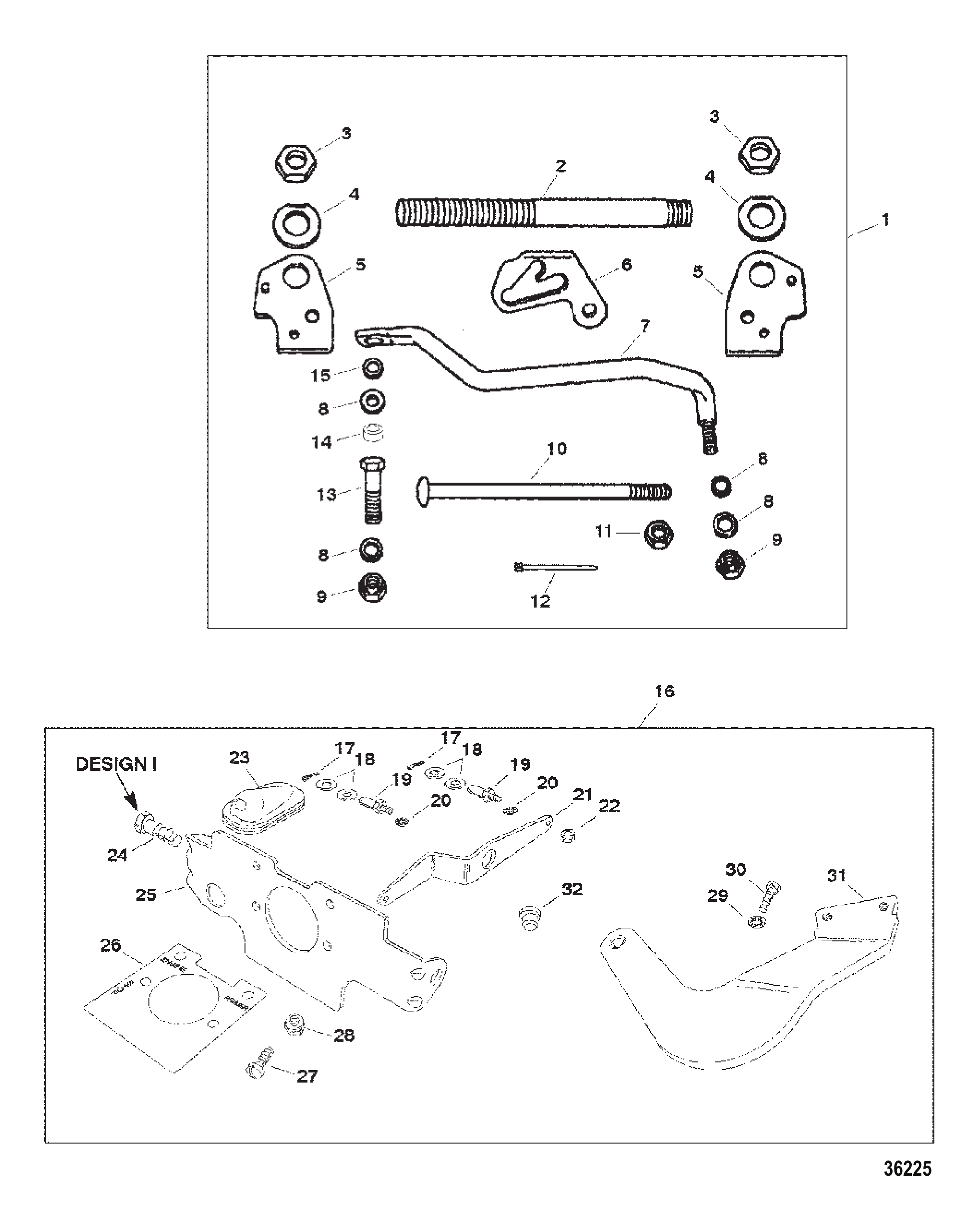

图 13遥控联动装置(830771A4)(设计I型) REMOTE CONTROL LINKAGE (830771A4) (DESIGN I)

REF	零件编号	中文名称	英文名称	数量
1	827889A2	遥控转向套件	STEERING KIT Remote	1
2	71565	导向套管	TUBE Cable Guide	1
3	37984	螺母 (.875-14)	NUT (.875-14)	2
4	42100	锁紧垫圈	TAB WASHER	2
5	827890	线管支架	BRACKET Cable Tube	2
6	F676541-2	倾斜锁	LOCK Tilt	1
7	F676881	转向连杆	LINK Steering	1
8	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	4
9	34863	螺母 (.375-24)	NUT (.375-24)	2
10	850185	枢轴螺栓-艉支架（0.375-16×7.375）	BOLT Pivot - Stern Bracket (.375-16 X 7.375)	1
11	F7026	螺母（0.375-16）	NUT (.375-16) (.375-16)	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
13	90072	螺钉(.375-24 x 1.750)	SCREW (.375-24 x 1.750)	1
14	F522359	隔套	SPACER	1
15	F84215	隔套	SPACER	1
16	830771A4	遥控转换套件	CONVERSION KIT Remote Control	1
17	27769	开口销	COTTER PIN	2
18	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	4
19	828819	油门控制螺柱	STUD Throttle Control	2
20	F8058	锁紧垫圈	LOCKWASHER	2
21	8191481	油门杆	LEVER Throttle	1
22	29488	螺母 (#10-32)	NUT (#10-32)	1
23	93527	护孔环	GROMMET	1
24	830772	专用螺钉	SCREW (SPECIAL)	2
25	830058A6	遥控转向电缆锚定总成	ANCHOR ASSEMBLY Remote Steering Cable	1
26	8192812	前板贴花	DECAL Front Plate	1
27	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	4
28	F7009	螺母(#10-24)	NUT (#10-24)	4
29	72521	内齿锁紧垫圈(.312)	LOCKWASHER Internal Tooth (.312)	2
30	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	2
31	830006T4	遥控转向臂(喷漆)	ARM Remote Steering (PAINTED)	1
32	48323	堵头	PLUG	1

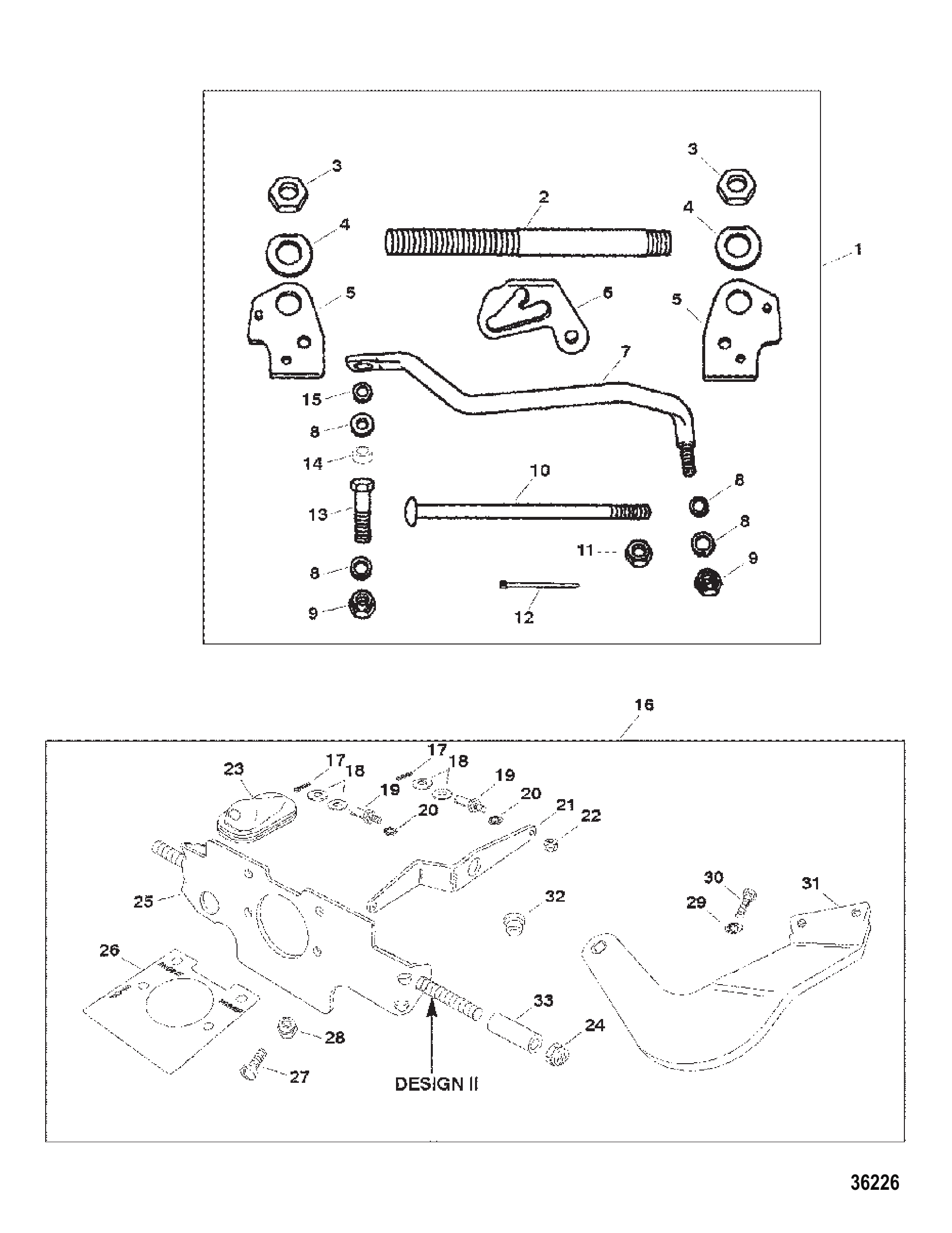

图 14遥控联动装置(830771A7)(设计II型) REMOTE CONTROL LINKAGE (830771A7) (DESIGN II)

REF	零件编号	中文名称	英文名称	数量
1	827889A2	遥控转向套件	STEERING KIT Remote	1
2	71565	导向套管	TUBE Cable Guide	1
3	37984	螺母 (.875-14)	NUT (.875-14)	2
4	42100	锁紧垫圈	TAB WASHER	2
5	827890	线管支架	BRACKET Cable Tube	2
6	F676541-2	倾斜锁	LOCK Tilt	1
7	F676881	转向连杆	LINK Steering	1
8	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	4
9	34863	螺母 (.375-24)	NUT (.375-24)	2
10	850185	枢轴螺栓-艉支架（0.375-16×7.375）	BOLT Pivot - Stern Bracket (.375-16 X 7.375)	1
11	F7026	螺母（0.375-16）	NUT (.375-16) (.375-16)	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
13	90072	螺钉(.375-24 x 1.750)	SCREW (.375-24 x 1.750)	1
14	F522359	隔套	SPACER	1
15	F84215	隔套	SPACER	1
16	830771A7	遥控转换套件	CONVERSION KIT Remote Control	1
17	27769	开口销	COTTER PIN	2
18	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	4
19	828819	油门控制螺柱	STUD Throttle Control	2
20	F8058	锁紧垫圈	LOCKWASHER	2
21	8191481	油门杆	LEVER Throttle	1
22	29488	螺母 (#10-32)	NUT (#10-32)	1
23	93527	护孔环	GROMMET	1
24	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
25	855791A1	遥控转向电缆锚定总成	ANCHOR ASSEMBLY Remote Steering Cable	1
26	8192812	前板贴花	DECAL Front Plate	1
27	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	4
28	F7009	螺母(#10-24)	NUT (#10-24)	4
29	72521	内齿锁紧垫圈(.312)	LOCKWASHER Internal Tooth (.312)	2
30	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	2
31	830006T4	遥控转向臂(喷漆)	ARM Remote Steering (PAINTED)	1
32	48323	堵头	PLUG	1
33	855648	套筒	SLEEVE	2

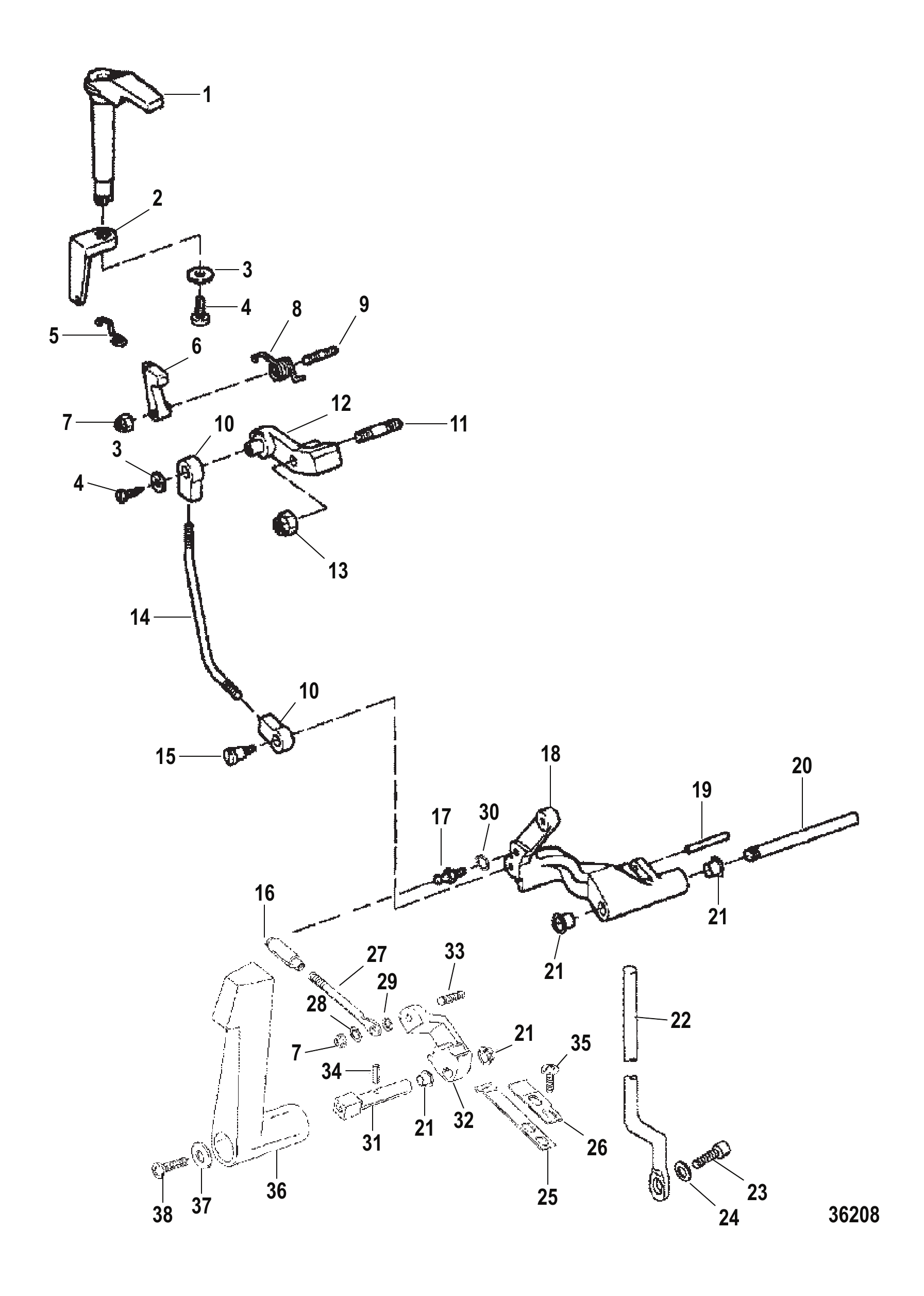

图 15换挡连杆 Shift Linkage

REF	零件编号	中文名称	英文名称	数量
1	F681490	启动滑轮联锁挡块	STOP Starter Pulley Interlock	1
2	F681003-1	启动联锁臂	ARM Starter Interlock	1
3	F8143	垫圈	WASHER	2
4	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
5	F681263-1	启动联锁连杆	LINK Starter Interlock	1
6	F681742	中间联锁杆	LEVER Intermediate Interlock	1
7	20110	螺母 (#10-32)	NUT (#10-32)	2
8	F681424	联锁杆弹簧	SPRING Interlock Lever	1
9	F681134	联锁杆螺柱	STUD Interlock Lever	1
10	816514	火花控制轴承	BEARING Spark Control	2
11	826590	双头螺柱（0.250-20×1.690）	STUD (.250-20 x 1.690)	1
12	824357	空档速度联锁杆	LEVER Neutral Speed Interlock	1
13	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
14	819159	联锁杆	ROD Interlock	1
15	819625	螺钉	SCREW	1
16	F286685	换挡杆连接器	CONNECTOR Gear Shift Rod	1
17	F98273	螺柱	STUD	1
18	855621T	换挡杆(喷漆)	LEVER Gear Shift (PAINTED)	1
19	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
20	F286871T	换挡杆销	PIN Gear Shift Lever	1
21	26841	衬套	BUSHING	4
22	8193781	上换挡杆	ROD Upper Gear Shift	1
23	F1976	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
24	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
25	39627	弹簧	SPRING	1
26	824994	板簧	SPRING Plate	1
27	850388	换挡杆连杆	LINK Shift Lever	1
28	F8048	弓形垫圈	WASHER Bowed	1
29	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	1
30	F8058	锁紧垫圈	LOCKWASHER	1
31	850386	换挡手柄轴	SHAFT Shift Handle	1
32	850387A1	定位凸轮杆总成	LEVER ASSEMBLY Detent Cam	1
33	846345	螺柱(#10-32 x .750)	STUD (#10-32 x .750)	1
34	25905	销	PIN	1
35	42813	螺钉（#10-32 X 0.380）	SCREW (#10-32 X .380)	2
36	852545	换挡手柄	HANDLE Shift	1
37	4002314	垫圈	WASHER	1
38	15124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

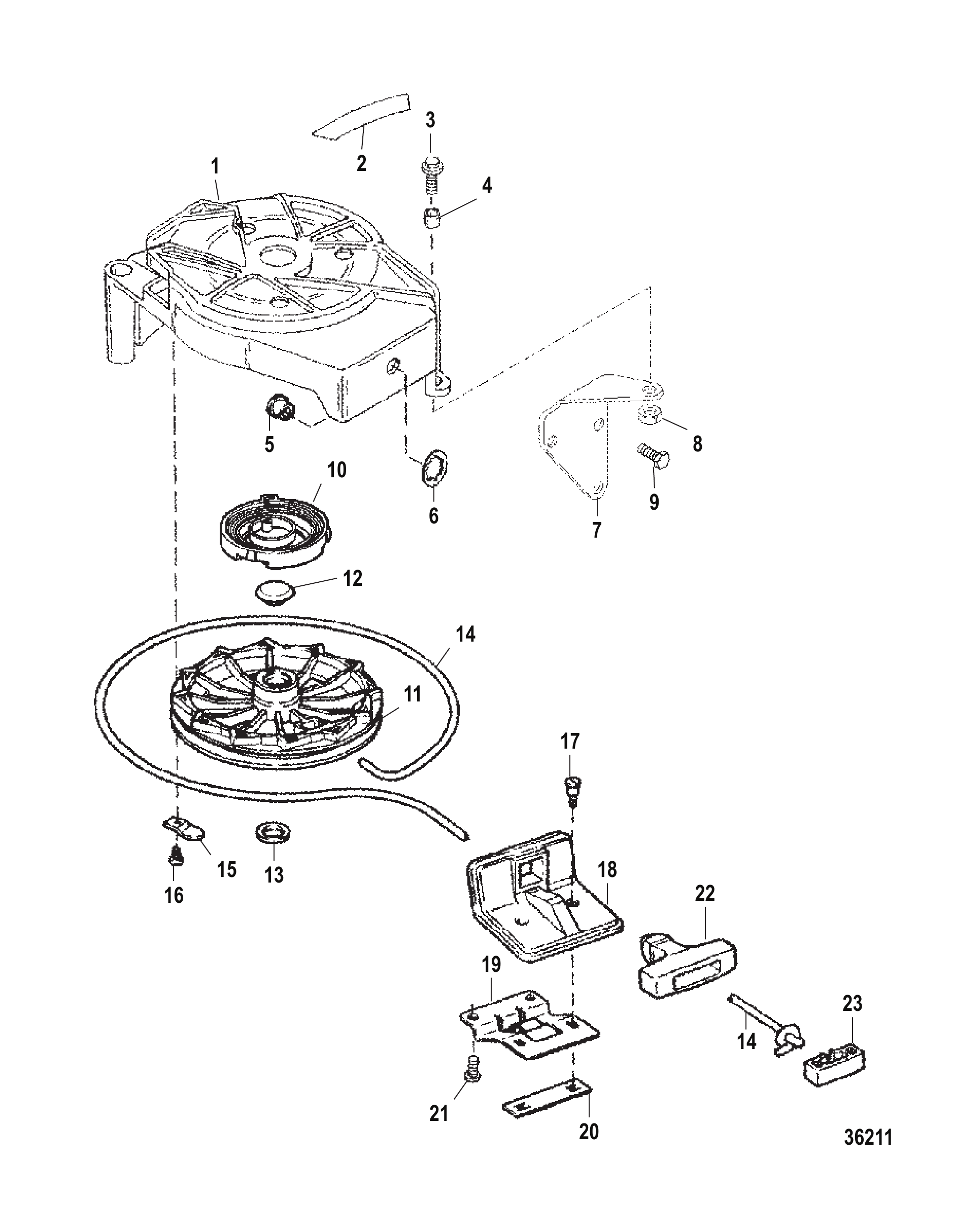

图 16启动机回绕组件 Starter Rewind Components

REF	零件编号	中文名称	英文名称	数量
1	F6814081	启动器壳体	HOUSING Starter	1
2	825149A1	换至空档贴花套件	DECAL KIT Shift to Neutral	1
3	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	3
4	F681405T	启动器外壳嵌件	INSERT Starter Housing	3
5	F681428	启动绳嵌件	INSERT Starter Rope	1
6	818853	挡圈	RING Retaining	1
7	819245T1	起动机壳体前支架(喷漆)	BRACKET Starter Housing - Front (PAINTED)	1
8	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
9	98254	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	3
10	F681970	启动器回位弹簧	SPRING Starter Rewind	1
11	42034A2	启动器回绕滑轮总成	PULLEY ASSEMBLY Starter Rewind	1
12	817362	盖帽	CAP	1
13	124941	滑轮轴承密封件	SEAL Pulley Bearing	1
14	F681232	绳索(64.00/67.00英寸)	ROPE (64.00/67.00 INCHES)	1
15	F681592	启动滑轮固定座	RETAINER Starter Pulley	3
16	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	3
17	819625	螺钉	SCREW	2
18	FA681630T	手柄支撑总成	SUPPORT ASSEMBLY Handle	1
19	8302821	手柄支撑板	PLATE Handle Support	1
20	F6818741	手柄支撑板紧固件	FASTENER Handle Support Plate	1
21	F2210	螺钉(.250-14 x .500)	SCREW (.250-14 x .500)	2
22	F681132	绳索手柄	HANDLE Rope	1
23	F681817	绳索手柄固定座	RETAINER Rope Handle	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

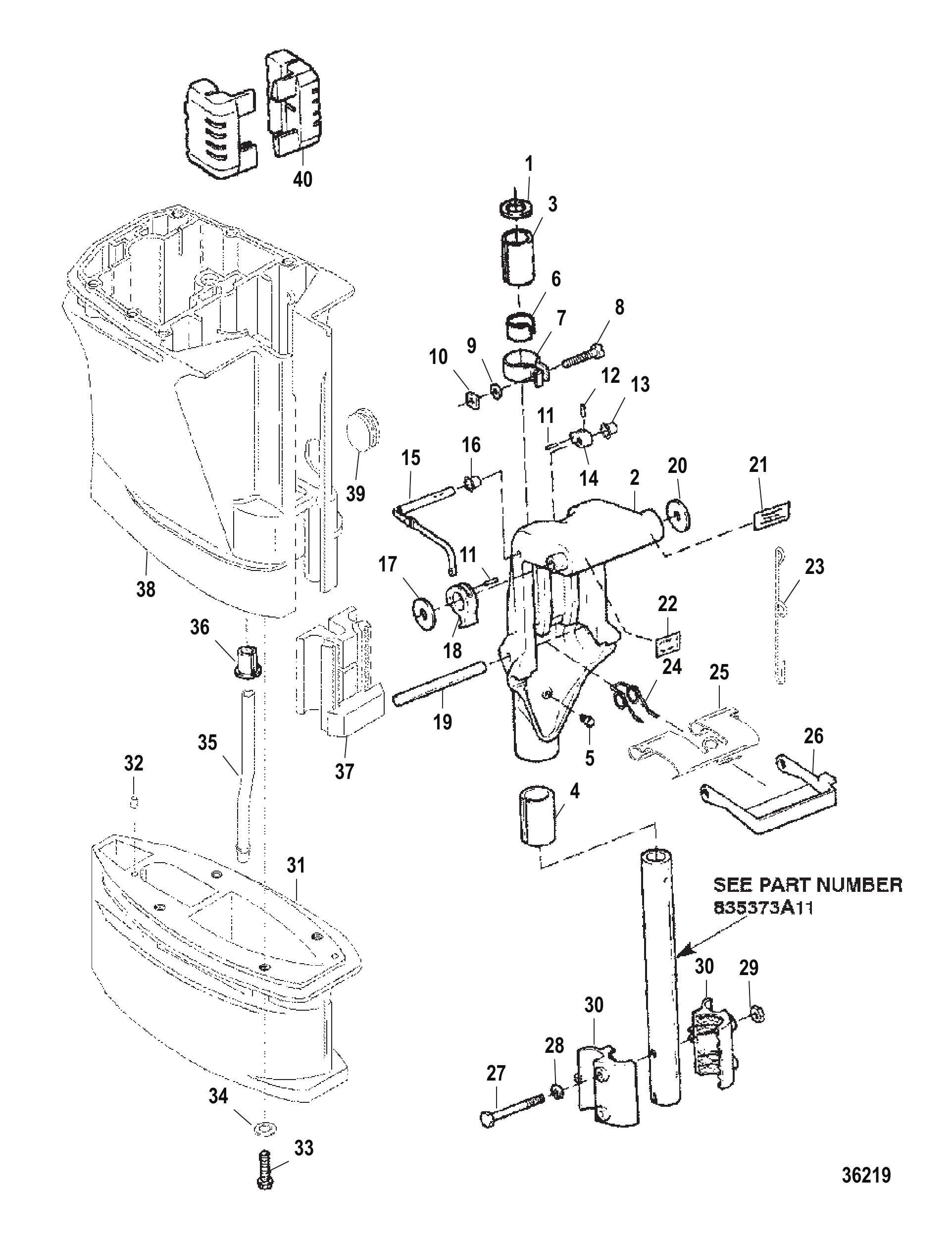

图 17旋转支架与驱动轴壳体 Swivel Bracket and Driveshft Housing

REF	零件编号	中文名称	英文名称	数量
1	F286011	旋转支架垫圈	WASHER Swivel Bracket	1
2	850049A8	旋转支架套件(喷漆)	SWIVEL BRACKET KIT (PAINTED)	1
3	F681169	轴承(1.125英寸)(顶部)	BEARING (1.125 INCHES) (TOP)	1
4	F286169	轴承(1.750英寸)(底部)	BEARING (1.750 INCHES) (BOTTOM)	1
5	F213274	接头	FITTING	2
6	F681631	摩擦块	SHOE Friction	1
7	F286573-1	转向摩擦夹	CLAMP Steering Friction	1
8	F1820	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
9	12038	垫圈	WASHER	1
10	F1608	螺母 (.250-20)	NUT (.250-20)	1
11	F1794	弹簧销	PIN Spring	2
12	F8538	弹簧销	PIN Spring	1
13	26856	衬套	BUSHING	1
14	833156	倒车锁杆	LEVER Reverse Lock	1
15	820095A2	倒挡锁中间杆总成	LEVER ASSEMBLY Reverse Lock Intermediate	1
16	F536813	衬套	BUSHING	1
17	F2037	垫圈	WASHER	1
18	F286827	倒挡锁释放杆	LEVER Reverse Lock Release	1
19	F1806	槽销	PIN Groove	1
20	F2037	垫圈	WASHER	1
21	8180291	燃油混合比标贴	DECAL Fuel Mix	1
22	8302531	倾斜释放标贴	DECAL Tilt Release	1
23	852528	倒挡锁连杆	LINK Reverse Lock Lever	1
24	F286300	倒挡锁弹簧	SPRING Reverse Lock	1
25	850259	倒车锁	LOCK Reverse	1
26	8301111	浅水驱动支架	BRACKET Shallow Water Drive	1
27	FA1844	螺丝套件(.250-20 x 2.375)	SCREW KIT (.250-20 x 2.375)	2
28	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
29	64015	螺母 (.250-20)	NUT (.250-20)	2
30	819320T3	减震器下支架(喷漆)	BRACKET Shock Mount Lower (PAINTED)	2
31	826361T4	隔套总成(喷漆)	SPACER ASSEMBLY (PAINTED)	1
32	85500	定位销(.187 x .530)	PIN Dowel (.187 x .530)	1
33	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	4
34	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	4
35	819149	进水管道	LINE Water Inlet	1
35	8191491	进水管道	LINE Water Inlet	1
36	F286914-1	进水管衬套	SLEEVE Water Inlet Line	1
37	8193192	下减震座	SHOCK MOUNT Lower	1
38	819215T5	传动轴壳体总成(喷漆)	HOUSING ASSEMBLY Driveshaft (PAINTED)	1
39	F46899-1	盖板	COVER	1
40	F517347	上减震座	SHOCK MOUNT Upper	2

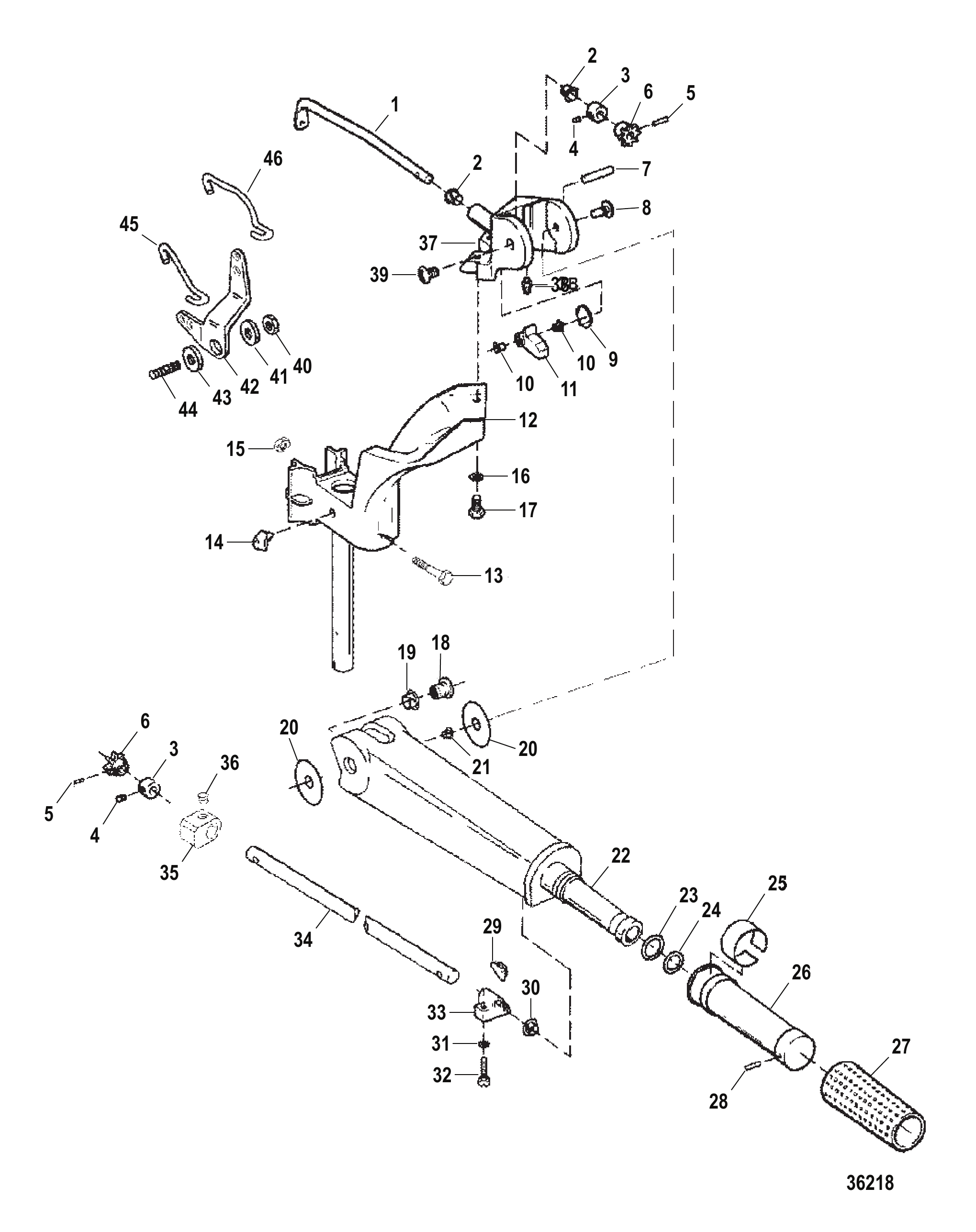

图 18舵柄手柄与油门联动装置 Tiller Handle and Throttle Linkage

REF	零件编号	中文名称	英文名称	数量
1	851928	油门控制轴	SHAFT Throttle Control	1
2	26841	衬套	BUSHING	2
3	FA343178	转向轴固定套件	RETAINER KIT Steering Shaft	2
4	832794	定位螺钉(.250-28 X .250)	SET SCREW (.250-28 X .250)	2
5	29908	销	PIN	2
6	8180091	转向轴齿轮	GEAR Steering Shaft	2
7	F1807	槽销	PIN Groove	1
8	823595	专用螺钉	SCREW (SPECIAL)	1
9	F286868	转向把手止动弹簧	SPRING Steering Handle Stop	1
10	26856	衬套	BUSHING	2
11	F286490T	转向把手止动块	STOP Steering Handle	1
12	835373A11	转向臂支架总成(喷漆)	BRACKET ASSEMBLY Steering Arm (PAINTED)	1
13	828815	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
14	F286539	缓冲垫	BUMPER	1
15	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
16	72521	内齿锁紧垫圈(.312内径)	LOCKWASHER Internal Tooth (.312 INTERNAL)	2
17	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	2
18	F2862241	转向把手枢轴衬套	INSERT Steering Handle Pivot	1
19	812707	衬套	BUSHING	1
20	F286220	转向把手垫圈	WASHER Steering Handle	2
21	26856	衬套	BUSHING	1
22	819279T3	转向手柄(喷漆)	HANDLE Steering (PAINTED)	1
23	21836	O型圈(0.796x0.139)(大)	O-RING (.796 x .139) (LARGE)	1
24	38101	O型圈(0.674x0.103)(小)	O-RING (.674 x .103) (SMALL)	1
25	F712894	速度/档位指示标贴	DECAL Speed/Shift Indicator	1
26	828406A1	油门把手总成	HANDLE/GRIP ASSEMBLY Throttle	1
27	828406	油门/转向把手握把	GRIP Throttle/Steering Handle	1
28	72255	滚动销	PIN Roll	1
29	819227	转向手柄楔块	WEDGE Steering Handle	1
30	97896	衬套	BUSHING	1
31	F8058	锁紧垫圈	LOCKWASHER	2
32	F1829	螺丝(#10-24x0.875)	SCREW (#10-24 x .875)	2
33	F4878161	轴承	BEARING	1
34	819160	转向手柄轴	SHAFT Steering Handle	1
35	832759	节气门止动块	STOP Throttle	1
36	832794	定位螺钉(.250-28 X .250)	SET SCREW (.250-28 X .250)	1
37	817751A12	转向臂支架总成(喷漆)	BRACKET ASSEMBLY Steering Arm (PAINTED)	1
38	F523274	润滑脂接头	FITTING Grease	1
39	823594	专用螺钉	SCREW (SPECIAL)	1
40	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
41	F286282	专用垫圈	WASHER (SPECIAL)	1
42	819148	磁电机控制杆	LEVER Magneto Control	1
43	F183813	控制杆轴承	BEARING Control Lever	1
44	834759	特殊双头螺柱（0.312-24×1.14）	STUD (.312-24 X 1.14) Special	1
45	826846	油门轴连杆	LINK Throttle Shaft	1
46	824142T	油门凸轮连杆	LINK Throttle Cam	1
-	819240A6	动力头总成	POWERHEAD ASSEMBLY	1

图 19专用工具 TOOLS SPECIAL

REF	零件编号	中文名称	英文名称	数量
-	FT2991	钢丝刷	BRUSH Wire	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	FT2909	飞轮拆卸螺母	KNOCK OFF NUT Flywheel Removal	1
-	FT2989	飞轮楔形工具	WEDGE TOOL Flywheel	1
-	13663A1	活塞销安装工具	INSTALLER TOOL Piston Pin	1
-	FT2990-1	活塞与活塞销定位块	BLOCK Piston And Piston Pin	1
-	FT8950	测试套件	TESTER KIT	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	938431	轴承座安装工具	INSTALLER TOOL Bearing Carrier	1
-	27780	拉拔器	PULLER	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	36571	导向垫圈	PILOT WASHER	1
-	29310	安装板	PLATE	1
-	31229	轴	SHAFT	1
-	24156	螺母(0.625-18)	NUT (.625-18)	1
-	34961	垫圈 (0.656 X 1.312 X 0.095)	WASHER (.656 X 1.312 X .095)	1
-	830230T	气隙工具(八腔)	AIR GAP TOOL Eight Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	99379	正时灯	TIMING LIGHT	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	99750A1	万用表	MULTI METER	1
-	825265A1	针轴承润滑脂 (8盎司)	COMPOUND (8 Ounce) NEEDLE BEARINGS	1
-	FT2987-1	润滑剂	LUBRICANT	1
-	901132	密封胶 RTV #1473	SEALANT RTV #1473	1
-	FT2962-2	密封胶	SEALANT	1
-	809819	乐泰271螺纹锁固剂 10毫升	LOCTITE 271 THREADLOCKER 10 ml	1
-	809820	乐泰271螺纹锁固剂 50毫升	LOCTITE 271 THREADLOCKER 50 ml	1
-	809824	底漆乐泰(4.5盎司喷雾)绿色	PRIMER Loctite (4.5 Ounce Aerosol) Green	1
-	850736A1	多功能润滑脂 2-4-C (8盎司管装)	MULTI LUBE 2 4 C (8 Ounce Tube)	1
-	850737A1	齿轮油 (10盎司管装)	GEAR LUBE (10 Ounce Tube)	1
-	816391A4	润滑脂	GREASE	1
