Force 系列 · Cat.# 90-809717 · 共 21 个部位 · 801 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 852550T | 化油器(FO-1C) | CARBURETOR (FO-1C) | 1 |
| - | 852550A1 | 化油器 | CARBURETOR | 1 |
| - | 852550A1 | 化油器(FO-1D) | CARBURETOR (FO-1D) | 1 |
| 1 | FO16128 | 旁通室塞 | PLUG By Pass Chamber | 1 |
| 2 | NSS | 不单独销售本体通道塞 | NOT SOLD SEPARATE Body Channel Plug | 4 |
| 3 | FO4784 | 阻风门摩擦球 | BALL Choke Friction | 1 |
| 4 | FO8805 | 阻风门摩擦弹簧 | SPRING Choke Friction | 1 |
| 5 | F10343 | 阻风门轴 | SHAFT Choke | 1 |
| 6 | F10344 | 阻风门片 | SHUTTER Choke | 1 |
| 7 | 809441 | 百叶窗螺钉 | SCREW Shutters | 2 |
| 8 | F10346 | 燃油杯浮子 | FLOAT Fuel Bowl | 1 |
| 8 | 891730A01 | 浮子套件 | FLOAT KIT | 1 |
| 9 | FO13944 | 浮子销 | PIN Float | 1 |
| 10 | FO15366 | 燃油浮子室 | BOWL Fuel Fuel | 1 |
| 11 | FO15623 | 燃油杯衬垫 | GASKET Fuel Bowl | 1 |
| 12 | 5128 | 燃油杯螺钉 | SCREW Fuel Bowl | 1 |
| 13 | FO2510 | 燃油杯衬垫 | GASKET Fuel Bowl | 2 |
| 14 | 854005 | 燃油弯头 | ELBOW Fuel | 1 |
| 15 | F10268 | 怠速混合气螺钉 | SCREW Idle Mixture | 1 |
| 16 | 27160 | 怠速混合气螺钉弹簧 | SPRING Idle Mixture Screw | 1 |
| 17 | F10265 | 进油针阀 | NEEDLE Inlet | 1 |
| 18 | 6030 | 主量孔(.070)(0-2500英尺) | JET (.070) Main (0 - 2500 Ft.) | 1 |
| 18 | 6029 | 主量孔(.068)(2500-5000英尺) | JET (.068) Main (.068) (2500 - 5000 Ft.) | OPT |
| 18 | 4215 | 燃油主量孔(.066)(5000-7500英尺) | JET Main Fuel (.066) (5000 - 7500 Ft.) | OPT |
| 18 | 4216 | 主量孔(.064)(7500-10000英尺) | JET (.064) Main (7500 - 10000 Ft.) | OPT |
| 19 | FO15722 | 主喷嘴 | NOZZLE Main | 1 |
| 20 | 820578 | 怠速空气量孔(.048) | JET (.048)-Idle Air Bleed | 1 |
| 21 | F10273 | 量孔(.047) | JET (.047) | 1 |
| 22 | F10275 | 节气门量孔密封螺钉 | SCREW Throttle Jet Sealing | 1 |
| 23 | F10290 | 节气门连杆 | LINKAGE Throttle | 1 |
| 24 | 809446 | 节气门连杆E型环 | E-RING Throttle Linkage | 2 |
| 25 | F10242 | 节气门连杆轴垫圈 | WASHER Throttle Linkage Shaft | 1 |
| 26 | 809443 | 节气门轴钢丝 | WIRE Throttle Shaft | 1 |
| 27 | F10349 | 油门轴 | SHAFT Throttle | 1 |
| 28 | F10350 | 节气门轴弹簧 | SPRING Throttle Shaft | 1 |
| 29 | F10351 | 节气门片 | SHUTTER Throttle | 1 |
| 30 | 809447 | 旁通管 | TUBE By Pass | 1 |
| 31 | F681677 | 阻风门杆衬套 | INSERT Choke Rod | 1 |
| 32 | F286547 | 阻风门旋钮 | KNOB Choke | 1 |
| 33 | 819348 | 阻风门拉杆 | ROD Choke | 1 |
| 34 | F341384 | 阻风门杆固定座 | RETAINER Choke Rod | 1 |
| 34 | 830569 | 阻风门杆固定座 | RETAINER Choke Rod | 1 |
| 35 | F197319 | 阻风门杆衬套 | BUSHING Choke Rod | 1 |
| - | FK10352 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| - | 854219A1 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |

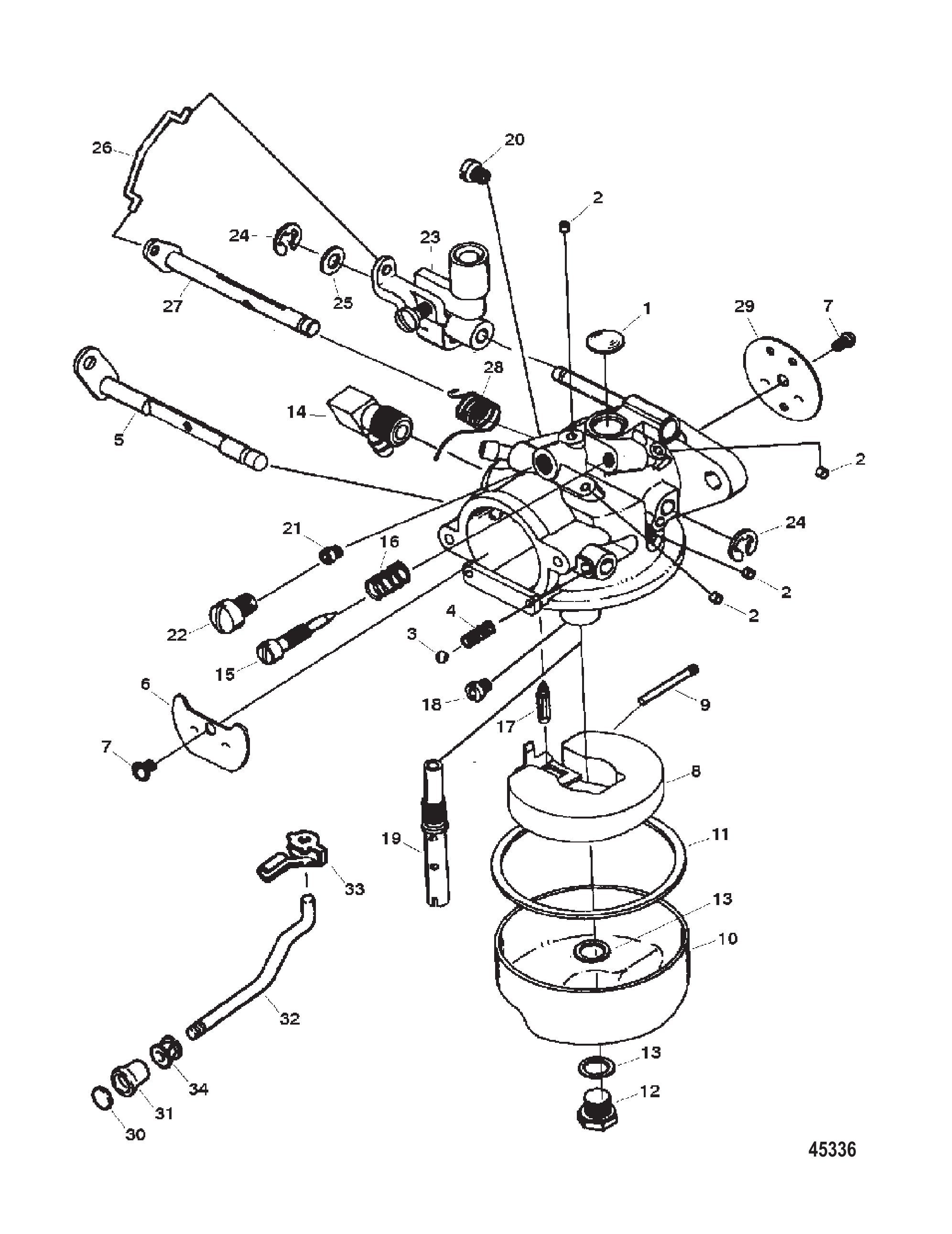

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | F7150611 | 化油器(FO-1B) | CARBURETOR (FO-1B) | 1 |
| 1 | FO16128 | 旁通室塞 | PLUG By Pass Chamber | 1 |
| 2 | FO10588 | 本体通道塞 | PLUG Body Channel Plug | 4 |
| 3 | FO4784 | 阻风门摩擦球 | BALL Choke Friction | 1 |
| 4 | FO8805 | 阻风门摩擦弹簧 | SPRING Choke Friction | 1 |
| 5 | F10343 | 阻风门轴 | SHAFT Choke | 1 |
| 6 | F10344 | 阻风门片 | SHUTTER Choke | 1 |
| 7 | F10345 | 百叶窗螺钉 | SCREW Shutter | 2 |
| 8 | F10346 | 燃油杯浮子 | FLOAT Fuel Bowl | 1 |
| 8 | 891730A01 | 浮子套件 | FLOAT KIT | 1 |
| 9 | FO13944 | 浮子销 | PIN Float | 1 |
| 10 | FO15366 | 燃油浮子室 | BOWL Fuel Fuel | 1 |
| 11 | FO15623 | 燃油杯衬垫 | GASKET Fuel Bowl | 1 |
| 12 | 5128 | 燃油杯螺钉 | SCREW Fuel Bowl | 1 |
| 13 | FO2510 | 燃油杯衬垫 | GASKET Fuel Bowl | 2 |
| 14 | F10347 | 弯头 | ELBOW | 1 |
| 15 | F10268 | 怠速混合气螺钉 | SCREW Idle Mixture | 1 |
| 16 | 27160 | 怠速混合气螺钉弹簧 | SPRING Idle Mixture Screw | 1 |
| 17 | F10265 | 进油针阀 | NEEDLE Inlet | 1 |
| 18 | 6030 | 主量孔(.070)(0-2500英尺) | JET (.070) Main (0 - 2500 Ft.) | 1 |
| 18 | 6029 | 主量孔(.068)(2500-5000英尺) | JET (.068) Main (2500 - 5000 Ft.) | OPT |
| 18 | 4215 | 燃油主量孔(.066)(5000-7500英尺) | JET Main Fuel (.066) (5000 - 7500 Ft.) | OPT |
| 18 | 4216 | 主量孔(.064)(7500-10000英尺) | JET (.064) Main (7500 - 10000 Ft.) | OPT |
| 19 | FO15722 | 主喷嘴 | NOZZLE Main | 1 |
| 20 | 820578 | 怠速空气量孔(.048) | JET (.048)-Idle Air Bleed | 1 |
| 21 | F10273 | 量孔(.047) | JET (.047) | 1 |
| 22 | F10275 | 节气门量孔密封螺钉 | SCREW Throttle Jet Sealing | 1 |
| 23 | F10290 | 节气门连杆 | LINKAGE Throttle | 1 |
| 24 | F10241 | 节气门连杆轴E型环 | E RING Throttle Linkage Shaft | 2 |
| 25 | F10242 | 节气门连杆轴垫圈 | WASHER Throttle Linkage Shaft | 1 |
| 26 | F10338 | 节气门连杆 | LINKAGE Throttle | 1 |
| 27 | F10349 | 油门轴 | SHAFT Throttle | 1 |
| 28 | F10350 | 节气门轴弹簧 | SPRING Throttle Shaft | 1 |
| 29 | F10351 | 节气门片 | SHUTTER Throttle | 1 |
| 30 | F681677 | 阻风门杆衬套 | INSERT Choke Rod | 1 |
| 31 | F286547 | 阻风门旋钮 | KNOB Choke | 1 |
| 32 | 819348 | 阻风门拉杆 | ROD Choke | 1 |
| 33 | F341384 | 阻风门杆固定座 | RETAINER Choke Rod | 1 |
| 33 | 830569 | 阻风门杆固定座 | RETAINER Choke Rod | 1 |
| 34 | F197319 | 阻风门杆衬套 | BUSHING Choke Rod | 1 |
| - | FK10352 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| - | FK10353 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 852406T | 化油器(HO-6A) | CARBURETOR (HO-6A) | 1 |
| 2 | FO2531 | 旁通室塞 | PLUG By Pass Chamber | 1 |
| 2 | 20011 | 韦尔奇塞 | WELCH PLUG | 1 |
| 3 | F10235 | 旁通管 | TUBE By Pass | 1 |
| 4 | FO4784 | 阻风门摩擦球 | BALL Choke Friction | 1 |
| 5 | FO8805 | 阻风门摩擦弹簧 | SPRING Choke Friction | 1 |
| 6 | FO15736 | 阻风门轴/杠杆总成 | SHAFT/LEVER ASSEMBLY Choke | 1 |
| 7 | F10236 | 阻风门片 | SHUTTER Choke | 1 |
| 8 | 854208 | 阻风门百叶窗螺钉 | SCREW Choke Shutter | 1 |
| 8 | 803176 | 螺钉-带补片 | SCREW-W/PATCH | 1 |
| 9 | FO10588 | 本体通道塞 | PLUG Body Channel | 1 |
| 10 | F10346 | 燃油杯浮子 | FLOAT Fuel Bowl | 1 |
| 10 | 891730A01 | 浮子套件 | FLOAT KIT | 1 |
| 11 | FO13944 | 浮子销 | PIN Float | 1 |
| 12 | FO15366 | 燃油浮子室 | BOWL Fuel Fuel | 1 |
| 13 | FO15623 | 燃油杯衬垫 | GASKET Fuel Bowl | 1 |
| 14 | 5128 | 燃油杯螺钉 | SCREW Fuel Bowl | 1 |
| 15 | FO2510 | 燃油杯衬垫 | GASKET Fuel Bowl | 2 |
| 16 | 854209 | 怠速混合气针阀 | NEEDLE Idle Mixture | 1 |
| 17 | 27160 | 怠速混合气针阀弹簧 | SPRING Idle Mixture Needle | 1 |
| 18 | F10265 | 进油针阀 | NEEDLE Inlet | 1 |
| 19 | 1457 | 主量孔(.057)(0-2500英尺) | JET Main (.057) (0 - 2500 Ft.) | 1 |
| 19 | 1655 | 主量孔(.055)(2500-5000英尺) | JET Main (.055) (2500 - 5000 Ft.) | OPT |
| 19 | 1653 | 主量孔(.053)(5000-7500英尺) | JET Main (.053) (5000 - 7500 Ft.) | OPT |
| 19 | FO11764 | 燃油主量孔(.051)(7500-10000英尺) | JET Main Fuel (.051) (7500 - 10000 Ft.) | OPT |
| 20 | F10238 | 主喷嘴 | NOZZLE Main | 1 |
| 21 | F10290 | 节气门连杆 | LINKAGE Throttle | 1 |
| 22 | F10240 | 节气门连杆轴 | SHAFT Throttle Linkage | 1 |
| 23 | 809446 | 节气门连杆E型环 | E-RING Throttle Linkage | 1 |
| 24 | F10242 | 连杆轴垫圈 | WASHER Linkage Shaft | 1 |
| 25 | F10339 | 节气门轴/杠杆总成 | SHAFT/LEVER ASSEMBLY Throttle | 1 |
| 26 | F10246 | 节气门轴回位弹簧 | SPRING Throttle Shaft Return | 1 |
| 27 | F10354 | 节气门片 | SHUTTER Throttle | 1 |
| 28 | 809441 | 百叶窗螺钉 | SCREW Shutters | 1 |
| 29 | 809443 | 节气门轴钢丝 | WIRE Throttle Shaft | 1 |
| 30 | F341384 | 阻风门杆固定座 | RETAINER Choke Rod | 1 |
| 30 | 830569 | 阻风门杆固定座 | RETAINER Choke Rod | 1 |
| 31 | 819348 | 阻风门拉杆 | ROD Choke | 1 |
| 32 | F681677 | 阻风门杆衬套 | INSERT Choke Rod | 1 |
| 33 | F286547 | 阻风门旋钮 | KNOB Choke | 1 |
| 34 | F197319 | 阻风门杆衬套 | BUSHING Choke Rod | 1 |
| - | FK10294 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| - | 854210A1 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |

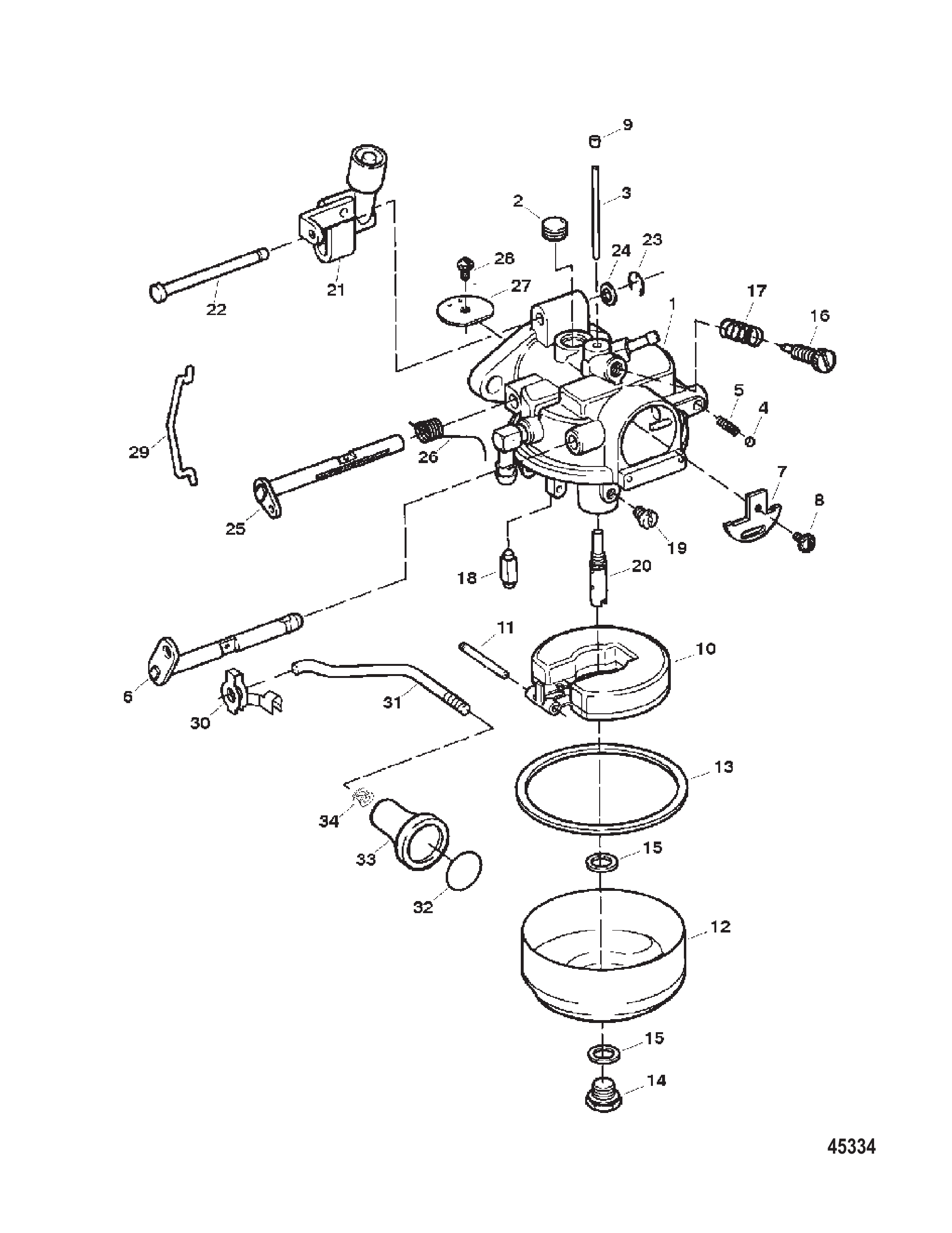

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F714061 | 化油器(HO-5A) | CARBURETOR (HO-5A) | 1 |
| 1 | 852406T | 化油器 | CARBURETOR | 1 |
| 2 | FO2531 | 旁通室塞 | PLUG By Pass Chamber | 1 |
| 2 | 20011 | 韦尔奇塞 | WELCH PLUG | 1 |
| 3 | F10235 | 旁通管 | TUBE By Pass | 1 |
| 4 | FO4784 | 阻风门摩擦球 | BALL Choke Friction | 1 |
| 5 | FO8805 | 阻风门摩擦弹簧 | SPRING Choke Friction | 1 |
| 6 | FO15736 | 阻风门轴/杠杆总成 | SHAFT/LEVER ASSEMBLY Choke | 1 |
| 7 | F10236 | 阻风门片 | SHUTTER Choke | 1 |
| 8 | FO10280 | 阻风门百叶窗螺钉 | SCREW Choke Shutter | 1 |
| 8 | 803176 | 螺钉-带补片 | SCREW-W/PATCH | 1 |
| 9 | FO10588 | 本体通道塞 | PLUG Body Channel | 1 |
| 10 | F10346 | 燃油杯浮子 | FLOAT Fuel Bowl | 1 |
| 10 | 891730A01 | 浮子套件 | FLOAT KIT | 1 |
| 11 | FO13944 | 浮子销 | PIN Float | 1 |
| 12 | FO15366 | 燃油杯 | BOWL Fuel | 1 |
| 13 | FO15623 | 燃油杯衬垫 | GASKET Fuel Bowl | 1 |
| 14 | 5128 | 燃油杯螺钉 | SCREW Fuel Bowl | 1 |
| 15 | FO2510 | 燃油杯衬垫 | GASKET Fuel Bowl | 2 |
| 16 | FO15520 | 怠速混合气针阀 | NEEDLE Idle Mixture | 1 |
| 17 | 27160 | 怠速混合气针阀弹簧 | SPRING Idle Mixture Needle | 1 |
| 18 | F10265 | 进油针阀 | NEEDLE Inlet | 1 |
| 19 | 1457 | 主量孔(.057)(0-2500英尺) | JET Main (.057) (0 - 2500 Ft.) | 1 |
| 19 | 1655 | 主量孔(.055)(2500-5000英尺) | JET Main (.055) (2500 - 5000 Ft.) | OPT |
| 19 | 1653 | 主量孔(.053)(5000-7500英尺) | JET Main (.053) (5000 - 7500 Ft.) | OPT |
| 19 | FO11764 | 燃油主量孔(.051)(7500-10000英尺) | JET Main Fuel (.051) (7500 - 10000 Ft.) | OPT |
| 20 | F10238 | 主喷嘴 | NOZZLE Main | 1 |
| 21 | F10290 | 节气门连杆 | LINKAGE Throttle | 1 |
| 22 | F10240 | 节气门连杆轴 | SHAFT Throttle Linkage | 1 |
| 23 | F10241 | 连杆轴E型环 | E RING Linkage Shaft | 1 |
| 24 | F10242 | 连杆轴垫圈 | WASHER Linkage Shaft | 1 |
| 25 | F10339 | 节气门轴/杠杆总成 | SHAFT/LEVER ASSEMBLY Throttle | 1 |
| 26 | F10246 | 节气门轴回位弹簧 | SPRING Throttle Shaft Return | 1 |
| 27 | F10354 | 节气门片 | SHUTTER Throttle | 1 |
| 28 | F10328 | 百叶窗螺钉 | SCREW Shutter | 1 |
| 28 | 803176 | 螺钉-带补片 | SCREW-W/PATCH | 1 |
| 29 | F10338 | 节气门连杆 | LINKAGE Throttle | 1 |
| 30 | F341384 | 阻风门杆固定座 | RETAINER Choke Rod | 1 |
| 30 | 830569 | 阻风门杆固定座 | RETAINER Choke Rod | 1 |
| 31 | 819348 | 阻风门拉杆 | ROD Choke | 1 |
| 32 | F681677 | 阻风门杆衬套 | INSERT Choke Rod | 1 |
| 33 | F286547 | 阻风门旋钮 | KNOB Choke | 1 |
| 34 | F197319 | 阻风门杆衬套 | BUSHING Choke Rod | 1 |
| - | FK10294 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| - | FK10295 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |

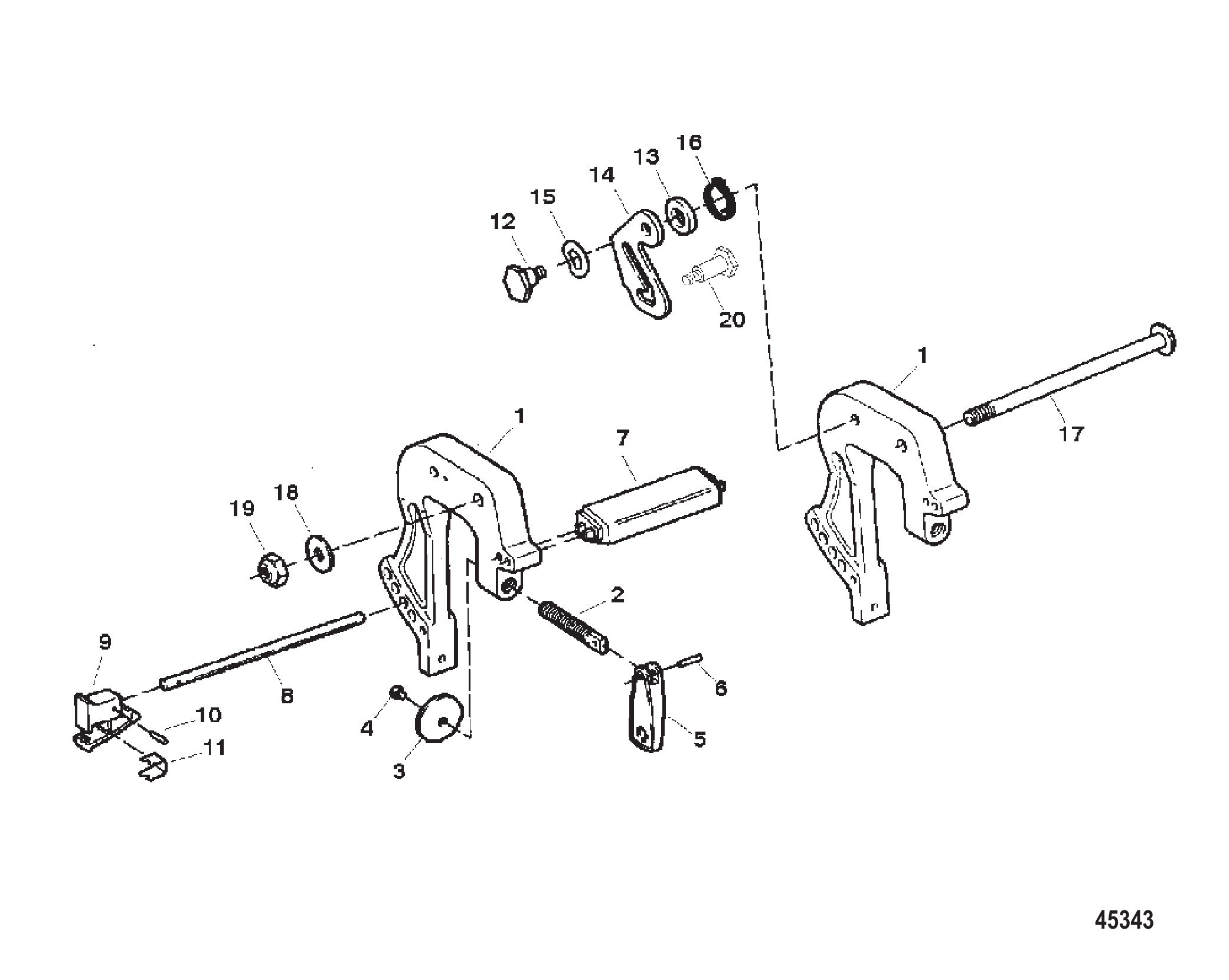

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

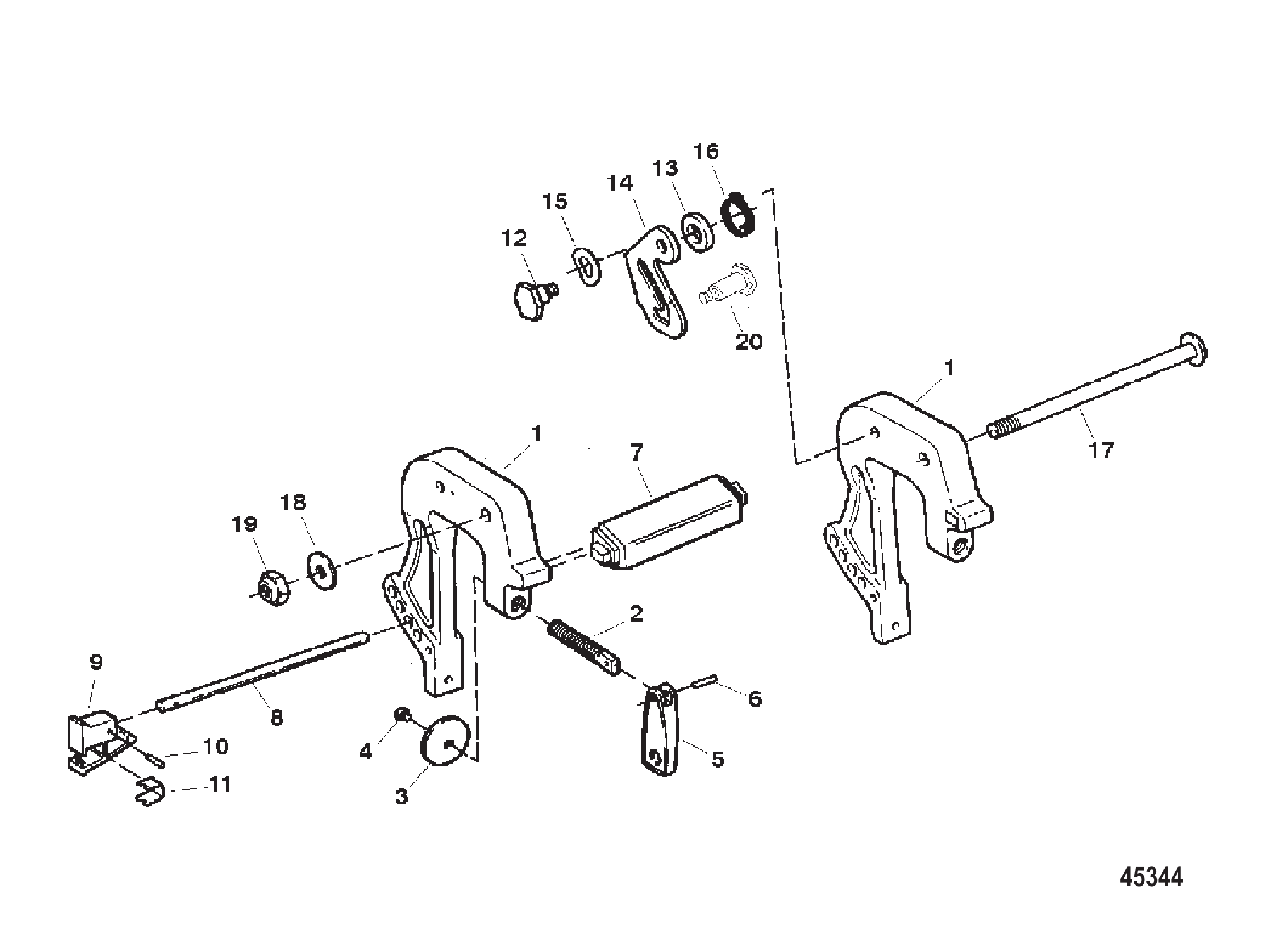

| 1 | 820068T1 | 艉部支架(喷漆) | BRACKET Stern (Painted) | 2 |
| 1 | 850073A1 | 支架套件-船尾 | BRACKET KIT-STERN | 2 |
| 2 | 826248 | 艉支架螺钉 | SCREW Stern Bracket | 2 |
| 3 | F24074 | 艉支架地脚螺钉 | FOOT Stern Bracket Screw | 2 |
| 4 | 69022 | 螺钉 (#10-32 x .500) 不锈钢 | SCREW (#10-32 x .500) Stainless Steel | 2 |
| 5 | F424075T | 手柄(喷漆) | HANDLE (Painted) | 2 |
| 5 | F424075T3 | 夹紧螺钉手柄 | HANDLE Clamp Screw | 2 |
| 6 | 24198 | 滚动销 | PIN Roll | 2 |
| 7 | F286647 | 搬运手柄 | HANDLE Carrying | 1 |
| 7 | 832035T | 手柄 | HANDLE | 1 |
| 8 | FA617113 | 锁定杆套件 | BAR KIT Lock | 1 |
| 8 | 851924A2 | 倾斜销总成-艉支架 | PIN ASSEMBLY Tilt - Stern Bracket | 1 |
| 9 | F286114 | 锁杆手柄 | HANDLE Lock Bar | 1 |
| 10 | 38489 | 滚动销 | PIN Roll | 1 |
| 11 | F286461 | 锁杆弹簧 | SPRING Lock Bar | 1 |
| 12 | F286422-1 | 倾斜锁定螺钉(.312-18专用) | SCREW (.312-18 Special) Tilt Lock | 1 |
| 13 | 819226 | 倾斜锁隔套 | SPACER Tilt Lock | 1 |
| 14 | F429541 | 倾斜锁 | LOCK Tilt | 1 |
| 15 | 69150 | 波形垫圈 | WAVE WASHER | 1 |
| 16 | F286544-1 | 倾斜锁弹簧 | SPRING Tilt Lock | 1 |
| 17 | F617037 | 艉架枢轴螺栓(.375-16x6.880) | BOLT (.375-16 x 6.880) Stern Bracket Pivot | 1 |
| 18 | 20553 | 垫圈(.406 x .734 x .063) | WASHER (.406 x .734 x .063) | 1 |
| 19 | F7026 | 螺母（.375-16） | NUT (.375-16) | 1 |
| 20 | 819707 | 倾斜锁销（0.250-20） | PIN Tilt Lock (.250-20) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 830295T | 艉部支架(喷漆) | BRACKET Stern (Painted) | 2 |
| 1 | 850073T7 | 艉支架 | BRACKET Stern | 2 |
| 2 | 826248 | 艉支架螺钉 | SCREW Stern Bracket | 2 |
| 3 | F24074 | 艉支架地脚螺钉 | FOOT Stern Bracket Screw | 2 |
| 4 | 69022 | 螺钉 (#10-32 x .500) 不锈钢 | SCREW (#10-32 x .500) Stainless Steel | 2 |
| 5 | F424075T | 手柄(喷漆) | HANDLE (Painted) | 2 |
| 5 | F424075T3 | 夹紧螺钉手柄 | HANDLE Clamp Screw | 2 |
| 6 | 24198 | 滚动销 | PIN Roll | 2 |
| 7 | 830564 | 搬运手柄 | HANDLE Carrying | 1 |
| 8 | FA617113 | 锁定杆套件 | BAR KIT Lock | 1 |
| 8 | 851924A2 | 倾斜销总成-艉支架 | PIN ASSEMBLY Tilt - Stern Bracket | 1 |
| 9 | F286114 | 锁杆手柄 | HANDLE Lock Bar | 1 |
| 10 | 38489 | 滚动销 | PIN Roll | 1 |
| 11 | F286461 | 锁杆弹簧 | SPRING Lock Bar | 1 |
| 12 | F286422-1 | 倾斜锁定螺钉(.312-18专用) | SCREW (.312-18 Special) Tilt Lock | 1 |
| 13 | 819226 | 倾斜锁隔套 | SPACER Tilt Lock | 1 |
| 14 | F429541 | 倾斜锁 | LOCK Tilt | 1 |
| 15 | 69150 | 波形垫圈 | WAVE WASHER | 1 |
| 16 | F286544-1 | 倾斜锁弹簧 | SPRING Tilt Lock | 1 |
| 17 | F617037 | 艉架枢轴螺栓(.375-16x6.880) | BOLT (.375-16 x 6.880) Stern Bracket Pivot | 1 |
| 18 | 20553 | 垫圈(.406 x .734 x .063) | WASHER (.406 x .734 x .063) | 1 |
| 19 | F7026 | 螺母（.375-16） | NUT (.375-16) | 1 |
| 20 | 819707 | 倾斜锁销（0.250-20） | PIN Tilt Lock (.250-20) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

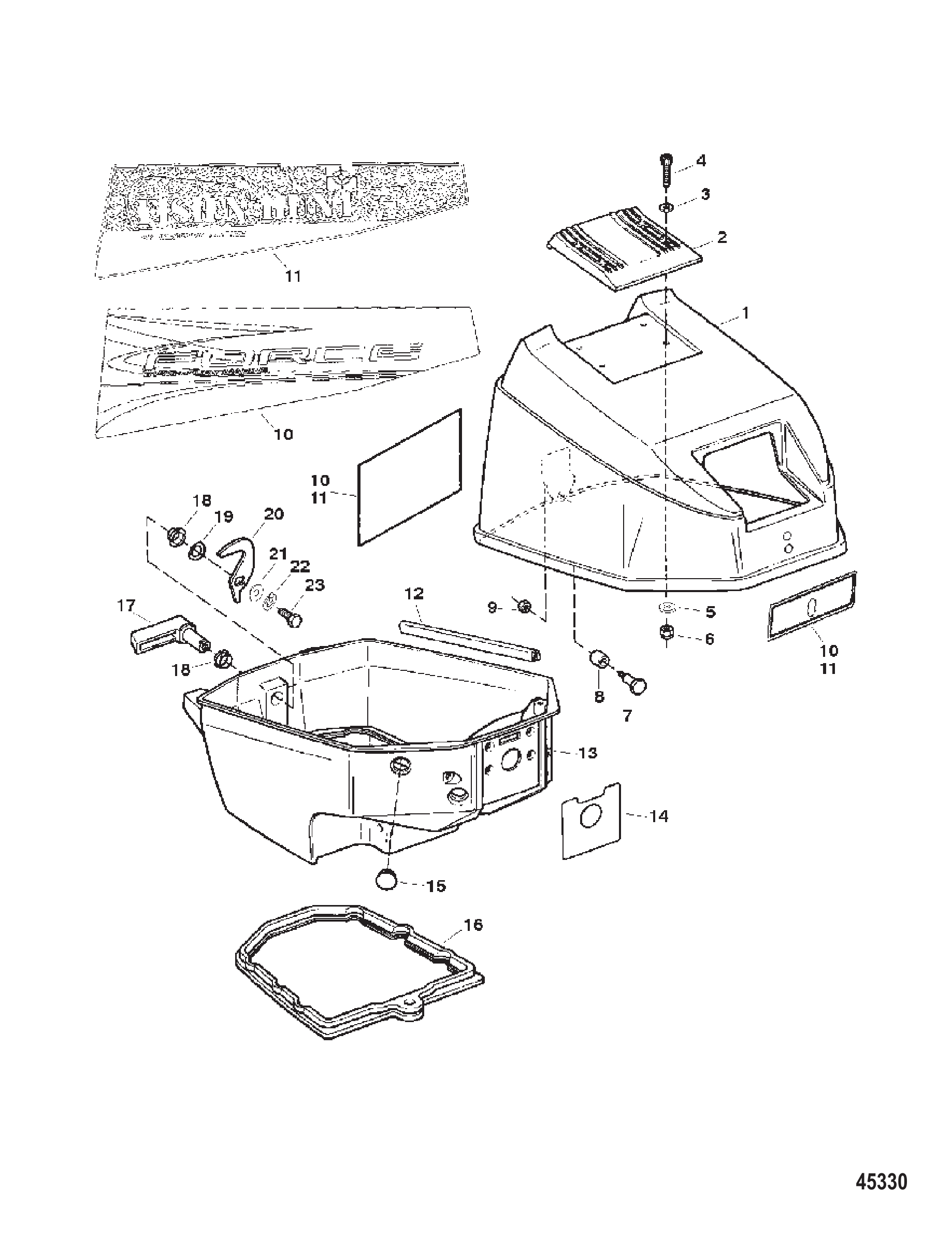

| 1 | 820154A2 | 顶盖总成(喷漆) | TOP COWL ASSEMBLY Top (Painted) | 1 |
| 1 | 820154A8 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 820154A4 | 顶盖总成(喷漆) | TOP COWL ASSEMBLY Top (Painted) | 1 |
| 2 | F681269 | 倾斜手柄 | HANDLE Tilt | 1 |
| 3 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 4 |
| 4 | F2211 | 不锈钢螺钉(#10-24 x .625) | SCREW (#10-24 x .625) Stainless Steel | 4 |
| 5 | F8143 | 垫圈 | WASHER | 4 |
| 6 | F7009 | 螺母(#10-24) | NUT (#10-24) | 4 |
| 7 | F681026 | 锁扣滚轮螺钉 | SCREW Latch Roller | 1 |
| 8 | F681759 | 锁扣滚轮 | ROLLER Latch | 1 |
| 9 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 9 | 8M0207776 | 螺母 | NUT | 1 |
| 10 | 820731A95 | 贴花套件 | DECAL SET | 1 |
| 10 | 820732A95 | 贴花套件 | DECAL SET | 1 |
| 11 | 826339A94 | 贴花套件 | DECAL SET | 1 |
| 11 | 855443A97 | 贴花套件 | DECAL SET | 1 |
| NS | 809856A96 | 贴花套件 | DECAL SET | 1 |
| NS | 854201A97 | 贴花套件 | DECAL SET | 1 |
| 12 | F392756 | 下盖顶部密封件 | SEAL Top Of Bottom Cowl | 1 |
| 13 | 819280A2 | 底部支撑板套件 | PLATE KIT Bottom Support | 1 |
| 14 | 8192811 | 前部-底部支撑板 | PLATE Front - Bottom Support | 1 |
| 15 | 73336 | 堵头 | PLUG | 1 |
| 16 | 819486 | 底罩密封条 | SEAL Bottom Cowl | 1 |
| 17 | FA681469T | 罩盖锁扣手柄总成 | HANDLE ASSEMBLY Cowl Latch | 1 |
| 17 | 854239A1 | 罩盖锁扣手柄总成 | HANDLE ASSEMBLY Cowl Latch | 1 |
| 18 | 812707 | 衬套 | BUSHING | 2 |
| 19 | F2047 | 波形垫圈 | WASHER Wave | 1 |
| 20 | F481777 | 凸轮锁轴 | CAM Latch Shaft | 1 |
| 20 | 8M0001081 | 凸轮 | CAM | 1 |
| 21 | 35044 | 垫圈(0.281×0.625×0.065)不锈钢 | WASHER (.281 x .625 x .065) Stainless Steel | 1 |
| 22 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 23 | 28635 | 不锈钢螺丝(.250-20 x .620) | SCREW (.250-20 x .620) Stainless Steel | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

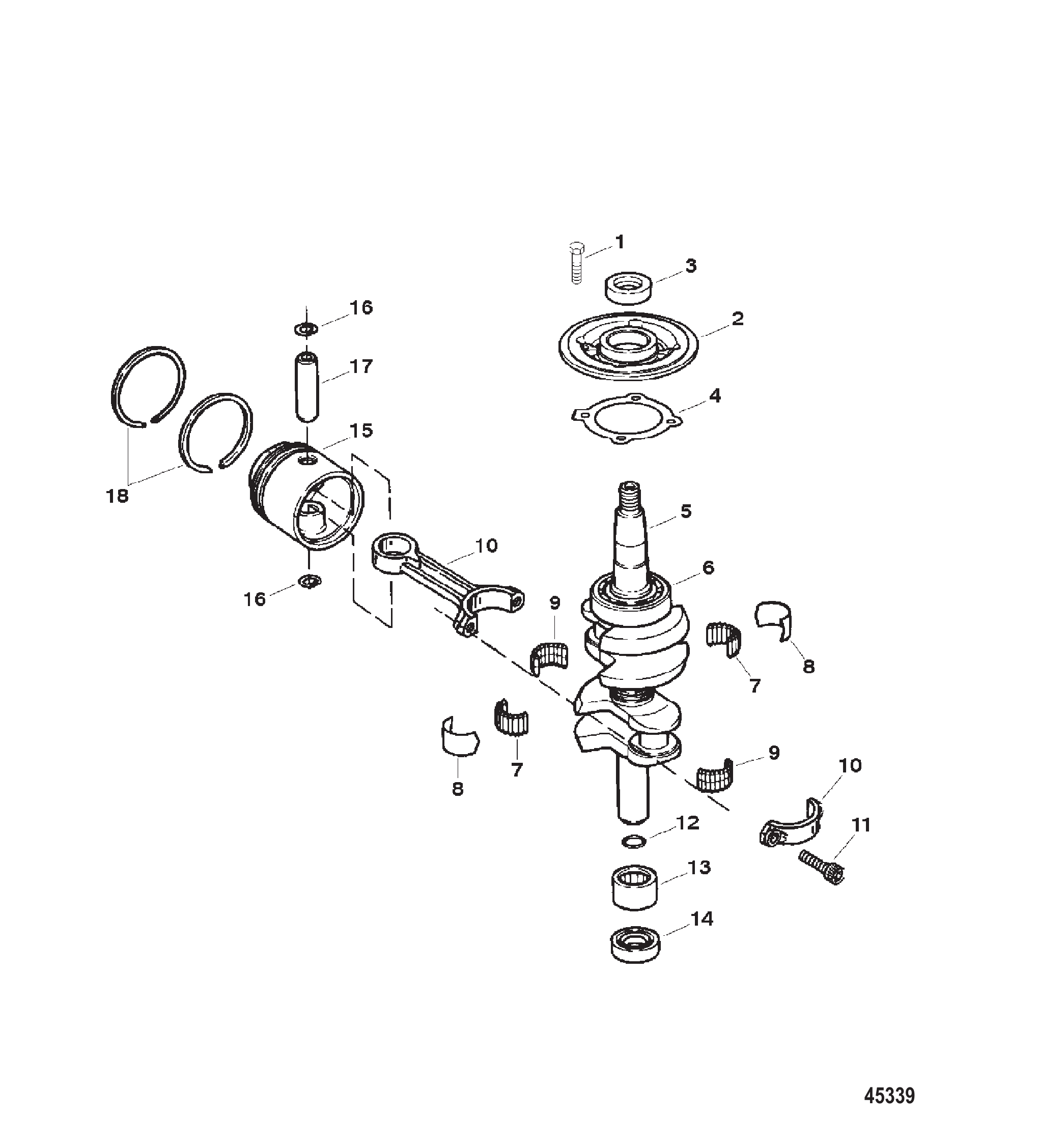

| 1 | F1914 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 4 |
| 2 | 817753A1 | 曲轴轴承保持架总成 | CAGE ASSEMBLY Crankshaft Bearing | 1 |
| 3 | 819801 | 曲轴上密封 | SEAL Upper - Crankshaft | 1 |
| 4 | F286277 | 曲轴轴承保持架垫片 | GASKET Crankshaft Bearing Cage | 1 |
| 5 | 819803A2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 6 | F286028 | 滚珠轴承 | BEARING Ball | 1 |
| 7 | F286571 | 滚柱套装(26件/套) | ROLLER SET (26 Per Set) | 1 |
| 8 | FA286155 | 中央主轴承衬套组 | LINER SET Center Main Bearing | 1 |
| 9 | FA712228 | 滚柱组(2条-28件/条) | ROLLER SET (2 Strips-28 Per) | 2 |
| 10 | FS715016 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 11 | F175634 | 连杆螺钉 | SCREW Conn Rod | 4 |
| 12 | 32509 | O型圈(.489x.070) | O-RING (.489 x .070) | 1 |
| 13 | F343014 | 曲轴下主轴承 | BEARING Crankshaft Lower Main | 1 |
| 14 | 819396 | 曲轴下端密封 | SEAL Crankshaft Lower | 1 |
| 15 | 819946A3 | 活塞套件 | PISTON KIT | 2 |
| 16 | F31410 | 挡圈 | RING Retaining | 4 |
| 17 | F712017 | 活塞销 | PIN Piston | 2 |
| 18 | 820484A1 | 活塞环组(2环) | RING SET Piston (2 Rings) | 2 |
| - | FG1036 | 短缸体垫片组 | GASKET SET Short Block | 1 |
| - | FG1035 | 短缸体垫片组 | GASKET SET Short Block | 1 |
| - | 819553A12 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| - | 819553A14 | 短缸体总成 | SHORT BLOCK ASSEMBLY | 1 |
| - | 819553A15 | 短缸体总成 | SHORT BLOCK ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

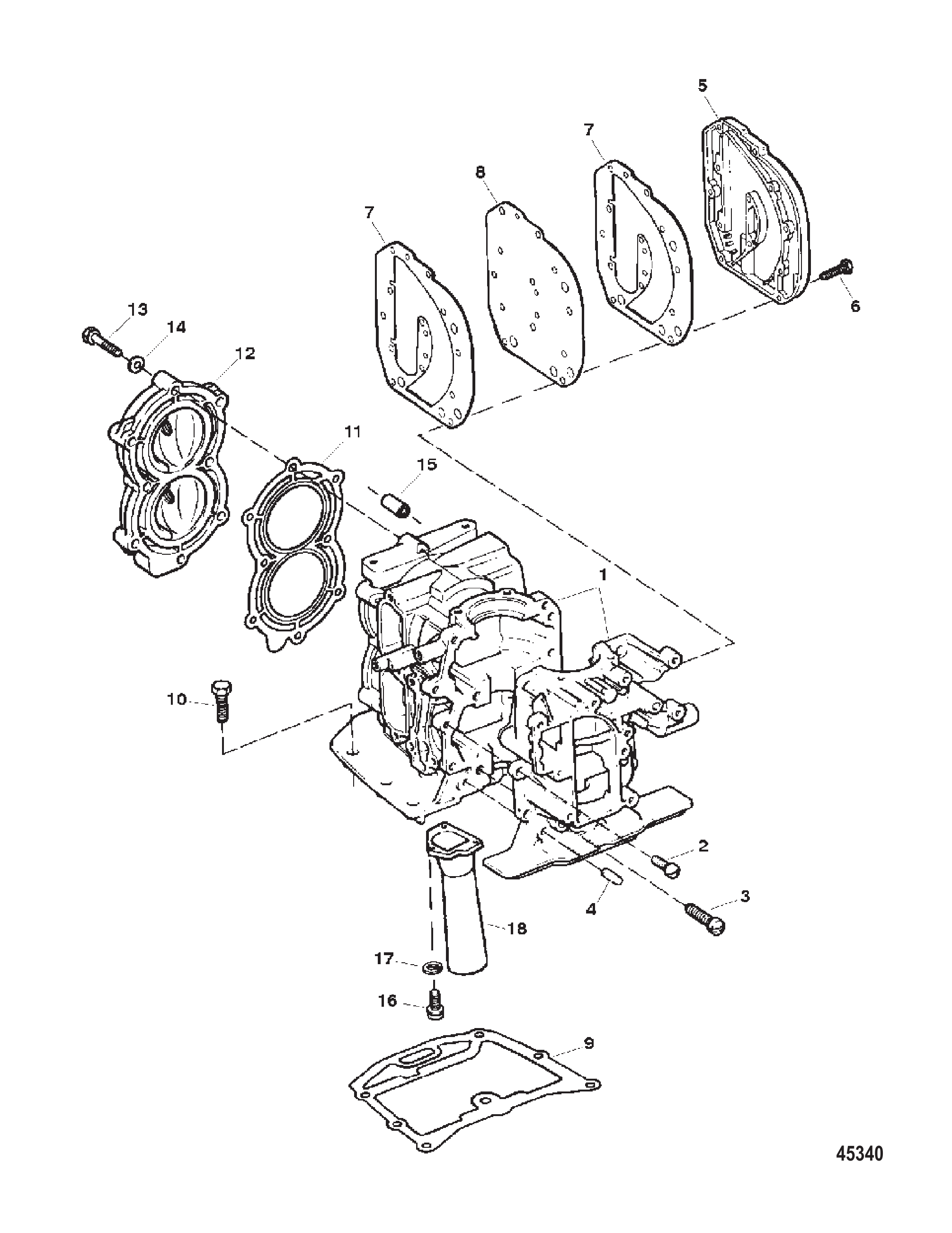

| 1 | 819553A14 | 短缸体总成(喷漆) | SHORT BLOCK ASSEMBLY (Painted) | 1 |
| 1 | 819553A15 | 短缸体总成 | SHORT BLOCK ASSEMBLY | 1 |
| 1 | 819553A12 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | F1107 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 8 |
| 3 | F1335 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 4 |
| 4 | F8559 | 定位销 | PIN Dowel | 2 |
| 5 | 824141T | 排气盖(喷漆) | COVER Exhaust (Painted) | 1 |
| 5 | 824141T1 | 盖套件-排气 | COVER KIT Exhaust | 1 |
| 6 | 28668 | 螺钉 (.250-20 x .875) 不锈钢 | SCREW (.250-20 x .875) Stainless Steel | 12 |
| 7 | F715154 | 排气口盖垫片 | GASKET Exhaust Port Cover | 2 |
| 8 | F715151 | 排气板 | PLATE Exhaust | 1 |
| 9 | F715279-1 | 气缸安装垫片 | GASKET Cylinder Mounting | 1 |
| 9 | 853957 | 气缸安装垫片 | GASKET Cylinder Mounting | 1 |
| 10 | 35386 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 6 |
| 11 | F286529-3 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| 12 | F703518T | 气缸盖(喷漆) | CYLINDER HEAD (Painted) | 1 |
| 12 | F703518T1 | 气缸盖 | CYLINDER HEAD | 1 |
| 12 | F286518T | 气缸盖(喷漆) | CYLINDER HEAD (Painted) | 1 |
| 12 | F286518T1 | 气缸盖 | CYLINDER HEAD | 1 |
| 13 | F901938-1 | 气缸盖螺钉(.250-20x.875专用) | SCREW (.250-20 x .875) Cylinder Head (Special) | 8 |
| 14 | 37998 | 垫圈 | WASHER | 8 |
| 15 | F715943 | 气缸水套管 | TUBE Cylinder Water Jacket | 1 |
| 16 | 28636 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 3 |
| 17 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 3 |
| 18 | F715660 | 排气管 | TUBE Exhaust | 1 |
| 18 | 855993 | 排气管 | TUBE Exhaust | 1 |
| - | FG1036 | 短缸体垫片组 | GASKET SET Short Block | 1 |
| - | FG1035 | 短缸体垫片组 | GASKET SET Short Block | 1 |
| - | 819553A12 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| - | 819553A14 | 短缸体总成 | SHORT BLOCK ASSEMBLY | 1 |
| - | 819553A15 | 短缸体总成 | SHORT BLOCK ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

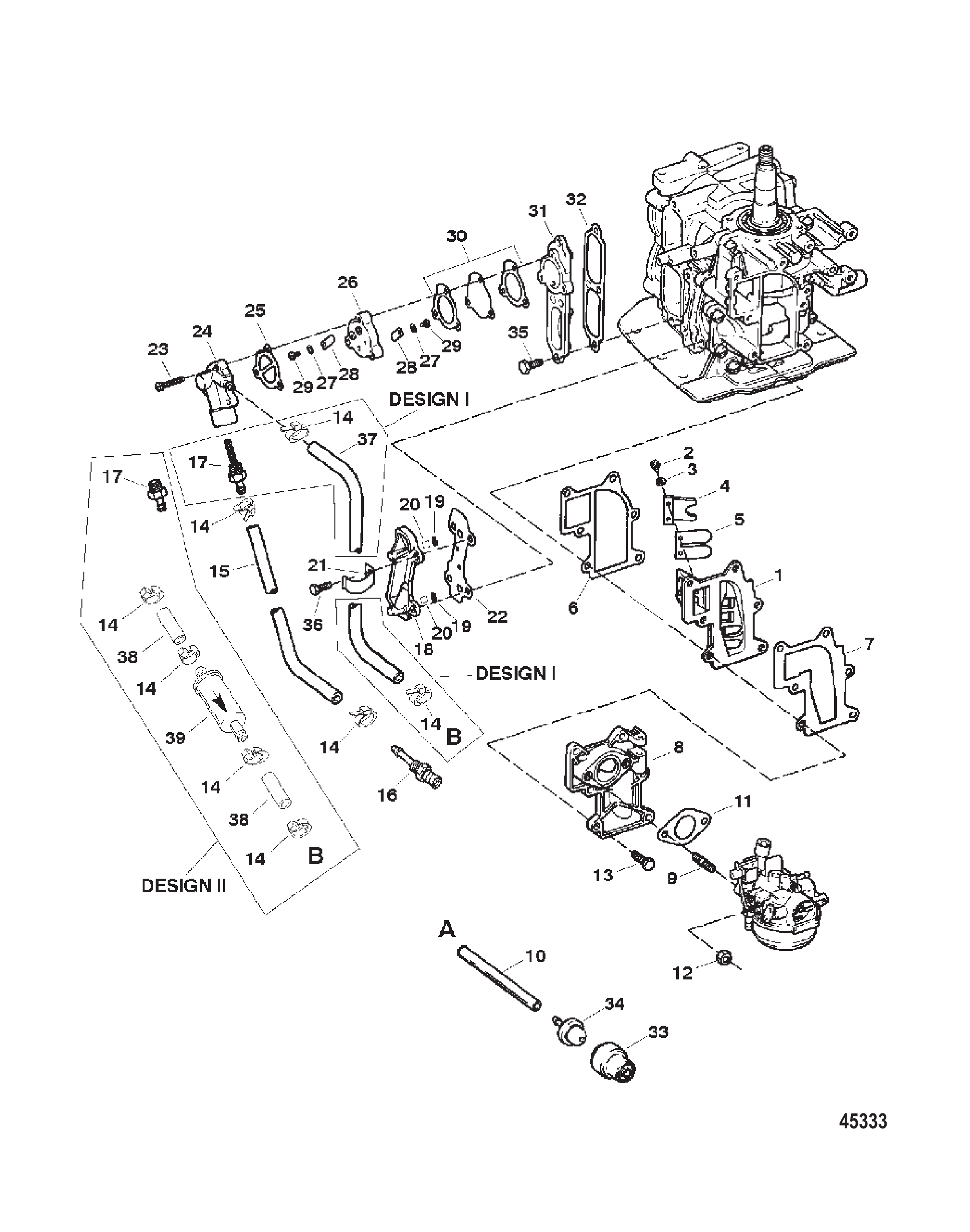

| 1 | FA715158 | 簧片阀板总成 | PLATE ASSEMBLY Reed | 1 |
| 1 | FA715158T | 板总成-簧片阀 | PLATE ASSY-REED | 1 |
| 2 | 28430 | 螺钉(#6-32 x .25) | SCREW (#6-32 x .25) | 8 |
| 3 | F1704 | 垫圈(#6内齿) | WASHER (#6 Internal) | 8 |
| 4 | F715161 | 簧片止挡 | STOP Reed | 4 |
| 5 | F31160-2 | 簧片 | REED | 4 |
| 6 | F286159-1 | 簧片阀衬垫 | GASKET Reed Plate | 1 |
| 7 | F715168 | 歧管垫片 | GASKET Manifold | 1 |
| 8 | FA714167 | 化油器歧管套件(9.9马力)(喷漆) | MANIFOLD KIT Carburetor (9.9) (Painted) | 1 |
| 8 | 854240A1 | 歧管总成-化油器 | MANIFOLD ASSEMBLY Carburetor | 1 |
| 8 | FA715167 | 化油器歧管套件(喷漆) | MANIFOLD KIT Carburetor (Painted) | 1 |
| 8 | 854241A1 | 歧管总成-化油器 | MANIFOLD ASSEMBLY Carburetor | 1 |
| 9 | 826622 | 双头螺柱(.250-20x.910) | STUD (.250-20 x .910) | 2 |
| 10 | 81939853 | 燃油软管(18英寸整卷)(裁切5.750英寸)-注油球至化油器 | HOSE Fuel (18.00 In. Bulk) (Cut 5.750 In.)-Primer Bulb to Carb | 1 |
| 10 | 819398T | 软管 | HOSE | 1 |
| 11 | F18906 | 化油器垫片(9.9马力) | GASKET Carburetor (9.9) | 1 |
| 11 | F715906 | 化油器安装垫片(15马力) | GASKET Carburetor Mount (15) | 1 |
| 12 | 20890 | 螺母 (.250-20) | NUT (.250-20) | 2 |
| 13 | 28668 | 螺钉 (.250-20 x .875) 不锈钢 | SCREW (.250-20 x .875) Stainless Steel | 6 |
| 14 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 6 |
| 15 | 81939853 | 燃油软管(18英寸整卷)(裁切13.380英寸) | HOSE Fuel (18.00 In. Bulk) (Cut 13.380 In.) | 1 |
| 15 | 819398T | 软管 | HOSE | 1 |
| 16 | F197767-2 | 燃油衬套 | BUSHING Fuel | 1 |
| 17 | F901811 | 燃油泵滤清器 | FILTER Fuel Pump | 1 |
| 17 | 850314 | 燃油泵接头 | FITTING Fuel Pump | 1 |
| 18 | FA429471 | 气缸排水盖总成(喷漆) | COVER ASSEMBLY Cylinder Drain (Painted) | 1 |
| 18 | 820070A3 | 盖总成-气缸排水 | COVER ASSEMBLY Cylinder Drain | 1 |
| 19 | F429811 | 滤网 | SCREEN | 2 |
| 20 | 817741A1 | 止回阀套件 | CHECK VALVE KIT | 2 |
| 21 | F286772-1 | 卡箍 | CLAMP | 1 |
| 22 | 825188 | 气缸排水盖垫片 | GASKET Cylinder Drain Cover | 1 |
| 23 | F1069 | 螺钉(#10-24x1.062) | SCREW (#10-24 x 1.062) | 3 |
| 24 | 819993T1 | 燃油泵盖(喷漆) | COVER Fuel Pump (Painted) | 1 |
| 24 | 819993T2 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 25 | F24748-2 | 燃油泵垫片 | GASKET Fuel Pump Fuel Pump | 1 |
| 26 | F2A24757 | 燃油泵板总成 | PLATE ASSEMBLY Fuel Pump | 1 |
| 27 | 18552 | 垫圈 | WASHER | 2 |
| 28 | F18160-3 | 簧片 | REED | 2 |
| 29 | F1286 | 螺钉(#4-40x.187) | SCREW (#4-40 x .187) | 2 |
| 30 | 818043A1 | 垫片/膜片组 | GASKET/DIAPHRAGM SET | 1 |
| 31 | 8201162 | 换气口盖 | COVER Transfer Port | 1 |
| 31 | 820116T | 换气口盖 | COVER Transfer Port | 1 |
| 32 | 825183 | 换气口盖垫片 | GASKET Transfer Port Cover | 1 |
| 33 | F681954-1 | 注油泵盖 | COVER Primer Bulb | 1 |
| 33 | 851934 | 注油泵盖 | COVER Primer Bulb | 1 |
| 34 | F681046 | 注油泵球 | BULB Primer | 1 |
| 35 | 98254 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 4 |
| 36 | F1922 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 4 |
| 37 | 81939853 | 燃油软管(18英寸整卷)(裁切8.250英寸) | HOSE Fuel (18.00 In. Bulk) (Cut 8.250 In.) | 1 |
| 37 | 819398T | 软管 | HOSE | 1 |
| 38 | 81939853 | 燃油软管(18英寸整卷)(裁切4.00英寸) | HOSE Fuel (18.00 In. Bulk) (Cut 4.00 In.) | 2 |
| 38 | 819398T | 软管 | HOSE | 2 |
| 39 | 828998 | 燃油滤清器(设计II型) | FILTER Fuel (DESIGN II) | 1 |
| - | FG1036 | 短缸体垫片组 | GASKET SET Short Block | 1 |
| - | FK10294 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| - | FG1035 | 短缸体垫片组 | GASKET SET Short Block | 1 |
| - | FK10352 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| - | 819553A12 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| - | 819553A14 | 短缸体总成 | SHORT BLOCK ASSEMBLY | 1 |
| - | 819553A15 | 短缸体总成 | SHORT BLOCK ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

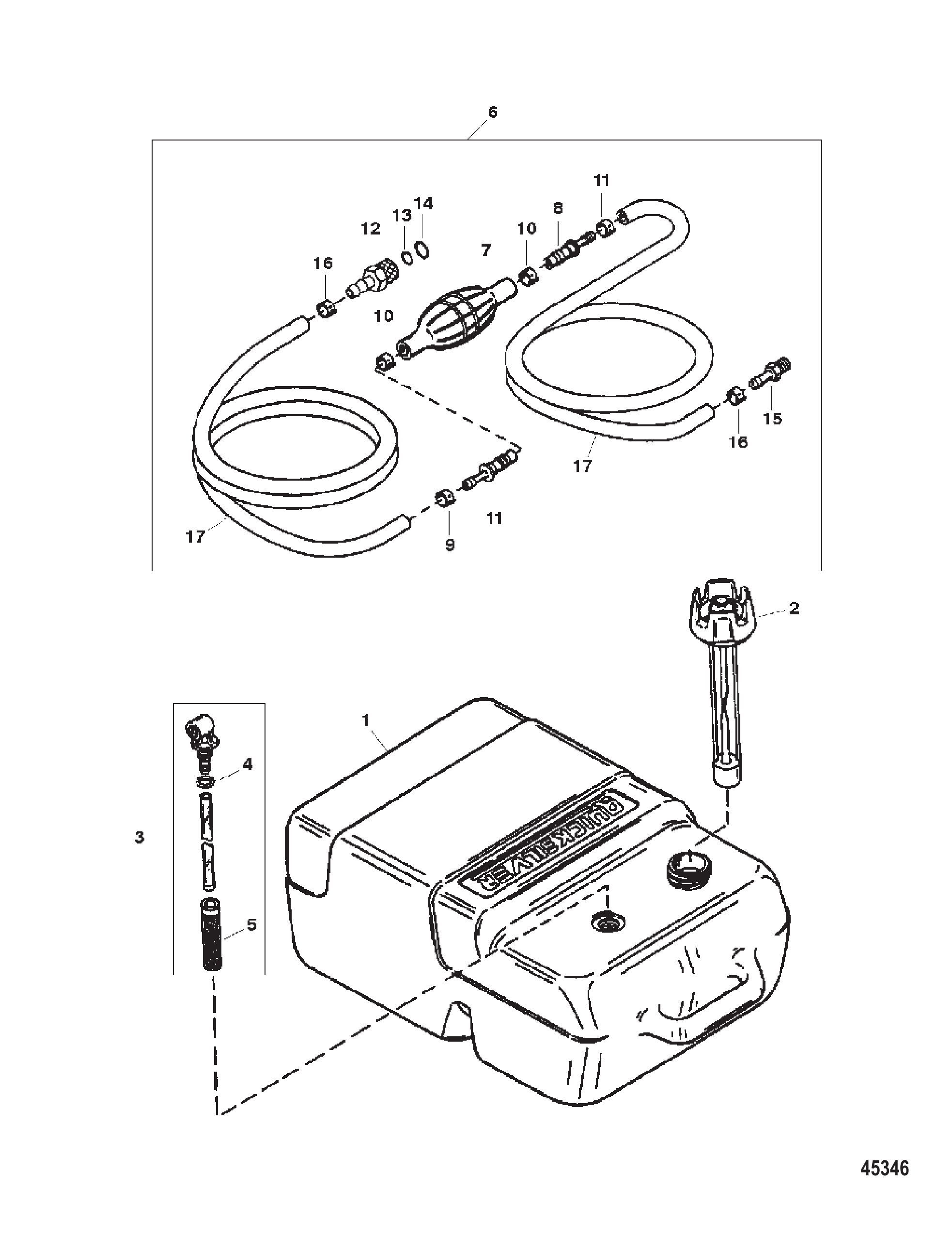

| 1 | 823504A3 | 燃油箱总成 | TANK ASSEMBLY Fuel | 1 |
| 1 | 823504A1 | 燃油箱总成-塑料6.6加仑 | TANK ASSEMBLY Fuel - Plastic 6.6 Gallon | 1 |
| 1 | 859063A1 | 燃油箱总成 | TANK ASSEMBLY Fuel | 1 |
| 2 | 823536 | 油量表/油箱盖总成 | GAUGE/CAP ASSEMBLY | 1 |
| 2 | 816976Q1 | 燃油手动通气盖总成 | CAP ASSEMBLY Fuel-Manual Vent | 1 |
| 3 | 823532 | 燃油接头总成 | CONNECTOR ASSEMBLY Fuel | 1 |
| 3 | 8M0175545 | 燃油连接套件 6.6 | CONN KIT FUEL 6.6 | 1 |
| 4 | 823533 | O型圈 | O-RING | 1 |
| 5 | 823534 | 滤网 | SCREEN Filter | 1 |
| 6 | 820572A8 | 燃油管路总成 | LINE ASSEMBLY Fuel | 1 |
| 6 | 877684Q8 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| 7 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 7 | 13330Q07 | 注油泵总成 - Quicksilver品牌 | BULB ASSEMBLY Primer - Quicksilver Brand | 1 |
| 8 | 13331A1 | CHECK VALVE ASSEMBLY (INLET) | 1 | |
| 8 | 13331A3 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 9 | 13331A2 | CHECK VALVE ASSEMBLY (OUTLET) | 1 | |
| 9 | 13331A4 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 10 | 4158210 | CLAMP Nylon (LARGE) | 2 | |
| 11 | 415827 | CLAMP Nylon (SMALL) | 2 | |
| 11 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 12 | F197787-3 | 燃油发动机端联轴器 | COUPLER Fuel Engine End | 1 |
| 12 | F197787Q3 | 燃油接头总成 | COUPLER ASSEMBLY Fuel | 1 |
| 13 | F17815 | 小密封件 | SEAL (SMALL) | 1 |
| 14 | F17816 | 大密封件 | SEAL (LARGE) | 1 |
| 15 | 897711 | 燃油箱端接头(.250-18) | CONNECTOR (.250-18) Fuel Tank End | 1 |
| 15 | 89771Q2 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 16 | 415827 | 尼龙卡箍 | CLAMP Nylon | 2 |
| 16 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 17 | 1678978 | HOSE (9.00 Feet Bulk) Cut as Req'd | AR | |
| 17 | 85861079 | 软管(9.00英尺整卷) | HOSE (9.00 Feet Bulk) | AR |
| 17 | 16789100 | HOSE (100.00 Feet Bulk) Cut as Req'd | AR | |
| 17 | 858610100 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

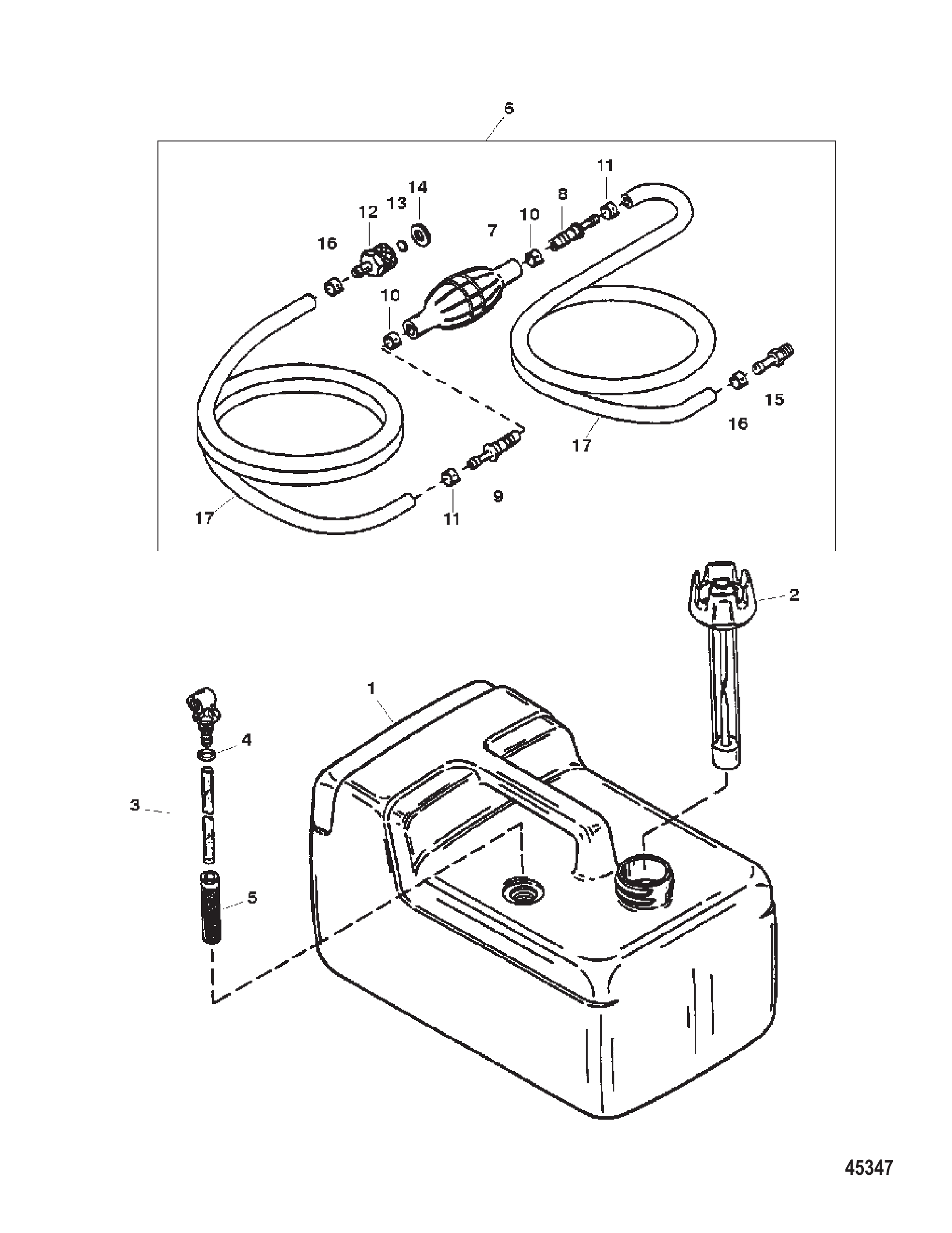

| 1 | 823505A2 | 燃油箱总成 | TANK ASSEMBLY Fuel | 1 |
| 1 | 823505A1 | 燃油箱总成 | TANK ASSEMBLY Fuel | 1 |
| 1 | 859061A1 | 燃油箱总成 | TANK ASSEMBLY Fuel | 1 |
| 2 | 823535 | 油量表/油箱盖总成 | GAUGE/CAP ASSEMBLY | 1 |
| 2 | 816976Q1 | 燃油手动通气盖总成 | CAP ASSEMBLY Fuel-Manual Vent | 1 |
| 3 | 823531 | 燃油接头总成 | CONNECTOR ASSEMBLY Fuel | 1 |
| 3 | 8M0175544 | 燃油连接套件3.2 | CONN KIT FUEL 3.2 | 1 |
| 4 | 823533 | O型圈 | O-RING | 1 |
| 5 | 823534 | 燃油吸油滤网 | SCREEN Fuel PickUP | 1 |
| 6 | 820572A8 | 燃油管路总成 | LINE ASSEMBLY Fuel | 1 |
| 6 | 877684Q8 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| 7 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 7 | 13330Q07 | 注油泵总成 - Quicksilver品牌 | BULB ASSEMBLY Primer - Quicksilver Brand | 1 |
| 8 | 13331A1 | CHECK VALVE ASSEMBLY (INLET) | 1 | |
| 8 | 13331A3 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 9 | 13331A2 | CHECK VALVE ASSEMBLY (OUTLET) | 1 | |
| 9 | 13331A4 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 10 | 4158210 | CLAMP Nylon (LARGE) | 2 | |
| 11 | 415827 | CLAMP Nylon (SMALL) | 2 | |
| 11 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 12 | F197787-3 | 燃油发动机端联轴器 | COUPLER Fuel Engine End | 1 |
| 12 | F197787Q3 | 燃油接头总成 | COUPLER ASSEMBLY Fuel | 1 |
| 13 | F17815 | 联轴器密封件 | SEAL Coupler | 1 |
| 14 | F17816 | 联轴器密封件 | SEAL Coupler | 1 |
| 15 | 897711 | 燃油管-油箱端接头(.250-18) | CONNECTOR (.250-18) Fuel Line-Fuel Tank End | 1 |
| 15 | 89771Q2 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 16 | 415827 | 尼龙卡箍 | CLAMP Nylon | 2 |
| 16 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 17 | 1678978 | HOSE (9.00 Feet Bulk) Cut as Req'd | AR | |
| 17 | 85861079 | 软管(9.00英尺整卷) | HOSE (9.00 Feet Bulk) | AR |
| 17 | 16789100 | HOSE (100.00 Feet Bulk) Cut as Req'd | AR | |
| 17 | 858610100 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

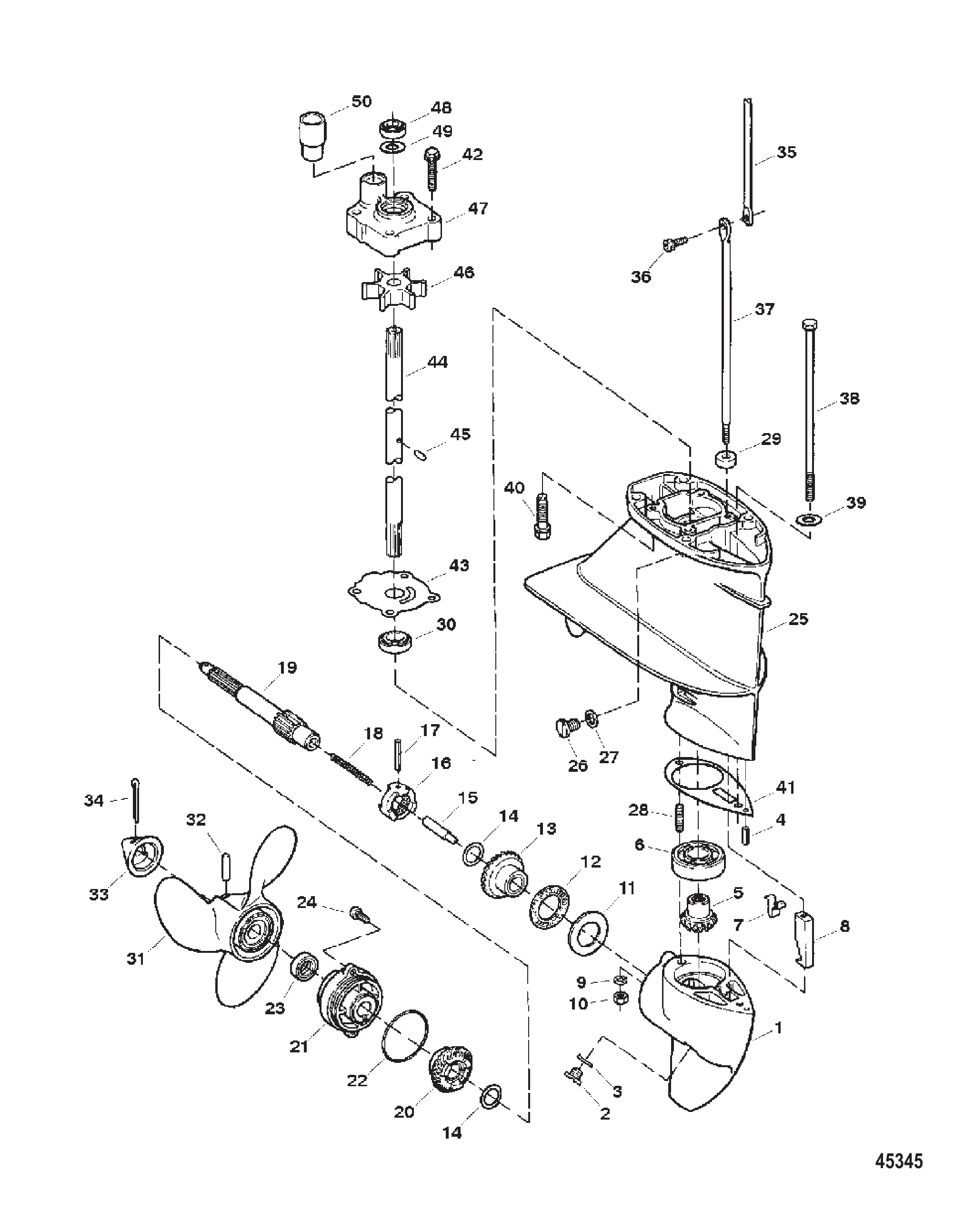

| 1 | 819483A2 | 齿轮箱套件(完整)(喷漆) | GEAR HOUSING KIT (COMPLETE) (Painted) | 1 |
| 1 | 817749A2 | 下部齿轮箱套件(基础)(喷漆) | GEAR HOUSING KIT Lower (BASIC) (Painted) | 1 |
| 2 | F50109 | 螺钉 | SCREW | 1 |
| 2 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 3 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 3 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 4 | 48450 | 定位销 | PIN Dowel | 1 |
| 5 | 819251A1 | 小齿轮总成 | GEAR ASSEMBLY Pinion | 1 |
| 6 | F127910-2 | 滚珠轴承 | BEARING Ball | 1 |
| 6 | 41341 | 滚珠轴承 | BEARING Ball | 1 |
| 7 | F286895 | 换档凸轮弹簧 | SPRING Shift Cam | 1 |
| 8 | F286721 | 换档凸轮 | CAM Shift | 1 |
| 9 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 10 | 20890 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 11 | F286903 | 垫圈(专用) | WASHER (Special) | 1 |
| 12 | 48913 | 螺旋桨轴轴承 | BEARING Propshaft | 1 |
| 13 | 819252A1 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 14 | F456717 | 止推垫片 | THRUST WASHER | 2 |
| 15 | F286728 | 换档凸轮销 | PIN Shift Cam | 1 |
| 16 | 819253 | 离合器 | CLUTCH | 1 |
| 17 | F8564 | 螺旋销 | PIN Spiral | 1 |
| 18 | F409719 | 离合器弹簧 | SPRING Clutch | 1 |
| 19 | F456098 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 20 | 819254A1 | 倒车齿轮总成 | GEAR ASSEMBLY Reverse | 1 |
| 21 | 817756A2 | 螺旋桨轴笼总成(喷漆) | CAGE ASSEMBLY Propeller Shaft (Painted) | 1 |
| 22 | F455305 | O型圈 | O-RING | 1 |
| 23 | 66022 | 油封 | SEAL Oil | 1 |
| 24 | 28639 | 250-20×0.625 螺钉 | SCREW (250-20 x .625) | 2 |
| 25 | 824916A1 | 上驱动轴壳体套件(喷漆) | HOUSING KIT Upper Driveshaft (Painted) | 1 |
| 26 | F50109 | 螺钉 | SCREW | 1 |
| 26 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 27 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 27 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 28 | 826542 | 双头螺柱(.250-20 x 1.360) | STUD (.250-20 x 1.360) | 1 |
| 29 | 817472 | 换挡杆油封 | SEAL Gear Shift Rod | 1 |
| 30 | F901307-2 | 传动轴密封件 | SEAL Driveshaft | 1 |
| 4 | 48450 | 定位销 | PIN Dowel | 1 |
| 31 | FP6477 | 螺旋桨(8.00 x 9.250 x 3右旋)尼龙 | PROPELLER (8.00 x 9.250 x 3 RH) Nylon | 1 |
| 31 | FP715 | 螺旋桨(8.375 x 6.00 x 3右旋)铝制 | PROPELLER (8.375 x 6.00 x 3RH) Aluminum | 1 |
| 32 | FA324101 | 螺旋桨安全销套件(3销带开口销) | SHEAR PIN KIT Propeller (3 Pins With Cotter Pin) | 1 |
| 33 | 817752A1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| 34 | 45882 | 开口销 | COTTER PIN | 1 |
| 35 | F286615 | 上换挡杆 | ROD Upper Gear Shift | 1 |
| 36 | F1976 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 1 |
| 37 | F2867051 | 下换挡杆 | ROD Lower Gear Shift | 1 |
| 37 | 819962 | 下换挡杆 | ROD Lower Gear Shift | 1 |
| 38 | F1800 | 螺栓(.250-20 x 7.00) | BOLT (.250-20 x 7.00) | 1 |
| 39 | 37998 | 垫圈 | WASHER | 1 |
| 40 | F430732 | 螺钉 (.312-18 x 1.250) 不锈钢 | SCREW (.312-18 x 1.250) Stainless Steel | 4 |
| 41 | F286555 | 齿轮箱衬垫 | GASKET Gear Housing | 1 |
| 42 | F2030 | 螺钉 (.250-20 x 1.250) 不锈钢 | SCREW (.250-20 x 1.250) Stainless Steel | 4 |
| 43 | F341562 | 水泵板 | PLATE Water Pump | 1 |
| 44 | F343128 | 驱动轴 | DRIVESHAFT | 1 |
| 44 | F344128 | 驱动轴 | DRIVESHAFT | 1 |
| 45 | F901563 | 驱动销 | PIN Drive | 1 |
| 46 | F436065-2 | 叶轮 | IMPELLER | 1 |
| 47 | FA715060 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 48 | F901307-2 | 传动轴密封件 | SEAL Driveshaft | 1 |
| 49 | F715388 | 圆盘 | DISC | 1 |
| 50 | FA510914 | 水管密封件 | SEAL Water Line | 1 |
| - | FK1019-1T | 驱动轴壳体延长套件(5英寸) | EXTENSION KIT (5 Inch) Driveshaft Housing | 1 |
| - | FK1065 | 下齿轮箱密封套件 | SEAL KIT Lower Gear Housing | 1 |
| - | FK1031-1 | 水泵套件 | PUMP KIT Water | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

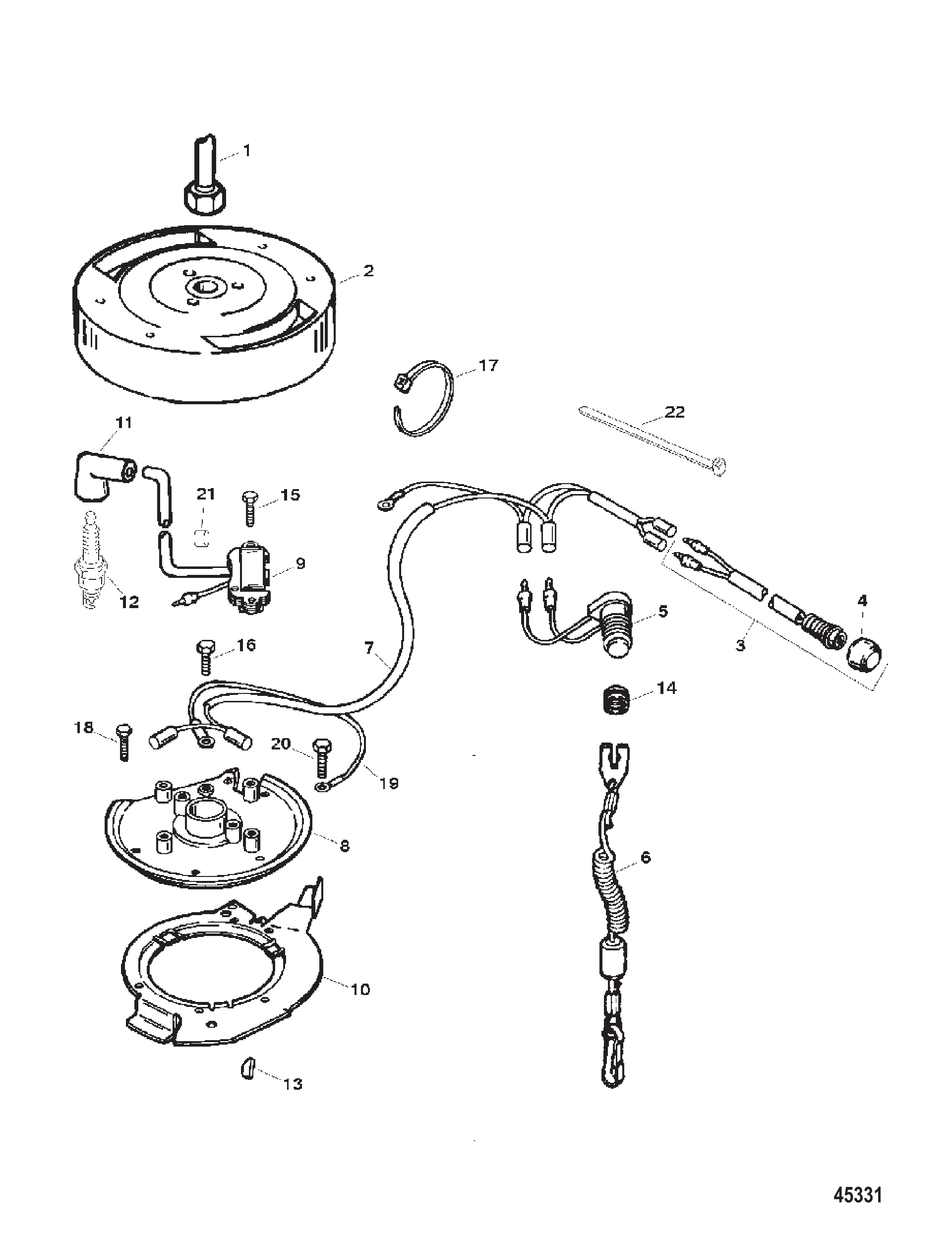

| 1 | F681091 | 飞轮螺母 | NUT Flywheel | 1 |
| 2 | 824380T3 | 飞轮(喷漆) | FLYWHEEL (Painted) | 1 |
| 2 | 824380T4 | 飞轮 | FLYWHEEL | 1 |
| 3 | 824440A9 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 3 | 824440A15 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 4 | 824466A3 | 停机开关盖总成 | COVER ASSEMBLY Stop Switch | 1 |
| 5 | 826214A1 | 紧急停止开关总成 | SWITCH ASSEMBLY Emergency Stop | 1 |
| 6 | 819399A1 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 6 | 879104 | 带夹子的拉绳 | LANYARD W/CLIP | 1 |
| 7 | 819379A7 | 发动机停机线束总成 | HARNESS ASSEMBLY Engine Stop | 1 |
| 8 | 826692T | 定子板 | PLATE Stator | 1 |
| 8 | 828243T | 定子片套件 | PLATE KIT Stator | 1 |
| 9 | 819156T | 点火模块(按需剪线) | MODULE Ignition (Cut Wire as Req'd) | 2 |
| 9 | 850899T | 点火模块 | MODULE Ignition | 2 |
| 10 | 8266911 | 节气门凸轮 | CAM Throttle | 1 |
| 10 | 855352 | 节气门凸轮 | CAM Throttle | 1 |
| 11 | 63709A1 | BOOT/TERMINAL KIT Spark Plug | 2 | |
| 12 | 312 | 火花塞(9.9)(冠军牌L87YC) | SPARK PLUG (9.9) (CHAMPION # L87YC) | 2 |
| 12 | 327 | 火花塞(9.9)(抗射频干扰)(冠军牌RL87YC) | SPARK PLUG (9.9) (RFI) (CHAMPION # RL87YC) | OPT |
| 12 | 328 | 火花塞(15)(冠军牌L82YC) | SPARK PLUG (15) (CHAMPION # L82YC) | 2 |
| 12 | 814 | 火花塞(15)(抗射频干扰)(冠军牌RL82YC) | SPARK PLUG (15) (RFI) ( CHAMPION # RL82YC) | OPT |
| 12 | 896329814 | SP #RL82YC @4 | SP #RL82YC @4 | OPT |
| 13 | F458498-1 | 曲轴/飞轮键 | KEY Crankshaft/Flywheel | 1 |
| 14 | F681188 | 停止开关套筒螺母 | NUT Stop Switch Sleeve | 1 |
| 14 | 855594 | 螺母 | NUT | 1 |
| 15 | 824353 | 螺钉(#8-32 x .750)-点火模块 | SCREW (#8-32 x .750)-Ignition Module | 6 |
| 16 | 824352 | 螺钉(#10-24 x .375)-接地 | SCREW (#10-24 x .375) (#10-24 x .375)-Ground | 1 |
| 17 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| 18 | 824358 | SCREW (#10-24 x .500) (#10-24 x .500)-Stator Plate | 5 | |
| 19 | 60466A21 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 20 | 824358 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 1 |
| 21 | 20117A1 | 点火电缆标记套件 | MARKER SET Ignition Cables | 1 |
| 22 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 22 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

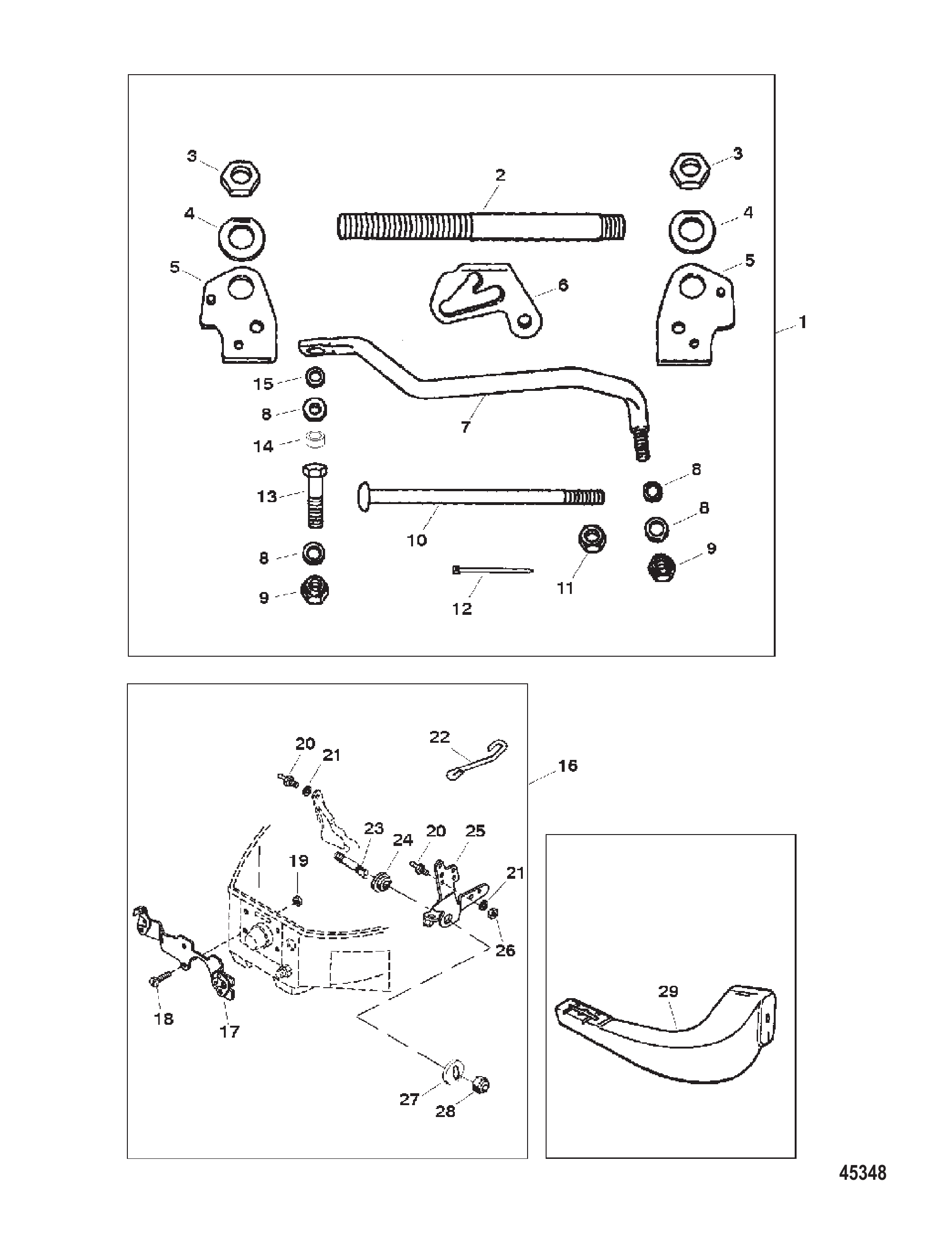

| 1 | 827889A1 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 1 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 2 | 71565A2 | TUBE ASSEMBLY Cable Guide | 1 | |
| 3 | 37984 | 特殊螺母(.875-14) | NUT (.875-14) Special | 2 |
| 3 | 8M0041651 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 4 | 42100 | 锁紧垫圈 | TAB WASHER | 2 |
| 5 | 827890 | 线管支架 | BRACKET Cable Tube | 2 |
| 6 | F676541-2 | 倾斜锁 | LOCK Tilt | 1 |
| 7 | F676881 | 转向连杆 | LINK Steering | 1 |
| 7 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 8 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 4 |
| 9 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 9 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 10 | 827894 | 螺栓(.375-16 x 7.375) | BOLT (.375-16 x 7.375) | 1 |
| 10 | 850185 | 螺栓-枢轴船尾支架 | BOLT Pivot - Stern Bracket | 1 |
| 11 | F7026 | 螺母（.375-16） | NUT (.375-16) | 1 |
| 12 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 13 | 90072 | 螺钉(.375-24 x 1.750) | SCREW (.375-24 x 1.750) (.375-24 x 1.750) | 1 |
| 14 | F522359 | 转向连杆垫片 | SPACER Steering Link | 1 |
| 15 | F84215 | 隔套 | SPACER | 1 |
| 16 | 819356A4 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 819356A7 | 转换套件-遥控 | CONV KIT-REMOTE | 1 |
| 17 | 819356A5 | 遥控转向支架总成 | BRACKET ASSEMBLY Remote Steering | 1 |
| 18 | F1733 | 不锈钢螺钉(#10-24 x .562) | SCREW (#10-24 x .562) SS | 4 |
| 18 | 852453 | 螺钉(#10-24 x .560) | SCREW (#10-24 x .560) | 4 |
| 19 | F7009 | 螺母(#10-24) | NUT (#10-24) | 4 |
| 20 | F98273 | 杆端连接器螺柱 | STUD Rod End Connector | 2 |
| 21 | F8058 | 锁紧垫圈 | LOCKWASHER | 2 |
| 22 | 824142 | 节流臂连杆 | LINK Throttle Arm | 1 |
| 22 | 824142T | 油门凸轮连杆 | LINK Throttle Cam | 1 |
| 23 | F286440 | 油门控制螺柱 | STUD Throttle Control | 1 |
| 24 | F183813 | 控制杆轴承 | BEARING Control Lever | 1 |
| 25 | 819408A1 | 节气门杠杆总成 | LEVER ASSEMBLY Throttle | 1 |
| 26 | 29488 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 26 | 8M0204718 | 螺母 | NUT | 1 |
| 27 | F286282 | 节流控制垫圈 | WASHER Throttle Control | 1 |
| 28 | F1803 | 螺母(.312-24) | NUT (.312-24) | 1 |
| 29 | F5H054 | 遥控转向支架(喷漆) | BRACKET Remote Steering Painted) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 823264 | 维修手册(所有型号) | SERVICE MANUAL (ALL Models) | 1 |
| - | 823264R1 | SM O/B F9.9-15 2S | SM O/B F9.9-15 2S | 1 |
| - | 830732 | 用户手册(1996) | OWNERS MANUAL (1996) | 1 |
| - | 8307321 | 用户手册 | OWNERS MANUAL | 1 |
| - | 10179970 | 用户手册(1997) | OWNERS MANUAL (1997) | 1 |
| - | 826782 | 用户手册 | OWNERS MANUAL | 1 |
| - | 81825212 | 石墨灰丙烯酸漆12盎司 | PAINT Graphite Gray Acrylic 12 oz | AR |
| - | 82793330 | 涂料-GRAPHI@6 | PAINT-GRAPHI@6 | AR |
| - | 82532112 | 石墨灰丙烯酸漆0.5盎司 | PAINT Graphite Gray Acrylic .5 oz | AR |
| - | 82793331 | 涂料.6-GRAP@6 | PAINT.6-GRAP@6 | AR |
| - | 81910712 | 透明丙烯酸漆12盎司 | PAINT Clear Acrylic 12 oz | AR |
| - | 82793353 | PAINT-CLEAR @6 | PAINT-CLEAR @6 | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

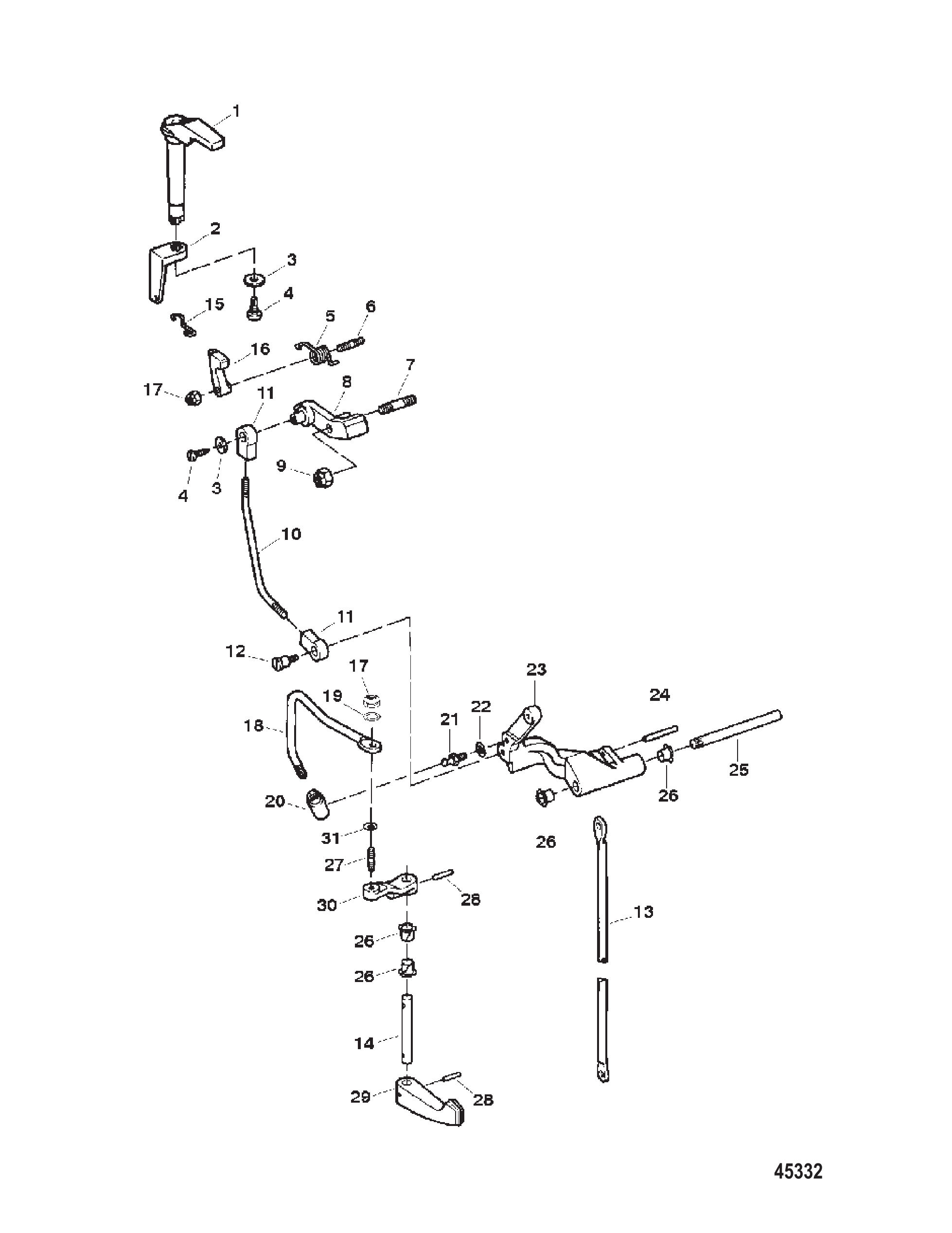

| 1 | F681490 | 启动滑轮联锁挡块 | STOP Starter Pulley Interlock | 1 |
| 2 | F681003-1 | 启动联锁臂 | ARM Starter Interlock | 1 |
| 3 | F8143 | 垫圈 | WASHER | 2 |
| 4 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 2 |
| 5 | F681424 | 联锁杆弹簧 | SPRING Interlock Lever | 1 |
| 6 | F681134 | 联锁杆螺柱 | STUD Interlock Lever | 1 |
| 7 | 826590 | 双头螺柱（0.250-20×1.690） | STUD (.250-20 x 1.690) | 1 |
| 8 | 824357 | 空档速度联锁杆 | LEVER Neutral Speed Interlock | 1 |
| 9 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 9 | 8M0207776 | 螺母 | NUT | 1 |
| 10 | F681531-1 | 联锁杆 | ROD Interlock | 1 |
| 10 | 852369 | 联锁杆 | ROD Interlock | 1 |
| 11 | 816514 | 火花控制轴承 | BEARING Spark Control | 2 |
| 12 | 819625 | 台阶螺钉(特殊) | SCREW Shoulder (Special) | 1 |
| 13 | F286615 | 上换挡杆 | ROD Upper Gear Shift | 1 |
| 14 | 824826 | 换挡手柄轴 | SHAFT Gear Shift Handle | 1 |
| 14 | 828931 | 轴 | SHAFT | 1 |
| 15 | F681263-1 | 启动联锁连杆 | LINK Starter Interlock | 1 |
| 16 | F681742 | 中间联锁杆 | LEVER Intermediate Interlock | 1 |
| 17 | 20110 | 螺母 (#10-32) | NUT (#10-32) | 2 |
| 18 | 825402 | 换挡杆连杆 | LINK Shift Lever | 1 |
| 19 | 26996 | 锁紧垫圈(#10)不锈钢 | LOCKWASHER (#10) Stainless Steel (#10) | 1 |
| 20 | F286685 | 换挡杆连接器 | CONNECTOR Gear Shift Rod | 1 |
| 21 | F98273 | 杆端连接器螺柱 | STUD Rod End Connector | 1 |
| 22 | F8058 | 锁紧垫圈 | LOCKWASHER | 1 |
| 23 | 819508T | 换挡杆 | LEVER Gear Shift | 1 |
| 23 | 855621T | 换挡杆 | LEVER Gear Shift | 1 |
| 24 | 31656 | 滚动销 | PIN Roll | 1 |
| 25 | F286871T | 换挡杆销 | PIN Gear Shift Lever Gear Shift Lever | 1 |
| 26 | 26841 | 衬套 | BUSHING | 4 |
| 27 | F286134 | 换挡杆螺柱 | STUD Gear Shift Lever | 1 |
| 28 | 25905 | 滚动销 | PIN Roll | 2 |
| 29 | 819626T | 换挡手柄 | HANDLE Gear Shift | 1 |
| 30 | 8203671 | 换挡手柄轴杆 | LEVER Shift Handle Shaft | 1 |
| 30 | 820367F1 | 杠杆 | LEVER | 1 |
| 31 | F8048 | 弓形垫圈 | WASHER Bowed | 1 |
| - | 819553A12 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| - | 819553A14 | 短缸体总成 | SHORT BLOCK ASSEMBLY | 1 |
| - | 819553A15 | 短缸体总成 | SHORT BLOCK ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

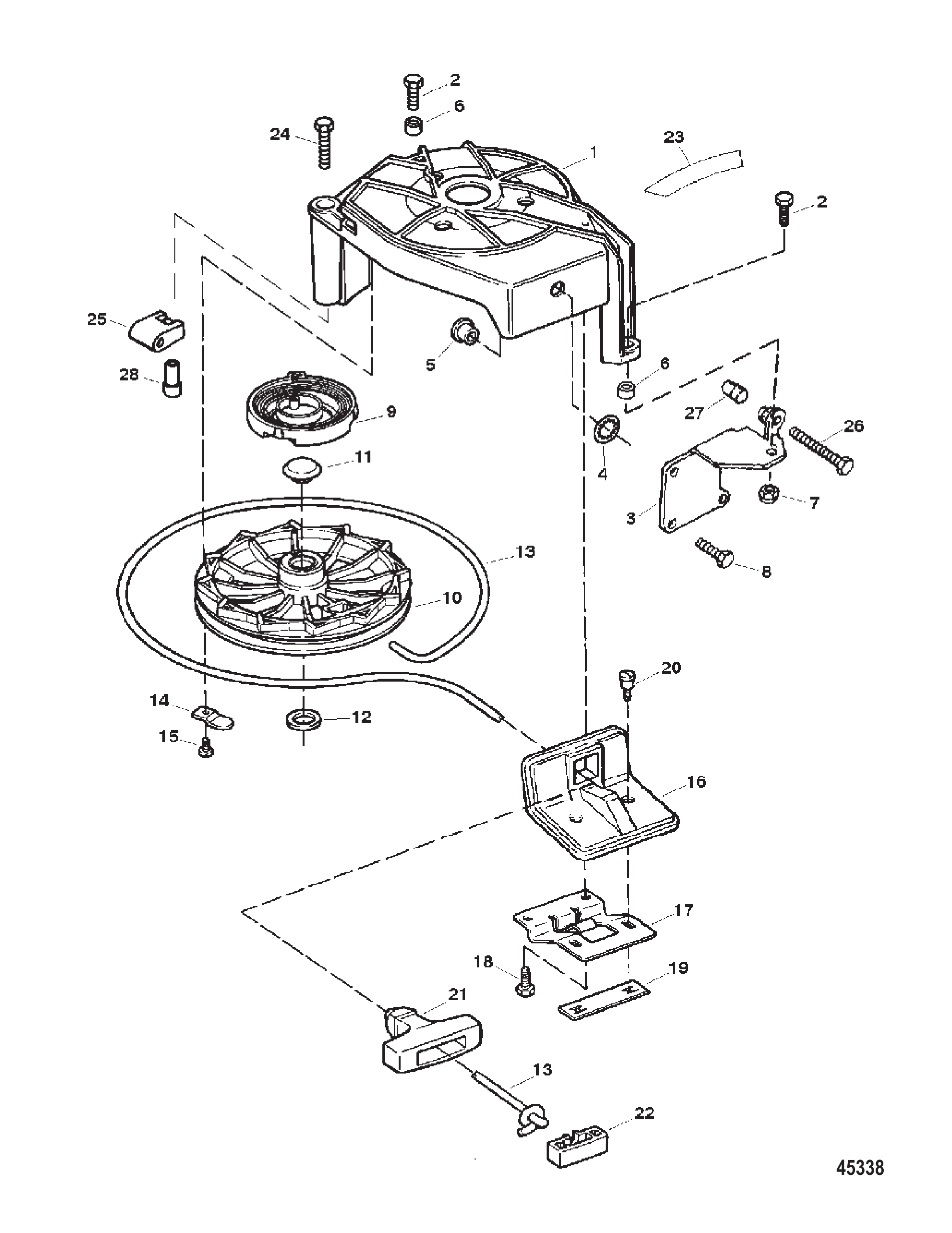

| 1 | 826693 | 启动器壳体 | HOUSING Starter | 1 |
| 2 | 90192 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 2 |
| 3 | 826559A2 | 启动器壳体前支架总成(喷漆) | BRACKET ASSEMBLY Starter Housing - Front (Painted) | 1 |
| 3 | 826559A3 | 启动机壳体支架总成 | BRACKET ASSEMBLY Starter Housing | 1 |
| 4 | 818853 | 挡圈 | RING Retaining | 1 |
| 5 | F681428 | 启动绳嵌件 | INSERT Starter Rope | 1 |
| 6 | F681405 | 启动器外壳嵌件 | INSERT Starter Housing | 2 |
| 6 | F681405T | 启动器外壳嵌件 | INSERT Starter Housing | 2 |
| 7 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 7 | 8M0207776 | 螺母 | NUT | 1 |
| 8 | F1922 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 4 |
| 9 | F681970 | 启动器回位弹簧 | SPRING Starter Rewind | 1 |
| 10 | 42034A2 | 启动器回绕滑轮总成 | PULLEY ASSEMBLY Starter Rewind | 1 |
| 11 | 817362 | 盖帽 | CAP | 1 |
| 12 | F681579 | 滑轮轴承密封件 | SEAL Pulley Bearing | 1 |
| 12 | 124941 | 滑轮轴承密封件 | SEAL Pulley Bearing | 1 |
| 13 | F681232 | ROPE (64.00/67.00 In.) | 1 | |
| 13 | 12066T03 | 启动拉绳 | ROPE-STARTER | 1 |
| 14 | F681592 | 启动滑轮固定座 | RETAINER Starter Pulley | 3 |
| 15 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 3 |
| 16 | FA681630T | 手柄支撑总成 | SUPPORT ASSEMBLY Handle | 1 |
| 17 | F681090 | 手柄支撑板 | PLATE Handle Support | 1 |
| 18 | F2210 | 螺钉(.250-14 x .500) | SCREW (.250-14 x .500) | 2 |
| 19 | F6818741 | 手柄支撑板紧固件 | FASTENER Handle Support Plate | 1 |
| 20 | 819625 | 台阶螺钉 | SCREW Shoulder | 2 |
| 21 | F681132 | 绳索手柄 | HANDLE Rope | 1 |
| 22 | F681817 | 绳索手柄固定座 | RETAINER Rope Handle | 1 |
| 23 | FA609853 | 换至空挡贴花 | DECAL Shift to Neutral | 1 |
| 23 | 825149A1 | 贴花套件 | DECAL KIT | 1 |
| 24 | F2030 | 螺钉 (.250-20 x 1.250) 不锈钢 | SCREW (.250-20 x 1.250) Stainless Steel | 1 |
| 25 | 830265 | 油门线固定座 | RETAINER Throttle Cable | 1 |
| 26 | 826676 | 怠速调节螺钉(.250-28 x 2.00) | SCREW (.250-28 x 2.00) Idle Adjust | 1 |
| 27 | 26852 | 尼龙怠速调节螺钉帽 | CAP Nylon Idle Adjust Screw | 1 |
| 28 | 830196 | 节流电缆固定垫片 | SPACER Throttle Cable Retainer | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

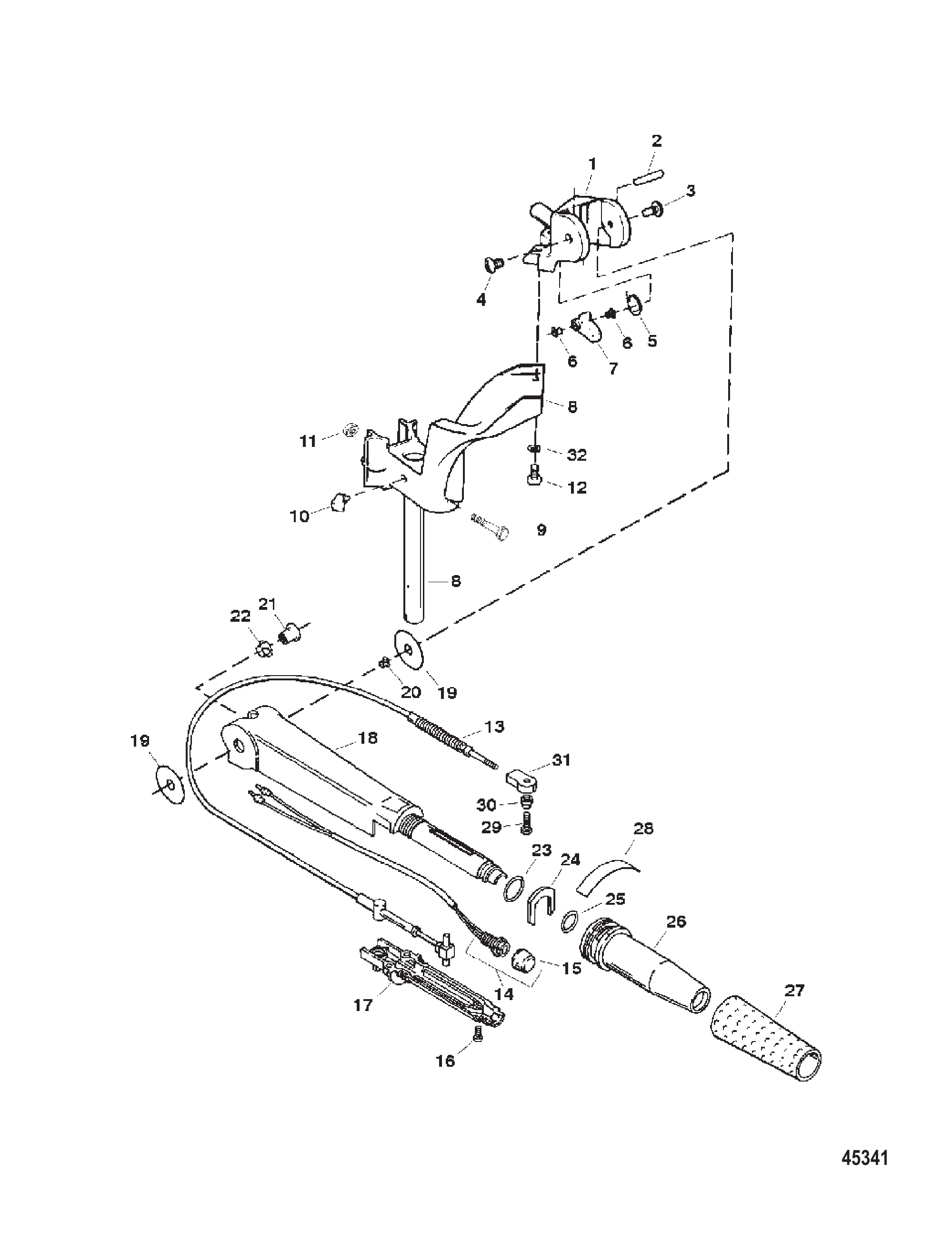

| 1 | 817751T1 | 转向支架(喷漆) | BRACKET Steering (Painted) | 1 |
| 2 | F1807 | 槽销 | PIN Groove | 1 |
| 3 | 823595 | 特殊螺钉-转向手柄枢轴 | SCREW (Special)-Steering Handle Pivot | 1 |
| 4 | 823594 | 特殊螺钉-转向手柄枢轴 | SCREW (Special)-Steering Handle Pivot | 1 |
| 5 | F286868 | 转向把手止动弹簧 | SPRING Steering Handle Stop | 1 |
| 6 | 26856 | 衬套 | BUSHING | 2 |
| 7 | F286490 | 转向把手止动块 | STOP Steering Handle | 1 |
| 7 | F286490T | 转向把手止动块 | STOP Steering Handle | 1 |
| 8 | 819914A2 | 转向臂/主销总成(喷漆) | ARM/KINGPIN ASSEMBLY Steering (Painted) | 1 |
| 9 | 828815 | 螺丝 (.250-20 x 1.750) | SCREW (.250-20 x 1.750) | 1 |
| 10 | F286539 | 缓冲垫 | BUMPER | 1 |
| 11 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 11 | 8M0207776 | 螺母 | NUT | 1 |
| 12 | 28635 | 不锈钢螺丝(.250-20 x .620) | SCREW (.250-20 x .620) Stainless Steel | 2 |
| 13 | 826592 | 油门拉索总成 | CABLE ASSEMBLY Throttle | 1 |
| 14 | 824440A9 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 14 | 824440A15 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 15 | 824466A3 | 停机开关盖总成 | COVER ASSEMBLY Stop Switch | 1 |
| 16 | 826575 | 螺钉(#8-32 x 0.625英寸) | SCREW (#8-32 x .625) | 3 |
| 17 | 827252 | 转向臂(下) | ARM Steering (LOWER) | 1 |
| 17 | 827252T | 下部臂 | ARM-LOWER | 1 |
| 18 | 826609T | 转向手柄(喷漆) | HANDLE Steering (Painted) | 1 |
| 18 | 826609T1 | 转向手柄 | HANDLE Steering | 1 |
| 19 | F286220 | 转向把手垫圈 | WASHER Steering Handle | 2 |
| 20 | 26856 | 衬套 | BUSHING | 1 |
| 21 | F2862241 | 转向把手枢轴衬套 | INSERT Steering Handle Pivot | 1 |
| 22 | 812707 | 衬套 | BUSHING | 1 |
| 23 | 21836 | O型圈(0.796x0.139)(大) | O-RING (.796 x .139) (LARGE) | 1 |
| 23 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 24 | F702178 | 握把固定座 | RETAINER Grip | 1 |
| 25 | 23145 | O型圈(.984 x .139)(小) | O-RING (.984 x .139) (SMALL) | 1 |
| 26 | F702137 | 转向手柄握把 | GRIP Steering Handle | 1 |
| 26 | 828070 | 转向手柄握把 | GRIP Steering Handle | 1 |
| 27 | 828406 | 油门/转向把手握把 | GRIP Throttle/Steering Handle | 1 |
| 28 | F712894 | 速度/档位指示标贴 | DECAL Speed/Shift Indicator | 1 |
| 29 | 824352 | 螺钉(#10-24 x .375) | SCREW (#10-24 x .375) | 1 |
| 30 | 826591 | 衬套 | BUSHING | 1 |
| 31 | 816514 | 火花控制轴承 | BEARING Spark Control | 1 |
| 32 | 78968 | 内锁紧垫圈 (.250) | LOCKWASHER Internal (.250) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

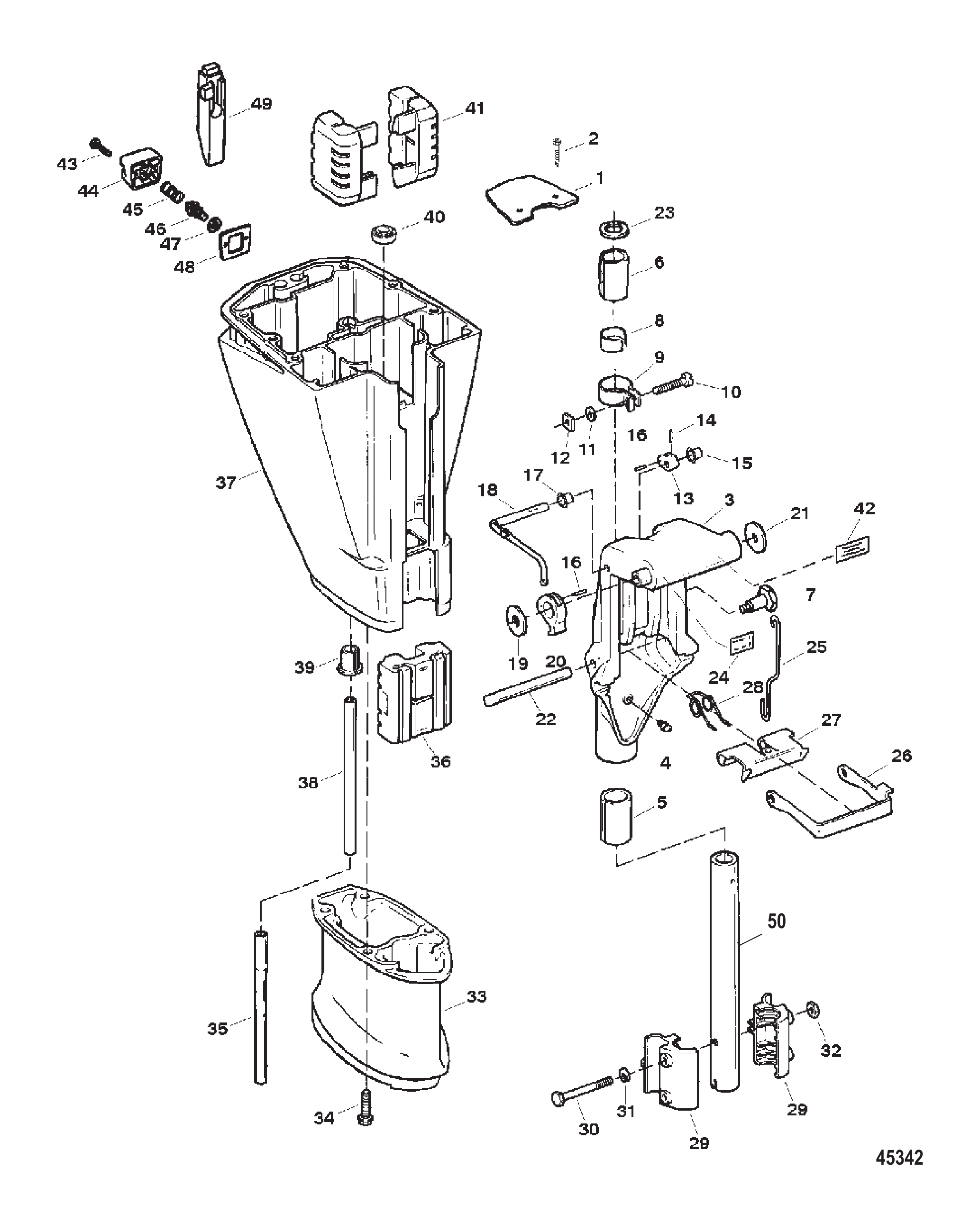

| 1 | F715404 | 支腿调谐板 | PLATE Leg Tuner | 1 |
| 2 | F2417 | 螺钉(.250-20 x .375) | SCREW (.250-20 x .375) | 2 |
| 2 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 2 |
| 3 | 817750A4 | 旋转支架套件(喷漆) | SWIVEL BRACKET KIT (Painted) | 1 |
| 3 | 819339A8 | 旋转支架套件 | SWIVEL BRACKET KIT | 1 |
| 4 | F213274 | 润滑脂接头 | FITTING Grease | 2 |
| 5 | F286169 | 底部轴承(1.750英寸) | BEARING Bottom (1.750 In.) | 1 |
| 6 | F681169 | 顶部轴承(1.125英寸) | BEARING Top (1.125 In.) | 1 |
| 7 | 819707 | 倾斜锁定销 | PIN Tilt Lock | 1 |
| 8 | F681631 | 摩擦块 | SHOE Friction | 1 |
| 9 | F286573-1 | 转向摩擦夹 | CLAMP Steering Friction | 1 |
| 10 | F1820 | 螺钉(.250-20×1.375) | SCREW (.250-20 x 1.375) | 1 |
| 11 | 12038 | 垫圈 | WASHER | 1 |
| 11 | 8M0207778 | 垫圈（0.344×0.625×0.063英寸） | WASHER .344 x .625 x.063 | 1 |
| 12 | F1608 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 13 | F286364 | 倒车锁杆 | LEVER Reverse Lock | 1 |
| 13 | F286364T | 倒车锁杆 | LEVER Reverse Lock | 1 |
| 14 | F8538 | 弹簧销 | PIN Spring | 1 |
| 15 | 26856 | 衬套 | BUSHING | 1 |
| 16 | F1794 | 弹簧销 | PIN Spring | 2 |
| 17 | F536813 | 衬套 | BUSHING | 1 |
| 18 | FA387742 | 中间杠杆总成 | LEVER ASSEMBLY Intermediate | 1 |
| 18 | 820095A2 | 倒挡锁中间杆总成 | LEVER ASSEMBLY Reverse Lock Intermediate | 1 |
| 19 | F2037 | 垫圈 | WASHER | 1 |
| 20 | F286827 | 倒挡锁释放杆 | LEVER Reverse Lock Release | 1 |
| 21 | F286286-1 | 垫圈 | WASHER | 1 |
| 22 | F1806 | 槽销 | PIN Groove | 1 |
| 23 | F286011 | 旋转支架垫圈 | WASHER Swivel Bracket | 1 |
| 24 | F688585 | 倾斜锁止贴纸 | DECAL Tilt Lock | 1 |
| 24 | 8302531 | 倾斜释放标贴 | DECAL Tilt Release | 1 |
| 25 | FA341510 | 倒车锁连杆 | LINK Reverse Lock | 1 |
| 26 | F286433 | 浅水驱动支架 | BRACKET Shallow Water Drive | 1 |
| 26 | 8301111 | 浅水驱动支架 | BRACKET Shallow Water Drive | 1 |
| 27 | F286349 | 倒车锁 | LOCK Reverse | 1 |
| 27 | 850259A1 | 锁止与连杆套件 | LOCK & LINK KIT | 1 |
| 28 | F286300 | 倒挡锁弹簧 | SPRING Reverse Lock | 1 |
| 29 | 819320T | 减震支架下减震座(喷漆) | BRACKET Shock Mount Lower Shock Mount (Painted) | 2 |
| 29 | 819320T3 | 下减震支架 | BRACKET Shock Mount Lower | 2 |
| 30 | FA1844 | 螺丝套件(.250-20 x 2.375) | SCREW KIT (.250-20 x 2.375) | 2 |
| 31 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 32 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 2 |
| 33 | FA492845T | 延长套件(喷漆) | EXTENSION KIT (Painted) | 1 |
| 34 | F430732 | 螺钉 (.312-18 x 1.250) 不锈钢 | SCREW (.312-18 x 1.250) Stainless Steel | 4 |
| 35 | FS901244 | 进水管道-延长型20英寸 | LINE Water Inlet - Extension 20 Inch | 1 |
| 36 | F286346 | 下减震座 | SHOCK MOUNT Lower | 1 |
| 37 | 819344T | 传动轴壳体(喷漆) | HOUSING Driveshaft (Painted) | 1 |
| 38 | F286244 | 进水管道 | LINE Inlet Water | 1 |
| 39 | F286914-1 | 进水管衬套 | SLEEVE Water Inlet Line | 1 |
| 40 | F901307-2 | 传动轴密封件 | SEAL Driveshaft | 1 |
| 41 | F286347 | 上减震座 | SHOCK MOUNT Upper | 2 |
| 42 | 818029 | 贴花 (燃油混合比) | DECAL (Fuel Mix) | 1 |
| 42 | 8180291 | 燃油混合比标贴 | DECAL Fuel Mix | 1 |
| 43 | 819382 | 螺钉 (.250-20 x 1.00) | SCREW (.250-20 x 1.00) | 2 |
| 44 | 819321 | 节温器盖 | COVER Thermostat | 1 |
| 45 | 819329 | 节温器弹簧 | SPRING Thermostat | 1 |
| 46 | 819550 | 节温器(105度) | THERMOSTAT (105 Degrees) | 1 |
| 47 | F658504 | 垫圈 节温器 | WASHER Thermostat | 1 |
| 48 | 819669 | 节温器盖衬垫 | GASKET Thermostat Cover | 1 |
| 49 | 823694 | 节温器插片 | INSERT Thermostat | 1 |
| 50 | NSS | 不单独销售 转向臂/主销总成部件 | NOT SOLD SEPARATE Part of Arm/King Pin Steering Assembly | - |
| - | FK1019-1T | 驱动轴壳体延长套件(5英寸) | EXTENSION KIT (5 Inch) Driveshaft Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | FT8948-1 | 轴承拆卸工具 齿轮箱轴承保持架 | PULLER TOOL Bearing Gear Housing Bearing Cage | 1 |
| - | 83164M | 飞轮拉拔器 | FLYWHEEL PULLER | 1 |
| - | F1800 | 螺栓(.250-20 x 7.00) | BOLT (.250-20 x 7.00) | 2 |
| - | F1972 | 螺钉(.250-20 x 2.500) | SCREW (.250-20 x 2.500) | 3 |
| - | 4000358 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 3 |
| - | 35044 | 垫圈(0.281×0.625×0.065)不锈钢 | WASHER (.281 x .625 x .065) Stainless Steel | 3 |
| - | F8012 | 垫圈(.203 x .469 x .049) | WASHER (.203 x .469 x .049) | 2 |
| - | 25909 | 垫圈(.406 x .812 x .065) | WASHER (.406 x .812 x .065) | 3 |
| - | FT2991 | 钢丝碳刷清洁器 | BRUSH Wire Carbon Remover | 1 |
| - | 803504T | 电刷 | BRUSH | 1 |
| - | FT2990-1 | 活塞与活塞销定位块 | BLOCK Piston And Piston Pin | 1 |
| - | FT2997 | 活塞环压缩工具 | COMPRESSOR TOOL Piston Ring | 1 |
| - | FT8926 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | FT8900 | 软管卡箍钳 燃油管路 | PLIERS Hose Clamp Fuel Lines | 1 |
| - | FT8957 | 换挡杆油封安装工具 | INSTALLER TOOL Seal Shift Rod | 1 |
| - | FT8919 | 弹簧销冲子 定位销与活塞销 | PUNCH TOOL Spring Pin Dowel Pins & Piston Pins | 1 |
| - | FT1749 | 卡环钳 活塞销挡圈 | PLIERS Snap Rings Piston Pin Retainer Rings | 1 |
| - | FT3012 | 上曲轴油封安装工具 | INSTALLER TOOL Seal Upper Crankshaft | 1 |
| - | FT2907 | 传动轴油封冲子 | PUNCH TOOL Driveshaft Seal | 1 |
| - | FT2909 | 飞轮拆卸螺母 | KNOCK OFF NUT Flywheel Removal | 1 |
| - | 803601T | 拆卸工具 | KNOCK OFF TOOL | 1 |
| - | FT2989 | 飞轮楔形工具 | WEDGE TOOL Flywheel | 1 |
| - | FT8929 | 连杆螺丝六角套筒适配器 | ADAPTER/HEX BITS Conn Rod Screw | 1 |
| - | 830230T | 八腔气隙调整工具 线圈与飞轮 | AIR GAP TOOL Eight Chamber Air Gap Setting-Coil to Flywheel | 1 |
| - | FT8950 | 下部单元测试套件 | TESTER KIT Lower Unit | 1 |
| - | FT11295 | 点火系统火花测试器 | SPARK TESTER Ignition System | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | 99750A1 | 电气部件万用表 | MULTI METER Electrical Components | 1 |
| - | FT2969 | 螺纹修复套件(#10-24) | HELI COIL KIT (#10-24) | 1 |
| - | FT2970 | 螺纹修复套件(.250-20) | HELI COIL KIT (.250-20) | 1 |
| - | FT2971 | 螺纹修复套件(.312-18) | HELI COIL KIT (.312-18) | 1 |
| - | FT2948 | 螺纹修复套件(.375-16) | HELI COIL KIT (.375-16) | 1 |
| - | 825265A1 | COMPOUND (8 Ounce) Needle Bearings | 1 | |
| - | 802868A1 | 润滑剂 | LUBRICANT | 1 |
| - | FT2987-1 | 防咬死润滑剂 | LUBRICANT Anti Seez | 1 |
| - | 898101390 | 防卡剂喷雾 | ARESOL ANTI-SEIZE | 1 |
| - | FT8969 | 润滑剂 | LUBRICANT | 1 |
| - | 901132 | 密封胶 RTV #1473 | SEALANT RTV #1473 | 1 |
| - | 809825 | RTV硅胶 (3盎司管装) 金属蓝 | RTV SILICONE (3 Ounce Tube) Metallic Blue | 1 |
| - | FT8936-1 | 乐泰RC 609密封胶 | SEALANT Loctite RC 609 | 1 |
| - | 809833 | 乐泰RC 680密封胶（10毫升瓶装）绿色 | SEALANT Loctite RC 680 (10 ml Bottle) Green | 1 |
| - | FT2962-2 | 密封胶Loctite H | SEALANT Loctite H | 1 |
| - | 809818 | 乐泰222螺纹锁固剂 10毫升 | LOCTITE 222 THREADLOCKER 10ml | 1 |
| - | 8230891 | 乐泰8831密封胶 | SEALANT Loctite 8831 | 1 |
| - | 809820 | 乐泰271螺纹锁固剂 50毫升 | LOCTITE 271 THREADLOCKER 50 ml | 1 |
| - | 593271 | 底涂剂LocQuic Primer | SEALANT LocQuic Primer | 1 |
| - | 809824 | 底漆乐泰(4.5盎司喷雾)绿色 | PRIMER Loctite (4.5 Ounce Aerosol) Green | 1 |
