水星 Mercury 120 H.P. (1996) 0E138600 THRU 0E202999 - 爆炸图零件明细

Force 系列 · USA - Cat.# 90-809770 · 共 29 个部位 · 1037 条零件

1适配板（上）2化油器 3外罩总成（底部）4外罩总成（顶部）5曲轴、活塞与连杆 6气缸体总成（序列号0E138600至0E173427）7气缸体总成（序列号0E173428至0E287999）8驱动轴壳体 9电气组件（飞轮与继电器）10电气组件（点火系统）11排气板 12燃油管路总成 13燃油泵总成 14齿轮箱总成（驱动轴）（3爪倒车离合器）15齿轮箱总成（驱动轴）（6爪倒车离合器）16齿轮箱总成（螺旋桨轴）（3爪倒车离合器）17齿轮箱总成（螺旋桨轴）（6爪倒车离合器）18齿轮箱标识 19说明书与涂料 20动力平衡组件（设计I）21动力平衡组件（设计II）22循环系统 23簧片板与启动泵 24启动器总成 25旋转支架与转向臂 26工具清单（专用）（1/2页）27工具清单（专用）（2/2页）28塔轴与油门联动装置 29艉板支架

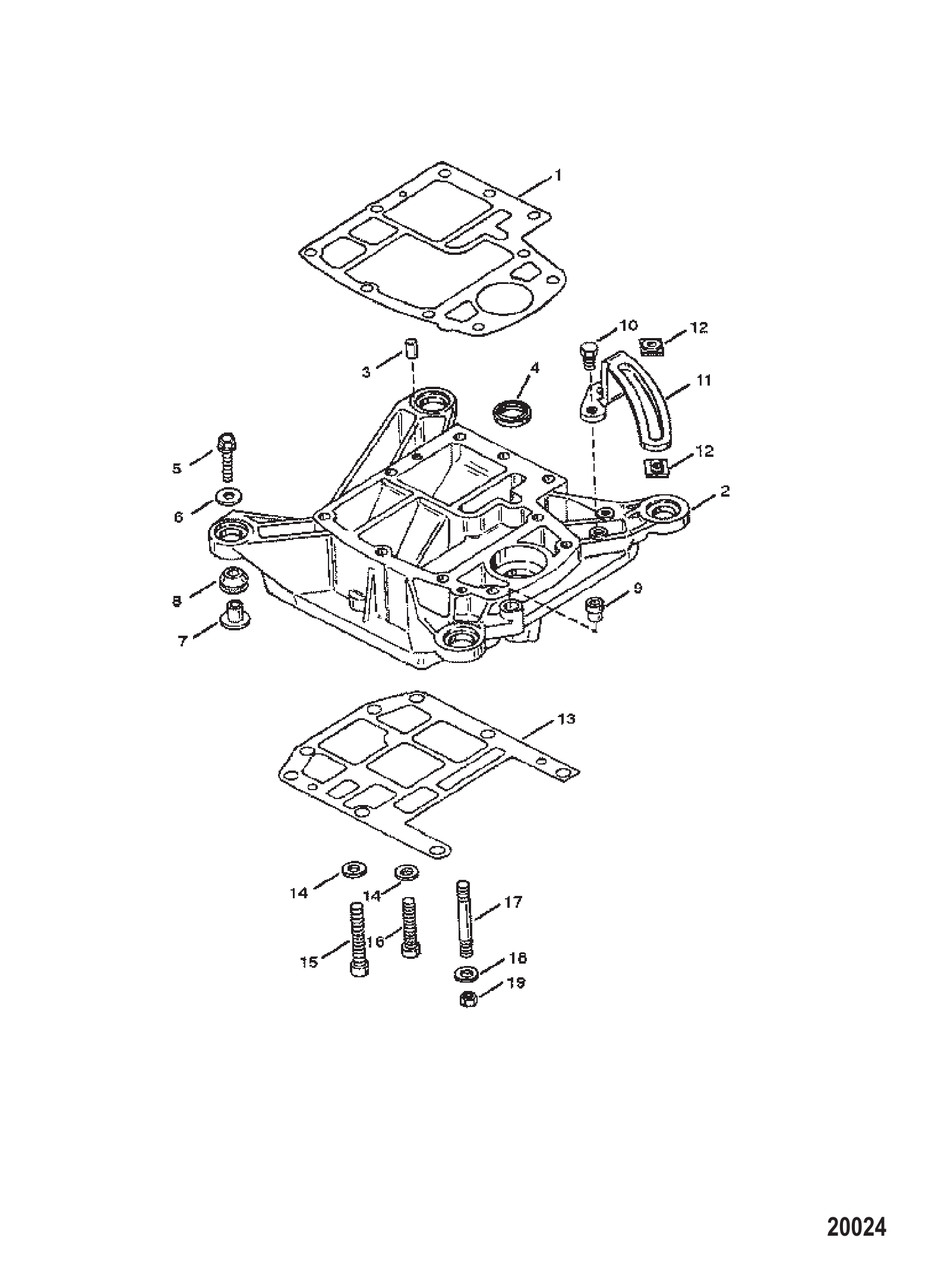

图 1适配板（上） Adapter Plate (Upper)

REF	零件编号	中文名称	英文名称	数量
1	826549	动力头至上适配板衬垫	GASKET Powerhead To Upper Adapter Plate	1
2	820192A1	上适配板总成	PLATE ASSEMBLY Upper Adapter	1
3	23784	定位销	PIN Dowel	2
4	819740	传动轴密封件	SEAL Driveshaft	1
5	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
6	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
7	19064	适配板衬套	BUSHING Adapter Plate Grommet	4
8	825380	护孔环	GROMMET	4
9	F40689-1	轴承	BEARING	1
10	1993820	螺钉(M8 x 20)	SCREW (M8 x 20)	2
11	820280	换挡导轨	SHIFT RAIL Shift	1
12	820277	换挡滑块	SLIDE Shift	2
13	826550	适配板至驱动轴壳体衬垫	GASKET Adapter Plate To Driveshaft Housing	1
14	828271	垫圈	WASHER	10
15	19929325	.325-16×3.25 螺钉	SCREW (.325-16 x 3.25)	3
16	19929175	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	7
17	8207021	M10 双头螺柱	STUD (M10) (M10)	8
18	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	8
19	13914	螺母(M10)	NUT (M10)	8
-	809125A2	动力头衬垫套件	GASKET SET Powerhead	1
-	818154A31	动力头总成	POWERHEAD ASSEMBLY	1
-	818154A43	动力头总成	POWERHEAD ASSEMBLY	1

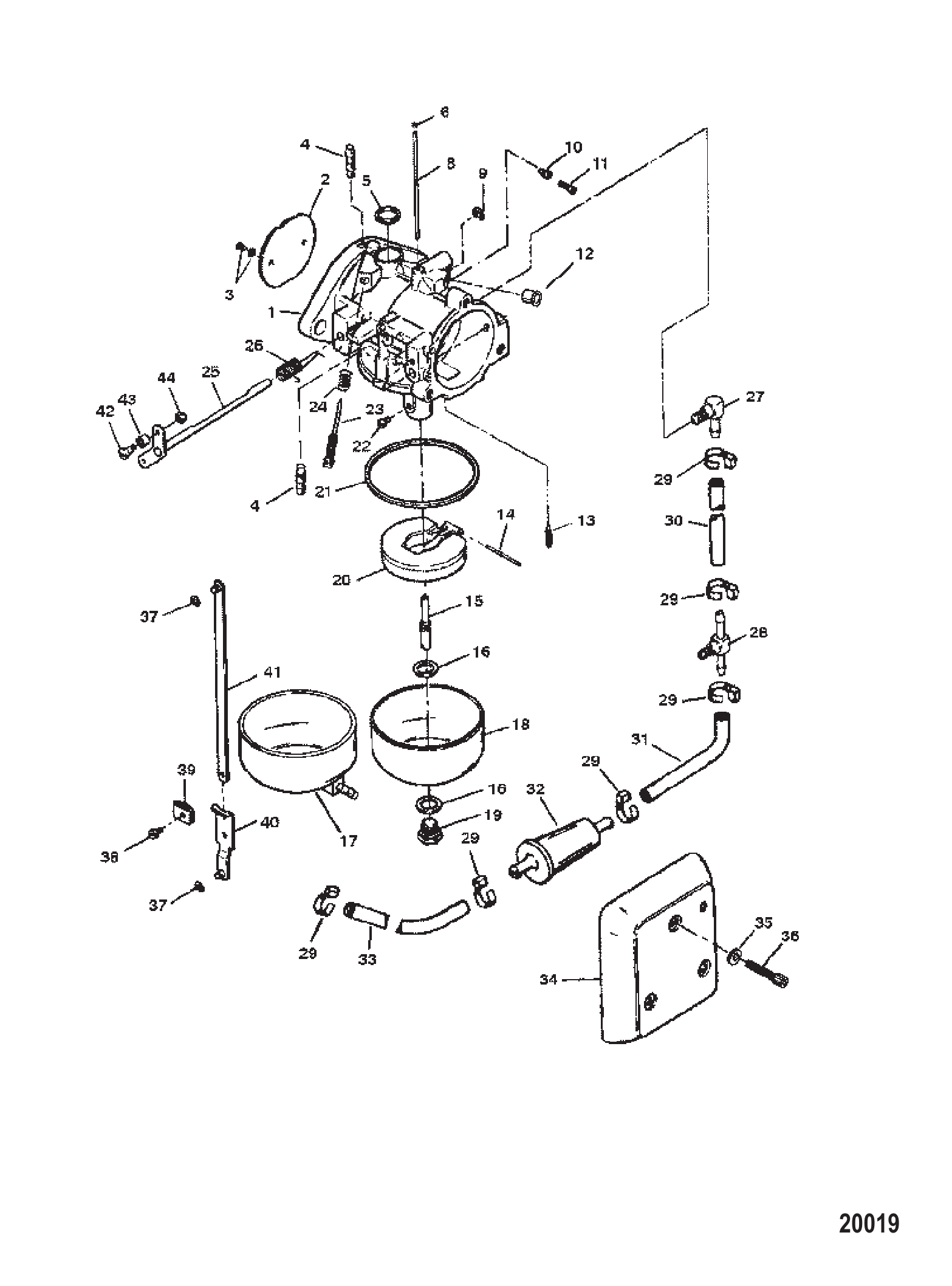

图 2化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	820203	化油器(上部)(TC-119A)	CARBURETOR (Top) (TC-119A)	1
1	820195	化油器(下部)(TC-120A)	CARBURETOR (Bottom) (TC-120A)	1
2	FO16142	节气门片	SHUTTER Throttle	1
3	F10328	百叶窗螺钉	SCREW Shutter	2
4	F10274	启动喷嘴	NOZZLE Primer	1
5	FO16128	韦尔奇塞	PLUG Welch	1
6	FO10588	杯塞(上部化油器)	PLUG Cup (Top Carb)	5
7	FO10588	杯塞(下部化油器)	PLUG Cup (Bottom Carb)	6
8	FO16993	旁通管	TUBE By Pass	1
9	FO16620	节气门轴E型卡环	E RING Throttle Shaft	1
10	F10273	怠速空气量孔(.047)	JET (.047) Idle Air	1
11	F10275	密封螺钉	SCREW Sealing	1
12	F10263	计量杯	CUP Metering	1
13	F10265	进油针阀	NEEDLE Inlet	1
14	FO13944	浮子销	PIN Float	1
15	FO16133	主喷嘴	NOZZLE Main	1
16	FO5323	燃油杯衬垫	GASKET Fuel Bowl	2
17	820492	燃油浮子室(上部化油器)	BOWL Fuel (Top Carb)	1
18	FO16130	燃油浮子室(下部化油器)	BOWL Fuel (Bottom Carb)	1
19	FO16132	燃油杯螺钉	SCREW Fuel Bowl	1
20	F10346	燃油杯浮子	FLOAT Fuel Bowl	1
21	FO15623	燃油杯衬垫	GASKET Fuel Bowl	1
22	FO14191	主量孔(.094)主燃油	JET Main (.094) Main Fuel	1
22	5733	主量孔(.092)主燃油	JET Main (.092) Main Fuel	OPT
22	6247	主量孔(.090)主燃油	JET Main (.090) Main Fuel	OPT
22	FO13193	主量孔(.088)主燃油	JET Main (.088) Main Fuel	OPT
22	FO13949	量孔(.086)主燃油	JET (.086) Main Fuel	OPT
23	F10268	怠速混合气螺钉	SCREW Idle Mixture	1
24	27160	怠速混合气螺钉弹簧	SPRING Idle Mixture Screw	1
25	FO17884	节气门轴及杠杆	SHAFT AND LEVER Throttle	1
26	FO16143	节气门轴弹簧	SPRING Throttle Shaft	1
27	F84314-2	弯头(L)(化油器顶部)	ELBOW (L) (Top Carb)	1
28	F85314-1	接头(T)(化油器底部)	FITTING (T) (Bottom Carb)	1
29	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
30	830756109	软管(57.00英寸整卷)(裁切7.500英寸)	HOSE (57.00 Inches Bulk) (Cut 7.500 Inches)	1
31	830756109	软管(57.00英寸整卷)(裁切21.00英寸)	HOSE (57.00 Inches Bulk) (Cut 21.00 Inches)	1
32	816296	燃油滤清器	FILTER Fuel	1
33	830756109	软管(57.00英寸整卷)(裁切6.00英寸)	HOSE (57.00 Inches Bulk) (Cut 6.00 Inches)	1
34	F511708-3	化油器盖	COVER Carburetor	2
35	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
36	F2192	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	6
37	21058	E型挡圈	E RING Retaining	2
38	F1064	螺丝（#8-32×0.375）	SCREW (#8-32 x .375)	1
39	F1693	螺母（#8-32）	NUT (#8-32)	1
40	FA85193	连杆端总成	END ASSEMBLY Tie Bar	1
41	FA178233	节气门连杆总成	TIE BAR ASSEMBLY Throttle	1
42	830110	节气门滚轮轴	SHAFT Throttle Roller	1
43	819225	节气门轴滚轮	ROLLER Throttle Shaft	1
44	F1997	螺母（#8-32）	NUT (#8-32)	1
-	FK10023	化油器衬垫组	GASKET SET Carburetor	1
-	809807A1	化油器维修套件	REPAIR KIT Carburetor	1

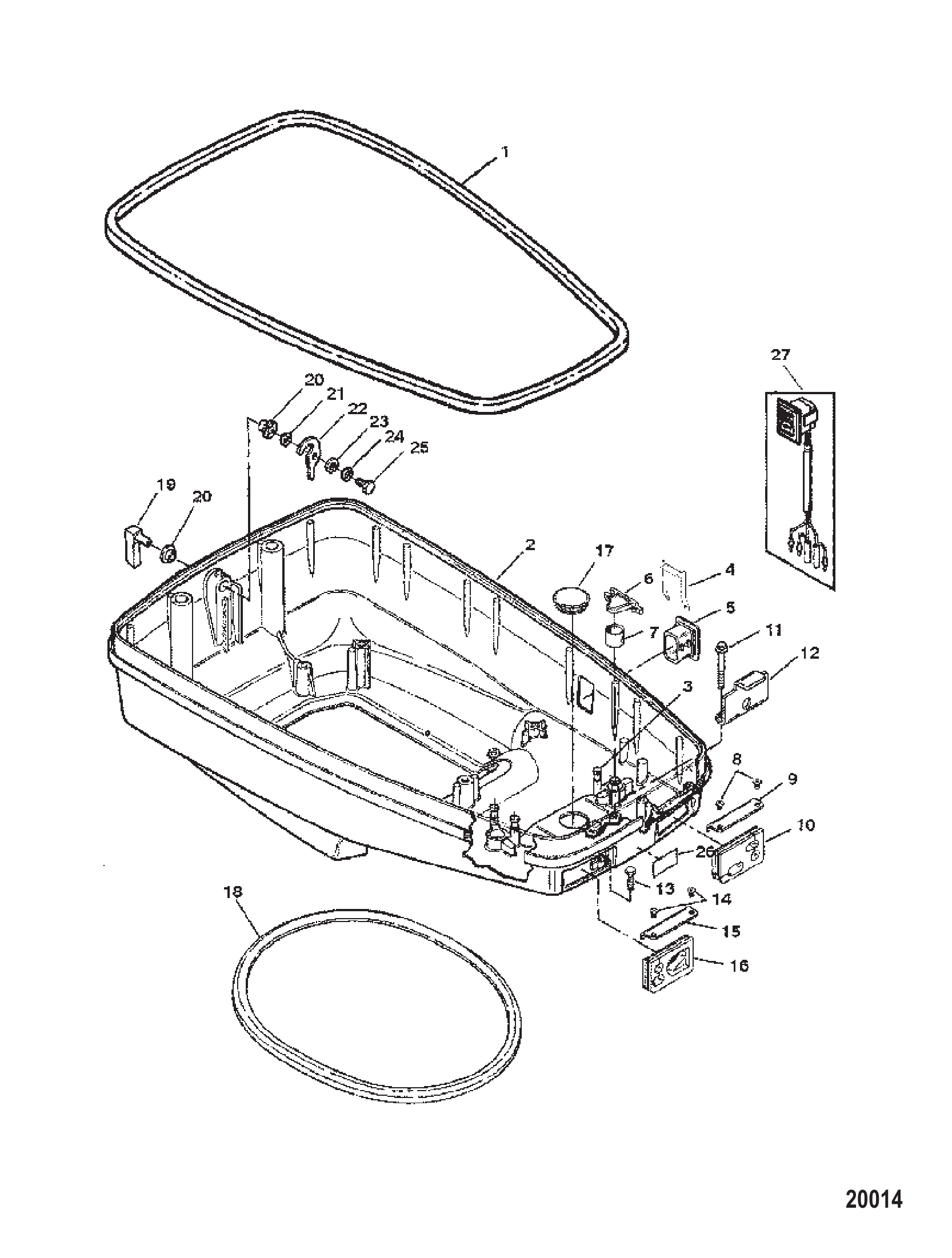

图 3外罩总成（底部） Cowl Assembly (Bottom)

REF	零件编号	中文名称	英文名称	数量
1	F663756-1	罩盖支撑填料	PACKING Cowl Support	1
2	819983F	下罩总成	BOTTOM COWL ASSEMBLY	1
3	42975		DRIVE SCREW (Special)	4
4	8124431	固定座	RETAINER	1
5	8128301	堵头	PLUG	1
6	820313	控制电缆锁扣	LATCH Control Cable	2
7	824015	筒形保持杯	CUP Barrel Retainer	2
8	40019104	螺钉（M5×8）	SCREW (M5 x 8)	2
9	823551	进线密封保持架	RETAINER Entry Cable Seal	1
10	823550	遥控线密封件	SEAL Remote Cables	1
11	40011127	螺钉 (M6 x 16) 不锈钢	SCREW (M6 x 16) Stainless Steel	2
12	F663480-1	前罩盖固定架	RETAINER Cowl Front	1
13	40011131	螺钉(M6x35)不锈钢燃油连接器	SCREW (M6 x 35) Stainless Steel Fuel Connector	1
14	40019104	螺钉（M5×8）	SCREW (M5 x 8)	2
15	823551	进线密封保持架	RETAINER Entry Cable Seal	1
16	823549	燃油连接器及遥控线密封件	SEAL Fuel Connector And Remote Cables	1
17	8199541	堵头	PLUG	1
18	8136076	底罩密封条	SEAL Bottom Cowl	1
19	820000A4	手柄总成	HANDLE ASSEMBLY	1
20	812707	衬套	BUSHING	2
21	F2047	波形垫圈	WASHER Wave	1
22	F481777	凸轮锁轴	CAM Latch Shaft	1
23	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
24	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
25	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
26	818029	贴花 (燃油混合比)	DECAL (Fuel Mix)	1
27	18286A40	开关总成(动力升降机型)	SWITCH ASSEMBLY (Power Trim Models)	OPT

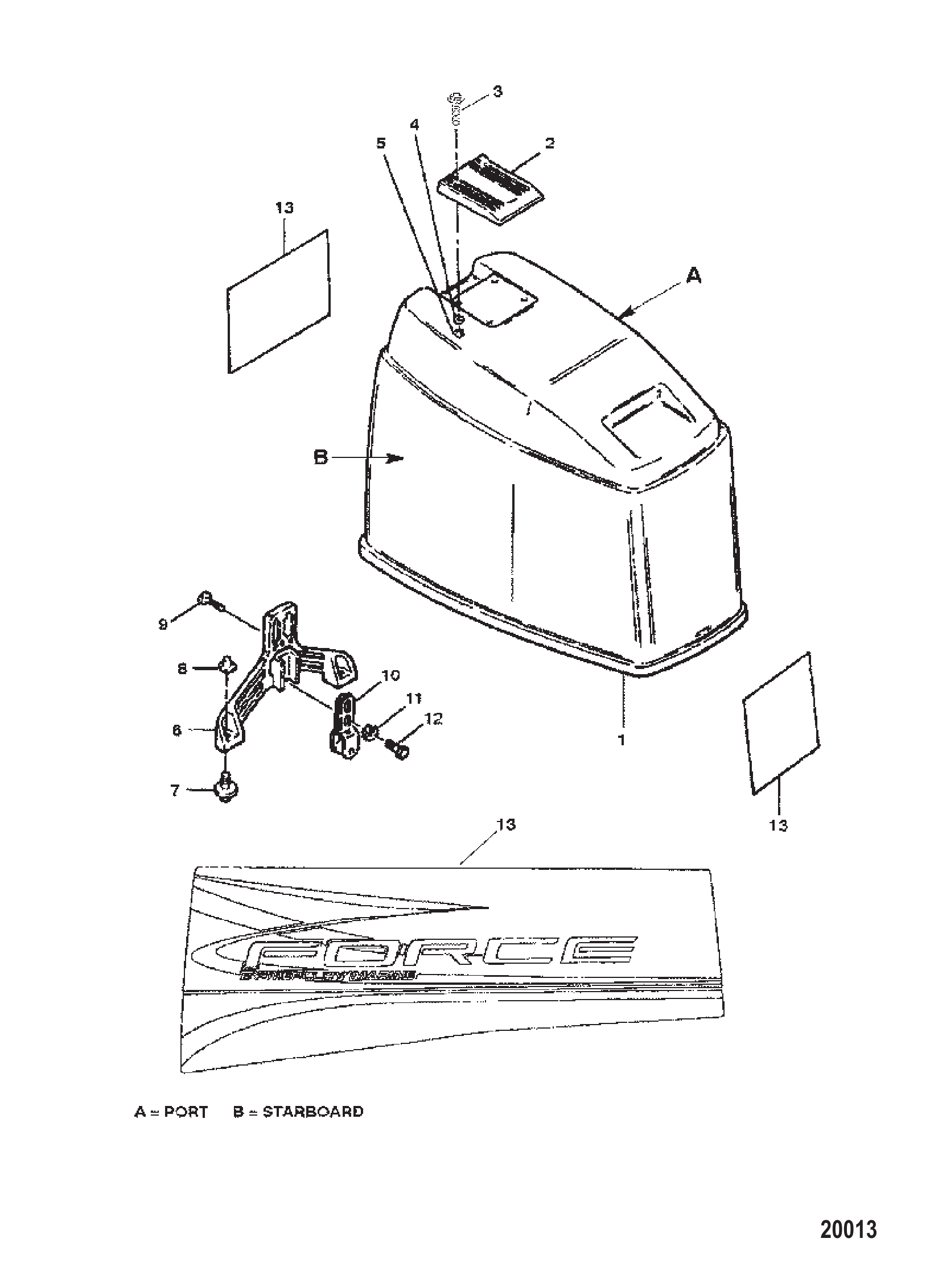

图 4外罩总成（顶部） Cowl Assembly (Top)

REF	零件编号	中文名称	英文名称	数量
1	819747A7	顶罩总成(无贴花)	TOP COWL ASSEMBLY (Without Decals)	1
2	828477	倾斜手柄	HANDLE Tilt	1
3	828478	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	4
4	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
5	56374	螺母 (.250-20)	NUT (.250-20)	4
6	8198141	罩盖锁扣支架	BRACKET Cowl Latch	1
7	F481434	罩盖锁扣导架	GUIDE Cowl Latch Bracket	2
8	F2088	紧固件	FASTENER	2
9	28639	250-20×0.625 螺钉	SCREW (250-20 x .625)	3
10	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
11	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
12	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
NS	827291		BLANKET Sound (Top)	1
NS	F664985	隔音毯(左舷和右舷)	BLANKET Sound (Port And Starboard)	2
13	820738A95	顶罩贴花套件	DECAL SET Top Cowl	1
NS	809862A96	顶罩贴花套件	DECAL SET Top Cowl	1
NS	852954A97	顶罩贴花套件	DECAL SET Top Cowl	1

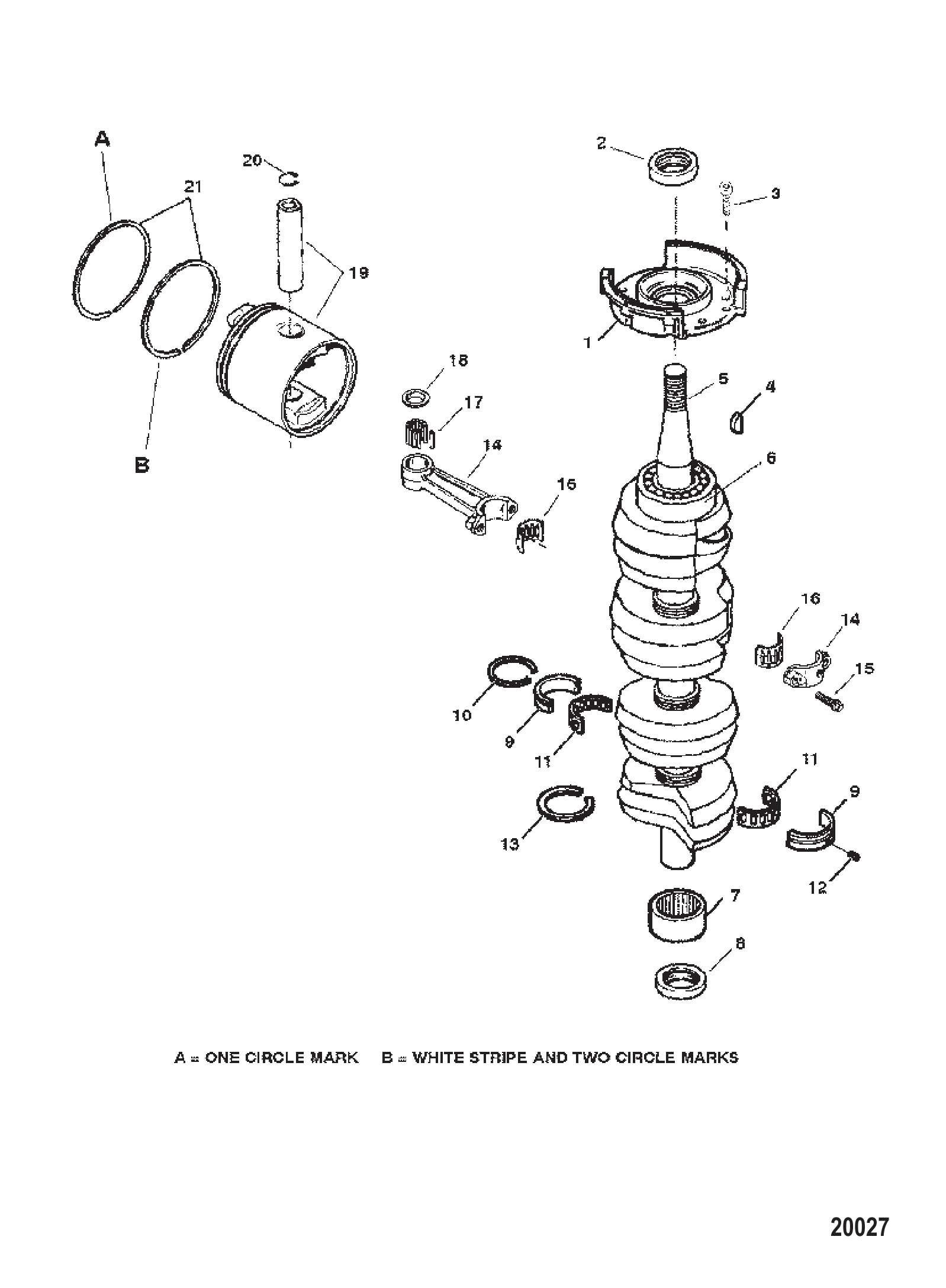

图 5曲轴、活塞与连杆 Crankshaft And Piston And Conn Rods

REF	零件编号	中文名称	英文名称	数量
1	819312A3	曲轴上端保持架总成	CAGE ASSEMBLY Crankshaft Upper	1
2	828626	曲轴上端油封	SEAL Crankshaft Upper	1
3	92160	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	5
4	91800	曲轴/飞轮半圆键	KEY Woodruff Crankshaft / Flywheel	1
5	828306A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
6	F284659-2	上滚珠轴承	BEARING Ball Upper	1
7	818050A3	下端轴承总成	BEARING ASSEMBLY Lower	1
8	828627	曲轴下端密封	SEAL Crankshaft Lower	1
9	FA85655-1	中央主轴承总成	BEARING ASSEMBLY Center Main	3
10	F85410	卡环	RING Snap	3
11	819193	保持架/滚子组	CAGE/ROLLER SET	3
12	823605	定位销	PIN Locating	4
13	F316579	曲轴箱密封件	SEAL Crankcase	3
14	9612A2	连杆总成	CONNECTING ROD ASSEMBLY	4
15	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	8
16	17514A2	滚子轴承套件	BEARING KIT Roller	4
17	47270	滚针轴承	BEARING Needle	116
18	812876	止推垫圈	WASHER Thrust	8
19	828304A2	活塞套件	PISTON KIT	4
19	828304A3	活塞套件	PISTON KIT	OPT
19	828304A4	活塞套件	PISTON KIT	OPT
20	52035	锁环	RING Lock	8
21	828565A1	活塞环组	RING SET	4
21	828565A2	活塞环组	RING SET	OPT
21	828565A3	活塞环组	RING SET	OPT
-	809125A2	动力头衬垫套件	GASKET SET Powerhead	1
-	818154A31	动力头总成	POWERHEAD ASSEMBLY	1
-	818154A43	动力头总成	POWERHEAD ASSEMBLY	1

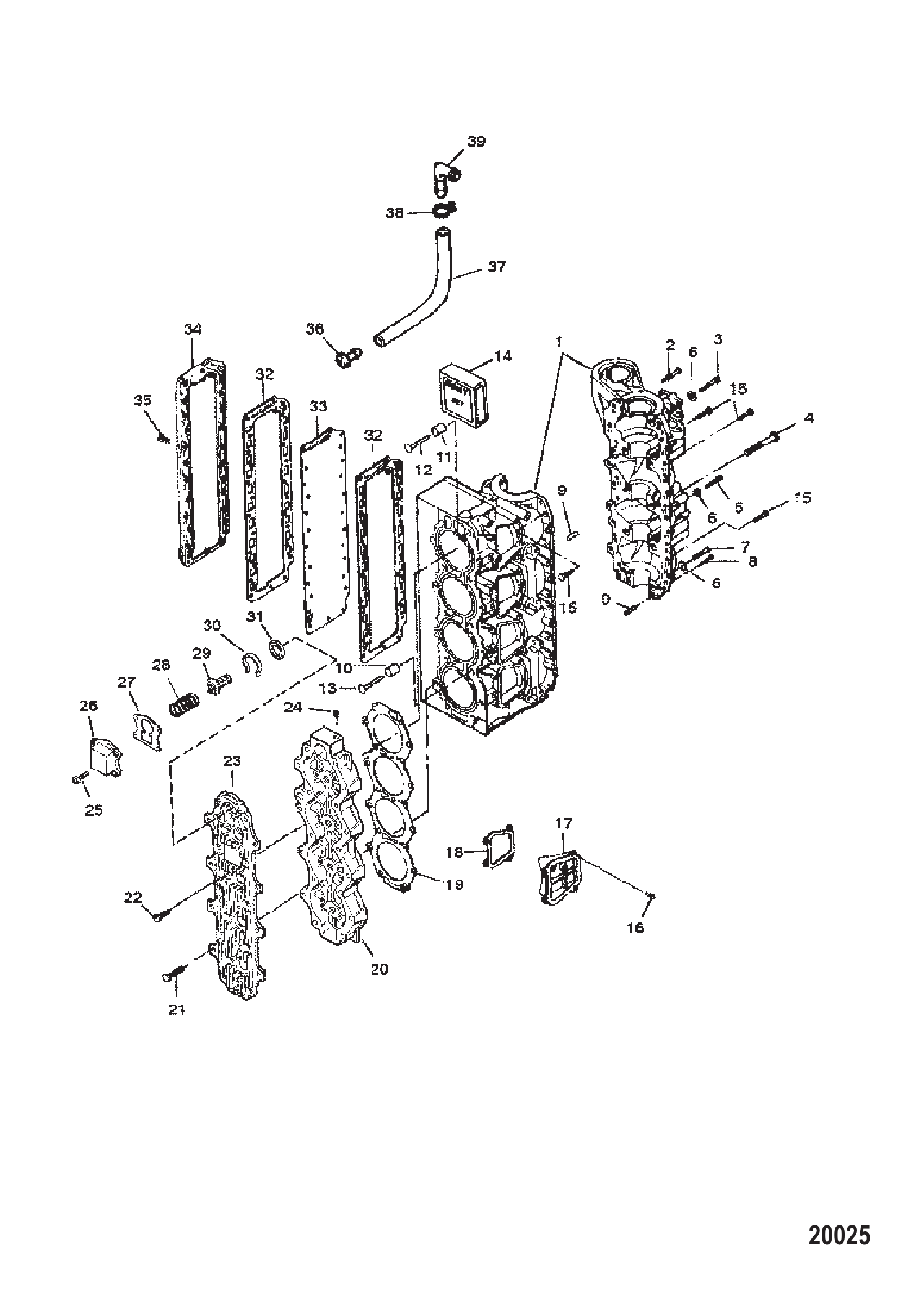

图 6气缸体总成（序列号0E138600至0E173427） Cylinder Block Assembly (Serial # 0E138600 Thru 0E173427)

REF	零件编号	中文名称	英文名称	数量
1	818154A31	动力头总成(完整)	POWERHEAD ASSEMBLY (Complete)	1
1	818154A29	气缸体套件	CYLINDER BLOCK KIT	1
2	F1874	螺钉(.375-16x3.125)	SCREW (.375-16 x 3.125)	1
3	47688	螺丝 (.375-16 x 2.750)	SCREW (.375-16 x 2.750)	1
4	53734	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	2
5	94207	螺钉(.375-16x2.00)	SCREW (.375-16 x 2.00)	4
6	828271	垫圈	WASHER	10
7	32132	螺钉(.375-16 x 1.750)	SCREW (.375-16 x 1.750)	2
8	820589	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	2
9	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
10	F719418	水套管	TUBE Water Jacket	3
11	F719943	水套管(顶部)	TUBE Water Jacket (Top)	1
12	F691372	水套管销(顶部)	PIN Water Jacket Tube (Top)	1
13	F719372	水套管销	PIN Water Jacket Tube	3
14	809125A2	动力头衬垫套件	GASKET SET Powerhead	1
15	819110088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	24
16	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	12
17	8197373	换气口盖	COVER Transfer Port	3
18	8205002	换气口盖垫片	GASKET Transfer Port Cover	3
19	8246151	气缸盖衬垫	GASKET Cylinder Head	1
20	8197772	气缸盖	CYLINDER HEAD	1
21	79654	螺钉(.312-18 x 2.380)	SCREW (.312-18 x 2.380)	18
22	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	4
23	F665995	气缸盖罩	COVER Cylinder Head	1
24	F722109-1	气缸盖尼龙塞	PLUG (Nylon) Cylinder Head	1
25	19932075	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
26	8196931	节温器盖	COVER Thermostat	1
27	828319	节温器盖衬垫	GASKET Thermostat Cover	1
28	F664268	弹簧	SPRING	1
29	F664068	节温器54°C(130°F)	THERMOSTAT 54°C (130°F)	1
30	828311	隔套	SPACER	1
31	F664914	密封件（节温器）	SEAL Thermostat	1
32	8190242	排气板衬垫	GASKET Exhaust Plate	2
33	8197791	排气板	PLATE Exhaust	1
34	F686152	排气罩	COVER Exhaust	1
35	819110125	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	27
36	813613	示警软管接头	FITTING Telltale hose	1
37	830756109	软管(57.00英寸整卷)(裁切21.00英寸)	HOSE (57.00 Inches Bulk) (Cut 21.00 Inches)	1
38	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
39	99664	弯头	ELBOW	1
-	809125A2	动力头衬垫套件	GASKET SET Powerhead	1

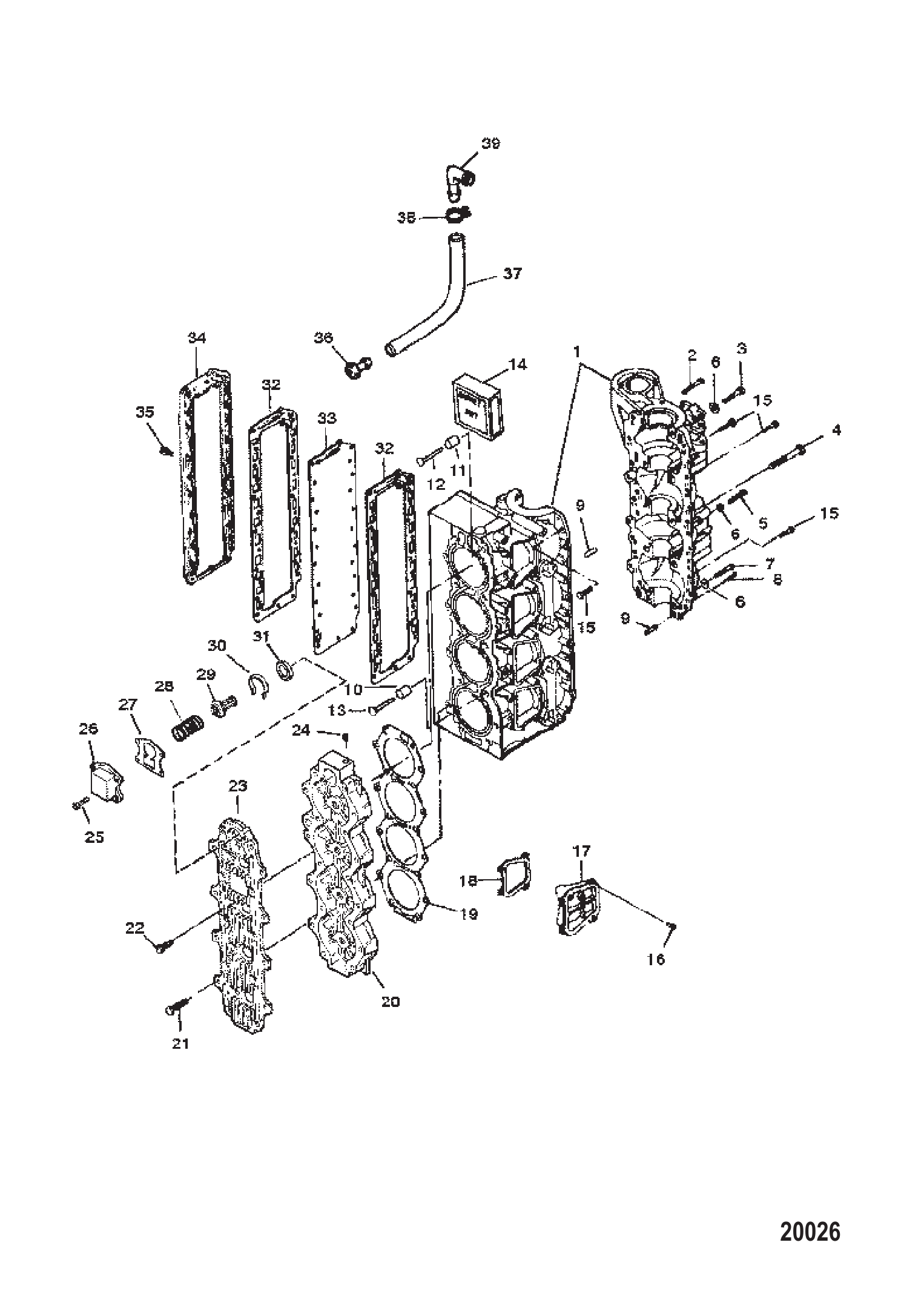

图 7气缸体总成（序列号0E173428至0E287999） Cylinder Block Assembly (Serial # 0E173428 Thru 0E287999)

REF	零件编号	中文名称	英文名称	数量
1	818154A43	动力头总成(完整)	POWERHEAD ASSEMBLY (Complete)	1
1	818154A41	气缸体套件	CYLINDER BLOCK KIT	1
2	F1874	螺钉(.375-16x3.125)	SCREW (.375-16 x 3.125)	1
3	47688	螺丝 (.375-16 x 2.750)	SCREW (.375-16 x 2.750)	1
4	53734	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	2
5	94207	螺钉(.375-16x2.00)	SCREW (.375-16 x 2.00)	4
6	828271	垫圈	WASHER	10
7	32132	螺钉(.375-16 x 1.750)	SCREW (.375-16 x 1.750)	2
8	820589	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	2
9	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
10	F719418	水套管	TUBE Water Jacket	3
11	F719943	水套管(顶部)	TUBE Water Jacket (Top)	1
12	F691372	水套管销(顶部)	PIN Water Jacket Tube (Top)	1
13	F719372	水套管销	PIN Water Jacket Tube	3
14	809125A2	动力头衬垫套件	GASKET SET Powerhead	1
15	819110088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	24
16	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	12
17	8197373	换气口盖	COVER Transfer Port	3
18	8205002	换气口盖垫片	GASKET Transfer Port Cover	3
19	8246151	气缸盖衬垫	GASKET Cylinder Head	1
20	8197772	气缸盖	CYLINDER HEAD	1
21	79654	螺钉(.312-18 x 2.380)	SCREW (.312-18 x 2.380)	18
22	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	4
23	F665995	气缸盖罩	COVER Cylinder Head	1
24	F722109-1	气缸盖尼龙塞	PLUG (Nylon) Cylinder Head	1
25	19932075	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
26	8196931	节温器盖	COVER Thermostat	1
27	828319	节温器盖衬垫	GASKET Thermostat Cover	1
28	F664268	弹簧	SPRING	1
29	F664068	节温器54°C(130°F)	THERMOSTAT 54°C (130°F)	1
30	828311	隔套	SPACER	1
31	F664914	密封件（节温器）	SEAL Thermostat	1
32	8190242	排气板衬垫	GASKET Exhaust Plate	2
33	8197791	排气板	PLATE Exhaust	1
34	F686152	排气罩	COVER Exhaust	1
35	819110125	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	27
36	813613		FITTING Telltale Hose	1
37	830756109	软管(57.00英寸整卷)(裁切21.00英寸)	HOSE (57.00 Inches Bulk) (Cut 21.00 Inches)	1
38	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
39	99664	弯头	ELBOW	1
-	809125A2	动力头衬垫套件	GASKET SET Powerhead	1

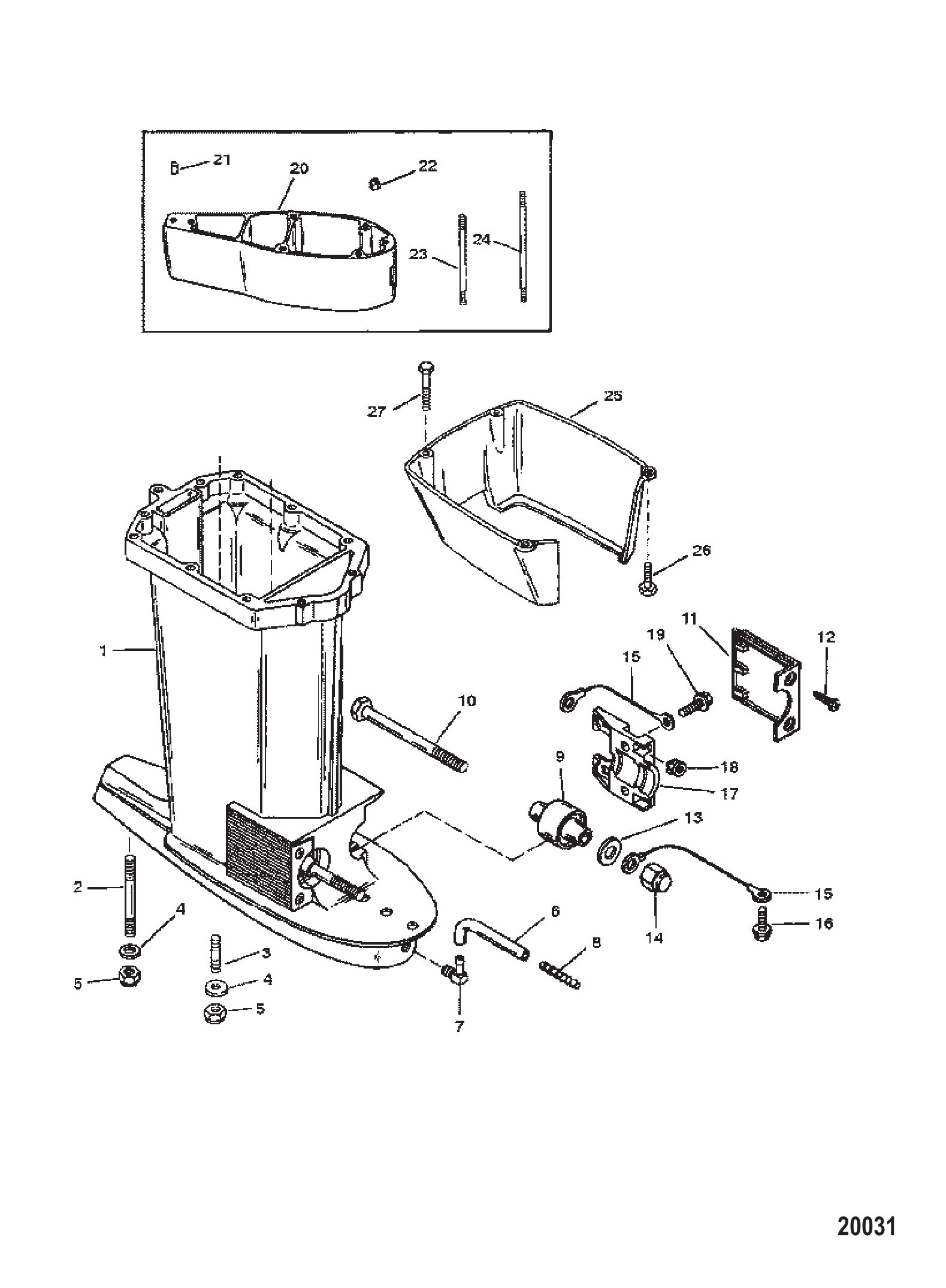

图 8驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	8974A25	驱动轴壳体套件	HOUSING KIT Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
NS	429221	维修替换壳体专用塞	PLUG (Service Replacement Housing Only)	1
4	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	5
5	13914	螺母(M10)	NUT (M10)	5
6	85822A4	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
8	85822	直通接头	CONNECTOR Straight	1
9	44343	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
11	67077F2	盖板	COVER	2
12	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
13	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
14	43528	螺母(M12)	NUT (M12)	2
15	88238A1	接地线总成	CABLE ASSEMBLY Ground	2
16	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
17	93192	卡箍	CLAMP	2
18	35521	专用螺母	NUT (Special)	4
19	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
20	12092A12	垫片套件(X长机型)	SPACER KIT (X Long Models)	1
21	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
21	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	13914	螺母(M10)	NUT (M10)	4
23	903503	螺柱(M10x190)(X长机型)	STUD (M10 x 190) (X Long Models)	4
24	903502	螺柱(M10x227)(X长机型)	STUD (M10 x 227) (X Long Models)	1
25	819955	配平盖	TRIM COVER	1
26	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2

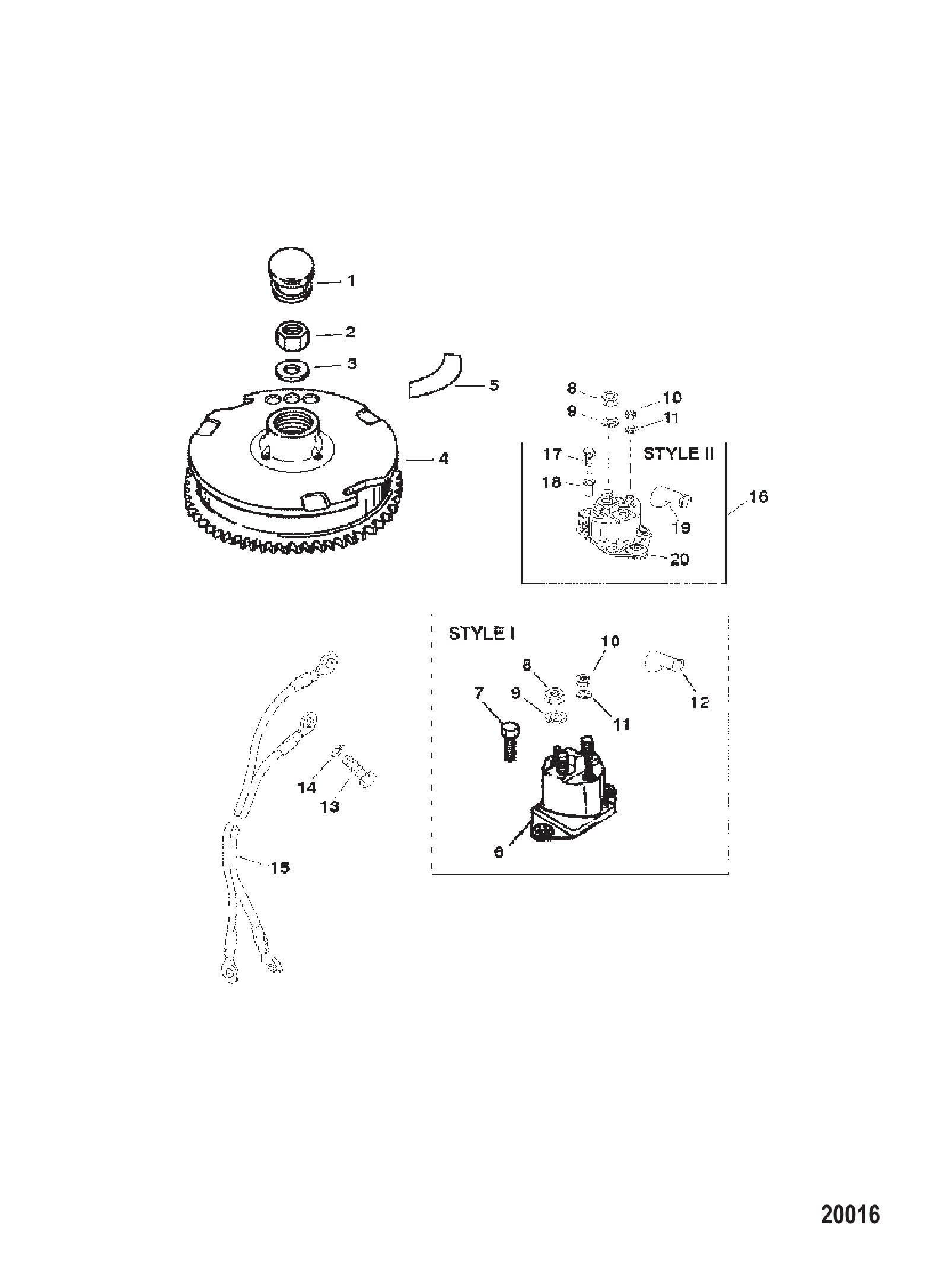

图 9电气组件（飞轮与继电器） Electrical Components (Flywheel And Relays)

REF	零件编号	中文名称	英文名称	数量
1	45907	曲轴/飞轮黄色塞	PLUG Yellow Crankshaft / Flywheel	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	9008A36	飞轮总成	FLYWHEEL ASSEMBLY	1
5	FA609853	贴花(换至空档)	DECAL (Shift To Neutral)	1
6	F460917-1	启动继电器(I型)	RELAY Starter (Style I)	1
7	19932062	螺钉(.250-20x.620)(I型)	SCREW (.250-20 x .620) (Style I)	2
8	68292	螺母(.312-18)	NUT (.312-18)	2
9	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
10	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
11	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
12	830233	红色绝缘护套	BOOT Insulator - Red	1
13	39349	接地不锈钢螺钉(.312-18x.750)	SCREW (.312-18 x .750) Stainless Steel Ground	1
14	53166	接地锁紧垫圈(.312)	LOCKWASHER (.312) Ground	1
15	F381896-4	电池电缆总成	CABLE ASSEMBLY Battery	1
16	817109A3	启动电磁阀套件(II型)	SOLENOID KIT Starter (Style II)	1
17	853652	螺钉(.250-20x1.125)(II型)	SCREW (.250-20 x 1.125) (Style II)	2
18	818968	衬套(II型)	BUSHING (Style II)	2
19	830233	红色绝缘护套(II型)	BOOT Insulator - Red (Style II)	1
20	822179	索环(II型)	GROMMET (Style II)	2

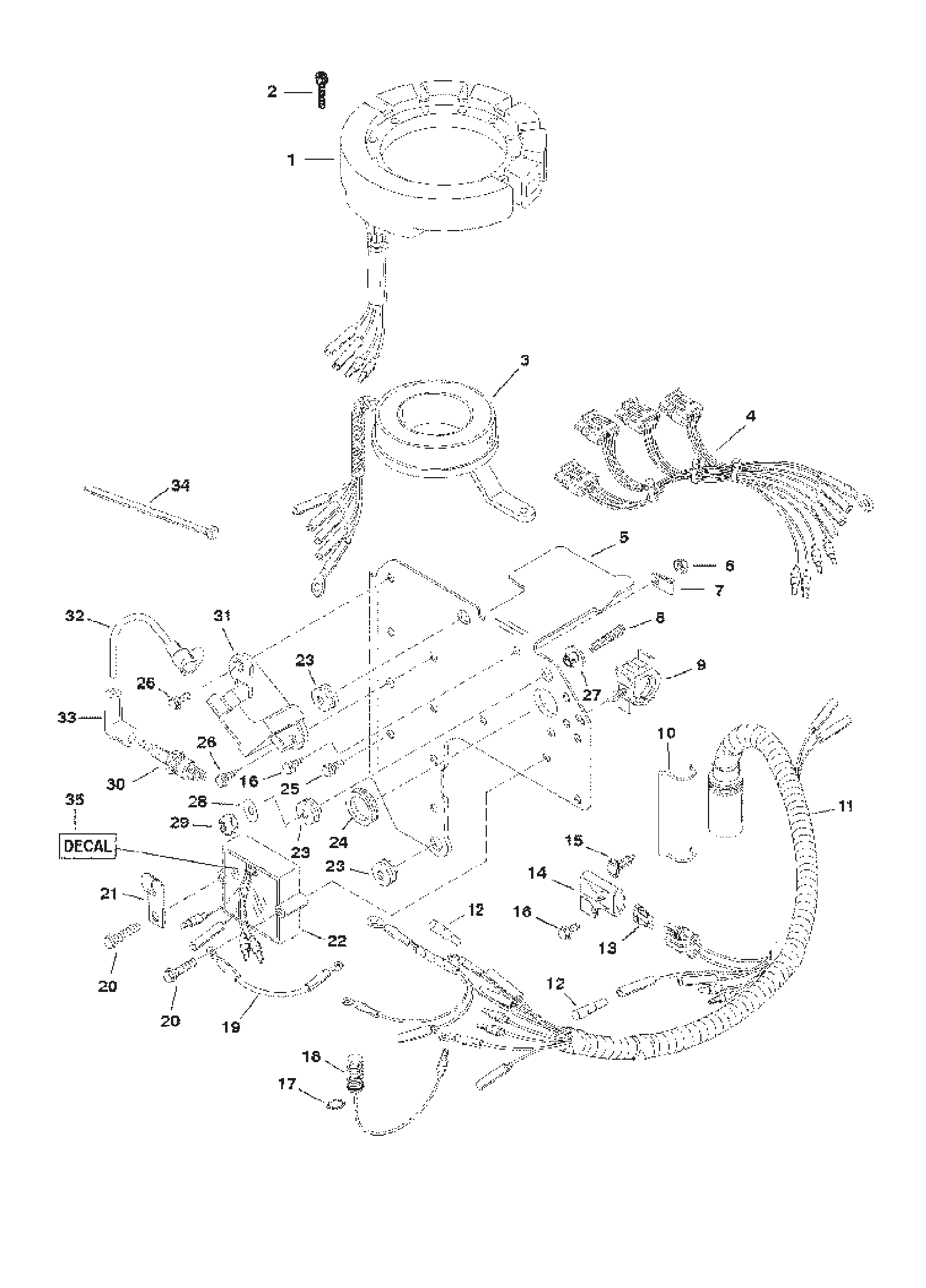

图 10电气组件（点火系统） Electrical Components (Ignition)

REF	零件编号	中文名称	英文名称	数量
1	9873A28	定子总成	STATOR ASSEMBLY	1
1	832075A4	点火定子套件	IGNITION STATOR KIT	1
2	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	6
3	828303A1	触发器总成	TRIGGER ASSEMBLY	1
4	828298A2	点火线束总成	HARNESS ASSEMBLY Ignition	1
5	8283121	点火组件板	PLATE Ignition Components	1
6	8268336	螺母 (M6)	NUT (M6)	2
7	820437	线束固定夹	CLIP Harness Retainer	2
8	830228	双头螺柱(.312-18/.250-28 x 1.750)	STUD (.312-18/.250-28 x 1.750)	3
9	828791	线束压紧夹	CLIP Harness Hold Down	1
10	92753	线束固定座	RETAINER Harness	1
11	828297A1	线束总成	HARNESS ASSEMBLY	1
12	13541	公插头	PLUG Male	2
13	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
14	828054	保险丝盖	COVER Fuse	1
15	828991	保险丝固定夹	CLIP Fuse Holder	1
16	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	2
17	F717096	挡圈	RING Retaining	1
18	8190221	温控开关	THERMOSWITCH	1
19	88807A21	电缆总成(黑色)	CABLE ASSEMBLY (Black)	1
20	82129135	螺钉(M6x35)	SCREW (M6 x 35)	2
21	54457	J型卡扣	J CLIP	1
22	815279T5	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
23	822002	护孔环	GROMMET	3
24	828836	护孔环	GROMMET	1
25	4010620	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	2
26	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	6
27	822003	衬套	BUSHING	3
28	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
29	828451	螺母(.250-28)	NUT (.250-28)	3
30	827C	火花塞(冠军牌L76V)	SPARK PLUG (Champion # L76V)	4
30	898	火花塞(RFI)(冠军牌QL76V)	SPARK PLUG (RFI) (Champion # QL76V)	OPT
31	827509A4	CDM模块总成(按需裁线)	CDM MODULE ASSEMBLY (Cut Wire As Required)	4
32	821945A61	高压电缆总成	CABLE ASSEMBLY Hi Tension	4
33	63709A1	高压电缆护套/端子套件	BOOT/TERMINAL KIT Hi Tension Cable	4
34	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
35	819526	油门线调节标签	DECAL Throttle Cable Adjustment	1
-	818154A31	动力头总成	POWERHEAD ASSEMBLY	1
-	818154A43	动力头总成	POWERHEAD ASSEMBLY	1

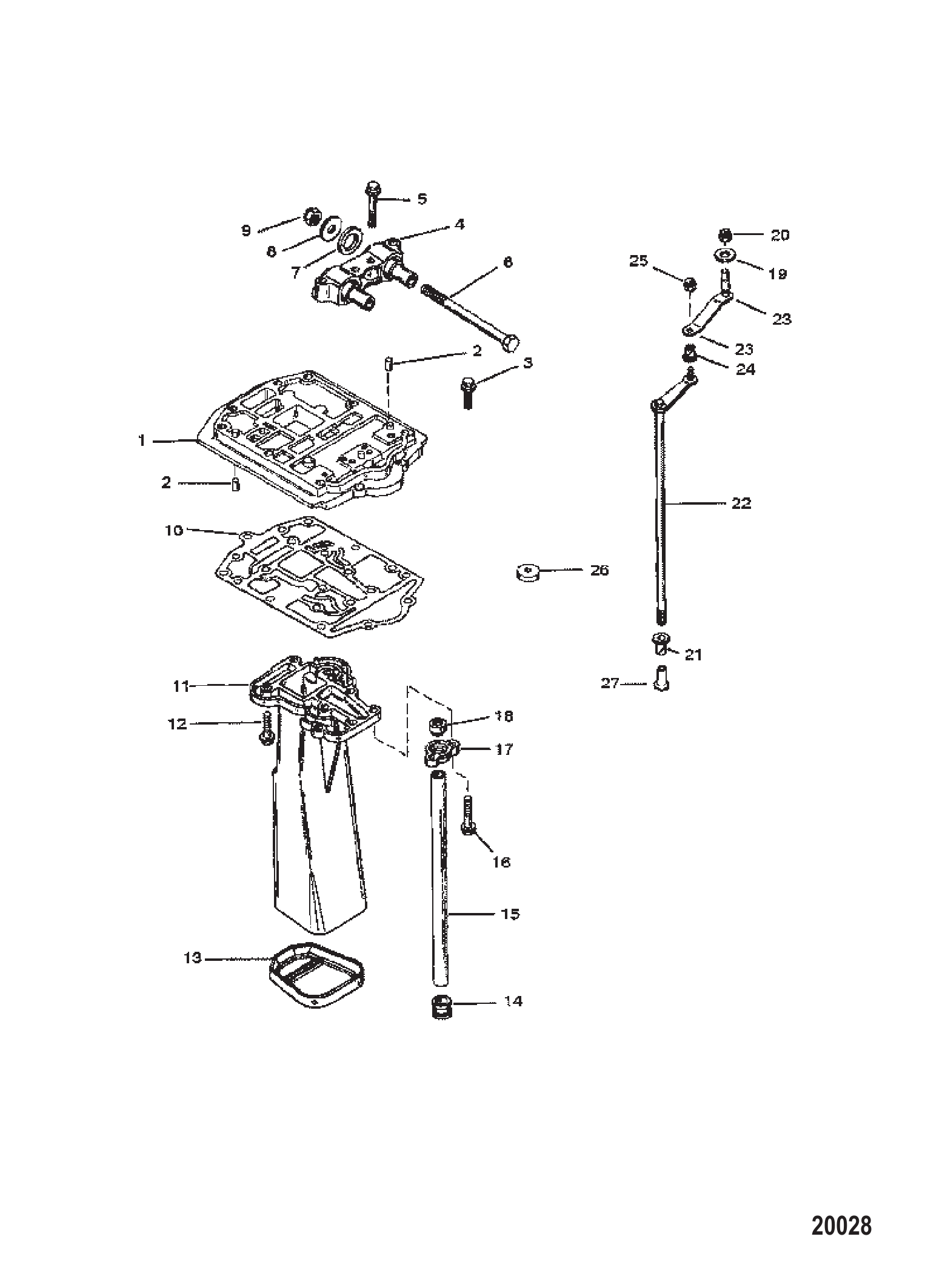

图 11排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	820194A1	排气板总成	PLATE ASSEMBLY Exhaust	1
2	23784	定位销	PIN Dowel	5
3	4008920	不锈钢螺钉(M8 x 20)	SCREW (M8 x 20) Stainless Steel	3
4	443442	支架(2.375英寸)	MOUNT (2.375 Inch)	1
5	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	4
6	42974	螺栓(M12×175)	BOLT (M12 x 175)	2
7	93416	垫圈	WASHER	2
8	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
9	90099	螺母(M12)	NUT (M12)	2
10	430086	排气板至排气管衬垫	GASKET Exhaust Plate To Exhaust Tube	1
11	429666	排气管	TUBE Exhaust	1
12	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	6
13	42962	排气管密封件	SEAL Exhaust Tube	1
14	894171	下端水管索环	GROMMET Water Tube Lower	1
15	8246601	水管	TUBE Water	1
15	8246602	水管	TUBE Water	1
16	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
17	824661	水管夹	CLAMP Water Tube	1
18	814080	上水管密封件	SEAL Water Tube Upper	1
19	35459	垫圈	WASHER	1
20	8268336	螺母 (M6)	NUT (M6)	1
21	48237	衬套	BUSHING	1
22	79932A9	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
22	79932A20	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
23	820278A1	换挡连杆总成	LINK ASSEMBLY Shift	1
24	48475	衬套	BUSHING	1
25	8268336	螺母 (M6)	NUT (M6)	1
26	43041	隔套	SPACER	1
26	11289	隔套	SPACER	1
27	43585	联轴器	COUPLING	1

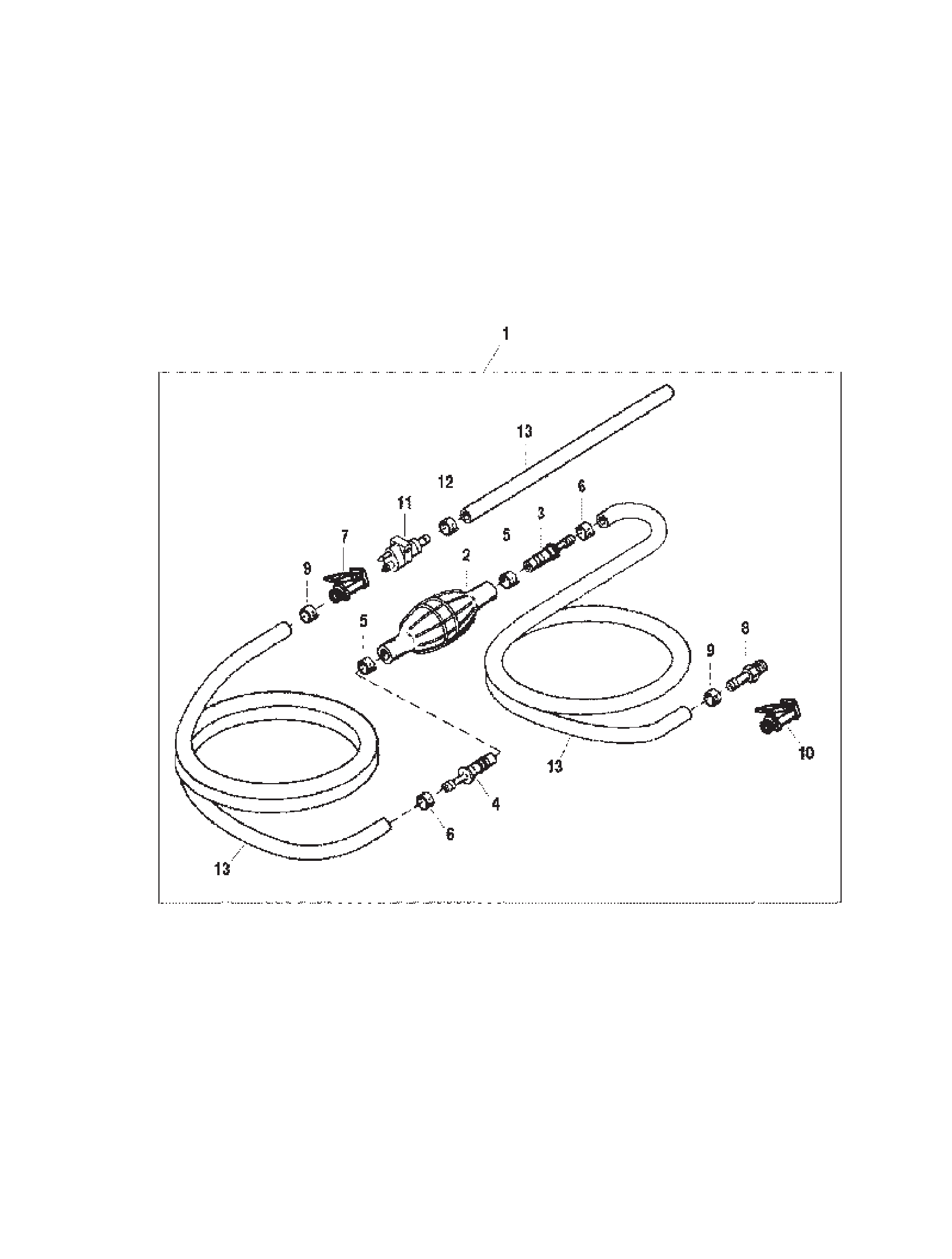

图 12燃油管路总成 Fuel Line Assembly

REF	零件编号	中文名称	英文名称	数量
1	17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
1	17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
2	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
3	13331A1	止回阀总成(进口)	CHECK VALVE ASSEMBLY (Inlet)	1
4	13331A2	止回阀总成(出口)	CHECK VALVE ASSEMBLY (Outlet)	1
5	4158210	尼龙卡箍(大)	CLAMP Nylon (Large)	2
6	415827	尼龙卡箍(小)	CLAMP Nylon (Small)	2
7	13563A3	燃油管接头总成	FITTING ASSEMBLY Fuel Line	1
8	897711	接头(.250-18)(黄铜)-油箱端	CONNECTOR (.250-18) (Brass)-Fuel Tank End	1
9	415827	尼龙卡箍	CLAMP Nylon	OPT
9	F698772	蜗轮卡箍(不锈钢)	CLAMP Worm Gear (Stainless Steel)	OPT
1	827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
1	827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
2	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
3	13331A1	止回阀总成(进口)	CHECK VALVE ASSEMBLY (Inlet)	1
4	13331A2	止回阀总成(出口)	CHECK VALVE ASSEMBLY (Outlet)	1
5	4158210	尼龙卡箍(大)	CLAMP Nylon (Large)	2
6	415827	尼龙卡箍(小)	CLAMP Nylon (Small)	2
7	13563A3	燃油管接头总成	FITTING ASSEMBLY Fuel Line	1
9	415827	尼龙卡箍	CLAMP Nylon	OPT
9	F698772	蜗轮卡箍(不锈钢)	CLAMP Worm Gear (Stainless Steel)	OPT
10	13563A7	燃油管接头总成	FITTING ASSEMBLY Fuel Line	1
1	822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
2	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
3	13331A1	止回阀总成(进口)	CHECK VALVE ASSEMBLY (Inlet)	1
4	13331A2	止回阀总成(出口)	CHECK VALVE ASSEMBLY (Outlet)	1
5	4158210	尼龙卡箍	CLAMP Nylon	2
6	415827	尼龙卡箍(小)	CLAMP Nylon (Small)	2
9	415827	尼龙卡箍	CLAMP Nylon	OPT
9	F698772	蜗轮卡箍(不锈钢)	CLAMP Worm Gear (Stainless Steel)	OPT
1	16789A26	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
2	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
3	13331A1	止回阀总成(进口)	CHECK VALVE ASSEMBLY (Inlet)	1
4	13331A2	止回阀总成(出口)	CHECK VALVE ASSEMBLY (Outlet)	1
5	4158210	尼龙卡箍(大)	CLAMP Nylon (Large)	2
6	415827	尼龙卡箍(小)	CLAMP Nylon (Small)	2
7	13563A3	燃油管接头总成	FITTING ASSEMBLY Fuel Line	1
9	F698772	蜗杆卡箍	CLAMP Worm Gear	OPT
11	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
12	415827	尼龙卡箍	CLAMP Nylon	OPT
12	F698772	蜗轮卡箍(不锈钢)	CLAMP Worm Gear (Stainless Steel)	OPT
13	1678978	软管(9.00英尺整卷)(按需裁切)	HOSE (9.00 Feet Bulk) (Cut As Required)	AR
13	16789100	软管(100.00英尺整卷)(按需裁切)	HOSE (100.00 Feet Bulk) (Cut As Required)	AR

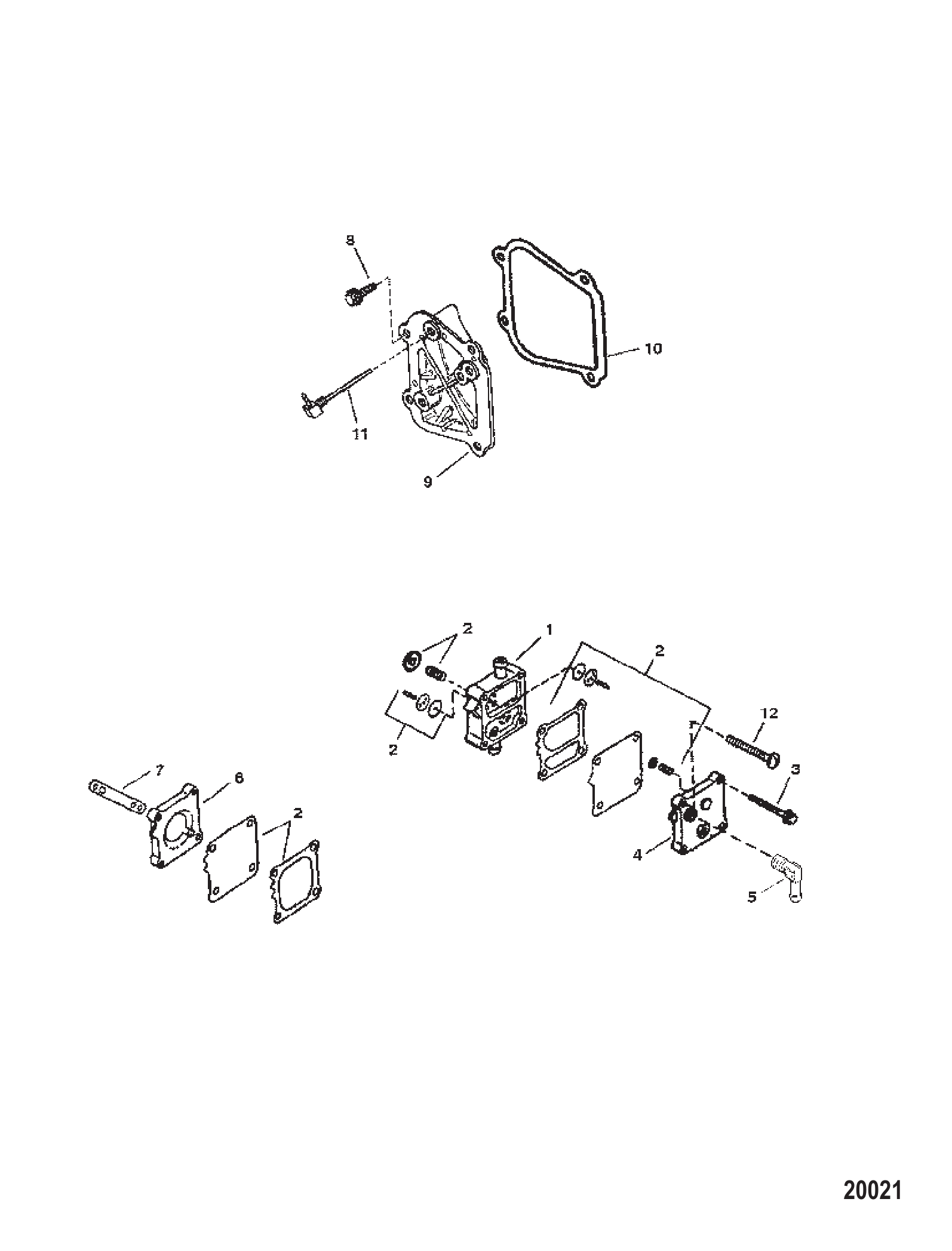

图 13燃油泵总成 Fuel Pump Assembly

REF	零件编号	中文名称	英文名称	数量
1	14360A49	燃油泵套件	PUMP KIT Fuel Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
3	82104540		SCREW (M5 x 40) Fuel Pump	2
4	987752	燃油泵板	PLATE Fuel Pump	1
5	99664	弯头	ELBOW	1
6	144303		BASE Fuel Pump	1
7	987691	燃油泵底座衬垫	GASKET Fuel Pump Base	1
8	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	4
9	8178702	燃油泵盖	COVER Fuel Pump	1
10	8205002	燃油泵盖衬垫	GASKET Fuel Pump Cover	1
11	F743314	循环弯头	ELBOW Recirculating	1
12	827357	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
NS	830756109	软管(57.00英寸整卷)(裁切4.500英寸)(燃油泵至气缸体)	HOSE (57.00 Inches Bulk) (Cut 4.500 Inches) (Fuel Pump To Cylinder Block)	1
-	809125A2	动力头衬垫套件	GASKET SET Powerhead	1
-	818154A31	动力头总成	POWERHEAD ASSEMBLY	1
-	818154A43	动力头总成	POWERHEAD ASSEMBLY	1

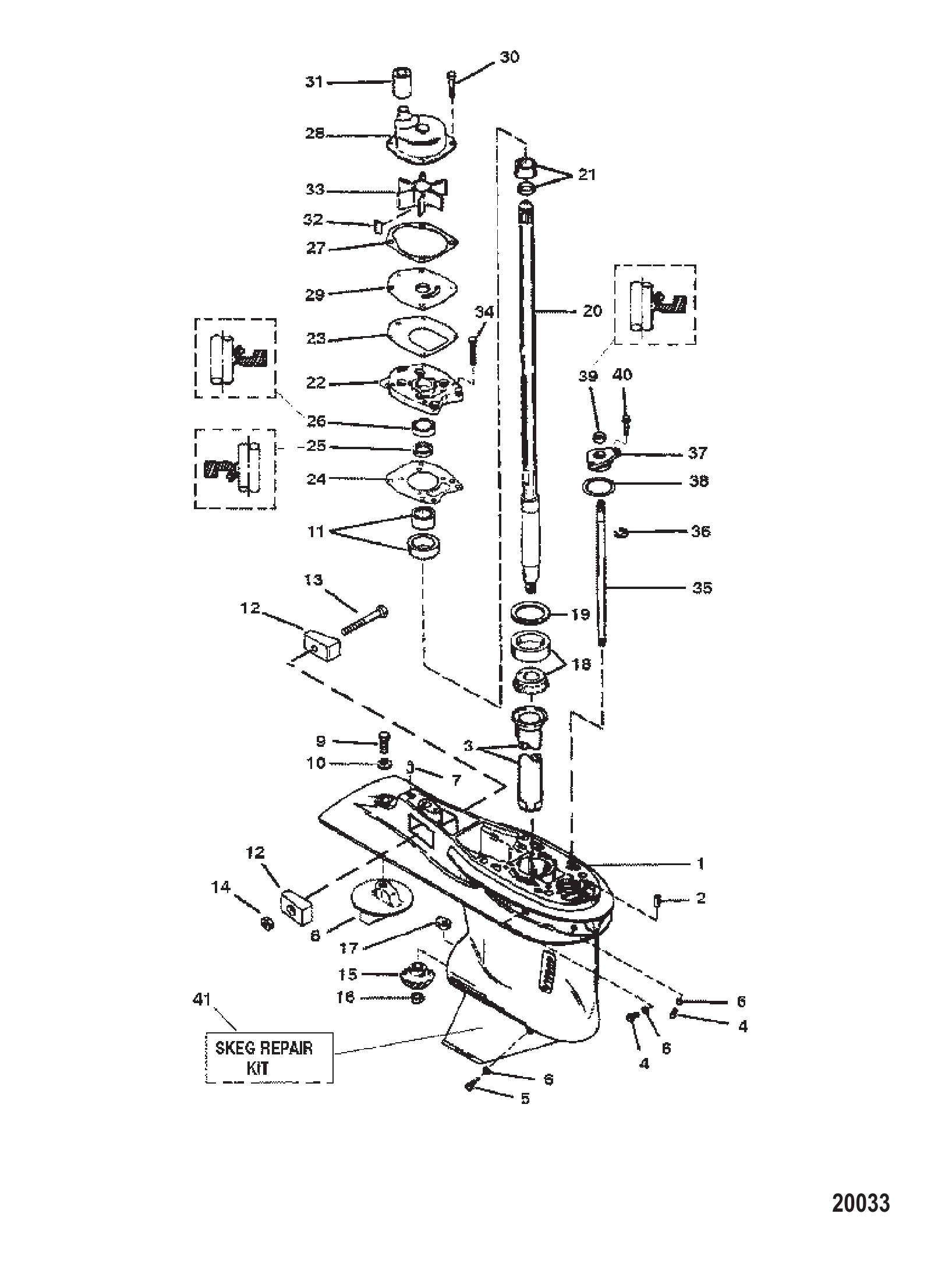

图 14齿轮箱总成（驱动轴）（3爪倒车离合器） Gear Housing Assembly (Driveshaft) (3 Jaw Reverse Clutch)

REF	零件编号	中文名称	英文名称	数量
1	9011A85	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011A90	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043		PIN Dowel - With Hole (.375 x .625) (Front)	1
3	43046	注油管	TUBE Oiler	1
4	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
5	67892A1		FITTING KIT Magnetic, Plug Fill/Drain (Magnetic)	1
6	19183	纤维垫圈	WASHER Fiber	3
7	43044		PIN Dowel - Without Hole (.375 x .625) (Rear)	1
8	316405	平衡鳍板	TRIM TAB	1
9	15942	螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250)	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
11	43040A1	托架总成	CARRIER ASSEMBLY	1
12	826134	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
15	19672	小齿轮	GEAR Pinion	1
16	35921		NUT (.625-18) (Special)	1
17	76039	换挡凸轮控制	CAM Shift Control	1
18	42677A1	圆锥滚子轴承总成(内圈和外圈)	BEARING ASSEMBLY Taper Roller (Cone And Cup)	1
19	44492A1	垫片组	SHIM SET	1
20	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	430331	衬垫	GASKET	1
24	430472	衬垫	GASKET	1
25	43036		SEAL Oil (Lower)	1
26	43035		SEAL Oil (Upper)	1
27	817277	衬垫	GASKET	1
28	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
29	817276	面板	FACEPLATE	1
30	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
31	430232	水管密封件	SEAL Water Tube	1
32	43037	叶轮驱动键	KEY Impeller Drive	1
33	430262	叶轮	IMPELLER	1
34	82684425	螺钉(M6x25)	SCREW (M6 x 25)	6
35	43048A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	43049A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	29641	E型卡环	E RING	1
37	43052A4	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
38	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8164641	油封	SEAL Oil	1
40	82684425	螺钉(M6x25)	SCREW (M6 x 25)	2
41	15985A1	齿轮箱尾鳍修复套件	SKEG KIT Gear Housing Repair	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1

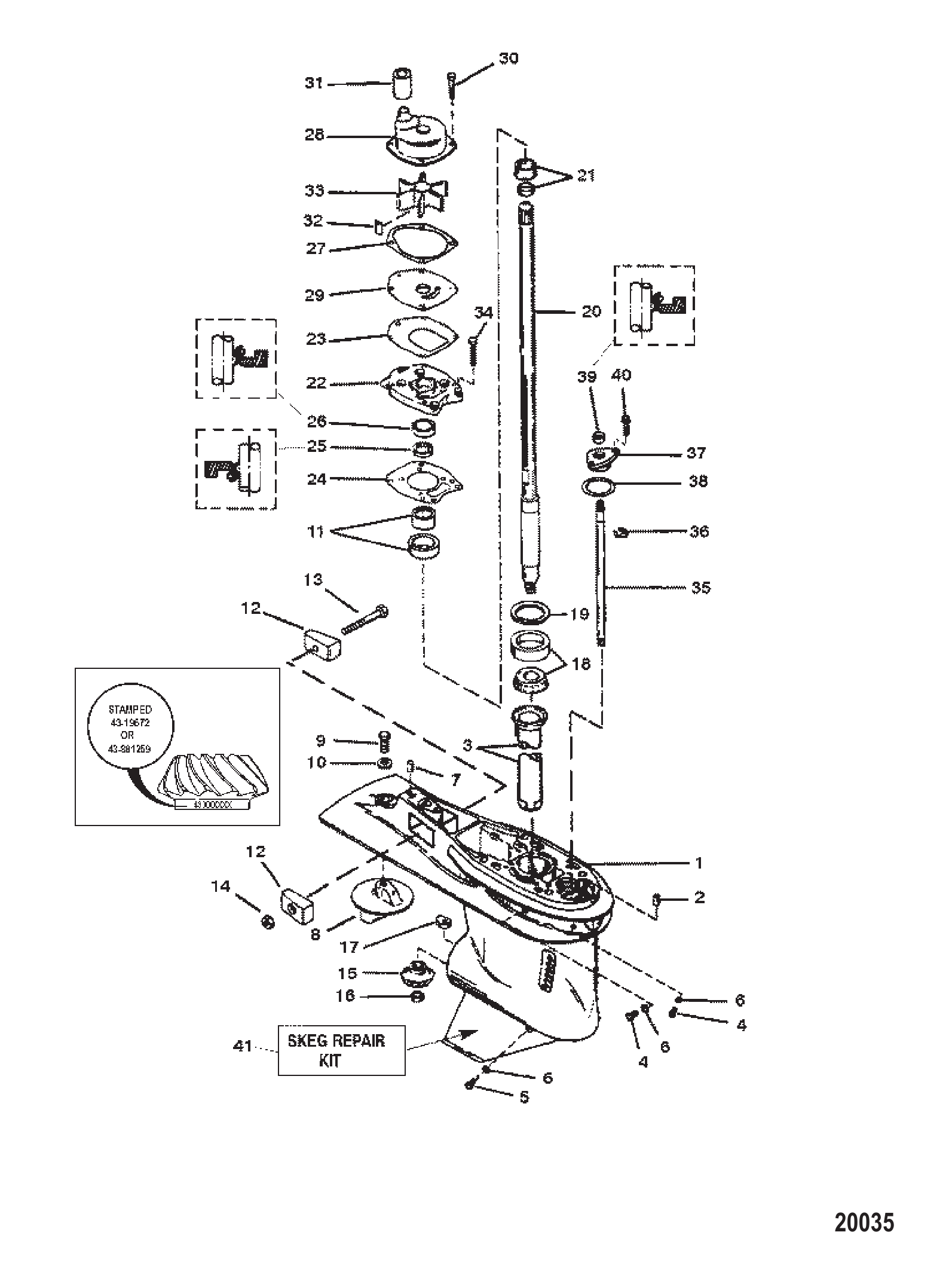

图 15齿轮箱总成（驱动轴）（6爪倒车离合器） Gear Housing Assembly (Driveshaft) (6 Jaw Reverse Clutch)

REF	零件编号	中文名称	英文名称	数量
1	9011G23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G24	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G22	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043		PIN Dowel - With Hole (.375 x .625) (Front)	1
3	43046	注油管	TUBE Oiler	1
4	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
5	67892A1		FITTING KIT Magnetic, Plug Fill/Drain (Magnetic)	1
6	19183	纤维垫圈	WASHER Fiber	3
7	43044		PIN Dowel - Without Hole (.375 x .625) (Rear)	1
8	316405	平衡鳍板	TRIM TAB	1
9	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
11	43040A1	托架总成	CARRIER ASSEMBLY	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	19672	小齿轮	GEAR Pinion	1
15	881260A5	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
15	881259T	小齿轮-14齿	GEAR Pinion - 14 Teeth	1
16	35921		NUT (.625-18) (Special)	1
17	850307	换挡凸轮控制	CAM Shift Control	1
18	42677A1	圆锥滚子轴承总成(内圈和外圈)	BEARING ASSEMBLY Taper Roller (Cone And Cup)	1
18	883047A1	圆锥滚子轴承总成(内圈和外圈)	BEARING ASSEMBLY Taper Roller (Cone And Cup)	1
19	44492A1	垫片组	SHIM SET	1
19	8M0063265	垫片组	SHIM SET	1
20	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
22	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	430331	衬垫	GASKET	1
24	430472	衬垫	GASKET	1
24	8M0214931	衬垫	GASKET	1
25	43036		SEAL Oil (Lower)	1
26	43035		SEAL Oil (Upper)	1
26	8M0245495	油封	OIL SEAL	1
27	817277	衬垫	GASKET	1
27	8172771	水泵上垫片	GASKET Water Pump, Upper	1
28	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
29	817276	面板	FACEPLATE	1
29	8M0204709	面板	FACEPLATE	1
30	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
31	430232	密封件	SEAL	1
32	43037	叶轮驱动键	KEY Impeller Drive	1
32	8M0204723	键	KEY	1
33	430262	叶轮	IMPELLER	1
33	43026T2	叶轮	IMPELLER	1
34	82684425	螺钉(M6x25)	SCREW (M6 x 25)	6
35	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	853908A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	29641	E型卡环	E RING	1
37	43052A4	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
38	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
38	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
39	8164641	油封	SEAL Oil	1
39	8M0246145	油封	OIL SEAL	1
40	82684425	螺钉(M6x25)	SCREW (M6 x 25)	2
41	15985A1	齿轮箱尾鳍修复套件	SKEG KIT Gear Housing Repair	1
41	15985A02	艉鳍替换件	SKEG-REPLACEMENT	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1

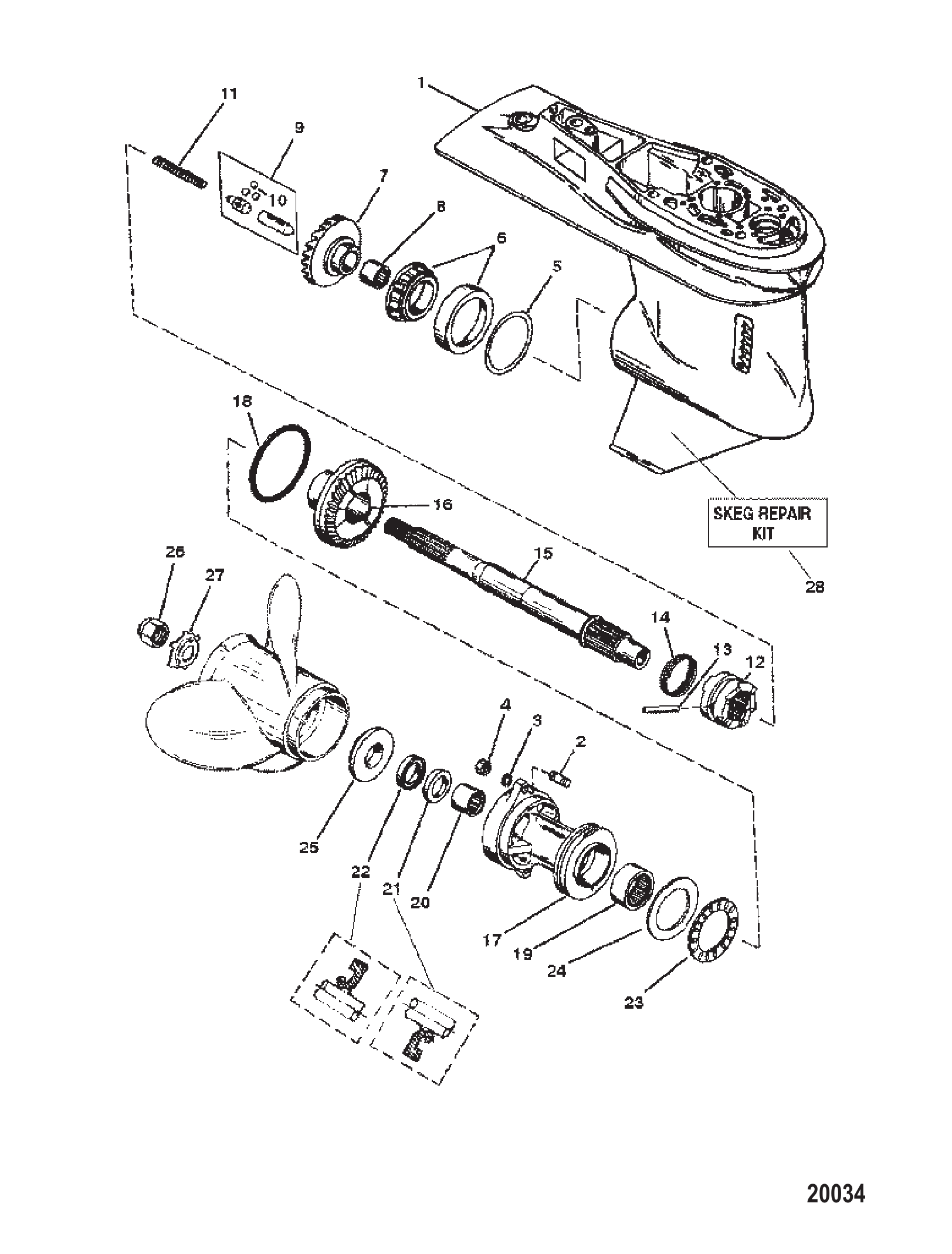

图 16齿轮箱总成（螺旋桨轴）（3爪倒车离合器） Gear Housing Assembly (Propshaft) (3 Jaw Reverse Clutch)

REF	零件编号	中文名称	英文名称	数量
1	9011A85	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G81	ORD 1667-9011J45	ORD 1667-9011J45	1
1	9011A90	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G84	ORD 1667 9011J46	ORD 1667 9011J46	1
1	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T80	ORD 1667-9011T73	ORD 1667-9011T73	1
2	429174		STUD (M8 x 1.25 x 48) (M8 x 48)	2
2	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
3	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
3	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
4	401198	螺母 (M8)	NUT (M8)	2
4	401378	螺母 (M8)	NUT (M8)	2
5	44491A1	垫片组	SHIM SET	1
5	8M0063266	垫片组	SHIM SET	1
6	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
7	19673A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
7	19673T2	前进齿轮总成	GEAR ASSY-FORWARD	1
8	30895	滚针轴承	BEARING Needle	1
8	30895T	滚针轴承	BEARING Needle	1
9	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
9	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
10	44530	钢球	BALL	3
11	30622	弹簧	SPRING	1
12	822539	离合器	CLUTCH	1
12	822539T	离合器	CLUTCH	1
13	30632	十字销	PIN Cross	1
13	8M0100263	十字销	PIN Cross	1
14	30893	弹簧	SPRING	1
15	12238T	螺旋桨轴	PROPELLER SHAFT	1
16	19671	倒挡齿轮	GEAR Reverse	1
16	19671T	倒车齿轮	GEAR REVERSE	1
17	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
17	8M0168901	轴承座总成	CARRIER ASSY.	1
18	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
18	8M0214974	O型圈	O RING	1
19	12578	滚针轴承	BEARING Needle	1
19	12578T	滚柱轴承	BEARING Roller	1
20	30956	滚针轴承	BEARING Needle	1
20	30956T	滚针轴承	BEARING Needle	1
21	70080	油封(内)	SEAL Oil (Inner)	1
21	8M0205728	密封件	SEAL	1
22	70081		SEAL Oil (Outer)	1
22	8M0205729	密封件	SEAL	1
23	12576	推力轴承	BEARING Thrust	1
24	12577	止推垫片	THRUST WASHER	1
25	13191A1	止推垫片	THRUST WASHER	1
25	13191Q01	止推垫片	THRUST WASHER	1
26	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
26	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
27	816629	锁紧垫圈	TAB WASHER	1
27	816629Q	锁紧垫圈	TAB WASHER	1
28	15985A1	齿轮箱尾鳍修复套件	SKEG KIT Gear Housing Repair	1
28	15985A02	艉鳍替换件	SKEG-REPLACEMENT	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

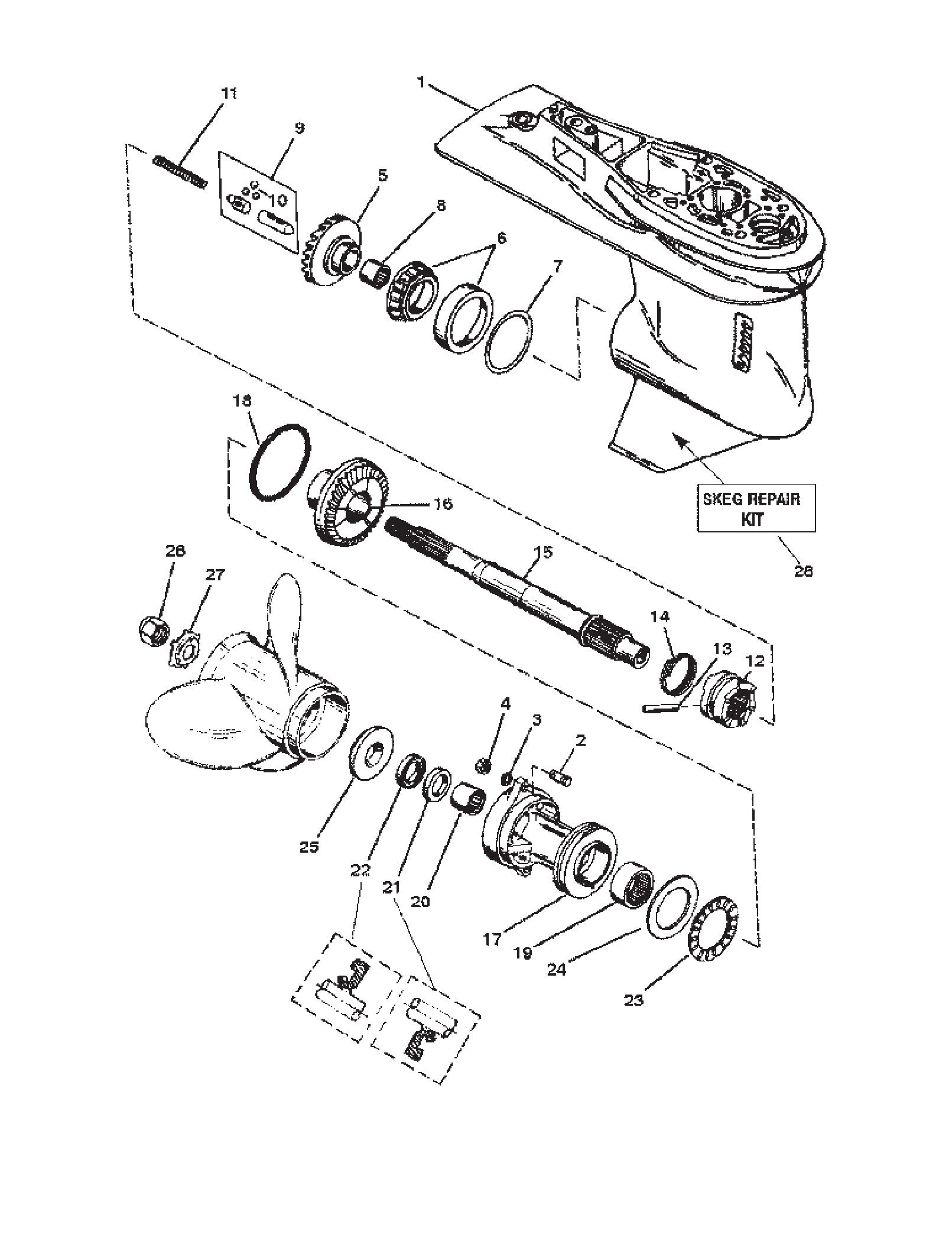

图 17齿轮箱总成（螺旋桨轴）（6爪倒车离合器） Gear Housing Assembly (Propshaft) (6 Jaw Reverse Clutch)

REF	零件编号	中文名称	英文名称	数量
1	9011G23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G81	ORD 1667-9011J45	ORD 1667-9011J45	1
1	9011G24	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G84	ORD 1667 9011J46	ORD 1667 9011J46	1
1	9011G22	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G66	ORD 1667-9011J42	ORD 1667-9011J42	1
2	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
2	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
3	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
3	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
4	401198	螺母 (M8)	NUT (M8)	2
4	401378	螺母 (M8)	NUT (M8)	2
5	850035A3	前进齿轮套件	GEAR KIT Forward	1
5	881260A5	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
6	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
7	44491A1	垫片组	SHIM SET	1
7	8M0063266	垫片组	SHIM SET	1
8	30895	滚针轴承	BEARING Needle	1
8	30895T	滚针轴承	BEARING Needle	1
9	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
10	44530	钢球	BALL	3
11	850327	弹簧	SPRING	1
12	850048	离合器	CLUTCH	1
12	850048T	离合器	CLUTCH	1
13	30632	十字销	PIN Cross	1
13	8M0100263	十字销	PIN Cross	1
14	30893	弹簧	SPRING	1
15	850308	螺旋桨轴	PROPELLER SHAFT	1
15	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
16	850036	倒车齿轮(29齿)	GEAR Reverse (29 Teeth)	1
16	850036T	倒车齿轮-29齿	GEAR Reverse - 29 Teeth	1
17	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
17	8M0168901	轴承座总成	CARRIER ASSY.	1
18	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
18	8M0214974	O型圈	O RING	1
19	12578	滚针轴承	BEARING Needle	1
19	12578T	滚柱轴承	BEARING Roller	1
20	30956	滚针轴承	BEARING Needle	1
20	30956T	滚针轴承	BEARING Needle	1
21	70080	油封(内)	SEAL Oil (Inner)	1
21	8M0205728	密封件	SEAL	1
22	70081		SEAL Oil (Outer)	1
22	8M0205729	密封件	SEAL	1
23	12576	推力轴承	BEARING Thrust	1
24	12577	止推垫片	THRUST WASHER	1
25	13191A1	止推垫片	THRUST WASHER	1
25	13191Q01	止推垫片	THRUST WASHER	1
26	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
26	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
27	816629	锁紧垫圈	TAB WASHER	1
27	816629Q	锁紧垫圈	TAB WASHER	1
28	15985A1	齿轮箱尾鳍修复套件	SKEG KIT Gear Housing Repair	1
28	15985A02	艉鳍替换件	SKEG-REPLACEMENT	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

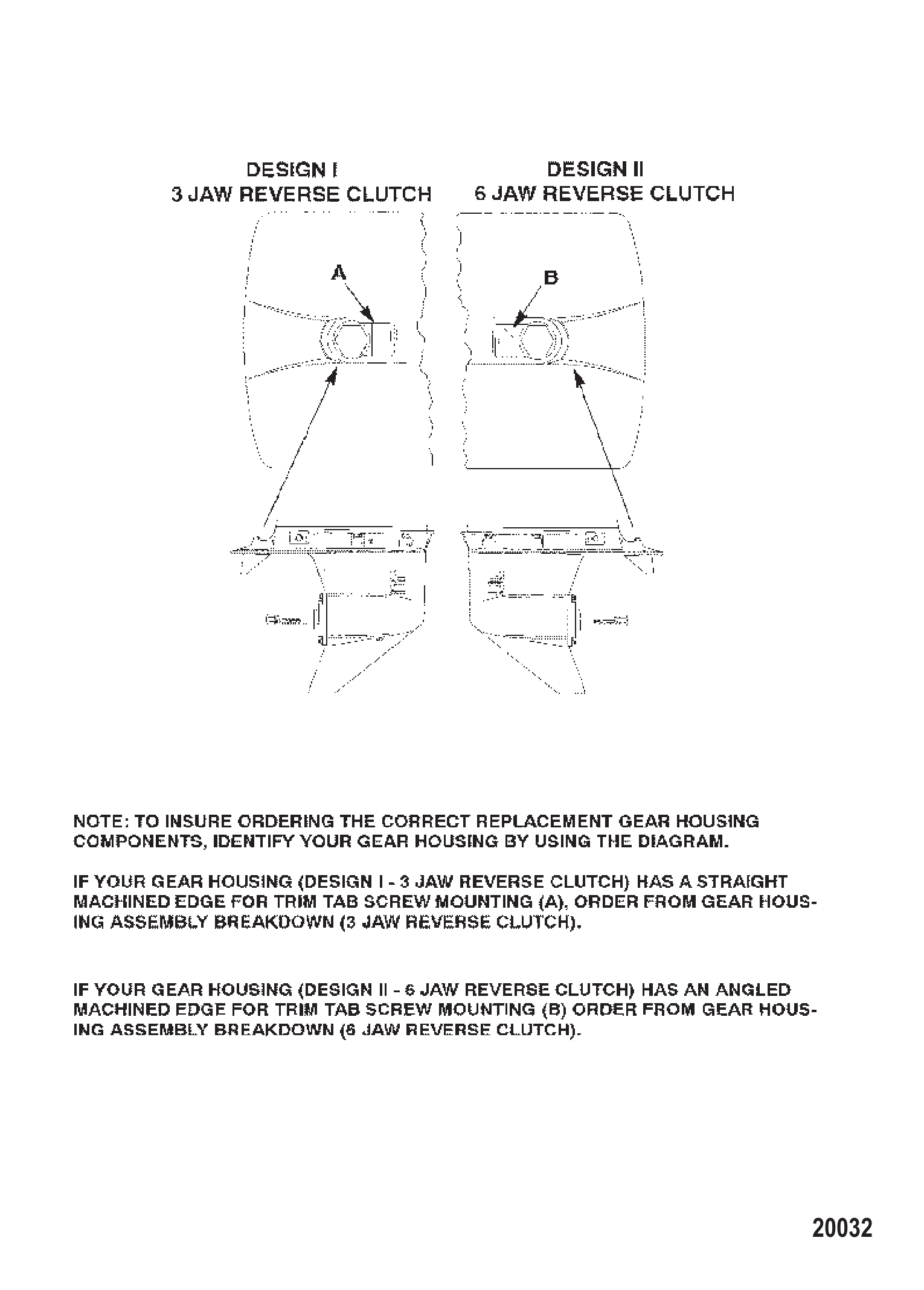

图 18齿轮箱标识 Gear Housing Identification

REF	零件编号	中文名称	英文名称	数量
-	9011A85	齿轮箱总成完整(长机型)	GEAR HOUSING ASSEMBLY Complete (Long Models)	1
-	9011G81	ORD 1667-9011J45	ORD 1667-9011J45	1
-	9011A90	齿轮箱总成（加长型）	GEAR HOUSING ASSEMBLY Complete (X Long Models)	1
-	9011G84	ORD 1667 9011J46	ORD 1667 9011J46	1
-	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
-	9011T80	ORD 1667-9011T73	ORD 1667-9011T73	1
-	9011G23	齿轮箱总成完整(长机型)	GEAR HOUSING ASSEMBLY Complete (Long Models)	1
-	9011G81	ORD 1667-9011J45	ORD 1667-9011J45	1
-	9011G24	齿轮箱总成（加长型）	GEAR HOUSING ASSEMBLY Complete (X Long Models)	1
-	9011G84	ORD 1667 9011J46	ORD 1667 9011J46	1
-	9011G22	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
-	9011G66	ORD 1667-9011J42	ORD 1667-9011J42	1

图 19说明书与涂料 Literature And Paint

REF	零件编号	中文名称	英文名称	数量
-	828993	用户手册	OWNERS MANUAL	1
-	10155970	用户手册	OWNERS MANUAL	1
-	10155970	用户手册	OWNERS MANUAL	1
-	832749	维修手册 F90/120 (1995至1998)	SERVICE MANUAL F90/120 (1995 Thru 1998)	1
-	832749R2	维修手册 F90/120 (1995至1998)	SERVICE MANUAL F90/120 (1995 Thru 1998)	1
-	809770	零件手册 120马力Force	PARTS MANUAL 120 Hp Force	1
-	81825212	石墨灰丙烯酸漆	PAINT Graphite Gray Acrylic	AR
-	82793330	涂料-GRAPHI@6	PAINT-GRAPHI@6	AR
-	82532112	石墨灰丙烯酸漆	PAINT Graphite Gray Acrylic	AR
-	82793331	涂料.6-GRAP@6	PAINT.6-GRAP@6	AR
-	81910712	透明丙烯酸漆	PAINT Clear Acrylic	AR
-	82793353	PAINT-CLEAR @6	PAINT-CLEAR @6	AR

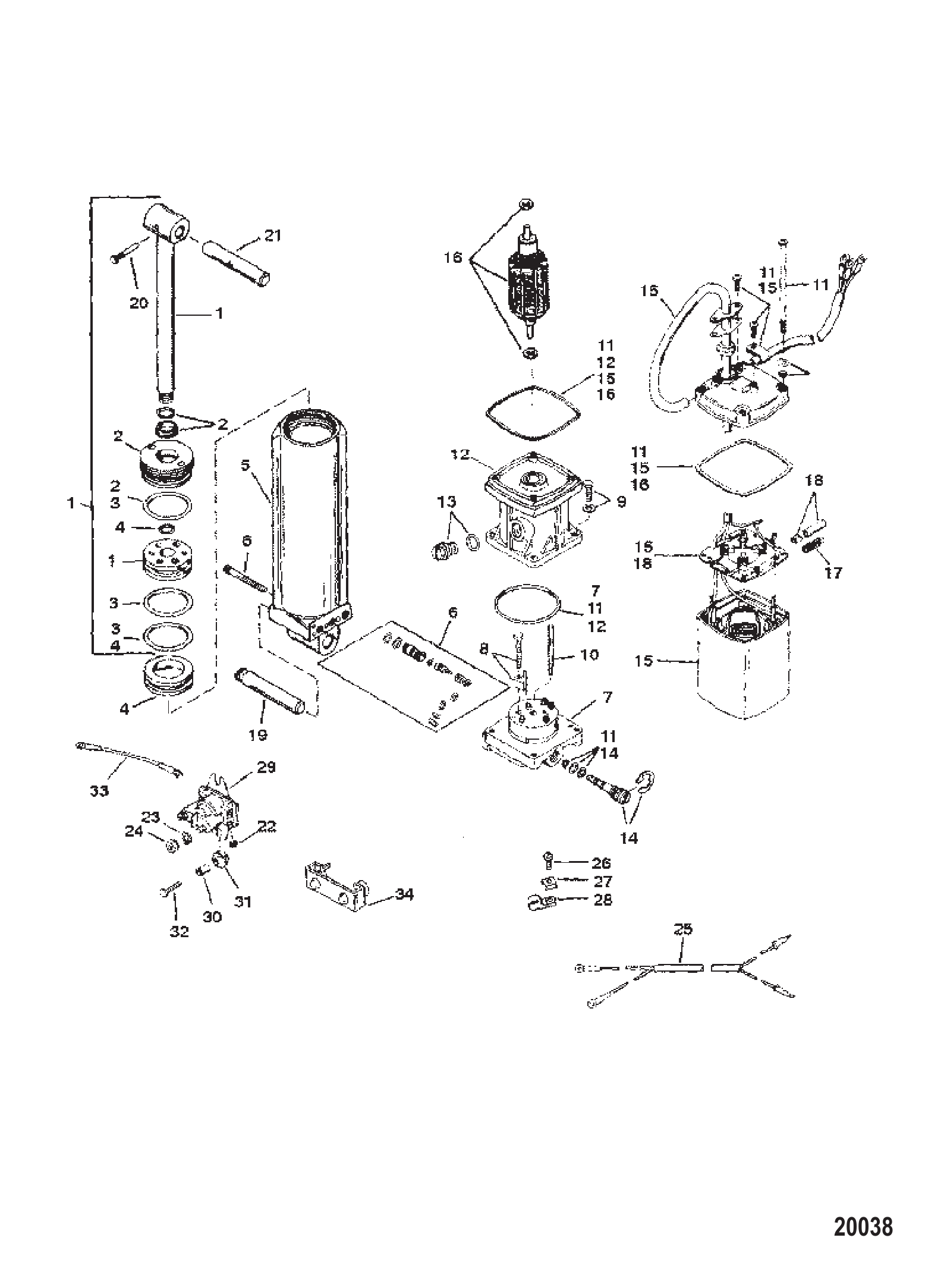

图 20动力平衡组件（设计I） Power Trim Components (Design I)

REF	零件编号	中文名称	英文名称	数量
-	824051	配平泵总成	PUMP ASSEMBLY Trim	1
1	8116661	减震杆总成	SHOCK ROD ASSEMBLY	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813432A3	气缸密封套件	SEAL KIT Cylinder	1
4	810776	记忆活塞套件	PISTON KIT Memory	1
5	8116691	气缸总成配平	CYLINDER ASSEMBLY Trim	1
5	893916A01	气缸总成	CYLINDER ASSEMBLY	1
6	811678A5	螺钉与密封套件	SCREW AND SEAL KIT	1
6	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
7	8116707	泵/歧管套件	PUMP/MANIFOLD KIT	1
7	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
8	823180A1	摇臂套件	ROCKER ARM KIT	1
8	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
9	813436	螺丝套件（4件）	SCREW KIT (4 Pieces)	1
10	8116711	驱动轴	DRIVESHAFT	1
11	811626A3		SEAL KIT (With Case Bolts)	1
11	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
12	8116731	储液罐套件	RESERVOIR KIT	1
12	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
13	813435	塞套件	PLUG KIT	1
13	8134351	堵头	PLUG	1
14	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
14	893929A01	安全阀套件	VALVE KIT Relief	1
15	8116241	机架与磁场套件	FRAME AND FIELD KIT	1
15	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
16	8116271	电枢套件	ARMATURE KIT	1
16	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
17	12665	电刷弹簧套件	SPRING KIT Brush	1
18	811625	电刷卡套件	BRUSH CARD KIT	1
19	818898	锚销	PIN Anchor	1
20	821539	三叶销	PIN Trilobe	1
21	996251	轴	SHAFT	1
21	99625002	轴	SHAFT	1
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
23	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
24	64015	螺母 (.250-20)	NUT (.250-20)	4
25	17201A2	电缆总成 (17.00 英寸)	CABLE ASSEMBLY (17.00 Inches)	1
26	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
26	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
27	69205	C形垫圈	C WASHER	1
27	8M0084613	C形垫圈	C-WASHER	1
28	22875	卡扣	CLIP	1
29	818997A1	电磁阀总成	SOLENOID ASSEMBLY	2
29	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	2
30	818968	衬套	BUSHING	3
30	8M0214955	衬套	BUSHING	3
31	818967	护孔环	GROMMET	3
31	8M0207785	护孔环	GROMMET	3
32	19932100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
33	87379A14		WIRE ASSEMBLY (2.750 Inches) (Red)	1
33	87379A46		CABLE ASSEMBLY (5.750 Inches) (Red)	1
33	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	2
34	97861		INSULATOR Solenoid	2

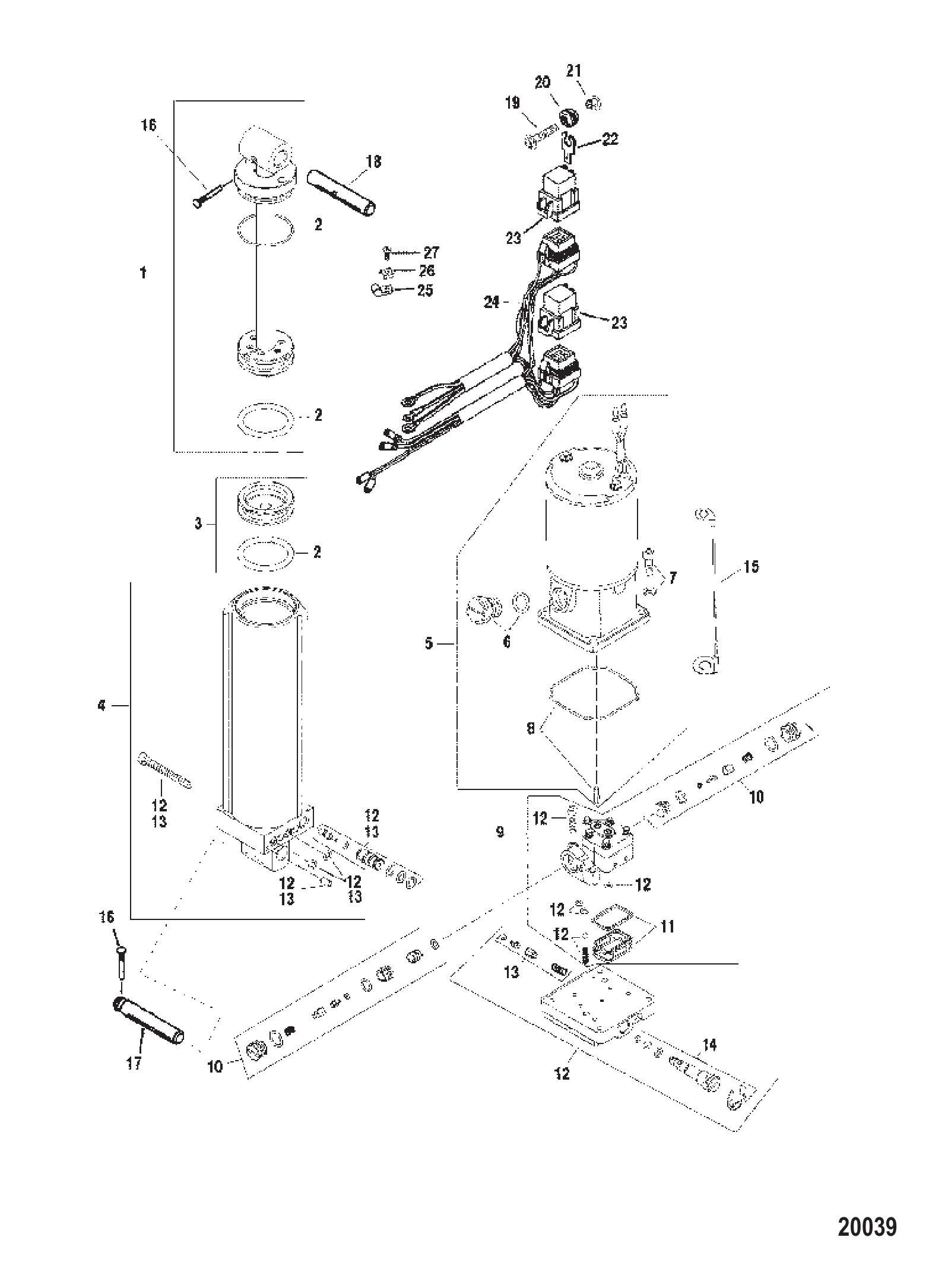

图 21动力平衡组件（设计II） Power Trim Components (Design II)

REF	零件编号	中文名称	英文名称	数量
-	830250A1	泵总成	PUMP ASSEMBLY	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809885A1	电机套件	MOTOR KIT	1
5	893907A02	电机套件	MOTOR KIT	1
6	8134351	堵头	PLUG	1
7	809876A1	螺丝套件（4件）	SCREW KIT (4 Pieces)	1
8	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
9	809874A1	泵总成	PUMP ASSEMBLY	1
9	893906A02	泵总成	PUMP ASSEMBLY	1
10	809879A1	提升阀套件	POPPET KIT	1
10	893913A02	提升阀套件	POPPET KIT	1
11	809878A1	滤清器套件	FILTER KIT	1
11	893912A02	滤清器套件	FILTER KIT	1
12	809875A1	歧管套件	MANIFOLD KIT	1
12	893909A02	歧管套件	MANIFOLD KIT	1
13	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
13	893905A02	阀套件	VALVE KIT	1
14	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
14	893929A01	安全阀套件	VALVE KIT Relief	1
15	88238A18	拉线总成	CABLE ASSEMBLY	1
NS	809880A1	O型圈套件（全套）	O-RING KIT (Complete)	1
NS	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销（下部）	PIN Anchor (Lower)	1
18	996251	轴(上部)	SHAFT (Upper)	1
18	99625002	轴	SHAFT	1
19	19932100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	2
20	818967	护孔环	GROMMET	2
20	8M0207785	护孔环	GROMMET	2
21	818968	衬套	BUSHING	2
21	8M0214955	衬套	BUSHING	2
22	828102	支架	BRACKET	2
22	8M0207771	安装支架	BRACKET Mounting	2
23	828151	继电器	RELAY	2
23	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
24	819514A11	升降线束总成	HARNESS ASSEMBLY Trim	1
25	22740	卡扣	CLIP	1
26	69205	C形垫圈	C WASHER	1
26	8M0084613	C形垫圈	C-WASHER	1
27	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
27	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1

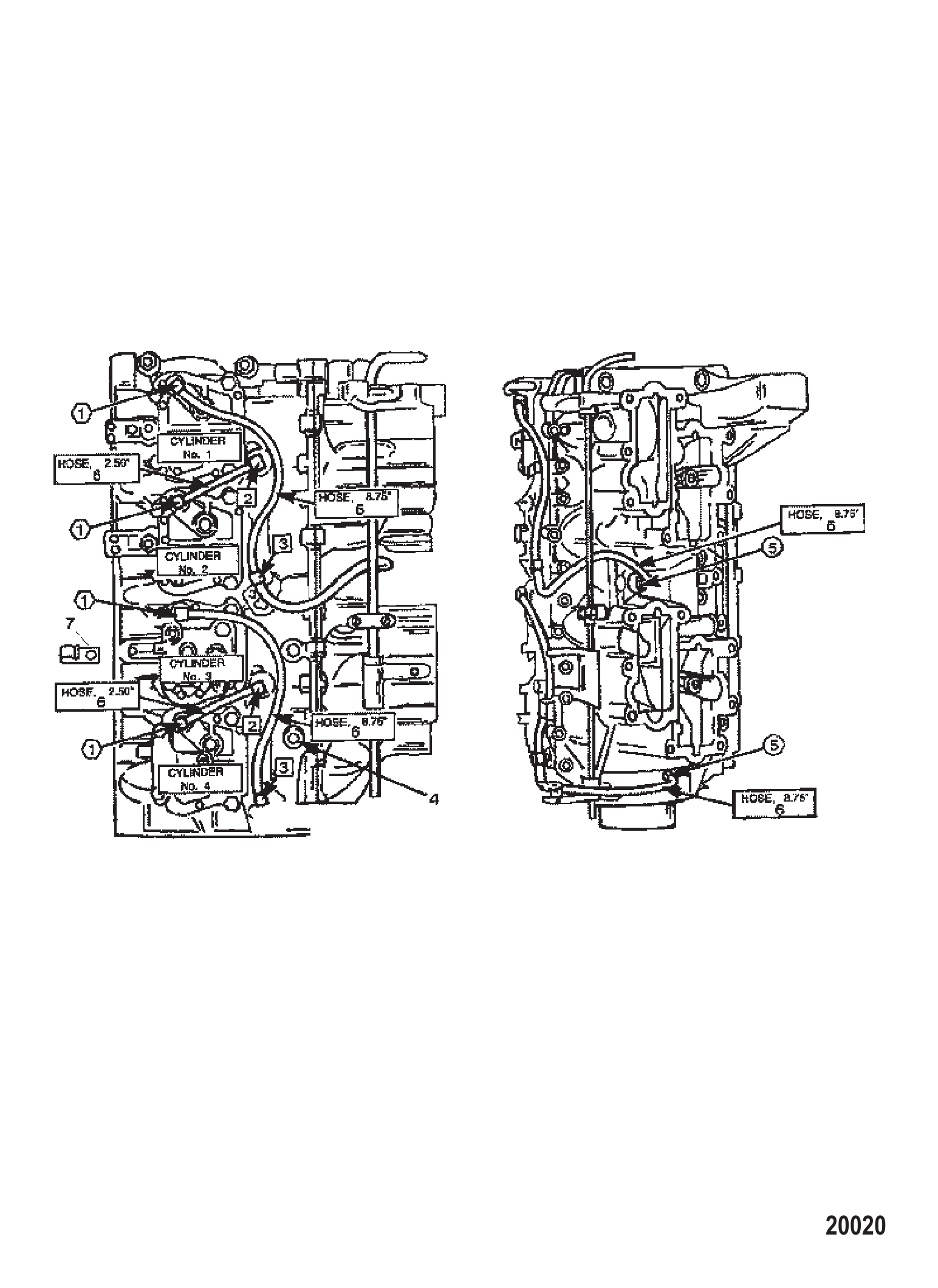

图 22循环系统 Recirculation System

REF	零件编号	中文名称	英文名称	数量
1	F743314	循环弯头	ELBOW Recirclating	4
2	42864	90度弯头	FITTING (90 Degree)	2
2	428641	止回阀接头	FITTING Check Valve	2
3	820706	循环管路弯头	ELBOW Recirculating Tubing	2
3	8207061	接头	FITTING	2
4	99664	燃油泵软管弯头	ELBOW Fuel Pump Hose	1
4	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
5	42658	止回阀	CHECK VALVE	2
5	426585	止回阀	CHECK VALVE	2
6	99130122	管材（20英尺整卷）（裁切2段2.5英寸/4段8.75英寸）	TUBING (20.00 Feet Bulk) (Cut 2 Pieces 2.500 Inches) (Cut 4 Pieces 8.750 Inches)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	55098	燃油管J型卡箍	J CLIP Fuel Hose	1
7	8M0024808	J型夹	J-CLIP	1
-	818154A31	动力头总成	POWERHEAD ASSEMBLY	1
-	818154A48	PH F120 99	PH F120 99	1
-	818154A43	动力头总成	POWERHEAD ASSEMBLY	1
-	818154A48	PH F120 99	PH F120 99	1

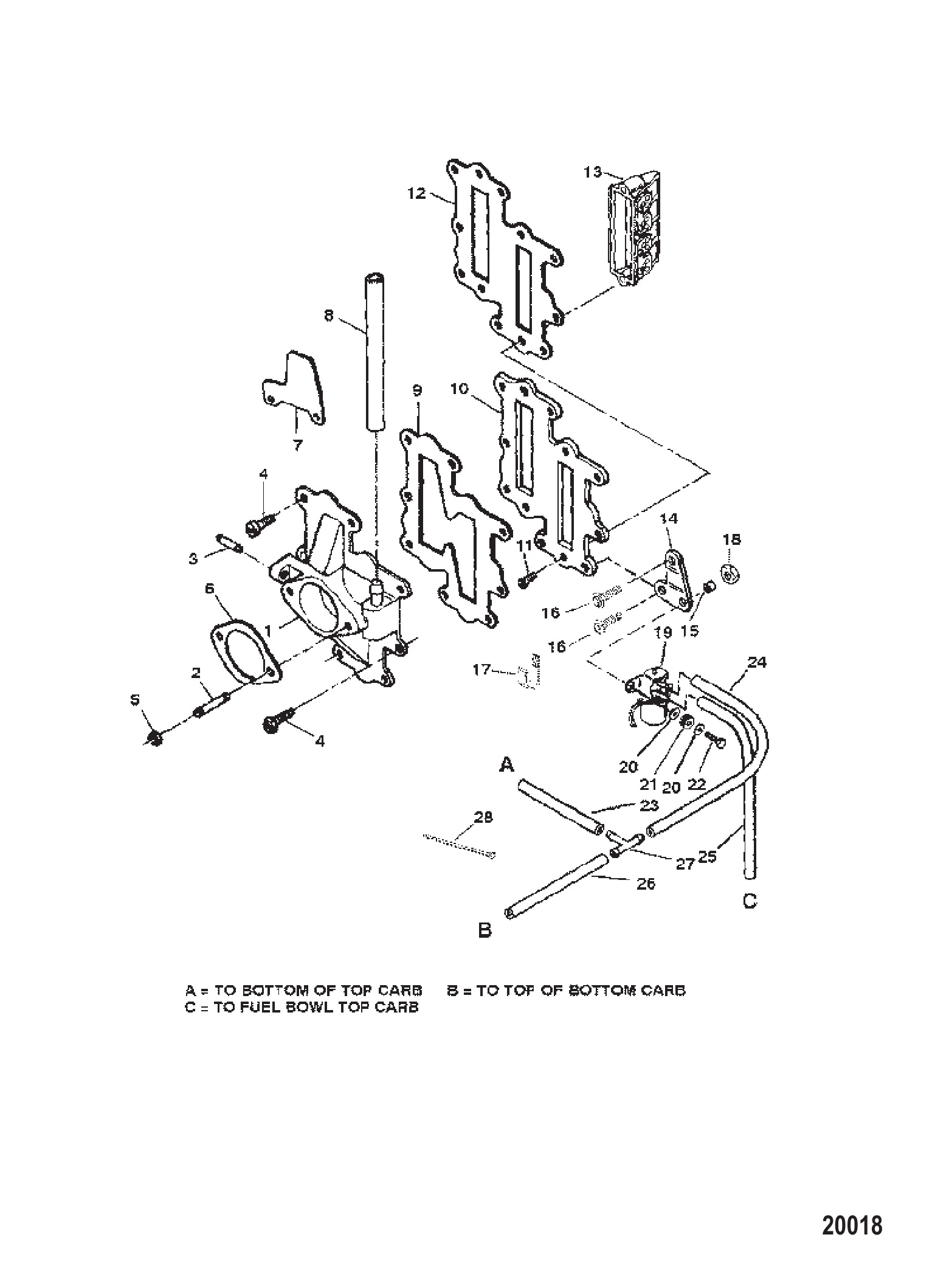

图 23簧片板与启动泵 Reed Plate And Primer

REF	零件编号	中文名称	英文名称	数量
1	817799A1		ADAPTER ASSEMBLY (Upper)	1
2	826387	双头螺栓(.375-16 x 1.625)	STUD (.375-16 x 1.625)	2
2	8263872	双头螺栓(.375-16 x 1.625)	STUD (.375-16 x 1.625)	2
1	817800A1		ADAPTER ASSEMBLY (Lower)	1
2	826387	双头螺栓(.375-16 x 1.625)	STUD (.375-16 x 1.625)	2
3	F433209-1	双头螺栓(.250-20 x 1.250)	STUD (.250-20 x 1.250)	1
4	819110100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	14
5	86226	螺母（.375-16）	NUT (.375-16)	4
5	8M0204671	螺母	NUT	4
6	F440906	化油器衬垫	GASKET Carburetor	2
7	F500894	正时指针	POINTER Timing	1
8	817736	软管（6英寸）	HOSE (6.00 Inches)	1
8	83075821	管材(6.00英寸散装)	TUBING (6.00 Inches Bulk)	1
9	828316	化油器进气适配器垫片	GASKET Carburetor Intake Adapter	2
10	820501	导流板	PLATE Deflector	2
11	826380	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	8
11	F1831	螺钉	SCREW	8
12	F406406	导流板衬垫	GASKET Deflector Plate	2
13	116451	簧片阀总成	REED BLOCK ASSEMBLY	4
13	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	4
14	819705	电磁阀支架	BRACKET Solenoid	1
15	F694359	隔套	SPACER	1
16	819110125	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	2
17	65292	J型卡扣	J CLIP	1
17	8M0024808	J型夹	J-CLIP	1
18	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
18	8M0207776	螺母	NUT	1
19	819503	启动电磁阀	SOLENOID Primer	1
19	819503T6	电磁阀	SOLENOID	1
20	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	2
21	F694504	护孔环	GROMMET	1
22	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
22	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	1
23	9912688	管材（36英寸整卷）（裁切1.25英寸至顶部化油器底部）	TUBING (36.00 Inches Bulk) (Cut 1.250 Inches) (To Bottom Of Top Carb)	1
24	9912688	管材（36英寸整卷）（裁切4.5英寸）	TUBING (36.00 Inches Bulk) (Cut 4.500 Inches)	1
25	9912688	管材（36英寸整卷）（裁切5.25英寸至顶部化油器油杯）	TUBING (36.00 Inches Bulk) (Cut 5.250 Inches) (To Fuel Bowl Top Carb)	1
26	9912688	管材（36英寸整卷）（裁切8英寸至底部化油器顶部）	TUBING (36.00 Inches Bulk) (Cut 8.00 Inches) (To Top Of Bottom Carb)	1
27	F694922	三通接头	FITTING Tee	1
28	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	3
-	FK10023	化油器衬垫组	GASKET SET Carburetor	1
-	809125A2	动力头衬垫套件	GASKET SET Powerhead	1
-	818154A31	动力头总成	POWERHEAD ASSEMBLY	1
-	818154A48	PH F120 99	PH F120 99	1
-	818154A43	动力头总成	POWERHEAD ASSEMBLY	1
-	818154A48	PH F120 99	PH F120 99	1

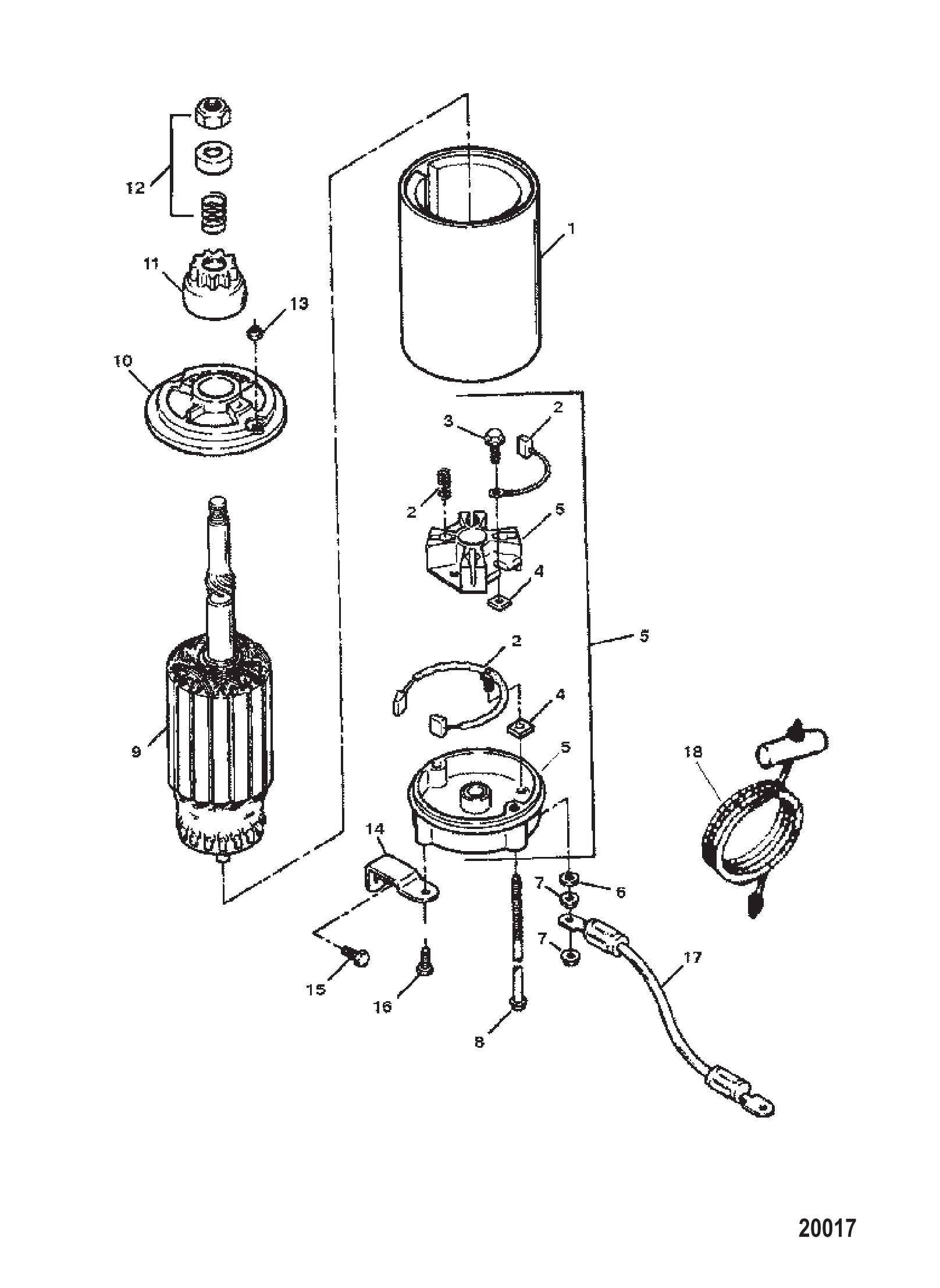

图 24启动器总成 Starter Assembly

REF	零件编号	中文名称	英文名称	数量
1	819085	启动电机总成（适用50-F616955-1）	STARTER MOTOR ASSEMBLY (Services 50-F616955-1)	1
2	F15190	电刷/弹簧套件	BRUSH/SPRING KIT	1
3	F15158	螺钉	SCREW	2
4	F15159	绝缘体	INSULATOR	2
4	57387	衬套	BUSHING	2
5	F15189	端盖总成	END CAP ASSEMBLY	1
6	F15160	垫圈	WASHER	1
6	804700	垫圈	WASHER	1
7	F15162	螺母	NUT	2
8	F15178	贯穿螺栓	THRU BOLT	2
9	F15177	电枢	ARMATURE	1
10	F15176	端盖	END CAP	1
10	803888T	驱动端盖	END CAP-DRIVE	1
11	819222	驱动总成	DRIVE ASSEMBLY	1
11	802587T01	驱动小齿轮	DRIVE-PINION	1
12	90644	驱动套件	DRIVE KIT	1
13	828451	螺母(.250-28)	NUT (.250-28)	2
14	F616675	启动机支架	BRACKET Starter Mount	1
15	19932062	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	1
16	19932062	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	1
17	93388A6	电缆总成（5.5英寸）启动线	CABLE ASSEMBLY (5.500 Inches) Starter Lead	1
18	47341A1	拉绳手柄套件（手动/应急启动）	ROPE AND HANDLE KIT Manual/Emergency Start Emergency Start	1
18	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
NS	825064	警示贴（挂档启动）	DECAL Caution (Start In Gear)	1
NS	881865	警示贴纸-挂档启动	DECAL Caution-Start in Gear	1
NS	825066	警告贴（高压电）	DECAL Warning (Hi Voltage)	1
NS	8272822	警告标贴	DECAL Warning	1

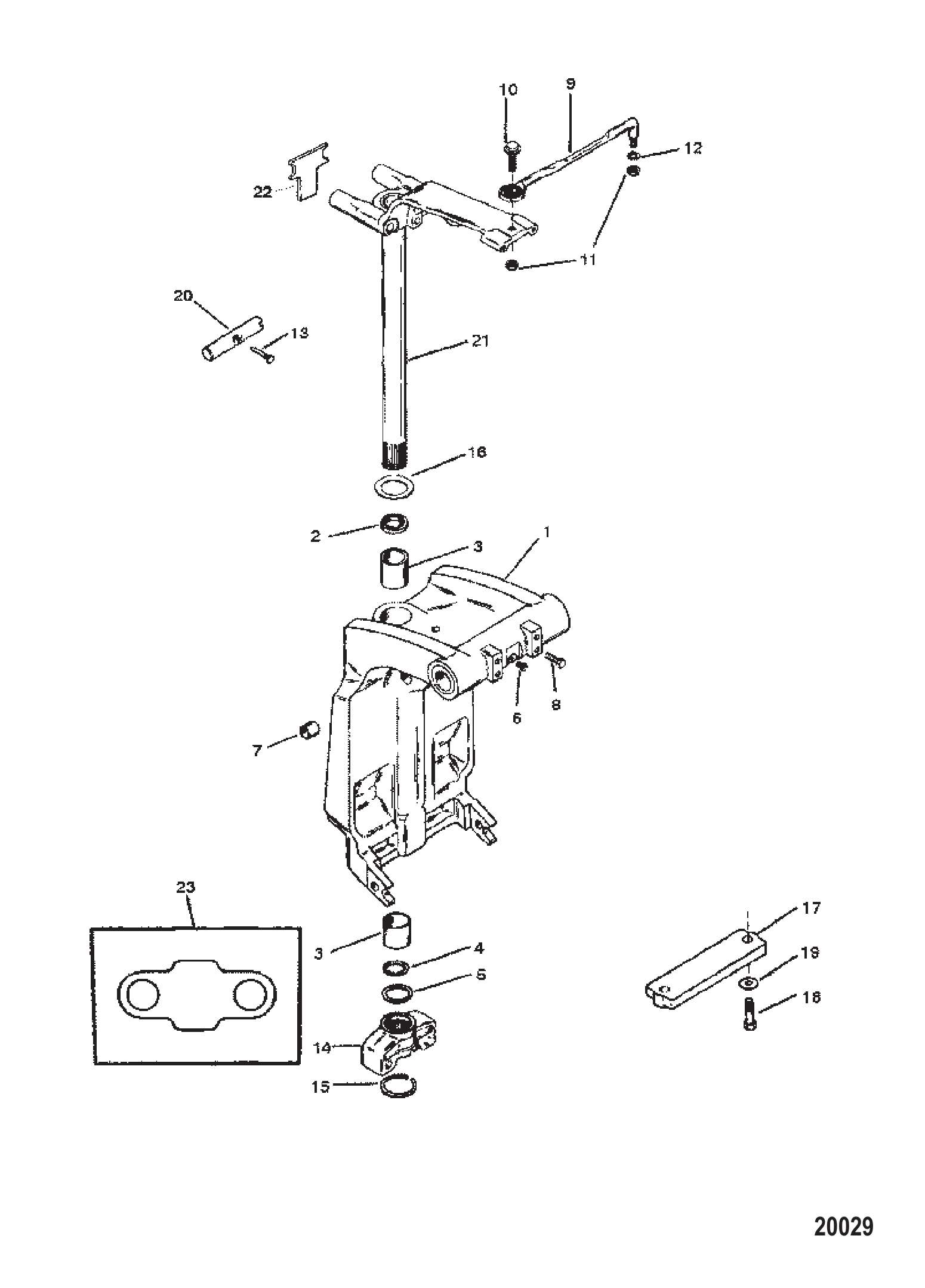

图 25旋转支架与转向臂 Swivel Bracket And Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	818904A3	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	87735	油封	SEAL Oil	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	92876A1	转向连杆总成	LINK ASSEMBLY Steering	OPT
9	92876A12	连杆总成	LINK ROD ASSEMBLY	OPT
10	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	OPT
10	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	OPT
11	34863	螺母 (.375-24)	NUT (.375-24)	OPT
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	OPT
12	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	OPT
13	821539	三叶销	PIN Trilobe	1
14	42961A4	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A5	轭架总成	YOKE ASSEMBLY	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	818298A1	阳极套件	ANODE KIT	1
17	818298Q1	阳极套件	ANODE KIT	1
18	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
18	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
19	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
19	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
20	996251	轴(上部)	SHAFT (Upper)	1
20	99625002	轴	SHAFT	1
21	99661A28	旋转销总成	SWIVEL PIN ASSEMBLY	1
21	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
22	88882	上轭缓冲垫（加长型）	BUMPER Top Yoke Top Yoke (X Long Models)	1
23	11288	下轭缓冲垫（加长型）	BUMPER Bottom Yoke (X Long Models)	1
23	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1

图 26工具清单（专用）（1/2页） Tool List (Special) (Page 1 Of 2)

REF	零件编号	中文名称	英文名称	数量
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	818494	专用螺钉	SCREW Special	1
-	52344	飞轮固定工具（齿型）	FLYWHEEL HOLDER TOOL Teeth Type Flywheel	1
-	FT2991	碳刷清洁钢丝刷	BRUSH Wire Carbon Removal	1
-	803504T	电刷	BRUSH	1
-	FT8914	曲轴轴承保持架密封拆卸工具	REMOVER Seal Crankshaft Bearing Cage	1
-	FT8903	曲轴轴承保持架密封安装工具	INSTALLER TOOL Seal Crankshaft Bearing Cage	1
-	FT8907	手柄驱动器（配合FT8903使用）	HANDLE Driver (Used With FT8903)	1
-	824892	手柄	HANDLE	1
-	FT8925	下曲轴密封安装工具	INSTALLER TOOL Seal Lower Crankshaft	1
-	FT2953	连杆螺丝套筒	SOCKET Connecting Rod Screws	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	FT2990-1	活塞与活塞销定位块	BLOCK Piston And Piston Pin	1
-	77109A2	活塞销锁环安装套件	INSTALLER KIT Piston Pin Lock Ring	1
-	69756	O型圈（0.549 x 0.103）	O-RING (.549 x .103)	1
-	98530	旋钮手柄	KNOB Handle	1
-	52952A1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	FT2996	活塞环压缩工具	COMPRESSOR TOOL Piston Ring Piston Rings	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring Piston Rings	1
-	90455	曲轴端吊环	LIFTING EYE Crankshaft End	1
-	904551	吊环	LIFTING EYE	1
-	112301	动力升降倾斜装置校准工具	ALIGNMENT TOOL Power Trim	1
-	44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1
-	44487A1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	52915A6	动力升降倾斜装置测试仪表套件	TEST GAUGE KIT Power Trim	1
-	11243	插头（公）-动力升降倾斜装置	CONNECTOR (Male)-Power Trim	1
-	74951	动力升降倾斜装置扳手	SPANNER WRENCH Power Trim	1
-	63209	加热灯	HEAT LAMP	1
-	12349A2	小齿轮定位工具	LOCATION TOOL Pinion	1
-	12349A05	小齿轮定位工具	TOOL Pinion Locating	1
-	13945	轴承安装工具	INSTALLATION TOOL Bearing	1
-	13949	油封安装工具	DRIVER TOOL Oil Seal	1
-	14308A1	轴承座圈工具	RACE TOOL Bearing	1
-	14308T02	轴承座圈驱动器	BEARING RACE DRIVER	1
-	14309A1	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14309T02	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14310A1	磨损套筒安装工具	INSTALLATION TOOL Wear Sleeve	1
-	14310T1	耐磨套驱动器	WEAR SLEEVE DRIVER	1
-	14311A2	轴承预紧工具	PRE LOAD TOOL Bearing	1
-	14311A04	预紧力工具	TOOL Preload	1
-	196601	背隙测量仪	INDICATOR TOOL Backlash	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	24156	螺母(0.625-18)	NUT (.625-18)	1
-	31229	轴	SHAFT	1
-	36569	驱动头工具	DRIVE HEAD TOOL	1
-	36569T	驱动头工具	DRIVE HEAD TOOL	1
-	15755	心轴	MANDREL	1
-	15755T	滚针轴承驱动器	NEEDLE BEARING DRIVER	1
-	37323	滚针轴承导杆工具	DRIVER ROD TOOL Needle Bearings	1

图 27工具清单（专用）（2/2页） Tool List (Special) (Page 2 Of 2)

REF	零件编号	中文名称	英文名称	数量
-	31106	轴承安装心轴杯	MANDREL Bearing Driver Cup	1
-	31108	油封安装工具	DRIVER TOOL Oil Seal	1
-	31108T	油封驱动器	DRIVER Oil Seal	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	37241	通用拉拔器板	PULLER PLATE Universal (Universal)	1
-	37350	导向垫圈	PILOT WASHER	1
-	37350T	导向心轴	PILOT MANDREL	1
-	46086A1	拉拔器爪头总成	PULLER JAW ASSEMBLY	1
-	56775	传动轴固定工具	HOLDING TOOL Driveshaft	1
-	56775T	传动轴固定工具	HOLDING TOOL Driveshaft	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	83155	千分表转接套件	ADAPTER KIT Dial Indicator	1
-	8M0237356	适配器套件	ADAPTER KIT	1
-	83165M	轴承拉拔器总成	PULLER ASSEMBLY Bearing	1
-	83165T	拉拔器总成	PULLER ASSEMBLY	1
-	85716	拉拔螺栓工具-轴承座	PULLER BOLT TOOL Bearing Carrier	1
-	99379	点火正时灯	TIMING LIGHT Ignition	1
-	79250A2	水压表套件	GAUGE KIT Water Pressure	1
-	FT11295	点火系统火花测试器	SPARK TESTER Ignition System	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	59339	点火维修转速表	SERVICE TACHOMETER Ignition	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	99750A1	电气部件万用表	MULTI METER Electrical Components	1
-	825207A2	CDM测试线束总成	HARNESS ASSEMBLY CDM Tester	1
-	825265A1		COMPOUND (8 Ounce) Needle Bearings	1
-	802868A1	润滑剂	LUBRICANT	1
-	78376A6	防腐蚀润滑脂（8盎司）	GREASE (8 Ounce) Anti Corrosion	1
-	850735A1	润滑脂	GREASE	1
-	916011	红色RTV密封胶（10盎司）	SEALER Red RTV (10 Ounce)	1
-	809826	RTV硅胶(13盎司筒装)黑色	RTV SILICONE (13 Ounce Cartridge) Black	1
-	901132	RTV #1473密封胶（2.8盎司）	SEALANT RTV #1473 (2.8 Ounce)	1
-	809825	RTV硅胶 (3盎司管装) 金属蓝	RTV SILICONE (3 Ounce Tube) Metallic Blue	1
-	FT8936-1	乐泰RC 609密封胶	SEALANT Loctite RC 609	1
-	809833	乐泰RC 680密封胶（10毫升瓶装）绿色	SEALANT Loctite RC 680 (10 ml Bottle) Green	1
-	809833	乐泰RC 680密封胶（10毫升瓶装）绿色	SEALANT Loctite RC 680 (10 ml Bottle) Green	1
-	8230891	乐泰8831密封胶	SEALANT Loctite 8831	1
-	809820	乐泰271螺纹锁固剂 50毫升	LOCTITE 271 THREADLOCKER 50 ml	1
-	593271	LocQuic密封底漆（4.5盎司罐装）	SEALANT LocQuic Primer (4.5 Ounce Can)	1
-	809824	底漆乐泰(4.5盎司喷雾)绿色	PRIMER Loctite (4.5 Ounce Aerosol) Green	1
-	825407A12	多功能润滑剂2-4C（8盎司装，12瓶/箱）	MULTI LUBE 2 4 C (8 Ounce)-Case Of 12	1
-	850736A1	多功能润滑脂 2-4-C (8盎司管装)	MULTI LUBE 2 4 C (8 Ounce Tube)	1
-	13872A1	专用润滑脂101(8盎司管装)	SPECIAL LUBE 101 (8 Ounce Tube)	1
-	802865Q1	专用润滑剂101	SPECIAL LUBE 101	1
-	257112	液态氯丁橡胶（1/2品脱）	NEOPRENE (1/2 Pint) Liquid	1
-	257113	氯丁橡胶(8盎司)	NEOPRENE (8 Ounce)	1
-	90100A12	动力升降/转向油（12瓶/箱）	OIL Power Trim/Steering (Case Of 12)	1
-	802880Q1	机油-P/T MQPT@12	OIL-P/T MQPT@12	1
-	98234A2	钻孔夹具套件-艉板	DRILL FIXTURE KIT Transom	1

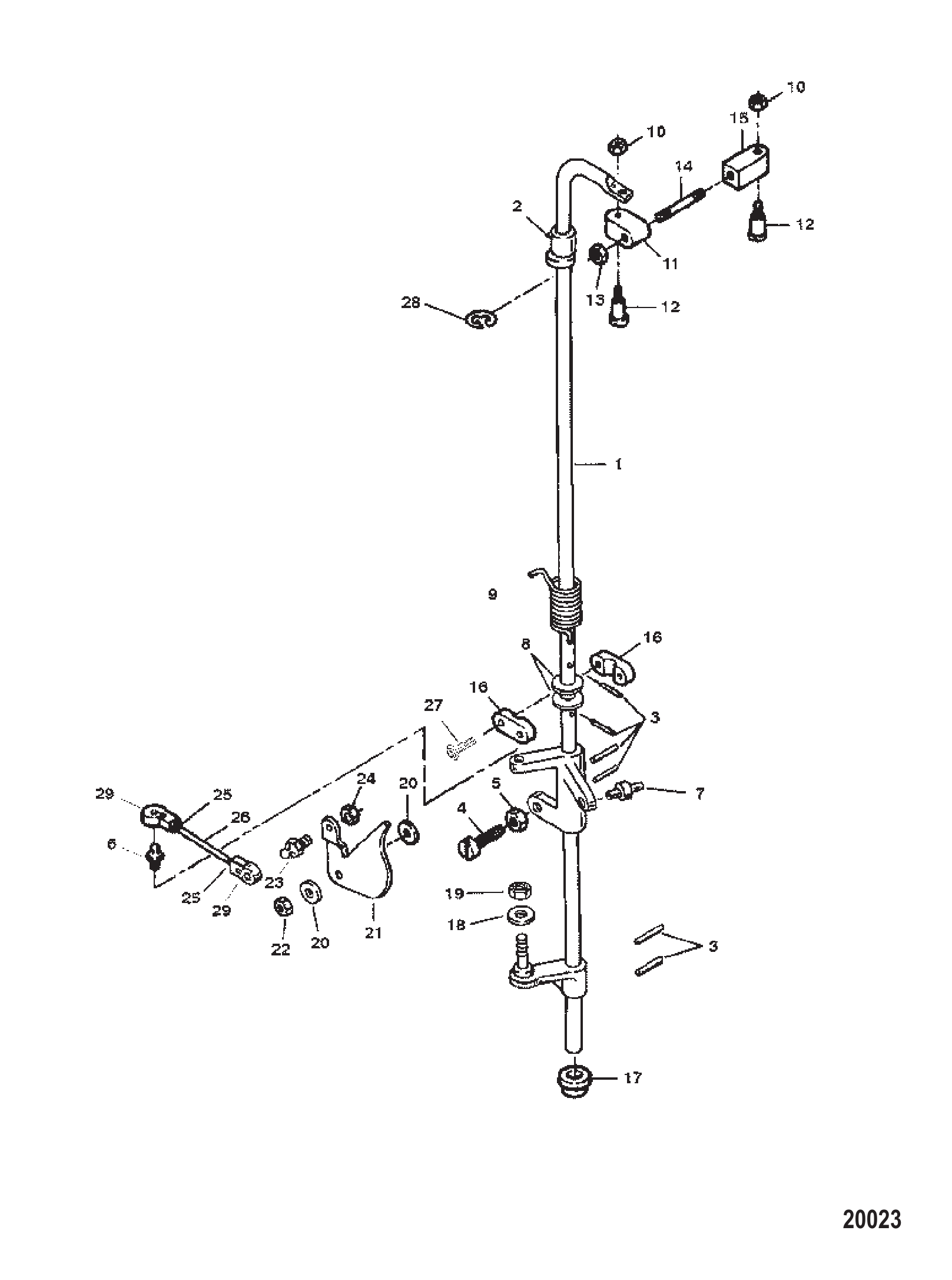

图 28塔轴与油门联动装置 Towershaft And Throttle Linkage

REF	零件编号	中文名称	英文名称	数量
1	820303A1	塔轴总成	TOWERSHAFT ASSEMBLY	1
2	819513	衬套上部	BUSHING Upper	1
3	38489	滚动销	PIN Roll	6
4	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	1
5	64015	螺母 (.250-20)	NUT (.250-20)	1
6	828514	螺纹球头	BALL (Threaded)	1
7	F1727	尼龙铆钉	RIVET (Nylon)	1
8	F1856	垫圈	WASHER	2
9	819533	节气门回位弹簧	SPRING Throttle Return	1
10	F7009	螺母(#10-24)	NUT (#10-24)	2
11	F499035	控制杆端头(连接塔轴)	END Control Rod (To Towershaft)	1
12	F499026	控制杆旋转端	SWIVEL Control Rod End	2
13	F2015	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
14	F85445-1	火花控制杆	ROD Spark Control	1
15	F499036-1	控制杆端头（.250-28左旋螺纹，连接触发器）	END Control Rod (.250-28 Left Hand) (To Trigger)	1
16	F607689	塔轴支撑轴承	BEARING Towershaft Support	2
17	F40689-1	塔轴下轴承	BEARING Towershaft Lower	1
18	35459	垫圈	WASHER	1
19	8268336	螺母 (M6)	NUT (M6)	1
19	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
20	F269319	节气门凸轮轴承	BEARING Throttle Cam	2
21	F440192-2	节气门凸轮	CAM Throttle	1
21	8289501	节气门凸轮-OBM	CAM-THROTTLE-OBM	1
22	72008	螺母 (.250-20)	NUT (.250-20)	1
22	8267088	螺母 (.250-20)	NUT (.250-20)	1
23	828514	螺纹球头	BALL (Threaded)	1
24	20110	螺母 (#10-32)	NUT (#10-32)	1
25	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
26	819002	油门连杆	LINK Throttle	1
27	19961088	螺钉 (#10-24 x 0.880)	SCREW (#10-24 x .880)	2
28	13194	挡圈	RING Retaining	1
29	830875	球窝接头	SOCKET Ball	2
29	817428	插座	SOCKET	2

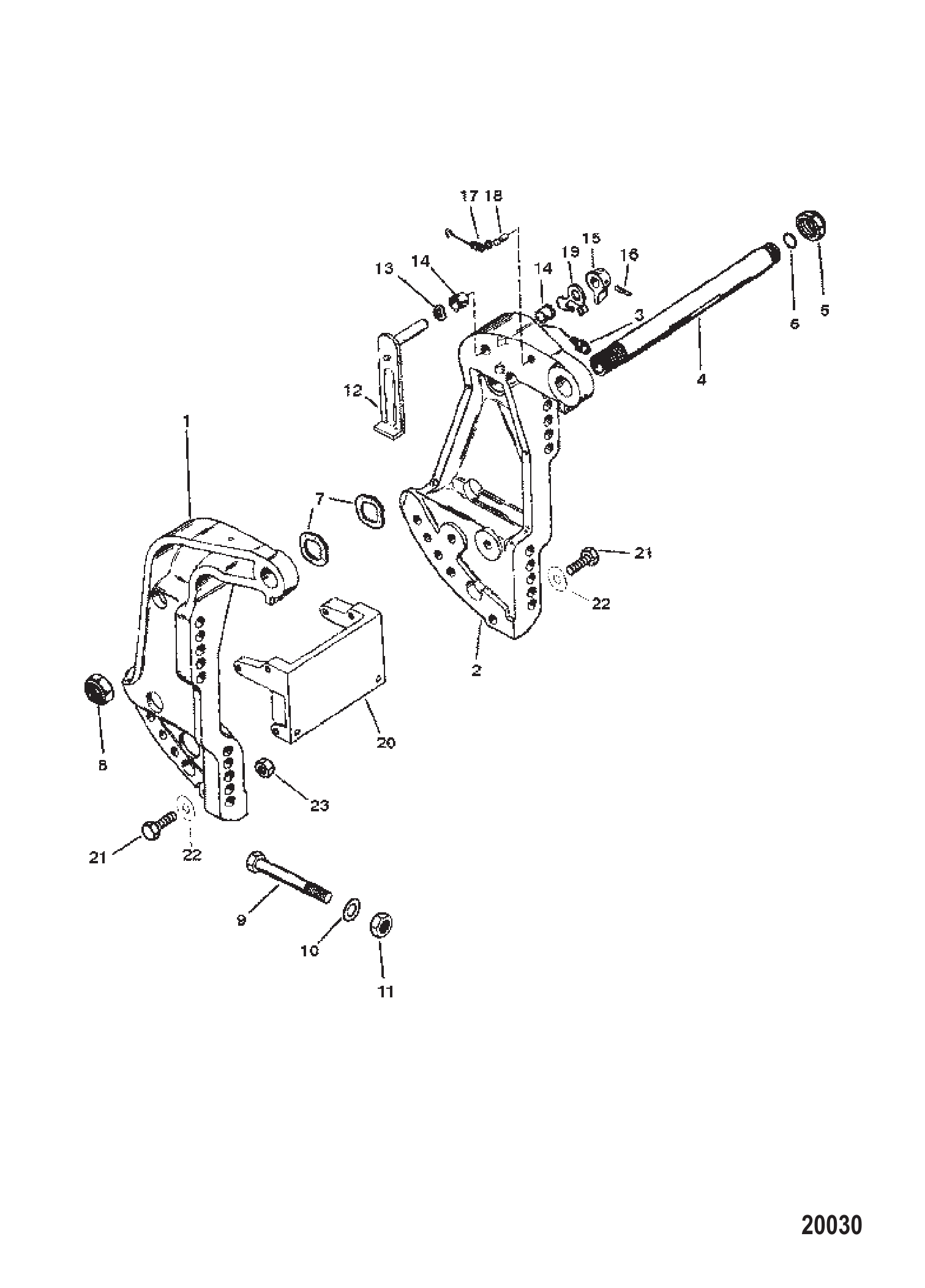

图 29艉板支架 Transom Bracket

REF	零件编号	中文名称	英文名称	数量
1	8718F10	艉板支架(右舷)	BRACKET Transom (Starboard)	1
2	8716A10	艉板支架总成(左舷)	BRACKET ASSEMBLY Transom (Port)	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	OPT
9	8M0149747	螺钉	SCREW	OPT
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	OPT
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	OPT
11	8M0027784	螺母	NUT	OPT
11	82671117	螺母(.500-20)	NUT (.500-20)	OPT
12	821176A1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
12	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	99611	波形垫圈	WAVE WASHER	1
14	65830	尼龙衬套	NYLINER	2
15	99633		KNOB Tilt Lock Lever	1
16	99615	槽销	PIN Groove	1
17	99622	倾斜锁定张力弹簧	SPRING Tilt Lock Tension	1
18	99604	槽销	PIN Groove	1
19	814207		STOP Tilt Lever	1
20	818771F7	锚支架	BRACKET Anchor	1
20	818771T8	ORD 818771T 1	ORD 818771T 1	1
21	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
